Openﬂex Boardview

Written: Paul Daniels (Inﬂex)

(Version R6)

Chapter 1

Preface

1.1 Introduction

Welcome to Openﬂex Boardview (from hereon referred to simply as OFBV). OFBV is an advance development fork of

OpenBoardView (OBV) by Chloridite in May 2016 as a response to seeing a need for an Open Source board viewing

software to assist in the repairs of many electronics systems.

At the time of writing, OFBV supports brd, bdv, asc, fz (with correct key) and bv (with converter to bvr) board

formats and is available on Windows (7 onwards), OSX and Linux.

1.2 Contact

Contact can be made with the developer(s) of OFBV via the following means;

Web http://openboardview.org

IRC #openboardview@irc.freenode.net:6667

GitHub https://github.com/inﬂex/OpenBoardView/tree/inﬂex-ui-features

Chapter 2

Installing

2.1 Windows

No installation required, simply run the executable.

2.2 Linux

2.2.1 Installing using debian package

$ sudo dpkg -i openboardview-R5.deb

Run it

$ openboardview

2.2.2 Building source from github

If you haven’t already installed the required development packages;

$ apt-get install build-essential cmake libsdl2-dev libgtk-3-dev

Clone the project

$ git clone –recursive ’https://github.com/inﬂex/OpenBoardView’

Build it

$ ./build.sh

Run it!

$ ./bin/openboardview ...or... $ ./openboardview.sh

2.3 OSX

???

Chapter 3

Getting Started

3.1 Main display

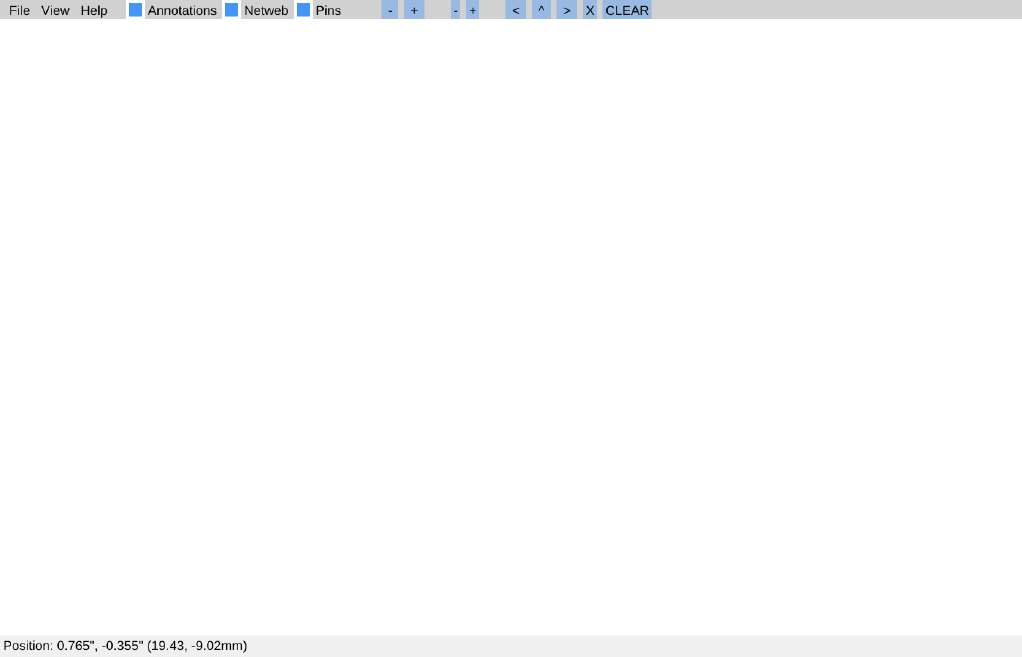

Figure 3.1: Openﬂex Boardview opened, no ﬁle

CHAPTER 3. GETTING STARTED 4

3.2 File Menu

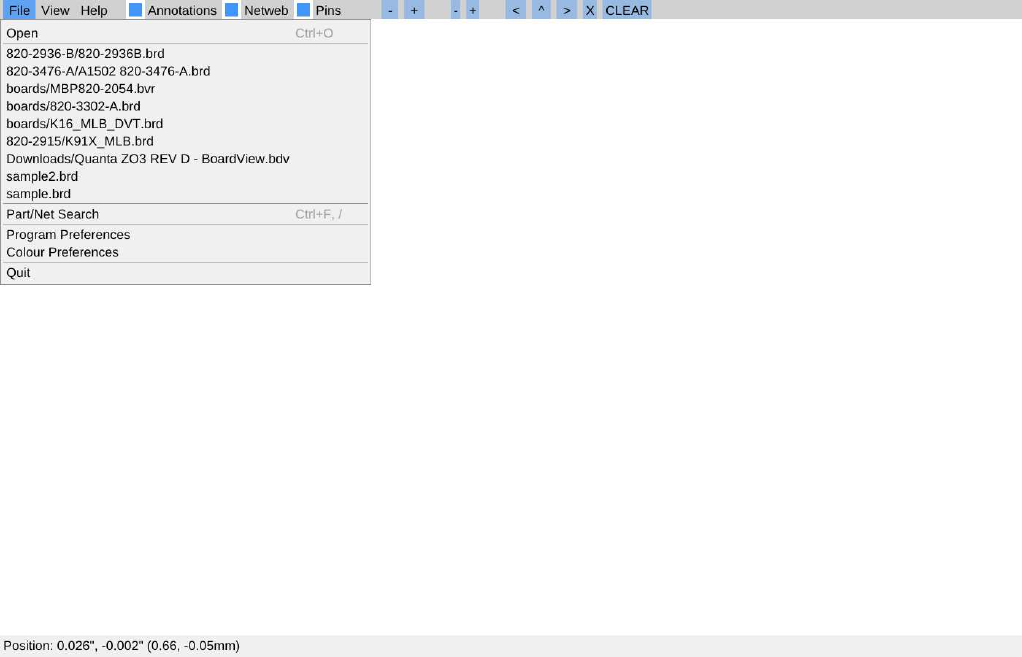

Figure 3.2: File menu

CHAPTER 3. GETTING STARTED 5

3.3 Open ﬁle dialog (linux)

Figure 3.3: Selecting board ﬁle from ﬁle picker

3.4 File opened

Each ﬁle successfully loaded is added to the recent history, allowing for quicker access for subsequent loads of the

same board.

3.5 Command line parameters (linux)

Flag Description

-h Display help for command line parameters

-V Display current OFBV Version

-l Enable slow CPU mode

-c <ﬁle> Load alternative conﬁguration <ﬁle>

-i <ﬁle> Load board <ﬁle>

-x <width> Set window to <width> pixels wide

-y <height> Set window to <height> pixels high

-z <size> Set font size to <size>

-p <dpi> Set DPI resolution to <dpi>

-r <renderer> Explicitly select a type of rendering engine [ 0..2 ]

-d Enable debug mode

CHAPTER 3. GETTING STARTED 6

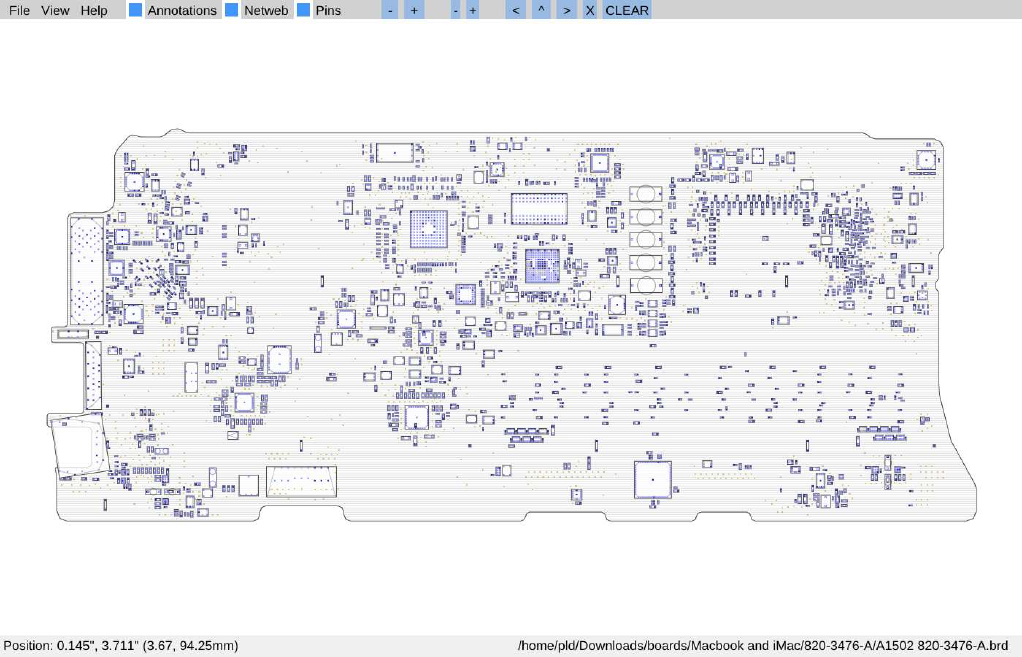

Figure 3.4: Board ﬁle successfully loaded.

Chapter 4

Controls

4.1 Keyboard

Action Key(s)

Open ﬁle-load dialog CTRL-o

Quit Openﬂex Boardview CTRL-q

Pan viewport UP w, up-arrow

Pan viewport DOWN s, down-arrow

Pan viewport LEFT a, left-arrow

Pan viewport RIGHT d, right-arrow

Search for component/net CTRL-f, /

Display component list k

Display net list l

Clear all highlighted items ESC

Mirror board m

Flip board <space> (ctrl+<space> for alternative origin)

Zoom in +, numpad +

Zoom out -, numpad -

Center board and zoom to ﬁt x, numpad 5

Rotate Clockwise . (period), numpad period

Rotate Counter-Clockwise , (comma), numpad 0

Toggle pin blanking p

4.2 Mouse

Action Mouse control

Select pin/network Left click on pin.

Select part (only) Left click on non-pin part area. CTRL+Click to select additional parts

Zoom Scroll wheel

Flip board Middle/Scroll click

Annotations Right click

Chapter 5

Menus

5.1 View

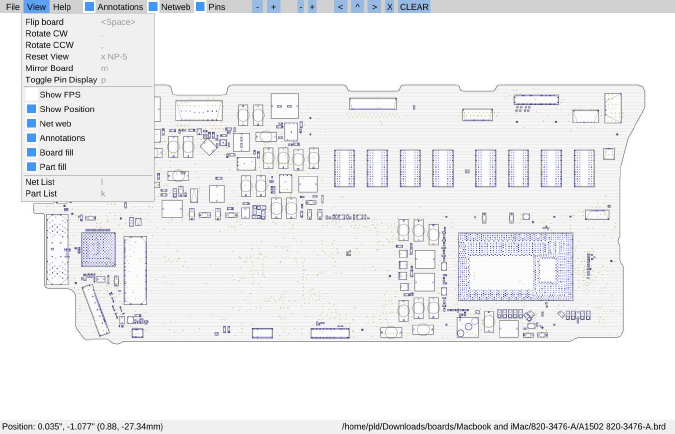

Figure 5.1: View menu

Flip Board Visually turn the board over to show the other side. Flipping is done around the X-axis ( some would

refer to this as ﬂipping vertically )

Rotate CW Rotate the board clockwise

Rotate CCW Rotate the board counter clockwise

Reset View Zoom and pan the board back to ﬁt the window

Mirror Board Mirror the board over the Y-axis (mirroring horizontally). This is used with some ﬁles that have been

generated relative to a different coordinate plane. This is not the same as ﬂipping the board.

Toggle Pin Display Enable/disable the drawing of the pins on the board

Show FPS Enable/disable the display of the frame rate in the status bar

Show Position Enable/disable the display of the current cursor position in the status bar

Net Web Enable/disable the drawing of radial lines to all other pins/pads within the same net

Annotations Enable/disable the display of the annotations ﬂags

Board Fill Enable/disable the ﬁlling of the board with the pinstripe/ﬂoodﬁll

Part Fill Enable/disable the drawing of ﬁll of the individual parts

Net List Show/hide the Net list window

Part List Show/ide the Part list window

CHAPTER 5. MENUS 9

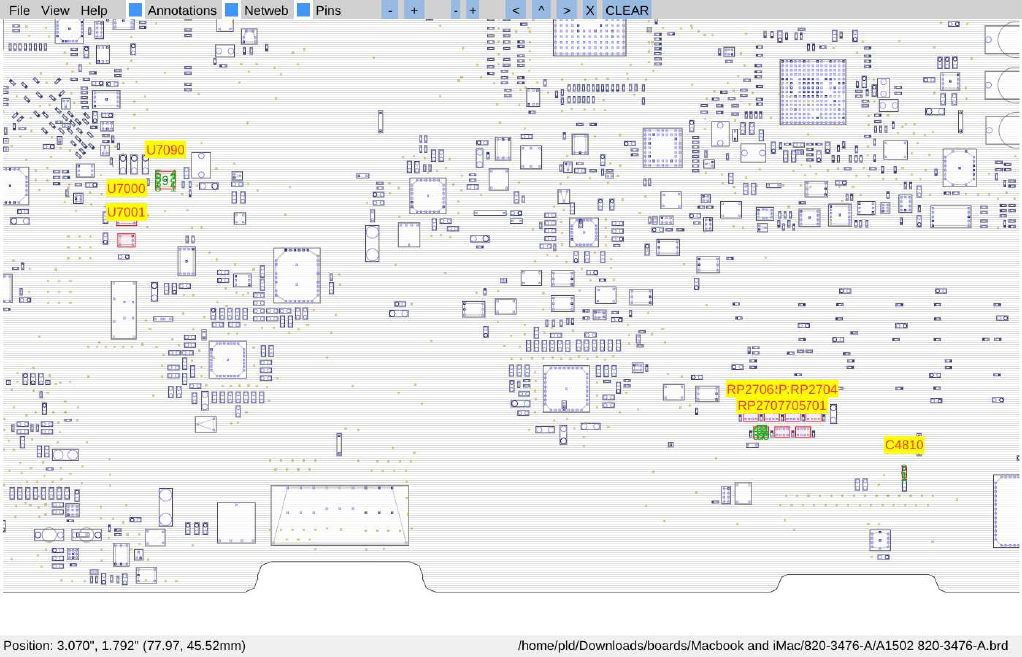

5.2 Quick access & Tablet/Touch Controls

Along the menu bar, after the HELP menu, there are Quick Access buttons for enabling/disabling Annotations, NetWeb

and Pins. This have the same function as those items located in the FILE->VIEW menu, as well as the conﬁguration

preferences.

Figure 5.2: Annotation completed, red ﬂag indicates annotation location. Hovering will show partial text

OFBV is equipped with controls on the menu bar to facilitate use on tablets and touch screens.

[ - ][ + ] Zoom in normal steps

[-][+] Zoom in reduced steps

<Rotate counter clockwise

^Flip board

>Rotate clockwise

XReset view

CLEAR Clear all highlighted items

Chapter 6

Searching

Openﬂex Boardview uses a compound searching system, which lets you mix nets and parts, both complete and

partial searches in to a single search with up to three (3) separate search parameters. All parts/nets matching will be

highlighted when the search is applied. Search results will be ﬁtted and centered to the display window.

The search dialog can be invoked by pressing Ctrl-F, /, or selecting File->Search

Search results can be cleared by pressing the [ESC] key.

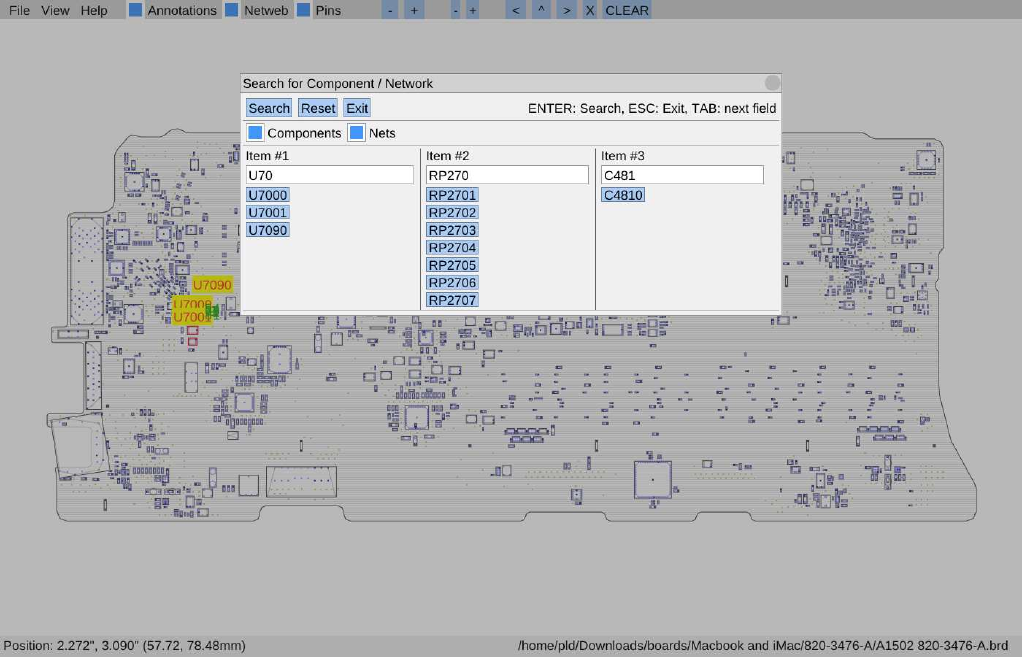

Figure 6.1: Entering the search parameters

CHAPTER 6. SEARCHING 11

Figure 6.2: Search results

Chapter 7

Annotations

Annotations allow you to leave notes about speciﬁc locations, pins, parts or nets for a particular board. Annotations

are stored in a sqlite3 database with a ﬁlename that mirrors the board (see Files).

To create an annotation, right click on the location, pin, part or net of interest. A dialog will appear and in its

reference description it’ll have the details of the location, pin, part and/or net depending on where you right-clicked.

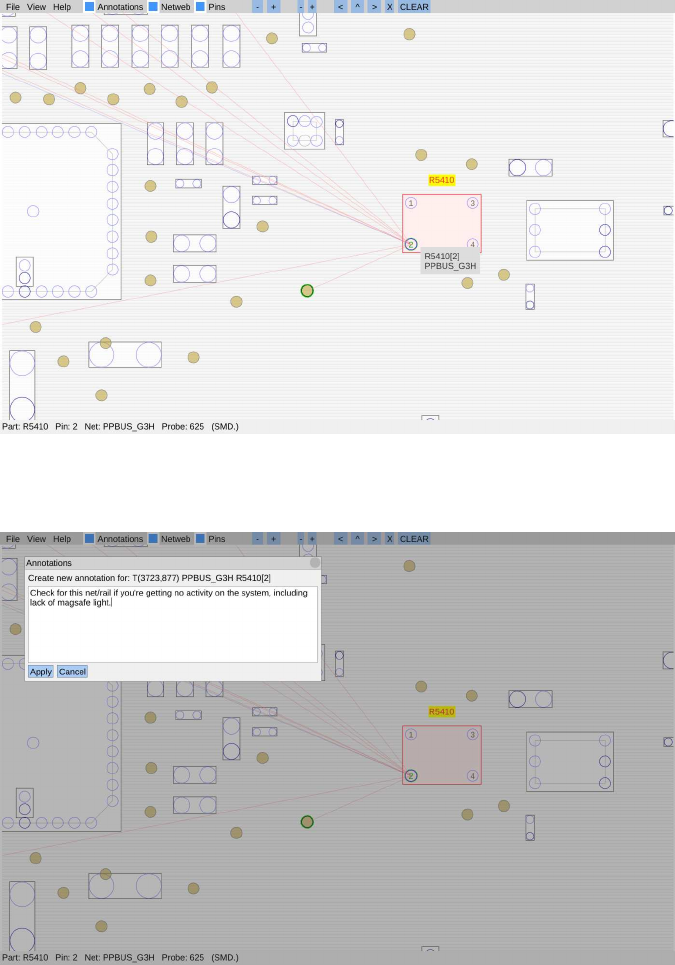

Figure 7.1: Preparation of an annotation, selecting pin [2] of R5410

Figure 7.2: Writing the annotation

CHAPTER 7. ANNOTATIONS 13

Type in the annotation and select [Apply]. You can cancel by clicking the dialog close icon on the top-right of the

dialog, or the [Cancel] button.

When the annotation has been saved a ﬂag will appear on the board in the location. When the mouse hovers over

the ﬂag a short-form of the annotation will be displayed. To edit the annotation you can right click the ﬂag.

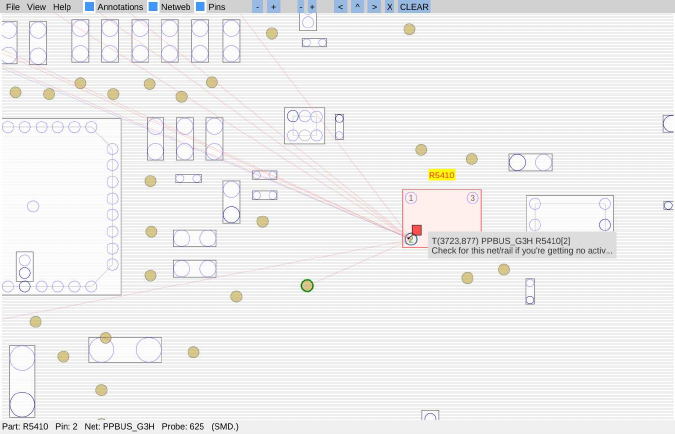

Figure 7.3: Annotation completed, red ﬂag indicates annotation location. Hovering will show partial text

Chapter 8

Conﬁguration Preferences

File->Program Preferences

Parameter Description

Window width Startup width

Window height Startup height

Font size Font size in pt

Screen DPI Screen dpi

Board ﬁll spacing Gap between board area ﬁll lines

Zoom step Proportion of zoom with each click/press

Zoom modiﬁer Divides Zoom Step when CTRL pressed

Panning step Viewport pixel step with panning

Panning modiﬁer Divides Panning Step when CTRL pressed

Flip mode When ﬂipping the board, OFBV can either maintain board-in-viewport

position, or ﬂip around current cursor point

Annotation ﬂag size Pixel size for Annotation ﬂag on board

Annotation ﬂag offset How far from the actual point of annotation to display the ﬂag

Pin Select Masks To assist with contrast, if enabled this will mask the non-selected parts off

with the bitmasks set in Colour Parameters

Pin Halo If set, will display an additional ring around the pin(s) selected

Halo Diameter Multiplier of pin size for the halo size

Halo thickness Thickness of circle drawn for halo

Center/Zoom Search Results If active, frame the search results (both sides) within the current display

Show Net Web If active, draw radial line interconnects to other pins/pads on the board with

the same net

slowCPU If active, deactivates various items to help improve the frame rate

Show FPS Display the frame rate in the status bar

Fill Parts Fill parts with colour speciﬁed

Fill Board Fill board area with colour

FZ Key Required to decode ASUS FZ board ﬁles. Consists of 44 32 bit hex values

CHAPTER 8. CONFIGURATION PREFERENCES 15

File->Colour Preferences

Base Theme There are two core built in themes for OFBV, Light or Dark. Once you have

selected a theme you can adjust it further

Background Background colour of the main board viewing window

Board ﬁll Colour used to generate the board ﬁll pin striping

Board outline Perimeter of board

Parts

Outline Outline of the parts

Hull On parts with many pins, there will often be a convex hull generated, this can

be drawn with this colour

Fill Colour to ﬁll the part Outline with

Selected Outline of selected parts

Fill (Selected) Inner ﬁll of selected parts

Text Colour of text of selected part name

Text background Background of selected part name

Pins

Default Default colour of normal (connected and not ground) pins

Default text Colour of pin number/name text for default pins

Ground Colour of ground pins

NC Colour of non connected (NC) pins

Test pad Outline colour of test pads

Test pad ﬁll Inner ﬁll colour of test pads

Selected Outline colour of selected pin

Highlighted Outline colour of pins additionally highlighted (ie, on same net)

Halo Colour of extra contrast ring around same net pins

Same net Colour of text for pins on same net

Net web strands Colour of interconnect rays drawn from selected pin to other pins on same

net for currently visible side

Net web (otherside) As above but for pins located on opposite board side

Annotations

Box Fill colour of box used to ﬂag annotation

Stalk Colour of stalk and border of annotation

Popup text Colour of text shown when annotation is hovered

Popup background Background colour of text show when annotation is hovered

Masks Masks are applied as originalColour | ORmask & ANDmask

Pins AND’d mask for pins

Parts AND’d mask for parts

Outline AND’d mask for board outline

Boost (pins) OR’d mask for pins

Boost (parts) OR’d mask for parts

Boost (outline) OR’d mask for outline

Chapter 9

Board Formats

Type Details

BRD Often distributed in an encoded format with a leading 4-byte signature of 0x23, 0xe2, 0x63,

0x28. Decoded text will contain the strings “str_length:” and “var_data:”. A lot of Apple

schematics are in this format

BRD2 Contains signature strings such as BRDOUT: and NETS:

BDV Very common board format, detected by the presence of strings such as “dd:1.3"

“<<format.asc>>" and "<<pins.asc>>" in the content. It is consolidated version of the multiﬁle

ASC format.

ASC Multi-ﬁle version of the BDV format. To load you will only need to select a single ﬁle of the

group.

FZ Encrypted ASUS distribution format. In order to view these ﬁles you will need the 44

quad-byte decoding signature in the Preferences->FZKey else an error will result when

attempting to decode.

BVR An OFBV speciﬁc format which is a SQL dump from MSAccess formatted BV ﬁle. A separate

decoder/converter is required because the tool to do the decoding is covered under the GPL

licence but OFBV is MIT licenced and thus incompatible.

Chapter 10

Files

10.1 obv.conf

Conﬁguration ﬁle. Plain text. Parameters are accessible via the File->Program Preferences, and Color Preferences

dialog

10.1.1 Location

Windows

%APPDATA%\locate\openboardview

Linux

~/.conﬁg/openboardview

OSX

???

10.2 obv.history

History ﬁle. Plain text. Contains recently loaded board ﬁles paths.

10.2.1 Location

Windows

%APPDATA%\locate\openboardview

Linux

~/.local/share/openboardview

OSX

???

10.3 *.sqlite3

Companion ﬁles for board ﬁles. Contains annotations currently but likely will be expanded out to contain other data

associated with the boards.

The sqlite3 companion ﬁles are generated by taking the board ﬁle name (eg, exampleboard1.brd) converting the

ﬁlename separator period in to an underscore and appending .sqlite3 to the name (eg, exampleboard1_brd.sqlite3).

These ﬁles can be safely removed without affecting the operation of OFBV other than the loss of the (currently)

annotations.
