Install Guide
Release Version: 15.0.0
OpenStack contributors
Oct 11, 2017
CONTENTS
Abstract 1
Contents 2
Conventions ............................................. 2
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Environment ............................................. 7
Identity service ............................................ 20
Image service ............................................ 27
Compute service ........................................... 34
Networking service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Dashboard .............................................. 68
Block Storage service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Additional services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Launch an instance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Appendix 107
Community support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Glossary 111
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Index 146
i
ABSTRACT
The OpenStack system consists of several key services that are separately installed. These services work to-
gether depending on your cloud needs and include the Compute, Identity, Networking, Image, Block Storage,
Object Storage, Telemetry, Orchestration, and Database services. You can install any of these projects sepa-
rately and configure them stand-alone or as connected entities.
This guide will show you how to install OpenStack by using packages available on Red Hat Enterprise Linux
7 and its derivatives through the RDO repository.
Explanations of configuration options and sample configuration files are included.
This guide documents the OpenStack Ocata release.
1
CONTENTS
Conventions
The OpenStack documentation uses several typesetting conventions.
Notices
Notices take these forms:
Note: A comment with additional information that explains a part of the text.
Important: Something you must be aware of before proceeding.
Tip: An extra but helpful piece of practical advice.
Caution: Helpful information that prevents the user from making mistakes.
Warning: Critical information about the risk of data loss or security issues.
Command prompts
$command
Any user, including the root user, can run commands that are prefixed with the $prompt.
#command
The root user must run commands that are prefixed with the #prompt. You can also prefix these commands
with the sudo command, if available, to run them.
Overview
The OpenStack project is an open source cloud computing platform that supports all types of cloud environ-
ments. The project aims for simple implementation, massive scalability, and a rich set of features. Cloud
computing experts from around the world contribute to the project.
OpenStack provides an Infrastructure-as-a-Service (IaaS) solution through a variety of complementary ser-
vices. Each service offers an Application Programming Interface (API) that facilitates this integration.
2
Install Guide (Release Version: 15.0.0)
This guide covers step-by-step deployment of the major OpenStack services using a functional example archi-
tecture suitable for new users of OpenStack with sufficient Linux experience. This guide is not intended to be
used for production system installations, but to create a minimum proof-of-concept for the purpose of learning
about OpenStack.
After becoming familiar with basic installation, configuration, operation, and troubleshooting of these Open-
Stack services, you should consider the following steps toward deployment using a production architecture:
Determine and implement the necessary core and optional services to meet performance and redundancy
requirements.
Increase security using methods such as firewalls, encryption, and service policies.
Implement a deployment tool such as Ansible, Chef, Puppet, or Salt to automate deployment and man-
agement of the production environment.
Example architecture
The example architecture requires at least two nodes (hosts) to launch a basic virtual machine or instance.
Optional services such as Block Storage and Object Storage require additional nodes.
Important: The example architecture used in this guide is a minimum configuration, and is not intended
for production system installations. It is designed to provide a minimum proof-of-concept for the purpose of
learning about OpenStack. For information on creating architectures for specific use cases, or how to determine
which architecture is required, see the Architecture Design Guide.
This example architecture differs from a minimal production architecture as follows:
Networking agents reside on the controller node instead of one or more dedicated network nodes.
Overlay (tunnel) traffic for self-service networks traverses the management network instead of a dedi-
cated network.
For more information on production architectures, see the Architecture Design Guide,OpenStack Operations
Guide, and OpenStack Networking Guide.
Overview 3
Install Guide (Release Version: 15.0.0)
Fig. 1: Hardware requirements
Controller
The controller node runs the Identity service, Image service, management portions of Compute, management
portion of Networking, various Networking agents, and the Dashboard. It also includes supporting services
such as an SQL database, message queue, and NTP.
Optionally, the controller node runs portions of the Block Storage, Object Storage, Orchestration, and Telemetry
services.
The controller node requires a minimum of two network interfaces.
Compute
The compute node runs the hypervisor portion of Compute that operates instances. By default, Compute uses
the KVM hypervisor. The compute node also runs a Networking service agent that connects instances to virtual
networks and provides firewalling services to instances via security groups.
You can deploy more than one compute node. Each node requires a minimum of two network interfaces.
4 Overview
Install Guide (Release Version: 15.0.0)
Block Storage
The optional Block Storage node contains the disks that the Block Storage and Shared File System services
provision for instances.
For simplicity, service traffic between compute nodes and this node uses the management network. Production
environments should implement a separate storage network to increase performance and security.
You can deploy more than one block storage node. Each node requires a minimum of one network interface.
Object Storage
The optional Object Storage node contain the disks that the Object Storage service uses for storing accounts,
containers, and objects.
For simplicity, service traffic between compute nodes and this node uses the management network. Production
environments should implement a separate storage network to increase performance and security.
This service requires two nodes. Each node requires a minimum of one network interface. You can deploy
more than two object storage nodes.
Networking
Choose one of the following virtual networking options.

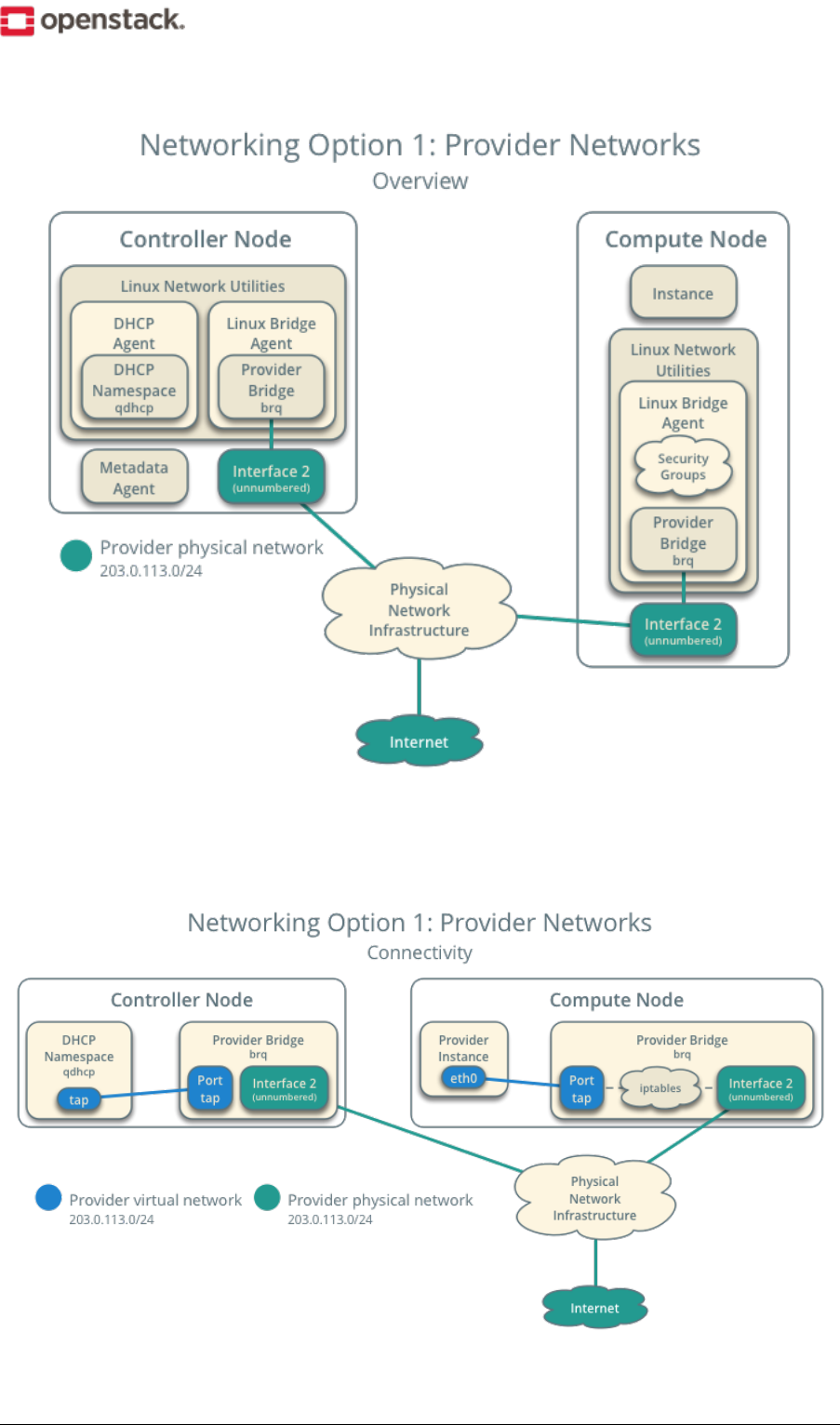

Networking Option 1: Provider networks
The provider networks option deploys the OpenStack Networking service in the simplest way possible with
primarily layer-2 (bridging/switching) services and VLAN segmentation of networks. Essentially, it bridges
virtual networks to physical networks and relies on physical network infrastructure for layer-3 (routing) services.
Additionally, a DHCP service provides IP address information to instances.
Warning: This option lacks support for self-service (private) networks, layer-3 (routing) services, and
advanced services such as LBaaS and FWaaS. Consider the self-service networks option below if you desire
these features.
Overview 5
Install Guide (Release Version: 15.0.0)

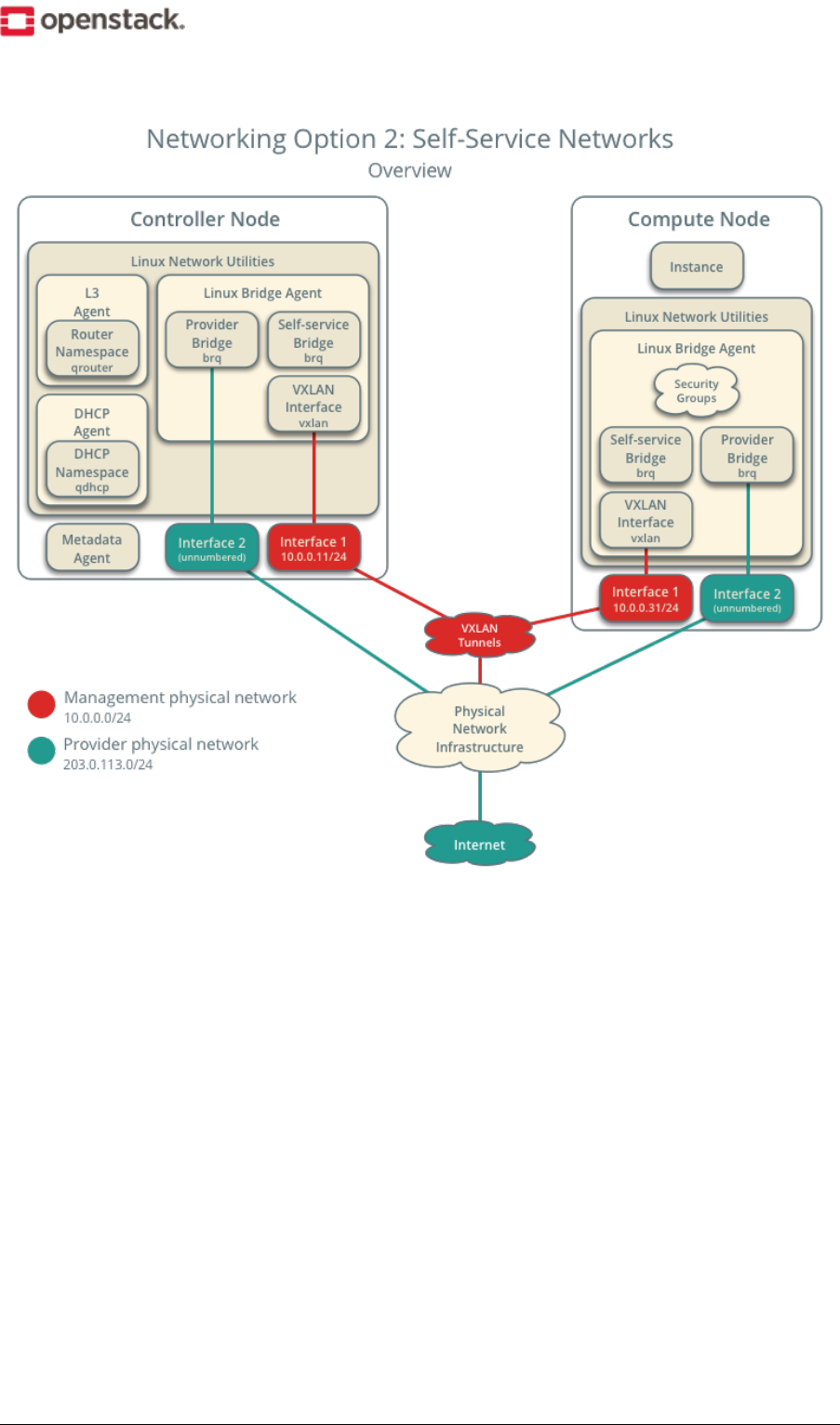

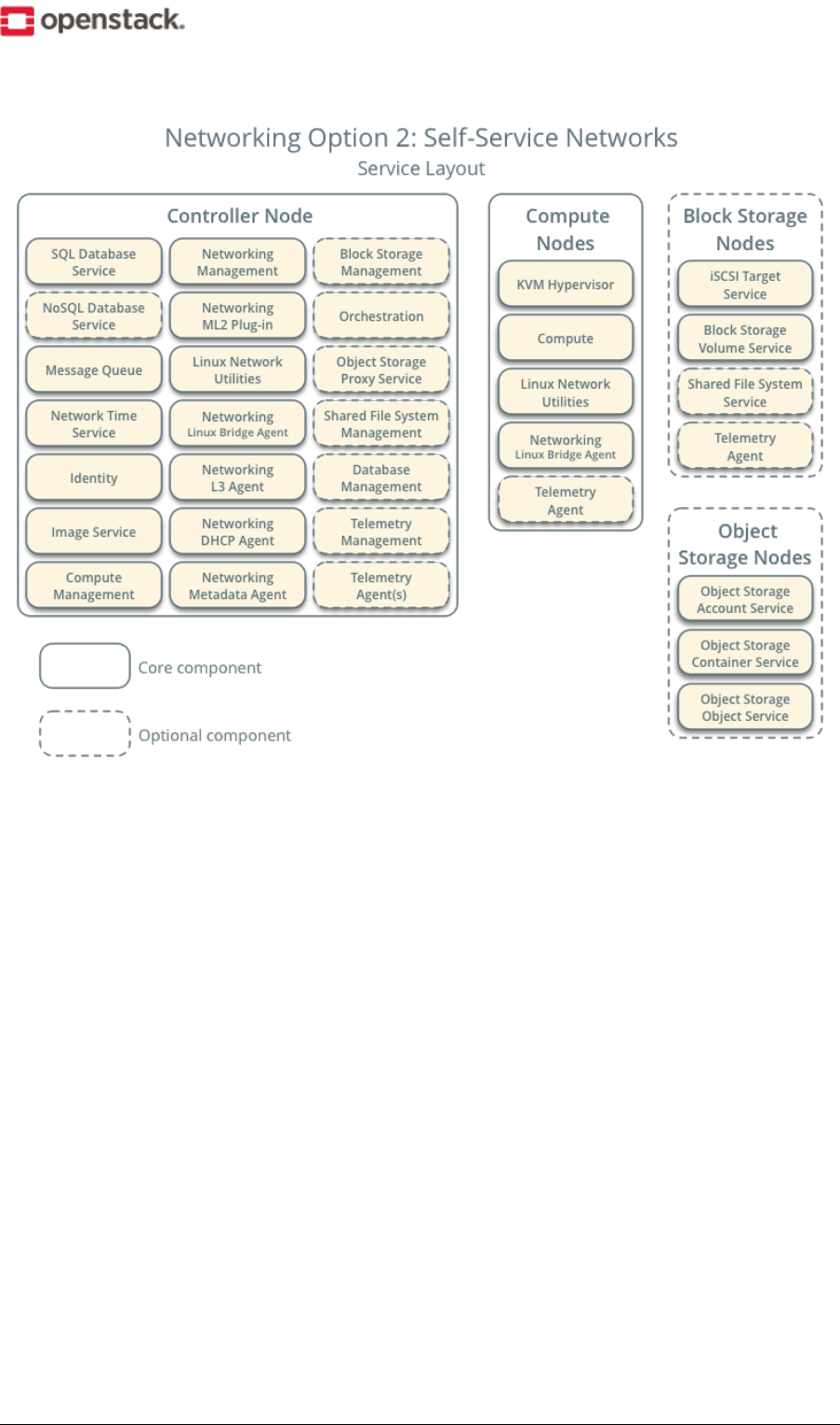

Networking Option 2: Self-service networks
The self-service networks option augments the provider networks option with layer-3 (routing) services that
enable self-service networks using overlay segmentation methods such as VXLAN. Essentially, it routes vir-
tual networks to physical networks using NAT. Additionally, this option provides the foundation for advanced
services such as LBaaS and FWaaS.
6 Overview
Install Guide (Release Version: 15.0.0)
Environment
This section explains how to configure the controller node and one compute node using the example architecture.
Although most environments include Identity, Image service, Compute, at least one networking service, and
the Dashboard, the Object Storage service can operate independently. If your use case only involves Object
Storage, you can skip to Object Storage Installation Guide after configuring the appropriate nodes for it.
You must use an account with administrative privileges to configure each node. Either run the commands as
the root user or configure the sudo utility.
For best performance, we recommend that your environment meets or exceeds the hardware requirements in
Hardware requirements.
The following minimum requirements should support a proof-of-concept environment with core services and
several CirrOS instances:
Controller Node: 1 processor, 4 GB memory, and 5 GB storage
Compute Node: 1 processor, 2 GB memory, and 10 GB storage
As the number of OpenStack services and virtual machines increase, so do the hardware requirements for the
best performance. If performance degrades after enabling additional services or virtual machines, consider
adding hardware resources to your environment.
Environment 7
Install Guide (Release Version: 15.0.0)
To minimize clutter and provide more resources for OpenStack, we recommend a minimal installation of your
Linux distribution. Also, you must install a 64-bit version of your distribution on each node.
A single disk partition on each node works for most basic installations. However, you should consider Logical
Volume Manager (LVM) for installations with optional services such as Block Storage.
For first-time installation and testing purposes, many users select to build each host as a virtual machine (VM).
The primary benefits of VMs include the following:
One physical server can support multiple nodes, each with almost any number of network interfaces.
Ability to take periodic “snap shots” throughout the installation process and “roll back” to a working
configuration in the event of a problem.
However, VMs will reduce performance of your instances, particularly if your hypervisor and/or processor
lacks support for hardware acceleration of nested VMs.
Note: If you choose to install on VMs, make sure your hypervisor provides a way to disable MAC address
filtering on the provider network interface.
For more information about system requirements, see the OpenStack Operations Guide.
Security
OpenStack services support various security methods including password, policy, and encryption. Additionally,
supporting services including the database server and message broker support password security.
To ease the installation process, this guide only covers password security where applicable. You can create
secure passwords manually, but the database connection string in services configuration file cannot accept
special characters like “@”. We recommend you generate them using a tool such as pwgen, or by running the
following command:
$openssl rand -hex 10
For OpenStack services, this guide uses SERVICE_PASS to reference service account passwords and SER-
VICE_DBPASS to reference database passwords.
The following table provides a list of services that require passwords and their associated references in the
guide.
8 Environment
Install Guide (Release Version: 15.0.0)
Table 1: Passwords
Password name Description
Database password (no variable used) Root password for the database
ADMIN_PASS Password of user admin
CINDER_DBPASS Database password for the Block Storage service
CINDER_PASS Password of Block Storage service user cinder
DASH_DBPASS Database password for the Dashboard
DEMO_PASS Password of user demo
GLANCE_DBPASS Database password for Image service
GLANCE_PASS Password of Image service user glance
KEYSTONE_DBPASS Database password of Identity service
METADATA_SECRET Secret for the metadata proxy
NEUTRON_DBPASS Database password for the Networking service
NEUTRON_PASS Password of Networking service user neutron
NOVA_DBPASS Database password for Compute service
NOVA_PASS Password of Compute service user nova
PLACEMENT_PASS Password of the Placement service user placement
RABBIT_PASS Password of user guest of RabbitMQ
OpenStack and supporting services require administrative privileges during installation and operation. In some
cases, services perform modifications to the host that can interfere with deployment automation tools such as
Ansible, Chef, and Puppet. For example, some OpenStack services add a root wrapper to sudo that can interfere
with security policies. See the OpenStack Administrator Guide for more information.
The Networking service assumes default values for kernel network parameters and modifies firewall rules. To
avoid most issues during your initial installation, we recommend using a stock deployment of a supported distri-
bution on your hosts. However, if you choose to automate deployment of your hosts, review the configuration
and policies applied to them before proceeding further.
Host networking
After installing the operating system on each node for the architecture that you choose to deploy, you must
configure the network interfaces. We recommend that you disable any automated network management tools
and manually edit the appropriate configuration files for your distribution. For more information on how to
configure networking on your distribution, see the documentation .
All nodes require Internet access for administrative purposes such as package installation, security updates,
DNS, and NTP. In most cases, nodes should obtain Internet access through the management network interface.
To highlight the importance of network separation, the example architectures use private address space for the
management network and assume that the physical network infrastructure provides Internet access via NAT or
other methods. The example architectures use routable IP address space for the provider (external) network and
assume that the physical network infrastructure provides direct Internet access.
In the provider networks architecture, all instances attach directly to the provider network. In the self-service
(private) networks architecture, instances can attach to a self-service or provider network. Self-service networks
can reside entirely within OpenStack or provide some level of external network access using NAT through the
provider network.
Environment 9
Install Guide (Release Version: 15.0.0)
The example architectures assume use of the following networks:
Management on 10.0.0.0/24 with gateway 10.0.0.1
This network requires a gateway to provide Internet access to all nodes for administrative purposes such
as package installation, security updates, DNS, and NTP.
Provider on 203.0.113.0/24 with gateway 203.0.113.1
This network requires a gateway to provide Internet access to instances in your OpenStack environment.
You can modify these ranges and gateways to work with your particular network infrastructure.
Network interface names vary by distribution. Traditionally, interfaces use eth followed by a sequential num-
ber. To cover all variations, this guide refers to the first interface as the interface with the lowest number and
the second interface as the interface with the highest number.
Unless you intend to use the exact configuration provided in this example architecture, you must modify the
networks in this procedure to match your environment. Each node must resolve the other nodes by name in
addition to IP address. For example, the controller name must resolve to 10.0.0.11, the IP address of the
management interface on the controller node.
Warning: Reconfiguring network interfaces will interrupt network connectivity. We recommend using a
local terminal session for these procedures.
10 Environment
Install Guide (Release Version: 15.0.0)
Note: Your distribution enables a restrictive firewall by default. During the installation process, certain steps
will fail unless you alter or disable the firewall. For more information about securing your environment, refer
to the OpenStack Security Guide.
Controller node
Configure network interfaces
1. Configure the first interface as the management interface:
IP address: 10.0.0.11
Network mask: 255.255.255.0 (or /24)
Default gateway: 10.0.0.1
2. The provider interface uses a special configuration without an IP address assigned to it. Configure the
second interface as the provider interface:
Replace INTERFACE_NAME with the actual interface name. For example, eth1 or ens224.
Edit the /etc/sysconfig/network-scripts/ifcfg-INTERFACE_NAME file to contain the fol-
lowing:
Do not change the HWADDR and UUID keys.
DEVICE=INTERFACE_NAME
TYPE=Ethernet
ONBOOT="yes"
BOOTPROTO="none"
3. Reboot the system to activate the changes.
Configure name resolution
1. Set the hostname of the node to controller.
2. Edit the /etc/hosts file to contain the following:
# controller
10.0.0.11 controller
# compute1
10.0.0.31 compute1
# block1
10.0.0.41 block1
# object1
10.0.0.51 object1
# object2
10.0.0.52 object2
Environment 11
Install Guide (Release Version: 15.0.0)
Warning: Some distributions add an extraneous entry in the /etc/hosts file that resolves the
actual hostname to another loopback IP address such as 127.0.1.1. You must comment out or
remove this entry to prevent name resolution problems. Do not remove the 127.0.0.1 entry.
Note: This guide includes host entries for optional services in order to reduce complexity should you
choose to deploy them.
Compute node
Configure network interfaces
1. Configure the first interface as the management interface:
IP address: 10.0.0.31
Network mask: 255.255.255.0 (or /24)
Default gateway: 10.0.0.1
Note: Additional compute nodes should use 10.0.0.32, 10.0.0.33, and so on.
2. The provider interface uses a special configuration without an IP address assigned to it. Configure the
second interface as the provider interface:
Replace INTERFACE_NAME with the actual interface name. For example, eth1 or ens224.
Edit the /etc/sysconfig/network-scripts/ifcfg-INTERFACE_NAME file to contain the fol-
lowing:
Do not change the HWADDR and UUID keys.
DEVICE=INTERFACE_NAME
TYPE=Ethernet
ONBOOT="yes"
BOOTPROTO="none"
3. Reboot the system to activate the changes.
Configure name resolution
1. Set the hostname of the node to compute1.
2. Edit the /etc/hosts file to contain the following:
# controller
10.0.0.11 controller
# compute1
10.0.0.31 compute1
12 Environment
Install Guide (Release Version: 15.0.0)
# block1
10.0.0.41 block1
# object1
10.0.0.51 object1
# object2
10.0.0.52 object2
Warning: Some distributions add an extraneous entry in the /etc/hosts file that resolves the
actual hostname to another loopback IP address such as 127.0.1.1. You must comment out or
remove this entry to prevent name resolution problems. Do not remove the 127.0.0.1 entry.
Note: This guide includes host entries for optional services in order to reduce complexity should you
choose to deploy them.
Block storage node (Optional)
If you want to deploy the Block Storage service, configure one additional storage node.
Configure network interfaces
Configure the management interface:
IP address: 10.0.0.41
Network mask: 255.255.255.0 (or /24)
Default gateway: 10.0.0.1
Configure name resolution
1. Set the hostname of the node to block1.
2. Edit the /etc/hosts file to contain the following:
# controller
10.0.0.11 controller
# compute1
10.0.0.31 compute1
# block1
10.0.0.41 block1
# object1
10.0.0.51 object1
Environment 13
Install Guide (Release Version: 15.0.0)
# object2
10.0.0.52 object2
Warning: Some distributions add an extraneous entry in the /etc/hosts file that resolves the
actual hostname to another loopback IP address such as 127.0.1.1. You must comment out or
remove this entry to prevent name resolution problems. Do not remove the 127.0.0.1 entry.
Note: This guide includes host entries for optional services in order to reduce complexity should you
choose to deploy them.
3. Reboot the system to activate the changes.
Verify connectivity
We recommend that you verify network connectivity to the Internet and among the nodes before proceeding
further.
1. From the controller node, test access to the Internet:
#ping -c 4openstack.org
PING openstack.org (174.143.194.225) 56(84) bytes of data.
64 bytes from 174.143.194.225: icmp_seq=1 ttl=54 time=18.3 ms
64 bytes from 174.143.194.225: icmp_seq=2 ttl=54 time=17.5 ms
64 bytes from 174.143.194.225: icmp_seq=3 ttl=54 time=17.5 ms
64 bytes from 174.143.194.225: icmp_seq=4 ttl=54 time=17.4 ms
--- openstack.org ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3022ms
rtt min/avg/max/mdev = 17.489/17.715/18.346/0.364 ms
2. From the controller node, test access to the management interface on the compute node:
#ping -c 4compute1
PING compute1 (10.0.0.31) 56(84) bytes of data.
64 bytes from compute1 (10.0.0.31): icmp_seq=1 ttl=64 time=0.263 ms
64 bytes from compute1 (10.0.0.31): icmp_seq=2 ttl=64 time=0.202 ms
64 bytes from compute1 (10.0.0.31): icmp_seq=3 ttl=64 time=0.203 ms
64 bytes from compute1 (10.0.0.31): icmp_seq=4 ttl=64 time=0.202 ms
--- compute1 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3000ms
rtt min/avg/max/mdev = 0.202/0.217/0.263/0.030 ms
3. From the compute node, test access to the Internet:
#ping -c 4openstack.org
PING openstack.org (174.143.194.225) 56(84) bytes of data.
64 bytes from 174.143.194.225: icmp_seq=1 ttl=54 time=18.3 ms
14 Environment
Install Guide (Release Version: 15.0.0)
64 bytes from 174.143.194.225: icmp_seq=2 ttl=54 time=17.5 ms
64 bytes from 174.143.194.225: icmp_seq=3 ttl=54 time=17.5 ms
64 bytes from 174.143.194.225: icmp_seq=4 ttl=54 time=17.4 ms
--- openstack.org ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3022ms
rtt min/avg/max/mdev = 17.489/17.715/18.346/0.364 ms
4. From the compute node, test access to the management interface on the controller node:
#ping -c 4controller
PING controller (10.0.0.11) 56(84) bytes of data.
64 bytes from controller (10.0.0.11): icmp_seq=1 ttl=64 time=0.263 ms
64 bytes from controller (10.0.0.11): icmp_seq=2 ttl=64 time=0.202 ms
64 bytes from controller (10.0.0.11): icmp_seq=3 ttl=64 time=0.203 ms
64 bytes from controller (10.0.0.11): icmp_seq=4 ttl=64 time=0.202 ms
--- controller ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3000ms
rtt min/avg/max/mdev = 0.202/0.217/0.263/0.030 ms
Note: Your distribution enables a restrictive firewall by default. During the installation process, certain steps
will fail unless you alter or disable the firewall. For more information about securing your environment, refer
to the OpenStack Security Guide.
Network Time Protocol (NTP)
You should install Chrony, an implementation of NTP, to properly synchronize services among nodes. We
recommend that you configure the controller node to reference more accurate (lower stratum) servers and other
nodes to reference the controller node.
Controller node
Perform these steps on the controller node.
Install and configure components
1. Install the packages:
#yum install chrony
2. Edit the /etc/chrony.conf file and add, change, or remove these keys as necessary for your environ-
ment:
server NTP_SERVER iburst
Replace NTP_SERVER with the hostname or IP address of a suitable more accurate (lower stratum) NTP
server. The configuration supports multiple server keys.
Environment 15
Install Guide (Release Version: 15.0.0)
Note: By default, the controller node synchronizes the time via a pool of public servers. However, you
can optionally configure alternative servers such as those provided by your organization.
3. To enable other nodes to connect to the chrony daemon on the controller node, add this key to the /etc/
chrony.conf file:
allow 10.0.0.0/24
If necessary, replace 10.0.0.0/24 with a description of your subnet.
4. Start the NTP service and configure it to start when the system boots:
#systemctl enable chronyd.service
#systemctl start chronyd.service
Other nodes
Other nodes reference the controller node for clock synchronization. Perform these steps on all other nodes.
Install and configure components
1. Install the packages:
#yum install chrony
2. Edit the /etc/chrony.conf file and comment out or remove all but one server key. Change it to
reference the controller node:
server controller iburst
3. Start the NTP service and configure it to start when the system boots:
#systemctl enable chronyd.service
#systemctl start chronyd.service
Verify operation
We recommend that you verify NTP synchronization before proceeding further. Some nodes, particularly those
that reference the controller node, can take several minutes to synchronize.
1. Run this command on the controller node:
#chronyc sources
210 Number of sources = 2
MS Name/IP address Stratum Poll Reach LastRx Last sample
===============================================================================
^- 192.0.2.11 2 7 12 137 -2814us[-3000us] +/- 43ms
^* 192.0.2.12 2 6 177 46 +17us[ -23us] +/- 68ms
16 Environment
Install Guide (Release Version: 15.0.0)
Contents in the Name/IP address column should indicate the hostname or IP address of one or more NTP
servers. Contents in the MS column should indicate *for the server to which the NTP service is currently
synchronized.
2. Run the same command on all other nodes:
#chronyc sources
210 Number of sources = 1
MS Name/IP address Stratum Poll Reach LastRx Last sample
===============================================================================
^* controller 3 9 377 421 +15us[ -87us] +/- 15ms
Contents in the Name/IP address column should indicate the hostname of the controller node.
OpenStack packages
Distributions release OpenStack packages as part of the distribution or using other methods because of differing
release schedules. Perform these procedures on all nodes.
Note: The set up of OpenStack packages described here needs to be done on all nodes: controller, compute,
and Block Storage nodes.
Warning: Your hosts must contain the latest versions of base installation packages available for your
distribution before proceeding further.
Note: Disable or remove any automatic update services because they can impact your OpenStack environment.
Prerequisites
Warning: We recommend disabling EPEL when using RDO packages due to updates in EPEL breaking
backwards compatibility. Or, preferably pin package versions using the yum-versionlock plugin.
Note: The following steps apply to RHEL only. CentOS does not require these steps.
1. When using RHEL, it is assumed that you have registered your system using Red Hat Subscription
Management and that you have the rhel-7-server-rpms repository enabled by default.
For more information on registering the system, see the Red Hat Enterprise Linux 7 System Administra-
tors Guide.
2. In addition to rhel-7-server-rpms, you also need to have the rhel-7-server-optional-rpms,
rhel-7-server-extras-rpms, and rhel-7-server-rh-common-rpms repositories enabled:
Environment 17
Install Guide (Release Version: 15.0.0)
#subscription-manager repos --enable=rhel-7-server-optional-rpms \
--enable=rhel-7-server-extras-rpms --enable=rhel-7-server-rh-common-rpms
Enable the OpenStack repository
On CentOS, the extras repository provides the RPM that enables the OpenStack repository. CentOS
includes the extras repository by default, so you can simply install the package to enable the OpenStack
repository.
#yum install centos-release-openstack-ocata
On RHEL, download and install the RDO repository RPM to enable the OpenStack repository.
#yum install https://rdoproject.org/repos/rdo-release.rpm
Finalize the installation
1. Upgrade the packages on all nodes:
#yum upgrade
Note: If the upgrade process includes a new kernel, reboot your host to activate it.
2. Install the OpenStack client:
#yum install python-openstackclient
3. RHEL and CentOS enable SELinux by default. Install the openstack-selinux package to automati-
cally manage security policies for OpenStack services:
#yum install openstack-selinux
SQL database
Most OpenStack services use an SQL database to store information. The database typically runs on the con-
troller node. The procedures in this guide use MariaDB or MySQL depending on the distribution. OpenStack
services also support other SQL databases including PostgreSQL.
Install and configure components
1. Install the packages:
#yum install mariadb mariadb-server python2-PyMySQL
2. Create and edit the /etc/my.cnf.d/openstack.cnf file and complete the following actions:
18 Environment
Install Guide (Release Version: 15.0.0)
Create a [mysqld] section, and set the bind-address key to the management IP address of the
controller node to enable access by other nodes via the management network. Set additional keys
to enable useful options and the UTF-8 character set:
[mysqld]
bind-address =10.0.0.11
default-storage-engine =innodb
innodb_file_per_table =on
max_connections =4096
collation-server =utf8_general_ci
character-set-server =utf8
Finalize installation
1. Start the database service and configure it to start when the system boots:
#systemctl enable mariadb.service
#systemctl start mariadb.service
2. Secure the database service by running the mysql_secure_installation script. In particular, choose
a suitable password for the database root account:
#mysql_secure_installation
Message queue
OpenStack uses a message queue to coordinate operations and status information among services. The message
queue service typically runs on the controller node. OpenStack supports several message queue services includ-
ing RabbitMQ,Qpid, and ZeroMQ. However, most distributions that package OpenStack support a particular
message queue service. This guide implements the RabbitMQ message queue service because most distri-
butions support it. If you prefer to implement a different message queue service, consult the documentation
associated with it.
The message queue runs on the controller node.
Install and configure components
1. Install the package:
#yum install rabbitmq-server
2. Start the message queue service and configure it to start when the system boots:
#systemctl enable rabbitmq-server.service
#systemctl start rabbitmq-server.service
3. Add the openstack user:
#rabbitmqctl add_user openstack RABBIT_PASS
Creating user "openstack" ...
Environment 19
Install Guide (Release Version: 15.0.0)
Replace RABBIT_PASS with a suitable password.
4. Permit configuration, write, and read access for the openstack user:
#rabbitmqctl set_permissions openstack ".*" ".*" ".*"
Setting permissions for user "openstack" in vhost "/" ...
Memcached
The Identity service authentication mechanism for services uses Memcached to cache tokens. The memcached
service typically runs on the controller node. For production deployments, we recommend enabling a combi-
nation of firewalling, authentication, and encryption to secure it.
Install and configure components
1. Install the packages:
#yum install memcached python-memcached
2. Edit the /etc/sysconfig/memcached file and complete the following actions:
Configure the service to use the management IP address of the controller node. This is to enable
access by other nodes via the management network:
OPTIONS="-l 127.0.0.1,::1,controller"
Note: Change the existing line OPTIONS="-l 127.0.0.1,::1".
Finalize installation
Start the Memcached service and configure it to start when the system boots:
#systemctl enable memcached.service
#systemctl start memcached.service
Identity service
Identity service overview
The OpenStack Identity service provides a single point of integration for managing authentication, authoriza-
tion, and a catalog of services.
The Identity service is typically the first service a user interacts with. Once authenticated, an end user can use
their identity to access other OpenStack services. Likewise, other OpenStack services leverage the Identity
service to ensure users are who they say they are and discover where other services are within the deployment.
The Identity service can also integrate with some external user management systems (such as LDAP).
20 Identity service
Install Guide (Release Version: 15.0.0)
Users and services can locate other services by using the service catalog, which is managed by the Identity
service. As the name implies, a service catalog is a collection of available services in an OpenStack deployment.
Each service can have one or many endpoints and each endpoint can be one of three types: admin, internal,
or public. In a production environment, different endpoint types might reside on separate networks exposed to
different types of users for security reasons. For instance, the public API network might be visible from the
Internet so customers can manage their clouds. The admin API network might be restricted to operators within
the organization that manages cloud infrastructure. The internal API network might be restricted to the hosts
that contain OpenStack services. Also, OpenStack supports multiple regions for scalability. For simplicity, this
guide uses the management network for all endpoint types and the default RegionOne region. Together, regions,
services, and endpoints created within the Identity service comprise the service catalog for a deployment. Each
OpenStack service in your deployment needs a service entry with corresponding endpoints stored in the Identity
service. This can all be done after the Identity service has been installed and configured.
The Identity service contains these components:
Server A centralized server provides authentication and authorization services using a RESTful interface.
Drivers Drivers or a service back end are integrated to the centralized server. They are used for accessing
identity information in repositories external to OpenStack, and may already exist in the infrastructure
where OpenStack is deployed (for example, SQL databases or LDAP servers).
Modules Middleware modules run in the address space of the OpenStack component that is using the Iden-
tity service. These modules intercept service requests, extract user credentials, and send them to the
centralized server for authorization. The integration between the middleware modules and OpenStack
components uses the Python Web Server Gateway Interface.
Install and configure
This section describes how to install and configure the OpenStack Identity service, code-named keystone, on
the controller node. For scalability purposes, this configuration deploys Fernet tokens and the Apache HTTP
server to handle requests.
Prerequisites
Before you install and configure the Identity service, you must create a database.
1. Use the database access client to connect to the database server as the root user:
$mysql -u root -p
2. Create the keystone database:
MariaDB [(none)]> CREATE DATABASE keystone;
3. Grant proper access to the keystone database:
MariaDB [(none)]> GRANT ALL PRIVILEGES ON keystone.* TO 'keystone'@'localhost' \
IDENTIFIED BY 'KEYSTONE_DBPASS';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON keystone.* TO 'keystone'@'%' \
IDENTIFIED BY 'KEYSTONE_DBPASS';
Replace KEYSTONE_DBPASS with a suitable password.
4. Exit the database access client.
Identity service 21
Install Guide (Release Version: 15.0.0)
Install and configure components
Note: Default configuration files vary by distribution. You might need to add these sections and options rather
than modifying existing sections and options. Also, an ellipsis (...) in the configuration snippets indicates
potential default configuration options that you should retain.
Note: This guide uses the Apache HTTP server with mod_wsgi to serve Identity service requests on ports
5000 and 35357. By default, the keystone service still listens on these ports. Therefore, this guide manually
disables the keystone service.
1. Run the following command to install the packages:
#yum install openstack-keystone httpd mod_wsgi
2. Edit the /etc/keystone/keystone.conf file and complete the following actions:
In the [database] section, configure database access:
[database]
# ...
connection =mysql+pymysql://keystone:KEYSTONE_DBPASS@controller/keystone
Replace KEYSTONE_DBPASS with the password you chose for the database.
Note: Comment out or remove any other connection options in the [database] section.
In the [token] section, configure the Fernet token provider:
[token]
# ...
provider =fernet
3. Populate the Identity service database:
#su -s /bin/sh -c "keystone-manage db_sync" keystone
4. Initialize Fernet key repositories:
#keystone-manage fernet_setup --keystone-user keystone --keystone-group keystone
#keystone-manage credential_setup --keystone-user keystone --keystone-group keystone
5. Bootstrap the Identity service:
#keystone-manage bootstrap --bootstrap-password ADMIN_PASS \
--bootstrap-admin-url http://controller:35357/v3/ \
--bootstrap-internal-url http://controller:5000/v3/ \
--bootstrap-public-url http://controller:5000/v3/ \
--bootstrap-region-id RegionOne
Replace ADMIN_PASS with a suitable password for an administrative user.
22 Identity service
Install Guide (Release Version: 15.0.0)
Configure the Apache HTTP server
1. Edit the /etc/httpd/conf/httpd.conf file and configure the ServerName option to reference the
controller node:
ServerName controller
2. Create a link to the /usr/share/keystone/wsgi-keystone.conf file:
#ln -s /usr/share/keystone/wsgi-keystone.conf /etc/httpd/conf.d/
Finalize the installation
1. Start the Apache HTTP service and configure it to start when the system boots:
#systemctl enable httpd.service
#systemctl start httpd.service
2. Configure the administrative account
$export OS_USERNAME=admin
$export OS_PASSWORD=ADMIN_PASS
$export OS_PROJECT_NAME=admin
$export OS_USER_DOMAIN_NAME=Default
$export OS_PROJECT_DOMAIN_NAME=Default
$export OS_AUTH_URL=http://controller:35357/v3
$export OS_IDENTITY_API_VERSION=3
Replace ADMIN_PASS with the password used in the keystone-manage bootstrap command in
keystone-install-configure.
Create a domain, projects, users, and roles
The Identity service provides authentication services for each OpenStack service. The authentication service
uses a combination of domains,projects,users, and roles.
1. This guide uses a service project that contains a unique user for each service that you add to your envi-
ronment. Create the service project:
$openstack project create --domain default \
--description "Service Project" service
+-------------+----------------------------------+
| Field | Value |
+-------------+----------------------------------+
| description | Service Project |
| domain_id | default |
| enabled | True |
| id | 24ac7f19cd944f4cba1d77469b2a73ed |
| is_domain | False |
| name | service |
| parent_id | default |
+-------------+----------------------------------+
Identity service 23
Install Guide (Release Version: 15.0.0)
2. Regular (non-admin) tasks should use an unprivileged project and user. As an example, this guide creates
the demo project and user.
Create the demo project:
$openstack project create --domain default \
--description "Demo Project" demo
+-------------+----------------------------------+
| Field | Value |
+-------------+----------------------------------+
| description | Demo Project |
| domain_id | default |
| enabled | True |
| id | 231ad6e7ebba47d6a1e57e1cc07ae446 |
| is_domain | False |
| name | demo |
| parent_id | default |
+-------------+----------------------------------+
Note: Do not repeat this step when creating additional users for this project.
Create the demo user:
$openstack user create --domain default \
--password-prompt demo
User Password:
Repeat User Password:
+---------------------+----------------------------------+
| Field | Value |
+---------------------+----------------------------------+
| domain_id | default |
| enabled | True |
| id | aeda23aa78f44e859900e22c24817832 |
| name | demo |
| options | {} |
| password_expires_at | None |
+---------------------+----------------------------------+
Create the user role:
$openstack role create user
+-----------+----------------------------------+
| Field | Value |
+-----------+----------------------------------+
| domain_id | None |
| id | 997ce8d05fc143ac97d83fdfb5998552 |
| name | user |
+-----------+----------------------------------+
Add the user role to the demo user of the demo project:
$openstack role add --project demo --user demo user
24 Identity service
Install Guide (Release Version: 15.0.0)
Note: This command provides no output.
Note: You can repeat this procedure to create additional projects and users.
Verify operation
Verify operation of the Identity service before installing other services.
Note: Perform these commands on the controller node.
1. For security reasons, disable the temporary authentication token mechanism:
Edit the /etc/keystone/keystone-paste.ini file and remove admin_token_auth from the
[pipeline:public_api],[pipeline:admin_api], and [pipeline:api_v3] sections.
2. Unset the temporary OS_AUTH_URL and OS_PASSWORD environment variable:
$unset OS_AUTH_URL OS_PASSWORD
3. As the admin user, request an authentication token:
$openstack --os-auth-url http://controller:35357/v3 \
--os-project-domain-name default --os-user-domain-name default \
--os-project-name admin --os-username admin token issue
Password:
+------------+-----------------------------------------------------------------+
| Field | Value |
+------------+-----------------------------------------------------------------+
| expires | 2016-02-12T20:14:07.056119Z |
| id | gAAAAABWvi7_B8kKQD9wdXac8MoZiQldmjEO643d-e_j-XXq9AmIegIbA7UHGPv |
| | atnN21qtOMjCFWX7BReJEQnVOAj3nclRQgAYRsfSU_MrsuWb4EDtnjU7HEpoBb4 |
| | o6ozsA_NmFWEpLeKy0uNn_WeKbAhYygrsmQGA49dclHVnz-OMVLiyM9ws |
| project_id | 343d245e850143a096806dfaefa9afdc |
| user_id | ac3377633149401296f6c0d92d79dc16 |
+------------+-----------------------------------------------------------------+
Note: This command uses the password for the admin user.
4. As the demo user, request an authentication token:
$openstack --os-auth-url http://controller:5000/v3 \
--os-project-domain-name default --os-user-domain-name default \
--os-project-name demo --os-username demo token issue
Password:
+------------+-----------------------------------------------------------------+
| Field | Value |
+------------+-----------------------------------------------------------------+
Identity service 25
Install Guide (Release Version: 15.0.0)
| expires | 2016-02-12T20:15:39.014479Z |
| id | gAAAAABWvi9bsh7vkiby5BpCCnc-JkbGhm9wH3fabS_cY7uabOubesi-Me6IGWW |
| | yQqNegDDZ5jw7grI26vvgy1J5nCVwZ_zFRqPiz_qhbq29mgbQLglbkq6FQvzBRQ |
| | JcOzq3uwhzNxszJWmzGC7rJE_H0A_a3UFhqv8M4zMRYSbS2YF0MyFmp_U |
| project_id | ed0b60bf607743088218b0a533d5943f |
| user_id | 58126687cbcc4888bfa9ab73a2256f27 |
+------------+-----------------------------------------------------------------+
Note: This command uses the password for the demo user and API port 5000 which only allows regular
(non-admin) access to the Identity service API.
Create OpenStack client environment scripts
The previous section used a combination of environment variables and command options to interact with the
Identity service via the openstack client. To increase efficiency of client operations, OpenStack supports
simple client environment scripts also known as OpenRC files. These scripts typically contain common options
for all clients, but also support unique options. For more information, see the OpenStack End User Guide.
Creating the scripts
Create client environment scripts for the admin and demo projects and users. Future portions of this guide
reference these scripts to load appropriate credentials for client operations.
Note: The paths of the client environment scripts are unrestricted. For convenience, you can place the scripts
in any location, however ensure that they are accessible.
1. Create and edit the admin-openrc file and add the following content:
Note: The OpenStack client also supports using a clouds.yaml file. For more information, see the
os-client-config.
export OS_PROJECT_DOMAIN_NAME=Default
export OS_USER_DOMAIN_NAME=Default
export OS_PROJECT_NAME=admin
export OS_USERNAME=admin
export OS_PASSWORD=ADMIN_PASS
export OS_AUTH_URL=http://controller:35357/v3
export OS_IDENTITY_API_VERSION=3
export OS_IMAGE_API_VERSION=2
Replace ADMIN_PASS with the password you chose for the admin user in the Identity service.
2. Create and edit the demo-openrc file and add the following content:
export OS_PROJECT_DOMAIN_NAME=Default
export OS_USER_DOMAIN_NAME=Default
export OS_PROJECT_NAME=demo
export OS_USERNAME=demo
26 Identity service
Install Guide (Release Version: 15.0.0)
export OS_PASSWORD=DEMO_PASS
export OS_AUTH_URL=http://controller:5000/v3
export OS_IDENTITY_API_VERSION=3
export OS_IMAGE_API_VERSION=2
Replace DEMO_PASS with the password you chose for the demo user in the Identity service.
Using the scripts
To run clients as a specific project and user, you can simply load the associated client environment script prior
to running them. For example:
1. Load the admin-openrc file to populate environment variables with the location of the Identity service
and the admin project and user credentials:
$. admin-openrc
2. Request an authentication token:
$openstack token issue
+------------+-----------------------------------------------------------------+
| Field | Value |
+------------+-----------------------------------------------------------------+
| expires | 2016-02-12T20:44:35.659723Z |
| id | gAAAAABWvjYj-Zjfg8WXFaQnUd1DMYTBVrKw4h3fIagi5NoEmh21U72SrRv2trl |
| | JWFYhLi2_uPR31Igf6A8mH2Rw9kv_bxNo1jbLNPLGzW_u5FC7InFqx0yYtTwa1e |
| | eq2b0f6-18KZyQhs7F3teAta143kJEWuNEYET-y7u29y0be1_64KYkM7E |
| project_id | 343d245e850143a096806dfaefa9afdc |
| user_id | ac3377633149401296f6c0d92d79dc16 |
+------------+-----------------------------------------------------------------+
Image service
Image service overview
The Image service (glance) enables users to discover, register, and retrieve virtual machine images. It offers
aREST API that enables you to query virtual machine image metadata and retrieve an actual image. You can
store virtual machine images made available through the Image service in a variety of locations, from simple
file systems to object-storage systems like OpenStack Object Storage.
Important: For simplicity, this guide describes configuring the Image service to use the file back end, which
uploads and stores in a directory on the controller node hosting the Image service. By default, this directory is
/var/lib/glance/images/.
Before you proceed, ensure that the controller node has at least several gigabytes of space available in this
directory. Keep in mind that since the file back end is often local to a controller node, it is not typically
suitable for a multi-node glance deployment.
For information on requirements for other back ends, see Configuration Reference.
Image service 27
Install Guide (Release Version: 15.0.0)
The OpenStack Image service is central to Infrastructure-as-a-Service (IaaS) as shown in
get_started_conceptual_architecture. It accepts API requests for disk or server images, and metadata
definitions from end users or OpenStack Compute components. It also supports the storage of disk or server
images on various repository types, including OpenStack Object Storage.
A number of periodic processes run on the OpenStack Image service to support caching. Replication services
ensure consistency and availability through the cluster. Other periodic processes include auditors, updaters, and
reapers.
The OpenStack Image service includes the following components:
glance-api Accepts Image API calls for image discovery, retrieval, and storage.
glance-registry Stores, processes, and retrieves metadata about images. Metadata includes items such as size
and type.
Warning: The registry is a private internal service meant for use by OpenStack Image service. Do
not expose this service to users.
Database Stores image metadata and you can choose your database depending on your preference. Most
deployments use MySQL or SQLite.
Storage repository for image files Various repository types are supported including normal file systems (or
any filesystem mounted on the glance-api controller node), Object Storage, RADOS block devices,
VMware datastore, and HTTP. Note that some repositories will only support read-only usage.
Metadata definition service A common API for vendors, admins, services, and users to meaningfully define
their own custom metadata. This metadata can be used on different types of resources like images,
artifacts, volumes, flavors, and aggregates. A definition includes the new property’s key, description,
constraints, and the resource types which it can be associated with.
Install and configure
This section describes how to install and configure the Image service, code-named glance, on the controller
node. For simplicity, this configuration stores images on the local file system.
Prerequisites
Before you install and configure the Image service, you must create a database, service credentials, and API
endpoints.
1. To create the database, complete these steps:
Use the database access client to connect to the database server as the root user:
$mysql -u root -p
Create the glance database:
MariaDB [(none)]> CREATE DATABASE glance;
Grant proper access to the glance database:
28 Image service
Install Guide (Release Version: 15.0.0)
MariaDB [(none)]> GRANT ALL PRIVILEGES ON glance.* TO 'glance'@'localhost' \
IDENTIFIED BY 'GLANCE_DBPASS';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON glance.* TO 'glance'@'%' \
IDENTIFIED BY 'GLANCE_DBPASS';
Replace GLANCE_DBPASS with a suitable password.
Exit the database access client.
2. Source the admin credentials to gain access to admin-only CLI commands:
$. admin-openrc
3. To create the service credentials, complete these steps:
Create the glance user:
$openstack user create --domain default --password-prompt glance
User Password:
Repeat User Password:
+---------------------+----------------------------------+
| Field | Value |
+---------------------+----------------------------------+
| domain_id | default |
| enabled | True |
| id | 3f4e777c4062483ab8d9edd7dff829df |
| name | glance |
| options | {} |
| password_expires_at | None |
+---------------------+----------------------------------+
Add the admin role to the glance user and service project:
$openstack role add --project service --user glance admin
Note: This command provides no output.
Create the glance service entity:
$openstack service create --name glance \
--description "OpenStack Image" image
+-------------+----------------------------------+
| Field | Value |
+-------------+----------------------------------+
| description | OpenStack Image |
| enabled | True |
| id | 8c2c7f1b9b5049ea9e63757b5533e6d2 |
| name | glance |
| type | image |
+-------------+----------------------------------+
4. Create the Image service API endpoints:
Image service 29
Install Guide (Release Version: 15.0.0)
$openstack endpoint create --region RegionOne \
image public http://controller:9292
+--------------+----------------------------------+
| Field | Value |
+--------------+----------------------------------+
| enabled | True |
| id | 340be3625e9b4239a6415d034e98aace |
| interface | public |
| region | RegionOne |
| region_id | RegionOne |
| service_id | 8c2c7f1b9b5049ea9e63757b5533e6d2 |
| service_name | glance |
| service_type | image |
| url | http://controller:9292 |
+--------------+----------------------------------+
$openstack endpoint create --region RegionOne \
image internal http://controller:9292
+--------------+----------------------------------+
| Field | Value |
+--------------+----------------------------------+
| enabled | True |
| id | a6e4b153c2ae4c919eccfdbb7dceb5d2 |
| interface | internal |
| region | RegionOne |
| region_id | RegionOne |
| service_id | 8c2c7f1b9b5049ea9e63757b5533e6d2 |
| service_name | glance |
| service_type | image |
| url | http://controller:9292 |
+--------------+----------------------------------+
$openstack endpoint create --region RegionOne \
image admin http://controller:9292
+--------------+----------------------------------+
| Field | Value |
+--------------+----------------------------------+
| enabled | True |
| id | 0c37ed58103f4300a84ff125a539032d |
| interface | admin |
| region | RegionOne |
| region_id | RegionOne |
| service_id | 8c2c7f1b9b5049ea9e63757b5533e6d2 |
| service_name | glance |
| service_type | image |
| url | http://controller:9292 |
+--------------+----------------------------------+
Install and configure components
30 Image service
Install Guide (Release Version: 15.0.0)
Note: Default configuration files vary by distribution. You might need to add these sections and options rather
than modifying existing sections and options. Also, an ellipsis (...) in the configuration snippets indicates
potential default configuration options that you should retain.
1. Install the packages:
#yum install openstack-glance
2. Edit the /etc/glance/glance-api.conf file and complete the following actions:
In the [database] section, configure database access:
[database]
# ...
connection =mysql+pymysql://glance:GLANCE_DBPASS@controller/glance
Replace GLANCE_DBPASS with the password you chose for the Image service database.
In the [keystone_authtoken] and [paste_deploy] sections, configure Identity service access:
[keystone_authtoken]
# ...
auth_uri =http://controller:5000
auth_url =http://controller:35357
memcached_servers =controller:11211
auth_type =password
project_domain_name =default
user_domain_name =default
project_name =service
username =glance
password =GLANCE_PASS
[paste_deploy]
# ...
flavor =keystone
Replace GLANCE_PASS with the password you chose for the glance user in the Identity service.
Note: Comment out or remove any other options in the [keystone_authtoken] section.
In the [glance_store] section, configure the local file system store and location of image files:
[glance_store]
# ...
stores =file,http
default_store =file
filesystem_store_datadir =/var/lib/glance/images/
3. Edit the /etc/glance/glance-registry.conf file and complete the following actions:
In the [database] section, configure database access:
[database]
# ...
connection =mysql+pymysql://glance:GLANCE_DBPASS@controller/glance
Image service 31
Install Guide (Release Version: 15.0.0)
Replace GLANCE_DBPASS with the password you chose for the Image service database.
In the [keystone_authtoken] and [paste_deploy] sections, configure Identity service access:
[keystone_authtoken]
# ...
auth_uri =http://controller:5000
auth_url =http://controller:35357
memcached_servers =controller:11211
auth_type =password
project_domain_name =default
user_domain_name =default
project_name =service
username =glance
password =GLANCE_PASS
[paste_deploy]
# ...
flavor =keystone
Replace GLANCE_PASS with the password you chose for the glance user in the Identity service.
Note: Comment out or remove any other options in the [keystone_authtoken] section.
4. Populate the Image service database:
#su -s /bin/sh -c "glance-manage db_sync" glance
Note: Ignore any deprecation messages in this output.
Finalize installation
Start the Image services and configure them to start when the system boots:
#systemctl enable openstack-glance-api.service \
openstack-glance-registry.service
#systemctl start openstack-glance-api.service \
openstack-glance-registry.service
Verify operation
Verify operation of the Image service using CirrOS, a small Linux image that helps you test your OpenStack
deployment.
For more information about how to download and build images, see OpenStack Virtual Machine Image Guide.
For information about how to manage images, see the OpenStack End User Guide.
Note: Perform these commands on the controller node.
32 Image service
Install Guide (Release Version: 15.0.0)
1. Source the admin credentials to gain access to admin-only CLI commands:
$. admin-openrc
2. Download the source image:
$wget http://download.cirros-cloud.net/0.3.5/cirros-0.3.5-x86_64-disk.img
Note: Install wget if your distribution does not include it.
3. Upload the image to the Image service using the QCOW2 disk format, bare container format, and public
visibility so all projects can access it:
$openstack image create "cirros" \
--file cirros-0.3.5-x86_64-disk.img \
--disk-format qcow2 --container-format bare \
--public
+------------------+------------------------------------------------------+
| Field | Value |
+------------------+------------------------------------------------------+
| checksum | 133eae9fb1c98f45894a4e60d8736619 |
| container_format | bare |
| created_at | 2015-03-26T16:52:10Z |
| disk_format | qcow2 |
| file | /v2/images/cc5c6982-4910-471e-b864-1098015901b5/file |
| id | cc5c6982-4910-471e-b864-1098015901b5 |
| min_disk | 0 |
| min_ram | 0 |
| name | cirros |
| owner | ae7a98326b9c455588edd2656d723b9d |
| protected | False |
| schema | /v2/schemas/image |
| size | 13200896 |
| status | active |
| tags | |
| updated_at | 2015-03-26T16:52:10Z |
| virtual_size | None |
| visibility | public |
+------------------+------------------------------------------------------+
For information about the openstack image create parameters, see Create or update an image
(glance) in the OpenStack User Guide.
For information about disk and container formats for images, see Disk and container formats for images
in the OpenStack Virtual Machine Image Guide.
Note: OpenStack generates IDs dynamically, so you will see different values in the example command
output.
4. Confirm upload of the image and validate attributes:
Image service 33
Install Guide (Release Version: 15.0.0)
$openstack image list
+--------------------------------------+--------+--------+
| ID | Name | Status |
+--------------------------------------+--------+--------+
| 38047887-61a7-41ea-9b49-27987d5e8bb9 | cirros | active |
+--------------------------------------+--------+--------+
Compute service
Compute service overview
Use OpenStack Compute to host and manage cloud computing systems. OpenStack Compute is a major part
of an Infrastructure-as-a-Service (IaaS) system. The main modules are implemented in Python.
OpenStack Compute interacts with OpenStack Identity for authentication; OpenStack Image service for disk
and server images; and OpenStack Dashboard for the user and administrative interface. Image access is limited
by projects, and by users; quotas are limited per project (the number of instances, for example). OpenStack
Compute can scale horizontally on standard hardware, and download images to launch instances.
OpenStack Compute consists of the following areas and their components:
nova-api service Accepts and responds to end user compute API calls. The service supports the OpenStack
Compute API, the Amazon EC2 API, and a special Admin API for privileged users to perform admin-
istrative actions. It enforces some policies and initiates most orchestration activities, such as running an
instance.
nova-api-metadata service Accepts metadata requests from instances. The nova-api-metadata service
is generally used when you run in multi-host mode with nova-network installations. For details, see
Metadata service in the OpenStack Administrator Guide.
nova-compute service A worker daemon that creates and terminates virtual machine instances through hy-
pervisor APIs. For example:
XenAPI for XenServer/XCP
libvirt for KVM or QEMU
VMwareAPI for VMware
Processing is fairly complex. Basically, the daemon accepts actions from the queue and performs a series
of system commands such as launching a KVM instance and updating its state in the database.
nova-placement-api service Tracks the inventory and usage of each provider. For details, see Placement
API.
nova-scheduler service Takes a virtual machine instance request from the queue and determines on which
compute server host it runs.
nova-conductor module Mediates interactions between the nova-compute service and the database. It
eliminates direct accesses to the cloud database made by the nova-compute service. The nova-
conductor module scales horizontally. However, do not deploy it on nodes where the nova-compute
service runs. For more information, see Configuration Reference Guide.
nova-cert module A server daemon that serves the Nova Cert service for X509 certificates. Used to generate
certificates for euca-bundle-image. Only needed for the EC2 API.
34 Compute service
Install Guide (Release Version: 15.0.0)
nova-consoleauth daemon Authorizes tokens for users that console proxies provide. See nova-
novncproxy and nova-xvpvncproxy. This service must be running for console proxies to work. You
can run proxies of either type against a single nova-consoleauth service in a cluster configuration. For
information, see About nova-consoleauth.
nova-novncproxy daemon Provides a proxy for accessing running instances through a VNC connection.
Supports browser-based novnc clients.
nova-spicehtml5proxy daemon Provides a proxy for accessing running instances through a SPICE connec-
tion. Supports browser-based HTML5 client.
nova-xvpvncproxy daemon Provides a proxy for accessing running instances through a VNC connection.
Supports an OpenStack-specific Java client.
The queue A central hub for passing messages between daemons. Usually implemented with RabbitMQ, also
can be implemented with another AMQP message queue, such as ZeroMQ.
SQL database Stores most build-time and run-time states for a cloud infrastructure, including:
Available instance types
Instances in use
Available networks
• Projects
Theoretically, OpenStack Compute can support any database that SQLAlchemy supports. Common
databases are SQLite3 for test and development work, MySQL, MariaDB, and PostgreSQL.
Install and configure controller node
This section describes how to install and configure the Compute service, code-named nova, on the controller
node.
Prerequisites
Before you install and configure the Compute service, you must create databases, service credentials, and API
endpoints.
1. To create the databases, complete these steps:
Use the database access client to connect to the database server as the root user:
$mysql -u root -p
Create the nova_api,nova, and nova_cell0 databases:
MariaDB [(none)]> CREATE DATABASE nova_api;
MariaDB [(none)]> CREATE DATABASE nova;
MariaDB [(none)]> CREATE DATABASE nova_cell0;
Grant proper access to the databases:
MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova_api.* TO 'nova'@'localhost' \
IDENTIFIED BY 'NOVA_DBPASS';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova_api.* TO 'nova'@'%' \
Compute service 35
Install Guide (Release Version: 15.0.0)
IDENTIFIED BY 'NOVA_DBPASS';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova.* TO 'nova'@'localhost' \
IDENTIFIED BY 'NOVA_DBPASS';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova.* TO 'nova'@'%' \
IDENTIFIED BY 'NOVA_DBPASS';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova_cell0.* TO 'nova'@'localhost' \
IDENTIFIED BY 'NOVA_DBPASS';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova_cell0.* TO 'nova'@'%' \
IDENTIFIED BY 'NOVA_DBPASS';
Replace NOVA_DBPASS with a suitable password.
Exit the database access client.
2. Source the admin credentials to gain access to admin-only CLI commands:
$. admin-openrc
3. Create the Compute service credentials:
Create the nova user:
$openstack user create --domain default --password-prompt nova
User Password:
Repeat User Password:
+---------------------+----------------------------------+
| Field | Value |
+---------------------+----------------------------------+
| domain_id | default |
| enabled | True |
| id | 8a7dbf5279404537b1c7b86c033620fe |
| name | nova |
| options | {} |
| password_expires_at | None |
+---------------------+----------------------------------+
Add the admin role to the nova user:
$openstack role add --project service --user nova admin
Note: This command provides no output.
Create the nova service entity:
$openstack service create --name nova \
--description "OpenStack Compute" compute
+-------------+----------------------------------+
| Field | Value |
+-------------+----------------------------------+
| description | OpenStack Compute |
| enabled | True |
| id | 060d59eac51b4594815603d75a00aba2 |
36 Compute service
Install Guide (Release Version: 15.0.0)
| name | nova |
| type | compute |
+-------------+----------------------------------+
4. Create the Compute API service endpoints:
$openstack endpoint create --region RegionOne \
compute public http://controller:8774/v2.1
+--------------+-------------------------------------------+
| Field | Value |
+--------------+-------------------------------------------+
| enabled | True |
| id | 3c1caa473bfe4390a11e7177894bcc7b |
| interface | public |
| region | RegionOne |
| region_id | RegionOne |
| service_id | 060d59eac51b4594815603d75a00aba2 |
| service_name | nova |
| service_type | compute |
| url | http://controller:8774/v2.1 |
+--------------+-------------------------------------------+
$openstack endpoint create --region RegionOne \
compute internal http://controller:8774/v2.1
+--------------+-------------------------------------------+
| Field | Value |
+--------------+-------------------------------------------+
| enabled | True |
| id | e3c918de680746a586eac1f2d9bc10ab |
| interface | internal |
| region | RegionOne |
| region_id | RegionOne |
| service_id | 060d59eac51b4594815603d75a00aba2 |
| service_name | nova |
| service_type | compute |
| url | http://controller:8774/v2.1 |
+--------------+-------------------------------------------+
$openstack endpoint create --region RegionOne \
compute admin http://controller:8774/v2.1
+--------------+-------------------------------------------+
| Field | Value |
+--------------+-------------------------------------------+
| enabled | True |
| id | 38f7af91666a47cfb97b4dc790b94424 |
| interface | admin |
| region | RegionOne |
| region_id | RegionOne |
| service_id | 060d59eac51b4594815603d75a00aba2 |
| service_name | nova |
| service_type | compute |
| url | http://controller:8774/v2.1 |
+--------------+-------------------------------------------+
Compute service 37
Install Guide (Release Version: 15.0.0)
5. Create a Placement service user using your chosen PLACEMENT_PASS:
$openstack user create --domain default --password-prompt placement
User Password:
Repeat User Password:
+---------------------+----------------------------------+
| Field | Value |
+---------------------+----------------------------------+
| domain_id | default |
| enabled | True |
| id | fa742015a6494a949f67629884fc7ec8 |
| name | placement |
| options | {} |
| password_expires_at | None |
+---------------------+----------------------------------+
6. Add the Placement user to the service project with the admin role:
$openstack role add --project service --user placement admin
Note: This command provides no output.
7. Create the Placement API entry in the service catalog:
$openstack service create --name placement --description "Placement API" placement
+-------------+----------------------------------+
| Field | Value |
+-------------+----------------------------------+
| description | Placement API |
| enabled | True |
| id | 2d1a27022e6e4185b86adac4444c495f |
| name | placement |
| type | placement |
+-------------+----------------------------------+
8. Create the Placement API service endpoints:
$openstack endpoint create --region RegionOne placement public http://controller:8778
+--------------+----------------------------------+
| Field | Value |
+--------------+----------------------------------+
| enabled | True |
| id | 2b1b2637908b4137a9c2e0470487cbc0 |
| interface | public |
| region | RegionOne |
| region_id | RegionOne |
| service_id | 2d1a27022e6e4185b86adac4444c495f |
| service_name | placement |
| service_type | placement |
| url | http://controller:8778 |
+--------------+----------------------------------+
$openstack endpoint create --region RegionOne placement internal http://
,controller:8778
+--------------+----------------------------------+
38 Compute service
Install Guide (Release Version: 15.0.0)
| Field | Value |
+--------------+----------------------------------+
| enabled | True |
| id | 02bcda9a150a4bd7993ff4879df971ab |
| interface | internal |
| region | RegionOne |
| region_id | RegionOne |
| service_id | 2d1a27022e6e4185b86adac4444c495f |
| service_name | placement |
| service_type | placement |
| url | http://controller:8778 |
+--------------+----------------------------------+
$openstack endpoint create --region RegionOne placement admin http://controller:8778
+--------------+----------------------------------+
| Field | Value |
+--------------+----------------------------------+
| enabled | True |
| id | 3d71177b9e0f406f98cbff198d74b182 |
| interface | admin |
| region | RegionOne |
| region_id | RegionOne |
| service_id | 2d1a27022e6e4185b86adac4444c495f |
| service_name | placement |
| service_type | placement |
| url | http://controller:8778 |
+--------------+----------------------------------+
Install and configure components
Note: Default configuration files vary by distribution. You might need to add these sections and options rather
than modifying existing sections and options. Also, an ellipsis (...) in the configuration snippets indicates
potential default configuration options that you should retain.
1. Install the packages:
#yum install openstack-nova-api openstack-nova-conductor \
openstack-nova-console openstack-nova-novncproxy \
openstack-nova-scheduler openstack-nova-placement-api
2. Edit the /etc/nova/nova.conf file and complete the following actions:
In the [DEFAULT] section, enable only the compute and metadata APIs:
[DEFAULT]
# ...
enabled_apis =osapi_compute,metadata
In the [api_database] and [database] sections, configure database access:
[api_database]
# ...
connection =mysql+pymysql://nova:NOVA_DBPASS@controller/nova_api
Compute service 39
Install Guide (Release Version: 15.0.0)
[database]
# ...
connection =mysql+pymysql://nova:NOVA_DBPASS@controller/nova
Replace NOVA_DBPASS with the password you chose for the Compute databases.
In the [DEFAULT] section, configure RabbitMQ message queue access:
[DEFAULT]
# ...
transport_url =rabbit://openstack:RABBIT_PASS@controller
Replace RABBIT_PASS with the password you chose for the openstack account in RabbitMQ.
In the [api] and [keystone_authtoken] sections, configure Identity service access:
[api]
# ...
auth_strategy =keystone
[keystone_authtoken]
# ...
auth_uri =http://controller:5000
auth_url =http://controller:35357
memcached_servers =controller:11211
auth_type =password
project_domain_name =default
user_domain_name =default
project_name =service
username =nova
password =NOVA_PASS
Replace NOVA_PASS with the password you chose for the nova user in the Identity service.
Note: Comment out or remove any other options in the [keystone_authtoken] section.
In the [DEFAULT] section, configure the my_ip option to use the management interface IP address
of the controller node:
[DEFAULT]
# ...
my_ip =10.0.0.11
In the [DEFAULT] section, enable support for the Networking service:
[DEFAULT]
# ...
use_neutron =True
firewall_driver =nova.virt.firewall.NoopFirewallDriver
Note: By default, Compute uses an internal firewall driver. Since the Networking service includes
a firewall driver, you must disable the Compute firewall driver by using the nova.virt.firewall.
40 Compute service
Install Guide (Release Version: 15.0.0)
NoopFirewallDriver firewall driver.
In the [vnc] section, configure the VNC proxy to use the management interface IP address of the con-
troller node:
[vnc]
enabled =true
# ...
vncserver_listen =$my_ip
vncserver_proxyclient_address =$my_ip
In the [glance] section, configure the location of the Image service API:
[glance]
# ...
api_servers =http://controller:9292
In the [oslo_concurrency] section, configure the lock path:
[oslo_concurrency]
# ...
lock_path =/var/lib/nova/tmp
In the [placement] section, configure the Placement API:
[placement]
# ...
os_region_name =RegionOne
project_domain_name =Default
project_name =service
auth_type =password
user_domain_name =Default
auth_url =http://controller:35357/v3
username =placement
password =PLACEMENT_PASS
Replace PLACEMENT_PASS with the password you choose for the placement user in the Identity service.
Comment out any other options in the [placement] section.
Due to a packaging bug, you must enable access to the Placement API by adding the following configu-
ration to /etc/httpd/conf.d/00-nova-placement-api.conf:
<Directory /usr/bin>
<IfVersion >=2.4>
Require all granted
</IfVersion>
<IfVersion < 2.4>
Order allow,deny
Allow from all
</IfVersion>
</Directory>
Restart the httpd service:
#systemctl restart httpd
Compute service 41
Install Guide (Release Version: 15.0.0)
3. Populate the nova-api database:
#su -s /bin/sh -c "nova-manage api_db sync" nova
Note: Ignore any deprecation messages in this output.
4. Register the cell0 database:
#su -s /bin/sh -c "nova-manage cell_v2 map_cell0" nova
5. Create the cell1 cell:
#su -s /bin/sh -c "nova-manage cell_v2 create_cell --name=cell1 --verbose" nova
109e1d4b-536a-40d0-83c6-5f121b82b650
6. Populate the nova database:
#su -s /bin/sh -c "nova-manage db sync" nova
7. Verify nova cell0 and cell1 are registered correctly:
#nova-manage cell_v2 list_cells
+-------+--------------------------------------+
| Name | UUID |
+-------+--------------------------------------+
| cell1 | 109e1d4b-536a-40d0-83c6-5f121b82b650 |
| cell0 | 00000000-0000-0000-0000-000000000000 |
+-------+--------------------------------------+
Finalize installation
Start the Compute services and configure them to start when the system boots:
#systemctl enable openstack-nova-api.service \
openstack-nova-consoleauth.service openstack-nova-scheduler.service \
openstack-nova-conductor.service openstack-nova-novncproxy.service
#systemctl start openstack-nova-api.service \
openstack-nova-consoleauth.service openstack-nova-scheduler.service \
openstack-nova-conductor.service openstack-nova-novncproxy.service
Install and configure a compute node
This section describes how to install and configure the Compute service on a compute node. The service
supports several hypervisors to deploy instances or VMs. For simplicity, this configuration uses the QEMU
hypervisor with the KVM extension on compute nodes that support hardware acceleration for virtual machines.
On legacy hardware, this configuration uses the generic QEMU hypervisor. You can follow these instructions
with minor modifications to horizontally scale your environment with additional compute nodes.
Note: This section assumes that you are following the instructions in this guide step-by-step to configure the
first compute node. If you want to configure additional compute nodes, prepare them in a similar fashion to
42 Compute service
Install Guide (Release Version: 15.0.0)
the first compute node in the example architectures section. Each additional compute node requires a unique
IP address.
Install and configure components
Note: Default configuration files vary by distribution. You might need to add these sections and options rather
than modifying existing sections and options. Also, an ellipsis (...) in the configuration snippets indicates
potential default configuration options that you should retain.
1. Install the packages:
#yum install openstack-nova-compute
2. Edit the /etc/nova/nova.conf file and complete the following actions:
In the [DEFAULT] section, enable only the compute and metadata APIs:
[DEFAULT]
# ...
enabled_apis =osapi_compute,metadata
In the [DEFAULT] section, configure RabbitMQ message queue access:
[DEFAULT]
# ...
transport_url =rabbit://openstack:RABBIT_PASS@controller
Replace RABBIT_PASS with the password you chose for the openstack account in RabbitMQ.
In the [api] and [keystone_authtoken] sections, configure Identity service access:
[api]
# ...
auth_strategy =keystone
[keystone_authtoken]
# ...
auth_uri =http://controller:5000
auth_url =http://controller:35357
memcached_servers =controller:11211
auth_type =password
project_domain_name =default
user_domain_name =default
project_name =service
username =nova
password =NOVA_PASS
Replace NOVA_PASS with the password you chose for the nova user in the Identity service.
Note: Comment out or remove any other options in the [keystone_authtoken] section.
Compute service 43
Install Guide (Release Version: 15.0.0)
In the [DEFAULT] section, configure the my_ip option:
[DEFAULT]
# ...
my_ip =MANAGEMENT_INTERFACE_IP_ADDRESS
Replace MANAGEMENT_INTERFACE_IP_ADDRESS with the IP address of the management network
interface on your compute node, typically 10.0.0.31 for the first node in the example architecture.
In the [DEFAULT] section, enable support for the Networking service:
[DEFAULT]
# ...
use_neutron =True
firewall_driver =nova.virt.firewall.NoopFirewallDriver
Note: By default, Compute uses an internal firewall service. Since Networking includes a fire-
wall service, you must disable the Compute firewall service by using the nova.virt.firewall.
NoopFirewallDriver firewall driver.
In the [vnc] section, enable and configure remote console access:
[vnc]
# ...
enabled =True
vncserver_listen =0.0.0.0
vncserver_proxyclient_address =$my_ip
novncproxy_base_url =http://controller:6080/vnc_auto.html
The server component listens on all IP addresses and the proxy component only listens on the
management interface IP address of the compute node. The base URL indicates the location where
you can use a web browser to access remote consoles of instances on this compute node.
Note: If the web browser to access remote consoles resides on a host that cannot resolve the
controller hostname, you must replace controller with the management interface IP address
of the controller node.
In the [glance] section, configure the location of the Image service API:
[glance]
# ...
api_servers =http://controller:9292
In the [oslo_concurrency] section, configure the lock path:
[oslo_concurrency]
# ...
lock_path =/var/lib/nova/tmp
In the [placement] section, configure the Placement API:
[placement]
# ...
44 Compute service
Install Guide (Release Version: 15.0.0)
os_region_name =RegionOne
project_domain_name =Default
project_name =service
auth_type =password
user_domain_name =Default
auth_url =http://controller:35357/v3
username =placement
password =PLACEMENT_PASS
Replace PLACEMENT_PASS with the password you choose for the placement user in the Identity
service. Comment out any other options in the [placement] section.
Finalize installation
1. Determine whether your compute node supports hardware acceleration for virtual machines:
$egrep -c '(vmx|svm)' /proc/cpuinfo
If this command returns a value of one or greater, your compute node supports hardware acceleration
which typically requires no additional configuration.
If this command returns a value of zero, your compute node does not support hardware acceleration and
you must configure libvirt to use QEMU instead of KVM.
Edit the [libvirt] section in the /etc/nova/nova.conf file as follows:
[libvirt]
# ...
virt_type =qemu
2. Start the Compute service including its dependencies and configure them to start automatically when the
system boots:
#systemctl enable libvirtd.service openstack-nova-compute.service
#systemctl start libvirtd.service openstack-nova-compute.service
Note: If the nova-compute service fails to start, check /var/log/nova/nova-compute.log. The error
message AMQP server on controller:5672 is unreachable likely indicates that the firewall on the con-
troller node is preventing access to port 5672. Configure the firewall to open port 5672 on the controller node
and restart nova-compute service on the compute node.
Add the compute node to the cell database
Important: Run the following commands on the controller node.
1. Source the admin credentials to enable admin-only CLI commands, then confirm there are compute hosts
in the database:
Compute service 45
Install Guide (Release Version: 15.0.0)
$. admin-openrc
$openstack hypervisor list
+----+---------------------+-----------------+-----------+-------+
| ID | Hypervisor Hostname | Hypervisor Type | Host IP | State |
+----+---------------------+-----------------+-----------+-------+
| 1 | compute1 | QEMU | 10.0.0.31 | up |
+----+---------------------+-----------------+-----------+-------+
2. Discover compute hosts:
#su -s /bin/sh -c "nova-manage cell_v2 discover_hosts --verbose" nova
Found 2 cell mappings.
Skipping cell0 since it does not contain hosts.
Getting compute nodes from cell 'cell1': ad5a5985-a719-4567-98d8-8d148aaae4bc
Found 1 computes in cell: ad5a5985-a719-4567-98d8-8d148aaae4bc
Checking host mapping for compute host 'compute': fe58ddc1-1d65-4f87-9456-bc040dc106b3
Creating host mapping for compute host 'compute': fe58ddc1-1d65-4f87-9456-bc040dc106b3
Note: When you add new compute nodes, you must run nova-manage cell_v2 discover_hosts
on the controller node to register those new compute nodes. Alternatively, you can set an appropriate
interval in /etc/nova/nova.conf:
[scheduler]
discover_hosts_in_cells_interval =300
Verify operation
Verify operation of the Compute service.
Note: Perform these commands on the controller node.
1. Source the admin credentials to gain access to admin-only CLI commands:
$. admin-openrc
2. List service components to verify successful launch and registration of each process:
$openstack compute service list
+----+--------------------+------------+----------+---------+-------+-----------------
,-----------+
| Id | Binary | Host | Zone | Status | State | Updated At
,|
+----+--------------------+------------+----------+---------+-------+-----------------
,-----------+
| 1 | nova-consoleauth | controller | internal | enabled | up | 2016-02-
,09T23:11:15.000000 |
| 2 | nova-scheduler | controller | internal | enabled | up | 2016-02-
,09T23:11:15.000000 |
46 Compute service
Install Guide (Release Version: 15.0.0)
| 3 | nova-conductor | controller | internal | enabled | up | 2016-02-
,09T23:11:16.000000 |
| 4 | nova-compute | compute1 | nova | enabled | up | 2016-02-
,09T23:11:20.000000 |
+----+--------------------+------------+----------+---------+-------+-----------------
,-----------+
Note: This output should indicate three service components enabled on the controller node and one
service component enabled on the compute node.
3. List API endpoints in the Identity service to verify connectivity with the Identity service:
Note: Below endpoints list may differ depending on the installation of OpenStack components.
$openstack catalog list
+-----------+-----------+-----------------------------------------+
| Name | Type | Endpoints |
+-----------+-----------+-----------------------------------------+
| keystone | identity | RegionOne |
| | | public: http://controller:5000/v3/ |
| | | RegionOne |
| | | internal: http://controller:5000/v3/ |
| | | RegionOne |
| | | admin: http://controller:35357/v3/ |
| | | |
| glance | image | RegionOne |
| | | admin: http://controller:9292 |
| | | RegionOne |
| | | public: http://controller:9292 |
| | | RegionOne |
| | | internal: http://controller:9292 |
| | | |
| nova | compute | RegionOne |
| | | admin: http://controller:8774/v2.1 |
| | | RegionOne |
| | | internal: http://controller:8774/v2.1 |
| | | RegionOne |
| | | public: http://controller:8774/v2.1 |
| | | |
| placement | placement | RegionOne |
| | | public: http://controller:8778 |
| | | RegionOne |
| | | admin: http://controller:8778 |
| | | RegionOne |
| | | internal: http://controller:8778 |
| | | |
+-----------+-----------+-----------------------------------------+
Note: Ignore any warnings in this output.
Compute service 47
Install Guide (Release Version: 15.0.0)
4. List images in the Image service to verify connectivity with the Image service:
$openstack image list
+--------------------------------------+-------------+-------------+
| ID | Name | Status |
+--------------------------------------+-------------+-------------+
| 9a76d9f9-9620-4f2e-8c69-6c5691fae163 | cirros | active |
+--------------------------------------+-------------+-------------+
5. Check the cells and placement API are working successfully:
#nova-status upgrade check
+---------------------------+
| Upgrade Check Results |
+---------------------------+
| Check: Cells v2 |
| Result: Success |
| Details: None |
+---------------------------+
| Check: Placement API |
| Result: Success |
| Details: None |
+---------------------------+
| Check: Resource Providers |
| Result: Success |
| Details: None |
+---------------------------+
Networking service
Networking service overview
OpenStack Networking (neutron) allows you to create and attach interface devices managed by other Open-
Stack services to networks. Plug-ins can be implemented to accommodate different networking equipment and
software, providing flexibility to OpenStack architecture and deployment.
It includes the following components:
neutron-server Accepts and routes API requests to the appropriate OpenStack Networking plug-in for action.
OpenStack Networking plug-ins and agents Plug and unplug ports, create networks or subnets, and provide
IP addressing. These plug-ins and agents differ depending on the vendor and technologies used in the
particular cloud. OpenStack Networking ships with plug-ins and agents for Cisco virtual and physical
switches, NEC OpenFlow products, Open vSwitch, Linux bridging, and the VMware NSX product.
The common agents are L3 (layer 3), DHCP (dynamic host IP addressing), and a plug-in agent.
Messaging queue Used by most OpenStack Networking installations to route information between the
neutron-server and various agents. Also acts as a database to store networking state for particular plug-
ins.
OpenStack Networking mainly interacts with OpenStack Compute to provide networks and connectivity for its
instances.
48 Networking service
Install Guide (Release Version: 15.0.0)
Networking (neutron) concepts
OpenStack Networking (neutron) manages all networking facets for the Virtual Networking Infrastructure
(VNI) and the access layer aspects of the Physical Networking Infrastructure (PNI) in your OpenStack en-
vironment. OpenStack Networking enables projects to create advanced virtual network topologies which may
include services such as a firewall, a load balancer, and a virtual private network (VPN).
Networking provides networks, subnets, and routers as object abstractions. Each abstraction has functional-
ity that mimics its physical counterpart: networks contain subnets, and routers route traffic between different
subnets and networks.
Any given Networking set up has at least one external network. Unlike the other networks, the external network
is not merely a virtually defined network. Instead, it represents a view into a slice of the physical, external
network accessible outside the OpenStack installation. IP addresses on the external network are accessible by
anybody physically on the outside network.
In addition to external networks, any Networking set up has one or more internal networks. These software-
defined networks connect directly to the VMs. Only the VMs on any given internal network, or those on subnets
connected through interfaces to a similar router, can access VMs connected to that network directly.
For the outside network to access VMs, and vice versa, routers between the networks are needed. Each router
has one gateway that is connected to an external network and one or more interfaces connected to internal
networks. Like a physical router, subnets can access machines on other subnets that are connected to the same
router, and machines can access the outside network through the gateway for the router.
Additionally, you can allocate IP addresses on external networks to ports on the internal network. Whenever
something is connected to a subnet, that connection is called a port. You can associate external network IP
addresses with ports to VMs. This way, entities on the outside network can access VMs.
Networking also supports security groups. Security groups enable administrators to define firewall rules in
groups. A VM can belong to one or more security groups, and Networking applies the rules in those security
groups to block or unblock ports, port ranges, or traffic types for that VM.
Each plug-in that Networking uses has its own concepts. While not vital to operating the VNI and OpenStack
environment, understanding these concepts can help you set up Networking. All Networking installations use
a core plug-in and a security group plug-in (or just the No-Op security group plug-in). Additionally, Firewall-
as-a-Service (FWaaS) and Load-Balancer-as-a-Service (LBaaS) plug-ins are available.
Install and configure controller node
Prerequisites
Before you configure the OpenStack Networking (neutron) service, you must create a database, service creden-
tials, and API endpoints.
1. To create the database, complete these steps:
Use the database access client to connect to the database server as the root user:
$mysql -u root -p
Create the neutron database:
MariaDB [(none)] CREATE DATABASE neutron;
Networking service 49
Install Guide (Release Version: 15.0.0)
Grant proper access to the neutron database, replacing NEUTRON_DBPASS with a suitable pass-
word:
MariaDB [(none)]> GRANT ALL PRIVILEGES ON neutron.* TO 'neutron'@'localhost' \
IDENTIFIED BY 'NEUTRON_DBPASS';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON neutron.* TO 'neutron'@'%' \
IDENTIFIED BY 'NEUTRON_DBPASS';
Exit the database access client.
2. Source the admin credentials to gain access to admin-only CLI commands:
$. admin-openrc
3. To create the service credentials, complete these steps:
Create the neutron user:
$openstack user create --domain default --password-prompt neutron
User Password:
Repeat User Password:
+---------------------+----------------------------------+
| Field | Value |
+---------------------+----------------------------------+
| domain_id | default |
| enabled | True |
| id | fdb0f541e28141719b6a43c8944bf1fb |
| name | neutron |
| options | {} |
| password_expires_at | None |
+---------------------+----------------------------------+
Add the admin role to the neutron user:
$openstack role add --project service --user neutron admin
Note: This command provides no output.
Create the neutron service entity:
$openstack service create --name neutron \
--description "OpenStack Networking" network
+-------------+----------------------------------+
| Field | Value |
+-------------+----------------------------------+
| description | OpenStack Networking |
| enabled | True |
| id | f71529314dab4a4d8eca427e701d209e |
| name | neutron |
| type | network |
+-------------+----------------------------------+
4. Create the Networking service API endpoints:
50 Networking service
Install Guide (Release Version: 15.0.0)
$openstack endpoint create --region RegionOne \
network public http://controller:9696
+--------------+----------------------------------+
| Field | Value |
+--------------+----------------------------------+
| enabled | True |
| id | 85d80a6d02fc4b7683f611d7fc1493a3 |
| interface | public |
| region | RegionOne |
| region_id | RegionOne |
| service_id | f71529314dab4a4d8eca427e701d209e |
| service_name | neutron |
| service_type | network |
| url | http://controller:9696 |
+--------------+----------------------------------+
$openstack endpoint create --region RegionOne \
network internal http://controller:9696
+--------------+----------------------------------+
| Field | Value |
+--------------+----------------------------------+
| enabled | True |
| id | 09753b537ac74422a68d2d791cf3714f |
| interface | internal |
| region | RegionOne |
| region_id | RegionOne |
| service_id | f71529314dab4a4d8eca427e701d209e |
| service_name | neutron |
| service_type | network |
| url | http://controller:9696 |
+--------------+----------------------------------+
$openstack endpoint create --region RegionOne \
network admin http://controller:9696
+--------------+----------------------------------+
| Field | Value |
+--------------+----------------------------------+
| enabled | True |
| id | 1ee14289c9374dffb5db92a5c112fc4e |
| interface | admin |
| region | RegionOne |
| region_id | RegionOne |
| service_id | f71529314dab4a4d8eca427e701d209e |
| service_name | neutron |
| service_type | network |
| url | http://controller:9696 |
+--------------+----------------------------------+
Configure networking options
You can deploy the Networking service using one of two architectures represented by options 1 and 2.
Option 1 deploys the simplest possible architecture that only supports attaching instances to provider (exter-
Networking service 51
Install Guide (Release Version: 15.0.0)
nal) networks. No self-service (private) networks, routers, or floating IP addresses. Only the admin or other
privileged user can manage provider networks.
Option 2 augments option 1 with layer-3 services that support attaching instances to self-service networks. The
demo or other unprivileged user can manage self-service networks including routers that provide connectiv-
ity between self-service and provider networks. Additionally, floating IP addresses provide connectivity to
instances using self-service networks from external networks such as the Internet.
Self-service networks typically use overlay networks. Overlay network protocols such as VXLAN include
additional headers that increase overhead and decrease space available for the payload or user data. Without
knowledge of the virtual network infrastructure, instances attempt to send packets using the default Ethernet
maximum transmission unit (MTU) of 1500 bytes. The Networking service automatically provides the correct
MTU value to instances via DHCP. However, some cloud images do not use DHCP or ignore the DHCP MTU
option and require configuration using metadata or a script.
Note: Option 2 also supports attaching instances to provider networks.
Choose one of the following networking options to configure services specific to it. Afterwards, return here
and proceed to Configure the metadata agent.
Networking Option 1: Provider networks
Install and configure the Networking components on the controller node.
Install the components
#yum install openstack-neutron openstack-neutron-ml2 \
openstack-neutron-linuxbridge ebtables
Configure the server component
The Networking server component configuration includes the database, authentication mechanism, message
queue, topology change notifications, and plug-in.
Note: Default configuration files vary by distribution. You might need to add these sections and options rather
than modifying existing sections and options. Also, an ellipsis (...) in the configuration snippets indicates
potential default configuration options that you should retain.
Edit the /etc/neutron/neutron.conf file and complete the following actions:
In the [database] section, configure database access:
[database]
# ...
connection =mysql+pymysql://neutron:NEUTRON_DBPASS@controller/neutron
Replace NEUTRON_DBPASS with the password you chose for the database.
52 Networking service
Install Guide (Release Version: 15.0.0)
Note: Comment out or remove any other connection options in the [database] section.
In the [DEFAULT] section, enable the Modular Layer 2 (ML2) plug-in and disable additional plug-
ins:
[DEFAULT]
# ...
core_plugin =ml2
service_plugins =
In the [DEFAULT] section, configure RabbitMQ message queue access:
[DEFAULT]
# ...
transport_url =rabbit://openstack:RABBIT_PASS@controller
Replace RABBIT_PASS with the password you chose for the openstack account in RabbitMQ.
In the [DEFAULT] and [keystone_authtoken] sections, configure Identity service access:
[DEFAULT]
# ...
auth_strategy =keystone
[keystone_authtoken]
# ...
auth_uri =http://controller:5000
auth_url =http://controller:35357
memcached_servers =controller:11211
auth_type =password
project_domain_name =default
user_domain_name =default
project_name =service
username =neutron
password =NEUTRON_PASS
Replace NEUTRON_PASS with the password you chose for the neutron user in the Identity service.
Note: Comment out or remove any other options in the [keystone_authtoken] section.
In the [DEFAULT] and [nova] sections, configure Networking to notify Compute of network topol-
ogy changes:
[DEFAULT]
# ...
notify_nova_on_port_status_changes =true
notify_nova_on_port_data_changes =true
[nova]
# ...
auth_url =http://controller:35357
auth_type =password
project_domain_name =default
user_domain_name =default
Networking service 53
Install Guide (Release Version: 15.0.0)
region_name =RegionOne
project_name =service
username =nova
password =NOVA_PASS
Replace NOVA_PASS with the password you chose for the nova user in the Identity service.
In the [oslo_concurrency] section, configure the lock path:
[oslo_concurrency]
# ...
lock_path =/var/lib/neutron/tmp
Configure the Modular Layer 2 (ML2) plug-in
The ML2 plug-in uses the Linux bridge mechanism to build layer-2 (bridging and switching) virtual networking
infrastructure for instances.
Edit the /etc/neutron/plugins/ml2/ml2_conf.ini file and complete the following actions:
In the [ml2] section, enable flat and VLAN networks:
[ml2]
# ...
type_drivers =flat,vlan
In the [ml2] section, disable self-service networks:
[ml2]
# ...
tenant_network_types =
In the [ml2] section, enable the Linux bridge mechanism:
[ml2]
# ...
mechanism_drivers =linuxbridge
Warning: After you configure the ML2 plug-in, removing values in the type_drivers
option can lead to database inconsistency.
In the [ml2] section, enable the port security extension driver:
[ml2]
# ...
extension_drivers =port_security
In the [ml2_type_flat] section, configure the provider virtual network as a flat network:
[ml2_type_flat]
# ...
flat_networks =provider
54 Networking service
Install Guide (Release Version: 15.0.0)
In the [securitygroup] section, enable ipset to increase efficiency of security group rules:
[securitygroup]
# ...
enable_ipset =true
Configure the Linux bridge agent
The Linux bridge agent builds layer-2 (bridging and switching) virtual networking infrastructure for instances
and handles security groups.
Edit the /etc/neutron/plugins/ml2/linuxbridge_agent.ini file and complete the following ac-
tions:
In the [linux_bridge] section, map the provider virtual network to the provider physical network
interface:
[linux_bridge]
physical_interface_mappings =provider:PROVIDER_INTERFACE_NAME
Replace PROVIDER_INTERFACE_NAME with the name of the underlying provider physical network
interface. See Host networking for more information.
In the [vxlan] section, disable VXLAN overlay networks:
[vxlan]
enable_vxlan =false
In the [securitygroup] section, enable security groups and configure the Linux bridge iptables
firewall driver:
[securitygroup]
# ...
enable_security_group =true
firewall_driver =neutron.agent.linux.iptables_firewall.IptablesFirewallDriver
Configure the DHCP agent
The DHCP agent provides DHCP services for virtual networks.
Edit the /etc/neutron/dhcp_agent.ini file and complete the following actions:
In the [DEFAULT] section, configure the Linux bridge interface driver, Dnsmasq DHCP driver, and
enable isolated metadata so instances on provider networks can access metadata over the network:
[DEFAULT]
# ...
interface_driver =linuxbridge
dhcp_driver =neutron.agent.linux.dhcp.Dnsmasq
enable_isolated_metadata =true
Return to Networking controller node configuration.
Networking service 55
Install Guide (Release Version: 15.0.0)
Networking Option 2: Self-service networks
Install and configure the Networking components on the controller node.
Install the components
#yum install openstack-neutron openstack-neutron-ml2 \
openstack-neutron-linuxbridge ebtables
Configure the server component
Edit the /etc/neutron/neutron.conf file and complete the following actions:
In the [database] section, configure database access:
[database]
# ...
connection =mysql+pymysql://neutron:NEUTRON_DBPASS@controller/neutron
Replace NEUTRON_DBPASS with the password you chose for the database.
Note: Comment out or remove any other connection options in the [database] section.
In the [DEFAULT] section, enable the Modular Layer 2 (ML2) plug-in, router service, and overlap-
ping IP addresses:
[DEFAULT]
# ...
core_plugin =ml2
service_plugins =router
allow_overlapping_ips =true
In the [DEFAULT] section, configure RabbitMQ message queue access:
[DEFAULT]
# ...
transport_url =rabbit://openstack:RABBIT_PASS@controller
Replace RABBIT_PASS with the password you chose for the openstack account in RabbitMQ.
In the [DEFAULT] and [keystone_authtoken] sections, configure Identity service access:
[DEFAULT]
# ...
auth_strategy =keystone
[keystone_authtoken]
# ...
auth_uri =http://controller:5000
auth_url =http://controller:35357
memcached_servers =controller:11211
auth_type =password
56 Networking service
Install Guide (Release Version: 15.0.0)
project_domain_name =default
user_domain_name =default
project_name =service
username =neutron
password =NEUTRON_PASS
Replace NEUTRON_PASS with the password you chose for the neutron user in the Identity service.
Note: Comment out or remove any other options in the [keystone_authtoken] section.
In the [DEFAULT] and [nova] sections, configure Networking to notify Compute of network topol-
ogy changes:
[DEFAULT]
# ...
notify_nova_on_port_status_changes =true
notify_nova_on_port_data_changes =true
[nova]
# ...
auth_url =http://controller:35357
auth_type =password
project_domain_name =default
user_domain_name =default
region_name =RegionOne
project_name =service
username =nova
password =NOVA_PASS
Replace NOVA_PASS with the password you chose for the nova user in the Identity service.
In the [oslo_concurrency] section, configure the lock path:
[oslo_concurrency]
# ...
lock_path =/var/lib/neutron/tmp
Configure the Modular Layer 2 (ML2) plug-in
The ML2 plug-in uses the Linux bridge mechanism to build layer-2 (bridging and switching) virtual networking
infrastructure for instances.
Edit the /etc/neutron/plugins/ml2/ml2_conf.ini file and complete the following actions:
In the [ml2] section, enable flat, VLAN, and VXLAN networks:
[ml2]
# ...
type_drivers =flat,vlan,vxlan
In the [ml2] section, enable VXLAN self-service networks:
Networking service 57
Install Guide (Release Version: 15.0.0)
[ml2]
# ...
tenant_network_types =vxlan
In the [ml2] section, enable the Linux bridge and layer-2 population mechanisms:
[ml2]
# ...
mechanism_drivers =linuxbridge,l2population
Warning: After you configure the ML2 plug-in, removing values in the type_drivers
option can lead to database inconsistency.
Note: The Linux bridge agent only supports VXLAN overlay networks.
In the [ml2] section, enable the port security extension driver:
[ml2]
# ...
extension_drivers =port_security
In the [ml2_type_flat] section, configure the provider virtual network as a flat network:
[ml2_type_flat]
# ...
flat_networks =provider
In the [ml2_type_vxlan] section, configure the VXLAN network identifier range for self-service
networks:
[ml2_type_vxlan]
# ...
vni_ranges =1:1000
In the [securitygroup] section, enable ipset to increase efficiency of security group rules:
[securitygroup]
# ...
enable_ipset =true
Configure the Linux bridge agent
The Linux bridge agent builds layer-2 (bridging and switching) virtual networking infrastructure for instances
and handles security groups.
Edit the /etc/neutron/plugins/ml2/linuxbridge_agent.ini file and complete the following ac-
tions:
In the [linux_bridge] section, map the provider virtual network to the provider physical network
interface:
58 Networking service
Install Guide (Release Version: 15.0.0)
[linux_bridge]
physical_interface_mappings =provider:PROVIDER_INTERFACE_NAME
Replace PROVIDER_INTERFACE_NAME with the name of the underlying provider physical network
interface. See Host networking for more information.
In the [vxlan] section, enable VXLAN overlay networks, configure the IP address of the physical
network interface that handles overlay networks, and enable layer-2 population:
[vxlan]
enable_vxlan =true
local_ip =OVERLAY_INTERFACE_IP_ADDRESS
l2_population =true
Replace OVERLAY_INTERFACE_IP_ADDRESS with the IP address of the underlying physical net-
work interface that handles overlay networks. The example architecture uses the management in-
terface to tunnel traffic to the other nodes. Therefore, replace OVERLAY_INTERFACE_IP_ADDRESS
with the management IP address of the controller node. See Host networking for more information.
In the [securitygroup] section, enable security groups and configure the Linux bridge iptables
firewall driver:
[securitygroup]
# ...
enable_security_group =true
firewall_driver =neutron.agent.linux.iptables_firewall.IptablesFirewallDriver
Configure the layer-3 agent
The Layer-3 (L3) agent provides routing and NAT services for self-service virtual networks.
Edit the /etc/neutron/l3_agent.ini file and complete the following actions:
In the [DEFAULT] section, configure the Linux bridge interface driver and external network bridge:
[DEFAULT]
# ...
interface_driver =linuxbridge
Configure the DHCP agent
The DHCP agent provides DHCP services for virtual networks.
Edit the /etc/neutron/dhcp_agent.ini file and complete the following actions:
In the [DEFAULT] section, configure the Linux bridge interface driver, Dnsmasq DHCP driver, and
enable isolated metadata so instances on provider networks can access metadata over the network:
[DEFAULT]
# ...
interface_driver =linuxbridge
dhcp_driver =neutron.agent.linux.dhcp.Dnsmasq
enable_isolated_metadata =true
Networking service 59
Install Guide (Release Version: 15.0.0)
Return to Networking controller node configuration.
Configure the metadata agent
The metadata agent provides configuration information such as credentials to instances.
Edit the /etc/neutron/metadata_agent.ini file and complete the following actions:
In the [DEFAULT] section, configure the metadata host and shared secret:
[DEFAULT]
# ...
nova_metadata_ip =controller
metadata_proxy_shared_secret =METADATA_SECRET
Replace METADATA_SECRET with a suitable secret for the metadata proxy.
Configure the Compute service to use the Networking service
Edit the /etc/nova/nova.conf file and perform the following actions:
In the [neutron] section, configure access parameters, enable the metadata proxy, and configure
the secret:
[neutron]
# ...
url =http://controller:9696
auth_url =http://controller:35357
auth_type =password
project_domain_name =default
user_domain_name =default
region_name =RegionOne
project_name =service
username =neutron
password =NEUTRON_PASS
service_metadata_proxy =true
metadata_proxy_shared_secret =METADATA_SECRET
Replace NEUTRON_PASS with the password you chose for the neutron user in the Identity service.
Replace METADATA_SECRET with the secret you chose for the metadata proxy.
Finalize installation
1. The Networking service initialization scripts expect a symbolic link /etc/neutron/plugin.ini point-
ing to the ML2 plug-in configuration file, /etc/neutron/plugins/ml2/ml2_conf.ini. If this sym-
bolic link does not exist, create it using the following command:
#ln -s /etc/neutron/plugins/ml2/ml2_conf.ini /etc/neutron/plugin.ini
2. Populate the database:
#su -s /bin/sh -c "neutron-db-manage --config-file /etc/neutron/neutron.conf \
--config-file /etc/neutron/plugins/ml2/ml2_conf.ini upgrade head" neutron
60 Networking service
Install Guide (Release Version: 15.0.0)
Note: Database population occurs later for Networking because the script requires complete server and
plug-in configuration files.
If you receive the following Python exception, Could not parse rfc1738 URL from string, move
the connection option from the [default] section to the [database] section. Then, remove the single
quotes from the value in the neutron.conf file.
3. Restart the Compute API service:
#systemctl restart openstack-nova-api.service
4. Start the Networking services and configure them to start when the system boots.
For both networking options:
#systemctl enable neutron-server.service \
neutron-linuxbridge-agent.service neutron-dhcp-agent.service \
neutron-metadata-agent.service
#systemctl start neutron-server.service \
neutron-linuxbridge-agent.service neutron-dhcp-agent.service \
neutron-metadata-agent.service
For networking option 2, also enable and start the layer-3 service:
#systemctl enable neutron-l3-agent.service
#systemctl start neutron-l3-agent.service
Install and configure compute node
The compute node handles connectivity and security groups for instances.
Install the components
#yum install openstack-neutron-linuxbridge ebtables ipset
Configure the common component
The Networking common component configuration includes the authentication mechanism, message queue,
and plug-in.
Note: Default configuration files vary by distribution. You might need to add these sections and options rather
than modifying existing sections and options. Also, an ellipsis (...) in the configuration snippets indicates
potential default configuration options that you should retain.
Edit the /etc/neutron/neutron.conf file and complete the following actions:
In the [database] section, comment out any connection options because compute nodes do not
directly access the database.
Networking service 61
Install Guide (Release Version: 15.0.0)
In the [DEFAULT] section, configure RabbitMQ message queue access:
[DEFAULT]
# ...
transport_url =rabbit://openstack:RABBIT_PASS@controller
Replace RABBIT_PASS with the password you chose for the openstack account in RabbitMQ.
In the [DEFAULT] and [keystone_authtoken] sections, configure Identity service access:
[DEFAULT]
# ...
auth_strategy =keystone
[keystone_authtoken]
# ...
auth_uri =http://controller:5000
auth_url =http://controller:35357
memcached_servers =controller:11211
auth_type =password
project_domain_name =default
user_domain_name =default
project_name =service
username =neutron
password =NEUTRON_PASS
Replace NEUTRON_PASS with the password you chose for the neutron user in the Identity service.
Note: Comment out or remove any other options in the [keystone_authtoken] section.
In the [oslo_concurrency] section, configure the lock path:
[oslo_concurrency]
# ...
lock_path =/var/lib/neutron/tmp
Configure networking options
Choose the same networking option that you chose for the controller node to configure services specific to it.
Afterwards, return here and proceed to Configure the Compute service to use the Networking service.
Networking Option 1: Provider networks
Configure the Networking components on a compute node.
Configure the Linux bridge agent
The Linux bridge agent builds layer-2 (bridging and switching) virtual networking infrastructure for instances
and handles security groups.
Edit the /etc/neutron/plugins/ml2/linuxbridge_agent.ini file and complete the following ac-
tions:
62 Networking service
Install Guide (Release Version: 15.0.0)
In the [linux_bridge] section, map the provider virtual network to the provider physical network
interface:
[linux_bridge]
physical_interface_mappings =provider:PROVIDER_INTERFACE_NAME
Replace PROVIDER_INTERFACE_NAME with the name of the underlying provider physical network
interface. See Host networking for more information.
In the [vxlan] section, disable VXLAN overlay networks:
[vxlan]
enable_vxlan =false
In the [securitygroup] section, enable security groups and configure the Linux bridge iptables
firewall driver:
[securitygroup]
# ...
enable_security_group =true
firewall_driver =neutron.agent.linux.iptables_firewall.IptablesFirewallDriver
Return to Networking compute node configuration.
Networking Option 2: Self-service networks
Configure the Networking components on a compute node.
Configure the Linux bridge agent
The Linux bridge agent builds layer-2 (bridging and switching) virtual networking infrastructure for instances
and handles security groups.
Edit the /etc/neutron/plugins/ml2/linuxbridge_agent.ini file and complete the following ac-
tions:
In the [linux_bridge] section, map the provider virtual network to the provider physical network
interface:
[linux_bridge]
physical_interface_mappings =provider:PROVIDER_INTERFACE_NAME
Replace PROVIDER_INTERFACE_NAME with the name of the underlying provider physical network
interface. See Host networking for more information.
In the [vxlan] section, enable VXLAN overlay networks, configure the IP address of the physical
network interface that handles overlay networks, and enable layer-2 population:
[vxlan]
enable_vxlan =true
local_ip =OVERLAY_INTERFACE_IP_ADDRESS
l2_population =true
Networking service 63
Install Guide (Release Version: 15.0.0)
Replace OVERLAY_INTERFACE_IP_ADDRESS with the IP address of the underlying physical net-
work interface that handles overlay networks. The example architecture uses the management in-
terface to tunnel traffic to the other nodes. Therefore, replace OVERLAY_INTERFACE_IP_ADDRESS
with the management IP address of the compute node. See Host networking for more information.
In the [securitygroup] section, enable security groups and configure the Linux bridge iptables
firewall driver:
[securitygroup]
# ...
enable_security_group =true
firewall_driver =neutron.agent.linux.iptables_firewall.IptablesFirewallDriver
Return to Networking compute node configuration.
Configure the Compute service to use the Networking service
Edit the /etc/nova/nova.conf file and complete the following actions:
In the [neutron] section, configure access parameters:
[neutron]
# ...
url =http://controller:9696
auth_url =http://controller:35357
auth_type =password
project_domain_name =default
user_domain_name =default
region_name =RegionOne
project_name =service
username =neutron
password =NEUTRON_PASS
Replace NEUTRON_PASS with the password you chose for the neutron user in the Identity service.
Finalize installation
1. Restart the Compute service:
#systemctl restart openstack-nova-compute.service
2. Start the Linux bridge agent and configure it to start when the system boots:
#systemctl enable neutron-linuxbridge-agent.service
#systemctl start neutron-linuxbridge-agent.service
Verify operation
Note: Perform these commands on the controller node.
1. Source the admin credentials to gain access to admin-only CLI commands:
64 Networking service
Install Guide (Release Version: 15.0.0)
$. admin-openrc
2. List loaded extensions to verify successful launch of the neutron-server process:
$openstack extension list --network
+---------------------------+---------------------------+----------------------------+
| Name | Alias | Description |
+---------------------------+---------------------------+----------------------------+
| Default Subnetpools | default-subnetpools | Provides ability to mark |
| | | and use a subnetpool as |
| | | the default |
| Availability Zone | availability_zone | The availability zone |
| | | extension. |
| Network Availability Zone | network_availability_zone | Availability zone support |
| | | for network. |
| Port Binding | binding | Expose port bindings of a |
| | | virtual port to external |
| | | application |
| agent | agent | The agent management |
| | | extension. |
| Subnet Allocation | subnet_allocation | Enables allocation of |
| | | subnets from a subnet pool |
| DHCP Agent Scheduler | dhcp_agent_scheduler | Schedule networks among |
| | | dhcp agents |
| Tag support | tag | Enables to set tag on |
| | | resources. |
| Neutron external network | external-net | Adds external network |
| | | attribute to network |
| | | resource. |
| Neutron Service Flavors | flavors | Flavor specification for |
| | | Neutron advanced services |
| Network MTU | net-mtu | Provides MTU attribute for |
| | | a network resource. |
| Network IP Availability | network-ip-availability | Provides IP availability |
| | | data for each network and |
| | | subnet. |
| Quota management support | quotas | Expose functions for |
| | | quotas management per |
| | | tenant |
| Provider Network | provider | Expose mapping of virtual |
| | | networks to physical |
| | | networks |
| Multi Provider Network | multi-provider | Expose mapping of virtual |
| | | networks to multiple |
| | | physical networks |
| Address scope | address-scope | Address scopes extension. |
| Subnet service types | subnet-service-types | Provides ability to set |
| | | the subnet service_types |
| | | field |
| Resource timestamps | standard-attr-timestamp | Adds created_at and |
| | | updated_at fields to all |
| | | Neutron resources that |
| | | have Neutron standard |
| | | attributes. |
| Neutron Service Type | service-type | API for retrieving service |
| Management | | providers for Neutron |
Networking service 65
Install Guide (Release Version: 15.0.0)
| | | advanced services |
| Tag support for | tag-ext | Extends tag support to |
| resources: subnet, | | more L2 and L3 resources. |
| subnetpool, port, router | | |
| Neutron Extra DHCP opts | extra_dhcp_opt | Extra options |
| | | configuration for DHCP. |
| | | For example PXE boot |
| | | options to DHCP clients |
| | | can be specified (e.g. |
| | | tftp-server, server-ip- |
| | | address, bootfile-name) |
| Resource revision numbers | standard-attr-revisions | This extension will |
| | | display the revision |
| | | number of neutron |
| | | resources. |
| Pagination support | pagination | Extension that indicates |
| | | that pagination is |
| | | enabled. |
| Sorting support | sorting | Extension that indicates |
| | | that sorting is enabled. |
| security-group | security-group | The security groups |
| | | extension. |
| RBAC Policies | rbac-policies | Allows creation and |
| | | modification of policies |
| | | that control tenant access |
| | | to resources. |
| standard-attr-description | standard-attr-description | Extension to add |
| | | descriptions to standard |
| | | attributes |
| Port Security | port-security | Provides port security |
| Allowed Address Pairs | allowed-address-pairs | Provides allowed address |
| | | pairs |
| project_id field enabled | project-id | Extension that indicates |
| | | that project_id field is |
| | | enabled. |
+---------------------------+---------------------------+----------------------------+
Note: Actual output may differ slightly from this example.
Use the verification section for the networking option that you chose to deploy.
Networking Option 1: Provider networks
List agents to verify successful launch of the neutron agents:
$openstack network agent list
+--------------------------------------+--------------------+------------+------------
,-------+-------+-------+---------------------------+
| ID | Agent Type | Host |
,Availability Zone | Alive | State | Binary |
+--------------------------------------+--------------------+------------+------------
,-------+-------+-------+---------------------------+
| 0400c2f6-4d3b-44bc-89fa-99093432f3bf | Metadata agent | controller | None
,| True | UP | neutron-metadata-agent |
66 Networking service
Install Guide (Release Version: 15.0.0)
| 83cf853d-a2f2-450a-99d7-e9c6fc08f4c3 | DHCP agent | controller | nova
,| True | UP | neutron-dhcp-agent |
| ec302e51-6101-43cf-9f19-88a78613cbee | Linux bridge agent | compute | None
,| True | UP | neutron-linuxbridge-agent |
| fcb9bc6e-22b1-43bc-9054-272dd517d025 | Linux bridge agent | controller | None
,| True | UP | neutron-linuxbridge-agent |
+--------------------------------------+--------------------+------------+------------
,-------+-------+-------+---------------------------+
The output should indicate three agents on the controller node and one agent on each compute node.
Networking Option 2: Self-service networks
List agents to verify successful launch of the neutron agents:
$openstack network agent list
+--------------------------------------+--------------------+------------+------------
,-------+-------+-------+---------------------------+
| ID | Agent Type | Host |
,Availability Zone | Alive | State | Binary |
+--------------------------------------+--------------------+------------+------------
,-------+-------+-------+---------------------------+
| f49a4b81-afd6-4b3d-b923-66c8f0517099 | Metadata agent | controller | None
,| True | UP | neutron-metadata-agent |
| 27eee952-a748-467b-bf71-941e89846a92 | Linux bridge agent | controller | None
,| True | UP | neutron-linuxbridge-agent |
| 08905043-5010-4b87-bba5-aedb1956e27a | Linux bridge agent | compute1 | None
,| True | UP | neutron-linuxbridge-agent |
| 830344ff-dc36-4956-84f4-067af667a0dc | L3 agent | controller | nova
,| True | UP | neutron-l3-agent |
| dd3644c9-1a3a-435a-9282-eb306b4b0391 | DHCP agent | controller | nova
,| True | UP | neutron-dhcp-agent |
+--------------------------------------+--------------------+------------+------------
,-------+-------+-------+---------------------------+
The output should indicate four agents on the controller node and one agent on each compute node.
Next steps
Your OpenStack environment now includes the core components necessary to launch a basic instance. You can
Launch an instance or add more OpenStack services to your environment.
This chapter explains how to install and configure the Networking service (neutron) using the provider networks
or self-service networks option.
For more information about the Networking service including virtual networking components, layout, and traf-
fic flows, see the OpenStack Networking Guide.
Networking service 67
Install Guide (Release Version: 15.0.0)
Dashboard
Install and configure
This section describes how to install and configure the dashboard on the controller node.
The only core service required by the dashboard is the Identity service. You can use the dashboard in combi-
nation with other services, such as Image service, Compute, and Networking. You can also use the dashboard
in environments with stand-alone services such as Object Storage.
Note: This section assumes proper installation, configuration, and operation of the Identity service using the
Apache HTTP server and Memcached service as described in the Install and configure the Identity service
section.
Install and configure components
Note: Default configuration files vary by distribution. You might need to add these sections and options rather
than modifying existing sections and options. Also, an ellipsis (...) in the configuration snippets indicates
potential default configuration options that you should retain.
1. Install the packages:
#yum install openstack-dashboard
2. Edit the /etc/openstack-dashboard/local_settings file and complete the following actions:
Configure the dashboard to use OpenStack services on the controller node:
OPENSTACK_HOST ="controller"
Allow your hosts to access the dashboard:
ALLOWED_HOSTS =['one.example.com','two.example.com']
Note: ALLOWED_HOSTS can also be [’*’] to accept all hosts. This may be useful for de-
velopment work, but is potentially insecure and should not be used in production. See https:
//docs.djangoproject.com/en/dev/ref/settings/#allowed-hosts for further information.
Configure the memcached session storage service:
SESSION_ENGINE ='django.contrib.sessions.backends.cache'
CACHES ={
'default': {
'BACKEND':'django.core.cache.backends.memcached.MemcachedCache',
'LOCATION':'controller:11211',
}
}
68 Dashboard
Install Guide (Release Version: 15.0.0)
Note: Comment out any other session storage configuration.
Enable the Identity API version 3:
OPENSTACK_KEYSTONE_URL ="http://%s:5000/v3" %OPENSTACK_HOST
Enable support for domains:
OPENSTACK_KEYSTONE_MULTIDOMAIN_SUPPORT =True
Configure API versions:
OPENSTACK_API_VERSIONS ={
"identity":3,
"image":2,
"volume":2,
}
Configure Default as the default domain for users that you create via the dashboard:
OPENSTACK_KEYSTONE_DEFAULT_DOMAIN ="Default"
Configure user as the default role for users that you create via the dashboard:
OPENSTACK_KEYSTONE_DEFAULT_ROLE ="user"
If you chose networking option 1, disable support for layer-3 networking services:
OPENSTACK_NEUTRON_NETWORK ={
...
'enable_router':False,
'enable_quotas':False,
'enable_distributed_router':False,
'enable_ha_router':False,
'enable_lb':False,
'enable_firewall':False,
'enable_vpn':False,
'enable_fip_topology_check':False,
}
Optionally, configure the time zone:
TIME_ZONE ="TIME_ZONE"
Replace TIME_ZONE with an appropriate time zone identifier. For more information, see the list of
time zones.
Finalize installation
Restart the web server and session storage service:
#systemctl restart httpd.service memcached.service
Dashboard 69
Install Guide (Release Version: 15.0.0)
Note: The systemctl restart command starts each service if not currently running.
Verify operation
Verify operation of the dashboard.
Access the dashboard using a web browser at http://controller/dashboard.
Authenticate using admin or demo user and default domain credentials.
Next steps
Your OpenStack environment now includes the dashboard. You can Launch an instance or add more services
to your environment.
After you install and configure the dashboard, you can complete the following tasks:
Provide users with a public IP address, a username, and a password so they can access the dashboard
through a web browser. In case of any SSL certificate connection problems, point the server IP address
to a domain name, and give users access.
Customize your dashboard. See section Customize and configure the Dashboard.
Set up session storage. See Set up session storage for the dashboard.
To use the VNC client with the dashboard, the browser must support HTML5 Canvas and HTML5
WebSockets.
For details about browsers that support noVNC, see README and browser support.
The Dashboard (horizon) is a web interface that enables cloud administrators and users to manage various
OpenStack resources and services.
This example deployment uses an Apache web server.
Block Storage service
Block Storage service overview
The OpenStack Block Storage service (cinder) adds persistent storage to a virtual machine. Block Storage
provides an infrastructure for managing volumes, and interacts with OpenStack Compute to provide volumes
for instances. The service also enables management of volume snapshots, and volume types.
The Block Storage service consists of the following components:
cinder-api Accepts API requests, and routes them to the cinder-volume for action.
cinder-volume Interacts directly with the Block Storage service, and processes such as the cinder-
scheduler. It also interacts with these processes through a message queue. The cinder-volume ser-
vice responds to read and write requests sent to the Block Storage service to maintain state. It can interact
with a variety of storage providers through a driver architecture.
70 Block Storage service
Install Guide (Release Version: 15.0.0)
cinder-scheduler daemon Selects the optimal storage provider node on which to create the volume. A similar
component to the nova-scheduler.
cinder-backup daemon The cinder-backup service provides backing up volumes of any type to a backup
storage provider. Like the cinder-volume service, it can interact with a variety of storage providers
through a driver architecture.
Messaging queue Routes information between the Block Storage processes.
Install and configure controller node
This section describes how to install and configure the Block Storage service, code-named cinder, on the con-
troller node. This service requires at least one additional storage node that provides volumes to instances.
Prerequisites
Before you install and configure the Block Storage service, you must create a database, service credentials, and
API endpoints.
1. To create the database, complete these steps:
Use the database access client to connect to the database server as the root user:
$mysql -u root -p
Create the cinder database:
MariaDB [(none)]> CREATE DATABASE cinder;
Grant proper access to the cinder database:
MariaDB [(none)]> GRANT ALL PRIVILEGES ON cinder.* TO 'cinder'@'localhost' \
IDENTIFIED BY 'CINDER_DBPASS';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON cinder.* TO 'cinder'@'%' \
IDENTIFIED BY 'CINDER_DBPASS';
Replace CINDER_DBPASS with a suitable password.
Exit the database access client.
2. Source the admin credentials to gain access to admin-only CLI commands:
$. admin-openrc
3. To create the service credentials, complete these steps:
Create a cinder user:
$openstack user create --domain default --password-prompt cinder
User Password:
Repeat User Password:
+---------------------+----------------------------------+
| Field | Value |
+---------------------+----------------------------------+
| domain_id | default |
Block Storage service 71
Install Guide (Release Version: 15.0.0)
| enabled | True |
| id | 9d7e33de3e1a498390353819bc7d245d |
| name | cinder |
| options | {} |
| password_expires_at | None |
+---------------------+----------------------------------+
Add the admin role to the cinder user:
$openstack role add --project service --user cinder admin
Note: This command provides no output.
Create the cinderv2 and cinderv3 service entities:
$openstack service create --name cinderv2 \
--description "OpenStack Block Storage" volumev2
+-------------+----------------------------------+
| Field | Value |
+-------------+----------------------------------+
| description | OpenStack Block Storage |
| enabled | True |
| id | eb9fd245bdbc414695952e93f29fe3ac |
| name | cinderv2 |
| type | volumev2 |
+-------------+----------------------------------+
$openstack service create --name cinderv3 \
--description "OpenStack Block Storage" volumev3
+-------------+----------------------------------+
| Field | Value |
+-------------+----------------------------------+
| description | OpenStack Block Storage |
| enabled | True |
| id | ab3bbbef780845a1a283490d281e7fda |
| name | cinderv3 |
| type | volumev3 |
+-------------+----------------------------------+
Note: The Block Storage services require two service entities.
4. Create the Block Storage service API endpoints:
$openstack endpoint create --region RegionOne \
volumev2 public http://controller:8776/v2/%\(project_id\)s
+--------------+------------------------------------------+
| Field | Value |
+--------------+------------------------------------------+
| enabled | True |
| id | 513e73819e14460fb904163f41ef3759 |
72 Block Storage service
Install Guide (Release Version: 15.0.0)
| interface | public |
| region | RegionOne |
| region_id | RegionOne |
| service_id | eb9fd245bdbc414695952e93f29fe3ac |
| service_name | cinderv2 |
| service_type | volumev2 |
| url | http://controller:8776/v2/%(project_id)s |
+--------------+------------------------------------------+
$openstack endpoint create --region RegionOne \
volumev2 internal http://controller:8776/v2/%\(project_id\)s
+--------------+------------------------------------------+
| Field | Value |
+--------------+------------------------------------------+
| enabled | True |
| id | 6436a8a23d014cfdb69c586eff146a32 |
| interface | internal |
| region | RegionOne |
| region_id | RegionOne |
| service_id | eb9fd245bdbc414695952e93f29fe3ac |
| service_name | cinderv2 |
| service_type | volumev2 |
| url | http://controller:8776/v2/%(project_id)s |
+--------------+------------------------------------------+
$openstack endpoint create --region RegionOne \
volumev2 admin http://controller:8776/v2/%\(project_id\)s
+--------------+------------------------------------------+
| Field | Value |
+--------------+------------------------------------------+
| enabled | True |
| id | e652cf84dd334f359ae9b045a2c91d96 |
| interface | admin |
| region | RegionOne |
| region_id | RegionOne |
| service_id | eb9fd245bdbc414695952e93f29fe3ac |
| service_name | cinderv2 |
| service_type | volumev2 |
| url | http://controller:8776/v2/%(project_id)s |
+--------------+------------------------------------------+
$openstack endpoint create --region RegionOne \
volumev3 public http://controller:8776/v3/%\(project_id\)s
+--------------+------------------------------------------+
| Field | Value |
+--------------+------------------------------------------+
| enabled | True |
| id | 03fa2c90153546c295bf30ca86b1344b |
| interface | public |
| region | RegionOne |
| region_id | RegionOne |
| service_id | ab3bbbef780845a1a283490d281e7fda |
| service_name | cinderv3 |
| service_type | volumev3 |
Block Storage service 73
Install Guide (Release Version: 15.0.0)
| url | http://controller:8776/v3/%(project_id)s |
+--------------+------------------------------------------+
$openstack endpoint create --region RegionOne \
volumev3 internal http://controller:8776/v3/%\(project_id\)s
+--------------+------------------------------------------+
| Field | Value |
+--------------+------------------------------------------+
| enabled | True |
| id | 94f684395d1b41068c70e4ecb11364b2 |
| interface | internal |
| region | RegionOne |
| region_id | RegionOne |
| service_id | ab3bbbef780845a1a283490d281e7fda |
| service_name | cinderv3 |
| service_type | volumev3 |
| url | http://controller:8776/v3/%(project_id)s |
+--------------+------------------------------------------+
$openstack endpoint create --region RegionOne \
volumev3 admin http://controller:8776/v3/%\(project_id\)s
+--------------+------------------------------------------+
| Field | Value |
+--------------+------------------------------------------+
| enabled | True |
| id | 4511c28a0f9840c78bacb25f10f62c98 |
| interface | admin |
| region | RegionOne |
| region_id | RegionOne |
| service_id | ab3bbbef780845a1a283490d281e7fda |
| service_name | cinderv3 |
| service_type | volumev3 |
| url | http://controller:8776/v3/%(project_id)s |
+--------------+------------------------------------------+
Note: The Block Storage services require endpoints for each service entity.
Install and configure components
1. Install the packages:
#yum install openstack-cinder
2. Edit the /etc/cinder/cinder.conf file and complete the following actions:
In the [database] section, configure database access:
[database]
# ...
connection =mysql+pymysql://cinder:CINDER_DBPASS@controller/cinder
Replace CINDER_DBPASS with the password you chose for the Block Storage database.
74 Block Storage service
Install Guide (Release Version: 15.0.0)
In the [DEFAULT] section, configure RabbitMQ message queue access:
[DEFAULT]
# ...
transport_url =rabbit://openstack:RABBIT_PASS@controller
Replace RABBIT_PASS with the password you chose for the openstack account in RabbitMQ.
In the [DEFAULT] and [keystone_authtoken] sections, configure Identity service access:
[DEFAULT]
# ...
auth_strategy =keystone
[keystone_authtoken]
# ...
auth_uri =http://controller:5000
auth_url =http://controller:35357
memcached_servers =controller:11211
auth_type =password
project_domain_name =default
user_domain_name =default
project_name =service
username =cinder
password =CINDER_PASS
Replace CINDER_PASS with the password you chose for the cinder user in the Identity service.
Note: Comment out or remove any other options in the [keystone_authtoken] section.
In the [DEFAULT] section, configure the my_ip option to use the management interface IP address
of the controller node:
[DEFAULT]
# ...
my_ip =10.0.0.11
In the [oslo_concurrency] section, configure the lock path:
[oslo_concurrency]
# ...
lock_path =/var/lib/cinder/tmp
3. Populate the Block Storage database:
#su -s /bin/sh -c "cinder-manage db sync" cinder
Note: Ignore any deprecation messages in this output.
Configure Compute to use Block Storage
Edit the /etc/nova/nova.conf file and add the following to it:
Block Storage service 75
Install Guide (Release Version: 15.0.0)
[cinder]
os_region_name =RegionOne
Finalize installation
1. Restart the Compute API service:
#systemctl restart openstack-nova-api.service
2. Start the Block Storage services and configure them to start when the system boots:
#systemctl enable openstack-cinder-api.service openstack-cinder-scheduler.service
#systemctl start openstack-cinder-api.service openstack-cinder-scheduler.service
Install and configure a storage node
This section describes how to install and configure storage nodes for the Block Storage service. For simplicity,
this configuration references one storage node with an empty local block storage device. The instructions use
/dev/sdb, but you can substitute a different value for your particular node.
The service provisions logical volumes on this device using the LVM driver and provides them to instances
via iSCSI transport. You can follow these instructions with minor modifications to horizontally scale your
environment with additional storage nodes.
Prerequisites
Before you install and configure the Block Storage service on the storage node, you must prepare the storage
device.
Note: Perform these steps on the storage node.
1. Install the supporting utility packages:
Install the LVM packages:
#yum install lvm2
Start the LVM metadata service and configure it to start when the system boots:
#systemctl enable lvm2-lvmetad.service
#systemctl start lvm2-lvmetad.service
Note: Some distributions include LVM by default.
2. Create the LVM physical volume /dev/sdb:
#pvcreate /dev/sdb
Physical volume "/dev/sdb" successfully created
76 Block Storage service
Install Guide (Release Version: 15.0.0)
3. Create the LVM volume group cinder-volumes:
#vgcreate cinder-volumes /dev/sdb
Volume group "cinder-volumes" successfully created
The Block Storage service creates logical volumes in this volume group.
4. Only instances can access Block Storage volumes. However, the underlying operating system manages
the devices associated with the volumes. By default, the LVM volume scanning tool scans the /dev
directory for block storage devices that contain volumes. If projects use LVM on their volumes, the
scanning tool detects these volumes and attempts to cache them which can cause a variety of problems
with both the underlying operating system and project volumes. You must reconfigure LVM to scan
only the devices that contain the cinder-volumes volume group. Edit the /etc/lvm/lvm.conf file
and complete the following actions:
In the devices section, add a filter that accepts the /dev/sdb device and rejects all other devices:
devices {
...
filter = [ "a/sdb/", "r/.*/"]
Each item in the filter array begins with afor accept or rfor reject and includes a regular expression
for the device name. The array must end with r/.*/ to reject any remaining devices. You can use
the vgs -vvvv command to test filters.
Warning: If your storage nodes use LVM on the operating system disk, you must also add
the associated device to the filter. For example, if the /dev/sda device contains the operating
system:
filter =[ "a/sda/", "a/sdb/", "r/.*/"]
Similarly, if your compute nodes use LVM on the operating system disk, you must also modify
the filter in the /etc/lvm/lvm.conf file on those nodes to include only the operating system
disk. For example, if the /dev/sda device contains the operating system:
filter =[ "a/sda/", "r/.*/"]
Install and configure components
1. Install the packages:
#yum install openstack-cinder targetcli python-keystone
2. Edit the /etc/cinder/cinder.conf file and complete the following actions:
In the [database] section, configure database access:
[database]
# ...
connection =mysql+pymysql://cinder:CINDER_DBPASS@controller/cinder
Replace CINDER_DBPASS with the password you chose for the Block Storage database.
In the [DEFAULT] section, configure RabbitMQ message queue access:
Block Storage service 77
Install Guide (Release Version: 15.0.0)
[DEFAULT]
# ...
transport_url =rabbit://openstack:RABBIT_PASS@controller
Replace RABBIT_PASS with the password you chose for the openstack account in RabbitMQ.
In the [DEFAULT] and [keystone_authtoken] sections, configure Identity service access:
[DEFAULT]
# ...
auth_strategy =keystone
[keystone_authtoken]
# ...
auth_uri =http://controller:5000
auth_url =http://controller:35357
memcached_servers =controller:11211
auth_type =password
project_domain_name =default
user_domain_name =default
project_name =service
username =cinder
password =CINDER_PASS
Replace CINDER_PASS with the password you chose for the cinder user in the Identity service.
Note: Comment out or remove any other options in the [keystone_authtoken] section.
In the [DEFAULT] section, configure the my_ip option:
[DEFAULT]
# ...
my_ip =MANAGEMENT_INTERFACE_IP_ADDRESS
Replace MANAGEMENT_INTERFACE_IP_ADDRESS with the IP address of the management network
interface on your storage node, typically 10.0.0.41 for the first node in the example architecture.
In the [lvm] section, configure the LVM back end with the LVM driver, cinder-volumes volume
group, iSCSI protocol, and appropriate iSCSI service. If the [lvm] section does not exist, create
it:
[lvm]
volume_driver =cinder.volume.drivers.lvm.LVMVolumeDriver
volume_group =cinder-volumes
iscsi_protocol =iscsi
iscsi_helper =lioadm
In the [DEFAULT] section, enable the LVM back end:
[DEFAULT]
# ...
enabled_backends =lvm
Note: Back-end names are arbitrary. As an example, this guide uses the name of the driver as the
78 Block Storage service
Install Guide (Release Version: 15.0.0)
name of the back end.
In the [DEFAULT] section, configure the location of the Image service API:
[DEFAULT]
# ...
glance_api_servers =http://controller:9292
In the [oslo_concurrency] section, configure the lock path:
[oslo_concurrency]
# ...
lock_path =/var/lib/cinder/tmp
Finalize installation
Start the Block Storage volume service including its dependencies and configure them to start when the
system boots:
#systemctl enable openstack-cinder-volume.service target.service
#systemctl start openstack-cinder-volume.service target.service
Verify operation
Verify operation of the Block Storage service.
Note: Perform these commands on the controller node.
1. Source the admin credentials to gain access to admin-only CLI commands:
$. admin-openrc
2. List service components to verify successful launch of each process:
$openstack volume service list
+------------------+------------+------+---------+-------+----------------------------
,+
| Binary | Host | Zone | Status | State | Updated_at
,|
+------------------+------------+------+---------+-------+----------------------------
,+
| cinder-scheduler | controller | nova | enabled | up | 2016-09-30T02:27:41.000000
,|
| cinder-volume | block@lvm | nova | enabled | up | 2016-09-30T02:27:46.000000
,|
+------------------+------------+------+---------+-------+----------------------------
,+
Block Storage service 79
Install Guide (Release Version: 15.0.0)
Next steps
Your OpenStack environment now includes Block Storage. You can launch an instance or add more services
to your environment in the following chapters.
The Block Storage service (cinder) provides block storage devices to guest instances. The method in which
the storage is provisioned and consumed is determined by the Block Storage driver, or drivers in the case of a
multi-backend configuration. There are a variety of drivers that are available: NAS/SAN, NFS, iSCSI, Ceph,
and more.
The Block Storage API and scheduler services typically run on the controller nodes. Depending upon the drivers
used, the volume service can run on controller nodes, compute nodes, or standalone storage nodes.
For more information, see the Configuration Reference.
Additional services
Installation and configuration of additional OpenStack services is documented in separate, project-specific in-
stallation guides.
Bare Metal service (ironic)
The Bare Metal service is a collection of components that provides support to manage and provision physical
machines.
Installation and configuration is documented in the Bare Metal installation guide.
Container Infrastructure Management service (magnum)
The Container Infrastructure Management service (magnum) is an OpenStack API service making container
orchestration engines (COE) such as Docker Swarm, Kubernetes and Mesos available as first class resources
in OpenStack.
Installation and configuration is documented in the Container Infrastructure Management installation guide.
Database service (trove)
The Database service (trove) provides cloud provisioning functionality for database engines.
Installation and configuration is documented in the Database installation guide.
DNS service (designate)
The DNS service (designate) provides cloud provisioning functionality for DNS Zones and Recordsets.
Installation and configuration is documented in the DNS installation guide.
80 Additional services
Install Guide (Release Version: 15.0.0)
Key Manager service (barbican)
The Key Manager service provides a RESTful API for the storage and provisioning of secret data such as
passphrases, encryption keys, and X.509 certificates.
Installation and configuration is documented in the Key Manager installation guide.
Messaging service (zaqar)
The Messaging service allows developers to share data between distributed application components performing
different tasks, without losing messages or requiring each component to be always available.
Installation and configuration is documented in the Messaging installation guide.
Object Storage services (swift)
The Object Storage services (swift) work together to provide object storage and retrieval through a REST API.
Installation and configuration is documented in the Object Storage installation guide.
Orchestration service (heat)
The Orchestration service (heat) uses a Heat Orchestration Template (HOT) to create and manage cloud re-
sources.
Installation and configuration is documented in the Orchestration installation guide.
Shared File Systems service (manila)
The Shared File Systems service (manila) provides coordinated access to shared or distributed file systems.
Installation and configuration is documented in the Shared File Systems installation guide.
Telemetry Alarming services (aodh)
The Telemetry Alarming services trigger alarms when the collected metering or event data break the defined
rules.
Installation and configuration is documented in the Telemetry Alarming installation guide.
Telemetry Data Collection service (ceilometer)
The Telemetry Data Collection services provide the following functions:
Efficiently polls metering data related to OpenStack services.
Collects event and metering data by monitoring notifications sent from services.
Publishes collected data to various targets including data stores and message queues.
Installation and configuration is documented in the Telemetry Data Collection installation guide.
Additional services 81
Install Guide (Release Version: 15.0.0)
Launch an instance
This section creates the necessary virtual networks to support launching instances. Networking option 1 includes
one provider (external) network with one instance that uses it. Networking option 2 includes one provider
network with one instance that uses it and one self-service (private) network with one instance that uses it. The
instructions in this section use command-line interface (CLI) tools on the controller node. However, you can
follow the instructions on any host that the tools are installed. For more information on the CLI tools, see the
OpenStack End User Guide. To use the dashboard, see the OpenStack End User Guide.
Create virtual networks
Create virtual networks for the networking option that you chose in Networking service. If you chose option 1,
create only the provider network. If you chose option 2, create the provider and self-service networks.
Provider network
Before launching an instance, you must create the necessary virtual network infrastructure. For networking
option 1, an instance uses a provider (external) network that connects to the physical network infrastructure via
layer-2 (bridging/switching). This network includes a DHCP server that provides IP addresses to instances.
The admin or other privileged user must create this network because it connects directly to the physical network
infrastructure.
Note: The following instructions and diagrams use example IP address ranges. You must adjust them for your
particular environment.
82 Launch an instance
Install Guide (Release Version: 15.0.0)
Fig. 2: Networking Option 1: Provider networks - Overview
Fig. 3: Networking Option 1: Provider networks - Connectivity
Launch an instance 83
Install Guide (Release Version: 15.0.0)
Create the provider network
1. On the controller node, source the admin credentials to gain access to admin-only CLI commands:
$. admin-openrc
2. Create the network:
$openstack network create --share --external \
--provider-physical-network provider \
--provider-network-type flat provider
Created a new network:
+---------------------------+--------------------------------------+
| Field | Value |
+---------------------------+--------------------------------------+
| admin_state_up | UP |
| availability_zone_hints | |
| availability_zones | |
| created_at | 2017-03-14T14:37:39Z |
| description | |
| dns_domain | None |
| id | 54adb94a-4dce-437f-a33b-e7e2e7648173 |
| ipv4_address_scope | None |
| ipv6_address_scope | None |
| is_default | None |
| mtu | 1500 |
| name | provider |
| port_security_enabled | True |
| project_id | 4c7f48f1da5b494faaa66713686a7707 |
| provider:network_type | flat |
| provider:physical_network | provider |
| provider:segmentation_id | None |
| qos_policy_id | None |
| revision_number | 3 |
| router:external | External |
| segments | None |
| shared | True |
| status | ACTIVE |
| subnets | |
| updated_at | 2017-03-14T14:37:39Z |
+---------------------------+--------------------------------------+
The --share option allows all projects to use the virtual network.
The --external option defines the virtual network to be external. If you wish to create an internal
network, you can use --internal instead. Default value is internal.
The --provider-physical-network provider and --provider-network-type flat options
connect the flat virtual network to the flat (native/untagged) physical network on the eth1 interface
on the host using information from the following files:
ml2_conf.ini:
[ml2_type_flat]
flat_networks =provider
84 Launch an instance
Install Guide (Release Version: 15.0.0)
linuxbridge_agent.ini:
[linux_bridge]
physical_interface_mappings =provider:eth1
3. Create a subnet on the network:
$openstack subnet create --network provider \
--allocation-pool start=START_IP_ADDRESS,end=END_IP_ADDRESS \
--dns-nameserver DNS_RESOLVER --gateway PROVIDER_NETWORK_GATEWAY \
--subnet-range PROVIDER_NETWORK_CIDR provider
Replace PROVIDER_NETWORK_CIDR with the subnet on the provider physical network in CIDR notation.
Replace START_IP_ADDRESS and END_IP_ADDRESS with the first and last IP address of the range within
the subnet that you want to allocate for instances. This range must not include any existing active IP
addresses.
Replace DNS_RESOLVER with the IP address of a DNS resolver. In most cases, you can use one from the
/etc/resolv.conf file on the host.
Replace PROVIDER_NETWORK_GATEWAY with the gateway IP address on the provider network, typically
the ”.1” IP address.
Example
The provider network uses 203.0.113.0/24 with a gateway on 203.0.113.1. A DHCP server assigns each
instance an IP address from 203.0.113.101 to 203.0.113.250. All instances use 8.8.4.4 as a DNS resolver.
$openstack subnet create --network provider \
--allocation-pool start=203.0.113.101,end=203.0.113.250 \
--dns-nameserver 8.8.4.4 --gateway 203.0.113.1 \
--subnet-range 203.0.113.0/24 provider
Created a new subnet:
+-------------------+--------------------------------------+
| Field | Value |
+-------------------+--------------------------------------+
| allocation_pools | 203.0.113.101-203.0.113.250 |
| cidr | 203.0.113.0/24 |
| created_at | 2016-11-02T20:45:04Z |
| description | |
| dns_nameservers | 8.8.4.4 |
| enable_dhcp | True |
| gateway_ip | 203.0.113.1 |
| headers | |
| host_routes | |
| id | 2c65ef8c-a5f3-4f51-94c1-4df0daaaab5c |
| ip_version | 4 |
| ipv6_address_mode | None |
| ipv6_ra_mode | None |
| name | provider |
| network_id | 9793a02d-4f05-40d2-a280-407c48db0161 |
| project_id | 7e188c33604d4b02ae0a99b5da68cae0 |
| revision_number | 2 |
| service_types | [] |
| subnetpool_id | None |
| updated_at | 2016-11-02T20:45:04Z |
+-------------------+--------------------------------------+
Launch an instance 85
Install Guide (Release Version: 15.0.0)
Return to Launch an instance - Create virtual networks.
Self-service network
If you chose networking option 2, you can also create a self-service (private) network that connects to the
physical network infrastructure via NAT. This network includes a DHCP server that provides IP addresses
to instances. An instance on this network can automatically access external networks such as the Internet.
However, access to an instance on this network from external networks such as the Internet requires a floating
IP address.
The demo or other unprivileged user can create this network because it provides connectivity to instances within
the demo project only.
Warning: You must create the provider network before the self-service network.
Note: The following instructions and diagrams use example IP address ranges. You must adjust them for your
particular environment.
86 Launch an instance
Install Guide (Release Version: 15.0.0)
Fig. 4: Networking Option 2: Self-service networks - Overview
Launch an instance 87
Install Guide (Release Version: 15.0.0)
Fig. 5: Networking Option 2: Self-service networks - Connectivity
Create the self-service network
1. On the controller node, source the demo credentials to gain access to user-only CLI commands:
$. demo-openrc
2. Create the network:
88 Launch an instance
Install Guide (Release Version: 15.0.0)
$openstack network create selfservice
Created a new network:
+-------------------------+--------------------------------------+
| Field | Value |
+-------------------------+--------------------------------------+
| admin_state_up | UP |
| availability_zone_hints | |
| availability_zones | |
| created_at | 2016-11-04T18:20:59Z |
| description | |
| headers | |
| id | 7c6f9b37-76b4-463e-98d8-27e5686ed083 |
| ipv4_address_scope | None |
| ipv6_address_scope | None |
| mtu | 1450 |
| name | selfservice |
| port_security_enabled | True |
| project_id | 3828e7c22c5546e585f27b9eb5453788 |
| project_id | 3828e7c22c5546e585f27b9eb5453788 |
| revision_number | 3 |
| router:external | Internal |
| shared | False |
| status | ACTIVE |
| subnets | |
| tags | [] |
| updated_at | 2016-11-04T18:20:59Z |
+-------------------------+--------------------------------------+
Non-privileged users typically cannot supply additional parameters to this command. The service auto-
matically chooses parameters using information from the following files:
ml2_conf.ini:
[ml2]
tenant_network_types =vxlan
[ml2_type_vxlan]
vni_ranges =1:1000
3. Create a subnet on the network:
$openstack subnet create --network selfservice \
--dns-nameserver DNS_RESOLVER --gateway SELFSERVICE_NETWORK_GATEWAY \
--subnet-range SELFSERVICE_NETWORK_CIDR selfservice
Replace DNS_RESOLVER with the IP address of a DNS resolver. In most cases, you can use one from the
/etc/resolv.conf file on the host.
Replace SELFSERVICE_NETWORK_GATEWAY with the gateway you want to use on the self-service net-
work, typically the ”.1” IP address.
Replace SELFSERVICE_NETWORK_CIDR with the subnet you want to use on the self-service network.
You can use any arbitrary value, although we recommend a network from RFC 1918.
Example
The self-service network uses 172.16.1.0/24 with a gateway on 172.16.1.1. A DHCP server assigns each
Launch an instance 89
Install Guide (Release Version: 15.0.0)
instance an IP address from 172.16.1.2 to 172.16.1.254. All instances use 8.8.4.4 as a DNS resolver.
$openstack subnet create --network selfservice \
--dns-nameserver 8.8.4.4 --gateway 172.16.1.1 \
--subnet-range 172.16.1.0/24 selfservice
Created a new subnet:
+-------------------+--------------------------------------+
| Field | Value |
+-------------------+--------------------------------------+
| allocation_pools | 172.16.1.2-172.16.1.254 |
| cidr | 172.16.1.0/24 |
| created_at | 2016-11-04T18:30:54Z |
| description | |
| dns_nameservers | 8.8.4.4 |
| enable_dhcp | True |
| gateway_ip | 172.16.1.1 |
| headers | |
| host_routes | |
| id | 5c37348e-e7da-439b-8c23-2af47d93aee5 |
| ip_version | 4 |
| ipv6_address_mode | None |
| ipv6_ra_mode | None |
| name | selfservice |
| network_id | b9273876-5946-4f02-a4da-838224a144e7 |
| project_id | 3828e7c22c5546e585f27b9eb5453788 |
| project_id | 3828e7c22c5546e585f27b9eb5453788 |
| revision_number | 2 |
| service_types | [] |
| subnetpool_id | None |
| updated_at | 2016-11-04T18:30:54Z |
+-------------------+--------------------------------------+
Create a router
Self-service networks connect to provider networks using a virtual router that typically performs bidirectional
NAT. Each router contains an interface on at least one self-service network and a gateway on a provider network.
The provider network must include the router:external option to enable self-service routers to use it for
connectivity to external networks such as the Internet. The admin or other privileged user must include this
option during network creation or add it later. In this case, the router:external option was set by using the
--external parameter when creating the provider network.
1. On the controller node, source the admin credentials to gain access to admin-only CLI commands:
$. admin-openrc
2. Source the demo credentials to gain access to user-only CLI commands:
$. demo-openrc
3. Create the router:
$openstack router create router
Created a new router:
90 Launch an instance
Install Guide (Release Version: 15.0.0)
+-------------------------+--------------------------------------+
| Field | Value |
+-------------------------+--------------------------------------+
| admin_state_up | UP |
| availability_zone_hints | |
| availability_zones | |
| created_at | 2016-11-04T18:32:56Z |
| description | |
| external_gateway_info | null |
| flavor_id | None |
| headers | |
| id | 67324374-396a-4db6-9443-c70be167a42b |
| name | router |
| project_id | 3828e7c22c5546e585f27b9eb5453788 |
| project_id | 3828e7c22c5546e585f27b9eb5453788 |
| revision_number | 2 |
| routes | |
| status | ACTIVE |
| updated_at | 2016-11-04T18:32:56Z |
+-------------------------+--------------------------------------+
4. Add the self-service network subnet as an interface on the router:
$neutron router-interface-add router selfservice
Added interface bff6605d-824c-41f9-b744-21d128fc86e1 to router router.
5. Set a gateway on the provider network on the router:
$neutron router-gateway-set router provider
Set gateway for router router
Verify operation
We recommend that you verify operation and fix any issues before proceeding. The following steps use the IP
address ranges from the network and subnet creation examples.
1. On the controller node, source the admin credentials to gain access to admin-only CLI commands:
$. admin-openrc
2. List network namespaces. You should see one qrouter namespace and two qdhcp namespaces.
$ip netns
qrouter-89dd2083-a160-4d75-ab3a-14239f01ea0b
qdhcp-7c6f9b37-76b4-463e-98d8-27e5686ed083
qdhcp-0e62efcd-8cee-46c7-b163-d8df05c3c5ad
3. List ports on the router to determine the gateway IP address on the provider network:
$neutron router-port-list router
+--------------------------------------+------+-------------------+-------------------
,-----------------------+
Launch an instance 91
Install Guide (Release Version: 15.0.0)
| id | name | mac_address | fixed_ips
,|
+--------------------------------------+------+-------------------+-------------------
,-----------------------+
| bff6605d-824c-41f9-b744-21d128fc86e1 | | fa:16:3e:2f:34:9b | {"subnet_id":
,|
| | | | "3482f524-8bff-
,4871-80d4-5774c2730728", |
| | | | "ip_address":
,"172.16.1.1"} |
| d6fe98db-ae01-42b0-a860-37b1661f5950 | | fa:16:3e:e8:c1:41 | {"subnet_id":
,|
| | | | "5cc70da8-4ee7-
,4565-be53-b9c011fca011", |
| | | | "ip_address":
,"203.0.113.102"} |
+--------------------------------------+------+-------------------+-------------------
,-----------------------+
4. Ping this IP address from the controller node or any host on the physical provider network:
$ping -c 4 203.0.113.102
PING 203.0.113.102 (203.0.113.102) 56(84) bytes of data.
64 bytes from 203.0.113.102: icmp_req=1 ttl=64 time=0.619 ms
64 bytes from 203.0.113.102: icmp_req=2 ttl=64 time=0.189 ms
64 bytes from 203.0.113.102: icmp_req=3 ttl=64 time=0.165 ms
64 bytes from 203.0.113.102: icmp_req=4 ttl=64 time=0.216 ms
--- 203.0.113.102 ping statistics ---
rtt min/avg/max/mdev = 0.165/0.297/0.619/0.187 ms
Return to Launch an instance - Create virtual networks.
After creating the appropriate networks for your environment, you can continue preparing the environment to
launch an instance.
Create m1.nano flavor
The smallest default flavor consumes 512 MB memory per instance. For environments with compute nodes
containing less than 4 GB memory, we recommend creating the m1.nano flavor that only requires 64 MB per
instance. Only use this flavor with the CirrOS image for testing purposes.
$openstack flavor create --id 0--vcpus 1--ram 64 --disk 1m1.nano
+----------------------------+---------+
| Field | Value |
+----------------------------+---------+
| OS-FLV-DISABLED:disabled | False |
| OS-FLV-EXT-DATA:ephemeral | 0 |
| disk | 1 |
| id | 0 |
| name | m1.nano |
| os-flavor-access:is_public | True |
| ram | 64 |
| rxtx_factor | 1.0 |
92 Launch an instance
Install Guide (Release Version: 15.0.0)
| swap | |
| vcpus | 1 |
+----------------------------+---------+
Generate a key pair
Most cloud images support public key authentication rather than conventional password authentication. Before
launching an instance, you must add a public key to the Compute service.
1. Source the demo project credentials:
$. demo-openrc
2. Generate a key pair and add a public key:
$ssh-keygen -q -N ""
$openstack keypair create --public-key ~/.ssh/id_rsa.pub mykey
+-------------+-------------------------------------------------+
| Field | Value |
+-------------+-------------------------------------------------+
| fingerprint | ee:3d:2e:97:d4:e2:6a:54:6d:0d:ce:43:39:2c:ba:4d |
| name | mykey |
| user_id | 58126687cbcc4888bfa9ab73a2256f27 |
+-------------+-------------------------------------------------+
Note: Alternatively, you can skip the ssh-keygen command and use an existing public key.
3. Verify addition of the key pair:
$openstack keypair list
+-------+-------------------------------------------------+
| Name | Fingerprint |
+-------+-------------------------------------------------+
| mykey | ee:3d:2e:97:d4:e2:6a:54:6d:0d:ce:43:39:2c:ba:4d |
+-------+-------------------------------------------------+
Add security group rules
By default, the default security group applies to all instances and includes firewall rules that deny remote
access to instances. For Linux images such as CirrOS, we recommend allowing at least ICMP (ping) and
secure shell (SSH).
Add rules to the default security group:
Permit ICMP (ping):
$openstack security group rule create --proto icmp default
+-------------------+--------------------------------------+
| Field | Value |
Launch an instance 93
Install Guide (Release Version: 15.0.0)
+-------------------+--------------------------------------+
| created_at | 2016-10-05T09:52:31Z |
| description | |
| direction | ingress |
| ethertype | IPv4 |
| headers | |
| id | 6ee8d630-9803-4d3d-9aea-8c795abbedc2 |
| port_range_max | None |
| port_range_min | None |
| project_id | 77ae8d7104024123af342ffb0a6f1d88 |
| project_id | 77ae8d7104024123af342ffb0a6f1d88 |
| protocol | icmp |
| remote_group_id | None |
| remote_ip_prefix | 0.0.0.0/0 |
| revision_number | 1 |
| security_group_id | 4ceee3d4-d2fe-46c1-895c-382033e87b0d |
| updated_at | 2016-10-05T09:52:31Z |
+-------------------+--------------------------------------+
Permit secure shell (SSH) access:
$openstack security group rule create --proto tcp --dst-port 22 default
+-------------------+--------------------------------------+
| Field | Value |
+-------------------+--------------------------------------+
| created_at | 2016-10-05T09:54:50Z |
| description | |
| direction | ingress |
| ethertype | IPv4 |
| headers | |
| id | 3cd0a406-43df-4741-ab29-b5e7dcb7469d |
| port_range_max | 22 |
| port_range_min | 22 |
| project_id | 77ae8d7104024123af342ffb0a6f1d88 |
| project_id | 77ae8d7104024123af342ffb0a6f1d88 |
| protocol | tcp |
| remote_group_id | None |
| remote_ip_prefix | 0.0.0.0/0 |
| revision_number | 1 |
| security_group_id | 4ceee3d4-d2fe-46c1-895c-382033e87b0d |
| updated_at | 2016-10-05T09:54:50Z |
+-------------------+--------------------------------------+
Launch an instance
If you chose networking option 1, you can only launch an instance on the provider network. If you chose
networking option 2, you can launch an instance on the provider network and the self-service network.
94 Launch an instance
Install Guide (Release Version: 15.0.0)
Launch an instance on the provider network
Determine instance options
To launch an instance, you must at least specify the flavor, image name, network, security group, key, and
instance name.
1. On the controller node, source the demo credentials to gain access to user-only CLI commands:
$. demo-openrc
2. A flavor specifies a virtual resource allocation profile which includes processor, memory, and storage.
List available flavors:
$openstack flavor list
+----+---------+-----+------+-----------+-------+-----------+
| ID | Name | RAM | Disk | Ephemeral | VCPUs | Is Public |
+----+---------+-----+------+-----------+-------+-----------+
| 0 | m1.nano | 64 | 1 | 0 | 1 | True |
+----+---------+-----+------+-----------+-------+-----------+
Note: You can also reference a flavor by ID.
3. List available images:
$openstack image list
+--------------------------------------+--------+--------+
| ID | Name | Status |
+--------------------------------------+--------+--------+
| 390eb5f7-8d49-41ec-95b7-68c0d5d54b34 | cirros | active |
+--------------------------------------+--------+--------+
This instance uses the cirros image.
4. List available networks:
$openstack network list
+--------------------------------------+--------------+-------------------------------
,-------+
| ID | Name | Subnets
,|
+--------------------------------------+--------------+-------------------------------
,-------+
| 4716ddfe-6e60-40e7-b2a8-42e57bf3c31c | selfservice | 2112d5eb-f9d6-45fd-906e-
,7cabd38b7c7c |
| b5b6993c-ddf9-40e7-91d0-86806a42edb8 | provider | 310911f6-acf0-4a47-824e-
,3032916582ff |
+--------------------------------------+--------------+-------------------------------
,-------+
Launch an instance 95
Install Guide (Release Version: 15.0.0)
This instance uses the provider provider network. However, you must reference this network using the
ID instead of the name.
Note: If you chose option 2, the output should also contain the selfservice self-service network.
5. List available security groups:
$openstack security group list
+--------------------------------------+---------+------------------------+-----------
,-----------------------+
| ID | Name | Description | Project
,|
+--------------------------------------+---------+------------------------+-----------
,-----------------------+
| dd2b614c-3dad-48ed-958b-b155a3b38515 | default | Default security group |
,a516b957032844328896baa01e0f906c |
+--------------------------------------+---------+------------------------+-----------
,-----------------------+
This instance uses the default security group.
Launch the instance
1. Launch the instance:
Replace PROVIDER_NET_ID with the ID of the provider provider network.
Note: If you chose option 1 and your environment contains only one network, you can omit the --nic
option because OpenStack automatically chooses the only network available.
$openstack server create --flavor m1.nano --image cirros \
--nic net-id=PROVIDER_NET_ID --security-group default \
--key-name mykey provider-instance
+--------------------------------------+----------------------------------------------
,-+
| Property | Value
,|
+--------------------------------------+----------------------------------------------
,-+
| OS-DCF:diskConfig | MANUAL
,|
| OS-EXT-AZ:availability_zone | nova
,|
| OS-EXT-STS:power_state | 0
,|
| OS-EXT-STS:task_state | scheduling
,|
| OS-EXT-STS:vm_state | building
,|
| OS-SRV-USG:launched_at | -
,|
96 Launch an instance
Install Guide (Release Version: 15.0.0)
| OS-SRV-USG:terminated_at | -
,|
| accessIPv4 |
,|
| accessIPv6 |
,|
| adminPass | hdF4LMQqC5PB
,|
| config_drive |
,|
| created | 2015-09-17T21:58:18Z
,|
| flavor | m1.nano
,|
| hostId |
,|
| id | 181c52ba-aebc-4c32-a97d-2e8e82e4eaaf
,|
| image | cirros (38047887-61a7-41ea-9b49-
,27987d5e8bb9) |
| key_name | mykey
,|
| metadata | {}
,|
| name | provider-instance
,|
| os-extended-volumes:volumes_attached | []
,|
| progress | 0
,|
| security_groups | default
,|
| status | BUILD
,|
| tenant_id | f5b2ccaa75ac413591f12fcaa096aa5c
,|
| updated | 2015-09-17T21:58:18Z
,|
| user_id | 684286a9079845359882afc3aa5011fb
,|
+--------------------------------------+----------------------------------------------
,-+
2. Check the status of your instance:
$openstack server list
+--------------------------------------+-------------------+--------+-----------------
,-------+------------+
| ID | Name | Status | Networks
,| Image Name |
+--------------------------------------+-------------------+--------+-----------------
,-------+------------+
| 181c52ba-aebc-4c32-a97d-2e8e82e4eaaf | provider-instance | ACTIVE | provider=203.0.
,113.103 | cirros |
+--------------------------------------+-------------------+--------+-----------------
,-------+------------+
Launch an instance 97
Install Guide (Release Version: 15.0.0)
The status changes from BUILD to ACTIVE when the build process successfully completes.
Access the instance using the virtual console
1. Obtain a Virtual Network Computing (VNC) session URL for your instance and access it from a web
browser:
$openstack console url show provider-instance
+-------+-----------------------------------------------------------------------------
,----+
| Field | Value
,|
+-------+-----------------------------------------------------------------------------
,----+
| type | novnc
,|
| url | http://controller:6080/vnc_auto.html?token=5eeccb47-525c-4918-ac2a-
,3ad1e9f1f493 |
+-------+-----------------------------------------------------------------------------
,----+
Note: If your web browser runs on a host that cannot resolve the controller host name, you can
replace controller with the IP address of the management interface on your controller node.
The CirrOS image includes conventional user name/password authentication and provides these creden-
tials at the login prompt. After logging into CirrOS, we recommend that you verify network connectivity
using ping.
2. Verify access to the provider physical network gateway:
$ping -c 4 203.0.113.1
PING 203.0.113.1 (203.0.113.1) 56(84) bytes of data.
64 bytes from 203.0.113.1: icmp_req=1 ttl=64 time=0.357 ms
64 bytes from 203.0.113.1: icmp_req=2 ttl=64 time=0.473 ms
64 bytes from 203.0.113.1: icmp_req=3 ttl=64 time=0.504 ms
64 bytes from 203.0.113.1: icmp_req=4 ttl=64 time=0.470 ms
--- 203.0.113.1 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 2998ms
rtt min/avg/max/mdev = 0.357/0.451/0.504/0.055 ms
3. Verify access to the internet:
$ping -c 4openstack.org
PING openstack.org (174.143.194.225) 56(84) bytes of data.
64 bytes from 174.143.194.225: icmp_req=1 ttl=53 time=17.4 ms
64 bytes from 174.143.194.225: icmp_req=2 ttl=53 time=17.5 ms
64 bytes from 174.143.194.225: icmp_req=3 ttl=53 time=17.7 ms
64 bytes from 174.143.194.225: icmp_req=4 ttl=53 time=17.5 ms
--- openstack.org ping statistics ---
98 Launch an instance
Install Guide (Release Version: 15.0.0)
4 packets transmitted, 4 received, 0% packet loss, time 3003ms
rtt min/avg/max/mdev = 17.431/17.575/17.734/0.143 ms
Access the instance remotely
1. Verify connectivity to the instance from the controller node or any host on the provider physical network:
$ping -c 4 203.0.113.103
PING 203.0.113.103 (203.0.113.103) 56(84) bytes of data.
64 bytes from 203.0.113.103: icmp_req=1 ttl=63 time=3.18 ms
64 bytes from 203.0.113.103: icmp_req=2 ttl=63 time=0.981 ms
64 bytes from 203.0.113.103: icmp_req=3 ttl=63 time=1.06 ms
64 bytes from 203.0.113.103: icmp_req=4 ttl=63 time=0.929 ms
--- 203.0.113.103 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3002ms
rtt min/avg/max/mdev = 0.929/1.539/3.183/0.951 ms
2. Access your instance using SSH from the controller node or any host on the provider physical network:
$ssh cirros@203.0.113.103
The authenticity of host '203.0.113.102 (203.0.113.102)' can't be established.
RSA key fingerprint is ed:05:e9:e7:52:a0:ff:83:68:94:c7:d1:f2:f8:e2:e9.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '203.0.113.102' (RSA) to the list of known hosts.
If your instance does not launch or seem to work as you expect, see the Instance Boot Failures section in
OpenStack Operations Guide for more information or use one of the many other options to seek assistance. We
want your first installation to work!
Return to Launch an instance.
Launch an instance on the self-service network
Determine instance options
To launch an instance, you must at least specify the flavor, image name, network, security group, key, and
instance name.
1. On the controller node, source the demo credentials to gain access to user-only CLI commands:
$. demo-openrc
2. A flavor specifies a virtual resource allocation profile which includes processor, memory, and storage.
List available flavors:
$openstack flavor list
+----+---------+-----+------+-----------+-------+-----------+
| ID | Name | RAM | Disk | Ephemeral | VCPUs | Is Public |
Launch an instance 99
Install Guide (Release Version: 15.0.0)
+----+---------+-----+------+-----------+-------+-----------+
| 0 | m1.nano | 64 | 1 | 0 | 1 | True |
+----+---------+-----+------+-----------+-------+-----------+
Note: You can also reference a flavor by ID.
3. List available images:
$openstack image list
+--------------------------------------+--------+--------+
| ID | Name | Status |
+--------------------------------------+--------+--------+
| 390eb5f7-8d49-41ec-95b7-68c0d5d54b34 | cirros | active |
+--------------------------------------+--------+--------+
This instance uses the cirros image.
4. List available networks:
$openstack network list
+--------------------------------------+-------------+--------------------------------
,------+
| ID | Name | Subnets
,|
+--------------------------------------+-------------+--------------------------------
,------+
| 4716ddfe-6e60-40e7-b2a8-42e57bf3c31c | selfservice | 2112d5eb-f9d6-45fd-906e-
,7cabd38b7c7c |
| b5b6993c-ddf9-40e7-91d0-86806a42edb8 | provider | 310911f6-acf0-4a47-824e-
,3032916582ff |
+--------------------------------------+-------------+--------------------------------
,------+
This instance uses the selfservice self-service network. However, you must reference this network
using the ID instead of the name.
5. List available security groups:
$openstack security group list
+--------------------------------------+---------+------------------------+
| ID | Name | Description |
+--------------------------------------+---------+------------------------+
| dd2b614c-3dad-48ed-958b-b155a3b38515 | default | Default security group |
+--------------------------------------+---------+------------------------+
This instance uses the default security group.
6. Launch the instance:
Replace SELFSERVICE_NET_ID with the ID of the selfservice network.
$openstack server create --flavor m1.nano --image cirros \
--nic net-id=SELFSERVICE_NET_ID --security-group default \
100 Launch an instance
Install Guide (Release Version: 15.0.0)
--key-name mykey selfservice-instance
+--------------------------------------+---------------------------------------+
| Field | Value |
+--------------------------------------+---------------------------------------+
| OS-DCF:diskConfig | MANUAL |
| OS-EXT-AZ:availability_zone | |
| OS-EXT-STS:power_state | 0 |
| OS-EXT-STS:task_state | scheduling |
| OS-EXT-STS:vm_state | building |
| OS-SRV-USG:launched_at | None |
| OS-SRV-USG:terminated_at | None |
| accessIPv4 | |
| accessIPv6 | |
| addresses | |
| adminPass | 7KTBYHSjEz7E |
| config_drive | |
| created | 2016-02-26T14:52:37Z |
| flavor | m1.nano |
| hostId | |
| id | 113c5892-e58e-4093-88c7-e33f502eaaa4 |
| image | cirros (390eb5f7-8d49-41ec-95b7-68c0d |
| | 5d54b34) |
| key_name | mykey |
| name | selfservice-instance |
| os-extended-volumes:volumes_attached | [] |
| progress | 0 |
| project_id | ed0b60bf607743088218b0a533d5943f |
| properties | |
| security_groups | [{u'name': u'default'}] |
| status | BUILD |
| updated | 2016-02-26T14:52:38Z |
| user_id | 58126687cbcc4888bfa9ab73a2256f27 |
+--------------------------------------+---------------------------------------+
7. Check the status of your instance:
$openstack server list
+--------------------------------------+----------------------+--------+--------------
,----------+
| ID | Name | Status | Networks
,|
+--------------------------------------+----------------------+--------+--------------
,----------+
| 113c5892-e58e-4093-88c7-e33f502eaaa4 | selfservice-instance | ACTIVE |
,selfservice=172.16.1.3 |
| 181c52ba-aebc-4c32-a97d-2e8e82e4eaaf | provider-instance | ACTIVE | provider=203.
,0.113.103 |
+--------------------------------------+----------------------+--------+--------------
,----------+
The status changes from BUILD to ACTIVE when the build process successfully completes.
Launch an instance 101
Install Guide (Release Version: 15.0.0)
Access the instance using a virtual console
1. Obtain a Virtual Network Computing (VNC) session URL for your instance and access it from a web
browser:
$openstack console url show selfservice-instance
+-------+-----------------------------------------------------------------------------
,----+
| Field | Value
,|
+-------+-----------------------------------------------------------------------------
,----+
| type | novnc
,|
| url | http://controller:6080/vnc_auto.html?token=5eeccb47-525c-4918-ac2a-
,3ad1e9f1f493 |
+-------+-----------------------------------------------------------------------------
,----+
Note: If your web browser runs on a host that cannot resolve the controller host name, you can
replace controller with the IP address of the management interface on your controller node.
The CirrOS image includes conventional user name/password authentication and provides these creden-
tials at the login prompt. After logging into CirrOS, we recommend that you verify network connectivity
using ping.
2. Verify access to the self-service network gateway:
$ping -c 4 172.16.1.1
PING 172.16.1.1 (172.16.1.1) 56(84) bytes of data.
64 bytes from 172.16.1.1: icmp_req=1 ttl=64 time=0.357 ms
64 bytes from 172.16.1.1: icmp_req=2 ttl=64 time=0.473 ms
64 bytes from 172.16.1.1: icmp_req=3 ttl=64 time=0.504 ms
64 bytes from 172.16.1.1: icmp_req=4 ttl=64 time=0.470 ms
--- 172.16.1.1 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 2998ms
rtt min/avg/max/mdev = 0.357/0.451/0.504/0.055 ms
3. Verify access to the internet:
$ping -c 4openstack.org
PING openstack.org (174.143.194.225) 56(84) bytes of data.
64 bytes from 174.143.194.225: icmp_req=1 ttl=53 time=17.4 ms
64 bytes from 174.143.194.225: icmp_req=2 ttl=53 time=17.5 ms
64 bytes from 174.143.194.225: icmp_req=3 ttl=53 time=17.7 ms
64 bytes from 174.143.194.225: icmp_req=4 ttl=53 time=17.5 ms
--- openstack.org ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3003ms
rtt min/avg/max/mdev = 17.431/17.575/17.734/0.143 ms
102 Launch an instance
Install Guide (Release Version: 15.0.0)
Access the instance remotely
1. Create a floating IP address on the provider virtual network:
$openstack floating ip create provider
+---------------------+--------------------------------------+
| Field | Value |
+---------------------+--------------------------------------+
| created_at | 2017-01-20T17:29:16Z |
| description | |
| fixed_ip_address | None |
| floating_ip_address | 203.0.113.104 |
| floating_network_id | b5b6993c-ddf9-40e7-91d0-86806a42edb8 |
| headers | |
| id | 88b4d06a-d794-4406-affd-6ffa2bcf1e2a |
| port_id | None |
| project_id | ed0b60bf607743088218b0a533d5943f |
| revision_number | 1 |
| router_id | None |
| status | DOWN |
| updated_at | 2017-01-20T17:29:16Z |
+---------------------+--------------------------------------+
2. Associate the floating IP address with the instance:
$openstack server add floating ip selfservice-instance 203.0.113.104
Note: This command provides no output.
3. Check the status of your floating IP address:
$openstack server list
+--------------------------------------+----------------------+--------+--------------
,-------------------------+
| ID | Name | Status | Networks
,|
+--------------------------------------+----------------------+--------+--------------
,-------------------------+
| 113c5892-e58e-4093-88c7-e33f502eaaa4 | selfservice-instance | ACTIVE |
,selfservice=172.16.1.3, 203.0.113.104 |
| 181c52ba-aebc-4c32-a97d-2e8e82e4eaaf | provider-instance | ACTIVE | provider=203.
,0.113.103 |
+--------------------------------------+----------------------+--------+--------------
,-------------------------+
4. Verify connectivity to the instance via floating IP address from the controller node or any host on the
provider physical network:
$ping -c 4 203.0.113.104
PING 203.0.113.104 (203.0.113.104) 56(84) bytes of data.
64 bytes from 203.0.113.104: icmp_req=1 ttl=63 time=3.18 ms
64 bytes from 203.0.113.104: icmp_req=2 ttl=63 time=0.981 ms
Launch an instance 103
Install Guide (Release Version: 15.0.0)
64 bytes from 203.0.113.104: icmp_req=3 ttl=63 time=1.06 ms
64 bytes from 203.0.113.104: icmp_req=4 ttl=63 time=0.929 ms
--- 203.0.113.104 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3002ms
rtt min/avg/max/mdev = 0.929/1.539/3.183/0.951 ms
5. Access your instance using SSH from the controller node or any host on the provider physical network:
$ssh cirros@203.0.113.104
The authenticity of host '203.0.113.104 (203.0.113.104)' can't be established.
RSA key fingerprint is ed:05:e9:e7:52:a0:ff:83:68:94:c7:d1:f2:f8:e2:e9.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '203.0.113.104' (RSA) to the list of known hosts.
If your instance does not launch or seem to work as you expect, see the Instance Boot Failures section in
OpenStack Operations Guide for more information or use one of the many other options to seek assistance. We
want your first installation to work!
Return to Launch an instance.
Block Storage
If your environment includes the Block Storage service, you can create a volume and attach it to an instance.
Block Storage
Create a volume
1. Source the demo credentials to perform the following steps as a non-administrative project:
$. demo-openrc
2. Create a 1 GB volume:
$openstack volume create --size 1volume1
+---------------------+--------------------------------------+
| Field | Value |
+---------------------+--------------------------------------+
| attachments | [] |
| availability_zone | nova |
| bootable | false |
| consistencygroup_id | None |
| created_at | 2016-03-08T14:30:48.391027 |
| description | None |
| encrypted | False |
| id | a1e8be72-a395-4a6f-8e07-856a57c39524 |
| multiattach | False |
| name | volume1 |
| properties | |
| replication_status | disabled |
| size | 1 |
104 Launch an instance
Install Guide (Release Version: 15.0.0)
| snapshot_id | None |
| source_volid | None |
| status | creating |
| type | None |
| updated_at | None |
| user_id | 684286a9079845359882afc3aa5011fb |
+---------------------+--------------------------------------+
3. After a short time, the volume status should change from creating to available:
$openstack volume list
+--------------------------------------+--------------+-----------+------+------------
,-+
| ID | Display Name | Status | Size | Attached
,to |
+--------------------------------------+--------------+-----------+------+------------
,-+
| a1e8be72-a395-4a6f-8e07-856a57c39524 | volume1 | available | 1 |
,|
+--------------------------------------+--------------+-----------+------+------------
,-+
Attach the volume to an instance
1. Attach a volume to an instance:
$openstack server add volume INSTANCE_NAME VOLUME_NAME
Replace INSTANCE_NAME with the name of the instance and VOLUME_NAME with the name of the volume
you want to attach to it.
Example
Attach the volume1 volume to the provider-instance instance:
$openstack server add volume provider-instance volume1
Note: This command provides no output.
2. List volumes:
$openstack volume list
+--------------------------------------+--------------+--------+------+---------------
,-----------------------------+
| ID | Display Name | Status | Size | Attached to
,|
+--------------------------------------+--------------+--------+------+---------------
,-----------------------------+
| a1e8be72-a395-4a6f-8e07-856a57c39524 | volume1 | in-use | 1 | Attached to
,provider-instance on /dev/vdb |
+--------------------------------------+--------------+--------+------+---------------
,-----------------------------+
Launch an instance 105
Install Guide (Release Version: 15.0.0)
3. Access your instance using SSH and use the fdisk command to verify presence of the volume as the
/dev/vdb block storage device:
$sudo fdisk -l
Disk /dev/vda: 1073 MB, 1073741824 bytes
255 heads, 63 sectors/track, 130 cylinders, total 2097152 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk identifier: 0x00000000
Device Boot Start End Blocks Id System
/dev/vda1 * 16065 2088449 1036192+ 83 Linux
Disk /dev/vdb: 1073 MB, 1073741824 bytes
16 heads, 63 sectors/track, 2080 cylinders, total 2097152 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk identifier: 0x00000000
Disk /dev/vdb doesn't contain a valid partition table
Note: You must create a file system on the device and mount it to use the volume.
For more information about how to manage volumes, see the Manage volumes in OpenStack End User Guide.
Return to Launch an instance.
Orchestration
If your environment includes the Orchestration service, you can create a stack that launches an instance.
For more information, see the Orchestration installation guide.
Shared File Systems
If your environment includes the Shared File Systems service, you can create a share and mount it in an instance.
For more information, see the Shared File Systems installation guide.
106 Launch an instance
APPENDIX
Community support
The following resources are available to help you run and use OpenStack. The OpenStack community constantly
improves and adds to the main features of OpenStack, but if you have any questions, do not hesitate to ask. Use
the following resources to get OpenStack support and troubleshoot your installations.
Documentation
For the available OpenStack documentation, see docs.openstack.org.
To provide feedback on documentation, join and use the openstack-docs@lists.openstack.org mailing list at
OpenStack Documentation Mailing List, join our IRC channel #openstack-doc on the freenode IRC network,
or report a bug.
The following books explain how to install an OpenStack cloud and its associated components:
Installation Tutorial for openSUSE Leap 42.2 and SUSE Linux Enterprise Server 12 SP2
Installation Tutorial for Red Hat Enterprise Linux 7 and CentOS 7
Installation Tutorial for Ubuntu 16.04 (LTS)
The following books explain how to configure and run an OpenStack cloud:
Architecture Design Guide
Administrator Guide
Configuration Reference
Operations Guide
Networking Guide
High Availability Guide
Security Guide
Virtual Machine Image Guide
The following books explain how to use the OpenStack Dashboard and command-line clients:
End User Guide
Command-Line Interface Reference
The following documentation provides reference and guidance information for the OpenStack APIs:
API Guide
The following guide provides how to contribute to OpenStack documentation:
Documentation Contributor Guide
107
Install Guide (Release Version: 15.0.0)
ask.openstack.org
During the set up or testing of OpenStack, you might have questions about how a specific task is completed or
be in a situation where a feature does not work correctly. Use the ask.openstack.org site to ask questions and
get answers. When you visit the Ask OpenStack site, scan the recently asked questions to see whether your
question has already been answered. If not, ask a new question. Be sure to give a clear, concise summary in the
title and provide as much detail as possible in the description. Paste in your command output or stack traces,
links to screen shots, and any other information which might be useful.
OpenStack mailing lists
A great way to get answers and insights is to post your question or problematic scenario to the OpenStack
mailing list. You can learn from and help others who might have similar issues. To subscribe or view the
archives, go to the general OpenStack mailing list. If you are interested in the other mailing lists for specific
projects or development, refer to Mailing Lists.
The OpenStack wiki
The OpenStack wiki contains a broad range of topics but some of the information can be difficult to find or is a
few pages deep. Fortunately, the wiki search feature enables you to search by title or content. If you search for
specific information, such as about networking or OpenStack Compute, you can find a large amount of relevant
material. More is being added all the time, so be sure to check back often. You can find the search box in the
upper-right corner of any OpenStack wiki page.
The Launchpad Bugs area
The OpenStack community values your set up and testing efforts and wants your feedback. To log a bug, you
must sign up for a Launchpad account. You can view existing bugs and report bugs in the Launchpad Bugs
area. Use the search feature to determine whether the bug has already been reported or already been fixed. If it
still seems like your bug is unreported, fill out a bug report.
Some tips:
Give a clear, concise summary.
Provide as much detail as possible in the description. Paste in your command output or stack traces, links
to screen shots, and any other information which might be useful.
Be sure to include the software and package versions that you are using, especially
if you are using a development branch, such as, "Kilo release" vs git commit
bc79c3ecc55929bac585d04a03475b72e06a3208.
Any deployment-specific information is helpful, such as whether you are using Ubuntu 14.04 or are
performing a multi-node installation.
The following Launchpad Bugs areas are available:
Bugs: OpenStack Block Storage (cinder)
Bugs: OpenStack Compute (nova)
Bugs: OpenStack Dashboard (horizon)
Bugs: OpenStack Identity (keystone)
108 Community support
Install Guide (Release Version: 15.0.0)
Bugs: OpenStack Image service (glance)
Bugs: OpenStack Networking (neutron)
Bugs: OpenStack Object Storage (swift)
Bugs: Application catalog (murano)
Bugs: Bare metal service (ironic)
Bugs: Clustering service (senlin)
Bugs: Container Infrastructure Management service (magnum)
Bugs: Data processing service (sahara)
Bugs: Database service (trove)
Bugs: Deployment service (fuel)
Bugs: DNS service (designate)
Bugs: Key Manager Service (barbican)
Bugs: Monitoring (monasca)
Bugs: Orchestration (heat)
Bugs: Rating (cloudkitty)
Bugs: Shared file systems (manila)
Bugs: Telemetry (ceilometer)
Bugs: Telemetry v3 (gnocchi)
Bugs: Workflow service (mistral)
Bugs: Messaging service (zaqar)
Bugs: OpenStack API Documentation (developer.openstack.org)
Bugs: OpenStack Documentation (docs.openstack.org)
The OpenStack IRC channel
The OpenStack community lives in the #openstack IRC channel on the Freenode network. You can hang out, ask
questions, or get immediate feedback for urgent and pressing issues. To install an IRC client or use a browser-
based client, go to https://webchat.freenode.net/. You can also use Colloquy (Mac OS X), mIRC (Windows),
or XChat (Linux). When you are in the IRC channel and want to share code or command output, the generally
accepted method is to use a Paste Bin. The OpenStack project has one at Paste. Just paste your longer amounts
of text or logs in the web form and you get a URL that you can paste into the channel. The OpenStack IRC
channel is #openstack on irc.freenode.net. You can find a list of all OpenStack IRC channels on the IRC
page on the wiki.
Documentation feedback
To provide feedback on documentation, join and use the openstack-docs@lists.openstack.org mailing list at
OpenStack Documentation Mailing List, or report a bug.
Community support 109
Install Guide (Release Version: 15.0.0)
OpenStack distribution packages
The following Linux distributions provide community-supported packages for OpenStack:
Debian: https://wiki.debian.org/OpenStack
CentOS, Fedora, and Red Hat Enterprise Linux: https://www.rdoproject.org/
openSUSE and SUSE Linux Enterprise Server: https://en.opensuse.org/Portal:OpenStack
Ubuntu: https://wiki.ubuntu.com/ServerTeam/CloudArchive
110 Community support
GLOSSARY
Glossary
This glossary offers a list of terms and definitions to define a vocabulary for OpenStack-related concepts.
To add to OpenStack glossary, clone the openstack/openstack-manuals repository and update the source file
doc/common/glossary.rst through the OpenStack contribution process.
0-9
6to4 A mechanism that allows IPv6 packets to be transmitted over an IPv4 network, providing a strategy for
migrating to IPv6.
A
absolute limit Impassable limits for guest VMs. Settings include total RAM size, maximum number of vC-
PUs, and maximum disk size.
access control list (ACL) A list of permissions attached to an object. An ACL specifies which users or system
processes have access to objects. It also defines which operations can be performed on specified objects.
Each entry in a typical ACL specifies a subject and an operation. For instance, the ACL entry (Alice,
delete) for a file gives Alice permission to delete the file.
access key Alternative term for an Amazon EC2 access key. See EC2 access key.
account The Object Storage context of an account. Do not confuse with a user account from an authentication
service, such as Active Directory, /etc/passwd, OpenLDAP, OpenStack Identity, and so on.
account auditor Checks for missing replicas and incorrect or corrupted objects in a specified Object Storage
account by running queries against the back-end SQLite database.
account database A SQLite database that contains Object Storage accounts and related metadata and that the
accounts server accesses.
account reaper An Object Storage worker that scans for and deletes account databases and that the account
server has marked for deletion.
account server Lists containers in Object Storage and stores container information in the account database.
account service An Object Storage component that provides account services such as list, create, modify, and
audit. Do not confuse with OpenStack Identity service, OpenLDAP, or similar user-account services.
accounting The Compute service provides accounting information through the event notification and system
usage data facilities.
Active Directory Authentication and identity service by Microsoft, based on LDAP. Supported in OpenStack.
active/active configuration In a high-availability setup with an active/active configuration, several systems
share the load together and if one fails, the load is distributed to the remaining systems.
active/passive configuration In a high-availability setup with an active/passive configuration, systems are set
up to bring additional resources online to replace those that have failed.
111
Install Guide (Release Version: 15.0.0)
address pool A group of fixed and/or floating IP addresses that are assigned to a project and can be used by
or assigned to the VM instances in a project.
Address Resolution Protocol (ARP) The protocol by which layer-3 IP addresses are resolved into layer-2
link local addresses.
admin API A subset of API calls that are accessible to authorized administrators and are generally not ac-
cessible to end users or the public Internet. They can exist as a separate service (keystone) or can be a
subset of another API (nova).
admin server In the context of the Identity service, the worker process that provides access to the admin API.
administrator The person responsible for installing, configuring, and managing an OpenStack cloud.
Advanced Message Queuing Protocol (AMQP) The open standard messaging protocol used by OpenStack
components for intra-service communications, provided by RabbitMQ, Qpid, or ZeroMQ.
Advanced RISC Machine (ARM) Lower power consumption CPU often found in mobile and embedded
devices. Supported by OpenStack.
alert The Compute service can send alerts through its notification system, which includes a facility to create
custom notification drivers. Alerts can be sent to and displayed on the dashboard.
allocate The process of taking a floating IP address from the address pool so it can be associated with a fixed
IP on a guest VM instance.
Amazon Kernel Image (AKI) Both a VM container format and disk format. Supported by Image service.
Amazon Machine Image (AMI) Both a VM container format and disk format. Supported by Image service.
Amazon Ramdisk Image (ARI) Both a VM container format and disk format. Supported by Image service.
Anvil A project that ports the shell script-based project named DevStack to Python.
aodh Part of the OpenStack Telemetry service; provides alarming functionality.
Apache The Apache Software Foundation supports the Apache community of open-source software projects.
These projects provide software products for the public good.
Apache License 2.0 All OpenStack core projects are provided under the terms of the Apache License 2.0
license.
Apache Web Server The most common web server software currently used on the Internet.
API endpoint The daemon, worker, or service that a client communicates with to access an API. API endpoints
can provide any number of services, such as authentication, sales data, performance meters, Compute
VM commands, census data, and so on.
API extension Custom modules that extend some OpenStack core APIs.
API extension plug-in Alternative term for a Networking plug-in or Networking API extension.
API key Alternative term for an API token.
API server Any node running a daemon or worker that provides an API endpoint.
API token Passed to API requests and used by OpenStack to verify that the client is authorized to run the
requested operation.
API version In OpenStack, the API version for a project is part of the URL. For example, example.com/
nova/v1/foobar.
applet A Java program that can be embedded into a web page.
112 Glossary
Install Guide (Release Version: 15.0.0)
Application Catalog service (murano) The project that provides an application catalog service so that users
can compose and deploy composite environments on an application abstraction level while managing
the application lifecycle.
Application Programming Interface (API) A collection of specifications used to access a service, appli-
cation, or program. Includes service calls, required parameters for each call, and the expected return
values.
application server A piece of software that makes available another piece of software over a network.
Application Service Provider (ASP) Companies that rent specialized applications that help businesses and
organizations provide additional services with lower cost.
arptables Tool used for maintaining Address Resolution Protocol packet filter rules in the Linux kernel fire-
wall modules. Used along with iptables, ebtables, and ip6tables in Compute to provide firewall services
for VMs.
associate The process associating a Compute floating IP address with a fixed IP address.
Asynchronous JavaScript and XML (AJAX) A group of interrelated web development techniques used on
the client-side to create asynchronous web applications. Used extensively in horizon.
ATA over Ethernet (AoE) A disk storage protocol tunneled within Ethernet.
attach The process of connecting a VIF or vNIC to a L2 network in Networking. In the context of Compute,
this process connects a storage volume to an instance.
attachment (network) Association of an interface ID to a logical port. Plugs an interface into a port.
auditing Provided in Compute through the system usage data facility.
auditor A worker process that verifies the integrity of Object Storage objects, containers, and accounts. Au-
ditors is the collective term for the Object Storage account auditor, container auditor, and object auditor.
Austin The code name for the initial release of OpenStack. The first design summit took place in Austin,
Texas, US.
auth node Alternative term for an Object Storage authorization node.
authentication The process that confirms that the user, process, or client is really who they say they are
through private key, secret token, password, fingerprint, or similar method.
authentication token A string of text provided to the client after authentication. Must be provided by the user
or process in subsequent requests to the API endpoint.
AuthN The Identity service component that provides authentication services.
authorization The act of verifying that a user, process, or client is authorized to perform an action.
authorization node An Object Storage node that provides authorization services.
AuthZ The Identity component that provides high-level authorization services.
Auto ACK Configuration setting within RabbitMQ that enables or disables message acknowledgment. En-
abled by default.
auto declare A Compute RabbitMQ setting that determines whether a message exchange is automatically
created when the program starts.
availability zone An Amazon EC2 concept of an isolated area that is used for fault tolerance. Do not confuse
with an OpenStack Compute zone or cell.
Glossary 113
Install Guide (Release Version: 15.0.0)
AWS CloudFormation template AWS CloudFormation allows Amazon Web Services (AWS) users to create
and manage a collection of related resources. The Orchestration service supports a CloudFormation-
compatible format (CFN).
B
back end Interactions and processes that are obfuscated from the user, such as Compute volume mount, data
transmission to an iSCSI target by a daemon, or Object Storage object integrity checks.
back-end catalog The storage method used by the Identity service catalog service to store and retrieve infor-
mation about API endpoints that are available to the client. Examples include an SQL database, LDAP
database, or KVS back end.
back-end store The persistent data store used to save and retrieve information for a service, such as lists of
Object Storage objects, current state of guest VMs, lists of user names, and so on. Also, the method that
the Image service uses to get and store VM images. Options include Object Storage, locally mounted
file system, RADOS block devices, VMware datastore, and HTTP.
Backup, Restore, and Disaster Recovery service (freezer) The project that provides integrated tooling for
backing up, restoring, and recovering file systems, instances, or database backups.
bandwidth The amount of available data used by communication resources, such as the Internet. Represents
the amount of data that is used to download things or the amount of data available to download.
barbican Code name of the Key Manager service.
bare An Image service container format that indicates that no container exists for the VM image.
Bare Metal service (ironic) The OpenStack service that provides a service and associated libraries capable
of managing and provisioning physical machines in a security-aware and fault-tolerant manner.
base image An OpenStack-provided image.
Bell-LaPadula model A security model that focuses on data confidentiality and controlled access to classified
information. This model divides the entities into subjects and objects. The clearance of a subject is
compared to the classification of the object to determine if the subject is authorized for the specific
access mode. The clearance or classification scheme is expressed in terms of a lattice.
Benchmark service (rally) OpenStack project that provides a framework for performance analysis and bench-
marking of individual OpenStack components as well as full production OpenStack cloud deployments.
Bexar A grouped release of projects related to OpenStack that came out in February of 2011. It included only
Compute (nova) and Object Storage (swift). Bexar is the code name for the second release of OpenStack.
The design summit took place in San Antonio, Texas, US, which is the county seat for Bexar county.
binary Information that consists solely of ones and zeroes, which is the language of computers.
bit A bit is a single digit number that is in base of 2 (either a zero or one). Bandwidth usage is measured in
bits per second.
bits per second (BPS) The universal measurement of how quickly data is transferred from place to place.
block device A device that moves data in the form of blocks. These device nodes interface the devices, such
as hard disks, CD-ROM drives, flash drives, and other addressable regions of memory.
block migration A method of VM live migration used by KVM to evacuate instances from one host to another
with very little downtime during a user-initiated switchover. Does not require shared storage. Supported
by Compute.
114 Glossary
Install Guide (Release Version: 15.0.0)
Block Storage API An API on a separate endpoint for attaching, detaching, and creating block storage for
compute VMs.
Block Storage service (cinder) The OpenStack service that implement services and libraries to provide on-
demand, self-service access to Block Storage resources via abstraction and automation on top of other
block storage devices.
BMC (Baseboard Management Controller) The intelligence in the IPMI architecture, which is a specialized
micro-controller that is embedded on the motherboard of a computer and acts as a server. Manages the
interface between system management software and platform hardware.
bootable disk image A type of VM image that exists as a single, bootable file.
Bootstrap Protocol (BOOTP) A network protocol used by a network client to obtain an IP address from a
configuration server. Provided in Compute through the dnsmasq daemon when using either the FlatD-
HCP manager or VLAN manager network manager.
Border Gateway Protocol (BGP) The Border Gateway Protocol is a dynamic routing protocol that connects
autonomous systems. Considered the backbone of the Internet, this protocol connects disparate networks
to form a larger network.
browser Any client software that enables a computer or device to access the Internet.
builder file Contains configuration information that Object Storage uses to reconfigure a ring or to re-create
it from scratch after a serious failure.
bursting The practice of utilizing a secondary environment to elastically build instances on-demand when the
primary environment is resource constrained.
button class A group of related button types within horizon. Buttons to start, stop, and suspend VMs are in
one class. Buttons to associate and disassociate floating IP addresses are in another class, and so on.
byte Set of bits that make up a single character; there are usually 8 bits to a byte.
C
cache pruner A program that keeps the Image service VM image cache at or below its configured maximum
size.
Cactus An OpenStack grouped release of projects that came out in the spring of 2011. It included Compute
(nova), Object Storage (swift), and the Image service (glance). Cactus is a city in Texas, US and is the
code name for the third release of OpenStack. When OpenStack releases went from three to six months
long, the code name of the release changed to match a geography nearest the previous summit.
CALL One of the RPC primitives used by the OpenStack message queue software. Sends a message and
waits for a response.
capability Defines resources for a cell, including CPU, storage, and networking. Can apply to the specific
services within a cell or a whole cell.
capacity cache A Compute back-end database table that contains the current workload, amount of free RAM,
and number of VMs running on each host. Used to determine on which host a VM starts.
capacity updater A notification driver that monitors VM instances and updates the capacity cache as needed.
CAST One of the RPC primitives used by the OpenStack message queue software. Sends a message and does
not wait for a response.
catalog A list of API endpoints that are available to a user after authentication with the Identity service.
Glossary 115
Install Guide (Release Version: 15.0.0)
catalog service An Identity service that lists API endpoints that are available to a user after authentication
with the Identity service.
ceilometer Part of the OpenStack Telemetry service; gathers and stores metrics from other OpenStack services.
cell Provides logical partitioning of Compute resources in a child and parent relationship. Requests are passed
from parent cells to child cells if the parent cannot provide the requested resource.
cell forwarding A Compute option that enables parent cells to pass resource requests to child cells if the parent
cannot provide the requested resource.
cell manager The Compute component that contains a list of the current capabilities of each host within the
cell and routes requests as appropriate.
CentOS A Linux distribution that is compatible with OpenStack.
Ceph Massively scalable distributed storage system that consists of an object store, block store, and POSIX-
compatible distributed file system. Compatible with OpenStack.
CephFS The POSIX-compliant file system provided by Ceph.
certificate authority (CA) In cryptography, an entity that issues digital certificates. The digital certificate
certifies the ownership of a public key by the named subject of the certificate. This enables others
(relying parties) to rely upon signatures or assertions made by the private key that corresponds to the
certified public key. In this model of trust relationships, a CA is a trusted third party for both the subject
(owner) of the certificate and the party relying upon the certificate. CAs are characteristic of many public
key infrastructure (PKI) schemes. In OpenStack, a simple certificate authority is provided by Compute
for cloudpipe VPNs and VM image decryption.
Challenge-Handshake Authentication Protocol (CHAP) An iSCSI authentication method supported by
Compute.
chance scheduler A scheduling method used by Compute that randomly chooses an available host from the
pool.
changes since A Compute API parameter that downloads changes to the requested item since your last request,
instead of downloading a new, fresh set of data and comparing it against the old data.
Chef An operating system configuration management tool supporting OpenStack deployments.
child cell If a requested resource such as CPU time, disk storage, or memory is not available in the parent
cell, the request is forwarded to its associated child cells. If the child cell can fulfill the request, it does.
Otherwise, it attempts to pass the request to any of its children.
cinder Codename for Block Storage service.
CirrOS A minimal Linux distribution designed for use as a test image on clouds such as OpenStack.
Cisco neutron plug-in A Networking plug-in for Cisco devices and technologies, including UCS and Nexus.
cloud architect A person who plans, designs, and oversees the creation of clouds.
Cloud Auditing Data Federation (CADF) Cloud Auditing Data Federation (CADF) is a specification for
audit event data. CADF is supported by OpenStack Identity.
cloud computing A model that enables access to a shared pool of configurable computing resources, such as
networks, servers, storage, applications, and services, that can be rapidly provisioned and released with
minimal management effort or service provider interaction.
cloud controller Collection of Compute components that represent the global state of the cloud; talks to
services, such as Identity authentication, Object Storage, and node/storage workers through a queue.
116 Glossary
Install Guide (Release Version: 15.0.0)
cloud controller node A node that runs network, volume, API, scheduler, and image services. Each service
may be broken out into separate nodes for scalability or availability.
Cloud Data Management Interface (CDMI) SINA standard that defines a RESTful API for managing ob-
jects in the cloud, currently unsupported in OpenStack.
Cloud Infrastructure Management Interface (CIMI) An in-progress specification for cloud management.
Currently unsupported in OpenStack.
cloud-init A package commonly installed in VM images that performs initialization of an instance after boot
using information that it retrieves from the metadata service, such as the SSH public key and user data.
cloudadmin One of the default roles in the Compute RBAC system. Grants complete system access.
Cloudbase-Init A Windows project providing guest initialization features, similar to cloud-init.
cloudpipe A compute service that creates VPNs on a per-project basis.
cloudpipe image A pre-made VM image that serves as a cloudpipe server. Essentially, OpenVPN running on
Linux.
Clustering service (senlin) The project that implements clustering services and libraries for the management
of groups of homogeneous objects exposed by other OpenStack services.
command filter Lists allowed commands within the Compute rootwrap facility.
Common Internet File System (CIFS) A file sharing protocol. It is a public or open variation of the original
Server Message Block (SMB) protocol developed and used by Microsoft. Like the SMB protocol, CIFS
runs at a higher level and uses the TCP/IP protocol.
Common Libraries (oslo) The project that produces a set of python libraries containing code shared by Open-
Stack projects. The APIs provided by these libraries should be high quality, stable, consistent, docu-
mented and generally applicable.
community project A project that is not officially endorsed by the OpenStack Foundation. If the project is
successful enough, it might be elevated to an incubated project and then to a core project, or it might be
merged with the main code trunk.
compression Reducing the size of files by special encoding, the file can be decompressed again to its original
content. OpenStack supports compression at the Linux file system level but does not support compression
for things such as Object Storage objects or Image service VM images.
Compute API (Nova API) The nova-api daemon provides access to nova services. Can communicate with
other APIs, such as the Amazon EC2 API.
compute controller The Compute component that chooses suitable hosts on which to start VM instances.
compute host Physical host dedicated to running compute nodes.
compute node A node that runs the nova-compute daemon that manages VM instances that provide a wide
range of services, such as web applications and analytics.
Compute service (nova) The OpenStack core project that implements services and associated libraries to
provide massively-scalable, on-demand, self-service access to compute resources, including bare metal,
virtual machines, and containers.
compute worker The Compute component that runs on each compute node and manages the VM instance
lifecycle, including run, reboot, terminate, attach/detach volumes, and so on. Provided by the nova-
compute daemon.
concatenated object A set of segment objects that Object Storage combines and sends to the client.
Glossary 117
Install Guide (Release Version: 15.0.0)
conductor In Compute, conductor is the process that proxies database requests from the compute process.
Using conductor improves security because compute nodes do not need direct access to the database.
congress Code name for the Governance service.
consistency window The amount of time it takes for a new Object Storage object to become accessible to all
clients.
console log Contains the output from a Linux VM console in Compute.
container Organizes and stores objects in Object Storage. Similar to the concept of a Linux directory but
cannot be nested. Alternative term for an Image service container format.
container auditor Checks for missing replicas or incorrect objects in specified Object Storage containers
through queries to the SQLite back-end database.
container database A SQLite database that stores Object Storage containers and container metadata. The
container server accesses this database.
container format A wrapper used by the Image service that contains a VM image and its associated metadata,
such as machine state, OS disk size, and so on.
Container Infrastructure Management service (magnum) The project which provides a set of services for
provisioning, scaling, and managing container orchestration engines.
container server An Object Storage server that manages containers.
container service The Object Storage component that provides container services, such as create, delete, list,
and so on.
content delivery network (CDN) A content delivery network is a specialized network that is used to distribute
content to clients, typically located close to the client for increased performance.
controller node Alternative term for a cloud controller node.
core API Depending on context, the core API is either the OpenStack API or the main API of a specific core
project, such as Compute, Networking, Image service, and so on.
core service An official OpenStack service defined as core by DefCore Committee. Currently, consists of
Block Storage service (cinder), Compute service (nova), Identity service (keystone), Image service
(glance), Networking service (neutron), and Object Storage service (swift).
cost Under the Compute distributed scheduler, this is calculated by looking at the capabilities of each host
relative to the flavor of the VM instance being requested.
credentials Data that is only known to or accessible by a user and used to verify that the user is who he says
he is. Credentials are presented to the server during authentication. Examples include a password, secret
key, digital certificate, and fingerprint.
CRL A Certificate Revocation List (CRL) in a PKI model is a list of certificates that have been revoked. End
entities presenting these certificates should not be trusted.
Cross-Origin Resource Sharing (CORS) A mechanism that allows many resources (for example, fonts,
JavaScript) on a web page to be requested from another domain outside the domain from which the
resource originated. In particular, JavaScript’s AJAX calls can use the XMLHttpRequest mechanism.
Crowbar An open source community project by SUSE that aims to provide all necessary services to quickly
deploy and manage clouds.
current workload An element of the Compute capacity cache that is calculated based on the number of build,
snapshot, migrate, and resize operations currently in progress on a given host.
118 Glossary
Install Guide (Release Version: 15.0.0)
customer Alternative term for project.
customization module A user-created Python module that is loaded by horizon to change the look and feel
of the dashboard.
D
daemon A process that runs in the background and waits for requests. May or may not listen on a TCP or
UDP port. Do not confuse with a worker.
Dashboard (horizon) OpenStack project which provides an extensible, unified, web-based user interface for
all OpenStack services.
data encryption Both Image service and Compute support encrypted virtual machine (VM) images (but not
instances). In-transit data encryption is supported in OpenStack using technologies such as HTTPS,
SSL, TLS, and SSH. Object Storage does not support object encryption at the application level but may
support storage that uses disk encryption.
Data loss prevention (DLP) software Software programs used to protect sensitive information and prevent
it from leaking outside a network boundary through the detection and denying of the data transportation.
Data Processing service (sahara) OpenStack project that provides a scalable data-processing stack and as-
sociated management interfaces.
data store A database engine supported by the Database service.
database ID A unique ID given to each replica of an Object Storage database.
database replicator An Object Storage component that copies changes in the account, container, and object
databases to other nodes.
Database service (trove) An integrated project that provides scalable and reliable Cloud Database-as-a-
Service functionality for both relational and non-relational database engines.
deallocate The process of removing the association between a floating IP address and a fixed IP address. Once
this association is removed, the floating IP returns to the address pool.
Debian A Linux distribution that is compatible with OpenStack.
deduplication The process of finding duplicate data at the disk block, file, and/or object level to minimize
storage use—currently unsupported within OpenStack.
default panel The default panel that is displayed when a user accesses the dashboard.
default project New users are assigned to this project if no project is specified when a user is created.
default token An Identity service token that is not associated with a specific project and is exchanged for a
scoped token.
delayed delete An option within Image service so that an image is deleted after a predefined number of seconds
instead of immediately.
delivery mode Setting for the Compute RabbitMQ message delivery mode; can be set to either transient or
persistent.
denial of service (DoS) Denial of service (DoS) is a short form for denial-of-service attack. This is a malicious
attempt to prevent legitimate users from using a service.
deprecated auth An option within Compute that enables administrators to create and manage users through
the nova-manage command as opposed to using the Identity service.
Glossary 119
Install Guide (Release Version: 15.0.0)
designate Code name for the DNS service.
Desktop-as-a-Service A platform that provides a suite of desktop environments that users access to receive
a desktop experience from any location. This may provide general use, development, or even homoge-
neous testing environments.
developer One of the default roles in the Compute RBAC system and the default role assigned to a new user.
device ID Maps Object Storage partitions to physical storage devices.
device weight Distributes partitions proportionately across Object Storage devices based on the storage ca-
pacity of each device.
DevStack Community project that uses shell scripts to quickly build complete OpenStack development envi-
ronments.
DHCP agent OpenStack Networking agent that provides DHCP services for virtual networks.
Diablo A grouped release of projects related to OpenStack that came out in the fall of 2011, the fourth release
of OpenStack. It included Compute (nova 2011.3), Object Storage (swift 1.4.3), and the Image service
(glance). Diablo is the code name for the fourth release of OpenStack. The design summit took place in
the Bay Area near Santa Clara, California, US and Diablo is a nearby city.
direct consumer An element of the Compute RabbitMQ that comes to life when a RPC call is executed. It
connects to a direct exchange through a unique exclusive queue, sends the message, and terminates.
direct exchange A routing table that is created within the Compute RabbitMQ during RPC calls; one is created
for each RPC call that is invoked.
direct publisher Element of RabbitMQ that provides a response to an incoming MQ message.
disassociate The process of removing the association between a floating IP address and fixed IP and thus
returning the floating IP address to the address pool.
Discretionary Access Control (DAC) Governs the ability of subjects to access objects, while enabling users
to make policy decisions and assign security attributes. The traditional UNIX system of users, groups,
and read-write-execute permissions is an example of DAC.
disk encryption The ability to encrypt data at the file system, disk partition, or whole-disk level. Supported
within Compute VMs.
disk format The underlying format that a disk image for a VM is stored as within the Image service back-end
store. For example, AMI, ISO, QCOW2, VMDK, and so on.
dispersion In Object Storage, tools to test and ensure dispersion of objects and containers to ensure fault
tolerance.
distributed virtual router (DVR) Mechanism for highly available multi-host routing when using OpenStack
Networking (neutron).
Django A web framework used extensively in horizon.
DNS record A record that specifies information about a particular domain and belongs to the domain.
DNS service (designate) OpenStack project that provides scalable, on demand, self service access to author-
itative DNS services, in a technology-agnostic manner.
dnsmasq Daemon that provides DNS, DHCP, BOOTP, and TFTP services for virtual networks.
domain An Identity API v3 entity. Represents a collection of projects, groups and users that defines admin-
istrative boundaries for managing OpenStack Identity entities. On the Internet, separates a website from
other sites. Often, the domain name has two or more parts that are separated by dots. For example,
120 Glossary
Install Guide (Release Version: 15.0.0)
yahoo.com, usa.gov, harvard.edu, or mail.yahoo.com. Also, a domain is an entity or container of all
DNS-related information containing one or more records.
Domain Name System (DNS) A system by which Internet domain name-to-address and address-to-name res-
olutions are determined. DNS helps navigate the Internet by translating the IP address into an address
that is easier to remember. For example, translating 111.111.111.1 into www.yahoo.com. All domains
and their components, such as mail servers, utilize DNS to resolve to the appropriate locations. DNS
servers are usually set up in a master-slave relationship such that failure of the master invokes the slave.
DNS servers might also be clustered or replicated such that changes made to one DNS server are au-
tomatically propagated to other active servers. In Compute, the support that enables associating DNS
entries with floating IP addresses, nodes, or cells so that hostnames are consistent across reboots.
download The transfer of data, usually in the form of files, from one computer to another.
durable exchange The Compute RabbitMQ message exchange that remains active when the server restarts.
durable queue A Compute RabbitMQ message queue that remains active when the server restarts.
Dynamic Host Configuration Protocol (DHCP) A network protocol that configures devices that are con-
nected to a network so that they can communicate on that network by using the Internet Protocol (IP).
The protocol is implemented in a client-server model where DHCP clients request configuration data,
such as an IP address, a default route, and one or more DNS server addresses from a DHCP server. A
method to automatically configure networking for a host at boot time. Provided by both Networking and
Compute.
Dynamic HyperText Markup Language (DHTML) Pages that use HTML, JavaScript, and Cascading Style
Sheets to enable users to interact with a web page or show simple animation.
E
east-west traffic Network traffic between servers in the same cloud or data center. See also north-south traffic.
EBS boot volume An Amazon EBS storage volume that contains a bootable VM image, currently unsupported
in OpenStack.
ebtables Filtering tool for a Linux bridging firewall, enabling filtering of network traffic passing through
a Linux bridge. Used in Compute along with arptables, iptables, and ip6tables to ensure isolation of
network communications.
EC2 The Amazon commercial compute product, similar to Compute.
EC2 access key Used along with an EC2 secret key to access the Compute EC2 API.
EC2 API OpenStack supports accessing the Amazon EC2 API through Compute.
EC2 Compatibility API A Compute component that enables OpenStack to communicate with Amazon EC2.
EC2 secret key Used along with an EC2 access key when communicating with the Compute EC2 API; used
to digitally sign each request.
Elastic Block Storage (EBS) The Amazon commercial block storage product.
encapsulation The practice of placing one packet type within another for the purposes of abstracting or se-
curing data. Examples include GRE, MPLS, or IPsec.
encryption OpenStack supports encryption technologies such as HTTPS, SSH, SSL, TLS, digital certificates,
and data encryption.
endpoint See API endpoint.
Glossary 121
Install Guide (Release Version: 15.0.0)
endpoint registry Alternative term for an Identity service catalog.
endpoint template A list of URL and port number endpoints that indicate where a service, such as Object
Storage, Compute, Identity, and so on, can be accessed.
entity Any piece of hardware or software that wants to connect to the network services provided by Net-
working, the network connectivity service. An entity can make use of Networking by implementing a
VIF.
ephemeral image A VM image that does not save changes made to its volumes and reverts them to their
original state after the instance is terminated.
ephemeral volume Volume that does not save the changes made to it and reverts to its original state when the
current user relinquishes control.
Essex A grouped release of projects related to OpenStack that came out in April 2012, the fifth release of
OpenStack. It included Compute (nova 2012.1), Object Storage (swift 1.4.8), Image (glance), Identity
(keystone), and Dashboard (horizon). Essex is the code name for the fifth release of OpenStack. The
design summit took place in Boston, Massachusetts, US and Essex is a nearby city.
ESXi An OpenStack-supported hypervisor.
ETag MD5 hash of an object within Object Storage, used to ensure data integrity.
euca2ools A collection of command-line tools for administering VMs; most are compatible with OpenStack.
Eucalyptus Kernel Image (EKI) Used along with an ERI to create an EMI.
Eucalyptus Machine Image (EMI) VM image container format supported by Image service.
Eucalyptus Ramdisk Image (ERI) Used along with an EKI to create an EMI.
evacuate The process of migrating one or all virtual machine (VM) instances from one host to another, com-
patible with both shared storage live migration and block migration.
exchange Alternative term for a RabbitMQ message exchange.
exchange type A routing algorithm in the Compute RabbitMQ.
exclusive queue Connected to by a direct consumer in RabbitMQ—Compute, the message can be consumed
only by the current connection.
extended attributes (xattr) File system option that enables storage of additional information beyond owner,
group, permissions, modification time, and so on. The underlying Object Storage file system must sup-
port extended attributes.
extension Alternative term for an API extension or plug-in. In the context of Identity service, this is a call
that is specific to the implementation, such as adding support for OpenID.
external network A network segment typically used for instance Internet access.
extra specs Specifies additional requirements when Compute determines where to start a new instance. Ex-
amples include a minimum amount of network bandwidth or a GPU.
F
FakeLDAP An easy method to create a local LDAP directory for testing Identity and Compute. Requires
Redis.
fan-out exchange Within RabbitMQ and Compute, it is the messaging interface that is used by the scheduler
service to receive capability messages from the compute, volume, and network nodes.
122 Glossary
Install Guide (Release Version: 15.0.0)
federated identity A method to establish trusts between identity providers and the OpenStack cloud.
Fedora A Linux distribution compatible with OpenStack.
Fibre Channel Storage protocol similar in concept to TCP/IP; encapsulates SCSI commands and data.
Fibre Channel over Ethernet (FCoE) The fibre channel protocol tunneled within Ethernet.
fill-first scheduler The Compute scheduling method that attempts to fill a host with VMs rather than starting
new VMs on a variety of hosts.
filter The step in the Compute scheduling process when hosts that cannot run VMs are eliminated and not
chosen.
firewall Used to restrict communications between hosts and/or nodes, implemented in Compute using iptables,
arptables, ip6tables, and ebtables.
FireWall-as-a-Service (FWaaS) A Networking extension that provides perimeter firewall functionality.
fixed IP address An IP address that is associated with the same instance each time that instance boots, is
generally not accessible to end users or the public Internet, and is used for management of the instance.
Flat Manager The Compute component that gives IP addresses to authorized nodes and assumes DHCP, DNS,
and routing configuration and services are provided by something else.
flat mode injection A Compute networking method where the OS network configuration information is in-
jected into the VM image before the instance starts.
flat network Virtual network type that uses neither VLANs nor tunnels to segregate project traffic. Each
flat network typically requires a separate underlying physical interface defined by bridge mappings.
However, a flat network can contain multiple subnets.
FlatDHCP Manager The Compute component that provides dnsmasq (DHCP, DNS, BOOTP, TFTP) and
radvd (routing) services.
flavor Alternative term for a VM instance type.
flavor ID UUID for each Compute or Image service VM flavor or instance type.
floating IP address An IP address that a project can associate with a VM so that the instance has the same
public IP address each time that it boots. You create a pool of floating IP addresses and assign them to
instances as they are launched to maintain a consistent IP address for maintaining DNS assignment.
Folsom A grouped release of projects related to OpenStack that came out in the fall of 2012, the sixth release
of OpenStack. It includes Compute (nova), Object Storage (swift), Identity (keystone), Networking
(neutron), Image service (glance), and Volumes or Block Storage (cinder). Folsom is the code name
for the sixth release of OpenStack. The design summit took place in San Francisco, California, US and
Folsom is a nearby city.
FormPost Object Storage middleware that uploads (posts) an image through a form on a web page.
freezer Code name for the Backup, Restore, and Disaster Recovery service.
front end The point where a user interacts with a service; can be an API endpoint, the dashboard, or a
command-line tool.
G
gateway An IP address, typically assigned to a router, that passes network traffic between different networks.
Glossary 123
Install Guide (Release Version: 15.0.0)
generic receive offload (GRO) Feature of certain network interface drivers that combines many smaller re-
ceived packets into a large packet before delivery to the kernel IP stack.
generic routing encapsulation (GRE) Protocol that encapsulates a wide variety of network layer protocols
inside virtual point-to-point links.
glance Codename for the Image service.
glance API server Alternative name for the Image API.
glance registry Alternative term for the Image service image registry.
global endpoint template The Identity service endpoint template that contains services available to all
projects.
GlusterFS A file system designed to aggregate NAS hosts, compatible with OpenStack.
gnocchi Part of the OpenStack Telemetry service; provides an indexer and time-series database.
golden image A method of operating system installation where a finalized disk image is created and then used
by all nodes without modification.
Governance service (congress) The project that provides Governance-as-a-Service across any collection of
cloud services in order to monitor, enforce, and audit policy over dynamic infrastructure.
Graphic Interchange Format (GIF) A type of image file that is commonly used for animated images on web
pages.
Graphics Processing Unit (GPU) Choosing a host based on the existence of a GPU is currently unsupported
in OpenStack.
Green Threads The cooperative threading model used by Python; reduces race conditions and only context
switches when specific library calls are made. Each OpenStack service is its own thread.
Grizzly The code name for the seventh release of OpenStack. The design summit took place in San Diego,
California, US and Grizzly is an element of the state flag of California.
Group An Identity v3 API entity. Represents a collection of users that is owned by a specific domain.
guest OS An operating system instance running under the control of a hypervisor.
H
Hadoop Apache Hadoop is an open source software framework that supports data-intensive distributed ap-
plications.
Hadoop Distributed File System (HDFS) A distributed, highly fault-tolerant file system designed to run on
low-cost commodity hardware.
handover An object state in Object Storage where a new replica of the object is automatically created due to
a drive failure.
HAProxy Provides a high availability load balancer and proxy server for TCP and HTTP-based applications
that spreads requests across multiple servers.
hard reboot A type of reboot where a physical or virtual power button is pressed as opposed to a graceful,
proper shutdown of the operating system.
Havana The code name for the eighth release of OpenStack. The design summit took place in Portland,
Oregon, US and Havana is an unincorporated community in Oregon.
124 Glossary
Install Guide (Release Version: 15.0.0)
health monitor Determines whether back-end members of a VIP pool can process a request. A pool can
have several health monitors associated with it. When a pool has several monitors associated with it, all
monitors check each member of the pool. All monitors must declare a member to be healthy for it to stay
active.
heat Codename for the Orchestration service.
Heat Orchestration Template (HOT) Heat input in the format native to OpenStack.
high availability (HA) A high availability system design approach and associated service implementation
ensures that a prearranged level of operational performance will be met during a contractual measurement
period. High availability systems seek to minimize system downtime and data loss.
horizon Codename for the Dashboard.
horizon plug-in A plug-in for the OpenStack Dashboard (horizon).
host A physical computer, not a VM instance (node).
host aggregate A method to further subdivide availability zones into hypervisor pools, a collection of common
hosts.
Host Bus Adapter (HBA) Device plugged into a PCI slot, such as a fibre channel or network card.
hybrid cloud A hybrid cloud is a composition of two or more clouds (private, community or public) that
remain distinct entities but are bound together, offering the benefits of multiple deployment models.
Hybrid cloud can also mean the ability to connect colocation, managed and/or dedicated services with
cloud resources.
Hyper-V One of the hypervisors supported by OpenStack.
hyperlink Any kind of text that contains a link to some other site, commonly found in documents where
clicking on a word or words opens up a different website.
Hypertext Transfer Protocol (HTTP) An application protocol for distributed, collaborative, hypermedia in-
formation systems. It is the foundation of data communication for the World Wide Web. Hypertext is
structured text that uses logical links (hyperlinks) between nodes containing text. HTTP is the protocol
to exchange or transfer hypertext.
Hypertext Transfer Protocol Secure (HTTPS) An encrypted communications protocol for secure commu-
nication over a computer network, with especially wide deployment on the Internet. Technically, it is
not a protocol in and of itself; rather, it is the result of simply layering the Hypertext Transfer Proto-
col (HTTP) on top of the TLS or SSL protocol, thus adding the security capabilities of TLS or SSL to
standard HTTP communications. Most OpenStack API endpoints and many inter-component communi-
cations support HTTPS communication.
hypervisor Software that arbitrates and controls VM access to the actual underlying hardware.
hypervisor pool A collection of hypervisors grouped together through host aggregates.
I
Icehouse The code name for the ninth release of OpenStack. The design summit took place in Hong Kong
and Ice House is a street in that city.
ID number Unique numeric ID associated with each user in Identity, conceptually similar to a Linux or LDAP
UID.
Identity API Alternative term for the Identity service API.
Glossary 125
Install Guide (Release Version: 15.0.0)
Identity back end The source used by Identity service to retrieve user information; an OpenLDAP server, for
example.
identity provider A directory service, which allows users to login with a user name and password. It is a
typical source of authentication tokens.
Identity service (keystone) The project that facilitates API client authentication, service discovery, dis-
tributed multi-project authorization, and auditing. It provides a central directory of users mapped to
the OpenStack services they can access. It also registers endpoints for OpenStack services and acts as a
common authentication system.
Identity service API The API used to access the OpenStack Identity service provided through keystone.
IETF Internet Engineering Task Force (IETF) is an open standards organization that develops Internet stan-
dards, particularly the standards pertaining to TCP/IP.
image A collection of files for a specific operating system (OS) that you use to create or rebuild a server.
OpenStack provides pre-built images. You can also create custom images, or snapshots, from servers
that you have launched. Custom images can be used for data backups or as “gold” images for additional
servers.
Image API The Image service API endpoint for management of VM images. Processes client requests for
VMs, updates Image service metadata on the registry server, and communicates with the store adapter to
upload VM images from the back-end store.
image cache Used by Image service to obtain images on the local host rather than re-downloading them from
the image server each time one is requested.
image ID Combination of a URI and UUID used to access Image service VM images through the image API.
image membership A list of projects that can access a given VM image within Image service.
image owner The project who owns an Image service virtual machine image.
image registry A list of VM images that are available through Image service.
Image service (glance) The OpenStack service that provide services and associated libraries to store, browse,
share, distribute and manage bootable disk images, other data closely associated with initializing compute
resources, and metadata definitions.
image status The current status of a VM image in Image service, not to be confused with the status of a
running instance.
image store The back-end store used by Image service to store VM images, options include Object Storage,
locally mounted file system, RADOS block devices, VMware datastore, or HTTP.
image UUID UUID used by Image service to uniquely identify each VM image.
incubated project A community project may be elevated to this status and is then promoted to a core project.
Infrastructure Optimization service (watcher) OpenStack project that aims to provide a flexible and scal-
able resource optimization service for multi-project OpenStack-based clouds.
Infrastructure-as-a-Service (IaaS) IaaS is a provisioning model in which an organization outsources phys-
ical components of a data center, such as storage, hardware, servers, and networking components. A
service provider owns the equipment and is responsible for housing, operating and maintaining it. The
client typically pays on a per-use basis. IaaS is a model for providing cloud services.
ingress filtering The process of filtering incoming network traffic. Supported by Compute.
126 Glossary
Install Guide (Release Version: 15.0.0)
INI format The OpenStack configuration files use an INI format to describe options and their values. It
consists of sections and key value pairs.
injection The process of putting a file into a virtual machine image before the instance is started.
Input/Output Operations Per Second (IOPS) IOPS are a common performance measurement used to
benchmark computer storage devices like hard disk drives, solid state drives, and storage area networks.
instance A running VM, or a VM in a known state such as suspended, that can be used like a hardware server.
instance ID Alternative term for instance UUID.
instance state The current state of a guest VM image.
instance tunnels network A network segment used for instance traffic tunnels between compute nodes and
the network node.
instance type Describes the parameters of the various virtual machine images that are available to users;
includes parameters such as CPU, storage, and memory. Alternative term for flavor.
instance type ID Alternative term for a flavor ID.
instance UUID Unique ID assigned to each guest VM instance.
Intelligent Platform Management Interface (IPMI) IPMI is a standardized computer system interface used
by system administrators for out-of-band management of computer systems and monitoring of their op-
eration. In layman’s terms, it is a way to manage a computer using a direct network connection, whether
it is turned on or not; connecting to the hardware rather than an operating system or login shell.
interface A physical or virtual device that provides connectivity to another device or medium.
interface ID Unique ID for a Networking VIF or vNIC in the form of a UUID.
Internet Control Message Protocol (ICMP) A network protocol used by network devices for control mes-
sages. For example, ping uses ICMP to test connectivity.
Internet protocol (IP) Principal communications protocol in the internet protocol suite for relaying datagrams
across network boundaries.
Internet Service Provider (ISP) Any business that provides Internet access to individuals or businesses.
Internet Small Computer System Interface (iSCSI) Storage protocol that encapsulates SCSI frames for
transport over IP networks. Supported by Compute, Object Storage, and Image service.
IP address Number that is unique to every computer system on the Internet. Two versions of the Internet
Protocol (IP) are in use for addresses: IPv4 and IPv6.
IP Address Management (IPAM) The process of automating IP address allocation, deallocation, and man-
agement. Currently provided by Compute, melange, and Networking.
ip6tables Tool used to set up, maintain, and inspect the tables of IPv6 packet filter rules in the Linux kernel.
In OpenStack Compute, ip6tables is used along with arptables, ebtables, and iptables to create firewalls
for both nodes and VMs.
ipset Extension to iptables that allows creation of firewall rules that match entire “sets” of IP addresses si-
multaneously. These sets reside in indexed data structures to increase efficiency, particularly on systems
with a large quantity of rules.
iptables Used along with arptables and ebtables, iptables create firewalls in Compute. iptables are the tables
provided by the Linux kernel firewall (implemented as different Netfilter modules) and the chains and
rules it stores. Different kernel modules and programs are currently used for different protocols: iptables
Glossary 127
Install Guide (Release Version: 15.0.0)
applies to IPv4, ip6tables to IPv6, arptables to ARP, and ebtables to Ethernet frames. Requires root
privilege to manipulate.
ironic Codename for the Bare Metal service.
iSCSI Qualified Name (IQN) IQN is the format most commonly used for iSCSI names, which uniquely
identify nodes in an iSCSI network. All IQNs follow the pattern iqn.yyyy-mm.domain:identifier, where
‘yyyy-mm’ is the year and month in which the domain was registered, ‘domain’ is the reversed domain
name of the issuing organization, and ‘identifier’ is an optional string which makes each IQN under the
same domain unique. For example, ‘iqn.2015-10.org.openstack.408ae959bce1’.
ISO9660 One of the VM image disk formats supported by Image service.
itsec A default role in the Compute RBAC system that can quarantine an instance in any project.
J
Java A programming language that is used to create systems that involve more than one computer by way of
a network.
JavaScript A scripting language that is used to build web pages.
JavaScript Object Notation (JSON) One of the supported response formats in OpenStack.
jumbo frame Feature in modern Ethernet networks that supports frames up to approximately 9000 bytes.
Juno The code name for the tenth release of OpenStack. The design summit took place in Atlanta, Georgia,
US and Juno is an unincorporated community in Georgia.
K
Kerberos A network authentication protocol which works on the basis of tickets. Kerberos allows nodes
communication over a non-secure network, and allows nodes to prove their identity to one another in a
secure manner.
kernel-based VM (KVM) An OpenStack-supported hypervisor. KVM is a full virtualization solution for
Linux on x86 hardware containing virtualization extensions (Intel VT or AMD-V), ARM, IBM Power,
and IBM zSeries. It consists of a loadable kernel module, that provides the core virtualization infrastruc-
ture and a processor specific module.
Key Manager service (barbican) The project that produces a secret storage and generation system capable
of providing key management for services wishing to enable encryption features.
keystone Codename of the Identity service.
Kickstart A tool to automate system configuration and installation on Red Hat, Fedora, and CentOS-based
Linux distributions.
Kilo The code name for the eleventh release of OpenStack. The design summit took place in Paris, France.
Due to delays in the name selection, the release was known only as K. Because kis the unit symbol
for kilo and the kilogram reference artifact is stored near Paris in the Pavillon de Breteuil in Sèvres, the
community chose Kilo as the release name.
L
large object An object within Object Storage that is larger than 5 GB.
128 Glossary
Install Guide (Release Version: 15.0.0)
Launchpad The collaboration site for OpenStack.
Layer-2 (L2) agent OpenStack Networking agent that provides layer-2 connectivity for virtual networks.
Layer-2 network Term used in the OSI network architecture for the data link layer. The data link layer is
responsible for media access control, flow control and detecting and possibly correcting errors that may
occur in the physical layer.
Layer-3 (L3) agent OpenStack Networking agent that provides layer-3 (routing) services for virtual networks.
Layer-3 network Term used in the OSI network architecture for the network layer. The network layer is
responsible for packet forwarding including routing from one node to another.
Liberty The code name for the twelfth release of OpenStack. The design summit took place in Vancouver,
Canada and Liberty is the name of a village in the Canadian province of Saskatchewan.
libvirt Virtualization API library used by OpenStack to interact with many of its supported hypervisors.
Lightweight Directory Access Protocol (LDAP) An application protocol for accessing and maintaining dis-
tributed directory information services over an IP network.
Linux Unix-like computer operating system assembled under the model of free and open-source software
development and distribution.
Linux bridge Software that enables multiple VMs to share a single physical NIC within Compute.
Linux Bridge neutron plug-in Enables a Linux bridge to understand a Networking port, interface attachment,
and other abstractions.
Linux containers (LXC) An OpenStack-supported hypervisor.
live migration The ability within Compute to move running virtual machine instances from one host to another
with only a small service interruption during switchover.
load balancer A load balancer is a logical device that belongs to a cloud account. It is used to distribute
workloads between multiple back-end systems or services, based on the criteria defined as part of its
configuration.
load balancing The process of spreading client requests between two or more nodes to improve performance
and availability.
Load-Balancer-as-a-Service (LBaaS) Enables Networking to distribute incoming requests evenly between
designated instances.
Load-balancing service (octavia) The project that aims to rovide scalable, on demand, self service access to
load-balancer services, in technology-agnostic manner.
Logical Volume Manager (LVM) Provides a method of allocating space on mass-storage devices that is more
flexible than conventional partitioning schemes.
M
magnum Code name for the Containers Infrastructure Management service.
management API Alternative term for an admin API.
management network A network segment used for administration, not accessible to the public Internet.
manager Logical groupings of related code, such as the Block Storage volume manager or network manager.
manifest Used to track segments of a large object within Object Storage.
Glossary 129
Install Guide (Release Version: 15.0.0)
manifest object A special Object Storage object that contains the manifest for a large object.
manila Codename for OpenStack Shared File Systems service.
manila-share Responsible for managing Shared File System Service devices, specifically the back-end de-
vices.
maximum transmission unit (MTU) Maximum frame or packet size for a particular network medium. Typ-
ically 1500 bytes for Ethernet networks.
mechanism driver A driver for the Modular Layer 2 (ML2) neutron plug-in that provides layer-2 connectivity
for virtual instances. A single OpenStack installation can use multiple mechanism drivers.
melange Project name for OpenStack Network Information Service. To be merged with Networking.
membership The association between an Image service VM image and a project. Enables images to be shared
with specified projects.
membership list A list of projects that can access a given VM image within Image service.
memcached A distributed memory object caching system that is used by Object Storage for caching.
memory overcommit The ability to start new VM instances based on the actual memory usage of a host, as
opposed to basing the decision on the amount of RAM each running instance thinks it has available. Also
known as RAM overcommit.
message broker The software package used to provide AMQP messaging capabilities within Compute. De-
fault package is RabbitMQ.
message bus The main virtual communication line used by all AMQP messages for inter-cloud communica-
tions within Compute.
message queue Passes requests from clients to the appropriate workers and returns the output to the client
after the job completes.
Message service (zaqar) The project that provides a messaging service that affords a variety of distributed
application patterns in an efficient, scalable and highly available manner, and to create and maintain
associated Python libraries and documentation.
Meta-Data Server (MDS) Stores CephFS metadata.
Metadata agent OpenStack Networking agent that provides metadata services for instances.
migration The process of moving a VM instance from one host to another.
mistral Code name for Workflow service.
Mitaka The code name for the thirteenth release of OpenStack. The design summit took place in Tokyo,
Japan. Mitaka is a city in Tokyo.
Modular Layer 2 (ML2) neutron plug-in Can concurrently use multiple layer-2 networking technologies,
such as 802.1Q and VXLAN, in Networking.
monasca Codename for OpenStack Monitoring.
Monitor (LBaaS) LBaaS feature that provides availability monitoring using the ping command, TCP, and
HTTP/HTTPS GET.
Monitor (Mon) A Ceph component that communicates with external clients, checks data state and consis-
tency, and performs quorum functions.
Monitoring (monasca) The OpenStack service that provides a multi-project, highly scalable, performant,
fault-tolerant monitoring-as-a-service solution for metrics, complex event processing and logging. To
130 Glossary
Install Guide (Release Version: 15.0.0)
build an extensible platform for advanced monitoring services that can be used by both operators and
projects to gain operational insight and visibility, ensuring availability and stability.
multi-factor authentication Authentication method that uses two or more credentials, such as a password
and a private key. Currently not supported in Identity.
multi-host High-availability mode for legacy (nova) networking. Each compute node handles NAT and DHCP
and acts as a gateway for all of the VMs on it. A networking failure on one compute node doesn’t affect
VMs on other compute nodes.
multinic Facility in Compute that allows each virtual machine instance to have more than one VIF connected
to it.
murano Codename for the Application Catalog service.
N
Nebula Released as open source by NASA in 2010 and is the basis for Compute.
netadmin One of the default roles in the Compute RBAC system. Enables the user to allocate publicly acces-
sible IP addresses to instances and change firewall rules.
NetApp volume driver Enables Compute to communicate with NetApp storage devices through the NetApp
OnCommand Provisioning Manager.
network A virtual network that provides connectivity between entities. For example, a collection of virtual
ports that share network connectivity. In Networking terminology, a network is always a layer-2 network.
Network Address Translation (NAT) Process of modifying IP address information while in transit. Sup-
ported by Compute and Networking.
network controller A Compute daemon that orchestrates the network configuration of nodes, including IP
addresses, VLANs, and bridging. Also manages routing for both public and private networks.
Network File System (NFS) A method for making file systems available over the network. Supported by
OpenStack.
network ID Unique ID assigned to each network segment within Networking. Same as network UUID.
network manager The Compute component that manages various network components, such as firewall
rules, IP address allocation, and so on.
network namespace Linux kernel feature that provides independent virtual networking instances on a single
host with separate routing tables and interfaces. Similar to virtual routing and forwarding (VRF) services
on physical network equipment.
network node Any compute node that runs the network worker daemon.
network segment Represents a virtual, isolated OSI layer-2 subnet in Networking.
Network Service Header (NSH) Provides a mechanism for metadata exchange along the instantiated service
path.
Network Time Protocol (NTP) Method of keeping a clock for a host or node correct via communication with
a trusted, accurate time source.
network UUID Unique ID for a Networking network segment.
network worker The nova-network worker daemon; provides services such as giving an IP address to a
booting nova instance.
Glossary 131
Install Guide (Release Version: 15.0.0)
Networking API (Neutron API) API used to access OpenStack Networking. Provides an extensible archi-
tecture to enable custom plug-in creation.
Networking service (neutron) The OpenStack project which implements services and associated libraries to
provide on-demand, scalable, and technology-agnostic network abstraction.
neutron Codename for OpenStack Networking service.
neutron API An alternative name for Networking API.
neutron manager Enables Compute and Networking integration, which enables Networking to perform net-
work management for guest VMs.
neutron plug-in Interface within Networking that enables organizations to create custom plug-ins for ad-
vanced features, such as QoS, ACLs, or IDS.
Newton The code name for the fourteenth release of OpenStack. The design summit took place in Austin,
Texas, US. The release is named after “Newton House” which is located at 1013 E. Ninth St., Austin,
TX. which is listed on the National Register of Historic Places.
Nexenta volume driver Provides support for NexentaStor devices in Compute.
NFV Orchestration Service (tacker) OpenStack service that aims to implement Network Function Virtu-
alization (NFV) orchestration services and libraries for end-to-end life-cycle management of network
services and Virtual Network Functions (VNFs).
Nginx An HTTP and reverse proxy server, a mail proxy server, and a generic TCP/UDP proxy server.
No ACK Disables server-side message acknowledgment in the Compute RabbitMQ. Increases performance
but decreases reliability.
node A VM instance that runs on a host.
non-durable exchange Message exchange that is cleared when the service restarts. Its data is not written to
persistent storage.
non-durable queue Message queue that is cleared when the service restarts. Its data is not written to persistent
storage.
non-persistent volume Alternative term for an ephemeral volume.
north-south traffic Network traffic between a user or client (north) and a server (south), or traffic into the
cloud (south) and out of the cloud (north). See also east-west traffic.
nova Codename for OpenStack Compute service.
Nova API Alternative term for the Compute API.
nova-network A Compute component that manages IP address allocation, firewalls, and other network-related
tasks. This is the legacy networking option and an alternative to Networking.
O
object A BLOB of data held by Object Storage; can be in any format.
object auditor Opens all objects for an object server and verifies the MD5 hash, size, and metadata for each
object.
object expiration A configurable option within Object Storage to automatically delete objects after a specified
amount of time has passed or a certain date is reached.
132 Glossary
Install Guide (Release Version: 15.0.0)
object hash Unique ID for an Object Storage object.
object path hash Used by Object Storage to determine the location of an object in the ring. Maps objects to
partitions.
object replicator An Object Storage component that copies an object to remote partitions for fault tolerance.
object server An Object Storage component that is responsible for managing objects.
Object Storage API API used to access OpenStack Object Storage.
Object Storage Device (OSD) The Ceph storage daemon.
Object Storage service (swift) The OpenStack core project that provides eventually consistent and redundant
storage and retrieval of fixed digital content.
object versioning Allows a user to set a flag on an Object Storage container so that all objects within the
container are versioned.
Ocata The code name for the fifteenth release of OpenStack. The design summit will take place in Barcelona,
Spain. Ocata is a beach north of Barcelona.
Octavia Code name for the Load-balancing service.
Oldie Term for an Object Storage process that runs for a long time. Can indicate a hung process.
Open Cloud Computing Interface (OCCI) A standardized interface for managing compute, data, and net-
work resources, currently unsupported in OpenStack.
Open Virtualization Format (OVF) Standard for packaging VM images. Supported in OpenStack.
Open vSwitch Open vSwitch is a production quality, multilayer virtual switch licensed under the open source
Apache 2.0 license. It is designed to enable massive network automation through programmatic exten-
sion, while still supporting standard management interfaces and protocols (for example NetFlow, sFlow,
SPAN, RSPAN, CLI, LACP, 802.1ag).
Open vSwitch (OVS) agent Provides an interface to the underlying Open vSwitch service for the Networking
plug-in.
Open vSwitch neutron plug-in Provides support for Open vSwitch in Networking.
OpenLDAP An open source LDAP server. Supported by both Compute and Identity.
OpenStack OpenStack is a cloud operating system that controls large pools of compute, storage, and net-
working resources throughout a data center, all managed through a dashboard that gives administrators
control while empowering their users to provision resources through a web interface. OpenStack is an
open source project licensed under the Apache License 2.0.
OpenStack code name Each OpenStack release has a code name. Code names ascend in alphabetical order:
Austin, Bexar, Cactus, Diablo, Essex, Folsom, Grizzly, Havana, Icehouse, Juno, Kilo, Liberty, Mitaka,
Newton, Ocata, Pike, and Queens. Code names are cities or counties near where the corresponding
OpenStack design summit took place. An exception, called the Waldon exception, is granted to elements
of the state flag that sound especially cool. Code names are chosen by popular vote.
openSUSE A Linux distribution that is compatible with OpenStack.
operator The person responsible for planning and maintaining an OpenStack installation.
optional service An official OpenStack service defined as optional by DefCore Committee. Currently, con-
sists of Dashboard (horizon), Telemetry service (Telemetry), Orchestration service (heat), Database ser-
vice (trove), Bare Metal service (ironic), and so on.
Glossary 133
Install Guide (Release Version: 15.0.0)
Orchestration service (heat) The OpenStack service which orchestrates composite cloud applications using
a declarative template format through an OpenStack-native REST API.
orphan In the context of Object Storage, this is a process that is not terminated after an upgrade, restart, or
reload of the service.
Oslo Codename for the Common Libraries project.
P
panko Part of the OpenStack Telemetry service; provides event storage.
parent cell If a requested resource, such as CPU time, disk storage, or memory, is not available in the parent
cell, the request is forwarded to associated child cells.
partition A unit of storage within Object Storage used to store objects. It exists on top of devices and is
replicated for fault tolerance.
partition index Contains the locations of all Object Storage partitions within the ring.
partition shift value Used by Object Storage to determine which partition data should reside on.
path MTU discovery (PMTUD) Mechanism in IP networks to detect end-to-end MTU and adjust packet size
accordingly.
pause A VM state where no changes occur (no changes in memory, network communications stop, etc); the
VM is frozen but not shut down.
PCI passthrough Gives guest VMs exclusive access to a PCI device. Currently supported in OpenStack
Havana and later releases.
persistent message A message that is stored both in memory and on disk. The message is not lost after a
failure or restart.
persistent volume Changes to these types of disk volumes are saved.
personality file A file used to customize a Compute instance. It can be used to inject SSH keys or a specific
network configuration.
Pike The code name for the sixteenth release of OpenStack. The design summit will take place in Boston,
Massachusetts, US. The release is named after the Massachusetts Turnpike, abbreviated commonly as
the Mass Pike, which is the easternmost stretch of Interstate 90.
Platform-as-a-Service (PaaS) Provides to the consumer the ability to deploy applications through a program-
ming language or tools supported by the cloud platform provider. An example of Platform-as-a-Service
is an Eclipse/Java programming platform provided with no downloads required.
plug-in Software component providing the actual implementation for Networking APIs, or for Compute APIs,
depending on the context.
policy service Component of Identity that provides a rule-management interface and a rule-based authoriza-
tion engine.
policy-based routing (PBR) Provides a mechanism to implement packet forwarding and routing according
to the policies defined by the network administrator.
pool A logical set of devices, such as web servers, that you group together to receive and process traffic.
The load balancing function chooses which member of the pool handles the new requests or connections
received on the VIP address. Each VIP has one pool.
134 Glossary
Install Guide (Release Version: 15.0.0)
pool member An application that runs on the back-end server in a load-balancing system.
port A virtual network port within Networking; VIFs / vNICs are connected to a port.
port UUID Unique ID for a Networking port.
preseed A tool to automate system configuration and installation on Debian-based Linux distributions.
private image An Image service VM image that is only available to specified projects.
private IP address An IP address used for management and administration, not available to the public Inter-
net.
private network The Network Controller provides virtual networks to enable compute servers to interact
with each other and with the public network. All machines must have a public and private network
interface. A private network interface can be a flat or VLAN network interface. A flat network interface
is controlled by the flat_interface with flat managers. A VLAN network interface is controlled by the
vlan_interface option with VLAN managers.
project Projects represent the base unit of “ownership” in OpenStack, in that all resources in OpenStack should
be owned by a specific project. In OpenStack Identity, a project must be owned by a specific domain.
project ID Unique ID assigned to each project by the Identity service.
project VPN Alternative term for a cloudpipe.
promiscuous mode Causes the network interface to pass all traffic it receives to the host rather than passing
only the frames addressed to it.
protected property Generally, extra properties on an Image service image to which only cloud administra-
tors have access. Limits which user roles can perform CRUD operations on that property. The cloud
administrator can configure any image property as protected.
provider An administrator who has access to all hosts and instances.
proxy node A node that provides the Object Storage proxy service.
proxy server Users of Object Storage interact with the service through the proxy server, which in turn looks
up the location of the requested data within the ring and returns the results to the user.
public API An API endpoint used for both service-to-service communication and end-user interactions.
public image An Image service VM image that is available to all projects.
public IP address An IP address that is accessible to end-users.
public key authentication Authentication method that uses keys rather than passwords.
public network The Network Controller provides virtual networks to enable compute servers to interact with
each other and with the public network. All machines must have a public and private network interface.
The public network interface is controlled by the public_interface option.
Puppet An operating system configuration-management tool supported by OpenStack.
Python Programming language used extensively in OpenStack.
Q
QEMU Copy On Write 2 (QCOW2) One of the VM image disk formats supported by Image service.
Qpid Message queue software supported by OpenStack; an alternative to RabbitMQ.
Glossary 135
Install Guide (Release Version: 15.0.0)
Quality of Service (QoS) The ability to guarantee certain network or storage requirements to satisfy a Service
Level Agreement (SLA) between an application provider and end users. Typically includes performance
requirements like networking bandwidth, latency, jitter correction, and reliability as well as storage per-
formance in Input/Output Operations Per Second (IOPS), throttling agreements, and performance expec-
tations at peak load.
quarantine If Object Storage finds objects, containers, or accounts that are corrupt, they are placed in this
state, are not replicated, cannot be read by clients, and a correct copy is re-replicated.
Queens The code name for the seventeenth release of OpenStack. The design summit will take place in
Sydney, Australia. The release is named after the Queens Pound river in the South Coast region of New
South Wales.
Quick EMUlator (QEMU) QEMU is a generic and open source machine emulator and virtualizer. One of
the hypervisors supported by OpenStack, generally used for development purposes.
quota In Compute and Block Storage, the ability to set resource limits on a per-project basis.
R
RabbitMQ The default message queue software used by OpenStack.
Rackspace Cloud Files Released as open source by Rackspace in 2010; the basis for Object Storage.
RADOS Block Device (RBD) Ceph component that enables a Linux block device to be striped over multiple
distributed data stores.
radvd The router advertisement daemon, used by the Compute VLAN manager and FlatDHCP manager to
provide routing services for VM instances.
rally Codename for the Benchmark service.
RAM filter The Compute setting that enables or disables RAM overcommitment.
RAM overcommit The ability to start new VM instances based on the actual memory usage of a host, as
opposed to basing the decision on the amount of RAM each running instance thinks it has available.
Also known as memory overcommit.
rate limit Configurable option within Object Storage to limit database writes on a per-account and/or per-
container basis.
raw One of the VM image disk formats supported by Image service; an unstructured disk image.
rebalance The process of distributing Object Storage partitions across all drives in the ring; used during initial
ring creation and after ring reconfiguration.
reboot Either a soft or hard reboot of a server. With a soft reboot, the operating system is signaled to restart,
which enables a graceful shutdown of all processes. A hard reboot is the equivalent of power cycling
the server. The virtualization platform should ensure that the reboot action has completed successfully,
even in cases in which the underlying domain/VM is paused or halted/stopped.
rebuild Removes all data on the server and replaces it with the specified image. Server ID and IP addresses
remain the same.
Recon An Object Storage component that collects meters.
record Belongs to a particular domain and is used to specify information about the domain. There are several
types of DNS records. Each record type contains particular information used to describe the purpose of
136 Glossary
Install Guide (Release Version: 15.0.0)
that record. Examples include mail exchange (MX) records, which specify the mail server for a particular
domain; and name server (NS) records, which specify the authoritative name servers for a domain.
record ID A number within a database that is incremented each time a change is made. Used by Object
Storage when replicating.
Red Hat Enterprise Linux (RHEL) A Linux distribution that is compatible with OpenStack.
reference architecture A recommended architecture for an OpenStack cloud.
region A discrete OpenStack environment with dedicated API endpoints that typically shares only the Identity
(keystone) with other regions.
registry Alternative term for the Image service registry.
registry server An Image service that provides VM image metadata information to clients.
Reliable, Autonomic Distributed Object Store (RADOS)
A collection of components that provides object storage within Ceph. Similar to OpenStack Object
Storage.
Remote Procedure Call (RPC) The method used by the Compute RabbitMQ for intra-service communica-
tions.
replica Provides data redundancy and fault tolerance by creating copies of Object Storage objects, accounts,
and containers so that they are not lost when the underlying storage fails.
replica count The number of replicas of the data in an Object Storage ring.
replication The process of copying data to a separate physical device for fault tolerance and performance.
replicator The Object Storage back-end process that creates and manages object replicas.
request ID Unique ID assigned to each request sent to Compute.
rescue image A special type of VM image that is booted when an instance is placed into rescue mode. Allows
an administrator to mount the file systems for an instance to correct the problem.
resize Converts an existing server to a different flavor, which scales the server up or down. The original server
is saved to enable rollback if a problem occurs. All resizes must be tested and explicitly confirmed, at
which time the original server is removed.
RESTful A kind of web service API that uses REST, or Representational State Transfer. REST is the style of
architecture for hypermedia systems that is used for the World Wide Web.
ring An entity that maps Object Storage data to partitions. A separate ring exists for each service, such as
account, object, and container.
ring builder Builds and manages rings within Object Storage, assigns partitions to devices, and pushes the
configuration to other storage nodes.
role A personality that a user assumes to perform a specific set of operations. A role includes a set of rights
and privileges. A user assuming that role inherits those rights and privileges.
Role Based Access Control (RBAC) Provides a predefined list of actions that the user can perform, such
as start or stop VMs, reset passwords, and so on. Supported in both Identity and Compute and can be
configured using the dashboard.
role ID Alphanumeric ID assigned to each Identity service role.
Glossary 137
Install Guide (Release Version: 15.0.0)
Root Cause Analysis (RCA) service (Vitrage) OpenStack project that aims to organize, analyze and visual-
ize OpenStack alarms and events, yield insights regarding the root cause of problems and deduce their
existence before they are directly detected.
rootwrap A feature of Compute that allows the unprivileged “nova” user to run a specified list of commands
as the Linux root user.
round-robin scheduler Type of Compute scheduler that evenly distributes instances among available hosts.
router A physical or virtual network device that passes network traffic between different networks.
routing key The Compute direct exchanges, fanout exchanges, and topic exchanges use this key to determine
how to process a message; processing varies depending on exchange type.
RPC driver Modular system that allows the underlying message queue software of Compute to be changed.
For example, from RabbitMQ to ZeroMQ or Qpid.
rsync Used by Object Storage to push object replicas.
RXTX cap Absolute limit on the amount of network traffic a Compute VM instance can send and receive.
RXTX quota Soft limit on the amount of network traffic a Compute VM instance can send and receive.
S
sahara Codename for the Data Processing service.
SAML assertion Contains information about a user as provided by the identity provider. It is an indication
that a user has been authenticated.
scheduler manager A Compute component that determines where VM instances should start. Uses modular
design to support a variety of scheduler types.
scoped token An Identity service API access token that is associated with a specific project.
scrubber Checks for and deletes unused VMs; the component of Image service that implements delayed
delete.
secret key String of text known only by the user; used along with an access key to make requests to the
Compute API.
secure boot Process whereby the system firmware validates the authenticity of the code involved in the boot
process.
secure shell (SSH) Open source tool used to access remote hosts through an encrypted communications chan-
nel, SSH key injection is supported by Compute.
security group A set of network traffic filtering rules that are applied to a Compute instance.
segmented object An Object Storage large object that has been broken up into pieces. The re-assembled
object is called a concatenated object.
self-service For IaaS, ability for a regular (non-privileged) account to manage a virtual infrastructure compo-
nent such as networks without involving an administrator.
SELinux Linux kernel security module that provides the mechanism for supporting access control policies.
senlin Code name for the Clustering service.
138 Glossary
Install Guide (Release Version: 15.0.0)
server Computer that provides explicit services to the client software running on that system, often managing
a variety of computer operations. A server is a VM instance in the Compute system. Flavor and image
are requisite elements when creating a server.
server image Alternative term for a VM image.
server UUID Unique ID assigned to each guest VM instance.
service An OpenStack service, such as Compute, Object Storage, or Image service. Provides one or more
endpoints through which users can access resources and perform operations.
service catalog Alternative term for the Identity service catalog.
Service Function Chain (SFC) For a given service, SFC is the abstracted view of the required service func-
tions and the order in which they are to be applied.
service ID Unique ID assigned to each service that is available in the Identity service catalog.
Service Level Agreement (SLA) Contractual obligations that ensure the availability of a service.
service project Special project that contains all services that are listed in the catalog.
service provider A system that provides services to other system entities. In case of federated identity, Open-
Stack Identity is the service provider.
service registration An Identity service feature that enables services, such as Compute, to automatically reg-
ister with the catalog.
service token An administrator-defined token used by Compute to communicate securely with the Identity
service.
session back end The method of storage used by horizon to track client sessions, such as local memory,
cookies, a database, or memcached.
session persistence A feature of the load-balancing service. It attempts to force subsequent connections to a
service to be redirected to the same node as long as it is online.
session storage A horizon component that stores and tracks client session information. Implemented through
the Django sessions framework.
share A remote, mountable file system in the context of the Shared File Systems service. You can mount a
share to, and access a share from, several hosts by several users at a time.
share network An entity in the context of the Shared File Systems service that encapsulates interaction with
the Networking service. If the driver you selected runs in the mode requiring such kind of interaction,
you need to specify the share network to create a share.
Shared File Systems API A Shared File Systems service that provides a stable RESTful API. The service au-
thenticates and routes requests throughout the Shared File Systems service. There is python-manilaclient
to interact with the API.
Shared File Systems service (manila) The service that provides a set of services for management of shared
file systems in a multi-project cloud environment, similar to how OpenStack provides block-based stor-
age management through the OpenStack Block Storage service project. With the Shared File Systems
service, you can create a remote file system and mount the file system on your instances. You can also
read and write data from your instances to and from your file system.
shared IP address An IP address that can be assigned to a VM instance within the shared IP group. Public IP
addresses can be shared across multiple servers for use in various high-availability scenarios. When an
IP address is shared to another server, the cloud network restrictions are modified to enable each server
to listen to and respond on that IP address. You can optionally specify that the target server network
Glossary 139
Install Guide (Release Version: 15.0.0)
configuration be modified. Shared IP addresses can be used with many standard heartbeat facilities,
such as keepalive, that monitor for failure and manage IP failover.
shared IP group A collection of servers that can share IPs with other members of the group. Any server in a
group can share one or more public IPs with any other server in the group. With the exception of the first
server in a shared IP group, servers must be launched into shared IP groups. A server may be a member
of only one shared IP group.
shared storage Block storage that is simultaneously accessible by multiple clients, for example, NFS.
Sheepdog Distributed block storage system for QEMU, supported by OpenStack.
Simple Cloud Identity Management (SCIM) Specification for managing identity in the cloud, currently un-
supported by OpenStack.
Simple Protocol for Independent Computing Environments (SPICE) SPICE provides remote desktop ac-
cess to guest virtual machines. It is an alternative to VNC. SPICE is supported by OpenStack.
Single-root I/O Virtualization (SR-IOV) A specification that, when implemented by a physical PCIe device,
enables it to appear as multiple separate PCIe devices. This enables multiple virtualized guests to share
direct access to the physical device, offering improved performance over an equivalent virtual device.
Currently supported in OpenStack Havana and later releases.
SmokeStack Runs automated tests against the core OpenStack API; written in Rails.
snapshot A point-in-time copy of an OpenStack storage volume or image. Use storage volume snapshots to
back up volumes. Use image snapshots to back up data, or as “gold” images for additional servers.
soft reboot A controlled reboot where a VM instance is properly restarted through operating system com-
mands.
Software Development Lifecycle Automation service (solum) OpenStack project that aims to make cloud
services easier to consume and integrate with application development process by automating the source-
to-image process, and simplifying app-centric deployment.
Software-defined networking (SDN) Provides an approach for network administrators to manage computer
network services through abstraction of lower-level functionality.
SolidFire Volume Driver The Block Storage driver for the SolidFire iSCSI storage appliance.
solum Code name for the Software Development Lifecycle Automation service.
spread-first scheduler The Compute VM scheduling algorithm that attempts to start a new VM on the host
with the least amount of load.
SQLAlchemy An open source SQL toolkit for Python, used in OpenStack.
SQLite A lightweight SQL database, used as the default persistent storage method in many OpenStack ser-
vices.
stack A set of OpenStack resources created and managed by the Orchestration service according to a given
template (either an AWS CloudFormation template or a Heat Orchestration Template (HOT)).
StackTach Community project that captures Compute AMQP communications; useful for debugging.
static IP address Alternative term for a fixed IP address.
StaticWeb WSGI middleware component of Object Storage that serves container data as a static web page.
storage back end The method that a service uses for persistent storage, such as iSCSI, NFS, or local disk.
140 Glossary
Install Guide (Release Version: 15.0.0)
storage manager A XenAPI component that provides a pluggable interface to support a wide variety of per-
sistent storage back ends.
storage manager back end A persistent storage method supported by XenAPI, such as iSCSI or NFS.
storage node An Object Storage node that provides container services, account services, and object services;
controls the account databases, container databases, and object storage.
storage services Collective name for the Object Storage object services, container services, and account ser-
vices.
strategy Specifies the authentication source used by Image service or Identity. In the Database service, it
refers to the extensions implemented for a data store.
subdomain A domain within a parent domain. Subdomains cannot be registered. Subdomains enable you to
delegate domains. Subdomains can themselves have subdomains, so third-level, fourth-level, fifth-level,
and deeper levels of nesting are possible.
subnet Logical subdivision of an IP network.
SUSE Linux Enterprise Server (SLES) A Linux distribution that is compatible with OpenStack.
suspend Alternative term for a paused VM instance.
swap Disk-based virtual memory used by operating systems to provide more memory than is actually available
on the system.
swauth An authentication and authorization service for Object Storage, implemented through WSGI middle-
ware; uses Object Storage itself as the persistent backing store.
swift Codename for OpenStack Object Storage service.
swift All in One (SAIO) Creates a full Object Storage development environment within a single VM.
swift middleware Collective term for Object Storage components that provide additional functionality.
swift proxy server Acts as the gatekeeper to Object Storage and is responsible for authenticating the user.
swift storage node A node that runs Object Storage account, container, and object services.
sync point Point in time since the last container and accounts database sync among nodes within Object
Storage.
sysadmin One of the default roles in the Compute RBAC system. Enables a user to add other users to a
project, interact with VM images that are associated with the project, and start and stop VM instances.
system usage A Compute component that, along with the notification system, collects meters and usage in-
formation. This information can be used for billing.
T
tacker Code name for the NFV Orchestration service
Telemetry service (telemetry) The OpenStack project which collects measurements of the utilization of the
physical and virtual resources comprising deployed clouds, persists this data for subsequent retrieval and
analysis, and triggers actions when defined criteria are met.
TempAuth An authentication facility within Object Storage that enables Object Storage itself to perform
authentication and authorization. Frequently used in testing and development.
Tempest Automated software test suite designed to run against the trunk of the OpenStack core project.
Glossary 141
Install Guide (Release Version: 15.0.0)
TempURL An Object Storage middleware component that enables creation of URLs for temporary object
access.
tenant A group of users; used to isolate access to Compute resources. An alternative term for a project.
Tenant API An API that is accessible to projects.
tenant endpoint An Identity service API endpoint that is associated with one or more projects.
tenant ID An alternative term for project ID.
token An alpha-numeric string of text used to access OpenStack APIs and resources.
token services An Identity service component that manages and validates tokens after a user or project has
been authenticated.
tombstone Used to mark Object Storage objects that have been deleted; ensures that the object is not updated
on another node after it has been deleted.
topic publisher A process that is created when a RPC call is executed; used to push the message to the topic
exchange.
Torpedo Community project used to run automated tests against the OpenStack API.
transaction ID Unique ID assigned to each Object Storage request; used for debugging and tracing.
transient Alternative term for non-durable.
transient exchange Alternative term for a non-durable exchange.
transient message A message that is stored in memory and is lost after the server is restarted.
transient queue Alternative term for a non-durable queue.
TripleO OpenStack-on-OpenStack program. The code name for the OpenStack Deployment program.
trove Codename for OpenStack Database service.
trusted platform module (TPM) Specialized microprocessor for incorporating cryptographic keys into de-
vices for authenticating and securing a hardware platform.
U
Ubuntu A Debian-based Linux distribution.
unscoped token Alternative term for an Identity service default token.
updater Collective term for a group of Object Storage components that processes queued and failed updates
for containers and objects.
user In OpenStack Identity, entities represent individual API consumers and are owned by a specific domain.
In OpenStack Compute, a user can be associated with roles, projects, or both.
user data A blob of data that the user can specify when they launch an instance. The instance can access this
data through the metadata service or config drive. Commonly used to pass a shell script that the instance
runs on boot.
User Mode Linux (UML) An OpenStack-supported hypervisor.
142 Glossary
Install Guide (Release Version: 15.0.0)
V
VIF UUID Unique ID assigned to each Networking VIF.
Virtual Central Processing Unit (vCPU) Subdivides physical CPUs. Instances can then use those divisions.
Virtual Disk Image (VDI) One of the VM image disk formats supported by Image service.
Virtual Extensible LAN (VXLAN) A network virtualization technology that attempts to reduce the scalabil-
ity problems associated with large cloud computing deployments. It uses a VLAN-like encapsulation
technique to encapsulate Ethernet frames within UDP packets.
Virtual Hard Disk (VHD) One of the VM image disk formats supported by Image service.
virtual IP address (VIP) An Internet Protocol (IP) address configured on the load balancer for use by clients
connecting to a service that is load balanced. Incoming connections are distributed to back-end nodes
based on the configuration of the load balancer.
virtual machine (VM) An operating system instance that runs on top of a hypervisor. Multiple VMs can run
at the same time on the same physical host.
virtual network An L2 network segment within Networking.
Virtual Network Computing (VNC) Open source GUI and CLI tools used for remote console access to VMs.
Supported by Compute.
Virtual Network InterFace (VIF) An interface that is plugged into a port in a Networking network. Typically
a virtual network interface belonging to a VM.
virtual networking A generic term for virtualization of network functions such as switching, routing, load
balancing, and security using a combination of VMs and overlays on physical network infrastructure.
virtual port Attachment point where a virtual interface connects to a virtual network.
virtual private network (VPN) Provided by Compute in the form of cloudpipes, specialized instances that
are used to create VPNs on a per-project basis.
virtual server Alternative term for a VM or guest.
virtual switch (vSwitch) Software that runs on a host or node and provides the features and functions of a
hardware-based network switch.
virtual VLAN Alternative term for a virtual network.
VirtualBox An OpenStack-supported hypervisor.
Vitrage Code name for the Root Cause Analysis service.
VLAN manager A Compute component that provides dnsmasq and radvd and sets up forwarding to and from
cloudpipe instances.
VLAN network The Network Controller provides virtual networks to enable compute servers to interact with
each other and with the public network. All machines must have a public and private network interface.
A VLAN network is a private network interface, which is controlled by the vlan_interface option
with VLAN managers.
VM disk (VMDK) One of the VM image disk formats supported by Image service.
VM image Alternative term for an image.
VM Remote Control (VMRC) Method to access VM instance consoles using a web browser. Supported by
Compute.
Glossary 143
Install Guide (Release Version: 15.0.0)
VMware API Supports interaction with VMware products in Compute.
VMware NSX Neutron plug-in Provides support for VMware NSX in Neutron.
VNC proxy A Compute component that provides users access to the consoles of their VM instances through
VNC or VMRC.
volume Disk-based data storage generally represented as an iSCSI target with a file system that supports
extended attributes; can be persistent or ephemeral.
Volume API Alternative name for the Block Storage API.
volume controller A Block Storage component that oversees and coordinates storage volume actions.
volume driver Alternative term for a volume plug-in.
volume ID Unique ID applied to each storage volume under the Block Storage control.
volume manager A Block Storage component that creates, attaches, and detaches persistent storage volumes.
volume node A Block Storage node that runs the cinder-volume daemon.
volume plug-in Provides support for new and specialized types of back-end storage for the Block Storage
volume manager.
volume worker A cinder component that interacts with back-end storage to manage the creation and deletion
of volumes and the creation of compute volumes, provided by the cinder-volume daemon.
vSphere An OpenStack-supported hypervisor.
W
Watcher Code name for the Infrastructure Optimization service.
weight Used by Object Storage devices to determine which storage devices are suitable for the job. Devices
are weighted by size.
weighted cost The sum of each cost used when deciding where to start a new VM instance in Compute.
weighting A Compute process that determines the suitability of the VM instances for a job for a particular
host. For example, not enough RAM on the host, too many CPUs on the host, and so on.
worker A daemon that listens to a queue and carries out tasks in response to messages. For example, the
cinder-volume worker manages volume creation and deletion on storage arrays.
Workflow service (mistral) The OpenStack service that provides a simple YAML-based language to write
workflows (tasks and transition rules) and a service that allows to upload them, modify, run them at scale
and in a highly available manner, manage and monitor workflow execution state and state of individual
tasks.
X
X.509 X.509 is the most widely used standard for defining digital certificates. It is a data structure that contains
the subject (entity) identifiable information such as its name along with its public key. The certificate can
contain a few other attributes as well depending upon the version. The most recent and standard version
of X.509 is v3.
Xen Xen is a hypervisor using a microkernel design, providing services that allow multiple computer operating
systems to execute on the same computer hardware concurrently.
144 Glossary
Install Guide (Release Version: 15.0.0)
Xen API The Xen administrative API, which is supported by Compute.
Xen Cloud Platform (XCP) An OpenStack-supported hypervisor.
Xen Storage Manager Volume Driver A Block Storage volume plug-in that enables communication with
the Xen Storage Manager API.
XenServer An OpenStack-supported hypervisor.
XFS High-performance 64-bit file system created by Silicon Graphics. Excels in parallel I/O operations and
data consistency.
Z
zaqar Codename for the Message service.
ZeroMQ Message queue software supported by OpenStack. An alternative to RabbitMQ. Also spelled 0MQ.
Zuul Tool used in OpenStack development to ensure correctly ordered testing of changes in parallel.
Glossary 145
INDEX
Symbols
6to4, 111
A
absolute limit, 111
access control list (ACL), 111
access key, 111
account, 111
account auditor, 111
account database, 111
account reaper, 111
account server, 111
account service, 111
accounting, 111
Active Directory, 111
active/active configuration, 111
active/passive configuration, 111
address pool, 112
Address Resolution Protocol (ARP), 112
admin API, 112
admin server, 112
administrator, 112
Advanced Message Queuing Protocol (AMQP), 112
Advanced RISC Machine (ARM), 112
alert, 112
allocate, 112
Amazon Kernel Image (AKI), 112
Amazon Machine Image (AMI), 112
Amazon Ramdisk Image (ARI), 112
Anvil, 112
aodh, 112
Apache, 112
Apache License 2.0, 112
Apache Web Server, 112
API endpoint, 112
API extension, 112
API extension plug-in, 112
API key, 112
API server, 112
API token, 112
API version, 112
applet, 112
Application Catalog service (murano), 113
Application Programming Interface (API), 113
application server, 113
Application Service Provider (ASP), 113
arptables, 113
associate, 113
Asynchronous JavaScript and XML (AJAX), 113
ATA over Ethernet (AoE), 113
attach, 113
attachment (network), 113
auditing, 113
auditor, 113
Austin, 113
auth node, 113
authentication, 113
authentication token, 113
AuthN, 113
authorization, 113
authorization node, 113
AuthZ, 113
Auto ACK, 113
auto declare, 113
availability zone, 113
AWS CloudFormation template, 114
B
back end, 114
back-end catalog, 114
back-end store, 114
Backup, Restore, and Disaster Recovery service
(freezer), 114
bandwidth, 114
barbican, 114
bare, 114
Bare Metal service (ironic), 114
base image, 114
Bell-LaPadula model, 114
Benchmark service (rally), 114
Bexar, 114
binary, 114
146
Install Guide (Release Version: 15.0.0)
bit, 114
bits per second (BPS), 114
block device, 114
block migration, 114
Block Storage API, 115
Block Storage service (cinder), 115
BMC (Baseboard Management Controller), 115
bootable disk image, 115
Bootstrap Protocol (BOOTP), 115
Border Gateway Protocol (BGP), 115
browser, 115
builder file, 115
bursting, 115
button class, 115
byte, 115
C
cache pruner, 115
Cactus, 115
CALL, 115
capability, 115
capacity cache, 115
capacity updater, 115
CAST, 115
catalog, 115
catalog service, 116
ceilometer, 116
cell, 116
cell forwarding, 116
cell manager, 116
CentOS, 116
Ceph, 116
CephFS, 116
certificate authority (CA), 116
Challenge-Handshake Authentication Protocol
(CHAP), 116
chance scheduler, 116
changes since, 116
Chef, 116
child cell, 116
cinder, 116
CirrOS, 116
Cisco neutron plug-in, 116
cloud architect, 116
Cloud Auditing Data Federation (CADF), 116
cloud computing, 116
cloud controller, 116
cloud controller node, 117
Cloud Data Management Interface (CDMI), 117
Cloud Infrastructure Management Interface (CIMI),
117
cloud-init, 117
cloudadmin, 117
Cloudbase-Init, 117
cloudpipe, 117
cloudpipe image, 117
Clustering service (senlin), 117
command filter, 117
Common Internet File System (CIFS), 117
Common Libraries (oslo), 117
community project, 117
compression, 117
Compute API (Nova API), 117
compute controller, 117
compute host, 117
compute node, 117
Compute service (nova), 117
compute worker, 117
concatenated object, 117
conductor, 118
congress, 118
consistency window, 118
console log, 118
container, 118
container auditor, 118
container database, 118
container format, 118
Container Infrastructure Management service (mag-
num), 118
container server, 118
container service, 118
content delivery network (CDN), 118
controller node, 118
core API, 118
core service, 118
cost, 118
credentials, 118
CRL, 118
Cross-Origin Resource Sharing (CORS), 118
Crowbar, 118
current workload, 118
customer, 119
customization module, 119
D
daemon, 119
Dashboard (horizon), 119
data encryption, 119
Data loss prevention (DLP) software, 119
Data Processing service (sahara), 119
data store, 119
database ID, 119
Index 147
Install Guide (Release Version: 15.0.0)
database replicator, 119
Database service (trove), 119
deallocate, 119
Debian, 119
deduplication, 119
default panel, 119
default project, 119
default token, 119
delayed delete, 119
delivery mode, 119
denial of service (DoS), 119
deprecated auth, 119
designate, 120
Desktop-as-a-Service, 120
developer, 120
device ID, 120
device weight, 120
DevStack, 120
DHCP agent, 120
Diablo, 120
direct consumer, 120
direct exchange, 120
direct publisher, 120
disassociate, 120
Discretionary Access Control (DAC), 120
disk encryption, 120
disk format, 120
dispersion, 120
distributed virtual router (DVR), 120
Django, 120
DNS record, 120
DNS service (designate), 120
dnsmasq, 120
domain, 120
Domain Name System (DNS), 121
download, 121
durable exchange, 121
durable queue, 121
Dynamic Host Configuration Protocol (DHCP), 121
Dynamic HyperText Markup Language (DHTML),
121
E
east-west traffic, 121
EBS boot volume, 121
ebtables, 121
EC2, 121
EC2 access key, 121
EC2 API, 121
EC2 Compatibility API, 121
EC2 secret key, 121
Elastic Block Storage (EBS), 121
encapsulation, 121
encryption, 121
endpoint, 121
endpoint registry, 122
endpoint template, 122
entity, 122
ephemeral image, 122
ephemeral volume, 122
Essex, 122
ESXi, 122
ETag, 122
euca2ools, 122
Eucalyptus Kernel Image (EKI), 122
Eucalyptus Machine Image (EMI), 122
Eucalyptus Ramdisk Image (ERI), 122
evacuate, 122
exchange, 122
exchange type, 122
exclusive queue, 122
extended attributes (xattr), 122
extension, 122
external network, 122
extra specs, 122
F
FakeLDAP, 122
fan-out exchange, 122
federated identity, 123
Fedora, 123
Fibre Channel, 123
Fibre Channel over Ethernet (FCoE), 123
fill-first scheduler, 123
filter, 123
firewall, 123
FireWall-as-a-Service (FWaaS), 123
fixed IP address, 123
Flat Manager, 123
flat mode injection, 123
flat network, 123
FlatDHCP Manager, 123
flavor, 123
flavor ID, 123
floating IP address, 123
Folsom, 123
FormPost, 123
freezer, 123
front end, 123
G
gateway, 123
generic receive offload (GRO), 124
148 Index
Install Guide (Release Version: 15.0.0)
generic routing encapsulation (GRE), 124
glance, 124
glance API server, 124
glance registry, 124
global endpoint template, 124
GlusterFS, 124
gnocchi, 124
golden image, 124
Governance service (congress), 124
Graphic Interchange Format (GIF), 124
Graphics Processing Unit (GPU), 124
Green Threads, 124
Grizzly, 124
Group, 124
guest OS, 124
H
Hadoop, 124
Hadoop Distributed File System (HDFS), 124
handover, 124
HAProxy, 124
hard reboot, 124
Havana, 124
health monitor, 125
heat, 125
Heat Orchestration Template (HOT), 125
high availability (HA), 125
horizon, 125
horizon plug-in, 125
host, 125
host aggregate, 125
Host Bus Adapter (HBA), 125
hybrid cloud, 125
Hyper-V, 125
hyperlink, 125
Hypertext Transfer Protocol (HTTP), 125
Hypertext Transfer Protocol Secure (HTTPS), 125
hypervisor, 125
hypervisor pool, 125
I
Icehouse, 125
ID number, 125
Identity API, 125
Identity back end, 126
identity provider, 126
Identity service (keystone), 126
Identity service API, 126
IETF, 126
image, 126
Image API, 126
image cache, 126
image ID, 126
image membership, 126
image owner, 126
image registry, 126
Image service (glance), 126
image status, 126
image store, 126
image UUID, 126
incubated project, 126
Infrastructure Optimization service (watcher), 126
Infrastructure-as-a-Service (IaaS), 126
ingress filtering, 126
INI format, 127
injection, 127
Input/Output Operations Per Second (IOPS), 127
instance, 127
instance ID, 127
instance state, 127
instance tunnels network, 127
instance type, 127
instance type ID, 127
instance UUID, 127
Intelligent Platform Management Interface (IPMI),
127
interface, 127
interface ID, 127
Internet Control Message Protocol (ICMP), 127
Internet protocol (IP), 127
Internet Service Provider (ISP), 127
Internet Small Computer System Interface (iSCSI),
127
IP address, 127
IP Address Management (IPAM), 127
ip6tables, 127
ipset, 127
iptables, 127
ironic, 128
iSCSI Qualified Name (IQN), 128
ISO9660, 128
itsec, 128
J
Java, 128
JavaScript, 128
JavaScript Object Notation (JSON), 128
jumbo frame, 128
Juno, 128
K
Kerberos, 128
kernel-based VM (KVM), 128
Key Manager service (barbican), 128
Index 149
Install Guide (Release Version: 15.0.0)
keystone, 128
Kickstart, 128
Kilo, 128
L
large object, 128
Launchpad, 129
Layer-2 (L2) agent, 129
Layer-2 network, 129
Layer-3 (L3) agent, 129
Layer-3 network, 129
Liberty, 129
libvirt, 129
Lightweight Directory Access Protocol (LDAP), 129
Linux, 129
Linux bridge, 129
Linux Bridge neutron plug-in, 129
Linux containers (LXC), 129
live migration, 129
load balancer, 129
load balancing, 129
Load-Balancer-as-a-Service (LBaaS), 129
Load-balancing service (octavia), 129
Logical Volume Manager (LVM), 129
M
magnum, 129
management API, 129
management network, 129
manager, 129
manifest, 129
manifest object, 130
manila, 130
manila-share, 130
maximum transmission unit (MTU), 130
mechanism driver, 130
melange, 130
membership, 130
membership list, 130
memcached, 130
memory overcommit, 130
message broker, 130
message bus, 130
message queue, 130
Message service (zaqar), 130
Meta-Data Server (MDS), 130
Metadata agent, 130
migration, 130
mistral, 130
Mitaka, 130
Modular Layer 2 (ML2) neutron plug-in, 130
monasca, 130
Monitor (LBaaS), 130
Monitor (Mon), 130
Monitoring (monasca), 130
multi-factor authentication, 131
multi-host, 131
multinic, 131
murano, 131
N
Nebula, 131
netadmin, 131
NetApp volume driver, 131
network, 131
Network Address Translation (NAT), 131
network controller, 131
Network File System (NFS), 131
network ID, 131
network manager, 131
network namespace, 131
network node, 131
network segment, 131
Network Service Header (NSH), 131
Network Time Protocol (NTP), 131
network UUID, 131
network worker, 131
Networking API (Neutron API), 132
Networking service (neutron), 132
neutron, 132
neutron API, 132
neutron manager, 132
neutron plug-in, 132
Newton, 132
Nexenta volume driver, 132
NFV Orchestration Service (tacker), 132
Nginx, 132
No ACK, 132
node, 132
non-durable exchange, 132
non-durable queue, 132
non-persistent volume, 132
north-south traffic, 132
nova, 132
Nova API, 132
nova-network, 132
O
object, 132
object auditor, 132
object expiration, 132
object hash, 133
object path hash, 133
object replicator, 133
150 Index
Install Guide (Release Version: 15.0.0)
object server, 133
Object Storage API, 133
Object Storage Device (OSD), 133
Object Storage service (swift), 133
object versioning, 133
Ocata, 133
Octavia, 133
Oldie, 133
Open Cloud Computing Interface (OCCI), 133
Open Virtualization Format (OVF), 133
Open vSwitch, 133
Open vSwitch (OVS) agent, 133
Open vSwitch neutron plug-in, 133
OpenLDAP, 133
OpenStack, 133
OpenStack code name, 133
openSUSE, 133
operator, 133
optional service, 133
Orchestration service (heat), 134
orphan, 134
Oslo, 134
P
panko, 134
parent cell, 134
partition, 134
partition index, 134
partition shift value, 134
path MTU discovery (PMTUD), 134
pause, 134
PCI passthrough, 134
persistent message, 134
persistent volume, 134
personality file, 134
Pike, 134
Platform-as-a-Service (PaaS), 134
plug-in, 134
policy service, 134
policy-based routing (PBR), 134
pool, 134
pool member, 135
port, 135
port UUID, 135
preseed, 135
private image, 135
private IP address, 135
private network, 135
project, 135
project ID, 135
project VPN, 135
promiscuous mode, 135
protected property, 135
provider, 135
proxy node, 135
proxy server, 135
public API, 135
public image, 135
public IP address, 135
public key authentication, 135
public network, 135
Puppet, 135
Python, 135
Q
QEMU Copy On Write 2 (QCOW2), 135
Qpid, 135
Quality of Service (QoS), 136
quarantine, 136
Queens, 136
Quick EMUlator (QEMU), 136
quota, 136
R
RabbitMQ, 136
Rackspace Cloud Files, 136
RADOS Block Device (RBD), 136
radvd, 136
rally, 136
RAM filter, 136
RAM overcommit, 136
rate limit, 136
raw, 136
rebalance, 136
reboot, 136
rebuild, 136
Recon, 136
record, 136
record ID, 137
Red Hat Enterprise Linux (RHEL), 137
reference architecture, 137
region, 137
registry, 137
registry server, 137
Reliable, Autonomic Distributed Object Store, 137
Remote Procedure Call (RPC), 137
replica, 137
replica count, 137
replication, 137
replicator, 137
request ID, 137
rescue image, 137
resize, 137
Index 151
Install Guide (Release Version: 15.0.0)
RESTful, 137
ring, 137
ring builder, 137
role, 137
Role Based Access Control (RBAC), 137
role ID, 137
Root Cause Analysis (RCA) service (Vitrage), 138
rootwrap, 138
round-robin scheduler, 138
router, 138
routing key, 138
RPC driver, 138
rsync, 138
RXTX cap, 138
RXTX quota, 138
S
sahara, 138
SAML assertion, 138
scheduler manager, 138
scoped token, 138
scrubber, 138
secret key, 138
secure boot, 138
secure shell (SSH), 138
security group, 138
segmented object, 138
self-service, 138
SELinux, 138
senlin, 138
server, 139
server image, 139
server UUID, 139
service, 139
service catalog, 139
Service Function Chain (SFC), 139
service ID, 139
Service Level Agreement (SLA), 139
service project, 139
service provider, 139
service registration, 139
service token, 139
session back end, 139
session persistence, 139
session storage, 139
share, 139
share network, 139
Shared File Systems API, 139
Shared File Systems service (manila), 139
shared IP address, 139
shared IP group, 140
shared storage, 140
Sheepdog, 140
Simple Cloud Identity Management (SCIM), 140
Simple Protocol for Independent Computing Environ-
ments (SPICE), 140
Single-root I/O Virtualization (SR-IOV), 140
SmokeStack, 140
snapshot, 140
soft reboot, 140
Software Development Lifecycle Automation service
(solum), 140
Software-defined networking (SDN), 140
SolidFire Volume Driver, 140
solum, 140
spread-first scheduler, 140
SQLAlchemy, 140
SQLite, 140
stack, 140
StackTach, 140
static IP address, 140
StaticWeb, 140
storage back end, 140
storage manager, 141
storage manager back end, 141
storage node, 141
storage services, 141
strategy, 141
subdomain, 141
subnet, 141
SUSE Linux Enterprise Server (SLES), 141
suspend, 141
swap, 141
swauth, 141
swift, 141
swift All in One (SAIO), 141
swift middleware, 141
swift proxy server, 141
swift storage node, 141
sync point, 141
sysadmin, 141
system usage, 141
T
tacker, 141
Telemetry service (telemetry), 141
TempAuth, 141
Tempest, 141
TempURL, 142
tenant, 142
Tenant API, 142
tenant endpoint, 142
152 Index
Install Guide (Release Version: 15.0.0)
tenant ID, 142
token, 142
token services, 142
tombstone, 142
topic publisher, 142
Torpedo, 142
transaction ID, 142
transient, 142
transient exchange, 142
transient message, 142
transient queue, 142
TripleO, 142
trove, 142
trusted platform module (TPM), 142
U
Ubuntu, 142
unscoped token, 142
updater, 142
user, 142
user data, 142
User Mode Linux (UML), 142
V
VIF UUID, 143
Virtual Central Processing Unit (vCPU), 143
Virtual Disk Image (VDI), 143
Virtual Extensible LAN (VXLAN), 143
Virtual Hard Disk (VHD), 143
virtual IP address (VIP), 143
virtual machine (VM), 143
virtual network, 143
Virtual Network Computing (VNC), 143
Virtual Network InterFace (VIF), 143
virtual networking, 143
virtual port, 143
virtual private network (VPN), 143
virtual server, 143
virtual switch (vSwitch), 143
virtual VLAN, 143
VirtualBox, 143
Vitrage, 143
VLAN manager, 143
VLAN network, 143
VM disk (VMDK), 143
VM image, 143
VM Remote Control (VMRC), 143
VMware API, 144
VMware NSX Neutron plug-in, 144
VNC proxy, 144
volume, 144
Volume API, 144
volume controller, 144
volume driver, 144
volume ID, 144
volume manager, 144
volume node, 144
volume plug-in, 144
volume worker, 144
vSphere, 144
W
Watcher, 144
weight, 144
weighted cost, 144
weighting, 144
worker, 144
Workflow service (mistral), 144
X
X.509, 144
Xen, 144
Xen API, 145
Xen Cloud Platform (XCP), 145
Xen Storage Manager Volume Driver, 145
XenServer, 145
XFS, 145
Z
zaqar, 145
ZeroMQ, 145
Zuul, 145
Index 153

Navigation menu
