DP23/23G/24

SAFETY PRECAUTIONS ......................................................................................................2

TECHNICAL CAUTIONS ......................................................................................................3

SPECIFICATIONS..................................................................................................................4

GENERAL INFORMATION ....................................................................................................5

CUSTOMIZED PICTURE AND SOUND ADJUSTMENTS ....................................................6

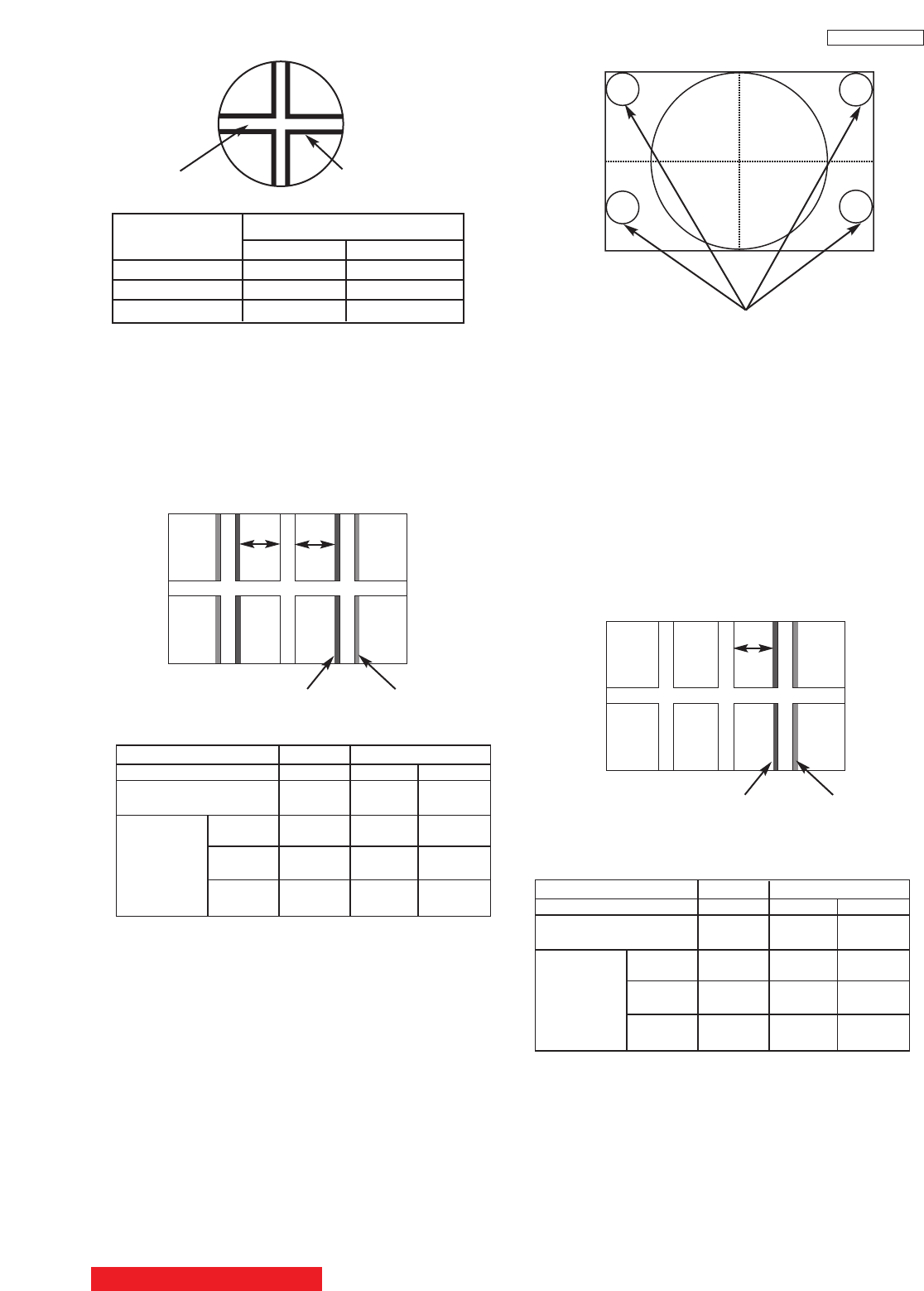

SERVICE ADJUSTMENTS..................................................................................................17

DC VOLTAGE ......................................................................................................................36

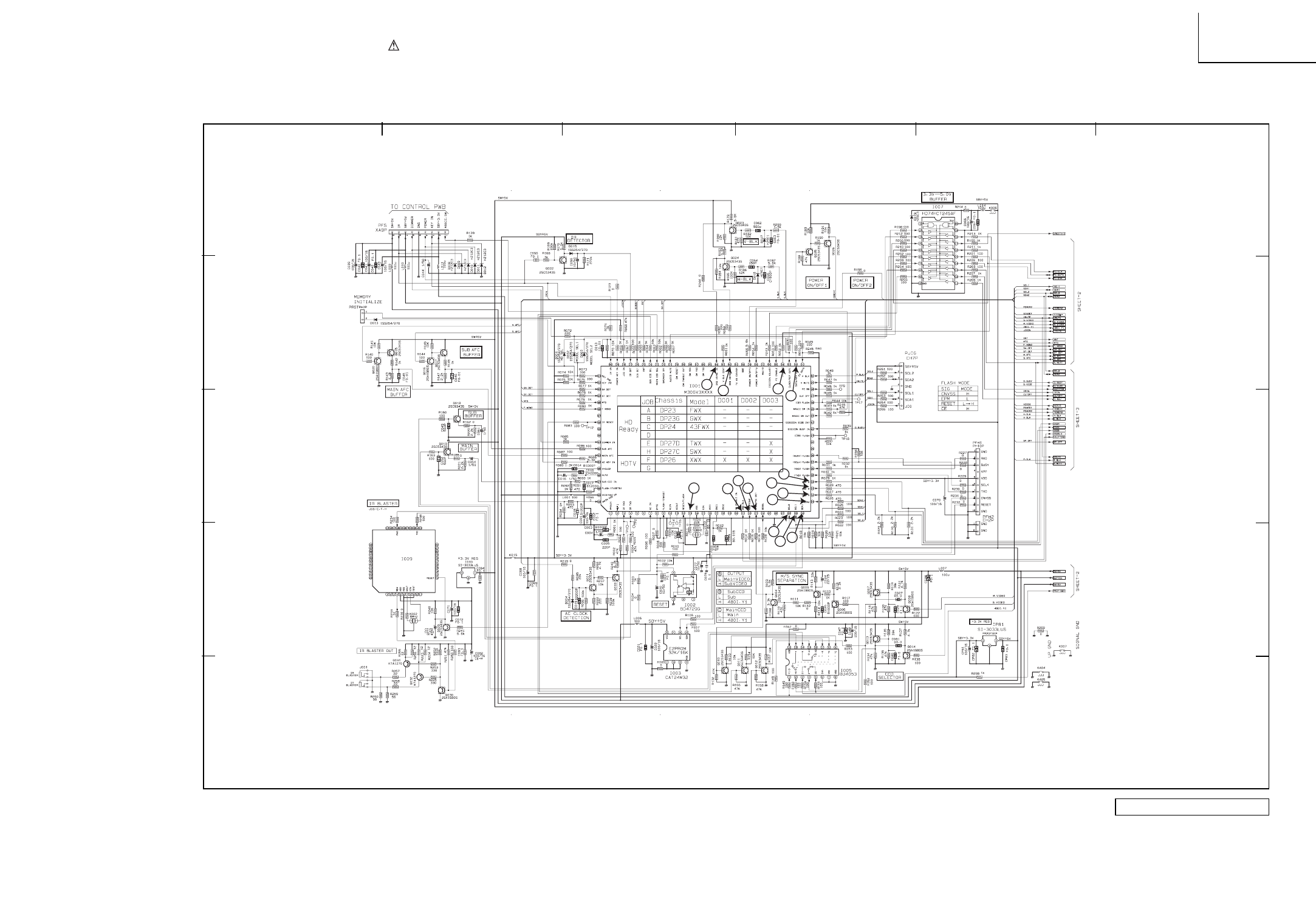

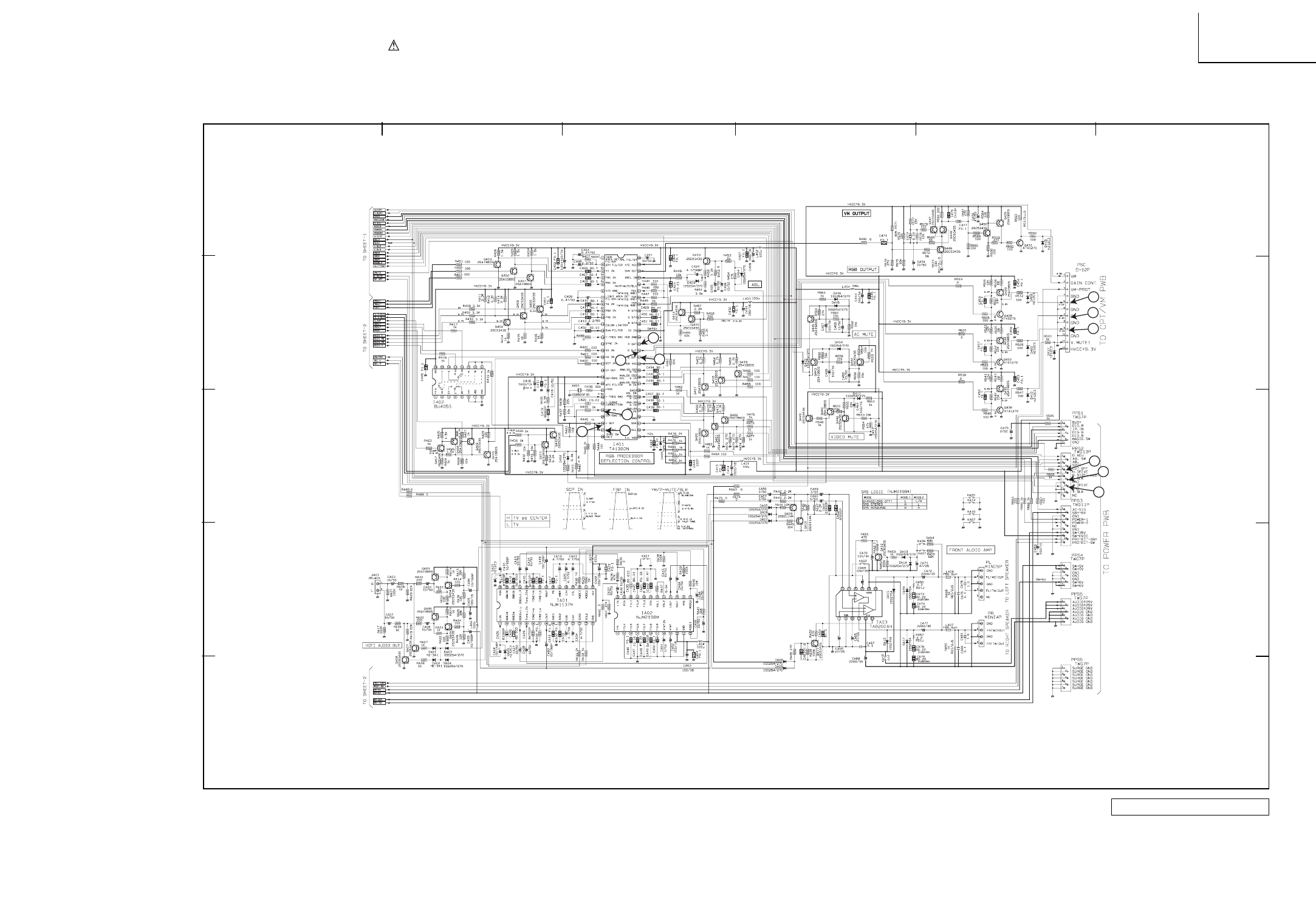

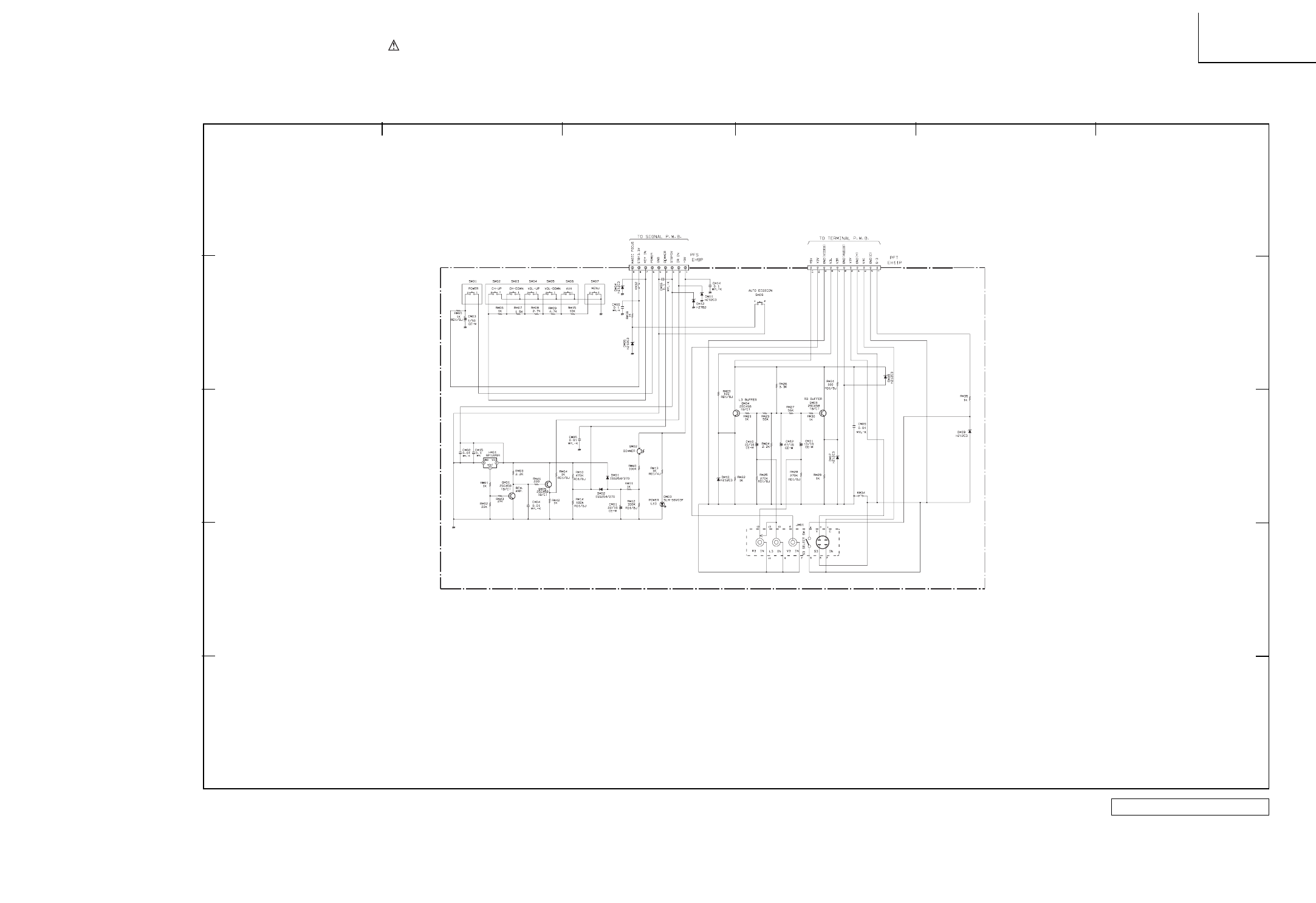

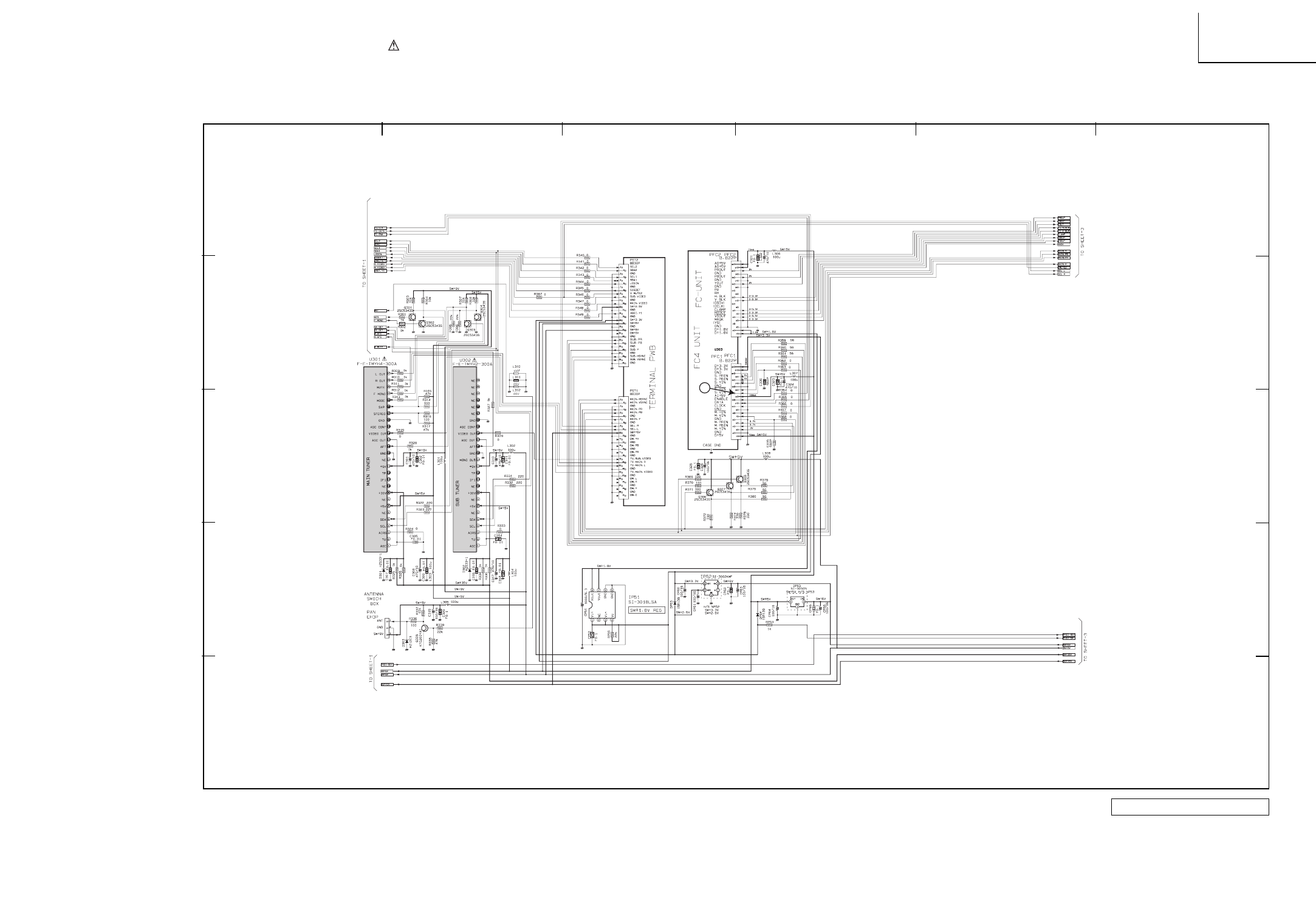

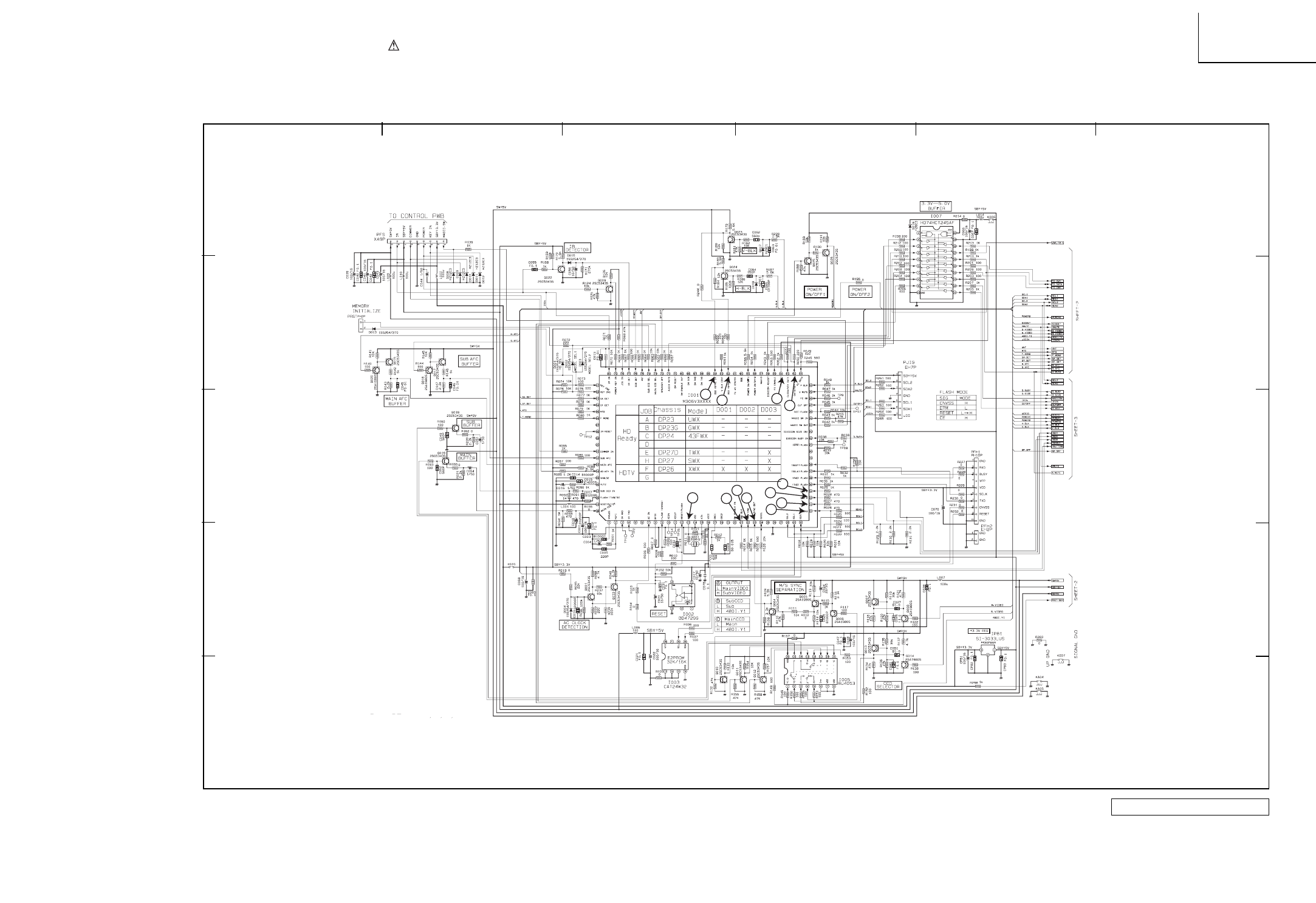

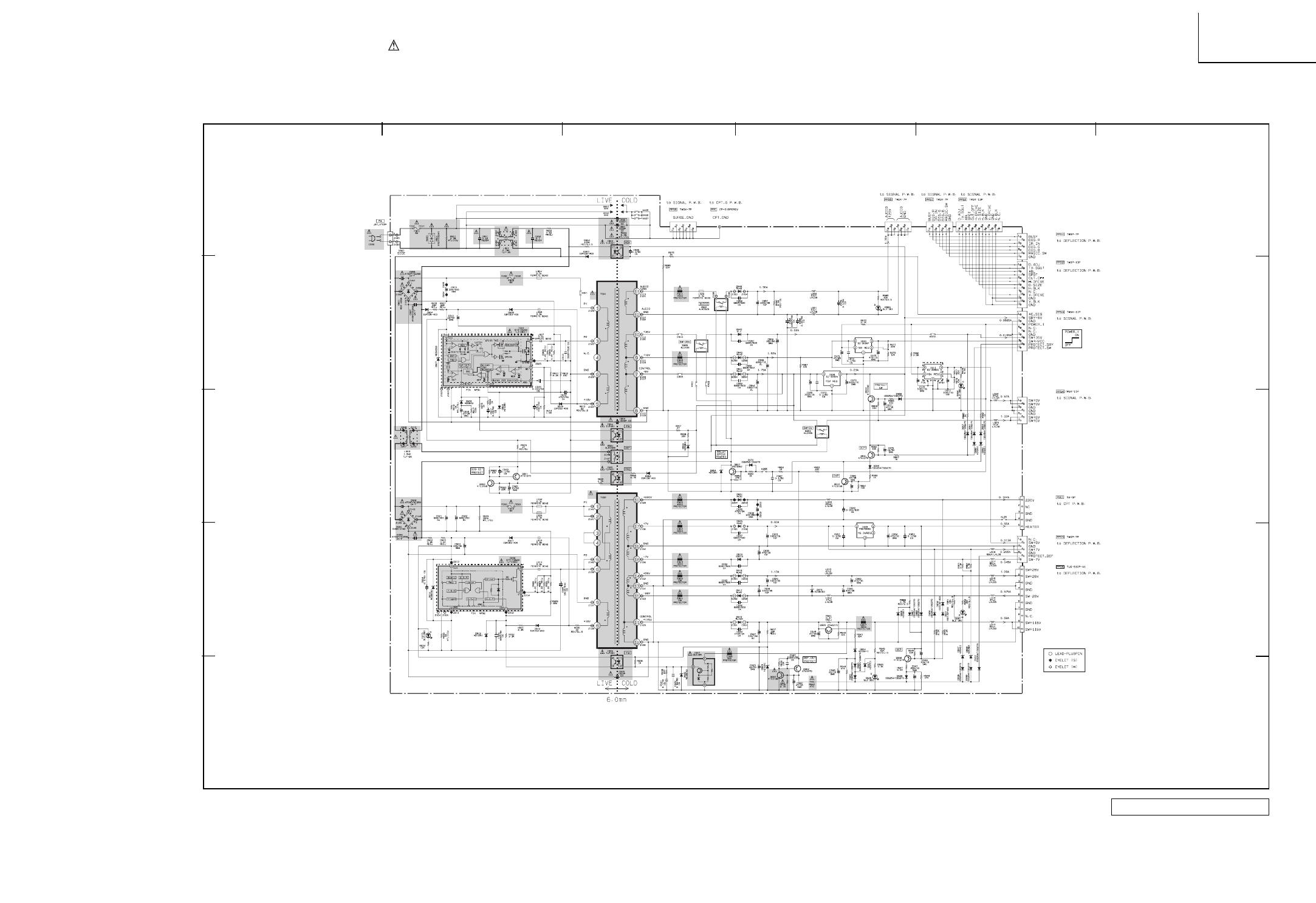

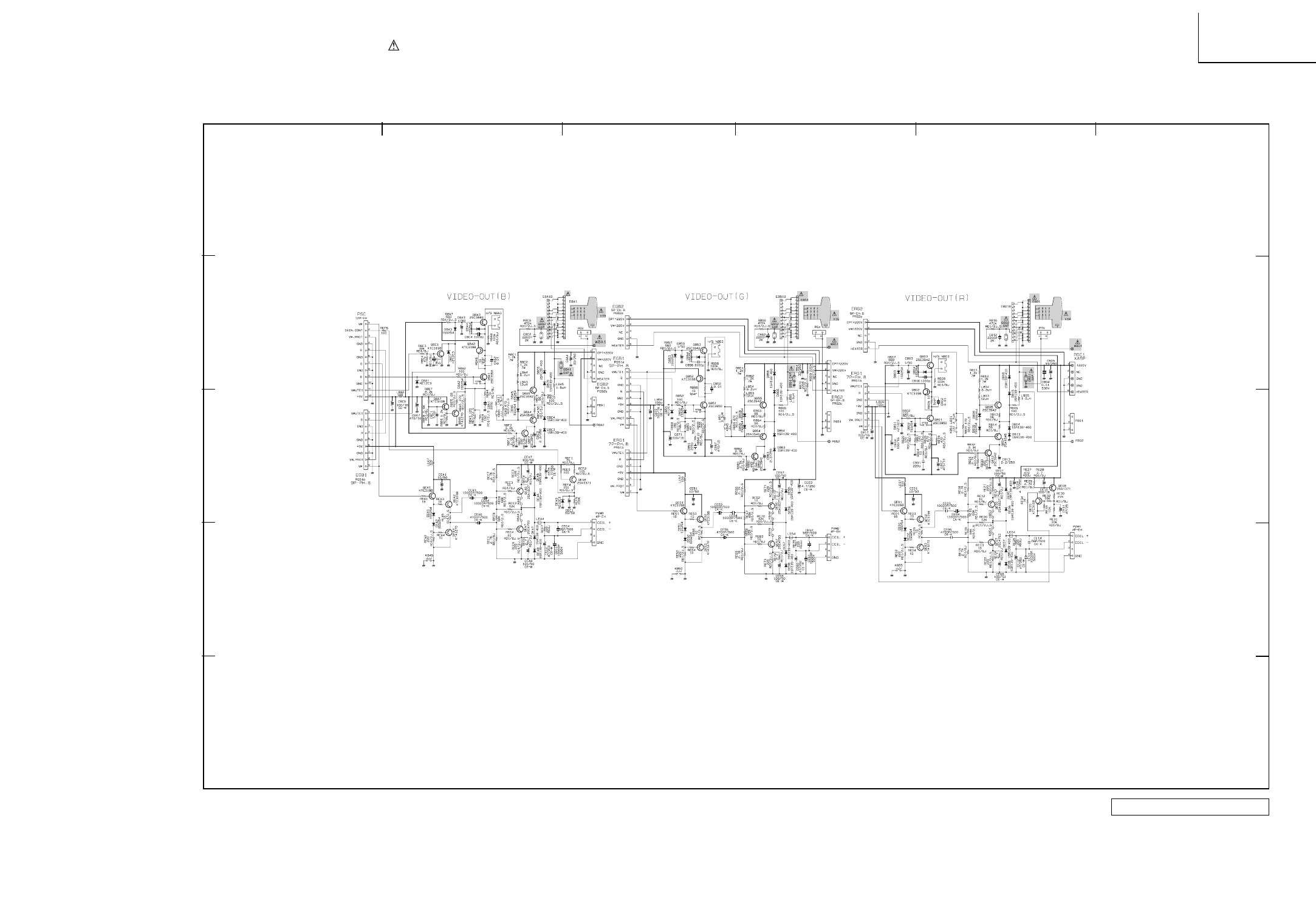

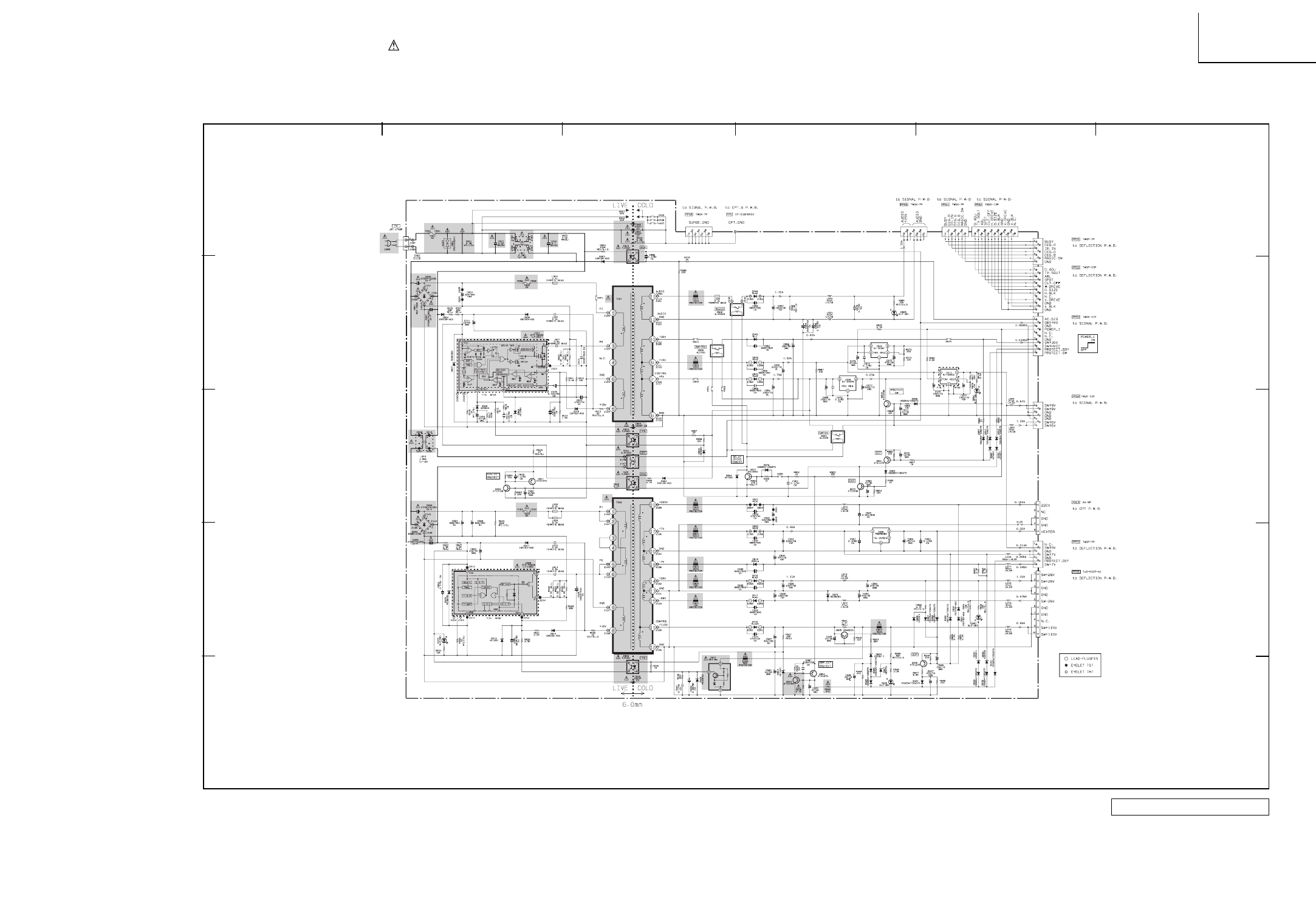

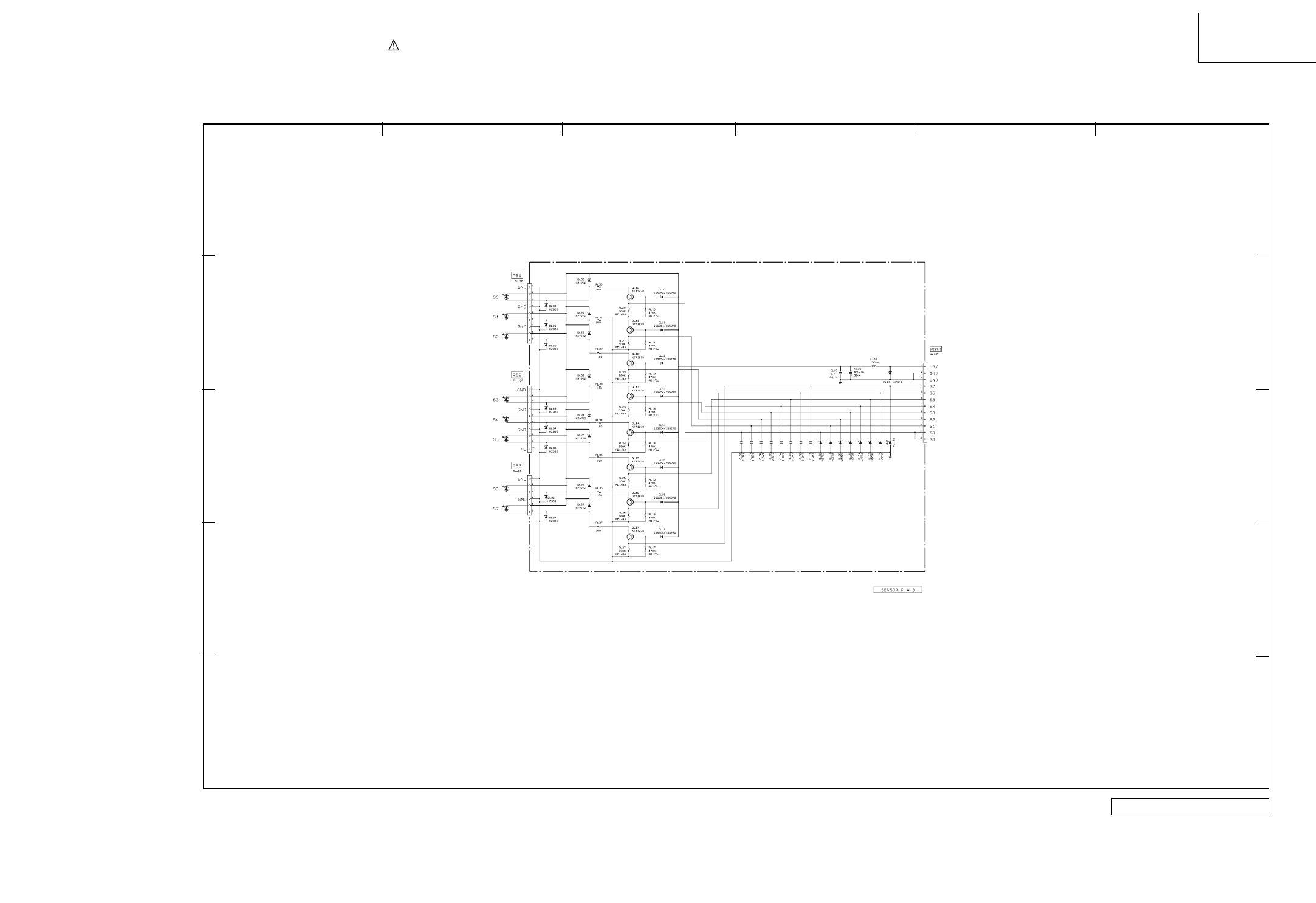

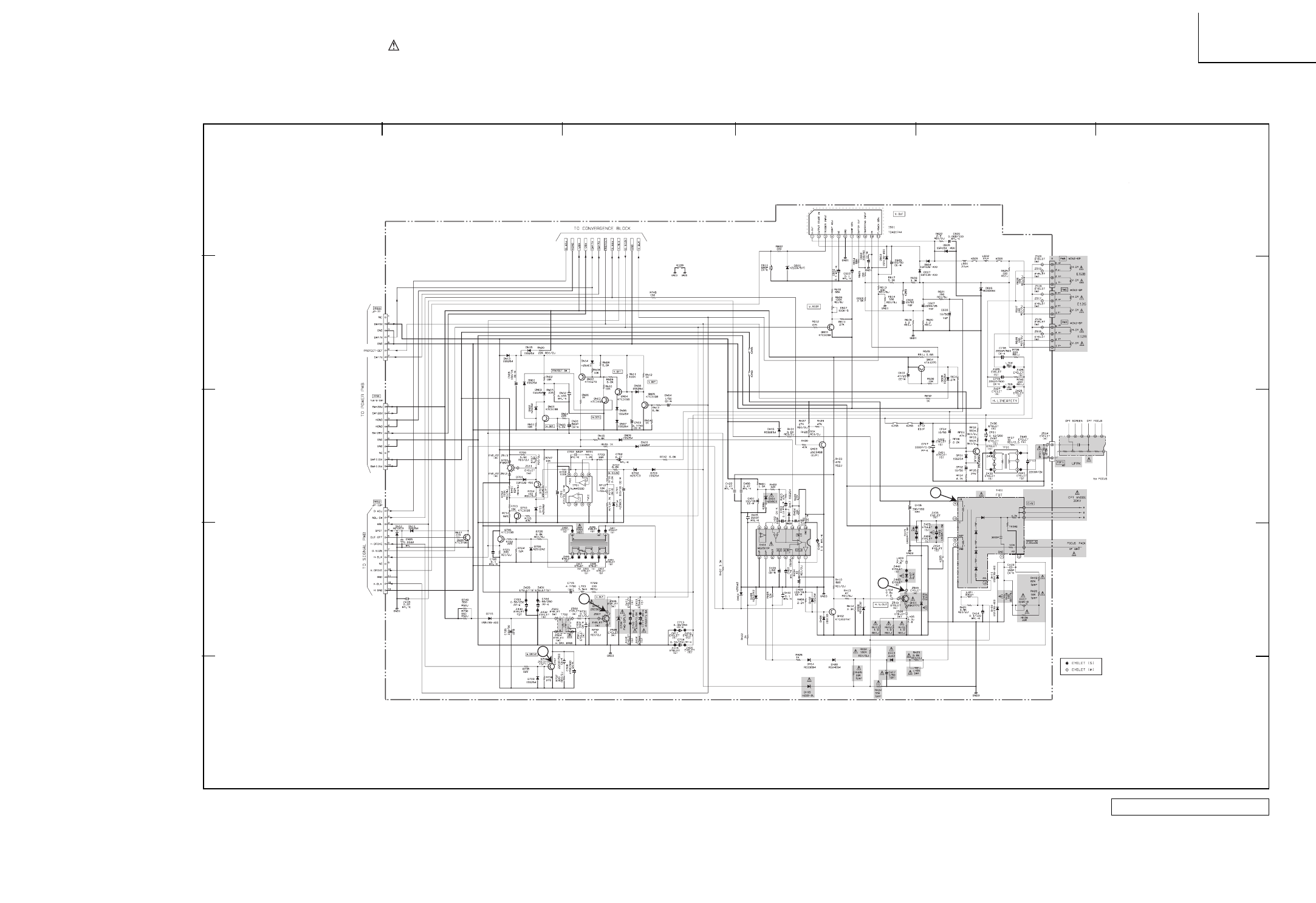

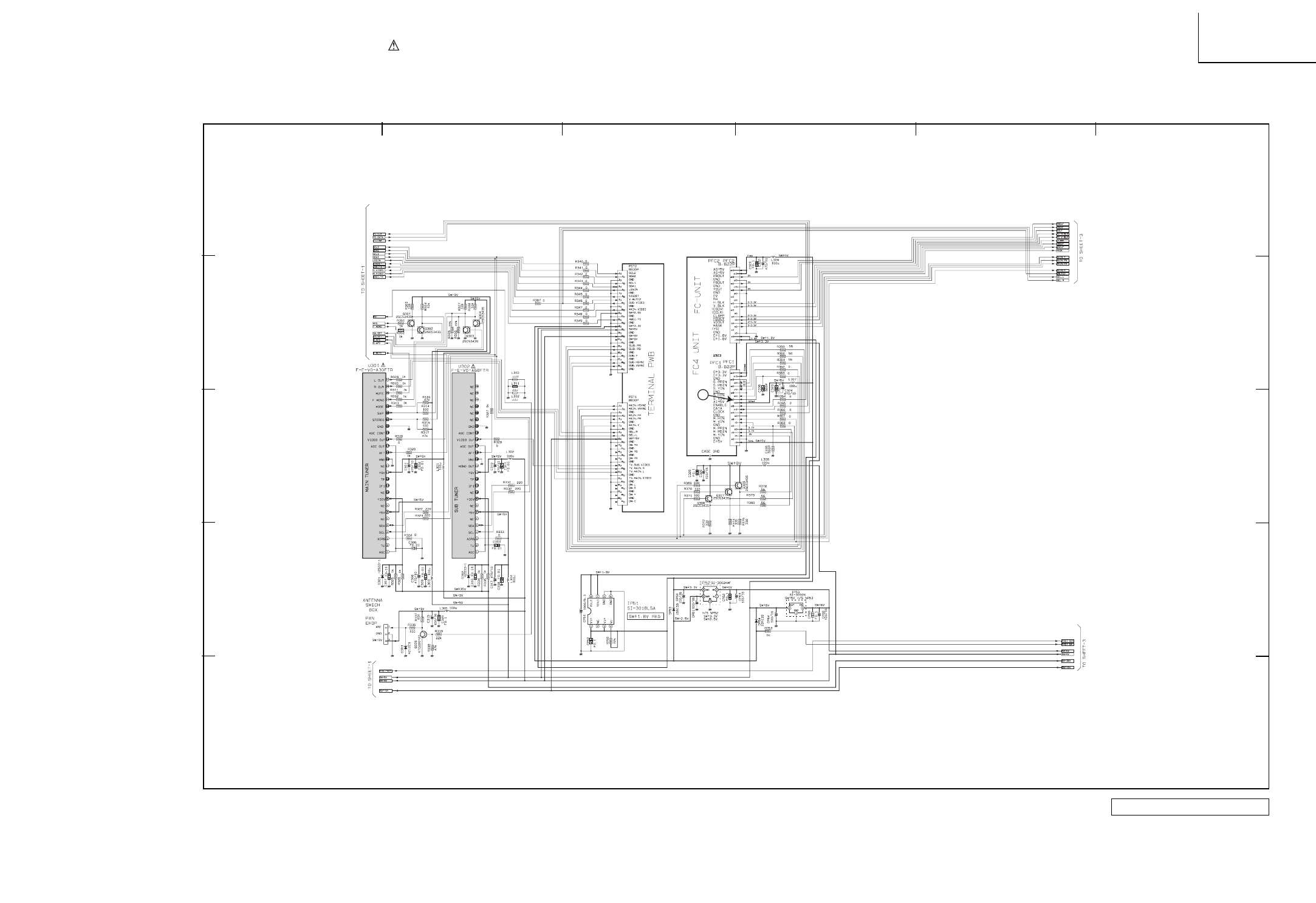

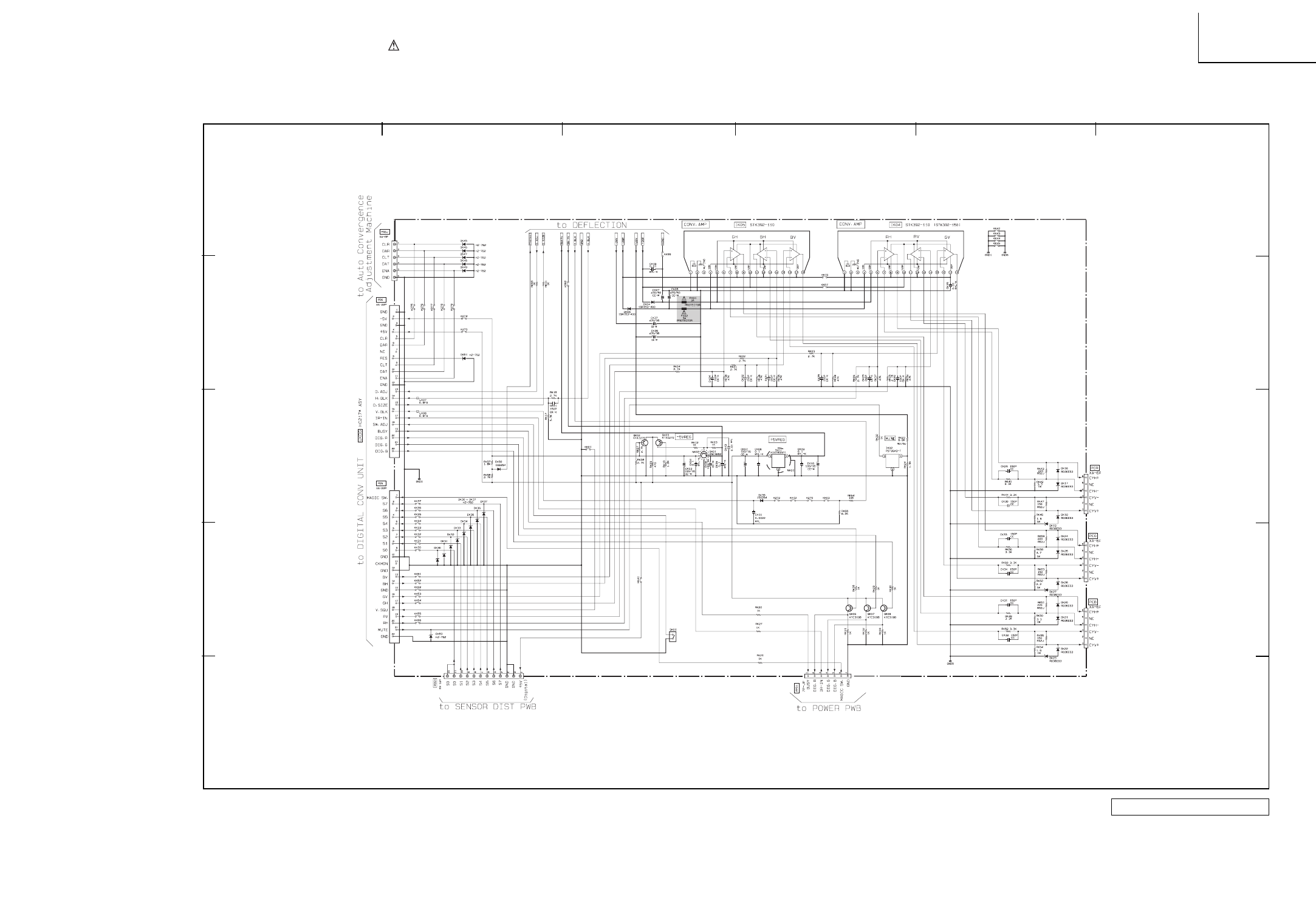

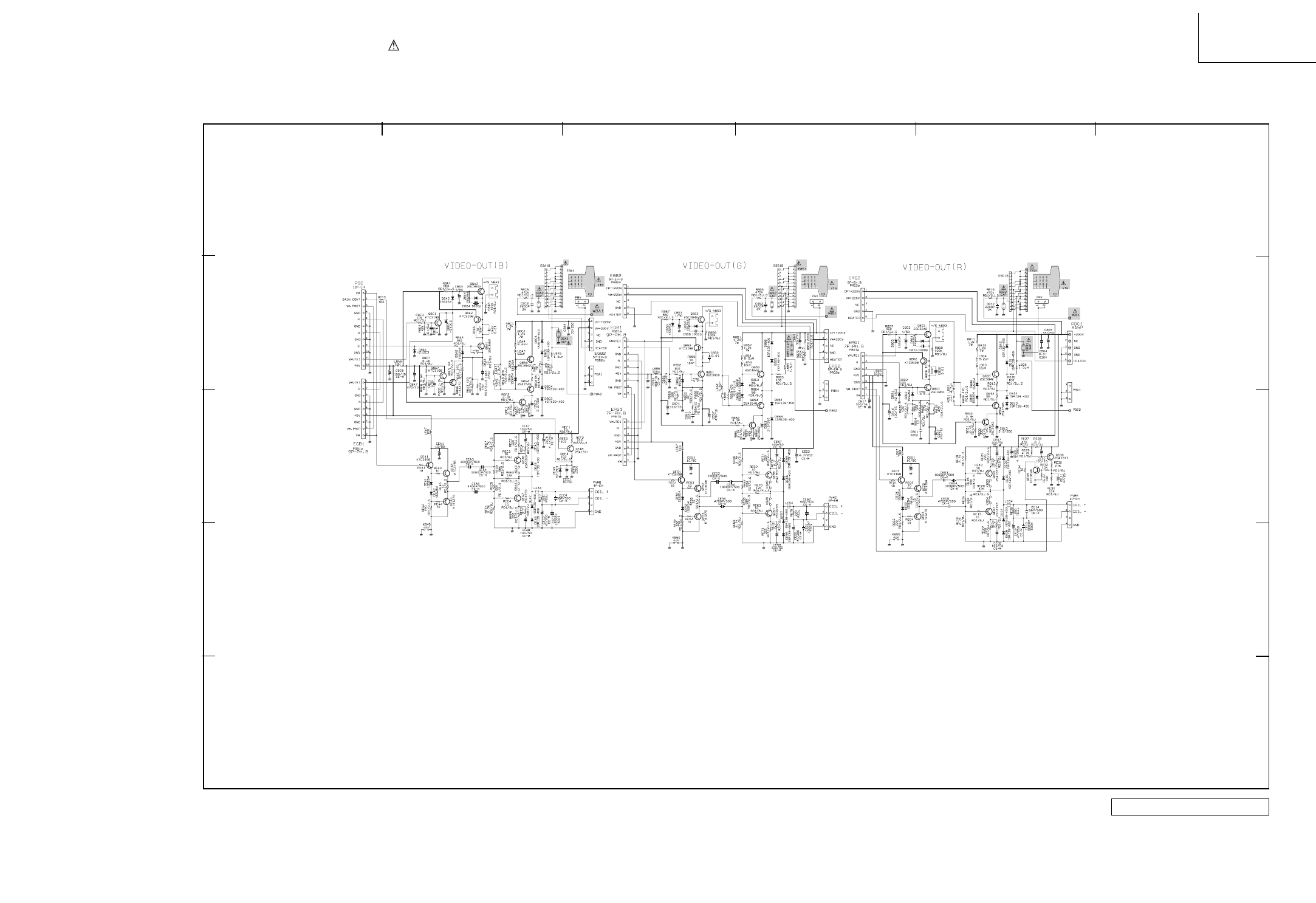

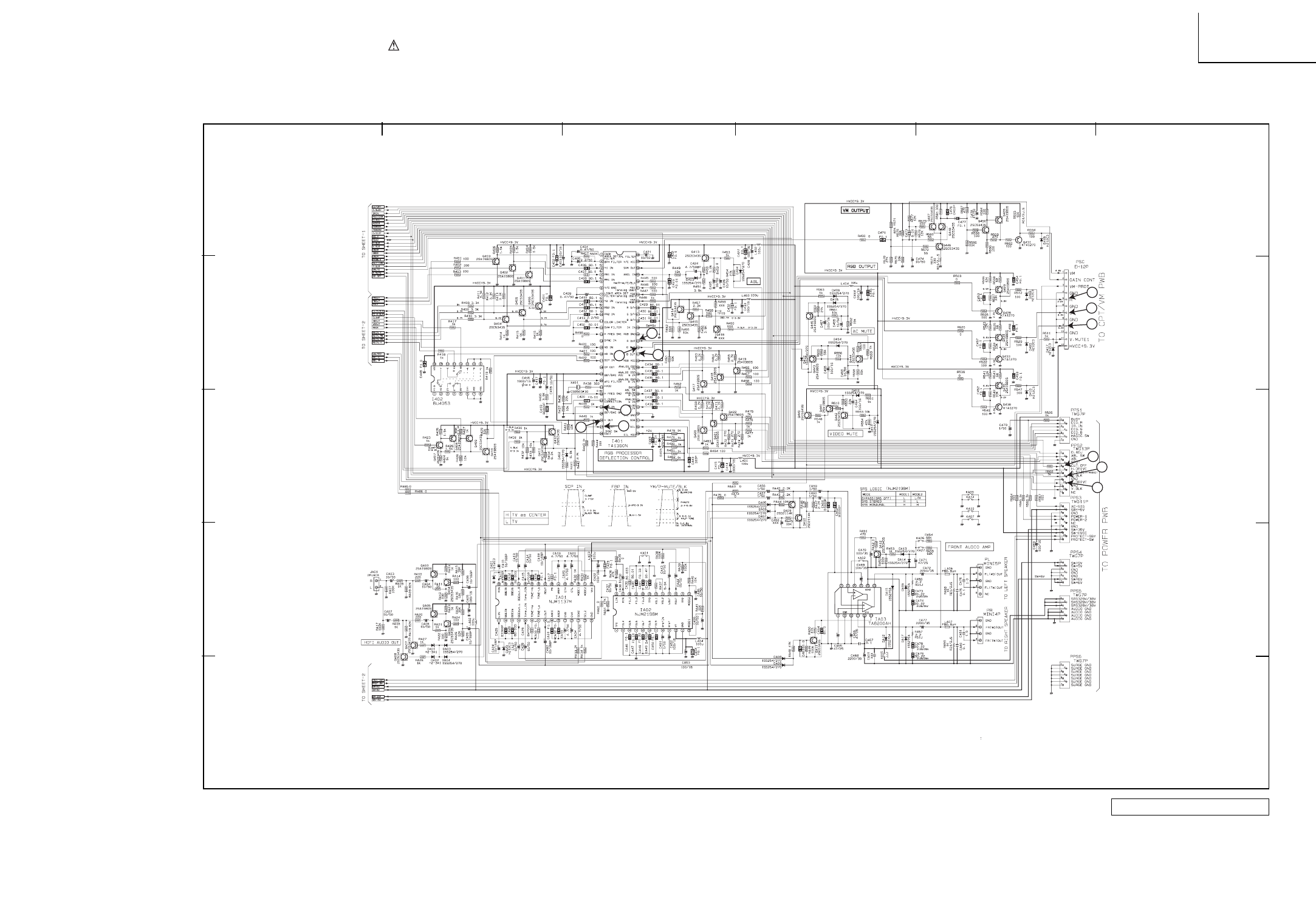

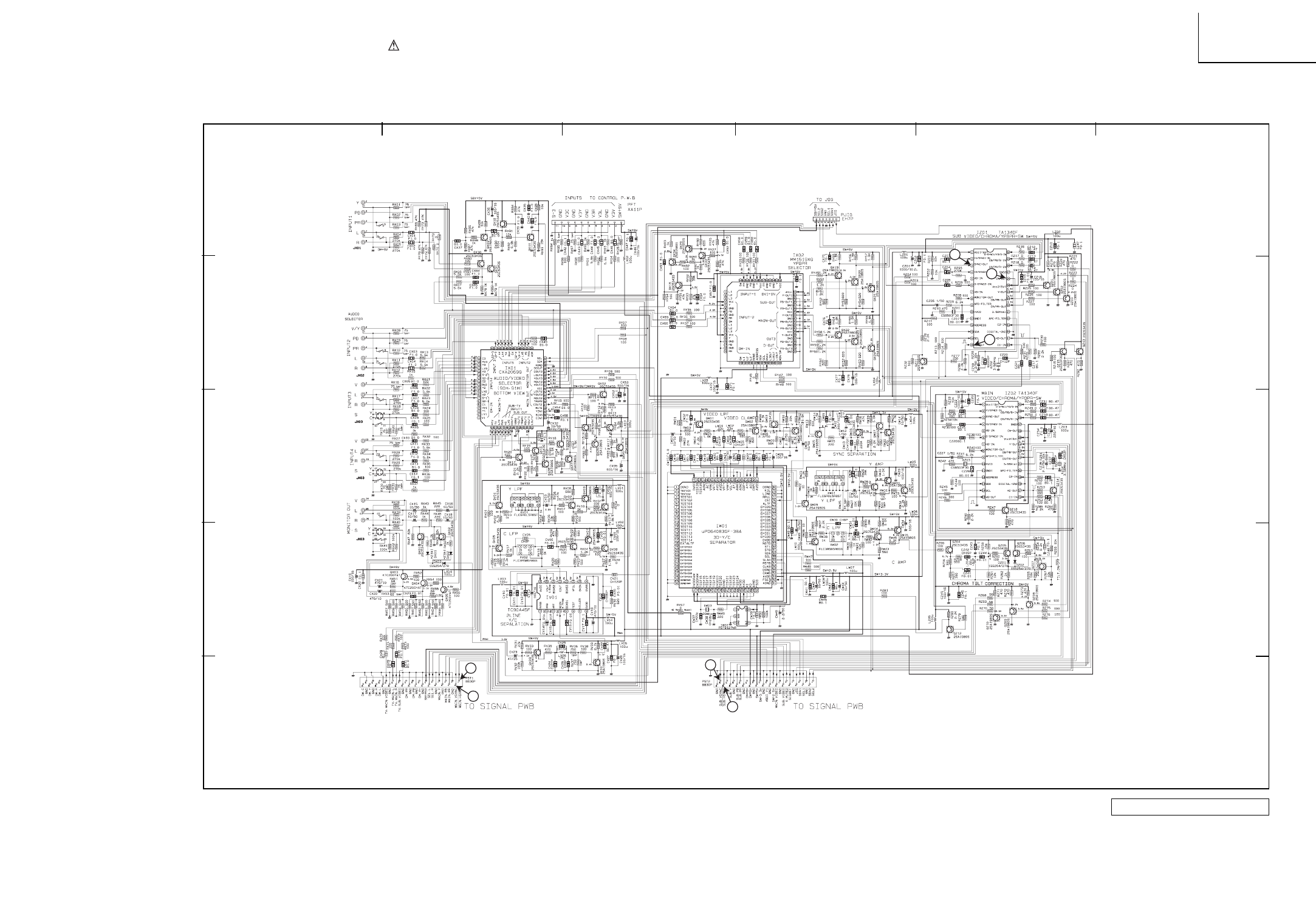

BASIC CIRCUIT DIAGRAM ................................................................................................51

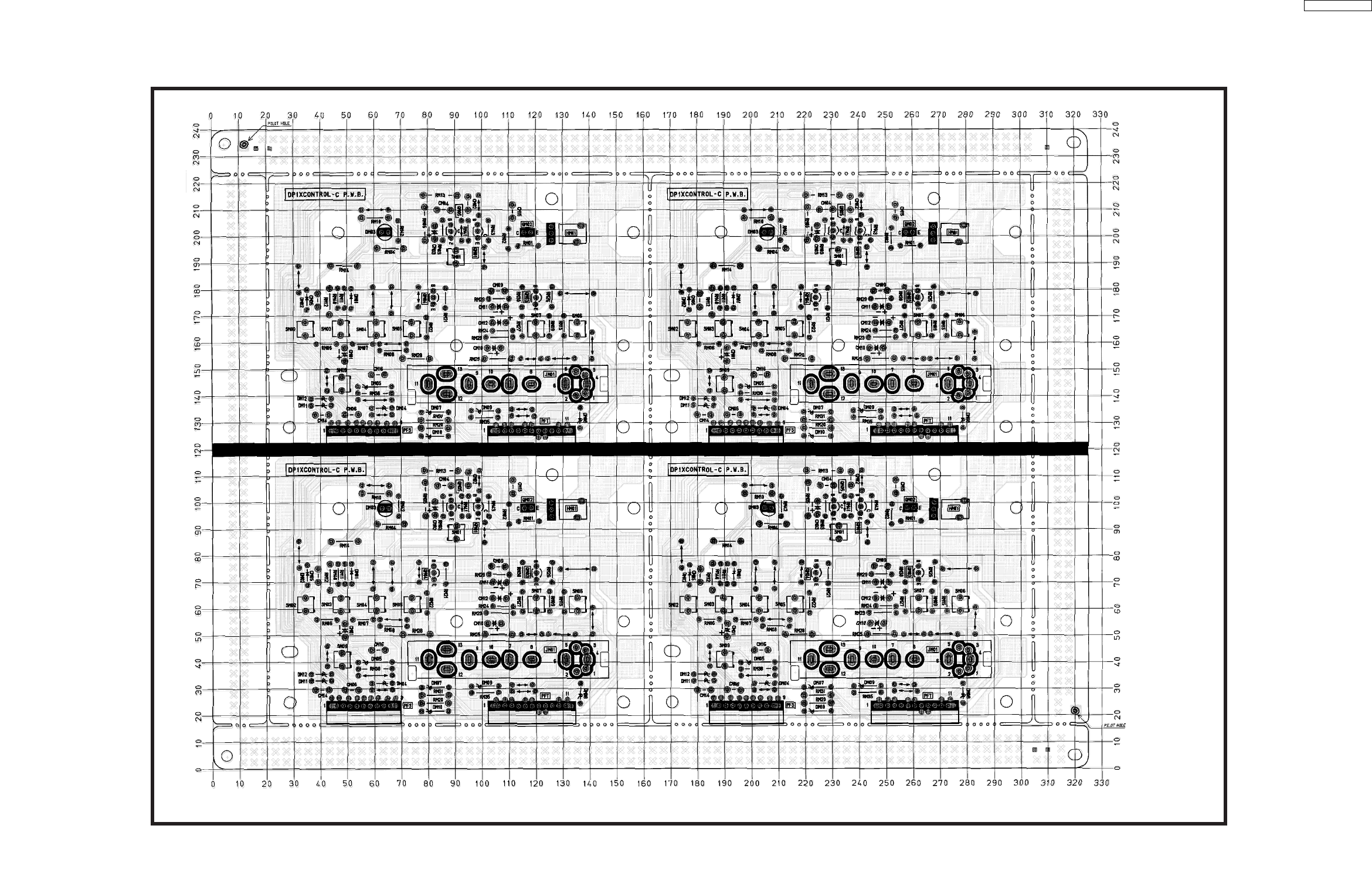

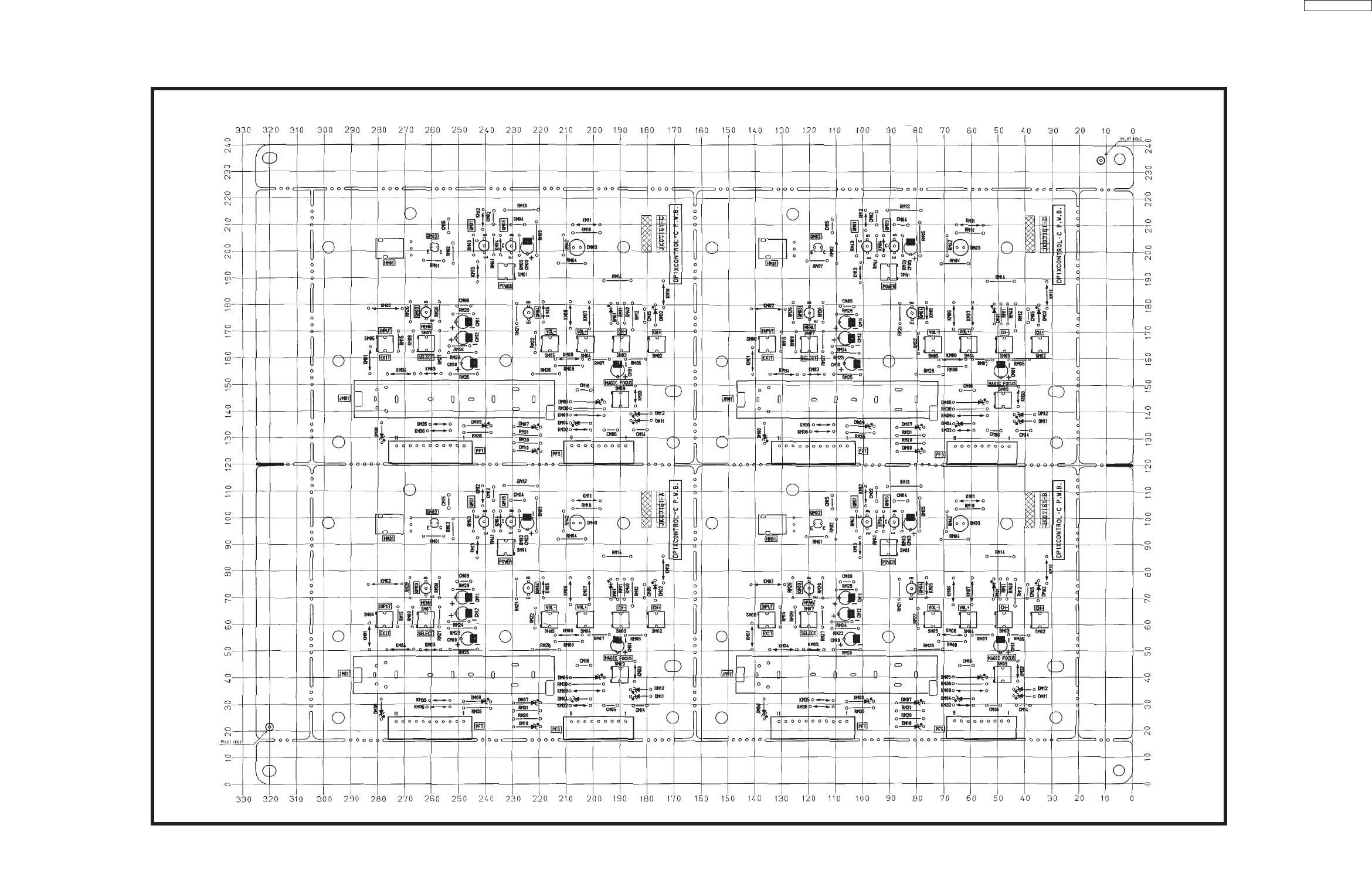

PRINTED CIRCUIT BOARDS ............................................................................................72

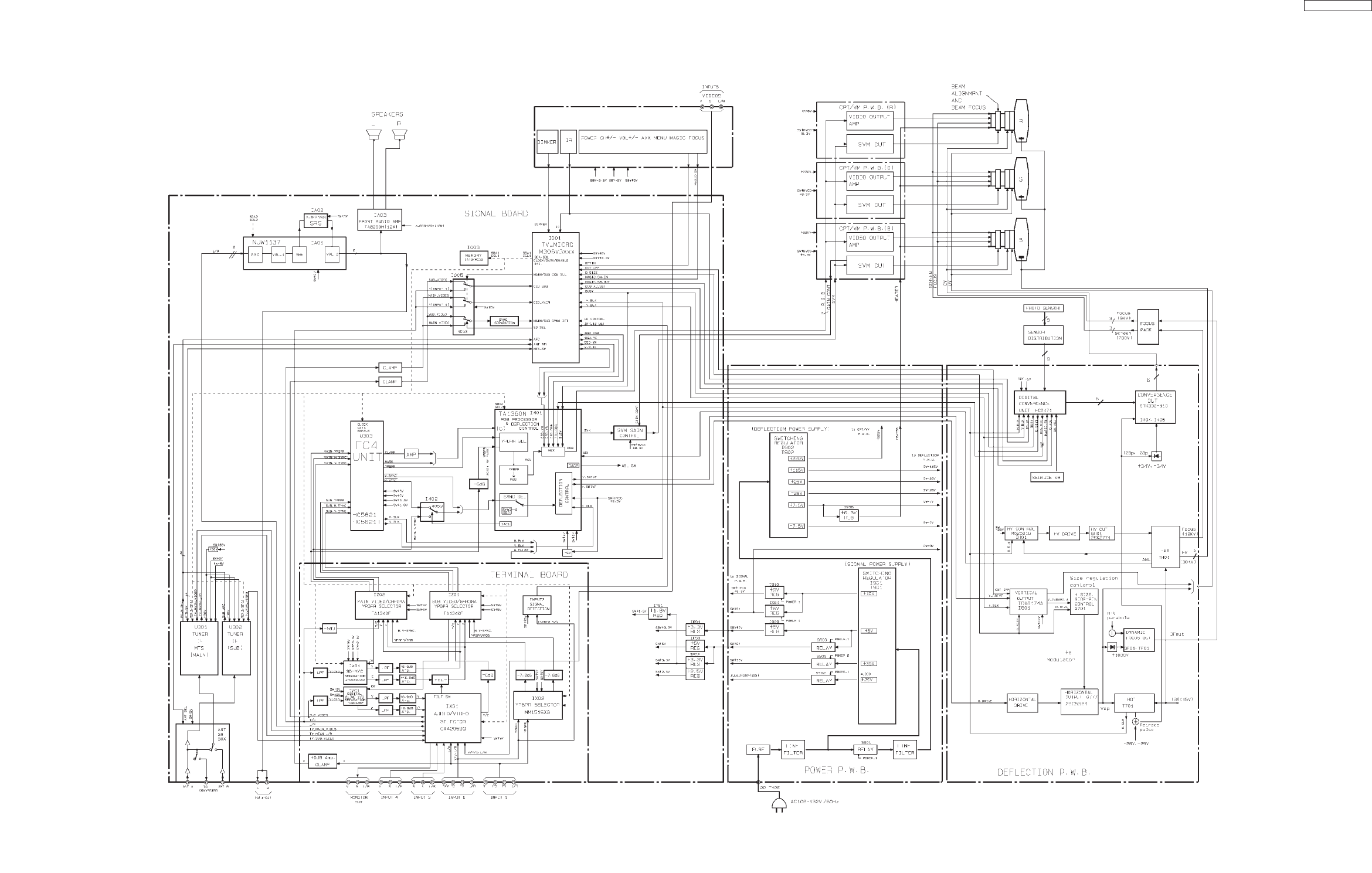

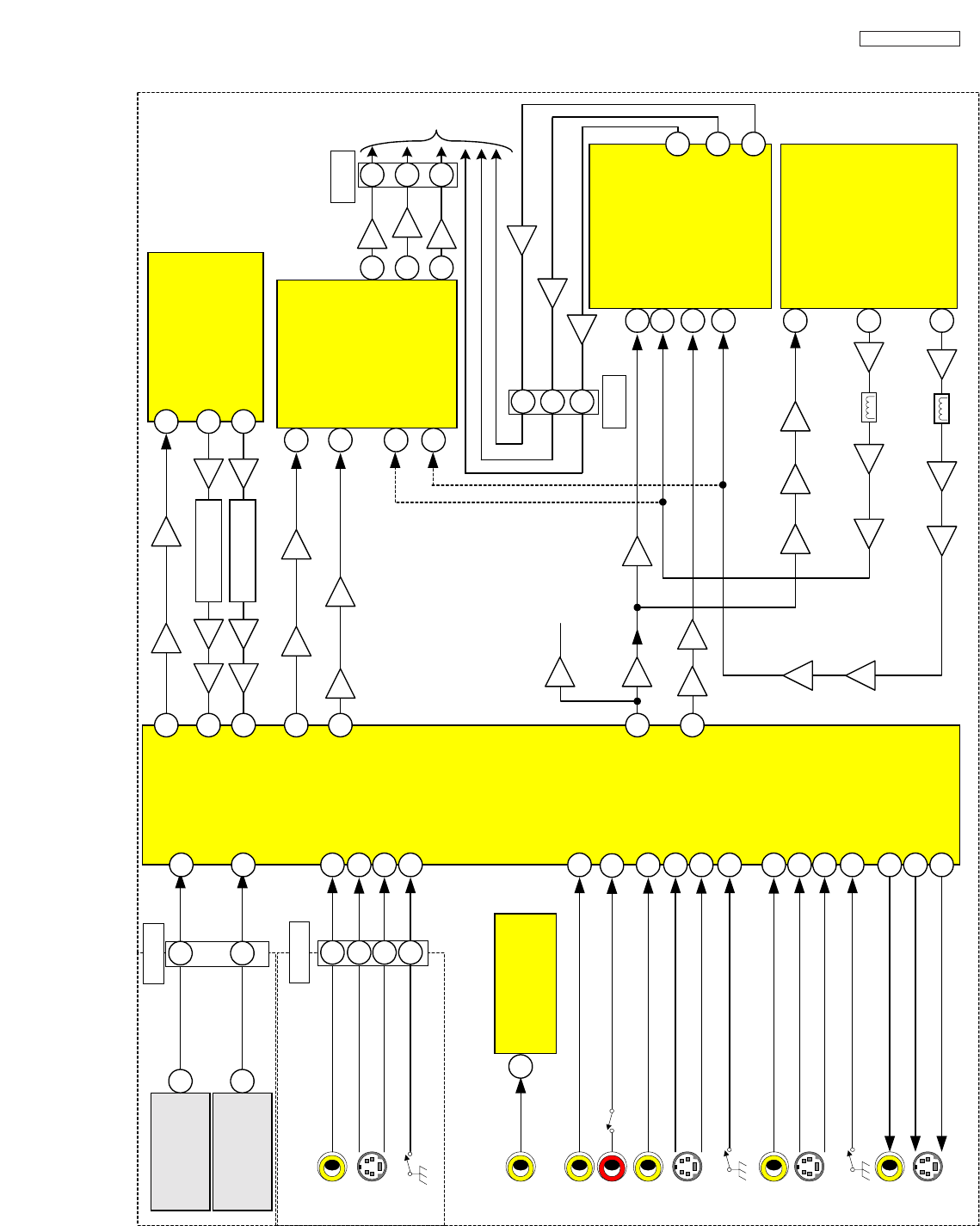

BLOCK DIAGRAM ..............................................................................................................74

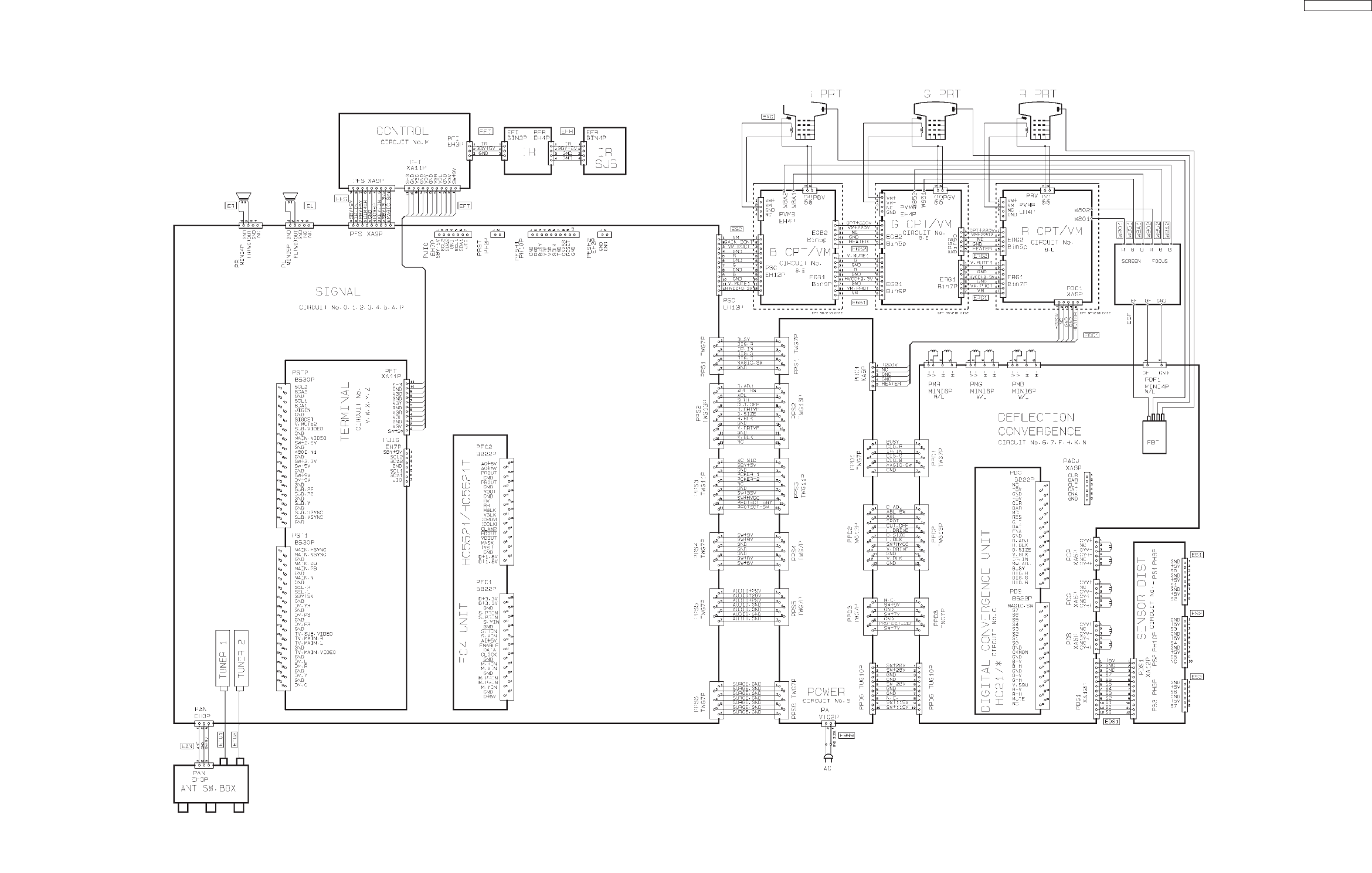

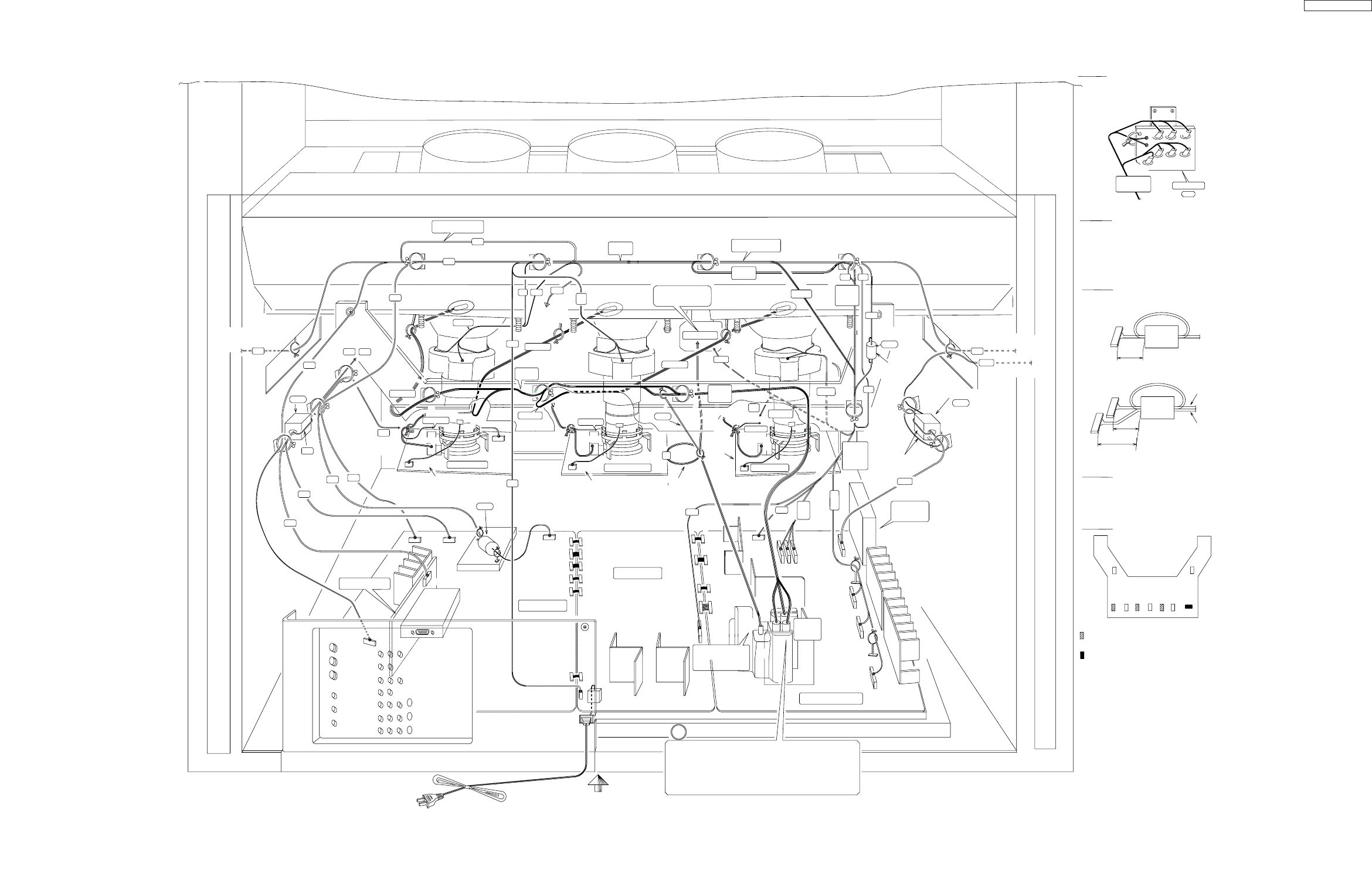

WIRING DIAGRAM ..............................................................................................................76

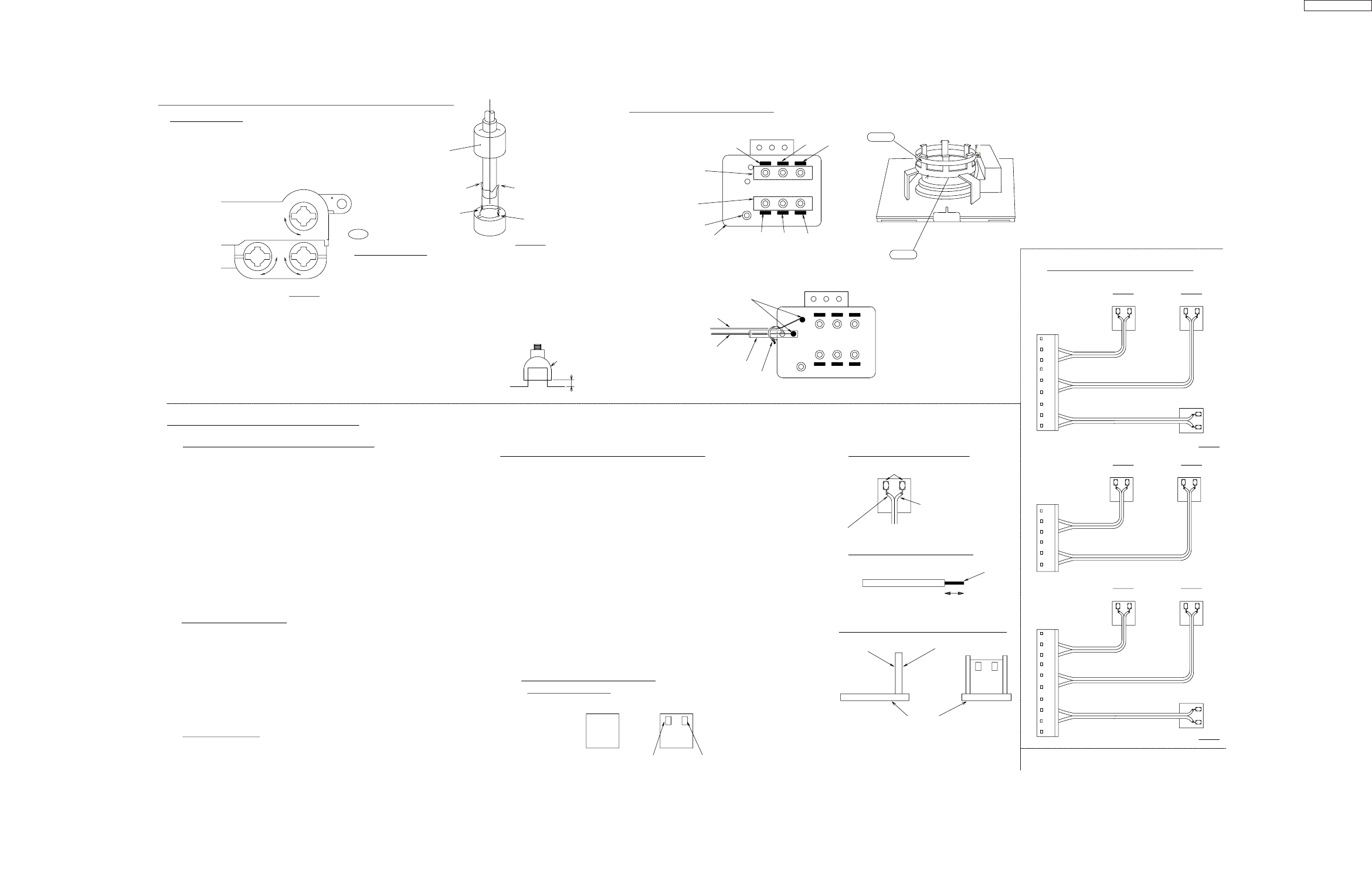

FINAL WIRING DRAWING ..................................................................................................78

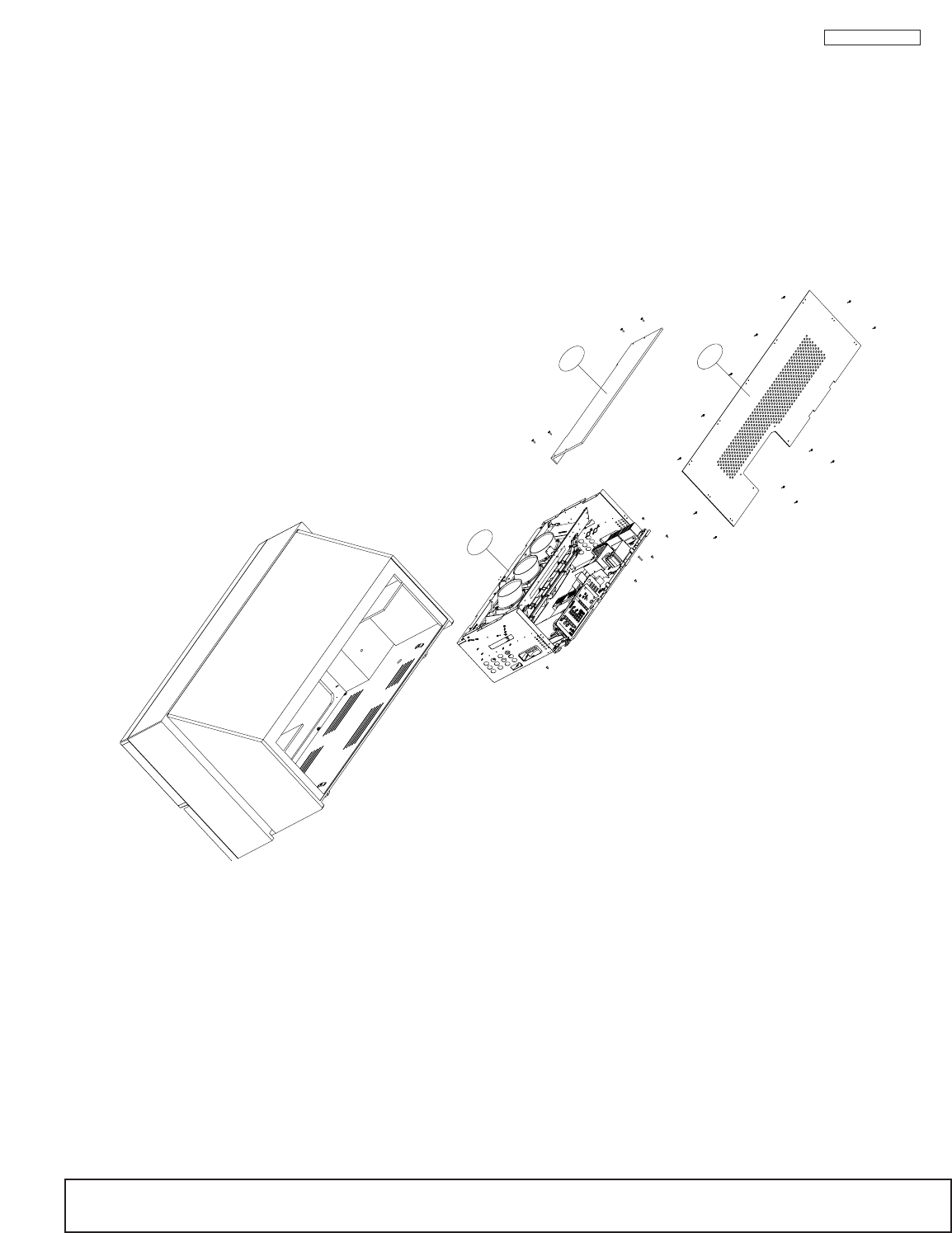

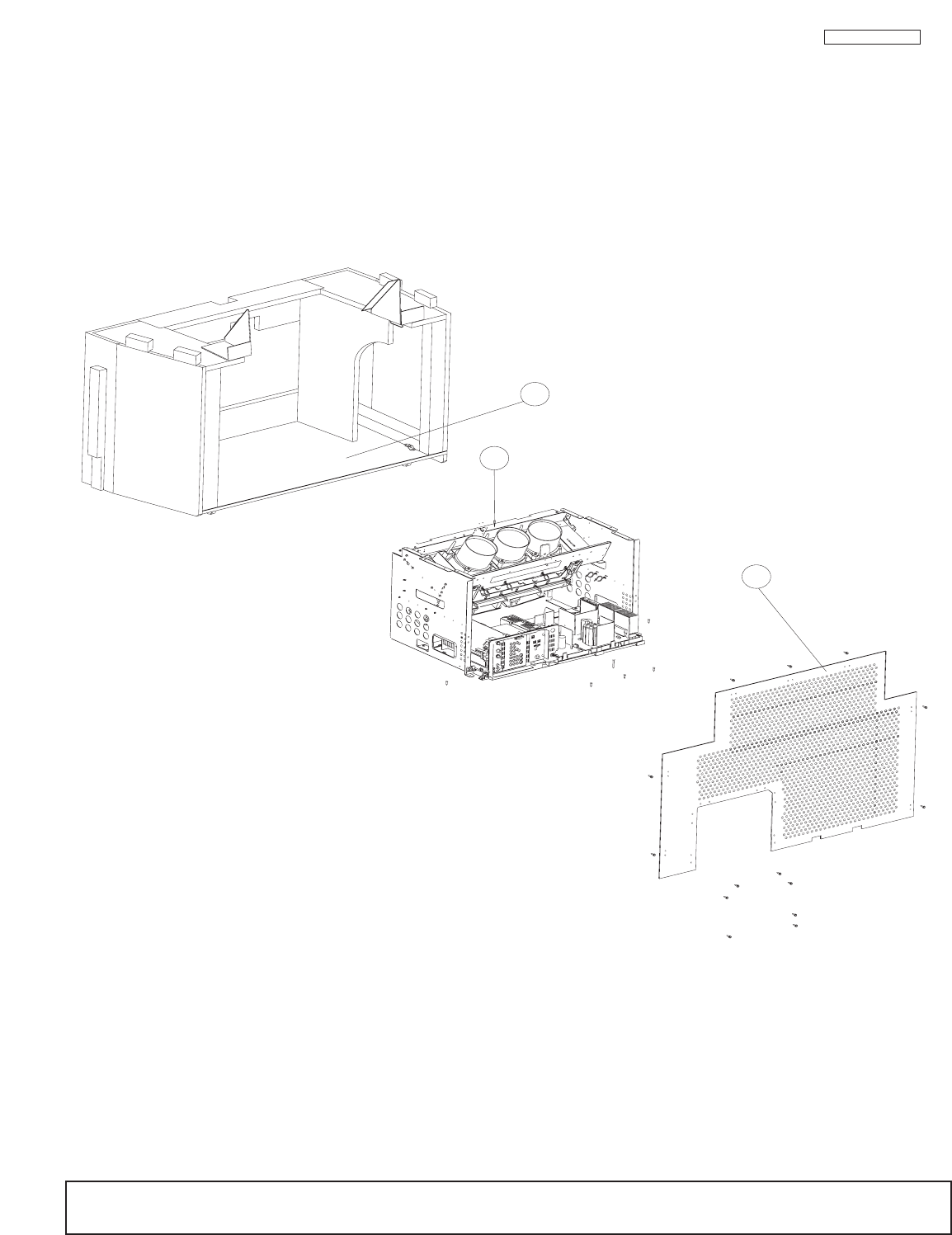

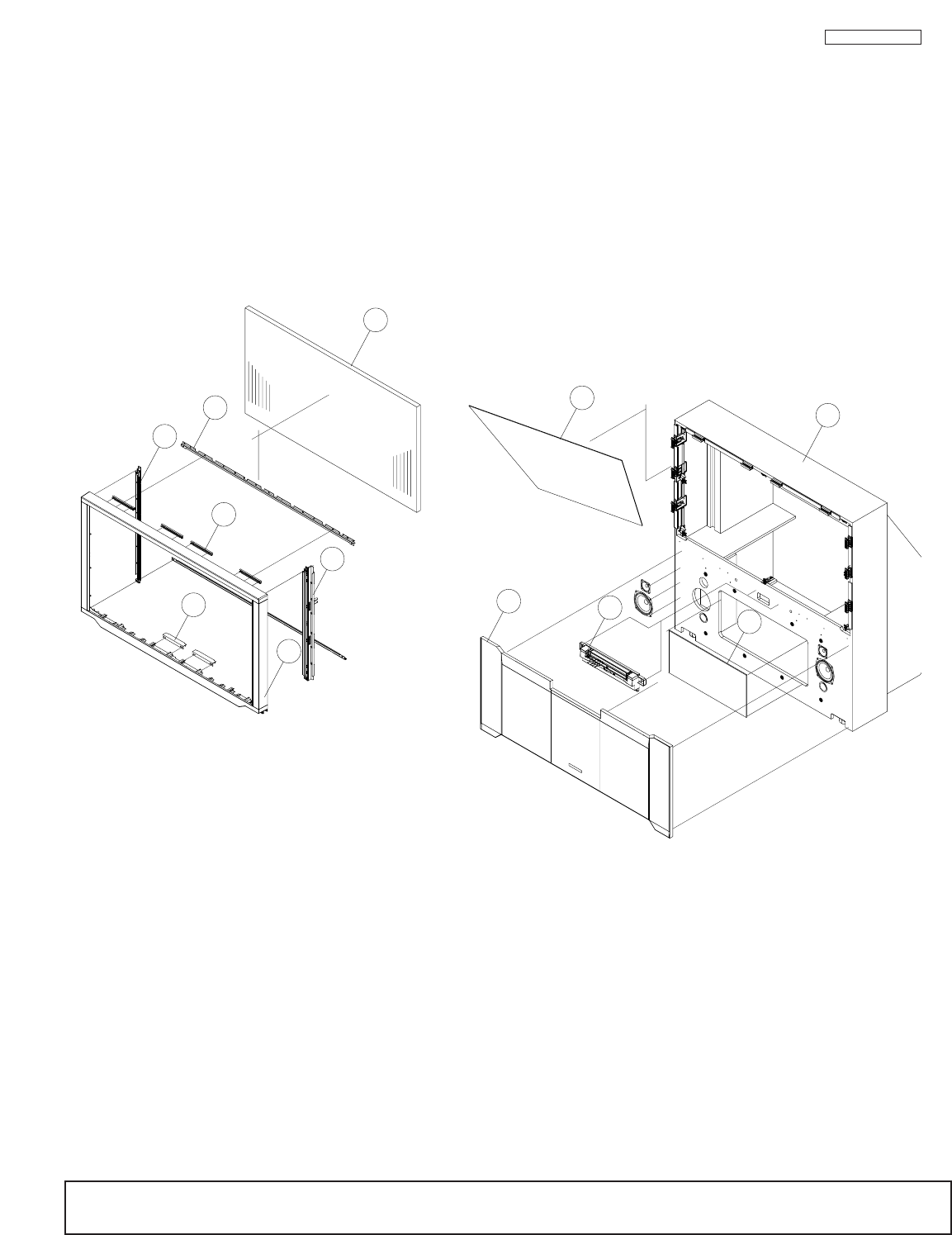

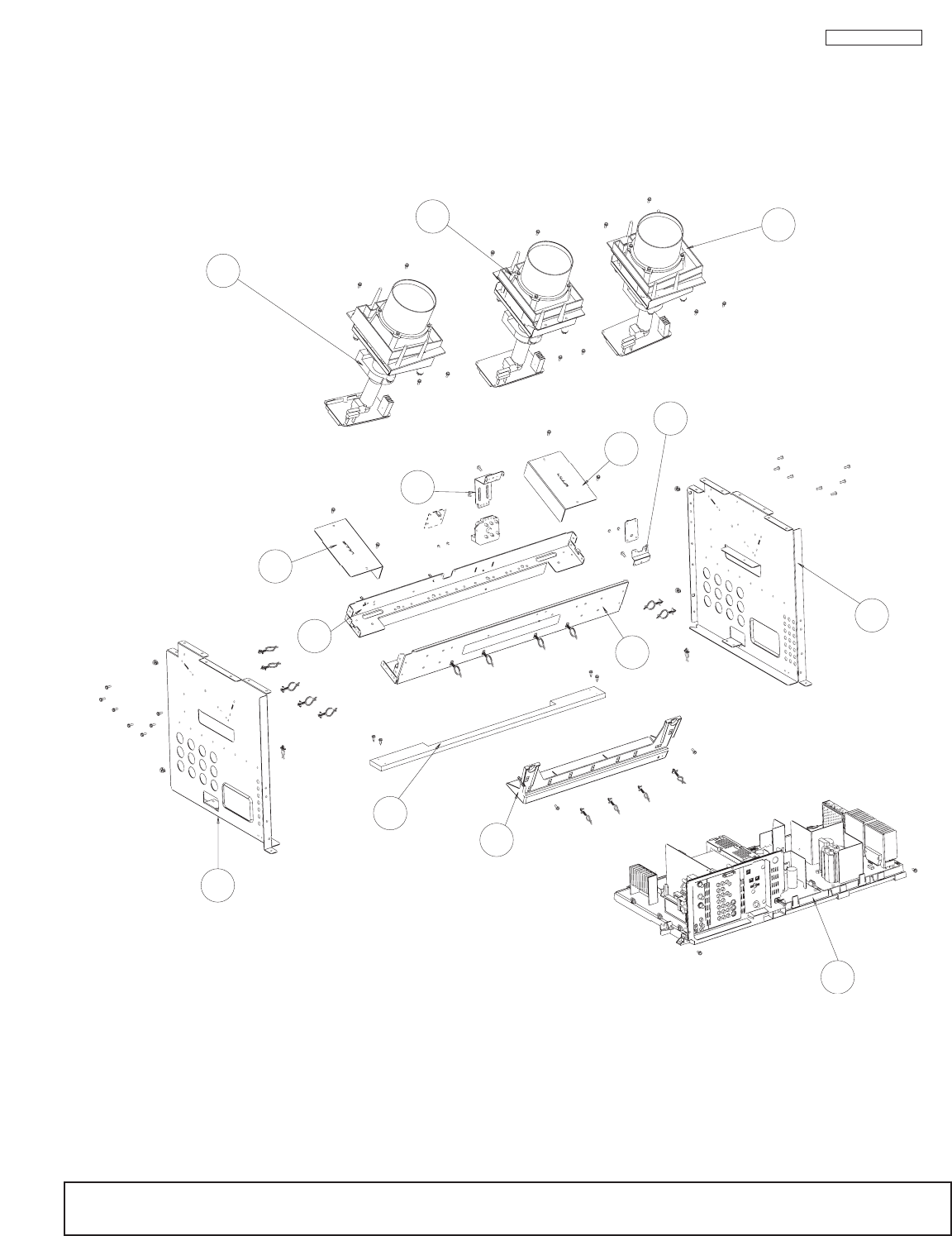

EXPLODED VIEW ..............................................................................................................84

EXPLODED VIEW PARTS LIST ..........................................................................................90

QUICK REFERENCE PARTS LIST ....................................................................................95

REPLACEMENT PARTS LIST ............................................................................................96

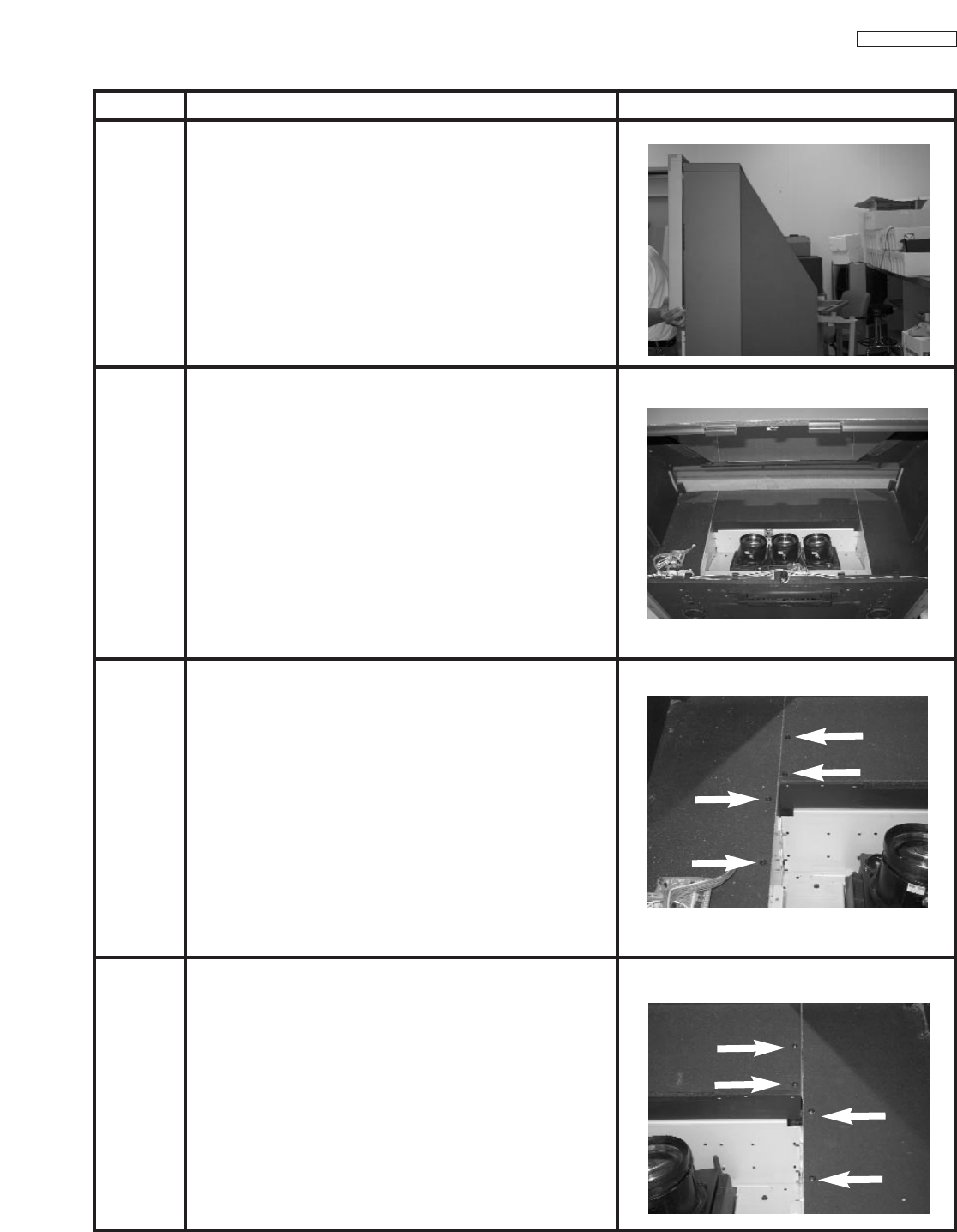

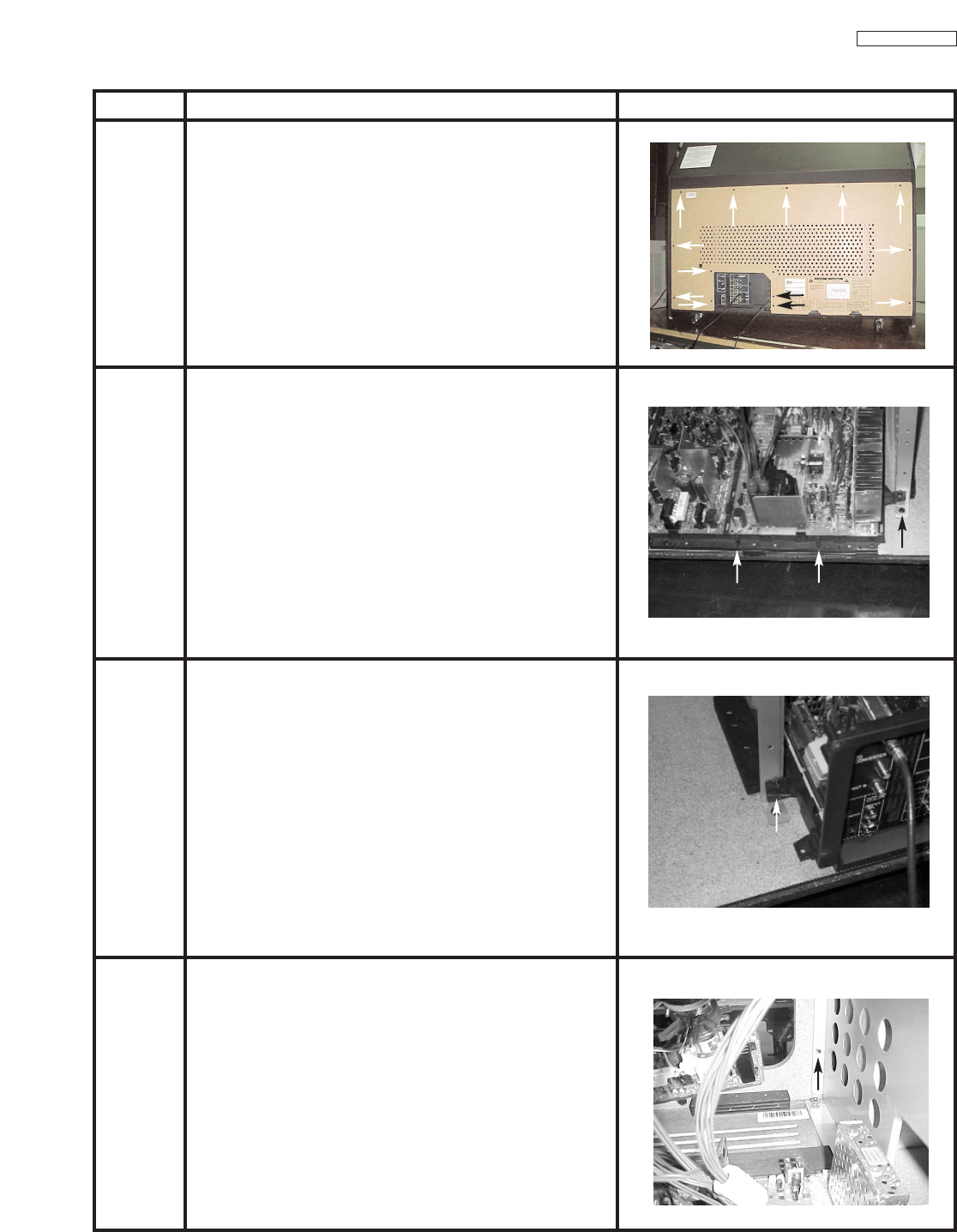

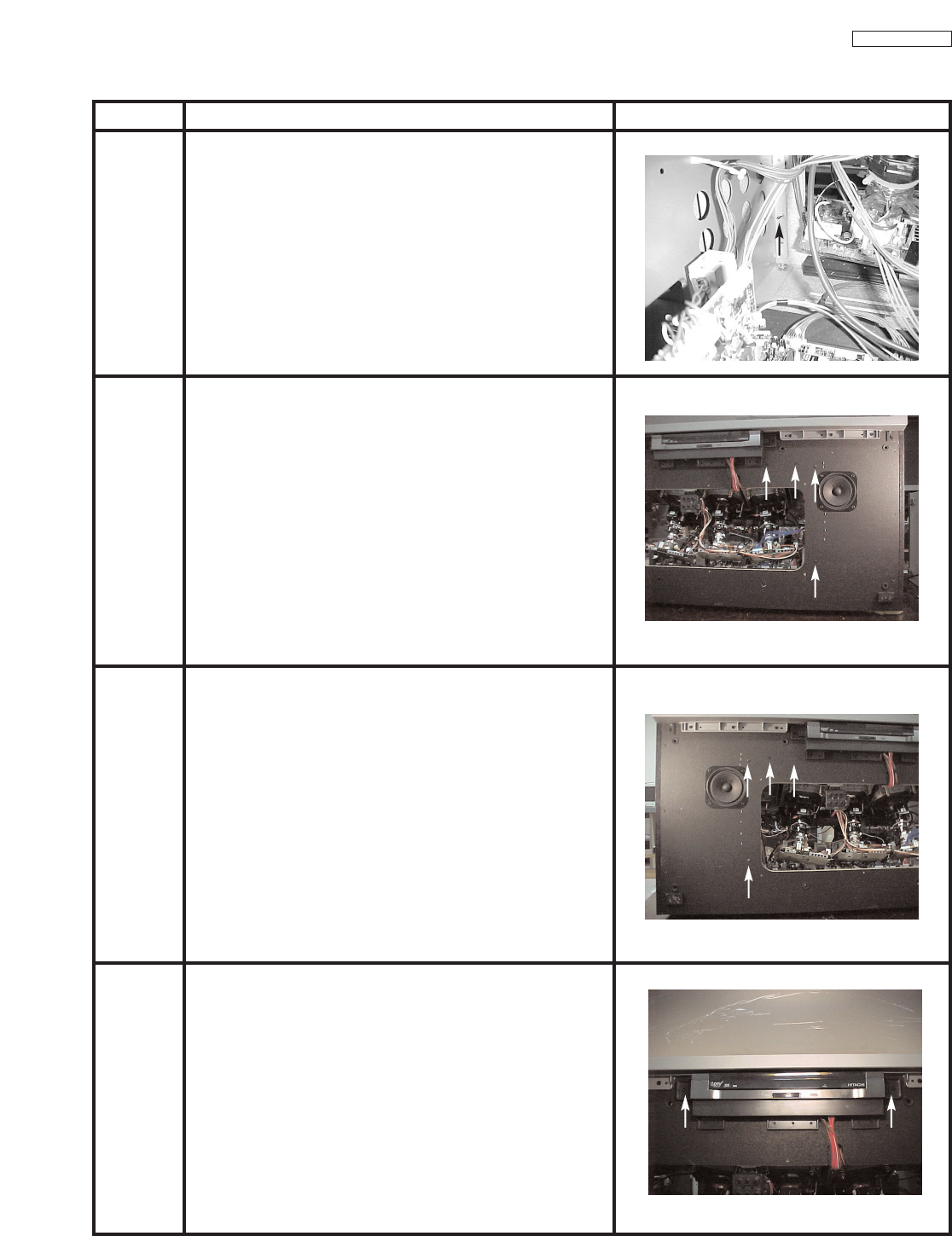

DISASSEMBLY INSTRUCTIONS ......................................................................................117

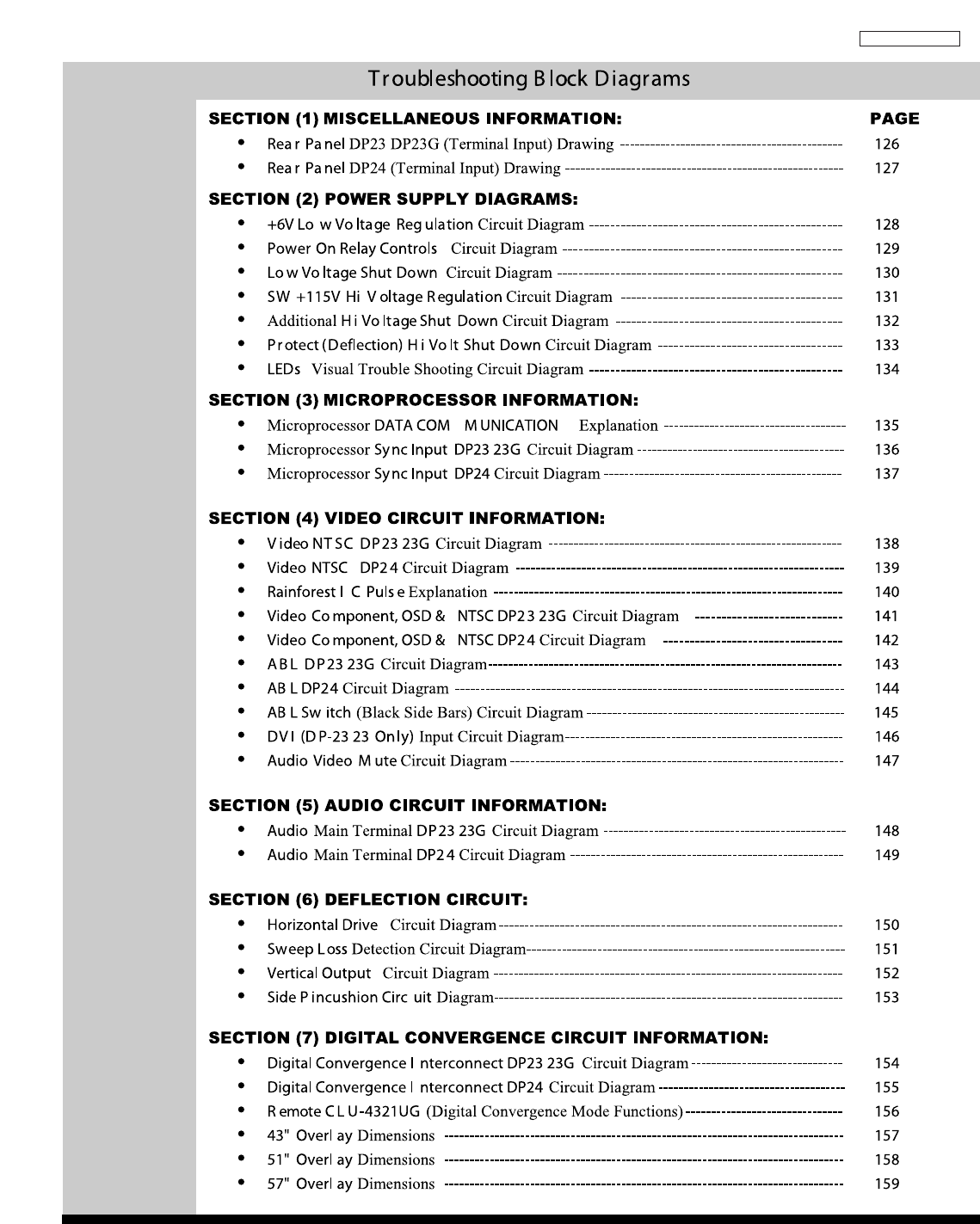

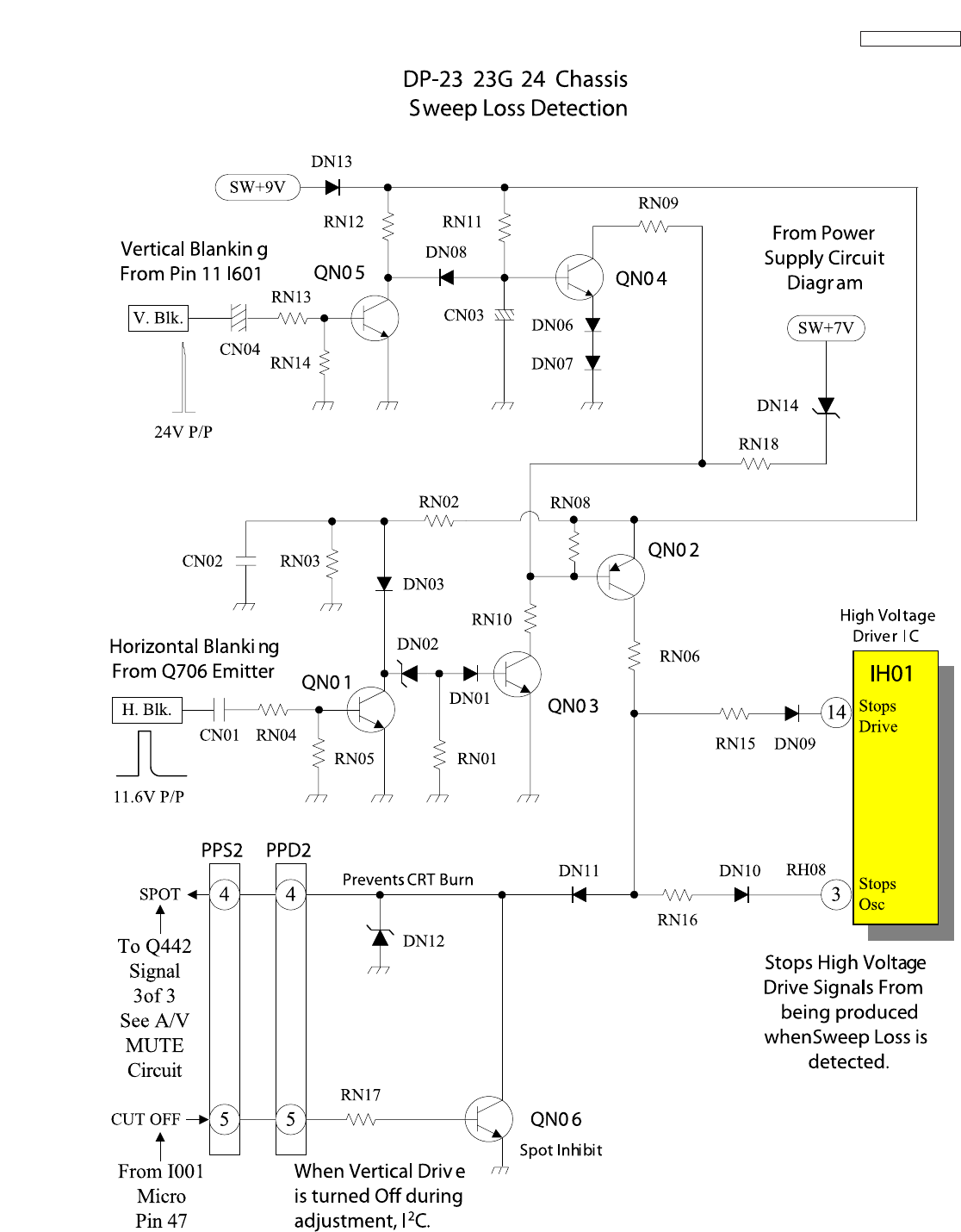

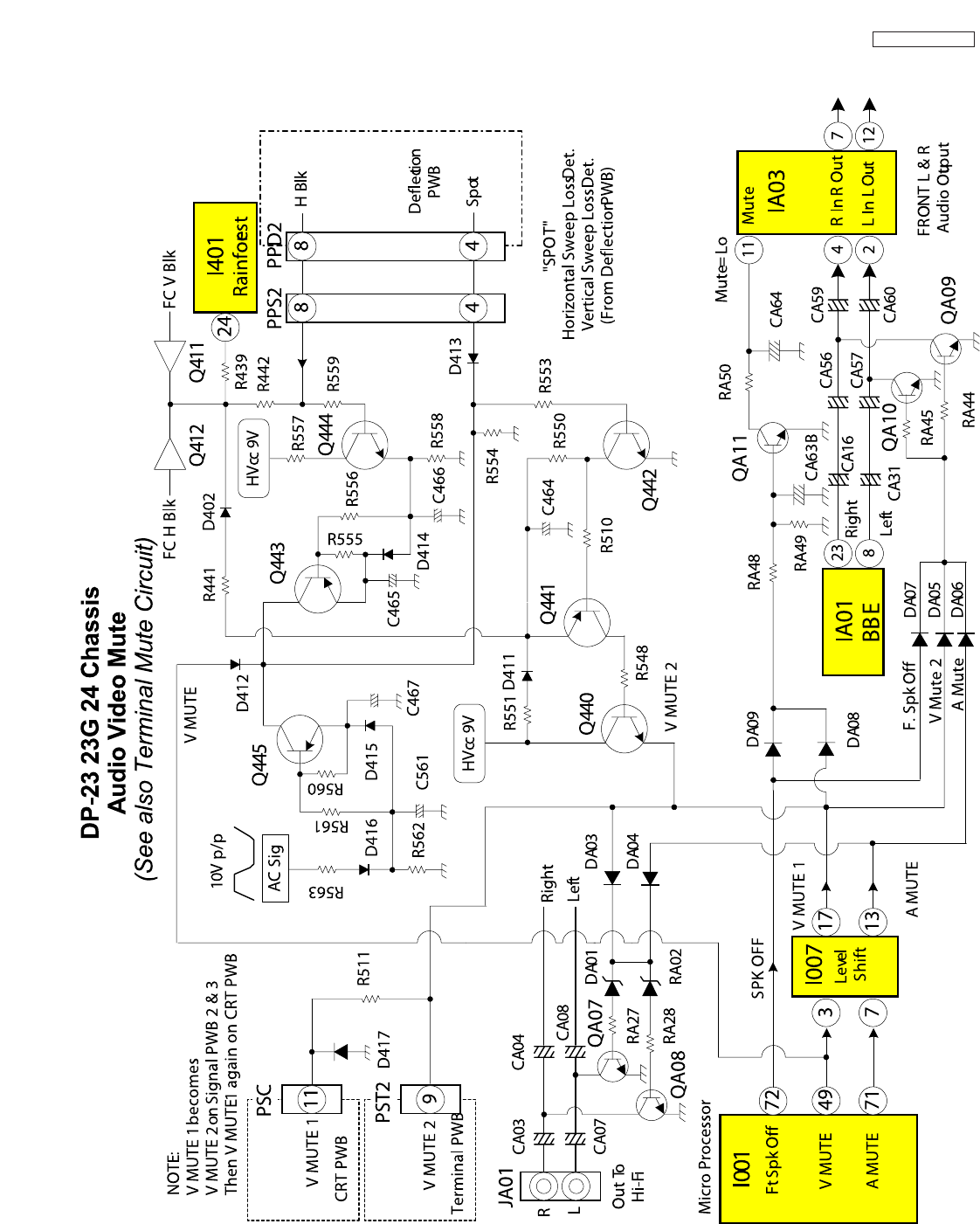

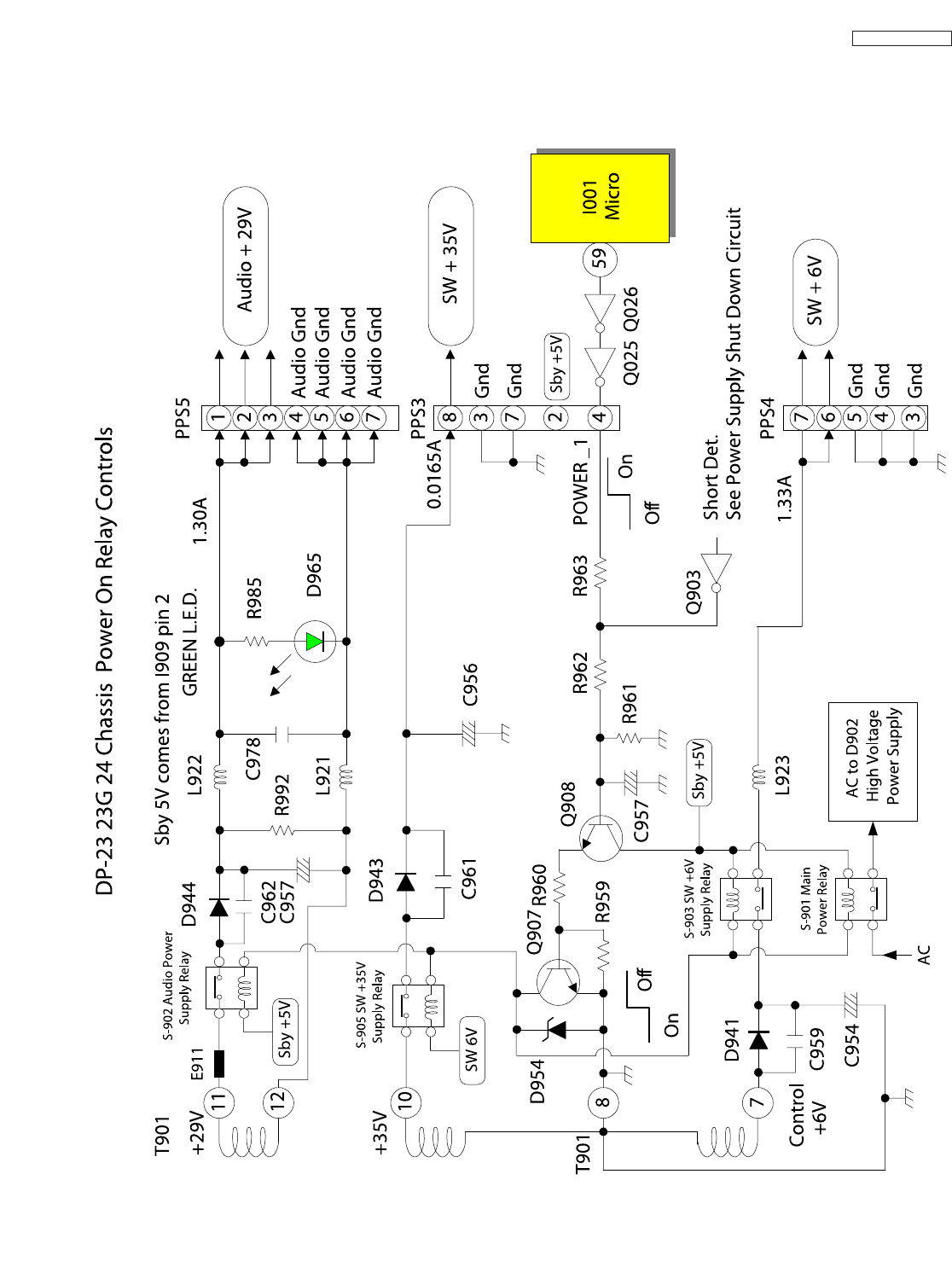

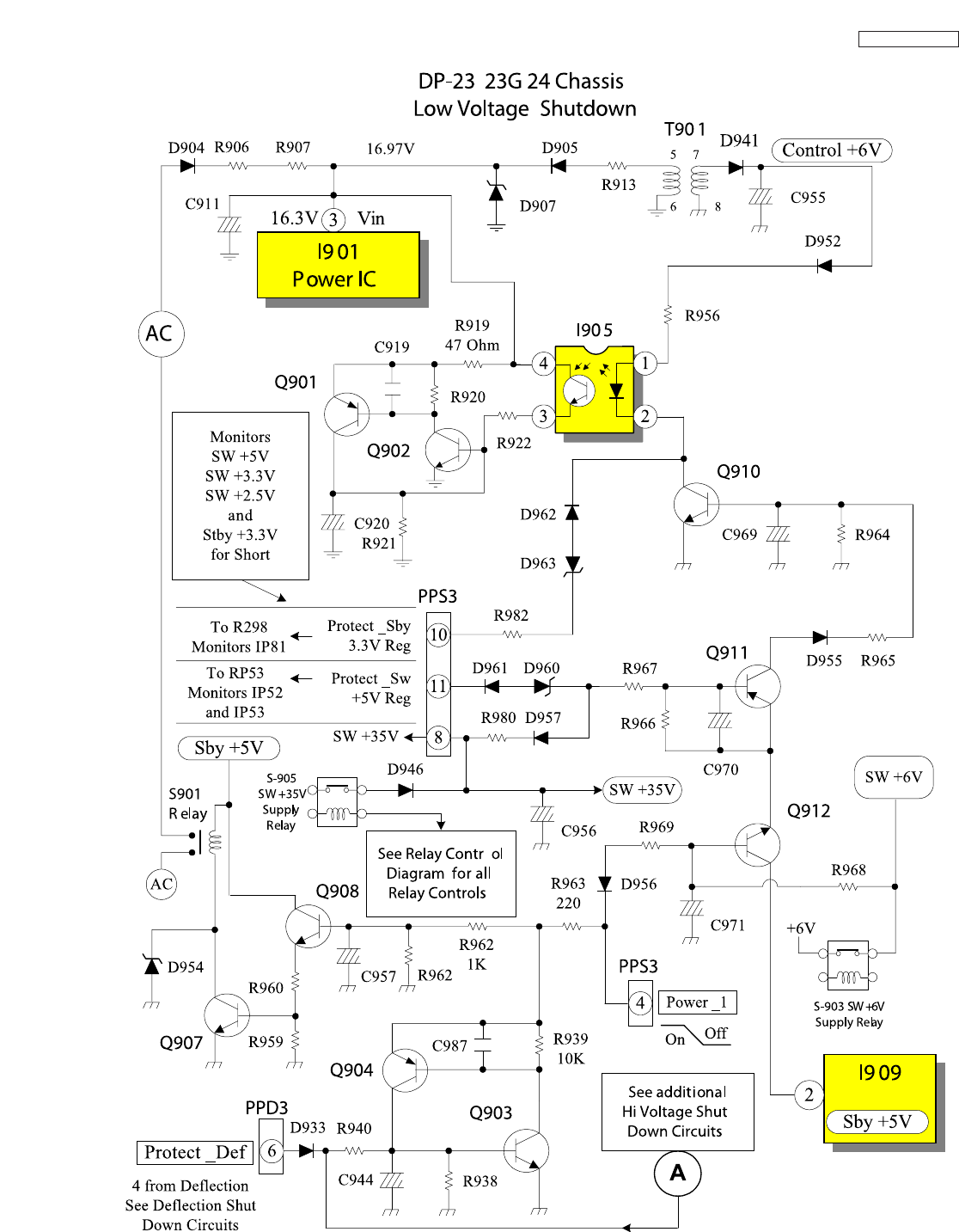

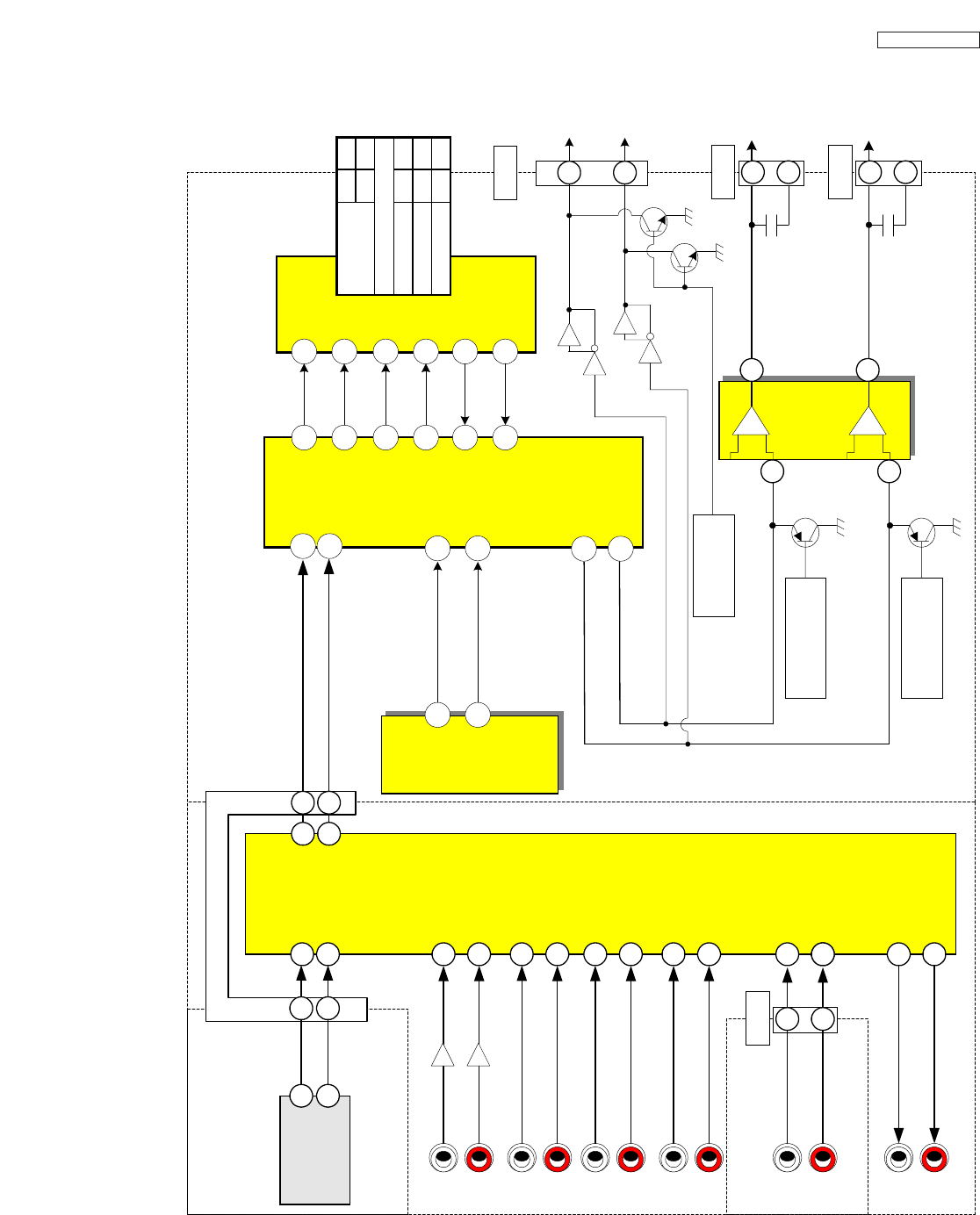

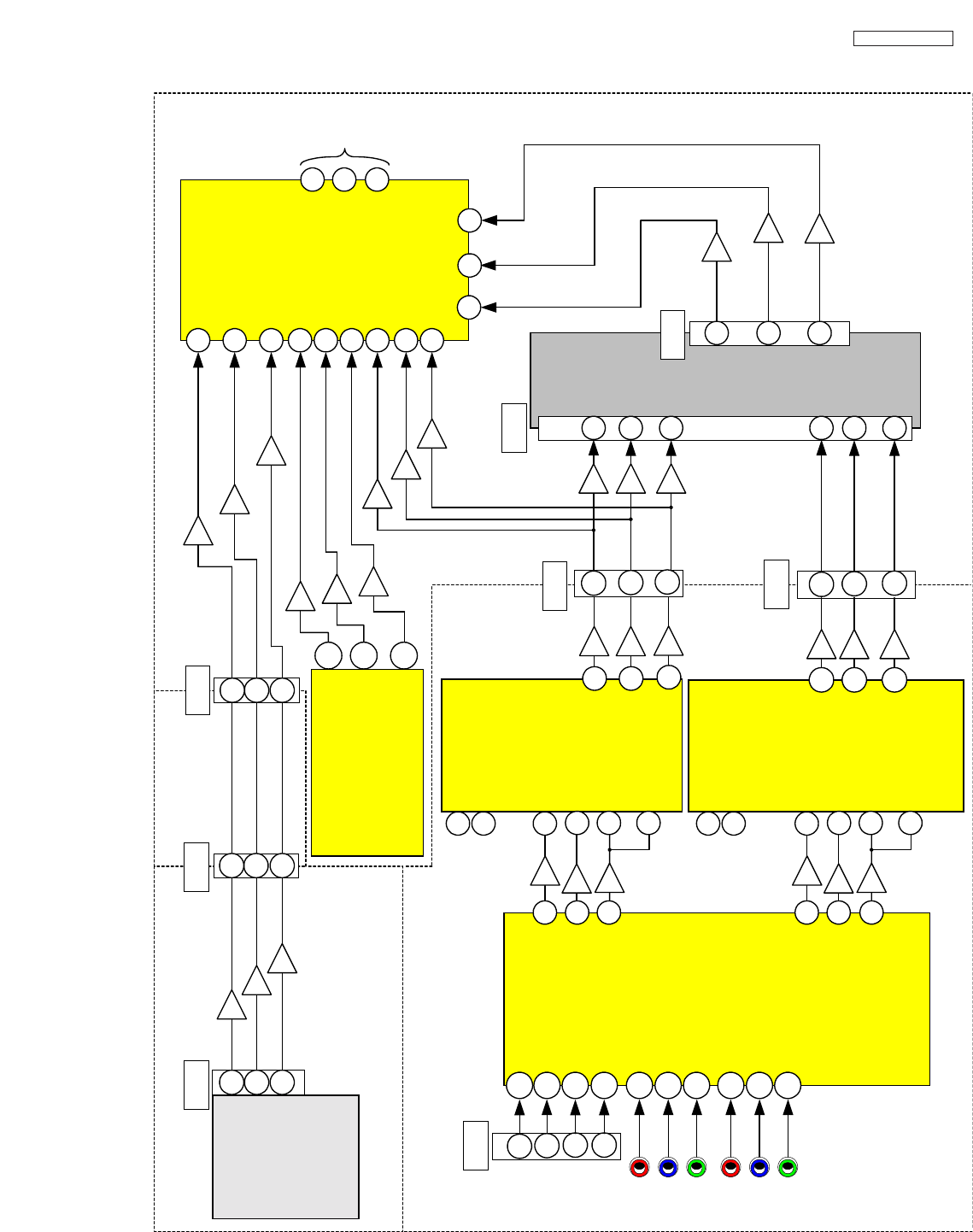

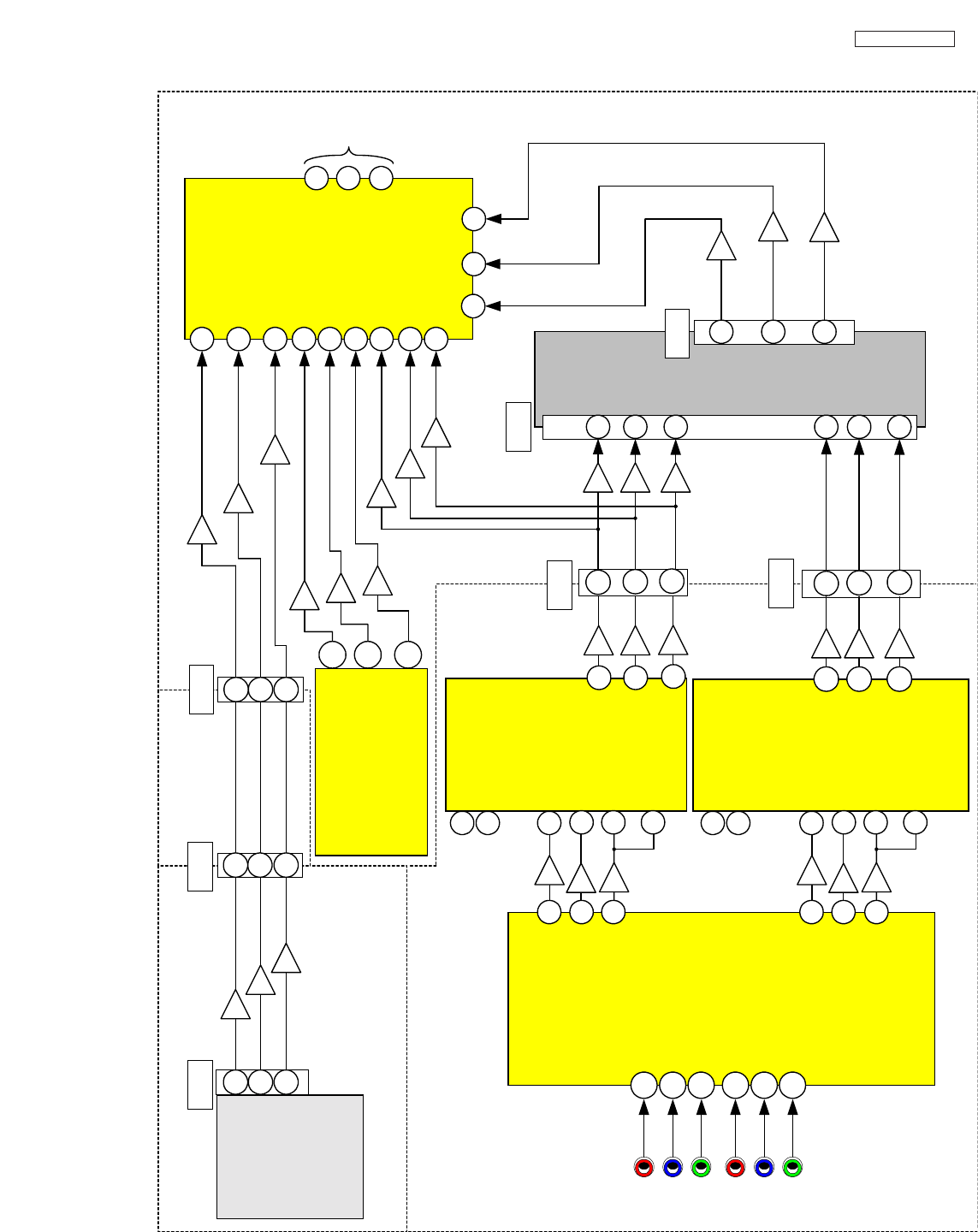

TROUBLESHOOTING BLOCK DIAGRAMS......................................................................125

PA No. 0162

NTSC DP23/DP23G/DP24 R/C: CLU-4321UG

SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT

JUNE 2002 HHEA-MANUFACTURING DIVISION

51UWX20B DP23

57UWX20B DP23

51GWX20B DP23G

57GWX20B DP23G

43FWX20B DP24

SERVICE MANUAL

This addendum gives differences between DP23/DP23G/DP24 and the DP27/DP27D chassis

models. For any other information, see the DP27/DP27D chassis Service Manual PA No. 0160

issued in MAY 2002.

CAUTION: Before servicing this chassis, it is important that the service technician read the

”Safety Precautions” and “Servicing Precautions” in Service Manual PA No. 0160.

PROJECTION COLOR TELEVISION

Updated 01/22/04

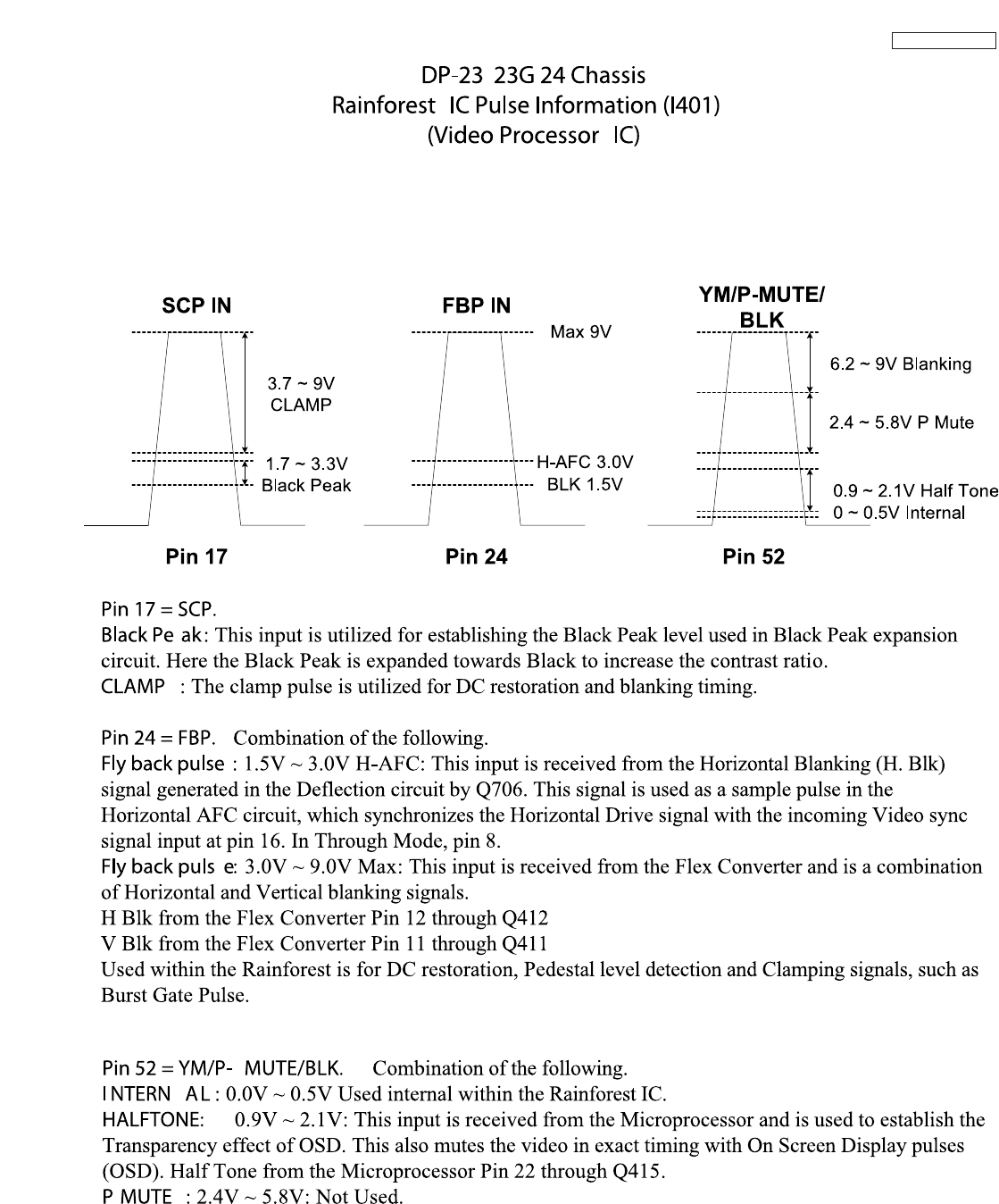

Waveforms Added ............................................................................................................160

Updated 01/26/05

Updated 03/26/04

TO GO TO A CHAPTER, CLICK ON IT'S HEADING

PWB Part Numbers Added ...............................................................................................164

Version 0162.07

Updated 02/12/07

DP23/23G/24

Components having special safety characteristics are identified by a on the schematics and on the parts list in this service

manual and its supplements and bulletins. Before servicing this chassis, it is important that the service technician read and

follow the “Important Safety Instructions” in this Service Manual.

For continued X-Radiation protection, replace picture tube with original type or Hitachi approved equivalent type.

This Service Manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified

technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex

products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void warranty. If you

are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the

repair to a qualified service technician.

WARNING

Lead in solder used in this product is listed by the California Health and Welfare agency as a known reproductive toxicant which

may cause birth defects or other reproductive harm (California Health and Safety Code, Section 25249.5).

When servicing or handling circuit boards and other components which contain lead in solder, avoid unprotected skin contact

with solder. Also, when soldering do not inhale any smoke or fumes produced.

This television receiver provides display of television closed captioning in accordance with section 15.119 of the FCC rules.

FEDERAL COMMUNICATIONS COMMISSION NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/television technician for help.

IMPORTANT SAFETY INSTRUCTIONS

USE ISOLATION TRANSFORMER WHEN SERVICING

DP23/23G/24

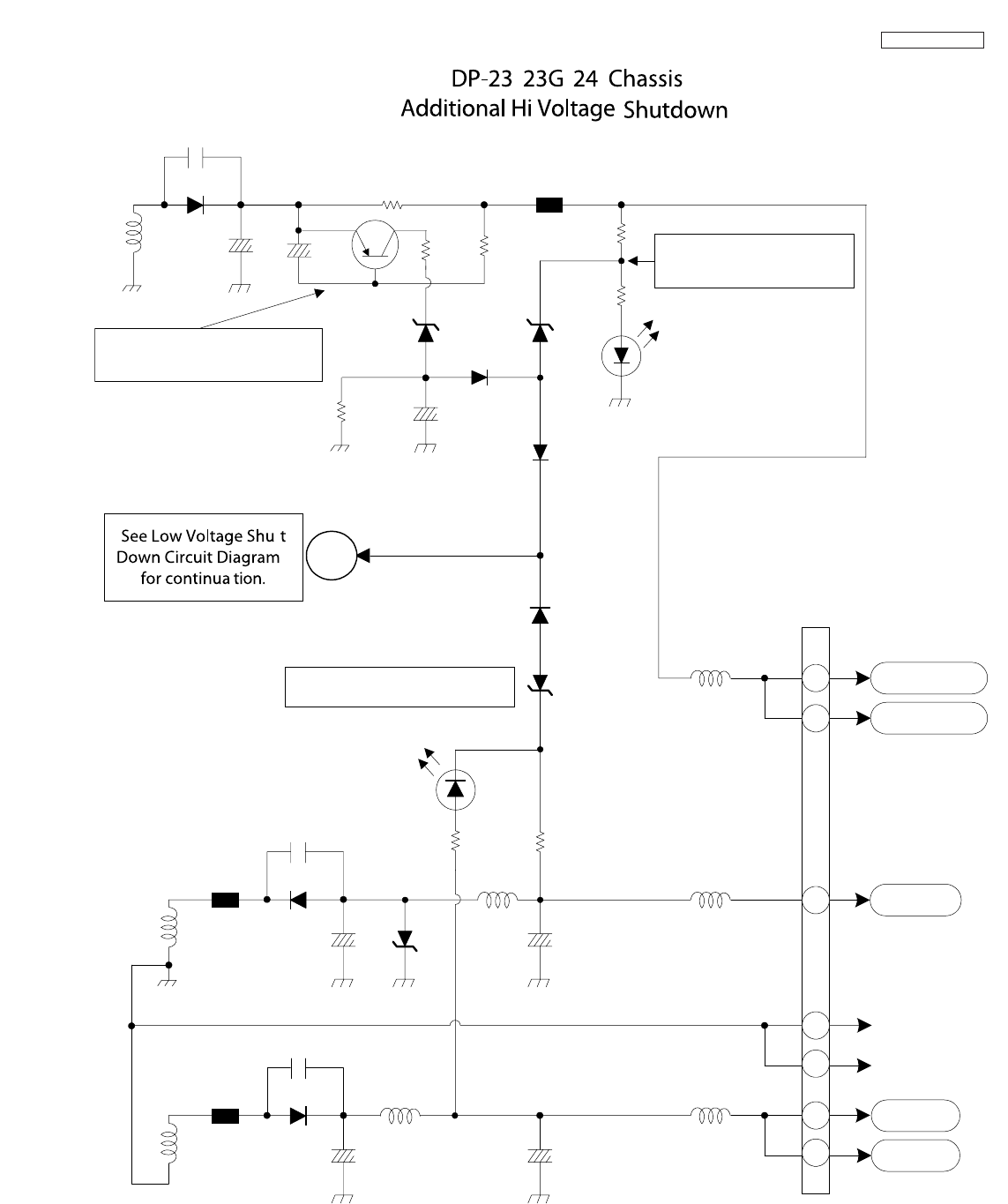

High Voltage limiter circuit operation check.

1. Turn off TV and connect jig as shown in Figure 2. Adjust

jig fully counter-clockwise for minimum resistance.

2. Set the AC input to 120V AC and turn on TV.

3. Confirm test pattern on CRT is a usable picture, then

slowly adjust jig until the picture disappears and TV shuts

down.

4. When the limiter circuit is operating properly, High

Voltage will be less than 30.5 kV at 1.4mA when TV shuts

down.

5. Turn off set immediately after checking circuit operation.

6. Unplug set for one minute to reset shutdown circuit.

Remove jig and voltmeter.

TECHNICAL CAUTIONS

(TH01)

WHITE side

GND side

TESTER

C901

R901

EF901 EF901

F901

KP01

X901

R903

C981

R980

AC CORD POLARITY

This check is based on the UL standard. Use the jigs specified by the production technology section. The GND side (wider

blade) of the AC power cord should be connected to K9Y1

DP23/23G/24

Models: 51UWX20B 51GWX20B

57UWX20B 57GWX20B

43FWX20B

Cathode-Ray Tube:

51/57UWX20B R=P16LXL00RFA(U)

51/57GWX20B G=P16LXL00HHA(U)

B=P16LXL00BMB(U)

43FWX20B R=P16LXS00RFA(U)

G=P16LXS00HHA(U)

B=P16LXS00MBM(U)

Power Input: 120 volts AC, 60 Hz

Power Consumption:

•Stand-By Power

51/57UWX20 . . . . . . . . . . . . . . . . . . .0.96W

43FWX20B/51/57GWX20B . . . . . . . . .0.96W

•Power Consumption (operating)

51/57UWX20 . . . . . . . . . . . . . . . . . . .188W

43FWX20B/51/57GWX20B . . . . . . . . . .203W

•Power Consumption (maximum)

51/57UWX20 . . . . . . . . . . . . . . . . . . .227W

43FWX20B/51/57GWX20B . . . . . . . . . .248W

Antenna Impedance: 75 Ohm Unbalanced

VHF / UHF / CATV

Receiving Channel: BAND CH

VHF 2~13

UHF 14~69

EXT. Mid (A-5)~(A-1), 4+

CATV Mid. A~I

CATV Super J~W

CATV Hyper (W+1)~(W+28)

CATV Ultra (W+29)~(W+84)

Intermediate Frequency: Picture l-F Carrier 45.75 MHz

Sound l-F Carrier 41.25 MHz

Color Sub Carrier 42.17 MHz

Video Input: 1 Volt p-p, 75 Ohm

Video Output: 1 Volt p-p, 75 ohm

Audio Input: 470 mVrms, 47 k Ohm

Stereo Audio Output: 470 mVrms, 1 k Ohm

Audio Output Power:

Front: 12 watts per channel at 10% distortion,

8 ohm Impedance. Max output – 24 watts.

Anode Voltage:

DP23/DP23G/DP24 30.2±0.3kv (1.20±0.2mA)

Brightness: 51” 57” 43”

(white screen) 220cd/m2180cd/m2300cd/m2

Speakers: 2 Woofers - 5 inch (12 cm) round

Dimension:

43” 51” 57”

Height (in.) 38 31/32 50 1/8 54 3/16

Width (in.) 41 7/32 44 1/2 54 1/64

Depth (in.) 20 5/8 25 1/32 25 1/32

Weight (Ibs.) 153 238 265

Circuit Board Assemblies:

C.P. T. (B) P.W.B. IR P.W.B.

C.P. T. (G) P.W.B. IR Sub P.W.B.

C.P. T. (R) P.W.B. Terminal P.W.B.

Power Supply P.W.B. Signal P.W.B.

Control P.W.B. Def/Convergence P.W.B.

Sensor Distribution P.W.B.

CIRCUIT PROTECTION

CAUTION: Below is an EXAMPLE only. See Replacement Parts List for details. The following symbol near the fuse

indicates fast operation fuse (to be replaced). Fuse ratings appear within the symbol.

125V

6 A 125V

Example:

SPECIFICATIONS

“RISK OF FIRE - REPLACE FUSE AS MARKED”

The rating of fuse F901 is 6A - 125V.

Replace with the same type fuse for continued protection

against fire.

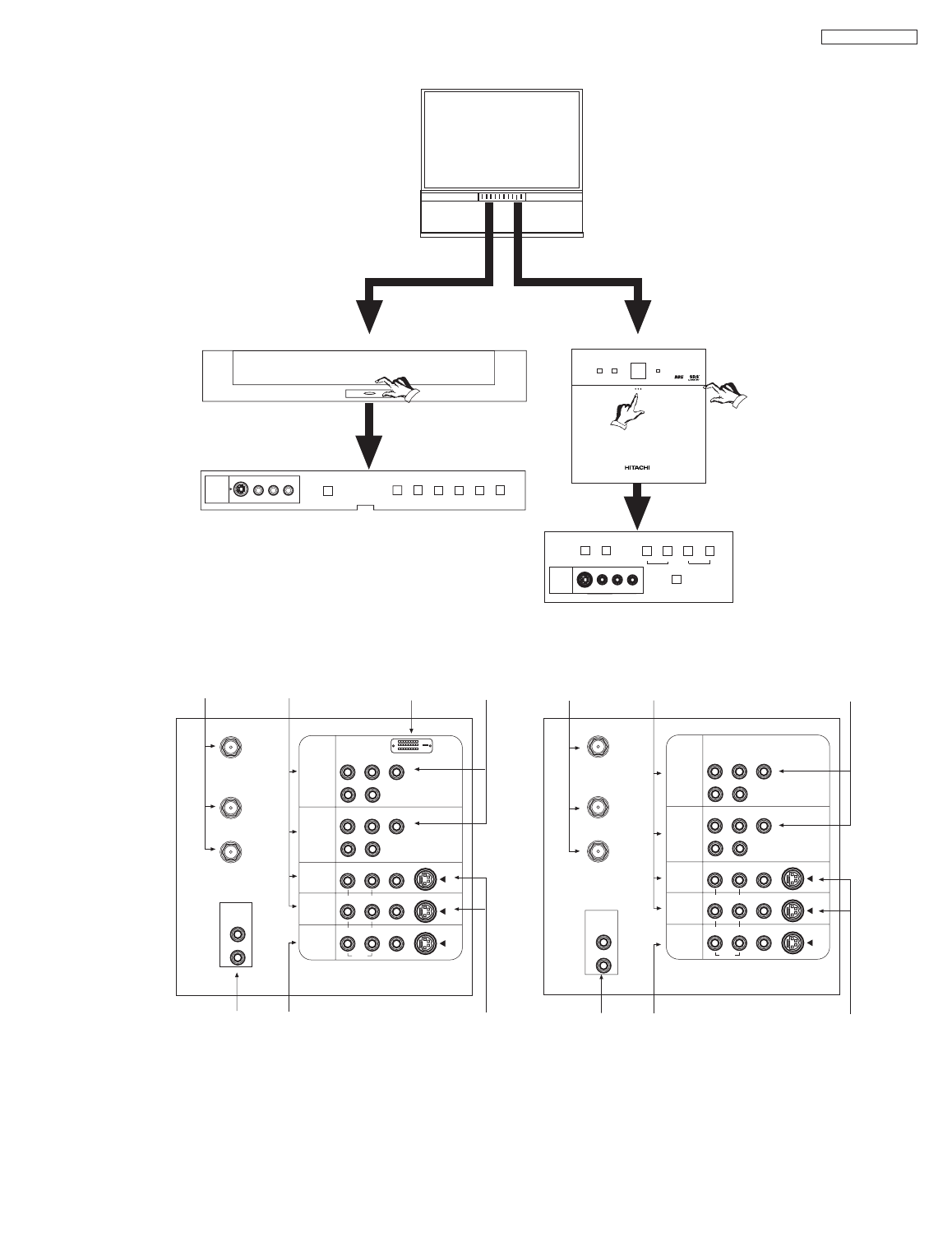

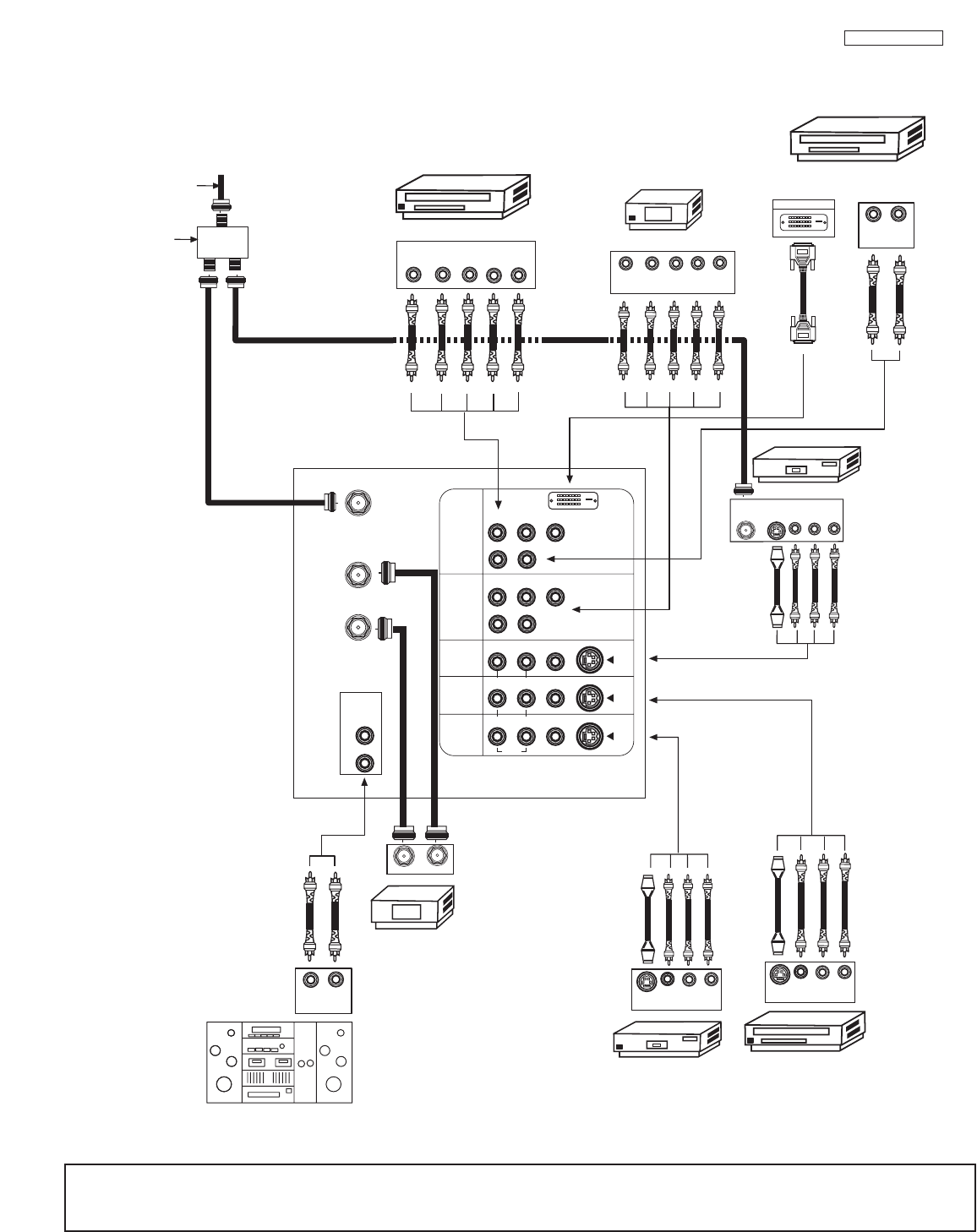

GENERAL INFORMATION

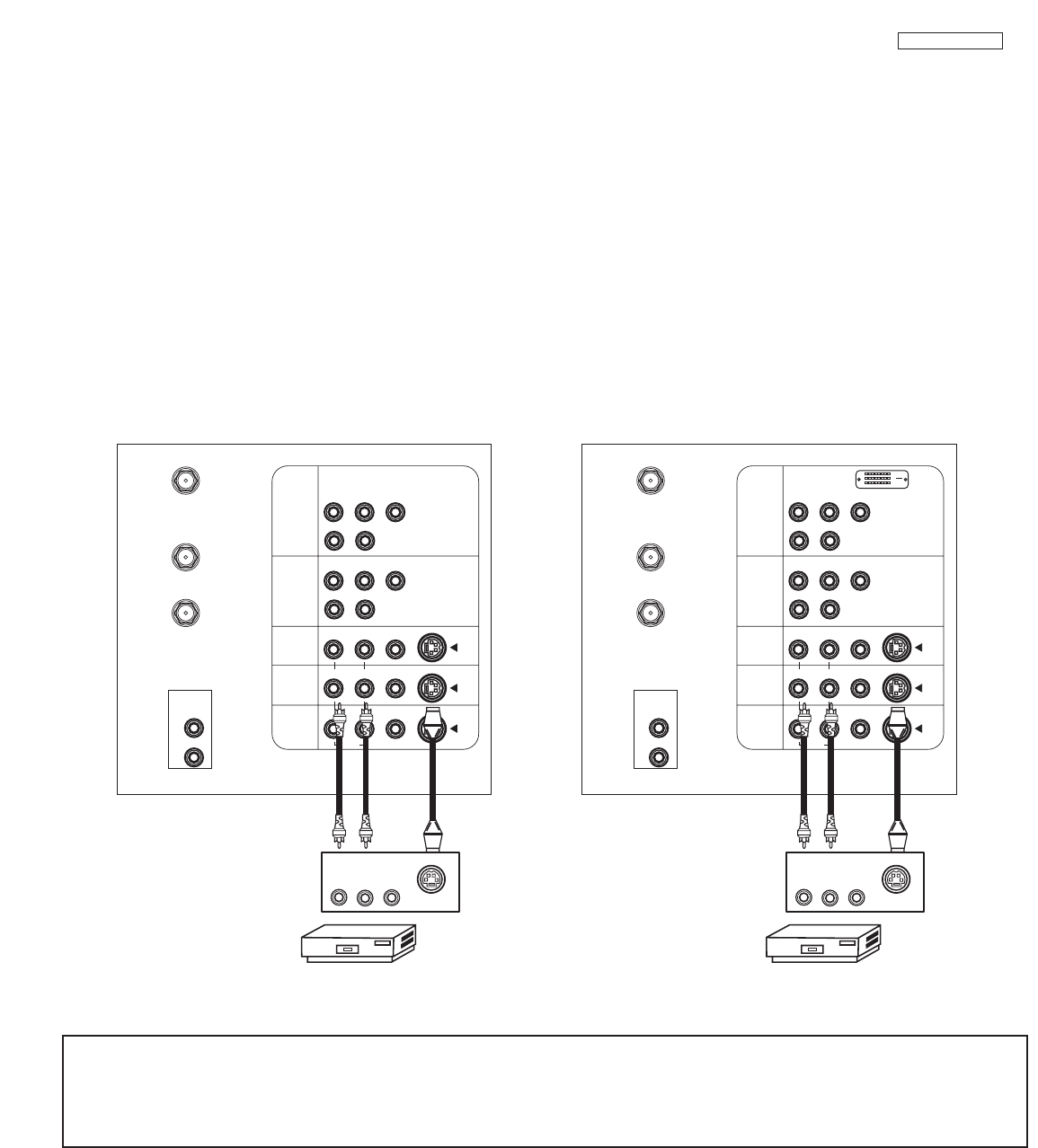

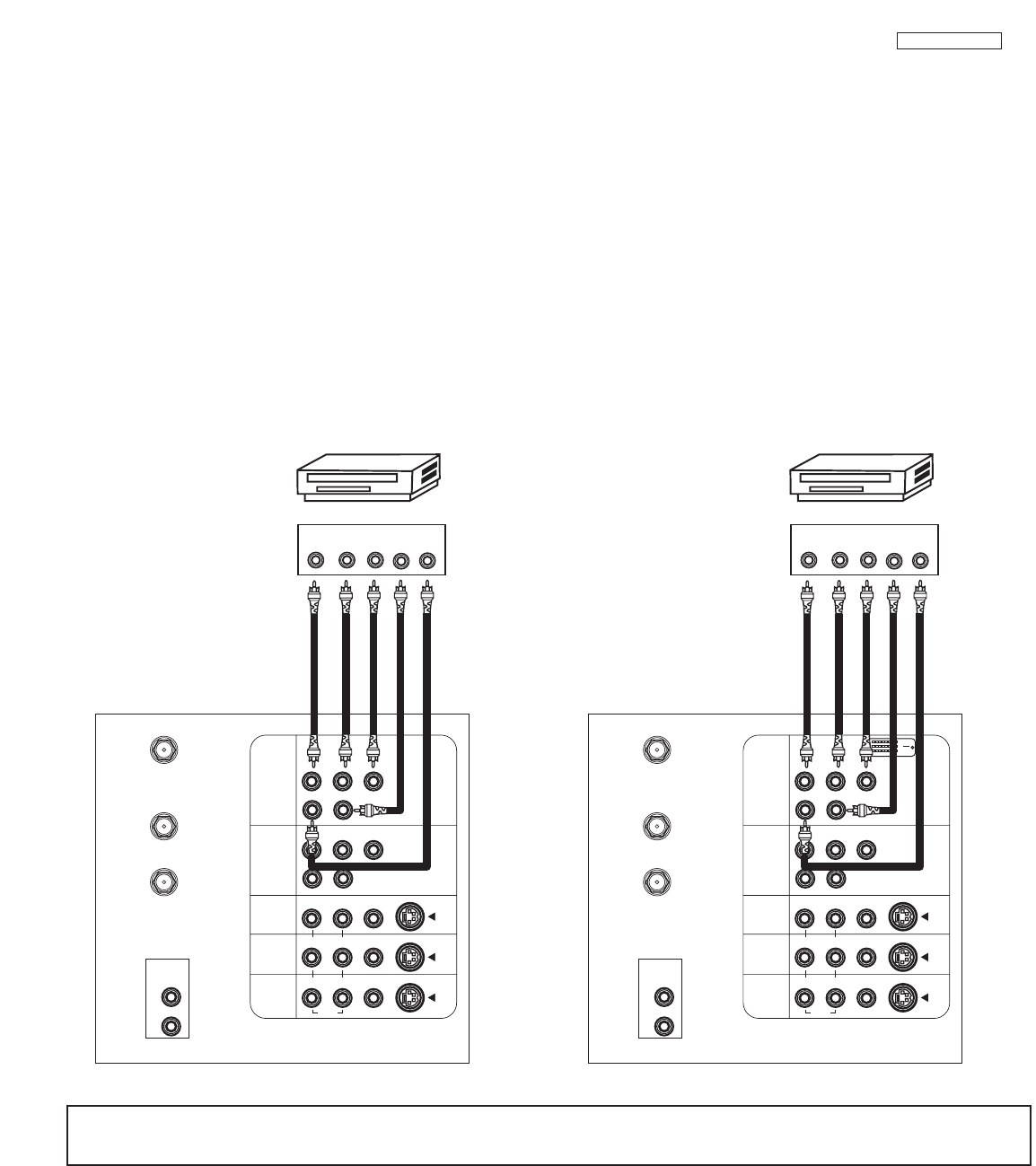

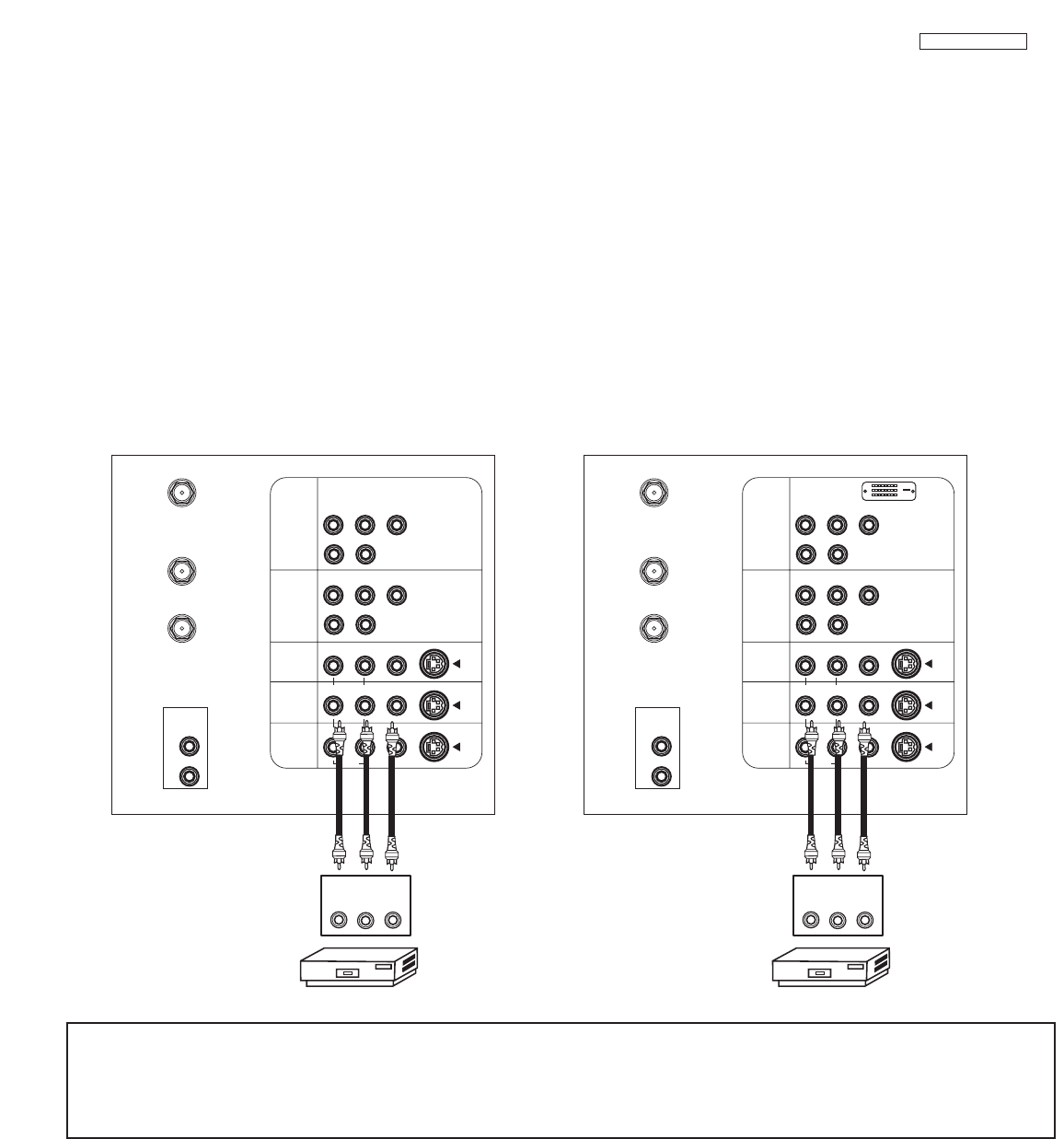

Antenna Input/Output S-VIDEO Inputs 3 and 4

Audio/Video Inputs 1, 2, 3 and 4 Component Input Y-PBPR

MONITOR OUT DVI-HDTV Input (Input 1)

AUDIO TO HI-FI Output (UWX and GWX Models Only)













ANT A

CONVERTER

ANT B

R(MONO)/L

AUDIO

TO HI-FI

S-VIDEO

Y/VIDEO

R(MONO)/L

R(MONO)/L VIDEO

RLVIDEO

INPUT 1

INPUT 2

INPUT 3

INPUT 4

MONITOR

OUT

AUDIO

DVI-HDTV











AUDIO

TO HI-FI



ANT A

CONVERTER

ANT B

R(MONO)/L

S-VIDEO

Y/VIDEO

R(MONO)/L

R(MONO)/L VIDEO

RLVIDEO

INPUT 1

INPUT 2

INPUT 3

INPUT 4

MONITOR

OUT

AUDIO

INPUT 5

S-VIDEO

VIDEO

-AUDIO-

L/MONO R

EXIT

INPUT

SELECT

MAGIC FOCUS VOL- VOL+ CH- CH+



POWER

PULL

Models: 51GWX20B/57GWX20B/51UWX20B/57UWX20B

INPUT 3

S-VIDEO VIDEO AUDIO

L/MONO R

EXIT

INPUT

SELECT

MAGIC

FOCUS

VOL- VOL+ CH-

CURSOR







POWER

PUSH

Model: 43FWX20B

CH+

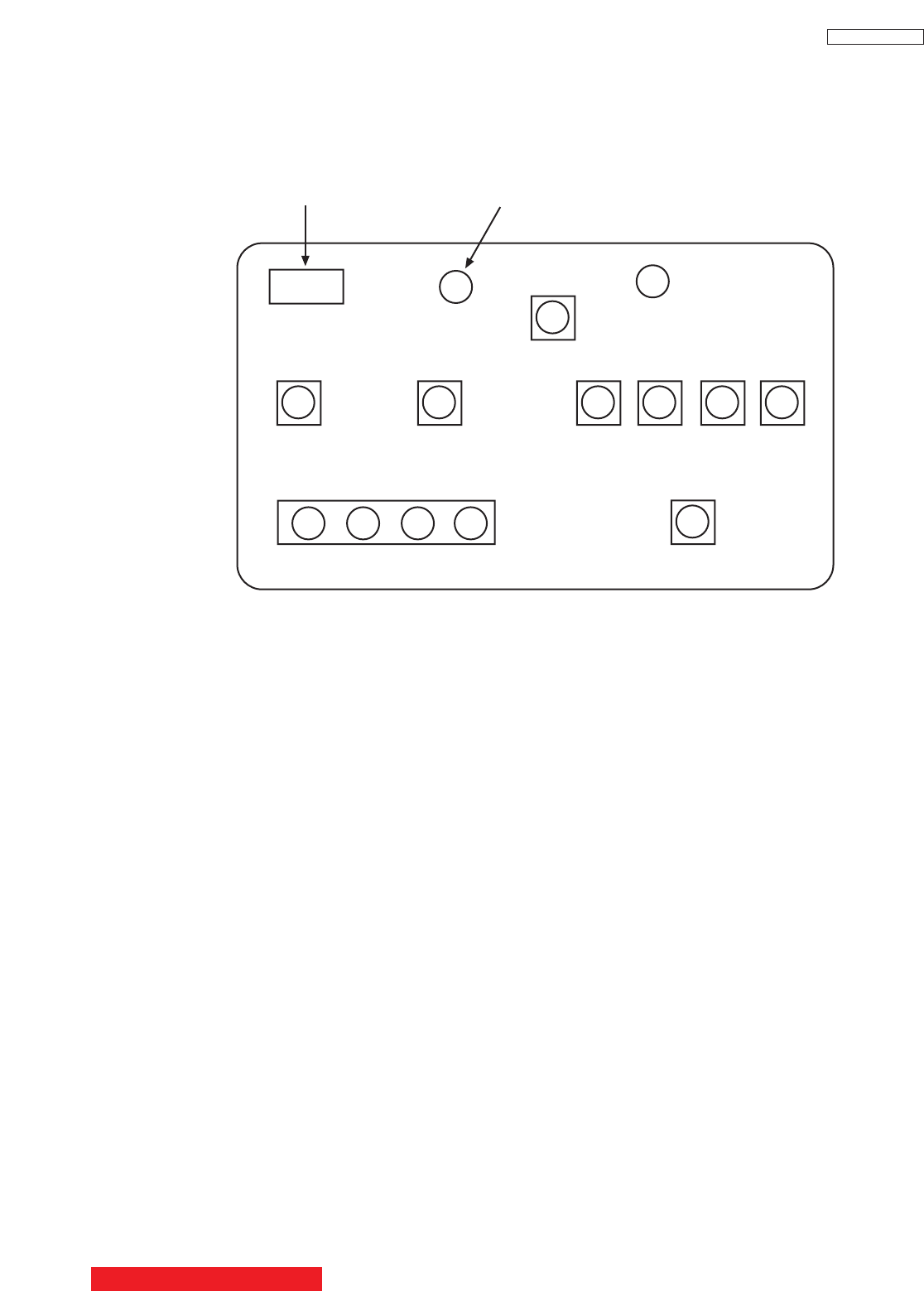

FRONT CONTROL PANEL

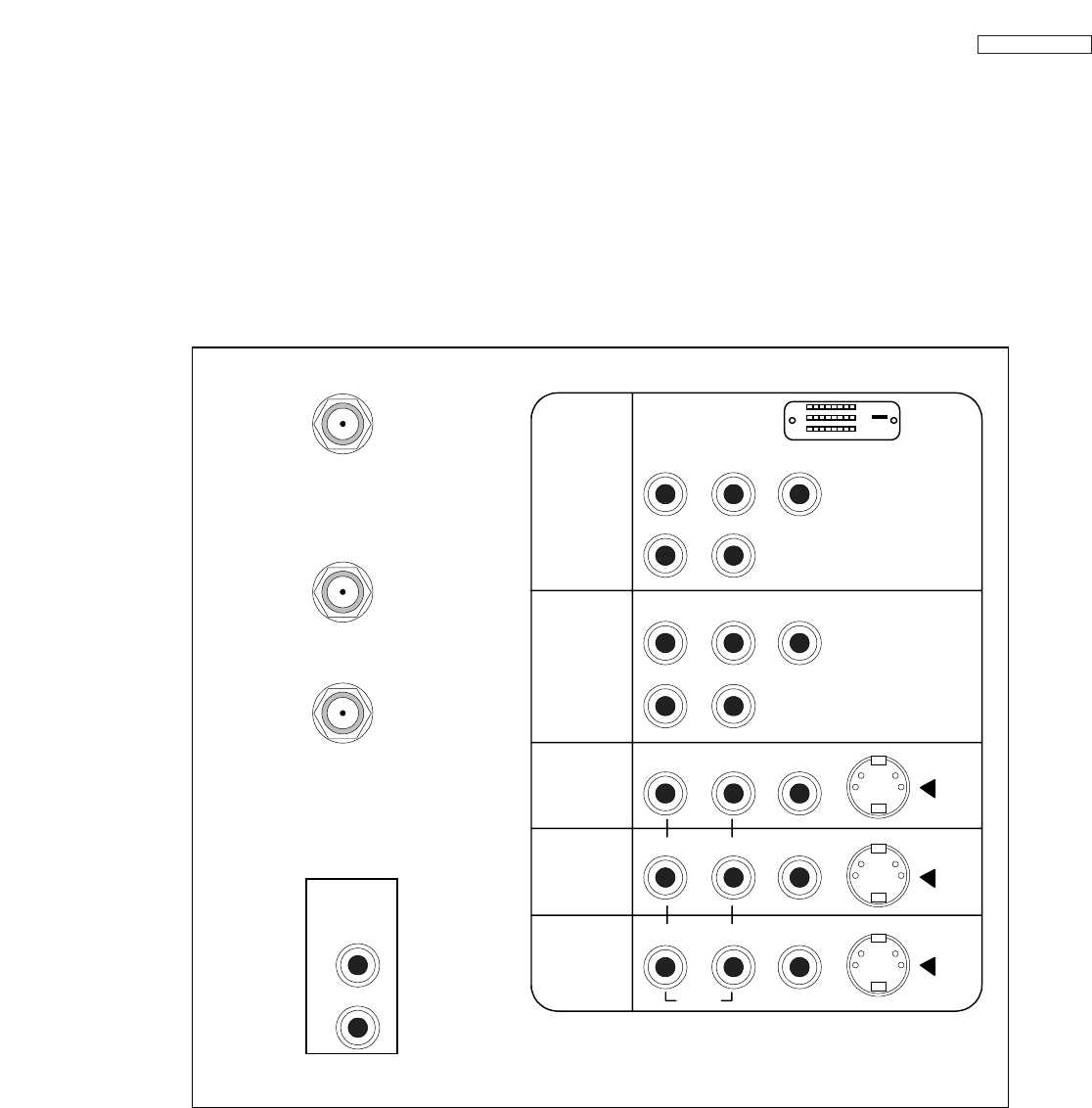

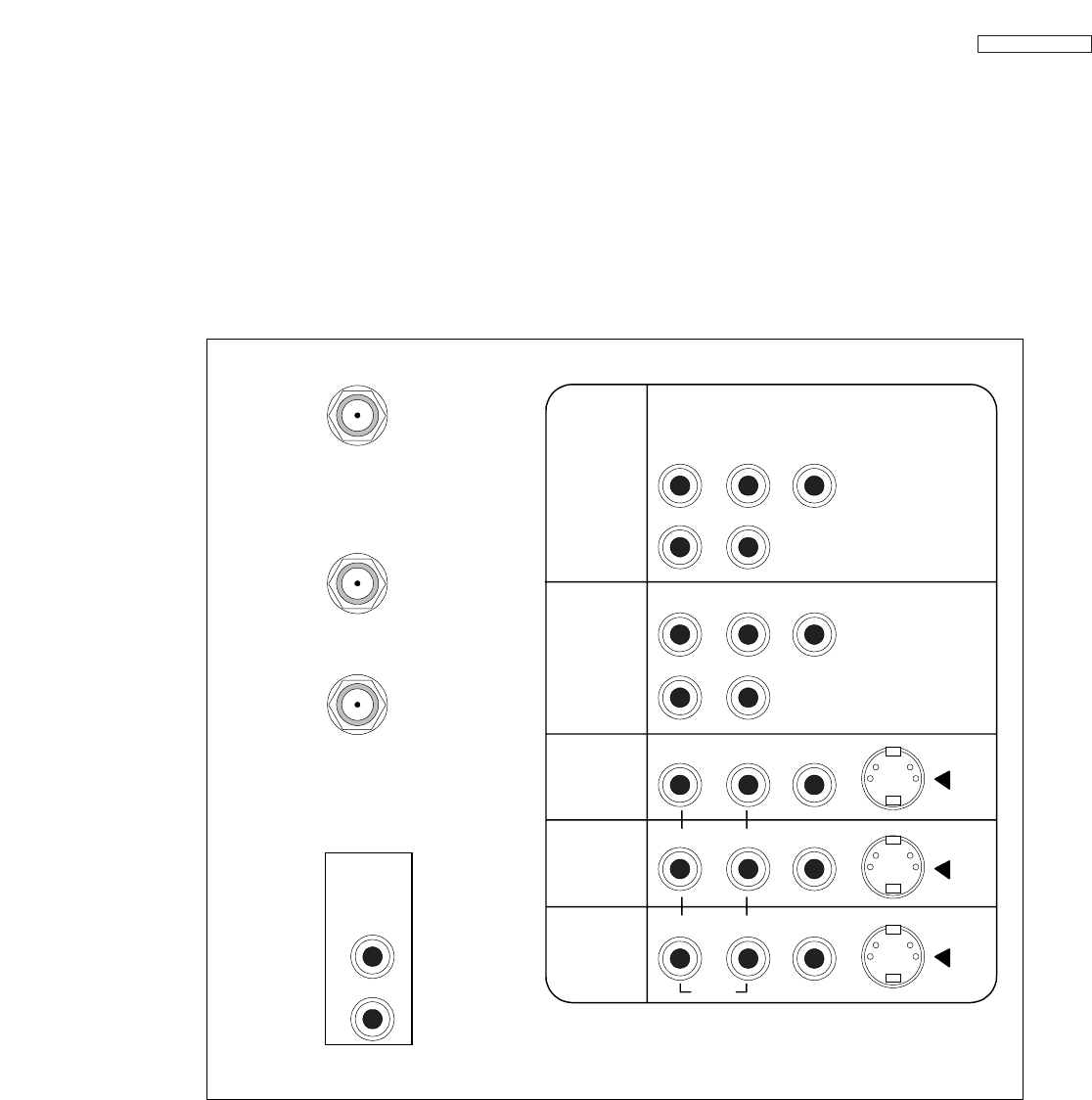

REAR PANEL JACKS

DP23/23G/24

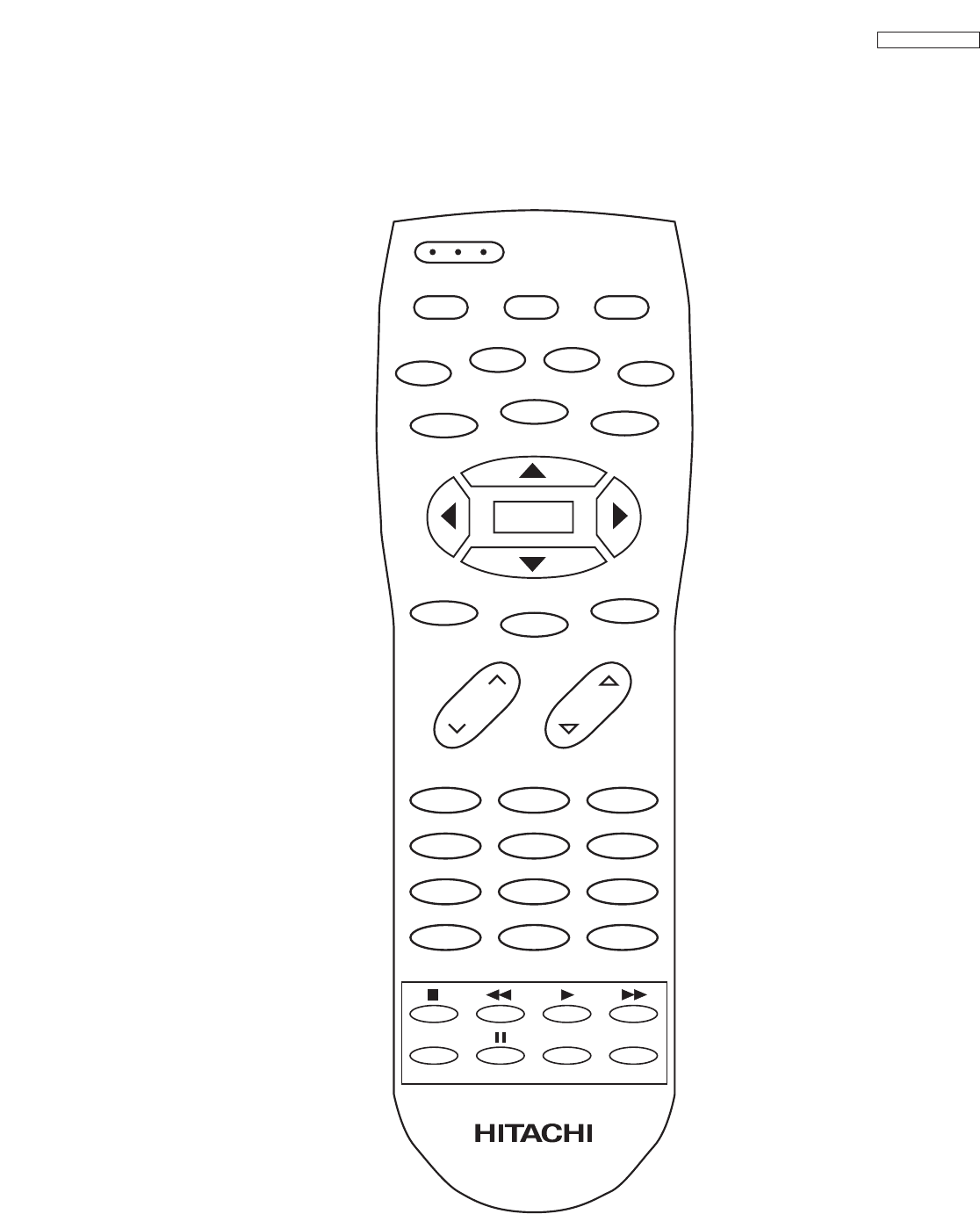

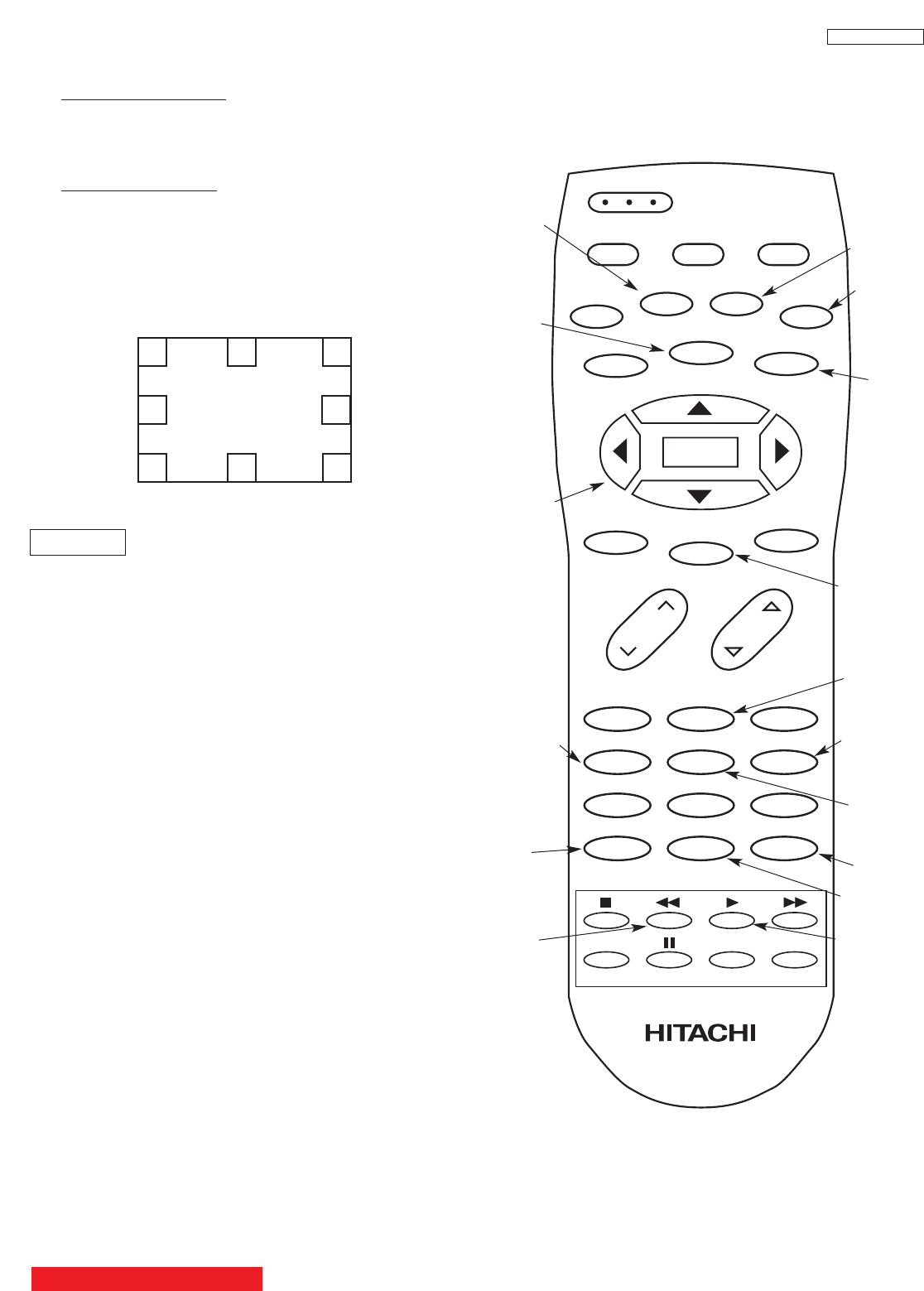

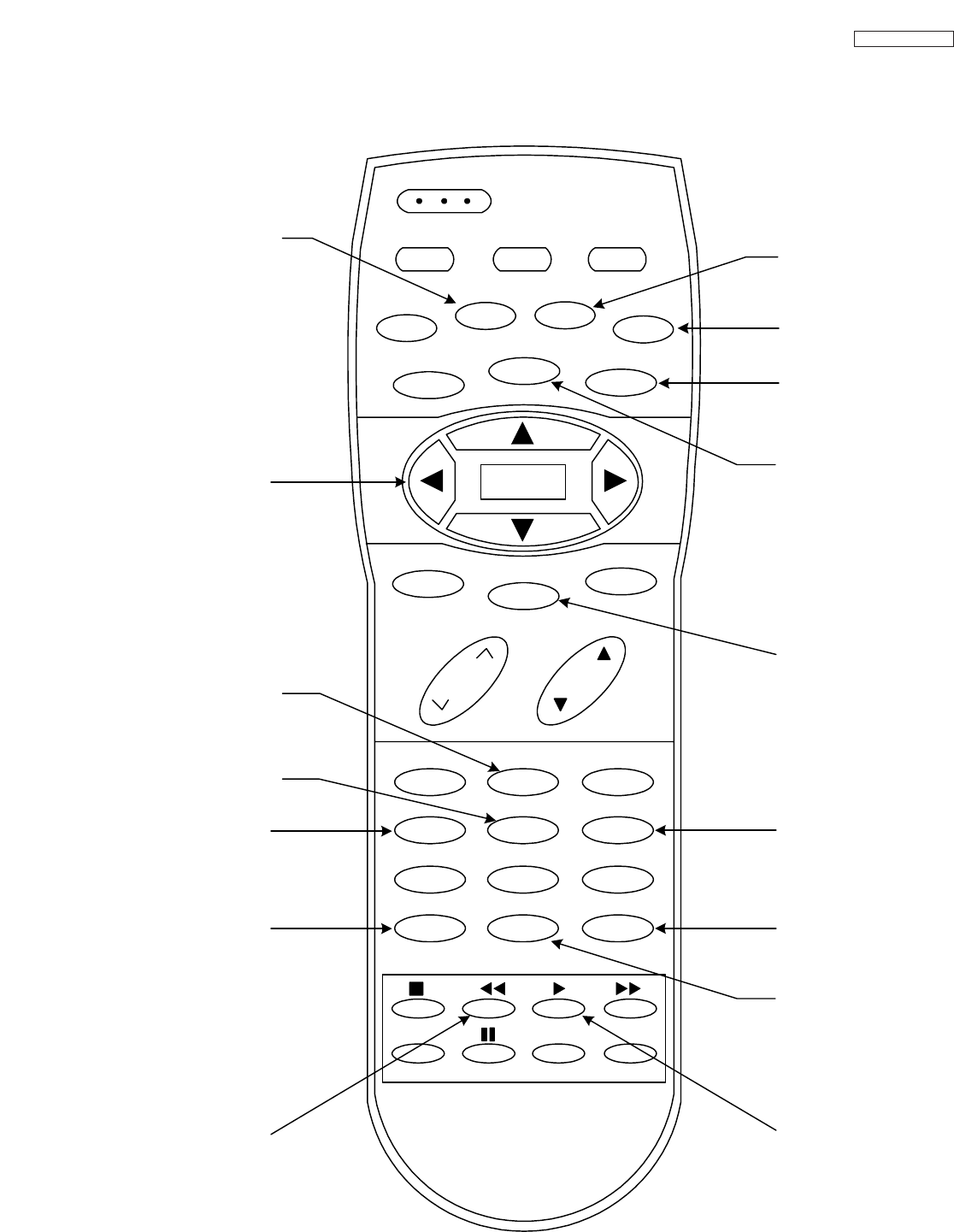

REMOTE CONTROL

123

456

789

ANT INFO

VOL CH

POWER

TV CBL/SAT DVD/VCR

PIP SWAP PIP MODE FREEZE

VIDEO PIP CH MENU

MUTE EXIT LAST CH

REC ASPECT VIRTUAL HD

SELECT

CLU-4321UG

VID1 VID2 VID3 VID4

VID5

CLU-4321UG

DP23/23G/24

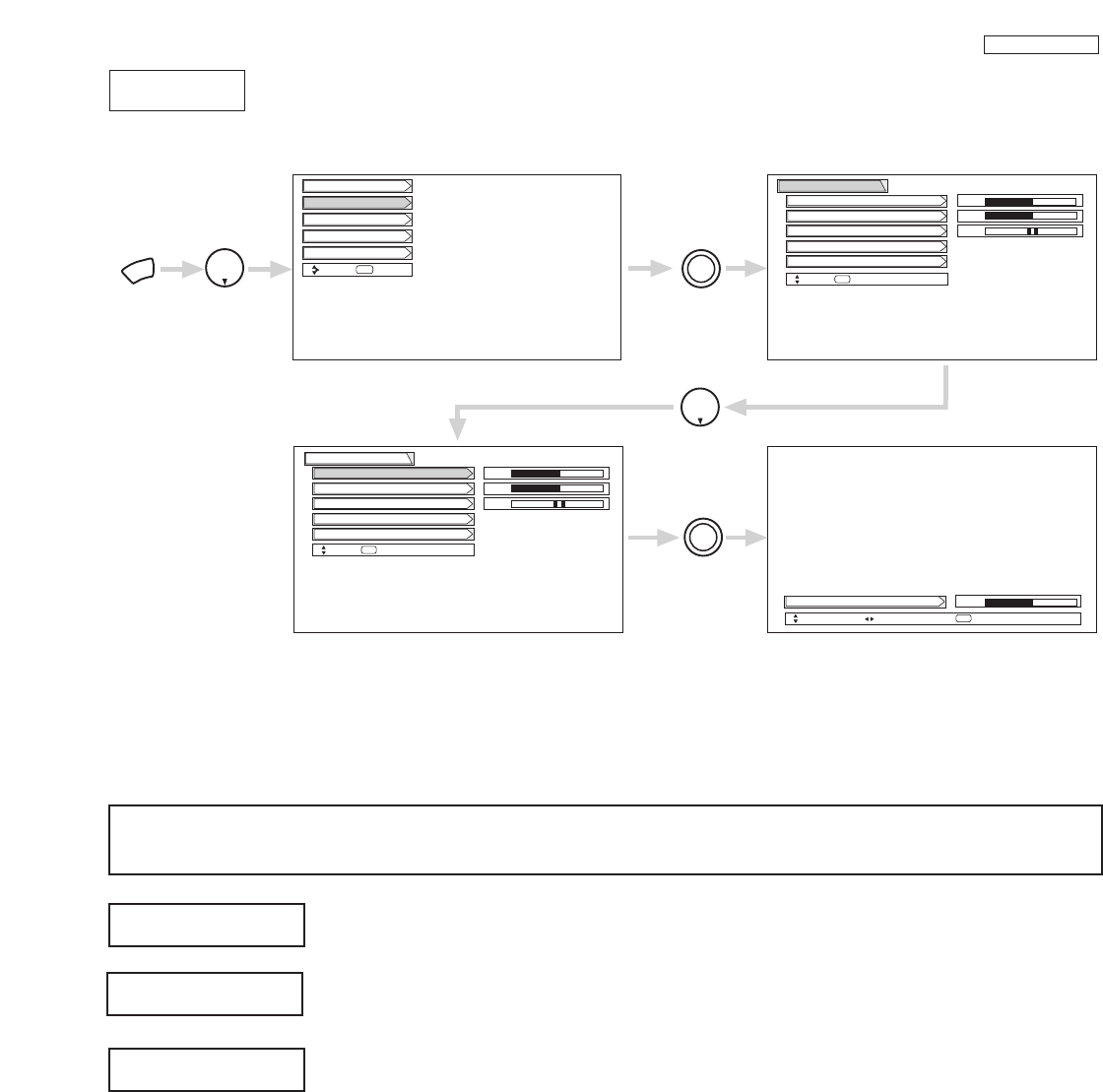

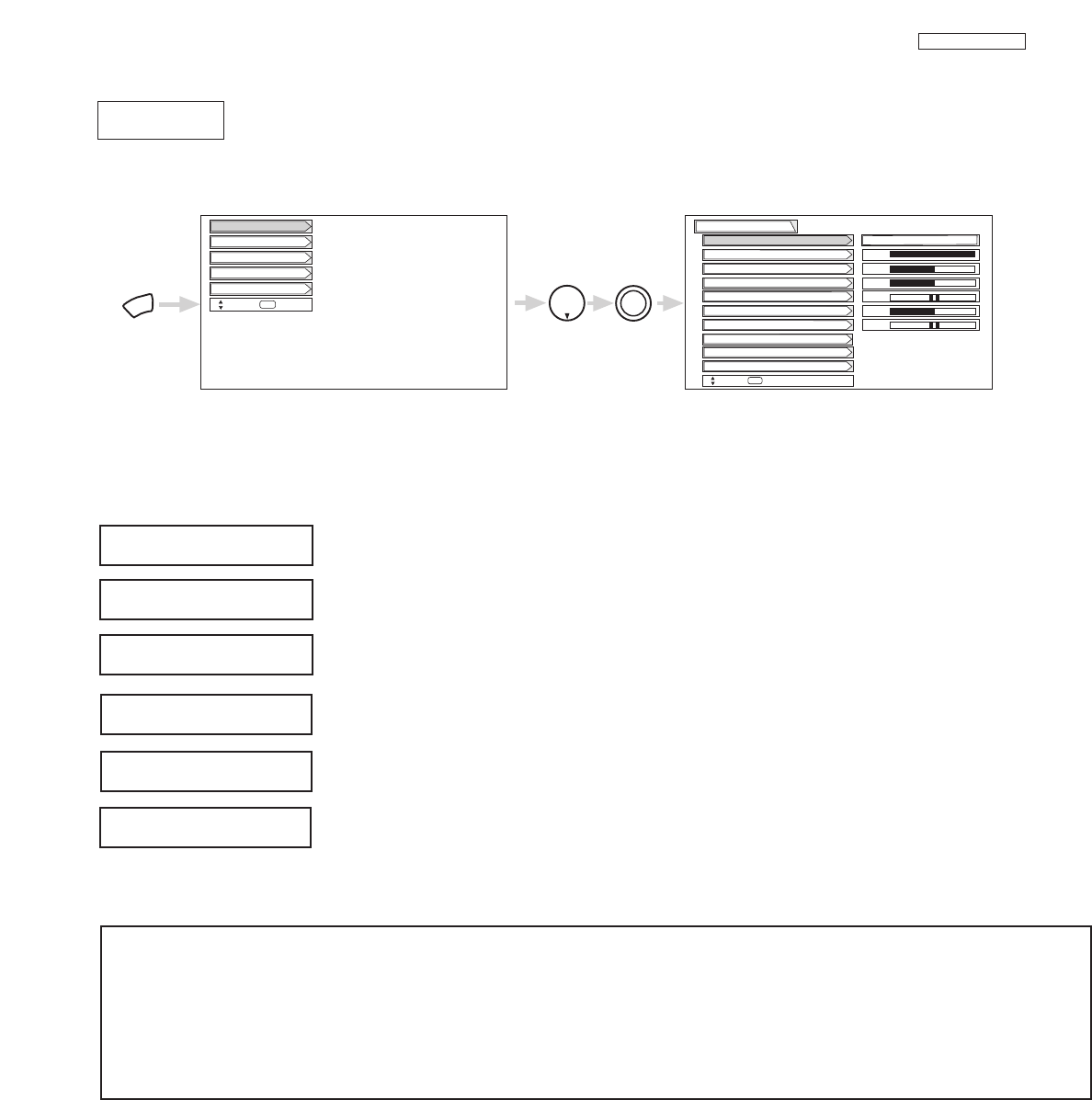

Select VIDEO to adjust picture settings and improve picture quality.

THUMB

STICK

THUMB

STICK

SELECT

Setup

Locks

Ch. Manager

Audio

Video

Move

SEL

Sel

Color

Brightness

Contrast

Picture Mode

Video

Move

SEL

Select

Vertical Position

Sharpness

Tint

Advanced Settings

Color System

100%

50%

Magic Focus

Sports

CUSTOMIZED PICTURE AND SOUND ADJUSTMENTS

Use this function to change the contrast between black and white levels in the picture. This adjustment

will only affect the picture when ADVANCED SETTINGS DIMMER is OFF.

Use the THUMB STICK or to highlight the function to be adjusted.

Press the THUMB STICK or to adjust the function. Press down on THUMB STICK to select the function settings.

Press MENU to return to main menu or select PICTURE MODE to return to previous menu.

Press EXIT to quit menu.

Use this function to adjust the level of color in the picture.

Use this function to adjust overall picture brightness.

This function allows you to select when aspect style is either 4:3 EXPANDED/ZOOM1/ZOOM2. Vertical

position can be changed with this mode. Adjustable range is -10 (video center is toward bottom of

screen) to +10 (video center is toward top of screen).

Contrast

Color

Brightness

Vertical Position

NOTES: 1. If CONTRAST is selected, you are adjusting CONTRAST. The additional menu items BRIGHTNESS, COLOR, TINT,

and SHARPNESS can be selected and adjusted in the same manner.

2. It may be necessary to adjust TINT to obtain optimum picture quality when using the COMPONENT VIDEO Y-PBPR

input jacks.

3. If you are using the COMPONENT VIDEO input jacks (Y-PBPR) and notice that the TINT and COLOR are abnormal,

check to make sure that VIDEO- Color System is set properly.

Use this function to adjust flesh tones so they appear natural.

Tint

Use this function to adjust the amount of fine detail in the picture.

Sharpness

Video

DP23/23G/24

MAGIC

FOCUS

MAGIC FOCUS

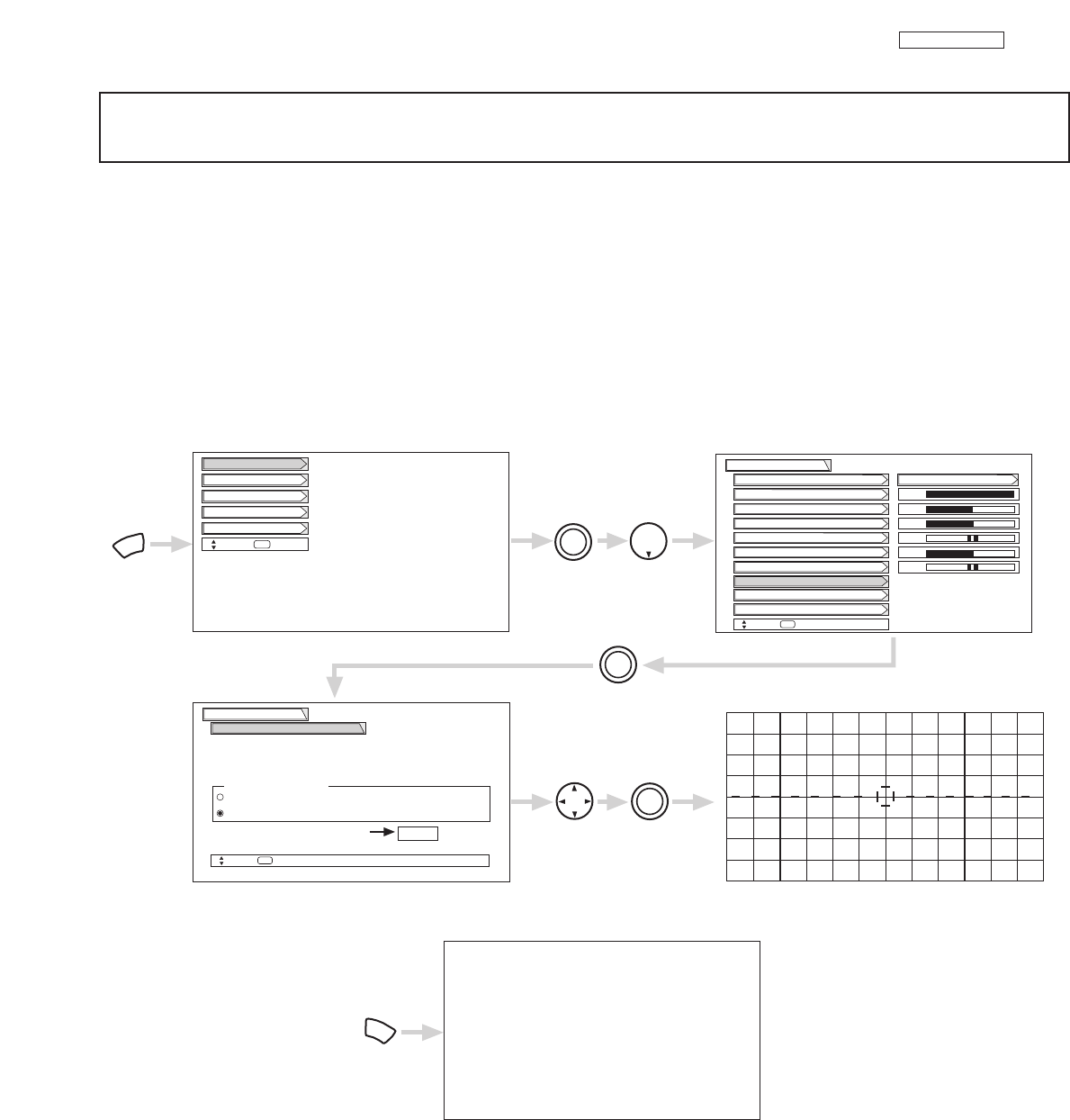

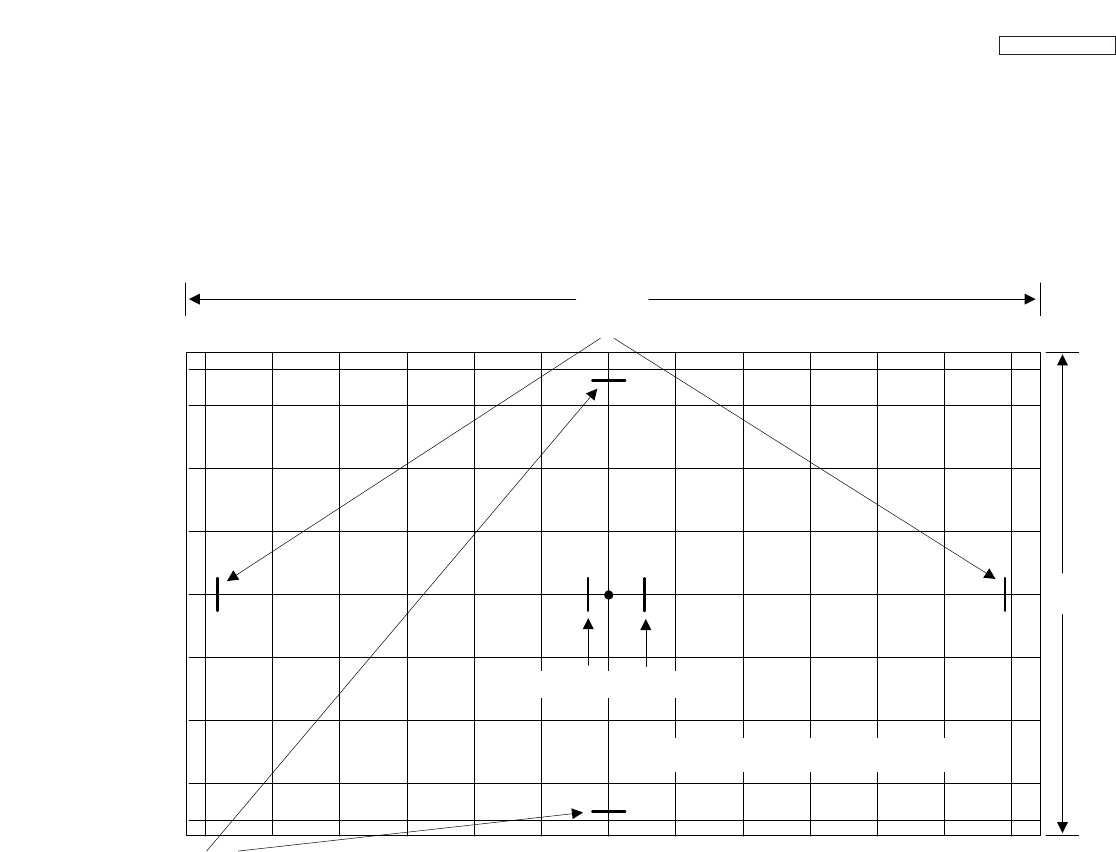

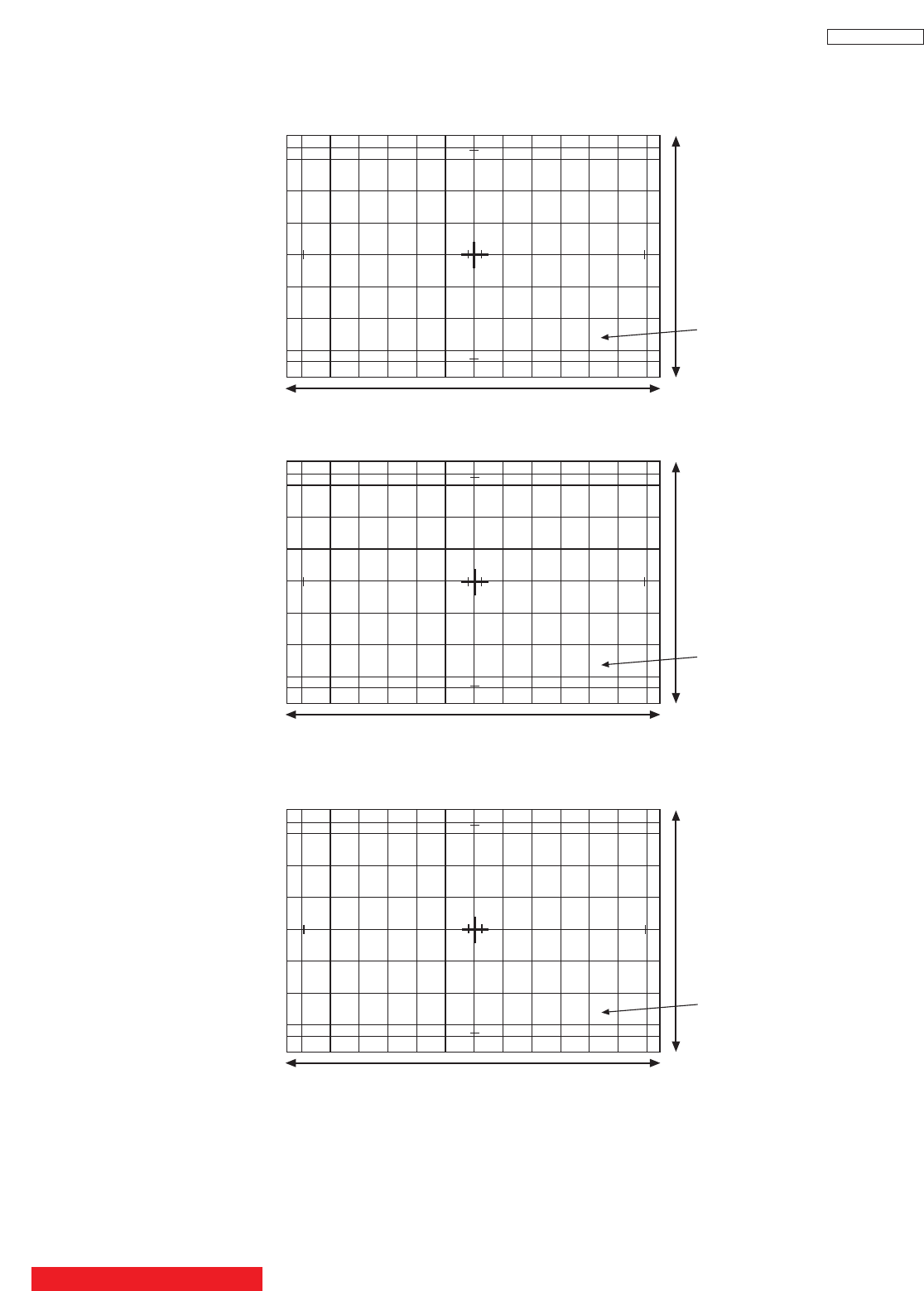

Auto Digital Convergence Adjustment

Please turn ON your television for at least 20 minutes before using this feature.

The Magic Focus button will not work when Adjustment Mode is set to Manual (see page 9).

Your HITACHI Projection TV has three color projection tubes: one for red, one for green, one for blue. When mixed together in the proper

proportion, the output of these three color tubes can produce any color. To produce these colors, however, the beams must be precisely

aligned over each other so that the colors can be mixed. The process of aligning these picture beams is called “convergence”.

Over a period of time, the picture tubes can drift out of alignment due to normal bumps and vibrations or moving the TV. If you move

your TV, or if, after a time, you notice color rings or halos around objects in the picture, you may want to converge (align) the colors.

Properly converged, the lines appear white, which is actually a combination of the outputs of the three color tubes. The output of the

green tube is stationary. The outputs of the red and blue tubes can be adjusted. When properly aligned, the outputs of all three tubes

should be directly over each other to produce the white lines.

To simplify convergence, HITACHI incorporates a function called MAGIC FOCUS located on the front control panel, which allows the TV

to self-adjust. Press this MAGIC FOCUS button and the convergence self adjustment will start and this process will take approximately

20 seconds. If this button is pressed during this process, no change in picture quality will occur. After this 20 second self-adjust period,

picture quality will be optimum. (Do not move the TV during self-adjust.)

You may also select Magic Focus from the VIDEO menu.

Magic Focus

NOTES: Only a momentary press of the MAGIC FOCUS button is necessary to start AUTO DIGITAL CONVERGENCE. At any

time during this convergence correction process, you may press the MAGIC FOCUS button to exit the MAGIC FOCUS

mode. However, the convergence correction process needs to be completed to SAVE the new corrected convergence

data.

Magic Focus

Video

Move

SEL

Return

Aligns the Red, Green, and Blue

colors to correct for Magnetic

Influences.

Auto

Manual

THUMB

STICK

THUMB

STICK

SELECT

Setup

Locks

Ch. Manager

Audio

Video

Move

SEL

Sel

Color

Brightness

Contrast

Picture Mode

Video

Move

SEL

Select

Vertical Position

Sharpness

Tint

Advanced Settings

Color System

100%

50%

Magic Focus

Sports

THUMB

STICK

SELECT

Adjustment Mode

If you want to adjust now

THUMB

STICK

THUMB

STICK

SELECT

Start

MAGIC FOCUS

CUSTOMIZED PICTURE AND SOUND ADJUSTMENTS

DP23/23G/24

NOTES: 1. Please turn ON your television for at least 20 minutes before using this feature.

2. Auto Adjustment Mode is recommended. If convergence is still not acceptable, use the Manual Adjustment Mode.

DO NOT press MAGIC FOCUS or use Auto Adjustment Mode after using Manual Adjustment Mode.

Manual Convergence Adjustment Mode

Using the Remote Control, select VIDEO-MAGIC FOCUS-MANUAL ADJUSTMENT MODE-START to access convergence crosshatch

pattern. The adjustment point is indicated by the Adjustment Point Cursor.

To Move Adjustment Point

To move adjustment point, the Adjustment Cursor must be WHITE. Use the THUMB STICK to move the Adjustment Cursor. Another

way to move the Adjustment Point Cursor is to press the followiing buttons: [2] up, [4] left, [5] down, [6] right. If you use the number

buttons while the adjustment point is WHITE, it will change to RED.

To Change the Color of Adjustment Point

Press the SELECT button repeatedly (WHITE-RED-BLUE-WHITE...). Green color is fixed and cannot be adjusted.

To Adjust the Convergence

Move the Adjustment Cursor to the point to be adjusted. Use the THUMB STICK to match the RED and BLUE colors to GREEN

(reference color). Properly aligned, all three colors should appear white.

If convergence is acceptable after Manual Convergence adjustment, press EXIT button to access menu mode.

Press the [1] button on the remote control to SAVE adjusted data and return to main picture.

Press the [2] button on the remote control to CANCEL adjusted data and return to main picture.

Press the [3] button on the remote control to recall the factory pre-set convergence data.

Press the [4] button on the remote control to return to the manual convergence adjustment mode (crosshatch pattern).

Press the [9] button on the remote control to read the SAVED data.

Magic Focus

Video

Move

SEL

Return

Aligns the Red, Green, and Blue

colors to correct for Magnetic

Influences.

Auto

Manual

THUMB

STICK

THUMB

STICK

SELECT

Setup

Locks

Ch. Manager

Audio

Video

Move

SEL

Sel

Color

Brightness

Contrast

Picture Mode

Video

Move

SEL

Select

Vertical Position

Sharpness

Tint

Advanced Settings

Color System

100%

50%

Magic Focus

Sports

THUMB

STICK

SELECT

Adjustment Mode

If you want to adjust now

THUMB

STICK

THUMB

STICK

SELECT

Start

EXIT

DONE : [1]

CANCEL : [2]

INI. RESET : [3]

BACK : [4]

CUSTOMIZED PICTURE AND SOUND ADJUSTMENTS

DP23/23G/24

Select AUDIO to adjust the TV to your preference and to improve the sound quality.

Audio

THUMB

STICK

THUMB

STICK

SELECT

THUMB

STICK

SELECT

Setup

Locks

Ch. Manager

Audio

Video

Move

SEL

Sel

Next/Prev Change Value Return

SEL

Sound Enhancement

Balance

Bass

Treble

Audio

Move

SEL

Return

50%

Sound Enhancement

Balance

Bass

Treble

Audio

Move

SEL

Select

50%

Treble

50%

THUMB

STICK

Advanced Settings

This function controls the low frequency audio to all speakers.

Use THUMB STICK to highlight functions.

Press down on THUMB STICK to select the function setting.

Press THUMB STICK or to adjust the function.

Press EXIT to quit MENU, or select Audio to return to the main menu.

NOTE: If TREBLE is selected you are adjusting treble. The additional menu items Bass and Balance can be selected

and adjusted in the same manner.

This function controls the high frequency audio to all speakers.

This function will control the left to right balance of the TV internal speakers and the AUDIO TO HI-

FI output.

Bass

Balance

Treble

CUSTOMIZED PICTURE AND SOUND ADJUSTMENTS

DP23/23G/24

REAR PANEL CONNECTIONS

NOTE: 1. Connect only 1 component to each input jack.

2. Follow connections that pertain to your personal entertainment system.

3. Standard video signal (Composite Video) can be input to all video inputs (Video1~Video5).

Outside antenna or

cable TV coaxial cable

2-Way signal splitter

Stereo System Amplifier

INPUT

Laserdisc player, VCR,

camcorder, etc.

HDTV Set-Top Box

DVD Player

Cable TV Box

OUTPUT

INPUT

VCR #1

ANT

OUTPUT

S-VIDEO VL R

ANT A

CONVERTER

ANT B

R(MONO)/L

AUDIO

TO HI-FI

S-VIDEO

Y/VIDEO

R(MONO)/L

R(MONO)/L VIDEO

RL VIDEO

INPUT 1

INPUT 2

INPUT 3

INPUT 4

MONITOR

OUT

OUTPUT

B/CBPR/CR

L R

VCR #2

V L R

OUTPUT

S-VIDEO

V L R

INPUT

S-VIDEO

OUTPUT

Y PB PR L R

AUDIO

DVI-HDTV

DIGITAL

OUTPUT CAPABILITY

DIGITAL OUTPUT

OUTPUT

TYPICAL FULL-FEATURE SETUP

(51/57UWX20B and 51/57GWX20B MODELS)

DP23/23G/24

REAR PANEL CONNECTIONS

NOTE: 1. Connect only 1 component to each input jack.

2. Follow connections that pertain to your personal entertainment system.

3. Standard video signal (Composite Video) can be input to all video inputs (Video1~Video5).

Outside antenna or

cable TV coaxial cable

2-Way signal splitter

Stereo System Amplifier

INPUT

Laserdisc player, VCR,

camcorder, etc.

HDTV Set-Top Box

DVD Player

Cable TV Box

OUTPUT

INPUT

VCR #1

ANT

OUTPUT

S-VIDEO VL R

ANT A

CONVERTER

ANT B

R(MONO)/L

AUDIO

TO HI-FI

S-VIDEO

Y/VIDEO

R(MONO)/L

R(MONO)/L VIDEO

RL VIDEO

INPUT 1

INPUT 2

INPUT 3

INPUT 4

MONITOR

OUT

OUTPUT

B/CBPR/CR

L R

VCR #2

V L R

OUTPUT

S-VIDEO

V L R

INPUT

S-VIDEO

OUTPUT

Y PB PR L R

AUDIO

TYPICAL FULL-FEATURE SETUP

(43FWX20B)

DP23/23G/24

CONNECTING EXTERNAL VIDEO SOURCES

CONNECTING A STEREO SOURCE TO INPUT2~INPUT5

1. Connect the cable from the VIDEO OUT of the VCR or the laserdisc player to the INPUT (VIDEO) jack, as shown on the TV set

below.

2. Connect the cable from the AUDIO OUT R of the VCR or the laserdisc player to the INPUT (AUDIO/R) jack.

3. Connect the cable from the AUDIO OUT L of the VCR or the laserdisc player to the INPUT (AUDIO/L) jack.

4. Press the VID2~VID5 button to view the program from the VCR or laserdisc player. The VIDEO label disappears automatically

after approximately four seconds.

5. Press the ANT button to return to the previous channel.

NOTES: 1. Completely insert the connection cord plugs when connecting to rear panel jacks. The picture and sound that is

played back will be abnormal if the connection is loose.

2. A single VCR can be used for VCR #1 and VCR #2, but note that a VCR cannot record its own video or line

output. (INPUT: 3 in example on page 11 or 12) Refer to your VCR operating guide for more information on line

input-output connections.

VCR

OUTPUT

RL V

ANT A

CONVERTER

ANT B

R(MONO)/L

S-VIDEO

Y/VIDEO

R(MONO)/L

R(MONO)/L VIDEO

RL VIDEO

INPUT 1

INPUT 2

INPUT 3

INPUT 4

MONITOR

OUT

VCR

OUTPUT

RL V

ANT A

CONVERTER

ANT B

R(MONO)/L

S-VIDEO

Y/VIDEO

R(MONO)/L

R(MONO)/L VIDEO

RL VIDEO

INPUT 1

INPUT 2

INPUT 3

INPUT 4

MONITOR

OUT

AUDIO

TO HI-FI

AUDIO

TO HI-FI

DVI-HDTV

Models: 51/57UWX20B

51/57GWX20B

Model: 43UWX20B

DP23/23G/24

CONNECTING EXTERNAL VIDEO SOURCES

CONNECTING AN S-VIDEO SOURCE TO INPUT 3, 4 AND 5

1. Connect the cable from the S-VIDEO OUT of the VCR or the laserdisc player to the INPUT (S-VIDEO) jack, as shown on the TV

set below.

2. Connect the cable from the AUDIO OUT R of the VCR or the laserdisc player to the INPUT (AUDIO/R) jack.

3. Connect the cable from the AUDIO OUT L of the VCR or the laserdisc player to the INPUT (AUDIO/L) jack.

4. Press the VID3~VID5 button to view the program from the VCR or laserdisc player. The VIDEO label disappears automatically

after approximately four seconds.

5. Press the ANT button to return to the previous channel.

NOTES: 1. Completely insert the connection cord plugs when connecting to rear panel jacks. The picture and sound that is

played back will be abnormal if the connection is loose.

2. A single VCR can be used for VCR #1 and VCR #2, but note that a VCR cannot record its own video or line

output. (INPUT: 3 in example on page 11 or 12) Refer to your VCR operating guide for more information on line

input-output connections.

VCR

OUTPUT

RL V

S-VIDEO

ANT A

CONVERTER

ANT B

R(MONO)/L

S-VIDEO

Y/VIDEO

R(MONO)/L

R(MONO)/L VIDEO

RL VIDEO

INPUT 1

INPUT 2

INPUT 3

INPUT 4

MONITOR

OUT

VCR

OUTPUT

RL V

S-VIDEO

ANT A

CONVERTER

ANT B

R(MONO)/L

S-VIDEO

Y/VIDEO

R(MONO)/L

R(MONO)/L VIDEO

RL VIDEO

INPUT 1

INPUT 2

INPUT 3

INPUT 4

MONITOR

OUT

AUDIO

TO HI-FI

AUDIO

TO HI-FI

DVI-HDTV

Model: 43FWX20B Models: 51/57UWX20B

51/57GWX20B

DP23/23G/24

CONNECTING EXTERNAL VIDEO SOURCES

CONNECTING A COMPONENT SOURCE WITH DVI-HDTV CAPABILITY TO INPUT 1.

1. Connect the DVI connection cable from the output of the HDTV set top box or DVD player to the DVI-HDTV input as shown on

the TV set at right.

2. Connect the cable from the AUDIO OUT R of the HDTV set top box or DVD player to the INPUT (AUDIO/R) jack.

3. Connect the cable from the AUDIO OUT L of the HDTV set top box or DVD player to the INPUT (AUDIO/L) jack.

4. Press the VID1 button to view the program from theHDTV set top box or DVD player. The VIDEO label disappears automatically

after approximately four seconds.

5. Press ANT button to return to the previous channel.

DVI-HDTV

ANT A

CONVERTER

ANT B

R(MONO)/L

AUDIO

TO HI-FI

S-VIDEO

Y/VIDEO

R(MONO)/L

R(MONO)/L VIDEO

RL VIDEO

INPUT 1

INPUT 2

INPUT 3

INPUT 4

MONITOR

OUT

DIGITAL

OUTPUT CAPABILITY

DIGITAL OUTPUT

OUTPUT

AUDIO

Models: 51/57UWX20B

51/57GWX20B

DP23/23G/24

CONNECTING EXTERNAL VIDEO SOURCES

CONNECTING A COMPONENT SOURCE TO INPUT 1 OR 2: Y-PBPR.

1. Connect the cable from the Y OUT of the Laserdisc/DVD player or HDTV set top box to the INPUT (Y) jack, as shown on the TV

set at right.

2. Connect the cable from the CB/PBOUT or B-Y OUT of the Laserdisc/DVD player or HDTV set top box to the INPUT (PB) jack.

3. Connect the cable from the CR/PROUT or R-Y OUT of the Laserdisc/DVD player or HDTV set top box to the INPUT (PR) jack.

4. Connect the cable from the AUDIO OUT R of the Laserdisc/DVD player or HDTV set top box to the INPUT (AUDIO/R) jack.

5. Connect the cable from the AUDIO OUT L of the Laserdisc/DVD player or HDTV set top box to the INPUT (AUDIO/L) jack.

6. Press the VID1~VID2 button, to view the program from the Laserdisc/DVD player or HDTV set top box. The VIDEO label

disappears automatically after approximately four seconds.

7. Press the ANT button to return to the previous channel.

NOTE: Completely insert the connection cord plugs when connecting to rear panel jacks. The picture and sound that is

played back will be abnormal if the connection is loose.

DVI-HDTV

DVD Player

OUTPUT

PRPBY L R

AUDIO

ANT A

CONVERTER

ANT B

R(MONO)/L

S-VIDEO

Y/VIDEO

R(MONO)/L

R(MONO)/L VIDEO

RL VIDEO

INPUT 1

INPUT 2

INPUT 3

INPUT 4

MONITOR

OUT

DVD Player

OUTPUT

PRPBY L R

AUDIO

ANT A

CONVERTER

ANT B

R(MONO)/L

S-VIDEO

Y/VIDEO

R(MONO)/L

R(MONO)/L VIDEO

RL VIDEO

INPUT 1

INPUT 2

INPUT 3

INPUT 4

MONITOR

OUT

AUDIO

TO HI-FI

AUDIO

TO HI-FI

Model: 43FWX20B

Models: 51/57UWX20B

51/57GWX20B

DP23/23G/24

1717

SERVICE ADJUSTMENTS

1. ASSEMBLED P.W.B ADJUSTMENT..................................................................................................................18

1-1. PIP Key Operation ..................................................................................................................................18

2. FINAL ASSEMBLY ADJUSTMENT (Adjustment should be according to below order) ..............................20

2-1. Cut Off Adjustment..................................................................................................................................20

2-2. DCU Phase Data Setting ......................................................................................................................20

2-3. Raster Position ........................................................................................................................................20

2-4. Vertical Size ..........................................................................................................................................21

2-5. Horizontal Size ......................................................................................................................................21

2-6. Lens Focus..............................................................................................................................................21

2-7. Digital Convergence ..............................................................................................................................23

2-7-1. Magic Focus Character Set Up ....................................................................................................24

2-7-2. Magic Focus Pattern Set Up ........................................................................................................24

2-7-3. Convergence Jig Screen Specification ........................................................................................26

2-7-4. Raster Position Adjsutment ..........................................................................................................27

2-7-5. Convergence Point Adjustment ....................................................................................................27

2-7-6. Magic Focus Initialize....................................................................................................................28

2-8. Blue Defocus ..........................................................................................................................................29

2-9. White Balance ........................................................................................................................................29

2-10. Raster Distortion Check ........................................................................................................................32

3. ADJUSTMENT POINT ........................................................................................................................................34

3-1. Control PWB (DP23/DP23G) ..................................................................................................................34

Control PWB (DP24) ..............................................................................................................................35

*IMPORTANT

For many of the above adjustments, it is necessary to have an HDTV (1080i or 720P) signal generator, SDTV (480P)

signal generator, as well as the usual NTSC (480i) signal generator.

Hitachi recognizes that few companies offer HDTV or SDTV signal generators and that the cost of these

generators is sometimes prohibitive. For this reason, we suggest the use of a set-top-box for HDTV and SDTV

adjustments. Usually, there is a switch on the set-top-box which enables it to output HDTV (1080i or 720P) or

SDTV (480P) signals even with no input. In this case, the sync is automatically detected by the TV (at the Y-PBPR

Inputs on the rear panel).

TO GO TO A SECTION, CLICK ON ITS HEADING BELOW

DP23/23G/24

1818

181818

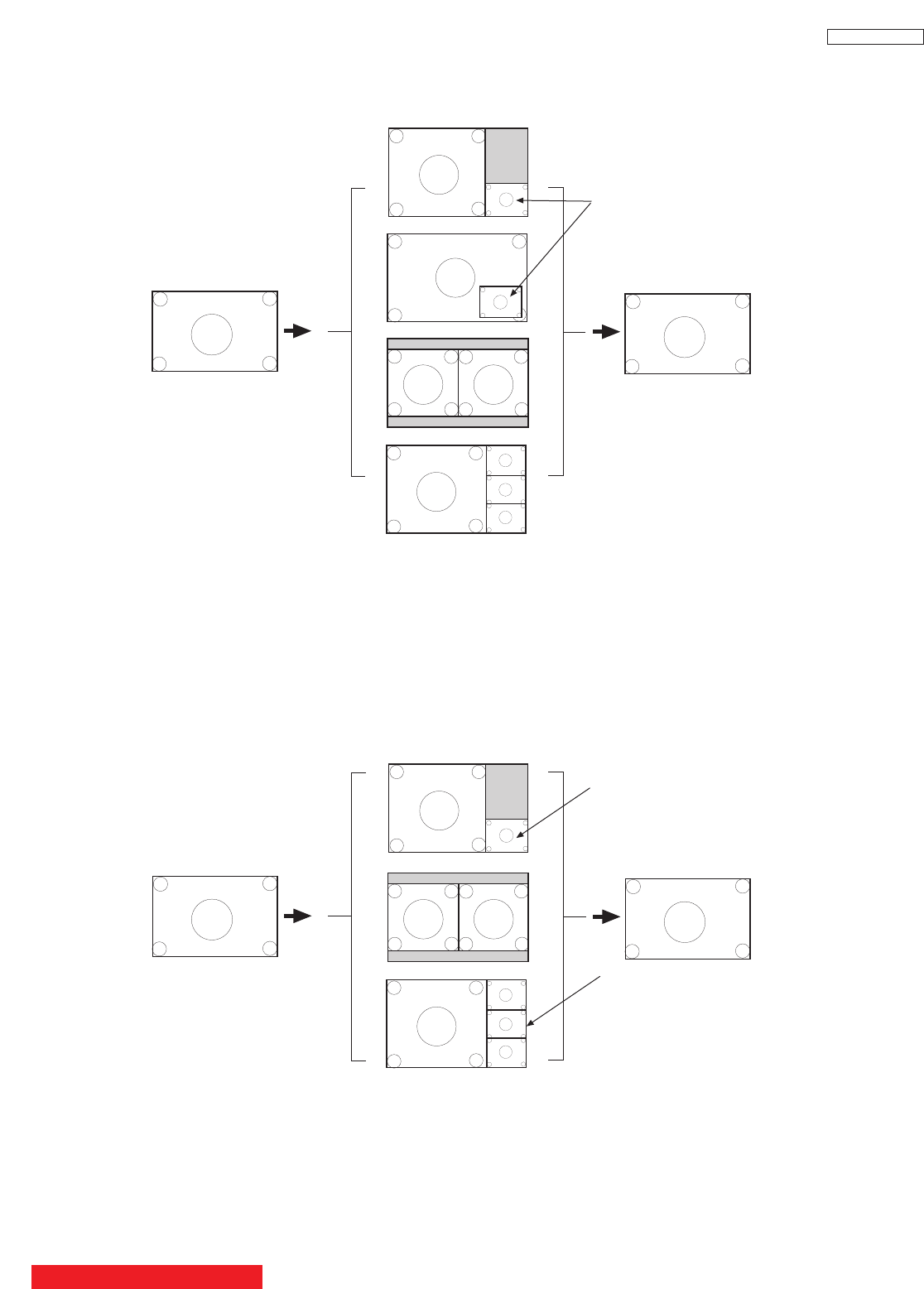

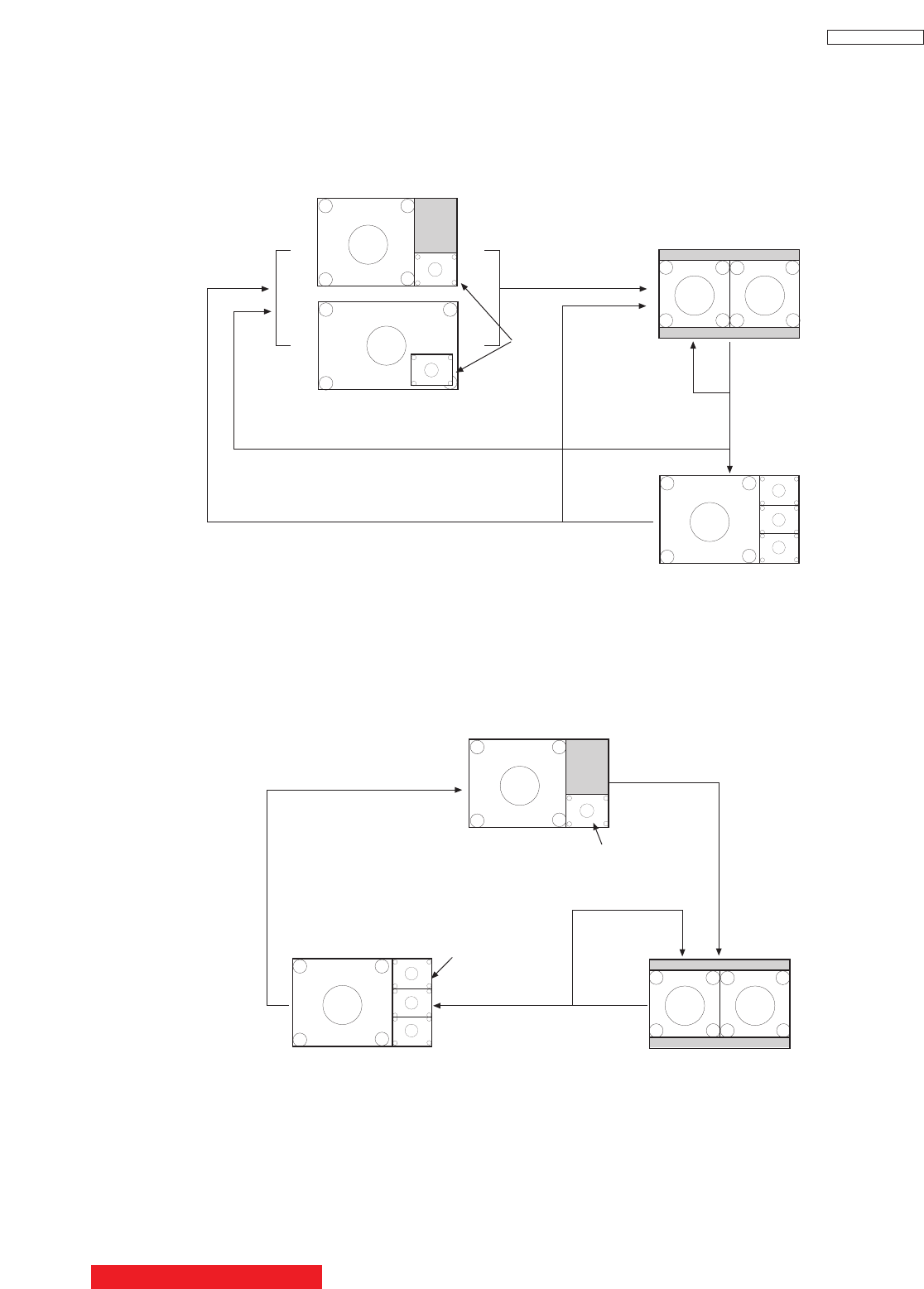

PIP Key Operation

FWX/GWX/UWX Model

Main

ANT A

SUB

Main

1080i

Main

All Sub

All

Main

NTSC

480i

PIP

Key

Main

PIP

Key

NTSC

480i

Main

Moving

SUB

Main

Moving Sub

Frozen

Main

NTSC

480i

PIP

Key

Main

PIP

Key

Sub

Frozen

Sub

Strobe

FREEZE Key Operation

FWX/GWX/UWX Model

BACK TO ADJUSTMENTS

DP23/23G/24

PIP Key Operation

FWX/GWX/UWX Model

PIP ON Mode

Main

ANT A

SUB

Main

All Sub

All

Main

NTSC

480i

NTSC

480i

Main

Moving

SUB

Main

Moviing

Main

1080i

PIP Mode

key

Rating On

PIP Mode

key

PIP Mode

key

Main

Moving Sub

Frozen

PIP Mode

key

PIP Mode

key

PIP Mode

key

Sub

Strobe

Sub

Frozen

FREEZE Key Operation

FWX/GWX/UWX Model

FREEZE Mode

BACK TO ADJUSTMENTS

2.3 Raster position adjustment

Adjustment preparation

(1) The set can face east or west.

(2) Input the single cross test signal.

(3) Set video conditions to factory preset.

(4) The static focus should have been coarse

adjusted.

(5) The digital convergence RAM should be cleared

(uncorrected state). With the TV set off, press

and hold the service switch located on the

DEF./CONV. PWB and then press the power

button.

(6) Start adjustment 20 minutes or more after TV is

turned on.

Adjustment procedure

(1) Turn the centering magnets for red, green, and

blue to satisfy the condition below. The red and

blue horizontal lines should match with green.

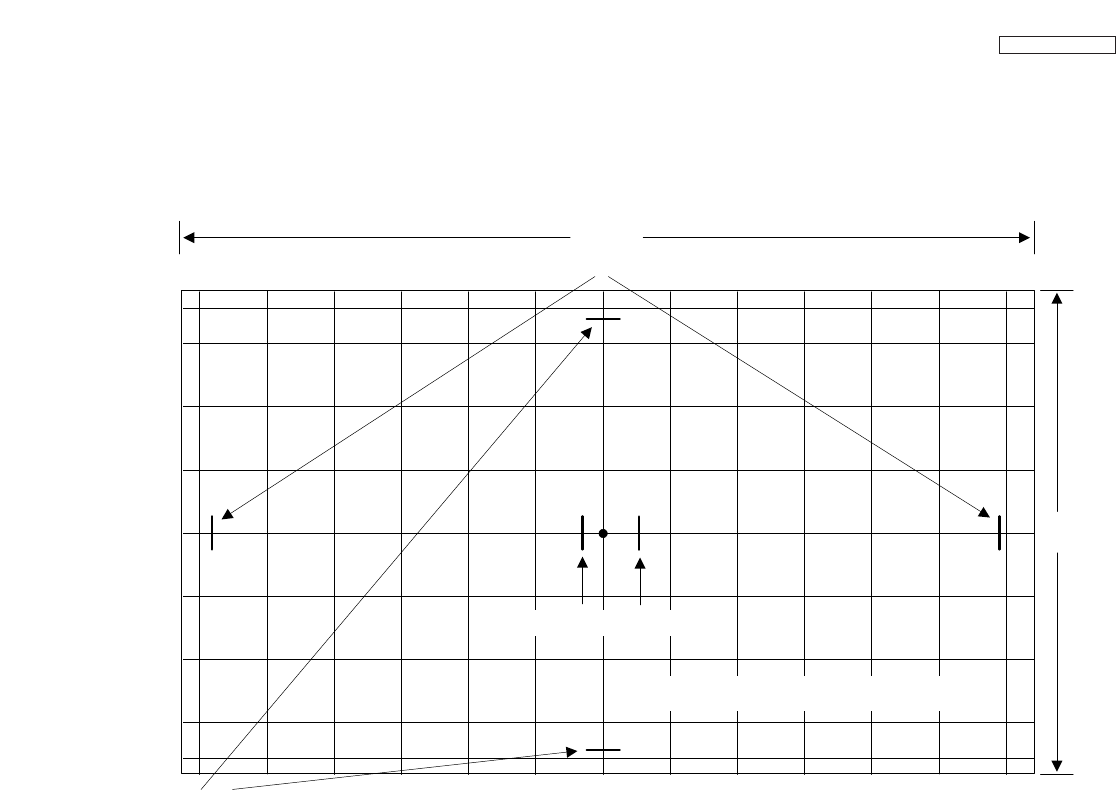

(RED) (BLUE)

43” 25 30

51” 20 35

57” 20 35

Tolerance: ± 2mm

Geometric

center of the

screen

(2) Upon completion of adjustment, fix centering

magnets with white paint.

NOTES: (1) If internal cross-hatch does not appear

after clearing RAM data, press service

switch again.

(2) To restore old RAM data, turn TV off and

on.

Units = millimeters

25.4mm = 1in.

DP23/23G/24

2. FINAL ASSEMBLY ADJUSTMENT

2.1 Cut Off Adjustment

Adjustment preparation

(1) Adjust screen VR’s on Focus Pack fully

counterclockwise.

(2) Adjust Focus VR’s on Focus Pack fully

clockwise.

(3) Set video conditions to factory preset.

(4) The vertical incident illumination on the screen

should be 20 lux or less (room should be dark).

Adjustment procedure

(1) Press and hold INPUT key on control panel and

then POWER ON to access I2C adjustment

mode.

(2) Choose “SERVICE” item from I2C adjustment

menu by pressing THUMB STICK .

(3) Screen VR should be turned clockwise gradually

and set so that retrace line begins to appear.

(4) Return to “NORMAL” mode by THUMB STICK 

again.

(5) Adjust Focus VR’s so that focus is even all

around screen.

2.2 DCU Phase Data Setting

Adjustment preparation

(1) Cut off adjustment should be finished.

(2) Set video conditions to factory preset.

Adjustment procedure

(1) Receive any NTSC signal.

(2) Push “SERVICE ONLY” SW on DEF./CONV.

PWB. (Enter to DCU ADJ. mode).

(3) Push VID2 KEY IN [CBL/SAT] on R/C. (Green

cross hatch is displayed).

Then push EXIT key on R/C. (Character pattern

is displayed. This is the PHASE setting mode).

(4) Set PH-H phase data as shown below by using

4 and 6 key on R/C.

(5) Set PH-V phase data as shown below by using

2 and 5 key on R/C.

(6) Set CR-H phase data as shown below by using

THUMB STICK and key on R/C.

(7) Set CR-V phase data as shown below by using

THUMB STICKand key on R/C.

(8) Push VID2 KEY IN [CBL/SAT] on R/C to exit

from the PHASE mode.

(9) Push PIP MODE key 2 times on R/C to write the

phase data to memory.

(10) When Green dots are displayed, push MUTE

key to return to DCU ADJ. mode.

(11)Push “SERVICE ONLY” SW to return to RF or

VIDEO mode.

PHASE MODE

PH-H :CD

PH-V: 04

CR-H: 35

CR-V: 0A

BACK TO ADJUSTMENTS

Adjustment Preparation:

1. Allow 20 minutes pre-heat run.

2. Set video conditions to factory presets.

Adjustment Procedure:

1. Access the I2C Adjustment Mode

1.1 On the front panel, press and hold the INPUT

button, then press the POWER button; release

both after hearing HV startup.

2. Select SERVICE from adjustment menu by

pressing the button on the remote. This will

collapse the vertical deflection.

3. Turn all screen (G2) controls to the full

counter-clockwise position.

4. Bring up each screen G2 control, one at a

time, until that color is just barely visible. (Also,

adjust the focus control for each color to obtain

optimum focus.)

5. After all colors are finished, press the

button on the remote to un-collapse the vertical,

and return to normal.

NOTE: Never power off the TV while in the

Service position of the I2C Adjustment Mode

(vertical collapsed) as CRT damage may result.

CH 7

Adjustment procedure

(1) Receive any NTSC signal.

(2) Press the SERVICE ONLY SW on DEF./CONV.

PWB and POWER to display DCU uncorrected

converge data.

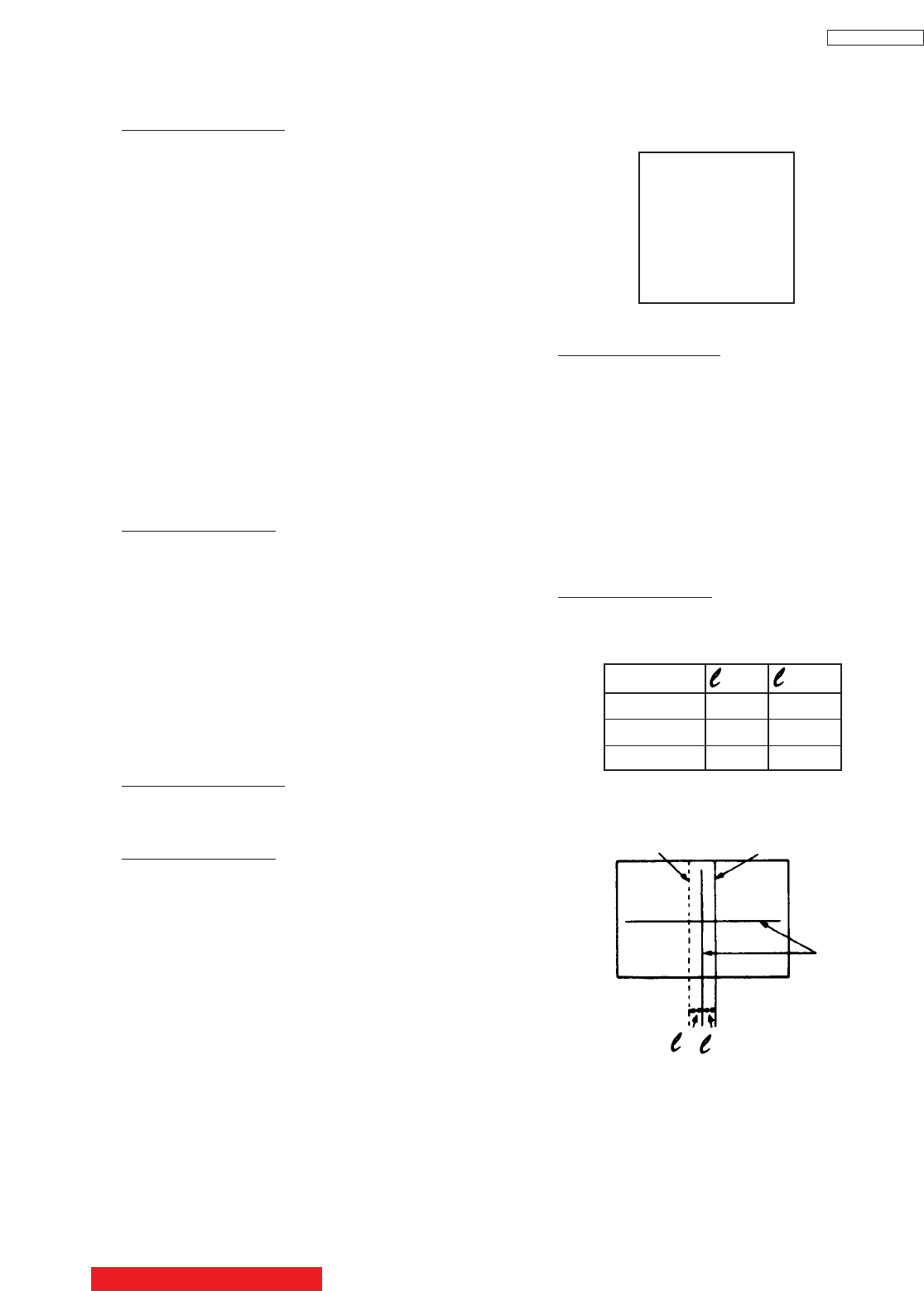

(3) Locate the horizontal size VR (R711 on

POWER/DEF PWB). Adjust horizontal size to

the table below.

Notes: (1) Once Normal mode Horizontal size adj. is

done. To restore old RAM data, turn TV off

and on.

(2) After adjustment, press SERVICE ONLY

switch to exit DCU crosshatch.

(3) H. SIZE adjustment is only done in

NORMAL MODE (NTSC).

=NORMAL

MODE

43” 870

51” 1020

57” 1140

Tolerance: ± 5mm

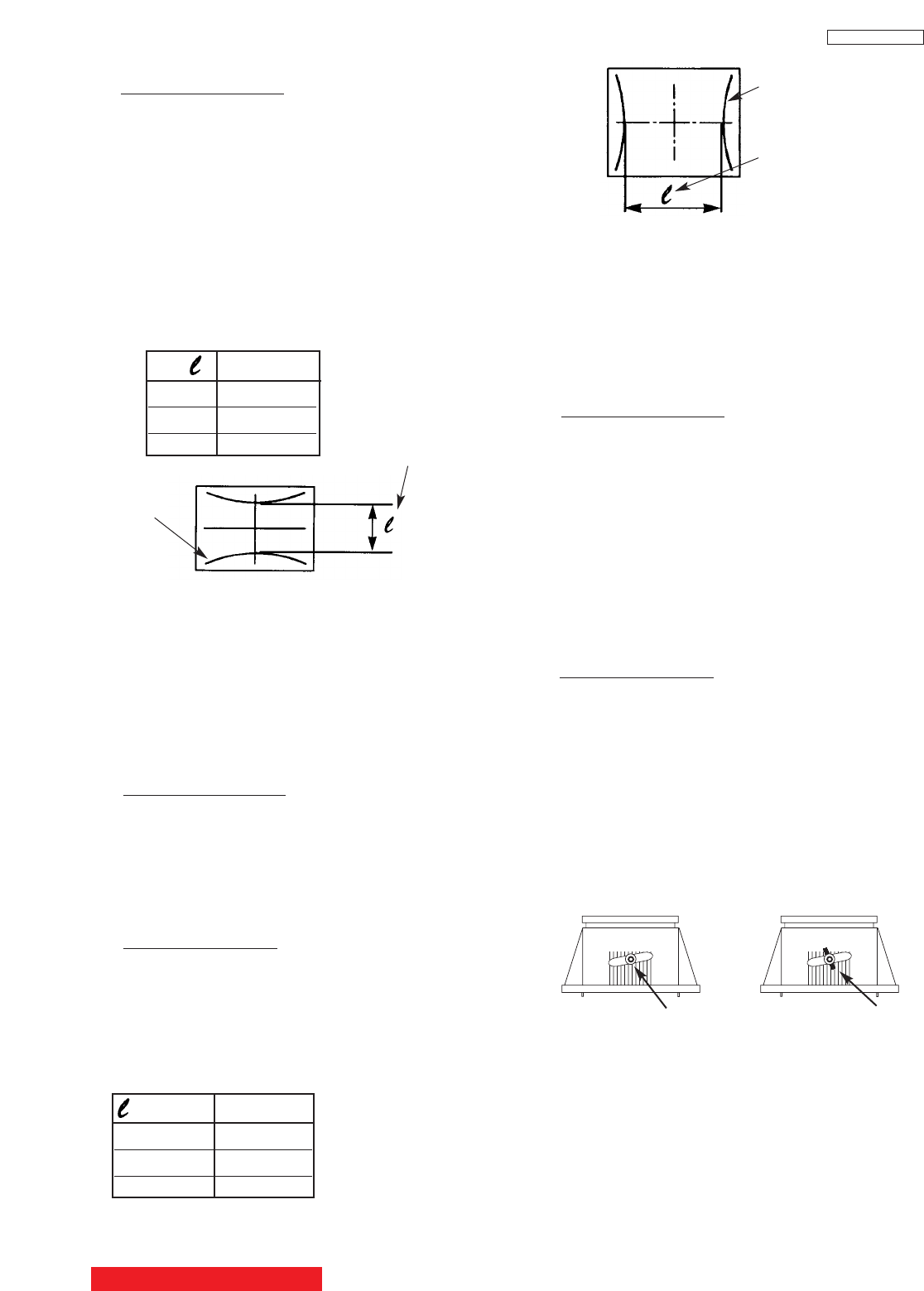

2.5 Horizontal size adjustment

Adjustment preparation

(1) The set can face east or west.

(2) Set video conditions to factory preset.

(3) The STATIC FOCUS adjustment should have

been coarse adjusted.

(4) Convergence should not be corrected.

(5) Start adjustment 20 minutes or more after TV is

turned on.

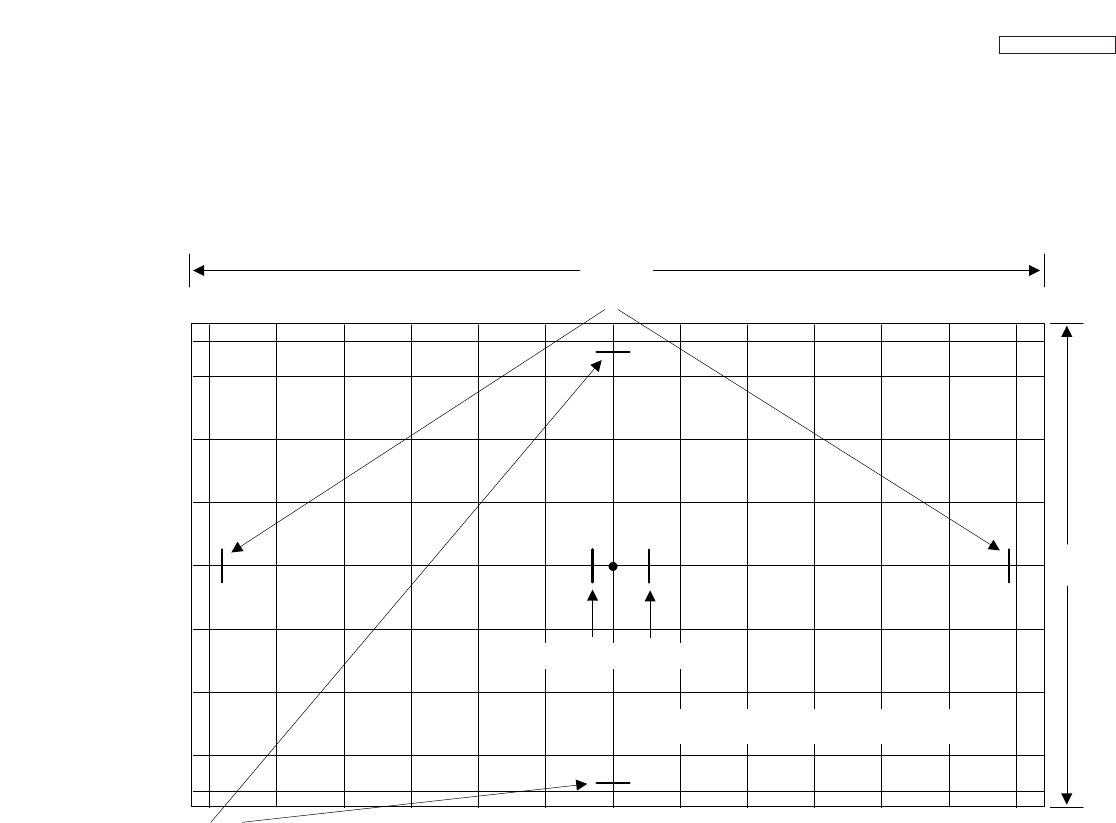

The 6th line

from center

Between the

vertical lines

at the left and

right end.

Units = millimeters

25.4mm = 1in.

Notes:(1) If internal cross-hatch does not

appear after clearing RAM data,

press service switch again (on

DEF./CONV. PWB).

(2) To restore old RAM data, turn TV

off and on.

(3) V-Size is only done in NORMAL

mode (NTSC).

=NORMAL

MODE

43” 460

51” 560

57” 625

Tolerance: ± 5mm

2.4 Vertical size adjustment

Adjustment preparation

(1) The set can face east or west.

(2) Set video conditions to factory preset.

(3) Convergence should not be corrected.

(4) Start adjustment 20 minutes or more after TV is

turned on.

Adjustment procedure

(1) Receive any NTSC signal.

(2) Press the SERVICE ONLY SW on DEF./CONV.

PWB and POWER to display DCU uncorrected

convergence data.

Between the

horizontal lines

at the top and

bottom

(3) Locate the vertical size VR (R607) on

DEFLECTION PWB. Adjust the vertical size

according to the following table.

The 5th line

from center

Units = millimeters

25.4mm = 1in.

DP23/23G/24

(Be careful the lens cylinder does not turn after

having tightened the screw or wing nuts. If it is

tightened too much, lens may tilt or screw may

break.)

(2) Apply covers to each color of R, G and B lenses.

And project a single color on the screen and

adjust in sequence. (The adjustment order of G,

R and B is only an example.)

(3) If the lens adjustment knob is turned clockwise

viewed from the front, the color Aberration

change as follows.

(NOTE 1)

Fixing Screw

(NOTE 2)

Fixing Wing Nut

TYPE 1 TYPE 2

Lens Assy Lens Assy

Adjustment procedure

(1) Loosen the fixing screw or wing nut on the lens

cylinder so that the lens cylinder can be turned.

(Be careful not to loosen too much). After

completing steps (4), (5), (6) below, tighten the

fixing screws or wing nuts for each lens with a

torque of 1.18N.m (12Kgf cm) ~ 1.67N.m (17Kgf

cm).

2.6 LENS FOCUS ADJUSTMENT

Adjustment preparation

(1) The orientation of PTV set is arbitrary, west,

east, north and south.

(2) Centering DY inclination should have been

adjusted.

(3) Static focus adjustment should have been

coarse adjusted.

(4) Drive VR location adjustment should have been

completed. (Red : 12 O’clock, Green : 1~2

O’clock).

(5) Receive the cross-hatch pattern signal.

(6) Refer to setup below.

CONTRAST : HALF of full scale.

BRIGHTNESS : minimum

BACK TO ADJUSTMENTS

DP23/23G/24

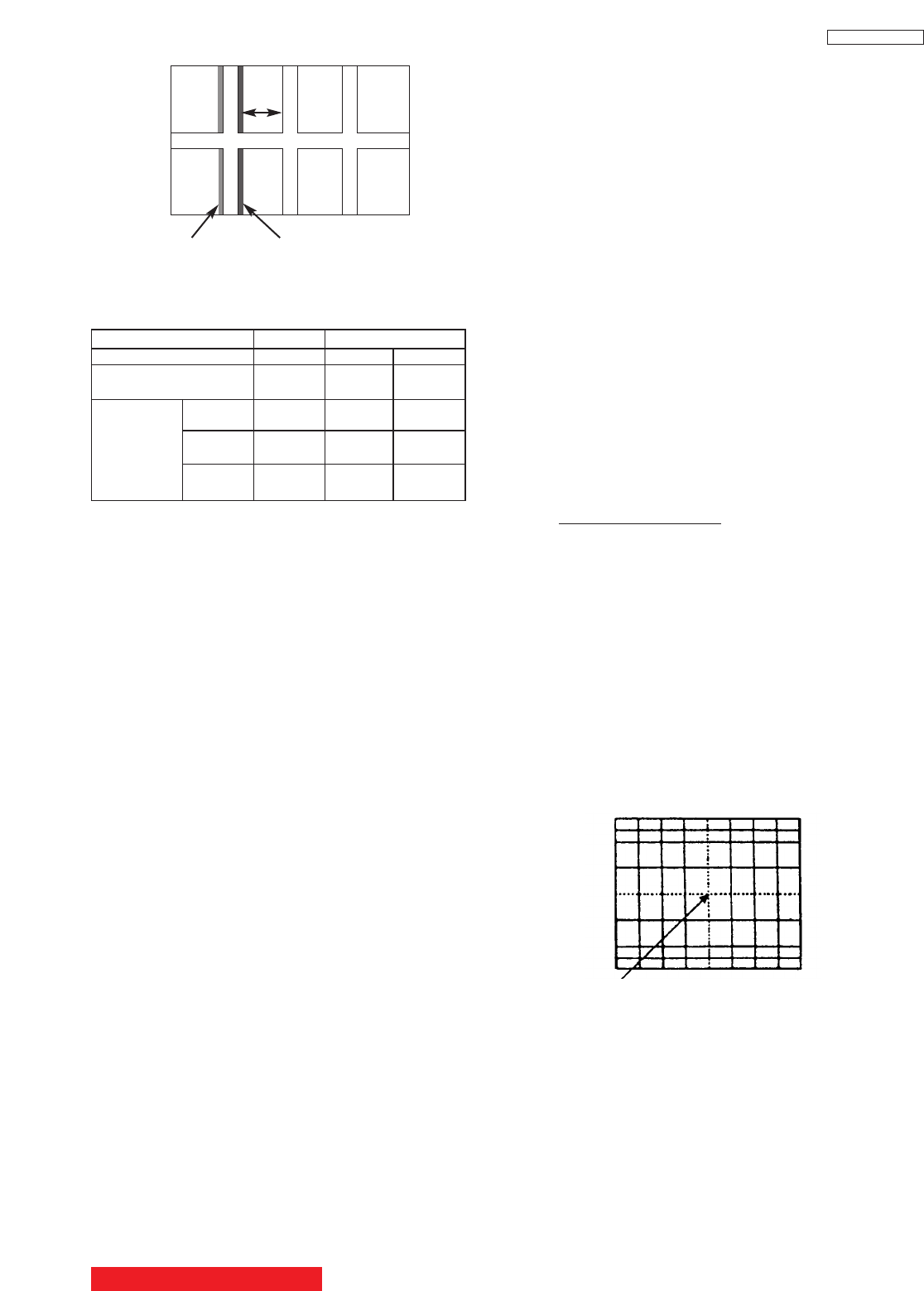

OPTICAL FOCUSING ADJUSTMENT RED

(6) In case of B lens. Set the position where the

chromatic aberration changes from purple to

green. As shown below, observe the vertical

bright line and adjust lens focus where the

purple or green chromatic aberration slightly

appears inside and purple or green outside

(reference value : 1~3mm) at the point specified

in table below. Change the signal and fine-

adjust in the same way as the G lens.

NOTE: Setting the center between Red and crimson

is optimum.

(5) In case of R lens. Set the position where the

chromatic aberration changes from red to

crimson. As shown below, observe the vertical

bright line and adjust lens focus where the

crimson or red chromatic aberration slightly

appears inside, and crimson or red outside

(reference value : 1~3mm) at the point specified

in table below. Change the signal and fine-

adjust the same way as the G lens.

OPTICAL FOCUSING ADJUSTMENT GREEN

Change the signal to the circle pattern and fine

adjust. Observe the corner part of the screen,

especially observe number in the small circle

when adjusting. If the focus performance at the

screen center exceeds the lower limit, it is

acceptable.

CHASSIS DP24 DP23/DP23G

SCREEN SIZE 43” 51” 57”

L1 and L2

(PITCHES from CENTER) 3.0 1.0 1.0

BETWEEN

L1&L2 * * *

COLOR * * *

ABERRATION I 3.0mm MAX 2.0mm MAX 3.0mm MAX

****

O 3.0mm MAX 3.5mm MAX 3.0mm MAX

(NOTE) * Slightly reddish or no color

** Slightly bluish or no color

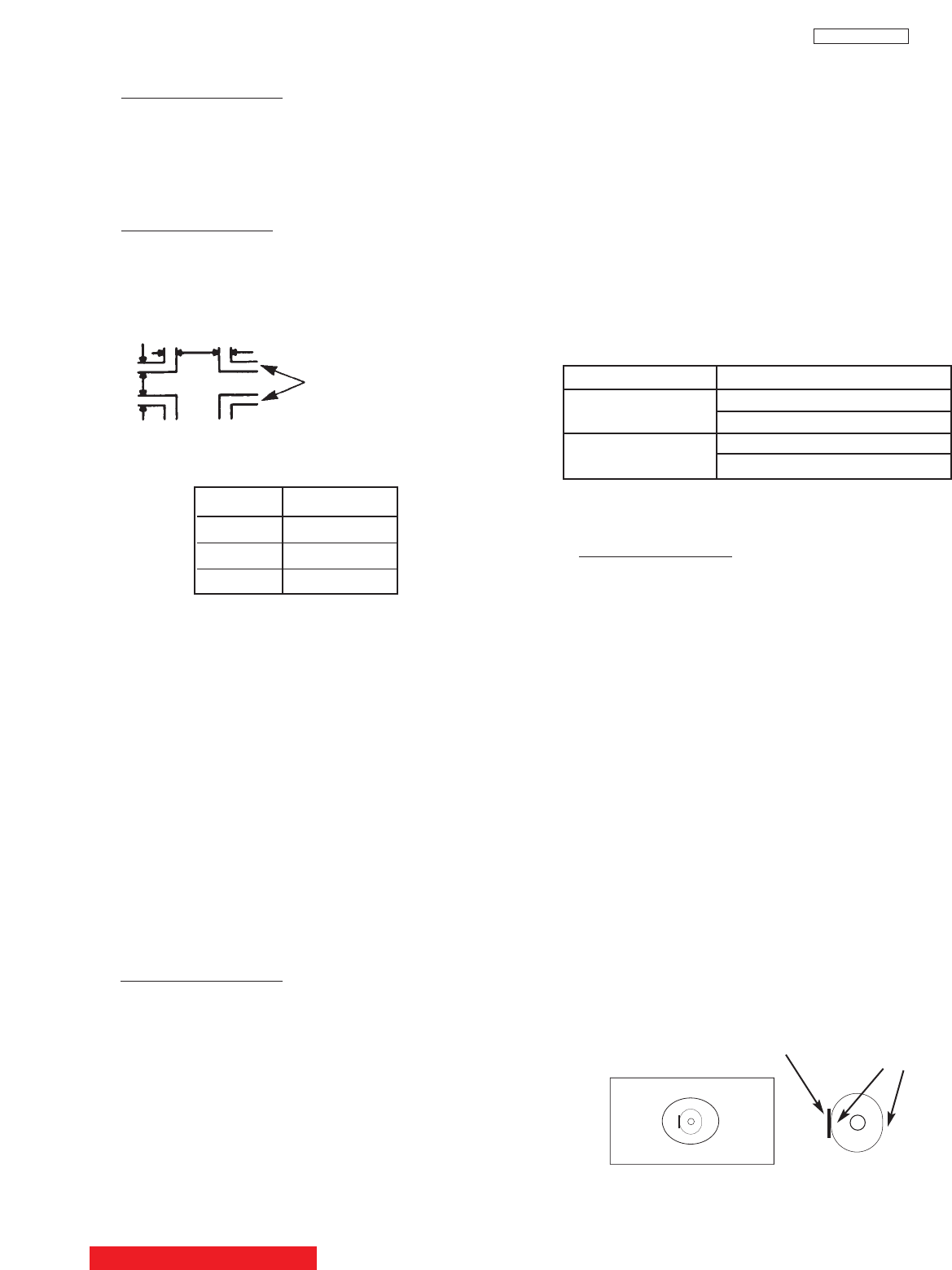

Small circle of circle pattern

NOTES: 1. Since the G light is very important for

picture quality and performance, pay

special attention in its adjustment.

2. Be careful not to touch the lens with your

fingers when adjusting.

CHASSIS DP24 DP23/DP23G

SCREEN SIZE 43” 51” 57”

L1 and L2

(PITCHES from CENTER) 3.0 3.0 3.0

BETWEEN

L1&L2 * * *

COLOR * * *

ABERRATION I 3.5mm MAX 2.0mm MAX 3.0mm MAX

** ** *

O 3.5mm MAX 2.0mm MAX 3.0mm MAX

(NOTE) * Slightly reddish or no color

** Slightly crimson or no color

Color

Aberration

Cross-Hatch

Change of Color Aberration

Short focus Long focus

RED LENS Orange Scarlet

GREEN LENS Blue Red

BLUE LENS Purple Green

L1 L2

(4) In case of G lens. Set to the point where the

chromatic aberration switches from blue to red.

If the chromatic aberration appearing all over

the screen is not the same, observe the vertical

bright line and adjust lens focus as specified in

table below. When the red chromatic aberration

appearing at both sides of the bright line is not

equal, observe the side with larger chromatic

aberration when adjusting.

BACK TO ADJUSTMENTS

DP23/23G/24

NOTE: Setting to the center between purple and

crimson is optimum.

(7) After all colors have been adjusted, display all

colors with the cross-hatch pattern signal and

check the focus performance.

(8) Then, select the circle pattern signal and check

the focus performance of each color and all

colors together.

(9) If the focus performance is not acceptable re-

adjust step (1) to (6).

OPTICAL FOCUSING ADJUSTMENT BLUE

CHASSIS DP24 DP23/DP23G

SCREEN SIZE 43” 51” 57”

L1 and L2

(PITCHES from CENTER) 3.0 3.0 3.0

BETWEEN

L1&L2 * * *

COLOR * * *

ABERRATION I 3.5mm MAX 2.0mm MAX 3.0mm MAX

****

O 3.5mm MAX 2.0mm MAX 3.0mm MAX

(NOTE) * Slightly reddish or no color

** Slightly greenish or no color

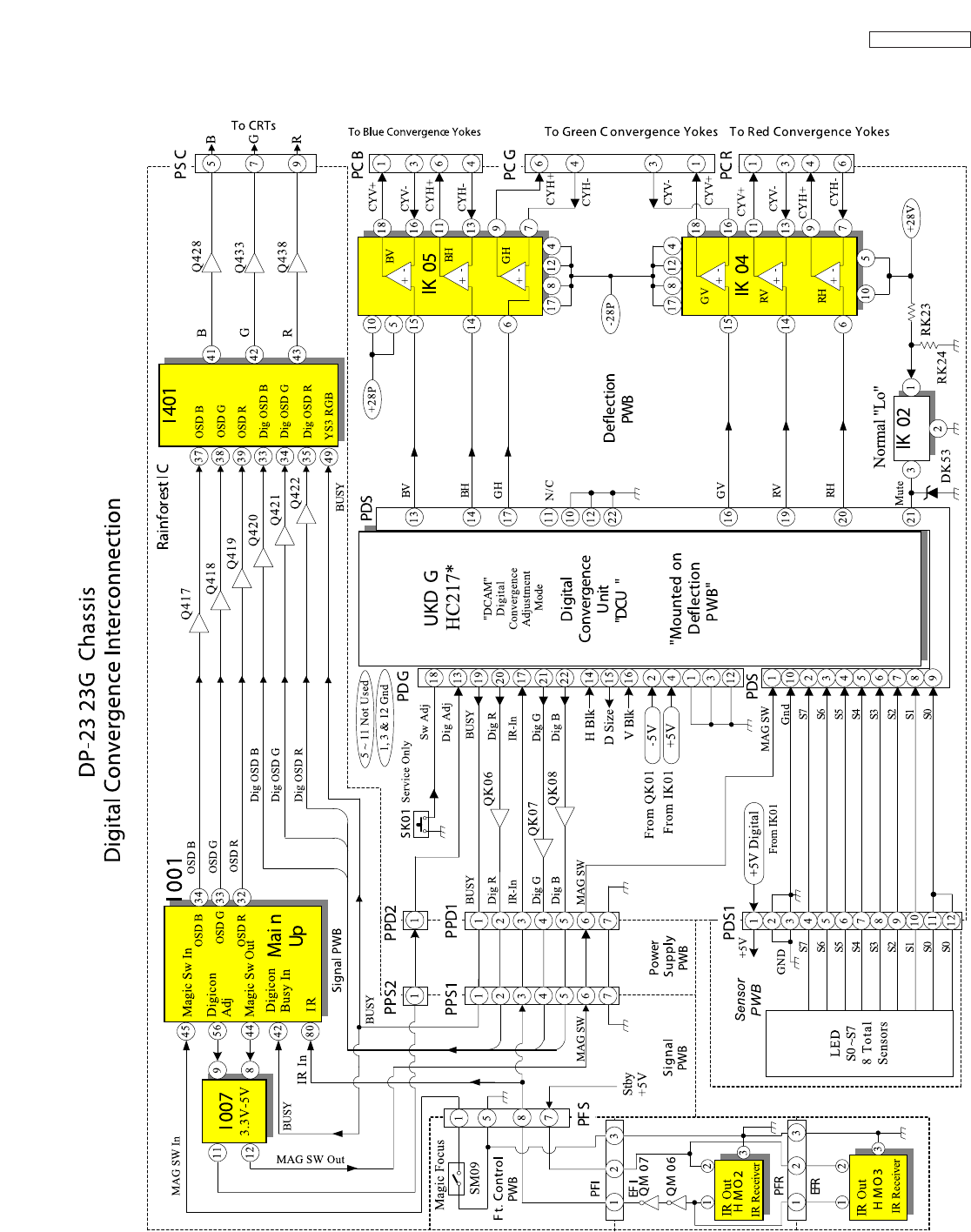

2.7 Digital convergence adjustment

Note: 1. If replacing a PRT, DY, etc. perform auto-

digital convergence first. (Press front panel

MAGIC FOCUS switch.) This can eliminate

the need for a complete digital convergence

alignment.

2. To enter digital convergence adjustment

mode without removing the front speaker

grill, please do the following:

1) Press “Magic Focus” button on the front

panel.

2) While “Magic Focus” is running, press

Magic Focus button again to “Stop”.

3) Press INFO button after “STOP” OSD

appears on the screen to enter digital

convergence mode.

4) Proceed with convergence adjustment

and save the data.

5) Do MAGIC FOCUS sensor initialization.

6) To exit, press POWER button on the front

panel.

Adjustment preparation

(1) Receive an RF or video signal.

(2) Set controls to factory preset.

(3) Install jig screen on the set.

(4) Note the center of the video pattern displayed.

This is necessary to match dotted lines

(adjustment point viewed) and actual point that

is adjusted and displayed by the video signal.

(5) Press the service only switch (on DEF./CONV.

PWB). The pattern displayed is now the digital

convergence mode.

(6) When performing a complete digital

convergence adjustment CLEAR DATA in RAM.

(With the TV set off, press and hold the service

switch located on the DEF./CONV. P.W.B. and

then press the POWER button).

Adjustment Point

BACK TO ADJUSTMENTS

2.7.2 MAGIC FOCUS Pattern Set-Up

NOTE: (1) This instruction should be applied when a

new DCU is being replaced.

(2) This instruction shows how to set up the

pattern position for MAGIC FOCUS.

Parameter Normal Normal

ADJ. DISP 77 77

DEMO WAIT 2F 2F

INT. START 03 03

V. SQUEEZE F0 F0

INT STEP 1 02 02

INT STEP 2 06 06

INT BAR 28 25

INT DELAY 01 01

MGF STEP 1 00 00

MGF STEP 2 06 06

MGF BAR 1B 1B

MGF DELAY 01 01

SEL. STAT. 00 00

LINE WID 1F 1F

ADD LINE 09 09

SENSOR CK 00 00

PORT 0 07 07

PORT 1 06 06

PORT 2 05 05

PORT 3 04 04

PORT 4 03 03

PORT 5 02 02

PORT 6 01 01

PORT 7 00 00

AD LEVEL 03 03

CENT. BAL 00 01

E. DISPLAY 00 00

ADJ. TIMS 60 60

AD LEVEL 05 05

AD NOISE 0A 0A

PHASE MOT 60 60

H. BLK-RV 00 00

H. BLK-GV 01 01

H. BLK-BV 00 00

H. BLK-H 00 00

PON DELAY 0C 0C

IR-CODE 00 00

INITIAL 50 9E 9E

MGF 50 96 96

CENTER 50 FE FE

STAT 50 FE FE

DYNA 50 9F 9F

DP23/DP23G DP24

TABLE 1. - DCU PARAMETER

Adjustment Procedure

(1) Receive NTSC RF or video signal.

(2) With Power off, PRESS and HOLD the

SERVICE ONLY button on DEF./CONV. PWB,

then press the Power On/Off, when picture

appears release SERVICE ONLY button.

(Internal crosshatch is displayed without conv.

correction data.)

DP23/23G/24

2.7.1 MAGIC FOCUS Character Set-Up

This instruction should be applied when a new

DCU is being replaced.

Adjustment Preparation

(1) Receive NTSC RF or video signal.

(2) With Power off, PRESS and HOLD the

SERVICE ONLY button on DEF./CONV. PWB,

then press the Power On/Off, when picture

appears release SERVICE ONLY switch.

(Internal crosshatch is displayed without conv.

correction data.)

(3) Press the SWAP button 2 times for ROM READ

operation. Picture will appear with convergence

correction data.

Adjustment Procedure

(1) Press FREEZE key on R/C. (One additional line

appears near the top and near the bottom.)

(2) Press PIPCH key, then ADJ. PARAMETER

mode is displayed as following.

(3) Press THUMBSTICK or to change the ADJ.

DISP. data.

(4) Press THUMBSTICK to access DCU

Parameter. Change the data as shown on Table

1 - DCU Parameter Data.

(5) Press PIP MODE key 2 times to write changed

data into EEPROM. (First press ADJ.

PARAMETER/ROM WRITE? is displayed for

alarm. 2nd press, writes data into EEPROM.

Green dots appear after completion of

operation.)

(6) Press MUTE key 3 times to exit from ADJ.

PARAMETER mode.

ADJ. PARAMETER

ADJ. DISP.: 77

DEMO WAIT: 2F

INT. START: 03

V. SQUEEZE: F0

BACK TO ADJUSTMENTS

DP23/23G/24

(7) Press PIP MODE key 2 times to write the changed

data in EEPROM. (First press, ADJ. PATTERN/ROM

WRITE ? 2nd press, writes data into EEPROM.

Green dots appear after completion of operation.)

(8) Press MUTE key to exit from PATTERN mode.

Adjustment Procedure

(1) Press FREEZE key on R/C. (One addtional line

appears near the top and near the bottom.)

(2) Press VID2 key in [CBL/SAT] on R/C, then MAGIC

FOCUS PATTERN mode is displayed as follows:

(3) Use [6] key on remote control to rotate the arrow.

Arrow indicates each sensor position. (Upper left

corner, middle top, upper right corner, right middle, in

this order).

(4) Use the keys to switch color of pattern.

INFO : Green pattern

0 : Red pattern

ANT : Blue pattern

(5) Press THUMBSTICK or to change the data

value to the horizontal direction. Press

THUMBSTICK or to change the data value to

the vertical direction.

(6) Set the data as shown below:

RH : 0A

RV : FF

01234567

RH 04 02 FC FE FC 02 02 02

RV 03 00 07 01 FB 01 FE 01

GH 04 00 FE 00 FE 00 02 02

GV 04 00 06 01 FC 01 FE 01

BH 06 FE FC 00 FE FE 04 02

BV 06 00 04 01 FE 01 FB 01

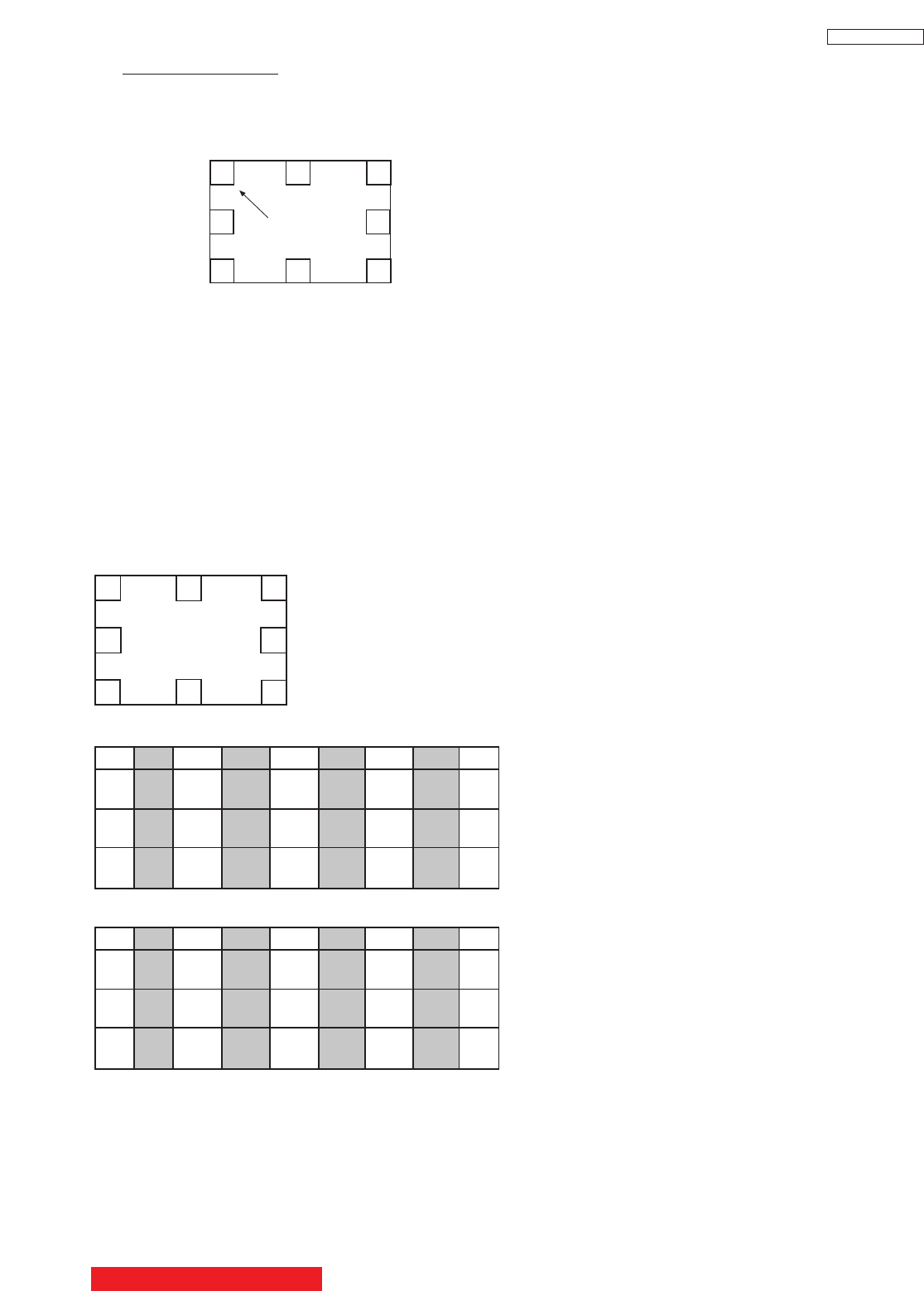

Pattern Position

Normal Mode (DP23/DP23G)

01234567

RH 04 02 FE 00 FE 02 04 02

RV 03 01 06 01 FC 01 FF 01

GH 04 00 FE 00 FE 00 02 02

GV 04 01 05 01 FD 01 FD 01

BH 04 FE FE 02 00 FE 04 02

BV 06 01 04 01 FF 01 FD 01

Normal Mode (DP24)

BACK TO ADJUSTMENTS

DP23/23G/24

19.7 90.8 90.8 90.8 90.8 90.8 90.8 90.8 90.8 90.8 90.8 90.8 90.8 19.7

30.5

41.0

30.5

41.0

82.0

1129

635

51UWX20B/51GWX20B (Part Number H312272)

51” DP2X Jig Screen

22 101.5 101.5 101.5 101.5 101.5 101.5 101.5 101.5 101.5 101.5 101.5 101.5 22

34.1

45.8

91.7

1262

710

57UWX20B/57GWX20B (Part Number H312273)

57” DP2X Jig Screen

91.7

45.8

34.1

17.0 76.5 76.5 76.5 76.5 76.5 76.5 76.5 76.5 76.5 76.5 76.5 76.5 17.0

25.7

34.5

25.7

34.5

69.1

952

535

43FWX20B (Part Number H312271)

H312271

H312272

H312273

57”

Wide

51”

Wide

43”

Wide

2.7.3 Convergence Jig Screen Specifications

BACK TO ADJUSTMENTS

DP23/23G/24

Note: If only minor adjustments to convergence are

needed, the jig screen is not necessary. Use

digital data stored in memory and one color as a

reference (red, green, or blue). DO NOT CLEAR

DATA and WRITE to ROM memory.

2.7.4 Raster position adjustment

Adjustment preparation

(1) Position adjustment - This will move an entire

color. Use this adjustment to match colors at the

center of the screen. (Active video center from

external signal and physical screen center

should now match from phase adjustment).

(2) Use the buttons below to switch color to adjust.

“INFO” - Green

“0” - Red

“ANT” - Blue

Adjustment procedure

(1) Press the FREEZE button. Extra horizontal lines

appear to confirm raster position mode.

(2) Use the thumb stick to adjust position.

(3) Press FREEZE again to exit raster position

mode.

Notes: (1) Other functions cannot be accessed when

in raster position adjustment mode. Press

FREEZE and confirm extra horizontal lines

disappear to exit raster position mode.

(2) Press MENU to remove colors displayed.

2.7.5 Convergence point adjustment

Adjustment preparation

(1) Select color to adjust.

“INFO” - Green

“0” - Red

“ANT” - Blue

(2) Use 4, 6, 2, and 5 to move the cursor position

(dotted lines).

(3) Use thumb stick to move the convergence point.

(4) Three adjustment modes are available:

1. (3x3) Press “INFO” 5 times (only works

when DCU is in uncorrected state)

2. (7x5) Press “0” 5 times

3. (13x9) Press “ANT” 5 times

For touch-up, only the (13x9) mode is necessary.

This will adjust every cross-hatch intersection point

on the screen.

For complete adjustment, start with (3x3) mode. This

will adjust center point and eight edge points only,

but will greatly reduce adjustment time. Then use

(7x5) mode, and finally (13x9) mode to finish

convergence.

If “S” distortion appears between cross-hatch

lines repeat (7x5) mode to change calculation

process while adjusting to remove distortion,

then return to (13x9) mode to finish touch-up

convergence.

Adjustment procedure

(1) Receive any NTSC signal.

(2) Start adjustment at the center of the screen.

(3) Continue adjustment at next closest position.

(4) Adjust center area first, ending with edge sections.

(5) Press INFO button to perform calculation operation.

This process will take about 1 second and no picture

will be seen at this time.

(6) After interpolation, check convergence again and

repeat (1)-(5) if necessary.

(7) When convergence is acceptable, press PIP MODE

to write data to ROM memory. ROM WRITE? is

displayed to alarm system that ROM will be

overwritten with new data. Press the PIP MODE

button again to write displayed data to ROM.

(8) DATA WRITE TO ROM will take approximately 4

seconds and no picture will be displayed.

(9) Green dots will be displayed when operation is

completed.

(10) Press MUTE to return to convergence pattern, then

confirm again convergence is acceptable.

(11) Press PIP MODE (ROM WRITE) mode, then press

PIP CH to initialize sensor data positions.

Notes: (1) Display only green for easier adjustment and

match to jig screen. Press “MENU”, THEN

PRESS “INFO”.

(2) Perform interpolation and data write to ROM

after green adjustment. Once green has been

confirmed to match jig screen, the jig screen can

be removed. Do not readjust the green color

after jig screen has been removed. This is now

your reference color.

(3) Display green and red only and match red to

green.

(4) Display all colors and match blue to green and

red. Touch-up red color if necessary.

(5) Existing DATA in ROM can be read by pressing

the SWAP button 2 times. This data can be used

after replacing a component (CRT, DY, etc.)

Where complete convergence adjustment is not

necessary, be careful not to overwrite this data.

DO NOT write cleared RAM data into ROM or a

complete convergence adjustment will be

necessary. Remember to try MAGIC FOCUS

before starting convergence adjustment to

minimize adjustment time.

(6) To confirm and fine tune the convergence at the

edge of the screen, press the PIP CH button on

the remote control while in the digital

convergence adjustment mode (DCAM) for

additional lines at the edge of the screen. Fine

tune the edge convergence as necessary. To

exit, press PIP CH again.

BACK TO ADJUSTMENTS

DP23/23G/24

Digital Convergence Remote Control

123

456

789

ANT INFO

VOL CH

POWER

TV CBL/SAT DVD/VCR

PIP SWAP PIP MODE FREEZE

VIDEO PIP CH MENU

MUTE EXIT LAST CH

REC ASPECT VIRTUAL HD

SELECT

CLU-4321UG

VID1 VID2 VID3 VID4

VID5

ROM READ

PHASE CALCULATION

R/C must be in

VCR mode.

GREEN

ADJUSTMENT

CURSOR LEFT

CURSOR

DOWN

BLUE

(13x9)

REMOVE

COLOR

ROM WRITE

RASTER

POSITION

CROSSHATCH

VIDEO

CURSOR UP

CURSOR

RIGHT

RED

(7x5)

INITIALIZE

2.7.6 Magic Focus Initialize

Adjustment Preparation

(1) Receive any NTSC signal.

(2) Digital convergence adjustment should have been

completed.

(3) Set is in DCU adjustment mode.

Adjustment Procedure

(1) Press “PIP MODE” and then “PIP CH” to initialize

Magic Focus. The initialize operation starts and

several windows appear during this operation. It

takes about 30 seconds or less.

(2) When green dots appear, initialize operation is

finished.

(3) Turn power OFF on TV set.

REMARKS

Another way to start the initialize operation:

(1) Press “SERVICE ONLY” Sw. on DEF./CONV. PWB to

set DCU adj. mode.

(2) Press [PIP MODE] key on R/C. Then “ROM

WRITE?” is displayed for alarm. Next, press [PIP

CH] key on R/C to start initialization. When green

dots appear, initalization operation is finished.

NOTE: If there is an error message, red dots or an error

code, refer to page 57, CONVERGENCE

ERRORS.

*INITIAL:N*

Initialization Operation

BACK TO ADJUSTMENTS

DP23/23G/24

Condition: User controls are set to the initial set

positions (for shipment)

Measuring point-Screen center.

STICKING OUT OF BLUE

UNEVENNESS SPECIFICATION: ±1cd/m2

Defocus sticking out specification

Screen Size Blue sticking out

43” 1.0mm

51” 1.0mm

57” 1.0mm

2.8 Blue defocus adjustment

Adjustment Preparation

(1) Optical and electrical focus adjustment should

have been completed.

(2) The convergence adjustment should have been

completed.

(3) Set Video conditions to factory preset.

(4) Input the cross-hatch signal.

Adjustment procedure

(1) Turn the B Focus VR (Focus Pack) fully

clockwise.

(2) Adjust sticking out level of blue to specification

shown in table below, by turning the (B) FOCUS

VR counter clockwise.

2.9 White balance adjustment

(1) Screen adjustment

(2) High light white balance.

(3) Low light white balance.

I2C data for High light white balance

Green : G DRIVE (HIGH) 3F (initial data)(Adjustable)

Red : R DRIVE (HIGH) 3F (initial data)(Adjustable)

Blue : on FOCUS PACK UFPK

I2C data for Low light white balance

Green : G CUT OFF (HIGH) 7F (initial) (Fixed data)

Red : R CUT OFF (HIGH) 7F (initial) (Adj. data)

Blue : B CUT OFF (HIGH) 7F (initial) (Adj. data)

Adjustment Preparation

(1) Adjustment should start 20 min. or more after the TV

power is turned ON.

(2) CUT OFF ADJ. should be finished.

(3) VIDEO control : Contrast is MAX., Others are center.

(4) Color temp. : HIGH

(5) Signal:

* Hight Light white Balance Adj.

White raster 0.715Vpp (w/o sync., termination

incidence : 75ohm.) 100IRE

*Low Light white balance ADJ.

White raster 0.180Vpp (w/o sync., termination

incidence : 75ohm.) 25 IRE (The brightness

equal to 20cd/m2at screen center on 53” 4:3

model)

(6) BLUE defocus ADJ. should be finished.

(7) The vertical incident illumination on the screen

should be 20 Lux. or less.

(8) Picture Format is 16:9 Standard Mode.

(9) Sub Brightness adjustment should be finished.

(10)Go into I2C service mode.

Table 1: White Balance Adjustment Signal

Table 1 shows amplitude of White raster (without sync,

termination impedence: 75ohm).

Adjustment Procedure

A. High Light W/B adjustment

(1) Receive signal for High Light white balance ADJ.

(2) Adjust white balance to 10800K-7 MPCD

(x=0.278±0.004; y=0.280±0.004) at center of screen,

using R DRV/ G DRV with remote control.

B. Low Light W/B adjustment

(1) Receive signal for Low Light white balance ADJ.

(2) Adjust white balance to 21000K-25 MPCD (x

=0.260±0.010, y=0.245±0.010) at center of screen,

using R CUT OFF/G CUT OFF/B CUT OFF with

remote control. Do not touch screen VRs.

(3) Take Green color as a reference color, then adjust

Low Light W/B by increasing other two colors CUT

OFF data. Do not change GREEN CUT OFF data.

CA-100 Probe should be set to a direction as shown

below.

Repeat A & B two or three times, until no adjustment

is needed (white balance tracking-GOOD). If W/B

tracking is not good, set all data (Both DRV and CUT

OFF) to inital data, and change reference color to

different color.

Note: If Low Light adj. spec cannot be followed, apply

previous adj. spec. (adjust by eye.)

Screen Size 43” 51” 57”

High light [IRE] 100

[Vpp] 0.715

Low light [IRE] 15.0 17.5 20.0

[Vpp] 0.105 0.123 0.140

Set probe to above direction.

(Screw hole side should

be on the left side)

Top view of

CA-100 Probe

Screen

Screw Hole Flat Face

BACK TO ADJUSTMENTS

DP23/23G/24

Adjustment preparation

(1) Start adjustment after the power is turned on for

20 minutes or more.

(2) The vertical incident illumination on the screen

should be 20 lux or less. (Room should be dark).

(3) Set the video settings (CONTRAST: max,

others: center) to standard condition.

(4) The blue defocus and cut off adjustments should

be completed.

(5) For low light white balance adjustment, input a

white raster signal level of 0.180 Vp-p (Video

input level).

(6) For high light white balance adjustment, input a

white raster signal level of 0.715Vp-p (Video

input level).

(7) Confirm R and G Drive (cool) data is 3F.

(8) Set Video Advanced Settings-Color Temp-

erature to HIGH.

Adjustment procedure

(1) Select the input signal for high brightness (Video

level = 0.715Vpp).

(2) Adjust the high brightness white balance by

changing I2C menu (R and B DRV HIGH mode

only).

(3) Select the signal for low brightness (Video level

= 0.105Vpp; 0.123 Vpp; 0.140Vpp)

(4) Adjust the low brightness white balance.

(5) Check that high brightness white balance is still

obtained. If it is not, return to step (2).

White balance = 10800° K -7 MPCD

Color coordinate = x …… 0.278±0.004

y …… 0.280±0.004

Normal: 7200˚K

Warm: 6500˚K

BACK TO ADJUSTMENTS

DP23/23G/24

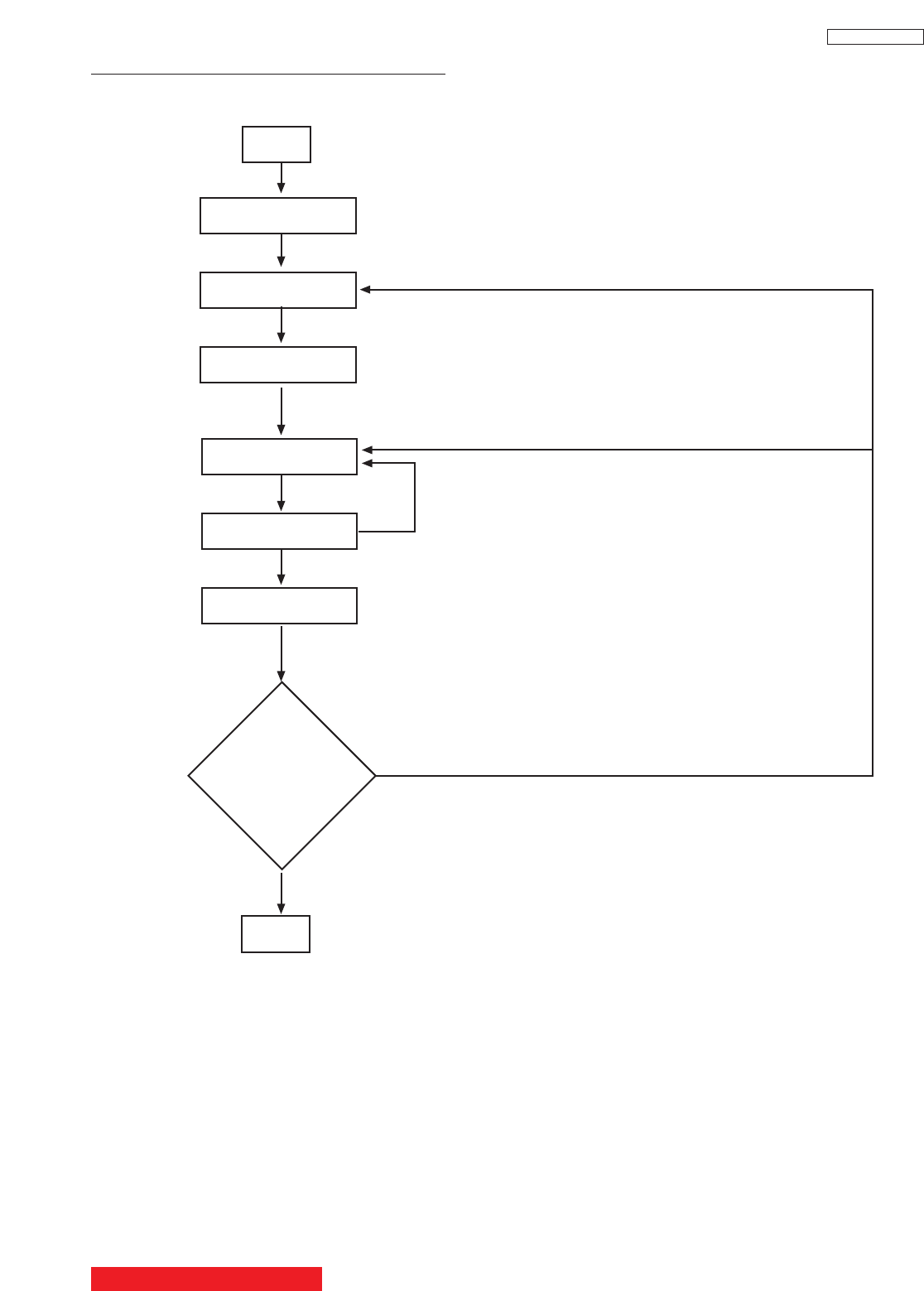

WHITE BALANCE ADJUSTMENT FLOW CHART

START

Cut Off Adj.

Blue defocus Adj.

Sub bright Adj.

Adj. High Light W/B

Adj. Low Light W/B

Sub bright Adj.

Check

Low Light W/B

High Light W/B

FINISH

Repeat two or three times, until no

adjustment is needed

If NOT OK

If OK

BACK TO ADJUSTMENTS

DP23/23G/24

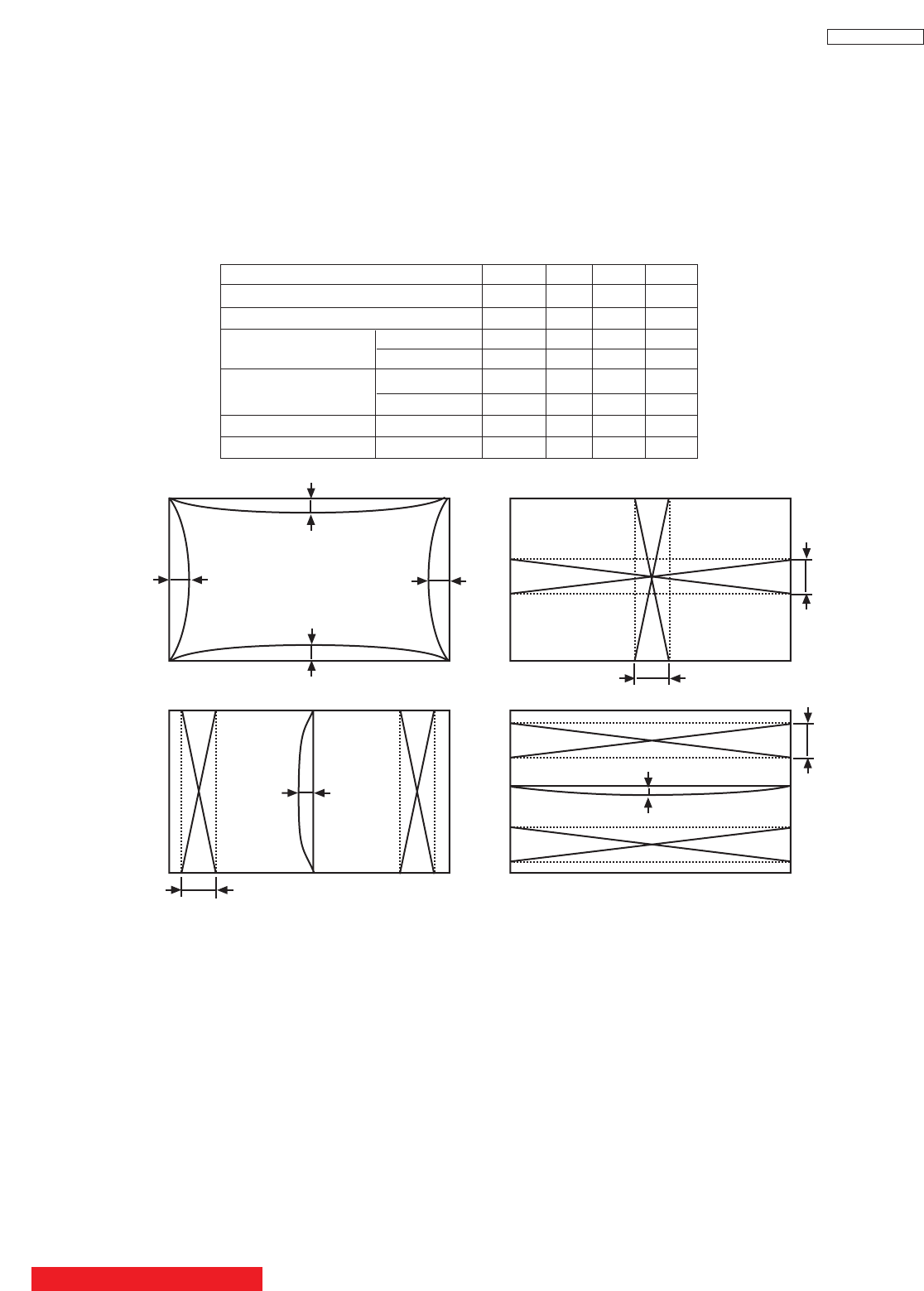

2.10 Raster distortion check

Checking condition

(1) Digital convergence adjustment should have been completed.

(2) Receive the cross-hatch signal (internal signal of the set is acceptable).

(3) Brightness/Contrast --- standard condition

Contrast : max

Other controls : center position

(4) Check the raster distortion specification: Value shown in the table below or less.

A ~ D

I ~ L ---Measure the winding of the outside line.

Item Symbol 43” 51” 57”

Top/Bottom pincushion distortion A,B ±5±6±6

Right/Left pincushion distortion C,D ±4±4±4

Center line Vertical line E 5 6 6

tilt Horizontal line F 5 6 6

Center line Vertical line G ±3±3±4

winding Horizontal line H ±3±3±4

Trapezoidal distortion Vertical line I,J 4 5 5

Skew distortion Horizontal line K,L 5 6 6

(unit: mm)

BACK TO ADJUSTMENTS

DP23/23G/24

5. Convergence Errors.

If an error message or code appears while performing MAGIC FOCUS or initialize (PIP MODE, PIP CH in DCU

service mode) follow this confirmation and repair method.

1. Turn on power and receive any signal.

2. Press service switch on DEF./CONV. board.

3. Press “SWAP” then “PIP CH” on remote control.

4. Error code will be displayed in bottom right corner of screen. If there is no error, an “INITIAL OK” message will

appear on screen.

5. Follow repair table for errors.

ERROR!! Error code CONNECT 1!

Error message

Sensor position

XNo. 1 3

DCU REPAIR TABLE

Error

Code

Error

Display

Code Countermeasure

Application

Initialize Magic

Focus

2Connect 1 1. Darken Outside Light

*2 2. Placing of sensor

3. Is pattern hitting sensor

4. Check connection and solder bridge of sensor

5. Replace sensor

6. Replace sensor P.W.B.

7. Sensor Connector check

8. Replace DCU

9. Adjustment check (H/V size, centering)

VF Error Replace DCU

3*2

4Over Flow 1. Check the placement of sensor

2. Adjustment check (H/V size, centering)

3. Conv. amp. gain check *1 (check resistor values only)

A/D Level Same as Error Code 2

Convergence Same as Error Code 4

Operation Same as Error Code 4

Connect 2 Same as Error Code 2

Noise Input strong field signal

Check the wiring of connector between sensor and DCU

Sync Input strong field signal

Check the wiring of connetor between sensor and DCU

*1 -- RK 42, 46, 50, 54, 58, 62 check these resistors.

*2 Sensor Position

0 1 2

654

(View from front side)

BACK TO ADJUSTMENTS

DP23/23G/24

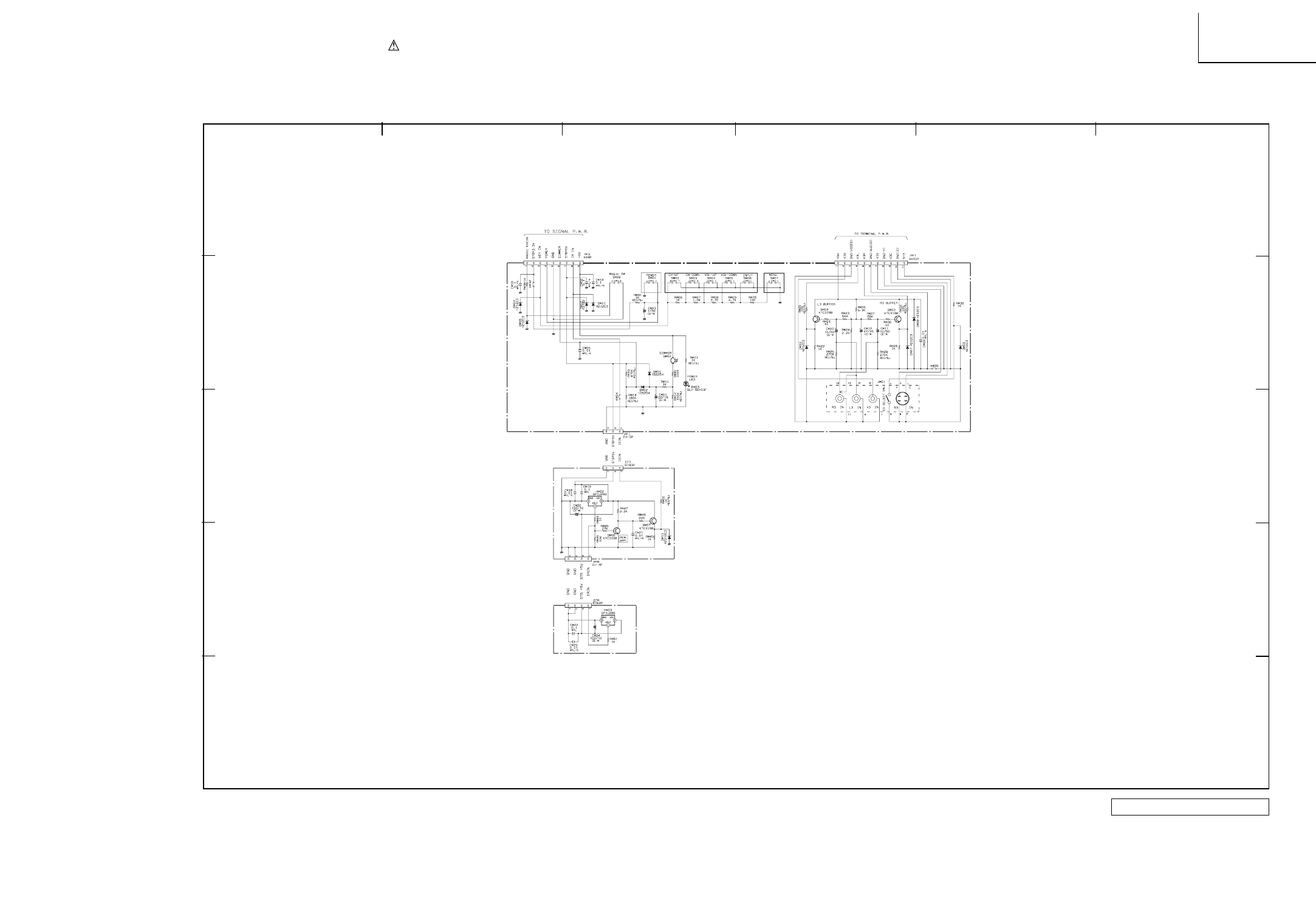

CONTROL P.W.B. DP23/DP23G

BACK TO ADJUSTMENTS

DP23/23G/24

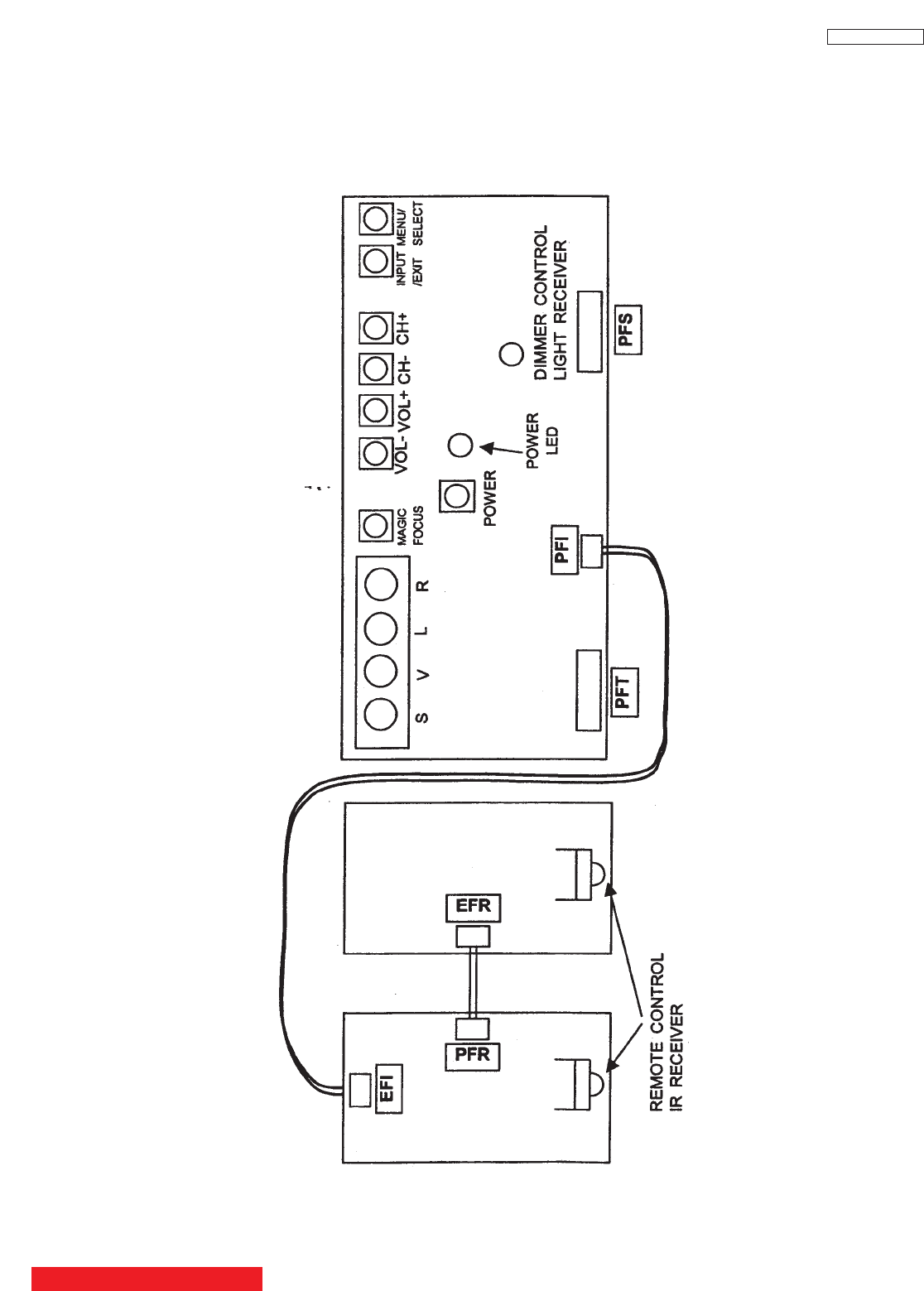

MAGIC FOCUS

VOL- VOL+ CH+ CH-

POWER

SELECT

EXIT

INPUT

POWER LED

DIMMER CONTROL

LIGHT RECEIVER

REMOTE CONTROL

IR RECEIVER

SVRL

CONTROL P.W.B. DP24

BACK TO ADJUSTMENTS

DP23/23G/24

Symbol Pin No. V(DC) Pin No. V(DC) Pin No. V(DC) Pin No. V(DC)

10.2 26 0.0 51 3.6 76 2.8

21.5 27 0.0 52 3.2 77 0.0

30.4 28 5.0 53 3.2 78 3.2

40.4 29 4.9 54 0.2 79 3.3

50.0 30 4.9 55 2.9 80 0.0

60.0 31 4.8 56 3.2 81 3.2

71.6 32 0.1 57 0.0 82 3.2

80.0 33 0.1 58 3.2 83 3.4

90.0 34 0.1 59 1.5 84 0.0

10 0.0 35 0.0 60 1.5 85 3.2

11 0.0 36 0.0 61 3.2 86 3.2

12 3.2 37 0.1 62 3.0 87 0.0

I001 13 1.6 38 0.0 63 0.0 88 0.0

14 0.0 39 0.0 64 3.5 89 0.0

15 1.6 40 0.0 65 0.0 90 0.0

16 3.2 41 0.0 66 0.0 91 2.5

17 0.0 42 0.0 67 0.0 92 1.9

18 3.2 43 0.0 68 0.0 93 0.2

19 0.0 44 3.2 69 0.0 94 3.7

20 0.0 45 3.3 70 0.0 95 0.2

21 0.0 46 0.1 71 0.0 96 1.5

22 0.0 47 0.0 72 0.0 97 2.0

23 3.0 48 0.0 73 3.2 98 0.0

24 0.0 49 0.0 74 3.2 99 5.0

25 0.0 50 0.0 75 3.2 100 2.0

Symbol Pin No. V(DC) Symbol Pin No. V(DC) Pin No. V(DC)

10.0 1 0.0 5 4.9

20.0 I003 2 0.0 6 4.9

I002 3 0.0 3 0.0 7 0.0

43.2 4 0.0 8 5.0

50.0

Symbol Pin No. V(DC) Pin No. V(DC) Symbol Pin No. V(DC) Pin No. V(DC)

14.4 9 9.4 1 0.2 11 5.0

25.9 10 9.4 2 4.8 12 0.0

35.4 11 0.0 3 0.0 13 0.0

I005 4 5.4 12 5.4 4 0.2 14 4.5

55.9 13 4.4 I007 5 0.0 15 0.0

60.0 14 5.4 6 0.0 16 5.0

70.0 15 4.4 7 0.0 17 0.0

80.0 16 9.4 8 3.2 18 4.9

93.2 19 0.0

10 0.0 20 5.0

Signal 1 of 3

DC VOLTAGE TABLES

DP23/23G/24

Symbol Pin No. V(DC) Pin No. V(DC) Symbol Pin No. V(DC) Pin No. V(DC)

10.0 6 0.4 PFH2 1 0.0 2 0.0

20.2 7 0.2

PFH1 3 0.0 8 0.0 Symbol Pin No. V(DC) Pin No. V(DC)

40.0 9 3.2 PRST 1 3.2 2 3.0

53.2 10 0.0

Symbol Pin No. V(DC) Pin No. V(DC)

Symbol Pin No. V(DC) Pin No. V(DC) 19.4 6 3.3

15.1 5 5.0 2 0.0 7 3.2

PJIG 2 4.9 6 4.9 PFS 3 5.0 8 3.3

34.8 7 3.2 4 2.0 9 3.2

40.0 -- 5 0.0 --

B0.4 B 2.9

Q001 C 1.5 Q016 C 0.0

E0.2 E 3.5

B0.1 B 3.5

Q004 C 3.1 Q017 C 5.7

E0.0 E 2.9

B6.1 B 4.4

Q005 C 0.6 Q018 C 9.4

E6.0 E 3.8

B5.5 B 5.5

Q006 C 0.0 Q019 C 9.4

E6.1 E 4.8

B5.2 B 2.7

Q007 C 9.4 Q020 C 0.0

E5.5 E 3.4

B3.9 B 0.6

Q008 C 0.0 Q022 C 0.1

E4.5 E 0.0

B0.0 B 0.0

Q009 C 3.3 Q023 C 3.5

E0.0 E 0.0

B0.0 B 1.4

Q010 C 9.4 Q024 C 0.0

E0.0 E 0.0

B0.7 B 0.7

Q012 C 0.0 Q025 C 0.0

E0.0 E 0.0

B5.2 B 0.0

Q013 C 9.4 Q026 C 4.7

E5.5 E 0.0

B4.0 B 0.6

Q014 C 0.0 Q033 C 1.6

E4.7 E 0.2

B3.4

Q015 C 5.1

E2.7

Signal 1 of 3 (Cont.)

DC VOLTAGE TABLES

DP23/23G/24

Symbol Pin No. V(DC) Pin No. V(DC) Symbol Pin No. V(DC)

13.3 5 0.0 1 1.9

IP51 2 2.6 6 0.0 2 3.3

33.3 7 1.8 IP52 3 0.0

42.3 8 1.8 4 5.8

52.5

Symbol Pin No. V(DC) Pin No. V(DC)

12.2 15 0.6 Symbol Pin No. V(DC)

25.2 16 2.7 1 0.0

30.0 17 2.2 IP53 2 5.1

44.9 18 2.2 3 5.7

54.8 19 1.9

60.0 20 0.0

U301 7 5.0 21 0.7 Symbol Pin No. V(DC) Pin No. V(DC)

80.0 22 0.1 1 2.2 15 0.0

933.9 23 0.1 2 5.8 16 1.4

10 0.0 24 0.0 3 5.0 17 2.2

11 0.0 25 0.0 4 4.9 18 2.2

12 0.0 26 4.2 5 4.9 19 1.9

13 9.3 27 4.2 6 0.0 20 0.0

14 0.6 -- U302 7 5.0 21 0.0

80.0 22 N/C

933.7 23 N/C

Symbol Pin No. V(DC) Pin No. V(DC) 10 0.0 24 N/C

15.2 12 4.5 11 0.0 25 N/C

20.0 13 5.0 12 0.0 26 N/C

34.2 14 0.2 13 9.3 27 N/C

44.0 15 4.0 14 3.0 --

PFC1 5 3.8 16 0.0

(U303) 6 0.0 17 4.8

70.2 18 4.6 Symbol Pin No. V(DC) Pin No. V(DC)

84.0 19 4.5 1 1.8 12 0.6

90.0 20 0.0 2 1.8 13 0.0

10 4.9 21 3.3 3 0.0 14 0.0

11 4.8 22 3.3 4 0.0 15 0.0

PFC2 5 1.0 16 1.6

(U303) 6 3.2 17 0.0

B0.7 7 3.1 18 1.8

Q301 C 0.0 8 0.2 19 0.0

E0.0 9 0.0 20 1.8

B0.7 10 0.0 21 5.0

Q302 C 0.0 11 0.2 22 5.0

E0.0

B0.1

Q303 C 3.4

E0.0

B0.6

Q304 C 0.0

E0.0

B0.0

Q305 C 0.0

E0.0

Signal 2 of 3

DC VOLTAGE TABLES

DP23/23G/24

Symbol Pin No. V(DC) Pin No. V(DC) Symbol Pin No. V(DC) Pin No. V(DC)

10.0 29 2.1 1 1.2 9 0.5

25.3 30 4.9 2 1.0 10 0.5

35.3 31 4.9 3 1.2 11 0.5

45.1 32 0.0 I402 4 1.0 12 3.0

55.1 33 4.0 5 1.0 13 4.0

60.0 34 4.0 6 0.0 14 0.0

70.8 35 4.0 7 0.0 15 0.8

85.1 36 0.5 8 0.0 16 9.1

95.1 37 4.0

10 5.1 38 4.0

11 6.2 39 4.0 Symbol Pin No. V(DC) Pin No. V(DC)

12 7.7 40 9.1 1 4.7 16 9.3

13 0.0 41 2.7 2 4.7 17 0.0

14 2.1 42 2.8 3 4.7 18 4.9

15 3.2 43 2.5 4 4.7 19 3.7

I401 16 3.0 44 0.0 5 4.7 20 4.0

17 1.5 45 9.1 6 4.7 21 0.0

18 0.2 46 5.0 7 4.7 22 4.7

19 9.1 47 5.0 IA01 8 4.7 23 4.7

20 0.0 48 5.1 9 1.0 24 4.7

21 5.5 49 0.0 10 4.7 25 0.0

22 2.8 50 0.0 11 1.8 26 0.0

23 2.5 51 0.0 12 1.8 27 0.0

24 1.0 52 0.0 13 4.8 28 4.7

25 0.0 53 5.8 14 4.9 29 4.7

26 0.9 54 4.4 15 0.0 30 4.7

27 5.0 55 9.1

28 0.5 56 5.5

Symbol Pin No. V(DC) Pin No. V(DC)

10.0 13 0.0

Symbol Pin No. V(DC) Pin No. V(DC) 24.7 14 0.0

11.5 7 16.2 3 4.7 15 4.7

20.0 8 5.1 4 4.7 16 4.7

IA03 3 0.0 9 34.7 5 4.7 17 4.7

42.8 10 0.0 IA02 6 4.7 18 4.7

51.5 11 4.4 7 4.7 19 0.0

611.7 12 45.9 8 4.7 20 4.7

94.7 21 4.7

10 9.3 22 4.7

Symbol Pin No. V(DC) Pin No. V(DC) 11 0.0 23 4.7

15.1 7 3.5 12 4.6 24 4.7

23.5 8 0.0

PSC 3 2.5 9 3.5

40.0 10 0.0

53.2 11 0.0

60.0 12 9.3

Signal 3 of 3

DC VOLTAGE TABLES

DP23/23G/24

B1.8 B 0.0 B 3.9

Q401 C 0.0 Q420 C 0.0 Q447 C 9.1

E2.4 E 0.6 E 3.7

B1.8 B 0.0 B 4.3

Q402 C 0.0 Q421 C 0.0 Q448 C 7.7

E2.4 E 0.7 E 3.7

B1.6 B 0.0 B 1.6

Q403 C 0.0 Q422 C 0.0 Q450 C 8.4

E2.3 E 0.7 E 1.0

B6.8 B 8.4 B 2.2

Q404 C 9.1 Q426 C 4.5 QA03 C 8.6

E6.1 E 9.1 E 1.6

B6.8 B 2.6 B 2.2

Q405 C 9.1 Q428 C 0.0 QA04 C 8.6

E6.2 E 6.2 E 1.6

B6.9 B 7.4 B 8.6

Q406 C 9.1 Q429 C 3.2 QA05 C 5.7

E6.3 E 8.0 E 9.3

B0.2 B 4.5 B 8.6

Q407 C 9.2 Q431 C 0.0 QA06 C 0.0

E0.4 E 5.2 E 9.1

B9.1 B 2.8 B 0.0

Q408 C 0.9 Q433 C 0.0 QA07 C 0.0

E9.2 E 3.5 E 0.0

B0.9 B 7.4 B 0.0

Q409 C 9.2 Q434 C 3.5 QA08 C 0.0

E0.9 E 8.0 E 0.0

B0.9 B 2.8 B 0.1

Q410 C 0.0 Q438 C 0.0 QA09 C 0.0

E1.5 E 3.5 E 0.0

B0.2 B 7.4 B 0.1

Q411 C 9.2 Q439 C 3.5 QA10 C 0.0

E1.1 E 8.0 E 0.0

B1.1 B -0.3 B 0.0

Q412 C 9.2 Q440 C 9.3 QA11 C 4.4

E0.5 E 0.0 E 0.0

B7.3 B 9.1 B 0.0

Q413 C 0.0 Q441 C 0.2 QA12 C 14.8

E6.7 E 9.2 E 0.0

B0.0 B 0.1

Q414 C 9.1 Q442 C 9.0

E0.0 E 0.0

B0.0 B 8.6

Q415 C 9.1 Q443 C 0.0

E0.0 E 8.5

B0.1 B 1.2

Q417 C 0.0 Q444 C 9.2

E0.8 E 8.6

B0.1 B 2.7

Q418 C 0.0 Q445 C 0.1

E0.7 E 2.7

B0.1 B 2.0

Q419 C 0.0 Q446 C 3.7

E0.8 E 1.4

Signal 3 of 3 (Cont.)

DC VOLTAGE TABLES

DP23/23G/24

Symbol Pin No. V(DC) Pin No. V(DC)

10.0 9 5.0

22.2 10 3.6

32.8 11 1.8

IV01 4 2.4 12 3.8

51.3 13 3.4

60.0 14 2.2

70.0 15 2.3

8-5.0 16 0.0

Symbol Pin No. V(DC) Pin No. V(DC) Pin No. V(DC) Pin No. V(DC)

10.0 26 0.0 51 0.0 76 3.0

20.0 27 0.0 52 2.4 77 0.0

30.0 28 0.0 53 2.4 78 0.0

40.0 29 0.0 54 0.0 79 0.0

50.0 30 0.0 55 0.0 80 0.0

60.0 31 2.4 56 0.0 81 0.0

70.0 32 2.4 57 3.3 82 1.1

80.0 33 0.0 58 0.0 83 1.5

90.0 34 0.0 59 4.9 84 1.4

10 0.0 35 0.0 60 4.8 85 1.1

11 3.3 36 0.0 61 0.1 86 0.0

12 3.3 37 0.0 62 0.1 87 0.0

IW01 13 0.0 38 3.3 63 0.0 88 -1.0

14 0.0 39 0.0 64 2.4 89 1.6

15 0.0 40 0.0 65 0.0 90 0.8

16 0.0 41 0.0 66 0.0 91 1.3

17 0.0 42 0.0 67 0.0 92 2.4

18 0.0 43 0.0 68 0.0 93 2.4

19 0.0 44 0.0 69 0.0 94 0.0

20 0.0 45 2.4 70 0.0 95 0.0

21 0.0 46 2.4 71 0.0 96 1.1

22 0.0 47 1.1 72 0.0 97 0.0

23 0.0 48 1.2 73 0.0 98 0.0

24 0.0 49 0.0 74 0.0 99 0.0

25 0.0 50 1.5 75 0.0 100 -2.5

Symbol Pin No. V(DC) Pin No. V(DC) Symbol Pin No. V(DC) Pin No. V(DC)

19.2 16 2.5 1 9.2 16 2.5

22.4 17 4.7 2 2.5 17 4.7

34.3 18 0.0 3 4.3 18 0.0

42.6 19 2.5 4 2.5 19 2.5

50.0 20 0.0 5 0.0 20 0.0

62.0 21 4.0 6 2.0 21 4.1

70.0 22 3.8 7 0.0 22 3.8

IZ01 8 5.0 23 3.9 IZ02 8 5.1 23 3.9

96.5 24 4.1 9 6.5 24 4.1

10 5.3 25 5.0 10 5.3 25 0.0

11 0.0 26 3.0 11 0.0 26 0.0

12 9.2 27 0.0 12 0.0 27 0.0

13 4.8 28 2.3 13 4.8 28 2.3

14 4.9 29 2.3 14 4.9 29 2.3

15 0.2 30 2.0 15 0.2 30 2.0

Te r minal

DC VOLTAGE TABLES

DP23/23G/24

Symbol Pin No. V(DC) Pin No. V(DC) Symbol Pin No. V(DC) Pin No. V(DC)

14.1 33 5.0 1 1.3 33 0.0

24.6 34 4.9 2 1.1 34 5.3

34.1 35 0.0 3 1.3 35 0.0

44.6 36 3.5 4 9.1 36 5.3

54.6 37 4.6 5 9.1 37 0.0

60.2 38 4.6 6 0.0 38 5.3

70.1 39 3.9 7 5.0 39 9.1

84.1 40 4.6 8 0.0 40 4.5

94.6 41 4.7 9 5.0 41 0.0

10 4.1 42 9.2 10 5.0 42 4.4

11 4.6 43 4.6 11 1.3 43 0.0

12 4.6 44 4.5 12 1.1 44 4.5

13 0.2 45 4.6 13 1.8 45 9.1

14 5.1 46 3.9 14 9.1 46 4.4

15 4.1 47 4.6 15 5.3 47 0.0

IX01 16 4.6 48 0.0 IX02 16 0.0 48 4.4

17 4.1 49 5.2 17 5.0 49 0.0

18 4.6 50 4.6 18 0.0 50 4.4

19 4.6 51 4.6 19 5.0 51 9.1

20 0.1 52 4.6 20 5.0 52 9.1

21 5.1 53 4.8 21 1.2 53 5.3

22 4.1 54 4.5 22 1.1 54 0.0

23 4.6 55 3.9 23 1.2 55 5.0

24 4.1 56 4.6 24 0.0 56 0.0

25 4.6 57 0.0 25 0.0 57 5.0

26 4.6 58 4.5 26 4.8 58 9.2

27 0.1 59 4.6 27 4.9 59 5.3

28 5.1 60 4.5 28 5.1 60 0.0

29 4.6 61 4.6 29 0.0 61 5.0

30 4.1 62 4.6 30 4.3 62 0.0

31 4.6 63 4.6 31 4.4 63 5.0

32 0.0 64 4.6 32 5.0 64 5.1

B4.2 B 2.9

QV01 C 9.3 QV06 C 8.6

E3.4 E 2.3

B3.8 B 8.7

QV02 C 8.6 QV07 C 6.0

E3.1 E 9.3

B8.6 B 6.0

QV03 C 7.7 QV08 C 9.3

E9.3 E 5.3

B7.7 B 7.0

QV04 C 9.3 QV09 C 9.4

E7.1 E 6.4

B3.9 B 2.5

QV05 C 9.3 QV10 C 0.0

E3.3 E 3.1

Te r minal (Cont.)

DC VOLTAGE TABLES

DP23/23G/24

B4.9 B 4.6 B 4.1

QW01 C 9.3 QX03 C 9.2 QZ01 C 0.0

E4.2 E 4.0 E 4.8

B1.8 B 3.9 B 3.9

QW02 C 0.0 QX04 C 9.2 QZ02 C 0.0

E2.4 E 3.3 E 4.6

B2.3 B 4.6 B 3.8

QW03 C 9.3 QX05 C 9.2 QZ03 C 0.0

E2.3 E 3.9 E 4.5

B2.3 B 2.6 B 6.6

QW04 C 0.0 QX09 C 0.0 QZ04 C 9.2

E3.0 E 3.2 E 5.9

B2.3 B 1.1 B 4.0

QW05 C 0.0 QX10 C 5.1 QZ05 C 9.2

E3.0 E 0.6 E 3.4

B2.3 B 0.6 B 0.1

QW06 C 3.2 QX11 C 2.9 QZ06 C 9.2

E2.1 E 0.0 E 0.1

B3.2 B 4.5 B 0.7

QW07 C 0.1 QX12 C 9.2 QZ07 C 0.0

E3.3 E 3.9 E 0.0

B0.1 B 4.5 B 3.8

QW08 C 3.0 QX13 C 9.2 QZ08 C 0.0

E0.0 E 3.9 E 4.4

B1.4 B 1.8 B 3.9

QW09 C 0.0 QX23 C 0.0 QZ09 C 0.0

E2.1 E 2.5 E 4.6

B1.9 B 1.8 B 4.1

QW10 C 8.7 QX24 C 0.0 QZ10 C 0.0

E1.3 E 2.5 E 4.7

G8.7 B 1.9 G 4.7

QW11 C 2.9 QX25 C 0.0 QZ14 C 5.0

E9.3 E 2.5 E 4.0

B2.9 B0.2

QW12 C 9.3 QZ15 C 5.0

E2.3 E0.2

B1.9 B0.2

QW14 C 8.7 QZ18 C 5.0

E1.3 E0.2

B8.7

QW15 C 6.6

E9.3

B1.6

QW16 C 0.0

E2.2

Te r minal (Cont.)

DC VOLTAGE TABLES

DP23/23G/24

Symbol Pin No. V(DC) Symbol Pin No. V(DC) Symbol Pin No. V(DC)

1143.6 1 4.0 1 7.5

20.1 2 2.1 I903 2 9.6

319.5 I902 3 167.5 3 1.9

I901 4 0.1 4 17.6 4 5.1

50.0 5 2.0

63.1

71.3 Symbol Pin No. V(DC)

112.0

I906 2 10.9

Symbol Pin No. V(DC) Symbol Pin No. V(DC) 35.3

10.0 1 5.7 4 17.4

I904 2 5.0 I905 2 4.9

30.1 3 0.1

42.7 4 19.5 Symbol Pin No. V(DC)

10.0

I909 2 5.1

Symbol Pin No. V(DC) Symbol Pin No. V(DC) 36.0

1116.2 1 7.7

I907 2 10.9 I908 2 6.4

30.0 3 0.0 B 19.5

42.1 Q901 C 0.1

E19.5

Symbol Pin No. V(DC) B0.1

10.0 Symbol Pin No. V(DC) Q902 C 19.5

24.7 1 0.0 E 0.1

I910 3 9.4 2 4.7 B 0.0

49.0 I911 3 9.6 Q903 C 4.7

510.4 4 9.2 E 0.0

510.4 B 4.7

Q904 C 0.0

E4.7

B116.1

Q905 C 0.2

E116.5

B6.1

Q906 C 0.0

E6.1

B0.7

Q907 C 0.0

E0.0

B4.6

Q908 C 5.1

E3.9

B0.0

Q910 C 4.9

E0.0

B4.6

Q911 C 0.0

E0.0

B5.2

Q912 C 5.1

E4.7

Power Supply

DC VOLTAGE TABLES

DP23/23G/24

Symbol Pin No. V(DC) B0.0 B 0.0

115.4 Q603 C 0.1 QN01 C 0.0

227.1 E 0.0 E 0.0

3 4.9 B 5.2 B

46.7 Q604 C 0.3 QN02 C 0.0

5 4.5 E 5.2 E

I601 6 0.0 B 92.4 B 0.1

7 3.0 Q701 C 116.1 QN03 C

83.9 E 91.5 E 0.0

94.5 B 0.6 B 0.2

10 27.5 Q703 C 17.2 QN04 C

11 0.8 E 0.4 E 0.1

B0.6 B 0.0

Q706 C 9.6 QN05 C 1.7

Symbol Pin No. V(DC) E1.2 E 0.0

11.8 B 0.4 B 0.0

20.9 Q709 C 12.7 QN06 C 0.0

31.1 E 0.0 E 0.0

I701 4 0.0 B -0.1

51.0 Q710 C 0.0

61.0 E 0.2

70.9 B 0.0

81.8 Q777 C 89.4

E0.0

B1.7

Symbol Pin No. V(DC) QF01 C 110.7

11.3 E 1.6

22.2 S 0.3

30.1 QH01 D 246.1

40.5 G 1.6

50.3 B 0.1

60.0 QH02 C 0.3

70.0 E 0.0

IH01 8 0.0 B 0.1

91.0 QH03 C 14.7

10 1.0 E 0.0

11 1.0

12 1.0

13 0.6

14 0.4

15 1.0

16 0.0

Deflection

DC VOLTAGE TABLES

9.0

CH 4

DP23/23G/24

Symbol Pin No. V(DC) Symbol Pin No. V(DC) B-6.9

17.6 1 5.1 QK01 C -5.2

IK01 2 0.0 2 0.2 E -7.5

35.0 3 0.2 B 0.0

40.3 QK02 C 0.0

50.2 E 0.6

Symbol Pin No. V(DC) 60.5 B 0.0

14.7 7 0.9 QK03 C -6.3

IK02 2 0.0 8 0.0 E 0.6

35.0 9 0.2 B 0.0

10 0.0 QK06 C 5.0

PBS 11 2.5 E 0.0

Symbol Pin No. V(DC) 12 0.0 B 0.0

10.0 13 0.0 QK07 C 5.0

20.0 14 0.0 E 0.0

3-30.4 15 0.0 B 0.0

4-31.6 16 0.0 QK08 C 5.0

531.8 17 0.3 E 0.0

60.2 18 0.0

70.2 19 0.0

827.9 20 0.4

IK04 9 0.3 21 5.0

10 -27.8 22 0.0

11 -0.1

12 -27.9

13 -0.1 Symbol Pin No. V(DC)

14 -0.1 1 0.0

15 0.1 2 5.2

16 -0.1 3 0.0

17 -27.9 4 5.0

18 0.1 5 0.4

60.0

75.0

Symbol Pin No. V(DC) 85.0

10.0 9 0.0

20.0 10 0.0

3-26.7 PDG 11 0.0

4-28.0 12 0.0

527.7 13 5.1

60.3 14 0.6

70.3 15 0.0

8-28.0 16 0.2

IK05 9 0.3 17 0.0

10 27.7 18 5.0

11 0.2 19 0.0

12 -28.0 20 0.0

13 0.2 21 0.0

14 0.1 22 0.0

15 0.0

16 0.0

17 -28.0

18 0.0

Convergence

DC VOLTAGE TABLES

DP23/23G/24

Symbol Pin No. V(DC) B4.7

15.0 QL10 C 0.2

20.0 E 3.6

30.0 B 4.7

40.2 QL11 C 1.2

50.3 E 5.1

PDS1 6 0.3 B 4.7

70.3 QL12 C 0.9

80.6 E 5.0

90.9 B 4.7

10 1.2 QL13 C 0.6

11 0.2 E 5.0

12 0.2 B 4.7

QL14 C 0.3

E5.0

Symbol Pin No. V(DC) B4.7

10.0 QL15 C 0.3

25.0 E 5.1

33.7 B 4.7

40.0 QL16 C 0.3

PS1 5 5.0 E 4.9

65.1 B 4.7

70.0 QL17 C 0.2

85.0 E 5.0

95.0

Symbol Pin No. V(DC)

10.0

25.0

35.1

40.0

PS2 5 5.0

65.0

70.0

85.0

95.1

10 0.0

Symbol Pin No. V(DC)

10.0

25.0

PS3 3 4.8

40.0

55.0

65.0

Sensor

DC VOLTAGE TABLES

DP23/23G/24

B3.2 B 3.8 B 5.1

Q801 C 8.5 Q8A7 C 9.2 QEA1 C 9.2

E2.7 E 3.1 E 4.5

B8.6 B 0.0 B 4.5

Q802 C 9.2 Q8C1 C 9.8 QEA2 C 9.2

E0.0 E 0.0 E 3.8

B9.1 B 1.7 B 3.1

Q803 C 180.7 Q8C2 C 1.1 QEA3 C 0.0

E8.6 E 1.0 E 3.7

B180.6 B 5.1 B 195.6

Q804 C 1.0 QE01 C 9.2 QEA6 C 100.1

E181.9 E 4.5 E 196.2

B182.0 B 4.5 B 3.7

Q805 C 221.9 QE02 C 9.2 QEA7 C 99.7

E181.8 E 3.8 E 0.0

B1.6 B 3.1 B 199.2

Q812 C 1.0 QE03 C 0.0 QEA8 C 3.5

E0.9 E 3.7 E 199.5

B3.4 B 196.0

Q851 C 8.4 QE06 C 0.1

E2.9 E 196.5

B8.6 B 3.7

Q852 C 9.2 QE07 C 100.2

E8.4 E 3.2

B9.1 B 221.5

Q853 C 0.1 QE08 C 0.0

E8.6 E 221.9

B166.8 B 0.0

Q854 C 1.1 QE09 C 2.5

E167.6 E 0.0

B164.7 G 5.1

Q855 C 221.8 QE51 C 9.2

E164.9 E 4.5

B1.8 B 4.5

Q862 C 1.1 QE52 C 9.2

E1.1 E 3.8

B3.4 B 3.0

Q8A1 C 2.9 QE53 C 0.0

E8.4 E 3.7

B8.6 B 195.9

Q8A2 C 0.0 QE56 C 99.5

E8.4 E 196.2

B9.1 B 3.7

Q8A3 C 166.6 QE57 C 99.6

E8.6 E 3.2

B165.8

Q8A4 C 1.1

E164.4

B171.2

Q8A5 C 221.8

E166.0

B3.1

Q8A6 C 0.0

E2.9

Symbol Pin No. V(DC) Symbol Pin No. V(DC) Symbol Pin No. V(DC)

19.8 1 9.8 1 221.9

23.5 2 3.2 2 199.7

30.0 3 0.0 ERG2 3 0.1

43.2 ERG1 4 9.2 4 0.0

EGB1 5 0.0 5 0.0 5 6.2

69.2 6 2.5

70.0 7 5.1

82.5

95.1

CPT/VM

DC VOLTAGE TABLES

DP23/23G/24

Symbol Pin No. V(DC) Symbol Pin No. V(DC) Symbol Pin No. V(DC)

10.0 1 0.0 1 9.8

P801 2 0.0 P8A1 2 0.0 2 3.2

30.0 3 0.0 3 0.0

EGR1 4 9.2

50.0

62.5

75.1

Symbol Pin No. V(DC) Symbol Pin No. V(DC) Symbol Pin No. V(DC)

1221.9 1 5.1 1 99.8

20.1 2 3.5 PVMB 2 99.7

PDC1 3 0.0 3 2.5 3 0.0

40.0 4 0.0 4 0.0

56.2 5 3.1

PSC 6 0.0

73.4 Symbol Pin No. V(DC)

80.0 1 100.1

93.3 PVMG 2 99.9

10 0.0 3 0.0

11 0.0 4 0.0

12 9.2

Symbol Pin No. V(DC)

199.9

PVMR 2 99.8

30.0

40.0

CPT/VM (Cont.)

DC VOLTAGE TABLES

DP23/23G/24

Symbol Pin No. V(DC) B0.7

10.0 QM01 C 0.1

PFI 2 5.0 E 0.0

30.0 1 9.4

QM02 2 2.2

Symbol Pin No. V(DC) B1.8

13.2 QM03 C 0.6

23.3 E 2.3

33.2 B 2.9

43.3 QM04 C 9.2

PFS 5 0.0 E 2.2

61.4 B 0.1

75.0 QM05 C 5.0

80.0 E 0.0

99.4

Symbol Pin No. V(DC)

19.3

20.0

30.0

42.0

52.1

PFT 6 0.0

70.0

80.0

90.0

10 0.0

11 5.0

Control

DC VOLTAGE TABLES

1234 56

 All DC voltage to be measured with a tester (100k/V). Voltage taken on a complex color bar signal including a standard color bar signal.

 Since this is a basic circuit diagram, the value of the parts is subject to be altered for improvement.

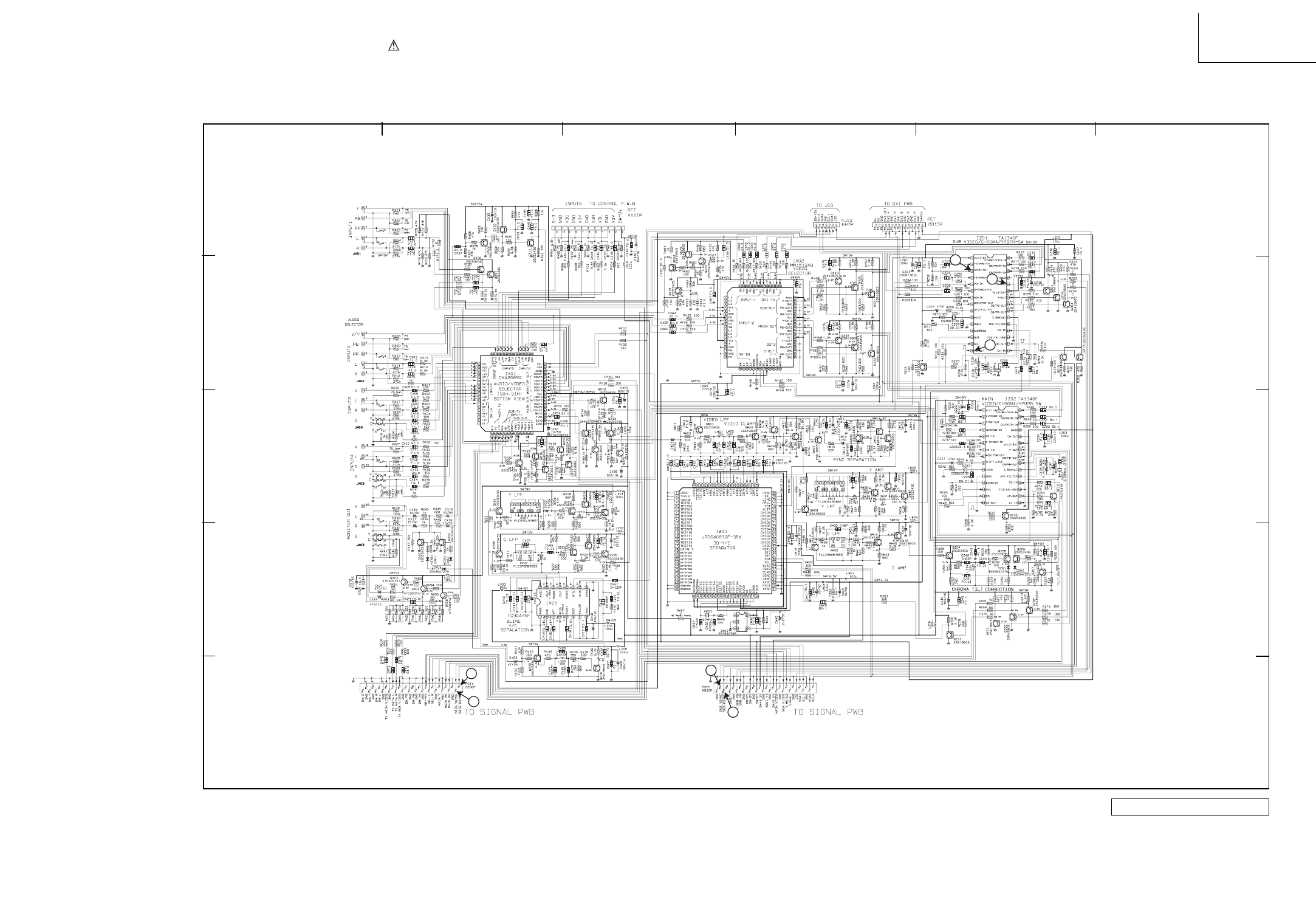

SIGNAL 1 of 3

PRODUCT SAFETY NOTE: Components marked with a and shaded have special characteristics important to

safety. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE of this Service

Manual. Don’t degrade the safety of the receiver through improper servicing.

BASIC CIRCUIT DIAGRAM DP23/G

SIGNAL 1 of 3

1234 56

 All DC voltage to be measured with a tester (100k/V). Voltage taken on a complex color bar signal including a standard color bar signal.

 Since this is a basic circuit diagram, the value of the parts is subject to be altered for improvement.

SIGNAL 2 of 3

PRODUCT SAFETY NOTE: Components marked with a and shaded have special characteristics important to

safety. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE of this Service

Manual. Don’t degrade the safety of the receiver through improper servicing.

BASIC CIRCUIT DIAGRAM DP23/G

SIGNAL 2 of 3

20 19

1234 56

 All DC voltage to be measured with a tester (100k/V). Voltage taken on a complex color bar signal including a standard color bar signal.

 Since this is a basic circuit diagram, the value of the parts is subject to be altered for improvement.

SIGNAL 3 of 3

PRODUCT SAFETY NOTE: Components marked with a and shaded have special characteristics important to

safety. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE of this Service

Manual. Don’t degrade the safety of the receiver through improper servicing.

BASIC CIRCUIT DIAGRAM DP23/G

SIGNAL 3 of 3

1234 56

 All DC voltage to be measured with a tester (100k/V). Voltage taken on a complex color bar signal including a standard color bar signal.

 Since this is a basic circuit diagram, the value of the parts is subject to be altered for improvement.

TERMINAL

PRODUCT SAFETY NOTE: Components marked with a and shaded have special characteristics important to

safety. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE of this Service

Manual. Don’t degrade the safety of the receiver through improper servicing.

BASIC CIRCUIT DIAGRAM DP23/G

TERMINAL

1234 56
A
B
C
D
E
  All DC voltage to be measured with a tester (100k/V). Voltage taken on a complex color bar signal including a standard color bar signal.
  Since this is a basic circuit diagram, the value of the parts is subject to be altered for improvement.

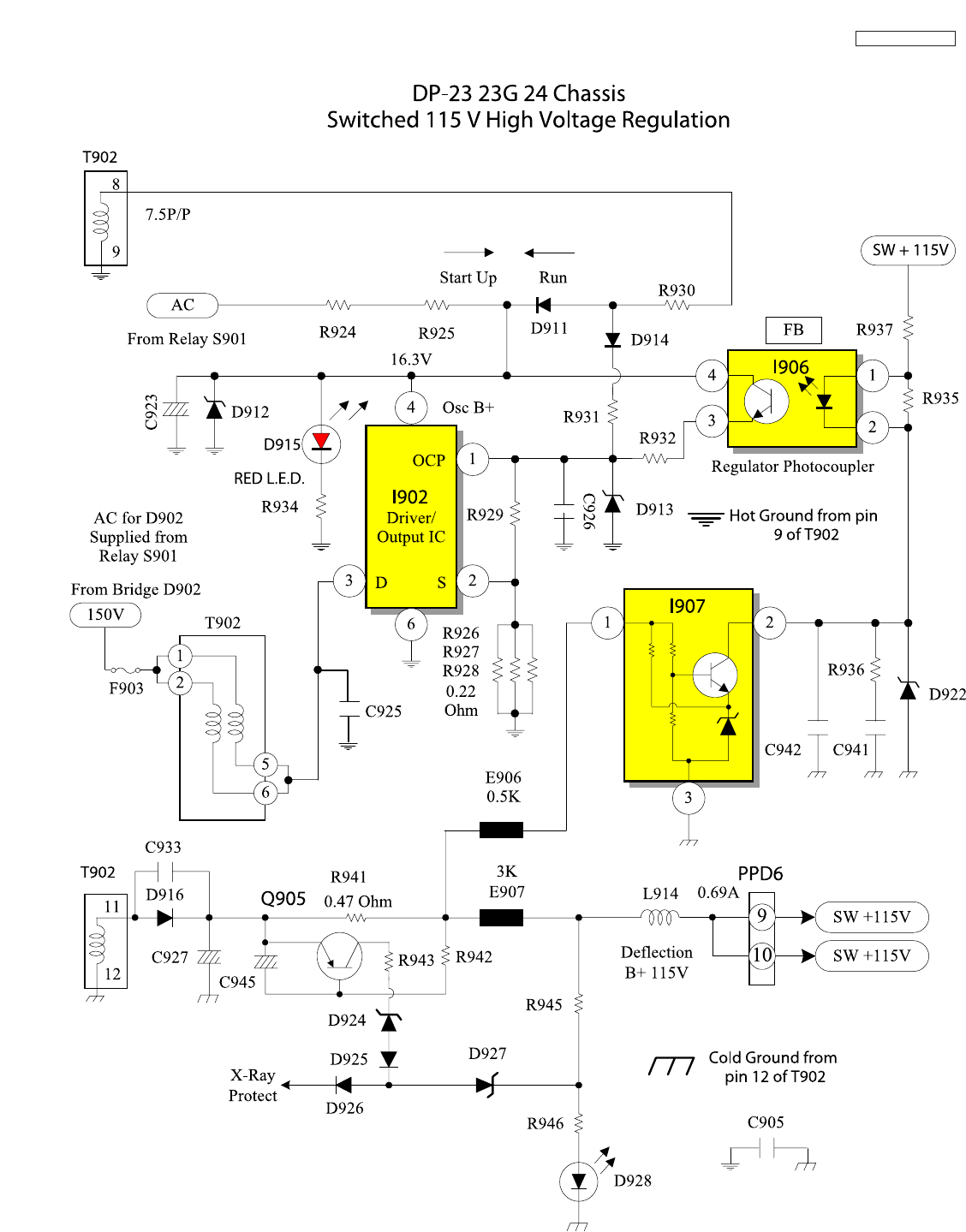

POWER SUPPLY
PRODUCT SAFETY NOTE: Components marked with a      and shaded have special characteristics important to
safety. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE of this Service
Manual. Don’t degrade the safety of the receiver through improper servicing.
BASIC CIRCUIT DIAGRAM DP23/G
POWER SUPPLY
55

1234 56

 All DC voltage to be measured with a tester (100k/V). Voltage taken on a complex color bar signal including a standard color bar signal.

 Since this is a basic circuit diagram, the value of the parts is subject to be altered for improvement.

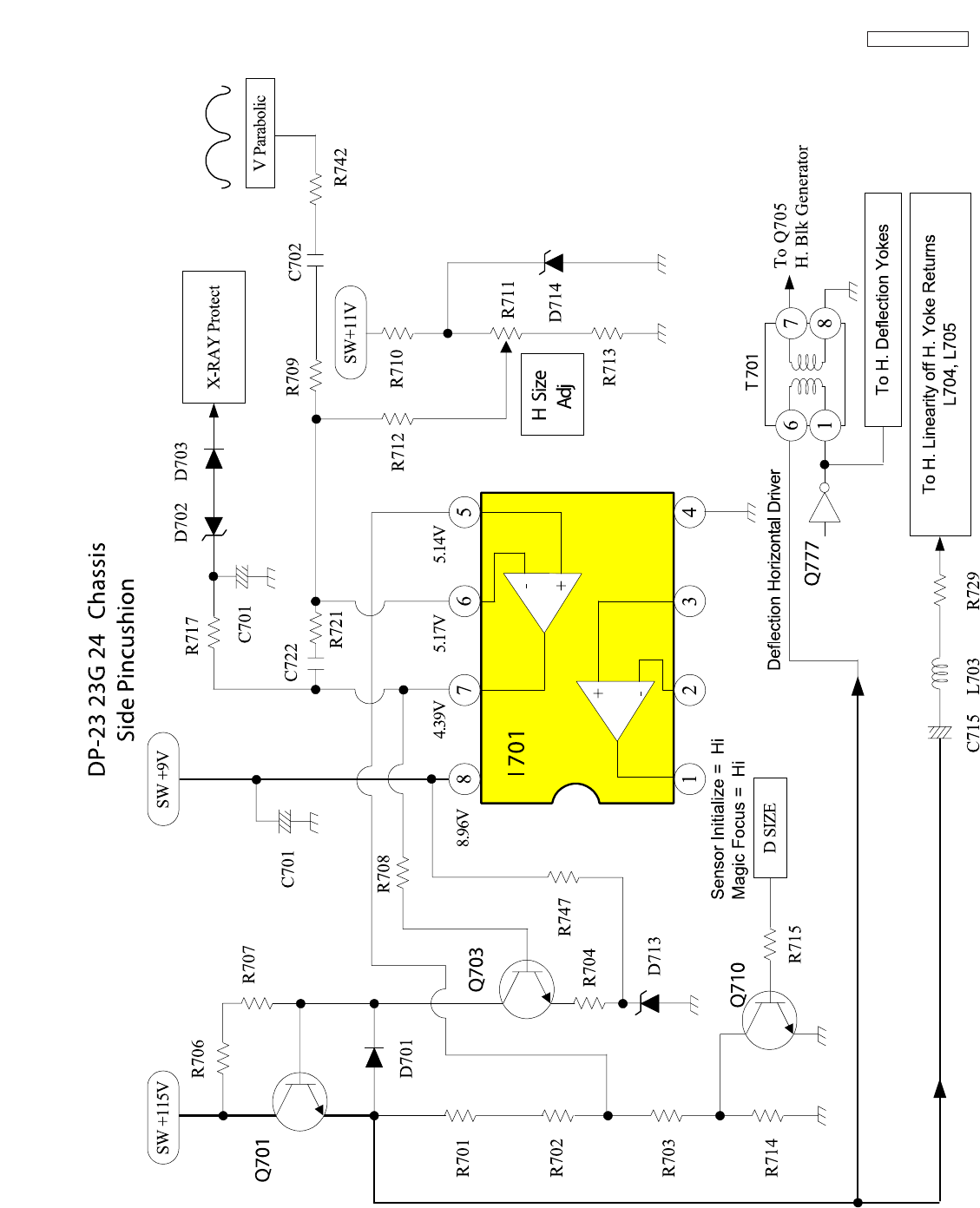

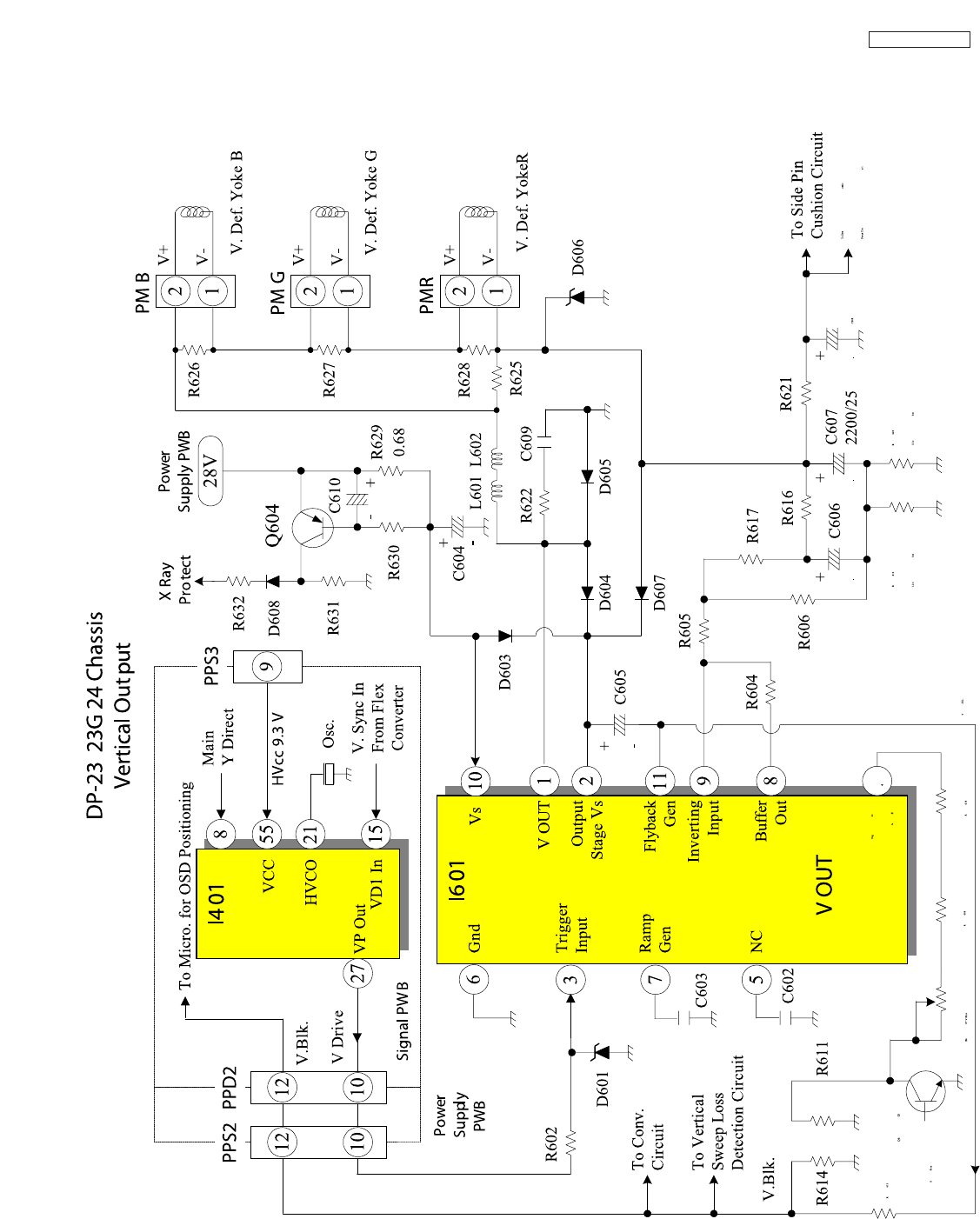

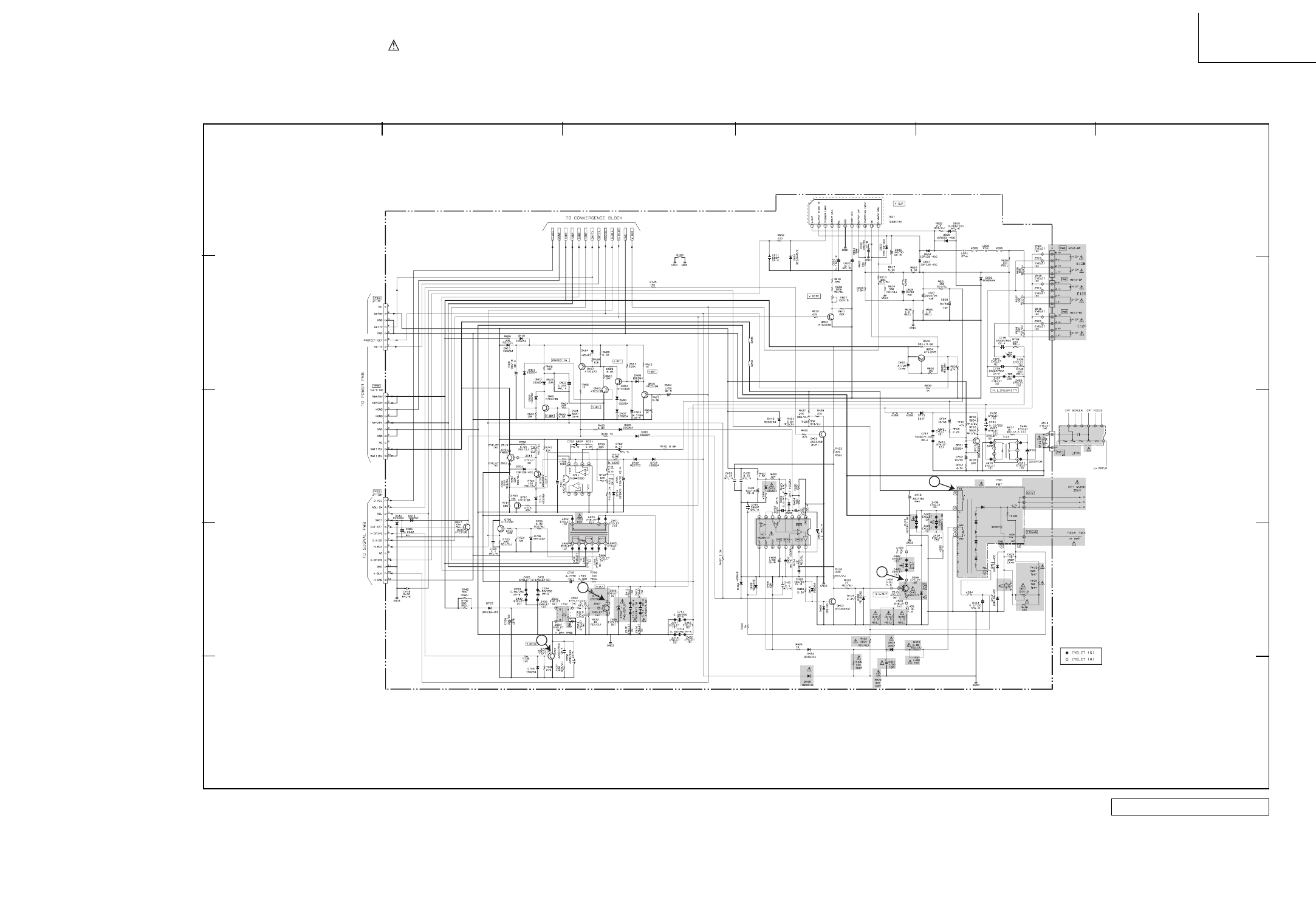

DEFLECTION

PRODUCT SAFETY NOTE: Components marked with a and shaded have special characteristics important to

safety. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE of this Service

Manual. Don’t degrade the safety of the receiver through improper servicing.

BASIC CIRCUIT DIAGRAM DP23/G

DEFLECTION

1234 56

 All DC voltage to be measured with a tester (100k/V). Voltage taken on a complex color bar signal including a standard color bar signal.

 Since this is a basic circuit diagram, the value of the parts is subject to be altered for improvement.

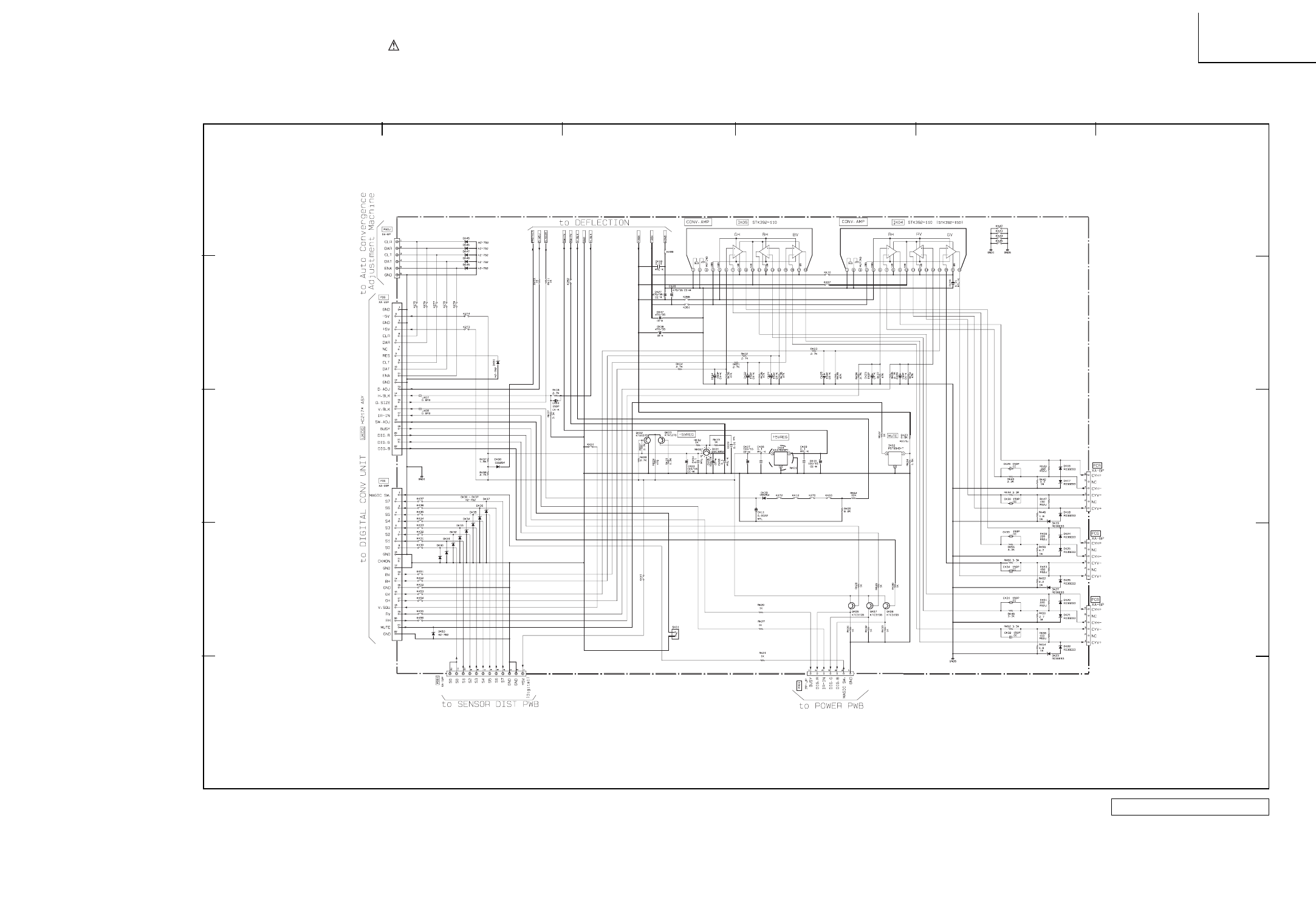

CONVERGENCE

PRODUCT SAFETY NOTE: Components marked with a and shaded have special characteristics important to

safety. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE of this Service

Manual. Don’t degrade the safety of the receiver through improper servicing.

BASIC CIRCUIT DIAGRAM DP23/G

CONVERGENCE

1234 56

 All DC voltage to be measured with a tester (100k/V). Voltage taken on a complex color bar signal including a standard color bar signal.

 Since this is a basic circuit diagram, the value of the parts is subject to be altered for improvement.

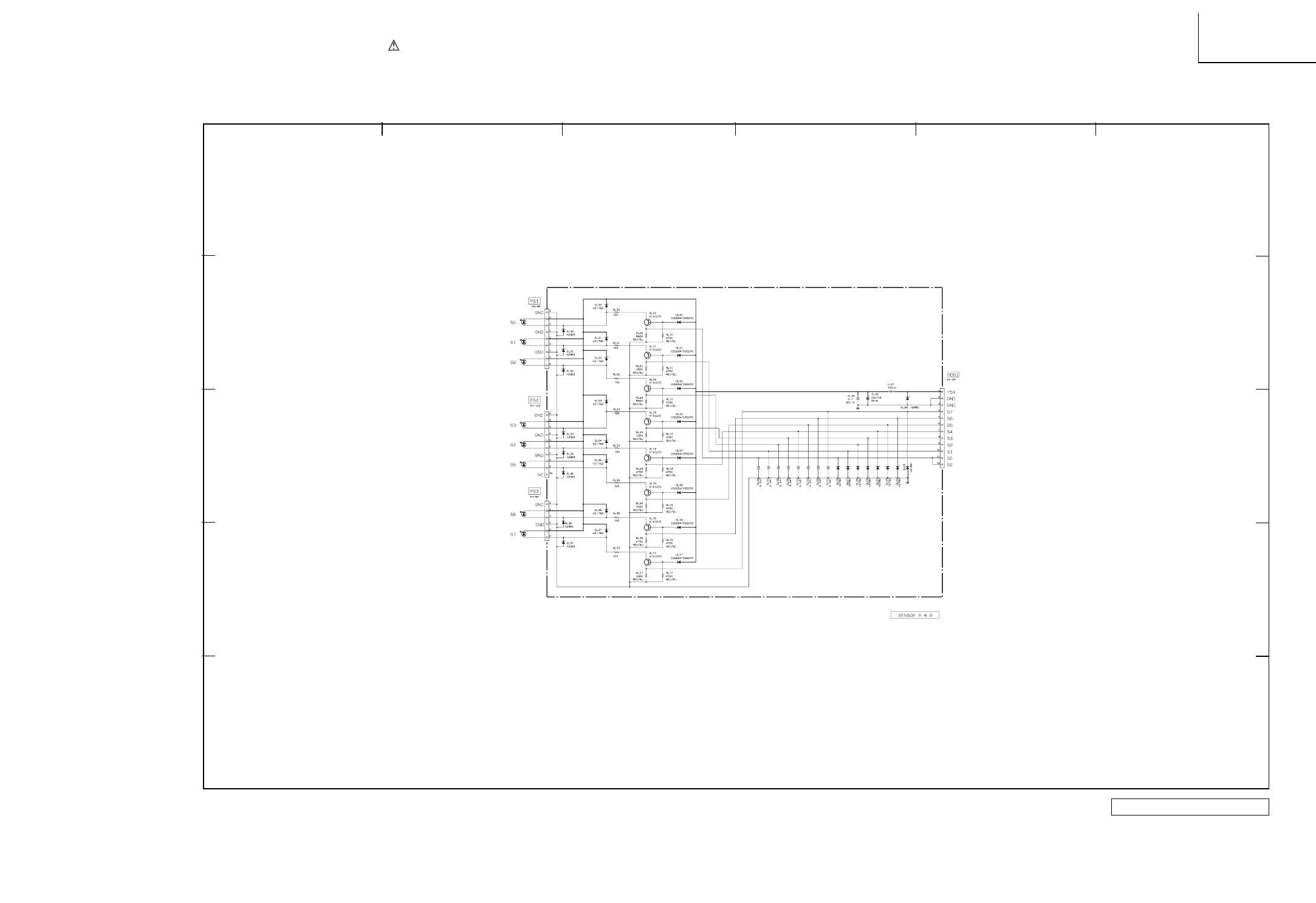

SENSOR

PRODUCT SAFETY NOTE: Components marked with a and shaded have special characteristics important to

safety. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE of this Service

Manual. Don’t degrade the safety of the receiver through improper servicing.

BASIC CIRCUIT DIAGRAM DP23/G

SENSOR

1234 56
A
B
C
D
E
  All DC voltage to be measured with a tester (100k/V). Voltage taken on a complex color bar signal including a standard color bar signal.
  Since this is a basic circuit diagram, the value of the parts is subject to be altered for improvement.
CPT/VM
PRODUCT SAFETY NOTE: Components marked with a      and shaded have special characteristics important to
safety. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE of this Service
Manual. Don’t degrade the safety of the receiver through improper servicing.
BASIC CIRCUIT DIAGRAM DP23/G
CPT/VM
59

1234 56

 All DC voltage to be measured with a tester (100k/V). Voltage taken on a complex color bar signal including a standard color bar signal.

 Since this is a basic circuit diagram, the value of the parts is subject to be altered for improvement.

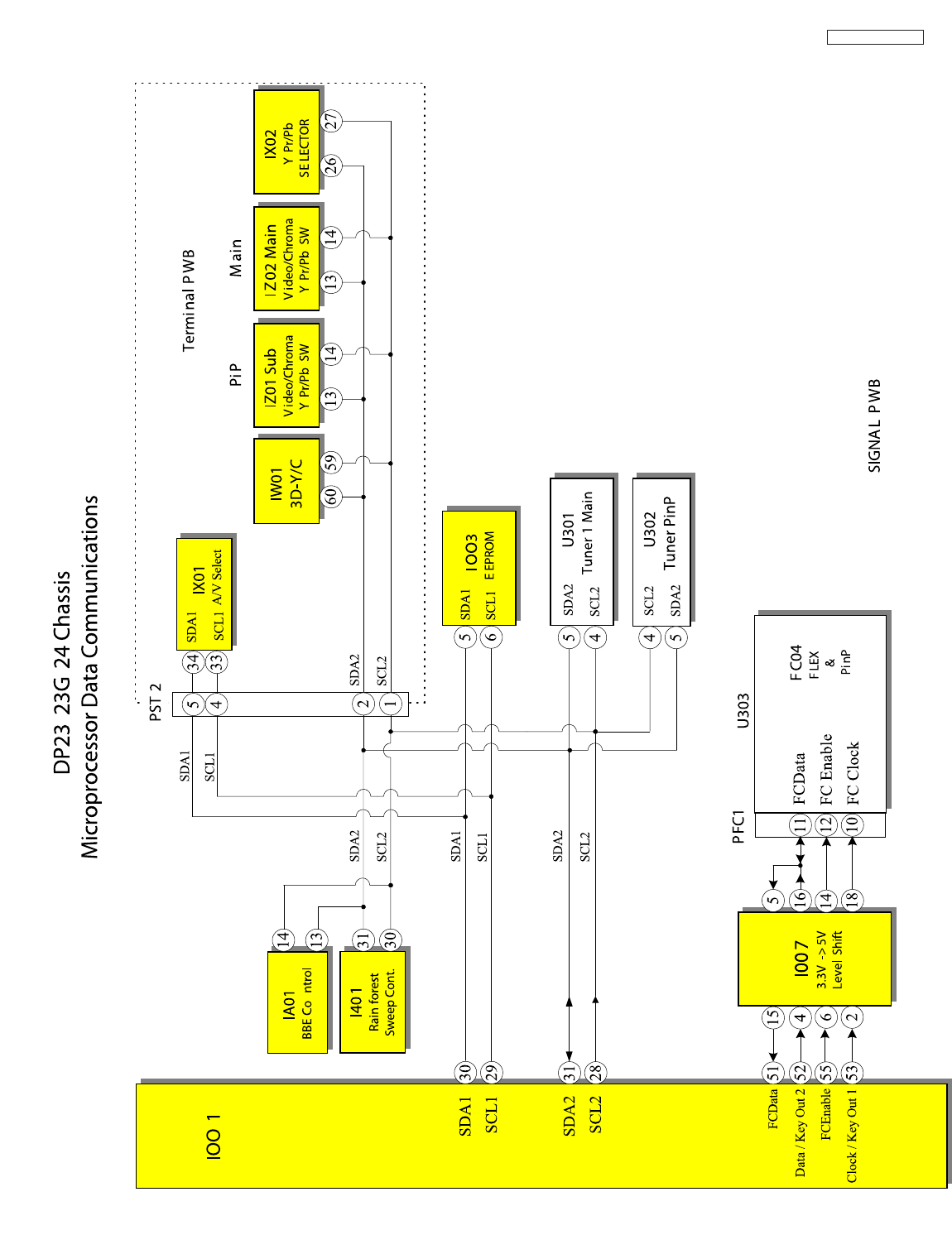

CONTROL

PRODUCT SAFETY NOTE: Components marked with a and shaded have special characteristics important to

safety. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE of this Service

Manual. Don’t degrade the safety of the receiver through improper servicing.

BASIC CIRCUIT DIAGRAM DP23/G

CONTROL

1234 56

 All DC voltage to be measured with a tester (100k/V). Voltage taken on a complex color bar signal including a standard color bar signal.

 Since this is a basic circuit diagram, the value of the parts is subject to be altered for improvement.

DVI

PRODUCT SAFETY NOTE: Components marked with a and shaded have special characteristics important to

safety. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE of this Service

Manual. Don’t degrade the safety of the receiver through improper servicing.

BASIC CIRCUIT DIAGRAM DP23/G

DVI

1234 56

 All DC voltage to be measured with a tester (100k/V). Voltage taken on a complex color bar signal including a standard color bar signal.

 Since this is a basic circuit diagram, the value of the parts is subject to be altered for improvement.

Signal 1 of 3

PRODUCT SAFETY NOTE: Components marked with a and shaded have special characteristics important to

safety. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE of this Service

Manual. Don’t degrade the safety of the receiver through improper servicing.

BASIC CIRCUIT DIAGRAM DP24

Signal 1 of 3

1234 56

 All DC voltage to be measured with a tester (100k/V). Voltage taken on a complex color bar signal including a standard color bar signal.

 Since this is a basic circuit diagram, the value of the parts is subject to be altered for improvement.

Signal 2 of 3

PRODUCT SAFETY NOTE: Components marked with a and shaded have special characteristics important to

safety. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE of this Service

Manual. Don’t degrade the safety of the receiver through improper servicing.

BASIC CIRCUIT DIAGRAM DP24

Signal 2 of 3

20 19

1234 56

 All DC voltage to be measured with a tester (100k/V). Voltage taken on a complex color bar signal including a standard color bar signal.

 Since this is a basic circuit diagram, the value of the parts is subject to be altered for improvement.

Signal 3 of 3

PRODUCT SAFETY NOTE: Components marked with a and shaded have special characteristics important to

safety. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE of this Service

Manual. Don’t degrade the safety of the receiver through improper servicing.

BASIC CIRCUIT DIAGRAM DP24

Signal 3 of 3

1234 56

 All DC voltage to be measured with a tester (100k/V). Voltage taken on a complex color bar signal including a standard color bar signal.

 Since this is a basic circuit diagram, the value of the parts is subject to be altered for improvement.

Terminal

PRODUCT SAFETY NOTE: Components marked with a and shaded have special characteristics important to

safety. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE of this Service

Manual. Don’t degrade the safety of the receiver through improper servicing.

BASIC CIRCUIT DIAGRAM DP24

Terminal

1234 56
A
B
C
D
E
  All DC voltage to be measured with a tester (100k/V). Voltage taken on a complex color bar signal including a standard color bar signal.
  Since this is a basic circuit diagram, the value of the parts is subject to be altered for improvement.
Power Supply
PRODUCT SAFETY NOTE: Components marked with a      and shaded have special characteristics important to
safety. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE of this Service
Manual. Don’t degrade the safety of the receiver through improper servicing.
BASIC CIRCUIT DIAGRAM DP24
Power Supply
66

1234 56

 All DC voltage to be measured with a tester (100k/V). Voltage taken on a complex color bar signal including a standard color bar signal.

 Since this is a basic circuit diagram, the value of the parts is subject to be altered for improvement.

Deflection

PRODUCT SAFETY NOTE: Components marked with a and shaded have special characteristics important to

safety. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE of this Service

Manual. Don’t degrade the safety of the receiver through improper servicing.

BASIC CIRCUIT DIAGRAM DP24

Deflection

1234 56

 All DC voltage to be measured with a tester (100k/V). Voltage taken on a complex color bar signal including a standard color bar signal.

 Since this is a basic circuit diagram, the value of the parts is subject to be altered for improvement.

Convergence

PRODUCT SAFETY NOTE: Components marked with a and shaded have special characteristics important to

safety. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE of this Service

Manual. Don’t degrade the safety of the receiver through improper servicing.

BASIC CIRCUIT DIAGRAM DP24

Convergence

1234 56

 All DC voltage to be measured with a tester (100k/V). Voltage taken on a complex color bar signal including a standard color bar signal.

 Since this is a basic circuit diagram, the value of the parts is subject to be altered for improvement.

Sensor

PRODUCT SAFETY NOTE: Components marked with a and shaded have special characteristics important to

safety. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE of this Service

Manual. Don’t degrade the safety of the receiver through improper servicing.

BASIC CIRCUIT DIAGRAM DP24

Sensor

1234 56
A
B
C
D
E
  All DC voltage to be measured with a tester (100k/V). Voltage taken on a complex color bar signal including a standard color bar signal.
  Since this is a basic circuit diagram, the value of the parts is subject to be altered for improvement.
CPT/VM
PRODUCT SAFETY NOTE: Components marked with a      and shaded have special characteristics important to
safety. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE of this Service
Manual. Don’t degrade the safety of the receiver through improper servicing.
BASIC CIRCUIT DIAGRAM DP24
CPT/VM
70

1234 56

 All DC voltage to be measured with a tester (100k/V). Voltage taken on a complex color bar signal including a standard color bar signal.

 Since this is a basic circuit diagram, the value of the parts is subject to be altered for improvement.

Control

PRODUCT SAFETY NOTE: Components marked with a and shaded have special characteristics important to

safety. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE of this Service

Manual. Don’t degrade the safety of the receiver through improper servicing.

BASIC CIRCUIT DIAGRAM DP24

Control

PRINTED CIRCUIT BOARD

Control P.W.B. - Pattern Side

DP23/23G/24

PRINTED CIRCUIT BOARD

Control P.W.B. - Part Side

DP23/23G/24

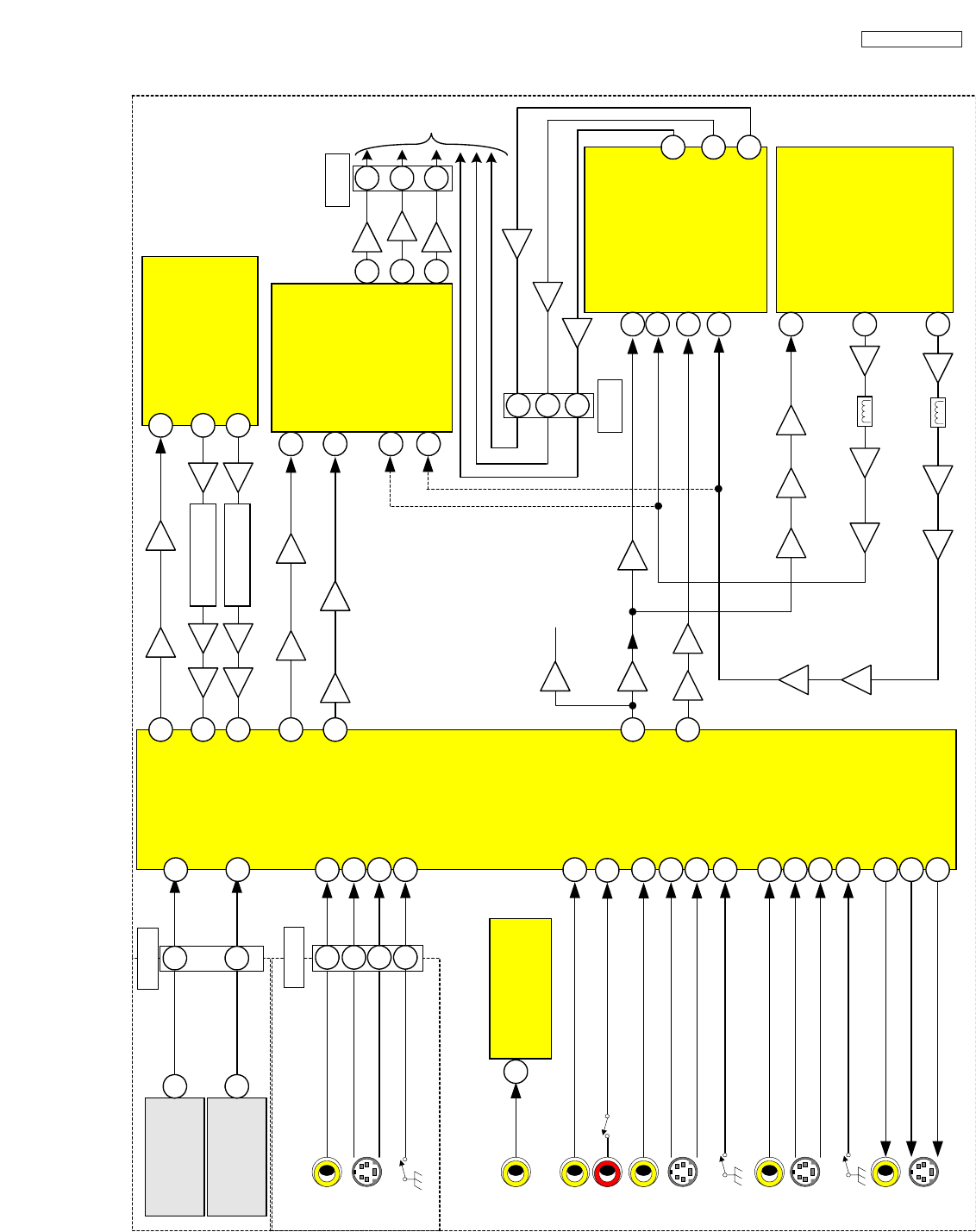

BLOCK DIAGRAM DP23/DP23G

DP23/23G/24

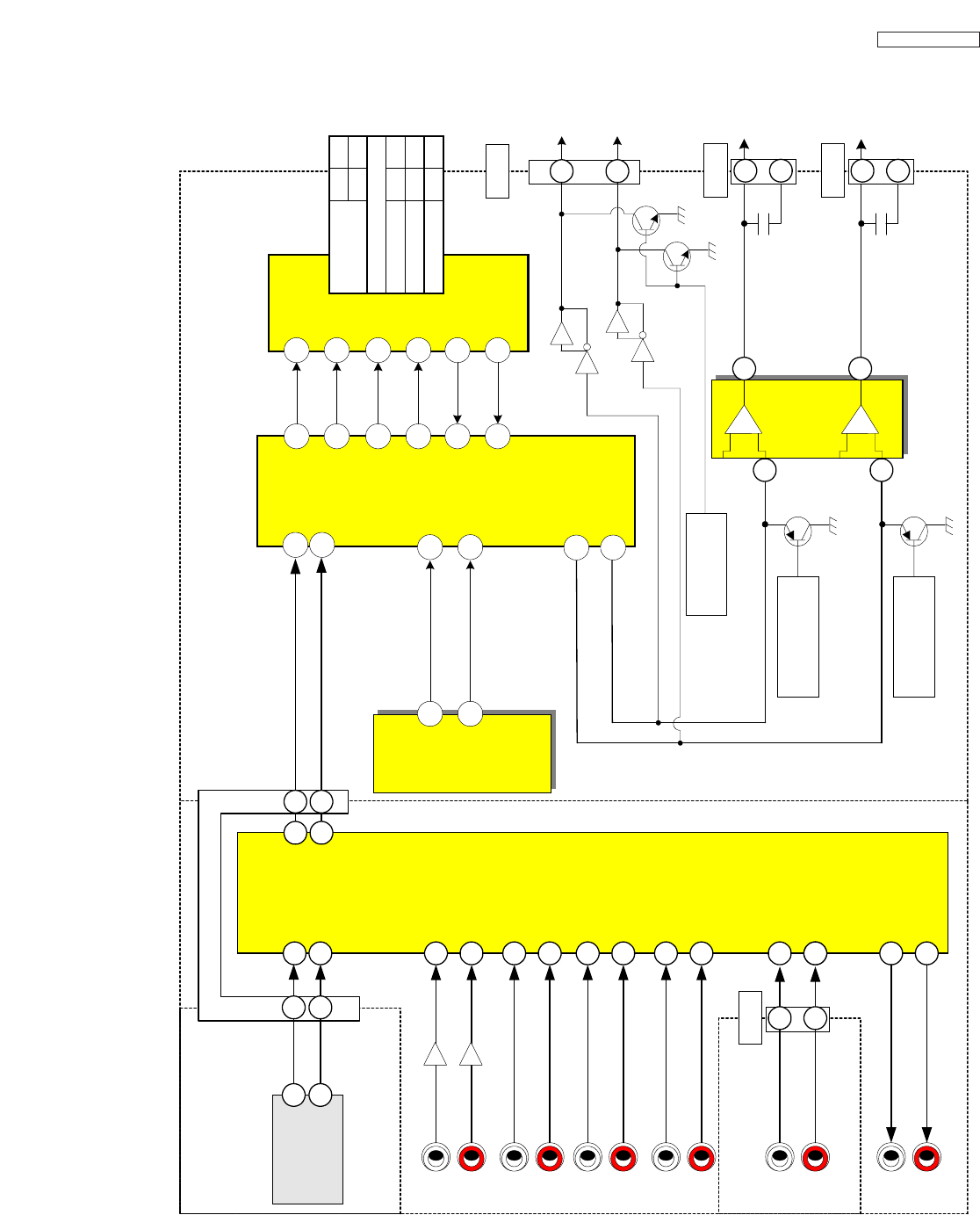

BLOCK DIAGRAM DP24

DP23/23G/24

WIRING DIAGRAM DP23/DP23G

DP23/23G/24

WIRING DIAGRAM DP24

DP23/23G/24

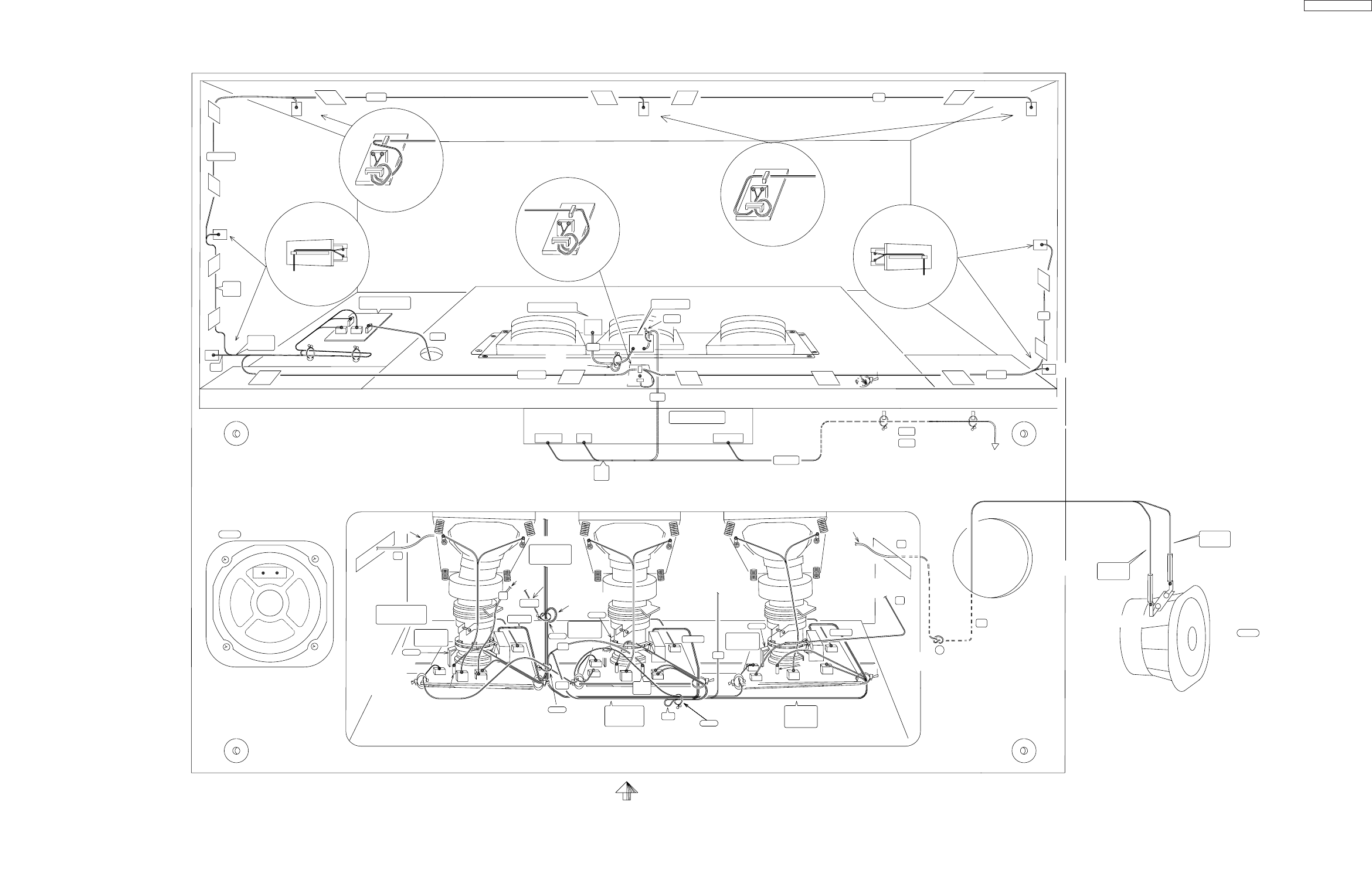

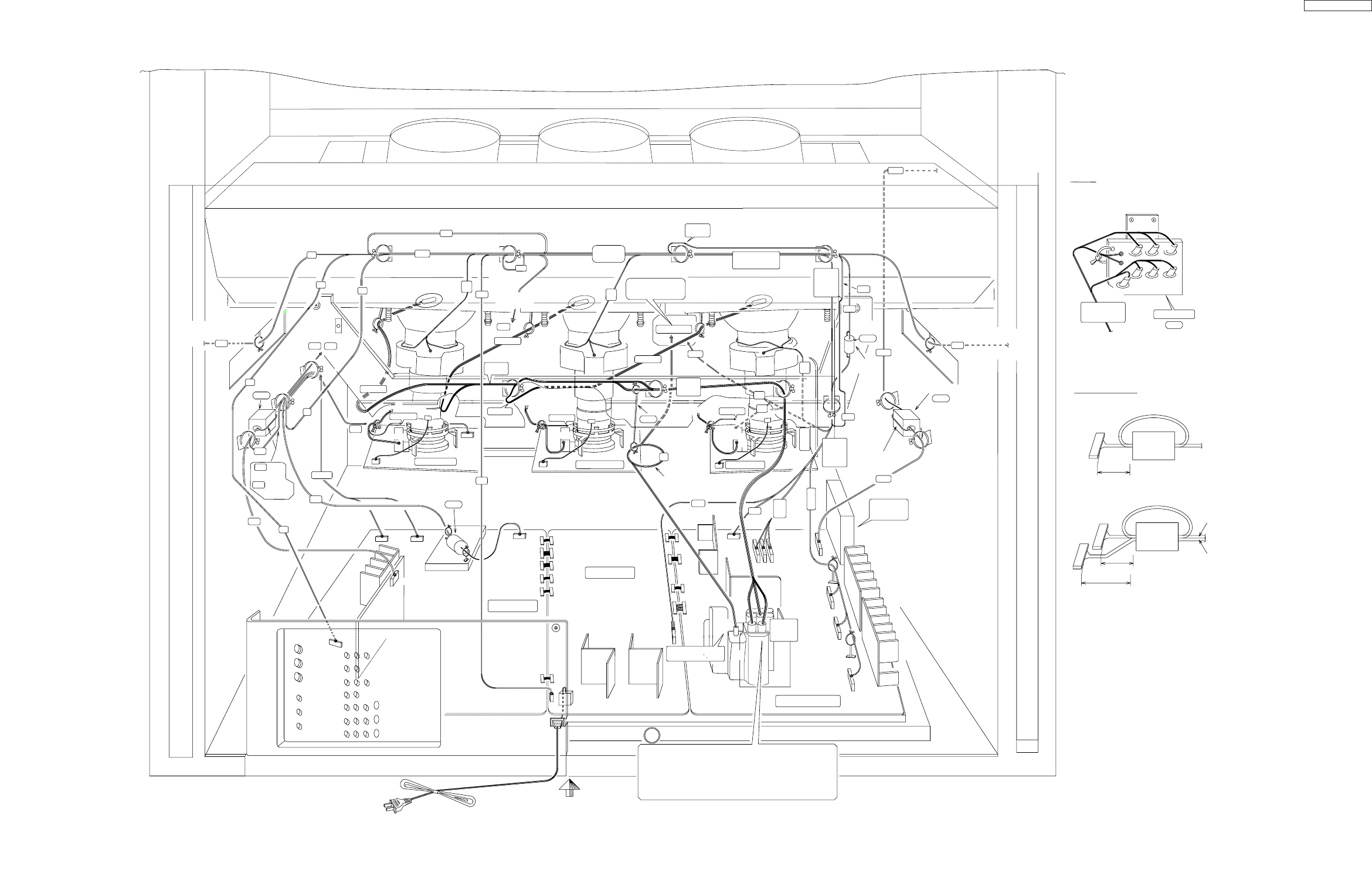

DP23/DP23G FINAL WIRING DRAWING

Control

P.W.B.

to Sensors

P.W.B.

to Deflection

P.W.B.

CPT P.W.B.

DC1

NOTE:(3)

DC1

MG,CG

to CPT

P.W.B. (R)

MB.CB

MG,CG,L

ANODE(R)

ANODE(G)

ANODE(B)

MR,CR

DF1,DC1

MR,CR

DF1,DC1

DF1

MAG-FERRITE

CORE LF

DF1

make a loop

E004

R make double loop

R,L

by the speaker side.

Adjust the slack of a speaker line

NOTE:(4)

E003

(FS),(FT),(E003)

(DS1),(E002)

PREPARATION JOB.

(DS1)

(FS)

(FT)

(FS)

(FT) only, make a loop

220mm

150mm

200mm

CONNECTOR.

E002

(DP23/23G CHASS.)

51/57UWX20B & 51/57GWX20B.

THIS DRAWING APPLIES TO

NOTE:(2)

P.W.B is inserted to PRT.

should be connected before CPT

Connector "VMR","VMG" and "VMB"

DF1,DC1

MR,CR

N003

ANODE(G)

ANODE

(R)

ANODE(B)

ANODE(G)

ANODE(B)

PDF1

CPT P.W.B.(R)

PVMR

MB.CB,DF1,DC1

MR,CR,MG,CG,L

Reference

SCREEN(R,G,B)

FOCUS(R,G,B)

DF1

NOTE:(1)

loop

make a

E003

CORE 1330

MAG-FERRITE

to CONTROL P.W.B.

DS1

NOTE:(2)

DS1

from Woofer R

only

through

PSC

MB,CB

DC1 DF1 CB

DF1

MB.CB

from Woofer L

from SENSOR P.W.B.

DEFLECTION P.W.B.

POWER P.W.B.

PFS

make 1 loop

E002

MAG-FERRITE CORE 1330

SCREEN(B)

PSC

SIGNAL P.W.B.

PPS6

MAG-FERRITE CORE LF

E001

PMG

PMR

PMB

PVMG

PVMB

CPT P.W.B.(G)

loopmake double

PDS1

PDC1

PPD1

PPD2

PPD6

PPD3

FOCUS

ANODE(B)

ANODE(G)

ANODE(R)

FBT

connector (anode lead) is removed or inserted.

NOTE: Refer to the figure (03/page) when the HV

operation of wiring dress.

Anode lead must not be twisted during the

wires. (min. 10mm)

NOTE: Anode lead should be separated from others

PPS3

PPS1

PPS5

PPS4

PPS2

BACK SIDE

PFT

PCB

PCG

PCR

POWER CORD

SCREEN(R)

CPT P.W.B.(B)

ANODE(B) ANODE(G) ANODE(R)

FOCUS PACK

UNIT

CONVERGENCE

DIGITAL

SCREEN(G)

(R)

FOCUS

FOCUS FOCUS

(B)

(G)

DF1

PFS

DF1

SCREEN(R,G,B)

FOCUS(R,G,B)

UFPK

FOCUS PACK

(R)

(G)

(B)

FOCUS

(R)

(G)

(B)

SCREEN

assembly of FOCUS PACK leads.

Refer to the figure below about

NOTE:(1)

PPC

EPC

to CPT P.W.B.

(G)

P851 PIN#3

Focus Pack Focus Pack

Focus Pack

ANODE(R)

DF1,DC1

MR,CR

Make sure FS connector

don't become tight and

it's fully inserted on

FBT.

TERMINAL P.W.B.

MG,CG

MB,CB

L make a loop

(LEAD CLAMP PARTS No.3813121).

MARK SHOULD BE APPLY A LEAD CLAMP(N009)

MARK SHOULD BE APPLY A LEAD CLAMP(N008)

(LEAD CLAMP PARTS No.3875511).

CATCH HOLDER

(BACK VIEW)

NOTE:(5)

R,L

(follow direction indicated)

DP23/23G/24

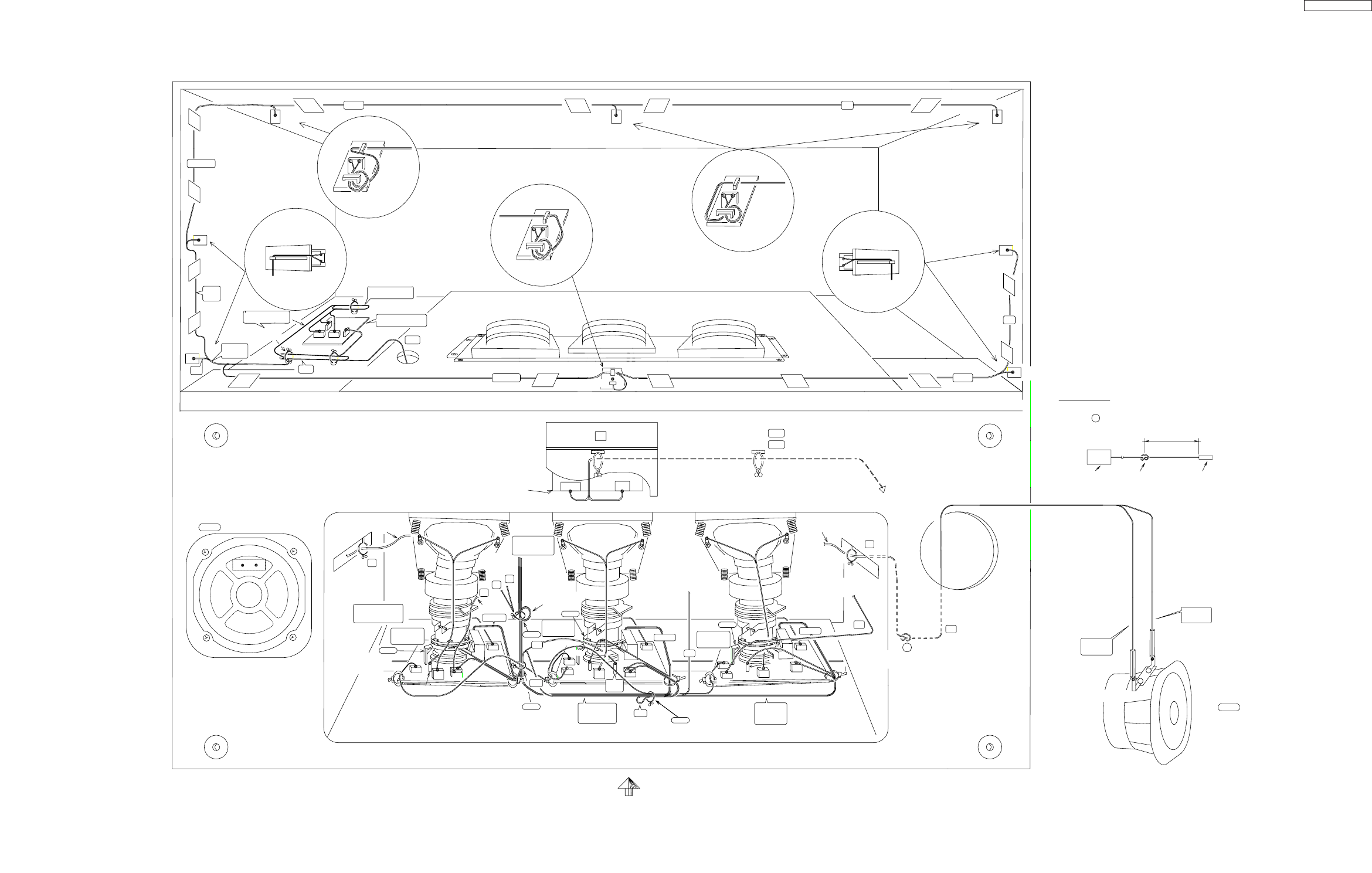

DP23/DP23G FINAL WIRING DRAWING

DS1

SK Binder

N001

DC1 Screen(R),Focus(R)

DF1,FS

EPC

PIN#3

P851

EPC

POWER SUPP P.W.B.

from

PDS1

SENSOR P.W.B.

from DEFLECTION P.W.B.

EAS1

PS3

PS1

PS2

EAS2

EAS3

EAS4

SO/S1/S2

S6/S7

EAS6

SO/S1

S2/S7

S0/S1/S2

EAS0

S1/S2

S3/S4/S5 S3/S4

(DP23/23G CHASS.)

51/57UWX20B & 51/57GWX20B.

THIS DRAWING APPLIES TO

RG2

N006

DF1,FS

N007

POWER

P.W.B.

from

DEFLECTION P.W.B.

from

from SIGNAL P.W.B.

(01/ )reference

SIGNAL P.W.B.

from

GB2

FOCUS(B)

SCREEN(B)

GB2

FOCUS(G&B)

RG2,EPC

SCREEN(G&B)

FT,FS

PFT PFI1

CONTROL P.W.B.

PFS

SCREEN (R)

EGB2

make a loop.

U402

Red

White

Woofer(L)

IR P.W.B.

IR SUB P.W.B.

from TERMINAL P.W.B.

from SIGNAL P.W.B.

U404

brown(PL)

blue(PR)

red(PL)

red(PR)

Woofer(R)

Terminal base : Red

Terminal base : white

PDC1

(G)

SCREEN

from FOCUS PACK

SCREEN(R,G,B)

FOCUS(R,G,B)

(B)

FOCUS

PVMBPVMG

PBV

PSC

PVMR

ERG2

EGB2

ERG2

PRV PGV

#231

ERG1

#231

EGB1

ERG1

(R)

FOCUS

(R)

P.W.B.

CPT

EAS5

(G)

FOCUS

NOTE:(3)

reference

(03/ )

(01/ )reference

EGB1

from SIGNAL P.W.B.

reference.

specification(1)

FRONT SIDE

HOLDER

CPT SOCKET

(B)

SCREEN

(G)

P.W.B.

CPT

P.W.B.

DEFLECTION

#231

(B)

P.W.B.

CPT

make a loop

EAS7

DP23/23G/24

DP23/DP23G FINAL WIRING DRAWING

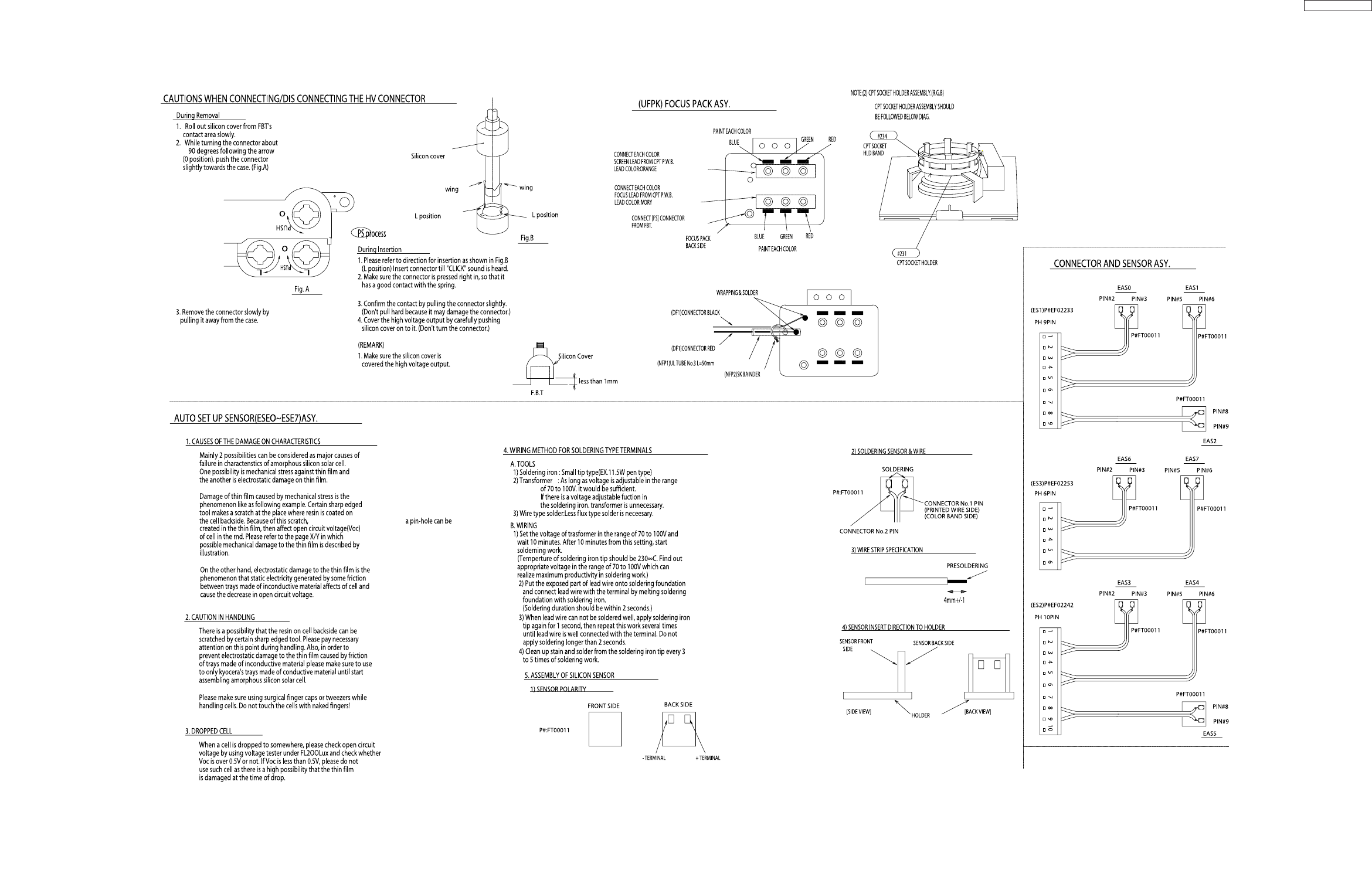

(ES2)P#EF02242

(ES1)P#EF02233

EAS7EAS6

EAS5

EAS4EAS3

EAS2

EAS1EAS0

PIN#2 PIN#5 PIN#6

PIN#3

P#FT00011

(ES3)P#EF02253

PH 6PIN

1 32

PIN#9

PIN#8

PIN#9

PIN#8

PH 10PIN

98 1074 65321

PIN#5

PIN#2 PIN#3 PIN#6

P#FT00011

8 9

P#FT00011

PIN#5

PIN#2 PIN#3 PIN#6

P#FT00011

4 65

PH 9PIN

321

CONNECTOR AND SENSOR ASY.

#234

BE FOLLOWED BELOW DIAG.

CPT SOCKET HOLDER ASSEMBLY SHOULD

NOTE:(3) CPT SOCKET HOLDER ASSEMBLY.(R.G.B)

HLD BAND

CPT SOCKET

#231

CPT SOCKET HOLDER

FROM FBT.

CONNECT[FS]CONNECTOR

(NFP1)UL TUBE No.3 L=50mm

(NFP2)SK BAINDER

(DF1)CONNECTOR RED

(DF1)CONNECTOR BLACK

WRAPPING & SOLDER

LEAD COLOR:IVORY

FOCUS LEAD FROM CPT P.W.B.

CONNECT EACH COLOR

LEAD COLOR:ORANGE

SCREEN LEAD FROM CPT P.W.B.

CONNECT EACH COLOR

RED

GREEN

BLUE

BACK SIDE

FOCUS PACK

PAINT EACH COLOR

RED

GREEN

BLUE

PAINT EACH COLOR

(UFPK) FOCUS PACK ASY.

F.B.T

less than 1mm

Silicon Cover

Silicon cover

wing

L position L position

Fig.B

covered the high voltage output.

1. Make sure the silicon cover is

(REMARK)

silicon cover on to it. (Don’t turn the connector.)

4. Cover the high voltage output by carefully pushing

(Don’t pull hard because it may damage the connector.)

3. Confirm the contact by pulling the connector slightly.

PS process

During Insertion

has a good contact with the spring.

2. Make sure the connector is pressed right in, so that it

(L position) Insert connector till "CLICK" sound is heard.

1. Please refer to direction for insertion as shown in Fig.B

PUSH

Fig. A

pulling it away from the case.

3. Pemove the connector slowly by

CAUTIONS WHEN CONNECTING/DIS CONNECTING THE HV CONNECTOR

slightly towards the case. (Fig.A)

(0 position). push the connector

90 degrees following the arrow

2. While turning the connector about

contact area slowly.

1. Roll out silicon cover from FBT’s

During Removal

4mm+/-1

PRESOLDERING

HOLDER

SENSOR BACK SIDE

SENSOR FRONT SIDE

SOLDERING

2) SOLDERING SENSOR & WIRE

P#:FT00011

CONNECTOR No.2 PIN

P#:FT00011

[SIDE VIEW] [BACK VIEW]

is dama

ed at the time of dro

use such cell as there is a high possibility that the thin film

Voc is over 0.5V or not. If Voc is less than 0.5V, please do not

voltage by using voltage tester under FL2OOLux and check whether

When a cell is dropped to somewhere, please check open circuit

- TERMINAL + TERMINAL

3. DROPPED CELL

handling cells. Do not touch the cells with naked fingers!

Please make sure using surgical finger caps or tweezers while

assembling amorphous silicon solar cell.

to only kyocera’s trays made of conductive material until start

of trays made of inconductive material please make sure to use

prevent electrostatic damage to the thin film caused by friction

attention on this point during handling. Also, in order to

scratched by certain sharp edged tool. Please pay necessary

There is a possibility that the resin on cell backside can be

2. CAUTION IN HANDLING

cause the decrease in open circuit voltage.

between trays made of inconductive material affects of cell and

phenomenon that static electricity generated by some friction

On the other hand, electrostatic damage to the thin film is the

illustration.

possible mechanical damage to the thin film is described by

of cell in the rnd. Please refer to the page X/Y in which

created in the thin film, then affect open circuit voltage(Voc)

a pin-hole can be

the cell backside. Because of this scratch,

tool makes a scratch at the place where resin is coated on

phenomenon like as following example. Certain sharp edged

Damage of thin film caused by mechanical stress is the

the another is electrostatic damage on thin film.

One possibility is mechanical stress against thin film and

failure in charactenstics of amorphous silicon solar cell.

Mainly 2 possibilities can be considered as major causes of

1. CAUSES OF THE DAMAGE ON CHARACTERISTICS

AUTO SET UP SENSOR(EASO~EAS7)ASY.

3) Wire type solder:Less flux type solder is neceesary.

the soldering iron. transformer is unnecessary.

If there is a voltage adjustable fuction in

of 70 to 100V. it would be sufficient.

2) Transformer : As long as voltage is adjustable in the range

1) Soldering iron : Small tip type(EX.11.5W pen type)

A. TOOLS

4. WIRING METHOD FOR SOLDERING TYPE TERMINALS

to 5 times of soldering work.

4) Clean up stain and solder from the soldering iron tip every 3

apply soldering longer than 2 seconds.

until lead wire is well connected with the terminal. Do not

tip again for 1 second, then repeat this work several times

3) When lead wire can not be soldered well, apply soldering iron

(Soldering duration should be within 2 seconds.)

foundation with soldering iron.

and connect lead wire with the terminal by melting soldering

2) Put the exposed part of lead wire onto soldering foundation

realize maximum productivity in soldering work.)

appropriate voltage in the range of 70 to 100V which can

(Temperture of soldering iron tip should be 230 C. Find out

solderning work.

wait 10 minutes. After 10 minutes from this setting, start

1) Set the voltage of trasformer in the range of 70 to 100V and

B. WIRING

5. ASSEMBLY OF SILICON SENSOR

1) SENSOR POLARITY

FRONT SIDE BACK SIDE

4) SENSOR INSERT DIRECTION TO HOLDER

3) WIRE STRIP SPECIFICATION

(COLOR BAND SIDE)

(PRINTED WIRE SIDE)

CONNECTOR No.1 PIN

DP23/23G/24

DP24 FINAL WIRING DRAWING

make a loop

DS1

loop

Make sure FS connector

don't become tight.

CR,

DF1,

ANODE(R)

FS FT

Focus Pack

P851 PIN#3

CPT P.W.B.(G)

EPC

PPC

NOTE:(1)

Refer to the figure below

about the assembly if

FOCUS PACK leads.

SCREEN

(B) (G) (R)

FOCUS

(B) (G) (R)

FOCUS PACK

UFPK

FOCUS(R,G,B)

SCREEN(R,G,B)

DF1 PFS

PFS

DF1

(G)

(B)

FOCUS

FOCUS FOCUS

(R)

SCREEN(G)

DIGITAL

CONVERGENCE

UNIT

FOCUS PACK

ANODE(R)

ANODE(G)

ANODE(B)

CPT P.W.B.(B)

SCREEN(R)

POWER CORD

PCR

PCG

PCB

PFT

BACK SIDE

PPS2

PPS4

PPS5

PPS1

PPS3

NOTE: Anode lead should be separated from others

wires. (min. 10mm)

Anode lead must not be twisted during the

operation of wiring dress.

NOTE: Refer to Preparation Drawing when the HV

connector (anode lead) is removed or inserted.

FBT

ANODE(R)

ANODE(G)

ANODE(B)

FOCUS

PPD3

PPD6

PPD2

PPD1

PDC1

PDS1

make double

loop

CPT P.W.B.(G)

PVMB PVMG

PMB

PMR

PMG

E001

MAG-FERRITE CORE LF

PPS6

SIGNAL P.W.B.

PSC

SCREEN(B)

MAG-FERRITE CORE 1330

E002

CPT-R P.W.B.

PL PFS

POWER P.W.B.

DEFLECTION P.W.B.

from SENSOR P.W.B.

from Woofer L

DF1

DC1

L,PFS

PSC

FS through

only

from Woofer R

DS1

to CONTROL P.W.B.

MAG-FERRITE

CORE 1330

E003

FT make

a loop

NOTE:(1)

DF1

FOCUS(R,G,B)

SCREEN(R,G,B)

Reference

MR,CR

DF1,DC1

PVMR

CPT P.W.B.(R)

PDF1

ANODE(B)

ANODE(G)

ANODE(B)

(R)

ANODE

ANODE(G)

N003

E002

CONNECTOR.

CONNECTOR:

200mm

250mm

(FT) only

(FS)

(FT)

(FS)

(DS1)

PREPARATION JOB.

(DS1),(E002)

(FS),(FT),(E003)

E003

make double loop

E004

MAG-FERRITE

CORE LF

DF1

CG,

CB,

DC1

DF1,DC1

CR,

CG,

CB, DC1

ANODE(B)

ANODE(G)

ANODE(R)

CB,L

MG,CG,MB,

R,L

EPC

make a

loop

DC1

CG,MG,CB,MB,L

DF1,DC1,CR,MR

DF1

DC1

DP23/23G/24

DP24 FINAL WIRING DRAWING

ftom TERMINAL P.W.B.

from SIGNAL P.W.B.

PFS

PFT

PFS

PFT

CONTROL P.W.B.

Screen(R),Focus(R)

DF1,FS

EPC

PIN#3

P851

EPC

POWER SUPP P.W.B.

from

PDS1

SENSOR P.W.B.

from DEFLECTION P.W.B.

EAS1

PS3

PS1

PS2

EAS2

EAS3

EAS4

SO/S1/S2

S6/S7

EAS6

SO/S1

S2/S7

S0/S1/S2

EAS0

S1/S2

S3/S4/S5 S3/S4

RG2

N006

DF1

N007

POWER P.W.B.

from

DEFLECTION

P.W.B.

from

from SIGNAL P.W.B.

SIGNAL P.W.B.

from

GB2

FOCUS(B)

SCREEN(B)

GB2

FOCUS(G,B)

RG2,EPC

SCREEN(G,B)

SCREEN (R)

EGB2

make a loop.

U402

Red

White

Woofer(L)

U404

brown(PL)

blue(PR)

red(PL)

red(PR)

Woofer(R)

Terminal base : Red

Terminal base : white

PDC1

(G)

SCREEN

from

FOCUS PACK

SCREEN(R,G,B)

FOCUS(R,G,B)

(B)

FOCUS

PVMBPVMG

PBV

PSC

PVMR

ERG2

EGB2

ERG2

PRV PGV

#231

ERG1

#231

EGB1

ERG1

(R)

FOCUS

(R)

P.W.B.

CPT

EAS5

(G)

FOCUS

EGB1

from SIGNAL P.W.B.

FRONT SIDE

HOLDER

CPT SOCKET

(B)

SCREEN

150mm+/-10mm

(G)

P.W.B.

CPT

P.W.B.

DEFLECTION

#231

(B)

P.W.B.

CPT

Faston side

Knot

Housing side

the hole A cabinet.

(1) Make a knot as below Figure after wires are through

SPECIFICATION

EAS7

PDS1

ONLY, make double loop

make loops

PS1,PS2,PS3

through this

clamp only

reference.

specification(1)

DC1

DP23/23G/24

DP24 FINAL WIRING DRAWING

DP23/23G/24

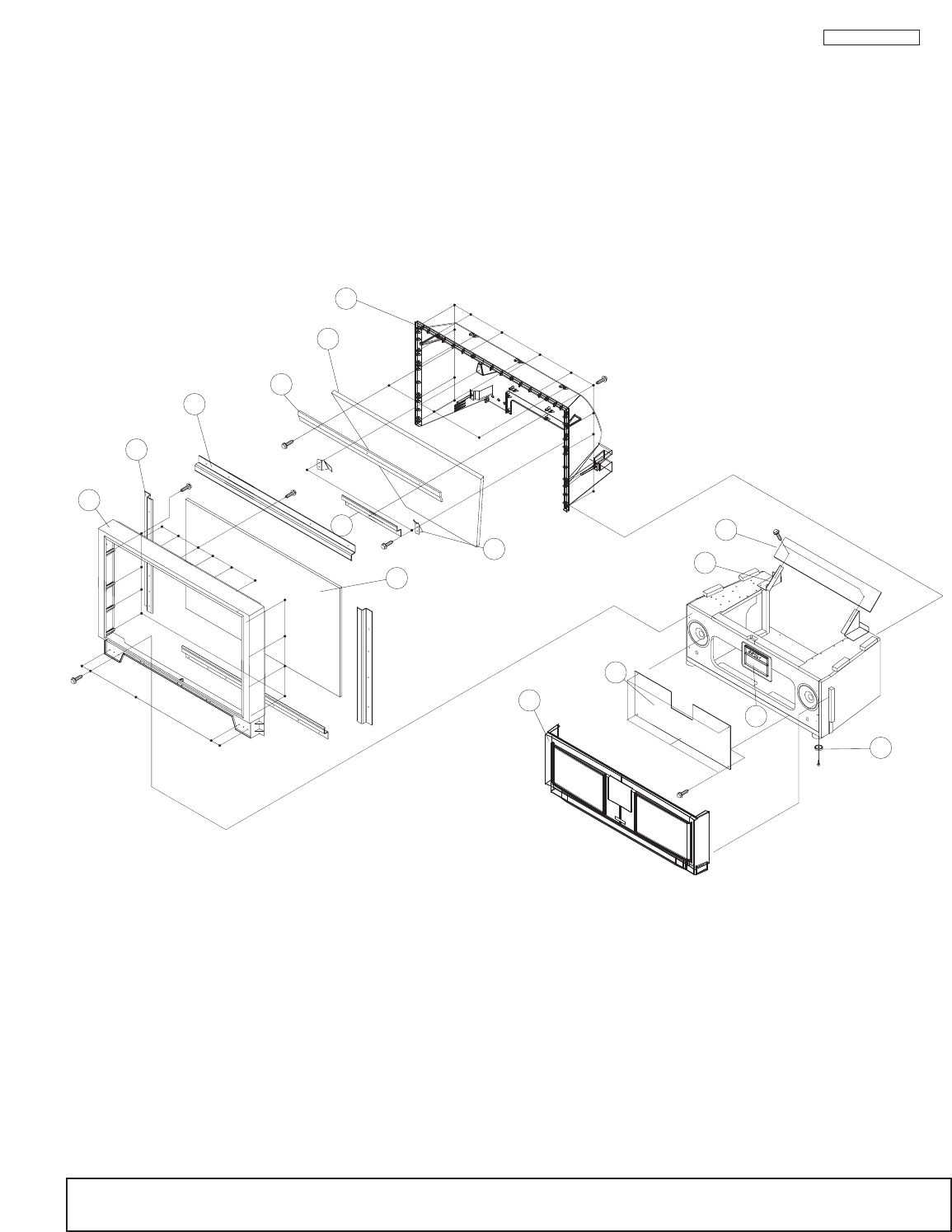

EXPLODED VIEW

43FWX 1

NOTES: Some parts may appear different than those shown in the exploded view. When ordering, refer to the replacement parts

list for the correct part number. The circled numbers correspond to the parts list shown on page 90.

DP23/23G/24

EXPLODED VIEW

43FWX 2

NOTES: Some parts may appear different than those shown in the exploded view. When ordering, refer to the replacement parts

list for the correct part number. The circled numbers correspond to the parts list shown on page 90.

DP23/23G/24

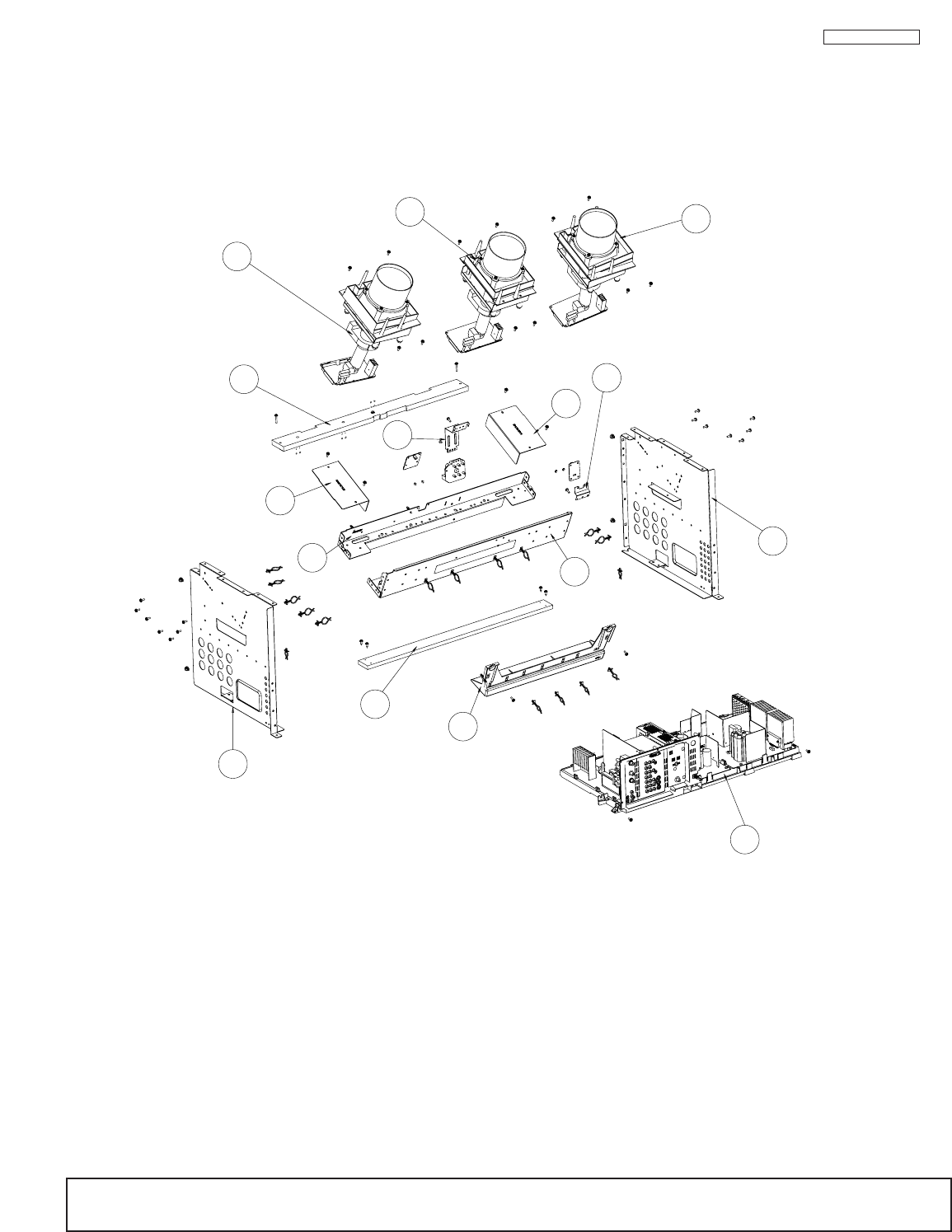

EXPLODED VIEW

43FWX 3

NOTES: Some parts may appear different than those shown in the exploded view. When ordering, refer to the replacement parts

list for the correct part number. The circled numbers correspond to the parts list shown on page 90.

DP23/23G/24

EXPLODED VIEW

51/57UWX/51/57GWX 1

NOTES: Some parts may appear different than those shown in the exploded view. When ordering, refer to the replacement parts

list for the correct part number. The circled numbers correspond to the parts list shown on pages 92, 93 and 94.

DP23/23G/24

EXPLODED VIEW

51/57UWX/51/57GWX 2

NOTES: Some parts may appear different than those shown in the exploded view. When ordering, refer to the replacement parts

list for the correct part number. The circled numbers correspond to the parts list shown on pages 92, 93 and 94.

DP23/23G/24

15 16

17 18

21 22

EXPLODED VIEW

51/57UWX/51/57GWX 3

NOTES: Some parts may appear different than those shown in the exploded view. When ordering, refer to the replacement parts

list for the correct part number. The circled numbers correspond to the parts list shown on pages 92, 93 and 94.

DP23/23G/24

Model

No Part No Description Qty

1QD21383 43" WIDE BACK COVER 1

2KS02029 '02 43" WIDE MIRROR GLASS 1

3NA53251 43W UPPER MIRROR HOLDER 1

4NA53261 43W LOWER MIRROR HOLDER 1

5NA52043 43 CENTRAL METAL MIRROR 1

6NJ05503 43" SCREEN AND WIRE RETAINER (H 16X9) 2

7KR02541 DP2X SCREEN ASSY 43W 1

8NJ05504 43" SCREEN AND WIRE RETAINER (V 16X9) 2

9QD21421 43" WIDE FRAME A PS UL94HB 1

10 33010465 BARRIER BOARD 43FWX 1

11 NA58801/2 COVER FIX METAL R/L 1

12 UE20003 DP24 CONTROL PANEL ASSY 1

PH30852 CONTROL PANEL ASSY (43UWX20B) 1

PH09751 CONTROL DOOR 43" 1

13 QJ00673 FOOT LC52-SV1 4

14 55020084 FRONT BOARD 43FWX 1

15 PH30662 SPEAKER GRILLE ASSY 1

16 QD34371 43UWX20B CABINET ASSY 1

17 UE20421 DP24 CORE BLOCK ASSY 1

18 H512308 LOWER REAR BOARD 1

19 UE20311 CPD-LXS LC BLOCK ASSY (RED) 1

20 UE20312 CPD-LXS LC BLOCK ASSY (GREEN) 1

21 UE20313 CPD-LXS LC BLOCK ASSY (BLUE) 1

22 NA57181 IR PWB FIX MTL DP2X 1

23 NA57573 LC METAL 2002-43 SIDE 2

24 NA57471 DP24 FOCUS FIX MTL 1

25 NA57221 LC METAL 2002-43 FRONT 1

26 NA56991 LC METAL 2002-25 REAR 1

27 NM00942 CHASSIS SUPPORT 2002-43 1

28 NA57231 SIDE METAL 2002-43 R 1

29 NJ06581 DRIPPING HOLDER DP2X 1

30 NA57232 SIDE METAL 2002-43 L 1

31 UE09963 DP24 CHASSIS ASY 1

43FWX20B

43FWX EXPLODED VIEW PARTS LIST

DP23/23G/24

Model

No Part No Description Qty

01 QD34242 SCREEN FRAME 51FWX20B 1

02 KR02542 51UWX SCREEN ASSY 1

03 NA56291 SCREEN TOP METAL 51 2

04 KS04087 '02 51W MIRROR GLASS 1

05 NA56321 SCREEN TOP SUPP.MTL 4

06 NA56311 SCREEN SIDE METAL 51 2

07 NA56302 SCREEN LOW METAL 51UW 2

08 PH31761 51FWX SP GRILLE ASSY 1

09 UE20001 DP23 CONTROL PANEL ASSY 1

PH31521 CONTROL PANEL 2002 51" & 57" 1

PH31533 CONTROL DOOR 51" & 57" 1

10 55010267 FRONT BOARD 2002 UWX 1

11 QD34361 51FWX20B CABINET ASSY 1

12 UE20431 51UWX CORE BLOCK ASSY 1

13 H512307 LOWER REAR BOARD 1

14 UE20791 SCB-LXL LC BLOCK ASSY (RED) 1

15 UE20792 SCB-LXL LC BLOCK ASSY (GREEN) 1

16 UE20793 SCB-LXL LC BLOCK ASSY (BLUE) 1

17 31210039 FRONT COVER 1

18 NA57181 IR PWB FIX MTL DP2X 1

19 NA57571 LC METAL 2002-51 SIDE 2

20 NA57191 DP2X FOCUS FIX MTL 1

21 NA56981 LC METAL 2002-25 FRONT 1

22 NA56991 LC METAL 2002-25 REAR 1

23 NM00941 CHASSIS SUPPORT 2002 1

24 NA56971 SIDE METAL 2002-25 R 1

25 NJ06581 DRIPPING HOLDER DP2X 1

26 NA56972 SIDE METAL 2002-25 L 1

27 UE09961 DP23 CHASSIS ASY 1

28 33020091 BARRIER BOARD ASSY 1

51UWX20B

51UWX EXPLODED VIEW PARTS LIST

DP23/23G/24

Model

No Part No Description Qty

01 QD34241 SCREN FRAME 51SWX20B 1

02 KR02543 51GWX SCREEN ASSY 1

03 NA56291 SCREEN TOP METAL 51 2

04 KS04087 '02 51W MIRROR GLASS 1

05 NA56321 SCREEN TOP SUPP.MTL 4

06 NA56311 SCREEN SIDE METAL 51 2

07 NA56332 SCREEN LOW SUPPORT METAL 2

08 PH31771 51GWX SP GRILLE ASSY 1

09 UE20002 DP23G CONTROL PANEL ASSY 1

PH31521 CONTROL PANEL 2002 51" & 57" 1

PH31533 CONTROL DOOR 51" & 57" 1

10 55010267 FRONT BOARD 2002 1

11 QD34362 51GWX22B CABINET ASSY 1

12 UE20432 51GWX CORE BLOCK ASSY 1

13 H512307 LOWER REAR BOARD 1

14 UE20791 SCB-LXL LC BLOCK ASSY (RED) 1

15 UE20792 SCB-LXL LC BLOCK ASSY (GREEN) 1

16 UE20793 SCB-LXL LC BLOCK ASSY (BLUE) 1

17 31210039 FRONT COVER 1

18 NA57181 IR PWB FIX MTL DP2X 1

19 NA57571 LC METAL 2002-51 SIDE 2

20 NA57191 DP2X FOCUS FIX MTL 1

21 NA56981 LC METAL 2002-25 FRONT 1

22 NA56991 LC METAL 2002-25 REAR 1

23 NM00941 CHASSIS SUPPORT 2002 1

24 NA56971 SIDE METAL 2002-25 R 1

25 NJ06581 DRIPPING HOLDER DP2X 1

26 NA56972 SIDE METAL 2002-25 L 1

27 UE09962 DP23G CHASSIS ASY 1

28 33020091 BARRIER BOARD ASSY 1

51GWX20B

51GWX EXPLODED VIEW PARTS LIST

DP23/23G/24

Model

No Part No Description Qty

01 QD34352 SCREEN FRAME 57FWX20B 1

02 KR02544 DP2X SCREEN ASSY 57UWX 1

03 NA56292 SCREEN TOP/LOW METAL 57 2

04 KS04085 '02 57W" MIRROR GLASS 1

05 NA56321 SCREEN TOP SUPP.MTL 4

06 NA56312 SCREEN SIDE METAL 57 2

07 NA56332 SCREEN LOW SUPPORT METAL 2

08 PH31762 SCREEN LOW SUPPORT METAL 2

09 UE20001 DP23 CONTROL PANEL ASSY 1

PH31521 CONTROL PANEL 2002 51" & 57" 1

PH31533 CONTROL DOOR 51" & 57" 1

10 55010267 FRONT BOARD 1

11 QD34541 57FWX20B CABINET ASSY 1

12 UE20431 57UWX20B CORE BLOCK ASSY 1

13 H512307 LOWER REAR BOARD 1

14 UE20794 SCC-LXL LC BLOCK ASSY (RED) 1

15 UE20795 SCC-LXL LC BLOCK ASSY (GREEN) 1

16 UE20796 SCC-LXL LC BLOCK ASSY (BLUE) 1

17 31210039 FRONT COVER 1

18 NA57181 IR PWB FIX MTL DP2X 1

19 NA57572 LC METAL 2002-57 SIDE 2

20 NA57191 DP2X FOCUS FIX MTL 1

21 NA56981 LC METAL 2002-25 FRONT 1

22 NA56991 LC METAL 2002-25 REAR 1

23 NM00941 CHASSIS SUPPORT 2002 1

24 NA56971 SIDE METAL 2002-25 R 1

25 NJ06581 DRIPPING HOLDER DP2X 1

26 NA56972 SIDE METAL 2002-25 L 1

27 UE09962 DP23 CHASSIS ASY 1

28 33020091 BARRIER BOARD ASSY 1

57UWX20B

57UWX EXPLODED VIEW PARTS LIST

DP23/23G/24

Model

No Part No Description Qty

01 QD34353 SCREEN FRAME 57SWX20B 1

02 KR02545 DP2X SCREEN ASSY 57TWX 1

03 NA56292 SCREEN TOP/LOW METAL 57 2

04 KS04085 '02 57W" MIRROR GLASS 1

05 NA56321 SCREEN TOP SUPP.MTL 4

06 NA56312 SCREEN SIDE METAL 57 2

07 NA56332 SCREEN LOW SUPPORT METAL 2

08 PH31772 57GWX SP GRILLE ASSY 1

09 UE20002 DP23G CONTROL PANEL ASSY 1

PH31521 CONTROL PANEL 2002 51" & 57" 1

PH31533 CONTROL DOOR 51" & 57" 1

10 55010267 FRONT BOARD 2002 1

11 QD34542 57GWX20B CABINET ASSY 1

12 UE20434 57GWX20B CORE BLOCK ASSY 1

13 H512307 LOWER REAR BOARD 1

14 UE20794 SCC-LXL LC BLOCK ASSY (RED) 1

15 UE20795 SCC-LXL LC BLOCK ASSY (GREEN) 1

16 UE20796 SCC-LXL LC BLOCK ASSY (BLUE) 1

17 31210039 FRONT COVER 1

18 NA57181 IR PWB FIX MTL DP2X 1

19 NA57572 LC METAL 2002-57 SIDE 2

20 NA57191 DP2X FOCUS FIX MTL 1

21 NA56981 LC METAL 2002-25 FRONT 1

22 NA56991 LC METAL 2002-25 REAR 1

23 NM00941 CHASSIS SUPPORT 2002 1

24 NA56971 SIDE METAL 2002-25 R 1

25 NJ06581 DRIPPING HOLDER DP2X 1

26 NA56972 SIDE METAL 2002-25 L 1

27 UE09962 DP23G CHASSIS ASY 1

28 33020091 BARRIER BOARD ASSY 2002 1

57GWX20B

57GWX EXPLODED VIEW PARTS LIST

DP23/23G/24

NO. CIRC. # PART NO. DESCRIPTION FUNCTION PWB asy SG DP23 DP23G DP24

1 I001 CK37372U M306V3MG-XXXFP TV u-com (MASK) Signal DA X X X

2I002 CK37051R BD4729G-TR RESET IC Signal DA X X X

3I003 CK35894R CAT24WC32J1 E2PROM Signal DB X X X

4I005 CK31992R BU4053BCF-E2 CCD SELECTOR Signal DB X X X

5I007 CK09541R HD74HCT245T BUFFER Signal DA X X X

6I401 CP08191U TA1360N RGB PROCESSOR Signal X X X

7I402 CK31992R BU4053BCF-E2 VIDEO SELECTOR Signal DA X X X

8IA01 CK36491R NJW1137M-TE1 AUDIO PROCESSOR w/ BBE Signal DA X X X

9IA02 CK35451R NJM2198M SRS 3D AUDIO PROCESSOR Signal DB X X X

10 IA03 2004751 ICL-TA8200AH AUDIO AMPLIFIER 12W Signal X X X

11 IP51 CK37191R SI-3018LSA-TL DM +1.8V REGULATOR Signal DA X X X

12 IP52 CP08121R SI-3002KWF SW +3.3/2.5V REGULATOR Signal X X X

13 IP53 CP06081 SI-3050N SW +5V REGULATOR Signal X X X

14 IP81 CK37184R SI-3033LUS SBY +3.3V REGULATOR Signal DA X X X

15 IV01 CK07631R TC90A45F DIG. 2 LINE Y/C SEPARATOR Terminal DA X X X

16 IW01 CK36951U UPD64083GF-3BA DIG. 3D Y/C SEPARATOR Terminal DA X X X

17 IW02 CK06097R PST9127NR RESET FOR IW01 Terminal DA X X X

18 IX01 CK30941U CXA2069Q A/V SELECTOR Terminal DB X X X

19 IX02 CK34811U MM1519XQ YPBPR SELECTOR Terminal DA X X X

20 IZ01 CK36961R TA1340F SUB Y/C YPBPR SELECTOR Terminal DA X X X

21 IZ02 CK36961R TA1340F MAIN Y/C YPBPR SELECTOR Terminal DA X X X

22 I601 CP06891 TDA8174A VERTICAL DEF OUT Deflection X X X

23 I701 2362606 NJM4558D GAIN AMP (SIDE PIN CORR.) Deflection X X X

24 IH01 CP07091 M62501P HV CONTROLLER Deflection X X X

25 IK01 CP02422 KIA7805PI +5V REGULATOR Deflection X X X

26 IK02 CP05011R PST994D-T DCU MUTE (RESET) Deflection C X X X

27 IK04 CZ00431 STK392-110 CONV. AMPLIFIER Deflection X X X

28 IK05 CZ00431 STK392-110 CONV. AMPLIFIER Deflection X X X

29 I901 CP08101U STR-X6456(LF1901) SWITCHING REGULTAOR Power X X X

30 I902 CZ01082 STR-F6628(LF1359) SWITCHING REGULATOR Power X X X

31 I903 CP07851 TLP421 OPT. ISOLATOR Power X X X

32 I904 CP07851 TLP421 OPT. ISOLATOR Power X X X

33 I905 CP07851 TLP421 OPT. ISOLATOR Power X X X

34 I906 CP07851 TLP421 OPT. ISOLATOR Power X X X

35 I907 2381343 SE115N +B REGULATOR Power X X X

36 I908 CP05141 PQ6RD083 +6.3V REGULATOR Power X X X

37 I909 CP06081 SI-3050N +5V REGULATOR Power X X X

38 I910 CP05163F SI-3090F +9V REGULATOR Power X X X

39 I911 CP06543F SI-3090C +9V REGULATOR Power X X X

40 EANT HP00771 UNX ANT SW ANT. SWITCH BOX Main Chass X X X

41 HM01 CZ00833 GP1U281R IR RECEIVER Control X

42 HM02 CZ00641 GP1U281Q IR RECEIVER IR X X

43 HM03 CZ00641 GP1U281Q IR RECEIVER IR X X

44 U301 HC00492 F-E-V0-A30FTR MAIN TUNER Signal X X

45 U301 HC00522 F-E-TMYH4X300A MAIN TUNER Signal X

46 U302 HC00502 F-E-V0-A68FTR SUB TUNER Signal X X

47 U302 HC00532 F-E-TMYH2X300A SUB TUNER Signal X

48 U303 CS00621 HC5621-ASY FLEX CONTROLLER UNIT FC4 Signal X X

49 U303 CS00641 HC5621T ASY FLEX CONTROLLER UNIT FC4 Signal X

50 UKDG CS00591 HC2171-ASY DIG. CONV. UNIT Deflection X

QUICK REFERENCE PARTS LIST

UKDG

CS00651

(HC2171)

DIG. CONV. UNIT

Deflection

CH 2

CK07631R

CK37372U

DP23/23G/24

REPLACEMENT PARTS LIST

PRODUCT SERVICE NOTE: Components marked with a have special characteristics important to safety. Before replacing

any of these components, read carefully, the PRODUCT SAFETY NOTICE of this Service Manual. Don’t degrade the safety of the

receiver through improper servicing.

Capacitors: Resistors: Semiconductors:

AL: Aluminum Electrolytic CF: Carbon Film TR: Transistor

CD: Ceramic Disc CC: Carbon Composition DI: Diode

EL: Electrolitic MF: Metal Oxide ZD: Zener Diode

PF: Polyester Film VR: Variable Resistor VA: Varistor

PP: Polypropylene WW: Wire Wound TH: Termistor

PL: Plastic FR: Fuse Resistor IC: Integrated Circuit

TA: Tantalum MG: Metal Grazed

PR: Paper

TM: Trimmer

MC: Mylar

ABBREVIATIONS

SYMBOL PART PART DP23 DP23G DP24 SYMBOL PART PART DP23 DP23G DP24

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

CAPACITORS C070 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

C001 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 C077 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0

C002 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 C078 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0 0

C003 0893208R CAP 1608CHIP 1000PFKB 50V TAPE 0 0 0 C080 AA01101R CERAMIC cap.(1UF 10V-F) 0 0 0

C004 0800279R CAP.-ELECTORO. 1.0UF-M(SMG) 50V 0 0 0 C081 AA01111R CERAMIC cap.(1.0UF 6.3V) 0 0 0

C005 0893131R CAP 1608CHIP 220PFJCH 50V TAPE 0 0 0 C301 0800352R CAP.-ELECTRO.470UF 10V 0 0 0

C008 0893104R CAP 1608CHIP 2PFCCK 50V TAPE 0 0 0 C302 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0

C009 0893182R CERAMIC cap.(15000PF 16V) 0 0 0 C305 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0

C013 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0 C307 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0

C014 0893208R CAP 1608CHIP 1000PFKB 50V TAPE 0 0 0 C308 0800352R CAP.-ELECTRO.470UF 10V 0 0 0

C015 0893131R CAP 1608CHIP 220PFJCH 50V TAPE 0 0 0 C309 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0

C016 0800279R CAP.-ELECTORO. 1.0UF-M(SMG) 50V 0 0 0 C310 0800352R CAP.-ELECTRO.470UF 10V 0 0 0

C017 0893209R CAP 1608CHIP 1200PFKB 50V TAPE 0 0 0 C311 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0

C018 0893209R CAP 1608CHIP 1200PFKB 50V TAPE 0 0 0 C314 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0

C019 0893213R CAP1608CHIP 2200PFKB 50V TAPE 0 0 0 C316 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0

C020 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 C317 0800352R CAP.-ELECTRO.470UF 10V 0 0 0

C021 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 C318 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0

C022 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 C319 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

C024 0800303R CAP.-ELECTRO. 22UF-M 50V 0 0 0 C320 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

C025 0893208R CAP 1608CHIP 1000PFKB 50V TAPE 0 0 0 C321 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

C026 AA01101R CERAMIC cap.(1UF 10V-F) 0 0 0 C322 0800352R CAP.-ELECTRO.470UF 10V 0 0 0

C027 AA01111R CERAMIC cap.(1.0UF 6.3V) 0 0 0 C323 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

C028 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 C324 0800352R CAP.-ELECTRO.470UF 10V 0 0 0

C031 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 C325 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

C032 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0 C326 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

C033 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0 C327 0893119R CAP 1608CHIP 33PFJCH 50V TAPE 0 0 0

C039 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 C335 0893205R CAP 1608CHIP 560PFKB 50V TAPE 0 0 0

C040 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 C336 0893205R CAP 1608CHIP 560PFKB 50V TAPE 0 0 0

C041 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 C401 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

C042 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 C402 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

C043 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 C403 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

C044 0800279R CAP.-ELECTORO. 1.0UF-M(SMG) 50V 0 0 0 C404 0800277R CAP.-ELECTORO. 0.47UF-M 50V 0 0 0

C045 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0 C405 0800282R CAP.-ELECTORO. 2.2UF-M(SMG) 50V 0 0 0

C046 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0 C406 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0

C047 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 C407 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0

C048 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 C408 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0

C049 0893205R CAP 1608CHIP 560PFKB 50V TAPE 0 0 0 C409 0800277R CAP.-ELECTORO. 0.47UF-M 50V 0 0 0

C051 0800279R CAP.-ELECTORO. 1.0UF-M(SMG) 50V 0 0 0 C410 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0

C052 0893205R CAP 1608CHIP 560PFKB 50V TAPE 0 0 0 C411 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0

C054 0800279R CAP.-ELECTORO. 1.0UF-M(SMG) 50V 0 0 0 C412 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0

C055 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 C413 0800282R CAP.-ELECTORO. 2.2UF-M(SMG) 50V 0 0 0

C056 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 C414 0800361N CAP.-ELECTRO 1000UF 16V 0 0 0

C062 0893205R CAP 1608CHIP 560PFKB 50V TAPE 0 0 0 C415 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

C063 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0 C416 0800361N CAP.-ELECTRO 1000UF 16V 0 0 0

C064 0893128R CAP 1608CHIP 150PFJCH 50V TAPE 0 0 0 C417 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

C065 0893126R CAP 1608CHIP 100PFJCH 50V TAPE 0 0 0 C418 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0

C066 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 C419 0893219R CAP 1608CHIP 6800PFKB 50V TAPE 0 0 0

C067 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 C420 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0

C068 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 C421 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0

C069 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 C422 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

PRODUCT SERVICE NOTE: Components marked with a have special characteristics important to safety. Before replacing

any of these components, read carefully, the PRODUCT SAFETY NOTICE of this Service Manual. Don’t degrade the safety of the

receiver through improper servicing.

SYMBOL PART PART DP23 DP23G DP24 SYMBOL PART PART DP23 DP23G DP24

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

C423 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0 C805 AL00031R CAP.-ELECTORO. 33UF-M 250V 0 0 0

C424 0284634R CAP.-ELECTRO 4.7UF-SME(BP) 50V 0 0 0 C807 0800352R CAP.-ELECTRO.470UF 10V 0 0 0

C425 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 C812 AJ00559F CC-222K202YBDF10 0 0 0

C426 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 C813 AL00025R CAP.ALMI 2.2UF250V 0 0 0

C427 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 C814 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

C428 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 C816 0890087R CAP.-CERAMIC 1000PF-K 50V 0 0 0

C429 0893222R CAP 1608CHIP10000PFKB 50V TAPE 0 0 0 C817 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

C430 0893222R CAP 1608CHIP10000PFKB 50V TAPE 0 0 0 C851 0890078R CAP.-CERAMIC 220PF-K 50V 0 0 0

C431 0893222R CAP 1608CHIP10000PFKB 50V TAPE 0 0 0 C852 0880044R CAP.-POLYESTER 0.01UF-KEB 50V 0 0 0

C432 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 C853 0800279R CAP.-ELECTORO. 1.0UF-M(SMG) 50V 0 0 0

C433 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 C854 AL00031R CAP.-ELECTORO. 33UF-M 250V 0 0 0

C434 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0 C857 0800352R CAP.-ELECTRO.470UF 10V 0 0 0

C435 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0 C862 AJ00559F CC-222K202YBDF10 0 0 0

C436 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0 C863 AL00025R CAP.ALMI 2.2UF250V 0 0 0

C437 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0 C866 0890087R CAP.-CERAMIC 1000PF-K 50V 0 0 0

C438 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0 C871 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

C439 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0 C872 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

C441 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0 C8A1 0890078R CAP.-CERAMIC 220PF-K 50V 0 0 0

C443 0893126R CAP 1608CHIP 100PFJCH 50V TAPE 0 0 0 C8A2 0880044R CAP.-POLYESTER 0.01UF-KEB 50V 0 0 0

C444 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 C8A3 0800279R CAP.-ELECTORO. 1.0UF-M(SMG) 50V 0 0 0

C445 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 C8A4 AL00031R CAP.-ELECTORO. 33UF-M 250V 0 0 0

C448 AA01101R CERAMIC cap.(1UF 10V-F) 0 0 0 C8A7 0800352R CAP.-ELECTRO.470UF 10V 0 0 0

C450 0893222R CAP 1608CHIP10000PFKB 50V TAPE 0 0 0 C8C0 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0 0

C453 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 C8C1 0800279R CAP.-ELECTORO. 1.0UF-M(SMG) 50V 0 0 0

C454 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 C8C2 AJ00559F CC-222K202YBDF10 0 0 0

C457 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 C8C3 AL00025R CAP.ALMI 2.2UF250V 0 0 0

C458 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 C8C4 0890087R CAP.-CERAMIC 1000PF-K 50V 0 0 0

C462 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 C8C5 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

C463 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 C901 AN01445S ACROSS CAPA 0.22UF 250V RE224 0 0 0

C464 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 C902 AN01301F METALLIZ POLYESTER FILM cap.(0.1UF250V ) 0 0 0

C465 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 C904 AJ00182F CAP. CERAMIC CD85-E2GA102MYNS 0 0 0

C466 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 C905 AJ00182F CAP. CERAMIC CD85-E2GA102MYNS 0 0 0

C467 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 C906 AJ00195F CAP. CERAMIC CK45-F2EA472ZYNN 0 0 0

C468 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 C907 AJ00195F CAP. CERAMIC CK45-F2EA472ZYNN 0 0 0

C469 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 C908 AJ00195F CAP. CERAMIC CK45-F2EA472ZYNN 0 0 0

C471 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 C909 AJ00195F CAP. CERAMIC CK45-F2EA472ZYNN 0 0 0

C473 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0 C910 AL02313S CE-221M201EWS KMX 0 0 0

C474 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 C911 0800303R CAP.-ELECTRO. 22UF-M 50V 0 0 0

C475 0893113R CAP 1608CHIP 10PFCCH 50V TAPE 0 0 0 C913 0299610F CAP.-POLYPRO.FILM 0.001UF 630V 0 0 0

C477 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 C914 0890083R CAP.-CERAMIC 470PF-K 50V 0 0 0

C478 0800321R CAP.-ELECTRO. 47UF-M 50V 0 0 0 C915 0880051R CAP.-POLYESTER 0.033UF-KEB 50V 0 0 0

C479 0800279R CAP.-ELECTORO. 1.0UF-M(SMG) 50V 0 0 0 C916 0890076R CAP.CERAMIC 150PF-K 50V 0 0 0

C602 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0 0 C917 0880198R CAP.-PLOY. 0.22UF-J 50V 0 0 0

C603 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0 0 C918 0800318R CAP.-ELECTRO. 47UF-M 25V 0 0 0

C604 0800347N CAP.-ELECTRO. 330UF-M(SMG) 50V 0 0 0 C919 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0 0

C605 0800329R CAP.-ELECTRO. 100UF-M(SMG) 50V 0 0 0 C920 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0

C606 AL01162R CAP.ELECTRO 10UF-M(YXF)50V 0 0 0 C921 AL01679 ALUMINIUM ELEC.200V 680UF GU22*45 0 0 0

C607 AL01143S CAP.ELECTROLYTIC 2200UF-M(YXF)25V 0 0 0 C922 AL01679 ALUMINIUM ELEC.200V 680UF GU22*45 0 0 0

C608 AL01162R CAP.ELECTRO 10UF-M(YXF)50V 0 0 0 C923 0800337R CAP.-ELECTRO 220UF 35V (SMG TY PE) 0 0 0

C609 0279692R CAP.-POLYESTER 0.068UF 100V 0 0 0 C924 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0 0

C610 0800318R CAP.-ELECTRO. 47UF-M 25V 0 0 0 C925 0299616F cap.-polyprop. FILM 0.0033UF-J 630V 0 0 0

C611 0890085R CAP.-CERAMIC 680PF-K 50V 0 0 0 C926 0890085R CAP.-CERAMIC 680PF-K 50V 0 0 0

C701 0800353R CAP.-ELECTRO.470UF-M 16V 0 0 0 C927 AL01663 ALUMINIUM ELEC. 160V 330UF 0 0 0

C702 0880203R CAP.-POLYESTER 0.47UF-J 50V 0 0 0 C928 AL01153S CAP.ELECTR. 1000UF-M 35V 0 0 0

C707 0244505R CAP-CERAMIC 0.0022UF-K 500V 0 0 0 C929 AL01153S CAP.ELECTR. 1000UF-M 35V 0 0 0

C708 0243509R CAP.-CERAMIC 470PF-K 500V 0 0 0 C930 AL01128R CAP.ELECTR.470UF-M(YXF)16V 0 0 0

C709 0890081R CAP.-CERAMIC 330PF 50V 0 0 0 C931 AL01129S CAP.ELECTROLYTIC 1000UF-M(YXF)16V 0 0 0

C710 AN01648F 4700PF 1500V METALLIZ polyprop. FILM CAPA 0 0 0 C932 AL02323 CE-101M251EW(KMX)D16 0 0 0

C711 AN01648F 4700PF 1500V METALLIZ polyprop. FILM CAPA 0 0 0 C933 0244202R CAP. CERAMIC DE0907R471K2K 0 0 0

C713 AN01176F cap. 0.39UF 250V METALLIZ polyprop. 0 0 0 C934 0243511R CAP.-CERAMIC 680PF-K 500V TAPE 0 0 0

C714 AN01176F cap. 0.39UF 250V METALLIZ polyprop. 0 0 0 C935 0243511R CAP.-CERAMIC 680PF-K 500V TAPE 0 0 0

C715 0284634R CAP.-ELECTRO 4.7UF-SME(BP) 50V 0 0 0 C936 0243511R CAP.-CERAMIC 680PF-K 500V TAPE 0 0 0

C717 AN01631F 1000PF1500VMETALLIZ polyprop. FILM CAPA 0 0 0 C937 0243511R CAP.-CERAMIC 680PF-K 500V TAPE 0 0 0

C718 0244505R CAP-CERAMIC 0.0022UF-K 500V 0 0 0 C938 0244202R CAP. CERAMIC DE0907R471K2K 0 0 0

C719 0244505R CAP-CERAMIC 0.0022UF-K 500V 0 0 0 C940 0299610F CAP.-POLYPRO.FILM 0.001UF 630V 0 0 0

C720 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0 0 C941 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0 0

C721 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 C942 0880198R CAP.-PLOY. 0.22UF-J 50V 0 0 0

C722 0890085R CAP.-CERAMIC 680PF-K 50V 0 0 0 C943 0800303R CAP.-ELECTRO. 22UF-M 50V 0 0 0

C723 AN01181F cap. 0.56UF 250V METALLIZ polyprop. 0 0 0 C944 0800319R CAP.-ELECTRO. 47UF-M 35V 0 0 0

C724 AN01181F cap. 0.56UF 250V METALLIZ polyprop. 0 0 0 C945 0800319R CAP.-ELECTRO. 47UF-M 35V 0 0 0

C725 0800347N CAP.-ELECTRO. 330UF-M(SMG) 50V 0 0 0 C946 0284647R CAP.-ELECTRO.22UF-SME(BP) 16V 0 0 0

C801 0890078R CAP.-CERAMIC 220PF-K 50V 0 0 0 C947 0800334R CAP.-ELECTRO. 220UF 10V 0 0 0

C802 0880044R CAP.-POLYESTER 0.01UF-KEB 50V 0 0 0 C948 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

C803 0800279R CAP.-ELECTORO. 1.0UF-M(SMG) 50V 0 0 0 C949 0800355N CAP.ELECTRO. 470UF-M 35V 0 0 0

C804 0299622F cap.-polyprop. FILM 0.01UF-J 630V 0 0 0 C950 0800355N CAP.ELECTRO. 470UF-M 35V 0 0 0

DP23/23G/24

PRODUCT SERVICE NOTE: Components marked with a have special characteristics important to safety. Before replacing

any of these components, read carefully, the PRODUCT SAFETY NOTICE of this Service Manual. Don’t degrade the safety of the

receiver through improper servicing.

SYMBOL PART PART DP23 DP23G DP24 SYMBOL PART PART DP23 DP23G DP24

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

C951 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0 0 CA50 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

C952 0800352R CAP.-ELECTRO.470UF 10V 0 0 0 CA51 0800279R CAP.-ELECTORO. 1.0UF-M(SMG) 50V 0 0 0

C953 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0 0 CA52 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

C954 AL01852F 3300UF 16V ALUMINIUM ELECTROLYTIC cap. 0 0 0 CA53 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

C955 AL01851R 2200UF 16V ALUMINIUM ELECTROLYTIC cap. 0 0 0 CA54 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

C956 0800338R CAP.ELECTRO.220UF-M 50V(SMG) 0 0 0 CA55 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0

C957 AL01153S CAP.ELECTR. 1000UF-M 35V 0 0 0 CA56 0800279R CAP.-ELECTORO. 1.0UF-M(SMG) 50V 0 0 0

C959 0243511R CAP.-CERAMIC 680PF-K 500V TAPE 0 0 0 CA57 0800279R CAP.-ELECTORO. 1.0UF-M(SMG) 50V 0 0 0

C960 0243511R CAP.-CERAMIC 680PF-K 500V TAPE 0 0 0 CA59 0800279R CAP.-ELECTORO. 1.0UF-M(SMG) 50V 0 0 0

C961 0243511R CAP.-CERAMIC 680PF-K 500V TAPE 0 0 0 CA60 0800279R CAP.-ELECTORO. 1.0UF-M(SMG) 50V 0 0 0

C962 0243511R CAP.-CERAMIC 680PF-K 500V TAPE 0 0 0 CA61 0893208R CAP 1608CHIP 1000PFKB 50V TAPE 0 0 0

C964 0244105R CAP.-CERAMIC 2200PF-K 50V TAPE 0 0 0 CA62 0893208R CAP 1608CHIP 1000PFKB 50V TAPE 0 0 0

C965 0880044R CAP.-POLYESTER 0.01UF-KEB 50V 0 0 0 CA63 AA01111R CERAMIC cap.(1.0UF 6.3V) 0 0 0

C967 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0 0 CA64 AA01111R CERAMIC cap.(1.0UF 6.3V) 0 0 0

C969 0800319R CAP.-ELECTRO. 47UF-M 35V 0 0 0 CA65 0800318R CAP.-ELECTRO. 47UF-M 25V 0 0 0

C970 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 CA66 0800318R CAP.-ELECTRO. 47UF-M 25V 0 0 0

C971 0800319R CAP.-ELECTRO. 47UF-M 35V 0 0 0 CA67 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0 0

C972 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0 0 CA68 0284824F CAP.-ELECTRO. 2200UF 35V 0 0 0

C973 0800366N CAP.-ELECTORO. 2200UF-10V SMG 0 0 0 CA69 0800328R CAP. ELECTRO. 100UF-M 35V 0 0 0

C974 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0 0 CA70 0800328R CAP. ELECTRO. 100UF-M 35V 0 0 0

C975 0800353R CAP.-ELECTRO.470UF-M 16V 0 0 0 CA71 0800318R CAP.-ELECTRO. 47UF-M 25V 0 0 0

C976 0800361N CAP.-ELECTRO 1000UF 16V 0 0 0 CA72 0284824F CAP.-ELECTRO. 2200UF 35V 0 0 0

C977 AL01129S CAP.ELECTROLYTIC 1000UF-M(YXF)16V 0 0 0 CA73 AA00981R CERAMIC cap.(0.22UF 25V-B) 0 0 0

C978 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0 0 CA74 AA00981R CERAMIC cap.(0.22UF 25V-B) 0 0 0

C979 0800318R CAP.-ELECTRO. 47UF-M 25V 0 0 0 CA75 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0 0

C980 AJ00182F CAP. CERAMIC CD85-E2GA102MYNS 0 0 0 CA77 0284824F CAP.-ELECTRO. 2200UF 35V 0 0 0

C981 AJ00182F CAP. CERAMIC CD85-E2GA102MYNS 0 0 0 CA78 AA00981R CERAMIC cap.(0.22UF 25V-B) 0 0 0

C985 0800361N CAP.-ELECTRO 1000UF 16V 0 0 0 CA79 AA00981R CERAMIC cap.(0.22UF 25V-B) 0 0 0

C986 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0 0 CA80 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0 0

C987 0890087R CAP.-CERAMIC 1000PF-K 50V 0 0 0 CA82 0284638R CAP.-ELECTRO. 10UF-SME(BP) 16V 0 0 0

CA03 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 CE01 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0

CA04 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 CE03 0244541F cap.-CERAMIC 0.01MF-K B 500V 0 0 0

CA05 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 CE04 0244541F cap.-CERAMIC 0.01MF-K B 500V 0 0 0

CA06 0284638R CAP.-ELECTRO. 10UF-SME(BP) 16V 0 0 0 CE06 0244509R CAP.-CERAMIC 4700PF-KB B 500V 0 0 0

CA07 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 CE07 0800329R CAP.-ELECTRO. 100UF-M(SMG) 50V 0 0 0

CA08 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 CE08 0800329R CAP.-ELECTRO. 100UF-M(SMG) 50V 0 0 0

CA09 0284638R CAP.-ELECTRO. 10UF-SME(BP) 16V 0 0 0 CE09 AL00027R CAP.-ELECTORO. 4.7UF-M 250V 0 0 0

CA10 0284638R CAP.-ELECTRO. 10UF-SME(BP) 16V 0 0 0 CE10 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

CA11 0893215R CAP 1608CHIP 3300PFKB 50V TAPE 0 0 0 CE11 0800318R CAP.-ELECTRO. 47UF-M 25V 0 0 0

CA12 0893186R CERAMIC cap.(33000PF 16V) 0 0 0 CE12 AL00032R CAP.-ELECTORO. 47UF-M 250V 0 0 0

CA13 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 CE13 0244541F cap.-CERAMIC 0.01MF-K B 500V 0 0 0

CA14 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 CE14 0246836R CAP.CERAMIC 18PF 500V TAPE 0 0 0

CA15 0893217R CAP 1608CHIP 4700PFKB 50V TAPE 0 0 0 CE51 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0

CA16 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 CE53 0244541F cap.-CERAMIC 0.01MF-K B 500V 0 0 0

CA17 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 CE54 0244541F cap.-CERAMIC 0.01MF-K B 500V 0 0 0

CA18 0284638R CAP.-ELECTRO. 10UF-SME(BP) 16V 0 0 0 CE56 0244509R CAP.-CERAMIC 4700PF-KB B 500V 0 0 0

CA19 0800288R CAP.-ELECTRO. 4.7UF-M(SMG) 50V 0 0 0 CE57 0800329R CAP.-ELECTRO. 100UF-M(SMG) 50V 0 0 0

CA20 0800288R CAP.-ELECTRO. 4.7UF-M(SMG) 50V 0 0 0 CE58 0800329R CAP.-ELECTRO. 100UF-M(SMG) 50V 0 0 0

CA21 0800288R CAP.-ELECTRO. 4.7UF-M(SMG) 50V 0 0 0 CE60 AL00032R CAP.-ELECTORO. 47UF-M 250V 0 0 0

CA22 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 CE61 0244541F cap.-CERAMIC 0.01MF-K B 500V 0 0 0

CA23 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 CE62 0246836R CAP.CERAMIC 18PF 500V TAPE 0 0 0

CA24 0284638R CAP.-ELECTRO. 10UF-SME(BP) 16V 0 0 0 CE63 AL00027R CAP.-ELECTORO. 4.7UF-M 250V 0 0 0

CA25 0893215R CAP 1608CHIP 3300PFKB 50V TAPE 0 0 0 CEA1 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0

CA26 0893186R CERAMIC cap.(33000PF 16V) 0 0 0 CEA3 0244541F cap.-CERAMIC 0.01MF-K B 500V 0 0 0

CA27 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 CEA4 0244541F cap.-CERAMIC 0.01MF-K B 500V 0 0 0

CA28 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 CEA6 0244509R CAP.-CERAMIC 4700PF-KB B 500V 0 0 0

CA29 0893217R CAP 1608CHIP 4700PFKB 50V TAPE 0 0 0 CEA7 0800329R CAP.-ELECTRO. 100UF-M(SMG) 50V 0 0 0

CA30 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 CEA8 0800329R CAP.-ELECTRO. 100UF-M(SMG) 50V 0 0 0

CA31 AA01101R CERAMIC cap.(1UF 10V-F) 0 0 0 CEC1 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0

CA32 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 CEC2 AL00032R CAP.-ELECTORO. 47UF-M 250V 0 0 0

CA33 0800288R CAP.-ELECTRO. 4.7UF-M(SMG) 50V 0 0 0 CEC3 0244541F cap.-CERAMIC 0.01MF-K B 500V 0 0 0

CA34 0800288R CAP.-ELECTRO. 4.7UF-M(SMG) 50V 0 0 0 CEC4 0246836R CAP.CERAMIC 18PF 500V TAPE 0 0 0

CA37 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 CEC5 AL00027R CAP.-ELECTORO. 4.7UF-M 250V 0 0 0

CA38 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 CF01 AN01163F cap. 0.12UF 250V METALLIZ polyprop. 0 0 0

CA39 0893186R CERAMIC cap.(33000PF 16V) 0 0 0 CF02 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0

CA40 0893222R CAP 1608CHIP10000PFKB 50V TAPE 0 0 0 CF03 AJ00138R CAP. CERAMIC CK45-R3DD222K-VR 0 0 0

CA41 0893248R CAP.CHIP-CERAMIC 330000PF 16V TAPE 0 0 0 CF04 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0

CA42 AA01121R CERAMIC cap.(0.47UF 10V) 0 0 0 CH01 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

CA43 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 CH02 0890078R CAP.-CERAMIC 220PF-K 50V 0 0 0

CA44 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 CH03 0880044R CAP.-POLYESTER 0.01UF-KEB 50V 0 0 0

CA45 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 CH05 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0

CA46 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 CH06 0800279R CAP.-ELECTORO. 1.0UF-M(SMG) 50V 0 0 0

CA47 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0 CH07 0880033R CAP.-POLYESTER 0.0015UF-KEB50V 0 0 0

CA48 0893227R CERAMIC cap.(220000PF 16V) 0 0 0 CH08 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

CA49 0893217R CAP 1608CHIP 4700PFKB 50V TAPE 0 0 0 CH09 0880207R CAP.-POLYESTER 1.0UF-J 50V 0 0 0

DP23/23G/24

PRODUCT SERVICE NOTE: Components marked with a have special characteristics important to safety. Before replacing

any of these components, read carefully, the PRODUCT SAFETY NOTICE of this Service Manual. Don’t degrade the safety of the

receiver through improper servicing.

SYMBOL PART PART DP23 DP23G DP24 SYMBOL PART PART DP23 DP23G DP24

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

CH10 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0 0 CK28 0800356N CAP.-ELECTRO. 470UF-M 50V 0

CH13 AN01113F 1200PF 1800V METALLIZ PP FILM CAPA 0 0 0 CK29 0890024M CAP.-CERAMIC 150PF-K B 50V CYLINDORICAL 0 0 0

CH14 0279693R CAP.-POLYESTER FLM 0.1UF 0 0 0 CK30 0890024M CAP.-CERAMIC 150PF-K B 50V CYLINDORICAL 0 0 0

CH15 0880038R CAP.-POLYESTER 0.0039UF-KEB50V 0 0 0 CK31 0890024M CAP.-CERAMIC 150PF-K B 50V CYLINDORICAL 0 0 0

CH16 AL01724 CAP.ALUMI.160V 390UF KMH(M) 0 0 0 CK32 0890024M CAP.-CERAMIC 150PF-K B 50V CYLINDORICAL 0 0 0

CH17 0284623R CAP.-ELECTRO. 1UF-SME(BP) 50V 0 0 0 CK33 0890024M CAP.-CERAMIC 150PF-K B 50V CYLINDORICAL 0 0 0

CH18 0880198R CAP.-PLOY. 0.22UF-J 50V 0 0 0 CK34 0890024M CAP.-CERAMIC 150PF-K B 50V CYLINDORICAL 0 0 0

CH19 0890082R CAP.-CERAMIC 390PF-K 50V 0 0 0 CK36 0800355N CAP.ELECTRO. 470UF-M 35V 0 0 0

CH20 AN01113F 1200PF 1800V METALLIZ PP FILM CAPA 0 0 0 CK37 0800355N CAP.ELECTRO. 470UF-M 35V 0 0 0

CH22 0880203R CAP.-POLYESTER 0.47UF-J 50V 0 0 0 CK43 0880044R CAP.-POLYESTER 0.01UF-KEB 50V 0 0 0

CH99 0880203R CAP.-POLYESTER 0.47UF-J 50V 0 0 0 CK51 0890076R CAP.CERAMIC 150PF-K 50V 0 0 0

CJ01 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 CL01 0880053R CAP.-POLYESTER 0.047UF-KEB 50V 0 0 0

CJ02 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 CL02 0880053R CAP.-POLYESTER 0.047UF-KEB 50V 0 0 0

CJ03 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 CL03 0880053R CAP.-POLYESTER 0.047UF-KEB 50V 0 0 0

CJ04 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 CL04 0880053R CAP.-POLYESTER 0.047UF-KEB 50V 0 0 0

CJ05 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 CL05 0880053R CAP.-POLYESTER 0.047UF-KEB 50V 0 0 0

CJ06 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 CL06 0880053R CAP.-POLYESTER 0.047UF-KEB 50V 0 0 0

CJ07 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 CL07 0880053R CAP.-POLYESTER 0.047UF-KEB 50V 0 0 0

CJ08 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 CL08 0880053R CAP.-POLYESTER 0.047UF-KEB 50V 0 0 0

CJ09 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 CL09 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

CJ10 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 CL10 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0 0

CJ11 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 CM01 0800303R CAP.-ELECTRO. 22UF-M 50V 0 0

CJ12 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 CM01 0800303R CAP.-ELECTRO. 22UF-M 50V 0

CJ13 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 CM02 0880044R CAP.-POLYESTER 0.01UF-KEB 50V 0

CJ14 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 CM03 0800279R CAP.-ELECTORO. 1.0UF-M(SMG) 50V 0 0

CJ15 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 CM03 0800279R CAP.-ELECTORO. 1.0UF-M(SMG) 50V 0

CJ16 0893222R CAP 1608CHIP10000PFKB 50V TAPE 0 0 CM04 0880044R CAP.-POLYESTER 0.01UF-KEB 50V 0

CJ17 0893126R CAP 1608CHIP 100PFJCH 50V TAPE 0 0 CM05 0880044R CAP.-POLYESTER 0.01UF-KEB 50V 0 0

CJ18 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 CM05 0880044R CAP.-POLYESTER 0.01UF-KEB 50V 0

CJ19 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 CM06 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0

CJ20 0893126R CAP 1608CHIP 100PFJCH 50V TAPE 0 0 CM06 0880194R CAP.-POLYESTER 0.1UF-J 50V 0

CJ21 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 CM09 0880044R CAP.-POLYESTER 0.01UF-KEB 50V 0 0

CJ22 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 CM09 0880044R CAP.-POLYESTER 0.01UF-KEB 50V 0

CJ23 0893126R CAP 1608CHIP 100PFJCH 50V TAPE 0 0 CM10 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0

CJ24 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 CM10 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0

CJ25 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 CM11 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0

CJ26 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 CM11 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0

CJ27 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 CM12 0800318R CAP.-ELECTRO. 47UF-M 25V 0 0

CJ28 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 CM12 0800318R CAP.-ELECTRO. 47UF-M 25V 0

CJ29 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 CM14 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0

CJ30 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 CM14 0880194R CAP.-POLYESTER 0.1UF-J 50V 0

CJ31 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 CM15 0880194R CAP.-POLYESTER 0.1UF-J 50V 0

CJ32 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 CM16 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0

CJ33 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 CM16 0880194R CAP.-POLYESTER 0.1UF-J 50V 0

CJ36 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 CM18 0880044R CAP.-POLYESTER 0.01UF-KEB 50V 0 0

CJ37 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 CM19 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0

CJ38 0800352R CAP.-ELECTRO.470UF 10V 0 0 CM20 0800325R CAP.-ELECTRO. 100UF-M 10V 0 0

CJ39 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 CM21 0880044R CAP.-POLYESTER 0.01UF-KEB 50V 0 0

CJ40 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 CM22 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0

CJ41 0800358R CAP.-ELECTRO. 1000UF-M 6.3V 0 0 CM23 0880044R CAP.-POLYESTER 0.01UF-KEB 50V 0 0

CJ52 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 CM24 0800325R CAP.-ELECTRO. 100UF-M 10V 0 0

CJ53 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 CN01 0890084R CAP.-CERAMIC 560PF-K 50V 0 0 0

CJ75 AA01111R CERAMIC cap.(1.0UF 6.3V) 0 0 CN02 0880051R CAP.-POLYESTER 0.033UF-KEB 50V 0 0 0

CJ77 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 CN03 0800288R CAP.-ELECTRO. 4.7UF-M(SMG) 50V 0 0 0

CJ79 0800318R CAP.-ELECTRO. 47UF-M 25V 0 0 CN04 0800279R CAP.-ELECTORO. 1.0UF-M(SMG) 50V 0 0 0

CK03 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 CN05 0880035R CAP.-POLY 2200PF-50V 0 0 0

CK04 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0 0 CN06 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

CK05 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 CP51 0800358R CAP.-ELECTRO. 1000UF-M 6.3V 0 0 0

CK06 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0 0 CP52 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

CK07 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 CP60 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

CK08 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0 0 CP61 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

CK09 0880194R CAP.-POLYESTER 0.1UF-J 50V 0 0 0 CP62 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

CK10 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 CP63 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

CK11 0880035R CAP.-POLY 2200PF-50V 0 0 0 CP64 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

CK18 0880044R CAP.-POLYESTER 0.01UF-KEB 50V 0 0 0 CP65 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

CK19 0880044R CAP.-POLYESTER 0.01UF-KEB 50V 0 0 0 CP66 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

CK20 0890076R CAP.CERAMIC 150PF-K 50V 0 0 0 CP81 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

CK21 0890076R CAP.CERAMIC 150PF-K 50V 0 0 0 CP82 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

CK22 0890076R CAP.CERAMIC 150PF-K 50V 0 0 0 CP83 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

CK23 0890076R CAP.CERAMIC 150PF-K 50V 0 0 0 CV01 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0

CK24 0890076R CAP.CERAMIC 150PF-K 50V 0 0 0 CV02 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

CK25 0890076R CAP.CERAMIC 150PF-K 50V 0 0 0 CV03 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0

CK27 0800355N CAP.ELECTRO. 470UF-M 35V 0 0 CV05 0893111R CAP 1608CHIP 8PFCCH 50V TAPE 0 0 0

CK27 0800356N CAP.-ELECTRO. 470UF-M 50V 0 CV06 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0

CK28 0800355N CAP.ELECTRO. 470UF-M 35V 0 0 CV08 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0

DP23/23G/24

100

PRODUCT SERVICE NOTE: Components marked with a have special characteristics important to safety. Before replacing

any of these components, read carefully, the PRODUCT SAFETY NOTICE of this Service Manual. Don’t degrade the safety of the

receiver through improper servicing.

SYMBOL PART PART DP23 DP23G DP24 SYMBOL PART PART DP23 DP23G DP24

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

CV09 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 CX10 AA01111R CERAMIC cap.(1.0UF 6.3V) 0 0 0

CV10 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0 CX11 AA01101R CERAMIC cap.(1UF 10V-F) 0 0 0

CV11 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0 CX12 AA01101R CERAMIC cap.(1UF 10V-F) 0 0 0

CV12 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0 CX13 AA01111R CERAMIC cap.(1.0UF 6.3V) 0 0 0

CV13 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 CX14 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

CV14 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0 CX15 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0

CV15 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0 CX16 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0

CV16 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0 CX17 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0

CV17 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 CX18 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0

CV18 0800352R CAP.-ELECTRO.470UF 10V 0 0 0 CX19 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

CV19 0893129R CAP 1608CHIP 180PFJCH 50V TAPE 0 0 0 CX20 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

CV20 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0 CX21 0800352R CAP.-ELECTRO.470UF 10V 0 0 0

CV21 0893127R CAP 1608CHIP 120PFJCH 50V TAPE 0 0 0 CX22 0800352R CAP.-ELECTRO.470UF 10V 0 0 0

CV22 AA01121R CERAMIC cap.(0.47UF 10V) 0 0 0 CX23 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0

CV23 0800318R CAP.-ELECTRO. 47UF-M 25V 0 0 0 CX28 AA01111R CERAMIC cap.(1.0UF 6.3V) 0 0 0

CV24 0893118R CAP 1608CHIP 27PFJCH 50V TAPE 0 0 0 CX29 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

CV25 0893115R CAP 1608CHIP 15PFJCH 50V TAPE 0 0 0 CX30 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

CV26 0893111R CAP 1608CHIP 8PFCCH 50V TAPE 0 0 0 CX31 AA01111R CERAMIC cap.(1.0UF 6.3V) 0 0 0

CV27 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 CX32 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0

CV28 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 CX35 AA01101R CERAMIC cap.(1UF 10V-F) 0 0 0

CW01 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 CX36 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

CW02 AA01101R CERAMIC cap.(1UF 10V-F) 0 0 0 CX37 AA01111R CERAMIC cap.(1.0UF 6.3V) 0 0 0

CW03 0893114R CAP 1608CHIP 12PFJCH 50V TAPE 0 0 0 CX38 AA01111R CERAMIC cap.(1.0UF 6.3V) 0 0 0

CW04 0893121R CAP 1608CHIP 39PFJCH 50V TAPE 0 0 0 CX39 AA01101R CERAMIC cap.(1UF 10V-F) 0 0 0

CW05 0893114R CAP 1608CHIP 12PFJCH 50V TAPE 0 0 0 CX40 AA01101R CERAMIC cap.(1UF 10V-F) 0 0 0

CW06 0800282R CAP.-ELECTORO. 2.2UF-M(SMG) 50V 0 0 0 CX42 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

CW07 0800282R CAP.-ELECTORO. 2.2UF-M(SMG) 50V 0 0 0 CX43 AA01111R CERAMIC cap.(1.0UF 6.3V) 0 0 0

CW08 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 CX44 AA01101R CERAMIC cap.(1UF 10V-F) 0 0 0

CW09 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0 CX45 AA01101R CERAMIC cap.(1UF 10V-F) 0 0 0

CW10 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 CX46 AA01111R CERAMIC cap.(1.0UF 6.3V) 0 0 0

CW11 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0 CX47 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

CW12 0800279R CAP.-ELECTORO. 1.0UF-M(SMG) 50V 0 0 0 CX48 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

CW13 0893135R CAP 1608CHIP 470PFJCH 50V TAPE 0 0 0 CX49 AA01111R CERAMIC cap.(1.0UF 6.3V) 0 0 0

CW14 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 CX52 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

CW15 AA01101R CERAMIC cap.(1UF 10V-F) 0 0 0 CX53 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

CW16 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0 CX54 AA01111R CERAMIC cap.(1.0UF 6.3V) 0 0 0

CW17 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0 CX55 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

CW18 AA01101R CERAMIC cap.(1UF 10V-F) 0 0 0 CX56 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

CW19 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0 CX57 AA01101R CERAMIC cap.(1UF 10V-F) 0 0 0

CW20 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0 CX58 AA01111R CERAMIC cap.(1.0UF 6.3V) 0 0 0

CW21 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 CX59 AA01111R CERAMIC cap.(1.0UF 6.3V) 0 0 0

CW22 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0 CX60 AA01111R CERAMIC cap.(1.0UF 6.3V) 0 0 0

CW23 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0 CX61 AA01111R CERAMIC cap.(1.0UF 6.3V) 0 0

CW24 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 CX62 AA01111R CERAMIC cap.(1.0UF 6.3V) 0 0

CW25 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 CX63 AA01111R CERAMIC cap.(1.0UF 6.3V) 0 0

CW26 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0 CX64 AA01111R CERAMIC cap.(1.0UF 6.3V) 0 0 0

CW27 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 CX65 AA01111R CERAMIC cap.(1.0UF 6.3V) 0 0 0

CW29 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 CX66 AA01111R CERAMIC cap.(1.0UF 6.3V) 0 0 0

CW30 0893111R CAP 1608CHIP 8PFCCH 50V TAPE 0 0 0 CX70 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

CW31 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0 CX71 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

CW32 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0 CX74 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

CW34 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 CX75 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

CW37 0893117R CAP 1608CHIP 22PFJCH 50V TAPE 0 0 0 CX76 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

CW38 0893117R CAP 1608CHIP 22PFJCH 50V TAPE 0 0 0 CX77 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

CW39 AA01101R CERAMIC cap.(1UF 10V-F) 0 0 0 CX78 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

CW40 0800282R CAP.-ELECTORO. 2.2UF-M(SMG) 50V 0 0 0 CX84 AA01101R CERAMIC cap.(1UF 10V-F) 0 0 0

CW41 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0 CX85 AA01101R CERAMIC cap.(1UF 10V-F) 0 0 0

CW42 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 CX92 AA01111R CERAMIC cap.(1.0UF 6.3V) 0 0 0

CW43 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0 CX93 AA01111R CERAMIC cap.(1.0UF 6.3V) 0 0 0

CW44 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 CX94 AA01101R CERAMIC cap.(1UF 10V-F) 0 0 0

CW45 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0 CX95 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

CW46 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0 CZ01 AL01842R 1000UF 10V ALUM. ELECTROLYTIC cap. 0 0 0

CW47 0893134R CAP 1608CHIP 390PFJCH 50V TAPE 0 0 0 CZ02 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

CW48 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0 CZ03 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0

CW49 0800294R CAP.-ELECTRO. 10UF-M(SMG) 50V 0 0 0 CZ04 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0

CW50 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0 CZ05 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0

CX01 AA01101R CERAMIC cap.(1UF 10V-F) 0 0 0 CZ06 0800279R CAP.-ELECTORO. 1.0UF-M(SMG) 50V 0 0 0

CX02 AA01101R CERAMIC cap.(1UF 10V-F) 0 0 0 CZ07 0893222R CAP 1608CHIP10000PFKB 50V TAPE 0 0 0

CX03 AA01101R CERAMIC cap.(1UF 10V-F) 0 0 0 CZ10 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0

CX04 AA01101R CERAMIC cap.(1UF 10V-F) 0 0 0 CZ12 AA01121R CERAMIC cap.(0.47UF 10V) 0 0 0

CX05 AA01111R CERAMIC cap.(1.0UF 6.3V) 0 0 0 CZ13 AA01121R CERAMIC cap.(0.47UF 10V) 0 0 0

CX06 AA01101R CERAMIC cap.(1UF 10V-F) 0 0 0 CZ14 AA01121R CERAMIC cap.(0.47UF 10V) 0 0 0

CX07 AA01101R CERAMIC cap.(1UF 10V-F) 0 0 0 CZ15 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0

CX08 AA01111R CERAMIC cap.(1.0UF 6.3V) 0 0 0 CZ16 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0

CX09 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 CZ17 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0

DP23/23G/24

101

PRODUCT SERVICE NOTE: Components marked with a have special characteristics important to safety. Before replacing

any of these components, read carefully, the PRODUCT SAFETY NOTICE of this Service Manual. Don’t degrade the safety of the

receiver through improper servicing.

SYMBOL PART PART DP23 DP23G DP24 SYMBOL PART PART DP23 DP23G DP24

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

CZ18 0800282R CAP.-ELECTORO. 2.2UF-M(SMG) 50V 0 0 0 D713 2339802M ZENER DIODE HZS2B2 TAPE 0 0 0

CZ19 0893213R CAP1608CHIP 2200PFKB 50V TAPE 0 0 0 D714 2339849M ZENER HZS6C3 TA 0 0 0

CZ20 0893114R CAP 1608CHIP 12PFJCH 50V TAPE 0 0 0 D715 CH02001M DIODE 1SR139-400 0 0 0

CZ21 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0 D801 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 0

CZ22 AL01842R 1000UF 10V alum. ELECTROLYTIC cap. 0 0 0 D802 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

CZ23 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 D803 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

CZ24 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0 D804 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

CZ25 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0 D806 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

CZ26 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0 D808 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

CZ27 0800279R CAP.-ELECTORO. 1.0UF-M(SMG) 50V 0 0 0 D813 CH02001M DIODE 1SR139-400 0 0 0

CZ28 0893222R CAP 1608CHIP10000PFKB 50V TAPE 0 0 0 D814 CH02001M DIODE 1SR139-400 0 0 0

CZ31 AA01121R CERAMIC cap.(0.47UF 10V) 0 0 0 D815 CH02001M DIODE 1SR139-400 0 0 0

CZ32 AA01121R CERAMIC cap.(0.47UF 10V) 0 0 0 D816 CH02001M DIODE 1SR139-400 0 0 0

CZ33 AA01121R CERAMIC cap.(0.47UF 10V) 0 0 0 D851 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 0

CZ34 AA01101R CERAMIC cap.(1UF 10V-F) 0 0 0 D852 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

CZ35 0800334R CAP.-ELECTRO. 220UF 10V 0 0 0 D853 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

CZ36 0800282R CAP.-ELECTORO. 2.2UF-M(SMG) 50V 0 0 0 D854 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

CZ37 0893213R CAP1608CHIP 2200PFKB 50V TAPE 0 0 0 D856 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

CZ38 0893114R CAP 1608CHIP 12PFJCH 50V TAPE 0 0 0 D858 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

CZ39 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0 D863 CH02001M DIODE 1SR139-400 0 0 0

CZ40 0893179R CAP.CHIP-CERAMIC 100000PF 16V TAPE 0 0 0 D864 CH02001M DIODE 1SR139-400 0 0 0

CZ41 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0 D865 CH02001M DIODE 1SR139-400 0 0 0

CZ42 0893121R CAP 1608CHIP 39PFJCH 50V TAPE 0 D866 CH02001M DIODE 1SR139-400 0 0 0

CZ42 0893123R CAP 1608CHIP 56PFJCH 50V TAPE 0 0 D8A1 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 0

CZ43 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 D8A2 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

CZ44 0893239R CAP 1608CHIP 10000PFZF 50V TAPE 0 0 0 D8A3 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

CZ45 0800326R CAP.-ELECTRO. 100UF-M 16V 0 0 0 D8A4 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

CZ46 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 D8A5 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

CZ47 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 D8A6 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

CZ48 0893232R CAP 1608CHIP 100000PFZF25V TAPE 0 0 0 D8C3 CH02001M DIODE 1SR139-400 0 0 0

D8C4 CH02001M DIODE 1SR139-400 0 0 0

DIODES D8C5 CH02001M DIODE 1SR139-400 0 0 0

D004 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 D8C6 CH02001M DIODE 1SR139-400 0 0 0

D008 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 0 D8C7 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 0

D009 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 0 D901 2338313 DIODE RBV-406M (60V) SI 0.1USEC 0 0 0

D010 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 0 D902 2342061 DIODE D3SB(A)60. 0 0 0

D011 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 0 D903 CH02001M DIODE 1SR139-400 0 0 0

D012 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 0 D904 CH02001M DIODE 1SR139-400 0 0 0

D013 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 D905 CH02011M DIODE 1SR153-400 0 0 0

D015 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 D906 2331844M ZENER HZ12-B1 0 0 0

D017 2331827M ZENER DIODE HZ-9 TAPE (C1) SI 500MW 9.3V 0 0 0 D907 2334304M ZENER RD30E (B3 T2/TP/TA) SI 5MA 30.51V 0 0 0

D018 2331827M ZENER DIODE HZ-9 TAPE (C1) SI 500MW 9.3V 0 0 0 D908 2339843M ZENER HZS-6 A3 (SI 200MA) 0 0 0

D019 2331809M ZENER DIODE HZ-6 TAPE (C3) SI 500MW 0 0 0 D910 CH02011M DIODE 1SR153-400 0 0 0

D301 2339971M ZENER HZS33-1 TA 0 0 0 D911 CH02011M DIODE 1SR153-400 0 0 0

D302 2339971M ZENER HZS33-1 TA 0 0 0 D912 2334324M ZENER DIODE RD36E TAPE (B3) SI 500MW 36V 0 0 0

D303 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 0 D913 2331844M ZENER HZ12-B1 0 0 0

D402 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 D914 CH02011M DIODE 1SR153-400 0 0 0

D403 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 D915 CH00183R LIGHT EMITTING DIODE (SLZ-981C-06-T1) 0 0 0

D404 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 D916 CH01061F DIODE RU4AM(600V) 0 0 0

D405 2339801M ZENER HZS-2 TAPE (B1) SI 400MW 2.0V 0 0 0 D917 2337951S DIODE RU4Z(LF015-302) 0 0 0

D408 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 0 D918 2337951S DIODE RU4Z(LF015-302) 0 0 0

D409 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 0 D919 2338532M DIODE EG01A (V1) 0 0 0

D410 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 0 D920 2337951S DIODE RU4Z(LF015-302) 0 0 0

D411 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 D921 2359314G DIODE RU-3C P12.5 0 0 0

D412 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 D922 2334304M ZENER RD30E (B3 T2/TP/TA) SI 5MA 30.51V 0 0 0

D413 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 D923 2339881M ZENER HZS12A1 TA 0 0 0

D414 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 D924 2339961M ZENER HZS30-1 TA 0 0 0

D415 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 D925 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

D416 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 D926 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

D417 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 0 D927 2339857M ZENER HZS7C1 SI 0 0 0

D418 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 0 D928 CH00182R LIGHT EMITTING DIODE (SLZ-381C-06-T1) 0 0 0

D601 2331154M ZENER HZ-12 (A1-3 B1-3.TA) SI 200MA 14.3V 0 0 0 D929 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

D603 CH02001M DIODE 1SR139-400 0 0 0 D930 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

D604 CH02001M DIODE 1SR139-400 0 0 0 D931 CH02001M DIODE 1SR139-400 0 0 0

D605 CH02011M DIODE 1SR153-400 0 0 0 D932 CH02001M DIODE 1SR139-400 0 0 0

D606 2334305M ZENER RD30E (B4 T2/TP/TA) SI 5MA 30.51V 0 0 0 D933 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

D607 CH02001M DIODE 1SR139-400 0 0 0 D936 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

D608 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 D937 2339827M ZENER HZS4C1 TA 0 0 0

D701 CH02001M DIODE 1SR139-400 0 0 0 D938 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

D702 2339859M ZENER HZS7C3 TA 0 0 0 D939 2339816M ZENER HZS3B3 TAPE 0 0 0

D703 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 D940 CH00182R LIGHT EMITTING DIODE (SLZ-381C-06-T1) 0 0 0

D706 2339882M ZENER DIODE HZS-12(A2) TAPE 0 0 0 D941 2337951S DIODE RU4Z(LF015-302) 0 0 0

D708 CH02161 DIODE FMQ-G2FLS (1500V) 0 0 0 D942 2337951S DIODE RU4Z(LF015-302) 0 0 0

D709 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 D943 CH01091M DIODE EL1 (350V) 0 0 0

D712 CH00041M DIODE ES1FV1 (1500V) 0 0 0 D944 2337951S DIODE RU4Z(LF015-302) 0 0 0

DP23/23G/24

102

PRODUCT SERVICE NOTE: Components marked with a have special characteristics important to safety. Before replacing

any of these components, read carefully, the PRODUCT SAFETY NOTICE of this Service Manual. Don’t degrade the safety of the

receiver through improper servicing.

SYMBOL PART PART DP23 DP23G DP24 SYMBOL PART PART DP23 DP23G DP24

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

D952 CH02001M DIODE 1SR139-400 0 0 0 DJ06 2344041M DIODE 1SS254TA/1SS270TA 0 0

D953 2339836M ZENER HZS-5 B3 0 0 0 DJ21 CC10721R DIODE CHIP DA204K-TPTX 0 0

D954 2331844M ZENER HZ12-B1 0 0 0 DJ22 CC10721R DIODE CHIP DA204K-TPTX 0 0

D955 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 DJ23 CC10721R DIODE CHIP DA204K-TPTX 0 0

D956 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 DJ24 CC10721R DIODE CHIP DA204K-TPTX 0 0

D957 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 DJ25 CC10721R DIODE CHIP DA204K-TPTX 0 0

D960 2339821M ZENER HZS4A1 TA 0 0 0 DJ26 CC10721R DIODE CHIP DA204K-TPTX 0 0

D961 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 DJ27 CC10721R DIODE CHIP DA204K-TPTX 0 0

D962 2339817M ZENER HZS3C1 TA 0 0 0 DJ28 CC10721R DIODE CHIP DA204K-TPTX 0 0

D963 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 DJ29 2344041M DIODE 1SS254TA/1SS270TA 0 0

D964 CH00182R LIGHT EMITTING DIODE (SLZ-381C-06-T1) 0 0 0 DJ30 CC00003R DIODE.CHIP 1SS355 0 0

D965 CH00182R LIGHT EMITTING DIODE (SLZ-381C-06-T1) 0 0 0 DJ31 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0

D966 2339847M ZENER HZS6C1 TA 0 0 0 DK04 CH02011M DIODE 1SR153-400 0

D967 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 DK05 CH02011M DIODE 1SR153-400 0

D968 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 DK16 2334324M ZENER DIODE RD36E TAPE (B3) SI 500MW 36V 0 0 0

D971 2334324M ZENER DIODE RD36E TAPE (B3) SI 500MW 36V 0 0 0 DK17 2334324M ZENER DIODE RD36E TAPE (B3) SI 500MW 36V 0 0 0

D972 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 DK18 2334324M ZENER DIODE RD36E TAPE (B3) SI 500MW 36V 0 0 0

DA01 2331771M ZENER HZ-3A1 TAPE 0 0 0 DK19 2334324M ZENER DIODE RD36E TAPE (B3) SI 500MW 36V 0 0 0

DA02 2331771M ZENER HZ-3A1 TAPE 0 0 0 DK20 2334324M ZENER DIODE RD36E TAPE (B3) SI 500MW 36V 0 0 0

DA03 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 DK21 2334324M ZENER DIODE RD36E TAPE (B3) SI 500MW 36V 0 0 0

DA04 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 DK22 2334324M ZENER DIODE RD36E TAPE (B3) SI 500MW 36V 0 0 0

DA05 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 DK23 2334324M ZENER DIODE RD36E TAPE (B3) SI 500MW 36V 0 0 0

DA06 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 DK24 2334324M ZENER DIODE RD36E TAPE (B3) SI 500MW 36V 0 0 0

DA07 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 DK25 2334324M ZENER DIODE RD36E TAPE (B3) SI 500MW 36V 0 0 0

DA08 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 DK26 2334324M ZENER DIODE RD36E TAPE (B3) SI 500MW 36V 0 0 0

DA09 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 DK27 2334324M ZENER DIODE RD36E TAPE (B3) SI 500MW 36V 0 0 0

DA12 2337341M DIODE 1SS270A (TP) 0 0 0 DK30 2331815M ZENER HZ7-B2 0 0 0

DA13 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 DK31 2331815M ZENER HZ7-B2 0 0 0

DA14 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 DK32 2331815M ZENER HZ7-B2 0 0 0

DA15 2337341M DIODE 1SS270A (TP) 0 0 0 DK33 2331815M ZENER HZ7-B2 0 0 0

DA16 2337341M DIODE 1SS270A (TP) 0 0 0 DK34 2331815M ZENER HZ7-B2 0 0 0

DA17 2337341M DIODE 1SS270A (TP) 0 0 0 DK35 2331815M ZENER HZ7-B2 0 0 0

DA20 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 0 DK36 2331815M ZENER HZ7-B2 0 0 0

DA21 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 0 DK37 2331815M ZENER HZ7-B2 0 0 0

DE01 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 DK39 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

DE02 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 DK45 2331815M ZENER HZ7-B2 0 0 0

DE05 CH02001M DIODE 1SR139-400 0 0 0 DK46 2331815M ZENER HZ7-B2 0 0 0

DE06 CH02001M DIODE 1SR139-400 0 0 0 DK47 2331815M ZENER HZ7-B2 0 0 0

DE07 CH02001M DIODE 1SR139-400 0 0 0 DK48 2331815M ZENER HZ7-B2 0 0 0

DE08 CH02001M DIODE 1SR139-400 0 0 0 DK49 2331815M ZENER HZ7-B2 0 0 0

DE51 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 DK51 2331815M ZENER HZ7-B2 0 0 0

DE52 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 DK53 2331815M ZENER HZ7-B2 0 0 0

DE55 CH02001M DIODE 1SR139-400 0 0 0 DK90 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

DE56 CH02001M DIODE 1SR139-400 0 0 0 DL01 2331815M ZENER HZ7-B2 0 0 0

DE57 CH02001M DIODE 1SR139-400 0 0 0 DL02 2331815M ZENER HZ7-B2 0 0 0

DE58 CH02001M DIODE 1SR139-400 0 0 0 DL03 2331815M ZENER HZ7-B2 0 0 0

DEA1 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 DL04 2331815M ZENER HZ7-B2 0 0 0

DEA2 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 DL05 2331815M ZENER HZ7-B2 0 0 0

DEA5 CH02001M DIODE 1SR139-400 0 0 0 DL06 2331815M ZENER HZ7-B2 0 0 0

DEA6 CH02001M DIODE 1SR139-400 0 0 0 DL07 2331815M ZENER HZ7-B2 0 0 0

DEA7 CH02001M DIODE 1SR139-400 0 0 0 DL08 2331815M ZENER HZ7-B2 0 0 0

DEA8 CH02001M DIODE 1SR139-400 0 0 0 DL10 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

DEA9 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 0 DL11 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

DF01 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 DL12 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

DH01 2339837M ZENER HZS-5C1 TAPE 0 0 0 DL13 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

DH04 2339832M ZENER HZS5A2 TA 0 0 0 DL14 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

DH05 2339882M ZENER DIODE HZS-12(A2) TAPE 0 0 0 DL15 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

DH06 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 DL16 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

DH07 2359312S DIODE RU3C LF-C4 (1000V 1.5A ) 0 0 0 DL17 2344041M DIODE 1SS254TA/1SS270TA 0 0 0

DH08 2334243M ZENER RD16E (B2 T2/TP/TA) SI 10MA 16.51V 0 0 0 DL20 2331815M ZENER HZ7-B2 0 0 0

DH09 CH00041M DIODE ES1FV1 (1500V) 0 0 0 DL21 2331815M ZENER HZ7-B2 0 0 0

DH10 CH02001M DIODE 1SR139-400 0 0 0 DL22 2331815M ZENER HZ7-B2 0 0 0

DH11 CH02001M DIODE 1SR139-400 0 0 0 DL23 2331815M ZENER HZ7-B2 0 0 0

DH13 CH00031M DIODE AU02V1(280V) 0 0 0 DL24 2331815M ZENER HZ7-B2 0 0 0

DH14 2334315M ZENER DIODE RD33E TAPE (B4) 0 0 DL25 2331815M ZENER HZ7-B2 0 0 0

DH14 2334324M ZENER DIODE RD36E TAPE (B3) SI 500MW 36V 0 DL26 2331815M ZENER HZ7-B2 0 0 0

DH15 2335042M ZENER HZ-22 (2L TP) SI 200MA 400MW 0 0 0 DL27 2331815M ZENER HZ7-B2 0 0 0

DH16 2334305M ZENER RD30E (B4 T2/TP/TA) SI 5MA 30.51V 0 0 0 DL28 2331824M ZENER HZ9B1 TA 0 0 0

DH17 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 DL30 2331824M ZENER HZ9B1 TA 0 0 0

DH18 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 DL31 2331824M ZENER HZ9B1 TA 0 0 0

DH20 2334285M ZENER RD24EB4 TA 0 0 DL32 2331824M ZENER HZ9B1 TA 0 0 0

DJ01 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 DL33 2331824M ZENER HZ9B1 TA 0 0 0

DJ02 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 DL34 2331824M ZENER HZ9B1 TA 0 0 0

DJ04 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 DL35 2331824M ZENER HZ9B1 TA 0 0 0

DJ05 2344041M DIODE 1SS254TA/1SS270TA 0 0 DL36 2331824M ZENER HZ9B1 TA 0 0 0

DP23/23G/24

103

PRODUCT SERVICE NOTE: Components marked with a have special characteristics important to safety. Before replacing

any of these components, read carefully, the PRODUCT SAFETY NOTICE of this Service Manual. Don’t degrade the safety of the

receiver through improper servicing.

SYMBOL PART PART DP23 DP23G DP24 SYMBOL PART PART DP23 DP23G DP24

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

DL37 2331824M ZENER HZ9B1 TA 0 0 0 HM03 CZ00641 GP1U281Q 0 0

DM01 2344041M DIODE 1SS254TA/1SS270TA 0 0 U301 HC00492 F/E V0-A30FTR 0 0

DM01 2344041M DIODE 1SS254TA/1SS270TA 0 U301 HC00522 F/E TMYH4X300A 0

DM02 2344041M DIODE 1SS254TA/1SS270TA 0 0 U302 HC00502 F/E V0-A68FTR 0 0

DM02 2344041M DIODE 1SS254TA/1SS270TA 0 U302 HC00532 F/E TMYH2X300A 0

DM03 2483392 LIGHT EMITTING DIODE (SLR-37) 0 0 U303 CS00621 CHIP BOARD UNIT (HC5621)(FC) 0 0

DM03 CH00231 LED SLH-56VC3F 0 U303 CS00641 CHIP BOARD UNIT (HC5621T)(FC) 0

DM04 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 UFPK AZ00163 CRX F-PACK MAYLAYSIA 0 0

DM04 2331849M ZENER HZ12C3 (TA) SI 500MW 0 UFPK AZ00651 CRX FOCUS PACK 0

DM05 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 UKDG CS00591 CHIP BOARD UNIT (HC2171) 0

DM05 2331849M ZENER HZ12C3 (TA) SI 500MW 0 UKDG CS00651 DCU HC2171HX ASY 0 0

DM07 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0

DM07 2331849M ZENER HZ12C3 (TA) SI 500MW 0 INTEGRATED CIRCUITS

DM08 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 I001 CK37372U M306V3MG-XXXFP 0 0 0

DM08 2331849M ZENER HZ12C3 (TA) SI 500MW 0 I002 CK37051R ANALOG MONOLITHIC IC(BD4729G) 0 0 0

DM09 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 I003 CK35894R IC CAT24WC32J1 0 0 0

DM09 2331849M ZENER HZ12C3 (TA) SI 500MW 0 I005 CK31992R IC BU4053BCF 0 0 0

DM10 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 I007 CK09541R IC HD74HCT245T 0 0 0

DM10 2331849M ZENER HZ12C3 (TA) SI 500MW 0 I401 CP08191U ANALOG MONOLITHIC IC TA1360N 0 0 0

DM11 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 I402 CK31992R IC BU4053BCF 0 0 0

DM11 2331849M ZENER HZ12C3 (TA) SI 500MW 0 I601 CP06891 IC TDA8174A 0 0 0

DM12 2331815M ZENER HZ7-B2 0 0 I701 2362606 IC NJM4558D 0 0 0

DM12 2331815M ZENER HZ7-B2 0 I901 CP08101U MONO IC STR-X6456(LF1901) 0 0 0

DM13 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 I902 CZ01082 IC STR-F6628(LF1359)) 0 0 0

DN01 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 I903 CP07851 MONO IC TLP421 0 0 0

DN02 2339802M ZENER DIODE HZS2B2 TAPE 0 0 0 I904 CP07851 MONO IC TLP421 0 0 0

DN03 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 I905 CP07851 MONO IC TLP421 0 0 0

DN06 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 I906 CP07851 MONO IC TLP421 0 0 0

DN07 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 I907 2381343 IC (SE115N) 0 0 0

DN08 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 I908 CP05141 ANALOG MONOLITHIC IC (PQ6RD083) 0 0 0

DN09 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 I909 CP06081 ANALOG MONOLITHIC IC (SI-3050N) 0 0 0

DN10 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 I910 CP05163F IC SI-3090F 0 0 0

DN11 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 I911 CP06543F IC REG.(SI-3090C) 0 0 0

DN12 2331849M ZENER HZ12C3 (TA) SI 500MW 0 0 0 IA01 CK36491R IC NJW1137M 0 0 0

DN13 2344041M DIODE 1SS254TA/1SS270TA 000IA02 CK35451R IC NJM2198M 0 0 0

DN14 2339827M ZENER HZS4C1 TA 0 0 0 IA03 2004751 IC TA8200AH 0 0 0

DN15 2344041M DIODE 1SS254TA/1SS270TA 0 0 0 IH01 CP07091 IC M62501P 0 0 0

DP53 CH02001M DIODE 1SR139-400 0 0 0 IJ01 CK35163R IC SII907BCQ52 0 0

DP54 CH02001M DIODE 1SR139-400 0 0 0 IJ02 CP05273U IC M24C02-BN6 0 0

DX01 2331771M ZENER HZ-3A1 TAPE 0 0 0 IJ04 CK37051R ANALOG MONOLITHIC IC(BD4729G) 0 0

DX02 2331771M ZENER HZ-3A1 TAPE 0 0 0 IJ07 CZ00671R ANALOG MONOLITHIC IC (BA033FP-E2) 0 0

DX03 2344041M DIODE 1SS254TA/1SS270TA 000IJ0A CA01301R TRS.CHIP NDC7002N 0 0

DZ01 2344041M DIODE 1SS254TA/1SS270TA 000IK01 CP02411 ANALOG MONOLITHIC IC KIA7805PI 0 0 0

DZ02 2344041M DIODE 1SS254TA/1SS270TA 000IK02 CP05011R IC PST994D-T 0 0 0

IK04 CZ00431 HYBRID IC (STK392-110) 0

FUSES, PROTECTORS IK04 CZ00433 HYBRID IC (STK392-150) 0 0

E901 AZ00421M PROTECTOR 491010T52 0 0 0 IK05 CZ00431 HYBRID IC (STK392-110) 0 0 0

E902 AZ00421M PROTECTOR 491010T52 0 0 0 IP51 CK37191R MONO IC SI-3018LSA-TL 0 0 0

E903 AZ00106M PROTECTOR CRXT491003 0 0 0 IP52 CP08121R MONO IC SI-3002KWF 0 0 0

E904 AZ00108M PROTECTOR(CRXT491005) 0 0 0 IP53 CP06081 ANALOG MONOLITHIC IC (SI-3050N) 0 0 0

E905 AZ00107M PROTECTOR CRXT491004 0 0 0 IP81 CK37184R MONO IC SI-3033LUS 0 0 0

E906 AZ00101M PROTECTOR(CRXT491.500) 0 0 0 IV01 CK07631R DIGITAL MONOLITHIC IC (TC90A45F) 0 0 0

E907 AZ00106M PROTECTOR CRXT491003 000IW01 CK36951U 3D Y/C SEP IC UPD64083GF-3BA 0 0 0

E909 AZ00109M PROTECTOR CRXT491007 000IW02 CK06097R ANALOG MONOLITHIC IC(PST9127NR) 0 0 0

E911 AZ00109M PROTECTOR CRXT491007 0 0 0 IX01 CK30941U IC CXA2069Q 0 0 0

F901 FN00374 FUSE 51MS 060 L 125V 6A 0 0 0 IX02 CK34811U IC MM1519XQ 0 0 0

F902 FN00373 FUSE 51MS 050 L 125V 5A 0 0 0 IZ01 CK36961R IC TA1340F 0 0 0

F903 FN00373 FUSE 51MS 050 L 125V 5A 0 0 0 IZ02 CK36961R IC TA1340F 0 0 0

FK01 AZ00106M PROTECTOR CRXT491003 0

FK02 AZ00106M PROTECTOR CRXT491003 0 COILS

L001 BH00697R FILTER COIL 100UH 0 0 0

SPARK GAPS L006 BH00697R FILTER COIL 100UH 0 0 0

G801 CJ00071R SPARK GAP 1.5KV 0 0 0 L007 BH00697R FILTER COIL 100UH 0 0 0

G802 CJ00071R SPARK GAP 1.5KV 0 0 0 L009 BH00697R FILTER COIL 100UH 0 0 0

G851 CJ00071R SPARK GAP 1.5KV 0 0 0 L010 BH00697R FILTER COIL 100UH 0 0 0

G852 CJ00071R SPARK GAP 1.5KV 0 0 0 L011 BH00697R FILTER COIL 100UH 0 0 0

G8A1 CJ00071R SPARK GAP 1.5KV 0 0 0 L014 BH00697R FILTER COIL 100UH 0 0 0

G8A2 CJ00071R SPARK GAP 1.5KV 0 0 0 L301 2123781R FILTER COIL 100UH(EL0607) 0 0 0

GF01 CJ00072R SPARK GAP 2.5KV 0 0 0 L302 2123781R FILTER COIL 100UH(EL0607) 0 0 0

QF02 CJ00072R SPARK GAP 2.5KV 0 0 0 L303 2123781R FILTER COIL 100UH(EL0607) 0 0 0

QF03 CJ00072R SPARK GAP 2.5KV 0 0 0 L304 2123781R FILTER COIL 100UH(EL0607) 0 0 0

L305 2123781R FILTER COIL 100UH(EL0607) 0 0 0

COMPOUND COMPONENTS L306 BH00697R FILTER COIL 100UH 0 0 0

EANT HP00771 ANT SW 0 0 0 L307 2123781R FILTER COIL 100UH(EL0607) 0 0 0

HM01 CZ00833 R/C REC.GP1U281R 0 L308 BH00697R FILTER COIL 100UH 0 0 0

HM02 CZ00641 GP1U281Q 0 0 L309 BH00671R COIL 1.0UH 0 0 0

DP23/23G/24

104

PRODUCT SERVICE NOTE: Components marked with a have special characteristics important to safety. Before replacing

any of these components, read carefully, the PRODUCT SAFETY NOTICE of this Service Manual. Don’t degrade the safety of the

receiver through improper servicing.

SYMBOL PART PART DP23 DP23G DP24 SYMBOL PART PART DP23 DP23G DP24

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

L401 BH00697R FILTER COIL 100UH 0 0 0 LK08 BH01341M COIL FERRITE BEADS 0.8UH 0 0 0

L402 BH00697R FILTER COIL 100UH 0 0 0 LL01 2125811N FILT.COIL(LHL08 100UH) 0 0 0

L403 BH00697R FILTER COIL 100UH 0 0 0 LV01 BH00697R FILTER COIL 100UH 0 0 0

L404 BH00697R FILTER COIL 100UH 0 0 0 LV02 BH00697R FILTER COIL 100UH 0 0 0

L601 2125803N FILT.COIL(LHL08 27UH) 0 0 0 LV03 BH00697R FILTER COIL 100UH 0 0 0

L602 2125803N FILT.COIL(LHL08 27UH) 0 0 0 LV04 BH00697R FILTER COIL 100UH 0 0 0

L703 BH00228R COIL 3 32K-1T7608A 0 0 0 LV05 BH00697R FILTER COIL 100UH 0 0 0

L704 BZ04612 HORIZONTAL LINEARITY COIL 13UH 0 0 0 LV06 BH00686R COIL 15UH 0 0 0

L705 BZ04611 HORIZONTAL LINEARITY COIL 6UH 0 0 0 LW01 BH00691R COIL 33UH 0 0 0

L801 BH00679R COIL 4.7UH 0 0 0 LW02 BH00691R COIL 33UH 0 0 0

L803 BH00685R COIL 12UH 0 0 0 LW03 BH00697R FILTER COIL 100UH 0 0 0

L804 BH00683R COIL 8.2UH(FLR50) 0 0 0 LW04 BH00697R FILTER COIL 100UH 0 0 0

L805 BH00671R COIL 1.0UH 0 0 0 LW05 BH00697R FILTER COIL 100UH 0 0 0

L806 BH00697R FILTER COIL 100UH 0 0 0 LW06 BH00697R FILTER COIL 100UH 0 0 0

L851 BH00677R COIL 3.3UH 0 0 0 LW07 BH00697R FILTER COIL 100UH 0 0 0

L853 BH00685R COIL 12UH 0 0 0 LW08 BH00697R FILTER COIL 100UH 0 0 0

L854 BH00683R COIL 8.2UH(FLR50) 0 0 0 LW09 BH00679R COIL 4.7UH 0 0 0

L855 BH00673R COIL 1.5UH 0 0 0 LW10 BH00697R FILTER COIL 100UH 0 0 0

L856 BH00697R FILTER COIL 100UH 0 0 0 LX01 BH00697R FILTER COIL 100UH 0 0 0

L8A1 BH00677R COIL 3.3UH 0 0 0 LX02 BH00697R FILTER COIL 100UH 0 0 0

L8A3 BH00685R COIL 12UH 0 0 0 LX03 BH00697R FILTER COIL 100UH 0 0 0

L8A4 BH00683R COIL 8.2UH(FLR50) 0 0 0 LX04 BH00697R FILTER COIL 100UH 0 0 0

L8A5 BH00673R COIL 1.5UH 0 0 0 LX05 BH00697R FILTER COIL 100UH 0 0 0

L8A6 BH00697R FILTER COIL 100UH 0 0 0 LZ01 BH00697R FILTER COIL 100UH 0 0 0

L901 BZ05201 LINE FILTER 4.7MH 4A 0 0 0 LZ02 BH00697R FILTER COIL 100UH 0 0 0

L903 BZ05191 LINE FILTER 1.5MH 4A 0 0 0 LZ03 BH00697R FILTER COIL 100UH 0 0 0

L904 BH01342M COIL FERRITE BEADS 2.3UH 0 0 0 LZ04 2123107M LAL02 AXIAL COIL 22UH-K 0 0 0

L906 BH01341M COIL FERRITE BEADS 0.8UH 0 0 0 LZ05 BH00697R FILTER COIL 100UH 0 0 0

L907 BH01341M COIL FERRITE BEADS 0.8UH 0 0 0

L908 BH01342M COIL FERRITE BEADS 2.3UH 0 0 0 TRANSISTORS

L909 BH01342M COIL FERRITE BEADS 2.3UH 0 0 0 Q001 CA01271R TRS.CHIP 2SC5343S 0 0 0

L910 BH01341M COIL FERRITE BEADS 0.8UH 0 0 0 Q004 CA01271R TRS.CHIP 2SC5343S 0 0 0

L911 BH01341M COIL FERRITE BEADS 0.8UH 0 0 0 Q005 CA01261R TRS.CHIP 2SA1980S 0 0 0

L912 2125806N FILT.COIL(LHL08 47UH) 0 0 0 Q006 CA01261R TRS.CHIP 2SA1980S 0 0 0

L913 2125803N FILT.COIL(LHL08 27UH) 0 0 0 Q007 CA01271R TRS.CHIP 2SC5343S 0 0 0

L914 2125808N FILT.COIL(LHL08 68UH) 0 0 0 Q008 CA01261R TRS.CHIP 2SA1980S 0 0 0

L915 2125806N FILT.COIL(LHL08 47UH) 0 0 0 Q009 CA01271R TRS.CHIP 2SC5343S 0

L916 2125803N FILT.COIL(LHL08 27UH) 0 0 0 Q010 CA01271R TRS.CHIP 2SC5343S 0 0 0

L917 2125808N FILT.COIL(LHL08 68UH) 0 0 0 Q011 CA01271R TRS.CHIP 2SC5343S 0 0 0

L918 2125808N FILT.COIL(LHL08 68UH) 0 0 0 Q012 CA01271R TRS.CHIP 2SC5343S 0 0 0

L919 2125811N FILT.COIL(LHL08 100UH) 0 0 0 Q013 CA01271R TRS.CHIP 2SC5343S 0 0 0

L920 BH01342M COIL FERRITE BEADS 2.3UH 0 0 0 Q014 CA01261R TRS.CHIP 2SA1980S 0 0 0

L921 2125797N FILT.COIL(LHL08 10UH) 0 0 0 Q015 CA01271R TRS.CHIP 2SC5343S 0 0 0

L922 2125797N FILT.COIL(LHL08 10UH) 0 0 0 Q016 CA01261R TRS.CHIP 2SA1980S 0 0 0

L923 2125797N FILT.COIL(LHL08 10UH) 0 0 0 Q017 CA01271R TRS.CHIP 2SC5343S 0 0 0

L924 2125803N FILT.COIL(LHL08 27UH) 0 0 0 Q018 CA01271R TRS.CHIP 2SC5343S 0 0 0

LA02 BH00697R FILTER COIL 100UH 0 0 0 Q019 CA01271R TRS.CHIP 2SC5343S 0 0 0

LA03 BH00697R FILTER COIL 100UH 0 0 0 Q020 CA01261R TRS.CHIP 2SA1980S 0 0 0

LA04 BH00697R FILTER COIL 100UH 0 0 0 Q022 CA01271R TRS.CHIP 2SC5343S 0 0 0

LA06 BH01341M COIL FERRITE BEADS 0.8UH 0 0 0 Q023 CA01271R TRS.CHIP 2SC5343S 0 0 0

LA07 BH01341M COIL FERRITE BEADS 0.8UH 0 0 0 Q024 CA01271R TRS.CHIP 2SC5343S 0 0 0

LE04 BH01341M COIL FERRITE BEADS 0.8UH 0 0 0 Q025 CA01271R TRS.CHIP 2SC5343S 0 0 0

LE07 BH00697R FILTER COIL 100UH 0 0 0 Q026 CA01271R TRS.CHIP 2SC5343S 0 0 0

LE54 BH01341M COIL FERRITE BEADS 0.8UH 0 0 0 Q033 CA01271R TRS.CHIP 2SC5343S 0 0 0

LE57 BH00697R FILTER COIL 100UH 0 0 0 Q301 CA01271R TRS.CHIP 2SC5343S 0 0 0

LEA4 BH01341M COIL FERRITE BEADS 0.8UH 0 0 0 Q302 CA01271R TRS.CHIP 2SC5343S 0 0 0

LEA7 BH00697R FILTER COIL 100UH 0 0 0 Q303 CA01271R TRS.CHIP 2SC5343S 0 0 0

LH01 2125817N FILT.COIL(LHL08 330UH) 0 0 Q304 CA01271R TRS.CHIP 2SC5343S 0 0 0

LH03 BH01342M COIL FERRITE BEADS 2.3UH 0 0 0 Q305 CF02781R TRS. KTC200YAT 0 0 0

LH04 BH01341M COIL FERRITE BEADS 0.8UH 0 0 0 Q306 CA01271R TRS.CHIP 2SC5343S 0 0 0

LH05 BH01342M COIL FERRITE BEADS 2.3UH 0 0 0 Q307 CA01271R TRS.CHIP 2SC5343S 0 0 0

LH06 2125824N FILT.COIL(LHL08 1000UH) 0 0 0 Q308 CA01271R TRS.CHIP 2SC5343S 0 0 0

LJ01 BM00289R FILTER BLM18BD471SN1D 0 0 Q309 CA01261R TRS.CHIP 2SA1980S 0 0 0

LJ02 BM00289R FILTER BLM18BD471SN1D 0 0 Q401 CA01261R TRS.CHIP 2SA1980S 0 0 0

LJ03 BM00289R FILTER BLM18BD471SN1D 0 0 Q402 CA01261R TRS.CHIP 2SA1980S 0 0 0

LJ04 BM00289R FILTER BLM18BD471SN1D 0 0 Q403 CA01261R TRS.CHIP 2SA1980S 0 0 0

LJ05 BM00289R FILTER BLM18BD471SN1D 0 0 Q404 CA01271R TRS.CHIP 2SC5343S 0 0 0

LJ06 BM00289R FILTER BLM18BD471SN1D 0 0 Q405 CA01271R TRS.CHIP 2SC5343S 0 0 0

LJ07 BM00289R FILTER BLM18BD471SN1D 0 0 Q406 CA01271R TRS.CHIP 2SC5343S 0 0 0

LJ08 BM00289R FILTER BLM18BD471SN1D 0 0 Q407 CA01271R TRS.CHIP 2SC5343S 0 0 0

LJ15 BH00684R COIL 10UH 0 0 Q408 CA01261R TRS.CHIP 2SA1980S 0 0 0

LJ16 BH00697R FILTER COIL 100UH 0 0 Q409 CA01271R TRS.CHIP 2SC5343S 0 0 0

LJ17 BH00697R FILTER COIL 100UH 0 0 Q410 CA01261R TRS.CHIP 2SA1980S 0 0 0

LJ20 BM00289R FILTER BLM18BD471SN1D 0 0 Q411 CA01271R TRS.CHIP 2SC5343S 0 0 0

LK07 BH01341M COIL FERRITE BEADS 0.8UH 0 0 0 Q412 CA01271R TRS.CHIP 2SC5343S 0 0 0

DP23/23G/24

105

PRODUCT SERVICE NOTE: Components marked with a have special characteristics important to safety. Before replacing

any of these components, read carefully, the PRODUCT SAFETY NOTICE of this Service Manual. Don’t degrade the safety of the

receiver through improper servicing.

SYMBOL PART PART DP23 DP23G DP24 SYMBOL PART PART DP23 DP23G DP24

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

Q413 CA01271R TRS.CHIP 2SC5343S 0 0 0 QA12 CA01271R TRS.CHIP 2SC5343S 0 0 0

Q414 CA01271R TRS.CHIP 2SC5343S 0 0 0 QE01 CF01421R TRS. KTC3198 (GR) TAPE 0 0 0

Q415 CA01271R TRS.CHIP 2SC5343S 0 0 0 QE02 CF01421R TRS. KTC3198 (GR) TAPE 0 0 0

Q417 CA01261R TRS.CHIP 2SA1980S 0 0 0 QE03 CF02771R TRS. KTA1270 0 0 0

Q418 CA01261R TRS.CHIP 2SA1980S 0 0 0 QE06 2315381 TRS. 2SA1837 0 0 0

Q419 CA01261R TRS.CHIP 2SA1980S 0 0 0 QE07 2315391 TRS. 2SC4793 0 0 0

Q420 CA01261R TRS.CHIP 2SA1980S 0 0 0 QE08 2326821R TRANSISTOR 2SA1371 (E/F) 0 0 0

Q421 CA01261R TRS.CHIP 2SA1980S 0 0 0 QE09 CF01421R TRS. KTC3198 (GR) TAPE 0 0 0

Q422 CA01261R TRS.CHIP 2SA1980S 0 0 0 QE51 CF01421R TRS. KTC3198 (GR) TAPE 0 0 0

Q426 CA01261R TRS.CHIP 2SA1980S 0 0 0 QE52 CF01421R TRS. KTC3198 (GR) TAPE 0 0 0

Q428 CF02771R TRS. KTA1270 0 0 0 QE53 CF02771R TRS. KTA1270 0 0 0

Q429 CA01261R TRS.CHIP 2SA1980S 0 0 0 QE56 2315381 TRS. 2SA1837 0 0 0

Q431 CF02771R TRS. KTA1270 0 0 0 QE57 2315391 TRS. 2SC4793 0 0 0

Q433 CF02771R TRS. KTA1270 0 0 0 QEA1 CF01421R TRS. KTC3198 (GR) TAPE 0 0 0

Q434 CA01261R TRS.CHIP 2SA1980S 000QEA2 CF01421R TRS. KTC3198 (GR) TAPE 0 0 0

Q438 CF02771R TRS. KTA1270 0 0 0 QEA3 CF02771R TRS. KTA1270 0 0 0

Q439 CA01261R TRS.CHIP 2SA1980S 000QEA6 2315381 TRS. 2SA1837 0 0 0

Q440 CA01271R TRS.CHIP 2SC5343S 0 0 0 QEA7 2315391 TRS. 2SC4793 0 0 0

Q441 CA01261R TRS.CHIP 2SA1980S 000QEA8 2326821R TRANSISTOR 2SA1371 (E/F) 0 0 0

Q442 CA01271R TRS.CHIP 2SC5343S 0 0 0 QF01 CF00821F TRS. 2SC4686A 1200V 0 0 0

Q443 CA01261R TRS.CHIP 2SA1980S 0 0 0 QH01 CF01583F TRS. 2SK2771-01R-F168R 0 0 0

Q444 CA01271R TRS.CHIP 2SC5343S 0 0 0 QH02 CF02781R TRS. KTC200YAT 0 0 0

Q445 CA01261R TRS.CHIP 2SA1980S 0 0 0 QH03 2326811R TRANSISTOR 2SC3468 (E/F) 0 0 0

Q446 CA01271R TRS.CHIP 2SC5343S 0 0 0 QJ01 CA01261R TRS.CHIP 2SA1980S 0 0

Q447 CA01271R TRS.CHIP 2SC5343S 0 0 0 QJ02 CA01261R TRS.CHIP 2SA1980S 0 0

Q448 CA01271R TRS.CHIP 2SC5343S 0 0 0 QJ03 CA01261R TRS.CHIP 2SA1980S 0 0

Q450 CA01271R TRS.CHIP 2SC5343S 0 0 0 QJ06 CA01271R TRS.CHIP 2SC5343S 0 0

Q603 CF01421R TRS. KTC3198 (GR) TAPE 0 0 0 QJ08 CA01271R TRS.CHIP 2SC5343S 0 0

Q604 CF02771R TRS. KTA1270 0 0 0 QK01 2312171 TRS. 2SC3852 0 0 0

Q701 2328102 TRS.FN-521 0 0 0 QK02 CF02771R TRS. KTA1270 0 0 0

Q703 2324321M TRANSISTOR 2SC2610-05 0 0 0 QK03 CF02771R TRS. KTA1270 0 0 0

Q706 CF01421R TRS. KTC3198 (GR) TAPE 0 0 0 QK06 CF01421R TRS. KTC3198 (GR) TAPE 0 0 0

Q709 2326216 TRS. 2SC3116 (S/T) 0 0 0 QK07 CF01421R TRS. KTC3198 (GR) TAPE 0 0 0

Q710 CF01421R TRS. KTC3198 (GR) TAPE 0 0 0 QK08 CF01421R TRS. KTC3198 (GR) TAPE 0 0 0

Q777 CF02731F TRS. 2SC5681 0 0 0 QL10 CF02771R TRS. KTA1270 0 0 0

Q801 2327471F TRS.2SC3950 (HIT D/E) 0 0 0 QL11 CF02771R TRS. KTA1270 0 0 0

Q802 CF01421R TRS. KTC3198 (GR) TAPE 0 0 0 QL12 CF02771R TRS. KTA1270 0 0 0

Q803 2312372F TRS-2SC3942 0 0 0 QL13 CF02771R TRS. KTA1270 0 0 0

Q804 2312773F TRS-2SA1546(2)M/L 0 0 0 QL14 CF02771R TRS. KTA1270 0 0 0

Q805 2312372F TRS-2SC3942 0 0 0 QL15 CF02771R TRS. KTA1270 0 0 0

Q812 2312372F TRS-2SC3942 0 0 0 QL16 CF02771R TRS. KTA1270 0 0 0

Q851 2327471F TRS.2SC3950 (HIT D/E) 0 0 0 QL17 CF02771R TRS. KTA1270 0 0 0

Q852 CF01421R TRS. KTC3198 (GR) TAPE 0 0 0 QM01 CF01421R TRS. KTC3198 (GR) TAPE 0

Q853 2312372F TRS-2SC3942 0 0 0 QM02 2312992 PHOTO TRS. RPT-38PT3F (M) 0 0

Q854 2312773F TRS-2SA1546(2)M/L 0 0 0 QM02 2312992 PHOTO TRS. RPT-38PT3F (M) 0

Q855 2312372F TRS-2SC3942 0 0 0 QM03 CF01421R TRS. KTC3198 (GR) TAPE 0 0

Q862 2312372F TRS-2SC3942 0 0 0 QM03 CF01421R TRS. KTC3198 (GR) TAPE 0

Q8A1 2327471F TRS.2SC3950 (HIT D/E) 0 0 0 QM04 CF01421R TRS. KTC3198 (GR) TAPE 0 0

Q8A2 CF01421R TRS. KTC3198 (GR) TAPE 0 0 0 QM04 CF01421R TRS. KTC3198 (GR) TAPE 0

Q8A3 2312372F TRS-2SC3942 0 0 0 QM05 CF01421R TRS. KTC3198 (GR) TAPE 0

Q8A4 2312773F TRS-2SA1546(2)M/L 0 0 0 QM06 CF01421R TRS. KTC3198 (GR) TAPE 0 0

Q8A5 2312372F TRS-2SC3942 0 0 0 QM07 CF01421R TRS. KTC3198 (GR) TAPE 0 0

Q8A6 CF02771R TRS. KTA1270 0 0 0 QN01 CF01421R TRS. KTC3198 (GR) TAPE 0 0 0

Q8A7 CF01421R TRS. KTC3198 (GR) TAPE 0 0 0 QN02 CF02771R TRS. KTA1270 0 0 0

Q8C1 CF01421R TRS. KTC3198 (GR) TAPE 0 0 0 QN03 CF01421R TRS. KTC3198 (GR) TAPE 0 0 0

Q8C2 2312372F TRS-2SC3942 0 0 0 QN04 CF01421R TRS. KTC3198 (GR) TAPE 0 0 0

Q901 CF02771R TRS. KTA1270 0 0 0 QN05 CF01421R TRS. KTC3198 (GR) TAPE 0 0 0

Q902 CF01421R TRS. KTC3198 (GR) TAPE 0 0 0 QN06 CF01421R TRS. KTC3198 (GR) TAPE 0 0 0

Q903 CF01421R TRS. KTC3198 (GR) TAPE 0 0 0 QV01 CA01271R TRS.CHIP 2SC5343S 0 0 0

Q904 CF02771R TRS. KTA1270 0 0 0 QV02 CA01271R TRS.CHIP 2SC5343S 0 0 0

Q905 CF02281R TRS. 2SA821S 000QV03 CA01261R TRS.CHIP 2SA1980S 0 0 0

Q906 CF02771R TRS. KTA1270 0 0 0 QV04 CA01271R TRS.CHIP 2SC5343S 0 0 0

Q907 2312171 TRS. 2SC3852 0 0 0 QV05 CA01271R TRS.CHIP 2SC5343S 0 0 0

Q910 CF01421R TRS. KTC3198 (GR) TAPE 0 0 0 QV06 CA01271R TRS.CHIP 2SC5343S 0 0 0

Q911 CF02771R TRS. KTA1270 0 0 0 QV07 CA01261R TRS.CHIP 2SA1980S 0 0 0

Q912 CF01421R TRS. KTC3198 (GR) TAPE 0 0 0 QV08 CA01271R TRS.CHIP 2SC5343S 0 0 0

QA03 CA01261R TRS.CHIP 2SA1980S 0 0 0 QV09 CA01271R TRS.CHIP 2SC5343S 0 0 0

QA04 CA01271R TRS.CHIP 2SC5343S 0 0 0 QV10 CA01261R TRS.CHIP 2SA1980S 0 0 0

QA05 CA01261R TRS.CHIP 2SA1980S 000QW01 CA01271R TRS.CHIP 2SC5343S 0 0 0

QA06 CA01271R TRS.CHIP 2SC5343S 0 0 0 QW02 CA01261R TRS.CHIP 2SA1980S 0 0 0

QA07 CA01271R TRS.CHIP 2SC5343S 0 0 0 QW03 CA01271R TRS.CHIP 2SC5343S 0 0 0

QA08 CA01271R TRS.CHIP 2SC5343S 0 0 0 QW04 CA01261R TRS.CHIP 2SA1980S 0 0 0

QA09 CA00461R TRS.CHIP 2SD2114K 20V TAPE 0 0 0 QW05 CA01261R TRS.CHIP 2SA1980S 0 0 0

QA10 CA00461R TRS.CHIP 2SD2114K 20V TAPE 0 0 0 QW06 CA01271R TRS.CHIP 2SC5343S 0 0 0

QA11 CA01271R TRS.CHIP 2SC5343S 0 0 0 QW07 CA01261R TRS.CHIP 2SA1980S 0 0 0

DP23/23G/24

106

PRODUCT SERVICE NOTE: Components marked with a have special characteristics important to safety. Before replacing

any of these components, read carefully, the PRODUCT SAFETY NOTICE of this Service Manual. Don’t degrade the safety of the

receiver through improper servicing.

SYMBOL PART PART DP23 DP23G DP24 SYMBOL PART PART DP23 DP23G DP24

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

QW08 CA01271R TRS.CHIP 2SC5343S 0 0 0 R026 0790033R RES.CHIP 1/16W 470 OHM 0 0 0

QW09 CA01261R TRS.CHIP 2SA1980S 0 0 0 R027 0790033R RES.CHIP 1/16W 470 OHM 0 0 0

QW10 CA01271R TRS.CHIP 2SC5343S 0 0 0 R028 0790033R RES.CHIP 1/16W 470 OHM 0 0 0

QW11 CA01261R TRS.CHIP 2SA1980S 0 0 0 R029 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

QW12 CA01271R TRS.CHIP 2SC5343S 0 0 0 R030 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

QW13 CA01261R TRS.CHIP 2SA1980S 0 0 0 R031 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

QW14 CA01271R TRS.CHIP 2SC5343S 0 0 0 R032 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

QW15 CA01261R TRS.CHIP 2SA1980S 0 0 0 R037 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

QW16 CA01261R TRS.CHIP 2SA1980S 0 0 0 R038 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

QX01 CA01271R TRS.CHIP 2SC5343S 0 0 0 R039 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

QX02 CA01271R TRS.CHIP 2SC5343S 0 0 0 R042 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

QX03 CF02781R TRS. KTC200YAT 0 0 0 R043 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

QX04 CF02781R TRS. KTC200YAT 0 0 0 R044 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

QX05 CF02781R TRS. KTC200YAT 0 0 0 R045 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

QX09 CA01261R TRS.CHIP 2SA1980S 0 0 0 R046 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

QX10 CA01271R TRS.CHIP 2SC5343S 0 0 0 R047 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

QX11 CA01271R TRS.CHIP 2SC5343S 0 0 0 R048 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

QX12 CA01271R TRS.CHIP 2SC5343S 0 0 0 R049 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

QX13 CA01271R TRS.CHIP 2SC5343S 0 0 0 R050 0790028R RES.CHIP 1/16W 220 OHM 0 0 0

QX14 CA01271R TRS.CHIP 2SC5343S 0 0 0 R051 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

QX15 CA01271R TRS.CHIP 2SC5343S 0 0 0 R052 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

QX16 CA01271R TRS.CHIP 2SC5343S 0 0 0 R053 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

QX17 CA01271R TRS.CHIP 2SC5343S 0 0 0 R054 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

QX18 CA01271R TRS.CHIP 2SC5343S 0 0 0 R055 0790047R RES.CHIP 1/16W 5.6K OHM 0 0 0

QX19 CA01261R TRS.CHIP 2SA1980S 0 0 0 R056 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

QX20 CA01261R TRS.CHIP 2SA1980S 0 0 0 R057 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

QX21 CA01261R TRS.CHIP 2SA1980S 0 0 0 R058 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

QX22 CA01261R TRS.CHIP 2SA1980S 0 0 0 R060 0790028R RES.CHIP 1/16W 220 OHM 0 0 0

QX23 CA01261R TRS.CHIP 2SA1980S 0 0 0 R061 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

QX24 CA01261R TRS.CHIP 2SA1980S 0 0 0 R062 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

QX25 CA01261R TRS.CHIP 2SA1980S 0 0 0 R063 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

QX26 CA01261R TRS.CHIP 2SA1980S 0 0 0 R064 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

QX27 CA01261R TRS.CHIP 2SA1980S 0 0 0 R065 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

QX28 CA01261R TRS.CHIP 2SA1980S 0 0 0 R066 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

QX29 CA01261R TRS.CHIP 2SA1980S 0 0 0 R067 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

QX30 CA01271R TRS.CHIP 2SC5343S 0 0 0 R068 0790059R RES.CHIP 1/16W 47K OHM 0 0 0

QX31 CA01271R TRS.CHIP 2SC5343S 0 0 0 R069 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

QX33 CA01271R TRS.CHIP 2SC5343S 0 0 0 R070 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

QX34 CA01261R TRS.CHIP 2SA1980S 0 0 0 R071 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

QZ01 CA01261R TRS.CHIP 2SA1980S 0 0 0 R072 0790028R RES.CHIP 1/16W 220 OHM 0 0 0

QZ02 CA01261R TRS.CHIP 2SA1980S 0 0 0 R073 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

QZ03 CA01261R TRS.CHIP 2SA1980S 0 0 0 R074 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

QZ04 CA01271R TRS.CHIP 2SC5343S 0 0 0 R075 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

QZ05 CA01271R TRS.CHIP 2SC5343S 0 0 0 R076 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

QZ06 CA01271R TRS.CHIP 2SC5343S 0 0 0 R077 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

QZ07 CA01271R TRS.CHIP 2SC5343S 0 0 0 R078 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

QZ08 CA01261R TRS.CHIP 2SA1980S 0 0 0 R079 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

QZ09 CA01261R TRS.CHIP 2SA1980S 0 0 0 R080 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

QZ10 CA01261R TRS.CHIP 2SA1980S 0 0 0 R085 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

QZ11 CA01261R TRS.CHIP 2SA1980S 0 0 0 R086 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

QZ13 CA01271R TRS.CHIP 2SC5343S 0 0 0 R087 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

QZ14 CA01271R TRS.CHIP 2SC5343S 0 0 0 R088 0790047R RES.CHIP 1/16W 5.6K OHM 0 0 0

QZ15 CA01271R TRS.CHIP 2SC5343S 0 0 0 R089 0790038R RES.CHIP 1/16W 1.2K OHM 0 0 0

QZ18 CA01271R TRS.CHIP 2SC5343S 0 0 0 R090 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R091 0790033R RES.CHIP 1/16W 470 OHM 0 0 0

RESISTORS R092 0790077R RES.CHIP 1/16W 1.0M OHM 0 0 0

R001 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R093 0790033R RES.CHIP 1/16W 470 OHM 0 0 0

R006 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R094 0790077R RES.CHIP 1/16W 1.0M OHM 0 0 0

R007 0790001R CHIP RESISTOR RECJUMPER-1-16C16T1608 0 0 0 R095 0790055R RES.CHIP 1/16W 22K OHM 0 0 0

R008 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R096 0790064R RES.CHIP 1/16W 100K OHM 0 0 0

R009 0790051R RES.CHIP 1/16W 10K OHM 0 0 0 R098 0790046R RES.CHIP 1/16W 4.7K OHM 0 0 0

R010 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R101 0790055R RES.CHIP 1/16W 22K OHM 0 0 0

R011 0790001R CHIP RESISTOR RECJUMPER-1-16C16T1608 0 0 0 R102 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

R012 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R103 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R014 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R104 0790001R CHIP RESISTOR RECJUMPER-1-16C16T1608 0 0 0

R015 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R105 0790001R CHIP RESISTOR RECJUMPER-1-16C16T1608 0 0 0

R016 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R106 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

R018 0790051R RES.CHIP 1/16W 10K OHM 0 0 0 R107 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

R019 0790051R RES.CHIP 1/16W 10K OHM 0 0 0 R108 0790044R RES.CHIP 1/16W 3.3K OHM 0 0 0

R020 0790051R RES.CHIP 1/16W 10K OHM 0 0 0 R109 0790047R RES.CHIP 1/16W 5.6K OHM 0 0 0

R021 0790051R RES.CHIP 1/16W 10K OHM 0 0 0 R110 0790059R RES.CHIP 1/16W 47K OHM 0 0 0

R022 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R111 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

R023 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R112 0790001R CHIP RESISTOR RECJUMPER-1-16C16T1608 0 0 0

R024 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R113 0790057R RES.CHIP 1/16W 33K OHM 0 0 0

R025 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R114 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

DP23/23G/24

107

PRODUCT SERVICE NOTE: Components marked with a have special characteristics important to safety. Before replacing

any of these components, read carefully, the PRODUCT SAFETY NOTICE of this Service Manual. Don’t degrade the safety of the

receiver through improper servicing.

SYMBOL PART PART DP23 DP23G DP24 SYMBOL PART PART DP23 DP23G DP24

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

R145 0790051R RES.CHIP 1/16W 10K OHM 0 0 0 R263 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

R146 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R264 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

R147 0790042R RES.CHIP 1/16W 2.2K OHM 0 0 0 R265 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

R148 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R269 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R149 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R298 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R150 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R299 0790039R RES.CHIP 1/16W 1.5K OHM 0 0 0

R151 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R301 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R152 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R302 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R153 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R303 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

R154 0790051R RES.CHIP 1/16W 10K OHM 0 0 0 R304 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

R155 0790059R RES.CHIP 1/16W 47K OHM 0 0 0 R305 0790055R RES.CHIP 1/16W 22K OHM 0 0 0

R156 0790051R RES.CHIP 1/16W 10K OHM 0 0 0 R306 0790055R RES.CHIP 1/16W 22K OHM 0 0 0

R157 0790051R RES.CHIP 1/16W 10K OHM 0 0 0 R307 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

R158 0790059R RES.CHIP 1/16W 47K OHM 0 0 0 R308 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

R159 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R309 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R160 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R310 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R162 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0 R311 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R163 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R312 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R165 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0 R313 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R166 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0 R314 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

R167 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0 R315 0790059R RES.CHIP 1/16W 47K OHM 0 0 0

R168 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R316 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

R169 0790064R RES.CHIP 1/16W 100K OHM 0 0 0 R317 0790059R RES.CHIP 1/16W 47K OHM 0 0 0

R170 0790047R RES.CHIP 1/16W 5.6K OHM 0 0 0 R319 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R171 0790069R RES.CHIP 1/16W 270K OHM 0 0 0 R320 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R179 0790047R RES.CHIP 1/16W 5.6K OHM 0 0 0 R322 0790028R RES.CHIP 1/16W 220 OHM 0 0 0

R180 0790052R RES.CHIP 1/16W 12K OHM 0 0 0 R323 0790028R RES.CHIP 1/16W 220 OHM 0 0 0

R181 0790059R RES.CHIP 1/16W 47K OHM 0 0 0 R324 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R182 0790051R RES.CHIP 1/16W 10K OHM 0 0 0 R325 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R183 0790047R RES.CHIP 1/16W 5.6K OHM 0 0 0 R326 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R184 0790052R RES.CHIP 1/16W 12K OHM 0 0 0 R327 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R185 0790064R RES.CHIP 1/16W 100K OHM 0 0 0 R329 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R186 0790052R RES.CHIP 1/16W 12K OHM 0 0 0 R331 0790028R RES.CHIP 1/16W 220 OHM 0 0 0

R187 0790047R RES.CHIP 1/16W 5.6K OHM 0 0 0 R332 0790028R RES.CHIP 1/16W 220 OHM 0 0 0

R188 0790059R RES.CHIP 1/16W 47K OHM 0 0 0 R333 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R189 0790051R RES.CHIP 1/16W 10K OHM 0 0 0 R334 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R190 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R335 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R191 0790051R RES.CHIP 1/16W 10K OHM 0 0 0 R336 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

R196 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0 R337 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

R198 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R338 0790059R RES.CHIP 1/16W 47K OHM 0 0 0

R199 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R339 0790055R RES.CHIP 1/16W 22K OHM 0 0 0

R200 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R340 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R201 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R341 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R202 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R342 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R203 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R343 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R204 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R344 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R205 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R345 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R206 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R346 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R207 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R347 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R208 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R348 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R209 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R349 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R210 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R359 0790021R RES.CHIP 1/16W 56 OHM 0 0 0

R211 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R360 0790021R RES.CHIP 1/16W 56 OHM 0 0 0

R212 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R361 0790021R RES.CHIP 1/16W 56 OHM 0 0 0

R213 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R362 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R214 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0 R363 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R215 0790059R RES.CHIP 1/16W 47K OHM 0 0 0 R364 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R219 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0 R365 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R220 0790042R RES.CHIP 1/16W 2.2K OHM 0 0 0 R366 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R221 0790042R RES.CHIP 1/16W 2.2K OHM 0 0 0 R367 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R222 0790028R RES.CHIP 1/16W 220 OHM 0 0 0 R368 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R227 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0 R369 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

R228 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0 R370 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

R229 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0 R371 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

R230 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0 R372 0790031R RES.CHIP 1/16W 330 OHM 0 0 0

R231 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0 R373 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

R232 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0 R374 0790031R RES.CHIP 1/16W 330 OHM 0 0 0

R237 0790051R RES.CHIP 1/16W 10K OHM 0 0 0 R375 0790031R RES.CHIP 1/16W 330 OHM 0 0 0

R239 0790064R RES.CHIP 1/16W 100K OHM 0 0 0 R376 0790034R RES.CHIP 1/16W 560 OHM 0 0 0

R240 0790046R RES.CHIP 1/16W 4.7K OHM 0 0 0 R377 0790021R RES.CHIP 1/16W 56 OHM 0 0 0

R243 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R378 0790021R RES.CHIP 1/16W 56 OHM 0 0 0

R244 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0 R379 0790021R RES.CHIP 1/16W 56 OHM 0 0 0

R245 0790034R RES.CHIP 1/16W 560 OHM 0 0 0 R387 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R261 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R401 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

R262 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R402 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

DP23/23G/24

108

PRODUCT SERVICE NOTE: Components marked with a have special characteristics important to safety. Before replacing

any of these components, read carefully, the PRODUCT SAFETY NOTICE of this Service Manual. Don’t degrade the safety of the

receiver through improper servicing.

SYMBOL PART PART DP23 DP23G DP24 SYMBOL PART PART DP23 DP23G DP24

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

R403 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R480 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R404 0790039R RES.CHIP 1/16W 1.5K OHM 0 0 0 R481 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R405 0790039R RES.CHIP 1/16W 1.5K OHM 0 0 0 R482 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R406 0790039R RES.CHIP 1/16W 1.5K OHM 0 0 0 R483 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R407 0790074R RES.CHIP 1/16W 560K OHM 0 0 0 R484 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

R408 0790044R RES.CHIP 1/16W 3.3K OHM 0 0 0 R490 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R409 0790044R RES.CHIP 1/16W 3.3K OHM 0 0 0 R498 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R410 0790044R RES.CHIP 1/16W 3.3K OHM 0 0 0 R4A1 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

R411 0790044R RES.CHIP 1/16W 3.3K OHM 0 0 0 R503 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R412 0790044R RES.CHIP 1/16W 3.3K OHM 0 0 0 R505 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

R413 0790044R RES.CHIP 1/16W 3.3K OHM 0 0 0 R506 0790052R RES.CHIP 1/16W 12K OHM 0 0 0

R414 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R507 0790057R RES.CHIP 1/16W 33K OHM 0 0 0

R415 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R508 0790022R RES.CHIP 1/16W 68 OHM 0 0 0

R416 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R509 0790033R RES.CHIP 1/16W 470 OHM 0 0 0

R417 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R510 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

R418 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R511 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R419 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R512 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

R420 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R520 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R421 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R522 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

R422 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R523 0790052R RES.CHIP 1/16W 12K OHM 0 0 0

R423 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R524 0790057R RES.CHIP 1/16W 33K OHM 0 0 0

R424 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R525 0790022R RES.CHIP 1/16W 68 OHM 0 0 0

R425 0790039R RES.CHIP 1/16W 1.5K OHM 0 0 0 R526 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R426 0790039R RES.CHIP 1/16W 1.5K OHM 0 0 0 R529 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

R427 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R538 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R428 0790051R RES.CHIP 1/16W 10K OHM 0 0 0 R540 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

R429 0790051R RES.CHIP 1/16W 10K OHM 0 0 0 R541 0790052R RES.CHIP 1/16W 12K OHM 0 0 0

R430 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R542 0790057R RES.CHIP 1/16W 33K OHM 0 0 0

R431 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R543 0790022R RES.CHIP 1/16W 68 OHM 0 0 0

R432 0790051R RES.CHIP 1/16W 10K OHM 0 0 0 R547 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

R433 0790051R RES.CHIP 1/16W 10K OHM 0 0 0 R548 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R434 0790049R RES.CHIP 1/16W 8.2K OHM 0 0 0 R550 0790055R RES.CHIP 1/16W 22K OHM 0 0 0

R435 0790045R RES.CHIP 1/16W 3.9K OHM 0 0 0 R551 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R436 0790055R RES.CHIP 1/16W 22K OHM 0 0 0 R553 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

R437 0790051R RES.CHIP 1/16W 10K OHM 0 0 0 R554 0790059R RES.CHIP 1/16W 47K OHM 0 0 0

R438 0196056R RES.-1608CHIP 1/16W 360-J TAPE 0 0 0 R555 0790061R RES.CHIP 1/16W 56K OHM 0 0 0

R439 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R556 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

R440 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R557 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

R441 0790048R RES.CHIP 1/16W 6.8K OHM 0 0 0 R558 0790053R RES.CHIP 1/16W 15K OHM 0 0 0

R442 0790043R RES.CHIP 1/16W 2.7K OHM 0 0 0 R559 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R443 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R560 0790056R RES.CHIP 1/16W 27K OHM 0 0 0

R444 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R561 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

R445 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R562 0790053R RES.CHIP 1/16W 15K OHM 0 0 0

R446 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R563 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R447 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R564 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

R448 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R565 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R449 0790051R RES.CHIP 1/16W 10K OHM 0 0 0 R566 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R450 0790038R RES.CHIP 1/16W 1.2K OHM 0 0 0 R567 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

R451 0790045R RES.CHIP 1/16W 3.9K OHM 0 0 0 R568 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R452 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0 R570 0790056R RES.CHIP 1/16W 27K OHM 0 0 0

R453 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R571 0790063R RES.CHIP 1/16W 82K OHM 0 0 0

R454 0790056R RES.CHIP 1/16W 27K OHM 0 0 0 R572 0790021R RES.CHIP 1/16W 56 OHM 0 0 0

R455 0790051R RES.CHIP 1/16W 10K OHM 0 0 0 R573 AT03864M 330OHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R456 0790044R RES.CHIP 1/16W 3.3K OHM 0 0 0 R575 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

R457 0790042R RES.CHIP 1/16W 2.2K OHM 0 0 0 R576 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

R458 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R577 0790052R RES.CHIP 1/16W 12K OHM 0 0 0

R461 0790051R RES.CHIP 1/16W 10K OHM 0 0 0 R578 0790052R RES.CHIP 1/16W 12K OHM 0 0 0

R462 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R579 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

R463 0790043R RES.CHIP 1/16W 2.7K OHM 0 0 0 R580 0790021R RES.CHIP 1/16W 56 OHM 0 0 0

R464 0790043R RES.CHIP 1/16W 2.7K OHM 0 0 0 R581 0790031R RES.CHIP 1/16W 330 OHM 0 0 0

R465 0790043R RES.CHIP 1/16W 2.7K OHM 0 0 0 R584 0790031R RES.CHIP 1/16W 330 OHM 0 0 0

R466 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R586 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

R467 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R587 0790059R RES.CHIP 1/16W 47K OHM 0 0 0

R468 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 R588 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

R469 0790043R RES.CHIP 1/16W 2.7K OHM 0 0 0 R590 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

R470 0790043R RES.CHIP 1/16W 2.7K OHM 0 0 0 R592 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

R471 0790043R RES.CHIP 1/16W 2.7K OHM 0 0 0 R593 AT03857M 100OHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R472 0790029R RES.CHIP 1/16W 270 OHM 0 0 0 R594 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

R473 0790029R RES.CHIP 1/16W 270 OHM 0 0 0 R602 0700027M RES.-CARBON FLM 1/16W 100-JB 0 0 0

R474 0790029R RES.CHIP 1/16W 270 OHM 0 0 0 R604 0700064M RES.-CARBON FLM 1/16W 56K-JB 0 0 0

R475 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R605 0700056M RES.-CARBON FLM 1/16W 15K-JB 0 0 0

R476 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R606 0700048M RES.-CARBON FLM 1/16W 3.9K-JB 0 0 0

R477 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R607 AW00131 TRIMMER resis. 0 0 0

R478 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R608 0100115M RES.-CARBON FLM 1/8W 120K-JB 0 0 0

R479 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 R611 0700058M RES.-CARBON FLM 1/16W 22K-JB 0

DP23/23G/24

109

PRODUCT SERVICE NOTE: Components marked with a have special characteristics important to safety. Before replacing

any of these components, read carefully, the PRODUCT SAFETY NOTICE of this Service Manual. Don’t degrade the safety of the

receiver through improper servicing.

SYMBOL PART PART DP23 DP23G DP24 SYMBOL PART PART DP23 DP23G DP24

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

R611 0700059M RES.-CARBON FLM 1/16W 27K-JB 0 0 R853 AT03856M 82.0OHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R612 0700063M RES.-CARBON FLM 1/16W 47K-JB 0 0 0 R854 0100017M RES.-CARBON FLM 1/8W 10-JB 0 0 0

R613 0100053M RES.-CARBON FLM 1/8W 330-JB 0 0 0 R855 AT03862M 220OHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R614 0100053M RES.-CARBON FLM 1/8W 330-JB 0 0 0 R856 0119559M RES.-MTL FLM 1/8W 10-FB 0 0 0

R616 0700047M RES.-CARBON FLM 1/16W 3.3K-JB 0 0 0 R857 AT03867M 560OHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R617 0700051M RES.-CARBON FLM 1/16W 5.6K-JB 0 0 0 R858 0100113M RES.-CARBON FLM 1/8W 100K-JB 0 0 0

R618 0700065M RES.-CARBON FLM 1/16W 68K-JB 0 0 R859 AT03866M 470OHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R618 0700066M RES.-CARBON FLM 1/16W 82K-JB 0 R861 AT04381 METAL OXIDE resis. (1.2KOHM 7W ) 0 0 0

R619 AT03191S METAL OX. 1.2OHM 1W 0 0 0 R862 AT04381 METAL OXIDE resis. (1.2KOHM 7W ) 0 0 0

R620 AT03191S METAL OX. 1.2OHM 1W 0 0 0 R863 0100035M RES.-CARBON FLM 1/8W 56-JB 0 0 0

R621 0100045M RES.-CARBON FLM 1/8W 150-JB 0 0 0 R864 0100035M RES.-CARBON FLM 1/8W 56-JB 0 0 0

R622 0188095M RES.-CARBON FLM 1/2W 2.2-J 0 0 0 R865 AT03857M 100OHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R625 AT03242S METAL OX. 100OHM 1W 0 0 0 R866 AT03906M 470KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R626 AT03857M 100OHM 1/2W RDS50 CARBON FILM resis. 000R868 AT03861M 180OHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R627 AT03857M 100OHM 1/2W RDS50 CARBON FILM resis. 000R869 AT03902M 220KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R628 AT03857M 100OHM 1/2W RDS50 CARBON FILM resis. 000R870 AT03902M 220KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R629 AT03184S METAL OX. 0.68OHM 1W 0 0 0 R880 0100049M RES.-CARBON FLM 1/8W 220-JB 0 0 0

R630 0700054M RES.-CARBON FLM 1/16W 10K-JB 0 0 0 R881 0100075M RES.-CARBON FLM 1/8W 2.7K-JB 0 0 0

R631 0700059M RES.-CARBON FLM 1/16W 27K-JB 0 0 0 R882 0100077M RES.-CARBON FLM 1/8W 3.3K-JB 0 0 0

R632 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0 R8A2 0100041M RES.-CARBON FLM 1/8W 100-JB 0 0 0

R701 0100111M RES.-CARBON FLM 1/8W 82K-JB 0 0 0 R8A3 AT03858M 120OHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R702 0100113M RES.-CARBON FLM 1/8W 100K-JB 0 0 0 R8A4 0100017M RES.-CARBON FLM 1/8W 10-JB 0 0 0

R703 0700054M RES.-CARBON FLM 1/16W 10K-JB 0 0 0 R8A5 AT03863M 270OHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R704 AT03857M 100OHM 1/2W RDS50 CARBON FILM resis. 000R8A6 0119559M RES.-MTL FLM 1/8W 10-FB 0 0 0

R706 AT03881M 5.6KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0 R8A7 AT03867M 560OHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R707 AT03882M 6.8KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0 R8A8 0100113M RES.-CARBON FLM 1/8W 100K-JB 0 0 0

R708 0700067M RES.-CARBON FLM 1/16W 100K-JB 0 0 0 R8A9 AT03866M 470OHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R709 0700064M RES.-CARBON FLM 1/16W 56K-JB 0 R8C1 AT04381 METAL OXIDE resis. (1.2KOHM 7W ) 0 0 0

R709 0700065M RES.-CARBON FLM 1/16W 68K-JB 0 0 R8C2 AT04381 METAL OXIDE resis. (1.2KOHM 7W ) 0 0 0

R710 0700045M RES.-CARBON FLM 1/16W 2.2K-JB 0 0 0 R8C3 0100035M RES.-CARBON FLM 1/8W 56-JB 0 0 0

R711 AW00123 TRIMMER resis. 0 0 0 R8C4 0100035M RES.-CARBON FLM 1/8W 56-JB 0 0 0

R712 0700055M RES.-CARBON FLM 1/16W 12K-JB 0 0 0 R8C5 AT03857M 100OHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R713 0700049M RES.-CARBON FLM 1/16W 4.7K-JB 0 0 0 R8C6 AT03906M 470KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R714 0700038M RES.-CARBON FLM 1/16W 680-JB 0 R8C8 AT03859M 150OHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R714 0700039M RES.-CARBON FLM 1/16W 820-JB 0 0 R8E3 0100089M RES.-CARBON FLM 1/8W 10K-JB 0 0 0

R715 0700063M RES.-CARBON FLM 1/16W 47K-JB 0 0 0 R8E4 0100105M RES.-CARBON FLM 1/8W 47K-JB 0 0 0

R717 0700052M RES.-CARBON FLM 1/16W 6.8K-JB 0 0 0 R8E5 AT03855M 68.0OHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R721 0700042M RES.-CARBON FLM 1/16W 1.2K-JB 0 0 0 R8E6 0100067M RES.-CARBON FLM 1/8W 1.2K-JB 0 0 0

R722 0700032M RES.-CARBON FLM 1/16W 220-JB 0 0 0 R8E7 0100087M RES.-CARBON FLM 1/8W 8.2K-JB 0 0 0

R723 AT03862M 220OHM 1/2W RDS50 CARBON FILM resis. 000R8E8 0100083M RES.-CARBON FLM 1/8W 5.6K-JB 0 0 0

R724 0700055M RES.-CARBON FLM 1/16W 12K-JB 0 0 0 R8F0 0100049M RES.-CARBON FLM 1/8W 220-JB 0 0 0

R725 0100085M RES.-CARBON FLM 1/8W 6.8K-JB 0 0 0 R8F1 0100075M RES.-CARBON FLM 1/8W 2.7K-JB 0 0 0

R729 AT03562S METAL OX. 100OHM 3W 0 0 0 R8F2 0100077M RES.-CARBON FLM 1/8W 3.3K-JB 0 0 0

R730 AT03422S METAL OX. 560OHM 2W 0 0 0 R901 AT03672M RES.MTL GRAZD FLM 1/2W 3.3M 0 0 0

R731 AT01532S METAL FILM resis.(0.12OHM 1/2W ) 0 0 0 R902 AT04371 W/WRE-R62K15W AKANE 0 0 0

R732 AT03844M 10.0OHM 1/2W RDS50 CARBON FILM resis. 0 0 0 R903 AT03676M RES.MTL GRAZD FLM 1/2W 6.8M 0 0 0

R735 0700028M RES.-CARBON FLM 1/16W 120-JB 0 0 0 R904 AT03897M 100KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R736 0700033M RES.-CARBON FLM 1/16W 270-JB 0 0 0 R906 AT03317S METAL OX. 68K OHM 1W 0 0 0

R737 AT03869M 820OHM 1/2W RDS50 CARBON FILM resis. 000R907 AT03317S METAL OX. 68K OHM 1W 0 0 0

R739 AT03251S METAL OX. 220OHM 1W 0 0 0 R908 AT03179S METAL OX. 0.47OHM 1W 0 0 0

R740 AT03251S METAL OX. 220OHM 1W 0 0 0 R909 AT03179S METAL OX. 0.47OHM 1W 0 0 0

R742 0700052M RES.-CARBON FLM 1/16W 6.8K-JB 0 0 0 R911 0700053M RES.-CARBON FLM 1/16W 8.2K-JB 0 0 0

R745 0700056M RES.-CARBON FLM 1/16W 15K-JB 0 0 0 R912 0700027M RES.-CARBON FLM 1/16W 100-JB 0 0 0

R747 0700054M RES.-CARBON FLM 1/16W 10K-JB 0 0 0 R913 AT03848M 22.0OHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R748 AT03422S METAL OX. 560OHM 2W 0 0 0 R914 0700043M RES.-CARBON FLM 1/16W 1.5K-JB 0 0 0

R802 0100041M RES.-CARBON FLM 1/8W 100-JB 0 0 0 R915 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0

R803 AT03858M 120OHM 1/2W RDS50 CARBON FILM resis. 000R916 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0

R804 0100017M RES.-CARBON FLM 1/8W 10-JB 0 0 0 R917 0700067M RES.-CARBON FLM 1/16W 100K-JB 0 0 0

R805 AT03866M 470OHM 1/2W RDS50 CARBON FILM resis. 000R918 AT03665M RES.MTL GRAZD FLM 1/2W 1M 0 0 0

R806 0119559M RES.-MTL FLM 1/8W 10-FB 0 0 0 R919 0100033M RES.-CARBON FLM 1/8W 47-JB 0 0 0

R807 AT03867M 560OHM 1/2W RDS50 CARBON FILM resis. 000R920 0700054M RES.-CARBON FLM 1/16W 10K-JB 0 0 0

R808 0100113M RES.-CARBON FLM 1/8W 100K-JB 0 0 0 R921 0700058M RES.-CARBON FLM 1/16W 22K-JB 0 0 0

R809 AT03866M 470OHM 1/2W RDS50 CARBON FILM resis. 000R922 0700049M RES.-CARBON FLM 1/16W 4.7K-JB 0 0 0

R811 AT04381 METAL OXIDE resis. (1.2KOHM 7W ) 0 0 0 R923 AT04428M ASR 12 TB 390KOHM J 0 0 0

R812 AT04381 METAL OXIDE resis. (1.2KOHM 7W ) 0 0 0 R924 AT03444S METAL OX. 3.9KOHM 2W 0 0 0

R813 0100035M RES.-CARBON FLM 1/8W 56-JB 0 0 0 R925 AT03444S METAL OX. 3.9KOHM 2W 0 0 0

R814 0100035M RES.-CARBON FLM 1/8W 56-JB 0 0 0 R926 AT03171S METAL OX. 0.22OHM 1W 0 0 0

R815 AT03857M 100OHM 1/2W RDS50 CARBON FILM resis. 000R927 AT03171S METAL OX. 0.22OHM 1W 0 0 0

R816 AT03906M 470KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0 R928 AT03171S METAL OX. 0.22OHM 1W 0 0 0

R819 AT03866M 470OHM 1/2W RDS50 CARBON FILM resis. 000R929 0700038M RES.-CARBON FLM 1/16W 680-JB 0 0 0

R820 AT03858M 120OHM 1/2W RDS50 CARBON FILM resis. 000R930 AT03844M 10.0OHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R830 0100049M RES.-CARBON FLM 1/8W 220-JB 0 0 0 R931 0700045M RES.-CARBON FLM 1/16W 2.2K-JB 0 0 0

R831 0100075M RES.-CARBON FLM 1/8W 2.7K-JB 0 0 0 R932 0700047M RES.-CARBON FLM 1/16W 3.3K-JB 0 0 0

R832 0100077M RES.-CARBON FLM 1/8W 3.3K-JB 0 0 0 R933 AT03665M RES.MTL GRAZD FLM 1/2W 1M 0 0 0

R852 0100041M RES.-CARBON FLM 1/8W 100-JB 0 0 0 R934 0700055M RES.-CARBON FLM 1/16W 12K-JB 0 0 0

DP23/23G/24

110

PRODUCT SERVICE NOTE: Components marked with a have special characteristics important to safety. Before replacing

any of these components, read carefully, the PRODUCT SAFETY NOTICE of this Service Manual. Don’t degrade the safety of the

receiver through improper servicing.

SYMBOL PART PART DP23 DP23G DP24 SYMBOL PART PART DP23 DP23G DP24

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

R935 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0 RA35 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R936 0700032M RES.-CARBON FLM 1/16W 220-JB 0 0 0 RA36 0790059R RES.CHIP 1/16W 47K OHM 0 0 0

R937 AT03464S METAL OX. 22K OHM 2W 0 0 0 RA37 0790047R RES.CHIP 1/16W 5.6K OHM 0 0 0

R938 0700049M RES.-CARBON FLM 1/16W 4.7K-JB 0 0 0 RA38 0790064R RES.CHIP 1/16W 100K OHM 0 0 0

R939 0700054M RES.-CARBON FLM 1/16W 10K-JB 0 0 0 RA39 0790064R RES.CHIP 1/16W 100K OHM 0 0 0

R940 0700036M RES.-CARBON FLM 1/16W 470-JB 0 0 0 RA40 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

R941 0119695M RES.-MTL OXIDE FLM 1W 0.47-F 0 0 0 RA41 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

R942 0700054M RES.-CARBON FLM 1/16W 10K-JB 0 0 0 RA42 0790042R RES.CHIP 1/16W 2.2K OHM 0 0 0

R943 0700058M RES.-CARBON FLM 1/16W 22K-JB 0 0 0 RA43 0790042R RES.CHIP 1/16W 2.2K OHM 0 0 0

R944 0700063M RES.-CARBON FLM 1/16W 47K-JB 0 0 0 RA44 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

R945 AT03896M 82KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0 RA45 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

R946 0700047M RES.-CARBON FLM 1/16W 3.3K-JB 0 0 0 RA46 0790042R RES.CHIP 1/16W 2.2K OHM 0 0 0

R947 0700052M RES.-CARBON FLM 1/16W 6.8K-JB 0 0 0 RA47 0790042R RES.CHIP 1/16W 2.2K OHM 0 0 0

R948 0700054M RES.-CARBON FLM 1/16W 10K-JB 0 0 0 RA48 0790059R RES.CHIP 1/16W 47K OHM 0 0 0

R949 0700063M RES.-CARBON FLM 1/16W 47K-JB 0 0 0 RA49 0790064R RES.CHIP 1/16W 100K OHM 0 0 0

R950 0700045M RES.-CARBON FLM 1/16W 2.2K-JB 0 0 0 RA50 0790059R RES.CHIP 1/16W 47K OHM 0 0 0

R951 AT03886M 15KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0 RA51 0790033R RES.CHIP 1/16W 470 OHM 0 0 0

R952 AT03886M 15KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0 RA52 0790064R RES.CHIP 1/16W 100K OHM 0 0 0

R953 0700047M RES.-CARBON FLM 1/16W 3.3K-JB 0 0 0 RA53 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

R954 0700047M RES.-CARBON FLM 1/16W 3.3K-JB 0 0 0 RA54 0790062R RES.CHIP 1/16W 68K OHM 0 0 0

R956 0700049M RES.-CARBON FLM 1/16W 4.7K-JB 0 0 0 RA55 0790062R RES.CHIP 1/16W 68K OHM 0 0 0

R957 0700023M RES.-CARBON FLM 1/16W 47-J 0 0 0 RA56 AT03197S METAL OX. 2.2OHM 1W 0 0 0

R958 0700031M RES.-CARBON FLM 1/16W 180-JB 0 0 0 RA57 AT03197S METAL OX. 2.2OHM 1W 0 0 0

R959 0700063M RES.-CARBON FLM 1/16W 47K-JB 0 0 0 RA58 AT03871M 1KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R960 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0 RA59 AT03871M 1KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R962 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0 RA60 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R963 0700032M RES.-CARBON FLM 1/16W 220-JB 0 0 0 RA61 0790059R RES.CHIP 1/16W 47K OHM 0 0 0

R964 0700054M RES.-CARBON FLM 1/16W 10K-JB 0 0 0 RA74 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R965 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0 RA75 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R966 0700054M RES.-CARBON FLM 1/16W 10K-JB 0 0 0 RA85 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R967 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0 RA86 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R968 0700054M RES.-CARBON FLM 1/16W 10K-JB 0 0 0 RAA2 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R969 0700027M RES.-CARBON FLM 1/16W 100-JB 0 0 0 RAA3 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

R970 0700046M RES.-CARBON FLM 1/16W 2.7K-JB 0 0 0 RE01 0700017M RES.-CARBON FLM 1/16W 18-J 0 0 0

R971 0700032M RES.-CARBON FLM 1/16W 220-JB 0 0 0 RE02 AT03862M 220OHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R972 0700055M RES.-CARBON FLM 1/16W 12K-JB 0 0 0 RE03 0700014M RES.-CARBON FLM 1/16W 10-J 0 0 0

R976 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0 RE04 0700014M RES.-CARBON FLM 1/16W 10-J 0 0 0

R977 0700032M RES.-CARBON FLM 1/16W 220-JB 0 0 0 RE05 AT03844M 10.0OHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R978 0700055M RES.-CARBON FLM 1/16W 12K-JB 0 0 0 RE12 0100017M RES.-CARBON FLM 1/8W 10-JB 0 0 0

R979 0700051M RES.-CARBON FLM 1/16W 5.6K-JB 0 0 0 RE13 0100017M RES.-CARBON FLM 1/8W 10-JB 0 0 0

R980 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0 RE15 AT03895M 68KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R982 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0 RE16 AT03895M 68KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R985 AT03886M 15KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0 RE18 AT03876M 2.7KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R986 0700054M RES.-CARBON FLM 1/16W 10K-JB 0 0 0 RE19 0100075M RES.-CARBON FLM 1/8W 2.7K-JB 0 0 0

R987 0700054M RES.-CARBON FLM 1/16W 10K-JB 0 0 0 RE20 AT03885M 12KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R988 AT03879M 4.7KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0 RE21 AT03862M 220OHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R989 0700045M RES.-CARBON FLM 1/16W 2.2K-JB 0 0 0 RE22 AT03862M 220OHM 1/2W RDS50 CARBON FILM resis. 0 0 0

R990 0700045M RES.-CARBON FLM 1/16W 2.2K-JB 0 0 0 RE23 0113686M RES.-CARBON FLM 1/2W 2.7-J 0 0 0

R992 AT03288S METAL OX. 5.6KOHM 1W 0 0 0 RE24 0113686M RES.-CARBON FLM 1/2W 2.7-J 0 0 0

RA07 0790064R RES.CHIP 1/16W 100K OHM 0 0 0 RE25 AT03571S METAL OX. 220OHM 3W 0 0 0

RA08 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RE27 AT03579S METAL OX. 470OHM 3W 0 0 0

RA09 0790063R RES.CHIP 1/16W 82K OHM 0 0 0 RE28 0113686M RES.-CARBON FLM 1/2W 2.7-J 0 0 0

RA10 0790028R RES.CHIP 1/16W 220 OHM 0 0 0 RE29 0100081M RES.-CARBON FLM 1/8W 4.7K-JB 0 0 0

RA11 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RE30 0100099M RES.-CARBON FLM 1/8W 27K-JB 0 0 0

RA12 0790031R RES.CHIP 1/16W 330 OHM 0 0 0 RE31 0100089M RES.-CARBON FLM 1/8W 10K-JB 0 0 0

RA13 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RE32 0700054M RES.-CARBON FLM 1/16W 10K-JB 0 0 0

RA14 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RE33 0700054M RES.-CARBON FLM 1/16W 10K-JB 0 0 0

RA15 0790058R RES.CHIP 1/16W 39K OHM 0 0 0 RE34 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0

RA16 0790052R RES.CHIP 1/16W 12K OHM 0 0 0 RE51 0700017M RES.-CARBON FLM 1/16W 18-J 0 0 0

RA17 0790064R RES.CHIP 1/16W 100K OHM 0 0 0 RE52 AT03862M 220OHM 1/2W RDS50 CARBON FILM resis. 0 0 0

RA18 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RE53 0700014M RES.-CARBON FLM 1/16W 10-J 0 0 0

RA19 0790063R RES.CHIP 1/16W 82K OHM 0 0 0 RE54 0700014M RES.-CARBON FLM 1/16W 10-J 0 0 0

RA20 0790028R RES.CHIP 1/16W 220 OHM 0 0 0 RE55 AT03844M 10.0OHM 1/2W RDS50 CARBON FILM resis. 0 0 0

RA21 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RE62 0100017M RES.-CARBON FLM 1/8W 10-JB 0 0 0

RA22 0790031R RES.CHIP 1/16W 330 OHM 0 0 0 RE63 0100017M RES.-CARBON FLM 1/8W 10-JB 0 0 0

RA23 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RE66 AT03876M 2.7KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0

RA24 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RE67 AT03895M 68KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0

RA25 0790058R RES.CHIP 1/16W 39K OHM 0 0 0 RE68 AT03895M 68KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0

RA26 0790052R RES.CHIP 1/16W 12K OHM 0 0 0 RE69 0100075M RES.-CARBON FLM 1/8W 2.7K-JB 0 0 0

RA27 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RE70 AT03885M 12KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0

RA28 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RE71 AT03862M 220OHM 1/2W RDS50 CARBON FILM resis. 0 0 0

RA30 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RE72 0113686M RES.-CARBON FLM 1/2W 2.7-J 0 0 0

RA31 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RE73 AT03862M 220OHM 1/2W RDS50 CARBON FILM resis. 0 0 0

RA33 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RE74 0113686M RES.-CARBON FLM 1/2W 2.7-J 0 0 0

RA34 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RE75 AT03571S METAL OX. 220OHM 3W 0 0 0

DP23/23G/24

111

PRODUCT SERVICE NOTE: Components marked with a have special characteristics important to safety. Before replacing

any of these components, read carefully, the PRODUCT SAFETY NOTICE of this Service Manual. Don’t degrade the safety of the

receiver through improper servicing.

SYMBOL PART PART DP23 DP23G DP24 SYMBOL PART PART DP23 DP23G DP24

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

REA1 0700017M RES.-CARBON FLM 1/16W 18-J 0 0 0 RJ16 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0

REA2 AT03862M 220OHM 1/2W RDS50 CARBON FILM resis. 000RJ17 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0

REA3 0700014M RES.-CARBON FLM 1/16W 10-J 0 0 0 RJ20 0790051R RES.CHIP 1/16W 10K OHM 0 0

REA4 0700014M RES.-CARBON FLM 1/16W 10-J 0 0 0 RJ23 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0

REA5 AT03844M 10.0OHM 1/2W RDS50 CARBON FILM resis. 0 0 0 RJ27 AQ00164R RES.CHIP 1/16W 75 OHM TAPE 0 0

REC3 0100017M RES.-CARBON FLM 1/8W 10-JB 0 0 0 RJ28 AQ00173R RES.CHIP 1/16W 160 OHM TAPE 0 0

REC4 0100017M RES.-CARBON FLM 1/8W 10-JB 0 0 0 RJ30 AQ00164R RES.CHIP 1/16W 75 OHM TAPE 0 0

REC7 AT 0 3876M 2.7KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0 RJ32 AQ00164R RES.CHIP 1/16W 75 OHM TAPE 0 0

REC8 AT 0 3895M 68KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0 RJ33 0196058R RES 1608 CHIP 1/16W 430J TAPE 0 0

REC9 AT 0 3895M 68KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0 RJ34 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0

REE1 0100075M RES.-CARBON FLM 1/8W 2.7K-JB 0 0 0 RJ37 0790057R RES.CHIP 1/16W 33K OHM 0 0

REE2 A T 0 3885M 12KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0 RJ38 0790057R RES.CHIP 1/16W 33K OHM 0 0

REE3 A T 0 3862M 220OHM 1/2W RDS50 CARBON FILM resis. 000RJ39 0790057R RES.CHIP 1/16W 33K OHM 0 0

REE4 0113686M RES.-CARBON FLM 1/2W 2.7-J 0 0 0 RJ40 0790057R RES.CHIP 1/16W 33K OHM 0 0

REE5 A T 0 3862M 220OHM 1/2W RDS50 CARBON FILM resis. 000RJ43 0790024R RES.CHIP 1/16W 100 OHM 0 0

REE6 0113686M RES.-CARBON FLM 1/2W 2.7-J 0 0 0 RJ44 0790024R RES.CHIP 1/16W 100 OHM 0 0

REE7 AT03571S METAL OX. 220OHM 3W 0 0 0 RJ49 0790059R RES.CHIP 1/16W 47K OHM 0 0

REE9 0700027M RES.-CARBON FLM 1/16W 100-JB 0 0 0 RJ50 0790059R RES.CHIP 1/16W 47K OHM 0 0

REF1 0100021M RES.-CARBON FLM 1/8W 15-JB 0 0 0 RJ58 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0

REF2 A T 0 3857M 100OHM 1/2W RDS50 CARBON FILM resis. 000RJ59 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0

REF4 0700027M RES.-CARBON FLM 1/16W 100-JB 0 0 0 RJ60 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0

REF5 0700067M RES.-CARBON FLM 1/16W 100K-JB 0 0 0 RJ61 0790025R RES.CHIP 1/16W 120 OHM 0 0

REF6 0700027M RES.-CARBON FLM 1/16W 100-JB 0 0 0 RJ62 0790025R RES.CHIP 1/16W 120 OHM 0 0

RF01 0700063M RES.-CARBON FLM 1/16W 47K-JB 0 0 0 RJ63 0790025R RES.CHIP 1/16W 120 OHM 0 0

RF02 AT04431M ASR 12 TB 560KOHM J 0 0 0 RJ65 0790039R RES.CHIP 1/16W 1.5K OHM 0 0

RF03 AT04431M ASR 12 TB 560KOHM J 0 0 0 RJ66 0790039R RES.CHIP 1/16W 1.5K OHM 0 0

RF04 0700049M RES.-CARBON FLM 1/16W 4.7K-JB 0 0 0 RJ67 0790039R RES.CHIP 1/16W 1.5K OHM 0 0

RF05 0700059M RES.-CARBON FLM 1/16W 27K-JB 0 0 0 RJ68 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0

RF06 0700045M RES.-CARBON FLM 1/16W 2.2K-JB 0 0 0 RJ69 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0

RF07 AT03871M 1KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0 RJ70 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0

RH01 0700043M RES.-CARBON FLM 1/16W 1.5K-JB 0 0 0 RJ71 0790024R RES.CHIP 1/16W 100 OHM 0 0

RH02 0700055M RES.-CARBON FLM 1/16W 12K-JB 0 0 0 RJ72 0790024R RES.CHIP 1/16W 100 OHM 0 0

RH03 0700063M RES.-CARBON FLM 1/16W 47K-JB 0 0 0 RJ73 0790024R RES.CHIP 1/16W 100 OHM 0 0

RH04 0700062M RES.-CARBON FLM 1/16W 39K-JB 0 0 0 RJ85 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0

RH05 0700059M RES.-CARBON FLM 1/16W 27K-JB 0 0 0 RJ86 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0

RH07 0700047M RES.-CARBON FLM 1/16W 3.3K-JB 0 0 0 RJ90 AQ00164R RES.CHIP 1/16W 75 OHM TAPE 0 0

RH08 0700045M RES.-CARBON FLM 1/16W 2.2K-JB 0 0 0 RJ91 AQ00164R RES.CHIP 1/16W 75 OHM TAPE 0 0

RH09 0700055M RES.-CARBON FLM 1/16W 12K-JB 0 0 0 RJ92 AQ00164R RES.CHIP 1/16W 75 OHM TAPE 0 0

RH10 AT03869M 820OHM 1/2W RDS50 CARBON FILM resis. 000RJ97 0790037R RES.CHIP 1/16W 1.0K OHM 0 0

RH11 AT03195S METAL OX. 1.8OHM 1W 0 0 0 RJA2 0790051R RES.CHIP 1/16W 10K OHM 0 0

RH12 AT03195S METAL OX. 1.8OHM 1W 0 0 0 RJA3 0790051R RES.CHIP 1/16W 10K OHM 0 0

RH13 0100033M RES.-CARBON FLM 1/8W 47-JB 0 0 0 RJE4 0790042R RES.CHIP 1/16W 2.2K OHM 0 0

RH14 0700047M RES.-CARBON FLM 1/16W 3.3K-JB 0 0 0 RJE5 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0

RH15 AT03195S METAL OX. 1.8OHM 1W 0 0 0 RJE7 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0

RH16 0100047M RES.-CARBON FLM 1/8W 180-JB 0 0 0 RJF2 0790037R RES.CHIP 1/16W 1.0K OHM 0 0

RH17 AW00208 TRIMMER resis. 100KOHM 1/2W 0 0 0 RJF4 0790024R RES.CHIP 1/16W 100 OHM 0 0

RH18 0700061M RES.-CARBON FLM 1/16W 33K-JB 0 0 0 RJF5 0790059R RES.CHIP 1/16W 47K OHM 0 0

RH19 0119653M RES.-MTL FLM 1/8W 82K-FB 0 0 0 RJF6 0790059R RES.CHIP 1/16W 47K OHM 0 0

RH20 0119637M RES.-MTL FLM 1/8W 18K-FB 0 0 0 RJF7 0790024R RES.CHIP 1/16W 100 OHM 0 0

RH21 AT03878M 3.9KOHM 1/2W RDS50 CARBON FILM resis. 0 0 RK01 0700046M RES.-CARBON FLM 1/16W 2.7K-JB 0 0 0

RH22 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0 RK02 0700046M RES.-CARBON FLM 1/16W 2.7K-JB 0 0 0

RH23 AT03882M 6.8KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0 RK03 0700046M RES.-CARBON FLM 1/16W 2.7K-JB 0 0 0

RH24 0119642M RES.-MTL FLM 1/8W 30K-FB 0 RK04 0700046M RES.-CARBON FLM 1/16W 2.7K-JB 0 0 0

RH24 0119643M RES.-MTL FLM 1/8W 33K-FB 0 0 RK05 0700046M RES.-CARBON FLM 1/16W 2.7K-JB 0 0 0

RH25 0119633M RES.-MTL FLM 1/8W 12K-FB 0 RK06 0700046M RES.-CARBON FLM 1/16W 2.7K-JB 0 0 0

RH25 0119643M RES.-MTL FLM 1/8W 33K-FB 0 0 RK07 0700046M RES.-CARBON FLM 1/16W 2.7K-JB 0 0 0

RH26 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0 RK08 0700046M RES.-CARBON FLM 1/16W 2.7K-JB 0 0 0

RH27 AT03889M 27KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0 RK09 0700036M RES.-CARBON FLM 1/16W 470-JB 0 0 0

RH28 AT03894M 56KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0 RK10 0700042M RES.-CARBON FLM 1/16W 1.2K-JB 0 0 0

RH29 AT03895M 68KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0 RK11 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0

RH30 0700063M RES.-CARBON FLM 1/16W 47K-JB 0 0 0 RK12 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0

RH31 AT03882M 6.8KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0 RK13 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0

RH32 0100117M RES.-CARBON FLM 1/8W 150K-JB 0 RK17 0700047M RES.-CARBON FLM 1/16W 3.3K-JB 0 0 0

RH32 0100119M RES.-CARBON FLM 1/8W 180K-JB 0 0 RK18 0700046M RES.-CARBON FLM 1/16W 2.7K-JB 0 0 0

RH33 AT03419S METAL OX. 470 OHM 2W 0 0 0 RK20 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0

RH34 AT03844M 10.0OHM 1/2W RDS50 CARBON FILM resis. 0 0 0 RK21 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0

RJ01 0790024R RES.CHIP 1/16W 100 OHM 0 0 RK22 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0

RJ02 0790024R RES.CHIP 1/16W 100 OHM 0 0 RK23 0100085M RES.-CARBON FLM 1/8W 6.8K-JB 0 0 0

RJ07 0790024R RES.CHIP 1/16W 100 OHM 0 0 RK24 0700043M RES.-CARBON FLM 1/16W 1.5K-JB 0 0 0

RJ10 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 RK27 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0

RJ11 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 RK28 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0

RJ12 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 RK29 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0

RJ13 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 RK30 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0

RJ14 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 RK31 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0

RJ15 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 RK32 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0

DP23/23G/24

112

PRODUCT SERVICE NOTE: Components marked with a have special characteristics important to safety. Before replacing

any of these components, read carefully, the PRODUCT SAFETY NOTICE of this Service Manual. Don’t degrade the safety of the

receiver through improper servicing.

SYMBOL PART PART DP23 DP23G DP24 SYMBOL PART PART DP23 DP23G DP24

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

RK33 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0 RM10 0100129M RES.-CARBON FLM 1/8W 470K-JB 0

RK34 0700063M RES.-CARBON FLM 1/16W 47K-JB 0 0 0 RM10 0100129M RES.-CARBON FLM 1/8W 470K-JB 0 0

RK35 0700063M RES.-CARBON FLM 1/16W 47K-JB 0 0 0 RM11 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0

RK36 0700063M RES.-CARBON FLM 1/16W 47K-JB 0 0 0 RM11 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0

RK37 0700063M RES.-CARBON FLM 1/16W 47K-JB 0 0 0 RM12 0100125M RES.-CARBON FLM 1/8W 330K-JB 0

RK38 0700063M RES.-CARBON FLM 1/16W 47K-JB 0 0 0 RM12 0100125M RES.-CARBON FLM 1/8W 330K-JB 0 0

RK39 0700063M RES.-CARBON FLM 1/16W 47K-JB 0 0 0 RM13 AT03871M 1KOHM 1/2W RDS50 CARBON FILM resis. 0

RK40 0700047M RES.-CARBON FLM 1/16W 3.3K-JB 0 0 0 RM13 AT03871M 1KOHM 1/2W RDS50 CARBON FILM resis. 0 0

RK42 AT03202S METAL OX. 3.3OHM 1W 0 0 0 RM14 0100119M RES.-CARBON FLM 1/8W 180K-JB 0

RK43 AT03411S METAL OX. 220OHM 2W 0 0 0 RM14 0100119M RES.-CARBON FLM 1/8W 180K-JB 0 0

RK44 0700047M RES.-CARBON FLM 1/16W 3.3K-JB 0 0 0 RM15 0700054M RES.-CARBON FLM 1/16W 10K-JB 0

RK46 AT03195S METAL OX. 1.8OHM 1W 0 RM15 0700054M RES.-CARBON FLM 1/16W 10K-JB 0 0

RK46 AT03197S METAL OX. 2.2OHM 1W 0 0 RM20 0100041M RES.-CARBON FLM 1/8W 100-JB 0

RK47 AT03406S METAL OX. 150OHM 2W 0 0 0 RM20 0100041M RES.-CARBON FLM 1/8W 100-JB 0 0

RK48 0700047M RES.-CARBON FLM 1/16W 3.3K-JB 0 0 0 RM21 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0

RK50 AT03199S METAL OX. 2.7OHM 1W 0 0 RM21 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0

RK50 AT03202S METAL OX. 3.3OHM 1W 0 RM22 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0

RK51 AT03411S METAL OX. 220OHM 2W 0 0 0 RM22 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0

RK52 0700047M RES.-CARBON FLM 1/16W 3.3K-JB 0 0 0 RM23 0700064M RES.-CARBON FLM 1/16W 56K-JB 0

RK54 AT03195S METAL OX. 1.8OHM 1W 0 0 0 RM23 0700064M RES.-CARBON FLM 1/16W 56K-JB 0 0

RK55 AT03406S METAL OX. 150OHM 2W 0 0 0 RM24 0700045M RES.-CARBON FLM 1/16W 2.2K-JB 0

RK56 0700047M RES.-CARBON FLM 1/16W 3.3K-JB 0 0 0 RM24 0700045M RES.-CARBON FLM 1/16W 2.2K-JB 0 0

RK58 AT03206S METAL OX. 4.7OHM 1W 0 0 0 RM25 0100123M RES.-CARBON FLM 1/8W 270K-JB 0

RK59 AT03411S METAL OX. 220OHM 2W 0 0 0 RM25 0100123M RES.-CARBON FLM 1/8W 270K-JB 0 0

RK60 0700047M RES.-CARBON FLM 1/16W 3.3K-JB 0 0 0 RM26 0700047M RES.-CARBON FLM 1/16W 3.3K-JB 0

RK62 AT03197S METAL OX. 2.2OHM 1W 0 RM26 0700047M RES.-CARBON FLM 1/16W 3.3K-JB 0 0

RK62 AT03199S METAL OX. 2.7OHM 1W 0 0 RM27 0700064M RES.-CARBON FLM 1/16W 56K-JB 0

RK63 AT03406S METAL OX. 150OHM 2W 0 0 0 RM27 0700064M RES.-CARBON FLM 1/16W 56K-JB 0 0

RK64 0700054M RES.-CARBON FLM 1/16W 10K-JB 0 0 0 RM28 0100123M RES.-CARBON FLM 1/8W 270K-JB 0

RK65 0700053M RES.-CARBON FLM 1/16W 8.2K-JB 0 0 0 RM28 0100123M RES.-CARBON FLM 1/8W 270K-JB 0 0

RK93 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0 RM29 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0

RK97 0700044M RES.-CARBON FLM 1/16W 1.8K-JB 0 0 0 RM29 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0

RK98 0700046M RES.-CARBON FLM 1/16W 2.7K-JB 0 0 0 RM30 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0

RL10 0100129M RES.-CARBON FLM 1/8W 470K-JB 0 0 0 RM30 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0

RL11 0100129M RES.-CARBON FLM 1/8W 470K-JB 0 0 0 RM31 0100041M RES.-CARBON FLM 1/8W 100-JB 0

RL12 0100129M RES.-CARBON FLM 1/8W 470K-JB 0 0 0 RM31 0100041M RES.-CARBON FLM 1/8W 100-JB 0 0

RL13 0100129M RES.-CARBON FLM 1/8W 470K-JB 0 0 0 RM35 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0

RL14 0100129M RES.-CARBON FLM 1/8W 470K-JB 0 0 0 RM35 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0

RL15 0100129M RES.-CARBON FLM 1/8W 470K-JB 0 0 0 RM38 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0

RL16 0100129M RES.-CARBON FLM 1/8W 470K-JB 0 0 0 RM38 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0

RL17 0100129M RES.-CARBON FLM 1/8W 470K-JB 0 0 0 RM40 0700067M RES.-CARBON FLM 1/16W 100K-JB 0

RL20 0100131M RES.-CARBON FLM 1/8W 560K-JB 0 0 0 RM40 0700067M RES.-CARBON FLM 1/16W 100K-JB 0 0

RL21 0100113M RES.-CARBON FLM 1/8W 100K-JB 0 RM41 0700032M RES.-CARBON FLM 1/16W 220-JB 0

RL21 0100117M RES.-CARBON FLM 1/8W 150K-JB 0 0 RM42 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0

RL22 0100131M RES.-CARBON FLM 1/8W 560K-JB 0 0 0 RM43 0700059M RES.-CARBON FLM 1/16W 27K-JB 0

RL23 0100125M RES.-CARBON FLM 1/8W 330K-JB 0 0 0 RM44 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0

RL24 0100129M RES.-CARBON FLM 1/8W 470K-JB 0 0 RM45 0700058M RES.-CARBON FLM 1/16W 22K-JB 0 0

RL24 0100133M RES.-CARBON FLM 1/8W 680K-JB 0 RM46 0700059M RES.-CARBON FLM 1/16W 27K-JB 0 0

RL25 0100113M RES.-CARBON FLM 1/8W 100K-JB 0 RM47 0700045M RES.-CARBON FLM 1/16W 2.2K-JB 0 0

RL25 0100117M RES.-CARBON FLM 1/8W 150K-JB 0 0 RM48 0700032M RES.-CARBON FLM 1/16W 220-JB 0 0

RL26 0100129M RES.-CARBON FLM 1/8W 470K-JB 0 0 RM49 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0

RL26 0100133M RES.-CARBON FLM 1/8W 680K-JB 0 RM50 0100065M RES.-CARBON FLM 1/8W 1K-JB 0 0

RL27 0100125M RES.-CARBON FLM 1/8W 330K-JB 0 0 0 RM51 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0

RL30 0700027M RES.-CARBON FLM 1/16W 100-JB 0 0 0 RN01 0700054M RES.-CARBON FLM 1/16W 10K-JB 0 0 0

RL31 0700027M RES.-CARBON FLM 1/16W 100-JB 0 0 0 RN02 0700057M RES.-CARBON FLM 1/16W 18K-JB 0 0 0

RL32 0700027M RES.-CARBON FLM 1/16W 100-JB 0 0 0 RN03 0700061M RES.-CARBON FLM 1/16W 33K-JB 0 0 0

RL33 0700027M RES.-CARBON FLM 1/16W 100-JB 0 0 0 RN04 0700058M RES.-CARBON FLM 1/16W 22K-JB 0 0 0

RL34 0700027M RES.-CARBON FLM 1/16W 100-JB 0 0 0 RN05 0700051M RES.-CARBON FLM 1/16W 5.6K-JB 0 0 0

RL35 0700027M RES.-CARBON FLM 1/16W 100-JB 0 0 0 RN06 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0

RL36 0700027M RES.-CARBON FLM 1/16W 100-JB 0 0 0 RN08 0700051M RES.-CARBON FLM 1/16W 5.6K-JB 0 0 0

RL37 0700027M RES.-CARBON FLM 1/16W 100-JB 0 0 0 RN09 0700052M RES.-CARBON FLM 1/16W 6.8K-JB 0 0 0

RM01 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 RN10 0700054M RES.-CARBON FLM 1/16W 10K-JB 0 0 0

RM02 0700058M RES.-CARBON FLM 1/16W 22K-JB 0 RN11 0700067M RES.-CARBON FLM 1/16W 100K-JB 0 0 0

RM03 0700045M RES.-CARBON FLM 1/16W 2.2K-JB 0 RN12 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0

RM04 0100065M RES.-CARBON FLM 1/8W 1K-JB 0 RN13 0700052M RES.-CARBON FLM 1/16W 6.8K-JB 0 0 0

RM05 0100065M RES.-CARBON FLM 1/8W 1K-JB 0 RN14 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0

RM05 0100065M RES.-CARBON FLM 1/8W 1K-JB 0 0 RN15 0700052M RES.-CARBON FLM 1/16W 6.8K-JB 0 0 0

RM06 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 RN16 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 0

RM06 0700041M RES.-CARBON FLM 1/16W 1.0K-JB 0 0 RN17 0700063M RES.-CARBON FLM 1/16W 47K-JB 0 0 0

RM07 0700043M RES.-CARBON FLM 1/16W 1.5K-JB 0 RN18 0700054M RES.-CARBON FLM 1/16W 10K-JB 0 0 0

RM07 0700043M RES.-CARBON FLM 1/16W 1.5K-JB 0 0 RN20 AT03888M 22KOHM 1/2W RDS50 CARBON FILM resis. 0 0 0

RM08 0700046M RES.-CARBON FLM 1/16W 2.7K-JB 0 RP53 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

RM08 0700046M RES.-CARBON FLM 1/16W 2.7K-JB 0 0 RP56 0790055R RES.CHIP 1/16W 22K OHM 0 0 0

RM09 0700049M RES.-CARBON FLM 1/16W 4.7K-JB 0 RV01 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RM09 0700049M RES.-CARBON FLM 1/16W 4.7K-JB 0 0 RV02 0790043R RES.CHIP 1/16W 2.7K OHM 0 0 0

DP23/23G/24

113

PRODUCT SERVICE NOTE: Components marked with a have special characteristics important to safety. Before replacing

any of these components, read carefully, the PRODUCT SAFETY NOTICE of this Service Manual. Don’t degrade the safety of the

receiver through improper servicing.

SYMBOL PART PART DP23 DP23G DP24 SYMBOL PART PART DP23 DP23G DP24

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

RV03 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RW45 0790044R RES.CHIP 1/16W 3.3K OHM 0 0 0

RV04 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RW47 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RV05 0790059R RES.CHIP 1/16W 47K OHM 0 0 0 RW48 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RV06 0790057R RES.CHIP 1/16W 33K OHM 0 0 0 RW49 0790028R RES.CHIP 1/16W 220 OHM 0 0 0

RV07 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RW50 0790064R RES.CHIP 1/16W 100K OHM 0 0 0

RV08 0790035R RES.CHIP 1/16W 680 OHM 0 0 0 RW51 0790047R RES.CHIP 1/16W 5.6K OHM 0 0 0

RV09 0790034R RES.CHIP 1/16W 560 OHM 0 0 0 RW52 0790032R RES.CHIP 1/16W 390 OHM 0 0 0

RV10 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RW53 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

RV12 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RX01 AQ00164R RES.CHIP 1/16W 75 OHM TAPE 0 0 0

RV13 0790041R RES.CHIP 1/16W 1.8K OHM 0 0 0 RX02 AQ00164R RES.CHIP 1/16W 75 OHM TAPE 0 0 0

RV14 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0 RX03 AQ00164R RES.CHIP 1/16W 75 OHM TAPE 0 0 0

RV15 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RX04 0790069R RES.CHIP 1/16W 270K OHM 0 0 0

RV16 0790044R RES.CHIP 1/16W 3.3K OHM 0 0 0 RX05 0790069R RES.CHIP 1/16W 270K OHM 0 0 0

RV17 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RX06 0790047R RES.CHIP 1/16W 5.6K OHM 0 0 0

RV18 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RX07 0790047R RES.CHIP 1/16W 5.6K OHM 0 0 0

RV19 0790059R RES.CHIP 1/16W 47K OHM 0 0 0 RX08 AQ00164R RES.CHIP 1/16W 75 OHM TAPE 0 0 0

RV20 0790055R RES.CHIP 1/16W 22K OHM 0 0 0 RX09 AQ00164R RES.CHIP 1/16W 75 OHM TAPE 0 0 0

RV21 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RX10 AQ00164R RES.CHIP 1/16W 75 OHM TAPE 0 0 0

RV22 0790035R RES.CHIP 1/16W 680 OHM 0 0 0 RX11 0790069R RES.CHIP 1/16W 270K OHM 0 0 0

RV23 0790034R RES.CHIP 1/16W 560 OHM 0 0 0 RX12 0790069R RES.CHIP 1/16W 270K OHM 0 0 0

RV24 0790038R RES.CHIP 1/16W 1.2K OHM 0 0 0 RX13 0790047R RES.CHIP 1/16W 5.6K OHM 0 0 0

RV26 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RX14 0790047R RES.CHIP 1/16W 5.6K OHM 0 0 0

RV27 0790041R RES.CHIP 1/16W 1.8K OHM 0 0 0 RX15 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

RV28 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0 RX16 AQ00164R RES.CHIP 1/16W 75 OHM TAPE 0 0 0

RV30 0790036R RES.CHIP 1/16W 820 OHM 0 0 0 RX17 0790069R RES.CHIP 1/16W 270K OHM 0 0 0

RV31 0790056R RES.CHIP 1/16W 27K OHM 0 0 0 RX18 0790069R RES.CHIP 1/16W 270K OHM 0 0 0

RV32 0790064R RES.CHIP 1/16W 100K OHM 0 0 0 RX19 AQ00164R RES.CHIP 1/16W 75 OHM TAPE 0 0 0

RV33 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RX20 AQ00164R RES.CHIP 1/16W 75 OHM TAPE 0 0 0

RV35 0790033R RES.CHIP 1/16W 470 OHM 0 0 0 RX21 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RV36 0196064R RES.-1608CHIP 1/16W 750-J TAPE 0 0 0 RX22 0790047R RES.CHIP 1/16W 5.6K OHM 0 0 0

RV37 0196064R RES.-1608CHIP 1/16W 750-J TAPE 0 0 0 RX23 0790047R RES.CHIP 1/16W 5.6K OHM 0 0 0

RV38 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RX24 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RV39 0790043R RES.CHIP 1/16W 2.7K OHM 0 0 0 RX25 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RW01 0790055R RES.CHIP 1/16W 22K OHM 0 0 0 RX26 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

RW02 0790056R RES.CHIP 1/16W 27K OHM 0 0 0 RX27 AQ00164R RES.CHIP 1/16W 75 OHM TAPE 0 0 0

RW03 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RX28 0790069R RES.CHIP 1/16W 270K OHM 0 0 0

RW04 0790042R RES.CHIP 1/16W 2.2K OHM 0 0 0 RX29 0790069R RES.CHIP 1/16W 270K OHM 0 0 0

RW05 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RX30 AQ00164R RES.CHIP 1/16W 75 OHM TAPE 0 0 0

RW06 0790027R RES.CHIP 1/16W 180 OHM 0 0 0 RX31 AQ00164R RES.CHIP 1/16W 75 OHM TAPE 0 0 0

RW07 0790036R RES.CHIP 1/16W 820 OHM 0 0 0 RX32 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RW08 0790044R RES.CHIP 1/16W 3.3K OHM 0 0 0 RX33 0790047R RES.CHIP 1/16W 5.6K OHM 0 0 0

RW09 0790061R RES.CHIP 1/16W 56K OHM 0 0 0 RX34 0790047R RES.CHIP 1/16W 5.6K OHM 0 0 0

RW10 0790055R RES.CHIP 1/16W 22K OHM 0 0 0 RX35 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RW11 0790048R RES.CHIP 1/16W 6.8K OHM 0 0 0 RX36 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RW12 0790041R RES.CHIP 1/16W 1.8K OHM 0 0 0 RX37 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

RW13 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RX38 0790064R RES.CHIP 1/16W 100K OHM 0 0 0

RW14 0790039R RES.CHIP 1/16W 1.5K OHM 0 0 0 RX39 0790064R RES.CHIP 1/16W 100K OHM 0 0 0

RW15 0790028R RES.CHIP 1/16W 220 OHM 0 0 0 RX40 0790064R RES.CHIP 1/16W 100K OHM 0 0 0

RW16 0790059R RES.CHIP 1/16W 47K OHM 0 0 0 RX41 0790064R RES.CHIP 1/16W 100K OHM 0 0 0

RW17 0790068R RES.CHIP 1/16W 220K OHM 0 0 0 RX42 0790064R RES.CHIP 1/16W 100K OHM 0 0 0

RW18 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RX43 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

RW19 0790042R RES.CHIP 1/16W 2.2K OHM 0 0 0 RX44 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

RW20 0790033R RES.CHIP 1/16W 470 OHM 0 0 0 RX45 0790028R RES.CHIP 1/16W 220 OHM 0 0 0

RW21 0790046R RES.CHIP 1/16W 4.7K OHM 0 0 0 RX46 0790028R RES.CHIP 1/16W 220 OHM 0 0 0

RW22 0790011R RES.CHIP 1/16W 10 OHM 0 0 0 RX47 0790063R RES.CHIP 1/16W 82K OHM 0 0 0

RW23 0790042R RES.CHIP 1/16W 2.2K OHM 0 0 0 RX48 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

RW24 AQ00194R RES.CHIP 1/16W 1.0K OHM TAPE 0 0 0 RX49 0790063R RES.CHIP 1/16W 82K OHM 0 0 0

RW25 AQ00194R RES.CHIP 1/16W 1.0K OHM TAPE 0 0 0 RX50 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

RW26 0790058R RES.CHIP 1/16W 39K OHM 0 0 0 RX51 AQ00163R RES.CHIP 1/16W 68 OHM TAPE 0 0 0

RW27 0790051R RES.CHIP 1/16W 10K OHM 0 0 0 RX52 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RW28 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RX53 AQ00163R RES.CHIP 1/16W 68 OHM TAPE 0 0 0

RW29 AQ00187R RES.CHIP 1/16W 560 OHM TAPE 0 0 0 RX54 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RW30 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RX55 AQ00163R RES.CHIP 1/16W 68 OHM TAPE 0 0 0

RW31 AQ00194R RES.CHIP 1/16W 1.0K OHM TAPE 0 0 0 RX56 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RW33 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RX57 0790034R RES.CHIP 1/16W 560 OHM 0 0 0

RW34 0790042R RES.CHIP 1/16W 2.2K OHM 0 0 0 RX58 0790034R RES.CHIP 1/16W 560 OHM 0 0 0

RW36 0790011R RES.CHIP 1/16W 10 OHM 0 0 0 RX59 0790034R RES.CHIP 1/16W 560 OHM 0 0 0

RW37 0790042R RES.CHIP 1/16W 2.2K OHM 0 0 0 RX60 0790034R RES.CHIP 1/16W 560 OHM 0 0 0

RW38 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RX61 0790034R RES.CHIP 1/16W 560 OHM 0 0 0

RW39 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RX62 0790034R RES.CHIP 1/16W 560 OHM 0 0 0

RW40 0790058R RES.CHIP 1/16W 39K OHM 0 0 0 RX63 0790034R RES.CHIP 1/16W 560 OHM 0 0 0

RW41 0790051R RES.CHIP 1/16W 10K OHM 0 0 0 RX64 0790034R RES.CHIP 1/16W 560 OHM 0 0 0

RW42 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RX65 0790034R RES.CHIP 1/16W 560 OHM 0 0 0

RW43 0790034R RES.CHIP 1/16W 560 OHM 0 0 0 RX70 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RW44 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RX71 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

DP23/23G/24

114

PRODUCT SERVICE NOTE: Components marked with a have special characteristics important to safety. Before replacing

any of these components, read carefully, the PRODUCT SAFETY NOTICE of this Service Manual. Don’t degrade the safety of the

receiver through improper servicing.

SYMBOL PART PART DP23 DP23G DP24 SYMBOL PART PART DP23 DP23G DP24

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

RX72 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RY60 0790038R RES.CHIP 1/16W 1.2K OHM 0 0 0

RX73 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RY61 0790036R RES.CHIP 1/16W 820 OHM 0 0 0

RX78 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RY62 0790036R RES.CHIP 1/16W 820 OHM 0 0 0

RX79 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RY63 0790036R RES.CHIP 1/16W 820 OHM 0 0 0

RX80 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RY64 0790041R RES.CHIP 1/16W 1.8K OHM 0 0 0

RX81 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RY65 0790041R RES.CHIP 1/16W 1.8K OHM 0 0 0

RX82 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RY66 0790041R RES.CHIP 1/16W 1.8K OHM 0 0 0

RX83 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RY67 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

RX84 0790056R RES.CHIP 1/16W 27K OHM 0 0 0 RY69 0790059R RES.CHIP 1/16W 47K OHM 0 0 0

RX85 0790051R RES.CHIP 1/16W 10K OHM 0 0 0 RY70 0790059R RES.CHIP 1/16W 47K OHM 0 0 0

RX86 0790059R RES.CHIP 1/16W 47K OHM 0 0 0 RY71 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

RX87 0790059R RES.CHIP 1/16W 47K OHM 0 0 0 RY72 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

RX88 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RY73 0790059R RES.CHIP 1/16W 47K OHM 0 0 0

RX89 0790051R RES.CHIP 1/16W 10K OHM 0 0 0 RY74 0790059R RES.CHIP 1/16W 47K OHM 0 0 0

RX90 0790064R RES.CHIP 1/16W 100K OHM 0 0 0 RY80 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RX91 0790051R RES.CHIP 1/16W 10K OHM 0 0 0 RY81 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RX92 0790048R RES.CHIP 1/16W 6.8K OHM 0 0 0 RY82 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

RX93 0790053R RES.CHIP 1/16W 15K OHM 0 0 0 RY83 AQ00193R RES.CHIP 1/16W 910 OHM TAPE 0 0 0

RX94 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RY84 0790047R RES.CHIP 1/16W 5.6K OHM 0 0 0

RX95 AQ00164R RES.CHIP 1/16W 75 OHM TAPE 0 0 0 RY85 0790047R RES.CHIP 1/16W 5.6K OHM 0 0 0

RX96 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RY86 AQ00193R RES.CHIP 1/16W 910 OHM TAPE 0 0 0

RX97 AQ00164R RES.CHIP 1/16W 75 OHM TAPE 0 0 0 RY87 0790047R RES.CHIP 1/16W 5.6K OHM 0 0 0

RX98 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RY88 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0

RX99 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RY89 0790047R RES.CHIP 1/16W 5.6K OHM 0 0 0

RY01 0790047R RES.CHIP 1/16W 5.6K OHM 0 0 0 RY90 0790035R RES.CHIP 1/16W 680 OHM 0 0 0

RY02 0790047R RES.CHIP 1/16W 5.6K OHM 0 0 0 RY91 0790059R RES.CHIP 1/16W 47K OHM 0 0 0

RY03 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RY92 0790058R RES.CHIP 1/16W 39K OHM 0 0 0

RY04 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RY93 0790059R RES.CHIP 1/16W 47K OHM 0 0 0

RY05 AQ00164R RES.CHIP 1/16W 75 OHM TAPE 0 0 0 RY94 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RY06 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RZ01 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

RY07 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RZ02 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

RY08 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RZ03 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RY09 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RZ04 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RY10 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RZ05 0790024R RES.CHIP 1/16W 100 OHM 0 0

RY11 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RZ06 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RY12 0790042R RES.CHIP 1/16W 2.2K OHM 0 0 0 RZ07 0790024R RES.CHIP 1/16W 100 OHM 0 0

RY13 0790001R CHIP resis. RECJUMPER-1-16C16T1608 000RZ08 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RY14 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RZ09 0196087R RES.-1608CHIP 1/16W 6.2K-J TAPE 0 0 0

RY15 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RZ10 0790033R RES.CHIP 1/16W 470 OHM 0 0 0

RY16 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RZ11 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RY17 AQ00194R RES.CHIP 1/16W 1.0K OHM TAPE 0 0 0 RZ13 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RY18 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RZ14 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RY19 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RZ15 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RY20 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RZ16 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

RY21 0790042R RES.CHIP 1/16W 2.2K OHM 0 0 0 RZ17 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

RY22 0790001R CHIP resis. RECJUMPER-1-16C16T1608 000RZ18 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

RY23 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 RZ19 0790033R RES.CHIP 1/16W 470 OHM 0 0 0

RY24 AQ00194R RES.CHIP 1/16W 1.0K OHM TAPE 0 0 0 RZ20 0790033R RES.CHIP 1/16W 470 OHM 0 0 0

RY25 0790059R RES.CHIP 1/16W 47K OHM 0 0 0 RZ21 0790033R RES.CHIP 1/16W 470 OHM 0 0 0

RY26 0790059R RES.CHIP 1/16W 47K OHM 0 0 0 RZ22 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

RY27 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RZ23 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

RY28 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 RZ24 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

RY29 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RZ25 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RY30 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RZ26 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RY31 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RZ27 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RY32 0790024R RES.CHIP 1/16W 100 OHM 0 0 RZ28 0196104R RES 1608 CHIP 1/16W 30KJ TAPE 0 0 0

RY33 0790024R RES.CHIP 1/16W 100 OHM 0 0 RZ29 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RY34 0790024R RES.CHIP 1/16W 100 OHM 0 0 RZ30 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RY35 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RZ31 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RY36 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RZ32 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RY37 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RZ33 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

RY45 0790001R CHIP resis. RECJUMPER-1-16C16T1608 000RZ34 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

RY47 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RZ35 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RY48 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 RZ36 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RY49 0790038R RES.CHIP 1/16W 1.2K OHM 0 0 0 RZ37 0790024R RES.CHIP 1/16W 100 OHM 0 0

RY50 0790038R RES.CHIP 1/16W 1.2K OHM 0 0 0 RZ38 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RY51 0790038R RES.CHIP 1/16W 1.2K OHM 0 0 0 RZ39 0790024R RES.CHIP 1/16W 100 OHM 0 0

RY52 0790036R RES.CHIP 1/16W 820 OHM 0 0 0 RZ40 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RY53 0790036R RES.CHIP 1/16W 820 OHM 0 0 0 RZ41 0196087R RES.-1608CHIP 1/16W 6.2K-J TAPE 0 0 0

RY54 0790036R RES.CHIP 1/16W 820 OHM 0 0 0 RZ42 0790033R RES.CHIP 1/16W 470 OHM 0 0 0

RY55 0790041R RES.CHIP 1/16W 1.8K OHM 0 0 0 RZ44 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RY56 0790041R RES.CHIP 1/16W 1.8K OHM 0 0 0 RZ45 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RY57 0790041R RES.CHIP 1/16W 1.8K OHM 0 0 0 RZ46 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RY58 0790038R RES.CHIP 1/16W 1.2K OHM 0 0 0 RZ47 0790024R RES.CHIP 1/16W 100 OHM 0 0 0

RY59 0790038R RES.CHIP 1/16W 1.2K OHM 0 0 0 RZ48 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0

DP23/23G/24

115

PRODUCT SERVICE NOTE: Components marked with a have special characteristics important to safety. Before replacing

any of these components, read carefully, the PRODUCT SAFETY NOTICE of this Service Manual. Don’t degrade the safety of the

receiver through improper servicing.

SYMBOL PART PART DP23 DP23G DP24 SYMBOL PART PART DP23 DP23G DP24

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

RZ49 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0 X901 AJ00832 ERZV10D241 0 0 0

RZ50 0790001R CHIP resis. RECJUMPER-1-16C16T1608 0 0 0 XV01 BJ00631 6MHZ LOW PASS FILTER TXV-774 0 0 0

RZ51 0196104R RES 1608 CHIP 1/16W 30KJ TAPE 0 0 0 XV02 BJ00641 3.5MHZ BAND PASS FILTER TYV-38K 0 0 0

RZ52 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 XW01 BJ00631 6MHZ LOW PASS FILTER TXV-774 0 0 0

RZ53 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 XW02 BJ00641 3.5MHZ BAND PASS FILTER TYV-38K 0 0 0

RZ54 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 XW03 BP01191 OSCILLATOR 20HHZ HC-49US 0 0 0

RZ55 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 XZ01 2168771 X'TAL(TYPE CSB503F30) 0 0 0

RZ56 0790032R RES.CHIP 1/16W 390 OHM 0 0 0 XZ02 BP01241 OSCILLATOR 3.58 49U 0 0 0

RZ57 0790032R RES.CHIP 1/16W 390 OHM 0 0 0 XZ03 2168771 X'TAL(TYPE CSB503F30) 0 0 0

RZ58 0790034R RES.CHIP 1/16W 560 OHM 0 0 0 XZ04 BP01241 OSCILLATOR 3.58 49U 0 0 0

RZ59 0790053R RES.CHIP 1/16W 15K OHM 0 0 0

RZ60 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 SPEAKERS

RZ61 0790052R RES.CHIP 1/16W 12K OHM 0 0 0 U402 GK00482 43" 12 CM SPEAKER ~L

RZ62 0790037R RES.CHIP 1/16W 1.0K OHM 0 0 0 U402 GK00701 51" 12 CM SPEAKER ~L

RZ63 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 U402 GK00971 57" 12 CM SPEAKER ~L

RZ64 0790049R RES.CHIP 1/16W 8.2K OHM 0 0 0 U404 GK00482 43" 12 CM SPEAKER ~R

RZ65 0790054R RES.CHIP 1/16W 18K OHM 0 0 0 U404 GK00701 51" 12 CM SPEAKER ~R

RZ66 0790051R RES.CHIP 1/16W 10K OHM 0 0 0 U404 GK00971 57" 12 CM SPEAKER ~R

RZ67 0790051R RES.CHIP 1/16W 10K OHM 0 0 0

RZ68 0790021R RES.CHIP 1/16W 56 OHM 0 0 0 MISCELLANEOUS

RZ69 0790021R RES.CHIP 1/16W 56 OHM 0 0 0 # KR02541 SCREEN ASSY 43UWX20B

RZ70 0790021R RES.CHIP 1/16W 56 OHM 0 0 0 # KR02542 SCREEN ASSY 51UWX20B

RZ71 0790033R RES.CHIP 1/16W 470 OHM 0 0 0 # KR02543 SCREEN ASSY 51GWX20B

RZ72 0790033R RES.CHIP 1/16W 470 OHM 0 0 0 # KR02544 SCREEN ASSY 57UWX20B

RZ73 0790033R RES.CHIP 1/16W 470 OHM 0 0 0 # KR02545 SCREEN ASSY 57GWX20B

RZ74 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 # UE20311 43" RED PRT ASSY

RZ75 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 # UE20312 43" GREEN PRT ASSY

RZ76 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 # UE20313 43" BLUE PRT ASSY

RZ77 0790024R RES.CHIP 1/16W 100 OHM 0 0 0 # UE20791 51" RED PRT ASSY

RZ78 0790042R RES.CHIP 1/16W 2.2K OHM 0 0 0 # UE20792 51" GREN PRT ASSY

RZ82 0790033R RES.CHIP 1/16W 470 OHM 0 0 0 # UE20793 51" BLUE PRT ASSY

RZ83 0790042R RES.CHIP 1/16W 2.2K OHM 0 0 0 # UE20794 57" RED PRT ASSY

RZ84 0790033R RES.CHIP 1/16W 470 OHM 0 0 0 # UE20795 57" GREEN PRT ASSY

RZ85 0790042R RES.CHIP 1/16W 2.2K OHM 0 0 0 # UE20796 57" BLUE PRT ASSY

RZ86 0790042R RES.CHIP 1/16W 2.2K OHM 0 0 0 # 1 0 QD21383 43" MIRROR HOLDER COVER

RZ87 0790033R RES.CHIP 1/16W 470 OHM 0 0 0 #010 PH31521 CONTROL PANEL 2002 51" & 57" 0 0

RZ90 0790042R RES.CHIP 1/16W 2.2K OHM 0 0 0 #020 PH31533 CONTROL DOOR 51" & 57" 0 0

RZ91 0790033R RES.CHIP 1/16W 470 OHM 0 0 0 #031 NT02152 SCREEN FRAME ASSY 43UWX20B

RZ95 0790069R RES.CHIP 1/16W 270K OHM 0 0 0 #031 NT02751 SCREEN FRAME ASSY 51UWX20B

#032 NT02752 SCREEN FRAME ASSY 51GWX20B

RELAYS, SWITCHES #033 NT02753 SCREEN FRAME ASSY 57UWX20B

S901 FJ00142 MAIN POWER RELAY ALKS329 0 0 0 #034 NT02754 SCREEN FRAME ASSY 57GWX20B

S902 FJ00142 AUDIO RELAY ALKS329 0 0 0 #035 KS02029 43" MIRROR

S903 FJ00301 SW 6.0 V RELAY ALD105 0 0 0 #035 KS04087 51" MIRROR

S905 FJ00302 SW 35.0 V RELAY RL-ALD106 0 0 0 #036 KS04085 57" MIRROR

SK01 FE10332R DCAM SWICTH 0 0 0 #120C PH30852 CONTROL PANEL ASSY (43UWX20B) 0

SM01 FE10402R PUSH SWITCH SKQNAB 0 0 #130C PH09751 CONTROL DOOR 43" 0

SM01 FE10402R PUSH SWITCH SKQNAB 0 #131C PH09761 COSMETIC DOOR 43" 0

SM02 FE10402R PUSH SWITCH SKQNAB 0 0 #132C PH09772 ACRYLIC PLATE 43" 0

SM02 FE10402R PUSH SWITCH SKQNAB 0 #417 H512299 43" LOWER REAR COVER

SM03 FE10402R PUSH SWITCH SKQNAB 0 0 #415 H512309 51" LOWER REAR COVER

SM03 FE10402R PUSH SWITCH SKQNAB 0 #416 H512307 57" LOWER REAR COVER

SM04 FE10402R PUSH SWITCH SKQNAB 0 0 #415 PH30662 SPEAKER GRILLE ASSY 43UWX20B

SM04 FE10402R PUSH SWITCH SKQNAB 0 #420 PH31761 SP GRILLE ASSY 51UWX20B

SM05 FE10402R PUSH SWITCH SKQNAB 0 0 #421 PH31771 SP GRILLE ASSY 51GWX20B

SM05 FE10402R PUSH SWITCH SKQNAB 0 #422 PH31762 SP GRILLE ASSY 57UWX20B

SM06 FE10402R PUSH SWITCH SKQNAB 0 0 #423 PH31772 SP GRILLE ASSY 57GWX20B

SM06 FE10402R PUSH SWITCH SKQNAB 0 #428 3727972 POWER CORD HANGER

SM07 FE10402R PUSH SWITCH SKQNAB 0 0 E801 EY00941 CRT-SOCKET HPS1600-016409 0 0 0

SM07 FE10402R PUSH SWITCH SKQNAB 0 E851 EY00941 CRT-SOCKET HPS1600-016409 0 0 0

SM09 FE10402R PUSH SWITCH SKQNAB 0 0 E8A1 EY00941 CRT-SOCKET HPS1600-016409 0 0 0

SM09 FE10402R PUSH SWITCH SKQNAB 0 EAS0 FT00011 MAGIC FOCUS SENSOR (AM3011)

EAS1 FT00011 MAGIC FOCUS SENSOR (AM3011)

TRANSFORMERS EAS2 FT00011 MAGIC FOCUS SENSOR (AM3011)

T701 BZ03982 HORIZONTAL DEFLECTION 0 0 0 EAS3 FT00011 MAGIC FOCUS SENSOR (AM3011)

T702 BZ03061 HORIZ DRIVE TRANS.-DJ81 0 0 0 EAS4 FT00011 MAGIC FOCUS SENSOR (AM3011)

T901 BT02091 STND BY SM TRANSFORMER 0 0 0 EAS5 FT00011 MAGIC FOCUS SENSOR (AM3011)

T902 BT02061 SWITCHING TRANSFORMER 0 0 0 EAS6 FT00011 MAGIC FOCUS SENSOR (AM3011)

TF01 BT01103 DYNAMIC FOCUS TRANSFORMER 0 0 0 EAS7 FT00011 MAGIC FOCUS SENSOR (AM3011)

TH01 BW02821 FLY BACK HFL1735VP-RC 0 ED91 EY00791 PJX-LEAD-PLUGPIN 0 0 0

TH01 BW02891 FLY BACK FBT-MSXUR3JC 0 0 ED92 EY00791 PJX-LEAD-PLUGPIN 0 0 0

ED93 EY00791 PJX-LEAD-PLUGPIN 0 0 0

FILTERS, CRYSTALS, OSCILLATORS ED94 EY00791 PJX-LEAD-PLUGPIN 0 0 0

X001 BP01311R CSTLS16M0X 0 0 0 ED95 EY00791 PJX-LEAD-PLUGPIN 0 0 0

X401 2168771 X'TAL(TYPE CSB503F30) 0 0 0 EL EF05933 CO-05C-F5R0-152#345NC

DP23/23G/24

UE20311

UE20312

UE20313

BW02822

43" FBT

GK00971

GK00701

GK00971

GK00701

CH 6

EV00557

AC Power Cord

0 0 0

116

PRODUCT SERVICE NOTE: Components marked with a have special characteristics important to safety. Before replacing

any of these components, read carefully, the PRODUCT SAFETY NOTICE of this Service Manual. Don’t degrade the safety of the

receiver through improper servicing.

SYMBOL PART PART DP23 DP23G DP24 SYMBOL PART PART DP23 DP23G DP24

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

ER EF05953 CO-04C-F5R0-152#34NC

ES1 EF02233 CO-09C-N2R0-322 (PH)

FE91 2721351 FUSE HOLDER 0 0 0

FE92 2721351 FUSE HOLDER 0 0 0

FE93 2721351 FUSE HOLDER 0 0 0

HJ01 2791754R CONDENSER WITH 3 TERMINAL 100PF 0 0

HJ02 2791754R CONDENSER WITH 3 TERMINAL 100PF 0 0

HJ03 2791754R CONDENSER WITH 3 TERMINAL 100PF 0 0

HJ04 2791753R CONDENSER WITH 3 TERMINAL 47PF 0 0

HJ05 2791754R CONDENSER WITH 3 TERMINAL 100PF 0 0

PADJ ED00385 PLUG 6P LOCK 2.5MM JST 0 0 0

PCB ED00385 PLUG 6P LOCK 2.5MM JST 0 0 0

PCG ED00385 PLUG 6P LOCK 2.5MM JST 0 0 0

PCR ED00385 PLUG 6P LOCK 2.5MM JST 0 0 0

PDG ED01782 22P PLUG PIN 0 0 0

PDJ ED04201U DVI-D RECEPTACLE 0 0

PDS ED01782 22P PLUG PIN 0 0 0

PET ED03212 15P 2.5MM PITCH CONNECTOR TAC-L15X-A3 0 0

PFC1 ED01782 22P PLUG PIN 0 0 0

PFC2 ED01782 22P PLUG PIN 0 0 0

PFR 2902263 PLUG PIN SUB MINI 4P 0 0

PFS 2902248 PLUG PIN SUB MINI9P 0

PFS ED00388 PLUG 9P LOCK 2.5MM JST 0 0

PJIG 2902266 PLUG PIN SUB MINI 7P 0 0 0

PMB ED01597U PLUG CP-06BP5R0VU-TBL#3,5N 0 0 0

PMG ED01597U PLUG CP-06BP5R0VU-TBL#3,5N 0 0 0

PMR ED01597U PLUG CP-06BP5R0VU-TBL#3,5N 0 0 0

PPD1 ED01471U PLUG 07BP1R2HUTWGP-A1 0 0 0

PPD1 ED01491U 7P PLUG PIN 0 0 0

PPD2 ED01473U PLUG 13BP1R2HUTWGP-A1 0 0 0

PPD2 ED01493U CONNECTOR 13BS1R2VUTWGX-A1 0 0 0

PPD3 ED01471U PLUG 07BP1R2HUTWGP-A1 0 0 0

PPD3 ED01491U 7P PLUG PIN 0 0 0

PPS1 ED01471U PLUG 07BP1R2HUTWGP-A1 0 0 0

PPS1 ED01491U 7P PLUG PIN 0 0 0

PPS2 ED01473U PLUG 13BP1R2HUTWGP-A1 0 0 0

PPS2 ED01493U CONNECTOR 13BS1R2VUTWGX-A1 0 0 0

PPS3 ED01472U PLUG 11BP1R2HUTWGP-A1 0 0 0

PPS3 ED01492U CONNECTOR 11BS1R2VUTWGX-A1 0 0 0

PPS4 ED01471U PLUG 07BP1R2HUTWGP-A1 0 0 0

PPS4 ED01491U 7P PLUG PIN 0 0 0

PPS5 ED01471U PLUG 07BP1R2HUTWGP-A1 0 0 0

PPS5 ED01491U 7P PLUG PIN 0 0 0

PPS6 ED01471U PLUG 07BP1R2HUTWGP-A1 0 0 0

PPS6 ED01491U 7P PLUG PIN 0 0 0

PS3 2959055 CONNECTOR-6P(PH) 0 0 0

PVMB 2902263 PLUG PIN SUB MINI 4P 0 0 0

PVMG 2902263 PLUG PIN SUB MINI 4P 0 0 0

PVMR 2902263 PLUG PIN SUB MINI 4P 0 0 0

W8A2 2692464 CO-01C-N0R0-821 FOCUS CABLE 0 0 0

OWNER ACCESSORIES

E203 FQ00021 AA BATTERY

E301 HL01831 REMOTE CONTROL CLU4321 UG

N201 QR52191 INSTRUCTION BOOK (ENGLISH)

N202 H462165 PTV WARRANTY CARD W/ C/R/C 02

N203 H462274 WARRANTY CARD (F) 02

N211 H463082 EASY GRAPHIC GUIDE

DP23/23G/24

117

DP23/23G/24

STEP INSTRUCTIONS IMAGE

Remove the Front Speaker Grille.

Pull the Speaker Grille off by placing your hand behind

the outside corners and pulling straight out.

The bottom picture shows the TV after the Speaker

Grille has been removed.

Remove the screws on the right bottom corner of the

screen frame.

The following instructions are for models with a Light Box design. This new cabinet design will enable servicers to

remove the Light Box assembly, with out the need to take a complete PTV out for service.

Disassembly Instructions for Screen Frame Assemblies and Light Box. MODELS: 51/57UWX20B; 51/57GWX20B

Remove the screws on the left bottom corner of the

screen frame.

118

DP23/23G/24

STEP INSTRUCTIONS IMAGE

Remove the screen assembly by placing your hands on

corners and lifting up to unhook from the cabinet.

Use additional help when necessary.

Carefully store Screen Frame Assembly.

After taking off the screen assembly, the cabinet light

cavity will be exposed.

Remove the 4 screws on the left of the CRT Lens

assembly.

Remove the 4 screws on the right of the CRT Lens

assembly.

119

DP23/23G/24

STEP INSTRUCTIONS IMAGE

Now move to the back of the PTV. The lower rear board

must be remoed.

Remove 14 screws to remove the lower rear board.

Now, move to the chssis area on the back of the TV.

Remove the 3 screws to the right of the chassis as

shown.

Remove one screw on the left of the chassis as shown.10

Remove the screw on the right corner of the light box.

120

DP23/23G/24

STEP INSTRUCTIONS IMAGE

Remove the screw on the left corner of the light box.12

Remove the screws on the front that hold the light box.

The picture shows the right side.

Remove the screws on the front that hold the light box.

the picture shows the left side.

Remove the control panel.

121

DP23/23G/24

STEP INSTRUCTIONS IMAGE

Remove the board on top of the light box assembly.16

Lift the Light box in the center and slide backwards until

it is out.

Use additional help if necessary.

The Light Box is now ready for easy transport to a

designated service and repair facility.

122

DP23/23G/24

STEP INSTRUCTIONS IMAGE

The Front Speaker Grille needs to be removed.1

Remove 4 Screws located on the back sides of the

Speaker Grille (2 on each side).

The image on the right shows the 2 screws on the right

back side of the Speaker Grille.

The image on the right shows the Speaker Grille

removed.

The Lower Rear board needs to be removed. Remove

14 screws all around the Lower Rear Board.

Models: 43FWX20B

123

DP23/23G/24

STEP INSTRUCTIONS IMAGE

Image on the right shows Lower Rear Board removed.

Next to be removed is the Back Cover which is partially

shown in this image.

Remove the 18 screws all around the Back Cover.

The image to the right shows the back of the right side

of the Back Cover.

Again, use extreme caution because the mirror is

attached to the Back Cover.

This image shows the back of the the PTV with the Back

Cover and Lower Rear Board removed.

Look for the Sensor Board located on the top right

corner. Remove the Sensor Interface connectors.

124

DP23/23G/24

STEP INSTRUCTIONS IMAGE

Remove the 4 screws (2 on each corner) that partially

holds the screen frame assembly.

this image shows the 2 screws on the right corner near

the sensor board.

Locate and remove the last 7 screws on the bottom

edge on the front of the Screen Frame. (2 on each

corner and 3 in the center.)

The image shows the bottom edge of the screen frame.

Please note that these screws are the last ones that are

holding the Screen Frame. Grab the Screen Frame on

both corners and slide out towards you.

Use additional help when necessary.

This image shows the PTV after you have removed the

Screen Frame assembly.

125

DP23/23G/24

126

DP23/23G/24

ANT A

Converter

ANT B

Pr Pb Y

R(MONO/L)

AUDIO

DVI-HDTV

INPUT 1

R VIDEO

R(MONO/L)

AUDIO

INPUT 2

INPUT 3

(MONO/L) S-VIDEO

RVIDEO

INPUT 4

(MONO/L) S-VIDEO

RVIDEO

LS-VIDEO

AUDIO

MONITOR

OUT

AUDIO

TO HI-FI

DP-23 / 23G REAR PANEL

Pr Pb Y/VIDEO

127

DP23/23G/24

ANT A

Converter

ANT B

Pr Pb Y

R(MONO/L)

AUDIO

INPUT 1

R VIDEO

R(MONO/L)

AUDIO

INPUT 2

INPUT 3

(MONO/L) S-VIDEO

RVIDEO

INPUT 4

(MONO/L) S-VIDEO

RVIDEO

LS-VIDEO

AUDIO

MONITOR

OUT

AUDIO

TO HI-FI

DP-24 REAR PANEL

Pr Pb Y/VIDEO

128

DP23/23G/24

D901

DP-23 23G 24 Chassis

+6.0 V Low Voltage Regulation

R913

Run

Start Up

Osc B+

16.3V

R907

R906

D905

D910

R914

R911

PPS3

0.0685A

Sby +5V

T901

C969

C964

D941

T901

C916

R912

150V

F902

T901

R908

R909

0.47

Ohm

D904

D906

C914

I901

Driver/

Output IC

OCP

Control

+6V

I909

+5V

Reg

3 2

C986C972 C973

I904

Regulator Photocoupler

R915

Hot Ground from

negative leg of

Bridge D901

R958

R957

D953

FB/OLP

D906

C918

R916

C917

R917

1.79A

Cold Ground from

pin 8 of T901

C904

Floating Ground

from pin 6 of T901

C915

ABS

D907

C911

C910A

C913

129

DP23/23G/24

130

DP23/23G/24

131

DP23/23G/24

132

DP23/23G/24

SW +28V

SW -28V

T902

Deflection B+ (115V)

Excessive Voltage Det.

Deflection B+ 115V

0.47 Ohm

Deflection B+ (115V)

Excessive Current Det.

SW-28V Short or Loss Det.

R941

R945

R946

R944

R952 R951

C933

C927

Q905

C945

R943 R942

D924

D928

D927

D926

C946 D925

D936

D937

D940

T902

C935

C929

D917

T902

C934

C928

D916

L912

C949

D971

D918

L913

C950

PPD6

SW +28V

Gnd

10K

E901

10K

E902

E907

L914

0.69A

0.575A

1.09A

L915

L916

SW +115V

Deflection B+ 115V

133

DP23/23G/24

PROTECT _DEF

Side Pin Failure

High Det.

Flyback

5OP

29.01V

OVP

TH01

ABL Voltage

Too High Det.

RH32

Hi Volt

Drive

LH06

Excessive Hi

Voltage Det.

RH23

CH17

RK97

DK90

D703 D702

HZS7C3

RK98

-5V

+5V

Convergence Out Circuit

-5V Loss

Detection

ABL

Stops H. Drive

Side Pincushion Circuit

Vertical Output Circuit

R630 R631

C610

DH15

R629 0.68 Ohm

Q604

28V

D608

Excessive Vertical

Current Det.

R632

See Low Voltage Shut Down

Circuit Diagram for continuation.

RH32 allows ABL fluctuations to

manipulate the Trigger Point of Shut

Down as screen brightness varies. ABL

is inverse proportionate to brightness.

This prevents false triggering.

Any fluctuations in High Voltage will

also be reflected by the 50P output P/P.

By monitoring the 50P (50 Pulse) rises

in High Voltage will be sensed. If High

Voltage climbs too high, DH15 will fire

and trigger a shut down event.

A loss of the Negative 5V will cause the

positive 5V to be felt on the anode of

DK90 which forward biases the diode

and delivers a Shut Down hi

If the Vertical Output IC has a problem,

R629 will sense the current rise. The

voltage drop will be reflected at the base

of Q604 turning it on and producing a

Shut Down high.

D702 monitors the Side Pin

Drive IC. If the voltage at

pin 7 rises too high, D702

will fire generating a Shut

Down high.

High Voltage

Sensing Circuit

PPD3

DH13

DH14

RH26

R717

RH24

RH25

134

DP23/23G/24

135

DP23/23G/24

136

DP23/23G/24

137

DP23/23G/24

138

DP23/23G/24

MON

OUT

Front Control PWB

IV01

2Line Y/C

Separator

V4 8

U301

Main Tuner

U302

Sub Tuner

PST1

SIGNAL

PWB

Aux 1 S-Y

Aux 1 S-C

Component 1 Video

Aux 2 S-Y

Aux 2 S-C

Aux 3 Video

Aux 5 S-Y V3Y

Aux 5 S-C V3C

Aux 5 Video V3V

Aux 4 Video

Monitor Out S-Y

Monitor Out S-C

Monitor Out Video

V Out 1

Y In 1

C In 1

V In

Y Out

C Out

V Out 3

C Out 3

Y Out 3

Out 2

V/Y

Out 2

C Out 1

Y Out 1

SUB OUT

IZ01

Sub Video

Chroma

Y2 In

C2 In

Sub Cr Out

Sub Cb Out

Sub Y Out

PST1

QV09

QX16 QX28

QX15 QX27

IZ02 MAIN

Video/Chroma

Processor

Main Cr Out

Main Cb Out

Main Y Out

QX95

-6db

Chroma Tilt

Correction

IW01

3D Y/C

Separator

V In

QW01

QW04QW02

VIDEO LPF

Y LPFY AMP

QW09

XW01QW10QW12

C LPFC AMP

QW13

XW02QW14QW15

QX13

QX14

MAIN

OUT

MON

OUT

IX01

A/V Select 7

QZ10

QZ09

QZ08

TERMINAL PWB

PFT

For PinP Only

QV10

XV01 189

QV01QV02QV04

QV05QV06QV08

XV02

2Y1

QX26

C Out ACO

Y Out AYO

16 C1

QZ04

SUB Video/Chroma

Processor

Y1 In

C1 In

QZ05

DP-23 23G Chassis

Video NTSC

TERMINAL PWB

QZ03

QZ02

PST2

QZ01

See Component

Signal Path

V2 30

Aux 2 Video (Component Y) V5

IX02

Y Pr/Pb Select

See Component Signal Path for

Component 1 Video 480i Y Cr/Cb

S-3 Det.

Pr S-1

Pr No Input for Composite

S-3

S-4 Det.

S-2

2811 S-4

S-5 Det.

QX12

See NTSC

Sync Path

PiP Video= Sub Video

139

DP23/23G/24

MON

OUT

Front Control PWB

IV01

2Line Y/C

Separator

V4 8

U301

Main Tuner

U302

Sub Tuner

PST1

SIGNAL

PWB

Aux 1 S-Y

Aux 1 S-C

Component 1 Video

Aux 2 S-Y

Aux 2 S-C

Aux 3 Video

Aux 5 S-Y V3Y

Aux 5 S-C V3C

Aux 5 Video V3V

Aux 4 Video

Monitor Out S-Y

Monitor Out S-C

Monitor Out Video

V Out 1

Y In 1

C In 1

V In

Y Out

C Out

V Out 3

C Out 3

Y Out 3

Out 2

V/Y

Out 2

C Out 1

Y Out 1

SUB OUT

IZ01

Sub Video

Chroma

Y2 In

C2 In

Sub Cr Out

Sub Cb Out

Sub Y Out

PST1

QV09

QX16 QX28

QX15 QX27

IZ02 MAIN

Video/Chroma

Processor

Main Cr Out

Main Cb Out

Main Y Out

QX95

-6db

Chroma Tilt

Correction

IW01

3D Y/C

Separator

V In

QW01

QW04QW02

VIDEO LPF

Y LPFY AMP

QW09

XW01QW10QW12

C LPFC AMP

QW13

XW02QW14QW15

QX13

QX14

MAIN

OUT

MON

OUT

IX01

A/V Select 7

QZ10

QZ09

QZ08

TERMINAL PWB

PFT

For PinP Only

QV10

XV01 189

QV01QV02QV04

QV05QV06QV08

XV02

2Y1

QX26

C Out ACO

Y Out AYO

16 C1

QZ04

SUB Video/Chroma

Processor

Y1 In

C1 In

QZ05

DP-24 Chassis

Video NTSC

TERMINAL PWB

QZ03

QZ02

PST2

QZ01

See Component

Signal Path

V2 30

Aux 2 Video (Component Y) V5

IX02

Y Pr/Pb Select

See Component Signal Path for

Component 1 Video 480i Y Cr/Cb

S-3 Det.

Pr S-1

Pr No Input for Composite

S-3

S-4 Det.

S-2

281 S-4

S-5 Det.

QX12

See NTSC

Sync Path

140

DP23/23G/24

141

DP23/23G/24

POWER PWB

DP-23 23G Chassis

Video Component, OSD & NTSC

V2 COMP 2 (Cr/Pr)

COMP 2 (Cb/Pb)

COMP 2 (Y)

IX02

Y/Pb/Pr

Selector

MAIN Pr-Out 2

MAIN

Pb-Out 2

MAIN Y-Out 2

DVI PR

DVI PB

DVI Y (G)

IZ01

SUB

Video/Chroma

Y Pr/Pb Switch

QZ01

QZ02

QZ03

IZ02

MAIN

Video/Chroma

Y Pr/Pb Switch

Main Y Out

QZ10

QZ09

QZ08

U303

FC4

UNIT

Q306

Q307

Q308

Q406

Q405

Q403

Q402

Q401

I401

RGB

Processor

Pr 1 In Y 1 InPb 1 In

Pr 2 In

Y 2 In

Pb 2 In

Q404

Q417

Q418

Q419

I001

Micro-

processor

OSD R

OSD B

OSD G

OSD R In

OSD B In

OSD G In

Analog R In

Analog B In

Analog G In

R Out

B Out

G Out

QK08

QK07

QK06

Q420

Q421

Q422

Digital Conv.

Unit

Dig R Out

Dig B Out

Dig G Out

DEFLECTION PWB

CPT

PWBs

SIGNAL PWB

PDG

PPD1

PPS1

PST1

PFC1

PFC2

PST2

PET

SUB Pr-Out 1

SUB Pb-Out 1

SUB Y-Out 1

DVI

INPUT

From

DVI

INPUT

PWB DVI Det

6412

D-Sync 1/Y3/ G In

Cb/Pb B In

Cr/Pr R In

QX22

QX23

QX24

6D-Sync 2 In

QX21

QX20

QX19

6D-Sync 2 In

D-Sync 1/Y3/ G In

Cb/Pb B In

Cr/Pr R In

MAIN

SUB Y Out

Pb Out

Pr Out

UKDG

Main Cr/Pr Out

Main Cb/Pb Out

Sub CrPr Out

Sub Cb/Pb Out

Sub Y Out

RAINFOREST IC

NTSC MAIN Y In

S-In MAIN Y In

NTSC MAIN Y In

Sub MAIN Y In

TERMINAL PWB SIGNAL PWB

See DVI Input

Signal Diagram

V1 COMP 1 (Cr/Pr)

COMP 1 (Cb/Pb)

COMP 1 (Y)

142

DP23/23G/24

POWER PWB

DP-24 Chassis

Video Component OSD & NTSC

V2 COMP 2 (Cr/Pr)

COMP 2 (Cb/Pb)

COMP 2 (Y)

IX02

Y/Pb/Pr

Selector

MAIN Pr-Out 2

MAIN

Pb-Out 2

MAIN Y-Out 2

IZ01

SUB

Video/Chroma

Y Pr/Pb Switch

QZ01

QZ02

QZ03

IZ02

MAIN

Video/Chroma

Y Pr/Pb Switch

Main Y Out

QZ10

QZ09

QZ08

U303

FC4

UNIT

Q306

Q307

Q308

Q406

Q405

Q403

Q402

Q401

I401

RGB

Processor

Pr 1 In Y 1 InPb 1 In

Pr 2 In

Y 2 In

Pb 2 In

Q404

Q417

Q418

Q419

I001

Micro-

processor

OSD R

OSD B

OSD G

OSD R In

OSD B In

OSD G In

Analog R In

Analog B In

Analog G In

R Out

B Out

G Out

QK08

QK07

QK06

Q420

Q421

Q422

Digital Conv.

Unit

Dig R Out

Dig B Out

Dig G Out

DEFLECTION PWB

CPT

PWBs

SIGNAL PWB

PDG

PPD1

PPS1

PST1

PFC1

PFC2

PST2

SUB Pr-Out 1

SUB Pb-Out 1

SUB Y-Out 1

D-Sync 1/Y3/ G In

Cb/Pb B In

Cr/Pr R In

QX22

QX23

QX24

6D-Sync 2 In

QX21

QX20

QX19

6D-Sync 2 In

D-Sync 1/Y3/ G In

Cb/Pb B In

Cr/Pr R In

MAIN

SUB Y Out

Pb Out

Pr Out

UKDG

Main Cr/Pr Out

Main Cb/Pb Out

Sub CrPr Out

Sub Cb/Pb Out

Sub Y Out

RAINFOREST IC

NTSC MAIN Y In

S-In MAIN Y In

NTSC MAIN Y In

Sub MAIN Y In

TERMINAL PWB SIGNAL PWB

V1 COMP 1 (Cr/Pr)

COMP 1 (Cb/Pb)

COMP 1 (Y)

143

DP23/23G/24

144

DP23/23G/24

145

DP23/23G/24

146

DP23/23G/24

Mode

IJ01

SiI907B

DP-23 23G Chassis

DVI Input

DVJ

DVI CONN

RX2-

RX2+

GND2/4

RX4+

RX4-

SCL

SDA

8VSYNC

RX1-

10RX1+

RX3+

RX3-

GND

HTPIUG

RX0-

RX0+

RX5+

RX5-

GNDC

TXC+

TXC-

C1 (R)

C2 (G)

C3 (B)

C4 (H)

GND1/3

GND0/5

C5 (GND)

RXC+

RXC-

RXO-

RXO+

RX1-

RX1+

RX2-

RX2+

IJ0A

NDC7002N

IJ07

IJ02

NDC7002N

SDA

SCL

IJ04

4 539

Reset

DVcc

Vcc

DACVcc

DACVccB

Vcc

DVcc

Vcc

AVcc

DJ06

DJ05

DJ29

QJ08

18 DVIV

DVIH

VSync

HSync

23 DVIG

DVIR

IOG

IOR QJ01

QJ02

31 DVIB

IOB QJ03

40 DVIDET

SCDT QJ06

Reset

SW+5

DVIV

DVIH

DVIG

DVIR

DVIB

DVIDET

GND

10 12 16 21 25

28 33 35 43 45 50

All of these pins are ground

LJ17

LJ15

DJ28

1 2

DJ27

B+

DJ26

1 2

DJ25

B+

DJ23

1 2

DJ24

B+

DJ21

1 2

DJ22

B+

DJ04DJ02 6

74 6

PET

DACVccR

DACVccG

Vcc

DJ01

147

DP23/23G/24

148

DP23/23G/24

V5 23

Aux 5 Left

Aux 5 Right 25

Front Control PWB

U301

Main Tuner

SIGNAL PWB

DP23 23G Chassis

Audio Main Terminal

TERMINAL PWB

MON

OUT

IX01

A/V Select

TV Main R

TV Main L

V1 59

Aux 1 Left

Aux 1 Right

V2 29

Aux 2 Left

Aux 2 Right

V3 16

Aux 3 Left

Aux 3 Right

V4 9

Aux 4 Left

Aux 4 Right

MON

Monitor Out Left

Monitor Out Right

JA01

HiFi Out

IA03

Front Audio Out

TA8258H

FR (WO) Out

FR (TW) Out

FL (TW) Out

SIGNAL PWB

PFT

SIGNAL PWB

QX30

QX31

945

2126

SCL

SDA

IA02

BBS/

SRS

BBEout R

BBEout L

RIn

LIn

Tone R In

Tone L In

ROut

LOut

MODE 1

MODE 2

1Right

IA01

Audio Control

Left

L Out

Left

R Out

Right

CA81

CA76

QA04

QA03

QA06

QA05 2

I001

QA09

See AV Mute

Circuit Diagram

See AV Mute

Circuit Diagram

QA10

See AV Mute

Circuit Diagram

FL (WO) Out

QA08

QA07

Left Out

Right Out

Micro

PST1

SRS LOGIC (NJM2198) IA02

L/H

Mode2

Pin 13

Mode1

Pin 12

BYPASS (SRS OFF)

SRS STEREO

SRS MONAURAL

MODE L OGIC

Left

Right

Left

149

DP23/23G/24

V5 23

Aux 5 Left

Aux 5 Right 25

Front Control PWB

U301

Main Tuner

SIGNAL PWB

DP24 Chassis

Audio Main Terminal

TERMINAL PWB

MON

OUT

IX01

A/V Select

TV Main R

TV Main L

V1 59

Aux 1 Left

Aux 1 Right

V2 29

Aux 2 Left

Aux 2 Right

V3 16

Aux 3 Left

Aux 3 Right

V4 9

Aux 4 Left

Aux 4 Right

MON

Monitor Out Left

Monitor Out Right

JA01

HiFi Out

IA03

Front Audio Out

TA8258H

FR (WO) Out

FR (TW) Out

FL (TW) Out

SIGNAL PWB

PFT

SIGNAL PWB

QX30

QX31

945

2126

SCL

SDA

IA02

BBS/

SRS

BBEout R

BBEout L

RIn

LIn

Tone R In

Tone L In

ROut

LOut

MODE 1

MODE 2

1Right

IA01

Audio Control

Left

L Out

Left

R Out

Right

CA81

CA76

QA04

QA03

QA06

QA05 2

I001

QA09

See AV Mute

Circuit Diagram

See AV Mute

Circuit Diagram

QA10

See AV Mute

Circuit Diagram

FL (WO) Out

QA08

QA07

Left Out

Right Out

Micro

PST1

SRS LOGIC (NJM2198) IA02

L/H

Mode2

Pin 13

Mode1

Pin 12

BYPASS (SRS OFF)

SRS STEREO

SRS MONAURAL

MODE LOGIC

Left

Righ

Left

150

DP23/23G/24

151

DP23/23G/24

152

DP23/23G/24

153

DP23/23G/24

154

DP23/23G/24

155

DP23/23G/24

156

DP23/23G/24

TV CBL/SAT DVD/VCR

POWER

PIP PIP MODE

SWAP FREEZE

VIDEO PIP CH MENU

SELECT

LAST CH

EXIT

MUTE

VOL

1 2 3

4 5 6

7 8 9

ANT 0INFO

VIRTUAL HD

ASPECT

REC

VID5

VID4VID3VID2VID1

HITACHI

CLU-4321UG

DP-23, DP-23G & DP-24 REMOTE CONTROL CLU-4321UG

(p/n HL01831)

ROM READ

(Read Old ROM Data)

PHASE

ADJUSTMENT

CURSOR UP

CURSOR DOWN

CURSOR LEFT

BLUE Select

13X9 Mode

(5 Times)

CURSOR RIGHT

GREEN Select

3X3 Mode (5 Times)

RED Select

7X5 Mode (5 Times)

INITIALIZE

RASTER POSITION

REMOVE COLOR

ROM WRITE

CALCULATION

*VCR MODE ONLY

CROSSHATCH /

VIDEO

(5 Times)

157

DP23/23G/24

NOTE: Aspect may not be correct but dimensions are correct.

DIGITAL CONVERGENCE OVERLAY DIMENSIONS

43FWX20B OVERLAY DIMENSIONS NORMAL MODE

H. SIZE

V. SIZE

Centering Offset

952

25.7

34.5

69.1

34.5

25.7

17 76.5

535

76.5 76.5 76.5 76.5 76.5 76.5 76.5 76.5

VERTICAL SIZE = 460mm

HORIZONTAL SIZE = 870mm

PART NUMBER H312271

76.5

RED OFFSET = 25mm

BLUE OFFSET = 30mm

43FWX20B DP-24 Chassis

158

DP23/23G/24

H. SIZE

V. SIZE

Centering Offset

1129

30.5

41.0

82.0

41.0

30.5

19.7 90.8

635

19.7

90.8 90.8 90.8 90.8 90.8 90.8 90.8 90.8

VERTICAL SIZE = 560mm

HORIZONTAL SIZE = 1020mm

PART NUMBER H312272

90.8

NOTE: Aspect may not be correct but dimensions are correct.

DIGITAL CONVERGENCE OVERLAY DIMENSIONS

51UWX20B, 51GWX20B

OVERLAY DIMENSIONS NORMAL MODE

RED OFFSET = 20mm

BLUE OFFSET = 35mm

51UWX20B DP-23 Chassis

51GWX20B DP-23G Chassis

159

DP23/23G/24

NOTE: Aspect may not be correct but dimensions are correct.

DIGITAL CONVERGENCE OVERLAY DIMENSIONS

57UWX02B, 57GWX20B

OVERLAY DIMENSIONS NORMAL MODE

H. SIZE

V. SIZE

Centering Offset

1262

34.1

45.8

91.7

45.8

34.1

22.0 101.5

710

22.0

101.5 101.5 101.5 101.5 101.5 101.5 101.5 101.5

VERTICAL SIZE = 625mm

HORIZONTAL SIZE = 1140mm

PART NUMBER H312273

101.5

RED OFFSET = 20mm

BLUE OFFSET = 35mm

57UWX02B DP-23 Chassis

57GWX20B DP-23G Chassis

WAVEFORMS AT EACH SECTION

Numbers inside circle correspond to locations shown in the circuit diagram.

1I001 Pin 13 2I001 Pin 21 3I001 Pin 22

4I001 Pin 23 5I001 Pin 28 6I001 Pin 29

7I001 Pin 30 8I001 Pin 31 9I001 Pin 32

10 I001 Pin 33 11 I001 Pin 34 12 I001 Pin 52

DP-2x

160

CH 1

WAVEFORMS AT EACH SECTION

Numbers inside circle correspond to locations shown in the circuit diagram.

13 I001 Pin 54 14 I001 Pin 62 15 I001 Pin 64

16 I401 Pin 24 17 I401 Pin 26 18 I401 Pin 27

19 I401 Pin 41 20 I401 Pin 42 21 I401 Pin 43

22 IZ02 Pin 3 23 IZ02 Pin 15 24 IZ02 Pin 26

DP-2x

161

CH 1

WAVEFORMS AT EACH SECTION

Numbers inside circle correspond to locations shown in the circuit diagram.

25 PPS2 Pin 6 26 PPS2 Pin 8 27 PPS2 Pin 10

28 PSC1 Pin 5 29 PSC1 Pin 7 30 PSC1 Pin 9

31 PFC1 Pin 1432 PST1 Pin 1 33 PST1 Pin 2

34 PST2 Pin 28 35 PST2 Pin 29 36 Q709 Collector

DP-2x

162

CH 1

WAVEFORMS AT EACH SECTION

Numbers inside circle correspond to locations shown in the circuit diagram.

37 Q777 Collector (100% reduced) 38 QH01 Drain (100% reduced) 39 TH01 Pin 9 (100% reduced)

DP-2x

163

CH 1

51UWX20B / DP23

CS00621 FLEX CONVERTER

CS00651 DCU

JT23031 SIGNAL PWB

JT23041 TERMINAL PWB

JT23051 DEFL / CONV PWB

JT23061 POWER SUPPLY PWB

JT23071 CPT / VM PWB

JT23092 DVI PWB

KR02542 SCREEN ASSEMBLY

UE09961 DP23 CHASSIS ASY

UE20791 RED CRT

UE20792 GREEN CRT

UE20793 BLUE CRT

X480249 SENSOR PWB

164

CH 5

57UWX20B / DP23

CS00621 FLEX CONVERTER

CS00651 DCU

JT23031 SIGNAL PWB

JT23041 TERMINAL PWB

JT23051 DEFL / CONV PWB

JT23061 POWER SUPPLY PWB

JT23071 CPT / VM PWB

KR02544 SCREEN ASSEMBLY

UE09961 DP23 CHASSIS ASY

UE20794 RED CRT

UE20795 GREEN CRT

UE20796 BLUE CRT

X480249 SENSOR PWB

165

CH 5

51GWX20B / DP23G

CS00621 FLEX CONVERTER

CS00651 DCU

JT23032 SIGNAL PWB

JT23042 TERMINAL PWB

JT23052 DEFL / CONV PWB

JT23062 POWER PWB

JT23072 CPT / VM PWB

KR02543 SCREEN ASSEMBLY

UE09962 DP23G CHASSIS ASSY

UE20791 RED CRT

UE20792 GREEN CRT

UE20793 BLUE CRT

X480257 CONTROL PWB

X480258 IR PWB

166

CH 5

57GWX20B / DP23G

CS00621 FLEX CONVERTER

CS00651 DCU

JT23032 SIGNAL PWB

JT23042 TERMINAL PWB

JT23052 DEFL / CONV PWB

JT23062 POWER PWB

JT23072 CPT / VM PWB

KR02545 SCREEN ASSEMBLY

UE09962 DP23G CHASSIS ASSY

UE20794 RED CRT

UE20795 GREEN CRT

UE20796 BLUE CRT

X480257 CONTROL PWB

X480258 IR PWB

167

CH 5

43FWX20B / DP24

CS00591 DCU

CS00641 FLEX CONVERTER

JT23033 SIGNAL PWB

JT23043 TERMINAL PWB

JT23053 DEFL / CONV PWB

JT23063 POWER PWB

JT23073 CPT / VM PWB

JT23083 CONTROL PWB

KR02541 SCREEN ASSEMBLY

UE09963 DP24 CHASSIS

UE20311 RED CRT

UE20312 GREEN CRT

UE20313 BLUE CRT

X480250 SENSOR PWB

168

CH 5

PANO 0162 Links Pa0162

51UWX20B 51UWX20B

50UWX20 50UWX20

Navigation menu

Versions of this User Manual:

Views

Navigation
