PAC® 520 Input Controller
The PAC 520 Input Controller provides the PAC
SecureNet system with notice of critical alarm
points in monitored areas. An Input Controller
connects directly to a PAC 500 Access and Alarm
Server with either standard alarm or CAT 5 cable
using RS-485 communications.
Designed and manufactured for use with PAC
SecureNet Access Control software, which
monitors and controls different devices,
including alarms, motion detectors, temperature
sensors and other associated devices. Twenty
user inputs are configurable as Normally Open
(NO) or Normally Closed (NC), with optional
supervision via three or four state monitoring.
Two 2 Amp outputs are configurable as latched,
momentary, toggling or pulsing.
The unique One-Touch™ testing mode shows
the state of each output and input providing
instantaneous polling and communication status
at the controller with just the press of a single
button. Installation testing has never been
simpler, no PC is required and complex
programming and dip switch configuration is
avoided.
Key Features:
• 20 User Inputs (supervised or non-supervised)
• Override and Tamper inputs
• All inputs can be individually configured to be two state,
three state or four state
• 2 x 2 Amp latching relay outputs
• Both outputs can be configured as latched, momentary,
toggling or pulsing
• Status LEDs show the state of all Inputs and Outputs using
One-Touch™
• Fast RS-485 communications to PAC 500
• Up to 48 input controllers can be connected to a single PAC
500 via RS-485
• Receives and processes real time commands from the PAC
500
• Reports all activities to the PAC 500
• Enables complex input and output linking with PAC 500 and
PAC 530
• Watchdog reset for maximum reliability
• Unique One-Touch™ installation mode simplifies and speeds
up system commissioning, without need for a PC or
programming
• Wide voltage operation 10.5V to 28V
• Two polyfused 10/100mA auxiliary voltage outputs
• Power supply status monitored and reported
• Fast 16 bit microprocessor
• Easy in-field firmware upgrades
• DIN-Rail mounting for ease of installation
OneTouchTM
Features & Specification
Description
PAC 520 Input Controller - DIN Mount
PAC 520 Input Controller (Boxed)
Dimensions/Weight:
DIN: H:125mm x W:180mm x D:60mm
Boxed:
H: 220mm x W: 150mm x D: 40mm
Temperature/ Humidity:
Operating: -10°c to +55°c (14°f to +130°f) Storage: -25°c to +80°c (-13°f to +176°f) Humidity: 0 to 85% RHNC
Outputs
2 x 2-Amp latching relay outputs, configurable as latched, momentary, toggling or pulsing
Inputs
20 software configurable alarm inputs can be used for alarm device monitoring. Configurable via SecureNet
software as N/O (normally open), N/C (normally closed) and two, three and four state sensor configurations
Communication Ports
RS-485 (57.6K bps)
Wiring Requirements RS-485 - CAT5 up to 1000m, 3000ft total cable or 7/0.2mm, 1500ft total cable
Module Power
10.5VDC @ 115mA to 28VDC @ 45mA
Warranty
5 Years
Regulatory Compliance
BS8030:2001 “Providing Access Solutions for Disabled People”
EN 50133 - Access control systems for use in security applications
EN55022 Class B. EN50130-4.
CE Certified. FCC - Part 15 Class B. Designed for UL1076 and UL294
Ordering Information
Part number
20051
20053
Description
PAC 520 Input Controller (Boxed)
PAC 520 Input Controller - DIN Mount
Stanley Security Products is a sales channel of Stanley Security Solutions
Stanley Security Solutions Ltd. Registered in England and Wales No. 181585. Registered Office: Stanley House, Bramble Road, Swindon, Wiltshire SN2 8ER. VAT No. 232 2446 95
All reasonable care has been taken to ensure that the information contained in this publication is accurate as at the date of printing. Such information is nevertheless liable to variation in the event of changes occurring subsequent to the date of printing in the
products, services or statements referred to in this publication.
PAC Access Control, 1 Park Gate Close, Bredbury, Stockport, Cheshire, SK6 2SZ
Tel: +44 (0) 161 406 3400 Fax: +44 (0) 161 406 8984 Email: customerservices@stanleysecurityproducts.com
www.stanleysecurityproducts.com

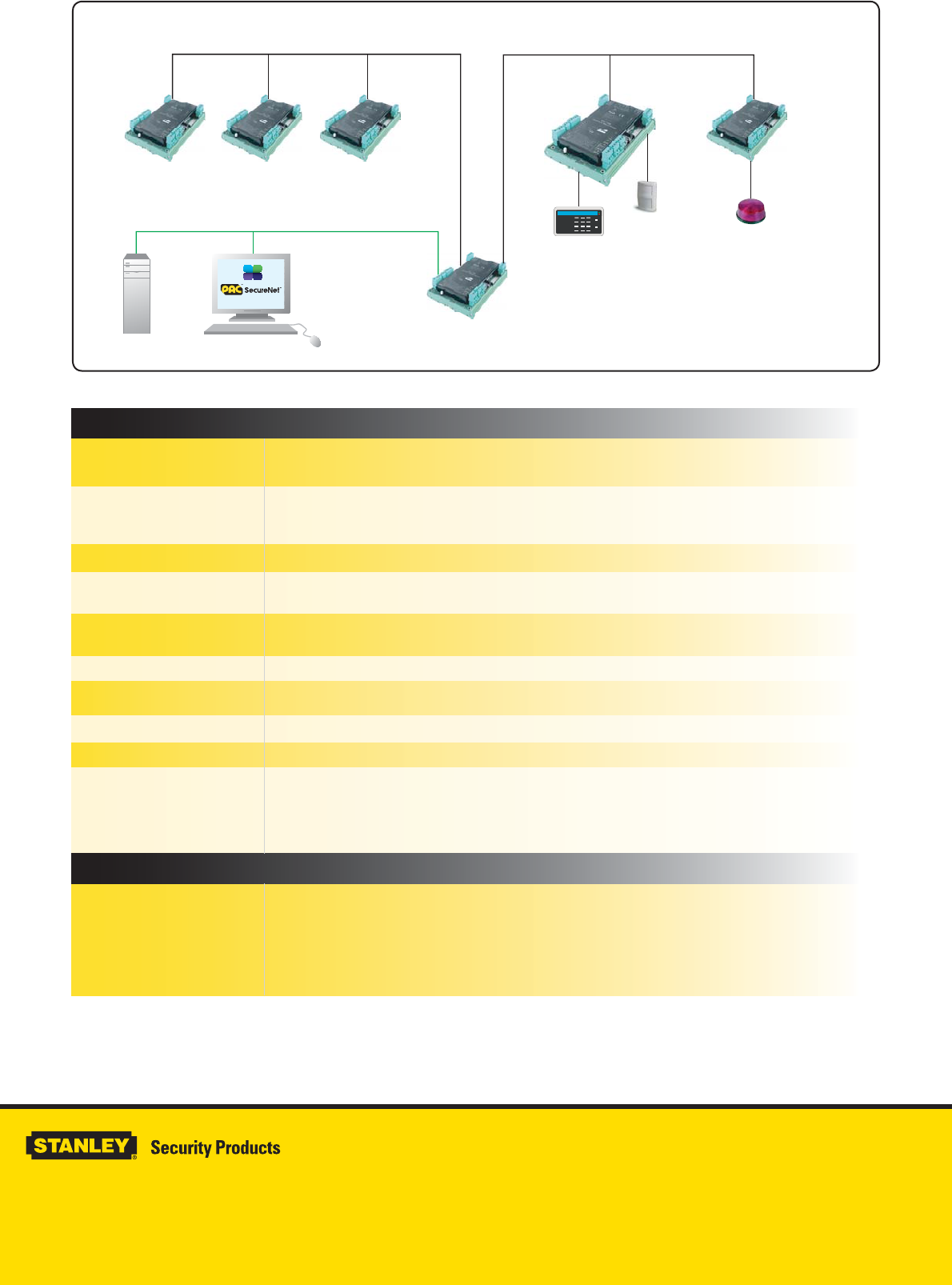

RS-485 Network
500 Series Controller 500 Series Controller 500 Series Controller
PAC 520
Input Controller
PAC 530
Output Controller
RS-485 Network
Local/Wide Area Network (LAN/WAN)
PAC System PAC Client
RS-485 (2)
RS-485 (1)
PAC 500
Access and Alarm Server
AREA 3 ARMED
Strobe
PIR Detector
Alarm Panel
LT SE
PROADV
