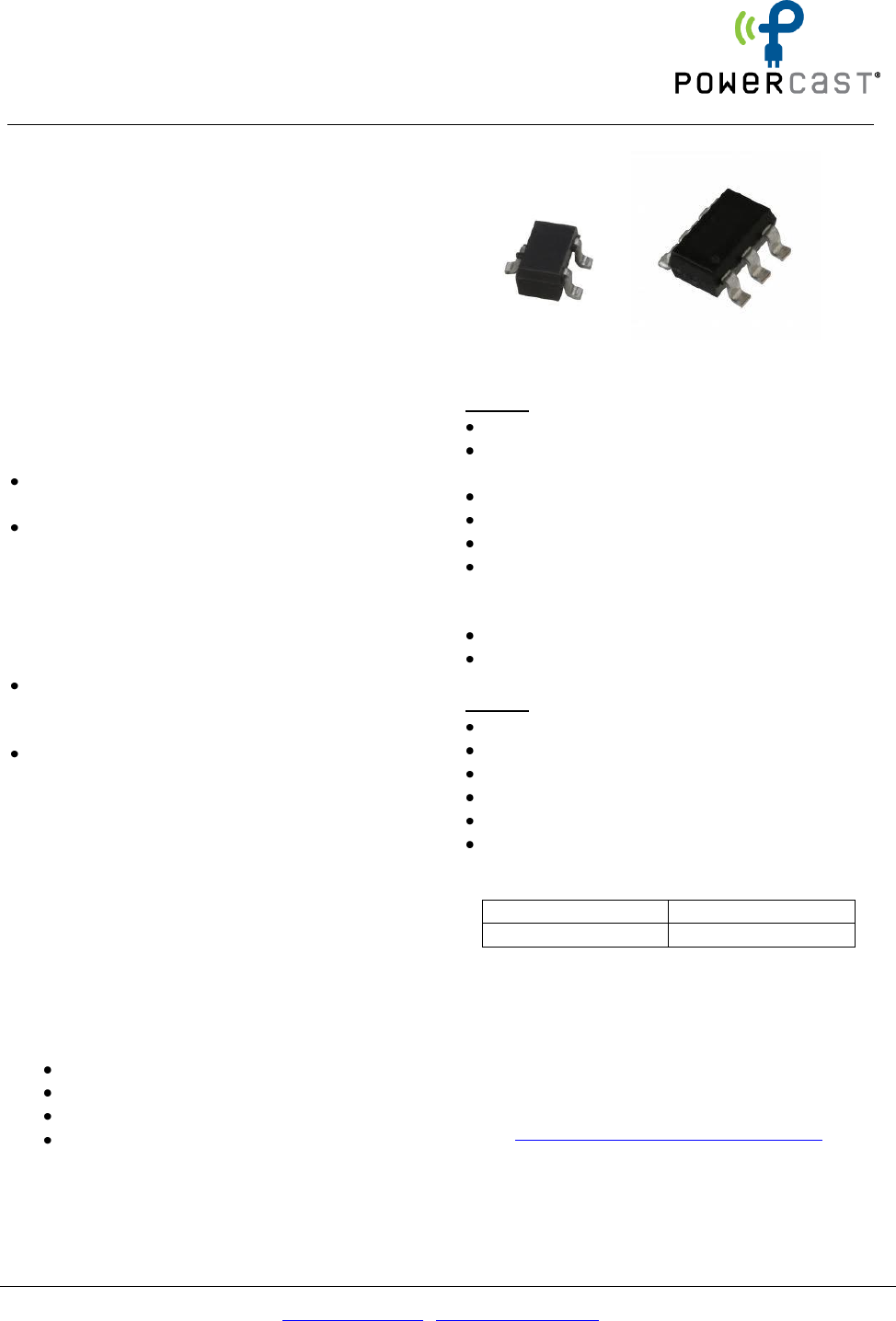

PCC110/PCC210
Powerharvester® Chipset
PCCX10 v1.2– 2015/08
© 2015 Powercast Corporation, All rights reserved.
www.powercastco.com / contact@powercastco.com
+1 412-455-5800
P a g e 1
DESCRIPTION
The Powercast Powerharvester® Chipset includes the
PCC110 RF-to-DC converter and the PCC210 Boost
Converter. The Chipset is used in conjunction with
numerous Powercast Reference Designs, including the
P1110 and P2110 Powerharvester Modules. The
PCC110 is designed to maximize RF to DC conversion
efficiency, up to 75%, while supporting a wide range
of input power levels, load voltages, and frequency
bands. The PCC210 is designed to efficiently boost
low input voltages to provide extended range and
provide a regulated output voltage to a load device.
APPLICATIONS
High-function RFID
- Sensors/Displays/Microprocessors
Battery-free wireless sensors
- Industrial Monitoring
- Smart Grid
- Defense
- Building Automation
- Oil & Gas
- Medical
Recharging
- Super capacitors
- Coin or thin-film cells
Low power electronics
- Devices that typically last for weeks,
months, or years on a battery
REFERENCE DESIGNS AVAILABLE
P1110
915MHz high-efficiency continuous
powering and battery recharging
P2110
915MHz long-range pulsed powering and
pulsed battery recharging
P2111
P2110 with enhanced sensitivity
P2120
2.45GHz long-range pulsed powering and
pulsed battery recharging
REFERENCE DESIGN INCLUDES:
Schematic
PCB Layout
Bill of Material
Performance Data
FEATURES (DESIGN DEPENDENT)
PCC110
High conversion efficiency, up to 75%
Converts low-level RF signals enabling long range
applications
Wide RF operating range: -17dBm to +20dBm
Wide Frequency range: 100MHz to 6GHz
Harvests from all modulation types
Interoperable with numerous RF sources:
Powercast TX91501 series transmitter, RFID
readers, Wi-Fi routers, etc.
SC-70 package
RoHS compliant
PCC210
High efficiency, up to 95%
Operation down to 0.4V input
Capable of 5.5V @ 50mA output
Resistor settable output voltage
SOT23-6 package
RoHS compliant
CHIP MARKINGS
PCC110
F1X
PCC210
P2X
ORDERING INFORMATION
Qualified high-volume customers can obtain the
Powercast Reference Design best suited for their
application by contacting Powercast and completing a
questionnaire and a reference design confidentiality
agreement:
http://www.powercastco.com/contact/
Powercast products, reference designs, and technology are covered by one or more of the following patents and other patents pending:
6,289,237 | 6,615,074 | 6,856,291 | 7,027,311 | 7,057,514 | 7,639,994 | 7,643,312 | 7,812,771 | 7,844,306 7,868,482 | 7,898,105 | 7,925,308
8,159,090 | 8,380,255 | 8,432,062 | 8,461,817 | 8,621,245 | 9,000,616 | 9,021,277
PCC110/PCC210
Powerharvester® Chipset
PCCX10 v1.2– 2015/08
© 2015 Powercast Corporation, All rights reserved.
www.powercastco.com / contact@powercastco.com
+1 412-455-5800
P a g e 2
IMPORTANT NOTICE
Information furnished by Powercast Corporation (Powercast) is believed to be accurate and
reliable. However, no responsibility is assumed by Powercast for its use, nor for any
infringements of patents or other rights of third parties that may result from its use.
Specifications are subject to change without notice.
No license is granted by implication or otherwise under any patent or patent rights of
Powercast. Trademarks and registered trademarks are the property of their respective owners.
POWERCAST PRODUCTS (INCLUDING HARDWARE AND/OR SOFTWARE) ARE NOT DESIGNED OR
INTENDED TO BE FAIL-SAFE, FAULT TOLERANT OR FOR USE IN ANY APPLICATION THAT COULD
LEAD TO DEATH, PERSONAL INJURY OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE
(INDIVIDUALLY AND COLLECTIVELY, “CRITICAL APPLICATIONS”), SUCH AS LIFE-SUPPORT OR
SAFETY DEVICES OR SYSTEMS, CLASS III MEDICAL DEVICES, NUCLEAR FACILITIES, APPLICATIONS
THAT AFFECT CONTROL OF A VEHICLE OR AIRCRAFT, APPLICATIONS RELATED TO THE
DEPLOYMENT OF AIRBAGS, OR ANY OTHER CRITICAL APPLICATIONS. CUSTOMER AGREES, PRIOR
TO USING OR DISTRIBUTING ANY SYSTEMS THAT INCORPORATE POWERCAST PRODUCTS, TO
THOROUGHLY TEST THE SAME FOR SAFETY PURPOSES. CUSTOMER ASSUMES THE SOLE RISK
AND LIABILITY OF ANY USE OF POWERCAST PRODUCTS IN CRITICAL APPLICATIONS, SUBJECT
ONLY TO APPLICABLE LAWS AND REGULATIONS GOVERNING LIMITATIONS ON PRODUCT
LIABILITY.
