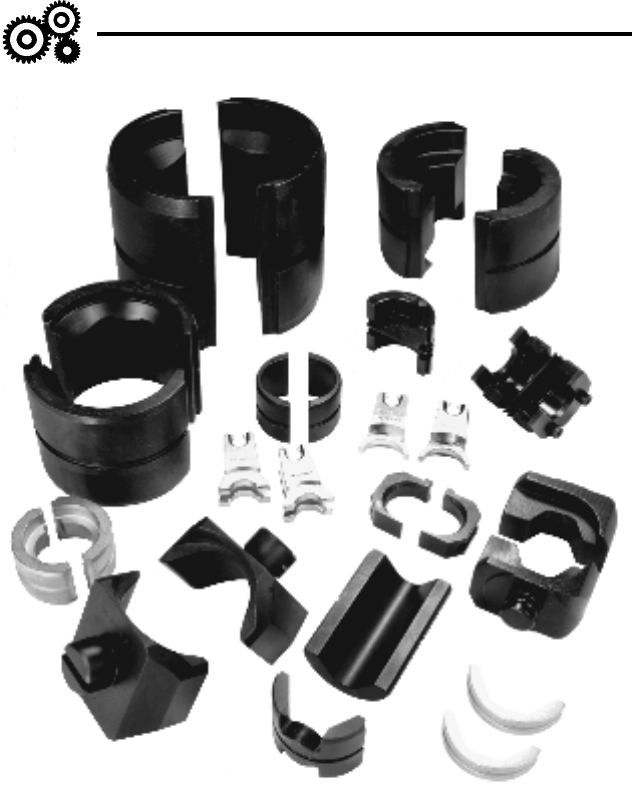

Reliable Equipment offers a complete line of compression dies for all
of your crimping needs. Sizes offered range from 6 through 200 ton and
are equivalent to Alcoa, Burndy, Huskie, Fargo, and Kearney style dies.
Reliable has one of the largest die inventories in the United States. If
the die you need is not available in stock, it can usually be obtained in 1-2 days.
When determining the correct die, consult the connector manufacturer for
their recommended die cross-referencing and application instructions. The
following die charts are for cross-reference only. All connectors are different
and the connector manufacturer should be consulted in each case.
There are many specialty dies too numerous to list. If the die you are looking for
is not on the following charts, please consult your Reliable representative.
Reliable Equipment is not responsible for misuse or misapplication of die sets.
TO ORDER CALL: 800-966-3530 OR FAX: 215-357-9193
RELIABLE EQUIPMENT
Tooling solutions for the power utility industry.
21
RELIABLE R6 SERIES
6 TON DIES EQUIV. TO BURNDY “W” STYLE
RELIABLE BURNDY RELIABLE BURNDY
R6-BG WBG R6-241 W241
R6-C WC R6-242 W242
R6-K840 WK840 R6-243 W243
R6-L WL R6-245 W245
R6-O WO R6-247 W247
R6-Q WQ R6-248 W248
R6-161 W161 R6-249 W249
R6-162 W162 R6-251 W251
R6-163 W163 R6-660 W660
R6-164 W164 R6-687 W687
R6-165 W165 R6-690 W690
R6-167 W167 R6-691 W691
R6-171 W171 R6-693 W693
R6-236 W236 R6-694 W694
R6-237 W237 R6-702 W702
R6-238 W238 R6-733 W733
R6-239 W239 R6-CUT W28K
R6-240 W240
RELIABLE R6K SERIES
6 TON DIES EQUIV. TO KEARNEY “O” STYLE
RELIABLE KEARNEY RELIABLE KEARNEY
R6K-B B R6K-5/16 5/16
R6K-D D R6K-3/8 3/8
R6K-J J R6K-1/2 1/2
R6K-K K R6K-9/16 9/16
R6K-O O R6K-19/32 19/32
R6K-P P R6K-5/8-1 5/8-1
R6K-T T R6K-11/16 11/16
R6K-737 737 R6K-D3 D3
R6K-781 781 R6K-510H 510-HEX
R6K-840 840 R6K-635H 635-HEX
R6K-3/16 3/16 R6K-747H 747-HEX
R6K-1/4 1/4
RELIABLE R12K SERIES
12 TON DIES EQUIV. TO KEARNEY “WH2”
RELIABLE KEARNEY RELIABLE KEARNEY
R12K-BKT KT R12K-5/16 5/16
R12K-C C R12K-3/8 3/8
R12K-D D R12K-1/2 1/2
R12K-N N R12K-9/16 9/16
R12K-O O R12K-19/32 19/32
R12K-P P R12K-5/8-1 5/8-1
R12K-U U R12K-11/16 11/16
R12K-510 510 R12K-3/4H 3/4-H
R12K-572 572 R12K-29/32 29/32-H
R12K-635 635 R12K
-
15/16H 15/16-H
R12K-727 727 R12K
-
1
-
2H 1-2-H
R12K-747 747 R12K
-
1
-
1/8
-
2H 1
-
1/8
-
2
-
H
R12K-781 781 R12K
-
1
-
5/16H 1
-
5/16
-
H
R12K-840 840 R12K
-
1
-
1/2H 1
-
1/2
-
H
R12K-1/4 1/4
RELIABLE R12 SERIES
12 TON DIES EQUIV. TO BURNDY “U” SERIES
RELIABLE BURNDY RELIABLE BURNDY
R12-BG U-BG R12-238 U-238
R12-C U-C R12-239 U-239
R12-D U-D R12-240 U-240
R12-D3 U-D3 R12-241 U-241
R12-E U-E R12-242 U-242
R12-F U-F R12-243 U-243
R12-H U-H R12-245 U-245
R12-L U-L R12-247 U-247
R12-M U-M R12-248 U-248
R12-N U-N R12-249 U-249
R12-O U-O R12-250 U-250
R12-R U-R R12-251 U-251
R12-161 U-161 R12-252 U-252
R12-162 U-162 R12-253 U-253
R12-163 U-163 R12-255 U-255
R12-164 U-164 R12-257 U-257
R12-165 U-165 R120261 U-261
R12-166 U-166 R12-267 U-267
R12-167 U-167 R12-276 U-276
R12-168 U-168 R12-304 U-304
R12-169 U-169 R12-305 U-305
R12-170 U-170 R12-308 U-308
R12-202 U-202 R12-313 U-313
412-203 U-203 R12-316 U-316
R12-209 U-209 R12-317 U-317
R12-210 U-210 R12-321 U-321
R12-236 U-236 R120327 U-327
R12-237 U-237 R12-329 U-329
R12-350 U-350 R12-5CRT U-5CRT
R12-373 U-373 R12-8CRT U-8CRT
R12-468 U-468 R12-25RT U-25RT
R12-490 U-490 R12-26RT U-26RT
R12-552 U-552 R12-27RT U-27RT
R12-608 U-608 R12-28RT U-28RT
R12-609 U-609 R12-29RT U-29RT
R12-642 U-642 R12-30RT U-30RT
R12-654 U-654 R12-31RT U-31RT
R12-655 U-655 R12-32RT U-32RT
R12-658 U-658 R12-34RT U-34RT
R12-659 U-659 R12-36RT U-36RT
R12-660 U-660 R12-39RT U-39RT
R12-668 U-668 R12-25ART U-25ART
R12-676 U-676 R12-26ART U-26ART
R12-677 U-677 R12-27ART U-27ART
R12-678 U-678 R12-28ART U-28ART
R12-679 U-679 R12-29ART U-29ART
R12-691 U-691 R12-30ART U-30ART
R12-693 U-693 R12-31ART U-31ART
R12-694 U-694 R12-32ART U-32ART
R12-705 U-705 R12-34ART U-34ART
R12-708 U-708 R12-36ART U-36ART
R12-778 U-778 R12-39ART U-39ART
R12-840 U-840 R1202CABT U-2CABT
R12-997 U-997 R12-4CABT U-4CABT
R12-1CRT U-1CRT R12-6CABT U-6CABT
R12-2CRT U-2CRT R12-8CABT U-8CABT
R12-3CRT U-3CRT R12-CUT U-CUT
R12-4CRT U-4CRT R12-TEST U-TEST
TO ORDER CALL: 800-966-3530 OR FAX: 215-357-9193
RELIABLE EQUIPMENT
Tooling solutions for the power utility industry.
22
RELIABLE R15 SERIES
15 TON DIES EQUIV. TO BURNDY “P” STYLE
RELIABLE BURNDY RELIABLE BURNDY
R15 PKR R15-40ART P40ART
R15-N PN R15-44ART P44ART
PU-155 PUADP-1 R15-15K P15K
R15-34RT P34RT R15-292 P292
R15-39RT P39RT R15-319 P319
R15-40RT P40RT R15-342 P342
R15-44RT P44RT R15-352 P352
R15-45RT P45RT R15-419 P419
R15-46RT P46RT R15-579 P579
R15-36ART P36ART R15-722 P722
R15-39ART P39ART R15-724 P724
RELIABLE R60 SERIES
DIES EQUIV. TO ALCOA 60 TON DIES
RELIABLE BURNDY RELIABLE BURNDY
R60-10SH 6010SH R60-40AH 6040AH
R60-12SH 6012SH R60-74AH 6074AH
R60-14SH 6014SH R60-75AH 6075AH
R60-16SH 6016SH R60-76AH 6076AH
R60-18SH 6018SH R60-07CD 6007CD
R60-20SH 6020SH R60-08CD 6008CD
R60-74SH 6074SH R60-09CD 6009CD
R60-75SH 6075SH R60-10CD 6010CD
R60-76SH 6076SH R60-11CD 6011CD
R60-20AH 6020AH R60-12CD 6012CD
R60-24AH 6024AH R60-13CD 6013CD
R60-27AH 6027AH R60-14CD 6014CD
R60-30AH 6030AH R60-15CD 6015CD
R60-34AH 6034AH R60-16CD 6016CD
R60-36AH 6036AH R60-17CD 6017CD
R60-38AH 6038AH
RELIABLE R100 SERIES
DIES EQUIV. TO ALCOA 100 TON DIES
RELIABLE
ALCOA
RELIABLE
ALCOA
R100-10SH 10010SH R100
-
42AH 10042AH
R100-12SH 10012SH R100
-
72AH 10072AH
R100-14SH 10014SH R100
-
75AH 10075AH
R100-16SH 10016SH R100
-
76AH 10076AH
R100-18SH 10018SH R100
-
07CD 10007CD
R100-20SH 10020SH R100
-
09CD 10009CD
R100-74SH 10074SH R100
-
10CD 10010CD
R100-75SH 10075SH R100
-
11CD 10011CD
R100-09AH 10009AH R100
-
12CD 10012CD
R100-20AH 10020AH R100
-
13CD 10013CD
R100-24AH 10024AH R100
-
14CD 10014CD
R100-27AH 10027AH R100
-
15CD 10015CD
R100-30AH 10030AH R100
-
16CD 10016CD
R100-34AH 10034AH R100
-
17CD 10017CD
R100-36AH 10036AH R100
-
18CD 10018CD
R100-38AH 10038AH R100
-
20CD 10020CD
R100-40AH 10040AH
NOTE: Do not use PG-4
to test 15 ton tool heads,
(Use PG-1 in-line gauge)
HUSKIE - PRESSURE GAUGES
PG-1 - IN-LINE PRESSURE GAUGE
Tests pump output pressure. Standard
3/8" couplers and a 10,000 psi indicator.
9" x 4.5" x 1.5".
PG-4 - GAUGE - Calibrates 12 ton
output tools. Designed to fit in all
brands of 12 ton tools. Supplied with
U-type test dies. For use with Kearney
tools, specify PG-4K which comes with
TDK-1 test dies. 9.5" x 4" x 1.5"
PG-15 - GAUGE - Check pressure on
6 ton tools. (REC-258 and CN-258)
10.5" x 4" x 2"
PG-4 and PG-15 gauges are supplied
with necessary test dies, carrying
case, and certification.
Part PG-1 PG-4 PG-15
Weight 3 lbs. 3.5 lbs. 5 lbs.
Dial face 2-1/2" 4" 4"
