PHILIPS DVD612 DVD Video Player DVD622 Service Manual

User Manual: DVD Video Player DVD622

Open the PDF directly: View PDF .
Page Count: 44

Published by MW 0162 Service PaCE Printed in the Netherlands Subject to modification 53122 785 11090

retrieval system or transmitted, in any form or by any means, electronic, mechanical,

photocopying, or otherwise without the prior permission of Philips.

DVD-Video Player DVD612

DVD612 /001/021/051

CL 16532007_000.eps

30-01-01

Contents Page

1 Technical specifications and connection facilities 2

2 Warnings, laser safety instructions and notes 3

3 Directions for use 6

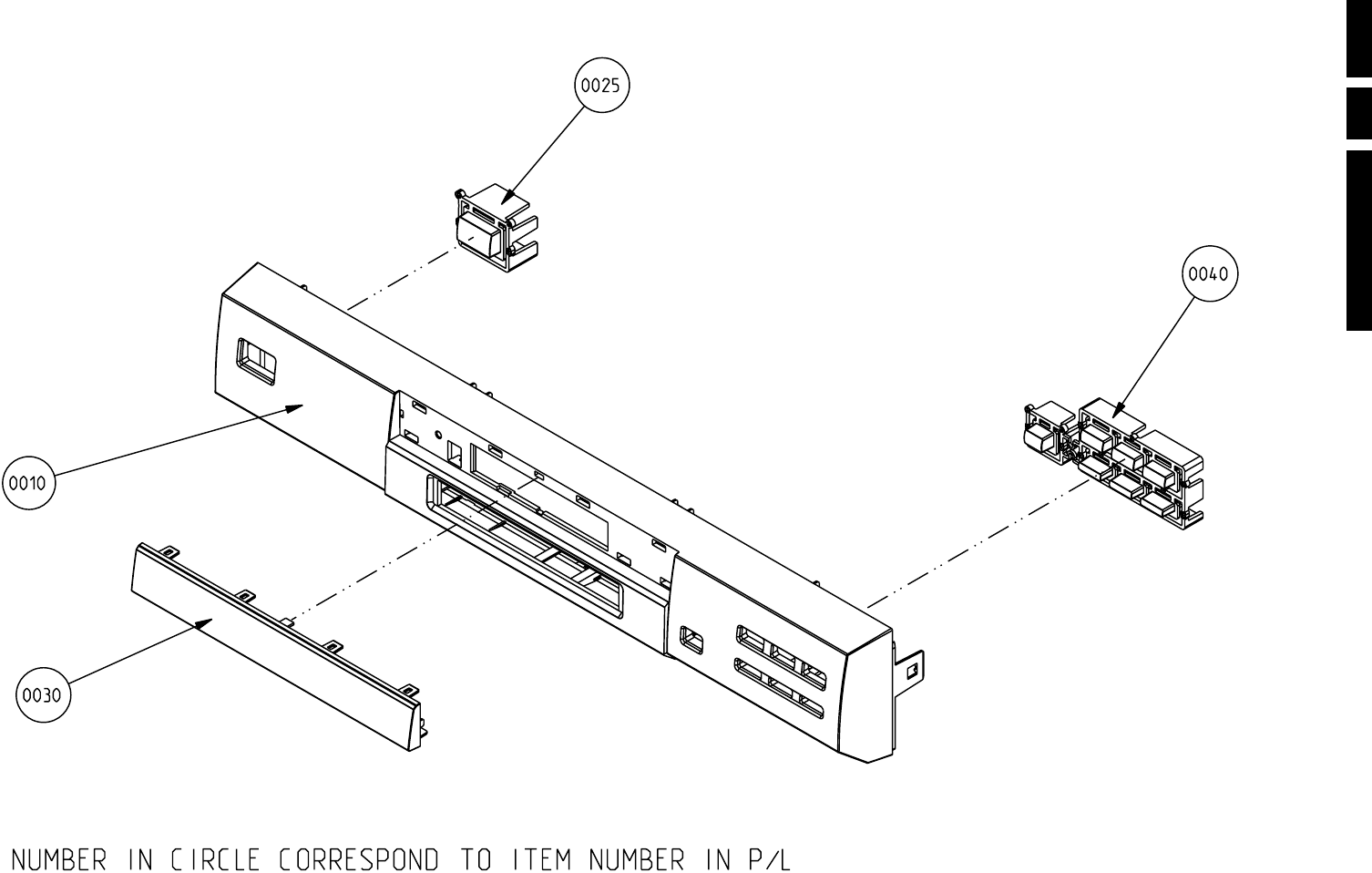

4 Mechanical instructions and exploded views 16

5 Diagnostic software descriptions and

troubleshooting 21

Block- and wiring diagram

Blockdiagram 39

Wiring diagram 40

Electrical diagrams and print-layouts Diagram PWB

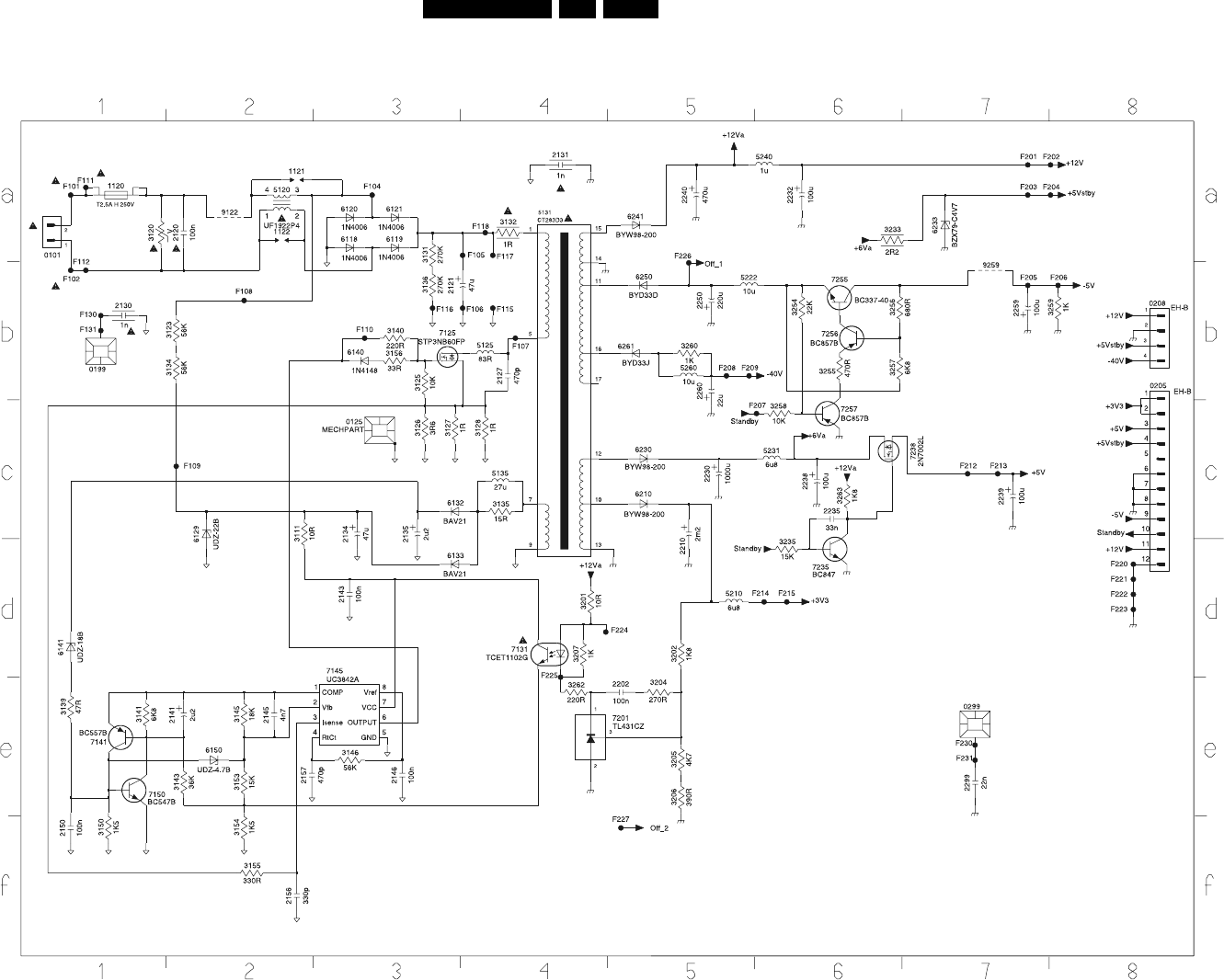

Power supply 41 42-43

A/V Board Video control (Diagram A1) 44 46-47

A/V Board Audio (Diagram A2) 45 46-47

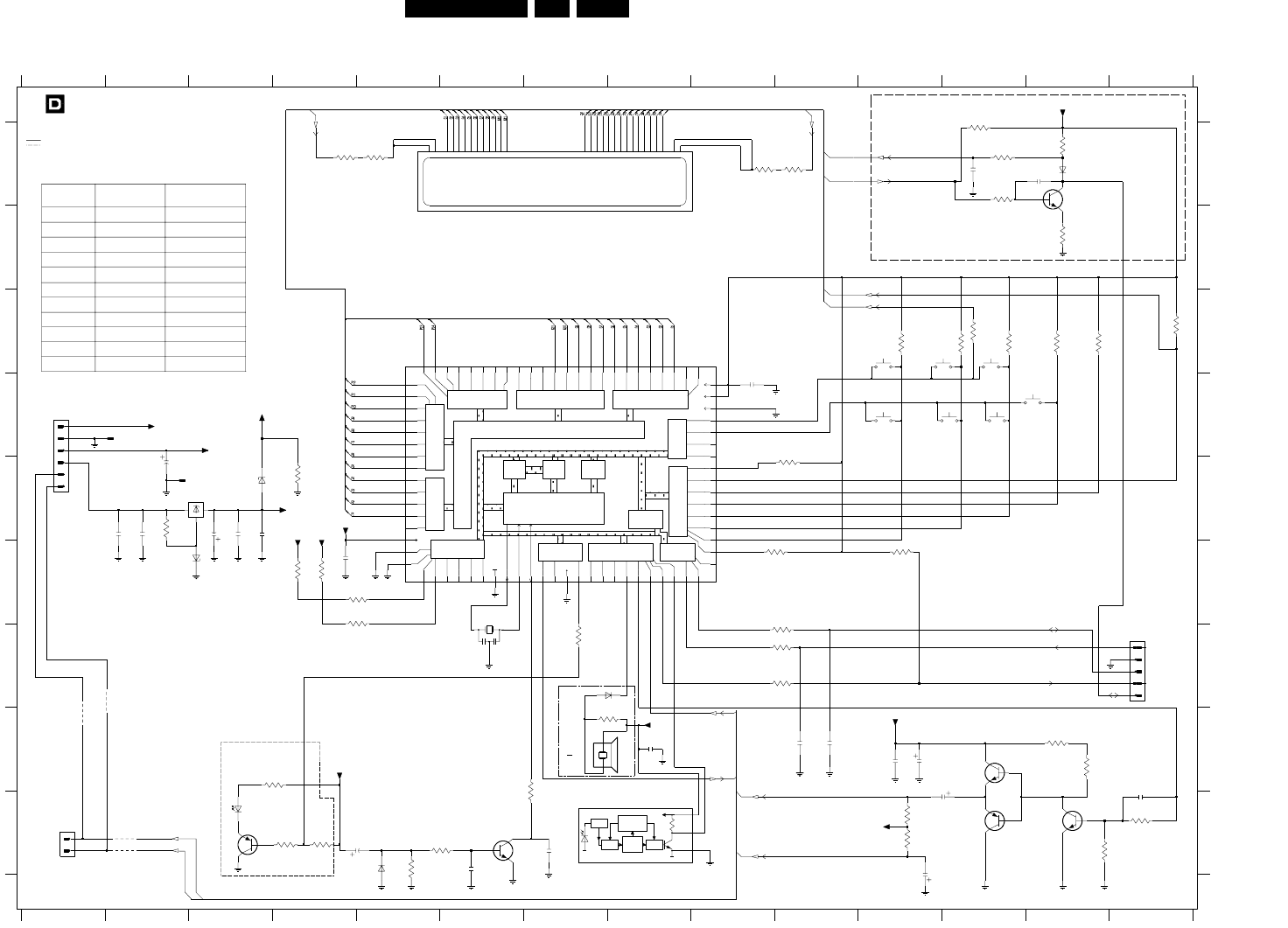

Display panel (Diagram D) 48 49

Bare board Standby 50 50

8 Electrical alignments 51

9 Circuit descriptions and 51

List of abbreviations 54

10 Spare part list 55

RTV servis Horvat

Tel: ++385-31-856-637

Tel/fax: ++385-31-856-139

Mob: 098-788-319

www.rtv-horvat-dj.hr

Technical specifications

GB 2 DVD612 /XX11.

1. Technical specifications

English

Specification

PLAYBACK SYSTEM

DVD-Video

Video CD & SVCD

CD (CD-R and CD-RW)

DVD+RW

MP3 (DVD622 only)

OPTICAL READOUT SYSTEM

Lasertype Semiconductor AlGaAs

Numerical Aperture 0.60 (DVD)

0.45 (VCD/CD)

Wavelength 650 nm (DVD)

780 nm (VCD/CD)

DVD DISC FORMAT

Medium Optical Disc

Diameter 12cm (8cm)

Playing time One layer 2.15 h*

(12cm) Dual layer 4 h*

Two side 4.30 h*

Single layer

Two side 8 h*

Dual layer

VIDEO FORMAT

DA Converter 10 bits

Signal handling Components

Digital Compression MPEG2 for DVD,

MPEG1 for VCD

TV STANDARD (PAL/50Hz) (NTSC/60Hz)

Number of lines 625 525

Playback Multistandard (PAL/NTSC)

DVD

Horiz. Resolution 720 pixels 720 pixels

Vertical Resolution 576 lines 480 lines

VCD

Horiz. Resolution 352 pixels 352 pixels

Vertical Resolution 288 lines 240 lines

VIDEO PERFORMANCE

Video output 1 Vpp into 75 ohm

RGB (SCART) output 0.7 Vpp into 75 ohm

Black Level Shift On/Off

Video Shift Left/Right

AUDIO FORMAT

Digital MPEG Compressed Digital

DTS/Dolby Digital 16, 20, 24 bits

PCM fs, 44.1, 48, 96 kHz

Analog Sound Stereo

Dolby Pro Logic downmix from Dolby Digital multi-channel sound

3D Sound (TruSurround) for virtual 5.1 channel sound on 2 speakers

AUDIO PERFORMANCE

DA Converter 24 bits

DVD fs 96 kHz 4 Hz - 44 kHz

fs 48 kHz 4 Hz - 22 kHz

Video CD fs 44.1 kHz 4 Hz - 20 kHz

CD fs 44.1 kHz 4 Hz - 20 kHz

Signal-Noise (1kHz) 100 dB

Dynamic Range (1kHz) 97 dB

Crosstalk (1kHz) 110 dB

Distortion and Noise (1kHz) 88 dB

MPEG MP3 MPEG Audio L3

CONNECTIONS

SCART Euroconnector

Video Output Cinch (yellow)

Audio L+R output Cinch (white/red)

Digital Output 1 coaxial

IEC958 for CDDA / LPCM

IEC1937 for MPEG1/2, Dolby Digital and DTS

CABINET

Dimensions (w x h x d) 435 x 81 x 295 mm

Weight Approx. 3.5 Kg

GENERAL FUNCTIONALITY

Stop / Play / Pause

Fast Forward / Backward

Time Search

Step Forward / Backward

Slow Motion

Title / Chapter / Track Select

Skip Next / Previous

Repeat (Chapter / Title / All) or (Track / All)

A-B Repeat

Shuffle

Scan

New enhanced user graphical interface

Perfect Still with digital multi-tap filter

Zoom (xl.33, x2. x4) with picture enhancement

Smart Picture for convenient personal colour setting (DVD622 only)

PAL/NTSC Conversion (DVD622 only)

Screen Saver (Dim 75% after 15 min.)

3D Sound (TruSurround)

Virtual Jog Shuttle

Audio and video bit rate indicator

DVD FUNCTIONALITY

Multi-angle Selection

Audio Selection (1 out of max. 8 languages)

Subtitles Selection (1 out of max. 32 languages)

Aspect Ratio conversion (16:9, 4:3 Letterbox, 4:3 Pan Scan)

Parental Control and Disk Lock

Disc Menu support (Title Menu and Root Menu)

Resume (5 discs) after stop / standby

Programming Titles/chapters with Favourite Selection

VIDEO CD FUNCTIONALITY

Playback Control for VCD 2.0 discs

Disc Lock

Resume (5 discs) after stop / standby

Programming Tracks with Favourite Selection

AUDIO CD FUNCTIONALITY

Time Display (Total / Track / Remaining Track Time)

Full audio functionality with remote control

Programming with Favourite Track Selection

MP3 FUNCTIONALITY (DVD622 only)

Time Display (Track)

Album and Track Selection

Repeat (Disc / Album / Track)

* typical playing time for movie with 2 spoken languages and 3 subtitle languages.

Specifications subject to change without prior notice

CL 16532007_001.eps

30-01-01

www.rtv-horvat-dj.hr

Warnings and Laser safety instructions GB 3DVD612 /XX1 2.

2. Warnings and Laser safety instructions

SHOCK, FIRE HAZARD SERVICE TEST:

CAUTION: After servicing this appliance and prior to returning to customer, measure the resistance between

either primary AC cord connector pins (with unit NOT connected to AC mains and its Power switch ON), and the

face or Front Panel of product and controls and chassis bottom,

Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC

power is applied, and verified before return to user/customer.

Ref.UL Standard NO.1492.

NOTE ON SAFETY:

Symbol : Fire or electrical shock hazard. Only original parts should be used to replace any part with symbol

Any other component substitution(other than original type), may increase risk or fire or electrical shock hazard.

FATTENTION

Tous les IC et beaucoup d’autres semi-

conducteurs sont sensibles aux décharges

statiques (ESD).

Leur longévité pourrait être considérablement

écourtée par le fait qu’aucune précaution

n’est prise a leur manipulation.

Lors de réparations, s’assurer de bien être

relié au même potentiel que la masse de

l’appareil et enfiler le bracelet serti d’une

résistance de sécurité.

Veiller a ce que les composants ainsi que les

outils que l’on utilise soient également a ce

potentiel.

DWARNUNG

Alle IC und viele andere Halbleiter sind

empfindlich gegen elektrostatische

Entladungen (ESD).

Unsorgfältige Behandlung bei der Reparatur

kann die Lebensdauer drastisch vermindern.

Sorgen sie dafür, das Sie im Reparaturfall

über ein Pulsarmband mit Widerstand mit

dem Massepotential des Gerätes verbunden

sind.

Halten Sie Bauteile und Hilfsmittel ebenfalls

auf diesem Potential.

WAARSCHUWING

Alle IC’s en vele andere halfgeleiders zijn

gevoelig voor elektrostatische ontladingen

(ESD).

Onzorgvuldig behandelen tijdens reparatie

kan de levensduur drastisch doen

verminderen.

Zorg ervoor dat u tijdens reparatie via een

polsband met weerstand verbonden bent met

hetzelfde potentiaal als de massa van het

apparaat.

Houd componenten en hulpmiddelen ook op

ditzelfde potentiaal.

AVVERTIMENTO

Tutti IC e parecchi semi-conduttori sono

sensibili alle scariche statiche (ESD).

La loro longevita potrebbe essere fortemente

ridatta in caso di non osservazione della piu

grande cauzione alla loro manipolazione.

Durante le riparazioni occorre quindi essere

collegato allo stesso potenziale che quello

della massa dell’apparecchio tramite un

braccialetto a resistenza.

Assicurarsi che i componenti e anche gli

utensili con quali si lavora siano anche a

questo potenziale.

All ICs and many other semi-conductors are

susceptible to electrostatic discharges (ESD).

Careless handling during repair can reduce

life drastically.

When repairing, make sure that you are

connected with the same potential as the

mass of the set via a wrist wrap with

resistance.

Keep components and tools also at this

potential.

WARNING

Safety regulations require that the set be restored to its original condition

and that parts which are identical with those specified be used.

Veiligheidsbepalingen vereisen, dat het apparaat in zijn oorspronkelijke

toestand wordt terug gebracht en dat onderdelen, identiek aan de

gespecifieerde worden toegepast.

Bei jeder Reparatur sind die geltenden Sicherheitsvorschriften zu beachten.

Der Originalzustand des Gerats darf nicht verandert werden.

Fur Reparaturen sind Original-Ersatzteile zu verwenden.

Le norme di sicurezza esigono che l’apparecchio venga rimesso nelle

condizioni originali e che siano utilizzati pezzi di ricambiago idetici a quelli

specificati.

Les normes de sécurité exigent que l’appareil soit remis a l’état d’origine et

que soient utilisées les pièces de rechange identiques à celles spécifiées.

“Pour votre sécurité, ces documents

doivent être utilisés par des

spécialistes agrées, seuls habilités à

réparer votre appareil en panne.”

GB NL

CL 96532065_002.eps

120799

www.rtv-horvat-dj.hr

Warnings and Laser safety instructions

GB 4 DVD612 /XX12.

LASER SAFETY

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this

device, due to possible eye injury.

LASER DEVICE UNIT

Type: Semiconductor laser GaAlAs

Wave length: 650 nm (DVD)

780 nm (VCD/CD)

Output Power: 7 mW (DVD)

10 mW (VCD/CD)

Beam divergence: 60 degree

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURE OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

AVOID DIRECT EXPOSURE TO BEAM

WARNING

The use of optical instruments with this product will increase eye hazard.

Repair handling should take place as much as possible with a disc loaded inside the player

WARNING LOCATION: INSIDE ON LASER COVERSHIELD

CAUTION VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID EXPOSURE TO BEAM

ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING UNDGÅ UDSÆTTELSE FOR STRÅLING

ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES UNNGÅ EKSPONERING FOR STRÅLEN

VARNING SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD BETRAKTA EJ STRÅLEN

VARO! AVATT AESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE LASER SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN

VORSICHT SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETSEN

DANGER VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID DIRECT EXPOSURE TO BEAM

ATTENTION RAYO NNEMENT LASER VISIBLE ET INVISIBLE EN CAS D'OUVERTURE EXPOSITION DANGEREUSE AU FAISCEAU

Warning for powersupply on position 1005

The primary side of the powersupply including the heatsink carries live mains voltage when the

player is connected to the mains even when the player is swiched off !

This primary area is not shielded so it is possible to touch copper tracks and/or components when

servicing the player. Service personnel have to take precautions to prevent touching this area or

components in this area .

The primary side of the powersupply has been indicated with a lightning stroke and a stripe-marked

printed on the printed wiring board

CL06532096_022.eps

060700

www.rtv-horvat-dj.hr

Warnings and Laser safety instructions GB 5DVD612 /XX1 2.

2.1 Notes

2.1.1 DVD-Module

For repair of the DVD-module ASD1, the service manual

3122 785 10840 has to be used.

2.1.2 Compair

For assistance with the repair process of the monoboard an

electronic Fault finding guidance has been developed , this

program is called COMPAIR.

This COMPAIR program is available on CDROM.

The Version of the CDROM for repair of the monoboard is

V1.3 and can be ordered with codenumber : 4822 727 21637.

This is an update CDROM , so when the COMPAIR CDROM

is used for the first time , one has to install the COMPAIR

ENGINE CDROM V1.2 first.

The V1.2 CDROM can be ordered with codenumber 4822

727 634 and has to registered after installation , the

procedure for registration is explained in the help file of the

program and in the booklet from the CDROM.

The cable to connect the monoboard with a PC can be

ordered with codenumber 3122 785 90017.

All the hardware and software requirements of the systems

necessary for working with COMPAIR is described on the

CDROM.

www.rtv-horvat-dj.hr

Mechanical instructions

GB 16 DVD612 /XX14.

4. Mechanical instructions

4.1 Dismantling instrutions

A/V board 1002

-> Remove connections

-> Remove 4 screws 227

(skt cinch and scart to

back-plate)

-> Release snaps of 2 spacers

221

-> Demount board

DVD Mono board

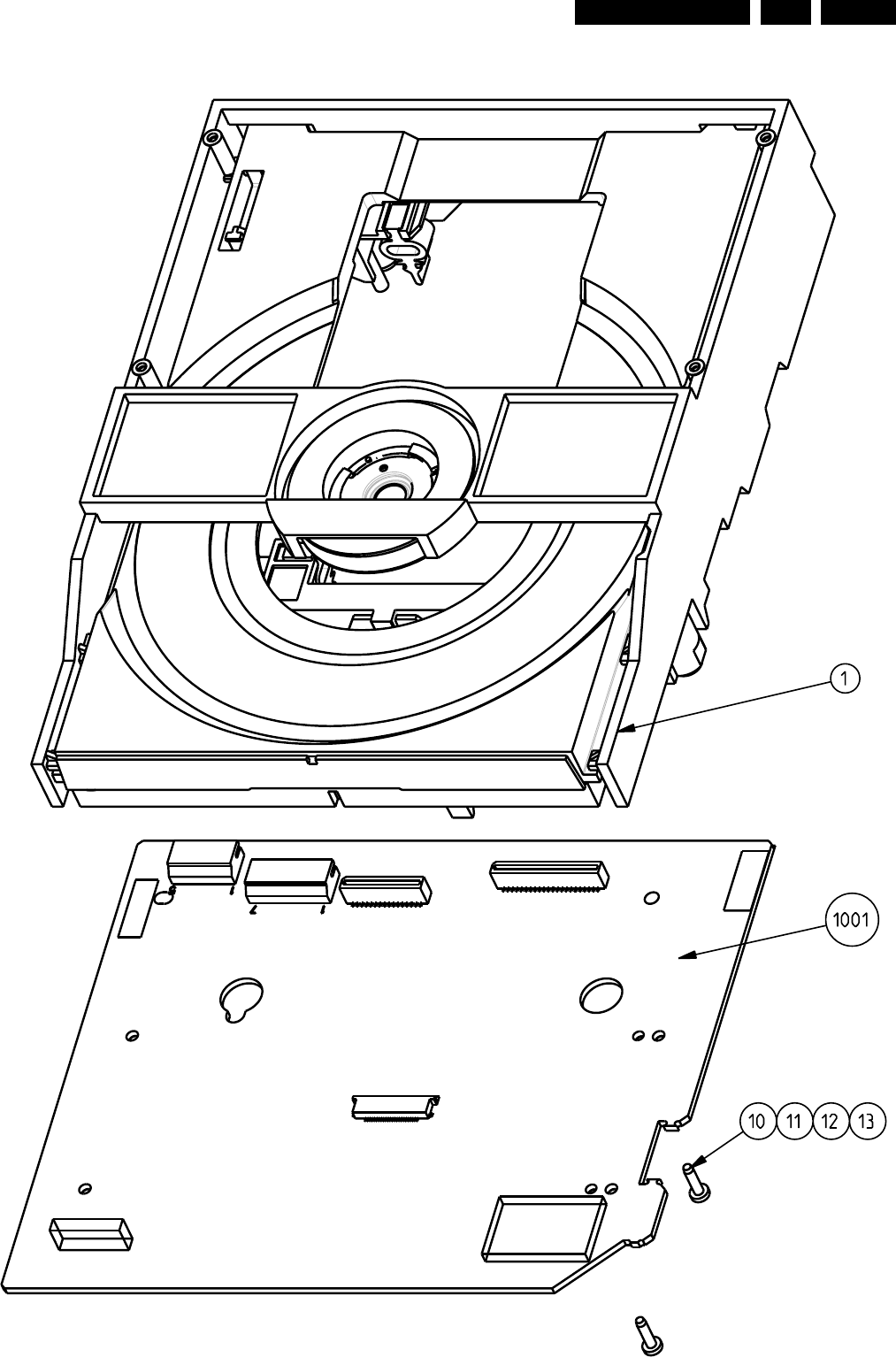

-> See also exploded view of

DVD module

-> Remove flex connections to

turntable motor and sledge

motor

-> Remove 4 screws 10 to 13

(mono-board to VAL6011)

-> Remove carefully flex

connection to OPU and wire

to the tray motor

-> Demount the board

Standby board and switch

assy

-> Remove 2 screws 211

-> Demount board

Cover 232

-> Remove 7 screws 233

-> Lift cover at rearside to

remove

DVD module 218

-> Remove connections to

Mono-board

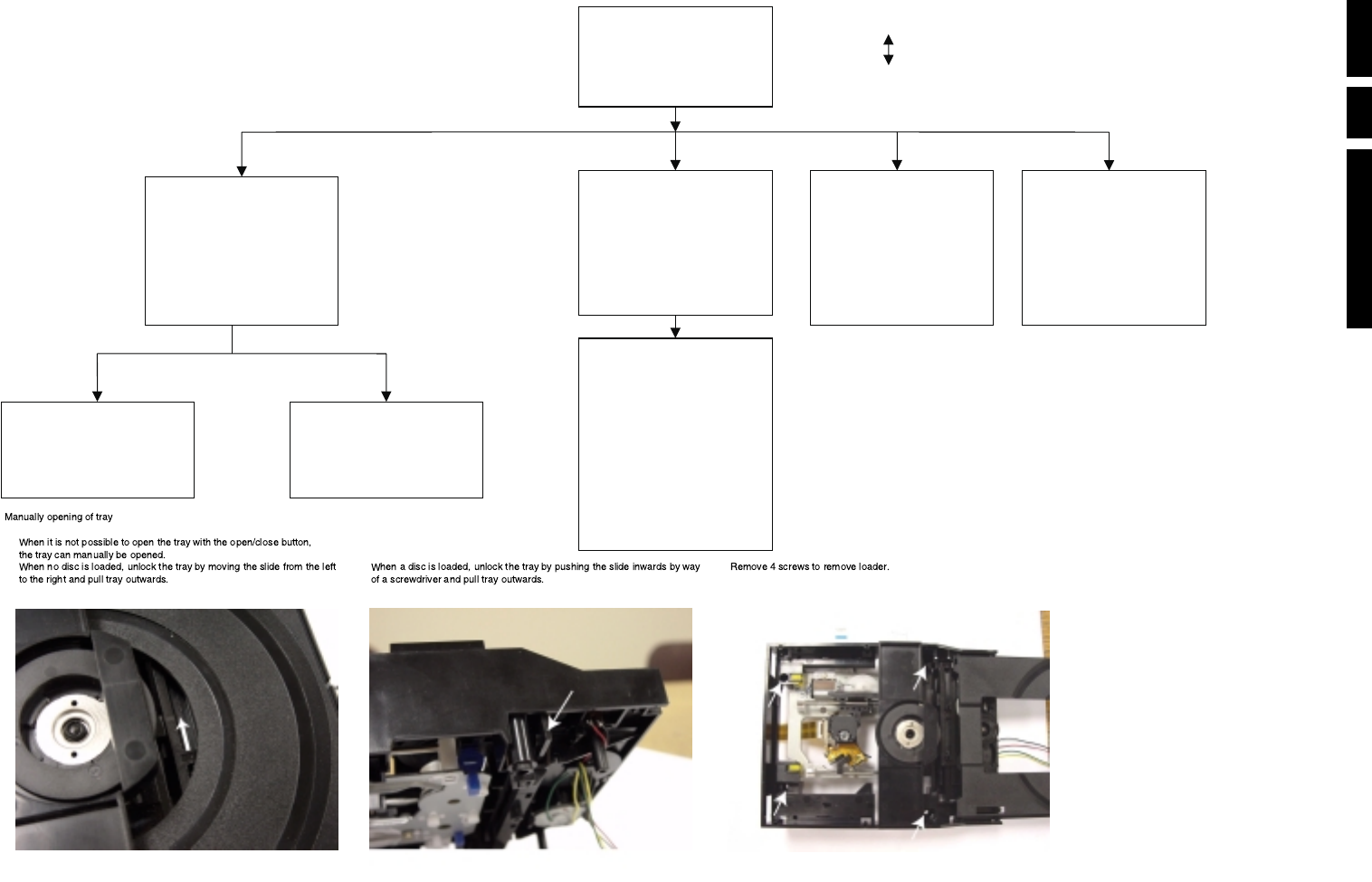

-> Open Tray

( See instruction below )

-> Remove 4 screws 217

(module to frame)

-> Demount module

Power supply unit 1005

-> Remove connections

-> Remove 2 screws 222

(board to frame)

-> Release snaps of 2 spacer

221 (board to frame)

-> Demount board

Display board 1003

-> Remove 8 screws 211

(board to front)

-> Demount board

DISMANTLING INSTRUCTIONS DVD612-622

See exploded view for item numbers

Front assy 200

-> Unlock front from frame by

releasing successively 4

snaps ( 2 each on the side

bottom )

-> Place front assy in front of

the set ( service position )

CL 16532007_056.eps

120201

Mounting

Demounting

www.rtv-horvat-dj.hr

Mechanical instructions GB 17DVD612 /XX1 4.

CL06532147_001.eps

151100

www.rtv-horvat-dj.hr

Mechanical instructions

GB 18 DVD612 /XX14.

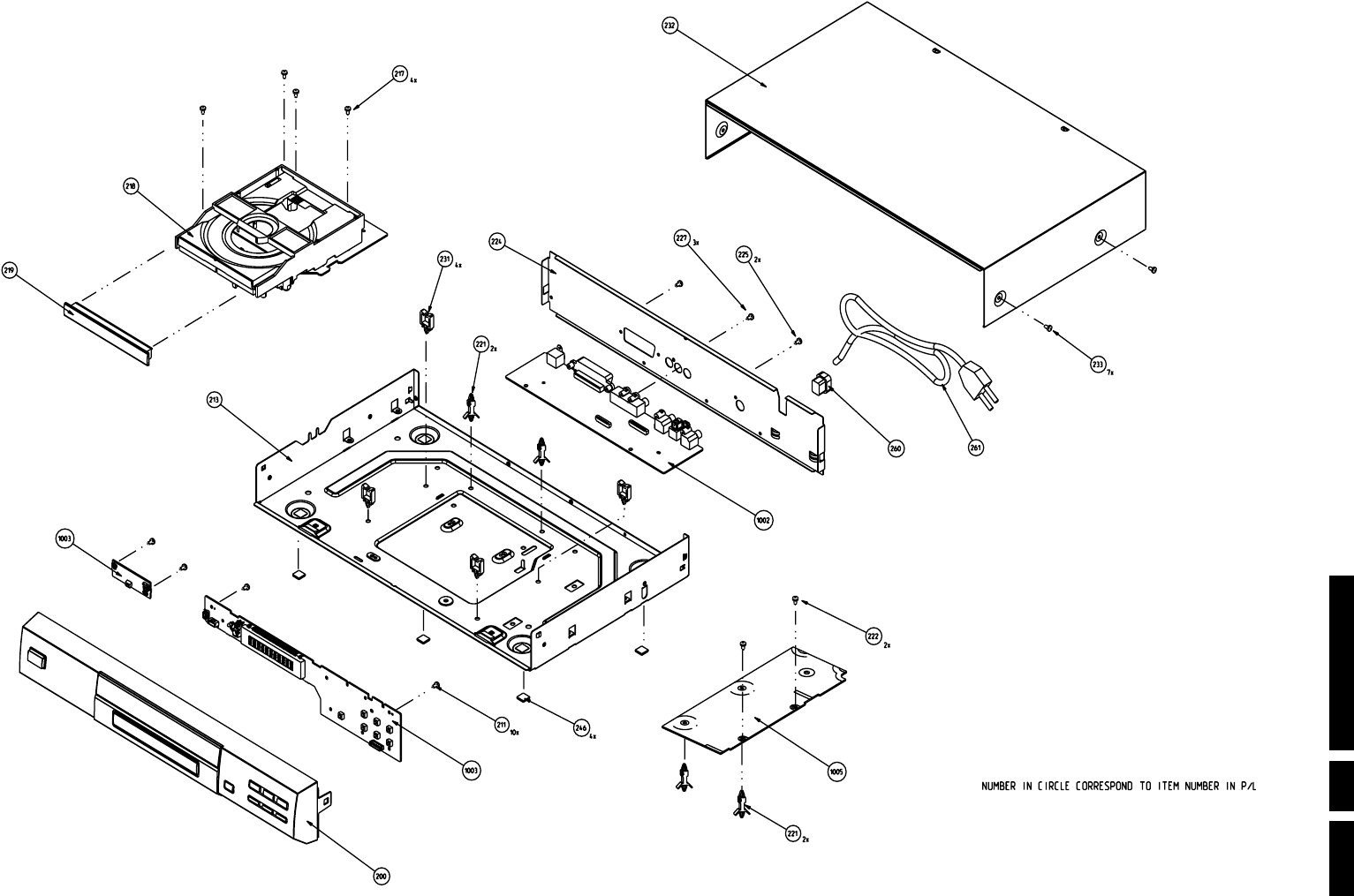

4.2 Exploded views

CL 16532007_028.eps

020201

www.rtv-horvat-dj.hr

Mechanical instructions GB 19DVD612 /XX1 4.

CL 16532007_030.eps

070201

www.rtv-horvat-dj.hr

Mechanical instructions

GB 20 DVD612 /XX14.

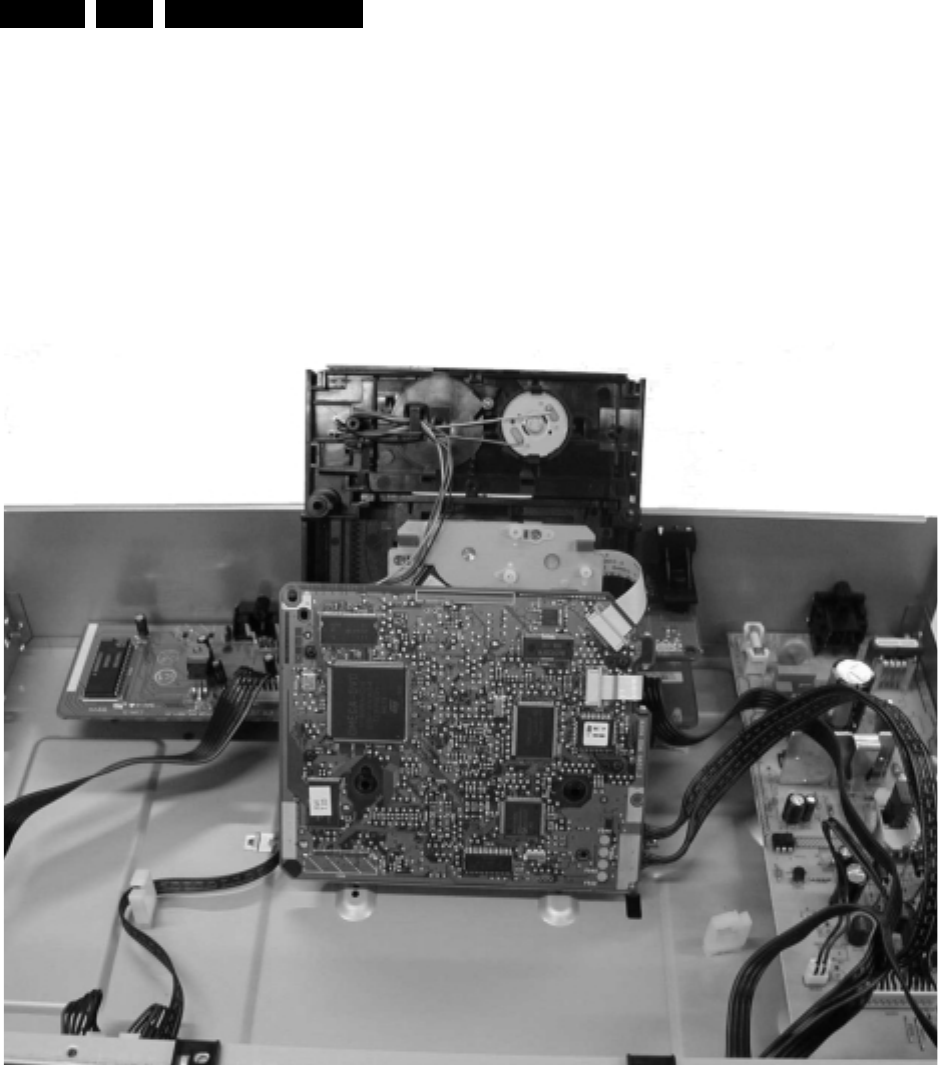

4.3 Service position

See figure 4-1 for the service position

1. Remove the cables from the cable tie housing.

2. Remove 4 screws that mount the DVD module to the

bottom frame.

3. Move the DVD module backward slightly and flip the

module over, so that the component side of the

board faces upwards, and the module is in the

service position.

Figure 4-1

www.rtv-horvat-dj.hr

Diagnostic software descriptions and troubleshooting GB 21DVD612 /XX1 5.

5. Diagnostic software descriptions and troubleshooting

5.1 Dealerscript

5.1.1 Purpose of Dealer Script

The dealer script can give a diagnosis on a standalone DVD

player; no other equipment is needed to perform a number of

hardware tests to check if the DVD player is faulty. The

diagnosis is simply a "error" or "pass" message; no indication

is given of faulty hardware modules. Only tests within the

scope of the diagnostic software will be executed hence only

faults within this scope can be detected.

5.1.2 Contents of Dealer Script

The dealer script executes all diagnostic nuclei that do not

need any user interaction and are meaningful on a

standalone DVD player.

The nuclei called in the dealer script are the following (the

number after each nucleus name corresponds with the

number being on the local display when the nucleus is

executed during the dealer script):

Figure 5-1

Figure 5-2

CL06532096_001.eps

050700

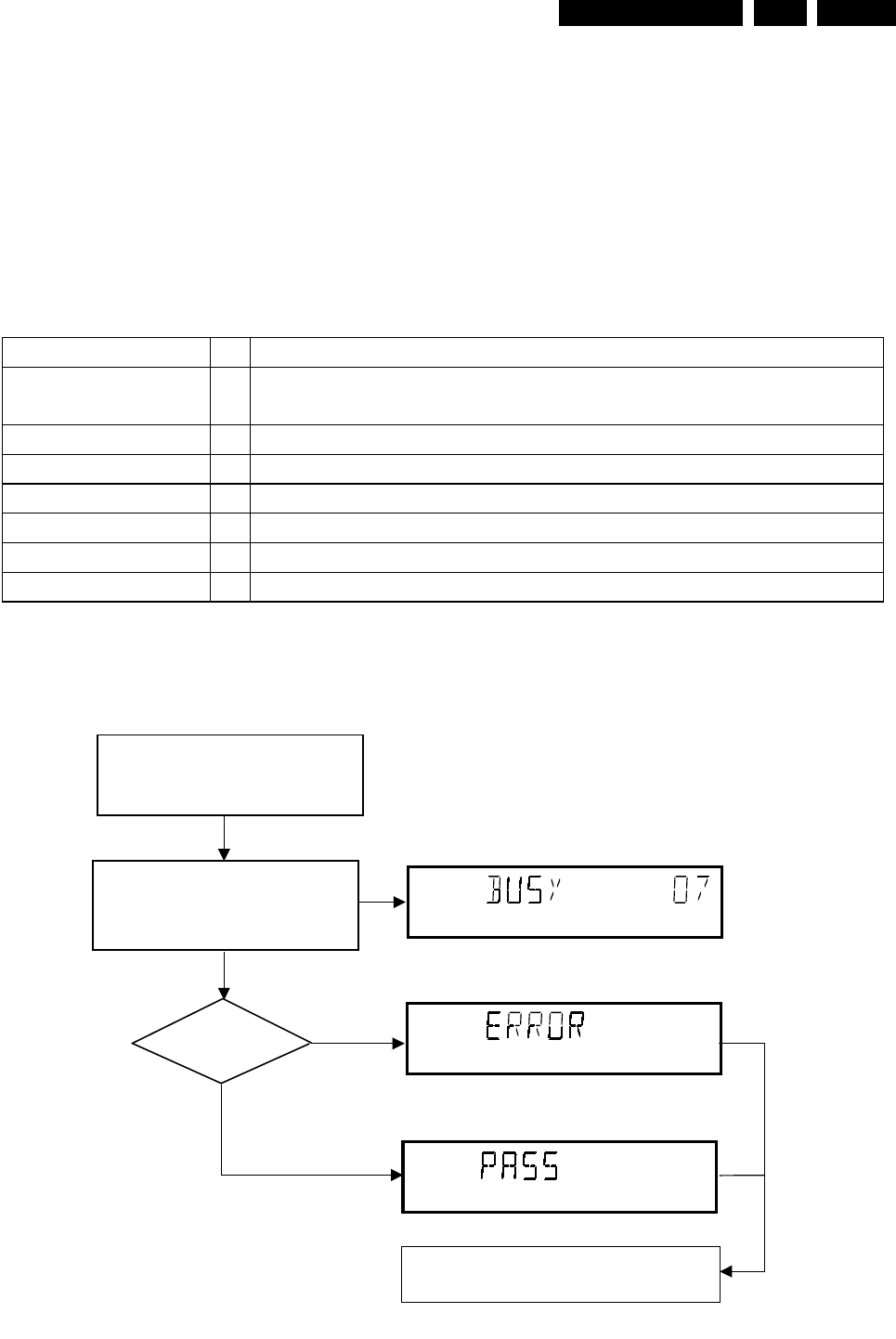

Nucleus Description

VideoColSetupComm 7Checks the I2C interface with the RGB video processor on the Audio/Video

board (only for DVD players with RGB video processor).

PapChksFl 6Calculate and verify checksum of FLASH memory.

PapI2cDisp 5Checks the I2C interface with the slave processor on the display PCB.

PapS2bEcho 4Checks the I2C interface to the basic engine.

PapI2cNvram 3Checks the I2C interface with the NVRAM.

PapNvramWrR 2Pattern test of all locations in the NVRAM

CompSdramWrR 1Pattern test of all locations in the SDRAM(s).

Press 2 keys simultaneously

Connect to mains.

During the test, the following display

is shown: the counter counts down

from the number of nuclei to be run

before the test finishes. Example:

SET O.K.?

YES

To exit DEALER SCRIPT ,disconnect from mains.

CL 96532065_004.eps

120799

www.rtv-horvat-dj.hr

Diagnostic software descriptions and troubleshooting

GB 22 DVD612 /XX15.

5.2 PLAYER SCRIPT

5.2.1 Purpose of Player Script

The Player script will give the opportunity to perform a test

that will determine which of the DVD player's modules are

faulty, to read the error log and error bits and to perform an

endurance loop test. To successfully perform the tests, the

DVD player must be connected to a tv set to check the output

of a number of nuclei. For DVDv2b a multi-channel amplifier,

a set of 6 boxes and an external video source are necessary

to test. To be able to check results of certain nuclei, the

player script expects some interaction of the user (i.e. to

approve a test picture or a test sound). Some nuclei (e.g.

nuclei that test functionality of the Basic Engine module)

require that the DVD player itself is opened, to enable the

user to observe moving parts and approve their movement

visually. Only tests within the scope of the diagnostic

software will be executed hence only faults within this scope

can be detected.

5.2.2 Contents of Player Script

The player script contains all nuclei that are useful on a DVD

player that is connected to a tv-set and help to determine

which module of the DVD player is faulty, as well as to read

out the contents of the error logs.

5.2.3 Structure of Player Script

The player script consists of a set of nuclei testing the three

hardware modules in the DVD player: the Display PWB, the

Digital PWB and the Basic Engine.

Nuclei run by the player test need some user interaction; in

the next paragraph this interaction is described. The player

test is done in two phases:

1. Interactive tests: this part of the player test depends

strongly on user interaction and input to determine

nucleus results and to progress through the full test.

Reading the error log and error bits information can be

useful to determine any errors that occurred recently

during normal operation of the DVD player.

2. The loop test will loop through the list of nuclei

indefinitely, till the NEXT key is pressed. The list of nuclei

is as follows:

• VideoColSetupComm

• VideoScartSwComm

• PapChksFlash

• PapI2cNvram

• CompSdramWrR

• PapS2bEcho

• PapI2cDisp

For DSW version 1.6 and above. the DSW version number

will be displayed on the local display. Press NEXT to

continue to the display test.

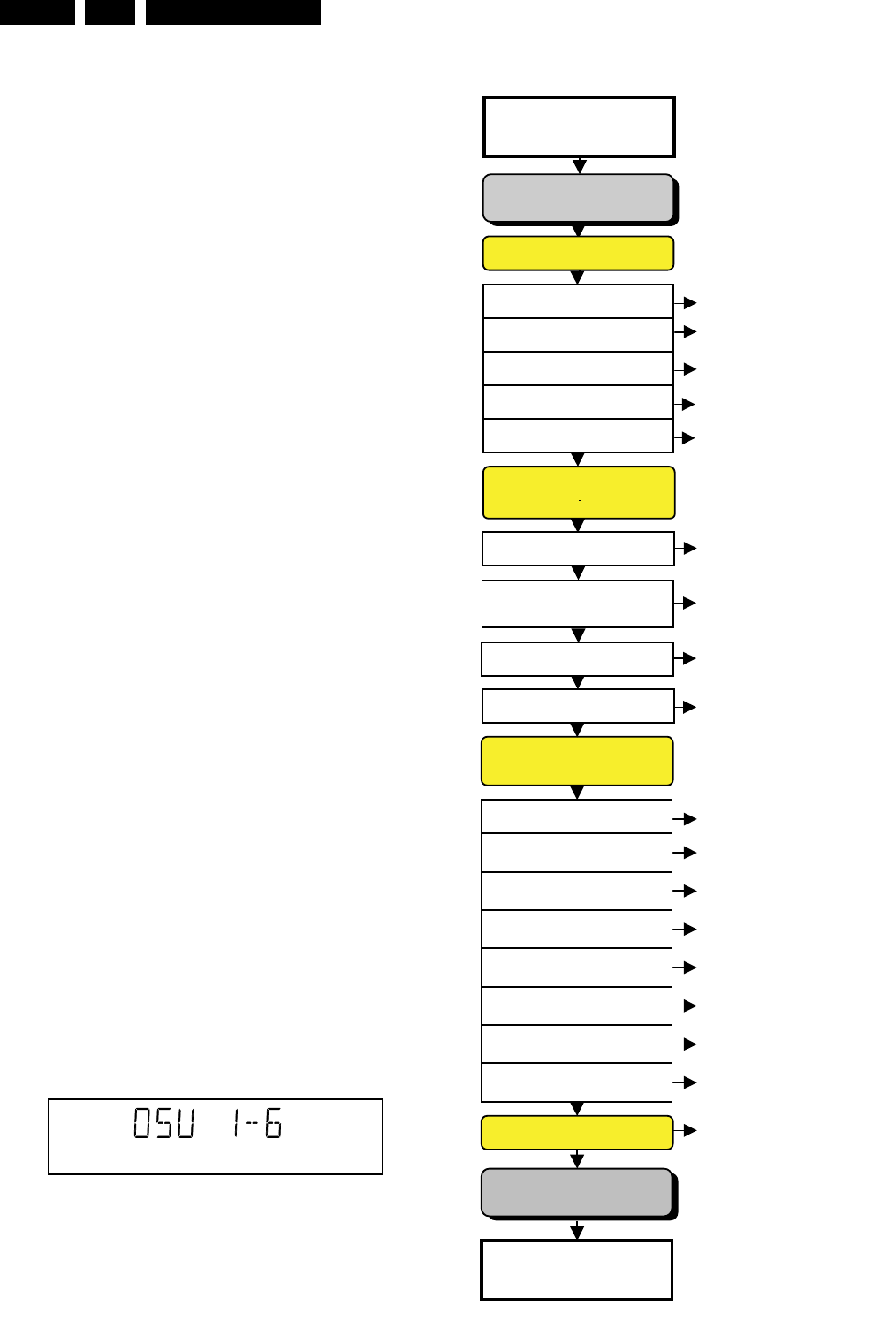

The display should look like the following:

Figure 5-3

5.2.4 Survey

Figure 5-4

CL 16532007_002.eps

010201

SLEDGE TEST

BeSledgeOut/In(41ab)

FOCUS TEST

BeFocusOn(38a)

DISC MOTOR TEST

BeDiscMotorOn(39a)

RADIAL TEST

BeRadialOn(40a)

JUMP TEST

BeGroovesIn/Mid/Out(42abc)

Press 2 keys simultaneously

Connect to mains

To exit player test,

disconnect from mains

INTERACTIVE TESTS

DISPLAY TEST

DispDisplay(30)

LED TEST

DispLed(29)

KEYBOARD TEST

DispKeyb(27)

SCART LOOP TEST

AudioPinkNoiseOn(20a)

VideoScartSwDvd(54a)

VideoColDencOn(23a)

PICTURE TEST

DISPLAY PCB

MONO PCB(SERVO)

& BASIC ENGINE

MONO PCB

DIGITAL PART

TRAY TEST

BeTrayOut/In(43ab)

VERSION NUMBER

BeVer(37)

REMOTE CONTROL

DispRc(28)

P50 LOOP BACK TEST

DispP50(60)

TRAY TEST

BeTrayOut/In(43ab)

ERROR LOG & BITS

LogReadErr(31)

LogReadbits(32)

LOOP TEST

= Dealer script exclusive of test2

AudioSineOn(21a)

SOUND 1 TEST

SCART DVD TEST

SOUND 2 TEST

VideoScartSwPass(54b)

CL 16532007_003.eps

300101

www.rtv-horvat-dj.hr

Diagnostic software descriptions and troubleshooting GB 23DVD612 /XX1 5.

5.3 DISPLAY PCB

5.3.1 DISPLAY TEST

The display test is performed by nucleus DispDisplay. By

putting a series of test patterns on the local display, the local

display is tested. To step through all different patterns, the

user must either press PLAY (pattern is ok) or PAUSE

(pattern was incorrect) to proceed to the next pattern. The

display of patterns is continued in a cyclic manner until the

user presses NEXT. If the user presses NEXT before all

display patterns are tested, the DispDisplay nucleus will

return TRUE (display test successful).

5.3.2 LED TEST

The LED(s) on the DVD player is (are) tested by nucleus

DispLed. The user must check if the LED(s) is (are) lighted;

if it is, press PLAY, if it is not, press PAUSE. By pressing

NEXT the script will proceed to the next test. If the user

presses NEXT before PLAY or PAUSE, the DispLed nucleus

will return TRUE (LED test successful).

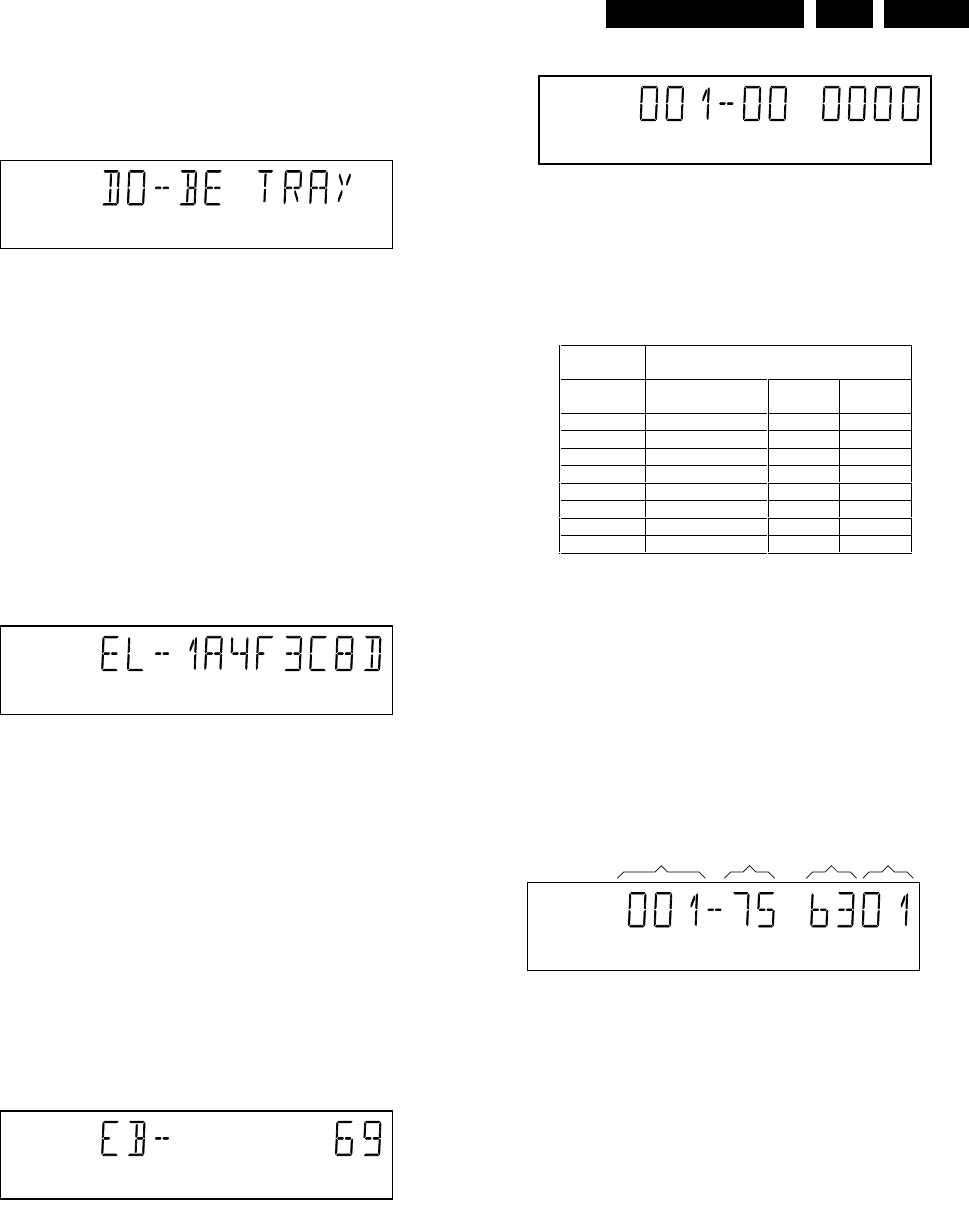

Figure 5-5

5.3.3 KEYBOARD TEST

The keyboard of the DVD player is tested by nucleus

DispKeyb. The user is expected to press all keys on the local

keyboard once. The code of the key pressed is shown on the

local display (1 hexadecimal digit) immediately followed by a

(hexadecimal) number indicating how many times that key

has been pressed. Example of the local display during this

test:

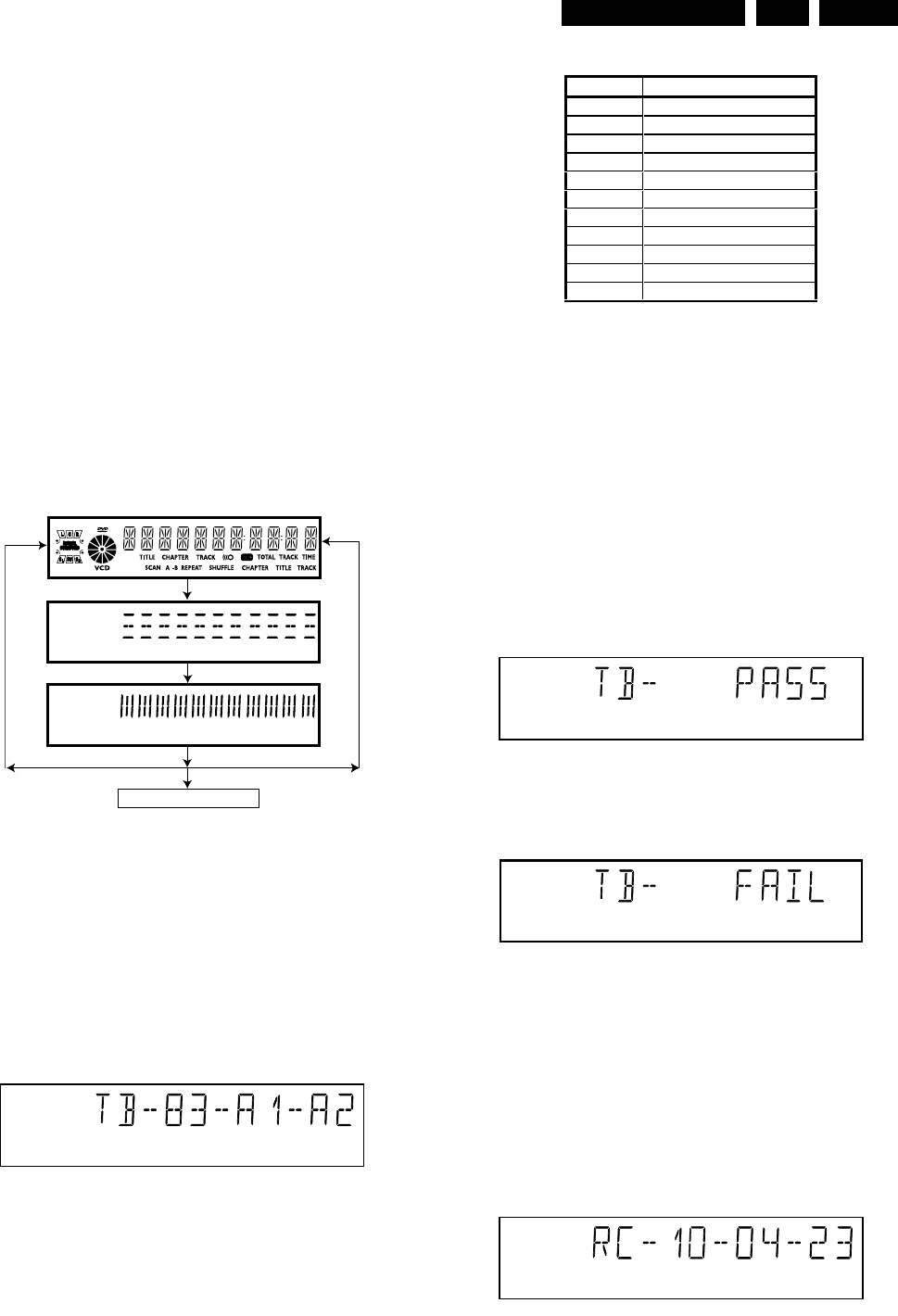

Figure 5-6

The key-codes displayed on the local display will scroll from

right to left when the display gets full, the text "tb-" will remain

on display.

Figure 5-7

If any keys are detected more than once (due to hardware

error), the key-code is displayed twice (or more), with the

second digit increased by 1.

If the user does not press all keys minimally once (in any

order), the DispKeys nucleus will return FALSE and cause an

error in the overall result of the player script.

The test will also pass if all buttons, except the microphone

key buttons, are pressed.

The user can leave the keyboard test by pressing the NEXT

key on the local display of the DVD player for at least one full

second.

The result of the keyboard test is shown on local display as

follows:

Figure 5-8

Figure 5-9

Pressing NEXT on the local keyboard again will proceed to

the next text.

5.3.4 REMOTE CONTROL TEST

The remote control of the DVD player is tested by nucleus

DispRc. The user must press any key on the remote control

just once. The codes of the key pressed will be shown on the

local display in hexadecimal format. Example:

Figure 5-10

In this example 23 is the hexidecimal code of the pressed RC

key. The user can leave the remote-control test by pressing

NEXT on the local keyboard of the DVD player. The remote

If OK, press PLAY If NOK, press PAUSE

press NEXT to continue

CL 96532065_006.eps

120799

CL 96532065_007.eps

120799

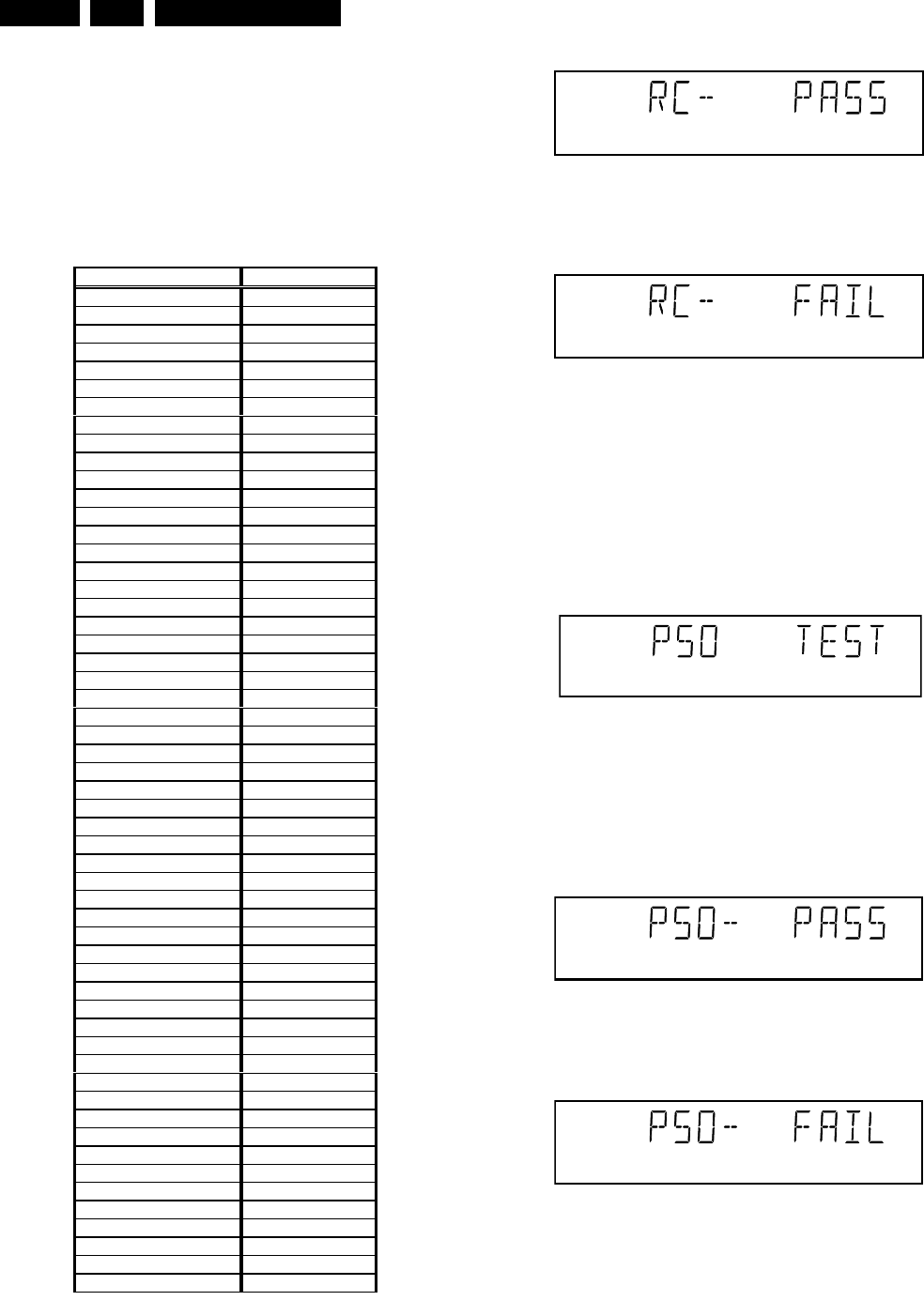

key id. key

0PLAY

1NEXT

2 PREVIOUS

3 PAUSE

4STOP

5 OPEN/CLOSE

6 3D-SURROUND

7 KEY- (Mic Control)

8 Once More (Mic Control)

9 KEY+(Mic Control)

A STAND BY

CL16532007_007.eps

300101

CL 96532065_009.eps

120799

CL 96532065_010.eps

120799

CL 96532065_011.eps

120799

www.rtv-horvat-dj.hr

Diagnostic software descriptions and troubleshooting

GB 24 DVD612 /XX15.

control test is successful if a code was received before the

user pressed the NEXT key; pressing the NEXT key before

pressing a key on the remote control gives an error in the

remote control test (note that the remote control test will also

fail if a key on the remote control was pressed but no code

was received). The remote control test does not check upon

the contents of the received code, that is it will not be

checked if the received code matches the key pressed. If

desired, the user can manually check this code by using a

code-table for the remote control key-codes.

Figure 5-11

After pressing NEXT, the result of the remote control test is

displayed on the local display of the DVD player as follows:

Figure 5-12

Figure 5-13

Pressing NEXT on the local keyboard again will proceed to

the next test.

5.3.5 P50 LOOP-BACK TEST

For the P50 loop-back test, the user must first press a key to

decide if the test is to be performed.

The display will show the following message:

Figure 5-14

If the user presses PAUSE, the P50 test will be skipped.

If the user presses PLAY, the P50 test is performed and the

result is displayed as follows:

Test successfull:

Figure 5-15

Test fails:

Figure 5-16

Press the NEXT key to continue to the next text

5.4 MONO PCB DIGITAL PART

5.4.1 PICTURE TEST

The picture test is performed by putting a predefined picture

(colour bar) on the display (nucleus VideoColDencOn) and

CL06532096_003.eps

050700

C Key id Hexadecimal code

STANDBY 0C

STOP 31

PLAY 2C

PLAY BACKWARD 2D

PAUSE 30

STEP FORWARD F6

STEP BACKWARD F5

FORWARD 28

FORWARD 4X DF

FORWARD 8X E0

BACKWARD 29

BACKWARD 4X DE

BACKWARD 8X DD

SLOW 22

SLOW 2 D9

SLOW BACKWARD 23

SLOW BACKWARD 2 DA

NEXT 20

PREVIOUS 21

CURSOR UP 58

CURSOR DOWN 59

CURSOR LEFT 5A

CURSOR RIGHT 5B

OK 5C

TOGGLE C8

ANGLE 85

AUDIO 4E

SUBTITLES 4B

SUBTITLE ON/OFF E3

ROOT MENU 54

TITLE MENU 71

MENU D1

SETUP MENU 82

OSD ON/OFF F

RETURN 83

RESUME D7

SCAN 2A

SHUFFLE 1C

REPEAT 1D

A/B REPEAT 3B

TOGGLE SCART 43

OPEN/CLOSE 42

FTS FB

KARAOKE E4

OPTION FA

CL 96532065_013.eps

120799

CL 96532065_014.eps

120799

CL 16532007_004.eps

010201

CL 16532007_005.eps

010201

CL 16532007_006.eps

010201

www.rtv-horvat-dj.hr

Diagnostic software descriptions and troubleshooting GB 25DVD612 /XX1 5.

asking the user for confirmation. The display will show the

following message:

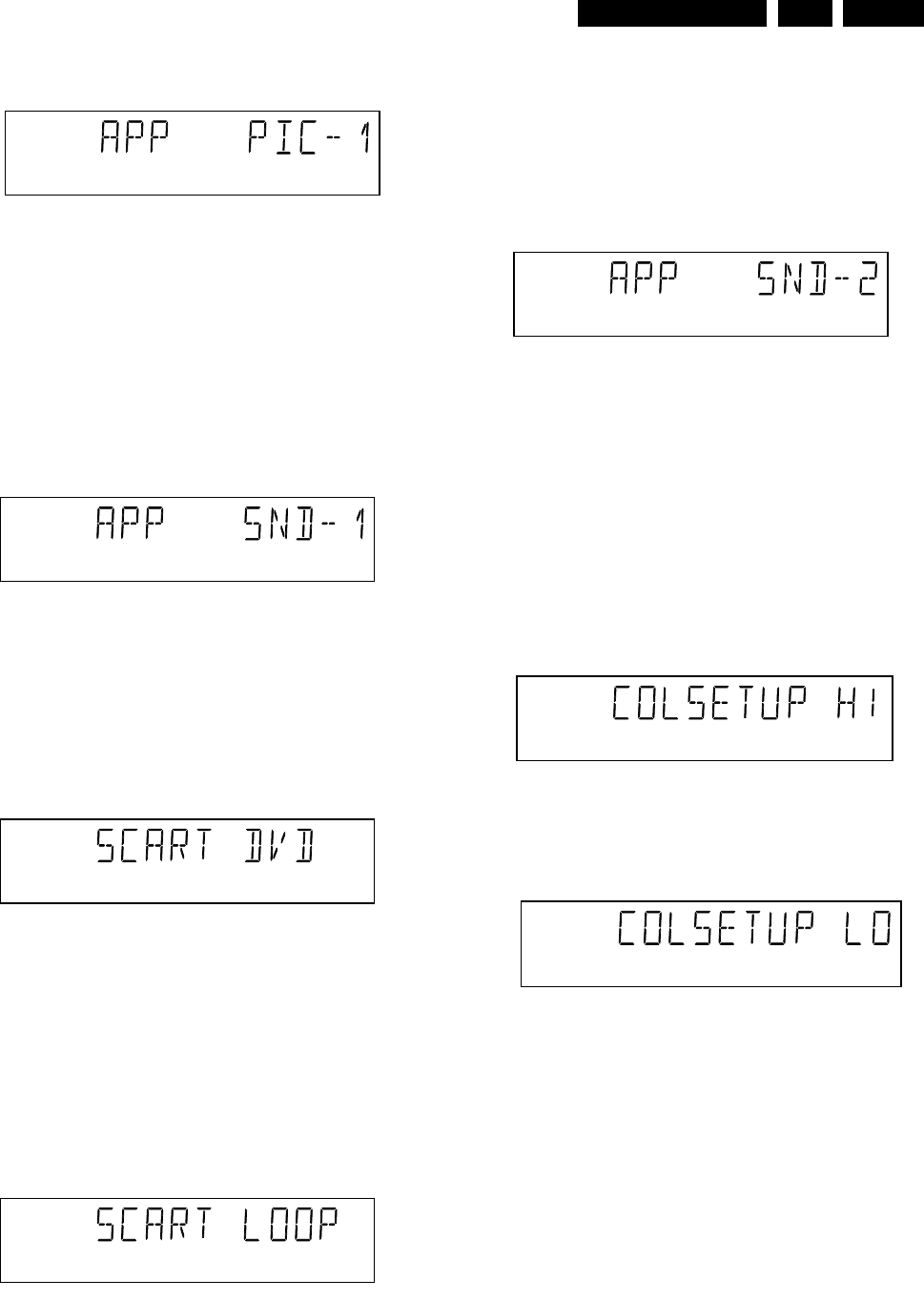

Figure 5-17

By pressing PLAY the user confirms the test, pressing

PAUSE will indicate the picture was invisible or incorrect.

Pressing NEXT will proceed to the next test

5.4.2 SOUND 1 & SCART DVD TEST

The first soundtest is performed by starting a pink noise

sound that needs confirmation from the user (nucleus

AudioPinkNoiseOn); the display will show the following

message very shortly:

Figure 5-18

This sound will only be audible from version cut3.1 of

Sti5505(item7503 on mono board) onwards. After starting up

sound 1, SCART loop-trough will be simultaneously active

during this test. SCART loop-trough will be measured with

the aid of an external video source.

When entering the SCART loop-trough, the local display

indicates:

Figure 5-19

On the TV screen a colour bar (generated by nucleus

VideoColDencOn) is visual and the internally generated

pinknoise is audible. By pressing PLAY the user confirms the

test, pressing PAUSE will indicate the sound was inaudible or

incorrect. Pressing NEXT will proceed to the next test; if the

user presses NEXT without pressing PLAY or PAUSE first,

the result of this test will be TRUE (sound ok). By pressing

the NEXT button there will be switched over to the external

source, this must become now visible on the TV screen

(using the SCART). The local display indicates:

Figure 5-20

The internally generated colour bar is still available on the

CVBS and Y/C outputs. And the pinknoise-signal is still

available on the cinch audio outputs. By pressing the PREV

button, the internal generated colour bar becomes visual

again.

The test can be left by pressing the NEXT key for more than

one second.

5.4.3 SOUND 2 TEST

The second soundtest is performed by producing a sine

sound (nucleus AudioSineOn). The signal can be stopped by

pressing the STOP-key. The display will show the following

message:

Figure 5-21

By pressing PLAY the user confirms the test, pressing

PAUSE will indicate that something went wrong. Pressing

NEXT will proceed to the next; if the user presses NEXT

without pressing PLAY or PAUSE first, the result of this test

will be TRUE (sound ok).

5.4.4 Colour setup test

The colour setup test is performed by putting the internally

generated colour bar in different settings on the TV screen.

The first colour bar will be displayed in setting 1. the display

will show the following message:

Figure 5-22

By pressing the NEXT button, you can go to the second

setting. The local display indicates:

Figure 5-23

By pressing the PREVIOUS button, the colour bar with the

first setting becomes visual again.

By pressing PLAY the user confirms the test, pressing

PAUSE will indicate that something went wrong.

The test can be left by pressing the NEXT key for more than

one second; if the user presses NEXT without pressing PLAY

or PAUSE first, the result of the test will be TRUE )colour set-

up ok).

5.5 BASIC ENGINE

5.5.1 VERSION NUMBER

In the basic engine tests, the version number of the Basic

Engine will be shown first, as the following example:

CL 96532065_015.eps

120799

CL 96532065_016.eps

120799

CL 96532065_017.eps

120799

CL 96532065_018.eps

120799

CL 96532065_019.eps

120799

CL06532096_004.eps

050700

CL06532096_005.eps

050700

www.rtv-horvat-dj.hr

Diagnostic software descriptions and troubleshooting

GB 26 DVD612 /XX15.

Figure 5-24

By pressing the NEXT key, the Basic Engine tests are

started.

5.5.2 TRAY TEST

First, the tray is tested. The purpose of this test is also to give

the user the opportunity to put a disc in the tray of the DVD

player. Some tests on the Basic Engine require that a

disc(e.g. DVD MPTD test disc) is present in the player. At the

end of the Basic Engine tests this tray test will be repeated

solely to enable the user to remove the disc in the tray. The

local display will look as follows:

Figure 5-25

By pressing PLAY or PAUSE the user can toggle the position

of the tray. Note that this test will not contribute to the test

result of the Basic Engine. Pressing NEXT will proceed to the

next test, after the tray has been closed (by the software) if it

was open.

5.5.3 SLEDGE TEST(visual test)

The second Basic Engine test tests the sledge; the user can

move the sledge as many times as desired by using PLAY

(nucleus BeSledgeOut) and PAUSE (nucleus BeSledgeIn).

Pressing NEXT on the local keyboard proceeds to the next

test. Note that this test will not contribute to the test result of

the Basic Engine. The local display will look as follows during

the sledge test:

Figure 5-26

5.5.4 DISC MOTOR TEST(visual test)

The third Basic Engine test tests the disc motor (nucleus

BeDiscMotorOn); the local display looks as follows:

Figure 5-27

By pressing PLAY the user confirms that the disc motor is

running; pressing PAUSE indicates the disc motor does not

work. Pressing NEXT proceeds to the next test, after a reset

of the disc motor (nucleus BeDiscMotorOff). If the user

presses NEXT before pressing PLAY or PAUSE, the result of

this test will be TRUE (disc motor is running).

5.5.5 FOCUS TEST(visual test)

The fourth Basic Engine test tests the focussing; first

focussing is turned on by calling nucleus BeFocusOn. The

display will look as follows:

Figure 5-28

By pressing PLAY the user confirms that the focussing was

succesful; pressing PAUSE indicates a focussing failure.

Pressing NEXT proceeds to the next test after a reset of the

focussing (nucleus BeFocusOff); if NEXT is pressed before

PLAY or PAUSE, the result of this test will be TRUE (focus

successful).

5.5.6 RADIAL TEST(visual & listening test)

The fifth Basic Engine test tests the radial functionality

(nucleus BeRadialOn); the local display looks as follows:

Figure 5-29

By pressing PLAY the user confirms that the radial function

worked; pressing PAUSE indicates the function does not

work. Pressing NEXT proceeds to the next test, after a reset

of the radial (nucleus BeRadialOff). If the user presses NEXT

before pressing PLAY or PAUSE, the result of this test will be

TRUE (radial successful).

5.5.7 JUMP TEST(listening test)

The sixth and last Basic Engine test tests the jumping by

calling nuclei BeGroovesIn, BeGroovesMid and

BeGroovesOut. During this test, the local display looks as

follows:

Figure 5-30

The user can switch between the three different types of

groove settings by pressing PLAY (forward to next nucleus in

the list In-Mid-Out) or PAUSE (backward in the list In-Mid-

Out). This is done in a cyclic manner; note that this test will

not contribute to the test result of the Basic Engine. Pressing

NEXT proceeds to the next test, after the disc motor has

been shut off with a call to nucleus BeDiscMotorOff.

CL 96532065_020.eps

120799

CL 96532065_021.eps

120799

CL 96532065_022.eps

120799

CL 96532065_023.eps

120799

CL 96532065_024.eps

120799

CL 96532065_025.eps

120799

CL 96532065_026.eps

120799

www.rtv-horvat-dj.hr

Diagnostic software descriptions and troubleshooting GB 27DVD612 /XX1 5.

5.5.8 TRAY TEST

As a last action for the Basic Engine tests, the tray test is

repeated. The local display will look as follows:

Figure 5-31

This test is meant to give the user the opportunity to remove

the disc in the tray. The tray position can be toggled using the

PLAY and PAUSE key. The tray will be closed (by the

software, if it is open) before proceeding to the next test when

the user presses the NEXT key.

5.5.9 ERROR LOG (see table on page 30)

Reading the error log and error bits information can be useful

to determine any errors that occurred recently during normal

operation of the DVD player. Reading the error log is done by

nucleus LogReadErr. The display during the errorlog readout

looks as follows :

Figure 5-32

By pressing PLAY or PAUSE the user can move forward or

backward (respectively) through the logged error codes. The

highlighted number indicates which errorcode is currently on

display (in the example above, errorcode number 4 is

displayed). If "0000" is displayed at all positions, the error log

is empty. Display of the logged errors is done in a cyclic

manner. The errorcode with the lowest highlighted number is

the most recent. By pressing NEXT on the local keyboard,

the user can proceed to the next test.

5.5.10 ERROR BITS (see table on page 30)

Reading the error bits is done by nucleus LogReadBits. The

display during the errorbits readout looks as follows:

Figure 5-33

Only the set errorbits will be shown by their (decimal)

number. Refer to the appropriate documentation for the

explanation of each bit number. If the display only shows

"EB-0", no error bits were set. By pressing NEXT the user

can continue to the next test.

5.6 LOOP TEST (see table below)

At the start of the loop test, the display will show the result of

the interactive player test:

Figure 5-34

The left side of the display contains a 3-digit code, which can

have a value between 000 and 111. These values are to be

interpreted as follows:

Figure 5-35

The loop test will perform the same nuclei as the dealer test,

but it will loop through the list of nuclei indefinitely. The

display of the DVD player will display not only the three digits

indicating correct/faulty modules and the last found error

code (as mentioned, faults are detected as far as they can be

within the scope of the diagnostic software), but also a loop

counter indicating how many times the loop has been gone

through. Example:

Figure 5-36

The number after the hyphen indicates the number of times

the loop test has been performed; the 4 digits at the right side

of the display show the last error that was found when

running the loop test: the leftmost two digits of this code

indicate which nucleus resulted in a fault; the rightmost two

digits refer to the faultcode within that nucleus. For further

explanation of this error code, see list of error codes below.

CL 96532065_027.eps

120799

CL 96532065_028.eps

120799

CL 96532065_029.eps

120799

CL 96532065_030.eps

120799

Displayed

Value Indication for each module

Basic Engine Mono

PCB Display

PCB

000 ok ok ok

001 ok ok faulty

010 ok faulty ok

011 ok faulty faulty

100 faulty ok ok

101 faulty ok faulty

110 faulty faulty ok

111 faulty faulty faulty

CL 96532065_031.eps

120799

FAULTY

MODULE(S)

LOOP

COUNTER NUCLEUS ERROR

CL 96532065_032.eps

120799

www.rtv-horvat-dj.hr

Diagnostic software descriptions and troubleshooting

GB 28 DVD612 /XX15.

Figure 5-37

ERROR CODES LOOP TEST

ERROR CODE NUCLEUS NUMBER ERROR DESCRIPTION

0601

6 Calculated checksum of FLASH is not correct

1101

11 I2C bus busy before start

1102

NVRAM access time-out

1103

No NVRAM Acknowledge

1104

NVRAM reply time-out

1201

12 I2C bus busy

1202

I2C bus not working

1203

Slave controller not responding

1204

Slave response is not correct

1301

13 Parity error from basic engine to serial

1302

Parity error from serial to basic engine

1303

No communication between serial and basic engine

1304

Communication time-out error

1601

16 The SDRAM is faulty

5201

5202

Error sending I2C command to COLOR SETUP IC

Error sending I2C command to SCART SWITCH IC

Colour setup IC not responding

Colour setup IC response is not correct

SCART Switch is not responding

SCART Switch response is not correct

5203

5204

5401

5402

5403

CL06532096_006.eps

050700

I2C bus busy

Error log / bits table Read ERROR LOG in player

script Read ERROR BITS in

player script

Basic engine errors Value: Value:

Command to the Basic Engine not allowed in this state or

unknown command

150101 8

Parameter(s) from the command to the Basic Engine is not

valid

150102 7

Sledge could not be moved to the inner home position 150103 6

Focus failure 150104 5

Turntable motor speed could not be reached within timeout 150105 4

Radial servo could not get on track on the disc 150106 3

PLL could not lock in the accessing or tracking state 150107 2

Subcode or sector information could not be read 150108 1

requested subcode could not be found 150109 16

Tray could not be closed or opened completely 15010A 15

TOC could not be read within timeout 15010B 14

The requested seek on the disc could not be executed 15010C 13

A requested lead-in is not on the disc 15010D 12

A non existing burst cutting area is requested 15010E 11

S2b communication error 1501F0 10

S2b communication error 1501F1 9

S2b communication error 1501F3 24

S2b communication error 1501F4 23

S2b communication error 1501F5 22

Digital PWB errors

Communication error with the Sti 5505 90000 32

Communication error with the Sti 5505 90001 31

Disply processor errors

Communication error with the display processor 190000 40

www.rtv-horvat-dj.hr

Diagnostic software descriptions and troubleshooting GB 29DVD612 /XX1 5.

5.6.1 Servicing DVD loader

The DVD Loader / mechanism, VAL6011, has to be

exchanged completely in case of failure. A new mechanism

can be ordered with codenumber 9305 023 61101.

5.6.2 Reprogramming of new mono boards.

Figure 5-38

5.6.3 Reset of Virgin Mode

After the player has been powered up for test by the dealer,

it would have gone through the Virgin Mode. It is possible to

reset the settings made during that mode before the delivery

of player to the customer. This can be done as shown in the

following diagram:

Figure 5-39

Figure 5-40

Caution

This information is confidential and may not be distributed. Only a qualified service person should

reprogram the mono board

After reset of NV-memory or repair of the mono board, all the customer settings and also the region code

will be lost.

Reprogramming of the mono board will put the player back in the state in which it has left the factory,

i.e. with the default settings and the allowed region code.

Reprogramming will be done by way of the remote control.

Put the player in stop mode, no disc loaded.

Reprogramming is limited to 25 times

When the counter reaches 25, reprogramming is not possible anymore

Press the following keys on the remote control:

PLAY

> followed by numerical keys

<1> <5> <9>

The display shows: “

- - - - - - - - - - -

”

Press now successively the following keys :

for DVD612 /002 /021 /051 :

<0><2><7> <0><0><0><0><0><0><0><0><0>

Press <

PLAY

> again.

The TV screen will become BLUE during a short time to confirm that the mono board has been

reprogrammed, then the set goes to standby mode.

CL 16532007_008.eps

010201

DISCONNECT FROM MAINS

PRESS 2 KEYS

SIMULTANEOUSLY

CONNECT TO MAINS

VIRGIN MODE IS RESET

TV SCREEN SHOWS

VIRGIN MODE MENU

CL 96532065_034.eps

070700

DISCONNECT FROM MAINS

IF TRADE MODE OFF

PRESS 2 KEYS

SIMULTANEOUSLY

CONNECT TO MAINS

DISCONNECT FROM MAINS

IF TRADE MODE ON

PLAYER IS IN NORMAL MODE

WHEN PRESSING FRONT

KEYS, THE PLAYER WILL

RESPOND

PRESS 2 KEYS

SIMULTANEOUSLY

CONNECT TO MAINS

PLAYER IS IN TRADE MODE

WHEN PRESSING FRONT

KEYS, THE PLAYER

DOESN'T RESPOND

TRADE MODE

When the player is in Trade Mode, the player cannot be

controlled by means of the front key buttons, but only by means

of the remote control.

C06532096_008.eps

050700

www.rtv-horvat-dj.hr

Diagnostic software descriptions and troubleshooting

GB 30 DVD612 /XX15.

5.7 Test Instruction Audio/Video Board

These test instructions can be used for all versions of the A/

V board which has the following outputs:

• Audio L/R

• 5.1 Audio output

• Subwoofer output

• Optical / Coaxial digital output

•CVBS

• Y/G_vid,U/B_vid,V/R_vid output

• S-video

• Scart output

5.7.1 General

• All the waveforms measurement carried out in these test

instruction will be base on the testpoint indicated in the A/

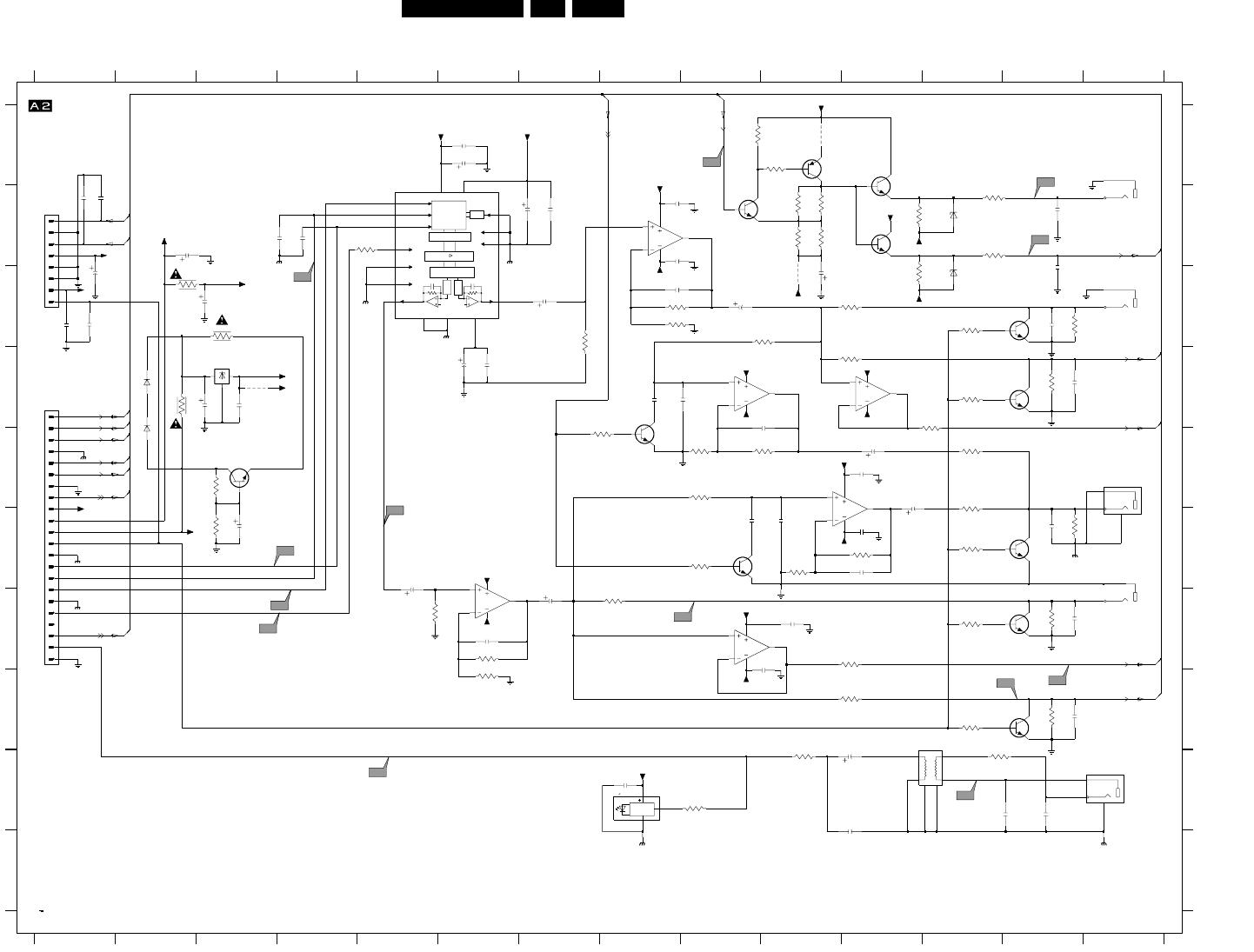

V board schematic diagram in the Service manual.

• Impedance of the measuring-equipment should be >

1MΩ

• Most of the tests can be done using either the Diagnostic

software “ Player script” which can be found in the

chapter “Diagnostic Software description and

troubleshooting” or the Menu interface using the Service

PC with a terminal emulation program ( e.g. Window

Hyperterminal ) where it is possible to control the

execution of the Diagnostic Nuclei

• Setup for the measurement will be done in set level with

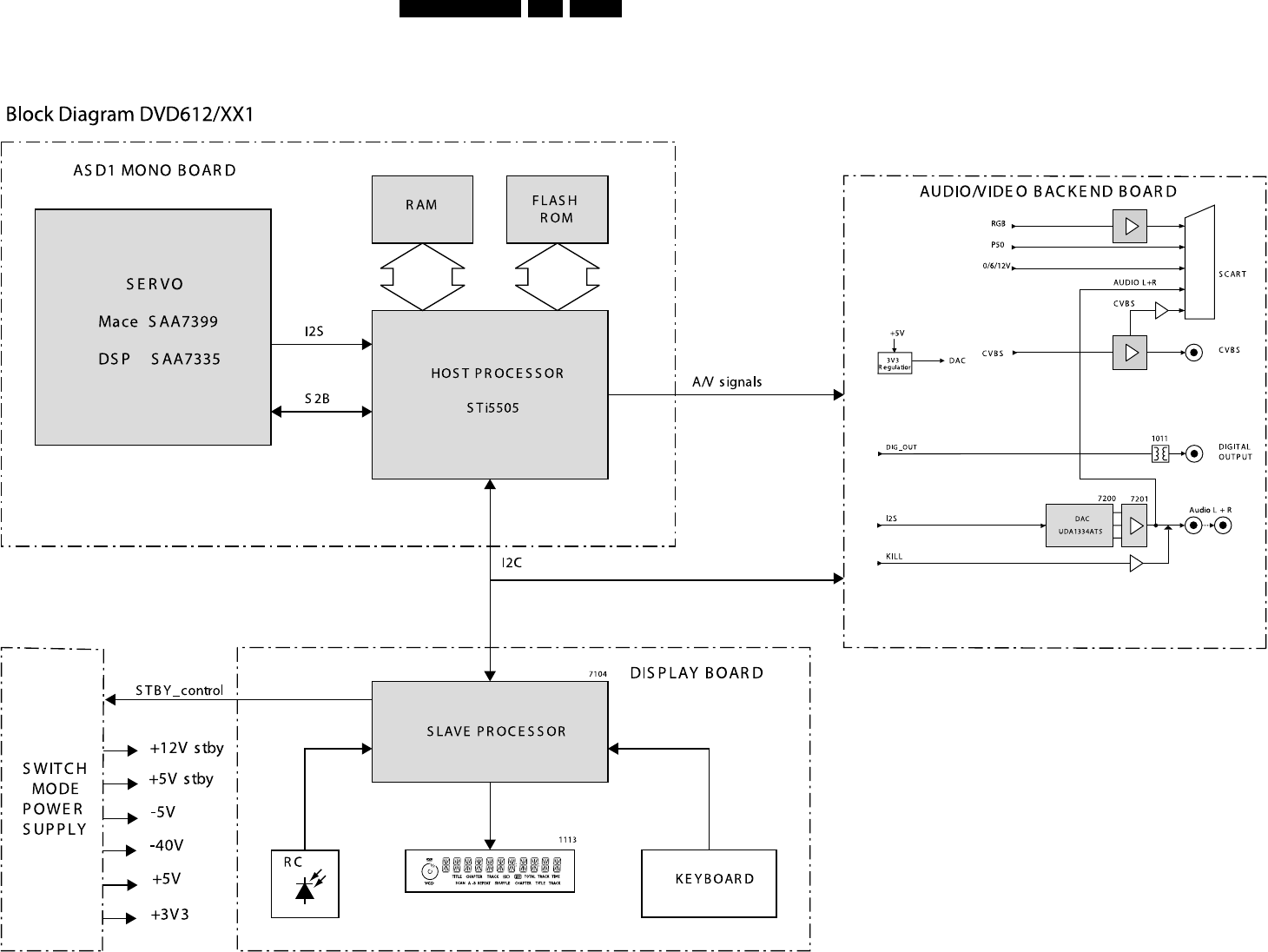

all modules connected as shown in the Wiring Block

diagram.

5.7.2 General start-up measurement

Supply check:

Before starting the measurement,ensure that all power

supply are connected to the A/V board.

The supply currents can be measured using a Tektronics

AM503B current probe or equivalent.

Clock Check

Ensure the present of the clock to the DAC

Audio mute check

Measure the Audio mute voltage input at pin 12 of connector

1010

To toggle between ON and OFF,use the following

commands:

5.7.3 Audio DAC and amplifier

Ensure that the Audio mute signal is OFF

To check the DAC and buffer amplifier,send the following

commands:

The audio signal ( sine or pink noise ) will also be present on

the digital output ( SPDIF ).This can be checked by

connecting digital signal to an amplifier with digital input.

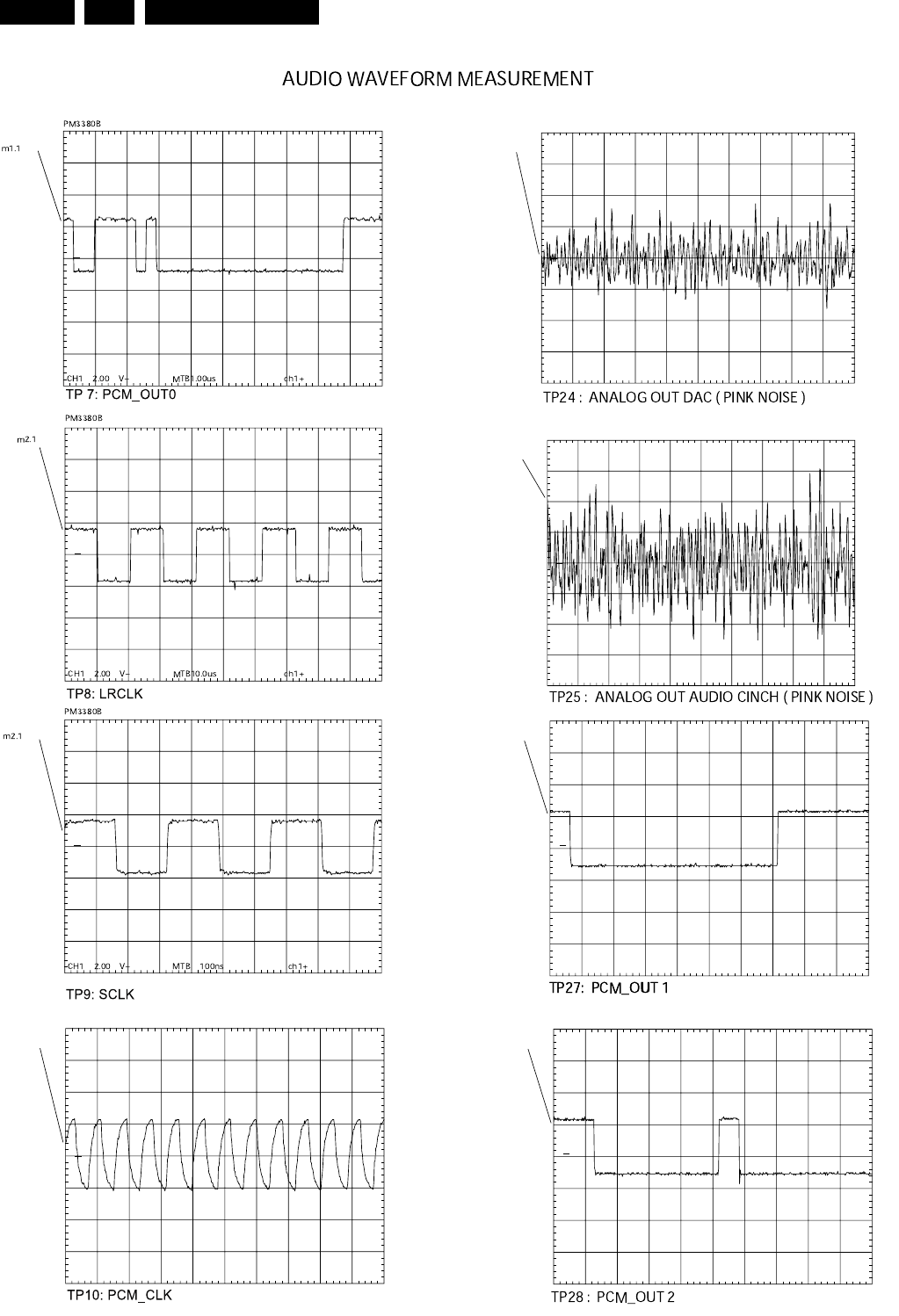

Check the I2S and audio signal at the following testpoints:

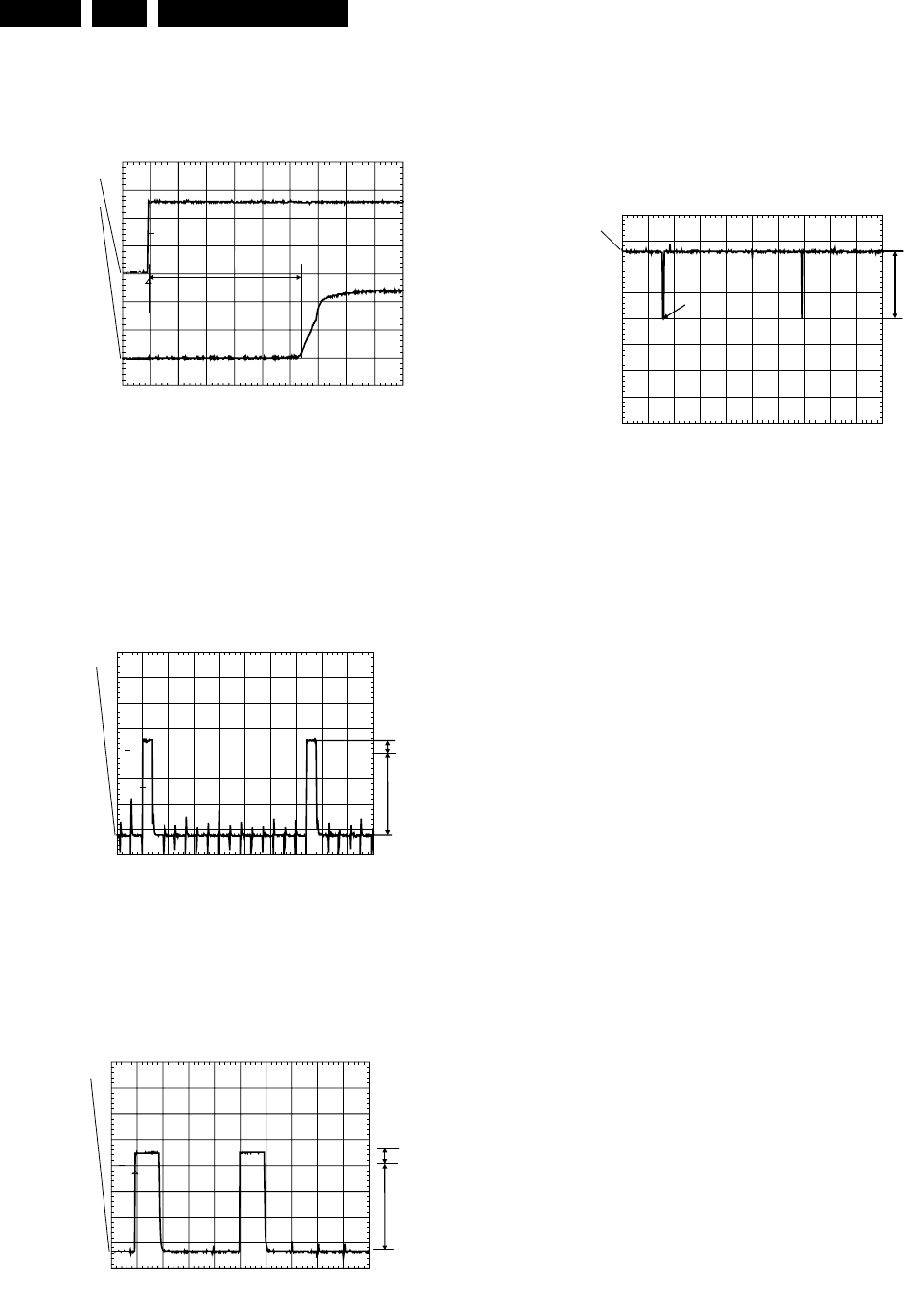

All waveforms can be refer to the waveform diagram in the

chapter “Diagnostic software description and

troubleshooting”.

5.7.4 Video output and buffer amplifier

Check DC output-level at all video cinch output : 1.0V DC ±

10%

Generate a color bar using the following software

commands:

Check the video outputs at the following testpoints:

All waveforms can be refer to the waveform diagram in the

chapter “Diagnostic Software description and

troubleshooting”.

Pin nbr Supply

1010-9 -5V ( -Vcc )

1010-10 +5V

1010-11 +5V

Supply Power consumption ( AVG )

+5VA +5V ± 3% I = 200mA

+5Vvid +5V ± 3% I = 200mA

-5V -5V ± 3% I = 200mA

Clock Name Testpoint Frequency

PCM_CLK TP10 11.2896MHz ± 0.02% tolerance

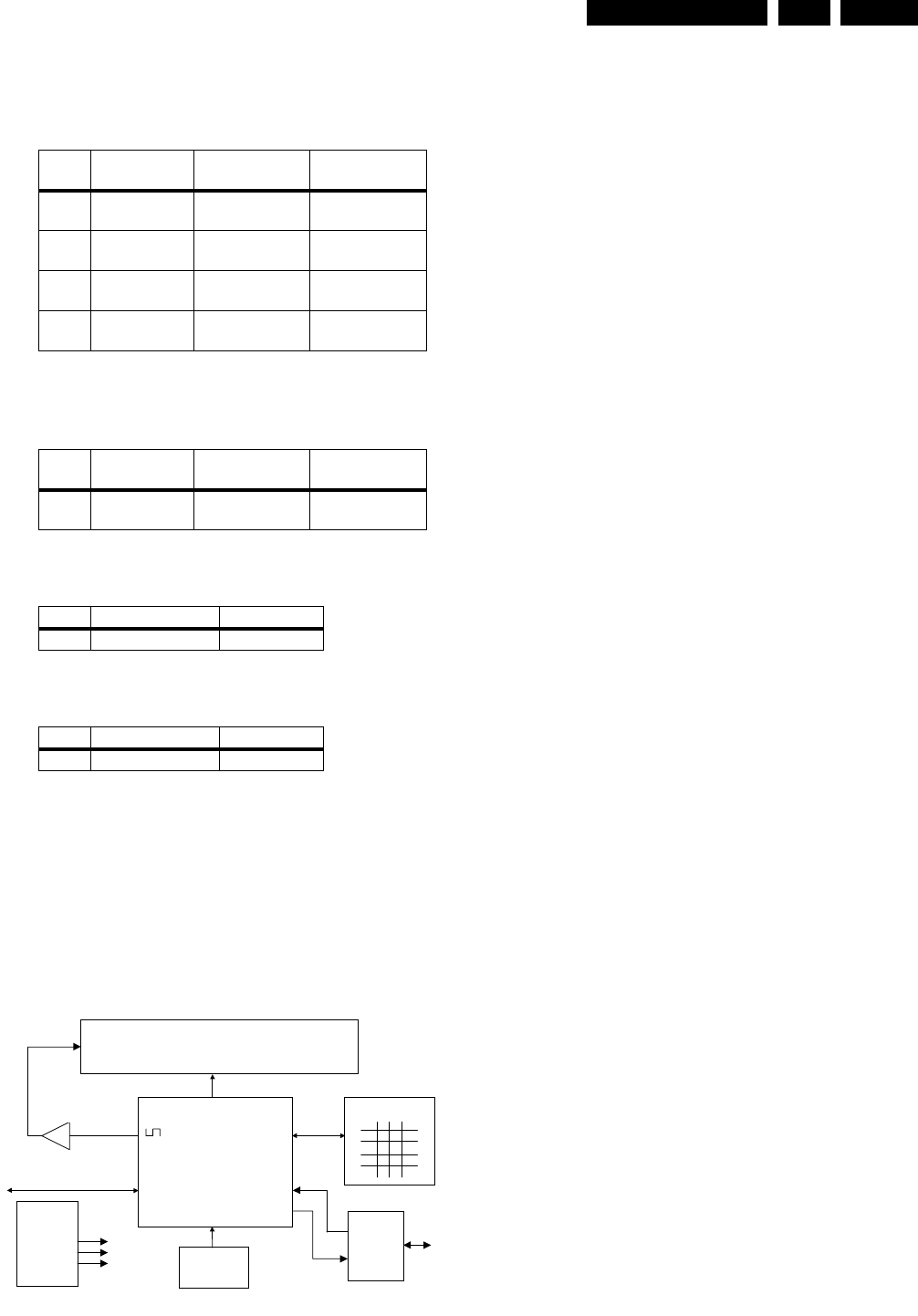

Status Value

AudioMuteOn 4.7V ± 10%

AudioMuteOff -8V ± 10%

Ref.# Command

Name Remarks

19a AudioMuteOn Audio Mute On

19b AudioMuteOff Audio Mute Off

Ref.# Command

Name Remarks Audio output

21a AudioSineOn Audio Sine

signal ON

Sine,1Khz on

stereo

---- Press stop

button

Audio Sine

signal OFF

No waveform

20a AudioPinkNois

eOn

Audio

Pinknoise ON

Pink Noise on

6 channels

20b AudioPinkNois

eOff

Audio

Pinknoise OFF

No waveform

Name Testpoint

LRCLK TP8

SCLK TP9

PCM_CLK P10

PCM_OUT0 TP7

PCM_OUT1 TP27

PCM_OUT2 TP28

SPDIF TP11

Front L/R out-Audio cinch TP13

H/P L/R out TP20

Analog out -Audio cinch TP25

Ref.# Command Name Remarks

23a VideoColDencOn Colour DENC ON

61a VideoColOutRGB RGB Colourbar

61b VideoColOutYUV YUV Colourbar

23b VideoColDencOff Colourbar DENC OFF

Name Testpoint

B_VID TP1

G_VID TP2

R_VID TP3

CVBS out TP14

S-Video-C out TP15

S-Video-Y out TP16

Y out TP17

U out TP18

V out TP19

www.rtv-horvat-dj.hr

Diagnostic software descriptions and troubleshooting GB 31DVD612 /XX1 5.

5.7.5 Play and 16/9 detection

Check DC voltage at S-Video-chroma output (pin 4) with a

6K8 ohm load and Scart connector (pin 8) and change the 0/

6/12 input (1010-8) using the following commands:

5.7.6 Kill circuit

To check the functionality of the Kill circuitry,the audio

outputs has to be present by the following command:

Check the audio outputs at the audio cinch of the A/V board

: Pink Noise

Activate the Kill circuit by using the following command:

Check the audio outputs at the audio cinch of the A/V board

: No waveform

Switch off the kill circuit by using the following command:

Check the audio outputs at the audio cinch of the A/V board

: Pink Noise

5.8 Test instructions Display board

5.8.1 Introduction

These test instructions are written for all versions of the

display PCBAS.

The contents of the PCB can be split up into next blocks:

Figure 5-41

5.8.2 Functionality description:

The essential component of the display PCB is the µP

(slave). This slave works on an 8MHz resonator and has a

reset circuit that is triggered by the +5Vstby. After the reset

pulse, the standby control line will release the reset of the

host µP. This host µP will then initialise the slave. In addition,

when going to stand-by, the slave will put the host µP in reset.

When the slave receives the right IR or key code to leave the

standby mode, the reset of the host µP will be released.

Other slave functions are:

• Square signal generator to generate the filament voltage,

which is required for an AC FTD.

• Generates the grid and segment scanning for the FTD.

• Generates a scanning grid for the keys (separated from

display scanning).

• Has inputs for RC (RC5 and RC6) and P50 (P50

controller is built in).

5.8.3 General

• Oscilloscope measurements have been carried out using

a Philips PM3392A.

• Impedance of measuring-equipment should be > 1MΩ.

• To do correct measurements we recommend to use

supply 3122 427 22570.

Ref.# Command

Name Remarks Chroma output

25a VideoScartLo Sends out 0V ±

0.5V

<0.1V

25b VideoScartMi Sends out 6V ±

10%

2.0V ± 10% with

load

5.0V ± 10%

without load

25c VideoScartHi Sends out 12V ±

10%

<0.1V

Ref.# Command

Name Remarks Audio output

21a AudioPinkNois

eOn

Audio Pinknoise

Pink Noise on 6

channels

Ref.# Command Name Remarks

19a AudioMuteOn Audio Mute On

Ref.# Command Name Remarks

19b AudioMuteOff Audio Mute Off

µProcessor

I2C

Display

Key-matrix

RC-Eye

V filament

Buffer

P50

I/O

Supply:

+5Vstby

+12V

-40V

CL 96532065_058.eps

130799

www.rtv-horvat-dj.hr

Diagnostic software descriptions and troubleshooting

GB 32 DVD612 /XX15.

5.8.4 Reset

Check next reset timing with an oscilloscope at pin 10 of the

microprocessor.

Figure 5-42

Timing: 400msec < T1 > 700msec.

CH1: +5Vstby voltage at power on.

CH2: Voltage at pin 10.

5.8.5 Display steering

Check next timing and level for all grid-lines (G1 r G14).

Figure 5-43

1. Check level A: +4V5 +/-10% for grid lines 1 => 11

2. Check level A: +4V0 +/-10% for grid lines 12 => 14

3. Check level B: -33V +/-10%

4. Check timing and levels of segment-lines P1 => P10:

Figure 5-44

Level A:+4V5 +/-10%

Level B:-33V +/-10%

The data on these segment lines depend on the characters

that are displayed.

The characters can be set by sending I2C commands to the

display.

See the Slave URS how to send a display command.

5.8.6 Key-matrix

Connect a extra 10kΩ pull-up to pin 36 en 37 of the µP and

check next matrix scanning at these pins.

Figure 5-45

Level A: 5.0V +/-7%

Level B: 0V +/-200mV

Check matrix scanning from pin 26 until 33 of the µP.

The results should be the same as the diagram above.

5.8.7 I.R. receiver

Check at pin 23 of the µP if this line switches from low (<

0.3V) to high (> 4.5V), while pressing a key on a Philips RC5

or RC6 remote control.

5.8.8 Karaoke interface

The karaoke interface (4 lines) is a single direction

communication.

This means that it consists of four µP output lines.

The interface can be checked by setting or resetting these

output-ports via the I2C bus.

Send next command via the I2C bus:

Address : 0x70

Command byte : 0x24

Data byte : xxxxabcd

Where : a = Karaoke reset.

: b = Karaoke data.

: c = Karaoke clock.

: d = Karaoke strobe.

5.8.9 P50 interface

P50 is a bi-directional serial interface, which is used for

communication between video equipment. For European

sets, this communication goes via pin 10 of the scart-bus. In

other regions, it can be a cinch bus at the back of the set.

1. Keep the µP in reset by short-circuiting emitter and

collector of transistor 7108, via resistor 3100 and 3104

transistor 7101 is switched on.

2. Check the voltage at the P50 output connector 1118-5: <

200mV.

When the reset is released the µP output-pin becomes low

and transistor 7101 is switched off.

1. Check the voltage at the P50 output connector 1118-5:

4V9 +/-5%.

2. Check also the µP P50 input (µP pin 20): 5V +/-5%.

3. Connect the P50 line (connector 1118-5) to ground.

4. Check again the µP P50 input (µP pin 20): <0V3.

PM3392A

ch1

ch2

CH1 2.00 V=

CH2 2 V= BWL MTB 100ms- 1.04dv ch2+

CL 96532065_073.eps

130799

PM3392A

ch1 ch1: low =-34.2 V

ch1: high= 3.98 V

STOP

CH1 10.0 V= MTB 200us 2324us ch1+

CL 96532065_074.eps

130799

PM3392A

ch1

CH1 10.0 V= BWL MTB 500us- 1.04dv ch1+

CL 96532065_075.eps

130799

PM3392A

ch1 ch1: low =-46.9mV

ch1: high= 5.09 V

STOP

CH1 2.00 V= MTB10.0ms ch1-

CL 96532065_076.eps

130799

www.rtv-horvat-dj.hr

Diagnostic software descriptions and troubleshooting GB 33DVD612 /XX1 5.

5.9 Troubleshooting

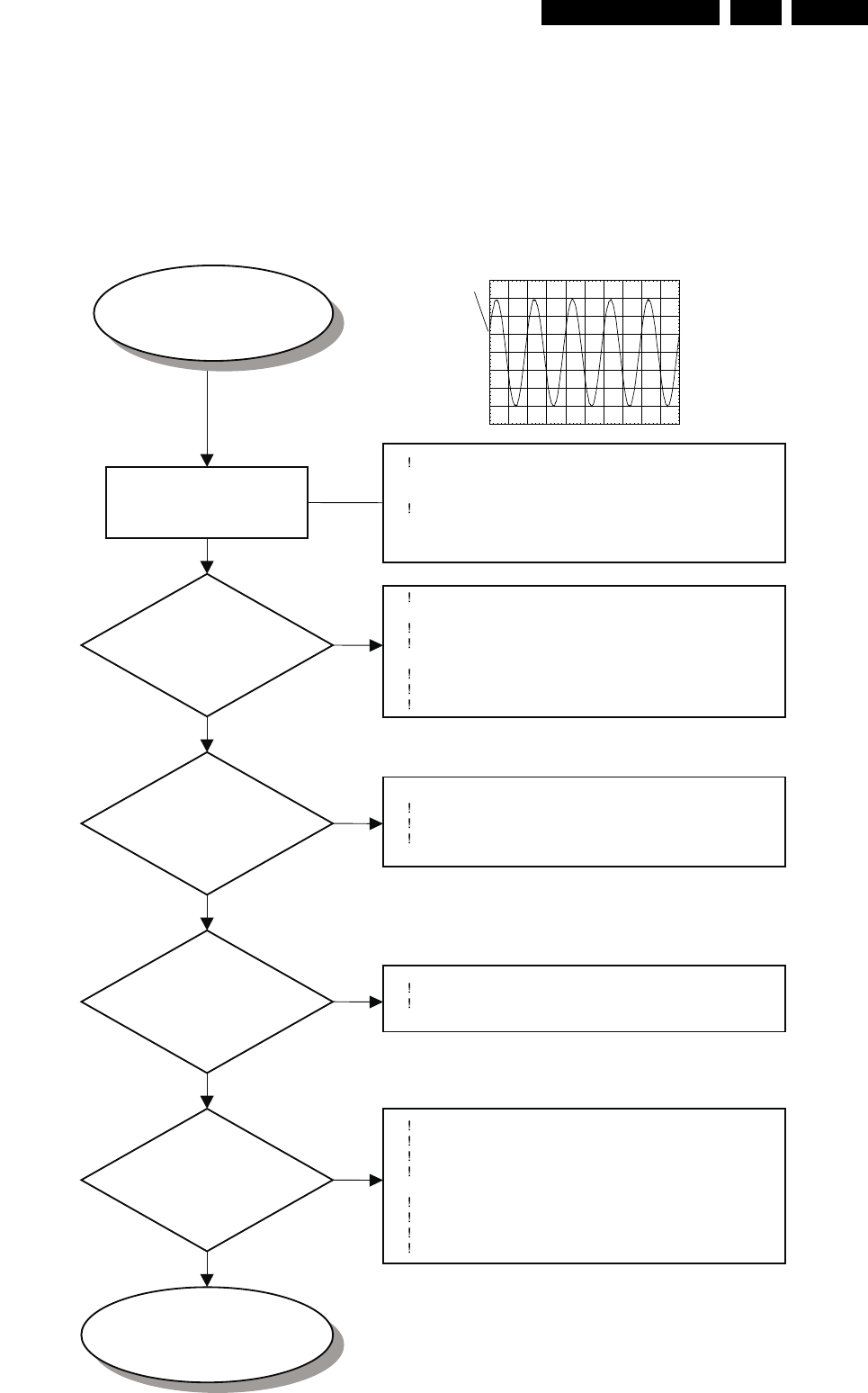

5.9.1 Troubleshooting A/V board

Testing of A/V board can be done using diagnostic software

“PLAYER SCRIPT”.

MONO board is used to generate a sound with the sound

tests SND-1 and SND-2 or a VIDEO signal with the picture

“DIAGNOSTIC SOFTWARE: SCRIPT INTERFACES”.

ACTIVATE

DIAGNOSTIC SOFTWARE

“ PLAYER SCRIPT “

CHECK

POWER SUPPLY

3V3_A and 3V3_B

TO DAC ?

CHECK

AUDIO I2S

SIGNAL TO DAC

YES

CHECK

DAC OUTPUT

AT TP12

YES

CHECK

AUDIO CINCH

AND SCART

OUTPUT ?

YES

NO SOUND OUTPUT

ON AUDIO CINCH

1005B/C AND SINGLE

SCART 1002

SOUND ON

AUDIO CINCH & SCART

END

START

To activate the "Player Script ",press Open/Close and

Stop keys on the local keyboard of the DVD player

simultaneously.

Proceed to the nuclei "AudioPinkNoise" by pressing

NEXT key until display shows "APP SND-1" and

seconds later it show " Scart DVD "

Check supply voltages at connector 1010

Pin 9 -> -5Vstdby

Pin 10/11-> +5V

Check 3V3 regulator 7203 and safety resistor 3209 ,

3237

Check the delay cct 7512 , 3238 , 3239 , 2237

Check the Flex cable to connector 1010

Check Mono Board

Check I2S signal at testpoints 7 , 8 , 9 , 10

Check the Flex cable to connector 1010

Check Mono Board

Check Vref-DAC on Pin 12 of DAC IC 7200 1V6

Check for malfunction of DAC IC 7200

Check audio signal at TP 13

Check KILL signal at Pin 12 connector 1010

Audio mute OFF -8V ± 10%

Check for malfunction of KILL transistor 7501 , 7502 ,

7506 ,7507

Check ± 5V supply to OP-AMP 7201

Check gain configuration of OP-AMP 7201

Check for malfunction of OP-AMP 7201

Check Mono Board

CL 16532007_020.eps

130201

AUDIO PART OF AUDIO/VIDEO BOARD 3139 243 30241

PM3380B

ch1

CH11.00V~MTB500usch1+

TP13: ANALOG OUTPUT AUDIO L/R

www.rtv-horvat-dj.hr

Diagnostic software descriptions and troubleshooting

GB 34 DVD612 /XX15.

PM3392A

ch1

CH1 2 V~ MTB 100ns ch1+

PM3392A

ch1

CH1!2.00 V~ MTB 500ns ch1+

PM3392A

ch1

CH1! 200mV~ MTB10.0ms ch1+

PM3392A

ch1

CH1!2.00 V~ MTB 500ns ch1+

PM3392A

ch1

CH1! 200mV~ MTB10.0ms ch1+

PM3392A

ch1

CH1! 200mV~ MTB10.0ms ch1+

PM3392A

ch1

CH1!2.00 V~ MTB 500ns ch1+

PM3392A

ch1

CH1!2.00 V~ MTB 500ns ch1+

CL 16532007_010.eps

050201

www.rtv-horvat-dj.hr

Diagnostic software descriptions and troubleshooting GB 35DVD612 /XX1 5.

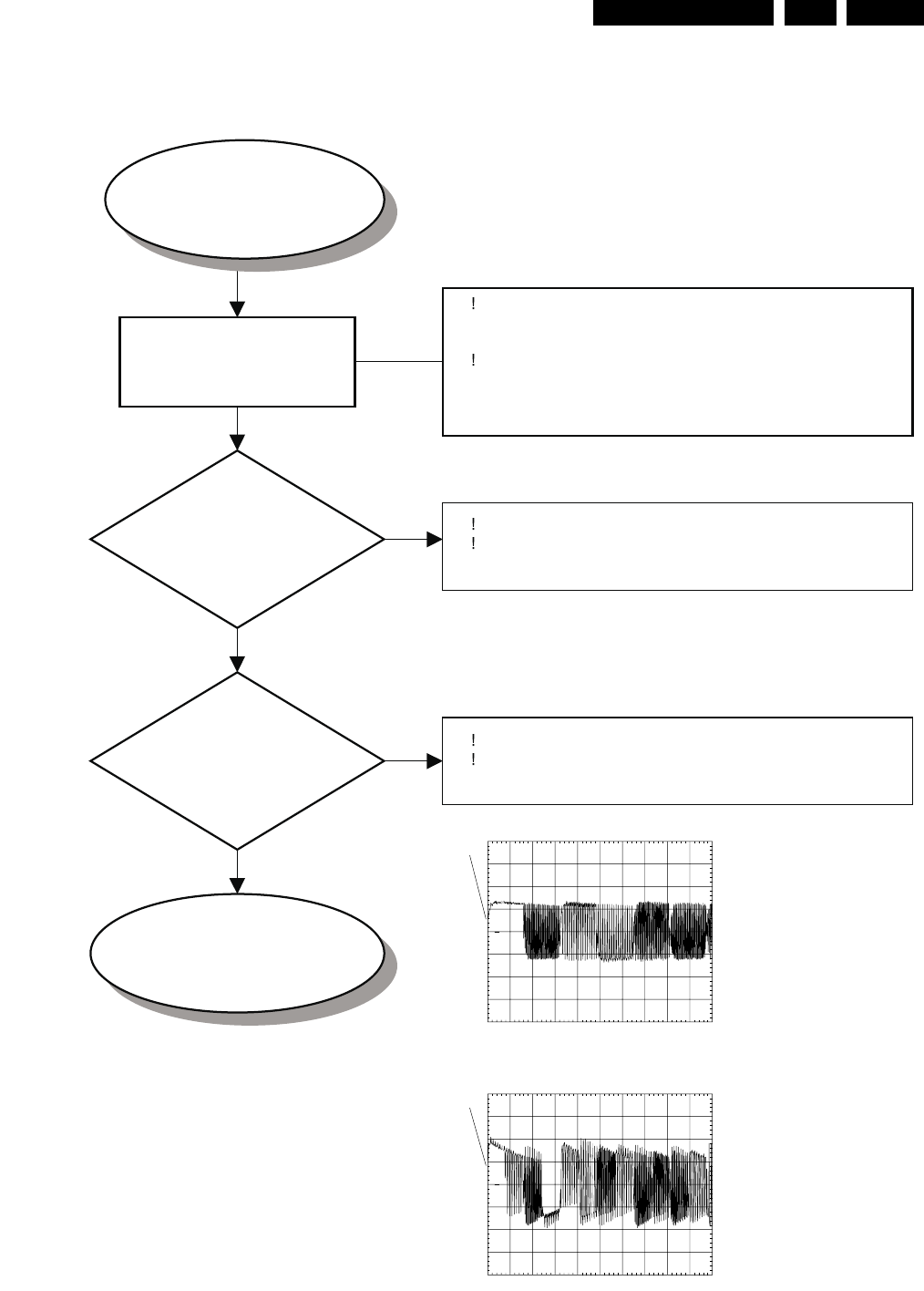

ACTIVATE

DIAGNOSTIC SOFTWARE

“ PLAYER SCRIPT “

CHECK

DIG_OUT AT

TP11

CHECK

DIGITAL COAX

OUTPUT AT TP21

YES

NO DIGITAL OUTPUT

ON COAXIAL

1011

DIGITAL OUT

START

END

To activate the "Player Script ",press Open/Close and

Stop keys on the local keyboard of the DVD player

simultaneously.

Proceed to the nuclei "AudioPinkNoise" by pressing

NEXT key until display shows "APP SND-1" and

seconds later it show " Scart DVD ".

Check Flex cable to connector 1010.

Check Mono Board.

Check coupling transformer 5200.

Check coupling components 3235, 3236, 2232.

CL 16532007_014.eps

130201

AUDIO PART OF AUDIO/VIDEO BOARD 3139 243 30241

PM3392A

ch1

CH1 2 V~ MTB 100ns ch1+

TP 11: DIG_OUT

PM3392A

ch1

CH1 200mV~ MTB 200ns ch1+

TP 21: DIGITAL OUT

www.rtv-horvat-dj.hr

Diagnostic software descriptions and troubleshooting

GB 36 DVD612 /XX15.

ACTIVATE

DIAGNOSTIC SOFTWARE

“ PLAYER SCRIPT “

CHECK

POWER SUPPLY

±5V AND 3V3

CHECK

VIDEO INPUT AT

CONN 1001 &

1010 ?

YES

CHECK

CVBS OUTPUT

AT CONN 1005A

& 1002 ?

YES

CHECK

RGB OUTPUT AT

SCART CONN

1002 ?

YES

NO PICTURE

CVBS , Y/C , YUV

VIDEO PART

START

END

To activate the "Player Script ",press Open/Close and

Stop keys on the local keyboard of the DVD player

simultaneously.

Proceed to the nuclei "VideoColDencOn" by pressing

NEXT key until display shows "APP PIC-1".

Check supply voltages at connector 1010

Pin 9 -> -5Vstdby.

Pin 10/11 -> +5V.

Check 3V3 regulator 7203 and safety resistor 3209 ,

3237.

Check the delay cct 7512 , 3238 , 3239 , 2237.

Check the Flex cable to connector 1010.

Check Mono Board.

Check video signal at TP1 B_Vid , TP2 G_Vid.

TP3 R_Vid , TP4 CVBS , TP5 C , TP6 Y.

Check the Flex cable to connector 1001 & 1010.

Check Mono Board.

Check CVBS signal at testpoint 14.

Check for ± 5V supply to Video buffer amplifier.

Check for malfunction of Video buffer amplifier 7508,

7509 , 7510 , 7511 and the biasing components.

Check RGB signal at PIN 15, 11, 7 respectively.

Check for ± 5V supply to Video buffer amplifier.

Check for malfunction of Video buffer amplifier 7413,

7414.

7415, 7416, 7417, 7418, 7420, 7421, 7422 and the

biasing components.

CL 16532007_022.eps

080201

VIDEO PART OF AUDIO/VIDEO BOARD 3139 243 30241

www.rtv-horvat-dj.hr

Diagnostic software descriptions and troubleshooting GB 37DVD612 /XX1 5.

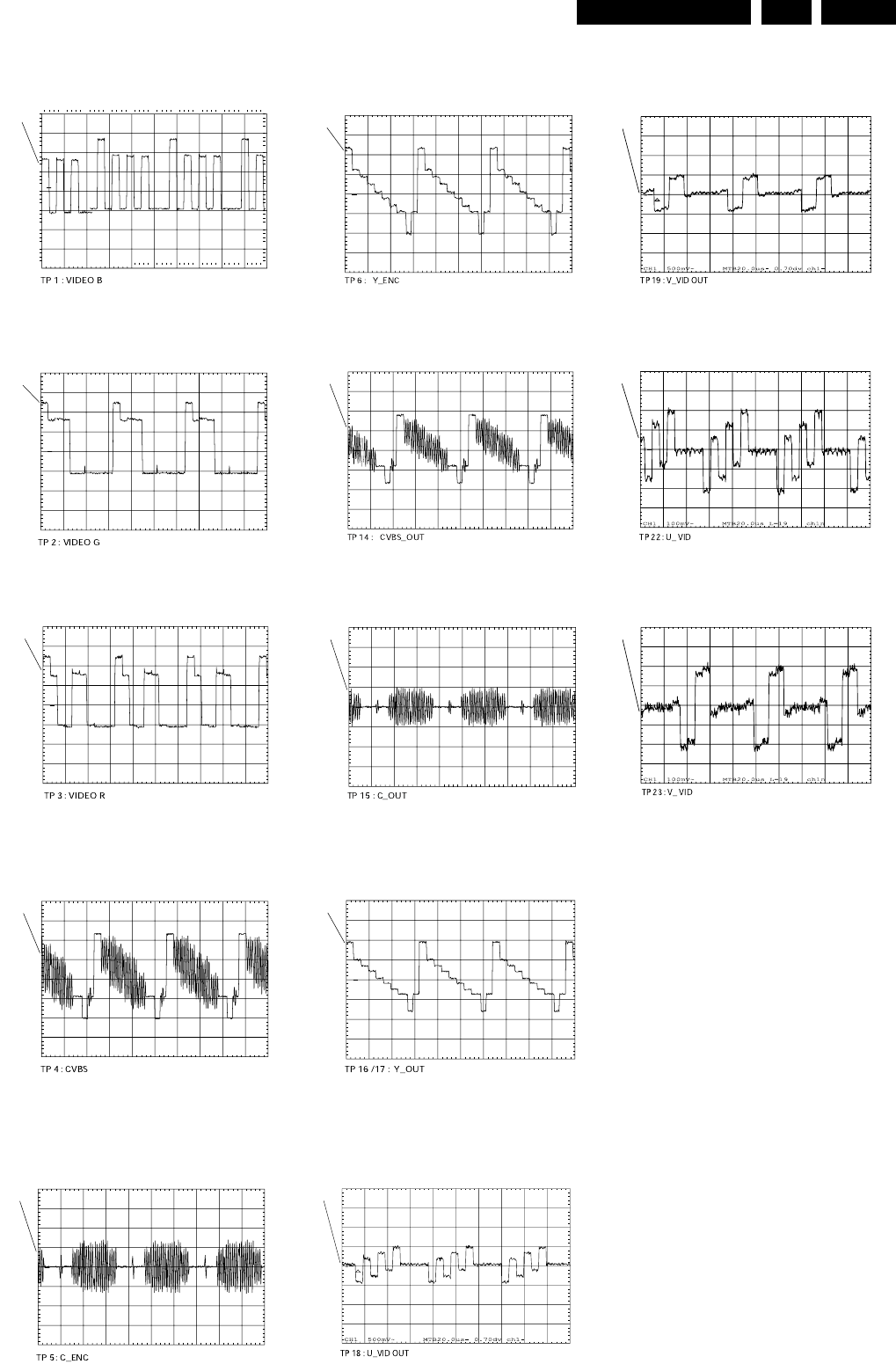

PM3392A

ch1

CH1 200mV~ MTB20.0us ch1+

PM3392A

ch1

CH1 200mV~ MTB20.0us ch1+

PM3392A

ch1

CH1 200mV~ MTB20.0us ch1+

PM3392A

ch1

CH1 200mV~ MTB20.0us ch1+

PM3392A PM3380B

ch1 ch1

CH1 200mV~ MTB20.0us ch1+

PM3392A PM3380B

PM3380B

ch1 ch1

CH1 200mV~ MTB20.0us ch1+

PM3392A

ch1 ch1

PM3380B

ch1

CH1 500mV~ MTB20.0us ch1+

PM3392A

ch1

CH1 500mV~ MTB20.0us ch1+

PM3392A

ch1

CH1 50mV~ MTB20.0us ch1+

VIDEO WAVEFORM MEASUREMENT

CL 16532007_058.eps

080200

www.rtv-horvat-dj.hr

Diagnostic software descriptions and troubleshooting

GB 38 DVD612 /XX15.

Check DC voltages

+12V, +5Vstdby, -8Vstdby, +5V,+3V3

Power Supply

Disconnect the power supply from the MAIN Board

Connect dummy load resistors 10W ( min 5W ) :

10 ohm at +3V3, 15 ohm at +12V and ground

TROUBLESHOOTING POWER SUPPLY UNIT VFM EURO

Check DC voltages

+12V, +5Vstdby, -8Vstdby, +5V, +3V3

These voltages will be somewhat higher than specified

Power Supply OK

Check : Mono Board

A/V Mux Board

Display Board

Check the +3V3 and +12V

Check +12V path : D6241, C2240, L5240

Check +3V3 path : D6210, C2210, L5210

Check the path of the faulty voltages:

+5V path: D6230, C2230, L5231, T7238, C2238, C2239

+5V_stby path: R3233, D6233

-5V path: D6250, C2250, L5222 and T7255 regulator unit

Connect the mains inlet to a mains isolated variac

Turn input voltage up and check across C2121

the voltage should be

+/-1.41 X Vin AC

Check the functionality of the following components:

F1120, L5120, D6118, D6119, D6120, D6121, C2121

Is power supply ticking?

Check the load on the secondary output

Check overvoltage protection:

D6141, R3139, T7141, T7150, R3150

Check oscillator voltage on pin 4 of IC7145

Check R3146,C2157 and replace IC7145

Check drive circuit : gate voltage of Mosfet 7125,

components R3111, R3140, R3156,R3125,D6140

Check working of regulation circuit :

T7131,T7201,R3201,R3202,R3204,R3205,

R3206,R3207,R3208,R3153,R3154,R3262,C2202

Check supply voltage on pin 7 of IC7145

Vcc within 10V - 16V (typical )

Power Supply Unit

Check start-up circuit and Vcc supply circuitry

Replace IC7145

NOK

YES

START

CL06532096_013.eps

160201

www.rtv-horvat-dj.hr

Block- and wiringdiagram. 39DVD612 /XX1 6.

6. Block- and wiringdiagram.

Blockdiagram DVD 612 /XX1

CL 16532007_046.eps

080201

www.rtv-horvat-dj.hr

40DVD612 /XX1 6.

Block- and wiringdiagram.

Wiringdiagram

1201

STBKEY+

STBKEY-

AIN4

AIN2

DVD 612 AP

BOARD

A/V BOARD

MONO BOARD

PH EH

DISPLAY BOARD

LEAD 2001

STANDBY

BOARD

HEADPHONE/MIC

DVD 733K ONLY

POWER SUPPLY

BOARD

DVD 612/17X

DVD 612/0XX

STANDBY

BOARD

ADC_SCLK

ADC_LRCLK

ADC_DATA

SCA

STBKEY-

1205

STBKEY+

STBKEY-

MECH SW

130MM

140MM

MECH SW

GND

1117 1

STBKEY+

STBKEY-

EH (SUB_LEAD)

15 1118

LRCLK

G (Y)

3139 110 39161

(EU)

140MM

130MM

105MM

GND

LRCLK

SCLK

FFC

PCM_CLK

SCL

GND

CVBS

GND

0|6|12

1117

-40V

+5V

MIC GND

1115

+12V

CENTER_ON

STEREO_MUTE

DIG_OUT

GND

P50

+5VD

STBKEY+

+12VSTBY+6VSTBY

GND

+5VD

+5WD

KILL

R (V)

GND

-5V

KILL

FFC

+6VSTBY

-5V

GND

+5VSTBY

GND 12

GND

-5V

+5VSTBY

+6VSTBY

GND

+12VSTBY

PCM_OUT1

HP_L

GND

P50

STBCONTROL

GND

3V3

+5V

+5VSTBY

GND

PCM_OUT0

CENTER_ON

STEREO_MUTE

DIG_OUT

GND

+5VSTBY

STBLED

-40V

0205

+5V

MIC_A

FFC

GND

STBCONTROL

GND

3139 110 33841(AP & US)

3104 157 11191 (EU)

3104 157 02361(SUB LEAD)

3139 110 34251

3139 110 38681

3139 110 38931(AP)

GND

SCL

KILL

MIC_A

+5V

HP_R

MIC GND

GND

-5V

16 1

0207

3V3

PCM_OUT2

GND

PCM_OUT1

P50

STBCONTROL

SCA

STBCONTROL

3V3A

121

-5V

FFC

1603

1600

SCL

-5V

+12VSTBY

SDA

+6VSTBY

3V3A

1117

3139 110 35151 3139 110 34231(AP & US)

3104 157 11201 (EU)

116 122

3139 110 38631

3139 110 38371

280MM

1013 1000 1010

GND

H_SYNC

0|6|12

SDA

+12VSTBY

GND

H_SYNC

-5V

SCL

10 9

1200

+5WD

KILL

GND

PCM_OUT0

B (U)

FFC

1501 1604

(DVD 733K ONLY)

280MM

1014

P50

B (U)

G (Y)

GND

R (V)

CVBS

GND

ADC_SCLK

ADC_LRCLK

ADC_DATA

ADC_PCMCLK

+5V

-5V

8NC

SCLK

GND

PCM_CLK

MECH SW

11206

ADC_PCMCLK PCM_OUT2

GND

HP_L

GND

+12V

GND

+5VSTBY

STBLED

STBKEY+

STBKEY-

HP_R

1507

100MM

280MM

AIN12

AIN4

AIN2

AIN1

MECH SW

3139 110 35610

80MM

GND

-5V

+5V

-5V

8NC

(LEAD)

3103 308 91151 (LEAD)

+5VSTBY

400MM

MECH SW

4+5VSTBY

COMBI

BOARD

STANDBY

DVD 870 ONLY

AIN12

AIN1

MECH SW

1122EH

+5VSTBY

STBKEY+

STBKEY-5

CL 16532007_037.eps

020201

www.rtv-horvat-dj.hr

Electrical diagrams and Print-layouts 41DVD612 /XX1 7.

7. Electrical diagrams and Print-layouts

Power Supply Unit VFM EURO (3122 427 22570)

CL 16532007_051.eps

050201

RTV servis Horvat

Tel: ++385-31-856-637

Tel/fax: ++385-31-856-139

Mob: 098-788-319

www.rtv-horvat-dj.hr

44DVD612 /XX1 7.

Electrical diagrams and Print-layouts

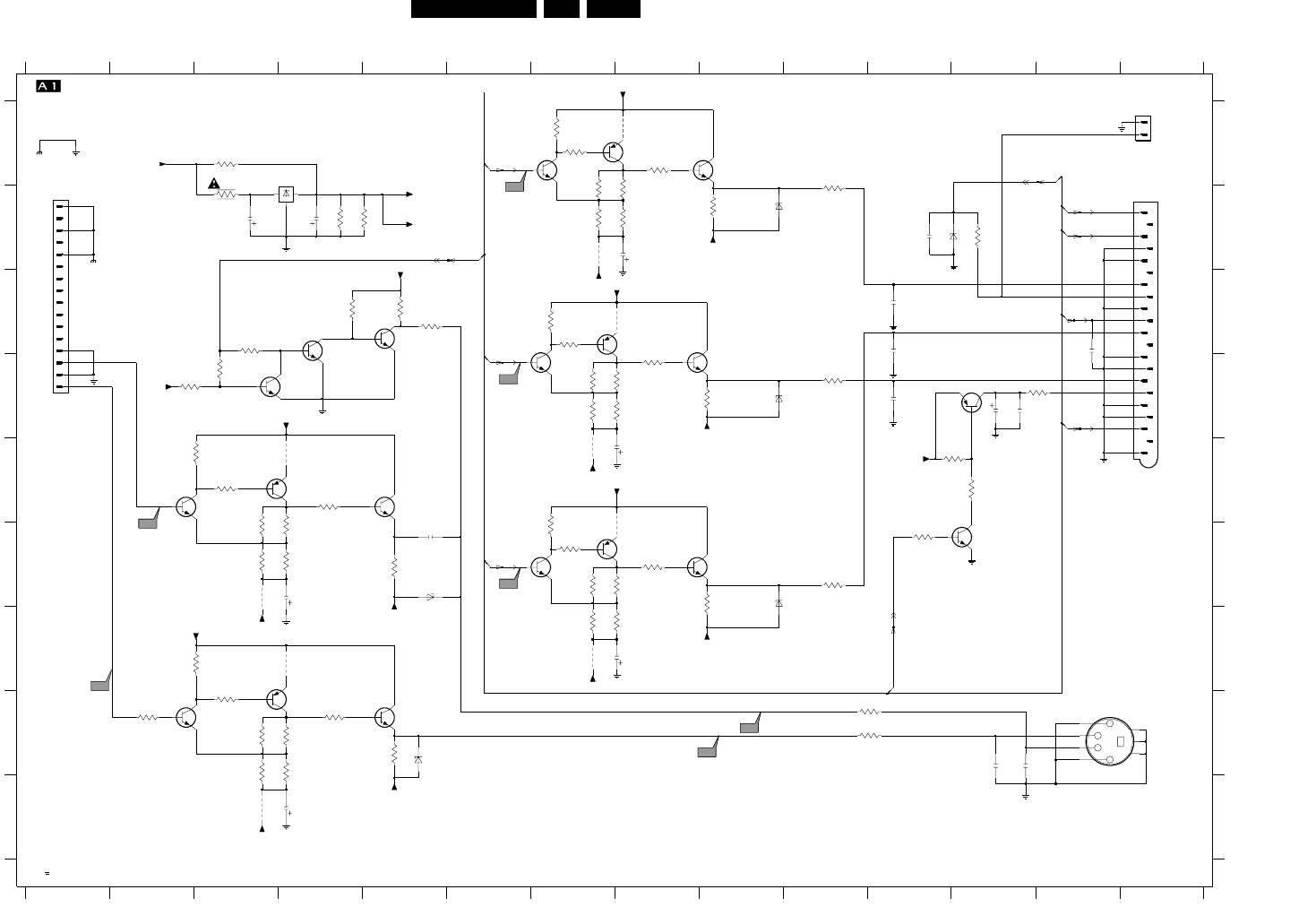

A/V Board (Video control & SCART )

3V2

1V6

3V2

4V9

1001 B1

1002 B14

1003 H13

1004 A14

2100 B3

2101 B4

2103 B8

2104 E8

2105 D12

-0V8

4V9

1234567891011121314

4R7

2106 D12

2107 F5

2108 F4

2109 G8

2110 H12

2111 B11

2112 C13

2113 H12

2114 I4

2115 C11

2116 C11

2117 D11

3100 A3

3102 B3

3111 A7

3113 A7

3114 A8

3115 B8

3116 B7

3117 B9

3118 B8

3119 B7

3120 A10

3121 C7

3122 C7

3123 D8

3124 D10

3125 D7

6K8

3136 4104

3126 D7

3127 D9

3128 D7

3129 D7

3130 B12

100p

2112

3131 F7

3132 F7

3133 F8

3134 F10

3135 F7

3136 F7

3137 F9

3138 G7

3139 G7

820R

3135

3140 C5

3141 C4

3142 C5

3143 C3

3144 D3

3145 D2

3146 D13

3147 E12

3148 E12

3149 F11

3150 E2

3151 E3

3152 E4

3153 F3

3154 F4

3155 F5

3156 F3

3157 F4

3158 H11

3159 H2

3160 G2

3161 H3

3162 H4

3163 H11

3164 H3

3165 H4

1002

3166 H5

3167 H3

3168 H4

3169 B4

3170 B4

4100 A8

4101 C8

4102 B7

4103 E4

4104 E7

4105 F8

4106 F3

4107 G7

4108 G4

4109 I3

6102 B10

6103 B11

6104 D10

6105 F10

6106 F5

6107 H5

7100 A4

7401 C5

7402 C4

7403 D4

7404 E4

7405 E3

7406 E5

7407 H4

7408 H3

7409 H5

7413 A8

7414 A7

7415 A9

7416 C8

7417 D7

7418 D9

7419 D11

7420 F8

7421 F7

7422 F9

7423 F12

1m0

2101

6107

BZX284-C15

2K2

3140

820R

3115

TP2

TP15

6K8

3153

100R

-5V

4V9

0V2

-2V9

A2-10

DC vtg measured in STOP_MODE

SCART

Reserved

A2-2

-5V

3154

+5VVID

1001

FMN

A2-12

VGND

1% 1%

AV_VIDEO

4V9

2V4

MC79L05

A2-4

4V9

VGND

A2-11

TO MONO BOARD

S-VIDEO

-1V2

4V9

-0V6

4V3

-0V6

4V3

4V9

1V5 1V5

0V2

2V4

A2-6

-1V2

0V2

4V3

-0V6

4V3

2V5

4V3

3V8

4V3

4V9

0V7

2V5

4V3

A2-1

-0V2

A2-6

4V3

1V6

4V5

A2-3

4V9

A2-6

100R

3133

-5V

4K7

3129

75R

3124

680R

3139

-5VA

+5V

BC847B

7405

820R

3145

10K

3141

6103

BZX284-C15

3126 6K8

3116

22K

3118

680R

-5V

3162

100R

BZX284-C15

6105

100R

3151

470R

3155

4101 4100

BC847B

7421

220p

2113

7419

BC857B

-5V

100u

2103

7413

8K2

3142

+5VVID

3138

4K7

BC857B

100u

2105

BZX284-C15

6102

4106

BC847B

7409

BC847B

7415

3168

680R

TP3

3157

680R

100R

3114

3156

4K7

2108

100u

-5V

3122

100R

270R

3131

7417

BC847B

3137

4105

2K2

100u

BC847B

7423

3160

270R

-5V

2114

100R

3167

4K7

3127

2K2

3152

7402

+5VVID

2K2

3166

BC847B

3164

6K8

BC847B

7401

3117

+5VVID

2K2

3165

820R

3102

BC847B

7418

TP1

+5VVID

4R7

3121

270R

TP6

EH-B

1004

7408

100R

3113

3161

100R

BC847B

4K7

3119

TP16

3159

100R

2110

220p

3158

75R

-5V

220p

2115

TP5

270R

3111

100R

3132

2109

100u

BC847B

7414

220p

3134

75R

4108

2116

BC857B

7407

BC857B

7416

2107

470n

2117

220p

220R

3130

2100

22u

3125

6K8

22K

3143

100u

2104

7422

BC847B

3120

4103

7403

BC847B

75R

2111

22K

3147

820R

15K

3144

22n

3128

680R

100n

6104

BZX284-C15

3146

75R

2106

3163

75R

7420

BC857B

4102

3123

7406

BC847B

3100

3148

+5VVID

BC857B

-5V

4107

7404

6106

BZX284-C15

270R

TCS79

1003

4109

-5V

3150

3170

-5V

3169

GND

IN OUT

-5V

47K

3149

7100

SCART_V

SCART_L

SCART_R

DGND

0|6|12

P50

0|6|12

-VCC

CL 16532007_018.eps

130201

BARE BOARD PCB

3139 243 30240

www.rtv-horvat-dj.hr

Electrical diagrams and Print-layouts 45DVD612 /XX1 7.

A/V Board (Sound)

DAC

DIGITAL

INTERFACE

FILTER

NOISE SHAPER

DAC

PLL

DE-EMPHASIS

INTERPOLATION

DRIVER

1005-A A14

1005-B F14

1005-C C14

1010 D1

1011 I14

1012 E14

1013 B1

2200 A6

2201 A6

1 2 3 4 5 6 7 8 9 10 11 12 13 14

123

10K

-5VA

3226

4 5 6 7 8 9 10 11 12 13

2202 B7

2203 B7

2204 B2

2205 C3

2206 D6

2207 D6

2208 D3

2209 D3

2210 B8

2211 C9

2212 C13

2213 B8

2214 C8

2215 D13

2216 C7

2217 E11

2218 D8

2219 D8

2220 E11

2221 F11

2222 F13

2223 F9

2224 F10

2225 E11

2226 G7

2227 F5

2228 G13

2229 G6

2230 H13

2231 I8

2232 H11

2233 J11

2234 I12

2235 I13

2236 C10

2237 F3

2238 F11

2239 D10

2240 G10

2241 G10

2242 C1

2243 B13

2244 C13

2245 B1

2246 B1

2247 C1

2248 C1

2249 B3

2250 B4

3202 C11

3203 D11

3204 B5

3205 C8

3206 C8

3207 C2

3208 C7

3209 D2

3210 C13

3211 C12

3212 D13

3213 D12

3214 C10

3215 E12

3216 E8

3217 E10

3218 E9

3219 E9

3220 E12

3221 F9

3222 F11

3223 F12

3224 F10

3225 G8

3226 G13

3227 G12

3228 H11

3229 H12

3230 G5

3231 G6

3232 H6

3233 H13

3234 I9

3235 I10

3236 I12

2214

100p

3237 C3

3238 E3

3239 F3

3240 A9

3241 A10

3242 B12

3243 B10

3244 B10

3245 B11

3246 B10

3247 B10

3248 B12

3249 C11

3250 F13

3251 D12

3252 G11

4201 D3

4203 A10

4204 C10

5200 H11

6203 B12

6204 C12

6205 E2

6206 D2

7200 A5

7201-A B8

7201-B F6

7202-A D9

7202-B E11

7203 D3

7204 I8

7205-A D11

2223

47u

2206

4201

47p

2233

1005-A

YKC21-3930

7510

BC847B

+3V3_A

LM833D

10K

3212

33K

3214

3238

4K7

-VCC

100n

2213

100R

3241

2204

100u

7509

BC857B

270R

3240

-5V

100u

2236

4K7

3206

-5VA

LM833D

7201-A

2217

100n

TP21

TP20

470p

2238

2235

47p

3246

4K7

4204

+5VA

TP13

3227

680R

3228

2K7

3231

3232

5K6

470p

2239

+5VA

3217

3205

5K6

100n

47R

3204 BC847B

7511

2246

100K

+5VA

-5VA

YKC21-3930

1005-B

3235

100R

7204

GP1F32T

100u

2226

TP8

TP4

10u

2208

7505

BC847B

3225

TP12

TP7

TP9

TP10

DIGITAL

A2-7

*DC vtg measured in STOP_MODE

A2-8

0V7

4V9

2V3

A1-4

A2-5

A2-9

A2-5

A1-6

A1-2

A1-10

VIDEO

LEFT

0V7

4V2

1V6

RIGHT

TO MONO BOARD

0V7

1V6

A2-8

A2-9

0V7

TO HEADPHONE

A1-1

A1-11

0V 0V

0V7

Reserved Parts

AV-SOUND

0V7

0V 0V

1V6

0V7

L78L33

A1-3

1V6

-0V2

-1V

4V3

1V6

A1-12

SUB_WOOFER

A2-7

4V8

OPTICAL

7502

BC817-25

4K7

3213

2K7

2243

220p

10K

3210

2230

100n

2240

100u

2225

680R

3247

10u

2216

470n

2209

3243

820R

7501

BC817-25

3250

10K

2K7

3211

3237

4R7

2237

470u

7504

BC817-25

3223

2K7

100n

2207

100p

2229

1SS355

6205

2228

100u

2205

100u

2242

3233

10K

100u

2220

7203

GND

OUT

33K

3219

+3V3_D

EH-B

1013

-5VA

+5VA

2227

10u

1010

3207

4R7

4203

LM833D

7205-B

6206

1SS355

3222

4K7

3218

2222

7202-A

LM833D

680R

3220

100n

68R

3236

SFOR1

6 SYSCLK|PLL1

VDDA

VDDD

VOL

VOR

VREF-DAC

VSSA

VSSD

+5VA

2234

7200

UDA1334ATS

BCK

DATA I

9 DEEM|CLKO

MUTE8

PLL0

11SFOR0

3249

-5V

680R

3215

+5VVID

2K2

100R

3234

100n

2231

7202-B

LM833D

+3V3_D

2248

2211

2203

LM833D

7201-B

100u

+5V

10K

3230

10K

2K7

3229

3208

6K8

3244

2232

10u

680R

3203

22n

BC847B

7503

YKC21-3416

1011

680R

3202

2201

100n

2200

6204

BZX284-C15

47u

YKC21-3416

1012

100R

3251

47u

2202

-5VA

2210

100n

2K2

3245

+5VA

7205-A

2K7

3216

-5V

6203

BZX284-C15

+3V3_A

+5VVID

-5VA

2224

22n

2218

22n

100n

2221

BC817-25

7507

3248

75R

3221

2K7

2215

2244

220p

BC847B

7508

2247

+5VA

TP14

3242

75R

TP11

TP13

+5V

7506

BC817-25

680R

920927152B

5200

2219

22n

2241

100n

3224

4K7

7512

BC817-25

3239

100R

3252

2245

+5VVID

22p

2250

1005-C

YKC21-39306

2212

2249

22p

LFE_FREQ

HP_R

HP_L

-5V

KILL

HP_L

DGND

3209

4R7

CVBS

P50

HP_R

DIG_OUT

LRCLK

+5V SCART_V

SCART_R

DGND

LFE_FREQ

PCM_CLK

DGND

PCM_OUT0

SCLK

DGND

CVBS

0|6|12

DGND

SCART_L

ST_R

CL 16532007_019.eps

130201

BARE BOARD PCB

3139 243 30240

www.rtv-horvat-dj.hr

48DVD612 /XX1 7.

Electrical diagrams and Print-layouts

Display board

8-Bit A/D

Converter

Counter

VFT driver circuit (automatic display)

80k pull

down

8-Bit h.break. v.

out w. latch P8

8-Bit high breakdown voltage

output part ewith latch P7

8-Bit high breakdown v.

output port with latch P6

4-Bit In/Output

sink open drain

out. port w. latch P9

5-Bit h. breakd. v.

out w. latch PD

8-Bit Input/Output

(tri-state) P0 3-Bit In/Output

with latch P2

8-Bit Input/Output

(tri-state) P0

3-B. I/O P3

sink o.drain

RAM ROM

Program

CPU

V24

V25

V26

V27

V28

V29

V30

V31

V32

V33

80k pull down 80k pull down

P6-P9 source open drain 80k pull down

source open

drain 80k p.d.

VDD

VAREF

VAS S

AIN13

AIN12

AIN11

AIN10

AIN7

AIN6

AIN5

AIN4

AIN3

AIN2

AIN1

AIN0

SCK0

SO1

P03

(tri-state) P5

8-Bit Input/Output

(tri-state) P4

8-Bit h. breakdown v.

XIN

-RESET

XTOUT

XTIN

TEST

-STOP

-INT0

-INT1

TC2

-DV0

TC4

TC1

INT2

INT4

SCL

SCA

P04

P05

P06

P07

VSS

XOUT

V34

V35

V36

VKK

-SCK1

SI1

V23

V22

V21

V20

V19

V18

V17

V16

V15

V14

V13

V12

V11

V10

DEM

BAND

PASS

CTRL

CIRCUIT

AGC

INP

2101

220p

3135

330R

2109

33n

1102

2122

Mech SW

MICRO-

Jumper

+5Vstb

ON/OFF SWITCH

P50

D-2

-30V

319

4V6

-32V

4K7

3155

3121

+12V

7109

3136

22u

2130

+5Vstb

2128

7101

BC847B

2107

33n

+5Vstb

PKM

1112

1001

RT-01T1

1106

3102

47K

3119

10K

+5Vstb

1110

VKK

2129

22u

6104

BAS216

-30V

5V4

F165 A13

F166 B12

F139 D5

F140 H8

F141 D5

F142 D9

F143 A12

4V6

-30V

D-6

ITEM

F144 A12

F145 G8

F146 D3

F147 E3

F148 D1

F149 D5

F150 E5

330R

10K

= 3.5 Vac RMS

SOUND

1V6

-30V

-17V

-27V

-24V

-32V

-30V

-32V

1V3

Model using

3133 10R

D-3

+12V

TO STANDBY PCB

1001 D2

1002 E2

1100 C11

F151 E5

OPEN / CLOSE

1106 D11

1107 D12

1108 D12

1109 D13

1110 F6

1112 H7

1113 A7

PAUSE

scart PIN 10

6P conn 4P conn

13 14

-27V

Jumper

to scart

1234567891011

4V8

123456

D-6

PLAY

For models with P50 only

RESERVED

4950

2106 E2

2107 F4

D-5

interface

WITH MECHANICAL

ONLY FOR MODELS

789

4853

1101 C12

1102 C12

V DC vtg measured in STOP-MODE

3157

7109

6200

STOP

D-3

10 11 12

3106 B13

3107 A9

INFO : FIL1 - FIL2

12 13

D-4

TO PSU

BOARD

1115 D1

1117 I1

1118 G14

2100 A12

2101 A13

2105 D9

3138 I11

3139 I14

2108 E2

2109 E2

2110 E3

2111 E4

2114 H10

2115 H10

2116 H8

2122 H11

2123 H11

2124 H12

2125 I14

2126 I5

1V5

2128 I6

2129 I11

2130 E3

2201 I7

3100 A12

3101 A13

3102 A12

3103 A4

3104 A12

3105 A5

6100 A13

6101 E4

3108 A10

3109 C14

3110 C11

3111 C12

3112 C12

3113 C14

3114 C12

3115 C13

3118 E4

3119 E2

3120 I11

3121 F11

-30V

3122 G10

3123 F10

3125 G10

3130 G10

3132 H13

3133 G7

3134 H13

3135 H4

3136 H7

3137 I4

F108 A5

F109 A9

3140 I6

3142 I4

3143 I14

3144 I5

3146 F4

3147 F4

3148 F5

3149 F5

3150 H8

3155 I2

3156 I2

3157 G1

3158

-40V

-22V

D-4

-17V

-30V

GND

+5V stb

SCA

SCL

P50

3158 H1

3159 E10

F137 D5

F138 D5

6102 F2

6104 I5

6105 G8

6200 I3

7101 A13

7104 C5

7105 H12

7106 I12

7107 I13

7108 I6

7109 I3

7110 I7

12V5

1817

MICRO+

P50

7112 E3

F102 D5

F103 D5

F152 E9

F153 C5

F119 C7

F120 C7

F121 C7

F122 C8

F123 C8

2V4

D-5

910

F124 C8

F125 C5

F129 C7

F130 C7

F131 C7

F132 C8

F133 C8

F242 G13

F154 E5

F155 E9

F156 E5

F157 E9

F158 E5

Jumper

330R

LTL-1CHPE

BC857B

5V5

3V8

3135

3156

4V6

STBY - LEDCONTROL

Model using Tact SW

F159 E9

F160 E9

F161 E9

F162 I6

F163 I7

F164 H6

F167 B13

F168 F1

F169 F1

F183 I1

F186 E9

DISPLAY PANEL

TO MONO

Diversity table for all item no marked with #

Jumper

D-2

D-1

F203 D2

F205 E1

F208 G13

F209 G13

F210 G13

F228 D1

F233 D9

F235 I1

F241 G14

0V 0V

D-1

1205

(-40V)

1115

STBY control

3155

3142

3137

+5Vstb

4K7

3159

2124

22u

7108

7107

BC847B

2126

BC847B

3123

10u

4K7

3110

10K

6101

PDZ-6.2B

3143

2106

100u

10K

3150

4K7

LTL-1CHPE

6200

BAS216

6105

2111

33n

100R

3149

33n

2116

3113

4K7

3109

10K

3140

4R7

31074R7

3103

4K7

3139

3105

2R2

+5Vstb

3106

220R

3157

3158

1115

2115

22p

2R2

3108

+12V

3138

470R

1100

3130

10R

33n

2100

2105

33n

3144

100K

220p

10R

3133

1OUT

2VS

3118

10K

3122

10R

TSOP2236

7110

3GND

3112

4K7

VFIL_DC

330R 10K

3137

BC857B

3142

3114

10R

3111

4K7

2114

22p

1109

3100

22K

3156

3125

10R

100R

3148

VFIL_DC

100u

100K

3104

3134

330R

2123

7106

3132

330R

BC337-25

7105

BC327-25

7112

MC79L24

GND

OUT

TMP87CH74

7104

33n

2201

323334353637383940414445 5678202122232425262728293031

11-MT-126GNK

1113

110111213141516171819 2

2125

22p

10K

3146

3120

470R

1101

PDZ-8.2B

6102

1117

27K

3101

PH-B

1118

RT-01T

1002

3147

10K

1107

VKK

1108

4K7

3115

BAS216

6100

2110

33n33n

2108

FIL1

FIL2

STBKEY+

STBKEY-

+5Vstb

IN_P50

STBKEY+

IN_P50

OUT_P50

OUT_P50 FIL1

FIL2

STBKEY-

CL 16532007_016.eps

130201

BARE BOARD PCB

3139 243 30230

www.rtv-horvat-dj.hr

50DVD612 /XX1 7.

Electrical diagrams and Print-layouts

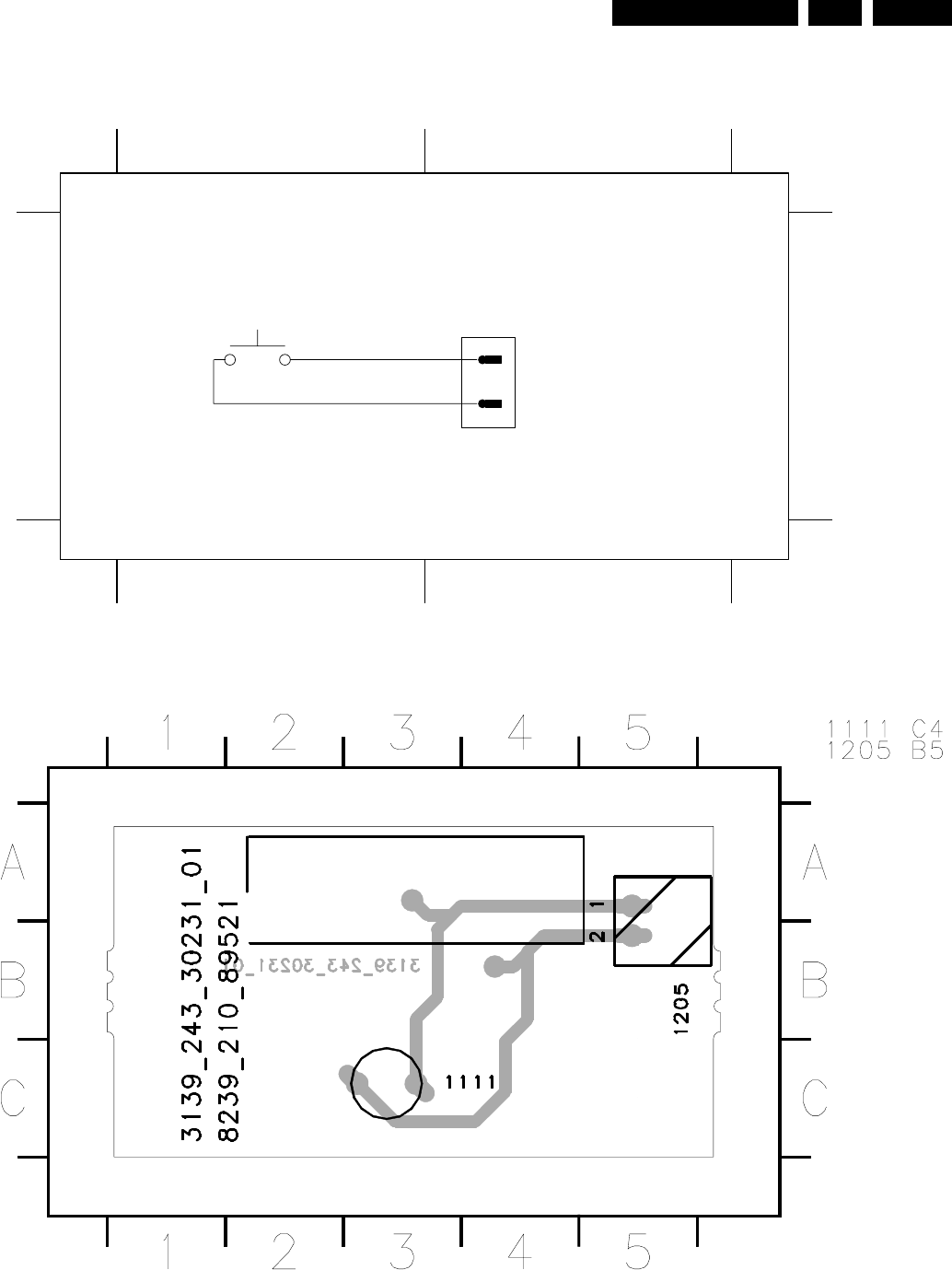

Bare board Standby

Layout Bare board Standby

BOARD

STANDBY

TO DISPLAY

11111 A1

1205 A2

F253 A1

F254 A1

1205 EH-S

STBKEY-

STBKEY+

1111

CL 16532007_015.eps

090201

BARE BOARD PCB

3139 243 30230

CL 16532007_042.eps

020201

www.rtv-horvat-dj.hr

Alignments GB 51DVD612 /XX1 8.

8. Alignments

No electrical alignments available

9. Circuit descriptions and list of abbreviations

9.1 Current mode Power Supply

9.1.1 Introduction

The switch mode power supply ( SMPS ) is mains isolated.

The control IC 7145 ( UC 3842A ) produces pulses to drive

the power switch, Mosfet 7125.

Power supply regulation is achieved by using duty cycle

control at fix frequency ,of approximately 58KHz ,determined

by the RC timing components.

9.1.2 General Description of UC 3842A

The UC 3842 is a high performance fixed frequency current

mode controller that is specifically designed for off-line and

DC-to-DC converter application. This integrated circuit

feature a trimmed oscillator for precise duty cycle control, a

temperature compensated reference, high gain error

amplifier, current sensing comparator and a high current

totem pole output ideally suited for driving a power MOSFET.

Also included are protective features consisting of input and

reference undervoltage lockouts each with hysteresis, cycle

by cycle current limiting, programmable output deadtime and

a latch for single pulse metering.

A representative Block diagram and Pin function description

is shown in Fig 1 and Fig 2 respectively.

9.1.3 BLOCK DIAGRAM

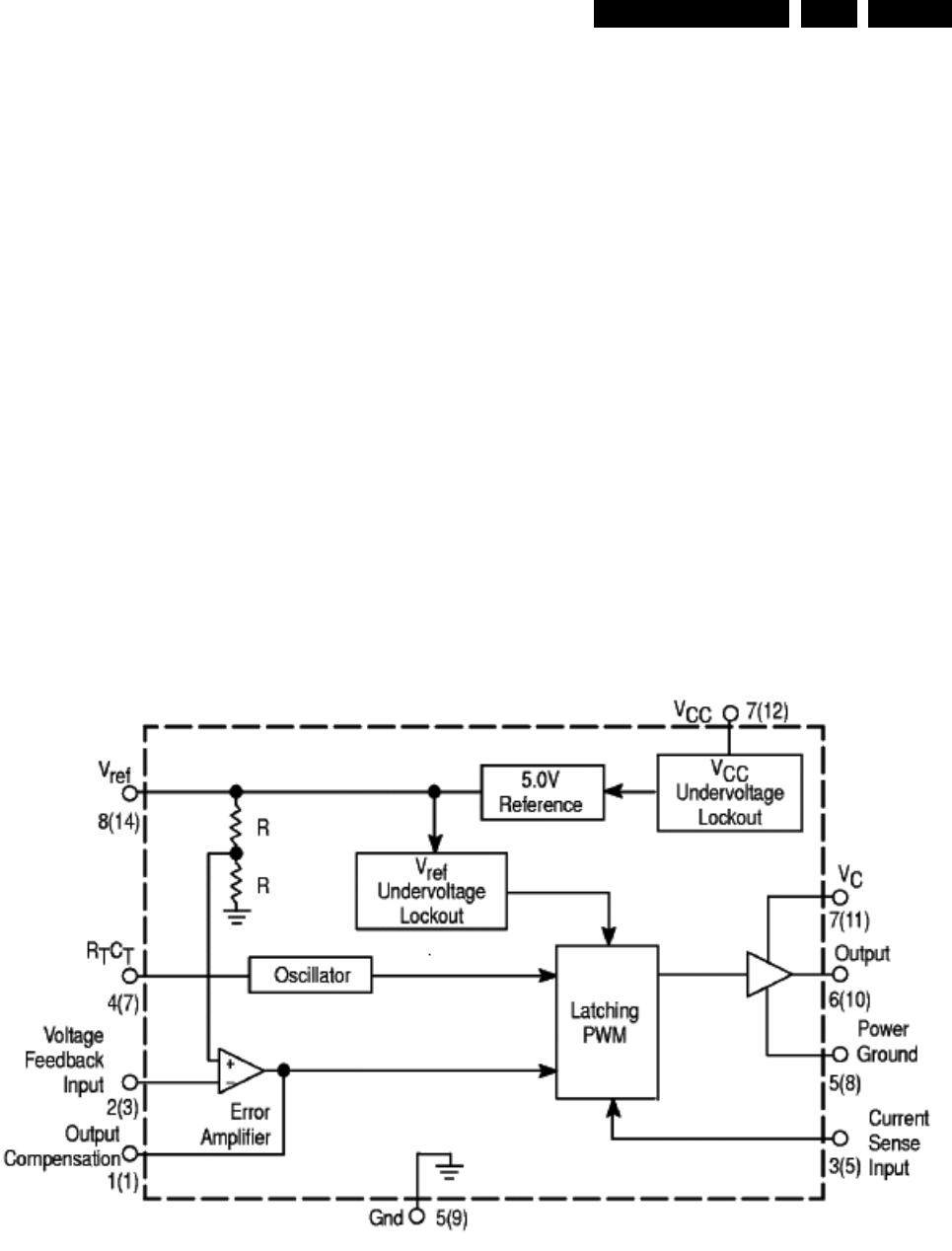

Figure 9-1

CL06532096_010.eps

060700

www.rtv-horvat-dj.hr

Circuit descriptions and list of abbreviations

GB 52 DVD612 /XX19.

9.1.4 Pin function description

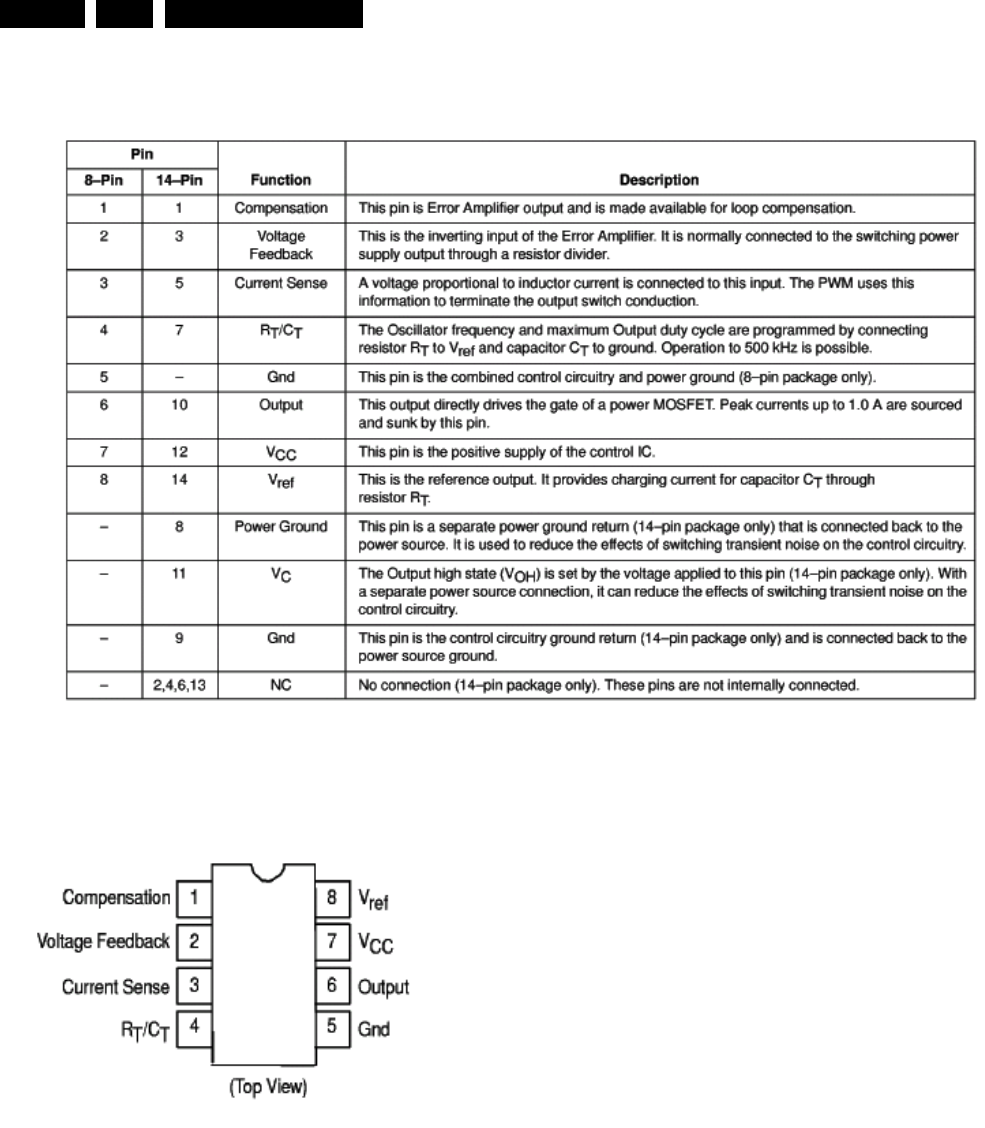

Figure 9-2

9.1.5 Pin connection

Figure 9-3

9.1.6 Output voltages

• +12V ( For Display board, Monoboard, A/V board )

created via D6241, C2240, L5240, C2232 (This voltage

is also present during standby)

• +5V_ stdby ( For Display board, Standby PCB,

Monoboard ) created from +6V via R3233 and D6233

(This voltage is also present during standby)

• +6V_stdby ( Reserve ) created from D6230, C2230,

L5231 (This voltage is also present during standby)

• +5V ( For Monoboard, A/V board ) derive from +6V stdby

via Mosfet 7238, C2239 and it will be switch off via

R3235, T7235 during Standby.

• -5V ( For Monoboard, A/V board ) created from D6250,

C2250, C2259, L5222, R3259, T7255 regulator circuit

and will switch off via R3258, T7257 during standby

(control signal Standby is HIGH)

• 3V3 ( For Monoboard, A/V board ) The 3V3 power

supply is regulated by the control loop comprising of

7201, 7131 and 7145 of the switch mode PSU. This

voltage is also present during standby

• -40V ( For Display board ) created via D6261,R3260,

L5260, C2260 This will not be present during standby

9.2 CONTROL CIRCUITRY

9.2.1 Mains input circuit

The mains voltage is rectified by bridge rectifier (D6118 to

D6121) and filter by C2121. The DC voltage across C2121is

the DC input voltage ,approximately 300V, is the DC input to

pin 1 of transformer T5131.The mains input also consists of

a lighting protection R3120.

9.2.2 Start-up and takeover circuitry

The start-up circuitry consist R3123, R3134, R3111, D6129,

C2134 and with the mains voltage input, the C2134 will

charge via R3123 and R3134. When the voltage at pin 7 of

IC7145 reaches the start-up threshold of min 14.5V,

IC7145 will start-up and the control circuit start to operate.

After start-up, the max sinking current of 17mA is required by

IC7145 which is not able to be delivered by the start-up

circuitry, so the takeover circuitry must be present.

If the takeover circuit does not occurred, the supply voltage

at pin 7 will decrease gradually till it reaches the IC7145

minimal operating voltage of 8.5Vand the IC will switch off.

The whole operation cycle will repeat itself with audible

hiccup sound if takeover is not present.

The takeover circuit comprises of D6133, R3135, l5135,

C2134. During the control circuit start-up, the voltage across

winding pin 7 and 9 will gradually built up and charged C2134

CL06532096_011.eps

060700

CL06532096_012.eps

060700

www.rtv-horvat-dj.hr

Circuit descriptions and list of abbreviations GB 53DVD612 /XX1 9.

via D6133, R3135 which will takeover the supply voltage of

T7145 at pin 7.

9.2.3 Secondary voltage sensing

The secondary voltage regulating circuit comprise of the

opto-coupler 7131 which isolate the error signal from the

control IC7145 ,on the primary side, and a reference

component 7201 ( TL431 ). The 7201 can be represented by

two components:

• A very stable and accurate reference diode

• A high gain amplifier

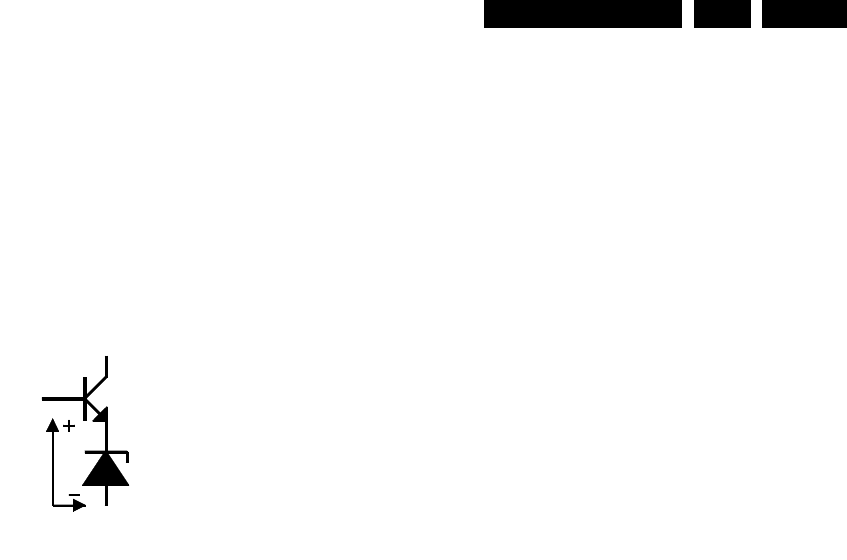

Figure 9-4

When the output voltage increases, due to a reduction in the

load, the voltage across R3205 and R3206 increases to

above the internal reference voltage of about 2.5V then

TL431 conduct. The current through the opto-coupler 7131

will increase due to the fact that the series resistor in 7201

decreases. This result in a increase of voltage to pin 2 of

IC7145, thus reducing the on-time of FET 7125.

In the event of a decrease in output voltage (increase in load

),the control circuit will operate in the opposite way to the

explaination above.

9.2.4 Primary current sensing

The current through the FET 7125 resulting in a voltage drop

across R3126,R3127,R3128 which is couple to pin 3 of

IC7145,current sense input.The higher the input voltage, the

more the primary current is limited. In this way the maximum

output power of the power supply is limited.

9.2.5 Undervoltage protection

Two undervoltage lockout comparators have been

incorporated to guarantee that the IC7145 is fully functional

before the output stage is enable. The supply voltage at pin

7 and reference voltage at pin 8 of IC7145 are each

monitored by separate comparators with built-in hysteresis.

If the supply voltage at pin 7 of IC7145 drops below 10V (

typical ), due to a secondary voltage is short-circuit or

excessive load, the drive pulse at pin 6 of IC7145 will be

disabled and the controller will switch off the complete

SMPS.

Remarks : In the event of the overvoltage situation remaining

present, the SMPS will go in sequence of protection,start- up

cycle, protection and the cycle repeats. This effect is highly

audible.

9.2.6 Overvoltage protection

The overvoltage circuitry comprising of D6141,R3139,

R3150, R3141,T7141, T7150 which is used to detect an over

voltage situation on the secondary side of the transformer.

After start-up, when the voltage across C2135 exceeds

18V,the overvoltage circuit will trigger the internal latch

circuit, pin 1 of IC7145 and the output buffer is disabled and

it goes into the overvoltage protection and a complete restart

sequence is required.

2.5V

CL 96532065_071.eps

130799

www.rtv-horvat-dj.hr

Circuit descriptions and list of abbreviations

GB 54 DVD612 /XX19.

9.3 List of abbreviations

B Buffered Video input Blue from DVD

monoboard

BC_AUX Blue or Chroma input from AUX-

scart

BC_TV Blue or Chroma output to TV-scart

C_ENC Buffered Chroma input from DVD

monoboard

CVBS Buffered Composite video input from

DVD monoboard

DC_OFF Control signal to switch off û8Vstby

and +12Vstby during standby

DIG_OUT Digital out

FBIN_AUX Fast blanking input from AUX-scart

FBOUT_TV Fast blanking output to TV-scart

G Buffered Video input Green from

DVD monoboard

GIN_AUX Video input Green from AUX-scart

GOUT_TV Video output Green to TV-scart

HP_L Audio output left to headphone and

audio scart switch TEA6420

HP_R Audio output right to headphone and

audio scart switch TEA6420

KILL Kill control signal for audio outputs

and for soft mute of DAC

LIN_AUX Audio input left from AUX-scart

LIN_TV Audio input left from TV-scart

LOUT_AUX Audio output left to AUX-scart

LOUT_TV Audio output left to TV-scart

LRCLK Left/Right clock

PCM_CLK Audio system clock for DAC

PCM_OUT0 Audio serial output data

R Buffered Video input Red from DVD

monoboard

RCIN_TV Red or Chroma input from TV-scart

RCOUT_TV Red or Chroma output to TV-scart

RIN_AUX Audio input right from AUX-scart

RIN_TV Audio input right from TV-scart

ROUT_AUX Audio output right to AUX-scart

ROUT_TV Audio output right to TV-scart

SCL I2C bus clock

SCLK Audio serial bit clock

SDA I2C bus data

SELECT Control signal for video scart

switches; high = TV ,low = AUX

SELECT_HIGH Control signal for switching fast

blanking and slow blanking signals;

high = TV,.low = AUX

SLB_AUX Slow blanking control signal from

AUX-scart

SLB_TV Slow blanking control signal to TV-

scart

STANDBY Control signal from STI5505 used to

swith off û8Vstby and +12Vstby

during standby.

STEREO_L Audio cinch output left

STEREO_R Audio cinch output right

Y_ENC Buffered Luma input from DVD

monoboard

YCVBSIN_AUX Luma or CVBS input from AUX-scart

YCVBSIN_TV Luma or CVBS input from TV-scart

YCVBSOUT_AUX Luma or CVBS output to AUX-scart

YCVBSOUT_TV Luma or CVBS output to TV-scart

0/6/12 Scart switch control signal A/V

board. 0V : loop through (AUX to

TV), 6V : play 16:9 format, 12V : play

4:3 format

www.rtv-horvat-dj.hr

Spare parts list GB 55DVD612 /XX1 10.

10. Spare parts list

DVD612 /001

Various

0010 3139 247 52811 CAB FRONT DVD612/00X

PPT

0025 3139 247 52941 BTN STANDBY DVD612/

00X PPT

0030 3139 247 52851 WINDOW DVD612/00X

PPT

0040 3139 247 52911 BTN CONTROL DVD612/

00X PPT

0200 3139 247 52771 FRONT ASSY DVD612/

00X

0224 3139 247 53011 BACK PLATE DVD612/00X

PPT

0232 3139 247 52991 COVER TOP DVD612/00X

PPT

0261 4822 321 11139 POWER CORD

0333 4822 321 11357 AUDIO CORD SET

0382 3111 170 21992 SCART CABLE (L=1.10M)

BMS

0384 3139 228 87051 PROD.ASSY RC19133001/

01 PACKED

0387 3139 246 10681 IFU DVD612/00X

1002 3139 248 80861 PCBAS AV DVD612 EU

1003 3139 248 80941 PCBAS FR DVD612 EU

1005 3122 427 22572 PSU DVD VFM EURO

1014 3104 157 11190 CWAS FLEX DVD 22 130

32S

AV PWB

Various

1002 2422 025 12352 CON BM EURO H 21P F

BK GRND-L

1005 4822 265 11566 3P YKC21-3930

1010 2422 025 16526 CON BM V 22P F 1.00 FFC

0.3 R

1011 4822 267 31729

2101 4822 124 40207 100µF 20% 25V

2103 4822 124 40207 100µF 20% 25V

2104 4822 124 40207 100µF 20% 25V

2105 4822 124 40207 100µF 20% 25V

2106 4822 126 14305 100nF 10% 16V 0603

2109 4822 124 40207 100µF 20% 25V

2111 4822 126 14494 22nF 10% 25V 0603

2112 4822 122 31765 100pF 2% 63V

2115 4822 126 13883 220pF 5% 50V

2116 4822 126 13883 220pF 5% 50V

2117 4822 126 13883 220pF 5% 50V

2200 4822 126 14305 100nF 10% 16V 0603

2201 4822 124 80231 47µF 20% 16V

2202 4822 124 80231 47µF 20% 16V

2203 4822 126 14305 100nF 10% 16V 0603

2204 4822 124 23432 100µF 20% 10V

2205 4822 124 40207 100µF 20% 25V

2206 4822 124 80231 47µF 20% 16V

2207 4822 126 14305 100nF 10% 16V 0603

2208 4822 124 11947 10µF 20% 16V

2209 3198 017 44740 0603 10V 470nF COL

2210 4822 126 14305 100nF 10% 16V 0603

2211 4822 124 40207 100µF 20% 25V

2212 3198 016 31020 0603 25V 1nF

2213 4822 126 14305 100nF 10% 16V 0603

2214 4822 122 31765 100pF 2% 63V

2215 3198 016 31020 0603 25V 1nF

2216 4822 124 11947 10µF 20% 16V

2226 4822 124 40207 100µF 20% 25V

2227 4822 124 11947 10µF 20% 16V

2228 3198 016 31020 0603 25V 1nF

2229 4822 122 31765 100pF 2% 63V

2230 3198 016 31020 0603 25V 1nF

2232 4822 124 11947 10µF 20% 16V

2233 4822 122 33777 47pF 5% 63V

2234 4822 126 14305 100nF 10% 16V 0603

2235 4822 122 33777 47pF 5% 63V

2236 4822 124 40207 100µF 20% 25V

2237 4822 124 80195 470µF 20% 10V

2243 4822 126 13883 220pF 5% 50V

2244 4822 126 13883 220pF 5% 50V

2249 4822 122 33761 22pF 5% 50V

3100 4822 051 20008 0Ω jumper . (0805)

3111 4822 051 30271 270Ω 5% 0.062W

3113 4822 051 30101 100Ω 5% 0.062W

3114 4822 051 30101 100Ω 5% 0.062W

3115 4822 117 12968 820Ω 5% 0.62W

3116 4822 051 30682 6k8 5% 0.062W

3117 4822 051 30222 2k2 5% 0.062W

3118 4822 051 30681 680Ω 5% 0.062W

3119 4822 051 30472 4k7 5% 0.062W

3120 4822 051 30759 75Ω 5% 0.062W

3121 4822 051 30271 270Ω 5% 0.062W

3122 4822 051 30101 100Ω 5% 0.062W

3123 4822 051 30101 100Ω 5% 0.062W

3124 4822 051 30759 75Ω 5% 0.062W

3125 4822 051 30682 6k8 5% 0.062W

3126 4822 117 12968 820Ω 5% 0.62W

3127 4822 051 30222 2k2 5% 0.062W

3128 4822 051 30681 680Ω 5% 0.062W

3129 4822 051 30472 4k7 5% 0.062W

3130 4822 051 30221 220Ω 5% 0.062W

3131 4822 051 30271 270Ω 5% 0.062W

3132 4822 051 30101 100Ω 5% 0.062W

3133 4822 051 30101 100Ω 5% 0.062W

3134 4822 051 30759 75Ω 5% 0.062W

3135 4822 117 12968 820Ω 5% 0.62W

3136 4822 051 30682 6k8 5% 0.062W

3137 4822 051 30222 2k2 5% 0.062W

3138 4822 051 30472 4k7 5% 0.062W

3139 4822 051 30681 680Ω 5% 0.062W

3146 4822 051 30759 75Ω 5% 0.062W

3147 4822 051 30223 22k 5% 0.062W

3148 4822 051 30102 1k 5% 0.062W

3149 4822 116 83884 47k 5% 0.5W

3169 4822 051 30102 1k 5% 0.062W

3170 4822 051 30102 1k 5% 0.062W

3202 4822 051 30681 680Ω 5% 0.062W

3203 4822 116 52228 680Ω 5% 0.5W

3204 4822 116 52195 47Ω 5% 0.5W

3205 4822 117 12902 8k2 1% 0.063W 0603

3206 4822 051 30472 4k7 5% 0.062W

3207 4822 117 11152 4Ω7 5%

3208 4822 051 30103 10k 5% 0.062W

3210 4822 051 30103 10k 5% 0.062W

3211 4822 051 30272 2k7 5% 0.062W

3212 4822 051 30103 10k 5% 0.062W

3213 4822 051 30272 2k7 5% 0.062W

3225 4822 051 30681 680Ω 5% 0.062W

3226 4822 051 30103 10k 5% 0.062W

3227 4822 051 30272 2k7 5% 0.062W

3228 4822 116 52228 680Ω 5% 0.5W

3229 4822 116 52263 2k7 5% 0.5W

3230 4822 051 30103 10k 5% 0.062W

3231 4822 117 12902 8k2 1% 0.063W 0603

3232 4822 051 30472 4k7 5% 0.062W

3233 4822 051 30103 10k 5% 0.062W

3235 4822 116 52175 100Ω 5% 0.5W

3236 4822 051 30689 68Ω 5% 0.063W 0603

RC21 RST SM

3237 4822 117 11152 4Ω7 5%

3238 4822 051 30472 4k7 5% 0.062W

3239 4822 117 13632 100k 1% 0603 0.62W

3240 4822 051 30271 270Ω 5% 0.062W

3241 4822 051 30101 100Ω 5% 0.062W

3242 4822 051 30759 75Ω 5% 0.062W

3243 4822 117 12968 820Ω 5% 0.62W

3244 4822 051 30682 6k8 5% 0.062W

3245 4822 051 30222 2k2 5% 0.062W

3246 4822 051 30472 4k7 5% 0.062W

3247 4822 051 30681 680Ω 5% 0.062W

3248 4822 051 30759 75Ω 5% 0.062W

3249 4822 051 30222 2k2 5% 0.062W

4xxx 4822 051 10008 0Ω 5% 0.25W (1206)

4xxx 4822 051 20008 0Ω 5% 0.25W (0805)

5200 4822 157 70601 100µH (920927085A)

6102 4822 130 11522 UDZ15B

6103 4822 130 11522 UDZ15B

Front PWB

Various

1100 4822 276 13775 SWITCH

1101 4822 276 13775 SWITCH

1102 4822 276 13775 SWITCH

1106 4822 276 13775 SWITCH

1107 4822 276 13775 SWITCH

1108 4822 276 13775 SWITCH

1109 4822 276 13775 SWITCH

1110 2422 540 98423 RES CER 8MHz

CSTS*MHz 03

1111 4822 276 13775 SWITCH

1113 3139 240 50021 FTD 11-MT-126GNK

DVD602

1115 4822 267 10565 4P

1117 2412 020 00724 CON BM V 2P M 2.50 EH B

1118 4822 267 10637 B5B-PH-K (5P)

1205 2422 025 12488 CON BM H 2P M 2.50 EH B

2100 4822 126 13883 220pF 5% 50V

2101 4822 126 13883 220pF 5% 50V

2105 4822 126 14549 33nF 16V O6O3

2106 4822 124 40207 100µF 20% 25V

2107 3198 024 44730 47nF 50V 0603

2108 3198 024 44730 47nF 50V 0603

2109 3198 024 44730 47nF 50V 0603

2110 3198 024 44730 47nF 50V 0603

2111 3198 024 44730 47nF 50V 0603

2114 4822 122 33761 22pF 5% 50V

2115 4822 122 33761 22pF 5% 50V

2116 4822 126 14549 33nF 16V O6O3

2122 4822 126 14549 33nF 16V O6O3

2123 4822 124 40207 100µF 20% 25V

2124 3198 028 42290 EL 5MM 35V 22µF PM20

COL A

2125 4822 122 33761 22pF 5% 50V

2126 4822 124 11947 10µF 20% 16V

2128 5322 126 11578 1nF 10% 50V 0603

2129 3198 028 42290 EL 5MM 35V 22µF PM20

COL A

2130 4822 124 41751 47µF 20% 50V

2201 4822 126 14549 33nF 16V O6O3

3100 4822 051 30223 22k 5% 0.062W

3101 4822 051 30273 27k 5% 0.062W

3102 4822 117 12925 47k 1% 0.063W 0603

3103 4822 117 13608 4.7Ω 5% 0603 0.0016W

3104 4822 117 13632 100k 1% 0603 0.62W

3105 4822 117 13613 2Ω2 5% 0603

3106 4822 051 30221 220Ω 5% 0.062W

3107 4822 117 13608 4.7Ω 5% 0603 0.0016W

3108 4822 117 13613 2Ω2 5% 0603

3109 4822 051 30472 4k7 5% 0.062W

3110 4822 051 30472 4k7 5% 0.062W

3111 4822 051 30472 4k7 5% 0.062W

3112 4822 051 30472 4k7 5% 0.062W

3113 4822 051 30472 4k7 5% 0.062W

3114 4822 051 30109 10Ω 5% 0.062W

3115 4822 051 30472 4k7 5% 0.062W

3118 4822 051 30103 10k 5% 0.062W

3119 4822 051 30103 10k 5% 0.062W

3120 4822 051 30471 470Ω 5% 0.062W

3121 4822 051 30472 4k7 5% 0.062W

3122 4822 051 30109 10Ω 5% 0.062W

3123 4822 051 30103 10k 5% 0.062W

3125 4822 051 30109 10Ω 5% 0.062W

3130 4822 051 30109 10Ω 5% 0.062W

3132 4822 051 30331 330Ω 5% 0.062W

3133 4822 051 30109 10Ω 5% 0.062W

3134 4822 051 30331 330Ω 5% 0.062W

3136 4822 051 30102 1k 5% 0.062W

3138 4822 051 30471 470Ω 5% 0.062W

3139 4822 051 30472 4k7 5% 0.062W

3140 4822 051 30103 10k 5% 0.062W

3143 4822 051 30103 10k 5% 0.062W

3144 4822 117 13632 100k 1% 0603 0.62W

3146 4822 051 30103 10k 5% 0.062W

3147 4822 051 30103 10k 5% 0.062W

3148 4822 051 30101 100Ω 5% 0.062W

3149 4822 051 30101 100Ω 5% 0.062W

www.rtv-horvat-dj.hr

Spare parts list

GB 56 DVD612 /XX110.

3155 4822 051 30008 0Ω jumper

3156 4822 051 30008 0Ω jumper

3159 4822 051 30472 4k7 5% 0.062W

6100 4822 130 11397 BAS316

6101 9965 000 04709 UDZ6.2BTE-17

6102 4822 130 10837 UDZS8.2B

6104 4822 130 11397 BAS316

7101 4822 130 60511 BC847B

7104 3104 123 94532 TMP87CH74F-1E29-

V2.18-DVDSLAVE

7105 4822 130 40981 BC337-25

7106 4822 130 40854 BC327

7107 4822 130 60511 BC847B

7108 4822 130 60511 BC847B

7110 9322 155 98667 IR RECEIVER

TSOP2236YA1(VISH)L

7112 4822 209 31257 MC79L24ACP

PSU PWB

Various

0101h4822 265 20723 B2P3-VH

0120h4822 265 11253 FUSE HOLDER 2P

0205 2422 025 08333 CON BM V 12P M 2.50 EH

0208 4822 267 10565 4P

1120h4822 253 30383 19181 (2,5A)

2120h4822 121 10711 100nF 20% 275V

2121 2222 151 90048 47µF 20% 400V

2127 4822 122 50116 470pF 10% 1KV

2130h4822 126 13841 1nF 20% 250V

2131h4822 126 13841 1nF 20% 250V

2134 4822 124 11566 47µF 20% 50V

2135 4822 124 22652 2.2µF 20% 50V

2141 4822 124 22652 2.2µF 20% 50V

2143 4822 126 14585 100nF 10% 50V

2145 5322 126 10223 4.7nF 10% 63V

2146 4822 126 14585 100nF 10% 50V

2150 4822 126 14585 100nF 10% 50V

2156 5322 122 31863 63V 330pF PM5

2157 5322 122 32268 63V 470P PM5

2202 4822 126 14585 100nF 10% 50V

2210 2020 012 93728 EL YK 10V S 2200µF PM20

2230 2020 012 93757 EL YK 10V S 1000µF PM20

2232 4822 124 81021 100µF 20% 16V

2235 4822 126 14549 33nF 16V O6O3

2238 4822 124 81021 100µF 20% 16V

2239 4822 124 81021 100µF 20% 16V

2240 4822 124 81147 470µF 20% YK 25V

2250 4822 124 41545 220µF 20% 16V

2259 4822 124 81021 100µF 20% 16V

2260 4822 124 81151 22µF 50V

2299 5322 122 32654 63V 22nF PM10 R

3111 4822 116 52176 10Ω 5% 0.5W

3120h2322 595 90023 VDR DC 1M A/423V S MAX

800V B

3123 4822 116 52291 56k 5% 0.5W

3125 4822 051 20223 22k 5% 0.1W

3126 4822 116 81801 3Ω6 5% 0.5W

3127 4822 116 80176 1Ω 5% 0.5W

3128 4822 116 80176 1Ω 5% 0.5W

3131 4822 051 10274 270k 2% 0.25W

3132h4822 052 11108 1Ω 5% 0.5W

3134 4822 116 52291 56k 5% 0.5W

3135 4822 116 52182 15Ω 5% 0.5W

3136 4822 051 10274 270k 2% 0.25W

3137 4822 117 10837 100k 1% 0.1W

3139 4822 051 20479 47Ω 5% 0.1W

3140 4822 116 52226 560Ω 5% 0.5W

3141 4822 117 11507 6k8 1% 0.1W

3143 3198 021 53630 36k 5% 0.1W 0805

3145 4822 117 10965 18k 1% 0.1W

3146 4822 117 11148 56k 1% 0.1W

3150 4822 117 11139 1k5 1% 0.1W

3153 4822 116 83933 15k 1% 0.1W

3154 4822 117 11139 1k5 1% 0.1W

3155 4822 116 52219 330Ω 5% 0.5W

3156 4822 051 20339 33Ω 5% 0.1W

3201 4822 116 52176 10Ω 5% 0.5W

3202 4822 117 11141 1k8 1% 0.1W

3204 4822 117 11504 270Ω 1% 0.1W

3205 4822 117 11145 4k7 1% 0.1W

3206 4822 051 20391 390Ω 5% 0.1W

3207 4822 051 10102 1k 2% 0.25W

3233 4822 052 10228 2Ω2 5% 0.33W

3235 4822 116 83933 15k 1% 0.1W

3254 4822 051 30223 22k 5% 0.062W

3255 5322 117 13049 470Ω 1% 0.063W 0603

RC22H

3256 5322 117 13053 6k8 1% 0.063W 0603

RC22H

3257 4822 051 30563 56k 5% 0.062W

3258 4822 051 30103 10k 5% 0.062W

3259 4822 051 20102 1k 5% 0.1W

3260 4822 051 20101 100Ω 5% 0.1W

3262 4822 116 83872 220Ω 5% 0.5W

3263 4822 116 52249 1k8 5% 0.5W

4xxx 4822 051 10008 0Ω 5% 0.25W (1206)

4xxx 4822 051 20008 0Ω 5% 0.25W (0805)

5120h4822 157 11846

5121h4822 157 53348 TER CHOKE ASSY

CU15D3

5125 4822 157 11411 100mH z

5131h3128 138 39631 SM TRANSFORMER -

CT282D4

5135 4822 157 70698 27µH

5210 2422 535 94638 IND FXD LHL08 S 6U8

PM20 A

5222h4822 156 20966 47 µH

5231 2422 535 94638 IND FXD LHL08 S 6U8

PM20 A

5240 4822 157 51195 1 µH 20% 4X9.8MM AXIAL

5260 4822 157 11517 10µH 5% 2.3X3.4

6118 4822 130 31603 1N4006

6119 4822 130 31603 1N4006

6120 4822 130 31603 1N4006

6121 4822 130 31603 1N4006

6129 9340 548 67115 DIO REG SM PDZ22B

(PHSE) R

6132 4822 130 30842 BAV21

6133 4822 130 30842 BAV21

6140 4822 130 30621 1N4148

6141 4822 130 11152 UDZ18B

6150 4822 130 11148 UDZ4.7B

6210 4822 130 11584 BYW98-200-C1

6230 4822 130 41602 BYW95C

6233 4822 130 34174 BZX79-B4V7

6241 4822 130 11584 BYW98-200-C1

6250 4822 130 42488 BYD33D

6261 4822 130 42606 BYD33J

7125 4822 130 11417 STP3NB60FP

7131h9322 149 04682 OPT CP TCET1102(G)

(VISH) L

7141 4822 130 44568 BC557B

7145 9322 145 88682 UC3842A

7150 4822 130 44257 BC547

7201 4822 209 81397 TL431CLPST

7235 4822 130 42705 BC847

7255 4822 130 40855 BC337

7256 5322 130 42756 BC857C

7257 5322 130 42756 BC857C

VAL 6011

Various

0001 9305 023 61101 VAL6011/01

MONO PWB

Various

1104 2422 025 15963 CON BM H 24P F 0.50 FFC

SMD R

1106 2422 025 16158 CON BM H 8P F 1.00 FFC

0.3 R

1205 2422 540 98428 RES CER SM 8M467

CSTCC8.46MHz R

1300 2422 540 98426 RES CER SM 6MHz

CSTCC6.00MHz R

1301 4822 267 51454 CONN. 11P FEMALE

1603 2422 025 16389 CON BM V 22P F 1.00 FFC

0.3 R

1604 2422 025 16388 CON BM V 16P F 1.00 FFC

0.3 R

2100 4822 126 14305 100nF 10% 16V 0603

2101 4822 126 14305 100nF 10% 16V 0603

2103 4822 124 80151 47µF 16V

2104 4822 126 13193 4.7nF 10% 63V

2105 4822 122 33761 22pF 5% 50V

2107 4822 126 13956 68pF 5% 63V CASE 0603

2108 4822 126 14315 390pF 5% 50V 0603

2109 2020 552 95697

2110 2222 861 15222 63V 2N2 PM5

2111 4822 126 14305 100nF 10% 16V 0603

2112 5322 126 11578 1nF 10% 50V 0603

2113 4822 126 14305 100nF 10% 16V 0603

2114 4822 122 31765 100pF 2% 63V

2115 4822 126 14305 100nF 10% 16V 0603

2116 4822 126 14305 100nF 10% 16V 0603

2117 4822 126 14305 100nF 10% 16V 0603

2118 3198 017 42230 0603 50V 22nF COL

2119 3198 017 42230 0603 50V 22nF COL

2120 4822 126 14305 100nF 10% 16V 0603

2121 4822 126 13879 220nF 20% 16V

2122 3198 017 42230 0603 50V 22nF COL

2123 4822 126 14305 100nF 10% 16V 0603

2124 4822 126 14305 100nF 10% 16V 0603

2125 4822 126 14305 100nF 10% 16V 0603

2126 4822 126 14305 100nF 10% 16V 0603

2127 4822 126 14305 100nF 10% 16V 0603

2128 4822 126 14508 180pF 5% 50V 0603

2129 4822 126 14508 180pF 5% 50V 0603

2130 4822 122 33761 22pF 5% 50V

2131 4822 126 14494 22nF 10% 25V 0603

2136 4822 126 14305 100nF 10% 16V 0603

2137 4822 126 14305 100nF 10% 16V 0603

2138 4822 126 14305 100nF 10% 16V 0603

2139 4822 126 14305 100nF 10% 16V 0603

2140 4822 126 14241 0603 50V 330P COL R

2141 4822 122 33761 22pF 5% 50V

2142 5322 126 11583 10nF 10% 50V 0603

2143 4822 126 13883 220pF 5% 50V

2144 4822 126 13883 220pF 5% 50V

2145 4822 126 13883 220pF 5% 50V

2146 4822 126 14305 100nF 10% 16V 0603

2203 4822 126 14305 100nF 10% 16V 0603

2204 4822 126 14305 100nF 10% 16V 0603

2205 4822 126 14305 100nF 10% 16V 0603

2206 4822 126 14549 33nF 16V O6O3

2207 5322 126 11578 1nF 10% 50V 0603

2208 4822 126 14305 100nF 10% 16V 0603

2209 4822 126 14305 100nF 10% 16V 0603

2210 5322 126 11578 1nF 10% 50V 0603

2212 4822 126 14305 100nF 10% 16V 0603

2213 4822 126 14305 100nF 10% 16V 0603

2214 3198 017 42230 0603 50V 22nF COL

2215 4822 124 23237 22µF 6.3V

2216 5322 126 11578 1nF 10% 50V 0603

2226 4822 126 14305 100nF 10% 16V 0603

2227 4822 126 14305 100nF 10% 16V 0603

2228 4822 126 14305 100nF 10% 16V 0603

2300 4822 126 14305 100nF 10% 16V 0603

2301 4822 126 14305 100nF 10% 16V 0603

2302 4822 126 14305 100nF 10% 16V 0603

2303 4822 124 80349 47µF 20% 6.3V

2304 3198 017 42230 0603 50V 22nF COL

2305 3198 017 42230 0603 50V 22nF COL

2306 4822 124 23002 10µF 16V

2307 3198 017 42230 0603 50V 22nF COL

2309 4822 126 14305 100nF 10% 16V 0603

2310 4822 126 14305 100nF 10% 16V 0603

2314 4822 126 14305 100nF 10% 16V 0603

2315 4822 126 14305 100nF 10% 16V 0603

2318 5322 122 33861 120pF 10% 50V

2319 4822 126 11669 27pF

2401 4822 126 14305 100nF 10% 16V 0603

2402 4822 126 14305 100nF 10% 16V 0603

2403 4822 126 14305 100nF 10% 16V 0603

2404 4822 126 14305 100nF 10% 16V 0603

2405 4822 126 14305 100nF 10% 16V 0603

2406 4822 126 14305 100nF 10% 16V 0603

2407 4822 126 14305 100nF 10% 16V 0603

2408 4822 126 14305 100nF 10% 16V 0603

www.rtv-horvat-dj.hr

Spare parts list GB 57DVD612 /XX1 10.

2409 4822 126 14305 100nF 10% 16V 0603

2410 4822 126 14305 100nF 10% 16V 0603

2411 4822 126 14305 100nF 10% 16V 0603

2412 4822 126 14305 100nF 10% 16V 0603

2413 4822 126 14305 100nF 10% 16V 0603

2418 4822 124 12095 100µF 20% 16V

2419 4822 124 80349 47µF 20% 6.3V

2420 4822 124 80349 47µF 20% 6.3V

2500 4822 126 14305 100nF 10% 16V 0603

2502 3198 030 74780 EL SM 35V 4U7 PM20 COL

2503 4822 126 14305 100nF 10% 16V 0603

2504 4822 122 31765 100pF 2% 63V

2505 4822 126 14494 22nF 10% 25V 0603

2506 4822 124 23002 10µF 16V

2507 4822 126 14305 100nF 10% 16V 0603

2508 5322 126 11579 3.3nF 10% 63V

2509 4822 126 14241 0603 50V 330P COL R

2510 4822 126 14305 100nF 10% 16V 0603

2511 4822 126 14305 100nF 10% 16V 0603

2512 4822 126 14305 100nF 10% 16V 0603

2513 4822 126 14305 100nF 10% 16V 0603

2514 4822 126 14305 100nF 10% 16V 0603

2515 4822 126 14305 100nF 10% 16V 0603

2516 4822 126 14305 100nF 10% 16V 0603

2517 4822 126 14305 100nF 10% 16V 0603

2518 4822 126 14305 100nF 10% 16V 0603

2519 4822 126 14305 100nF 10% 16V 0603

2520 4822 126 14305 100nF 10% 16V 0603

2521 4822 126 14305 100nF 10% 16V 0603

2522 4822 126 14305 100nF 10% 16V 0603

2523 4822 126 14305 100nF 10% 16V 0603

2524 4822 126 14305 100nF 10% 16V 0603

2525 4822 126 14305 100nF 10% 16V 0603

2526 4822 126 14305 100nF 10% 16V 0603

2527 4822 126 14305 100nF 10% 16V 0603

2528 4822 126 14305 100nF 10% 16V 0603

2529 4822 126 14305 100nF 10% 16V 0603

2530 3198 030 74780 EL SM 35V 4U7 PM20 COL

2531 3198 030 74780 EL SM 35V 4U7 PM20 COL

2532 4822 122 33777 47pF 5% 63V

2533 4822 122 33777 47pF 5% 63V

2534 5322 126 11578 1nF 10% 50V 0603

2535 5322 126 11578 1nF 10% 50V 0603

2600 4822 126 14494 22nF 10% 25V 0603

2601 4822 126 14247 0603 50V 1N5 COL R

2602 4822 126 14247 0603 50V 1N5 COL R

2603 4822 126 14305 100nF 10% 16V 0603

2604 4822 124 12095 100µF 20% 16V

2605 4822 126 14494 22nF 10% 25V 0603

2606 4822 124 12095 100µF 20% 16V

2607 4822 124 12095 100µF 20% 16V

2608 4822 124 23002 10µF 16V

2609 4822 124 80151 47µF 16V

2610 4822 126 14305 100nF 10% 16V 0603

2611 4822 124 12095 100µF 20% 16V

2614 4822 122 33777 47pF 5% 63V

2615 4822 122 33777 47pF 5% 63V

2616 4822 122 33777 47pF 5% 63V

2617 4822 122 33777 47pF 5% 63V

2618 4822 126 14305 100nF 10% 16V 0603

2620 4822 122 33777 47pF 5% 63V

2621 4822 122 33777 47pF 5% 63V

2622 4822 122 33777 47pF 5% 63V

2623 4822 122 33777 47pF 5% 63V

2624 4822 122 33777 47pF 5% 63V

2625 4822 122 33777 47pF 5% 63V

2626 4822 122 33777 47pF 5% 63V

2627 4822 122 33777 47pF 5% 63V

2632 4822 124 12095 100µF 20% 16V

2633 4822 124 12095 100µF 20% 16V

2634 4822 126 14305 100nF 10% 16V 0603

2635 4822 126 14305 100nF 10% 16V 0603

2636 4822 126 14305 100nF 10% 16V 0603

2637 4822 126 14305 100nF 10% 16V 0603

2638 4822 126 14305 100nF 10% 16V 0603

2639 4822 126 14305 100nF 10% 16V 0603

2641 4822 122 33761 22pF 5% 50V

3100 4822 117 11152 4Ω7 5%

3102 5322 117 13034 1k5 1% 0.063W 0603

RC22H

3103 5322 117 13034 1k5 1% 0.063W 0603

RC22H

3104 5322 117 13062 390Ω 1% 0.063W 0603

RC22H

3105 4822 051 30103 10k 5% 0.062W

3106 4822 051 30479 47Ω 5% 0.062W

3107 4822 051 20228 2Ω2 5% 0.1W

3108 4822 051 20228 2Ω2 5% 0.1W

3110 4822 051 30479 47Ω 5% 0.062W

3111 5322 117 13058 150Ω 1% 0.063W 0603

RC22H

3112 5322 117 13021 47Ω 1% 0.063W 0603

RC22H

3114 4822 051 20228 2Ω2 5% 0.1W

3115 4822 051 20228 2Ω2 5% 0.1W

3116 5322 117 13042 3k9 1% 0.063W 0603

RC22H

3117 4822 051 30181 180Ω 5% 0.062W

3118 4822 051 30681 680Ω 5% 0.062W

3119 5322 117 13062 390Ω 1% 0.063W 0603

RC22H

3120 4822 051 30102 1k 5% 0.062W

3121 4822 051 30273 27k 5% 0.062W

3122 4822 051 30471 470Ω 5% 0.062W

3123 4822 051 30103 10k 5% 0.062W

3124 4822 051 30471 470Ω 5% 0.062W

3125 4822 051 30103 10k 5% 0.062W

3126 4822 051 30103 10k 5% 0.062W

3127 4822 051 30223 22k 5% 0.062W

3128 2322 704 69109

3129 4822 051 30392 3k9 5% 0.063W 0603

3130 4822 051 20228 2Ω2 5% 0.1W

3131 4822 051 20228 2Ω2 5% 0.1W

3132 4822 051 20228 2Ω2 5% 0.1W

3133 4822 051 20228 2Ω2 5% 0.1W

3134 5322 117 13047 330Ω 1% 0.063W 0603

RC22H

3135 4822 117 13613 2Ω2 5% 0603

3137 4822 117 13613 2Ω2 5% 0603

3138 5322 117 13053 6k8 1% 0.063W 0603

RC22H

3139 4822 117 12917 1Ω 5% 0.062W CASE0603

3140 4822 051 30479 47Ω 5% 0.062W

3141 4822 117 11152 4Ω7 5%

3142 5322 117 13028 12k 1% 0.063W 0603

RC22H

3143 5322 117 13043 220Ω 1% 0.063W 0603

RC22H

3144 2322 704 69109

3146 4822 051 30103 10k 5% 0.062W

3147 4822 051 30103 10k 5% 0.062W

3148 5322 117 13022 22k 1% 0.063W 0603

RC22H

3153 4822 117 12139 22Ω 5% 0.062W

3155 4822 051 30103 10k 5% 0.062W

3157 4822 051 30103 10k 5% 0.062W

3158 5322 117 13017 100Ω 1% 0.063W 0603

RC22H

3160 4822 051 30101 100Ω 5% 0.062W

3161 4822 117 13613 2Ω2 5% 0603

3162 4822 051 30101 100Ω 5% 0.062W

3163 4822 051 30273 27k 5% 0.062W

3164 4822 117 13613 2Ω2 5% 0603

3165 5322 117 13063 120Ω 1% 0.063W 0603

RC22H

3166 4822 051 30393 39k 5% 0.062W

3167 4822 051 30101 100Ω 5% 0.062W

3168 5322 117 13047 330Ω 1% 0.063W 0603

RC22H

3169 4822 051 30101 100Ω 5% 0.062W

3170 4822 051 30101 100Ω 5% 0.062W

3171 4822 051 30101 100Ω 5% 0.062W

3172 4822 117 13632 100k 1% 0603 0.62W

3173 4822 117 13632 100k 1% 0603 0.62W

3174 4822 117 11152 4Ω7 5%

3175 4822 117 13613 2Ω2 5% 0603

3176 4822 051 30153 15k 5% 0.062W

3178 4822 117 11151 1Ω 5%

3179 4822 051 30221 220Ω 5% 0.062W

3180 4822 117 13632 100k 1% 0603 0.62W

3181 4822 051 30561 560Ω 5% 0.062W

3182 5322 117 13018 1k0 1% 0.063W 0603

RC22H

3183 5322 117 13017 100Ω 1% 0.063W 0603

RC22H

3184 2322 704 61204

3185 4822 117 11151 1Ω 5%

3187 4822 051 30273 27k 5% 0.062W

3189 4822 051 30008 0Ω jumper

3190 4822 051 30008 0Ω jumper

3191 4822 051 30008 0Ω jumper

3192 4822 051 30008 0Ω jumper

3193 4822 051 30008 0Ω jumper

3194 4822 051 30008 0Ω jumper

3195 4822 051 30008 0Ω jumper

3197 4822 051 30008 0Ω jumper

3198 5322 117 13049 470Ω 1% 0.063W 0603

RC22H

3199 5322 117 13042 3k9 1% 0.063W 0603

RC22H

3200 4822 051 30103 10k 5% 0.062W

3201 4822 117 11151 1Ω 5%

3202 4822 117 11151 1Ω 5%

3203 4822 051 30105 1M 5% 0.062W

3204 4822 051 30331 330Ω 5% 0.062W

3205 4822 051 30103 10k 5% 0.062W

3206 4822 051 30103 10k 5% 0.062W

3208 4822 051 30272 2k7 5% 0.062W

3209 4822 051 30472 4k7 5% 0.062W

3210 4822 051 30392 3k9 5% 0.063W 0603

3211 4822 051 30472 4k7 5% 0.062W

3212 4822 117 11152 4Ω7 5%

3213 4822 117 11152 4Ω7 5%

3214 4822 051 30392 3k9 5% 0.063W 0603

3215 4822 051 30103 10k 5% 0.062W

3219 4822 051 30103 10k 5% 0.062W

3220 4822 051 30103 10k 5% 0.062W

3221 4822 051 30103 10k 5% 0.062W

3224 4822 051 30151 150Ω 5% 0.062W

3225 2322 704 62004

3226 4822 051 30103 10k 5% 0.062W

3227 4822 051 30472 4k7 5% 0.062W

3229 4822 051 30123 12k 5% 0.062W

3230 4822 051 30103 10k 5% 0.062W

3231 4822 051 30103 10k 5% 0.062W

3232 4822 117 13613 2Ω2 5% 0603

3234 4822 117 12902 8k2 1% 0.063W 0603

3235 4822 117 13632 100k 1% 0603 0.62W

3236 4822 051 30472 4k7 5% 0.062W

3237 4822 051 30103 10k 5% 0.062W

3238 4822 051 30103 10k 5% 0.062W

3239 4822 051 30008 0Ω jumper

3240 4822 051 30103 10k 5% 0.062W

3242 4822 051 30008 0Ω jumper

3243 4822 051 30008 0Ω jumper

3246 4822 051 30008 0Ω jumper

3247 4822 051 30008 0Ω jumper

3249 4822 051 30008 0Ω jumper

3250 4822 051 30008 0Ω jumper

3251 4822 051 30008 0Ω jumper

3252 4822 051 30008 0Ω jumper

3253 4822 051 30008 0Ω jumper

3254 4822 051 30008 0Ω jumper

3255 4822 051 30008 0Ω jumper

3256 4822 051 30008 0Ω jumper

3257 4822 051 30008 0Ω jumper

3258 4822 051 30008 0Ω jumper

3259 4822 117 11151 1Ω 5%

3260 4822 117 11151 1Ω 5%

3261 4822 051 30102 1k 5% 0.062W

3300 4822 117 11152 4Ω7 5%

3301 4822 051 30105 1M 5% 0.062W

3302 4822 051 30221 220Ω 5% 0.062W

3304 4822 051 30272 2k7 5% 0.062W

3305 4822 051 30272 2k7 5% 0.062W

3309 4822 051 30103 10k 5% 0.062W

3310 4822 051 30223 22k 5% 0.062W

3311 4822 051 30223 22k 5% 0.062W

3312 4822 051 30472 4k7 5% 0.062W

3313 4822 051 30472 4k7 5% 0.062W

3316 4822 051 20108 1Ω 5% 0.1W

3317 4822 051 20108 1Ω 5% 0.1W

3318 4822 051 30472 4k7 5% 0.062W

3319 4822 051 30479 47Ω 5% 0.062W

3320 4822 051 30472 4k7 5% 0.062W

3321 4822 051 30682 6k8 5% 0.062W

3322 5322 117 13026 4k7 1% 0.063W 0603

RC22H

3323 5322 117 13026 4k7 1% 0.063W 0603

RC22H

3324 4822 117 13632 100k 1% 0603 0.62W

3325 4822 051 30682 6k8 5% 0.062W

3326 4822 051 30479 47Ω 5% 0.062W

3327 4822 051 30682 6k8 5% 0.062W

3328 4822 051 30223 22k 5% 0.062W

3329 4822 051 30223 22k 5% 0.062W

3330 4822 051 30223 22k 5% 0.062W

3331 4822 051 30332 3k3 5% 0.062W

3332 4822 051 30332 3k3 5% 0.062W

3333 4822 051 30101 100Ω 5% 0.062W

3334 4822 051 30101 100Ω 5% 0.062W

3335 4822 051 30101 100Ω 5% 0.062W

3336 4822 051 30101 100Ω 5% 0.062W

3337 4822 051 30101 100Ω 5% 0.062W

3338 4822 051 30101 100Ω 5% 0.062W

3339 4822 051 30008 0Ω jumper

3340 4822 051 30008 0Ω jumper

3403 4822 051 30103 10k 5% 0.062W

3404 4822 051 30103 10k 5% 0.062W

3405 4822 051 30103 10k 5% 0.062W

3412 4822 051 30008 0Ω jumper

3414 4822 051 30008 0Ω jumper

3416 4822 051 30008 0Ω jumper

3500 4822 051 30332 3k3 5% 0.062W

3501 4822 051 30332 3k3 5% 0.062W

www.rtv-horvat-dj.hr

Spare parts list

GB 58 DVD612 /XX110.

3502 4822 051 30223 22k 5% 0.062W

3503 4822 051 30103 10k 5% 0.062W

3504 4822 051 30103 10k 5% 0.062W

3505 4822 051 30103 10k 5% 0.062W

3506 4822 051 30103 10k 5% 0.062W

3507 4822 051 30472 4k7 5% 0.062W

3508 4822 051 30689 68Ω 5% 0.063W 0603

RC21 RST SM

3509 4822 051 30103 10k 5% 0.062W

3511 4822 051 30332 3k3 5% 0.062W

3512 4822 051 30332 3k3 5% 0.062W

3513 4822 051 30103 10k 5% 0.062W

3514 4822 051 30103 10k 5% 0.062W

3515 4822 051 30103 10k 5% 0.062W

3516 4822 051 30103 10k 5% 0.062W

3517 4822 051 30332 3k3 5% 0.062W

3519 4822 051 30103 10k 5% 0.062W

3520 4822 051 30103 10k 5% 0.062W

3521 4822 051 30103 10k 5% 0.062W

3522 4822 051 30103 10k 5% 0.062W

3523 4822 051 30332 3k3 5% 0.062W

3524 4822 051 30101 100Ω 5% 0.062W

3525 4822 051 30103 10k 5% 0.062W

3526 4822 051 30103 10k 5% 0.062W

3534 4822 051 30103 10k 5% 0.062W

3535 4822 051 30153 15k 5% 0.062W

3536 4822 051 30101 100Ω 5% 0.062W

3537 4822 051 30331 330Ω 5% 0.062W

3538 4822 051 30681 680Ω 5% 0.062W

3541 4822 051 30479 47Ω 5% 0.062W

3542 4822 051 30479 47Ω 5% 0.062W

3545 4822 051 30221 220Ω 5% 0.062W

3546 4822 051 30101 100Ω 5% 0.062W

3548 4822 051 30008 0Ω jumper

3549 4822 051 30008 0Ω jumper

3550 4822 051 30101 100Ω 5% 0.062W

3551 4822 051 30101 100Ω 5% 0.062W

3552 4822 051 30008 0Ω jumper

3554 4822 051 30008 0Ω jumper

3564 4822 051 30008 0Ω jumper

3566 4822 051 30008 0Ω jumper

3570 4822 051 30101 100Ω 5% 0.062W

3571 4822 051 30689 68Ω 5% 0.063W 0603

RC21 RST SM

3572 4822 051 30689 68Ω 5% 0.063W 0603

RC21 RST SM

3574 4822 051 30008 0Ω jumper

3605 4822 051 30008 0Ω jumper

3606 4822 117 12925 47k 1% 0.063W 0603

3607 4822 117 13632 100k 1% 0603 0.62W

3608 4822 117 13632 100k 1% 0603 0.62W

3609 4822 117 13632 100k 1% 0603 0.62W

3610 4822 051 30103 10k 5% 0.062W

3611 4822 051 30103 10k 5% 0.062W

3612 4822 051 30103 10k 5% 0.062W

3613 4822 051 30103 10k 5% 0.062W

3614 4822 051 30103 10k 5% 0.062W

3615 4822 051 30103 10k 5% 0.062W

3616 4822 051 30103 10k 5% 0.062W

3618 4822 051 30223 22k 5% 0.062W

3619 4822 051 30223 22k 5% 0.062W

3620 4822 051 30101 100Ω 5% 0.062W

3621 4822 051 30101 100Ω 5% 0.062W

3622 4822 051 30101 100Ω 5% 0.062W

3623 4822 051 30101 100Ω 5% 0.062W

3624 4822 051 30101 100Ω 5% 0.062W

3625 4822 051 30101 100Ω 5% 0.062W

3626 4822 051 30102 1k 5% 0.062W

3627 4822 051 30471 470Ω 5% 0.062W

3628 4822 051 30471 470Ω 5% 0.062W

3629 4822 051 30472 4k7 5% 0.062W

3630 4822 051 30221 220Ω 5% 0.062W

3631 2322 704 64301 RST SM 0603 RC22H

430Ω PM1 R

3632 2322 704 64301 RST SM 0603 RC22H

430Ω PM1 R

3633 2322 704 64301 RST SM 0603 RC22H

430Ω PM1 R

3635 4822 051 30682 6k8 5% 0.062W

3636 4822 051 30682 6k8 5% 0.062W

3637 4822 051 30332 3k3 5% 0.062W

3642 4822 051 30103 10k 5% 0.062W

3647 2322 704 64301 RST SM 0603 RC22H

430Ω PM1 R

3648 2322 704 64301 RST SM 0603 RC22H

430Ω PM1 R

3651 2322 704 64301 RST SM 0603 RC22H

430Ω PM1 R

3654 2322 704 64301 RST SM 0603 RC22H

430Ω PM1 R

3655 2322 704 64301 RST SM 0603 RC22H

430Ω PM1 R

3656 2322 704 64301 RST SM 0603 RC22H

430Ω PM1 R

3657 2322 704 64301 RST SM 0603 RC22H

430Ω PM1 R

3658 4822 051 30102 1k 5% 0.062W

3659 4822 051 30102 1k 5% 0.062W

3660 4822 051 30102 1k 5% 0.062W

3661 2322 704 64301 RST SM 0603 RC22H

430Ω PM1 R

3662 4822 051 30102 1k 5% 0.062W

3663 4822 051 30102 1k 5% 0.062W

3664 2322 704 64301 RST SM 0603 RC22H

430Ω PM1 R

3665 4822 117 12139 22Ω 5% 0.062W

3667 4822 051 30331 330Ω 5% 0.062W

3669 4822 051 30008 0Ω jumper

3671 4822 051 30222 2k2 5% 0.062W

3672 4822 051 30479 47Ω 5% 0.062W

3673 4822 051 30101 100Ω 5% 0.062W

3677 4822 051 30008 0Ω jumper

3678 4822 051 30008 0Ω jumper

3679 4822 051 30008 0Ω jumper

3681 4822 051 30008 0Ω jumper

3683 4822 051 30008 0Ω jumper

3685 4822 051 30008 0Ω jumper

3686 4822 051 30223 22k 5% 0.062W

3687 4822 051 30223 22k 5% 0.062W

3688 4822 051 30472 4k7 5% 0.062W

3689 4822 051 30223 22k 5% 0.062W

3692 4822 051 30103 10k 5% 0.062W

3693 4822 117 12925 47k 1% 0.063W 0603

3694 4822 117 13632 100k 1% 0603 0.62W

3696 4822 051 30472 4k7 5% 0.062W

3697 4822 117 13632 100k 1% 0603 0.62W

3698 4822 051 30103 10k 5% 0.062W

3699 4822 051 30103 10k 5% 0.062W

3700 4822 051 30472 4k7 5% 0.062W

5200 4822 157 11717 BLM31P500SPT

5300 4822 157 11717 BLM31P500SPT

5301 4822 157 11717 BLM31P500SPT

5402 4822 157 11499 BLM11P600SPT

5403 4822 157 11499 BLM11P600SPT

5501 4822 157 70299 2.2µH (NL322522T-2R2J)

5502 4822 157 70299 2.2µH (NL322522T-2R2J)

5503 4822 157 71206 BLM21A601SPT

5504 4822 157 71206 BLM21A601SPT

5600 4822 157 71206 BLM21A601SPT

5601 4822 157 11499 BLM11P600SPT

5602 4822 157 70298 15µH (NL322522T-150J)

5603 4822 157 71206 BLM21A601SPT

5604 4822 157 70298 15µH (NL322522T-150J)

5605 4822 157 70298 15µH (NL322522T-150J)

5606 4822 157 70298 15µH (NL322522T-150J)

5607 4822 157 70298 15µH (NL322522T-150J)

5608 4822 157 70298 15µH (NL322522T-150J)

5609 4822 157 11717 BLM31P500SPT

5610 4822 157 11717 BLM31P500SPT

6200 4822 130 11397 BAS316

6301 9322 128 69685 S1D

6302 9322 128 69685 S1D

6303 9322 128 69685 S1D

6600 4822 130 11528 1PS76SB10

7100 5322 130 42718 BFS20

7101 5322 130 42718 BFS20

7102 9352 637 37518 TZA1033HL

7103 4822 209 17229 BA5938FM

7104 4822 209 30095 LM833D

7105 4822 209 32073 MC34072D

7106 5322 130 42718 BFS20

7109 4822 209 15083 AN78M09

7110 5322 130 60803 BST72A

7111 4822 130 60511 BC847B

7112 4822 130 60511 BC847B

7113 4822 130 60511 BC847B

7114 4822 130 60511 BC847B

7115 4822 130 60373 BC856B

7116 4822 130 60511 BC847B

7117 4822 209 90927 L78L05ACD

7118 5322 130 60845 BC807-25

7119 4822 130 42804 BC817-25

7201 9351 869 80118

7202 3104 123 85860 AM29F002T/4.3.13

7203 4822 130 60373 BC856B

7207 4822 209 17231 SAA7399HL

7208 9322 139 67685 IC SM MC33464N-45A

(MOTA) R

7304 4822 209 16877 BA6856FP

7310 4822 209 15899 CY7C199-15C

7311 9352 637 83557 IC SM SAA7335HL/E/M2

(PHSE) Y

7312 4822 130 60373 BC856B

7315 4822 130 60511 BC847B

7404 9322 144 59668 IC SM MT48LC1M16A1TG-

7S (MRN)R

7405 9322 144 59668 IC SM MT48LC1M16A1TG-

7S (MRN)R

7501 4822 130 60511 BC847B

7503 9322 151 16671 STI5505AVC

7504 4822 242 10838 27MHZ 120P FX0-31FT

7505 9322 156 81668 M24C32-WMN6TNKSA

7600 5322 209 71568 PC74HCT14T

7604 4822 130 60511 BC847B

7605 4822 209 17398 LD1117DT33

7607 4822 130 60511 BC847B

7608 4822 130 60373 BC856B

7609 4822 130 60373 BC856B

7610 4822 130 60511 BC847B

7611 9352 456 80115

7612 4822 130 60511 BC847B

7613 4822 130 60511 BC847B

7614 4822 130 60511 BC847B

7615 4822 130 60511 BC847B

7616 9322 151 71668 IC SM MK2703STR (MICL)

7617 4822 130 60511 BC847B

7618 4822 130 60511 BC847B

7620 4822 130 60373 BC856B

7621 4822 130 42804 BC817-25

7622 4822 130 60511 BC847B

DVD612/021

Various

0010 3139 247 52811 CAB FRONT DVD612/00X

PPT

0025 3139 247 52941 BTN STANDBY DVD612/

00X PPT

0030 3139 247 52851 WINDOW DVD612/00X

PPT

0040 3139 247 52911 BTN CONTROL DVD612/

00X PPT

0200 3139 247 52771 FRONT ASSY DVD612/

00X

0224 3139 247 53011 BACK PLATE DVD612/00X

PPT

0232 3139 247 52991 COVER TOP DVD612/00X

PPT

0261 4822 321 11139 POWER CORD

0336 4822 321 61579 VIDEO-CABLE

0382 3111 170 21992 SCART CABLE (L=1.10M)

BMS

0384 3139 228 87051 PROD.ASSY RC19133001/

01 PACKED

0387 3139 246 10691 IFU DVD612/02X

1002 3139 248 80861 PCBAS AV DVD612 EU

1003 3139 248 80941 PCBAS FR DVD612 EU

1005 3122 427 22572 PSU DVD VFM EURO

1014 3104 157 11190 CWAS FLEX DVD 22 130

32S

DVD612/051

Various

0010 3139 247 52811 CAB FRONT DVD612/00X

PPT

0025 3139 247 52941 BTN STANDBY DVD612/

00X PPT

0030 3139 247 52851 WINDOW DVD612/00X

PPT

0040 3139 247 52911 BTN CONTROL DVD612/

00X PPT

0200 3139 247 52771 FRONT ASSY DVD612/

00X

0224 3139 247 53011 BACK PLATE DVD612/00X

PPT

0232 3139 247 52991 COVER TOP DVD612/00X

PPT

0261h3139 128 75222 MAINSCORD (2.3M) UK

BK (VHR)

0333 4822 321 11357 AUDIO CORD SET

0336 4822 321 61579 VIDEO-CABLE

www.rtv-horvat-dj.hr

Spare parts list GB 59DVD612 /XX1 10.

0382 3111 170 21992 SCART CABLE (L=1.10M)

BMS

0384 3139 228 87051 PROD.ASSY RC19133001/

01 PACKED

0387 3139 246 10711 IFU DVD612/05X

1002 3139 248 80861 PCBAS AV DVD612 EU

1003 3139 248 80941 PCBAS FR DVD612 EU

1005 3122 427 22572 PSU DVD VFM EURO

1014 3104 157 11190 CWAS FLEX DVD 22 130

32S

RTV servis Horvat

Tel: ++385-31-856-637

Tel/fax: ++385-31-856-139

Mob: 098-788-319

www.rtv-horvat-dj.hr

PHILIPS DVD612 DVD Video Player DVD622 Service Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
