Published by WO 0563 TV Service Printed in the Netherlands Subject to modification EN 3122 785 14621
©
Copyright 2005 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic,
mechanical, photocopying, or otherwise without the prior permission of Philips.
Colour television Chassis
FTL2.1E & FTL2.2E
AA
(TOP)
(TOP)
E_15240_000.eps
301204
(SOFT WRAP)
(SOFT WRAP)
(SOFT WRAP)
Contents Page Contents Page
1. Technical Specifications, Connections, and Chassis
Overview 2
2. Safety Instructions, Warnings, and Notes 5
3. Directions for Use 6
4. Mechanical Instructions 7
5. Service Modes, Error Codes, and Fault Finding 13
6. Block Diagrams, Testpoint Overviews, and
Waveforms
Wiring Diagram 32" Sharp/LPL LCD 23
Wiring Diagram 37" LPL LCD 24
Wiring Diagram 42" LPL LCD 25
Block Diagram Supply + Standby 32" 26
Block Diagram Supply + Standby 37" 27
Block Diagram Supply + Standby 42" 28
Block Diagram Video 29
Block Diagram Audio 30
I2C IC’s overview 31
Supply Lines Overview 32
7. Circuit Diagrams and PWB Layouts Diagram PWB
PSU (30-32"): Mains Filter and Standby (A1) 33 35-38
PSU (30-32"): Supply (A2) 34 35-38
PSU (37"): Mains Filter and Standby (A1) 39 41-46
PSU (37"): Supply (A2) 40 41-46
PSU (42"): Mains Filter and Standby Part A (A1) 47 51-56
PSU (42"): Supply Part A (A2) 48 51-56
PSU (42"): Mains Filter and Standby Part B (A3) 49 51-56
PSU (42"): Supply Part B (A4) 50 51-56
Ambi Light Panel (AL) 57 58

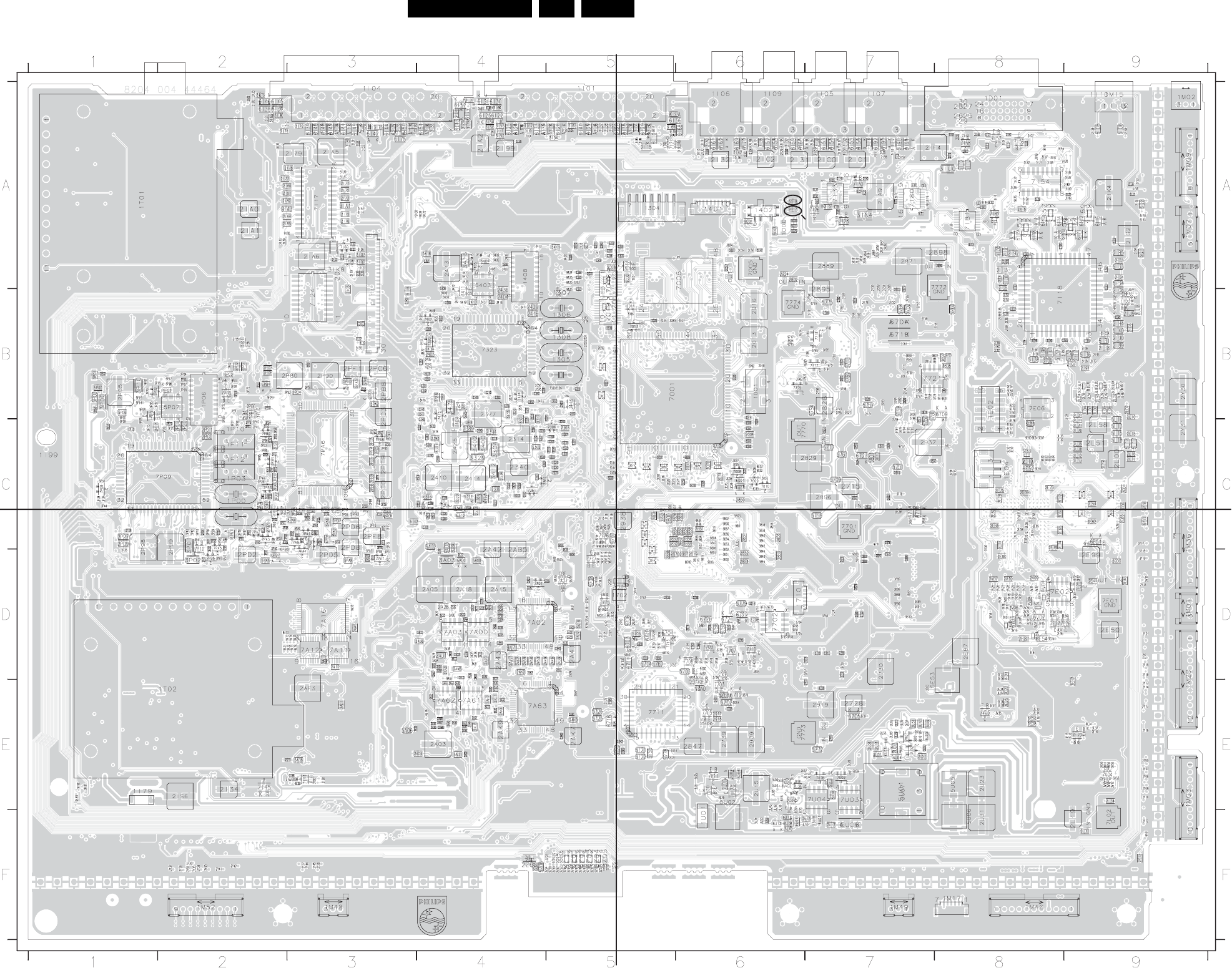

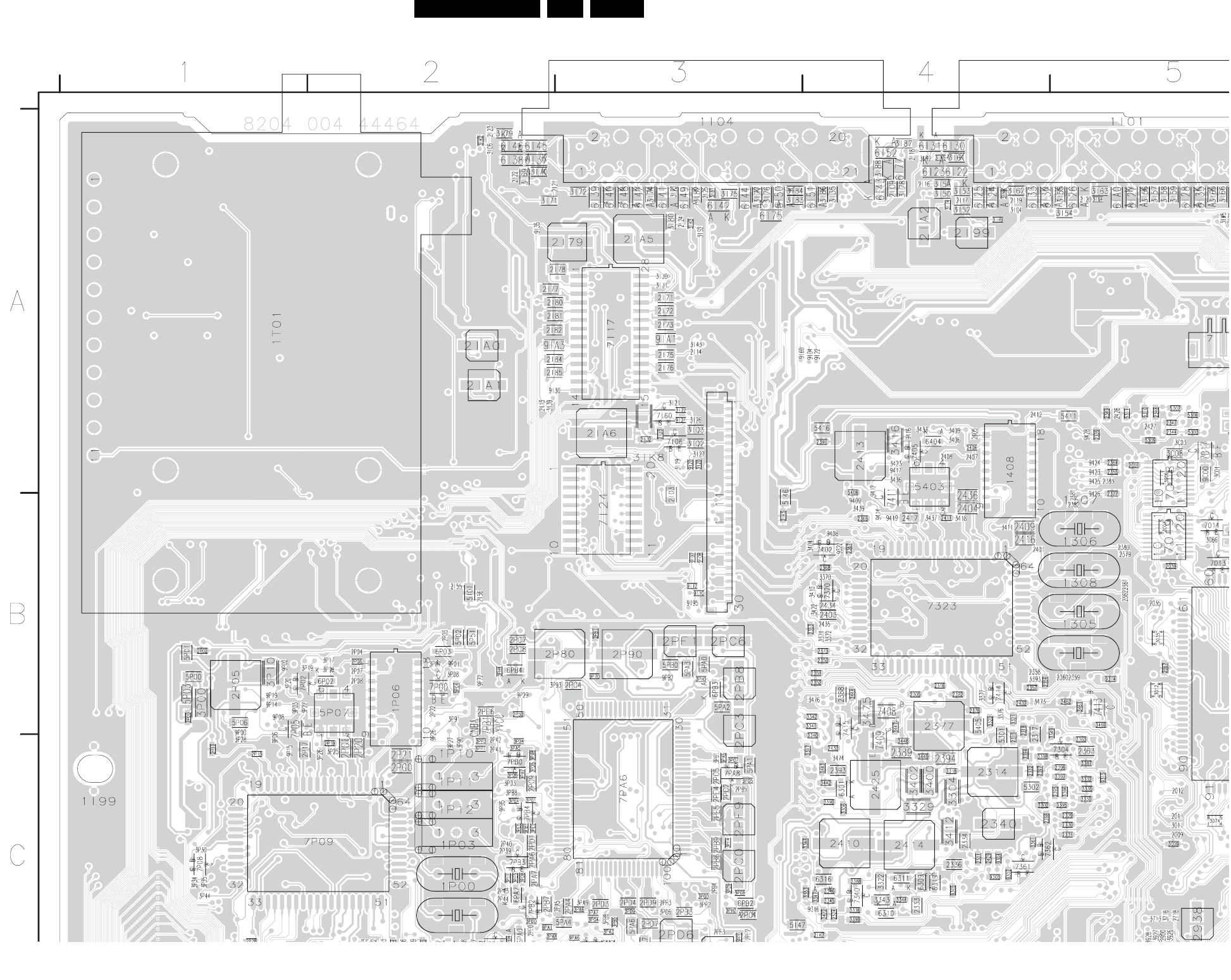

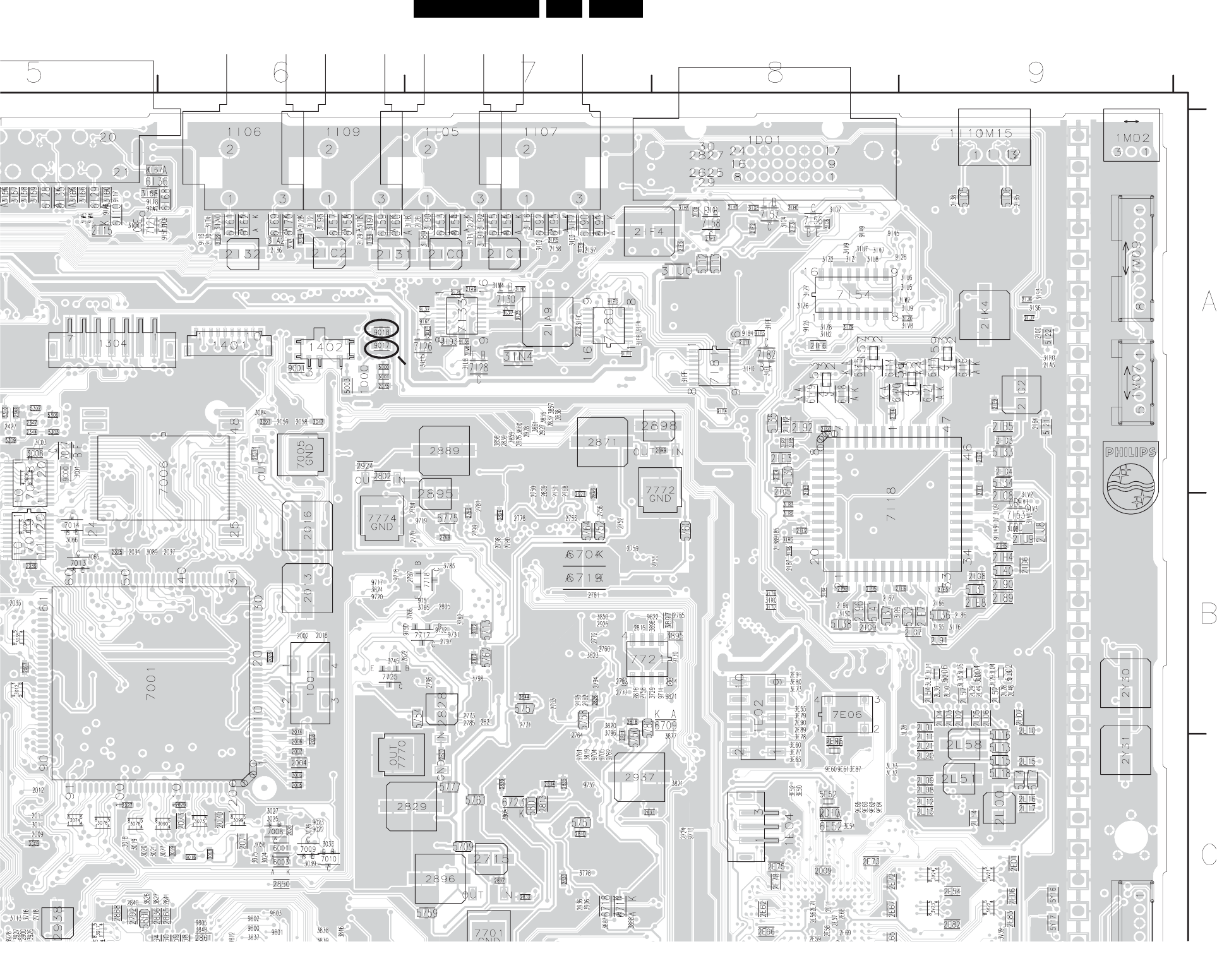

Small Signal Board (B2-B21) 59-91 92-103

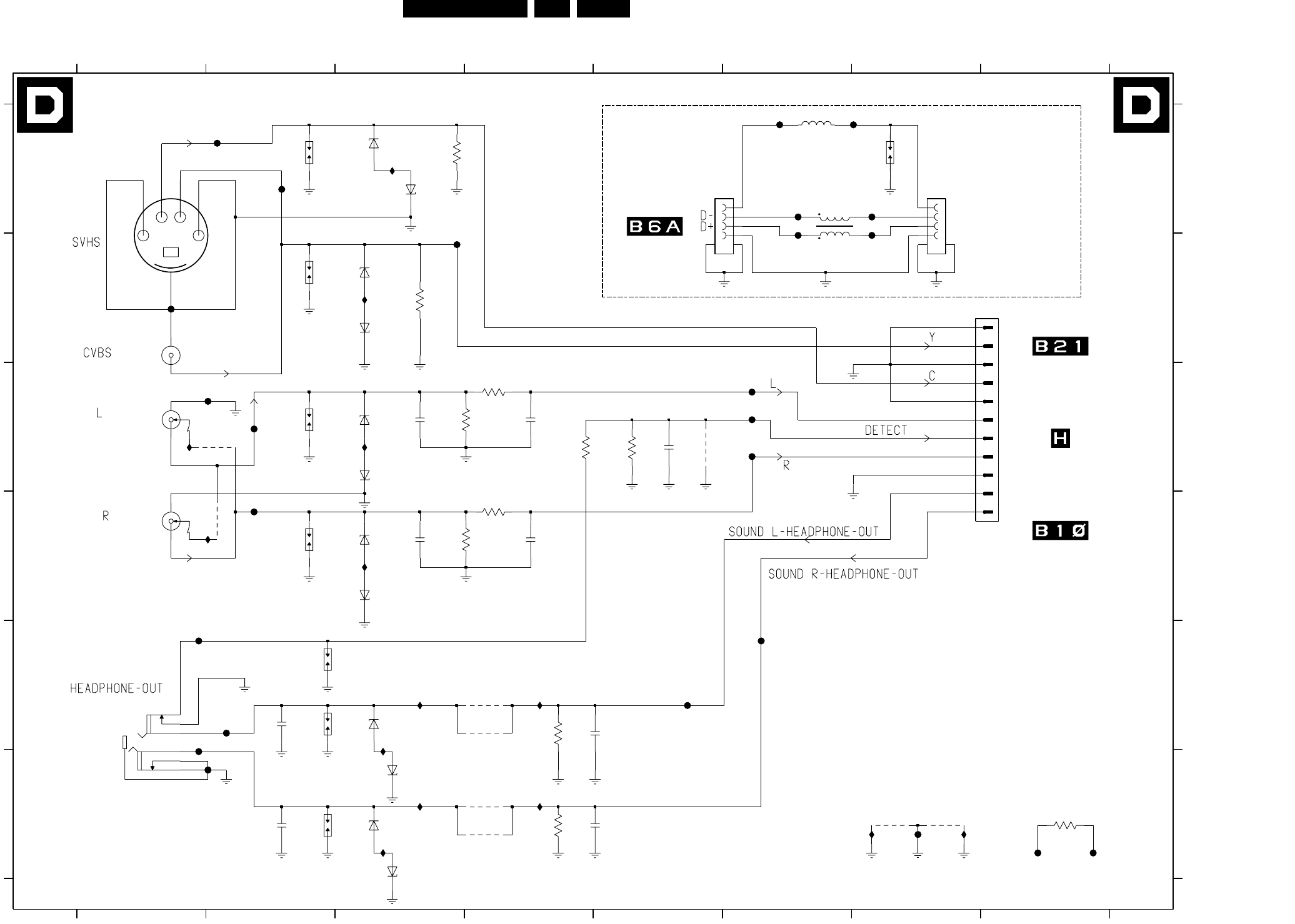

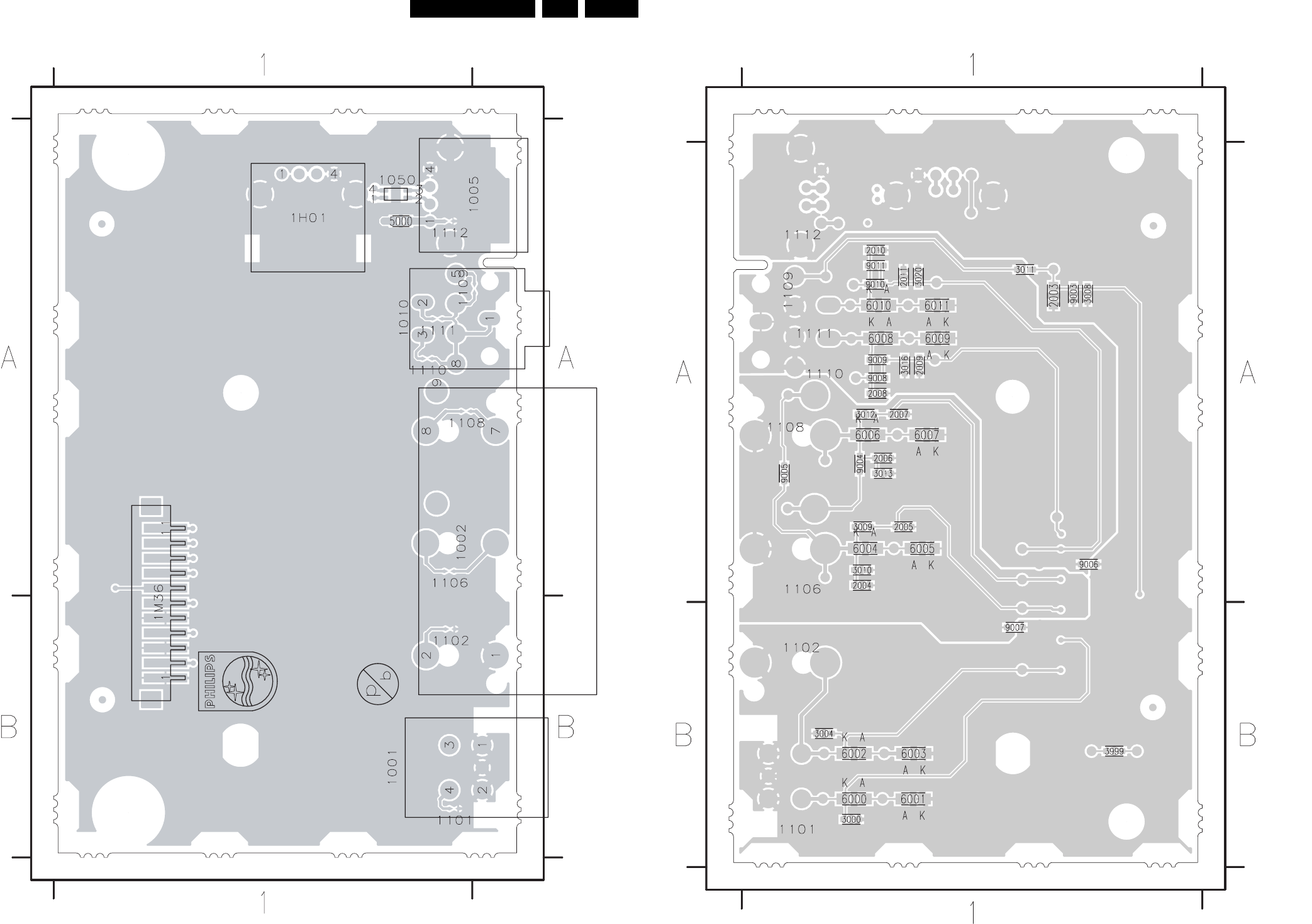

Side I/O Panel (D) 104 105
Top Control Panel (E) 106 107

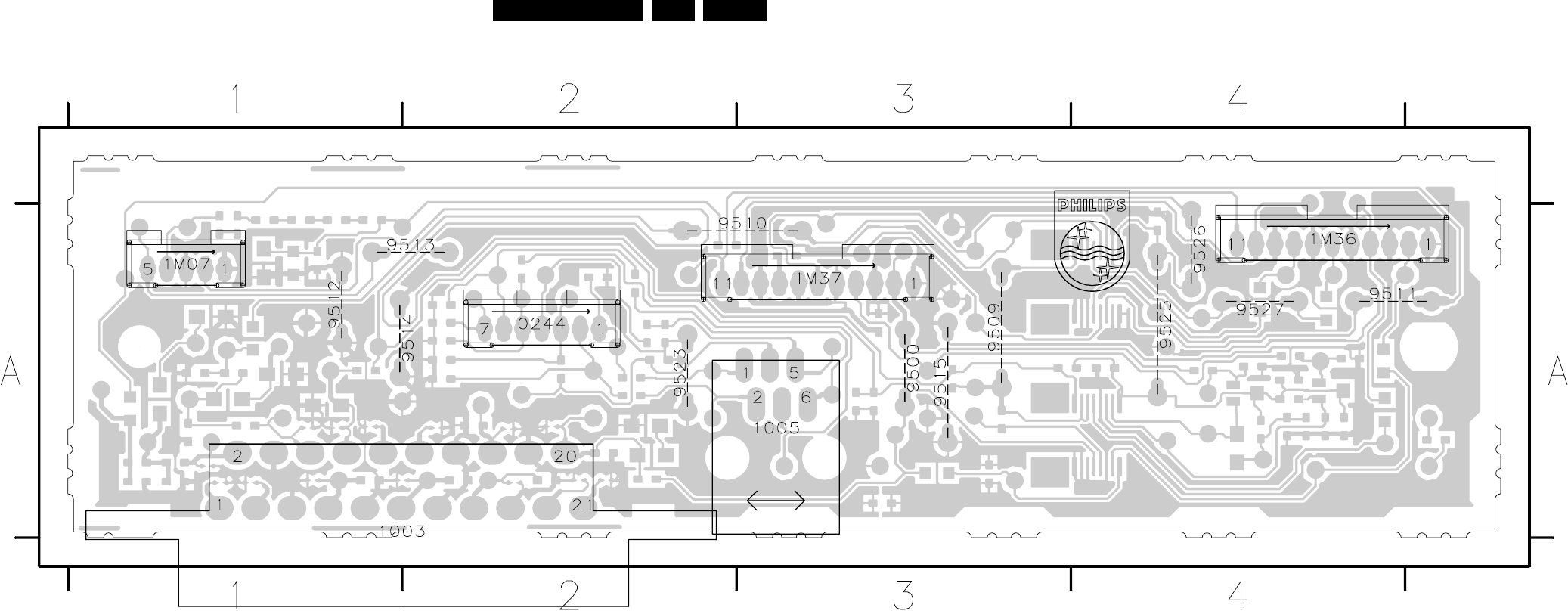

SCART 3 Panel (H) 108 109-110

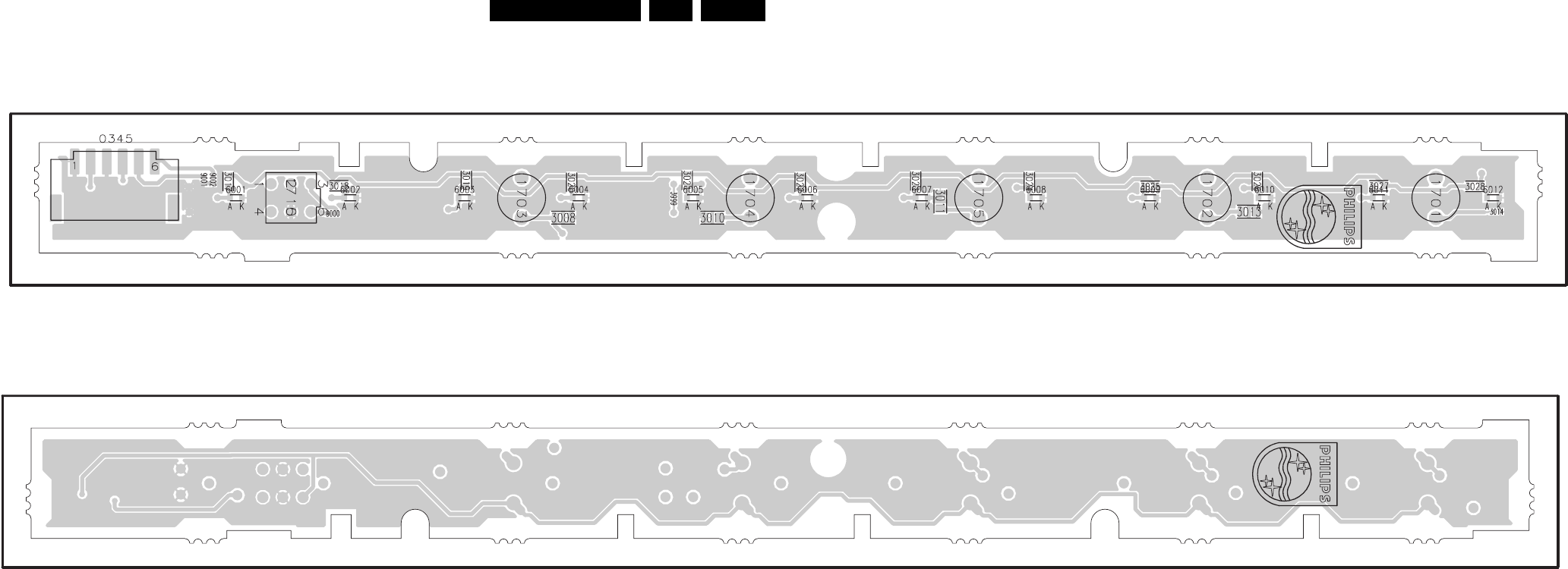

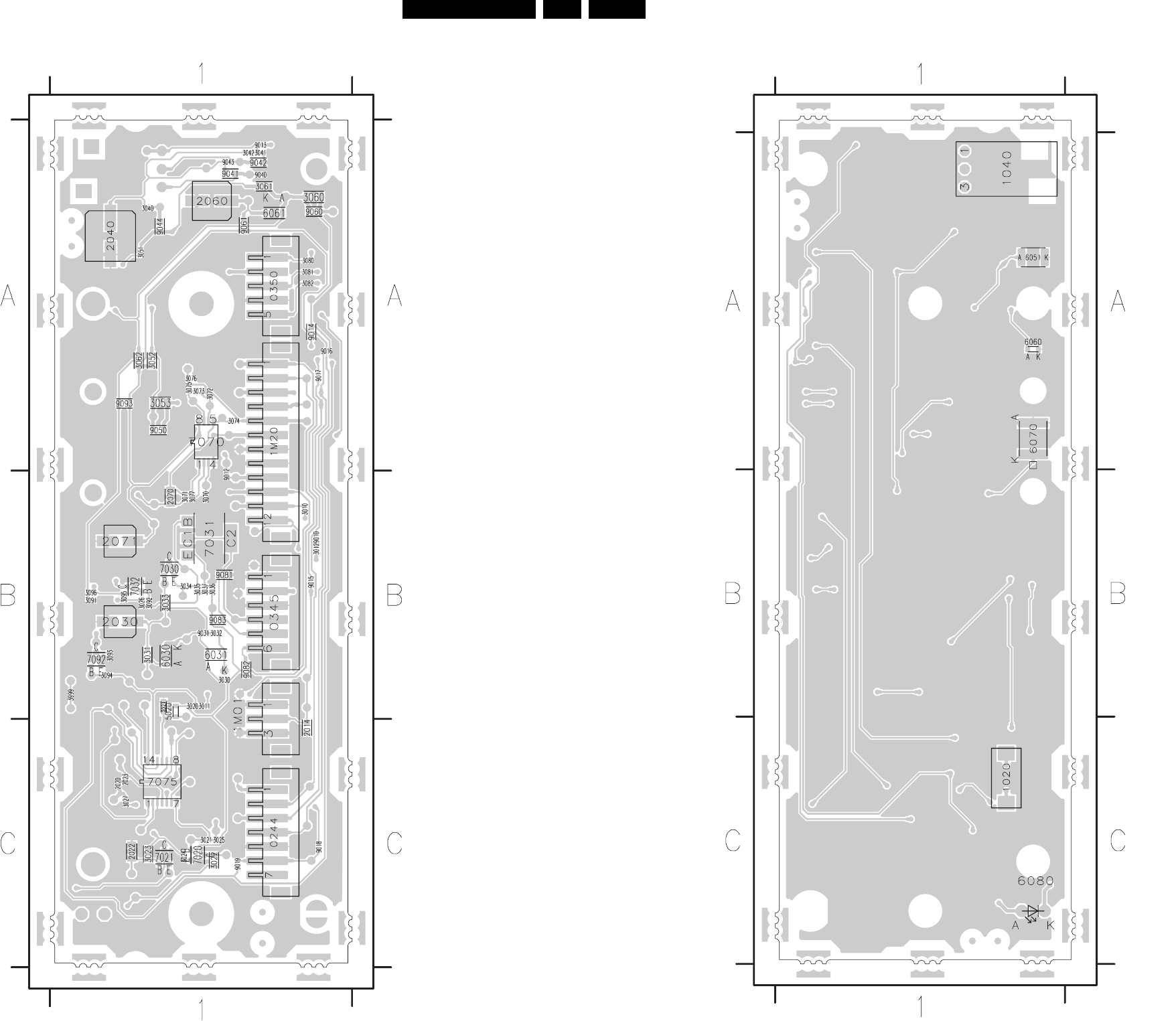

LED and Switch Panel (J) 111 112

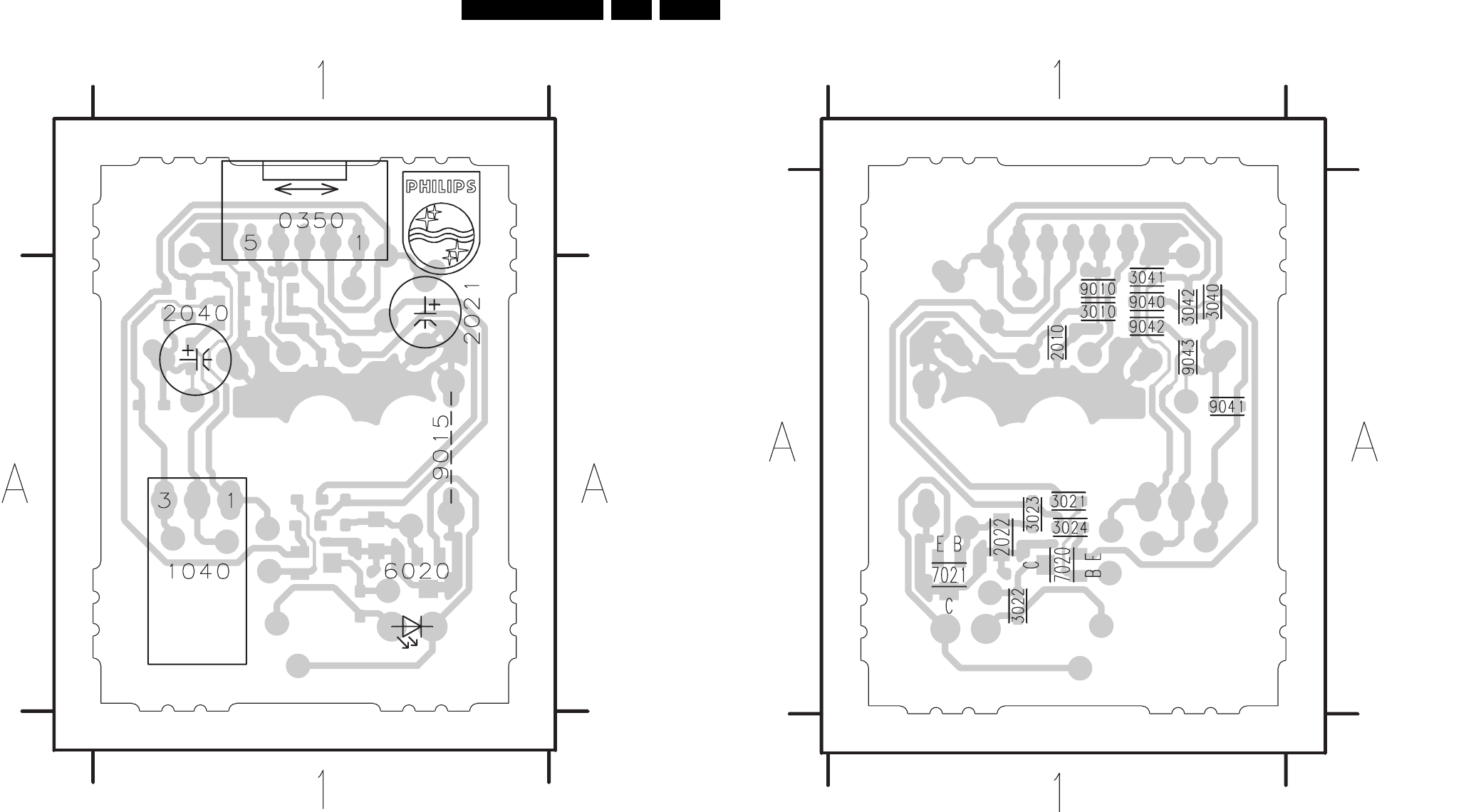

Proximity Sensor (PR) 113 114

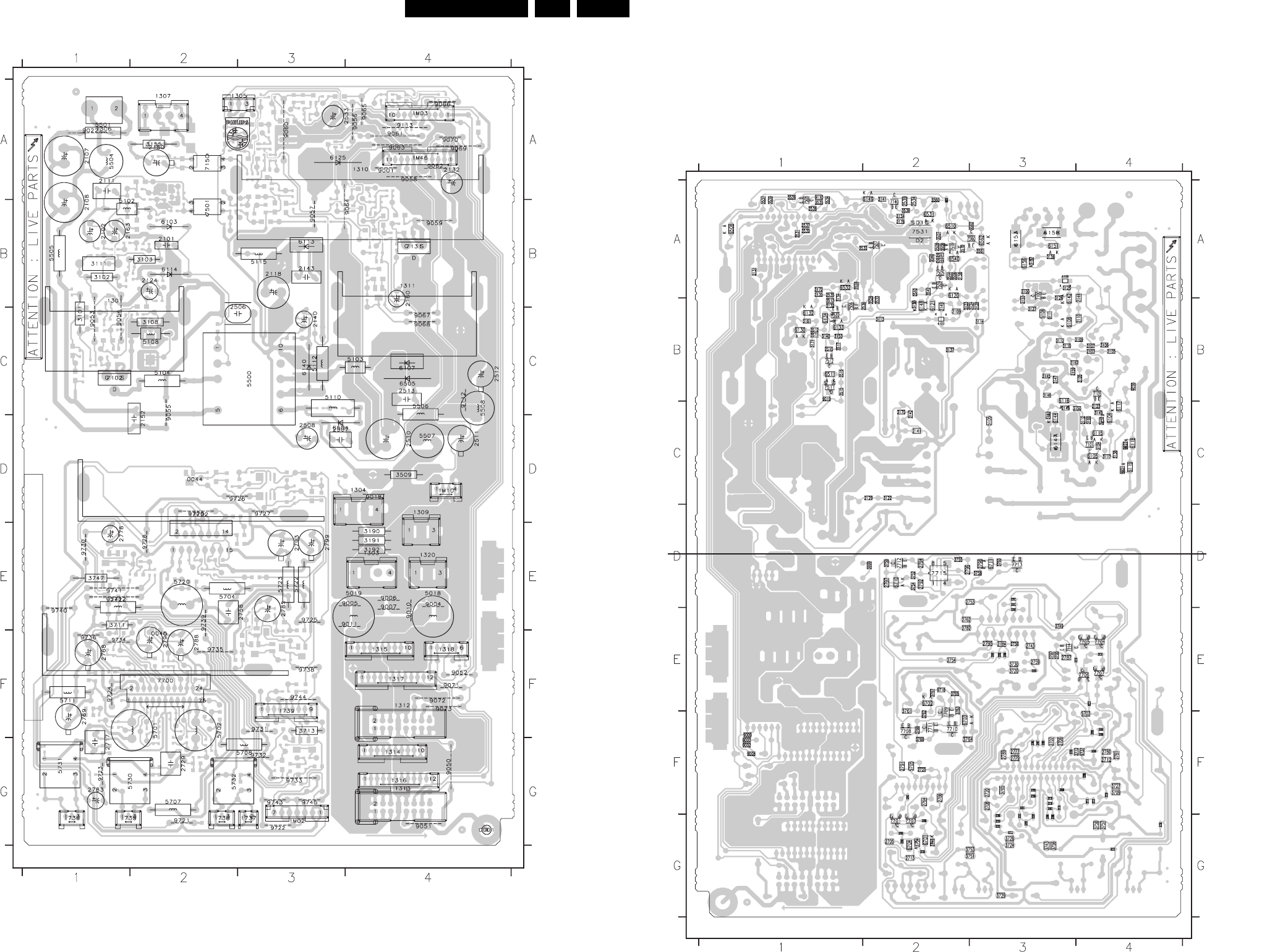

LCD Standby Audio Panel: Connections (SA1) 115 118-120
LCD Standby Audio Panel: Standby (SA2) 116 118-120
LCD Standby Audio Panel: Audio (SA3) 117 118-120
8. Alignments 121
9. Circuit Descriptions, Abbreviation List, and IC Data
Sheets 127
Abbreviation list 134
IC Data Sheets 137
10. Spare Parts List 145
11. Revision List 172
Technical Specifications, Connections, and Chassis Overview
EN 2 FTL2.1, FTL2.2E AA1.
1. Technical Specifications, Connections, and Chassis Overview
Index of this chapter:
1.1 Technical Specifications
1.2 Connections
1.3 Chassis Overview
Note: Figures below can deviate slightly from the actual
situation, due to the different set executions.
1.1 Technical Specifications
1.1.1 Vision
Display type : LCD, VA
Screen size : 32” (82 cm), 16:9
: 37” (94 cm), 16:9
: 42” (107 cm), 16:9
Resolution (HxV pixels) : 1366(*3)x768 WXGA
Contrast ratio : 800:1 (32-inch)
: 800:1 (37-inch)
: 500:1 (42-inch)
Light output (cd/m2) : 450 (32-inch)
: 450 (37-inch)
: 400 (42-inch)
LCD response time (ms) : 12
Viewing angle (HxV degrees) : 170 (32-inch)
: 176 (37-inch)
: 176 (42-inch)
Tuning system : PLL
Colour systems : PAL B/G, D/K, I
: SECAM B/G, D/K, L/L’
Supported computer formats : VGA (640x480)
: SVGA (800x600)
: XVGA (1024x768)
: WXGA (1280x768)
Supported video formats : 640x480i - 1fH
: 720x576i - 1fH
: 640x480p - 2fH
: 720x576p - 2fH
: 1920x1080i - 2fH
: 1280x720p - 3fH
AV (playback only) : NTSC, PAL, SECAM
Channel selections : 100 presets
: UVSH
1.1.2 Sound
Sound systems : AV stereo,
:FM/FM B/G
: NICAM B/G, D/K, I
Maximum power (WRMS) : 2 x 15 (int.)
1.1.3 Miscellaneous
Mains voltage (VAC) : 220 - 240
Mains frequency : 50 / 60 Hz
Ambient temperature (°C) : +5 to +40
Maximum humidity (R.H>) : 90%
Power consumption
- Normal operation (W) : 185 (32-inch)
: 200 (37-inch)
: 240 (42-inch)
- Stand-by (W) : < 2
1.2 Connections
Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.
1.2.1 Side I/O
Figure 1-1 Side I/O connections
Headphone (Output)
- Headphone 32 - 600 ohm / 10 mW ot
Cinch: Video CVBS - In, Audio - In
Rd - Audio R 0.5 VRMS / 10 kohm jq
Wh - Audio L 0.5 VRMS / 10 kohm jq
Ye - Video CVBS 1 VPP / 75 ohm jq
SVHS (Hosiden): Video Y/C - In
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 VPP / 75 ohm j
4 - Video C 0.3 VPPP / 75 ohm j
1.2.2 Rear Connections
Figure 1-2 Rear connections
Aerial - In
- IEC-type Coax, 75 ohm D
E_14620_022.eps
050404
SIDE I/O
SVHS
CVBS
R
AUDIO
L
E_14620_023.eps
170604
AERIAL IN EXT2 EXT1
R
L
R
L
EXT3
SUBW
OUT
CENTRE
IN DVI
SERVICE
AUDIO
OUT
AUDIO
IN
MAINS
(LCD SETS)
MAINS
(PLASMA SETS)
Technical Specifications, Connections, and Chassis Overview EN 3FTL2.1, FTL2.2E AA 1.
SCART2: Video RGB/YC - In, CVBS - In/Out, Audio - In/Out

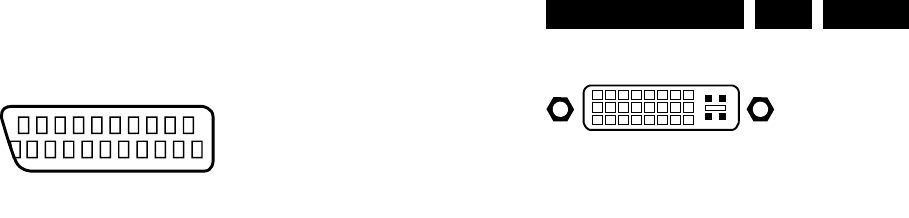

Figure 1-3 SCART connector
1 - Audio R 0.5 VRMS / 1 kohm k
2 - Audio R 0.5 VRMS / 10 kohm j
3 - Audio L 0.5 VRMS / 1 kohm k
4 - Ground Audio Gnd H
5 - Ground Blue Gnd H
6 - Audio L 0.5 VRMS / 10 kohm j
7 - Video Blue/C-out 0.7 VPP / 75 ohm jk
8 - Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j
9 - Ground Green Gnd H
10 - Easylink P50 0 - 5 V / 4.7 kohm jk
11 - Video Green 0.7 VPP / 75 ohm j
12 - n.c.
13 - Ground Red Gnd H
14 - Ground P50 Gnd H
15 - Video Red/C 0.7 VPP / 75 ohm j
16 - Status/FBL 0 - 0.4 V: INT
1 - 3 V: EXT / 75 ohm j
17 - Ground Video Gnd H
18 - Ground FBL Gnd H
19 - Video CVBS 1 VPP / 75 ohm k
20 - Video CVBS/Y 1 VPP / 75 ohm j
21 - Shield Gnd H
SCART1: Video RGB - In, CVBS - In/Out, Audio - In/Out
1 - Audio R 0.5 VRMS / 1 kohm k
2 - Audio R 0.5 VRMS / 10 kohm j
3 - Audio L 0.5 VRMS / 1 kohm k
4 - Ground Audio Gnd H
5 - Ground Blue Gnd H
6 - Audio L 0.5 VRMS / 10 kohm j
7 - Video Blue 0.7 VPP / 75 ohm jk
8 - Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j
9 - Ground Green Gnd H
10 - Easylink P50 0 - 5 V / 4.7 kohm jk
11 - Video Green 0.7 VPP / 75 ohm j
12 - n.c.
13 - Ground Red Gnd H
14 - Ground P50 Gnd H
15 - Video Red 0.7 VPP / 75 ohm j
16 - Status/FBL 0 - 0.4 V: INT
1 - 3 V: EXT / 75 ohm j
17 - Ground Video Gnd H
18 - Ground FBL Gnd H
19 - Video CVBS 1 VPP / 75 ohm k
20 - Video CVBS 1 VPP / 75 ohm j
21 - Shield Gnd H
Cinch: Sub woofer - Out, Centre - In
Bu - Centre 0.5 VRMS / 10 kohm jq
Bk - Sub woofer 0.5 VRMS / 10 kohm kq
Cinch: Audio - Out
Rd - Audio - R 0.5 VRMS / 10 kohm kq
Wh - Audio - L 0.5 VRMS / 10 kohm kq
Cinch: DVI Audio - In
Rd - Audio - R 0.5 VRMS / 10 kohm jq
Wh - Audio - L 0.5 VRMS / 10 kohm jq
DVI-I: Digital/Analogue Video - In
Figure 1-4 DVI-I connector
1-D2- j
2-D2+ j
3 - Shield Gnd H
4-D4- j
5-D4+ j
6 - DDC_SCL DDC clock k
7 - DDC_SDA DDC data jk
8 - V-sync 0 - 5 V j
9-D1- j
10 - D1+ j
11 - Shield Gnd H
12 - D3- j
13 - D3+ j
14 - +5V j
15 - Ground Gnd H
16 - HPD Hot Plug Detect j
17 - D0- j
18 - D0+ j
19 - Shield Gnd H
20 - D5- j
21 - D5+ j
22 - Shield Gnd H
23 - CLK+ j
24 - CLK- j
C1 - Video Red 0.7 VPP / 75 ohm j
C2 - Video Green 0.7 VPP / 75 ohm j
C3 - Video Blue 0.7 VPP / 75 ohm j
C4 - H-sync 0 - 5 V j
C5 - Ground Gnd H
Service connector (ComPair)
1 - SDA-S I2C Data (0 - 5 V) jk
2 - SCL-S I2C Clock (0 - 5 V) j
3 - Ground Gnd H
SCART3: Video CVBS - In, Audio - In
1-n.c.
2 - Audio R 0.5 VRMS / 10 kohm j
3-n.c.
4 - Ground Audio Gnd H
5 - Ground Blue Gnd H
6 - Audio L 0.5 VRMS / 10 kohm j
7-n.c.
8 - Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j
9 - Ground Green Gnd H
10 - n.c.
11 - n.c.
12 - n.c.
13 - Ground Red Gnd H
14 - Ground Data Gnd H
15 - n.c.
16 - n.c.
17 - Ground Video Gnd H
18 - Ground FBL Gnd H
19 - n.c.
20 - Video CVBS 1 VPP / 75 ohm j
21 - Shield Gnd H
21
20
1
2
E_06532_001.eps
050404
18
916
17
24
C5
C1 C2
C3 C4
E_06532_004.eps
050404
Technical Specifications, Connections, and Chassis Overview
EN 4 FTL2.1, FTL2.2E AA1.

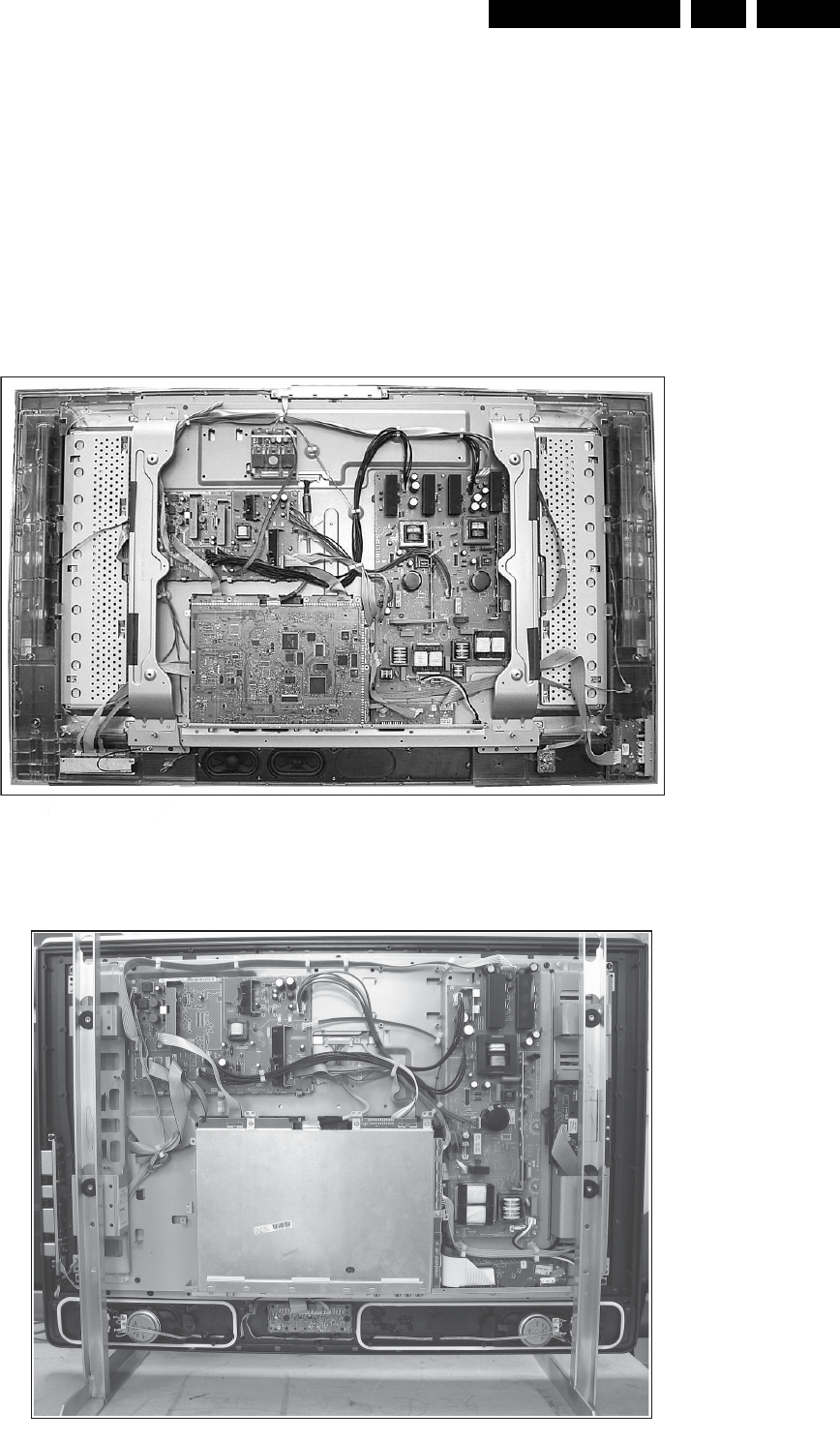

1.3 Chassis Overview
Figure 1-5 PWB locations (FTL2.1 “Top” model)
Figure 1-6 PWB locations (FTL2.2 “Wrap” model)
AL
D
E_14620_163.eps
050105
SIDE IO PANEL
ASA MAIN SUPPLY PANEL
STANDBY SUPPLY /
AUDIO PANEL
E
TOP CONTROL PANEL
PR
PROXIMITY SENSOR PANEL
H
SCART3 / SIDE I/O (optional)
PANEL
AMBI LIGHT PANEL
JLED + SWITCH PANEL
BSSP PANEL
E_14620_167.eps
310105
SA
AL
STANDBY SUPPLY/
AUDIO PANEL
E
SIDE CONTROL PANEL
B
SMALL SIGNAL
PANEL
J
LED PANEL
D
SIDE I/O PANEL
H
SCART3 PANEL
A
MAIN SUPPLY
PANEL
AMBI LIGHT PANEL
(OPTIONAL)
Safety Instructions, Warnings, and Notes EN 5FTL2.1, FTL2.2E AA 2.
2. Safety Instructions, Warnings, and Notes
Index of this chapter:
2.1 Safety Instructions
2.2 Warnings
2.3 Notes
2.1 Safety Instructions
Safety regulations require the following during a repair:
• Connect the set to the Mains (AC Power) via an isolation
transformer (> 800 VA).
• Replace safety components, indicated by the symbol h,
only by components identical to the original ones. Any
other component substitution (other than original type) may
increase risk of fire or electrical shock hazard.
Safety regulations require that after a repair, the set must be
returned in its original condition. Pay in particular attention to
the following points:
• Route the wire trees correctly and fix them with the
mounted cable clamps.
• Check the insulation of the Mains (AC Power) lead for
external damage.
• Check the strain relief of the Mains (AC Power) cord for
proper function.
• Check the electrical DC resistance between the Mains (AC
Power) plug and the secondary side (only for sets that have
a Mains (AC Power) isolated power supply):
1. Unplug the Mains (AC Power) cord and connect a wire
between the two pins of the Mains (AC Power) plug.
2. Set the Mains (AC Power) switch to the "on" position
(keep the Mains (AC Power) cord unplugged!).
3. Measure the resistance value between the pins of the
Mains (AC Power) plug and the metal shielding of the
tuner or the aerial connection on the set. The reading
should be between 4.5 Mohm and 12 Mohm.
4. Switch "off" the set, and remove the wire between the
two pins of the Mains (AC Power) plug.
• Check the cabinet for defects, to prevent touching of any
inner parts by the customer.
2.2 Warnings
• All ICs and many other semiconductors are susceptible to
electrostatic discharges (ESD w). Careless handling
during repair can reduce life drastically. Make sure that,
during repair, you are connected with the same potential as
the mass of the set by a wristband with resistance. Keep
components and tools also at this same potential. Available
ESD protection equipment:
– Complete kit ESD3 (small tablemat, wristband,
connection box, extension cable and earth cable) 4822
310 10671.
– Wristband tester 4822 344 13999.
• Be careful during measurements in the high voltage
section.
• Never replace modules or other components while the unit
is switched "on".
• When you align the set, use plastic rather than metal tools.
This will prevent any short circuits and the danger of a
circuit becoming unstable.
2.3 Notes
2.3.1 General
• Measure the voltages and waveforms with regard to the
chassis (= tuner) ground (H), or hot ground (I), depending
on the tested area of circuitry. The voltages and waveforms
shown in the diagrams are indicative. Measure them in the
Service Default Mode (see chapter 5) with a colour bar
signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated
otherwise) and picture carrier at 475.25 MHz for PAL, or
61.25 MHz for NTSC (channel 3).
• Where necessary, measure the waveforms and voltages
with (D) and without (E) aerial signal. Measure the
voltages in the power supply section both in normal
operation (G) and in stand-by (F). These values are
indicated by means of the appropriate symbols.
• The semiconductors indicated in the circuit diagram and in
the parts lists, are interchangeable per position with the
semiconductors in the unit, irrespective of the type
indication on these semiconductors.
• Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic” and the “double-D symbol”, are
trademarks of Dolby Laboratories.
2.3.2 Schematic Notes
• All resistor values are in ohms, and the value multiplier is
often used to indicate the decimal point location (e.g. 2K2
indicates 2.2 kohm).
• Resistor values with no multiplier may be indicated with
either an "E" or an "R" (e.g. 220E or 220R indicates 220
ohm).
• All capacitor values are given in micro-farads (µ= x10-6),
nano-farads (n= x10-9), or pico-farads (p= x10-12).
• Capacitor values may also use the value multiplier as the
decimal point indication (e.g. 2p2 indicates 2.2 pF).
• An "asterisk" (*) indicates component usage varies. Refer
to the diversity tables for the correct values.
• The correct component values are listed in the Spare Parts
List. Therefore, always check this list when there is any
doubt.
2.3.3 Rework on BGA (Ball Grid Array) ICs
General
Although (LF)BGA assembly yields are very high, there may
still be a requirement for component rework. By rework, we
mean the process of removing the component from the PWB
and replacing it with a new component. If an (LF)BGA is
removed from a PWB, the solder balls of the component are
deformed drastically so the removed (LF)BGA has to be
discarded.
Device Removal
As is the case with any component that, is being removed, it is
essential when removing an (LF)BGA, that the board, tracks,
solder lands, or surrounding components are not damaged. To
remove an (LF)BGA, the board must be uniformly heated to a
temperature close to the reflow soldering temperature. A
uniform temperature reduces the risk of warping the PWB.
To do this, we recommend that the board is heated until it is
certain that all the joints are molten. Then carefully pull the
component off the board with a vacuum nozzle. For the
appropriate temperature profiles, see the IC data sheet.
Area Preparation
When the component has been removed, the vacant IC area
must be cleaned before replacing the (LF)BGA.
Removing an IC often leaves varying amounts of solder on the
mounting lands. This excessive solder can be removed with
either a solder sucker or solder wick. The remaining flux can be
removed with a brush and cleaning agent.
After the board is properly cleaned and inspected, apply flux on
the solder lands and on the connection balls of the (LF)BGA.
Note: Do not apply solder paste, as this has been shown to
result in problems during re-soldering.
Directions for Use
EN 6 FTL2.1, FTL2.2E AA3.
Device Replacement
The last step in the repair process is to solder the new
component on the board. Ideally, the (LF)BGA should be
aligned under a microscope or magnifying glass. If this is not
possible, try to align the (LF)BGA with any board markers.
So as not to damage neighbouring components, it may be
necessary to reduce some temperatures and times.
More Information
For more information on how to handle BGA devices, visit this
URL: www.atyourservice.ce.philips.com (needs subscription,
not available for all regions). After login, select “Magazine”,
then go to “Workshop Information”. Here you will find
Information on how to deal with BGA-ICs.
2.3.4 Lead-free Solder
Philips CE is producing lead-free sets (PBF) from 1.1.2005
onwards.
Identification: The bottom line of a type plate gives a 14-digit
serial number. Digits 5 and 6 refer to the production year, digits
7 and 8 refer to production week (in example below it is 1991
week 18).

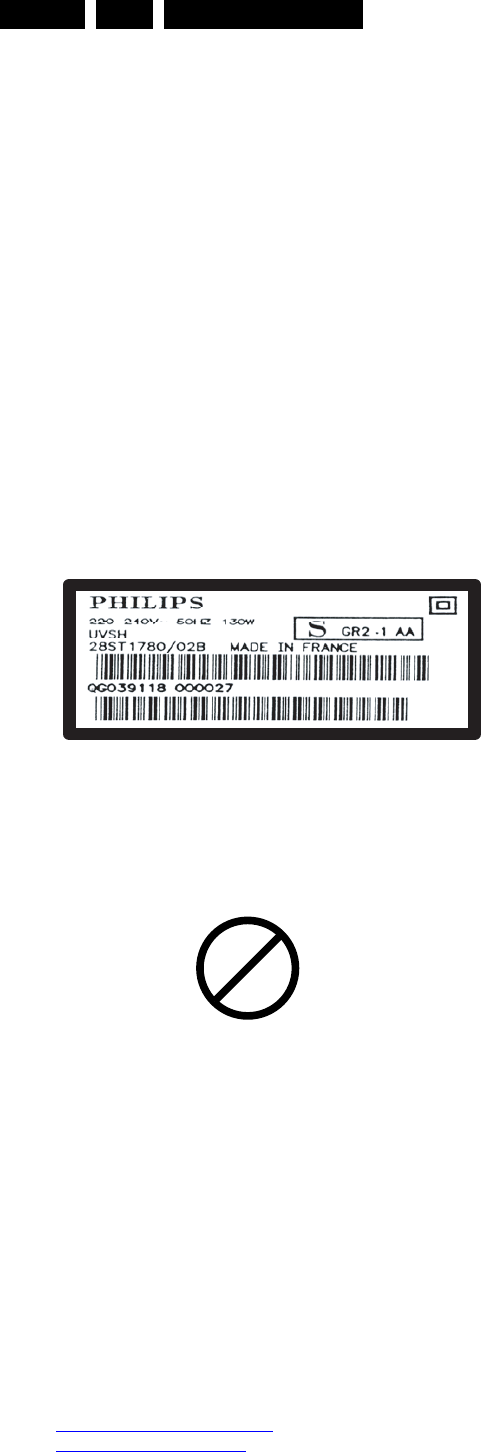

Figure 2-1 Serial number example
Regardless of the special lead-free logo (which is not always
indicated), one must treat all sets from this date onwards
according to the rules as described below.
Figure 2-2 Lead-free logo
Due to lead-free technology some rules have to be respected
by the workshop during a repair:
• Use only lead-free soldering tin Philips SAC305 with order
code 0622 149 00106. If lead-free solder paste is required,
please contact the manufacturer of your soldering
equipment. In general, use of solder paste within
workshops should be avoided because paste is not easy to
store and to handle.
• Use only adequate solder tools applicable for lead-free
soldering tin. The solder tool must be able:
– To reach a solder-tip temperature of at least 400°C.
– To stabilise the adjusted temperature at the solder-tip.
– To exchange solder-tips for different applications.
• Adjust your solder tool so that a temperature of around
360°C - 380°C is reached and stabilised at the solder joint.
Heating time of the solder-joint should not exceed ~ 4 sec.
Avoid temperatures above 400°C, otherwise wear-out of
tips will increase drastically and flux-fluid will be destroyed.
To avoid wear-out of tips, switch “off” unused equipment or
reduce heat.
• Mix of lead-free soldering tin/parts with leaded soldering
tin/parts is possible but PHILIPS recommends strongly to
avoid mixed regimes. If this cannot be avoided, carefully
clear the solder-joint from old tin and re-solder with new tin.
• Use only original spare-parts listed in the Service-Manuals.
Not listed standard material (commodities) has to be
purchased at external companies.
• Special information for lead-free BGA ICs: these ICs will be
delivered in so-called "dry-packaging" to protect the IC
against moisture. This packaging may only be opened
shortly before it is used (soldered). Otherwise the body of
the IC gets "wet" inside and during the heating time the
structure of the IC will be destroyed due to high (steam-)
pressure inside the body. If the packaging was opened
before usage, the IC has to be heated up for some hours
(around 90°C) for drying (think of ESD-protection!).
Do not re-use BGAs at all!
• For sets produced before 1.1.2005, containing leaded
soldering tin and components, all needed spare parts will
be available till the end of the service period. For the repair
of such sets nothing changes.
In case of doubt whether the board is lead-free or not (or with
mixed technologies), you can use the following method:
• Always use the highest temperature to solder, when using
SAC305 (see also instructions below).
• De-solder thoroughly (clean solder joints to avoid the
mixing of two alloys).
Caution: For BGA-ICs, you must use the correct temperature
profile, which is coupled to the 12NC. For an overview of these
profiles, visit the website www.atyourservice.ce.philips.com
(needs subscription, but is not available for all regions).
You will find this and more technical information within the
"Magazine", chapter "Workshop information".
For additional questions please contact your local repair help
desk.
2.3.5 Practical Service Precautions
•It makes sense to avoid exposure to electrical shock.
While some sources are expected to have a possible
dangerous impact, others of quite high potential are of
limited current and are sometimes held in less regard.
•Always respect voltages. While some may not be
dangerous in themselves, they can cause unexpected
reactions that are best avoided. Before reaching into a
powered TV set, it is best to test the high voltage insulation.
It is easy to do, and is a good service precaution.
3. Directions for Use
You can download this information from the following websites:
http://www.philips.com/support
http://www.p4c.philips.com
E_06532_024.eps
230205
P
b
Mechanical Instructions EN 7FTL2.1, FTL2.2E AA 4.
4. Mechanical Instructions
Index of this chapter:
4.1 Cable Dressing
4.2 Service Positions
4.3 Assy/PWB Removal (for FTL2.1 “Top” sets)
4.4 Assy/PWB Removal (for FTL2.2 “Wrap” Sets)
4.5 Set Re-assembly
Notes:
• Figures below can deviate slightly from the actual situation,
due to the different set executions.
• Follow the disassemble instructions in described order.
• As this chassis has two different mecanical stylings, the
dismantle instructions are splitted in two parts: one for the
“Top” version and one for the “Wrap” version.
4.1 Cable Dressing
4.1.1 Chassis
Figure 4-1 Chassis cable dressing (FTL2.1 “Top” model)
Figure 4-2 Chassis cable dressing (FTL2.2 “Wrap” model)
E_14620_026.eps
090704
E_14620_168.eps
310105
Mechanical Instructions
EN 8 FTL2.1, FTL2.2E AA4.
4.2 Service Positions
For easy servicing of this set, there are a few possibilities
created:
• The buffers from the packaging (see figure "Rear cover").
• Foam bars (created for service).
• Aluminium service stands (created for Service).
4.2.1 Foam Bars
Figure 4-3 Foam bars
The foam bars (order code 3122 785 90580 for two pieces) can
be used for all types and sizes of Flat TVs. By laying the TV
face down on the (ESD protective) foam bars, a stable situation
is created to perform measurements and alignments.
By placing a mirror under the TV, you can monitor the screen.
4.2.2 Aluminium Stands
Figure 4-4 Aluminium stands (MkI)
The new MkII aluminium stands (not on drawing) with order
code 3122 785 90690, can also be used to do measurements,
alignments, and duration tests. The stands can be
(dis)mounted quick and easy by means of sliding them in/out
the "mushrooms". The new stands are backwards compatible
with the earlier models.
Important: For (older) FTV sets without these "mushrooms", it
is obligatory to use the provided screws, otherwise it is possible
to damage the monitor inside!.
4.3 Assy/PWB Removal (for FTL2.1 “Top” sets)
4.3.1 Metal Back Plate
Caution: Disconnect the mains power cord before you remove
the metal back plate.
Figure 4-5 Metal back plate
1. Place the TV set upside down on a table top, using the
foam bars (see part "Foam Bars").
Caution: do not put pressure on the LCD display, but let
the monitor lean on the speakers or the Front cover.
2. Remove all T10 parker screws (1) from the topside of the
back plate.
3. Remove all T10 tapping screws (2) from the centre,
bottom, and left and right sides of the back plate.
4. Lift the back plate from the set. Make sure that wires and
flat foils are not damaged during the back plate removal.
4.3.2 Rear Cover
Figure 4-6 Rear cover
1. Disconnect all connectors (3) from the Ambient Light
inverter panel.
2. Remove all tapping screws (4) around the edges of the rear
cover (some of them are indicated on the figure above).
3. Remove all parker screws (5) from the rear cover (some of
them are indicated on the figure above).
4. Lift the rear cover from the set (it hinges at the bottom side).
4.3.3 Ambient Light Panel
1. Remove all mounting screws from the Ambient Light panel.
2. Disconnect all cables from the Ambient Light panel.
3. Take out the Ambient Light panel.
E_06532_018.eps
170504
E_06532_019.eps
170504
E_14620_028.eps
280704
1
1
1
2 2
E_14620_027.eps
130504
4 5
Mechanical Instructions EN 9FTL2.1, FTL2.2E AA 4.
4.3.4 Main Supply Panel
1. Remove all mounting screws from the Main Supply panel.
2. Disconnect all cables from the Main Supply panel.
3. Take out the Main Supply panel (it hinges at the right
(speaker) side).
4.3.5 SCART3 Panel
1. Disconnect all cables from the SCART3 panel.
2. Remove the two mounting screws (7) near the SCART3 at
the connector plate (see figure "Connector plate").
3. Take out the SCART3 panel.
4.3.6 Stand-by Supply / Audio Panel
1. Disconnect all cables from the Stand-by Supply / Audio
panel.
2. Remove all mounting screws from the Stand-by Supply /
Audio panel.
3. Take out the Stand-by Supply / Audio panel (it hinges at the
bottom side).
4.3.7 Side I/O Panel
Figure 4-7 Side I/O Panel
1. Disconnect the cable from the Side I/O panel.
2. Remove the mounting screws (1) if present.
3. Slide the Side I/O bracket to the right (2).
4. Release the clamp (3) and take out the Side I'O panel from
its bracket.
4.3.8 Top Control
1. Remove the mounting screws from the Top Control panel
bracket.
2. Disconnect the cable.
3. Release the clamps and take out the Top Control panel.
4.3.9 Proximity Panel
1. Remove the mounting screws.
2. Take out the Proximity panel and disconnect the cable.
4.3.10 LED / Switch Panel
1. Disconnect all cables from the LED / Switch panel.
2. Remove the mounting screws from the panel shielding and
remove it.
3. Remove the mounting screws from the LED/Switch panel.
4. Take out the LED/Switch panel.
4.3.11 Small Signal Board (SSB)
Figure 4-8 SSB top shielding
Figure 4-9 Connector plate
Figure 4-10 SSB
1. Remove the LVDS fixing tape (1).
2. Remove all fixing screws (2).
3. Lift the shielding at the top. The panel hinges at the SCART
side.
Caution: do not damage the EMC shielding foam while
you remove the shielding.
4. Remove mounting screws (3) from the connector plate.
Use a 5 mm socket screwdriver to remove both DVI
connector distance bolts (4).
5. Remove the mounting screws from the SSB (5).
6. Disconnect the LVDS cable (6).
7. Lift the SSB, disconnect all cables, and take out the SSB.
E_14620_029.eps
130504
3
2
1
E_14620_030.eps
130504
1
2
E_14620_031.eps
130504
73
4
E_14620_032.eps
130504
6
5
Mechanical Instructions
EN 10 FTL2.1, FTL2.2E AA4.
4.3.12 Woofer
1. Remove all mounting screws.
2. Take out the woofer unit together with its cable.
Caution: the woofer unit must remain airtight.
4.3.13 Speakers
Figure 4-11 Speaker mounting screws at the rear side
Figure 4-12 Front cover removal
Figure 4-13 Speaker mounting screws at the front side
Figure 4-14 Speaker removal
1. Remove all speakers mounting screws (1) at the rear side
of the set (one screw is located under the Side I/O).
2. Flip the set over (be aware that the front cover is loose
now), and remover the front cover (2).
3. Remove all speakers mounting screws (3) at the LCD side.
4. Take out the speaker unit (4).
4.3.14 LCD Panel
Figure 4-15 LCD panel (photo: “Top” model)
Caution: Before you start, be sure that the foam bars support
the LCD panel border, to prevent the display from falling when
its mounting screws are released.
1. Remove the screws from the wall mounting brackets and
remove the brackets.
2. Unplug the LVDS connector (1) at the LCD panel.
3. Unplug the backlight connectors (2).
4. Remove all mounting LCD panel screws (3).
5. Lift the plastic frame together with metal frame and PWBs
from the LCD panel.
E_14620_033.eps
130504
1
E_14620_034.eps
130504
2 2
E_14620_035.eps
090704
3
E_14620_036.ep
s
13050
4
4
E_14620_037.eps
090704
3
3
3
3
22
1
Mechanical Instructions EN 11FTL2.1, FTL2.2E AA 4.
4.3.15 Ambient Lights
Figure 4-16 Ambient light
Ambient lights are located in the rear cover of the set.
1. Remove all mounting Ambient lights screws (1) (some of
them are shown on the Figure above).
2. Remove the screw from the cable clamp (2).
3. Unplug the cables (3).
4. Shift the Ambient light unit to the side (4) and take out the
unit.
4.4 Assy/PWB Removal (for FTL2.2 “Wrap” Sets)
Note: Use figures from “Assy/PWB Removal (for FTL2.1 “Top”
Sets)“. Mind you that the different models can deviate slightly
from each other w.r.t. the mechanical construction. Where
necessary, you will find separate figures for clarification.
4.4.1 Metal Back Plate
Caution: Disconnect the AC Power (mains) cord before you
remove the metal back plate.
1. Place the TV set upside down on a table top, using the
foam bars (see part "Foam Bars").
Caution: do not put pressure on the display, but let the
monitor lean on the speakers or the Front cover.
2. Remove all T10 screws from the metal back plate.
3. Remove the four "mushrooms" (2) from the back plate.
4. Lift the back plate from the set. Make sure that wires and
flat foils are not damaged during the back plate removal.
4.4.2 Rear Cover
1. Remove all T10 parker screws (2) around the edges of the
rear cover.
2. Lift the rear cover from the set.
4.4.3 Main Supply Panel
1. Disconnect all cables from the Main Supply panel.
2. Remove all T10 mounting screws from the Main Supply
panel.
3. Take out the Main Supply panel.
4.4.4 Ambient Light Panel
1. Remove all mounting screws from the Ambient Light panel.
2. Disconnect all cables from the Ambient Light panel.
3. Take out the Ambient Light panel.
4.4.5 SCART3 Panel
1. Disconnect all cables from the SCART3 panel.
2. Remove the two mounting screws (7) near the SCART3 at
the connector plate (see figure "Connector plate").
3. Take out the SCART3 panel.
4.4.6 Stand-by Supply/Audio Panel
1. Disconnect all cables from the Stand-by Supply/Audio
panel.
2. Remove all T10 mounting screws from the Stand-by
Supply/Audio panel.
3. Take out the Stand-by Supply/Audio panel (it hinges at the
bottom side).
4.4.7 Side I/O Panel
1. Disconnect the cable(s) from the panel.
2. Remove the T10 mounting screws that hold the assy.
3. Release the clamps and take out the panel from its bracket.
4.4.8 Top/Side Control
1. Disconnect the cable(s) from the panel.
2. Remove the T10 mounting screws that hold the assy.
3. Release the clamps and take out the panel from its bracket.
4.4.9 LED Panel
1. Disconnect the cable(s) from the panel.
E_14620_052.eps
130504
4
4
2
3
1
Mechanical Instructions
EN 12 FTL2.1, FTL2.2E AA4.
2. Remove the T10 mounting screws that hold the panel.
3. Take out the panel.
4.4.10 Speakers
1. After removal of the rear cover, you can access the
speakers.
Note: In the rear cover itself, two additional “passive”
speakers are mounted.
2. Be sure that the foam that makes the unit airtight is not
damaged. Otherwise, replace it.
4.4.11 SSB
1. Remove the LVDS fixing tape (1).
2. Remove all fixing screws (2).
3. Lift the shielding at the top and shift it upwards. The
shielding clamps at the connector side.
Caution: Be careful not to damage the EMC shielding
foam while you remove the shielding.
4. Remove all connector fixation screws from the connector
plate.
5. Remove the mounting screws from the SSB (5).
6. Disconnect the LVDS cable (6).
7. Lift the SSB, disconnect all cables, and take out the SSB.
4.4.12 LCD Panel
Figure 4-17 LCD panel (photo: “Wrap” model)
Caution: Before you start, be sure that the foam bars support
the LCD panel border, to prevent the display from falling when
its mounting screws are released.
1. Remove the T10 screws (1) from the mounting frame.
2. Remove all mounting LCD panel screws (2).
3. Important: Unplug the LVDS connector (3) at the LCD
panel. Be careful, as this is a very fragile connector!
4. Unplug the backlight and loudspeaker connectors (4).
5. Lift the metal frame (together with all PWBs) from the LCD
panel. During lift, free the backlight and speaker cables.
6. After removal of the frame, you can lift the LCD display
from the set.
4.5 Set Re-assembly
To re-assemble the whole set, execute all processes in reverse
order.
Note: While re-assembling, make sure, that all cables are
placed and connected in their original position
E_14620_154.eps
300904
1
1
3
4
1
1
5
1
2
Service Modes, Error Codes, and Fault Finding EN 13FTL2.1, FTL2.2E AA 5.
5. Service Modes, Error Codes, and Fault Finding
Index of this chapter:
5.1 Test Points
5.2 Service Modes
5.3 Problems and Solving Tips (related to CSM)
5.4 ComPair
5.5 Error Codes
5.6 The Blinking LED Procedure
5.7 Protections
5.8 Repair tips
5.9 Software Downloading
5.1 Test Points
The chassis is equipped with test points printed on the circuit
board assemblies.
Perform measurements under the following conditions:
• Service Default Mode.
• Video: colour bar signal.
• Audio: 3 kHz left, 1 kHz right.
5.2 Service Modes
Service Default Mode (SDM) and Service Alignment Mode
(SAM) offer several features for the service technician, while
the Customer Service Mode (CSM) is used for communication
between a Philips Customer Care Centre (P3C) and a
customer.
There is also the option of using ComPair, a hardware interface
between a computer (see requirements below) and the TV
chassis. It offers the ability of structured troubleshooting, test
pattern generation, error code reading, software version read-
out, and software upgrading.
Minimum requirements: a Pentium processor, Windows 95/
98, and a CD-ROM drive (see also paragraph “ComPair”).
5.2.1 Service Default Mode (SDM)
Purpose
• To create a pre-defined setting, to get the same
measurement results as given in this manual.
• To override SW protections.
• To start the blinking LED procedure.
Specifications
Table 5-1 SDM default settings
• All picture settings at 50% (brightness, colour, contrast).
• All sound settings at 50%, except volume at 25%.
• All service-unfriendly modes (if present) are disabled, like:
– (Sleep) timer.
– Child/parental lock.
– Blue mute.
– Automatic volume limiter (AVL).
– Auto switch-off (when no video signal was received for
10 minutes).
– Skip/blank of non-favourite pre-sets.
– Smart modes.
– Auto store of personal presets.
– Auto user menu time-out.
How to activate SDM
Use one of the following methods:
• Use the standard RC-transmitter and key in the code
“062596”, directly followed by the “MENU” button.
Note: It is possible that, together with the SDM, the main
menu will appear. To switch it off, push the “MENU” button
again.
Figure 5-1 Service pads
• Short for a moment the two solder pads on the SSB, with
the indication “SDM”. Activation can be performed in all
modes, except when the set has a problem with the main
microprocessor.
Caution: If the SDM is activated via the pins, all the
software-controlled protections are de-activated.
• Use the DST-emulation feature of ComPair.
• Use the “DEFAULT” button on the Dealer Service Tool
(RC7150).
After activating this mode, “SDM” will appear in the upper right
corner of the screen.
How to navigate
When you press the “MENU” button on the RC transmitter, the
set will toggle between the SDM and the normal user menu
(with the SDM mode still active in the background).
How to exit SDM
Use one of the following methods:
• Switch the set to STANDBY via the RC-transmitter.
• Press the “EXIT” button on the DST.
• Via a standard customer RC-transmitter: key in “00”-
sequence.
5.2.2 Service Alignment Mode (SAM)
Purpose
• To perform (software) alignments.
• To change option settings.
• To easily identify the used software version.
• To view operation hours.
• To display (or clear) the error code buffer.
Specifications
• Operation hours counter.
• Software version.
• Option settings.
Region Freq. (MHz)
Default
system
Europe, AP-PAL/Multi 475.25 PAL B/G
NAFTA, AP-NTSC, LATAM 61.25 (ch. 3) NTSC M
E_14620_151.eps
290704
SDM
SAM
NORMAL
TV MODE
SW UPGRADE
MODE
Service Modes, Error Codes, and Fault Finding
EN 14 FTL2.1, FTL2.2E AA5.
• Error buffer reading and erasing.
• Software alignments.
How to activate SAM
Use one of the following methods:
• Via a standard RC transmitter: key in the code “062596”
directly followed by the “OSD [i+]” button. After activating
SAM with this method a service warning will appear on the
screen, you can continue by pressing any digit key on the
RC.
• Short for a moment the two solder pads on the SSB with
the indication "SAM". Depending on the software version,
it is possible that a service warning will appear. You can
continue by pressing any digit key on the RC.
• Use the DST-emulation feature of ComPair.
• Press the ALIGN button on the DST while the set is in the
normal operation
After activating this mode, “SAM” will appear in the upper right
corner of the screen.
Contents of SAM:
•OPERATION HOURS. Displays the accumulated total of
operation hours (not the stand-by hours).
•HARDWARE INFO.
–ROM VERSION. Displays the date of the software and
the software version of the ROM
(example: TX21EU_1.0_01234 =
AAAABB_X.Y_NNNNN).
•AAAA= the chassis name.
•BB= the region: EU= Europe, AP= Asia Pacific
PAL/Multi, AN= Asia Pacific NTSC, US= USA, LT=
LATAM.
•X.Y= the software version, where X is the main
version number (different numbers are not
compatible with one another) and Y is the sub
version number (a higher number is always
compatible with a lower number).
•NNNNN= last five digits of 12nc code software.
–FBX Version. Displays the software version of the
FBX
–SW VERSION EPLD. Displays the software version of
the EPLD.
•ERRORS. (followed by maximal 10 errors). The most
recent error is displayed at the upper left (for an error
explanation see paragraph “Error Codes”).
•DEFECTIVE MODULE. Here the module that generates
the error is displayed. If there are multiple errors in the
buffer, which are not all generated by a single module,
there is probably another defect. It will then display the
message “UNKNOWN” here.
•RESET ERROR BUFFER. When you press the “OK”
button, the error buffer is reset.
•ALIGNMENTS. This will activate the “ALIGNMENTS” sub-
menu.
•DEALER OPTIONS. Extra features for the dealers.
•SERVICE OPTIONS. Extra features for Service.
•INITIALISE NVM. When an NVM was corrupted (or
replaced) in the former EM3 chassis, the microprocessor
replaced the content with default data (to assure that the
set can operate). However, all pre-sets and alignment
values are gone now, and option numbers are not correct.
Therefore, this was a very drastic way. In this chassis, the
procedure is implemented in another way: The moment the
processor recognises a corrupted NVM, the “initialise
NVM” line will be highlighted. Now, you can do two things
(dependent of the service instructions at that moment):
– Save the content of the NVM via ComPair for
development analysis, before initialising. This will give
the Philips Service department an extra possibility for
diagnosis (e.g. when Development asks for this).
– Initialise the NVM (same as in the past, however now it
happens conscious).
•STORE. All options and alignments are stored when
pressing the “OK”-button
•FUNCTIONAL TEST. All devices are tested via the “OK”
button. Eventual errors are displayed in the error buffer.
The error buffer is not erased, the content returns when this
test is terminated.
•DAILY MENUS. With the “OK” button, you can go to the
normal user menu. SAM is still active in the background.
With the “MENU” button, you return from the user menu to
SAM menu. This feature can be helpful to quickly change
some settings in the user menu.
•SW MAINTENANCE.
•UPGRADE. More info see paragraph Software
downloading.
•EVENTS. Not useful for Service purposes. In case of
specific software problems, the development
department can ask for this info.
•BDM INFO. Broadcast Debug Menu info. The purpose
of this menu is to debug the broadcast, not the TV. The
menu gives an overview of what is received on the
current preset.
Following items are displayed:
Figure 5-2 Broadcast debug menu overview.
Table 5-2 Broadcast debug menu explanation
Item Source Description
Presetnr Set Preset number of the current selected preset.
Presetname Set Preset name of the current selected preset.
CNI NVM Broadcaster CNI number stored in NVM for the current preset.
CNI F1 Broadcaster CNI number from transmitted Packet 8/30 Format
1.
CNI F2 Broadcaster CNI number from transmitted Packet 8/30 Format
2.
CNI VPS Broadcaster CNI number from transmitted VPS line.
Morning Prog Broadcaster "ARD" or "ZDF" according to dedicated bit in 8/30
Format 1.
Name 8/30 F1 Broadcaster Name extracted from status message of 8/30
Format 1.
Name 8/30 F2 Broadcaster Name extracted from status message of 8/30
Format 2.
Name TXT Broadcaster Name extracted from TXT header.
Signal Strength FBX Noise figure measured for selected preset.
EPG Service Set EPG Service stored in NVM for current preset
displayed as "TXT", "MCP", "SCP", "OCP".
UTC Set UTC (Universal Time Code formerly known as
Greenwich Mean Time) used in the set.
LTO Set LTO (Local Time Offset) used in the set. Used by
EPG for all Nextview displays. (= Time TXT
header - Time 8/30 F1 )
Time Set Current time running in the set. Was extracted at
start-up, then maintained by software.
Date Set Current date running in the set. Was extracted at
start-up, then maintained by software.
Time TXT Broadcaster TXT header time from the selected preset.
Time 8/30 F1 Broadcaster UTC time from 8/30 Format 1.
Date 8/30 F1 Broadcaster Date from 8/30 Format 1.
LTO 8/30 F1 Broadcaster LTO from 8/30 Format 1.
WSS G1 Broadcaster WSS Group 1 (Aspect Ratio) bits 0 1 2 3
WSS G2 Broadcaster WSS Group 2 (Enhanced Services) bits 4 5 6 7
WSS G3 Broadcaster WSS Group 3 (Subtitles) bits 8 9 10
WSS G4 Broadcaster WSS Group 4 (Reserved) bits 11 12 13
P r e s e t n r : -- UTC: - - : - - : --
P r e s e t n a m e : ----- LTO: - - : - - : --
Time: - - : - - : --
C N I N V M : ---- Date: - - / - - / ----
C N I F 1 : ----
C N I F 2 : ---- Time TXT: - - : - - : --
C N I V P S : ---- Time 8/30 F1: - - : - - : --
M o r n i n g P r o g : --- Date 8/30 F1: - - / - - / ----
N a m e 8 / 3 0 F 1 : ----- LTO 8/30 F1: - - : - - : --
N a m e 8 / 3 0 F 2 : -----
N a m e T X T : ----- WSS G1: - - - -
S i g n a l S t r e n g t h :--- WSS G2: - - - -
WSS G3: - - -
E P G S e r v i c e : --- WSS G4: - - -
E_14620_050.eps
170504
Service Modes, Error Codes, and Fault Finding EN 15FTL2.1, FTL2.2E AA 5.
How to navigate
• In SAM, you can select the menu items with the “CURSOR
UP/DOWN” key on the RC-transmitter. The selected item
will be highlighted. When not all menu items fit on the
screen, move the “CURSOR UP/DOWN” key to display the
next/previous menu items.
• With the “CURSOR LEFT/RIGHT” keys, it is possible to:
– (De) activate the selected menu item.
– Change the value of the selected menu item.
– Activate the selected submenu.
How to exit SAM
Use one of the following methods:
• Press the “MENU” button on the RC-transmitter, or
• Switch the set to STANDBY via the RC-transmitter, or
• Press the “EXIT” button on the DST.
5.2.3 Customer Service Mode (CSM)
Purpose
When a customer is having problems with his TV-set, he can
call his dealer. The service technician can than ask the
customer to activate the CSM, in order to identify the status of
the set. Now, the service technician can judge the severity of
the complaint. In many cases, he can advise the customer how
to solve the problem, or he can decide if it is necessary to visit
the customer.
The CSM is a read only mode; therefore, modifications in this
mode are not possible.
How to activate CSM
Use one of the following methods:
• Press the “MUTE” button on the RC-transmitter
simultaneously with the “MENU” button on the TV (top
control) for at least 4 seconds.
• Key in the code “123654” via the standard RC transmitter.
Note: Activation of the CSM is only possible if there is no (user)
menu on the screen!
How to navigate
By means of the “CURSOR-DOWN/UP” knob on the RC-
transmitter, you can navigate through the menus.
Contents of CSM
CUSTOMER SERVICE MENU 1
•SOFTWARE VERSION (example: TX21EU_1.0_01234).
Displays the built-in software version. In case of field
problems related to software, software can be upgraded
(for more details, see paragraph Software downloading).
You will find details of the software versions in the chapter
“Software Survey” of the “Product Survey - Colour
Television” publication. This publication is generated four
times a year.
•FEATURE BOX. The 12NC-number of the built-in Feature
Box software.
•SET TYPE. This information is very helpful for a help desk/
workshop as reference for further diagnosis. In this way, it
is not necessary for the customer to look at the rear of the
TV-set.
•CODE 1. Gives the latest five errors of the error buffer. As
soon as the built-in diagnose software has detected an
error the buffer is adapted. The last occurred error is
displayed on the leftmost position. Each error code is
displayed as a 3-digit number. When less than 10 errors
occur, the rest of the buffer is empty (000). See also
paragraph Error Codes for a description.
•CODE 2. Gives the first five errors of the error buffer. See
also paragraph Error Codes for a description.
•VOLUME. Gives the last status of the volume as set by the
customer. The value can vary from 0 (volume is minimum)
to 100 (volume is maximum). Volume values can be
changed via the volume key on the RC-transmitter.
•BRIGHTNESS. Gives the last status of the brightness as
set by the customer. The value can vary from 0 (brightness
is minimum) to 100 (brightness is maximum). Brightness
values can be changed via the “CURSOR LEFT” and
“CURSOR RIGHT” keys on the RC-transmitter after
pressing the “MENU” button and selecting “PICTURE” and
“BRIGHTNESS”.
•CONTRAST. Gives the last status of the contrast as set by
the customer. The value can vary from 0 (contrast is
minimum) to 100 (contrast is maximum). Contrast values
can be changed via “CURSOR LEFT” and “CURSOR
RIGHT” keys on the RC-transmitter after pressing the
“MENU” button and selecting “PICTURE” and
“CONTRAST”.
•COLOUR. Gives the last status of the colour saturation, as
set by the customer. The value can vary from 0 (colour is
minimum) to 100 (colour is maximum). Colour values can
be changed via “CURSOR LEFT” and “CURSOR RIGHT”
keys on the RC-transmitter after pressing the “MENU”
button and selecting “PICTURE” and “COLOUR”.
•HUE. Only relevant for NTSC-signals (e.g. some NTSC-
DVD-discs).
CUSTOMER SERVICE MENU 2
•SHARPNESS. Gives the sharpness value. The value can
vary from 0 (sharpness is minimum) to 7 (sharpness is
maximum). In case of bad antenna signals, a too high
value of the sharpness can result in a noisy picture.
Sharpness values can be changed via the “CURSOR
LEFT” and “CURSOR RIGHT” keys on the RC-transmitter
after pressing the “MENU” button and selecting “PICTURE”
and “SHARPNESS”.
•HEADPHONE VOLUME. Gives the last status of the
headphone volume, as set by the customer. The value can
vary from 0 (volume is minimum) to 100 (volume is
maximum). Headphone volume values can be changed via
the “CURSOR LEFT” and “CURSOR RIGHT” keys on the
RC-transmitter after pressing the “MENU” button and
selecting “SOUND” and “HEADPHONE VOLUME”.
•DOLBY. Indicates whether the received transmitter
transmits Dolby sound (“ON”) or not (“OFF”). Attention: The
presence of Dolby can only be tested by the software on
the Dolby Signalling bit. If a Dolby transmission is received
without a Dolby Signalling bit, this indicator will show “OFF”
even though a Dolby transmission is received.
•SURROUND MODE. Indicates the by the customer
selected surround mode (or automatically chosen mode).
Possible values are “OFF”, “INCREDIBLE SURROUND”
OR “DOLBY VIRTUAL”. These settings can be influenced
after pressing the “MENU” button and selecting “SOUND”
and SURROUND MODE”. It can also have been selected
automatically by signalling bits (internal software).
•TUNER FREQUENCY. Indicates the frequency the
selected transmitter is tuned to. The tuner frequency can
be changed via the “CURSOR LEFT” and “CURSOR
RIGHT” keys for fine tune after opening the installation
menu and selecting “INSTALL” and “MANUAL INSTALL”.
•DIGITAL OPTION. Gives the selected digital mode,
“PROGRESSIVE SCAN”, “MOVIE PLUS” or “PIXEL
PLUS”. Change via “MENU”, “PICTURE”, “DIGITAL
OPTIONS”.
•CENTRE TRIM. Not applicable for this set.
•TV SYSTEM. Gives information about the video system of
the selected transmitter.
– BG: PAL BG signal received.
– DK: PAL DK signal received.
– I: PAL I signal received.
– L/La: SECAM L/La signals received.
– M: NTSC M signal received with video carrier on 38.9
MHz.
Service Modes, Error Codes, and Fault Finding
EN 16 FTL2.1, FTL2.2E AA5.
CUSTOMER SERVICE MENU 3
•BALANCE. Indicates the balance settings, between “-50”
and “+50”. Change via “MENU”, “SOUND”, and
“BALANCE”. Not applicable for Dolby Pro Logic sets.
•CENTRE MODE. Indicates if centre mode is set “ON” or
“OFF”. When centre mode is on, all TV speakers are used
as one centre speaker. Change Centre mode via “MENU”,
“SETUP”, “SPEAKERS”, and “CENTRE MODE”.
•DNR. Gives the selected DNR setting (Dynamic Noise
Reduction), “OFF”, “MINIMUM”, “MEDIUM”, or
“MAXIMUM”. Change via “MENU”, “PICTURE”, “DNR”
•NOISE FIGURE. Gives the noise ratio for the selected
transmitter. This value can vary from 0 (good signal) to 127
(average signal) and to 255 (bad signal). For some
software versions, the noise figure will only be valid when
“Active Control” is set to “medium” or “maximum”.
•SOURCE. Indicates which source is used and the video/
audio signal quality of the selected source. (Example:
Tuner, Video/NICAM) Source: “TUNER”, “EXT1”, “EXT2”,
“EXT3”, “EXT4”, “SIDE”, “AV1”, “AV2”, “AV3” or “AV4”.
Video signal quality: “VIDEO”, “S-VIDEO”, “RGB 1FH”,
“YPBPR 1FH 480P”, “YPBPR 1FH 576P”, “YPBPR 1FH
1080I”, “YPBPR 2FH 480P”, “YPBPR 2FH 576P”, “YPBPR
2FH 1080I”, “RGB 2FH 480P”, “RGB 2FH 576P” or “RGB
2FH 1080I”. Audio signal quality: “STEREO”, “SPDIF 1”,
“SPDIF 2”, or “SPDIF”.
•AUDIO SYSTEM. Gives information about the audio
system of the selected transmitter: “ANALOGUE MONO”,
“ANALOGUE STEREO”, “PCM 2/0”, “DD 1/0”, “DD 2/0
LtRt”, “DD 2/0 L0R0”, “DD 2/1”, “DD 2/2”, “DD 3/0”, “DD 3/
1”, “DD 3/2”, “DD 1+1”, “MPEG 1/0”, “MPEG 2/0”, “MPEG
2/0 LtRt”, “MPEG 2/1”, “MPEG 2/2”, “MPEG 3/0”, “MPEG
3/1”, “MPEG 3/2”, “MPEG 1+1” or “MPEG 2+2”.
•TUNED BIT. Gives information about the tuning method of
the stored pre-set. If a channel is found via “automatic
installation”, you will see the value “YES”. When you
change this (automatically found) frequency via “fine tune”
adjustment (installation menu - manual installation), the
displayed value will change to “NO”. Therefore, when you
see the value “NO” in this line, it is an indication that the
received channel is a non-standard signal (e.g. of a VCR).
•SURROUND SPEAKERS. Not applicable in this set.
•ON TIMER. Indicates if the “On Timer” is set “ON” or “OFF”
and if the timer is “ON” also displays start time, start day
and program number. Change via “MENU”, “TV”,
“FEATURES”, and “ON TIMER”.
•PRESET LOCK. Indicates if the selected preset has a child
lock: “LOCKED” or “UNLOCKED”. Change via “MENU”,
“TV”, “FEATURES”, “CHILD LOCK”, and “CUSTOM
LOCK”.
CUSTOMER SERVICE MENU 4
•CHILD LOCK. Indicates the last status of the general child
lock: “UNLOCK”, “LOCK”, or “CUSTOM LOCK”. Change
via “MENU”, “TV”, “FEATURES”, “CHILD LOCK”, and
“LOCK”.
•AGE LOCK. Indicates the last status of the EPG rating for
child lock: “OFF”, “4 YEARS”, “6 YEARS”, “8 YEARS”, “10
YEARS”, “12 YEARS”, “14 YEARS” or “16 YEARS”. This is
only displayed if child lock is set to “CUSTOM LOCK”
•LOCK AFTER. Indicates at what time the child lock is set:
“OFF” or e.g. “18:45” (lock time). This is only displayed if
child lock is set to “CUSTOM LOCK”
•CATEGORY LOCK. Indicates the last status of the EPG
theme childlock: “MOVIES”, “NEWS”, “SHOWS”,
“SPORTS”, “CHILDREN”, “MUSIC”, “CULTURE”, or
“SERIES”. This is only displayed if child lock is set to
“CUSTOM LOCK”. It is possible that more than one value
is shown.
•PROGRAM CATEGORY. Indicates the theme of the
selected transmitter: “MOVIES”, “NEWS”, “SHOWS”,
“SPORTS”, “CHILDREN”, “MUSIC”, “CULTURE”, or
“SERIES”.
•TV RATINGS LOCK. Only applicable for US.
•MOVIE RATINGS LOCK. Only applicable for US.
•V-CHIP TV STATUS. Only applicable for US.
CUSTOMER SERVICE MENU 5
•V-CHIP MOVIE STATUS. Only applicable for US.
•OPTIONS 1. Gives the option codes of option group 1 as
set in SAM (Service Alignment Mode).
•OPTIONS 2. Gives the option codes of option group 2 as
set in SAM (Service Alignment Mode).
•AVL. Indicates the last status of AVL (Automatic Volume
Level): “ON” or “OFF”. Change via “MENU”, “TV”,
“SOUND”, “AVL”
•DELTA VOLUME. Indicates the last status of the delta
volume for the selected preset as set by the customer: from
“-12” to “+12”. Change via “MENU”, “TV”, “SOUND”,
“DELTA VOLUME”.
•FRONT SPKR DIST. Not applicable for this set.
•FRONT SPKR DIST. Not applicable for this set.
How to exit CSM
Use one of the following methods:
• After you press a key on the RC-transmitter (with exception
of the “CHANNEL”, “VOLUME” and digit (0-9) keys), or
• After you switch the TV-set “OFF” with the mains switch.
5.3 Problems and Solving Tips (related to CSM)
Note: Below described problems are all related to the TV
settings (visible in the CSM menu). The procedures to change
the value (or status) of the different settings are described
above. New value(s) are automatically stored.
5.3.1 Picture Problems
Snowy/noisy picture
1. Check in CSM line NOISE FIGURE. In case the value is
"127" or higher, and the value is also high on other
programs, check the aerial cable/aerial system. For some
software versions, the noise figure will only be valid when
“Active Control” is set to “medium” or “maximum”.
2. Check in CSM lines SHARPNESS and NOISE FIGURE. In
case the value of line SHARPNESS is "3" or "4" and the
value of line NOISE FIGURE is high ("127" or higher),
decrease the "Sharpness” value.
Picture too dark
1. Press “Menu”, “TV”, “Picture”, “Smart Picture”. In case the
picture improves, increase the “Brightness” or the
“Contrast” value. The new value(s) are automatically
stored (in “personal” pre-set) for all TV channels.
2. Check in CSM line BRIGHTNESS and CONTRAST. If the
value of these lines is low (< "10"), increase the
“Brightness” or the “Contrast” value via the user menu.
Picture too bright
1. Press “Menu”, “TV”, “Picture”, “Smart Picture”. In case the
picture improves, decrease the “Brightness” or the
“Contrast” value. The new value(s) are automatically
stored (in “personal” pre-set) for all TV channels.
2. Check in CSM lines BRIGHTNESS and CONTRAST. If the
value of these line is high (> 50), decrease the “Brightness”
value or increase the “Contrast” value via the user menu.
White line around picture elements and text
1. Press “Menu”, “TV”, “Picture”, “Smart Picture”. In case the
picture improves, decrease the “Sharpness” value. The
new value is automatically stored (in “personal” pre-set) for
all TV channels.
2. Check in CSM line “Sharpness”. If the value is high,
decrease it. The new value is automatically stored for all
TV channels.
Service Modes, Error Codes, and Fault Finding EN 17FTL2.1, FTL2.2E AA 5.
No picture
Check in CSM line TUNED BIT. In case the value is “No”, install
the required program again. Open the installation menu and
perform manual installation.
No picture
No proper signal is received. Check the aerial cable/aerial
system.
No picture or unstable picture
A scrambled or decoded signal is received.
Black and white picture
Check in CSM line COLOUR. In case the value is low (< "10"),
increase the “Colour” value via the user menu. The new value
is automatically stored for all TV channels.
No colours/colour lines around picture elements or
colours not correct or unstable picture
1. Check in CSM line TV SYSTEM. If a “strange” system pops
up, something has gone wrong during installation. Re-
install the channel.
2. If in CSM line TV SYSTEM is “L”, the installed system for
this pre-set is “France”, while “West Europe” is required.
Install the required program again: open the installation
menu and perform manual installation. Select system
“West Europe”.
Menu text not sharp enough
1. Press “MENU”, “TV”, “PICTURE”, “SMART PICTURE”. In
case picture improves, decrease the contrast value. The
new value(s) are automatically stored for all TV channels.
2. Check line “Contrast”. If the value is high, decrease the
contrast value.
5.3.2 Sound Problems
No sound from left and right speaker
Check line 6 “Volume”. The value is low. Increase the value of
“Volume”. The new value(s) are automatically stored (in
“personal” pre-set) for all TV channels.
5.4 ComPair
5.4.1 Introduction
ComPair (Computer Aided Repair) is a service tool for Philips
Consumer Electronics products. ComPair is a further
development on the European DST (service remote control),
which allows faster and more accurate diagnostics. ComPair
has three big advantages:
• ComPair helps you to quickly get an understanding on how
to repair the chassis in a short time by guiding you
systematically through the repair procedures.
• ComPair allows very detailed diagnostics (on I2C level) and
is therefore capable of accurately indicating problem areas.
You do not have to know anything about I2C commands
yourself because ComPair takes care of this.
• ComPair speeds up the repair time since it can
automatically communicate with the chassis (when the
microprocessor is working) and all repair information is
directly available. When ComPair is installed together with
the SearchMan electronic manual of the defective chassis,
schematics and PWBs are only a mouse click away.
5.4.2 Specifications
ComPair consists of a Windows based fault finding program
and an interface box between PC and the (defective) product.
The ComPair interface box is connected to the PC via a serial
or RS232 cable.
For this chassis, the ComPair interface box and the TV
communicate via a bi-directional service cable via the service
connector.
The ComPair fault finding program is able to determine the
problem of the defective television. ComPair can gather
diagnostic information in two ways:
• Automatic (by communication with the television): ComPair
can automatically read out the contents of the entire error
buffer. Diagnosis is done on I2C level. ComPair can access
the I2C bus of the television. ComPair can send and
receive I2C commands to the micro controller of the
television. In this way, it is possible for ComPair to
communicate (read and write) to devices on the I2C buses
of the TV-set.
• Manually (by asking questions to you): Automatic
diagnosis is only possible if the micro controller of the
television is working correctly and only to a certain extends.
When this is not the case, ComPair will guide you through
the fault finding tree by asking you questions (e.g. Does the
screen give a picture? Click on the correct answer: YES /
NO) and showing you examples (e.g. Measure test-point I7
and click on the correct oscillogram you see on the
oscilloscope). You can answer by clicking on a link (e.g.
text or a waveform picture) that will bring you to the next
step in the fault finding process.
By a combination of automatic diagnostics and an interactive
question / answer procedure, ComPair will enable you to find
most problems in a fast and effective way.
Beside fault finding, ComPair provides some additional
features like:
• Up- or downloading of pre-sets.
• Managing of pre-set lists.
• Emulation of the Dealer Service Tool (DST).
• If both ComPair and SearchMan (Electronic Service
Manual) are installed, all the schematics and the PWBs of
the set are available by clicking on the appropriate
hyperlink.
Example: Measure the DC-voltage on capacitor C2568
(Schematic/Panel) at the Mono-carrier.
– Click on the “Panel” hyperlink to automatically show
the PWB with a highlighted capacitor C2568.
– Click on the “Schematic” hyperlink to automatically
show the position of the highlighted capacitor.
5.4.3 Stepwise Start-up
Under normal circumstances, a fault in the power supply, or an
error during start-up, will switch the television to protection
mode. ComPair can take over the initialisation of the television.
In this way, it is possible to distinguish which part of the start-
up routine (hence which circuitry) is causing the problem.
Take notice that the transition between two steps can take
some time, so give the set some time to reach a stable state.
During the transition time, the LED can blink strangely.
Stepwise start- up explanation
This is realised via ComPair and is very helpful when a
protection is activated (see also chapter “Protections”). The
following diagram shows the start-up procedure of the set.
Every step of the stepwise start-up (also called trapped start-
up) in the diagram corresponds with the number of times the
led blinks.
Service Modes, Error Codes, and Fault Finding
EN 18 FTL2.1, FTL2.2E AA5.
Figure 5-3 Stepwise start-up part 1
Figure 5-4 Stepwise start-up part 2
Note (*):
• When the set is in stepwise mode and, due to stepping-up,
a protection is activated, the set will really go into protection
(blinking LED). The set will not leave the stepwise-mode
however. If state X is the state where the set went to
protection, stepwise start-up will return to state X-1. At
state (X-1) diagnostic measurements can be performed.
Also, in the short time the set is in state X but not yet in
protection, you can also do some measurements.
5.4.4 How To Connect
This is described in the chassis fault finding database in
ComPair.
Figure 5-5 ComPair interface connection
5.4.5 How To Order
ComPair order codes (EU/AP/LATAM):
• Starter kit ComPair32/SearchMan32 software and
ComPair interface (excl. transformer): 3122 785 90450.
• ComPair interface (excl. transformer): 4822 727 21631.
• Starter kit ComPair32 software (registration version): 3122
785 60040.
• Starter kit SearchMan32 software: 3122 785 60050.
• ComPair32 CD (update): 3122 785 60070 (year 2002),
3122 785 60110 (year 2003 onwards).
• SearchMan32 CD (update): 3122 785 60080 (year 2002),
3122 785 60120 (year 2003), 3122 785 60130 (year 2004).
• ComPair firmware upgrade IC: 3122 785 90510.
• Transformer (non-UK): 4822 727 21632.
• Transformer UK: 4822 727 21633.
• ComPair interface cable: 3122 785 90004.
• ComPair interface extension cable: 3139 131 03791.
• ComPair UART interface cable: 3122 785 90630
Note: If you encounter any problems, contact your local
support desk.
5.5 Error Codes
5.5.1 Introduction
The error code buffer contains all detected errors since the last
time the buffer was erased. The buffer is written from left to
right, new errors are logged at the left side, and all other errors
shift one position to the right.
When an error has occurred, the error is added to the list of
errors, provided the list is not full or the error is a protection
error.
When an error occurs and the error buffer is full, then the new
error is not added, and the error buffer stays intact (history is
maintained), except when the error is a protection error.
To prevent that an occasional error stays in the list forever, the
error is removed from the list after 50+ operation hours.
When multiple errors occur (errors occurred within a short time
span), there is a high probability that there is some relation
between them.
5.5.2 How to read the Error Buffer
Use one of the following methods:
• On screen via the SAM (only if you have a picture).
Examples:
–0 0 0 0 0: No errors detected
–6 0 0 0 0: Error code 6 is the last and only detected
error
–9 6 0 0 0: Error code 6 was first detected and error code
9 is the last detected error
• Via the blinking LED procedure (when you have no
picture). See next paragraph.
•Via ComPair.
Initialize PICNIC + screen info
Start TXT acquisition
and time extraction
Reset Audio = low
and Initialize MSP
Screen type
400msec>t>200msec
Trapped Startup 2
+5V and +8V is switched on
Put Stand-by line LOW
CPU GO becomes HIGH
Keep sound amplifiers muted with
sound enable = high
+8V and +5V get their nominal level,
detected by the OTC
Read rest of NVM information
activate protection algorithms for +8V and +5V and
I²C (start I²C protection the moment the component
is initialised).
Initialize 3D Combfilter
or Initialize Columbus
Initialize HIP: IF, source selection, 2fh input, video
processing
Switch on the syncoutput: set_syncout_tristate= off
Stand-by
start time extraction
start P50 recording
start EPG loading
Standby bit = off
Ambient light ON
Initialize rest of PIP/DW module
Initialize tuner
Start up LCD
opt 3,4,5,6
Initialize PDP SDI
opt 0,1,7 E_14620_048.eps
170504
Initialize PDP FHP
opt 2,8
OFF
Read NVM identification
enable watchdog
OUT
OTC gets supply voltage
Mains cord IN
OTC resets, Initialise IO pins
Reset Audio=high
Tact switch
Stand-by bit = OFF
Set STBYEN,VCCON,PFCON = 1
Only FHP (opt 2, 8)
Initialize EBILD
Trapped Startup 1
Start
Semi stand by
yes
Ebild Power ON
Output Blanking OFF
ON
Stand-by bit set ? no
Start up LCD
Trapped Startup 3
LAMP ON
LCD ON
Trapped Startup 4
E_14620_049.eps
170504
E_06532_021.eps
180804
PC VCR I2CPower
9V DC
TO
UART SERVICE
CONNECTOR
TO
I2C SERVICE
CONNECTOR
Service Modes, Error Codes, and Fault Finding EN 19FTL2.1, FTL2.2E AA 5.
5.5.3 How to clear the Error Buffer
Use one of the following methods:
• By activation of the “RESET ERROR BUFFER” command
in the SAM menu.
• With a normal RC, key in sequence “MUTE” followed by
“062599” and “OK”.
• When you transmit the commands “DIAGNOSE” - “99” -
“OK” with ComPair (or with a DST).
• If the content of the error buffer has not changed for 50+
hours, it resets automatically.
5.5.4 Error Codes
In case of non-intermittent faults, clear the error buffer before
you begin the repair. This to ensure that old error codes are no
longer present. Before clearing the buffer, write down the
content, as this history can give you significant information.
If possible, check the entire contents of the error buffer. In
some situations, an error code is only the result of another error
code and not the actual cause (e.g., a fault in the protection
detection circuitry can also lead to a protection).
There are various errors:
•I
2C device errors.
•I
2C bus errors.
• Protection errors.
• Errors not related to an I2C device, but of importance:
–FEM (Falconic with Embedded Memory) (Error 26):
at start-up, after initialisation of the PICNIC, the
presence of the FEM can be checked.
–Eagle (Error 27): at start-up, after initialisation of the
PICNIC, the presence of the Eagle can be checked.
Table 5-3 Error Table
Note:
• Error codes 1, 6, or 18 are protection codes and in this
case, supplies of some circuits will be switched “off”. Also,
in protection, the LED will blink the number of times
equivalent to the most recent error code.
Error Device Description Def. item Def. Module indication Diagr.
1 M24Cxx NVM, spontaneous blinking error 1 7011 Control B5a
3 SAA4978 PICNIC 7713 Feature Box B3a
4 Supply 5 V 5V protection / +5V Supply B5a
5 Supply 8 V 8V protection / +8V Supply B5a
6Slow I2C bus blocked Spontaneous blinking error 6 / Slow I2C Blocked /
8 TDA932x HIP High-end Input Processor 7323 Chroma IF IO B2
13 UV1318/... Tuner protection 1T01 Tuner B13a
14 MSPxxxx ITT sound processor 7A02 Audio module B6a
18 Fast I2C bus blocked Spontaneous blinking error 18 / Fast I2C Blocked /
21 M62320P I/O Expander 7P56 Video Dual Screen B15b
23 UV1318/... Sub tuner 1T02 Video Dual Screen B13b
24 SAB9083H PIP Muppet 7PA6 Video Dual Screen B15c
25 Z86130 V-CHIP (US only) 7P51 Video Dual Screen B15b
26 SAA4998 FEM (Falconic with Embedded Memory) 7760 +3V (FBX) Supply B3b
27 T6TX5ES Eagle 1C 7720 +3V (FBX) Supply B3c
32 M29W400BT Flash Ram (EPG) 7012 EPG Memory B5a
34 TDA932x Second HIP 7P09 Video Dual Screen B15a
35 T6TU5ES Columbus 7752 +3V (FBX) Supply B3d
53 AD9883A AD converter 7E23 HD B19c
55 DC/DC converter One of the voltages is not ok + protection error / Supply /
56 EPLD EPLD error 7V01 Video control B19d
76 Audio supply Audio supply protection / / /
82 TDA7309 Headphone processor 7A06 Video Dual Screen B6a
83 TEA6422 Source select matrix audio 7I17 Audio Source Select B14d
Service Modes, Error Codes, and Fault Finding
EN 20 FTL2.1, FTL2.2E AA5.
5.6 The Blinking LED Procedure
5.6.1 Introduction
Via this procedure, you can make the contents of the error
buffer visible via the front LED. This is especially useful for fault
finding, when there is no picture.
When the SDM is activated, the front LED will show (blink) the
contents of the error-buffer. Error-codes > 10 are shown as
follows:
– A long blink of 750 ms (which is an indication of the decimal
digit),
– A pause of 1.5 s,
– “n” short blinks (where “n” = 1 - 9),
– When all the error-codes are displayed, the sequence
finishes with a LED blink of 3 s,
– The sequence starts again.
Example: Error 12 9 6 0 0.
After activation of the SDM, the front LED will show:
– 1 long blink of 750 ms (which is an indication of the decimal
digit) followed by a pause of 1.5 s,
– 2 short blinks followed by a pause of 3 s,
– 9 short blinks followed by a pause of 3 s,
– 6 short blinks followed by a pause of 3 s,
– 1 long blink of 3 s to finish the sequence,
– The sequence starts again.
Note: If errors 1, 6, or 18 occur, the LED always gives the last
occurred error even if the set is NOT in service mode.
5.6.2 How to Activate
Use one of the following methods:
• Activate the SDM (only via soldering pads marked “SDM”
on SSB). The blinking front LED will show the entire
contents of the error buffer (this works in “normal
operation” mode and in “protection” mode).
• Transmit the commands “MUTE” - “062500” - “OK” with a
normal RC. The complete error buffer is shown. Take
notice that it takes some seconds before the blinking LED
starts.
• Transmit the commands “MUTE” - “06250x” - “OK” with a
normal RC (where “x” is a number between 1 and 5). When
x= 1 the last detected error is shown, x= 2 the second last
error, etc.... Take notice that it takes some seconds before
the blinking LED starts.
• “DIAGNOSE X” with the DST (where “x” is a number
between 1 and 5). When x= 1 the last detected error is
shown, x= 2 the second last error, etc.... When x = 0 all
errors are shown.
5.7 Protections
5.7.1 Introduction
This chassis has only one microprocessor (OTC), which
remains active during Stand-by. This because power of the
microprocessor and the attached memory chip set is coming
from the 3V3 supply, which is derived from the 5V Stand-by-
circuitry. Therefore, in both Power-on as in Stand-by mode, the
microprocessor is connected to this power supply.
If a fault situation is detected, an error code will be generated
and if necessary, the set is put in protection mode. The
protection mode is indicated by the blinking of the front LED at
a frequency of 3 Hz (or by a coded blinking in special cases).
The content of the error buffer can be read via the service menu
(SAM), the blinking LED procedure or via DST/ComPair.
To get a quick diagnosis, this chassis has three service-modes
implemented:
• The Customer Service Mode (CSM).
• The Service Default Mode (SDM). Start-up of the set in a
predefined way.
• The Service Alignment Mode (SAM). In this mode, items
of the set can be adjusted via a menu.
You can activate both SDM and SAM modes via the “service
pads” on the SSB, via an RC-transmitter (DST or standard RC),
or via ComPair. It is not possible to activate the SAM in “stand-
by”; the TV has to be in “normal operation” mode.
The “Protection Diagram” shows the structure of the protection
system. See diagram below.
Figure 5-6 Protection diagram
There are several types of protections:
•I
2C related protections.
• OTC related protections (via polling on I/O pins or via
algorithms).
• Hardware protection
All protections are explained below.
5.7.2 I2C Related Protections
In normal operation, some registers of the I2C controlled ICs
are refreshed every 200 ms. During this sequence, the I2C
buses and the I2C ICs are checked.
An I2C protection will take place if the SDA and SCL lines are
short-circuited to ground, or to each other. An I2C error will also
occur, if the power supply of the IC is missing.
DC/DC protection: When a 3V3 supply is short-circuited, the
DC/DC converter switches “off” and goes in protection. The
FBX, EPLD IC, and 3D comb IC have no supply voltage and
give no acknowledge. In this case, the set should go into
protection. An error code is written in the NVM: DC/DC error.
FBX protection: the FBX protection is not available any more.
It is replaced by the DC/DC protection.
5.7.3 OTC Related Protections
If a protection is detected at an OTC input, the OTC will start to
scan all protection inputs every 200 ms for 5 times. If the
protection on one of the inputs is still active after 1 s, the
microprocessor will put the set in the protection mode. Before
the scanning is started, a so-called “ESD refresh” is carried out.
This is done, because the interrupt on one of the inputs is
possibly caused either by a flash or by ESD. As a flash or ESD
can influence IC settings, the HIP, MSP, 3D Comb and wireless
module (not used in this set) are initialised again, to ensure the
normal picture and sound conditions of the set.
DC_PROT (from audio) IRQ-DIGITAL (98)
+8V_CON +8V SENSE (105)
+5V_CON +5V SENSE (106)
OTC
TUNER
FAST I2C BUS BLOCKED
SLOW I2C BUS BLOCKED
DC/DC I2C
PROTECTION
EPLD
+
FBX
+
3D COMB
E_14620_051.eps
150704
Service Modes, Error Codes, and Fault Finding EN 21FTL2.1, FTL2.2E AA 5.
8 V and 5 V protections: The microprocessor senses the
presence of the 8 V and 5 V (via the “+5V_CON” and
“+8V_CON” lines). If one (or both) of these voltages is (are) not
present, an error code is stored in the error buffer of the NVM,
and the set is put in the protection mode.
Audio DC protection: The OTC senses if the audio module is
in protection via IRQ-DIGITAL (pin 98 of OTC). If this is the
case, the OTC puts the set in protection.
5.7.4 Hardware Protection
Short-circuiting the 3V3 supply from the DC/DC converter will
shut down the DC/DC converter. The absence of the 3V3
supply line is also sensed via I2C (see description DC/DC
protection above), this is useful if there is something wrong in
the detection circuit of the DC/DC converter. There are no
hardware protections in this chassis, which switch off the main
supply.
5.8 Repair tips
5.8.1 3V3 Supply (DC/DC converter)
As mentioned above, the DC/DC converter is switched “off”
when something goes wrong (detection of a missing 3V3
supply at one of the devices supplied by the 3V3). Because of
this, the set goes to protection (I2C protection). Error code 55 is
logged.
For further diagnoses, you need to overrule the I2C protection:
put the set in Service Default Mode by means of the solder
pads on the SSB.
The DC/DC converter is still not working because it is switched
“off” by the 3V3_FAULT line (schematic B12). Now you have
some possibilities:
1. First, measure the impedance over diode 6U06. In normal
conditions, you should measure approximately 120 ohm (if
possible, verify this with another set). If the impedance is
much too low, do not try to start up the converter as
mentioned below. Remind that if FET 7U03 is short-
circuited, this will also influence your measurement.
2. Desolder coils 5U05 and 5U06, connect an external 3V3
supply at capacitor 2U23 (current limitation to 500 mA) and
a second external 3V3 supply at capacitor 2U31 (current
limitation to 800 mA). The normal working current of the
3V3_SIM line is approximately 400 mA and the normal
working current for the 3V3_DCDCFBX line is
approximately 700 mA. Therefore, if one of the currents
exceeds their nominal value you can determine in which
circuit the overload is situated. If the set would start up and
you have normal picture, there is probably no overload but
a problem in the detection circuits.
3. If you do not have two external power supplies, you can do
the following: Desolder coils 5U02, 5U03, and 5U04 (you
must desolder all three, otherwise the circuit could be
damaged), connect an external power supply of 3V3 at the
cathode of diode 6U06. Make sure to limit the current of this
external supply to approximately 1200 mA. If the supplied
current exceeds 1100 mA (approximately normal working
current) you can conclude that one of the devices supplied
by 3V3 is short-circuited.
4. Another possibility is to force the converter to start up by
short-circuiting (and keep short-circuited) resistor 3U25
(B12).
Caution: Be aware that this can damage the set. Even if
you measure approximately 120 ohm over diode 6U06,
there can still be something wrong in the converter itself.
By short-circuiting resistor 3U25, the internal protection of
the converter is disabled.
5.8.2 ComPair
This chassis does not have an IR transmitting LED (as in MG-
sets). Therefore, a “Service” (ComPair) connector is
implemented at the rear side of the set, which is directly
accessible. In addition to this, there is also a blinking LED
procedure to show the contents of the error buffer.
When you use ComPair, you have the possibility to activate a
“stepwise start-up” mode. With this mode, you can initiate the
start-up sequence step by step. This also means that in certain
steps, some protections are not activated. This is sometimes
very convenient during repair.
5.8.3 Protections
Activating SDM via the “service pads” will overrule the
processor-controlled protections, but not the hardware
protections. This means, that the A/D-input protections (5 and
8 V) and the I2C “not-acknowledging” info of FBX + EPLD + 3D
Comb and of the tuner are overruled.
Caution: When doing this, the service technician must know
what he is doing, as it could lead to damaging the set.
Service Modes, Error Codes, and Fault Finding
EN 22 FTL2.1, FTL2.2E AA5.
5.8.4 Repair tip table
Table 5-4 Repair tips
5.9 Software Downloading
In this chassis, you can upgrade the Main software via
ComPair without removing the back cover of the set (it is
possible that early production sets don’t have a hole in the back
plate, in this case you have to remove the back plate). The
switch (see figure “Service pads”), which is needed for the
software downloading procedure, can be reached through a
gap in the back cover or the SSB shielding. The switch can be
operated with a toothpick or something like that. Make sure that
you do not damage the PWB with sharp objects. You can find
more information on how this procedure works in the ComPair
file. It is possible that not all sets are equipped with the
hardware, needed to make software upgrading possible. To
speed up the programming process the firmware of the
ComPair interface can be upgraded. See paragraph “How To
Order” for the order numbers.
Phenomenon Possible Cause Repair tip
F in right corner of the screen and set is not
reacting on remote control. The local keyboard is
functioning.
TV is in factory mode. Press menu button on local keyboard for at least 3 seconds. Set will leave factory
mode and function normally again.
No picture, LED blinking at 3 Hz. Set is in protection due to various causes.
For error codes see error-code list.
You have no picture, so:
- Read the error buffer via ComPair (error buffer is accessible when set is in
protection, compare-file will guide you to this)
- Read the blinking LED information via standard remote command
<mute>06250x<ok>.
- Or you read the error code sequence via standard remote command
<mute>062500<ok>.
When you have found the error, check the circuitry related to the supply voltage and
I2C-communication or the circuitry that triggers the protection.
No picture, LED blinking with code 6-6-6 or
18-18-18.
No communication on slow I2C- or fast I2C-bus. As processor cannot communicate with one of the 2 buses it the stand-by-led
spontaneously starts blinking 6-6-6-etc or 18-18-18-etc...
If in the error buffer somewhere is an error 6 or 18, these will have the highest priority
starting the mentioned blinking.
Measure dependent of the error on the I2C-bus which device is loading the bus. (Use
I2C-overview)
No picture, LED blinking with code 1-1-1. No communication on NVM-I2C bus to the uP. As the uP cannot communicate with the NVM I2C bus, it spontaneously starts blinking
1-1-1.
Note: when there is no access to the NVM, a lot of picture setting can go wrong.
No RC-reception. Blue LED does not echo RC-
commands.
uP circuitry or RC-receiver is defective. In case the set does react on a local keyboard operation, you must check the RC-
receiver circuitry (diagram J).
Picture is not synchronised. The sync is derived in the HIP. Check crystals in the HIP circuit on bad contacts.
Picture is distorted. Check video-path in Service Default Mode. Investigate whether there is an error code present in the error buffer. In case there is
one, check the I2C-bus and/or supply lines (see overview supply lines).
Measure and check signal path Tuner-HIP-FBX-EPLD.
Picture with horizontal stripes. Pixel Plus processing is malfunctioning Check functionality on circuitry (B3a, B3b, B3c and B3d) of PICNIC, FEM, EAGLE,
COLUMBUS and/or field memories.
Tip: the whole Pixel Plus chipset (4 ICs + Field Memories) can be diagnosed via
ComPair.
No NextView (EPG). IC7012 defective or not powered. Check circuitry around IC7012 on diagram B5A.
No Teletext. IC7007 defective or not powered. Check circuitry around IC7007 on diagram B5A.
Problems caused by EPG (Electronic Program
Guide). The TV set "hangs".
Problems with NexTView EPG broadcasts. To switch from EPG 2C3 to Teletext guide. Press for 4 seconds, simultaneously the
Menu button on the TV and digit 0 on the remote. The option settings for NexTView
type and Flashram will not change.
NexTView EPG is not functioning only Teletext
guide.
EPG version 2C3 is switched off during
production.
To switch from Teletext guide to EPG 2C3. Press for 4 seconds, simultaneously the
Menu button on the TV and digit 1 on the remote. The option settings for NexTView
type and Flashram will not change.
Various symptoms, due to missing local supply
voltage.
An interrupted fuse, NFR-resistor or connection. When no symptom or error code leads you to a specific circuitry, use the supply lines
overview (see supply lines overview), for a quick scan of all supply lines.
No sound at the speakers but sound at monitor
out.
Possible problem with the class D amplifier Check circuitry around IC7700 on diagram SA3 (LCD) or C (PDP).
No sound at the speakers but sound at monitor
out.
Sound enable from OTC is HIGH, speakers are
muted
Check pin 95 of OTC on diagram B5a.
No sound at the speakers not at monitor out, but
sound at Scart 1 output.
POR line is low, anti plop circuit mutes the sound Check pin 8 on connector 1739 on audio panel.
Diagram C for PDP sets and diagram SA3 for LCD sets
No sound from any output (except headphone) Reset audio is high or MSP is not properly reset Check pin 16 of MSP (diagram B6a) and circuitry around MSP.
No sound from the tuner but sound from any other
input.
Problem with the delay line (PDP sets only) Check circuitry on diagram B6d.
32" Sharp display (LCD) remains black at 1/3 of
the bottom
Display is defect. Replace display.
42" LPL display (LCD) has no backlight. 24V adjustment not correct. Adjust 24V with pot meter 3U26 on diagram A4 or check circuitry around it.
Block Diagrams, Testpoint Overviews, and Waveforms 23FTL2.xE AA 6.
6. Block Diagrams, Testpoint Overviews, and Waveforms
Wiring Diagram 32" Sharp/LPL LCD
1308
1305 1306 1307 1304
1M07 1M37 1M36
1M36
MF Supply
3th SCART
Side I/O
Ambient light lamps left
Ambient light lamps right
Top Control
0345
1M20 1M01
0345 0244
LED panel
LS
right
LS
left
LS
center
CN1 CN2
CN3
CN4
CN5
1M52 1M48 1G50 1M46
1M03
1M20
1M01
1M36
1M07
SSB
1306
1307
1305
1M03
1M46
1304
1314
1315
1M10
1736
1M02
1739
1738
Audio + Stand-by
Ambient
Light
(Optional)
Inverters
1M02
8307
1735
1M12
1M13
1309
1309
1M17
1318
1M14
1M11
Proximity
Panel
(Optional)
AC inlet
0350
0350
1M49
A
SA
AL
J
PR
D
B
E
5P 12P 6P N.C.
9P N.C. 31P 3P 7P 11P
10P
12P
N.C.
11P
5P
5P 11P 11P
2P3
3P
2P3
4P
3P
4P
7P
6P
10P
10P
5P 11P
10P
10P
6P
4P
3P
7P 9P
4P 11P 10P
2P3
4P
3P
6P
1M10
1M48
3th SCART
8337
8336 8308
8336
8736
8311
8313
8735
8310
8349
8350
(Optional)
8220
8345
N.C.
8318
8314
8304
8309
8346
8315
8317
8250
OR
8350
8303
8306
8305
8307
8302
8352
Tuner
splitter
1T01
2
nd
Tuner
1T02
8192
H
WIRING 32” SHARP / LPL
3th SCART
3th SCART
E_14620_038.eps
220305
Connectors of Ambi-light inverter
Philips Applied
Concepts
Functions
1008
1009
1M14
1M12
1006
1007
1001
1002
1003
1M13
1M11
1M08
1M10
1M48
1. GND (light)
2. GND (light)
3. GND (light)
1. Green light
6. Blue light
11. Red light
1. +12V_A
2. +12V_A
3. GND
4. GND
1. SCL-S
2. GND
3. SDA-S
Only for
SHARP displays
24FTL2.xE AA 6.
Block Diagrams, Testpoint Overviews, and Waveforms
Wiring Diagram 37" LPL LCD
1M07 1M37 1M36
1M36
3th SCART
Side I/O
Ambient light lamps left
Ambient light lamps right
Top Control
0345
1M20 1M01
0345 0244
LED panel
LS
right
LS
left
LS
center
CN1
1M52 1M48 1G50 1M46
1M03
1M20
1M01
1M36
1M07
SSB
Tuner
splitter
1T01
2nd Tuner
1T02
1306
1305
1M03
1M46
1304
1M10
1736
1M02
1739
1738 Audio
Stand-by
Ambient Light
1M10
1M48
1735
1M13
1M12
1304
1309
1308
1305 1306
1M02
8336
1309
Inverter 1
Inv1
Inv2
Inverter 2
1M14
1M11
1316
1317
1M17
AC inlet
0350 0350
1M49
5P 12P 6P
5P
11P
11P N.C.
31P 3P N.C. 11P
10P
12P
3P
5P 11P 11P
5P
11P
12P
3P 4P 7P
3P
2P3
2P3
12P
9P
4P
3P
12P 4P
11P
2P
3P
12P
7P
10P
SA
A
AL
E
B
J
PR
D
H
Supply
N.C. N.C.
8305
8349
8310
8313 8311
8337
8336
8352
8302
8736
8735
8303
8346
834583458345834583458345834583458345
8350
8220
E_14620_039.eps
220305
8192
3th SCART
3th SCART
3th SCART
8307
WIRING 37” LPL
Connectors of Ambi-light inverter
Philips Applied
Concepts
Functions
1008
1009
1M14
1M12
1006
1007
1001
1002
1003
1M13
1M11
1M08
1M10
1M48
1. GND (light)
2. GND (light)
3. GND (light)
1. Green light
6. Blue light
11. Red light
1. +12V_A
2. +12V_A
3. GND
4. GND
1. SCL-S
2. GND
3. SDA-S
(Optional)
Proximity
Panel
(Optional)
(Optional)
8250
OR
8350
Block Diagrams, Testpoint Overviews, and Waveforms 25FTL2.xE AA 6.
Wiring Diagram 42" LPL LCD
1M07 1M37 1M36
1M36
3th SCART
Side I/O
Ambient light lamps left
Ambient light lamps right
Top Control
0345
1M20 1M010345 0244
LED panel
LS
right
LS
left
LS
center
1M52 1M48 1G50 1M46
1M03
1M20
1M01
1M36
1M07
1306
1307
1305
1M03
1M46
1304
1303
1M10
1736
1M02
1739
1738
Audio
Stand-by
Ambient Light
1735
1303
1308
1305
1306
1307
1M02
Inv1
Inv2
CN1
1B06
1C05
1320
1309
1320
1304
1309
Inverter 1 Inverter 2
1316
1317
AC inlet
0350
0350
1M17
1M49
E
AL
SA
A
PR
J
D
B
H
Supply
5P 12P 6P N.C.
5P
5P 11P 11P
5P
11P
12P
4P
3P
7P
4P
3P
5P
2P3
3P 3P 3P
2P3
11P
N.C.
12P
10P
11PN.C.3P
31P
3P9P
6P
2P
4P
3P
10P11P
7P
12P 12P
9P
4P 4P
3P 3P 4P
12P
31P
N.C.
1M48 1M10
1M11 1M12
1M13 1M14
8199
8336
8337
8307
8346
8303
8305
8307
8306
8320
8309
8303
8304
8302
8349
8310
8352
8350
8220
8345
8736
8317
8311
8313
8735
8316
E_14620_040.eps
220305
Tuner
splitter
1T01
SSB
2
nd
Tuner
1T02
8192
WIRING 42” LPL
3th SCART
3th SCART
8336
3th SCART
3th SCART
Connectors of Ambi-light inverter
Philips Applied
Concepts
Functions
1008
1009
1M14
1M12
1006
1007
1001
1002
1003
1M13
1M11
1M08
1M10
1M48
1. GND (light)
2. GND (light)
3. GND (light)
1. Green light
6. Blue light
11. Red light
1. +12V_A
2. +12V_A
3. GND
4. GND
1. SCL-S
2. GND
3. SDA-S
(Optional)
Proximity
Panel
(Optional)
(Optional)
8250
OR
8350
26FTL2.xE AA 6.
Block Diagrams, Testpoint Overviews, and Waveforms
Block Diagram Supply + Standby 32"
6807
GBJ6J
-
+
6506
DF06M
-
+
2
1
1305
7001
MC34067P 15
7017
7018
7007
HIGH
SIDE
DRIVE
7004
7009
5001
BIAS SUPPLY
SOFT
START
+
CURRENT
PROTECTION
CONTROL
VCC
OSCC
ERROR
SOST
OB
OA
FI
2
4
11
7
1
14
12
10
7005
STU16NB501
7002
TCET1102
6
7
5
3
7
8
9
10
11
12
13
5002
7008
LOW
SIDE
DRIVE
7006
STU16NB501
9
10
5040
2003
3057
3022 3052
3000 60786079
3007
7010
TL431ACD
3026
VS Voltage
Adj.
3024
3030
+12V_A
+12V_+24V
HOT
COLD
1400
T3.15AH
1308
5401
5402
5403
23
MAINS
FILTER
2
1
14
CONTROL
3
7501
TCET1102
2
1
4
3
1450
OVER
VOLTAGE
PROTECTION
+5V2-RELAY-IO2
3
2
1
1306
1401
T1AE
3810
400V_HOT
25V_HOT
14
15
16
3
4
1304
2
1
5027
5025
5026
5028
2
1
1306
2
1
1307
3
4
2
1
1305
3
3108
7100
7101
7105
7150
TCET1102
2
14
6151
6150
7511
7131
VTUN
+11V
+8V6
+5V2
+5V_SW
5500
5110 6504 3509
6140
5103 2513 5506
7531
6505
6107
+12V
6
7
10
STANDBY
7507
7506
7512
STANDBY
OVERVOLTAGE
PROTECTION
8
3128 6122
1M46
10
11
5105
STANDBY
SA2
SUPPLY
A2
MAINS FILTER + STANDBY
A1
CONNECTIONS
SA1
8
9
6
7
4
5
2
3
1
HOT COLD
B21
TO 1M46
CONNECTIONS
HOT
COLD
3
3155
5
2
1
7102
THYRISTOR
7505/7509/7560
1M03
9
3
4
2
1
1304
SUPPLY + STANDBY 32"
B21
TO 1M03
CONNECTIONS
2
1
1307
3
4
6044
STPS20L45CT
1
2
6021
STPS20H100CT
3
6025
STPS20H100CT
6045
STPS20L45CT
1
2
3
1
2
3
1
2
3
EUR, CHINA 1X MAINS FILTER + HORMONIC COIL
US, AP 2X MAINS FILTER + IR INRUSH CURRENT
1007
T5A
5239
5292
5291
1M02
2291
6291
6293
2293
7
6
5
4
3
2
1
SA3
TO 1M02
AUDIO
VSND_POS
VSND_NEG
GND_SND
DC_PROT
HOT COLD
6155
6154
CONNECTIONS
SA1
2503
2021
2038
MAINS IN
EUR: 198 - 264V~
CHINA: 160 - 270V~
US: 108 - 132V~
APmulti: 90 - 175V~
DC_PROT
SEE ALSO
BLOCK DIAGRAM
SUPPLY LINE
+12V
+24V
+5V2-RELAY-IO2
OVERVOLTAGE PROTECTION
7508
OR
9110
+5V2
+5V2-RELAY-IO2
POR
STANDBY: LOW = ON
HIGH = STBY
3158
3V MAX
1V MAX STBY
2011
DC_PROT
PRINTED
COMPONENT
400V_HOT
3101
6153
8
7
STANDBY
5507
+12V_A
STANDBY
PROT-OVV
E_14620_041.eps
300604
7805
7806
VOLTAGE
DOUBLER
(for 110V only)
US DOUBLER
AP AUTO DOUBLER
WITH TRIAC
2816
2815
VREF
5
3001
41
32
1
2
3
4
5
1
2
3
4
5
1316
1317
1
2
1M10
AL
TO
AMBI LIGHT
TO
DISPLAY
TO
DISPLAY
Block Diagrams, Testpoint Overviews, and Waveforms 27FTL2.xE AA 6.
Block Diagram Supply + Standby 37"
6307
GBJ6J
-+
6506
DF06M
-+
2
1
1305
7001
MC34067P 15
7011
7012
7007
HIGH
SIDE
DRIVE
7004
7009
5001
BIAS SUPPLY
SOFT
START
+
CURRENT
PROTECTION
CONTROL
VCC
OSCC
ERROR
SOST
OB
OA
FI
2
4
11
7
11
14
12
10
7005
STU16NB501
7002
TCET1102
6
7
5
3
7
8
41
32
9
10
11
3
1
2
12
13
5011
7008
LOW
SIDE
DRIVE
7006
STU16NB501
10
9
6044
STPS20L40CFP
2003
3057
3022
3052
3000 60246025
3007
7010
TL431ACD
3026
VS Voltage
Adj.
3024
3030
+12V
+12V_+24V
1314
T5AH
1308
5301
5302
5305
5306
5307
23
MAINS
FILTER
2
1
14
1350
OVER
VOLTAGE
PROTECTION
3
2
1
1306
1401
T1AE
3318
400V_HOT
25V_HOT
14
15
16
3
4
1304
2
1
5003
5025
5026
5006
SUPPLY
A2
MAINS FILTER + STANDBY
A1
CONNECTIONS
SA1
HOT COLD
HOT
COLD
3
4
2
1
1304
SUPPLY + STANDBY 37"
1002
2
1
2327
2319 6304
LATCH
7307
TCET1102
5007 5008 399V_HOT
5
3
7
8
9
10
11
12
13
5002
14
15
16
1007
T5A
5020
5019
5018
1M02
2009
6029
6030
2021
7
6
5
4
3
2
1
SA3
TO 1M02
AUDIO
VSND_POS
VSND_NEG
GND_SND
5021
5022
2042
6031
6040
2049
+24Vb
2029
6021
6041
2045
+24VA
+12V
400V_HOT
2
1
1004
3
HOT
COLD
CONTROL
3
7501
TCET1102
2
1
4
3
+5V2-RELAY-IO2
2
1
1306
2
1
1307
3
4
2
1
1305
3
3108
7100
7101
7105
7150
TCET1102
2
14
6151
6150
7511
7131
VTUN
+11V
+8V6
+5V2
+5V_SW
5500
5110 6504 3509
6140
5103 2513 5506
7531
6505
6107
+12V
6
7
10
STANDBY
7507
7506
7512
STANDBY
8
3128 6122
1M46
10
11
5507
5105
STANDBY
SA2
8
9
6
7
4
5
2
3
1
B21
TO 1M46
CONNECTIONS
3
3155
5
2
1
7102
B21
TO 1M03
CONNECTIONS
CONNECTIONS
SA1
+5V2-RELAY-IO2
7508
OR
9110
+5V2
+5V2-RELAY-IO2
POR
STANDBY: LOW = ON
HIGH = STBY
OVERVOLTAGE
PROTECTION
EUR, CHINA 1X MAINS FILTER + HORMONIC COIL
US, AP 2X MAINS FILTER + IR INRUSH CURRENT
MAINS IN
EUR: 198 - 264V~
CHINA: 160 - 270V~
US: 108 - 132V~
APmulti: 90 - 175V~
N.C.
2303
2020
2022
DC_PROT
DC_PROT
1M03
9
8
7
STANDBY
THYRISTOR
7505/7509/7560
OVERVOLTAGE PROTECTION
STANDBY
3158 PROT-OVV
6153
2011
PRINTED
COMPONENT
+12V_A
E_14620_042.eps
240804
HOT COLD
VREF
5
N.C.
1
2
3
4
5
1
2
3
4
5
1316
1317
1
2
1M10
AL
TO
AMBI LIGHT
TO
DISPLAY
TO
DISPLAY
28FTL2.xE AA 6.
Block Diagrams, Testpoint Overviews, and Waveforms
Block Diagram Supply + Standby 42"
6807
GBJ6J
-
+
7805
7806
6506
DF06M
-
+
VOLTAGE
DOUBLER
(for 110V only)
2
1
1305
7001
MC34067P 15
7017
7018
7007
HIGH
SIDE
DRIVE
7003
7004
5001
BIAS SUPPLY
SOFT
START
+
CURRENT
PROTECTION
CONTROL
VCC
OSCC
ERROR
SOST
OB
OA
FI
2
4
11
7
11
14
12
10
7005
STU16NB501
6
7
5
3
7
8
9
10
11
3
1
2
12
13
5002
7008
LOW
SIDE
DRIVE
7006
STU16NB501
10
9
5040
6044
STPS20L45CT
2003
3057
3022
3052
3000 60786079
3007
7010
TL431ACD
3026
VS Voltage
Adj.
3024
3030
+12V_A
+12V_+24V
1400
T3.15AH
0308
5400
5401
5402
5403
23
MAINS
FILTER
2
1
14
1450
OVER
VOLTAGE
PROTECTION
3
2
1
1306
1401
T1AE
1307
3810
400V_HOT_A
25V_HOT_A
14
15
16
1
2
6021
STTH2003CFP
3
4
1304
2
1
5027
5025
5026
5028
6H07
GBJ6J
-
+
7H05
7H06
VOLTAGE
DOUBLER
(for 110V only)
2
1
1C05
7U01
MC34067P 15
7U17
7U18
7U07
HIGH
SIDE
DRIVE
7U03
7U04
5U01
BIAS SUPPLY
SOFT
START
+
CURRENT
PROTECTION
CONTROL
VCC
OSCC
ERROR
SOST
OB
OA
FI
2
4
11
7
11
14
12
10
7U05
STP15NK50ZFP
6
7
5
3
7
8
9
10
11
12
13
5U02
7U08
LOW
SIDE
DRIVE
7U06
STP15NK50ZFP
10
9
5U40
2003
3U57
3U22
3U52
3U00 6U786U79
3U07
7U10
TL431ACD
3U26
VS Voltage
Adj.
3U24
3U30
+24V
HOT COLD
1D00
T3.15AH
9U01
9U06
5D02
5D03
23
MAINS
FILTER
14
1D50
OVER
VOLTAGE
PROTECTION
3
3H10
400V_HOT_B
25V_HOT_B
14
15
16
1
2
6U21
STTH2003CFP
2
1
1303
3
4
5U25
5U26
1U07
T5A
5B93
5B92
5B91
1M02
2B91
6B91
6B93
2B93
7
6
5
4
3
2
1
2
1
3
4
HOT_P+
HOT_P-
400V_HOT_B
1B06
SUPPLY PART B
A4
SUPPLY PART A
A2
MAINS FILTER + STANDBY PART A
A1
MAINS FILTER + STANDBY PART B
A3
CONNECTIONS
SA1
HOT COLD
HOT COLD
SA3
TO 1M02
AUDIO
HOT
COLD
HOT
COLD
HOT COLD
3
VSND_POS
VSND_NEG
213
3
3
4
2
1
1304
SUPPLY + STANDBY 42"
EUR, CHINA 1X MAINS FILTER + HORMONIC COIL
US, AP 2X MAINS FILTER + IR INRUSH CURRENT
MAINS IN
EUR: 198 - 264V~
CHINA: 160 - 270V~
US: 108 - 132V~
APmulti: 90 - 175V~
US DOUBLER
AP AUTO DOUBLER
WITH TRIAC
US DOUBLER
AP AUTO DOUBLER
WITH TRIAC
2816
2815
6156
HOT
COLD
CONTROL
3
7501
TCET1102
2
1
4
3
+5V2-RELAY-IO2
2
1
1306
2
1
1307
3
4
2
1
1305
3
3108
7100
7101
7105
7150
TCET1102
2
14
6151
6150
7511
7131
VTUN
+11V
+8V6
+5V2
+5V_SW
5500
5110 6504 3509
6140
5103 2513 5506
7531
6505
6107
+12V
6
7
10
STANDBY
7507
7506
7512
STANDBY
OVERVOLTAGE
PROTECTION
8
3128 6122
1M46
10
11
5105
STANDBY
SA2
8
9
6
7
4
5
2
3
1
B21
TO 1M46
CONNECTIONS
3
3155
5
2
1
7102
1M03
9
B21
TO 1M03
CONNECTIONS
+5V2-RELAY-IO2
7508
OR
9110
+5V2
+5V2-RELAY-IO2
POR
STANDBY: LOW = ON
HIGH = STBY
3V MAX
1V MAX STBY
2H16
2H15
6155
6154
6157
6A55
6A54
2020
2022
2503
2U20
THYRISTOR
7505/7509/7560
OVERVOLTAGE PROTECTION
STANDBY
5507
+12V_A
DC_PROT
DC_PROT
DC_PROT
DC_PROT
3158 PROT-OVV
6153
3406
E_14620_043.eps
080704
VREF
5
1
2
3
4
5
1
2
3
4
5
1316
1317
TO
DISPLAY
TO
DISPLAY
2
1
1303
3
4
1
2
1M10
AL
TO
AMBI LIGHT
+24V_2
7002
TCET1102
2
1
4
3
7U02
TCET1102
2
1
4
3
VREF
5
Block Diagrams, Testpoint Overviews, and Waveforms 29FTL2.xE AA 6.
Block Diagram Video
B14C B14B
CONNECT
B21
SIDE I/O
D
MMC
B14A
SUB TUNER
B13B
PIP HIP
B15A
PIP SWITCH
B15B
PIP MUPPET
B15C
B14F
DIGITAL INPUT
AUDIO
DEMODULATOR
B6A
PIP SWITCH
B15B
PICNIC
B3A
COLUMBUS
B3D
FALCONIC
B3B
OTC
B5A B3A B19C
EPLD OSD
PICNIC
SCART3
H
B14B CONNECTIONS
IO3 SWITCH
B14G
I/O7
B19A
B20
SCREEN
INTERFACE
MAIN TUNER
B13A
IF, I/O VIDEOPROCESSING EAGLE
B3C
B2
B19B
EPLD CONTROL EPLD I/O
B19D
13
15
22
1T01
UV1318ST
S-SDA-PIP
S-SCL-PIP
+33V
1410
1408
AGC
MONITOR
1407 7322
EF
1409-A
17
CVBS-SC1_AV1-IN
CVBS-AV3-IN
Y-CVBS-SC2_AV2-IN
C-SC2_SVHS-IN 21
32 34
SAW FILTER
AUDIO
SAW FILTER
VIDEO
SOUND
FILTER
CVBS-TXT
OTC
7323
TDA9321H
PLL
DEM
GROUP
DELAY
COR.
VIDEO
SWITCH
+
CONTROL
QSS
MIXER
AM
DEMO
QSS-AM
QSS-AM
SOUND-OUTPUT
7,3
2
10 12 13 14
Y
PROC. Y/U/V
SWITCH
UU
Y
U
V
VY V
UY
R
SCART1
SCART2
V
Y
C
PROC.
SYNC
SEPAR.
61
60 HA50
VA50
51
50
49
H-SYNC
PROC.
V-SYNC
PROC.
DECODER
PAL
NTSC
SECAM
C
3
62
63
64
5
MAIN TUNER
AGC
7411
RGB/YUV
MATRIX
40,4
5403
7410
7415
20
I6
TUNER AGC
V1
SIF2
SIF1
VIF1
VIF2
7320
12
EF
26 29
CY
28
EF
G B
36 37 38 39
R G B
41 42 43 40
9
1
5
11
6TO8
4
+5V
IF-TER
V2
CVBS-TER-OUT
16
SEE
BLOCK DIAGRAM
AUDIO
23
24
B6A
B5A
B5A
Y-CVBS-FRONT-IN
C-FRONT-IN
CVBS-SC2-MON-OUT
R/G/B-SC1-Y/U/V-IN
SC2-FBL-IN
SC2-R_C-IN_AV2
SC2-G-IN
SC2-B-IN_C-OUT
7402
VIDEO
Y50
7414
U50
V50
Y-PIP+MAIN-OUT
U-PIP+MAIN-OUT
V-PIP+MAIN-OUT
HIP
54
57
46
47
1305
4.43MHz
PAL
1308
3.57MHz
NTSC M
SCL-F
SDA-F
SCL-F
SDA-F
FIELD
MEMORY
FM1
SN-DA
SN-CL
Href-EXT
23
64K
PROM
25
SYNC PROCESSING
DIGITAL
SIGNAL PROCESSING
PICNIC
FALCONIC
EMBEDDED
MEMORY
3x
ADC
26
28
29
LATCH
7712
74HC573
7713
SAA4978H
7711
M27C512
7714
MS81V04160A
3727
3728
HA50
F165
F162
F164
F166
4
5
CLI6
WEC
RSTW
FAL R EF
CLK32I
REFIN
Vref
SNDA
SNCL
CLK32E
Href
CLK-64
CLK-VID
SDA-F3
CLK-2FH
CLK64
HD-E
VD-E
DA (0-15)
7760
SAA4998H
EAGLE
7720
T6TX5AF
7V01
EP1C12F256C8
7E23
AD9883AKST
7719
MSM56V16160F
5T25
EPLD
CVBS-SC1_AV1-IN
SC1-FBL
SC1-STATUS
SC1-R
SC1-G
SC1-B
CVBS-TER-OUT
SCART 1
20
16
8
21
19
15
11
7
CVBS-SC3-IN
20
16
8
11
21
19
15
7
IN-Y-CVBS-SC2_AV2
SEL-SVHS-RR_STATUS2
B5A
OTC
C-SC2_SVHS-IN
SC2-G
SC2-B_C-OUT
SC2-FBL
P50
CVBS-SC2_MON-OUT
SCART 2
SCART 3
20
16
8
21
19
15
11
7
STATUS-SC3-F
2
5
1
34
1M36
C
CVBS
SVHS
Y2
4
Y
C
5
2
12
4
15
14
3
1
13
7132
74HC4053
1:2
STANDARD
DEFLECTION
INPUT
CONTROL
SYNC
CONTROL
YUV
to
RGB
CLKP
OSD
INSERTION
UV DEMUX
CONTRAST
SATURATION
BRIGHTNESS
PATH
FOR
3FH
ONLY
UV
CONVERTION
Y-OUT (0-9)
U-VOUT (0-9)
R-OSD (0-5)
G-OSD (0-5)
B-OSD (0-5)
BL-OSD (0-4)
Href-EXT
VA
HD-E
VD-E
H-2FH-AD-OUT
V-2FH-AD-OUT
SYNCDET
TXLCD0-
TXLCD0+
TXLCD1-
TXLCD1+
TXLCD2-
TXLCD2+
TXLCD3-
TXLCD3+
TXCLKLCD-
TXCLKLCD+
R (0-7)
G (0-7)
B (0-7)
A/D
COVERTER
DIPLAY
INTERFACE
SEE ALSO
BLOCK
DIAGRAM
CONTROL
18
1G50
17
16
15
14
13
10
9
12
11
1,2,3,4
11,14,17,20,23,26,27,28,29,32,33
VDISP
DISPLAY
MF (1-17)
U-VOUT (0-9)
Y-OUT (0-9)
G-OSD (0-5)
R-OSD (0-5)
BL-OSD (0-5)
B-OSD (0-5)
UVG (0-7)
YG (0-7)
YF (0-7)
UVF (0-7)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
CLK-OSD
10
11
7L01
AD9883AKST
2-9
70-77
12-19
V-2FH
Y-2 FH
U-2FH
7001
SAA5801H
3064-1 3858
77 R-TXT 2FHR-GFX R-OSD
3064-2 3859
78 G-TXT 2FHG-GFX G-OSD
3064-3 3860
79 B-TXT 2FHB-GFX B-OSD
3064-4 3861
80 FB-TXT 2FHFB-GFX
BL-OSD
HD3-OTC
B14b
B14b
B14b
B14b
B14b
B14a
B14a
B14b
B14c
B14g
SNDA
SNCL
1
2
30
B19b
B19d
B19d
B19d
B19d
B19d
DRAM
512KX16X2
B19b
B3a
B3a
SDA-F3
SCL-F3
PARITY
CLK-OUT
B1
SUPPLY
SCL-F3
SN-CL
SN-DA
CLK-OSD
HD3-OTC
VD-OTC
PWR-OK-PDP
LCD-PWR-ON
LAMP-ON
B3a
B3c
B19a
Vref
Href
RSTR
B3c
B3c
REF
FALREF
REFIN
CLKP
U-AD (0-7)
UV-AD (0-7)
Y-AD (0-7)
1T02
UV1318ST
S-SDA
S-SCL
+33V
1P05-A
1P06-A
1P09 7P06
EF
1P04-A
18
IN-CVBS-SC1_AV1-SUB
AV3-CVBS-IN
IN-Y-CVBS-SC2_AV2
SC2-R_C-IN 21
SAW FILTER
AUDIO
SAW FILTER
VIDEO
SOUND
FILTER
7P09
TDA9321H
PLL
DEM
GROUP
DELAY
COR.
VIDEO
SWITCH
+
CONTROL
QSS
MIXER
AM
DEMO
QSS-AM
PIP-AM
MONO-HIP-OUT
7,3
2
10 12 13 14
Y
PROC. Y/U/V
SWITCH
UU
Y
U
V
VY V
UY
R
SCART1
SCART2
V
Y
C
PROC.
SYNC
SEPAR.
61
60 HS-HIP-OUT
VS-HIP-OUT
51
50
49
H-SYNC
PROC.
V-SYNC
PROC.
DECODER
PAL
NTSC
SECAM
C
3
62
63
64
5
SUB TUNER
AGC2
7P05
RGB/YUV
MATRIX
40,4
5P07
7P07-2
20
I6
TUNER AGC
V1
SIF2
SIF1
VIF1
VIF2
7P08
EF
26
EF
G B
36 37 38 39
R G B
41 42 43 40
9
15
11
4
+5V
IF-TER2
V2
16
SEE
BLOCK DIAGRAM
AUDIO
23
24
B14A
Y-CVBS-PIPDW-OUT
C-PIPDW-OUT
SUB-Y/U/V
SC2-FBL-IN
SC2-R_C-IN_AV2
SC2-G-IN
SC2-B-IN_C-OUT
Y-HIP-OUT
U-HIP-OUT
V-HIP-OUT
HIP
54
57
46
47
1P00
4.43MHz
PAL
1P03
3.57MHz
NTSC M
SCL-S
SDA-S
5T04
B2
B14a
B14a
N.C.
B14c
B14g
B15B
MUPPET
DOUBLE
WINDOW
PROC.
98 8
7PA7
IN-Y50
7PA6
SAB9083H
12
10
DY
DU
DV
2
7PA8
IN-U50
100
7PA9
IN-V50
70
VA50-PIP
94
83
79
81
4
MUPPET_BLK
OR
GATE
7PB1
7PA5
7PB5
SDA-S
168
74
73
75
2
72
87
9
10
11
12
3I/O
EXP
7P56
M62320
3PB8
7PA2
7PB6
7PA0
7PA1
HA50
2
SDA-S
SCL-S
SCL-S
FBLK
SWITCH-MAIN
PIP_RESET
SWITCH-SUB
PIP-RESET
B14C
B15C
B14C
HA
9
16
11
6
3
5
MUPPET-BLK
7P54
BA7609F
8
1
14
7752-1
T6TU5XB
COLUMBUS
I/O
7753
MSN56V16160F-7TS
SDRAM
VA50
16
17
18
19
20
21
22
23
SCL_DVI
SDA_DVI
AV6-V
1I59
1I56
1I57
1I53
49
48
52
51
3
2
5
6
RX2-
RX2+
RX1-
RX1+
RX0-
RX0+
RXC+
RXC-
24
C1
C2
C3
C4
GROUND
1
LOGIC
SEPA
SYNC
DET
2
1
1
1
2
1
2
2
2
VD1-IN
12
VD2-IN
HD-S-SIG-DET
2
HD1-IN
24
HD2-IN
23
R-OUT
21
R1-IN
1
R2-IN
7
20
VCC
VD-OUT
14
18
CTL
16
G-OUT
19
G1-IN
3
G2-IN
9
4
6
8
10
HD-OUT
7I55
BA7657F
B-OUT
B1-IN
5
B2-IN
11
C-S-OUT
17
C-V-IN
SWITCH-MAIN
+5VIO
7I56
7I57
7I58
7154
TSH95
R-VGA
G-VGA
B-VGA
43
48
54
SYNC
PROC.
+
CLOCK
GENERATOR
SERIAL
REGISTER
+
POWER
MAN.
30
31
49
67
65
64
66
CLK-2FH
SYNCDET
V-2FH-AD-OUT
H-2FH-AD-OUT
HSYNC
VSYNC
IOB
IOG
IOR 23
26
31
19
18 HDVI
V-DVI
B-DVI
G-DVI
R-DV1
AV6-H
AV6-V
AV6-B
AV6-G
AV6-R
7I51
7I52
SCLS
SDAS
DVI
RECEIVER
18
916
17
24
C5
C1 C2
C3 C4
DVI-I INPUT
CONNECTOR
B15B
7I18
SII907
7E24
AD9283BRS-80
VD-OTC
8-BIT
ADC
5
3
1
12
7I12
74HC4053
13
2
4
15
14
5
3
1
12
7I33
74HC4053
13
2
4
15
14
5
3
1
7I32
74HC4053
4
15 2
3
2
4
3
1M36
1M36
2
4
3
2
4
3
1M36
FRONT-SC3-Y-CVBS
FRONT-SC3-Y-C
B13b
5T02
B15B
PIP-CVBS-MON
32
PIP-OUT
32
32
PIP-OUT1
R-SC1_V-IN
G-SC1-IN_Y-IN
B-SC1-IN_U-IN
B2
B2
B2
SUB-V
SUB-Y
SUB-U
B15a
B15a
B15a
B2
FBL-SC1-IN
B2
B2
B2
a
b
c
a
b
c
e
f
g
e
f
g
B2
B2
B2
B15a
B2
FRONT-Y-CVBS
FRONT-C
SEL_FRONT_SC3
B2
B2
7PB2
HA
SDA-F3
SCL-F3
SERIAL
REGISTER
+
POWER
MAN.
A/D
COVERTER
SYNC
PROC.
+
CLOCK
GENERATOR
B19d
B19b
B15a
B19d
B19d
B3a
Href-EXT
B3a
B3c,d,B19d
5Z01
5Z02
5Z03
5Z05
5Z04
7V03
MSM56V16160F
DRAM
512KX16X2
SD-A
SD-DQ
BUS A BUS B
BUS C
UVA / YA
UVB / YB
AD(0-7)
B3a
B3a
B19d
OTC
YF (0-7)
UVF (0-7)
UVF (0-7)
YF (0-7)
B13a
Y-CVBS-SC2_AV2-IN
B14a
SC2-R_C-IN
B15a
IN-CVBS-SC1_AV1-SUB
B15A
SEL-SVHS-RR_STATUS2
18
B15a
N.C.
B3a
B3a
B3a
B19a
B19a
B19a
B15b
B15b
B15b
B15b
VA
B19d
SC2-R_C-IN_AV2
SC2-G-IN
SC2-B-IN_C-OUT
B2
B15A
C-PIPDW-OUT
B15a
C-FRONT-IN
Y-CVBS-FRONT-IN
Y-CVBS-PIPDW-OUT
B15a
FRONT-Y-CVBS-IN
FRONT-C-IN
SC2-B_C-OUT
CONTROL
7I35
7I36
7I37
SC2-FBL
B14b,c
B14b
B2
B2
B14b
B14b
B14b
B19C
B3c
7E03
7E04
SWITCH-1FH
SWITCH-2FH
SWITCH-2FH
SWITCH-2FH
CLK32I
B19b
B19b
B19d
B19d
CLK32P_EPLD
CLK32E
B19b
B19d
CLK32E
B19d
B3a
B3c
B3c
B3c
EAG_SD
COL_SD
R7
R5
G6
G7
G5
B0
B5
3V32
3V31
3V30
4V29
3V28
3V27
3V26
3V25
3V33
3V24
+2V5-IO
+3V3-IO
+1V5-INT
+1V5-PLL
1D01
1001
1002
E_14620_044.eps
230704
30FTL2.xE AA 6.
Block Diagrams, Testpoint Overviews, and Waveforms
Block Diagram Audio
AUDIO
SA3
B14B I/O
B14D
SIDE I/O
DH SCART 3
CONNECTIONS
I/O
B14B
IF
B2 AUDIO I/O
B14D
LED + SWITCH
J
PROXIMITY SENSOR
PR
OTC FLASH
B5A B3A B19C
CONNECTIONS
B21
TOP CONTROL
E
7001
SAA5801H
B6A B21
B21
B14C
B14B
SIDE I/O
D
H
SCART 3
B21
AUDIO I/O
B15A PIP I/O
B15B
J
CONNECTIONS
OTC-FLASH
B5C
7323
TDA9321H
QSS_AM
HIP
MAIN
SEE ALSO
BLOCK DIAGRAM
VIDEO
3380
5SOUND-OUTPUT
B68
B69
B67
B66
7410
AL-SC1-IN 3
4
6
10
2
11
25
24
20
19
18
4
5
6
SCART 1
AR-SC1-IN
SNR-DVI-IN
SND-DVI-IN
1
3
2
6
AL-SC2-IN
SCART 2
AR-SC2-IN
1
3
2
6
SNDL-SC3-IN
SCART 3
SNDR-SC3-IN
1
3
2
6
3
5
9
1
12
4
5
9
10
11
R1
7I17
TEA6422D
R2
R3
13
15
45
47
IF1
7A02
MSP3411G
IF2
50
44
SC3 ADC
SC4
I2S-MSP-OUT
I2S-MSP-WS
I2S-MSP-CLK
I2S-DPL-OUT
I2S-DPL-CLK
I2S-DPL-WS
5
4
3
17
R1
R2
R3
R4
R5
R6
MATRIX
SWITCH
L1
L2
L3
L1
L2
L3
L4
L5
L6
B14c
B14c
SNDR-MAIN-IN
MONO-IN
SNDL-MAIN-IN
12
15
14
12
14
16
SCART
DSP
INPUT
SELECT
SNDR-DVI-IN
SNDR-SEC-IN
N.C.
36
38
39
41
42
35
SC1
N.C.
N.C.
N.C.
SOURCE
SELECT
PRESCALE
I2S
INTERFACE
DE-
MODULATOR
ADC PRE-PROCESSING
PRESCALE LOUD-
SPEAKER
SOUND
PROCESSING
DAC
HEADPHONE/
SURROUND
SOUND
PROCESSING
DAC
SCART
OUTPUT
SELECT
DAC
DAC
LOUD
SC
20
21
23
17
18
DACM-SUB
FRONT-DECT
7
1
AUDIO-R
AUDIO-L
AUDIO-R
AUDIO-L
AUDIO-SW
HPN-R
HPN-L
MSP-CENTER
MSP-SURR
18
18
28
25
26
61
SNDL-MON-OUT
SNDR-MON-OUT
SNDL-MON-OUT
SNDR-MON-OUT
SNDR-SC2-OUT
SNDL-SC2-OUT
SNDR-SC1-OUT
SNDL-SC1-OUT
SNDR-SC1-OUT-DC
SNDL-SC1-OUT-DC
29
5
3
7
5
2
115
4
REG-SW
5
3
9.10
HPN-L
HPN-R
10
1M36
11
7
L
R
DETECT
HEADPHONE-L
HEADPHONE-R
3
5
1
7
7A07
MC33178D
1M36
11
7
7A03
LM833D
7A00
LM833D
7I22-B
2I99
2IA2
7I20
B65
3858
1M52
1M02
7
6
5
4
3
2
1
-16V-19V
5Y11
9Y06
10
EPG-
FLASH-RAM
4Mbit
AUXILIARY
FLASH
PROGRAM
CIRCUIT
FOR
FLASH RAM
SEE ALSO
BLOCK DIAGRAM
VIDEO
SEE ALSO
BLOCK DIAGRAM
VIDEO
7015
7016
B2
BLOCK DIAGRAM CONTROLS
AUDIO
74LVC245APW
74LVC245APW
775
OTC
CVBS-TXT
CVBS-Y-RECORD-IN
R-TXT
B14B
B14B
B14B
109
OUT +3V3
INTOTC
N.C.
IN
+5V2-CON
STATUS_SC3
STATUS_SC4 108
97
120
7009
7022
B4
99POR-FLASH
98IRQ-DIGITAL
93HD@HOME
96IRQ-FTV
N.C.
N.C.
N.C.
115
P50
7008
LED2
107KEYBOARD
LIGHTSENSOR 110
LIGHT_SENSOR
100
RC
2
6x
+3V3
RC
SA
B6A
84
7
N.C.
114
RESET 74
RESET
83
B3A
HD3-EPLD
B3A
VD-EPLD
78 G-TXT
SEE ALSO
IIC DIAGRAM
79 B-TXT
80 FBL-TXT
R-OSD
G-OSD
B-OSD
BL-OSD
88 SDA-F
87 SCL-F
86 SDA-S
85 SCL-S
104 STANDBY
90 TXD
89
119
96
RXD
3099-3 3081
3074-4 3097
SAM
SDM
95 SOUND-ENABLE
94 RESET AUDIO
117
116
SEL_IN_2
91 SDA
92
5
6
SCL
16
17 1001
6Mhz
SEL_IN_1
7006
LH28F320BJE
7007
MSM51V18165F
7012
M29W400BT
7018
7019
103 PWW-BLACKLIGHT
B5B
ADDRESS
DATA
CONTROL
KEYBOARD
MENU
CHANNEL+
CHANNEL-
VOLUME+
VOLUME-
0345
RP
RESET
FLASH
RAM
7002 :
7004
7013, 7014
DRAM
(TXT)
16Mbit
PROGRAM
FLASH-RAM
SET SW
32Mbit
7011
MC24C32
EEPROM
NVM.
4kByte
RP
1
7005
LF33AB
(OCTAL BUS TRANSCEIVER)
3859
3860
3861
9ID0
1M20
RED
BLUE
1M20
1
2
72
6060
6070
7070
LM358P
3
4
5
6
7
8
9
10
1
+8V
LIGHT-SENSOR
RC-IN
2
3
4
5
6
7
8
9
10 +5V2-STBY
+8V
PWM
-16V-19V
-16V-19V +16V+19V
I722
18
3
24 22
+16 +19V
14,15 11,13
24
10
6
I778
3
1
1735
15W/
8Ω
15W/
8Ω
15W/
8Ω
23
I776
3
1
5702
5701
5720
OSC
STBY-MUTE
7700
TDA7490
PWM
+16V+19V
10
3717
3718
3728
3745
6745
I747
I711
9
3
4
1738
SUBWOOFER
L
R
1
7701 : 7707
SOUND-ENABLE
POR-CLASSD PROT1
PROT-AUDIO-SUPPLY
7702
TDA7482
SOUND
ENABLE
3
2
4
5
6
7
8
9
1
1739
AUDIO-L
AUDIO-R
7
3
7715
PRE PWM
FEEDCAP
IN
OUT
STBY/MUTE
1736
5730
5731
5733
AUDIO
SUPPLY
PROT, CIRCUIT
SCART 1
1
3
2
6
SCART 2
1
3
2
6
+8VP
DCPROT
+16V+19V
DCPROT
TO 1M02
A4
LCD 42"
TO 1M02
A2
LCD 30"/37"
HEADPHONE-OUT
17
18 2
9
7A06
TDA7309
20
14
13
11
SDA-F-AUD
SCL-F-AUD
5
2
12
4
15
14
3
1
13
7515
74HC4053
SNDL-IN
SEL_FRONT_SC3
SNDR-IN
FRONT-L
FRONT-R
SND-CENTRE-IN
SNDL-SEC-IN
SND-CENTER-IN
SNDR-SEC-IN
SNDL-SEC-IN
N.C.
N.C.
3
2
4
5
6
7
8
9
1
POR
7Y01
7010
IRQ-AUDIOSUPPLY
AUDIO-SW
SOUND-ENABLE
B5A
B5A
1I05
1I07
10
1M36
11
7
L
R
1M36
11
7
10
11
7
ON / OFF
2
KEYBOARD
0345
11
12
6051
+5V2-STBY
SCL-S
SDA-S
1
0350
3
5
0350
11
7
1
3
5
7075
P87LPC760BDH
COM-SND
MICRO
CONTROLLER
7020
7021 PWM-OUT
RC2
PULSE-OUT
PROXIMITY
LIGHT SENSOR
IR
SENSOR
1040
7021
7020
6020
+5V2-STBY
RC2
PULSE-OUT
PWM-OUT
CONTROL
11
12
SCL-SF
SDA-SF
KEYBOARD
7022 115
ON-OFFOLED
+3V3
LED2
LED1
B14E
118
CON-SND
CON-SND
6005
2016
7516
74HC4053
H
N.C.
A-PLOP
SA
B14B
1404
SSSS811
SWITCH FOR
SOFTWARE
DOWNLOAD
B14b
B6a
B6a
B6a
10
9
1002
SNDR-SC2-OUT
SNDL-SC2-OUT
12
11
PIP-AM
2
PIP-FM
B15A
B15B
1
B6a
SNDL-DVI-IN
B6a
B6a
B6a
DACM-SUB
23
1I06
SUBW
9ID0
B6C
AUDIO_SW
1I06
4
7P09
TDA9321H
PIP
VIFOUT
SEE ALSO
BLOCK DIAGRAM
VIDEO
PIP IF
3P48
5
3
7P55
TDA9820T
1
2
1
8
QSS_AM
MONO-HIP-OUT 7P07
1P12
1P10
SEL-PIP-SOUND1
SEL-PIP-SOUND2
1P11
FM
INTERCARRIER
SOUND
DEMODULATOR
(MONO)
I/O
EXP
3P93 7P55-M
7P55-BG
7P55-DK
7P55-I
7P56
M62320
3
2
SDA-S
SCL-S 6
PIP-FM
SIF-OUT
B14D
SEE ALSO
BLOCK DIAGRAM
VIDEO
SA
B5A
+5V2-STBY
1
7
9
813
IR
SENSOR
1040
LED2
LED1
GND-AUD
N.C.
E_14620_045.eps
260405
7A00-A
1
3
EXT 3
AUDIO
L/R IN
EXT 1
AUDIO
L/R IN
EXT 2
AUDIO
L/R IN
FRONT
AUDIO
L/R IN
DVI
AUDIO
L/R IN
CENTRE
IN
EXT 1
AUDIO
L/R OUT
EXT 2
AUDIO
L/R OUT
AUDIO
L/R OUT
SUBW
OUT
Block Diagrams, Testpoint Overviews, and Waveforms 31FTL2.xE AA 6.
I2C IC’s overview
45
7A06
TDA7309
AUDIO
DECODER
ERR
82
21
7A02
MSP3411G
AUDIO
DEMODUL
ERR
14
SDA-F-AUD
SCL-F-AUD
SDA-S
SCL-S
SDA-F
SCL-F
SN-DA
SN-CL
SDA-D
SCL-D
SDA-F
SCL-F
SDA-DISP
SCL-DISP
SDA-F3
SCL-F3
AL-CL-IN
AL-DA-IN
AL-CL
AL-DA
SDA-SF
SCL-SF
SDA-S
SCL-S
1
2
54
7713
SAA4978H
PICNIC
ERR
3
9E57
9E58
21
7V01-4
EP1C12F256C8
BANK3
ERR
56
SDA
SCL
+3V3-INTOTC
3001 3002
91
92
7011
M24C64
(NVM)
EEPROM
7006
M29W320DT
PROGRAM
FLASH-RAM
ERR
1
ERR
32
56
7007
MSM51V18165F
DRAM
(TXT)
7012
M29W400DT
3IJ0
28 27
3IJ1
7I17
TEA6422D
BUS
DECODER
ERR
83
3P23
47 46
3P22
7P09
TDA9321H
HIP
ERR
34
3P66
32
3P65
7P56
M62320FP
I/O
EXPANDER
ERR
21
7PA5
74 73
3PC1
7PA6
SAB9083H
MUPPET
ERR
24
HA
1I11
19
20
RES
FOR MMC
1
2
3
COMPAIR
SERVICE
CONNECTOR
1M15
7
6
3I49 3I46
65
7I19
M24C02
EEPROM
14 15
7I18
SII907BCQ
DVI
RECEIVER
DS
G
D
3377 3376 3826
47 46
7323
TDA9321H
HIP
ERR
8
18
916
17
24
C5
C1 C2
C3 C4
7001
SAA5801H
SET
PROCESSOR
3064-4
3064-3
88
87
ERR
18
3079
+5V2_CON
3069
SN-DA
SN-CL
3A19
3A17
+5V2Pr
3758
3710
3709
3827
SDA-EPLD
SCL-EPLD
VCC
7E10
PCA9515DP
6
7
8
RES
3
2
3E69
3E70
+3V3-EPLD
C14 D14
7752-2
T6TU5XB
COLUMBUS
CTRL
ERR
35
9815 9816
A15 B15
9817 9818
33 24
7720
T6TX5AF
EAGLE1C
ERR
27
9757 9755
3064-2
86
3064-1
85
3092
+5V2_CON
3088
DVI INPUT
CONNECTOR
9T10
54
9T09
1T02
UV1318S
SUB
TUNER
ERR
23
9T08
54
9T07
1T01
UV1318ST
MAIN
TUNER
ERR
13
RES
VCC
7T50
P82B96TD
3L06 3L03
57 56
7L01
AD9883AKST
A/D
CONVERTER
ERR
53
3E18 3E19
57 56
7E23
AD9883AKST
A/D
CONVERTER
ERR
53
3V38 3V37
1G50
31
30 TO
DISPLAY
11
12
1M20
LED SWITCH
PANEL
(ITV)
3T05
3T06
3Y09
3Y40
7V04-1
+3V3-IO
+5V
3V50
3V51
3V52
7V04-2
+3V3-IO
+5V
3V55
3V54
3V53
1
2
3
TO CON2
AMBI LIGHT
1M49
I2C BUFFER
RES
3Z51
3Z50
ADDRESS
34 41
7760
SAA4998H/V1
FEM
ERR
26
ERR
6
DATA
CONTROL
RES
VCC
7I10
PCA9515DP
3
2
6
7
9T50
9T12
1
7
3
5
2
6
9I06
9I05
8
3IB3
3IB1
8
S-SDA-PIP
S-SCL-PIP
3V3-Si-IO
3IQ7
7I52
7I51
S
G
3IQ6
SCL-DVI
SDA-DVI
AL
+5V
+3V3_SIM
SDA-S
SCL-S
RES
OTC
B5
I/O, VIDEO
PROCESSING
B2
PICNIC
B3A
FALCONIC
B3B
EAGLE
B3C
IIC
COLUMBUS
B3D
AUDIO
DEMODULATOR
B6A
EPLD OSD
B19A
HDI A/D
CONVERTER
B19C
EPLD I/0
B19D
I/O6 DIGITAL INPUT
B14F
I/O5
I/O4 AUDIO
B14D
PIP SWITCH
I/O2 CONNECTIONS
B14B
MAIN TUNER
B13A
SUB TUNER
B13B
I/05
B14E
B15B B14E
PIP HIP
B15A
PIP MUPPET
B15C
EPLD
CONTROL
B19B
SCREEN
INTERFACE
B20
CONNECTIONS
B21
CONNECTIONS
B21
E_14620_046.eps
240804
32FTL2.xE AA 6.
Block Diagrams, Testpoint Overviews, and Waveforms
Supply Lines Overview
SCREEN INTERFACE
B20
EPLD I/O
B19D
EPLD OSD
B19C
EPLD CONTROL
B19B
HDI A/D CONVERTER
B19A
PIP MUPPET
B15C
PIP SWITCH
B15B
PIP HIP
B15A
I/O7
B14G
I/O6 DIGITAL INPUTS
B14F
I/O5
B14E
I/O4 AUDIO
B14D
I/O3 SWITCH
B14C
I/O2 CONNECTIONS
B14B
I/O1 MMC
B14A
DC-DC CONVERTER
B13C
SUB TUNER
B13B
MAIN TUNER
B13A
MAIN TUNER
B12
AUDIO DELAY
B6D
DOLBY PROLOGIC PROCESSOR
B6C
DOLBY DIGITAL DECODER
B6B
AUDIO DEMODULATOR
B6A
BACKLIGHT CONTROL
B5C
OTC FLASH
B5A
HOP
B4
FBX SUPPLY
B3E
COLUMBUS
B3D
EAGLE
B3C
FALCONIC EMBEDDED MEMORY
B3B
PICNIC
B3A
IF,I/O VIDEOPROCESSING
B2
CONNECTIONS
B21
BACKLIGHT CONTROL
B5B
LED SWITCH PANEL
J
SCART 3
H
SUPPLY LINES OVERVIEW
CONNECTIONS
SA1
AUDIO
SA3
STANDBY
SA2
SUPPLY
A
VDISP
+3V3_SIM
VDISP
+3V3_SIM
+11V
+11V
+3V3-SD
+3V3-IO
+3V3-SD
+3V3-IO
+5V
+5V
+3V3_EPLD
+3V3_EPLD
+3V3-AD
5E02
5E03
VDDO
PVDO
5E01 VDO
5E00 VBL
5E50 +1V5-INT
5E52 +1V5-PLL
7E05
13
+3V3-SIM
5E51
5E54 +3V3-SD
5E53 +3V3-EPLD
7E01
13
+2V5-IO
+3V3-IO
+5V
5L17
5L16 VD
+3V3-AD
7L02
32
VDD
5L14
5L13
5L18 PVD
5L15
IN OUT
2
+3V3_SIM
5PB0 +3VD
5PA9 +3V
+3.3V
+5VPIP +5VPIP
9PB2
+5V
+5VPIP
+5VD
+8VPIP +8VPIP
5P51
3P74
+8V
+8VPIP
+8VHIP
+5V +5VHIP
5P01
3P02
3P01
5P03 5P00 3P00
5I13 +8V-VIDEO
5I12
3I40
3IG9
+8V
3IW1
REF1
REF2
REF3
6I80
6IA1
+5VIO +5VIO
+8V-VIDEO
3V3-TMDS
+8V-VIDEO
+3V3-AD
+3V3-AD
7I18
914,17
3V3-Si-IO
DVI
RECEIVER
VCC-Si
+5V2_STBY
+11V
+5V2_STBY
+11V_DC
+3V3_SIM
+3V3_SIM
1I79
T300mA
+11V_S +11V_SF
5IEE
+5V
+5V_CON
5I46
+5V_VDP
5I45
+5V
+5V
+8V
+5V
+8V
+5V +5VIO
3IN4
+5V
+5V2-APLOP
3
1
2
3ID0
3IC1
7I09
7I07
+11V +11V_S
3I37
6
2
1
7I21-1
3ID9
7I21-2 7I05-1
9IA5
+5V
+5V2-STBY
5
43
+8V
+8VA
3IK7
+8V
5T14 VDISP
5T15
5T11
+11V_DC
+11V_DC
7T01-1 7TO4
DC-DC
5T10
+5V +5V
+33V
+33V
7U03
7U04
CONTROL
5U02
+11V
1U01
T1500mA
6U02
5U05
+3V3_
DCDCFBX
5U06
+3V3_SIM
+3V3-LINK
RES
5U01
+5M +5D
5A07
+8VC
+5DB
+11V_AUD
+5DA
+8VC
+5DB
+11V_AUD
+5DA
+5V +5M
5A38
5A03 +5DB
5A02 +5DA
+5VF
5A06
+11V_S +11V_AUD
5A01
+5V +5V
5A00
+8V +8VC
3A03
+3V3_INTOTC
+8V_CON
+3V3_INTOTC
EAn
7005
+5V2-STBY
1000
F500mA
5000
5001
+5V2_CON
VPP_SW
5003
+8V_CON
EAn
VPP-SW
+5V_VDP +5VS
3304
+8V_VDP +8VS
3329
5768
5770
+3V3PB
+3V3PC
5779 +3V3GA
5767 +3V3PA
5772
+3V3FB
+1V8FA
5771
+3V3FA
5769
+3V3Pr
5773
RES
5775 +2V5_FBXA
7774
7773
5763
+8V_CON 5702 +8VPA
5709 +1V5_FBXB
7701
6719
5760 +1V5_FBXA
7770
5761
5777 +3V3_FBXB
7774
5764
IN OUT
5756 +3V3CA
+3V3CB
5764 +2V5EC
5752 +2V5ED
5753
5780 +3V3ED
+3V3EC
5751 +3V3EB
5750 +3V3EA
5801
5713 +2V5EA
+2V5EB
5762
5719
5720
+3V3_DCDCFBXA
+3V3_DCDCFBX
5721
5722
+5V_FBXA
+5VF
RES
+5V2Pr
5775
+3V3CA
+3V3CB
+1V5CA
+5V2Pr
+3V3CA
+3V3CB
+1V5CA
+5V2Pr
+2V5ED
+2V5EC
+1V5EA
+1V5EB
+2V5EB
+2V5EA
+3V3EA
+3V3EB
+5V2Pr
+3V3EC
+3V3ED
+2V5ED
+2V5EC
+1V5EA
+1V5EB
+2V5EB
+2V5EA
+3V3EA
+3V3EB
+5V2Pr
+3V3EC
+3V3ED
+3V3FB
+3V3FA
+1V8FA
+1V8FA
+3V3_DCDCFBXA
+1V5_FBXA
+3V3_FBXB
+5V2Pr
+2V5_FBXA
+3V3PA
+8VPA
+3V3Pr
+3V3PB
+3V3PC
+3V3GA
+3V3FB
+3V3FA
+1V8FA
+5VS
+8V
5416
+5V_VDP
3402
+1V8FA
+3V3_DCDCFBXA
+1V5_FBXA
+3V3_FBXA
+5V2Pr
+2V5_FBXA
+3V3PA
+8VPA
+3V3Pr
+3V3PB
+3V3PC
+3V3GA
+8V_VDP
+8VP
+5VS
+8V
+5V_VDP
+5VCOM
+8V_CON
1M46
1
2
3
4
5
6
7
+33V
+8V
8
9
10
11
1M20
1M03
1
2
3
4
5
6
7
8
9
10
5Y06
+5V
5Y15
+11V
5Y02
+5V2-STBY
5Y07
5Y03
+5V
5Y09 9Y01
+5V2-STBY
+1V5
6
7
8
9
10
5Y12 9Y06
+5V2-STBY
5Y11
+8V
1M07
3
4
5
+11V_SF
+8V_CON
+5V_CON
+8V_CON
+5V_CON
+3V3_INTOTC
5I35
+1V5EA
5753
5758 +1V5EB
5759 +1V5CA
EAn
3C01
B5a
3400
+8V_VDP
B14e,B15c,
B19b,B20,
B21
B14e
B21
B14e
B4
B3e
B3e
B3e
B3e
B3e
B3e
B3e
B3e
B3e
B3e
B3e
B3e
B3e
B3e
B3e
B3e
B3e
B3e
B3e
B3e
B3e
B3e
B3e
B3e
B3e
B3e
B3e
B3e
B3e
B3e
B12
B6a
B2
B14e
B14e
B21
B5c
B2
B5c
B14e
B2
B5a
B21
B21
B14b
B21
B6a
B6a
B6a
B6a
B6b
B21
B21
B21
B14e
B21
B21
B21
B21
B21
B21
B21
B14b
B21
B21
B12
B14g
B19a
N.C.
B21
B14c
B21
B21
B15a
B21
B15b
B12
B21
B12
B14eB14e
B19a
B19b
B19b
B21
B19b
B12
B13c
B21
B3e,B5a,B5b
B3a
B3a
B3a
B3a
B3b
B3b
B3a
B3a,B3b
B3a
B3c
B3d
B3a
B3c
B3a
B3c
B3c
B3c
B3c
B3a
B3c
B3c
B3c
B3c
B3d
B3d
B3a,B3c,B3d
B3a
B3c
B2
B3e
B6c
B6c
B6c
B6c
B6b
N.C.
B20
B3a,B3c
B6a,B14e
B14g
B13c
B21
B5a,B5b
B2,B4
B19a,B19c
B14f
B15b
B15c
B14f,B19c
B19d
B19d
B19d
B2,B6a,
B14a,d,e,g,B15a
B6a,b,B13a,b,B14b,
c,d,e,B15a,b,19a,d
B14b,e,B20
B13a,B13b
+8V +8V_VDP
5I47
B21 B2,B4
RES
B21
B5a,B14b,e,
6I11
B21
B21
B21
B21
B14e
+8V
+5V2-STBY
+11V_SF
+11V_SFS
3511-3516
1M46
1
2
3
4
5
6
7
8
9
10
11
+12V
VTUN
+5V2
+5V_SW
+8V6
+12V
+24V_2
1
2
3
4
5
6
7
8
9
10
1M03
+5V2-RELAY-IO2
1
2
3
4
+12V_+24V
+12V_A
6
1
+16V+19V
-16V-19V
-Vf21
5723
-Vf11
5707
-Vf1
5711
1M02
Vp
7712
7713
+16V+19V
-16V-19V
6719
6719
Vm
6719
6719
6719
6719
1M20
6
7
8
9
10
1M07
3
4
5
7511
7131
VTUN
+11V
+8V6
+5V2
+5V_SW
5500
5110 6504 3509
6140
5103 2513 5506
7531
6505
6107
+12V
6
7
8
5
1
2
1306
1
2
1303
1304
A4
TO 1303
42" SUPPLY
PART B
A2
TO 1304
SUPPLY
(PART A 42")
SA2
SA2
SA2
SA2
SA2
SA2
SA2
A1
TO 1306
MAINS FILTER
(PART A 42")
A2
TO 1M02
SUPPLY 30"/37"
OR
SA1
SA1
SA1
SA1
SA1
+5V2-RELAY-IO2
SA1
A4
TO 1M02
SUPPLY 42"
1
2
1303
1
2
3
4
1304
1
2
1306
6
1
1M02
SEE ALSO
BLOCK DIAGRAM
SUPPLY
1
2
1305
3
1
2
1305
3
A1
TO 1305
MAINS FILTER
(PART A 42")
SA2
DISPLAY
AMBI LIGHT AL
CONTROL
CONTROL
CONTROL
5507
SA1
+12V_A
E_14620_047.eps
020205
10
1M17
1
B12
+3V3_SIM
Only for
SHARP display
To
Display
Circuit Diagrams and PWB Layouts 33FTL2.xE AA 7.
7. Circuit Diagrams and PWB Layouts
PSU (30-32"): Mains Filter and Standby
MODE
VM
OSIN
VSS
OSOUT
VG
NC
VDD
V
C
D
E
F
G
A
B
C
1001 D4
1011 E5
1305 F7
1306 F2
1307 B13
1308 C1
1400 C2
1401 F3
AUDIO-STANDBY
TO 1307
TO 1305
AUDIO-STANDBY
T5AH 250V(US)
1234567
AUDIO-STANDBY
TO 1306
MAINS INPUT
8
D
E
F
G
1000 D2
12345678
T5AH 250V(AP)
95-264Vac
MAINS FILTER + STANDBY
A
B
COLD
HOT
1402 D3
1403 D3
9 10111213
2407 C4
2408 C6
2503 E6
2802 E10
2803 C11
2804 C10
2806 F10
2808 E11
9 10111213
3400 C3
3401 C1
3402 C2
3403 D2
3404 D4
3405 D3
3450 B6
3451 C6
3800 E9
3802 E10
3803 E11
3804 E9
3805 E12
1450 C8
2400 C2
2401 C4
2404 C3
2406 C5
5403 B5
5804 E11
MAINS FILTER
6154 C12
6155 C12
6460 E8
6461 D8
6506 E6
6807 C10
6808 E9
6809 D9
7805 D10
7806 E11
9001 C5
9003 C5
2809 E12
2810 D12
2815 C11
2816 D12
3101 C12
9812 E11
9813 C12
9814 C12
F410 B2
F411 B2
F412 C1
F413 C1
F414 C2
F415 C1
F416 C2
F417 C2
F418 C1
F419 C2
F420 F7
F421 F8
F422 B10
3806 E9
3807 E9
3810 B10
5401 C3
5402 C5
F428 F4
I410 C3
T3.15AH 250V(EUR)
I411 C4
I412 C5
I413 C8
I414 B13
I415 C6
I416 C4
I417 B13
I418 C12
I419 D2
I420 D12
I421 E11
I422 E11
9005 C6
9806 E9
9808 C12
9810 D10
9811 D12
I428 E10
I429 D2
290V (303V)
288V (0)
COLD
4V8 (0V)
I430 D4
I431 D3
I432 D5
I442 B6
I444 B6
I445 C6
I455 D4
I456 E7
I810 B10
I811 B11
I812 B11
I813 C10
I814 E9
I815 E9
I816 E9
I817 C11
I820 F9
I824 E12
I825 E12
F423 B10
F424 F2
F425 F2
F426 F2
F427 F3
9005
GNDHOT
I826 E12
I828 E9
I423 E10
I424 E7
I425 E10
I426 E10
I427 E10
3802
91K
I413
220R
3404
2408
100n
1000
GND screw
1
1403
500V
I442
F420
1
2
4
3
2808
47n
9808
5403
9814
I429
I431
I430
2804
56n
4M7
3402
I811
I814
I416
I419
3803
390R
F419
100n
BAS316
6460
500V
2809
1402
470n
2401
I412
I422
76
23
4
58
1
AVS1ACP0 8
7805
I825
F418
F415 F416
3450
1R
47p
2406
G5PA-1-5VDC
1450
F425
F424
3807
22K
F417
F412
25V_HOT
I415
9811
1401
T1AE 250V
PTF/65
400V_HOT
F413
4R7
3805
2802
2806
47u 50V
100p
1
2
I410
56n
2803
1308
9003
I427
1
2
3
9813
I817
1305
B3B-EH-A
I812
1N5062
6808
I828
I816
3806
470R
I456
I810
3810
12K
9806
DF06M
6506
F422
2816
470n
2400
330u
I820
GNDHOT
9812
6461
I445
BAS316
4M7
3403
1
2
I824
6807
1306
GBJ6J
1011
HEATSINK
4
1K0
3101
1307
B4P-VH
1
2
3
2503
10u
100n
2810
F421
I826
I813
BYG10
6154
F414
F423
AVS10CB
7806
I414
3405
220R
F411
F410
I421
6155
BYG10
I418
14
23
DMF3547HB60
5401
33u
5804
I428
I455
I815
23
DMF3547HB60
5402
14
F426
F427
I411
I425
I423
3800
I426
1M0
I420
I444
4M7
3401
I424
I432
3400
9001
1R
3451
3804
20K
2407
220p
9810
47p
2404
I417
PTF/65
1400
1N5062
6809
F428
330u
2815
GND screw
1001
1
E_14620_055.eps
220305
3104 313 6009.5
34FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
PSU (30-32"): Supply
NC
VCC UVLO/
ENABLE
VARIABLE
FREQUENCY
OSCILLATOR
2.5V CLAMP
ERROR
SOFT-START
5.0 V
REFERENCE
VREF UVLO
STEERING
FLIP-FLOP
FAULT DET/
LATCH
ONE-SHOT
C
D
E
F
G
H
I
1007 G10
1009 H10
1010 H11
1012 H11
1304 H13
1309 I13
1M02 H13
2000 E9
2002 A2
2003 A5
2004 C2
2005 D2
2006 C2
2007 E1
2008 G4
0V (0V)
A2
A2
24V4 (0V)
TO 1309
1 23456789101112 13
123
11V3 (0V)
32" SHARP
HIGH SIDE
20V4 (0V) 22V(0V)
288V(0V)
456789101112 13
A
B
C
D
E
F
G
H
I
A
B
13V4
2009 D1
10V2 (0V)
2010 H1
2011 E9
2012 E8
2013 C8
2014 F6
2015 F5
2016 E6
2017 C9
2018 F5
2019 H2
2020 C11
2021 C11
2022 E11
2023 A12
2024 E12
2025 E13
2026 G3
2027 F3
2028 B10
2029 D11
2030 F12
CURRENT
DRIVE
HOT COLD
2031 B12
2032 E13
2033 E13
2034 C1
2035 C2
2036 A13
2037 B13
2038 D11
2039 B10
2040 C1
2041 D13
2042 D13
2043 D13
2044 C10
2045 E11
2046 I4
2047 I5
AUDIO - STBY
TO 1M02
AUDIO - STBY
CONTROL
2048 I4
2050 E3
2051 D13
2052 D13
2053 D13
2060 C7
2061 B7
2062 D7
2063 C6
2064 D6
2065 D7
2071 E7
2072 C7
2077 H4
2290 G10
2291 G11
2292 G11
2293 H11
2294 H11
COLD
SUPPLY
3000 A2
3001 F5
3002 C1
3003 C1
3004 D1
3005 C2
3006 D2
3007 E2
3008 E2
3009 E1
3010 H2
3011 H2
3012 F3
3013 G4
3014 C7
3015 C8
3016 C7
3017 D8
3018 E8
BIAS SUPPLY
Voltage
3021 G6
3022 C11
3023 E12
3024 E13
3025 F13
3026 G13
3027 G3
3028 E7
3029 C7
3030 F11
3031 A11
3032 B10
3033 A5
3034 F13
3035 C7
3036 A13
3037 C12
3038 E13
3039 A13
3040 E13
3041 F13
HOT GROUND
TO 1304
Adj.
3043 D1
3044 A13
3045 G5
3046 F6
3047 H3
3048 D2
3049 A12
3050 E3
3051 B12
3052 C12
3053 E3
3054 C12
3055 I5
3056 I3
3057 A12
3058 E2
3059 A13
3061 E4
3064 F3
3065 E4
3066 F3
COLD GROUND
GND_SND
3019 E7
3020 E7
3067 G1
3068 G4
3070 H4
3071 H4
3075 G5
3089 H6
3100 A9
3292 G10
3999 A11
5001 C6
5002 D9
5004 D8
5005 C9
5007 B8
5008 B8
5009 B5
5010 A6
3042 B13
VSND_NEG
5013 E8
5015 C6
5016 D6
5017 A3
5025 D10
5026 D10
5027 B10
5028 C10
5040 D9
5041 E8
5291 G11
5292 H11
5293 G11
6001 D2
6002 D7
6003 C7
6004 D6
6005 D6
DRIVE
6006 I4
6007 C7
6008 D7
6009 H1
6010 G4
6011 F4
6012 E8
6013 C8
6014 H6
6015 G6
6017 I5
6020 H1
6021 D11
6022 H2
6023 E13
6025 E11
6027 C7
6028 E7
6030 A12
6044 B10
6045 C10
6051 H3
6054 A13
6077 A5
6078 A6
6079 A4
6080 A4
6081 A2
6082 A3
6291 G11
6293 G11
7001 C3
7002 A9
7004 H5
7005 C8
7006 D8
7007 C8
CONTROL
HOT
PROTECTION
Vs
7008 E8
7009 G4
7010 F12
7017 F3
7018 F3
7030 A10
7031 B13
9002 G13
9004 B5
9008 A4
9009 A3
9010 C11
9024 D8
9025 E8
F001 H12
F002 C8
F003 C6
F004 D6
F005 D8
F006 I12
F007 F3
VSND_POS
VS-CONTROLLER
F008 D6
F009 D6
F014 F12
F016 B11
F017 D11
F018 A8
F021 A11
F022 A12
F023 F9
F024 D11
F025 D11
F027 D11
F028 C11
F029 C9
F290 G12
F292 G12
F293 G12
F294 H12
F295 H12
F296 G13
F297 G12
F298 H12
F299 A8
AUDIO - STBY
LOW SIDE
I002 B8
I003 C7
I004 D8
I005 A10
I006 B2
I007 C2
I008 C2
I009 C2
I010 D2
I011 I5
I012 D4
I013 A13
I014 A13
I015 A13
I016 A12
I017 B13
I018 E3
I020 F3
I021 E1
I022 F3
I023 F3
FLM 1/6W
I024 F4
I025 F2
F010 H12
F012 D11
I029 G2
I033 F5
I034 F6
I036 F5
I037 C8
I038 C8
I039 D7
I042 C7
I045 C7
I046 C8
I051 E8
I052 D7
I055 E8
I057 D8
I059 E8
I062 A10
I063 A10
I064 B7
I070 B10
I072 C10
I073 D10
I074 D10
I076 D10
F300 F9
I001 B8
I081 F7
I084 F9
I085 E12
I088 E13
I089 E12
I092 F13
I093 F13
I094 G12
I095 A4
I096 A3
I097 A3
I098 A5
I099 A6
I100 A6
I101 A6
I103 C1
I104 D2
I105 E3
I106 E6
I107 C6
I108 D6
SOFTSTART
I109 C7
I110 D8
I111 C8
I112 E8
I113 E8
I114 D9
I116 C10
I117 C10
I027 C3
I028 G2
I121 E13
I122 F13
I123 F10
I124 G10
I131 I5
I132 I4
I133 I4
I134 I3
I135 G3
I136 H4
I137 G4
I138 H4
I139 G4
I140 G5
I141 H1
I142 H1
I143 G1
I145 E7
I290 G11
I291 G11
I292 H10
ONLY FOR
I077 E10
I080 F10
1
3
2
I293 H11
I294 C8
I295 H6
I296 G6
c001 G9
c002 E8
I119 C12
I120 C12
RES
STPS20H100CT
6021
15K
3037
470n
2008
16
33K
3041
I038
5040
6013
SML4744
SML4744
2K7
3048
6012
2000V
2014
2n2
470p
2000 16
2024
220n
50
2015
10n
9002
F008
3055
220R
5008
2047
10n
F012
F298
I077
6077
BYG22D
2009
I294
+12V
100p
BAS316
6006
I099
I073
3000
4R7
I138
2063
470p
1010
HEATSINK
7005
STP15NK50ZFP
I110
I052
I039
I076
3K3
3009
2043
220n
I046
3025
1K8
1%
6004
BAT54 COL
I104
6044
STPS20L45CT
1
3
2
5007
I022
3057
220R
3K3
3020
2016
16 100n
I116
1n0
2071
I109
9004
GND3
I003
I033
I106
I034
470R
3011
3010
470R
F004
F003
100u
2010
BZX384-C4V7
6022
100p
I093
3026
2034
I070
470R
2m2
2294
F027
F025
F029
F021
F028
c001
I055
I114
330R
3008
I072
3
2
I036
6025
STPS20H100CT
1
50V
I004
13
2
1n0
2044
STPS20L45CT
6045
6291
STPS8H100FP
50V
1n0
RES
I001
2045
33K
3038
5009
I089
3040
8K2
BAS316
6011
I290
I097
I296
2290
10n 50
I295
2061
2n2
I062
25V_HOT
3007
10K
10K
3013
1304 VH
1
2
3
4
F010
2041
220n
I095
I011
RES
RES
100n
2018
1m
5010
9008
BYG22D
F296
I122
6080
STP15NK50ZFP
7006
2065
2n2
I045
470n
2023
10n
2017 1600
I121
5M6
3058
2021
2m2
I108
47R
3018
3027
100K
I101
2033
220n
100R
3067
I123
3033
1R0
I105
I037
I057
5
R
8
I008
7010
TL431ACD
2
A
3
6
7
K1
4
I063
3068
2K2
14
32
BAS316
6002
100K
TCET1102
7002
I025
3065
I292
5005
I028
3001
100R
HEATSINK
1009
3023
15K
3005
33K
3034
RES
1%
I012
I145
2002
470u
3999
1K0
2040
560p
3014
100R
2005
630
100p 2035
100p
BC857BW
7009
5041
6017
BAS316
BC847BW
7004
3071
10K
7
I007
1M02
1
2
3
4
5
6
B7B-EH-A
BC847BW
7018
2n2
2062
7007
BC857BW
2048
1n0
16
2030
100n
6001
BAS316
RES
I143
3022
680R
F022
9024
9025
I139
3056
220R
100R
3017
I291
I293
2042
220n
5028
3016
3K3
50V
2028
1n0
7017
BC857BW
I009
2
3
4
6
7
9
I020
5001
S13932-04
10
BAS316
6020
6
EN|UA9
FI 10
GND
4
I+8
I-
7
OA 14
OB 12
OS16
OSCC1
OSCCC3
OSCR2
PGND 13
SOST
11
VCC
15
VREF
5
7001
MC34067P
EAO
5004
I137
I136
400V_HOT
50
2027
15n
RES
I029
4m7 16V
I027
2038
I112
10R
3100
25
2006
1n
3003
100K
3006
10K
3075
1K
10n
2011
1600
2292
2m2
I111
I094
I117
7030
BC857BW
7008
BC847BW
9010
10K 3031
2020
2m2 25
3064
10K
2077
2n2
I006
c002
33K
3024
MRS25 1%
I107
F014
F292
470n
2007
16
470n
2039
I113
I064
2046
47n
3029
3K3
6003
BAS316
5027
5015
1309
1
2
3
B3P-VH
3052
33K
I005
3K3
3035
STPS8H100FP
6293
3043
10R
I002
3050
820K
3047
47R
6028
BAS316
22R
3045
3046
22R
BAS316
6027
F290
F005
+12V
F002
I141
F016
3066
10K
3061
68K
5013
50
2026
2n2
I084
RES
BAS316
6007
220n
2051
2032
4n7
220n
2052
2n2
2060
19372
1007
T5A 250V
+24V
3004
27K
630
3030
18K
I088
200p
2004
F299
I119
F024
2037
470n
BAS316
6030
3054
4K7
3051
4K7
F007
BYG22D
6078
2003
1m0
1012
HEATSINK
5026
2072
1n0
I085
RES
BAS316
6051
I051
2031
10n
6009
PDZ-18B
560R
3292
6010
BAS316
1n5
2012
6079
BYG22D
2000V
3K3
3028
BAS316
6023
I081
3K3
3019
5025
I131
2000V
2013
1n5
2022
4m7 16V
I018
I042
50V
2029
1n0
2064 470p
3015
47R
5016
I059
3036
100K
7031
BC847BW
33u
5293
I092
I021
BAT54 COL 6005
15K
3012
22R
3021
400V_HOT
220n
2053
I096
I023
5292
33u
3053
680K
I124
+24V
I134
F023
3042
12K
470n
2036
F017
F293
F294
I080
F009
F018
F297
470p
2291
50
I103
I098
9009
33K
RES
BAS316
6082 3049
3039
1K0
I142
F295
5017
I120
I132
1n0
2050
I135
F300
I133
I074
3044
470R
6008
BAS316
I017
I016
I014
I015
+12V
I013
6054
3059
2K2
BZX384-C10
GND_SND
50
2293
470p
I024
6
7
89
3070
1K
1
10
11
12
13
14
15
16
2
3
5
BS51312-01
5002
I010
2025
220n
F006
2019
10n
47K
3032
3002
39K
6014
BZX384-C22
6015
BAS316
10K
3089
BZX384-C22
6081
I100
I140
33u
5291
F001
DC_PROT
DC_PROT
E_14620_056.eps
190504
3104 313 6009.5
Circuit Diagrams and PWB Layouts 35FTL2.xE AA 7.
Layout PSU (30-32") (Top Side)
E_14620_057.eps
190504
3104 313 6009.5
1000 A1
1001 A3
1007 B10
1009 B9
1010 C9
1011 C3
1012 A9
1304 A10
1305 A3
1306 A4
1307 A5
1308 C1
1309 A8
1400 C1
1401 A4
1402 A2
1403 B1
1450 A3
1M02 B10
2000 A7
2002 A7
2003 A6
2004 A6
2005 A6
2010 A7
2011 B7
2012 C7
2013 C6
2014 A7
2017 B6
2020 C8
2021 C8
2022 A8
2038 A9
2292 A10
2294 C10
2400 C2
2401 B1
2404 B1
2406 A3
2407 A3
2408 B3
2503 A4
2803 B3
2804 B4
2806 B4
2809 C4
2810 C4
2815 A3
2816 A5
3000 A5
3014 B6
3015 C5
3017 C7
3018 C7
3026 A9
3033 A6
3050 A5
3053 A5
3058 A5
3400 C2
3401 C2
3402 A1
3403 A1
3404 A2
3405 B1
3450 A2
3451 A3
3800 A4
3805 C4
3807 B4
3810 A4
5001 B6
5002 A7
5004 C6
5005 C6
5007 B6
5008 C5
5009 B7
5010 B6
5013 C7
5015 A6
5016 A6
5017 A5
5025 B9
5026 A9
5027 C9
5028 C9
5040 B6
5041 C7
5291 B10
5292 C10
5293 B10
5401 B2
5402 A1
5403 A3
5804 B4
6021 B9
6025 B10
6044 C10
6045 C10
6291 A9
6293 A10
6506 A4
6807 C3
6808 A4
6809 A4
7001 A6
7002 A8
7005 C6
7006 C7
7805 B4
7806 C4
9001 A3
9003 A3
9004 A7
9005 B3
9006 C10
9007 A8
9010 A10
9011 A8
9012 C8
9013 B8
9014 B1
9016 A7
9017 A5
9018 A6
9019 A6
9020 B7
9021 A6
9022 C3
9023 C3
9024 C6
9025 B7
9026 C8
9027 B9
9028 B9
9031 A9
9032 A9
9033 A9
9034 A10
9035 B8
9036 B9
9037 B8
9038 A9
9039 A9
9040 B9
9041 B9
9042 B10
9043 B10
9044 C9
9045 C9
9046 C9
9047 C10
9080 A7
9081 C2
9086 B10
9087 B9
9088 A10
9090 A10
9091 A9
9092 A7
9093 A7
9098 B3
9808 B5
9811 B5
9812 B4
9813 B5
9814 A5
36FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
Layout PSU (30-32") (Overview Bottom Side)
E_14620_058.eps
190504
3104 313 6009.5
Part 1
E_14620_058a.eps
Part 2
E_14620_058b.eps
2006 A5
2007 A6
2008 A5
2009 A5
2015 A5
2016 A5
2018 A5
2019 A5
2023 B1
2024 B1
2025 A1
2026 A6
2027 A6
2028 C2
2029 B2
2030 B1
2031 A1
2032 A1
2033 A1
2034 A5
2035 A5
2036 C1
2037 C1
2039 B1
2040 A5
2041 A1
2042 A1
2043 A1
2044 C1
2045 B1
2046 A4
2047 A5
2048 A5
2050 A5
2051 A1
2052 A1
2053 A1
2060 C6
2061 B5
2062 C5
2063 A5
2064 A5
2065 C4
2071 C4
2072 C5
2077 A4
2290 B3
2291 A2
2293 A1
2802 B7
2808 C7
3001 A4
3002 A5
3003 A5
3004 A5
3005 A5
3006 A5
3007 A6
3008 A6
3009 A6
3010 A4
3011 A5
3012 A5
3013 A5
3016 C6
3019 C4
3020 C4
3021 A4
3022 B1
3023 B1
3024 A1
3025 B1
3027 A6
3028 C4
3029 C6
3030 B1
3031 B1
3032 B1
3034 B1
3035 C6
3036 C1
3037 A1
3038 B1
3039 C1
3040 B1
3041 B1
3042 C1
3043 A5
3044 C1
3045 A5
3046 A4
3047 A4
3048 A5
3049 C1
3051 C1
3052 A1
3054 C1
3055 A4
3056 A4
3057 A1
3059 C1
3061 A5
3064 A5
3065 A6
3066 A5
3067 A4
3068 A4
3070 A4
3071 A4
3075 A4
3089 A4
3100 A4
3101 A6
3292 B3
3802 B7
3803 B6
3804 B7
3806 B7
3999 B8
6001 A5
6002 C4
6003 C6
6004 A5
6005 A5
6006 A5
6007 B6
6008 C5
6009 A4
6010 A5
6011 A5
6012 B4
6013 C5
6014 A4
6015 A4
6017 A5
6020 A4
6022 A5
6023 A1
6027 C6
6028 C4
6030 C1
6051 A4
6054 C1
6077 A5
6078 B5
6079 A5
6080 A6
6081 A4
6082 A6
6154 A6
6155 A6
6460 A8
6461 A8
7004 A4
7007 C5
7008 C5
7009 A4
7010 A1
7017 A5
7018 A6
7030 B1
7031 C1
9002 B1
9008 A6
9009 A6
9030 A1
9085 B1
9806 B7
9810 B7
Circuit Diagrams and PWB Layouts 37FTL2.xE AA 7.
Layout PSU (30-32") (Part 1 Bottom Side)
E_14620_058a.eps
190504
Part 1
38FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
Layout PSU (30-32") (Part 2 Bottom Side)
E_14620_058b.eps
190504
Part 2
Circuit Diagrams and PWB Layouts 39FTL2.xE AA 7.
PSU (37"): Mains Filter and Standby
MODE
VM
OSIN
VSS
OSOUT
VG
NC
VDD
V
234567
T1AE 250V
6 7 8 9 10 11 12 13 14
A
B
C
D
E
F
A
1311 E6
1312 E6
1314 C2
2300 C3
2301 C4
2302 C5
B
C
D
E
F
1002 D1
1004 F9
1300 D3
1301 D4
1302 B4
1303 B4
1304 B4
TO 1305
AUDIO-STBY
TO 1306
2320 D13
2321 C13
2322 D6
1
2325 C5
2326 C8
2327 B10
8 9 10 11 12 13 14
12345
1305 F9
1306 F2
1307 D2
1308 C1
1309 B4
3314 F13
3316 D7
3317 D71315 F3
1350 C9
3320 D7
5301 D8
5302 C62303 E8
2304 C12
2305 F11
2306 C5
2307 D4
2308 C8
2309 E13
2310 C11
2311 C12
2312 C4
2313 F11
2314 E12
5V0
(0V)
2315 C12
2316 D13
2317 C12
2318 D5
2319 B10
AUDIO-STBY
2323 C3
2324 C4
6315 A122328 D1
2329 D2
3300 C3
3301 C2
3302 D2
3303 D2
3304 B5
3305 B4
3306 A14
3307 F10
3308 B13
3309 E10
3310 B13
3311 E11
3312 E12
3313 F10
9303 D5
9304 E10
3318 B10
3319 E7
9307 C6
9308 C6
9309 C5
5303 D6
5304 F12
5305 C4
5306 C5
5307 D4
6304 A10
6305 B11
6306 E8
6307 C11
6308 E10
6309 D10
6314 C14
95-264Vac
272V(30V)
AUDIO-STBY
MAINS FILTER + STANDBY
6316 A13
6317 B13
6318 B13
6354 C13
6355 C13
6360 E9
6361 D9
7305 E11
7306 E12
7307 B14
9301 D13
9302 D13
RELAY +
I442 D7
I444 D8
I445 C8
9305 E7
9306 D7
I812 C12
I813 C11
I814 E10
9310 D11
9311 B14
9312 F13
9313 D13
9314 C13
9315 D3
9316 F3
F410 B2
F411 B2
F412 C2
F413 C2
F414 C2
F415 C2
F416 C2
F417 C2
F418 C2
F419 C2
F420 E8
F421 F8
F422 F9
F423 F9
F424 F2
F524 C14
I297 D5
I298 C6
I299 D5
I410 C3
I411 C5
I412 C5
I413 C10
I415 C8
I416 C5
I419 D2
I424 E9
I810 C11
I811 C12
I815 E10
I816 E10
I817 D12
I820 F10
I821 B4
I825 E13
I826 E13
I828 A13
I829 A14
I830 A13
I831 C13
I832 C13
T5AH 250V(AP)
T5AH 250V(US)
COLD GROUND
I833 B14
I834 B14
I835 B11
I836 A10
I837 E12
I838 E12
MAINS FILTER
271V(297V)
RELAY -
TO 1306
T5AH 250V(EUR)
I839 E11
I840 E11
I841 E11
I842 E10
I843 D10
I844 C4
I846 B4
COLD GROUND
MAINS INPUT
2315
330u
1308
B2P-VA-BF-BK
1
2
F414
B2P-VA-BF-BK
1002
1
2
9306
10u
2303
I442
22K
3308
BAS316
6304
1
AVS10CB
7306
1301
GND screw
9301
6307
GBJ6J
I840
I820
I839
BAS316
6305
18K
3313
1M0
3309
3
2328
100p
5306
DMF3547HB60
14
2
I825
3304
220R
9304
I416
6317
BAS316
10K
3306
50V47u
2313
1314
PTF/65
470n
2325
14
23
2
43
DMF3547HB60
5302
5303
DTH40203H65
1
I817
1311
91K
3311
HEATSINK
F410
I813
6306
DF06M
I844
2306
47p
I843
2319
I445
2
43
1u0
DTH40203H65
5301
1
2318
220p
4M7
3303
22K
3307
1
6354
BYG10
76
23
4
58
23
14
7305
AVS1ACP08
1350
G5PA-1-5VDC
6360
BAS316
9307
1312
HEATSINK
1R0
3316
6308
1N5062
9308
PTF/65
1315
I821
2308
470n
I846
F421
F411
I838
I297
I842
2
3
I831
9313
DMF2405H60
53071
4
100p
2329
9316
1307
1
3302
4M7
GNDHOT
F524
2317
10n
1
2
3
B3B-EH-A
1305
I830
I298
I829
470n
2326
1004
1
2
3
6309
1N5062
B3B-EH-A
2K2
3318
1300
1
3301
4M7
3320
1R0
1R0
3319
470n
2323
I833
3300
I832
I816
3317
1R0
9303
I812
F418
9311
I811
5304
100u
F412
3310
47K
GNDHOT
BZG03-C200
6314
9315
F424
2312
47p
I841
F423
2324
470n
I834
56n
2309
I415
9312
I444
330u
2316
I424
I411
1n0
2307
3
220R
3305
5305
DMF3547HB60
14
2
I810
1K0
3312
I826
BZG03-C200
6315
9309
470n
2327
6355
2311
56n
BYG10
F413
3314
4R7
7307
TCET1102(G)
2320
330u
F419
F422
F415
330u
2321
I815
F417
47n
2314
I410
100p
2305
500V
1303
GND4
2301
470n
2322
9305
220p
V_NOM
1005
V_NOM
1003
6318
F416
BAS316
I412
F420
I419
I837
BAS316
6316
2300
470n
9302
I814
56n
2310
2304
56n
1
2
B2P-VA-BF-BK
1306
9314
6361
BAS316
9310
I413
2302
470n
500V
1302 I835
I836
I299
400V_HOT
399V_HOT
25V_HOT
25V_HOT
I828
LATCH
3104 313 6006.4
F_14621_001.eps
050105
40FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
PSU (37"): Supply
NC
2001 G9
2002 B4
2003 A3
2004 C2
2005 D1
2006 C2
2007 E1
2008 G3
2009 H11
HOT
34567891011
13V4
HOT GROUND
1007 G10
1105 H7
1106 H7
1107 H7
1108 I7
1109 H9
1110 I10
1112 H10
1113 I9
1304 H8
1309 H8
1M02 I13
2000 A9
A
B
C
D
E
F
G
H
I
12345678910111213
12
2024 D12
2025 D13
2026 G2
2027 F2
2028 C10
2029 E10
2030 E12
2031 C12
2032 D13
LOW SIDE
BIAS SUPPLY
12 13
A
B
C
D
E
F
G
H
I
2044 D11
2045 E10
2046 I3
2047 I4
2048 I4
2049 G12
2050 F4
2051 H10
2052 D7
GND_SND
VSND_POS
2010 H1
2011 E8
2012 E8
2013 C8
2014 F6
2015 F4
2016 E5
2017 C8
2018 H12
2019 H2
2020 D11
2021 I11
2022 E11
2023 B12
2064 D12
2065 G12
2066 D11
3000 A1
3001 F5
3002 C1
3003 C1
3004 D1
3005 C2
SUPPLY
CURRENT
2033 D13
2034 H12
2035 E7
2036 C7
2037 H4
2038 E11
2039 C10
2040 C1
2041 G12
2042 G12
2043 G12
3018 E7
3019 E7
3020 E7
3021 G5
3022 C12
3023 D12
3024 D12
3025 E12
3026 E12
2053 D5
2054 C6
2055 D7
2056 B6
2057 C6
2058 C1
2059 C8
2060 E8
2061 C1
2062 D1
2063 F5
3039 H3
3040 D13
3041 E13
3042 G3
3043 D1
3044 F2
3045 G5
3046 F5
3047 H2
COLD
STANDBY
3006 D2
3007 E2
3008 E1
3009 E1
3010 H1
3011 H1
3012 F3
3013 G3
3014 C7
3015 C7
3016 C6
3017 D7
3061 E7
3062 C6
3063 C12
3065 B6
3066 H12
3067 H13
3068 A10
3070 A10
3071 A10
CONTROL
COLD GROUND
3027 G2
3028 G4
3029 C6
3030 E11
3031 C11
3032 C10
3033 H10
3034 E12
3035 E5
3036 H4
3037 C12
3038 D13
3085 A11
3086 A11
3087 A11
3088 A12
3089 H5
3090 A12
3091 D12
3999 A13
5001 D6
272V(30V)
5002 F9
5003 C10
5004 D8
MRS25 1%
VS-CONTROLLER
HIGH SIDE
3048 D1
3049 E3
3050 E2
3051 F2
3052 C12
3054 F4
3055 I5
3056 I3
3057 B12
3058 E2
3059 C1
3060 H4
5025 E10
5026 E10
5027 E8
6002 D7
6003 C6
6004 D6
6005 D5
6006 I3
6007 C6
TO 1304
VSND_NEG
SOFTSTART
3072 A10
3073 A11
3074 A11
3075 A11
3076 A11
3077 A11
3078 A12
3079 A12
3080 A10
3081 A10
3082 A10
3083 A11
3084 A11
6026 H3
6027 C7
6028 E7
6029 H11
6030 H11
6031 G11
6032 A2
6033 A3
6035 C5
DRIVE
(0V)
5005 C8
5006 D10
5007 B8
5008 B8
5009 B5
5010 A4
5011 D9
5012 D8
5013 E8
5015 C6
5016 D5
5017 A2
5018 H12
5019 I12
5020 H12
5021 G11
5022 G11
7006 D8
7007 C7
7008 E7
7009 G4
7010 E12
7011 F3
7012 F3
9001 E8
9002 F13
24V5(0V)
9003 A3
9004 H7
9005 F10
9006 F10
9007 G10
6008 D7
6010 G4
6011 F4
6012 E7
6013 C7
6014 H5
6015 G5
6017 I4
6018 E5
6019 D10
6020 E4
6021 E10
6022 H2
6023 E13
6024 A4
6025 A3
F016 C12
F017 D11
F018 B8
F021 A13
F022 A13
F024 D13
F025 D13
F027 D11
F028 D11
DRIVE
AUDIO-STBY
PROTECTION
6036 C5
6038 D2
6040 G12
6041 E10
6042 H13
6043 G13
6044 G13
7001 C4
7002 B9
7003 C10
7004 H4
7005 C8
F425 E5
I001 E10
I002 E10
I003 E10
I004 E10
I007 C2
I008 D2
I009 C1
I010 D2
I012 E4
I018 E2
I020 F3
I021 E1
9008 B5
9009 A2
9010 F10
9011 D8
9012 E8
9013 D8
9014 C8
9015 D10
9016 D10
F002 C7
F003 C5
F005 D8
F007 F2
F008 D5
F009 D6
F012 D12
F014 E12
I052 D7
I055 E7
I057 D7
I059 E7
I062 B10
I063 B10
I064 B8
I070 D10
I072 D10
18V6
(0V)
F029 A8
F030 D5
F290 H12
F292 H12
F293 H12
F294 H12
F295 H12
F296 H13
F297 H12
F298 H12
F299 A8
F300 H7
F301 H7
F302 H8
I097 A2
I098 A4
I099 A4
I100 A4
I101 A4
I107 C6
I108 D5
I109 C7
I110 D8
TO 1309
11V3(0V)
I022 F2
I023 F2
I024 F3
I025 F1
I027 C2
I028 G1
I029 G2
I033 F4
I034 F5
I036 F5
I037 C7
I038 C7
I039 D6
I042 C7
I045 C6
I046 C7
I051 E7
I121 D13
I122 E13
I124 H11
I131 I5
I132 I4
I133 I3
I134 I2
I135 G2
I136 H3
CONTROL
TO 1M02
17V4
I073 G11
I074 G11
I076 G10
I077 G11
I081 F6
I084 F9
I085 D12
I088 D13
I089 D12
I092 E13
I093 E13
I094 F12
I096 A2
I291 H12
I292 I11
I293 I12
I294 C8
I295 E5
I296 E5
I845 D9
I847 D2
I849 C1
I850 I4
T5A 250V
AUDIO-STBY
10V2(0V)
I111 C8
I112 E8
I113 E8
I114 D8
I116 C10
I117 D10
I120 C12
I851 C6
I852 B8
I853 C12
I854 C10
I855 D7
c001 F8
c002 E8
FLM 1/6W
I137 G4
I138 H4
I139 G4
I140 G5
I141 H1
I145 E7
I290 H12
I077
BC857BW
7008
I107
3001
100R
I022
F295
I108
2019
15n
F298
BZX384-C4V7
6022
I089
9010
I070
I088
I291
I295
3005
33K
I038
9013
9014
3074
4K7
4K7
3086
3085
4K7
3025
1K5
3024
I009
39K
I139
1n5
2012
2000V
7011
BC857BW
I064
BC857BW
7012
I121
I036
22R
3045
I852
50V
2028
1n0
BYG22D
6032
1
2
5002
BS51312-01
1105
B2P-VA-BF-BK
1n0
2050
I020
3051
10K
F296
5006
I001
I010
100p
2061
3043
1R0
I055
3046
22R
5001
S13932-04
10
2
3
4
6
7
9
6004
BAT54 COL
A
3
6
7
K1
4
5
R
8
I098
7010
TL431ACD
2
3006
10K
2018
2m2
10K
3033
100K
5021
3002
47R
3018
47K
3032
I290
I094
c001
I114
I110
I113
F301
1n0
2035
2053
15n
50V
2027
15n
F009
2048
1n0
2016
16V100n
50V
2021
15n
3066
100K
3036
10K
3039
10K
5007
2062
100p
100n
2063
5012
I012
6017
BAS316
2020
2m2
3049
10K
3K3
3019
I057
470R
3011
I021
100p
2005
3028
10K
330R
3008
3078
4K7
3065
1K0
7007
BC857BW
I111
2046
15n
I137
3035
100R
I145
2002
470u
I096
7005
STP15NK50ZFP
3K3
3062
3061
3K3
4K7
3071
4K7
3073
3010
470R
5015
33n
2011
1600V
BS51312-01
5011
10n
2039
3027
10K
BAS316
6036
2052
2n2
9006
3072
4K7
3068
220R
I136
2n2
2055
I092
GND3
50V
2030
15n
I109
200p
2004
I008
9001
5017
10K
3063
F008
I076
2036
1n0
2056
2n2
F299
I073
I101
1007
F302
10K
3031
3067
47K
47R
I093
3017
10K
3030
F292
2038
4m7 35V
I122
F025
9002
BAS316
6035
I072
50V
2026
15n
5013
F012
3081
4K7
10K
3009
4K7
3082
3083
4K7
10K
3089
F017
2047
15n
470n
2008
16V
I132
9011
c002
STP15NK50ZFP
7006
I120
I853
I063
F425
2025
1u0
7003
BC857BW
16V
6038
6041
BAS316
I293
BYW29EX-200
I023
F028
470p
2001
5027 5008
3999
1K0
1m0
5010
I081
3047
10K
3016
3K3
100u
2010
I847
I845
5016
I018
3K3
3003
10K
3029
I024
BAS316
6026
GND4
2032
4n7
I084
I029
F290
1n0
2042
50V
BYW29EX-200
6040
3076
4K7
I046
I296
5003
5M6
3058
4K7
3090
3070
4K7
4K7
3084
3079
4K7
6014
BZX384-C33
I052
6015
BAS316
I292
I062
1106
B2P-VA-BF-BK
1
2I124
I097
10K
3041
3K3
3020
BAT54 COL6005
3056
220R
BYG22D
6024
I028
2054
15n
3n3
6008
BAS316
2
3
2064
1309
B3P-VH
1
I099
3060
10K
BAS316
6044
F021
BAS316
6042
F018
4K7
3075
3012
BAS316
6006
4
32
10K
TCET1102(G)
7002
1
50V
2015
15n
2000V
2013
1n5
I850
I851
I849
3055
220R
33K
3038
HEATSINK
1109
F297
F016
6012
SML4744
BAS316
6027
50V
I133
1n0
2045
2051
15n 50V
2OSCR
13
PGND
11 SOST
15
VCC
5
VREF
4
GND
In
7
8Ip
14
OA
12
OB
16 OS
1OSCC
3OSCCC
6EAO
9EN|UA
10
FI
2003
1m0
7001
MC34067P
6018
BAS316
2040
560p
2031
10n
I085
1113
HEATSINK
HEATSINK
1112
22R
3021
9009
6025
BYG22D
BAS316
6003
BAS316
6002
10K
3013
33u
5020
3057
220R
2037
15n
2000V
2014
2n2
5019
33u
I855
5022
F005
2
3
4
BAS316
6043
B4P-VH
1304
1
2000
470p
BYG22D
6033
F022
9008
3059
10K
3044
10K
5018
BYW29EX-200
6021
33u
I294
5009
BAS316
6007 3014
47R
15K
3037
F293
F007
I141
BAS316
6020
1
2
3
4
5
6
7
I112
B7B-EH-A
1M02
I059
I138
1600V33n
2017
I140
F300
3050
1M0
15n
2009
50V
5004
16V4m7
2041
2058
100p
F294
9004
3023
15K
3034
I042
5005
2024
100n
3015
47R
I027
I117
I051
2057
2n2
2033
1u0
2034
2m2
I134
I003
I100
5026
I135
3026
470R
I045
3022
680R
35V4m7
2043
BYW29EX-200
6030
F014
F027
5025
10K
3048
3042
10K
I131
I039
1107
B2P-VA-BF-BK
1
2
4K7
3088
50V
2029
1n0
3091
1R0
F029
I116
9005
3054
10K
6031
BYW29EX-200
9012
6019
25V
2006
1n0
STPS20L40CFP
I004
4K7
BAS316
6023
3087
F030
9003
1n0
2044
F002
I025
2022
4m7 35V
3004
27K
2065
4m7 35V
I074
3052
33K
6028
BAS316
I854
3040
8K2
I037
1110
HEATSINK
BC857BW
7004
9007
I002
4K7
3077
3007
10K
BC857BW
7009
470n
2023
F024
50V
2049
1n0
1108
B2P-VA-BF-BK
1
2
6029
BYW29EX-200
I034I033
4K7
3080
6013
SML4744
15n
2059
15n
2060
9015
2m2 25V
9016
2066
BAS316
6011
470n
2007
16V
6010
BAS316
F003
3000
47R
I007
400V_HOT
400V_HOT
LATCH
+24Vb
+24Va
+12V
25V_HOT
400V_HOT
+12V
+24Vb
400V_HOT
DC_PROT
DC_PROT
+24Vb
+12V
+24Va
+24Vb
+24Va
+24Vb
399V_HOT
A2 A2
3104 313 6006.4
F_14621_002.eps
050105
Circuit Diagrams and PWB Layouts 41FTL2.xE AA 7.
Layout PSU (37") (Top Side)
F_14621_003.eps
050105
3104 313 6006.4
1002 E1
1003 E2
1004 A5
1005 E2
1007 F8
1105 B10
1106 B10
1107 D10
1108 E10
1109 B8
1110 C8
1112 F8
1113 E9
1300 C7
1301 C1
1302 E2
1303 E2
1304 D10
1305 A5
1306 A5
1307 F1
1308 E1
1309 C10
1311 E4
1312 D3
1314 F2
1315 A6
1350 A5
1M02 E10
2000 B7
2001 E7
2002 D5
2003 F7
2004 E5
2005 D4
2010 D6
2011 B6
2012 F6
2013 F5
2014 C6
2017 A5
2018 E9
2020 D10
2022 B9
2034 F9
2038 B10
2041 E10
2043 E8
2059 A5
2060 B6
2065 E10
2066 D10
2300 E2
2301 C2
2302 B2
2303 A5
2304 C3
2306 B1
2307 D1
2308 A5
2309 C5
2310 C3
2311 D3
2312 D2
2313 C6
2314 C5
2315 B3
2316 D2
2317 B3
2318 C1
2319 D4
2320 E3
2321 B4
2322 B1
2323 E2
2324 C2
2325 B2
2326 A5
2327 E4
2328 F1
2329 F1
3000 E7
3014 F4
3015 F4
3017 F5
3018 F5
3026 D9
3050 D4
3058 E6
3070 D8
3071 E10
3072 D8
3073 E8
3074 E9
3075 E9
3076 E9
3077 E9
3078 D8
3079 E10
3080 B9
3081 B9
3082 B10
3083 B10
3084 B10
3085 C9
3086 C9
3087 C9
3088 C9
3090 C9
3300 F2
3301 F1
3302 E1
3303 D1
3304 D2
3305 D2
3307 C5
3308 F3
3309 B5
3312 B6
3314 C4
3316 A4
3317 A2
3318 D4
3319 A3
3320 A4
5001 E4
5002 D8
5003 B8
5004 E5
5005 F4
5006 B7
5007 F5
5008 F4
5009 E6
5010 E7
5011 A7
5012 F5
5013 F6
5015 D5
5016 D5
5017 E7
5018 F10
5019 F10
5020 E10
5021 D8
5022 C8
5025 A8
5026 A8
5027 E6
5301 A3
5302 A1
5303 A2
5304 C5
5305 E1
5306 C1
5307 D1
6019 D9
6021 B9
6029 F8
6030 F9
6031 E9
6040 E9
6041 B9
6306 B4
6307 D3
6308 B5
6309 B5
7001 E5
7002 B7
7005 F4
7006 F5
7305 B5
7306 D5
7307 F4
9001 F6
9004 B10
9005 C8
9006 C8
9007 C8
9008 D6
9010 F7
9011 F6
9012 F6
9013 E5
9014 F4
9015 B8
9016 B8
9301 C3
9302 D4
9303 C1
9305 A3
9306 A2
9307 A1
9308 A1
9309 C2
9312 C5
9313 C2
9314 C3
9315 B7
9316 A5
9500 B3
9501 B4
9502 B4
9503 B5
9504 C4
9505 C4
9506 D6
9507 B6
9508 B10
9509 D10
9510 E7
9511 E5
9512 D6
9513 D5
9514 E6
9515 D10
9516 E5
9517 E10
9518 D9
9519 B6
9520 B6
9521 B6
9522 C10
9523 E8
9524 B1
9525 B2
9526 D3
9527 D3
9529 F1
9530 D9
42FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
Layout PSU (37") (Overview Bottom Side)
3104 313 6006.4
Part 1
F_14621_004a.eps
Part 2
F_14621_004b.eps
Part 3
F_14621_004c.eps
Part 4
F_14621_004d.eps F_14621_004.eps
050105
2006 E6
2007 E6
2008 C5
2009 F3
2015 C6
2016 D6
2019 E5
2021 F2
2023 D2
2024 D1
2025 D2
2026 D5
2027 D6
2028 D2
2029 B2
2030 D1
2031 D1
2032 D1
2033 D2
2035 E6
2036 E7
2037 D5
2039 E1
2040 E6
2042 E2
2044 D2
2045 B1
2046 E5
2047 E5
2048 E5
2049 E2
2050 C5
2051 E2
2052 E6
2053 D6
2054 D6
2055 E6
2056 E7
2057 E7
2058 E6
2061 E6
2062 E6
2063 C6
2064 D1
2305 C6
3001 D6
3002 E7
3003 D7
3004 E6
3005 E6
3006 E6
3007 E6
3008 E6
3009 E6
3010 D5
3011 E5
3012 D5
3013 C5
3019 E7
3020 E7
3021 C6
3022 D2
3023 D1
3024 D1
3025 D1
3027 D6
3028 D6
3029 E7
3030 D2
3031 E1
3032 E1
3033 E2
3034 D1
3035 D6
3036 E5
3037 D1
3038 D1
3039 E5
3040 D2
3041 D2
3042 E6
3043 E6
3044 D6
3045 D6
3046 C6
3047 E6
3048 E6
3049 D6
3051 D5
3052 D1
3054 C5
3055 E5
3056 E5
3057 D2
3059 D7
3060 E5
3061 E6
3062 E7
3063 D1
3065 C4
3066 E1
3067 E1
3068 D2
3089 D5
3091 D1
3306 E7
3310 F7
3311 C5
3313 C6
3999 F1
6002 E6
6003 E7
6004 E6
6005 E6
6006 E5
6007 E7
6008 E6
6010 C6
6011 C6
6012 E5
6013 E7
6014 C6
6015 C6
6017 E5
6018 D6
6020 D6
6022 E5
6023 D1
6024 F4
6025 F4
6026 E5
6027 F7
6028 E6
6032 F4
6033 F4
6035 E6
6036 D6
6038 E6
6042 F1
6043 E1
6044 E1
6304 D7
6305 E6
6314 F8
6315 F7
6316 F7
6317 F8
6318 F7
6354 F8
6355 F8
6360 A7
6361 A6
7003 E1
7004 D6
7007 E7
7008 E7
7009 D6
7010 D2
7011 D5
7012 D6
9002 D2
9003 F4
9009 F4
9304 B6
9310 B5
9311 F8
9528 D7
Circuit Diagrams and PWB Layouts 43FTL2.xE AA 7.
Layout PSU (37") (Part 1 Bottom Side)
Part 1
F_14621_004a.eps
050105
44FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
Layout PSU (37") (Part 2 Bottom Side)
Part 2
F_14621_004b.eps
050105
Circuit Diagrams and PWB Layouts 45FTL2.xE AA 7.
Layout PSU (37") (Part 3 Bottom Side)
Part 3
F_14621_004c.eps
050105
46FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
Layout PSU (37") (Part 4 Bottom Side)
Part 4
F_14621_004d.eps
050105
Circuit Diagrams and PWB Layouts 47FTL2.xE AA 7.
PSU (42"): Mains Filter and Standby Part A
MODE
VM
OSIN
VSS
OSOUT
VG
NC
VDD
V
MAINS FILTER + STANDBY PART A
I465 E11
I466 E10
I467 E11
I468 E11
I469 E12
I470 E10
I471 D12
I472 C14
I810 B11
I811 B11
I812 B11
I813 C10
I814 E9
I815 E9
I816 E9
I817 C11
I820 F9
I824 E12
I825 E12
I826 E12
I827 E10
I413 C9
I415 C7
I416 C6
I419 D2
I424 D8
I442 C6
AUDIO-STANDBY
I444 C7
I445 C7
I455 D6
I456 E7
I461 B13
I462 C12
I463 D5
I464 D10
F424 E8
F425 E8
F426 B11
F427 F3
F428 F3
I410 C3
I411 C5
I412 B6
F410 B2
F411 B2
F412 C2
F413 C2
F414 C2
F415 C2
TO 1306
(EUR+AP CHINA)
F416 C2
F417 C3
F418 C2
F419 C2
F420 B14
F421 B13
F422 C13
F423 C14
9003 C6
9005 B7
9006 B5
9007 C5
9008 C4
9009 F3
9011 B7
9806 E10
9808 C12
9810 D10
9811 D12
9812 E12
9813 C12
9814 C12
6155 C12
6156 B13
6157 B13
6158 C14
6159 C14
6460 D8
95-264Vac
TO 1307
TO 1305
FROM
6461 D8
6506 E6
6807 C11
6808 E9
6809 D9
7805 D10
7806 E12
9001 B4
3451 B7
3800 E10
3802 E11
3803 E11
3804 E10
3805 E12
T1AE 250V
3806 E10
3807 E9
3810 B10
5400 C4
5401 C5
5402 C6
5403 B6
5804 E12
6154 C13
2809 E12
2810 E12
2815 C12
2816 D12
2817 C11
3400 C3
AUDIO-STANDBY
3401 C2
3402 D2
3403 D2
3404 D6
3405 D5
3406 B14
3407 C14
3450 B7
1B06 E8
2400 C3
2401 C5
2403 C4
2404 C5
2405 D4
MAINS FILTER
2406 C6
2407 C5
2408 C7
2409 C3
2410 C5
2411 D3
2412 D2
2503 E7
2802 E10
2803 C11
2804 C11
2806 F11
2808 E11
10 11 12 13 14
A
MAINS INPUT
1001 D4
1011 E5
1305 F8
1306 F2
1307 B14
1308 C1
1400 C2
1401 F3
1402 D4
1403 D4
1450 C8
10 11 12 13 14
123456789
G
A
B
C
D
E
F
G
1000 D2
123456789
T4AH 250V(AP+US)
T3.15AH 250V
AUDIO-STANDBY
TO
B
C
D
E
F
470R
3806
I461
I469
9812
100p
1N5062
6809
2802
3
56n
2803
DMF3547HB60
5401
14
2
100n
F417
1
2809
I444
1000
GND screw
1305
B3B-EH-A
1
2
3
3450
1R
3807
22K
56n
2804
I456
I466
I410
9005
F416
470n
2400
3451
9011
1R
HOT_GNDA
6
23
4
58
1
3406
100R
AVS1ACP08
7805
7
F415
F419
F411
F421
F414
I811
G5PA-1-5VDC
1450
I810
100n
2810
2407
1n0
1
I820
HOT_GNDA
1001
GND screw
470n
2401
I816
9808
BYG10
6154
6159
BYG10
3810
12K
I824 9814
470n
2410
I467
6155
BYG10
100u
5804
4M7
3401
I424
1
2
3
I827
B3B-EH-A
1B06
2408
470n
I817
2
I419
B2P-VA-BF-BK
1308
1
4M7
3402
3405
220R
9003
9806
4R7
3805
BAS316
6461
HOT_GNDA
470n
2409
I445
I462
F424
2503
10u
220R
3404
BYG10
6156
2404
F426
4M7
3403
47p
3804
20K
F413
I470
1011
HEATSINK
1402
500V
F425
I455
I463
BYG10
6158 3407
9001
100R
1
2
4
3
1N5062
6808
5403
DTH40203H65
HOT_GNDA
400V_HOT_A
2816
330u
I442
25V_HOT_A
220p
2411
220p
2412
2806
47u 50V
I825
I812
4
23
2405
220p
5400
DMF2405H60
1
3400
9813
I464
HOT_P-
I826
HOT_GNDA HOT_GNDB
HOT_P+
9811
F428
I471
3
4
F427
1307
B4P-VH
1
2
I814 I465
F412
GNDHOT
I468
1306
B2P-VA-BF-BK
1
2
GNDHOT
47p
2403
F420
9810
10n
2817
330u
2815
DF06M
6506
400V_HOT_B
F418
F422
F410
3800
1M0
1403
500V
2808
47n
I411
PTF/65
1400
9006
90079008
91K
3802
6157
I472
47p
2406
BYG10
1401
PTF/65
I415
GBJ6J
6807
I815
I416
I813
7806
AVS10CB
I413
F423
14
23
DMF3547HB60
5402
I412
9009
3803
390R
BAS316
6460
MAINS_L
MAINS_N
E_14620_059.eps
190504
3104 313 6018.4
48FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
PSU (42"): Supply Part A
NC
VCC UVLO/
ENABLE
VARIABLE
FREQUENCY
OSCILLATOR
2.5V CLAMP
ERROR
SOFT-START
5.0 V
REFERENCE
VREF UVLO
STEERING
FLIP-FLOP
FAULT DET/
LATCH
ONE-SHOT
(1V2)
CONTROL
I140 G6
I141 H2
I142 G1
I143 G1
I144 A4
I145 E8
I146 B9
I147 C9
I148 C7
I149 C12
I150 D9
I151 I5
I294 C9
c001 F10
c002 F9
(0V)
17V3
DRIVE
(0V)
I105 E4
I106 E6
I107 C7
I108 D7
I109 D8
I110 D9
I111 C9
I112 E9
I113 E9
I114 D10
I116 C11
I117 D11
I119 D13
I120 D13
I121 E14
I122 F14
I124 H11
I131 I6
I132 I5
I133 I4
I134 I4
I135 H3
I136 H4
I137 H5
I138 H5
I139 G5
13V4
AUDIO - STBY
I078 A4
I080 B10
I081 F8
I084 F10
I085 E13
I088 E14
I089 E13
I092 F14
I093 F14
I094 G13
I096 A3
I097 A3
I098 A5
I099 A5
I100 A6
I101 A5
I103 C1
I104 D2
4V9
I033 F5
I034 F7
I036 F6
I037 C8
I038 C8
I039 D8
I042 C8
I045 C7
I046 C8
I051 E8
I052 D8
I055 E9
I057 E9
I059 E9
I062 B11
I063 B11
I064 B10
I070 D12
I072 D11
I073 E11
I074 E11
I076 F11
I077 F11
PROTECTION
(7V6)
Vs
17V
SOFTSTART
F300 F9
I006 B3
I007 C3
I008 C3
I009 D2
I010 D3
I012 D5
I018 E3
I020 F4
I021 E2
I022 F3
I023 F3
I024 F4
I025 F3
I027 C3
I028 G2
I029 G3
(0V7)
HIGH SIDE
DRIVE
VS-CONTROLLER
(0V7)
F016 D13
F017 D12
F018 B9
F021 A12
F022 A13
F023 F9
F024 E13
F025 E13
F027 E12
F028 D12
F029 C10
F030 H12
F031 H12
F032 I12
F299 A9
LOW SIDE
399V
(0V3)
BIAS SUPPLY
7010 F13
7017 F4
7018 F4
7030 C11
9002 G13
9004 F11
9010 G11
F002 C9
F003 C6
F004 D6
F005 D9
F007 F3
F008 D6
F009 D7
F012 E13
F014 F13
4V9
AUDIO - STBY
7V3
5V1
1%
6027 C8
6028 E8
6044 D12
6051 H4
6077 A4
6078 A5
6079 A4
6080 A3
6081 B2
7001 C3
7002 B10
7004 H6
7005 C9
7006 D9
7007 D8
7008 E8
7009 G5
MRS25 1%
Adj.
TO 1304
6005 D6
6006 I5
6007 C8
6008 D8
6009 G2
6010 G5
6011 F5
6012 E9
6013 C9
6014 F11
6015 H7
6016 G7
6017 I5
6020 H1
6021 E11
6022 H3
6023 F14
CURRENT
0V01
5004 D9
5005 C9
5007 B9
5008 B9
5009 B4
5010 A5
5013 E9
5015 C7
5016 D7
5017 A3
5025 E11
5026 F11
5027 D11
5028 D11
5040 D10
5041 E9
6001 D3
6002 D8
6003 C8
6004 D7
SUPPLY PART A
HOT
1%
7V3
3047 H3
3048 D2
3050 E3
3052 D13
3053 E4
3055 I6
3056 I4
3057 C13
3058 E3
3061 E4
3064 F4
3065 E5
3066 F3
3067 G1
3068 H4
3070 H4
3071 H5
3075 G5
3089 H7
3292 H11
3999 A13
5001 C7
5002 C10
HOT GROUND
3018 E8
3019 E8
3020 E8
3021 G6
3022 D13
3023 E13
3024 E13
3025 F13
3026 G13
3027 G3
3028 B10
3029 C8
3030 G12
3031 C12
3032 C12
3033 B11
3034 F14
3037 D13
3038 E14
3040 E14
3041 F14
3043 D2
3045 G6
3046 F6
(0V5)
0V6
Voltage
TO 1309
2071 E8
2072 C8
2077 H5
2290 H11
3000 A3
3001 F6
3002 C2
3003 C1
3004 D1
3005 C3
3006 D3
3007 E3
3008 E2
3009 E2
3010 H2
3011 H2
3012 F4
3013 G5
3014 C8
3015 C8
3016 C8
3017 D8
COLD
(0V3)
2028 D12
2029 E12
2030 F13
2031 D13
2032 E14
2033 E14
2034 C2
2035 F11
2038 E12
2039 C11
2040 C1
2044 D12
2045 F12
2046 I4
2047 I5
2048 I5
2050 E4
2060 C7
2061 C8
2062 D8
2063 C7
2064 D7
2065 D8
COLD GROUND
2V
FLM 1/6W
2007 E2
2008 G4
2009 D2
2010 H2
2011 E10
2012 E9
2013 D9
2014 F7
2015 F5
2016 E6
2017 C10
2019 H3
2020 D12
2021 C2
2022 E12
2023 B13
2024 E13
2025 E14
2026 G4
2027 F3
COLD
(5V)
HOT
1 2 3 4 5 6 7 8 9 10 11 12 13 14
1 2 3 4 5 6 7 8 9 10 11 12 13 14
A
B
C
D
E
F
G
H
I
A
B
C
D
E
F
G
H
I
1009 I9
1010 I9
1304 H12
1309 I12
2000 F10
2002 B3
2003 A4
2004 C2
2005 D2
2006 C3
4V9
I150
I080
CONTROL
I009
3292
560R
5008
3055
220R
I088
6028
BAS316
I135
3017
100R
I029
I143
10K
3031
I148
GND3
+24Va
GNDA
HOT_GNDA
5017
2
3047
47R
HOT_GNDA
STTH2003CFP
6021
1
3
BAS316
I142
HOT_GNDA
6016
50V
HOT_GNDA
9010
1n0
2035
I147
9004
18K
I006
3024
22R
3021
I124
I028
7030
BC847BW
2000V
2014
2n2
3023
15K
I023
10n
GNDA
5013
2039
I033
GNDA
I100
2022
1m8 35V
BYG22D
6080
BC847BW
7018
GNDA
1010
HEATSINKHEATSINK
1009
470p
2000
5041
2060
2n2
I052
I076
3056
220R
5007
5005
5M6
3058
I034
F030
I045
I151
I149
HOT_GNDA
BZX384-C4V7
6022
I109
25V_HOT_A
3010
470R
9002
I113
HOT_GNDA
+12V
2046
47n
16
BC857BW
7009
F017
470n
2007
I092
I085
I110
3043
1R0
3070
1K
I133
I294
I008
50V
2029
1n0
I089
I021
I108
I120
I114
BC857BW
7008
47K
3032
5040
I105
I025
10n
2017 1600
I137
50V
2025
1u0
I119
BAS316
6007
400V_HOT_A
I073
F023
I139
F299
100p
2005
I140
I010
630
BZX384-C22
6015
3027
100K
I012
I078
I018
33K
3041
HOT_GNDA
3026
470R
7007
BC857BW
c001
6K8
I094
5026
3065
6079
BYG22D
3071
10K
GNDA
2290
10n 50
2009
100p
A
2
3
6
7
K
1
4
5
R
8
7010
TL431ACD
I007
3015
47R
BAS316
6023
16
3014
100R
I136
2024
220n
I070
6008
BAS316
I093
5025
I037
3064
10K
10K
3089
15K
3012
2n2
2062
GNDA
3028
1K0
2047
10n
GNDA
HOT_GNDA
BAS316
6051
3050
820K
I134
BYV27-200
6078
HOT_GNDA
2020
2m2
25
I106
6013
SML4744
BAS316
6027
I081
I131
BAS316
6006
STP15NK50ZFP
7006
3068
2K2
F024
2077
2n2
2033
1u0
BAS3166005
3057
220R
BAS316
6011
15K
3037
6004 BAS316
I121
I104
33K
3038
1K0
3
I046
3999
GNDA
1309
B3P-VH
1
2
50
2015
10n
GNDA
3K3
3009
5028
47R
3018
I036
I107
1n0
2050
2034
100p
100p
2021
16
2030
100n
BC847BW
7004
470n
2008
16
2000V
2013
1n5
2019
10n
6012
SML4744
F029
F027
100u
2010
I051
3000
4R7
F002
50
2027
15n
10n
3022
680R
2011
1600
BZX384-C22
6081
F007
BAS316
6001
GNDA
GNDA
HOT_GNDA
1n0
2071
4
GND
I+8
I-
7
OA 14
OB 12
OS16
OSCC1
OSCCC3
OSCR2
PGND 13
SOST
11
VCC
15
VREF
5
I063
7001
MC34067P
EAO6
EN|UA9
FI 10
3046
22R
2
3
4
6
7
9
5001
S13932-04
10
I141
33K
200p
2004
630
3005
I077
3034
I084
5027
7017
BC857BW
F031
I020
50V
2044
1n0
c002
1
3
2
5015
I146
6044
STPS20L45CT
I097
1304
B4P-VH
1
2
3
4
I138
14
32
5016
TCET1102
7002
50V
2028
1n0
I074
3066
10K
6009
PDZ-18B
I096
6020
2002
470u
BAS316
I099
5009
I072
3004
27K
400V_HOT_A
HOT_GNDA
2016
16 100n
10K
3013
HOT_GNDA
33K
I064
3052
2032
4n7
F021
F028
2072
1n0
BAS316
3029
2K2
BAS316
6002
6003
I122
I098
1n0
2045
50V
F016
F014
2064
470p
STP15NK50ZFP
7005
3003
I144
100K
6010
BAS316
I145
I132
3030
18K
F009
100R
3067
1m
5010
6077
3008
BYG22D
I038
330R
F003
2K7
3048
10n
I027
2031
2038
1m8 35V
F004
F025
I111
F005
470n
2023
3001
100R
3007
10K
3011
3016
2K2
470R
2048
1n0
3
5
6
7
89
I024
1
10
11
12
13
14
15
16
2
BS51312-01
5002
2K2
3019
25
3040
8K2
6017
2006
1n
50
2026
2n2
BAS316
I042
I101
3025
1K8
F008
F012
F018
F300
2040
F022
3053
680K
560p
I117
1K0
3033
2065
2n2
F032
3061
68K
6014
BYW29FP-200
1n5
2012
2000V
3002
10K
I022
2K2
22R
3045
I057
3020
+24Va
I039
3006
10K
I116
2061
2n2
I062
2003
1m0
HOT_GNDA
+12V
5004
I103
2063
470p
I055
I059
3075
1K
I112
DC_PROT
E_14620_060.eps
190504
3104 313 6018.4
Circuit Diagrams and PWB Layouts 49FTL2.xE AA 7.
PSU (42"): Mains Filter and Standby Part B
V
MODE
VM
OSIN
VSS
OSOUT
VG
NC
VDD
MAINS FILTER
TO
MAINS FILTER + STANDBY PART B
IH11 C11
IH12 C11
IH13 C10
IH14 E9
IH15 E9
IH16 E9
IH17 C11
IH20 F9
IH24 E12
IH25 E12
IH26 E12
95-264Vac
T3.15AH 250V
ID55 D6
ID61 D12
ID62 D12
ID63 D5
ID64 D10
ID65 E11
ID66 E10
ID67 E11
ID68 E11
ID69 E12
ID70 E10
IH10 C11
ID12 C7
ID13 C8
ID15 C7
ID16 C6
ID24 D8
ID42 C7
ID44 C7
ID45 C7
9U08 D4
9U10 B7
FD10 B2
FD11 B2
FD12 C1
FD13 C2
FD14 C2
FD15 C1
FD16 C2
FD17 C2
FD18 C2
FD19 C2
FD24 E8
FD25 E8
FD26 B11
ID10 C3
ID11 C6
6D61 D8
6H07 C11
6H08 E9
6H09 D9
7H05 E10
7H06 E12
9H06 E10
9H08 D12
9H10 D10
9H11 D12
9H12 F12
9H13 D12
9H14 C12
9U01 C4
9U03 D6
9U05 B7
9U06 C5
9U07 D5
T5AH 250V(AP+US)
TO
3H04 F9
3H05 F12
3H07 F9
3H10 B10
5D00 C4
5D01 C5
5D02 C6
5D03 B6
5H04 F12
6A54 C13
6A55 C12
6D60 D8
2D10 C6
2H02 F10
2H03 C11
2H04 C11
2H06 F10
2H08 E11
2H09 E12
2H10 E12
2H15 C12
2H16 D12
2H17 C11
3D00 C3
3D04 D6
3D05 D5
3D50 C7
3D51 C7
3H00 E9
3H02 E11
3H03 E11
9 10111213
123456789 10111213
A
B
C
D
E
F
G
A
B
C
D
E
F
1D03 D5
1D50 C8
1U01 E4
1U11 E5
2D00 C3
2D01 C5
2D03 C4
2D04 C5
2D05 D4
2D06 C6
2D07 D6
2D08 C7
2D09 C3
12345678
MAINS INPUT
(EUR+AP CHINA)
G
1C05 E8
1D00 C2
1D02 D5
500V
1D03
HOT_GNDB
HOT_GNDB
9H13
22K
3H07
3H10
25V_HOT_B
ID44
12K
6H08
1N5062
6H09
1N5062
6H07
GBJ6J
2H17
10n
400V_HOT_B
220R
3D05
IH12IH10 IH11
3
9H08
5D00
DMF2405H60
14
2
47p
2D03
ID62
ID63
2H04
56n
HEATSINK
1U11
330u
2H16
1
HOT_GNDB
1U01
GND screw
ID55
BYG10
6A55
2D05
220p
5D02
DMF3547HB60
14
23
1D50
G5PA-1-5VDC
3D00
1D00
PTF/65
9H11
2
4
3
9H14
DTH40203H65
5D03
1
9U10
IH15
MAINS_N
MAINS_L
3D51
1R
ID45
ID65
ID42
ID70
FD10
FD15
IH25
FD26
6D60
BAS316
ID68
2H03
56n
6D61
BAS316
2H10
100n
9H12
3H05
4R7
9U079U08
9U069U01
ID24
2H15
330u
ID13
IH24
ID61
ID67
1M0
3H00
100p
2H02
9H06
9H10
91K
3H02
18K
3H04
FD14
FD11
FD13
IH26
FD12
2D09
470n
2D10
470n
9U05
2D00
470n
IH17
IH13
6A54
BYG10
9U03
ID64
ID16
2H09
ID66
2D01
470n
100n
2D04
47p
ID69
1
2
3
IH20
4
58
1
B3B-EH-A
1C05
7H05
AVS1ACP08
76
23
5D01
DMF3547HB60
14
23
1R
3D50
3D04
220R
FD18
FD16
FD24
FD25
47n
2H08
5H04
100u
AVS10CB
7H06
IH16
470n
2D08
IH14
ID15
ID10
ID12
2D06
47p
500V
1D02
FD17
FD19
50V47u
2H06
390R
3H03
HOT_GNDB
HOT_P+
HOT_P-
ID11
1n0
2D07
E_14620_061.eps
190504
3104 313 6018.4
50FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
PSU (42"): Supply Part B
VCC UVLO/
ENABLE
VARIABLE
FREQUENCY
OSCILLATOR
2.5V CLAMP
ERROR
SOFT-START
5.0 V
REFERENCE
VREF UVLO
STEERING
FLIP-FLOP
FAULT DET/
LATCH
ONE-SHOT
NC
IU79 B10
IU80 F11
IU81 F8
IU84 F10
IU85 E13
IU88 E14
IU89 E13
IU92 F14
IU28 G2
IU29 G3
IU33 F5
IU34 F7
IU36 F6
IU37 C9
IU38 C8
IU39 D8
17V3
IU41 H2
IU42 C8
IU45 C8
IU46 C8
IU51 E8
IU52 D8
IU55 E9
IU57 E9
IU59 E9
IU62 B11
IU63 B11
IU64 B10
IU73 E11
IU74 E12
IU76 F11
IU77 F12
IB91 G12
IB92 H11
IB93 H12
IB94 C9
IU05 A4
IU06 B2
IU07 C3
IU08 C3
(0V3)
PROTECTION
GND_SND
Vs
IU09 D2
IU10 D3
IU12 D5
IU18 E3
IU20 F4
IU21 E2
IU22 F3
IU23 F3
IU24 F4
IU25 F3
IU27 C3
IA32 I5
IA33 I4
IA34 I4
IA35 G3
IA36 H4
IA37 G5
IA38 H5
IA39 G5
399V
(1V2)
HOT
1%
IA40 G6
IA42 G1
IA43 G1
IA44 C14
IA45 E8
IA46 B9
IA47 B9
IA48 C7
IA49 C12
IA50 D9
IA51 I5
IB90 G12
IA03 C1
IA04 D2
IA05 E4
IA06 E6
IA07 C7
IA08 D7
IA09 D8
IA10 D9
MRS25 1%
CURRENT
CONTROL
13V4
IA11 C9
IA12 E9
IA13 E9
IA14 D10
IA20 E13
IA21 E14
IA22 F14
IA23 F11
IA24 G11
IA31 I6
FU12 E13
FU14 F13
FU17 D12
FU18 A9
FU23 F9
FU24 E13
FU25 E13
FU27 D12
(5V)
4V9
FU28 D12
FU29 C10
FU30 H12
FU32 I12
FU99 A9
IA00 A6
IA01 A5
FB92 G14
FB93 G13
FB94 H13
FB95 H14
FB96 G14
FB97 G13
FB98 H13
FC00 F9
(0V7)
2V
BIAS SUPPLY
VSND_POS
CONTROL
FU02 C9
FU03 C6
FU04 D6
FU05 D9
FU07 F3
FU08 D6
FU09 D7
6U77 A4
6U78 A5
6U79 A4
6U81 B2
7U01 C3
7U02 B10
7U04 H6
7U05 C9
(0V5)
0V6
4V9
LOW SIDE
7U06 D9
7U07 C8
7U08 E9
7U09 G5
7U10 F13
7U17 F4
7U18 F4
7U30 C11
9U02 G13
9U04 B5
FB90 H14
6U04 D7
6U05 D6
6U06 I5
6U07 C8
6U08 D8
6U09 G2
6U10 G5
6U11 F5
DRIVE
17V
COLD GROUND
6U12 E9
6U13 C9
6U15 H7
6U16 G7
6U17 I5
6U20 H1
6U21 E11
6U22 H3
6U23 E14
6U27 C8
6U28 E8
6U51 H4
5U09 B5
5U10 A5
5U13 E9
5U15 C7
5U16 D7
5U17 A3
5U25 E11
5U26 F11
VS-CONTROLLER
Voltage
4V9
(0V)
5U40 D10
5U41 E9
6B91 G12
6B93 H12
6U01 D3
6U02 D8
6U03 C8
3U67 G1
3U68 G4
3U70 H4
3U71 H5
3U75 G5
3U89 H7
5B91 G13
5B92 H13
(0V7)
5V1
0V01
(7V6)
HOT GROUND COLD
5B93 G13
5U01 C7
5U02 C10
5U04 D9
5U05 C9
5U07 B9
5U08 B9
3U34 F14
3U38 E14
3U39 C13
3U40 E14
3U41 F14
3U43 D2
3U45 G6
3U46 F6
250V
3U47 H3
3U48 D2
3U50 E3
3U52 D13
3U53 E4
3U55 I6
3U56 I4
3U57 C13
3U58 E3
3U61 E4
3U64 F4
3U65 E5
3U66 F3
3U12 F4
3U13 G5
3U14 C8
3U15 C8
3U16 C8
3U17 D8
3U18 E8
3U19 E8
Adj.
SOFTSTART
3U20 E8
3U21 G6
3U22 D13
3U23 E13
3U24 E13
3U25 F13
3U26 G13
3U27 G3
3U28 B10
3U29 C8
3U30 F12
3U31 C12
3U32 C12
3U33 B11
2U48 I5
2U50 E4
2U60 C7
2U61 B8
2U62 D8
2U63 C7
2U64 D7
2U65 D8
1%
FLM 1/6W
AUDIO - STBY
AUDIO - STBY
TO 1320
(0V)
2U71 E8
2U72 C8
2U77 H5
3B92 G11
3U00 A3
3U01 F6
3U02 C2
3U03 C1
3U04 D1
3U05 C3
3U06 D3
3U07 E3
3U08 E2
3U09 E2
3U10 H2
3U11 H2
2U19 H3
2U21 C2
2U22 E12
2U23 B14
2U24 E13
2U25 E14
2U26 G4
2U27 F3
HIGH SIDE
2U29 E12
2U30 F13
2U32 E14
2U33 E14
2U34 C2
2U38 E12
2U39 C12
2U40 C1
2U45 F12
2U46 I4
2U47 I5
F
G
H
A
B
C
D
TO 1M02
TO 1303
VSND_NEG
7V3
(0V3)
2U06 C3
2U07 E2
2U08 G4
2U09 D2
2U10 H2
2U11 E10
2U12 E9
2U13 D9
2U14 F7
2U15 F5
2U16 E6
2U17 C10
234567891011121314
1234567891011121314
A
B
C
D
E
SUPPLY PART B
E
F
G
H
I
1303 H13
1320 I13
1M02 H14
1U07 G11
1U09 I9
1U10 I10
2B90 G11
2B91 G11
2B92 G12
2B93 H11
2B94 H12
2U00 E10
2U02 B3
2U03 A4
2U04 C2
2U05 D2
7V3
COLD
HOT
AUDIO - STBY
1
GNDB
IU93 F14
IU94 G13
IU96 A3
IU97 A3
IU98 A5
IU99 A5
cU01 F10
cU02 F9
DRIVE
2U64
470p
IA34
IA36
10K
3U31
IA12
3U32
47K
6U05 BAS316
IU29
IU97
IU84
3U45
22R
3B92
3U46
22R
IA46
560R
2U61
2n2
IU80
IA00
IA40
IU06
2U08
10K
3U64
IU81
470n 16
HOT_GNDB
3U22
330R
7U09
BC857BW
IU63
IU12
IU21
IU25
IU09
IU10
50
15n
6U10
BAS316
2K2
3U68
2U27
220R
FB90
3U56
10n
1600
2U11
FU07
3U34
3U03
100K
470R
2U04
200p
630
3U26
2U23
470n
5B91
3U40
8K2
33u
IU99
IU51
IU08
9
3U55
220R
12
13
14
15
16
2
3
5
6
7
8
BS51312-01
1
10
11
GNDB
FU30
5U02
GNDB
HOT_GNDB
GNDB
7U08
BC857BW
IU39
7U18
BC847BW
IU46
3U06
10K
HOT_GNDB
GNDB
IU57
FB98
FU27
+24Vb
3U20
2K2
FU32
400V_HOT_B
1n0
2U29
50V
IU59
BZX384-C22
6U81
IU94
IA50
IA47
HOT_GNDB
cU01
2U00
470p
2U30
16
100n
3U18
47R
3U66
10K
STP15NK50ZFP
3U41
33K
7U06
6U79
BYG22D
BC847BW
7U30
GNDB
SML4744
6U12
6U04 BAS316
IA31
IA33
IA09
IA32
47R
3U47
7U07
6U22
BZX384-C4V7
IU64
HOT_GNDB
HOT_GNDB
BC857BW
IU62
IU28
5U41
5U13
4n7
2U33
1u0
2U32
3U23
15K
10K
3U27
100K
FU08
3U13
FB93
400V_HOT_B
IU38
5U17
IU79
4R7
3U00
3U05
33K
IU27
5U07
2U72
1n0
5U26
5U25
6U11
BAS316
FU09
2U13
2000V1n5
FB97
2U60
2n2
B4P-VH
1
2
3
4
1
2
3
4
5
6
7
1303
1n5
B7B-EH-A
1M02
2000V
2U12
5U15
IA43
1m
5U10
IA44
BC847BW
7U04
IU96
IA49
FU28
HOT_GNDB
FU05
FC00
HOT_GNDB
HOT_GNDB
HOT_GNDB
3U08
330R
1n0
2U71
HEATSINK
IA14
1U10
2U14
2000V
2n2
TCET1102
14
32
470u
2U02
2U25
50V1u0
7U02
IU18
IA20
10n
2U47
IA06
IA07
2U17
FU99
10n 1600
680K
3U53
5U16
IA42
3K3
BYW29EX
6B91
5U09
3U09
4
5
R
8
6U23
BAS316
TL431ACD
A
2
3
6
7
K
1
2K7
3U48
7U10
1K0
3U28
6U01
BAS316
FU12
3U17
470R
3U11
IU07
HOT_GNDB
100R
SML4744
6U13
FB95
2U65
2n2
9
FI 10
GND
4
I+8
I-
7
OA 14
OB 12
OS16
OSCC1
OSCCC3
OSCR2
PGND 13
SOST
11
VCC
15
VREF
5
33K
7U01
MC34067P
EAO6
EN|UA
3U38
33u
5B92
FU17
IU89
IU36
3U70
IA24
GNDB
cU02
1K
16 100n
2U16
IB90
IA01
IU41
IA05
IA51
IA38
FU29
FU14
BAS316
6U08
1K
BAS316
6U28
2n2
3U75
9U02
2U77
FU02
IA22
IU22
6U78
BYV27-200
5U40
3U29
3U71
10K
6U07
2K2
3U14
100R
BAS316
3U15
47R
IU45
IU52
GNDB
6U06
BAS316
3U57
220R
FU23
2U46
47n
IA04
3U50
5U04
5U05
820K
3U30
560p
2U40
3U07
18K
1K8
3U25
10K
3U24
18K
7U17
BC857BW
10n 50
2B90
5U08
10n
2U19
GNDB
50470p
2B93
100R
2U07
470n
16
3U65
3U01
470p 50
2B91
6K8
1
2
3
100u
B3P-VH
1320
PDZ-18B
6U09
2U10
IU42
3U58
5M6
BAS316
IB91
IB92
6U51
IU76
IA45
6U03
BAS316
IU24
10K
3U02
IU98
GNDB
IU23
3U19
2K2
IU20
GNDB
IU05
10n
2U62
2n2
FB96
2U15
50
IA23
22R
+24Vb
15K
3U12
3U21
6U77
BYG22D
100p
2U34
2U22
1m8 35V
FU18
6B93
68K
3U61
IU93
3U10
470R
BYW29EX
6U20
BAS316
3U16
2K2
IU85
6U27
BAS316
IA03
1n0
2U50
6U02
IA21
BAS316
IU33
2U45
1n0 50V
HOT_GNDB
IU37
4
6
7
9
IU55
5U01
S13932-04
10
2
3
FU03
100p
BAS316
6U17
2U21
2U05
100p
100p
2U09
IA48
630
IA37
2U39
10n
2U63
470p
1U07
19372
T5A
220R
3U52
7U05
STP15NK50ZFP
50
2n2
2U26
3U43
1R0
33u
5B93
IU34
IA35
9U04
FU24
IB93
IU73
IA39
6U16
BAS316BZX384-C22
6U15
10K
3U89
330R
3U39
IB94
GND_SND
IU92
IA13
IU74
IU77
IA08
HOT_GNDB
FU04
1n0
3U67
100R
2U24
2U48
FB94
16
220n
2m2
2m2
2B94
2B92
IU88
2U03
1m0
HEATSINK
1
3
2
1U09
FU25
6U21
STTH2003CFP
1K0
3U33
2U38
1m8 35V
IA10
25V_HOT_B
IA11
3U04
FB92
251n
2U06
27K
DC_PROT
DC_PROT
E_14620_062.eps
190504
3104 313 6018.4
Circuit Diagrams and PWB Layouts 51FTL2.xE AA 7.
Layout PSU (42") (Top Side)
E_14620_063.eps
190504
3104 313 6018.4
1000 B1
1001 A2
1009 B10
1010 C10
1011 C4
1303 E11
1304 B11
1305 A4
1306 A5
1307 D5
1308 C1
1309 B11
1320 E11
1400 B1
1401 A5
1402 A3
1403 A3
1450 B4
1B06 A4
1C05 D4
1D00 D1
1D02 E3
1D03 E3
1D50 E4
1M02 F11
1U01 D3
1U07 F10
1U09 E10
1U10 G10
1U11 G4
2000 A9
2002 B8
2003 B7
2004 A8
2005 A8
2010 A8
2011 C7
2012 D9
2013 C7
2014 A9
2017 B7
2020 C11
2022 B11
2025 A10
2033 A11
2038 B10
2400 B1
2401 B4
2403 A3
2404 A3
2405 A3
2406 B3
2407 B4
2408 C3
2409 B1
2410 B4
2411 B1
2412 B1
2503 A5
2803 C4
2804 C5
2806 B5
2808 C5
2809 D4
2810 D5
2815 B4
2816 B6
2817 A6
2B92 F10
2B94 F10
2D00 D2
2D01 E4
2D03 D4
2D04 E4
2D05 D4
2D06 E4
2D07 E4
2D08 E4
2D09 D2
2D10 E4
2H03 F5
2H04 F5
2H06 F5
2H08 F5
2H09 G5
2H10 G6
2H15 E5
2H16 E6
2H17 E6
2U00 E9
2U02 E8
2U03 E7
2U04 D7
2U05 D7
2U10 D8
2U11 F8
2U12 G9
2U13 G8
2U14 D8
2U17 F7
2U22 F11
2U25 D11
2U33 D11
2U38 E10
3000 A6
3014 C7
3015 C6
3017 D8
3018 D8
3026 A10
3050 A7
3053 A7
3058 A7
3400 A1
3401 C1
3402 D1
3403 C1
3404 B3
3405 B3
3406 D5
3407 D6
3450 D2
3451 C3
3800 B5
3803 C5
3805 C5
3807 B5
3810 B5
3D00 D1
3D04 E3
3D05 E3
3D50 G2
3D51 G4
3H00 E5
3H03 F6
3H05 G4
3H07 E5
3H10 E5
3U00 D5
3U14 F7
3U15 G7
3U17 G8
3U18 G8
3U26 D10
3U50 E7
3U53 D6
3U58 E7
5001 C7
5002 B9
5004 C7
5005 D7
5007 A6
5008 A6
5009 B8
5010 B7
5013 D8
5015 B7
5016 B7
5017 A5
5025 B10
5026 B10
5027 C9
5028 C10
5040 C7
5041 D9
5400 A2
5401 A2
5402 C3
5403 C3
5804 C5
5B91 F11
5B92 F11
5B93 F11
5D00 E2
5D01 E3
5D02 F3
5D03 F2
5H04 F5
5U01 F7
5U02 F9
5U04 F7
5U05 G8
5U07 E6
5U08 E6
5U09 E8
5U10 E8
5U13 G9
5U15 E7
5U16 E7
5U17 D6
5U25 E10
5U26 E10
5U40 F7
5U41 G9
6014 A11
6021 B10
6044 D10
6078 B7
6506 B4
6807 C4
6808 B5
6809 B5
6B91 G10
6B93 G11
6H07 G5
6H08 E5
6H09 E5
6U21 E10
6U78 E7
7001 A7
7002 A9
7005 D7
7006 C8
7805 B5
7806 D5
7H05 F6
7H06 G6
7U01 D7
7U02 D9
7U05 G7
7U06 G9
9001 A1
9003 B4
9004 B11
9005 D2
9006 B2
9007 B3
9008 A1
9009 A5
9010 B11
9011 C3
9080 A8
9082 C4
9088 A10
9090 A10
9091 A9
9092 B8
9093 A8
9094 B7
9095 B9
9096 C7
9097 D6
9098 C4
9099 B3
9808 C6
9811 C6
9812 C5
9813 C6
9814 B6
9H08 F6
9H11 F6
9H12 F5
9H13 E6
9H14 E6
9H15 F6
9H16 G5
9H17 C1
9U01 E1
9U03 E4
9U04 E8
9U05 G3
9U06 E2
9U07 E3
9U08 E2
9U09 G8
9U10 F4
9U50 E3
9U51 E9
9U52 E5
9U53 F5
9U54 G7
9U55 D8
9U56 F10
9U58 E7
9U59 E5
9U60 D4
9U61 D5
9U62 D5
9U63 B11
9U65 B11
9U66 D10
9U67 A7
9U68 B7
9U69 A8
9U70 A8
9U71 B7
9U72 B7
9U73 B7
9U74 D7
9U76 E8
9U77 E9
9U78 E9
9U79 E8
9U80 E7
9U81 E7
9U82 F7
9U83 E7
9U84 G4
9U85 E6
9U86 B9
9U87 B9
9U88 F3
52FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
Layout PSU (42") (Overview Bottom Side)
E_14620_064.eps
190504
3104 313 6018.4
Part 1
E_14620_064a.eps
Part 2
E_14620_064b.eps
Part 4
E_14620_064d.eps
Part 3
E_14620_064c.eps
2006 A5
2007 A5
2008 A5
2009 A4
2015 A4
2016 A5
2019 A4
2021 A4
2023 A2
2024 A2
2026 A5
2027 A5
2028 D2
2029 B2
2030 A1
2031 A2
2032 A2
2034 A4
2035 B1
2039 A1
2040 A5
2044 D2
2045 B2
2046 A4
2047 A4
2048 A4
2050 A5
2060 C5
2061 C5
2062 C5
2063 C5
2064 C5
2065 C4
2071 C4
2072 C6
2077 A4
2290 B3
2802 C7
2B90 F3
2B91 G1
2B93 G1
2H02 F7
2U06 E5
2U07 E5
2U08 D5
2U09 D4
2U15 D4
2U16 E5
2U19 D4
2U21 D4
2U23 D2
2U24 D1
2U26 D5
2U27 D5
2U29 E2
2U30 D1
2U32 D1
2U34 D4
2U39 D1
2U40 E5
2U45 E2
2U46 D4
2U47 D4
2U48 E4
2U50 D5
2U60 G5
2U61 F5
2U62 G4
2U63 F5
2U64 F5
2U65 G4
2U71 G4
2U72 G5
2U77 D4
3001 A4
3002 A5
3003 A4
3004 A4
3005 A5
3006 A5
3007 A5
3008 A5
3009 A5
3010 A4
3011 A4
3012 A5
3013 A5
3016 C6
3019 C4
3020 C4
3021 A4
3022 A1
3023 A2
3024 A2
3025 A1
3027 A5
3028 A4
3029 C6
3030 A2
3031 A1
3032 A1
3033 A3
3034 A1
3037 A2
3038 A1
3040 A1
3041 A1
3043 A5
3045 A4
3046 A4
3047 A4
3048 A5
3052 A2
3055 A4
3056 A4
3057 A2
3061 A5
3064 A5
3065 A5
3066 A5
3067 A4
3068 A4
3070 A4
3071 A4
3075 A4
3089 A4
3292 B3
3802 C7
3804 C7
3806 C7
3999 C2
3B92 F3
3H02 F7
3H04 F7
3U01 D4
3U02 D5
3U03 D4
3U04 E4
3U05 D5
3U06 D5
3U07 E5
3U08 E5
3U09 E5
3U10 E4
3U11 D4
3U12 D5
3U13 D5
3U16 G5
3U19 G4
3U20 G4
3U21 D4
3U22 E1
3U23 D1
3U24 D1
3U25 D1
3U27 D5
3U28 D3
3U29 G5
3U30 D1
3U31 E1
3U32 D1
3U33 D3
3U34 D1
3U38 D1
3U39 E1
3U40 D1
3U41 D1
3U43 D5
3U45 D5
3U46 D5
3U47 D4
3U48 D5
3U52 D2
3U55 D4
3U56 D4
3U57 D2
3U61 D5
3U64 D5
3U65 D5
3U66 D5
3U67 E4
3U68 D4
3U70 D4
3U71 D4
3U75 D4
3U89 D3
6001 A5
6002 C4
6003 C5
6004 B5
6005 A5
6006 A4
6007 C5
6008 C5
6009 A4
6010 A5
6011 A5
6012 C4
6013 C5
6015 A4
6016 A4
6017 A4
6020 A4
6022 A4
6023 A1
6027 C6
6028 C4
6051 A4
6077 B5
6079 A6
6080 A6
6081 B4
6154 D6
6155 D6
6156 D7
6157 E7
6158 C6
6159 D6
6460 A8
6461 A8
6A54 D7
6A55 D7
6D60 D8
6D61 D8
6U01 D5
6U02 G3
6U03 G5
6U04 E5
6U05 E5
6U06 D4
6U07 F5
6U08 G4
6U09 D4
6U10 D4
6U11 D5
6U12 F3
6U13 F5
6U15 D4
6U16 D3
6U17 E4
6U20 E4
6U22 D4
6U23 D1
6U27 G5
6U28 G4
6U51 D4
6U77 E4
6U79 D6
6U81 E4
7004 A4
7007 C6
7008 C5
7009 A4
7010 A2
7017 A5
7018 A5
7030 A1
7U04 D4
7U07 G5
7U08 F4
7U09 D4
7U10 D2
7U17 D5
7U18 D5
7U30 E1
9002 A2
9085 A1
9806 C7
9810 C7
9H06 F7
9H10 F7
9U02 D2
9U57 D1
Circuit Diagrams and PWB Layouts 53FTL2.xE AA 7.
Layout PSU (42") (Part 1 Bottom Side)
E_14620_064a.eps
190504
Part 1
54FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
Layout PSU (42") (Part 2 Bottom Side)
E_14620_064b.eps
190504
Part 2
Circuit Diagrams and PWB Layouts 55FTL2.xE AA 7.
Layout PSU (42") (Part 3 Bottom Side)
E_14620_064c.eps
190504
Part 3
56FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
Layout PSU (42") (Part 4 Bottom Side)
E_14620_064d.eps
070604
Part 4
Circuit Diagrams and PWB Layouts 57FTL2.xE AA 7.
Ambi Light Panel
COM
OUTIN
P0<3:6>
X2
P2<0:1>
P1<0:3>
T0
SDA
P1.5
P1.7
CIN1B
X1
CLKOUT
CMP1
CMPREF
CIN1A
VDD
RST
INT0
SCL
RXD
TXD
VSS
I005 C5
I006 B5
I007 A6
I008 A6
I009 B6
I010 B6
I011 D6
I012 D6
F023 A2
F024 A2
F025 A1
F026 A3
F027 A10
F028 B10
F029 C10
F030 E10
F031 E10
F032 E10
F033 E10
F034 E7
F035 D7
F036 D7
F037 C7
F038 C7
F040 B7
F041 B7
F042 A7
F043 A7
F045 B5
F046 C5
F047 D5
F048 A5
F050 B4
F060 D5
F098 E4
F099 E5
I001 A2
I002 C2
I003 D2
I004 D5
TO 2nd AMBI
A
B
C
D
E
1004 D1
1010 A2
1050 C4
1M08 A1
1M10 B1
1M11 B10
1M12 D10
1M13 C10
1M14 E10
1M48 C1
1M49 E1
2001 A2
2002 A3
2003 C2
2004 D2
2005 D4
2006 D4
2007 E6
2008 E6
2009 C6
2010 C6
2011 B6
2012 B6
2020 A7
2021 A7
LIGHT PWB
(OPTIONAL)
TO
1M10
FROM
1M49
NC
TO 1M49
SSB
(2K5 SETS)
WARNING HIGH VOLTAGE
TO
CCFL
TO
CCFL
TO
CCFL
TO
CCFL
123
GREEN
456789 10
123456789 10
A
B
C
D
E
RED
SI4946
2022 A7
2023 A8
2024 A8
2025 A8
2026 A8
2027 A8
2028 A8
2029 A8
2030 B7
2031 B7
2032 B7
2033 B8
2034 B8
2035 B8
2036 A9
2037 A9
2038 B8
2039 B8
2040 C7
2041 C7
2042 C7
2043 C8
2044 C8
2045 C8
2046 B8
2047 B8
2048 B9
2049 B9
2050 C7
2051 C7
2052 C7
2053 C8
2054 C8
2055 C8
2056 C8
2057 C8
2058 C8
2059 C8
2060 D7
2061 D7
2062 D7
2063 D8
SI4946
SI4946
SI4946
2064 D8
2065 D8
2066 C9
2067 C9
2068 C8
2069 C8
2070 D7
2071 D7
2072 D7
2073 D8
2074 D8
2075 D8
2076 C8
2077 C8
2078 C9
2079 C9
2080 D8
SI4946
SI4946
BLUE
2081 D8
2082 D8
2083 D8
2084 D9
2085 D9
2086 D8
2087 D8
2088 D8
2089 D8
2090 D9
2091 D9
3001 C1
3002 D1
3003 C4
3004 E6
3005 E6
3006 D6
3007 D6
3008 C6
3009 C6
3010 C7
3011 B7
3012 B6
3013 B6
3014 B7
3015 A7
3016 C2
3017 B4
3018 A4
3019 A4
3020 A4
3022 E2
3023 E2
3024 D4
3025 C4
3026 D2
3027 D2
F 3A
3028 C2
3029 A4
3030 B4
3031 C5
3999 E4
5002 A9
5004 A10
5005 B10
5006 D10
5007 A9
5008 A9
5014 B10
5015 C10
5016 D10
6000 A5
6001 B5
6002 C5
6003 C5
6004 D5
6005 D5
6006 B6
6007 B6
6008 C6
6009 C6
6010 E5
6011 E6
7001 C3
7002 A2
7009 B5
7010 C5
7011 D5
7015-1 A7
7015-2 A7
7016-1 B7
7016-2 C7
7017-1 D7
7017-2 D7
7018 A5
7019 B5
7020 D5
F001 C4
F002 C4
F003 C4
F004 C4
F005 C2
F006 D2
F007 E2
F008 E1
F009 E1
F010 E1
F011 E1
F012 E1
F013 E1
F014 D1
F015 D1
F016 C1
F017 C1
F018 B1
F019 B1
F020 B2
F021 B1
F022 A1
3029 F048
4K7
F050
BC847BW
7018
3030
4K7
7019
BC847BW
F060
BC847BW
7020
4K7
3031
220n2053
2045 220n
220n2044
2043 220n
220n2042
2041 220n
2054 220n
2035 220n
220n2034
2033 220n
220n2032
2031 220n
220n2091
2090 220n
220n2089
2088 220n
2087
2085 220n
220n
2083 220n
220n2084
2081 220n
220n2082
2086 220n
2079 220n
220n2080
2077 220n
220n2078
220n
220n2076
2069
220n2067
2066 220n
220n2059
F020
F019
3001
100R
1
32
F001
7002
LD1117DT
F034
9
F033
F036
5015
1
3
5
13
1
3
5
13
9
J-IT21A
6003
BAS316
J-IT21A
5016
2058 220n
220n2057
2056 220n220n2068
2048 220n
220n2049
220n
220n2047
2046
220n2039
2037 220n
220n2036
2029 220n
220n2028
2027 220n
2038 220n 220n2026
2062 220n
220n2061
2052 220n
220n2051
2007 6n8
F099
3020
10K
220R
3008
5008 15u
15u
5007
F031
F032
7009
BC847BW
1
2
3
4
B4B-PH-K
1M08
2030 220n
220n2025
2024 220n
220n2023
2022 220n
220n2021
F098
F030
3999
10K
F029
F010
F009
3009
F013
270R
6n82009
3005 270R
220n
2020
6
7
8
9
10K
3019
1M11
B11B-EH-A
1
10
11
2
3
4
5
F016
F018
8
2
1
8
9
7016-1
7
1
10
11
2
3
4
5
6
7
3
B11B-EH-A
1M13
1M14
B3B-EH-A
1
2
1M12
1
2
3
B3B-EH-A
BAS316
6005
6004
BAS316
6n82012
6010
BZX384-C12
BZX384-C12
6008 6006
BZX384-C12
BZX384-C12 BZX384-C12
60076009
220n
BZX384-C12
6011
2075
220n2074
2073 220n
220n2072
2071 220n
220n2065
2064 220n
220n2063
220n2055
15p
2006
7011
BC847BW
F004
3004 220R
1
2
3
4
6
2
3
4
6
EFD20-01
5005
5004
EFD20-01
1
2001
1m0 16V
F005
4
3
6000
BAS316
7017-2
5
6
7
8
2
1
7017-1
15u
5002
F023
220n
2050 2040 220n
I001
I002
I003
F042
BAS316
6002
2070 220n 220n
2060
2002
100n
3018
10K
I009
2004
1n0
+5V
3003
220R
5
6
4
3
I010
7015-2
3026
1K0
100R
3002
2003
F038
1n0
F037
1
2
3
4
F035
1
2
3
1M49
B4B-PH-K
F022
B3B-PH-K
1M48
3013 270R
2011 6n8
3012 220R
3011
1K2
1K2
3010
F046
F047
F045
F021
3014
1K2
6n82008
BC847BW
7010
3024
4K7
3025
4K7
3017
4K7
I006
F002
F003
3015
1K2
3016
4K7
15p
2005
3
4
20M
DSX840GA
1050
1M10
B4B-PH-K
1
2
I008
I007
I011
F025
F024
F028
F027
F040
F041
+5V
8
2
1
I005
5
7015-1
7
B5B-PH-K
1004
1
2
3
4
7
6
2
1
5
4
113
14
13
12
10
9
8
5014
J-IT21A
1
3
5
13
9
MICROCONTROLLER
Φ
7001
P87LPC760BDH
F012
F011
2
3
4
6
F014
5006
EFD20-01
1
100R
3023
100R
3022
F043
F026
7016-2
5
6
4
3
F007
F008
BAS316
6001
1010
2010 6n8
1K2
3007
3006
1K2
1K0
3027
F017
F015
3028
10K
I012
F006
I004
E_14620_164.eps
220305
AMBI LIGHT
3104 313 6072.4
AL AL
*
2007
2008
2009
2010
2011
2012
3104 328
36647
3104 328
36892
Panel
Item
X
X = PRESENT, = NOT PRESENT
X
X
X
X
X
58FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
Layout Ambi Light Panel (Top Side)
E_14620_165.eps
280105
3104 131 6072.4
1004 B2
1010 B1
1050 B2
1M08 B1
1M10 B1
1M11 A2
1M12 A1
1M13 A2
1M14 A1
1M48 B2
1M49 B2
2001 B1
2002 B2
2003 B2
2004 B2
2005 B2
2006 B2
2007 B1
2008 B1
2009 B2
2010 B2
2011 B2
2012 B2
2020 A2
2021 A2
2022 A2
2023 A2
2024 A2
2025 A2
2030 A2
2031 A2
2032 A2
2033 A2
2034 A2
2035 A2
2040 A1
2041 A1
2042 A2
2043 A2
2044 A1
2045 A1
2050 A2
2051 A2
2052 A2
2053 A2
2054 B2
2055 B2
2060 A1
2061 A1
2062 A1
2063 A1
2064 A1
2065 A1
2070 A1
2071 A1
2072 A1
2073 A1
2074 A1
2075 A1
3001 B2
3002 B2
3003 B2
3004 B1
3005 B1
3006 B1
3007 B1
3008 B2
3009 B2
3010 B2
3011 B2
3012 B2
3013 B2
3014 B2
3015 B2
3016 B2
3017 B2
3018 B2
3019 B2
3020 B2
3022 B2
3023 B2
3024 B2
3025 B2
3026 B2
3027 B2
3028 B2
3029 B2
3030 B2
3031 B2
3999 B1
5002 B2
5004 A2
5005 A1
5006 A1
5007 B1
5008 B1
5014 A2
5015 A1
5016 A1
6000 B2
6001 B2
6002 B2
6003 B2
6004 B1
6005 B1
6006 B2
6007 B2
6008 B2
6009 B2
6010 B1
6011 B1
7001 B2
7002 B2
7009 B2
7010 B2
7011 B1
7015 B2
7016 B2
7017 B1
7018 B2
7019 B2
7020 B1
Layout Ambi Light Panel (Bottom Side)
E_14620_166.eps
280105
3104 131 6072.4
2026 B1
2027 B1
2028 A1
2029 B1
2036 A1
2037 B1
2038 A1
2039 B1
2046 A1
2047 A1
2048 A1
2049 B1
2056 B2
2057 A1
2058 A1
2059 A2
2066 B1
2067 A2
2068 A1
2069 A1
2076 B1
2077 A1
2078 B1
2079 A1
2080 B2
2081 B2
2082 A2
2083 A2
2084 A2
2085 B2
2086 A2
2087 A2
2088 A2
2089 B2
2090 B2
2091 A2
Circuit Diagrams and PWB Layouts 59FTL2.xE AA 7.
SSB: IF, I/O Video Processing
IF DEM
SUPPLY CTRL SYNC
OUTP SWITCH
LUMA & CHROMA PROC.
I/O SWITCH
DELAY COR.
GROUP
O
GND
I
NCMT
O
GND
I
NCMT 2H/4H DELAY
ADAPTIVE
COMB FILTER
FILTER
TUNING
CLOCK
CLAMP
GEN
CLAMP
SAND-
CASTLE
NCMT
O
GND
I
1410-B F3
1234567891011
B15a(4x)
14
A
B
C
D
E
F
G
H
I
B14c
5V0
1411 G6
2300 F7
A
B
C
D
E
F
G
H
I
1305 E11
1306 E11
1307 E12
1308 E12
1406 E4
1407 E5
1408-A G3
1408-B G3
1409-A C3
1409-B D3
1410-A E3
2360 F11
2361 F13
2362 F13
2364 C12
2365 F7
2366 F8
2367 F8
2368 F8
2369 F8
2370 F8
2371 B10
2372 B10
12 13 14
12345678910111213
B2(3x)
B15a(4x)
B2(3x)
COIL 40.4 SUPPRESSION
B
0V
2302 H14
2305 C11
2316 C11
2322 C11
2327 D12
2339 H7
2350 A11
2351 A11
2352 A11
2353 I12
2354 G12
2355 C12
2356 F10
2357 F11
2358 F11
2359 F11
B6a
B14c
B14c
B14b
B14a
2373 B8
2374 B8
2375 B8
2376 B7
2377 B6
2378 B7
2379 F12
2380 F12
2381 F12
2382 F12
2383 D12
2384 F7
2385 G13
2387 B7
2388 A11
2389 B12
B2,B6a
B6a
B2
B2
B2
B2
B2
B2
B13a
2391 B3
2392 B8
2394 B6
2401 C6
2402 G6
2403 F9
2404 D6
2405 D1
2406 G2
2407 G3
2408 H3
2409 C6
2410 G9
2411 D6
PAL M
B14b,g,B15a
B14c,g,B15a
B2,B6a
B14b,B15a
B2
B2(2x),B5a
2412 C1
2413 D5
2414 H6
2415 H6
2416 C6
2417 E6
2418 D6
7V7
nc
B2
nc
3371 H9
3372 H9
B14b
IF, I/O VIDEO PROCESSING
2419 D7
2420 G8
2421 G14
2422 E13
2423 G14
2424 H11
2425 B1
HIP
B14b
RES
4V2
3410 E3
3411 D2
3412 G6
SAW-FILTER AUDIO
2426 H13
2427 I14
2428 I14
2432 D11
2433 G9
2434 F9
2435 G9
2436 C6
3300 G7
3301 I12
3303 H10
3370 F9
B5a
NTSC M
5V
B14b
3376 B9
3377 B10
3378 B10
3380 B7
3382 F7
3385 G7
3393 F11
3400 B5
3401 B6
3402 B1
3404 I6
3405 H5
3406 G2
3407 F2
3408 B5
3409 G2
B2
MODULATOR
B6a
4V1
3457 H5
3460 D13
3413 F9
3414 D2
3415 B4
3416 D5
3417 G5
3418 D7
3419 E5
3420 G6
3421 F4
3422 G9
3423 H1
3433 G1
3434 E2
3435 G5
3436 E6
3437 D7
B5a
B3a,B6a
SAW-FILTER VIDEO
B2
B2
PAL N
5404 B6
4V2
4V5
2V8
5V0
3439 E6
3441 B4
3444 B11
3445 F6
3447 B11
3448 B12
3449 B12
3450 E14
3451 F13
3452 F14
3456 G5
B2
B2
B2
RES
B14b,g,B15a
nc
nc
3461 D13
3462 D13
3463 B4
3468 H11
3473 D11
3474 F8
3475 G9
3476 H9
5309 H14
5310 H14
5311 I14
5312 F14
5318 F7
5401 D2
5402 E5
5403 H2
B2
B2(2x),B5a
B14a
B2(2x)
B2
B2,B15a(2x)
B2(3x),B15a(4x)
B2,B15a(2x)
B2
B2(3x),B15a(4x)
5405 B6
5406 E5
5408 D6
5411 C1
5416 B3
6402 E2
6403 D2
6404 G2
6405 E2
7307 G11
7320 F9
7322 E7
7323 D9
7401 F2
7402 H7
7403 D2
B13a
7V7
0V4
B14a(2x)
B14c
B14a,b,c(2x)
9414 E7
9415 C3
COIL
B2
B2
7405 H1
7406 F5
7407 G5
7408 A11
7409 A12
7410 H5
7411 D6
7412 F14
7413 D13
7414 D11
B2
B14b
B14a,b
F403 C7
F404 E12
F405 E12
F406 E12
F407 B10
F408 B10
F411 C6
F413 B6
F437 D1
F440 B7
I401 H9
I402 C7
7415 H9
9318 G11
9319 G11
9322 G8
9401 F3
9402 E2
9403 E2
9404 F6
9405 E2
9406 F13
9407 B4
9408 H7
9409 E5
9410 B4
9412 G6
9413 F6
B3a,B6a
RES
0V4
I444 B5
I445 B5
I446 D5
I447 D5
I448 E6
I449 F7
I450 H6
I451 H5
I452 B1
I453 B11
I454 B11
I455 B12
9416 D5
9417 D6
9418 E5
9419 E7
9420 F5
9422 H6
9423 C11
9424 C11
9425 C11
9426 D11
9427 G7
9428 H7
A400 G2
A409 C5
A410 C5
A411 C4
A412 C4
F401 D7
I456 D13
I457 D14
I458 E4
I460 F2
I461 F5
I462 G5
I463 H5
I464 F9
I465 G9
I467 E7
c002 A8
I411 B4
I415 H8
I417 F8
I421 B8
I422 B8
I424 E13
I425 F14
I426 F14
I427 F14
I428 F13
I430 H13
I431 H14
I432 I12
I433 I11
I434 H11
I435 H11
I440 B4
I441 B7
I442 B7
I443 B6
270R
3451
SAW-FILTER-VIDEO
B14a,B14g,B15a
B15a
3K3
3460
I433
9422
BC847BW
7414
54
YCOMBIN
28
YOUT 49
Y_CVBS3
20
Y_CVBS4
23
9412
19
SW01
22
SYS1
25
SYS2
27
TUNERAGC
62
UOUT 50
VA
61
VCO1
7
VCO2
8
VIF1
2
VIF2
3
VIFOUT
10
VOUT 51
X3.575 56
X3.579 57
X3.582 55
X4.43
58
IN
12
OUT
13
PIPOUT
32
PLLRILT
6
QSS_AM
5
R1IN 36
R2IN 41
SCL
46
SCOUT
59
SDA
47
SEC_DEC 53
SIF1
63
SIF2
64
SVBCOUT
30
SW0
COMBOUT
26
CVBS1
16
CVBS2
18
CVBSINT
14
CVBSOUT
34
DEC
35
DIGDEC
33
DIGGND
31
FBL1IN 39
FBL2IN 40
G1IN 37
G2IN 42
GND_1
44
GND_2
9
HA
60
HPLL
+8_1
11
+8_2
45
ADSEL
48
AGCDEC
4
AGCSIF
1
AV1
15
AV2
17
B1IN 38
B2IN 43
C3
21
C4
24
CCOMBIN
29
COL_PLL 52
39K
3447
7323
TDA9320H
9427
+8VP
3371
47R
3441
22K
2K2
3449
100u
2410
100n
2391
2411
100n
9408
2385
100n
100n
2378
3407
5K6
F405
330p
2402
9322
9403
+8VP
100n
2432
+5VS
2392
1u0
1SS356
6405
3476
560R
7409
BC857BW
+5V_VDP
2K7
3411
1p2
2361
I446
2355
10p
+8V_VDP
10p2426
I441
2383 10p
2372
1u
3G575611
1307
L1101-98007-0E1
L1101-98006-0E1
1306
3G582056
3p3
2408
9426
3417
5K6
I426
15p
2379
2377
100u
3376
100R
1K2
3462
7401
BC847BW
F401
3445
120R
2370
100n
1K0
3420
100n
2365
9417
+5VCOM
2366
100n
9401
I430
100n
2368
3457
4K7
2418
12p
A412
2
13
F403
1406
TPWKA
I448
100MHZ
5311
100n
2369
I457
3K9
3433
c002
9425
+8V_VDP
100n
2415
100n
10p
2339
2352
10 13 14 15 11 12 16 17
7320
BC847BW
OFWK9656L
1410-B
1184569
BC847BW
7403
2413
47u
0u33
5411
3418
390R
3434
4K7
2K2
3415
I453
I443
3439
1K2
I411
2
34
6
78
5CCB
5408
1
2403
100n
3
7
8
2376
100n
OFWK3953L
1409-A
2
2373
100n
9423
A409
9420
2407
+8VP
I449
68p
+8VP
+8V_VDP
I461
F408
100K
3303
I452
4K7
3410
6u8
5405
4K7
3456
I445
I402
+8V_VDP
I447
I442
2350
100n
1K0
3422
270R
3413
+8VP
3416
6R8
F407
BFR93AW
7413
+8VP
3409
4K7
+8VP
2414 100u
3378
15K
2
13
A400
TPWKA
1407
4n7
2412
100n
2316
9428
9418
2358
3n3
100n
2433
7407
BC857BW
1u0
2387
3475
10R
I464
I467
I465
3437
1K0
I463
100K
3301
+5VS
9405
I435
10p 2327
4R7
3412
+5VCOM
4n7
2405
4 5 6 9 10 1314 15 11 12 16 17
1408-B
OFWK3953L
118
1K
3450
3474
10R
100n
2424
6p8
2421
560R
3382
100R
3377
I460
I462
10p
2423
1K8
3461
10p
2364
2427 10p
3u9
5402
I450
F437
2
3
7
8
9415
OFWK9656L
1410-A
5403
5CCE
1
2
34
5
6
78
I422
2419
5p6
F413
9416
2305
100n
BC847BW
7322
V9
I415
BC847BW
7410
2360
1p2
BC847BW
7411
3408
100R
7402
BC847BW
6402
1SS356
I424
7408
BC857BW
9410
+8VP
2359
15p
100n
2357
I432
220p
2406
2356
100n
3M58
1308
L1101-96152-0E1
9406
V1
V2
F440
I451
3404
560R
9413
1u0
2394
4K7
3414
2375
22n
9424
10n
2401
1K0
3405
3419
390R
2381
15p
BA792
6403
+8VP+8VP
7412
BC857BW
5K6
3421
I454
2404 1u0
100u
2425
F406
+8VP
F404
I428
12p
2362
+8V
2322
100n
2388
220n
I434
3372
470R
BC847BW
7405
9414
2435
1n0
10K
3448
F411
3380
100R
OFWK3953L
2
3
7
8
100n
2422
1408-A
470R
3385
VDD
5
12 Y|CVBS1
3 Y|CVBS2
14
Y|CVBSO
9407
13
AGND
1CIN
16COUT
4
DGND
9
FSC
8
FSCSEL
2 INPSEL
15
OUTSEL
7SC
11
SYS1
10
SYS2
6
VCC
3R9
3402
TDA9181
7307
I444
2382
1p5
I440
10p2428
2374
1u0
100n
2351
30R
5416
4M433619
1305
HC-49/U
4K7
3463
I6
4K7
3435
1p5
2380
3393
100K
33u
5312
3300
A410
1K0
100K
3401
1u02409
3370
100R
7406
BC847BW
9419
A411
2389
1u0
2371
4n7
3468
100K
6404
1SS356
+5VCOM
I421
9402
+8VP
5K6
3423
680K
3444
9404
5401
6u8
+8V_CON
2353
100n
100n
2434
I458
I456
I401
I455
150R
3452
100n
2354
V10
I417
5404
6u8
2420150p
2367
100n
2417
470n
I425
13 14 15 11 12 16 17
100MHZ
5309
OFWK3953L
1409-B
118456910
3436
270R
3400
+8VP
100n
2302
4R7
33u
5318
SFSKA
1411
2
13
2384
4M5
100n
I431
5310
100MHZ
I427
3473
1K0
+8VP
93199318
2436 1u0
2416 1u0
9409
2300 47p
3406
5406
3u3
27R
SOUND-OUTPUT
7415
BC847BW
AGC
C-FRONT-IN
CVBS-TER-OUT
SOUND-OUTPUT
PIP-OUT
Y-CVBS-FRONT-IN
Y50
FBL-SC1-IN
CVBS-TXT
CVBS-PIP_TUN1-2-CVBS-IN
COMB-Y_CVBS-OUT
CVBS-SC2_MON-OUT
COMB-C-OUT
LMN
LMN
SC2-R_C-IN_AV2
SC2-G-IN
SC2-B-IN_C-OUT
U50
V50
SC2-FBL-IN
CVBS-AV3-IN
AV3-CVBS-IN
CVBS-3D-COMB
R-SC1_V-IN
G-SC1-IN_Y-IN
COMB-Y_CVBS-OUT
COUT-3D
YOUT-3D
IF-TER
BG
YOUT-3D-COMB
COUT-3D-COMB
CVBS-TXT
COUT-3D
YOUT-3D
Y50
AGC-MONITOR
QSS_AM
LMN
SC1-STATUS
HA50
SC
LMN
SYS1
SYS2
VA50
B-SC1-IN_U-IN
SCL-F
SDA-F
CVBS-TXT
CVBS-SC1_AV1-IN
C-SC2_SVHS-IN
Y-CVBS-SC2_AV2-IN
BG
SEL-SVHS-RR_STATUS2
FSC
SC
SYS1
SYS2
7307-p4
FSC
7307-p4
COMB-C-OUT
8204 000 8345.4
E_14620_084.eps
070704
60FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
SSB: PICNIC
3 X DAC
P0
BUS A
BUS D
BUS C
CLK
BUS B
TIMING
CLK
OSC
BST
P2
ANALOG
PROCESSING
PSP
MICRO-PROCESSOR
BACK END
PEAKING
MUX
MID END
HISTOGRAM
NOISE
REDUCTION
TBC/SRC
MUX
TIMING
TIMING
CLK
3 X ADC
FRONT
END
PLL
NC
PROM
FS
1
OUT
VDD
FBIN
IN
0
1
GND
2
VCC
VSS
NC
25
24
23
22
21
20
17
16
15
14
13
12
11
1010
11
12
13
14
15
16
17
20
21
22
23
24
25
26
27
26
27
SWCK
RSTR2
RSTW2
OE2
IE2
RE2
WE2
RSTR1
RSTW1
OE1
IE1
RE1
WE1
MODE2
MODE1
SRCK
EN
C1
1D
F165 J5
F166 J5
F708 C6
F709 D5
B
B3b,c(2x),d
B3e
B3e
N.C.
B3c
B3a
F126 M6
F127 M6
B3a
B3a
F140 K14
F145 C6
B3c
12MHz
B3d
F148 G14
F149 G14
F151 F10
F152 L7
F155 G6
F156 G6
F157 H7
F158 H7
F159 H7
F160 I7
F161 I6
F162 I5
F163 I5
F164 J5
F107 A8
F108 H2
F706 C6
F707 C6
F112 K3
F114 F3
RES
B19c
F115 F3
F118 I7
F119 K3
F122 L6
F123 L6
F124 L6
F125 L6
9709 J5
9710 F4
F128 F6
F129 G6
9727 E18
9728 D15
B3c
B19d
B3d
B3
9729 A4
9767 I18
9768 H17
9769 I16
9770 H16
9771 H16
9772 H16
9809 B5
9820 B14
9825 I4
9826 J3
9827 J3
A139 K14
7711 C8
7712 E7
F109 I2
F110 J2
7715 G5
7775 H4
B3c,d,B19d
B6a
B6a
B2,B6a
B3c,d
7776 I3
7777 J4
9700 B7
9701 F5
9702 E6
9703 H7
9706 L6
9707 I5
9708 I4
5708 J4
5714 H6
9720 L3
9726 G4
5725 C8
5726 C7
B3a(2x)
SOFTWARE
RES
5727 D7
5728 D7
6701 A8
6703 J7
6710 H6
7702 H17
7703 C4
7705 A6
7706 A7
7707 D5
7708 B6
7709 C5
7710 D6
3909 A9
3922 H3
7713 I9
7714 D16
3925 I4
3926 I4
B5a
B19c,d
RES
B3b,c,d
B2,B6a
** SEE MAPPING G1 ON B3c
3927 I3
3928 I3
3929 I3
3930 J3
3931 J4
3932 J4
3933 J4
5703 A8
5705 J6
5706 H5
5707 I4
3751 B6
3752 B7
5723 E5
5724 F5
3755 D5
3756 D5
FBX
3758 F7
3759 I6
3760 D15
3761 B14
3826 L3
3827 L3
3856 J18
3857 J17
3858 K18
3859 K17
3860 L18
3861 L18
3903 C5
3905 E6
3726 K3
3727 K4
3923 H4
3924 H4
3732 A6
3733 C3
N.C.
B3d
B3a,b,c
3734 C4
3736 C5
3737 C6
3738 D5
3739 D5
3740 A6
3741 D5
3742 D6
3743 D6
3746 D6
3747 C5
3748 B5
3749 D4
3750 D6
3706 I6
3709 F3
3753 C6
3754 C6
3712 L7
3713 H3
PICNIC
B3a,b
RES
B3c(2x),d
B5a
3714 I3
3715 J3
3716 H3
3717 J3
3718 J3
3719 G5
3720 H5
3721 H6
3722 C3
3723 K6
3724 H18
3725 K4
2917 A7
2918 A7
3728 K3
3730 K3
2927 M17
2928 L18
B3a(2x),c
B3b,c
B3b
2929 L6
2931 I5
2935 L5
3700 K14
3701 L6
3702 E11
3703 H16
3704 G17
3705 H18
2806 H6
2807 K7
3710 F3
3711 E11
2839 K18
2840 L3
B3a
RES
RES
B19b
B6a
B3a
2841 M3
2881 J6
2900 I4
2901 I4
2902 J4
2915 I5
2916 J5
2733 I14
2734 K14
2920 J7
2926 L17
2737 G6
2738 C18
RES
B3b
B3b,c,d
B19d
2740 I5
2741 I5
2742 I5
2743 C6
2744 C6
2745 C8
2746 D8
2747 H5
2748 F6
2749 H6
2754 D8
2757 I7
2800 I6
2804 J6
2716 C16
2717 C15
2837 J18
2838 K17
2720 J3
2721 K3
B3b,c,d
B19c
PICNIC
B3a,b,c
B3d
FM1
2722 K3
2724 F6
2725 C16
2726 F13
2727 E11
2731 F9
2732 C7
G
H
2735 L9
2736 M10
K
L
B5a
B3a,d
B3a(2x)
B3a,b
B3a(2x)
B3a,d
2707 C2
2708 I16
2709 A8
2710 C17
2711 C17
2712 C15
2713 G2
2714 G3
89
2718 H3
2719 J3
12 13
B19c
B5a
B3D
* SEE MAPPING I1 ON B3c
B3
B3a,b
14 15 16 17 18 19
A
B
C
D
E
F
12 13
I
J
16 17
B3a(2x),c
B3a,b
B19b(2x)
B3a(2x),c
B3e
B5a
18 19
1234567
L
M
10 11
1703 K6
1710 L5
intern
B5a
B19c
B19d
B3a(2x),b
B3e,B19d
B3b,c(2x),d
1234567891011
I813 A6
I814 C3
14 15
I815 C5
I820 D5
B3b
B19b
B3a(2x),c
M
N
A
B
C
D
E
F
G
H
I
J
K
2743
100n
N
1702 K6
F710 K6
F784 E7
F785 F7
F786 E8
F787 F8
F788 H7
I720 B4
I727 H6
I802 A8
I803 I6
I804 H6
I805 D6
I810 H5
F161
9809
F110
100n
2807
9708
15p
2719
100n
2917
22n
2757
4K7
3755
10R
3860
YD5 106
YD6 107
YD7 108
109YD8
68
YB8
67
YC0
122 121
YC1
YC2 120
YC3 119
YC4 118
YC5 117
YC6 116
YC7 115
114YC8
YD0 101
102YD1
YD2 103
YD3 104
YD4 105
53
YA1
54
YA2
55
YA3
56
YA4
57
YA5
58
YA6
59
YA7
60
YA8
61
YB0
75
YB1
74
YB2
73
YB3
72
YB4
71
YB5
70
YB6
69
YB7
90
VSSD3
134
VSSD4
139
VSSO1
42
VSSO2
63
VSSO3 86
111VSSO4
VSSO5
133
VSSO63
VSSX33
WD-RST7
WE-A
62
WE-B
66
WE-C 113
Y-IN23
12 Y-OUT
YA0
22
VDDA324
VDDA431
VDDD1
64
VDDD2 87
VDDD3 100
135
VDDD4
VDDO1
52
VDDO2
123
VDDO3
148
26 VIN
VSSA113
VSSA216
VSSA327
VSSA432
65
VSSD1
VSSD2
126
UVC7
125
UVC8
124
UVD0 91
UVD1 92
UVD2 93
94UVD3
UVD4 95
UVD5 96
UVD6 97
UVD7 98
UVD8 99
V-A29
V-D19
V-OUT15
11 VDDA1
VDDA2
UVB0 84
UVB1 83
UVB2 82
UVB3 81
UVB4
80
UVB5
79
UVB6
78
UVB7
77
UVB8
76
UVC0
132
UVC1
131
UVC2
130
UVC3
129
UVC4
128 127
UVC5
UVC6
TDO40
36 TEST
TMS38
TRST37
U-IN25
U-OUT14
UP-RST6
43
UVA0
UVA1
44
UVA2
45
UVA3
46
UVA4
47 48
UVA5
UVA6
49
UVA7
50
UVA8
51
142
P2-6
141
P2-7
140
PSEN
137
RE-D 110
RSTR9
RSTW8
SCL4
SDA5
SN-CL2
SN-DA1
T0
159
T1
160
41
TCK
TDI39
158
OSC-I34
OSC-O35
P0-0
156
P0-1
155
P0-2
154
P0-3
153
P0-4
152
P0-5
151
P0-6
150
P0-7
149
P2-0
147
P2-1
146
P2-2
145 144
P2-3
P2-4
143
P2-5
7713
AGND20
ALE
138
BGEXT17
CLK-AS 85
CLK16 88
CLK32 89
DIFFIN21
EAN
136
FBL10
H-A28
H-D18
30 HREF-EXT
IE-C 112
INT0
157
INT1
9703
SAA4978H
3752
1R0
RES
9709
2718
15p
7707
BC847BW
2837
100p
2734
100n
F126
F127
F128
F129
10K
3756
10R
+3V3PC
I720
3861
220R
3931
9702
18p
2935
1703
2721
100p
BAS316
6701
3725
3K3
3760
100R
2709
100n
res
2918
220n
+2V5_FBXA
150p
2931
2738
5706
100n
6u8
7709
BC847BW
100n
2800
3716
100K
2746
100n
180R
3713 100R
3724
2928
100p
3712
47K
2732
1n0
9767
+3V3_DCDCFBXA
100n
2736
3923
680R
+3V3PB
3924
220R
3758
4K7
100n
2716
100p
2722
100p
100n
2749
2927
+8VPA
3930
220R 7777
BC857BW
9827
680R
3932
+8VPA
9770
+3V3PA
9769
3761
100R
3K9
3750
100p
2838
F165
F162
5714
9768
25
26
12
Q0 13
Q1 14
15
Q2
Q3 18
Q4 19
Q5 20
Q6 21
Q7 22
VCC
32
VSS
16
30
A14
31
2A15
9A2
A3
8
A4
7
6A5
A6
5
4A7
A8
29
A9
28
1
17
23 E_
G_
7711
M27C512
A0
11
A1
10
A10
24
27 A11
3A12
A13
9700
RES
2711
100n
9729
1n0
2754
16
17
23
33
35
39
32
94
59
67
72
77
78
87
91
9
93
10
14
15
34
37
43
51
62
3
48
49
54
30
96
63
13
11
64
75
83
89
92
12
36
38
40
42
46
80
45
81
44
82
76
79
84
86
88
90
100
8
18
25
26
69
68
66
65
31
95
85
41
1
47
50
55
56
57
58
60
61
74
73
71
70
19
97
98
99
2
4
5
6
7
52
53
29
28
27
24
22
21
20
(262,214 x 8) x 2
DUAL FIFO
7714
MS81V04160A
5703
1
4
5
3
2
6
8
7
13
2
& ZDB
CY2302S
7702
FREQ.
MULTI.
1702 CSTCV
12M
BC857BW
7775
220R
3922
680R
3928
F709
220R
3927
9826
7776
BC857BW
3929
220R
100n
2731
3741
RES
3727
150R
+3V3PB
100n
2744
2724
100p
2901
47p 3749
3K9
9825
3732
47K
180R
3715
9772
100R
3754
100n2726
150p
2915
100n
2806
3747
47K
F112
F109
3705
100R
100n
2804
BC847BW
7710
+3V3_DCDCFBXA
3858
10R
I810
I814
I815
I813
3746
5723
3K9
+3V3PB
4K7
3703
+3V3PB
3700
22R
3702 10R
3751
100n
2745
3K3
5726
BC847BW
7705
+3V3PB
2742
22n
res
9726
3826
100R
F710
12K
3739
res 22p
2841
3706
100R
I805
I803
I804
100R3721
I802
2720
15p
5707
6u8
3759
220R
100n
2708
100n
2748
100R
3704
3905
4K7
+1V5_FBXA
3718
100K
1K0
3737
813
912
11 10
GND
120
Vcc
9707
74HC573
7712
219
318
417
516
615
714
100n
2712
100R
3736
9727
RES
9701
100K
3717
RES
5724
1K0
3738
10R
3859
PMBT2369
7715
+1V8FA
F119
150R
3728
2839
3827
100p
2840
100R
res 22p
6u85705
I820
3753
1R0
F785
22n
2741
2916
150p
22p
2714
3903
100K
res
100n
2727
6710
BAS316
RES
5727
I727
3710
100R
180R
3714
+3V3_DCDCFBXA
F784
100n
2725
+3V3_DCDCFBXA
res
2713
22p
1K2
3726
3711 1K0
10K
RES
3743
+3V3PB
2881 27p
3740
2740
22n
4K7
6703
BAS316
9771
F156
+3V3PC
F160
+3V3_DCDCFBXA
F788
F708
9820
1710
1
2
3
4
5
6
7
100n
2733
FMN
3909
100R
1K0
3701
F122
F164
9728
100n
2710
3K3
3719
+3V3_DCDCFBXA
100n
2717
68p
2747
2920
100n
RES
9710
5725
F786
2735
100n
F787
6u8
560R
3730
5708
2926
100p
120K
3748
F155
F159
F157
F158
3857
10R
+8VPA
F163
F124
F125
F145
+3V3_FBXB
F140
F149
F707
F148
F118
7708
BC847BW
10K
3720
RES
3723
1M0
100R
3709
2A
3
GND
1NC
5
VCC
4Y
7706
74LVC1G14GW
3925
680R
3926
680R
47p
2900
3733
1K0
F115
F114
F108
+3V3PA
9720
F152
+5V2Pr
22K
3742
F151
5728
2707
22p
47p
2902
3933
680R
7703
BC847BW
3734
100R
1K0
3722
100p
2737
9706
A139
F107
F123
2929
18p
F706
F166 10R
3856
3V3_FAULT_FBX
3V3_FAULT_FBX
SN-CL
VAP
+1V8FA
+5V2Pr
+3V3Pr
HD_E_T0
RST-FBX
SN-DA
CLK32P_EPLDCLK32G
+3V3GA
+3V3GA
+3V3GA
+3V3GA
CLK32G
CLK32P
3V3_FAULT_FBX
RST_PIC_EAG
RST-FEM
RST_COL
CLK32G
TDO
TCK
SDA-D
SCL-D
RSTW
INT1
HREF_EXT
ALE
TDOC
+3V3Pr
CL16
CLK32P
TMS
G-OSD
RSTR_O
TRST
MF(13)
MF(14)
MF(15)
MF(16)
DA(08)
DA(09)
DA(10)
DA(11)
DA(12)
DA(13)
DA(14)
DA(15)
DA(07)
DA(06)
DA(05)
DA(04)
DA(03)
DA(02)
DA(01)
DA(00)
2FHG-GFX
CLK32FM1
RSTW
RSTR_O
MF(17)
MF(17)
MF(8)
MF(7)
MF(6)
MF(5)
MF(4)
MF(3)
MF(2)
MF(1)
MF(9)
MF(10)
MF(11)
MF(12)
RSTR_I
SDA-F
SDA-EPLD
SCL-F
SCL-EPLD
VA
BL-OSD
2FHFB-GFX
B-OSD
2FHB-GFX
R-OSD
2FHR-GFX
HD3-OTC
HD3-EPLD
VD-OTC
VD-EPLD
CLK32NE
CLK32NE
YB(5)
YA(8)
YA(7)
YA(6)
YA(5)
YA(4)
YA(3)
YA(2)
YA(1)
YA(0)
UVB(1)
UVB(0)
CLK-AS
UVB(2)
+5V2Pr
CLK32
CLK32FM1
WE-B
YB(8)
YB(7)
YB(6)
YB(2)
YB(1)
YB(0)
UVB(6)
UVB(5)
UVB(4)
UVB(7)
UVB(8)
YB(3)
YB(4)
AD(00)
AD(01)
AD(02)
AD(03)
AD(04)
AD(05)
AD(06)
AD(07)
MF(17)
+3V3Pr
V-PIP+MAIN-IN
Y-PIP+MAIN-IN
U-PIP+MAIN-IN
CL16
SCL-F
SDA-F
AD(00)
AD(01)
AD(02)
AD(03)
AD(04)
AD(05)
AD(06)
AD(07)
AD(00)
AD(01)
AD(02)
AD(03)
AD(04)
AD(05)
AD(06)
AD(07)
DA(11)
DA(10)
DA(09)
DA(08)
+3V3PB
WE-A
DA(07)
DA(06)
DA(05)
DA(04)
DA(03)
DA(02)
DA(01)
DA(00)
HA50
VA50
+5V2Pr ALE
UVB(3)
RSTW
UVA(0)
UVA(1)
UVA(2)
UVA(3)
UVA(4)
UVA(5)
UVA(6)
UVA(7)
UVA(8)
DA(15)
DA(14)
DA(13)
DA(12)
8204 000 8343.4
E_14620_085.eps
070704
Circuit Diagrams and PWB Layouts 61FTL2.xE AA 7.
SSB: (FEM) Falconic Embedded Memory
B3a,c
B3a
B3a(2x),c
B3c
9808 C7
9810 F4
9811 G5
2885 E3
2886 D3
2887 B6
2888 B6
3876 C7
3880 F4
3881 F4
3882 F4
3883 F5
3884 G5
3885 E4
B3a,c(2x),d
B3d
FALCONIC EMBEDDED MEMORY
3
B3c(2x)
B3a,c(2x),d
B3c
B3c,B19d
2878 D9
2879 E9
2880 G7
2882 H6
2883 H6
2884 H6
6
3886 E4
3887 E5
3888 E4
3889 E5
3890 E4
3891 E4
7760 E6
B3a
B3a
B3a,c,d
45678910
FEM
B3a
C
D
E
F
G
H
A
B
C
D
E
7891011
12
B3a,c,d
B3a,c,d
RES
2875 B5
2876 B6
2877 B6
B3c,B19d
B3c,B19d
B3c
12345
FEM
B3c
11
A
B
+3V3FB
F
G
H
2723 G7
2882
100n
+3V3FA
YG4|DPIP4
2YG5|DPIP5
1
YG6|DPIP6 100
YG7|DPIP7 95
YF4 72
YF5 71
YF6 69
YF7 68
YG0|DPIP0
8YG1|DPIP1
7YG2|DPIP2
6YG3|DPIP3
5
YA4 59
YA5 60
YA6 61
YA7 62
YF0 76
YF1 75
YF2 74
YF3 73
VSSM3 97
VSSM4 99
VSSS1 52
VSSS2 85
YA0 55
YA1 56
YA2 57
YA3 58
VSSD2 66
VSSD3 87
VSSE1
4
VSSE2
15
VSSE3 70
VSSE4 82
VSSM1
37
VSSM2
39
VDDM2
40
VDDM3 96
VDDM4 98
VDDP
23
VDDS1 51
VDDS2 84
VSSA 90
VSSD1
49
VDDA 91
VDDD1
48
VDDD2 65
VDDD3 86
VDDE1
3
VDDE2
35
VDDE3 77
VDDM1
38
UVG1|QPIP1
18 UVG2|QPIP2
17
UVG3|QPIP3
13 UVG4|QPIP4
12 UVG5|QPIP5
11 UVG6|QPIP6
10 UVG7|QPIP7
9
VD 94
UVF1 92
UVF2 89
UVF3 88
UVF4 81
UVF5 80
UVF6 79
UVF7 78
UVG0|QPIP0
19
UVA1
43
UVA2
44
UVA3
45
UVA4
46
UVA5
47
UVA6 53
UVA7 54
UVF0 93
SNRST
33
TCK
31
TDI
29
TDO
30
TMS
28 TRSTN
27
TWOFMON
50
UVA0
42
NC|SWCK2
16
NC|WE2
24
PIPON
36
REA 63
REF 67
RST
32
SNCL
41
SNDA
34
ACV|RE2
25
CLK32 83
IE 64
NC|IE2
22
NC|LLC
14
NC|OIE2
21
NC|RSTR2
26
NC|RSTW2
20
7760
SAA4998H/V1
3883
47K
47K
3882
9810
+3V3FA +3V3FA
47K
3881
3880
47K
2723
100n
+3V3FA
100n
2885
+1V8FA
100n
2879
3891
1K0
+3V3FA
3889
1K0
1K0
3886
3885
1K0
+1V8FA
+1V8FA
2886
+1V8FA
100n
+3V3FA
100n
2880
+1V8FA+1V8FA
2876
100n
+3V3FA
2884
100n
100R
3876
100n
2888
+3V3FA
2887
100n
9808
47K
3884
1K0
3890
9811
2878
100n
1K0
3888
3887
1K0
+1V8FA
100n
2877
100n
2883
RSTR_O
SN-CL
100n
2875
TRST
TDOA
TDOB
TCK
CLK32
CLK32NE
TMS
UVF(5)
RST-FEM
YG(5)
YG(6)
YG(7)
MF(12)
MF(13)
MF(14)
MF(15)
MF(16)
YF(0)
YF(1)
YF(2)
YF(3)
YF(4)
YF(5)
YF(6)
YF(7)
YG(0)
YG(1)
YG(2)
YG(3)
YG(4)
UVF(3)
UVF(4)
UVF(6)
UVF(7)
UVG(0)
UVG(1)
UVG(2)
UVG(3)
UVG(4)
UVG(5)
UVG(6)
UVG(7)
MF(9)
MF(10)
MF(11)
MF(17)
RE_F
SN-DA
MF(1)
MF(2)
MF(3)
MF(4)
MF(5)
MF(6)
MF(7)
MF(8)
UVF(0)
UVF(1)
UVF(2)
8204 000 8343.4 E_14620_086.eps
070704
62FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
SSB: Eagle
8
NC
L
U
10
16
1
2
3
4
5
9
10
11
12
13
512K-1
DQM
VDD
0
VSSQ
A
14
15
RAS
CAS
WE
A11
3
2
CLK
D
VSS
VDDQ
1
0
CKE
CS
9
8
7
6
5
4
6
7
BISTEN
PLLND2
0
1
2
4
5
8
YG
Y
UV
ADDR
TESTSEL
2
3
4
5
6
DQ
DATA SDRAM
4
5
6
7
0
2
7
6
5
4
3
2
1
0
FALREF
11
SNRSTO
ADDRESS SDRAM
OUTP_VAL
VA
HD
9
8
7
6
5
4
3
2
1
6
7
8
9
10
11
12
13
3
14
15
8
7
6
5
4
3
2
1
0
9
SDCLKIN
UVG
CLK32O
CLKI
2
1
0
TCK
TDO
TDI
TMS
7
0
1
2
3
4
5
6
7
0
1
FSADJV
AOUTPV
AOUTNV
FSADJU
AOUTPU
AOUTNU
FSADJY
AOUTPY
AOUTNY
HREF
AVSPLL
DVSS
1
2
3
4
5
6
7
VDD
VSS
0
9
SNCL
SNRST
BOUNDARY SCAN
INPUT BUS F
INPUT BUS G
SNERT
COLOUR DIFFERENCE
CLOCK
LUMINANCE
DQM
RESET
IS0
IS1
UVF
3
YF
AVDDU
CLKSEL
CLK64O
SNDA
VREFY
VBSY
VREFU
VBSU
VREFV
VBSV
TRST
VD
REFIN
0
1
10
WEN
CASN
RASN
SDCLKOUT
INTR
VSS2
VDD2 VDDC VDDS
AVDDV
AVDDY
AVDPLL
AVSSU
AVSSV
AVSSY
2768 A4
2769 A4
2770 A4
2771 A4
B3a,b,d
123456
B3a
14
A
B
B3c
B3b
B3a
RES
RES
B3b,B19d
B3b,B19d
RES
F
G
H
2750 A3
2751 A3
2752 A3
2753 A3
2755 A3
2756 A3
2758 A9
2759 A3
2760 A5
2761 A5
2762 A5
2763 A5
2764 A5
2765 A8
C
D
E
RES
7891011121314
12345678910111213
2784 A5
2785 A5
2786 D7
B3b
B3a,d
B19d
B3c
B3b,c
B19d
C
D
E
F
G
H
A
B
2798 A4
2799 A5
2805 A3
RES
B3a,b,d
B3c
B3c
B3c
B19b
B3a,19d
B19d
B3c
B3c
B3c
B3a,b,d
B3a,b,c,d
2772 A4
2773 A4
2777 A4
2778 A4
2780 A4
2781 A4
2782 A5
2827 E8
2830 B11
2831 B11
RES
B3a(3x)
B19b
B19d
RES
B3a,d,B19d
B3c
RES
B19d
2787 D9
2788 E2
2789 E2
2790 E2
2791 E2
2793 E2
2794 A4
2795 A4
2796 A4
2797 A4
3767 C13
3768 C13
3769 C13
RES
B3c
B19d
B3a,c,d
B3c
RES
2808 A3
2809 A3
2812 A7
2814 A10
2815 A9
2816 A9
2821 A5
2822 A5
2823 E8
2824 E2
2825 D8
3794 D7
3795 E8
3796 E7
EAGLE - IC
RES
2832 B12
2833 B12
2834 B12
2835 B12
2925 H6
2936 E11
3729 B9
3744 F11
3745 G10
3757 E8
3762 C13
3763 C13
3764 C13
3765 C9
3766 C8
3821 E12
3822 F12
3823 F12
EAGLE
B3a,b,c,d
B3b,c
B3c
B3b
3770 C13
3771 C7
3772 C7
3773 C7
3774 C13
3775 C13
3776 D7
3777 D13
3778 D11
3779 D13
3780 D13
3781 D13
3782 D8
3783 D9
3784 D13
3792 E7
3793 F10
3912-3 F7
3912-4 F6
3918 F7
3797 F8
3798 F1
3799 F1
3800 D7
3801 D7
3802 D8
3803 D13
3804 D13
3811 H8
3812 H8
3814 H8
3815 H8
3817 H9
3818 H9
3819 H1
3820 H1
9717 F12
9718 G12
9719 G12
B19d
B3a,b,c,d
3824 F12
3825 F12
3850 H6
3894 E7
3895 A8
3896 A8
3897 A8
3898 A10
3900 G7
3901 G6
3902 G7
3906 D11
3911-1 G6
3911-2 G7
3911-3 F6
3911-4 F7
3912-1 G6
3912-2 G7
9762 F6
9763 F1
9764 F8
B3a,c,d
B3a(2x),b
3919 F6
3921 G6
7717 D8
7718 C9
7719 B11
7720 B3
7721 A9
7725 F10
9704 H2
9705 H2
9711 A10
9712 E1
9713 G12
9714 G12
9715 G6
9716 E7
I715 E6
I716 E6
I717 E8
9721 G12
9723 E1
9730 B9
9731 C8
9732 C8
9740 F2
9750 C8
9751 C9
9752 D10
9753 D6
9754 D6
9755 E2
9756 E2
9757 E2
9758 E2
9759 E6
9760 E6
9761 E6
B19d
B19d
RES
B3a
B3c
9765 F2
9766 F2
9773 F6
9774 F6
9775 F6
9821 B10
9822 A10
9823 G7
F714 C8
F715 C9
F718 E8
F720 F9
F765 G8
F766 G8
F767 G9
I713 E2
I714 E1
B3c
B3c
B3a,b
I719 E8
I730 D8
I731 E1
I732 E1
I733 F1
I734 F12
I735 C7
I736 C10
I806 H6
I808 E6
I809 E6
I811 E6
I812 E6
I816 F10
I817 D6
I818 D6
I819 D9
B3a,b,c,d
100n
2825
RES
RES
B19d
RES
9723
9714
F766
1n0
2772
I734
2805
1n0
1n0
2769
1n0
2756
2771
1n0
68R
3918
75R
3817
2830
100n
1n0
2796
9774
9704
2761
68R
1n0
1n0
3919
2764
3912-2
68R
9740
9716
2789
100n
3745
1K0
PMBT2369
7717
3822
27R
2760
1K0
3782
1n0
9763
I713
68R
2835
3767
9718
100n
9712
3811
75R
68R
68R
3763
3798
3911-4
4K7
9713
2762
1n0
9752
2768
1n0
3900
68R
75R
3800
68R
2752
9823
1n0
3769
68R
9760
9766
9759
150R
3795
1n0
2751
3774
68R
3771
I735
75R
3912-1
68R
3911-1
68R
2773
1n0
4K7
RES
3796
3778
4K7
3850
82R
9715
10R
3825
3818
75R
9775
68R
9773
3921
9754
2781
1n0
68R
100n
3768
2831
3802
150R
75R
3776
150R
3894
9705
150R
3801
1K0
100n
2793
3783
3775
68R
1n0
2809
9765
F715
9758
9761
3744
2K2
3793
2K2
3803
68R
33R
3821
2770
1n0
68R
3823
1n0
2925
2799
1n0
I732
I816
I812
I818
I809
68R
I730
3912-4
I731
I716
3757
150R
F714
1n0
2755
F720
1n0
2822
I719
150R
3792
2791
100n
9717
F718
2833
100n
3804
68R
3764
68R
68R
44
26
50
4
10
41
47
15
3762
39
14
33
37
17
36
1
25
7
13
38
46
48
49
3
5
6
8
9
11
12
31
32
16
34
35
18
2
40
42
43
45
21
22
20
19
23
24
27
28
29
30
DRAM
512K X 16 X 2
Φ
MSM56V16160F-6TS
7719
2795
1n0
2798
1n0
3765
1K0
F767
100n
2823
I733
I715
75R
3773
1n0
2784
1n0
2785
I819
1n0
2758
1n0
2812
7721
CY2305SC-1
CLK1 3
CLK2 2
CLK3 5
CLK4 7
CLKOUT 8
GND
4
REF
1
VDD
6
I817
I808
I811
I806
100n
2832
3906
75R
15p
2814
100R
3729
100R
3898
2K2
3895
9750
res
2750
1n0
1n0
2778
I717
3779
68R
1n0
2753
4K7
3797
9721
2797
1n0
2759
1n0
1n0
2808
2780
1n0
3824
10R
2786
68p
I736
2K2
3897
82R
3896
10p
2816
3902
68R
100n
2788
17
18
19
201
202
203
204
205
206
207
208
105
103
102
100
99
12
13
14
15
16
98
107
117
124
135
142
116
115
110
109
106
200
20
34
43
77
86
97
108
114
52
85
11
123
130
144
150
156
161
168
178
183
198
66
73
57
1
145
148
160
173
184
28
131
143
151
22
51
125
139
149
162
172
185
111
10
167
182
199
21
44
78
96
113
58
27
29
83
30
87
101
112
90
95
104
190
191
192
193
194
195
196
197 32
67
74
81
80
2
3
4
5
6
7
8
9
45
37
36
94
93
92
91
89
88
84
82
128
129
24
33
25
23
40
38
39
41
42
158
53
153
154
164
79
50
140
47
48
146
61
62
46
68
75
59
26
35
31
159
187
188
189
174
171
170
169
166
165
177
179
141
147
118
163
157
176
175
180
181
186
72
56
69
76
60
152
155
63
70
54
49
132
119
120
121
122
126
127
64
71
55
65
PROCESSOR
VIDEO ENHANCEMENT
Φ
136
134
137
138
133
7720
EAGLE1C
3770
68R
3812
75R
RES
4K7
3819
9756
9755
F765
9731
res
3784
68R
9732
1n0
9762
9730
2821
2790
100n
68R
1n0
2936
3911-3
9757
9751
1n0
2782
2824
100n
68R
9719
3911-2
1n0
2777
7725
PMBT2369
4K7
3799
3794
75R
1K0
3766
75R
68R
3814
2827
3901
3780
68R
100n
2763
1n0
3815
75R
2815
9821
10p
9711
3820
4K7
9764
RES
68p
2787
1n0
2765
3777
68R
1n0
2794
I714
9753
68R
3912-3
7718
PMBT2369
100n
2834
3772
75R
3781
68R
+3V3ED
HD_E_T0
HD_E
EAG_SD_CLK
EAG_SD_CLKIN
9822
RST_PIC_EAG
EAG_DQM
TDOB
TDOC
+3V3EB
EAG_SD_WEN
EAG_SD_CLK
+3V3ED
EAG_SD_CLKOUT
EAG_SD_A(4)
EAG_SD_A(2)
EAG_SD_A(11)
EAG_SD_A(9)
EAG_SD_A(7)
EAG_SD_A(5)
EAG_SD_A(3)
EAG_SD_A(1)
EAG_SD_CLKOUT
CLK32G
+5V2Pr
VAP
TMS
TCK
SN-DA
SN-CL
INT1
HREF_EXT
EAG_SD_A(0)
EAG_SD_A(10)
EAG_SD_A(8)
EAG_SD_A(6)
SN-DA_EPLD
SN-CL_EPLD
RSTR_EPLD
+3V3EA
+3V3EA
+3V3EA
+3V3EA
RSTR_O
TRST
UVF(1)
YF(6)
RE_F
VD_E
+3V3EA
+3V3EC
+2V5EB
+1V5EB
+2V5EA
+1V5EA
+2V5EC
+2V5ED+2V5ED
YG(6)
UVG(1)
EAG_DQM
HREF
HREF_EXT_E
VREF
VAP_E
REF
SN-DA
SN-CL
RSTR_I
CLK32IN
CLK32O
EAG_SD_DQ(2)
+3V3EA
+3V3EA
RSTR_I
FALREF
REFIN
CLK32O CLK32
CLK32IN
CLK32I
EAG_SD_DQ(6)
EAG_SD_DQ(7)
EAG_SD_DQ(8)
EAG_SD_DQ(9)
EAG_SD_DQ(10)
EAG_SD_DQ(11)
EAG_SD_DQ(12)
EAG_SD_DQ(13)
EAG_SD_DQ(14)
EAG_SD_DQ(15)EAG_SD_RASN
EAG_SD_CASN
+3V3EA
+3V3EB
EAG_SD_DQ(0)
EAG_SD_DQ(1)
EAG_SD_DQ(3)
EAG_SD_DQ(4)
EAG_SD_DQ(5)
EAG_SD_A(0)
EAG_SD_A(1)
EAG_SD_A(10)
EAG_SD_A(11)
EAG_SD_A(2)
EAG_SD_A(3)
EAG_SD_A(4)
EAG_SD_A(5)
EAG_SD_A(6)
EAG_SD_A(7)
EAG_SD_A(8)
EAG_SD_A(9)
EAG_SD_A(0:11)
EAG_SD_DQ(0:15)
HREF_EXT_E
RE_F
+3V3EA
EAG_SD_A(0:11)
EAG_SD_RASN
EAG_SD_CASN
EAG_SD_WEN
EAG_SD_DQ(8)
EAG_SD_DQ(9)
O_VAL
EAG_SD_CLKIN
+2V5ED
+2V5EA
+3V3EA
+3V3EA
EAG_SD_DQ(0:15)
VAP_E
U_VOUT(3)
U_VOUT(2)
U_VOUT(1)
U_VOUT(0)
CLK64
EAG_SD_DQ(0)
EAG_SD_DQ(1)
EAG_SD_DQ(10)
EAG_SD_DQ(11)
EAG_SD_DQ(12)
EAG_SD_DQ(13)
EAG_SD_DQ(14)
EAG_SD_DQ(15)
EAG_SD_DQ(2)
EAG_SD_DQ(3)
EAG_SD_DQ(4)
EAG_SD_DQ(5)
EAG_SD_DQ(6)
EAG_SD_DQ(7)
YOUT(4)
YOUT(3)
YOUT(2)
YOUT(1)
YOUT(0)
UVG(7)
UVG(6)
UVG(5)
UVG(4)
UVG(3)
UVG(2)
UVG(0)
UVF(7)
UVF(6)
UVF(5)
UVF(4)
UVF(3)
UVF(2)
UVF(0)
U_VOUT(9)
U_VOUT(8)
U_VOUT(7)
U_VOUT(6)
U_VOUT(5)
U_VOUT(4)
YF(0:7) UVF(0:7)
UVG(0:7)
YG(0:7)
YG(7)
YG(5)
YG(4)
YG(3)
YG(2)
YG(1)
YG(0)
YF(7)
YF(5)
YF(4)
YF(3)
YF(2)
YF(1)
YF(0)
YOUT(9)
YOUT(8)
YOUT(7)
YOUT(6)
YOUT(5)
E_14620_087.eps
070704
8204 000 8343.4
Circuit Diagrams and PWB Layouts 63FTL2.xE AA 7.
SSB: Columbus
8
NC
L
U
10
16
1
2
3
4
5
9
10
11
12
13
512K-1
DQM
VDD
0
VSSQ
A
14
15
RAS
CAS
WE
A11
3
2
CLK
D
VSS
VDDQ
1
0
CKE
CS
9
8
7
6
5
4
6
7
BISTEN
AVS
VDDC
VSS
656SEL
A0IIC
CLKEXT
CLKSEL
RESET
TST1
TMS
TST3
TCK
TDO
TDI
TST2
NC_3
NC_2
AVD
SCL
SDA
SNRST
SNCL
SNDA
TRST
VDDS
MUX
MUX
656
Encod
3D Comb
SWAN 3D
Noise Reduct
Memory
Interface
A2
A3
A4
A5
A6
A8
A10
A9
A11
RAS_
CAS_
DQM
UVA2 / Di2
UVA3 / Di3
UVA4 / Di4
UVA7 / Di7
UVA0 / Di0
UVA1 / Di1
UVB0 / Do0
VA
HREF
UVB6 / Do6
UVB7 / Do7
UVB8 / Do8
UVB5 / Do5
UVB4 / Do4
UVB3 / Do3
UVB2 / Do2
UVB1 / Do1
MUX
656
Decod
DQ13
DQ12
DQ11
DQ10
DQ9
DQ14
DQ15
DQ16
DQ8
DQ6
DQ5
DQ4
DQ3
DQ2
DQ7
DQ1
CLKASA
WEA / DAVA
YA7
YA0 / Di9
YA1
YA2
YA3
YA4
YA5
YA6
YA8
CLK
WE_
A7
A0
A1
UVA5 / Di5
UVA6 / Di6
UVA8 / Di8
YB5
YB4
YB3
YB2
YB1
YB6
YB7
YB8
YB0 / Do9
WEB / DAVB
CLKASB
9804 G6
9805 G6
9806 H5
9807 H5
9812 B6
9815 G11
9816 G11
9817 H11
9818 H11
F735 H10
F736 H10
3914-3 D10
3914-4 D10
3915-1 C10
3915-2 C10
3915-3 E10
3915-4 E10
3916-1 E10
3916-2 D10
3916-3 D10
3916-4 C10
3917-1 D10
B3a,b,c(2x)
C4
E13
9801 D2
9802 D2
9803 D2
B3a
B3a
3841 C11
3842 C10
3843 C11
3844 C11
I718 F10
I801 G6
I807 I6
K3
COLUMBUS_CTRL
B3a,b,c
3913-1 D10
3913-2 C10
3913-3 C10
3913-4 C10
3914-1 C10
3914-2 D10
B3a
B3a
B3a,c,B19d
B3d
B3a,c
B3d
B3d
3830 B11
3831 B10
3917-2 D10
3917-3 D10
3917-4 D10
5800 F10
7752-1 A7
7752-2 G6
7753 C3
9722 H11
9800 D2
C11
B3d
B3d
2859 G2
2860 G3
2861 G3
3845 C10
3846 D1
3847 G5
3848 G6
3849 H10
3851 H10
3853 H5
3854 H6
3855 I6
B3b
B3a,b,c
8 9 10 11 12
A
B
C
D
E
3832 B11
3833 B11
3834 B10
3835 B11
3836 B11
3837 B10
3838 B11
3839 B10
3840 B11
N8
B3a
B3a
B3d
B3a
B3a,b,c
(ONLY FOR 3D COMB)
G13
M3/N3
H13
SDRAM
B3a,B3c(2x)
2862 G3
2863 G3
2864 G4
2865 H2
2866 H2
2867 H2
2868 H2
2869 H3
2870 H3
B3d
C7/B8
B3d
D3
F
G
H
I
A
B
C
D
E
N6
G3
12
1234567
B3a,b,c(2x)
B3a
N9
F
G
H
I
2792 G10
2819 H3
2836 H3
7891011
COLUMBUS
2852 A1
2853 A2
2854 A2
2855 A2
2856 G2
2857 G2
2858 G2
N11
123456
P13/N14
C12 L13
22R
2850 A1
2851 A1
3914-3
3834
68R
+1V5CA
+1V5CA
+3V3CB
3849
4K7
68R
4K7
3833
22R
3855
3916-3
68R
+5V2Pr
+3V3CB
3831
3914-4
22R
2869
100n
+3V3CA
4K7
3854
F735
3839
+3V3CA
68R
22R
3848
4K7
3916-4
3915-2
22R
100n
2855
3913-2
22R
3914-2
22R
38
44
26 50
4
10
41
47
15
39
14
33
37
17
36
1
25
7
13
45
46
48
49
3
5
6
8
9
11
12
30
31
32
16
34
35
18
2
40
42
43
21
22
20
19
23
24
27
28
29
Φ
512K X 16 X 2
DRAM
7753
MSM56V16160F-7TS
3915-3
22R
3915-4
22R
3916-1
22R
22R
3917-2
2836
100n
3851
4K7
100n
2858
I807
22R
9800
3913-4
R9
R11
C5
C6
C13
D13
C9
M13
E3
F3
F13
C3
J3
J13
K13
L3
N5
N7
N10
N8
N11
B2
C10
N4
N12
N13
P2
P14
B14
N9
K3
C4
N14
P13
C12
G3
G13
L13
M3
N3
A8
F1
H3
C8
C7
D3
C11
H13
E13
N6
N2
G15
B15
A15
D14
C14
C15
D15
F15
E15
E14
F14
A7
G14
N1
P1
B8
H14
H15
D4
22R
COLUMBUS
7752-2
COLUMBUS_CTRL
3917-4
9806
4K7
3847
+3V3CA
3914-1
22R
2870
100n
+5V2Pr
9802
2853
100n
I801
9805
68R
3837
3842
100n
2792
68R
3915-1
22R
3913-1
22R
+3V3CA
100n
2860
3916-2
22R
100n
2866
100n
2819
9722
100n
2865
2856
100n
2857
100n
22R
9803
3913-3
3843
68R
22R
3917-3
3832
68R
+3V3CB
9815
9817
9816
9818
3845
68R
I718
9801
5800
68R
2851
100n
3844
2864
100n
2861
100n
68R
2867
100n
3840
+3V3CA
3838
100n
2863
68R
4K7
3846
2868
100n
9804
100n
2859
22R
3853
47K
3917-1
3830
68R
68R
3836
68R
3835
9812
9807
+3V3CA
+1V5CA
100n
2852
100n
2850
E2
E1
D2
D1
C2
C1
B1
B9
A9
B10
A10
B11
A11
B12
A12
G2
F2
K2
K1
J2
J1
H2
A13
J15
B13 A1
B7
B3
A3
B4
A4
B5
A5
B6
A6
M2
M1
L2
L1
P10
R10
P9
P8
R8
R13
L14
A14
K15
A2
P12
R14
R15
P15
N15
M14
M15
L15
R12
P11
P5
R5
R1
R2
R3
P3
R4
P4
K14
J14
H1 G1
P6
R6
R7
P7
3841
COLUMBUS_IO
COLUMBUS
7752-1
2862
100n
68R
2854
100n
SCL-D
SN-CL
SN-DA
SDA-D
F736
YB(6)
YB(7)
YB(8)
UVB(8)
UVB(7)
UVB(6)
UVB(5)
UVB(4)
UVB(3)
UVB(2)
UVB(1)
UVB(0)
WE-B
CLK-AS
RST_COL
RSTR_I
YB(0)
YB(1)
YB(2)
YB(3)
YB(4)
YB(5)
TDO
CL16
WE-A
YA(1)
YA(2)
YA(3)
YA(4)
YA(5)
YA(6)
YA(7)
YA(8)
YA(0)
COL_SD_A1
COL_SD_CLK
TCK
TDOA
TMS
TRST
COL_SD_DQ2
COL_SD_DQ8
COL_SD_DQ7
COL_SD_DQ6
COL_SD_DQ5
COL_SD_DQ4
COL_SD_DQ3
COL_SD_DQ16
COL_SD_DQ15
COL_SD_DQ14
COL_SD_DQ13
COL_SD_DQ12
COL_SD_DQ11
COL_SD_DQ10
COL_SD_DQ9
COL_SD_DQ1COL_SD_CASN
COL_SD_CLK
COL_DQM
HREF_EXT
COL_SD_RASN
UVA(0)
UVA(1)
UVA(2)
UVA(3)
UVA(4)
UVA(5)
UVA(6)
UVA(7)
UVA(8)
VAP
COL_SD_WEN
COL_DQM
COL_SD_WEN
COL_SD_CASN
COL_SD_RASN
COL_SD_A0
COL_SD_A10
COL_SD_A11
COL_SD_A2
COL_SD_A3
COL_SD_A4
COL_SD_A5
COL_SD_A6
COL_SD_A7
COL_SD_A8
COL_SD_A9
COL_SD_A0
COL_SD_A1
COL_SD_A10
COL_SD_A11
COL_SD_A2
COL_SD_A3
COL_SD_A4
COL_SD_A5
COL_SD_A6
COL_SD_A7
COL_SD_A8
COL_SD_A9
COL_SD_DQ1
COL_SD_DQ10
COL_SD_DQ11
COL_SD_DQ12
COL_SD_DQ13
COL_SD_DQ14
COL_SD_DQ15
COL_SD_DQ16
COL_SD_DQ2
COL_SD_DQ3
COL_SD_DQ4
COL_SD_DQ5
COL_SD_DQ6
COL_SD_DQ7
COL_SD_DQ8
COL_SD_DQ9
E_14620_088.eps
070704
8204 000 8343.4
64FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
SSB: FBX Supply
I754 E9
I755 F9
I756 A1
B3e
B12
B3a(3x)B3e(14x)
F792 D2
F793 D2
F794 E2
F798 D6
F799 B4
I712 C9
I721 B1
I742 A9
I743 A4
I744 B1
I745 B7
I746 B9
I747 C1
I748 C3
I749 D1
I750 E1
I751 E1
I752 F2
I753 F1
6718 B9
6719 C3
6720 E9
I758 A1
I759 C1
I760 D9
7701 B4
7770 B7
7772 C4
7773 F2
7774 A4
F711 E6
F712 D6
F713 C4
F734 B1
F740 A9
F741 B9
F743 F9
F744 E9
F745 D7
F746 E7
F747 F7
F748 E2
F749 C6
F750 C7
F789 D9
F790 B2
F791 C1
5777 B7
5778 E4
5779 B1
F795 F2
F796 F3
F797 F6
B3e
B3e
B3e
B3e
B3e
B3e
6704 D3
6705 F1
6709 C9
6711 A2
6712 B1
6713 D2
6714 D2
6715 E2
6716 E2
6717 A9
5754 B6
5755 C7
5756 E9
6721 F9
6722 B2
6723 D9
5760 C3
5761 C4
5762 F5
5763 F3
5764 D5
5767 B2
5768 C1
5769 D1
5770 D1
5771 E1
5772 F1
5773 E1
5775 A3
3870 A1
3871 C1
3872 D1
5780 C9
5801 D9
6702 C2
B3e
3877 C9
5702 A5
5709 B3
5713 E5
5719 B5
5720 C5
5721 C5
5722 C5
5750 A9
5751 B9
5752 D5
5753 F9
2914 C2
2919 F2
2921 E6
5757 D7
5758 E7
5759 F7
B3e
2932 A5
2933 A5
2937 B7
2938 A4
2939 B1
3707 F1
3805 D9
3829 C1
3864 F9
3865 E9
3867 B9
3868 A9
3869 A1
F
A
B
3873 E1
3874 E1
3875 B1
2846 F9
2847 C7
2848 C7
2849 D6
2871 D4
2872 E6
2873 F6
2874 F7
2889 B4
2890 B2
2891 C2
2892 D2
2893 D2
2894 E2
2895 B3
2896 C4
2897 C4
2898 D3
2899 D4
B3e
2922 E4
2923 E5
2924 B4
23456789
1 23456789
A
B
C
FBX SUPPLY
B3e
D
E
C
D
E
F
2715 C3
2728 F2
2729 F2
2730 F3
2739 B1
2802 B3
2810 B9
2811 A9
2813 D9
2817 F3
2818 C9
2820 B6
2826 E7
2828 B6
2829 B7
2843 F2
2844 E7
2845 E9
B3e
B3e
B3e
LD1117
7770 RES
1
GND
3IN 2
OUT
1
B3e
+5V_FBXA
2739
100u
GND
16V100u
2937
F746
F713
5769
100n
2845
GND
KF25BDT
7774
2
GND
1
IN
3
OUT
GND GND
10n
2923
F798
2728 10u
5721
5722
I749
I746
I747
F748
+3V3_DCDCFBX
2899
100n
OUT
3
100R
3869
res
7701
LF15AB
GND
2
IN
1
5764
F799
F712
+1V5_FBXB
BAS316
6714
5754
+5V_FBXA
+1V5_FBXB
5719
100n
2729
5772
100n
2893
+3V3_FBXB
5760
100n
2890
+3V3_FBXB
+5V2Pr
2820
100n
100n
2924
F745
5770
BAS316
6702
3829
100R
100n
2874
5768
6711
BAS316
+1V5_FBXA
6716
100n
2817
BAS316
2871
100u
100n
2891
BAS316
6720
+3V3_DCDCFBXA
+3V3_DCDCFBXA
10u
2847
100n
2843
2829
100u
I748
LF18ABT
7773
GND
2
1
IN OUT
3
2849
100n
I751
+3V3_DCDCFBXA
3872
100R
100n
2897
5763
F792
res
I742
I744 I745
100n
2844
I743
F749
+2V5_FBXA
5720
2826
100n
100R
3875
+3V3_DCDCFBXA
6722
BAS316
+3V3_FBXB
5767
5713
+5VF
GND
I721
3865
100R
2810
100n
2898
10u
100u
2730
10u
2715
100u
2896
5709
res
res
2894
100n
5771
6717
BAS316
+3V3_FBXB
100n
2892
100R
3870
+1V5_FBXB
F743
100R
3864
F711
F747
I752
I750
5757
2828
10u
3867
100R
3871
+2V5_FBXA
6713
BAS316
100R
F797
5753
F793
F790
F794
F791
+3V3_DCDCFBXA
2846
100n
5777
GND
5755
2922
10n
5759
+2V5_FBXA
+5V_FBXA
100n
2873
5762
5756
5779
100n
2811
I755
2889
100u
I754
I759
6712
BAS316
6715
BAS316
F740
100n
2818
5780
2938
10u 16V
100R
3868
100R
I753
3874
5775
100R
3707
6704
S1D
F795
res
5761
6721
BAS316
100R
3873
5702
2939
100u 16V
100n
2933
100u
2919
+1V5_FBXA
5752
BAS316
6723
3805
100R
I760
+3V3_FBXB
BAS316
6718
F796
100n
2802
F750
+2V5_FBXA
2914
100n
5758
100n
2848
I712
100R
3877
+3V3_FBXB
6709
BAS316
5751
2872
100n
2895
10u
F741
F744
6u8
5778
+8V_CON +8VPA
BAS316
2932
100n
I758
6705
I756
F734
S1D
6719
5773
5750
100n
2921
LF15AB
7772
2
GND
1
IN
3
OUT
+3V3_FBXB
2813
100n
+2V5_FBXA
5801 F789
3V3_FAULT_FBX
+3V3EC
+3V3ED
3V3_FAULT_FBX
+3V3Pr
3V3_FAULT_FBX
3V3_FAULT_FBX
3V3_FAULT_FBX
+3V3GA
3V3_FAULT_FBX
3V3_FAULT_FBX
3V3_FAULT_FBX
3V3_FAULT_FBX
3V3_FAULT_FBX
3V3_FAULT_FBX
3V3_FAULT_FBX
3V3_FAULT
+2V5EC
+2V5ED
3V3_FAULT_FBX
3V3_FAULT_FBX
3V3_FAULT_FBX
+1V8FA
+3V3PA
3V3_FAULT_FBX
+3V3FA
+1V5EB
+1V5CA
+2V5EB
+2V5EA
+3V3FB
+3V3PB
+3V3PC
+3V3EA
+3V3EB
+3V3CA
+3V3CB
+1V5EA
E_14620_089.eps
070704
8204 000 8343.4
Circuit Diagrams and PWB Layouts 65FTL2.xE AA 7.
SSB: HOP
CONTR
BRIGHT
SAT
BLACK
STRETCH
RGB-INSERTION
WHITE
POINT
CONTROL
OUTPUT
+ BUFFER
+ BLUE
STRETCH
WHITE P.
PWL +
BEAM CURR
LIMITER
CONTIN’S
CATHODE
CALIBR’N
I2C
SUPPLY
1PHI-
PHI-2 START/STOP
H-DRIVE
6-BITS
DAC
EW
FRAME
RAMP
GENERATOR
R
B
G
R
B
G
R
V
U
Y
Y
VUY
DIGGND
DIGSUP
ANAGND
BANDGAP
RGB
SYNC+GEO
SC
Hsel
SWITCH
SATUR’N
CONTROL
COLOUR
MATRIX
CONTRAST
BRIGHTNESS
CONTROL
RGB-YUV
MATRIX
AMPL
DIFF
AND
R
G
BB
G
LUMA
NC
TRAL
DOW
WIN-
ADC
PROC
SPEC-
CONTROL
PROCESSING
CHROMA
PROCESSING
nc
B4
B4
B4,B5a
nc
nc
nc
B4
B5a
B21
E
F
G
H
I
1301 G4
1304 G3
1412 E13
2301 C2
2303 E9
345 678
2304 G7
2306 I9
2307 F4
2308 G9
2309 D3
2310 E3
2311 H5
2312 F9
2313 F9
2314 E2
2315 E2
2317 F3
2318 F3
2319 G10
2320 G3
2321 B3
2323 B4
2324 I6
nc
B4(2x)
1V1
0V8
0V2
0V
5V2
1V5
1V3
B5a,B21
B4
nc
12 345 678 9 10 11 12 13
12
B4(2x)
B4(2x)
B4
ONLY FOR NO HOP
B4
B4(3x),B5a
B4(2x)
9 101112 13
A
B
C
D
E
F
G
H
I
A
B
C
D
nc
B14b
2398 A3
2429 B4
2431 B3
3302 C4
3304 I11
B14b
2325 G5
2326 E12
2328 B7
2329 B6
2330 A6
2331 B6
2332 E2
2333 D10
2334 E8
2335 F10
2336 E8
HOP
N.C.
B4
B4
nc
nc
nc
nc
3324 I5
3325 A9
2337 B12
2338 C12
2340 I11
2341 C12
2342 A7
2343 A9
2344 H3
2345 H2
2346 H2
2347 H2
2348 H2
2349 H2
2363 F3
2386 G12
2393 E13
2395 D3
2396 D3
2397 D3
B4
NC
B4(2x)
nc
B4(3x)
B4
3344 D10
3345 D9
3346 C9
3347 D9
3305 C3
3306 E9
3307 E9
3308 E9
3310 E9
3311 G7
3312 E11
3313 E11
3314 G8
3315 H8
3316 H10
3317 G9
3318 F9
3319 E12
3320 D3
3321 E3
3322 D12
3323 H5
B4
B4
B4
B4
B4(2x)
B5a
B5a
B4
nc
B4
3326 H5
3327 G6
3328 F9
3329 E2
3330 A7
3331 G3
3332 A7
3333 F3
3334 H5
3335 A7
3336 H6
3337 A11
3338 A12
3339 C3
3340 A13
3341 B13
3342 C13
3343 D12
B3a,B4(3x)
B4(2x)
B4(2x)
B4(2x)
B5a
B4
B4,B5a
B4,B5a
B5a
nc
ONLY FOR NO HOP
3348 D9
3349 F2
3350 B10
3351 B9
3352 A9
3353 A10
3354 A10
3355 B7
3356 G12
3357 F12
3358 A11
3359 B9
3360 A7
3361 G7
3362 F11
3363 F3
3364-A F11
3364-B G11
RES ONLY PTV
B4
B4
B5b
B
B3a,B4(3x),B5a
5303 G1
5304 H1
5305 H1
B4
B4,B5a
HOP
3364-C G10
3364-D G10
3365 F13
3366 H11
3367 F11
3369 B11
3383 B13
3384 C12
3386 F13
3387 G2
3388 B5
3389 C13
3390 D9
3391 G12
3394 E9
B4(2x)
B4
B4(2x)
B4(2x)
B4(2x)
B4(2x)
B4(2x)
B5a
B4
6316 C9
6317 E12
3395 C3
3396 D3
3397 D2
3398 D3
3399 B5
3442 E12
3443 E13
3453 C2
3454 B1
3455 C1
3459 B11
3465 B9
3467 A8
3470 B8
3471 A8
3472 I6
5301 E2
5302 E2
B4,B5a
B4,B5a
7319 C12
5306 H1
5307 H1
5308 H1
5313 A12
5314 B12
5315 C12
6301 E12
6303 H9
6304 H9
6306 I5
6307 I5
6308 C2
6309 D11
6310 D9
6311 D12
6312 H8
6313 H9
6314 H9
C001 H12
F309 D11
F311 C2
F312 E9
F329 H9
F347 D12
6319 D9
6334 H5
7301 B4
7302 A1
7303 H8
7304 F2
7305 B8
7306 A9
7309 G13
7310-A G11
7310-B G12
7312 F10
7313 A11
7314 A10
7315 B10
7316 A12
7317 B12
7318 E10
nc
7340 A5
7361 H7
7362 H7
7375 B8
9302 A3
9303 A4
9304 A4
9305 A4
9308 B4
9309 B4
9310 B4
9311 I1
9312 I1
9313 F13
9314 H1
9315 H1
9316 I6
9421 B9
B14b,B21(2x)
4V0
2V5
F348 G3
F349 H3
F350 H3
F351 H3
F352 H3
F353 H3
F362 H3
F364 F4
I302 E2
I303 F4
I304 B11
I305 G5
I306 G5
I307 G7
I308 A12
I309 B11
I310 B12
I311 D8
0V2
7V9
B5a
I312 E3
I313 C11
I314 D9
I315 D8
I316 D9
I317 C12
I319 B11
I320 B10
I321 F3
I326 B7
7V9
B4
1V1
I330 B4
I331 B4
I332 B3
I333 C2
I338 E3
9312
I339 E4
I357 E8
I358 E4
I359 F4
I363 H5
I365 E10
I366 B3
I367 D10
I368 B7
I369 A8
I370 B10
I371 I12
c200 F3
3357
3K9
9314
1304
1
2
3
4
5
6
7
+8VS
I320
36
I359
3465
33K
3364-C
680K
3366
220R
47K
3316
5305 100MHZ
F353
I321
+8VS
F20
V23
9421
3359
100K
I338
+8VS
+8VS
9311
I312
I316
100K
3471
100MHZ
5308
2398
100n
+5VS
I326
100MHZ
5304
10p
2308
F348
+8VS
2310
10p
3356
2K2
2395
100n
10K
3351
+8V_VDP
7306
BC847BW
+8VS
+8VS
9313
+8VS
BZX384-C5V6
6306
7305
BC847BW
3443
220K
7375
3306
220R
BC847BW
6313
BZX384-C22
3390
220R
9302
L13
RES
BC847BS
7310-B
5
3
4
68p
2311
F312
+8VS
100MHZ
5306
6R8
3329
100n
2325
10R
3388
3328
39K
100R
3395
I303
3354
2K2
F309
BAS316
6304
3348
2K2
+8VS
2K2
3459
22n
2318
3364-A
680K
18
6308
MCL4148
BC847BW
7362
3315
1K
6319
BAS316
9316
10p
2304
3321
100R
3310
47K
+8VS
3442
22K
V28
I314
I339
I357
F349
3330 1K
3307
18K
F311
2333
2u2
9315
2431
100n
2363
470p
3344
2K2
3304
3R9
10p
2345
4K7
6309
BAS316
1K
3363
3349
3396
100R
2397
100n
I311
V19
3346
33K
5303 100MHZ
13
2
12M CSTCV
1301
100n
2396
3386
100K
2u2
2336
3335 1K
220R
3367
3325
100K
I319
470p
2306
3360
100K
I365
100R
3320
10p
2347
3399
10K
3331
1K
2331
100n
3365
4K7
6u8
5301
100n
2330
6310
BZM55-C6V8
1n
2386
680K
54
3337
820R
6
1
F329
3364-D
3308
470K
BC847BS
7310-A
2
100K
3313
3389
680R
9305
+8VS
BAS316
6314
I366
3338
680R
5u6
3302
1K
+8VS
5314
VD23
VDOA 1
VDOB 2
VIN
26
VP1
17
VP239
VSC 15
XTALI
20
XTALO
21
YIN
28
100n
2342
GND219
GO 41
HD24
HFB
13
HOUT 8
HSEL12
IREF 16
LPSU
22
PWL
34
RI130
RI2
35
RO 40
SCL10
SCO
9
SDA11
UIN
27
37
BL133
BL2
38
BLKIN 44
BO 42
DACOUT 25
DECBG18
DECVD7
DPC
14
EHTIN 4
EWO 3
FBCSO
29
FLASH
5
GI131
GI2
36
GND16
V31
7301
TDA9330
BCL 43
BI132
BI2
2334
2u2
3326
100K
RES
+5VS
4K7
3324
7313
PMBT2369
I307
2429
100n
6316
6p8
2341
I367
BAS316
3398
100R
9309
BAS316
6312
+8VS
I306
+5VS
+8VS
I371
100n
2321
9310
2348
10p
1K
3336
1412
+5V_VDP
I369
V22
+8VS
2329
100n
3340
47R
I358
GND-RGB-CRT
3347
22K
2338
6p8
100n
2323
100n
2301
F19
5307 100MHZ
I310
I330
BAS316
6334
820R
3369
6p8
2337
+8VS
I317
7312
PDTC144EU
3334
1K
3391
10K
I368
2324
10n
I370
3384
820R
7340
BC847BW
BC857BW
7319
I302
BAS316
6301
I313
V32
3342
47R
3358
1K8
BC857BW
7303
3332 1K
47K
3361
+8VS
2340
10u
L12
680R
3383
5u6
5315
BC857BW
7316
I308
3470
2312
33n
3317
220R
33K
5302
6u8
I305
10p
2349
5u6
5313
10p
2320
3352
100K
6311
BZX384-C22
3K9
3362
V20
10K
3314
F18
BZX384-C47
6303
2344
10p
1n
2335
100R
GND-RGB-CRT
3455
1K
3353
3345
10K
7304
PDTC144EU
9308
2315
100n
I333
9303
BAT54 COL
6307
3364-B
680K
72
RES
10n
2326
100R
3397
100K
3323
100n
2332
1u
2393
10p
2309
3350
1K
V29
3312
3333
1K
I315
100K
2328
22p
+8VS+8VS+8VS
I363
100K
3327
1u
2317
GND-RGB-CRT
c200
I331
+8VS
BC847BW
7309
+8VS
7317
BC857BW
I304
33K
3453
3322
1K
I309
7361
PDTC144EU
2102324
1
SC
11
SCL
14
SDA
21SOUT
8 UIN 17UOUT
20
VCC
9 VIN 16VOUT
6 YIN
19YO U T
TDA9178
7302
3
AD1
4
AD2
5
AD3
7
ADR
22 CF
15
DEC
18
GND
13 12
68K
3305
F350
2303
1u
2319
1n
3341
3394
4K7
+8VS
47R
2346
10p
2307
100n
3343
68K
PMBT2369
7315
3454
100R
3387
V21
100R
1K
3318
F351
C001
3467
10K
+8VS
6K8
3339
100K
3311
V30
+8VS
I332
22K
3472
100n
2313
9304
+8VS
F364
F362
BC847BW
7314
100n
2343
100R
3319
F347
F17
100u
2314
F352
6317
BAS316
3355
33K
BC857BW
7318
VSYNC
HD@HOME
NOHOP1B
HFB
VSYNC
ANTI-MOIRE
BACKLIGHT-CNTRL
HD100
FBL-TXT
Y-SCAVEM
Yltp
G_2FH
B_2FH
R_2FH
2FH-FBL
2FH-B
2FH-G
2FH-R
FBL_2FH
POR_FLASH
POR
LIGHT-SENSOR
Yltp
NOHOP1A
VD100
R_2FH
G_2FH
B_2FH
FBL_2FH
HD100
VD
2FH-HD100
2FH-VD100
GND-RGB-CRT
NOHOP1A
NOHOP1B
HD100
NOHOP2B
FRAMEDRIVE+
LINEDRIVE1
TILT
HFB_X-RAY-PROT
U100
V100
Y100
SDA-F
SCL-F
HD100
SANDCASTLE
CUTOFF
SANDCASTLE
Y100
U100
V100
VD
TILT
HFB_X-RAY-PROT
HFB
FBL-TXT
SCL-F
SDA-F
DYN-FASE-COR
EHT-INFO
NOHOP2B
B-CRT
G-CRT
R-CRT
EHT-INFO
EW-DRIVE
B-TXT
G-TXT
R-TXT
GND-LINEDRIVE
EHT-INFO
R_2FH
G_2FH
B_2FH
FBL_2FH
BCL
E_14620_091.eps
070704
8204 000 8345.4
66FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
SSB: OTC-Flash
USA
CLOSE
TXT
EXTERNAL CODE AND DATA INTERFACE
DISPLAY TIMING
AND
CLOCK GENERATOR
INTERFACE
DISPLAY
VIDEOn
TXT
CAPTION
EPG
NC
NC
GND
NC
IC05 D1
IC07 E2
IC09 F1
IC11 G13
IC13 G11
IC14 G8
IC15 H8
IC17 H4
IC18 H8
IC20 H7
IC21 H3
IC22 H4
IC23 I9
IC24 I9
FC46 H9
FC47 J6
FC48 G2
FC49 G3
FC50 E8
FC51 D7
FC52 I12
FC53 I12
FC54 J12
FC55 J12
FC56 I12
FC57 A3
FC58 J12
FC60 A4
FC61 E4
FC66 I7
FC67 H13
B14a,b,B15b
Nc
B
B5c(3x)
B4
FC68 H12
FC69 J1
FC70 J11
IC03 B2
FC25 F10
FC26 B7
FC27 F10
FC28 B7
FC29 B10
FC30 B7
FC31 G10
FC32 G12
FC33 F9
FC34 C10
FC35 G9
FC36 F10
FC37 G9
FC38 C10
FC39 G9
FC40 C10
FC41 C10
(TXT)
RES
5V3
FC42 C10
FC43 G10
FC44 C10
FC45 H8
FC04 C8
FC05 C10
FC06 C7
FC07 C8
FC08 C7
FC09 C7
FC10 C7
FC11 D8
FC12 D8
FC13 D10
FC15 D7
FC16 D8
FC17 D10
FC18 D8
FC19 E8
FC20 F13
FC21 F10
RES
N.C.
B3a
NVM
FC22 A7
FC23 F10
FC24 B7
3V4
9011 I11
9012 I11
9013 J11
9014 C2
9015 D2
9016 C2
9017 A4
9018 A3
9021 A1
9022 B3
9023 B3
9024 A1
9025 C3
FC01 A9
FC02 A7
FC03 C7
E
B4
C
3V4
RES
B14e
B4(2x)
RES
RES
1V3
7012 A12
7013 H12
7014 G13
7015 I2
7016 J2
7022 B1
9001 H2
9002 I2
9003 F1
9004 G1
9005 A4
9006 A3
9007 F12
9008 J10
9009 J11
9010 I11
B21
0V2
B4 (2X)
B21
A
6001 E2
6002 F11
6003 E3
6004 D2
6005 A4
6006 C4
7001 A6
7002 F11
7003 G12
7004 G13
7005 E12
7006 A9
7007 F10
7008 E1
7009 D3
7010 C3
7011 G2
RES
FLASH-RAM
0V
B4
3V4
3099-1 B4
3099-2 B4
3099-3 A4
3099-4 B4
3100 F4
3101 F4
3102-1 C13
3102-2 B13
3102-3 C13
3102-4 B13
3103 D3
3C09 I1
3C10 I1
3C11 J1
3C12 J7
5000 F7
5001 F7
B3a
B2
B14d
B5a
B14e(2x),B21
B3a
FLASH-RAM
OTC
5003 F8
3086-1 D11
3086-2 B11
3086-3 A11
3086-4 A11
3087 A11
3088 E3
3089 A8
3090-1 C4
3090-2 C4
3090-3 C4
3090-4 C4
3091 C2
3092 E3
3093 D11
3094 H1
3095 I1
3096 J2
B5a
A
2V9
B5b
DRAM
B5c(3x)
3097 A3
3098 J10
3076-1 D4
3076-2 D3
3076-3 D3
3076-4 D4
3077 D3
3078-1 D4
3078-2 B3
3078-3 B3
3079 E3
3080 A2
3081 A4
3082-1 A13
3082-2 C13
3082-3 B13
3082-4 C13
3083-1 B13
3083-2 C13
B3a
E
3083-3 B13
3083-4 C13
3084 D8
3085-1 B11
3085-2 C11
3085-3 C11
3085-4 C11
3064-2 F4
3064-3 E3
3064-4 E4
3065 G12
3066 G12
3067 H11
3068 A2
3069 E3
3072-1 A13
3072-2 B13
3072-3 A13
3072-4 B13
3073-1 C4
3073-2 C4
3073-3 C4
3073-4 B4
3074-1 F2
F
B2(3x)
B6a,B14b
SAM
RES
B5c(3x)
OTC
2V8
RAM_CSn
3074-2 F4
3074-3 F3
3074-4 A3
3075 C1
3052-4 C8
3053 E2
3054-1 D10
3054-2 C10
3054-3 D10
3054-4 B10
3055-1 B10
3055-2 C10
3055-3 B10
3055-4 C10
3056-1 B10
3056-2 C10
3056-3 B10
3056-4 C10
3057-1 B10
3057-2 C10
3057-3 B10
B4(2x)
3057-4 C10
3058 C1
3059 C1
3061-1 C11
3061-2 C11
3061-3 C11
3061-4 C11
3062 E11
3064-1 F3
3046-4 I11
3047 C2
3048-1 B8
3048-2 D8
3048-3 D8
3048-4 D8
3049-1 D8
3049-2 B8
3049-3 A8
3049-4 A8
3050-1 B8
3050-2 B8
3050-3 B8
3050-4 B8
3051-1 B8
3051-2 C8
3051-3 C8
B5a(2x)
B5a(2x)
B5a(2x),C(3x)
(Set SW)
B5a
B5a(2x)
B5a
RES
H
3051-4 C8
3052-1 C8
3052-2 C8
3052-3 C8
3031-4 D13
3033 C3
3034-1 G7
3034-2 H7
3034-3 H7
3034-4 H7
3035-1 H7
3035-2 H7
3035-3 H7
3035-4 H7
3038 B1
3039 B2
3040 I1
3041 I1
3042 J1
3045 J11
3046-1 J12
B5a(2x)
B5a
B5a(2x)
B4
B21
B5c(3x)
B5c(3x)
3046-2 J12
3046-3 I11
3012-4 I8
3013 F12
3014 F12
3015 G11
3016 G12
3017 F13
3018 A2
3019 A2
3020 A2
3021 B2
3024 D3
3025 E1
3026 E4
3027 E2
3029-1 B11
3029-2 B11
3029-3 B11
RES
PROGRAM
H
F
EPG-
3029-4 B11
3031-1 B11
3031-2 D13
3031-3 D13
3004 F12
3005 E13
3006 J5
3007-1 J6
3007-2 J6
3007-3 J6
3007-4 J6
3008-1 J6
3008-2 J7
3008-3 J7
3008-4 J7
3009 A1
3010 E8
3011 E2
3012-1 I8
3012-2 I8
3012-3 I8
B5c(3x)
B5c(3x)
B5a(2x),C(3x)
B5a(2x),C(3x)
B5a(2x)
2053 J11
2054 J12
2055 J12
2056 I13
2057 I12
2058 C2
2059 C2
2060 A4
2061 A3
2067 I7
2068 J2
2070 B2
2071 B1
2072 B1
2073 C3
2074 D4
2075 F8
B5c(3x)
B5a
B4,B21
C
B21
C
B21
3001 F3
3002 F3
3003 J4
2019 F10
2020 E1
2022 E2
2023 A4
2024 A5
2025 A5
2026 A6
2027 A6
2028 A6
2029 A6
2031 A8
2033 H8
2034 H8
2035 H8
2036 H8
2037 H8
2038 E9
B14b,B21
B4
B5a
2039 H12
2040 A12
2041 H1
2052 J12
11 12 13
A
B
C
D
E
F
G
H
I
J
A
B
C
D
Nc
2017 G12
2018 G3
0V2
B14b,B21
B5a
B5c(3x)
11 12 13
1234
SDM
F
OTC-FLASH
3V4
5678910
2010 I9
2011 I9
2012 I9
2013 F11
2014 I4
2016 F13
RES
12345678910
B3a
3V4
B14b
RES
B14e
IC42 F12
IC43 G12
IC44 G12
IC45 I1
IC46 J2
IC48 E3
B3a,B4 (4X)
B3a
G
E
F
G
H
I
J
1000 F7
1001 G3
1401 I12
2002 G3
2003 J4
2004 J4
2005 J3
2006 J3
2007 J3
2008 H4
2009 I8
IC26 I3
IC27 I9
IC28 I8
IC29 D8
IC37 F4
IC38 J12
IC40 E3
IC41 C3
IC44
FC55
33p
2018
63
FC26
100R
3031-3
IC03
470R
3081
4K7
3002
18
3085-1
72
3102-2
100R
3C10
100R
3053
10K
IC48
27
36
3061-2
6
3085-3
3090-3
470R
3
3088
1K8
18
+3V3_INTOTC
+3V3_INTOTC
3057-1
63
2006
100n
63
3055-3
470R 3007-3
IC46
3074-2
470R
27
IC45
IC42
100K
3033
FC09
6
9008
470R
3073-3
3
3076-1
470R
18
FC68
3062
10K
2034
82p
FC36
470R
18
+3V3_INTOTC
3099-1
3001
4K7
15K
3004
63 100R
3102-3
27K
3024
3039180R
36
+3V3_INTOTC
IC27
3086-3
9007
100R
27
+3V3_INTOTC
3008-2
BC857BW
7010
2071
100n
47p
2009
100n
2072
IC41
IC43
FC37
IC40
2
3051-2
7
27
45
100R
3072-2
3057-4
VSSP3
84 VSYNC
70WEn
2031
100n
20
VDD1
9
VDDA
75
VDDD2
101
VDDD3
19
VDDN1
38
VDDP1
49
VDDP2
111
VDDP3
10
VSSA
21
VSSD1
76
VSSD2
102
VSSD3
39
VSSP1
50
VSSP2
112
120 P3-7|CBB
42
77R
41RAM_OEn
69RASn
3 REF+
74 RESET
43ROM_CSn
40ROM_OEn
8 STN|BLACK
11
TEST0
12
TEST1
13
TEST2
14
TEST3
15
TEST4
103 P2-0|PWM0
104 P2-1|PWM1
105 P2-2|ADC0
106 P2-3|ADC1
107 P2-4|ADC2
108 P2-5|ADC3
109 P2-6|ADC4
110 P2-7|ADC5
113 P3-0|LED0
114 P3-1|LED1
115 P3-2
116 P3-3
117 P3-4
118 P3-5|TTD
119 P3-6|TTC
86 P0-1|SDA0
87 P0-2|SCL1
88 P0-3|SDA1
89 P0-4|RxDo
90 P0-5|TxDo
91 P0-6|CORN
92 P0-7
93 P1-0|T0
94 P1-1|T1
95 P1-2|T2
96 P1-3|INT0
97 P1-4|INT1
98 P1-5|INT2
99 P1-6|INT3
100 P1-7|RC
35D7
34D8
30D9
81DATA
73EAn
80FADI N G
82 FRAME
78G
83 HSYNC
2 IREF
1 IREF_DEC
18 OSCGND
17 OSCIN
16 OSCOUT
85 P0-0|SCL0
CVBS0_R
7 CVBS1
6 CVBS1_R
36D0
32D1
26D10
22D11
25D12
29D13
33D14
37D15
28D2
24D3
23D4
27D5
31D6
64A20
66A21
67A22
68A23
51A3
53A4
55A5
57A6
59A7
61A8
62A9
79B
71CASHn
72CASLn
5 CVBS0
4
SAA5801H
7001
45A1
60A10
58A11
56A12
54A13
52A14
48A15
46A16
44A17
63A18
65A19
47A2
63
BC847BW
7004
3082-3
100R
47p
2010
470R
3074-3
36
1K8
3092
FC21
18
3040
4K7
3090-1
470R
470K
3015
FC52
18
9006
3072-1
100R
FC16
2016
100u
3052-2
72
FC27
FC34
FC49
3057-3
36
2039
100n
+3V3_INTOTC
6
2056
10p
3076-3
470R
3
FC32
54
FC39
3048-4
FC42
FC11
9010
6006
3076-2
27
BZG05C3V9
470R
2054
10p
27p
2002
27
47K
3096
3029-2
+3V3_INTOTC
3064-2
100R
27
9016
VCC
4
VSS
7
WC_
FC10
M24C32
7011
1
E0
2
E1
3
E2
6
SCL
5SDA
8
+3V3_INTOTC 3077
4K7
5
FC51
3035-4
100R
4
3069
1K8
4
FC38
100R
3031-4
5
100n
2008
54
100n
2005
72
3083-4
100R
3049-2
3055-4
54
10K
3018
FC03
63
+3V3_INTOTC
3083-3
100R
9017
FC18
PMBT2369
7015
45
IC24
3064-4
100R
+3V3_INTOTC
100R
3008-3
36
220R
3025
45
54
3029-4
3007-4470R
100p
2059
FC12
IC17
100n 2027
81
3050-1
3072-4
100R
45
45
9018
54
100R
3034-4
IC38
100R
3102-4
72
36
100R
3083-2
3034-3
100R
2004
220n
72
100n
2038
8
9
100R
3082-2
1401
1
10
2
3
4
5
6
7
IC37
220R
3100
FC20
IC07
3056-3
36
470R
3074-1
18
72
100n 2023
3055-2
1K8
3079
FC57
BC857BW
7002
FC48
FC28
FC69
2041
150p
100n
2007
3097
470R
2028
100n
3005
10K
7009
6K8
3014
BC847BW
FC44
68R
3C12
470R
3099-2
27
FC58
100n 2029
10K
3013
100R
3098
3089 100R
3042
4K7
18
FC25
3046-1
100R
9009
FC61
3041
4K7
FC45
IC13
54
FC46
3082-4
100R
3073-4
470R
45
+3V3_INTOTC
3020
10K
3084
10K
470R
3073-1
18
36
FC66
3061-3
FC17
3095
47K
72
9005
3048-2
FC53
47p
2012
+3V3_INTOTC
FC19
IC26
2067
100n
+3V3_INTOTC
+3V3_INTOTC
81
10p
2057
3048-1
45
7016
PMBT2369
470R
3076-4
2052
10p
100R
3045
IC28
82p
2033
9013
FC01
470R
3078-2
27
6005
PLVA2650A
+3V3_INTOTC
100n
2074
81
FC35
FC56
100R
3082-1
45
63
3061-4
3049-3
2070
27
100n
3056-2
9011
9001
3093
10K
220p
2020
FC67
3031-2
100R
72
2n2
2068
47K
3066
18
45
3056-1
54
3008-4
100R
3052-4
FC04
9003
81
220n
2003
9015
3055-1
7013
BC847BW
24K
3003
100n
2040
100n
2014
2036
82p
3067
470K
FC33
DQ5
42
DQ6
44
DQ7
30
DQ8
32
DQ9
27 46
28 OE_
12 RP_
15
RY|BY_
37
VCC VCCW
13
11 WE_
14 WP_
A7
8A8
7A9
47 BYTE_
26 CE_
29
DQ0
31
DQ1
34
DQ10
36
DQ11
39
DQ12
41
DQ13
43
DQ14
DQ15|A_1 45
33
DQ2
DQ3 35
38
DQ4
40
A11
4A12
3A13
2A14
1A15
48 A16
17 A17
16 A18
9A19
23 A2
10 A20
22 A3
21 A4
A5
20
19 A6
18
72
LH28F320BJE
7006
A0
25
24 A1
6A10
5
3050-2
VCC3
21
VSS1
22
VSS2
37
VSS3
42
WE_
13
470R
3047
DQ6 8
DQ7 9
DQ8 10
DQ9 33
LCAS_
31
11
12
15
16
32
OE_
29
RAS_
14
UCAS_
30
VCC1
1
VCC2
6
A6
25
A7
26
A8
27
A9
28
DQ1 2
DQ10 34
DQ11 35
DQ12 36
DQ13 38
DQ14 39
DQ15 40
DQ16 41
DQ2 3
DQ3 4
DQ4 5
DQ5 7
7007
MSM51V18165F
A0
17
A1
18
A2
19
A3
20
A4
23
A5
24
3052-1
81
45
27
3056-4
100R
3012-2
9002
FC40
18
100n 2025
470R
3091
100R
3064-1
FC07
FC24
27
7014
BC857BW
3086-2
82p
2035
FC15
FC05
3073-2
470R
27
1K5
3016
36
3C09
10K
18
100R
3072-3
100R
3008-1
36
3017
4K7
100R
3035-3
6003
1PS76SB10
470R
36
FC13
3078-3
FC47
2024
100n
IC14
1PS76SB10
6001
IC20
FC60
3034-2
100R
27
IC09
81
FC41
+3V3_INTOTC
100R
3083-1
6K8
3058
3050-3
63
63
3052-3
4K7
3026
100u
2013
7003
10p
2053
IC22
BC847BW
7005
GND
IN OUT
47K
3094
LF33AB
CX-5F
1001
6M
BAS316
6002
7008
BC847BW
2058
100p
18
36
100R
3034-1
VSS2
11 W_
3012-3
100R
DQ5
42
DQ6
44
DQ7
30
DQ8
32
DQ9
26 E_
28 G_
10
9
14
13
16
15 RB_
12 RP_
37
VCC
27
VSS1
46
A6
18 A7
8A8
7A9
47 BYTE_
29
DQ0
31
DQ1
34
DQ10
36
DQ11
39
DQ12
41
DQ13
43
DQ14
DQ15|A-1 45
33
DQ2
35
DQ3
38
DQ4
40
25 A0
24 A1
6A10
5A11
4A12
3A13
2A14
1A15
48 A16
17 A17
23 A2
22 A3
21 A4
20 A5
19
FC22
M29W400BT
7012
5
FC70
470R
3099-4
4
IC23
9004
3
3051-3
6
82p
2037
1
3051-1
8
3010
10K
3099-3
470R
36
FC43
3029-1
18
470R 3006
3074-4
470R
54
FC02
18
+3V3_INTOTC
+5V2_CON
3061-1
FC29
9012
BAT54WS
6004
2055
10p
3068
2K7
IC29
+3V3_INTOTC
2073
100n
47K
3027
470R
3090-4
45
54
100R
3012-4
100p
2061
3054-2
27
9023
+3V3_INTOTC
3057-2
27
100n
2022
45
3086-4
4K7
3011
18
2017
100n
100R
3035-1
3035-2
100R
27
+3V3_INTOTC
5
FC06
3085-4
4
100n
2019
2011
47p
9022
18
3059
620R
3012-1
100R
3102-1
100R
81
FC50
7
4K7
3019
470R
3090-2
2
72
IC15
3007-2470R
+3V3_INTOTC
7022
BC857BW
100R 3046-227
3054-3
36
IC21
IC11
3048-3
63
81
220R
3101
3049-1
45
100R
3046-4
2026
100n
10K
3075
FC08
36
100R
3064-3
10K3080
3086-1
18
+3V3_INTOTC
470R
3103
180R 3009
9024
10K
3038
FC31
IC18
18
27
3031-1
FC54
3085-2
9014
10K
3021
3087 100R
FC23
100R
3C11
9025
100MHZ
5000
F 500mA
1000
441
5001
100MHZ
+5V2_CON
2075
100n
5003
30R
9021
54
+3V3_INTOTC
3051-4
36
FC30
IC05
3046-3
100R
3054-1
18
3078-1
470R
18
+5V2-STBY
54
81
3049-4
470R 3007-1
+5V2_CON
3054-4
45
4K7
3065
36
2060
100p
3029-3
54
PWM_BACKLIGHT
CON-SND
LIGHT-SENSOR
FRONT-DETECT
3050-4
IRQ-FTV
IRQ-FTV
SEL_IN_2
LED2
D(8)
D(2)
D(5)
D(4)
D(3)
A(4)
A(0)
D(7)
D(10)
CVBS-Y-RECORD-IN
SOUND-ENABLE
RESET-AUDIO
HD100
KEYBOARD
STANDBY
HD3-EPLD
VD-EPLD
D(5)
D(6)
D(7)
D(8)
D(15)
A(8)
A(10)
A(16)
DD(6)
D(0)
DD(7)
AA(7)
AA(2)
AA(4)
AA(6)
AA(8)
A(0) AA(0)
A(2)
A(1)
A(7)
A(3)
A(5)
A(9)
A(10)
A(1)
A(0)
SW_WE
D(15)
A(11)
A(15)
D(9)
SW_OE
SW_CS
AA(0)
A(17)
A(18)
D(9)
D(0)
D(1)
D(10)
D(11)
D(12)
D(13)
D(14)
D(2)
D(3)
D(4)
D(5)
D(4)
D(3)
D(2)
D(14)
D(13)
D(12)
D(11)
D(10)
D(1)
D(0)
A(9)
A(8)
A(7)
A(6)
A(5)
A(4)
A(3)
A(20)
A(2)
A(19)
A(18)
A(17)
A(16)
A(15)
A(14)
A(13)
A(12)
A(11)
AA(16)
AA(10)
A(12)AA(12)
AA(11)
A(4)
A(6)
A(3)AA(3)
A(5)AA(5)
AA(17)
A(1)AA(1)
A(7)
A(2)
A(8)
AA(18)
A(19)AA(19)
A(20)AA(20)
VPP-SW
D(8)
D(7)
D(6)
DD(13)
DD(5)
DD(12)
DD(11)
DD(2)
DD(3)
DD(10)
DD(1)
DD(9)
DD(0)
DD(8)
DD(14)
DD(15)
A(14)AA(14)
A(13)AA(13)
AA(15)
EP_WE
EP_OE
EP_CS
FBL-TXT
B-TXT
R-TXT
G-TXT
RESET
+5V2_CON
AA(2)
A(9)AA(9)
DD(4)
RxD
TxD
2FHG-GFX
2FHB-GFX
2FHFB-GFX
2FHR-GFX
VPP-EPG
AA(6)
AA(5)
AA(4)
AA(3)
AA(1)
DD(14)
DD(13)
DD(12)
DD(11)
DD(10)
DD(9)
DD(8)
DD(7)
DD(6)
DD(5)
DD(4)
DD(3)
DD(2)
DD(1)
DD(0)
AA(17)
AA(16)
AA(15)
AA(14)
AA(13)
AA(12)
AA(11)
AA(10)
AA(9)
AA(8)
AA(7)
TxD
RxD
STATUS-SC3
STATUS-SC4
AGC-MONITOR
STATUS_SC3
HFB
SDA-S
SCL-F
+5V2_CON
SDA-F
SCL-S
AA(20)
AA(19)
AA(18)
DD(15)
WE
CASH
CASL
RAS
POR_FLASH
P50
ROM_OE
RAM_OE
ROM_CS
RAM_CS
HD@HOME
SCL-F
SCL-S
SDA-F
SDA-S
VSYNC
RAS
RAM_OE
CASL
D(15)
D(6)
D(1)
D(12)
D(11)
D(13)
D(9)
D(14)
AA(14)
AA(18)
A(6)
SEL_IN_1
+5V2_CON
RC
CASL
CASH
WE
AA(5)
AA(7)
AA(8)
AA(9)
AA(11)
AA(13)
AA(15)
AA(17)
AA(19)
AA(16)
AA(12)
AA(10)
AA(6)
AA(4)
AA(20)
DD(15)
DD(14)
DD(13)
DD(9)
DD(7)
DD(5)
DD(3)
ON-OFF-LED
RAS
RAM_OE
WE
CASH
DD(1)
DD(10)
DD(11)
DD(12)
DD(2)
DD(4)
DD(6)
DD(8)
IRQ-DIGITAL
DD(0)
AA(3)
RESET
CVBS-TXT
+5V2_CON
+8V_CON+5V_CON
EAn
AA(2)
AA(1)
AA(0)
E_14620_092.eps
070704
8204 000 8344.3
Circuit Diagrams and PWB Layouts 67FTL2.xE AA 7.
SSB: Backlight Control
*
*
*
***
*
*
*
*
FC72 B4
IC50 B4
IC51 B3
IC52 B2
B5a *
*
(
BACKLIGHT CONTROL
7020 B2
7021-1 B4
7021-2 B4
9019 C4
BACKLIGHT
4
A
D
A
B
C
D
2063 C3
3022 B1
3023 C1
3028 B2
3030 B2
3032 B2
3036 B4
3037 C4
3070 C3
)B4
CONTROL
1234
123
B
C
IC50
+5V_CON
IC52
IC51
+5V_CON
10K
3037
RES
+8V_CON
BC847BPN
7021-2
BC847BPN
7021-1
RES
2063
100n
RES
10K
3032
3036
4K7
4K7
3030
7020
BC847BW
4K7
3028
2K2
3023
1K2
3022
27K
3070
FC72
PWM_BACKLIGHT
ANTI-MOIRE
9019
E_14620_093.eps
160804
8204 000 8344.3
SSB: OTC-Flash
2
1
3EN2
3EN1
G3
2
1
3EN2
3EN1
G3
b5c(2x)
b5a,c(2x)
b5a,c(2x)
b5a,c(2x)
b5a(3x),c(2x)
b5a,c(2x)
b5a(3x),c(2x)
b5c(2x)
A
B
C
D
E
F
1402 C1
1404 B1
2C00 A2
2C01 B3
2C02 D3
b5a,c(2x)
b5a,c(2x)
b5a,c(2x)
3V3
SWITCH
B5a,c
b5c(2x)
b5c(2x)
1234
DOWNLOAD
b5a,c(2x)
b5a,c(2x)
b5a(3x),c(2x)
b5a(3x),c(2x)
b5a(3x),c(2x)
b5a,c(2x)
OTC-FLASH
FOR SOFTWARE
b5a,c(2x)
b5a,c(2x)
b5a,c(2x)
b5a,c(2x)
b5a,c(2x)
b5a,c(2x)
1234
A
B
C
D
E
F
b5c(2x)
SWITCH
0V1
SWITCH
3V3
b5a(3x),c(2x)
3C00 A2
3C01 A2
3C03 B2
3C04 D2
3C05 D2
3C06-1 C4
3C06-2 C4
b5a,c(2x)
b5a,c(2x)
b5a,c(2x)
b5a,c(2x)
b5a,c(2x)
b5c(2x)
b5c(2x)
b5a,c(2x)
b5a,c(2x)
3C06-3 C4
3C06-4 C4
3C07-1 C4
3C07-2 C4
3C07-3 D4
3C07-4 D4
3C08 B2
7017 B2
7018 B3
7019 D3
9C00 A2
9C01 C1
9C02 D1
FC62 F3
FC63 F3
FC64 E3
FC65 C1
FC71 B2
3C00
2K2
b5a,c(2x)
b5a,c(2x)
3C05
470R
3C04
10K
15
14
13
12
11
GND 10
19
1
VCC 20
7019
74LVC245APW
2
3
4
5
6
7
8
9
18
17
16
9
18
17
16
15
14
13
12
11
GND 10
19
1
VCC 20
7018
74LVC245APW
2
3
4
5
6
7
8
3C06-1
10R
81
3C03
10K
+3V3_INTOTC
3C07-2
10R
27
FC71
FC63
9C02 9C01
7017
PDTC144EU
2C01
100n
10R
3C07-1
18
2C02
100n
2C00
100n
FC62
3C08
10K
3C01
10R
3C06-4
10R
54
63
10R
3C06-3
SSSS8
1402 3C06-2
10R
72
FC65
FC64
45
36
3C07-4
10R
+3V3_INTOTC
10R
3C07-3
+3V3_INTOTC
9C00
1404
SSSS8
SW_WE
EP_WE
EP_CS
EP_OE
SW_CS
SW_OE
WP
WP
WE
RAM_CS
RAM_OE
ROM_CS
ROM_OE
SW_OE
SW_CS
EP_OE
EP_CS
SW_WE
EP_WE
VPP-SW
VPP-EPG
VPP-SW
SW_WE
EP_WE
EP_CS
EP_OE
SW_CS
SW_OE
VPP-SW
VPP-EPG
EAn
VPP-EPG
VCCW
WP
WP
WE
RAM_CS
RAM_OE
ROM_CS
ROM_OE
WE
RAM_CS
RAM_OE
ROM_CS
ROM_OE
VCCW
VCCW
E_14620_094.eps
070704
8204 000 8344.3
68FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
SSB: Audio Demodulator
I2SL/R
NICAM B
NICAM A
FM2
FM1 S1...4
interface
I2S
interface
ADR
DEMODULATOR
D/A
D/A
D/A
D/A
A/D
A/D
SCART 1
SCART 2
MONO
SCART 2
SCART 3
SCART 1
SCART-L
SCART-R
SCART-R
SCART-L
HEADPHONE L
NC
HEADPHONE R
HEADPHONE
IDENT
DSP
IDENT
LOUDSPEAKER
SCART 4
Switching Facilities
SCART
LOUDSPEAKER R
LOUDSPEAKER L
D/A
D/A
I2SL/R
MUTE
SOFT
+ LATCHES
SERIAL BUS DECODER
LOUDNESS
VOLUME+
LOUDNESS
VOLUME+
SUPPLY
INPUT
SELECTOR
MUTE
MUTE
B14d
B14b(2x)
4V2
E
F
G
H
I
A
B
F
G
H
I
1A00 G7
B6b,c
5V2
6V5
B14c,B15b,c
123456789
B6c
13
12
*
*
*
B6A(3X)B6C(3X)
2V7
B6a(3x),C(3x)
B15b,c
B2 , B3a
34567891011
C
D
E
B
C
D
B6a,B14d(2x)
*
B6a,B14d(2x)
B6a,B14d(2x)
6V5
5V2
B6c,B21
1A01 G7
2A00 A3
2A01 B2
2A02 B1
2A03 B2
2A04 B3
2A05 B1
2A06 B1
2A07 B2
10 11 12
2A11 B10
2A14 B13
2A15 B12
B14c
5V2
6V3
B2
B14d(2x)
B3a
3V9
2A16 B12
2A17 B7
2A18 B6
2A20 B11
2A21 B7
2A22 C10
2A23 C9
2A25 C11
2A26 C10
2A27 C7
12 13
A
2A32 D1
2A33 D2
2A35 D7
B14d
B6c
2A36 C9
2A37 D2
2A39 D2
2A40 D9
2A41 D9
2A42 D8
2A43 D8
2A44 D8
2A46 D2
2A47 I8
2A49 E2
2A50 E8
2A51 I8
2A53 E2
2A54 E8
2A56 E2
2A08 B2
2A09 B3
2A10 B13
2A66 G9
2A69 G9
2A70 G9
B6c
0V
B21
nc
B6c,B21
2A72 G9
2A74 G9
2A75 H9
2A76 H12
2A79 H3
2A80 I9
2A81 I10
2A83 I10
2A88 I11
2A89 I10
2A90 I10
2A29 C2
2A30 C11
2A31 D9
2A99 I3
2AA5 I6
2AA6 G6
B2 , B3a
2AA7 G6
2AA9 H7
2AB0 H7
2AB2 G4
2AB3 H3
2AB4 H5
2AB5 D8
2AB6 G4
2AB7 G3
2AB8 B12
3A00 B8
3A01 B8
3A03 B6
3A04 H4
2A59 F2
2A62 F2
2A64 G11
3A09 B8
3A11 B12
3A12 B11
B6a,B14d(2x)
B14d
3A13 B9
3A14 B10
3A15 B12
3A16 B13
3A17 C2
3A18 C11
3A19 C2
3A20 C10
3A21 B11
3A22 I3
3A23 D10
3A24 I8
3A26 D9
3A27 D10
2A91 I3
2A92 I6
2A95 I11
3A46 I3
3A47 H5
3A48 I4
B14b
B6a
B6c
B6a
B6a
B6c,B21
B2
B14b(2x)
B15b
3A49 I3
3A51 I6
3A52 I3
3A53 I6
3A55 I4
3A60 I6
3A61 I7
3A62 I7
3A63 H7
3A64 I8
3A65 I8
3A66 C9
3A05 H8
3A06 I7
3A07 I8
5A03 B1
5A06 I11
5A19 D2
B6a,b,c
B15b,c
3V6
B6a,b,c
3V6
B6b,d
6A00 B7
6A01 I8
6A02 H8
7A00-A C12
7A00-B B13
7A01 B8
7A02 B3
7A03-A C10
7A03-B C11
7A04 I7
7A06 G10
7A07-A H3
7A07-B H6
7A08-1 I7
7A08-2 I7
3A28 D9
3A40 I6
3A45 H3
9A00 E11
9A01 E11
9A02 G12
B14c,B15b
B14d(2x)
B3a
B14b,d(2x)
B14c,B15b
B6a(3x),C(3x)
B5a,B14b
B14c,B15c
B6a,b,c
B21
B6c
B6a
AUDIO DEMODULATOR
9A03 G12
9A04 H1
9A05 H1
9A06 H1
9A07 G8
5A00 A1
5A01 B2
5A02 B1
9A12 H1
9A13 H1
9A14 I1
*
B6a,b,c
B6d
9A15 I1
9A16 I13
9A17 I13
9A18 B13
9A67 F2
9A71 G2
9A78 H7
9A79 H8
FA12 B12
FA13 B7
FA14 B8
FA17 B13
FA23 D9
FA24 D8
FA26 D2
7A09 I4
7A31-1 H8
7A31-2 H8
IA01 H6
IA02 H4
IA03 I7
6V5
C(3x)
B14c,B15b
B2
B15b,c
B6b
B14b,d(2x)
B6a
B2(2x)
IA04 B11
IA05 C10
IA06 C9
IA07 C7
IA08 D7
IA09 G6
IA10 A2
IA12 B2
9A08 G8
9A10 G1
9A11 H1
IA16 F2
IA17 F2
IA18 G2
B14c
B6b,d
B3a
*
B6a
B6c
B6a(3x),
IA21 I10
IA22 B8
IA23 D2
IA24 D2
IA25 C2
IA35 D7
IA36 E7
IA40 I8
FA27 E2
FA28 B3
IA00 H3
IA41 I8
IA42 I7
IA43 I6
IA46 I8
IA47 I8
IA48 I4
IA49 I4
cA01 H6
IA13 E2
IA14 E2
IA15 F2
IA02
A
IA03
+5V
3A06
100K
100K
3A07
9A79
9A78
4
22K
3A05
1
7A31-2
BC847BS
5
3
7A31-1
BC847BS
2
6
+11V_AUD
+8V
FA14
FA23
IA08
IA22
IA07
FA13
A
100K
3A63
+5V
1A01
18M432
DSX840
+11V_AUD
IA18
3A19
9A08
+11V_AUD
100R
9A07
2A09
10n
2A64
100n
3A03
6R8
5A01
30R
2A54
1n
100p
2A30
+5DA
A
+11V_AUD
1u
2A49
IA09
IA00
3
4
BC847BS
7A08-2 5
9A71
2AB3
1u
IA06
cA01
IA05
IA04
IA21
A
IA15
+5VF
3A27
4K7
2A80
1u
3A23
68K
IA17
+8VC
3A01
2K2
3A11
100K
100R
1u0
2A31
3A20
100K
3A16
RES
22u
5A19
3A48
100K
IA01
A
2A99
2A62
1u
+5V
1u0
FA24
FA27
A
IA13
FA26
IA14
2A22
1n0
2A01
100n
2A07
1n0
3A52
56K
3A17
2A14
1n
100R
5p6
2AA9
FA17
FA28
FA12
IA12
IA10
A
1u
2A08
47K
3A64
6
1
330R
3A55
BC847BS
7A08-1 2
CX-5F
1
4
2
3
9A04
LM833D
7A03-A
3
2
1
8
4
1A00
18M432
100n
2A21
1n
2A35
1n
+5DB
2AB2
A
+11V_S
SC2-IN-R42
SC2-OUT-L 26
25SC2-OUT-R
38 SC3-IN-L
SC3-IN-R39
SC4-IN-L35
SC4-IN-R36
63 STANDBYQ
53 TESTEN
56 TP
VREF1
27
19 VREF2
VREFTOP 46
54 XTAL-IN
55 XTAL-OUT
5
I2S-DA-O1
4
I2S-WS
15
I2S-WS3
MONO-IN47
58
59
64
22
13
24
16
RESETQ
SC1-IN-L44
SC1-IN-R45
SC1-OUT-L 29
SC1-OUT-R 28
SC2-IN-L41
CAPL-M 32
D-CTR-IO0
6160
D-CTR-IO1
DACA-L
18
DACA-R 17
DACM-L 21
20DACM-R
23 DACM-SUB
11 DVSS
10 DVSUP
1I2C-CL
I2C-DA
2
3
I2S-CL
14
I2S-CL3
6
I2S-DA-IN1
12
I2S-DA-IN2
62 ADR-SEL
8
ADR-WS
AGNDC 34
33 AHVSS
AHVSUP
31
ANA-IN-
51
ANA-IN1+50
ANA-IN2+52
43 ASG0
ASG1
40
ASG2
37
AUD-CL-OUT
57
48 AVSS
49 AVSUP
30
CAPL-A
7A02
MSP4450
ADR-CL
9
ADR-DA
7
A
3A13
3A14
47K
47K
2A74
47K
3A47
9A11 1u
1n
2AA6
10u
2A41
2AA7
1n
3A21
27K
2A90
22u
+8VC
IA25
IA16
+5DB
IA35
3A26
68K
100K
3A04
3A09
22K
1n
2A50
100n
2A40
1u
2A75
2AB7
1n
30R
5A00
9A12
1n
2A00
+5V
9A05
1
8
4
IA43
7A07-A
MC33178D
3
2
IA41
IA40
IA42
3A00
22K
1u
2A46
2A66
1u
2A39
9A03
1u
5A02
3A60
2A91
100p
100K
2A29
100p
6A00
PDZ-10B
1u
2A20
2A47
1u0
33K
4K7
3A28
3A18
IA23
7A04
IA24
100u
BC857B
9A00
2A18
6A02
BZX384-C3V3
6A01
BAS316
7A00-B
5
67
8
4
1u
2A04
LM833D
2A11
100n
9A14
2A32
100n
2A23
100u
2A15
100p
2AB5
2AB4
1u
7A00-A
LM833D
3
2
1
8
4
10u
100n
2A16
100K
3A66
1u
56K
3A53
5p6
2A59
7A01
2AB0
2A37
100p
BC847BW
4
1u0
2A26
LM833D
7A03-B
5
6
7
8
2A42
1u
2A56
5A03
10u
7A09
220p
2A95
BC857B
9A06
5A06
100p
2A36
3A51
3A15
100K
4K7
9A16
1u
2A02
1n
2A06
3A22
2A44
100n
100K
3A46
4K7
3A49
47K
9A10
2AB6
1n
9A02
2A81
2AB8
1u
2A70
1u
1n
9A15
2A92
1u0
100p
2AA5
100n
2A79
9A18
9A17
1u
2A89
3A12
47K
2A88
100n
3A65
1M0
330R
3A61
2A03
100u
1n
2A27
100n
2A83
MC33178D
7A07-B
5
6
7
8
4
2A10
100n
2A51
1u0
9A13
2A76
2A25
100n
1u
2A53
100p
SDA 4
VS
16
2A05
100u 16V
CREF
15
CSM 3
DGND 6
IN1L17
IN1R14
IN2L18
IN2R13
IN3L20
IN3R11
LOUDL
19
LOUDR
12
OUTL 2
OUTR 9
RECL
1
RECR
10
SCL 5
7A06
TDA7309
ADDR 8
AGND
7
3A45
47K
10u
2A43
9A01
3A24
180R
47K
3A40
1u
2A72
IA36
IA48
9A67
IA47
IA46
IA49
3A62
100K
RES
1u
2A69
1n
2A17
POR
SYS-RESET
100n
2A33
HEADPHONE-R
+5DA
+5DB
REF-AUD
SDA-F-AUD
SCL-F-AUD
DACM-SUB
HPN-R
SND-CENTER-IN
SUBW-SPI-SW
REG-SW
RESET-AUDIO
AUDIO-SW
AUDIO-R
AUDIO-L
SNDR-SC1-OUT-DC
SNDL-SC1-OUT-DC
QSS_AM
V-PIP+MAIN-OUT
U-PIP+MAIN-OUT
Y-PIP+MAIN-OUT
SNDL-MON-OUT
SNDR-MON-OUT
SNDL-SEC-IN
SNDR-SEC-IN
HEADPHONE-L
SYS-RESET
DACM-SUB
HPN-R
SNDR-DVI-IN
SNDL-DVI-IN
+5DA
HPN-L
REF-AUD
REF-AUD
SNDR-MAIN-IN
SNDL-MAIN-IN
SNDR-SC2-IN
SNDL-SC2-IN
SNDR-SEC-IN
SNDL-SEC-IN
HPN-L
MSP-CENTER
MSP-SURR
SCL-F
I2S-MSP-IN
I2S-DPL-OUT
SDA-F
SCL-F-AUD
SDA-F-AUD
I2S-MSP-WS
I2S-MSP-OUT
I2S-MSP-CLK
SYS-CLK0
REF-AUD
I2S-DPL-CLK
I2S-DPL-WS
Y50
U50
V50 IN-V50
V-PIP+MAIN-IN
Y-PIP+MAIN-IN
U-PIP+MAIN-IN
IN-Y50
IN-U50
HA50-PIP
HA50
VA50
VA50-PIP
E_14620_095.eps
070704
8204 000 8329.4
Circuit Diagrams and PWB Layouts 69FTL2.xE AA 7.
SSB: Dolby Digital Decoder
B6a,d
B6a(2x),C
AND
AUDIO DECODER
B6c
3A74 D7
3A77 E7
5A38 B8
7A30 B4
IA71 D7
IA72 D7
IA75 D7
2AD3 B4
2AD4 B6
2AD5 B5
2AD6 B6
2AE2 D8
2AE3 D7
2AE5 D7
2AF0 E6
2AF3 C8
2AF4 C7
B6c
DOLBY DIGITAL
DOLBY DIGITAL DECODER
9
123456789
A
B
C
D
B14b
B6a,d
3V1
12345
B6a,C
MPEG-1 LAYER-2
678
E
F
A
B
C
D
E
F
2AC1 B4
2AD0 B6
2AD1 B6
B6c
B6a(2x),C
B14b
B6a
B6c
4V9
2AD0
1n
1n
2AD5
2AF3
100u
2AE5
10n
2AE2
1n
IA72
IA71
A6
A4
+5V
10n
2AE3
A7
A5
1u
2AD1
+5M
A2
2AD4
1u
10n
2AF0
+5M
2AD6
1n
75R
3A74
100n
2AF4
A3
2AC1
220p
+5M
42
_RTR
41
_RTW
3A77
75R
26
SOI
17
SPDIFOUT
38
SPDI_1
40
SPDI_2
39
SPREF
44
SYNC
6
TE
2
VDD
1
VSS
9
XTI
10
XTO
23
XVDD
22
XVSS
_EOD
43
36
_PCS
5
_POR
18
PI4
24
PI8
37
PR
4
SCL
3
SDA
19
SIC
32
SIC_PI16
21
SID
30
SID_PI14
20
SII
31
SII_PI15
25
SOC
27
SOD
14
SOD1
15
SOD2
16
SOD3
7A30
8
AVDD
7
AVSS
13
CLKO
11
NC1
12
NC2
28
PI12
29
PI13
33
PI17
34
PI18
35
PI19
MAS3528E
2AD3
1u
IA75
+5M 30R
5A38
A8
I2S-DD-CLK
SYS-CLK1
I2S-DD-OUT
I2S-DD-WS
SCL-F-AUD
SDA-F-AUD
SYS-RESET
I2S-MSP-OUT
I2S-MSP-WS
I2S-MSP-CLK
SPDIF-IN1
SPDIF-BO-OUT
+5M
E_14620_096.eps
070704
8204 000 8329.4
70FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
SSB: Dolby Pro Logic Processor
A/D
DECODER
NICAM
Switching Facilities
IDENT
HEADPHONE R
SCART-L
SCART-R
SCART-R
SCART-L
D/A
D/A
LOUDSPEAKER R
SCART
D/A
SCART 4
A/D
SCART 2
D/A
LOUDSPEAKER L
D/A
DSP
I2SL/R
I2S INTERFACE
I2SL/R
FM1
HEADPHONE L
FM2
SCART 3
D/A
IDENT
LOUDSPEAKER
DEMODULATOR
NICAM B
NICAM A
HEADPHONE
SCART 1
AUDIO PLL
6V5
IA51 B11
IA52 B9
IA53 E12
IAA1 E12
IAA2 B8
IAA3 E9
IAA4 C9
B6b
IAA6 C11
IAA7 F11
IAA8 C6
IAA9 C7
IAB0 D7
IAB1 C9
IAB2 C12
3AB8 E10
3AB9 E9
3AC0 B12
3AC1 B11
7A61-A B12
7A61-B B10
7A62-A E12
6V5
B6b
7A63 C3
9A19 C13
9A20 D13
9A60 B8
9A61 F12
9A65 B10
IA50 D9
2AN0 E9
2AN1 E10
2AN5 D7
2AN6 D8
2AN7 G5
3AA0 B9
3AA1 D9
IAA5 D2
B6a(4x),C(2x)
3AA5 C12
3AA6 B9
3AA7 C12
3AA9 C11
3AB0 E11
3AB2 D9
3AB3 F12
3AB4 D9
3AB5 F12
3AB6 E10
3AB7 F11
2AL2 B11
2AL3 B9
2AL4 B11
2AL8 C12
2AL9 C12
2ALA F11
2AM0 C10
7A62-B D10
6V5
B6a,B21
B6a
B6a
2AM2 E11
2AM3 E7
2AM5 D9
2AM6 F12
2AM7 D8
2AM9 E12
11 12 13
A
B
C
D
3AA4 C10
6V5
B6a,B21
B6a
2AK5 B6
2AK6 D2
2AK7 D2
2AK8 B6
2AK9 B6
2AL0 B12
2AL1 B9
B21
B6a
2AM1 E13
0V2
B14b,e
B6a
B14b,e
B6b
234 567 8
E
B6b
B6a,b
3V8
F
G
H
2AK0 G5
2AK1 G5
2AK2 B7
2AK3 B7
10
B14b
B6a
1 234 567 89 10 11 12 13
1
B6a(2x),b
B6a(4x),C(2x)
B6a(2x),b
9
B6a(4x),C(2x)
DOLBY PRO LOGIC PROCESSOR
B6a,B21
F
G
H
A
B
C
D
E
2AK4 B6
3AB8
68K
100K
3AA5
3AB5
68K
2AN5
A
100n
A
2AM2
100n
2AK6
100n
IAA2
3AB0
47K
IAA8
+11V_AUD
+5DB
IAA9
2AK1
1n
3AB3
100K
IA52
IA53
IAB0
IA51
4K7
3AA9
2AL8
1u
A
A10
A11
68K
3AA7
2AN1
100p
LM833D
7A61-B
5
67
8
4
1n
2AL3
+11V_AUD
2AM1
100n
9A60
2AK9
10u
3AA1
18K
2AK0
1u
18K
3AC1
+11V_AUD
47K
3AC0
4
470n
2AL2
A9
7A61-A
LM833D
3
2
1
8
10u
2AN6
1u
2AK2
IAA6
2ALA
1n
+8VC
9A65
100p
2AM0
1n
2AL4
1n
2AK3
3AB2
47K
IAA1
A
10n
2AN7
IAA5
47K
3AA4
SC3-IN-L
39 SC3-IN-R
35 SC4-IN-L
36 SC4-IN-R
STANDBYQ 63
53
TESTEN
56
TP1
27
VREF1
19
VREF2
46 VREFTOP
54
XTAL_IN
55
XTAL_OUT
MONO_IN
58
NC1
59
NC2
64
NC3
13
NC4
22
NC5
24
NC6
16
RESETQ
44 SC1_IN_L
45 SC1_IN_R
29
SC1_OUT_L
28SC1_OUT_R
26SC2-OUT-L
25SC2-OUT-R
41 SC2_IN_L
42 SC2_IN_R
38
DACA-L
17DACA-R
23
DACM-SUB
21DACM_L
DACM_R 20
11
DVSS
10
DVSUP
1 I2C_CL
2 I2C_DA
3
I2S-CL
I2S-CL3
14
I2S-DA-IN1
6
I2S-DA-IN2|3
12
I2S-DA-OUT1
54
I2S-WS
I2S-WS3
15
47
AGNDC
33
AHVSS
31
AHVSUP
52 ANA-IN2+
51 ANA_IN-
50 ANA_IN1+
43
ASG0
ASG1
4037
ASG2
57
AUD-CL-OUT
48
AVSS
49
AVSUP
CAPL-A
30
CAPL-M
32
61
D-CTR-IO0
60
D-CTR-IO1
18
7A63
DPL4519G
ADR-CL
9
ADR-DA
7
ADR-WS
8
ADR_SEL
62
34
100p
2AL9
IAA4
3AB7
6K8
IAA7
IA50
+5DB
LM833D
7A62-A
3
2
1
8
4
1u
2AL1
1u
2AK4
6K8
3AA6
2AM7
1n
2AM5
470n
2AM9
100p
A15
A16
IAA3
2AM3
1n
A13
+5DB
3AB6
100K
4
47K
3AA0
LM833D
7A62-B
5
6
7
8
9A20
A14
47K
9A19
100n
2AM6
3AB4
100n
2AL0
IAB1
A12
+11V_AUD
IAB2
9A61
10u
2AK7
1n
2AK5
+5DA
10u
2AK8
3AB9
4K7
1u
2AN0
I2S-DPL-CLK
I2S-DPL-WS
SYS-RESET
SYS-CLK0
I2S-DD-OUT
I2S-DD-WS
SUBW
REF-AUD
I2S-DD-CLK
AUDIO-SW
SURR-R
AUDIO-R
SURR-L
AUDIO-L
SCL-F-AUD
SDA-F-AUD
REF-AUD
REF-AUD
AUDIO-C
I2S-DPL-OUT
SYS-CLK1
MSP-CENTER
MSP-SURR
E_14620_097.eps
070704
8204 000 8329.4
Circuit Diagrams and PWB Layouts 71FTL2.xE AA 7.
SSB: Audio Delay
C2
G1
1+
CT=0
CTR8
(CT=255)Z4
2D 3
4
EN3
C2
G1
1+
CT=0
CTR8
(CT=255)Z4
2D 3
4
EN3
FA03 D9
FA04 E6
9A75 D9
FA00 B9
FA01 E5
FA02 E5
9A21 D9
9A22 E9
9A23 E9
9A24 E9
9A25 F8
9A72 D9
9A73 D9
9A74 D9
B6a,b
B6a,b
AUDIO DELAY
B6a
12
6
2A19 F5
2A24 D8
2A34 D9
2A38 B9
2A45 B7
78 9
A
3A02 F5
3A67 E5
5A07 B9
7A11 A1
7A12 D1
7A13 E5
7A14 D7
7A15 D8
7A16 A3
C
D
E
F
2A12 B2
2A13 D2
345678 9
12345
FA01
B
C
D
E
F
A
B
FA02
2A19
27p
+5D
100n
2A13
2A12
100n
+5D
+5D
9A73
9A72
9A74
9A75
7
13
9
16
+5D
+5D
10
8
14
15
1
2
3
4
5
6
16
M74HC590T
7A12
11
12
15
1
2
3
4
5
6
7
13
9
M74HC590T
7A11
11
12
10
8
14
2A45
100n
+5D
FA00
2A38
1u0
27
WE_
FA04
9A23
2
A6
3
A7
4
A8
5
A9
20
CE_
14
GND
11
I|O0
12
I|O1
13
I|O2
15
I|O3
16
I|O4
17
I|O5
18
I|O6
19
I|O7
22
OE_
28
VCC
CY7C199B
7A16
21
A0
23
A1
6
A10
7
A11
8
A12
9
A13
10
A14
24
A2
25
A3
26
A4
1
A5
D6
9D7
11 E
10
GND
1
OE_
19
Q0
18
Q1
17
Q2
16
Q3
15
Q4
14
Q5
13
Q6
12
Q7
20
VCC
12
Q7
20
VCC
74HCT573
7A15
2D0
3D1
4D2
5D3
6D4
7D5
8
4D2
5D3
6D4
7D5
8D6
9D7
11 E
10
GND
1
OE_
19
Q0
18
Q1
17
Q2
16
Q3
15
Q4
14
Q5
13
Q6
74HCT573
7A14
2D0
3D1
7A13
BC847BW
FA03
3A02
47K
+5D
+5M 5A07
9A25
9A22
9A21
+5D
100n
2A34
2A24
100n
+5D
3A67
470R
I2S-MSP-IN
9A24
I2S-MSP-CLK
I2S-MSP-OUT
E_14620_098.eps
070704
8204 000 8329.4
72FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
SSB: DC/DC Converter
IU44 F11
IU45 F9
IU46 F5
IU47 F6
cU01 H12
1%
IU18 D11
IU19 C14
IU20 D10
IU21 D14
IU22 E12
0V7
B3e,B14a,B19b,B13c
IU25 H4
IU26 E2
IU27 G3
IU28 H2
IU30 C3
IU31 C2
IU32 E2
IU34 H6
IU35 G7
IU36 G9
IU37 G8
IU38 G9
IU39 G9
IU40 G10
IU41 H9
IU42 C6
IU43 E10
7U13-2 F4
FU03 B9
FU04 B9
FU05 C8
FU06 H6
1V7
1V6
21V4
FU07 H1
FU08 C9
FU09 D13
IU01 B2
IU02 C1
IU03 D1
IU04 E3
IU05 D3
IU06 D4
IU07 D4
IU08 C4
IU09 B4
IU10 A4
IU11 A5
IU13 D8
IU14 D6
IU15 A8
IU16 C11
IU17 D9
6U13 E10
6U14 H8
6U16 F7
6U17 D14
7U01 B2
3V4
7U02 C4
7U03 C7
7U04 C5
7U05 D9
7U06-A D12
7U06-B D12
7U07-1 G10
7U07-2 F8
7U08 D5
7U09 E1
7U10 G4
7U11 E3
7U12 H3
7U13-1 F5
3U66 F4
3U67 G5
3U68 G6
3U69 F6
3U70 C14
5U01 B8
5U02 A2
5U03 B7
5U04 C7
5U05 C12
5U06 D12
5U07 B8
6U01 A2
6U02 A8
6U03 A4
6U04 B5
6U05 B1
6U06 C9
6U07 D14
6U08 E3
6U09 E3
6U10 H1
6U11 H2
6U12 F93U37 G9
3U38 G9
3U39 G9
3U40 G9
3U41 H6
DC/DC - CONVERTER
3U42 H5
3U43 G6
3U44 D2
3U45 E2
3U46 C10
3U51 B5
3U52 F10
3U53 F10
3U54 H7
3U55 E9
3U56 B6
3U57 A6
3U58 G12
3U59 G12
3U60 F4
3U61 F5
3U62 F7
3U63 F6
3U64 F7
3U65 F5
3U18 E11
3U19 E8
3U20 E14
3U21 E2
3U22 E12
21V6
3U23 E14
3U24 G6
3U25 F2
3U26 H4
3U27 H10
3U28 E1
3U29 C2
3U30 C2
3U31 B2
3U32 H1
3U33 H2
3U34 H4
3U35 H5
3U36 H10
2U36 B6
2U37 B6
2U38 A3
2U39 F6
2U40 F3
3V4
2U41 F7
2U42 E6
3U01 C14
3U02 B1
3U03 C1
3U04 C2
3U05 C3
3U06 C12
3U07 C9
3U08 C11
3U09 C4
3U10 D14
3U11 D4
3U12 G10
3U13 D7
3U14 D1
3U15 D14
3U16 D11
3U17 D7
C
D
E
F
G
2U13 E14
2U14 B5
2U15 A1
2U16 C2
2U17 D5
2U18 B2
2U19 H2
2U20 H4
2U21 B4
2U22 H6
2U23 C13
2U24 G8
2U25 H5
2U26 H6
2U27 D2
2U28 E2
2U29 C9
2U30 C1
2U31 D13
2U32 C1
2U33 F10
2U34 G11
2U35 H8
12345
420
1%
6 7 8 9 10 11 12 13 14
A
B
2U11 E10
2U12 E7
1%
1
1%
1%
6V9
2 3 4 5 6 7 8 9 10 11 12 13 14
123
H
A
B
C
D
E
F
G
H
1U01 A1
2U01 A8
2U02 B9
2U03 B4
2U04 B5
2U05 C2
2U06 C3
2U07 C4
2U08 C8
2U09 D6
2U10 A3
GND_SUPPLY
7U03
SI4410DY 5678
4
6U05
BZX384-C12
2n2
2U37
BC857BW
7U05
2U12
10n
GND_SUPPLY
FU08
5
3
4
FU03
7U07-2
BC847BPN
1n0
2U24
BAS316
6U11
GND
22K
3U43
FU09
cU01
6U09
BAT54 COL
22n
2U34
PDZ-6.8B
6U07
3U28
47K
3U04
120R
3U03
33K
IU41
IU42
IU04
1500mAT
1U01
IU36
IU17
1K5
3U08
22u
120R
3U30
+11V
2U08
6n8
GND_SUPPLY
GND_SUPPLY
GND_SUPPLY
2U27
IU02
2U14
470n
22K
3U27 3U12
22K
10K
3U35
3U23
1R0
3U11
120R
3U05
1K0
3U53
IU22
18K
22K
3U39
22R
3U07
IU32
3U52
1K
GND_SUPPLY
GND_SUPPLY
IU44
3n3
2U32
47n
2U42
4K7
3U56
3U09
5K6
470n
IU26
2U09
1n0
2U04
3U14
1K
2U11
1n0
2U13
3U29
10R
5U02
10u
220n
IU03
FU07
res
STPS2L30A
6U02
2U05
1n0
82p
2U07
FU04
IU08
1u0
2U03
6U01
BAS316
2U23
100u
BC857B
7U01
6U13
1R0
PDZ-8.2B
22K
3U26
3U10
2K2
3U38
3U34
330K
GND_SUPPLY
22R
3U51
100R
3U67
1K0
3U65
3U66
10K
IU10
GND_SUPPLY
10K
3U42
IU35
3U02
1K0
2U29
330u 6.3V
GND_SUPPLY
7U06-B
BC847BS
5
3
4
res
1K0
3U41
GND_SUPPLY
3U40
150K
10u
5U06
10
IU34
res
5U01
51
6
GND_SUPPLY
GND_SUPPLY
IU31
GND_SUPPLY
100u
2U31
3U58
1R0
7U08
BC817-25
res
GND_SUPPLY
10K
3U57
1M0
3U44
GND_SUPPLY
7U02
BC857B
3U69
1K0
5U03
30R
IU39
IU45
IU43
2U38
220u 16V
res
3U20
1K0
120p
2U18
GND_SUPPLY
IU25
+3V3-ILINK
10K
3U33
270R
3U22
470n
2U21
7U11
BC847BW
1K0
3U64
3U68
10K
2K2
3U63
3U60
1K0
3U18
1K0
IU18
IU07
100n
2U36
res
2U01
2n2
3U46
47K
22u
2U06
BC817-25
7U09
100R
3U54
IU40
3U13
10K
22K
3U37
100n
2U19
2U25
100n
GND_SUPPLYGND_SUPPLY
IU20
GND_SUPPLY
GND_SUPPLY
3U36
2K2
IU21IU13
IU01
2U15
100u
IU14
GND_SUPPLY
1K
3U55
3U45
1M0
3U06
470R
GND_SUPPLY
GND_SUPPLY
6U03
BAS316
BZX384-C5V1
6U12
IU30
BZG05C3V9
6U06
3U31
120R
IU19
5U04
30R
3U17
4R7
+3V3_DCDCFBX
GND_SUPPLY
IU37
GND_SUPPLY
IU09
1u0
2U20
5U05
10u
GND_SUPPLY
GND_SUPPLY
2U22
1u0
GND-ILINK
IU11
47K
3U21
2
6
1
2U39
100n
BC847BPN
7U07-1
GND_SUPPLY
2U41
6n8
2U40
2n2
GND_SUPPLY
3U62
1K0
GND
6U14 BAV99 COL
2U30
120p
10K
3U61
7U13-2
BC847BPN 7U13-1
BC847BPN
BAT54 COL
6U08
3U24
22K
3K3
3U15
100n
2U26
IU28
7U10
BC847BW
IU38
47u
2U02
GND_SUPPLY
res
2U33
IU16
GND_SUPPLY
6U10
BZX384-C15
1u0
470n
2U17
2
6
1
IU05
220K
3U25
BC847BS
7U06-A
IU06
4n7
2U16
10u
5U07
3U70
1K0
2U10
22u
6U17
PDZ-6.8B
GND
+3V3_SIM
6U16
BZX384-C5V1
FU06
23
3U16
120R
SI4410DY
7U04
5678
4
1
FU05
IU15
IU46
3U32
18K
IU47
6n8
2U28
4K7
3U19
1R0
3U59
IU27
res
BC847BW
GND-ILINK
BAS316
6U04
7U12
2U35
1u0
1K0
3U01
GND_SUPPLY
GND GND
3V3_FAULT
GND_SUPPLY
E_14620_099.eps
070704
8204 000 8331.4
Circuit Diagrams and PWB Layouts 73FTL2.xE AA 7.
SSB: Main Tuner
MIX-OSC
PRE-FIL TRACK
FILTER
GAIN
CTRL
PRE-AMP
TRACK
FILTER
RF
MT
OUT
INTMED
FILTER
PRE-FIL BOOSTER
SPLITTER
MT
IN
RF
PLL
AGC
DET
IF AMP
RES
RES
B2
RES
B13b
FT50 B1
FT51 C2
FT52 D4
FT53 C6
FT54 D5
IT50 A1
IT51 D4
IT52 D5
IT53 C7
IT54 D7
MAIN TUNER
RES
RES
3T03 B1
3T05 C7
3T06 D7
5T20 B1
5T22 C5
5T25 C6
6T01 A2
6T03 B2
6T05 D6
6T08 D5
7T50 C6
9T01 A2
9T04 D4
9T05 E4
9T07 E4
9T08 E4
9T12 E7
9T14 C5
9T50 E7
AT00 E5
1234567
1234567
A
B
C
D
E
A
B13b
B
C
D
E
1T01 B3
2T01 B2
2T04 C5
2T05 B1
2T06 E4
2T09 D5
2T12 C7
2T13 B2
2T15 D5
2T17 D2
2T21 B2
2T22 B2
B2
1u
2T15
5T25
10u
2T09
22n
FT52
9T05
IT53
9T07
10K
3T05
AT0 0
IT50
IT54
+33V
9T01
9T12
17
NC1
6
10 NC2
4SCL
5SDA
2TU
8 ADC
1AGC
3AS
11IFOUT
12
13
14
15
16
1T01
UV1318ST/AIH-MK3
33V9
75V
2T06
10n
10n
2T17
2T01
220u
FT51
3T03
+5V
2T04
47n
9T50
FT54
BAS216
6T01
2T05
220u
FT53
3T06
10K
6T05
SML4752-33V
6.3V47u
2T22
6.3V220u
2T21
IT51
IT52
2T13
10n
FT50
6T08
PDZ-33B
100n
2T12
5T22
6T03
BAS216
5T20
SY
3TX
TY 5
8
VCC
P82B96TD
7T50
4
GND
2RX
6RY
1SX
7
9T14
9T04
9T08
AGC
S-SCL-PIP
SDA-S
SCL-S
IF-TER
S-SDA-PIP
E_14620_100.eps
070704
8204 000 8341.3
74FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
SSB: Sub Tuner
M
LL
H
M
H
PLL
34567
123456
2T03 B3
2T07 D4
B
C
D
E
2T10 D7
2T11 B4
2T14 B3
2T16 D7
2T18 D4
2T19 C6
2T20 B3
3T04 B3
5T02 C6
5T03 C7
5T04 B6
B13a
SUB TUNER
12
RES
B15A
9T06 D4
9T09 E4
9T10 E5
FT04 C4
FT05 D6
IT07 D4
IT09 C7
IT10 A3
IT17 B6
7
A
C
D
E
1T02 C4
2T02 D6
A
B
6T02 B3
6T04 B4
6T06 D6
6T07 D6
9T02 B3
9T03 D4
RES
RES
B15A
B13a
RES
33V5
5V1
IT18 D4
IT19 D5
IT19
2T02
PDZ-33B
6T06
+33V
47n
IT17
22n
2T10
FT04
IT18
10n
2T07
5T02
+5V
6
SCL4
SDA5
TU2
VS7
VST9
9T10
1
AS3
IF111
IF2|NC210
12 MT1
MT2
13
MT3 14
MT4 15
NC1
UV1318S
1T02
ADC8
AGC
IT07
2T19
220u
6.3V47u
2T11
2T16
1u
FT05
2T14
9T02
10n
2T18
10n BAS216
6T04
2T20
220u 6.3V
6T02
BAS216
3T04
IT10
9T03
9T06
IT09
PDZ-33B
6T07
5T04
220u
2T03
10u
5T03
9T09
AGC2
IF-TER2
S-SCL-PIP
S-SDA-PIP
E_14620_101.eps
070704
8204 000 8338.4
Circuit Diagrams and PWB Layouts 75FTL2.xE AA 7.
SSB: DC/DC Converter
OSC
Monitor
Protection & Ref
VREF
SS
OSC
EAREF
COMP
NC
VFB
GND
PGND
LGATE
PHASE
HGATE
BOOT
OCSET
VCC
PGOOD
1T04 E5
2T33 B4
2T34 B4
2T35 B4
2T36 C4
2T49 B6
2T50 C4
1234 8567
345678
1T03 E4
E
F
2T30 B4
2T31 B4
2T32 B4
2T51 E9
2T52 E7
2T37 D4
2T38 B7
2T40 B8
2T41 B8
2T42 C8
2T43 C8
2T44 D8
2T45 D8
2T46 B9
2T47 D6
2T48 E6
3T19 E7
3T20 D7
9
12
3T24 D7
3T25 C8
3T26 C7
3T27 B7
3T28 B9
3T29 B7
9
A
B
C
D
E
F
A
B
C
D
3T58 F7
3T59 F6
2T53 C7
2T54 A5
3T10 A4
3T11 A6
3T12 B6
3T13 B5
3T14 C4
3T15 C3
3T16 C4
3T17 D4
3T18 D6
5T15 D9
6T10 B6
IT42 B6
3T22 D7
3T23 E7
7T01-1 B7
7T01-2 C7
7T04 B5
7T10-1 C5
7T10-2 E6
7T11-1 A7
3T30 A7
3T31 A8
3T32 D8
3T33 B5
3T51 B5
3T52 F8
3T53 F8
3T54 F8
3T55 E8
3T56 E8
3T57 E7
IT00 A4
IT01 A4
B12
IT20 D8
IT21 C9
DC - DC CONVERTER
IT06 C5
IT08 C3
IT11 B7
IT12 C6
IT13 B7
IT15 C7
3T60 C7
5T10 B8
5T11 C8
5T12 B8
5T13 B8
5T14 D9
IT34 B7
IT41 C7
IT44 C4
IT45 B5
IT46 F7
6T11 A5
IT47 E7
IT48 E7
IT60 F9
IT61 F9
IT62 E8
IT63 C7
7T11-2 A6
7T12 F9
7T13-1 F7
7T13-2 E8
9T11 D4
FT10 C4
FT11 B7
FT12 C7
FT13 D9
FT14 E9
FT15 A7
IT16 A7
IT02 B5
IT04 B5
IT05 B5
IT22 E7
IT23 B9
IT24 B9
IT25 A8
IT26 A5
IT30 D5
IT32 E6
IT33 C8
IT43 A7
IT24
IT33
IT00
5T10
10u
2T46
1n0
2T41
IT21
+11V_DC
1n0
IT20
IT41
IT32
GND5V
IT30
100K
3T16
7T13-1
BC847BPN
2
6
1
BC847BPN
7T13-2
7T11-1
BC847BPN
IT25
FT12
IT43
6K8
IT16
3T25
10K
3T17
1u0
10R
3T28
1T04
2T52
GND-P
IT22
FT15
5T12 res
5T13 res
2T32
100n
2T33
100n
100n
2T35
5
3
4
GND-P
GND-P
7T11-2
BC847BPN
GND-P
100n
2T38
IT13
1n0
2T49
IT01
FT11
BC847BW
7T12
10K
3T56 3T55
10K
FT10
+11V_DC
3T10
10K
1K0
3T31
3T29
10K
3T15
10K
1K0
3T23
GND5V
GND5V
FT13
2T51
VDISP
5T14
1u0
9T11
5T15
BAS316
6T10
IT34
IT23
IT11
10K
3T54
IT12
IT15
6T11
IT26
2T50
10n
BZX384-C9V1
IT04
IT44
2T54
100n
2K7
3T18
1u0
2T36
22u
2T43
2T31
22u
22u
2T30
2T44
10n
2T42
22n
100n
2T48
10n
2T37
470p
2T47
2T34
1n0
GND5V GND5V
GND-P
2
6
1GND-P
GND5V
5
3
4
7T10-1
BC847BS
BC847BS
7T10-2
IT06
IT02
IT05
100n
2T40
3T11
10K1K0
3T12
10K
3T13
1K0
3T20
3K9
3T24
10K
3T30
IT46
3T53
470K
3T26
2R2
10R
3T27
1K0
3T32
IT08
330R
3T19
3n3
IT63 2T53
3T60
4R7
GND-P
FT14
2T45
10n
GND5V
GND5V
10R
3T33
IT42
10K
1T03
IT45
3T52
3T51
1K0
3T58
47K
3T59
10K
3T57
100R
4K7
3T22
7T01-2
SI4936ADY
56
4
3
7T01-1
78
2
1
3
2
13
9
10
4
15
6
1
SI4936ADY
12
5
8
7
11
14
16
L6910
7T04
IT47
47K
3T14
IT61
IT48 IT62
5T11
10u
IT60
3V3_FAULT
5V-ENABLE
E_14620_102.eps
070704
8204 000 8338.4
76FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
SSB: I/O1: MMC
9I01 B5
II09 C7
II10 D7
3IQ0 C11
II11 D6
II12 F6
*
*
*
*
II14 C10
II15 C11
II16 C9
IIC0 I10
IIC1 G7
IIC2 F7
IIC3 F7
IIC4 D12
IIC5 B7
IIC6 B5
IIC7 B3
IIC8 H4
IIC9 C10
IIG1 C11
IIG2 D9
7I60 G7
7I62 E11
9I00 A5
3IJ8 D12
res
9I02 F5
9I03 F5
9I15 F4
9I20 F7
9I21 G7
9I78 B5
9I95 B3
9I96 B3
II00 C4
II01 B4
II02 E4
II03 D4
II04 D4
II05 E4
II06 E5
II07 C7
II08 B6
3IP6 B10
3IP7 C9
3IP8 B11
3I16 C7
TO PIP/DW (HIP SUB)
3IQ1 C11
3IQ2 F8
3IQ3 G7
3IQ4 C11
3IT9 E10
5I01 I10
7I06 F8
7I24 C5
7I35 D10
7I36 C10
7I37 C10
7I38 C11
3I26 H7
3I27 F8
3IHG C12
3I01 B4
B
B2,B14b
RESERVED FOR MMC
3IK4 D3
3IK5 F3
3IK7 I4
3IK8 E7
3IN1 B11
3IP0 C9
3IP1 D9
3IP2 D10
3IP3 C12
3IP4 C10
3IP5 B10
3I13 C6
3I14 C7
3I15 C6
B
I/O1 :MMC
For US (AV3)
B14b,c
res
res
RES FOR MMC
3I17 D6
3I18 D7
3I19 D6
3I20 D6
3I21 F6
3I22 F6
3I23 E5
3I24 E5
3I25 E6
2IJ3 E8
2IJ4 C11
2IL0 B11
11
B2
B2
B14b
B
B5a,B14b,B15b
3I02 C4
3I03 B3
3I04 C3
3I05 C3
3I06 B5
3I08 E9
3I09 E4
3I10 B6
3I11 B6
3I12 B7
H
I
A
910111213
1
From Front
From Scart 4
B14b
B21
2I08 F5
2I55 I10
2I56 I10
2IA5 I4
2IA6 F7
2IE0 B5
2IG1 C9
2IJ0 F3
2IJ1 D3
2IJ2 F7
8910
B12
1
B14b,c(2x)
B15a
B15a
12 13
A
B
C
D
E
F
G
B15c
8
E
F
G
H
I
2I01 F4
234567
B15a
*
From HIP MAIN
B2,B14a,B15a
234567
B2
B2
(USA AV3)
C
D
From PIP/DW
2I02 B3
2I03 C3
2I04 D3
2I05 D3
2I06 E3
2I07 F4
B2,B14b,c (2x)
B21
B14b
2IG1
100n
res 100K
3I01
II13
II08
100u
2IA5
560R
3I11
220n
2IE0
res
3IK5
75R
IIC3
IIC1
+8V
2
2I06
220n
7I60
BC847BW
1
3
9I02
75R
3I06
220n
2I05
2IJ3
100n
9I78
3IQ2
75R
75R
3IP3
2IJ4
100n
3IN1
1K0
1K0
3IP8
OUT5
15
OUT6
16
SCL
4
SDA
2
SUB
7
VCC1
9
10p
2IL0
GND1
19
GND2
12
IN1
10
IN2
20
IN3
3
IN4
1
IN5
11
IN6
5
IN7
8
IN8
6
OUT1
13
OUT2
14
OUT3
17
OUT4
18
3I09
68K
7I24
TEA6415CD-TR
7I35
BC847BW
II16
IIC7
IIC6
res
2I01
100n
+8VA
res
68K
3I25
470R
3I20
3I05
+8VA
IIG2
100R IIG1
3I16
1K5
res
res
2I07
220n
BC847BW
7I38
II15
IIC4
2IJ0
470p
100R
3I19
3I21
100R
2K7
3IP7
2IA6
100u
IIC2
470R
3I12
res
II07
res
2IJ1
100p
3I26
1K0
II14
II11
BC847BW
7I06
68K
3I02
2I08
100n
3I04
100R
220n
2I02
3IP0
8K2
3IP4
270R
IIC0
560R
3I15
II02
II05
100K
3I24
4R7
3IK7
3I17
560R
7I37
BC857BW
+8VA
9I20
3I14
470R
res
+8VA
1K2
3IQ1
100n
2IJ2
II03
10n
2I55
res
6u8
5I01
3IP2
220R
II06
IIC5
9I15
+8VA
10n
res
II01
2I56
220n
2I03
II04
330R
3IT9
BC847BW
7I62
2I04
220n
res
9I96
3IP6
1K0
IIC9
3IP5
2R2
9I00
3I23
100K
9I03
3I08
330R
10R
3IQ0
1K
3I10
II00
9I21
3I03
75R res
3IQ4
1K2
res
+8V
9I95
II12
res
3IP1
2K2
3IK8
4R7 3I18
470R
res
75R
3IK4
1K0
3I27
II09
1K8
3IHG
II10
560R
1K0
3IJ8
470R
3I22
res
3I13
7I36
BC847BW
IIC8
75R
3IQ3
AV3-CVBS-IN
FRONT-Y-CVBS-IN
SC2-FBL
C-SC2_SVHS-IN
SC2-B_C-OUT
9I01
3V3_FAULT 3V3_FAULT_PIP
FRONT-C-IN
Y-CVBS-SC2_AV2-IN
SCL-S
SDA-S
PIP-OUT1
PIP-OUT
C-MMC-OUT
C-RECORD-IN
CVBS-Y-RECORD-IN
Y-CVBS-MMC-OUT
C-FRONT-IN
C-PIPDW-OUT
Y-CVBS-FRONT-IN
Y-CVBS-PIPDW-OUT
C-FRONT-IN
E_14620_103.eps
070704
8204 000 8340.4
Circuit Diagrams and PWB Layouts 77FTL2.xE AA 7.
SSB: I/O2: Connections
1I03 D3
1I04-1 A7
1I04-2 E7
1I05 F4
1I06 I4
1I08 D4
6 7 8 9 10 11
B14c
0V7
0V
0V
0V
B4,B21(2x)
B14b
TO B4
F
G
H
I
J
1I01-1 A3
1I01-2 E3
1I02 C6
H
I
J
A
B
C
D
E
12345678910111213
12345
B14d (2x)
1I09 H4
1I11 E9
1I34 A2
1I35 B2
1I36 C3
4V2
*
12 13
A
B
C
D
E
F
G
1I58 J3
1I71 C2
1I72 C2
1I73 D2
1I74 D2
1I75 D7
1I76 D8
2I11 H11
RES
B2
RES
4V9
4V1
4V2
4V2
4V2
3V6
B6c,B14c
B14b
B6c,B14c
B14b
2I36 J2
2I39 H11
2I46 B12
2I47 J13
2IA4 I12
2IC0 F2
2IC1 F2
2IC2 G1
5V2
1I37 B3
1I38 A3
1I39 A7
1I40 B7
1I41 C6
1I42 D6
1I43 D8
1I44 C8
1I45 C8
1I46 B8
1I47 A8
1I48 F4
1I49 G4
1I50 G4
1I52 H4
1I54 I4
3I56 C1
3I57 C2
3I58 C1
3I59 D2
3I60 D2
3I61 A4
3I62 B4
3I63 B4
B14b
B14d
B2,B14a 2I12 J12
2I15 G13
2I16 A1
2I17 B1
2I18 B4
2I19 B4
2I20 C4
2I21 B6
2I22 A6
2I23 B9
2I24 B9
2I25 C9
2I26 F2
2I27 G2
2I28 G2
2I29 H2
2I30 I2
2I31 H2
2I32 H2
3I82 B8
3I83 C8
3I84 C8
3I86 D8
3I87 D8
3I88 D8
3I89 F2
3I90 F3
B5a,B21
B6b
B14a,c
2IC9 D6
2IH3 I13
3I07 I11
3I28 I1
3I34 I12
3I35 D9
3I36 J11
3I37 H12
3I38 J11
3I50 A1
3I51 A2
3I52 B1
3I53 B2
3I54 B1
3I55 C2
3IB4 B12
3IB5 B12
3IC1 C11
3IC2 I13
3IC3 I13
3IC4 B4
3IC6 A9
3IC9 F12
B14d
B14c (2x)
B14a
Multi Media Connector (MMC)
3I64 C4
3I65 D4
3I66 D3
3I67 D3
3I68 D4
3I69 A6
3I70 A6
3I71 B5
3I72 B6
3I73 B6
3I74 C6
3I75 C6
3I76 D6
3I77 D6
3I78 D6
3I79 A8
3I80 B8
3I81 C8
6I12 I12
6I13 J12
6I22 A2
6I23 A2
6I24 B2
6I25 B2
6I26 C2
6I27 C2
B
B14d
B14d
SCART2
3I91 F2
3I92 F3
3I94 G2
3I95 G3
3I96 H2
3I97 H3
3I98 J13
3I99 H2
3IA0 H3
3IA1 J13
3IA2 I2
3IA3 J2
3IA4 C11
3IA5 D11
3IA6 E11
3IA7 E11
3IA8 F11
3IA9 G11
3IB0 G11
3IB2 A4
6I49 C8
6I50 D8
6I51 D8
6I52 D8
6I53 F3
6I54 F3
6I55 F3
6I56 G3
B2
B14c(2x)
B2,B14a,c (2x)
B14d
3ID0 B11
3ID1 F13
3ID7 I12
3ID8 J10
3IH1 H13
3IK2 A9
3IK3 B9
3IN5 A4
3IN6 B4
3IS2 B9
3IT0 F2
3IT1 G2
3IT2 G2
3IT3 H2
3IT4 I2
3IW4 H13
3IW5 H13
6I10 F13
6I11 H12
7I04 F11
7I05-1 H11
7I05-2 I11
7I07 B11
7I09 B11
7I21-1 F13
7I21-2 F13
7I44-A J12
B14b
6I28 D2
6I29 D2
6I30 A3
6I31 B3
6I32 B3
6I33 B3
6I35 D3
6I36 D4
6I37 A6
6I38 A6
6I39 B6
6I40 B6
6I41 C6
6I42 C6
6I43 D6
6I44 D6
6I45 A8
6I46 B8
6I47 B8
6I48 B8
9I19 D9
9I22 I7
9I39 B6
9I50 H11
9I51 F12
9I60 I7
9I92 H9
9I93 H7
B14b
VARIABLE LEVEL
B15a
B14a
B5a,B6a
6I57 G3
6I58 H3
6I59 H3
6I60 H3
6I61 I3
6I62 I3
6I68 E4
6I69 J3
6I70 J3
6I75 D9
6I77 E8
6IA0 C3
6IA7 I12
7I01-A D11
7I01-B D11
7I02-A E11
7I02-B E11
7I03-A G11
7I03-B G11
9IA5 E12
9IA6 G13
9IA7 G13
9IB1 H6
9IB2 H6
FI10 J9
FI11 I8
FI12 I8
B14b(4x)
B14b
B14a,c (2x)
B14d
VARIABLE LEVEL
I/O 2 : CONNECTIONS
B14b,f
B2,B14g,B15a
B2,B14g,B15a
B2,B14g,B15a
7I44-B I13
7I49 H13
7I50-1 J11
7I50-2 I11
9I04 I7
9I08 I7
9I09 H7
9I10 I8
9I11 H7
9I12 J8
9I13 I1
9I16 C9
9I17 D1
9I18 D4
FI21 H8
FI22 H8
FI32 A2
FI33 B2
FI34 B2
FI35 C2
FI36 C2
FI37 C2
B6b
B6a
B15a
B6c
B15a
B2
B14b(4x)
B14b
b6a,B14d (2x)
B14c(2x)
B5a
B14b
B2
B14d
B14b(4x)
B14b
9I94 G9
9I97 I7
9IA4 E12
FI46 A6
FI47 B7
FI48 B7
FI49 B7
FI50 E9
FI51 C7
FI52 D6
FI53 D7
B14d (2x)
B14b(3x)
*
DOLBY DIGITAL
B15b,B5a,B14a
B14b,f
B
B14b(4x)
B14b
B14b(4x)
FI13 I8
FI14 H8
FI16 G8
FI18 G8
FI19 G8
FI20 G9
FI54 D8
FI55 C8
FI56 D8
FI57 B8
FI58 B8
FI59 A8
FI60 F4
B14b(4x)
B14b
B14a
B14b(4x)
b6a,B14d (2x)
B14c(2x)
B14b
B14d
SCART1
B14d(2x)
B14b
FI38 C2
FI39 D2
FI40 D2
FI41 A3
FI42 B3
FI43 B3
FI44 D3
FI45 D3
FI62 G3
FI63 H3
FI64 I3
FI68 J3
FI69 F9
FI91 G1
FI92 H1
FI93 H1
B14f
B14b
B14b
B5a,B21
B2
B14d(2x)
II26 B1
II27 C1
II29 B4
II32 A6
II33 B6
II34 D8
II35 B8
II36 B9
II37 A9
II38 E2
*
B
B14b
B14b
B15a
FI61 F3
B14b(3x)
IIA0 C1
IIA1 A4
IIA2 B4
IIA3 C7
IIA4 G2
IIA5 F2
IIA9 I12
IIB0 I11
FI94 I8
FI96 F9
FIA9 F9
FIC1 H8
II25 A1
IID6 I13
IID7 H11
IIG3 C11
IIG4 D11
IIG5 E11
IIG6 E11
IIG7 F11
IIG8 G11
IIG9 G11
IIH0 B11
IIH1 H13
IIH2 I11
II41 H2
II42 H2
II43 I2
II44 I11
II45 I12
II46 B12
II47 B11
II48 B11
II49 A12
SUBWOOFER
SURROUND
2I15
1u0
IID0 B10
IID1 H12
IID2 H10
IID3 I12
IID4 J11
IID5 J13
150K
100K
3ID1
3ID7
3ID8
100K
2
6
1
3IC9
22K
7I21-1
BC847BPN
FI41 IIA1
BC847BS
7I03-A 2
6
1
100R
3I28
6I58
75R
3I59
FI55
II26
BZX384-C6V8
6I41
1I52
1I58
BZX384-C6V8
6I61
+5V
FI12
68K
3IW4
9IA5
+5V2-STBY
3IW5
15K
BZX384-C6V8
6I37
9IA4
6I46
1I36
6I48
BC847BPN
7I05-1
100p
2I27
+5V2-STBY
47K
3IH1
270R
3I52
3
12
+5V2-APLOP
+5V2-APLOP
YKC21-3226
1I09
+5V
9I51
47K
6I10
BAS316
3IA9
1K0
IIB0
6I38
1K
3IA5
FI11
6I22
BZX384-C6V8
6I50
BZX384-C6V8
2IC9
220p
2I23
100p
II48
FI44
BZX384-C6V8
6I45
II46
II47
5
3
4
+11V_S
BC847BPN
7I21-2
9IA7
+5V
9IA6
9I18
9I92
II42
1K0
3IB0
FI57
II32
3IN5
22K
FI45
BZX384-C6V8
6I32
IID3
3ID0
4K7
22K
3I38
75R
3I88
270R
3I91
270R
3I94
3I79
100R
6I56
3I86
75R
FI33
1I35
3I75
100R
3I62
100R
FI39
II25
FI51
FI46
3IA4
1K
FI14
FI59
1I49
7I01-A
BC847BS
FI43
6I39
BZX384-C6V8
3I95
100R
3I71
270R
100R
3I90
BZX384-C6V8
6I57
6I59
BZX384-C6V8
6I52
BZX384-C6V8
10u
2I32
BZX384-C6V8
6I24
1I48
6I35
BZX384-C6V8
1I04-2
MT
HR-AG0741S-0
2223
6I23
FIA9
100p
2I18
FI50
100p
2I24
9I08
2I12
1u0
IIA9
II27
FI18
FI68
3IT3
47K
2IC1
10u
4
5
6
7
8
9
BZX384-C6V8
6I68
17
18
19
2
20
21
22
23
24
25
26
27
28
29
3
30
1I11
1
10
11
12
13
14
15
16
1I08
FI36
FI53
3I53
100R
3I54
100R
75R
3I66
BAS316
6I12
1I43
9I16
FI40
FI60
BAS316
6IA7
FI61
2I28
100p
100p
2I36
6I30
BZX384-C6V8
75R
3I67
100R
3I72
9I10
II34
7I02-B
BC847BS
100R
3I83
9I09
II38
22K
3I37
3IA7
1K0
1I41
10K
3I34
2I17
100p
3I58
100R
3I77
75R
6I55
BZX384-C6V8
IID5
2I31
10u
FI96
FI64
II45
1I76
6I43
BZX384-C6V8
6I49
BZX384-C12
1I40
9I19
100R
3I51
20
21
3
4
5
6
7
8
9
1I72
11
12
13
14
15
16
17
18
19
2
1I01-1
1
10
IIH2
IIH0
IIH1
IIG7
FI54
BZX384-C6V8
6I51
3IT1
47K
1I03
6I36
BZX384-C6V8
22K
3IA3
1n0
2IH3
3I73
100R
res
HR-AG0741S-0
MT
1I01-2
2223
FI32
6IA0
BZX384-C12
100R
3I97
2I20
330p
3I60
75R
3I55
75R
II43
IIA3
100R
3I65
FIC1
3K9
3I82
75R
3I84
1I54
FI92
100R
3IS2
FI19
100R
3I61
1I37
9I22
1I50
1I42
2I26
100p
100p
2I16
3I50
270R
FI37
3IC2
22K
75R
3I78
FI63
II35
9I97
BC847BS
7I02-A
9I93
9I13
3IA1
100K
270R
3I89
BZX384-C6V8
6I26
6I31
1I74
IIG4
FI69
6I69
BZX384-C6V8
1I75
1I34
2IC0
10u
22K
3IN6
100R
3IA2
FI91
6
7
8
9
3IC3
22K
16
17
18
19
2
20
21
3
4
5
1
10
11
12
13
14 15
1I04-1
3I07
10K
1I39
2I47
1n0
IIG3
1u0
2I11
FI58
BC847BS
7I01-B
8K2
3I81
IID4
FI13
3I36
22K
6I47
BZX384-C6V8
FI21
6I11
BAS316
FI38
7I44-A
BC847BS
2
6
1
PDTC144EU
7I49
9I60
IIG8
1I02
IIG6
IIG9
IIG5
100R
3I68
FI48
100p
2I29
FI42
7I07
BC869
BC847BW
7I04
+5V
+11V
6I40
1u
2IA4
2I30
100p
3I63
3K9
IIA4
II41
FI94
2I22
100p
100R
3I92
IIA5
3IB4
22K
3I98
100K
100R
3I56
100R
3IC6
1I38
3I64
8K2 2I19
100p
9I94
BZX384-C6V8
6I42
BZX384-C6V8
6I44
IID2
IID6
47K
3IT2
6I25
1K0
3IA8
7I09
BC847BW
1
3
2
7I03-B
BC847BS
5
3
4
FI16
6I70
100R
3I87
75R
3I57
270R
3I69
IIA0
22K
3IB5
6I54
10u
2IC2
FI20
FI22
FI56
6I33
9I04
100R
3I80
FI52
1K0
3IA6
3IK2
22K
II33
6I13
3I74
75R
BAS316
+11V_S
II49
3I70
100R
3I76
100R
6I75
6I77
BZX384-C6V8
BZX384-C6V8
47K
3IT0
6I62
BZX384-C6V8
6I29
1R5
3IC1
II29
6I28
res
9I17
BC847BPN
7I50-1
BZX384-C6V8
FI47
22K
3IK3
+5V2-APLOP
1n0
2I46
IIA2
IID7
IID0
IID1
6I27
BZX384-C6V8
3
12
47n
2I39
9IB1
1I06
YKC21-3226
9I39
100R
3IB2
7I44-B
5
3
4
II44
BC847BPN
7I50-2
BC847BS
270R
3I99
47K
3IT4
BC847BPN
7I05-2
FI10
1I47
FI93
9IB2
9I50
1I71
1I44
6I60
9I12
9I11
1I73
3
12
+5V2-APLOP
1I05
YKC21-3226
1I46
FI62
3I96
270R
330p
2I25
100p
2I21
3I35
1I45
100R
FI35
FI34
II36
II37
FI49
100R
3IC4
BZX384-C6V8
6I53
3IA0
100R
POR-LINEOUT
POR
SEL-SVHS-RR_STATUS2
CVBS-SC1_AV1-IN
SC1-STATUS
Y-CVBS-SC2_AV2-IN
C-SC2_SVHS-IN
POR-LINEOUT
RESET-AUDIO
CVBS-TER-OUT
SC1-FBL
IN-CVBS-SC1_AV1-SUB
CVBS-SC2_MON-OUT
SC2-R_C-IN
IN-Y-CVBS-SC2_AV2
SC2-B-IN_C-OUT
MMC-B
SC2-G-IN
MMC-G
SC2-R_C-IN_AV2
MMC-R
SC2-FBL
SPDIF-IN1
A-PLOP_E
SOUND-ENABLE
SURR-R
SND-CENTER-IN
A-PLOP
SC1-R
SNDL-BO-OUT
SNDR-BO-OUT
SPDIF-BO-OUT
SNDR-BO-IN
AR-SC1-IN
AL-SC1-IN
AR-SC2-IN
AL-SC2-IN
TER-CVBS-OUT-SUB
VD-ANA
2FH-VD100
HD-ANA
2FH-HD100
Y-CVBS-MMC-OUT
CVBS-Y-RECORD-IN
C-MMC-OUT
IRQ-DIGITAL
VD-ANA
HD-ANA
C-RECORD-IN
SNDL-BO-IN
SCL-S
SDA-S
SURR-L
SNDL-SC2-OUT
SNDR-MON-OUT
SNDL-MON-OUT
SC2-B_C-OUT
AP-FRONT-L
AP-FRONT-R
AP-SURR-L
AP-SURR-R
AP_SUBW
AP-FRONT-R
SC1-G
SNDR-SC2-OUT
AP-SNDR-SC2-OUT
AP-SNDL-SC2-OUT
SC2-G
AP-FRONT-L
AP-SURR-L
AP_SUBW
A-PLOP_E
A-PLOP
A-PLOP
A-PLOP_E
A-PLOP_E
AP-SNDR-SC2-OUT
A-PLOP
AP-SNDL-SC2-OUT
A-PLOP
AP-SURR-R
SUBW
P50
SC1-B
SNDL-SC1-OUT
SNDR-SC1-OUT
E_14620_104.eps
070704
8204 000 8340.4
78FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
SSB: IO3: Switch
MUXDX
MUXDX
MUXDX
MUXDX
MUXDX
H
I
A
B
C
D
E
F
G
H
I
1I07 I2
2I50 D3
2I57 H2
2I58 H3
2IA9 E9
2IC3 D12
2IR0 H7
1234567891011121314
1234
B6a,B15b
*
B2
B14c(2x),f,g,B15b
B14c(2x),f,g,B15b
567891011121314
A
B
C
D
E
F
G
1I68 I2
1I69 I3
2I49 D7
B14g(2x)
B2,B15a
B6a,B15b
B14a,b
B14c,B19a
B6a,B15b,c
2IR1 H12
3I85 B1
3I93 C1
3IC8 B4
3ID5 B3
3ID9 C4
3IE2 G3
3IE3 G2
3IE7 D3
3IE9 G2
3IF5 G3
3IF6 H3
3IF7 H2
3IFA G6
B14c,B15b
RESERVED
B2,B14a,b,c
3IFB H6
3IFC H6
3IFD H11
3IFE I8
3IFF G11
3IFL I8
3IH7 D4
3IL1 A8
3IL3 B8
3IL8 C8
3IM0 C8
3IM4 D8
3IN0 D8
3IN2 B2
3IN3 C2
*
B2
B15a
*
*
B2
2FH
3IN4 E9
3IN8 E3
3IO5 B11
3IO6 A11
3IP9 D1
3IS4 B2
6I90 H2
6I91 H2
6I92 H3
6I93 H3
7I12 C3
7I26 B8
7I27 B4
7I28 C8
7I29 D4
B14b,c
RESERVED
B14g,B19a
B14g(2x)
7I30 D8
7I31 E4
7I32 D12
7I33 C7
7I80 H7
7I81 H12
7I82 I8
9I25 D7
9I26 D7
9I27 D7
9I37 A7
9I41 A12
9I42 B11
9I59 A7
9I61 A7
9I62 E2
9I63 D2
9I64 D2
9I65 A2
9I66 A2
9I67 A2
9I79 A12
9I87 G6
B2
B14c(2x),f,g,B15b
B14b,c
B14b,c
RES
B15a
B15a
B14b,c
B14b,c
9I89 G6
9I90 H6
9IA2 B11
9IF0 F7
9IF1 I7
9IF2 I7
9IF3 I12
9IF4 F12
FIB0 I2
B2,B14a,b,c
B14b,c
B14c(2x),f,g,B15b
B14g(2x)
*
*
*
B14a,b,c
B6a
FIB1 I3
II39 G12
II50 H2
II51 H3
IIB1 E9
B14b,c
B6a,B15b
B14c(2x),f,g,B15b
IIB2 H2
IIB3 H3
IID8 G6
IID9 G6
IIE0 H6
IIE1 H11
IIH3 I8
B14a,b,c
I/O3 : SWITCH
B2
B14b
B6a,B15c
*
**
*
*
3ID5
10R B14c(2x),f,g,B15b
B15a
B14c,B15b
*
*
*
*
*
B6a
B14b,c
*
*
2IR0
100n
100n
2I50
10R
3IN8
10K
3IO6
100p
2I58
FIB1
+5VIO
res
9IF4
3IF6
IID8
100R
12
1y0
13 1y1
14
2y0
2
12y1
15
53y0
33y1
4
6
G3
8
GND
16
VCC
7
VEE
11
10
9
74HC4053
7I12
+5VIO
BC857BW
3IE9
22K
7I27
9IF2
res
IIB1
75R
3IN3
res
5
3y1
3
4
G3 6
GND
8
VCC
16
VEE
7
11
10
9
7I33 74HC4053
1y0
12
1y1
13
14
22y0
2y1
1
15
3y0
10K
3IO5
75R
3IP9
res
9I64 res
BC857BW
7I26
+5VIO
560R
3IL1
res
res
9IF1
22y0
2y1
1
15
3y0
5
3y1
3
4
G3 6
GND
8
VCC
16
VEE
7
11
10
9
9IF0
+5VIO
7I80
74HC4053
1y0
12
1y1
13
14
II39
7I29
BC857BW
3IE7
10R
3IC8
560R
BC857BW
7I31
560R
3IH7
9I59
res
BC857BW
7I30
560R
3IM4
22K
3IF5
+5VIO
10R
3IN0
3I93
75R
res
+5VIO
9I61
res
10R
3IL3
res
2IC3
100n
IIE0
9I79
75R
3IS4
res
3IN2
75R
res
100u
9I66
res
2IA9
IIE1
100K
3IFD
9I90
res
9I89
9I87
+5VIO
9I62
7I28
BC857BW
4K7
3IFE
res
VEE
7
11
10
9
FIB0
1y0
12
1y1
13
14
2y0
2
2y1
1
15
3y0
5
3y1
3
4
G3 6
GND
8
VCC
BC847BW
7I32
74HC4053
7I82
3ID9
560R
+5VIO
res
9IF3
3IFC
100K
res
75R
3I85
res
3IL8
560R
+5VIO
3IM0
10R
6I93
2I57
100p
II51
100R
3IE3
6I92
BZX384-C6V8
1I68
3IN4
2R2
9I25
+5V
+5VIO
IIB2
6I91
IID9
3IFB
res
100K
res
100K
3IFF
+5VIO
res
9IA2
3IFA
100K
res
9I37
RES
9I63
res
1I69
IIB3
+5VIO
2IR1
100n
100R
3IE2
II50
9I65
res
2I49
100n
9I67
YKC21-3226
3
1
2
res
1I07
BZX384-C6V8
6I90
RES
9I27
9I42
res
3IF7
100R
+5VIO
+5VIO
9I41
res
RES
9I26
IIH3
1K0
3IFL
12
1y0
13 1y1
14
2y0
2
12y1
15
53y0
33y1
4
6
G3
8
GND
16
VCC
7
VEE
11
10
9
SWITCH-MAIN
TRI-STATE-DVI
TRI-STATE-DVI
R-SC1_V-IN
B-SC1-IN_U-IN
G-SC1-IN_Y-IN
SUB-V
SWITCH-SUB
SUB-Y
SUB-U
74HC4053
7I81
G-VGA
R-VGA
TRI-STATE-DVI
V-PIP+MAIN-OUT
Y-PIP+MAIN-OUT
U-PIP+MAIN-OUT
HS-2FH
VS-2FH
VA50-PIP
HA50-PIP
SC2-FBL
FBL-SC1-IN
SC1-G
SC2-B_C-OUT
SC1-B
SC2-G
SC1-R
C-SC2_SVHS-IN
C-SC2_SVHS-IN
SC1-G
SC2-G
SC1-B
SC2-B_C-OUT
B-VGA
SWITCH-SUB
SWITCH-MAIN
SWITCH-MAIN
SNDR-DVI-IN
SNDL-DVI-IN
SC1-FBL-IN
SC2-FBL-IN
SC1-FBL
SC1-R
E_14620_105.eps
231204
8204 000 8340.4
Circuit Diagrams and PWB Layouts 79FTL2.xE AA 7.
SSB: I/O1: Audio
MUXDX
NC
SUPPLY BUS DECODER
B14b.d
B6a,B14b,B14d
IIE7 A4
B6a,B14d
I/O4 AUDIO
B6a , B14d
B6a
B14b.d
B14b.d
IIE2 B9
IIE3 D10
IIE4 F7
IIE5 E7
IIE6 E2
B5a
B6a,B14d
B6a
B14b
B6a,B14b,B14d
B14b
7I17 B2
7I20 C12
7I22 C10
7I23-1 H7
7I23-2 G7
B14b
B14b
9I30 E5
9I31 E5
9I32 E5
9I33 E5
9I34 E5
9I35 E5
9I57 E12
9I58 E12
9I68 F8
9IA1 B3
9IA3 D3
II67 C10
II69 G7
II70 H7
II72 C2
2IA2 F7
3I39 E2
3I43 A4
3IH8 C10
3IH9 E7
B14b
B6a , B14d
B14e
B14d,B21
3II0 C10
3II1 C10
3II2 D10
3II3 D10
3II4 F7
3II5 H7
3II6 H7
3II7 H7
3IJ0 C4
3IJ1 C5
3IJ2 F7
3IJ3 G7
3IJ4 G7
C
D
E
F
G
B6a ,B14d
B6a , B14d
B6a (2x),B14d
B6a,B14b,B14d
B5a
B6a,B14d
B6a (2x),B14d
2I84 E3
2I85 D3
2I99 E7
2IA0 B10
2IA1 D10
45678
B14b
9 10111213
A
B
C
D
E
F
G
H
A
B
8 9 10 11 12
B14b.d
B14b
B14d,B21
B14b.d
B14b.d
13
123
2I78 C2
2I79 C2
2I80 E2
2I81 D3
2I82 E3
B6a
B14b,d
1234567
B6a,B14b,B14d
B14d,B21
B6a (2x),B14d
B6a (2x),B14d
B14b
B15a
B15b
H
2I13 E2
2I14 B4
2I71 B2
2I72 B3
2I73 B3
2I75 B3
2I76 B3
2I77 C1
B14d,B21
B14b,d
RES
B6a , B14d
IIE6
3IJ0
100R
2I73
1u
2IA1
1u
2I84
10u 16V
8
21
22
25
R1 R2
24 23
R3 R4
20 19
R5
18
R6 ROUT1 13
15ROUT2
17ROUT3
SCL 27
28SDAVS3
26ADDR
CAP2
1 GND
4
L1
5
L2
6
L3
9
L4 L5
10 11
L6
12LOUT1
LOUT2 14
16LOUT3
7
3II4
47K
7I17
TEA6422D
2I99
10u
1y0
1y1 13
14
2
2y0
2y1 1
15
3y0 5
3
3y1
4
G3
6
GND
8
VCC
16
VEE
7
11
10
9
2
6
1
7I20
74HC4053
12
BC847BS
7I23-1
22K
3II2
9I58
3II6
IIE3
2IA2
22K
9I32
10u
2I79
22u
3II3
47K
9I34
9I30
10K
3II0
2I82
1u
7I22
9I35
BC847BW
9I57
9I31
9IA1
2I72
1u
2I85
1u
2I76
3II7
22K
1u
+5V
+8V
II72
3II1
22K
9I33
2I77
1u
+8V
2I71
1u
10n
2I13
IIE4
IIE2
47K
3IH9
2I78
1u
IIE5
+5V
II67
9IA3
3I39
4K7
3IJ1
9I68
2I14
100R
10n
10K
3II5
3IH8
47K
+8V
IIE7
II69
3IJ4
22K
RES
10K
RES
3IJ2
3IJ3
22K
RES
2I80
1u 2I81
II70
16V
2IA0
1u
10u
3I43
4K7
BC847BS
5
3
4
2I75
1u
7I23-2
SDA-S
SCL-S
SNDL-BO-OUT
SNDL-BO-IN
SNDL-SC2-OUT
SNDR-SC2-OUT
SNDR-SC1-OUT
SNDL-SC1-OUT
TRI-STATE-DVI
R-FRONT-INL-FRONT-IN
SNDR-SEC-IN
SNDL-SEC-IN
SNDR-MAIN-IN
SNDL-MAIN-IN
SNDL-MON-OUT
SEL_IN_2
SEL_IN_1_B
AL-SC2-IN
AR-SC2-IN
AR-SC2-IN
AL-SC1-IN AR-SC1-IN
SNDR-BO-IN
SNDR-BO-OUT
SNDL-SC1-OUT-DC
REG-SW
SNDR-MAIN-IN
SNDR-SEC-IN
SNDR-SC1-OUT-DC
SNDR-MON-OUT
SNDL-MON-OUT
SNDL-MAIN-IN
SNDL-SEC-IN
L-FRONT-IN
R-FRONT-IN
AL-SC1-IN
AR-SC1-IN
AL-SC2-IN
SNDL-SC2-IN
SNDR-SC2-IN
SNDR-MON-OUT
PIP-AM
PIP-FM
SNDR-SC1-OUT-DC
SNDL-SC1-OUT-DC
SEL_IN_1
E_14620_106.eps
070704
8204 000 8340.4
80FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
SSB: I/O5
NC
RES
B21
RES
IIE9 G9
B5a
B21
B14d
B5a,B14e,B21
B21
B5a
FIC5 F2
II75 D4
II76 D3
II77 C4
II78 D2
II79 A12
II80 D1
II81 B11
II82 A11
II83 D4
RES
B21
NC
RES
7I08 A4
7I10 D10
IIF1 B13
IIH4 A11
IIH5 B11
B6c,B14b
7I15 D4
7I16-1 E3
7I16-2 E1
7I40 C11
7I45 C8
7I46 C10
9I05 F10
9I06 F10
9I99 B12
9ID0 G8
FI15 G2
FIC4 F2
5I06 F2
5I10 C5
5I21 F8
5I22 G2
5I45 F5
5I46 F5
5I47 F6
II84 D3
II85 D10
II86 C5
II87 C6
II88 B12
II89 E11
II95 E12
II96 D9
IIE8 G8
B5a,B14e,B21
T3A 420
B6c,B14b
3IGE C11
3IGF C11
3IGH G8
3IH0 A12
3IH2 B11
3IH4 B12
3IS3 H9
3IS6 H9
3IW3 B5
3IW9 B5
7I11 G8
7I13 D5
7I14 A11
RES
RES
I/O5
RES
NC
3ID2 C4
3ID3 A12
3ID4 B12
3ID6 C6
3IE0 A11
3IF0 F8
3IF1 D1
3IF2 D2
3IF3 D2
3IF4 D3
6I03 F12
6I04 D12
6I05 C5
NC
SENSOR
3IGB B12
3IGC A11
3IGD A11
2IK5 G5
2IK6 G5
2IK7 G6
2IS6 H4
3I00 G8
3IB1 D11
3IB3 D11
3IB6 D8
3IB7 C9
3IB8 G10
5I02 D9
5I04 D10
5I05 F2
3IC7 B10
5678910111213
A
3IF8 D4
3IF9 D3
3IGA A122I60 D2
2I62 G10
2I64 G9
2I65 F2
2IA3 F8
2IB7 C4
2IJ5 C6
2IJ6 H9
2IJ7 H9
1I79 H3
1I99 H1
1M15 F1
2I00 G2
2I10 A3
2I33 C9
2I34 D10
2I37 A10
2I38 F2
2I40 C10
3IB9 G9
3IC0 C9
3IC5 B9
SERVICE
CONNECTOR
B21
B21
5678910111213
1234
1234
TEMPERATURE
E
B
C
D
F
G
H
A
B
C
D
E
F
G
H
1I10 F1
1I12 F1
2I48 D3
2I52 C5
2I59 D11
B21
47K
3IGD
3IC5
220R
3IC0
1K0
3IB6
1K0
100R
3IW3
*
VCC
8
II88
7I10
*
EN5
GND
4
NC 1
SCL02 SCL1 7
SDA03SDA16
PCA9515DP
2IJ5
100n
II79
100R
3IS3
II87
100p
2IJ6
31
K
2
R
2I37
1u0
TS2431
7I45
A
100K
3IGH
3IH2
47K
*
9ID0
100u
2IS6
+5V
1I79
3000mAT
16V
2K2
3IF8
3ID6
2K2
10K
3IGE
*
4K7
3IGB
*
+3V3_SIM
3ID4
4K7
2
6
1
7I16-1
BC847BS
1M15
S3B-EH
1
2
3
3IGC
10K
3IB3
10K
*
1n0
2IA3
+8V
7I16-2
BC847BS
5
3
4
1I12
BAV99 COL
*
6I04
+11V_S
+5V2-STBY
BC847BW
7I11
3ID2
1R
2IJ7
100p
2I64
100p
100R
3IF0
II80
FIC5
RES
2I52
220p
*
FIC4
10K
3IB1
100p
2I00
47K
3IE0
BC847BW
7I14
*
3IW9
100R
IIH5
+5V2-STBY
IIE8
1u0
2I40
*
470R
1I99
EMC HOLE
II95
3IF4
+11V
*
+5V
II96
100n
2I10
*
+5V
5I45
30R
100n
2I59
6I05
BAS316
3IH0
4K7
1I10
II83
5I02
*
30R
5I47
BC847BW
7I40
*
+11V_DC
5I05
BC817-25W
7I13
II78
II75
3IB8
10K
IIH4
IIE9
+5V2-STBY
+33V
+3V3_SIM
100n
2IK5
3IGF
47K
*
2I65
100p
5I06
100n
2IK7
9I06
2K2
3IH4
+5V
5I21
30R
+8V
+5V
6I03
BAV99 COL
*
9I05
FI15
30R
5I46
8
+VS
7A0
6A1
5A2
4GND
3
OS
2
SCL
1
SDA
LM75ADP
7I08
*
+11V_SF
30R
5I22
3IS6
100R
+5V 10K
3I00
II84
II77
+3V3_SIM
10K
3IF3
100p
2I62
2IB7
100n
2IK6
100n
II89
5I04
+5V2-STBY
BC847B
7I46
16V10u
2I34
2I33
1n0
3IB7
330R
3IC7
220R
II76
1n0
2I60
II85
100p
2I38
+5V
2K7
3IF2
1m0
5I10
3IGA
4K7
II86
470R
3IF1
2I48
1n0 BC847BW
1
3
2
3K3
3IF9 7I15
II82
4K7
3ID3
IIF1
9I99
II81
CPU-GO
PDP-GO
100R
3IB9
SDA-DISP
SCL-DISP
STATUS-SC3 STATUS-SC3-F
SCL-S
SDA-S
SDA-SF
SCL-SF
SDA-S
SCL-S
SEL_IN_1_BFSEL_IN_1_B
STANDBY
SURR-R SURR-RF
SURR-LFSURR-L
+5V_VDP
+5V_CON
+8V_VDP
STANDBY
ON-OFF-LED
LED1
E_14620_107.eps
070704
8204 000 8340.4
Circuit Diagrams and PWB Layouts 81FTL2.xE AA 7.
SSB: I/O6: Digital Input
RESET_
PD CLK
VSYNC
HSYNC
DE
CNTL3
DB[7:0]
DG[7:0]
DR[7:0]
DR
DG
DB
8
8
8
PLLCK
FORMATTER
DE
HSYNC
VSYNC
BIT DAC
MODE
SELECT
DACPD
C
VREF-IN VREF-OUT
HDCP
TRIPPLE 8-
PANELLINK
SCDT
RECEIVER
CIPHER
SCL
ADR
0
1
2SDA
WC
FI78 H14
FI79 H14
II92 E13
II93 F13
RXC+
9ID9 B7
FI00 B2
FI01 C2
FI02 D2
FI03 D2
II94 F14
II97 E14
IIG0 I7
IIH6 H9
DVI INPUT
FI76 B10
FI77 H14
RX0-
RX0+
FI80 B4
FI81 B4
FI82 B5
FI83 C6
FI84 C8
FIC3 E2
II60 A10
II61 C11
II62 D11
II63 D11
II64 D11
II65 D10
II66 D10
II68 A11
9ID7 A7
9ID8 B7
FI04 F2
FI05 F2
FI06 F2
FI07 G2
FI08 E2
FI09 E2
FI29 G14
FI30 G14
FI70 C2
FI71 C2
FI72 I5
FI73 H10
FI74 I8
FI75 G10
7I53-1 I8
7I53-2 I9
B14c (3x),g,B15b
B14b(2x)
B14g
DVI INPUT
B14f
B14b
5I30 C11
5I31 C12
5I32 D13
7I61 B10
7I64 B11
9I07 F14
9I14 F14
9I85 G14
9IB3 A7
9ID1 B4
9ID2 A4
9ID3 B4
9ID4 A5
9ID5 B5
9ID6 A5
6I14 E5
6I15 E5
B14c (3x),g,B15b
B14b(2x)
res res
RES
B14c
HOT PLUG
res
RXC-
RECEIVER
6I16 E6
6I17 E6
6I18 E7
6I19 E7
6I20 E4
6I21 E4
6I63 H7
6I64 I7
6I65 I4
6I66 I4
7I18 E10
7I19 I6
7I51 H8
7I52 H8
3IV2 I7
3IV3 I7
I/O6 : DIGITAL INPUT
CONNECTOR
B14b
B14g
B14g,B19d
RX1+
RES
RES
3I45 I4
3I46 I5
3I47 I5
5I33 D10
5I34 D10
5I35 E13
5I36 H13
5I37 H13
5I38 H13
5I39 H5
5I40 C12
5I41 E13
6I01 C3
6I06 C4
6I07 C5
6I08 C6
6I09 C8
3IR4 G9
3IR5 G13
RX1-
SDA_DVI
CONNECTOR
B14g
B14c
2IG5 C11
2IG6 C12
2IG7 C13
2IG8 C12
DVI
RES
3IR6 G13
3IR7 F13
3IR8 F13
3IR9 I13
3IS0 I13
3IS1 I13
3IS5 I12
3IT5 I14
3IT6 I14
3IV0 H9
3IV1 I7
3I42 E2
3I44 I4
B14g
B14b
2IB3 E9
2IB5 E8
2IB8 H5
2IB9 H4
3I48 H5
3I49 I7
3II8 A12
3II9 A11
3IK9 A9
3IQ5 H6
3IQ6 H7
3IQ7 H8
3IQ8 H9
3IQ9 I9
3IR0 I9
3IR1 I10
3IR2 G8
3IR3 G8
2IG3 C10
2IG4 C10
SCL_DVI
RES
RX2-
RX2+
1I66 E2
1I67 F2
2I66 I12
2I67 I13
2IG9 C13
2IH1 H5
2IH2 C13
2IH4 C12
2IH5 C11
2IJ8 H8
2IJ9 H9
3I29 C4
3I30 C4
3I31 D5
3I32 C6
3I33 C7
3I40 C7
3I41 C8
2I97 E9
2I98 E9
B14f
B14g
B14g
B14g
2IC5 H6
2IC6 C7
2IC7 C6
2IC8 E10
2IE1 E10
2IE2 E11
2IE3 D11
2IE4 D11
2IE5 D12
2IE6 E12
2IE7 E12
2IE8 D12
2IE9 C9
2IG2 C9
1I64 D2
1I65 D2
+5V
567891011
2I68 I13
2I69 I13
2I70 I14
2I86 I14
2I87 G13
2I88 G13
2I89 G13
2I90 G12
2I91 G12
2I92 F13
2I93 F13
2I94 F12
2I95 E12
2I96 E13
C
D
1D01-4 A6
1I14 D2
1I15 G2
1I16 G2
1I17 C8
1I18 C5
12
1I19 B5
1I20 B4
1I21 B3
1I53 G4
1I55 F2
1I56 D3
1I57 F4
1I59 F4
1I60 C2
1I61 C2
1I62 D2
34 12 13 14
A
B
C
D
E
F
G
H
A
B
E
F
G
H
I
1D01-1 D1
3 4 5 6 7 8 9 1011121314
12
3V3-Si-IO
3V3-Si-IO
II63
FI06
II93
FI07
2IE5
2IE8
1u0
100n
100n
2IE6
5I31
FI29
120R
3IS0
II68
BC847BW
7I64
RES
+8V-VIDEO
IIG0
IIH6
2IH4
1u0
3IR2
5I40
4K7
3IR3
4K7
FI30
7I61
1K0
3II8
RES
BC847BW
II94
+8V-VIDEO
2I67
47p
120R
9I14
3IR9
9
10
11
12
13
14
15
16
4
5
6
7
8
1D01-1
YKF45-7005
1
2
3
+8V-VIDEO
100n
2IB9
II97
II64
3IR5
47R
2I89
1u0
II62
2IH5
100n
2IH2
100n
100n
FI05
II92
2IB3
1
6I07
BAV99 COL
5I39
9I07
2IC5
100n
17
18
19
20
21
22
23
24
FI71
FI76
2IG8
100n 100n
2IG7
res
9IB3
1K0
3I42
9ID3
2I88
100p
3K3
100p
2I87 3IR8
8K2
3IV0
3IQ8
3K3
75R
3I29
II60
1I62
1I14
1I57
DLW21S
5I35
2I92
1u0
75R
3I31
1u0 5I32
2IE7
6I18
BAV99 COL
1u0
FI84
2I96
3II9
1K
32
29
30
1K0
3IK9
1D01-4
C1 25C226
27C3C428
31
YKF45-7005
1K0
3I32
FI78
1I56
DLW21S
FI74
FI72
FI08
FI09
II61
II66 II65
100n
2IG5
100n
2I97
1I67
1I55
3IR4
3IT5
120R
3V3-Si-IO
100R
3I48
2K2
3IV3
47p
1K0
3IR1
2I68
3IR0
6-M7
270R
1K2
6I65
2I98
100n
6I64
BAS316
6I66
BAS316
BAS316 1I53
DLW21S
1I59
6I09
PLVA2656A
3
12
DLW21S
res
9ID7
100n
2IB8
2I93
100n
5I41
1u0
2IJ9
BAV99 COL
6I20
9ID1
FI79
100n
2I95
2IE2
100n
2IC7
47p
3I46
100R
1u0
2IJ8
1I65
9I85
FI75
2IE1
100n
6I15
1I60
6I14
BAV99 COL
FI70
BAV99 COL
1I18
FI82
1I19
res
9ID2
res
9ID6
120R
res
9ID4
3IT6
82p
2I70
3I40
100R
47p
2IC6
47R
3IR6
BC847BPN
7I53-1
2
6
1
FI04
470R
3V3-Si-IO
3IV2
82p
2I69 120R
3IS1
FI77
FI73
5
3
4
BC847BPN
7I53-2
5I33
FI00
BSH112
7I51
BSH112
7I52
34
SCLS15
SDAM36
SDAS14
13
VCC1
VCC2
22
VCC3
46
VSYNC 19
20
PD_11
PGND
10
PVCC
9
38RESERVED
RESET_39
RSET29
2 RX0+
RX0-3
RX1+51
RX1-52
RX2+48
RX2-49
RXC+5
RXC-6
SCDT 40
SCLM
27
DACVCCR
24
DE 44
EXT-RES 8
GND1
21
GND2
12
GND3
45
HSYNC 18
IOB 31
26IOG
IOR 23
ODCK 42
OGND1
16
OGND2
43
OVCC1
17
OVCC2
41
PD-DAC_
AGND1
47
AGND2
50
AGND3
4
AVCC1
1
AVCC2
7
COMP 30
35
DACGND
DACGNDB
33
DACGNDG
28
DACGNDR
25
DACVCC
37
DACVCCB
32
DACVCCG
BAV99 COL
6I21
SII905
7I18
2IG6
FIC3
100n
FI01
2IG4
1u0
2I90
100n
BAV99 COL
6I06
FI81
9ID9
1I20
470n
9ID5
5I38
470n
5I37
5I36
470n
100R
100R 3IQ7
3IQ6
3I49
100R
FI83
1I17
100n
2IH1
BAV99 COL
6I19
BAS316
6I63
5I30
3IQ5
47K
3I45
47K
3I44
10K
100n
3IS5
120R
2I91
1u0
2IE3
2I94
100n
100n
2IE4
7
BAV99 COL
6I16
7I19
M24C02-WDW6
1
2
3
6
5
84
(256x8)
EEPROM
6I01
BAV99 COL
FI80
1I16
100n
2IG3
1I15
FI02
2I86
82p
2IG9
100n
3I47
2K2
1I21
3V3-Si-IO
FI03
9ID8
3IR7
470R
BAV99 COL
100n
2IE9
6I17
1K0
3IV1
2
3IQ9
1K0
PLVA2656A
6I08
3
1
1u0
2IB5
5I34
1u0
2IC8
2IG2
1I66
22u
3I30
75R
3I41
1K0
100R
47p
2I66
3I33
1I64
1I61
H-DVI
R-DVI
B-DVI
MMC-R
MMC-G
MMC-B
AV6-H
AV6-V
AV6-B
AV6-G
AV6-R
G-DVI
V-DVI
+3V3-AD
V
H
R
3V3-TMDS
3V3-TMDS
DVI-PWR-DOWN
VCC-Si
3V3-TMDS
+3V3-AD
HS-DET
TRI-STATE-DVI
SWITCH-MAIN
DVI-PWR-DOWN
HD-ANA
VD-ANA
E_14620_108.eps
070704
8204 000 8340.4
82FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
SSB: I/O7
GROUND
1
LOGIC
SEPA
SYNC
DET
2
1
1
1
2
1
2
2
2
B19a,d
B14g (2x)
IIH8 C11
B19d
B14g (2x)
II31 E3
IIB4 B11
IIB5 B12
IIB6 D11
IIB7 E12
IIB8 F11
IIB9 F12
IIF2 C6
IIF3 C6
IIF4 D6
IIF5 C8
IIF6 D8
IIF7 F8
IIH7 C12
B14g (2x)
B14f
B14g (2x)
B2,B14b,B15a
B14f
9I84 E7
9I88 F4
9I91 B4
9I98 B4
FIB2 G2
FIB3 I10
FIB5 H6
FIB6 G13
FIB7 G13
FIB8 H10
FIB9 H10
FIC2 E2
II30 E3
B14g
B14f
B2,B14b,B15a
B14g
B14g (2x)
res
B14c,g
7I54-B C13
7I54-C D13
7I54-D F13
7I55 C4
7I56 C8
7I57 E8
7I58 F8
9I23 B13
9I28 C12
9I29 B4
9I45 D11
9I49 F11
9I81 F4
B14g (2x)
B14f
B14c,g
B14c,g
B14g (2x)
B14g (2x)
3IZ7 B12
3IZ8 B13
3IZ9 A12
5I12 H6
5I13 H6
5I42 E2
6I80 H10
6I81 I10
6IA1 H10
7I41 C12
7I54-A A13
B14f
B14f,B19d
HDI : RGB-YPbPr
B14c,g
B14g (2x)
I/O7
B19a
RES
RES
3IW7 B11
3IW8 B11
3IZ0 F11
3IZ1 F12
3IZ2 F13
3IZ3 B11
3IZ4 B11
3IZ5 B11
3IZ6 C13
B2,B14b,B15a
3IU1 G13
3IU2 B13
3IU3 H13
3IU5 D11
3IU6 E11
3IU7 E12
3IU8 E13
3IU9 F11
3IV4 C6
3IV5 D6
3IV6 D6
3IV7 E13
3IV8 F11
3IV9 F13
3IW1 H10
3IW2 E11
B2,B14a,B15a
B14f
B14c,g
B14c,g
3IG0 F9
3IG1 F8
3IG3 D9
3IG4 D8
3IG6 B9
3IG7 C8
3IG9 H10
3IHA G9
3IHB E9
3IHC C9
3IJ6 C11
3IJ7 D11
3IK0 G3
3IT7 G3
3IT8 G3
3IU0 H5
RES
B14f
B19a(2x)
2IF1 F9
2IF2 D9
2IF3 B9
2IF4 H6
2IF5 H7
2IF6 A13
2IF8 D2
2IF9 D2
2IH6 D2
2IH7 D2
2IH8 C2
2IH9 C2
2IK1 C5
2IK2 H10
2IK3 H10
2IK4 I10
B19a
B14g (2x)
RGB-OUTPUT SELECTION
B14g (3x),f,B15b
2IN8 E3
2IN9 E3
11 12 13 14
123456789101112
RES
B14g
B14g (2x)
RES
2IF0 I9
D
E
F
G
H
I
A
B
C
D
E
F
G
H
I
2I09 I10
RESERVED
123
RES
RES
89104567
B14g (2x)
B14c,B19a
13 14
A
B
C
680R
3IW1
res
9I98
9I88
2IN9
100n
IIF3
9I81
res
2IF2
100n
3IV6
1K
res
FIB7
+8V
FIB2
1K0
3IW7
IIF2
22u
REF3
2IH7
470R
3IJ7
9I84
1K2
3IW8
VD1-IN
12
VD2-IN
13
22u
2IF8
HD-S-SIG-DET
2
HD1-IN
24
HD2-IN
23
R-OUT 21
R1-IN
1
R2-IN
7
20
VCC
VD-OUT 14
18
CTL
16
G-OUT 19
G1-IN
3
G2-IN
9
4
6
8
10
22
HD-OUT
7I55
B-OUT 15
B1-IN
5
B2-IN
11
C-S-OUT 17
C-V-IN
+8V-VIDEO
BA7657F
2IK1
10K
3IU1
9I29
220n
3IZ1
100n
2IF0
1K2
3K3
3IU9
100K
3IU2
100R
FIC2
3IJ6
BFR93AW
7I41
1K
1K
3IT8
3IZ9
1K
3IZ0
2K2
IIB7
3IZ2
REF3
BAS316
6IA1
220n
100n
2IF3
2IF6
IIB6
1K
3IG6
3IU5
3K3
IIB5
+8V-VIDEO
+8V-VIDEO
IIF5
22u
3K9
3IZ5
REF1
2IH9
2IH6
22u
IIF7
3IZ8
3IV5
res
2K2
+8V-VIDEO
680R
3IG9
1K
FIB9
5I12
3IT7
1K
3IG4
10R
IIB9
3IZ6
100K
IIH7
5
6
7
8
4
13
+8V-VIDEO
IIH8
+8V-VIDEO
TSH95
7I54-B
BZX384-C3V9
6I81
4
13
TSH95
7I54-D
14
15
16
9
REF2
3IZ4
1K
10u
2I09
res
3IHA
100R 100R
3IHB
100R
1K2
3IU6
3IHC
100K
3IV9
1K2
3IU7
res
3IU8
3K3
IIB8
100n
2IF5
+8V-VIDEO
FIB8
100n
2IF1
1K
3IG0
7I58
6I80
BC847BW
7I56
BAS316
BC847BW
16V47u
2IK4
5I13
FIB5
100n
2IN8
10K
3IW2
22u
2IF9
REF3
3IG7
10R
3IG3
1K
3IZ7
330R
IIF4
+8V-VIDEO
REF2
FIB6
IIB4
+8V-VIDEO
+8V-VIDEO
12
11
10
9
4
13
2IH8
22u
7I54-C
TSH95
REF2
+8V-VIDEO
1K0
3IZ3
FIB3
100n
2IK2
100n
2IK3
18K
3IV7
1647u
2IF4
BC847BW
7I57
3IV8
47K
II30
REF2
3IG1
10R
3IV4
1K
res
9I91
3IU0
2R2
TSH95
3
2
1
8
4
13
7I54-A
5I42
9I45
9I28
9I23
IIF6
II31
+5VIO
9I49
3IU3
10K
3IK0
1K0
VS-2FH
AV6-V
B-VGA
G-VGA
R-VGA
V-DVI
R-VGA-BUF
G-VGA-BUF
B-VGA-BUF
R-VGA-BUF
STANDBY2
U-2FH
STANDBY2
V-2FH
STANDBY1
R-VGA
G-VGA
B-VGA
H-DVI
HS-2FH
AV6-H
SC2-R_C-IN_AV2
Y-2FH
SWITCH-MAIN
AV6-R
R-DVI
AV6-G
G-DVI
AV6-B
B-DVI
STANDBY1
STANDBY1
STANDBY2
G-VGA-BUF
B-VGA-BUF
HS-DET
B-VGA-BUF
R-VGA-BUF
H-2FH-DIV-2
AV3-CVBS-INV-2FH-AD-OUT
SC2-B-IN_C-OUT
SC2-G-IN
E_14620_109.eps
070704
8204 000 8340.4
Circuit Diagrams and PWB Layouts 83FTL2.xE AA 7.
SSB: PIP HIP
O
GND
I
2H/4H DELAY
ADAPTIVE
COMB FILTER
FILTER
TUNING
CLOCK
CLAMP
GEN
CLAMP
SAND-
CASTLE
O
GND
I
NCMT
O
GND
I
O
GND
I
NCMT
NCMT
IF DEM
SUPPLY CTRL SYNC
OUTP SWITCH
LUMA & CHROMA PROC.
I/O SWITCH
DELAY COR.
GROUP
O
GND
I
2P01 B2
2P02 B2
2P03 C1
2P04 D2
2P05 D5
2P06 G3
8V0
12345678
1P04-A C3
RES
E
F
G
H
I
1P00 E11
1P03 E13
B15a
5V0
B14b
1P04-B D3
1P05-A E4
1P05-B F3
1P06-A G4
1P06-B G3
1P07 G7
1P08 E5
1P09 E6
1P10 E13
1P11 F14
1P12 E12
2P00 B1
B15a
B15a
B14a
B14a
B
*
*
B15b
45678910
9 1011121314
1
B2(2x),B15a
B15b
*
*
B15c
*
*
*
RES
B14b
*
MODULATOR COIL
*
B14a
B2,B14a,g
23
*
B15a
B15a
B15b
*
B15a
RES
RES
2V7
RES
11 12 13 14
A
B
C
B2(2x),B15a(3X)
HIP
B14c
B2, B14b,g
B13b
*
SAW-FILTER AUDIO
*
2P07 G3
2P08 H3
2P09 B8
2P10 F8
2P11 F8
2P12 F8
2P13 F8
2P14 F8
2P15 F8
2P16 F7
2P17 E7
2P18 D7
*
D
E
F
G
H
I
B15a
B15b
2P26 B8
2P27 B8
2P28 B9
2P29 B11
2P30 B11
2P31 C11
2P32 C11
2P33 C11
2P34 F11
2P35 F11
2P36 F11
2P37 F11
*
B2, B14c
A
B
C
D
B15a
B15a
B15a
*
*
B14c
2P45 C11
2P46 D11
2P47 D11
2P49 D7
2P91 G11
2P92 I12
2P93 G14
2P94 G14
2P95 G13
2P96 G12
2P97 F14
2P19 D7
2P20 C7
2P21 C7
2P22 C7
2P23 B7
2P24 B7
2P25 B6
*
B15b
B14c
RES
B2, B14b,g
8V0
B13b
3P02 B3
3P03 B5
3P04 B5
3P05 B5
3P06 B5
3P07 D2
3P08 D2
3P09 E3
3P10 D5
3P11 E5
3P12 E2
3P13 F2
2P38 F12
2P39 F12
2P40 F12
2P41 F13
2P42 F13
2P43 F13
2P44 F14
RES
*
0V5
*
3P21 B7
3P22 B10
3P23 B10
3P24 B11
3P25 D7
3P26 D7
3P27 E6
3P28 E6
3P29 E11
3P30 F9
3P31 F8
3P32 F7
2P98 B7
2P99 B7
2PG0 C7
2PG1 C7
2PG2 F7
3P00 B2
3P01 B3
*
7V6 *
*
*
*
3P40 F6
3P41 D13
3P42 D13
3P43 D13
3P44 F9
3P45 H11
3P46 H11
3P47 I12
3P48 B8
3P71 F7
3P14 F5
3P15 G5
3P16 G5
3P17 G2
3P18 G2
3P19 G2
3P20 H1
SAW-FILTER VIDEO
B15c
5V0
8V0
COIL 40.4 SUPPRESSION
RES
RES
B14b
5P05 E5
5P06 E6
5P07 H2
5P08 D6
5P09 B7
5P10 B7
5P11 F7
6P00 E2
6P01 E2
6P02 G2
6P03 D2
7P00 D2
3P33 I6
3P34 G9
3P35 G9
3P36 H7
3P37 H7
3P38 H6
3P39 G7
5V4
RES
*
PIP HIP
*
RES
B15a
B15a
7P07-2 I6
7P08 F9
7P09 D9
7P10 D13
7P11 G11
9P00 E6
9P01 C3
9P02 D5
9P03 D6
9P04 E2
3P90 E12
3P91 E13
3P92 E14
3P93 E14
5P00 A2
5P01 B3
5P02 C1
2V8
7V6
*
B2, B14b,g
5V0
RES
5P03 A1
5P04 D3
9P12 G8
9P13 D11
9P14 G6
9P15 E7
9P16 E3
9P17 H6
9P18 G7
9P19 H5
9P20 F11
9P21 G11
7P01 F2
7P02 H1
7P03 F5
7P04 G5
7P05 D6
7P06 E7
7P07-1 H7
B14a
8V0
B14b
*
B15a
*
0V5
RES
RES
AP02 C1
AP04 C4
AP05 C4
AP06 C5
AP07 C5
AP09 G3
FP02 B8
FP03 C1
FP08 B5
FP11 I7
FP12 G9
FP13 F7
9P05 E5
9P06 E7
9P07 F7
9P08 G6
9P09 F6
9P10 F3
9P11 E3
RES
RES
*
B15c
RES
*
FP37 C12
FP38 C12
FP39 C12
FP40 C12
FP41 H8
FP42 H9
IP00 B5
IP01 E5
IP02 B5
IP03 E5
IP10 H8
IP17 C7
9P22 G11
9P23 H6
9P24 G9
9P25 F9
9P26 E11
9P27 E11
9P28 F12
RES
B15a
*
RES
0V5
*
B15a
2V4
RES
9P29 F13
9P30 F7
B15c
IP27 B3
IP28 B3
IP29 B4
IP30 A3
IP31 B3
IP32 C3
IP33 B6
IP34 B7
IP35 B7
FP14 E6
FP15 D7
FP16 C7
FP17 F7
FP23 B11
FP24 D12
FP25 D12
SAW-FILTER VIDEO
RES
RES
RES
0V5
RES
B2(4x),B15a(3x)
FP26 D12
FP27 D5
FP29 H11
FP36 G9
RES
B14c
RES
B2(2x),B15a
B2
B15a
IP43 G14
IP68 F2
IP20 B8
IP21 B9
IP22 D5
IP23 A2
IP24 A3
IP25 B2
IP26 B4
B15a
*
IP70 G5
IP71 E7
IP72 F9
IP73 D14
cP00 A8
cP01 A8
B15a
*
*
*
B15a
*
IP36 B10
IP37 H11
IP38 H11
IP39 H12
IP40 G13
IP41 G14
IP42 G13
B15c
B2(4x),B15a(3x)
B2(4x),B15a(3x)
B15a
2K7
3P07
IP69 F5
9P22
4n7
2P04
4K7
3P04
FP27
470R
3P31
3P15
5K6
3P11
470R
9P20
3P29
100K
+5VHIP
FP29
IP34
+5V
3P71
560R
IP17
IP37
560R
3P92
9P19
BA591
6P03
3P34
47R
3P13
5K6
30R
5P10
BC847BW
7P00
FP36
5P11
33u
47p2PG2
9P00
1u02PG1
1u02PG0
+8VPIP
FP15
100n
2P47
2P30
4n7
7P07-2
5
3
4
BC847BS
IP38
9P06
100n
2P16
4K7
3P16
9P30
390R
3P25
2P25
10u
100n
2P13
2P26
22n
IP29
3
7
8
+8V
9P03
OFWK9656L
1P04-A
2
9P04
47R
3P18
1
I
3
O
2n2
2P97
5M5
SFSRH
1P11
FP03
3P24
15K
7P10
9P15
BFR93AW
IP25
AP09
100R
3P44
+8VHIP
FP02
9P11
100n
2P92
1p2
2P44
9P26
2P32
100n
5K6
3P14
3P47
100K
1K0
3P38
9P10
BC847BW
7P02
2K7
0u33
5P02
3P17
9P02
3P35
470R
2P12
100n
2P95
100n
2P00
100n
INPSEL
15
OUTSEL
7SC
11
SYS1
10
SYS2
6
VCC VDD
5
12 Y|CVBS1
3 Y|CVBS2
14
Y|CVBSO
+8VHIP
TDA9181
7P11
13
AGND
1 CIN
16COUT
4
DGND
9
FSC
8
FSCSEL
2
IP36
IP01
100K
3P21
FP23
IP26
IP32
+8VHIP
100n
2P93
100u
2P01
2P36
3n3
IP40
6P02
1SS356
FP39
1p5
2P40
3P26
470R
I6
7P04
BC857BW
2P42
1p5
2p7
2P08
9P21
7P05
I
1
O
3
BC847BW
5M5
1P10
SFSRH
BC847BW
7P06
IP35
V2
4K7
3P09
9P27
2P91
100n
+5VHIP
2P29
1u0
2P94 100n
2P20 1u0
AP06
cP00
9P01
2
3
7
8
3P37
4K7
30R
1P06-A
OFWK3953L
9P14
5P00
FP17
1K0
3P36
30R
5P01
100n
2P33
100K
3P46
3P45
100K
3K9
3P19
2P34
100n
1SS356
6P01
100n
2P11
IP41
2P99
100u
+8VHIP
IP31
2P18
5p6
4M433619
1P00
HC-49/U
100R
3P22
3P27
180R
1R
3P02
17
4K7
3P08
1184 5 6 9 10 1314 15 11 12 16
1P06-B
OFWK3953L
FP25
IP21
1K8
3P42
9P29
100n
2P15
IP24
6P00
1SS356
2P05
47u
+8VHIP
2P19
100n
5K6
3P20
2P28
100n
IP22
100n
2P45
+8VHIP
1K5
3P43
+8VHIP
IP33
68p
2P07
7P03
BC847BW
2P38
1p2
+8VHIP
IP20
IP42
100n
2P02
+8VHIP
12p
2P43
FP16
100u
2P98
IP03
3
3P06
100R
1P08
TPWKA
2
1
220p
2P06
100R
3P23
1
2
3
FP14
9P24
SFSCC
1P07
GND_DEC
9P25
680R
3P93
2P41
15p
9P17
+5VHIP
2R2
3P00
5P06
2u2
5P03
2R2
3P01
560R
3P32 7P08
BC847BW
FP38
2P22
IP43
22n
9P28
FP08
100n
2P35
2P14
100n
FP37
IP10
9P08
2P31
100n
9P23
17
OFWK1967L
1P05-A
2
3
7
8
1184 5 6 9 10 1314 15 11 12 16
OFWK9656L
1P04-B
3P10
6R8
3K3
3P41
AP04
2P27
1u0
AP07
IP73
IP30
IP72
IP70
IP71
IP69
1
I
3
O
9P16
1P12
5M5
SFSRH
2
+8VHIP
5P09
30R
9P13
5P07
5CCE
1
2
34
5
6
78
FP42
4p72P49
1K0
X3.579 57
X3.582 55
X4.43 54
YCOMBIN
28
YOUT 49
Y_CVBS3
20
Y_CVBS4
23
+8VHIP
3P33
SIF2
64
SVBCOUT
30
SW0
19
SW01
22
SYS1
25
SYS2
27
TUNERAGC
62
UOUT 50
VA
61
VCO1
7
VCO2
8
VIF1
2
VIF2
3
VIFOUT
10
VOUT 51
56
X3.575
GND_1
44
GND_2
9
HA
60
HPLL
58
IN
12
OUT
13
PIPOUT
32
PLLRILT
6
QSS_AM
5
R1IN 36
R2IN 41
SCL
46
SCOUT
59
SDA
47
SEC_DEC 53
63 SIF1
C3
21
C4
24
CCOMBIN
29
COL_PLL 52
COMBOUT
26
CVBS1
16
CVBS2
18
CVBSINT
14
CVBSOUT
34
DEC
35
DIGDEC
33
DIGGND
31
FBL1IN 39
FBL2IN 40
G1IN 37
42
G2IN
TDA9321H
+8_1
11
+8_2
45
ADSEL
48
AGCDEC
4
AGCSIF
1
AV1
15
AV2
17
B1IN 38
43
B2IN
7P09
2
6
1
2P37
15p
BC847BS
7P07-1
4n7
2P03
9P09
9P07
560R
3P90
7P01
BC847BW
AP05
FP26
14 15 11 12 16 17
FP12
OFWK1967L
1P05-B
11845691013
3P40
120R
3u9
5P05
IP02
FP13
+5VHIP
IP28
IP68
IP27
3P48
100R
V1
TPWKA
1P09
2
13
HC-49/U
4M433619
1P03
2P17
470n
9P18
1u0
2P09
3P30
100R
3P28
390R
FP24
100n
2P96
FP41
cP01
2P46
100n
4K7
3P39
15p
2P39
2K2
3P03
5P04
6u8
IP39
5K6
3P05
560R
3P91
AP02
IP00
IP23
8
2P10
100n
5CCB
5P08
1
2
34
6
7
9P12
FP40
FP11
3P12
2K7
+8VHIP
2P23
100n
1u02P21
+8VHIP
9P05
7P55-BG
100n
2P24
SIF-OUT
TER-CVBS-OUT-SUB
MONO-HIP-OUT
PIP-AM
PIP-COMB-Y_CVBS-OUT
PIP-CVBS-MON
SIF-OUT
7P55-I
7P55-DK
7P55-M
SC2-G-IN
SC2-B-IN_C-OUT
MONO-HIP-OUT
CVBS-PIP_TUN1-2-CVBS-IN
PIP-OUT1
PIP-CVBS-COMB
7P11-P4
PIP-SC
PIP-SYS1
PIP-SYS2
7P11-P4
PIP-FSC
PIP-COMB-C-OUT
PIP-COMB-Y_CVBS-OUT
PIP-CVBS-COMB
SC2-R_C-IN_AV2
PIP-SYS1
PIP-SYS2
C-PIPDW-OUT
U-HIP-OUT
V-HIP-OUT
Y-HIP-OUT Y-HIP-OUT
HS-HIP-OUT
VS-HIP-OUT
AGC2
SCL-S
SC2-R_C-IN
AV3-CVBS-IN
IN-Y-CVBS-SC2_AV2
LMN
LMN
BG
LMN
SUB-V
SUB-Y
SUB-U
SC1-FBL-IN
LMN
PIP-COMB-C-OUT
PIP-SC
PIP-FSC
SC2-FBL-IN
SDA-S
IN-CVBS-SC1_AV1-SUB
Y-CVBS-PIPDW-OUT
IF-TER2
BG
E_14620_110.eps
070704
8204 000 8339.4
84FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
SSB: PIP Switch
VCC
GND
88
888
CHIP SELECT
I
2
C BUS
TRANSCEIVER
I/O PORT
DATA LATCHES
PWR
RES
OUTI/OIN
SHIFT
REG
8
1
X1
1
UNIT
CONTROL
SUPPLY
VCO2
AMPLIFIER 2
LIMITER
7 STAGE
AMPLIFIER 1
LIMITER
7 STAGE
VCO1
IN1
M
B|G
I
D|K
1
X1
1
IP57 D8
IP58 E7
IP59 B9
IP60 C7
IP61 D8
IP62 D14
IP63 F12
IP64 F12
IP74 G5
IP75 F5
*
B6a,B14c
0V1
RES
9P70 I13
9P71 I13
9P72 F1
9P73 G9
9P74 G9
9P75 H9
B15c
FP56 C10
FP57 I7
FP59 G15
FP60 H9
IP50 C2
IP51 E4
*
B15a
*
*
B6a,B15c
RES
RES
7P52-1 F5
7P53-1 G6
7P53-2 H6
7P54 G9
7P55 B7
7P56 G13
*
IP52 F5
IP53 E2
IP54 E3
IP55 G6
IP56 E14
7P61-2 C14
7P62 B13
7P63 B12
9P31 H6
9P32 G6
9P52 F5
B15b
B15b
(US ONLY)
B15c
9P53 G5
9P54 I6
9P69 I13
B5a,B14a,b
*
3PJ1 B12
3PJ2 B12 9PB7 B11
FP50 E15
FP51 G10
FP52 G10
FP53 G10
FP55 E15
3PJ9 C15
5P50 D4
5P51 E15
6P10 F8
7P51 D3
7P52 G4
I/O EXPANDER
RES
3P76 F5
3P79 D4
3P80 C2
3P81 D4
3P82 D2
3P85 F14
7P58-1 G7
7P58-2 H8
7P59-1 F7
7P59-2 G7
7P60 B15
7P61-1 B14
3P97 G7
3P98 G6
3P99 G6
3PG7 F7
3PG8 F7
3PJ0 B11
B15B
RES
B6a,B15c
3P54 F2
3P55 I6
3P56 H5
3P57 G6
3P60 F5
3P61 E8
3PJ3 B12
3PJ4 B13
3PJ5 B14
3PJ6 B14
3PJ7 B14
3PJ8 C14
3P68 F14
3P69 F14
3P70 F14
3P72 E14
3P74 E15
3P75 H6
V-CHIP
2P75 B8
2P76 E1
2P77 E4
2P78 E12
2P79 E7
2P80 F14
3P86 C10
3P87 C10
3P88 D6
3P94 D5
3P95 D4
3P96 G7
2PE9 A13
2PG6 F8
3P49 B13
3P50 D1
3P51 E1
3P52 E4
*
5V2
*
0V
3P53 E2
0V1
0V1
B14d
2P56 G6
2P57 G6
2P58 F6
3P62 H6
3P63 H6
3P64 H7
3P65 H15
3P66 G15
3P67 G14
2P66 F9
2P70 E6
2P71 E15
2P72 E7
2P73 E8
2P74 D6
B15a
PIP SWITCH
*
0V1
*
0V1
2P81 F14
2P87 D2
2P88 D1
2P90 E6
2PE7 H7
2PE8 G7
F
G
H
I
A
B
2V5
B6a,B14c
B6a,B14c
*
B15c
67
2P59 I5
2P60 H6
2P61 I6
2P62 F6
2P63 F7
2P65 F9
14 15
A
B
C
D
*
B15a
*
*
AUDIO DEMODULATOR
8
*
E
15
12345
2V5
B15a
2P52 F2
*
0V1
VIDEO SWITCH
B14c(2x)
*
B15c
8 9 10 11 12 13
234567
0V1
*
*
*
B15B
7V9
*
0V1
91011121314
C
D
E
F
G
H
I
1P50 E2
2P50 E4
2P51 E1
9P31
2P53 F2
2P54 F2
2P55 G2
0V1
4V4
*
B15c
B14c(3x),f,g
1
0V1
9
D5
10
D6
11
D7
12
GND 8
SCL 2
SDA 3
SO
1
VDD 13
7P56
M62320
CS0
16
CS1
15
CS2
14
D0
4
D1
5
D2
6
D3
7
D4
+5VPIP
100R
DMX-26S
1P50
32K768
3P66
IN3B
9
OUT1 3
OUT2 5
OUT3 6
13
IP61
7
4
10
15
IN1A
1
IN1B
16
IN2A
14
IN2B
11
IN3A
8
7P54
BA7609F
3-CHANNEL
VIDEO SWITCH
2CTL1
12 CTL2
CTL3
3P70
4K7
BC847BS
7P58-2
3P64
4K7
47p
2P61
RES
7P63
BC857BW
680R
3PJ1
+5VPIP
+5VPIP
3PJ2
330R
3PJ5
820R
2P66
100n
100n
2P78
2P56
47p
RES
30R
5P51
+5VD
4K7
3P94
3P95
4K7
2P60
1u0
3P75
100R
1I2C-SEL
9LPF
NC1 17
NC2 18
RREF 10
SCK 15
SDA 14
SDO 16
4SEN
6SMS
VDD 127 VIDEO
VIN-INTRO 13
VSS 11
3XOUT
7P51
Z86130
8CSYNC
5HIN-XIN
2HSEL
+5VPIP 680R
3P63
9P72
FP56
3P56
10R
9P53
470R
3P53
IP75
10V
10u
2P65
V34
RES
IP64
1K
3P55
2P70
100n
13
16
1
2
3
IN215
NC1
4
S1 5
S2 6
VAF1 8
VAF2 7
VCOREF
1114
VP
10M
3P50
TDA9820T/V1
7P55
C1
9
C2
10
CSTAB
12
GND
9P69
1u
2P73
res
9PB7
3PJ0
10R
3P85
74LVC1G66GW
4
35
1
2
4K7
7P60
4K7
3P72
+5VPIP
FP57
IP74
BC847BS
7P58-1
V38
2P88
+5VD
22p
6K8
3P54
3P96
4K7
1u0
2PE7
BC857BS
7P53-2
2P58
1u0
RES 2P62
47p
1u
2P75
3P74
9P71
V33
2R2
2P59
47p
BC857BS
V39
2PE8
1u0
7P53-1
4K7
3P97
5P50
+5VD
+5VD
6u8
2P53
100n
IP50
IP54
V37
9P75
68n
2P54
10K
3P52
2P79
1u0
100u 3R9
3P88
3PJ4
680R
2P90
3PJ8
1K8
7P61-2
BC847BS
5
3
4
3PJ7
2K2
V35
10R
3P62
+5VPIP
IP55
100R
3P79
2P50
100n
6K8
3P80
4
35
1
2
3P60
680R
74LVC1G66GW
7P62
9P32
3P98
10R
1u0
3P61
27K
+5VPIP
2P72
9P73
3P51
10M
3PJ9
4K7
+5VPIP
2
6
1
+5VPIP
7P52-1BC847BS
3P81
100R
9P52
7P59-1
BC847BS
IP63
2PE9
1u0
2PG6
10u10V
4K7
BZX384-C2V7
6P10
3PG7
IP60
BC847BS
7P59-2
IP59
+8VPIP
IP58
56p
2P52
100n
2P77
IP52
+5VPIP
IP62
2
6
1
BC847BS
7P61-1
IP53
4K7
3P67
4
680R
3P57
+5VPIP
BC847BS7P52-2
5
3
IP51
+8VPIP
9P70
10u
2P71
3P82
470K
FP59
+5VD
3P76
10R
680R
3PJ6
res
9P54
3PJ3
120R
10K
3P87
+5VPIP
3P68
4K7
3PG8
1K0
FP60
1u0
2P87
8p2
2P76
100u
2P80
3P69
4K7
1u0
2P57
FP55
FP52
IP57
FP51
100n
2P51
6n8
2P55
3P86
10K
3P65 100R
FP53
FP50
9P74
100n
2P74
+5V
3P99
680R
2P81
IP56
100n
2P63
100n
3P49
390R
SUB-SYNC-INSERT
HA50-PIP
DY
DY-IN
SCL-VCHIP
SDA-VCHIP
IN-U50
DU
IN-V50
DV
HA50-PIP
IN-Y50
SUB-ATTENUATION
PIP-FM
SEL_PIP_SOUND2
SEL_PIP_SOUND1
7P55-I
7P55-BG
7P55-DK
7P55-M
Y-PIP+MAIN-OUT
V-PIP+MAIN-OUT
U-PIP+MAIN-OUT
DY-IN
SDA-S
SWITCH-SUB
SUB-ATTENUATION
PIP_RESET
SWITCH-MAIN
SEL_PIP_SOUND2
SEL_PIP_SOUND1
SUB-SYNC-INSERT
CVBS-Y-RECORD-IN
PIP-CVBS-MON
MUPPET_BLK
SCL-S
FBLK
E_14620_111.eps
070704
8204 000 8339.4
Circuit Diagrams and PWB Layouts 85FTL2.xE AA 7.
SSB: PIP Muppet
LINE MEMORY
DISPLAY
CONTROL
PROCESSING
CLAMP
AND A/D
CONVERTER
PLL AND CLOCK
GENERATION
H/V FILTER LINE MEMORY
TEST
CONTROL
DAC
GENERATION
PLL AND CLOCK
CONVERTER
AND A/D
IIC BUS
CONTROL
CLAMP
H/V FILTER
13
IPB8 A8
IPB9 A8
IPC1 A10
IPC2 A9
IPC3 A9
IPC4 B11
12 13 14 15
A
B
C
F
G
H
I
2PA0 B5
2PA1 B5
RES
2V7
B
C
D
E
123456789101112
2PB3 G5
2PB4 G5
2PB5 H2
2PB6 G5
2PB7 H5
2PB8 B7
2PB9 B7
14 15
1234
IPC5 B11
RES
RES
B15a
B15a
B15b
B15a
RES
1V0
3V2
2PD3 B10
2PD4 B10
2PD5 B10
2PD6 B10
2PD7 C10
2PD8 C10
2PD9 C11
D
E
F
G
H
I
2PA2 B5
2PA3 B5
2PA4 C5
2PA5 C5
2PA6 E6
2PA7 D5
2PA8 F2
RES
2PA9 E5
2PB0 F4
2PB1 G4
2PB2 G4
3PA2 B4
3PA3 B4
3PA4 B4
3PA5 H12
3PA6 C4
3PA7 C4
3PA8 C3
2PC0 B7
2PC1 B7
2PC2 B7
2PC3 B7
2PC4 B8
2PC5 B8
567891011
2PC7 C8
2PC8 C8
2PC9 C8
2PD0 B9
2PD1 B9
2PD2 B10
3PC1 F4
3PC2 F3
3PC3 F3
3PC4 G2
3PC5 E4
3PC6 G5
3PC7 G22PE0 B12
2PE1 E13
2PE2 E13
2PE3 F13
2PE4 G12
2PE5 F12
A
0V2
B15b
B15a(2x)
RES
2PF6 D14
2PF7 D5
2PF8 G5
2PF9 G12
3PA0 B2
3PA1 B4
3PD5 I4
3PD6 I5
3PD7 I6
3PD8 I6
3PD9 E5
3PA9 C5
3PB0 D4
3PB1 D3
3PB2 D2
3PB3 D3
3PB4 E3
2PC6 B8
0V
B15b
RES
1V0
RES
RES
3PB6 D5
3PB7 E2
3PB8 E3
3PB9 F2
3PC0 E3
3PF5 F4
3PF6 E12
3PF7 E13
3PF8 E12
3PF9 E13
3PG0 F12
3PG1 F13
3PC8 G3
3PC9 G3
3PD0 H3
3PD1 H5
3PD2 H5
3PD3 H42PE6 H13
2PF1 D13
2PF2 D13
2PF3 F4
2PF5 D14
PIP MUPPET
3PH5 A9
3PH6 A9
3PH7 A10
3PH8 A11
3PH9 A11
3PI0 A6
5PA0 B6
3PE0 B12
3PE1 B12
3PE2 C13
3PE3 A13
3PE4 B14
3PE5 B14
3PB5 E5
B15b
B6a,B15b
2V7
B6a,B14c
3PF1 G14
3PF2 F12
3PF3 G14
3PF4 F12
5PA8 B11
5PA9 C14
5PB0 D14
6PA0 D4
6PA1 E2
6PA2 B13
3PG2 B4
3PG3 B3
3PG4 C4
3PG5 G3
3PG6 H4
3PH2 A7
3PD4 H5
RES
RES
RES
3PH4 A8
7PA0 B3
7PA1 C3
7PA2 D3
7PA3 D4
7PA4 D5
7PA5 E3
7PA6 C65PA1 B7
5PA2 B7
5PA3 B8
5PA4 B9
5PA5 B10
5PA6 B10
3PF0 F12
RES
RES
B15a
B6a,B15b
B6a,B15b
B15c(2x)
9PA6 H3
9PA7 H5
9PA8 I5
9PB1 C14
9PB2 C13
9PB3 B4
9PB4 D3
6PB1 B6
6PB2 B7
6PB3 B7
6PB4 B8
6PB5 B9
6PB6 B9
3PH3 A7
RES
RES
6PB8 B10
6PB9 B11
FPA5 G6
FPA6 B15
FPA7 D15
FPA8 E15
FPA9 F15
FPB0 C147PA7 F2
7PA8 G3
7PA9 H4
7PB0 I5
7PB1 H13
7PB2 B125PA7 B10
RES
RES
RES
1V2
B15a
RES
9PA0 B3
9PA1 C3
9PA2 E4
9PA3 F3
9PA4 G2
9PA5 G2
IPA3 D14
IPA5 F12
IPA6 G12
IPA7 D5
IPA8 D6
IPA9 G6
IPB0 G6
9PB5 B13
9PB8 E12
FPA0 E5
FPA1 D5
FPA2 F5
FPA3 F5
6PB7 B10
RES
RES
B15c(2x)
IPB7 A6
FPB1 F5
FPB2 F6
IP76 B3
IP77 C3
IP78 D4
IP79 E4
IP80 E2
B15c(2x)
MUPPET
RES
7PB3 B13
RES
RES
7PB4 B14
7PB5 E5
7PB6 A4
IP81 H4
IP82 G2
IP83 I5
IP84 B14
IP85 B12
IPA1 C14
FPA4 G6
RES
RES
B15b
B14a
IPB1 B14
IPB2 D2
IPB3 D4
IPB4 B5
IPB5 F3
IPB6 A7
120R
3PF0
0u82
5PA4
7PA2
BC847BW
100n
2PA4
IP84
IP83
IP85
FPB2
IP81
7PB4
BC857BW
IP76
IP77
100R
3PA1
2PC9
100n
9PB4
3PB9
3K3
4u7
5PA2
IPA5
IPB0
+3V
3PC9
2PD3
100n
2PB4
150p
39K
47p
2PE3
IP82
IP79
IP78
IP80
3PF6
560R
39K
3PD1
7PA1
BC847BW
10u
2PF1
3PF1
1K5
+3.3V
1K8
3PD3
2PD6
10u
IPA6
2PF7
10u 10V
6PB1
BAS316
6PA2
BZX384-C3V9
150p
2PA5
68R
3PG1
120R
3PF9
1u0
2PA0
100R
3PA3
RES2PD2
10u
12u
5PA1
BC847BW
7PA8
3PF3
3K3
2PC2
100n
3PB4
1K5
1K5
3PE2
3PA9
39K
RES
9PB3
100R
3PC1
+5VPIP
2PA7
100n
+3VD
2PF2
100n
1K0
3PF5
3PE3
1K5
RES
9PA4
+3V
39K
3PC6
10u
2PD5
100n
2PB7
100R
3PD2
+5VPIP
3PA6
39K
2PE2
680R
3PG5
47p
2PB8
10u
+3.3V
680R
IPA1
9PA7
3PG3
2PE5
100n
RES
2PC6
10u
IPA7
150p
2PA1
470R
3PF7
RES
9PA6
100n
2PB9
5PA5
12u
9PB5
2PD1
100n
1
2
35
4
2PF3
150p
7PB1
74LVC1G32GW
3PF2
270R
3K3
3PD8
FPA7
100n
220R
3PA0
2PE6
2PE1
47p
RES
3PE1
470R
RES
+5VPIP
10K
3PD6
3PA5
220R
RES
3PH7
47R
10V
10u
2PA9
FPB1
FPA8
+3VD
3PD0
220R
BC847BW
7PB0
4K7
3PC5
7PB6
BC847BW
2PA2
100n
FPA0
100R
3PA7
+3.3V
1K5
3PE0
1K2
3PD7
1K
3PB5
FPB0
FPA9
5PA9
30R
BC847BW
7PA5
1u0
2PB0
100R
3PB7
100n
2PC4
47p
2PB5
RES
39K
3PA4
100n
2PD4
IPA9
7PB3
BC847BW
560R
3PG0
2PD0
10u
1610u
2PF9
2PC5
100n
2PD7
100n
BC847BW
7PA3
9PA3
12u
5PA7
BC857BW
7PA4
3K3
3PC0
9PA2
3PC2
100R
47R
3PI0
FPA1
5PA6
12u
FPA5
13
Vref_B_DA
1Vref_B_MA
80 Vref_B_SA
11
Vref_T_DA
99 Vref_T_MA
82 Vref_T_SA
680R
3PG2
40
VSSD_RL
41
VSSD_RM
61
VSSD_RP
85
VSSD_SA
18
VSSD_T1
19
VSSD_T2
VSSD_T3 30
48
VSSD_T4
49
VSSD_T5
50
VSSD_T6
51
VSSD_T7
62
VSSD_T8
63
VSSD_T9
9
Vbias_DA
97 Vbias_MA
84 Vbias_SA
17
VDDD_P1
64
VDDD_P2
39
VDDD_RL
42
VDDD_RM
20
VDDD_RP
86
VDDD_SA
7
VSSA_DA
91
VSSA_DP
4
VSSA_MA
77
VSSA_SA
90
VSSA_SP
66
VSSD_D
15
VSSD_DA
96
VSSD_MA
16
VSSD_P1
VSSD_P2
65
38
TC
46
TCBC
45
TCBD
47
TCBR
43
TCLK
44
TM
6
VDDA_DA
92
VDDA_DP
5
VDDA_MA
3
VDDA_MF
76
VDDA_SA
78
VDDA_SF
89
VDDA_SP
67
VDDD_D
14
VDDD_DA
VDDD_MA
95
75 POR
73 SCL
74 SDA
87 SHSYNC
79 SU
81 SV
72 SVSYNC
83 SY
37
T0
36
T1
35
T2
34
T3
33
T4
32
T5
88
T6
T7
9323
NC13
24
NC14
25
NC15
26
NC16
27
NC17
28
NC18
29
NC19
53
NC2
54
NC3
55
NC4
56
NC5
57
NC6
58
NC7
59
NC8
60
NC9
69
PKOFF
71
DCLK
DHSYNC
94
12
DU
10
DV
70 DVSYNC
8
DY
68
FBL
2MU
100 MV
98 MY
52
NC1
31
NC10
21
NC11
22
NC12
BC847BW
7PB5
SAB9081H
7PA6
IPA3
+3V
100n
2PF6
+5VPIP
100n
2PB2
39K
3PC3
3PE4
220R
1K2
3PB6
6PB2
BAS316
3PD9
3K3
+5VPIP
3PH3
47R
RES
FPA3
+5VPIP
9PA8
3PG6
680R
220R
3PB3
RES
9PA0
1610u
2PF8
47R
3PH8
2PC0
10u
BAS316
6PB8
RES
9PA1
3PH5
47R
150p
2PB1
+3VD
5PA0
0u82
+5VPIP
+3V
100n
2PA6
2PE0
3n3
IPC2IPB8 IPB9
IPB6
BAS316
6PB4
2PB3
100n
100n
2PB6
6PB9
BAS316
9PB1
5PA3
4u7
3PC8
100R
150p
2PA3
IPB4
IPB5
2PC7
100n
3PH9
47R
3PB0
1K5
9PB8
FPA4
IPB2
3PA8
220R
2PF5
100n
6PB5
BAS316
3PC4
680R
BC847BW
7PB2
IPA8
+3V3_SIM
100n
2PE4
6PB7
BAS316
+3V
RES
470R
3PB1
RES
9PA5
680R
3PG4
7PA7
BC847BW
47R
3PH4
9PB2
100n
1K5
3PB2
2PA8
2PC1
100n
IPB3
IPC1
BZX384-C3V9
6PA0
IPC3
30R
5PB0
IPC4 IPC5
6PA1
BAS316
22K
3PF4
3PB8
1K8
+3VD
IPB7
3PH2
47R
FPA2
FPA6
100n
2PC8
IPB1
39K
3PA2
RES 10u
2PC3
220R
3PC7
4K7
3PD4
7PA9
BC847BW
+3VD
47R
3PH6
100n
2PD9
BAS316
6PB6
+3V
RES
10u
2PD8
BC847BW
7PA0
+5VPIP
12u
5PA8
3PD5
3K3
6PB3
BAS316
820R
3PF8
3PE5
1K
V-HIP-OUT
3V3_FAULT_PIP
DU
HA50-PIP
PIP_RESET
FBLK
Y-HIP-OUT
SCL-S
IN-Y50
IN-V50
HA
IN-U50
SDA-S
HA
U-HIP-OUT
MUPPET_BLK
HA
DV
DY
VS-HIP-OUT
VA50-PIP
HS-HIP-OUT
E_14620_112.eps
070704
8204 000 8339.4
86FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
SSB: HDI A/D Converter
SERIAL REGISTER
VDD
REF
8
A/D
8
SYNC
PROCESSING
AND CLOCK
GENERATION
PVD
AND
PWR MANAGMENT
VD
CLAMP
8
GND
A/DCLAMP
CLAMP
A/D
COM
OUTIN
2L04 A4
2L05 A4
2L06 A5
2L07 A5
2L08 C4
FL11 G4
FL12 F3
FL13 G4
FL15 G10
FL17 A1
IL06 F6
IL07 H3
12345
IL08 H3
IL09 H6
IL10 A5
IL11 B5
IL12 C5
H
I
2L00 B3
2L01 A4
2L02 A4
2L03 A4
12345
2L09 C4
2L10 A5
2L11 F6
2L12 B4
2L13 B4
RES
B14g,B19d
to EPLD
HDI A/D CONVERTER
G
H
I
A
B
678910
RES
B19d
B19d
B19d
B19d
A/D CONVERTER
11
2L31 H2
2L32 H2
2L33 A2
2L34 A3
2L48 D2
678910
B14g(2x)B19a
11
A
B
C
D
E
F
2L56 G4
2L57 E6
2L58 A3
2L59 E5
C
D
E
F
G
B14c(2x)
2L14 B4
2L15 B4
2L16 B4
2L17 B5
2L18 E5
2L19 A1
2L20 C4
2L21 C4
2L25 H10
2L26 H2
2L27 H2
2L28 D3
2L29 E3
2L30 F3
3L12 G3
3L19 D4
3L20 E4
3L21 F4
3L28 G6
2L49 E2
2L50 F2
2L51 C3
2L52 C6
2L54 F6
B19b,d
2L60 G4
3L02 E5
3L03 H5
3L04 C2
3L05 E2
B19b
B19b,d
RES
3L06 H5
3L08 H3
3L11 F2
AL02 G10
AL06 C1
AL07 E1
AL08 F1
FE02 A3
3L29 C4
3L30 E4
3L31 F4
3L32 G4
3L33 G5
B14g
B14g
B14g(2x),B19a
5L02 C2
5L04 E2
5L06 F2
5L13 A3
5L14 B3
RES
B14c,g
B19d
5L15 C3
5L16 A3
5L17 B3
5L18 B3
7L01 C6
7L02 A2
FL12
FL03 G10
FL04 G10
FL05 H10
FL09 C3
FL10 E3
RESRES
64
VSYNC31
AL02
46
51
52
59
11
22
23
69
78
79
VSOUT
56
SDA57
SOGIN49
SOGOUT 65
26
62
27
39
42
45
77
ROUTA1 76
ROUTA2 75
ROUTA3 74
ROUTA4 73
ROUTA5 72
ROUTA6 71
ROUTA7 70
SCL
GOUTA7 2
HSOUT 66
HSYNC30
MIDSCV37
34
35
RAIN54
REF-BYPASS 58
ROUTA0
36
GOUTA0 9
GOUTA1 8
GOUTA2 7
GOUTA3 6
GOUTA4 5
GOUTA5 4
GOUTA6 3
61
63
68
10
80
20
21
24
25
28
32
GAIN48
1
40
41
44
47
50
53
60
BOUTA4 15
BOUTA5 14
BOUTA6 13
BOUTA7 12
CLAMP38
COAST29 DATACK 67
FILT33
A055
BAIN43
BOUTA0 19
BOUTA1 18
BOUTA2 17
BOUTA3 16
AD9883AKST
7L01
2L06
100n
2L56
1n0
2L58
22u 6.3V
100n
2L21
FL11
3L19
680R
PVD
3L28
470R
FL05
2L31
47n
4p7
2L48
2L14
100n
FE02
4n7
VDD
2L27
22p
2L28 100n
2L34
680R
3L21
100n
2L05
2L32
+5V
+3V3-AD
2L30
3n3
22p
IL06
3L05
100R
FL03
3L04
100R
FL13
IL09
2L52
47n
5L15
5L18
2L33
100n
5L16
IL10
PVD
150R
3L29
6.3V
100n
2L07
FL09
2L19
22u
150R
3L30
AL07
47n
2L54
100n
2L15
2L12
100n
5L02
470n
470R
3L02
2L29
22p
2L02
100n
100n
2L11
AL06
5L13
FL04
FL17 VD
5L14
3L12
470R
4p7
VD
2L49
3L11
100R
5L17
470R
3L33
2L51
22u 6.3V
IL07
2L16
100n
33n
2L26
150R
3L31
100n
2L01
FL15
VDD
PVD
100n
2L03
1n0
2L59
47n
2L57
2L08
100n
2L10
100n
2L17
100n
3L08
2K7 3L06
100R
5L06
IL11
470n
2L18
47p
AL08
470n
5L04
470R
3L32
FL10
2L60
47p
2L50
4p7
LD1117DT33C
7L02
1
32
IL12
6.3V22u
2L00
PVD
100n
2L09
2L04
100n
100R
3L03
VD
100n
2L13
680R
3L20
IL08
2L25
100n
2L20
100n
COAST
SYNCDET
CLK-2FH
SDA-F3
SCL-F3
Y-AD-7
Y-AD-6
Y-AD-5
Y-AD-4
Y-AD-1
U-AD-5
Y-AD-3
Y- 2 F H
HS-2FH
VS-2FH
UV-AD-0
UV-AD-1
UV-AD-2
UV-AD-3
UV-AD-4
UV-AD-5
UV-AD-6
UV-AD-7
U-AD-0
U-AD-1
U-AD-3
U-AD-4
U-AD-6
U-AD-7
U-AD-2
H-2FH-AD-OUT
V-2FH-AD-OUT
V-2FH
Y- 2 F H
U-2FH
Y-AD-0
Y-AD-2
E_14620_113.eps
070704
8204 000 8346.5
Circuit Diagrams and PWB Layouts 87FTL2.xE AA 7.
SSB: EPLD Control
DATA
GND
ASDI
DCLK
CS_
VCC
STAT US
2
1
0
CEO
TMS
TCK
TDO
TDI
SCAN
CLK
MSEL
3
ASDO
CSO
DCLK
DATA 0
1
0
CE
CONFIG
CONF_DONE
VCCA
GNDA
GNDG
GND
PLL2
BANK1
PLL2
PLL1
PLL1
VCCIO
PLL1
PLL2
BANK2
BANK3
BANK4
VCCINT
EN
EN
B19b
B12
B19b(5x),B19d(2x)
G
H
I
1E02 B8
1E04 G6
FE50 I10
FE51 B8
FE52 B8
FE53 C7
FE54 C8
FE55 B8
FE56 D6
FE57 H4
FE58 I4
FE59 G3
FE60 F3
FE61 E3
FE66 B9
FE67 E2
IE20 B4
IE21 C3
IE22 B3
IE23 C4
IE24 C4
IE25 C3
IE26 E2
B3A
B3A
B19b
B19b
IE27 E2
IE29 G5
IE30 H5
IE31 I5
IE32 G5
IE33 E12
IE34 C3
IE35 C3
IE36 B3
IE37 E5
RES
B19d
B19b,d
B3a,B19b
B19b,d
B19a
B3c
7
2D03 E5
2D04 F3
2D09 G3
2D10 G3
2D11 G3
2D12 G3
2D15 I5
2E01 G4
2E03 G4
2E06 G4
123456789
B19b
B3a
B19b B3a
123456
FOR FACTORY
USE ONLY
I2C BUFFER
RES
B3a,B19b
B19a,d,c
G
H
I
A
B
C
D
E
F
B19d
RES
8 9 10 11 12 13
2E55 H4
2E56 H4
2E57 H4
2E58 H4
2E59 H4
2E62 H3
2E65 H3
2E66 H3
2E67 H3
RES
B19a,d,c
10 11 12 13
A
B
C
D
E
F
2E77 I2
2E78 I2
2E79 F5
2E80 F5
2E81 I2
2E82 G3
2E83 G3
2E84 B1
2E86 E1
I2C BUFFER
2E41 F5
2E42 F6
2E43 F4
2E49 E3
2E50 E3
2E51 E2
2E52 G8
2E54 G4
2E94 E12
2E95 I12
2E96 B4
2E97 C4
2E98 C4
2E99 F6
3E00 B2
3E01 B4
3E02 C4
RES
RES
RES
2E68 I4
2E69 I4
2E70 I4
2E71 I3
2E72 I3
2E73 I3
2E74 I3
2E75 I3
3E50 B4
3E51 B4
3E52 B4
3E53 B7
3E54 G5
3E55 E2
3E56 E2
3E57 E2
3E58 G5
B
2E87 E6
2E88 A8
2E89 B8
2E90 B8
2E91 C8
2E92 B9
2E93 G12
3E85 G12
3E86 G11
3E87 I11
3E88 H5
3E89 I5
5E50 H5
5E51 I5
5E52 G5
5E53 D5
B19b
3E03 D4
5E55 E11
5E56 H11
5E58 G8
6E51 E5
6E52 G5
6E53 G5
6E54 I4
6E55 H5
6E56 E12
3E59 B3
3E60 A7
3E61 E6
3E62 D5
3E63 B7
3E64 B3
3E69 H8
3E70 H9
3E73 B6
3E74 I5
3E77 A8
3E78 A8
3E79 B8
3E80 C8
3E81 E12
3E82 F12
3E83 F11
3E84 G10
9E57 I8
9E58 I8
9E59 E5
9E60 C7
9E61 D7
9E62 C7
9E63 C7
9E64 C7
9E65 D7
FE05 F5
ONLY
USE
FACTORY
FOR
B19b
B3c
5E54 F5
EPLD CONTROL
RES
7E01 E5
7E02 B2
7E03 F11
7E04 G11
7E05 D3
7E06 I11
7E10 H8
7E12-1 F3
7E12-2 E2
7E25 C3
7E26 B3
7E27 C3
7V01-1 B5
7V01-6 A12
10n
2D12
FE05
1K0
3E02
7E25
BC857BW
3E69
4K7
2E77
100n
10K
3E55
+3V3-EPLD
10K
3E59
1K0
3E03
2E96
100p
IE35
IE37
IE36
BC857BW
7E27
IE34
FE56
FE61
100p
2E89
FE55
47R
3E89
10n
2E58
3E64
10K
9E60
res
9E61
2E49
100n
FE59
10n
2E69
FE60
5E51
100n
2E78
+1V5-INT
100n
2E66
2E50
9E58
4V47u
2D11
10n
2E65
100n
1u0
100n
2E52
3E57
2E51
+3V3_SIM
100K
3E85
10R
2E92
SDA0 6SDA1
8
VCC
100p
5EN
4
GND
1
NC
2 SCL0 7SCL1
3
PCA9515DP
7E10
47R
3E74
2E67
100n
100n
2E62
+3V3-IO
3E80
47R
1u0
2D10
2E80
100n
10K
3E52
B3B-PH-SM3-TBT
1E04
1
2
3
3E00
10K
3E01
1K0
+3V3-IO
BC857BW
7E26
5E58
1
10
2
34
56
78
9
1E02
147279
33K
3E56
5E50
FE54
100n
100n
2E54
2E01
IE31
IE33
+3V3-IO
3E79
47R
10R
3E83
3E82
10R
+2V5-IO
BAS316
6E52
100p
2E90
100n
2E73
3E87
47R res
res
5E56
10R
3E84
26
4
3
7
8
+3V3-EPLD
EPCS4SI8
7E02
SCD
5
1
2D09
100n
+1V5-PLL
BAS316
6E55
+3V3-EPLD
5E52
5E54
+3V3-IO
100n
2E82
+3V3-IO
47R
3E61
2E06
100n
res
9E59
6E53
BAS316 47R
3E58
IE21
100n
2E03
FE53
2E98
100p
100p
2E97
+3V3-IO
+3V3-EPLD
14M31818
FXO-34FL
2
1
4
3
res
100n
2E95
IE30
res
7E06
IE29
FE50
1u0
2E55
3E81
47R
FE51
3E54
47R
+3V3-IO
+3V3-IO
4K7
3E70
7E12-2
BC847BS
3E86
10R
2E86
100n
+1V5-PLL
+1V5
FE58
BAS316
6E54
2E59
10n
res
9E64
+1V5
+3V3-EPLD
res
9E63
FE66
2E42
10n
6E51
BAS316
100n
2E75
2E91
100p
2E41
100n
K4
J3
J2
J13
J14
H14
H15
J15K3
H4
J4
G1
H1
G16
H16
H3
K13
G4
H2
+1V5
EP1C12F256C8
7V01-1
CONTROL
IE25
IE22
IE23
+3V3-EPLD
IE20
+2V5-IO
+3V3-IO
10n
2E56
+3V3-SD
3E51
10K
9E65
1n0
2D03
BAS316
6E56
+3V3-IO
3E88
47R
LF15AB
7E05
GND
2
1
IN
3
OUT
1n0
2D04
A14
F10
F7
A3
P16
K11
C16
T3
L7
L10
T14
A10
G8
G10
H7
H9
J8
J10
K7
C1
G6
P1
G7
J6
J11
J5
J12
H6
H11
A7
K9
T7
T10
T1
T5
T12
T16
A5
A12
F6
F8
F9
F11
H10
J7
J9
K6
K8
K10
L6
A16
L8
L9
L11
POWER
A1
G9
G11
H8
7E12-1
EP1C12F256C8
7V01-6
FE52
BC847BS
10K
3E60
3E63
10K
2E93
100n
100n
2E94
2E72
100n
3E53
10K
FE57
3
1
5
4
74LVC1G126GW
7E03
2
9E62
100p
2E88
10n
2E68
2E81
1u0
+3V3-EPLD
+3V3-EPLD
4
5E55
7E04
74LVC1G125GW
2
3
1
5
2E70
10n
IE24
3E78
47R
100n
2E84
2E43
100n
LF25C
7E01
GND
IN OUT
100n
2E74
IE27
IE32
2E83
100n
2E57
10n
1K0
3E62
16V100u
2E87
FE67
10n
2D15
+1V5-INT
IE26
+3V3-IO
10n
2E71
3E77
10u
5E53
9E57
47R
10K
3E73
2E79
100n
2E99
47u 4V
CLK64
10K
3E50
CLK32P_EPLD
REFCLK
PROT
PROT
CLK32P_EPLD
PROT
CLK32I
SWITCH-2FH
CLK32E
SWITCH-2FH
REFCLK
SDA-F3
PROT
PROT
SCL-F3SCL-EPLD
SDA-EPLD
3V3_FAULT
PROT
CLK-VID
CLK-2FH
E_14620_114.eps
070704
8204 000 8346.5
88FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
SSB: EPLD OSD
AIN-
PWRDWN
2
DATA
GND
3
7
VD VDD
VREFIN
5
4
VREFOUT
AIN+
1
0
6
ENCODE
SERIAL REGISTER
VDD
REF
8
A/D 8
SYNC
PROCESSING
AND CLOCK
GENERATION
PVD
AND
PWR MANAGMENT
VD
CLAMP
8
GND
A/DCLAMP
CLAMP
A/D
E
F
G
H
I
2E02 D1
2E04 D2
2E05 B4
2E07 A5
2E08 C5
2E09 A6
2E10 B5
2E11 B6
2E12 B6
2E13 B6
2E14 B6
2E15 B6
A/D CONVERTER
3 4 5 6 7 8 9 10111213
123456
C
D
8 9 10 11 12 13
A
B
C
D
E
F
G
H
I
A
B
EPLD OSD
12
2E16 B5
2E17 B6
2E18 B6
2E19 B6
2E20 C6
2E21 D7
2E22 D7
2E23 E7
2E24 E7
2E25 F7
B3a
7
2E26 G7
2E27 G7
2E28 H4
2E29 H4
2E30 H4
2E32 F1
2E34 H4
2E35 I12
2E39 B1
2E48 H6
2E53 G6
3E04 D1
3E05 C1
3E06 D6
3E07 E6
B19a,b,d
B19a,b,d
B3a,B19d
B3a
B19c,d
B19d
B3a
B3a
B3a
3E08 F6
3E09 E1
3E10 E2
3E11 G6
3E12 G6
3E13 E1
3E14 G7
3E15 F1
3E16 H5
3E18 H7
3E19 I7
3E37 B1
3E90 D1
3E91 H12
5E00 A5
5E01 B5
5E02 B5
5E03 C5
7E22 E1
7E23 C8
7E24 B2
9E74 E2
AL10 H12
FE01 G6
FE03 G6
FE04 H12
FL01 B4
IE00 H4
IE01 H5
IE03 E1
IE04 E2
IE05 F2
IL01 A7
IL02 B7
IL03 C7
IL05 G8
100n
2E12
2E11
100n
100n
2E10
2E29
33n
PVDO PVDO
FL01
PVDO
2E24
22p
FE04
PVDO
5E00
100n
2E09
VDO
22p
2E26
47n
2E23
2E25
47n
470R
3E12
470R
3E11
IL02
3E19
FE01
100R
100n
2E05
100n
2E19
2E18
100n
100n
2E17
10p
2E48
2E53
10p
2E35
100n
4n7
16
1
5
8
15
3
2
2E30
20
19
18
17
14
13
12
11
10
4
9
7E24
AD9283BRS-80
ADC
8-BIT
7
6
2E13
33R
3E91
100n
3E90
IL01
68R
2E34
2E28
47n
100R
3n3
100R
3E15
3E09
100n
2E04
VBL
2K7
IE00
3E16
IL05
100R
3E06
100n
2E27
2E08
100n
2E39
10p
22p
2E22
3E05
1K5
2E02
100n
100R
100R
3E08
3E07
33R
3E10
IL03
VDDO
3E18
100R
2E16
100n
100n
2E20
VDO
5E02
100n
2E14
IE05
IE04
+3V3-AD
IE03
BC847BW
7E22
10p
2E32
VBL
VDDO
+3V3-AD
1K0
3E14
AL10
IE01
3E04
1K0
5E01
22
23
69
78
79
VSOUT 64
VSYNC31
26
62
27
39
42
45
46
51
52
59
11
ROUTA4 73
ROUTA5 72
ROUTA6 71
ROUTA7 70
SCL56
SDA57
SOGIN49
SOGOUT 65
37
34
35
RAIN54
REF-BYPASS 58
ROUTA0 77
ROUTA1 76
ROUTA2 75
ROUTA3 74
7
GOUTA3 6
GOUTA4 5
GOUTA5 4
GOUTA6 3
GOUTA7 2
HSOUT 66
HSYNC30
MIDSCV
20
21
24
25
28
32
36
GOUTA0 9
GOUTA1 8
GOUTA2
44
47
50
53
60
61
63
68
10
80
12
CLAMP38
COAST29 DATACK 67
FILT33
GAIN48
1
40
41
43
BOUTA0 19
BOUTA1 18
BOUTA2 17
BOUTA3 16
BOUTA4 15
BOUTA5 14
BOUTA6 13
BOUTA7
AD9883AKST
7E23
A055
BAIN
FE03
3E37
100R
2E21
47n
RES
9E74
1K0
3E13
2E15
100n
2E07
100n
5E03
CLK-BL
CLK-OSD
CLK-BL
G-OSD-0
G-OSD-2
R-OSD
G-OSD
B-OSD
HD3-OTC
VD-OTC
B-OSD-7
B-OSD-6
B-OSD-5
B-OSD-4
B-OSD-3
B-OSD-2
B-OSD-1
B-OSD-0
G-OSD-1
G-OSD-3
G-OSD-4
G-OSD-5
G-OSD-6
G-OSD-7
SCL-F3
R-OSD-0
R-OSD-1
R-OSD-2
R-OSD-3
R-OSD-4
R-OSD-5
R-OSD-6
R-OSD-7
BL-OSD
BL-OSD-0
BL-OSD-1
BL-OSD-2
BL-OSD-3
BL-OSD-4
BL-OSD-5
BL-OSD-6
BL-OSD-7
SDA-F3
E_14620_115.eps
070704
8204 000 8346.5
Circuit Diagrams and PWB Layouts 89FTL2.xE AA 7.
SSB: EPLD I/O
PLL
TTL PARALLEL-TO-LVDS TTL PARALLEL-TO-LVDS
GND
PLL
GND
LSVD
VCC
GND
INIT_DONE
CLKUSR
DEV_OE
DEV_CLR
8
NC
L
U
10
16
1
2
3
4
5
9
10
11
12
13
512K-1
DQM
VDD
0
VSSQ
A
14
15
RAS
CAS
WE
A11
3
2
CLK
D
VSS
VDDQ
1
0
CKE
CS
9
8
7
6
5
4
6
7
2V09 A12
2V10 A12
*
*
B3c
B3b,c
B19d
B19a
B19a
B19d
E
F
G
H
I
2V06 B13
2V07 A11
2V08 A12
B19d
B19d
123456789101112
B19c(4x)
B19a,b,c
B19a,b,c
B3c
13 14
B3b,c
B3a
B19a
B19a
A
B
C
D
E
B3b,c
B19a
B19d
B21,B19b(2x)
B3c
B3c
B19a
B19c(2x)
B3c
B3b,c
F
G
H
I
A
B
C
D
B3a,B19c
B19d
LVDS TRANSMITTER
B20
B14f,g
3V21-1 H8
3V21-2 H7
2V11 E6
2V12 D6
2V16 C13
2V17 C14
2V18 D13
2V19 D14
2V20 E13
2V21 E14
2V22 G14
2V23 G14
B3b,c
B3a
B20,B21
B3b,c
B14g,B19a
B19d
B3c 2V24 G14
2V25 G14
3V01 H12
3V02 H12
3V07 G10
3V08 B13
3V14 A11
3V15 A14
3V16 A14
3V17 H12
3V18 I2
3V19 I12
B3c
B3c
B3a
B20
B20
B19d
B3c
3V20 I12
3V36 B6
3V37 G2
3V21-3 H8
3V21-4 G7
3V22-1 H8
3V22-2 H7
3V22-3 H8
3V22-4 H7
3V23-1 H7
3V23-2 H8
3V23-3 H7
3V23-4 H8
3V24-1 H7
3V24-2 H8
B3c
B3c
B20
B20
B20
EPLD I/O
3V24-3 H7
3V24-4 I8
3V25 G12
3V26 H12
3V27 H12
3V28 H12
3V29 H12
3V30 H12
3V31 I12
3V32 I12
B13b,B20(2x)
B20
B3a
B3a,c
B14g
B19c,d
B19c
3V33 I12
3V34 I12
3V35 F6
3V38 G1
3V39 H5
3V40 H1
3V50 D5
3V51 D6
3V52 D6
3V53 E6
3V54 E6
3V55 E5
3V56 F6
3V57 F6
5V06 A12
B3c
B3b,c
B3b,c
B19d
B19c
B20
9E67 E8
9E68 E8
5V07 A12
5V08 A13
6V01 A11
6V02 A13
6V03 A13
6V05 I2
7V01-2 A2
B3a,c,d
B3b,c
B3c
B3c
B19d
B3c
B19b
B19d
B19d
B19b
7V01-3 D2
7V01-4 G3
7V01-5 A7
7V02 B11
7V03 G6
7V04-1 D6
7V04-2 F6
B20
7V06 F6
9E66 D8
B19a
9E69 E8
9E70 D8
9E71 E8
9E72 F8
9E73 F8
9E75 E3
9E76 F3
9E77 D8
AV01 F9
IV01 E3
IV02 A14
IV03 A14
IV04 A11
IV05 B7
*
B20
+3V3-IO
10K
3V57
7V06
BC847BW
180R
3V02
5V08
+3V3-SD
120R
3V31
2V10
100n
9E69
9E68
9E66
9E67
10K
3V50
2V23
10p
5V06
68R
3V24-4 45
+5V
+3V3-IO
+3V3-IO
3V51
10K
3V16
47R
3V22-3 3 6 68R
3V30
120R
12
120R
3V25
5V07
100R
3V35
2V06
100n
3V40
68R45
100R
3V21-4
120R
3V27
10p
2V18
9E72
9E71
273V21-2 68R
+3V3-EPLD
9E76
+3V3-EPLD
36
3V32
68R3V24-3
18
120R
68R3V24-1
9E77
9E73
3V38
100R
9E70
IV03
IV02
6V02
BAS316
9E75
3V07
4K7
2V24
10p
26
9
1
TXOUT0+ 47
TXOUT0- 48
TXOUT1+ 45
TXOUT1- 46
TXOUT2+ 41
TXOUT2- 42
TXOUT3+ 37
TXOUT3- 38
TXIN2750
TXIN355
TXIN456
TXIN52
TXIN63
TXIN74
TXIN86
TXIN97
TXIN254
TXIN2022
TXIN2123
TXIN2224
TXIN2325
TXIN2427
TXIN2528
TXIN2630
TXIN1211
TXIN1312
TXIN1414
TXIN1515
TXIN1616
TXIN1718
TXIN1819
TXIN1920
R-FB 17
TXCLKIN31
TXCLKOUT+ 39
TXCLKOUT- 40
TXIN051
TXIN152
TXIN108
TXIN1110
29
53
36
43
49
LVDSVCC 44
35
33 PLLVCC 34
PWRDWN_32
DS90C385MTD
7V02
5
13
21
120R
3V34
18
68R18
68R
3V22-1
3V21-1
3V17
180R
10p
2V25
3V23-3 68R36
68R27
3V23-2
IO_3
C2
IO_4
B1
IO_40 N4
IO_5
G5
IO_6
F4
IO_7
D3
IO_8
E4
IO_9
F5
IO_32 L5
IO_33 M4
IO_34 N3
IO_35 K5
IO_36 L4
IO_37 R1
IO_38 P2
IO_39 P3
IO_24 K1
IO_25 L1
IO_26 L2
IO_27 M1
IO_28 N1
IO_29 M2
IO_30 N2
IO_31 M3
IO_18
G2
IO_19
F1
IO_1
D4
IO_2
C3
IO_20
H5
IO_21 J1
IO_22 K2
IO_23 L3
IO_10
E3
IO_11
D2
IO_12
E2
IO_13
D1
IO_14
F3
IO_15
G3
IO_16
F2
IO_17
E1
7V01-2
EP1C12F256C8
BANK 1
T15
IO_88 R15
+3V3-IO
M11
IO_80 M12
IO_81 P12
IO_82 R12
IO_83 T13
IO_84 R13
IO_85 R14
IO_86 P13
IO_87
T11
IO_72 N10
IO_73 P10
IO_74 R11
IO_75 P11
IO_76 N11
IO_77 N12
IO_78 M9
IO_79
N8
IO_64
P8
IO_65 M10
IO_66 R9
IO_67 T9
IO_68 P9
IO_69 N9
IO_70 R10
IO_71
M7
IO_56
T6
IO_57
R7
IO_58
P7
IO_59
N7
IO_60
R8
IO_61
T8
IO_62
M8
IO_63
R5
IO_48
P5
IO_49
M5
IO_50
M6
IO_51
N5
IO_52
N6
IO_53
P6
IO_54
R6
IO_55
IO_41
R2
IO_42
T2
IO_43
R3
IO_44
P4
IO_45
R4
IO_46
T4
IO_47
BANK 4
EP1C12F256C8
7V01-5
100R
3V37
180R
3V01
120R
3V29
B2
120R
3V28
E5
IO_172 C5
IO_173 B5
IO_174 A4
IO_175 B4
IO_176 C4
IO_177 B3
IO_178 A2
IO_179
B7
IO_164 A6
IO_165 E7
IO_166 B6
IO_167 C6
IO_168 D6
IO_169 D5
IO_170 E6
IO_171
E10
IO_156
C8
IO_157 D8
IO_158 E8
IO_159 A8
IO_160 B8
IO_161 D7
IO_162 C7
IO_163
A11
IO_148
B10
IO_149
C10
IO_150
D10
IO_151
A9
IO_152
B9
IO_153
D9
IO_154
C9
IO_155
C12
IO_140
E12
IO_141
E11
IO_142
E9
IO_143
D12
IO_144
D11
IO_145
C11
IO_146
B11
IO_147
IO_132
B15
IO_133
A15
IO_134
B14
IO_135
C13
IO_136
B13
IO_137
A13
IO_138
B12
IO_139
BANK 2
EP1C12F256C8
7V01-3
IO_99
M13
IO_91
P15
IO_92
R16
IO_93
N15
IO_94
N16
IO_95
K12
IO_96
K14
IO_97
L12
IO_98
N14
IO_126 H13
IO_127 G12
IO_128 B16
IO_129 C15
IO_130 C14
IO_131 D13
IO_89
N13
IO_90
P14
IO_118 E16
IO_119 E15
IO_120 D16
IO_121 D15
IO_122 E14
IO_123 F12
IO_124 E13
IO_125 D14
IO_110
H12
IO_111 G14
IO_112 G13
IO_113 G15
IO_114 F16
IO_115 F14
IO_116 F13
IO_117 F15
IO_102
M15
IO_103
M16
IO_104
L14
IO_105
L15
IO_106
L16
IO_107
K16
IO_108
K15
IO_109
J16
BANK 3
7V01-4
EP1C12F256C8
IO_100
M14
IO_101
L13
AV01
3V39 4K7
6V05
TLMG3100
3V18
390R
47R
3V15
8
120R
3V26
3V23-1 68R1
3V33
120R
IV05
6V03
BAS316
68R36
3V21-3
45
2V19
10p
68R3V22-4
2V20
10p
10p
2V21
BAS316
6V01
3V36
100R
+3V3-SD
3V20
180R
2V16
10p
3V23-4 68R45
IV04
27
100n
2V09
68R3V22-2
10p
2V17
180R
3V19
15
10p
2V22
7
13
38
44
26
50
4
10
41
47
9
11
12
39
14
33
37
17
36
1
25
40
42
43
45
46
48
49
3
5
6
8
28
29
30
31
32
16
34
35
18
2
21
22
20
19
23
24
27
DRAM
512K X 16 X 2
MSM56V16160F-7TS
7V03
100n
2V07
47R
3V14
2 7 68R
3V24-2
IV01
3V56
100R
2
6
1
+3V3-EPLD
BC847BS
7V04-1
2V08
100n
3V08
1K0
2V12
470p470p
2V11
3V52
+3V3-IO
+3V3-IO
47K
+5V
3V54
3V53
47K
10K
5
3
4
3V55
10K
7V04-2
BC847BS
AL-CLAL-CL-IN
AL-DAAL-DA-IN
R4 ODC
AL-DA-IN
LAMP LAMP-ON
R-OSD-2
G-OSD-6
G-OSD-3
G-OSD-5
BL-OSD-0 R3
G-OSD-1 B2
G-OSD-0 G0
B-OSD-1 R2
BL-OSD-1
B-OSD-0
R-OSD-1
R-OSD-0 G3
BL-OSD-2
RST-FBX
BL-OSD-2 G1
R6
R1
R0
FRAME
BL-OSD-3
BL-OSD-4
B-OSD-4
BL-OSD-5
BL-OSD-6
B-OSD-2
BL-OSD-7
B-OSD-5
R-OSD-6
R-OSD-5
G-OSD-2
R-OSD-4
R-OSD-3
G-OSD-4
R-OSD-7
SD-DQ1
SYNCDET
SD-CLK
SWITCH-2FH
CLK32E
O_VAL
YOUT(9)
YOUT(6)
YOUT(5)
YOUT(8)
YOUT(4)
YOUT(3)
YOUT(0)
YOUT(7)
SDA-F3
SCL-F3
YOUT(2)
YOUT(1)
U_VOUT(1)
U_VOUT(0)
U_VOUT(2)
U_VOUT(6)
B-OSD-6
B-OSD-7
B-OSD-3
TXCLKLCD+
G1
G3
G4
B6
B7
G2
LAMP
LCD-PWR-ON
SD-CLK
SD-A0
SD-A1
SD-A10
SD-A2
SD-A3
SD-A4
SD-A5
SD-A8
SD-A9
SD-DQM
SD-WE
SD-CAS
SD-A7
SD-A6
SD-A11
SD-RAS
SD-DQ3
TXLCD0-
TXLCD0+
TXLCD3+
TXLCD3-
TXCLKLCD-
YG(0)
Y-AD-2
SD-DQ2
SD-DQ4
SD-DQ5
SD-DQ7
SD-DQ6
SD-DQ8
SD-DQ9
SD-DQ11
SD-DQ10
SD-DQ12
SD-DQ13
SD-DQ15
SD-DQ14
SD-DQ16
UV-AD-2
UV-AD-4
SD-DQ5
SD-DQ4
SD-DQ7
SD-DQ8
SD-WE
SD-DQ10
G4
G2
R7
R5
B4
DE-OUT
G6
G7
B3
G5
B0
B7
B6
B5
PARITY
LVDS-PWR-DOWN
VS-OUT
CLK-OUT
G-OSD-7
B1
HS-OUT
SD-DQ9
SD-RAS
CLK-OUT
R5
YG(1)
YG(5)
HD3-OTC
VREF
VA
RSTR_EPLD
HREF
SN-CL_EPLD
SN-DA_EPLD
FALREF
YG(4)
VD_E
REFIN
REF
HD_E
U_VOUT(9)
U_VOUT(8)
U_VOUT(5)
U_VOUT(7)
U_VOUT(4)
U_VOUT(3)
R6
R0
R1
HREF_EXT
YG(7)
VD-OTC
H-2FH-DIV-2
HS-DET
UV-AD-1
Y-AD-5
Y-AD-6
PROT
PROT
U-AD-7
SD-DQ14
G6
G7
TXLCD1+
G5
TXLCD2+
B5
B1
R7
R6
G0
B0
PARITY
SD-DQ11
SD-DQ6
SD-A10
SD-A0
SD-A3
SD-A1
CLK-OSD
SD-A2
SD-A6
SD-A5
SD-A4
SD-A7
SD-A11
SD-A8
SD-A9
SD-CAS
V-2FH-AD-OUT
H-2FH-AD-OUT
CLK-VID
COAST
AL-CL-IN
U-AD-0
U-AD-2
U-AD-3
Y-AD-0
U-AD-4
U-AD-1
U-AD-5
Y-AD-1
R4
G0
B2
UVG(0)
G3
UVG(1)
UVG(2)
UVG(3)
UVG(7)
YG(3)
YG(2)
UVG(4)
UVG(5)
UVG(6)
YG(6)
UV-AD-3
Y-AD-7
UV-AD-5
UV-AD-6
UV-AD-7
UV-AD-0
U-AD-6
Y-AD-4
SD-DQM
Y-AD-3
SD-DQ1
SD-DQ2
SD-DQ16
SD-DQ15
SD-DQ13
SD-DQ3
SD-DQ12
R0
R1
B2
R2
B3
B4
HS-OUT
VS-OUT
DE-OUT
R3
R4
TXLCD1-
TXLCD2-
LVDS-PWR-DOWN
G1
R2
R3
E_14620_116.eps
070704
1 2 3 4 5 6 7 8 9 10 11 12 13 14
8204 000 8346.5
90FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
SSB: Screen Interface
B19d
B19d
2Z49 D2
2Z50 E2
2Z51 E2
2Z52 E2
B13b,B19d,B20
234567
A
LVDS
CONNECTOR
FZ43 A2
FZ44 A2
FZ45 B2
FZ46 B2
FZ66 A6
IZ00 B5
IZ01 A5
IZ02 B4
IZ03 A4
B19d,B21
B19d
TO
2Z53 E2
2Z54 B6
2Z55 B4
2Z56 A5
2Z57 B1
2Z58 A1
E
F
1G50 C7
2Z44 C2
2Z45 C2
2Z46 C2
2Z47 D2
2Z48 D2
B19d
3Z24 B2
3Z25 B2
3Z26 A2
3Z28 C6
B
C
D
E
F
A
B
C
D
FZ08 D2
FZ10 D2
FZ12 D2
B14e
B14e
res
2Z59 A2
2Z60 F1
2Z61 F2
2Z62 B1
2Z63 C6
2Z64 C5
2Z65 C5
3Z22 A1
3Z23 A5
B19d
SCREEN INTERFACE
FZ40 E3
FZ41 F3
FZ42 F7
B19d
3Z38 A2
3Z39 B1
3Z50 F1
3Z51 F2
3Z52 B1
3Z29 B6
3Z30 B6
3Z31 B5
3Z32 B4
3Z33 B4
B19e
B19d
7Z01 B5
FZ02 C2
FZ04 C2
FZ07 C2
res
(IRQ)
(PDWN)
resres
1234567
1
3Z34 B1
3Z35 B1
3Z36 A1
3Z37 A1
DISPLAY
FZ17 E2
FZ18 E2
FZ20 D7
FZ21 C6
res
res
3Z53 B1
3Z54 A1
3Z55 A1
3Z56 A5
5Z01 C1
5Z02 C1
5Z03 D1
5Z04 E1
5Z05 E1
5Z06 C6
5Z07 C6
5Z08 D6
6Z00 B6
7Z00 A4
res
B14e
B19d
B19d
B19d
B19d
FZ14 D2
FZ16 E2
10V10u
2Z65
2Z64
100n
2
4
3
FZ08
DLW21S
1
FZ07
5Z02
2Z46
22p
4
3
2Z49
22p
5Z01 1
2
DLW21S
1u0
2Z54
IZ02
4K73Z38
+3V3_SIM
FZ21
1K0
3Z35 3Z34
1K0
3Z26
1K0
1
2
5
6
3
4
3Z54
7Z01
SI3441BDV
100R
2Z57
100p
2Z48
22p
3Z33
10K
+3V3_SIM
FZ41
47R
3Z29
3Z53
100R
FZ66
100p
2Z61
FZ04
FZ02
100R
VDISP
3Z55
100n
2Z63
+3V3_SIM
5Z08
FZ43
FZ42
FZ44
FZ45
29
3
30
31
4
5
6
7
8
9
32
33
2
20
21
22
23
24
25
26
27
28
1
10
11
12
13
14
15
16
17
18
19
1G50
FI-WE31P-HF-E1500
FZ20
1.5AT
3Z28
7Z00
BC847BW
3Z31
47K
BZX384-C5V6
6Z00
3Z30
47K
IZ00
IZ01
4K7
3Z22
100R
3Z52
FZ14
FZ17
2Z59
100p
100p
2Z58
2Z62
100p
100R
3Z51
FZ40
2Z60
100p
FZ46
2Z55
100n
10K
3Z32
1
2
4
3
FZ12
FZ10
5Z03
DLW21S
5Z04
DLW21S
1
2
4
3
FZ16
3Z23
3Z56
1K0
100R
5Z07
+3V3_SIM
+3V3_SIM
100R
3Z39
2Z45
22p
2Z44
22p
2Z47
22p
2Z51
22p
22p
2Z50
22p
2Z52
22p
1n0
2Z56
2Z53
3Z50
100R
IZ03
5Z06
1
2
4
3
FZ18
DLW21S
5Z05
3Z37
4K7
+11V
3Z36
10K
3Z25
100R
3Z24
100R
LAMP-ON
5V-ENABLE
PDP-GO
BACKLIGHT-CNTRL
LCD-PWR-ON
CPU-GO
SCL-DISP
TXLCD3-
TXLCD3+
TXCLKLCD-
TXCLKLCD+
TXLCD2-
TXLCD2+
TXLCD1+
TXLCD1-
TXLCD0+
TXLCD0-
SDA-DISP
LCD-PWR-ON
E_14620_117.eps
070704
8204 000 8395.3
Circuit Diagrams and PWB Layouts 91FTL2.xE AA 7.
SSB: Connection
7
B2,B21(3x)
B14d(2x)
H
B20,B19d
B4,B5a
A
B
C
D
E
F
G
H
0Y00 A1
0Y01 A1
0Y02 A1
0Y03 A1
0Y04 A1
0Y05 A1
0Y06 A1
0Y07 A1
0Y08 A1
0Y10 A2
0Y11 A2
123456
0Y33 B3
8 9 10 11 12 13 14 15
123456789101112131415
A
B
C
D
E
F
G
1Y06 A10
B14a
B6a,c
B5a,B14e(2x)
B5a
0Y12 A3
0Y13 A2
0Y14 A2
0Y15 A3
0Y16 A2
0Y17 A2
0Y18 A3
0Y20 B1
0Y21 B1
0Y22 B1
0Y23 B1
0Y24 B1
0Y25 B1
0Y26 B1
0Y27 B1
0Y28 B1
0Y30 B2
0Y31 B2
0Y32 B3
1Y24 F8
B14a
B4,B14b,B21
0Y34 B3
0Y35 B4
1M01 D10
1M02 E7
1M03 E5
1M07 F10
1M09 G10
1M17 A4
1M20 F8
1M36 B15
1M46 E15
1M48 E12
1M49 D5
1M52 A10
1Y02 A10
1Y04 A10
1Y05 A10
1Y45 C2
B5a
B6b
B14e
1Y07 A10
1Y08 B10
1Y09 B10
1Y10 E3
1Y11 F4
1Y12 F4
1Y13 F3
1Y14 F3
1Y15 F3
1Y16 F3
1Y17 G3
1Y18 G3
1Y21 E8
1Y22 E8
1Y23 F8
2Y20 E6
B6a
B5a
B6a,c
CONNECTION
B5a,B14b
1Y25 F8
1Y26 E8
1Y27 E8
1Y28 D10
1Y30 B15
1Y31 B15
1Y32 B15
1Y33 B15
1Y34 B15
1Y35 B15
1Y37 B15
1Y38 A10
1Y39 A10
1Y40 C2
1Y41 B2
1Y42 C3
2Y40 C7
B14e
B6a,c
2Y00 E14
2Y01 F14
2Y02 F14
2Y03 G14
2Y04 G14
2Y06 D2
2Y07 E2
2Y08 E2
2Y09 F2
2Y10 H2
2Y11 A5
2Y12 H2
2Y13 H2
2Y14 G6
2Y15 H6
2Y16 H6
2Y17 G6
2Y18 F6
2Y19 F6
3Y08 H2
nc
2Y21 E6
2Y22 A5
2Y23 D9
2Y25 A13
2Y26 B13
2Y27 B13
2Y28 C13
2Y29 C13
2Y30 D13
2Y31 D13
2Y32 D13
2Y33 D13
2Y34 E14
2Y37 A8
2Y38 A7
2Y39 B7
3Y34 D4
LED + SWITCH
TO 1M20
N.C.
B14e
N.C.
B21
B19d
B21
B21
2Y41 C9
2Y42 D7
2Y43 B6
2Y44 E11
2Y45 E11
2Y48 A5
2Y49 D5
2Y50 D5
2Y51 B8
2Y52 G3
2Y53 F9
3Y00 D2
3Y01 E2
3Y02 E2
3Y03 F1
3Y04 H4
3Y05 G2
3Y06 A5
5Y19 B7
B14e
B14d(2x)
OR
B4
AUDIO-STBY
OR
B14e
N.C.
3Y09 E6
3Y10 F6
3Y11 G6
3Y12 F8
3Y13 A5
3Y14 G2
3Y17 B13
3Y18 C13
3Y19 C13
3Y20 C12
3Y21 D12
3Y22 D12
3Y23 D12
3Y24 B5
3Y25 A7
3Y27 E11
3Y28 D11
3Y30 E2
3Y33 A6 9Y13 F13
LED + SWITCH
B14e
AUDIO-STBY
AUDIO-STBY
3Y35 D4
3Y36 A8
3Y37 F2
3Y38 F3
3Y39 G2
3Y40 E6
5Y00 H2
5Y01 G6
5Y02 G13
5Y03 G13
5Y06 E13
5Y07 F13
5Y09 G13
5Y11 G6
5Y12 H6
5Y14 F6
5Y15 E13
5Y16 A13
5Y17 B13
5Y18 A7 FY25 F3
B21
*
*
*
TO 1M07
B21
B4,B14b,B21
B21
5Y20 C7
5Y21 C8
5Y22 C7
5Y23 F9
7Y01 B5
7Y02 G3
9Y00 D9
9Y01 H1
9Y03 F1
9Y05 G6
9Y06 H6
9Y09 E2
9Y12 A5
FY51 B13
TO 1M03
*
*
B6a
B14e
9Y14 F15
9Y15 H1
9Y16 B5
9Y17 B5
FY00 E14
FY01 F14
FY03 F14
FY05 F15
FY22 E3
FY23 F3
FY24 F3
FY73 G9
TO 1M01
TO
SDI SUPPLY
SCART 3
TO 1M37
FY26 F2
FY28 G2
FY29 F4
FY30 H2
FY31 H2
FY32 D9
FY37 E7
FY38 E7
FY39 F7
FY40 F7
FY41 F7
FY42 F7
FY43 G7
FY44 F7
FY45 G7
FY46 F14
FY47 F14
FY48 E15
FY49 A13
FY50 B13
*
OR
B12
PDP AUDIO
B21
TO 1739
FY52 B13
FY53 B14
FY54 B14
FY55 B14
FY56 A9
FY57 A9
FY58 A8
FY59 B8
FY60 B9
FY61 C7
FY62 C9
FY63 C8
FY64 C8
FY65 E14
FY66 F10
FY67 F9
FY68 G9
FY69 G9
FY70 G9
FY71 G9
FY72 G9
SDI SUPPLY
*
FY74 A5
FY75 A5
FY76 G8
FY77 F8
FY78 F8
FY79 F3
FY80 E12
FY81 E12
FY82 H7
FY85 A5
FY86 D5
FY87 D5
TO 1M46
res
SCART 3
*
9Y09
*
*
*
*
*
*
0Y07
1Y11
3Y01
100R
FY65
0Y20
9Y06
2Y02
100p
FY47
FY52
9Y14
1Y24
8
9
100R
3Y13
1
10
11
12
2
3
4
5
6
7
1M20
B12P-PH-K
30R
5Y11
FY30
FY70
FY69
5Y20
1Y30
1Y15
FY77
0Y14
100p
2Y41
0Y15
+5V
4
5
6
789
9Y16
BM07B-SRSS-TBT
1M17
1
2
3
EMC HOLE
1Y42
FY44
FY71
100p
2Y04
0Y08
9Y13
FY38
0Y05
1Y25
100p
2Y16
2Y25
100p
1Y17
FY56
0Y30
1Y28
EMC HOLE
1Y41
+5V 9Y17
1Y10
9Y15
4K7
3Y14
0Y04
68R
3Y22
10p
2Y20
8
9
+11V_SF
FY22
B9B-PH-K
1
2
3
4
5
6
7
1M52
100R
3Y18
FY54
100R
3Y06
30R
5Y07
0Y22
FY85
FY79
3Y17
100R
FY01
0Y310Y21
2Y00
100p
FY68
res 10p
2Y45
FY55
2Y29
1n0
5Y21
1Y40
EMC HOLE
FY46
0Y18
0Y23 0Y24
FY31
2Y33
1n0
2Y11
100p
5
3Y21
68R
B5B-PH-K
1M07
1
2
3
4
FY61
9V_STBY
0Y32
FY32
+5V2-STBY
FY51
0Y13
3Y19
100R
0Y00
2Y12
100p
2Y23
100p
FY03
FY48
2Y50
10p
FY86
100R
3Y34
9Y1210p
2Y49
1Y05
1Y21
FY62
9Y01
2Y28
FY72
1Y37
1n0
100R
3Y10
5Y00
9
30R
5Y09
1
10
2
3
4
5
6
7
8
1-440054-0
1M03
2Y17
100p
1Y35
3Y23
68R
0Y01
+8V
+5V
100p
2Y01
100p
2Y40
0Y06
1Y34
FY76
+5V2-STBY
100p
2Y10
100p
2Y26
3Y40
100R
FY63
FY00
FY40
FY29
100R
3Y02
0Y10
FY53
FY59
3Y11
100R
3Y03
100R
5Y18
2Y39
100p
FY58
+11V_SF
5Y22
1Y32
15K
3Y30
1Y09
9Y05
FY23
0Y34
2Y19
100p
100p
2Y06
1Y45
EMC HOLE
100R
3Y00
100p
2Y18
9Y00
FY28
0Y16 0Y17
2Y14
FY45
100p
5Y06
30R
1Y22
2Y27
1n0
FY26
FY42
1Y12
100R
3Y25
FY80
2Y08
1Y08
100p
0Y11
2
3
B3B-PH-K
1M01
1
4
5
6
7
8
30R
5Y15
1M09
1
2
3
B8P-PH-K
2Y43
100p
100p
5Y14
2Y38
3Y04
2K2
2Y21
10p
1Y13
100R
3Y05
1Y16
1Y31
FY60
1Y02
3Y12
2Y30
100u16V
100R
100R
3Y08
FY43
PDTC144EU
7Y01
5Y02
5Y03
+11V
1Y27
1Y33
0Y28
10
11
2
3
4
5
6
7
8
9
B11B-PH-K
1M36
1
1
2
3
1M49
B3B-PH-K
FY87
3Y35
100R
9V_STBY
100p
2Y34
1Y38
1M48
B3B-PH-K
1
2
3
FY25
res
5Y01
10K
3Y39
4K7
3Y37
68R
3Y20
FY74
30R
5Y12
FY50
0Y02
100p
2Y37
100p
2Y22
0Y12
2Y03
100p
FY67
1
2
3
+8V
FY73
1M02
S3B-PH-K
0Y03
1Y06
1Y04
3Y36
100R
FY57
100n
2Y13
1Y07
100R
3Y09
1Y14
0Y350Y33
100n
2Y52
FY05
4
5
6
7
8
9
1
10
11
2
3
1M46
B11B-PH-K
2Y44
10p
res
0Y27
res
3Y27
100R
7Y02
BC857BW
2K2
3Y38
30R
5Y17
5Y19
FY78
FY82
FY49
2Y15
100p
1Y26
1n0
2Y32
1Y23
16V 100u
2Y31
100p
2Y51
FY37
FY66
+5V2-STBY
FY64
res
100R
3Y28
+5V
0Y25
9Y03
+33V
FY24
1Y18
5Y16
30R
1Y39
FY39
2Y42
100p
2Y09
100p
+5V2-STBY
100K
3Y24
2Y07
100p
3Y33
100R
2Y48
100p
FY75
+3V3_SIM
FY81
100p
2Y53
0Y26
5Y23
FY41
LED2
PROT-AUDIOSUPPLY
PROT-AUDIOSUPPLY
KEYBOARD
IRQ-DIGITAL
PWR-OK-PDP
POR
POR
POR-CLASSD
ODC
AL-CL
AL-DA
CON-SND
STANDBY-IO4
SCL-SF
SDA-SF
FRAME
STATUS-SC3-F
SEL_IN_1_BF
SCL-S
SDA-S
HEADPHONE-R
HEADPHONE-L
AUDIO-C
AUDIO-L
AUDIO-R
AUDIO-SW
POR-CLASSD
SOUND-ENABLE
SURR-RF
SURR-LF
GND-AUD
GND-AUD
KEYBOARD
FRONT-Y-CVBS-IN
FRONT-C-IN
L-FRONT-IN
FRONT-DETECT
R-FRONT-IN
BACKLIGHT-CNTRL
LIGHT-SENSOR
RC
LED1
SDA-S
SCL-S
GND-AUD
STANDBY
PWR-OK-PDP
FAN-SPEED
LAMP-ON
E_14620_118.eps
070704
8204 000 8347.5
92FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
Layout SSB (Top Side Overview)
SDM
SAM
Part 1
E_14620_053a.eps
Part 3
E_14620_053c.eps
Part 4
E_14620_053d.eps
Part 2
E_14620_053b.eps
E_14620_053.eps
040105
3104 303 3894.4
Circuit Diagrams and PWB Layouts 93FTL2.xE AA 7.
Layout SSB Mapping (Top Side)
1000 A6
1001 B6
1304 A5
1305 B5
1306 B4
1307 B5
1308 B4
1401 A6
1402 A6
1408 A4
1702 D5
1703 D5
1710 D7
1D01 A8
1E02 B8
1E04 C8
1I01 A5
1I04 A4
1I05 A7
1I06 A6
1I07 A7
1I09 A6
1I11 A3
1I53 A8
1I56 A9
1I57 A8
1I59 A9
1I79 E1
1M01 D9
1M02 A9
1M03 E9
1M07 A9
1M09 A9
1M15 A9
1M17 F8
1M20 D9
1M36 C9
1M46 F8
1M48 F3
1M49 F7
1M52 F2
1P00 C2
1P03 C2
1P06 B2
1P10 C2
1P11 C2
1P12 C2
1T01 A2
1T02 E2
1U01 F6
2002 B6
2004 C6
2005 C6
2006 C6
2007 C6
2008 C6
2009 C5
2011 C5
2012 C5
2013 B6
2014 B6
2016 B6
2018 B6
2020 C6
2025 B5
2027 C5
2028 B6
2029 C6
2031 A6
2034 B5
2035 B5
2037 B6
2039 B5
2058 A6
2059 A6
2067 B5
2070 C6
2071 C6
2073 C6
2075 A6
2301 C4
2305 B4
2314 C4
2315 C4
2316 B4
2317 B4
2318 B4
2322 B4
2324 C4
2327 B5
2329 C5
2330 C5
2331 C5
2332 C4
2333 C4
2334 C4
2336 C4
2339 A5
2340 C4
2344 A5
2347 A5
2348 A5
2349 A5
2350 B4
2351 B4
2352 B4
2353 B4
2355 A5
2356 B4
2357 B4
2358 B4
2359 B5
2360 B5
2361 B5
2362 B5
2363 C5
2364 A5
2365 B4
2367 B4
2368 B4
2373 B4
2376 B4
2377 C4
2379 B5
2380 B5
2381 B5
2382 B5
2383 A5
2388 B4
2389 C4
2391 A4
2393 C4
2394 C4
2395 C5
2396 C5
2397 C4
2398 C4
2401 B4
2403 B4
2404 B4
2405 A4
2406 A4
2407 A4
2408 A4
2409 B4
2410 C4
2411 B4
2412 A4
2413 A4
2414 C4
2416 B4
2417 B4
2425 C4
2427 A5
2428 A5
2429 C4
2432 B4
2433 C4
2434 B4
2435 B4
2436 B4
2707 D6
2708 D6
2709 E6
2710 D7
2711 D7
2712 D7
2715 C7
2716 E7
2717 D7
2718 C5
2719 C5
2720 D5
2721 D5
2722 D5
2723 D7
2724 C8
2725 E7
2726 E6
2728 E7
2729 E7
2730 D7
2732 E5
2733 D6
2735 D5
2736 D6
2738 D7
2739 E6
2740 D5
2741 D5
2742 D5
2743 D6
2744 D6
2745 E5
2747 D5
2749 D5
2750 A7
2751 A7
2752 B7
2753 B7
2755 B8
2756 B7
2758 B7
2759 B7
2760 B7
2761 B7
2762 B7
2763 B7
2764 C7
2765 B8
2768 A7
2770 B7
2771 B7
2772 B7
2773 B7
2777 B7
2778 B7
2780 B7
2781 B7
2782 B7
2784 B7
2785 B7
2787 B7
2788 B7
2790 B7
2792 C5
2794 B7
2795 B7
2796 B7
2797 B7
2798 B7
2799 B7
2800 D5
2802 A6
2805 B7
2809 A7
2810 C7
2811 C7
2813 C7
2814 B8
2815 B7
2816 B7
2818 B7
2819 D6
2820 C7
2821 B7
2822 B6
2824 B7
2826 B7
2828 B7
2829 C7
2830 C7
2831 C7
2832 C7
2833 C7
2834 C7
2835 C7
2836 C5
2837 A7
2838 A7
2839 A7
2840 C5
2841 C6
2843 E5
2844 B7
2845 D6
2846 D6
2847 E6
2848 E5
2849 B7
2850 C6
2851 C6
2852 D6
2853 D6
2854 D6
2855 C6
2856 C6
2857 C6
2858 C6
2859 C6
2860 C6
2861 C6
2862 C5
2863 C5
2864 C5
2865 C6
2866 D5
2867 D6
2868 C5
2869 C6
2870 D5
2871 A7
2872 B7
2873 B7
2874 D6
2875 D7
2876 C7
2877 D7
2878 D7
2879 D7
2880 D7
2881 D5
2886 D7
2887 D7
2888 D7
2889 A7
2890 D5
2891 E6
2895 A7
2896 C6
2897 C7
2898 A8
2899 A8
2900 C5
2901 D5
2902 D5
2914 D6
2915 C5
2916 D5
2917 E6
2918 E6
2919 E7
2921 B7
2922 E5
2923 E5
2924 A6
2925 B7
2926 A7
2927 A7
2928 A7
2929 D5
2931 D5
2935 D5
2936 C7
2937 C7
2938 C5
2939 E6
2A00 E4
2A02 D5
2A03 E4
2A04 E4
2A05 D4
2A06 D4
2A08 C4
2A09 D5
2A10 D4
2A11 D4
2A12 D3
2A13 D3
2A14 D4
2A15 D4
2A16 D4
2A17 D4
2A18 D4
2A20 D4
2A21 D4
2A22 D4
2A23 D4
2A25 D4
2A26 D4
2A27 D4
2A29 D5
2A30 D4
2A31 D4
2A32 D5
2A33 D5
2A35 D4
2A36 D4
2A37 D5
2A39 D5
2A40 D5
2A41 D5
2A42 D4
2A43 D4
2A44 D4
2A45 D3
2A46 D5
2A49 D4
2A50 D4
2A53 D4
2A54 D4
2A56 D4
2A59 D4
2A62 D4
2A66 D4
2A76 D4
2A95 E3
2AA6 D5
2AA7 D4
2AB2 D4
2AB5 D4
2AB6 D4
2AB7 D4
2AD1 E3
2AF3 E3
2AF4 E3
2AK0 E5
2AK1 E5
2AK2 D4
2AK3 D4
2AK4 E4
2AK5 E4
2AK6 E5
2AK7 E5
2AK9 E4
2AL0 D4
2AL1 E4
2AL2 E4
2AL3 E4
2AL4 D4
2AL8 E4
2AL9 E4
2ALA E4
2AM0 D4
2AM1 D4
2AM2 E4
2AM3 E4
2AM5 D4
2AM6 E4
2AM7 E4
2AM9 E4
2AN0 D4
2AN1 E4
2AN7 E5
2C01 A5
2D03 E7
2D09 C8
2D10 C8
2D11 C8
2D12 C8
2E01 C9
2E03 D9
2E06 C9
2E17 E9
2E21 D8
2E22 D8
2E23 E8
2E24 E8
2E25 E8
2E26 E8
2E28 E8
2E29 E8
2E30 E8
2E32 E9
2E34 E8
2E39 E9
2E41 D9
2E42 C8
2E43 D9
2E50 D9
2E54 C9
2E56 C8
2E57 C8
2E58 C8
2E59 C8
2E62 C8
2E65 C8
2E66 C8
2E67 C8
2E68 C8
2E69 C8
2E70 C8
2E71 C8
2E72 C8
2E73 C8
2E74 C8
2E75 C8
2E77 C8
2E78 C8
2E79 C8
2E80 D8
2E81 D8
2E82 C9
2E83 C9
2E87 D8
2E89 B8
2E90 B8
2E91 B8
2E95 C8
2E96 D8
2E97 D9
2E98 D8
2E99 D9
2I00 A9
2I03 B3
2I13 A2
2I14 A3
2I15 A5
2I16 A4
2I17 A4
2I18 A4
2I19 A4
2I20 A5
2I21 A2
2I22 A2
2I23 A2
2I24 A3
2I25 A3
2I26 A7
2I27 A7
2I28 A6
2I29 A6
2I30 A6
2I31 A7
2I32 A6
2I34 E2
2I36 A6
2I38 A9
2I49 A7
2I55 B2
2I56 B2
2I57 A7
2I58 A7
2I62 E3
2I64 A9
2I65 A9
2I66 B9
2I67 B8
2I68 B8
2I71 A3
2I72 A3
2I73 A3
2I75 A3
2I76 A3
2I77 A2
2I78 A3
2I79 A3
2I80 A2
2I81 A2
2I82 A2
2I84 A2
2I85 A2
2I86 B9
2I87 B8
2I88 B8
2I89 B9
2I90 B9
2I91 B9
2I92 A8
2I93 A8
2I94 A8
2I95 B8
2I96 B8
2I97 A9
2I98 B8
2I99 A4
2IA0 A2
2IA1 A2
2IA2 A4
2IA3 A9
2IA5 A3
2IA6 A3
2IA9 A7
2IB3 A8
2IB5 A9
2IC0 A7
2IC1 A7
2IC2 A6
2IC8 B9
2IC9 A4
2IE1 A9
2IE2 B8
2IE3 A8
2IE4 A8
2IE5 B9
2IE6 B9
2IE7 B9
2IE8 B9
2IE9 A9
2IF1 A8
2IF2 A8
2IF3 A8
2IF4 A7
2IF5 A8
2IF6 A8
2IG2 A9
2IG3 A9
2IG4 A9
2IG5 A8
2IG6 B9
2IG7 B9
2IG8 B9
2IG9 B8
2IH2 A8
2IH4 B9
2IH5 B9
2IJ2 A3
2IJ3 A3
2IJ6 A9
2IJ7 A9
2IJ8 B9
2IJ9 B9
2IK4 A9
2IK5 B3
2IK7 C4
2IR1 A8
2IS6 E2
2L00 C9
2L01 B9
2L02 B9
2L03 B9
2L04 B9
2L05 B9
2L06 B9
2L07 B9
2L08 C9
2L09 C9
2L10 B9
2L11 C9
2L12 C9
2L13 C9
2L14 C9
2L15 C9
2L16 C9
2L17 C9
2L19 F8
2L20 C9
2L21 C9
2L28 B9
2L29 B9
2L30 B9
2L33 F9
2L34 E9
2L48 B9
2L49 B9
2L50 B9
2L51 C9
2L52 B9
2L54 B9
2L57 B9
2L58 B9
2P00 B1
2P02 B1
2P03 B2
2P04 B2
2P05 B1
2P06 B2
2P07 B2
2P08 B2
2P09 C1
2P10 C1
2P13 C1
2P17 C1
2P19 C2
2P20 C2
2P21 C2
2P22 B2
2P26 D1
2P27 C1
2P28 C1
2P34 C2
2P35 C2
2P36 C2
2P37 C2
2P38 C2
2P39 C2
2P40 C2
2P41 C2
2P42 C2
2P43 C2
2P44 C2
2P50 B2
2P80 B3
2P81 B3
2P90 B3
2P98 C1
2P99 C2
2PA4 C3
2PA5 C3
2PA6 C2
2PA7 C2
2PA8 C2
2PB3 C3
2PB4 C3
2PB5 C3
2PB6 C3
2PB7 C2
2PB8 B3
2PB9 C3
2PC0 C3
2PC1 C3
2PC2 C3
2PC3 B3
2PC4 B3
2PC5 C3
2PC6 B3
2PC7 B2
2PC8 B2
2PC9 C2
2PD1 C2
2PD2 D2
2PD3 C3
2PD4 C3
2PD5 D3
2PD6 C3
2PD7 C3
2PD8 C3
2PD9 C3
2PE0 C2
2PE1 D3
2PE2 C3
2PE3 C3
2PE4 C3
2PE5 C3
2PE6 B2
2PF1 B3
2PF3 C3
2PF8 C3
2PF9 C3
2PG0 C2
2PG1 C2
2U03 E7
2U04 E7
2U05 E7
2U07 E7
2U09 E7
2U11 E6
2U12 E6
2U13 F7
2U14 E7
2U15 E6
2U16 E7
2U17 F7
2U18 E7
2U20 E6
2U21 E7
2U23 E8
2U30 E7
2U31 F8
2U32 E7
2U34 F6
2U36 E6
2V06 D8
2V07 D8
2V08 D8
2V09 D8
2V10 D8
2V11 E9
2V12 E9
2V16 D8
2V17 D8
2V18 D8
2V19 D8
2V20 D8
2V21 D8
2V22 D8
2V23 D8
2V24 D8
2V25 D8
2Y06 E9
2Y07 E9
2Y08 E9
2Y09 E9
2Y10 E9
2Y12 F9
2Y13 F9
2Y14 E9
2Y15 E9
2Y16 E9
2Y17 E9
2Y18 D9
2Y19 D9
2Y20 D9
2Y21 D9
2Y30 B9
2Y31 C9
2Y32 D9
2Y33 D9
2Y37 F2
2Y38 F2
2Y39 F2
2Y40 F2
2Y41 F2
2Y42 F2
2Y44 F3
2Y45 F3
2Y51 F2
2Z44 F5
2Z45 F5
2Z46 F5
2Z47 F5
2Z48 F5
2Z49 F5
2Z50 F5
2Z51 F5
2Z52 F5
2Z53 F5
2Z57 F5
2Z58 F5
2Z59 F5
2Z60 F5
2Z61 F5
2Z62 F5
2Z63 F4
2Z65 F4
3003 C6
3011 C5
3012 B5
3018 C5
3019 C5
3020 C5
3021 C5
3024 C6
3025 C6
3026 C6
3027 C6
3033 C6
3035 B5
3039 C6
3047 A6
3058 C6
3059 C6
3065 B5
3066 B5
3068 C6
3073 C6
3074 C5
3075 C6
3076 C5
3077 C6
3078 C5
3084 A6
3089 B5
3090 C6
3091 A6
3099 C6
3302 C4
3304 C4
3306 C4
3317 C4
3318 C4
3320 B4
3321 B4
3322 C4
3329 C4
3330 C5
3332 C5
3335 C5
3336 C4
3340 C4
3341 B4
3342 B4
3343 C4
3344 C4
3345 C4
3346 C4
3347 C4
3348 C4
3349 B5
3353 C4
3361 C4
3363 C5
3370 B4
3371 B4
3372 B4
3376 B4
3377 B4
3387 C5
3388 C4
3390 C4
3393 B4
3394 C4
3395 C5
3396 C5
3397 C5
3398 C4
3399 C4
3400 C4
3402 B4
3404 B4
3406 A4
3409 A4
3411 B4
3412 C4
3413 B4
3416 A4
3418 B4
3422 B4
3423 A4
3433 A4
3436 A4
3437 B4
3439 B4
3442 C4
3443 C4
3444 B4
3447 B4
3448 C4
3449 C4
3460 B5
3461 B5
3462 B5
3472 C4
3473 B4
3474 C4
3475 B4
3476 B4
3701 D6
3703 D6
3704 D6
3705 D6
3706 D5
3707 E7
3712 D5
3713 C5
3714 C5
3715 D5
3716 C5
3717 C5
3718 D5
3719 D5
3720 D5
3721 D5
3722 D6
3723 D5
3724 D7
3725 D5
3726 D5
3727 D5
3728 D5
3729 B8
3730 D5
3732 E6
3733 D6
3734 D6
3736 D6
3737 D6
3738 D6
3739 D6
3740 E6
3741 D6
3742 D6
3743 D6
3744 D5
3745 B6
3746 D6
3747 D6
3748 D6
3749 D6
3750 D6
3751 E6
3752 D6
3753 D5
3754 D6
3755 D6
3756 D6
3760 D7
3765 B7
3766 B7
3778 C7
3782 B7
3783 B7
3796 B7
3798 B7
3805 C7
3819 C7
3820 B7
3821 C8
3823 B7
3824 B6
3826 C5
3827 C5
3829 E6
3830 D6
3831 D6
3832 D6
3833 C6
3834 C6
3835 C6
3836 C6
3837 C6
3838 C6
3839 C6
3840 C6
3841 C6
3842 C6
3843 D6
3844 D6
3845 D6
3846 C6
3847 C6
3848 C6
3849 D5
3850 B7
3851 D5
3853 C6
3854 C6
3855 C6
3856 A7
3857 A7
3858 A7
3859 A7
3860 A7
3861 A7
3864 D6
3865 D6
3867 C7
3868 C7
3869 D5
3870 E6
3874 E5
3875 D6
3876 D7
3877 C8
3885 D7
3886 D7
3887 D7
3888 D7
3889 D7
3890 D7
3891 D7
3895 B8
3897 B8
3898 B8
3903 D6
3905 D6
3906 C7
3909 D5
3913 D5
3914 D5
3915 C5
3916 C5
3917 C5
3922 D5
3923 D5
3924 D5
3925 D5
3926 C5
3927 C5
3928 C5
3929 C5
3930 D5
3931 D5
3932 D5
3933 D5
3A00 D5
3A01 D5
3A03 D4
3A05 D5
3A07 D5
3A09 D5
3A11 D4
3A12 D4
3A13 D4
3A14 D4
3A15 D4
3A16 D4
3A18 D4
3A20 D4
3A21 D4
3A23 D4
3A26 D4
3A27 D4
3A28 D4
3A66 D4
3AA0 E4
3AA1 E4
3AA4 D4
3AA5 E4
3AA6 D4
3AA7 E4
3AA9 E4
3AB0 E4
3AB2 E4
3AB3 E4
3AB4 E4
3AB5 E4
3AB6 D4
3AB7 E4
3AB8 D4
3AB9 D4
3AC0 E4
3AC1 E4
3C01 A5
3C03 A5
3C06 A5
3C07 B5
3C08 A5
3C09 C5
3E00 D8
3E01 D8
3E02 D9
3E03 D8
3E06 D8
3E07 E8
3E08 E8
3E09 E9
3E10 E9
3E13 E9
3E15 E9
3E16 E8
3E37 E9
3E50 C8
3E52 C8
3E53 B8
3E54 C8
3E59 D9
3E60 C8
3E61 C9
3E62 C8
3E63 C8
3E64 D9
3E73 B8
3E74 D8
3E77 C8
3E78 C8
3E79 B8
3E80 B8
3E87 C8
3E91 D8
3I00 E3
3I19 A3
3I20 A3
3I21 A3
3I22 A3
3I26 A3
3I27 A3
3I35 A4
3I39 A2
3I43 A3
3I50 A4
3I51 A4
3I52 A4
3I53 A4
3I54 A5
3I55 A5
3I56 A5
3I57 A5
3I58 A5
3I59 A5
3I60 A5
3I61 A4
3I62 A4
3I63 A5
3I64 A5
3I65 A5
3I66 A5
3I67 A5
3I68 A5
3I69 A2
3I70 A2
3I71 A2
3I72 A3
3I73 A3
3I74 A3
3I75 A3
3I76 A3
3I77 A3
3I78 A4
3I79 A2
3I80 A3
3I81 A3
3I82 A3
3I83 A3
3I84 A3
3I86 A4
3I87 A4
3I88 A4
3I89 A7
3I90 A7
3I91 A7
3I92 A7
3I93 A7
3I94 A6
3I95 A6
3I96 A6
3I97 A6
3I99 A6
3IA0 A6
3IA2 A6
3IA3 A6
3IB2 A4
3IB8 E3
3IB9 E3
3IC4 A4
3IC6 A2
3IC9 A6
3ID1 A5
3IE2 A7
3IE3 A7
3IE9 A7
3IF0 A9
3IF5 A7
3IF6 A7
3IF7 A7
3IFA A7
3IFB A7
3IFC A7
3IFD A8
3IFE A8
3IFF A8
3IFL A8
3IG0 A8
3IG1 A8
3IG3 A8
3IG4 A8
3IG6 A8
3IG7 A8
3IGH E3
3IH9 A4
3IHA A8
3IHB A8
3IHC A8
3II4 A4
3IJ0 A3
3IJ1 A3
3IK0 B8
3IK2 A2
3IK3 A3
3IK8 A3
3IL1 A7
3IL3 A7
3IL8 A7
3IM0 A7
3IM4 A7
3IN0 A7
3IN4 A7
3IN5 A4
3IN6 A4
3IQ2 A3
3IQ3 A3
3IQ8 B9
3IQ9 B9
3IR2 B8
3IR3 B8
3IR4 B8
3IR5 B8
3IR6 B8
3IR7 A8
3IR8 A8
3IR9 B8
3IS0 B8
3IS2 A3
3IS3 A9
3IS5 B9
3IS6 A9
3IT0 A7
3IT1 A7
3IT2 A6
3IT3 A6
3IT4 A6
3IT6 B9
3IT7 B8
3IT8 B8
3IU0 A8
3IU2 A8
3IU5 A9
3IU6 A9
3IU7 A8
3IU8 A8
3IU9 A9
3IV0 B9
3IV1 B9
3IV2 B9
3IV3 B9
3IV7 A8
3IV8 A9
3IV9 A8
3IW2 A9
3IW4 A5
3IW5 A5
3IZ0 A9
3IZ1 A8
3IZ2 A8
3IZ6 A8
3IZ7 A8
3IZ8 A8
3IZ9 A8
3L04 B9
3L05 B9
3L11 B9
3L19 B9
3L20 B9
3L21 B9
3L28 B9
3L29 B9
3L30 B9
3L31 B9
3L32 C8
3L33 C8
3P00 C1
3P01 C2
3P02 D2
3P07 B2
3P08 B2
3P10 B1
3P17 B2
3P18 B2
3P19 B1
3P20 B1
3P25 C2
3P26 C2
3P27 B1
3P28 C1
3P29 C2
3P30 C1
3P34 C1
3P35 C1
3P41 C2
3P42 C2
3P43 C2
3P44 C1
3P61 C3
3P90 C2
3P91 B2
3P93 B3
3PA0 C3
3PA1 D2
3PA2 D2
3PA3 C3
3PA4 C3
3PA5 C2
3PA6 C3
3PA7 C3
3PA8 C2
3PA9 C3
3PB0 C2
3PB1 C2
3PB2 C2
3PB3 C2
3PB4 C2
3PB5 C3
3PB6 C3
3PB7 C2
3PB8 C2
3PB9 C2
3PC1 C2
3PC2 D3
3PC3 D3
3PC4 D3
3PC6 C3
3PC7 C3
3PC8 C3
3PC9 C3
3PD0 C3
3PD1 C2
3PD2 C3
3PD3 C2
3PD4 C2
3PD5 C2
3PD6 C2
3PD8 C2
3PD9 C3
3PE0 C2
3PE1 C2
3PE2 C2
3PE3 C2
3PE4 C2
3PE5 C2
3PF0 C3
3PF1 C2
3PF2 C3
3PF3 C2
3PF4 C3
3PF6 C3
3PF7 D3
3PF8 C3
3PF9 C3
3PG0 C3
3PG2 D2
3PG3 C3
3PG4 C3
3PG5 C3
3PG6 C2
3PH2 C3
3PH3 B3
3PH4 B2
3PH6 C2
3PH7 D2
3PH8 C3
3U01 F6
3U02 E7
3U03 E7
3U04 E7
3U05 E7
3U06 E6
3U07 E6
3U08 E6
3U09 E7
3U10 F7
3U11 E7
3U13 E7
3U14 E7
3U15 F7
3U16 E6
3U17 E7
3U18 E6
3U19 E6
3U20 F6
3U21 E6
3U22 F6
3U23 F6
3U25 E6
3U26 E6
3U28 E7
3U29 E7
3U30 E7
3U31 E7
3U34 E6
3U46 E6
3U51 E7
3U52 F6
3U53 F6
3U56 E6
3U57 E6
3U70 F6
3V01 D8
3V02 D8
3V07 D8
3V08 D8
3V14 D8
3V15 D8
3V16 D8
3V17 D8
3V19 D8
3V20 D8
3V21 C9
3V22 C9
3V23 C9
3V24 C9
3V25 D8
3V26 D8
3V27 D8
3V28 D8
3V29 D8
3V30 D8
3V31 D8
3V32 D8
3V33 D8
3V34 D8
3V35 E8
3V36 C8
3V39 C9
3V50 E9
3V51 E9
3V52 E9
3V53 E9
3V54 E9
3V55 E9
3V56 D8
3V57 E8
3Y04 C9
3Y17 C9
3Y18 D9
3Y19 D9
3Y27 F3
3Y28 F3
3Y36 F2
3Y39 F2
3Z22 F5
3Z34 F5
3Z35 F5
3Z50 F5
3Z51 F5
3Z52 F5
3Z53 F5
3Z54 F5
3Z55 F5
5000 A6
5001 A6
5003 A6
5301 C4
5302 C4
5303 A5
5306 A5
5307 A5
5309 A5
5310 A5
5311 A5
5403 A4
5405 B4
5406 A4
5411 A5
5416 A4
5703 D6
5705 D5
5706 D5
5707 C5
5708 D5
5709 C7
5713 B7
5714 D5
5721 E5
5722 E5
5725 E5
5726 E5
5750 C7
5751 C7
5752 B7
5753 D6
5754 B7
5755 E5
5756 D6
5757 B7
5758 B7
5759 C7
5760 B8
5761 C7
5762 B7
5764 B7
5767 D5
5768 E6
5772 E7
5773 E5
5775 B7
5777 C7
5778 E5
5779 D6
5780 B7
5800 C5
5801 C7
5A00 D4
5A01 E4
5A02 C4
5A03 C4
5A06 E3
5A19 D5
5A38 E3
5E51 D8
5E52 C8
5E53 E7
5E56 C8
5I01 B2
5I05 A9
5I06 A9
5I12 A8
5I13 A8
5I21 A9
5I22 A9
5I30 A8
5I31 B9
5I32 B9
5I33 A9
5I34 A9
5I35 A8
5I36 B9
5I37 B8
5I38 B8
5I40 B9
5I41 B8
5I46 B3
5I47 C3
5L02 B9
5L04 B9
5L06 B9
5L13 C9
5L14 C9
5L15 C9
5L16 C9
5L17 C9
5L18 C9
5P00 B1
5P01 B1
5P02 B2
5P03 B1
5P04 B2
5P06 B1
5P07 B2
5P51 B2
5PA0 B3
5PA1 C3
5PA2 B3
5PA3 B3
5PA4 C3
5PA5 D2
5PA6 C3
5PA7 C3
5PA8 D3
5PB0 B3
5U01 F7
5U02 F6
5U03 E7
5U04 E7
5U05 E8
5U06 F8
5U07 E7
5V06 D8
5V07 D8
5V08 D8
5Y16 C9
5Y17 C9
5Z01 F5
5Z02 F5
5Z03 F5
5Z04 F5
5Z05 F5
5Z06 F4
6001 C6
6003 C6
6301 C4
6309 C4
6310 C4
6311 C4
6316 C4
6319 C4
6404 A4
6701 D5
6702 E6
6703 D5
6704 B7
6705 E7
6709 C8
6710 D5
6711 D5
6712 E6
6716 E5
6717 C7
6718 C7
6719 B7
6720 D6
6721 D6
6722 D6
6723 C7
6A00 D4
6E51 C9
6E52 C8
6E54 D8
6I10 A5
6I14 A9
6I15 A8
6I16 A9
6I17 A9
6I18 A8
6I19 A8
6I20 A8
6I21 A9
6I22 A4
6I23 A4
6I24 A4
6I25 A4
6I26 A5
6I27 A5
6I28 A5
6I29 A5
6I30 A4
6I31 A4
6I32 A4
6I33 A4
6I35 A5
6I36 A5
6I37 A2
6I38 A2
6I39 A3
6I40 A3
6I41 A3
6I42 A3
6I43 A4
6I44 A3
6I45 A2
6I46 A2
6I47 A3
6I48 A3
6I49 A3
6I50 A3
6I51 A4
6I52 A4
6I53 A7
6I54 A7
6I55 A7
6I56 A7
6I57 A6
6I58 A6
6I59 A6
6I60 A6
6I61 A6
6I62 A6
6I68 A6
6I69 A6
6I70 A6
6I75 A3
6I77 A4
6I90 A7
6I91 A7
6I92 A7
6I93 A7
6IA0 A5
6P02 B2
6P03 B2
6PA0 C2
6PA1 C2
6PA2 C2
6PB2 C3
6PB3 B3
6PB4 B2
6PB6 D2
6PB7 C2
6PB8 C3
6U01 F7
6U03 E7
6U04 E7
6U05 E7
6U06 F7
6U07 F6
6U08 E6
6U09 E6
6U13 F6
6U17 F6
6V01 D8
6V02 D8
6V03 D8
7001 B6
7005 A6
7006 B6
7008 C6
7009 C6
7010 C6
7013 B5
7014 B5
7017 A5
7018 A5
7019 B5
7304 B5
7320 B4
7323 B4
7340 C4
7361 C4
7362 C5
7402 B4
7405 A4
7408 B4
7409 C4
7411 B4
7413 B5
7414 B4
7415 B4
7701 C7
7702 D6
7703 E6
7705 E6
7706 D6
7707 D6
7708 D6
7709 D6
7710 D6
7711 D5
7715 D6
7717 B7
7718 B7
7721 B7
7725 B6
7770 C6
7772 B8
7773 E6
7774 B6
7775 D5
7776 C5
7777 D5
7A00 D4
7A01 D4
7A02 D4
7A03 D4
7A11 D3
7A12 D3
7A16 D3
7A31 D5
7A61 E4
7A62 E4
7A63 E4
7E01 D9
7E02 D8
7E06 B8
7E22 E9
7E25 D9
7E26 D9
7E27 D8
7I06 A3
7I11 E3
7I17 A3
7I18 B9
7I21 A6
7I24 B3
7I26 A7
7I28 A7
7I30 A7
7I33 A7
7I45 E2
7I53 B9
7I54 A8
7I56 A8
7I57 A8
7I58 A8
7I60 A3
7I80 A7
7I81 A8
7I82 A8
7L02 F9
7P00 B2
7P02 B1
7P05 B2
7P08 C1
7P09 C2
7P10 C2
7PA0 C3
7PA1 C3
7PA2 C2
7PA3 C2
7PA4 C3
7PA5 C2
7PA6 C2
7PA7 D3
7PA8 C3
7PA9 C3
7PB0 C2
7PB1 B2
7PB2 C2
7PB3 C2
7PB4 C2
7PB6 D2
7U01 E7
7U02 E7
7U03 E7
7U04 E7
7U05 E6
7U06 E6
7U08 E7
7U09 E7
7U10 E6
7U11 E6
7U12 E6
7V04 E9
7V06 E8
9016 C6
9017 A6
9018 A6
9022 C6
9023 C6
9302 C4
9303 C4
9304 C4
9305 C4
9314 B5
9315 C5
9316 C4
9322 B4
9408 B4
9409 B4
9412 A4
9414 B4
9416 A4
9417 A4
9419 B4
9423 A5
9424 A5
9425 A5
9426 B5
9428 A5
9700 D6
9703 D5
9704 C7
9705 C7
9707 D5
9708 C5
9709 D5
9711 B8
9713 C8
9717 B6
9718 B6
9719 B7
9720 B6
9721 C7
9722 D5
9727 D7
9728 D7
9729 E6
9730 B8
9731 B7
9732 B7
9750 B7
9751 B7
9752 C7
9761 C7
9762 C7
9767 D6
9768 D6
9769 D6
9770 D6
9771 D6
9772 D6
9800 C6
9801 C6
9802 C6
9803 C6
9804 C6
9805 C6
9806 C6
9807 D6
9808 D7
9809 D6
9810 D7
9812 C6
9815 D6
9816 D6
9817 D6
9818 D6
9821 B8
9822 B8
9825 D5
9826 C5
9827 D5
9A04 C5
9A05 D5
9A06 D5
9A19 E4
9A21 D2
9A22 D3
9A23 D3
9A24 D3
9A25 D3
9A60 D4
9A61 E4
9A65 D4
9A67 D4
9A71 D4
9A72 D2
9A73 D2
9A74 D3
9A75 D3
9A78 D5
9A79 D5
9C00 A5
9C01 A6
9E59 C9
9E60 C8
9E61 C8
9E62 C8
9E63 C8
9E64 C8
9E65 C8
9E74 E9
9I04 A4
9I07 B9
9I08 B3
9I10 B3
9I12 B3
9I13 A6
9I14 B9
9I17 A5
9I18 A5
9I20 A3
9I21 A3
9I22 A4
9I23 A8
9I25 A7
9I26 A7
9I27 A7
9I28 A9
9I30 A2
9I35 A2
9I37 A7
9I45 A8
9I49 A8
9I51 A6
9I59 A7
9I60 A3
9I61 A7
9I84 A8
9I85 B8
9I87 E1
9I89 E1
9I90 E1
9I95 B3
9I97 B3
9IA1 A3
9IA3 A2
9IA6 A5
9IA7 A5
9ID0 E3
9IF0 A7
9IF1 A7
9IF2 A7
9IF3 A8
9IF4 A8
9P00 B1
9P01 B2
9P02 B1
9P03 B1
9P06 C1
9P08 B1
9P13 C2
9P14 B1
9P15 C1
9P19 B1
9P26 C2
9P27 C2
9P29 B2
9P70 B3
9P72 B2
9PA0 C3
9PA1 C2
9PA2 C3
9PA3 C2
9PA4 D3
9PA5 C3
9PA6 C3
9PA7 C2
9PA8 C2
9PB1 C2
9PB2 B3
9PB3 C2
9PB4 C2
9PB5 C2
9PB8 D3
9Y01 F9
E_14620_053m.eps
270504
94FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
Layout SSB (Top Side Part 1)
Part 1
E_14620_053a.eps
040105
Circuit Diagrams and PWB Layouts 95FTL2.xE AA 7.
Layout SSB (Top Side Part 2)
E_14620_053b.eps
040105
SDM
SAM
Part 2
96FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
Layout SSB (Top Side Part 3)
E_14620_053c.eps
040105
Part 3
Circuit Diagrams and PWB Layouts 97FTL2.xE AA 7.
Layout SSB (Top Side Part 4)
Part 4
E_14620_053d.eps
040105
98FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
Layout SSB (Bottom Side Overview)
Part 1
E_14620_054a.eps
Part 3
E_14620_054c.eps Part 4
E_14620_054d.eps
Part 2
E_14620_054b.eps
E_14620_054.eps
300305
3104 303 3894.4
SAM
SDM
Circuit Diagrams and PWB Layouts 99FTL2.xE AA 7.
Layout SSB Mapping (Bottom Side)
E_14620_054m.eps
270504
1301 B5
1404 A4
1406 A6
1407 A6
1409 A5
1410 B6
1411 B6
1A00 D5
1A01 D5
1G50 F5
1P04 B8
1P05 C8
1P07 C8
1P08 B9
1P09 C9
1P50 C8
2003 B4
2010 C5
2017 B5
2019 A5
2022 C4
2023 B4
2024 B4
2026 B5
2033 B5
2036 B4
2038 B4
2040 B4
2041 B5
2052 A4
2053 A4
2054 A4
2055 A4
2056 A4
2057 A4
2060 A4
2061 A4
2063 C4
2068 C5
2072 C5
2074 C5
2300 B6
2302 B6
2303 C6
2304 C6
2306 B6
2307 C6
2308 C6
2309 B6
2310 B6
2311 B6
2312 B6
2313 B6
2319 C6
2320 B5
2321 C5
2323 C5
2325 B6
2326 C6
2328 C5
2335 C6
2337 C6
2338 C6
2341 C6
2342 C6
2343 C6
2345 A5
2346 A5
2354 B6
2366 B6
2369 B6
2370 C6
2371 B6
2372 B6
2374 B6
2375 B6
2378 B6
2384 B6
2385 B6
2386 C6
2387 B6
2392 B6
2402 B6
2415 B6
2418 B6
2419 B6
2420 B6
2421 B6
2422 B6
2423 B6
2424 B6
2426 A5
2431 C5
2713 E5
2714 E5
2727 E4
2731 E5
2734 D4
2737 C2
2746 E5
2748 E5
2754 E5
2757 D5
2769 B3
2786 B4
2789 A3
2791 A3
2793 A3
2804 D5
2806 D5
2807 D5
2808 B4
2812 B3
2817 D3
2823 A3
2825 A3
2827 A3
2882 D3
2883 D3
2884 D3
2885 D3
2892 E3
2893 D3
2894 D3
2920 D5
2932 C5
2933 C5
2A01 D6
2A07 C6
2A19 D7
2A24 D7
2A34 D8
2A38 D7
2A47 D5
2A51 C5
2A64 D6
2A69 D6
2A70 D6
2A72 D6
2A74 D6
2A75 D6
2A79 D6
2A80 D6
2A81 D6
2A83 D6
2A88 D6
2A89 D6
2A90 D6
2A91 D5
2A92 D6
2A99 D5
2AA5 D6
2AA9 D5
2AB0 D5
2AB3 D6
2AB4 D6
2AB8 D6
2AC1 E7
2AD0 E7
2AD3 E7
2AD4 E8
2AD5 E7
2AD6 E8
2AE2 D7
2AE3 D8
2AE5 E8
2AF0 D7
2AK8 E6
2AN5 E6
2AN6 E6
2C00 A5
2C02 B5
2D04 D1
2D15 D1
2E02 E1
2E04 E1
2E05 E2
2E07 E1
2E08 E2
2E09 D1
2E10 E2
2E11 E2
2E12 D2
2E13 E2
2E14 E2
2E15 D2
2E16 E1
2E18 D2
2E19 D1
2E20 E2
2E27 E2
2E35 D2
2E48 E2
2E49 D1
2E51 D1
2E52 C2
2E53 E2
2E55 C2
2E84 D2
2E86 D1
2E88 C2
2E92 B2
2E93 B2
2E94 B2
2I01 B7
2I02 B8
2I04 A7
2I05 B7
2I06 B7
2I07 A8
2I08 A8
2I09 A1
2I10 A6
2I11 A4
2I12 A5
2I33 E8
2I37 F6
2I39 A5
2I40 F6
2I46 A2
2I47 A5
2I48 E6
2I50 A3
2I52 E5
2I59 E8
2I60 F6
2I69 B2
2I70 B2
2IA4 A5
2IB7 E6
2IB8 A1
2IB9 B2
2IC3 A3
2IC5 B1
2IC6 A2
2IC7 A2
2IE0 B8
2IF0 A1
2IF8 A2
2IF9 A2
2IG1 A8
2IH1 B1
2IH3 A5
2IH6 A2
2IH7 A2
2IH8 A2
2IH9 A2
2IJ0 A8
2IJ1 A7
2IJ4 A8
2IJ5 E5
2IK1 A2
2IK2 A1
2IK3 A1
2IK6 C6
2IL0 A7
2IN8 A2
2IN9 A2
2IR0 A3
2L18 B1
2L25 B1
2L26 C2
2L27 C2
2L31 C2
2L32 C2
2L56 B1
2L59 B1
2L60 B1
2P01 C8
2P11 C9
2P12 C9
2P14 C9
2P15 C9
2P16 C9
2P18 C8
2P23 C8
2P24 C8
2P25 C9
2P29 C8
2P30 C8
2P31 C9
2P32 D9
2P33 C9
2P45 C9
2P46 C9
2P47 C8
2P49 C8
2P51 C8
2P52 C7
2P53 C7
2P54 C7
2P55 C7
2P56 C7
2P57 C7
2P58 C7
2P59 D8
2P60 D7
2P61 D7
2P62 D7
2P63 C7
2P65 C7
2P66 C7
2P70 B7
2P71 C7
2P72 B7
2P73 B7
2P74 C7
2P75 B7
2P76 C7
2P77 C7
2P78 B8
2P79 B7
2P87 B8
2P88 B7
2P91 C9
2P92 C9
2P93 C9
2P94 C9
2P95 C8
2P96 C8
2P97 C7
2PA0 C7
2PA1 C7
2PA2 C7
2PA3 C7
2PA9 C8
2PB0 C7
2PB1 C7
2PB2 C7
2PD0 C8
2PE7 C7
2PE8 C7
2PE9 C7
2PF2 B7
2PF5 B7
2PF6 B7
2PF7 C8
2PG2 C9
2PG6 D7
2T01 A9
2T02 D9
2T03 D8
2T04 A9
2T05 A9
2T06 A9
2T07 D8
2T09 A9
2T10 D9
2T11 D8
2T12 A9
2T13 A9
2T14 D8
2T15 A9
2T16 D9
2T17 A9
2T18 D8
2T19 D8
2T20 D8
2T21 A9
2T22 A9
2T30 E9
2T31 E8
2T32 E9
2T33 E8
2T34 E8
2T35 E8
2T36 E9
2T37 E8
2T38 E9
2T40 D9
2T41 D8
2T42 E8
2T43 E8
2T44 E8
2T45 E8
2T46 D8
2T47 E9
2T48 E8
2T49 E9
2T50 E9
2T51 E8
2T52 E9
2T53 E8
2T54 E9
2U01 F3
2U02 E3
2U06 E4
2U08 F2
2U10 F3
2U19 E4
2U22 E4
2U24 E4
2U25 E4
2U26 F4
2U27 E3
2U28 E3
2U29 F2
2U33 F4
2U35 E4
2U37 E3
2U38 E4
2U39 E4
2U40 E4
2U41 E4
2U42 E4
2Y00 F2
2Y01 F2
2Y02 F2
2Y03 F2
2Y04 F2
2Y11 F2
2Y22 F2
2Y23 D1
2Y25 C1
2Y26 C1
2Y27 C1
2Y28 D1
2Y29 D1
2Y34 F2
2Y43 F8
2Y48 F2
2Y49 F3
2Y50 F3
2Y52 F8
2Y53 D1
2Z54 E5
2Z55 E5
2Z56 E5
2Z64 F6
3001 C5
3002 C5
3004 B5
3005 B5
3006 B4
3007 B4
3008 B5
3009 C4
3010 B5
3013 B5
3014 B5
3015 B5
3016 B5
3017 B5
3022 C4
3023 C4
3028 C4
3029 B5
3030 C4
3031 B5
3032 C4
3034 B4
3036 C4
3037 C4
3038 C4
3040 B5
3041 B5
3042 C5
3045 A4
3046 A4
3048 B5
3049 B5
3050 B5
3051 B5
3052 B4
3053 C5
3054 B4
3055 B4
3056 B4
3057 B4
3061 B4
3062 B4
3064 C5
3067 B5
3069 C5
3070 C4
3072 B4
3079 C5
3080 C4
3081 B4
3082 B4
3083 B4
3085 B5
3086 B5
3087 B4
3088 C5
3092 C5
3093 B5
3094 C5
3095 C5
3096 C5
3097 A4
3098 A4
3100 C5
3101 C5
3102 B4
3103 C4
3300 B6
3301 B6
3303 B6
3305 C6
3307 C6
3308 C6
3310 C6
3311 C6
3312 C6
3313 C6
3314 C6
3315 B6
3316 C6
3319 C6
3323 B6
3324 B6
3325 C6
3326 B6
3327 B6
3328 B6
3331 C5
3333 B5
3334 B6
3337 C6
3338 C6
3339 C6
3350 C6
3351 C6
3352 C6
3354 C6
3355 C6
3356 C6
3357 C6
3358 C6
3359 C6
3360 C6
3362 C6
3364 C6
3365 C6
3366 C6
3367 C6
3369 C6
3378 B6
3380 B6
3382 B6
3383 C6
3384 C6
3385 B6
3386 C6
3389 C6
3391 C6
3401 B6
3405 B6
3407 A6
3408 B6
3410 A6
3414 B6
3415 B6
3417 A6
3419 A6
3420 B6
3421 A6
3434 A6
3435 A6
3441 B6
3445 A6
3450 B6
3451 B6
3452 B6
3453 C6
3454 C6
3455 C6
3456 B6
3457 B6
3459 C6
3463 B6
3465 C6
3467 C6
3468 B6
3470 C6
3471 C6
3700 D4
3702 E4
3709 E5
3710 D5
3711 E4
3757 A3
3758 E5
3759 D5
3761 D4
3762 C3
3763 C3
3764 C3
3767 C3
3768 C3
3769 C3
3770 C3
3771 A3
3772 A3
3773 A3
3774 C3
3775 C3
3776 A3
3777 C3
3779 C3
3780 C3
3781 C3
3784 C3
3792 A3
3793 B4
3794 A3
3795 A3
3797 B4
3799 B4
3800 A3
3801 A3
3802 A3
3803 C3
3804 C3
3811 A3
3812 A3
3814 A3
3815 A3
3817 A3
3818 A3
3822 D4
3825 B4
3871 E3
3872 D3
3873 E3
3880 D3
3881 D3
3882 D3
3883 D3
3884 D3
3894 A3
3896 B2
3900 B3
3901 C3
3902 C3
3911 B3
3912 B3
3918 B3
3919 B3
3921 B3
3A02 D7
3A04 D5
3A06 D6
3A17 D6
3A19 D6
3A22 D5
3A24 C5
3A40 D6
3A45 D5
3A46 D5
3A47 D6
3A48 D5
3A49 D5
3A51 D6
3A52 D6
3A53 D6
3A55 D5
3A60 D6
3A61 D6
3A62 D6
3A63 D6
3A64 D5
3A65 C5
3A67 D7
3A74 E8
3A77 D7
3C00 A5
3C04 A5
3C05 A5
3C10 B5
3C11 C5
3C12 B5
3E04 E1
3E05 E1
3E11 E2
3E12 E2
3E14 E2
3E18 D2
3E19 D2
3E51 D1
3E55 D1
3E56 D1
3E57 D1
3E58 D1
3E69 C2
3E70 C2
3E81 C2
3E82 B2
3E83 C2
3E84 B2
3E85 B2
3E86 B2
3E88 D2
3E89 D1
3E90 E1
3I01 A8
3I02 B8
3I03 B8
3I04 A7
3I05 B7
3I06 B8
3I07 A5
3I08 A8
3I09 A8
3I10 B7
3I11 B7
3I12 B7
3I13 B7
3I14 B7
3I15 B7
3I16 B7
3I17 A7
3I18 A7
3I23 A8
3I24 A8
3I25 B8
3I28 A4
3I29 A3
3I30 A2
3I31 A3
3I32 A2
3I33 A2
3I34 A4
3I36 A4
3I37 A4
3I38 A4
3I40 A2
3I41 A2
3I42 B2
3I44 A1
3I45 A2
3I46 A1
3I47 B1
3I48 B1
3I49 A2
3I85 A3
3I98 A5
3IA1 A5
3IA4 A8
3IA5 A8
3IA6 A3
3IA7 A3
3IA8 A4
3IA9 A4
3IB0 A3
3IB1 E8
3IB3 E8
3IB4 A2
3IB5 A2
3IB6 E8
3IB7 E8
3IC0 E8
3IC1 A3
3IC2 A5
3IC3 A5
3IC5 E8
3IC7 E8
3IC8 A3
3ID0 A3
3ID2 E6
3ID3 F6
3ID4 F6
3ID5 A3
3ID6 E5
3ID7 A5
3ID8 A5
3ID9 A3
3IE0 F6
3IE7 A3
3IF1 E6
3IF2 E6
3IF3 F6
3IF4 E6
3IF8 E6
3IF9 E6
3IG9 A1
3IGA F6
3IGB F6
3IGC F6
3IGD F6
3IGE F6
3IGF F6
3IH0 F6
3IH1 A5
3IH2 F6
3IH4 F6
3IH7 A3
3IH8 A8
3IHG A7
3II0 A8
3II1 A8
3II2 A8
3II3 A8
3II5 A2
3II6 A2
3II7 A2
3II8 B2
3II9 B2
3IJ2 A2
3IJ3 A2
3IJ4 A2
3IJ6 A2
3IJ7 A2
3IJ8 A7
3IK4 A7
3IK5 A8
3IK7 A7
3IK9 B2
3IN1 A7
3IN2 A3
3IN3 A3
3IN8 A3
3IO5 A3
3IO6 A3
3IP0 A8
3IP1 A8
3IP2 A8
3IP3 A7
3IP4 A8
3IP5 A8
3IP6 A8
3IP7 A8
3IP8 A7
3IP9 A3
3IQ0 A7
3IQ1 A7
3IQ4 A7
3IQ5 B2
3IQ6 A2
3IQ7 A2
3IR0 B1
3IR1 B1
3IS1 B2
3IS4 A3
3IT5 B2
3IT9 A8
3IU1 A2
3IU3 A1
3IV4 A2
3IV5 A2
3IV6 A2
3IW1 A1
3IW3 A6
3IW7 A2
3IW8 A2
3IW9 A6
3IZ3 A2
3IZ4 A2
3IZ5 A2
3L02 B1
3L03 C2
3L06 C2
3L08 C2
3L12 B1
3P03 C8
3P04 C8
3P05 C8
3P06 C8
3P09 B8
3P11 B9
3P12 B8
3P13 B8
3P14 B8
3P15 B8
3P16 C9
3P21 C8
3P22 C8
3P23 C8
3P24 C8
3P31 C9
3P32 C9
3P33 C9
3P36 C9
3P37 C8
3P38 C9
3P39 C9
3P40 B9
3P45 C8
3P46 C8
3P47 C9
3P48 C8
3P49 C8
3P50 C7
3P51 C7
3P52 C7
3P53 C8
3P54 C7
3P55 D7
3P56 C7
3P57 C7
3P60 C7
3P62 C7
3P63 C7
3P64 C7
3P65 B8
3P66 B8
3P67 B7
3P68 B7
3P69 B7
3P70 B7
3P71 C8
3P72 B8
3P74 B7
3P75 D7
3P76 C7
3P79 C8
3P80 C8
3P81 C7
3P82 B7
3P85 B8
3P86 B7
3P87 B7
3P88 B7
3P92 C8
3P94 C8
3P95 C8
3P96 C7
3P97 D7
3P98 C7
3P99 C7
3PC0 C8
3PC5 B7
3PD7 C8
3PF5 B7
3PG1 C7
3PG7 D7
3PG8 C7
3PH5 D8
3PH9 D7
3PI0 B7
3PJ0 D8
3PJ1 D8
3PJ2 D8
3PJ3 D8
3PJ4 C7
3PJ5 C7
3PJ6 C7
3PJ7 C7
3PJ8 C7
3PJ9 C7
3T03 A9
3T04 D8
3T05 A9
3T06 A9
3T10 E9
3T11 E9
3T12 E9
3T13 E9
3T14 E9
3T15 E9
3T16 E8
3T17 E8
3T18 E8
3T19 E8
3T20 E9
3T22 E9
3T23 E8
3T24 E8
3T25 E8
3T26 E8
3T27 E9
3T28 D8
3T29 E9
3T30 E9
3T31 E9
3T32 E8
3T33 E9
3T51 E9
3T52 E9
3T53 E9
3T54 E9
3T55 E9
3T56 E9
3T57 E9
3T58 E9
3T59 E9
3T60 E9
3U12 F5
3U24 E4
3U27 E5
3U32 E3
3U33 E3
3U35 E4
3U36 F5
3U37 F4
3U38 F4
3U39 E4
3U40 E4
3U41 E4
3U42 E4
3U43 F4
3U44 E3
3U45 E3
3U54 E5
3U55 F4
3U58 E3
3U59 E3
3U60 E4
3U61 E4
3U62 E4
3U63 E4
3U64 E4
3U65 E4
3U66 E4
3U67 E4
3U68 E4
3U69 E4
3V18 C2
3V37 C2
3V38 C2
3V40 C2
3Y00 E1
3Y01 E1
3Y02 E1
3Y03 E1
3Y05 E1
3Y06 F2
3Y08 F1
3Y09 D1
3Y10 D1
3Y11 E1
3Y12 D1
3Y13 F2
3Y14 F8
3Y20 D1
3Y21 D1
3Y22 D1
3Y23 D1
3Y24 F8
3Y25 F8
3Y30 F1
3Y33 F2
3Y34 F3
3Y35 F3
3Y37 F8
3Y38 F8
3Y40 D1
3Z23 E5
3Z24 F5
3Z25 F5
3Z26 F5
3Z28 E5
3Z29 E5
3Z30 E5
3Z31 E5
3Z32 E5
3Z33 E5
3Z36 E5
3Z37 F5
3Z38 F6
3Z39 F5
3Z56 E5
5304 A5
5305 A5
5308 A5
5312 B6
5313 C6
5314 C6
5315 C6
5318 B6
5401 B6
5402 A6
5404 B6
5408 B6
5702 C5
5719 E4
5720 E4
5723 E5
5724 E5
5727 E5
5728 E5
5763 D3
5769 E3
5770 D3
5771 D3
5A07 D7
5E00 E1
5E01 E2
5E02 E2
5E03 E2
5E50 C2
5E54 D1
5E55 C2
5E58 C2
5I02 E8
5I04 E8
5I10 E6
5I39 B2
5I42 A2
5I45 C6
5P05 B9
5P08 C8
5P09 C8
5P10 C8
5P11 C9
5P50 C7
5PA9 B7
5T02 D9
5T03 D8
5T04 E8
5T10 D9
5T11 E8
5T12 D9
5T13 D9
5T14 E8
5T15 E8
5T20 A9
5T22 A9
5T25 A9
5Y00 F1
5Y01 E1
5Y02 F2
5Y03 F2
5Y06 F2
5Y07 F2
5Y09 F1
5Y11 E1
5Y12 E1
5Y14 D1
5Y15 F2
5Y18 F8
5Y19 F8
5Y20 F8
5Y21 F8
5Y22 F8
5Y23 D1
5Z07 F6
5Z08 F6
6002 A4
6004 C4
6005 A4
6006 C4
6303 B6
6304 B6
6306 B6
6307 B6
6308 C6
6312 B6
6313 B6
6314 C6
6317 C6
6334 B6
6402 A6
6403 B6
6405 A6
6713 E3
6714 D3
6715 E3
6A01 C5
6A02 C6
6E53 D1
6E55 D2
6E56 C2
6I01 A3
6I03 E8
6I04 E8
6I05 E5
6I06 A2
6I07 A3
6I08 A2
6I09 A2
6I11 A4
6I12 A5
6I13 A5
6I63 B2
6I64 A2
6I65 A1
6I66 A2
6I80 A1
6I81 A1
6IA1 A1
6IA7 A5
6P00 B8
6P01 B8
6P10 C7
6PB1 B7
6PB5 D8
6PB9 D7
6T01 A9
6T02 D8
6T03 A9
6T04 D8
6T05 A9
6T06 D9
6T07 D9
6T08 A9
6T10 E9
6T11 E9
6U02 E3
6U10 E3
6U11 E4
6U12 F4
6U14 E4
6U16 E4
6V05 C2
6Z00 E5
7002 B5
7003 B5
7004 B5
7007 A5
7011 C5
7012 B5
7015 C5
7016 C5
7020 C4
7021 C4
7022 C4
7301 C6
7302 C6
7303 B6
7305 C6
7306 C6
7307 B6
7309 C6
7310 C6
7312 B6
7313 C6
7314 C6
7315 C6
7316 C6
7317 C6
7318 C6
7319 C6
7322 B6
7375 C6
7401 A6
7403 B6
7406 A6
7407 A6
7410 B6
7412 B7
7712 E5
7713 D4
7714 D3
7719 C3
7720 B3
7752 C5
7753 C4
7760 D3
7A04 D6
7A06 D6
7A07 D6
7A08 D5
7A09 D5
7A13 D7
7A14 D7
7A15 D8
7A30 E7
7E03 B2
7E04 C2
7E05 D1
7E10 C2
7E12 D1
7E23 E2
7E24 E1
7I01 A8
7I02 A3
7I03 A4
7I04 A4
7I05 A5
7I07 A3
7I08 A6
7I09 A2
7I10 E8
7I12 A3
7I13 E5
7I14 F6
7I15 E6
7I16 E6
7I19 B1
7I20 A8
7I22 A8
7I23 A2
7I27 A3
7I29 A3
7I31 A3
7I32 A3
7I35 A8
7I36 A8
7I37 A8
7I38 A7
7I40 F6
7I41 A2
7I44 A5
7I46 E8
7I49 A5
7I50 A5
7I51 B2
7I52 B2
7I55 A2
7I61 B2
7I62 A8
7I64 B2
7L01 B1
7P01 B8
7P03 B9
7P04 B9
7P06 C9
7P07 C9
7P11 C9
7P51 C7
7P52 C7
7P53 C7
7P54 C7
7P55 C7
7P56 B7
7P58 C7
7P59 C7
7P60 C8
7P61 C8
7P62 C8
7P63 D8
7PB5 B7
7T01 D9
7T04 E9
7T10 E8
7T11 E9
7T12 E9
7T13 E9
7T50 A9
7U07 F4
7U13 E4
7V01 C2
7V02 D2
7V03 C1
7Y01 F9
7Y02 F8
7Z00 E5
7Z01 E5
9001 C5
9002 C5
9003 C5
9004 B5
9005 A4
9006 A4
9007 A4
9008 C4
9009 C4
9010 C5
9011 C5
9012 C4
9013 C4
9014 B5
9015 C5
9019 C4
9021 C4
9024 C4
9025 C4
9308 C6
9309 C6
9310 C6
9311 C6
9312 C6
9313 C6
9318 B6
9319 B6
9401 A6
9402 A6
9403 A6
9404 B6
9405 A6
9406 B6
9407 B6
9410 B6
9413 B6
9415 B6
9418 A6
9420 A6
9421 C6
9422 B6
9427 B6
9701 E5
9702 E5
9706 D5
9710 D5
9712 B4
9714 C2
9715 B4
9716 B4
9723 B3
9726 D5
9740 B4
9753 B4
9754 B4
9755 B4
9756 B4
9757 B4
9758 B4
9759 B4
9760 B4
9763 B4
9764 B4
9765 B4
9766 B4
9773 B4
9774 B4
9775 B4
9811 D3
9820 D4
9823 B3
9A00 D6
9A01 D6
9A02 D6
9A03 D6
9A07 D6
9A08 D6
9A10 E6
9A11 E6
9A12 E6
9A13 E6
9A14 E6
9A15 E6
9A16 E6
9A17 E6
9A18 D6
9A20 E6
9C02 A4
9E57 C2
9E58 C2
9E66 D1
9E67 D1
9E68 D1
9E69 D1
9E70 D1
9E71 D1
9E72 D1
9E73 D2
9E75 D1
9E76 D1
9E77 D2
9I00 A7
9I01 A7
9I02 A7
9I03 B7
9I05 E8
9I06 E8
9I09 A7
9I11 A7
9I15 A8
9I16 A8
9I19 B7
9I29 A2
9I31 A7
9I32 A7
9I33 A7
9I34 A8
9I39 A7
9I41 A3
9I42 A3
9I50 A4
9I57 A8
9I58 A8
9I62 A3
9I63 A3
9I64 A3
9I65 A3
9I66 A3
9I67 A3
9I68 A2
9I78 B8
9I79 A3
9I81 A2
9I88 A2
9I91 A2
9I92 A7
9I93 A7
9I94 A7
9I96 B8
9I98 A2
9I99 F6
9IA2 A3
9IA4 A5
9IA5 A5
9IB1 A7
9IB2 A7
9IB3 A2
9ID1 A3
9ID2 A3
9ID3 A2
9ID4 A2
9ID5 A2
9ID6 A2
9ID7 A2
9ID8 A2
9ID9 A2
9P04 B8
9P05 B9
9P07 C9
9P09 B9
9P10 B8
9P11 B8
9P12 C9
9P16 B8
9P17 C8
9P18 B9
9P20 C8
9P21 C8
9P22 C9
9P23 C8
9P24 C9
9P25 C9
9P28 C8
9P30 C9
9P31 C7
9P32 C7
9P52 C7
9P53 C7
9P54 D7
9P69 B7
9P71 B7
9P73 D7
9P74 D7
9P75 D7
9PB7 D8
9T01 A9
9T02 D8
9T03 D8
9T04 A9
9T05 A9
9T06 D8
9T07 A9
9T08 A9
9T09 D8
9T10 D8
9T11 E8
9T12 A9
9T14 A9
9T50 A9
9Y00 D1
9Y03 F1
9Y05 E1
9Y06 E1
9Y09 F1
9Y12 F2
9Y13 F2
9Y14 F2
9Y15 F1
9Y16 F9
9Y17 F9
Personal Notes:
E_06532_012.eps
131004
100FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
Layout SSB (Bottom Side Part 1)
Part 1
SAM
SDM
E_14620_054a.eps
300305
Circuit Diagrams and PWB Layouts 101FTL2.xE AA 7.
Layout SSB (Bottom Side Part 2)
Part 2
E_14620_054b.eps
300305
102FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
Layout SSB (Bottom Side Part 3)
Part 3
E_14620_054c.eps
300305
Circuit Diagrams and PWB Layouts 103FTL2.xE AA 7.
Layout SSB (Bottom Side Part 4)
Part 4
E_14620_054d.eps
300305
104FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
Side I/O Panel
I004 A3
I005 F3
I006 F4
I007 E3
I008 E4
I009 B3
I010 D3
I011 F7
I012 F7
I013 F3
I014 E3
SSB JAGUAR
TO 1M36
SCART 3
TO 1M36
F010 F8
F011 F8
F012 A6
F013 A7
F014 A6
F015 A7
F016 A6
F017 A7
F018 F7
F019 F2
F020 B3
F021 C6
F022 C6
F023 C6
F024 E6
F025 E5
I001 C1
I002 C3
I003 D2
JAGUAR ONLY
CONNECTOR
USB
1M60
OR
9006 F7
9007 F7
9008 F4
9009 F4
9010 E4
9011 E4
F001 A2
F002 A2
F003 B1
F004 C2
F005 C2
F006 D2
F007 E1
F008 E2
F009 E1
Y / CVBS
SIDE I/O
6004 C3
6005 C3
6006 D3
6007 D3
6008 F3
6009 F3
6010 E3
6011 F3
9003 C5
9004 C2
9005 D1
2009 F4
2010 E2
2011 E4
3000 A3
3004 B3
3008 C5
3009 C4
3010 C3
3011 C4
3012 D4
3013 D3
3016 F4
3020 E4
3999 F8
5000 A6
6000 A3
6001 A3
6002 B3
6003 B3
C1010 E1
1050 A6
1101 A2
1102 B2
1106 C2
1108 D2
1109 E2
1110 F2
1111 E2
1112 A7
1H01 A6
1M36 B8
2003 C5
2004 C3
2005 C4
2006 D3
2007 D4
2008 F2
TO 1H01
TO 1M36
SSB EMGT
RES
2345678
12345678
A
B
C
D
E
F
A
B
C
D
E
F
1001 B1
1002-1 B1
1002-2 C1
1002-3 D1
1005 A7
VIPER
1
I005
EMGT
OR
OR
I008
GND_AUD
I007
1109
GND_AUD
3011
3K9
GND_AUD
I002
8
1K0
3012
RED
1002-3
9
7
1106
GNDB
F006
6007
PDZ6.8-B
GNDB
I003
I012
6002
PDZ6.8-B
F009
6003
PDZ6.8-B
F002
GNDB
GNDB
GNDB
PDZ6.8-B
6011
1
2
3
4
56
1
2
3
4
56
1H01
1005
1050
DLW31S
F014
F012 F013
F024
F019
GND_AUD
GND_AUD
1108
GND_AUD
9004
5000
3020
10K
75R
2
3
4
5
7
8
3000
1010
1
1110
F010
3999
150R
2003
1u0
I006
F007
6008
PDZ6.8-B
GND_AUD
9011
9010
I001
22n
2010
6006
PDZ6.8-B
2008
22n
680p
2006
3009
1K0
100p
2005
1
2
3010
33K
1002-1
YELLOW
2004
680p
1111
I010
9005
GNDB
F005
9003
GNDB
6
4
5
GNDB
GND_AUD
GNDB
WHITE
1002-2
9007
F020
9006
F015
GNDB
F017
F018
F003
1101
2007
100p
F001
I004
6010
PDZ6.8-B
PDZ6.8-B
6009
6005
PDZ6.8-B
6004
GNDB
PDZ6.8-B
F025
GNDB
F023
GNDB
F011
1M36
1
10
11
2
3
4
5
6
7
8
9
F004
F016
F008
2011
10n
9008
33K
3013
9009
I014
I013
10K
3016
10n
2009
1102
1112
I009
34
2
GNDB
1001
5
1
I011
3004
75R
PDZ6.8-B
6001
F021
F022
2K2
3008
PDZ6.8-B
GNDB
6000
E_14620_065.eps
190504
3104 313 6008.3
Circuit Diagrams and PWB Layouts 105FTL2.xE AA 7.
Layout Side I/O Panel (Top Side)
1001 B1
1002 A1
1005 A1
1010 A1
1050 A1
1H01 A1
1M36 B1
5000 A1
E_14620_066.eps
190504
3104 313 6008.3
Layout Side I/O Panel (Bottom Side)
E_14620_067.eps
190504
3104 313 6008.3
2003 A1
2004 A1
2005 A1
2006 A1
2007 A1
2008 A1
2009 A1
2010 A1
2011 A1
3000 B1
3004 B1
3008 A1
3009 A1
3010 A1
3011 A1
3012 A1
3013 A1
3016 A1
3020 A1
3999 B1
6000 B1
6001 B1
6002 B1
6003 B1
6004 A1
6005 A1
6006 A1
6007 A1
6008 A1
6009 A1
6010 A1
6011 A1
9003 A1
9004 A1
9005 A1
9006 A1
9007 B1
9008 A1
9009 A1
9010 A1
9011 A1
106FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
Top Control Panel
I114 B2
I115 B3
I116 B3
I117 B4
F007 E7
I105 D1
I106 D2
I107 D2
I108 D2
I109 D1
I110 B1
I111 B1
I112 B2
I113 B2
6009 B4
6010 B4
6011 B5
6012 B5
TOP CONTROL
9000 D4
9001 D5
9002 D5
F001 C5
F002 C5
F005 C5
F006 E7
3027 B5
3028 B5
3999 E7
6001 B1
LED + SWITCH
KEYBOARD
6002 B1
6003 B2
6004 B2
6005 B2
6006 B3
6007 B3
6008 B4
D
E
A
B
C
D
ON / OFF
CHANNEL +
CHANNEL -
MENU
VOLUME +
VOLUME -
TO
3025 B4
3026 B4
3019 B2
3020 B2
3021 B2
3022 B3
3023 B3
3024 B4
1234567
1234567
A
B
C
I118 B4
I119 B4
I120 B5
I121 B5
E
0345 C5
1701 D1
1702 D1
1703 D2
1704 D2
1705 D2
1710 E4
3008 D3
3010 D2
3011 D2
3013 D1
3014 D1
3017 B1
3018 B1
SML512BC2T
6003
6002
SML512BC2T
SKQNAB
1704
1705
SKQNAB
1702
SKQNAB
BACKLIGHT-TC
620R
3008
F007
9001
9002
I114I110
F005
F002
I105
F001
I121
3028
33R
6012
SML512BC2T
I120
33R
3027
SML512BC2T
6011
I107I106I108
I113
I109
SKQNAB
1703
33R
I119
6010
SML512BC2T
3026
I118
1K1
3010
I116
390R
3014
I115
1710
25
14
36
200R
3013
33R
3025
SML512BC2T
6009
33R
I117
6008
SML512BC2T
3024
3018
33R
33R
3017
SML512BC2T
6007
6006
SML512BC2T
SML512BC2T
6005
6004
SML512BC2T
SML512BC2T
6001
9000
I112I111
2K2
3999
F006
2K0
3011
1
2
3
4
5
6
BACKLIGHT-TC
0345
SKQNAB
1701
33R
3023
3022
33R
33R
3021
33R
3020
3019
33R
E_14620_068.eps
190504
3104 313 6020.3
Circuit Diagrams and PWB Layouts 107FTL2.xE AA 7.
Layout Top Control Panel (Top Side)
Layout Top Control Panel (Bottom Side)
E_14620_069.eps
180604
3104 313 6020.3
0345
1701
1702
1703
1704
1705
1710
3008
3010
3011
3013
3014
3017
3018
3019
3020
3021
3022
3023
3024
3025
3026
3027
3028
3999
6001
6002
6003
6004
6005
6006
6007
6008
6009
6010
6011
6012
9000
9001
9002
E_14620_122.eps
180604
3104 313 6020.3
108FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
SCART 3 Panel
MUXDX
MUXDX
F545 C10
F546 C12
F547 D12
F548 D13
F549 E12
I503 A3
I504 B2
I505 A4
I508 B3
I516 B3
I518 B4
I519 C3
I549 C2
I550 C2
I551 D2
ONLY
FOR
ITV
TO 1M36
F524 F2
F525 F12
F526 F12
F527 F1
F528 G2
F529 G1
F530 G12
F531 A12
F532 A5
F536 A9
F538 C2
F539 B5
F540 C5
F541 D7
F542 D5
F543 E5
F544 B10
F502 C2
F503 D2
F510 A13
F512 A12
F513 A13
F514 A12
F515 A13
F516 A12
F517 C13
F518 C12
F519 C12
F520 E5
F521 E1
F522 E1
F523 F12
6505 F2
6506 E2
6507 D3
6508 A8
7501 E9
7502 F9
7515 A6
7516 D6
9500 E4
9501 E7
9502 C7
9503 A12
9504 C12
9505 C12
9506 A12
9516 H8
9517 H7
9521 G7
F500 B2
F501 B2
3527 F8
3528 F8
3529 F9
3530 B12
3531 B12
3532 C12
3533 D12
3534 D12
3535 F9
3536 D9
3543 D3
3999 E1
6500 A3
6501 B3
6502 C3
RES
6503 C3
6504 D8
3508 E2
3509 E3
3510 E3
3511 A6
3512 A6
3513 A7
3514 A7
3515 A7
3516 A8
3517 D8
3522 D3
3523 E8
3524 E9
3525 E9
3526 C3
2513 F9
2515 E5
2516 E6
2517 B5
2520 B12
2521 B12
2522 C12
2523 D11
2524 D12
3500 A3
3501 A3
3502 B4
3503 B3
3504 B3
3505 C4
3506 C2
3507 D2
1M36 F1
1M37 F12
2500 A4
2501 A3
2502 B4
2503 C3
2504 E6
2505 C5
2506 C6
2507 A9
2508 A9
2509 F6
2510 D4
2511 D9
2512 E8
13
A
B
C
D
E
F
G
H
A
B
C
D
E
F
6 7 8 9 10 11 12 13
1 2 3 4 5 6 7 8 9 10 11 12
1500 B3
1501 C2
1502 C3
1504 E2
1505 E2
1506 D3
1507 D2
1508 C2
1509 B2
1510 D2
1511 B2
1512 C2
1513 C2
1514 E2
1M07 E12
SSB EMG
TO 1M36
SIDE I/O
SCART 3
ONLY
FOR
ITV
TO 1M07
SSB EMG
12345
I565 C7
I570 E5
I571 E6
I572 E7
I573 E7
I575 E7
I576 B6
I577 B6
I578 E8
I579 E7
I580 E9
I581 E6
I582 E6
I583 F9
c001 F7
SCART
G
H
0244 B13
1003 B1
1005 C13
I552 D2
I560 A5
I562 B5
I564 B7
1507
3522
2K7
6
7
8
9
B11B-PH-K
1
10
11
2
3
4
5
I564
1M36
I565
1512
2510
330p
+11V-SFS
2500
1u
I508
1501
3
4
5
F500
B5B-PH-K
1M07
1
2
3510
100R
75R
6
7
3501
1
2
3
4
5
0244
B7B-PH-K
V-GND
100p
2521
F503
V-GND
9517
V-GND
9516
V-GND
9521
I576
I577
F545
F549
3514
47R
F536
I550
+11V-SFS
V-GND
2513
100n
1508
3527
68K
V-GND
V-GND
9504
F515
V-GND
2507
1n0
2508
1u
F516
9505
F501
I516
F543
1505
I504
I549
I581
I551
BZX384-C6V8
6503
3515
3532
100R
47R
3513
A-GND
A-GND
47R
100p
2503
100p
2501
2506
100n
1509
6502
BZX384-C6V8
6501
BZX384-C6V8
47R
3516
+11V-SF
3511
47R
1511
3526
8K2
1513
6508
BZX384-C10
BZX384-C6V8
6506
2502
1u
+11V-SF
1504
3512
47R
75R
3506
I518
F541
I572
I575
I573
22K
3528
3535
47R
1K0
3529
7502
BC847BW
6504
BAS316
9503
100p
2523
2522
100p
100R
3509
2520
100p
100R
3533
3531
100R
100R
3530
1
2
3
4
5
6
A-GND
c001
440050-1
1005
1510
I519
BZX384-C6V8
6500
3543
75R
F538
F524
I505
BZX384-C6V8
1K0
3999
6505
3502
22K
F502
V-GND
47R
3524
3525
1K0
BC847BW
7501
100n
2509
9501
A-GND
A-GND
2
3
4
5
6
7
8
9
RES
1M37
1
10
11
F539
I503
B11B-PH-K
I560
F532
1514
F519
21
3
4
5
6
7
8
9
A-GND
12
13
14
15
16
17
18
19
2
20
1003
1
10
11
3507
75R
F522
F546
F521
2516
1u0
2515
1u0
2504
1u0
3500
100R
11
10
9
1506
7515
12
1y0
13 1y1
14
22y0
12y1
15
53y0
33y1
4
6
G3
8
GND
16
VCC
7
VEE
4
G3 6
GND
8
VCC
16
VEE
7
11
10
9
74HC4053
74HC4053
7516
1y0
12
1y1
13
14
2y0
2
2y1
1
15
3y0
5
3y1
3
A-GND
100R
3504
3505
22K
1500
100R
3503
V-GND
V-GND
6507
BZX384-C12
+11V-SFS
V-GND
1u0
2517
I571
1u0
2505
2524
100p
3534
100R
9506
I580
I582
I578
F513
F531
F512
I583
F510
F530
F547
F548
2511
100n
100n
2512
3523
22K
3517
47K
I552
I570
F542
+11V-SFS
I579
F518
F544
F517
9500
F514
F520
3508
75R
F529
F527 F528
A-GND
1502
I562
F540
F526
F525
V-GND
V-GND
F523
9502
V-GND
V-GND
3536
+11V-SFS
+11V-SFS
10K
SNDR-IN
SNDL-IN
STATUS-SC3-F
FRONT-SC3-C
FRONT-SC3-Y-CVBS
SEL_FRONT_SC3
FRONT-SC3-Y-CVBS
CVBS-SC3-IN
SNDR-SC3-IN
SNDL-SC3-IN
STATUS-SC3-F
CVBS-SC3-IN
SEL_IN_1_BF
SEL_FRONT_SC3
SNDR-IN
SNDL-IN
SEL_IN_1_BF
STATUS-SC3-F
CVBS-SC3-IN
SNDL-SC3-IN
SNDR-SC3-IN
SEL_FRONT_SC3
FRONT-R
FRONT-L
SEL_FRONT_SC3
FRONT-Y-CVBS
FRONT-C
B
G
R
FBL
FRONT-Y-CVBS
FRONT-C
HEADPHONE-L HEADPHONE-R
FRONT-L
FRONT-R
FRONT-SC3-C
FRONT-SC3-Y-CVBS
HEADPHONE-R
HEADPHONE-L
E_14620_070.eps
190504
3104 313 6023.3
Circuit Diagrams and PWB Layouts 109FTL2.xE AA 7.
Layout SCART 3 Panel (Top Side)
E_14620_071.eps
190504
3104 313 6023.3
1003 A1 1005 A3 1M07 A1 1M36 A4 1M37 A3 9500 A3 9509 A3 9510 A3 9511 A4 9512 A1 9513 A2 9514 A1 9515 A3 9523 A2 9525 A4 9526 A4 9527 A4
110FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
Layout SCART 3 Panel (Bottom Side)
E_14620_072.eps
190504
3104 313 6023.3
2500 A4
2501 A4
2502 A4
2503 A4
2504 A2
2505 A1
2506 A1
2507 A4
2508 A4
2509 A1
2510 A2
2511 A1
2512 A1
2513 A1
2515 A1
2516 A1
2517 A1
2520 A3
2521 A3
2522 A3
2523 A3
2524 A3
3500 A4
3501 A4
3502 A4
3503 A4
3504 A4
3505 A4
3506 A4
3507 A3
3508 A3
3509 A3
3510 A3
3511 A4
3512 A4
3513 A4
3514 A4
3515 A4
3516 A4
3517 A1
3522 A2
3523 A1
3524 A1
3525 A1
3526 A4
3527 A1
3528 A1
3529 A1
3530 A3
3531 A3
3532 A3
3533 A3
3534 A3
3535 A1
3536 A2
3543 A3
3999 A1
6500 A4
6501 A4
6502 A4
6503 A4
6504 A1
6505 A3
6506 A3
6507 A4
6508 A4
7501 A1
7502 A1
7515 A2
7516 A2
9501 A2
9502 A2
9503 A3
9504 A3
9505 A3
9506 A3
9508 A3
9516 A2
9517 A2
9521 A2
9524 A2
Circuit Diagrams and PWB Layouts 111FTL2.xE AA 7.
LED and Switch Panel
P0<3:6>
X2
P2<0:1>
P1<0:3>
T0
SDA
P1.5
P1.7
CIN1B
X1
CLKOUT
CMP1
CMPREF
CIN1A
VDD
RST
INT0
SCL
RXD
TXD
VSS
I094 G2
c001 E5
I064 D5
TO 0345
TOP CONTROL
I071 F10
I072 F12
I073 G11
I074 G11
I075 F10
I076 F12
I093 G2
I033 I4
"LIGHT SENSOR"
I034 G3
I035 E6
I036 F7
I037 H6
I038 H6
I039 H3
I040 H4
I041 G9
I042 G9
I043 F9
I044 E9
I045 F9
I046 E9
I047 H4
I048 H5
I049 H7
I051 D7
I052 B7
I061 C5
I062 B5
I063 C6
F083 B10
(RES)
(RES)
(RES)
(RES)
(RES)
F084 B10
F086 B10
F087 C10
F088 B10
F089 B10
I019 E5
I020 C2
I021 E4
I022 C2
I023 C2
I024 C2
I025 C2
I026 F11
I027 E7
I028 F1
I029 F2
I030 E6
I031 E6
I032 E7
F011 A3
FOR ITV
F012 A2
F013 B3
F014 B2
F015 A3
F016 B2
F017 A2
F018 B2
F019 B2
F020 B2
F021 D2
F027 E2
F028 E2
F029 E2
F030 E4
F031 D3
F032 E2
F033 F4
F038 I12
F039 I13
9012 B4
9013 E9
9014 C2
9015 A4
9016 A4
9017 A4
9018 C4
9019 C4
9031 H4
9040 G9
9041 F9
9042 G9
9043 F9
9044 E9
9050 C7
9060 C5
9061 B6
9081 B11
9082 B11
9083 C11
9093 H1
F010 A2
3096 H2
3999 I13
5020 D4
6030 H4
6031 I4
6051 C8
6060 C5
6061 B6
6070 G10
6080 E7
7020 E6
7021 F7
7030 H5
7031 H6
7032 I3
7070-1 F11
7070-2 F12
7075 E3
7092 H2
9010 C4
3061 B5
3062 B5
3070 G10
3071 F11
3072 G11
3073 G12
3074 F12
3075 F12
3076 G13
3077 G11
3080 C10
3081 C10
3082 C10
3091 H1
3092 G2
3093 H3
3094 G1
3095 I2
3024 E7
(RES)
3025 E4
3026 F4
3027 E2
3030 H3
3031 H4
3032 I4
3033 H5
3034 H6
3035 H6
3036 H6
3037 H7
3040 E9
3041 G9
3042 F9
3051 B8
3052 B8
3053 C7
3060 C5
D
"PROXIMITY"
0350 C11
1020 E2
1040 F8
1M01 C1
1M20 A1
2014 D3
2020 F2
2021 E3
2022 F7
2023 F1
2030 I4
2040 F9
2060 C6
2070 F11
2071 G11
3010 B2
3011 A3
3012 B2
3020 E1
3021 E5
3022 E6
3023 E7
13
"IR RECEIVER"
"LED DIMMING"
"BLUE" "RED"
TO 0350
PROXIMITY SENSOR
TO 1M20
SSB JAGUAR
TO 0244
SIDE I/O
OR
SSB EMG
TO 1M01
SSB JAGUAR
OR
SSB EMG
A
B
C
6 7 8 9 10 11 12 13
123456789101112
E
F
G
H
I
A
B
C
D
E
F
G
H
I
0244 C1
0345 B11
12345
100R
+5V2-STBY
3053
F089
16V
2060
22u
F015
2014
100n
9019
9093
F017
12
TEMD5000
6070
84
6051
OPT_LED
TLMH3100
LM358P
7070-1
3
2
1
10K
3092
9012
7
I074
B7B-PH-SM3-TBT
1
2
3
4
5
6
0244
F011
F012
I040
100R
3060
+8V
6
2
1
5
4
113
BC847BW
7032
7075
14
13
12
10
9
8
7
P87LPC760BDH
Φ
MICROCONTROLLER
9044
2040
100u 16V
9042
I063
I030
8
9018
I033
0345
1
2
3
4
5
6
7
B6B-PH-SM3-TBT
10K
3026
I046
F084
F088
+8V
47K
3023
9040
+8V
I051
6030
BAS316
F030
+5V2-STBY
I064
3032
180K
3091
10K
I027
I019
I021
F019
F020
3062
560R
9060
+8V
9015
F039
+5V2-STBY
I072
3093
10K
+5V2-STBY
10K
3096
9050
10K
3020
c001
I038
3011
100R
0350
B5B-PH-SM3-TBT
1
2
3
4
5
BC847BW
7092
F029
+5V2-STBY
3075
4K7
5
6
7
84
+5V2-STBY
LM358P
7070-2
9081
I028
9082
I031
3076
3K3
BC857CW
7021
F016
SML512BC2T
6060
F021
I037
3012
3010
100R
100R
+5V2-STBY
F087
100R
3082
I026
+5V2-STBY
9031
220R
3027
+5V2-STBY
330R
3061
I036
+8V
3999
10K
I093
I094
3104 313 6016.4
3037
2R2
F038
BC857CW
7020
I039
9043
BAS316
6031
I047
VS
TSOP34836YA1
1040
GND
OUT
I025
9010
I024
3071
4M7
+5V2-STBY
F028
3030
4K7
I061
3094
10K
1020
DSX840GA
20M
I052
I075
I071
16V
2030
2020
15p
10u
10K
3041
TSAL5300
2023
15p
6080
F010
I042
2R2
3036
7030
3033
1K0
BC857BW
100K
+5V2-STBY
3031
3K3
3024
9061
5020
3040
330R
I020
I076
3051
330R
6K8
3042
4M7
3070
10K
3025
1
2
3
1M01
B3B-PH-SM3-TBT
3074
10K
F027
I029
F032
7031
I023
BCP53
F014
9014
I045
9083
+5V2-STBY
I035
F013
3095
+5V2-STBY
10K
I073
470n
2070
I034
3034
1K0
14
F018
12
2
3
4
5
6
7
8
9
13
B12B-PH-SM3-TBT
1M20
1
10
11
3021
2K2
6061
I049
F033
BAS316
F031
I022
3072
1K0
I032
220n
2022
I041
+5V2-STBY
I044
2021
I062
100R
100n
3080
3081
3077
3K3
100R
9041
3022
75R
F083
+5V2-STBY
F086
4K7
3035
I043
3K3
3073
9016
9017
9013
+8V
I048
2071
10u 16V
560R
3052
LIGHT-SENSOR
COM-SND
RC2
PWM-OUT
PULSE-OUT
STATUS-POWER
RC
KEYBOARD
PROX-DET
LED2
LED1
STATUS-POWER
PULSE-OUT
COM-SND
RC
RC2
PROX-DET
LED1
SCL-S
SDA-S
KEYBOARD
LED2
SDA-S
COM-SND
STATUS-POWER
LED1
SCL-S
LIGHT-SENSOR
PWM-OUT
RC
BLACKLIGHT-TC
BLACKLIGHT-TC
RC
KEYBOARD
PWM-OUT
E_14650_036.eps
180604
112FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
Layout LED and Switch Panel (Top Side)
0244 C1
0345 B1
0350 A1
1040 A1
1M01 B1
1M20 A1
2014 C1
2020 C1
2021 B1
2022 C1
2023 C1
2030 B1
2040 A1
2060 A1
2070 B1
2071 B1
3010 B1
3011 B1
3012 B1
3020 B1
3021 C1
3022 C1
3023 C1
3024 C1
3025 C1
3026 B1
3027 C1
3030 B1
3031 B1
3032 B1
3033 B1
3034 B1
3035 B1
3036 B1
3037 B1
3040 A1
3041 A1
3042 A1
3051 A1
3052 A1
3053 A1
3060 A1
3061 A1
3062 A1
3070 B1
3071 B1
3072 A1
3073 A1
3074 A1
3075 A1
3076 A1
3077 B1
3080 A1
3081 A1
3082 A1
3091 B1
3092 B1
3093 B1
3094 B1
3095 B1
3096 B1
3999 B1
5020 B1
6030 B1
6031 B1
6061 A1
6080 C1
7020 C1
7021 C1
7030 B1
7031 B1
7032 B1
7070 A1
7075 C1
7092 B1
9010 B1
9012 B1
9013 A1
9014 A1
9015 B1
9016 A1
9017 A1
9018 C1
9019 C1
9031 B1
9040 A1
9041 A1
9042 A1
9043 A1
9044 A1
9050 A1
9060 A1
9061 A1
9081 B1
9082 B1
9083 B1
9093 A1
E_14650_037.eps
180604
3104 313 6016.4
Layout LED and Switch Panel (Bottom Side)
E_14650_038.eps
180604
3104 313 6016.4
1020 C1
1040 A1
6051 A1
6060 A1
6070 A1
6080 C1
Circuit Diagrams and PWB Layouts 113FTL2.xE AA 7.
Proximity Sensor
9041 E2
9042 F2
9043 E2
F001 A2
F002 A2
F003 A2
F004 B2
F005 B2
I001 C1
I002 B2
I003 C1
I004 C2
I005 C2
I006 C3
I008 E2
I009 F2
I011 F2
I012 F2
PROXIMITY SENSOR
LED + SWITCH
TO 0350
2021 C1
2022 D3
2040 E3
3010 B2
3021 C1
3022 C2
3023 C3
3024 C3
3040 E2
3041 F2
3042 E2
6020 C2
7020 C1
7021 C3
9010 B2
9040 F2
IR SENSOR
123
123
A
B
C
D
E
F
A
B
C
D
E
F
0350 A2
1040 F1
2010 B2
10K
3041 3042
+5V2-STBY
6K8
2022
220n
+5V2-STBY
+5V2-STBY
TSAL5300
6020
3021
2K2 3022
75R
BC857CW
7020
7021
BC857CW
I008
0350
PH-S
1
2
3
4
5
F005
I002
F004
I001
9010
10V100u
2021
3023
47K
3010
100R
3024
3K3
2040
10V100u
9041
GND 2
OUT 1
VS 3
9040
9043
TSOP34836YA1
1040
9042
330R
3040
2010
100p
I011
I012
I009
I006
I004 I005I003
F003
+5V2-STBY
F002
RC2
F001
RC2
PWM-OUT
PULSE-OUT
PULSE-OUT
PWM-OUT
E_14620_076 .eps
190504
3104 313 6032.3
Personal Notes:
E_06532_012.eps
131004
114FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
Layout Proximity Sensor (Top Side)
E_14620_077 .eps
250504
3104 313 6032.3
0350 A1
1040 A1
2021 A1
2040 A1
6020 A1
9015 A1
Layout Proximity Sensor (Bottom Side)
E_14620_078 .eps
250504
3104 313 6032.3
0350 A1
1040 A1
2010 A1
2021 A1
2022 A1
2040 A1
3010 A1
3021 A1
3022 A1
3023 A1
3024 A1
3040 A1
3041 A1
3042 A1
6020 A1
7020 A1
7021 A1
9010 A1
9015 A1
9040 A1
9041 A1
9042 A1
9043 A1
Circuit Diagrams and PWB Layouts 115FTL2.xE AA 7.
LCD Standby Audio Panel: Connections
A2
A2
AS1
AS2
LC04
LC04
TO 1304
TO 1309
F108 B10
F109 E6
F110 B9
F111 B6
F112 D10
F113 B6
F114 E6
F115 B6
F117 E6
F119 B7
F120 C8
F121 B6
F122 C6
F131 D6
F132 E6
F135 D6
F136 D6
F137 A5
F138 B5
F139 C6
9009 A5
9010 C8
TO 1M03
TO 1303
SSB EMG
9011 D8
9018 B10
9113 B6
F101 B10
F102 A8
F103 A9
F104 A7
F105 A7
F106 A7
F107 B7
1M46 D7
3190 D9
SA1
3191 D9
3192 D9
5018 C8
5019 D8
9001 E6
9002 B5
9003 B5
9004 C8
9005 D8
9006 C9
9007 C9
9008 A5
D
E
TO 1M46 SSB JAGUAR
1312 A8
1313 A7
1314 B1
1315 B2
1316 A3
1317 A4
1318 A5
1320 B9
1M03 B7
1M10 A9
78
LCD SUPPLY
TO
DISPLAY
CONNECTIONS
910
A
B
C
D
E
A
B
C
56
LCD SUPPLY
TO 1304
78910
123456
1304 B9
1309 D9
42"
LCD SUPPLY
OR
SA1 (3x)
SA1 (3x)
SA1
SA2
SA2
SA1 (3x)
DISPLAY
TO
DISPLAY
TO
DISPLAY
TO
42"
DISPLAY
TO
30"/37"/42"
TO 1320
SSB JAGUARTO 1M03
OR
TO 1M46 SSB EMG
1234
SA2
TO
DISPLAY
SA1
SA1 (3x)
TO
AMBI LIGHT
TO 1309
LCD SUPPLY
30"/37"/42"
0001 E1
1303 A9
3192
1K2
1K2
3191
F107
F110
F122
1
2
3
B3P-VH
1309
GND-SSP
+5V_SW
F106
F105
F111
F115
F136
1M10
B4B-PH-K
1
2
3
4
9001
9008
F101
9011
GND-SSP
9010
F137
GND-SSP
GND-SSP
GND screw
0001
1
3
4
5
6
7
8
9
B12P-PH-K
1
10
11
12
2
1316
F103
GND-SSP
F112
1K2
3190
9003
GND-SSP
RES
9002
RES
F132
F135
F119
F102
F104
9007
F113
F121
1
2
3
9018
F131
B3P-VH
1320
9006
F114
F109
F139
GND-SSP
GND-SSP
10
2
3
4
5
6
7
8
9
3
4
5
6
7
8
9
PH-B
1315
1
GND-SSP
1314
PH-B
1
10
2
2
3
4
5
6
7
8
9
GND-SSP
B11B-PH-K
1M46
1
10
11
1304
1
2
3
4
10
2
3
4
5
6
7
8
9
B4P-VH
6
7
8
9
1M03
PH-B
111
12
13
14
15
16
2
3
4
5
1313
440091-7
1
10
15
16
2
3
4
5
6
7
8
9
1
10
11
12
13
14
GND-SSP
440091-7
1312
1
2
3
4
5
6
+5V_SW
B6B-PH-K
1318
9004
9005
5019
68u RES
F108
GND-SSP
11
12
2
3
4
5
6
7
8
9
B12P-PH-K
1317
1
10
1303
B4P-VH
1
2
3
4
GND-SSP
9009
RES
+5V_SW
F138
9113
F120
F117
68u
5018
RES
+5V_SW
9V_STBY_SW
9V_STBY
+12V
ON_OFF
DIM_CONTROL
DIM_CONTROL
ON_OFF
+24V_2
+12V_+24V
ON_OFF
DIM_CONTROL
DIM_CONTROL
POR
ON_OFF
STANDBY
PROT_AUDIOSUPPLY
+5V2-RELAY-IO2
+12V
+12V_A
+5V2
VTUN
+8V6
E_14620_132.eps
281204
8204 000 8314.5
116FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
LCD Standby Audio Panel: Standby
Caution: Both and symbols can indicate a HOT ground in this schematic!!
A1
AS1
LC04
TO 1306
A1
AS1
LC04
TO 1307
A1
AS1
LC04
TO 1305
6119 B3
6120 G7
6121 G7
6122 E7
6125 C8
6130 B10
6132 C10
6133 C9
6134 C9
6140 D7
6153 H6
6156 H5
6504 A7
6505 E7
6508 G9
5504 B4
5505 B4
5506 E9
5507 B9
5508 E9
6103 C1
6104 D3
6105 C4
6106 F3
6107 E7
6510 E13
6511 A8
6531 F10
6532 C11
6540 F12
6562 E13
7100 F4
7101 D4
7102 C4
7105 E4
TO 1306
LCD SUPPLY
30"/37"/42"
6114 G2
6115 D4
6116 F4
6117 C3
6118 B3
3536 H10
3537 H9
3538 F8
3539 H10
3540 G13
3541 G12
3542 H13
3544 G12
6142 F3
6144 D3
6147 D5
6148 F8
6149 F9
6150 G4
6151 G5
5110 B6
5112 D7
5115 D8
5500 B6
5501 B4
3516 A9
3517 A11
3528 C11
3529 C12
3530 D13
3531 C13
3532 C12
3533 D12
3534 H9
3535 H9
COLD GROUND
HOT GROUND
6108 F3
6113 C7
3172 C10
3175 F8
3176 G10
3506 G12
3507 F13
3508 F13
3560 E12
3561 F12
3562 E12
3999 H8
5102 D1
5103 E7
5104 C5
5105 C5
5106 D1
5108 D5
3510 F12
3511 B9
3512 C9
3513 D10
3515 B8
3152 D3
3153 C8
3155 G5
3156 G6
3157 H5
3158 G6
3159 E8
3160 D4
3161 C10
3171 C9
3125 E3
3126 E4
3127 F4
3128 F6
3132 D9
3134 C10
3135 C10
3137 D8
3138 D3
3140 C8
3509 A7
3146 F4
3147 H3
3148 E4
3149 E4
3150 D4
3106 E1
3107 F1
3108 D4
3109 F1
3110 F1
3111 D2
3112 G1
3113 E7
3114 F6
3117 D3
SA2
SA1
STANDBY
E_14620_133.eps
281204
8204 000 8314.5
3122 B6
3123 F7
3124 F7
2510 E8
2511 B9
2512 E10
2513 E7
2515 B10
2533 F11
2534 E8
2535 D10
2536 D12
2537 D13
SA1
SA2
3141 F10
3142 F9
3145 G2
3101 D3
3102 D2
3103 D2
3104 D3
3105 D2
G
H
A
B
C
D
E
F
G
H
2163 F2
2506 C6
2507 B7
2508 C7
2509 F13
12345678910
5V3 (5V3)
LCD SUPPLY
TO 1305
34V (34V)
2538 H9
2539 E8
2540 H13
2544 G13
3100 F3
B
C
D
E
F
2112 D4
2118 D7
2123 E4
2124 H2
2129 B6
2131 C10
2132 C11
2140 F8
2141 D7
2143 D7
30"/37"/42"
COLD GROUNDHOT GROUND
0V (0V)
2144 F2
2145 D3
2149 G7
2150 G5
2152 B4
2153 F5
2154 G10
2159 D2
2160 C9
2162 D2
9101112 13
9112 E9
F100 D5
F123 B4
F124 B4
F125 D13
F126 E13
F127 H4
F128 H4
F129 H4
F130 H4
11V5 (12V)
11V9 (11V8) 8V9 (8V8)
0V8 (0V8)
5V3 (5V3)
11V7 (11V7)
0V7 (0V6)
0V2 (0V2)
275V
11 12 13
A
2107 A4
2108 B4
2109 F7
2110 F2
2111 E2
I120 C6
I121 C13
I122 C2
I123 C6
I124 C5
I125 D8
I126 D9
I127 C8
I128 D7
I129 D7
7131 B10
7140 F10
7150 H6
7501 F6
LCD SUPPLY
30"/37"/42"
(289V)
TO 1307
SA1
12345678 9021 B3
9022 B4
9023 B3
9110 H10
9111 D1
I152 E12
I153 E1
I154 E4
I155 E4
I156 E4
I157 F6
I158 F7
I159 F8
I160 F8
I161 F9
F133 H8
F134 H8
I100 B4
I101 A6
1301 B2
1305 D13
1306 B3
1307 H4
1310 A13
1311 A12
2101 C2
2102 F2
2103 D2
2105 D2
I115 C12
I116 C10
I117 C12
I118 C5
I119 C4
I184 G6
I185 F3
I186 G6
I189 H10
I190 G2
I191 G5
I192 H9
I197 C9
I198 D7
I199 D5
I130 C4
I131 C2
I132 C4
I133 C5
7505 G13
7506 C11
7507 C12
7508 H10
7509 G12
7510 F13
7511 A8
7512 A10
7531 E11
7532 D9
7560 E12
9019 A8
9020 C3
I147 E2
I148 E10
I149 E7
I150 E13
I151 E13
I504 F12
I505 F13
I506 F13
I507 F13
I508 A8
I509 A9
I510 A10
I511 A10
I512 H9
I513 D1
I162 E2
I163 F9
I164 F7
I165 F7
I102 A7
I103 C9
I104 B10
I105 B7
I106 C11
I107 C8
I108 C9
I109 C11
I110 C3
I111 C3
I112 C10
I113 B4
I114 B6
I168 F9
I169 F2
I170 G8
I171 F5
I172 F2
I173 F2
I174 F3
I175 F5
I176 G7
I177 F2
I178 G13
I179 G12
I180 G5
I181 G2
I182 G13
I183 G5
I501 F7
I502 F7
I503 F6
I134 D3
I135 D3
I136 D2
I137 E7
I138 E7
I139 E12
I140 C1
I141 D3
I142 D2
I143 D3
I144 D2
I145 D3
I146 D4
PDZ2.7-B
6510
I166 F3
I167 F4
I173
I181
15K
3508
GND-SSP
I177
I507
1u0
2534
9022
5501
RES
F133
I503
I501
I502
4R7
3128
3509
2K2
10K
3536
RES
BC847BW
7508
RES
GNDHOT
VTUN
I102
I129
I105
I139
I172
GND-SSP
BZX384-C9V1
6508
RES
+11V
I198
5106
10u
I508
I511
GND-SSPGND-SSP
I509
F129
3517
22K
6511
BZX384-C12
3516
4K7
I146
GND-SSP
I167
33K
GND-SSP
I166
3135
3172
330R
GND-SSP
PDZ6.8-B
6132
I155
GND-SSP
I158
I153
I506
3515
100K
I137
I504
2509
2n2
GND-SSP
9020
I160
GND-SSP
I163
3510
I513
220R
220R
GND-SSP
3544
2132
100u 25V
9111
RES
I117
+5V2-RELAY-IO2
+5V2
+5V2-RELAY-IO2
I116
470R
3539
3153
22K 22K
3140
10V2m2
2510
RES
3534
10K
GNDHOT
GNDHOT
2K2
3535
I101
GNDHOT
I197
1
2
I124
+12V
HEATSINK
1301
I199
I183 I184
6140
GND-SSP
F123
BYV95C
F124
I156
F130
F127 F128
F126
GND-SSP GND-SSP
I135
GND-SSP
1K0
3134
220R
3114
14
32
BZX384-C5V6
6116
7501
TCET1102
STP16NF06FP
7131
GND-SSP
50V1u0
2160
I140
GND-SSP
I505
I165
I159
I141
10K
3507
I138
I157
I119 I118
I168
BC847BW
7510
I152
I148
I151
+11V
I121
I115
I106 I109
6153
BZG03-C200
+5V2
TCET1102
7150
14
32 9110
6133
BAS316
100R
3150
10n
2112
1K0
3160
33R
3124
6121
BAS316
10n
2538
3541
2K2
GNDHOT
F100
I123
GNDHOT
I114
1
2
I136
1311
HEATSINK
GND-SSP
GND-SSP
I186
2141
470n
I191
I190
I175
I180
GND-SSP
I154
I133
GND-SSP
I130
I132
22n
2131
6532
BAS316
BC847BW
7506
2152
10n
5110
10u
10u
2108
5504
33u
6n8
2153
BYV27-200
6114
100R
3171
GND-SSP
12K
3161
I147
I144
I164
GND-SSP
I149
I143
GND-SSP
GND-SSP
I131
I100
I111
I161
I110
+5V_SW
I122
+5V2
47R
3158
3157
+5V2
+5V2-RELAY-IO2
22K
68K
3511
470R
3512
BAS316
6134
6105
BZX384-C15
6104
BZX384-C27
RES
3138
1M0
2159
470p
6115
BAT54 COL
BC817-25W
7101
BAS316
6120
10R
3123
10n
2544
I120
GNDHOT
10K
GNDHOT
GNDHOT
3542
1
2
3
GND-SSP
I145 1305
B3B-EH-A
GND-SSP
4R7
3562
GND-SSP
I171
GND-SSPGND-SSPGND-SSP
3532
4K7
GND-SSP
GND-SSP GND-SSP
4K7
3528
BYV27
6504
470R
3122
1n0
2129
6103
BYV27-200
3126
10K
7100
BC857BW
3125
5505
15R
1306
1
2
4K7
3145
B2P-VA-BF-BK
10u
2124
BZX384-C12
6130
50V
I142
GND-SSP
GND-SSP
GND-SSP
BC847BW
7140
GND-SSP
I134
SB340
6125
GND
6505
SB360
1
2
3
4
I113
B4P-VH
1307
BZG03-C200
6150 6151
BZX384-C33 10K
3155
47R
3159
25V220u
2150
BAS316
6156
1K0
3156
BC847BW
7532
3108
4R7
5104
7102
4M7
3101
STP6NK60Z
2513
2n2
2n2
2143
470p RES
100K
3137
1K
3103
2162
47R
3104
470p
2145
1u
2149
2K2
3540
GNDHOT
7509
10n
2540
GND-SSP
BC847BW
BZX384-C22
6562
10K
3149
3148
47R
10K
3176
6K8
3560
GND-SSP
15K
3531
2n2
2537
22K
3530
100p
2507
7507
BC847BW
100R
3529
6
7
8
10n
2536
5500
110
2
3
5
3107
390R 390R
3106 5102
3127
2144
1u
5K6
390R
3112
RES
2512
220u 25V
PDZ-20B
6106
6108
BAT54 COL
I185
RES15u
5508
22K
3147
GND-SSP
25V100u
2533
BZX384-C15
6531
15n
2154
GNDHOT
3113
GND-SSP
5115
22R
3102
1K 220R
3105
GND
10K
3175
100R
3538
BC817-25W
7560
3K9
3561
BYW29EX-200
6113
10n
2535
3513
33K
33K
3132
5108
6119
RES
6118
BZX384-C33
RES
BZX384-C33
BZX384-C33
6117
RES
STPS8H100
6107
5103
22u
2508
1K5
3111
100V
2n2
2101
47n
2111
2163
100u25V
BC857BW
7105
2109
1u
1K0
3152
2107
7505
BC857BW
47R
3146
10u
BAT54 COL
6540
100n
2123
I112
470R
3141
BZX384-C5V6
6149
5506
I103
I104
+5V2
2506
470p
5105
2102
25V 100u
50V10u
2140
12K
3142
6142
BAT54 COL
9112
1u
2110
GND-SSP
7531
BSP030
BAS316
6144
PDZ-3.9B
6122
2539
1u0
BAS316
6148
390R
3110 3109
SML4736-6V8
6147
390R
251m
2118
47R
3117
2105
100p 100p
2103
1310
HEATSINK
1
2
5112
I169
GND-SSP
GND-SSP
I162
I176
I170
I108
I126
I107
RES
I125
1K5
9019
GND-SSP
3533
GND-SSP
I128
I127
F134
3999
1K0
RES
I512
I510
3K3
3537
I189
I192
2n2
2515
3506
470R
9021
+12V_A
+8V6
9023
+12Vstby
F125
7512
PMSTA42
100R
7511
BST82
I150
3100
I178
I179
2511
220u 25V
I182
15u
5507
I174
+12V
PROT_AUDIOSUPPLY
Prot-OVV
Prot-OVV
POR
STANDBY
Circuit Diagrams and PWB Layouts 117FTL2.xE AA 7.
LCD Standby Audio Panel: Audio
A4
A2
AS2
LC04
TO 1M02
-VCC
PRE
PWM
+VCC
PWM
STAGE2
G=2.5
PRE-AMP1
INTERGR 1
INTERGR 2
PWM
STAGE2
OSC
G=2.5
PRE-AMP2
I784 B3
I785 B4
I786 B4
I787 C4
I788 C7
I790 F3
I791 B12
I792 B13
I793 B13
I794 B12
I795 F6
I796 C12
I797 C12
I798 E5
I799 E4
I762 D11
I763 C6
I764 C13
I765 D13
I766 F9
I767 F2
I768 G3
I769 F3
I770 G2
I771 G3
I772 F8
I773 F9
I774 F9
I776 E4
TO 1M02
LCD SUPPLY 42"
I777 D2
I778 E3
I779 E3
I780 E13
I781 C13
I782 C13
I783 B3
I748 B3
I749 C3
I750 B12
I751 A12
I752 E13
I753 B3
I754 E3
I755 F4
I756 C2
I757 D2
I758 E11
I759 E11
LCD SUPPLY 30"/37"
TO 1M02
I760 C5
I761 F8
I734 F12
I735 D8
I736 E8
I737 C6
I738 C6
I739 B6
I740 D9
I741 E9
I742 C12
I743 C12
I744 D5
I745 B4
I746 E13
I747 D11
SSB JAGUAR
OR
TO 1M52
SSB EMG
TO 1M52
OR
-18V
15W/8
L
I713 E4
I714 C8
I715 A7
I716 E3
I717 B5
I718 B5
I719 E3
I720 C8
I721 C3
I722 B3
I723 B9
I724 D3
I725 E2
I726 C3
I727 B5
I728 C9
I729 C5
I730 F7
I731 B11
I732 B6
I733 C10
F742 B9
F743 B9
F744 B9
F745 A9
F747 F5
F748 G5
F749 G6
F751 F6
I700 E6
I701 E6
I702 A6
I703 B6
I704 A6
I705 D6
SA3
SA3
SA3
I706 D5
I707 D5
I708 F12
I709 E4
I710 F5
I711 C4
I712 A5
7714 C5
7715-1 C9
7715-2 C11
9717 B5
9718 B13
F708 F2
F710 G2
F711 A2
F712 A2
F713 C3
F714 B5
F718 D10
F720 G8
F721 G2
-18V
F722 F2
F731 G8
F736 G7
F737 G6
F738 F2
F739 G2
F741 F8
5730 F2
5731 G2
5732 G8
6701 C6
6702 B12
6703 C12
6704 B6
6710 D8
6711 E8
7700 C5
7701 B7
7702 E11
7703 C7
7704 B5
7705 B6
7706 C6
7707 C5
7708 C13
7709 C13
7710 B13
7711 B13
7712 D9
7713 E9
3767 B12
3768 A13
3790 C4
3791 C3
3792 B3
3793 B4
3794 D11
3795 C5
3796 E11
3797 C5
3798 D6
5701 F4
5702 F3
5703 B5
SA3
SA3
5704 F7
5705 F6
5707 D2
5708 E2
5711 D5
5712 D5
5720 F9
5722 D13
5723 D133749 A7
3750 G3
3751 G8
3752 B8
3753 G8
3754 C8
3755 B10
3756 F4
3757 G3
3758 C10
3759 D8
3760 E8
3761 A12
3762 B12
SA3
SA3
SA3 (3x)
SA3
SA3
AUDIO
SA3
3763 B12
3764 C12
3765 C12
3766 B143712 E3
3713 D7
3714 C6
3715 B6
3716 B6
3717 F4
3718 G4
3720 F7
3721 B2
3722 C2
3723 C2
3724 F2
3725 E3
3726 F2
SA3
SA3
3727 F5
3729 G9
3730 F7
3741 F12
3743 F4
3744 G12
3746 C6
3747 C6
3748 C5
2785 B13
2786 B4
2787 C5
2788 D2
2789 D2
2790 E2
2791 C7
2792 C8
2793 D13
2794 C9
2795 D12
2796 C10
2797 D8
2798 E8
15W/8
SA3
CENTERWOOFER
2799 D13
3701 E6
3702 B6
3703 A6
3704 B6
3705 C3
3706 E6
3707 D6
3708 E6
3709 F5
3710 E4
3711 D5
2728 E3
2729 F3
2741 F12
2743 F13
2753 E13
2754 D11
2755 D11
2756 E11
2758 G9
2759 F8
2762 E13
2764 B3
2766 A4
2768 E5
SA3
SA3
SA3
15W/8
2769 D5
2777 D2
2778 C5
2779 E3
2780 E5
2781 D5
2782 D12
2783 C7
2784 D13
2708 A3
2709 D6
2710 D6
2711 E2
2712 D5
2713 B7
2714 E4
2715 F4
2716 E4
2717 G4
2718 E3
2719 F5
2720 B3
2721 C2
SA3
2722 D2
2723 F8
2725 F6
2726 E3
2727 E3
11 12 13 14
12345678910
1737 F7
1738 F7
1739 F5
1M02 A9
2702 C4
2704 C3
2705 A7
2706 B4
2707 C4
G
0044 F13
0045 B2
1735 F2
1736 G2
123
R
45678910
11 12 13 14
A
B
C
D
E
F
G
A
B
C
D
E
F
1K2
3713
100u
2799
2741
2K7
3796
2K7
3791
22p
I765
2K2
3749
470R
330p
2716
3753
220R
3709
3757
2K2
2778
4u7
100u
2769
3716
47K
3754
22K
I783
2768
100u
100K
3767
2783
22u 16V
4K7
3721
I739
I741
3748
470R
I747
2721
470p
I724
3727
220R
BAS316
6704
4
3I708
5732
PLT09H
1
2
PLT09H
5731 12
43
12
43
F722 5730
PLT09H
2781
220n
F721
3726
220R
3720
220R
220R
I721
7706
BC857B
3724
I794
3725
22K
I740
I728 3764
10R
1u0
2792
6703
BZX384-C10
I759
I763
F710
I730
5708
2791
1u0
2789
220n
2782
220n
I727
F708
3765
100K
10K
3792
5702
I757
68u
I755
I795
100p
2725
5705
1n
2715
3717
100K
100K
3718
I719
I716
I791
1
2
3
2K2
3756
1738
B3B-PH-K
5720
68u
I714
10K
3793
BZX384-C10
6702
2718
22p
100n
2706
220n
2779
I793
33K
3703
1735
B3B-PH-K
1
2
3
1
2
3
B3B-PH-K
1736
2795
220n
5723
68u
5701
I705
2720
1n
2723
I790
220n
I780
I723
I736
I792
I731
I735
I733
100K
3768
7709
BC847B
BC847B
7710
2753
220n
47K
3747
1n
2727
2766
2u2
56K
2u2
2764
F751
3723
F747
F749
F748
10R
15K
3798
3761
10K
3702
2702
1n
I754
9
4
NC
1OUT
STBY|MUTE
10
13
12 VREG
2755
1n 7702
TDA7482
+VCCS
11
14 -VCC1 15
-VCC2
8
-VCCS
BOOT 3
BOOTD
2
FEEDCAP
5
6
FREQGNDS
7
IN
3741
10K
2796
1u0
220n
2784
68K
3722
7704
BC847B
2712
220n
680n
2729
I781
I706
470p
2709
I746
2707
100n
1
2
F737
1
2
HEATSINK0044
0045 HEATSINK
I788
LM833D
7715-1
3
2
1
8
4
F738
I779
I704
I777
BC847B
7708
100K
3766
2754
2u2
5
6
7
8
4
2743
33n
7715-2
LM833D
Vm
Vp
I787
9717
8R2
3705
3704
10K
I712
BC847B
7701
I726
3755
470R
I761
3752
330R
2K2
3763
F742
I703
I744
F745
56K
3708
39K
3746
2719
1n
470n
2705
5711
I786
I751
I785
I748
I745
I749
I713
I776
I707
2710
470p
33n
2726
F744
220R
3730
3707
68K
I796
I797
I762
I782
F720 F731
I701
BC847B
7703
I799
3758
8K2
2K2
3750
3729
100K
I715
Vm
33n
2714
3744
100K
330p
2728
120K
3711
2717
680n
220n
2797
2786
22n
3751
2K2
F713
F714
F712
5707
I732
100u
I725
2758
680n
2793
I750
I743I742
2777
220n
4K7
3706
1n
2704
2708
220n
BZX384-C15
6711 6710
BZX384-C15
1u0
2794
BC847B
7707
7705
BC847B
I734
2713
470n
470p
2722
3790
2K7
5703
30R
I729
GND 13
IN1 10
IN2 18
NC
20
OSC8
OUT13
OUT223
STBY-MUTE
6
T111
T215
VREG 25
+5V 12
+VCC1
4
+VCC2
22
-5V 16
-VCC1 1
-VCC2
2
-VCC3
24
BOOT15
BOOT221
CURREF
14
FEED1
7
FEED2
9
FEED3
17
FEED4
19
F741
7700
TDA7490
47K
3715
3797
220K
1u0
2787
7714
BC847BW
I773
I756
I772
Vm
I758
7713
BC857B
7712
BC847B
2798
220n
F718
1M02
B7B-EH-A
1
2
3
4
5
6
7
I771
I770
I769
I767
I702
F711
I752
BC847B
7711
I738 I737
1n
220n
2762
2711
3743
2K2
5712
I778
I774
Vp
Vp
3K3
3760 3759
3K3
5704
10K
3701
I764
3710
F743
I766
22K
6701
BAS316
I720
2756
470p
2759
1n
I753
3762
2K2
I722
I768
1
2
3795
120K
F736
1737
B2B-PH-K
I760
10K
3794
2790
100u
100u
2788
3714
47K
I710
I784
I709
I700
I711
I717
I718
100u
2785
9718
16V
1
2
3
4
5
6
7
8
9
B9B-PH-K
1739
5722
F739
220n
2780
3712
10K
I798
+16V+19V
-Vf21
-16V-19V
-Vf1
AUDIO-SW
-16V-19V
+16V+19V
-Vf21
POR-CLASSD
AUDIO-R
AUDIO-L
-Vf21
DCPROT
+16V+19V
DCPROT
-16V-19V
PROT_AUDIOSUPPLY
+16V+19V
-16V-19V
AUDIO-SW
-Vf11
POR-CLASSD
-Vf1
+16V+19V
PROT1
PROT1
PROT1
PROT1
+16V+19V
-Vf11
AUDIO-L
AUDIO-R
PROT_AUDIOSUPPLY
SOUND-ENABLE
-Vf11
SOUND-ENABLE
-Vf1
-Vf1
+16V+19V
-16V-19V
-16V-19V
E_14620_134.eps
281204
8204 000 8313.5
118FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
Layout LCD Standby Audio Panel (Top Side)
E_14620_135.eps
020704
3104 313 6010.5
0001 G4
0044 D1
0045 E1
1301 B1
1303 E4
1304 D4
1305 A3
1306 A1
1307 A2
1309 D4
1310 A3
1311 B4
1312 F4
1313 G4
1314 G4
1315 F4
1316 G4
1317 F4
1318 F4
1320 E4
1735 G1
1736 G1
1737 G3
1738 G2
1739 F3
1M02 G3
1M03 A4
1M10 D4
1M46 A4
2101 B2
2102 B1
2107 A1
2108 A1
2111 A1
2118 B3
2124 B2
2132 A4
2140 C3
2143 B3
2150 A2
2152 D2
2160 B4
2163 B1
2506 B2
2507 D3
2508 D3
2510 D4
2511 D4
2512 C4
2513 C4
2533 A4
2717 F1
2729 G2
2758 E3
2768 F1
2769 F1
2778 E1
2783 G1
2785 E3
2788 F2
2790 E2
2793 E3
2799 E3
3101 B1
3102 B1
3103 B2
3108 C2
3111 B1
3155 A2
3190 E3
3191 E3
3192 E3
3509 D4
3711 F1
3713 F3
3747 E1
5018 E4
5019 E4
5102 B2
5103 C4
5104 C2
5108 C1
5110 C3
5112 C3
5115 B3
5500 C3
5501 A1
5504 A1
5505 B1
5506 C4
5507 D4
5508 C4
5701 F2
5702 F2
5704 E2
5707 G2
5708 G3
5711 F1
5712 E1
5720 E2
5722 E3
5723 E3
5730 G2
5731 G1
5732 G3
6103 B2
6107 C4
6113 B3
6114 B2
6125 A3
6140 C3
6504 D3
6505 C4
7102 C1
7131 B4
7150 A2
7501 B2
7700 F2
7702 E3
9001 A4
9004 E4
9005 E4
9006 E4
9007 E4
9010 E4
9011 E4
9018 D4
9022 A1
9050 G4
9051 G4
9052 F4
9053 B1
9054 B1
9055 C2
9056 A4
9057 A3
9058 A4
9059 B4
9060 A3
9061 A4
9062 A4
9063 A4
9064 A3
9065 A4
9066 A4
9067 C4
9068 C4
9069 A4
9070 A4
9071 F4
9072 F4
9073 F4
9112 C4
9113 A4
9721 G2
9722 G3
9723 G1
9724 F1
9725 E3
9726 D2
9727 D3
9728 E2
9729 D2
9730 E1
9731 F3
9732 G3
9733 G3
9734 F1
9735 F3
9736 F1
9738 F3
9739 F2
9740 E1
9741 E1
9742 E1
9743 G3
9744 F3
9745 G3
Layout LCD Standby Audio Panel (Overview Bottom Side)
E_14620_136.eps
131004
3104 313 6010.5
Part 1
E_14620_136a.eps
Part 2
E_14620_136b.eps
2103 B4
2105 B4
2109 B2
2110 B4
2112 C4
2123 C4
2129 C2
2131 A1
2141 C2
2144 A4
2145 C3
2149 B2
2153 B3
2154 A2
2159 B3
2162 B3
2509 A2
2515 B1
2534 A2
2535 A1
2536 B2
2537 A1
2538 A1
2539 A2
2540 A2
2544 A2
2702 F4
2704 F3
2705 G2
2706 F3
2707 F3
2708 F3
2709 G3
2710 F3
2711 G3
2712 F4
2713 G2
2714 F4
2715 F4
2716 F3
2718 F3
2719 F4
2720 F3
2721 G3
2722 G3
2723 E3
2725 F2
2726 G3
2727 G3
2728 F3
2741 D3
2743 E3
2753 D3
2754 E2
2755 E3
2756 E3
2759 E3
2762 E2
2764 F2
2766 F2
2777 F3
2779 F3
2780 F4
2781 F4
2782 E2
2784 E3
2786 F4
2787 E3
2789 F3
2791 F2
2792 D2
2794 D2
2795 E3
2796 D2
2797 D2
2798 D3
3100 A3
3104 C4
3105 B4
3106 B4
3107 B4
3109 B4
3110 B3
3112 B3
3113 B2
3114 B3
3117 C4
3122 C2
3123 B2
3124 B3
3125 A3
3126 A3
3127 B3
3128 B3
3132 B1
3134 A1
3135 A1
3137 B2
3138 C4
3140 B1
3141 A2
3142 C2
3145 B3
3146 B3
3147 B3
3148 C4
3149 C4
3150 C4
3152 C3
3153 B1
3155 A3
3156 A3
3157 A3
3158 A2
3159 B2
3160 C4
3161 B1
3171 B1
3172 A1
3175 C2
3176 A2
3190 E1
3191 E1
3192 E1
3506 A2
3507 A2
3508 A2
3509 D1
3510 A2
3511 B1
3512 B1
3513 B1
3515 B1
3516 B1
3517 B1
3528 A1
3529 B2
3530 A1
3531 A1
3532 A2
3533 B2
3534 A1
3535 A1
3536 A1
3537 A1
3538 A2
3539 A1
3540 A2
3541 A2
3542 A2
3544 A2
3560 A2
3561 A3
3562 A3
3701 F2
3702 G2
3703 G2
3704 G2
3705 F3
3706 G3
3707 F3
3708 F3
3709 F4
3710 F3
3711 E4
3712 F4
3713 F2
3714 E4
3715 E3
3716 G2
3717 G4
3718 G4
3720 E3
3721 F3
3722 G3
3723 G3
3724 G3
3725 F3
3726 G3
3727 F4
3729 G3
3730 E3
3741 D3
3743 G3
3744 E3
3746 G2
3747 E4
3748 F4
3749 E3
3750 G4
3751 G3
3752 D2
3753 G3
3754 D2
3755 D2
3756 G3
3757 G4
3758 D3
3759 D2
3760 D3
3761 F2
3762 F2
3763 E2
3764 F2
3765 E2
3766 F2
3767 E2
3768 F2
3790 F4
3791 F3
3792 F3
3793 F4
3794 E3
3795 E3
3796 E3
3797 E3
3798 G2
3999 D2
5105 C3
5106 B3
5703 F4
5705 F2
6104 C4
6105 C4
6106 A3
6108 B3
6115 C4
6116 B3
6117 B4
6118 C4
6119 C4
6120 A2
6121 B2
6122 B2
6130 B1
6132 B1
6133 B1
6134 B1
6142 B3
6144 C3
6147 C3
6148 B2
6149 A2
6150 A3
6151 A3
6153 A3
6156 A3
6508 A1
6510 A2
6511 B1
6531 A2
6532 A1
6540 A2
6562 A3
6701 G2
6702 E2
6703 F3
6704 G2
6710 D2
6711 D3
7100 A3
7101 C4
7105 B4
7140 A2
7505 A2
7506 B1
7507 A2
7508 A1
7509 A2
7510 A2
7511 B1
7512 B1
7531 A2
7532 B1
7560 A3
7701 G2
7703 G2
7704 E4
7705 E4
7706 E3
7707 E4
7708 F2
7709 F2
7710 F2
7711 F2
7712 D2
7713 D3
7714 E3
7715 D2
9002 F1
9003 F1
9008 F1
9009 F1
9019 B1
9020 B4
9021 C4
9023 C4
9074 A2
9110 A1
9111 B3
9717 E4
9718 E2
9737 F4
Circuit Diagrams and PWB Layouts 119FTL2.xE AA 7.
Layout LCD Standby Audio Panel (Part 1 Bottom Side)
E_14620_136a.eps
131004
Part 1
120FTL2.xE AA 7.
Circuit Diagrams and PWB Layouts
Layout LCD Standby Audio Panel (Part 2 Bottom Side)
E_14620_136b.eps
131004
Part 2
Alignments EN 121FTL2.1E, FTL2.2E 8.
8. Alignments
Index of this chapter:
8.1 General Alignment Conditions
8.2 Hardware Alignments
8.3 Software Alignments
8.4 Option Settings
Note: The Service Default Mode (SDM) and Service Alignment
Mode (SAM) are described in chapter 5. Menu navigation is
done with the CURSOR UP, DOWN, LEFT or RIGHT keys of
the remote control transmitter.
8.1 General Alignment Conditions
8.1.1 Start Conditions
Perform all electrical adjustments under the following
conditions:
• Power supply voltage (depends on region):
–AP-NTSC: 120 VAC or 230 VAC / 50 Hz (± 10%).
–AP-PAL-multi: 120 - 230 VAC / 50 Hz (± 10%).
–EU: 230 VAC / 50 Hz (± 10%).
–LATAM-NTSC: 120 - 230 VAC / 50 Hz (± 10%).
–US: 120 VAC / 60 Hz (± 10%).
• Connect the set to the mains via an isolation transformer
with low internal resistance.
• Allow the set to warm up for approximately 15 minutes.
• Measure voltages and waveforms in relation to chassis
ground (with the exception of the voltages on the primary
side of the power supply).
Caution: never use heatsinks as ground.
• Test probe: Ri > 10 Mohm, Ci < 20 pF.
• Use an isolated trimmer/screwdriver to perform
alignments.
8.1.2 Initial Settings
Perform all electrical adjustments with the following initial
settings (via the "Active Control" button on the RC):
1. To avoid the working of the lightsensor, set "Active Control"
to "Off".
2. Set "Smart Picture" to "Natural".
3. Set "Active Display" to "Off"
8.1.3 Alignment Sequence
• First, set the correct options:
– In SAM, select SERVICE OPTIONS -> OPT. NO,
– Fill in the option settings according to the set sticker
(see also paragraph "Option Settings"),
– Select STORE OPTIONS and push "OK" on the
remote control,
– After storing, the set must be restarted!
• Warming up (>10 minutes).
• White-D alignment.
8.2 Hardware Alignments
8.2.1 12 or 24 V Backlight Voltage Alignment
Switch the set "on" and measure the voltage between pin 1 of
connector 1304 and pin 1 of connector 1309 (ground). Align
potmeter R3026 until this voltage is:
•12 V
DC +/- 0.1 V (for Sharp displays).
•24 V
DC +/- 0.1 V (for LG.Philips displays).
Caution: This voltage must be aligned very precisely: when it
is too high (> 27 V), it can destroy the inverters. When it is too
low (< 23 V) the backlight will not start up.
Note: The 42" models have a double PSU, therefore an extra
potmeter must be aligned: measure the voltage between pin 1
of connector 1303 and pin 1 of connector 1320 (ground). Align
R3U26 until this voltage is 24 VDC +/- 0.1 V.
8.3 Software Alignments
Put the set in SAM mode (see the "Service Modes, Error Codes
and Fault Finding" section). The SAM menu will now appear on
the screen. Select ALIGNMENTS and go to one of the sub
menus. The alignments are explained below.
Notes:
• All changes must be stored manually.
• If an empty EAROM (permanent memory) is detected, all
settings are set to pre-programmed default values.
8.3.1 General
For the next alignments, supply the following test signals via a
video generator to the RF input:
•EU/AP-PAL models: a PAL B/G TV-signal with a signal
strength of at least 1 mV and a frequency of 475.25 MHz
•US/AP-NTSC models: an NTSC M/N TV-signal with a
signal strength of at least 1 mV and a frequency of 61.25
MHz (channel 3).
•LATAM models: an NTSC M or PAL M TV-signal with a
signal strength of at least 1 mV and a frequency of 61.25
MHz (channel 3).
Luma Gain
Fixed setting of "1".
Delta Luma Gain for Aux (only when a 2nd Tuner is
present)
Fixed setting of "0 dB".
IF AFC
Alignment procedure:
1. During the IF AFC-parameter adjustment, one can see
OSD feedback on the screen.
2. The OSD feedback can give 4 kinds of messages:
3. The first item ("IN/OUT") informs you whether you are in or
out of the AFC-window.
4. The second item ("HIGH/LOW") informs you whether the
AFC-frequency is too high or too low.
Table 8-1 AFC
1. Adjust the IF AFC parameter until the first value is within
the AFC window (= IN).
2. Next, adjust the IF AFC parameter until the second value
is LOW.
IF LPRIME AFC (only for EU sets)
Same procedure as described above, but with SECAM L/L'
signal source.
TUNER AGC
Measure the DC voltage on pin 1 of the (main) Tuner. You can
adjust this voltage by adjusting the TUNER AGC item in the
AFC-window AFC-frequency vs. reference
Out High
In High
[ In ] [ Low ]
Out Low
Alignments
EN 122 FTL2.1E, FTL2.2E8.
SAM menu. Alignment is correct when the DC voltage is just
below 3.5 V.
IF AFC Tuner 2
Use the same procedure as described above (under IF AFC)
with the set switched to the DW source.
IF LPRIME AFC Tuner 2
Use the same procedure as described above (under IF
LPRIME AFC) with the set switched to the DW source.
Tuner AGC Tuner 2
Use the same procedure as described above (under TUNER
AGC) with the set switched to the DW source. Measure on pin
1 of the DW Tuner.
Blend Intensity
Use this alignment when you replace the microcontroller, NVM,
or the EBILD. It aligns the level of transparency of the menu-
picture blended into the main-picture. Fixed setting of "16".
8.3.2 2fh ADC Alignment
Only necessary to align, when the A/D convertor or NVM is
replaced. Use the default values as mentioned in the table.
Table 8-2 “2fH ADC alignment”
8.3.3 White D Alignment
• Set ACTIVE CONTROL to "Off".
• In the TV -> PICTURE user menu set:
– DYNAMIC CONTRAST to "Off".
– COLOUR ENHANCEMENT to "Off".
– COLOUR to "0".
– CONTRAST to "100".
– BRIGHTNESS to "43".
• Go to the SAM and select ALIGNMENTS -> WHITE
POINT.
Method 1 (with colour analyser):
• Use a 100% white screen as input signal and set the
following values:
– COLOR TEMPERATURE: "Tint to be aligned".
– WHITEPOINTRED: "127".
– WHITEPOINTGREEN: "127".
– WHITEPOINTBLUE: "127".
– RED BL OFFSET: "7"
– GREEN BL OFFSET: "7".
• Measure with a calibrated (phosphor- independent) colour
analyser in the centre of the screen. Use a contactless
analyser (e.g. Minolta CA-210) to align an LCD TV. The
colour analyser may not touch the screen surface.
Consequently, the measurement needs to be done in a
dark environment.
Note: The colour analyser needs to be calibrated for LCD!
• Adjust, by means of decreasing the value of one or two
whitepoints, the correct x,y coordinates (see table "White D
alignment values"). Tolerance: dx,dy: ± 0.004.
• Repeat this step for the other Colour Temperatures that
need to be aligned.
• When finished press "Store" to store the aligned values to
the NVM.
Table 8-3 White D alignment values
Method 2 (without colour analyser):
If you do not have a colour analyser, you can use the default
values. This is the next best solution. The default values are
average values coming from production (statistics).
1. Select a COLOUR TEMPERATURE (e.g. COOL,
NORMAL, or WARM).
2. Set the RED, GREEN and BLUE default values according
to the values in the "Tint settings" table.
3. When finished press "Store" to store the aligned values to
the NVM.
Table 8-4 Tint settings
8.3.4 Lum. Del.
With this Luminance Delay alignment, you place the luminance
information exactly on the chrominance information (brightness
is pushed onto the colour). Use a colour bar / grey scale pattern
as test signal.
•LUM. DELAY PAL BG: Apply a PAL BG colour bar / grey
scale pattern as a test signal. Adjust this parameter until
the transients of the colour part and black and white part of
the test pattern are at the same position.
Default value is "7".
•LUM. DELAY PAL I: Apply a PAL I colour bar/grey scale
pattern as a test signal. Adjust this parameter until the
transients of the colour part and black and white part of the
test pattern are at the same position.
Default value is "9".
•LUM. DELAY SECAM: Apply a SECAM colour bar/grey
scale pattern as a test signal. Adjust this parameter until
the transients of the colour part and black and white part of
the test pattern are at the same position.
Default value is "9".
•LUM. DELAY BYPASS: apply a NTSC colour bar/
greyscale pattern as a test signal. Adjust this value until the
transients of the colour and black and white part of the test
area are at the same position.
Default value is "6".
Menu item Value
Red Gain RGB 106
Blue Gain RGB 112
Green Gain RGB 133
Red Offset RGB 40
Blue Offset RGB 41
Green Offset RGB 43
Red Gain YPbPr * 115
Blue Gain YPbPr * 118
Green Gain YPbPr * 102
Red Offset YPbPr * 59
Blue Offset YPbPr * 56
Green Offset YPbPr * 35
* = only for sets with YPbPr input
Coordinates Cool Normal Warm
X0.276 0.287 0.314
Y0.281 0.292 0.320
Cool Normal Warm
32" 37" 42" 32" 37" 42" 32" 37" 42"
R127 125 126 127 127 127 127 127 127
G126 127 122 123 127 120 116 121 114
B112 125 127 104 118 116 86 101 98
Alignments EN 123FTL2.1E, FTL2.2E 8.
8.4 Option Settings
8.4.1 Introduction
The microprocessor communicates with a large number of I2C
ICs in the set. To ensure good communication and to make
digital diagnosis possible, the microprocessor has to know
which ICs to address. The presence / absence of these specific
ICs (or functions) is made known by the option codes.
Notes:
• After changing the option(s), save them with the STORE
command.
• The new option setting is only active after the TV is
switched "off" and "on" again with the Mains switch (the
EAROM is then read again).
8.4.2 Dealer Options
Table 8-5 Dealer option overview
8.4.3 SERVICE OPTIONS
Select the sub menu's to set the initialisation codes (options) of
the set via text menus.
Table 8-6 Service option overview
Menu name Subjects Options Description
Personal
Options
Picture Mute Yes Picture (blue) mute active in case no picture detected
No Noise in case of no picture detected
Virgin Mode Yes TV starts up (once) with language selection menu after mains switch
"on" for the first time (virgin mode)
No TV does not starts up (once) with language selection menu after mains
switch "on" for the first time (virgin mode)
Auto Store Mode (only for EU and
AP-PAL/M sets)
None Autostore mode disabled (not in installation menu)
PDC-VPS Autostore mode via ATS (PDC/VPS) enabled
TXT page Autostore mode via ACI enabled
PDC-VPS-TXT Autostore mode via ACI or ATS enabled
TXT Preference (only for EU and AP-
PAL sets)
TOP Preference to TOP Teletext
FLOF Preference to FLOF Teletext
DVD door lock (only for sets with
integrated DVD)
Yes To disable the DVD tray opening function
No To enable the DVD tray opening function
AmbiLight Demo (only when Ambi
Light option is “on”)
Yes Activation of AmbiLight demo via local "MENU" button possible
No Activation of AmbiLight demo via local "MENU" button not possible
Menu-item Subjects Options Description
Dual Screen PIP/Dual Screen Yes / No Feature present / not present
Text/EPG Yes / No Feature present / not present
DS/PIP Tuner Yes / No Feature present / not present (only selectable if PIP/Dual Screen option
is "on")
Teletext Flash RAM Yes / No Flash RAM present / not present
NexTView type None Feature not present
Textguide only Feature present, but only as text guide
Nextview 2c3 Feature present, for countries that support NexTView
Display Screen Value "000" 42 inch PDP SDI
Value "001" 50 inch PDP SDI
Value "002" 42 inch PDP FHP
Value "003" 30 inch LCD LPL
Value "004" 37 inch LCD LPL
Value "005" 42 inch LCD LPL
Value "006" 32 inch LCD Sharp
Value "007" 42 inch PDP SDI VGA
Value "008" 37 inch PDP FHP
Alignments
EN 124 FTL2.1E, FTL2.2E8.
8.4.4 OPT. NO. (Option numbers)
Select this sub menu to set all options at once (expressed in
two long strings of numbers).
Table 8-7 Option number overview (indication only, use sticker inside set as reference)
An option number (or "option byte") represents a number of
different options. When you change these numbers directly,
you can set all options very quickly. All options are controlled
via eight option numbers.
When the EAROM is replaced, all options will require resetting.
To be certain that the factory settings are reproduced exactly,
you must set both option number lines.
Note: You can find the correct option numbers on a sticker
inside the TV set.
Example: The options sticker gives the following option
numbers:
• 62948 40992 49488 04097
• 04118 01537 16480 49632
The first line (group 1) indicates options 1 to 4, the second line
(group 2) options 5 to 8.
Every 5-digit number represents 16 bits (so the maximum value
will be 65536 if all options are set).
When all the correct options are set, the sum of the decimal
values of each Option Byte (OB) will give the option number.
Note: As the info was not up-to-date at the time of writing, the
option number explanation is not given in this manual. As soon
it becomes available, a Service Info or update manual will be
send via the appropriate channels
Video Repro Featurebox type 1050i/1250i HD input
Eagle 1B "Eagle version 1B" present (Pixel Plus 1)
Eagle 1C "Eagle version 1C" present (Pixel Plus 2)
Lightsensor Yes / No Feature present / not present
3D Combfilter Yes / No Only selectable when Columbus is present
Improved Noise Reduction Yes / No Only selectable when Columbus is present
PixelPlus Version 1 Standard PP: only selectable with Eagle 1C
2 Improved PP: only selectable with Eagle 1C
720p Yes / No Enable for high resolution displays
Source
Selection
EXT3 1Fh (2003) Yes / No Not selectable
Audio Repro Acoustic System FTV Top Cabinet design (xxPF9986 and xxPF9996 with NXT).
See styling 499 in Product Survey.
Soft Wrap Cabinet design (xxPF9956 and xxPF9966 standard).
See styling 496 in Product Survey.
Wrap Cabinet design (xxPF9956 and xxPF9966 standard).
See styling 500 in Product Survey.
FTV2.3 Cabinet design (for future)
AVL Yes / No Enable / disable Automatic Volume Limiter
Miscellaneous Home Cinema Yes / No Model with / without Home Cinema Link (EU only)
AmbiLight Yes / No Rear lighting feature present / not present
Integrated RC Yes / No Control pheripheral equipment via TV IR receiver (EU only)
Tuner type UV1316 /
TEDE9
Model with Philips tuner / Alps tuner
P50 DVD menu line Yes / No Enable / disable DVD control via user menu with TV RC (EU only)
Hotel Mode Yes / No Enable / disable Hotel Mode
Intelligent Lights Yes / No Proximity sensor present / not present
Option no. Group 1 Group 1 option code overview (see set sticker)
Group 2 Group 2 option code overview (see set sticker)
Menu-item Subjects Options Description
Model Number 12 NC Options Group 1 Options Group 2
32PF9976/12 (with Sharp LCD) 8670 000 21855 46436 40992 49472 04096 04118 01537 16448 49601
32PF9976/12 (with LPL LCD) 8670 000 21855 46436 40992 49472 04096 04118 01025 16448 00449
32PF9986/12 (with Sharp LCD) 8670 000 20663 62948 40992 49488 04097 04118 01537 16480 49632
32PF9986/12 (with LPL LCD) 8670 000 20663 62948 40992 49488 04097 04118 01025 16480 00480
37PF9986/12 8670 000 20667 62948 40992 49488 04097 04118 01025 16480 03040
42PF9986/12 8670 000 20669 62948 40992 49488 04097 04118 01281 16480 03296
Alignments EN 125FTL2.1E, FTL2.2E 8.
Table 8-8 Option overview
Byte Bit (dec. value) Subject Options Settings (in decimal values) Remarks
1 0 (1) Video Repro Feauture Box Type 3= Eagle 1B, 4= Eagle 1C, 5= 1050i/1250i
1 (2)
2 (4)
3 (8) Personal Ambi Light Demo 0= Off, 8= On
4 (16) Video Repro Auto Scavem 0= No, 16= Yes Only selectable for CRT sets.
5 (32) Improv. Noise Reduction 0= No, 32= Yes Fixed to "Yes" in case Columbus is present
6 (64) Light Sensor 0= No, 64= Yes
7 (128) Miscellaneous Ambi Light 0= No, 128= Yes
8 (256) Video Repro Digital Option 0 (No)= Dig. Natural Motion (for PP1) or PixelPlus
(for PP2), 256 (Yes)= PixelPlus (for PP1) or
PixelPlus2 (for PP2)
This depends on the "Pixel Plus Version" option (see also Byte 1
- bit 14), and gives the info that is visible in the user menu.
9 (512) n.a.
10 (1024) Source Selection 1152i 0= Off, 1024= On
11 (2048) Video Repro n.a.
12 (4096) Signalling Bits 0= No, 4096= Yes Fixed to: "Yes" in EU and AP-P, "No" for other versions.
13 (8192) 3D Comb Filter 0= No (2D Comb), 8192= Yes (3D Comb)
14 (16384) PP (Pixel Plus) Version 0= “1”, 16384= “2” Only selectable when "Feature Box" option is "Eagle 1C". See
also Byte 1- bit 8 "Digital Option".
15 (32768) 720p 0= No, 32768= Yes
2 0 (1) Audio Repro n.a.
1 (2) Dolby Pro Logic 0= No, 2= Yes
2 (4) Virtual Rear Speakers 0= No, 4= Yes Fixed to: "Yes" for sets with Dolby Pro Logic.
3 (8) Cordless Rear Speakers 0= No, 8= Yes Fixed to: "No" for all versions, except for EU.
4 (16) Dolby Digital 0= No, 16= Yes When Dolby Digital is "Yes", the AVL (Byte 8 - bit 6) option must
be "No".
5 (32) Virtual Dolby 0= No, 32= Yes Fixed to: "No" in case the "Dolby Pro Logic" option (Byte 2 - Bit 1)
unequals "none".
6 (64) Subwoofer 0= No Subwoofer present, 64= Subwoofer present.
7 (128)
8 (256) Chassis/Region Chassis 0= EM6, 256= EM5, 512 = EM3 FTx2.x= EM6
9 (512)
10 (1024)
11 (2048)
12 (4096) Teletext n.a.
13 (8192) Flash RAM 0= No, 8192= Yes NexTView type 2C3 and 2 need a Flash RAM.
14 (16384) NexTView type 0= None, 16384= Textguide only,
32768= NexTView 2C3, 49152= NexTView 2
Only available for EU.
15 (32768)
3 0 (1) n.a. n.a.
1 (2) n.a. n.a.
2 (4) n.a. n.a.
3 (8) n.a. n.a.
4 (16) Dual Screen PIP/Dual Screen 0= No, 16= Yes
5 (32) n.a.
6 (64) TXT/EPG Dual Screen 0= No, 64= Yes. Fixed to: "Off" for AP-N, US, and LA versions.
7 (128) n.a.
8 (256) Display CRT type (Aspect Ratio) 0= 4:3, 256= 16:9
9 (512) Picture Rotation 0= No, 512= Yes Only selectable for CRT sets.
10 (1024) Monitor 0= No, 1024= Yes Reserved for Flat TV monitor.
11 (2048) Miscellaneous Integrated Radio 0= No, 2048= Yes
12 (4096) Stand Alone 0= No, 4096= Yes Reserved for Flat TV monitor.
13 (8192) Integrated DVD 0= No, 8192= Yes
14 (16384) Home Cinema 0= No, 16384= Yes Fixed to: "No" in all versions except for EU.
15 (32768) Integraded RC 0= No, 32768= Yes Fixed to: "No" in all versions except for EU.
4 0 (1) Dual Screen DS/PIP (Aux) Tuner 0= Aux Tuner not present,
1= Aux Tuner present
Only selectable in the EU version, provided the "PIP/Dual
Screen" option is "Yes".
1 (2) DS/PIP (Aux) Tuner Type 0= UV1316, 2= TEDE9
2 (4) Miscellaneous 38.0 (or China) IF 0= No, 4= Yes Fixed to: "No" in all versions except for AP-P.
3 (8) Tuner Type 0= UV1316, 8= TEDE9
4 (16) Teletext n.a.
5 (32) n.a.
6 (64) n.a.
7 (128) n.a.
8 (256) Miscellaneous Integrated Dig. Module 0= No, 256= Yes
9 (512) Integrated HDD 0= No, 512= Yes
10 (1024) n.a.
11 (2048) n.a.
12 (4096) Anti Aging 0= No, 4096= Yes Fixed to: "Yes" for FTV.
13 (8192) Personal DVD Door Lock 0= No, 8192= Yes
14 (16384) n.a.
15 (32768) n.a.
Alignments
EN 126 FTL2.1E, FTL2.2E8.
5 0 (1) Personal n.a.
1 (2) Auto Store Mode 0= None, 2= PDC/VPS, 4= TXT Page,
6= PDC/VPS/TXT Page
Fixed to: "None" in the AP-N and US versions.
2 (4)
3 (8) 2CS Korea 0= BTSC, 8= Korean Stereo As the MSP can not automatically detect if Korean stereo ( 2CS
) or BTSC is transmitted, this option is needed to tell the MSP
what detection should be done.
4 (16) Blue (or Picture) Mute 0= No, 16 = Yes
5 (32) n.a.
6 (64) Virgin Mode 0= No, 64= Yes
7 (128) Miscellaneous Hotel Mode 0= No, 128= Yes
8 (256) Personal Flex TV Demo 0= No, 256= Yes
9 (512) n.a.
10 (1024) n.a.
11 (2048) n.a.
12 (4096) TXT Preference 0= Top, 4096= FLOF Only available in the EU version.
13 (8192) n.a.
14 (16384) n.a.
15 (32768) n.a.
6 0 (1) Miscellaneous P50 DVD Menu Line 0= No, 1= Yes Fixed to: "No" in all versions except for EU.
1 (2) n.a.
2 (4) n.a.
3 (8) n.a.
4 (16) Chassis/Region Region 0= EU, 16= AP-P,
32= AP-N, 48= US,
64= Latam, 80= Australia
5 (32)
6 (64)
7 (128)
8 (256) Display Screen "000" (0)= 42-inch PDP (SDI),
"001" (256)= 50-inch PDP (SDI),
"002" (512)= 42-inch PDP (FHP),
"003" (768)= 30-inch LCD (LPL), ,
"004" (1024)= 37-inch LCD (LPL),
"005" (1280)= 42-inch LCD (LPL),
"006" (1536)= 32-inch LCD (Sharp),
"007" (1792)= 42-inch PDP (SDI) VGA,
"008" (2048)= 37-inch PDP (FHP).
Fixed to "0" in case of CRT.
9 (512)
10 (1024)
11 (2048)
12 (4096)
13 (8192)
14 (16384)
15 (32768)
7 0 (1) Source Selection EXT4 1fH 0= No, 1= Yes
1 (2) EXT1 2fH 0= No, 2= Yes
2 (4) n.a.
3 (8) n.a.
4 (16) n.a.
5 (32) EXT3 1fH 0= No, 32= Yes
6 (64) DVI/VGA 0= No, 64= Yes
7 (128) HDMI (Europe) 0= No, 128= Yes
8 (256) AV3 1fH 0= No, 256= Yes
9 (512) AV1 2fH 0= No, 512= Yes
10 (1024) AV2 2fH 0= No, 1024= Yes
11 (2048) n.a.
12 (4096) n.a.
13 (8192) n.a.
14 (16384) n.a.
15 (32768) HDMI (Non Europe) 0= No, 32768= Yes
8 0 (1) Audio Repro Acoustic System 0= FTV-Top (499), 1= Soft Wrap (496, 498),
2= Wrap (496, 498), 3= FTV2.3 (505),
4= FL9 Monitor (n.a.), 5= FL10 (n.a.),
6= FL11 or FL11-upgr. (380, 382, 406, 425, 426,
534), 7= FL12 (296, 305, 395, 408, 428, 444),
8= FL14 (n.a.), 9= PV02 (462), 10= FL13A (456),
11= Soft Design Line (336, 383), 12= Tech Design
Line (419), 14= FL13B (456), 15= Others
Used for setting dynamic audio parameters.
Between brackets the styling numbers are mentioned as listed in
the quarterly Product Survey.
1 (2)
2 (4)
3 (8)
4 (16) Miscellaneous n.a.
5 (32) Intelligent Lights 0= No, 32= Yes
6 (64) Audio Repro AVL 0= No, 64= Yes Switch to "No" when Dolby Digital is present.
7 (128) ??? 1080i Screen 0= 2fH path, 128= 3fH path
8 (256) Display CRT Size 0= 28", 256= 32", 512= 36" MEC, 768= 29",
1024= 34", 1280= 38", 1536= 28" Mk2,
1792= 36" PH, 2048= 32" MEC, 2304= 32" PH,
2560= 30", 2816= 37", 3072= 42",
3328= 50", 3840= Others
9 (512)
10 (1024)
11 (2048)
12 (4096) Anti Moire Filter 0= No, 4096= Yes Only for CRT
13 (8192) Display Type 0= LCD (LPL), 8192= PDP, 16384= CRT,
24576= LCoS, 32768= PTV, 40960= LCD (AUO),
49152= LCD (Sharp)
14 (16384)
15 (32768)
Byte Bit (dec. value) Subject Options Settings (in decimal values) Remarks
Circuit Descriptions, Abbreviation List, and IC Data Sheets EN 127FTL2.1E, FTL2.2E 9.
9. Circuit Descriptions, Abbreviation List, and IC Data Sheets
Index of this chapter:
9.1 Introduction
9.2 Power Supply LCD
9.3 Video
9.4 Synchronisation
9.5 Audio
9.6 Control
9.7 Proximity Sensor (if present)
9.8 Ambient Light (if present)
9.9 Software Upgrading
9.10 Abbreviation list
9.11 IC Data Sheets
Note:
•Only new (not recently published) circuits are described
here. For the other circuit descriptions, see a.o. the FTL13
and EM5.3 manuals.
• In the following text, the model year 2003 refers to the
FTL13x chassis, while the model year 2004 refers to the
new FTL2.x chassis.
• Figures can deviate slightly from the actual situation, due
to different set executions.
• For a good understanding of the following circuit
descriptions, please use the wiring, block and circuit
diagrams. Where necessary, you will find a separate
drawing for clarification.
9.1 Introduction
This chassis contains, compared to its predecessor, the
following new features/components:
•New Small Signal Board (SSB) with lower height due to
a.o. flat mounted tuners. This board is completely shielded
(i.s.o. only the FBX).
•FEM (Falconic Embedded Memories): this is a new
Falconic IC with internal Field memories and jagged line
removal.
•Improved 2D/3D Comb filter: The new key components
are Columbus and SDRAM. When SDRAM is used, a 3D
comb filter (or temporal comb filtering) is possible. Without
SDRAM, only 2D comb filtering (or spatial comb filtering) is
possible. This is improved with respect to the previous 2D
comb filter.
•Improved noise reduction: This is a second function of
the Columbus and SDRAM. Noise reduction is possible
without SDRAM (2D) and with SDRAM (3D).
•Pixel Plus 2: Eagle 1B is replaced by Eagle 1C.
– Algorithms for Horizontal LTI and Vertical LTI are
improved.
– "Thin Line Control" as part of the sharpness control.
– "Face Depending Peaking" should allow less
sharpness in faces different from the rest of the picture.
This could be used to anti age faces versus the rest of
the picture.
– "Vivid Colours 1" will result in more saturated colours.
– The range/amount of "Blue Stretch" is extended.
– More steps of "Green Enhancement".
– Improved "Colour Dependent Sharpness".
– Increased range of skin gain and skin tone.
•Proximity sensor: to detect a motion when the customer
is approaching the set, and then to light up the LEDs on the
set for 6 s (detection area is 1.5 - 2 m).
•Improved/new AutoTV functions: AutoTV 2004 has
some new hardware configurations. Applying an LCD
panel requires to have contrast reserve and backlight
regulation. Applying a PDP panel requires to have contrast
reserve as well (no backlight regulation). The Eagle 1C is
detected automatically. Columbus improved noise
reduction is used when the Columbus is present.
•Ambient Light: To be able to control lamps at the rear of
the TV with respect to the measured ambient light level
from the light sensor or the picture content, a control output
from AutoTV has been foreseen.
•DVI input for Europe, HDMI input for NAFTA and AP.
The chassis consists of a full sized SSB, two Power Supply
boards (one for the stand-by supply and one for the main
supply), and some smaller PWBs for I/O and Control functions.
The main functionalities are:
•Stand-by Supply: The Stand-by Supply is a new board
that also includes the (class D) Audio Amplifier and the
power supply interfacing to the LCD panel.
•Main Supply: LLC power supply, based on the one used
in the plasma monitors (FMxx chassis). This supply (single
sided) is built up very conventional, with hardly any surface
mounted components on the copper side.
•SSB: Core TV functionalities, being TXT/control, video and
audio decoding, feature box, video featuring, and sync/
geometry control. The SSB is a high tech module (four
layer, two sides reflow technology, full SMC) with very high
component density and full shielding for EMC-reasons.
Despite this, it is designed in such a way, that repair on
component level is possible. To achieve this, attention was
paid to:
– Clearance around surface mounted ICs (for replacing).
– Detailed diagnostics and fault finding is possible via
ComPair.
– Software upgrading (only for main software) is possible
via ComPair.
On the next drawings, it is indicated where all the functional
cells are located on the SSB (mind you that this is just an
indication):
Circuit Descriptions, Abbreviation List, and IC Data Sheets
EN 128 FTL2.1E, FTL2.2E9.

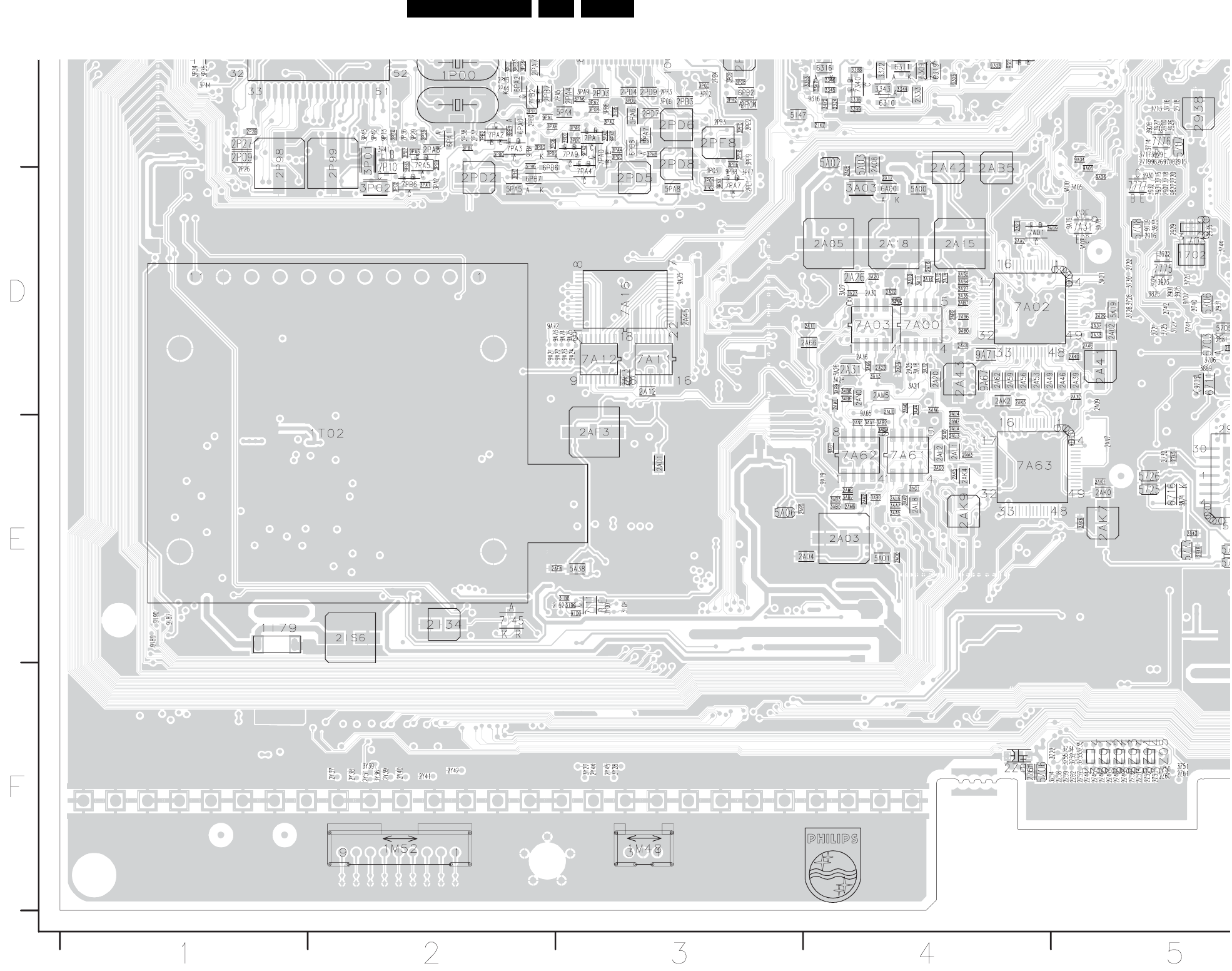

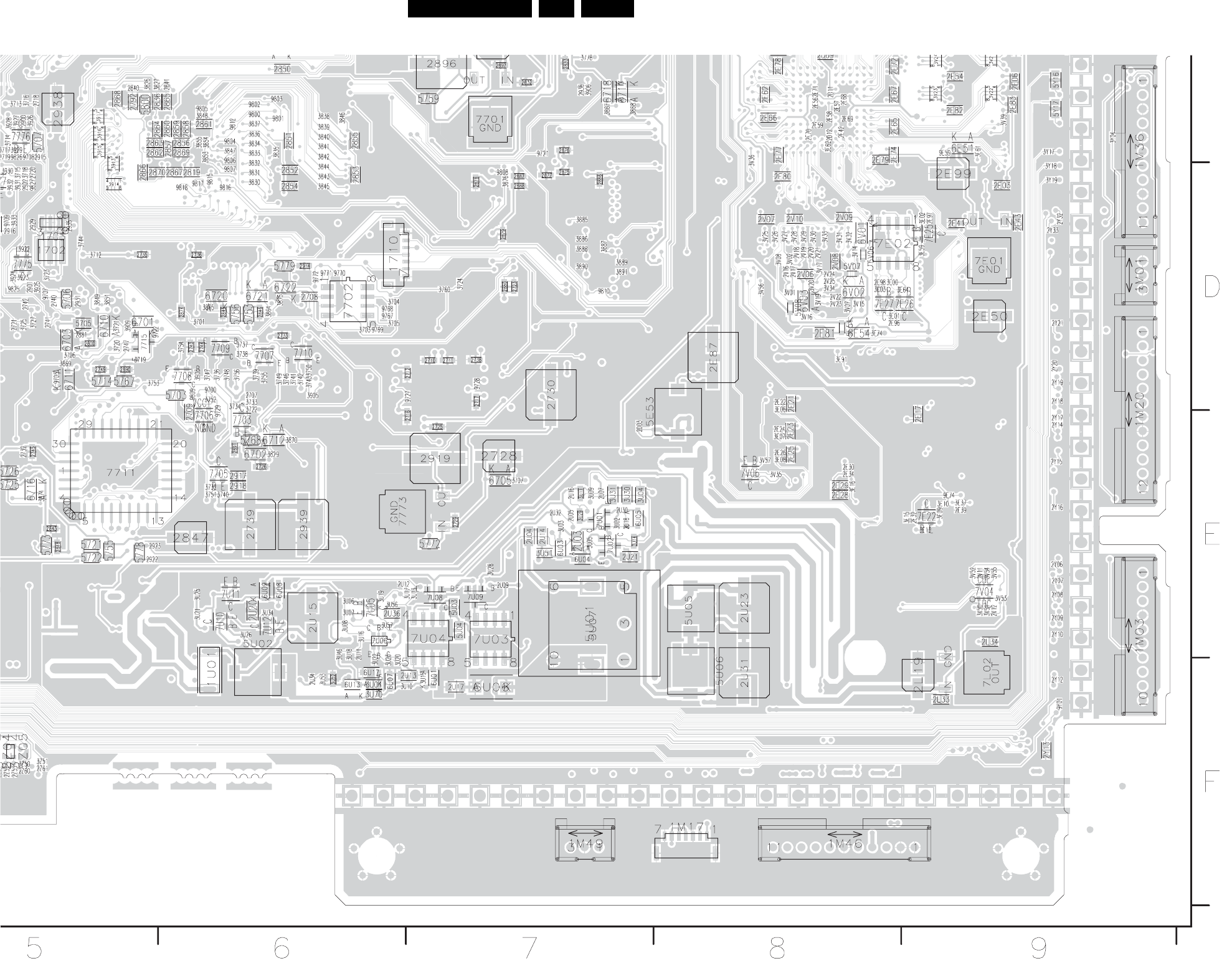

Figure 9-1 SSB top view

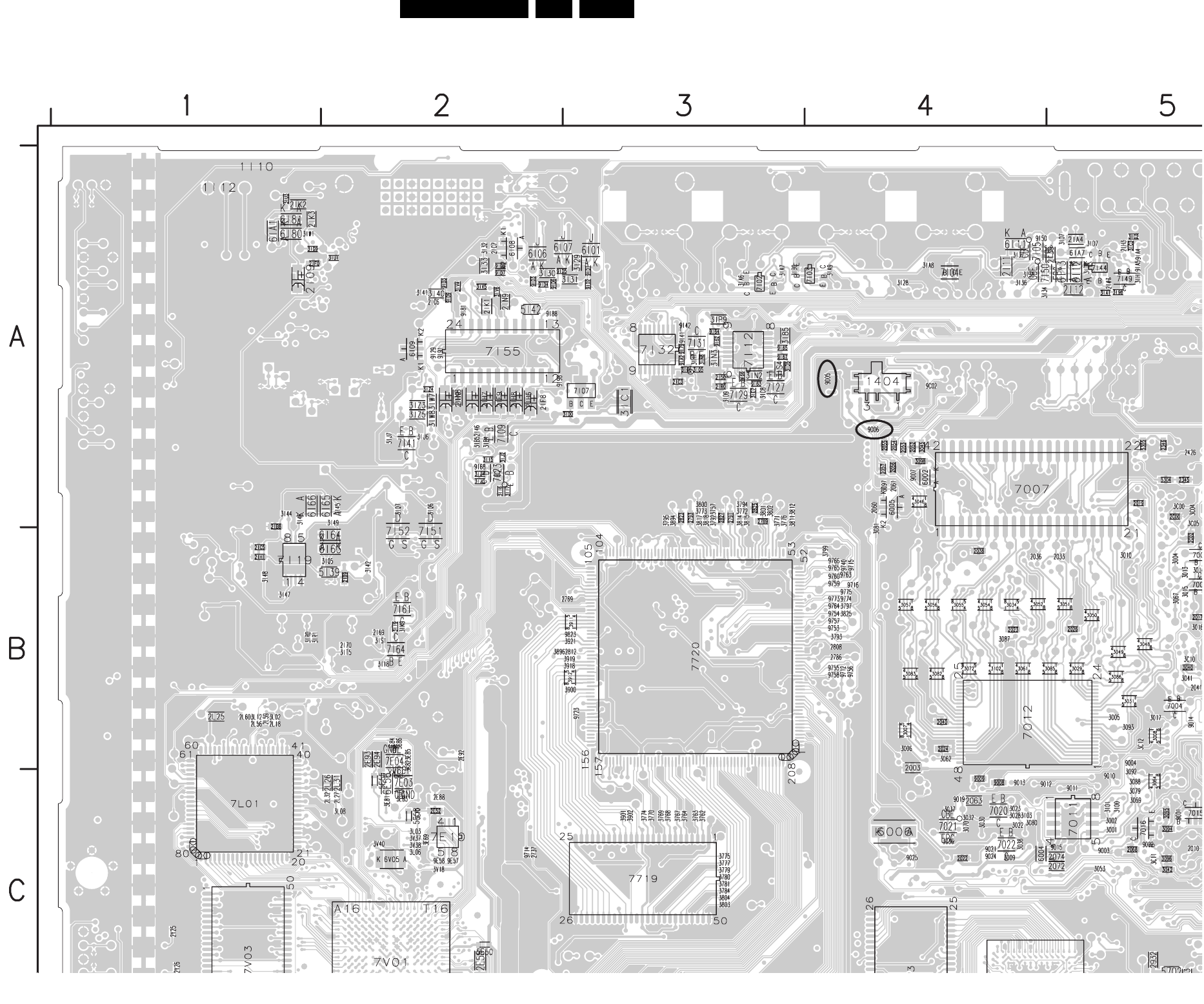

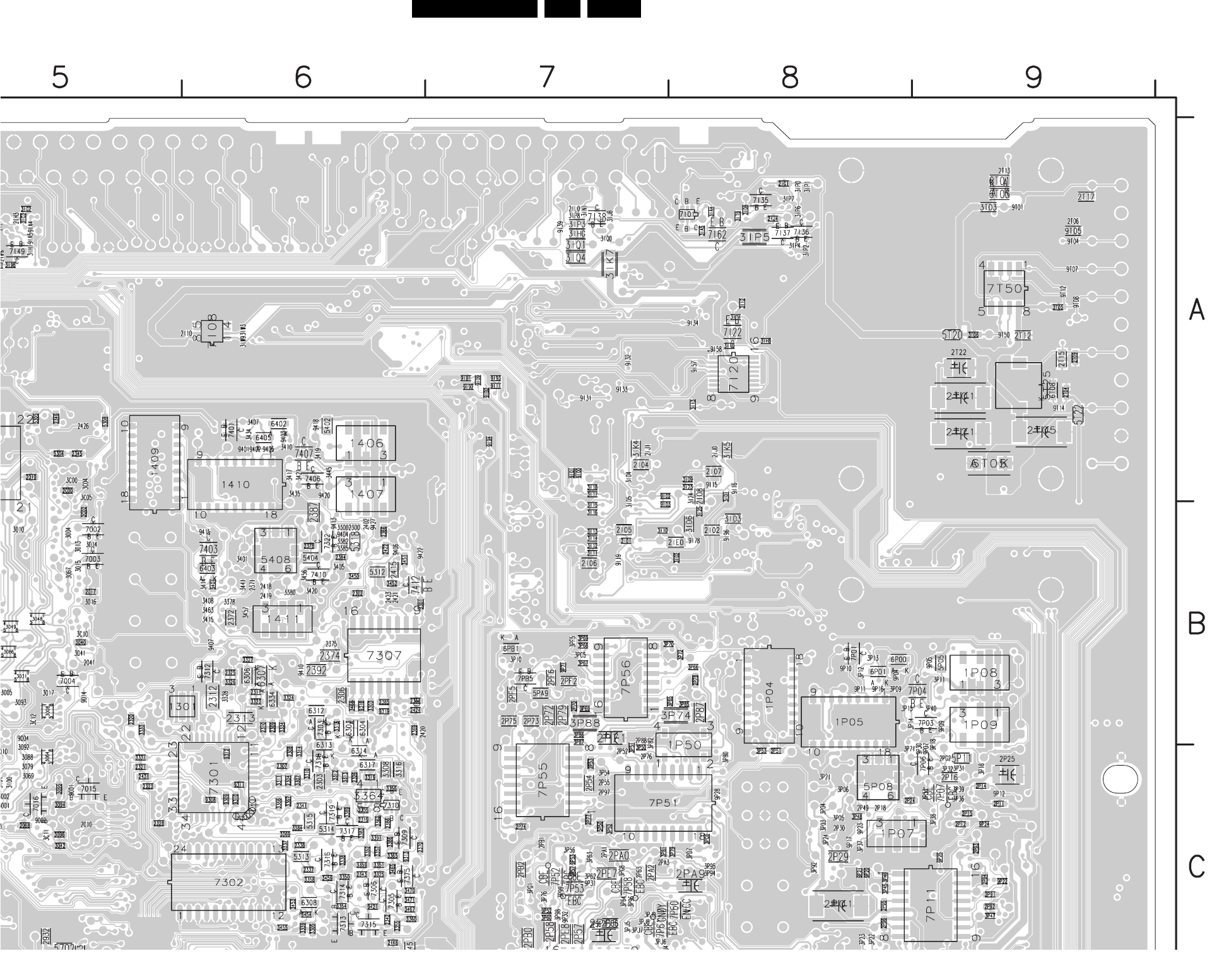

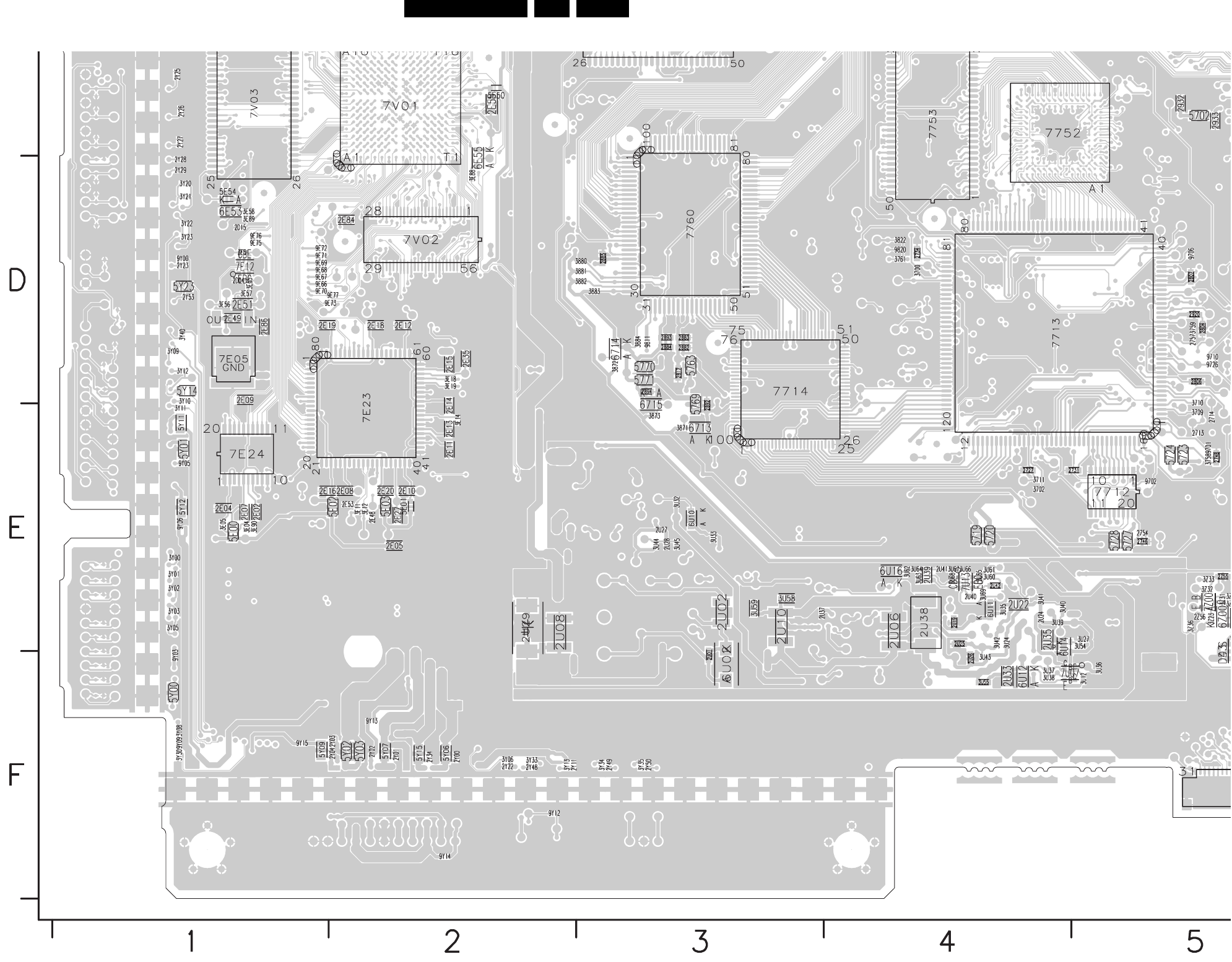

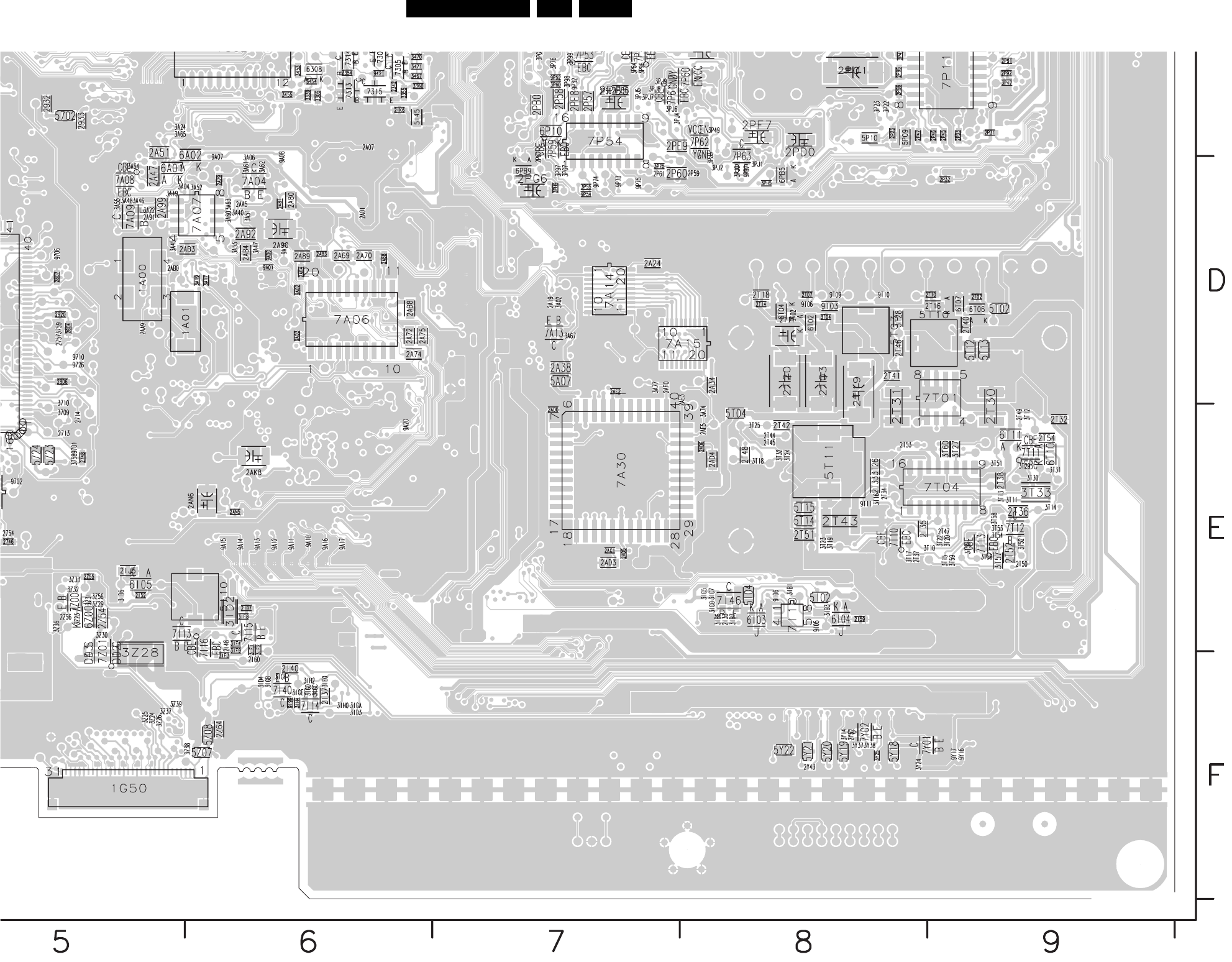

Figure 9-2 SSB bottom view
INTERFACING
DC/DC CONVERTER
EPLD
LVDS PIP/DW
MAIN
TUNER
PIP/DW TUNER
HIP2
MAIN
SW
FBX
SW
DPL
MSP
OTC
HIP1
DVI-I
DVI
RECEIVER
SCART2SCART1
MUPPET
XTAL'S
FBX SUPPLY
FBX (2FH)
AUDIO
OTC
I/O
HIP
E_14620_012.eps
130504
DC/DC CONVERTERLVDS
PIP/DW
FM1
ADC
(HDI)
EPLD
COLUM
BUS
FEM
FLASH
(EPG)
HP
AMP PICNIC
EAGLE
DRAM(TXT)
DRAM
LVDS
DRAM
DRAM
SAW
FEATURE BOXAUDIO
HOP
(N.A.)
HIP
I/O
OTC
INTERFACING
MAIN
TUNER
DVI-I
SCART2 SCART1
E_14620_002.eps
130504
Circuit Descriptions, Abbreviation List, and IC Data Sheets EN 129FTL2.1E, FTL2.2E 9.
9.2 Power Supply LCD
9.2.1 General
Changes in 2004:
•All displays:
– The sound supplies are +18V and -18V.
– A loudspeaker DC protection is added (via TS7030 on
the Main Supply).
– A POK (Power OK) is generated when the 12V from
the Aux supply is stabilised.
– The STAND-BY supply is integrated in the Sound
Amplifier panel.
•For Sharp displays (32”) only:
– 12V supply for the lamps i.s.o. 24V.
– 12V to 5V DC/DC converter on SSB.
9.2.2 Block Diagram
Figure 9-3 Block diagram LCD power supply
Main Supply (Block "D")
Diversity
• Mains input voltage diversity (1308):
– EU: 198 - 264 VAC.
– US: 108 - 132 VAC (doubler).
– AP multi: 90 - 275 VAC (auto doubler with AVS10
control IC and triac).
– China: 160 - 270 VAC.
• Mains filter diversity:
– EU, China: 1 x mains filter + harmonic coil.
– US, AP: 2 x mains filter + inrush current resistor.
• Screen size diversity:
– One module for 30" to 37" sets.
– Two (almost identical) modules on one PWB for 42"
sets.
Specifications
• 12 V / 3 A on connector 1304 (for Ambient Light and to
generate +8V6).
• 24 V / 5 A for LCD backlight on connector 1304 (for Sharp
12 V, 9 A).
• +18V, -18V sound on connector 1M02.
• +8V6 (derived from +12V from the Main Supply, switched
"off" in Stand-by).
• Output voltage: over-voltage protection of resonant supply.
• Output current protection of resonant supply.
• Current protection at some safety fault conditions.
Stand-by mode
• The resonant supply is switched "off" via relay 1450 that is
driven by the Stand-by Supply (via connector 1305).
Outputs
• 130-400 VDC (full range) for Stand-by Supply (connector
1306).
• Mains over-voltage and safety protection for Stand-by
Supply (connector 1307).
Inputs
• Relay drive voltage (for STAND-BY/ON mode) on
connector 1305.
• DC_PROT signal to protect loudspeakers when there is a
DC voltage across the loudspeakers (1M02).
Figure 9-4 Functional diagram Main Supply (one module)
Stand-by Supply (Block "E")
The Stand-by Supply is based upon the "Fly Back Converter"
principle. A description of this principle can be found in the
FM2x Service Manuals.
110-230V
OTC
Blue LED
Audioprotect
Stby
5Vrelay
Stby LED
Reset
3V3
POR
5V2
E_14620_010.eps
070504
Block A
Input filter
Block B
Relay Switch
Relay Control
Block C
Rectifier
Doubler
Block D
LCD Aux
Supply
+24V lamp(+12V for Sharp)
+12V
+8V6
+18V Sound
-18V Sound
Block E
Stand By
Supply
MUTE
MUTE
GENERATOR
Audio
+5Vsw
+5V2
V tuner
DC prot
TACT
switch
Supply LCD 2004
1
+400V
AVS10
Mains filter
Mains filter
Mains Harmonic
Inruch
Bridge
Rectifier
US / APmulti
US / APmultiEUR / CHINA
EUR / CHINA
Relais
1308
1305
Driver Trafo
US / APmulti
Heatsink
Doubler
Control supply
MC34067P
Resonant Trafo
Heatsink Heatsink
Opto
12V 24V
-18V18V 1M02
Reference
COLD
HOT
+12V
1306
1307
Bridge
Rectifier
1304
+12V
+24V
HOT
HOT
COLD
COLD
GND_AUD
Audio Supply
Display supply
Mains input
Stand By supply
Supply
Invertors
(RES)
DC prot
25V_HOT
(Startup)
Relais drive
GND_SND
+400V
+400V
E_14620_025.eps
100504
Circuit Descriptions, Abbreviation List, and IC Data Sheets
EN 130 FTL2.1E, FTL2.2E9.
Specifications
• Class D audio amplifier on same panel.
• Low profile.
• Full range (90 - 270 VAC) and for all screen sizes (however
NOT exchangeable due to component diversity).
Outputs
• +5V2.
• +5V_SW (switched "off" in Stand-by).
• V_TUN (Tuner voltage, switched "off" in Stand-by).
Inputs
• 130-400 VDC from the Mains Filter panel (1306).
• STAND-BY_INFO from SSB (1M03).
• Over-voltage / safety protection from the Main Supply
(1307 -> 6150/51/53 -> 7150 -> 7505/09 -> 7560).
– Protection against over-voltage of the mains.
– Protection against short-circuit of mains elco’s with
doubler.
Interfacing between SSB and Main Supply
• +24V (or +12V) from MF supply (1304) to Display
(backlight) (1312, 1313, or 1314, 1315 or 1316, 1317).
• +12V from MF supply (1304) to SSB (1M46) and Ambient
Light circuit (1M10).
DC/DC Converter (only for Sharp displays)
The DC/DC converter, which is present on the SSB, is based
upon the "Synchronous Buck Converter" principle. A
description of this principle can be found in the FTL13 Service
Manual.
9.2.3 Start-up sequence
Connect the mains voltage
1. A voltage of 130-400 VDC (depends on region) will be
available at the Stand-by Supply panel.
2. The +5V2 becomes available for the SSB.
Close the functional switch
1. +5V2_RELAY_IO will be present (= supply for relay and P).
A POR is generated.
2. If STAND-BY bit is "low", the +5V_SW will be present for
the SSB.
3. The relay is closed.
4. The Main Supply will start up.
5. The +24V (+12V for Sharp displays) and the Audio Supply
becomes available.
6. +12V ready from MF panel -> +8V6 on Stand-by Supply
panel is ready to SSB
9.2.4 Power States
There are four different power states. Their characteristics are
summarised in Table "Power states".
Table 9-1 Power states
(1) Stand-by, entered via the remote or via a protection. A
special case of STAND-BY state is SERVICE STAND-BY
STATE. It can be entered by a service engineer with a “Dealer
Service Tool”. In this state, an IR LED can be used for
Diagnostics (for reading error codes). It is the starting condition
for the “stepwise start-up".
Notes:
• Region US uses a red LED for STAND-BY and a blue LED
for ON, like in Europe. Otherwise, there is no visible
difference between OFF and STAND-BY.
• In SEMI-STAND-BY coming from STAND-BY, the blue
LED is "on",
• In SEMI-STAND-BY coming from ON, the red LED is "on".
Figure 9-5 Power state diagram
Power States Switch LCD
OUT
(Mains cord
disconnected)
XNo power.
OFF OFF Stand-by supply is working.
Main supply not working.
2003: OTC is not powered.
2004: OTC is powered and is in
low power stand-by.
No LED is “on”.
No P50 or EPG.
Proximity sensor is OFF.
No time extraction started.
No ambient light.
RC6 ignored.
STAND-BY (1) ON Stand-by supply is working.
Red LED is “on” in EU and US.
SEMI STAND-BY
(Going to ON)
ON Stand-by supply is working.
Main supply is working.
LCD and LCD backlight not
active.
EPG loading and P50 recording
are possible (EU).
Time extraction (EU and US).
2003: Red and Green LEDs are
“on”.
2004: Blue LED is “on”.
ON ON The set is working.
2003: Green LED is “on” in EU
and US.
2004: Blue LED is “on”.
SEMI STAND-BY
(Coming from ON)
ON Stand-by supply is working.
Main supply is working.
LCD and backlight not active.
EPG loading and P50 recording
are possible (EU).
2003: Red and Green LEDs are
“on”.
2004: Red LED is “on”.
SEMI STAND-BY
(Ambient light ON)
ON Stand-by supply is working.
Main supply is working.
LCD and backlight not active.
Red LED is “on”.
E_14620_020.eps
290404
OUT ONSemi Standby
OFF
Standby
Circuit Descriptions, Abbreviation List, and IC Data Sheets EN 131FTL2.1E, FTL2.2E 9.
•OUT: The set is OUT when the mains cord is disconnected.
When the mains cord is connected, the set goes to OFF or
to STAND-BY state, depending on the last status in the
NVM. From all states, the set can be set to the OUT state
by disconnecting the mains cord or by a mains interruption.
•OFF: In the OFF state, the OTC is powered but is in low
power STAND-BY state. No LEDs are "on", RC6 is
ignored, no EPG or P50 is possible, Proximity is set to "off",
time extraction is not started (if it was done before this
state, the clock stays running). This state can only be
changed by the tact switch; the set goes via SEMI-STAND-
BY to ON. From all states, we can go to the OFF state by
the tact switch.
•STAND-BY: The set is in STAND-BY if the STAND-BY bit
is set. This state can change with the RC6 "on" command,
for EPG loading, P50 recording, for time extraction, or for
ambient light. The next state is SEMI-STAND-BY and to
ON if the STAND-BY bit is not set.
•SEMI-STAND-BY: State between STAND-BY or OFF and
ON state. All supply voltages are present, but the screen is
blanked.
•ON: set is ON.
9.2.5 POR detection
Situation in 2003:
By starting up or switching "off" the set by the ON/OFF switch
or with (dis)connecting the mains cord, the power supply
generates a POR. In case of mains spikes within the limits,
there should be no POR. The POR line is "high" by starting up
and shutting down and is "low" when the set is "on". This line
mutes the audio amplifier and the audio outputs. The POR is
also inverted and sent to the OTC (POR_FLASH). After a POR,
the software starts the set, and there is a delay of 1 s after
switching "off" for the backlights.
Changes in 2004:
Since the ON/OFF switch is always closed (not present
anymore), there is no POR by starting up. The POR line is
connected to +5V2 and is always "high". Only when the mains
cord is reconnected, the Stand-by supply starts up, and the
POR line follows the start up of the 5V2.
9.3 Video
For a detailed description of the Feature Box (PICNIC,
Columbus, FEM, and Eagle 1C), see the EM5.3 Service
Manual.
9.4 Synchronisation
See the FTL13 manual for a (more) detailed description.
9.5 Audio
See the FTL13 manual for a (more) detailed description.
9.6 Control
See the FTL13 manual for a (more) detailed description.
9.7 Proximity Sensor (if present)
9.7.1 Introduction
The function of Proximity Sensor is to detect a motion when the
customer is approaching the set. It will then light up the LEDs
on the set for 6 s (detection area is 1.5 - 2 m). Its functionality
is based upon IR emission, IR detection, and LED lighting
processes. These three different phases are defined as
follows:
1. First, it emits a signal through an IR transmitter.
2. Then it detects a reflection of this signal caused by a
person approaching the set.
3. Finally, it lights up the different LEDs.
There are two IR transmitters used to cover the complete front,
and detection is done with the existing IR receiver. It detects
the reflected signal coming from the customer when he/she is
approaching the set. If the customer presses a button on the
keyboard of the Top Control, the lighting phase is also
activated (or re-triggering).
The output of the module will control the lighting of the LED with
a fade in/out effect.
The function can be switched “off/on” in the set-up menu.
The module is powered by the 5V_STAND-BY and works in
“Stand-by” and in “On” state.
The control of the proximity sensor is done by a separate
microprocessor. The communication between this processor
and the OTC is done by the RC5 line. The following info is sent
via this line:
Figure 9-6 Pulses proximity microprocessor.
• Proximity OFF: negative pulse of 20 ms. The feature is
switched "off" -> no detection.
• Proximity ON: negative pulse of 40 ms. The feature is
turned "on" -> detection possible.
• Keyboard pressed: negative pulse of 60 ms. This gives a
command to the proximity uP to turn "on" the LEDs.
• OTC goes to STAND-BY: negative pulse of 80 ms. This
gives an indication that the set is in "Stand-by" mode.
OFF ON STDBYKeybP
20ms
40ms
60ms
80ms
E_14620_019.eps
290404
Circuit Descriptions, Abbreviation List, and IC Data Sheets
EN 132 FTL2.1E, FTL2.2E9.
9.7.2 Block Diagram
The function diagram is shown in the next figure.
Figure 9-7 Emitting and detecting diagram
Emitting phase
IR Transmission (fo)
The IR transmission is realised with diode D6080 (TSAL5300).
This IR emitting diode is modulated with a 36.7 kHz signal. This
frequency (fo) is the same as the carrier frequency of the
remote control system (RC5/6). The microcontroller IC7075
(87LPC760) generates a specific pattern: during one second
10 times 100 periods (T0= 1/f0) of the modulation signal is sent
with a duty cycle of 50%. A timer port of the microcontroller is
used to generate the 36.7 kHz
AGC of the transmission (PWM)
The Automatic Gain Control (AGC) allows managing the power
of the IR emitting diode according to the detected reflection
signal. The microcontroller generates a Pulse Width
Modulation (PWM) signal that will change as soon as there is a
reflection signal received by the RC5/6 system. If there is no
reflection signal detected, the power will increase (average
PWM signal tends to "0"). If a detection signal appears and
remains, the power of the IR diode will decrease (average
PWM signal tend to "1"). The average PWM signal is realised
with a RC filter.
The maximum power depends on the forward current (If) in the
IR diode. This current can be adjusted with the resistance
R3022: the higher this resistance, the lower the IR power.
During the start up of the Proximity sensor feature, a calibration
mode will adapt the power of the IR diode. It is clear that the
distance of the detection will decrease while the PWM signal
tends to "1".
If a fixed object is placed in front of the TV set, the power will
be adjusted and the detection zone will be limited from the TV
set until the object. A timer port of the microcontroller is used to
generate the PWM signal.
Detecting phase
IR detection (Reflection)
The IR detection is done via the existing remote control system
(RC5/6). This IR receiver system detects all signals that get a
carrier frequency of 36.7 kHz (f0). When a signal is detected,
the output of the RC5/6 system will go to "0".
For the proximity sensor, we use this detection process to
activate the LED signal. The microcontroller receives the
detection signal coming from the reflection. There is a reflection
when the modulated pattern (sent through the IR transmitting
diode) hits an object or a person in the detection zone. The IR
receiver demodulates the pattern signal that is directly decoded
by the microcontroller. It is clear that the reflection will depend
on the colour and texture of the customers clothing, or the
object (table, chair...).
The figure shows the connection between the microcontroller
and the RC5/6 system. The input port (an interruption pin) of
the microcontroller is used for this.
Detection zone
The detection zone is defined when the IR diode power is at its
maximum (average PWM signal is "0").
The Proximity sensor is more sensitive with bright and
reflective clothes or surfaces. The detection zone is quite
directive and is limited to one side of the set. Therefore, a
divergence lens should be placed in front of the IR emitting
diode to increase the detection zone and /or the IR diode
orientation has to change on the main switch board.
Lighting phase
Fade in/out effect and current driver:
When the microcontroller detects a reflection signal, it will
switch on the blue LEDs located on the Top Control. The light
of the LED will increase gradually to full intensity (fade in
effect). This effect will take 1 s. The light will remain "on" during
6 s, then it will switch "off" gradually within 3 s (fade out effect).
The light can re-trigger if the microcontroller receives the
keyboard press information (as described in the "keyboard
press detection" paragraph).
The fade in/out effect is realised with a simple electronic circuit
(see following figure). The timing can be adjusted by changing
the value of the resistors R3031 and R3032.
Figure 9-8 Fade in/out circuitry
A current driver circuit is used to power at least ten blue LEDs
(see next figure). This current driver can supply around 120 mA
thanks to the transistor TS7031.
Figure 9-9 LED driver circuitry
Keyboard press detection
If the user manages to approach the set without activating the
sensor but presses any button on the Top Control, the blue light
will switch "on". If the user activates any button within the
lighting phase, the light stays on for another 6 s.
Microcontroller
36.7 kHz
PWM
VDD
f0
If
R1
LED
VDD
VDD
GND
IR transmission
GND
GND
R
C
VDD
RC5
IR RC5
D
Rp
Reflection
E_14620_014.eps
200804
E_14620_016.eps
110504
Microcontroller
36.7 kHz
LED
VCC
GND
D1 R1
D2 R2
R2
Fade
C
VCC
GNDGND
E_14620_017.eps
110504
Microcontroller
Fade in/out
circuit
LED
Fade
Dz
5V6
VCC VCC
GND
T
Blue LEDs
Top Control
Circuit Descriptions, Abbreviation List, and IC Data Sheets EN 133FTL2.1E, FTL2.2E 9.
The keyboard press detection is done by communication via
the RC5/6 line. Because the OTC already receives the
information KEYBOARD_PRESS, we can use the
communication protocol between the OTC and the
microcontroller via the RC5/6 line to switch "on" the blue LEDs.
9.8 Ambient Light (if present)
9.8.1 Introduction
At the rear left and right side of the TV-set, three gas
discharging lamps are mounted. With the red, green, and blue
lamps, each colour can be made.
• Ambient light is adjustable with three variables: Hue,
Saturation, and Brightness.
• Hue and saturation are controlled via menu control or via
smart settings.
• The brightness is controlled via menu or via a cycle
generator.
• The light sensor influences the brightness.
• Switching "on" or "off" goes via a ramp up or down.
• The ambient light may be active or passive.
In the user set up menu the following items are added:
• Ambient Light.
• Lights "On/Off".
• Ambient Light: "Personal/Normal/Warm/Cool".
Two extra keys are added on the Remote Control:
• ON/OFF: A (normal) press on this key switches the
Ambient Light "On/Off".
• MODE: In case the set is "On", to toggle the smart modes.
Specifications:
• Lamp current frequency= 43 kHz.
• Lamp dimming frequency= 85 Hz.
• PWM duty cycle range= 30 %
• Each lamp is only driven one third of the period to avoid
crosstalk (drive lamps at 33.3 % to have no losses in
output).
9.8.2 Block diagram
Figure 9-10 Ambient light block diagram
All mentioned blocks (from "Cycle Generator" to "HSV-to-RGB
Converter" are implemented in the main software. Via I2C, the
RGB values are sent to the EPLD (where a selection is made
between "active" and "passive" mode) and again via I2C the
Inverter board is addressed.
In "passive" mode, the RGB values from the "HSV-to-RGB
Converter" are used, while in "active" mode the picture content
is used to steer the ambient lights.
Cycle Generator
The Cycle Generator (for fade in/out) starts with a long press
on the "On/Off" button on the RC. It stops when the button is
released.
Light sensor
The light sensor influences the Brightness: when the room is
darker, the ambient light is reduced. The amount of dimming is
set according to an algorithm in the Auto TV software. In
"active" Ambient Light mode, the light sensor does not
influence the Brightness.
Ramp Up/down
The Brightness is changing with a speed from min. to max. in
2 s.
HSV to RGB converter.
The HSV (Hue, Saturation, Value) values are converted to
RGB values.
Outputs
The outputs are RGB values and can individually be
decreased.
The EPLD
In "passive" mode, the EPLD sends the info from the OTC
directly to the inverter board. In "active" mode, the EPLD
calculates the RGB values. Hue and Saturation are not
adjustable, Brightness is adjustable.
9.8.3 Inverter Board
This board is for Service a "Black Box". This means that it is not
repairable on component level, but if it is defect, the board must
be swapped. See the Spare Parts List for the order code.
Some specifications:
• There are three inverters to drive the lamps, each inverter
drives the Left and Right lamp for one colour.
• DC-to-AC converter: 2.3 kV.
SW1 GND
Light sensor Passive/Active AL
E_14620_007.eps
070504
HSV to RGB
Converter
SetHue (H)
SetSaturation (S)
SetValue (V)
Start
CyclingValue
SetLightState
Stop
RGB
EPLD
RED left
RED right
GREEN left
GREEN right
BLUE left
BLUE right
RED
inverter
Inverter board CCFL
GREEN
inverter
BLUE
inverter
RampUp
Down
Profiles
personal
Profiles Picture
content
Cycle
Generator
OTC SOFTWARE
SW2
Circuit Descriptions, Abbreviation List, and IC Data Sheets
EN 134 FTL2.1E, FTL2.2E9.
• Able to drive Cold Cathode Fluorescent Lamps (CCFL).
There are two lamp units, three lamps (RGB) per unit= six
lamps.
• The lamps are driven with Pulse Width Modulation (PWM).
• The inverters and lamps are supplied with 12V from main
supply.
9.9 Software Upgrading
In this chassis, you can upgrade the Main software via
ComPair. This offers the possibility, to replace the entire SW
image without having to remove the flash-memory from its
socket. You can find more information on how this procedure
works in the ComPair file. It is possible that not all sets are
equipped with the hardware, needed to make software
upgrading possible.
To speed up the programming process, the firmware of the
ComPair interface can be upgraded. See Chapter "Service
Modes ..."; paragraph "ComPair" - "How To Order" for the order
number.
See the FTL13 manual for a (more) detailed description.
9.10 Abbreviation list
1080i 1080 visible lines, interlaced
1080p 1080 visible lines, progressive scan
2DNR Spatial (2D) Noise Reduction
3DNR Temporal (3D) Noise Reduction
AARA Automatic Aspect Ratio Adaptation:
algorithm that adapts aspect ratio to
remove horizontal black bars; keeping
up the original aspect ratio
ACI Automatic Channel Installation:
algorithm that installs TV sets directly
from cable network by means of a
predefined TXT page
ADC Analogue to Digital Converter
AFC Automatic Frequency Control: control
signal used to tune to the correct
frequency
AGC Automatic Gain Control: algorithm that
controls the video input of the feature-
box
AM Amplitude Modulation
ANR Automatic Noise Reduction: one of the
algorithms of Auto TV
AR Aspect Ratio: 4 by 3 or 16 by 9
Artistic See OTC 2.5: main processor
ASF Auto Screen Fit: algorithm that adapts
aspect ratio to remove horizontal black
bars but without throwing away video
information
ATV See Auto TV
AUDIO_C Audio Centre
AUDIO_L Audio Left
AUDIO_R Audio Right
AUDIO_SL Audio Surround Left
AUDIO-SR Audio surround right
AUDIO_SW Audio Sub woofer
Auto TV A hardware and software control
system that measures picture content,
and adapts image parameters in a
dynamic way
B/G Monochrome TV system. Sound
carrier distance is 5.5 MHz. B= VHF-
band, G= UHF-band
B-SC1-IN Blue SCART1 in
B-SC2-IN Blue SCART2 in
B-TXT Blue teletext
CL Constant Level: audio output to
connect with an external amplifier
ComPair Computer aided rePair
CRT Cathode Ray Tube or picture tube
CSM Customer Service Mode
CTI Colour Transient Improvement:
manipulates steepness of chroma
transients
CVBS Composite Video Blanking and
Synchronisation
CVBS-TER CVBS terrestrial
COLUMBUS COLour LUMinance Baseband
Universal Subsystem. IC performing
noise reduction and 2D/3D comb
filtering
DAC Digital to Analogue Converter
DBE Dynamic Bass Enhancement: extra
low frequency amplification
DDC Display Data Channel; is a part of the
"Plug and Play" feature
DFU Direction For Use: description for the
end user
D/K Monochrome TV system. Sound
carrier distance is 6.5 MHz. D= VHF-
band, K= UHF-band
DNR Digital Noise Reduction: noise
reduction feature of the box
Circuit Descriptions, Abbreviation List, and IC Data Sheets EN 135FTL2.1E, FTL2.2E 9.
DPL Dolby ProLogic
DSP Digital Signal Processing
DST Dealer Service Tool: special remote
control designed for dealers to enter
e.g. service mode
DVD Digital Versatile Disc
DVI(-d)(-i) Digital Visual Interface (d= digital only)
(i= integrated); a digital video interface
to a display, designed to replace the
analogue YPbPr or RGB interface
Eagle Feature box IC performing peaking,
zooming and sub pixel LTI in both
horizontal and vertical direction, CTI
and other colour features
EDID Extended Display Identification Data
(VESA standard)
EEPROM Electrically Erasable and
Programmable Read Only Memory
EHT Extra High Tension
EPG Electronic Program Guide: system
used by broadcasters to transmit TV
guide information (= NexTView)
EPLD Erasable Programmable Logic Device
EU EUrope
EXT External (source), entering the set via
SCART or via cinches
FALCONIC SAA4992H, Feature Box IC
performing Digital Natural Motion,
3DNR, and vertical zoom and vertical
peaking
FBL Fast Blanking: DC signal
accompanying RGB signals
FBL-PIP The fast blanking signal for PIP
FBL-TXT The fast blanking signal for TXT. It has
a higher priority than FBL-PIP
FBX Feature Box: part of small signal /
separate module which contains 100
Hz processing, extra featuring and
AutoTV algorithms (FBX6= based on
PICNIC, FBX7= based on PICNIC and
Eagle)
FDS Full Dual Screen
FEM Falconic Embedded Memory; IC
(SAA4998H) that is the successor of
the SAA4993H with jagged line
removal and embedded memory
FHP Fujitsu Hitachi Plasma display Ltd.
FLOF Full Level One Features, TXT
standard
FLASH Flash memory
FM Field Memory or Frequency
Modulation
G-TXT Green teletext
GND-DRIVE A separate ground for the line drive
towards the line driver
HA Horizontal Acquisition: horizontal sync
pulse coming out of the HIP
HD at HOME A signal from the OTC, to switch the
HOP to the Pixel Plus standard (75 Hz
frame)
HIP High-end video Input Processor
(TDA9320): video and chroma
decoder of EM5E
HOP High-end video Output Processor
(TDA9330): video, sync, and
geometry controller of EM5E
HP Head phone
I Monochrome TV system. Sound
carrier distance is 6.0 MHz. VHF- and
UHF-band
Interlaced Scan mode where two fields are used
to form one frame. Each field contains
half the number of the total amount of
lines. The fields are written in 'pairs',
causing line flicker
I/O Input/Output
I2C Inter IC bus (also called IIC)
IF Intermediate Frequency
Interlaced Scan mode where two fields are used
to form one frame. Each field contains
half the number of the total amount of
lines. The fields are written in "pairs",
causing line flicker
Last Status The settings last chosen by the
customer, read, and stored in RAM or
in the NVM. They are called at start-up
of the set to configure it according the
customers wishes
LCD Liquid Crystal Display
LPL LG-Philips LCD
LED Light Emitting Diode
L/L’ Monochrome TV system. Sound
carrier distance is 6.5 MHz. L' is Band
I, L is all bands except for Band I
LNA Low Noise Adapter
LORE LOcal REgression based noise
reduction
LSP Large signal panel
LVDS Low Voltage Differential Signalling;
Data transmission system for high
speed and low EMI communication
M/N Monochrome TV system. Sound
carrier distance is 4.5 MHz. M= 525
lines @ 60 Hz, N= 625 lines @ 50 Hz
MSP Multi-standard Sound Processor: ITT
sound decoder of EM5E
MUTE Mute-Line
NC Not Connected
NICAM Near Instantaneously Companded
Audio Multiplexing; This is a digital
sound system, mainly used in Europe
NTSC National Television Standard
Committee; Colour system mainly
used in North America and Japan.
Colour carrier NTSC M/N= 3.579545
MHz, NTSC 4.43= 4.433619 MHz (this
is a VCR norm, it is not transmitted off-
air)
NVM Non Volatile Memory: IC containing
TV related data e.g. alignments
O/C Open Circuit
ON/OFF LED On/Off control signal for the LED
OSD On Screen Display
OTC On screen display Teletext and
Control; also named Artistic
(SAA5800)
P50 Project 50 communication: protocol
between TV and peripherals
PAL Phase Alternating Line; Colour system
mainly used in West Europe (colour
carrier= 4.433619 MHz) and South
America (colour carrier PAL M=
3.575612 MHz and PAL N= 3.582056
MHz)
PCB Printed Circuit Board
PDP Plasma Display Panel
PFC Power Factor Corrector (or Pre-
conditioner)
PICNIC Peripheral Integrated Combined
Network IC (SAA4978): main IC for
100 Hz featuring and feature
processing
PIP Picture In Picture
PLL Phase Locked Loop; Used for e.g.
FST tuning systems. The customer
can directly provide the desired
frequency
POR Power On Reset; Signal to reset the
µP
Circuit Descriptions, Abbreviation List, and IC Data Sheets
EN 136 FTL2.1E, FTL2.2E9.
Progressive Scan Scan mode where all scan lines are
displayed in one frame at the same
time, creating a double vertical
resolution.
PSU Power Supply Unit
PWB Printed Wiring Board
RAM Random Access Memory
R-TXT Red teletext
RC Remote Control
RC5 / RC6 Signal protocol from the remote
control receiver
RESET Reset signal
RGB Red, Green, and Blue colour space;
The primary colour signals for TV. By
mixing levels of R, G, and B, all colours
(Y/C) are reproduced
RGBHV Red, Green, Blue, Horizontal sync,
and Vertical sync
ROM Read Only Memory
SAM Service Alignment Mode
S/C Short Circuit
SCL-F Clock signal on fast I2C bus
SD Standard Definition
SDA-F Data signal on fast I2C bus
SDI Samsung Display Industry
SECAM SÉquence Couleur Avec Mémoire;
Colour system mainly used in France
and East Europe. The chroma is FM
modulated and the R-Y and B-Y
signals are transmitted line
sequentially. Colour carriers=
4.406250 MHz and 4.250000 MHz
SIF Sound Intermediate Frequency
SMD Surface Mounted Device
SMPS Switched Mode Power Supply
SNERT Synchronous No parity Eight bit
Reception and Transmit
SSB Small Signal Board
STBY Stand-by
SW Sub woofer
SVGA 800x600 (4:3)
SVHS Super Video Home System
TMDS Transition Minimised Differential
Signalling
TOP Table Of Pages; TXT standard
TXT Teletext
uP Microprocessor
UV Colour difference signals
UVSH UHF, VHF, S-, and Hyper-band
VA Vertical Acquisition
V-a Addressing voltage for the plasma
display
VDS Virtual Dolby Surround
VESA Video Electronics Standards
Association
VFB Vertical Flyback Pulse: vertical sync
pulse coming from the Feature Box
VGA Video Graphics Array; 640x480 (4:3)
VL Variable Level out: processed audio
output towards external amplifier
V-ra Setting voltage for V_a
V-rs Setting voltage for V_s
V-s Sustain voltage for the plasma display
WSS Wide Screen Signalling; used by
broadcasters to transmit e.g.
PALPLUS and 16:9 Aspect Ratio
WXGA Wide eXtended Graphics Array;
1280x768 (15:9) or 1366x768 (16:9)
WYSIWYR What You See Is What You Record:
record selection that follows main
picture and sound
XGA Extended Graphics Array; 1024x768
(4:3)
XTAL Quartz crystal
Y Luminance signal
Y100 Y from Feature Box
YPbPr This is a scaled version of the YUV
colour space. Y= Luminance, Pb/Pr=
Colour difference signals B-Y and R-Y,
other amplitudes w.r.t. to YUV
Y-OUT Luminance-signal to HOP IC
YUV Colour space used by the NTSC and
PAL video systems. Y is the luminance
and U/V are the colour difference
signals
Circuit Descriptions, Abbreviation List, and IC Data Sheets EN 137FTL2.1E, FTL2.2E 9.
9.11 IC Data Sheets
In this paragraph, the internal block diagrams and pinning are
given of ICs that are drawn as a 'black box' in the electrical
diagrams (with the exception of 'memory' and 'logic' ICs).
9.11.1 Diagram A1 and A3, AVS1ACP08 (IC7805 and IC7H05)
Figure 9-11 Internal block diagram and pin configuration
BLOCK DIAGRAM
E_14620_145.eps
200804
1
2
3
4
8
7
6
5
PIN CONFIGURATION
V
SS
Osc/In
Osc/Out
V
DD
V
M
Mode
N.C.
V
G
Circuit Descriptions, Abbreviation List, and IC Data Sheets
EN 138 FTL2.1E, FTL2.2E9.
9.11.2 Diagram B3B, SAA4998 (IC7760)
Figure 9-12 Internal block diagram and pin configuration
COMPRESS
DYNAMIC
NOISE
REDUCTION
MUX
SPM TPM ESM
MUX
FIELD MEMORY 2
DECOMPRESS
SAA4998H
68, 69,
71 to 76
55 to 62
YF7 to YF0
YG7 to YG0
YA0 to YA7
MPR
LEFT
UPCONVERSION
DE-INTERLACER
WITH EDDI
SNERT
INTERFACE
MOTION ESTIMATOR
MPR
RIGHT
1, 2,
5 to 8,
95, 100
41
SNCL
34
SNDA
33
SNRST
BST/TEST
31
vectors
vectors
TCK
30
TDO
29
TDI
28
TMS
27
TRSTN
83
CLK32
CONTROL
FIELD MEMORY 3
VERTICAL
ZOOM
VERTICAL
PEAKING
VD
25
ACV
32
RST
36
PIPON
50
TWOFMON
63
REA
64
IE
67
REF
94
MEMORY CONTROL
Block diagram of the luminance part in full FALCONIC mode.
COMPRESS/
FORMAT
DECOMPRESS/
REFORMAT
DNR
MPR
LEFT
DECOMPRESS/
REFORMAT
FORMAT
SAA4998H
78 to 81,
88, 89,
92, 93
42 to 47,
53, 54
UVA0 to UVA7
9 to 13,
17 to 19
vectors
UPCONVERSION
MPR
RIGHT
VERTICAL
ZOOM
FIELD MEMORY 2 FIELD MEMORY 3
UVF7 to UVF0
UVG7 to UVG0
Block diagram of the chrominance part in full FALCONIC mode.
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
5130
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
TDO
TDI
TMS
TRSTN
n.c./RSTR2
ACV/RE2
n.c./WE2
VDDP
n.c./IE2
n.c./OIE2
n.c./RSTW2
UVG0/QPIP0
UVG1/QPIP1
UVG2/QPIP2
n.c./SWCK2
VSSE
n.c./LLC
UVG3/QPIP3
UVG4/QPIP4
UVG5/QPIP5
UVG6/QPIP6
UVG7/QPIP7
YG0/DPIP0
YG1/DPIP1
YG2/DPIP2
YG3/DPIP3
VSSE
VDDE
YG4/DPIP4
YG5/DPIP5
VDDS
VSSS
UVA6
UVA7
YA0
YA1
YA2
YA3
YA4
YA5
YA6
YA7
REA
IE
VDDD
VSSD
REF
YF7
YF6
VSSE
YF5
YF4
YF3
YF2
YF1
YF0
VDDE
UVF7
UVF6
UVF5
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
YG6/DPIP6
VSSM
VDDM
VSSM
VDDM
YG7/DPIP7
VD
UVF0
UVF1
VDDA
VSSA
UVF2
UVF3
VSSD
VDDD
VSSS
VDDS
CLK32
VSSE
UVF4
TCK
RST
SNRST
SNDA
VDDE
PIPON
VSSM
VDDM
VSSM
VDDM
SNCL
UVA0
UVA1
UVA2
UVA3
UVA4
UVA5
VDDD
VSSD
TWOFMON
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
MXXxxx
SAA4998H
Pin configuration
E_14600_057.eps
300304
Circuit Descriptions, Abbreviation List, and IC Data Sheets EN 139FTL2.1E, FTL2.2E 9.
9.11.3 Diagram B3C, T6TX5EF (IC7720)
Figure 9-13 Internal block diagram and pin configuration
Internal Clock generation
E_14600_058.eps
131004
CAS
WE
DQ(15:0)
A(11:0)
DQ(15:0)
A(11:0)
RAS
CAS
CLK
WE
LDQM
RASN
CASN
SDCLKOUT
WEN
DQM
DQ(15:0)
A(11:0)
DQM
CS
Vss
RAS
CLK
Vdd CKE
UDQM
MSM56V16160F-6
Eagle-1c
CLK
SDCLKIN
Interface between Eagle and External SDRAM
EAGLE IC digital output
interface to LVDS device
Eagle 1c
PLL
TTL to LV DS
Y0
Y1
Y2
Y3
Y4
Y5
Y6
Y7
Y8
Y9
UV0
UV1
UV2
UV3
UV4
UV5
UV6
UV7
UV8
UV9
VDE
HDE
CLK64O
TXN0
TXN1
TXN2
TXN3
TXN4
TXN5
TXN6
TXN7
TXN8
TXN9
TXN10
TXN11
TXN12
TXN13
TXN14
TXN15
TXN16
TXN17
TXN18
TXN19
TXN20
TXN21
TXN22
TXN23
TXN24
TXN25
TXN26
TXN27
LVDS Interface IC
OUTP_VAL
CLKI
η
VCO
@256MHZ
÷2
PLL
÷2 ÷2
CLK32O
MUX
IS0 IS1
MUX
CLKSEL
CLK64O SDCLKOUT
0
1
1
0
power down
sel
sel
YG7
YG6
YG5
YG4
YG3
YG2
YG1
YG0
VSS2
VDDC
VDDS
UVG7
UVG6
UVG5
UVG4
UVG3
UVG2
UVG1
UVG0
DQ15
DQ14
DQ13
DQ12
VDDS
VSS
VSS2
VDDC
DQ11
DQ10
DQ9
VSS2
DQ8
DQ0
DQ1
DQ2
VSS
VDDS
DQ3
DQ4
DQ5
VSS2
VDDC
DQ6
DQ7
NC
CLKI
VDDS
VSS2
VSS
IS0
IS1
CLKSEL
208
207
206
205
204
203
202
201
200
199
198
197
196
195
194
193
192
191
190
189
188
187
186
185
184
183
182
181
180
179
178
177
176
175
174
173
172
171
170
169
168
167
166
165
164
163
162
161
160
159
158
157
VSS 1 156 VSS2
UVF0 2 155 AVSPLL
UVF1 3 154 NC
UVF2 4 153 NC
UVF3 5 152 AVDPLL
UVF4 6 151 VDDC
UVF5 7 150 VSS2
UVF6 8 149 VDDS
UVF7 9 148 VSS
VDDC 10 147 CLK32O
VSS2 11 146 DQM
YF0 12 145 VSS
YF1 13 144 VSS2
YF2 14 143 VDDC
YF3 15 142 WEN
YF4 16 141 CASN
YF5 17 140 RASN
YF6 18 139 VDDS
YF7 19 138 ADDR11
VSS2 20 137 ADDR10
VDDC 21 136 ADDR0
VDDS 22 135 VSS
SNRSTO 23 134 ADDR1
SNCL 24 133 ADDR2
SNRST 25 132 ADDR3
HD 26 131 VDDC
VD 27 130 VSS2
VSS 28 129 SDCLKOUT
VDD 29 128 SDCLKIN
VDD2 30 127 ADDR9
INTR 31 126 ADDR8
VA 32 125 VDDS
SNDA 33 124 VSS
VSS2 34 123 VSS2
HREF 35 122 ADDR7
TRST 36 121 ADDR6
TMS 37 120 ADDR5
TDI 38 119 ADDR4
TDO 39 118 CLK64O
TCK 40 117 VSS
TESTSEL0 41 116 Y0
TESTSEL1 42 115 Y1
VSS2 43 114 VSS2
VDDC 44 113 VDDC
TESTSEL2 45 112 VDD2
FALREF 46 111 VDD
REFIN 47 110 Y2
RESET 48 109 Y3
BISTEN 49 108 VSS2
PLLND2 50 107 VSS
VDDS 51 106 Y4
VSS 52 105 Y5
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
NC
AVSSY
AOUTNY
AOUTPY
VREFY
VBSY
FSADJY
AVDDY
DVDD
DVSS
AVSSU
AOUTNU
AOUTPU
VREFU
VBSU
FSADJU
AVDDU
AVSSV
AOUTNV
AOUTPV
VREFV
VBSV
FSADJV
AVDDV
VSS2
VDDC
OUTP_VAL
UV9
UV8
UV7
VDD
UV6
VSS
VSS2
VDD2
UV5
UV4
VDD
UV3
UV2
UV1
UV0
VDD
VDDC
VSS2
VSS
Y9
Y8
VDD2
Y7
Y6
VDD
Eagle 1C
Circuit Descriptions, Abbreviation List, and IC Data Sheets
EN 140 FTL2.1E, FTL2.2E9.
9.11.4 Diagram B3C, CY2305SC-1 (IC7721)
Figure 9-14 Internal block diagram and pin configuration.
9.11.5 Diagram B3D, T6TU5XB (IC7752)
Figure 9-15 Pin configuration
Block Diagram
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
REF
CLKA1
CLKA2
VDD
GND
CLKB1
CLKB2
S2
CLKOUT
CLKA4
CLKA3
VDD
GND
CLKB4
CLKB3
S1
SOIC/TSSOP
Top View
Pin Configuration
1
2
3
45
8
7
6
REF
CLK2
CLK1
GND
VDD
CLKOUT
CLK4
CLK3
SOIC
Top View
PLL
MUX
Select Input
REF
S2
S1
CLKA1
CLKA2
CLKA3
CLKA4
CLKB1
CLKB2
CLKB3
CLKB4
Decoding
CLKOUT
E_14620_146.eps
200804
123456789101112131415
A
WEB/
DAVB
UVA0
/Di0
UVA2
/Di2
UVA4
/Di4
UVA6
/Di6
UVA8
/Di8 SEL656 TST1 YA2 YA4 YA6 YA8 VA HREF SDA
A
B
YB8 VSS UVA1
/Di1
UVA3
/Di3
UVA5
/Di5
UVA7
/Di7
YA 0
/Di9 BISTEN YA1 YA3 YA5 YA7 WEA/
DAVA VSS SCL
B
C
YB7 YB6 VSS VDDS VSS VSS VDDC VDDC VSS VSS VDDC VDDS VSS SNDA SNRST
C
D
YB5 YB4 VDDC N.C. VSS SNCL TCK
D
E
YB3 YB2 VSS VDDC TMS TDO
E
F
TST2 YB1 VSS VSS TRST TDI
F
G
CLKASB YB0
/Do9 VDDS
COLUMBUS
VDDS A0ICC RESET
G
H
CLKASA UVB8/
Do8 TST3
TOP-VIEW
VDDC CLK
EXT CLKSEL
H
J
UVB7
/Do7
UVB6/
Do6 VSS VSS CLK WEN
J
K
UVB5
/Do5
UVB4/
Do4 VDDC
PPA Version 2.7
VSS CASN RASN
K
L
UVB3
/Do3
UVB2
/Do2 VSS VDDS DQM DQ16
L
M
UVB1
/Do1
UVB0
/Do0 VDDS VSS DQ14 DQ15
M
N
AVD N.C. VDDS VSS VSS VDDC VSS VDDS VDDC VSS VDDS VSS VSS VDDS DQ13
N
P
AVS VSS A7 A9 A2 A0 A11 DQ7 DQ6 DQ4 DQ3 DQ1 VDDS VSS DQ12
P
R
A4 A5 A6 A8 A3 A1 A10 DQ8 VSS DQ5 VSS DQ2 DQ9 DQ10 DQ11
R
123456789101112131415
Figure 1 Package outline (top view)
E_14600_059.eps
200804
Circuit Descriptions, Abbreviation List, and IC Data Sheets EN 141FTL2.1E, FTL2.2E 9.
9.11.6 Diagram B6B, MAS3528E (IC7A30)
Figure 9-16 Internal block diagram and pin configuration
S/PDIF
in
Serial In
I2S
I2SClock PIO
Serial Out
I2S
S/PDIF
out
RISC DSP Core
S/PDIF in
Serial inputs
Serial Control
S/PDIF out
I2S output
additional
inputs and outputs
/9+3/
(Dolby Digital,
MPEG-1 Layer-2, PCM)
CLKO XTO XTI
18.432 MHz
MAS 3528E
E_14620_147.eps
080704
7
8
9
10
11
12
13
14
15
16
17
39
38
37
36
35
34
33
32
31
30
29
18 19 20 21 22 23 24 25 26 27 28
6 5 4 3 2 1 44 43 42 41 40
AVS S
AV DD
XTI
XTO
N.C.
N.C.
CLKO
SOD1
SOD2
SOD3
SPDIFOUT
SPREF
SPDI
PR
PCS
PI19
PI18
PI17
PI16
PI15
PI14
PI13
POR
I2CC
I2CD
VDD
VSS
TE
SYNC
EOD
RTR
RTW
SPDI2
SIC
SII
SID
XVSS
XVDD
PI4
PI8
SOC
SOI
SOD
PI12
MAS 3528E
Circuit Descriptions, Abbreviation List, and IC Data Sheets
EN 142 FTL2.1E, FTL2.2E9.
9.11.7 Diagram B14D, UDA1352TS (IC7I25)
Figure 9-17 Internal block diagram and pin configuration
BLOCK DIAGRAM
PIN CONFIGURATION
E_14620_148.eps
080704
VOUTR
5
17
RESET
CLOCK
AND
TIMING CIRCUIT
PCMDET
1
LOCK
16
n.c.
21, 22, 27
DAC
VOUTL
15
DAC
VDDA(DAC)
14
VSSA(DAC)
20
Vref
19
TEST1
2
TEST2
18
AUDIO FEATURE PROCESSOR
INTERPOLATOR
NOISE SHAPER
IEC 60958
DECODER
SLICER
L3-BUS
OR I2C-BUS
INTERFACE NON-PCM DATA
SYNC
DETECTOR
8
L3DATA
9
L3CLOCK
10
L3MODE
25
DA1
28
DA0
3
VDDD 7
VSSD
6
VDDD(C) 12
VSSD(C)
24
VDDA(PLL) 23
VSSA(PLL)
13
SPDIF
26
4
SELSTATIC
SELIIC
11 MUTE
UDA1352TS
UDA1352TS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
PCMDET
TEST1
VDDD
SELIIC
RESET
VDDD(C)
VSSD
L3DATA
L3CLOCK
L3MODE
MUTE
VSSD(C)
SPDIF
VDDA(DAC)
DA0
n.c.
SELSTATIC
DA1
VDDA(PLL)
VSSA(PLL)
n.c.
n.c.
VSSA(DAC)
Vref
TEST2
VOUTR
LOCK
VOUTL
28
27
26
25
24
23
22
21
20
19
18
17
16
15
Circuit Descriptions, Abbreviation List, and IC Data Sheets EN 143FTL2.1E, FTL2.2E 9.
9.11.8 Diagram B14F, SiI9993CT100 (IC7I18)
Figure 9-18 Internal block diagram and pin configuration
DACVCC1
100-Pin
TQFP
(Top View)
N/C
2DACGND
3
N/C4
DACGNDR5
DACVCCR6
AnRPr7
COMP8
RSET9
DACGNDG10
DACVCCG11
AnGY12
DACGNDB13
DACVCCB14
AnBPb15
GND16
VCC17
RSVDL18
RSVDO19
RSVDO20
OVCC21
PGND222
PVCC2
23
PLLIN
24
N/C25
MCLKOUT26
MCLKIN27
OG ND28
SP DI F29
SD O30
WS31
SC K32
HSYN C33
VSYNC34
DE35
Q2336
Q2237
Q2138
Q20
39
VC C40
GND41
Q1942
Q1843
Q1744
OG ND45
ODC K46
OVCC47
Q1648
Q1549
Q1450
75
Q1
74
OVCC
73
CSDA
72
Q3
71
Q4
70
Q5
69
Q6
68
Q7
67
Q8
66
OGND
65
OVCC
64
Q9
63
Q10
62
Q11
61
Q12
60
Q13
59
58
57
56
55
54
53
52
51
Q0
VC C 100
GND 99
AG ND 9 8
RX2+ 97
RX2- 96
AVCC 95
AG ND 9 4
AVCC 93
RX1+ 92
RX1- 91
AG ND 90
AVCC 89
AGND 88
RX0+ 87
RX0- 86
AG ND 85
RXC+ 84
RXC- 83
AVCC 82
EX T _ RE S 81
PVCC1 80
PGND1 79
OG ND 7 8
DSCL 77
DSDA 76
CSCL
RSVDL
Q2
RESET#
INT
OGND
VCC
GND
SiI 9993
Block Diagram
Pin Configuration
E_14620_149.eps
170305
HDCP
Decryption
Engine
HDCP
Keys
EEPROM
Registers
----------------
Configuration
Logic Block
XOR
Mask
Video
Color
Space
Converter
Up/Down
Sampling
control
signals
I2C
Slave
24
DE
Q[23:0]
DSDA
DSCL
R_EXT
RXC±
RX0±
RX1±
RX2±
INT
RESET#
Audio
Data
Decode
Logic
Block
SPDIF
MCLKOUT
PanelLink
TMDSTM
Digital
Core
MCLK
Gen
HSYNC
VSYNC
ODCK
SD0
SCK
WS
MCLKIN
Mode
Control
Aux Data
Logic
Block
control
signals
Video
DAC
30
AnGY
AnRPr
AnBPb
I2C
Slave
CSDA
CSCL
OMPC
SETR
Circuit Descriptions, Abbreviation List, and IC Data Sheets
EN 144 FTL2.1E, FTL2.2E9.
9.11.9 Diagram J, P87LPC760BDH (IC7075)
Figure 9-19 Internal block diagram and pin configuration
BLOCK DIAGRAM
PIN CONFIGURATION
E_14620_150.eps
200804
TIMER 0, 1
I2C
UART
ACCELERATED
80C51 CPU
WATCHDOG TIMER
AND OSCILLATOR
PORT 0
CONFIGURABLE I/OS
128 BYTE
DATA RAM
1 KBYTE
CODE EPROM
INTERNAL BUS
ANALOG
COMPARATOR
PORT 1
CONFIGURABLE I/OS
KEYPAD
INTERRUPT
PORT 2
CONFIGURABLE I/OS
POWER MONITOR
(POWER-ON RESET,
BROWNOUT RESET)
CONFIGURABLE
OSCILLATOR
CRYSTAL OR
RESONATOR
ON-CHIP
RC
OSCILLATOR
1
2
3
4
5
6
7
11
12
13
14
P1.7
RST/P1.5
VSS
X1/P2.1
X2/CLKOUT/P2.0
SDA/INT0/P1.3
SCL/T0/P1.2
P0.3/CIN1B
P0.4/CIN1A
P0.5/CMPREF
VDD
P0.6/CMP1
P1.0/TxD
P1.1/RxD
8
9
10
Spare Parts List EN 145FTL2.1E, FTL2.2E 10.
10. Spare Parts List
Set Level
(FTL2.1E Top)
Various
0175 3104 328 36681 Ambi Light assy 32/37” L
0175 3104 328 36701 Ambi Light assy 42” L
0176 3104 328 36691 Ambi Light assy 32/37” R
0176 3104 328 36711 Ambi Light assy 42” R
1004 9322 206 51682 LC420W02-A4 (LPL)
1004 9322 206 52682 LC370W01-A5 (LPL)
1004 9322 209 35682 LQ315T3LZ13 (Sharp)
1004 9322 211 11682 LC420W02-A4K3 (LPL)
8250 3104 311 08891 Cbl 31P/480/30P (42”)
8250 3104 311 08901 Cbl 31P/230/30P (32/37”)
8302 3104 311 04721 Cable 7P/680/7P
8302 3104 311 08931 Cable 7P/1000/7P
8303 3104 311 06921 Cable 4P/560/4P
8303 3104 311 08261 Cable 4P/820/4P
8304 3104 311 06921 Cable 4P/560/4P
8304 3104 311 08271 Cable 4P/340/4P
8304 3104 311 08291 Cable 4P/680/4P
8305 3104 311 01731 Cable 3P/400/3P
8305 3104 311 07581 Cable 3P/560P3P
8305 3104 311 08401 Cable 3P/280/3P
8305 3104 311 08411 Cable 3P/340/3P
8305 3104 311 08421 Cable 3P/400/3P
8306 3104 311 01431 Cable 2P3/340/2P3
8306 3104 311 08341 Cable 2P3/280/2P3
8306 3104 311 08351 Cable 2P3/340/2P3
8307 3104 311 04321 Cable 9P/450/9P
8307 3104 311 06921 Cable 4P/560/4P
8307 3104 311 08371 Cable 4P/340/4P
8309 3104 311 06921 Cable 4P/560/4P
8309 3104 311 08301 Cable 3P/340/3P
8309 3104 311 08321 Cable 3P/680/3P
8310 3104 311 07061 Cable 4P/280/4P
8310 3104 311 07371 Cable 4P/340/4P
8310 3104 311 08121 Cable 4P/340/4P
8310 3104 311 08131 Cable 4P/400/4P
8311 3104 311 09061 Cable 3P+3P11/460/3P
8311 3104 311 09081 Cable 3P+3P11/750/3P
8311 8204 000 77021 Cable 3P+3P11/1160/3P
8311 8204 000 77031 Cable 3P+3P11/1320/3P
8311 8204 000 77061 Cable 3P+3P11/970/3P
8313 3104 311 09061 Cable 3P+3P11/460/3P
8313 3104 311 09071 Cable 3P+3P11/250/3P
8313 3104 311 09081 Cable 3P+3P11/750/3P
8313 3104 311 09451 Cable 3P+3P11/600/3P
8313 8204 000 76981 Cable 3P+3P11/220/3P
8314 3104 311 07441 Cable 10P/680/10P
8315 3104 311 07441 Cable 10P/680/10P
8316 3104 311 07261 Cable 12P/120/12P
8316 3104 311 07981 Cable 12P/180/12P
8317 3104 311 07481 Cable 12P/820/12P
8317 3104 311 08191 Cable 12P/1K2/12P
8317 3104 311 08201 Cable 12P/1300/12P
8318 3104 311 07421 Cable 6P/680/6P
8320 3104 311 06921 Cable 4P/560/4P
8320 3104 311 08331 Cable 3P/820/3P
8350 3104 311 07601 Cable 5P/1K0/5P
8735 3104 311 06721 Cable 2P3/680/2P
8735 3104 311 07491 Cable 2P3/480/2P
8736 3104 311 06721 Cable 2P3/680/2P
8736 3104 311 07551 Cable 2P3/1600/2P
MF Supply [A]
(FTL2.1E Top)
Various
1005h4822 071 55002 Fuse 5A 250V T
1006h4822 071 55002 Fuse 5A 250V T
1007h4822 071 55002 Fuse 5A 250V T
1303 2422 025 04475 Connector 4p m
1303 2422 025 10647 Connector 4p m
1304 2422 025 10647 Connector 4p m
1304 2422 025 10648 Connector 8p m
1305 4822 267 10735 Connector 3p
1306 2422 025 16374 Connector 2p m
1307 2422 025 10647 Connector 4p m
1308 4822 265 20723 Connector 2p
1309 2422 025 04475 Connector 4p m
1309 2422 025 11143 Connector 3p m
1320 2422 025 04475 Connector 4p m
1320 2422 025 11143 Connector 3p m
1400h4822 070 33152 Fuse 3.15A
1400h4822 253 50145 Fuse 3.15A T
1401h4822 252 11224 Fuse 1A T 250V
1402h4822 252 60151 Surge protect
1403 4822 265 11253 Fuse holder
1405 4822 265 11253 Fuse holder
1410 4822 265 11253 Fuse holder
1411 4822 265 11253 Fuse holder
1420 3104 311 08391 Cable 3p/140/3p Wh
1450h2422 132 07411 Relay 1p 5V 5A
1B06 4822 267 10735 Connector 3p
1C05 4822 267 10735 Connector 3p
1D00h4822 070 33152 Fuse 3.15A
1D02h4822 252 60151 Surge protect
1D10 4822 265 11253 Fuse holder
1D50h2422 132 07411 Relay 1p 5V 5A
1M02 2422 025 11244 Connector 7p m
1U07h4822 071 55002 Fuse T5A 250V
g
2000h2020 554 90169 470pF 10% 250V
2000h2252 811 95022 1.5nF 20% 250V
2002 4822 124 11767 470µF 20% 25V
2003 4822 124 80061 1000µF 20% 25V
2007 2020 552 96684 470nF 10% 25V 0805
2007h4822 126 14583 470nF 10% 16V 0805
2008 4822 126 14583 470nF 10% 16V 0805
2009 2238 867 18101 100pF 1% 50V 0603
2010 4822 124 40207 100µF 20% 25V
2011 2022 333 00119 10nF 5% 1.6kV
2011 4822 121 70617 10nF 5% 1.6kV
2012 4822 126 13862 1.5nF 10% 2kV
2013 4822 126 13862 1.5nF 10% 2kV
2014 2252 811 95018 2.2nF 20% 250V
2014 4822 126 13451 2.2nF 10% 2kV
2015 5322 126 11583 10nF 10% 50V 0603
2016 2238 586 59812 100nF 20% 50V 0603
2017 2022 333 00119 10nF 5% 1.6kV
2017 4822 121 70617 10nF 5% 1.6kV
2019 5322 126 11583 10nF 10% 50V 0603
2020 2020 021 00012 2200µF 20% 16V
2020 4822 124 12417 2200µF 20% 25V
2021 2020 021 00012 2200µF 20% 16V
2021 2238 867 18101 100pF 1% 50V 0603
2021 4822 124 12417 2200µF 20% 25V
2022 2020 021 00012 2200µF 20% 16V
2022 4822 124 11583 2200µF 20% 35V
2022 4822 124 81168 2200 µF 20% 35V
2023 2020 552 96684 470nF 10% 25V 0805
2023 4822 126 14583 470nF 10% 16V 0805
2024 2020 552 96326 220nF 10% 16V
2025 2020 552 96683 220nF 10% 50V
2025 4822 121 51319 1µF 10% 63V
2026 4822 126 14238 2.2nF 50V 0603
2027 3198 017 31530 15nF 20% 50V 0603
2028 5322 126 11578 1nF 10% 50V 0603
2029 5322 126 11578 1nF 10% 50V 0603
2031 5322 126 11583 10nF 10% 50V 0603
2032 4822 126 13193 4.7nF 10% 63V
2033 2020 552 96683 220nF 10% 50V
2033 4822 121 51319 1µF 10% 63V
2034 2238 867 18101 100pF 1% 50V 0603
2035 2238 867 18101 100pF 1% 50V 0603
2035 5322 126 11578 1nF 10% 50V 0603
2036 4822 126 14583 470nF 10% 16V 0805
2037 4822 126 14583 470nF 10% 16V 0805
2038 2020 021 00012 2200µF 20% 16V
2038 4822 124 11583 2200µF 20% 35V
2038 4822 124 81168 2200 µF 20% 35V
2039 4822 126 14583 470nF 10% 16V 0805
2039 5322 126 11583 10nF 10% 50V 0603
2040 4822 126 14249 560pF 10% 50V 0603
2041 2020 552 96683 220nF 10% 50V
2042 2020 552 96683 220nF 10% 50V
2043 2020 552 96683 220nF 10% 50V
2044 5322 126 11578 1nF 10% 50V 0603
2045 5322 126 11578 1nF 10% 50V 0603
2046 3198 017 34730 47nF 16V 0603
2047 5322 126 11583 10nF 10% 50V 0603
2048 5322 126 11578 1nF 10% 50V 0603
2050 5322 126 11578 1nF 10% 50V 0603
2051 2020 552 96683 220nF 10% 50V
2052 2020 552 96683 220nF 10% 50V
2053 2020 552 96683 220nF 10% 50V
2060 4822 126 14238 2.2nF 50V 0603
2061 4822 126 14238 2.2nF 50V 0603
2062 4822 126 14238 2.2nF 50V 0603
2063 4822 126 13881 470pF 5% 50V
2064 4822 126 13881 470pF 5% 50V
2065 4822 126 14238 2.2nF 50V 0603
2071 5322 126 11578 1nF 10% 50V 0603
2072 5322 126 11578 1nF 10% 50V 0603
2077 4822 126 14238 2.2nF 50V 0603
2290 5322 126 11583 10nF 10% 50V 0603
2291 4822 126 13881 470pF 5% 50V
2292 2020 021 91354 1000µF 20% 50V
2292 4822 124 12417 2200µF 20% 25V
2293 4822 126 13881 470pF 5% 50V
2294 2020 021 91354 1000µF 20% 50V
2294 4822 124 12417 2200µF 20% 25V
2400h2222 338 22474 470nF 20% 275V
2401h2222 338 22474 470nF 20% 275V
2405h2020 554 90167 220pF 10% 250V
2407h2020 554 90167 220pF 10% 250V
2407h2252 811 95017 470pF 10% 250V
2407h2252 811 95065 220pF 10% 250V
2503 2020 024 90718 10µF 20% 450V
2803 2222 365 55563 56nF 10% 400V
2804 2222 365 55563 56nF 10% 400V
2816 2020 024 90749 330µF 20% 400V
2817 4822 121 70162 10nF 5% 400V
2B90 5322 126 11583 10nF 10% 50V 0603
2B91 4822 126 13881 470pF 5% 50V
2B92 2020 021 91354 1000µF 20% 50V
2B92 4822 124 12417 2200µF 20% 25V
2B93 4822 126 13881 470pF 5% 50V
2B94 2020 021 91354 1000µF 20% 50V
2B94 4822 124 12417 2200µF 20% 25V
2D00h2222 338 22474 470nF 20% 275V
2D01h2222 338 22474 470nF 20% 275V
2D05h2020 554 90167 220pF 10% 250V
2D07 2020 554 90167 220pF 10% 250V
2H03 2222 365 55563 56nF 10% 400V
2H04 2222 365 55563 56nF 10% 400V
2H16 2020 024 90749 330µF 20% 400V
2H17 4822 121 70162 10nF 5% 400V
2U00h2020 554 90169 470pF 10% 250V
2U02 4822 124 11767 470µF 20% 25V
2U03 4822 124 80061 1000µF 20% 25V
2U07 2020 552 96684 470nF 10% 25V 0805
2U08 4822 126 14583 470nF 10% 16V 0805
2U09 2238 867 18101 100pF 1% 50V 0603
2U10 4822 124 40207 100µF 20% 25V
2U11 4822 121 70617 10nF 5% 1.6kV
2U12 4822 126 13862 1.5nF 10% 2kV
2U13 4822 126 13862 1.5nF 10% 2kV
2U14 2252 811 95018 2.2nF 20% 250V
2U14 4822 126 13451 2.2nF 10% 2kV
2U15 5322 126 11583 10nF 10% 50V 0603
2U16 2238 586 59812 100nF 20% 50V 0603
2U17 4822 121 70617 10nF 5% 1.6kV
2U19 5322 126 11583 10nF 10% 50V 0603
2U21 2238 867 18101 100pF 1% 50V 0603
2U22 4822 124 11583 2200µF 20% 35V
2U22 4822 124 81168 2200 µF 20% 35V
2U23 2020 552 96684 470nF 10% 25V 0805
2U24 2020 552 96326 220nF 10% 16V
2U25 4822 121 51319 1µF 10% 63V
2U26 4822 126 14238 2.2nF 50V 0603
2U27 3198 017 31530 15nF 20% 50V 0603
2U29 5322 126 11578 1nF 10% 50V 0603
2U32 4822 126 13193 4.7nF 10% 63V
2U33 4822 121 51319 1µF 10% 63V
2U34 2238 867 18101 100pF 1% 50V 0603
2U38 4822 124 11583 2200µF 20% 35V
2U38 4822 124 81168 2200 µF 20% 35V
2U39 5322 126 11583 10nF 10% 50V 0603
2U40 4822 126 14249 560pF 10% 50V 0603
2U45 5322 126 11578 1nF 10% 50V 0603
2U46 3198 017 34730 47nF 16V 0603
2U47 5322 126 11583 10nF 10% 50V 0603
2U48 5322 126 11578 1nF 10% 50V 0603
2U50 5322 126 11578 1nF 10% 50V 0603
2U60 4822 126 14238 2.2nF 50V 0603
2U61 4822 126 14238 2.2nF 50V 0603
2U62 4822 126 14238 2.2nF 50V 0603
2U63 4822 126 13881 470pF 5% 50V
2U64 4822 126 13881 470pF 5% 50V
2U65 4822 126 14238 2.2nF 50V 0603
2U71 5322 126 11578 1nF 10% 50V 0603
2U72 5322 126 11578 1nF 10% 50V 0603
2U77 4822 126 14238 2.2nF 50V 0603
f
3000h4822 052 10478 4.7Ω 5% 0.33W
3001 4822 051 30101 100Ω 5% 0.062W
Spare Parts List EN 146FTL2.1E, FTL2.2E 10.
3002 4822 051 30103 10kΩ 5% 0.062W
3002 4822 051 30393 39kΩ 5% 0.062W
3003 4822 117 13632 100kΩ 1% 0603 0.62W
3004 4822 051 30273 27kΩ 5% 0.062W
3005 4822 051 30333 33kΩ 5% 0.062W
3006 4822 051 30103 10kΩ 5% 0.062W
3007 4822 051 30103 10kΩ 5% 0.062W
3008 4822 051 30331 330Ω 5% 0.062W
3009 4822 051 30332 3.3Ω 5% 0.062W
3010 4822 051 30471 47Ω 5% 0.062W
3011 4822 051 30471 47Ω 5% 0.062W
3012 4822 051 30153 15kΩ 5% 0.062W
3013 4822 051 30103 10kΩ 5% 0.062W
3014h4822 052 10101 100Ω 5% 0.33W
3015h4822 052 10479 47Ω 5% 0.33W
3016 4822 051 30222 2.2kΩ 5% 0.062W
3016 4822 051 30332 3.3Ω 5% 0.062W
3017h4822 052 10101 100Ω 5% 0.33W
3018h4822 052 10479 47Ω 5% 0.33W
3019 4822 051 30222 2.2kΩ 5% 0.062W
3019 4822 051 30332 3.3Ω 5% 0.062W
3020 4822 051 30222 2.2kΩ 5% 0.062W
3020 4822 051 30332 3.3Ω 5% 0.062W
3021 4822 117 12971 15Ω 5% 0603 0.62W
3021 9965 000 23109 22Ω 5% 0603
3022 4822 051 30681 680Ω 5% 0.062W
3023 4822 051 30153 15kΩ 5% 0.062W
3024 2322 704 61803 18kΩ 1% 0603
3025 4822 117 12903 1.8kΩ 1% 0.063W 0603
3026 4822 101 11383 Potm. 470Ω 30% linear
3027 4822 117 13632 100kΩ 1% 0603 0.62W
3028 4822 051 30102 1kΩ 5% 0.062W
3028 4822 051 30332 3.3Ω 5% 0.062W
3029 4822 051 30222 2.2kΩ 5% 0.062W
3029 4822 051 30332 3.3Ω 5% 0.062W
3030 4822 051 30183 18kΩ 5% 0.062W
3031 4822 051 30103 10kΩ 5% 0.062W
3031 4822 051 30223 22kΩ 5% 0.062W
3032 4822 051 30103 10kΩ 5% 0.062W
3033 4822 052 11108 1Ω 5% 0.5W
3034 4822 051 30102 1kΩ 5% 0.062W
3035 4822 051 30332 3.3Ω 5% 0.062W
3036 4822 117 13632 100kΩ 1% 0603 0.62W
3037 4822 051 30153 15kΩ 5% 0.062W
3038 4822 051 30333 33kΩ 5% 0.062W
3039 4822 051 30102 1kΩ 5% 0.062W
3040 5322 117 13056 8.2kΩ 1% 0.063W 0603
3041 4822 051 30333 33kΩ 5% 0.062W
3042 4822 051 30123 12kΩ 5% 0.1W
3043 4822 051 30109 10Ω 5% 0.062W
3044 4822 051 30471 47Ω 5% 0.062W
3045 4822 117 12971 15Ω 5% 0603 0.62W
3045 9965 000 23109 22Ω 5% 0603
3046 4822 117 12971 15Ω 5% 0603 0.62W
3046 9965 000 23109 22Ω 5% 0603
3047 4822 051 30479 47Ω 5% 0.062W
3048 4822 051 30272 2.7kΩ 5% 0.062W
3049 4822 051 30333 33kΩ 5% 0.062W
3050 4822 050 28204 820kΩ 1% 0.6W
3051 4822 051 30472 4.7Ω 5% 0.062W
3052 2322 704 63303 33kΩ 1% 0603
3052 2322 704 67502 7.5kΩ 1% 0.5W
3053 4822 050 26804 680kΩ 1% 0.6W
3054 4822 051 30472 4.7Ω 5% 0.062W
3055 4822 051 30221 220Ω 5% 0.062W
3056 4822 051 30221 220Ω 5% 0.062W
3057 4822 051 30221 220Ω 5% 0.062W
3058 4822 053 20565 5.6MΩ 5% 0.25W
3059 4822 051 30222 2.2kΩ 5% 0.062W
3061 4822 051 30683 68kΩ 5% 0.062W
3064 4822 051 30103 10kΩ 5% 0.062W
3065 4822 051 30682 6.8Ω 5% 0.062W
3065 4822 117 12925 47kΩ 1% 0.063W 0603
3065 4822 117 13632 100kΩ 1% 0603 0.62W
3066 4822 051 30103 10kΩ 5% 0.062W
3067 4822 051 30101 100Ω 5% 0.062W
3068 4822 051 30222 2.2kΩ 5% 0.062W
3070 4822 051 30102 1kΩ 5% 0.062W
3071 4822 051 30103 10kΩ 5% 0.062W
3075 4822 051 30102 1kΩ 5% 0.062W
3076 4822 050 22702 2.7kΩ 1% 0.6W
3077 4822 050 22702 2.7kΩ 1% 0.6W
3078 4822 050 22702 2.7kΩ 1% 0.6W
3079 4822 050 22702 2.7kΩ 1% 0.6W
3080 4822 050 22702 2.7kΩ 1% 0.6W
3081 4822 050 22702 2.7kΩ 1% 0.6W
3082 4822 050 22702 2.7kΩ 1% 0.6W
3100 4822 051 30109 10Ω 5% 0.062W
3292 4822 051 30561 560Ω 5% 0.062W
3400h2122 550 00158 VDR 1mA 612V
3401h4822 053 21475 4.7MΩ 5% 0.5W
3402h4822 053 21475 4.7MΩ 5% 0.5W
3403h4822 053 21475 4.7MΩ 5% 0.5W
3404 4822 116 83872 220Ω 5% 0.5W
3406h4822 052 10101 100Ω 5% 0.33W
3407h4822 052 10101 100Ω 5% 0.33W
3810 2322 257 41123 12kΩ 5% 5W
3999 4822 051 30102 1kΩ 5% 0.062W
3B92 4822 051 30561 560Ω 5% 0.062W
3D00h2122 550 00158 VDR 1mA 612V
3D04 4822 116 83872 220Ω 5% 0.5W
3H10 2322 257 41123 12kΩ 5% 5W
3U00h4822 052 10478 4.7Ω 5% 0.33W
3U01 4822 051 30101 100Ω 5% 0.062W
3U02 4822 051 30103 10kΩ 5% 0.062W
3U03 4822 117 13632 100kΩ 1% 0603 0.62W
3U04 4822 051 30273 27kΩ 5% 0.062W
3U05 4822 051 30333 33kΩ 5% 0.062W
3U06 4822 051 30103 10kΩ 5% 0.062W
3U07 4822 051 30103 10kΩ 5% 0.062W
3U08 4822 051 30331 330Ω 5% 0.062W
3U09 4822 051 30332 3.3Ω 5% 0.062W
3U10 4822 051 30471 47Ω 5% 0.062W
3U11 4822 051 30471 47Ω 5% 0.062W
3U12 4822 051 30153 15kΩ 5% 0.062W
3U13 4822 051 30103 10kΩ 5% 0.062W
3U14h4822 052 10101 100Ω 5% 0.33W
3U15h4822 052 10479 47Ω 5% 0.33W
3U16 4822 051 30222 2.2kΩ 5% 0.062W
3U17h4822 052 10101 100Ω 5% 0.33W
3U18h4822 052 10479 47Ω 5% 0.33W
3U19 4822 051 30222 2.2kΩ 5% 0.062W
3U20 4822 051 30222 2.2kΩ 5% 0.062W
3U21 9965 000 23109 22Ω 5% 0603
3U22 4822 051 30681 680Ω 5% 0.062W
3U23 4822 051 30153 15kΩ 5% 0.062W
3U24 5322 117 13033 15kΩ 1% 0.063W 0603
3U25 4822 117 12903 1.8kΩ 1% 0.063W 0603
3U26 4822 101 11383 Potm. 470Ω 30% linear
3U27 4822 117 13632 100kΩ 1% 0603 0.62W
3U28 4822 051 30102 1kΩ 5% 0.062W
3U29 4822 051 30222 2.2kΩ 5% 0.062W
3U30 4822 051 30183 18kΩ 5% 0.062W
3U31 4822 051 30223 22kΩ 5% 0.062W
3U32 4822 051 30103 10kΩ 5% 0.062W
3U34 4822 051 30102 1kΩ 5% 0.062W
3U38 4822 051 30333 33kΩ 5% 0.062W
3U40 5322 117 13056 8.2kΩ 1% 0.063W 0603
3U41 4822 051 30333 33kΩ 5% 0.062W
3U43 4822 051 30109 10Ω 5% 0.062W
3U45 9965 000 23109 22Ω 5% 0603
3U46 9965 000 23109 22Ω 5% 0603
3U47 4822 051 30479 47Ω 5% 0.062W
3U48 4822 051 30272 2.7kΩ 5% 0.062W
3U50 4822 050 28204 820kΩ 1% 0.6W
3U52 4822 051 30221 220Ω 5% 0.062W
3U53 4822 050 26804 680kΩ 1% 0.6W
3U55 4822 051 30221 220Ω 5% 0.062W
3U56 4822 051 30221 220Ω 5% 0.062W
3U57 4822 051 30221 220Ω 5% 0.062W
3U58 4822 053 20565 5.6MΩ 5% 0.25W
3U61 4822 051 30683 68kΩ 5% 0.062W
3U64 4822 051 30103 10kΩ 5% 0.062W
3U65 4822 051 30682 6.8Ω 5% 0.062W
3U65 4822 117 12925 47kΩ 1% 0.063W 0603
3U66 4822 051 30103 10kΩ 5% 0.062W
3U67 4822 051 30101 100Ω 5% 0.062W
3U68 4822 051 30222 2.2kΩ 5% 0.062W
3U70 4822 051 30102 1kΩ 5% 0.062W
3U71 4822 051 30103 10kΩ 5% 0.062W
3U75 4822 051 30102 1kΩ 5% 0.062W
9002 4822 051 30008 Jumper 0603
9009 4822 051 30008 Jumper 0603
9030 4822 051 30008 Jumper 0603
9047 4822 051 30008 Jumper 0603
9085 4822 051 30008 Jumper 0603
9U02 4822 051 30008 Jumper 0603
9U57 4822 051 30008 Jumper 0603
b
5001h2422 531 02444 Transf. S13932-04Y
5002h3104 308 21111 Transf. BS51312-01
5002h8204 000 77321 Transf. 2652.0002
5004 4822 526 10704 Bead 50 Ω at 100MHz
5005 4822 157 11411 Bead 80Ω at 100MHz
5005 4822 526 10704 Bead 50 Ω at 100MHz
5007 4822 157 11411 Bead 80Ω at 100MHz
5007 4822 526 10704 Bead 50 Ω at 100MHz
5008 4822 157 11411 Bead 80Ω at 100MHz
5008 4822 526 10704 Bead 50 Ω at 100MHz
5009 4822 157 11411 Bead 80Ω at 100MHz
5010 4822 157 11411 Bead 80Ω at 100MHz
5013 4822 157 11411 Bead 80Ω at 100MHz
5013 4822 526 10704 Bead 50 Ω at 100MHz
5015 4822 157 11411 Bead 80Ω at 100MHz
5016 4822 157 11411 Bead 80Ω at 100MHz
5017 4822 526 10704 Bead 50 Ω at 100MHz
5025 4822 157 11411 Bead 80Ω at 100MHz
5026 4822 157 11411 Bead 80Ω at 100MHz
5026 4822 526 10704 Bead 50 Ω at 100MHz
5027 4822 157 11411 Bead 80Ω at 100MHz
5028 4822 157 11411 Bead 80Ω at 100MHz
5028 4822 526 10704 Bead 50 Ω at 100MHz
5029 4822 526 10704 Bead 50 Ω at 100MHz
5030 4822 526 10704 Bead 50 Ω at 100MHz
5031 4822 526 10704 Bead 50 Ω at 100MHz
5032 4822 526 10704 Bead 50 Ω at 100MHz
5033 4822 526 10704 Bead 50 Ω at 100MHz
5034 4822 526 10704 Bead 50 Ω at 100MHz
5040 4822 157 11411 Bead 80Ω at 100MHz
5041 4822 526 10704 Bead 50 Ω at 100MHz
5291 2422 536 00776 33µH 10%
5292 2422 536 00776 33µH 10%
5293 2422 536 00776 33µH 10%
5400h4822 157 11523 Line filter 5mH/2A
5401h2422 549 43291 Filter 47mH 2A
5402h2422 549 43291 Filter 47mH 2A
5403h3104 308 21101 Coil DTH40203H65
5403h3104 308 21191 Coil DTH40323H65
5B91 4822 157 71467 39µH 10%
5B92 4822 157 71467 39µH 10%
5B93 4822 157 71467 39µH 10%
5D00h4822 157 11523 Line filter 5mH/2A
5D01h2422 549 43291 Filter 47mH 2A
5D02h2422 549 43291 Filter 47mH 2A
5D03h3104 308 21101 Coil DTH40203H65
5U01h2422 531 02444 Transf. S13932-04Y
5U02h3104 308 21111 Transf. BS51312-01
5U04 4822 526 10704 Bead 50 Ω at 100MHz
5U05 4822 157 11411 Bead 80Ω at 100MHz
5U07 4822 157 11411 Bead 80Ω at 100MHz
5U08 4822 157 11411 Bead 80Ω at 100MHz
5U09 4822 157 11411 Bead 80Ω at 100MHz
5U10 4822 157 11411 Bead 80Ω at 100MHz
5U13 4822 157 11411 Bead 80Ω at 100MHz
5U15 4822 157 11411 Bead 80Ω at 100MHz
5U16 4822 157 11411 Bead 80Ω at 100MHz
5U17 4822 526 10704 Bead 50 Ω at 100MHz
5U25 4822 157 11411 Bead 80Ω at 100MHz
5U26 4822 157 11411 Bead 80Ω at 100MHz
5U40 4822 157 11411 Bead 80Ω at 100MHz
5U41 4822 526 10704 Bead 50 Ω at 100MHz
d
6001 4822 130 11397 BAS316
6002 4822 130 11397 BAS316
6003 4822 130 11397 BAS316
6004 4822 130 11397 BAS316
6004 4822 130 80622 BAT54
6005 4822 130 11397 BAS316
6005 4822 130 80622 BAT54
6006 4822 130 11397 BAS316
6007 4822 130 11397 BAS316
6008 4822 130 11397 BAS316
6009 4822 130 11152 UDZ18B
6010 4822 130 11397 BAS316
6011 4822 130 11397 BAS316
6012 9322 197 30685 SML4744
6013 9322 197 30685 SML4744
6014 4822 130 11596 BYW29EX-200
6017 4822 130 11397 BAS316
6020 4822 130 11397 BAS316
6021 9322 192 03687 STPS20H100CFP
6021 9322 207 11687 STPS20L45CT
6022 4822 130 11148 UDZ4.7B
6023 4822 130 11397 BAS316
6025 9322 207 11687 STPS20L45CT
6027 4822 130 11397 BAS316
6028 4822 130 11397 BAS316
6030 4822 130 11397 BAS316
6044 9322 205 63687 STPS20L40CT
6044 9322 207 11687 STPS20L45CT
6045 9322 207 11687 STPS20L45CT
6051 4822 130 11397 BAS316
6054 4822 130 11551 UDZS10B
6077 9322 202 55685 BYG22D
6078 5322 130 31938 BYV27-200
6078 9322 202 55685 BYG22D
6079 9322 202 55685 BYG22D
6080 9322 202 55685 BYG22D
6081 9340 548 67115 PDZ22B
6156 9322 099 61685 BYG10J
6157 9322 099 61685 BYG10J
6158 9322 099 61685 BYG10J
6159 9322 099 61685 BYG10J
6291 4822 130 11572 STPS8H100F
6293 4822 130 11572 STPS8H100F
6460 4822 130 11397 BAS316
Spare Parts List EN 147FTL2.1E, FTL2.2E 10.
6461 4822 130 11397 BAS316
6506 4822 130 83147 DF06M
6807 9322 199 39682 GBJ6J-B12
6807 9322 199 74682 GBJ6J-B15
6B91 4822 130 11596 BYW29EX-200
6B93 4822 130 11596 BYW29EX-200
6D60 4822 130 11397 BAS316
6D61 4822 130 11397 BAS316
6H07 9322 199 74682 GBJ6J-B15
6U01 4822 130 11397 BAS316
6U02 4822 130 11397 BAS316
6U03 4822 130 11397 BAS316
6U04 4822 130 11397 BAS316
6U04 4822 130 80622 BAT54
6U05 4822 130 11397 BAS316
6U05 4822 130 80622 BAT54
6U06 4822 130 11397 BAS316
6U07 4822 130 11397 BAS316
6U08 4822 130 11397 BAS316
6U09 4822 130 11152 UDZ18B
6U10 4822 130 11397 BAS316
6U11 4822 130 11397 BAS316
6U12 9322 197 30685 SML4744
6U13 9322 197 30685 SML4744
6U17 4822 130 11397 BAS316
6U20 4822 130 11397 BAS316
6U21 9322 192 03687 STPS20H100CFP
6U22 4822 130 11148 UDZ4.7B
6U23 4822 130 11397 BAS316
6U27 4822 130 11397 BAS316
6U28 4822 130 11397 BAS316
6U51 4822 130 11397 BAS316
6U77 9322 202 55685 BYG22D
6U78 5322 130 31938 BYV27-200
6U79 9322 202 55685 BYG22D
6U81 9340 548 67115 PDZ22B
ce
7001 9322 108 21682 MC34067P
7002 9322 149 04682 TCET1102
7004 3198 010 42310 BC847BW
7005 9322 192 18687 STP15NK50ZFP
7005 9322 205 26687 FQPF18N50V2
7006 9322 192 18687 STP15NK50ZFP
7006 9322 205 26687 FQPF18N50V2
7007 3198 010 42320 BC857BW
7008 3198 010 42320 BC857BW
7009 3198 010 42320 BC857BW
7010 4822 209 16406 TL431ACD
7010 9322 125 09668 TL431AID
7017 3198 010 42320 BC857BW
7018 3198 010 42310 BC847BW
7030 3198 010 42310 BC847BW
7031 3198 010 42310 BC847BW
7U01 9322 108 21682 MC34067P
7U02 9322 149 04682 TCET1102
7U04 3198 010 42310 BC847BW
7U05 9322 192 18687 STP15NK50ZFP
7U06 9322 192 18687 STP15NK50ZFP
7U07 3198 010 42320 BC857BW
7U08 3198 010 42320 BC857BW
7U09 3198 010 42320 BC857BW
7U10 4822 209 16406 TL431ACD
7U17 3198 010 42320 BC857BW
7U18 3198 010 42310 BC847BW
7U30 3198 010 42310 BC847BW
Ambi Light Inverter Panel [AL]
(FTL2.1E Top)
Various
0615 3104 317 09401 SW (check Prod. Survey)
1010h2422 086 00657 Fuse 3A 125V F SMD
1050 2422 543 01431 Xtal 20MHz 16pF
1M10 2422 025 09406 Connector 4p m
1M11 2422 025 12485 Connector 11p m
1M12 4822 267 10735 Connector 3p m
1M13 2422 025 12485 Connector 11p m
1M14 4822 267 10735 Connector 3p m
1M48 2422 025 10768 Connector 3p m
g
2001 2020 012 00018 1000µF 20% 16V
2002 2238 586 59812 100nF 20% 50V 0603
2003 2020 552 96618 1nF 10% 50V 0402
2004 2020 552 96618 1nF 10% 50V 0402
2005 3198 034 01590 15pF 1% 50V 0402
2006 3198 034 01590 15pF 1% 50V 0402
2007 4822 126 14238 2.2nF 50V 0603
2008 4822 126 14238 2.2nF 50V 0603
2009 4822 126 14238 2.2nF 50V 0603
2010 4822 126 14238 2.2nF 50V 0603
2011 4822 126 14238 2.2nF 50V 0603
2012 4822 126 14238 2.2nF 50V 0603
2021 2020 552 96683 220nF 10% 50V
2023 2020 552 96683 220nF 10% 50V
2024 2020 552 96683 220nF 10% 50V
2030 2020 552 96683 220nF 10% 50V
2032 2020 552 96683 220nF 10% 50V
2033 2020 552 96683 220nF 10% 50V
2040 2020 552 96683 220nF 10% 50V
2043 2020 552 96683 220nF 10% 50V
2045 2020 552 96683 220nF 10% 50V
2050 2020 552 96683 220nF 10% 50V
2052 2020 552 96683 220nF 10% 50V
2055 2020 552 96683 220nF 10% 50V
2060 2020 552 96683 220nF 10% 50V
2062 2020 552 96683 220nF 10% 50V
2064 2020 552 96683 220nF 10% 50V
2071 2020 552 96683 220nF 10% 50V
2074 2020 552 96683 220nF 10% 50V
2075 2020 552 96683 220nF 10% 50V
f
3001 4822 117 13545 100Ω 1% 0402
3002 4822 117 13545 100Ω 1% 0402
3003 4822 117 13596 220Ω 5% 0.01W 0402
3004 4822 051 20471 470Ω 5% 0.1W
3005 4822 051 20561 560Ω 5% 0.1W
3006 2322 762 60102 1kΩ 5% 2512
3007 2322 762 60102 1kΩ 5% 2512
3008 4822 051 20471 470Ω 5% 0.1W
3009 4822 051 20561 560Ω 5% 0.1W
3010 2322 762 60102 1kΩ 5% 2512
3011 2322 762 60102 1kΩ 5% 2512
3012 4822 051 20471 470Ω 5% 0.1W
3013 4822 051 20561 560Ω 5% 0.1W
3014 2322 762 60102 1kΩ 5% 2512
3015 2322 762 60102 1kΩ 5% 2512
3016 3198 031 04720 4.7kΩ 5% 0402
3017 3198 031 04720 4.7kΩ 5% 0402
3018 3198 031 04720 4.7kΩ 5% 0402
3019 3198 031 04720 4.7kΩ 5% 0402
3020 3198 031 04720 4.7kΩ 5% 0402
3022 4822 117 13545 100Ω 1% 0402
3023 4822 117 13545 100Ω 1% 0402
3024 3198 031 04720 4.7kΩ 5% 0402
3025 3198 031 04720 4.7kΩ 5% 0402
3028 4822 117 13606 10kΩ 5% 0.01W 0402
3029 3198 031 04720 4.7kΩ 5% 0402
3030 3198 031 04720 4.7kΩ 5% 0402
3031 3198 031 04720 4.7kΩ 5% 0402
3999 3198 021 31820 1.8kΩ 5% 0.062W 0603
3999 4822 051 30102 1kΩ 5% 0.062W
b
5002 2422 536 00923 22µH 10% LHL10
5004h3104 308 21271 Transf. BD21416-00
5005h3104 308 21271 Transf. BD21416-00
5006h3104 308 21271 Transf. BD21416-00
5007 2422 536 00923 22µH 10% LHL10
5008 2422 536 00923 22µH 10% LHL10
d
6000 4822 130 11397 BAS316
6001 4822 130 11397 BAS316
6002 4822 130 11397 BAS316
6003 4822 130 11397 BAS316
6004 4822 130 11397 BAS316
6005 4822 130 11397 BAS316
6006 4822 130 11152 UDZ18B
6007 4822 130 11152 UDZ18B
6008 4822 130 11152 UDZ18B
6009 4822 130 11152 UDZ18B
6010 4822 130 11152 UDZ18B
6011 4822 130 11152 UDZ18B
ce
7001 For SW see item 0615
7002 9322 202 58668 LD1117DT50
7009 3198 010 42310 BC847BW
7010 3198 010 42310 BC847BW
7011 3198 010 42310 BC847BW
7015 9322 214 20668 SI4946EY
7016 9322 214 20668 SI4946EY
7017 9322 214 20668 SI4946EY
7018 3198 010 42310 BC847BW
7019 3198 010 42310 BC847BW
7020 3198 010 42310 BC847BW
Small Signal Board [B]
(FTL2.1E Top)
Various
0601 3104 317 08781 SW (see Prod. Survey)
0602 3104 317 07861 SW (see Prod. Survey)
0603 3104 317 06591 SW (see Prod. Survey)
0605 3104 317 47611 SW (see Prod. Survey)
Only for 32-in Sharp LCD
0605 3104 317 47621 SW (see Prod. Survey)
For all, except 32” Sharp
1000 2422 086 11092 Fuse 500mA 50V F SMD
1001 2422 543 89022 Xtal 6MHz 20p
1305 2422 543 01184 Xtal 4.433619MHz 20p
1308 2422 543 01183 Xtal 3.579545MHz 16p
1403 2422 086 11092 Fuse 500mA 50V F SMD
1404 2422 127 00543 Switch 1p 2 pos
1407 2422 549 44324 Filt. 5.5/5.74MHz
1408 2422 549 44372 SAW 38.9MHz K3953L
1409 2422 549 44369 SAW 38.9MHz K9656L
1702 2422 540 98456 Resonator 12MHz
1A00 2422 543 89019 Xtal 18.432MHz 12p
1D01 2422 033 00515 Socket DVI-I 29p f
1E02 2422 025 17274 Connector 10p m
1E04 2422 025 17103 Connector 3p m SMD
1G50 2422 025 18427 Connector 31p f
1I01 2422 025 18133 Socket SCART
1I04 2422 025 18133 Socket SCART
1I05 2422 026 05054 Soc CINCH 2p f WhRd
1I05 2422 026 05539 Socket Cinch 2p f WhRd
1I06 2422 026 05527 Socket Cinch 2p f
1I07 2422 026 05054 Soc CINCH 2p f WhRd
1I53 2422 549 45325 Bead 67Ω at 100MHz
1I56 2422 549 45325 Bead 67Ω at 100MHz
1I57 2422 549 45325 Bead 67Ω at 100MHz
1I59 2422 549 45325 Bead 67Ω at 100MHz
1I63h2422 086 00623 Fuse 3A T 125V
1I79h2422 086 00623 Fuse 3A T 125V
1M01 2422 025 10768 Connector 3p m
1M03 2422 025 10771 Connector 10p m
1M07 4822 267 10637 Connector 5p
1M15 4822 267 10748 Connector 3p
1M17 2422 025 17765 Connector 7p m
1M20 2422 025 10772 Connector 12p m
1M36 2422 025 10655 Connector 11p m
1M46 2422 025 10655 Connector 11p m
1M48 2422 025 10768 Connector 3p m
1M49 2422 025 10768 Connector 3p m
1M52 2422 025 10769 Connector 9p m
1P00 2422 543 01184 Xtal 4.433619MHz 20p
1P03 2422 543 01183 Xtal 3.579545MHz 16p
1P04 2422 549 44369 SAW 38.9MHz K9656L
1P06 2422 549 44372 SAW 38.9MHz K3953L
1P09 2422 549 44324 Filt. 5.5/5.74MHz
1P10 4822 242 81299 Filter 6.5 MHz
1P11 4822 242 10314 Filter 5.5 MHz
1P12 4822 242 81265 Filter 6.0 MHz
1T01 3139 147 20201 Tuner UV1318ST/AIH-3
1T02 3139 147 19801 Tuner UV1318S/A IH -3
1U01h2422 086 11112 Fuse 1A T 125V
8192 3104 311 07711 Wire phono M/170/IEC
8220 3104 311 07281 Cable 12P/680/12P
8301 3104 311 06831 Cable 3P/680/3P
8301 3104 311 07011 Cable 3P/820/3P
8303 3104 311 06511 Cable 10p/280/10p
8303 3104 311 07841 Cable 10P/220/10P
8303 3104 311 07971 Cable 10P/280/10P
8307 3104 311 05691 Cable 5p/100/5p
8308 3104 311 06751 Cable 2P3/120/Inlet
8308 3104 311 06951 Cable 2P3/180/2P
8308 3104 311 08061 Cable 2P3/120/Inlet
8317 3104 311 07871 Cable 7P/180/7P
8320 3104 311 06541 Cable 10P/560/10P
8320 3104 311 07291 Cable 12P/820/12P
8336 3104 311 07001 Cable 11P/400/11P
8336 3104 311 07111 Cable 11P/340/11P
8336 3104 311 07131 Cable 11P/340/11P
8336 3104 311 07461 Cable 11P/560/11P
8336 3104 311 07471 Cable 11P/680/11P
8337 3104 311 06991 Cable 11P/280/11P
8337 3104 311 07451 Cable 11P/220/11P
8346 3104 311 06991 Cable 11P/280/11P
8346 3104 311 07401 Cable 11P/180/11P
8348 3104 311 00351 Cable 3p/400/3p
8348 3104 311 02141 Cable 3P/480/3P
Spare Parts List EN 148FTL2.1E, FTL2.2E 10.
8348 3104 311 07781 Cable 3p/480/3p Wh
8349 3104 311 07781 Cable 3p/480/3p Wh
8349 3104 311 08871 Cable 3P/480/3P
8350 3104 311 07601 Cable 5P/1K0/5P
8350 3104 311 07961 Cable 5P/1K2/5P
8352 3104 311 06061 Cable 9P/180/9P
8352 3104 311 06811 Cable 9P/340/9P
8436 3104 311 07471 Cable 11P/680/11P
g
2002 3198 034 02790 47pF 1% 50V 0402
2003 2238 780 15654 220nF 10% 16V 0805
2004 2238 780 15654 220nF 10% 16V 0805
2005 2238 586 59812 100nF 20% 50V 0603
2006 2238 586 59812 100nF 20% 50V 0603
2007 2238 586 59812 100nF 20% 50V 0603
2008 2238 586 59812 100nF 20% 50V 0603
2010 3198 034 04790 27pF 1% 50V 0402
2011 3198 034 04790 27pF 1% 50V 0402
2012 3198 034 04790 27pF 1% 50V 0402
2013 2020 021 91557 100µF 20% 16V
2016 4822 124 12095 100µF 20% 16V
2017 2238 586 59812 100nF 20% 50V 0603
2018 4822 126 14324 33pF 5% 50V 0402
2019 2238 586 59812 100nF 20% 50V 0603
2020 2238 869 15221 220pF 1% 50V 0402
2022 2238 586 59812 100nF 20% 50V 0603
2023 2238 586 59812 100nF 20% 50V 0603
2024 2238 586 59812 100nF 20% 50V 0603
2025 2238 586 59812 100nF 20% 50V 0603
2026 2238 586 59812 100nF 20% 50V 0603
2027 2238 586 59812 100nF 20% 50V 0603
2028 2238 586 59812 100nF 20% 50V 0603
2029 2238 586 59812 100nF 20% 50V 0603
2031 2238 586 59812 100nF 20% 50V 0603
2033 2238 869 75829 82pF 5% 50V 0402
2034 2238 869 75829 82pF 5% 50V 0402
2035 2238 869 75829 82pF 5% 50V 0402
2036 2238 869 75829 82pF 5% 50V 0402
2037 2238 869 75829 82pF 5% 50V 0402
2038 2238 586 59812 100nF 20% 50V 0603
2039 2238 586 59812 100nF 20% 50V 0603
2040 2238 586 59812 100nF 20% 50V 0603
2063 2238 586 59812 100nF 20% 50V 0603
2067 2238 586 59812 100nF 20% 50V 0603
2074 2238 586 59812 100nF 20% 50V 0603
2075 2238 586 59812 100nF 20% 50V 0603
2305 2238 586 59812 100nF 20% 50V 0603
2316 2238 586 59812 100nF 20% 50V 0603
2322 2238 586 59812 100nF 20% 50V 0603
2324 5322 126 11583 10nF 10% 50V 0603
2350 2238 586 59812 100nF 20% 50V 0603
2351 2238 586 59812 100nF 20% 50V 0603
2352 2238 586 59812 100nF 20% 50V 0603
2356 2238 586 59812 100nF 20% 50V 0603
2357 2238 586 59812 100nF 20% 50V 0603
2358 3198 035 03320 3.3nF 5% 50V 0402
2359 3198 034 01590 15pF 1% 50V 0402
2360 3198 034 01280 1.2pF 1% 50V 0402
2361 3198 034 01280 1.2pF 1% 50V 0402
2362 3198 034 01290 12pF 1% 50V 0402
2365 2238 586 59812 100nF 20% 50V 0603
2366 2238 586 59812 100nF 20% 50V 0603
2367 2238 586 59812 100nF 20% 50V 0603
2368 2238 586 59812 100nF 20% 50V 0603
2369 2238 586 59812 100nF 20% 50V 0603
2370 2238 586 59812 100nF 20% 50V 0603
2371 2020 552 96793 4.7nF 10% 50V 0402
2371 3198 035 14720 4.7nF 5% 25V 0402
2372 2022 552 05679 1µF 10% 16V 0805
2373 2238 586 59812 100nF 20% 50V 0603
2374 2022 552 05679 1µF 10% 16V 0805
2375 2238 787 15641 22nF 5% 16V 0402
2376 2238 586 59812 100nF 20% 50V 0603
2377 2020 021 91557 100µF 20% 16V
2378 2238 586 59812 100nF 20% 50V 0603
2384 2238 586 59812 100nF 20% 50V 0603
2387 2022 552 05679 1µF 10% 16V 0805
2390 2238 586 59812 100nF 20% 50V 0603
2391 2238 586 59812 100nF 20% 50V 0603
2392 2022 552 05679 1µF 10% 16V 0805
2394 2022 552 05679 1µF 10% 16V 0805
2403 2238 586 59812 100nF 20% 50V 0603
2404 2022 552 05679 1µF 10% 16V 0805
2405 2020 552 96793 4.7nF 10% 50V 0402
2405 3198 035 14720 4.7nF 5% 25V 0402
2406 2238 869 15221 220pF 1% 50V 0402
2407 4822 126 14524 68pF 5% 50V 0402
2408 3198 034 03380 3.3pF 1% 50V 0402
2409 2022 552 05679 1µF 10% 16V 0805
2410 2020 021 91557 100µF 20% 16V
2411 2238 586 59812 100nF 20% 50V 0603
2412 2020 552 96793 4.7nF 10% 50V 0402
2412 3198 035 14720 4.7nF 5% 25V 0402
2414 2020 021 91557 100µF 20% 16V
2415 2238 586 59812 100nF 20% 50V 0603
2416 2022 552 05679 1µF 10% 16V 0805
2417 4822 126 14583 470nF 10% 16V 0805
2418 3198 034 05680 5.6pF 1% 50V 0402
2425 2020 021 91557 100µF 20% 16V
2432 2238 586 59812 100nF 20% 50V 0603
2433 2238 586 59812 100nF 20% 50V 0603
2434 2238 586 59812 100nF 20% 50V 0603
2435 2020 552 96618 1nF 10% 50V 0402
2436 2020 552 96448 1µF 10% 16V 0805
2707 3198 034 02790 47pF 1% 50V 0402
2707 4822 126 14519 22pF 5% 50V 0402
2708 2238 586 59812 100nF 20% 50V 0603
2709 2238 586 59812 100nF 20% 50V 0603
2710 2238 586 59812 100nF 20% 50V 0603
2711 2238 586 59812 100nF 20% 50V 0603
2712 2238 586 59812 100nF 20% 50V 0603
2713 4822 126 14519 22pF 5% 50V 0402
2714 4822 126 14519 22pF 5% 50V 0402
2715 2020 021 91854 10µF 20% 16V
2716 2238 586 59812 100nF 20% 50V 0603
2717 2238 586 59812 100nF 20% 50V 0603
2718 3198 034 01590 15pF 1% 50V 0402
2719 3198 034 01590 15pF 1% 50V 0402
2720 3198 034 01590 15pF 1% 50V 0402
2721 2238 869 15101 100pF 5% 50V 0402
2722 2238 869 15101 100pF 5% 50V 0402
2723 2238 586 59812 100nF 20% 50V 0603
2725 2238 586 59812 100nF 20% 50V 0603
2726 2238 586 59812 100nF 20% 50V 0603
2727 2238 586 59812 100nF 20% 50V 0603
2728 2020 021 91854 10µF 20% 16V
2729 2238 586 59812 100nF 20% 50V 0603
2730 2020 021 91557 100µF 20% 16V
2731 2238 586 59812 100nF 20% 50V 0603
2732 2020 552 96618 1nF 10% 50V 0402
2733 2238 586 59812 100nF 20% 50V 0603
2734 2238 586 59812 100nF 20% 50V 0603
2735 2238 586 59812 100nF 20% 50V 0603
2736 2238 586 59812 100nF 20% 50V 0603
2738 2238 586 59812 100nF 20% 50V 0603
2739 2020 021 91557 100µF 20% 16V
2740 2238 787 15641 22nF 5% 16V 0402
2741 2238 787 15641 22nF 5% 16V 0402
2742 2238 787 15641 22nF 5% 16V 0402
2743 2238 586 59812 100nF 20% 50V 0603
2744 2238 586 59812 100nF 20% 50V 0603
2745 2238 586 59812 100nF 20% 50V 0603
2746 2238 586 59812 100nF 20% 50V 0603
2747 4822 126 14524 68pF 5% 50V 0402
2748 2238 586 59812 100nF 20% 50V 0603
2749 2238 586 59812 100nF 20% 50V 0603
2750 2020 552 96618 1nF 10% 50V 0402
2750 2238 586 59812 100nF 20% 50V 0603
2751 2020 552 96618 1nF 10% 50V 0402
2751 2238 586 59812 100nF 20% 50V 0603
2752 2020 552 96618 1nF 10% 50V 0402
2752 2238 586 59812 100nF 20% 50V 0603
2753 2020 552 96618 1nF 10% 50V 0402
2753 2238 586 59812 100nF 20% 50V 0603
2754 2020 552 96618 1nF 10% 50V 0402
2755 2020 552 96618 1nF 10% 50V 0402
2755 2238 586 59812 100nF 20% 50V 0603
2756 2020 552 96618 1nF 10% 50V 0402
2756 2238 586 59812 100nF 20% 50V 0603
2757 2238 787 15641 22nF 5% 16V 0402
2759 2020 552 96618 1nF 10% 50V 0402
2759 2238 586 59812 100nF 20% 50V 0603
2760 2238 586 59812 100nF 20% 50V 0603
2760 2238 787 15641 22nF 5% 16V 0402
2761 2238 586 59812 100nF 20% 50V 0603
2761 2238 787 15641 22nF 5% 16V 0402
2762 2238 586 59812 100nF 20% 50V 0603
2762 2238 787 15641 22nF 5% 16V 0402
2763 2238 586 59812 100nF 20% 50V 0603
2763 2238 787 15641 22nF 5% 16V 0402
2764 2238 586 59812 100nF 20% 50V 0603
2764 2238 787 15641 22nF 5% 16V 0402
2768 2238 586 59812 100nF 20% 50V 0603
2768 2238 787 15641 22nF 5% 16V 0402
2769 2020 552 96618 1nF 10% 50V 0402
2769 2238 586 59812 100nF 20% 50V 0603
2770 2020 552 96618 1nF 10% 50V 0402
2770 2238 586 59812 100nF 20% 50V 0603
2771 2020 552 96618 1nF 10% 50V 0402
2771 2238 586 59812 100nF 20% 50V 0603
2772 2238 586 59812 100nF 20% 50V 0603
2772 2238 787 15641 22nF 5% 16V 0402
2773 2020 552 96618 1nF 10% 50V 0402
2773 2238 586 59812 100nF 20% 50V 0603
2777 2020 552 96618 1nF 10% 50V 0402
2777 2238 586 59812 100nF 20% 50V 0603
2778 2020 552 96618 1nF 10% 50V 0402
2778 2238 586 59812 100nF 20% 50V 0603
2780 2020 552 96618 1nF 10% 50V 0402
2780 2238 586 59812 100nF 20% 50V 0603
2781 2020 552 96618 1nF 10% 50V 0402
2781 2238 586 59812 100nF 20% 50V 0603
2782 2020 552 96618 1nF 10% 50V 0402
2782 2238 586 59812 100nF 20% 50V 0603
2784 2238 586 59812 100nF 20% 50V 0603
2784 2238 787 15641 22nF 5% 16V 0402
2785 2238 586 59812 100nF 20% 50V 0603
2785 2238 787 15641 22nF 5% 16V 0402
2788 2238 586 59812 100nF 20% 50V 0603
2789 2238 586 59812 100nF 20% 50V 0603
2790 2238 586 59812 100nF 20% 50V 0603
2791 2238 586 59812 100nF 20% 50V 0603
2792 2238 586 59812 100nF 20% 50V 0603
2793 2238 586 59812 100nF 20% 50V 0603
2794 2020 552 96618 1nF 10% 50V 0402
2794 2238 586 59812 100nF 20% 50V 0603
2795 2020 552 96618 1nF 10% 50V 0402
2795 2238 586 59812 100nF 20% 50V 0603
2796 2020 552 96618 1nF 10% 50V 0402
2796 2238 586 59812 100nF 20% 50V 0603
2797 2020 552 96618 1nF 10% 50V 0402
2797 2238 586 59812 100nF 20% 50V 0603
2798 2020 552 96618 1nF 10% 50V 0402
2798 2238 586 59812 100nF 20% 50V 0603
2799 2020 552 96618 1nF 10% 50V 0402
2799 2238 586 59812 100nF 20% 50V 0603
2800 2238 586 59812 100nF 20% 50V 0603
2802 2238 586 59812 100nF 20% 50V 0603
2804 2238 586 59812 100nF 20% 50V 0603
2805 2020 552 96618 1nF 10% 50V 0402
2805 2238 586 59812 100nF 20% 50V 0603
2806 2238 586 59812 100nF 20% 50V 0603
2807 2238 586 59812 100nF 20% 50V 0603
2808 2020 552 96618 1nF 10% 50V 0402
2808 2238 586 59812 100nF 20% 50V 0603
2809 2020 552 96618 1nF 10% 50V 0402
2809 2238 586 59812 100nF 20% 50V 0603
2810 2238 586 59812 100nF 20% 50V 0603
2811 2238 586 59812 100nF 20% 50V 0603
2812 3198 031 02290 22Ω 5% 0.1W 0402
2813 2238 586 59812 100nF 20% 50V 0603
2817 2238 586 59812 100nF 20% 50V 0603
2819 2238 586 59812 100nF 20% 50V 0603
2821 2238 586 59812 100nF 20% 50V 0603
2821 2238 787 15641 22nF 5% 16V 0402
2822 2238 586 59812 100nF 20% 50V 0603
2822 2238 787 15641 22nF 5% 16V 0402
2823 2238 586 59812 100nF 20% 50V 0603
2824 2238 586 59812 100nF 20% 50V 0603
2825 2238 586 59812 100nF 20% 50V 0603
2826 2238 586 59812 100nF 20% 50V 0603
2827 2238 586 59812 100nF 20% 50V 0603
2829 2020 021 91557 100µF 20% 16V
2830 2238 586 59812 100nF 20% 50V 0603
2831 2238 586 59812 100nF 20% 50V 0603
2832 2238 586 59812 100nF 20% 50V 0603
2833 2238 586 59812 100nF 20% 50V 0603
2834 2238 586 59812 100nF 20% 50V 0603
2835 2238 586 59812 100nF 20% 50V 0603
2836 2238 586 59812 100nF 20% 50V 0603
2837 2238 869 15101 100pF 5% 50V 0402
2838 2238 869 15101 100pF 5% 50V 0402
2839 2238 869 15101 100pF 5% 50V 0402
2840 4822 126 14519 22pF 5% 50V 0402
2841 4822 126 14519 22pF 5% 50V 0402
2844 2238 586 59812 100nF 20% 50V 0603
2845 2238 586 59812 100nF 20% 50V 0603
2846 2238 586 59812 100nF 20% 50V 0603
2847 2020 021 91854 10µF 20% 16V
2848 2238 586 59812 100nF 20% 50V 0603
2849 2238 586 59812 100nF 20% 50V 0603
2850 2238 586 59812 100nF 20% 50V 0603
2851 2238 586 59812 100nF 20% 50V 0603
2852 2238 586 59812 100nF 20% 50V 0603
2853 2238 586 59812 100nF 20% 50V 0603
2854 2238 586 59812 100nF 20% 50V 0603
2855 2238 586 59812 100nF 20% 50V 0603
2856 2238 586 59812 100nF 20% 50V 0603
2857 2238 586 59812 100nF 20% 50V 0603
2858 2238 586 59812 100nF 20% 50V 0603
2859 2238 586 59812 100nF 20% 50V 0603
2860 2238 586 59812 100nF 20% 50V 0603
2861 2238 586 59812 100nF 20% 50V 0603
2862 2238 586 59812 100nF 20% 50V 0603
2863 2238 586 59812 100nF 20% 50V 0603
2864 2238 586 59812 100nF 20% 50V 0603
2865 2238 586 59812 100nF 20% 50V 0603
2866 2238 586 59812 100nF 20% 50V 0603
2867 2238 586 59812 100nF 20% 50V 0603
Spare Parts List EN 149FTL2.1E, FTL2.2E 10.
2868 2238 586 59812 100nF 20% 50V 0603
2869 2238 586 59812 100nF 20% 50V 0603
2870 2238 586 59812 100nF 20% 50V 0603
2871 2020 021 91557 100µF 20% 16V
2872 2238 586 59812 100nF 20% 50V 0603
2873 2238 586 59812 100nF 20% 50V 0603
2874 2238 586 59812 100nF 20% 50V 0603
2875 2238 586 59812 100nF 20% 50V 0603
2876 2238 586 59812 100nF 20% 50V 0603
2877 2238 586 59812 100nF 20% 50V 0603
2878 2238 586 59812 100nF 20% 50V 0603
2879 2238 586 59812 100nF 20% 50V 0603
2880 2238 586 59812 100nF 20% 50V 0603
2881 3198 034 02790 47pF 1% 50V 0402
2882 2238 586 59812 100nF 20% 50V 0603
2883 2238 586 59812 100nF 20% 50V 0603
2884 2238 586 59812 100nF 20% 50V 0603
2885 2238 586 59812 100nF 20% 50V 0603
2886 2238 586 59812 100nF 20% 50V 0603
2887 2238 586 59812 100nF 20% 50V 0603
2888 2238 586 59812 100nF 20% 50V 0603
2889 2020 021 91557 100µF 20% 16V
2890 2238 586 59812 100nF 20% 50V 0603
2891 2238 586 59812 100nF 20% 50V 0603
2892 2238 586 59812 100nF 20% 50V 0603
2893 2238 586 59812 100nF 20% 50V 0603
2894 2238 586 59812 100nF 20% 50V 0603
2895 2020 021 91854 10µF 20% 16V
2896 2020 021 91557 100µF 20% 16V
2897 2238 586 59812 100nF 20% 50V 0603
2898 2020 021 91854 10µF 20% 16V
2899 2238 586 59812 100nF 20% 50V 0603
2914 2238 586 59812 100nF 20% 50V 0603
2917 2238 586 59812 100nF 20% 50V 0603
2919 2020 021 91557 100µF 20% 16V
2920 2238 586 59812 100nF 20% 50V 0603
2921 2238 586 59812 100nF 20% 50V 0603
2922 2020 552 96628 10nF 10% 16V 0402
2923 2020 552 96628 10nF 10% 16V 0402
2924 2238 586 59812 100nF 20% 50V 0603
2925 2020 552 96618 1nF 10% 50V 0402
2926 2238 869 15101 100pF 5% 50V 0402
2927 2238 869 15101 100pF 5% 50V 0402
2928 2238 869 15101 100pF 5% 50V 0402
2937 2020 021 91557 100µF 20% 16V
2939 2020 021 91557 100µF 20% 16V
2A00 2020 552 96618 1nF 10% 50V 0402
2A01 2020 552 96618 1nF 10% 50V 0402
2A02 2022 552 05679 1µF 10% 16V 0805
2A03 2020 021 91557 100µF 20% 16V
2A04 2022 552 05679 1µF 10% 16V 0805
2A05 2020 021 91557 100µF 20% 16V
2A06 2020 552 96618 1nF 10% 50V 0402
2A07 2020 552 96618 1nF 10% 50V 0402
2A08 2022 552 05679 1µF 10% 16V 0805
2A10 2238 586 59812 100nF 20% 50V 0603
2A11 2238 586 59812 100nF 20% 50V 0603
2A14 2020 552 96618 1nF 10% 50V 0402
2A15 2020 021 91557 100µF 20% 16V
2A16 2238 586 59812 100nF 20% 50V 0603
2A17 2020 552 96618 1nF 10% 50V 0402
2A18 2020 021 91557 100µF 20% 16V
2A20 2022 552 05679 1µF 10% 16V 0805
2A21 2238 586 59812 100nF 20% 50V 0603
2A22 2238 586 59812 100nF 20% 50V 0603
2A23 2238 586 59812 100nF 20% 50V 0603
2A25 2238 869 15101 100pF 5% 50V 0402
2A26 2022 552 05679 1µF 10% 16V 0805
2A26 2238 586 59812 100nF 20% 50V 0603
2A27 2020 552 96618 1nF 10% 50V 0402
2A29 2238 869 15101 100pF 5% 50V 0402
2A30 2238 869 15101 100pF 5% 50V 0402
2A31 2022 552 05679 1µF 10% 16V 0805
2A31 2238 586 59812 100nF 20% 50V 0603
2A32 2238 869 15101 100pF 5% 50V 0402
2A33 2238 586 59812 100nF 20% 50V 0603
2A35 2020 552 96618 1nF 10% 50V 0402
2A36 2238 869 15101 100pF 5% 50V 0402
2A37 2238 869 15101 100pF 5% 50V 0402
2A39 2022 552 05679 1µF 10% 16V 0805
2A40 2238 586 59812 100nF 20% 50V 0603
2A41 2020 021 91854 10µF 20% 16V
2A42 2020 021 91854 10µF 20% 16V
2A43 2020 021 91854 10µF 20% 16V
2A44 2238 586 59812 100nF 20% 50V 0603
2A46 2022 552 05679 1µF 10% 16V 0805
2A47 2020 552 96618 1nF 10% 50V 0402
2A47 2022 552 05679 1µF 10% 16V 0805
2A49 2022 552 05679 1µF 10% 16V 0805
2A50 2020 552 96618 1nF 10% 50V 0402
2A53 2022 552 05679 1µF 10% 16V 0805
2A54 2020 552 96618 1nF 10% 50V 0402
2A56 2022 552 05679 1µF 10% 16V 0805
2A59 2022 552 05679 1µF 10% 16V 0805
2A62 2022 552 05679 1µF 10% 16V 0805
2A64 2238 586 59812 100nF 20% 50V 0603
2A66 2022 552 05679 1µF 10% 16V 0805
2A69 2022 552 05679 1µF 10% 16V 0805
2A70 2022 552 05679 1µF 10% 16V 0805
2A72 2022 552 05679 1µF 10% 16V 0805
2A74 2022 552 05679 1µF 10% 16V 0805
2A75 2022 552 05679 1µF 10% 16V 0805
2A76 2238 586 59812 100nF 20% 50V 0603
2A79 2238 586 59812 100nF 20% 50V 0603
2A80 2022 552 05679 1µF 10% 16V 0805
2A81 2020 552 96618 1nF 10% 50V 0402
2A83 2238 586 59812 100nF 20% 50V 0603
2A88 2238 586 59812 100nF 20% 50V 0603
2A89 2022 552 05679 1µF 10% 16V 0805
2A90 4822 124 12313 22µF 10V 20%
2A91 2238 869 15101 100pF 5% 50V 0402
2A92 2020 552 96618 1nF 10% 50V 0402
2A92 2022 552 05679 1µF 10% 16V 0805
2A95 2238 869 15221 220pF 1% 50V 0402
2A99 2020 552 96618 1nF 10% 50V 0402
2A99 2022 552 05679 1µF 10% 16V 0805
2AA5 2238 869 15101 100pF 5% 50V 0402
2AA6 2020 552 96618 1nF 10% 50V 0402
2AA7 2020 552 96618 1nF 10% 50V 0402
2AA9 3198 034 05680 5.6pF 1% 50V 0402
2AB0 3198 034 05680 5.6pF 1% 50V 0402
2AB2 2020 552 96618 1nF 10% 50V 0402
2AB3 2022 552 05679 1µF 10% 16V 0805
2AB4 2022 552 05679 1µF 10% 16V 0805
2AB5 2020 021 91854 10µF 20% 16V
2AB6 2020 552 96618 1nF 10% 50V 0402
2AB7 2020 552 96618 1nF 10% 50V 0402
2AB8 2022 552 05679 1µF 10% 16V 0805
2C00 2238 586 59812 100nF 20% 50V 0603
2C01 2238 586 59812 100nF 20% 50V 0603
2C02 2238 586 59812 100nF 20% 50V 0603
2D04 2020 552 96618 1nF 10% 50V 0402
2D09 2238 586 59812 100nF 20% 50V 0603
2D10 2022 552 05679 1µF 10% 16V 0805
2D11 2020 552 96628 10nF 10% 16V 0402
2D12 2020 552 96628 10nF 10% 16V 0402
2E01 2238 586 59812 100nF 20% 50V 0603
2E02 2238 586 59812 100nF 20% 50V 0603
2E02 3198 035 71040 100nF 10% 16V 0402
2E03 2238 586 59812 100nF 20% 50V 0603
2E04 2238 586 59812 100nF 20% 50V 0603
2E06 2238 586 59812 100nF 20% 50V 0603
2E07 2238 586 59812 100nF 20% 50V 0603
2E08 2238 586 59812 100nF 20% 50V 0603
2E09 2238 586 59812 100nF 20% 50V 0603
2E10 2238 586 59812 100nF 20% 50V 0603
2E11 2238 586 59812 100nF 20% 50V 0603
2E12 2238 586 59812 100nF 20% 50V 0603
2E13 2238 586 59812 100nF 20% 50V 0603
2E14 2238 586 59812 100nF 20% 50V 0603
2E15 2238 586 59812 100nF 20% 50V 0603
2E16 2238 586 59812 100nF 20% 50V 0603
2E17 2238 586 59812 100nF 20% 50V 0603
2E18 2238 586 59812 100nF 20% 50V 0603
2E19 2238 586 59812 100nF 20% 50V 0603
2E20 2238 586 59812 100nF 20% 50V 0603
2E21 3198 017 34730 47nF 16V 0603
2E22 4822 126 14519 22pF 5% 50V 0402
2E23 3198 017 34730 47nF 16V 0603
2E24 4822 126 14519 22pF 5% 50V 0402
2E25 3198 017 34730 47nF 16V 0603
2E26 4822 126 14519 22pF 5% 50V 0402
2E27 2238 586 59812 100nF 20% 50V 0603
2E28 3198 017 34730 47nF 16V 0603
2E29 3198 017 33330 33nF 20% 16V 0603
2E29 4822 126 14549 33nF 16V 0603
2E30 3198 035 14720 4.7nF 5% 25V 0402
2E34 3198 035 03320 3.3nF 5% 50V 0402
2E35 2238 586 59812 100nF 20% 50V 0603
2E39 2238 869 15109 10pF 5% 50V 0402
2E41 2022 552 05679 1µF 10% 16V 0805
2E41 2238 586 59812 100nF 20% 50V 0603
2E42 2020 552 96628 10nF 10% 16V 0402
2E43 2238 586 59812 100nF 20% 50V 0603
2E49 2238 586 59812 100nF 20% 50V 0603
2E50 4822 124 23237 22µF 6.3V
2E50 4822 124 81058 47µF 20% 4V
2E51 2022 552 05679 1µF 10% 16V 0805
2E52 2238 586 59812 100nF 20% 50V 0603
2E54 2238 586 59812 100nF 20% 50V 0603
2E55 2022 552 05679 1µF 10% 16V 0805
2E56 2020 552 96628 10nF 10% 16V 0402
2E57 2020 552 96628 10nF 10% 16V 0402
2E58 2020 552 96628 10nF 10% 16V 0402
2E59 2020 552 96628 10nF 10% 16V 0402
2E62 2238 586 59812 100nF 20% 50V 0603
2E65 2238 586 59812 100nF 20% 50V 0603
2E66 2238 586 59812 100nF 20% 50V 0603
2E67 2238 586 59812 100nF 20% 50V 0603
2E68 2020 552 96628 10nF 10% 16V 0402
2E69 2020 552 96628 10nF 10% 16V 0402
2E70 2020 552 96628 10nF 10% 16V 0402
2E71 2020 552 96628 10nF 10% 16V 0402
2E72 2238 586 59812 100nF 20% 50V 0603
2E73 2238 586 59812 100nF 20% 50V 0603
2E74 2238 586 59812 100nF 20% 50V 0603
2E75 2238 586 59812 100nF 20% 50V 0603
2E77 2238 586 59812 100nF 20% 50V 0603
2E78 2238 586 59812 100nF 20% 50V 0603
2E79 2238 586 59812 100nF 20% 50V 0603
2E80 2238 586 59812 100nF 20% 50V 0603
2E81 2022 552 05679 1µF 10% 16V 0805
2E82 2238 586 59812 100nF 20% 50V 0603
2E83 2238 586 59812 100nF 20% 50V 0603
2E84 2238 586 59812 100nF 20% 50V 0603
2E86 2238 586 59812 100nF 20% 50V 0603
2E87 4822 124 12095 100µF 20% 16V
2E88 2238 869 15101 100pF 5% 50V 0402
2E89 2238 869 15101 100pF 5% 50V 0402
2E90 2238 869 15101 100pF 5% 50V 0402
2E91 2238 869 15101 100pF 5% 50V 0402
2E92 2238 869 15101 100pF 5% 50V 0402
2E93 2238 586 59812 100nF 20% 50V 0603
2E94 2238 586 59812 100nF 20% 50V 0603
2E96 2238 869 15101 100pF 5% 50V 0402
2E97 2238 869 15101 100pF 5% 50V 0402
2E98 2238 869 15101 100pF 5% 50V 0402
2E99 4822 124 81058 47µF 20% 4V
2I00 2238 869 15101 100pF 5% 50V 0402
2I11 2022 552 05679 1µF 10% 16V 0805
2I12 2022 552 05679 1µF 10% 16V 0805
2I12 4822 126 14585 100nF 10% 0805 50V
2I13 2020 552 96628 10nF 10% 16V 0402
2I14 2020 552 96623 2.2nF 10% 50V 0402
2I15 2020 552 96448 1µF 10% 16V 0805
2I15 2022 552 05679 1µF 10% 16V 0805
2I16 2238 869 15101 100pF 5% 50V 0402
2I17 2238 869 15101 100pF 5% 50V 0402
2I18 2238 869 15101 100pF 5% 50V 0402
2I19 2238 869 15101 100pF 5% 50V 0402
2I20 3198 035 03310 330pF 5% 50V 0402
2I21 2238 869 15101 100pF 5% 50V 0402
2I22 2238 869 15101 100pF 5% 50V 0402
2I23 2238 869 15101 100pF 5% 50V 0402
2I24 2238 869 15101 100pF 5% 50V 0402
2I25 3198 035 03310 330pF 5% 50V 0402
2I26 2238 869 15101 100pF 5% 50V 0402
2I27 2238 869 15101 100pF 5% 50V 0402
2I30 2238 869 15101 100pF 5% 50V 0402
2I32 4822 124 23002 10µF 16V
2I36 2238 869 15101 100pF 5% 50V 0402
2I38 2238 869 15101 100pF 5% 50V 0402
2I46 2020 552 96618 1nF 10% 50V 0402
2I47 2020 552 96618 1nF 10% 50V 0402
2I49 2238 586 59812 100nF 20% 50V 0603
2I50 2238 586 59812 100nF 20% 50V 0603
2I57 2238 869 15101 100pF 5% 50V 0402
2I58 2238 869 15101 100pF 5% 50V 0402
2I64 2238 869 15101 100pF 5% 50V 0402
2I65 2238 869 15101 100pF 5% 50V 0402
2I69 2238 869 75829 82pF 5% 50V 0402
2I69 4822 126 14324 33pF 5% 50V 0402
2I70 2238 869 75829 82pF 5% 50V 0402
2I70 4822 126 14324 33pF 5% 50V 0402
2I71 2022 552 05679 1µF 10% 16V 0805
2I72 2022 552 05679 1µF 10% 16V 0805
2I73 2022 552 05679 1µF 10% 16V 0805
2I75 2022 552 05679 1µF 10% 16V 0805
2I76 2022 552 05679 1µF 10% 16V 0805
2I77 2022 552 05679 1µF 10% 16V 0805
2I78 2022 552 05679 1µF 10% 16V 0805
2I79 5322 124 41945 22µF 20% 35V
2I80 2022 552 05679 1µF 10% 16V 0805
2I81 2022 552 05679 1µF 10% 16V 0805
2I82 2022 552 05679 1µF 10% 16V 0805
2I84 2022 552 05679 1µF 10% 16V 0805
2I85 2022 552 05679 1µF 10% 16V 0805
2I86 2238 869 75829 82pF 5% 50V 0402
2I86 4822 126 14324 33pF 5% 50V 0402
2I87 2238 869 15101 100pF 5% 50V 0402
2I88 2238 869 15101 100pF 5% 50V 0402
2I89 2022 552 05679 1µF 10% 16V 0805
2I90 2022 552 05679 1µF 10% 16V 0805
2I91 2238 586 59812 100nF 20% 50V 0603
2I92 2022 552 05679 1µF 10% 16V 0805
2I93 2238 586 59812 100nF 20% 50V 0603
2I94 2238 586 59812 100nF 20% 50V 0603
2I95 2238 586 59812 100nF 20% 50V 0603
2I96 2022 552 05679 1µF 10% 16V 0805
2I97 2238 586 59812 100nF 20% 50V 0603
2I98 2238 586 59812 100nF 20% 50V 0603
2I99 2022 552 05679 1µF 10% 16V 0805
Spare Parts List EN 150FTL2.1E, FTL2.2E 10.
2I99 4822 124 23002 10µF 16V
2IA0 2022 552 05679 1µF 10% 16V 0805
2IA0 4822 124 23002 10µF 16V
2IA1 2022 552 05679 1µF 10% 16V 0805
2IA1 4822 124 23002 10µF 16V
2IA2 2022 552 05679 1µF 10% 16V 0805
2IA2 4822 124 23002 10µF 16V
2IA3 2020 552 96618 1nF 10% 50V 0402
2IA4 2022 552 05679 1µF 10% 16V 0805
2IA4 4822 126 14585 100nF 10% 0805 50V
2IA5 2020 021 91557 100µF 20% 16V
2IA9 2020 021 91557 100µF 20% 16V
2IB3 2238 586 59812 100nF 20% 50V 0603
2IB5 2022 552 05679 1µF 10% 16V 0805
2IB8 2238 586 59812 100nF 20% 50V 0603
2IB9 2238 586 59812 100nF 20% 50V 0603
2IC0 4822 124 23002 10µF 16V
2IC1 4822 124 23002 10µF 16V
2IC3 2238 586 59812 100nF 20% 50V 0603
2IC5 2238 586 59812 100nF 20% 50V 0603
2IC6 3198 034 04790 27pF 1% 50V 0402
2IC7 3198 034 04790 27pF 1% 50V 0402
2IC8 2022 552 05679 1µF 10% 16V 0805
2IC9 3198 035 02210 220pF 5% 50V 0402
2IC9 4822 126 13883 220pF 5% 50V
2IE1 2238 586 59812 100nF 20% 50V 0603
2IE2 2238 586 59812 100nF 20% 50V 0603
2IE3 2022 552 05679 1µF 10% 16V 0805
2IE4 2238 586 59812 100nF 20% 50V 0603
2IE5 2238 586 59812 100nF 20% 50V 0603
2IE6 2238 586 59812 100nF 20% 50V 0603
2IE7 2022 552 05679 1µF 10% 16V 0805
2IE8 2022 552 05679 1µF 10% 16V 0805
2IE9 2238 586 59812 100nF 20% 50V 0603
2IF1 2238 586 59812 100nF 20% 50V 0603
2IF2 2238 586 59812 100nF 20% 50V 0603
2IF3 2238 586 59812 100nF 20% 50V 0603
2IF4 4822 124 80151 47µF 16V
2IF5 2238 586 59812 100nF 20% 50V 0603
2IF8 2022 552 05679 1µF 10% 16V 0805
2IF8 4822 124 11946 22µF 20% 16V
2IF9 2022 552 05679 1µF 10% 16V 0805
2IF9 4822 124 11946 22µF 20% 16V
2IG1 2238 586 59812 100nF 20% 50V 0603
2IG2 5322 124 41945 22µF 20% 35V
2IG3 2238 586 59812 100nF 20% 50V 0603
2IG4 2238 586 59812 100nF 20% 50V 0603
2IG5 2238 586 59812 100nF 20% 50V 0603
2IG6 2238 586 59812 100nF 20% 50V 0603
2IG7 2238 586 59812 100nF 20% 50V 0603
2IG8 2238 586 59812 100nF 20% 50V 0603
2IG9 2238 586 59812 100nF 20% 50V 0603
2IH1 2238 586 59812 100nF 20% 50V 0603
2IH2 2238 586 59812 100nF 20% 50V 0603
2IH3 2020 552 96618 1nF 10% 50V 0402
2IH4 2022 552 05679 1µF 10% 16V 0805
2IH5 2238 586 59812 100nF 20% 50V 0603
2IH6 2022 552 05679 1µF 10% 16V 0805
2IH6 4822 124 11946 22µF 20% 16V
2IH7 2022 552 05679 1µF 10% 16V 0805
2IH7 4822 124 11946 22µF 20% 16V
2IH8 2022 552 05679 1µF 10% 16V 0805
2IH8 4822 124 11946 22µF 20% 16V
2IH9 2022 552 05679 1µF 10% 16V 0805
2IH9 4822 124 11946 22µF 20% 16V
2IJ4 2238 586 59812 100nF 20% 50V 0603
2IJ8 2022 552 05679 1µF 10% 16V 0805
2IJ9 2022 552 05679 1µF 10% 16V 0805
2IK1 2238 780 15654 220nF 10% 16V 0805
2IK5 2238 586 59812 100nF 20% 50V 0603
2IK6 2238 586 59812 100nF 20% 50V 0603
2IK7 2238 586 59812 100nF 20% 50V 0603
2IL0 2238 869 15109 10pF 5% 50V 0402
2IN8 2238 586 59812 100nF 20% 50V 0603
2IN9 2238 586 59812 100nF 20% 50V 0603
2IR7 4822 124 12095 100µF 20% 16V
2IS6 4822 124 12095 100µF 20% 16V
2L00 4822 124 23237 22µF 6.3V
2L01 2238 586 59812 100nF 20% 50V 0603
2L02 2238 586 59812 100nF 20% 50V 0603
2L03 2238 586 59812 100nF 20% 50V 0603
2L04 2238 586 59812 100nF 20% 50V 0603
2L05 2238 586 59812 100nF 20% 50V 0603
2L06 2238 586 59812 100nF 20% 50V 0603
2L07 2238 586 59812 100nF 20% 50V 0603
2L08 2238 586 59812 100nF 20% 50V 0603
2L09 2238 586 59812 100nF 20% 50V 0603
2L10 2238 586 59812 100nF 20% 50V 0603
2L11 2238 586 59812 100nF 20% 50V 0603
2L12 2238 586 59812 100nF 20% 50V 0603
2L13 2238 586 59812 100nF 20% 50V 0603
2L14 2238 586 59812 100nF 20% 50V 0603
2L15 2238 586 59812 100nF 20% 50V 0603
2L16 2238 586 59812 100nF 20% 50V 0603
2L17 2238 586 59812 100nF 20% 50V 0603
2L19 4822 124 23237 22µF 6.3V
2L20 2238 586 59812 100nF 20% 50V 0603
2L21 2238 586 59812 100nF 20% 50V 0603
2L25 2238 586 59812 100nF 20% 50V 0603
2L26 3198 017 33330 33nF 20% 16V 0603
2L26 4822 126 14549 33nF 16V 0603
2L27 3198 035 14720 4.7nF 5% 25V 0402
2L28 2238 869 75829 82pF 5% 50V 0402
2L28 3198 034 03990 39pF 1% 50V 0402
2L29 3198 034 03990 39pF 1% 50V 0402
2L29 4822 126 14519 22pF 5% 50V 0402
2L30 2238 869 75829 82pF 5% 50V 0402
2L30 3198 034 03990 39pF 1% 50V 0402
2L31 3198 017 34730 47nF 16V 0603
2L32 3198 035 03320 3.3nF 5% 50V 0402
2L33 2238 586 59812 100nF 20% 50V 0603
2L34 2238 586 59812 100nF 20% 50V 0603
2L48 3198 034 01590 15pF 1% 50V 0402
2L50 3198 034 01590 15pF 1% 50V 0402
2L51 4822 124 23237 22µF 6.3V
2L52 3198 017 34730 47nF 16V 0603
2L54 3198 017 34730 47nF 16V 0603
2L56 2020 552 96618 1nF 10% 50V 0402
2L57 3198 017 34730 47nF 16V 0603
2L58 4822 124 23237 22µF 6.3V
2L60 2238 869 15101 100pF 5% 50V 0402
2L60 3198 034 04790 27pF 1% 50V 0402
2P00 2238 586 59812 100nF 20% 50V 0603
2P01 2020 004 90297 100µF 20% 16V
2P02 2238 586 59812 100nF 20% 50V 0603
2P03 2020 552 96793 4.7nF 10% 50V 0402
2P03 3198 035 14720 4.7nF 5% 25V 0402
2P04 2020 552 96793 4.7nF 10% 50V 0402
2P04 3198 035 14720 4.7nF 5% 25V 0402
2P06 2238 869 15221 220pF 1% 50V 0402
2P07 4822 126 14524 68pF 5% 50V 0402
2P08 3198 034 02780 27pF 1% 50V 0402
2P09 2022 552 05679 1µF 10% 16V 0805
2P10 2238 586 59812 100nF 20% 50V 0603
2P11 2238 586 59812 100nF 20% 50V 0603
2P12 2238 586 59812 100nF 20% 50V 0603
2P13 2238 586 59812 100nF 20% 50V 0603
2P14 2238 586 59812 100nF 20% 50V 0603
2P15 2238 586 59812 100nF 20% 50V 0603
2P16 2238 586 59812 100nF 20% 50V 0603
2P17 4822 126 14583 470nF 10% 16V 0805
2P18 3198 034 05680 5.6pF 1% 50V 0402
2P19 2238 586 59812 100nF 20% 50V 0603
2P20 2022 552 05679 1µF 10% 16V 0805
2P21 2022 552 05679 1µF 10% 16V 0805
2P23 2238 586 59812 100nF 20% 50V 0603
2P24 2238 586 59812 100nF 20% 50V 0603
2P25 3198 032 55130 10µF 20% 20V
2P26 2238 787 15641 22nF 5% 16V 0402
2P27 2022 552 05679 1µF 10% 16V 0805
2P28 2238 586 59812 100nF 20% 50V 0603
2P29 2022 552 05679 1µF 10% 16V 0805
2P29 3198 017 41050 1µF 10V 0603
2P30 2020 552 96793 4.7nF 10% 50V 0402
2P30 3198 035 14720 4.7nF 5% 25V 0402
2P31 2238 586 59812 100nF 20% 50V 0603
2P32 2238 586 59812 100nF 20% 50V 0603
2P33 2238 586 59812 100nF 20% 50V 0603
2P34 2238 586 59812 100nF 20% 50V 0603
2P35 2238 586 59812 100nF 20% 50V 0603
2P36 3198 035 03320 3.3nF 5% 50V 0402
2P37 3198 034 01590 15pF 1% 50V 0402
2P38 3198 034 01280 1.2pF 1% 50V 0402
2P43 3198 034 01290 12pF 1% 50V 0402
2P44 3198 034 01280 1.2pF 1% 50V 0402
2P45 2238 586 59812 100nF 20% 50V 0603
2P46 2238 586 59812 100nF 20% 50V 0603
2P47 2238 586 59812 100nF 20% 50V 0603
2P57 2022 552 05679 1µF 10% 16V 0805
2P57 3198 017 34730 47nF 16V 0603
2P58 2022 552 05679 1µF 10% 16V 0805
2P58 3198 017 34730 47nF 16V 0603
2P60 2022 552 05679 1µF 10% 16V 0805
2P65 2020 004 90283 10µF 20% 10V 1206
2P65 2020 004 90297 100µF 20% 16V
2P66 2238 586 59812 100nF 20% 50V 0603
2P70 2238 586 59812 100nF 20% 50V 0603
2P71 2020 004 90283 10µF 20% 10V 1206
2P72 2022 552 05679 1µF 10% 16V 0805
2P73 2022 552 05679 1µF 10% 16V 0805
2P74 2238 586 59812 100nF 20% 50V 0603
2P75 2022 552 05679 1µF 10% 16V 0805
2P78 2238 586 59812 100nF 20% 50V 0603
2P79 2022 552 05679 1µF 10% 16V 0805
2P80 4822 124 12095 100µF 20% 16V
2P81 2238 586 59812 100nF 20% 50V 0603
2P90 4822 124 12095 100µF 20% 16V
2P98 4822 124 12095 100µF 20% 16V
2P99 4822 124 12095 100µF 20% 16V
2PA0 2022 552 05679 1µF 10% 16V 0805
2PA1 3198 034 01510 150pF 1% 50V 0402
2PA2 2238 586 59812 100nF 20% 50V 0603
2PA3 3198 034 01510 150pF 1% 50V 0402
2PA4 2238 586 59812 100nF 20% 50V 0603
2PA5 3198 034 01510 150pF 1% 50V 0402
2PA6 2238 586 59812 100nF 20% 50V 0603
2PA7 2238 586 59812 100nF 20% 50V 0603
2PA8 2238 586 59812 100nF 20% 50V 0603
2PA9 2020 004 90283 10µF 20% 10V 1206
2PB0 2022 552 05679 1µF 10% 16V 0805
2PB1 3198 034 01510 150pF 1% 50V 0402
2PB2 2238 586 59812 100nF 20% 50V 0603
2PB3 2238 586 59812 100nF 20% 50V 0603
2PB4 3198 034 01510 150pF 1% 50V 0402
2PB6 2238 586 59812 100nF 20% 50V 0603
2PB7 2238 586 59812 100nF 20% 50V 0603
2PB8 4822 124 23002 10µF 16V
2PB9 2238 586 59812 100nF 20% 50V 0603
2PC0 4822 124 23002 10µF 16V
2PC1 2238 586 59812 100nF 20% 50V 0603
2PC2 2238 586 59812 100nF 20% 50V 0603
2PC4 2238 586 59812 100nF 20% 50V 0603
2PC5 2238 586 59812 100nF 20% 50V 0603
2PC7 2238 586 59812 100nF 20% 50V 0603
2PC8 2238 586 59812 100nF 20% 50V 0603
2PC9 2238 586 59812 100nF 20% 50V 0603
2PD0 2020 004 90283 10µF 20% 10V 1206
2PD1 2238 586 59812 100nF 20% 50V 0603
2PD3 2238 586 59812 100nF 20% 50V 0603
2PD4 2238 586 59812 100nF 20% 50V 0603
2PD5 4822 124 23002 10µF 16V
2PD6 4822 124 23002 10µF 16V
2PD7 2238 586 59812 100nF 20% 50V 0603
2PD9 2238 586 59812 100nF 20% 50V 0603
2PE4 2238 586 59812 100nF 20% 50V 0603
2PE5 2238 586 59812 100nF 20% 50V 0603
2PE6 2238 586 59812 100nF 20% 50V 0603
2PE7 2022 552 05679 1µF 10% 16V 0805
2PE7 2238 586 59812 100nF 20% 50V 0603
2PE8 2022 552 05679 1µF 10% 16V 0805
2PE8 2238 586 59812 100nF 20% 50V 0603
2PE9 2022 552 05679 1µF 10% 16V 0805
2PE9 4822 126 14585 100nF 10% 0805 50V
2PF1 4822 124 23002 10µF 16V
2PF2 2238 586 59812 100nF 20% 50V 0603
2PF3 3198 034 01510 150pF 1% 50V 0402
2PF7 2020 004 90283 10µF 20% 10V 1206
2PF8 4822 124 23002 10µF 16V
2PF9 4822 124 23002 10µF 16V
2PG0 2022 552 05679 1µF 10% 16V 0805
2PG1 2020 552 96448 1µF 10% 16V 0805
2PG6 2020 004 90283 10µF 20% 10V 1206
2T01 3198 032 28210 220µF 20% 6.3V
2T02 2238 586 15641 22nF 10% 50V 0603
2T03 3198 032 28210 220µF 20% 6.3V
2T04 2238 586 15641 22nF 10% 50V 0603
2T05 3198 032 28210 220µF 20% 6.3V
2T06 2020 552 96628 10nF 10% 16V 0402
2T09 3198 017 34730 47nF 16V 0603
2T10 3198 017 34730 47nF 16V 0603
2T12 2238 586 59812 100nF 20% 50V 0603
2T13 2020 552 96628 10nF 10% 16V 0402
2T13 5322 126 11583 10nF 10% 50V 0603
2T14 5322 126 11583 10nF 10% 50V 0603
2T15 2022 552 05679 1µF 10% 16V 0805
2T16 2022 552 05679 1µF 10% 16V 0805
2T19 3198 032 28210 220µF 20% 6.3V
2T20 3198 032 28210 220µF 20% 6.3V
2T21 3198 032 28210 220µF 20% 6.3V
2T30 2022 552 05635 22µF 10% 16V
2T31 2022 552 05635 22µF 10% 16V
2T32 2238 586 59812 100nF 20% 50V 0603
2T33 2238 586 59812 100nF 20% 50V 0603
2T34 2020 552 96618 1nF 10% 50V 0402
2T34 2020 552 96621 1.5nF 10% 50V 0402
2T35 2238 586 59812 100nF 20% 50V 0603
2T36 2022 552 05679 1µF 10% 16V 0805
2T37 2020 552 96628 10nF 10% 16V 0402
2T38 2238 586 59812 100nF 20% 50V 0603
2T40 2238 586 59812 100nF 20% 50V 0603
2T41 5322 126 11578 1nF 10% 50V 0603
2T42 2238 787 15641 22nF 5% 16V 0402
2T42 2238 916 15641 22nF 10% 25V 0603
2T43 2022 552 05635 22µF 10% 16V
2T44 2020 552 96628 10nF 10% 16V 0402
2T45 2020 552 96628 10nF 10% 16V 0402
2T46 5322 126 11578 1nF 10% 50V 0603
2T47 3198 035 04710 470pF 50V 0402
2T48 2238 586 59812 100nF 20% 50V 0603
2T49 2020 552 96618 1nF 10% 50V 0402
2T49 2020 552 96621 1.5nF 10% 50V 0402
2T50 2020 552 96628 10nF 10% 16V 0402
Spare Parts List EN 151FTL2.1E, FTL2.2E 10.
2T51 2022 552 05679 1µF 10% 16V 0805
2T52 2022 552 05679 1µF 10% 16V 0805
2T53 3198 035 03320 3.3nF 5% 50V 0402
2T54 2238 586 59812 100nF 20% 50V 0603
2U03 2022 552 05679 1µF 10% 16V 0805
2U04 4822 126 14583 470nF 10% 16V 0805
2U05 2020 552 96618 1nF 10% 50V 0402
2U06 2022 552 05635 22µF 10% 16V
2U07 2238 869 75829 82pF 5% 50V 0402
2U08 2022 552 05635 22µF 10% 16V
2U09 2020 552 96618 1nF 10% 50V 0402
2U10 2022 552 05635 22µF 10% 16V
2U11 2020 552 96618 1nF 10% 50V 0402
2U12 2020 552 96628 10nF 10% 16V 0402
2U13 2238 780 15654 220nF 10% 16V 0805
2U14 4822 126 14583 470nF 10% 16V 0805
2U15 4822 124 12095 100µF 20% 16V
2U16 2020 552 96793 4.7nF 10% 50V 0402
2U16 3198 035 14720 4.7nF 5% 25V 0402
2U17 4822 126 14583 470nF 10% 16V 0805
2U18 3198 034 01210 120pF 1% 50V 0402
2U19 2238 586 59812 100nF 20% 50V 0603
2U20 2022 552 05679 1µF 10% 16V 0805
2U21 4822 126 14583 470nF 10% 16V 0805
2U22 2022 552 05679 1µF 10% 16V 0805
2U23 4822 124 12095 100µF 20% 16V
2U24 2020 552 96618 1nF 10% 50V 0402
2U25 2238 586 59812 100nF 20% 50V 0603
2U26 2238 586 59812 100nF 20% 50V 0603
2U27 3198 035 26820 6.8nF 10% 16V 0402
2U28 3198 035 26820 6.8nF 10% 16V 0402
2U30 3198 034 01210 120pF 1% 50V 0402
2U31 4822 124 12095 100µF 20% 16V
2U32 3198 035 03320 3.3nF 5% 50V 0402
2U33 2022 552 05679 1µF 10% 16V 0805
2U34 2238 787 15641 22nF 5% 16V 0402
2U35 2022 552 05679 1µF 10% 16V 0805
2U36 2238 586 59812 100nF 20% 50V 0603
2U37 2020 552 96623 2.2nF 10% 50V 0402
2U39 2238 586 59812 100nF 20% 50V 0603
2U40 2020 552 96623 2.2nF 10% 50V 0402
2U40 4822 126 14238 2.2nF 50V 0603
2U41 3198 035 26820 6.8nF 10% 16V 0402
2U42 3198 017 34730 47nF 16V 0603
2V11 3198 035 04710 470pF 50V 0402
2V12 3198 035 04710 470pF 50V 0402
2Y00 2238 869 15101 100pF 5% 50V 0402
2Y01 2238 869 15101 100pF 5% 50V 0402
2Y02 2238 869 15101 100pF 5% 50V 0402
2Y03 2238 869 15101 100pF 5% 50V 0402
2Y06 2020 552 96618 1nF 10% 50V 0402
2Y06 2238 869 15101 100pF 5% 50V 0402
2Y07 2238 869 15101 100pF 5% 50V 0402
2Y08 2020 552 96618 1nF 10% 50V 0402
2Y08 2238 869 15101 100pF 5% 50V 0402
2Y09 2238 869 15101 100pF 5% 50V 0402
2Y10 2238 869 15101 100pF 5% 50V 0402
2Y11 2020 552 96618 1nF 10% 50V 0402
2Y11 2238 869 15101 100pF 5% 50V 0402
2Y12 2238 869 15101 100pF 5% 50V 0402
2Y13 2238 869 15101 100pF 5% 50V 0402
2Y14 2238 869 15101 100pF 5% 50V 0402
2Y15 2238 869 15101 100pF 5% 50V 0402
2Y16 2238 869 15101 100pF 5% 50V 0402
2Y17 2238 869 15101 100pF 5% 50V 0402
2Y18 2238 869 15101 100pF 5% 50V 0402
2Y19 2238 869 15101 100pF 5% 50V 0402
2Y20 2238 869 15101 100pF 5% 50V 0402
2Y21 2238 869 15101 100pF 5% 50V 0402
2Y22 2020 552 96618 1nF 10% 50V 0402
2Y22 2238 869 15101 100pF 5% 50V 0402
2Y23 2238 869 15101 100pF 5% 50V 0402
2Y25 2238 869 15101 100pF 5% 50V 0402
2Y26 2238 869 15101 100pF 5% 50V 0402
2Y27 2020 552 96618 1nF 10% 50V 0402
2Y28 2020 552 96618 1nF 10% 50V 0402
2Y29 2020 552 96618 1nF 10% 50V 0402
2Y30 4822 124 12095 100µF 20% 16V
2Y31 4822 124 12095 100µF 20% 16V
2Y32 2020 552 96618 1nF 10% 50V 0402
2Y33 2020 552 96618 1nF 10% 50V 0402
2Y34 2238 869 15101 100pF 5% 50V 0402
2Y36 2238 869 15101 100pF 5% 50V 0402
2Y37 2238 869 15101 100pF 5% 50V 0402
2Y38 2238 869 15101 100pF 5% 50V 0402
2Y39 2238 869 15101 100pF 5% 50V 0402
2Y40 2238 869 15101 100pF 5% 50V 0402
2Y41 2238 869 15101 100pF 5% 50V 0402
2Y42 2238 869 15101 100pF 5% 50V 0402
2Y43 2238 869 15101 100pF 5% 50V 0402
2Y44 2238 869 15101 100pF 5% 50V 0402
2Y45 2238 869 15101 100pF 5% 50V 0402
2Y49 2238 869 15101 100pF 5% 50V 0402
2Y49 2238 869 15109 10pF 5% 50V 0402
2Y50 2238 869 15101 100pF 5% 50V 0402
2Y50 2238 869 15109 10pF 5% 50V 0402
2Y51 2238 869 15101 100pF 5% 50V 0402
2Y52 3198 035 71040 100nF 10% 16V 0402
2Y53 2238 869 15101 100pF 5% 50V 0402
2Z44 4822 126 14519 22pF 5% 50V 0402
2Z45 4822 126 14519 22pF 5% 50V 0402
2Z46 4822 126 14519 22pF 5% 50V 0402
2Z47 4822 126 14519 22pF 5% 50V 0402
2Z48 4822 126 14519 22pF 5% 50V 0402
2Z49 4822 126 14519 22pF 5% 50V 0402
2Z50 4822 126 14519 22pF 5% 50V 0402
2Z51 4822 126 14519 22pF 5% 50V 0402
2Z52 4822 126 14519 22pF 5% 50V 0402
2Z53 4822 126 14519 22pF 5% 50V 0402
2Z54 2022 552 05679 1µF 10% 16V 0805
2Z55 2238 586 59812 100nF 20% 50V 0603
2Z56 2020 552 96618 1nF 10% 50V 0402
2Z59 2238 869 15101 100pF 5% 50V 0402
2Z63 2238 586 59812 100nF 20% 50V 0603
2Z64 2238 586 59812 100nF 20% 50V 0603
f
3001 3198 031 04720 4.7kΩ 5% 0402
3002 3198 031 04720 4.7kΩ 5% 0402
3003 4822 117 13525 24kΩ 1% 0.62W 0603
3005 4822 117 13606 10kΩ 5% 0.01W 0402
3006 4822 117 13543 470Ω 5% 0402
3007 2350 033 10471 4 x 470Ω 5%
3008 2350 033 10101 4 x 100Ω 5%
3008 2350 033 11221 4 x 220Ω 5%
3009 3198 031 01810 180Ω 5% 0402
3009 4822 117 13606 10kΩ 5% 0.01W 0402
3010 4822 117 13606 10kΩ 5% 0.01W 0402
3011 3198 031 04720 4.7kΩ 5% 0402
3012 2350 033 10101 4 x 100Ω 5%
3013 4822 117 13606 10kΩ 5% 0.01W 0402
3014 3198 031 06820 6.8kΩ 5% 0.01W 0402
3015 3198 031 04740 470kΩ 5% 0402
3016 2322 706 71502 1.5kΩ 1% 0402
3017 3198 031 04720 4.7kΩ 5% 0402
3018 4822 117 13606 10kΩ 5% 0.01W 0402
3019 3198 031 04720 4.7kΩ 5% 0402
3020 4822 117 13606 10kΩ 5% 0.01W 0402
3021 4822 117 13606 10kΩ 5% 0.01W 0402
3022 3198 031 01220 1.2kΩ 5% 0.01W 0402
3022 3198 031 01230 12kΩ 5% 0402
3023 4822 117 13601 22kΩ 5% 0402
3023 4822 117 13602 2.2kΩ 5% 0.01W 0402
3023 4822 117 13605 Jumper 0402
3024 3198 031 02730 27kΩ 5% 0402
3025 4822 117 13596 220Ω 5% 0.01W 0402
3026 3198 031 04720 4.7kΩ 5% 0402
3027 3198 031 04730 47Ω 5% 0402
3028 3198 031 04720 4.7kΩ 5% 0402
3029 2350 033 10101 4 x 100Ω 5%
3030 3198 031 04720 4.7kΩ 5% 0402
3031 2350 033 10101 4 x 100Ω 5%
3032 4822 117 13606 10kΩ 5% 0.01W 0402
3033 4822 117 11297 100kΩ 5% 0.1W
3033 4822 117 13606 10kΩ 5% 0.01W 0402
3034 2350 033 10101 4 x 100Ω 5%
3035 2350 033 10101 4 x 100Ω 5%
3036 3198 031 04720 4.7kΩ 5% 0402
3036 3198 031 04730 47Ω 5% 0402
3037 4822 117 13548 1kΩ 5% 0402
3038 4822 117 13606 10kΩ 5% 0.01W 0402
3039 3198 031 01810 180Ω 5% 0402
3046 2350 033 10101 4 x 100Ω 5%
3047 4822 051 30008 Jumper 0603
3048 2350 033 10101 4 x 100Ω 5%
3049 2350 033 10101 4 x 100Ω 5%
3050 2350 033 10101 4 x 100Ω 5%
3051 2350 033 10101 4 x 100Ω 5%
3052 2350 033 10101 4 x 100Ω 5%
3053 4822 117 13606 10kΩ 5% 0.01W 0402
3054 2350 033 10101 4 x 100Ω 5%
3055 2350 033 10101 4 x 100Ω 5%
3056 2350 033 10101 4 x 100Ω 5%
3057 2350 033 10101 4 x 100Ω 5%
3059 2322 704 66201 620Ω 1% 0603
3061 2350 033 10101 4 x 100Ω 5%
3062 4822 117 13606 10kΩ 5% 0.01W 0402
3064 2350 033 10101 4 x 100Ω 5%
3065 3198 031 04720 4.7kΩ 5% 0402
3066 3198 031 04730 47Ω 5% 0402
3067 3198 031 04740 470kΩ 5% 0402
3069 3198 031 01820 1.8kΩ 5% 0.01W 0402
3070 3198 031 02730 27kΩ 5% 0402
3072 2350 033 10101 4 x 100Ω 5%
3073 2350 033 10471 4 x 470Ω 5%
3074 2350 033 10471 4 x 470Ω 5%
3076 2350 033 10471 4 x 470Ω 5%
3077 3198 031 04720 4.7kΩ 5% 0402
3078 2350 033 10471 4 x 470Ω 5%
3079 3198 031 01820 1.8kΩ 5% 0.01W 0402
3080 4822 117 13606 10kΩ 5% 0.01W 0402
3081 4822 117 13543 470Ω 5% 0402
3082 2350 033 10101 4 x 100Ω 5%
3083 2350 033 10101 4 x 100Ω 5%
3084 4822 117 13606 10kΩ 5% 0.01W 0402
3085 2350 033 10101 4 x 100Ω 5%
3086 2350 033 10101 4 x 100Ω 5%
3087 4822 117 13545 100Ω 1% 0402
3088 3198 031 01820 1.8kΩ 5% 0.01W 0402
3089 4822 117 13545 100Ω 1% 0402
3090 2350 033 10471 4 x 470Ω 5%
3091 4822 051 30008 Jumper 0603
3092 3198 031 01820 1.8kΩ 5% 0.01W 0402
3093 4822 117 13606 10kΩ 5% 0.01W 0402
3097 4822 117 13543 470Ω 5% 0402
3099 2350 033 10471 4 x 470Ω 5%
3100 4822 117 13596 220Ω 5% 0.01W 0402
3101 4822 117 13596 220Ω 5% 0.01W 0402
3102 2350 033 10101 4 x 100Ω 5%
3103 4822 117 13543 470Ω 5% 0402
3304 2322 750 63908 3.9Ω 5% Fuse 1206
3370 4822 117 13545 100Ω 1% 0402
3371 4822 117 13546 47Ω 5% 0402
3372 4822 117 13543 470Ω 5% 0402
3376 4822 117 13545 100Ω 1% 0402
3377 4822 117 13545 100Ω 1% 0402
3378 3198 031 01530 15kΩ 5% 0.01W 0402
3380 4822 117 13545 100Ω 1% 0402
3382 4822 117 13543 470Ω 5% 0402
3385 4822 117 13543 470Ω 5% 0402
3393 4822 117 11297 100kΩ 5% 0.1W
3400h4822 117 11152 4.7Ω 5%
3402h2322 750 63908 3.9Ω 5% Fuse 1206
3404 3198 031 05610 560Ω 5% 0.01W 0402
3405 4822 117 13548 1kΩ 5% 0402
3406 2322 705 70279 27Ω 5% 0402
3408 4822 117 13545 100Ω 1% 0402
3411 3198 031 02720 2.7kΩ 5% 0.01W 0402
3412h4822 117 11152 4.7Ω 5%
3413 3198 031 02710 270Ω 5% 0.1W 0402
3414 3198 031 04720 4.7kΩ 5% 0402
3415 4822 117 13602 2.2kΩ 5% 0.01W 0402
3418 3198 031 03910 390Ω 1% 0402
3419 3198 031 03390 33Ω 1% 0402
3422 4822 117 13548 1kΩ 5% 0402
3435 3198 031 04720 4.7kΩ 5% 0402
3436 3198 031 01810 180Ω 5% 0402
3437 4822 117 13543 470Ω 5% 0402
3439 4822 117 13597 330Ω 5% 0402 0.01W
3441 3198 031 05620 5.6kΩ 5% 0.01W 0402
3445 4822 117 13543 470Ω 5% 0402
3463 3198 031 04720 4.7kΩ 5% 0402
3473 4822 117 13548 1kΩ 5% 0402
3474 3198 031 01090 10Ω 5% 0.01W 0402
3475h5322 117 11726 10Ω 5%
3476 3198 031 05610 560Ω 5% 0.01W 0402
3700 3198 031 02290 22Ω 5% 0.1W 0402
3701 4822 117 13548 1kΩ 5% 0402
3702 3198 031 01090 10Ω 5% 0.01W 0402
3703 3198 031 04720 4.7kΩ 5% 0402
3706 4822 117 13545 100Ω 1% 0402
3707 4822 117 13545 100Ω 1% 0402
3709 4822 117 13545 100Ω 1% 0402
3710 4822 117 13545 100Ω 1% 0402
3712 3198 031 04730 47Ω 5% 0402
3713 3198 031 01810 180Ω 5% 0402
3714 3198 031 01810 180Ω 5% 0402
3715 3198 031 01810 180Ω 5% 0402
3716 4822 117 11297 100kΩ 5% 0.1W
3717 4822 117 11297 100kΩ 5% 0.1W
3718 4822 117 11297 100kΩ 5% 0.1W
3719 3198 031 03320 3.3kΩ 5% 0402
3720 4822 117 13606 10kΩ 5% 0.01W 0402
3721 4822 117 13545 100Ω 1% 0402
3722 4822 117 13548 1kΩ 5% 0402
3724 4822 117 13545 100Ω 1% 0402
3725 3198 031 03320 3.3kΩ 5% 0402
3726 3198 031 01220 1.2kΩ 5% 0.01W 0402
3727 3198 031 01510 150Ω 5% 0.01W 0402
3728 3198 031 01510 150Ω 5% 0.01W 0402
3729 4822 117 13605 Jumper 0402
3730 3198 031 05610 560Ω 5% 0.01W 0402
3730 3198 031 06810 680Ω 5% 0.01W 0402
3732 3198 031 04730 47Ω 5% 0402
3733 4822 117 13548 1kΩ 5% 0402
3734 4822 117 13545 100Ω 1% 0402
3736 4822 117 13545 100Ω 1% 0402
3737 4822 117 13548 1kΩ 5% 0402
3738 4822 117 13548 1kΩ 5% 0402
3739 3198 031 01230 12kΩ 5% 0402
Spare Parts List EN 152FTL2.1E, FTL2.2E 10.
3740 3198 031 04720 4.7kΩ 5% 0402
3742 4822 117 13601 22kΩ 5% 0402
3743 4822 117 13606 10kΩ 5% 0.01W 0402
3744 4822 117 13602 2.2kΩ 5% 0.01W 0402
3745 4822 117 13548 1kΩ 5% 0402
3746 3198 031 03920 3.9kΩ 5% 0402
3747 3198 031 04730 47Ω 5% 0402
3748 2322 705 70124 120kΩ 5% 0402
3749 3198 031 03920 3.9kΩ 5% 0402
3750 3198 031 03920 3.9kΩ 5% 0402
3751 3198 031 03320 3.3kΩ 5% 0402
3752 4822 117 13605 Jumper 0402
3753 4822 117 13605 Jumper 0402
3754 4822 117 13545 100Ω 1% 0402
3755 3198 031 04720 4.7kΩ 5% 0402
3756 4822 117 13606 10kΩ 5% 0.01W 0402
3757 3198 031 01510 150Ω 5% 0.01W 0402
3758 3198 031 04720 4.7kΩ 5% 0402
3759 4822 117 13596 220Ω 5% 0.01W 0402
3762 3198 031 03390 33Ω 1% 0402
3762 3198 031 06890 68Ω 5% 0402
3763 3198 031 03390 33Ω 1% 0402
3763 3198 031 06890 68Ω 5% 0402
3764 3198 031 03390 33Ω 1% 0402
3764 3198 031 06890 68Ω 5% 0402
3766 4822 117 13548 1kΩ 5% 0402
3767 3198 031 03390 33Ω 1% 0402
3767 3198 031 06890 68Ω 5% 0402
3768 3198 031 03390 33Ω 1% 0402
3768 3198 031 06890 68Ω 5% 0402
3769 3198 031 03390 33Ω 1% 0402
3769 3198 031 06890 68Ω 5% 0402
3770 3198 031 03390 33Ω 1% 0402
3770 3198 031 06890 68Ω 5% 0402
3771 3198 031 07590 75Ω 5% 0402
3772 3198 031 07590 75Ω 5% 0402
3773 3198 031 07590 75Ω 5% 0402
3774 3198 031 03390 33Ω 1% 0402
3774 3198 031 06890 68Ω 5% 0402
3775 3198 031 03390 33Ω 1% 0402
3775 3198 031 06890 68Ω 5% 0402
3776 3198 031 07590 75Ω 5% 0402
3777 3198 031 03390 33Ω 1% 0402
3777 3198 031 06890 68Ω 5% 0402
3778 3198 031 04720 4.7kΩ 5% 0402
3779 3198 031 03390 33Ω 1% 0402
3779 3198 031 06890 68Ω 5% 0402
3780 3198 031 03390 33Ω 1% 0402
3780 3198 031 06890 68Ω 5% 0402
3781 3198 031 03390 33Ω 1% 0402
3781 3198 031 06890 68Ω 5% 0402
3782 4822 117 13548 1kΩ 5% 0402
3784 3198 031 03390 33Ω 1% 0402
3784 3198 031 06890 68Ω 5% 0402
3792 3198 031 01510 150Ω 5% 0.01W 0402
3793 4822 117 13602 2.2kΩ 5% 0.01W 0402
3794 3198 031 07590 75Ω 5% 0402
3795 3198 031 01510 150Ω 5% 0.01W 0402
3797 3198 031 04720 4.7kΩ 5% 0402
3800 3198 031 07590 75Ω 5% 0402
3801 3198 031 01510 150Ω 5% 0.01W 0402
3802 3198 031 01510 150Ω 5% 0.01W 0402
3803 3198 031 03390 33Ω 1% 0402
3803 3198 031 06890 68Ω 5% 0402
3804 3198 031 03390 33Ω 1% 0402
3804 3198 031 06890 68Ω 5% 0402
3805 4822 117 13545 100Ω 1% 0402
3811 3198 031 07590 75Ω 5% 0402
3812 3198 031 07590 75Ω 5% 0402
3814 3198 031 07590 75Ω 5% 0402
3815 3198 031 07590 75Ω 5% 0402
3817 3198 031 07590 75Ω 5% 0402
3818 3198 031 07590 75Ω 5% 0402
3820 3198 031 04720 4.7kΩ 5% 0402
3821 3198 031 03390 33Ω 1% 0402
3823 3198 031 06890 68Ω 5% 0402
3826 4822 117 13545 100Ω 1% 0402
3827 4822 117 13545 100Ω 1% 0402
3828 4822 117 13605 Jumper 0402
3829 4822 117 13545 100Ω 1% 0402
3830 3198 031 06890 68Ω 5% 0402
3831 3198 031 06890 68Ω 5% 0402
3832 3198 031 06890 68Ω 5% 0402
3833 3198 031 06890 68Ω 5% 0402
3834 3198 031 06890 68Ω 5% 0402
3835 3198 031 06890 68Ω 5% 0402
3836 3198 031 06890 68Ω 5% 0402
3837 3198 031 06890 68Ω 5% 0402
3838 3198 031 06890 68Ω 5% 0402
3839 3198 031 06890 68Ω 5% 0402
3840 3198 031 06890 68Ω 5% 0402
3841 3198 031 06890 68Ω 5% 0402
3842 3198 031 06890 68Ω 5% 0402
3843 3198 031 06890 68Ω 5% 0402
3844 3198 031 06890 68Ω 5% 0402
3845 3198 031 06890 68Ω 5% 0402
3846 3198 031 04720 4.7kΩ 5% 0402
3850 2322 705 70829 82Ω 5% 0402
3850 2322 705 87829 82Ω 5% 0402
3853 3198 031 04730 47Ω 5% 0402
3855 3198 031 04720 4.7kΩ 5% 0402
3856 3198 031 01090 10Ω 5% 0.01W 0402
3857 3198 031 01090 10Ω 5% 0.01W 0402
3858 3198 031 01090 10Ω 5% 0.01W 0402
3859 3198 031 01090 10Ω 5% 0.01W 0402
3860 3198 031 01090 10Ω 5% 0.01W 0402
3861 3198 031 01090 10Ω 5% 0.01W 0402
3864 4822 117 13545 100Ω 1% 0402
3865 4822 117 13545 100Ω 1% 0402
3867 4822 117 13545 100Ω 1% 0402
3868 4822 117 13545 100Ω 1% 0402
3869 4822 117 13545 100Ω 1% 0402
3870 4822 117 13545 100Ω 1% 0402
3871 4822 117 13545 100Ω 1% 0402
3872 4822 117 13545 100Ω 1% 0402
3873 4822 117 13545 100Ω 1% 0402
3875 4822 117 13545 100Ω 1% 0402
3880 3198 031 04730 47Ω 5% 0402
3881 3198 031 04730 47Ω 5% 0402
3882 3198 031 04730 47Ω 5% 0402
3883 3198 031 04730 47Ω 5% 0402
3884 3198 031 04730 47Ω 5% 0402
3885 4822 117 13548 1kΩ 5% 0402
3886 4822 117 13548 1kΩ 5% 0402
3887 4822 117 13548 1kΩ 5% 0402
3888 4822 117 13548 1kΩ 5% 0402
3889 4822 117 13548 1kΩ 5% 0402
3890 4822 117 13548 1kΩ 5% 0402
3891 4822 117 13548 1kΩ 5% 0402
3894 3198 031 01510 150Ω 5% 0.01W 0402
3896 4822 117 13605 Jumper 0402
3900 3198 031 06890 68Ω 5% 0402
3901 3198 031 06890 68Ω 5% 0402
3902 3198 031 06890 68Ω 5% 0402
3903 4822 117 11297 100kΩ 5% 0.1W
3905 3198 031 04720 4.7kΩ 5% 0402
3909 4822 117 13545 100Ω 1% 0402
3911 2350 033 11689 4x 68Ω 5% Netw.
3912 2350 033 11689 4x 68Ω 5% Netw.
3913 2350 033 11229 4x 22Ω 5% Netw.
3914 2350 033 11229 4x 22Ω 5% Netw.
3915 2350 033 11229 4x 22Ω 5% Netw.
3916 2350 033 11229 4x 22Ω 5% Netw.
3917 2350 033 11229 4x 22Ω 5% Netw.
3918 3198 031 06890 68Ω 5% 0402
3919 3198 031 06890 68Ω 5% 0402
3921 3198 031 06890 68Ω 5% 0402
3A00 4822 117 13601 22kΩ 5% 0402
3A01 4822 117 13606 10kΩ 5% 0.01W 0402
3A03h4822 117 13568 6.8Ω 5% 1206
3A04 4822 117 13601 22kΩ 5% 0402
3A05 4822 117 13601 22kΩ 5% 0402
3A06 4822 117 11297 100kΩ 5% 0.1W
3A07 4822 117 11297 100kΩ 5% 0.1W
3A09 4822 117 13601 22kΩ 5% 0402
3A11 4822 117 11297 100kΩ 5% 0.1W
3A12 3198 031 04730 47Ω 5% 0402
3A13 3198 031 04730 47Ω 5% 0402
3A14 3198 031 04730 47Ω 5% 0402
3A15 4822 117 11297 100kΩ 5% 0.1W
3A16 4822 117 13545 100Ω 1% 0402
3A17 4822 117 13545 100Ω 1% 0402
3A18 3198 031 06830 68kΩ 5% 0.01W 0402
3A19 4822 117 13545 100Ω 1% 0402
3A20 4822 117 11297 100kΩ 5% 0.1W
3A21 3198 031 02730 27kΩ 5% 0402
3A21 3198 031 06830 68kΩ 5% 0.01W 0402
3A22 4822 117 11297 100kΩ 5% 0.1W
3A23 3198 031 06830 68kΩ 5% 0.01W 0402
3A24 3198 031 06810 680Ω 5% 0.01W 0402
3A24 4822 117 13545 100Ω 1% 0402
3A26 3198 031 06830 68kΩ 5% 0.01W 0402
3A27 3198 031 06820 6.8kΩ 5% 0.01W 0402
3A28 3198 031 06820 6.8kΩ 5% 0.01W 0402
3A40 3198 031 04730 47Ω 5% 0402
3A45 3198 031 04730 47Ω 5% 0402
3A46 3198 031 04720 4.7kΩ 5% 0402
3A47 3198 031 04730 47Ω 5% 0402
3A48 4822 117 11297 100kΩ 5% 0.1W
3A49 3198 031 04730 47Ω 5% 0402
3A51 3198 031 04720 4.7kΩ 5% 0402
3A52 3198 031 03930 39kΩ 5% 0402
3A52 3198 031 05630 56kΩ 5% 0402
3A53 3198 031 03930 39kΩ 5% 0402
3A53 3198 031 05630 56kΩ 5% 0402
3A55 4822 117 13597 330Ω 5% 0402 0.01W
3A60 4822 117 11297 100kΩ 5% 0.1W
3A61 4822 117 13597 330Ω 5% 0402 0.01W
3A62 4822 117 11297 100kΩ 5% 0.1W
3A63 4822 117 13601 22kΩ 5% 0402
3A64 3198 031 04730 47Ω 5% 0402
3A64 4822 117 13597 330Ω 5% 0402 0.01W
3A65 3198 031 01050 1MΩ 5% 0402
3A65 4822 117 11297 100kΩ 5% 0.1W
3A66 4822 117 11297 100kΩ 5% 0.1W
3C00 4822 117 13602 2.2kΩ 5% 0.01W 0402
3C01 3198 031 01090 10Ω 5% 0.01W 0402
3C03 4822 117 13606 10kΩ 5% 0.01W 0402
3C04 4822 117 13606 10kΩ 5% 0.01W 0402
3C05 4822 117 13543 470Ω 5% 0402
3C08 4822 051 30103 10kΩ 5% 0.062W
3C10 4822 117 13545 100Ω 1% 0402
3C11 4822 117 13545 100Ω 1% 0402
3C12 3198 031 06890 68Ω 5% 0402
3E00 4822 117 13606 10kΩ 5% 0.01W 0402
3E01 4822 117 13548 1kΩ 5% 0402
3E02 4822 117 13548 1kΩ 5% 0402
3E03 4822 117 13548 1kΩ 5% 0402
3E04 4822 117 13548 1kΩ 5% 0402
3E05 3198 031 01520 1.2kΩ 5% 0.01W 0402
3E06 4822 117 13545 100Ω 1% 0402
3E07 4822 117 13545 100Ω 1% 0402
3E08 4822 117 13545 100Ω 1% 0402
3E11 4822 117 13543 470Ω 5% 0402
3E12 4822 117 13543 470Ω 5% 0402
3E14 4822 117 13548 1kΩ 5% 0402
3E16 3198 031 02720 2.7kΩ 5% 0.01W 0402
3E18 4822 117 13545 100Ω 1% 0402
3E19 4822 117 13545 100Ω 1% 0402
3E37 4822 117 13545 100Ω 1% 0402
3E50 4822 117 13606 10kΩ 5% 0.01W 0402
3E51 4822 117 13606 10kΩ 5% 0.01W 0402
3E52 4822 117 13606 10kΩ 5% 0.01W 0402
3E53 4822 117 13606 10kΩ 5% 0.01W 0402
3E54 4822 117 13546 47Ω 5% 0402
3E55 4822 117 13606 10kΩ 5% 0.01W 0402
3E56 4822 117 13603 33kΩ 5% 0402
3E57 4822 117 11297 100kΩ 5% 0.1W
3E58 4822 117 13546 47Ω 5% 0402
3E59 4822 117 13606 10kΩ 5% 0.01W 0402
3E61 4822 117 13546 47Ω 5% 0402
3E62 4822 117 13548 1kΩ 5% 0402
3E63 4822 117 13606 10kΩ 5% 0.01W 0402
3E64 4822 117 13606 10kΩ 5% 0.01W 0402
3E69 3198 031 04720 4.7kΩ 5% 0402
3E70 3198 031 04720 4.7kΩ 5% 0402
3E73 4822 117 13606 10kΩ 5% 0.01W 0402
3E74 4822 117 13546 47Ω 5% 0402
3E77 4822 117 13546 47Ω 5% 0402
3E78 4822 117 13546 47Ω 5% 0402
3E79 4822 117 13546 47Ω 5% 0402
3E80 4822 117 13546 47Ω 5% 0402
3E81 4822 117 13546 47Ω 5% 0402
3E82 3198 031 01090 10Ω 5% 0.01W 0402
3E83 3198 031 01090 10Ω 5% 0.01W 0402
3E84 3198 031 01090 10Ω 5% 0.01W 0402
3E85 3198 031 01090 10Ω 5% 0.01W 0402
3E86 3198 031 01090 10Ω 5% 0.01W 0402
3E88 4822 117 13546 47Ω 5% 0402
3E89 4822 117 13546 47Ω 5% 0402
3E90 3198 031 06890 68Ω 5% 0402
3E91 3198 031 03390 33Ω 1% 0402
3I07 4822 117 13606 10kΩ 5% 0.01W 0402
3I08 4822 117 13597 330Ω 5% 0402 0.01W
3I28 4822 117 13545 100Ω 1% 0402
3I29 4822 051 30759 75Ω 5% 0.062W
3I30 4822 051 30759 75Ω 5% 0.062W
3I31 4822 051 30759 75Ω 5% 0.062W
3I32 4822 117 13548 1kΩ 5% 0402
3I33 4822 051 30101 100Ω 5% 0.062W
3I34 4822 117 13606 10kΩ 5% 0.01W 0402
3I35 4822 051 30101 100Ω 5% 0.062W
3I36 4822 117 13601 22kΩ 5% 0402
3I37 4822 117 13601 22kΩ 5% 0402
3I38 4822 117 13601 22kΩ 5% 0402
3I39 3198 031 04720 4.7kΩ 5% 0402
3I40 4822 051 30101 100Ω 5% 0.062W
3I41 4822 117 13548 1kΩ 5% 0402
3I42 4822 117 13548 1kΩ 5% 0402
3I42 4822 117 13602 2.2kΩ 5% 0.01W 0402
3I43 3198 031 04720 4.7kΩ 5% 0402
3I44 4822 117 13606 10kΩ 5% 0.01W 0402
3I45 3198 031 04730 47Ω 5% 0402
3I46 4822 117 13545 100Ω 1% 0402
3I47 4822 117 13602 2.2kΩ 5% 0.01W 0402
3I49 4822 117 13545 100Ω 1% 0402
3I50 4822 051 30271 270Ω 5% 0.062W
3I51 4822 051 30101 100Ω 5% 0.062W
3I51 4822 117 13545 100Ω 1% 0402
3I52 4822 051 30271 270Ω 5% 0.062W
3I53 4822 051 30101 100Ω 5% 0.062W
3I53 4822 117 13545 100Ω 1% 0402
Spare Parts List EN 153FTL2.1E, FTL2.2E 10.
3I54 4822 051 30101 100Ω 5% 0.062W
3I54 4822 117 13545 100Ω 1% 0402
3I55 4822 051 30759 75Ω 5% 0.062W
3I56 4822 051 30101 100Ω 5% 0.062W
3I56 4822 117 13545 100Ω 1% 0402
3I57 4822 051 30759 75Ω 5% 0.062W
3I58 4822 051 30101 100Ω 5% 0.062W
3I58 4822 117 13545 100Ω 1% 0402
3I59 4822 051 30759 75Ω 5% 0.062W
3I60 4822 051 30759 75Ω 5% 0.062W
3I61 4822 051 30101 100Ω 5% 0.062W
3I61 4822 117 13545 100Ω 1% 0402
3I62 4822 051 30101 100Ω 5% 0.062W
3I62 4822 117 13545 100Ω 1% 0402
3I63 4822 051 30392 3.9Ω 5% 0.063W 0603
3I64 3198 031 08220 8.2kΩ 5% 0.5W
3I65 4822 051 30101 100Ω 5% 0.062W
3I65 4822 117 13545 100Ω 1% 0402
3I66 4822 051 30759 75Ω 5% 0.062W
3I67 4822 051 30759 75Ω 5% 0.062W
3I68 4822 051 30101 100Ω 5% 0.062W
3I68 4822 117 13545 100Ω 1% 0402
3I69 4822 051 30271 270Ω 5% 0.062W
3I70 4822 051 30101 100Ω 5% 0.062W
3I70 4822 117 13545 100Ω 1% 0402
3I71 4822 051 30271 270Ω 5% 0.062W
3I72 4822 051 30101 100Ω 5% 0.062W
3I72 4822 117 13545 100Ω 1% 0402
3I75 4822 051 30101 100Ω 5% 0.062W
3I75 4822 117 13545 100Ω 1% 0402
3I76 4822 051 30101 100Ω 5% 0.062W
3I76 4822 117 13545 100Ω 1% 0402
3I77 4822 051 30759 75Ω 5% 0.062W
3I78 4822 051 30759 75Ω 5% 0.062W
3I79 4822 051 30101 100Ω 5% 0.062W
3I79 4822 117 13545 100Ω 1% 0402
3I80 4822 051 30101 100Ω 5% 0.062W
3I80 4822 117 13545 100Ω 1% 0402
3I81 3198 031 08220 8.2kΩ 5% 0.5W
3I82 4822 051 30392 3.9Ω 5% 0.063W 0603
3I83 4822 051 30101 100Ω 5% 0.062W
3I83 4822 117 13545 100Ω 1% 0402
3I84 4822 051 30759 75Ω 5% 0.062W
3I86 4822 051 30759 75Ω 5% 0.062W
3I87 4822 051 30101 100Ω 5% 0.062W
3I87 4822 117 13545 100Ω 1% 0402
3I88 4822 051 30759 75Ω 5% 0.062W
3I89 4822 051 30271 270Ω 5% 0.062W
3I90 4822 051 30101 100Ω 5% 0.062W
3I90 4822 117 13545 100Ω 1% 0402
3I91 4822 051 30271 270Ω 5% 0.062W
3I92 4822 051 30101 100Ω 5% 0.062W
3I92 4822 117 13545 100Ω 1% 0402
3I98 4822 117 11297 100kΩ 5% 0.1W
3I98 4822 117 13605 Jumper 0402
3I99 4822 051 30271 270Ω 5% 0.062W
3IA0 4822 051 30101 100Ω 5% 0.062W
3IA0 4822 117 13545 100Ω 1% 0402
3IA1 4822 117 11297 100kΩ 5% 0.1W
3IA2 4822 051 30101 100Ω 5% 0.062W
3IA2 4822 117 13545 100Ω 1% 0402
3IA3 4822 117 13601 22kΩ 5% 0402
3IA4 4822 117 13548 1kΩ 5% 0402
3IA5 4822 117 13548 1kΩ 5% 0402
3IA6 4822 117 13548 1kΩ 5% 0402
3IA7 4822 117 13548 1kΩ 5% 0402
3IA8 4822 117 13548 1kΩ 5% 0402
3IB2 4822 117 13545 100Ω 1% 0402
3IB4 4822 117 13601 22kΩ 5% 0402
3IB5 4822 117 13601 22kΩ 5% 0402
3IC1h4822 117 13574 1.5Ω 5% 1206
3IC2 4822 117 13601 22kΩ 5% 0402
3IC3 4822 117 13601 22kΩ 5% 0402
3IC4 4822 117 13545 100Ω 1% 0402
3IC6 4822 117 13545 100Ω 1% 0402
3IC8 3198 031 05610 560Ω 5% 0.01W 0402
3IC9 4822 117 13601 22kΩ 5% 0402
3ID0 3198 031 04720 4.7kΩ 5% 0402
3ID1 3198 031 01540 150kΩ 5% 0402
3ID5 3198 031 01090 10Ω 5% 0.01W 0402
3ID7 4822 117 11297 100kΩ 5% 0.1W
3ID8 4822 117 11297 100kΩ 5% 0.1W
3ID9 3198 031 05610 560Ω 5% 0.01W 0402
3IE2 4822 117 13545 100Ω 1% 0402
3IE3 4822 117 13545 100Ω 1% 0402
3IE7 3198 031 01090 10Ω 5% 0.01W 0402
3IE9 4822 117 13601 22kΩ 5% 0402
3IF0 4822 117 13545 100Ω 1% 0402
3IF5 4822 117 13601 22kΩ 5% 0402
3IF6 4822 051 30101 100Ω 5% 0.062W
3IF6 4822 117 13545 100Ω 1% 0402
3IF7 4822 051 30101 100Ω 5% 0.062W
3IF7 4822 117 13545 100Ω 1% 0402
3IG0 3198 031 05610 560Ω 5% 0.01W 0402
3IG0 4822 117 13548 1kΩ 5% 0402
3IG1 3198 031 01090 10Ω 5% 0.01W 0402
3IG3 3198 031 05610 560Ω 5% 0.01W 0402
3IG3 4822 117 13548 1kΩ 5% 0402
3IG4 3198 031 01090 10Ω 5% 0.01W 0402
3IG6 3198 031 05610 560Ω 5% 0.01W 0402
3IG6 4822 117 13548 1kΩ 5% 0402
3IG7 3198 031 01090 10Ω 5% 0.01W 0402
3IH1 3198 031 04730 47Ω 5% 0402
3IH7 3198 031 05610 560Ω 5% 0.01W 0402
3IH8 3198 031 04730 47Ω 5% 0402
3IH9 3198 031 04730 47Ω 5% 0402
3IHA 4822 117 13545 100Ω 1% 0402
3IHB 4822 117 13545 100Ω 1% 0402
3IHC 4822 117 13545 100Ω 1% 0402
3IHG 4822 117 12903 1.8kΩ 1% 0.063W 0603
3II0 4822 117 13606 10kΩ 5% 0.01W 0402
3II1 4822 117 13601 22kΩ 5% 0402
3II2 4822 117 13601 22kΩ 5% 0402
3II3 3198 031 04730 47Ω 5% 0402
3II4 3198 031 04730 47Ω 5% 0402
3II6 4822 117 13601 22kΩ 5% 0402
3II7 4822 117 13601 22kΩ 5% 0402
3II8 4822 117 13548 1kΩ 5% 0402
3II9 4822 117 13548 1kΩ 5% 0402
3IJ0 4822 117 13545 100Ω 1% 0402
3IJ1 4822 117 13545 100Ω 1% 0402
3IJ8 4822 117 13548 1kΩ 5% 0402
3IK0 4822 117 13548 1kΩ 5% 0402
3IK2 4822 117 13601 22kΩ 5% 0402
3IK3 4822 117 13601 22kΩ 5% 0402
3IK7h4822 117 11152 4.7Ω 5%
3IL1 3198 031 05610 560Ω 5% 0.01W 0402
3IL3 3198 031 01090 10Ω 5% 0.01W 0402
3IL8 3198 031 05610 560Ω 5% 0.01W 0402
3IM0 3198 031 01090 10Ω 5% 0.01W 0402
3IM4 3198 031 05610 560Ω 5% 0.01W 0402
3IN0 3198 031 01090 10Ω 5% 0.01W 0402
3IN1 4822 117 13548 1kΩ 5% 0402
3IN4 4822 117 11748 Fuse 2.2Ω 5% 1206
3IN5 4822 117 13601 22kΩ 5% 0402
3IN6 4822 117 13601 22kΩ 5% 0402
3IN8 3198 031 01090 10Ω 5% 0.01W 0402
3IO5 4822 117 13606 10kΩ 5% 0.01W 0402
3IO6 4822 117 13606 10kΩ 5% 0.01W 0402
3IP0 3198 031 08220 8.2kΩ 5% 0.5W
3IP1 4822 117 13602 2.2kΩ 5% 0.01W 0402
3IP2 4822 117 13596 220Ω 5% 0.01W 0402
3IP3 4822 051 30689 68Ω 5% 0.063W 0603
3IP3 4822 051 30759 75Ω 5% 0.062W
3IP4 3198 031 02710 270Ω 5% 0.1W 0402
3IP5h4822 117 11748 Fuse 2.2Ω 5% 1206
3IP6 4822 117 13548 1kΩ 5% 0402
3IP7 3198 031 02720 2.7kΩ 5% 0.01W 0402
3IP8 4822 117 13548 1kΩ 5% 0402
3IQ0 3198 031 01090 10Ω 5% 0.01W 0402
3IQ5 3198 031 04730 47Ω 5% 0402
3IQ6 4822 117 13545 100Ω 1% 0402
3IQ7 4822 117 13545 100Ω 1% 0402
3IQ8 3198 031 03320 3.3kΩ 5% 0402
3IQ9 4822 117 13548 1kΩ 5% 0402
3IR1 3198 031 02710 270Ω 5% 0.1W 0402
3IR2 3198 031 04720 4.7kΩ 5% 0402
3IR3 3198 031 04720 4.7kΩ 5% 0402
3IR4 4822 117 13545 100Ω 1% 0402
3IR5 4822 117 13546 47Ω 5% 0402
3IR6 4822 117 13546 47Ω 5% 0402
3IR7 4822 117 13543 470Ω 5% 0402
3IR8 3198 031 03320 3.3kΩ 5% 0402
3IR9 2322 706 71201 120Ω 1% 0402
3IS0 2322 706 71201 120Ω 1% 0402
3IS1 2322 706 71201 120Ω 1% 0402
3IS2 4822 117 13545 100Ω 1% 0402
3IS5 2322 706 71201 120Ω 1% 0402
3IS7 4822 117 11297 100kΩ 5% 0.1W
3IT0 3198 031 04730 47Ω 5% 0402
3IT1 3198 031 04730 47Ω 5% 0402
3IT4 3198 031 04730 47Ω 5% 0402
3IT5 2322 706 71201 120Ω 1% 0402
3IT6 2322 706 71201 120Ω 1% 0402
3IT7 4822 117 13548 1kΩ 5% 0402
3IT8 4822 117 13548 1kΩ 5% 0402
3IT9 4822 117 13597 330Ω 5% 0402 0.01W
3IU0h4822 117 11748 Fuse 2.2Ω 5% 1206
3IV0 3198 031 08220 8.2kΩ 5% 0.5W
3IV1 4822 117 13548 1kΩ 5% 0402
3IV2 4822 117 13543 470Ω 5% 0402
3IV3 4822 117 13548 1kΩ 5% 0402
3IV4 4822 117 13548 1kΩ 5% 0402
3IV5 4822 117 13548 1kΩ 5% 0402
3IV6 4822 117 13548 1kΩ 5% 0402
3IW4 3198 031 06820 6.8kΩ 5% 0.01W 0402
3IW4 4822 117 13548 1kΩ 5% 0402
3IW5 3198 031 02720 2.7kΩ 5% 0.01W 0402
3IW5 4822 117 13548 1kΩ 5% 0402
3IW6 4822 117 13548 1kΩ 5% 0402
3IY1 4822 117 13601 22kΩ 5% 0402
3IY2 3198 031 01540 150kΩ 5% 0402
3IY3 4822 117 11297 100kΩ 5% 0.1W
3IY4 4822 117 11297 100kΩ 5% 0.1W
3L03 4822 117 13545 100Ω 1% 0402
3L04 4822 117 13545 100Ω 1% 0402
3L05 4822 117 13545 100Ω 1% 0402
3L06 4822 117 13545 100Ω 1% 0402
3L08 3198 031 02720 2.7kΩ 5% 0.01W 0402
3L11 4822 117 13545 100Ω 1% 0402
3L12 4822 117 13543 470Ω 5% 0402
3L28 4822 117 13543 470Ω 5% 0402
3L29 3198 031 01510 150Ω 5% 0.01W 0402
3L30 3198 031 01510 150Ω 5% 0.01W 0402
3L31 3198 031 01510 150Ω 5% 0.01W 0402
3L32 4822 117 13543 470Ω 5% 0402
3L33 4822 117 13543 470Ω 5% 0402
3P00h4822 117 11748 Fuse 2.2Ω 5% 1206
3P01h4822 117 11748 Fuse 2.2Ω 5% 1206
3P02h4822 117 11151 1Ω 5%
3P03 4822 117 13602 2.2kΩ 5% 0.01W 0402
3P04 3198 031 04720 4.7kΩ 5% 0402
3P05 3198 031 05620 5.6kΩ 5% 0.01W 0402
3P06 4822 117 13545 100Ω 1% 0402
3P07 3198 031 02720 2.7kΩ 5% 0.01W 0402
3P07 4822 051 30272 2.7kΩ 5% 0.062W
3P08 3198 031 04720 4.7kΩ 5% 0402
3P11 4822 117 13546 47Ω 5% 0402
3P16 3198 031 04720 4.7kΩ 5% 0402
3P18 4822 117 13546 47Ω 5% 0402
3P22 4822 117 13545 100Ω 1% 0402
3P23 4822 117 13545 100Ω 1% 0402
3P24 3198 031 01530 15kΩ 5% 0.01W 0402
3P25 3198 031 03910 390Ω 1% 0402
3P26 4822 117 13543 470Ω 5% 0402
3P27 3198 031 01810 180Ω 5% 0402
3P28 3198 031 03910 390Ω 1% 0402
3P28 3198 031 08210 820Ω 5% 0.5W
3P29 4822 117 11297 100kΩ 5% 0.1W
3P30 4822 117 13545 100Ω 1% 0402
3P31 4822 117 13543 470Ω 5% 0402
3P32 3198 031 05610 560Ω 5% 0.01W 0402
3P33 4822 117 13548 1kΩ 5% 0402
3P34 4822 117 13546 47Ω 5% 0402
3P35 4822 117 13543 470Ω 5% 0402
3P36 4822 117 13548 1kΩ 5% 0402
3P40 3198 031 01210 120Ω 5% 0.01W 0402
3P44 4822 117 13545 100Ω 1% 0402
3P48 4822 117 13545 100Ω 1% 0402
3P49 3198 031 03910 390Ω 1% 0402
3P56 3198 031 01090 10Ω 5% 0.01W 0402
3P57 3198 031 06810 680Ω 5% 0.01W 0402
3P58 4822 117 13545 100Ω 1% 0402
3P59 4822 117 13545 100Ω 1% 0402
3P60 3198 031 06810 680Ω 5% 0.01W 0402
3P61 3198 031 02730 27kΩ 5% 0402
3P62 3198 031 01090 10Ω 5% 0.01W 0402
3P63 3198 031 06810 680Ω 5% 0.01W 0402
3P64 3198 031 04720 4.7kΩ 5% 0402
3P65 4822 117 13545 100Ω 1% 0402
3P66 4822 117 13545 100Ω 1% 0402
3P67 3198 031 04720 4.7kΩ 5% 0402
3P68 3198 031 04720 4.7kΩ 5% 0402
3P69 3198 031 04720 4.7kΩ 5% 0402
3P70 3198 031 04720 4.7kΩ 5% 0402
3P72 3198 031 04720 4.7kΩ 5% 0402
3P74h4822 117 11748 Fuse 2.2Ω 5% 1206
3P75 4822 117 13545 100Ω 1% 0402
3P76 3198 031 01090 10Ω 5% 0.01W 0402
3P85 3198 031 04720 4.7kΩ 5% 0402
3P86 4822 117 13606 10kΩ 5% 0.01W 0402
3P87 4822 117 13606 10kΩ 5% 0.01W 0402
3P88h2322 750 63908 3.9Ω 5% Fuse 1206
3P90 3198 031 05610 560Ω 5% 0.01W 0402
3P91 3198 031 05610 560Ω 5% 0.01W 0402
3P92 3198 031 05610 560Ω 5% 0.01W 0402
3P96 3198 031 04720 4.7kΩ 5% 0402
3P97 3198 031 04720 4.7kΩ 5% 0402
3P98 3198 031 01090 10Ω 5% 0.01W 0402
3P99 3198 031 06810 680Ω 5% 0.01W 0402
3PA0 4822 117 13596 220Ω 5% 0.01W 0402
3PA1 4822 117 13545 100Ω 1% 0402
3PA3 4822 117 13545 100Ω 1% 0402
3PA7 4822 117 13545 100Ω 1% 0402
3PA8 4822 117 13596 220Ω 5% 0.01W 0402
3PA9 3198 031 03930 39kΩ 5% 0402
3PB2 3198 031 01520 1.2kΩ 5% 0.01W 0402
3PB4 3198 031 01520 1.2kΩ 5% 0.01W 0402
3PB6 3198 031 01220 1.2kΩ 5% 0.01W 0402
3PB7 4822 117 13545 100Ω 1% 0402
3PB8 3198 031 01820 1.8kΩ 5% 0.01W 0402
3PB9 3198 031 03320 3.3kΩ 5% 0402
Spare Parts List EN 154FTL2.1E, FTL2.2E 10.
3PC0 3198 031 03320 3.3kΩ 5% 0402
3PC1 4822 117 13545 100Ω 1% 0402
3PC2 4822 117 13545 100Ω 1% 0402
3PC4 3198 031 06810 680Ω 5% 0.01W 0402
3PC5 3198 031 04720 4.7kΩ 5% 0402
3PC6 3198 031 03930 39kΩ 5% 0402
3PC7 4822 117 13596 220Ω 5% 0.01W 0402
3PC8 4822 117 13545 100Ω 1% 0402
3PD0 4822 117 13596 220Ω 5% 0.01W 0402
3PD2 4822 117 13545 100Ω 1% 0402
3PD3 3198 031 01820 1.8kΩ 5% 0.01W 0402
3PD5 3198 031 03320 3.3kΩ 5% 0402
3PD7 3198 031 01220 1.2kΩ 5% 0.01W 0402
3PD8 3198 031 03320 3.3kΩ 5% 0402
3PD9 3198 031 03320 3.3kΩ 5% 0402
3PE0 3198 031 01520 1.2kΩ 5% 0.01W 0402
3PE2 3198 031 01520 1.2kΩ 5% 0.01W 0402
3PE9 4822 117 13597 330Ω 5% 0402 0.01W
3PF0 3198 031 01210 120Ω 5% 0.01W 0402
3PF1 3198 031 01520 1.2kΩ 5% 0.01W 0402
3PF2 3198 031 02710 270Ω 5% 0.1W 0402
3PF3 3198 031 03320 3.3kΩ 5% 0402
3PF4 4822 117 13601 22kΩ 5% 0402
3PF5 4822 117 13548 1kΩ 5% 0402
3PF6 3198 031 05610 560Ω 5% 0.01W 0402
3PF7 4822 117 13543 470Ω 5% 0402
3PF7 4822 117 13545 100Ω 1% 0402
3PF8 3198 031 08210 820Ω 5% 0.5W
3PF9 3198 031 01210 120Ω 5% 0.01W 0402
3PG0 3198 031 05610 560Ω 5% 0.01W 0402
3PG1 3198 031 06890 68Ω 5% 0402
3PG2 3198 031 06810 680Ω 5% 0.01W 0402
3PG3 3198 031 06810 680Ω 5% 0.01W 0402
3PG4 3198 031 06810 680Ω 5% 0.01W 0402
3PG5 3198 031 06810 680Ω 5% 0.01W 0402
3PG6 3198 031 06810 680Ω 5% 0.01W 0402
3PG7 3198 031 04720 4.7kΩ 5% 0402
3PG8 4822 117 13548 1kΩ 5% 0402
3PH2 4822 117 13546 47Ω 5% 0402
3PH3 4822 117 13546 47Ω 5% 0402
3PH4 4822 117 13546 47Ω 5% 0402
3PH5 4822 117 13546 47Ω 5% 0402
3PH6 4822 117 13546 47Ω 5% 0402
3PH7 4822 117 13546 47Ω 5% 0402
3PH8 4822 117 13546 47Ω 5% 0402
3PH9 4822 117 13546 47Ω 5% 0402
3PI0 4822 117 13546 47Ω 5% 0402
3PJ0 3198 031 01090 10Ω 5% 0.01W 0402
3PJ1 3198 031 06810 680Ω 5% 0.01W 0402
3PJ2 4822 117 13597 330Ω 5% 0402 0.01W
3PJ3 3198 031 01210 120Ω 5% 0.01W 0402
3PJ4 3198 031 06810 680Ω 5% 0.01W 0402
3PJ5 3198 031 08210 820Ω 5% 0.5W
3PJ7 4822 117 13602 2.2kΩ 5% 0.01W 0402
3PJ8 3198 031 01820 1.8kΩ 5% 0.01W 0402
3PJ9 3198 031 04720 4.7kΩ 5% 0402
3T10 4822 117 13606 10kΩ 5% 0.01W 0402
3T11 4822 117 13606 10kΩ 5% 0.01W 0402
3T12 4822 117 13548 1kΩ 5% 0402
3T13 4822 117 13606 10kΩ 5% 0.01W 0402
3T14 3198 031 04730 47Ω 5% 0402
3T15 4822 117 13548 1kΩ 5% 0402
3T15 4822 117 13606 10kΩ 5% 0.01W 0402
3T16 4822 117 11297 100kΩ 5% 0.1W
3T17 4822 117 13606 10kΩ 5% 0.01W 0402
3T18 3198 031 02720 2.7kΩ 5% 0.01W 0402
3T19 4822 117 13596 220Ω 5% 0.01W 0402
3T20 2322 706 71002 1kΩ 1% 0402
3T22 3198 031 04720 4.7kΩ 5% 0402
3T23 4822 117 13548 1kΩ 5% 0402
3T24 2322 706 73902 3.9kΩ 1% 0402
3T25 3198 031 06820 6.8kΩ 5% 0.01W 0402
3T26 4822 117 13613 2.2Ω 5% 0603
3T27 4822 051 30109 10Ω 5% 0.062W
3T27 4822 117 13613 2.2Ω 5% 0603
3T28 4822 051 30109 10Ω 5% 0.062W
3T29 4822 117 13606 10kΩ 5% 0.01W 0402
3T30 4822 117 13606 10kΩ 5% 0.01W 0402
3T31 4822 117 13545 100Ω 1% 0402
3T32 4822 117 13548 1kΩ 5% 0402
3T33h5322 117 11726 10Ω 5%
3T51 4822 117 13548 1kΩ 5% 0402
3T52 4822 117 13606 10kΩ 5% 0.01W 0402
3T53 3198 031 04740 470kΩ 5% 0402
3T54 4822 117 13606 10kΩ 5% 0.01W 0402
3T55 4822 117 13606 10kΩ 5% 0.01W 0402
3T56 4822 117 13606 10kΩ 5% 0.01W 0402
3T57 4822 051 30101 100Ω 5% 0.062W
3T58 3198 031 04730 47Ω 5% 0402
3T59 4822 117 13606 10kΩ 5% 0.01W 0402
3T60 4822 117 13608 4.7Ω 5% 0603 0.62W
3U01 4822 051 30102 1kΩ 5% 0.062W
3U02 4822 117 13548 1kΩ 5% 0402
3U03 4822 117 13603 33kΩ 5% 0402
3U04 4822 051 20121 120Ω 5% 0.1W
3U05 4822 051 30102 1kΩ 5% 0.062W
3U05 4822 117 13548 1kΩ 5% 0402
3U06 4822 117 13543 470Ω 5% 0402
3U07 3198 031 02290 22Ω 5% 0.1W 0402
3U08 2322 706 71502 1.5kΩ 1% 0402
3U09 3198 031 05620 5.6kΩ 5% 0.01W 0402
3U10 3198 031 01210 120Ω 5% 0.01W 0402
3U10 4822 117 13596 220Ω 5% 0.01W 0402
3U11 4822 051 30121 120Ω 5% 0.062W
3U12 4822 117 13601 22kΩ 5% 0402
3U13 4822 117 13606 10kΩ 5% 0.01W 0402
3U14 4822 051 30102 1kΩ 5% 0.062W
3U15 2322 706 73302 3.3kΩ 1% 0402
3U16 3198 031 01210 120Ω 5% 0.01W 0402
3U17 3198 031 04780 4.7Ω 5% 0402
3U18 2322 704 61002 1kΩ 1%
3U18 2322 706 71002 1kΩ 1% 0402
3U19 3198 031 04720 4.7kΩ 5% 0402
3U20 2322 704 61002 1kΩ 1%
3U20 2322 706 71002 1kΩ 1% 0402
3U21 3198 031 04730 47Ω 5% 0402
3U22 3198 031 02710 270Ω 5% 0.1W 0402
3U23 3198 031 01090 10Ω 5% 0.01W 0402
3U24 4822 117 13601 22kΩ 5% 0402
3U25 3198 031 02240 220kΩ 5% 0.1W 0402
3U26 4822 117 13601 22kΩ 5% 0402
3U27 4822 117 13601 22kΩ 5% 0402
3U28 3198 031 04730 47Ω 5% 0402
3U29 4822 051 30109 10Ω 5% 0.062W
3U30 4822 051 20121 120Ω 5% 0.1W
3U31 4822 051 20121 120Ω 5% 0.1W
3U32 3198 031 01830 18kΩ 5% 0.01W 0402
3U33 4822 117 13606 10kΩ 5% 0.01W 0402
3U34 3198 031 04740 470kΩ 5% 0402
3U35 4822 117 13606 10kΩ 5% 0.01W 0402
3U36 4822 117 13602 2.2kΩ 5% 0.01W 0402
3U37 4822 117 13601 22kΩ 5% 0402
3U38 4822 117 13602 2.2kΩ 5% 0.01W 0402
3U39 4822 117 13601 22kΩ 5% 0402
3U40 3198 031 01540 150kΩ 5% 0402
3U41 4822 117 13548 1kΩ 5% 0402
3U42 4822 117 13606 10kΩ 5% 0.01W 0402
3U43 4822 117 13601 22kΩ 5% 0402
3U44 3198 031 01050 1MΩ 5% 0402
3U45 3198 031 01050 1MΩ 5% 0402
3U46 2322 706 74703 47kΩ 1% 0402
3U46 5322 117 13029 47kΩ 1% 0.063W 0603
3U51 9965 000 23109 22Ω 5% 0603
3U52 4822 051 30102 1kΩ 5% 0.062W
3U53 3198 031 01830 18kΩ 5% 0.01W 0402
3U54 4822 117 13545 100Ω 1% 0402
3U55 4822 051 30102 1kΩ 5% 0.062W
3U56 3198 031 04720 4.7kΩ 5% 0402
3U57 4822 117 13606 10kΩ 5% 0.01W 0402
3U60 4822 117 13548 1kΩ 5% 0402
3U61 4822 117 13606 10kΩ 5% 0.01W 0402
3U62 4822 117 13548 1kΩ 5% 0402
3U63 4822 117 13602 2.2kΩ 5% 0.01W 0402
3U64 4822 117 13548 1kΩ 5% 0402
3U65 4822 117 13548 1kΩ 5% 0402
3U66 4822 117 13606 10kΩ 5% 0.01W 0402
3U67 4822 117 13545 100Ω 1% 0402
3U68 4822 117 13606 10kΩ 5% 0.01W 0402
3U69 4822 117 13548 1kΩ 5% 0402
3U70 4822 051 30102 1kΩ 5% 0.062W
3V01 3198 031 01810 180Ω 5% 0402
3V02 3198 031 01810 180Ω 5% 0402
3V17 3198 031 01810 180Ω 5% 0402
3V18 3198 031 03910 390Ω 1% 0402
3V19 3198 031 01810 180Ω 5% 0402
3V20 3198 031 01810 180Ω 5% 0402
3V21 2350 033 11339 4 x 33Ω 5%
3V21 2350 033 11689 4x 68Ω 5% Netw.
3V22 2350 033 11339 4 x 33Ω 5%
3V22 2350 033 11689 4x 68Ω 5% Netw.
3V23 2350 033 11339 4 x 33Ω 5%
3V23 2350 033 11689 4x 68Ω 5% Netw.
3V24 2350 033 11339 4 x 33Ω 5%
3V24 2350 033 11689 4x 68Ω 5% Netw.
3V25 3198 031 01810 180Ω 5% 0402
3V26 3198 031 01810 180Ω 5% 0402
3V27 3198 031 01810 180Ω 5% 0402
3V28 3198 031 01810 180Ω 5% 0402
3V29 3198 031 01810 180Ω 5% 0402
3V30 3198 031 01810 180Ω 5% 0402
3V31 3198 031 01810 180Ω 5% 0402
3V32 3198 031 01810 180Ω 5% 0402
3V33 3198 031 01810 180Ω 5% 0402
3V34 3198 031 01810 180Ω 5% 0402
3V35 4822 117 13545 100Ω 1% 0402
3V36 4822 117 13545 100Ω 1% 0402
3V37 4822 117 13545 100Ω 1% 0402
3V38 4822 117 13545 100Ω 1% 0402
3V39 3198 031 04720 4.7kΩ 5% 0402
3V40 4822 117 13545 100Ω 1% 0402
3V50 4822 117 13606 10kΩ 5% 0.01W 0402
3V51 4822 117 13606 10kΩ 5% 0.01W 0402
3V52 3198 031 04730 47Ω 5% 0402
3V52 4822 117 13606 10kΩ 5% 0.01W 0402
3V53 3198 031 04730 47Ω 5% 0402
3V53 4822 117 13606 10kΩ 5% 0.01W 0402
3V54 4822 117 13606 10kΩ 5% 0.01W 0402
3V55 4822 117 13606 10kΩ 5% 0.01W 0402
3V56 4822 117 13545 100Ω 1% 0402
3Y00 4822 117 13545 100Ω 1% 0402
3Y01 4822 117 13545 100Ω 1% 0402
3Y02 4822 117 13545 100Ω 1% 0402
3Y03 4822 117 13545 100Ω 1% 0402
3Y04 4822 117 13602 2.2kΩ 5% 0.01W 0402
3Y05 4822 117 13545 100Ω 1% 0402
3Y06 4822 117 13543 470Ω 5% 0402
3Y06 4822 117 13545 100Ω 1% 0402
3Y07 4822 117 13545 100Ω 1% 0402
3Y08 4822 117 13545 100Ω 1% 0402
3Y09 4822 117 13545 100Ω 1% 0402
3Y10 4822 117 13545 100Ω 1% 0402
3Y11 4822 117 13545 100Ω 1% 0402
3Y12 4822 117 13545 100Ω 1% 0402
3Y13 4822 117 13543 470Ω 5% 0402
3Y13 4822 117 13545 100Ω 1% 0402
3Y14 3198 031 04720 4.7kΩ 5% 0402
3Y14 4822 051 30102 1kΩ 5% 0.062W
3Y14 4822 117 13548 1kΩ 5% 0402
3Y15 4822 051 30102 1kΩ 5% 0.062W
3Y15 4822 117 13548 1kΩ 5% 0402
3Y16 4822 051 30102 1kΩ 5% 0.062W
3Y16 4822 117 13548 1kΩ 5% 0402
3Y17 4822 117 13545 100Ω 1% 0402
3Y18 4822 117 13545 100Ω 1% 0402
3Y19 4822 117 13545 100Ω 1% 0402
3Y20 3198 031 06890 68Ω 5% 0402
3Y20 4822 117 12521 68Ω 1% 0.1W
3Y21 3198 031 06890 68Ω 5% 0402
3Y22 3198 031 06890 68Ω 5% 0402
3Y23 3198 031 06890 68Ω 5% 0402
3Y24 4822 117 11297 100kΩ 5% 0.1W
3Y25 4822 117 13545 100Ω 1% 0402
3Y27 4822 117 13545 100Ω 1% 0402
3Y28 4822 117 13545 100Ω 1% 0402
3Y29 3198 031 05620 5.6kΩ 5% 0.01W 0402
3Y30 3198 031 01530 15kΩ 5% 0.01W 0402
3Y34 4822 117 13545 100Ω 1% 0402
3Y35 4822 117 13545 100Ω 1% 0402
3Y36 4822 117 13545 100Ω 1% 0402
3Y37 3198 031 04720 4.7kΩ 5% 0402
3Y37 4822 117 13545 100Ω 1% 0402
3Y38 4822 117 13602 2.2kΩ 5% 0.01W 0402
3Y39 4822 117 13606 10kΩ 5% 0.01W 0402
3Y40 4822 117 13545 100Ω 1% 0402
3Z22 3198 031 04720 4.7kΩ 5% 0402
3Z23 4822 117 13545 100Ω 1% 0402
3Z27h4822 117 11151 1Ω 5%
3Z28h2422 086 00644 Fuse 2A T 125V
3Z28h4822 117 11151 1Ω 5%
3Z29 4822 117 13546 47Ω 5% 0402
3Z30 3198 031 04730 47Ω 5% 0402
3Z30 4822 117 13606 10kΩ 5% 0.01W 0402
3Z31 3198 031 04730 47Ω 5% 0402
3Z31 4822 117 13606 10kΩ 5% 0.01W 0402
3Z32 4822 117 13606 10kΩ 5% 0.01W 0402
3Z33 4822 117 13606 10kΩ 5% 0.01W 0402
3Z37 3198 031 04720 4.7kΩ 5% 0402
3Z55 4822 117 13545 100Ω 1% 0402
3Z56 4822 117 13548 1kΩ 5% 0402
9001 4822 117 13605 Jumper 0402
9002 4822 117 13605 Jumper 0402
9007 4822 117 13605 Jumper 0402
9010 4822 117 13605 Jumper 0402
9011h4822 117 13605 Jumper 0402
9012 4822 117 13605 Jumper 0402
9013 4822 117 13605 Jumper 0402
9016 4822 051 30008 Jumper 0603
9019 4822 117 13605 Jumper 0402
9020 4822 117 13605 Jumper 0402
9023 4822 117 13605 Jumper 0402
9024 4822 117 13605 Jumper 0402
9322 4822 117 13605 Jumper 0402
9410 4822 117 13605 Jumper 0402
9413 4822 117 13605 Jumper 0402
9416 4822 117 13605 Jumper 0402
9417 4822 117 13605 Jumper 0402
9418 4822 117 13605 Jumper 0402
9419 4822 117 13605 Jumper 0402
9420 4822 117 13605 Jumper 0402
9423 4822 117 13605 Jumper 0402
9424 4822 117 13605 Jumper 0402
9425 4822 117 13605 Jumper 0402
Spare Parts List EN 155FTL2.1E, FTL2.2E 10.
9426 4822 117 13605 Jumper 0402
9427 4822 117 13545 100Ω 1% 0402
9428 4822 117 13605 Jumper 0402
9702 4822 117 13605 Jumper 0402
9704 4822 117 13605 Jumper 0402
9706 4822 117 13605 Jumper 0402
9707 4822 117 13605 Jumper 0402
9708 4822 117 13605 Jumper 0402
9709 4822 117 13605 Jumper 0402
9710 4822 117 13605 Jumper 0402
9713 4822 117 13605 Jumper 0402
9714 4822 117 13605 Jumper 0402
9715 4822 117 13605 Jumper 0402
9716 4822 117 13605 Jumper 0402
9717 4822 117 13605 Jumper 0402
9718 4822 117 13605 Jumper 0402
9720 4822 117 13605 Jumper 0402
9721 4822 117 13605 Jumper 0402
9722 4822 117 13605 Jumper 0402
9723 4822 117 13605 Jumper 0402
9724 4822 117 13605 Jumper 0402
9727 4822 117 13605 Jumper 0402
9728 4822 117 13605 Jumper 0402
9730 4822 117 13605 Jumper 0402
9732 4822 117 13605 Jumper 0402
9750 4822 117 13605 Jumper 0402
9751 4822 117 13605 Jumper 0402
9752 4822 117 13605 Jumper 0402
9753 4822 117 13605 Jumper 0402
9754 4822 117 13605 Jumper 0402
9755 4822 117 13605 Jumper 0402
9756 4822 117 13605 Jumper 0402
9757 4822 117 13605 Jumper 0402
9758 4822 117 13605 Jumper 0402
9760 4822 117 13605 Jumper 0402
9761 4822 117 13605 Jumper 0402
9762 4822 117 13605 Jumper 0402
9763 4822 117 13605 Jumper 0402
9765 4822 117 13605 Jumper 0402
9766 4822 117 13605 Jumper 0402
9772 4822 117 13605 Jumper 0402
9773 4822 117 13605 Jumper 0402
9774 4822 117 13605 Jumper 0402
9775 4822 117 13605 Jumper 0402
9800 4822 117 13605 Jumper 0402
9801 4822 117 13605 Jumper 0402
9802 4822 117 13605 Jumper 0402
9803 4822 117 13605 Jumper 0402
9804 4822 117 13605 Jumper 0402
9805 4822 117 13605 Jumper 0402
9806 4822 117 13605 Jumper 0402
9808 4822 117 13605 Jumper 0402
9809 4822 117 13605 Jumper 0402
9811 4822 117 13605 Jumper 0402
9812 4822 117 13605 Jumper 0402
9813 2350 033 11689 4x 68Ω 5% Netw.
9814 2350 033 11689 4x 68Ω 5% Netw.
9815 2350 033 11229 4x 22Ω 5% Netw.
9815 4822 117 13605 Jumper 0402
9816 2350 033 11229 4x 22Ω 5% Netw.
9816 4822 117 13605 Jumper 0402
9817 2350 033 11229 4x 22Ω 5% Netw.
9817 4822 117 13605 Jumper 0402
9818 4822 117 13605 Jumper 0402
9819 2350 033 11229 4x 22Ω 5% Netw.
9820 2350 033 11229 4x 22Ω 5% Netw.
9820 4822 117 13605 Jumper 0402
9821 3198 031 06890 68Ω 5% 0402
9821 4822 117 13605 Jumper 0402
9822 3198 031 06890 68Ω 5% 0402
9822 4822 117 13605 Jumper 0402
9823 3198 031 06890 68Ω 5% 0402
9824 3198 031 06890 68Ω 5% 0402
9825 3198 031 06890 68Ω 5% 0402
9825 4822 117 13605 Jumper 0402
9826 3198 031 06890 68Ω 5% 0402
9826 4822 117 13605 Jumper 0402
9827 3198 031 06890 68Ω 5% 0402
9827 4822 117 13605 Jumper 0402
9A02 4822 117 13605 Jumper 0402
9A03 4822 117 13605 Jumper 0402
9A07 4822 117 13605 Jumper 0402
9A10 4822 117 13605 Jumper 0402
9A11 4822 117 13605 Jumper 0402
9A12 4822 117 13605 Jumper 0402
9A13 4822 117 13605 Jumper 0402
9A14 4822 117 13605 Jumper 0402
9A15 4822 117 13605 Jumper 0402
9A16 4822 117 13605 Jumper 0402
9A17 4822 117 13605 Jumper 0402
9A25 4822 117 13605 Jumper 0402
9A65 4822 117 13605 Jumper 0402
9C02 4822 117 13605 Jumper 0402
9E60 4822 117 13605 Jumper 0402
9E62 4822 117 13605 Jumper 0402
9E65 4822 117 13605 Jumper 0402
9E66 4822 117 13605 Jumper 0402
9E67 4822 117 13605 Jumper 0402
9E68 4822 117 13605 Jumper 0402
9E69 4822 117 13605 Jumper 0402
9E70 4822 117 13605 Jumper 0402
9E71 4822 117 13605 Jumper 0402
9E72 4822 117 13605 Jumper 0402
9E73 4822 117 13605 Jumper 0402
9E74 4822 117 13605 Jumper 0402
9E76 4822 117 13605 Jumper 0402
9E77 4822 117 13605 Jumper 0402
9I00 4822 117 13605 Jumper 0402
9I01 4822 117 13605 Jumper 0402
9I02 4822 117 13605 Jumper 0402
9I03 4822 117 13605 Jumper 0402
9I07 4822 117 13605 Jumper 0402
9I15 4822 117 13605 Jumper 0402
9I16 4822 117 13605 Jumper 0402
9I18 4822 117 13605 Jumper 0402
9I19 4822 117 13605 Jumper 0402
9I24 4822 117 13605 Jumper 0402
9I28 4822 117 13605 Jumper 0402
9I39 4822 117 13605 Jumper 0402
9I45 4822 117 13605 Jumper 0402
9I46 4822 117 13605 Jumper 0402
9I47 4822 117 13605 Jumper 0402
9I48 4822 117 13605 Jumper 0402
9I49 4822 117 13605 Jumper 0402
9I68 4822 117 13605 Jumper 0402
9I77 4822 117 13605 Jumper 0402
9I85 4822 117 13605 Jumper 0402
9IA1 4822 051 20008 Jumper 0805
9IA1 4822 117 13605 Jumper 0402
9IA3 4822 051 20008 Jumper 0805
9IA3 4822 117 13605 Jumper 0402
9IA5 4822 117 13605 Jumper 0402
9IA7 4822 117 13605 Jumper 0402
9ID0 4822 117 13605 Jumper 0402
9ID1 4822 117 13605 Jumper 0402
9ID3 4822 117 13605 Jumper 0402
9ID5 4822 117 13605 Jumper 0402
9ID8 4822 117 13605 Jumper 0402
9ID9 4822 117 13605 Jumper 0402
9P02 4822 117 13605 Jumper 0402
9P03 4822 117 13605 Jumper 0402
9P05 4822 117 13605 Jumper 0402
9P09 4822 117 13605 Jumper 0402
9P12 4822 117 13605 Jumper 0402
9P13 4822 117 13605 Jumper 0402
9P15 4822 117 13605 Jumper 0402
9P17 4822 117 13605 Jumper 0402
9P24 4822 117 13605 Jumper 0402
9P28 4822 117 13605 Jumper 0402
9P29 4822 117 13605 Jumper 0402
9P52 4822 117 13605 Jumper 0402
9P53 4822 117 13605 Jumper 0402
9P54 4822 117 13605 Jumper 0402
9P69 4822 117 13605 Jumper 0402
9P70 4822 117 13605 Jumper 0402
9P71 4822 117 13605 Jumper 0402
9P73 4822 117 13605 Jumper 0402
9P74 4822 117 13605 Jumper 0402
9P75 4822 117 13605 Jumper 0402
9PA2 4822 117 13605 Jumper 0402
9PA7 4822 117 13605 Jumper 0402
9PB1 4822 117 13605 Jumper 0402
9PB2 4822 117 13605 Jumper 0402
9PB4 4822 117 13605 Jumper 0402
9PB5 4822 117 13605 Jumper 0402
9PB8 4822 117 13605 Jumper 0402
9T01 4822 117 13601 22kΩ 5% 0402
9T02 4822 051 30223 22kΩ 5% 0.062W
9T02 4822 117 13601 22kΩ 5% 0402
9T04 4822 117 13605 Jumper 0402
9T06 4822 117 13605 Jumper 0402
9T07 4822 117 13605 Jumper 0402
9T08 4822 117 13605 Jumper 0402
9T09 4822 117 13605 Jumper 0402
9T10 4822 117 13605 Jumper 0402
9T11 4822 117 13605 Jumper 0402
9T12 4822 117 13605 Jumper 0402
9T14 4822 117 13605 Jumper 0402
9T50 4822 117 13605 Jumper 0402
9Y00 4822 117 13605 Jumper 0402
9Y01 4822 117 13605 Jumper 0402
9Y03 4822 117 13605 Jumper 0402
9Y05 4822 117 13605 Jumper 0402
9Y06 4822 117 13605 Jumper 0402
9Y12 4822 117 13605 Jumper 0402
9Y13 4822 117 13605 Jumper 0402
9Y14 4822 117 13605 Jumper 0402
9Y16 4822 117 13605 Jumper 0402
b
5003 4822 157 11716 Bead 30Ω at 100MHz
5401 3198 018 56880 6.8µH 10% 0603
5403 2422 549 00195 Bead 40.4MHz
5404 4822 157 11506 Bead 120Ω at 100MHz
5405 4822 157 11506 Bead 120Ω at 100MHz
5406 3198 018 52280 2.2µF 10% 1008
5408 2422 549 44983 Trimmer 78MHz 5CCB
5411 4822 157 11892 0.22µH 10% 0805
5415 4822 157 11716 Bead 30Ω at 100MHz
5416 4822 157 11716 Bead 30Ω at 100MHz
5703 4822 157 11716 Bead 30Ω at 100MHz
5705 4822 157 11876 6.8µH 10% 0805
5713 4822 157 11716 Bead 30Ω at 100MHz
5714 4822 157 11716 Bead 30Ω at 100MHz
5719 4822 157 11716 Bead 30Ω at 100MHz
5720 4822 157 11716 Bead 30Ω at 100MHz
5722 4822 157 11716 Bead 30Ω at 100MHz
5723 4822 157 11716 Bead 30Ω at 100MHz
5726 4822 157 11716 Bead 30Ω at 100MHz
5728 4822 157 11716 Bead 30Ω at 100MHz
5750 4822 157 11716 Bead 30Ω at 100MHz
5751 4822 157 11716 Bead 30Ω at 100MHz
5752 4822 157 11716 Bead 30Ω at 100MHz
5753 4822 157 11716 Bead 30Ω at 100MHz
5755 4822 157 11716 Bead 30Ω at 100MHz
5756 4822 157 11716 Bead 30Ω at 100MHz
5757 4822 157 11716 Bead 30Ω at 100MHz
5758 4822 157 11716 Bead 30Ω at 100MHz
5759 4822 157 11716 Bead 30Ω at 100MHz
5760 4822 157 11716 Bead 30Ω at 100MHz
5761 4822 157 11716 Bead 30Ω at 100MHz
5762 4822 157 11716 Bead 30Ω at 100MHz
5763 4822 157 11716 Bead 30Ω at 100MHz
5764 4822 157 11716 Bead 30Ω at 100MHz
5767 4822 157 11716 Bead 30Ω at 100MHz
5768 4822 157 11716 Bead 30Ω at 100MHz
5769 4822 157 11716 Bead 30Ω at 100MHz
5770 4822 157 11716 Bead 30Ω at 100MHz
5771 4822 157 11716 Bead 30Ω at 100MHz
5772 4822 157 11716 Bead 30Ω at 100MHz
5775 4822 157 11716 Bead 30Ω at 100MHz
5777 4822 157 11716 Bead 30Ω at 100MHz
5778 4822 157 11876 6.8µH 10% 0805
5779 4822 157 11716 Bead 30Ω at 100MHz
5800 4822 157 11716 Bead 30Ω at 100MHz
5801 4822 157 11716 Bead 30Ω at 100MHz
5A00 4822 157 11716 Bead 30Ω at 100MHz
5A01 4822 157 11716 Bead 30Ω at 100MHz
5A02 4822 157 11716 Bead 30Ω at 100MHz
5A03 4822 157 11716 Bead 30Ω at 100MHz
5A06 4822 157 11716 Bead 30Ω at 100MHz
5A19 4822 157 11828 22µH 20% 0805
5E00 4822 156 21729 Bead 1kΩ 100MHz 0805
5E01 2422 549 42896 Bead 120Ω 100MHz
5E01 4822 156 21729 Bead 1kΩ 100MHz 0805
5E02 4822 156 21729 Bead 1kΩ 100MHz 0805
5E03 4822 156 21729 Bead 1kΩ 100MHz 0805
5E50 2422 549 43062 Bead 600Ω at 100MHz
5E50 4822 157 11499 Bead 60Ω at 100MHz
5E51 2422 549 42896 Bead 120Ω 100MHz
5E51 2422 549 43062 Bead 600Ω at 100MHz
5E52 2422 549 43062 Bead 600Ω at 100MHz
5E53 2422 535 94134 10µH 20% 0805
5E53 2422 536 00779 10µH 20%
5E54 2422 549 43062 Bead 600Ω at 100MHz
5E54 4822 157 11499 Bead 60Ω at 100MHz
5E55 2422 549 43062 Bead 600Ω at 100MHz
5E58 2422 549 43062 Bead 600Ω at 100MHz
5I01 4822 157 11876 6.8µH 10% 0805
5I05 4822 157 11716 Bead 30Ω at 100MHz
5I06 4822 157 11716 Bead 30Ω at 100MHz
5I12 4822 157 11716 Bead 30Ω at 100MHz
5I13 4822 157 11716 Bead 30Ω at 100MHz
5I21 4822 157 11716 Bead 30Ω at 100MHz
5I22 4822 157 11716 Bead 30Ω at 100MHz
5I30 4822 157 11716 Bead 30Ω at 100MHz
5I31 4822 157 11716 Bead 30Ω at 100MHz
5I32 4822 157 11716 Bead 30Ω at 100MHz
5I33 4822 157 11716 Bead 30Ω at 100MHz
5I34 4822 157 11716 Bead 30Ω at 100MHz
5I35 4822 157 11716 Bead 30Ω at 100MHz
5I36 3198 018 34770 0.47µH 10% 0805
5I36 4822 157 11892 0.22µH 10% 0805
5I37 3198 018 34770 0.47µH 10% 0805
5I37 4822 157 11892 0.22µH 10% 0805
5I38 3198 018 34770 0.47µH 10% 0805
5I38 4822 157 11892 0.22µH 10% 0805
5I39 4822 157 11716 Bead 30Ω at 100MHz
5I40 4822 157 11716 Bead 30Ω at 100MHz
5I41 4822 157 11716 Bead 30Ω at 100MHz
Spare Parts List EN 156FTL2.1E, FTL2.2E 10.
5I42 4822 156 21729 Bead 1kΩ 100MHz 0805
5I45 4822 157 11716 Bead 30Ω at 100MHz
5I46 4822 157 11716 Bead 30Ω at 100MHz
5I47 4822 157 11716 Bead 30Ω at 100MHz
5L02 3198 018 51080 1µH 10% 0603
5L02 3198 018 54770 0.47µF 10% 0603
5L04 3198 018 54770 0.47µF 10% 0603
5L06 3198 018 51080 1µH 10% 0603
5L06 3198 018 54770 0.47µF 10% 0603
5L13 4822 156 21729 Bead 1kΩ 100MHz 0805
5L14 4822 156 21729 Bead 1kΩ 100MHz 0805
5L15 4822 156 21729 Bead 1kΩ 100MHz 0805
5L16 4822 157 11716 Bead 30Ω at 100MHz
5L17 4822 157 11716 Bead 30Ω at 100MHz
5L18 4822 157 11716 Bead 30Ω at 100MHz
5P00 4822 157 11716 Bead 30Ω at 100MHz
5P01 4822 157 11716 Bead 30Ω at 100MHz
5P02 3198 018 32770 0.27µH 10% 0805
5P03 4822 157 11716 Bead 30Ω at 100MHz
5P04 3198 018 56880 6.8µH 10% 0603
5P06 4822 157 10586 2.2µH 10% 0805
5P07 2422 549 00195 Bead 40.4MHz
5P08 2422 549 44983 Trimmer 78MHz 5CCB
5P09 4822 157 11716 Bead 30Ω at 100MHz
5P10 4822 157 11716 Bead 30Ω at 100MHz
5P51 4822 157 11716 Bead 30Ω at 100MHz
5PA0 4822 157 71694 0.82µH 10%
5PA1 3198 018 31290 12µH 10%
5PA2 4822 157 10977 4.7µH 10%
5PA3 4822 157 10977 4.7µH 10%
5PA4 4822 157 71694 0.82µH 10%
5PA5 3198 018 31290 12µH 10%
5PA6 3198 018 31290 12µH 10%
5PA7 3198 018 31290 12µH 10%
5PA8 3198 018 31290 12µH 10%
5PA9 4822 157 11716 Bead 30Ω at 100MHz
5PB0 4822 157 11716 Bead 30Ω at 100MHz
5T02 4822 157 71206 Bead 600Ω 100MHz
5T03 2422 535 94134 10µH 20% 0805
5T04 4822 157 71206 Bead 600Ω 100MHz
5T10 2422 536 00779 10µH 20%
5T11 2422 535 94995 10µF 20% 10145
5T14 2422 549 44197 Bead 220Ω at 100MHz
5T15 2422 549 44197 Bead 220Ω at 100MHz
5T20 4822 157 71206 Bead 600Ω 100MHz
5T22 4822 157 71206 Bead 600Ω 100MHz
5T25 2422 535 94134 10µH 20% 0805
5U01 3104 308 20661 Transf. BD13118-02
5U02 2422 535 94134 10µH 20% 0805
5U02 2422 536 00779 10µH 20%
5U03 2422 549 44197 Bead 220Ω at 100MHz
5U03 4822 157 11716 Bead 30Ω at 100MHz
5U04 2422 549 44197 Bead 220Ω at 100MHz
5U04 4822 157 11716 Bead 30Ω at 100MHz
5U05 2422 535 94134 10µH 20% 0805
5U05 2422 536 00779 10µH 20%
5U06 2422 535 94134 10µH 20% 0805
5U06 2422 536 00779 10µH 20%
5Y00 4822 157 11716 Bead 30Ω at 100MHz
5Y01 4822 157 11716 Bead 30Ω at 100MHz
5Y02 2422 549 44197 Bead 220Ω at 100MHz
5Y03 2422 549 44197 Bead 220Ω at 100MHz
5Y06 4822 157 11716 Bead 30Ω at 100MHz
5Y07 4822 157 11716 Bead 30Ω at 100MHz
5Y11 4822 157 11716 Bead 30Ω at 100MHz
5Y12 4822 157 11716 Bead 30Ω at 100MHz
5Y13 4822 157 11716 Bead 30Ω at 100MHz
5Y14 4822 157 11716 Bead 30Ω at 100MHz
5Y15 4822 157 11716 Bead 30Ω at 100MHz
5Y16 4822 157 11716 Bead 30Ω at 100MHz
5Y17 4822 157 11716 Bead 30Ω at 100MHz
5Y18 4822 157 11716 Bead 30Ω at 100MHz
5Y19 2422 549 43769 Bead 30Ω at 100MHz
5Y19 4822 157 11716 Bead 30Ω at 100MHz
5Y20 4822 157 11716 Bead 30Ω at 100MHz
5Y21 4822 117 10353 150Ω 1% 0.1W
5Y21 4822 157 11716 Bead 30Ω at 100MHz
5Y22 4822 117 10353 150Ω 1% 0.1W
5Y22 4822 157 11716 Bead 30Ω at 100MHz
5Y23 4822 157 11716 Bead 30Ω at 100MHz
5Z01 2422 549 45325 Bead 67Ω at 100MHz
5Z02 2422 549 45325 Bead 67Ω at 100MHz
5Z03 2422 549 45325 Bead 67Ω at 100MHz
5Z04 2422 549 45325 Bead 67Ω at 100MHz
5Z05 2422 549 45325 Bead 67Ω at 100MHz
5Z06 2422 549 44197 Bead 220Ω at 100MHz
5Z07 2422 549 44197 Bead 220Ω at 100MHz
5Z08 2422 549 44197 Bead 220Ω at 100MHz
5Z09 2422 549 44197 Bead 220Ω at 100MHz
d
6001 4822 130 80622 BAT54
6002 4822 130 11397 BAS316
6003 4822 130 80622 BAT54
6004 4822 130 80622 BAT54
6005 4822 130 11422 PLVA2650A
6006 4822 130 11564 UDZ3.9B
6403 9340 552 30115 BA591
6701 4822 130 11397 BAS316
6702 4822 130 11397 BAS316
6703 4822 130 11397 BAS316
6705 4822 130 11397 BAS316
6710 4822 130 11397 BAS316
6711 4822 130 11397 BAS316
6712 4822 130 11397 BAS316
6713 4822 130 11397 BAS316
6714 4822 130 11397 BAS316
6715 4822 130 11397 BAS316
6717 4822 130 11397 BAS316
6718 4822 130 11397 BAS316
6719 9322 128 69685 S1D
6720 4822 130 11397 BAS316
6721 4822 130 11397 BAS316
6722 4822 130 11397 BAS316
6723 4822 130 11397 BAS316
6A00 4822 130 11551 UDZS10B
6A01 4822 130 11397 BAS316
6A02 4822 130 10838 UDZ3.3B
6A02 9322 159 70685 MM3Z9V1
6E51 4822 130 11397 BAS316
6E52 4822 130 11397 BAS316
6E53 4822 130 11397 BAS316
6E54 4822 130 11397 BAS316
6E55 4822 130 11397 BAS316
6E56 4822 130 11397 BAS316
6I01 4822 130 10328 BAV99W
6I06 4822 130 10328 BAV99W
6I07 4822 130 10328 BAV99W
6I08 4822 130 11423 PLVA2656A
6I09 4822 130 11423 PLVA2656A
6I10 4822 130 11397 BAS316
6I11 4822 130 11397 BAS316
6I12 4822 130 11397 BAS316
6I13 4822 130 11397 BAS316
6I14 4822 130 10328 BAV99W
6I15 4822 130 10328 BAV99W
6I16 4822 130 10328 BAV99W
6I17 4822 130 10328 BAV99W
6I18 4822 130 10328 BAV99W
6I19 4822 130 10328 BAV99W
6I20 4822 130 10328 BAV99W
6I21 4822 130 10328 BAV99W
6I22 4822 130 11416 PDZ6.8B
6I23 4822 130 11416 PDZ6.8B
6I24 4822 130 11416 PDZ6.8B
6I25 4822 130 11416 PDZ6.8B
6I26 4822 130 11416 PDZ6.8B
6I27 4822 130 11416 PDZ6.8B
6I28 4822 130 11416 PDZ6.8B
6I29 4822 130 11416 PDZ6.8B
6I30 4822 130 11416 PDZ6.8B
6I31 4822 130 11416 PDZ6.8B
6I32 4822 130 11416 PDZ6.8B
6I33 4822 130 11416 PDZ6.8B
6I35 4822 130 11416 PDZ6.8B
6I36 4822 130 11416 PDZ6.8B
6I37 4822 130 11416 PDZ6.8B
6I38 4822 130 11416 PDZ6.8B
6I39 4822 130 11416 PDZ6.8B
6I40 4822 130 11416 PDZ6.8B
6I41 4822 130 11416 PDZ6.8B
6I42 4822 130 11416 PDZ6.8B
6I43 4822 130 11416 PDZ6.8B
6I44 4822 130 11416 PDZ6.8B
6I45 4822 130 11416 PDZ6.8B
6I46 4822 130 11416 PDZ6.8B
6I47 4822 130 11416 PDZ6.8B
6I48 4822 130 11416 PDZ6.8B
6I49 9322 129 41685 BZM55-C12
6I50 4822 130 11416 PDZ6.8B
6I51 4822 130 11416 PDZ6.8B
6I52 4822 130 11416 PDZ6.8B
6I53 4822 130 11416 PDZ6.8B
6I54 4822 130 11416 PDZ6.8B
6I55 4822 130 11416 PDZ6.8B
6I56 4822 130 11416 PDZ6.8B
6I61 4822 130 11416 PDZ6.8B
6I63 4822 130 11397 BAS316
6I64 4822 130 11397 BAS316
6I65 4822 130 11397 BAS316
6I66 4822 130 11397 BAS316
6I68 4822 130 11416 PDZ6.8B
6I69 4822 130 11416 PDZ6.8B
6I70 4822 130 11416 PDZ6.8B
6I75 4822 130 11416 PDZ6.8B
6I77 4822 130 11416 PDZ6.8B
6I90 4822 130 11416 PDZ6.8B
6I91 4822 130 11416 PDZ6.8B
6I92 4822 130 11416 PDZ6.8B
6I93 4822 130 11416 PDZ6.8B
6I99 4822 130 11422 PLVA2650A
6I99 4822 130 11423 PLVA2656A
6IA0 9322 129 41685 BZM55-C12
6IA7 4822 130 11397 BAS316
6P03 9340 552 30115 BA591
6P10 9322 102 64685 UDZ2.7B
6PA1 4822 130 11397 BAS316
6PB1 4822 130 11397 BAS316
6PB2 4822 130 11397 BAS316
6PB3 4822 130 11397 BAS316
6PB4 4822 130 11397 BAS316
6PB5 4822 130 11397 BAS316
6PB6 4822 130 11397 BAS316
6PB7 4822 130 11397 BAS316
6PB8 4822 130 11397 BAS316
6PB9 4822 130 11397 BAS316
6T01 4822 130 11397 BAS316
6T02 4822 130 11397 BAS316
6T03 4822 130 11397 BAS316
6T04 4822 130 11397 BAS316
6T08 9340 548 71115 PDZ33B
6T10 4822 130 11397 BAS316
6T11 9340 548 58115 PDZ9.1B
6U01 4822 130 11397 BAS316
6U03 4822 130 11397 BAS316
6U04 4822 130 11397 BAS316
6U05 9322 129 41685 BZM55-C12
6U06 9322 203 37685 BZG05C3V9
6U07 4822 130 11416 PDZ6.8B
6U08 4822 130 80622 BAT54
6U09 4822 130 80622 BAT54
6U10 4822 130 11522 UDZ15B
6U11 4822 130 11397 BAS316
6U12 9340 548 52115 PDZ5.1B
6U13 9340 548 58115 PDZ9.1B
6U14 4822 130 10328 BAV99W
6U14 4822 130 11397 BAS316
6U15 4822 130 11397 BAS316
6U16 9340 548 52115 PDZ5.1B
6U17 4822 130 11416 PDZ6.8B
6V05 9322 085 77685 TLMG3100
6Z00 3198 020 55680 BZX384-C5V6
ce
7001 9352 684 81557 SAA5801H/015
7002 3198 010 42320 BC857BW
7003 3198 010 42310 BC847BW
7004 3198 010 42310 BC847BW
7005 9322 172 45668 LF33ABDT
7006 For SW see item 0601
7007 9322 157 20668 MSM51V18165F-60J
7008 3198 010 42310 BC847BW
7009 3198 010 42310 BC847BW
7010 3198 010 42320 BC857BW
7011 9322 130 41668 M24C64-WMN6
7012 9322 199 93668 M29W400DT-55N6
7013 3198 010 42310 BC847BW
7014 3198 010 42320 BC857BW
7017 9340 310 30215 PDTC144ET
7018 9352 115 40118 74LVC245APW
7019 9352 115 40118 74LVC245APW
7020 3198 010 42310 BC847BW
7021 9340 425 30115 BC847BPN
7022 3198 010 42320 BC857BW
7022 9340 310 30215 PDTC144ET
7320 3198 010 42310 BC847BW
7322 3198 010 42310 BC847BW
7323 9352 625 24518 TDA9321H/N2
7402 3198 010 42310 BC847BW
7403 3198 010 42310 BC847BW
7407 3198 010 42320 BC857BW
7410 3198 010 42310 BC847BW
7411 3198 010 42310 BC847BW
7414 3198 010 42310 BC847BW
7415 3198 010 42310 BC847BW
7701 9322 170 14668 LF15ABDT
7703 3198 010 42310 BC847BW
7705 3198 010 42310 BC847BW
7706 3198 010 70400 74LVC1G14GW
7707 3198 010 42310 BC847BW
7708 3198 010 42310 BC847BW
7709 3198 010 42310 BC847BW
7710 3198 010 42310 BC847BW
7711 2422 486 80938 Socket 32p f PLCC
7711 For SW see item 0605
7712 9351 870 00118 74HC573PW
7713 9352 688 09557 SAA4978H/V204
7714 9965 000 02179 MS81V04160-25TB
Spare Parts List EN 157FTL2.1E, FTL2.2E 10.
7715 4822 209 73852 PMBT2369
7717 4822 209 73852 PMBT2369
7719 9322 206 19672 MSM56V16160F-7T3-FG
7720 9322 207 36702 T6TX5EF-0001
7725 4822 209 73852 PMBT2369
7752 9322 202 21671 T6TU5XB-0001
7753 9322 206 19672 MSM56V16160F-7T3-FG
7760 9352 730 86557 SAA4998H/V1
7772 9322 170 14668 LF15ABDT
7773 9322 179 78668 LF18ABDT
7774 9322 142 88668 LF25CDT
7A00 4822 209 30095 LM833D
7A01 3198 010 42310 BC847BW
7A02 9322 196 03702 MSP3411G-QI-B8V3
7A03 4822 209 30095 LM833D
7A04 4822 130 60373 BC856B
7A06 5322 209 16349 TDA7309D
7A07 9322 183 05668 TS482ID
7A08 9340 425 20115 BC847BS
7A09 4822 130 60373 BC856B
7A10 9340 425 20115 BC847BS
7A31 9340 425 20115 BC847BS
7E01 9322 142 88668 LF25CDT
7E02 For SW see item 0602
7E03 9352 687 21165 74LVC1G126GW
7E04 9352 687 20125 74LVC1G125GW
7E05 9322 170 14668 LF15ABDT
7E10 9352 686 35118 PCA9515DP
7E12 9340 425 20115 BC847BS
7E23 9322 181 72671 AD9883AKST-110
7E24 9322 205 36668 AD9283BRSZ-50
7E25 3198 010 42320 BC857BW
7E26 3198 010 42320 BC857BW
7E27 3198 010 42320 BC857BW
7I01 9340 425 20115 BC847BS
7I02 9340 425 20115 BC847BS
7I03 9340 425 20115 BC847BS
7I04 3198 010 42310 BC847BW
7I05 9340 425 30115 BC847BPN
7I07 4822 130 60142 BC869
7I09 3198 010 42310 BC847BW
7I12 9351 869 40118 74HC4053PW
7I17 9322 116 87668 TEA6422D
7I18 9322 183 61682 SII907BCQ52
7I19 For SW see item 0603
7I20 9351 869 40118 74HC4053PW
7I21 9340 425 30115 BC847BPN
7I22 3198 010 42310 BC847BW
7I23 9340 425 20115 BC847BS
7I26 3198 010 42320 BC857BW
7I27 3198 010 42320 BC857BW
7I28 3198 010 42320 BC857BW
7I29 3198 010 42320 BC857BW
7I30 3198 010 42320 BC857BW
7I31 3198 010 42320 BC857BW
7I32 9351 869 40118 74HC4053PW
7I33 9351 869 40118 74HC4053PW
7I35 3198 010 42310 BC847BW
7I36 3198 010 42310 BC847BW
7I37 3198 010 42320 BC857BW
7I38 3198 010 42310 BC847BW
7I44 9340 425 20115 BC847BS
7I45 4822 130 11155 PDTC114ET
7I49 9340 310 30215 PDTC144ET
7I50 9340 425 30115 BC847BPN
7I51 9340 560 35235 BSH112
7I52 9340 560 35235 BSH112
7I53 9340 425 30115 BC847BPN
7I55 4822 209 12776 TDA8601T/C1
7I55 4822 209 16095 BA7657F
7I56 3198 010 42310 BC847BW
7I56 3198 010 42320 BC857BW
7I57 3198 010 42310 BC847BW
7I57 3198 010 42320 BC857BW
7I58 3198 010 42310 BC847BW
7I58 3198 010 42320 BC857BW
7I62 3198 010 42310 BC847BW
7I64 3198 010 42310 BC847BW
7I71 9340 425 30115 BC847BPN
7L01 9322 181 72671 AD9883AKST-110
7L02 4822 209 17398 LD1117DT33
7P00 3198 010 42310 BC847BW
7P04 3198 010 42320 BC857BW
7P05 3198 010 42310 BC847BW
7P06 3198 010 42310 BC847BW
7P07 9340 425 20115 BC847BS
7P08 3198 010 42310 BC847BW
7P09 9352 625 24518 TDA9321H/N2
7P52 9340 425 20115 BC847BS
7P53 9340 425 10115 BC857BS
7P54 4822 209 12776 TDA8601T/C1
7P54 9322 208 56668 BA7609F
7P55 9350 399 00118 TDA9820T/V1
7P56 4822 209 17345 M62320FP
7P58 9340 425 20115 BC847BS
7P59 9340 425 20115 BC847BS
7P60 9352 690 58125 74LVC1G66GW
7P61 9340 425 20115 BC847BS
7P62 9352 690 58125 74LVC1G66GW
7P63 3198 010 42320 BC857BW
7PA0 3198 010 42310 BC847BW
7PA1 3198 010 42310 BC847BW
7PA2 3198 010 42310 BC847BW
7PA5 3198 010 42310 BC847BW
7PA6 9352 639 83557 SAB9083H/N4
7PA7 3198 010 42310 BC847BW
7PA8 3198 010 42310 BC847BW
7PA9 3198 010 42310 BC847BW
7PB1 9352 683 81115 74LVC1G32GW
7PB2 3198 010 42310 BC847BW
7PB5 3198 010 42310 BC847BW
7PB6 3198 010 42310 BC847BW
7T01 9322 160 70668 SI4936ADY
7T04 9322 182 77668 L6910
7T10 9340 425 20115 BC847BS
7T11 9340 425 30115 BC847BPN
7T12 3198 010 42310 BC847BW
7T13 9340 425 30115 BC847BPN
7U01 4822 130 60373 BC856B
7U02 4822 130 60373 BC856B
7U03 9322 091 04668 SI4410DY
7U04 9322 091 04668 SI4410DY
7U05 3198 010 42320 BC857BW
7U06 9340 425 20115 BC847BS
7U07 9340 425 30115 BC847BPN
7U08 4822 130 42804 BC817-25
7U09 4822 130 42804 BC817-25
7U10 3198 010 42310 BC847BW
7U11 3198 010 42310 BC847BW
7U12 3198 010 42310 BC847BW
7U13 9340 425 30115 BC847BPN
7V01 9322 200 14671 EP1C12F256C8
7V03 9322 206 19672 MSM56V16160F-7T3-FG
7V04 9340 425 20115 BC847BS
7Y01 4822 130 10255 MUN2213
7Y01 9340 310 30215 PDTC144ET
7Y02 3198 010 42320 BC857BW
7Z00 3198 010 42310 BC847BW
7Z01 9322 204 10685 SI3441BDV
Side I/O Panel [D]
(FTL2.1E Top)
Various
1001 2422 026 05133 Connector SVHS 4p f
1002 4822 267 10975 Soc. CINCH f YeWhRd
1010 4822 267 31014 Soc. headphone
1M36 2422 025 17179 Connector 11p m
g
2003 2022 552 05679 1µF 10% 16V 0805
2004 3198 016 36810 680pF 25V 0603
2005 2020 552 94427 100pF 5% 50V
2006 3198 016 36810 680pF 25V 0603
2007 2020 552 94427 100pF 5% 50V
2008 2238 916 15641 22nF 10% 25V 0603
2009 5322 126 11583 10nF 10% 50V 0603
2010 2238 916 15641 22nF 10% 25V 0603
2011 5322 126 11583 10nF 10% 50V 0603
f
3000 4822 051 30759 75Ω 5% 0.062W
3004 4822 051 30759 75Ω 5% 0.062W
3008 4822 051 30222 2.2kΩ 5% 0.062W
3009 4822 051 30102 1kΩ 5% 0.062W
3010 4822 051 30333 33kΩ 5% 0.062W
3011 4822 051 30392 3.9Ω 5% 0.063W 0603
3012 4822 051 30102 1kΩ 5% 0.062W
3013 4822 051 30333 33kΩ 5% 0.062W
3016 4822 051 30103 10kΩ 5% 0.062W
3020 4822 051 30103 10kΩ 5% 0.062W
9004 4822 051 30008 Jumper 0603
9005 4822 051 30008 Jumper 0603
9006 4822 051 30008 Jumper 0603
9007 4822 051 30008 Jumper 0603
9008 4822 051 30008 Jumper 0603
9009 4822 051 30008 Jumper 0603
9010 4822 051 30008 Jumper 0603
9011 4822 051 30008 Jumper 0603
d
6000 4822 130 11416 PDZ6.8B
6001 4822 130 11416 PDZ6.8B
6002 4822 130 11416 PDZ6.8B
6003 4822 130 11416 PDZ6.8B
6004 4822 130 11416 PDZ6.8B
6005 4822 130 11416 PDZ6.8B
6006 4822 130 11416 PDZ6.8B
6007 4822 130 11416 PDZ6.8B
6008 4822 130 11416 PDZ6.8B
6009 4822 130 11416 PDZ6.8B
6010 4822 130 11416 PDZ6.8B
6011 4822 130 11416 PDZ6.8B
Top Control Panel [E]
(FTL2.1E Top)
Various
0345 2422 025 16544 Connector 6p m
1014 3104 328 28921 Top control 2K4
1701 4822 276 13775 Switch 1p 0.1A 12V
1702 4822 276 13775 Switch 1p 0.1A 12V
1703 4822 276 13775 Switch 1p 0.1A 12V
1704 4822 276 13775 Switch 1p 0.1A 12V
1705 4822 276 13775 Switch 1p 0.1A 12V
1710 4822 276 14007 Switch 2p 0.1A 12V
8345 3104 311 07041 Cable 6P/1000/6P
f
3008 4822 117 10845 620Ω 1% 0.1W
3010 4822 117 11534 1.1kΩ 1% 0.1W
3011 4822 117 11951 2kΩ 1% 0.1W
3013 4822 117 13528 200Ω 1% 0.125W 0805
3014 3198 031 03910 390Ω 1% 0402
3017 4822 051 30339 33Ω 5% 0.062W
3018 4822 051 30339 33Ω 5% 0.062W
3019 4822 051 30339 33Ω 5% 0.062W
3020 4822 051 30339 33Ω 5% 0.062W
3021 4822 051 30339 33Ω 5% 0.062W
3022 4822 051 30339 33Ω 5% 0.062W
3023 4822 051 30339 33Ω 5% 0.062W
3024 4822 051 30339 33Ω 5% 0.062W
3025 4822 051 30339 33Ω 5% 0.062W
3026 4822 051 30339 33Ω 5% 0.062W
3027 4822 051 30339 33Ω 5% 0.062W
3028 4822 051 30339 33Ω 5% 0.062W
3999 4822 117 13602 2.2kΩ 5% 0.01W 0402
9000 4822 117 13605 Jumper 0402
d
6001 9322 198 19685 SML512BC2T
6002 9322 198 19685 SML512BC2T
6003 9322 198 19685 SML512BC2T
6004 9322 198 19685 SML512BC2T
6005 9322 198 19685 SML512BC2T
6006 9322 198 19685 SML512BC2T
6007 9322 198 19685 SML512BC2T
6008 9322 198 19685 SML512BC2T
6009 9322 198 19685 SML512BC2T
6010 9322 198 19685 SML512BC2T
6011 9322 198 19685 SML512BC2T
6012 9322 198 19685 SML512BC2T
SCART3 Panel [H]
(FTL2.1E Top)
Various
1003 2422 025 14911 Socket Euro 21p f
1M07 4822 267 10637 Connector 5p
1M36 2422 025 10655 Connector 11p m
1M37 2422 025 10655 Connector 11p m
g
2500 2022 552 05679 1µF 10% 16V 0805
2501 2020 552 94427 100pF 5% 50V
2502 2022 552 05679 1µF 10% 16V 0805
2503 2020 552 94427 100pF 5% 50V
2504 2022 552 05679 1µF 10% 16V 0805
2505 2022 552 05679 1µF 10% 16V 0805
2506 2238 586 59812 100nF 20% 50V 0603
2507 5322 126 11578 1nF 10% 50V 0603
Spare Parts List EN 158FTL2.1E, FTL2.2E 10.
2508 2022 552 05679 1µF 10% 16V 0805
2509 2238 586 59812 100nF 20% 50V 0603
2510 4822 126 14241 330pF 0603 50V
2511 2238 586 59812 100nF 20% 50V 0603
2512 2238 586 59812 100nF 20% 50V 0603
2513 2238 586 59812 100nF 20% 50V 0603
2515 2022 552 05679 1µF 10% 16V 0805
2516 2022 552 05679 1µF 10% 16V 0805
2517 2022 552 05679 1µF 10% 16V 0805
f
3500 4822 051 30101 100Ω 5% 0.062W
3501 4822 051 30101 100Ω 5% 0.062W
3502 4822 051 30223 22kΩ 5% 0.062W
3503 4822 051 30101 100Ω 5% 0.062W
3504 4822 051 30101 100Ω 5% 0.062W
3505 4822 051 30223 22kΩ 5% 0.062W
3506 4822 051 30759 75Ω 5% 0.062W
3507 4822 051 30759 75Ω 5% 0.062W
3508 4822 051 30759 75Ω 5% 0.062W
3509 4822 051 30101 100Ω 5% 0.062W
3510 4822 051 30759 75Ω 5% 0.062W
3511 4822 051 30479 47Ω 5% 0.062W
3512 4822 051 30479 47Ω 5% 0.062W
3513 4822 051 30479 47Ω 5% 0.062W
3514 4822 051 30479 47Ω 5% 0.062W
3515 4822 051 30479 47Ω 5% 0.062W
3516 4822 051 30479 47Ω 5% 0.062W
3517 4822 117 12925 47kΩ 1% 0.063W 0603
3522 4822 051 30272 2.7kΩ 5% 0.062W
3523 4822 051 30223 22kΩ 5% 0.062W
3524 4822 051 30479 47Ω 5% 0.062W
3525 4822 051 30102 1kΩ 5% 0.062W
3526 5322 117 13056 8.2kΩ 1% 0.063W 0603
3527 4822 051 30683 68kΩ 5% 0.062W
3528 4822 051 30223 22kΩ 5% 0.062W
3529 4822 051 30102 1kΩ 5% 0.062W
3535 4822 051 30479 47Ω 5% 0.062W
3536 4822 051 30103 10kΩ 5% 0.062W
3543 4822 051 30759 75Ω 5% 0.062W
3599 4822 051 30102 1kΩ 5% 0.062W
3999 4822 051 30102 1kΩ 5% 0.062W
9502 4822 051 30008 Jumper 0603
9508 4822 051 30008 Jumper 0603
9509 3198 036 90010 Wire 0.58mm
9510 3198 036 90010 Wire 0.58mm
9511 3198 036 90010 Wire 0.58mm
9512 3198 036 90010 Wire 0.58mm
9513 3198 036 90010 Wire 0.58mm
9514 3198 036 90010 Wire 0.58mm
9515 3198 036 90010 Wire 0.58mm
9521 4822 051 30008 Jumper 0603
9523 3198 036 90010 Wire 0.58mm
9524 4822 051 30008 Jumper 0603
9525 3198 036 90010 Wire 0.58mm
9526 3198 036 90010 Wire 0.58mm
d
6500 4822 130 11416 PDZ6.8B
6501 4822 130 11416 PDZ6.8B
6502 4822 130 11416 PDZ6.8B
6503 4822 130 11416 PDZ6.8B
6504 4822 130 11397 BAS316
6505 4822 130 11416 PDZ6.8B
6506 4822 130 11416 PDZ6.8B
6507 9322 129 41685 BZM55-C12
6508 4822 130 11551 UDZS10B
ce
7501 3198 010 42310 BC847BW
7502 3198 010 42310 BC847BW
7515 9351 869 40118 74HC4053PW
7516 9351 869 40118 74HC4053PW
LED/Switch Panel [J]
(FTL2.1E Top)
Various
0075 3104 317 06821 SW (see Prod. Survey)
0164 3122 358 76351 LED holder IR
0345 2422 025 16961 Connector 6p m SMD
0350 2422 025 16966 Connector 5p m SMD
1020 2422 543 01431 Xtal 20MHz 16pF
1M01 2422 025 17103 Connector 3p m SMD
1M20 2422 025 17441 Connector 12p m
g
2020 3198 034 01590 15pF 1% 50V 0402
2021 2238 586 59812 100nF 20% 50V 0603
2022 2238 780 15654 220nF 10% 16V 0805
2023 3198 034 01590 15pF 1% 50V 0402
2030 4822 124 23002 10µF 16V
2040 4822 124 12095 100µF 20% 16V
2060 5322 124 41945 22µF 20% 35V
2070 4822 126 14583 470nF 10% 16V 0805
2071 4822 124 23002 10µF 16V
f
3010 4822 117 13545 100Ω 1% 0402
3011 4822 117 13545 100Ω 1% 0402
3021 4822 117 13602 2.2kΩ 5% 0.01W 0402
3022 2322 702 60568 5.6Ω 5% 0603
3022 4822 051 30759 75Ω 5% 0.062W
3023 4822 117 12925 47kΩ 1% 0.063W 0603
3024 3198 031 03320 3.3kΩ 5% 0402
3025 4822 117 13606 10kΩ 5% 0.01W 0402
3026 4822 117 13606 10kΩ 5% 0.01W 0402
3027 4822 117 13596 220Ω 5% 0.01W 0402
3028 4822 117 13606 10kΩ 5% 0.01W 0402
3029 4822 117 13606 10kΩ 5% 0.01W 0402
3030 3198 031 04720 4.7kΩ 5% 0402
3031 4822 117 12889 270kΩ 1% 0.063W 0603
3031 4822 117 13632 100kΩ 1% 0603 0.62W
3032 2322 705 70184 180Ω 5% 0402
3033 4822 051 30102 1kΩ 5% 0.062W
3034 4822 117 13548 1kΩ 5% 0402
3035 3198 031 04720 4.7kΩ 5% 0402
3036 3198 031 02280 2.2Ω 5% 0.1W 0402
3037 3198 031 02280 2.2Ω 5% 0.1W 0402
3040 4822 117 13597 330Ω 5% 0402 0.01W
3041 4822 117 13606 10kΩ 5% 0.01W 0402
3042 3198 031 06820 6.8kΩ 5% 0.01W 0402
3051 4822 117 13597 330Ω 5% 0402 0.01W
3060 4822 117 13606 10kΩ 5% 0.01W 0402
3061 4822 051 30331 330Ω 5% 0.062W
3062 4822 117 11373 100Ω 1% 0805
3063 4822 117 13606 10kΩ 5% 0.01W 0402
3064 4822 117 11373 100Ω 1% 0805
3070 2322 705 70475 4.7MΩ 5% 0402
3071 2322 705 70475 4.7MΩ 5% 0402
3072 4822 117 13548 1kΩ 5% 0402
3073 3198 031 03320 3.3kΩ 5% 0402
3074 4822 117 13606 10kΩ 5% 0.01W 0402
3075 3198 031 04720 4.7kΩ 5% 0402
3078 3198 031 03320 3.3kΩ 5% 0402
3079 3198 031 03320 3.3kΩ 5% 0402
3081 4822 117 13545 100Ω 1% 0402
3088 4822 117 13545 100Ω 1% 0402
3090 4822 117 13545 100Ω 1% 0402
3999 4822 117 13606 10kΩ 5% 0.01W 0402
9013 4822 117 13605 Jumper 0402
9019 4822 117 13605 Jumper 0402
9022 4822 051 30008 Jumper 0603
9024 4822 051 30008 Jumper 0603
9026 4822 117 13605 Jumper 0402
9027 4822 117 13605 Jumper 0402
9040 4822 117 13605 Jumper 0402
9043 4822 117 13605 Jumper 0402
b
5020 2422 549 43062 Bead 600Ω at 100MHz
d
6030 4822 130 11397 BAS316
6031 4822 130 11397 BAS316
6051 4822 130 83915 TLMV3100
6060 9322 198 19685 SML512BC2T
6061 4822 130 11397 BAS316
6070 9322 140 63685 TEMD5000
6080 9322 127 27676 TSAL5300
ce
7020 9340 218 60115 BC857CW
7021 9340 218 60115 BC857CW
7030 3198 010 42320 BC857BW
7031 5322 130 62804 BCP53
7032 3198 010 42310 BC847BW
7060 3198 010 42310 BC847BW
7061 3198 010 42310 BC847BW
7070 9322 192 63668 LM358P
7075 For SW see item 0075
Proximity Sensor Panel [PR]
(FTL2.1E Top)
Various
0350 4822 267 10596 Connector 5p
1040 9322 206 81667 TSOP34836YA1
g
2021 4822 124 41584 100µF 20% 10V
2022 2238 780 15654 220nF 10% 16V 0805
2040 4822 124 41584 100µF 20% 10V
f
3010 4822 051 30101 100Ω 5% 0.062W
3021 4822 051 30222 2.2kΩ 5% 0.062W
3022 2322 702 60568 5.6Ω 5% 0603
3022 4822 051 30759 75Ω 5% 0.062W
3023 4822 117 12925 47kΩ 1% 0.063W 0603
3024 4822 051 30332 3.3Ω 5% 0.062W
3040 4822 051 30331 330Ω 5% 0.062W
3041 4822 051 30103 10kΩ 5% 0.062W
3042 4822 051 30682 6.8Ω 5% 0.062W
9040 4822 051 30008 Jumper 0603
9043 4822 051 30008 Jumper 0603
d
6020 9322 127 27676 TSAL5300
ce
7020 9340 218 60115 BC857CW
7021 9340 218 60115 BC857CW
Stand-by Supply/Audio Panel [SA]
(FTL2.1E Top)
Various
1303 2422 025 04475 Connector 4p m
1303 2422 025 10647 Connector 4p m
1304 2422 025 10647 Connector 4p m
1305 4822 267 10735 Connector 3p
1306 2422 025 16374 Connector 2p m
1307 2422 025 10647 Connector 4p m
1309 2422 025 04475 Connector 4p m
1309 2422 025 11143 Connector 3p m
1314 2422 025 10771 Connector 10p m
1315 2422 025 10771 Connector 10p m
1316 2422 025 10772 Connector 12p m
1317 2422 025 10772 Connector 12p m
1318 2422 025 08149 Connector 6p m
1320 2422 025 04475 Connector 4p m
1320 2422 025 11143 Connector 3p m
1735 2422 025 10768 Connector 3p m
1736 2422 025 10768 Connector 3p m
1738 2422 025 10768 Connector 3p m
1739 2422 025 10769 Connector 9p m
1M02 2422 025 11244 Connector 7p m
1M03 2422 025 10771 Connector 10p m
1M10 2422 025 09406 Connector 4p m
1M46 2422 025 10655 Connector 11p m
g
2101 4822 121 51598 2.2nF 5% 400V
2102 4822 124 40207 100µF 20% 25V
2103 2020 552 94427 100pF 5% 50V
2105 2020 552 94427 100pF 5% 50V
2107 2020 024 90718 10µF 20% 450V
2108 2020 024 90718 10µF 20% 450V
2109 2022 552 05679 1µF 10% 16V 0805
2110 2022 552 05679 1µF 10% 16V 0805
2111 4822 121 43526 47nF 5% 250V
2112 5322 126 11583 10nF 10% 50V 0603
2123 2238 586 59812 100nF 20% 50V 0603
2124 4822 124 40248 10µF 20% 63V
2129 5322 126 11578 1nF 10% 50V 0603
2131 2238 586 15641 22nF 10% 50V 0603
2132 4822 124 40207 100µF 20% 25V
2140 4822 124 40248 10µF 20% 63V
2141 4822 126 14583 470nF 10% 16V 0805
2144 2022 552 05679 1µF 10% 16V 0805
Spare Parts List EN 159FTL2.1E, FTL2.2E 10.
2145 4822 126 13881 470pF 5% 50V
2149 2022 552 05679 1µF 10% 16V 0805
2150 4822 124 12379 220µF 25V
2152 4822 121 70162 10nF 5% 400V
2153 5322 126 11582 6.8nF 10% 63V
2154 3198 017 31530 15nF 20% 50V 0603
2160 4822 124 21913 1µF 20% 63V
2163 4822 124 40207 100µF 20% 25V
2506 2252 811 95017 470pF 10% 250V
2507 4822 126 13682 100pF 5% 1kV
2508 4822 124 40764 22µF 100V
2510 2020 021 91668 2200µF 20% 10V
2511 4822 124 12379 220µF 25V
2512 4822 124 12379 220µF 25V
2513 4822 126 10206 2.2nF 10% 500V
2515 4822 126 14238 2.2nF 50V 0603
2533 4822 124 40207 100µF 20% 25V
2534 2020 552 96448 1µF 10% 16V 0805
2535 5322 126 11583 10nF 10% 50V 0603
2536 5322 126 11583 10nF 10% 50V 0603
2537 4822 126 14238 2.2nF 50V 0603
2538 5322 126 11583 10nF 10% 50V 0603
2539 2020 552 96448 1µF 10% 16V 0805
2539 4822 126 14583 470nF 10% 16V 0805
2540 5322 126 11583 10nF 10% 50V 0603
2544 5322 126 11583 10nF 10% 50V 0603
2702 5322 126 11578 1nF 10% 50V 0603
2704 5322 126 11578 1nF 10% 50V 0603
2705 2020 552 96684 470nF 10% 25V 0805
2706 2222 580 15649 100nF 10% 50V 0805
2707 4822 126 14585 100nF 10% 0805 50V
2708 2020 552 96326 220nF 10% 16V
2709 4822 126 13881 470pF 5% 50V
2710 4822 126 13881 470pF 5% 50V
2711 5322 126 11578 1nF 10% 50V 0603
2712 2020 552 96683 220nF 10% 50V
2713 2020 552 96684 470nF 10% 25V 0805
2714 4822 126 14549 33nF 16V 0603
2715 5322 126 11578 1nF 10% 50V 0603
2716 4822 126 14241 330pF 0603 50V
2717 5322 121 42498 680nF 5% 63V
2718 4822 122 33761 22pF 5% 50V
2719 5322 126 11578 1nF 10% 50V 0603
2720 2020 552 96326 220nF 10% 16V
2721 4822 126 13881 470pF 5% 50V
2722 4822 126 13881 470pF 5% 50V
2723 5322 126 11578 1nF 10% 50V 0603
2726 4822 126 14549 33nF 16V 0603
2727 5322 126 11578 1nF 10% 50V 0603
2728 4822 126 14241 330pF 0603 50V
2729 5322 121 42498 680nF 5% 63V
2741 4822 122 33761 22pF 5% 50V
2743 4822 126 12105 33nF 5% 50V 0805
2753 2020 552 96326 220nF 10% 16V
2754 4822 126 14491 2.2µF 10V 0805
2755 5322 126 11578 1nF 10% 50V 0603
2756 4822 126 13881 470pF 5% 50V
2758 5322 121 42498 680nF 5% 63V
2759 5322 126 10511 1nF 5% 50V
2762 2020 552 96326 220nF 10% 16V
2764 4822 126 14491 2.2µF 10V 0805
2766 4822 126 14491 2.2µF 10V 0805
2768 4822 124 40255 100µF 20% 63V
2769 4822 124 40255 100µF 20% 63V
2777 2020 552 96683 220nF 10% 50V
2778 4822 124 40769 4.7µF 20% 100V
2779 2020 552 96683 220nF 10% 50V
2780 2020 552 96683 220nF 10% 50V
2781 2020 552 96683 220nF 10% 50V
2782 2020 552 96683 220nF 10% 50V
2783 4822 124 41751 47µF 20% 50V
2784 2020 552 96683 220nF 10% 50V
2786 2238 586 15641 22nF 10% 50V 0603
2788 4822 124 40255 100µF 20% 63V
2789 2020 552 96683 220nF 10% 50V
2790 4822 124 40255 100µF 20% 63V
2791 2022 552 05679 1µF 10% 16V 0805
2792 2022 552 05679 1µF 10% 16V 0805
2793 4822 124 40255 100µF 20% 63V
2794 2022 552 05679 1µF 10% 16V 0805
2795 2020 552 96683 220nF 10% 50V
2796 2022 552 05679 1µF 10% 16V 0805
2797 4822 126 14076 220nF +80/-20% 25V
2798 4822 126 14076 220nF +80/-20% 25V
2799 4822 124 40255 100µF 20% 63V
f
3100 4822 051 30101 100Ω 5% 0.062W
3101 4822 053 20475 4.7MΩ 5% 0.25W
3102 2312 915 11002 1kΩ 1% 0.5W
3103 2312 915 11002 1kΩ 1% 0.5W
3104 4822 051 30479 47Ω 5% 0.062W
3105 4822 051 30221 220Ω 5% 0.062W
3106 4822 051 30391 390Ω 5% 0.062W
3107 4822 051 30391 390Ω 5% 0.062W
3108 4822 053 10478 4.7Ω 5% 1W
3109 4822 051 30391 390Ω 5% 0.062W
3110 4822 051 30391 390Ω 5% 0.062W
3111 4822 053 10152 1.5kΩ 5% 1W
3112 4822 051 30391 390Ω 5% 0.062W
3113 9965 000 23109 22Ω 5% 0603
3114 4822 051 30221 220Ω 5% 0.062W
3117 4822 051 30479 47Ω 5% 0.062W
3121 4822 051 30109 10Ω 5% 0.062W
3122 4822 051 30471 47Ω 5% 0.062W
3123 4822 051 30109 10Ω 5% 0.062W
3124 4822 051 30339 33Ω 5% 0.062W
3125 4822 117 12971 15Ω 5% 0603 0.62W
3126 4822 051 30103 10kΩ 5% 0.062W
3127 4822 051 30562 5.6kΩ 5% 0.063W 0603
3128 4822 117 13608 4.7Ω 5% 0603 0.62W
3132 4822 051 30333 33kΩ 5% 0.062W
3134 4822 051 30102 1kΩ 5% 0.062W
3135 4822 051 30331 330Ω 5% 0.062W
3138 4822 051 30105 1MΩ 5% 0.062W
3140 4822 051 30223 22kΩ 5% 0.062W
3141 4822 051 30471 47Ω 5% 0.062W
3142 4822 051 30123 12kΩ 5% 0.1W
3145 4822 051 30472 4.7Ω 5% 0.062W
3146 4822 051 30479 47Ω 5% 0.062W
3147 4822 051 30223 22kΩ 5% 0.062W
3148 4822 051 30479 47Ω 5% 0.062W
3149 4822 051 30103 10kΩ 5% 0.062W
3150 4822 051 30101 100Ω 5% 0.062W
3152 4822 051 30102 1kΩ 5% 0.062W
3153 4822 051 30223 22kΩ 5% 0.062W
3155 4822 050 21003 10kΩ 1% 0.6W
3156 4822 051 30102 1kΩ 5% 0.062W
3157 4822 051 30223 22kΩ 5% 0.062W
3158 4822 051 30479 47Ω 5% 0.062W
3159 4822 051 30479 47Ω 5% 0.062W
3160 4822 051 30102 1kΩ 5% 0.062W
3161 4822 051 30123 12kΩ 5% 0.1W
3171 4822 051 30101 100Ω 5% 0.062W
3172 4822 051 30333 33kΩ 5% 0.062W
3175 4822 051 30103 10kΩ 5% 0.062W
3176 4822 051 30103 10kΩ 5% 0.062W
3190 4822 050 22702 2.7kΩ 1% 0.6W
3190 4822 053 10122 1.2kΩ 5% 1W
3191 4822 050 22702 2.7kΩ 1% 0.6W
3191 4822 053 10122 1.2kΩ 5% 1W
3192 4822 050 22702 2.7kΩ 1% 0.6W
3192 4822 053 10122 1.2kΩ 5% 1W
3509 4822 053 10222 2.2kΩ 5% 1W
3511 4822 051 30683 68kΩ 5% 0.062W
3512 4822 051 30471 47Ω 5% 0.062W
3513 4822 051 30333 33kΩ 5% 0.062W
3515 4822 117 13632 100kΩ 1% 0603 0.62W
3516 4822 051 30472 4.7Ω 5% 0.062W
3517 4822 051 30223 22kΩ 5% 0.062W
3528 4822 051 30472 4.7Ω 5% 0.062W
3529 4822 051 30101 100Ω 5% 0.062W
3530 4822 051 30223 22kΩ 5% 0.062W
3531 4822 051 30153 15kΩ 5% 0.062W
3532 4822 051 30472 4.7Ω 5% 0.062W
3533 4822 051 30152 1.5Ω 5% 0.062W
3534 4822 051 30103 10kΩ 5% 0.062W
3538 4822 051 30101 100Ω 5% 0.062W
3539 4822 051 30471 47Ω 5% 0.062W
3540 4822 051 30222 2.2kΩ 5% 0.062W
3541 4822 051 30222 2.2kΩ 5% 0.062W
3542 4822 051 30103 10kΩ 5% 0.062W
3544 4822 051 30221 220Ω 5% 0.062W
3560 4822 051 30682 6.8Ω 5% 0.062W
3561 4822 051 30392 3.9Ω 5% 0.063W 0603
3562 4822 117 13608 4.7Ω 5% 0603 0.62W
3701 4822 051 30103 10kΩ 5% 0.062W
3702 4822 051 30103 10kΩ 5% 0.062W
3702 4822 051 30682 6.8Ω 5% 0.062W
3703 4822 051 30333 33kΩ 5% 0.062W
3704 4822 117 10833 10kΩ 1% 0.1W
3705 4822 051 20828 8.2Ω 5% 0.1W
3706 4822 051 30472 4.7Ω 5% 0.062W
3707 4822 051 30683 68kΩ 5% 0.062W
3708 4822 051 30563 56kΩ 5% 0.062W
3709 4822 117 11503 220Ω 1% 0.1W
3710 4822 051 30223 22kΩ 5% 0.062W
3711 4822 050 21204 120kΩ 1% 0.6W
3712 4822 051 30103 10kΩ 5% 0.062W
3713 2312 915 11202 1.2kΩ 1% 0.5W
3714 4822 117 12925 47kΩ 1% 0.063W 0603
3715 4822 117 12925 47kΩ 1% 0.063W 0603
3716 4822 117 12925 47kΩ 1% 0.063W 0603
3717 4822 117 13632 100kΩ 1% 0603 0.62W
3718 4822 117 13632 100kΩ 1% 0603 0.62W
3720 4822 117 11503 220Ω 1% 0.1W
3721 4822 051 30472 4.7Ω 5% 0.062W
3722 4822 051 30683 68kΩ 5% 0.062W
3723 4822 051 30563 56kΩ 5% 0.062W
3724 4822 117 11503 220Ω 1% 0.1W
3725 4822 051 30223 22kΩ 5% 0.062W
3726 4822 117 11503 220Ω 1% 0.1W
3727 4822 117 11503 220Ω 1% 0.1W
3729 4822 117 10837 100kΩ 1% 0.1W
3730 4822 117 11503 220Ω 1% 0.1W
3741 4822 051 30103 10kΩ 5% 0.062W
3743 4822 117 11449 2.2kΩ 5% 0.1W 0805
3744 4822 117 13632 100kΩ 1% 0603 0.62W
3746 4822 051 30223 22kΩ 5% 0.062W
3747 4822 117 12925 47kΩ 1% 0.063W 0603
3748 4822 051 30471 47Ω 5% 0.062W
3749 4822 051 30471 47Ω 5% 0.062W
3750 4822 117 11449 2.2kΩ 5% 0.1W 0805
3751 4822 117 11449 2.2kΩ 5% 0.1W 0805
3752 4822 051 30331 330Ω 5% 0.062W
3753 4822 117 11449 2.2kΩ 5% 0.1W 0805
3754 4822 051 30223 22kΩ 5% 0.062W
3755 4822 051 30471 47Ω 5% 0.062W
3756 4822 117 11449 2.2kΩ 5% 0.1W 0805
3757 4822 117 11449 2.2kΩ 5% 0.1W 0805
3758 5322 117 13056 8.2kΩ 1% 0.063W 0603
3759 4822 051 30332 3.3Ω 5% 0.062W
3760 4822 051 30332 3.3Ω 5% 0.062W
3761 4822 051 20109 10Ω 5% 0.1W
3762 4822 051 30222 2.2kΩ 5% 0.062W
3763 4822 051 30222 2.2kΩ 5% 0.062W
3764 4822 051 20109 10Ω 5% 0.1W
3765 4822 117 13632 100kΩ 1% 0603 0.62W
3766 4822 117 13632 100kΩ 1% 0603 0.62W
3767 4822 117 13632 100kΩ 1% 0603 0.62W
3768 4822 117 13632 100kΩ 1% 0603 0.62W
3790 4822 051 30272 2.7kΩ 5% 0.062W
3791 4822 051 30272 2.7kΩ 5% 0.062W
3792 4822 051 30103 10kΩ 5% 0.062W
3793 4822 051 30103 10kΩ 5% 0.062W
3794 4822 051 30103 10kΩ 5% 0.062W
3796 4822 051 30272 2.7kΩ 5% 0.062W
3798 4822 051 30153 15kΩ 5% 0.062W
3999 4822 051 30102 1kΩ 5% 0.062W
3999 4822 051 30682 6.8Ω 5% 0.062W
9020 4822 051 30008 Jumper 0603
9110 4822 051 30008 Jumper 0603
9717 4822 051 30008 Jumper 0603
9737 4822 051 30008 Jumper 0603
b
5102 4822 526 10704 Bead 50 Ω at 100MHz
5103 4822 526 10704 Bead 50 Ω at 100MHz
5104 4822 157 11411 Bead 80Ω at 100MHz
5105 4822 157 11716 Bead 30Ω at 100MHz
5106 3198 018 31090 10µH 10% 0805
5108 4822 526 10704 Bead 50 Ω at 100MHz
5110 4822 157 71736 10µH 5%
5500h3104 308 21181 Transf. BS25320-00
5504 2422 536 00776 33µH 10%
5505 4822 157 11411 Bead 80Ω at 100MHz
5506 4822 157 11411 Bead 80Ω at 100MHz
5507 2422 536 00433 15µH 10%
5508 2422 536 00433 15µH 10%
5701 2422 536 00385 68µH 10%
5701 2422 536 00685 68µF 10%
5702 2422 536 00385 68µH 10%
5702 2422 536 00685 68µF 10%
5703 4822 157 11716 Bead 30Ω at 100MHz
5704 4822 157 11411 Bead 80Ω at 100MHz
5707 4822 157 11411 Bead 80Ω at 100MHz
5708 4822 157 11411 Bead 80Ω at 100MHz
5711 4822 157 11411 Bead 80Ω at 100MHz
5712 4822 157 11411 Bead 80Ω at 100MHz
5720 2422 536 00385 68µH 10%
5720 2422 536 00685 68µF 10%
5722 4822 157 11411 Bead 80Ω at 100MHz
5723 4822 157 11411 Bead 80Ω at 100MHz
d
6103 4822 130 10871 SBYV27-200
6104 9340 548 69115 PDZ27B
6105 4822 130 11522 UDZ15B
6106 9340 548 66115 PDZ20B
6108 4822 130 80622 BAT54
6114 4822 130 10871 SBYV27-200
6115 4822 130 80622 BAT54
6116 3198 020 55680 BZX384-C5V6
6120 4822 130 11397 BAS316
6121 4822 130 11397 BAS316
6122 9322 129 34685 BZM55-C3V9
Spare Parts List EN 160FTL2.1E, FTL2.2E 10.
6130 9322 129 41685 BZM55-C12
6132 4822 130 11416 PDZ6.8B
6133 4822 130 11397 BAS316
6134 4822 130 11397 BAS316
6140 4822 130 41487 BYV95C
6142 4822 130 80622 BAT54
6144 4822 130 11397 BAS316
6147 9322 200 23685 SML4736
6148 4822 130 11397 BAS316
6149 3198 020 55680 BZX384-C5V6
6150 9340 292 50135 BZG03-C200
6151 9340 548 71115 PDZ33B
6153 9340 292 50135 BZG03-C200
6156 4822 130 11397 BAS316
6504 9340 418 70133 BYV27-600
6505 9322 161 78682 SB360L-7024
6511 9322 129 41685 BZM55-C12
6531 4822 130 11522 UDZ15B
6532 4822 130 11397 BAS316
6540 4822 130 80622 BAT54
6562 9340 548 67115 PDZ22B
6701 4822 130 11397 BAS316
6702 4822 130 11551 UDZS10B
6703 4822 130 11551 UDZS10B
6710 4822 130 11551 UDZS10B
6711 4822 130 11551 UDZS10B
ce
7100 3198 010 42320 BC857BW
7101 9340 219 30115 BC817-25W
7102 9322 160 34687 FQPF3N60
7102 9322 194 27687 STP3NK60ZFP
7105 3198 010 42320 BC857BW
7131 9340 557 69127 PHX9NQ20T
7140 3198 010 42310 BC847BW
7150h9322 149 04682 TCET1102
7501h9322 149 04682 TCET1102
7505 3198 010 42320 BC857BW
7506 3198 010 42310 BC847BW
7507 3198 010 42310 BC847BW
7509 3198 010 42310 BC847BW
7511 9337 331 10215 BST82
7512 9340 422 80115 PMSTA42
7531 9340 436 50115 BSP030
7532 3198 010 42310 BC847BW
7560 9340 219 30115 BC817-25W
7700 9322 163 86682 TDA7490L
7701 3198 010 42310 BC847BW
7701 5322 130 60159 BC846B
7702 9322 147 23682 TDA7481
7703 3198 010 42310 BC847BW
7703 5322 130 60159 BC846B
7704 3198 010 42310 BC847BW
7704 5322 130 60159 BC846B
7705 3198 010 42310 BC847BW
7705 5322 130 60159 BC846B
7706 3198 010 42320 BC857BW
7706 4822 130 60373 BC856B
7707 3198 010 42310 BC847BW
7707 5322 130 60159 BC846B
7708 3198 010 42310 BC847BW
7708 5322 130 60159 BC846B
7709 3198 010 42310 BC847BW
7709 5322 130 60159 BC846B
7710 3198 010 42310 BC847BW
7710 5322 130 60159 BC846B
7711 3198 010 42310 BC847BW
7711 5322 130 60159 BC846B
7712 5322 130 60159 BC846B
7713 4822 130 60373 BC856B
7715 4822 209 30095 LM833D
Spare Parts List EN 161FTL2.1E, FTL2.2E 10.
Set Level
(FTL2.2E Wrap)
Various
1004h9322 209 35682 LQ315T3LZ13 (Sharp)
1004 9322 217 44682 LC320W01-A6K1 (LPL)
8206 3104 311 08361 Cable 2P3/400/2P3
8302 3104 311 04721 Cable 7P/680/7P
8304 3104 311 08281 Cable 4P/480/4P
8305 3104 311 08431 Cable 3P/480/3P
8307 3104 311 08381 Cable 4P/400/4P
8309 3104 311 08311 Cable 3P/480/4P
8314 3104 311 08531 Cable 10P/820/10P
8315 3104 311 08531 Cable 10P/820/10P
8318 3104 311 06841 Cable 6P/820/6P
8350 3104 311 08901 Cable 31P/230/30P
8735 3104 311 08601 Cable 2P3/820/2xPOSI
8736 3104 311 07551 Cable 2p3/1600/2p
MF Supply Panel [A]
(FTL2.2E Wrap)
Various
1007h4822 071 55002 Fuse T5A 250V
1304 2422 025 10647 Connector 4p m
1305 4822 267 10735 Connector 3p
1306 2422 025 16374 Connector 2p m
1307 2422 025 10647 Connector 4p m
1308 4822 265 20723 Connector 2p
1309 2422 025 11143 Connector 3p m
1400h4822 253 50145 Fuse 3.15A T
1402 4822 252 60151 Surge protect
1410 4822 265 11253 Fuse holder
1411 4822 265 11253 Fuse holder
1450h2422 132 07411 Relay 1p 5V 5A
1M02 2422 025 11244 Connector 7p m
g
2000h2252 811 95022 1.5nF 20% 250V
2002h4822 124 11767 470µF 20% 25V
2003h4822 124 80061 1000µF 20% 25V
2007h4822 126 14583 470nF 10% 16V 0805
2008h4822 126 14583 470nF 10% 16V 0805
2009h2238 867 18101 100pF 1% 50V 0603
2010h4822 124 40207 100µF 20% 25V
2011 2222 375 90161 18nF 1.6kV 5%
2012h4822 126 13862 1.5nF 10% 2kV
2013h4822 126 13862 1.5nF 10% 2kV
2014h4822 126 13451 2.2nF 10% 2kV
2015h5322 126 11583 10nF 10% 50V 0603
2016h2238 586 59812 100nF 20% 50V 0603
2017 2222 375 90161 18nF 1.6kV 5%
2019 5322 126 11583 10nF 10% 50V 0603
2020 2020 021 00012 2200µF 20% 16V
2021 2020 021 00012 2200µF 20% 16V
2022 4822 124 81168 2200 µF 20% 35V
2023 4822 126 14583 470nF 10% 16V 0805
2024 2020 552 96326 220nF 10% 16V
2025 2020 552 96683 220nF 10% 50V
2026 4822 126 14238 2.2nF 50V 0603
2028 5322 126 11578 1nF 10% 50V 0603
2029 5322 126 11578 1nF 10% 50V 0603
2033 2020 552 96683 220nF 10% 50V
2034 2238 867 18101 100pF 1% 50V 0603
2035 2238 867 18101 100pF 1% 50V 0603
2036 4822 126 14583 470nF 10% 16V 0805
2037 4822 126 14583 470nF 10% 16V 0805
2038 4822 124 81168 2200 µF 20% 35V
2039 4822 126 14583 470nF 10% 16V 0805
2040 4822 126 14249 560pF 10% 50V 0603
2041 2020 552 96683 220nF 10% 50V
2042 2020 552 96683 220nF 10% 50V
2043 2020 552 96683 220nF 10% 50V
2044 5322 126 11578 1nF 10% 50V 0603
2045 5322 126 11578 1nF 10% 50V 0603
2046 3198 017 34730 47nF 16V 0603
2047 5322 126 11583 10nF 10% 50V 0603
2048 5322 126 11578 1nF 10% 50V 0603
2050 5322 126 11578 1nF 10% 50V 0603
2051 2020 552 96683 220nF 10% 50V
2052 2020 552 96683 220nF 10% 50V
2053 2020 552 96683 220nF 10% 50V
2060 4822 126 14238 2.2nF 50V 0603
2061 4822 126 14238 2.2nF 50V 0603
2062 4822 126 14238 2.2nF 50V 0603
2063 4822 126 13881 470pF 5% 50V
2064 4822 126 13881 470pF 5% 50V
2065 4822 126 14238 2.2nF 50V 0603
2071 5322 126 11578 1nF 10% 50V 0603
2072 5322 126 11578 1nF 10% 50V 0603
2077 4822 126 14238 2.2nF 50V 0603
2290 5322 126 11583 10nF 10% 50V 0603
2291 4822 126 13881 470pF 5% 50V
2292 4822 124 12417 2200µF 20% 25V
2293 4822 126 13881 470pF 5% 50V
2294 4822 124 12417 2200µF 20% 25V
2400 2222 338 22474 470nF 20% 275V
2407 2252 811 95017 470pF 10% 250V
2503 2020 024 90718 10µF 20% 450V
2816 2020 024 00001 330µF 20% 400V
f
3000 4822 052 10478 4.7Ω 5% 0.33W
3001 4822 051 30101 100Ω 5% 0.062W
3002 4822 117 12925 47kΩ 1% 0.063W 0603
3003 4822 117 13632 100kΩ 1% 0603 0.62W
3004 4822 051 30273 27kΩ 5% 0.062W
3005 4822 051 30333 33kΩ 5% 0.062W
3006 4822 051 30103 10kΩ 5% 0.062W
3007 4822 051 30103 10kΩ 5% 0.062W
3008 4822 051 30331 330Ω 5% 0.062W
3009 4822 051 30332 3.3Ω 5% 0.062W
3010 4822 051 30471 47Ω 5% 0.062W
3011 4822 051 30471 47Ω 5% 0.062W
3012 4822 051 30153 15kΩ 5% 0.062W
3013 4822 051 30103 10kΩ 5% 0.062W
3014 4822 052 10101 100Ω 5% 0.33W
3015 4822 052 10479 47Ω 5% 0.33W
3016 4822 051 30332 3.3Ω 5% 0.062W
3017 4822 052 10101 100Ω 5% 0.33W
3018 4822 052 10479 47Ω 5% 0.33W
3019 4822 051 30332 3.3Ω 5% 0.062W
3020 4822 051 30332 3.3Ω 5% 0.062W
3021 4822 117 12971 15Ω 5% 0603 0.62W
3022 4822 051 30681 680Ω 5% 0.062W
3023 4822 051 30153 15kΩ 5% 0.062W
3025 3198 021 31820 1.8kΩ 5% 0.062W 0603
3026 2120 368 90118 Potm. lin. 470Ω hor.
3027 4822 117 13632 100kΩ 1% 0603 0.62W
3028 4822 051 30332 3.3Ω 5% 0.062W
3029 4822 051 30332 3.3Ω 5% 0.062W
3030 4822 051 30183 18kΩ 5% 0.062W
3031 4822 051 30103 10kΩ 5% 0.062W
3032 4822 051 30103 10kΩ 5% 0.062W
3033 4822 052 11108 1Ω 5% 0.5W
3034 4822 051 30102 1kΩ 5% 0.062W
3035 4822 051 30332 3.3Ω 5% 0.062W
3036 4822 117 13632 100kΩ 1% 0603 0.62W
3039 4822 051 30102 1kΩ 5% 0.062W
3040 5322 117 13056 8.2kΩ 1% 0.063W 0603
3041 4822 051 30333 33kΩ 5% 0.062W
3042 4822 051 30123 12kΩ 5% 0.1W
3043 4822 051 30109 10Ω 5% 0.062W
3044 4822 051 30471 47Ω 5% 0.062W
3045 4822 117 12971 15Ω 5% 0603 0.62W
3046 4822 117 12971 15Ω 5% 0603 0.62W
3047 4822 051 30479 47Ω 5% 0.062W
3048 4822 051 30272 2.7kΩ 5% 0.062W
3049 4822 051 30333 33kΩ 5% 0.062W
3050 4822 050 28204 820kΩ 1% 0.6W
3051 4822 051 30472 4.7Ω 5% 0.062W
3052 2322 704 67502 7.5kΩ 1% 0.5W
3053 4822 050 26804 680kΩ 1% 0.6W
3054 4822 051 30472 4.7Ω 5% 0.062W
3055 4822 051 30221 220Ω 5% 0.062W
3056 4822 051 30221 220Ω 5% 0.062W
3057 4822 051 30221 220Ω 5% 0.062W
3058 4822 053 20565 5.6MΩ 5% 0.25W
3059 4822 051 30222 2.2kΩ 5% 0.062W
3061 4822 051 30683 68kΩ 5% 0.062W
3064 4822 051 30103 10kΩ 5% 0.062W
3065 4822 117 13632 100kΩ 1% 0603 0.62W
3066 4822 051 30103 10kΩ 5% 0.062W
3067 4822 051 30101 100Ω 5% 0.062W
3068 4822 051 30222 2.2kΩ 5% 0.062W
3070 4822 051 30102 1kΩ 5% 0.062W
3071 4822 051 30103 10kΩ 5% 0.062W
3075 4822 051 30102 1kΩ 5% 0.062W
3089 4822 051 30103 10kΩ 5% 0.062W
3100 4822 051 30109 10Ω 5% 0.062W
3292 4822 051 30561 560Ω 5% 0.062W
3400 2122 550 00158 VDR 1mA 612V
3401 4822 053 21475 4.7MΩ 5% 0.5W
3402 4822 053 21475 4.7MΩ 5% 0.5W
3403 4822 053 21475 4.7MΩ 5% 0.5W
3404 4822 116 83872 220Ω 5% 0.5W
3810 2322 257 41123 12kΩ 5% 5W
3999 4822 051 30102 1kΩ 5% 0.062W
b
5001 2422 531 02444 Transf. S13932-04Y
5002h3104 308 21241 Transf. 2652.0002
5005 4822 526 10704 Bead 50 Ω at 100MHz
5007 4822 526 10704 Bead 50 Ω at 100MHz
5008 4822 526 10704 Bead 50 Ω at 100MHz
5009 4822 157 11411 Bead 80Ω at 100MHz
5010 4822 157 11411 Bead 80Ω at 100MHz
5013 4822 526 10704 Bead 50 Ω at 100MHz
5015 4822 157 11411 Bead 80Ω at 100MHz
5016 4822 157 11411 Bead 80Ω at 100MHz
5017 4822 526 10704 Bead 50 Ω at 100MHz
5025 4822 526 10704 Bead 50 Ω at 100MHz
5026 4822 526 10704 Bead 50 Ω at 100MHz
5027 4822 526 10704 Bead 50 Ω at 100MHz
5028 4822 526 10704 Bead 50 Ω at 100MHz
5040 4822 157 11411 Bead 80Ω at 100MHz
5291 2422 536 00776 33µH 10%
5292 2422 536 00776 33µH 10%
5293 2422 536 00776 33µH 10%
5401 2422 549 43291 Filter 47mH 2A
5403 3104 308 21201 Line filter DTH40383H65
d
6002 4822 130 11397 BAS316
6003 4822 130 11397 BAS316
6004 4822 130 80622 BAT54
6005 4822 130 80622 BAT54
6006 4822 130 11397 BAS316
6007 4822 130 11397 BAS316
6008 4822 130 11397 BAS316
6009 4822 130 11152 UDZ18B
6010 4822 130 11397 BAS316
6011 4822 130 11397 BAS316
6012 9322 208 80685 BZG05C15
6013 9322 208 80685 BZG05C15
6014 9340 548 67115 PDZ22B
6015 4822 130 11397 BAS316
6017 4822 130 11397 BAS316
6020 4822 130 11397 BAS316
6021 9322 207 11687 STPS20L45CT
6022 4822 130 11148 UDZ4.7B
6023 4822 130 11397 BAS316
6025 9322 207 11687 STPS20L45CT
6027 4822 130 11397 BAS316
6028 4822 130 11397 BAS316
6030 4822 130 11397 BAS316
6044 9322 207 11687 STPS20L45CT
6045 9322 207 11687 STPS20L45CT
6051 4822 130 11397 BAS316
6054 4822 130 11551 UDZS10B
6077 9322 202 55685 BYG22D
6078 9322 202 55685 BYG22D
6079 9322 202 55685 BYG22D
6080 9322 202 55685 BYG22D
6081 9340 548 67115 PDZ22B
6291 4822 130 11572 STPS8H100F
6293 4822 130 11572 STPS8H100F
6460 4822 130 11397 BAS316
6461 4822 130 11397 BAS316
6506 4822 130 83147 DF06M
6807 9322 199 74682 GBJ6J-B15
ce
7001 9322 108 21682 MC34067P
7002 9322 149 04682 TCET1102
7004 3198 010 42310 BC847BW
7005 9322 192 18687 STP15NK50ZFP
7006 9322 205 26687 FQPF18N50V2
7007 3198 010 42320 BC857BW
7008 3198 010 42320 BC857BW
7009 3198 010 42320 BC857BW
7010 9322 125 09668 TL431AID
7017 3198 010 42320 BC857BW
7018 3198 010 42310 BC847BW
7030 3198 010 42310 BC847BW
7031 3198 010 42310 BC847BW
Small Signal Board [B]
(FTL2.2E Wrap)
Various
0601 3104 317 08781 SW (see Prod. Survey)
0602 3104 317 07861 SW (see Prod. Survey)
0603 3104 317 06591 SW (see Prod. Survey)
Spare Parts List EN 162FTL2.1E, FTL2.2E 10.
0605 3104 317 47621 SW (see Prod. Survey)
1000h2422 086 11092 Fuse 500mA 50V F SMD
1001 2422 543 89022 Xtal 6MHz 20p
1026 3104 328 29591 SCART 3 assy
1305 2422 543 01184 Xtal 4.433619MHz 20p
1308 2422 543 01183 Xtal 3.579545MHz 16p
1404 2422 127 00543 Switch 1p 2pos
1407 2422 549 44324 Filt. 5.5/5.74MHz
1408 2422 549 44372 SAW 38.9MHz K3953L
1409 2422 549 44369 SAW 38.9MHz K9656L
1702 2422 540 98456 Resonator 12MHz
1A00 2422 543 89019 Xtal 18.432MHz 12p
1D01 2422 033 00515 Socket DVI-I 29p f
1E02 2422 025 17274 Connector 10p m
1E04 2422 025 18738 Connector 3P m
1G50 2422 025 18427 Connector 31p f
1I01 2422 025 18133 Socket SCART
1I04 2422 025 18133 Socket SCART
1I05 2422 026 05539 Socket Cinch 2p f WhRd
1I06 2422 026 05527 Socket Cinch 2p f
1I07 2422 026 05054 Socket Cinch 2p f WhRd
1I53 2422 549 45325 Bead 67Ω at 100MHz
1I56 2422 549 45325 Bead 67Ω at 100MHz
1I57 2422 549 45325 Bead 67Ω at 100MHz
1I59 2422 549 45325 Bead 67Ω at 100MHz
1I79h2422 086 00623 Fuse 3A T 125V
1M01 2422 025 10768 Connector 3p m
1M03 2422 025 10771 Connector 10p m
1M07 4822 267 10637 Connector 5p
1M15 4822 267 10748 Connector 3p
1M17 2422 025 17765 Connector 7p m
1M20 2422 025 10772 Connector 12p m
1M36 2422 025 10655 Connector 11p m
1M46 2422 025 10655 Connector 11p m
1M49 2422 025 10768 Connector 3p m
1M52 2422 025 10769 Connector 9p m
1T01 3139 147 19801 Tuner UV1318S/A IH -3
1U01h2422 086 11112 Fuse 1A T 125V
8220 3104 311 08631 Cable12P/480/12P
8303 3104 311 06511 Cable 10p/280/10p
8307 3104 311 05691 Cable 5p/100/5p
8308 3104 311 06951 Cable 2P3/180/2P
8317 3104 311 07871 Cable 7P/180/7P
8336 3104 311 07451 Cable 11P/220/11P
8337 3104 311 07451 Cable 11P/220/11P
8346 3104 311 06991 Cable 11P/280/11P
8352 3104 311 07381 Cable 9P/220/9P
g
2002 3198 034 02790 47pF 1% 50V 0402
2003 2238 780 15654 220nF 10% 16V 0805
2004 2238 780 15654 220nF 10% 16V 0805
2005 2238 586 59812 100nF 20% 50V 0603
2006 2238 586 59812 100nF 20% 50V 0603
2007 2238 586 59812 100nF 20% 50V 0603
2008 2238 586 59812 100nF 20% 50V 0603
2013 2020 021 91557 100µF 20% 16V
2016 4822 124 12095 100µF 20% 16V
2017 2238 586 59812 100nF 20% 50V 0603
2018 4822 126 14324 33pF 5% 50V 0402
2019 2238 586 59812 100nF 20% 50V 0603
2020 2238 869 15221 220pF 1% 50V 0402
2022 2238 586 59812 100nF 20% 50V 0603
2023 2238 586 59812 100nF 20% 50V 0603
2024 2238 586 59812 100nF 20% 50V 0603
2025 2238 586 59812 100nF 20% 50V 0603
2026 2238 586 59812 100nF 20% 50V 0603
2027 2238 586 59812 100nF 20% 50V 0603
2028 2238 586 59812 100nF 20% 50V 0603
2029 2238 586 59812 100nF 20% 50V 0603
2031 2238 586 59812 100nF 20% 50V 0603
2033 2238 869 75829 82pF 5% 50V 0402
2034 2238 869 75829 82pF 5% 50V 0402
2035 2238 869 75829 82pF 5% 50V 0402
2036 2238 869 75829 82pF 5% 50V 0402
2037 2238 869 75829 82pF 5% 50V 0402
2038 2238 586 59812 100nF 20% 50V 0603
2039 2238 586 59812 100nF 20% 50V 0603
2040 2238 586 59812 100nF 20% 50V 0603
2063 2238 586 59812 100nF 20% 50V 0603
2067 2238 586 59812 100nF 20% 50V 0603
2072 2238 586 59812 100nF 20% 50V 0603
2073 3198 017 44740 470nF 10V 0603
2074 2238 586 59812 100nF 20% 50V 0603
2075 2238 586 59812 100nF 20% 50V 0603
2305 2238 586 59812 100nF 20% 50V 0603
2316 2238 586 59812 100nF 20% 50V 0603
2322 2238 586 59812 100nF 20% 50V 0603
2324 5322 126 11583 10nF 10% 50V 0603
2350 2238 586 59812 100nF 20% 50V 0603
2351 2238 586 59812 100nF 20% 50V 0603
2352 2238 586 59812 100nF 20% 50V 0603
2356 2238 586 59812 100nF 20% 50V 0603
2357 2238 586 59812 100nF 20% 50V 0603
2358 3198 035 03320 3.3nF 5% 50V 0402
2359 3198 034 01590 15pF 1% 50V 0402
2360 3198 034 01280 1.2pF 1% 50V 0402
2361 3198 034 01280 1.2pF 1% 50V 0402
2362 3198 034 01290 12pF 1% 50V 0402
2365 2238 586 59812 100nF 20% 50V 0603
2366 2238 586 59812 100nF 20% 50V 0603
2367 2238 586 59812 100nF 20% 50V 0603
2368 2238 586 59812 100nF 20% 50V 0603
2369 2238 586 59812 100nF 20% 50V 0603
2370 2238 586 59812 100nF 20% 50V 0603
2371 3198 035 14720 4.7nF 5% 25V 0402
2372 2022 552 05679 1µF 10% 16V 0805
2373 2238 586 59812 100nF 20% 50V 0603
2374 2022 552 05679 1µF 10% 16V 0805
2375 2238 787 15641 22nF 5% 16V 0402
2376 2238 586 59812 100nF 20% 50V 0603
2377 2020 021 91557 100µF 20% 16V
2378 2238 586 59812 100nF 20% 50V 0603
2384 2238 586 59812 100nF 20% 50V 0603
2387 2022 552 05679 1µF 10% 16V 0805
2391 2238 586 59812 100nF 20% 50V 0603
2392 2022 552 05679 1µF 10% 16V 0805
2394 2022 552 05679 1µF 10% 16V 0805
2403 2238 586 59812 100nF 20% 50V 0603
2404 2022 552 05679 1µF 10% 16V 0805
2405 3198 035 14720 4.7nF 5% 25V 0402
2406 2238 869 15221 220pF 1% 50V 0402
2407 4822 126 14524 68pF 5% 50V 0402
2408 3198 034 03380 3.3pF 1% 50V 0402
2409 2022 552 05679 1µF 10% 16V 0805
2410 2020 021 91557 100µF 20% 16V
2411 2238 586 59812 100nF 20% 50V 0603
2412 3198 035 14720 4.7nF 5% 25V 0402
2414 2020 021 91557 100µF 20% 16V
2415 2238 586 59812 100nF 20% 50V 0603
2416 2022 552 05679 1µF 10% 16V 0805
2417 4822 126 14583 470nF 10% 16V 0805
2418 3198 034 05680 5.6pF 1% 50V 0402
2425 2020 021 91557 100µF 20% 16V
2432 2238 586 59812 100nF 20% 50V 0603
2433 2238 586 59812 100nF 20% 50V 0603
2434 2238 586 59812 100nF 20% 50V 0603
2435 2020 552 96618 1nF 10% 50V 0402
2436 2022 552 05679 1µF 10% 16V 0805
2707 3198 034 02790 47pF 1% 50V 0402
2709 2238 586 59812 100nF 20% 50V 0603
2710 2238 586 59812 100nF 20% 50V 0603
2711 2238 586 59812 100nF 20% 50V 0603
2712 2238 586 59812 100nF 20% 50V 0603
2716 2238 586 59812 100nF 20% 50V 0603
2717 2238 586 59812 100nF 20% 50V 0603
2718 3198 034 01590 15pF 1% 50V 0402
2719 3198 034 01590 15pF 1% 50V 0402
2720 3198 034 01590 15pF 1% 50V 0402
2721 2238 869 15101 100pF 5% 50V 0402
2722 2238 869 15101 100pF 5% 50V 0402
2723 2238 586 59812 100nF 20% 50V 0603
2725 2238 586 59812 100nF 20% 50V 0603
2726 2238 586 59812 100nF 20% 50V 0603
2727 2238 586 59812 100nF 20% 50V 0603
2728 2020 021 91854 10µF 20% 16V
2729 2238 586 59812 100nF 20% 50V 0603
2730 2020 021 91557 100µF 20% 16V
2731 2238 586 59812 100nF 20% 50V 0603
2732 2020 552 96618 1nF 10% 50V 0402
2733 2238 586 59812 100nF 20% 50V 0603
2734 2238 586 59812 100nF 20% 50V 0603
2735 2238 586 59812 100nF 20% 50V 0603
2736 2238 586 59812 100nF 20% 50V 0603
2738 2238 586 59812 100nF 20% 50V 0603
2739 2020 021 91557 100µF 20% 16V
2740 2238 787 15641 22nF 5% 16V 0402
2741 2238 787 15641 22nF 5% 16V 0402
2742 2238 787 15641 22nF 5% 16V 0402
2743 2238 586 59812 100nF 20% 50V 0603
2744 2238 586 59812 100nF 20% 50V 0603
2745 2238 586 59812 100nF 20% 50V 0603
2746 2238 586 59812 100nF 20% 50V 0603
2747 4822 126 14524 68pF 5% 50V 0402
2748 2238 586 59812 100nF 20% 50V 0603
2749 2238 586 59812 100nF 20% 50V 0603
2750 2020 552 96618 1nF 10% 50V 0402
2751 2020 552 96618 1nF 10% 50V 0402
2752 2020 552 96618 1nF 10% 50V 0402
2753 2020 552 96618 1nF 10% 50V 0402
2754 2020 552 96618 1nF 10% 50V 0402
2755 2020 552 96618 1nF 10% 50V 0402
2756 2020 552 96618 1nF 10% 50V 0402
2757 2238 787 15641 22nF 5% 16V 0402
2759 2020 552 96618 1nF 10% 50V 0402
2760 2238 787 15641 22nF 5% 16V 0402
2761 2238 787 15641 22nF 5% 16V 0402
2762 2238 787 15641 22nF 5% 16V 0402
2763 2238 787 15641 22nF 5% 16V 0402
2764 2238 787 15641 22nF 5% 16V 0402
2768 2238 787 15641 22nF 5% 16V 0402
2769 2020 552 96618 1nF 10% 50V 0402
2770 2020 552 96618 1nF 10% 50V 0402
2771 2020 552 96618 1nF 10% 50V 0402
2772 2238 787 15641 22nF 5% 16V 0402
2773 2020 552 96618 1nF 10% 50V 0402
2777 2020 552 96618 1nF 10% 50V 0402
2778 2020 552 96618 1nF 10% 50V 0402
2780 2020 552 96618 1nF 10% 50V 0402
2781 2020 552 96618 1nF 10% 50V 0402
2782 2020 552 96618 1nF 10% 50V 0402
2784 2238 787 15641 22nF 5% 16V 0402
2785 2238 787 15641 22nF 5% 16V 0402
2788 2238 586 59812 100nF 20% 50V 0603
2789 2238 586 59812 100nF 20% 50V 0603
2790 2238 586 59812 100nF 20% 50V 0603
2791 2238 586 59812 100nF 20% 50V 0603
2792 2238 586 59812 100nF 20% 50V 0603
2793 2238 586 59812 100nF 20% 50V 0603
2794 2020 552 96618 1nF 10% 50V 0402
2795 2020 552 96618 1nF 10% 50V 0402
2796 2020 552 96618 1nF 10% 50V 0402
2797 2020 552 96618 1nF 10% 50V 0402
2798 2020 552 96618 1nF 10% 50V 0402
2799 2020 552 96618 1nF 10% 50V 0402
2800 2238 586 59812 100nF 20% 50V 0603
2802 2238 586 59812 100nF 20% 50V 0603
2804 2238 586 59812 100nF 20% 50V 0603
2805 2020 552 96618 1nF 10% 50V 0402
2806 2238 586 59812 100nF 20% 50V 0603
2807 2238 586 59812 100nF 20% 50V 0603
2808 2020 552 96618 1nF 10% 50V 0402
2809 2020 552 96618 1nF 10% 50V 0402
2810 2238 586 59812 100nF 20% 50V 0603
2811 2238 586 59812 100nF 20% 50V 0603
2812 3198 031 02290 22Ω 5% 0.1W 0402
2813 2238 586 59812 100nF 20% 50V 0603
2817 2238 586 59812 100nF 20% 50V 0603
2819 2238 586 59812 100nF 20% 50V 0603
2821 2238 787 15641 22nF 5% 16V 0402
2822 2238 787 15641 22nF 5% 16V 0402
2823 2238 586 59812 100nF 20% 50V 0603
2824 2238 586 59812 100nF 20% 50V 0603
2825 2238 586 59812 100nF 20% 50V 0603
2826 2238 586 59812 100nF 20% 50V 0603
2827 2238 586 59812 100nF 20% 50V 0603
2829 2020 021 91557 100µF 20% 16V
2830 2238 586 59812 100nF 20% 50V 0603
2831 2238 586 59812 100nF 20% 50V 0603
2832 2238 586 59812 100nF 20% 50V 0603
2833 2238 586 59812 100nF 20% 50V 0603
2834 2238 586 59812 100nF 20% 50V 0603
2835 2238 586 59812 100nF 20% 50V 0603
2836 2238 586 59812 100nF 20% 50V 0603
2837 2238 869 15101 100pF 5% 50V 0402
2838 2238 869 15101 100pF 5% 50V 0402
2844 2238 586 59812 100nF 20% 50V 0603
2845 2238 586 59812 100nF 20% 50V 0603
2846 2238 586 59812 100nF 20% 50V 0603
2848 2238 586 59812 100nF 20% 50V 0603
2849 2238 586 59812 100nF 20% 50V 0603
2850 2238 586 59812 100nF 20% 50V 0603
2851 2238 586 59812 100nF 20% 50V 0603
2852 2238 586 59812 100nF 20% 50V 0603
2853 2238 586 59812 100nF 20% 50V 0603
2854 2238 586 59812 100nF 20% 50V 0603
2855 2238 586 59812 100nF 20% 50V 0603
2856 2238 586 59812 100nF 20% 50V 0603
2857 2238 586 59812 100nF 20% 50V 0603
2858 2238 586 59812 100nF 20% 50V 0603
2859 2238 586 59812 100nF 20% 50V 0603
2860 2238 586 59812 100nF 20% 50V 0603
2861 2238 586 59812 100nF 20% 50V 0603
2862 2238 586 59812 100nF 20% 50V 0603
2863 2238 586 59812 100nF 20% 50V 0603
2864 2238 586 59812 100nF 20% 50V 0603
2865 2238 586 59812 100nF 20% 50V 0603
2866 2238 586 59812 100nF 20% 50V 0603
2867 2238 586 59812 100nF 20% 50V 0603
2868 2238 586 59812 100nF 20% 50V 0603
2869 2238 586 59812 100nF 20% 50V 0603
2870 2238 586 59812 100nF 20% 50V 0603
2871 2020 021 91557 100µF 20% 16V
2872 2238 586 59812 100nF 20% 50V 0603
2873 2238 586 59812 100nF 20% 50V 0603
2874 2238 586 59812 100nF 20% 50V 0603
2875 2238 586 59812 100nF 20% 50V 0603
2876 2238 586 59812 100nF 20% 50V 0603
2877 2238 586 59812 100nF 20% 50V 0603
2878 2238 586 59812 100nF 20% 50V 0603
Spare Parts List EN 163FTL2.1E, FTL2.2E 10.
2879 2238 586 59812 100nF 20% 50V 0603
2880 2238 586 59812 100nF 20% 50V 0603
2881 3198 034 02790 47pF 1% 50V 0402
2882 2238 586 59812 100nF 20% 50V 0603
2883 2238 586 59812 100nF 20% 50V 0603
2884 2238 586 59812 100nF 20% 50V 0603
2885 2238 586 59812 100nF 20% 50V 0603
2886 2238 586 59812 100nF 20% 50V 0603
2887 2238 586 59812 100nF 20% 50V 0603
2888 2238 586 59812 100nF 20% 50V 0603
2889 2020 021 91557 100µF 20% 16V
2890 2238 586 59812 100nF 20% 50V 0603
2891 2238 586 59812 100nF 20% 50V 0603
2892 2238 586 59812 100nF 20% 50V 0603
2893 2238 586 59812 100nF 20% 50V 0603
2894 2238 586 59812 100nF 20% 50V 0603
2895 2020 021 91854 10µF 20% 16V
2898 2020 021 91854 10µF 20% 16V
2899 2238 586 59812 100nF 20% 50V 0603
2917 2238 586 59812 100nF 20% 50V 0603
2919 2020 021 91557 100µF 20% 16V
2920 2238 586 59812 100nF 20% 50V 0603
2921 2238 586 59812 100nF 20% 50V 0603
2922 2020 552 96628 10nF 10% 16V 0402
2923 2020 552 96628 10nF 10% 16V 0402
2924 2238 586 59812 100nF 20% 50V 0603
2937 2020 021 91557 100µF 20% 16V
2939 2020 021 91557 100µF 20% 16V
2A00 2020 552 96618 1nF 10% 50V 0402
2A01 2020 552 96618 1nF 10% 50V 0402
2A02 2022 552 05679 1µF 10% 16V 0805
2A03 2020 021 91557 100µF 20% 16V
2A04 2022 552 05679 1µF 10% 16V 0805
2A05 2020 021 91557 100µF 20% 16V
2A06 2020 552 96618 1nF 10% 50V 0402
2A07 2020 552 96618 1nF 10% 50V 0402
2A08 2022 552 05679 1µF 10% 16V 0805
2A10 2238 586 59812 100nF 20% 50V 0603
2A11 2238 586 59812 100nF 20% 50V 0603
2A14 2020 552 96618 1nF 10% 50V 0402
2A15 2020 021 91557 100µF 20% 16V
2A16 2238 586 59812 100nF 20% 50V 0603
2A17 2020 552 96618 1nF 10% 50V 0402
2A18 2020 021 91557 100µF 20% 16V
2A20 2022 552 05679 1µF 10% 16V 0805
2A21 2238 586 59812 100nF 20% 50V 0603
2A22 2238 586 59812 100nF 20% 50V 0603
2A23 2238 586 59812 100nF 20% 50V 0603
2A25 2238 869 15101 100pF 5% 50V 0402
2A26 2022 552 05679 1µF 10% 16V 0805
2A27 2020 552 96618 1nF 10% 50V 0402
2A29 2238 869 15101 100pF 5% 50V 0402
2A30 2238 869 15101 100pF 5% 50V 0402
2A31 2022 552 05679 1µF 10% 16V 0805
2A32 2238 869 15101 100pF 5% 50V 0402
2A33 2238 586 59812 100nF 20% 50V 0603
2A35 2020 552 96618 1nF 10% 50V 0402
2A36 2238 869 15101 100pF 5% 50V 0402
2A37 2238 869 15101 100pF 5% 50V 0402
2A39 2022 552 05679 1µF 10% 16V 0805
2A40 2238 586 59812 100nF 20% 50V 0603
2A41 2020 021 91854 10µF 20% 16V
2A42 2020 021 91854 10µF 20% 16V
2A43 2020 021 91854 10µF 20% 16V
2A44 2238 586 59812 100nF 20% 50V 0603
2A46 2022 552 05679 1µF 10% 16V 0805
2A47 2022 552 05679 1µF 10% 16V 0805
2A49 2022 552 05679 1µF 10% 16V 0805
2A50 2020 552 96618 1nF 10% 50V 0402
2A53 2022 552 05679 1µF 10% 16V 0805
2A54 2020 552 96618 1nF 10% 50V 0402
2A56 2022 552 05679 1µF 10% 16V 0805
2A59 2022 552 05679 1µF 10% 16V 0805
2A62 2022 552 05679 1µF 10% 16V 0805
2A79 2238 586 59812 100nF 20% 50V 0603
2A91 2238 869 15101 100pF 5% 50V 0402
2A92 2022 552 05679 1µF 10% 16V 0805
2A95 2238 869 15221 220pF 1% 50V 0402
2A99 2022 552 05679 1µF 10% 16V 0805
2AA5 2238 869 15101 100pF 5% 50V 0402
2AA6 2020 552 96618 1nF 10% 50V 0402
2AA7 2020 552 96618 1nF 10% 50V 0402
2AA9 3198 034 05680 5.6pF 1% 50V 0402
2AB0 3198 034 05680 5.6pF 1% 50V 0402
2AB2 2020 552 96618 1nF 10% 50V 0402
2AB3 2022 552 05679 1µF 10% 16V 0805
2AB4 2022 552 05679 1µF 10% 16V 0805
2AB5 2020 021 91854 10µF 20% 16V
2AB6 2020 552 96618 1nF 10% 50V 0402
2AB7 2020 552 96618 1nF 10% 50V 0402
2AB8 2022 552 05679 1µF 10% 16V 0805
2C00 2238 586 59812 100nF 20% 50V 0603
2C01 2238 586 59812 100nF 20% 50V 0603
2C02 2238 586 59812 100nF 20% 50V 0603
2D04 2020 552 96618 1nF 10% 50V 0402
2D09 2238 586 59812 100nF 20% 50V 0603
2D10 2022 552 05679 1µF 10% 16V 0805
2D11 2020 552 96628 10nF 10% 16V 0402
2D12 2020 552 96628 10nF 10% 16V 0402
2E01 2238 586 59812 100nF 20% 50V 0603
2E02 2238 586 59812 100nF 20% 50V 0603
2E03 2238 586 59812 100nF 20% 50V 0603
2E04 2238 586 59812 100nF 20% 50V 0603
2E06 2238 586 59812 100nF 20% 50V 0603
2E07 2238 586 59812 100nF 20% 50V 0603
2E08 2238 586 59812 100nF 20% 50V 0603
2E09 2238 586 59812 100nF 20% 50V 0603
2E10 2238 586 59812 100nF 20% 50V 0603
2E11 2238 586 59812 100nF 20% 50V 0603
2E12 2238 586 59812 100nF 20% 50V 0603
2E13 2238 586 59812 100nF 20% 50V 0603
2E14 2238 586 59812 100nF 20% 50V 0603
2E15 2238 586 59812 100nF 20% 50V 0603
2E16 2238 586 59812 100nF 20% 50V 0603
2E17 2238 586 59812 100nF 20% 50V 0603
2E18 2238 586 59812 100nF 20% 50V 0603
2E19 2238 586 59812 100nF 20% 50V 0603
2E20 2238 586 59812 100nF 20% 50V 0603
2E21 3198 017 34730 47nF 16V 0603
2E22 4822 126 14519 22pF 5% 50V 0402
2E23 3198 017 34730 47nF 16V 0603
2E24 4822 126 14519 22pF 5% 50V 0402
2E25 3198 017 34730 47nF 16V 0603
2E26 4822 126 14519 22pF 5% 50V 0402
2E27 2238 586 59812 100nF 20% 50V 0603
2E28 3198 017 34730 47nF 16V 0603
2E29 3198 017 33330 33nF 20% 16V 0603
2E34 3198 035 03320 3.3nF 5% 50V 0402
2E35 2238 586 59812 100nF 20% 50V 0603
2E39 2238 869 15109 10pF 5% 50V 0402
2E41 2238 586 59812 100nF 20% 50V 0603
2E42 2020 552 96628 10nF 10% 16V 0402
2E43 2238 586 59812 100nF 20% 50V 0603
2E49 2238 586 59812 100nF 20% 50V 0603
2E50 4822 124 81058 47µF 20% 4V
2E51 2022 552 05679 1µF 10% 16V 0805
2E52 2238 586 59812 100nF 20% 50V 0603
2E54 2238 586 59812 100nF 20% 50V 0603
2E55 2022 552 05679 1µF 10% 16V 0805
2E56 2020 552 96628 10nF 10% 16V 0402
2E57 2020 552 96628 10nF 10% 16V 0402
2E58 2020 552 96628 10nF 10% 16V 0402
2E59 2020 552 96628 10nF 10% 16V 0402
2E62 2238 586 59812 100nF 20% 50V 0603
2E65 2238 586 59812 100nF 20% 50V 0603
2E66 2238 586 59812 100nF 20% 50V 0603
2E67 2238 586 59812 100nF 20% 50V 0603
2E68 2020 552 96628 10nF 10% 16V 0402
2E69 2020 552 96628 10nF 10% 16V 0402
2E70 2020 552 96628 10nF 10% 16V 0402
2E71 2020 552 96628 10nF 10% 16V 0402
2E72 2238 586 59812 100nF 20% 50V 0603
2E73 2238 586 59812 100nF 20% 50V 0603
2E74 2238 586 59812 100nF 20% 50V 0603
2E75 2238 586 59812 100nF 20% 50V 0603
2E77 2238 586 59812 100nF 20% 50V 0603
2E78 2238 586 59812 100nF 20% 50V 0603
2E79 2238 586 59812 100nF 20% 50V 0603
2E80 2238 586 59812 100nF 20% 50V 0603
2E81 2022 552 05679 1µF 10% 16V 0805
2E82 2238 586 59812 100nF 20% 50V 0603
2E83 2238 586 59812 100nF 20% 50V 0603
2E84 2238 586 59812 100nF 20% 50V 0603
2E86 2238 586 59812 100nF 20% 50V 0603
2E87 4822 124 12095 100µF 20% 16V
2E93 2238 586 59812 100nF 20% 50V 0603
2E94 2238 586 59812 100nF 20% 50V 0603
2E96 2238 869 15101 100pF 5% 50V 0402
2E97 2238 869 15101 100pF 5% 50V 0402
2E98 2238 869 15101 100pF 5% 50V 0402
2E99 4822 124 81058 47µF 20% 4V
2I00 2238 869 15101 100pF 5% 50V 0402
2I11 2022 552 05679 1µF 10% 16V 0805
2I12 4822 126 14585 100nF 10% 0805 50V
2I15 2022 552 05679 1µF 10% 16V 0805
2I16 2238 869 15101 100pF 5% 50V 0402
2I17 2238 869 15101 100pF 5% 50V 0402
2I18 2238 869 15101 100pF 5% 50V 0402
2I19 2238 869 15101 100pF 5% 50V 0402
2I20 3198 035 03310 330pF 5% 50V 0402
2I21 2238 869 15101 100pF 5% 50V 0402
2I22 2238 869 15101 100pF 5% 50V 0402
2I23 2238 869 15101 100pF 5% 50V 0402
2I24 2238 869 15101 100pF 5% 50V 0402
2I25 3198 035 03310 330pF 5% 50V 0402
2I26 2238 869 15101 100pF 5% 50V 0402
2I27 2238 869 15101 100pF 5% 50V 0402
2I30 2238 869 15101 100pF 5% 50V 0402
2I32 4822 124 23002 10µF 16V
2I36 2238 869 15101 100pF 5% 50V 0402
2I38 2238 869 15101 100pF 5% 50V 0402
2I46 2020 552 96618 1nF 10% 50V 0402
2I47 2020 552 96618 1nF 10% 50V 0402
2I50 2238 586 59812 100nF 20% 50V 0603
2I57 2238 869 15101 100pF 5% 50V 0402
2I58 2238 869 15101 100pF 5% 50V 0402
2I64 2238 869 15101 100pF 5% 50V 0402
2I65 2238 869 15101 100pF 5% 50V 0402
2I69 4822 126 14324 33pF 5% 50V 0402
2I70 4822 126 14324 33pF 5% 50V 0402
2I86 4822 126 14324 33pF 5% 50V 0402
2I87 2238 869 15101 100pF 5% 50V 0402
2I88 2238 869 15101 100pF 5% 50V 0402
2I89 2022 552 05679 1µF 10% 16V 0805
2I90 2022 552 05679 1µF 10% 16V 0805
2I91 2238 586 59812 100nF 20% 50V 0603
2I92 2022 552 05679 1µF 10% 16V 0805
2I93 2238 586 59812 100nF 20% 50V 0603
2I94 2238 586 59812 100nF 20% 50V 0603
2I95 2238 586 59812 100nF 20% 50V 0603
2I96 2022 552 05679 1µF 10% 16V 0805
2I97 2238 586 59812 100nF 20% 50V 0603
2I98 2238 586 59812 100nF 20% 50V 0603
2I99 4822 124 23002 10µF 16V
2IA0 4822 124 23002 10µF 16V
2IA1 4822 124 23002 10µF 16V
2IA2 4822 124 23002 10µF 16V
2IA3 2020 552 96618 1nF 10% 50V 0402
2IA4 4822 126 14585 100nF 10% 0805 50V
2IA5 2020 021 91557 100µF 20% 16V
2IA9 2020 021 91557 100µF 20% 16V
2IB3 2238 586 59812 100nF 20% 50V 0603
2IB5 2022 552 05679 1µF 10% 16V 0805
2IB8 2238 586 59812 100nF 20% 50V 0603
2IB9 2238 586 59812 100nF 20% 50V 0603
2IC0 4822 124 23002 10µF 16V
2IC1 4822 124 23002 10µF 16V
2IC3 2238 586 59812 100nF 20% 50V 0603
2IC5 2238 586 59812 100nF 20% 50V 0603
2IC6 3198 034 04790 27pF 1% 50V 0402
2IC7 3198 034 04790 27pF 1% 50V 0402
2IC8 2022 552 05679 1µF 10% 16V 0805
2IC9 4822 126 13883 220pF 5% 50V
2IE1 2238 586 59812 100nF 20% 50V 0603
2IE2 2238 586 59812 100nF 20% 50V 0603
2IE3 2022 552 05679 1µF 10% 16V 0805
2IE4 2238 586 59812 100nF 20% 50V 0603
2IE5 2238 586 59812 100nF 20% 50V 0603
2IE6 2238 586 59812 100nF 20% 50V 0603
2IE7 2022 552 05679 1µF 10% 16V 0805
2IE8 2022 552 05679 1µF 10% 16V 0805
2IE9 2238 586 59812 100nF 20% 50V 0603
2IF1 2238 586 59812 100nF 20% 50V 0603
2IF2 2238 586 59812 100nF 20% 50V 0603
2IF3 2238 586 59812 100nF 20% 50V 0603
2IF4 4822 124 80151 47µF 16V
2IF5 2238 586 59812 100nF 20% 50V 0603
2IF8 4822 124 11946 22µF 20% 16V
2IF9 4822 124 11946 22µF 20% 16V
2IG1 2238 586 59812 100nF 20% 50V 0603
2IG2 5322 124 41945 22µF 20% 35V
2IG3 2238 586 59812 100nF 20% 50V 0603
2IG4 2238 586 59812 100nF 20% 50V 0603
2IG5 2238 586 59812 100nF 20% 50V 0603
2IG6 2238 586 59812 100nF 20% 50V 0603
2IG7 2238 586 59812 100nF 20% 50V 0603
2IG8 2238 586 59812 100nF 20% 50V 0603
2IG9 2238 586 59812 100nF 20% 50V 0603
2IH1 2238 586 59812 100nF 20% 50V 0603
2IH2 2238 586 59812 100nF 20% 50V 0603
2IH3 2020 552 96618 1nF 10% 50V 0402
2IH4 2022 552 05679 1µF 10% 16V 0805
2IH5 2238 586 59812 100nF 20% 50V 0603
2IH6 4822 124 11946 22µF 20% 16V
2IH7 4822 124 11946 22µF 20% 16V
2IH8 4822 124 11946 22µF 20% 16V
2IH9 4822 124 11946 22µF 20% 16V
2IJ4 2238 586 59812 100nF 20% 50V 0603
2IJ8 2022 552 05679 1µF 10% 16V 0805
2IJ9 2022 552 05679 1µF 10% 16V 0805
2IK1 2238 780 15654 220nF 10% 16V 0805
2IK5 2238 586 59812 100nF 20% 50V 0603
2IK6 2238 586 59812 100nF 20% 50V 0603
2IK7 2238 586 59812 100nF 20% 50V 0603
2IL0 2238 869 15109 10pF 5% 50V 0402
2IN8 2238 586 59812 100nF 20% 50V 0603
2IN9 2238 586 59812 100nF 20% 50V 0603
2IS6 4822 124 12095 100µF 20% 16V
2L00 4822 124 23237 22µF 6.3V
2L01 2238 586 59812 100nF 20% 50V 0603
2L02 2238 586 59812 100nF 20% 50V 0603
2L03 2238 586 59812 100nF 20% 50V 0603
Spare Parts List EN 164FTL2.1E, FTL2.2E 10.
2L04 2238 586 59812 100nF 20% 50V 0603
2L05 2238 586 59812 100nF 20% 50V 0603
2L06 2238 586 59812 100nF 20% 50V 0603
2L07 2238 586 59812 100nF 20% 50V 0603
2L08 2238 586 59812 100nF 20% 50V 0603
2L09 2238 586 59812 100nF 20% 50V 0603
2L10 2238 586 59812 100nF 20% 50V 0603
2L11 2238 586 59812 100nF 20% 50V 0603
2L12 2238 586 59812 100nF 20% 50V 0603
2L13 2238 586 59812 100nF 20% 50V 0603
2L14 2238 586 59812 100nF 20% 50V 0603
2L15 2238 586 59812 100nF 20% 50V 0603
2L16 2238 586 59812 100nF 20% 50V 0603
2L17 2238 586 59812 100nF 20% 50V 0603
2L19 4822 124 23237 22µF 6.3V
2L20 2238 586 59812 100nF 20% 50V 0603
2L21 2238 586 59812 100nF 20% 50V 0603
2L25 2238 586 59812 100nF 20% 50V 0603
2L26 3198 017 33330 33nF 20% 16V 0603
2L27 3198 035 14720 4.7nF 5% 25V 0402
2L28 3198 034 03990 39pF 1% 50V 0402
2L29 3198 034 03990 39pF 1% 50V 0402
2L30 3198 034 03990 39pF 1% 50V 0402
2L31 3198 017 34730 47nF 16V 0603
2L32 3198 035 03320 3.3nF 5% 50V 0402
2L33 2238 586 59812 100nF 20% 50V 0603
2L34 2238 586 59812 100nF 20% 50V 0603
2L51 4822 124 23237 22µF 6.3V
2L52 3198 017 34730 47nF 16V 0603
2L54 3198 017 34730 47nF 16V 0603
2L56 2020 552 96618 1nF 10% 50V 0402
2L57 3198 017 34730 47nF 16V 0603
2L58 4822 124 23237 22µF 6.3V
2L60 3198 034 04790 27pF 1% 50V 0402
2P80 4822 124 12095 100µF 20% 16V
2P81 2238 586 59812 100nF 20% 50V 0603
2T01 3198 032 28210 220µF 20% 6.3V
2T04 2238 586 15641 22nF 10% 50V 0603
2T05 3198 032 28210 220µF 20% 6.3V
2T06 2020 552 96628 10nF 10% 16V 0402
2T09 3198 017 34730 47nF 16V 0603
2T12 2238 586 59812 100nF 20% 50V 0603
2T13 2020 552 96628 10nF 10% 16V 0402
2T15 2022 552 05679 1µF 10% 16V 0805
2T21 3198 032 28210 220µF 20% 6.3V
2T30 2222 784 13681 22µF 10% 16V X5R 1812
2T31 2222 784 13681 22µF 10% 16V X5R 1812
2T32 2238 586 59812 100nF 20% 50V 0603
2T33 2238 586 59812 100nF 20% 50V 0603
2T34 2020 552 96618 1nF 10% 50V 0402
2T35 2238 586 59812 100nF 20% 50V 0603
2T36 2022 552 05679 1µF 10% 16V 0805
2T37 2020 552 96628 10nF 10% 16V 0402
2T38 2238 586 59812 100nF 20% 50V 0603
2T40 2238 586 59812 100nF 20% 50V 0603
2T41 5322 126 11578 1nF 10% 50V 0603
2T42 2238 916 15641 22nF 10% 25V 0603
2T43 2222 784 13681 22µF 10% 16V X5R 1812
2T44 2020 552 96628 10nF 10% 16V 0402
2T45 2020 552 96628 10nF 10% 16V 0402
2T46 5322 126 11578 1nF 10% 50V 0603
2T47 3198 035 04710 470pF 50V 0402
2T48 2238 586 59812 100nF 20% 50V 0603
2T49 2020 552 96618 1nF 10% 50V 0402
2T50 2020 552 96628 10nF 10% 16V 0402
2T51 2022 552 05679 1µF 10% 16V 0805
2T52 2022 552 05679 1µF 10% 16V 0805
2T53 3198 035 03320 3.3nF 5% 50V 0402
2T54 2238 586 59812 100nF 20% 50V 0603
2U03 2022 552 05679 1µF 10% 16V 0805
2U04 4822 126 14583 470nF 10% 16V 0805
2U05 2020 552 96618 1nF 10% 50V 0402
2U06 2022 552 05635 22µF 10% 16V
2U07 2238 869 75829 82pF 5% 50V 0402
2U08 2222 784 13681 22µF 10% 16V X5R 1812
2U09 2020 552 96618 1nF 10% 50V 0402
2U10 2022 552 05635 22µF 10% 16V
2U11 2020 552 96618 1nF 10% 50V 0402
2U12 2020 552 96628 10nF 10% 16V 0402
2U13 2238 780 15654 220nF 10% 16V 0805
2U14 4822 126 14583 470nF 10% 16V 0805
2U15 4822 124 12095 100µF 20% 16V
2U16 3198 035 14720 4.7nF 5% 25V 0402
2U17 4822 126 14583 470nF 10% 16V 0805
2U18 3198 034 01210 120pF 1% 50V 0402
2U19 2238 586 59812 100nF 20% 50V 0603
2U20 2022 552 05679 1µF 10% 16V 0805
2U21 4822 126 14583 470nF 10% 16V 0805
2U22 2022 552 05679 1µF 10% 16V 0805
2U23 4822 124 12095 100µF 20% 16V
2U24 2020 552 96618 1nF 10% 50V 0402
2U25 2238 586 59812 100nF 20% 50V 0603
2U26 2238 586 59812 100nF 20% 50V 0603
2U27 3198 035 26820 6.8nF 10% 16V 0402
2U28 3198 035 26820 6.8nF 10% 16V 0402
2U30 3198 034 01210 120pF 1% 50V 0402
2U31 4822 124 12095 100µF 20% 16V
2U32 3198 035 03320 3.3nF 5% 50V 0402
2U33 2022 552 05679 1µF 10% 16V 0805
2U34 2238 787 15641 22nF 5% 16V 0402
2U35 2022 552 05679 1µF 10% 16V 0805
2U36 2238 586 59812 100nF 20% 50V 0603
2U37 2020 552 96623 2.2nF 10% 50V 0402
2U39 2238 586 59812 100nF 20% 50V 0603
2U40 2020 552 96623 2.2nF 10% 50V 0402
2U41 3198 035 26820 6.8nF 10% 16V 0402
2U42 3198 017 34730 47nF 16V 0603
2V11 3198 035 04710 470pF 50V 0402
2V12 3198 035 04710 470pF 50V 0402
2Y00 2238 869 15101 100pF 5% 50V 0402
2Y01 2238 869 15101 100pF 5% 50V 0402
2Y02 2238 869 15101 100pF 5% 50V 0402
2Y03 2238 869 15101 100pF 5% 50V 0402
2Y06 2020 552 96618 1nF 10% 50V 0402
2Y07 2238 869 15101 100pF 5% 50V 0402
2Y08 2020 552 96618 1nF 10% 50V 0402
2Y09 2238 869 15101 100pF 5% 50V 0402
2Y10 2238 869 15101 100pF 5% 50V 0402
2Y11 2020 552 96618 1nF 10% 50V 0402
2Y12 2238 869 15101 100pF 5% 50V 0402
2Y14 2238 869 15101 100pF 5% 50V 0402
2Y15 2238 869 15101 100pF 5% 50V 0402
2Y16 2238 869 15101 100pF 5% 50V 0402
2Y17 2238 869 15101 100pF 5% 50V 0402
2Y18 2238 869 15101 100pF 5% 50V 0402
2Y19 2238 869 15101 100pF 5% 50V 0402
2Y22 2020 552 96618 1nF 10% 50V 0402
2Y23 2238 869 15101 100pF 5% 50V 0402
2Y25 2238 869 15101 100pF 5% 50V 0402
2Y26 2238 869 15101 100pF 5% 50V 0402
2Y27 2020 552 96618 1nF 10% 50V 0402
2Y28 2020 552 96618 1nF 10% 50V 0402
2Y29 2020 552 96618 1nF 10% 50V 0402
2Y30 4822 124 12095 100µF 20% 16V
2Y31 4822 124 12095 100µF 20% 16V
2Y32 2020 552 96618 1nF 10% 50V 0402
2Y33 2020 552 96618 1nF 10% 50V 0402
2Y34 2238 869 15101 100pF 5% 50V 0402
2Y37 2238 869 15101 100pF 5% 50V 0402
2Y38 2238 869 15101 100pF 5% 50V 0402
2Y39 2238 869 15101 100pF 5% 50V 0402
2Y40 2238 869 15101 100pF 5% 50V 0402
2Y41 2238 869 15101 100pF 5% 50V 0402
2Y42 2238 869 15101 100pF 5% 50V 0402
2Y43 2238 869 15101 100pF 5% 50V 0402
2Y49 2238 869 15101 100pF 5% 50V 0402
2Y50 2238 869 15101 100pF 5% 50V 0402
2Y51 2238 869 15101 100pF 5% 50V 0402
2Y52 3198 035 71040 100nF 10% 16V 0402
2Y53 2238 869 15101 100pF 5% 50V 0402
2Z44 4822 126 14519 22pF 5% 50V 0402
2Z45 4822 126 14519 22pF 5% 50V 0402
2Z46 4822 126 14519 22pF 5% 50V 0402
2Z47 4822 126 14519 22pF 5% 50V 0402
2Z48 4822 126 14519 22pF 5% 50V 0402
2Z49 4822 126 14519 22pF 5% 50V 0402
2Z50 4822 126 14519 22pF 5% 50V 0402
2Z51 4822 126 14519 22pF 5% 50V 0402
2Z52 4822 126 14519 22pF 5% 50V 0402
2Z53 4822 126 14519 22pF 5% 50V 0402
2Z55 2238 586 59812 100nF 20% 50V 0603
2Z56 2020 552 96618 1nF 10% 50V 0402
2Z63 2238 586 59812 100nF 20% 50V 0603
2Z64 2238 586 59812 100nF 20% 50V 0603
f
3001 3198 031 04720 4.7kΩ 5% 0402
3002 3198 031 04720 4.7kΩ 5% 0402
3003 4822 117 13525 24kΩ 1% 0.62W 0603
3005 4822 117 13606 10kΩ 5% 0.01W 0402
3006 4822 117 13543 470Ω 5% 0402
3007 2350 033 10471 4 x 470Ω 5%
3008 2350 033 10101 4 x 100Ω 5%
3009 3198 031 01810 180Ω 5% 0402
3010 4822 117 13606 10kΩ 5% 0.01W 0402
3011 3198 031 04720 4.7kΩ 5% 0402
3012 2350 033 10101 4 x 100Ω 5%
3013 4822 117 13606 10kΩ 5% 0.01W 0402
3014 3198 031 06820 6.8kΩ 5% 0.01W 0402
3015 3198 031 04740 470kΩ 5% 0402
3016 2322 706 71502 1.5kΩ 1% 0402
3017 3198 031 04720 4.7kΩ 5% 0402
3018 4822 117 13606 10kΩ 5% 0.01W 0402
3019 3198 031 04720 4.7kΩ 5% 0402
3020 4822 117 13606 10kΩ 5% 0.01W 0402
3021 4822 117 13606 10kΩ 5% 0.01W 0402
3022 3198 031 01230 12kΩ 5% 0402
3023 4822 117 13601 22kΩ 5% 0402
3024 3198 031 02730 27kΩ 5% 0402
3025 4822 117 13596 220Ω 5% 0.01W 0402
3026 3198 031 04720 4.7kΩ 5% 0402
3027 3198 031 04730 47Ω 5% 0402
3028 3198 031 04720 4.7kΩ 5% 0402
3029 2350 033 10101 4 x 100Ω 5%
3030 3198 031 04720 4.7kΩ 5% 0402
3031 2350 033 10101 4 x 100Ω 5%
3032 4822 117 13606 10kΩ 5% 0.01W 0402
3033 4822 117 11297 100kΩ 5% 0.1W
3034 2350 033 10101 4 x 100Ω 5%
3035 2350 033 10101 4 x 100Ω 5%
3036 3198 031 04730 47Ω 5% 0402
3037 4822 117 13548 1kΩ 5% 0402
3038 4822 117 13606 10kΩ 5% 0.01W 0402
3039 4822 117 13597 330Ω 5% 0402 0.01W
3046 2350 033 10101 4 x 100Ω 5%
3048 2350 033 10101 4 x 100Ω 5%
3049 2350 033 10101 4 x 100Ω 5%
3050 2350 033 10101 4 x 100Ω 5%
3051 2350 033 10101 4 x 100Ω 5%
3052 2350 033 10101 4 x 100Ω 5%
3053 4822 117 13606 10kΩ 5% 0.01W 0402
3054 2350 033 10101 4 x 100Ω 5%
3055 2350 033 10101 4 x 100Ω 5%
3056 2350 033 10101 4 x 100Ω 5%
3057 2350 033 10101 4 x 100Ω 5%
3061 2350 033 10101 4 x 100Ω 5%
3062 4822 117 13606 10kΩ 5% 0.01W 0402
3064 2350 033 10101 4 x 100Ω 5%
3065 3198 031 04720 4.7kΩ 5% 0402
3066 3198 031 04730 47Ω 5% 0402
3067 3198 031 04740 470kΩ 5% 0402
3069 3198 031 01820 1.8kΩ 5% 0.01W 0402
3072 2350 033 10101 4 x 100Ω 5%
3073 2350 033 10471 4 x 470Ω 5%
3074 2350 033 10471 4 x 470Ω 5%
3075 2020 552 96628 10nF 10% 16V 0402
3076 2350 033 10471 4 x 470Ω 5%
3077 3198 031 04720 4.7kΩ 5% 0402
3078 2350 033 10471 4 x 470Ω 5%
3079 3198 031 01820 1.8kΩ 5% 0.01W 0402
3080 4822 117 13606 10kΩ 5% 0.01W 0402
3081 4822 117 13543 470Ω 5% 0402
3082 2350 033 10101 4 x 100Ω 5%
3083 2350 033 10101 4 x 100Ω 5%
3084 4822 117 13606 10kΩ 5% 0.01W 0402
3085 2350 033 10101 4 x 100Ω 5%
3086 2350 033 10101 4 x 100Ω 5%
3087 4822 117 13545 100Ω 1% 0402
3088 3198 031 01820 1.8kΩ 5% 0.01W 0402
3089 4822 117 13545 100Ω 1% 0402
3090 2350 033 10471 4 x 470Ω 5%
3092 3198 031 01820 1.8kΩ 5% 0.01W 0402
3093 4822 117 13606 10kΩ 5% 0.01W 0402
3097 4822 117 13543 470Ω 5% 0402
3099 2350 033 10471 4 x 470Ω 5%
3100 4822 117 13596 220Ω 5% 0.01W 0402
3101 4822 117 13596 220Ω 5% 0.01W 0402
3102 2350 033 10101 4 x 100Ω 5%
3103 4822 117 13543 470Ω 5% 0402
3304 2322 750 63908 3.9Ω 5% Fuse 1206
3370 4822 117 13545 100Ω 1% 0402
3371 4822 117 13546 47Ω 5% 0402
3372 4822 117 13543 470Ω 5% 0402
3376 4822 117 13545 100Ω 1% 0402
3377 4822 117 13545 100Ω 1% 0402
3378 3198 031 01530 15kΩ 5% 0.01W 0402
3380 4822 117 13545 100Ω 1% 0402
3382 4822 117 13543 470Ω 5% 0402
3385 4822 117 13543 470Ω 5% 0402
3393 4822 117 11297 100kΩ 5% 0.1W
3400 4822 117 11152 4.7Ω 5%
3402 2322 750 63908 3.9Ω 5% Fuse 1206
3404 3198 031 05610 560Ω 5% 0.01W 0402
3405 4822 117 13548 1kΩ 5% 0402
3406 2322 705 70279 27Ω 5% 0402
3408 4822 117 13545 100Ω 1% 0402
3411 3198 031 02720 2.7kΩ 5% 0.01W 0402
3412 4822 117 11152 4.7Ω 5%
3413 3198 031 02710 270Ω 5% 0.1W 0402
3414 3198 031 04720 4.7kΩ 5% 0402
3415 4822 117 13602 2.2kΩ 5% 0.01W 0402
3418 3198 031 03910 390Ω 1% 0402
3419 3198 031 03390 33Ω 1% 0402
3422 4822 117 13548 1kΩ 5% 0402
3435 3198 031 04720 4.7kΩ 5% 0402
3436 3198 031 01810 180Ω 5% 0402
3437 4822 117 13543 470Ω 5% 0402
3439 4822 117 13597 330Ω 5% 0402 0.01W
3441 3198 031 05620 5.6kΩ 5% 0.01W 0402
3445 4822 117 13543 470Ω 5% 0402
Spare Parts List EN 165FTL2.1E, FTL2.2E 10.
3463 3198 031 04720 4.7kΩ 5% 0402
3473 4822 117 13548 1kΩ 5% 0402
3474 3198 031 01090 10Ω 5% 0.01W 0402
3475 5322 117 11726 10Ω 5%
3476 3198 031 05610 560Ω 5% 0.01W 0402
3700 3198 031 02290 22Ω 5% 0.1W 0402
3701 4822 117 13548 1kΩ 5% 0402
3702 3198 031 01090 10Ω 5% 0.01W 0402
3706 4822 117 13545 100Ω 1% 0402
3707 4822 117 13545 100Ω 1% 0402
3709 4822 117 13545 100Ω 1% 0402
3710 4822 117 13545 100Ω 1% 0402
3712 3198 031 04730 47Ω 5% 0402
3713 3198 031 01810 180Ω 5% 0402
3714 3198 031 01810 180Ω 5% 0402
3715 3198 031 01810 180Ω 5% 0402
3716 4822 117 11297 100kΩ 5% 0.1W
3717 4822 117 11297 100kΩ 5% 0.1W
3718 4822 117 11297 100kΩ 5% 0.1W
3719 3198 031 03320 3.3kΩ 5% 0402
3720 4822 117 13606 10kΩ 5% 0.01W 0402
3721 4822 117 13545 100Ω 1% 0402
3722 4822 117 13548 1kΩ 5% 0402
3724 4822 117 13545 100Ω 1% 0402
3725 3198 031 03320 3.3kΩ 5% 0402
3726 3198 031 01220 1.2kΩ 5% 0.01W 0402
3727 3198 031 01510 150Ω 5% 0.01W 0402
3728 3198 031 01510 150Ω 5% 0.01W 0402
3729 4822 117 13605 Jumper 0402
3730 3198 031 05610 560Ω 5% 0.01W 0402
3732 3198 031 04730 47Ω 5% 0402
3733 4822 117 13548 1kΩ 5% 0402
3734 4822 117 13545 100Ω 1% 0402
3736 4822 117 13545 100Ω 1% 0402
3737 4822 117 13548 1kΩ 5% 0402
3738 4822 117 13548 1kΩ 5% 0402
3739 3198 031 01230 12kΩ 5% 0402
3740 3198 031 04720 4.7kΩ 5% 0402
3742 4822 117 13601 22kΩ 5% 0402
3743 4822 117 13606 10kΩ 5% 0.01W 0402
3744 4822 117 13602 2.2kΩ 5% 0.01W 0402
3745 4822 117 13548 1kΩ 5% 0402
3746 3198 031 03920 3.9kΩ 5% 0402
3747 3198 031 04730 47Ω 5% 0402
3748 2322 705 70124 120kΩ 5% 0402
3749 3198 031 03920 3.9kΩ 5% 0402
3750 3198 031 03920 3.9kΩ 5% 0402
3751 3198 031 03320 3.3kΩ 5% 0402
3752 4822 117 13605 Jumper 0402
3753 4822 117 13605 Jumper 0402
3754 4822 117 13545 100Ω 1% 0402
3755 3198 031 04720 4.7kΩ 5% 0402
3756 4822 117 13606 10kΩ 5% 0.01W 0402
3757 3198 031 01510 150Ω 5% 0.01W 0402
3758 3198 031 04720 4.7kΩ 5% 0402
3759 4822 117 13596 220Ω 5% 0.01W 0402
3762 3198 031 06890 68Ω 5% 0402
3763 3198 031 06890 68Ω 5% 0402
3764 3198 031 06890 68Ω 5% 0402
3766 4822 117 13548 1kΩ 5% 0402
3767 3198 031 06890 68Ω 5% 0402
3768 3198 031 06890 68Ω 5% 0402
3769 3198 031 06890 68Ω 5% 0402
3770 3198 031 06890 68Ω 5% 0402
3771 3198 031 07590 75Ω 5% 0402
3772 3198 031 07590 75Ω 5% 0402
3773 3198 031 07590 75Ω 5% 0402
3774 3198 031 06890 68Ω 5% 0402
3775 3198 031 06890 68Ω 5% 0402
3776 3198 031 07590 75Ω 5% 0402
3777 3198 031 06890 68Ω 5% 0402
3778 3198 031 04720 4.7kΩ 5% 0402
3779 3198 031 06890 68Ω 5% 0402
3780 3198 031 06890 68Ω 5% 0402
3781 3198 031 06890 68Ω 5% 0402
3782 4822 117 13548 1kΩ 5% 0402
3784 3198 031 06890 68Ω 5% 0402
3792 3198 031 01510 150Ω 5% 0.01W 0402
3793 4822 117 13602 2.2kΩ 5% 0.01W 0402
3794 3198 031 07590 75Ω 5% 0402
3795 3198 031 01510 150Ω 5% 0.01W 0402
3797 3198 031 04720 4.7kΩ 5% 0402
3800 3198 031 07590 75Ω 5% 0402
3801 3198 031 01510 150Ω 5% 0.01W 0402
3802 3198 031 01510 150Ω 5% 0.01W 0402
3803 3198 031 06890 68Ω 5% 0402
3804 3198 031 06890 68Ω 5% 0402
3805 4822 117 13545 100Ω 1% 0402
3811 3198 031 07590 75Ω 5% 0402
3812 3198 031 07590 75Ω 5% 0402
3814 3198 031 07590 75Ω 5% 0402
3815 3198 031 07590 75Ω 5% 0402
3817 3198 031 07590 75Ω 5% 0402
3818 3198 031 07590 75Ω 5% 0402
3820 3198 031 04720 4.7kΩ 5% 0402
3821 3198 031 03390 33Ω 1% 0402
3823 3198 031 06890 68Ω 5% 0402
3826 4822 117 13545 100Ω 1% 0402
3827 4822 117 13545 100Ω 1% 0402
3829 4822 117 13545 100Ω 1% 0402
3830 3198 031 06890 68Ω 5% 0402
3831 3198 031 06890 68Ω 5% 0402
3832 3198 031 06890 68Ω 5% 0402
3833 3198 031 06890 68Ω 5% 0402
3834 3198 031 06890 68Ω 5% 0402
3835 3198 031 06890 68Ω 5% 0402
3836 3198 031 06890 68Ω 5% 0402
3837 3198 031 06890 68Ω 5% 0402
3838 3198 031 06890 68Ω 5% 0402
3839 3198 031 06890 68Ω 5% 0402
3840 3198 031 06890 68Ω 5% 0402
3841 3198 031 06890 68Ω 5% 0402
3842 3198 031 06890 68Ω 5% 0402
3843 3198 031 06890 68Ω 5% 0402
3844 3198 031 06890 68Ω 5% 0402
3845 3198 031 06890 68Ω 5% 0402
3846 3198 031 04720 4.7kΩ 5% 0402
3853 3198 031 04730 47Ω 5% 0402
3855 3198 031 04720 4.7kΩ 5% 0402
3856 3198 031 01090 10Ω 5% 0.01W 0402
3857 3198 031 01090 10Ω 5% 0.01W 0402
3858 3198 031 01090 10Ω 5% 0.01W 0402
3859 3198 031 01090 10Ω 5% 0.01W 0402
3860 3198 031 01090 10Ω 5% 0.01W 0402
3861 3198 031 01090 10Ω 5% 0.01W 0402
3864 4822 117 13545 100Ω 1% 0402
3865 4822 117 13545 100Ω 1% 0402
3867 4822 117 13545 100Ω 1% 0402
3868 4822 117 13545 100Ω 1% 0402
3869 4822 117 13545 100Ω 1% 0402
3870 4822 117 13545 100Ω 1% 0402
3871 4822 117 13545 100Ω 1% 0402
3872 4822 117 13545 100Ω 1% 0402
3873 4822 117 13545 100Ω 1% 0402
3880 3198 031 04730 47Ω 5% 0402
3881 3198 031 04730 47Ω 5% 0402
3882 3198 031 04730 47Ω 5% 0402
3883 3198 031 04730 47Ω 5% 0402
3884 3198 031 04730 47Ω 5% 0402
3885 4822 117 13548 1kΩ 5% 0402
3886 4822 117 13548 1kΩ 5% 0402
3887 4822 117 13548 1kΩ 5% 0402
3888 4822 117 13548 1kΩ 5% 0402
3889 4822 117 13548 1kΩ 5% 0402
3890 4822 117 13548 1kΩ 5% 0402
3891 4822 117 13548 1kΩ 5% 0402
3894 3198 031 01510 150Ω 5% 0.01W 0402
3896 4822 117 13605 Jumper 0402
3900 3198 031 06890 68Ω 5% 0402
3901 3198 031 06890 68Ω 5% 0402
3902 3198 031 06890 68Ω 5% 0402
3903 4822 117 11297 100kΩ 5% 0.1W
3905 3198 031 04720 4.7kΩ 5% 0402
3909 4822 117 13545 100Ω 1% 0402
3911 2350 033 11689 4x 68Ω 5% Netw.
3912 2350 033 11689 4x 68Ω 5% Netw.
3913 2350 033 11229 4x 22Ω 5% Netw.
3914 2350 033 11229 4x 22Ω 5% Netw.
3915 2350 033 11229 4x 22Ω 5% Netw.
3916 2350 033 11229 4x 22Ω 5% Netw.
3917 2350 033 11229 4x 22Ω 5% Netw.
3918 3198 031 06890 68Ω 5% 0402
3919 3198 031 06890 68Ω 5% 0402
3921 3198 031 06890 68Ω 5% 0402
3A00 4822 117 13601 22kΩ 5% 0402
3A01 4822 117 13606 10kΩ 5% 0.01W 0402
3A03 4822 117 13568 6.8Ω 5% 1206
3A04 4822 117 13601 22kΩ 5% 0402
3A05 4822 117 13601 22kΩ 5% 0402
3A06 4822 117 11297 100kΩ 5% 0.1W
3A07 4822 117 11297 100kΩ 5% 0.1W
3A09 4822 117 13601 22kΩ 5% 0402
3A11 4822 117 11297 100kΩ 5% 0.1W
3A12 3198 031 04730 47Ω 5% 0402
3A13 3198 031 04730 47Ω 5% 0402
3A14 3198 031 04730 47Ω 5% 0402
3A15 4822 117 11297 100kΩ 5% 0.1W
3A16 4822 117 13545 100Ω 1% 0402
3A17 4822 117 13545 100Ω 1% 0402
3A18 3198 031 06830 68kΩ 5% 0.01W 0402
3A19 4822 117 13545 100Ω 1% 0402
3A20 4822 117 11297 100kΩ 5% 0.1W
3A21 3198 031 06830 68kΩ 5% 0.01W 0402
3A22 4822 117 11297 100kΩ 5% 0.1W
3A23 3198 031 06830 68kΩ 5% 0.01W 0402
3A24 3198 031 06810 680Ω 5% 0.01W 0402
3A26 3198 031 06830 68kΩ 5% 0.01W 0402
3A27 3198 031 06820 6.8kΩ 5% 0.01W 0402
3A28 3198 031 06820 6.8kΩ 5% 0.01W 0402
3A40 3198 031 01830 18kΩ 5% 0.01W 0402
3A45 3198 031 04730 47Ω 5% 0402
3A46 3198 031 01530 15kΩ 5% 0.01W 0402
3A47 3198 031 04730 47Ω 5% 0402
3A49 3198 031 01830 18kΩ 5% 0.01W 0402
3A51 3198 031 01530 15kΩ 5% 0.01W 0402
3A52 3198 031 05630 56kΩ 5% 0402
3A53 3198 031 05630 56kΩ 5% 0402
3A55 4822 117 13597 330Ω 5% 0402 0.01W
3A60 4822 117 11297 100kΩ 5% 0.1W
3A61 4822 117 13597 330Ω 5% 0402 0.01W
3A63 4822 117 13601 22kΩ 5% 0402
3A64 3198 031 04730 47Ω 5% 0402
3A65 4822 117 11297 100kΩ 5% 0.1W
3A66 4822 117 11297 100kΩ 5% 0.1W
3C00 4822 117 13602 2.2kΩ 5% 0.01W 0402
3C01 3198 031 01090 10Ω 5% 0.01W 0402
3C03 4822 117 13606 10kΩ 5% 0.01W 0402
3C04 4822 117 13606 10kΩ 5% 0.01W 0402
3C05 4822 117 13543 470Ω 5% 0402
3C08 4822 051 30103 10kΩ 5% 0.062W
3C10 4822 117 13545 100Ω 1% 0402
3C11 4822 117 13545 100Ω 1% 0402
3C12 3198 031 06890 68Ω 5% 0402
3E00 4822 117 13606 10kΩ 5% 0.01W 0402
3E01 4822 117 13548 1kΩ 5% 0402
3E02 4822 117 13548 1kΩ 5% 0402
3E03 4822 117 13548 1kΩ 5% 0402
3E04 4822 117 13548 1kΩ 5% 0402
3E05 3198 031 01520 1.2kΩ 5% 0.01W 0402
3E06 4822 117 13545 100Ω 1% 0402
3E07 4822 117 13545 100Ω 1% 0402
3E08 4822 117 13545 100Ω 1% 0402
3E11 4822 117 13543 470Ω 5% 0402
3E12 4822 117 13543 470Ω 5% 0402
3E14 4822 117 13548 1kΩ 5% 0402
3E16 3198 031 02720 2.7kΩ 5% 0.01W 0402
3E18 4822 117 13545 100Ω 1% 0402
3E19 4822 117 13545 100Ω 1% 0402
3E37 4822 117 13545 100Ω 1% 0402
3E50 4822 117 13606 10kΩ 5% 0.01W 0402
3E51 4822 117 13606 10kΩ 5% 0.01W 0402
3E52 4822 117 13606 10kΩ 5% 0.01W 0402
3E53 4822 117 13606 10kΩ 5% 0.01W 0402
3E54 4822 117 13546 47Ω 5% 0402
3E55 4822 117 13606 10kΩ 5% 0.01W 0402
3E56 4822 117 13603 33kΩ 5% 0402
3E57 4822 117 11297 100kΩ 5% 0.1W
3E58 4822 117 13546 47Ω 5% 0402
3E59 4822 117 13606 10kΩ 5% 0.01W 0402
3E61 4822 117 13546 47Ω 5% 0402
3E62 4822 117 13548 1kΩ 5% 0402
3E63 4822 117 13606 10kΩ 5% 0.01W 0402
3E64 4822 117 13606 10kΩ 5% 0.01W 0402
3E69 3198 031 04720 4.7kΩ 5% 0402
3E70 3198 031 04720 4.7kΩ 5% 0402
3E73 4822 117 13606 10kΩ 5% 0.01W 0402
3E74 4822 117 13546 47Ω 5% 0402
3E77 4822 117 13546 47Ω 5% 0402
3E78 4822 117 13546 47Ω 5% 0402
3E79 4822 117 13546 47Ω 5% 0402
3E80 4822 117 13546 47Ω 5% 0402
3E81 4822 117 13546 47Ω 5% 0402
3E82 3198 031 01090 10Ω 5% 0.01W 0402
3E83 3198 031 01090 10Ω 5% 0.01W 0402
3E84 3198 031 01090 10Ω 5% 0.01W 0402
3E85 3198 031 01090 10Ω 5% 0.01W 0402
3E86 3198 031 01090 10Ω 5% 0.01W 0402
3E88 4822 117 13546 47Ω 5% 0402
3E89 4822 117 13546 47Ω 5% 0402
3E90 3198 031 06890 68Ω 5% 0402
3E91 3198 031 03390 33Ω 1% 0402
3I07 4822 117 13606 10kΩ 5% 0.01W 0402
3I08 4822 117 13597 330Ω 5% 0402 0.01W
3I28 4822 117 13545 100Ω 1% 0402
3I29 4822 051 30759 75Ω 5% 0.062W
3I30 4822 051 30759 75Ω 5% 0.062W
3I31 4822 051 30759 75Ω 5% 0.062W
3I32 4822 117 13548 1kΩ 5% 0402
3I33 4822 051 30101 100Ω 5% 0.062W
3I34 4822 117 13606 10kΩ 5% 0.01W 0402
3I35 4822 051 30101 100Ω 5% 0.062W
3I36 4822 117 13601 22kΩ 5% 0402
3I37 4822 117 13601 22kΩ 5% 0402
3I38 4822 117 13601 22kΩ 5% 0402
3I40 4822 051 30101 100Ω 5% 0.062W
3I41 4822 117 13548 1kΩ 5% 0402
3I42 4822 117 13548 1kΩ 5% 0402
3I44 4822 117 13606 10kΩ 5% 0.01W 0402
3I45 3198 031 04730 47Ω 5% 0402
3I46 4822 117 13545 100Ω 1% 0402
3I47 4822 117 13602 2.2kΩ 5% 0.01W 0402
3I49 4822 117 13545 100Ω 1% 0402
Spare Parts List EN 166FTL2.1E, FTL2.2E 10.
3I50 4822 051 30271 270Ω 5% 0.062W
3I51 4822 051 30101 100Ω 5% 0.062W
3I52 4822 051 30271 270Ω 5% 0.062W
3I53 4822 051 30101 100Ω 5% 0.062W
3I54 4822 051 30101 100Ω 5% 0.062W
3I55 4822 051 30759 75Ω 5% 0.062W
3I56 4822 051 30101 100Ω 5% 0.062W
3I57 4822 051 30759 75Ω 5% 0.062W
3I58 4822 051 30101 100Ω 5% 0.062W
3I59 4822 051 30759 75Ω 5% 0.062W
3I60 4822 051 30759 75Ω 5% 0.062W
3I61 4822 051 30101 100Ω 5% 0.062W
3I62 4822 051 30101 100Ω 5% 0.062W
3I63 4822 051 30392 3.9Ω 5% 0.063W 0603
3I64 3198 031 08220 8.2kΩ 5% 0.5W
3I65 4822 051 30101 100Ω 5% 0.062W
3I66 4822 051 30759 75Ω 5% 0.062W
3I67 4822 051 30759 75Ω 5% 0.062W
3I68 4822 051 30101 100Ω 5% 0.062W
3I69 4822 051 30271 270Ω 5% 0.062W
3I70 4822 051 30101 100Ω 5% 0.062W
3I71 4822 051 30271 270Ω 5% 0.062W
3I72 4822 051 30101 100Ω 5% 0.062W
3I75 4822 051 30101 100Ω 5% 0.062W
3I76 4822 051 30101 100Ω 5% 0.062W
3I77 4822 051 30759 75Ω 5% 0.062W
3I78 4822 051 30759 75Ω 5% 0.062W
3I79 4822 051 30101 100Ω 5% 0.062W
3I80 4822 051 30101 100Ω 5% 0.062W
3I81 3198 031 08220 8.2kΩ 5% 0.5W
3I82 4822 051 30392 3.9Ω 5% 0.063W 0603
3I83 4822 051 30101 100Ω 5% 0.062W
3I84 4822 051 30759 75Ω 5% 0.062W
3I86 4822 051 30759 75Ω 5% 0.062W
3I87 4822 051 30101 100Ω 5% 0.062W
3I88 4822 051 30759 75Ω 5% 0.062W
3I89 4822 051 30271 270Ω 5% 0.062W
3I90 4822 051 30101 100Ω 5% 0.062W
3I91 4822 051 30271 270Ω 5% 0.062W
3I92 4822 051 30101 100Ω 5% 0.062W
3I98 4822 117 13605 Jumper 0402
3I99 4822 051 30271 270Ω 5% 0.062W
3IA0 4822 051 30101 100Ω 5% 0.062W
3IA2 4822 051 30101 100Ω 5% 0.062W
3IA3 4822 117 13601 22kΩ 5% 0402
3IA4 4822 117 13548 1kΩ 5% 0402
3IA5 4822 117 13548 1kΩ 5% 0402
3IA6 4822 117 13548 1kΩ 5% 0402
3IA7 4822 117 13548 1kΩ 5% 0402
3IA8 4822 117 13548 1kΩ 5% 0402
3IB2 4822 117 13545 100Ω 1% 0402
3IB4 4822 117 13601 22kΩ 5% 0402
3IB5 4822 117 13601 22kΩ 5% 0402
3IC1 4822 117 13574 1.5Ω 5% 1206
3IC2 4822 117 13601 22kΩ 5% 0402
3IC3 4822 117 13601 22kΩ 5% 0402
3IC4 4822 117 13545 100Ω 1% 0402
3IC6 4822 117 13545 100Ω 1% 0402
3IC8 3198 031 05610 560Ω 5% 0.01W 0402
3IC9 4822 117 13601 22kΩ 5% 0402
3ID0 3198 031 04720 4.7kΩ 5% 0402
3ID1 3198 031 01540 150kΩ 5% 0402
3ID5 3198 031 01090 10Ω 5% 0.01W 0402
3ID7 4822 117 11297 100kΩ 5% 0.1W
3ID8 4822 117 11297 100kΩ 5% 0.1W
3ID9 3198 031 05610 560Ω 5% 0.01W 0402
3IE2 4822 117 13545 100Ω 1% 0402
3IE3 4822 117 13545 100Ω 1% 0402
3IE7 3198 031 01090 10Ω 5% 0.01W 0402
3IE9 4822 117 13601 22kΩ 5% 0402
3IF0 4822 117 13545 100Ω 1% 0402
3IF5 4822 117 13601 22kΩ 5% 0402
3IF6 4822 051 30101 100Ω 5% 0.062W
3IF7 4822 051 30101 100Ω 5% 0.062W
3IG0 3198 031 05610 560Ω 5% 0.01W 0402
3IG1 3198 031 01090 10Ω 5% 0.01W 0402
3IG3 3198 031 05610 560Ω 5% 0.01W 0402
3IG4 3198 031 01090 10Ω 5% 0.01W 0402
3IG6 3198 031 05610 560Ω 5% 0.01W 0402
3IG7 3198 031 01090 10Ω 5% 0.01W 0402
3IH1 3198 031 04730 47Ω 5% 0402
3IH7 3198 031 05610 560Ω 5% 0.01W 0402
3IH8 3198 031 04730 47Ω 5% 0402
3IH9 3198 031 04730 47Ω 5% 0402
3IHA 4822 117 13545 100Ω 1% 0402
3IHB 4822 117 13545 100Ω 1% 0402
3IHC 4822 117 13545 100Ω 1% 0402
3IHG 3198 021 31820 1.8kΩ 5% 0.062W 0603
3II0 4822 117 13606 10kΩ 5% 0.01W 0402
3II1 4822 117 13601 22kΩ 5% 0402
3II2 4822 117 13601 22kΩ 5% 0402
3II3 3198 031 04730 47Ω 5% 0402
3II4 3198 031 04730 47Ω 5% 0402
3II6 4822 117 13601 22kΩ 5% 0402
3II7 4822 117 13601 22kΩ 5% 0402
3II9 4822 117 13548 1kΩ 5% 0402
3IJ8 4822 117 13548 1kΩ 5% 0402
3IK0 4822 117 13548 1kΩ 5% 0402
3IK2 4822 117 13601 22kΩ 5% 0402
3IK3 4822 117 13601 22kΩ 5% 0402
3IK7 4822 117 11152 4.7Ω 5%
3IN1 4822 117 13548 1kΩ 5% 0402
3IN4 4822 117 11748 Fuse 2.2Ω 5% 1206
3IN5 4822 117 13601 22kΩ 5% 0402
3IN6 4822 117 13601 22kΩ 5% 0402
3IN8 3198 031 01090 10Ω 5% 0.01W 0402
3IO5 4822 117 13606 10kΩ 5% 0.01W 0402
3IO6 4822 117 13606 10kΩ 5% 0.01W 0402
3IP0 3198 031 08220 8.2kΩ 5% 0.5W
3IP1 4822 117 13602 2.2kΩ 5% 0.01W 0402
3IP2 4822 117 13596 220Ω 5% 0.01W 0402
3IP3 4822 051 30759 75Ω 5% 0.062W
3IP4 3198 031 02710 270Ω 5% 0.1W 0402
3IP5 4822 117 11748 Fuse 2.2Ω 5% 1206
3IP6 4822 117 13548 1kΩ 5% 0402
3IP7 3198 031 02720 2.7kΩ 5% 0.01W 0402
3IP8 4822 117 13548 1kΩ 5% 0402
3IQ0 3198 031 01090 10Ω 5% 0.01W 0402
3IQ5 3198 031 04730 47Ω 5% 0402
3IQ6 4822 117 13545 100Ω 1% 0402
3IQ7 4822 117 13545 100Ω 1% 0402
3IQ8 3198 031 03320 3.3kΩ 5% 0402
3IQ9 4822 117 13548 1kΩ 5% 0402
3IR1 3198 031 02710 270Ω 5% 0.1W 0402
3IR2 3198 031 04720 4.7kΩ 5% 0402
3IR3 3198 031 04720 4.7kΩ 5% 0402
3IR4 4822 117 13545 100Ω 1% 0402
3IR5 4822 117 13546 47Ω 5% 0402
3IR6 4822 117 13546 47Ω 5% 0402
3IR7 4822 117 13543 470Ω 5% 0402
3IR8 3198 031 03320 3.3kΩ 5% 0402
3IR9 2322 706 71201 120Ω 1% 0402
3IS0 2322 706 71201 120Ω 1% 0402
3IS1 2322 706 71201 120Ω 1% 0402
3IS2 4822 117 13545 100Ω 1% 0402
3IS5 2322 706 71201 120Ω 1% 0402
3IT0 3198 031 04730 47Ω 5% 0402
3IT1 3198 031 04730 47Ω 5% 0402
3IT4 3198 031 04730 47Ω 5% 0402
3IT5 2322 706 71201 120Ω 1% 0402
3IT6 2322 706 71201 120Ω 1% 0402
3IT7 4822 117 13548 1kΩ 5% 0402
3IT8 4822 117 13548 1kΩ 5% 0402
3IT9 4822 117 13597 330Ω 5% 0402 0.01W
3IU0 4822 117 11748 Fuse 2.2Ω 5% 1206
3IV0 3198 031 08220 8.2kΩ 5% 0.5W
3IV1 4822 117 13548 1kΩ 5% 0402
3IV2 4822 117 13543 470Ω 5% 0402
3IV3 4822 117 13548 1kΩ 5% 0402
3IW4 3198 031 06820 6.8kΩ 5% 0.01W 0402
3IW5 3198 031 02720 2.7kΩ 5% 0.01W 0402
3IY1 4822 117 13601 22kΩ 5% 0402
3IY2 3198 031 01540 150kΩ 5% 0402
3IY3 4822 117 11297 100kΩ 5% 0.1W
3IY4 4822 117 11297 100kΩ 5% 0.1W
3L03 4822 117 13545 100Ω 1% 0402
3L04 4822 117 13545 100Ω 1% 0402
3L05 4822 117 13545 100Ω 1% 0402
3L06 4822 117 13545 100Ω 1% 0402
3L08 3198 031 02720 2.7kΩ 5% 0.01W 0402
3L11 4822 117 13545 100Ω 1% 0402
3L12 4822 117 13543 470Ω 5% 0402
3L28 4822 117 13543 470Ω 5% 0402
3L29 3198 031 01510 150Ω 5% 0.01W 0402
3L30 3198 031 01510 150Ω 5% 0.01W 0402
3L31 3198 031 01510 150Ω 5% 0.01W 0402
3L32 4822 117 13543 470Ω 5% 0402
3L33 4822 117 13543 470Ω 5% 0402
3P65 4822 117 13545 100Ω 1% 0402
3P66 4822 117 13545 100Ω 1% 0402
3P67 3198 031 04720 4.7kΩ 5% 0402
3P69 3198 031 04720 4.7kΩ 5% 0402
3P70 3198 031 04720 4.7kΩ 5% 0402
3P72 3198 031 04720 4.7kΩ 5% 0402
3T10 4822 117 13606 10kΩ 5% 0.01W 0402
3T11 4822 117 13606 10kΩ 5% 0.01W 0402
3T12 4822 117 13548 1kΩ 5% 0402
3T13 4822 117 13606 10kΩ 5% 0.01W 0402
3T14 3198 031 04730 47Ω 5% 0402
3T15 4822 117 13606 10kΩ 5% 0.01W 0402
3T16 4822 117 11297 100kΩ 5% 0.1W
3T17 4822 117 13606 10kΩ 5% 0.01W 0402
3T18 3198 031 02720 2.7kΩ 5% 0.01W 0402
3T19 4822 117 13596 220Ω 5% 0.01W 0402
3T20 2322 706 71002 1kΩ 1% 0402
3T22 3198 031 04720 4.7kΩ 5% 0402
3T23 4822 117 13548 1kΩ 5% 0402
3T24 2322 706 73902 3.9kΩ 1% 0402
3T25 3198 031 06820 6.8kΩ 5% 0.01W 0402
3T26 4822 117 13613 2.2Ω 5% 0603
3T27 4822 051 30109 10Ω 5% 0.062W
3T28 4822 051 30109 10Ω 5% 0.062W
3T29 4822 117 13606 10kΩ 5% 0.01W 0402
3T30 4822 117 13606 10kΩ 5% 0.01W 0402
3T31 4822 117 13545 100Ω 1% 0402
3T32 4822 117 13548 1kΩ 5% 0402
3T33 5322 117 11726 10Ω 5%
3T51 4822 117 13548 1kΩ 5% 0402
3T52 4822 117 13606 10kΩ 5% 0.01W 0402
3T53 3198 031 04740 470kΩ 5% 0402
3T54 4822 117 13606 10kΩ 5% 0.01W 0402
3T55 4822 117 13606 10kΩ 5% 0.01W 0402
3T56 4822 117 13606 10kΩ 5% 0.01W 0402
3T57 4822 051 30101 100Ω 5% 0.062W
3T58 3198 031 04730 47Ω 5% 0402
3T59 4822 117 13606 10kΩ 5% 0.01W 0402
3T60 4822 117 13608 4.7Ω 5% 0603 0.62W
3U01 4822 051 30102 1kΩ 5% 0.062W
3U02 4822 117 13548 1kΩ 5% 0402
3U03 4822 117 13603 33kΩ 5% 0402
3U04 4822 051 20121 120Ω 5% 0.1W
3U05 4822 117 13548 1kΩ 5% 0402
3U06 4822 117 13543 470Ω 5% 0402
3U07 3198 031 02290 22Ω 5% 0.1W 0402
3U08 2322 706 71502 1.5kΩ 1% 0402
3U09 3198 031 05620 5.6kΩ 5% 0.01W 0402
3U10 4822 117 13596 220Ω 5% 0.01W 0402
3U11 4822 051 30121 120Ω 5% 0.062W
3U12 4822 117 13601 22kΩ 5% 0402
3U13 4822 117 13606 10kΩ 5% 0.01W 0402
3U14 4822 051 30102 1kΩ 5% 0.062W
3U15 2322 706 73302 3.3kΩ 1% 0402
3U16 3198 031 01210 120Ω 5% 0.01W 0402
3U17 3198 031 04780 4.7Ω 5% 0402
3U18 2322 706 71002 1kΩ 1% 0402
3U19 3198 031 04720 4.7kΩ 5% 0402
3U20 2322 706 71002 1kΩ 1% 0402
3U21 3198 031 04730 47Ω 5% 0402
3U22 3198 031 02710 270Ω 5% 0.1W 0402
3U23 3198 031 01090 10Ω 5% 0.01W 0402
3U24 4822 117 13601 22kΩ 5% 0402
3U25 3198 031 02240 220kΩ 5% 0.1W 0402
3U26 4822 117 13601 22kΩ 5% 0402
3U27 4822 117 13601 22kΩ 5% 0402
3U28 3198 031 04730 47Ω 5% 0402
3U29 4822 051 30109 10Ω 5% 0.062W
3U30 4822 051 20121 120Ω 5% 0.1W
3U31 4822 051 20121 120Ω 5% 0.1W
3U32 3198 031 01830 18kΩ 5% 0.01W 0402
3U33 4822 117 13606 10kΩ 5% 0.01W 0402
3U34 3198 031 04740 470kΩ 5% 0402
3U35 4822 117 13606 10kΩ 5% 0.01W 0402
3U36 4822 117 13602 2.2kΩ 5% 0.01W 0402
3U37 4822 117 13601 22kΩ 5% 0402
3U38 4822 117 13602 2.2kΩ 5% 0.01W 0402
3U39 4822 117 13601 22kΩ 5% 0402
3U40 3198 031 01540 150kΩ 5% 0402
3U41 4822 117 13548 1kΩ 5% 0402
3U42 4822 117 13606 10kΩ 5% 0.01W 0402
3U43 4822 117 13601 22kΩ 5% 0402
3U44 3198 031 01050 1MΩ 5% 0402
3U45 3198 031 01050 1MΩ 5% 0402
3U46 2322 706 74703 47kΩ 1% 0402
3U51 9965 000 23109 22Ω 5% 0603
3U52 4822 051 30102 1kΩ 5% 0.062W
3U53 3198 031 01830 18kΩ 5% 0.01W 0402
3U54 4822 117 13545 100Ω 1% 0402
3U55 4822 051 30102 1kΩ 5% 0.062W
3U56 3198 031 04720 4.7kΩ 5% 0402
3U57 4822 117 13606 10kΩ 5% 0.01W 0402
3U60 4822 117 13548 1kΩ 5% 0402
3U61 4822 117 13606 10kΩ 5% 0.01W 0402
3U62 4822 117 13548 1kΩ 5% 0402
3U63 4822 117 13602 2.2kΩ 5% 0.01W 0402
3U64 4822 117 13548 1kΩ 5% 0402
3U65 4822 117 13548 1kΩ 5% 0402
3U66 4822 117 13606 10kΩ 5% 0.01W 0402
3U67 4822 117 13545 100Ω 1% 0402
3U68 4822 117 13606 10kΩ 5% 0.01W 0402
3U69 4822 117 13548 1kΩ 5% 0402
3U70 4822 051 30102 1kΩ 5% 0.062W
3V01 3198 031 01810 180Ω 5% 0402
3V02 3198 031 01810 180Ω 5% 0402
3V17 3198 031 01810 180Ω 5% 0402
3V19 3198 031 01810 180Ω 5% 0402
3V20 3198 031 01810 180Ω 5% 0402
3V21 2350 033 11689 4x 68Ω 5% Netw.
3V22 2350 033 11689 4x 68Ω 5% Netw.
3V23 2350 033 11689 4x 68Ω 5% Netw.
3V24 2350 033 11689 4x 68Ω 5% Netw.
3V25 3198 031 01810 180Ω 5% 0402
3V26 3198 031 01810 180Ω 5% 0402
Spare Parts List EN 167FTL2.1E, FTL2.2E 10.
3V27 3198 031 01810 180Ω 5% 0402
3V28 3198 031 01810 180Ω 5% 0402
3V29 3198 031 01810 180Ω 5% 0402
3V30 3198 031 01810 180Ω 5% 0402
3V31 3198 031 01810 180Ω 5% 0402
3V32 3198 031 01810 180Ω 5% 0402
3V33 3198 031 01810 180Ω 5% 0402
3V34 3198 031 01810 180Ω 5% 0402
3V35 4822 117 13545 100Ω 1% 0402
3V36 4822 117 13545 100Ω 1% 0402
3V37 4822 117 13545 100Ω 1% 0402
3V38 4822 117 13545 100Ω 1% 0402
3V39 3198 031 04720 4.7kΩ 5% 0402
3V40 4822 117 13545 100Ω 1% 0402
3V50 4822 117 13606 10kΩ 5% 0.01W 0402
3V51 4822 117 13606 10kΩ 5% 0.01W 0402
3V52 4822 117 13606 10kΩ 5% 0.01W 0402
3V53 4822 117 13606 10kΩ 5% 0.01W 0402
3V54 4822 117 13606 10kΩ 5% 0.01W 0402
3V55 4822 117 13606 10kΩ 5% 0.01W 0402
3V56 4822 117 13545 100Ω 1% 0402
3Y00 4822 117 13545 100Ω 1% 0402
3Y02 4822 117 13545 100Ω 1% 0402
3Y04 4822 117 13602 2.2kΩ 5% 0.01W 0402
3Y05 4822 117 13545 100Ω 1% 0402
3Y06 4822 117 13543 470Ω 5% 0402
3Y09 4822 117 13545 100Ω 1% 0402
3Y10 4822 117 13545 100Ω 1% 0402
3Y11 4822 117 13545 100Ω 1% 0402
3Y12 4822 117 13545 100Ω 1% 0402
3Y13 4822 117 13543 470Ω 5% 0402
3Y14 3198 031 04720 4.7kΩ 5% 0402
3Y17 4822 117 13545 100Ω 1% 0402
3Y18 4822 117 13545 100Ω 1% 0402
3Y19 4822 117 13545 100Ω 1% 0402
3Y20 3198 031 06890 68Ω 5% 0402
3Y21 3198 031 06890 68Ω 5% 0402
3Y22 3198 031 06890 68Ω 5% 0402
3Y23 3198 031 06890 68Ω 5% 0402
3Y24 4822 117 11297 100kΩ 5% 0.1W
3Y25 4822 117 13545 100Ω 1% 0402
3Y34 4822 117 13545 100Ω 1% 0402
3Y35 4822 117 13545 100Ω 1% 0402
3Y36 4822 117 13545 100Ω 1% 0402
3Y37 3198 031 04720 4.7kΩ 5% 0402
3Y38 4822 117 13602 2.2kΩ 5% 0.01W 0402
3Y39 4822 117 13606 10kΩ 5% 0.01W 0402
3Y40 4822 117 13545 100Ω 1% 0402
3Z22 3198 031 04720 4.7kΩ 5% 0402
3Z23 4822 117 13545 100Ω 1% 0402
3Z30 4822 117 13606 10kΩ 5% 0.01W 0402
3Z31 4822 117 13606 10kΩ 5% 0.01W 0402
3Z32 4822 117 13606 10kΩ 5% 0.01W 0402
3Z33 4822 117 13606 10kΩ 5% 0.01W 0402
3Z37 3198 031 04720 4.7kΩ 5% 0402
3Z56 4822 117 13548 1kΩ 5% 0402
9001 4822 117 13605 Jumper 0402
9002 4822 117 13605 Jumper 0402
9007 4822 117 13605 Jumper 0402
9010 4822 117 13605 Jumper 0402
9011 4822 117 13605 Jumper 0402
9012 4822 117 13605 Jumper 0402
9013 4822 117 13605 Jumper 0402
9023 4822 117 13605 Jumper 0402
9024 4822 117 13605 Jumper 0402
9322 4822 117 13605 Jumper 0402
9410 4822 117 13605 Jumper 0402
9413 4822 117 13605 Jumper 0402
9416 4822 117 13605 Jumper 0402
9417 4822 117 13605 Jumper 0402
9418 4822 117 13605 Jumper 0402
9419 4822 117 13605 Jumper 0402
9420 4822 117 13605 Jumper 0402
9423 4822 117 13605 Jumper 0402
9424 4822 117 13605 Jumper 0402
9425 4822 117 13605 Jumper 0402
9426 4822 117 13605 Jumper 0402
9427 4822 117 13545 100Ω 1% 0402
9428 4822 117 13605 Jumper 0402
9702 4822 117 13605 Jumper 0402
9704 4822 117 13605 Jumper 0402
9706 4822 117 13605 Jumper 0402
9707 4822 117 13605 Jumper 0402
9708 4822 117 13605 Jumper 0402
9709 4822 117 13605 Jumper 0402
9710 4822 117 13605 Jumper 0402
9713 4822 117 13605 Jumper 0402
9714 4822 117 13605 Jumper 0402
9715 4822 117 13605 Jumper 0402
9716 4822 117 13605 Jumper 0402
9717 4822 117 13605 Jumper 0402
9718 4822 117 13605 Jumper 0402
9720 4822 117 13605 Jumper 0402
9721 4822 117 13605 Jumper 0402
9722 4822 117 13605 Jumper 0402
9723 4822 117 13605 Jumper 0402
9727 4822 117 13605 Jumper 0402
9728 4822 117 13605 Jumper 0402
9730 4822 117 13605 Jumper 0402
9732 4822 117 13605 Jumper 0402
9751 4822 117 13605 Jumper 0402
9752 4822 117 13605 Jumper 0402
9753 4822 117 13605 Jumper 0402
9754 4822 117 13605 Jumper 0402
9755 4822 117 13605 Jumper 0402
9756 4822 117 13605 Jumper 0402
9757 4822 117 13605 Jumper 0402
9758 4822 117 13605 Jumper 0402
9760 4822 117 13605 Jumper 0402
9761 4822 117 13605 Jumper 0402
9762 4822 117 13605 Jumper 0402
9763 4822 117 13605 Jumper 0402
9765 4822 117 13605 Jumper 0402
9766 4822 117 13605 Jumper 0402
9772 4822 117 13605 Jumper 0402
9773 4822 117 13605 Jumper 0402
9774 4822 117 13605 Jumper 0402
9775 4822 117 13605 Jumper 0402
9800 4822 117 13605 Jumper 0402
9801 4822 117 13605 Jumper 0402
9802 4822 117 13605 Jumper 0402
9803 4822 117 13605 Jumper 0402
9804 4822 117 13605 Jumper 0402
9805 4822 117 13605 Jumper 0402
9806 4822 117 13605 Jumper 0402
9808 4822 117 13605 Jumper 0402
9809 4822 117 13605 Jumper 0402
9811 4822 117 13605 Jumper 0402
9812 4822 117 13605 Jumper 0402
9815 4822 117 13605 Jumper 0402
9816 4822 117 13605 Jumper 0402
9817 4822 117 13605 Jumper 0402
9818 4822 117 13605 Jumper 0402
9820 4822 117 13605 Jumper 0402
9821 4822 117 13605 Jumper 0402
9822 4822 117 13605 Jumper 0402
9823 3198 031 06890 68Ω 5% 0402
9825 4822 117 13605 Jumper 0402
9826 4822 117 13605 Jumper 0402
9827 4822 117 13605 Jumper 0402
9A00 4822 117 13605 Jumper 0402
9A01 4822 117 13605 Jumper 0402
9A04 4822 117 13605 Jumper 0402
9A05 4822 117 13605 Jumper 0402
9A06 4822 117 13605 Jumper 0402
9A07 4822 117 13605 Jumper 0402
9A25 4822 117 13605 Jumper 0402
9A65 4822 117 13605 Jumper 0402
9A67 4822 051 20008 Jumper 0805
9A71 4822 051 20008 Jumper 0805
9C02 4822 117 13605 Jumper 0402
9E60 4822 117 13605 Jumper 0402
9E62 4822 117 13605 Jumper 0402
9E65 4822 117 13605 Jumper 0402
9E66 4822 117 13605 Jumper 0402
9E67 4822 117 13605 Jumper 0402
9E68 4822 117 13605 Jumper 0402
9E69 4822 117 13605 Jumper 0402
9E70 4822 117 13605 Jumper 0402
9E71 4822 117 13605 Jumper 0402
9E72 4822 117 13605 Jumper 0402
9E73 4822 117 13605 Jumper 0402
9E74 4822 117 13605 Jumper 0402
9E76 4822 117 13605 Jumper 0402
9E77 4822 117 13605 Jumper 0402
9I00 4822 117 13605 Jumper 0402
9I02 4822 117 13605 Jumper 0402
9I07 4822 117 13605 Jumper 0402
9I15 4822 117 13605 Jumper 0402
9I28 4822 117 13605 Jumper 0402
9I30 4822 117 13605 Jumper 0402
9I31 4822 117 13605 Jumper 0402
9I32 4822 117 13605 Jumper 0402
9I33 4822 117 13605 Jumper 0402
9I34 4822 117 13605 Jumper 0402
9I35 4822 117 13605 Jumper 0402
9I39 4822 117 13605 Jumper 0402
9I45 4822 117 13605 Jumper 0402
9I49 4822 117 13605 Jumper 0402
9I68 4822 117 13605 Jumper 0402
9I85 4822 117 13605 Jumper 0402
9IA5 4822 117 13605 Jumper 0402
9IA7 4822 117 13605 Jumper 0402
9ID0 4822 117 13605 Jumper 0402
9ID1 4822 117 13605 Jumper 0402
9ID3 4822 117 13605 Jumper 0402
9ID5 4822 117 13605 Jumper 0402
9ID8 4822 117 13605 Jumper 0402
9ID9 4822 117 13605 Jumper 0402
9P69 4822 117 13605 Jumper 0402
9P70 4822 117 13605 Jumper 0402
9P71 4822 117 13605 Jumper 0402
9T01 4822 117 13601 22kΩ 5% 0402
9T04 4822 117 13605 Jumper 0402
9T07 4822 117 13605 Jumper 0402
9T08 4822 117 13605 Jumper 0402
9T11 4822 117 13605 Jumper 0402
9T12 4822 117 13605 Jumper 0402
9T14 4822 117 13605 Jumper 0402
9T50 4822 117 13605 Jumper 0402
9Y00 3198 031 01090 10Ω 5% 0.01W 0402
9Y01 4822 117 13605 Jumper 0402
9Y03 4822 117 13605 Jumper 0402
9Y05 4822 117 13605 Jumper 0402
9Y06 4822 117 13605 Jumper 0402
9Y12 4822 117 13605 Jumper 0402
9Y13 4822 117 13605 Jumper 0402
9Y16 4822 117 13605 Jumper 0402
9Y99 4822 320 12423 Speaker cable
b
5003 4822 157 11716 Bead 30Ω at 100MHz
5401 3198 018 56880 6.8µH 10% 0603
5403 2422 549 00195 Bead 40.4MHz
5404 4822 157 11506 Bead 120Ω at 100MHz
5405 4822 157 11506 Bead 120Ω at 100MHz
5406 3198 018 52280 2.2µF 10% 1008
5408 2422 549 00232 Trimmer 78MHz 5JKH
5411 4822 157 11892 0.22µH 10% 0805
5416 4822 157 11716 Bead 30Ω at 100MHz
5703 4822 157 11716 Bead 30Ω at 100MHz
5705 4822 157 11876 6.8µH 10% 0805
5713 4822 157 11716 Bead 30Ω at 100MHz
5714 4822 157 11716 Bead 30Ω at 100MHz
5719 4822 157 11716 Bead 30Ω at 100MHz
5720 4822 157 11716 Bead 30Ω at 100MHz
5722 4822 157 11716 Bead 30Ω at 100MHz
5723 4822 157 11716 Bead 30Ω at 100MHz
5726 4822 157 11716 Bead 30Ω at 100MHz
5728 4822 157 11716 Bead 30Ω at 100MHz
5750 4822 157 11716 Bead 30Ω at 100MHz
5751 4822 157 11716 Bead 30Ω at 100MHz
5752 4822 157 11716 Bead 30Ω at 100MHz
5753 4822 157 11716 Bead 30Ω at 100MHz
5755 4822 157 11716 Bead 30Ω at 100MHz
5756 4822 157 11716 Bead 30Ω at 100MHz
5757 4822 157 11716 Bead 30Ω at 100MHz
5758 4822 157 11716 Bead 30Ω at 100MHz
5759 4822 157 11716 Bead 30Ω at 100MHz
5760 4822 157 11716 Bead 30Ω at 100MHz
5761 4822 157 11716 Bead 30Ω at 100MHz
5762 4822 157 11716 Bead 30Ω at 100MHz
5763 4822 157 11716 Bead 30Ω at 100MHz
5764 4822 157 11716 Bead 30Ω at 100MHz
5767 4822 157 11716 Bead 30Ω at 100MHz
5768 4822 157 11716 Bead 30Ω at 100MHz
5769 4822 157 11716 Bead 30Ω at 100MHz
5770 4822 157 11716 Bead 30Ω at 100MHz
5771 4822 157 11716 Bead 30Ω at 100MHz
5772 4822 157 11716 Bead 30Ω at 100MHz
5775 4822 157 11716 Bead 30Ω at 100MHz
5777 4822 157 11716 Bead 30Ω at 100MHz
5778 4822 157 11876 6.8µH 10% 0805
5800 4822 157 11716 Bead 30Ω at 100MHz
5801 4822 157 11716 Bead 30Ω at 100MHz
5A00 4822 157 11716 Bead 30Ω at 100MHz
5A01 4822 157 11716 Bead 30Ω at 100MHz
5A02 4822 157 11716 Bead 30Ω at 100MHz
5A03 4822 157 11716 Bead 30Ω at 100MHz
5A06 4822 157 11716 Bead 30Ω at 100MHz
5A19 4822 157 11828 22µH 20% 0805
5E00 4822 156 21729 Bead 1kΩ 100MHz 0805
5E01 2422 549 42896 Bead 120Ω 100MHz
5E02 4822 156 21729 Bead 1kΩ 100MHz 0805
5E03 4822 156 21729 Bead 1kΩ 100MHz 0805
5E50 4822 157 11499 Bead 60Ω at 100MHz
5E51 2422 549 42896 Bead 120Ω 100MHz
5E52 2422 549 43062 Bead 600Ω at 100MHz
5E53 2422 536 00779 10µH 20%
5E54 4822 157 11499 Bead 60Ω at 100MHz
5E55 2422 549 43062 Bead 600Ω at 100MHz
5E58 2422 549 43062 Bead 600Ω at 100MHz
5I05 4822 157 11716 Bead 30Ω at 100MHz
5I06 4822 157 11716 Bead 30Ω at 100MHz
5I12 4822 157 11716 Bead 30Ω at 100MHz
5I13 4822 157 11716 Bead 30Ω at 100MHz
5I21 4822 157 11716 Bead 30Ω at 100MHz
5I22 4822 157 11716 Bead 30Ω at 100MHz
5I30 4822 157 11716 Bead 30Ω at 100MHz
5I31 4822 157 11716 Bead 30Ω at 100MHz
Spare Parts List EN 168FTL2.1E, FTL2.2E 10.
5I32 4822 157 11716 Bead 30Ω at 100MHz
5I33 4822 157 11716 Bead 30Ω at 100MHz
5I34 4822 157 11716 Bead 30Ω at 100MHz
5I35 4822 157 11716 Bead 30Ω at 100MHz
5I36 4822 157 11892 0.22µH 10% 0805
5I37 4822 157 11892 0.22µH 10% 0805
5I38 4822 157 11892 0.22µH 10% 0805
5I39 4822 157 11716 Bead 30Ω at 100MHz
5I40 4822 157 11716 Bead 30Ω at 100MHz
5I41 4822 157 11716 Bead 30Ω at 100MHz
5I42 4822 156 21729 Bead 1kΩ 100MHz 0805
5I45 4822 157 11716 Bead 30Ω at 100MHz
5I46 4822 157 11716 Bead 30Ω at 100MHz
5I47 4822 157 11716 Bead 30Ω at 100MHz
5L02 3198 018 54770 0.47µF 10% 0603
5L04 3198 018 54770 0.47µF 10% 0603
5L06 3198 018 54770 0.47µF 10% 0603
5L13 4822 156 21729 Bead 1kΩ 100MHz 0805
5L14 4822 156 21729 Bead 1kΩ 100MHz 0805
5L15 4822 156 21729 Bead 1kΩ 100MHz 0805
5L16 4822 157 11716 Bead 30Ω at 100MHz
5L17 4822 157 11716 Bead 30Ω at 100MHz
5L18 4822 157 11716 Bead 30Ω at 100MHz
5P51 4822 157 11716 Bead 30Ω at 100MHz
5T10 2422 536 00779 10µH 20%
5T11 2422 535 94995 10µF 20% 10145
5T14 2422 549 44197 Bead 220Ω at 100MHz
5T15 2422 549 44197 Bead 220Ω at 100MHz
5T20 4822 157 11716 Bead 30Ω at 100MHz
5T22 4822 157 11716 Bead 30Ω at 100MHz
5T25 2422 535 94134 10µH 20% 0805
5U01 3104 308 20661 Transf. BD13118-02
5U02 2422 536 00779 10µH 20%
5U03 2422 549 44197 Bead 220Ω at 100MHz
5U04 2422 549 44197 Bead 220Ω at 100MHz
5U05 2422 536 00779 10µH 20%
5U06 2422 536 00779 10µH 20%
5Y00 4822 157 11716 Bead 30Ω at 100MHz
5Y01 4822 157 11716 Bead 30Ω at 100MHz
5Y02 2422 549 44197 Bead 220Ω at 100MHz
5Y03 2422 549 44197 Bead 220Ω at 100MHz
5Y06 4822 157 11716 Bead 30Ω at 100MHz
5Y07 4822 157 11716 Bead 30Ω at 100MHz
5Y11 4822 157 11716 Bead 30Ω at 100MHz
5Y12 4822 157 11716 Bead 30Ω at 100MHz
5Y14 4822 157 11716 Bead 30Ω at 100MHz
5Y15 4822 157 11716 Bead 30Ω at 100MHz
5Y16 4822 157 11716 Bead 30Ω at 100MHz
5Y17 4822 157 11716 Bead 30Ω at 100MHz
5Y18 4822 157 11716 Bead 30Ω at 100MHz
5Y19 4822 157 11716 Bead 30Ω at 100MHz
5Y20 4822 157 11716 Bead 30Ω at 100MHz
5Y21 4822 117 10353 150Ω 1% 0.1W
5Y22 4822 117 10353 150Ω 1% 0.1W
5Y23 4822 157 11716 Bead 30Ω at 100MHz
5Z01 2422 549 45325 Bead 67Ω at 100MHz
5Z02 2422 549 45325 Bead 67Ω at 100MHz
5Z03 2422 549 45325 Bead 67Ω at 100MHz
5Z04 2422 549 45325 Bead 67Ω at 100MHz
5Z05 2422 549 45325 Bead 67Ω at 100MHz
5Z06 2422 549 44197 Bead 220Ω at 100MHz
5Z07 2422 549 44197 Bead 220Ω at 100MHz
5Z08 2422 549 44197 Bead 220Ω at 100MHz
d
6001 4822 130 80622 BAT54
6003 4822 130 80622 BAT54
6004 4822 130 80622 BAT54
6005 4822 130 11422 PLVA2650A
6006 4822 130 11564 UDZ3.9B
6403 9340 552 30115 BA591
6701 4822 130 11397 BAS316
6702 4822 130 11397 BAS316
6703 4822 130 11397 BAS316
6705 4822 130 11397 BAS316
6710 4822 130 11397 BAS316
6711 4822 130 11397 BAS316
6712 4822 130 11397 BAS316
6713 4822 130 11397 BAS316
6714 4822 130 11397 BAS316
6715 4822 130 11397 BAS316
6717 4822 130 11397 BAS316
6718 4822 130 11397 BAS316
6719 9322 128 69685 S1D
6720 4822 130 11397 BAS316
6721 4822 130 11397 BAS316
6723 4822 130 11397 BAS316
6A00 4822 130 11551 UDZS10B
6A01 4822 130 11397 BAS316
6A02 9322 159 70685 MM3Z9V1
6E51 4822 130 11397 BAS316
6E52 4822 130 11397 BAS316
6E53 4822 130 11397 BAS316
6E54 4822 130 11397 BAS316
6E55 4822 130 11397 BAS316
6E56 4822 130 11397 BAS316
6I01 4822 130 10328 BAV99W
6I06 4822 130 10328 BAV99W
6I07 4822 130 10328 BAV99W
6I08 4822 130 11423 PLVA2656A
6I09 4822 130 11423 PLVA2656A
6I10 4822 130 11397 BAS316
6I11 4822 130 11397 BAS316
6I12 4822 130 11397 BAS316
6I13 4822 130 11397 BAS316
6I14 4822 130 10328 BAV99W
6I15 4822 130 10328 BAV99W
6I16 4822 130 10328 BAV99W
6I17 4822 130 10328 BAV99W
6I18 4822 130 10328 BAV99W
6I19 4822 130 10328 BAV99W
6I20 4822 130 10328 BAV99W
6I21 4822 130 10328 BAV99W
6I22 4822 130 11416 PDZ6.8B
6I23 4822 130 11416 PDZ6.8B
6I24 4822 130 11416 PDZ6.8B
6I25 4822 130 11416 PDZ6.8B
6I26 4822 130 11416 PDZ6.8B
6I27 4822 130 11416 PDZ6.8B
6I28 4822 130 11416 PDZ6.8B
6I29 4822 130 11416 PDZ6.8B
6I30 4822 130 11416 PDZ6.8B
6I31 4822 130 11416 PDZ6.8B
6I32 4822 130 11416 PDZ6.8B
6I33 4822 130 11416 PDZ6.8B
6I35 4822 130 11416 PDZ6.8B
6I36 4822 130 11416 PDZ6.8B
6I37 4822 130 11416 PDZ6.8B
6I38 4822 130 11416 PDZ6.8B
6I39 4822 130 11416 PDZ6.8B
6I40 4822 130 11416 PDZ6.8B
6I41 4822 130 11416 PDZ6.8B
6I42 4822 130 11416 PDZ6.8B
6I43 4822 130 11416 PDZ6.8B
6I44 4822 130 11416 PDZ6.8B
6I45 4822 130 11416 PDZ6.8B
6I46 4822 130 11416 PDZ6.8B
6I47 4822 130 11416 PDZ6.8B
6I48 4822 130 11416 PDZ6.8B
6I49 9322 129 41685 BZM55-C12
6I50 4822 130 11416 PDZ6.8B
6I51 4822 130 11416 PDZ6.8B
6I52 4822 130 11416 PDZ6.8B
6I53 4822 130 11416 PDZ6.8B
6I54 4822 130 11416 PDZ6.8B
6I55 4822 130 11416 PDZ6.8B
6I56 4822 130 11416 PDZ6.8B
6I61 4822 130 11416 PDZ6.8B
6I63 4822 130 11397 BAS316
6I64 4822 130 11397 BAS316
6I65 4822 130 11397 BAS316
6I66 4822 130 11397 BAS316
6I68 4822 130 11416 PDZ6.8B
6I69 4822 130 11416 PDZ6.8B
6I70 4822 130 11416 PDZ6.8B
6I75 4822 130 11416 PDZ6.8B
6I77 4822 130 11416 PDZ6.8B
6I90 4822 130 11416 PDZ6.8B
6I91 4822 130 11416 PDZ6.8B
6I92 4822 130 11416 PDZ6.8B
6I93 4822 130 11416 PDZ6.8B
6I99 4822 130 11422 PLVA2650A
6IA0 9322 129 41685 BZM55-C12
6IA7 4822 130 11397 BAS316
6T01 4822 130 11397 BAS316
6T03 4822 130 11397 BAS316
6T08 9340 548 71115 PDZ33B
6T10 4822 130 11397 BAS316
6T11 9340 548 58115 PDZ9.1B
6U01 4822 130 11397 BAS316
6U03 4822 130 11397 BAS316
6U04 4822 130 11397 BAS316
6U05 9322 129 41685 BZM55-C12
6U06 9322 203 37685 BZG05C3V9
6U07 4822 130 11416 PDZ6.8B
6U08 4822 130 80622 BAT54
6U09 4822 130 80622 BAT54
6U10 4822 130 11522 UDZ15B
6U11 4822 130 11397 BAS316
6U12 9340 548 52115 PDZ5.1B
6U13 9340 548 58115 PDZ9.1B
6U14 4822 130 10328 BAV99W
6U16 9340 548 52115 PDZ5.1B
6U17 4822 130 11416 PDZ6.8B
ce
7001 9352 684 81557 SAA5801H/015
7002 3198 010 42320 BC857BW
7003 3198 010 42310 BC847BW
7004 3198 010 42310 BC847BW
7005 9322 172 45668 LF33ABDT
7006 For SW see item 0601
7007 9322 157 20668 MSM51V18165F-60J
7008 3198 010 42310 BC847BW
7009 3198 010 42310 BC847BW
7010 3198 010 42320 BC857BW
7011 9322 130 41668 M24C64-WMN6
7012 9322 199 93668 M29W400DT-55N6
7013 3198 010 42310 BC847BW
7014 3198 010 42320 BC857BW
7017 9340 310 30215 PDTC144ET
7018 9352 115 40118 74LVC245APW
7019 9352 115 40118 74LVC245APW
7020 3198 010 42310 BC847BW
7021 9340 425 30115 BC847BPN
7022 3198 010 42320 BC857BW
7320 3198 010 42310 BC847BW
7322 3198 010 42310 BC847BW
7323 9352 625 24518 TDA9321H/N2
7402 3198 010 42310 BC847BW
7403 3198 010 42310 BC847BW
7407 3198 010 42320 BC857BW
7410 3198 010 42310 BC847BW
7411 3198 010 42310 BC847BW
7414 3198 010 42310 BC847BW
7415 3198 010 42310 BC847BW
7703 3198 010 42310 BC847BW
7705 3198 010 42310 BC847BW
7706 3198 010 70400 74LVC1G14GW
7707 3198 010 42310 BC847BW
7708 3198 010 42310 BC847BW
7709 3198 010 42310 BC847BW
7710 3198 010 42310 BC847BW
7711 For SW see item 0605
7712 9351 870 00118 74HC573PW
7713 9352 688 09557 SAA4978H/V204
7714 9965 000 02179 MS81V04160-25TB
7715 4822 209 73852 PMBT2369
7717 4822 209 73852 PMBT2369
7719 9322 206 19672 MSM56V16160F-7T3-FG
7720 9322 207 36702 T6TX5EF-0001
7725 4822 209 73852 PMBT2369
7752 9322 202 21671 T6TU5XB-0001
7753 9322 206 19672 MSM56V16160F-7T3-FG
7760 9352 730 86557 SAA4998H/V1
7772 9322 170 14668 LF15ABDT
7773 9322 179 78668 LF18ABDT
7774 9322 142 88668 LF25CDT
7A00 4822 209 30095 LM833D
7A01 3198 010 42310 BC847BW
7A02 9322 196 03702 MSP3411G-QI-B8V3
7A03 4822 209 30095 LM833D
7A04 4822 130 60373 BC856B
7A07 9322 183 05668 TS482ID
7A08 9340 425 20115 BC847BS
7A09 4822 130 60373 BC856B
7A31 9340 425 20115 BC847BS
7E01 9322 142 88668 LF25CDT
7E02 For SW see item 0602
7E03 9352 687 21165 74LVC1G126GW
7E04 9352 687 20125 74LVC1G125GW
7E05 9322 170 14668 LF15ABDT
7E10 9352 759 98118 PCA9515ADP
7E12 9340 425 20115 BC847BS
7E23 9322 181 72671 AD9883AKST-110
7E24 9322 205 36668 AD9283BRSZ-50
7E25 3198 010 42320 BC857BW
7E26 3198 010 42320 BC857BW
7E27 3198 010 42320 BC857BW
7I01 9340 425 20115 BC847BS
7I02 9340 425 20115 BC847BS
7I03 9340 425 20115 BC847BS
7I04 3198 010 42310 BC847BW
7I05 9340 425 30115 BC847BPN
7I07 4822 130 60142 BC869
7I09 3198 010 42310 BC847BW
7I12 9351 869 40118 74HC4053PW
7I18 9322 183 61682 SII907BCQ52
7I19 For SW see item 0603
7I20 9351 869 40118 74HC4053PW
7I21 9340 425 30115 BC847BPN
7I22 3198 010 42310 BC847BW
7I23 9340 425 20115 BC847BS
7I27 3198 010 42320 BC857BW
7I29 3198 010 42320 BC857BW
7I31 3198 010 42320 BC857BW
Spare Parts List EN 169FTL2.1E, FTL2.2E 10.
7I32 9351 869 40118 74HC4053PW
7I35 3198 010 42310 BC847BW
7I36 3198 010 42310 BC847BW
7I37 3198 010 42320 BC857BW
7I38 3198 010 42310 BC847BW
7I44 9340 425 20115 BC847BS
7I49 9340 310 30215 PDTC144ET
7I50 9340 425 30115 BC847BPN
7I51 9340 560 35235 BSH112
7I52 9340 560 35235 BSH112
7I53 9340 425 30115 BC847BPN
7I55 4822 209 16095 BA7657F
7I56 3198 010 42310 BC847BW
7I57 3198 010 42310 BC847BW
7I58 3198 010 42310 BC847BW
7I62 3198 010 42310 BC847BW
7I71 9340 425 30115 BC847BPN
7L01 9322 181 72671 AD9883AKST-110
7L02 4822 209 17398 LD1117DT33
7P56 4822 209 17345 M62320FP
7T01 9322 160 70668 SI4936ADY
7T04 9322 182 77668 L6910
7T10 9340 425 20115 BC847BS
7T11 9340 425 30115 BC847BPN
7T12 3198 010 42310 BC847BW
7T13 9340 425 30115 BC847BPN
7U01 4822 130 60373 BC856B
7U02 4822 130 60373 BC856B
7U03 9322 091 04668 SI4410DY
7U04 9322 091 04668 SI4410DY
7U05 3198 010 42320 BC857BW
7U06 9340 425 20115 BC847BS
7U07 9340 425 30115 BC847BPN
7U08 4822 130 42804 BC817-25
7U09 4822 130 42804 BC817-25
7U10 3198 010 42310 BC847BW
7U11 3198 010 42310 BC847BW
7U12 3198 010 42310 BC847BW
7U13 9340 425 30115 BC847BPN
7V01 9322 200 14671 EP1C12F256C8
7V03 9322 206 19672 MSM56V16160F-7T3-FG
7V04 9340 425 20115 BC847BS
7Y01 9340 310 30215 PDTC144ET
7Y02 3198 010 42320 BC857BW
7Z00 3198 010 42310 BC847BW
Side I/O Panel [D]
(FTL2.2E Wrap)
Various
1001 2422 026 05133 Connector SVHS 4p f
1002 4822 267 10975 Soc. CINCH f YeWhRd
1010 4822 267 31014 Soc. headphone
1M36 2422 025 17179 Connector 11p m
g
2003 2022 552 05679 1µF 10% 16V 0805
2004 3198 016 36810 680pF 25V 0603
2005 2020 552 94427 100pF 5% 50V
2006 3198 016 36810 680pF 25V 0603
2007 2020 552 94427 100pF 5% 50V
2008 2238 916 15641 22nF 10% 25V 0603
2009 5322 126 11583 10nF 10% 50V 0603
2010 2238 916 15641 22nF 10% 25V 0603
2011 5322 126 11583 10nF 10% 50V 0603
f
3000 4822 051 30759 75Ω 5% 0.062W
3004 4822 051 30759 75Ω 5% 0.062W
3008 4822 051 30222 2.2kΩ 5% 0.062W
3009 4822 051 30102 1kΩ 5% 0.062W
3010 4822 051 30333 33kΩ 5% 0.062W
3011 4822 051 30392 3.9Ω 5% 0.063W 0603
3012 4822 051 30102 1kΩ 5% 0.062W
3013 4822 051 30333 33kΩ 5% 0.062W
3016 4822 051 30103 10kΩ 5% 0.062W
3020 4822 051 30103 10kΩ 5% 0.062W
9004 4822 051 30008 Jumper 0603
9005 4822 051 30008 Jumper 0603
9006 4822 051 30008 Jumper 0603
9007 4822 051 30008 Jumper 0603
9008 4822 051 30008 Jumper 0603
9009 4822 051 30008 Jumper 0603
9010 4822 051 30008 Jumper 0603
9011 4822 051 30008 Jumper 0603
d
6000 4822 130 11416 PDZ6.8B
6001 4822 130 11416 PDZ6.8B
6002 4822 130 11416 PDZ6.8B
6003 4822 130 11416 PDZ6.8B
6004 4822 130 11416 PDZ6.8B
6005 4822 130 11416 PDZ6.8B
6006 4822 130 11416 PDZ6.8B
6007 4822 130 11416 PDZ6.8B
6008 4822 130 11416 PDZ6.8B
6009 4822 130 11416 PDZ6.8B
6010 4822 130 11416 PDZ6.8B
6011 4822 130 11416 PDZ6.8B
Top Control Panel [E]
(FTL2.2E Wrap)
Various
0345 2422 025 16544 Connector 6p m
1701 4822 276 13775 Switch 1p 0.1A 12V
1702 4822 276 13775 Switch 1p 0.1A 12V
1703 4822 276 13775 Switch 1p 0.1A 12V
1704 4822 276 13775 Switch 1p 0.1A 12V
1705 4822 276 13775 Switch 1p 0.1A 12V
1710 2422 128 00119 Switch 2p 0.1A 12V
1710 4822 276 14007 Switch 2p 0.1A 12V
8345 3104 311 08141 Cable 6P/480/6P
f
3008 4822 117 10845 620Ω 1% 0.1W
3010 4822 117 11534 1.1kΩ 1% 0.1W
3011 4822 117 11951 2kΩ 1% 0.1W
3013 4822 117 13528 200Ω 1% 0.125W 0805
3014 3198 031 03910 390Ω 1% 0402
3017 4822 051 30339 33Ω 5% 0.062W
3018 4822 051 30339 33Ω 5% 0.062W
3019 4822 051 30339 33Ω 5% 0.062W
3020 4822 051 30339 33Ω 5% 0.062W
3021 4822 051 30339 33Ω 5% 0.062W
3022 4822 051 30339 33Ω 5% 0.062W
3023 4822 051 30339 33Ω 5% 0.062W
3024 4822 051 30339 33Ω 5% 0.062W
3025 4822 051 30339 33Ω 5% 0.062W
3026 4822 051 30339 33Ω 5% 0.062W
3027 4822 051 30339 33Ω 5% 0.062W
3028 4822 051 30339 33Ω 5% 0.062W
3999 4822 117 13602 2.2kΩ 5% 0.01W 0402
9000 4822 117 13605 Jumper 0402
9001 4822 117 13605 Jumper 0402
9002 4822 117 13605 Jumper 0402
d
6001 9322 198 19685 SML512BC2T
6001 9322 208 45685 SML512BC4TL
6002 9322 198 19685 SML512BC2T
6002 9322 208 45685 SML512BC4TL
6003 9322 198 19685 SML512BC2T
6004 9322 198 19685 SML512BC2T
6004 9322 208 45685 SML512BC4TL
6005 9322 198 19685 SML512BC2T
6005 9322 208 45685 SML512BC4TL
6006 9322 198 19685 SML512BC2T
6007 9322 198 19685 SML512BC2T
6008 9322 198 19685 SML512BC2T
6008 9322 208 45685 SML512BC4TL
6009 9322 198 19685 SML512BC2T
6010 9322 198 19685 SML512BC2T
6010 9322 208 45685 SML512BC4TL
6011 9322 198 19685 SML512BC2T
6011 9322 208 45685 SML512BC4TL
6012 9322 198 19685 SML512BC2T
SCART3 Panel [H]
(FTL2.2E Wrap)
Various
1003 2422 025 14911 Socket Euro 21p f
1M07 4822 267 10637 Connector 5p
1M36 2422 025 10655 Connector 11p m
1M37 2422 025 10655 Connector 11p m
g
2500 2022 552 05679 1µF 10% 16V 0805
2501 2020 552 94427 100pF 5% 50V
2502 2022 552 05679 1µF 10% 16V 0805
2503 2020 552 94427 100pF 5% 50V
2504 2022 552 05679 1µF 10% 16V 0805
2505 2022 552 05679 1µF 10% 16V 0805
2506 2238 586 59812 100nF 20% 50V 0603
2507 5322 126 11578 1nF 10% 50V 0603
2508 2022 552 05679 1µF 10% 16V 0805
2509 2238 586 59812 100nF 20% 50V 0603
2510 4822 126 14241 330pF 0603 50V
2511 2238 586 59812 100nF 20% 50V 0603
2512 2238 586 59812 100nF 20% 50V 0603
2513 2238 586 59812 100nF 20% 50V 0603
2515 2022 552 05679 1µF 10% 16V 0805
2516 2022 552 05679 1µF 10% 16V 0805
2517 2022 552 05679 1µF 10% 16V 0805
f
3500 4822 051 30101 100Ω 5% 0.062W
3501 4822 051 30101 100Ω 5% 0.062W
3502 4822 051 30223 22kΩ 5% 0.062W
3503 4822 051 30101 100Ω 5% 0.062W
3504 4822 051 30101 100Ω 5% 0.062W
3505 4822 051 30223 22kΩ 5% 0.062W
3506 4822 051 30759 75Ω 5% 0.062W
3507 4822 051 30759 75Ω 5% 0.062W
3508 4822 051 30759 75Ω 5% 0.062W
3509 4822 051 30101 100Ω 5% 0.062W
3510 4822 051 30759 75Ω 5% 0.062W
3511 4822 051 30479 47Ω 5% 0.062W
3512 4822 051 30479 47Ω 5% 0.062W
3513 4822 051 30479 47Ω 5% 0.062W
3514 4822 051 30479 47Ω 5% 0.062W
3515 4822 051 30479 47Ω 5% 0.062W
3516 4822 051 30479 47Ω 5% 0.062W
3517 4822 117 12925 47kΩ 1% 0.063W 0603
3522 4822 051 30272 2.7kΩ 5% 0.062W
3523 4822 051 30223 22kΩ 5% 0.062W
3524 4822 051 30479 47Ω 5% 0.062W
3525 4822 051 30102 1kΩ 5% 0.062W
3526 5322 117 13056 8.2kΩ 1% 0.063W 0603
3527 4822 051 30683 68kΩ 5% 0.062W
3528 4822 051 30223 22kΩ 5% 0.062W
3529 4822 051 30102 1kΩ 5% 0.062W
3535 4822 051 30479 47Ω 5% 0.062W
3536 4822 051 30103 10kΩ 5% 0.062W
3543 4822 051 30759 75Ω 5% 0.062W
3599 4822 051 30102 1kΩ 5% 0.062W
3999 4822 051 30102 1kΩ 5% 0.062W
9502 4822 051 30008 Jumper 0603
9508 4822 051 30008 Jumper 0603
9521 4822 051 30008 Jumper 0603
9524 4822 051 30008 Jumper 0603
d
6500 4822 130 11416 PDZ6.8B
6501 4822 130 11416 PDZ6.8B
6502 4822 130 11416 PDZ6.8B
6503 4822 130 11416 PDZ6.8B
6504 4822 130 11397 BAS316
6505 4822 130 11416 PDZ6.8B
6506 4822 130 11416 PDZ6.8B
6507 9322 129 41685 BZM55-C12
6508 4822 130 11551 UDZS10B
ce
7501 3198 010 42310 BC847BW
7502 3198 010 42310 BC847BW
7515 9351 869 40118 74HC4053PW
7516 9351 869 40118 74HC4053PW
LED/Switch Panel [J]
(FTL2.2E Wrap)
Various
0345 2422 025 16961 Connector 6p m SMD
1040 9322 206 81667 TSOP34836YA1
1M01 2422 025 17103 Connector 3p m SMD
1M20 2422 025 17441 Connector 12p m
Spare Parts List
EN 170 FTL2.1E, FTL2.2E10.
g
2030 4822 124 23002 10µF 16V
2040 4822 124 12095 100µF 20% 16V
2060 5322 124 41945 22µF 20% 35V
2070 4822 126 14583 470nF 10% 16V 0805
2071 4822 124 23002 10µF 16V
f
3011 4822 117 13545 100Ω 1% 0402
3020 4822 117 13606 10kΩ 5% 0.01W 0402
3030 3198 031 04720 4.7kΩ 5% 0402
3031 4822 117 12889 270kΩ 1% 0.063W 0603
3031 4822 117 13632 100kΩ 1% 0603 0.62W
3032 2322 705 70184 180Ω 5% 0402
3033 4822 051 30102 1kΩ 5% 0.062W
3034 4822 117 13548 1kΩ 5% 0402
3035 3198 031 04720 4.7kΩ 5% 0402
3036 3198 031 02280 2.2Ω 5% 0.1W 0402
3037 3198 031 02280 2.2Ω 5% 0.1W 0402
3040 4822 117 13597 330Ω 5% 0402 0.01W
3041 4822 117 13606 10kΩ 5% 0.01W 0402
3042 3198 031 06820 6.8kΩ 5% 0.01W 0402
3051 4822 117 13597 330Ω 5% 0402 0.01W
3060 4822 117 13606 10kΩ 5% 0.01W 0402
3061 4822 051 30331 330Ω 5% 0.062W
3062 4822 117 11373 100Ω 1% 0805
3063 4822 117 13606 10kΩ 5% 0.01W 0402
3064 4822 117 11373 100Ω 1% 0805
3070 2322 705 70475 4.7MΩ 5% 0402
3071 2322 705 70475 4.7MΩ 5% 0402
3072 4822 117 13548 1kΩ 5% 0402
3073 3198 031 03320 3.3kΩ 5% 0402
3074 4822 117 13606 10kΩ 5% 0.01W 0402
3075 3198 031 04720 4.7kΩ 5% 0402
3076 3198 031 03320 3.3kΩ 5% 0402
3077 3198 031 03320 3.3kΩ 5% 0402
3078 3198 031 03320 3.3kΩ 5% 0402
3079 3198 031 03320 3.3kΩ 5% 0402
3091 4822 117 13606 10kΩ 5% 0.01W 0402
3096 4822 117 13606 10kΩ 5% 0.01W 0402
3999 3198 031 04720 4.7kΩ 5% 0402
9010 4822 117 13605 Jumper 0402
9012 4822 117 13605 Jumper 0402
9013 4822 117 13605 Jumper 0402
9015 4822 117 13605 Jumper 0402
9016 4822 117 13605 Jumper 0402
9017 4822 117 13605 Jumper 0402
9019 4822 117 13605 Jumper 0402
9022 4822 051 30008 Jumper 0603
9024 4822 051 30008 Jumper 0603
9026 4822 117 13605 Jumper 0402
9027 4822 117 13605 Jumper 0402
9040 4822 117 13605 Jumper 0402
9043 4822 117 13605 Jumper 0402
d
6030 4822 130 11397 BAS316
6031 4822 130 11397 BAS316
6051 4822 130 11395 TLMH3100
6051 4822 130 83915 TLMV3100
6060 9322 198 19685 SML512BC2T
6060 9322 208 45685 SML512BC4TL
6061 4822 130 11397 BAS316
6070 9322 140 63685 TEMD5000
ce
7030 3198 010 42320 BC857BW
7031 5322 130 62804 BCP53
7032 3198 010 42310 BC847BW
7060 3198 010 42310 BC847BW
7061 3198 010 42310 BC847BW
7070 9322 192 63668 LM358P
Stand-by Supply/Audio Panel [SA]
(FTL2.2E Wrap)
Various
1304 2422 025 10647 Connector 4p m
1305 4822 267 10735 Connector 3p
1306 2422 025 16374 Connector 2p m
1307 2422 025 10647 Connector 4p m
1309 2422 025 11143 Connector 3p m
1314 2422 025 10771 Connector 10p m
1315 2422 025 10771 Connector 10p m
1316 2422 025 10772 Connector 12p m
1317 2422 025 10772 Connector 12p m
1318 2422 025 08149 Connector 6p m
1735 4822 267 10918 Connector 3p
1736 2422 025 10768 Connector 3p m
1739 2422 025 10769 Connector 9p m
1M02 2422 025 11244 Connector 7p m
1M03 2422 025 10771 Connector 10p m
1M10 2422 025 09406 Connector 4p m
1M46 2422 025 10655 Connector 11p m
g
2101h4822 121 51598 2.2nF 5% 400V
2102 4822 124 40207 100µF 20% 25V
2103 2020 552 94427 100pF 5% 50V
2105 2020 552 94427 100pF 5% 50V
2107h2020 024 90718 10µF 20% 450V
2108h2020 024 90718 10µF 20% 450V
2109 2022 552 05679 1µF 10% 16V 0805
2110 2022 552 05679 1µF 10% 16V 0805
2111 4822 121 43526 47nF 5% 250V
2112 5322 126 11583 10nF 10% 50V 0603
2123 2238 586 59812 100nF 20% 50V 0603
2124 4822 124 40248 10µF 20% 63V
2129 5322 126 11578 1nF 10% 50V 0603
2131 2238 586 15641 22nF 10% 50V 0603
2132 4822 124 40207 100µF 20% 25V
2140 4822 124 40248 10µF 20% 63V
2141 4822 126 14583 470nF 10% 16V 0805
2144 2022 552 05679 1µF 10% 16V 0805
2145 4822 126 13881 470pF 5% 50V
2149 2022 552 05679 1µF 10% 16V 0805
2150 4822 124 12379 220µF 25V
2152 4822 121 70162 10nF 5% 400V
2153 5322 126 11582 6.8nF 10% 63V
2154 3198 017 31530 15nF 20% 50V 0603
2160 4822 124 21913 1µF 20% 63V
2163 4822 124 40207 100µF 20% 25V
2506h2252 811 95017 470pF 10% 250V
2507 4822 126 13682 100pF 5% 1kV
2508 4822 124 40764 22µF 100V
2510 2020 021 91668 2200µF 20% 10V
2511 4822 124 12379 220µF 25V
2513h4822 126 10206 2.2nF 10% 500V
2515 4822 126 14238 2.2nF 50V 0603
2533 4822 124 40207 100µF 20% 25V
2534 2022 552 05679 1µF 10% 16V 0805
2535 5322 126 11583 10nF 10% 50V 0603
2536 5322 126 11583 10nF 10% 50V 0603
2537 4822 126 14238 2.2nF 50V 0603
2538 5322 126 11583 10nF 10% 50V 0603
2539 2022 552 05679 1µF 10% 16V 0805
2540 5322 126 11583 10nF 10% 50V 0603
2544 5322 126 11583 10nF 10% 50V 0603
2702 5322 126 11578 1nF 10% 50V 0603
2704 5322 126 11578 1nF 10% 50V 0603
2705 2020 552 96684 470nF 10% 25V 0805
2706 2222 580 15649 100nF 10% 50V 0805
2707 4822 126 14585 100nF 10% 0805 50V
2708 2020 552 96326 220nF 10% 16V
2709 4822 126 13881 470pF 5% 50V
2710 4822 126 13881 470pF 5% 50V
2711 5322 126 11578 1nF 10% 50V 0603
2712 2020 552 96683 220nF 10% 50V
2713 2020 552 96684 470nF 10% 25V 0805
2714 3198 017 33330 33nF 20% 16V 0603
2715 5322 126 11578 1nF 10% 50V 0603
2716 4822 126 14241 330pF 0603 50V
2717 5322 121 42498 680nF 5% 63V
2718 4822 122 33761 22pF 5% 50V
2719 5322 126 11578 1nF 10% 50V 0603
2720 2020 552 96326 220nF 10% 16V
2721 4822 126 13881 470pF 5% 50V
2722 4822 126 13881 470pF 5% 50V
2725 2020 552 94427 100pF 5% 50V
2726 3198 017 33330 33nF 20% 16V 0603
2727 5322 126 11578 1nF 10% 50V 0603
2728 4822 126 14241 330pF 0603 50V
2729 5322 121 42498 680nF 5% 63V
2764 4822 126 14491 2.2µF 10V 0805
2766 4822 126 14491 2.2µF 10V 0805
2768 4822 124 40255 100µF 20% 63V
2769 4822 124 40255 100µF 20% 63V
2777 2020 552 96683 220nF 10% 50V
2778 4822 124 40769 4.7µF 20% 100V
2779 2020 552 96683 220nF 10% 50V
2780 2020 552 96683 220nF 10% 50V
2781 2020 552 96683 220nF 10% 50V
2783 4822 124 41751 47µF 20% 50V
2786 2238 586 15641 22nF 10% 50V 0603
2788 4822 124 40255 100µF 20% 63V
2789 2020 552 96683 220nF 10% 50V
2790 4822 124 40255 100µF 20% 63V
f
3100 4822 051 30101 100Ω 5% 0.062W
3101 4822 053 20475 4.7MΩ 5% 0.25W
3102 2312 915 11002 1kΩ 1% 0.5W
3103 2312 915 11002 1kΩ 1% 0.5W
3104 4822 051 30479 47Ω 5% 0.062W
3105 4822 051 30221 220Ω 5% 0.062W
3106 4822 051 30391 390Ω 5% 0.062W
3107 4822 051 30391 390Ω 5% 0.062W
3108 4822 053 10478 4.7Ω 5% 1W
3109 4822 051 30391 390Ω 5% 0.062W
3110 4822 051 30391 390Ω 5% 0.062W
3111h4822 053 10152 1.5kΩ 5% 1W
3112 4822 051 30391 390Ω 5% 0.062W
3113 9965 000 23109 22Ω 5% 0603
3114 4822 051 30221 220Ω 5% 0.062W
3117 4822 051 30479 47Ω 5% 0.062W
3122 4822 051 30471 47Ω 5% 0.062W
3123 4822 051 30109 10Ω 5% 0.062W
3124 4822 051 30339 33Ω 5% 0.062W
3125 4822 117 12971 15Ω 5% 0603 0.62W
3126 4822 051 30103 10kΩ 5% 0.062W
3127 4822 051 30562 5.6kΩ 5% 0.063W 0603
3128 4822 117 13608 4.7Ω 5% 0603 0.62W
3132 4822 051 30333 33kΩ 5% 0.062W
3134 4822 051 30102 1kΩ 5% 0.062W
3135 4822 051 30331 330Ω 5% 0.062W
3138 4822 051 30105 1MΩ 5% 0.062W
3140 4822 051 30223 22kΩ 5% 0.062W
3141 4822 051 30471 47Ω 5% 0.062W
3142 4822 051 30123 12kΩ 5% 0.1W
3145 4822 051 30472 4.7Ω 5% 0.062W
3146 4822 051 30479 47Ω 5% 0.062W
3147 4822 051 30223 22kΩ 5% 0.062W
3148 4822 051 30479 47Ω 5% 0.062W
3149 4822 051 30103 10kΩ 5% 0.062W
3150 4822 051 30101 100Ω 5% 0.062W
3152 4822 051 30102 1kΩ 5% 0.062W
3153 4822 051 30223 22kΩ 5% 0.062W
3155 4822 050 21003 10kΩ 1% 0.6W
3156 4822 051 30102 1kΩ 5% 0.062W
3157 4822 051 30223 22kΩ 5% 0.062W
3158 4822 051 30479 47Ω 5% 0.062W
3159 4822 051 30479 47Ω 5% 0.062W
3160 4822 051 30102 1kΩ 5% 0.062W
3161 4822 051 30123 12kΩ 5% 0.1W
3171 4822 051 30101 100Ω 5% 0.062W
3172 4822 051 30333 33kΩ 5% 0.062W
3175 4822 051 30103 10kΩ 5% 0.062W
3176 4822 051 30103 10kΩ 5% 0.062W
3509 4822 053 10222 2.2kΩ 5% 1W
3511 4822 051 30683 68kΩ 5% 0.062W
3512 4822 051 30471 47Ω 5% 0.062W
3513 4822 051 30333 33kΩ 5% 0.062W
3515 4822 117 13632 100kΩ 1% 0603 0.62W
3516 4822 051 30472 4.7Ω 5% 0.062W
3517 4822 051 30223 22kΩ 5% 0.062W
3528 4822 051 30472 4.7Ω 5% 0.062W
3529 4822 051 30101 100Ω 5% 0.062W
3530 4822 051 30223 22kΩ 5% 0.062W
3531 4822 051 30153 15kΩ 5% 0.062W
3532 4822 051 30472 4.7Ω 5% 0.062W
3533 4822 051 30152 1.5Ω 5% 0.062W
3534 4822 051 30103 10kΩ 5% 0.062W
3538 4822 051 30101 100Ω 5% 0.062W
3539 4822 051 30471 47Ω 5% 0.062W
3540 4822 051 30222 2.2kΩ 5% 0.062W
3541 4822 051 30222 2.2kΩ 5% 0.062W
3542 4822 051 30103 10kΩ 5% 0.062W
3544 4822 051 30221 220Ω 5% 0.062W
3560 4822 051 30682 6.8Ω 5% 0.062W
3561 4822 051 30392 3.9Ω 5% 0.063W 0603
3562 4822 117 13608 4.7Ω 5% 0603 0.62W
3701 4822 051 30103 10kΩ 5% 0.062W
3702 4822 051 30682 6.8Ω 5% 0.062W
3703 4822 051 30333 33kΩ 5% 0.062W
3704 4822 117 10833 10kΩ 1% 0.1W
3705 4822 051 20828 8.2Ω 5% 0.1W
3706 4822 051 30472 4.7Ω 5% 0.062W
3707 4822 051 30683 68kΩ 5% 0.062W
3708 4822 051 30563 56kΩ 5% 0.062W
3709 4822 117 11503 220Ω 1% 0.1W
3710 4822 051 30223 22kΩ 5% 0.062W
3711 4822 050 21204 120kΩ 1% 0.6W
3712 4822 051 30103 10kΩ 5% 0.062W
3713 2312 915 11202 1.2kΩ 1% 0.5W
3714 4822 117 12925 47kΩ 1% 0.063W 0603
3715 4822 117 12925 47kΩ 1% 0.063W 0603
3716 4822 117 12925 47kΩ 1% 0.063W 0603
3717 4822 117 13632 100kΩ 1% 0603 0.62W
Spare Parts List
EN 171 FTL2.1E, FTL2.2E10.
3718 4822 117 13632 100kΩ 1% 0603 0.62W
3721 4822 051 30472 4.7Ω 5% 0.062W
3722 4822 051 30683 68kΩ 5% 0.062W
3723 4822 051 30563 56kΩ 5% 0.062W
3724 4822 117 11503 220Ω 1% 0.1W
3725 4822 051 30223 22kΩ 5% 0.062W
3726 4822 117 11503 220Ω 1% 0.1W
3727 4822 117 11503 220Ω 1% 0.1W
3743 4822 117 11449 2.2kΩ 5% 0.1W 0805
3746 4822 051 30223 22kΩ 5% 0.062W
3747 4822 050 24703 47kΩ 1% 0.6W
3748 4822 051 30471 47Ω 5% 0.062W
3750 4822 117 11449 2.2kΩ 5% 0.1W 0805
3756 4822 117 11449 2.2kΩ 5% 0.1W 0805
3757 4822 117 11449 2.2kΩ 5% 0.1W 0805
3759 4822 051 30332 3.3Ω 5% 0.062W
3760 4822 051 30332 3.3Ω 5% 0.062W
3761 4822 051 20109 10Ω 5% 0.1W
3762 4822 051 30222 2.2kΩ 5% 0.062W
3763 4822 051 30222 2.2kΩ 5% 0.062W
3764 4822 051 20109 10Ω 5% 0.1W
3765 4822 051 30103 10kΩ 5% 0.062W
3766 4822 117 13632 100kΩ 1% 0603 0.62W
3767 4822 117 13632 100kΩ 1% 0603 0.62W
3768 4822 117 13632 100kΩ 1% 0603 0.62W
3790 4822 051 30272 2.7kΩ 5% 0.062W
3791 4822 051 30272 2.7kΩ 5% 0.062W
3792 4822 051 30183 18kΩ 5% 0.062W
3793 4822 051 30183 18kΩ 5% 0.062W
3798 4822 051 30153 15kΩ 5% 0.062W
3999 4822 051 30222 2.2kΩ 5% 0.062W
9008 4822 051 30008 Jumper 0603
9020 4822 051 30008 Jumper 0603
9110 4822 051 30008 Jumper 0603
9717 4822 051 30008 Jumper 0603
9737 4822 051 30008 Jumper 0603
b
5102 4822 526 10704 Bead 50 Ω at 100MHz
5103 4822 526 10704 Bead 50 Ω at 100MHz
5104 4822 157 11411 Bead 80Ω at 100MHz
5105 4822 157 11716 Bead 30Ω at 100MHz
5106 3198 018 31090 10µH 10% 0805
5108 4822 526 10704 Bead 50 Ω at 100MHz
5110 4822 157 71736 10µH 5%
5500 3104 308 21181 Transf. BS25320-00
5504 2422 536 00776 33µH 10%
5505 4822 157 11411 Bead 80Ω at 100MHz
5506 4822 157 11411 Bead 80Ω at 100MHz
5507 2422 536 00433 15µH 10%
5701 2422 536 00385 68µH 10%
5702 2422 536 00385 68µH 10%
5703 4822 157 11716 Bead 30Ω at 100MHz
5705 4822 157 11716 Bead 30Ω at 100MHz
5707 4822 157 11411 Bead 80Ω at 100MHz
5708 4822 157 11411 Bead 80Ω at 100MHz
5711 4822 157 11411 Bead 80Ω at 100MHz
5712 4822 157 11411 Bead 80Ω at 100MHz
5730 2422 549 00112 Line filt. 50V 3A
5731 2422 549 00112 Line filt. 50V 3A
d
6103 4822 130 10871 SBYV27-200
6104 9340 548 69115 PDZ27B
6105 4822 130 11522 UDZ15B
6106 9340 548 66115 PDZ20B
6108 4822 130 80622 BAT54
6114 4822 130 10871 SBYV27-200
6115 4822 130 80622 BAT54
6116 3198 020 55680 BZX384-C5V6
6120 4822 130 11397 BAS316
6121 4822 130 11397 BAS316
6122 9322 129 34685 BZM55-C3V9
6130 9322 129 41685 BZM55-C12
6132 4822 130 11416 PDZ6.8B
6133 4822 130 11397 BAS316
6134 4822 130 11397 BAS316
6140 4822 130 41487 BYV95C
6142 4822 130 80622 BAT54
6144 4822 130 11397 BAS316
6147 9322 200 23685 SML4736
6148 4822 130 11397 BAS316
6149 3198 020 55680 BZX384-C5V6
6150 9340 292 50135 BZG03-C200
6151 9340 548 71115 PDZ33B
6153 9340 292 50135 BZG03-C200
6156 4822 130 11397 BAS316
6504 9340 418 70133 BYV27-600
6505 9322 161 78682 SB360L-7024
6511 9322 129 41685 BZM55-C12
6531 4822 130 11522 UDZ15B
6532 4822 130 11397 BAS316
6540 4822 130 80622 BAT54
6562 9340 548 67115 PDZ22B
6701 4822 130 11397 BAS316
6702 4822 130 11551 UDZS10B
6703 4822 130 11551 UDZS10B
ce
7100 3198 010 42320 BC857BW
7101 9340 219 30115 BC817-25W
7102h9322 160 34687 FQPF3N60
7105 3198 010 42320 BC857BW
7131h9340 557 69127 PHX9NQ20T
7140 3198 010 42310 BC847BW
7150h9322 149 04682 TCET1102
7501h9322 149 04682 TCET1102
7505 3198 010 42320 BC857BW
7506 3198 010 42310 BC847BW
7507 3198 010 42310 BC847BW
7509 3198 010 42310 BC847BW
7511 9337 331 10215 BST82
7512 9340 422 80115 PMSTA42
7531h9340 436 50115 BSP030
7532 3198 010 42310 BC847BW
7560 9340 219 30115 BC817-25W
7700 9322 163 86682 TDA7490L
7701 3198 010 42310 BC847BW
7701 5322 130 60159 BC846B
7703 3198 010 42310 BC847BW
7703 5322 130 60159 BC846B
7704 3198 010 42310 BC847BW
7704 5322 130 60159 BC846B
7705 3198 010 42310 BC847BW
7705 5322 130 60159 BC846B
7706 3198 010 42320 BC857BW
7706 4822 130 60373 BC856B
7707 3198 010 42310 BC847BW
7707 5322 130 60159 BC846B
7708 3198 010 42310 BC847BW
7708 5322 130 60159 BC846B
7709 3198 010 42310 BC847BW
7709 5322 130 60159 BC846B
7710 3198 010 42310 BC847BW
7710 5322 130 60159 BC846B
7711 3198 010 42310 BC847BW
7711 5322 130 60159 BC846B
Revision List
EN 172 FTL2.1E, FTL2.2E11.
11. Revision List
Manual xxxx xxx xxxx.0
• First release, with only the FTL2.1E chassis covered.
Manual xxxx xxx xxxx.1
• Combination of the FTL2.1E and FTL2.2E manuals.
• All chapters: small textual and graphical improvements.
• Ch. 2: Lead-free text updated.
• Ch. 8: Model specific option codes and Option Bit
explanation table added.
• Ch. 10: Parts lists available for both chassis.
www.s-manuals.com

Navigation menu
