Philips Chassis LC4.31E AA Service Manual. Www.s Manuals.com. Tv Ch Manual

User Manual: LCD TV Philips LC4.31E AA Chassis - Service manuals and Schematics. Free.

Open the PDF directly: View PDF PDF.
Page Count: 130 [warning: Documents this large are best viewed by clicking the View PDF Link!]

Published by WS 0671 BG CD Customer Service Printed in the Netherlands Subject to modification EN 3122 785 16212
©
Copyright 2006 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic,
mechanical, photocopying, or otherwise without the prior permission of Philips.
Colour Television Chassis
LC4.31E
AA
G_16212_000.eps
191006
ME5FL ME5P
ME6
Contents Page Contents Page
1. Technical Specifications, Connections, and Chassis
Overview 2
2. Safety Instructions, Warnings, and Notes 5
3. Directions for Use 7
4. Mechanical Instructions 8
5. Service Modes, Error Codes, and Fault Finding 13
6. Block Diagrams, Test Point Overviews, and
Waveforms
Wiring Diagram 26” & 32” 23
Wiring Diagram 37” 24
Wiring Diagram 42” 25
Block Diagram Supply 37” 26
Block Diagram Supply 42” 27
Block Diagram Video 28

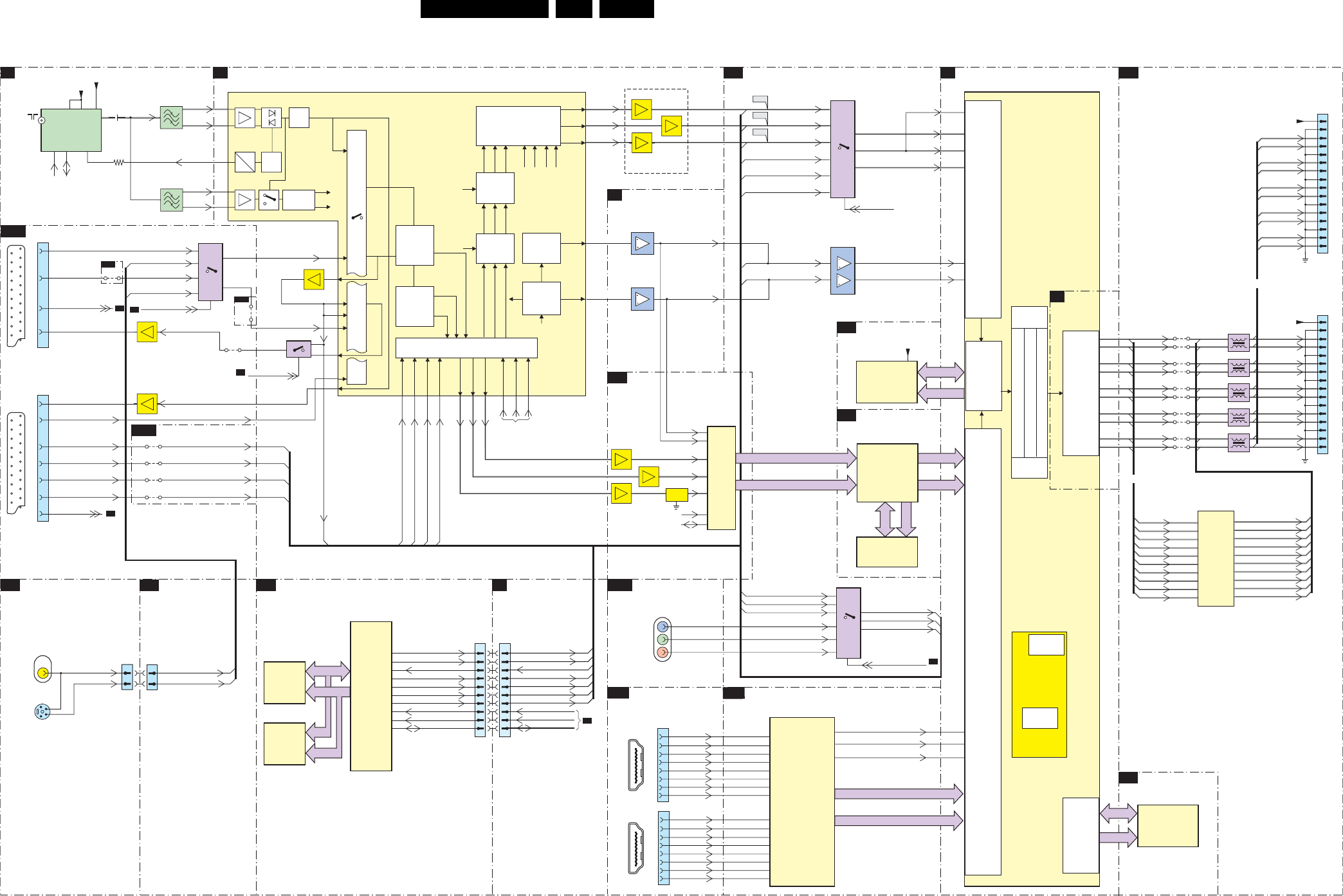

Block Diagram Audio 29
Test Point Overview Small Signal Board 30
I2C Overview 31
Supply Voltage Overview 32
7. Circuit Diagrams and PWB Layouts Diagram PWB

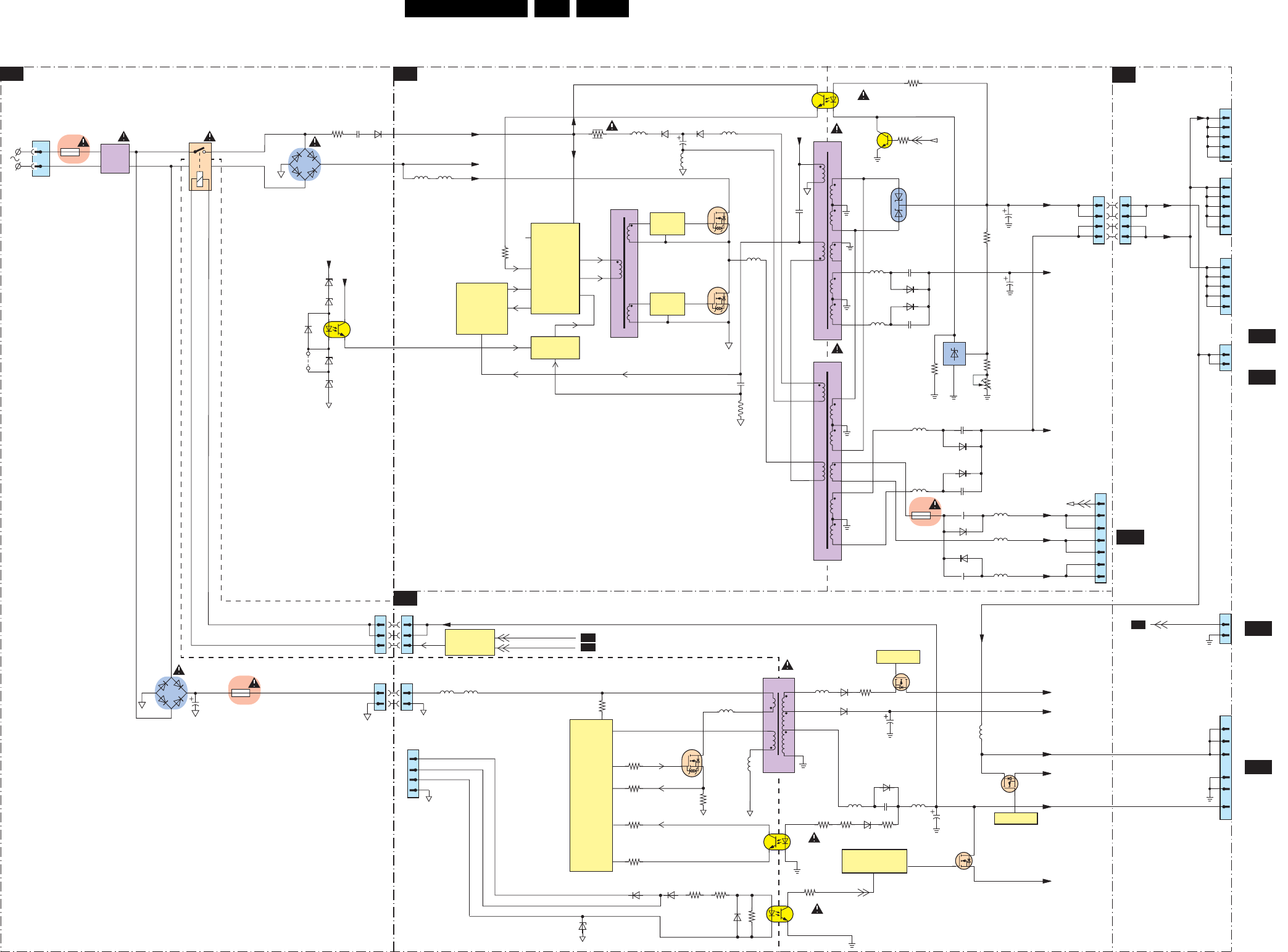

LCD Supply (37”): Mains Filter & Standby (A1) 33 35-40

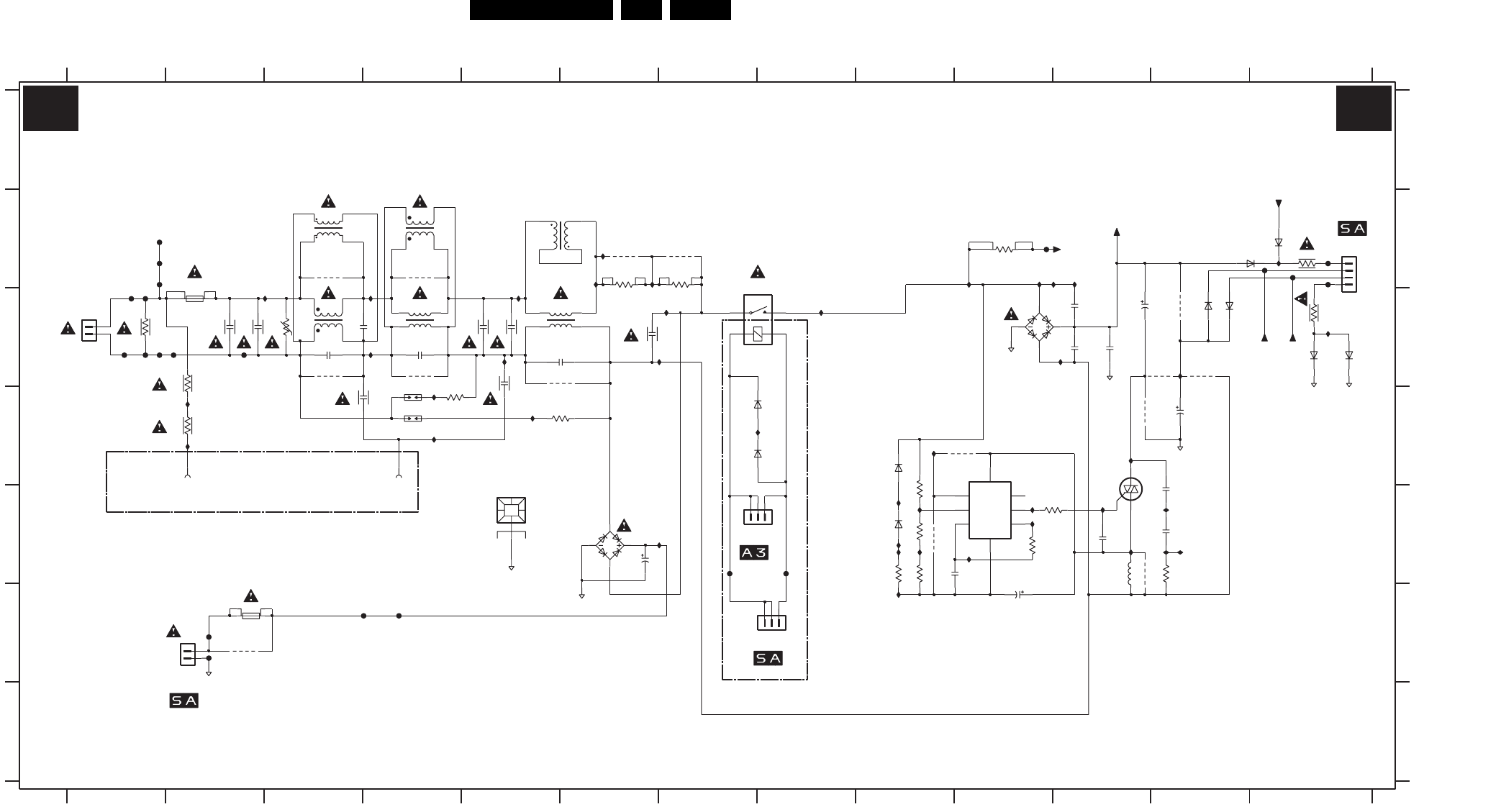

LCD Supply (37”): Supply (A2) 34 35-40
LCD Supply (42”): Mains Filter + Stdby A (A1) 41 45-50
LCD Supply (42”): Supply A (A2) 42 45-50
LCD Supply (42”): Mains Filter + Stdby B (A3) 43 45-50
LCD Supply (42”): Supply B (A4) 44 45-50
SSB: Tuner and IF (B1) 51 74-83

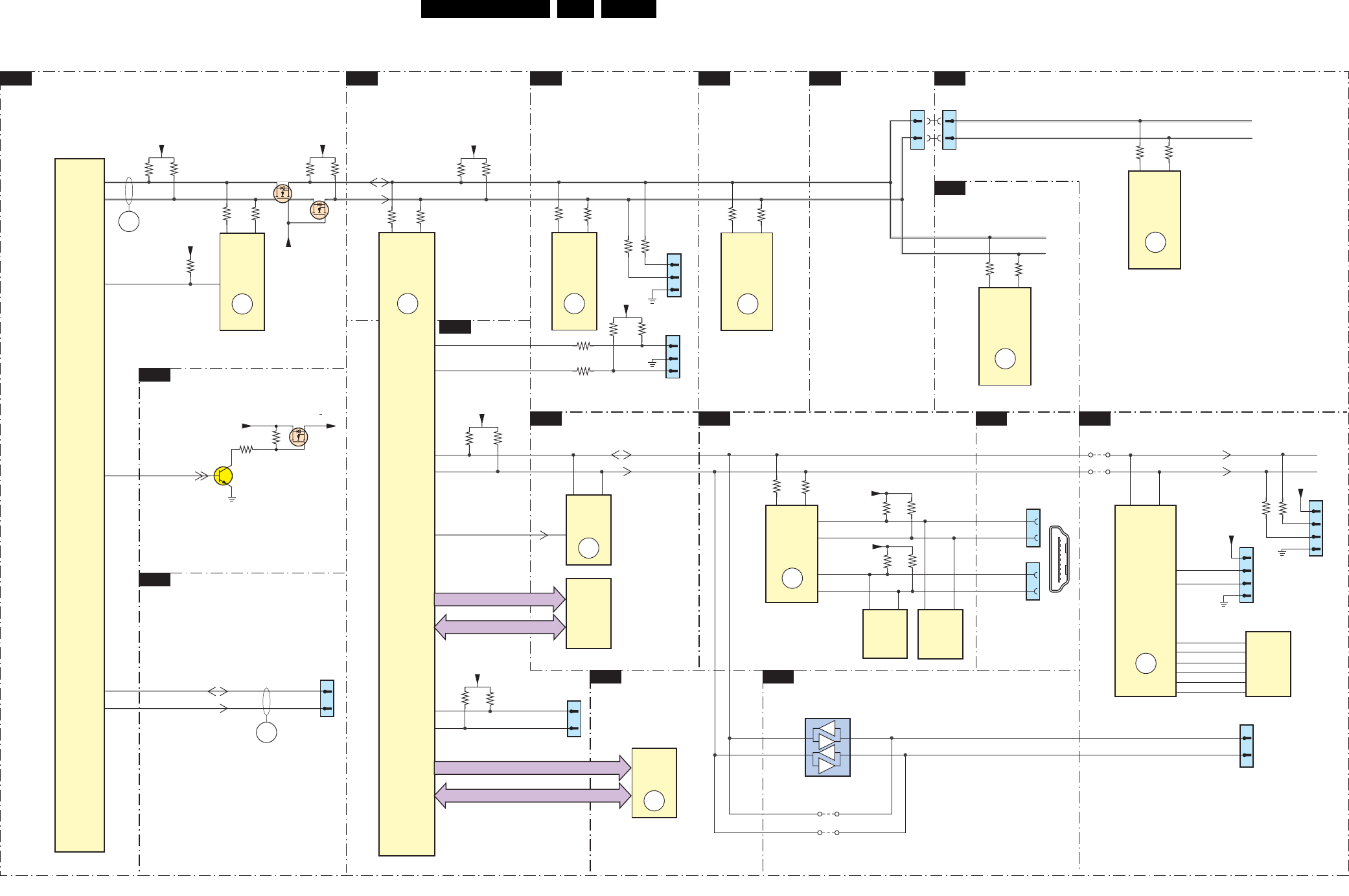

SSB: Hercules (B2) 52 74-83
SSB: Sync Interface (B3) 53 74-83
SSB: Audio Delay Line (PDP Only) (B4) 54 74-83
SSB: Audio Processing (B5) 55 74-83
SSB: DC-DC Converter (B6) 56 74-83
SSB: Diversity Tables B1-B6 57
SSB: Scaler (B7) 58 74-83
SSB: Scaler (B8) 59 74-83
SSB: Scaler Interface (B9) 60 74-83
SSB: SDRAM (B10) 61 74-83
SSB: Flash / Control (B11) 62 74-83
SSB: HDMI (B12) 63 74-83
SSB: MUX-Sync Interface (B13) 64 74-83
SSB: Digital I/O (B14) 65 74-83
SSB: SCART Analog I/O (B15A) 66 74-83
SSB: DMMI (B15B) 67 74-83
SSB: Top Connectors (B16) 68 74-83
SSB: Side Connectors (B17) 69 74-83
SSB: ADC (B18) 70 74-83
SSB: Columbus (B19) 71 74-83
SSB: Pacific 3 (B20) 72 74-83
SSB: Diversity Tables B9-B20 73
Class D Audio Amplifier (26” & 32”) (C) 84 85
Side I/O Panel (26” & 32”) (D) 86 87
Side I/O Panel (37” & 42”) (D) 88 89
Keyboard Control Board (26” & 32”) (E) 90 90
Keyboard Control Board (37” & 42”) (E) 91 91
Front IR / LED Panel (26” & 32”) (ME5P) (J) 92 92
IR-LED and Light Sensor Panel (26”& 32”) (J) 93 93
Front IR / LED Panel (37” & 42”) (J) 94 95
Standby & Audio Panel: Connections (SA1) 96 99-101
Standby & Audio Panel: Standby (SA2) 97 99-101
Standby & Audio Panel: Audio (SA3) 98 99-101
OTC Flash (For 1000pg TXT) (T) 102 103
8. Alignments 105
9. Circuit Descriptions, Abbreviation List, and IC Data
Sheets 110
Abbreviation List 111
IC Data Sheets 114
10. Spare Parts List 118
11. Revision List 129
Technical Specifications, Connections, and Chassis Overview
EN 2 LC4.31E AA1.
1. Technical Specifications, Connections, and Chassis Overview
Index of this chapter:
1.1 Technical Specifications
1.2 Connection Overview
1.3 Chassis Overview
Notes:
Figures can deviate due to the different set executions.
Specifications are indicative (subject to change).
1.1 Technical Specifications
1.1.1 Vision
Display type : LCD, IPS
Screen size :
- 26PF5321/10/12 : 26” (66 cm), 16:9
- 32PF5321/10/12 : 32” (82 cm), 16:9
- 37PF5321/10/12 : 37” (94 cm), 16:9
- 26PF7321/12 : 26” (66 cm), 16:9
- 32PF7321/12 : 32” (82 cm), 16:9
- 37PF7321/10/12 : 37” (94 cm), 16:9
- 42PF5421/10 : 42” (107 cm), 16:9
Resolution (HxV pixels) : 1366 x 768
Contrast ratio :
- 26PF5321/10/12 : 1200:1
- 32PF5321/10/12 : 1200:1
- 37PF5321/10/12 : 1200:1
- 26PF7321/12 : 2400:1
- 32PF7321/12 : 2400:1
- 37PF7321/10/12 : 2400:1
- 42PF5421/10 : 4000:1
Light output (cd/m2) : 500
Response time (ms) : 8
Viewing angle (HxV degrees) :
- 26PF5321/10/12 : 178x178
- 32PF5321/10/12 : 178x178
- 37PF5321/10/12 : 176x176
- 26PF7321/12 : 178x178
- 32PF7321/12 : 178x178
- 37PF7321/10/12 : 176x176
- 42PF5421/10 : 176x176
Tuning system : PLL
TV Colour systems : PAL B/G, D/K, I
: SECAM B/G, D/K, L/L’
Video playback : NTSC M/N 3.58, 4.43
: PAL B/G
: SECAM L/L’
Supported computer formats : VGA (640x480)
: MAC (640x480)
: SVGA (800x600)
: XVGA (1024x768)
: WXGA (1280x768)
Supported video formats : 640x480p - 2fH
: 720x576p - 2fH
: 1280x720p - 3fH
: 1920x1080i - 2fH
Presets/channels : 100 presets
Tuner bands : VHF
:UHF
: S-band
:Hyper-band
1.1.2 Sound
Sound systems : NICAM B/G, D/K, I, L
: AV Stereo
Maximum power (WRMS):
- 26PF5321/10/12 : 2 x 5
- 32PF5321/10/12 : 2 x 15
- 37PF5321/10/12 : 2 x 15
- 26PF7321/12 : 2 x 5
- 32PF7321/12 : 2 x 15
- 37PF7321/10/12 : 2 x 15
- 42PF5421/10 : 2 x 15
1.1.3 Miscellaneous
Power supply:
Mains voltage (VAC):
- 26PF5321/10/12 : 110 - 240
- 32PF5321/10/12 : 110 - 240
- 37PF5321/10/12 : 220 - 240
- 26PF7321/12 : 110 - 240
- 32PF7321/12 : 110 - 240
- 37PF7321/10/12 : 220 - 240
- 42PF5421/10 : 220 - 240
Mains frequency (Hz) : 50 / 60
Ambient conditions:
- Temperature range (°C) : +5 to +40
- Maximum humidity : 90% R.H.
Power consumption:
Normal operation (W) :
- 26PF5321/10/12 : 100
- 32PF5321/10/12 : 120
- 37PF5321/10/12 : 180
- 26PF7321/12 : 100
- 32PF7321/12 : 120
- 37PF7321/10/12 : 180
- 42PF5421/10 : 246
Stand-by (W) :
- 26PF5321/10/12 : < 1
- 32PF5321/10/12 : < 1
- 37PF5321/10/12 : < 2
- 26PF7321/12 : < 1
- 32PF7321/12 : < 1
- 37PF7321/10/12 : < 2
- 42PF5421/10 : < 1
Dimensions (WxHxD cm):
- 26PF5321/10/12 : 80.45 x 43.8 x 11.4
- 32PF5321/10/12 : 92.4 x 50.7 x 11.9
- 37PF5321/10/12 : 110.0 x 60.9 x 10.25
- 26PF7321/12 : 69.75 x 49.48 x 9.97
- 32PF7321/12 : 93.5 x 51.65 x 12.0
- 37PF7321/10/12 : 111.4 x 61.8 x 10.3
- 42PF5421/10 : 123.7 x 68.8 x 11.0
Weight (kg):
- 26PF5321/10/12 : 13.3
- 32PF5321/10/12 : 18.9
- 37PF5321/10/12 : 25.1
Technical Specifications, Connections, and Chassis Overview EN 3LC4.31E AA 1.
- 26PF7321/12 : 13.0
- 32PF7321/12 : 19.2
- 37PF7321/10/12 : 25.9
- 42PF5421/10 : 31.5
1.2 Connection Overview
Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, and Ye= Yellow.
1.2.1 Side I/O connections

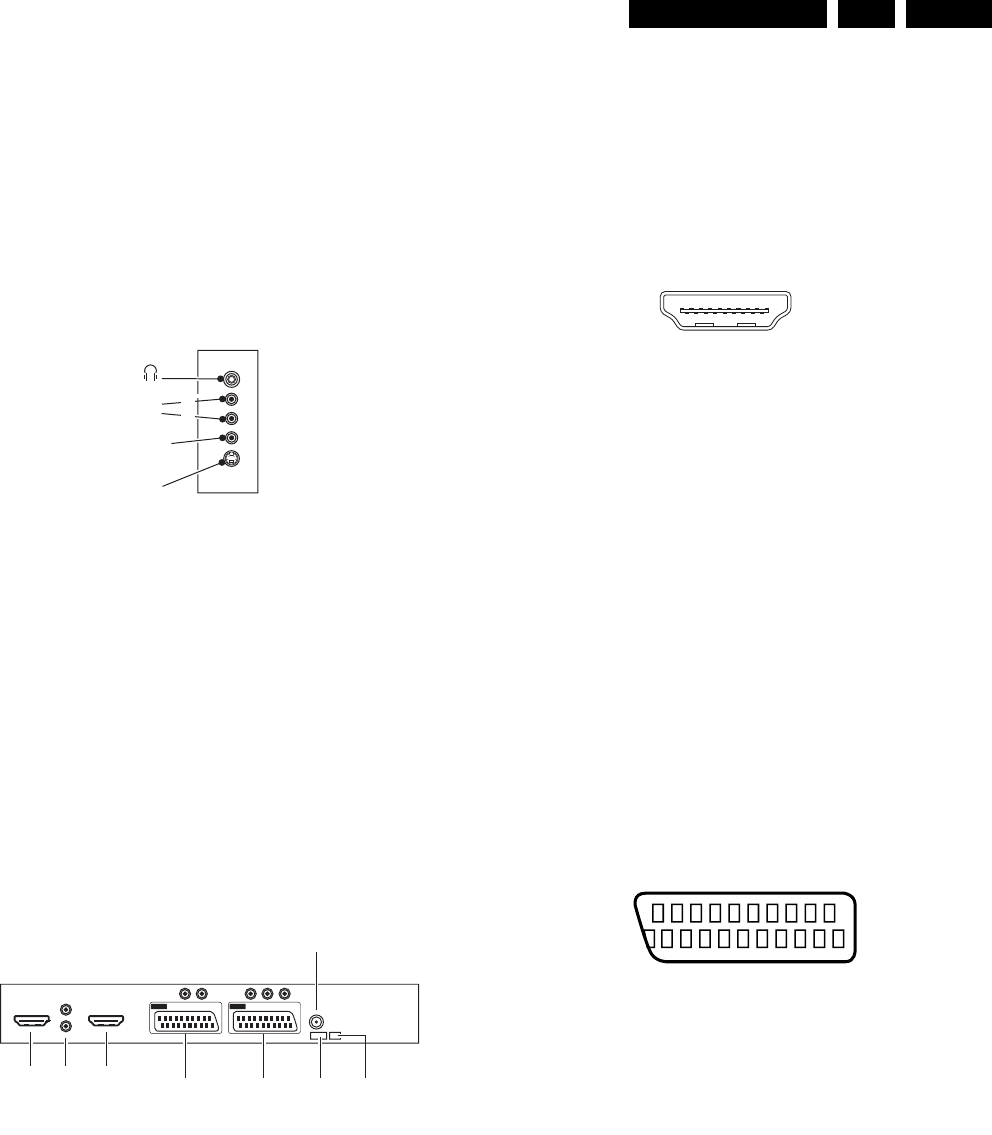

Figure 1-1 Side I/O connections
S-Video (Hosiden): Video Y/C - In
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 VPP / 75 ohm j
4 - Video C 0.3 VPP / 75 ohm j
Cinch: Video CVBS - In, Audio - In
Ye - Video CVBS 1 VPP / 75 ohm jq
Wh - Audio L 0.5 VRMS / 10 kohm jq
Rd - Audio R 0.5 VRMS / 10 kohm jq
Mini Jack: Audio Head phone - Out
Bk - Head phone 32 - 600 ohm / 10 mW ot
1.2.2 Rear Connections
Figure 1-2 Rear I/O
Aerial - In
- - IEC-type (EU) Coax, 75 ohm D
Cinch: Audio - In
Wh - Audio L 0.5 VRMS / 10 kohm jq
Rd - Audio R 0.5 VRMS / 10 kohm jq
Cinch: Video YPbPr - In
Gn - Video Y 1 VPP / 75 ohm jq
Bu - Video Pb 0.7 VPP / 75 ohm jq
Rd - Video Pr 0.7 VPP / 75 ohm jq
Cinch: DVI Audio - In
Rd - Audio - R 0.5 VRMS / 10 kohm jq
Wh - Audio - L 0.5 VRMS / 10 kohm jq
Service connector (ComPair)
1 - SDA-S I2C Data (0 - 5 V) jk
2 - SCL-S I2C Clock (0 - 5 V) j
3 - Ground Gnd H
Service connector (UART)
1 - UART_TX Transmit k
2 - Ground Gnd H
3 - UART_RX Receive j
HDMI: Digital Video/Digital Audio - In
Figure 1-3 HDMI (type A) connector
1 - D2+ Data channel j
2 - Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5 - Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8 - Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - n.c.
14 - n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
EXT1: Video RGB - In, CVBS - In/Out, Audio - In/Out
Figure 1-4 SCART connector
1 - Audio R 0.5 VRMS / 1 kohm k
2 - Audio R 0.5 VRMS / 10 kohm j
3 - Audio L 0.5 VRMS / 1 kohm k
4 - Ground Audio Gnd H
5 - Ground Blue Gnd H
6 - Audio L 0.5 VRMS / 10 kohm j
7 - Video Blue 0.7 VPP / 75 ohm j
8 - Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j
9 - Ground Green Gnd H
10 - n.c.
11 - Video Green 0.7 VPP / 75 ohm j
12 - n.c.
13 - Ground Red Gnd H
14 - Ground Gnd H
15 - Video Red 0.7 VPP / 75 ohm j
16 - Status/FBL 0 - 0.4 V: INT
1 - 3 V: EXT / 75 ohm j
17 - Ground Video Gnd H
18 - Ground FBL Gnd H
19 - Video Terr. CVBS 1 VPP / 75 ohm k
20 - Video CVBS/Y 1 VPP / 75 ohm j
21 - Shield Gnd H
L
R
Audio
S-Video
Video
G_16210_070.eps
190106
EXT 2 EXT 1
G_16210_071.eps
190106
DVI HDMI
AUDIO IN
AUDIO IN
R
R
L
VIDEO IN
Pr Pb Y
L
EXT 2 UART I2C
EXT 1
HDMI
ComPair
AERIAL IN
19 1
18 2
E_06532_017.eps
250505
21
20
1
2
E_06532_001.eps
050404
Technical Specifications, Connections, and Chassis Overview
EN 4 LC4.31E AA1.
EXT2: Video Y/C - in, CVBS - In/Out, Audio - In/Out
Figure 1-5 SCART connector
1 - Audio R 0.5 VRMS / 1 kohm k
2 - Audio R 0.5 VRMS / 10 kohm j
3 - Audio L 0.5 VRMS / 1 kohm k
4 - Ground Audio Gnd H
5 - Ground Blue Gnd H
6 - Audio L 0.5 VRMS / 10 kohm j
7-n.c.
8 - Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j
9 - Ground Green Gnd H
10 - n.c.
11 - n.c.
12 - n.c.
13 - Ground Red Gnd H
14 - Ground Gnd H
15 - YC/C - in 0.7 VPP / 75 ohm j
16 - n.c.
17 - Ground Video Gnd H
18 - Ground Gnd H
19 - Video Mon. CVBS 1 VPP / 75 ohm k
20 - YC/Y - in 0.7 VPP / 75 ohm j
21 - Shield Gnd H

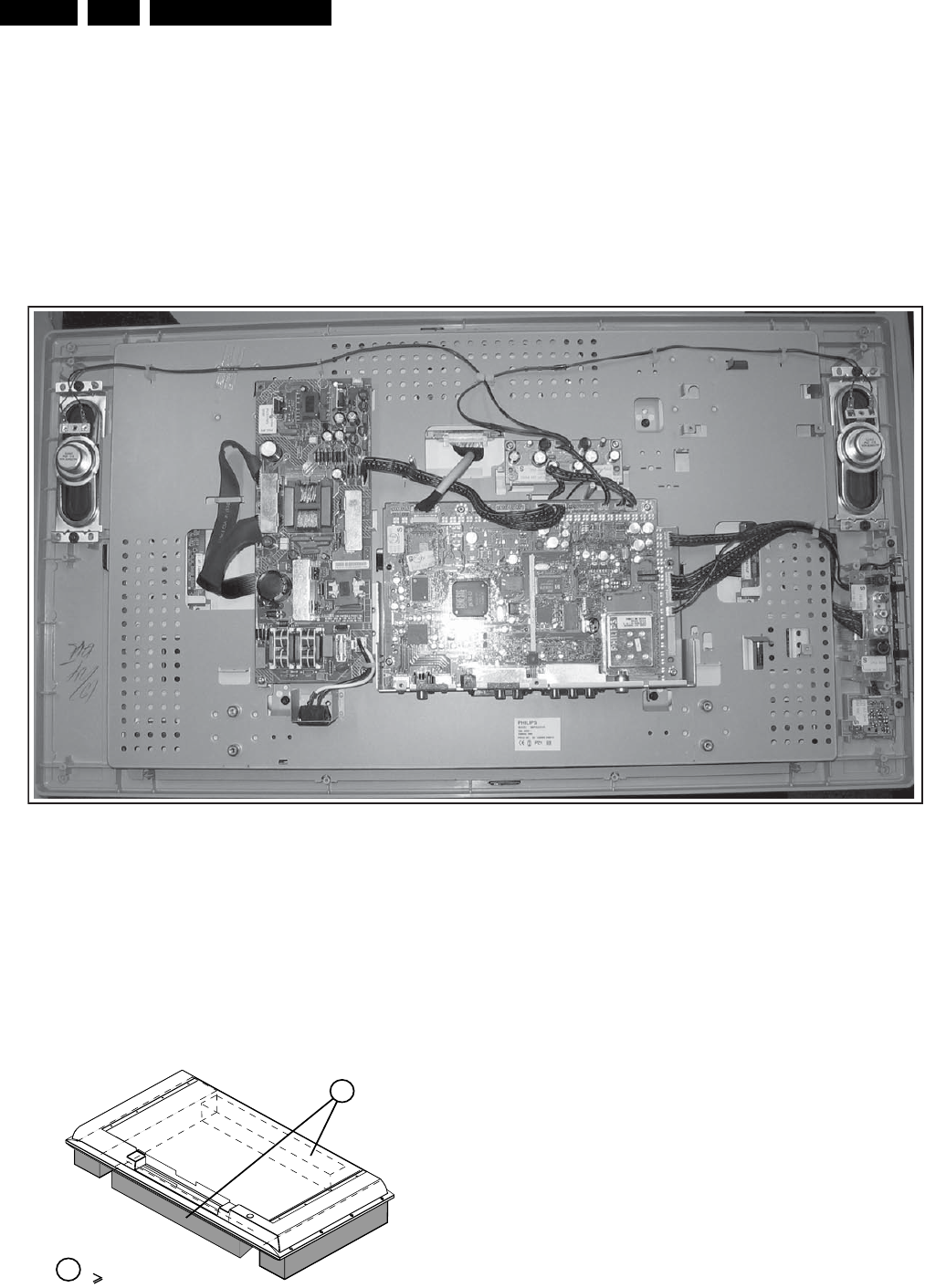

1.3 Chassis Overview
Figure 1-6 Chassis overview
21
20
1
2
E_06532_001.eps
050404
G_16210_072.eps
190506
SMALL SIGNAL BOARD
B
CLASS D AUDIO
AMPLIFIER PANEL
C
KEYBOARD CONTROL
PANEL
E
LCD PANEL
POWER SUPPLY
PANEL
LED & IR PANEL
J
SIDE I/O PANEL
D
POWER SUPPLY
UNIT
A
A
CONTROL BOARD
E
LCD PANEL
Chassis Overview 37” & 42” Models
OTC TXT PANEL
T
SMALL SIGNAL
BOARD
B
OTC TXT PANEL
T
STANDBY & AUDIO
PANEL
SA
LED & IR PANEL
J
SIDE I/O PANEL
D
Chassis Overview 26” & 32” Models
Safety Instructions, Warnings, and Notes EN 5LC4.31E AA 2.
2. Safety Instructions, Warnings, and Notes
Index of this chapter:
2.1 Safety Instructions
2.2 Warnings
2.3 Notes
2.1 Safety Instructions
Safety regulations require the following during a repair:
Connect the set to the Mains (AC Power) via an isolation
transformer (> 800 VA).
Replace safety components, indicated by the symbol h,
only by components identical to the original ones. Any
other component substitution (other than original type) may
increase risk of fire or electrical shock hazard.
Safety regulations require that after a repair, the set must be
returned in its original condition. Pay in particular attention to
the following points:
Route the wire trees correctly and fix them with the
mounted cable clamps.
Check the insulation of the Mains (AC Power) lead for
external damage.
Check the strain relief of the Mains (AC Power) cord for
proper function.
Check the electrical DC resistance between the Mains (AC
Power) plug and the secondary side (only for sets that have
a Mains (AC Power) isolated power supply):
1. Unplug the Mains (AC Power) cord and connect a wire
between the two pins of the Mains (AC Power) plug.
2. Set the Mains (AC Power) switch to the “ON” position
(keep the Mains (AC Power) cord unplugged!).
3. Measure the resistance value between the pins of the
Mains (AC Power) plug and the metal shielding of the
tuner or the aerial connection on the set. The reading
should be between 4.5 Mohm and 12 Mohm.
4. Switch “off” the set, and remove the wire between the
two pins of the Mains (AC Power) plug.
Check the cabinet for defects, to prevent touching of any
inner parts by the customer.
2.2 Warnings
All ICs and many other semiconductors are susceptible to
electrostatic discharges (ESD w). Careless handling
during repair can reduce life drastically. Make sure that,
during repair, you are connected with the same potential as
the mass of the set by a wristband with resistance. Keep
components and tools also at this same potential. Available
ESD protection equipment:
Complete kit ESD3 (small tablemat, wristband,
connection box, extension cable and earth cable) 4822
310 10671.
Wristband tester 4822 344 13999.
Be careful during measurements in the high voltage
section.
Never replace modules or other components while the unit
is switched “on”.
When you align the set, use plastic rather than metal tools.
This will prevent any short circuits and the danger of a
circuit becoming unstable.
2.3 Notes
2.3.1 General
Measure the voltages and waveforms with regard to the
chassis (= tuner) ground (H), or hot ground (I), depending
on the tested area of circuitry. The voltages and waveforms
shown in the diagrams are indicative. Measure them in the
Service Default Mode (see chapter 5) with a colour bar
signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated
otherwise) and picture carrier at 475.25 MHz for PAL, or
61.25 MHz for NTSC (channel 3).
Where necessary, measure the waveforms and voltages
with (D) and without (E) aerial signal. Measure the
voltages in the power supply section both in normal
operation (G) and in stand-by (F). These values are
indicated by means of the appropriate symbols.
The semiconductors indicated in the circuit diagram and in
the parts lists, are interchangeable per position with the
semiconductors in the unit, irrespective of the type
indication on these semiconductors.
2.3.2 Schematic Notes
All resistor values are in ohms, and the value multiplier is
often used to indicate the decimal point location (e.g. 2K2
indicates 2.2 kohm).
Resistor values with no multiplier may be indicated with
either an "E" or an "R" (e.g. 220E or 220R indicates 220
ohm).
All capacitor values are given in micro-farads (μ= x10-6),
nano-farads (n= x10-9), or pico-farads (p= x10-12).
Capacitor values may also use the value multiplier as the
decimal point indication (e.g. 2p2 indicates 2.2 pF).
An "asterisk" (*) indicates component usage varies. Refer
to the diversity tables for the correct values.
The correct component values are listed in the Spare Parts
List. Therefore, always check this list when there is any
doubt.
2.3.3 Rework on BGA (Ball Grid Array) ICs
General
Although (LF)BGA assembly yields are very high, there may
still be a requirement for component rework. By rework, we
mean the process of removing the component from the PWB
and replacing it with a new component. If an (LF)BGA is
removed from a PWB, the solder balls of the component are
deformed drastically so the removed (LF)BGA has to be
discarded.
Device Removal
As is the case with any component that, is being removed, it is
essential when removing an (LF)BGA, that the board, tracks,
solder lands, or surrounding components are not damaged. To
remove an (LF)BGA, the board must be uniformly heated to a
temperature close to the reflow soldering temperature.
A uniform temperature reduces the risk of warping the PWB. To
do this, we recommend that the board is heated until it is certain
that all the joints are molten. Then carefully pull the component
off the board with a vacuum nozzle. For the appropriate
temperature profiles, see the IC data sheet.
Area Preparation
When the component has been removed, the vacant IC area
must be cleaned before replacing the (LF)BGA.
Removing an IC often leaves varying amounts of solder on the
mounting lands. This excessive solder can be removed with
either a solder sucker or solder wick. The remaining flux can be
removed with a brush and cleaning agent.
Safety Instructions, Warnings, and Notes
EN 6 LC4.31E AA2.
After the board is properly cleaned and inspected, apply flux on
the solder lands and on the connection balls of the (LF)BGA.
Note: Do not apply solder paste, as this has been shown to
result in problems during re-soldering.
Device Replacement
The last step in the repair process is to solder the new
component on the board. Ideally, the (LF)BGA should be
aligned under a microscope or magnifying glass. If this is not
possible, try to align the (LF)BGA with any board markers.
So as not to damage neighbouring components, it may be
necessary to reduce some temperatures and times.
More Information
For more information on how to handle BGA devices, visit this
URL: www.atyourservice.ce.philips.com (needs subscription,
not available for all regions). After login, select “Magazine”,
then go to “Repair downloads”. Here you will find Information
on how to deal with BGA-ICs.
2.3.4 Lead-free Solder
Philips CE is producing lead-free sets (PBF) from 1.1.2005
onwards.
Identification: The bottom line of a type plate gives a 14-digit
serial number. Digits 5 and 6 refer to the production year, digits
7 and 8 refer to production week (in example below it is 1991
week 18).
Figure 2-1 Serial number example
Regardless of the special lead-free logo (which is not always
indicated), one must treat all sets from this date onwards
according to the rules as described below.
Figure 2-2 Lead-free logo
Due to lead-free technology some rules have to be respected
by the workshop during a repair:
Use only lead-free soldering tin Philips SAC305 with order
code 0622 149 00106. If lead-free solder paste is required,
please contact the manufacturer of your soldering
equipment. In general, use of solder paste within
workshops should be avoided because paste is not easy to
store and to handle.
Use only adequate solder tools applicable for lead-free
soldering tin. The solder tool must be able:
To reach a solder-tip temperature of at least 400°C.
To stabilise the adjusted temperature at the solder-tip.
To exchange solder-tips for different applications.
Adjust your solder tool so that a temperature of around
360°C - 380°C is reached and stabilised at the solder joint.
Heating time of the solder-joint should not exceed ~ 4 sec.
Avoid temperatures above 400°C, otherwise wear-out of
tips will increase drastically and flux-fluid will be destroyed.
To avoid wear-out of tips, switch “off” unused equipment or
reduce heat.
Mix of lead-free soldering tin/parts with leaded soldering
tin/parts is possible but PHILIPS recommends strongly to
avoid mixed regimes. If this cannot be avoided, carefully
clear the solder-joint from old tin and re-solder with new tin.
Use only original spare-parts listed in the Service-Manuals.
Not listed standard material (commodities) has to be
purchased at external companies.
Special information for lead-free BGA ICs: these ICs will be
delivered in so-called "dry-packaging" to protect the IC
against moisture. This packaging may only be opened
shortly before it is used (soldered). Otherwise the body of
the IC gets "wet" inside and during the heating time the
structure of the IC will be destroyed due to high (steam-)
pressure inside the body. If the packaging was opened
before usage, the IC has to be heated up for some hours
(around 90°C) for drying (think of ESD-protection!).
Do not re-use BGAs at all!
For sets produced before 1.1.2005, containing leaded
soldering tin and components, all needed spare parts will
be available till the end of the service period. For the repair
of such sets nothing changes.
In case of doubt whether the board is lead-free or not (or with
mixed technologies), you can use the following method:
Always use the highest temperature to solder, when using
SAC305 (see also instructions below).
De-solder thoroughly (clean solder joints to avoid the
mixing of two alloys).
Caution: For BGA-ICs, you must use the correct temperature
profile, which is coupled to the 12NC. For an overview of these
profiles, visit the website www.atyourservice.ce.philips.com
(needs subscription, but is not available for all regions).
You will find this and more technical information within the
“Magazine”, chapter “Repair downloads”.
For additional questions please contact your local repair help
desk.
2.3.5 Alternative BOM identification
In September 2003, Philips CE introduced a change in the way
the serial number (or production number, see Figure 2-1) is
composed. From this date on, the third digit in the serial
number (example: AG2B0335000001) indicates the number of
the alternative BOM (Bill of Materials used for producing the
specific model of TV set). It is possible that the same TV model
on the market is produced with e.g. two different types of
displays, coming from two different O.E.M.s.
By looking at the third digit of the serial number, the service
technician can see if there is more than one type of B.O.M.
used in the production of the TV set he is working with. He can
then consult the At Your Service Web site, where he can type
in the Commercial Type Version Number of the TV set (e.g.
28PW9515/12), after which a screen will appear that gives
information about the number of alternative B.O.M.s used.
If the third digit of the serial number contains the number 1
(example: AG1B033500001), then there is only one B.O.M.
version of the TV set on the market. If the third digit is a 2
(example: AG2B0335000001), then there are two different
B.O.M.s. Information about this is important for ordering
the correct spare parts!
For the third digit, the numbers 1...9 and the characters A...Z
can be used, so in total: 9 plus 26 = 35 different B.O.M.s can
be indicated by the third digit of the serial number.
2.3.6 Practical Service Precautions
It makes sense to avoid exposure to electrical shock.
While some sources are expected to have a possible
dangerous impact, others of quite high potential are of
limited current and are sometimes held in less regard.
E_06532_024.eps
130606
MODEL :
PROD.NO:
~
S
32PF9968/10 MADE IN BELGIUM
220-240V 50/60Hz
128W
AG 1A0617 000001 VHF+S+H+UHF
BJ3.0E LA
P
b
Directions for Use EN 7LC4.31E AA 3.
Always respect voltages. While some may not be
dangerous in themselves, they can cause unexpected
reactions that are best avoided. Before reaching into a
powered TV set, it is best to test the high voltage insulation.
It is easy to do, and is a good service precaution.
3. Directions for Use
You can download this information from the following websites:
http://www.philips.com/support
http://www.p4c.philips.com
Mechanical Instructions
EN 8 LC4.31E AA4.
4. Mechanical Instructions
Index of this chapter:
4.1 Cable Dressing
4.2 Service Position
4.3 Assy/Panel Removal
4.4 Set Re-assembly
Notes:
Figures below can deviate slightly from the actual situation,
due to the different set executions.
Follow the disassembling instructions in described order.
4.1 Cable Dressing
Figure 4-1 Cable dressing (26PF5321/10)
4.2 Service Position
First, put the TV set in its service position. Therefore, place it
upside down on a table top (use a protection sheet or foam
bars).
4.2.1 The Foam Bars
Figure 4-2 Foam bars
The foam bars (order code 3122 785 90580) can be used for
all types and sizes of Flat TVs. By laying the plasma or LCD TV
flat on the (ESD protective) foam bars, a stable situation is
created to perform measurements and alignments. By first
placing a mirror flat on the table under the TV you can easily
see if something is happening on the screen.
4.3 Assy/Panel Removal
4.3.1 Rear Cover
Warning: Disconnect the mains power cord before you remove
the rear cover.
1. Remove the screws that secure the rear cover.
2. Lift the rear cover from the cabinet cautiously. Make sure
that wires and other internal components are not damaged
during cover removal.
G_16210_073.eps
190106
E_06532_018.eps
011106
1
Required for sets
42”
1
Mechanical Instructions EN 9LC4.31E AA 4.
4.3.2 Side I/O Panel

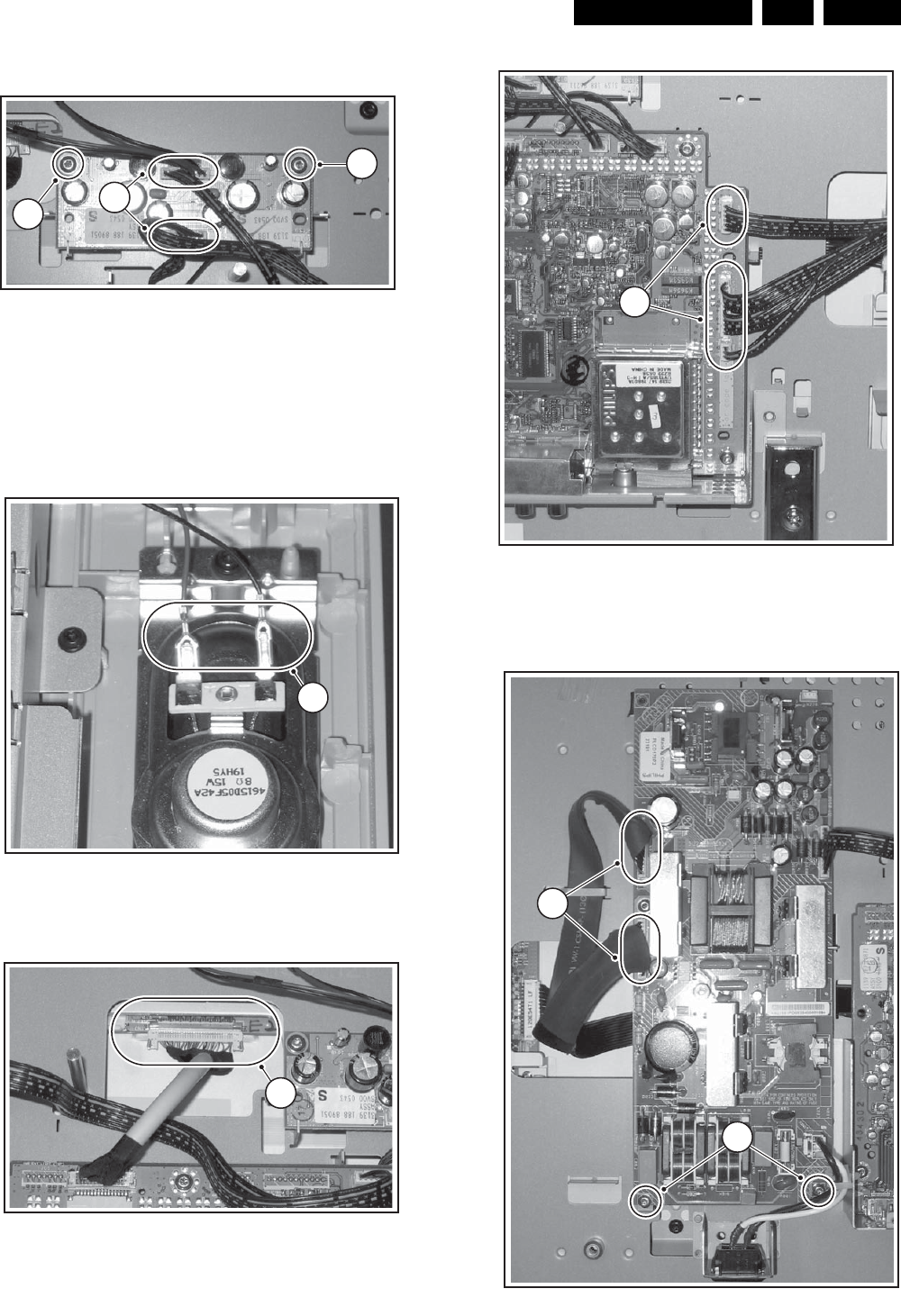

Figure 4-3 Side I/O panel
1. Disconnect the cable [1] from the panel.
2. Release the two fixation clamps [2] and lift the panel out of
the bracket.
4.3.3 LED Panel
Figure 4-4 LED panel
1. Release the fixation clamp [1] and take the panel out of the
bracket.
2. Disconnect the cable [2] from the panel.
4.3.4 Keyboard Control Panel
Figure 4-5 Keyboard control panel
1. Remove the two fixation screws [1] from the bracket and
take out the panel/bracket combination.
2. Remove the fixation tape [2] from the panel/bracket
combination.
3. Release the three fixation clamps [3] and lift the panel out
of the bracket.
4. Disconnect the cable [4] from the panel.

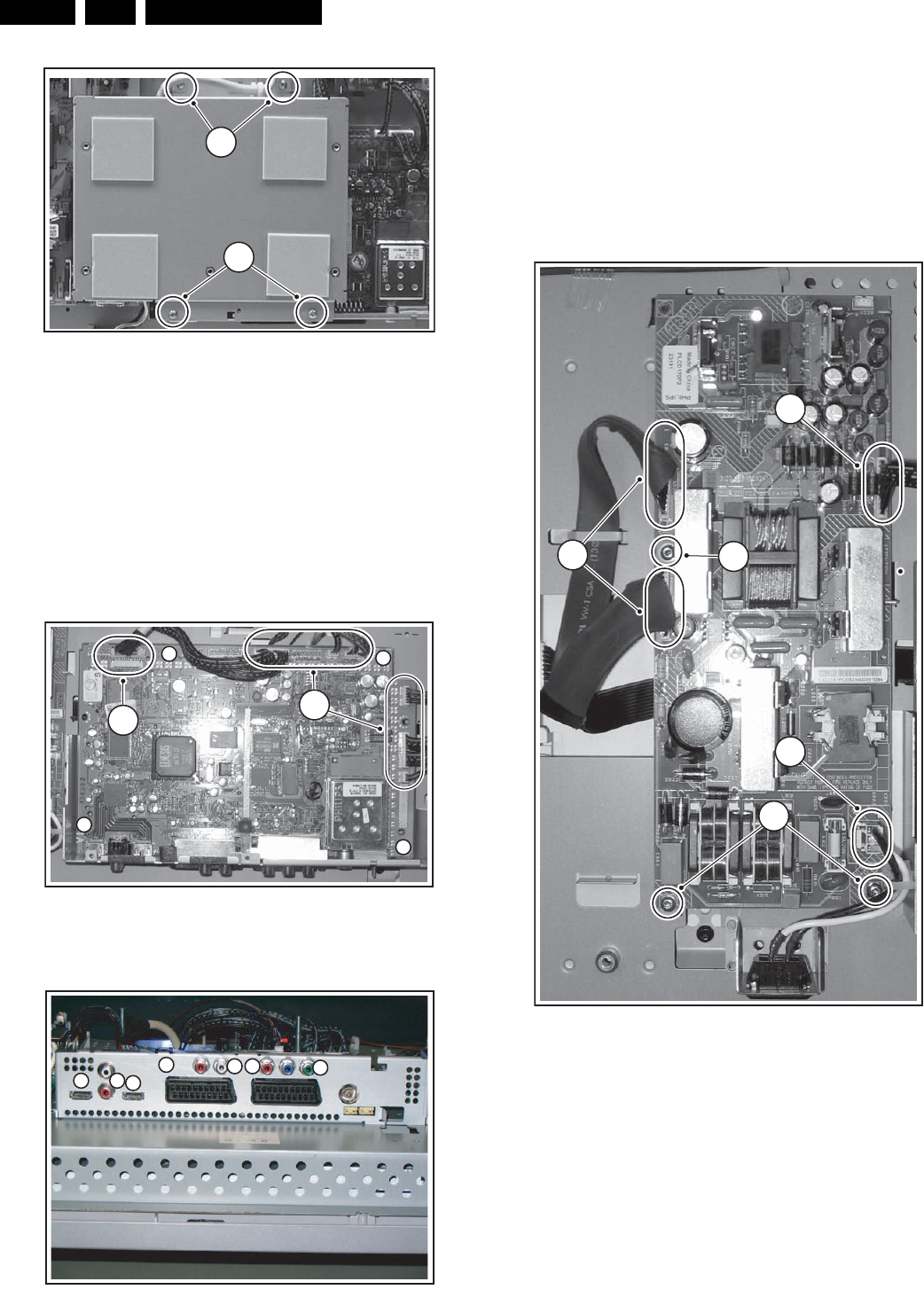

4.3.5 SSB Cover Shield (depending on model)
Figure 4-6 Cable clip on cover shield
G_16210_074.eps
190106
2
2
1
G_16210_075.eps
190106
2
1
G_16210_076.eps
190106
1
1
4
3
3
3
2
2
F_15270_044.eps
180505
1
Mechanical Instructions
EN 10 LC4.31E AA4.
Figure 4-7 SSB cover shield
1. Release the cable from the plastic cable clip [1] on the
shield (see Figure “Cable clip on cover shield” above).
2. Remove the four fixation screws (2, see Figure “SSB cover
shield”; the screws are also indicated by arrows on the
shield) and remove the shield.
Notice that on one side, the shield is not only held by two
screws, but also by two brackets (see Figure “Cable clip on
cover shield” above).
4.3.6 Small Signal Board
Figure 4-8 SSB connectors
Figure 4-9 Connector screws
1. Very cautiously disconnect the LVDS cable [1] from the
panel (see Figure “SSB connectors”). Notice that this cable
is very fragile.
2. Disconnect the other cables [2] from the panel.
3. Remove the fixation screws [3] that secure the SSB
(depending on model) and also the fixation screws [4] from
the connector plate (see Figure “Connector screws”).
4. Take the panel out of its brackets.
4.3.7 Power Supply Panel (various models used)
Figure 4-10 Power supply panel
1. Disconnect all cables [1] from the panel.
Notice that the two connectors for X520 and X530 on
this panel are similar, and should not be mixed up later
when they are reconnected (X520 is connected via its
flatcable to connector CN01 on the LCD panel, near the R-
speaker; X530 is connected via its flatcable to connector
CN04 on the LCD panel, near the L-speaker).
2. Remove the fixation screws [2] from the panel.
3. Take the panel out of its brackets.
F_15270_045.eps
190505
2
2
G_16210_077.eps
190106
2
3
3
3
3
1
G_16210_078.eps
200106
4 4 4
44 4 4
G_16210_079.eps
200106
2
1
1
1
2
Mechanical Instructions EN 11LC4.31E AA 4.
4.3.8 Audio Amplifier Panel
Figure 4-11 Audio amplifier panel
1. Disconnect all cables [1] from the panel.
2. Remove the fixation screws [2] from the panel.
3. Remove the panel.
4.3.9 LCD Panel
Figure 4-12 Loudspeaker cables
Figure 4-13 LVDS connector
Figure 4-14 SSB connectors for side I/O, side control panel, and
LED
Figure 4-15 Connectors X520 and X530 and fixation screws on
power supply panel
G_16210_080.eps
200106
2
2
1
G_16210_081.eps
200106
1
G_16210_082.eps
2
00
1
06
2
G_16210_083.eps
200106
3
G_16210_084.eps
200106
4
5
Mechanical Instructions
EN 12 LC4.31E AA4.
Figure 4-16 Shield screws of the LCD panel
Figure 4-17 LCD panel
To remove the LCD-panel, carry out the following steps:
1. Disconnect the cables [1] from the “L” and the “R”
loudspeakers (see Figure “Loudspeaker cables”).
2. Important: Unplug the LVDS connector [2] on the LCD
panel (see Figure “LVDS connector”), or better: remove the
cable completely.
Be careful, as this is a very fragile connector/cable!
3. Unplug the connectors [3] of the Side I/O panel, the Top
Control panel, and the LED panel on the SSB (see Figure
“SSB connectors for side I/O, side control panel, and
LED”).
4. Unplug the connectors X520 and X530 [4] on the Power
Supply board (see Figure “Connectors X520 and X530 and
fixation screws on power supply panel”).
5. Loosen the fixation screws [5] from the power supply
board, and put the power supply board a bit aside.
6. Loosen screws [6] and [7] (see Figure “Shield screws of the
LCD panel”).
7. Lift the metal frame (together with all PWBs) from the LCD
panel.
Take care not to damage the fragile LVDS cable.
8. After removal of the metal frame, you can lift the LCD
display [8] from its plastic frame (see Figure “LCD panel”).
9. If the plastic frame is damaged, replace it by a new frame,
after removing the loudspeakers, the Side I/O panel, the
Side Control panel, and the LED panel.

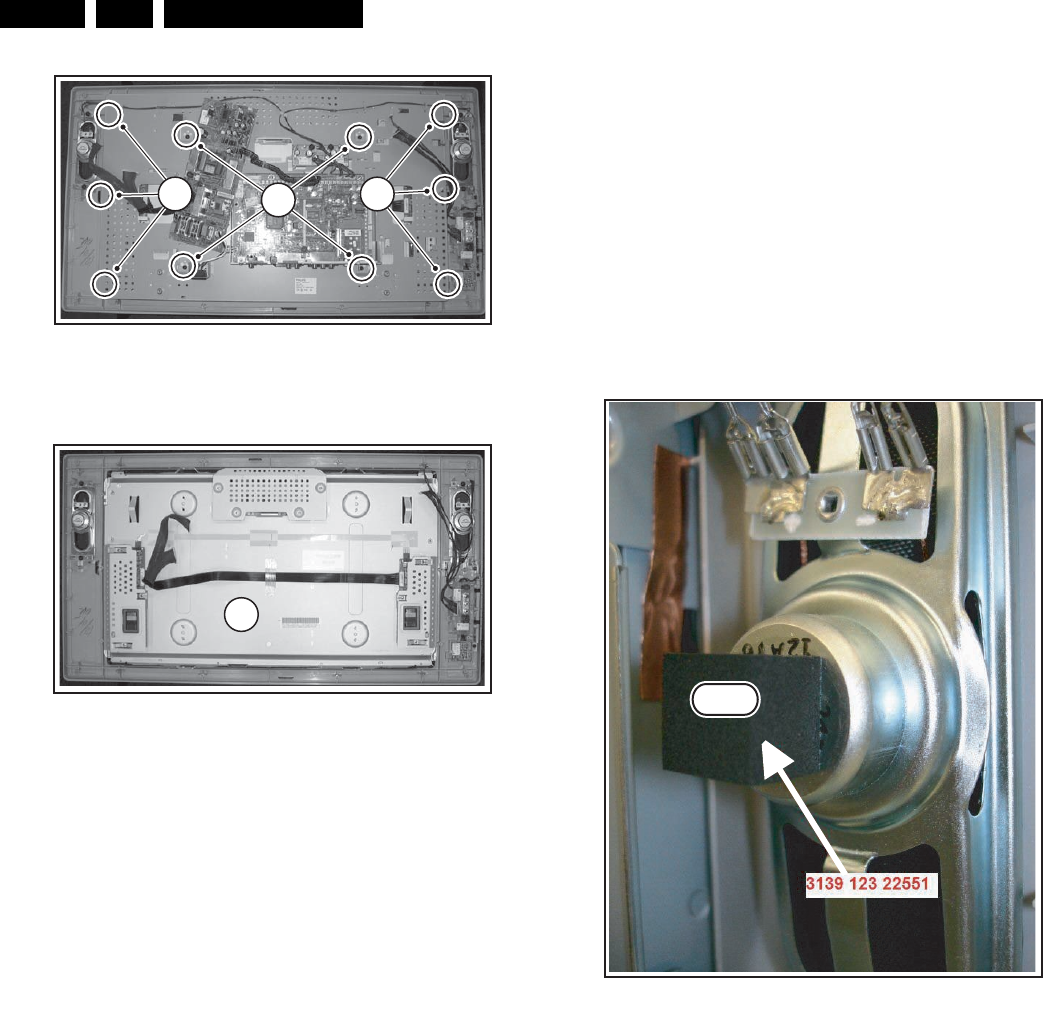

4.3.10 Loudspeaker foam
This information applies only to the following model numbers:
• 32HF7444/10
• 32HF7544D/27
• 32HF7844T/27
• 32HF7874/10
• 32PF3321/10
• 32PF5321/10
• 32PF5321/12
• 32PF5321D/37
• 32PF5411/10
• 32PF5521D/10
• 32PF5521D/12
• 32PF7321/12
• 32PF7321D/37
• 32PF7411/10
• 32PF7421D/37
• 32PF7521D/10
• 32PF7521D/12
• 42HF7544D/27
• 42PF7421D/37
When a speaker of a set mentioned above is defective, you
need to order the speaker foam as well (12NC:
313912322551). It is required to prevent a rattling sound. Place
it on the speaker as shown by the photo below.
Figure 4-18 Loudspeaker foam
4.4 Set Re-assembly
To re-assemble the whole set, execute all processes in reverse
order.
Notes:
While re-assembling, make sure that all cables are placed
and connected in their original positions. See Figure “Cable
dressing”.
Be careful with the fragile LVDS cable.
G_16210_085.eps
200106
76
6
G_16210_086.eps
200106
8
G_16212_001.eps
201006
Foam
Service Modes, Error Codes, and Fault Finding EN 13LC4.31E AA 5.
5. Service Modes, Error Codes, and Fault Finding
Index of this chapter:
5.1 Test Points
5.2 Service Modes
5.3 Problems and Solving Tips Related to CSM
5.4 Service Tools
5.5 Error Codes
5.6 The Blinking LED Procedure
5.7 Fault Finding and Repair Tips
5.1 Test Points
This chassis is equipped with test points. In the schematics,
test points are indicated with a rectangle box around Fxxx or
Ixxx, in the layouts with a half-moon.
Perform measurements under the following conditions:
Television set in Service Default Mode.
Video input: Colour bar signal.
Audio input: 3 kHz left channel, 1 kHz right channel.
5.2 Service Modes
Service Default mode (SDM) and Service Alignment Mode
(SAM) offer several features for the service technician, while
the Customer Service Mode (CSM) is used for communication
between the call centre and the customer.
This chassis also offers the option of using ComPair, a
hardware interface between a computer and the TV chassis. It
offers the possibilities of structured troubleshooting, error code
reading, and software version read-out for all chassis.
Minimum requirements for ComPair: a Pentium processor, a
Windows OS, and a CD-ROM drive (see also paragraph
"ComPair").
5.2.1 Service Default Mode (SDM)
Purpose
To create a predefined setting for measurements to be
made.
To override software protections.
To start the blinking LED procedure.
To inspect the error buffer.
To check the life timer.
Specifications
Tuning frequency: 475.25 MHz.
Colour system: PAL-BG.
All picture settings at 50% (brightness, colour contrast,
hue).
Bass, treble, and balance at 50 %; volume at 25 %.
All service-unfriendly modes (if present) are disabled. The
service unfriendly modes are:
Timer / Sleep timer.
Child / parental lock.
Blue mute.
Hotel / hospital mode.
Auto shut off (when no “IDENT” video signal is
received for 15 minutes).
Skipping of non-favourite presets / channels.
Auto-storage of personal presets.
Auto user menu time-out.
Auto Volume Levelling (AVL).
How to Enter
To enter SDM, use one of the following methods:
Press the following key sequence on the remote control
transmitter: “062596” directly followed by the MENU button
(do not allow the display to time out between entries while
keying the sequence).
Short one of the "Service" jumpers on the TV board during
cold start and apply mains (see Figures "Service jumper").
Then press the mains button (remove the short after start-
up).
Caution: Entering SDM by shorting "Service" jumpers will
override the +8V-protection. Do this only for a short period.
When doing this, the service-technician must know exactly
what he is doing, as it could damage the television set.
Or via ComPair.

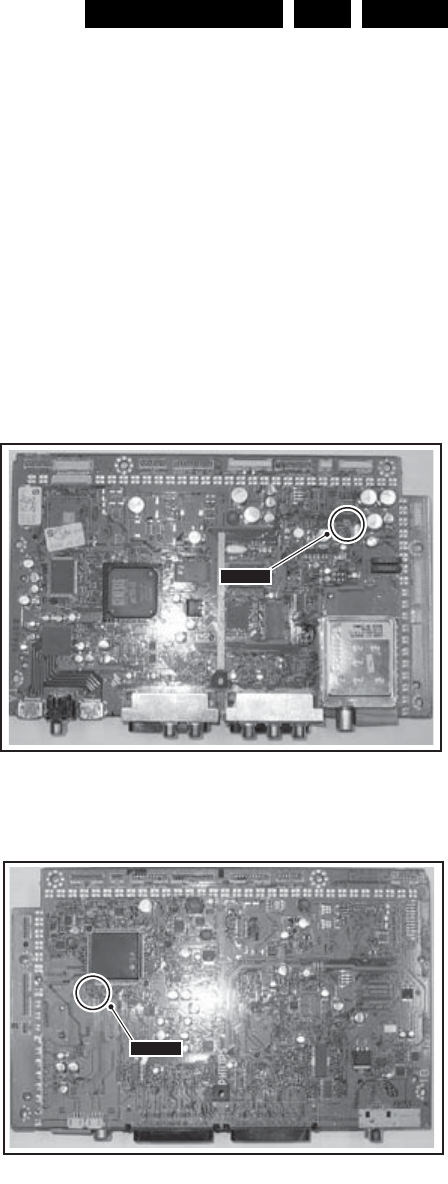

Figure 5-1 Service jumper (component side)
Figure 5-2 Service jumper (solder side)
After entering SDM, the following screen is visible, with SDM in
the upper right corner of the screen to indicate that the
television is in Service Default Mode.
G_16210_087.eps
200106
SDM
G_16210_088.eps
200106
SDM
Service Modes, Error Codes, and Fault Finding
EN 14 LC4.31E AA5.
Figure 5-3 SDM menu
How to Navigate
Use one of the following methods:
When you press the MENU button on the remote control,
the set will switch on the normal user menu in the SDM
mode.
On the TV, press and hold the VOLUME DOWN and press
the CHANNEL DOWN for a few seconds, to switch from
SDM to SAM and reverse; or press the following key
sequence on the remote control transmitter: “062596
directly followed by the OSD button to switch to SAM (do
not allow the display to time out between entries while
keying the sequence).
How to Exit
Switch the set to STANDBY by pressing the mains button on
the remote control transmitter or the television set.
If you turn the television set off by removing the mains (i.e.,
unplugging the television) without using the mains button, the
television set will remain in SDM when mains is re-applied, and
the error buffer is not cleared.
5.2.2 Service Alignment Mode (SAM)
Purpose
To change option settings.
To display / clear the error code buffer.
To perform alignments.
Specifications
Operation hours counter (maximum five digits displayed).
Software version, Error codes, and Option settings display.
Error buffer clearing.
Option settings.
Software alignments (Tuner, White Tone, Geometry &
Audio).
NVM Editor.
ComPair Mode switching.
How to Enter
To enter SAM, use one of the following methods:
Press the following key sequence on the remote control
transmitter: “062596" directly followed by the OSD/
STATUS/INFO(I+) button (do not allow the display to time
out between entries while keying the sequence).
Or via ComPair.
After entering SAM, the following screen is visible, with SAM in
the upper right corner of the screen to indicate that the
television is in Service Alignment Mode.
Figure 5-4 SAM menu
Menu Explanation
1. LLLLL. This represents the run timer. The run timer counts
normal operation hours, but does not count standby hours.
2. AAABCD X.YY. This is the software identification of the
main microprocessor:
A= the project name (LC04.x).
B= the region: E= Europe, A= Asia Pacific, U= NAFTA,
L= LATAM.
C= the software diversity:
Europe: T= 1 page TXT, F= Full TXT, V= Voice
control.
LATAM and NAFTA: N= Stereo non-dBx, S=
Stereo dBx.
Asian Pacific: T= TXT, N= non-TXT, C= NTSC.
ALL regions: M= mono, D= DVD, Q= Mk2.
D= the language cluster number.
X= the main software version number (updated with a
major change that is incompatible with previous
versions).
Y= the sub software version number (updated with a
minor change that is compatible with previous
versions).
3. EEEEE F.GG. This is the software identification of the
Scaler:
EEEEEE= the scaler sw cluster
F= the main sw version no.
GG= the sub-version no.
4. SAM. Indication of the Service Alignment Mode.
5. Error Buffer. Shows all errors detected since the last time
the buffer was erased. Five errors possible.
6. Option Bytes. Used to read-out the option bytes. See
“Options” in the Alignments section for a detailed
description. Seven codes are possible.
7. Clear. Erases the contents of the error buffer. Select the
CLEAR menu item and press the MENU RIGHT key. The
content of the error buffer is cleared.
8. Options. Used to set the option bits. See “Options” in the
Alignments section for a detailed description.
9. Tuner. Used to align the tuner. See “Tuner” in the
Alignments section for a detailed description.
10. White Tone. Used to align the white tone. See “White
Tone” in the Alignments section for a detailed description.
11. Audio. No audio alignment is necessary for this television
set.
00035 HSD21E1 1.00/S21LXN 1.00 SDM
ERR 0 0 0 0 0
OP 152 167 015 081 252 127 019
G_16210_089.eps
200106
G_16210_090.eps
110706
00035 HSD21E1 1.00/S21LXN 1.00 SAM
ERR 0 0 0 0 0
OP 152 167 015 081 252 127 019
. Clear Clear ?
. Options
. Tuner
. White Tone
. Audio
. NVM Editor
. SC NVM Editor
. Test Pattern
. ComPair Mode On
Service Modes, Error Codes, and Fault Finding EN 15LC4.31E AA 5.
12. NVM Editor. Can be used to change the NVM data in the
television set. See table “NVM data” further on.
13. SC NVM Editor. Can be used to edit Scaler NVM.
14. ComPaIr. Can be used to switch on the television to In
System Programming (ISP) mode, for software uploading
via ComPair.
Caution: When this mode is selected without ComPair
connected, the TV will be blocked. Remove the AC power
to reset the TV.
How to Navigate
In SAM, select menu items with the MENU UP/DOWN keys
on the remote control transmitter. The selected item will be
indicated. When not all menu items fit on the screen, use
the MENU UP/DOWN keys to display the next / previous
menu items.
With the MENU LEFT/RIGHT keys, it is possible to:
Activate the selected menu item.
Change the value of the selected menu item.
Activate the selected submenu.
In SAM, when you press the MENU button twice, the set
will switch to the normal user menus (with the SAM mode
still active in the background). To return to the SAM menu
press the MENU button.
When you press the MENU key in while in a submenu, you
will return to the previous menu.
On the TV, press and hold the VOLUME DOWN and press
the CHANNEL DOWN for a few seconds, to switch from
SAM to SDM and reverse; or press the following key
sequence on the remote control transmitter: “062596
directly followed by the MENU button to switch to SDM (do
not allow the display to time out between entries while
keying the sequence).
How to Store SAM Settings
To store the settings changed in SAM mode, leave the top level
SAM menu by using the POWER button on the remote control
transmitter or the television set.
How to Exit
Switch the set to STANDBY by pressing the mains button on
the remote control transmitter or the television set.
If you turn the television set “off” by removing the mains (i.e.,
unplugging the television) without using the mains button, the
television set will remain in SAM when mains is re-applied, and
the error buffer is not cleared.
5.2.3 Customer Service Mode (CSM)
Purpose
The Customer Service Mode shows error codes and
information on the TV’s operation settings. The call centre can
instruct the customer (by telephone) to enter CSM in order to
identify the status of the set. This helps the call centre to
diagnose problems and failures in the TV set before making a
service call.
The CSM is a read-only mode; therefore, modifications are not
possible in this mode.
How to Enter
To enter CSM, press the following key sequence on the remote
control transmitter: “123654” (do not allow the display to time
out between entries while keying the sequence).
Upon entering the Customer Service Mode, the following
screen will appear:
Figure 5-5 CSM menu
Menu Explanation
1. Indication of the decimal value of the operation hours
counter, Main/Scaler software version (see “Service
Alignment Mode" for an explanation), and the service mode
(CSM = Customer Service Mode).
2. Displays the last five errors detected in the error code
buffer.
3. Displays the option bytes.
4. Displays the type number version of the set.
5. aaaaaa / b.ccc Firmware identification of the Pacific 3 and
the OTC:
aaaaaa = the firmware version of the Pacific 3 (Pixel+)
b.ccc = the firmware version of the OTC (for the 1000
page TXT decoder).
6. Indicates the television is receiving an "IDENT" signal on
the selected source. If no "IDENT" signal is detected, the
display will read "NOT TUNED".
7. Displays the detected Colour system (e.g. PAL/NTSC).
8. Displays the detected Audio (e.g. stereo/mono).
9. Displays the picture setting information.
10. Displays the sound setting information.
How to Exit
To exit CSM, use one of the following methods:
Press the MENU button twice, or POWER button on the
remote control transmitter.
Press the POWER button on the television set.
5.3 Problems and Solving Tips Related to CSM
5.3.1 Picture Problems
Note: The problems described below are all related to the TV
settings. The procedures used to change the value (or status)
of the different settings are described.
Picture too Dark or too Bright
If:
The picture improves when you press the SMART
PICTURE button on the remote control transmitter, or
The picture improves when you enter the Customer
Service Mode,
1 00035 HSD21E1 1.00/S21LXN 1.00 CSM
2 CODES 0 0 0 0 0
3 OP 152 167 015 081 252 127 019
4 26PF5321/10
5 AAAAAA/B.CC
6 NOT TUNED
7 PAL
8 STEREO
9 CO 50 CL 50 BR 50
0 AVL Off
G_16210_091.eps
200106
Service Modes, Error Codes, and Fault Finding
EN 16 LC4.31E AA5.
Then:
1. Press the SMART PICTURE button on the remote control
transmitter repeatedly (if necessary) to choose
PERSONAL picture mode.
2. Press the MENU button on the remote control transmitter.
This brings up the normal user menu.
3. In the normal user menu, use the MENU UP/DOWN keys
to select the PICTURE sub menu.
4. Press the MENU LEFT/RIGHT keys to enter the PICTURE
sub menu.
5. Use the MENU UP/DOWN keys (if necessary) to select
BRIGHTNESS.
6. Press the MENU LEFT/RIGHT keys to increase or
decrease the value of the selected parameter.
7. Use the MENU UP/DOWN keys to select STORE.
8. Press the MENU RIGHT key to store the new value.
9. Press the MENU key to exit the PERSONAL picture mode.
White Line around Picture Elements and Text
If:
The picture improves after you have pressed the SMART
PICTURE button on the remote control transmitter,
Then:
1. Press the SMART PICTURE button on the remote control
transmitter repeatedly (if necessary) to choose
PERSONAL picture mode.
2. Press the MENU button on the remote control transmitter.
This brings up the normal user menu.
3. In the normal user menu, use the MENU UP/DOWN keys
to select the PICTURE sub menu.
4. Press the MENU LEFT/RIGHT keys to enter the PICTURE
sub menu.
5. Use the MENU UP/DOWN keys (if necessary) to select
SHARPNESS.
6. Press the MENU LEFT/RIGHT keys to increase or
decrease the value of the selected parameter.
7. Use the MENU UP/DOWN keys to select STORE.
8. Press the MENU RIGHT key to store the new value.
9. Press the MENU key to exit the PERSONAL picture mode.
Snowy Picture
Check CSM line 6. If this line reads “Not Tuned”, check the
following:
Antenna not connected. Connect the antenna.
No antenna signal or bad antenna signal. Connect a proper
antenna signal.
The tuner is faulty (in this case line 2, the Error Buffer line,
will contain error number 10). Check the tuner and replace/
repair the tuner if necessary.
Black and White Picture
If:
The picture improves after you have pressed the SMART
PICTURE button on the remote control transmitter,
Then:
1. Press the SMART PICTURE button on the remote control
transmitter repeatedly (if necessary) to choose
PERSONAL picture mode.
2. Press the MENU button on the remote control transmitter.
This brings up the normal user menu.
3. In the normal user menu, use the MENU UP/DOWN keys
to select the PICTURE sub menu.
4. Press the MENU LEFT/RIGHT keys to enter the PICTURE
sub menu.
5. Use the MENU UP/DOWN keys (if necessary) to select
COLOUR.
6. Press the MENU LEFT/RIGHT keys to increase or
decrease the value of the selected parameter.
7. Use the MENU UP/DOWN keys to select STORE.
8. Press the MENU RIGHT key to store the new value.
9. Press the MENU key to exit the PERSONAL picture mode.
5.4 Service Tools
5.4.1 ComPair
Introduction
ComPair (Computer Aided Repair) is a service tool for Philips
Consumer Electronics products. ComPair is a further
development on the European DST (service remote control),
which allows faster and more accurate diagnostics. ComPair
has three big advantages:
1. ComPair helps you to quickly get an understanding on how
to repair the chassis in a short time by guiding you
systematically through the repair procedures.
2. ComPair allows very detailed diagnostics (on I2C level) and
is therefore capable of accurately indicating problem areas.
You do not have to know anything about I2C commands
yourself because ComPair takes care of this.
3. ComPair speeds up the repair time since it can
automatically communicate with the chassis (when the
microprocessor is working) and all repair information is
directly available. When ComPair is installed together with
the Force/SearchMan electronic manual of the defective
chassis, schematics and PWBs are only a mouse click
away.
Specifications
ComPair consists of a Windows based fault finding program
and an interface box between PC and the (defective) product.
The ComPair interface box is connected to the PC via a serial
(or RS-232) cable.
For this chassis, the ComPair interface box and the TV
communicate via a bi-directional service cable via the service
connector(s).
The ComPair fault finding program is able to determine the
problem of the defective television. ComPair can gather
diagnostic information in two ways:
Automatically (by communicating with the television):
ComPair can automatically read out the contents of the
entire error buffer. Diagnosis is done on I2C/UART level.
ComPair can access the I2C/UART bus of the television.
ComPair can send and receive I2C/UART commands to
the micro controller of the television. In this way, it is
possible for ComPair to communicate (read and write) to
devices on the I2C/UART buses of the TV-set.
Manually (by asking questions to you): Automatic
diagnosis is only possible if the micro controller of the
television is working correctly and only to a certain extent.
When this is not the case, ComPair will guide you through
the fault finding tree by asking you questions (e.g. Does the
screen give a picture? Click on the correct answer: YES /
NO) and showing you examples (e.g. Measure test-point I7
and click on the correct oscillogram you see on the
oscilloscope). You can answer by clicking on a link (e.g.
text or a waveform picture) that will bring you to the next
step in the fault finding process.
By a combination of automatic diagnostics and an interactive
question / answer procedure, ComPair will enable you to find
most problems in a fast and effective way.
Service Modes, Error Codes, and Fault Finding EN 17LC4.31E AA 5.
How to Connect
This is described in the chassis fault finding database in
ComPair.

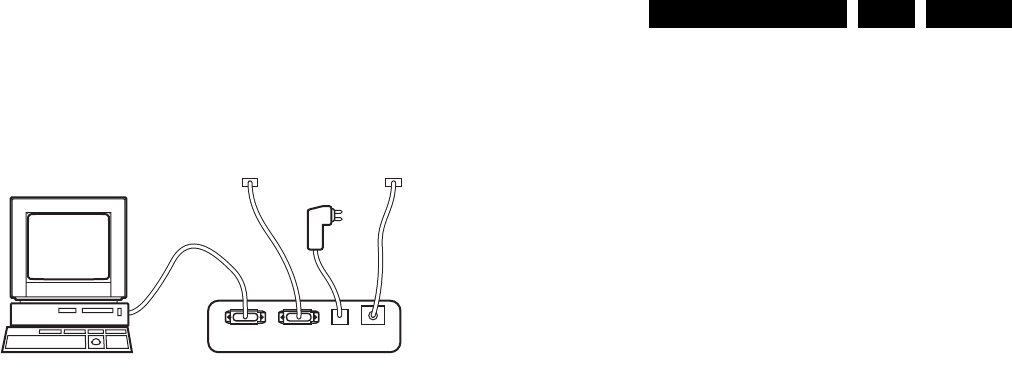

Figure 5-6 ComPair interface connection
How to Order
ComPair order codes (EU/AP/LATAM):
Starter kit ComPair32/software and ComPair interface
(excl. transformer): 3122 785 90450.
ComPair interface (excl. transformer): 3122 785 90520.
ComPair32 CD (update): 3122 785 60140.
Transformer (non-UK): 4822 727 21632.
Transformer (UK): 4822 727 21633.
ComPair interface cable: 3122 785 90004.
ComPair interface extension cable: 3139 131 03791.
ComPair UART interface cable: 3122 785 90630.
Note: If you encounter any problems, contact your local
support desk.
5.4.2 LVDS Tool
Introduction
This service tool (also called “ComPair Assistant 1“) may help
you to identify, in case the TV does not show any picture,
whether the Small Signal Board (SSB) or the display of a Flat
TV is defective.
Furthermore it is possible to program EPLDs with this tool (Byte
blaster). Read the user manual for an explanation of this
feature.
Since 2004, the LVDS output connectors in our Flat TV models
are standardised (with some exceptions). With the two
delivered LVDS interface cables (31p and 20p) you can cover
most chassis (in special cases, an extra cable will be offered).
When operating, the tool will show a small (scaled) picture on
a VGA monitor. Due to a limited memory capacity, it is not
possible to increase the size when processing high-resolution
LVDS signals (> 1280x960). Below this resolution, or when a
DVI monitor is used, the displayed picture will be full size.
Generally this tool is intended to determine if the SSB is
working or not. Thus to determine if LVDS, RGB, and sync
signals are okay.
How to Connect
Connections are explained in the user manual, which is packed
with the tool.
Note: To use the LVDS tool, you must have ComPair release
2004-1 (or later) on your PC (engine version >= 2.2.05).
For every TV type number and screen size, one must choose
the proper settings via ComPair. The ComPair file will be
updated regularly with new introduced chassis information.
How to Order
LVDS tool (incl. two LVDS cables: 31p and 20p):
3122 785 90671.
LVDS tool Service Manual:
3122 785 00810.
LVDS cable 31p/FI -> 31p/FI (for JL2.1 chassis):
3122 785 90861.
LVDS cable 30p/DF -> 31p/FI (for LC4.3 chassis):
3122 785 90821.
LVDS cable 41p/FI -> 31p/FI (dual -> single LVDS):
3122 785 90831.
LVDS cable 20p/DF -> 20p/DF (standard with tool):
3122 785 90731.
LVDS cable 31p/FI -> 31p/FI (standard with tool):
3122 785 90662.
LVDS cable 20p/DF -> 20p/DF (for LC4.1 chassis):
3122 785 90851.
5.5 Error Codes
The error code buffer contains all errors detected since the last
time the buffer was erased. The buffer is written from left to
right. When an error occurs that is not yet in the error code
buffer, it is displayed at the left side and all other errors shift one
position to the right.
5.5.1 How to Read the Error Buffer
You can read the error buffer in 3 ways:
On screen via the SAM (if you have a picture).
Examples:
ERROR: 0 0 0 0 0 : No errors detected
ERROR: 6 0 0 0 0 : Error code 6 is the last and only
detected error
ERROR: 9 6 0 0 0 : Error code 6 was detected first and
error code 9 is the last detected (newest) error
Via the blinking LED procedure (when you have no
picture). See “The Blinking LED Procedure”.
•Via ComPair.
5.5.2 How to Clear the Error Buffer
The error code buffer is cleared in the following cases:
By using the CLEAR command in the SAM menu:
To enter SAM, press the following key sequence on the
remote control transmitter: “062596” directly followed
by the OSD/i+ button (do not allow the display to time
out between entries while keying the sequence).
Make sure the menu item CLEAR is selected. Use the
MENU UP/DOWN buttons, if necessary.
Press the MENU RIGHT button to clear the error
buffer. The text on the right side of the “CLEAR” line will
change from “CLEAR?” to “CLEARED”
If the contents of the error buffer have not changed for 50
hours, the error buffer resets automatically.
Note: If you exit SAM by disconnecting the mains from the
television set, the error buffer is not reset.
5.5.3 Error Codes
In case of non-intermittent faults, write down the errors present
in the error buffer and clear the error buffer before you begin
the repair. This ensures that old error codes are no longer
present.
If possible, check the entire contents of the error buffer. In
some situations, an error code is only the result of another error
and not the actual cause of the problem (for example, a fault in
the protection detection circuitry can also lead to a protection).
E_06532_021.eps
180804
PC VCR I2CPower
9V DC
TO
UART SERVICE
CONNECTOR
TO
I2C SERVICE
CONNECTOR
Service Modes, Error Codes, and Fault Finding
EN 18 LC4.31E AA5.
Table 5-1 Error code overview
5.6 The Blinking LED Procedure
Using this procedure, you can make the contents of the error
buffer visible via the front LED. This is especially useful when
there is no picture.
When the SDM is entered, the front LED will blink the contents
of the error-buffer:
The LED blinks with as many pulses as the error code
number, followed by a time period of 1.5 seconds, in which
the LED is off.
Then this sequence is repeated.
Any RC5 command terminates this sequence.
Example of error buffer: 12 9 6 0 0
After entering SDM, the following occurs:
1 long blink of 5 seconds to start the sequence,
12 short blinks followed by a pause of 1.5 seconds,
9 short blinks followed by a pause of 1.5 seconds,
6 short blinks followed by a pause of 1.5 seconds,
1 long blink of 1.5 seconds to finish the sequence,
The sequence starts again with 12 short blinks.
5.7 Fault Finding and Repair Tips
Notes:
It is assumed that the components are mounted correctly
with correct values and no bad solder joints.
Before any fault finding actions, check if the correct options
are set.
5.7.1 NVM Editor
In some cases, it can be handy if one directly can change the
NVM contents. This can be done with the “NVM Editor” in SAM
mode. With this option, single bytes can be changed.
Caution:
Do not change the NVM settings without
understanding the function of each setting, because
incorrect NVM settings may seriously hamper the
correct functioning of the TV set!
Do not change the Scaler NVM settings, as this will
hamper the DVI / HDMI functionality of the TV set!
Always note down the existing NVM settings, before
changing the settings. This will enable you to return to the
original settings, if the new settings turn out to be incorrect.
Table 5-2 NVM editor overview
Error Error Description Check Item Diagram
0 No Error
1 Mis-match of TV (Hercules)
SW and Scaler SW
Software
versions
N.A.
2 +12V from PSU error PSU A
3Plasma I
2C error (only for
plasma sets)
N.A. N.A.
4I
2C error while
communicating with the
Genesis Scaler
7801 B7 + B8
5 +5V protection 7752 B6
6 General I2C error;
communication between
ADC, analogue tuner, and/or
Columbus I2C failed
1102, 7L01,
7M00
B1 + B18
+ B19
7I
2C error while
communicating with ADC
7L01 B18
8I
2C error while
communicating with the
Scaler EEPROM
7C01 B11
9I
2C error while
communicating with the
Hercules EEPROM (NVM for
TV).
Remark: when the Hercules
EEPROM is defective, the
Hercules should operate with
its default values.
7207 B2
10 I2C error while
communicating with the PLL
tuner
1102 B1
11 I2C error while
communicating with the 3D
combfilter IC-7M00
(Columbus)
7M00 B19
12 I2C error while
communicating with iBoard
uP (only iTV sets)
N.A. N.A.
13 I2C error while
communicating with the
HDMI decoder IC-7D03 (only
for NAFTA and AP)
N.A. N.A.
14 Read-write error with the
Scaler SDRAM
7B01 B10
15 I2C error while
communicating with the OTC
7001 T
16 I2C error while
communicating with EPLD or
Pacific III
7N00 B20 +
B21
17 I2C error while
communicating with the
Digital Module (only for digital
sets)
N.A. N.A.
Hex Dec Description
.ADR 0x000A 10 Existing value
.VAL 0x0000 0 New value
.Store Store?
Service Modes, Error Codes, and Fault Finding EN 19LC4.31E AA 5.
Table 5-3 NVM Default values (option bit settings through NVM Editor in SAM Mode)
Byte Nr. Bit Feature/Mode Description
26PF5321/10/12
32PF5321/10/12
37PF5321/10/12
26PF7321/12
32PF7321/12
37PF7321/10/12
42PF5421/10
Byte 0
174(dec)
0 QSS (LSB) Mode of quasi split sound amplifier 1
1 FMI Connection of output of QSS amplifier 1
2 HCO EHT tracking mode 0
3 HP2 Synchronization of OSD/Text display 1
4 FSL Forced slicing level for vertical sync 1
5 TFR DC transfer ratio of luminance signal 1
6 OSVE Black current measuring in overscan 0
7 MVK (MSB) (For Future Usage, as defined by software) 0
Total Dec Values 59
Total Hex Values 3B
Byte 1
175(dec)
0 PSE PSE 0
1OPC OPC 0
2 PRIS PRIS 0
3 CONTINUOUS FACTORY Continuous factory mode 1
4 WHITE PATTERN ON Last colour pattern status in factory mode 0
5 SDM MODE Service default mode on/off 0
6 SAM MODE Service Align mode on/off 0
7 SVMA Scavem On / Off 0
Total Dec Values 8
Total Hex Values 08
Byte 2
176(dec)
0 MUTE STATUS Mute status 0
1 TUNER AUTO MODE Auto mode 1
2 CABLE MODE Cable/Antenna mode 0
3 LAST POWER MODE Last power status of the set 1
4 CHILD LOCK MODE Child lock enabled 0
5 SURF MODE Surf mode on/off 0
6 FACTORY MODE Factory mode on 1
7 PSNS For PAL colour enhancement in ES4 1
Total Dec Values 202
Total Hex Values CA
Byte 3
177(dec)
0 RADIO/TV MODE Radio mode or TV mode 0
1 WAKE-UP MODE WAKE-UP MODE 0
2 HOTEL MODE TV in Hotel mode 0
3 HOTEL KBD LOCK Keyboard locked 0
4HBL HBL 0
5 BLS Blue stretch mode 1
6SL SL 0
7 CFA0 Comb filter On/Off 0
Total Dec Values 32
Total Hex Values 20
Byte 4
178(dec)
0 Signal Strength Signal Strength Switch in MK2 0
1LPG LPG 0
2 DVD TRAY LOCK Lock/Unlock DVD tray 0
3 SCRSAVER MODE Screen saver mode 1
4 BKS Black Stretch Mode 1
5 BSD Black Stretch Depth 1
6 CRA0 Coring on SVM 1
7 PIP QSS PIP QSS 0
Total Dec Values 120
Total Hex Values 78
Byte 5
179(dec)
0 FFI Fast Filter 0
1 NNR No red reduction during blue stretch 1
2 MUS NTSC matrix 1
3 GAM Gamma control 1
4 CBS Control sequence of beam current limiting 0
5 LLB Low level of beam current limiter 0
6 DSA Dynamic skin tone angle area 1
7 DSK Dynamic skin tone angle on/ off 0
Total Dec Values 78
Total Hex Values 4E
Service Modes, Error Codes, and Fault Finding
EN 20 LC4.31E AA5.
5.7.2 Load Default NVM Values
In case a blank NVM is placed or when the NVM content is
corrupted, default values can be downloaded into the NVM.
(For empty NVM replacement, short the SDM with a jumper
and apply the mains voltage. Remember to remove the jumper
after the reload is completed). After the default values are
downloaded, it will be possible to start up and to start aligning
the TV set. This is no longer initiated automatically; to initiate
the download the following action has to be performed:
1. Switch “off” the TV set by disconnecting the AC Power
plug.
2. Short circuit an SDM jumper (keep short-circuited).
3. Press P+ or Ch+ on the local keyboard (and keep it
pressed).
4. Switch on the TV set via the AC Power plug.
5. Keep pressing the P+/Ch+ button until the set has started
up and the SDM is shown.
Alternative method:
1. Go to SAM.
2. Select NVM Editor (not SC NVM Editor).
3. Select ADR (address) to 1 (dec).
4. Change the VAL (value) to 170 (dec).
5. Store the value.
6. Disconnect the mains plug and wait for a few seconds.
7. Reconnect the mains plug and wait until the set goes into
its standby mode (red LED lights up).
8. Restart the set.
5.7.3 Flash New Scaler Software
When you need to flash new scaler software, follow the
instructions in ComPair. Make sure you put the set in one of the
Service Modes, SDM/SAM/CSM, before you start flashing.
This reduces the risk of the set hanging during the flashing
procedure.
5.7.4 Tuner and IF
No Picture in RF Mode, but there is a Noise Raster
1. Check whether picture is present in AV. If not, go to Video
processing troubleshooting section.
2. If present, check if the Option settings are correct.
3. Check if all the supply voltages are present (3.3/5/8/12/33
V).
4. Check if the I2C lines are working correctly (3.3 V).
5. Manually store a known channel and check if there is IF
output at Tuner pin 11.
6. Check the tuning DC voltage at pin 2 of the Tuner. The DC
voltage should vary according to the frequency/channel
being chosen.
7. If the tuning voltage is OK, check the tuner output, pin 11.
8. If it has no output, the Tuner may have a defect. Change
the Tuner.
Sound in Picture Problem for L' System (rolling horizontal
lines)
1. Check whether AGC L' in SAM mode is set to 0.
2. If yes, align the set to correct value.
Required System is not Selected Correctly
Check whether a Service jumper (#4204 & 4205, 0805 size) is
present. If yes, remove it.
5.7.5 Video Processing
No Power
1. Check +12 V and 3V3 at position 1J02.
2. If no supply, first check the connector 1J02.
3. If the connector is correct, check the power supply board.
Power Supply is Correct, but no Green LED
1. Check if the connectors 1K00 are properly inserted.
2. If they are inserted correctly, check if the 3V3 is present.
No Picture Display (blank screen with correct sound
output)
1. Check whether the user menu is visible.
2. If the user menu is OK, activate teletext mode.
3. If teletext is OK, the problem is in the ADC (B18) &
Columbus 3D combfilter (B19), if present (depending on
model, see also paragraph “Teletext Path” in chapter 9).
4. If the user menu is not visible, check if the LCD panel
backlight is ON.
5. If the backlight is OFF, the problem is in the power supply
board or LCD panel. Also check pin 12 (LAMP_ON_OFF)
of 1J02. It should be HIGH during normal operation.
Note: For fault finding purposes, it is important to know the
following: in Pixel Plus and Digital Crystal Clear models, which
have an ADC (B18) and Columbus 3D combfilter (B19), the
digital input of the scaler is used for the digital video path
(Hercules output), whereas the analogue RGB input (analogue
Byte 6
180(dec)
0 LTI status LTI last status 0
1 Inc_Life_Time Inc_Life_Time 0
2 PC_Mode PC_Mode 0
3 HD_Mode HD_Mode 0
4 Tact_Switch Tact_Switch 0
5 Set_In_Special_Stby Set_In_Special_Stby 0
6 Hotel_OSDDisplay Hotel_OSDDisplay 0
7 Hotel_MonitorOut Hotel_MonitorOut 0
Total Dec Values 0
Total Hex Values 00
Byte 7
181(dec)
0 Hotel_IconMode Hotel_IconMode 0
1DBE DBE 1
2SD SD 0
3 Set_in_PC_Sleep_Mode Set_in_PC_Sleep_Mode 0
4 Reserved Reserved 1
5 Reserved Reserved 0
6 Reserved Reserved 0
7 Reserved Reserved 0
Total Dec Values 18
Total Hex Values 12
Byte Nr. Bit Feature/Mode Description
26PF5321/10/12
32PF5321/10/12
37PF5321/10/12
26PF7321/12
32PF7321/12
37PF7321/10/12
42PF5421/10
Service Modes, Error Codes, and Fault Finding EN 21LC4.31E AA 5.
input of the scaler) is only used for teletext. This means that no
mixed mode (video plus teletext simultaneously) is possible. If
there is sound and teletext, but no video and user menu (blank
screen), the digital path (Hercules - ADC - Columbus - Scaler)
is faulty. If there is sound but no teletext, the back-end part
(Scaler - LCD panel) is faulty. In Crystal Clear models, which
do not have an ADC and Columbus, the RGB path (analogue
input of scaler) is used for both video and teletext.
No TV, but PC is Present
1. Check if Hsync_SDTV and Vsync_SDTV are present at pin
1 & pin13 of 7E03.
2. If they are present, check teletext output.
3. If there is no teletext output, the IC TDA150xx may be
defect.
5.7.6 Power Supply
Check Fuse
The power supply (various models are used) contains one fuse
near the AC input connector X002.
1. Check with power supply in “off” state by means of ohmic
measurement.
2. Fuse X102 may open in case of severe lightning strikes
and/or failures in the power supply.
3. Check the standby signal at pin 10 of X200. ON is HIGH,
OFF is LOW. During standby mode only the 3V3 is present
at pin 10.
Protections Concept on Power Supply Board (two models)
1. 12 V output (pin 8 of X200): Short-circuit protected by 2.5
A fuse X610. Over-voltage protection when output voltage
is more than 40% above nominal value.
2. Vaudio output (+18 or +24 V, depending on power
supply model used); (pin 1 of X200): Short-circuit proof
(+18 V version has 2.5 A fuse X660). Over voltage
protection when output voltage is more than 40% above
nominal value.
3. 3V3STBY output (pin 3&4 of X200): Short-circuit proof
with auto-restart. Over voltage protection when output
voltage is more than 40% above nominal value.
4. 24 V output (for inverter X520 & X530): Short-circuit
proof with auto-restart. Over voltage protection when
output voltage is more than 40% above nominal value.
Standby Mode
1. Apply a 12 ohm load resistor of sufficient power rating to all
outputs mentioned above (+12 V, +18/ 24 V, +3V3 and +24
V). Connect the STBY pin (pin 10 of X200) to logical “L”
(low), i.e. to GND.
2. Over an input voltage range of 90 VAC to 276 VAC only the
+3V3 STBY output shall be up.
Normal Mode:
1. Apply a 12 ohm load resistor of sufficient power rating to all
outputs mentioned above (+12 V, +18/ 24 V, +3V3 and +24
V). Connect the STBY pin (pin 10 of X200) to logical “H”
(high), i.e. to the +3V3 STBY output via a 2,2 k pull up
resistor.
2. Over an input voltage range of 90 VAC to 276 VAC all
outputs shall be up. The voltage on the +3V3 STBY output
shall be 3.3 V over the entire input voltage range. The
voltage on the big 400 V capacitor on the power supply
should also be 400 V ± 10%.
Service Modes, Error Codes, and Fault Finding
EN 22 LC4.31E AA5.
Personal Notes:
E_06532_012.eps
131004
Block Diagrams, Test Point Overviews, and Waveforms 23LC4.31E AA 6.
6. Block Diagrams, Test Point Overviews, and Waveforms

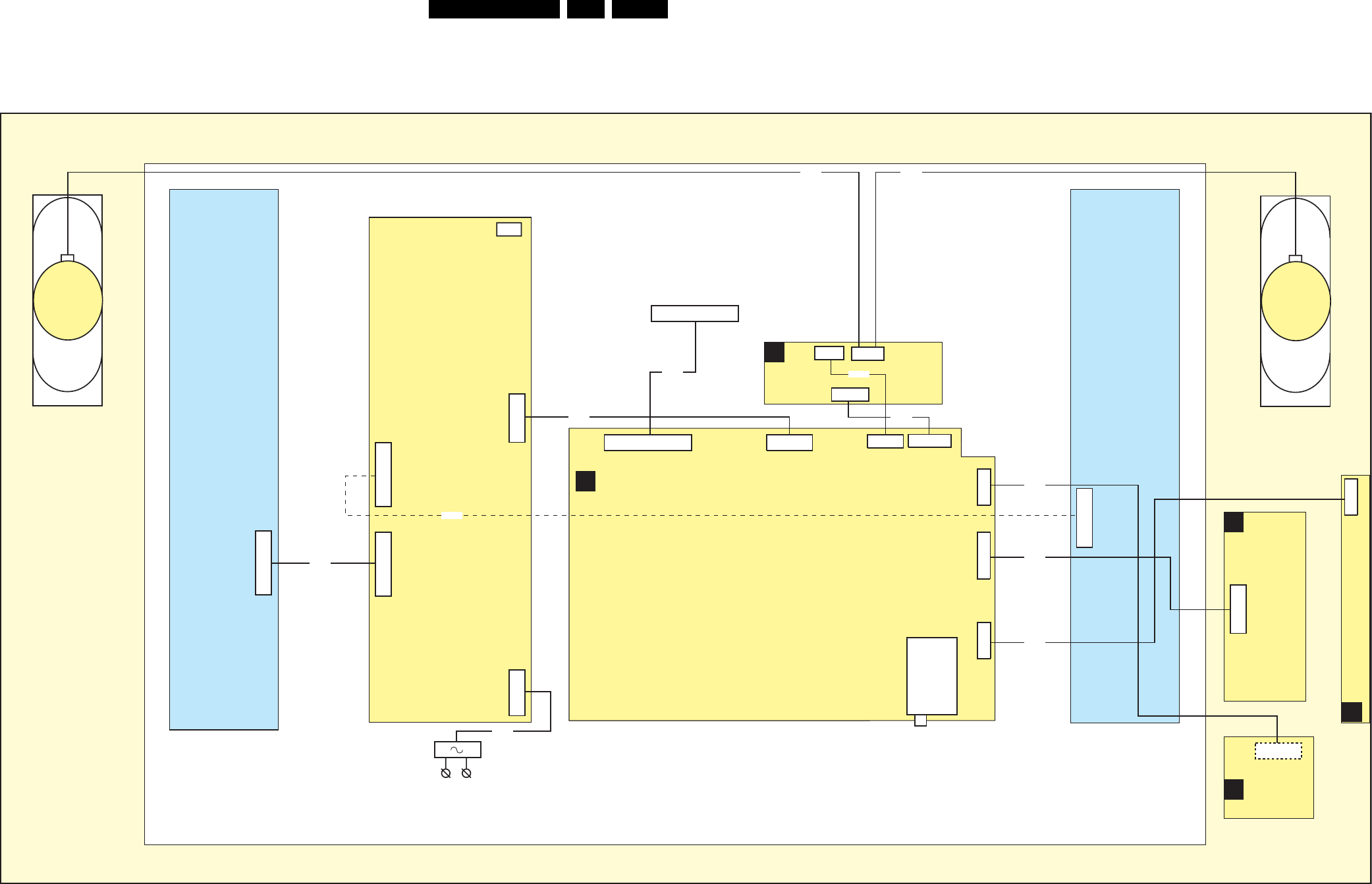

Wiring Diagram 26” & 32”
LEFT
SPEAKER
RIGHT
SPEAKER
12P
31P
G_16210_058.eps
010206
30P
12P
X200
12P
X530
1P06 1J02
POWER
IN
X002
B
SSB
D
SIDE AV
J
IR/LED/LIGHT
SENSOR
LVDS CONNECTION
TO DISPLAY
INVERTER
6P
1870
1304
(1M06)
POWER
SUPPLY
1001
1003
9P
1J04(1M52)
3P
1J03
1002
30P
8J02
3P
1684
6P
1K00(1M21)
12P
1K01(1M06)
3P
1K02
X220
14P
14P
X520
INVERTER
INVERTER
2P3
3P
9P
3P 4P
12P
AC POWER
INLET
TUNER
E
KEYBOARD CONTROL
C
CLASS D
AUDIO
AMPLIFIER
8J04
8J03
8K01
8002
8520
8870
8903
8903
8P06
8684
WIRING 26”- 32”
12P
8520
24LC4.31E AA 6.
Block Diagrams, Test Point Overviews, and Waveforms
Wiring Diagram 37”
INVERTER
0345
6P
J
LED PANEL
LCD PANEL
RIGHT
SPEAKER LEFT
SPEAKER
G_16210_059.eps
280606
WIRING 37”
INVERTER
14P
12P
1304
4P
1305
3P1306
2P3
A
LCD SUPPLY
1M02
7P
1308
2P3
1309
3P
D
SIDE AV
1M36
11P
TUNER
B
SSB
1J04
9P
1N17
30P 1J03
3P
1K02
3P
1K04
11P
1K00
6P
1J01
11P
1442
14P
1J00
10P
1N20
3P
SA
STANDBY
1316
12P
1739
9P
1317
12P
1309
3P1304
4P
1306
2P3
1307
4P
1305
3P
1M03
10P
1M46
11P
1736
3P
1735
3P
1M02
7P
1319
14P
LVDS
TO DISPLAY
8002
AC INLET
8187
(8188UK)
1M01
3P
E
KEYBOARD CONTROL
8902 8903
8305
8306
8521
8304
8309
8302
8J04
8337
8P06
8322
8870
8K01
8101
8520
T
OTC-
FLASH
1000
14P
8000
Block Diagrams, Test Point Overviews, and Waveforms 25LC4.31E AA 6.
Wiring Diagram 42”
1J04(1M52)
9P
1N17
31P
1J01(1M46)
11P
Tuner
1177
3P
1K04(1M06)
11P
0345
6P
1M36
11P
1M01
3P
BSSB
INVERTER
D
ECONTROL BOARD
JLED SWITCH
PANEL
LCD PANEL
AC INLET
RIGHT
SPEAKER
LEFT
SPEAKER
G_16210_101.eps
190506
1K02
3P
1303
4P
1320
3P
1B06
3P
12P
1736
2P3
1735
2P3
1738
2P3
1M02
7P
1316
12P
1739
9P
1319
14P
1320
3P
1303
4P
1306
2P3
1307
4P
1305
3P
1M03
10P
1M46
11P
1M10
4P
AMF + SUPPLY
1M02
7P
1308
2P
30P
8302
8736
INVERTER
14P
SIDE I/O
8735
8319
8306
8305
8317
8304
8309
8136
8120
1K00(1M21)
6P
1J00(1M03)
10P
8146
8103
8152
1306
2P3
8150
8101
1103
3P
1151
3P
Compair
UART
SA STANDBY / AUDIO
1304
4P
1309
3P
1307
4P
1305
3P
1C05
3P
1309
3P
1304
4P
8303
8320
8307
8308
1420
WIRING 42” LCD
1442
14P
TOTC-
FLASH
1000
14P
8000
LVDS
26LC4.31E AA 6.
Block Diagrams, Test Point Overviews, and Waveforms
Block Diagram Supply 37”
CONNECTIONS
SA1
STANDBY
SA2
MAINS FILTER + STANDBY
A1 SUPPLY
A2
6307
GBJ6J
-+
6306
DF06M
-+
7001
MC34067P 15
7011
7012
7007
HIGH
SIDE
DRIVE
7004
7009
5001
BIAS SUPPLY
SOFT
START
+
CURRENT
PROTECTION
CONTROL
VCC
OSCC
ERROR
SOST
OB
OA
FI
2
4
11
7
11
14
12
10
6
7
5011
7008
LOW
SIDE
DRIVE
10
9
2003
60246025
3007
7010
TS2431
3030
1314
T5AH
13085305
5306
MAINS
FILTER
2
1
OVER
VOLTAGE
PROTECTION
400V_HOT
25V_HOT
HOT COLD
HOT
COLD
SUPPLY 37"
399V_HOT
5002
1007
T5A
VSND_POS
VSND_NEG
GND_SND
+24Vb
+24Va
+12V
400V_HOT
2303
2020
2022
2060
PRINTED
COMPONENT
HOT COLD
VREF
5
N.C.
5008
5007
25V_HOT
399V_HOT
6315
6316
6318
6317
RES
6314
6304
2319
33183000
2029
2045
6021
6041
5025
5026
+12V_A
+12V_+24V
HOT
COLD
CONTROL
3
STAND BY
7100
7101
7105
VTUN
+11V
+8V6
+5V2
+5V_SW
5500
+12V
6
7
10
STANDBY
7507
7506
7512
STANDBY
OVERVOLTAGE
PROTECTION
8
B01B
TO 1M46
(1J01)
SSB
5
2
1
+5V2
STANDBY: LOW = ON
HIGH = STBY
CONTROL
7505/7509/7560
Prot-OVV
+12V_A
PROT-OVV
G_16210_060.eps
260906
TO
DISPLAY
1305
11
1305
22
33
1306
11
1306
22
1
1307
2
3
4
1304
44
1304
33
22
11
6504
6140
3509
5110
5507
5103
6107
6122
3158
PROT_AUDIOSUPPLY
2512
5506
2513
31283113
3124
2141
5504 5505
5104
5105
3108
3127
3104
3150
3101
3155
6151
6150 3156
6153
3157
6156
1
2
3
4
5
1316
1
2
1M10
1M03
7
1M46
4
7
3100
11
2
1
2
3
4
5
1317
1M02
7
6
4
5
3
2
1
TO 1M02
AUDIO
TO
DISPLAY
SA1
SA2
2009
6029
2021
6030
5020
5018
5019
2042
2049
6031
6040
5021
5022
DC_PROT
70033031
3052
3057
VS Voltage
Adj.
3026
3025
5017
5012
5009
2059
5010
DC_PROT
3V MAX
1V MAX STBY
7150
TCET1102
2
14
3
7501
TCET1102
2
14
3
7002
TCET1102
2
14
3
7307
TCET1102
2
14
3
B16
B01B
TO 1M03
(1J00)
SSB
B16
SA3
HOT COLD
6019
STPS20L40CFP
6019
STPS20L40CFP
7005
STP15NK50
7006
STP15NK50
7102
STP15NK50
7531
7131
7511
23
14
1350
9311
RES
RES
1
4
1315
T1A
9
SA2
1
2
3
4
5
1319
TO
DISPLAY
B01B
TO 1301
IBO ZAPPER
(ONLY DVB SETS)
K3
B01B
TO 1329
SIDE AV
D
Block Diagrams, Test Point Overviews, and Waveforms 27LC4.31E AA 6.
Block Diagram Supply 42”
G_16210_102.eps
260906
SUPPLY PART A
A2
STANDBY
SA2
SUPPLY PART B
A4
CONNECTIONS
SA1
MAINS FILTER + STANDBY
PART B
A3
MAINS FILTER + STANDBY PART A
A1
SUPPLY 42"
6807
GBJ6J
-+
7001
MC34067P 15
7017
7018
7007
7004
7009
5001
BIAS SUPPLY
SOFT
START
+
CURRENT
PROTECTION
CONTROL
VCC
OSCC
ERROR
SOST
OB
OA
FI
2
4
11
7
11
14
12
10
6
7
5
3
7
8
9
10
11
3
1
2
12
13
5002
7008
10
9
3007
7010
TL431ACD
VS Voltage
Adj.
+12V_A
+12V_+24V
5400
5401
5403
23
MAINS
FILTER
14
6506
DF06M
-+
1450
OVER
VOLTAGE
PROTECTION
400V_HOT_A
25V_HOT_A
14
15
16
6021
STTH2003CFP
6H07
GBJ6J
-+
7U01
MC34067P 15
7U17
7U18
7U07
HIGH
SIDE
DRIVE
7U04
7U09
5U01
BIAS SUPPLY
SOFT
START
+
CURRENT
PROTECTION
CONTROL
VCC
OSCC
ERROR
SOST
OB
OA
FI
2
4
11
7
11
14
12
10
6
7
5
3
7
8
9
10
11
12
13
5U02
7U08
LOW
SIDE
DRIVE
10
97U10
TL431ACD
VS Voltage
Adj.
+24V
5D00
5D01
5D03
23
MAINS
FILTER
14
1D50
OVER
VOLTAGE
PROTECTION
400V_HOT_B
25V_HOT_B
14
15
16
400V_HOT_B
VSND_POS
VSND_NEG
MAINS INPUT
CONTROL
3
7100
7101
7105
VTUN
+11V
+8V6
+5V2
+5V_SW
+12V
6
7
10
STANDBY
7507
7506
7512
STANDBY
OVERVOLTAGE
PROTECTION
8
5
2
1
+5V2
STANDBY: LOW = ON
HIGH = STBY
3V MAX
1V MAX STBY
2020
2022
CONTROL
7505/7509/7560/
Prot-OVV
+12V_A
DC_PROT
DC_PROT
DC_PROT
DC_PROT
PROT-OVV
VREF
5
TO
DISPLAY
TO
DISPLAY
+24V_2
VREF
5
5B92
2
1308
1
1400
3A15
1401
T1A
2503
6156
3810
2815
China
2816
6157
3406
2H15
China
2H16
1305
11
1305
22
33
1306
11
1306
22
1307
11
1307
22
33
44
1C05
11
1B06
22
33
3000 6080 6078
2003
3022
3052
3026
3030
1304
44
1304
33
22
11
3057
+12V
+24Va
7030
6014
3025
6504
6140
3509
5110
5507
5103
6107
6122
3158
PROT_AUDIOSUPPLY
2512
5506
2513
3128 3113
3124
2141
5504 5505
5104
5105
3108
3127
3150
3101
3155
6151
6150 3156
6153
3157
6156
3U07
3U57
6U78
6U79
2U03
2B91
2B93
6B91
6B93
5B93
5B91
1303
11
1303
22
33
44
3U30
3U26
3U24
3U22
2U22
1316
1
2
3
4
5
1M10
1
2
1M46
9
1
7
1319
(1317)
1
2
3
4
5
1M02
6
5
3
2
1
4
3U28
3U00 6U77
5U40
5U105U17
5U08
5U07
7
DC_PROT
3U25
6077 5010
5017
3028
5007 5008
5U09 5009
3U52
3U39
MAINS_L
MAINS_N
3H10
3100
11
2
1M03
7
4
SA3
3
4
1400
3A15
6019
STPS20L40CFP
5027
5028
1
3
2
6021
STPS20L40CFP
5025
5026
7002
TCET1102
2
14
3
7005
STP15NK50
7006
STP15NK50
HIGH
SIDE
DRIVE 5040
LOW
SIDE
DRIVE
1
3
2
6021
STPS20L40CFP
5U25
5U26
1U07
T5A
7U05
STP15NK50
7U06
STP15NK50
7U02
TCET1102
2
14
3
7501
TCET1102
2
14
3
7150
TCET1102
2
14
3
7102
3104
5500
7131
7511
B01B
TO 1M46
SSB
N.C.
TO 1M02
AUDIO
B16
B01B
TO 1M03
SSB
B16
SA3
RES
HOT GROUND COLD GROUND
HOT GROUND
COLD GROUND
HOT GROUND COLD GROUND
HOT GROUND COLD GROUND
STANDBY
SA2
HOT GROUND
COLD GROUND
HOT GROUND
COLD GROUND
RES
7531
28LC4.31E AA 6.
Block Diagrams, Test Point Overviews, and Waveforms
Block Diagram Video
B1
TUNER & VIF
B15A
SCART ANALOG IO
B2
HERCULES
B14
DIGITAL IO
B13
MUX-SYNC INTERFACE
B7
SCALER
B11
FLASH/CONTROL
B10
SDRAM
B3
SYNC INTERFACE
VIDEO
B18
ADC
B17
SIDE
CONNECTIONS
D
SIDE AV
B19
COLUMBUS
(Dig. PAL/NTC Comb)
B20
PACIFIC3
HERCULES
B15B
B15B
B12
HDMI
B15A
SCART ANALOG IO
T
OTC-FLASH
(FOR 1000pg TXT)
B3
SYNC INTERFACE
(TO OTC-FLASH)
B15B
DMMI
DD(0-15)
1152
UV1318S
RF
IN
TUNER
2156
11
1154 VIF1
VIF2
5
4
1
4513154 RF_AGC
SCL
SDA
DC
AC AGC
Detect
21
1
SCART 2
1G02
20
15
SC2_Y_IN
SC2_Y_IN_1
SC2_C_IN
1G01
20
7
8
16
15
11
SC1_CVBS_IN SC1_CVBS_IN
21
1
SCART 1
24
25
31
51
52
55
SC2_CVBS_MON_OUT
19
SC1_CVBS_RF_OUT
43
EF
7G01
77 7879 80
EF
7208
R_OTC_SDTV
EF
7209
G_OTC_SDTV
EF
7210
B_OTC_SDTV
85
86
87
74 75 76 70 71 72
22
67
7E01
SC1_R_CVI_Pr_IN
SC1_G_CVI_Y_IN
SC1_B_CVI_Pb_IN
27
3
7
25
1
5
R_PR+
G_Y+
B_PB+
17
14
11
Vsync_SDTV
Hsync_SDTV
AVSYNC
AHSYNC
7E04
5
1
8
4L4
L3
ANALOG
INPUT
PORT
DVI/HDMI
INPUT
PORT
7B01
K4D263238F
SDRAM
1Mx32x4
FSDATA
FSADDR
7801
GM1501
GRAPHIC
ZOOM
DISPLAY
TIMING
GEN.
VIDEO
ZOOM
OSD CONTROLLER
OUT BLENDER
BRIGHTNESS/CONTRAST/HUE/SAT
EXTERNAL
ROM
INTERFACE
7C03
M29W400DT55N6E
FLASH
ROM
512Kx8
OCMDATA
OCMADDR
1N17
1
11
10
12
14
13
15
19
18
20
27
26
28
22
21
23
LVD S_VCC
TXB0-
TXB3+
TXB0+
TXB1-
TXB1+
TXBC+
TXBC-
TXB2-
TXB2+
TXB3-
RGB/Pr Pb Insert
YUV Interface
RGB Matrix
Blue & Black
Strech
Gamma Corr.
PAL/NTSC/
SECAM
Decoder &
Baseband
Delay
Sync Sep
H-OSC
H-Shift
H-Drive
Vertical &
East-West
Geometry
CVBS/Y
VDRB
H/V HOUT
RO
GO
BO
INSSW3
Chroma
Yint
R/Pr-3
G/Y3
B/Pb-3
YOUT
VOUT
UOUT
VIN
UIN
YIN
B_OSD
G_OSD
R_OSD
Fast Blanking
Peaking
SCAVEM
U/V Delay
Skin Tone
U/V Tint
Saturation
YUV
YUV in/out
SAT
SCAVEM
on text
Dig. 2H/4H
Combfilter
Y Delay Adj.
c
cvbs/y
Sound
Traps
Video
Switch
+
Control
Uint
Vint
CVBS1
BINA|Pb
GINA|YINA
RINA|Pr
FRAME
STORE
CONTROL
MICRO
CONTROLLER
UART
INTERFACE
INTERNAL
RAM
QSS Mixer
AM Demod. AM
QSS/FM
1156 4
5
1
SIF1
SIF2
29
30
FE00
FE01
FE02
IF-TER
AE16
AF11
AF16
AF12
AE15
AF15
AE12
AF13
AE14
AF14
D2
C2
B2
7217
TDA15021H
RO
GO
BO
Vsync_SDTV
Hsync_SDTV
INTF_Y_OUT
INTF_U_OUT
INTF_V_OUT
SC1_CV1_DMMI_B_Pb_IN
SC1_FBL_IN_1
SC1_CV1_DMMI_R_Pr_IN
SC1_CV1_DMMI_G_Y_IN
19
STATUS_2_IN|OUT
8
STATUS_1
67
+5SW_a
+VTUN
7436-2
43
7436-1
21
N.C.
EF
7L61/7L62
EF
7L51/7L52
EF
7L71
7L01
P3563M-LF
A/D
CONV.
COL_Di(1-9)
COL_YA(1-9)
COL_A
COL_DQ
7M00
T6TU5XBG
COLUMBUS
DIGITAL COMB
FILTER
DRAM
512Kx16x2
7M01
MSM56V16
+2V5_DDR
95
G_16210_061.eps
260706
9
6
11
2
3
37
38
SCL
SDA
COL_Do(1-8)
COL_YB(1-8)
7E00
1
13
3
5
2
12
15
14
4
C3
SOG
2
1304
(1M36)
1K01
(1K04)
2
44
1
5
SVHS
24
3
1301
(1001)
1302
(1002)
EF
7206
64
58
7G11
2
9
12
15
14
FRONT_Y_CVBS_IN
1
FRONT_C_IN
13
59
SC2_AV3_C_IN
SC1_FBL_IN
CVI_Pr_IN
CVI_Y_IN
CVI_Pb_IN
SC1_FBL_IN_1
SC1_CV1_DMMI_R_Pr_IN
SC1_CV1_DMMI_G_Y_IN
SC1_CV1_DMMI_B_Pb_IN
B2
B2,B13
B2,B13
B2,B13
B15b
B15b
B15b
B15b
SC1_CV1_DMMI_R_Pr_IN
SC1_CV1_DMMI_G_Y_IN
SC1_CV1_DMMI_B_Pb_IN
B15b
B15b
B15bSC1_R_CVI_Pr_IN
SC1_G_CVI_Y_IN
SC1_B_CVI_Pb_IN
B13
B13
B13
B13
B13
B13
B3
B3
EF
7G02
7219
48
13
12
14
4G18
4G31
4G14
4G15
4G17
4G16
B2
B2
FRONT_YCVBS_IN
FRONT_C_IN
CVBS_COMB
B9
SCALER
LVD S
PACIFIC3
7N00
T6TF4AFG
TXB0-
TXB3+
TXB0+
TXB1-
TXB1+
TXBC+
TXBC-
TXB2-
TXB2+
TXB3-
OR
4N02
4N09
4N01
4N10
4N04
4N03
4N07
4N08
4N06
4N05
TXO0+
TXO0-
TXO1+
TXO1-
TXO2+
TXO2-
TXO3+
TXO3-
TXOC+
TXOC-
OR
LVD SA+
LVD SA-
LVD SB+
LVD SB-
LVD SC+
LVD SC-
LVD SD+
LVD SD-
LVD SCLK+
LVD SCLK-
1N16
1
11
12
13
14
15
16
17
18
19
20
24
25
26
21
22
LVD S_VCC
LVD SA+
LVD SA-
LVD SB+
LVD SB-
LVD SC+
LVD SC-
LVD SD+
LVD SD-
LVD SCLK+
LVD SCLK-
TO DISPLAY (26” & 32)TO DISPLAY (LCD 37 & 42, PDP 42 & 50)
SC2_AV3_Y_IN
9
9RGB|CVI_HDA_SEL
SCALER
B7
9
AV2_DMMI_SW
B7
SC2_OUT_SW
I_PC_HD_SEL
R-PR-ADC
G-Y-ADC
B-PB-ADC
EXT 2
EXT 1
VIDEO
IN
S-VHS
B2
VSYNC
HOUT
4G04
RGB-R|YC-C_IN
For sets without
OTC-Flash (26, 32)
1F03
12
10
7
9
6
4
3
RX0-B
RX0+B
RXC+B
RXC-B
RX1-B
RX1+B
RX2+B
RX2-B
HDMI-2
1
19 1
182
7D03
SII9993CTG100
HDMI
PANELLINK
RECEIVER
HDMI_Y(0-7)
HDMI_CbCr(1-7)
C10
C9
C13
C12
C16
C15
G14
F14
H_HDMI
V_HDMI
A2
A1
B14
C14
1F02
12
10
7
9
6
4
3
RX0-A
RX0+A
RXC+A
RXC-A
RX1-A
RX1+A
RX2+A
RX2-A
HDMI-1
1
19 1
182
A9
A10
A12
A13
A15
A16
F16
G16
1G01
HDMI_VCLK
D1
D16
1N12
1N13
1N14
1N15
1N11
(RES For PIXEL+)
7006
M29W160ET70N6E
FLASH
ROM
512Kx8
7007
MSM51V18165F
FLASH
ROM
512Kx8
AA(1-20)
7001
SAA5801H/015
TV
CONTROL
1000 1442
22
44
55
99
77
11 11
12 12
1313
14 14
83 H
84V
77 R_OTC
78G_OTC
79 B_OTC
78SCL
79 SDA
5CVBS_COMB
96 INT_OTC
74 RESET_FLASH
Hsync_SDTV
Vsync_SDTV
R_OTC_SDTV
G_OTC_SDTV
B_OTC_SDTV
SCL
SDA
CVBS_COMB
INT_OTC
RESET_FLASH
11
B2
B2
B7
B13
B13
B13
B13
B13
CVBS_COMB
B3
(OTC)
7L72
VIN VOUT
COM
FRONT_YCVBS_IN
FRONT_C_IN
(Only For 37 - 50 Sets)
( ) 37 - 42 only
TXO0+
TXO0-
TXO1+
TXO1-
TXO2+
TXO2-
TXO3+
TXO3-
TXOC+
TXOC-
28
29
31
32
34
35
40
41
38
37
102
103
100
101
98
99
92
93
95
96
Block Diagrams, Test Point Overviews, and Waveforms 29LC4.31E AA 6.

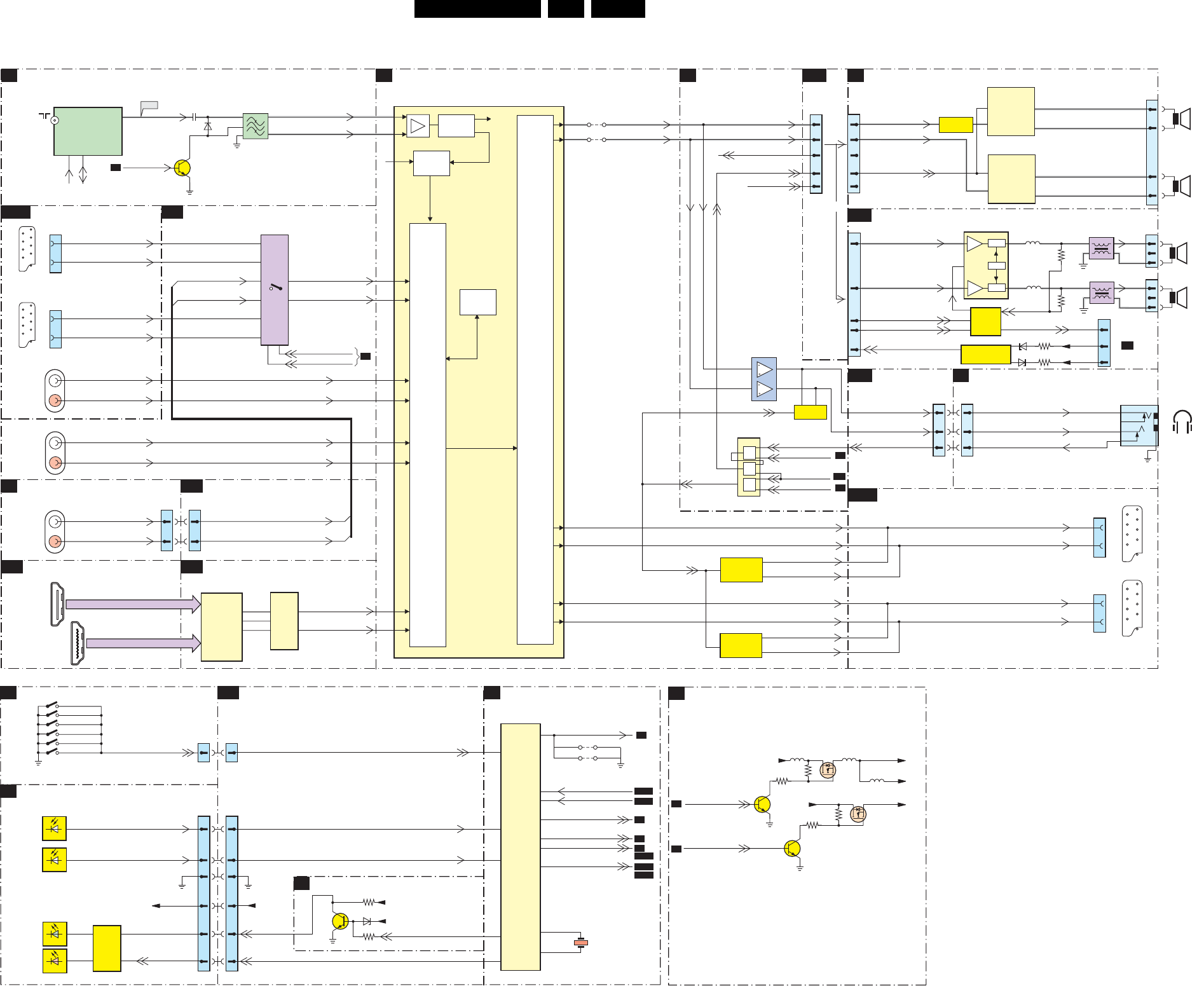

Block Diagram Audio
B5
AUDIO PROCESSING
B17
SIDE
CONNECTORS
D
SIDE AV
B2
HERCULES
B1
TUNER & IF
AUDIO
CONTROL
J
IR/LED/LIGHT-SENSOR
B2
HERCULES
C
AUDIO AMPLIFIER
(CLASS-D)
B16
B14
DIGITAL IO
B15A
SCART ANALOG-IO
D
SIDE AV
B17
SIDE CONNECTORS
E
KEYBOARD CONTROL
B17
SIDE CONNECTORS
B3
SYNC INTERFACE
B6
DC-DC CONVERTER
B14
DIGITAL IO
SA3
AUDIO
B15A
SCART ANALOG-IO
B12
HDMI
1001
4
3
2
1
LEFT
SPEAKER
RIGHT
SPEAKER
60
61 AUDOUTLSR
AUDOUTLSL
1K01
(1K04)
10 10
1304
(1M36)
12 12
HP_LOUT
HP_ROUT
HEADPHONE
HEAD_PH_L
HEAD_PH_R
7217
TDA15021H
1152
UV1318S
RF IN
TUNER
2156
11
45
SCL
SDA
QSS Mixer
AM Demod.
AM
1156 4
5
1SIF1
SIF2
AD Conv.
Std Stereo
Decoder
21
1
1G02-1
21
1
1G01-1
21
1
SC1_L_RF_OUT
SC1_R_RF_OUT
AV1_Audio_INL
AV1_Audio_INR
34
35
SC2_L_MON_OUT
SC2_R_MON_OUT
AV2_Audio_INL
AV2_Audio_INR
21
1
62
63
36
37
29
30
33
IF-TER
IFOUT
F158
AUDIO
SELECT
ADC/DAC
AUDIO
CONTROL
Vol/Treb/
Bass
Features
DACs
I2S
Processor
QSS/FM
1310(1704)
3324(1705)
1311(1701)
1312(1702)
1313(1706)
Channel+
Channel-
Volume+
Volume-
Power
33
55
1870
(0345) 1K00
22
44
66
PC-TV-LED
LED_SEL
RC
+3V3STBY
PC-TV-LED
LED_SEL
RC_OUT
KEYBOARD
97
7217
TDA15021H
115
107
120
7430 +3v3STBY
+5VSW
3431
6430
114 SEL_IF_SDM
4204
SERVICE
SDM
116 STATUS_1
B15A
119 STATUS_2
MUTE
OUT_MUTE
102 EXT_MUTE
B5
POWER_DOWN
SOUND_ENABLE
111 SOUND-ENABLE
B5
122 SC_STANDBY
B6
G_16210_062.eps
030206
B1
HERCULES
6154
7151
3
SEL_IF_SDM
B2
MUTE
OUT_MUTE
MUTE
4211
4212
1J04
33
1002
11
POWER
COMPARATOR
7001
TDA8931T
OUT
HVPI
16
13
IN+
4
POWER
COMPARATOR
7000
TDA8931T
OUT
HVPI
16
13
IN+
4
88
7
AUDIO-R
SOUND-ENABLE
AUDIO-L
PHASE
INVERTER
SOUND-ENABLE
7606
7202
7201
1G01-1
6
2
1G02-1
6
2
1G02-2
66
88
L_FRONT_IN
R_FRONT_IN
SIDE_AudioINL
SIDE_AudioINR
53
54
1304
(1M36) 1K01
(1K04)
11
LIGHT-SENSOR LSIPDP_DVB_SEMISTANDBY
1309(1703)
Menu
1684
(1M01)
22
1K02
(1M01)
KEYBOARD
+3V3STBY
P50_LIN2_ITV_IR_SW_RST 123
1202
24M576
127 AV2_DMMI_SW
7601
TS482ID
1
7
2
6
SC1_L
SC1_R
SC2_L
SC2_R
7
7004
11
10
1303
(1010)
7
1
2
11 11 HP_DET_R_DC1
HP_DET_R_DC_1
HP_DET_R_DC_1
EXT_MUTE
2
1
9
10
7602
74HC08PW
B16
B2
B2
6
8
SC1_L_RF_OUT
SC1_R_RF_OUT
SC2_L_MON_OUT
SC2_R_MON_OUT
OUT_MUTE
&
&
&
3
5
3432
RES
7756
3759
3750
+3V3STBY
+3V3SW
SC_STANDBY
7755
PANEL-PWR-CTL
3758
3755
LVDS_VCC
5756 5757 PAN_VCC
+12VSW
B8
B2
EXT 1
SCART 1
EXT 2
SCART 2
AUDIO
L/R IN
3
1
3
1
7758
7754
2
HD_AudioINL
HD_AudioINR
HD_AudioINL
HD_AudioINR
49
50
1302
(1002)
7F03
1
12
4
11
2
15
3
13
9Analog_AudioSEL1
1F01
AUDIO
L/R IN
DVI_D_AudioINL
DVI_D_AudioINR
DVI_D_AudioINL
DVI_D_AudioINR
56
57
SIDE_AudioINL
SIDE_AudioINR
Analog_AudioINL
Analog_AudioINR
10
Analog_AudioSEL2
B7
7D03
TDA9975
7D04
UDA1334ATS
DAC
14
16
HDMI_AudioINL
HDMI_AudioINR
1
3
2
A5
A7
B7
HDMI
10-BIT
VIDEO
CONVERTER
HDMI_A
HDMI_B
1F02
1F03
19 1
18 2
19 1
18 2
FOR 26” & 32” ONLY
FOR 37”ONLY
7
9
8
3
1
1739
PWM
PWM
OSC
7700
TDA7490 5731 1736
1
2
3
5730 1735
1
2
3
1M02
7
TO 1M02
SUPPLY
A
SOUND
ENABLE
SOUND-ENABLE
AUDIO SUPPLY
PROT, CIRCUIT
PROT_AUDIOSUPPLY
7701÷7707
POR-CLASSD
PROT1
stby-
mute
10
6
18
3
23
AUDIO-L
AUDIO-R
3764
6703
3761
6702
-16 V-19V
+16 V+19V
7708÷7711
3717
3718
DCPROT
77
PROTECT_AUD
AUDIO-R
AUDIO-L
99
POR_AUDIO
OR
1
5
5702
5701
LED
SELECT
LED
GREEN
LED
RED
LIGHT
SENSOR
REMOTE
CONTROL
5700
LEFT
SPEAKER
RIGHT
SPEAKER
4205
B15A
B15B
B15A
B15B
( ) For 37” - 42”
( ) For 37” - 42”
( ) For 37” - 42”
( ) For 37” - 42”
AUDIO
L/R IN
HDMI 1
HDMI 2 EXT 1
SCART 1
EXT 2
SCART 2
30LC4.31E AA 6.
Block Diagrams, Test Point Overviews, and Waveforms

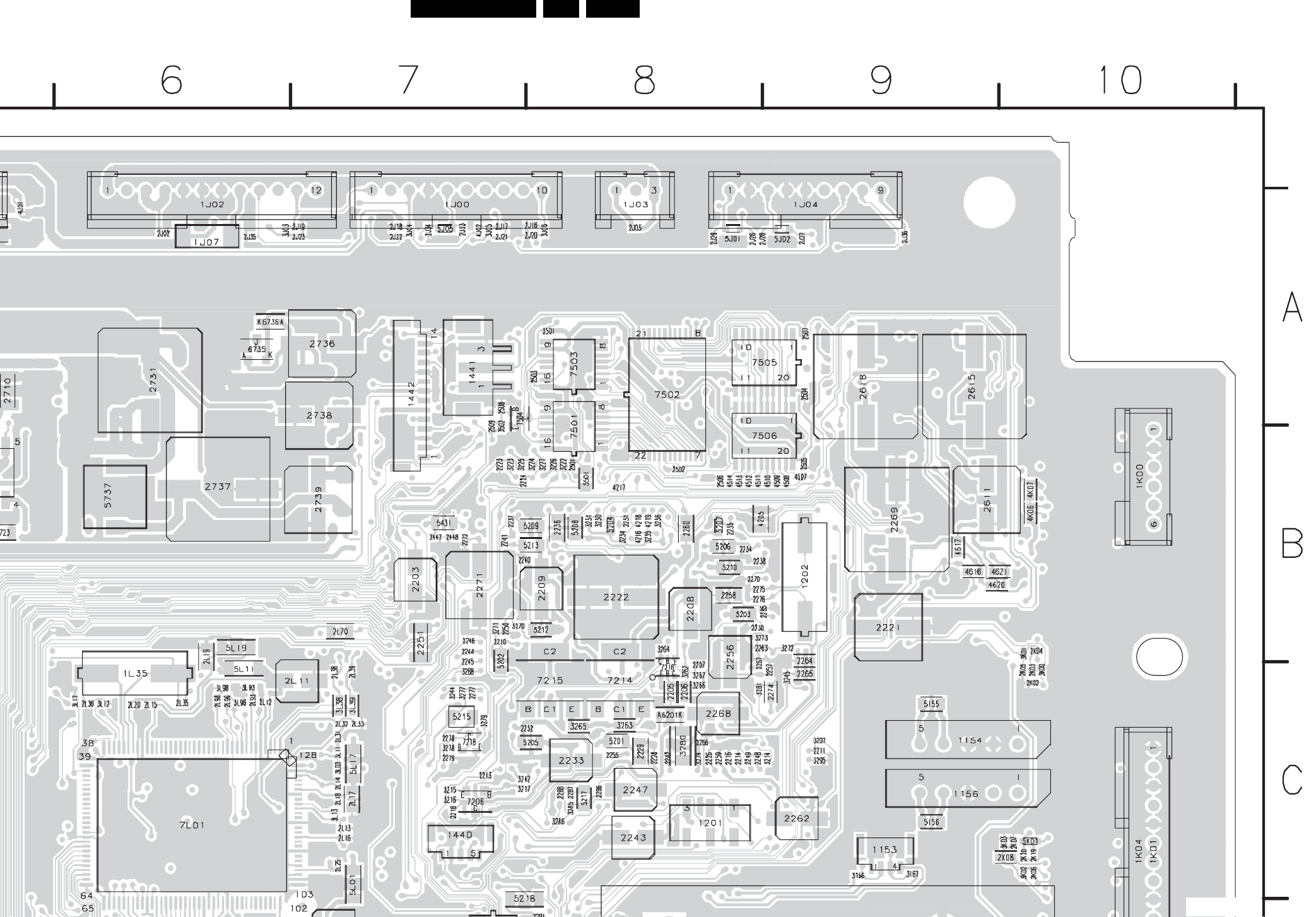

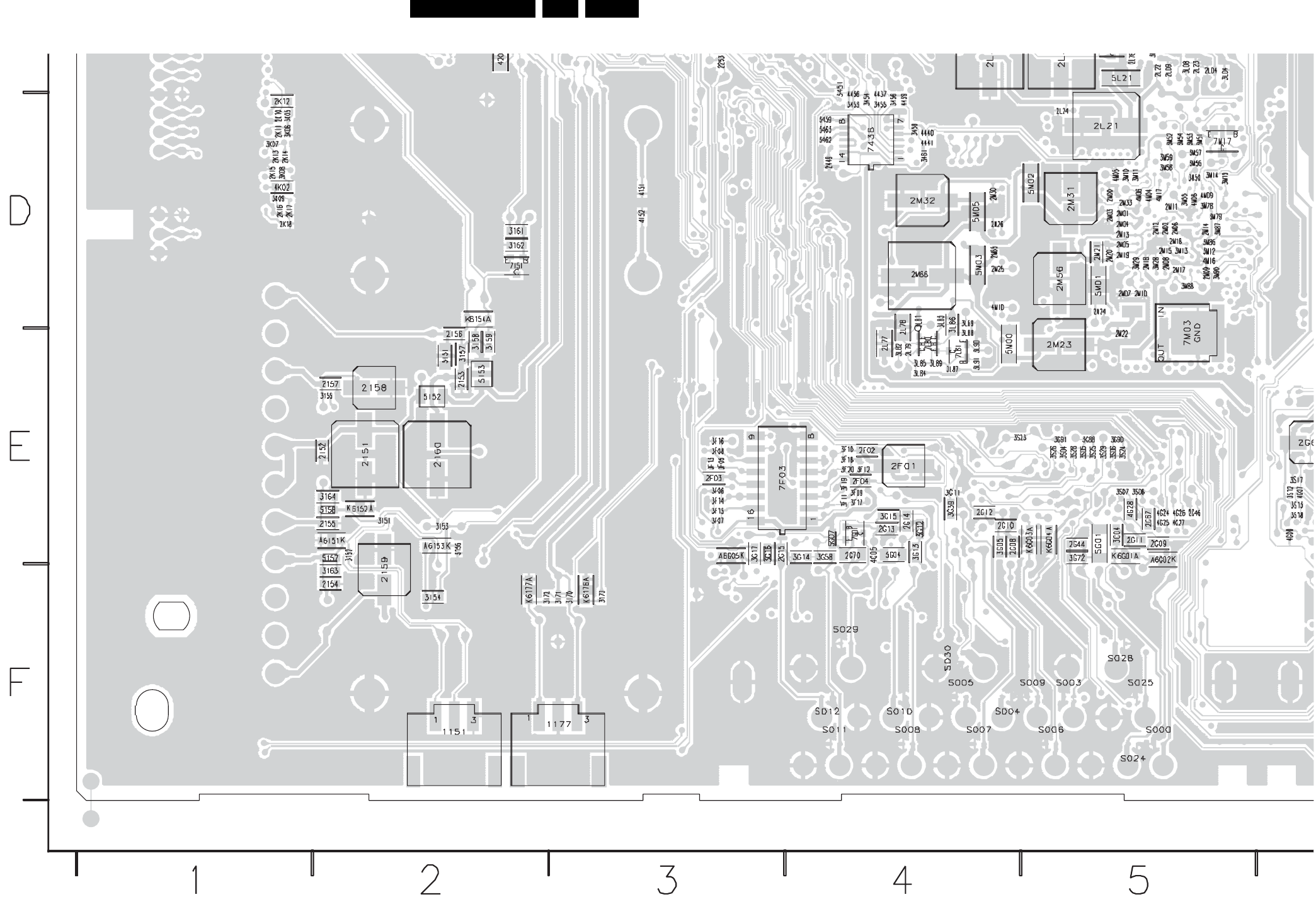

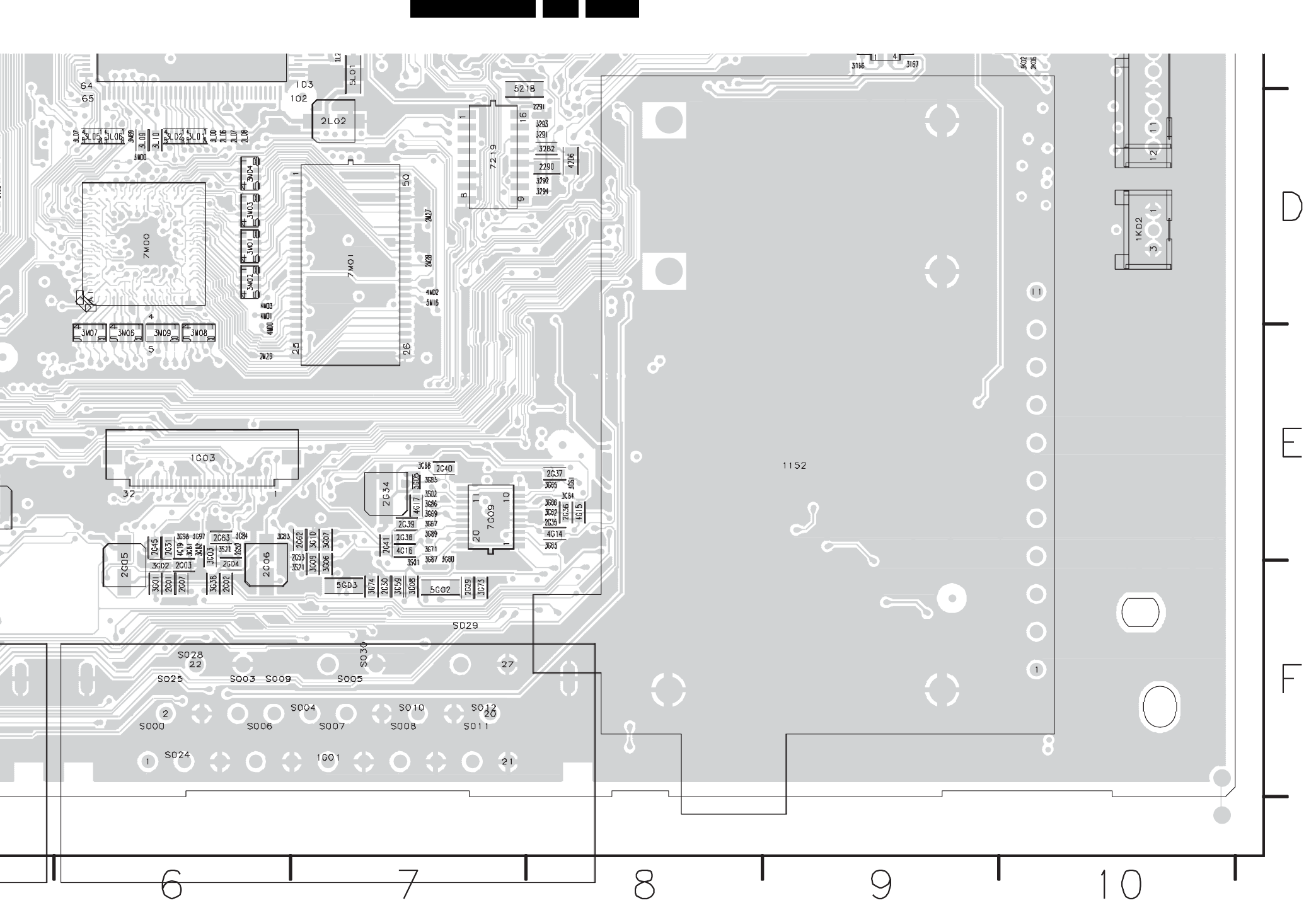

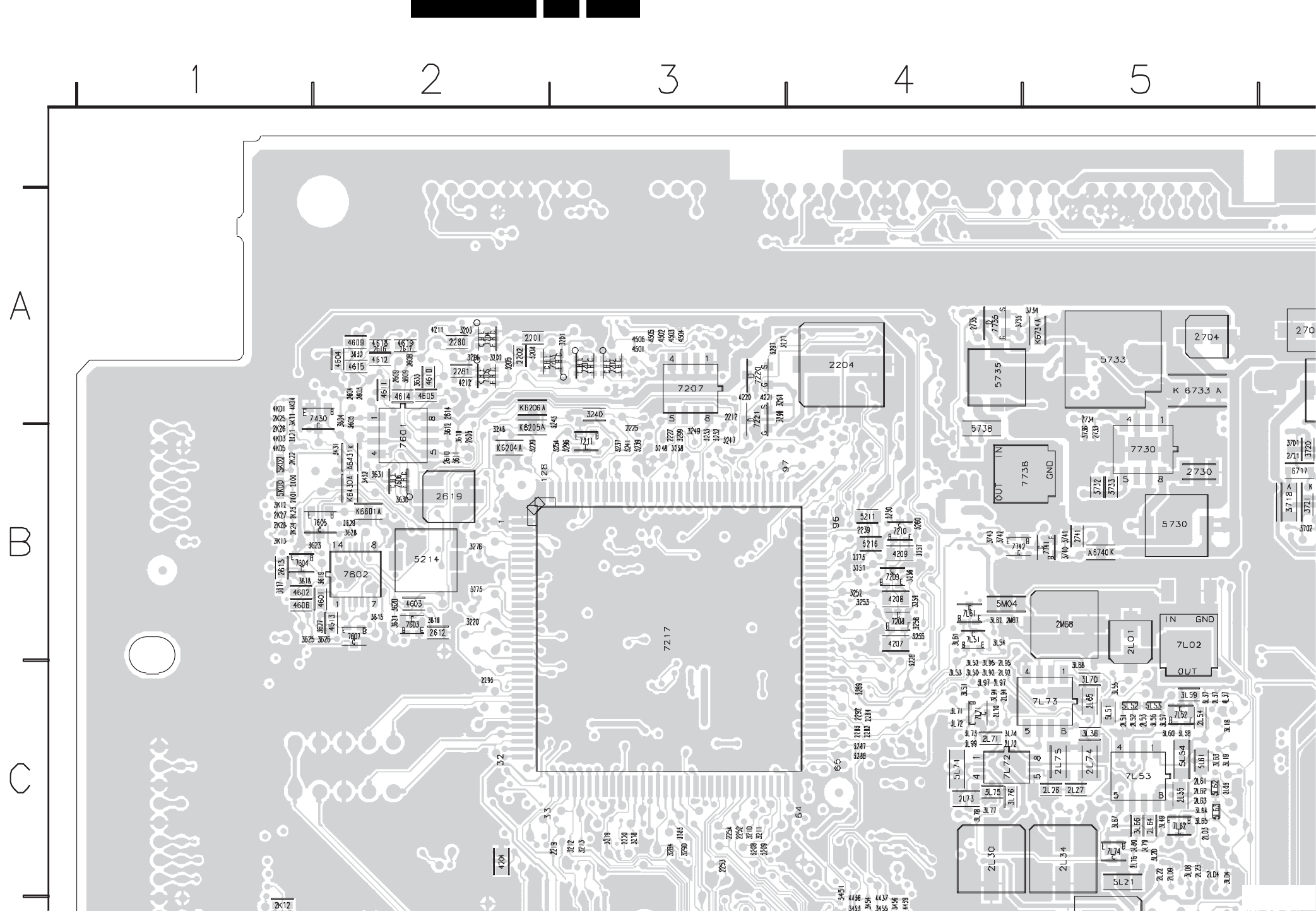

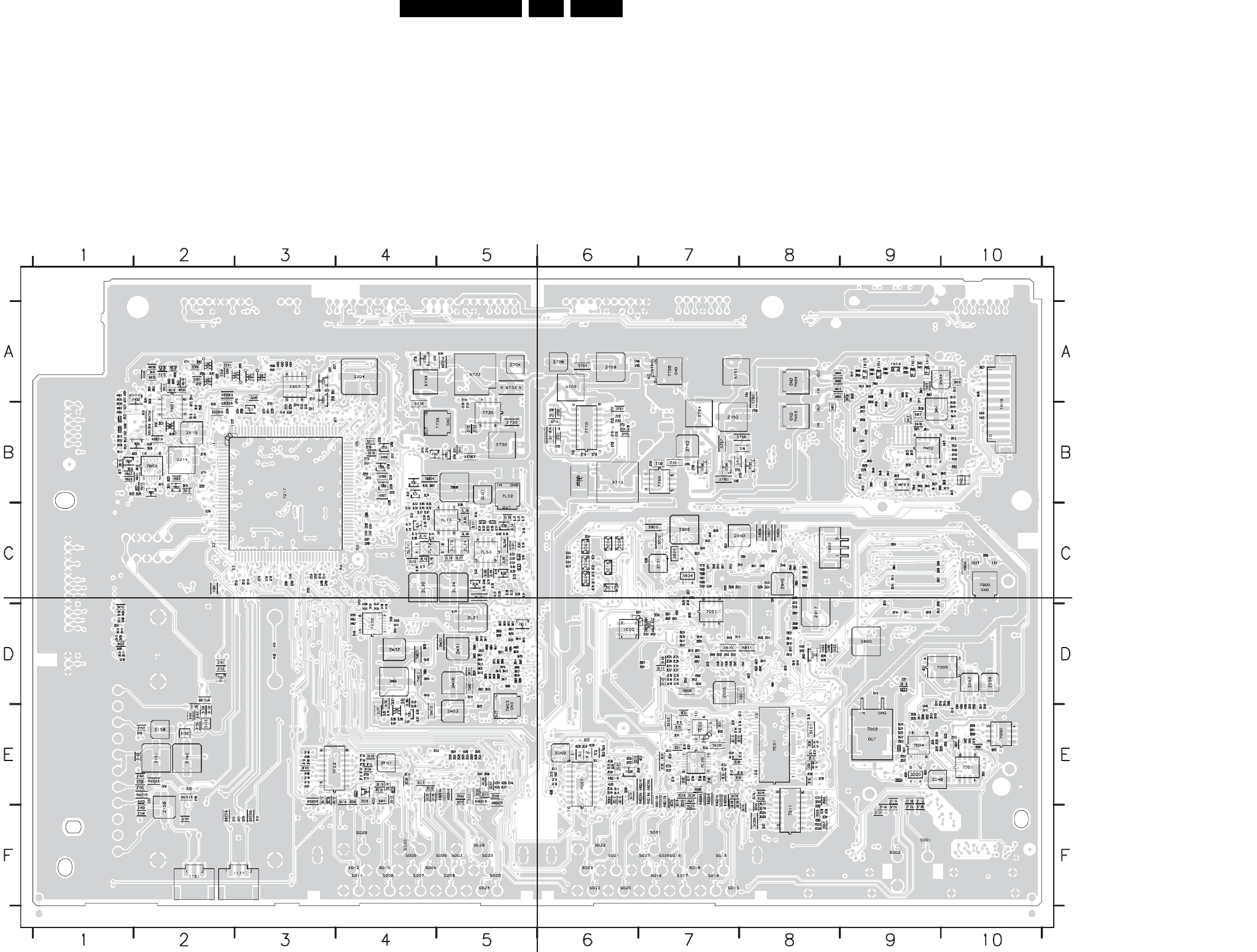

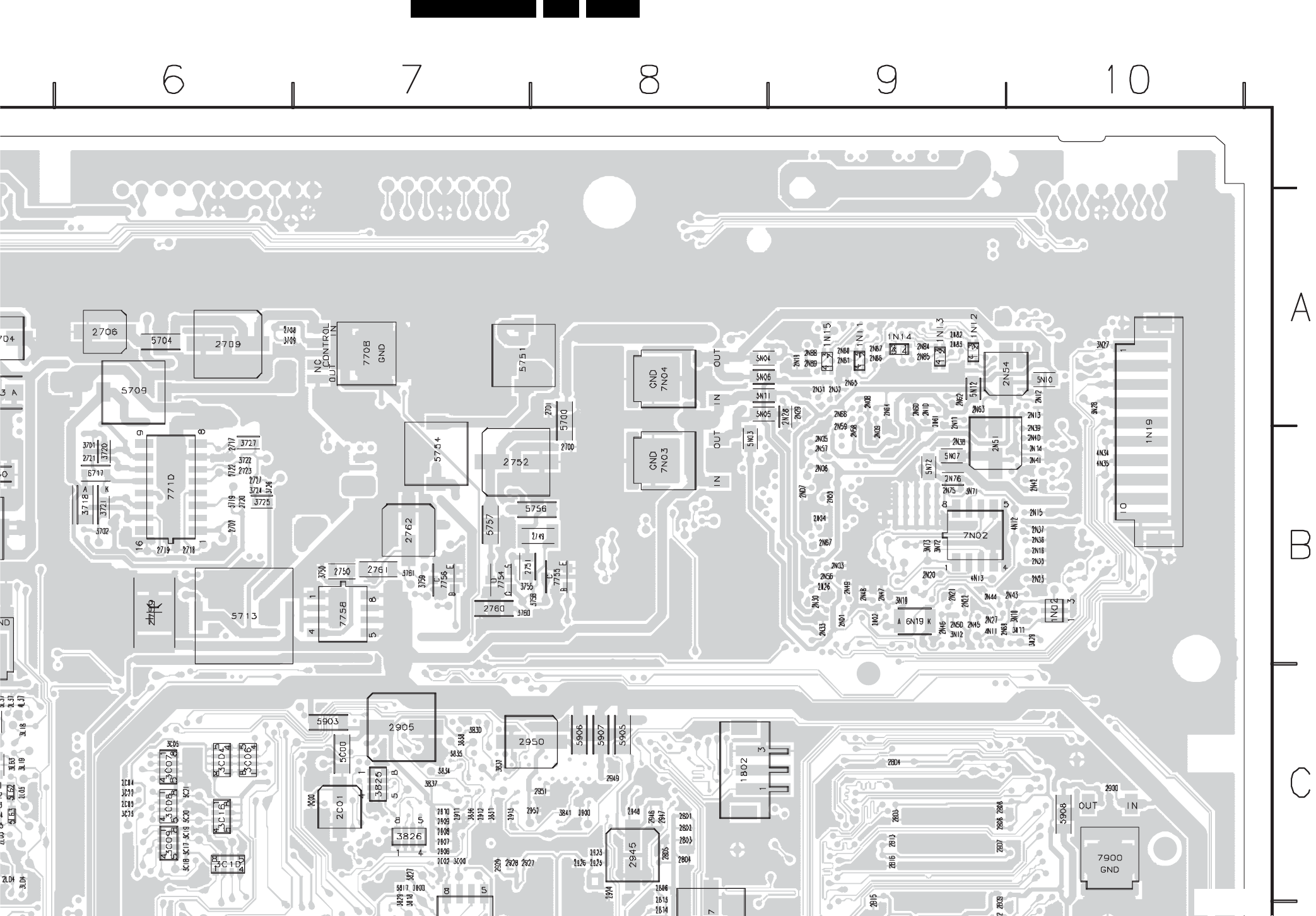

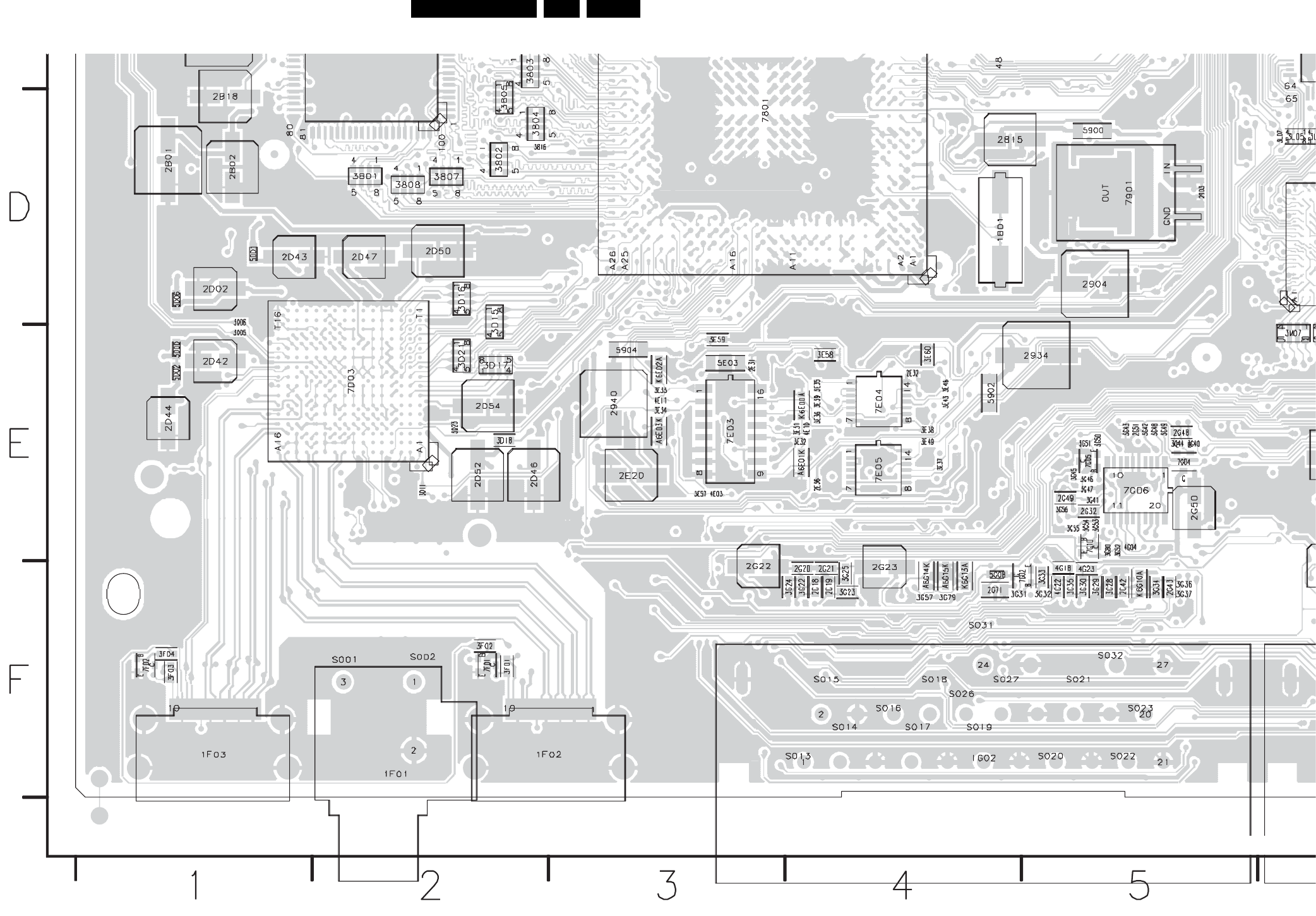

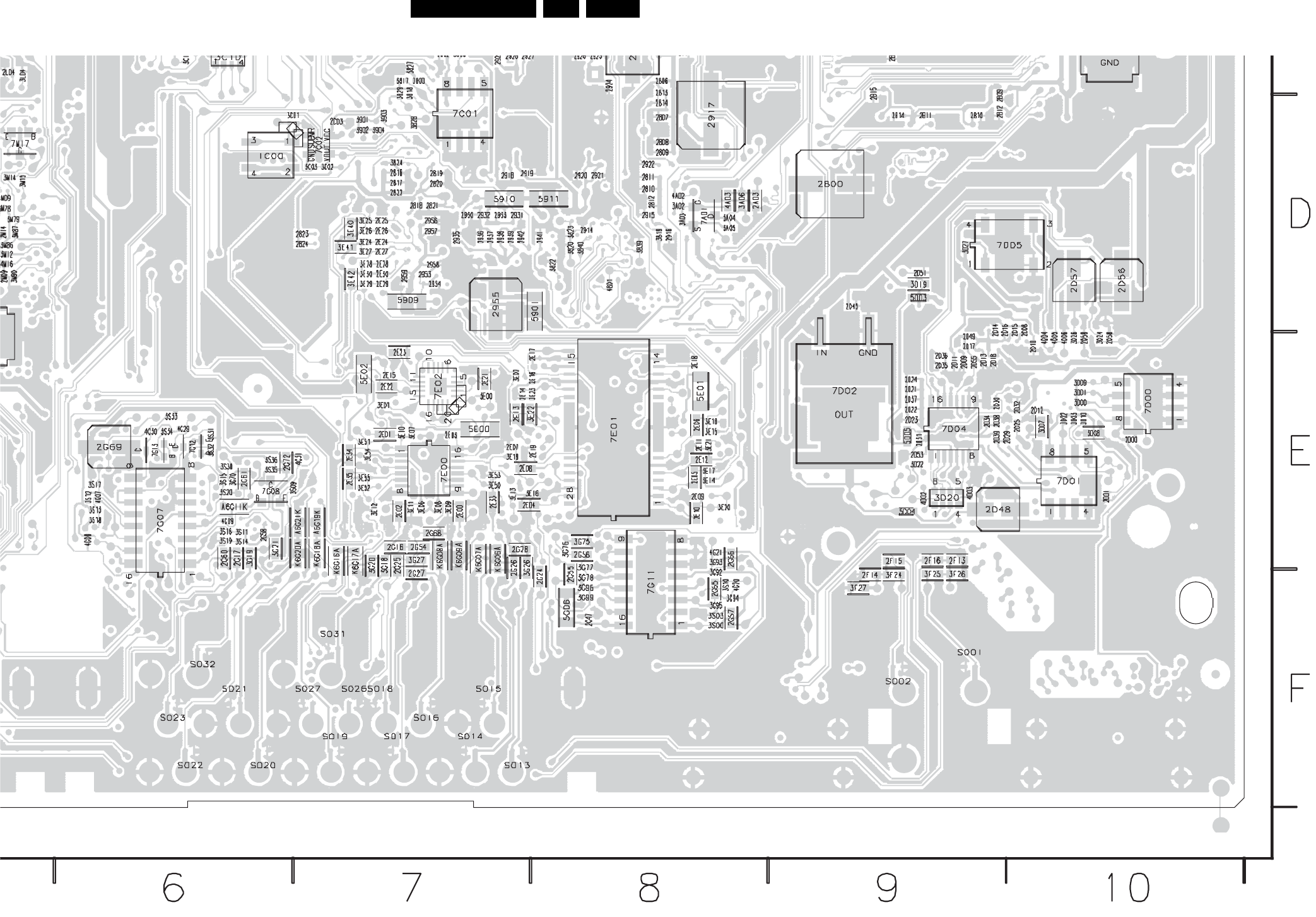

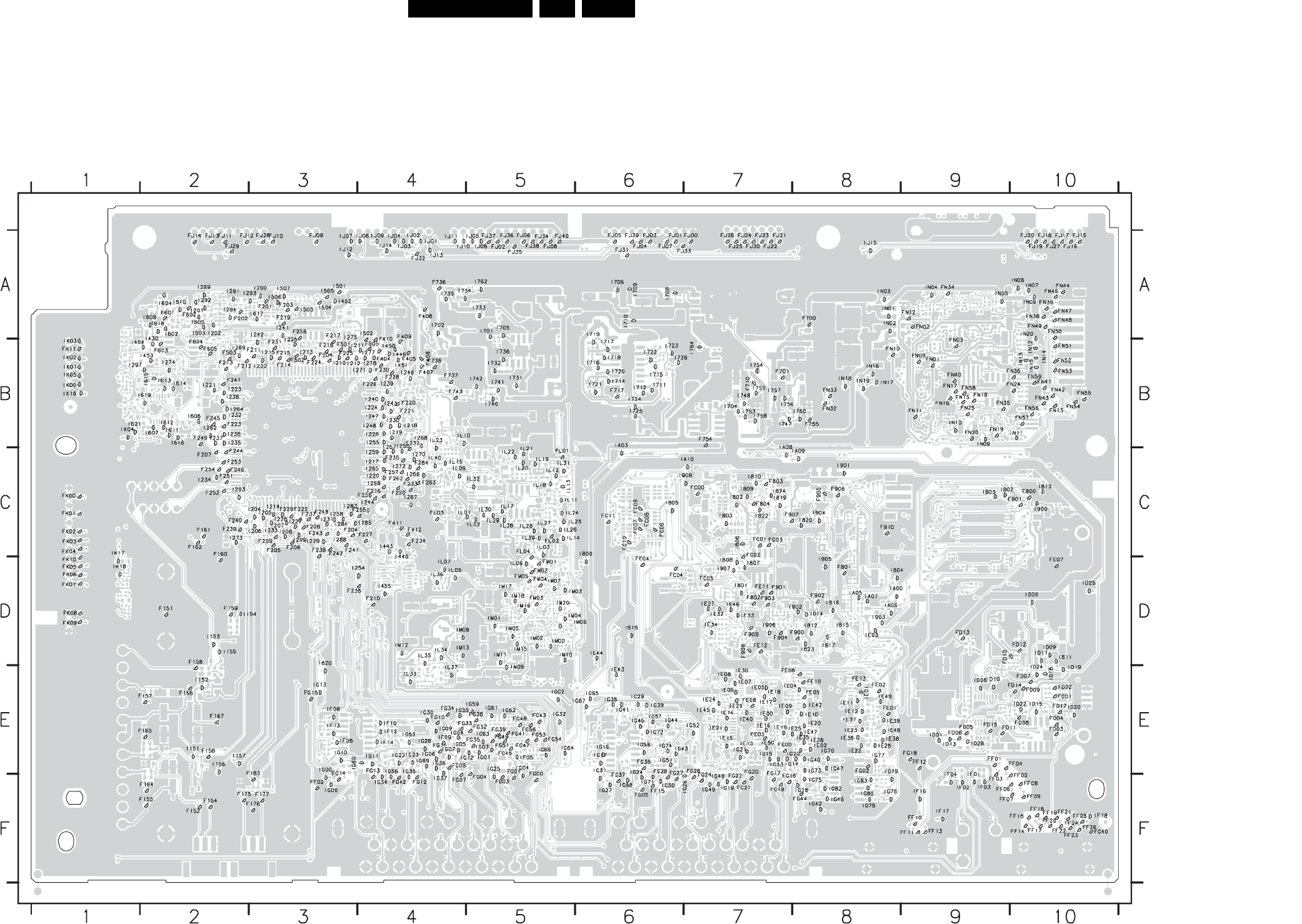

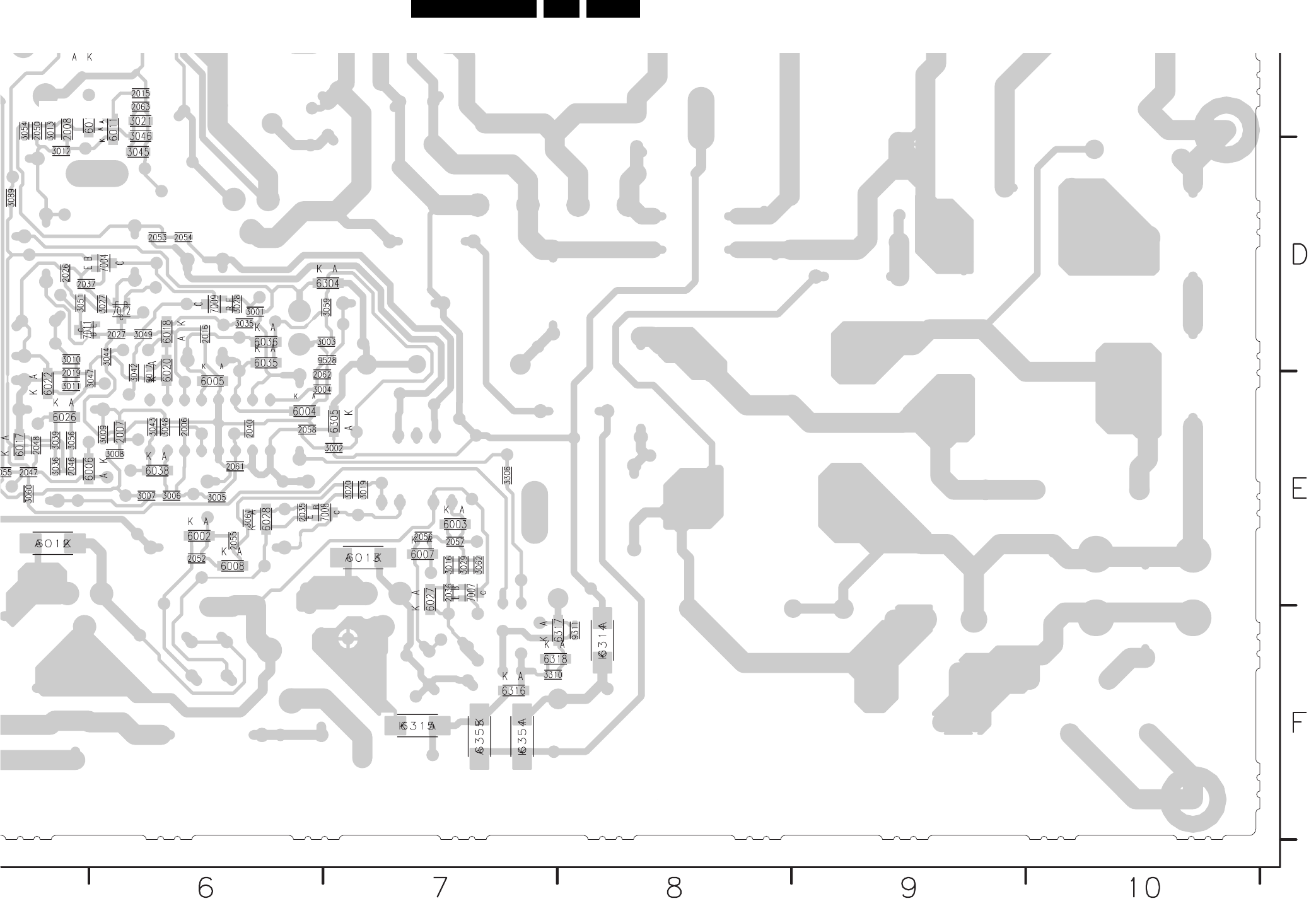

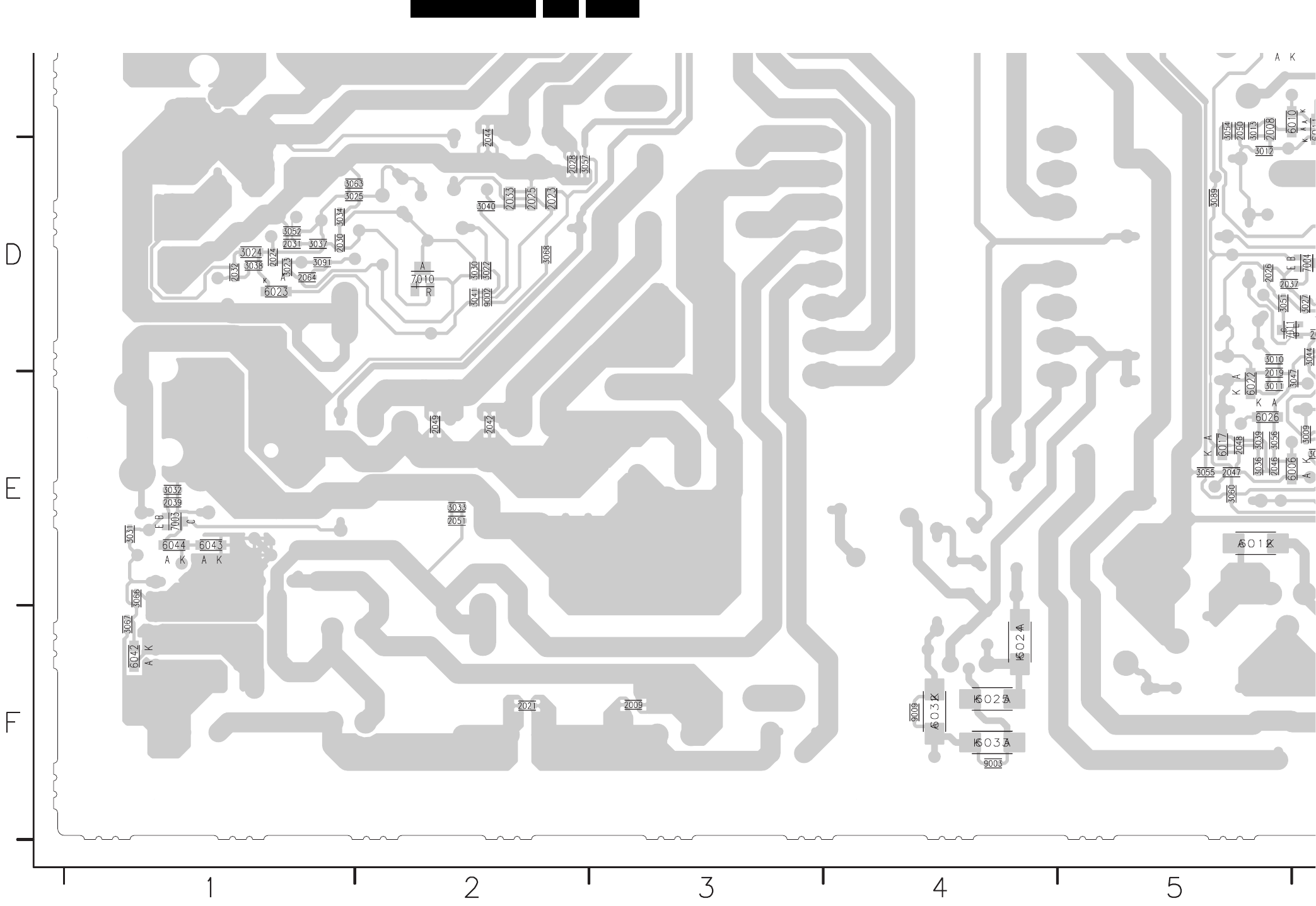

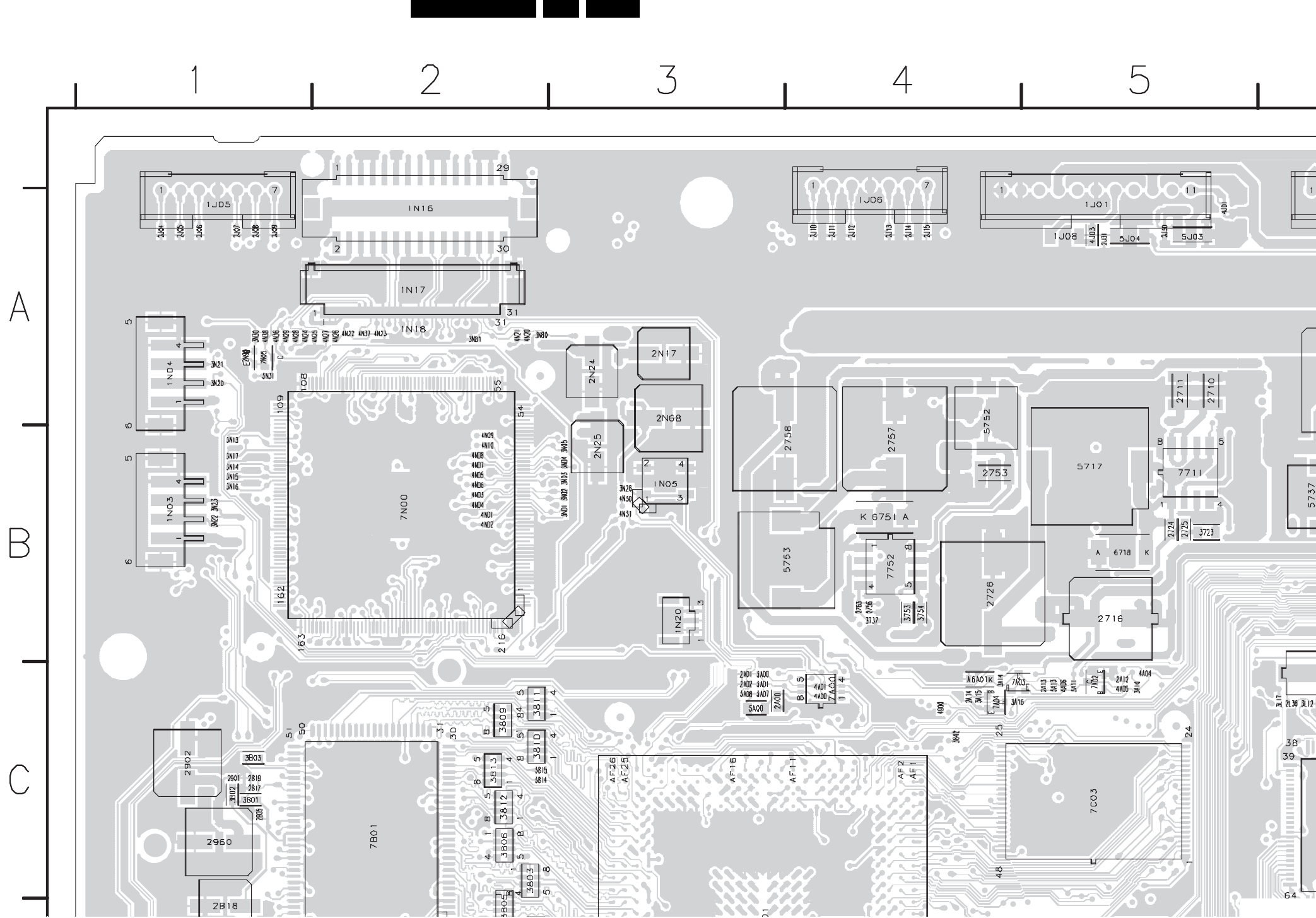

Test Point Overview Small Signal Board
G_16210_024.eps
170106
3139 123 6117.2
F151 D2
F152 F2
F154 F2
F155 F2
F156 E2
F157 E2
F158 D2
F159 D2
F160 C2
F161 C2
F162 C2
F163 E3
F164 F2
F165 E2
F166 E2
F167 E2
F175 F2
F176 F3
F177 F3
F201 A3
F202 A2
F203 A3
F204 C3
F205 C3
F206 C3
F207 C2
F208 C3
F209 C3
F210 D4
F211 B3
F212 B2
F213 B2
F214 B3
F215 B3
F216 C4
F217 A3
F218 B3
F219 A3
F220 B4
F221 B4
F222 C3
F223 B2
F224 B3
F225 B3
F226 B4
F227 C4
F228 B4
F229 C3
F230 B4
F231 B3
F232 B4
F233 C4
F234 C4
F235 C4
F236 D3
F237 C3
F238 C3
F239 C2
F240 C2
F241 C3
F242 C3
F243 C3
F244 C2
F245 B2
F246 C2
F247 B2
F248 C3
F249 B2
F250 C4
F251 C2
F252 C2
F253 C2
F254 C2
F255 C4
F256 C4
F257 C4
F258 A3
F262 C4
F263 C4
F264 C4
F404 B4
F405 B4
F406 A4
F407 B4
F408 B4
F409 A4
F410 B4
F411 C4
F412 C4
F501 B3
F502 B3
F503 B2
F504 B3
F505 B4
F601 A2
F602 A2
F603 B2
F604 B2
F605 B2
F700 A8
F701 B7
F710 B7
F717 B6
F736 A4
F737 B4
F738 B4
F743 B4
F754 B7
F755 B8
F800 C10
F801 D8
F802 D7
F803 C7
F804 C7
F900 D8
F901 D7
F902 D8
F903 D7
F904 D7
F905 C8
F906 C8
F907 C7
F908 D7
F909 D7
F910 C8
FB01 C10
FC00 C7
FC01 C7
FC02 C7
FC03 C7
FC04 D6
FC05 D7
FC06 C6
FC07 C6
FC08 C6
FC09 C6
FC10 C6
FC11 C6
FD01 E10
FD02 E10
FD03 E10
FD04 E10
FD05 E9
FD06 E9
FD07 E10
FD08 E10
FD09 E10
FD10 D9
FD11 E9
FD12 D10
FD13 D9
FD14 E10
FD15 E9
FD17 E10
FE00 E7
FE01 E8
FE02 E8
FE03 E7
FE04 D6
FE05 E8
FE06 E7
FE07 D10
FE08 E7
FE10 E8
FE11 D7
FE12 D7
FE13 E8
FF01 E9
FF02 F3
FF03 F9
FF04 E10
FF05 F10
FF06 F9
FF07 F9
FF08 F10
FF09 F10
FF10 F9
FF11 F9
FF12 E9
FF13 F9
FF14 F10
FF15 F6
FF16 F10
FF17 F10
FF18 F10
FF19 F10
FF20 F10
FF21 F10
FF22 F10
FF23 F10
FF24 F10
FF25 F10
FF26 F10
FG00 E5
FG01 E5
FG02 E8
FG03 F5
FG04 F5
FG05 F6
FG07 F4
FG08 E4
FG10 E4
FG11 E4
FG12 F4
FG13 E4
FG14 E3
FG15 E3
FG16 F7
FG17 E7
FG18 E9
FG19 F7
FG20 E7
FG21 F7
FG22 F7
FG24 F7
FG26 E7
FG27 E6
FG28 E6
FG32 E5
FG33 E4
FG34 E4
FG35 E5
FG36 E6
FG37 F6
FG38 E5
FG39 E5
FG40 F10
FG41 E5
FG42 F4
FG43 E5
FG44 F8
FG45 E5
FG47 E5
FG48 E5
FG49 E5
FG51 E5
FG53 E5
FG54 E5
FG56 E5
FJ00 A7
FJ01 A6
FJ02 A5
FJ03 A6
FJ04 A6
FJ05 A6
FJ06 A5
FJ07 A6
FJ08 A5
FJ09 A3
FJ10 A3
FJ11 A2
FJ12 A2
FJ13 A2
FJ14 A2
FJ15 A10
FJ16 A10
FJ17 A10
FJ18 A10
FJ19 A10
FJ20 A10
FJ21 A7
FJ22 A7
FJ23 A7
FJ24 A7
FJ25 A7
FJ26 A7
FJ27 A10
FJ28 A3
FJ29 A2
FJ30 A7
FJ31 A6
FJ32 A4
FJ33 A7
FJ34 A5
FJ35 A5
FJ36 A5
FJ37 A5
FJ38 A5
FJ39 A6
FJ40 A5
FK00 C1
FK01 C1
FK02 C1
FK03 C1
FK04 C1
FK05 D1
FK06 D1
FK07 D1
FK08 D1
FK09 D1
FK10 D1
FK11 B1
FL01 C5
FL02 C5
FL03 C4
FL04 C5
FM01 D5
FM02 D5
FM03 D5
FM04 D5
FM05 D5
FN01 B9
FN02 A9
FN03 B9
FN09 B9
FN10 B8
FN11 B9
FN12 A9
FN13 B10
FN15 B9
FN16 B9
FN17 B9
FN18 B9
FN19 B9
FN20 B9
FN24 B10
FN25 B9
FN32 B8
FN33 B8
FN34 A9
FN35 B9
FN36 B10
FN38 A10
FN39 A10
FN40 B9
FN41 B10
FN42 B10
FN43 B10
FN44 A10
FN46 A10
FN47 A10
FN48 A10
FN49 A10
FN50 A10
FN51 B10
FN52 B10
FN53 B10
FN54 B10
FN55 B10
FN56 B10
FN57 B10
FN58 B9
FN59 B10
I151 E2
I152 E2
I153 D2
I154 D3
I155 D2
I156 E2
I157 E2
I201 A2
I202 A2
I203 C2
I204 C3
I205 C3
I206 C3
I207 C3
I208 C3
I209 C3
I210 B3
I211 B3
I212 B3
I213 B3
I214 C3
I215 B3
I217 C4
I218 B4
I219 B4
I220 C4
I221 B2
I222 B3
I223 B2
I224 B4
I225 B3
I226 C3
I227 C3
I228 B4
I229 C3
I230 B4
I231 C3
I232 B2
I233 C3
I234 C2
I235 B2
I236 B2
I237 B2
I238 B2
I239 B4
I240 B4
I241 A3
I242 A3
I243 B4
I244 C4
I246 B4
I247 B4
I248 B4
I254 D4
I255 B4
I256 B4
I257 B4
I258 C3
I259 C4
I262 B2
I264 B2
I265 C4
I266 C4
I267 C4
I268 B4
I269 B2
I270 C4
I271 B4
I272 C4
I273 C2
I274 B2
I275 A3
I277 B4
I278 B4
I283 C3
I284 C3
I285 C4
I288 C3
I289 A2
I290 A3
I291 A2
I292 A2
I293 A3
I294 A2
I297 B1
I298 C4
I430 A2
I440 D4
I443 C4
I449 B4
I450 B4
I451 B4
I452 A3
I453 B2
I454 B1
I455 D4
I501 A3
I502 A4
I503 A3
I504 A3
I505 A3
I506 A3
I507 A3
I602 A2
I603 A2
I604 A2
I605 A2
I606 B2
I607 B2
I608 A2
I610 A2
I611 B2
I612 B2
I613 B2
I614 B2
I615 B2
I616 B2
I617 A3
I618 A2
I619 B2
I620 D3
I621 B1
I701 A5
I702 A4
I704 B7
I705 A5
I706 A6
I708 A6
I709 A6
I710 A6
I711 B6
I712 B6
I714 B6
I715 B6
I716 B6
I717 B6
I718 B6
I719 A6
I720 B6
I721 B6
I722 B6
I723 B6
I724 B6
I725 B6
I726 B6
I731 B5
I732 B5
I733 A5
I734 A4
I735 A4
I736 B5
I740 B5
I741 B5
I742 B5
I747 B7
I748 B7
I753 B7
I754 B7
I755 B7
I756 B7
I757 B7
I758 B7
I760 B8
I762 A5
I764 B7
I800 C6
I801 D7
I802 C7
I803 C7
I804 D8
I805 C6
I806 C7
I807 D7
I808 D7
I809 C7
I810 C7
I811 D10
I812 D8
I813 C10
I815 D8
I816 D8
I817 D8
I818 D6
I819 C7
I820 C8
I822 C7
I823 D8
I824 C7
I900 C10
I901 C8
I902 D8
I903 D8
I904 C8
I905 D8
I906 D7
I907 D7
I908 C7
IA00 D8
IA03 B6
IA05 D8
IA06 D8
IA07 D8
IA08 B7
IA09 C8
IA10 C7
IB02 C9
IB03 C9
ID00 D10
ID01 E9
ID08 E9
ID09 D10
ID10 E9
ID11 D10
ID13 E9
ID14 D8
ID15 E10
ID18 E10
ID19 E10
ID20 E10
ID22 E10
ID24 E10
ID25 D10
ID28 E9
IE00 E7
IE01 E8
IE02 E8
IE03 D8
IE04 E7
IE05 E7
IE06 E7
IE07 E7
IE08 E7
IE09 E7
IE10 E8
IE11 E8
IE12 E8
IE13 E7
IE14 E7
IE15 E7
IE16 E7
IE17 E7
IE18 E7
IE19 E7
IE20 E8
IE21 E7
IE22 E8
IE23 E8
IE24 E7
IE25 E8
IE26 E8
IE27 D7
IE28 E8
IE29 E7
IE30 E7
IE32 D7
IE33 D7
IE34 D7
IE35 E8
IE36 E8
IE37 E8
IE38 E8
IE39 E8
IE40 E7
IE42 E8
IE43 E6
IE44 D6
IE45 E7
IE46 D7
IE47 E8
IE48 E8
IE49 E8
IE50 E7
IF01 E9
IF02 F9
IF03 F9
IF04 F9
IF05 E5
IF06 E3
IF08 E3
IF09 E4
IF10 E4
IF12 E4
IF13 E3
IF14 E4
IF16 F9
IF17 F9
IF18 F10
IG00 E3
IG01 E5
IG02 E5
IG03 E5
IG04 E5
IG05 E4
IG06 E4
IG07 E4
IG08 F3
IG09 E4
IG10 E3
IG11 E4
IG12 E5
IG13 E3
IG14 E7
IG15 E7
IG16 E6
IG17 E6
IG18 F8
IG19 F7
IG20 E8
IG21 E7
IG22 E4
IG23 E4
IG24 E6
IG25 E5
IG26 F7
IG27 F6
IG28 E4
IG29 E6
IG30 E4
IG31 E6
IG32 E5
IG33 E7
IG34 F4
IG35 E4
IG36 E4
IG37 F4
IG38 E6
IG39 E6
IG40 E8
IG41 E6
IG42 F8
IG43 E6
IG44 E6
IG45 E6
IG46 F8
IG47 E8
IG48 F7
IG49 F7
IG50 F6
IG51 E6
IG52 E7
IG53 E4
IG54 E4
IG55 E4
IG56 E4
IG57 E6
IG58 E6
IG59 E5
IG60 E3
IG61 E5
IG62 E5
IG63 E5
IG64 E5
IG65 E6
IG66 E5
IG67 E6
IG68 F6
IG69 E4
IG70 E8
IG71 F6
IG72 E6
IG73 E8
IG74 E6
IG75 F8
IG76 F8
IG77 E8
IG78 F8
IG79 E8
IG80 F8
IG82 F8
IG83 F8
IJ01 A4
IJ02 A4
IJ03 A4
IJ04 A4
IJ05 A5
IJ06 A4
IJ07 A3
IJ08 A5
IJ09 A4
IJ10 A4
IJ11 A4
IJ12 A3
IJ13 A4
IJ14 A4
IJ15 A8
IK00 B1
IK01 B1
IK02 B1
IK03 B1
IK04 B1
IK05 B1
IK16 B1
IK17 C1
IK18 D1
IL01 C4
IL02 C5
IL03 C5
IL05 D4
IL06 D5
IL07 D4
IL09 C4
IL10 B4
IL11 C5
IL12 C5
IL13 C5
IL14 C5
IL15 C4
IL17 C5
IL18 C5
IL19 C5
IL20 C5
IL21 C5
IL22 C5
IL23 B4
IL24 C5
IL25 C5
IL26 C5
IL27 C5
IL28 C5
IL29 C5
IL30 C5
IL31 C5
IL32 C5
IL33 E4
IL34 D4
IL35 D4
IL36 D4
IL37 E4
IL38 C5
IL39 C5
IL40 C4
IM00 D5
IM01 D5
IM02 D5
IM03 D6
IM04 D5
IM05 D5
IM06 D6
IM07 D5
IM08 D4
IM09 E5
IM10 D5
IM11 D5
IM12 D4
IM13 D4
IM15 D5
IM16 D5
IM17 D5
IM18 D5
IM20 D5
IN01 A8
IN02 A8
IN03 A8
IN04 A9
IN05 A9
IN06 A10
IN07 A10
IN08 A10
IN09 B9
IN10 B9
IN11 B10
IN12 B10
IN13 B10
IN14 B10
IN15 B10
IN16 B8
IN17 B8
IN18 B8
IN19 B8
IN20 A10
Block Diagrams, Test Point Overviews, and Waveforms 31LC4.31E AA 6.
I2C Overview
7756
3759
3750
+3V3STBY
+3V3SW
SC_STANDBY
7758
7217
TDA15021H
I²C
HERCULES
B2 SCALER
B8TUNER & IF
B1 COLUMBUS
B19 SYNC INTERFACE
B3OTC-FLASH
T
ADC
B18
DMMI
B15B
SDRAM
B10 SCALER INTERFACE
B9
FLASH / CONTROL
B11 HDMI
B12 DIGITAL I/O
B14 PACIFIC3
B20
SCALER
B7
DC-DC CONVERTER
B6
SDA
SCL
109
HERCULES
SET
PROCESSOR
108
54
1102
UV1318S
TUNER
ERR
10
N1 N2
7801
GM1501H
SCALER
ERR
4
ERR
6
G_16210_063.eps
260906
+3V3STBY
3233
3232
56
7207
M24C16
EEPROM
NVM
ERR
9
NVM_WP_HERC
+3V3STBY
3249
104
1151
1
2
3
SERVICE
CONNECTOR
COMPAIR
56
7D01
M24C02
EEPROM
256x8
2x HDMI
CONNECTOR
3102
3101
SDA_IO
SCL_IO
56
7C01
M24C32
EEPROM
P3
P4
+3V3SW
3818
3817
ERR
8
NVM_WP_SCALER
7C03
M29W400D
ERROM
7B01
K4D263238F
SDRAM
ERR
14
ADDRESS
DATA
ADDRESS
DATA
AF5
SDA
SCL
7
1177
1
2
3
SERVICE
CONNECTOR
UART
UART_TX
UART_RX
3172
3173
M1
M2
2
1802
1
JTAG_TDI_SDA
JTAG_CLK_SCL
AF7
AD6
+3V3_IO
3838
3837
JTAG
I2C
FSDATA
FSADDR
OCMDATA
OCMADDR
7
SWHW_I2C_SDA
SWHW_I2C_SCL
1
1G03
2
Reserved
for DMMI
38 37
7L01
P3563M
ADC
ERR
7
3L19
3L18
A15 B15
7M00
T6TU5XBG
COLUMBUS
CTRL
ERR
11
3M14
3M15
ERR
17
198200
7N00
T6TF4AFG
PACIFIC3
MISC
ERR
16
1N04
2
3
4
FOR
DEVELOPMENT
USE ONLY (N.S.)
SDA
SCL
1
+3V3SW
3N20
3N21
7A00
PCA9515ADP
1N17
(1G50)
31
30
3
2
6
7
TO
DISPLAY
3152
3151
112
113
19 1
182
75 74
7D03
TDA9975
HDMI
PANELLINK
RECEIVER
ERR
13
3D05
3D06
1F03
16
15
+5VHDMI_A
3D09
3D01
J16
J15 DOC_SCLB
DOC_SDAB
+3V3STBY
3170
3171
SDA_DMA_BUS1_DISP
SDA_DMA_BUS1_DISP
FOR PDP ONLY
(Depending on screen manufacturer)
4A01
4A00
RES
7221
7220
+3V3SW
3298
3297
+3V3SW
1442
14 14
1000
1313
8685
7001
SAA5801H/
TV
CONTROL
ERR
15
3016
3015
+3V3STBY
3902
3901
56
7D00
M24C02
EEPROM
256x8
1F02
16
15
K16
K15 DOC_SCLA
DOC_SDAA
+5VHDMI_B
3D10
3D03
4N30
4N31
(OPTIONAL PIXEL+)
SDA_PF3
SCL_PF3
1N03
2
3
4
FOR PACIFIC3
PROGRAMMING (N.S.)
SSDA
SSCL
1
+3V3SW
202
204
7N02
M25P05
Flash
512k
SPI_SO
SPI_SCK
192
191
SPI_CS
SPI_WP
194
188
SPI_RST
SPI_SI
187
193
5
6
1
3
7
2
(Only For 37 - 42 Sets)
122
3248
3247
3904
3903
32LC4.31E AA 6.
Block Diagrams, Test Point Overviews, and Waveforms
Supply Voltage Overview
B12
B18
B6
B6
B16
TOP CONNECTORS
B1
TUNER & IF
B2
HERCULES
B3
SYNC INTERFACE
B4
AUDIO DELAY LINE
(FOR PDP SETS ONLY)
B5
AUDIO PROCESSING
B7
SCALER
B8
SCALER
B10
SDRAM
B11
FLASH / CONTROL
B12
HDMI
B13
MUX-SYNC INTERFACE
B14
DIGITAL IO
B15A
SCART ANALOG IO
B18
ADC
B19
COLUMBUS
B20
PACIFIC3
B6
DC-DC CONVERTER
B15B
DMMI
C
CLASS D AUDIO AMPLIFIER
D
SIDE-AV
J
IR / LED / LIGHT-SENSOR
T
OTC-FLASH
(FOR 1000pg TXT)
B17
SIDE CONNECTORS
B9
SCALER INTERFACE
SA3
AUDIO
SUPPLY
PANEL 26- 32
(PSU)
SUPPLY LINE OVERVIEW
1
1J02
2
3
4
5
6
7
8
9
10
11
12
LAMP_ON_OFF
BACKLIGHT_CTRL
STANDBY
POWER_DOWN
+3V3STBY
VP
+12VSW
+5VSW
+5VSW
+5VSW_b
+5VSW_a
5152
5153
+3V3STBY
+3V3STBY
+1V8_A
+3V3STBY
+3V3STBY
+5VSW
+5VSW
+8VSW_TV
+8VSW_TV
7215
3265
7216-1
3264
+1V8_B
7217
3263
7216-2
3262
+5VSW
+5VSW
+3V3STBY
+3V3STBY
+3V3SW
+3V3SW
+5VSWI
+5VSWI
+5VD
5501
+3V3SW
+3V3SW
+3V3STBY
+3V3STBY
+5VSW
+5VSW
+5V
+5V
+1V8_CORE
+1V8_CORE
+2V5_DDR
+2V5_DDR
+3V3SW
+3V3SW
+3V3_IO
+3V3_IO
+3V3_PLL
+3V3_PLL
+3V3SW
+3V3SW
+1V8
3V3_PLL
5900
3V3_ADC
5901
3V3_DVI
5902
3V3_IO
5903
3V3_LBADC
5904
3V3_LVDSA
5905
3V3_LVDSB
5906
3V3_LVDS
5907
+2V5_DDR
5908
7900
IN OUT
COM
7901
IN OUT
COM
5909
5910
5911
+1V8_ADC
+1V8_DV1
+1V8_CORE
+2V5_DDR
+2V5_DDR
FSVREF
3B01
+3V3_IO
+3V3_IO
+3V3SW
+3V3SW
+3V3SW
+3V3SW
+3V3SW
+3V3SW
+5VSWI
+5VSWI
+5VSWI
+5VSWI
18
1F03+5VHDMI_B
+5VSW
+5VSW
+5VSWIA
+5VSWIA
+3V3SWB
7L02
IN OUT
COM
+3V3SW
+3V3SW
+3V3SWA
5M03
+5VSWI
+5VSWI
+5VSWIA
5M04
+3V3SW
+3V3SW
+1V5
LVDS_VCC
LVDS_VCC
+2V5PLL
7N03
IN OUT
COM
5N03
+2V5VDD
1
1J01
(1M46)
2
3
4
5
6
7
8
9
10
11
+12VUFD
+5V_UFD
5J03
1J07
1J08
N.C
.
N.C
.
N.C
.
N.C
.
4J01
+5V
37/42 SETS
1J03
1
1
1J00
(1M03)
2
3
4
5
6
7
8
9
10
STANDBY
FAN_SPEED
BACKLIGHT_CTRL
N.C
.LAMP_ON_OFF
POWER_UP_OK
N.C
.
N.C
.
PROTECT_AUD
UFD CONTROL
C
1003
B1,B2,B3,
B5,B8,B9,
B15b
B3,B6
B5,B6,B9
B6
B6,B16
B16
B6
B6
B6
B6
B16
B6
B6
B8
B6
B15b
B4,B9,B19
B19
B6
B6
B20
B6
B6
26 SETS+12VSW
+3V3STBY
7708
IN OUT
COM
+5V
+5V
5704
+8VSW_TV
7738
IN OUT
COM
5738
7754
LVDS_VCC
7758
+3V3SW
PANEL-PWR-CTL
5752
DC/DC
Converter
7752 5753
5754
+5VSWI
5730
PWR
REG
77305733
+VTUN
+5VSW
5737
5757
6735
B16
B16
5709
(For 37-50 Large Screen)
DVI
5J04
B7,B10
B8
B8
B8
B6
B6
B6,B16
B6
B6
B8
B6
B6
B6
B6
B7,B11
B13,B19,B20
B8
5700
B6
PAN_VCC
(For 26-42 Screen)
HERCULES
RES
X200
X002
+3V3SW
+3V3SW
+12VSW
+12VSW
+5V
+5V
+12VSW
7758
5717 5713
STEP
DOWN
CONTR
3718
7754
SC_STANDBY
(Supply to Tuner & Hercules)
+3V3STBY
+3V3STBY
B16
VDDA_3V3PLL
5D06
VDDA_3V3
5D00
VDDD_3V3
5D01
VDDI_3V3
5D02
VDDC_1V8
5D05
7D02
IN OUT
COM
5D03
5D04
VDDA_1V8
VDDD_1V8
18
1F02 +5VHDMI_A
DVI
+3V3STBY
+3V3STBY
+5VSW
+5VSW
+8VSW_TV
+8VSW_TV
5L01
5L11
VDDP
VADC
VMPLL
5L17
VPLL
+2V5_DDR
+2V5_DDR
VDDC
5L21
B8
7N04
IN OUT
COM
5N04
1V5CORE
5N05
+1V5PLL
5N06
3001
5001
3
B16
7
B17
5
1J03
1K01
VP
VP_SGN
+5VSW
+3V3STBY
1870
1304
1003
5001
6
B3
1442
+3V3SW
+3V3_INTOTC
1000
(OPTIONAL)
+3V3STBY
+3V3STBY
+5VSW
+5VSW
1K00
5
1K01
7
+3V3STBY_1
+5VSW_1
B6,B16
B6
D
1304
+5VHDMI_A
+5VHDMI_A
+5VHDMI_B
+5VHDMI_B
B14
B14
5L19
B18
+3V3SW
+3V3SW
+3V3STBY
+3V3STBY
+5VSWI
+5VSWI
+5V
+5V
B16
B6
B2,B3,B5,B7,
B8,B9,B11,B12
B12
B13
B15a,B15b,
B17
B1,B2,B3,B5,
B8,B9,B15b
B1,B2,B3,B5
B6
B16
B6
B2
B6
B16
B6
B6
B6
B6
B6
B7
B7
1M46
B6
G_16210_064.eps
260906
B1
+VTUN
+VTUN
1M02
2
6+16V+19V
-16V-19V
-Vf21
-Vf11
-Vf1
+16V+19V
-16V-19V
Vp
Vm
A2
1M02
TO 1M02
SUPPLY 37
1
5
5723
5707
5711
3760 3759
7712
7713
2797
2798
67106711
SA1
TO 1M03
STBY-SUPPLY
SA1
TO 1M46
STBY-SUPPLY
SUPPLY
PANEL 37/42
(PSU)
1M03
5K00
5K01
(Only For 26 - 32 Sets)
(Only For 37/42 Sets)
(Only For 26 - 32 Sets)
A4
TO 1M02
SUPPLY 42
1442
6
T
1000
Circuit Diagrams and PWB Layouts 33LC4.31E AA 7.
7. Circuit Diagrams and PWB Layouts

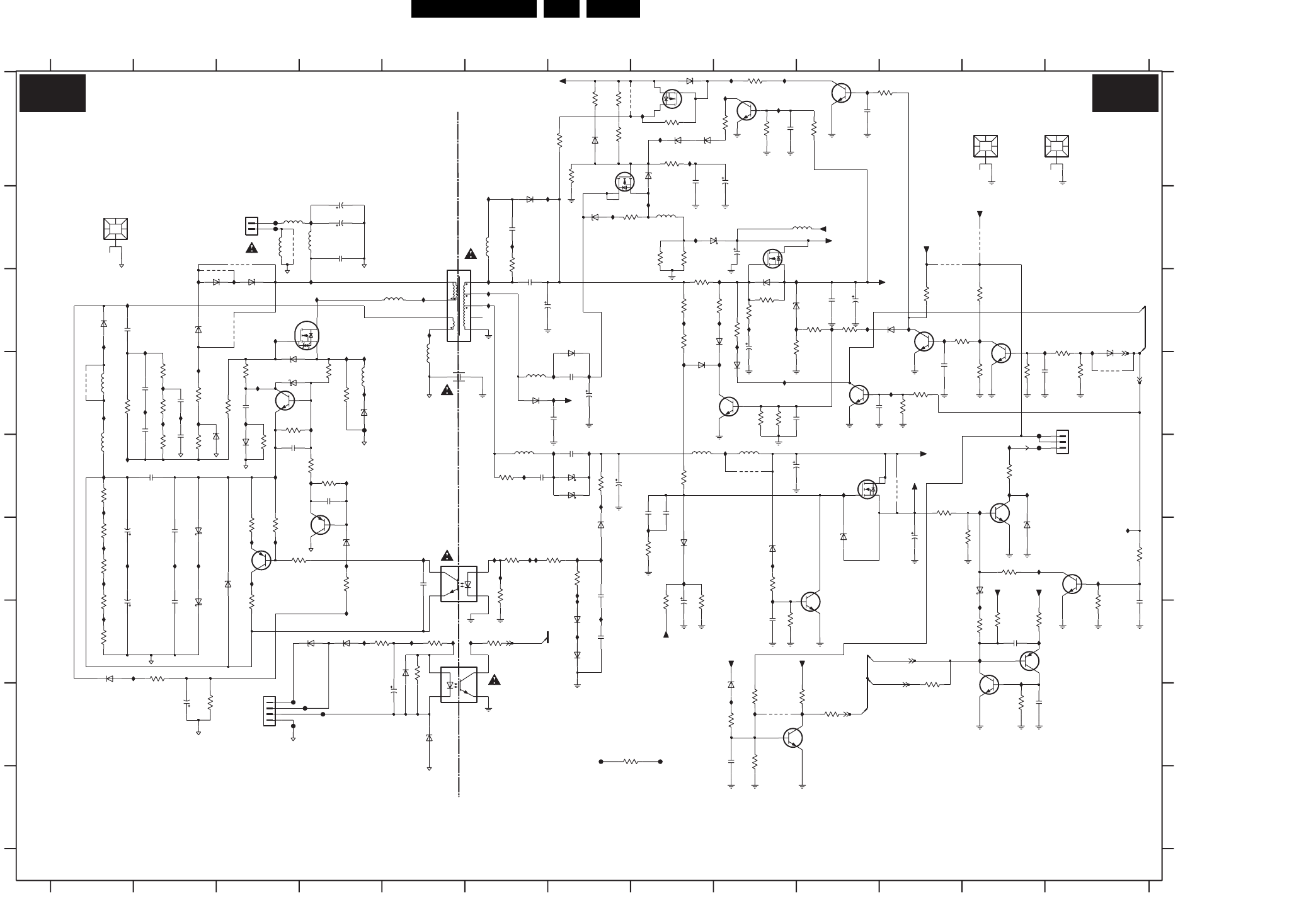

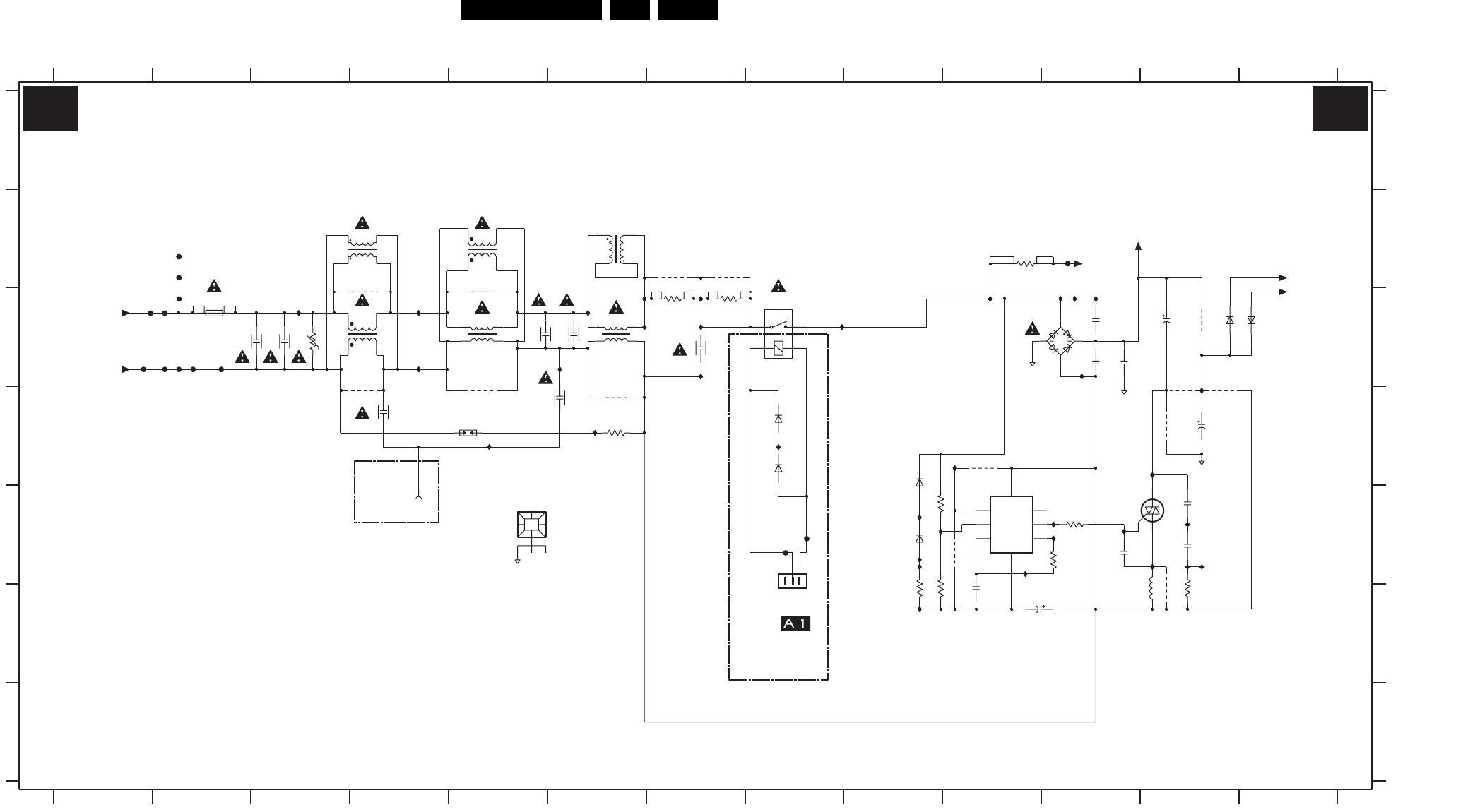

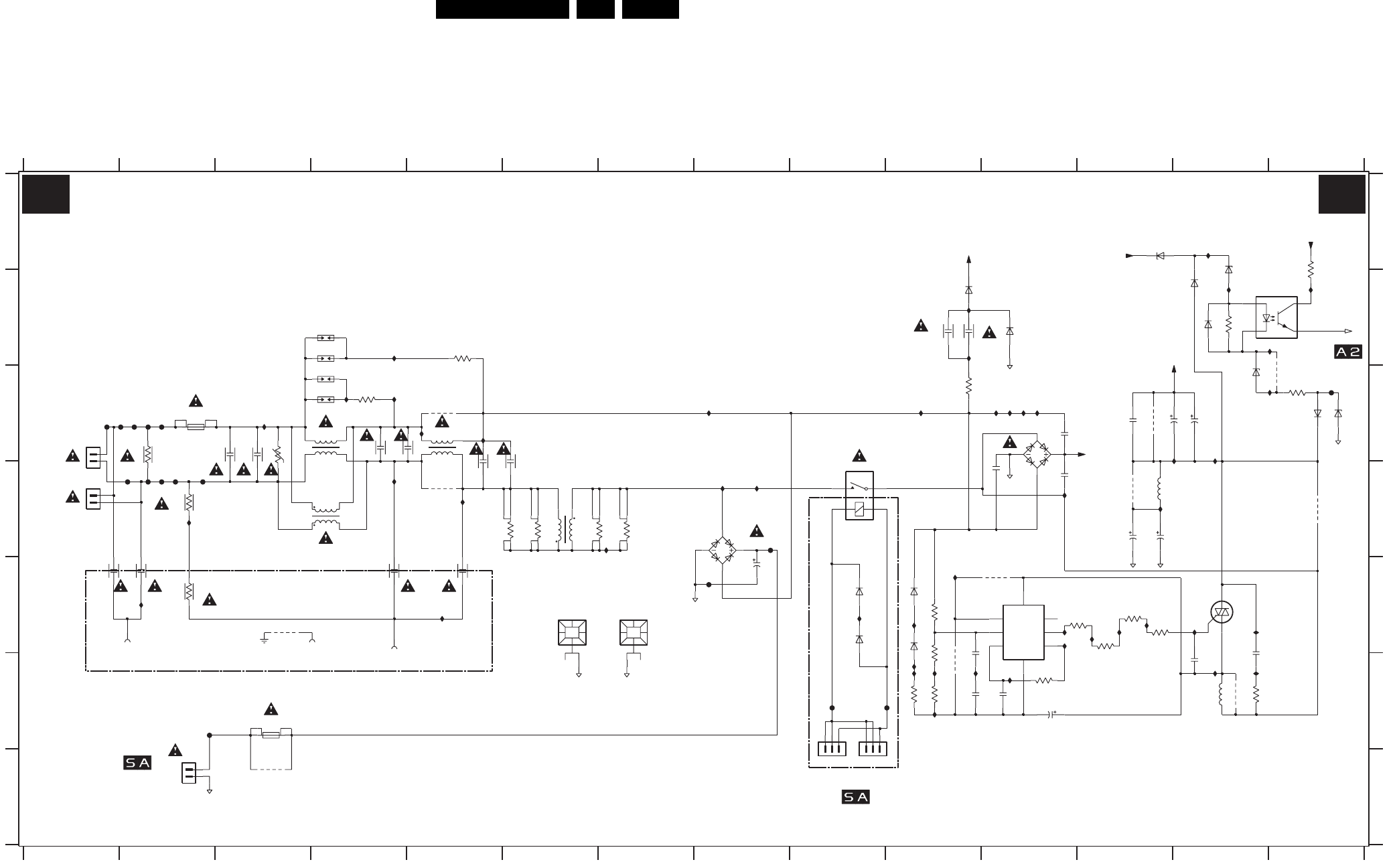

LCD Supply (37”): Mains Filter & Standby
G_16210_054.eps
180106
3104 313 6082.2
MODE
VM
OSIN
VSS
OSOUT
VG
NC
VDD
V
I841 F11
I842 F10
I844 C4I831 C13
I832 C13
I833 B14
To 1306
95-264Vac
RELAY +
Standby Audio
I835 B10
I836 B10
I837 E13
I838 F13
I816 F10
I817 D11
I820 F10
I821 B4
I822 E12
I823 E12
I824 E12
I825 E13
I826 F13
I827 D7
I828 B13
I829 B14
I830 A13
Standby Audio To 1305 To 1306
I839 E11
I840 E11
T1AE 250V
I444 D8
I445 C8
I810 C11
I811 C11
I812 C11
I813 C11
I814 E10
I815 F10
I834 C14
COLD GROUND
COLD GROUND
MAINS INPUT
F419 D2
F420 D8
F421 E8
F422 F9
F423 F9
F424 F2
F524 C14
I297 D5
I299 E5
I410 C3
I411 C5
I412 C5
I413 C10
I415 D8
I416 D4
I419 D2
I424 E9
T5AH 250V(US)
RELAY -
9301 D14
9302 C12
9303 D5
9304 F10
9308 D12
9309 C5
9310 E11
9311 C14
9312 F13
9315 E3
9316 G3
F410 C1
F411 C2
F412 C2
F413 C2
F414 C2
F415 D2
F416 D2
F417 D2
F418 D2
5V0
T5AH 250V(AP)
5308 D12
6304 B10
6305 B11
6306 D8
6307 C11
6308 E10
6309 E10
6314 C14
6315 A12
6316 B13
6317 C13
6318 B13
6354 C14
6355 B13
6360 E9
6361 E9
7305 E11
7306 E13
7307 B14
3307 F10
3308 C14
3309 E10
3310 B13
3311 F11
3312 E12
3313 F10
3314 F13
3316 D6
3317 D6
3318 C10
3319 D6
3320 D7
3321 F10
3322 E12
3323 E12
3324 E12
5303 D6
5304 F13
5305 C4
5306 C5
5307 D3
2314 F13
2315 C12
2316 D12
2317 C12
2318 E5
2319 B10
2320 D12
2321 C13
2323 C3
2324 C4
2325 D6
2327 B10
2328 E1
2329 E2
2330 F10
2331 F10
3300 C3
3301 C2
3302 D2
3303 E2
3304 B5
3305 C4
3306 B141004 G9
1005 B4
1300 E4
1301 E4
1302 B4
1303 C4
1305 G9
1306 G2
1307 E2
1308 C1
1311 E6
1312 E7
1314 C2
1315 F3
1350 D9
2300 C3
2301 C4
2302 D5
2303 E8
2304 D11
2305 F11
2307 E4
2309 F13
271V(297V)
2310 D11
2311 C11
2313 F11
34567891011121314
12345678910
MAINS FILTER + STANDBY
13 14
A
B
C
D
E
F
G
A
B
C
D
E
F
G
1002 D1
1003 C4
12
(0V)
MAINS FILTER
I846 C4
I860 F10
I861 E10
I862 D12
I863 E2
T5AH 250V(EUR)
272V(30V)
11 12
I416
9304
BZX384-C33
6317
I842
I836
PTF/65
1314
F417
I815
2314
47n
2305
100p
F420
I830
9302
I844
470R
3318
3319
1R0
I411
I810
I862
5308
9308
3305
220R
I839
3313
18K
3306
1K0
9312
14
23
DMF3547HB60
5305
3320
1R0
I813
4M7
3302
I811
10n
2317
I846
1315
PTF/65
6308
470n
2301
1N5062
1306
1
2
6354
BYG10
I445
2313
47u 50V
12
43
9310
DTH40203H65
5303
6314
BZG03-C200
HEATSINK
1312
9303
I816
56n I825
2309
V_NOM
1005
4R7
3314
9309
5307
DMF2405H60
1
4
2
3
1
F410
2329
100p
1300
2320
330u
V_NOM
1003
1N5062
6309
6315
BZG03-C200
DF06M
6306
1305
B3B-EH-A
1
2
3
7306
AVS10CB
330u
2315
9316
1u0
9311
3
14
2319
G5PA-1-5VDC
1350
2
I829
100p
2328
2302
I841
470n
BAS316
6361
I840
I820
220R
3304
1307
1
I835
F418
BAS316
6360
76
23
4
58
1
AVS1ACP08
7305
2303
10u
1311
HEATSINK
1303
500V
3323
100R
F524
3324
100R
1R0
3317 2325
470n
2K7
3321
I831
470p
F424
9301
2307
GBJ6J
6307
F414
470n
2300
1002
1
2
GNDHOT
I834
1302
500V
F416
6318
BAS316
2323
470n
I814
F422
2321
330u
3312
100R
I838
GND4
2330
47n
GND screw
1301
1
I812
3308
22K
9315
I860
6316
BZX384-C33
F415
I817
6305
BAS316
I419
I412
F423
470p
2318
56n
2304
100u
5304
47K
3310
I297
470n
56n
2311
2327
I832
3300
F412
I413
4M7
3301
6355
BYG10
I299
I833
I828
3322
100R
F411
1004
B3B-EH-A
1
2
3
3316
1R0
3307
22K
F421
I415
3311
100K
1
2
1308
47n
2331
I837
F419
330u
2316
I821
I823
I824
I822
I863
I827
I826
I410
GNDHOT
6304
BAS316
I861
F413
3309
1M0
470n
2324
4M7
3303
14
2
3
I444
DMF3547HB60
5306
I424
2310
56n
TCET1102(G)
7307
400V_HOT
400V_HOT
LATCH
399V_HOT
25V_HOT
25V_HOT
A1 A1
34LC4.31E AA 7.
Circuit Diagrams and PWB Layouts
LCD Supply (37”): Supply
G_16210_055.eps
180106
3104 313 6082.2
To 1304
Standby Audio
To 1309
Standby Audio To 1M02
Standby Audio
(0V)
(0V)
LOW SIDE
BIAS SUPPLY
GND_SND
HOT GROUND
6030 H11
6033 A3
6035 C5
6036 C5
6038 D2
6040 G12
6041 E10
VSND_POS
6005 D5
18V6
13V4
6006 I4
6007 C7
6010 G4
6011 F4
6012 E7
6013 C7
6014 H5
6015 G5
6017 I4
6018 E5
6019 C10
6020 E4
6021 E10
6022 H2
6023 E13
6024 A4
6025 A3
6026 H3
6027 C7
6028 E7
6029 H11
5006 D10
CURRENT
6031 G12
6032 A2
SUPPLY
5007 A8
5009 B5
5010 A4
5011 D9
5012 D8
5013 D8
5015 C6
5016 D5
5017 A2
5018 H12
5019 I12
5020 H12
5021 G11
5022 G11
5025 E10
5026 E10
5027 E8
6002 D7
6003 C6
6004 D6
3076 A11
(0V)
3077 A11
6008 D7
3079 A12
3080 A10
3081 A10
3082 A10
3083 A11
3084 A11
3085 A11
3086 A11
3087 A11
3088 A12
3089 H5
3090 A12
3091 D12
3999 A13
5001 C6
5002 F9
5003 C10
5004 C8
5005 C8
3051 F3
HIGH SIDE
3052 C12
5008 B8
3055 I5
3056 I3
3057 B12
3058 E2
3059 C1
3060 H4
3061 E7
3062 C7
3063 C12
3065 B6
3066 H13
3067 H13
3068 A10
3070 A10
3071 A10
3072 A10
3073 A11
3074 A11
3075 A11
3027 G2
(0V)
272V(30V)
DRIVE
COLD GROUND 3028 G4
3029 C7
3030 E11
3078 A12
3032 C10
3033 H10
3034 E13
3035 E5
3036 H4
3037 C12
3038 D13
3039 H3
3040 D13
3041 E13
3042 G3
3043 D1
3044 F2
3045 G5
3046 F5
3047 H2
3048 D1
3049 E3
3050 E2
2066 D11
3000 A1
3001 F5
3002 C1
3003 C1
3004 D1
3005 C3
3006 D2
3054 F4
3008 E1
3009 E1
3010 H1
3011 H1
3012 F3
3013 G4
3014 C7
3015 C7
3016 C7
3017 D7
3018 E7
3019 E7
3020 E7
3021 G5
3022 C11
3023 D12
3024 D12
3025 E12
3026 E12
2038 E11
DRIVE
SOFTSTART
2039 C10
2040 C1
2041 G12
2042 G12
2043 G12
2044 D11
2045 E10
3031 C11
2047 I4
2048 I4
2049 G12
2050 F4
2051 H10
2052 D7
2053 D5
2054 C6
2055 D7
2056 B7
2057 C6
2058 C1
2059 C9
2060 E8
2061 C2
2062 D1
2063 F5
2064 D12
2065 G12
2019 H2
T5A 250V
24V5(0V)
3007 E2
2020 D11
2021 I11
2022 E11
2023 B12
2024 D12
2025 D13
2026 G3
2027 E2
2028 C10
2029 E10
2030 E12
2031 C12
2032 D13
2033 D13
2034 H12
2035 E7
2036 C7
2037 H4
B
MRS25 1%
1309 H8
2046 I3
2000 A9
2001 G9
2002 B5
2003 A3
2004 C2
2005 D1
2006 C2
2007 E1
2008 G3
2009 H11
2010 H1
2011 E8
2012 E8
2013 C8
2014 F6
2015 F5
2016 D5
2017 C8
2018 H12
A
FLM 1/6W
COLD
B
C
D
E
F
G
H
I
A
345
11V3
PROTECTION
1M02 H13
17V4
HOT
VS-CONTROLLER
7 8 9 10 11 12 13
D
E
F
I
1007 G11
1105 G7
1106 H7
1107 H7
1108 I7
1109 H9
1110 I10
1112 H10
1113 I9
1304 H8
12345678910111213
12 6
VSND_NEG
10V2
CONTROL
CONTROL
C
G
H
2063
100n
2010
100u
I847
F014
10K
3060
BYW29EX-200
6029
6042
BAS316
I033
BZG05C15
6013
2060
15n
2043
4m7 35V
6030
BYW29EX-200
2n2
2014
2000V
F027
I855
33u
5019
5013
6043
BAS316
4K7
3081
470p
2000
4K7
3083
F022
A
31
K
2
R
1n0
2049
50V
470R
3010
TS2431
7010
3073
4K7
3075
4K7
6006
BAS316
1u0
2033
2034
I042
2m2
5022
I074
1304
1
2
3
4
BYG22D
BAS316
6028
6033
8K2
3040
470n
220R
3057
2023
2037
2n2
4K7
3076
I296
I046
I134
F021
2n2
2026
50V
I076
F298
F018
100p
2062
5012
I018
I845
5025
3048
2K7
2
3041
33K
1108
1
I034
3080
4K7
6002
BAS316
2059 15n
3013
10K
470p
2054
I045
I028
BAS316
6008
I293
F028
I023
F005
I109
6044
BAS316
3071
4K7
3089
10K
BAT54 COL
6004
10K
3006
2m2
2018
5015
3012
22K
7002
TCET1102(G)
14
32
c002
3034
2065
I120
220R
3056
35V4m7
15K
3052
6024
BYG22D
2n2
2052
4K7
3072
220R
3068
47n
2046
I136
3035 I145
100R
5003
STP15NK50ZFP
7005
F012
9001
F008
BYG22D
6025
5005
I012
BAS316
6017
5016
3K3
3029
I097
I057
3020
3K3
I021
6003
BAS316
18K
3030
1K0
3028
1K0
3065
BC857BW
7007
I137
I111
I852
1n0
2028
50V
6032
BYG22D
2001
470p
2004
200p
I010
I008
3082
4K7
22R
3046
10K
3063
1
2
I098
1107
10n
2019
2K2
3002
3032
10K
10n
2015
50V
7006
STP15NK50ZFP
c001
I853
I077
6005 BAT54 COL
100R
3001
9006
I022
I108
F295
9008
100K
3059
680u
2002
I096
5018
33u
3062
3K3
3009
3K3
I029
47K
3067
100n
2024
9010
2m2
2020
3019
3K3
4K7
3003
I121
3011
470R
10K
3051
2005
100p
50V
15n
2027
9014
3045
22R
3008
330R
4K7
3078
3086
4K7
4K7
3085
1K5
3025 3024
39K
2041
4m7 16V
9011
9004
5002
10R
3043
2061
100p
5017
6
7
9
10
2
3
4
220R
3055
S13932-04
5001
I039
F297
3088
4K7
6022
BZX384-C4V7
5021
3018
47R
1600V
2011
33n
I070
I290
I036
7004
BC847BW
5006
7008
BC857BW
9009
I107
5026
470R
3026
680R
3022
F294
100p
2058
I291
10K
3044
I038
6021
BYW29EX-200
3K3
3061
I020
I084
I295
F290
47R
3015
3033
560R
I027
2057
100K
3049
2n2
4R7
3000
F009
68K
3054
9012
1n0
2048
STPS20L40CFP
9013
6019
4K7
3074
6023
BAS316
10n
2047
16V
2008
470n
I132
I024
10K
3023
I294
I055
I850
33K
F293
I141
3038
1n0
2029
50V
1109
HEATSINK
I089
I088
I037
3058
5M6
I003
I100
3090
4K7
I135
4K7
3070
2009
470p
I062
50V
1
2
I292
I124
1106
33K
3005
100K
3027
I110
6026
BAS316
BC847BW
7003
4n7
2032
9007
F007
9017
I117
50V
2042
1n0
6040
BYW29EX-200
I051
1
2
3
4
5
6
7
1M02
50V
2045
1n0
I007
I133
5009
BYW29EX-200
6031
25V1n0
2006
F017
I052
BC857BW
7011
7012
BC847BW
I064
2K2
3042
9016
I851
BAS316
6007
100R
3014
16V
2007
470n
2n2
2056
I849
F030
4K7
3087
6041
BYW29EX-200
F016
1R0
3091
6020
BAS316
I116
15n
2030
50V
6027
BAS316
I113
15n
2021
50V
F301
F003
2039
10n
2035
1n0
GND3
6036
BAS316
F425
GND4
I063
35V4m7
2022
6038
BAS316
560p
2040
I002
3077
4K7
10K
3007
F029
BZG05C15
6012
I138
I112
1600V
2017 33n
I140
2053
50V
10n
2051
I854
470p
F292
35V4m7
2038
F025
I122
BAS316
9002
6035
1
2
I072
9015
1105
5011
BS51312-01
2m2
2066
25V
3037
15K
3K3
3016
BAS316
6010
F299
1007
I073
2n2
3n3
2064
1
2
3
2055
1309
I092
100n 16V
2016
5027 5008
5020
33u
1m0
2003
I004
BZX384-C33
6014
BAS316
6015
3021
22R
1112
HEATSINK
2044
1n0
HEATSINK
1110
I025
F296
16V1u0
2025
5004
HEATSINK
1113
7009
BC857BW
F024
9003
9005
1n5
2013
2000V
I059
3017
I114
100R
10K
3036
3084
4K7
5007
4K7
3079
I139
I009
2000V
2012
1n5
F302
3031
10K
I131
1K0
3999
2050
1n0
I093
I081
5010
1m0
6011
BAS316
2036
1K0
3039
1n0
I101
I011
I099
I030
I015
I026
I016
I019
I017
I041
I014
I040
I013
I005 I006
F002
I001
F300
I094
OSCCC
3
OSCR
2
PGND 13
SOST
11
VCC
15
VREF 5
FI 10
GND
4
7In
Ip
8
OA 14
OB 12
OS
16
OSCC
1
MC34067P
7001
EAO
6
EN|UA
9
6018
PDZ18-B
I085
10n
2031
1M5
3050
27K
3004
100K
3066
47R
3047 +24Va
+24Vb
399V_HOT
400V_HOT
400V_HOT
LATCH
+24Vb
+24Va
+12V
25V_HOT
400V_HOT
+12V
+24Vb
400V_HOT
DC_PROT
DC_PROT
+24Vb
+12V
+24Va
+24Vb
A2 A2
Circuit Diagrams and PWB Layouts 35LC4.31E AA 7.

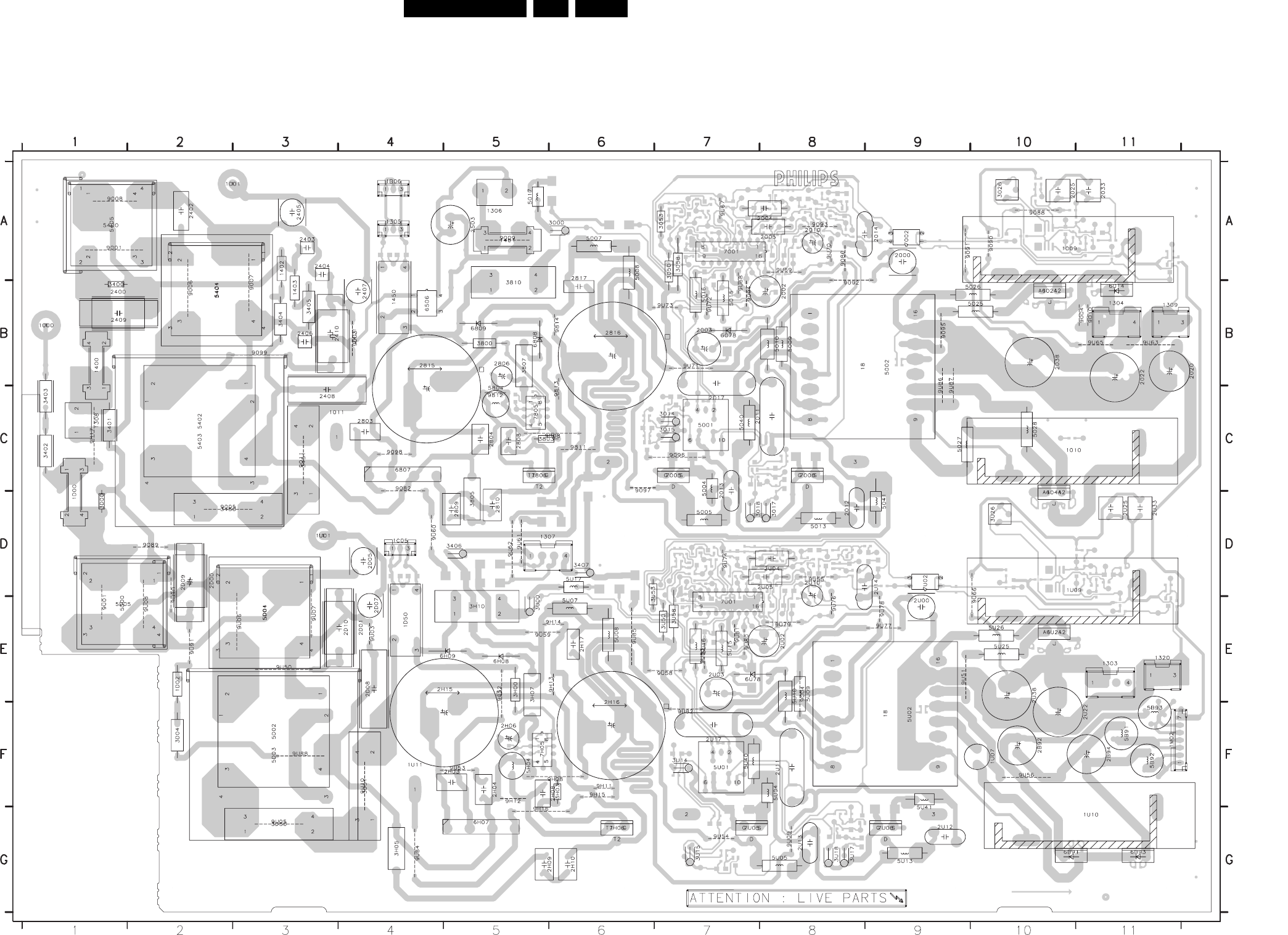

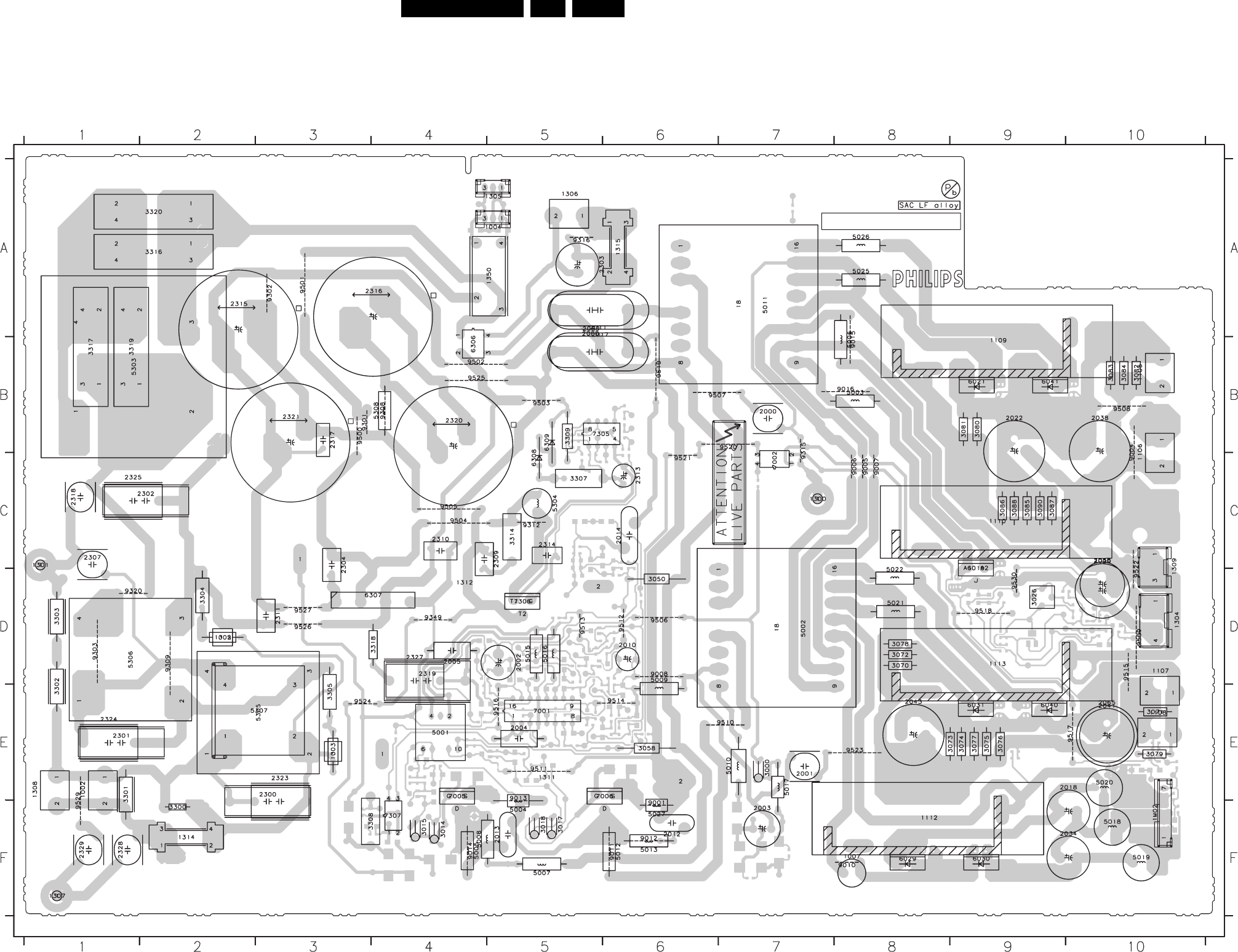

Layout LCD Supply (37”) (Top Side)
G_16210_056.eps
180106
3104 313 6082.2
1002 E1
1003 E3
1004 A5
1005 D2
1007 F8
1105 B10
1106 B10
1107 D10
1108 E10
1109 B8
1110 C8
1112 F8
1113 E8
1300 C7
1301 C1
1302 D2
1303 E3
1304 D10
1305 A5
1306 A5
1307 F1
1308 E1
1309 C10
1311 E4
1312 D3
1314 F2
1315 A6
1350 A5
1M02 F10
2000 B7
2001 E7
2002 D5
2003 F7
2004 E5
2005 D4
2010 D6
2011 A5
2012 F6
2013 F5
2014 C6
2017 A5
2018 E10
2020 D10
2022 B9
2034 F10
2038 B10
2041 E10
2043 E8
2059 A5
2060 A5
2065 E10
2066 C10
2300 E3
2301 E2
2302 C2
2303 A5
2304 C3
2307 C1
2309 C4
2310 C4
2311 D2
2313 C6
2314 C5
2315 A2
2316 A3
2317 B3
2318 C1
2319 D4
2320 B5
2321 B3
2323 E3
2324 E2
2325 C2
2327 E4
2328 F1
2329 F1
3000 E7
3014 F4
3015 F4
3017 F5
3018 F5
3026 D9
3050 D6
3058 E6
3070 D8
3071 E10
3072 D8
3073 E8
3074 E9
3075 E9
3076 E9
3077 E9
3078 D8
3079 E10
3080 B9
3081 B9
3082 B10
3083 B10
3084 B10
3085 C9
3086 C9
3087 C9
3088 C9
3090 C9
3300 E2
3301 E2
3302 E1
3303 D1
3304 D2
3305 E3
3307 C5
3308 F3
3309 B5
3314 C5
3316 A1
3317 B1
3318 D4
3319 B2
3320 A1
5001 E4
5002 D8
5003 B8
5004 E5
5005 F4
5006 B7
5007 F5
5008 F4
5009 E6
5010 E7
5011 A7
5012 F5
5013 F6
5015 D5
5016 D5
5017 E7
5018 F10
5019 F10
5020 E10
5021 D8
5022 C8
5025 A8
5026 A8
5027 E6
5303 A1
5304 C5
5305 E2
5306 D1
5307 D3
5308 B4
6019 D9
6021 B9
6029 F8
6030 F9
6031 E9
6040 E9
6041 B9
6306 B4
6307 D3
6308 B5
6309 B5
7001 E5
7002 B7
7005 F4
7006 F5
7305 B5
7306 D5
7307 F4
9001 F6
9004 C10
9005 C8
9006 C8
9007 C8
9008 D6
9010 F7
9011 F6
9012 F6
9013 F5
9014 F4
9015 B8
9016 B8
9301 B4
9302 A3
9303 D1
9308 B4
9309 D2
9312 C5
9315 B7
9316 A5
9320 D2
9349 D4
9500 B3
9501 A3
9502 B5
9503 B5
9504 C4
9505 C4
9506 D6
9507 B6
9508 B10
9509 D10
9510 E7
9511 E5
9512 D6
9513 D5
9514 E6
9515 D10
9516 E5
9517 E10
9518 D9
9519 B6
9520 B6
9521 B6
9522 C10
9523 E8
9524 E3
9525 B4
9526 D3
9527 D3
9529 F1
9530 D9
36LC4.31E AA 7.
Circuit Diagrams and PWB Layouts

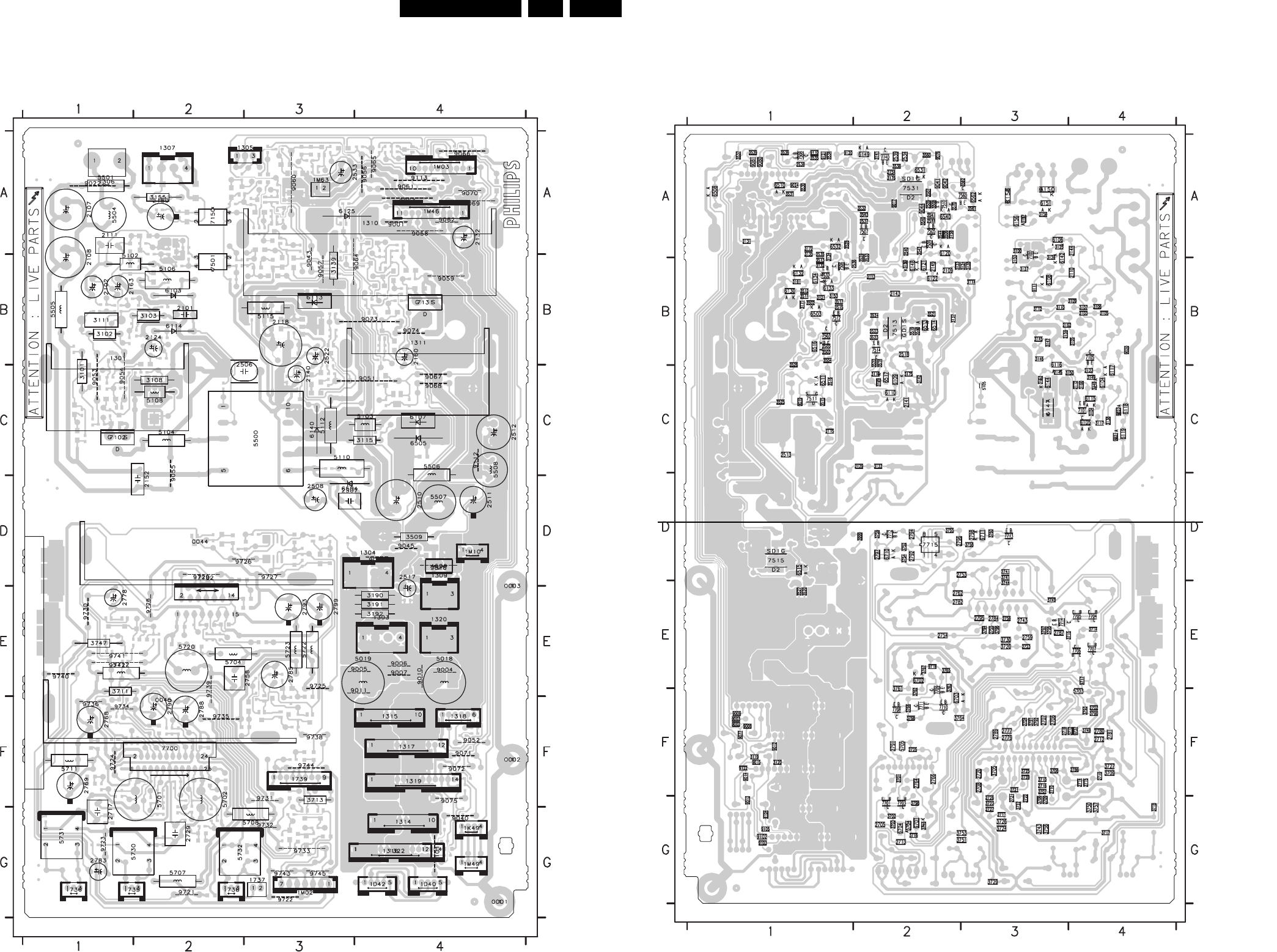

Layout LCD Supply (37”) (Overview Bottom Side)
G_16210_057.eps
190106
3104 313 6082.2
Part 1
G_16210_057a.eps
Part 2
G_16210_057b.eps
Part 3
G_16210_057c.eps
Part 4
G_16210_057d.eps
2006 E6
2007 E6
2008 C5
2009 F3
2015 C6
2016 D6
2019 E5
2021 F2
2023 D2
2024 D1
2025 D2
2026 D5
2027 D6
2028 D2
2029 B2
2030 D1
2031 D1
2032 D1
2033 D2
2035 E6
2036 E7
2037 D5
2039 E1
2040 E6
2042 E2
2044 D2
2045 B1
2046 E5
2047 E5
2048 E5
2049 E2
2050 C5
2051 E2
2052 E6
2053 D6
2054 D6
2055 E6
2056 E7
2057 E7
2058 E6
2061 E6
2062 E6
2063 C6
2064 D1
2305 C6
2330 B6
2331 B6
3001 D6
3002 E7
3003 D7
3004 E6
3005 E6
3006 E6
3007 E6
3008 E6
3009 E6
3010 D5
3011 E5
3012 D5
3013 C5
3016 E7
3019 E7
3020 E7
3021 C6
3022 D2
3023 D1
3024 D1
3025 D1
3027 D6
3028 D6
3029 E7
3030 D2
3031 E1
3032 E1
3033 E2
3034 D1
3035 D6
3036 E5
3037 D1
3038 D1
3039 E5
3040 D2
3041 D2
3042 E6
3043 E6
3044 D6
3045 D6
3046 C6
3047 E6
3048 E6
3049 D6
3051 D5
3052 D1
3054 C5
3055 E5
3056 E5
3057 D2
3059 D7
3060 E5
3061 E6
3062 E7
3063 D1
3065 C4
3066 E1
3067 F1
3068 D2
3089 D5
3091 D1
3306 E7
3310 F7
3311 C5
3312 B5
3313 C6
3321 C6
3322 B5
3323 B5
3324 B5
3999 A4
6002 E6
6003 E7
6004 E6
6005 E6
6006 E5
6007 E7
6008 E6
6010 C6
6011 C6
6012 E5
6013 E7
6014 C5
6015 C6
6017 E5
6018 D6
6020 D6
6022 E5
6023 D1
6024 F4
6025 F4
6026 E5
6027 E7
6028 E6
6032 F4
6033 F4
6035 E6
6036 D6
6038 E6
6042 F1
6043 E1
6044 E1
6304 D7
6305 E7
6314 F8
6315 F7
6316 F7
6317 F8
6318 F7
6354 F7
6355 F7
6360 A7
6361 A6
7003 E1
7004 D6
7007 E7
7008 E7
7009 D6
7010 D2
7011 D5
7012 D6
9002 D2
9003 F4
9009 F4
9017 E6
9304 B6
9310 B5
9311 F8
9528 D7
Circuit Diagrams and PWB Layouts 37LC4.31E AA 7.

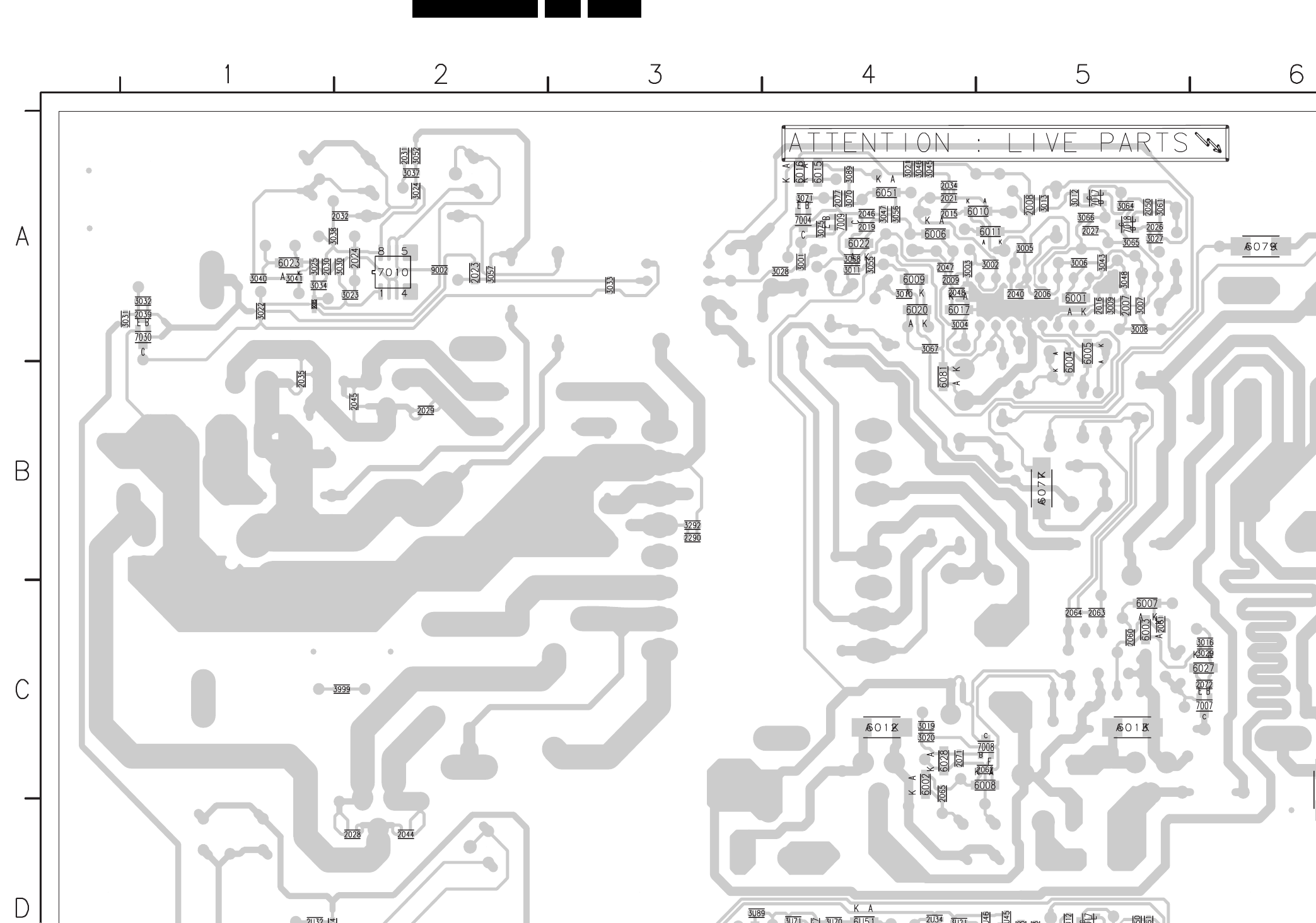

Layout PSU LCD Supply (37”) (Part 1 Bottom Side)
Part 1
G_16210_057a.eps
190106
38LC4.31E AA 7.
Circuit Diagrams and PWB Layouts

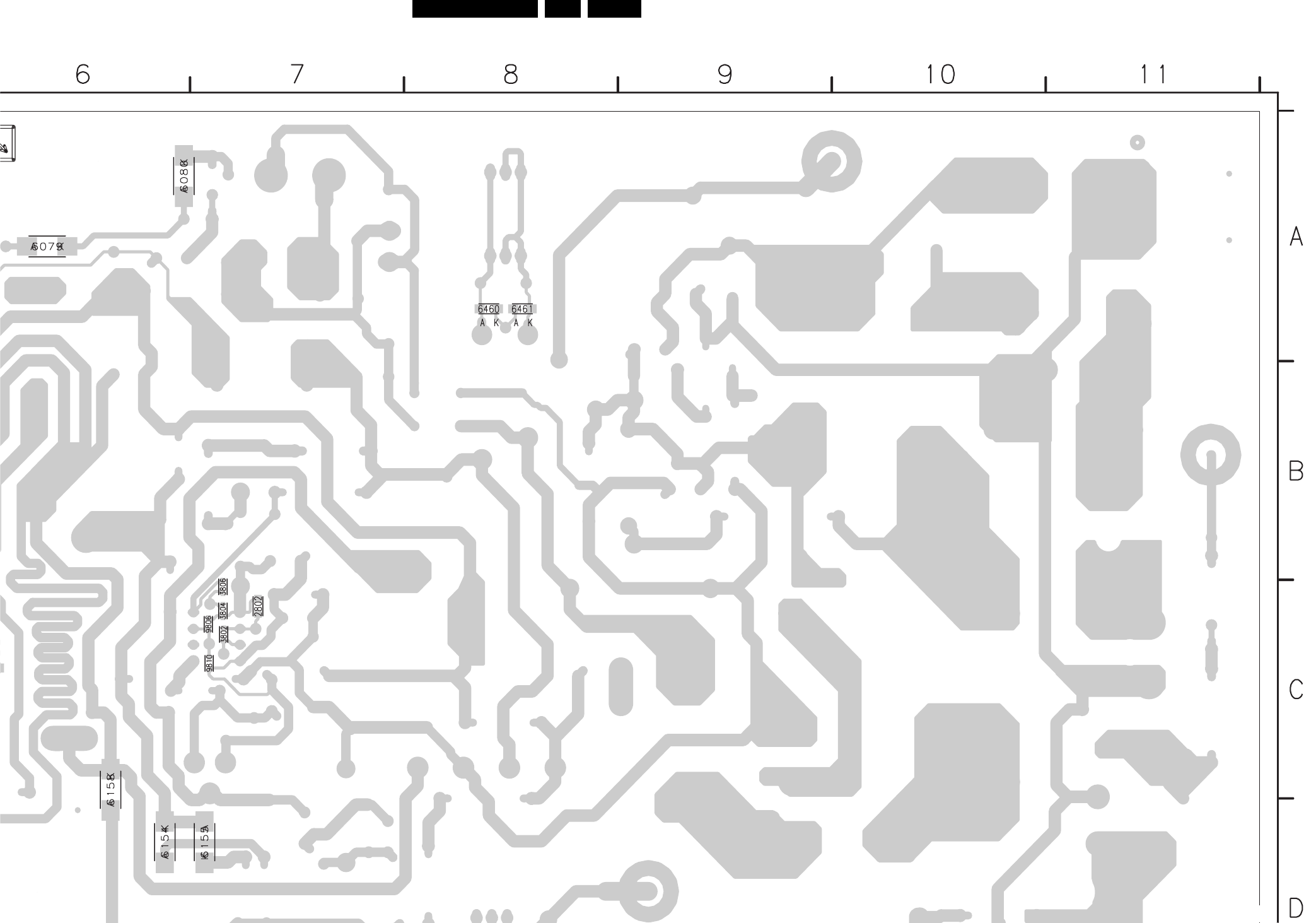

Layout PSU LCD Supply (37”) (Part 2 Bottom Side)
Part 2
G_16210_057b.eps
190106
Circuit Diagrams and PWB Layouts 39LC4.31E AA 7.
Layout PSU LCD Supply (37”) (Part 3 Bottom Side)
Part 3
G_16210_057c.eps
190106
40LC4.31E AA 7.
Circuit Diagrams and PWB Layouts
Layout PSU LCD Supply (37”) (Part 4 Bottom Side)
Part 4
G_16210_057d.eps
190106
G_16210_057a.eps
190106
Circuit Diagrams and PWB Layouts 41LC4.31E AA 7.
LCD Supply (42”): Mains Filter + Stdby A
V
MODE
VM
OSIN
VSS
OSOUT
VG
NC
VDD
12 13
12345678910
D
E
F
I424 D7
F412 B1
F411 B2
I419 D2
F410 B1
T3.15AH 250V
I473 D2
I474 C4
COLD
F425 E7
F426 B10
F427 F2
F428 F2
F429 F4
F430 F4
I410 C3
I411 C5
I412 B6
I413 C8
11 12 13
3451 B7
3800 E9
10 11
1011 E5
A
TO
1305 F7
1307 B13
1306 F2
C
I825 E12
I461 B13
I462 C12
I463 D4
I464 D9
I465 E10
I466 E9
I467 E11
F421 B13
9011 B7
9806 E9
9808 C12
9810 D10
9811 D11
9812 E11
I471 D11
I475 C4
I472 C13
I415 C7
TO 1306
RELAY -
I416 C5
I470 E10
T1AE 250V
3450 B6
9009 F2
2809 E12
2810 E12
2815 C11
2816 D12
2817 C11
3400 C3
3401 C1
3402 C2
COLD GROUND
AUDIO-STANDBY
A
G
B
I826 E12
I824 E12
(EUR+AP CHINA)
I827 E9
I820 F9
I814 E9
MAINS FILTER + STANDBY PART A
I442 C6
TO 1305
AUDIO-STANDBY
TO 1307
I456 E7
I460 D4
F419 C2
F420 B13
9813 C12
9814 C12
I469 E11
I810 B10
I811 B11
I445 C7
I455 D5
I812 B11
GROUND
F
G
1000 D2
1001 D4
12345678
6461 D7
6506 E6
6807 C10
6808 E9
6809 D9
7805 D10
7806 E11
I468 E10
9006 B4
9007 C4
F423 C13
F424 E8
3802 E10
5400 C3
5401 C4
5402 C6
5403 B6
5404 B4
5405 B3
5804 E11
6154 C12
6155 C12
6156 B13
6157 B13
6158 C13
2409 C2
2410 C5
2503 E6
2802 E9
2803 C11
2804 C11
6159 C13
6460 D7
I815 E9
I444 C6
MAINS INPUT
1308 C1
1400 C2
1401 F2
1402 D4
1403 D4
B
C
D
E
9
2806 F10
2808 E11
AUDIO-STANDBY
T4AH 250V(AP+US)
95-264Vac
F413 B1
F414 B2
MAINS FILTER
3804 E9
3805 E12
3806 E9
3807 E9
3810 B10
9001 B3
9003 C6
9005 B6
F422 B13
I817 C11
F415 C1
F416 C1
F417 C2
F418 C1
RELAY +
9008 C3
3803 E11
1450 C8
1B06 E7
2400 C2
2401 C5
2402 C3
2403 C3
2404 C4
2405 D3
2406 C6
2407 C5
2408 C6
3403 D2
3404 D6
3405 D4
3406 B13
3407 C13
I813 C10
I816 E9
HOT_GNDA
I442
F422
F410
I465
F412
I468
1000
GND screw
1
GNDHOT
BYG10
6155
F421
F414
I811
G5PA-1-5VDC
1450
I810
I460
2408
470n
9813
HOT_P+
I826
I445
F424
1306
B2P-VA-BF-BK
1
2
I413
I462
4
1
3
2
47p
2403
5400
DMF28
I474
I475
BYG10
6158
F415
470n
2401
9812
4M7
3403
I469
470n
2400
3804
20K
1011
HEATSINK
I470
F411
F425
14
23
I820
DMF3547HB60
5402
2405
220p
3803
390R
F428
BAS316
6460
9006
HOT_GNDA
58
1
3406
100R
AVS1ACP08
7805
76
23
4
F419
25V_HOT_A
2816
330u
I455
3400
9808
3810
12K
6159
BYG10
I824 9814
470n
2410
6807
I415
9009
GBJ6J
I412
4M7
3402
3405
220R
100u
5804
4M7
3401
I827
I424
1
4
2
3
DMF2405H60
5405
6506
F413
DF06M
9806
3800
1M0
2808
47n
100n
2810
2407
1n0
4
1
3
2
22n
2402
5404
DMF28
BYG10
6156
F426
BYG10
6157
47p
2404
F418
1
2
3
4
1307
B4P-VH
3407
1401
PTF/65
100R
9810
10n
2817
GND screw
1
400V_HOT_A
1001
6154
I816
BYG10
1N5062
6809
2802
100p
14
23
56n
2803
F417
DMF3547HB60
5401
100n
2809
I463
I467
9001
470R
3806
330u
2815
90079008
3802
HOT_GNDB
I472
91K
HOT_GNDA
1R0
3451
1N5062
6808
2806
47u 50V
1305
B3B-EH-A
1
2
3
I825
22K
1
2
3
3807
9005
B3B-EH-A
1B06
3805
4R7
I444
I461
I817
I419
1403
500V
I416
I815
3450
1R0
7806
AVS10CB
I464
F423
PTF/65
1400
HOT_P-
HOT_GNDA
9811
1402
500V
I471
I411
9011
1
2
4
3
400V_HOT_B
5403
DTH40203H65
56n
2804
I410
I456
I466
F416
1308
1
2
GNDHOT
F420
B2P-VA-BF-BK
47p
2406
2503
10u
I812
F430
9003
F429
F427
I814
BAS316
6461
HOT_GNDA
470n
2409
I813
220R
3404
MAINS_N
I473
MAINS_L
F_15420_081.eps
190705
3104 313 3958.3
A1 A1
42LC4.31E AA 7.
Circuit Diagrams and PWB Layouts

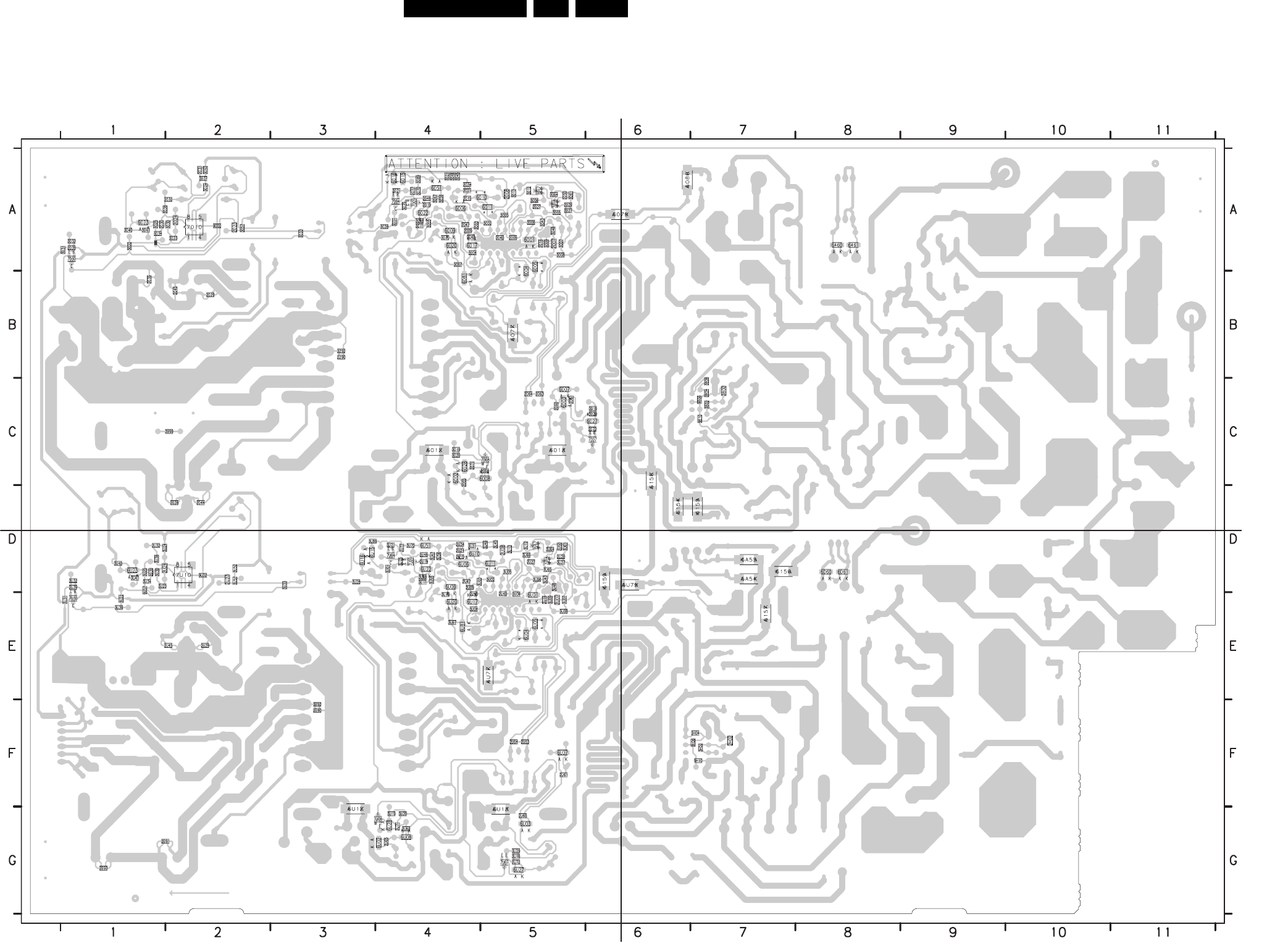

LCD Supply (42”): Supply A
NC
3065 E
5
3006 D
3
3004 D
1
BIAS SUPPLY
3003 C
1
3005 C
3
TO 1304
3007 E
3
GROUND GROUND
GROUND GROUND
D
E
F
G
H
I
1009 I9
2003 A
4
3055 I6
(0V7)
3061 E
4
2027 F
3
2025 E
1
2028 D
1
2024 E
1
3016 C
8
2030 F
1
2026 G
4
2029 E
1
2031 D
1
3011 H
2
3012 F
4
3013 G
5
1%
Adj.
PROTECTION
3064 F
4
2007 E
2
4V9
2004 C
2
2008 G
4
(5V)
COLD
2006 C
3
2009 D
2
13
4V9
COLD
2039 C
1
12
2040 C
1
(0V3)
3033 B
1
3034 F
1
3037 D
1
3038 E
1
3040 E
1
17V3
HIGH SIDE
3058 E
3
3057 C
1
(0V)
3056 I4
F
G
H
3008 E
2
3009 E
2
3010 H
2
MRS25 1%
3014 C
8
3015 C
8
456789101112
2005 D
2
(7V6)
3032 C
1
AUDIO - STBY
14
1
CURRENT
2000 F
1
2045 F
1
2046 I4
2047 I5
2048 I5
2050 E
4
2060 C
7
2061 C
8
2062 D
8
2063 C
7
2064 D
7
3041 F
1
2065 D
8
2071 E
8
2072 C
8
2077 H
5
2290 H
1
3000 A
3
3001 F
6
3002 C
2
11
A4
E
0V6
12
HOT
C
3
9
2V
10
SUPPLY PART A
2
HOT
Vs
678
2044 D
1
B
1309 I1
2
1304 H
1
A
3018 E
8
3019 E
8
3020 E
8
3021 G
6
3022 D
1
3025 F
1
3026 G
1
3027 G
3
3028 B
1
3029 C
8
2002 B
3
CONTROL
13 14
A
B
C
D
1010 I9
DRIVE
(0V)
3048 D
2
2010 H
2
2011 E
1
2012 E
9
2013 D
9
FLM 1/6W
(0V5)
AUDIO - STBY
2014 F
7
2015 F
5
2016 E
6
2017 C
1
2019 H
3
2020 D
1
2021 C
2
2022 E
1
2023 B
1
345
3023 E
1
2035 F
1
TO 1309
Voltage
2032 E
1
3067 G
1
3068 H
4
3017 D
8
DRIVE
(1V2)
5V1
3043 D
2
3052 D
1
1%
3045 G
6
(0V7)
3047 H
3
3050 E
3
3046 F
6
3053 E
4
CONTROL
(0V3)
13V4
3066 F
3
3030 G
1
3031 C
1
2034 C
2
3024 E
1
LOW SIDE
399V
2038 E
1
2033 E
1
7V3
0V01
7V3
4V9
17V
RES
SOFTSTART
VS-CONTROLLER
I028
7030
BC847BW
2000V
2014
2n2
3023
15K
I078
3056
220R
5005
80R
15K
3012
I136
I021
100u
2010
GNDA
c001
50V
2015
10n
3065
6K8
I137
HOT_GNDA
GNDA
I034
2n2
2062
F030
5M6
3058
GNDA
I094
9004
50R
5041
2060
2n2
I092
I052
I070
6008
BAS316
I093
5025
80R
3000
4R7
I037
10K
3089
BZX384-C22
6081
2K7
3048
100p
2021
BC847BW
7004
16V
2030
100n
6016
BAS316
I151
GND3
I149
100R
6028
BAS316
I113
3017
GNDA
GNDA
1n0
2071
80R
5028
80R
5008
I135
25V_HOT_A
F017
I029
I085
6001
F007
BAS316
HOT_GNDA
470n
2008
16V
BAS316
6051
BAS316
6023
2019
10n
F027
6012
SML4744
9002
I133
400V_HOT_A
HOT_GNDA
1n0
2035
50V
I088
BYG22D
6080
1010
HEATSINK
I139
470p
2000
I140
10n
2039
80R
5013
2290
10n 50V
3292
560R
7007
BC857BW
220R
+24Va
3055
470n
2007
16V
3014
100R
2024
220n
16V
I114
I142
I124
5040
80R
PGND
11 SOST
15
VCC
VREF 5
BZX384-C4V7
6022
8Ip
14
OA
OB 12
16 OS
1OSCC
OSCCC
3
2OSCR
13
EAO
6
EN|UA
9
FI 10
GND
4
In
7
I108
7001
MC34067P
I147
3024
18K
I119
6013
SML4744
I100
I033
2022
1m8 35V
BC847BW
7018
F024
F299
2033
1u0
630V
100p
2005
3031
I143
10K
I148
HOT_GNDA
I023
I150
I080
I009
5007
80R
3047
47R
2K2
3019
BC857BW
7008
47K
3032
2047
10n
GNDA
HOT_GNDA
HOT_GNDA
I105
6079
BYG22D
I109
400V_HOT_A
3010
470R
GNDA
HOT_GNDA
4
5
R
8
2009
100p
A
2
3
6
7
K
1
7010
TL431ACD
STP15NK50ZFP
7006
2032
4n7
1n5
2012
2000V
F031
c002
3002
10K
I010
BZX384-C22
6015
3027
100K
I012
6004 BAS316
I018
HOT_GNDA
1
3
2
3026
470R
I144
STTH2003CFP
6021
1m0
5010
I103
I132
I072
I055
BYV27-200
6078
3046
22R
HOT_GNDA
I038
F006
BAS316
6020
BAS316
6027
I131
35V
I081
2038
1m8
2000V
2013
1n5
F021
3001
100R
470R
3011
6003
BAS316
BAS316
6005
BAS316
6011
3057
220R
3037
15K
1304
B4P-VH
1
2
3
4
I104
I121
33K
3038
7005
STP15NK50ZFP
3999
1K0
I120
BAS316
6017
7017
BC857BW
F025
F022
F300
F008
I063
16V100n
F012
HOT_GNDA
2016
3016
2K2
+12V
I064
10K
3013
3052
33K
50V
2028
1n0
F028
7
9
6014
BYW29FP-200
10
2
3
4
6
I141
5001
S13932-04
200p
2004
630V
2K2
22R
3045
I057
3020
I039
5027
80R
F004
680K
F005
3053
2063
470p
100K
3003
I083
F009
I082
3061
68K
100R
3067
3075
1K0
80R
I112
5009
BYG22D
6077
330R
3008
HOT_GNDA
2020
2m2
25V
BAS316
6007
I073
BAS316
6006
3068
2K2
F023
2072
1n0
3029
2K2
F029
1K0
3033
I117
2065
2n2
F010
I138
5016
80R
I059
I145
I074
3066
10K
2006
1n025V
1309
B3P-VH
1
2
3
50V
2026
2n2
GNDA
I101
3025
1K8
3K3
3009
I036
5026
80R
22R
3021
I075
F014
F002
50V
2027
15n
3022
680R
2011
1600V
10n
GNDA
HEATSINK
1009
I022
3034
I084
I077
F003
I027
2031
10n
2023
2061
2n2
470n
3007
10K
3030
18K
I045
I006
I076
5017
50R
9010
HOT_GNDA
3004
27K
I107
47R
3018
100p
1n0
2050
2034
+12V
2046
47n
I007
HOT_GNDA
BC857BW
7009
3015
47R
1n0
I020
50V
2044
2077
2n2
BAS316
6002
I122
50V
I098
F032
1n0
2045
9
I024
2048
1n0
12
13
14
15
16
2
3
5
6
7
8
BS51312-01
5002
1
10
11
3005
33K
I046
3040
8K2
GNDAGNDA
6010
BAS316
2002
470u
3050
820K
I099
I134
I025
10n
2017 1600V
50V
2025
1u0
I096
6009
PDZ18-B
32
I042
7002
TCET1102(G)
14
3006
10K
I116
560p
2040
F018
I062
2003
1m0
I110
5004
50R
3043
1R0
1K0
I294
3070
I008
3064
10K
50V
2029
1n0
I089
33K
3041
I051
3
2
80R
5015
6044
STPS20L45CT
1
I097
I146
+24Va
F016
I111
2064
470p
3071
10K
3028
1K0
DC_PROT
F_15420_082.eps
190705
3104 313 3958.3
A2 A2
Circuit Diagrams and PWB Layouts 43LC4.31E AA 7.
LCD Supply (42”): Mains Filter + Stdby B
V
MODE
VM
OSIN
VSS
OSOUT
VG
NC
VDD
6D61 D8
ID67 E11
FD25 E8
IH11 C11
ID69 E12
MAINS INPUT
(EUR+AP CHINA)
FD19 C2
ID66 E10
ID70 E10
ID64 D10
FD24 E8
IH10 C11
ID65 E11
12
911
8
12
67
10
9
T5AH 250V(AP+US)
TO
2D03 C4
2D04 C5
IH17 C11
ID61 D12
2H10 E12
2H15 C12
2H16 D12
2H17 C11
3D00 C3
3D04 D6
3D05 D5
3D50 C7
3H10 B10
A
3H07 F9
5D05 B4
5DO4 B5
5H04 F12
6A54 C13
6A55 C12
6D60 D8
3H00 E9
6H07 C11
2H06 F10
2H09 E12
2H04 C11
COLD GROUND
7H05 E10
7H06 E11
6H09 D9
6H08 E9
9H06 E10
9H08 D12
2H08 E11
E
F
G
D
E
F
2H03 C11
6
2D10 C6
2D07 D6
G
2D08 C7
2D09 C3
ID68 E11
IH13 C10
IH12 C11
95-264Vac
10 11
RELAY +
2
1U01 E4
13
2D00 C2
2D01 C5
1U11 E5
1
ID62 D12
ID63 D5
IH14 E9
IH15 E9
IH16 E9
9U03 D6
9U05 B7
9U06 C5
9U07 D5
9U08 D4
9U10 B7
FD10 B2
FD11 B2
FD12 C1
FD13 C2
ID16 C6
ID46 C4
ID48 D5
B
3D51 C7
3H05 F12
3H04 F9
C
3H02 E11
ID47 C4
3H03 E11
13
1D03 D5
1C05 E8
1D50 C8
1D02 D5
1D00 C2
T3.15AH 250V
A
B
C
D
ID24 D8
ID44 C7
ID45 C7
FD26 B11
ID10 C3
ID11 C6
ID12 C7
ID13 C8
ID15 C7
FD16 C2
5D03 B6
5D00 C4
5D02 C6
4
2H02 F10
MAINS FILTER
5
2D06 C6
3
2D05 D4
3
IH25 E12
IH26 E12
1
MAINS FILTER + STANDBY PART B
RELAY -
IH24 E12
524
IH20 F9
5D01 C5
FD17 C2
FD14 C2
FD18 C2
FD15 C1
9H13 D12
9H14 C12
9U01 C4
ID55 D6
9H10 D10
COLD GROUND
9H12 F12
9H11 D12
ID42 C6
25V_HOT_B
78
3H10
12K
6A55
BYG10
1
2
3
ID55
58
1
1C05
B3B-EH-A
AVS1ACP08
7H05
76
23
4
14
23
DMF3547HB60
5D01
4
1
3
2
IH11
DMF28
5D00
3D00
PTF/65
1D00
ID15
MAINS_N
ID12
23
220p
2D05
DMF3547HB60
5D02
14
2
3
G5PA-1-5VDC
1D50
DMF2405H60
5D05
1
4
IH20
9H13 9H08
HOT_GNDB
HOT_GNDB
HOT_P+
HOT_P-
2H02
100p
ID44
ID16
56n
2H04
1U11
HEATSINK
2H16
330u
220R
3D04
FD16
ID69
IH15
IH12
FD11
FD13
FD14
FD12
ID11
470n
2D01
1
2
4
3
400V_HOT_B
DTH40203H65
5D03
2D07
1n0
GND screw
1U01
1
HOT_GNDB
56n
2H03
ID47
3H07
22K
9H12
ID46
4R7
3H05
9U07
7H06
AVS10CB
2D08
470n
IH16
IH14
9U05
470n
2D00
IH13
IH26
IH17
470n
2D09
470n
2D10
BAS316
6D60
ID68
100u
5H04
3H00
1M0
3H03
390R
330u
2H15
ID61
FD10
FD15
FD26
IH25
ID65
BYG10
6A54
ID70
FD24
FD18
FD25
6D61
BAS316
ID67
100n
2H10
1
3
2
IH10
DMF28
5DO4
4
2H06
47u 50V
1D02
500V
FD19
FD17
9U08
9U01
ID13
ID24
ID62
ID48
9U06
IH24
ID64
3D50
1R0
ID66
9H10
2H09
100n
3H02
91K
3H04
18K
HOT_GNDB
9H06
ID45
9U03
ID42
ID10
9U10
3D51
1R0
2H08
47n
MAINS_L
1N5062
6H08
1N5062
6H09
GBJ6J
6H07
10n
2H17
9H14
9H11
F_15420_083.eps
190705
3104 313 3958.3
A3 A3
44LC4.31E AA 7.
Circuit Diagrams and PWB Layouts
LCD Supply (42”): Supply B
NC
IA44 C14
IU84 F10
IU85 E13
IU86 D13
IU88 E14
IU89 E13
IU92 F14
IU93 F14
IU94 G13
IU96 A3
IU97 A3
IU98 A5
IU99 A5
cU01 F10
cU02 F9
BIAS SUPPLY
LOW SIDE
4V9
0V6
(0V)
(0V5)
GROUNDGROUND
GROUND
0V01
(7V6)
(0V7)
250V
IU27 C3
IA03 C1
IU28 G2
IU29 G3
IU33 F5
IU34 F6
IU36 F6
IU37 C8
IU38 C8
IU39 D8
IU41 H2
IU42 C8
IU45 C8
IU46 C8
IU51 E8
IU52 D8
IU55 F9
IU57 E9
IU59 E9
IU62 B11
IU63 C11
IU64 C9
IU73 E11
IU74 E11
IU76 F11
IU77 F11
IU79 B9
IU80 G11
4V9
VS-CONTROLLER
IU81 F8
IU82 H7
IU83 H7
FB94 H13
IA45 E8
IA46 B9
IA47 C9
IA48 C7
IA49 C12
IA50 D9
IA51 I5
IB90 G12
IB91 G12
IB92 H11
IB93 H12
IB94 C9
IU05 A4
IU06 B2
IU07 C3
IU08 C3
IU09 D2
IU10 D3
IU12 E5
IU18 E3
IU20 F4
IU21 E2
IU22 F3
IU23 F3
IU24 F4
IU25 F3
CURRENT
TO 1M02
TO 1303
VSND_NEG
CONTROL
6U20 H1
IA04 D2
IA05 E3
IA07 C7
IA08 D7
IA09 D8
IA10 D9
IA11 C9
IA12 E9
IA13 E9
IA14 E10
IA20 E13
IA21 E14
IA22 F14
IA23 F11
IA24 G11
IA31 I6
IA32 I5
IA33 I4
IA34 I3
IA35 H3
IA36 H4
IA37 H5
IA38 H5
IA39 G5
IA40 H6
IA42 H1
COLD
5V1
17V
DRIVE
IA43 G1
5U09 B5
FB95 H13
FB96 G14
FB97 G13
FB98 H13
FC00 F9
FU02 C9
FU03 C6
FU04 D6
FU05 D9
FU06 E6
FU07 F3
FU08 D6
FU09 D7
FU10 E6
FU12 E13
FU14 F13
FU17 D12
FU18 B9
FU23 F9
FU24 E13
FU25 E13
FU27 E12
FU28 D12
FU29 C10
FU30 I12
FU32 I12
Adj.
SOFTSTART
FU99 A9
IA00 A5
IA01 A5
3U45 G6
6U21 E11
6U22 H3
6U23 F14
6U27 C8
6U28 E8
6U51 H4
6U77 A4
6U78 A5
6U79 A4
6U81 B2
7U01 C4
7U02 B10
7U04 H5
7U05 C9
7U06 D9
7U07 D8
7U08 E8
7U09 G5
7U10 F13
7U17 F4
7U18 G4
7U30 C11
9U02 G13
9U04 B5
FB90 H13
FB92 G13
17V3
PROTECTION
GROUND
FB93 G13
3U13 G5
5U10 A5
5U13 E9
5U15 C7
5U16 D6
5U17 A3
5U25 E11
5U26 F11
5U40 D10
5U41 E9
6B91 G11
6B93 H11
6U01 D3
6U02 D8
6U03 C8
6U04 D7
6U05 D6
6U06 I4
6U07 C8
6U08 D8
6U09 H2
6U10 G5
6U11 F5
6U12 E9
6U13 C9
6U15 H7
6U16 G7
GND_SND
(5V)
399V
CONTROL
6U17 I5
2U40 C1
3U46 F6
3U47 H3
3U48 D2
3U50 E3
3U52 D13
3U53 E4
3U55 I6
3U56 I4
3U57 C13
3U58 E3
3U61 E4
3U64 F4
3U65 E5
3U66 F3
3U67 G1
3U68 H4
3U70 H4
3U71 H5
3U75 G5
3U89 H7
5B91 G13
5B92 H13
5B93 G13
5U01 C7
5U02 D10
5U04 D9
2V
(0V7)
5U05 C9
5U07 B9
5U08 B9
2U05 D2
3U14 C8
3U15 C8
3U16 C8
3U17 D8
3U18 E8
3U19 E8
3U20 E8
3U21 G6
3U22 D13
3U23 E13
3U24 E13
3U25 F13
3U26 G13
3U27 G3
3U28 B9
3U29 C8
3U30 G12
3U31 C12
3U32 C12
3U33 B11
3U34 F14
3U38 E14
3U39 D13
3U40 E14
3U41 F14
3U43 D2
VSND_POS
13V4
Voltage
FLM 1/6W
1%
9
2U45 F12
2U46 I4
2U47 I5
2U48 I5
2U50 E4
2U60 C7
2U61 C8
2U62 D8
2U63 C7
2U64 D7
2U65 D8
2U71 E8
2U72 C8
2U77 H5
3B92 G11
3U00 A3
3U01 F6
3U02 C2
3U03 C1
3U04 D1
3U05 C3
3U06 D3
3U07 E3
3U08 E2
3U09 E2
3U10 H2
(0V3)
Vs
MRS25 1%
3U11 H2
3U12 F4
H
2U06 C3
2U07 E2
2U08 G4
2U09 D2
2U10 H2
2U11 E10
2U12 E9
2U13 D9
2U14 F7
2U15 F5
2U16 E6
2U17 D10
2U19 H3
2U21 C2
2U22 E12
2U23 B14
2U24 E13
2U25 E14
2U26 G4
2U27 F3
2U29 E12
2U30 F13
2U32 E14
2U33 E14
2U34 C2
2U38 E12
1%
4V9
HOT
(1V2)
2U39 C12
10 11 12 13 14
1234567891011121314
TO 1320
(0V)
AUDIO - STBY
(0V3)
7V3
AUDIO - STBY
2B93 H11
2B94 H12
2U00 F10
2U02 B3
2U03 A4
2U04 C2
I
A
B
C
D
E
F
G
H
I
1303 I12
1320 I12
1M02 H14
1U07 G11
1U09 I9
1U10 I10
2B90 G11
2B91 G11
2B92 G12
AUDIO - STBY
HOT
HIGH SIDE
DRIVE
12345678
COLD
A4
7V3
A4
A
B
C
D
E
F
G
10K
3U02
2U04
200p
630V
2U23
470n
33u
5B91
3U40
8K2
IU73
3U13
10K
IA39
6U16
BAS316
80R
5U07
IU27
2U72
1n0
FB97
BAS316
6U02
1
2
3
4
2U60
2n2
IU34
1303
B4P-VH
2K2
FU27
22R
+24Vb
3U20
IA04
3U45
5U04
50R
820K
3U50
FB90
3U25
10n
1600V
2U11
1K8
5AT
