Published by BB 0565 TV Service Printed in the Netherlands Subject to modification EN 3122 785 15272

©

Copyright 2005 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.

All rights reserved. No part of this publication may be reproduced, stored in a

retrieval system or transmitted, in any form or by any means, electronic,

mechanical, photocopying, or otherwise without the prior permission of Philips.

Colour Television Chassis

LC4.3E

AA

E_14710_000.eps

240604

Contents Page Contents Page

1. Technical Specifications, Connections, and Chassis

Overview 2

2. Safety Instructions, Warnings, and Notes 5

3. Directions for Use 7

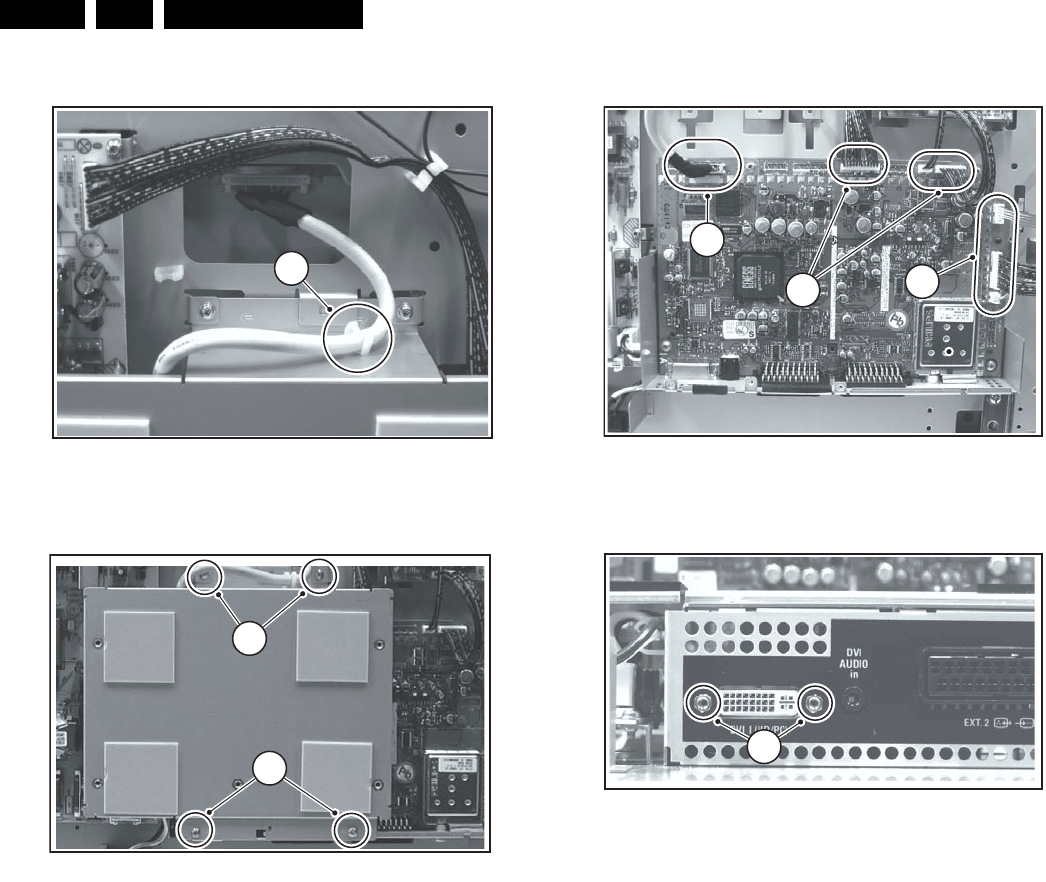

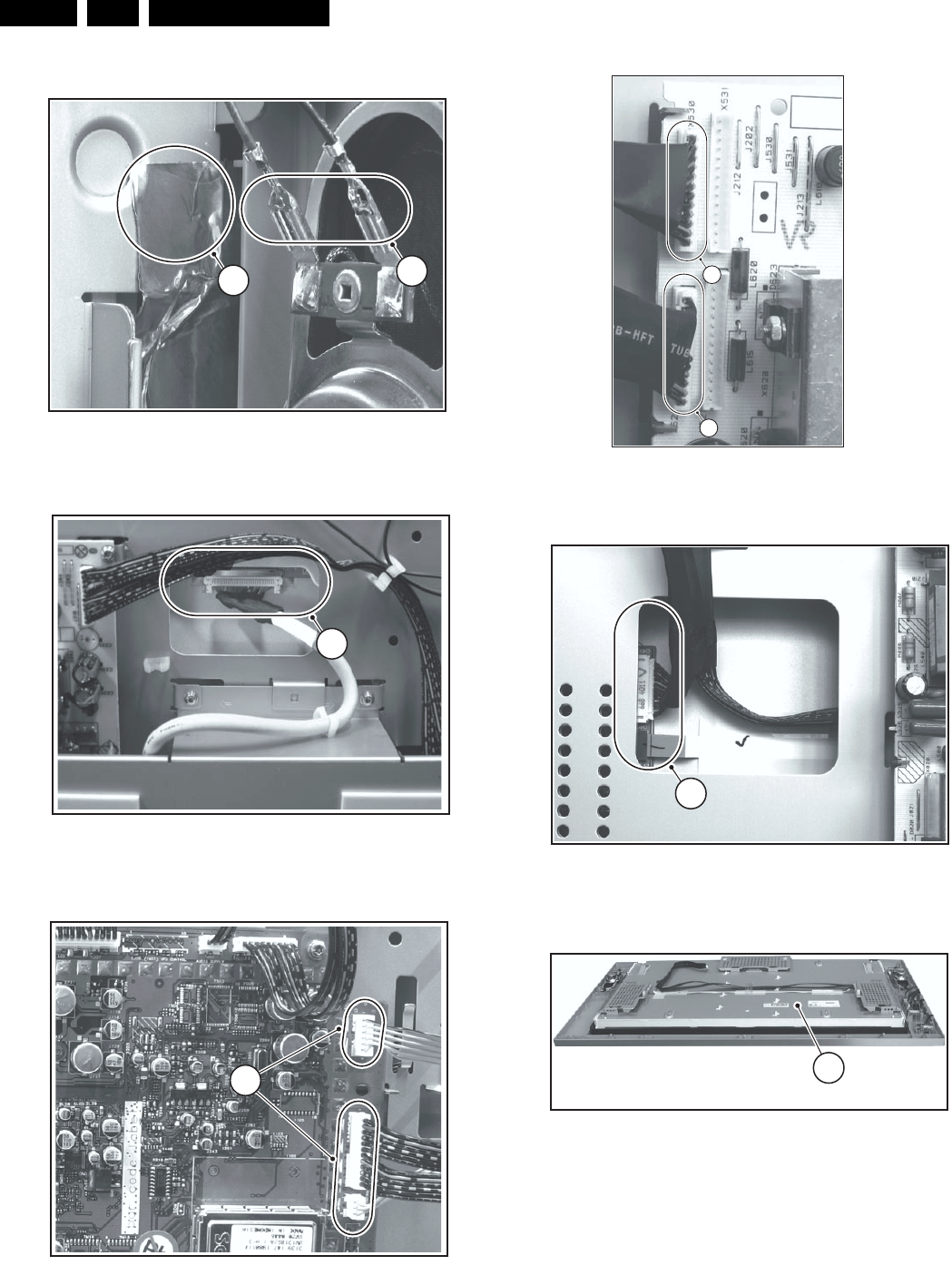

4. Mechanical Instructions 8

5. Service Modes, Error Codes, and Fault Finding 14

6. Block Diagrams, Testpoint Overviews, and

Waveforms

Wiring Diagram 23

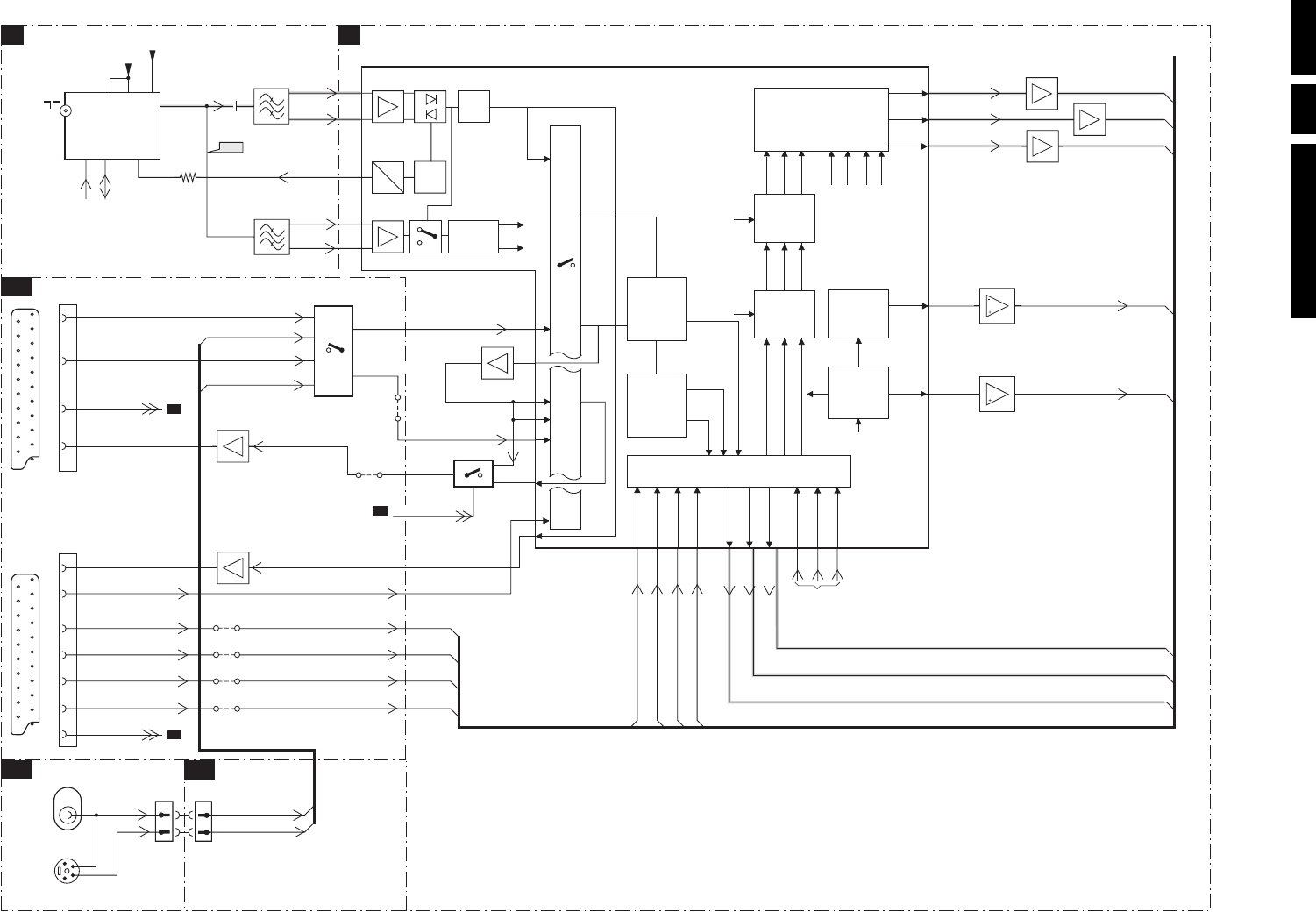

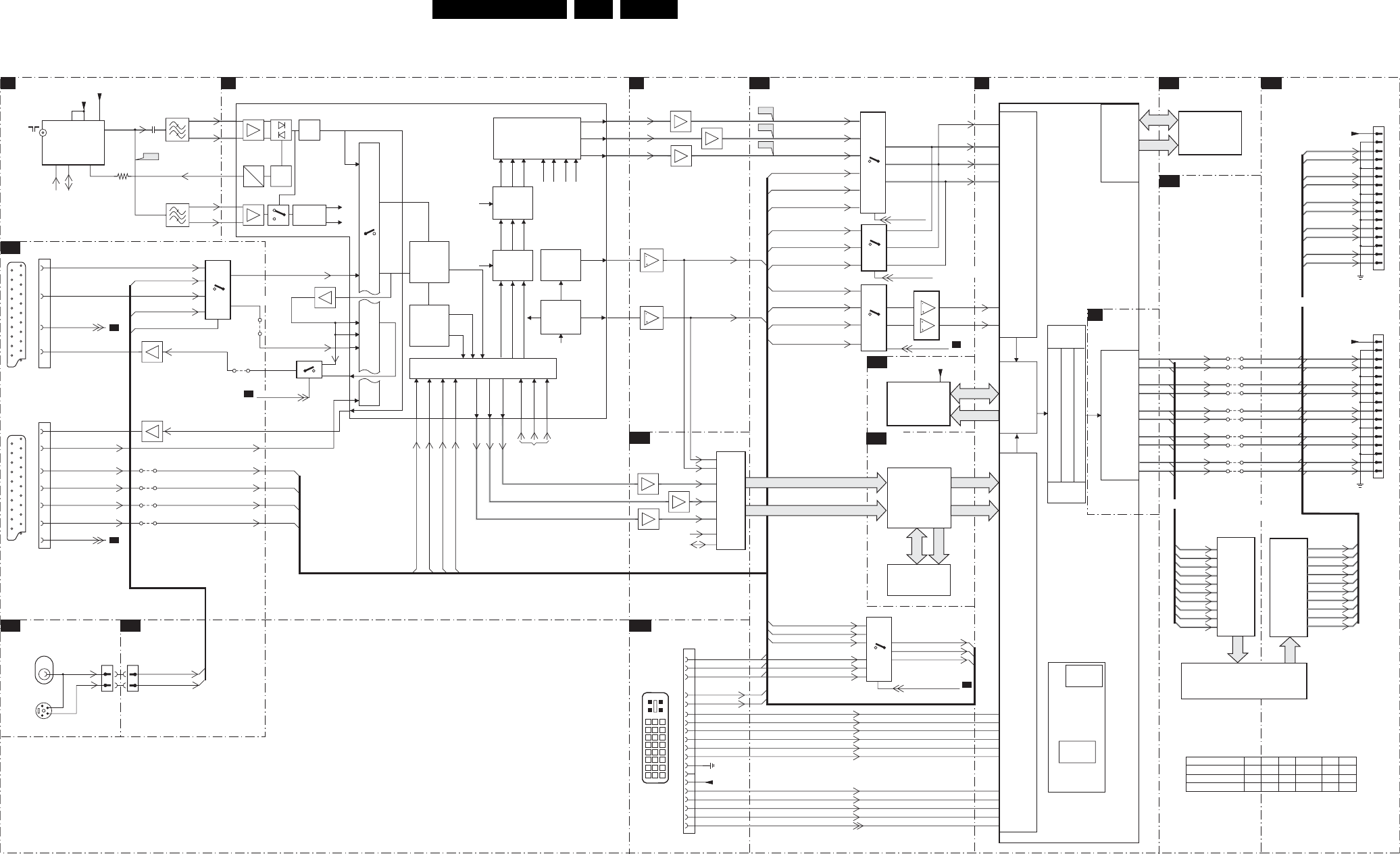

Block Diagram Video 24

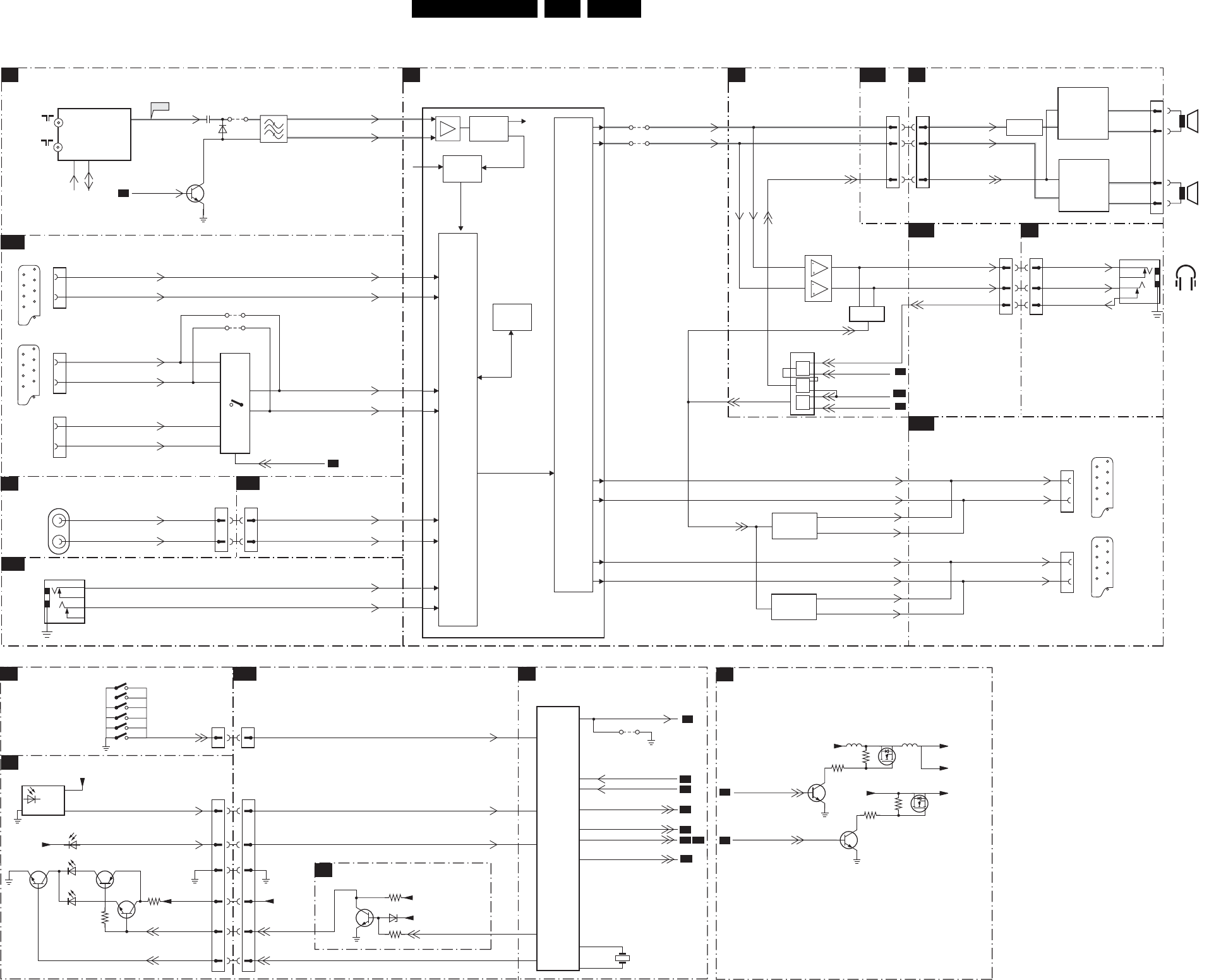

Block Diagram Audio 25

Testpoint Overview Small Signal Board 26

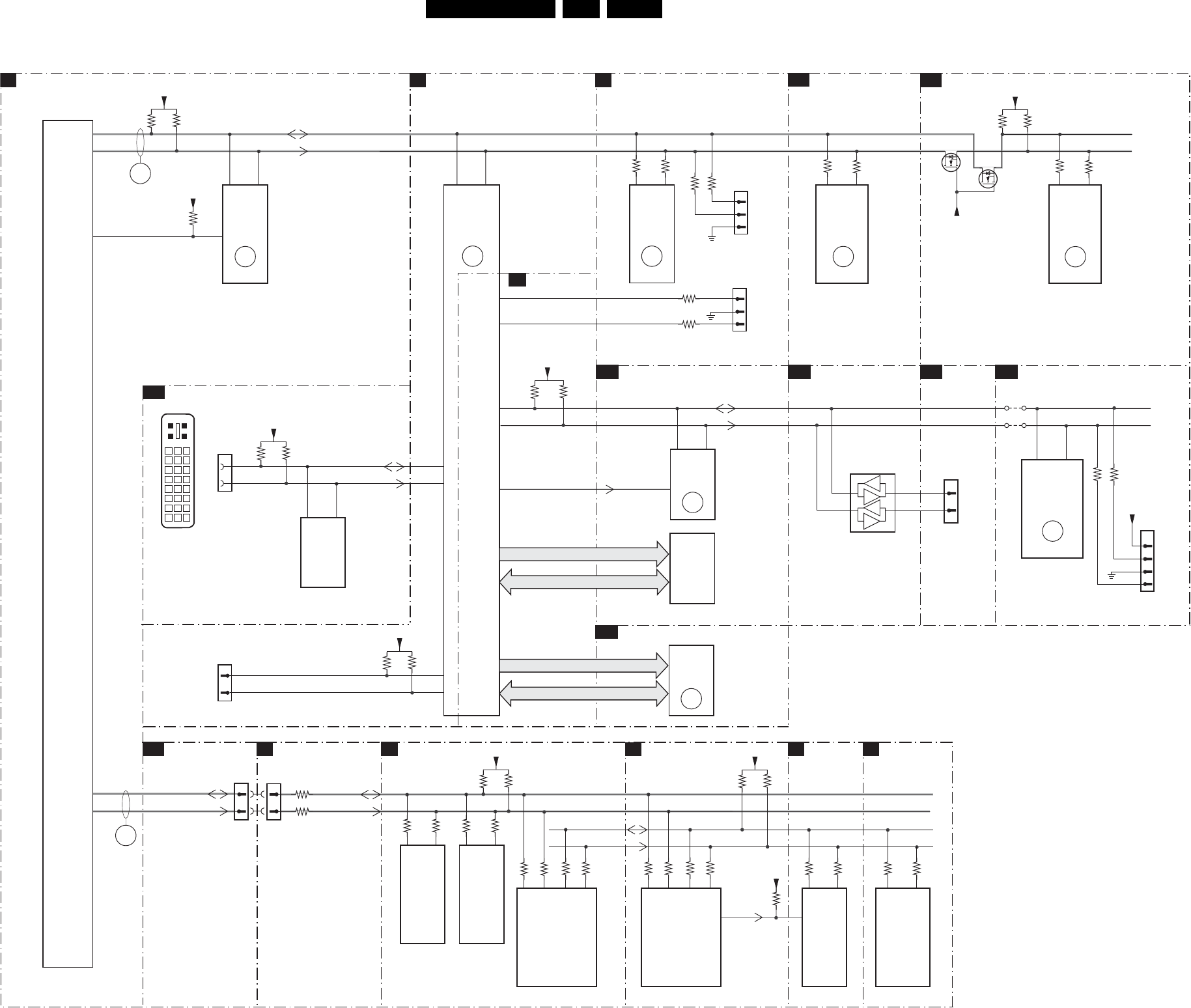

I2C IC Overview 27

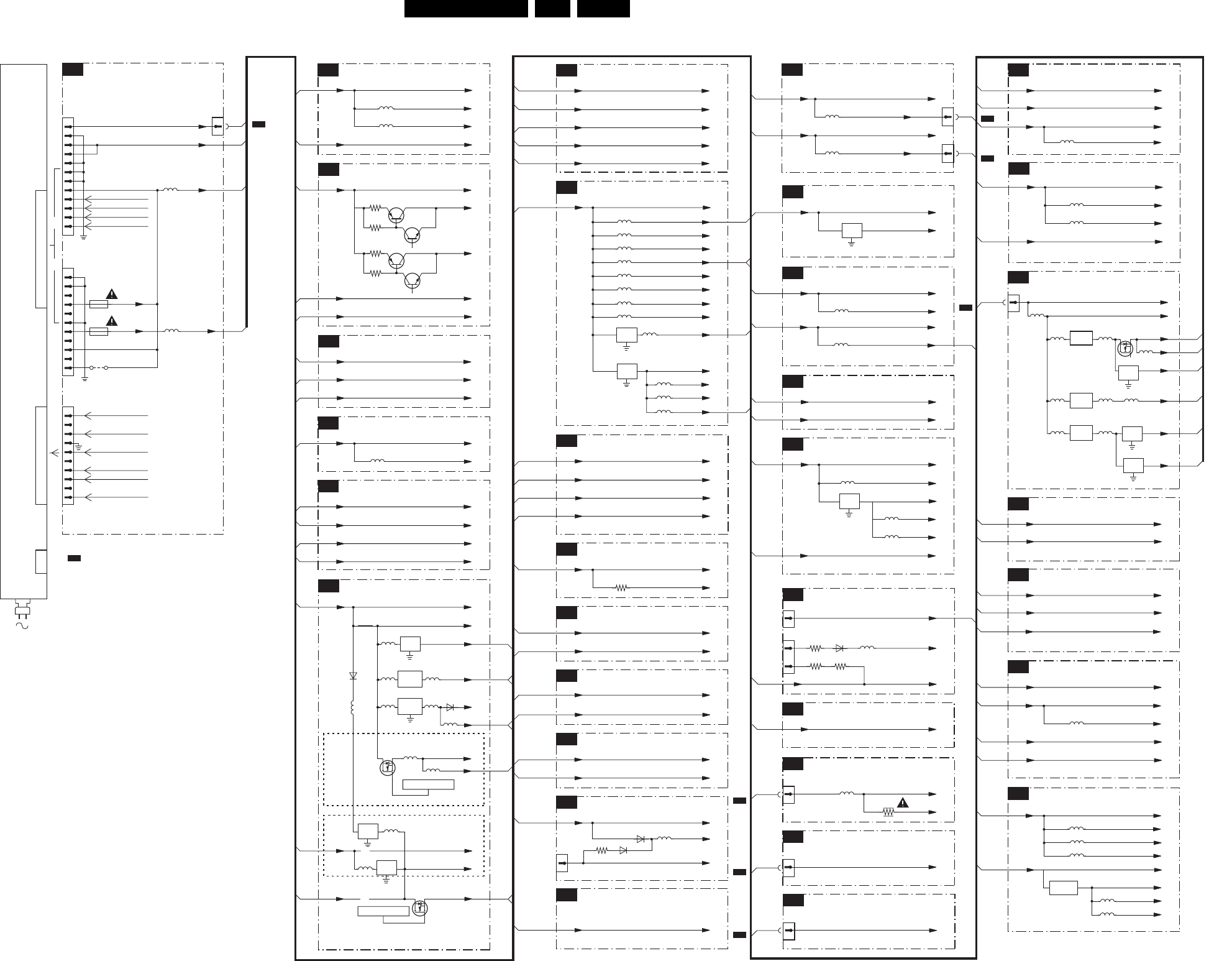

Supply Voltage Overview 28

7. Circuit Diagrams and PWB Layouts Diagram PWB

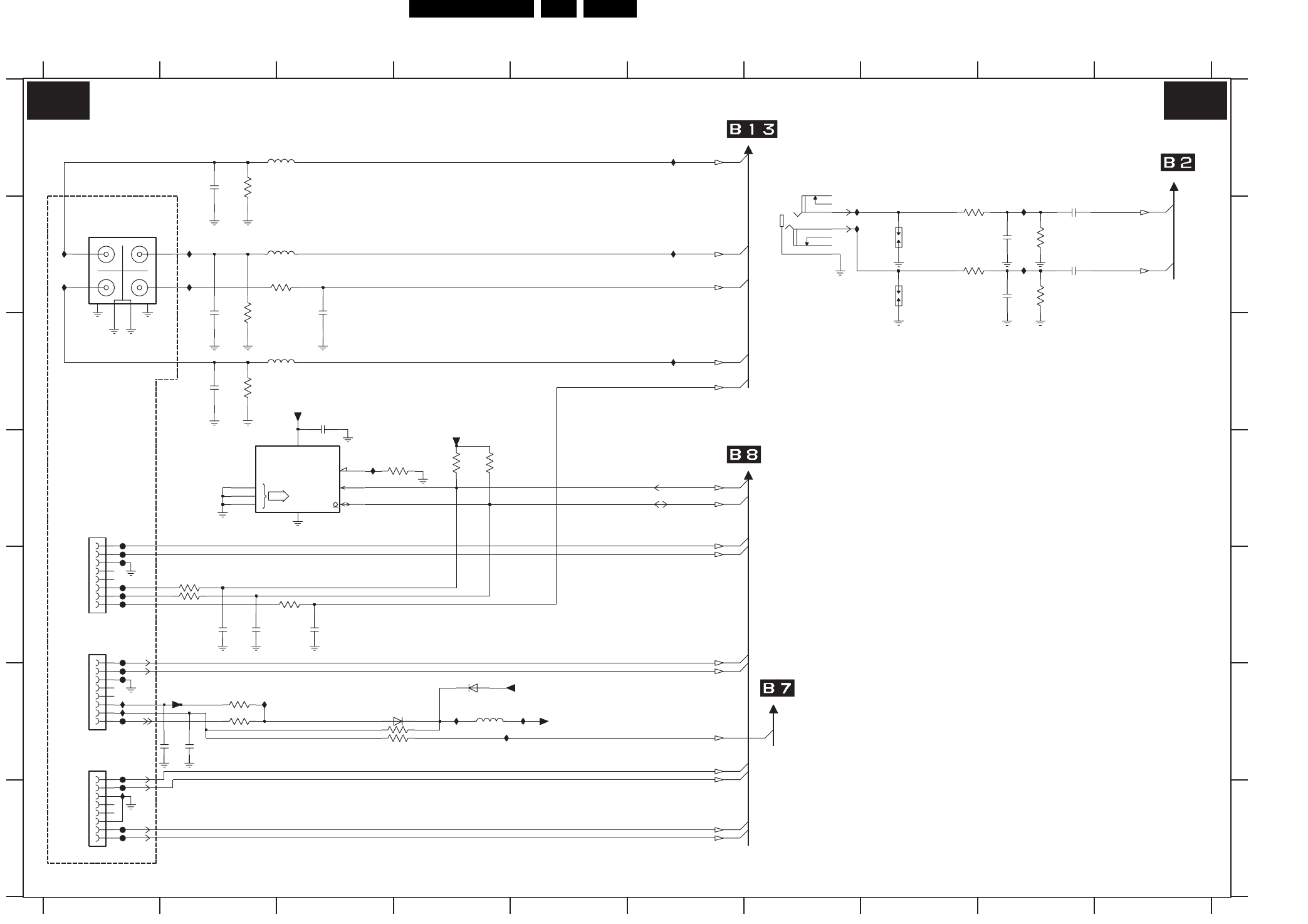

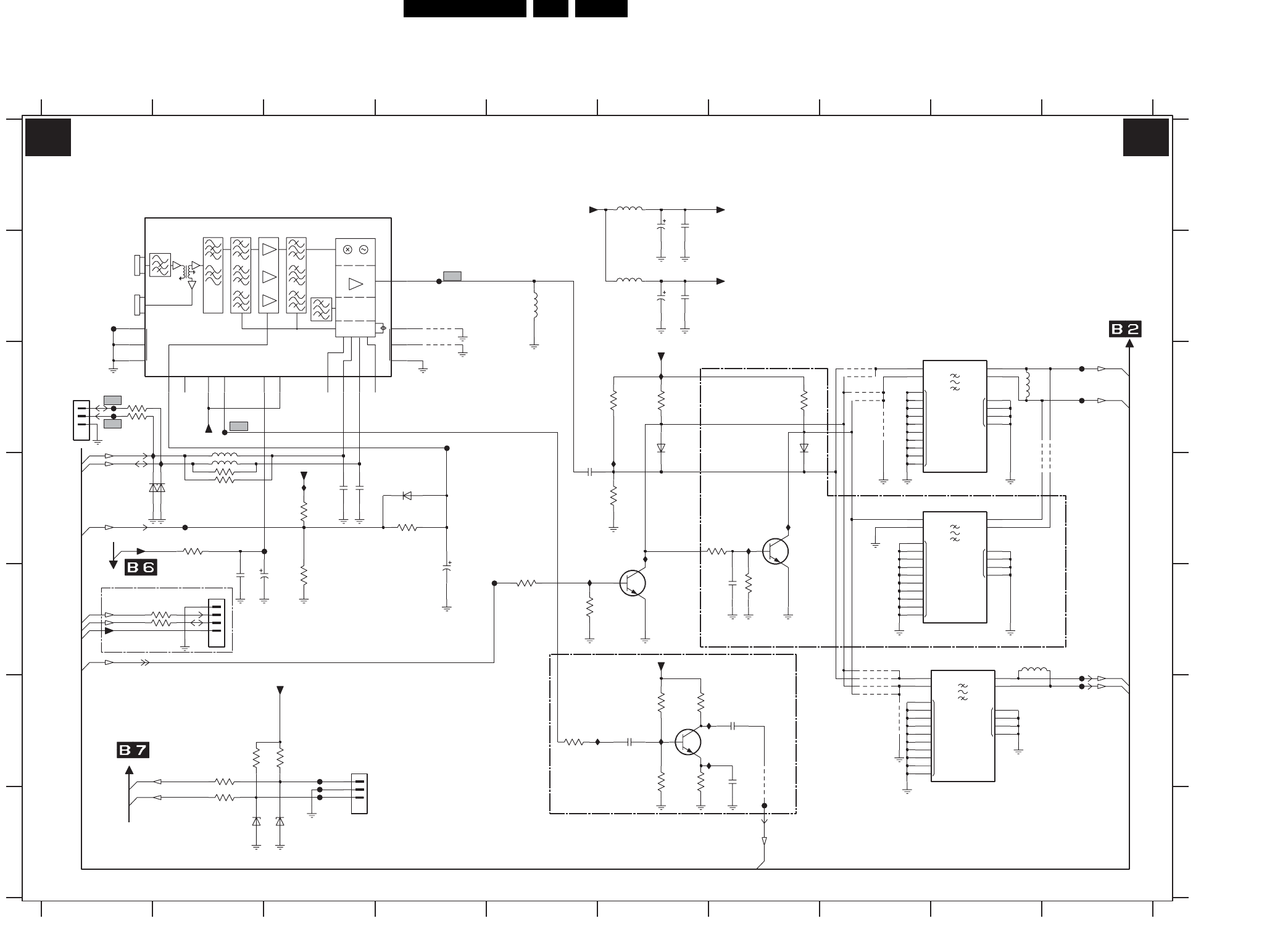

SSB: Tuner and VIF (B1) 29 51-60

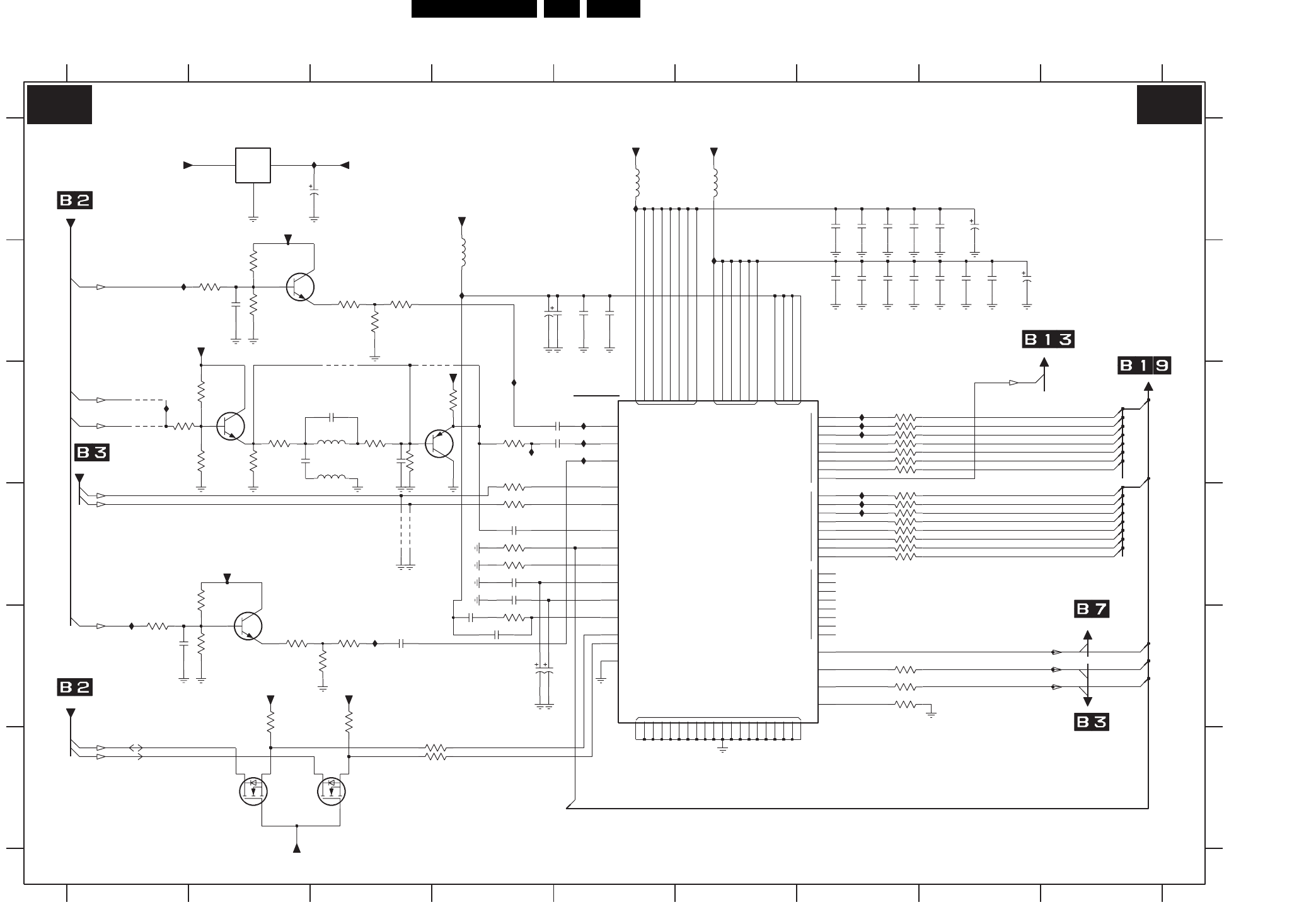

SSB: Hercules (B2) 30 51-60

SSB: Sync Interface (B3) 31 51-60

SSB: Audio Delay Line (Reserved) (B4) 32 51-60

SSB: Audio Processing (B5) 33 51-60

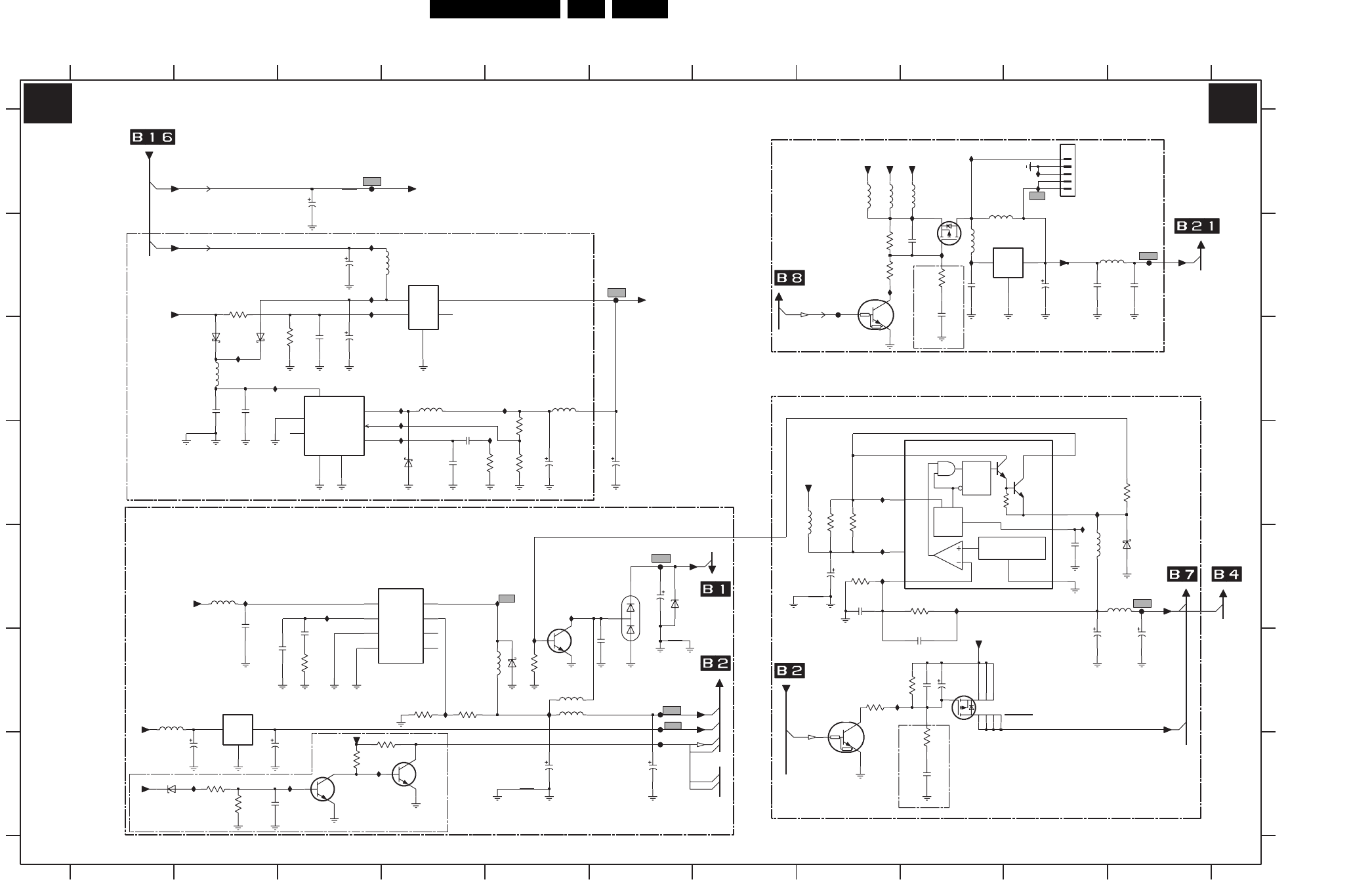

SSB: DC-DC Converter (B6) 34 51-60

SSB: Diversity Tables B1-B6 35

SSB: Scaler (B7) 36 51-60

SSB: Scaler (B8) 37 51-60

SSB: Scaler Interface (B9) 38 51-60

SSB: SDRAM (B10) 39 51-60

SSB: Flash / Control (B11) 40 51-60

SSB: MUX-Sync Interface (B13) 41 51-60

SSB: Digital I/O (B14) 42 51-60

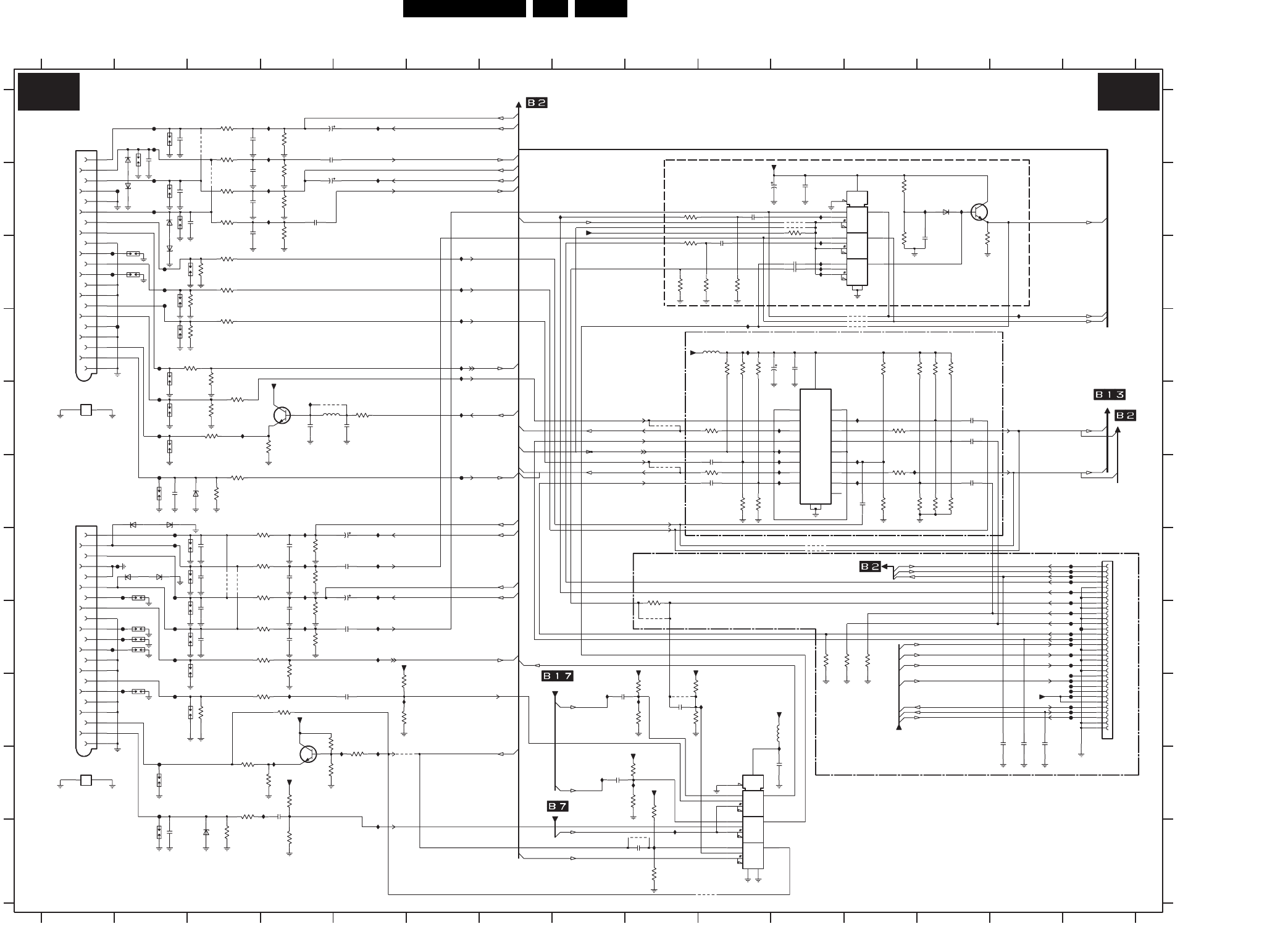

SSB: SCART Analogue I/O (B15) 43 51-60

SSB: Top Connectors (B16) 44 51-60

SSB: Side Connectors (B17) 45 51-60

SSB: ADC (B18) 46 51-60

SSB: Columbus (B19) 47 51-60

SSB: EPLD (B20) 48 51-60

SSB: EPLD (B21) 49 51-60

SSB: Diversity Tables B9-B21 50

Class D Audio Amplifier (C) 61 62

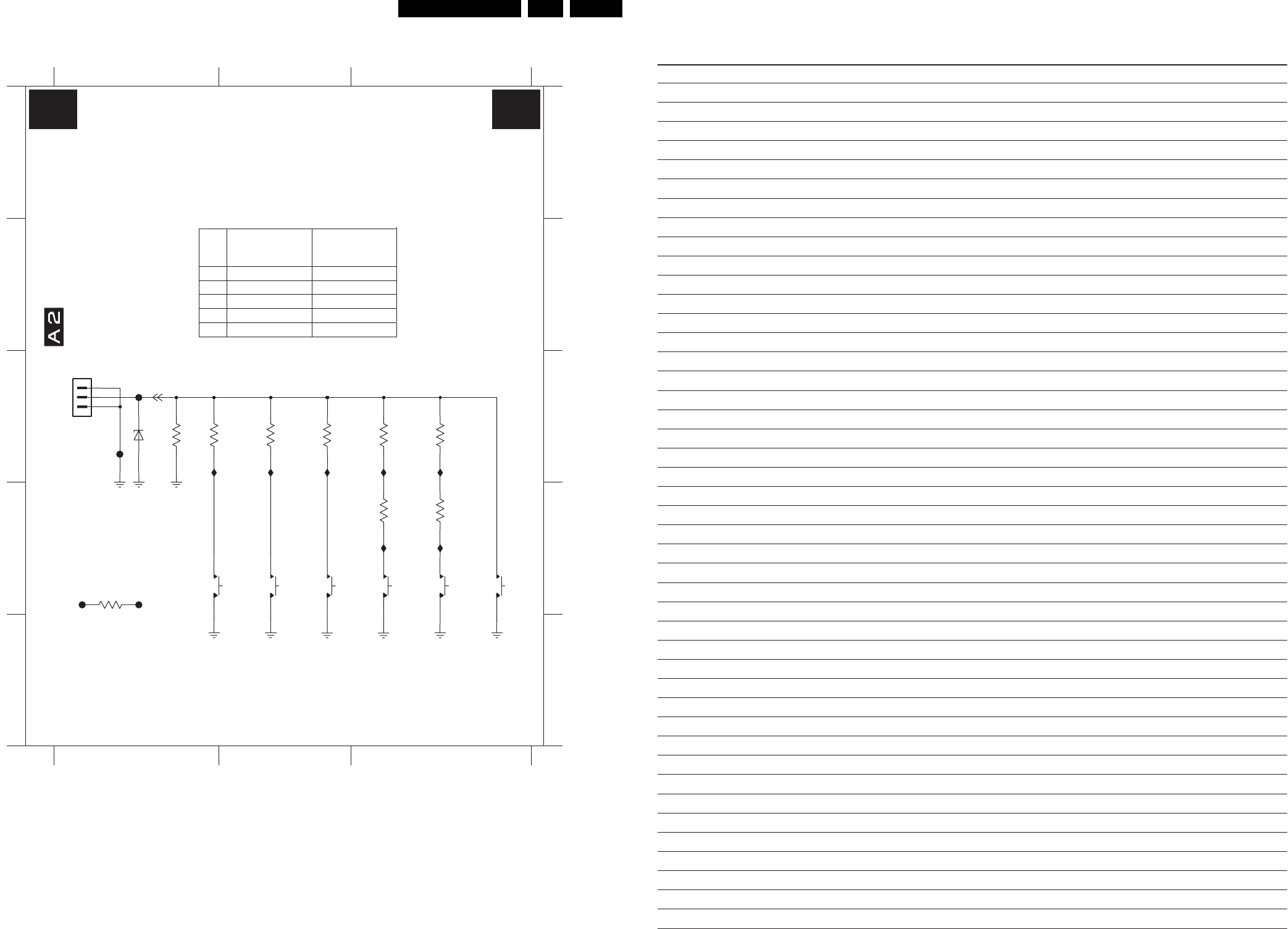

Keyboard Control Panel (D) 63 64

Side A/V Panel (G) 65 66

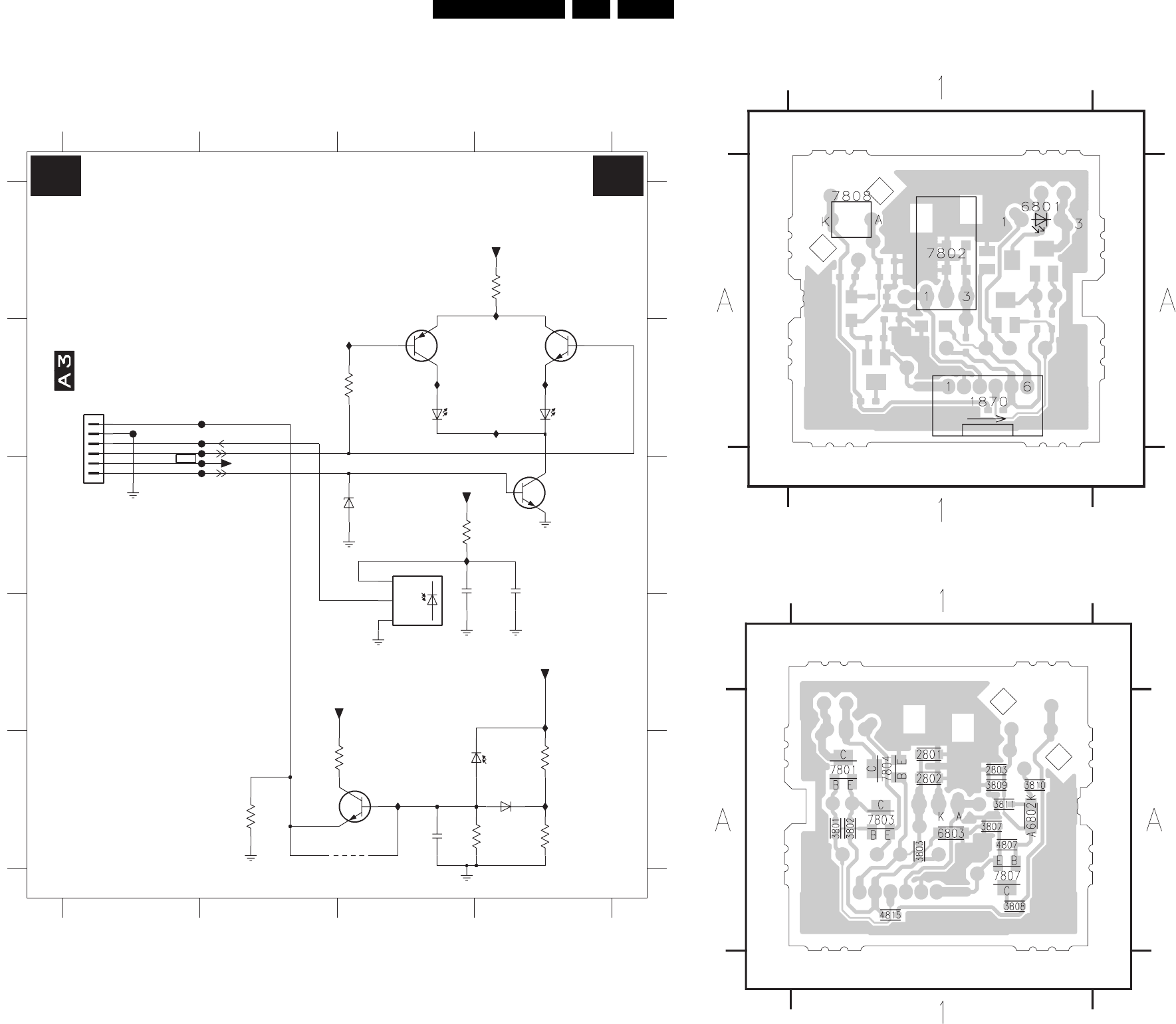

IR-LED and Light Sensor Panel (J) 67 67

8. Alignments 69

9. Circuit Descriptions, Abbreviation List, and IC Data

Sheets 74

Abbreviation List 82

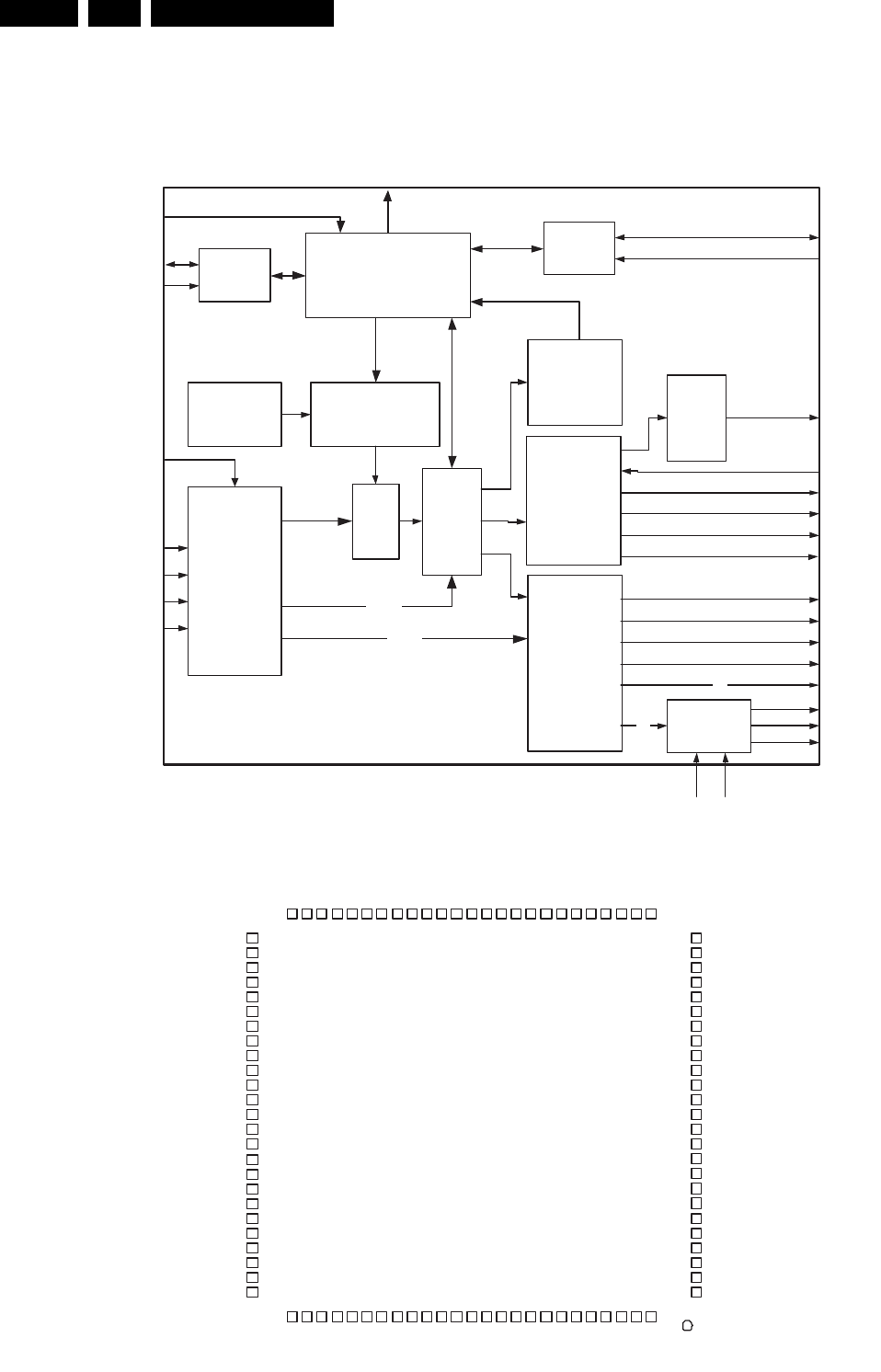

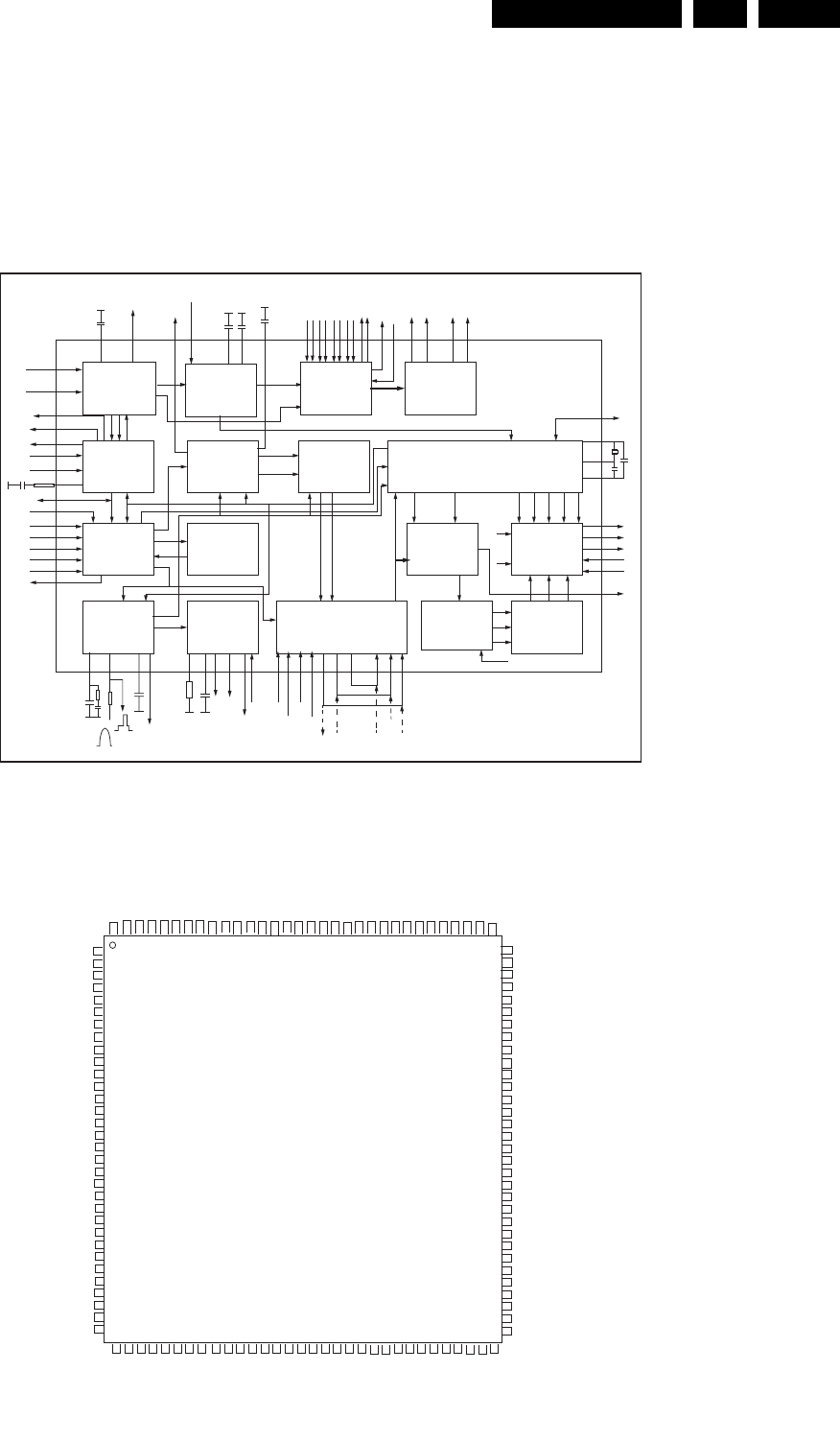

IC Data Sheets 85

10. Spare Parts List 89

11. Revision List 95

Technical Specifications, Connections, and Chassis Overview

EN 2 LC4.3E AA1.

1. Technical Specifications, Connections, and Chassis Overview

Index of this chapter:

1.1 Technical Specifications

1.2 Connection Overview

1.3 Chassis Overview

Notes:

• Figures can deviate due to the different set executions.

• Specifications are indicative (subject to change).

1.1 Technical Specifications

1.1.1 Vision

Display type : LCD, IPS

Screen size :

- 26PF4310/10 : 26” (66 cm), 15:9

- 26PF5320/10 : 26” (66 cm), 16:9

- 32PF5320/10 : 32” (82 cm), 16:9

- 32PF7320/10 : 32” (82 cm), 16:9

Resolution (HxV pixels) :

- 26PF4310/10 : 1280 x 768

- 26PF5320/10 : 1366 x 768

- 32PF5320/10 : 1366 x 768

- 32PF7320/10 : 1366 x 768

Contrast ratio :

- 26PF4310/10 : 500:1

- 26PF5320/10 : 600:1

- 32PF5320/10 : 600:1

- 32PF7320/10 : 600:1

Light output (cd/m2):

- 26PF4310/10 : 400

- 26PF5320/10 : 500

- 32PF5320/10 : 500

- 32PF7320/10 : 500

Response time (ms) :

- 26PF4310/10 : 16

- 26PF5320/10 : 16

- 32PF5320/10 : 18

- 32PF7320/10 : 18

Viewing angle (HxV degrees) :

- 26PF4310/10 : 176x176

- 26PF5320/10 : 178x178

- 32PF5320/10 : 176x176

- 32PF7320/10 : 176x176

Tuning system : PLL

TV Colour systems : PAL B/G, D/K, I

: SECAM B/G, D/K, L/L’

Video playback :

- 26PF4310/10 : PAL B/G; SECAM L/L’

- 26PF5320/10, :

- 32PF5320/10, :

- 32PF7320/10: : NTSC M/N 3.58, 4.43

: PAL B/G

: SECAM L/L’

Supported computer formats : VGA (640x480)

: MAC (640x480)

: SVGA (800x600)

: XVGA (1024x768)

: WXGA (1280x768)

Supported video formats : 640x480i - 1fH

: 720x576i - 1fH

: 640x480p - 2fH

: 720x576p - 2fH

: 1920x1080i - 2fH

Presets/channels : 100 presets

Tuner bands : VHF

: UHF

: S-band

:Hyper-band

1.1.2 Sound

Sound systems : FM-mono

: FM-stereo B/G

: NICAM B/G, D/K, I, L

: AV Stereo

Maximum power (WRMS):

- 26PF4310/10 : 2 x 5

- 26PF5320/10 : 2 x 5

- 32PF5320/10 : 2 x 15

- 32PF7320/10 : 2 x 15

1.1.3 Miscellaneous

Power supply:

- Mains voltage (VAC) : 95 - 240

- Mains frequency (Hz) : 50 / 60

Ambient conditions:

- Temperature range (qC) : +5 to +40

- Maximum humidity : 90% R.H.

Power consumption

- Normal operation (W) : | 96

- Stand-by (W) : < 1

Dimensions (WxHxD cm) :

- 26PF4310/10 : 79.2 x 43.1 x 24.2

- 26PF5320/10 : 80.45 x 47.7 x 22.2

- 32PF5320/10 : 92.4 x 55.0 x 22.2

- 32PF7320/10 : 92.4 x 55.0 x 22.2

Weight (kg) :

- 26PF4310/10 : 15

- 26PF5320/10 : 16

- 32PF5320/10 : 18.2

- 32PF7320/10 : 18.2

1.2 Connection Overview

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=

Grey, Rd= Red, Wh= White, and Ye= Yellow.

1.2.1 Side I/O connections

Figure 1-1 Side I/O connections

SVHS (Hosiden): Video Y/C - In

1 - Ground Y Gnd H

2 - Ground C Gnd H

3 - Video Y 1 VPP / 75 ohm j

4 - Video C 0.3 VPP / 75 ohm j

Cinch: Video CVBS - In, Audio - In

Ye - Video CVBS 1 VPP / 75 ohm jq

Wh - Audio L 0.5 VRMS / 10 kohm jq

Rd - Audio R 0.5 VRMS / 10 kohm jq

LR

AudioS-Video Video

E_14710_005.eps

210404

Technical Specifications, Connections, and Chassis Overview EN 3LC4.3E AA 1.

Mini Jack: Audio Head phone - Out

Bk - Head phone 32 - 600 ohm / 10 mW ot

1.2.2 Rear Connections

Figure 1-2 Rear I/O

Aerial - In

- - IEC-type (EU) Coax, 75 ohm D

Mini Jack: PC-Audio - In

1 - Ground Gnd H

2 - Audio L 0.5 VRMS / 10 kohm j

3 - Audio R 0.5 VRMS / 10 kohm j

Service connector (ComPair)

1 - SDA-S I2C Data (0 - 5 V) jk

2 - SCL-S I2C Clock (0 - 5 V) j

3 - Ground Gnd H

Service connector (UART)

1 - UART_TX Transmit k

2 - Ground Gnd H

3 - UART_RX Receive j

DVI-I: Digital/Analogue Video - In

Figure 1-3 DVI-I connector

1 -D2- j

2 - D2+ j

3 - Shield Gnd H

4 - D4- j

5 - D4+ j

6 - DDC_SCL DDC clock k

7 - DDC_SDA DDC data jk

8 - V-sync 0 - 5 V j

9 - D1- j

10-D1+ j

11 - Shield Gnd H

12-D3- j

13-D3+ j

14 - +5V j

15 - Ground Gnd H

16 - HPD Hot Plug Detect j

17-D0- j

18-D0+ j

19 - Shield Gnd H

20 - D5- j

21 - D5+ j

22 - Shield Gnd H

23 - CLK+ j

24 - CLK- j

C1 - Video Red 0.7 VPP / 75 ohm j

C2 - Video Green 0.7 VPP / 75 ohm j

C3 - Video Blue 0.7 VPP / 75 ohm j

C4 - H-sync 0 - 5 V j

C5 - Ground Gnd H

EXT1: Video RGB - In, CVBS - In/Out, Audio - In/Out

Figure 1-4 SCART connector

1 - Audio R 0.5 VRMS / 1 kohm k

2 - Audio R 0.5 VRMS / 10 kohm j

3 - Audio L 0.5 VRMS / 1 kohm k

4 - Ground Audio Gnd H

5 - Ground Blue Gnd H

6 - Audio L 0.5 VRMS / 10 kohm j

7 - Video Blue 0.7 VPP / 75 ohm j

8 - Function Select 0 - 2 V: INT

4.5 - 7 V: EXT 16:9

9.5 - 12 V: EXT 4:3 j

9 - Ground Green Gnd H

10 - n.c.

11 - Video Green 0.7 VPP / 75 ohm j

12 - n.c.

13 - Ground Red Gnd H

14 - Ground Gnd H

15 - Video Red 0.7 VPP / 75 ohm j

16 - Status/FBL 0 - 0.4 V: INT

1 - 3 V: EXT / 75 ohm j

17 - Ground Video Gnd H

18 - Ground FBL Gnd H

19 - Video Terr. CVBS 1 VPP / 75 ohm k

20 - Video CVBS/Y 1 VPP / 75 ohm j

21 - Shield Gnd H

EXT2: Video Y/C - in, CVBS - In/Out, Audio - In/Out

Figure 1-5 SCART connector

1 - Audio R 0.5 VRMS / 1 kohm k

2 - Audio R 0.5 VRMS / 10 kohm j

3 - Audio L 0.5 VRMS / 1 kohm k

4 - Ground Audio Gnd H

5 - Ground Blue Gnd H

6 - Audio L 0.5 VRMS / 10 kohm j

7 - n.c.

8 - Function Select 0 - 2 V: INT

4.5 - 7 V: EXT 16:9

9.5 - 12 V: EXT 4:3 j

9 - Ground Green Gnd H

10 - n.c.

11 - n.c.

12 - n.c.

13 - Ground Red Gnd H

14 - Ground Gnd H

15 - YC/C - in 0.7 VPP / 75 ohm j

16 - n.c.

17 - Ground Video Gnd H

18 - Ground Gnd H

19 - Video Mon. CVBS 1 VPP / 75 ohm k

20 - YC/Y - in 0.7 VPP / 75 ohm j

21 - Shield Gnd H

18

916

17

24

C5

C1 C2

C3 C4

EXT 2 EXT 1

DVI AUDIO

F_15270_001.eps

120505

DVIDVI-I

Audio In EXT 2 UART I2CEXT 1

ComPair

AERIAL IN

18

916

17

24

C5

C1 C2

C3 C4

E_06532_004.eps

050404

21

20

1

2

E_06532_001.eps

050404

21

20

1

2

E_06532_001.eps

050404

Technical Specifications, Connections, and Chassis Overview

EN 4 LC4.3E AA1.

1.3 Chassis Overview

Figure 1-6 Chassis overview

F_15270_002.eps

2450505

SMALL SIGNAL BOARD B

CLASS D AUDIO

AMPLIFIER PANEL C

KEYBOARD CONTROL

PANEL E

LCD PANEL

POWER SUPPLY

PANEL

LED & IR PANEL J

SIDE I/O PANEL G

Safety Instructions, Warnings, and Notes EN 5LC4.3E AA 2.

2. Safety Instructions, Warnings, and Notes

Index of this chapter:

2.1 Safety Instructions

2.2 Warnings

2.3 Notes

2.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains (AC Power) via an isolation

transformer (> 800 VA).

• Replace safety components, indicated by the symbol h,

only by components identical to the original ones. Any

other component substitution (other than original type) may

increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be

returned in its original condition. Pay in particular attention to

the following points:

• Route the wire trees correctly and fix them with the

mounted cable clamps.

• Check the insulation of the Mains (AC Power) lead for

external damage.

• Check the strain relief of the Mains (AC Power) cord for

proper function.

• Check the electrical DC resistance between the Mains (AC

Power) plug and the secondary side (only for sets that have

a Mains (AC Power) isolated power supply):

1. Unplug the Mains (AC Power) cord and connect a wire

between the two pins of the Mains (AC Power) plug.

2. Set the Mains (AC Power) switch to the "on" position

(keep the Mains (AC Power) cord unplugged!).

3. Measure the resistance value between the pins of the

Mains (AC Power) plug and the metal shielding of the

tuner or the aerial connection on the set. The reading

should be between 4.5 Mohm and 12 Mohm.

4. Switch "off" the set, and remove the wire between the

two pins of the Mains (AC Power) plug.

• Check the cabinet for defects, to prevent touching of any

inner parts by the customer.

2.2 Warnings

• All ICs and many other semiconductors are susceptible to

electrostatic discharges (ESD w). Careless handling

during repair can reduce life drastically. Make sure that,

during repair, you are connected with the same potential as

the mass of the set by a wristband with resistance. Keep

components and tools also at this same potential. Available

ESD protection equipment:

– Complete kit ESD3 (small tablemat, wristband,

connection box, extension cable and earth cable) 4822

310 10671.

– Wristband tester 4822 344 13999.

• Be careful during measurements in the high voltage

section.

• Never replace modules or other components while the unit

is switched "on".

• When you align the set, use plastic rather than metal tools.

This will prevent any short circuits and the danger of a

circuit becoming unstable.

2.3 Notes

2.3.1 General

• Measure the voltages and waveforms with regard to the

chassis (= tuner) ground (H), or hot ground (I), depending

on the tested area of circuitry. The voltages and waveforms

shown in the diagrams are indicative. Measure them in the

Service Default Mode (see chapter 5) with a colour bar

signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated

otherwise) and picture carrier at 475.25 MHz for PAL, or

61.25 MHz for NTSC (channel 3).

• Where necessary, measure the waveforms and voltages

with (D) and without (E) aerial signal. Measure the

voltages in the power supply section both in normal

operation (G) and in stand-by (F). These values are

indicated by means of the appropriate symbols.

• The semiconductors indicated in the circuit diagram and in

the parts lists, are interchangeable per position with the

semiconductors in the unit, irrespective of the type

indication on these semiconductors.

2.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is

often used to indicate the decimal point location (e.g. 2K2

indicates 2.2 kohm).

• Resistor values with no multiplier may be indicated with

either an "E" or an "R" (e.g. 220E or 220R indicates 220

ohm).

• All capacitor values are given in micro-farads (P x10-6),

nano-farads (n= x10-9), or pico-farads (p= x10-12).

• Capacitor values may also use the value multiplier as the

decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An "asterisk" (*) indicates component usage varies. Refer

to the diversity tables for the correct values.

• The correct component values are listed in the Spare Parts

List. Therefore, always check this list when there is any

doubt.

2.3.3 Rework on BGA (Ball Grid Array) ICs

General

Although (LF)BGA assembly yields are very high, there may

still be a requirement for component rework. By rework, we

mean the process of removing the component from the PWB

and replacing it with a new component. If an (LF)BGA is

removed from a PWB, the solder balls of the component are

deformed drastically so the removed (LF)BGA has to be

discarded.

Device Removal

As is the case with any component that, is being removed, it is

essential when removing an (LF)BGA, that the board, tracks,

solder lands, or surrounding components are not damaged. To

remove an (LF)BGA, the board must be uniformly heated to a

temperature close to the reflow soldering temperature.

A uniform temperature reduces the risk of warping the PWB. To

do this, we recommend that the board is heated until it is certain

that all the joints are molten. Then carefully pull the component

off the board with a vacuum nozzle. For the appropriate

temperature profiles, see the IC data sheet.

Area Preparation

When the component has been removed, the vacant IC area

must be cleaned before replacing the (LF)BGA.

Removing an IC often leaves varying amounts of solder on the

mounting lands. This excessive solder can be removed with

either a solder sucker or solder wick. The remaining flux can be

removed with a brush and cleaning agent.

Safety Instructions, Warnings, and Notes

EN 6 LC4.3E AA2.

After the board is properly cleaned and inspected, apply flux on

the solder lands and on the connection balls of the (LF)BGA.

Note: Do not apply solder paste, as this has been shown to

result in problems during re-soldering.

Device Replacement

The last step in the repair process is to solder the new

component on the board. Ideally, the (LF)BGA should be

aligned under a microscope or magnifying glass. If this is not

possible, try to align the (LF)BGA with any board markers.

So as not to damage neighbouring components, it may be

necessary to reduce some temperatures and times.

More Information

For more information on how to handle BGA devices, visit this

URL: www.atyourservice.ce.philips.com (needs subscription,

not available for all regions). After login, select “Magazine”,

then go to “Workshop Information”. Here you will find

Information on how to deal with BGA-ICs.

2.3.4 Lead-free Solder

Philips CE is producing lead-free sets (PBF) from 1.1.2005

onwards.

Identification: The bottom line of a type plate gives a 14-digit

serial number. Digits 5 and 6 refer to the production year, digits

7 and 8 refer to production week (in example below it is 1991

week 18).

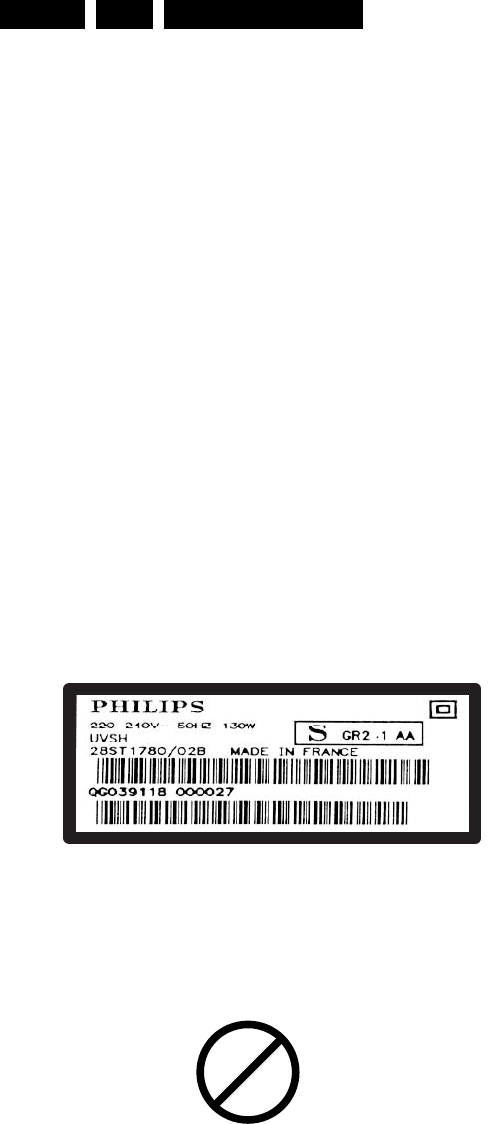

Figure 2-1 Serial number example

Regardless of the special lead-free logo (which is not always

indicated), one must treat all sets from this date onwards

according to the rules as described below.

Figure 2-2 Lead-free logo

Due to lead-free technology some rules have to be respected

by the workshop during a repair:

• Use only lead-free soldering tin Philips SAC305 with order

code 0622 149 00106. If lead-free solder paste is required,

please contact the manufacturer of your soldering

equipment. In general, use of solder paste within

workshops should be avoided because paste is not easy to

store and to handle.

• Use only adequate solder tools applicable for lead-free

soldering tin. The solder tool must be able:

– To reach a solder-tip temperature of at least 400°C.

– To stabilise the adjusted temperature at the solder-tip.

– To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around

360°C - 380°C is reached and stabilised at the solder joint.

Heating time of the solder-joint should not exceed ~ 4 sec.

Avoid temperatures above 400°C, otherwise wear-out of

tips will increase drastically and flux-fluid will be destroyed.

To avoid wear-out of tips, switch “off” unused equipment or

reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering

tin/parts is possible but PHILIPS recommends strongly to

avoid mixed regimes. If this cannot be avoided, carefully

clear the solder-joint from old tin and re-solder with new tin.

• Use only original spare-parts listed in the Service-Manuals.

Not listed standard material (commodities) has to be

purchased at external companies.

• Special information for lead-free BGA ICs: these ICs will be

delivered in so-called "dry-packaging" to protect the IC

against moisture. This packaging may only be opened

shortly before it is used (soldered). Otherwise the body of

the IC gets "wet" inside and during the heating time the

structure of the IC will be destroyed due to high (steam-)

pressure inside the body. If the packaging was opened

before usage, the IC has to be heated up for some hours

(around 90°C) for drying (think of ESD-protection!).

Do not re-use BGAs at all!

• For sets produced before 1.1.2005, containing leaded

soldering tin and components, all needed spare parts will

be available till the end of the service period. For the repair

of such sets nothing changes.

In case of doubt whether the board is lead-free or not (or with

mixed technologies), you can use the following method:

• Always use the highest temperature to solder, when using

SAC305 (see also instructions below).

• De-solder thoroughly (clean solder joints to avoid the

mixing of two alloys).

Caution: For BGA-ICs, you must use the correct temperature

profile, which is coupled to the 12NC. For an overview of these

profiles, visit the website www.atyourservice.ce.philips.com

(needs subscription, but is not available for all regions).

You will find this and more technical information within the

"Magazine", chapter "Workshop information".

For additional questions please contact your local repair help

desk.

2.3.5 Practical Service Precautions

•It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible

dangerous impact, others of quite high potential are of

limited current and are sometimes held in less regard.

•Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected

reactions that are best avoided. Before reaching into a

powered TV set, it is best to test the high voltage insulation.

It is easy to do, and is a good service precaution.

E_06532_024.eps

230205

P

b

Directions for Use EN 7LC4.3E AA 3.

3. Directions for Use

You can download this information from the following websites:

http://www.philips.com/support

http://www.p4c.philips.com

Mechanical Instructions

EN 8 LC4.3E AA4.

4. Mechanical Instructions

Index of this chapter:

4.1 Cable Dressing

4.2 Service Position

4.3 Assy/Panel Removal

4.4 Set Re-assembly

Notes:

• Figures below can deviate slightly from the actual situation,

due to the different set executions.

• Follow the disassembling instructions in described order.

4.1 Cable Dressing

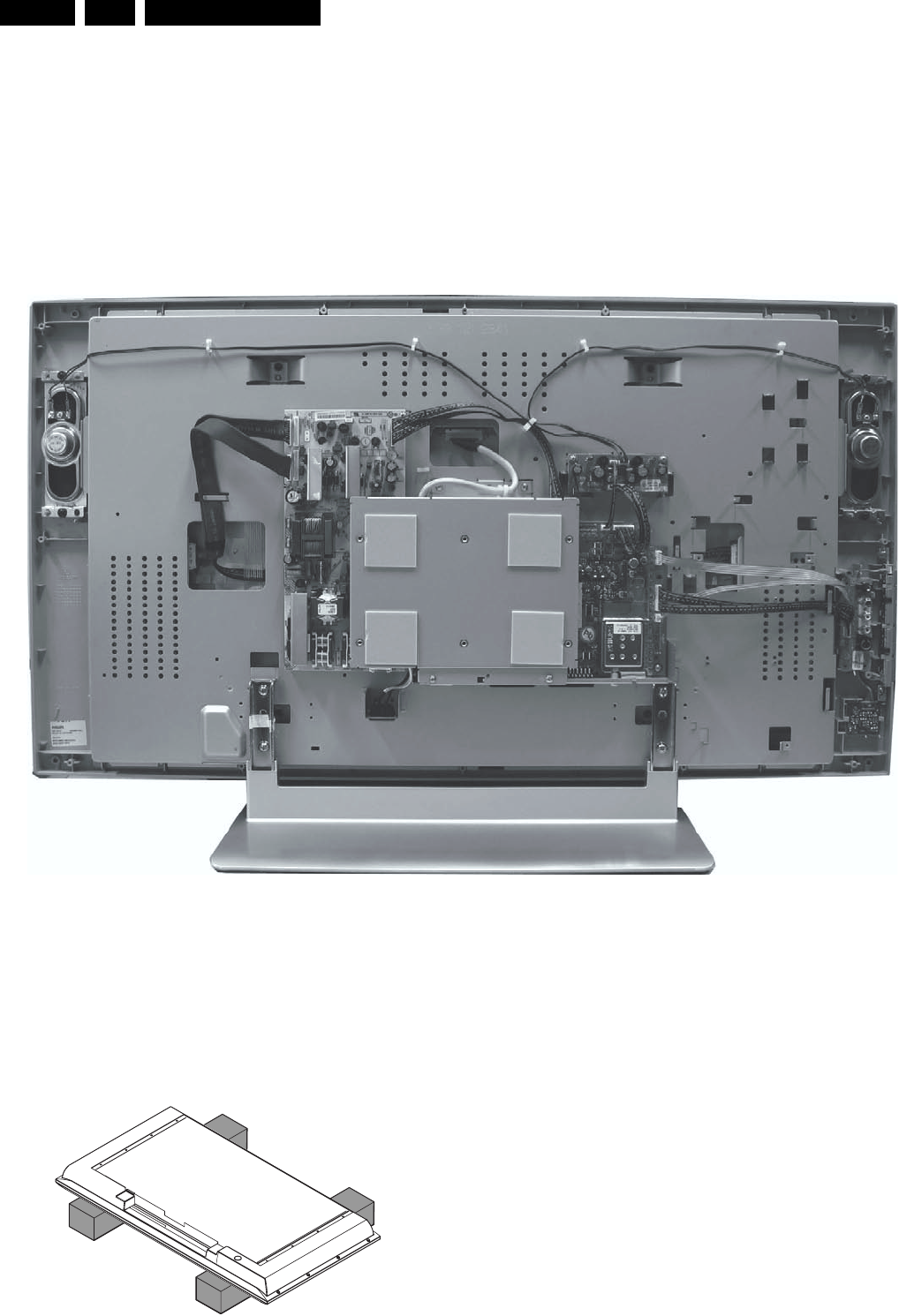

Figure 4-1 Cable dressing

4.2 Service Position

First, put the TV set in its service position. Therefore, place it

upside down on a table top (use a protection sheet or foam

bars).

4.2.1 The Foam Bars

Figure 4-2 Foam bars

The foam bars (order code 3122 785 90580) can be used for

all types and sizes of Flat TVs. By laying the plasma or LCD TV

flat on the (ESD protective) foam bars, a stable situation is

created to perform measurements and alignments. By first

placing a mirror flat on the table under the TV you can easily

see if something is happening on the screen.

4.3 Assy/Panel Removal

4.3.1 Rear Cover

Warning: Disconnect the mains power cord before you remove

the rear cover.

1. Remove the screws that secure the rear cover.

2. Lift the rear cover from the cabinet cautiously. Make sure

that wires and other internal components are not damaged

during cover removal.

F_15270_043.eps

180505

E_06532_018.eps

170504

Mechanical Instructions EN 9LC4.3E AA 4.

4.3.2 Side I/O Panel

Figure 4-3 Side I/O panel

1. Disconnect the cable (1) from the panel.

2. Release the two fixation clamps (2) and lift the panel out of

the bracket.

4.3.3 LED Panel

Figure 4-4 LED panel

1. Release the fixation clamp (1) and take the panel out of the

bracket.

2. Disconnect the cable (2) from the panel.

4.3.4 Keyboard Control Panel

Figure 4-5 Keyboard control panel

1. Remove the two fixation screws (1) from the bracket and

take out the panel/bracket combination.

2. Remove the fixation tape (2) from the panel/bracket

combination.

3. Release the three fixation clamps (3) and lift the panel out

of the bracket.

4. Disconnect the cable (4) from the panel.

F_15390_046.eps

240505

1

2

F-15390_039.eps

280205

1

2

F_15390_049.eps

250505

1

1

4

3

2

2

3

3

Mechanical Instructions

EN 10 LC4.3E AA4.

4.3.5 SSB Board Cover Shield (depending on model)

Figure 4-6 Cable clip on cover shield

Figure 4-7 SSB board cover shield

1. Release the cable from the plastic cable clip (1) on the

shield (see Figure “Cable clip on cover shield” above).

2. Remove the four fixation screws (2, see Figure “SSB board

cover shield”; the screws are also indicated by arrows on

the shield) and remove the shield.

Notice that on one side, the shield is not only held by two

screws, but also by two brackets (see Figure “Cable clip on

cover shield” above).

4.3.6 SSB Board

Figure 4-8 SSB board connectors

Figure 4-9 DVI-I connector screws

1. Very cautiously disconnect the LVDS cable (1) from the

panel (see Figure “SSB board connectors”). Notice that this

cable is very fragile.

2. Disconnect the six remaining cables (2) from the panel.

3. Remove the fixation screws that secure the SSB board

(depending on model) and also the two fixation screws (3)

from the DVI-I connector on the SSB board (see Figure

“DVI-I connector screws”).

4. Take the panel out of its brackets.

F_15270_044.eps

180505

1

F_15270_045.eps

190505

2

2

F_15270_046.eps

180505

1

22

F_15270_047.eps

180505

3

Mechanical Instructions EN 11LC4.3E AA 4.

4.3.7 Power Supply Panel (various models used)

Figure 4-10 Power supply panel

1. Disconnect all cables (1) from the panel.

Notice that the two connectors for X520 and X530 on

this panel are similar, and should not be mixed up later

when they are reconnected (X520 is connected via its

flatcable to connector CN01 on the LCD panel, near the R-

speaker; X530 is connected via its flatcable to connector

CN04 on the LCD panel, near the L-speaker).

2. Remove the three fixation screws (2) from the panel.

3. Take the panel out of its brackets.

4.3.8 Audio Amplifier Panel

Figure 4-11 Audio amplifier panel

1. Disconnect all cables (1) from the panel.

2. Remove the fixation screws (2) from the panel.

3. Remove the panel.

F_15270_048.eps

180505

1

2

2

2

1

1

1

X530

X520

F_15270_049.eps

180505

1

22

Mechanical Instructions

EN 12 LC4.3E AA4.

4.3.9 LCD Panel

Figure 4-12 Anti-static copper foil

Figure 4-13 LVDS connector

Figure 4-14 SSB board connectors for side I/O, keyboard control,

and LED

Figure 4-15 Connectors X520 and X530 on power supply panel

Figure 4-16 Connector 66B on LCD panel

Figure 4-17 LCD panel

F_15390_047.eps

280205

2

1

F_15270_051.ep

s

28020

5

3

F_15270_052.eps

180505

4

F_15390_052.eps

280205

5

5

F_15390_051.eps

280205

6

F_15390_050.eps

280205

7

Mechanical Instructions EN 13LC4.3E AA 4.

To remove the LCD-panel, carry out the following steps:

1. Cautiously pull back the upper parts of the anti-static

copper foils next to the “L” and “R” loudspeakers (see

Figure “Anti-static copper foil”). Do this in such a way that

the foils are no longer attached to the metal ground plate

on which the SSB board is mounted.

2. Disconnect the cables (2) from the “L” and the “R”

loudspeakers (see Figure “Anti-static copper foil”).

3. Important: Unplug the LVDS connector (3) on the LCD

panel (see Figure “LVDS connector”).

Be careful, as this is a very fragile connector!

4. Unplug the connectors (4) of the Side I/O panel, the Top

Control panel, and the LED panel on the SSB board (see

Figure “SSB board connectors for side I/O, keyboard

control, and LED”).

5. Unplug the X520 and X530 connectors (5) on the Power

Supply board (see Figure “ Connectors X520 and X530 on

power supply panel”). Instead of X520, also connector 66B

(6) on the other end of the flatcable can be unplugged (see

Figure “Connector 66B on LCD panel”).

6. Lift the metal frame (together with all PWBs) from the LCD

panel.

Take care not to damage the fragile LVDS cable, the

66B connector and the anti-static copper foils near the

“L” and “R” loudspeakers (take care of this too when

later re-assembling the TV set and replacing the

copper foil).

7. After removal of the metal frame, you can lift the LCD

display (7) from its plastic frame (see Figure “LCD panel”).

8. If the plastic frame is damaged, replace it by a new frame,

after removing the loudspeakers, the Side I/O panel, the

Top Control panel, and the LED panel.

4.4 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse

order.

Notes:

• While re-assembling, make sure that all cables are placed

and connected in their original positions. See Figure "Cable

dressing". Also make sure that the anti-static copper foils

are not damaged and that they make good electrical

contact with the metal frame. Be careful with the fragile

LVDS cable.

Service Modes, Error Codes, and Fault Finding

EN 14 LC4.3E AA5.

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

5.1 Test Points

5.2 Service Modes

5.3 Problems and Solving Tips Related to CSM

5.4 ComPair

5.5 Error Codes

5.6 The Blinking LED Procedure

5.7 Fault Finding and Repair Tips

5.1 Test Points

This chassis is equipped with test points in the service printing.

In the schematics test points are identified with a rectangle box

around Fxxx or Ixxx.

Perform measurements under the following conditions:

• Television set in Service Default Alignment Mode.

• Video input: Colour bar signal.

• Audio input: 3 kHz left channel, 1 kHz right channel.

5.2 Service Modes

Service Default mode (SDM) and Service Alignment Mode

(SAM) offers several features for the service technician, while

the Customer Service Mode (CSM) is used for communication

between the call centre and the customer.

This chassis also offers the option of using ComPair, a

hardware interface between a computer and the TV chassis. It

offers the possibilities of structured troubleshooting, error code

reading, and software version readout for all chassis.

Minimum requirements for ComPair: a Pentium processor, a

Windows OS, and a CD-ROM drive (see also paragraph

"ComPair").

5.2.1 Service Default Mode (SDM)

Purpose

• To create a predefined setting for measurements to be

made.

• To override software protections.

• To start the blinking LED procedure.

• To inspect the error buffer.

• To check the life timer.

Specifications

• Tuning frequency: 475.25 MHz.

• Colour system: PAL-BG.

• All picture settings at 50% (brightness, colour contrast,

hue).

• Bass, treble, and balance at 50 %; volume at 25 %.

• All service-unfriendly modes (if present) are disabled. The

service unfriendly modes are:

– Timer / Sleep timer.

– Child / parental lock.

– Blue mute.

– Hotel / hospital mode.

– Auto shut off (when no “IDENT” video signal is

received for 15 minutes).

– Skipping of non-favourite presets / channels.

– Auto-storage of personal presets.

– Auto user menu time-out.

– Auto Volume Levelling (AVL).

How to Enter

To enter SDM, use one of the following methods:

• Press the following key sequence on the remote control

transmitter: “062596” directly followed by the MENU button

(do not allow the display to time out between entries while

keying the sequence).

• Short "Service" jumpers on the TV board during cold start

and apply mains (see Figure "Service jumpers"). Then

press the mains button (remove the short after start-up).

Caution: Entering SDM by shorting "Service" jumpers will

override the +8V-protection. Do this only for a short period.

When doing this, the service-technician must know exactly

what he is doing, as it could damage the television set.

• Or via ComPair.

Figure 5-1 Service jumpers

After entering SDM, the following screen is visible, with SDM in

the upper right corner of the screen to indicate that the

television is in Service Default Mode.

Figure 5-2 SDM menu

F_15270_053.eps

180505

1

00035 LC4XEP1 1.08/S4XGVX 1.10 SDM

ERR 0 0 0 0 0

OP 000 057 140 032 120 128 000

F_15270_003.eps

1250505

Service Modes, Error Codes, and Fault Finding EN 15LC4.3E AA 5.

How to Navigate

Use one of the following methods:

• When you press the MENU button on the remote control,

the set will switch on the normal user menu in the SDM

mode.

• On the TV, press and hold the VOLUME DOWN and press

the CHANNEL DOWN for a few seconds, to switch from

SDM to SAM and reverse.

How to Exit

Switch the set to STANDBY by pressing the mains button on

the remote control transmitter or the television set.

If you turn the television set off by removing the mains (i.e.,

unplugging the television) without using the mains button, the

television set will remain in SDM when mains is re-applied, and

the error buffer is not cleared.

5.2.2 Service Alignment Mode (SAM)

Purpose

• To change option settings.

• To display / clear the error code buffer.

• To perform alignments.

Specifications

• Operation hours counter (maximum five digits displayed).

• Software version, Error codes, and Option settings display.

• Error buffer clearing.

• Option settings.

• AKB switching.

• Software alignments (Tuner, White Tone, Geometry &

Audio).

• NVM Editor.

• ComPair Mode switching.

How to Enter

To enter SAM, use one of the following methods:

• Press the following key sequence on the remote control

transmitter: “062596" directly followed by the OSD/

STATUS/INFO(I+) button (do not allow the display to time

out between entries while keying the sequence).

• Or via ComPair.

After entering SAM, the following screen is visible, with SAM in

the upper right corner of the screen to indicate that the

television is in Service Alignment Mode.

Figure 5-3 SAM menu

Menu Explanation

1. LLLLL. This represents the run timer. The run timer counts

normal operation hours, but does not count standby hours.

2. AAABCD-X.Y. This is the software identification of the

main microprocessor:

–A= the project name (LC04.x).

–B= the region: E= Europe, A= Asia Pacific, U= NAFTA,

L= LATAM.

–C= the software diversity:

•Europe: T= 1 page TXT, F= Full TXT, V= Voice

control.

•LATAM and NAFTA: N= Stereo non-dBx, S=

Stereo dBx.

•Asian Pacific: T= TXT, N= non-TXT, C= NTSC.

•ALL regions: M= mono, D= DVD, Q= Mk2.

–D= the language cluster number.

–X= the main software version number (updated with a

major change that is incompatible with previous

versions).

–Y= the sub software version number (updated with a

minor change that is compatible with previous

versions).

3. EEEEE-F.GG. This is the software identification of the

Scaler:

–EEEEEE= the scaler sw cluster

–F= the main sw version no.

–GG= the sub-version no.

4. SAM. Indication of the Service Alignment Mode.

5. Error Buffer. Shows all errors detected since the last time

the buffer was erased. Five errors possible.

6. Option Bytes. Used to set the option bytes. See “Options”

in the Alignments section for a detailed description. Seven

codes are possible.

7. Clear. Erases the contents of the error buffer. Select the

CLEAR menu item and press the MENU RIGHT key. The

content of the error buffer is cleared.

8. Options. Used to set the option bits. See “Options” in the

Alignments section for a detailed description.

9. Tuner. Used to align the tuner. See “Tuner” in the

Alignments section for a detailed description.

10. White Tone. Used to align the white tone. See “White

Tone” in the Alignments section for a detailed description.

11. Audio. No audio alignment is necessary for this television

set.

12. NVM Editor. Can be used to change the NVM data in the

television set. See table “NVM data” further on.

13. SC NVM Editor. Can be used to edit Scaler NVM.

14. ComPaIr. Can be used to switch on the television to In

System Programming (ISP) mode, for software uploading

via ComPair.

Caution: When this mode is selected without ComPair

connected, the TV will be blocked. Remove the AC power

to reset the TV.

How to Navigate

• In SAM, select menu items with the MENU UP/DOWN keys

on the remote control transmitter. The selected item will be

highlighted. When not all menu items fit on the screen, use

the MENU UP/DOWN keys to display the next / previous

menu items.

• With the MENU LEFT/RIGHT keys, it is possible to:

– Activate the selected menu item.

– Change the value of the selected menu item.

– Activate the selected submenu.

• In SAM, when you press the MENU button twice, the set

will switch to the normal user menus (with the SAM mode

still active in the background). To return to the SAM menu

press the MENU or STATUS/EXIT button.

• When you press the MENU key in while in a submenu, you

will return to the previous menu.

F_15270_004.eps

250505

00035 LC4XEP1 1.08/S4XGVX 1.10 SAM

ERR 0 0 0 0 0

OP 000 057 140 032 120 128 000

. Clear Clear ?

. Options

. Tuner

. White Tone

. Audio

. NVM Editor

. SC NVM Editor

. ComPair Mode On

Service Modes, Error Codes, and Fault Finding

EN 16 LC4.3E AA5.

How to Store SAM Settings

To store the settings changed in SAM mode, leave the top level

SAM menu by using the POWER button on the remote control

transmitter or the television set.

How to Exit

Switch the set to STANDBY by pressing the mains button on

the remote control transmitter or the television set.

If you turn the television set “off” by removing the mains (i.e.,

unplugging the television) without using the mains button, the

television set will remain in SAM when mains is re-applied, and

the error buffer is not cleared.

5.2.3 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codes and

information on the TV’s operation settings. The call centre can

instruct the customer (by telephone) to enter CSM in order to

identify the status of the set. This helps the call centre to

diagnose problems and failures in the TV set before making a

service call.

The CSM is a read-only mode; therefore, modifications are not

possible in this mode.

How to Enter

To enter CSM, press the following key sequence on the remote

control transmitter: “123654” (do not allow the display to time

out between entries while keying the sequence).

Upon entering the Customer Service Mode, the following

screen will appear:

Figure 5-4 CSM menu

Menu Explanation

1. Indication of the decimal value of the operation hours

counter, Software identification of the main microprocessor

(see "Service Default or Alignment Mode" for an

explanation), and the service mode (CSM = Customer

Service Mode).

2. Displays the last five errors detected in the error code

buffer.

3. Displays the option bytes.

4. Displays the type number version of the set.

5. Reserved item for P3C call centres (AKBS stands for

Advanced Knowledge Base System).

6. Indicates the television is receiving an "IDENT" signal on

the selected source. If no "IDENT" signal is detected, the

display will read "NOT TUNED"

7. Displays the detected Colour system (e.g. PAL/NTSC).

8. Displays the detected Audio (e.g. stereo/mono).

9. Displays the picture setting information.

10. Displays the sound setting information.

How to Exit

To exit CSM, use one of the following methods:

• Press the MENU, STATUS/EXIT, or POWER button on the

remote control transmitter.

• Press the POWER button on the television set.

5.3 Problems and Solving Tips Related to CSM

5.3.1 Picture Problems

Note: The problems described below are all related to the TV

settings. The procedures used to change the value (or status)

of the different settings are described.

Picture too Dark or too Bright

If:

• The picture improves when you press the AUTO PICTURE

button on the remote control transmitter, or

• The picture improves when you enter the Customer

Service Mode,

Then:

1. Press the AUTO PICTURE button on the remote control

transmitter repeatedly (if necessary) to choose

PERSONAL picture mode.

2. Press the MENU button on the remote control transmitter.

This brings up the normal user menu.

3. In the normal user menu, use the MENU UP/DOWN keys

to highlight the PICTURE sub menu.

4. Press the MENU LEFT/RIGHT keys to enter the PICTURE

sub menu.

5. Use the MENU UP/DOWN keys (if necessary) to select

BRIGHTNESS.

6. Press the MENU LEFT/RIGHT keys to increase or

decrease the BRIGHTNESS value.

7. Use the MENU UP/DOWN keys to select PICTURE.

8. Press the MENU LEFT/RIGHT keys to increase or

decrease the PICTURE value.

9. Press the MENU button on the remote control transmitter

twice to exit the user menu.

10. The new PERSONAL preference values are automatically

stored.

White Line around Picture Elements and Text

If:

The picture improves after you have pressed the AUTO

PICTURE button on the remote control transmitter,

Then:

1. Press the AUTO PICTURE button on the remote control

transmitter repeatedly (if necessary) to choose

PERSONAL picture mode.

2. Press the MENU button on the remote control transmitter.

This brings up the normal user menu.

3. In the normal user menu, use the MENU UP/DOWN keys

to highlight the PICTURE sub menu.

4. Press the MENU LEFT/RIGHT keys to enter the PICTURE

sub menu.

5. Use the MENU UP/DOWN keys to select SHARPNESS.

6. Press the MENU LEFT key to decrease the SHARPNESS

value.

7. Press the MENU button on the remote control transmitter

twice to exit the user menu.

8. The new PERSONAL preference value is automatically

stored.

1 00035 LC4XEP1 1.08/S4XGVX 1.10 CSM

2 CODES 0 0 0 0 0

3 OP 000 057 140 032 120 128 000

4

5

6 NOT TUNED

7 PAL

8 STEREO

9 CO 50 CL 50 BR 50

0 AVL Off

E_15270_005.eps

120505

Service Modes, Error Codes, and Fault Finding EN 17LC4.3E AA 5.

Snowy Picture

Check CSM line 6. If this line reads “Not Tuned”, check the

following:

• Antenna not connected. Connect the antenna.

• No antenna signal or bad antenna signal. Connect a proper

antenna signal.

• The tuner is faulty (in this case line 2, the Error Buffer line,

will contain error number 10). Check the tuner and replace/

repair the tuner if necessary.

Black and White Picture

If:

• The picture improves after you have pressed the AUTO

PICTURE button on the remote control transmitter,

Then:

1. Press the AUTO PICTURE button on the remote control

transmitter repeatedly (if necessary) to choose

PERSONAL picture mode.

2. Press the MENU button on the remote control transmitter.

This brings up the normal user menu.

3. In the normal user menu, use the MENU UP/DOWN keys

to highlight the PICTURE sub menu.

4. Press the MENU LEFT/RIGHT keys to enter the PICTURE

sub menu.

5. Use the MENU UP/DOWN keys to select COLOR.

6. Press the MENU RIGHT key to increase the COLOR value.

7. Press the MENU button on the remote control transmitter

twice to exit the user menu.

8. The new PERSONAL preference value is automatically

stored.

Menu Text not Sharp Enough

If:

• The picture improves after you have pressed the AUTO

PICTURE button on the remote control transmitter,

Then:

1. Press the AUTO PICTURE button on the remote control

transmitter repeatedly (if necessary) to choose

PERSONAL picture mode.

2. Press the MENU button on the remote control transmitter.

This brings up the normal user menu.

3. In the normal user menu, use the MENU UP/DOWN keys

to highlight the PICTURE sub menu.

4. Press the MENU LEFT/RIGHT keys to enter the PICTURE

sub menu.

5. Use the MENU UP/DOWN keys to select PICTURE.

6. Press the MENU LEFT key to decrease the PICTURE

value.

7. Press the MENU button on the remote control transmitter

twice to exit the user menu.

8. The new PERSONAL preference value is automatically

stored.

5.4 ComPair

5.4.1 Introduction

ComPair (Computer Aided Repair) is a service tool for Philips

Consumer Electronics products. ComPair is a further

development on the European DST (service remote control),

which allows faster and more accurate diagnostics. ComPair

has three big advantages:

• ComPair helps you to quickly get an understanding on how

to repair the chassis in a short time by guiding you

systematically through the repair procedures.

• ComPair allows very detailed diagnostics (on I2C level) and

is therefore capable of accurately indicating problem areas.

You do not have to know anything about I2C commands

yourself because ComPair takes care of this.

• ComPair speeds up the repair time since it can

automatically communicate with the chassis (when the

microprocessor is working) and all repair information is

directly available. When ComPair is installed together with

the Force/SearchMan electronic manual of the defective

chassis, schematics and PWBs are only a mouse click

away.

5.4.2 Specifications

ComPair consists of a Windows based fault finding program

and an interface box between PC and the (defective) product.

The ComPair interface box is connected to the PC via a serial

(or RS-232) cable.

For this chassis, the ComPair interface box and the TV

communicate via a bi-directional service cable via the service

connector(s).

The ComPair fault finding program is able to determine the

problem of the defective television. ComPair can gather

diagnostic information in two ways:

• Automatic (by communication with the television): ComPair

can automatically read out the contents of the entire error

buffer. Diagnosis is done on I2C/UART level. ComPair can

access the I2C/UART bus of the television. ComPair can

send and receive I2C/UART commands to the micro

controller of the television. In this way, it is possible for

ComPair to communicate (read and write) to devices on

the I2C/UART buses of the TV-set.

• Manually (by asking questions to you): Automatic

diagnosis is only possible if the micro controller of the

television is working correctly and only to a certain extend.

When this is not the case, ComPair will guide you through

the fault finding tree by asking you questions (e.g. Does the

screen give a picture? Click on the correct answer: YES /

NO) and showing you examples (e.g. Measure test-point I7

and click on the correct oscillogram you see on the

oscilloscope). You can answer by clicking on a link (e.g.

text or a waveform picture) that will bring you to the next

step in the fault finding process.

By a combination of automatic diagnostics and an interactive

question / answer procedure, ComPair will enable you to find

most problems in a fast and effective way.

5.4.3 How to Connect

This is described in the chassis fault finding database in

ComPair.

CAUTION: It is compulsory to connect the TV to the PC as

shown in the picture below (with the ComPair interface in

between), as the ComPair interface acts as a level shifter. If

one connects the TV directly to the PC (via UART), ICs will be

blown!

Figure 5-5 ComPair interface connection

5.4.4 How to Order

ComPair order codes (EU/AP/LATAM):

• Starter kit ComPair32/SearchMan32 software and

ComPair interface (excl. transformer): 3122 785 90450.

• ComPair interface (excl. transformer): 4822 727 21631.

E_06532_021.eps

180804

PC VCR I2CPowe r

9V DC

TO

UART SERVICE

CONNECTOR

TO

I2C SERVICE

CONNECTOR

Service Modes, Error Codes, and Fault Finding

EN 18 LC4.3E AA5.

• Starter kit ComPair32 software (registration version): 3122

785 60040.

• Starter kit SearchMan32 software: 3122 785 60050.

• ComPair32 CD (update): 3122 785 60070 (year 2002),

3122 785 60110 (year 2003 onwards).

• SearchMan32 CD (update): 3122 785 60080 (year 2002),

3122 785 60120 (year 2003), 3122 785 60130 (year 2004).

• ComPair firmware upgrade IC: 3122 785 90510.

• Transformer (non-UK): 4822 727 21632.

• Transformer UK: 4822 727 21633.

• ComPair interface cable: 3122 785 90004.

• ComPair interface extension cable: 3139 131 03791.

• ComPair UART interface cable: 3122 785 90630.

Note: If you encounter any problems, contact your local

support desk.

5.5 Error Codes

The error code buffer contains all errors detected since the last

time the buffer was erased. The buffer is written from left to

right. When an error occurs that is not yet in the error code

buffer, it is displayed at the left side and all other errors shift one

position to the right.

5.5.1 How to Read the Error Buffer

You can read the error buffer in 3 ways:

• On screen via the SAM (if you have a picture).

Examples:

– ERROR: 0 0 0 0 0 : No errors detected

– ERROR: 6 0 0 0 0 : Error code 6 is the last and only

detected error

– ERROR: 9 6 0 0 0 : Error code 6 was detected first and

error code 9 is the last detected (newest) error

• Via the blinking LED procedure (when you have no

picture). See “The Blinking LED Procedure”.

• Via ComPair.

5.5.2 How to Clear the Error Buffer

The error code buffer is cleared in the following cases:

• By using the CLEAR command in the SAM menu:

– To enter SAM, press the following key sequence on the

remote control transmitter: “062596” directly followed

by the OSD/STATUS button (do not allow the display

to time out between entries while keying the

sequence).

– Make sure the menu item CLEAR is highlighted. Use

the MENU UP/DOWN buttons, if necessary.

– Press the MENU RIGHT button to clear the error

buffer. The text on the right side of the “CLEAR” line will

change from “CLEAR?” to “CLEARED”

• If the contents of the error buffer have not changed for 50

hours, the error buffer resets automatically.

Note: If you exit SAM by disconnecting the mains from the

television set, the error buffer is not reset.

5.5.3 Error Codes

In case of non-intermittent faults, write down the errors present

in the error buffer and clear the error buffer before you begin

the repair. This ensures that old error codes are no longer

present.

If possible, check the entire contents of the error buffer. In

some situations, an error code is only the result of another error

and not the actual cause of the problem (for example, a fault in

the protection detection circuitry can also lead to a protection).

Table 5-1 Error code overview

Error Device Error Description Check Item Diagram

0 Not applicable No Error

1 Not applicable Mis-match of TV

Hercules SW and

Scaler SW

--

2 Not applicable - - -

3 Not applicable - - -

4 Genesis Scaler

Flash-ROM

I2C error while

communicating with

the Genesis Scaler

and/or Flash-ROM

is faulty/empty

7801

7B01

B7 + B8

B10

5 Scaler supply

7752

+5V protection 7752 B6

6 Not applicable General I2C error 1102, 7L04, 7M00 B1 + B18

+ B19

7ADC I

2C error 7L04 B18

8 Scaler EEPROM I2C error while

communicating with

the Scaler

EEPROM

7C01 B11

9 Hercules

EEPROM

I2C error while

communicating with

the Hercules

EEPROM (NVM for

TV).

Remark: when the

Hercules EEPROM

is defective, the

Hercules should

operate with its

default values.

7207 B2

10 Tuner I2C error while

communicating with

the PLL tuner

1102, F102, F104,

F107

B1

11 Columbus I2C error while

communicating with

the 2D/3D

combfilter

Columbus

7M00 B19

12 Not applicable - - -

13 HDMI Panellink

Receiver/

Decoder

I2C error while

communicating with

the iBoard HDMI

Panellink Receiver/

Decoder (only in

NAFTA and AP

sets)

7D03 B12

(only in

NAFTA

and AP

sets)

14 Scaler SDRAM Read-write error

with the Scaler

SDRAM

7B01 B10

15 Not applicable - - -

16 EPLD I2C error while

communicating with

EPLD

7N02 B20 +

B21

17 Digital Module

(only on Digital

sets)

I2C error while

communicating with

the Digital Module

(only on Digital

sets)

Digital Module

(only on Digital

sets)

18 Not applicable - - -

Service Modes, Error Codes, and Fault Finding EN 19LC4.3E AA 5.

5.6 The Blinking LED Procedure

Using this procedure, you can make the contents of the error

buffer visible via the front LED. This is especially useful when

there is no picture.

When the SDM is entered, the front LED will blink the contents

of the error-buffer:

• The LED blinks with as many pulses as the error code

number, followed by a time period of 1.5 seconds, in which

the LED is off.

• Then this sequence is repeated.

Any RC5 command terminates this sequence.

Example of error buffer: 12 9 6 0 0

After entering SDM, the following occurs:

• 1 long blink of 5 seconds to start the sequence,

• 12 short blinks followed by a pause of 1.5 seconds,

• 9 short blinks followed by a pause of 1.5 seconds,

• 6 short blinks followed by a pause of 1.5 seconds,

• 1 long blink of 1.5 seconds to finish the sequence,

• The sequence starts again with 12 short blinks.

5.7 Fault Finding and Repair Tips

Notes:

• It is assumed that the components are mounted correctly

with correct values and no bad solder joints.

• Before any fault finding actions, check if the correct options

are set.

5.7.1 NVM Editor

In some cases, it can be handy if one directly can change the

NVM contents. This can be done with the “NVM Editor” in SAM

mode. With this option, single bytes can be changed.

Caution:

•Do not change the NVM settings without

understanding the function of each setting, because

incorrect NVM settings may seriously hamper the

correct functioning of the TV set!

•Do not change the Scaler NVM settings, as this will

hamper the DVI functionality of the TV set!

• Always note down the existing NVM settings, before

changing the settings. This will enable you to return to the

orgininal settings, if the new settings turn out to be

incorrect.

Table 5-2 NVM editor overview

Hex Dec Description

.ADR 0x000A 10 Existing value

.VAL 0x0000 0 New value

.Store Store?

Service Modes, Error Codes, and Fault Finding

EN 20 LC4.3E AA5.

Table 5-3 NVM Default values (option bit settings through NVM Editor in SAM Mode)

Byte Nr. Bit Feature/Mode Description

32PF7320/10

32PF5320/10

26PF5320/10

26PF4310/10

Byte 0

174(dec)

0 QSS (LSB) Mode of quasi split sound amplifier 1 1 1 1

1 FMI Connection of output of QSS amplifier 1 1 1 1

2 HCO EHT tracking mode 0 0 0 0

3 HP2 Synchronization of OSD/Text display 1 1 1 1

4 FSL Forced slicing level for vertical sync 1 1 1 1

5 TFR DC transfer ratio of luminance signal 1 1 1 1

6 OSVE Black current measuring in overscan 0 0 0 0

7 MVK (MSB) (For Future Usage, as defined by software) 0 0 0 0

Total Dec Values 59 59 59 59

Total Hex Values 3B 3B 3B 3B

Byte 1

175(dec)

0 PSE PSE 0 0 0 0

1 OPC OPC 0 0 0 0

2PRIS PRIS 0 0 0 0

3 CONTINUOUS FACTORY Continuous factory mode 0 0 0 0

4 WHITE PATTERN ON Last color pattern status in factory mode 0 0 0 0

5 SDM MODE Service default mode on/off 0 0 0 0

6 SAM MODE Service Align mode on/off 0 0 0 0

7 SVMA Scavm On / Off 0 0 0 0

Total Dec Values 0 0 0 0

Total Hex Values 00 00 00 00

Byte 2

176(dec)

0 MUTE STATUS Mute status 0 0 0 0

1 TUNER AUTO MODE Auto mode 1 1 1 1

2 CABLE MODE Cable/Antenna mode 0 0 0 0

3 LAST POWER MODE Last power status of the set 1 1 1 1

4 CHILD LOCK MODE Child lock enabled 0 0 0 0

5 SURF MODE Surf mode on/off 0 0 0 0

6 FACTORY MODE Factory mode on 0 0 0 0

7 PSNS For PAL color enhancement in ES4 1 1 1 1

Total Dec Values 138 138 138 138

Total Hex Values 8A 8A 8A 8A

Byte 3

177(dec)

0 RADIO/TV MODE Radio mode or TV mode 0 0 0 0

1 WAKE-UP MODE WAKE-UP MODE 0 0 0 0

2 HOTEL MODE TV in Hotel mode 0 0 0 0

3 HOTEL KBD LOCK Keyboard locked 0 0 0 0

4HBL HBL 0 0 0 0

5 BLS Blue stretch mode 1 1 1 1

6SL SL 0 0 0 0

7 CFA0 Comb filter On/Off 0 0 0 0

Total Dec Values 32 32 32 32

Total Hex Values 20 20 20 20

Byte 4

178(dec)

0 Signal Strength Signal Strength Switch in MK2 0 0 0 0

1 LPG LPG 0 0 0 0

2 DVD TRAY LOCK Lock/Unlock DVD tray 0 0 0 0

3 SCRSAVER MODE Screen saver mode 1 1 1 1

4 BKS Black Stretch Mode 1 1 1 1

5 BSD Black Stretch Depth 1 1 1 0

6 CRA0 Coring on SVM 1 1 1 1

7 PIP QSS PIP QSS 0 0 0 0

Total Dec Values 120 120 120 88

Total Hex Values 78 78 78 58

Service Modes, Error Codes, and Fault Finding EN 21LC4.3E AA 5.

5.7.2 Load Default NVM Values

In case a blank NVM is placed or when the NVM content is

corrupted, default values can be downloaded into the NVM.

(For empty NVM replacement, short the SDM with a jumper

and apply the mains voltage. Remember to remove the jumper

after the reload is completed). After the default values are

downloaded, it will be possible to start up and to start aligning

the TV set. This is no longer initiated automatically; to initiate

the download the following action has to be performed:

1. Switch “off” the TV set by disconnecting the AC Power

plug.

2. Short circuit the SDM jumpers (keep short-circuited).

3. Press P+ or Ch+ on the local keyboard (and keep it

pressed).

4. Switch on the TV set via the AC Power plug.

5. Keep pressing the P+/Ch+ button until the set has started

up and the SDM is shown.

Alternative method:

1. Go to SAM.

2. Select NVM Editor (not SC NVM Editor).

3. Select ADR (address) to 1 (dec).

4. Change the VAL (value) to 170 (dec).

5. Store the value.

6. Disconnect the mains plug and wait for a few seconds.

7. Reconnect the mains plug and wait until the set goes into

its standby mode (red LED lights up).

8. Restart the set.

5.7.3 Tuner and IF

No Picture in RF Mode, but there is a Noise Raster

1. Check whether picture is present in AV. If not, go to Video

processing troubleshooting section.

2. If present, check if the Option settings are correct.

3. Check if all the supply voltages are present (3.3/5/8/12/33

V).

4. Check if the I2C lines are working correctly (3.3 V).

5. Manually store a known channel and check if there is IF

output at Tuner pin 11.

6. Check the tuning DC voltage at pin 2 of the Tuner. The DC

voltage should vary according to the frequency/channel

being chosen.

7. If the tuning voltage is OK, check the tuner output, pin 11.

8. If it has no output, the Tuner may have a defect. Change

the Tuner.

Sound in Picture Problem for L' System (rolling horizontal

lines)

1. Check whether AGC L' in SAM mode is set to 0.

2. If yes, align the set to correct value.

Required System is not Selected Correctly

Check whether a Service jumper (#4204 & 4205, 0805 size) is

present. If yes, remove it.

Byte 5

179(dec)

0 FFI Fast Filter 0 0 0 0

1 NNR No red reduction during blue stretch 1 1 1 1

2 MUS NTSC matrix 1 1 1 1

3 GAM Gamma control 1 1 1 1

4 CBS Control sequence of beam current limiting 0 0 0 0

5 LLB Low level of beam current limiter 0 0 0 0

6 DSA Dynamic skin tone angle area 1 1 1 0

7 DSK Dynamic skin tone angle on/ off 0 0 0 1

Total Dec Values 78 78 78 142

Total Hex Values 4E 4E 4E 8E

Byte 6

180(dec)

0 LTI status LTI last status 0 0 0 0

1 Inc_Life_Time Inc_Life_Time 0 0 0 0

2 PC_Mode PC_Mode 0 0 0 0

3 HD_Mode HD_Mode 0 0 0 0

4 Tact_Switch Tact_Switch 0 0 0 0

5 Set_In_Special_Stby Set_In_Special_Stby 0 0 0 0

6 Hotel_OSDDisplay Hotel_OSDDisplay 0 0 0 0

7 Hotel_MonitorOut Hotel_MonitorOut 0 0 0 0

Total Dec Values 0 0 0 0

Total Hex Values 00 00 00 00

Byte 7

181(dec)

0 Hotel_IconMode Hotel_IconMode 0 0 0 0

1 DBE DBE 1 1 1 1

2SD SD 0 0 0 0

3 Set_in_PC_Sleep_Mode Set_in_PC_Sleep_Mode 0 0 0 0

4 Reserved Reserved 0 0 0 0

5 Reserved Reserved 0 0 0 0

6 Reserved Reserved 0 0 0 0

7 Reserved Reserved 0 0 0 0

Total Dec Values 2 2 2 2

Total Hex Values 02 02 02 02

Byte Nr. Bit Feature/Mode Description

32PF7320/10

32PF5320/10

26PF5320/10

26PF4310/10

Service Modes, Error Codes, and Fault Finding

EN 22 LC4.3E AA5.

5.7.4 Video Processing

No Power

1. Check +12 V and 3V3 at position 1J02.

2. If no supply, check the connector 1J02.

3. If it is correct, check the power supply board.

Power Supply is Correct, but no Green LED

1. Check if the connectors 1K00 are properly inserted.

2. If they are inserted correctly, check if the 3V3 is present.

No Picture Display (blank screen with correct sound

output)

1. Check whether the user menu is visible.

2. If the user menu is OK, activate teletext mode.

3. If teletext is OK, the problem is in the ADC (B18) &

Columbus 3D combfilter (B19), if present (depending on

model, see also paragraph “Teletext Path” in chapter 9).

4. If the user menu is not visible, check if the LCD panel

backlight is ON.

5. If the backlight is OFF, the problem is in the power supply

board or LCD panel. Also check pin 12 (LAMP_ON_OFF)

of 1J02. It should be HIGH during normal operation.

Note: For faultfinding purposes, it is important to know the

following: in Pixel Plus and Digital Crystal Clear models, which

have an ADC (B18) and Columbus 3D combfilter (B19), the

digital input of the scaler is used for the digital video path

(Hercules output), whereas the analogue RGB input (analogue

input of the scaler) is only used for teletext. This means that no

mixed mode (video plus teletext simultaneously) is possible. If

there is sound and teletext, but no video and user menu (blank

screen), the digital path (Hercules - ADC - Columbus - Scaler)

is faulty. If there is sound but no teletext, the back-end part

(Scaler - LCD panel) is faulty. In Crystal Clear models, which

do not have an ADC and Columbus, the RGB path (analogue

input of scaler) is used for both video and teletext.

No TV, but PC is Present

1. Check if Hsync_SDTV and Vsync_SDTV are present at pin

1 & pin13 of 7E03.

2. If they are present, check teletext output.

3. If there is no teletext output, the IC TDA150xx may be

defect.

5.7.5 Power Supply

Check Fuse

The power supply (various models are used) contains one fuse

near the AC input connector X002.

1. Check with power supply in “off” state by means of ohmic

measurement.

2. Fuse X102 may open in case of severe lightning strikes

and/or failures in the power supply.

3. Check the standby signal at pin 10 of X200. ON is HIGH,

OFF is LOW. During standby mode only the 3V3 is present

at pin 10.

Protections Concept on Power Supply Board (two models)

1. 12 V output (pin 8 of X200): Short-circuit protected by 2.5

A fuse X610. Over-voltage protection when output voltage

is more than 40% above nominal value.

2. Vaudio output (+18 or +24 V, depending on power

supply model used); (pin 1 of X200): Short-circuit proof

(+18 V version has 2.5 A fuse X660). Over voltage

protection when output voltage is more than 40% above

nominal value.

3. 3V3STBY output (pin 3&4 of X200): Short-circuit proof

with auto-restart. Over voltage protection when output

voltage is more than 40% above nominal value.

4. 24 V output (for inverter X520 & X530): Short-circuit

proof with auto-restart. Over voltage protection when

output voltage is more than 40% above nominal value.

Standby Mode

1. Apply a 12 ohm load resistor of sufficient power rating to all

outputs mentioned above (+12 V, +18/ 24 V, +3V3 and +24

V). Connect the STBY pin (pin 10 of X200) to logical “L”

(low), i.e. to GND.

2. Over an input voltage range of 90 VAC to 276 VAC only the

+3V3 STBY output shall be up.

Normal Mode:

1. Apply a 12 ohm load resistor of sufficient power rating to all

outputs mentioned above (+12 V, +18/ 24 V, +3V3 and +24

V). Connect the STBY pin (pin 10 of X200) to logical “H”

(high), i.e. to the +3V3 STBY output via a 2,2 k pull up

resistor.

2. Over an input voltage range of 90 VAC to 276 VAC all

outputs shall be up. The voltage on the +3V3 STBY output

shall be 3.3 V over the entire input voltage range. The

voltage on the big 400 V capacitor on the power supply

should also be 400 V r10%.

Block Diagrams, Testpoint Overviews, and Waveforms 23LC4.3E AA 6.

6. Block Diagrams, Testpoint Overviews, and Waveforms

Wiring Diagram

12P

31P

F_15270_038.eps

190505

30P

12P

X200

12P

X530

1P06 1J02

POWER

IN

X002

BSSB

DSIDE AV

J

IR/LED/LIGHT

SENSOR

LVDS CONNECTION

TO SCREEN

INVERTER

6P

1870

1304

(1M06)

POWER

SUPPLY

HP

1303

1302

1301

LEFT

SPEAKER

1001

1003

9P

1JO4(1M52)

3P

1J03

1002

30P

8J02

3P

1684

6P

1K00(1M21)

12P

1K01(1M06)

3P

1K02

3P

1J03

X220

14P

14P

X520

INVERTER

12P

INVERTER

Digital A/V Analog A/V Analog A/V

2P3

3P

9P

3P 4P

12P

AC POWER

INLET

L

R

Y

SVHS

TUNER

EKEYBOARD CONTROL

C

CLASS D

AUDIO

AMPLIFIER

8J04

8J03

8K01

8002

8520

8870

8903

8903

8P06

8684

RIGHT

SPEAKER

VGA

24LC4.3E AA 6.

Block Diagrams, Testpoint Overviews, and Waveforms

Block Diagram Video

B1

TUNER & VIF

B15

SCART ANALOG IO

B2

HERCULES

B14

DIGITAL IO

B13

MUX-SYNC INTERFACE

B7

SCALER

B11

FLASH/CONTROL

B10

SDRAM

B3

SYNC INTERFACE

VIDEO

B18

ADC

B17

SIDE

CONNECTIONS

D

SIDE AV

B19

COLUMBUS

(Dig. PAL/NTC Comb)

B20

EPLD

B21

EPLD

HERCULES

1102

UX1318ST

RF

IN

TUNER

2106

11

1104 VIF1

VIF2

8

7

2

4513104 RF_AGC

SCL

SDA

DC

AC AGC

Detect

21

1

SCART 2

1102

20

15

SC2_Y_IN

SC2_Y_IN_1

SC2_C_IN

1101

20

7

8

16

15

11

SC1_CVBS_IN SC1_CVBS_IN

21

1

SCART 1

24

25

31

51

52

55

SC2_CVBS_MON_OUT

19

SC1_CVBS_RF_OUT

43

EF

7G03 77 78 79 80

EF

7208

R_SDTV

EF

7209

G_SDTV

EF

7210

B_SDTV

85

86

87

74 75 76 70 71 72

22

67

7E01

SC1_R_CVI_Pr_IN

SC1_G_CVI_Y_IN

SC1_B_CVI_Pb_IN

27

3

7

25

1

5

R_PR+

G_Y+

B_PB+

17

14

11

V_PC 2

H_PC 12

7E03

1

13

Vsync_SDTV

Hsync_SDTV

AVSYNC

AHSYNC

15

14

7604

5

1

8

4L4

L3

1F00

15

16

18

23

24

17

+5VSWI

6

14

9

10

11

7

2

1

ANALOG

INPUT

PORT

DVI/HDMI

INPUT

PORT

7B010

K4D263238F

SDRAM

1Mx32x4

FSDATA

FSADDR

7401

GM1501

GRAPHIC

ZOOM

DISPLAY

TIMING

GEN.

VIDEO

ZOOM

OSD CONTROLLER

OUT BLENDER

BRIGHTNESS/CONTRAST/HUE/SAT

EXTERNAL

ROM

INTERFACE

7C00

MX29LV040QC

FLASH

ROM

512Kx8

OCMDATA

OCMADDR

1P06

1

11

10

12

14

13

15

19

18

20

27

26

28

22

21

23

LVDS_VCC

TXB0-

TXB3+

TXB0+

TXB1-

TXB1+

TXBC+

TXBC-

TXB2-

TXB2+

TXB3-

RGB/Pr Pb Insert

YUV Interface

RGB Matrix

Blue & Black

Strech

Gamma Corr.

PAL/NTSC/

SECAM

Decoder &

Baseband

Delay

Sync Sep

H-OSC

H-Shift

H-Drive

Vertical &

East-West

Geometry

CVBS/Y

VDRB

H/V HOUT

RO

GO

BO

INSSW3

Chroma

Yint

R/Pr-3

G/Y3

B/Pb-3

YOUT

VOUT

UOUT

VIN

UIN

YIN

B_OSD

G_OSD

R_OSD

Fast Blanking

Peaking

SCAVEM

U/V Delay

Skin Tone

U/V Tint

Saturation

YUV

YUV in/out

SAT

SCAVEM

on text

Dig. 2H/4H

Combfilter

Y Delay Adj.

c

cvbs/y

Sound

Traps

Video

Switch

+

Control

Uint

Vint

CVBS1

H_PC

V_PC

BINA|Pb

GINA|YINA

RINA|Pr

HOTPLUG

RX0-IN

RX0+IN

RXC+IN

RXC-IN

SCL_DVI

SDA_DVI

RX1-IN

RX1+IN

RX2+IN

RX2-IN

FRAME

STORE

CONTROL

MICRO

CONTROLLER

UART

INTERFACE

INTERNAL

RAM

7E02

14

2

11

15

1

12

QSS Mixer

AM Demod. AM

QSS/FM

1106 7

8

2

SIF1

SIF2

29

30

F624

F625

F626

F108

IF-TER

AE16

AF11

AF16

AF12

AE15

AF15

AE12

AF13

AE14

AF14

B10

A10

N4

N3

B9

A9

B8

A8

AL

B6

AE10

D2

C2

B2

7217

TDA15021H

RO

GO

BO

Vsync_SDTV

Hsync_SDTV

INTF_Y_OUT

INTF_U_OUT

INTF_V_OUT

SC1_B_CVI_Pb_IN

SC1_FBL_IN_1

SC1_R_CVI_Pr_IN

SC1_G_CVI_Y_IN

19 PC_HD_DET

DVI

CONNECTOR

19

STATUS_2

8

STATUS_1

67

+5SW_a

+VTUN

18

916

17

24

C5

C1 C2

C3 C4

28

8

27

26

25

7436-1

7436-2

2

4

1

3

N.C.

EF

7L01

EF

7L03

EF

7L02

7L04

MST9883C

A/D

CONV.

COL_Di(1-7)

COL_YA(1-7)

COL_A

COL_D

7M00

T6TU5XBG

COLUMBUS

DIGITAL COMB

FILTER

DRAM

512Kx16x2

7M01

MSM56V16

+2V5_DDR

95

F_15270_039.eps

250505

48

43

54

30

31

56

57

SCL

SDA

COL_Do(1-7)

COL_YB(1-7)

7E00

1

13

3

5

2

12

15

14

4

SD_HD_SEL

10,11

C3

SOG

BINA|Pb

GINA|YINA

RINA|Pr

2

1304

(1M06) 1K01

2

44

1

5

SVHS

24

3

1080

1060

C

Y/CVBS

EF

7206

64

58

7G10

2

9

12

15

14

FRONT_Y_CVBS_IN

1

FRONT_C_IN

13

59

SC2_AV3_C_IN

SC1_FBL_IN

CVI_Pr_IN

CVI_Y_IN

CVI_Pb_IN

SC1_FBL_IN_1

SC1_CV1_DMMI_R_Pr_IN

SC1_CV1_DMMI_G_Y_IN

SC1_CV1_DMMI_B_Pb_IN

B2

B13

B13

B13

B15

B13

B13

B13

SC1_CV1_DMMI_R_Pr_IN

SC1_CV1_DMMI_G_Y_IN

SC1_CV1_DMMI_B_Pb_IN

B13

B15

B15

B15

B13

B13

B13

B13

SC1_R_CVI_Pr_IN

SC1_G_CVI_Y_IN

SC1_B_CVI_Pb_IN

B2,B13

B2,B13

B2,B13

B13

B13

B13

B14

B14

B14

B3

B13

B14

B14

B13

B3

EF

7G05

7G19

48

13

12

14

4G18

Present only for

non DVB sets

4G13

4G14

4G15

4G17

4G16

B2

B2

FRONT_YCVBS_IN

FRONT_C_IN

CVBS_COMB

B9

SCALER

LVDS

INTERFACE

RECEIVER

7N04

THC63LVDF84B

TXB0-

TXB3+

TXB0+

TXB1-

TXB1+

TXBC+

TXBC-

TXB2-

TXB2+

TXB3-

LVDS

TRANS-

MITTER

7P02

THC63LVDM83R

EPLD

PIXEL+

PROCESSOR

RGB

7N02

EP1C12F256C8N

OR

RGB

4N03

4N13

4N01

4N15

4N07

4N05

4N17

4N19

4N11

4N09

LVDSAp

LVDSAn

LVDSBp

LVDSBn

LVDSCp

LVDSCn

LVDSDp

LVDSDn

LVDSCLKp

LVDSCLKn

LVDSAp

LVDSAn

LVDSBp

LVDSCp

LVDSCn

LVDSDp

LVDSDn

LVDSCLKp

LVDSCLKn

LVDSBn

OR

LVDSA+

LVDSA-

LVDSB+

LVDSB-

LVDSC+

LVDSC-

LVDSD+

LVDSD-

LVDSCLK+

LVDSCLK-

1P07

1

11

12

13

14

15

16

17

18

19

20

24

25

26

21

22

LVDS_VCC

LVDSA+

LVDSA-

LVDSB+

LVDSB-

LVDSC+

LVDSC-

LVDSD+

LVDSD-

LVDSCLK+

LVDSCLK-

TO PLASMA PANELTO LCD PANEL

Only for sets with

PIXEL PLUS

SC2_AV3_Y_IN

9

9RGB|CVI_HDA_SEL

HDPCSide-AVEXT2EXT1TV

PC_HD_DET H H H H L H

SD_HD_SEL H H H H H H

RGB|CVI_HDA_SEL L H L L L L

SCALER

B7

B7

9

AV2_DMMI_SW

B7

SC2_OUT_SW

PC_HD_SEL

I_PC_HD_SEL

R-PR-ADC

G-Y-ADC

B-PB-ADC

EXT 2

EXT 1

VIDEO

IN

S-VHS

Block Diagrams, Testpoint Overviews, and Waveforms 25LC4.3E AA 6.

Block Diagram Audio

B5

AUDIO PROCESSING

B17

SIDE

CONNECTORS

D

SIDE AV

B2

HERCULES

B1

TUNER & IF

AUDIO

CONTROL

J

IR/LED/LIGHT-SENSOR

B2

HERCULES

C

AUDIO AMPLIFIER

(CLASS-D)

B16

B15

SCART ANALOGUE IO

B14

DIGITAL IO

B15

SCART ANALOG IO

D

SIDE AV

B17

SIDE CONNECTORS

E

KEYBOARD CONTROL

B17

SIDE CONNECTORS

B3

SYNC INTERFACE

B6

DC-DC CONVERTER

1001

4

3

2

1

LEFT

SPEAKER

RIGHT

SPEAKER

60

61 AUDOUTLSR

AUDOUTLSL

1K01

10 10

1304

(1M06)

12 12

HP_LOUT

HP_ROUT

HEADPHONE

HEAD_PH_L

HEAD_PH_R

7217

TDA15021H

1102

UR1318S(D)

RF IN

RF OUT

TUNER

2106

11

45

SCL

SDA

QSS Mixer

AM Demod.

AM

1106 7

8

2SIF1

SIF2

AD Conv.

Std Stereo

Decoder

21

1

1G02-1

21

1

1G01-1

21

1

SC1_L_RF_OUT

SC1_R_RF_OUT

SCART 1

SCART 2

PC

AUDIO

IN

AudioIN2L

AudioIN2R

53

54

SC1_COMP_AV1_L_IN

SC1_COMP_AV1_R_IN

SC1_COMP_AV1_L_IN

SC1_COMP_AV1_R_IN

34

35

SC2_L_MON_OUT

SC2_R_MON_OUT

SC2_L_IN

SC2_R_IN

SC2_L_IN

SC2_R_IN

56

57

21

1

SCART 1

SCART 2

62

63

36

37

29

30

33

IF-TER

IFOUT

F108

AUDIO

SELECT

ADC/DAC

AUDIO

CONTROL

Vol/Treb/

Bass

Features

DACs

I2S

Processor

QSS/FM

1310

3324

1311

1312

1313

Channel+

Channel-

Volume+

Volume-

Power

33

55

1870 1K00

6801-2

6801-1

7801

7804

7803

3801

7802

GND

+3V3STBY

VS

OUT

22

44

66

PC-TV-LED

LED_SEL

IR

3802 +3V3STBY

Red

Green

PC-TV-LED

LED_SEL

IR

+3V3STBY

KEYBOARD

97

7217

TDA15021H

115

107

120

7430 +3v3STBY

+5VSW

3431

6F00

114 SEL_IF_SDM

4022

SERVICE

SMD

116 STATUS_1

B3

119 STATUS_2

B3

MUTE

OUT_MUTE

102 EXT_MUTE

B5

POWER_DOWN

SOUND_ENABLE

111 SOUND-ENABLE

B5

122 SC_STANDBY

B15B6

F_15270_040.eps

180505

B1

HERCULES

4110

6104

7101

3

SEL_IF_SDM

B2

MUTE

OUT_MUTE

MUTE

4211

4212

1J04

33

1002

11

POWER

COMPARATOR

7001

TDA8931T

OUT

HVPI

16

13

IN+

4

POWER

COMPARATOR

7000

TDA8931T

OUT

HVPI

16

13

IN+

4

88

7

AUDIO-R

SOUND-ENABLE

AUDIO-L

PHASE

INVERTER

SOUND-ENABLE

7606

7202

7201

7G07*

74HC4053D

1G01

6

2

1G02

6

2

DMMI_L_IN

DMMI_R_IN

1G03

6

4

Only for

DVB sets

1302

66

88

L_FRONT_IN

R_FRONT_IN

FRONT_L_IN

FRONT_R_IN

49

50

1304

(1M06)

1K01

(1M06)

2

3

1

7808

11

LIGHT-SENSOR-SDM LIGHT_SENSOR

1309

Menu

1684

22

1K02

(1M06)

KEYBOARD

+3V3STBY

ITV_IR_SW_RESET 123

1202

127 AV2_DMMI_SW

7601

TS482ID

1

7

2

6

SC1_L

SC1_R

SC2_L

SC2_R

7

7004

11

10

1F01

2

4

3

7

2

1303

7

1

2

11 11 HP_DET_R_DC1

HP_DET_R_DC_1

HP_DET_R_DC_1

EXT_MUTE

2

1

9

10

7602

74HC08PW

B16

B2

B2

6

8

13

1

4G11

4G12

*Only for

DVB Set

12

2

Only on

DVB Sets

SC1_L_RF_OUT

SC1_R_RF_OUT

SC2_L_MON_OUT

SC2_R_MON_OUT

OUT_MUTE

&

&

&

3

5

DMM1

CONNECTOR

3432

RES

7756

3759

7758

3750

+3V3STBY +3V3SW

SC_STANDBY

7755

PANEL-PWR-CTL

3758

7758

3755

LVDS_VCC

5756 5757

PAN_VCC

+12VSW

B8

B2

B15

EXT 1

EXT 2

AUDIO

L/R IN

EXT 2

EXT 1

3

1

3

1

10,11

14

15

AV2_DMMI_SW

B2

Block Diagrams, Testpoint Overviews, and Waveforms 27LC4.3E AA 6.

I2C IC Overview

HERCULUS TUNER & IF

B1

SCALER

IIC

ADC

B18

B2 B8

DIGITAL IO

B14

FLASH / CONTROL

B11

SDRAM

B10

B15 SCART ANALOGUE IO

COLUMBUS

B19

SCALER INTERFACE

B9 EPLD

B21 EPLD

B20

B7

SCALER

ANALOG BACKEND

K5

FRONT END

K6

MOJO

K1

MEMORY

K2

MEMORY

K7

IBO ZAPPER (Only For DVB Sets)

SDA

SCL

109

HERCULES

SET

PROCESSOR

108

54

1102

UR1318S

TUNER

ERR

10

N1 N2

7801

GM1501H

SCALER

ERR

4

ERR

6

F_15270_041.eps

180505

+3V3STBY

3233

3232

56

7207

M24C16

EEPROM

NVM

ERR

9

NVM_WP_HERC

+3V3STBY

3249

104

1101

1

2

3

SERVICE

CONNECTOR

COMPAIR

18

916

17

24

C5

C1 C2

C3 C4

1F00

7

6

56

7F03

M24C02

EEPROM

256x8

DCC_5V

3F18

3F17

SDA_DVI

SCL_DVI

DVI-D

CONNECTOR

3102

(5108)

3101

(5107)

SDA_IO

SCL_IO

56

7C01

M24C32

EEPROM

P3

P4

+3V3SW

3818

3817

ERR

8

NVM_WP_SCALER

7C00

MX29LV040

FLASH ROM

7B01

K4D263238F

SDRAM

ERR

14

ADDRESS

DATA

ADDRESS

DATA

AF5

N3

N4

SDA

SCL

7

1107

1

2

3

SERVICE

CONNECTOR

UART

UART_TX

UART_RX

3122

3123

M1

M2

2

1802

1

JTAG_TDI_SDA

JTAG_CLK_SCL

AF7

AD6

+3V3IO

3838

3837

JTAG

I2C

FS DATA

FSADDR

OCMDATA

OCMADDR

7

SW_I2C_SDA

SW_I2C_SCL

1

1G03

2

57 56

7L04

MST9883C

ANALOG

INTERFACE

ERR

7

3L19

3L20

7L07

7L06

+3V3SWB

3L36

3L37

+3V3SWB

A15 B15

7M00

T6TU5XBG

COLUMBUS

CTRL

ERR

11

3M14

3M15

ERR

17

T2 R2

7N02

EP1C12F256C8N

EPLD

BANK 4

ERR

16

4N21

4N22

1N02

2

3

4

FOR

DEVELOPMENT

USE ONLY

SDA

SCL

1

+3V3SW

3N46

3N47

7A00

PCA9515ADP

1P07

(1G50)

31

30

3

2

6

7

TO

DISPLAY

FOR

PDP ONLY

3125

3124

112

113

I2C_TV_SDA

I2C_TV_SCL

+5V

3626

3627

98

1600

TD1316L

TUNER

DIGITAL

1

1500

2

7217

TDA15021H

3513

3512

56

7602

M24C256

EEPROM

3607

3605

3632

3633

43

7600

TDA10046

COFDM

CHANNEL DECODER

3630

3631

86

3625

3629

98

7100

PNX8316HS

MOJO

3147

3146

76

3144

3143

56

7203

M24C64

EEPROM

3209

3210

185 7

WP

3625

+5V

+5V

3207

3206

30 31

7700

ST70700

PCMCIA

CONTROLLER

3701

3700

I2C_local_SDA

I2C_local_SCL

28LC4.3E AA 6.

Block Diagrams, Testpoint Overviews, and Waveforms

Supply Voltage Overview

B16

TOP CONNECTORS

B1

TUNER & IF

B2

HERCULES

B3

SYNC INTERFACE

B4

AUDIO DELAY LINE (RESERVED)

B5

AUDIO PROCESSING

B7

SCALER

B8

SCALER

B9

SCALER INTERFACE

B10

SDRAM

B11

FLASH / CONTROL

B12

HDMI (Not for EUR Sets)

B13

MUX-SYNC INTERFACE

B14

DIGITAL IO (Only for EUR Sets)

B15

SCART ANALOGUE IO

B17

SIDE CONNECTORS

B18

ADC

B19

COLUMBUS

B20

EPLD

B21

EPLD

B22

DIGITAL IO (Not for EUR Sets)

B23

CINCH ANALOGUE (Not for EUR Sets)

C

CLASS D AUDIO AMPLIFIER

D

SIDE-AV

J

IR / LED / LIGHT-SENSOR

B6

DC-DC CONVERTER

K1

MOJO

K2

FLASH MEMORY

K4

INTERFACE

K6

FRONT END

K7

COMMON INTERFACE

K5

ANALOG BACK END

K3

POWER SUPPLY

SUPPLY

PANEL

(PSU)

SUPPLY LINE OVERVIEW

1

1J02

2

3

4

5

6

7

8

9

10

11

12

LAMP_ON_OFF

BACKLIGHT_CTRL

STANDBY

POWER_DOWN

+3V3STBY

VP

+12VUNREG

+5VSW

+5VSW

+5VSW_b

+5VSW_a

5102

5103

+3V3STBY

+3V3STBY

+1V8_A

+3V3STBY

+3V3STBY

+5VSW

+5VSW

+8VSW_TV

+8VSW_TV

7215

3265

7216-1

3264

+1V8_B

7217

3263

7216-2

3262

+5VSW

+5VSW

+3V3STBY

+3V3STBY

+3V3SW

+3V3SW

+5VSWI

+5VSWI

+5VD

5501

+3V3SW

+3V3SW

+3V3STBY

+3V3STBY

+5VSW

+5VSW

+5V

+5V

+1V8_CORE

+1V8_CORE

+2V5_DDR

+2V5_DDR

+3V3SW

+3V3SW

+3V3_IO

+3V3_IO

+3V3_PLL

+3V3_PLL

+3V3SW

+3V3SW

+1V8

3V3_PLL

5900

3V3_ADC

5901

3V3_DVI

5902

3V3_IO

5903

3V3_LBADC

5904

3V3_LVDSA

5905

3V3_LVDSB

5906

3V3_LVDS

5907

+2V5_DDR

5908

7900

IN OUT

COM

7901

IN OUT

COM 5909

5910

5911

+1V8_ADC

+1V8_DV1

+1V8_CORE

+3V3SW

+3V3SW

+3V3STBY

+3V3STBY

+5VSWI

+5VSWI

+5V

+5V

+2V5_DDR

+2V5_DDR

FSVREF

3B01

+3V3_IO

+3V3_IO

+3V3SW

+3V3SW

+3V3SW

+3V3SW

+5VHDMI

+5VHDMI

+3V3SW

+3V3SW

+5VSWI

+5VSWI

+5VSWI

+5VSWI

DDC_5V

5F03

6F00

1

1F00

DVI_5V

3F20 6F01

+5VSW

+5VSW

+3V3STBY

+3V3STBY

+5VSW

+5VSW

+5VSWIA

+5VSWIA

+3V3SWB

7K05

IN OUT

COM

+3V3SW

+3V3SW

+3V3SWA

5M03

+5VSWI

+5VSWI

+5VSWIA

5M04

+3V3SW

+3V3SW

+3V3-IO

+3V3-IO

+3V3SW

+3V3SW

+3V3-IO

LVDS_VCC

LVDS_VCC

1V5

7P01

IN OUT

COM

5P01

5P02

5P03

1V5-PLL

1V5-INT

1K00

5

5K00

1K01

7

5K01

+3V3STBY_1

+5VSW_1

1

1J01

2

3

4

5

6

7

8

9

10

11

+12VUFD

+5V_UFD

5J03

1J07

1J08

N.C

.

N.C

.

N.C

.

N.C

.

4J01

+5V

UFD SUPPY

1J03

1

1

1J01

2

3

4

5

6

7

8

9

10

STANDBY

FAN_SPEED

BACKLIGHT_CTRL

N.C

.LAMP_ON_OFF

POWER_UP_OK

N.C

.

N.C

.

PROTECT_AUD

UFD CONTROL

C

1003

B1,B3,B3,

B5,B6,B9,

B17

B6

B5,B6,B9

B6

B16

B16

B6

B6

B16

B6

B6

B6

B6

B16

B6

B16

B8

B6

B16

B6

B7

B7,

B11,B20

B19

B7,B10

B6

B6

B7

B6

B8

B6

B6

J

1540

D

1304

B18

(Only UFD)

MFD SUPPY

OR

OR

F_15270_042.eps

180505

DDC_5V

1870

96Q16

3Q16 5Q16

10 3Q17 3Q18

+5VSWI +5VSWI

+5VSW

+5VSW

3001

5001

3

B16

7

B17

5

B17

1K00

1J03

1K01

VP

VP_SGN

+5VSW

+3V3STBY

1540

1304

1003

+12VUNREG

+12VUNREG

+12VSW

+3V3STBY

7708

IN OUT

COM

+5V

+5V

5704

+8VSW_TV

7738

IN OUT

COM

5738

7754

LVDS_VCC

PANEL-PWR-CTL

7758

+3V3SW

SC_STANDBY

5752 DC/DC

Converter

7752 5753

5754

+5VSWI

5730 PWR

REG

7730

5733

+VTUN

+5VSW

5737

5757

6735

OR

+3V3STBY

B16

B16

B16

OR

7710

IN OUT

COM

6708

5709

5712

(Only UFD)

18

+5VSW

1Q03

B12

+1V2_MOJO

+1V2_MOJO

+3V3

+3V3

+3V3_MOJO

5100

K3

K3

3V3clean

3V3clean

K3

+3V3

+3V3

+3V3_NOR48

+3V3_NOR48

5201

5200

+5V

+5V

K3

K3

+3V3

+3V3

K3

+5V_USB

+5V_USB

N.C.

+1V8FE

+1V8FE

+3V3

+3V3

K3

K3 +5V

+5V

K3

+3V3_FE

5801

+5Vclean

+5Vclean

K3

+3V3

+3V3

K3

+3V3_BUF

5702

+5V

+5V

K3

+3V3_STV

5703

+3V3_CORE

5704

CURRENT

SWITCH

7705

17

PCMCIA_5V

PCMCIA_AVCC

5701

PCMCIA_VPP

5700

+3V3

+3V3

+5V

+5V

K3

K3

+3V3clean

+3V3clean

K3

1

+12V

1301

5309

+12V_A

SUPPLY

7300

MC34063AP1

62

5301 5300 7311

5302

+3V3

3V3clean

7P01

IN OUT

COM

+1V8FE

SUPPLY

7305

MC34063AP1

62

5306 5305 7P01

IN OUT

COM

7P01

IN OUT

COM

+5V

+5Vclean

SUPPLY

7303

MC34063AP1

5304 5303

+1V2_MOJO

5307

62

K6

K2,K5,

K6,K7

K1

K6

K1,K5

K1,K2,K4,

K5,K6,K7

DVI

VGA

HDMI

K3

TO 1301

POWER SUPPLY

(DVB)

(ONLY FOR DVB SET)

(ONLY FOR DVB SET)

(ONLY FOR DVB SET)

(ONLY FOR DVB SET)

(ONLY FOR DVB SET)

(ONLY FOR DVB SET)

(ONLY FOR DVB SET)

X220

PSU

5J04

B3,B5,B7,

B8,B9,B11

B12,B13,

B19,B20,

B21

B8

B8

B8

B6

B6

B16

B16

B6

B6

B8

B8

B6

B6

B22

B6

B6

B6

B6

B6

B1,B2,B3,

B15,B17

B4,B9,B13,

B14,B19

B2

5700 B21

PAN_VCC

(Only LCD)

Circuit Diagrams and PWB Layouts 29LC4.3E AA 7.

7. Circuit Diagrams and PWB Layouts

SSB: Tuner and VIF

NC

ISWI

I

O2

GND

O1

NC

I2

I1

O2

GND

O1

NC

I2

I1

O2

GND

O1

MIX-OSC

PRE-FIL TRACK

FILTER

GAIN

CTRL

PRE-AMP

TRACK

FILTER

RF

MT

OUT

INTMED

FILTER

PRE-FIL BOOSTER

SPLITTER

MT

IN

RF

PLL

AGC

DET

IF AMP

TUNER & IF

5V3

2V6

2V6

33V

5V3

NC

0V

0V

RES

RES

EUROPE & AP

PAL-MUTLI

ONLY

FOR -/93 ONLY

COMPAIR

FROM SCALER

UART

For ITV Only

FOR FM RADIO ONLY

RES

1V7

NC

SERVICE

*

**

*

**

*

*

*

*

*

*

*

*

SERVICE

0V

0V

RES

RES

RES

RES

F103 C2

F104 C1

F105 C4

F106 D2

F107 D3

F108 B4

F109 E5

F110 C10

F111 C10

F112 E10

F113 F10

F114 G7

F115 F3

F116 G3

F117 G3

I101 D3

I102 C6

I103 D6

I104 E5

I105 D6

I106 D7

I107 F6

I108 F7

I109 F7

I110 D7

I111 F6

I112 C1

I113 D2

4104 C8

4105 C8

4106 C8

4107 D9

4108 D10

4109 E8

4110 F8

4111 F8

4112 F8

4113 F8

4114 F7

4115 B4

4116 C4

5101 B5

5102 A6

5103 B6

5105 C9

5106 E9

5107 D2

5108 D2

6101 D1

6102 D2

6103 D4

6104 C6

6105 C7

6106 G2

6107 G3

7101 D6

7102 D7

7103 F6

F101 B1

F102 C1

2112 F7

2113 B6

2114 E7

3101 D2

3102 D2

3103 D3

3104 D4

3105 D2

3106 E3

3107 C6

3108 C6

3109 D6

3110 C7

3111 E5

3112 E5

3113 D7

3114 E7

3115 F5

3116 F6

3117 F7

3118 F6

3119 F6

3120 F3

3121 F3

3122 F2

3123 G2

3124 C1

3125 C1

3126 E1

3127 E1

4102 C8

4103 C8

E

F

G

1101 C1

1102 A1

1103 E2

1104 C9

1105 D8

1106 E9

1107 F3

2101 A6

2102 A6

2103 B6

2104 D3

2105 D3

2106 D5

2107 E2

2108 E3

12345678910

12345678910

A

B

C

D

E

F

G

A

B

C

D

100R

3101

2109 D4

2110 F6

2111 F7

3102 100R

4116

4115

1u0

2114

2113

100u

16V

I112

I113

100R

3127

3126 100R

3125

100R

100R

3124

I111

5VSW_a

5VSW_b

5VSW_b

5VSW_a

+VTUN

5VSW_a

2102

10n

16V

100u

2101

3106

16

17

7

8

6

9

10

13

14

15

2

3

11

12

1106

OFWK9656L

40M4

1

18

4

5

+3V3STBY

56

1

2

3

4

F113

1103

F112

F116

F115

F1173123 100R

100R3122

6106

BZX384-C6V8

BZX384-C6V8

6107

6101 6102

BZX384-C6V8BZX384-C6V8

F111

F110

F109

F114

+3V3STBY

3120

10K

3

45

10K

3121

1107

1

2

1

2

345

1101

6NC1

NC2

10

SCL

4

SDA5

TU2

11

12

13

14

15

16

17

933V

5V7

ADC8

AGC1

AS3

IFOUT

1102

UV1318ST/AIH-MK3

I110

I104

I106

I105

I103

I102

I107

I108

I109

1K0

3105 11

12

16

17

7

8

+5VSW

5

6

9

10

13

14

15

2

3

38M

OFWK3955L

1105

1

18

4

3

11

12

16

17

7

8

18

4

5

6

9

10

13

14

15

2

38M9

OFWK3953L

1104

1

7103

4114

BFS20

1n0

2110 1n0

2111

1n0

2112

820R

3115

3117

560R

3119

150K

3118

100K

3116

4107

4108

5106

6u8

5103

4113

4109

4112

4110

4111

5105

4105

4106

4103

4104

4102

5101

390n

2103

2106

10n

10n

3111

22K

18K

3112

2K2

3109

BC847BW

1SS356

7101

6104

6K8

3107 2K2

3108

3113

22K

3114

47K

BC847BW

7102

1SS356

6105

2K2

3110

10K

3103

6u8

5102

I101

50V

2u2

2108

2109

22u

16V

+5VSW

6103

BAS316

5108

5107

F102

F106

F104

22p

21052104

22p

F101

F103

F107

F105

F108

47n

2107

SCL

10K

3104

SDA

UART_TX

UART_RX

SEL_IF_SDM

SSIF

VIF2

VIF1

SIF2

SIF1

RF_AGC

SCL

SDA

IF-TER

B1 B1

3139 123 6093.1 F_15270_011.eps

250505

30LC4.3E AA 7.

Circuit Diagrams and PWB Layouts

SSB: Hercules

O

GND

I

4X1

G4

4X2

1

2

VDD

VEEVSS

VREF_POS_HPR

VREF_POS_LSL

VREF_POS_LSR+HPR

VREFAD

SWIO

SWO

SSIF

REFO

REFIN

PIP

FMRO

VDDP_3.3

VDDCOMB

VDDC4

VDDC3

VDDC2

VDDC1

P2<0:5>

ADC3

AMOUT

IFVO

FMRO

CSY

AVL

SVO

CVBSI

O

P0<0:5>

P1<0:7>

RO

QSSO

P3<0:3>

I2SCLK

I2SDO2

I2SDO1

I2SDI1

IFVO

HOUT

AUDOUTSR

AUDOUTSL

AUDOUTLSR

AUDOUTLSL

AUDOUTHPR

VDDA1

VDDA_1.8

VCC8V

YOUT

VOUT

VSSA1

VSSADC

VSSC1|P

VSSC2

SSIF

AUDIOIN4R

VSSP2

ADC1

ADC0

PWM4

PWM3

PWM2

PWM1

PWM0

TPWM

SDA

SCL

AUDIOIN5L

AUDIOIN5R

B

BCLIN

BLKIN

PBIN3

YIN3

PRIN3

AUDIOIN3R

SIFIN1

SIFIN2

UIN

VGUARD

VIFIN1

GO

FBISO

EWD

DVBO

AUDIOIN4L

INT0

I2SWS

AVL

VREFAD_NEG

VREFAD_POS

VSC

XTALIN

XTALOUT

YIN

YSYNC

VP3

VP2

VP1

AUDOUTHPL

AGCOUT

GND1

GND2

GND3

GNDA

VDDADC_1.8

VDDA3_3.3

VDDA2_3.3

AUDEEM

AGC2SIF

AUDIOIN2L

AUDIOIN2R

AUDIOIN3L

VDRB

VDRA

UOUT

SVM

VSSC3

VSSC4

VSSCOMB

ADC2

C2

C4

CVBS2

CVBS3

CVBS4

DECBG

DECDIG

DECSDEM

DECV1V8

EHTO

TX

RX

T1

INT2

T0

INT1

PLLIF

R

SECPLL

Y4

GNDIF

DVBAGC

DVBIN1

DVBIN2

VIFIN2

VIN

VREF_NEG_HPL+HPR

VREF_NEG_LSL+HPL

DVBO

CVBSO

BO

INSSW2

SWO1

G

SIFAGC

INSSW3

IREF

PH1LF

PH2LF

C3

Y2

Y3

SCL

ADR

0

1

2SDA

WC

AUDIO PROCESSING

B4

B5

HERCULES

B2 B2

*EMC

*EMC

RES

B8

B12/B14

B8

B8

B17

B17

FOR SERVICE

B1

RES

0R

0R

0R

B17

B12/B14

B15/B23

B15/B17

B7

B5

B6/B15/ B23

B1

B1

B1

B3

B6/B7

B15/B23

B1

B1

B15

B3

B4

B4

B7

B15

B7

B17

B13

B5

B5

B17

RES

B15

B15

B15

B15

B15/B23

B23

B15

B5

B13

B13

B15/B23

B15/B23

B15/B23

B1

B13

B13

B13

B9

B3/B18

RES

RES

RES

B3/B15/B17/B23

RES RES RES

RES

B18

RES

RES

RES

B18

ES10.3B RESET (RESERVED)

RES

RES

RES

RES

0R

RESERVED

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES RES

RES

RES

RES

RES

HERCULES

RES

B7

3V2

3V2

2V9

2V8

0V

0V

0V

3V2

3V2

3V2

0V

3V1

3V2

0V

2V4

2V2

1V6

8V

1V4

1V4

1V9

1V9

1V9

1V9

8V

0V

2V5

2V1

1V9

2V8 2V

1V9

2V7

0V

3V9

3V9

3V9

3V9

3V9

*

*

*

*

B15 / B23

3V9

RES

RES

RES

RES

RES

RES

RES

RES

RES

B15/B23

B15/B23

B15/B23

123456789101112

123456789101112

A

B

C

D

E

F

G

H

A

B

C

D

E

F

G

H

1201 B7

1202 G10

2201 A3

2202 B3

2203 D2

2205 G4

2206 G4

2207 F5

2208 G4

2209 G4

2210 B5

2211 B6

2214 B6

2216 B6

2218 A7

2219 A7

2220 B7

2221 A7

2223 B8

2224 C8

2225 B10

2226 C10

2227 B11

2228 C5

2229 C5

2230 D5

2231 D5

2232 D5

2233 D5

2234 D4

2235 D4

2236 D5

2237 D5

2238 E5

2239 E5

2240 E5

2241 E5

2242 E5

2243 E5

2244 E5

2245 E5

2246 F5

2247 F6

2248 G6

2249 G6

2250 F7

2251 F7

2252 F7

2253 F7

2254 F7

2255 F7

2256 F8

2257 F8

2258 G5

2259 G8

2260 F8

2262 G8

2263 F8

2264 G8

2265 G8

2266 G8

2267 F8

2268 G8

2269 F9

2270 F9

2271 F9

2272 F9

2273 F10

2274 F10

2275 G9

2276 G10

2277 F10

2278 F11

2279 F11

2280 A3

2281 B3

2282 F10

2283 F10

2284 F10

2285 F6

2286 F7

2287 H7

2288 H6

2290 F3

2291 F2

2292 E11

2293 C10

3201 A3

3202 A4

3203 A4

3204 B3

3205 B4

3206 B4

3207 B6

3208 B6

3209 B6

3210 B6

3211 B6

3212 B6

3213 B6

3214 B7

3215 B6

3216 A6

3217 B7

3218 B7

3219 B7

3220 B7

3222 B8

3223 B8

3224 B8

3225 B8

3226 B9

3227 C8

3228 D2

3229 C9

3230 B9

3231 B9

3232 B9

3233 B9

3234 B9

3235 B9

3236 B9

3237 C9

3238 C10

3239 C10

3240 B10

3241 B10

3242 C10

3243 C10

3244 D2

3245 C10

3246 C11

3247 B11

3248 B11

3249 A11

3250 D2

3251 D3

3252 D3

3253 D3

3254 F3

3255 E2

3256 E2

3257 E3

3258 E2

3259 E2

3260 E3

3262 F3

3263 F3

3264 F4

3265 F4

3266 F4

3267 F4

3268 F5

3270 F7

3271 F7

3272 F8

3273 F8

3274 F8

3275 F9

3276 F9

3277 F10

3278 F11

3279 G11

3280 E4

3281 F8

3282 F3

3283 B8

3284 B8

3285 G6

3286 H6

3287 B7

3288 B7

3289 D2

3290 B8

3291 F2

3292 F2

3293 G2

3294 G2

3295 F8

3296 B5

4201 F5

4202 F5

4203 F5

4204 C9

4205 C9

4206 F3

4207 E2

4208 E2

4209 E3

4211 A4

4212 B4

4213 F5

4214 F5

4215 F5

5201 B5

5202 B5

5203 B7

5204 D5

5205 D5

5206 D4

5207 D4

5208 D5

5209 D5

5210 D5

5211 E5

5212 E5

5213 E5

5214 G9

5215 F10

5216 F10

5217 H7

5218 F2

6201 E4

6204 C11

6205 C11

6206 C12

7201-1 B1

7201-2 C2

7202-1 C2

7202-2 C3

7203-1 C3

7203-2 C3

7204-1 A4

7204-2 A3

7205-1 B4

7205-2 B4

7206 B6

7207 B11

7208 D2

7209 D2

7210 D3

7211 F4

7214 G3

7215 G4

7216-1 G3

7216-2 G3

7217 C6

7218 F11

7219 F2

F201 B2

F202 B2

F203 B3

F204 B3

F205 B6

F206 B6

F207 C7

F208 C7

F209 B7

F210 F1

F211 C9

F212 C8

F213 C10

F214 C10

F215 C10

F216 C10

F218 A11

F219 B12

F220 D3

F221 D3

F222 D5

F223 D5

F224 D5

F225 D5

F226 D5

F227 D4

F228 E5

F229 E5

F230 G4

F231 G4

F232 F5

F233 F5

F234 F5

F235 F5

F236 F6

F237 F6

F238 F6

F239 F6

F240 F6

F241 G7

F242 G7

F243 G7

F244 F8

F245 F9

F246 F10

F247 D11

F248 F8

F249 E11

F250 A7

I201 A5

I202 B5

I203 B6

I204 B6

I205 B6

I206 A7

I207 C7

I208 B7

I209 C8

I210 C8

I211 B8

I212 B9

I213 C10

I214 C10

I215 C10

I216 C10

I217 C11

I218 D3

I219 C5

I220 D5

I221 D5

I222 D5

I223 D5

I224 E5

I225 C10

I226 F8

I227 F6

I228 F7

I229 F7

I230 F7

I231 F7

I232 F8

I233 F8

I234 F8

I235 F8

I236 F8

I237 F8

I238 F9

I239 F9

I240 F10

I241 B10

I242 F4

I243 C4

I244 B7

I246 D2

I247 D4

I248 D4

I254 F6

I255 F6

I256 E7

I257 E7

I258 E7

I259 F8

I262 F8

I264 F9

I265 F10

I266 F10

I267 F11

I268 G11

I269 C11

I270 B11

I271 B10

I272 B10

I273 C9

I274 A9

I275 A9

I277 C8

I278 C8

I283 B6

I284 B6

I285 B6

I288 B6

I289 A3

I290 A3

I291 A4

I292 B3

I293 B3

I294 B3

I297 B8

I298 C7

B15/

B23

B15/

B15/B23

B15/B23

B15/B23

B15/B23

B15/B23

B15/B23

SFSKA

1201

2

1

3

4M5

4202

4203

4201

4215

4213

4214

2293

2292

100n

4211

4212

100n

2285

4206

2291

5218 +5VSW

3294

3293

3292

3291

150R3282

2290 4u712

2

5

14

15

4

11

10

9

16

7

8

13

1

3

MDX

7219

6

3290

GND GND1

GND1

3289

3244

3228

I225

I226

F250

F208

3288

3287

3285

3286 100R 5217

2288 2287

2286 100n

3296 100R

+1V8_B

7211

BC847BW

3284

3283

I285

I288

I284

I297

I283

I278

I275

I277

I274

I272

I273

I271

I269

I270

F249

I267

I268

I266

I264

I265

I262

I258

I259

I256

I257

I255

I254

I247

I248

I246

I291

I290

I289

I294

I292

I293

4u7

2281

F248

2280 4u7

2284

2283

2282

4205

2218

100R

100n

3247

3248

100R

42094207 4208

I206

I207

I208

2220

100K

3218

2219

330R

330R

3215 3216

+5VSW

I244

BC857B

7206

3217 1K0

2258 10u

2229 10u

10u2260

+3V3STBY +3V3STBY

+3V3STBY

+3V3STBY

+1V8_A

+5VSW

+3V3STBY

+3V3STBY

F206

I205

1n02216

3213 100R

101

125

2

68

1

10

11

72

74

73

90

8

6

9

5

7

26

12

95

121

22

13

24

25

70

76

15

47

82

91

89

4

96

93

117

100

124

3

69

110

23

78

19

42

29

30

65

71

75

45

88

94

123

115

116

119

120

17

16

41

39

85

107

127

128

108

109

111

112

113

114

122

77

27

106

105

104

103

102

97

98

99

126

21

66

18

40

81

92

28

86

79

67

48

58

51

64

20

14

38

118

44

43

32

36

37

33

83

84

87

80

59

52

55

54

56

57

49

50

34

35

62

63

60

61

PROCESSOR

SIGNAL

VIDEO

Φ

TDA15021H/N1A11

7217

46 31

53

2279 100n

3278

+8VSW_TV

I234

68K

I298

F220

F221

I217

BC847BW

7218

3279

2278

100R

47u

27p

5215

3277 1K5

I203

5213

2248

2249

680R

3207

3226

2233 10u 16V

220n

100R

+3V3STBY

2241

6204 BAT54 COL

I211

I228

I218

I212

I222

I210

F246

F244

3276 75R

2205

5K63266

2u22206

I242

3242

I202

10K

I220

I201

I230

I224

I213

I243

I240

I229

I209

I231

I227

I214

I204

I237

I216

I236

I235

I238

I223

I221

I241

I215

F205

F209

F235

F240

F233

F239

F234

F242

F214

F232

F204

F201

F202

F203

F236

F210

F238

F215

F237

F243

F224

F241

F218

F227

F228

F222

F226

F229

F230

F231

F223

F212

F211

F225

16V

BAS321

6201

+3V3STBY

2269 470u

4K7

3234

+3V3STBY

2K2

3230 10K

3231

4204

F213

3295 100K

1u0

F216

2201

2202 1u0

3280

1R0

16V

2221 100u

2208

1u0 16V10u

50V

+3V3STBY

2209

3204 100R

3201 100R

+8VSW_TV

BC857BS

7205-2

3205

+8VSW_TV

BC857BS

7205-1

3206

+8VSW_TV

7204-2

BC857BS

3202

7204-1

BC857BS

3271

+3V3STBY

2250 1n0

2214 1n0

10V

470n

2264

6206

6205 BAT54 COL

+3V3STBY

3258

330R

3255

BC847BW

7208

330R

3259

BC847BW

3256

7209

+5VSW

3260

330R

3257

2203

10u

16V

100R

3250

BC847BW

7210

3222

+3V3STBY

100R

+3V3STBY

+3V3STBY

10u2251 25V

4

+1V8_A

+1V8_B

BC847BS

7216-2

5

3

BC847BS

7216-1

26

1

22K

3262 3R9

3263

2

4

3

3R9

3265

7215

BCP69-25

11

2

4

3

I232

+1V8_A

BCP69-25

7214

3267 5K6

220n

22K

3264 2207

+8VSW_TV

+5VSW

PUMH7

7203-2

PUMH7

7203-1

PUMH7

7202-2

PUMH7

7202-1

PUMH77201-2

+8VSW_TV

+5VSW

3203

+3V3STBY

+1V8_A

+1V8_B

+5VSW

+3V3STBY

+3V3STBY

+3V3STBY

+3V3STBY

+3V3STBY

7201-1 PUMH7

2227

F219

4K73249

1n0

4

7

7207

M24C16-WMN6

(2Kx8)

1

2

3

6

5

8

I233

Φ

EEPROM

10u

2243 16V

2240 220n

5212

5210

4K7

3224

680R

3214

2276 8p2

2275 8p2

3219 100R

F207

F245

F247

I219

I239

3223 10R

2270 100n

3220

2234 220n

47K

100R

3254

1K0

3241

100R

3239

4K73236

3235 4K7

2225 1n0

3229 4K7

3237

4K7

3246

3243 4K7

1u0

2224 2223 100p

3238 100R

220n2236

5208

3240 1K0 1%

2231 220n

5204

3K3

3232 3K3

3233

100R

3227 3225 4K7

2235

+1V8_B

220n

5207

2239 100n

5211

220n2237

5209

16V

2271 100n2272

5216

100u

220n2273

100R

3251

3252

100R

100R

3253

+5VSW

3270

2210 220n

5202

2246 100n

2244 100n

100n2245

100R3268

2277 100n

5205

2232 100n

+3V3STBY

100R

100R

3209

3211

3208

3210

100R

100R

100n2252

2254 100n

100n2253

2255 100n

2247 2u2

50V

2242

2228 100n

100n

5201

2u2 50V2268

390R3274

3n3

2266 100n

2226

50V

2262 10u

2259 100n

100R

3212

10n2211

2274 150n

3281 39K

220K

3245

10u

2256 16V

2257 100n

2267

3272 4K7

220n

1u0

6n8

10V2265

2263

1K0

3273

100n

2230

5203

100R

3275

5214 1m0

24M576

1202

2238

5206

220n

SC1_CVI_DMMI_B_Pb_IN

SC1_CVI_DMMI_G_Y_IN

SC1_CVI_DMMI_R_Pr_IN

INTF_U_OUT

SC2_OUT_SW

AV2_DMMI_SW

CVBS_COMB

SANDCASTLE

INTF_V_OUT

INTF_Y_OUT

CVBS_COMB

CVBS_COMB

SC1_L

DMMI_RGB_SW

RF_AGC

KEYBOARD

SC_STANDBY

POWER_DOWN

POWER-DOWN_BOLT-ON

PC-TV-LED

LIGHT_SENSOR

IR

TV_IRQ

TV_SC_COM

EXT_MUTE

SC1_R_CVI_Pr_IN

SC1_B_CVI_Pb_IN

SC2_CVBS_MON_OUT

INTF_Y_OUT

Y_NOTCH

SC1_FBL_IN_1

HOUT

SC2_Y_IN_1

SC2_AV3_C_IN

MAIN_OUTL

MAIN_OUTR

Const_L_OUT

Const_L_OUT

Const_R_OUT

Const_R_OUT

SC1_R

SC2_L

SC2_R

SC2_L_MON_OUT

SC2_R_MON_OUT

SC1_CVBS_RF_OUT

FRONT_L_IN

SC1_COMP_AV1_R_IN

SC1_CVBS_IN

SC2_L_IN_1

VIF1

VIF2

FRONT_R_IN

SC1_L_RF_OUT

SC1_R_RF_OUT

SW_I2C_SDA

SW_I2C_SCL

SEL_IF_SDM

ITV_IR_SW_RESET

STATUS_1

STATUS_2

SIF1

SIF2

VSYNC

I2SDI1

I2SDO1

I2SCLK

POWER_DOWN_BOLTON_P50

SCL

SOUND_ENABLE

SC1_COMP_AV1_L_IN

AudioIN2L

AudioIN2R

SC2_R_IN_1

B_SDTV

G_SDTV

R_SDTV

AUDOUTLSL

AUDOUTLSR

OUT_MUTE

INTF_V_OUT

SC1_G_CVI_Y_IN

NVM_WP_HERC

SDA

SSIF

INTF_U_OUT

3139 123 6093.1

F_15270_012.eps

170505

Circuit Diagrams and PWB Layouts 31LC4.3E AA 7.

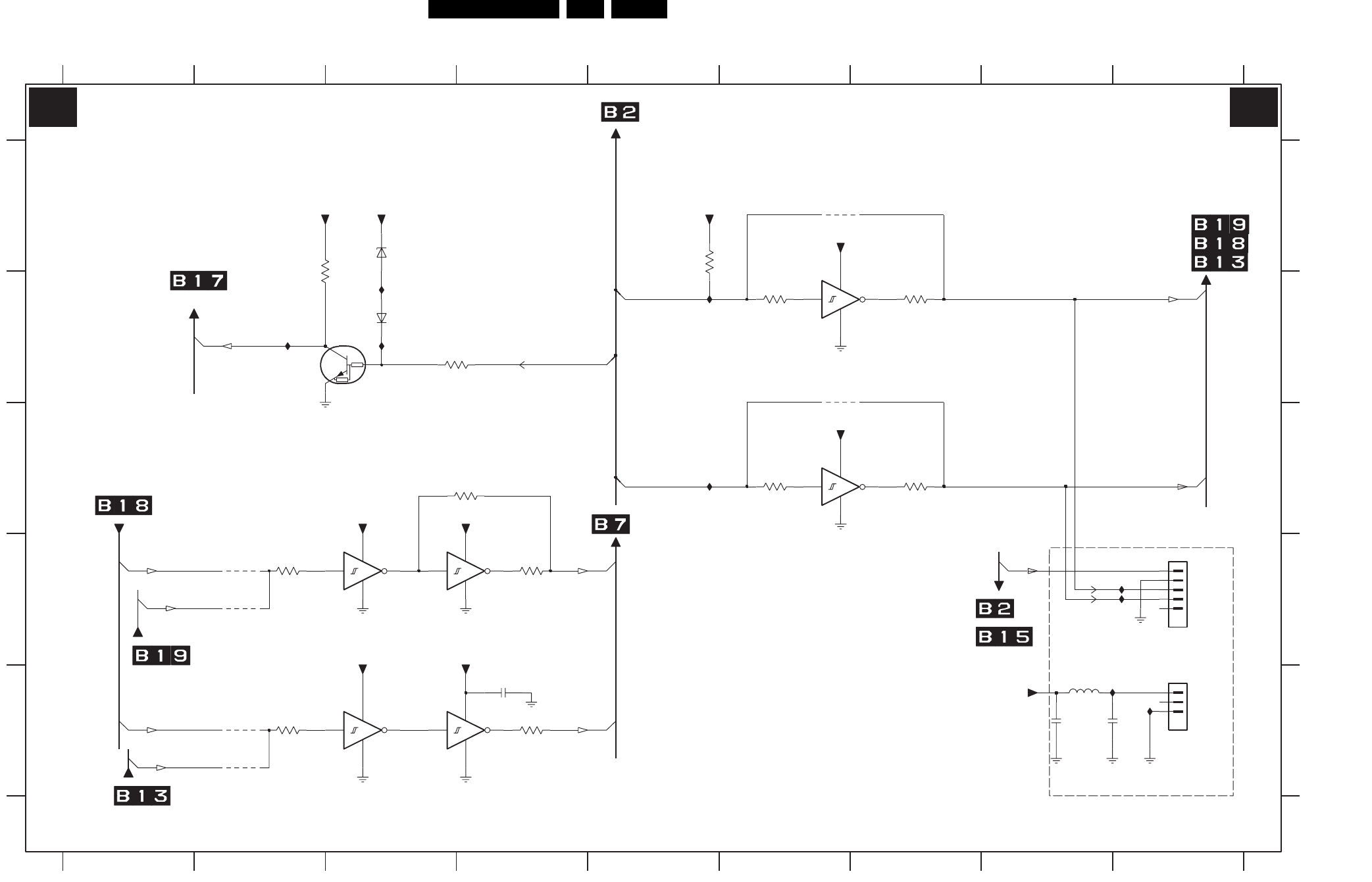

SSB: Sync Interface

SYNC INTERFACE

FOR ITV ONLY

(NC)

&

TO SIDE CONNECTORS

RES

RES

RES

RES

RES

RES

123456789

123456789

A

B

C

D

E

A

B

C

D

E

1440 D9

1441 E9

2447 E8

2448 E9

2449 E4

3431 A3

3432 B3

3451 A5

3453 B6

3454 B7

3455 C6

3456 C7

3458 D2

3459 D4

3461 E2

3462 E4

3463 C4

4436 A6

4437 B6

4438 D2

4439 E2

4440 D2

4441 E2

5431 E8

6430 A3

6431 B3

7430 B3

7436-1 A6

7436-2 C7

7436-3 D3

7436-4 D4

7436-5 E4

7436-6 E3

I430 B3

I440 C6

I443 B5

I449 D8

I450 D8

I451 E9

I452 E9

I453 B3

I454 B2

0V

3V1

I440

I453

I454

3463

2449

100n

+3V3SW+3V3SW

100R

3462

100R

4439

3461

4441

100R

3459

+3V3SW

4438

+3V3SW

100R

3458

4440

3456

100R

100R

3454

100R

3455

13

7

14

12

3453

100R

14

10

7436-6

74LVC14APW

74LVC14APW

11

7

9

7

14

8

7436-5

74LVC14APW

5

7

14

6

7436-4

74LVC14APW

7

14

4

7436-3

7436-2

74LVC14APW

3

7436-1

74LVC14APW

1

7

14

2

+3V3SW

+3V3SW

4437

4436

I451

I452

I450

I443

I449

6431

1N4148

10p

2448

2447

10p

5431 1

2

3

45

+12VSW

1441

S3B-PH-SM4-TB

3432

4K7

3451

+3V3STBY

1440

BM05B-SRSS-TBT

1

2

3

4

5

67

I430

BZX384-C2V7

6430

+3V3STBY +5VSW

7430

PDTC114ET

1K0

3431

COL_HREF

H_DELAY

H_1FH

COL_VA

Vsync_SDTV

V_1FH

SC1_CVBS_RF_OUT

Vsync_SDTV

ITV_IR_SW_RESET

VSYNC

HOUT Hsync_SDTV

LED_SEL

B3 B3

3139 123 6093.1

F_15270_013.eps

170505

32LC4.3E AA 7.

Circuit Diagrams and PWB Layouts

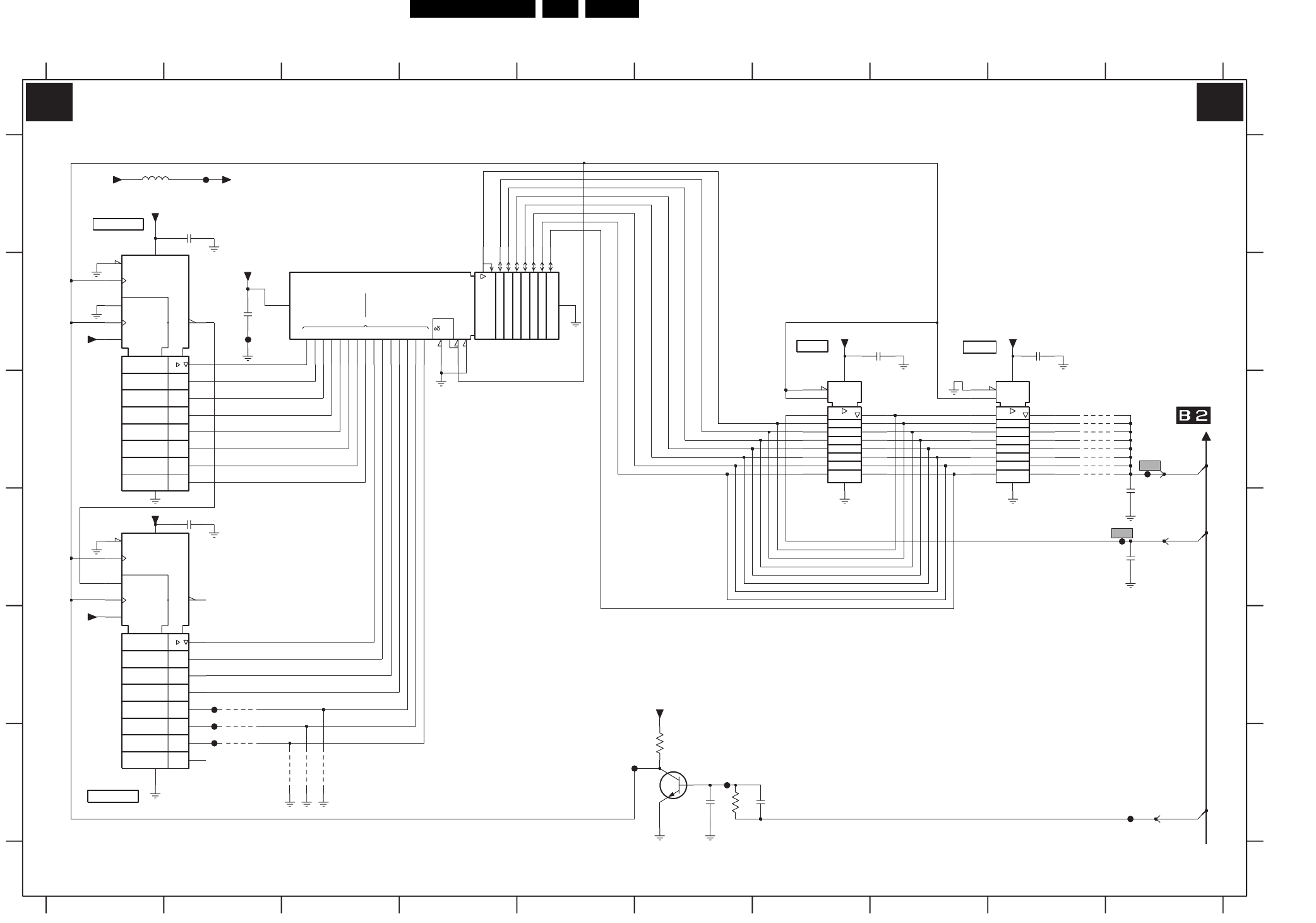

SSB: Audio Delay Line (Reserved)

EN

C1

1D

EN

C1

1D

2C1

14

13

11

10

9

8

7

6

5

4

3

2

1

0

2EN

32k-1

0

A

A,1D

12

A

G2

C2

G1

1+

CT=0

CTR8

(CT=255)Z4

2D 3

4

EN3

C2

G1

1+

CT=0

CTR8

(CT=255)Z4

2D 3

4

EN3

AUDIO DELAY LINE (RESERVED)

COUNTER

COUNTER

LATCH LATCH

2V3

2V3

5V3

5V3

2V6

2V6

2V6

2V6

2V6

2V6

2V6

5V3

2V5

2V5

2V5

2V5

2V5

2V5

2V5

2V5

2V3

5V3

2V3

5V3

5V3

2V6

2V6

2V6

2V6

2V6

2V6

2V6

2V3

0V2

5V3

2V3

2V6

2V3

5V3

2V6

RES

*

RES

RES

RES

RES

RES

RES

RES

RES

*

4510 C9

4511 C9

4512 C9

4513 C9

4514 C9

5501 A1

7501 A1

7502 B3

7503 F1

7504 F6

7505 B7

7506 B8

F501 A2

F502 B2

F503 C10

F504 D10

F505 F10

I501 F5

I502 F6

I503 E2

I504 E2

I505 F2

A

B

C

D

E

F

A

B

C

D

E

F

2501 A2

2502 B2

2503 D2

2504 B8

2505 B9

2506 C10

2507 D10

2508 F6

2509 F7

3501 F6

3502 F6

4501 E2

4502 F2

4503 F2

4504 F3

4505 F3

4506 F3

4507 C9

4508 C9

4509 C9

22

28

27

F502

12345678910

1234567

I505

8910

I503

I504

20

11

12

13

15

16

17

18

19

14

9

10

24

25

26

1

2

3

4

5

21

23

6

7

8

CY62256LL-70ZC

7502

32kx8

RAM

82p

2508

470p

2507

20

330p

2506

11

1

19

18

17

16

15

14

13

12

2

3

4

5

6

7

8

9

10

12

20

74HC573PW

7505

10

11

1

19

18

17

16

15

14

13

2

3

4

5

6

7

8

9

74HC573PW

7506

F505

4504

4506

I502

I501

F504

4514 F503

4513

4512

4511

4509

4510

4508

4507

+5VD

4505

4502

4501

4503

7504

BC847BW

3502

47K

3501

470R

2509

82p

+5VD

2505

100n

+5VD

+5VD

2504

100n

2502

100n

+5VD

+5VD

2503 100n

100n2501

+5VD

+5VD

+5VD

F501

5501 1u0

6

7

13

9

VCC

16

+5VSWI

GND

8

14

15

1

2

3

4

5

11

12

10

5

6

7

13

9

16

VCC

7503

M74HC590T

GND

8

14

15

1

2

3

4

7501

M74HC590T

11

12

10

I2SDI1

I2SCLK

I2SDO1

B4 B4

3139 123 6093.1

F_15270_014.eps

240505

Circuit Diagrams and PWB Layouts 33LC4.3E AA 7.

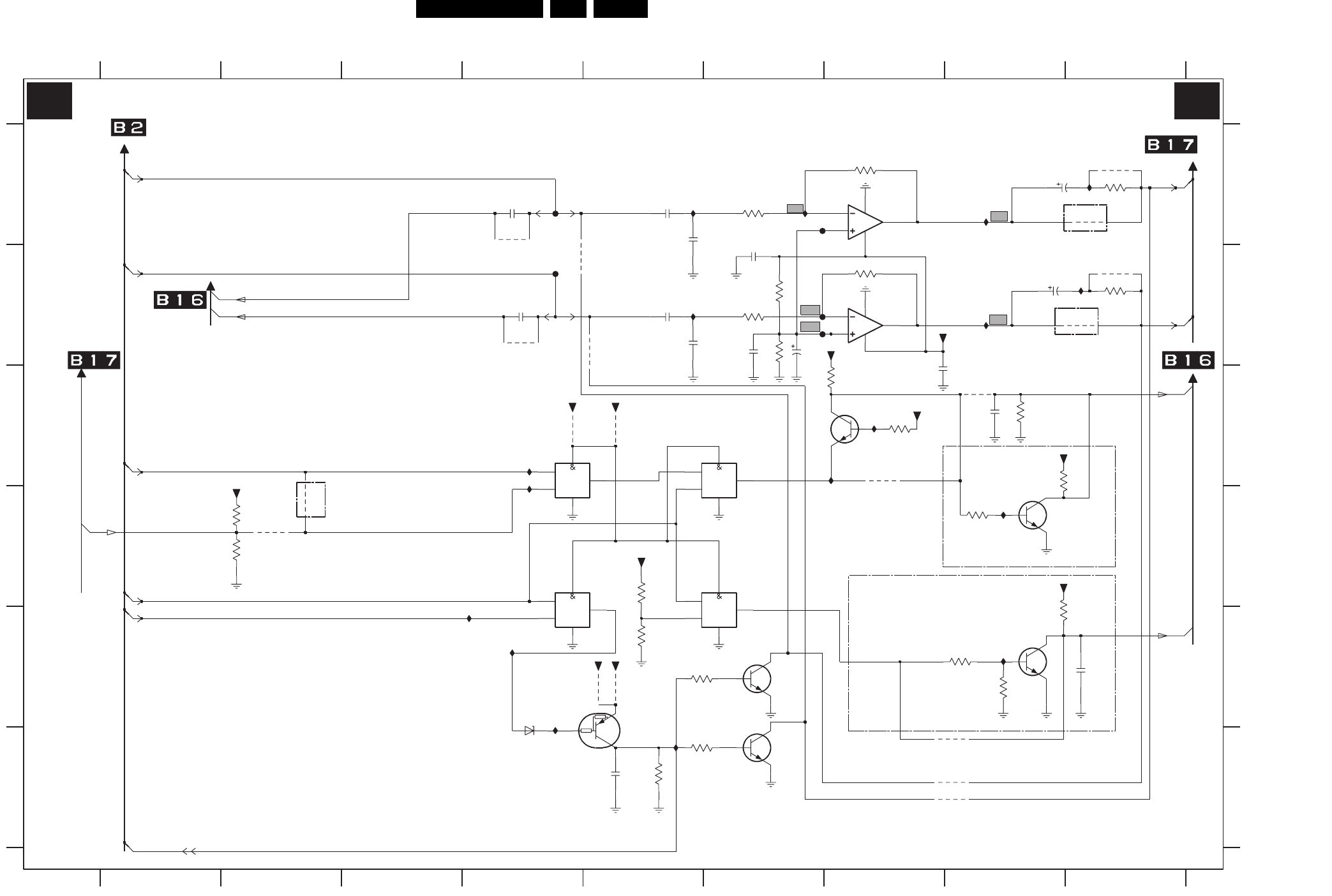

SSB: Audio Processing

AUDIO PROCESSING

FROM HERCULES

**

**

RES

3.2 TO 4.3V

3V3

ITV ONLY

RES

RES

RES

PDTA143ET

RESERVED FOR UFD

RESERVED FOR UFD

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

2V6

2V6 2V6

5V3

2V6

2V6 2V6

5V3

3V4

3V2

5V2

0V

5V

0V

0V

123456789

123456789

A

B

C

D

E

F

A

B

C

D

E

F

2603 A5

2604 A6

2605 B6

2608 B5

2609 B6

2610 B6

2611 B6

2612 E9

2613 C8

2614 B8

2615 A8

2616 A4

2617 B4

2618 B8

2619 F5

3604 A6

3605 A7

3609 B6

3610 B6

3611 B6

3612 B7

3615 C7

3616 E9

3617 C9

3618 C8

3619 D8

3620 E8

3621 E8

3623 F5

3625 C6

3626 D2

3627 D2

3628 D5

3629 E5

3630 E5

3631 F5

3632 A9

3633 B9

4601 D2

4602 C8

4603 F8

4604 A9

4605 B9

4606 C7

4609 A9

4610 B9

4611 B4

4612 B4

4613 D2

4614 F8

4615 F8

4616 C4

4617 C5

4618 A4

4619 B4

4620 E5

4621 E5

6601 E4

7601-1 A7

7601-2 B7

7602-1 C4

7602-2 C5

7602-3 D5

7602-4 D6

7603 E8

7604 D8

7605 E4

7606-1 E6

7606-2 F6

7607 C7

F601 A4

F602 B4

F603 A6

F604 B6

F605 B6

I602 A8

I603 B8

I604 A9

I605 B9

I606 C4

I607 C4

I608 A5

I610 B5

I611 C7

I612 C6

I613 E3

I614 E4

I615 E4

I616 E8

I617 F5

I618 A6

I619 D8

470p

2604

2619

47u

4606

4621

+5V

4620

4619

+3V3STBY

4618

4617

4616

4615

4614

4613

4612

4611

4610

4609

3633

39R

39R

3632

+5V

3628

3629

3631

470R

3630

470R

+5VSW

22K

3627

10K

3626 I619

6601

I618

BZX384-C3V3 I617

I616

I614

I615

I613

I612

I610

I611

I608

4603

3K3

3625

4601

+5VSW

+5VSW

2614

100n

7606-2

BC847BS

BC847BS

7606-1

47K

3623

+3V3SW

7605

10K

3615

16V

100u

2611

22K

3618

10V

1u0

2613

2612

1u0

10V

3620

10K

4602

7607

+5VSW

470p

2609

BC847BW

84

3621

7601-1

TS482IDT

3

2

1

5

6

7

84

7601-2

TS482IDT

F605

F603

F604

2u2

2616

2u2

2617

+3V3STBY

7604

BC847BW

3619

10K

3617

+3V3STBY

1K0

7603

BC847BW

1K0

3616

I607

I606

I605

I604

I602

I603

F601

F602

3611

100K

2610

1u0

1u0

2605

3605 22K

3609

22K

3604

22K

3610

100K

22K3612

+3V3SW

12

13

7

14

11

4

5

7

14

6

74HC08PW

7602-4

8

7602-2

74HC08PW

7602-3

74HC08PW9

10

7

14

1

2

7

14

3

74HC08PW

7602-1

2608

1u0

2603

1u0 4604

16V470u

2615

4605

16V

2618

470u

OUT_MUTE

HPIC_RIN

EXT_MUTE

POR_AUDIO

SOUND_ENABLE_1

AUDIO-L

AUDIO-R

POWER_DOWN

SOUND_ENABLE

HP_LOUT

HP_ROUT

HPIC_ROUT

HPIC_LOUT

HP_DET_R_DC

HPIC_LIN

AUDOUTLSL

AUDOUTLSR

B5 B5

3139 123 6093.1 F_15270_015.eps

170505

34LC4.3E AA 7.

Circuit Diagrams and PWB Layouts

SSB: DC-DC Converter

COM

OUTIN

COM

OUTIN

OUTIN

CTRL NC

COM

FB

OUT

COMP

VREFVCC

INH

SYNC

GND GND_HS

DC-DC CONVERTER

NC

NC

NC

RES

RES

SS = 4V9

0V6

(0V)

11V7

11V7

11V7

1V2

RES

FROM SCALER

RES RES

RES

RES

RES

TO SCALER CELL

TO HERCULES CELL

TO TUNER CELL

FROM TOP CONNECTORS

FOR LCD ONLY

SUPPLY TO TUNER & HERCULES

SUPPLY TO SCALER

TO EPLD

SI9433BDY-T1-E3

FROM HERCULES

B5

TO LIPSYNC

B7

B16

SI2301BDS-T1-E3

RES

FOR UFD ONLY

FOR UFD ONLY

FOR UFD ONLY

FOR UFD ONLY

32V9

5V2

8V

0V

3V1

3V2

3V2

5V4

11V5

11V5

6V8

I733 E5

I734 F5

I735 E5

I736 F5

I740 G2

I741 G3

I742 G4

I747 B9

I748 F8

I749 A10

I750 A10

I751 D8

I752 E8

I753 E8

I754 E9

I755 D10

I756 B9

I757 A9

I758 D10

I759 B9

I760 B8

7735 E5

7738 F2

7741 G3

7742 G4

7752 D9

7753 B10

7754 A9

7755 B8

7756 G8

7758 F10

F700 B11

F701 A3

F710 B6

F736 E6

F737 F6

F738 F6

F743 G6

F754 E11

F755 C8

I705 E3

I706 B3

I708 B3

I709 B3

I710 C2

I711 C2

I712 C4

I713 C5

I714 C4

I715 D4

I716 D5

I731 E2

I732 F4

3759 F8

3760 B9

3761 F9

5700 B11

5704 B4

5709 C2

5712 C4

5713 C5

5730 E2

5733 F5

5735 F5

5737 F5

5738 F1

5752 D8

5753 E11

5754 E11

5755 A9

5756 A9

5757 A9

5758 A8

5759 B9

6708 C2

6709 C2

6712 D4

6733 F5

6735 E6

6736 E6

6740 G2

6751 E11

7708 B4

7710 C3

7730 E3

2752 B10

2753 E8

2754 E8

2755 F9

2756 E10

2757 E11

2758 E11

2759 B9

2760 B9

2761 G9

2762 F9

3708 B2

3709 C3

3712 D5

3713 D5

3716 D5

3732 F4

3733 F4

3734 D11

3735 F5

3736 F3

3740 G2

3741 G2

3742 G3

3743 G4

3750 F9

3751 D8

3752 D8

3753 E8

3754 E9

3755 B9

3758 B8

F

G

A

B

C

D

E

F

G

1751 A10

2700 B11

2701 B11

2704 A3

2706 B3

2708 C3

2709 C3

2710 C2

2711 C2

2713 D5

2714 D4

2715 D4

2716 D6

1234567891011

1234567891011

A

B

C

D

E

2762

22u16V

2730 E2

2731 G5

2733 F2

2734 E3

2735 F6

2736 E6

2737 G6

2738 G2

2739 G3

2741 G3

2750 F9

2751 B9

3761

100R

25V

1u0

2761

3760

25V

100R

16V

2760

1u0

3736

2731

470u

SUP_GND1 SUP_GND1

4K7

2734

22n

I760

SUP_GND1

LVDS_VCC

+5VSWI

SUP_GND1 SUP_GND1

+3V3STBY

7756

PDTC114ET

1K0

3759

3750

+3V3SW

I748

22K

1

2

3

2750

2u2

SI4433DY

7758

5

6

7

8

4

F700

100p

27012700

5700

+5V

I758

I749

+5VSWI

I750

F755

I755

F754

I754

I751

I753

I752

I747

I757

I756

67

I759

1

2

3

4

5

SUP_GND3

GND

1751

5758

SUP_GND3

SUP_GND3

2754

SUP_GND3

6751

SS14

SUP_GND3

+12VSW

4

IS7

SWC 1

SWE 2

TIMC 3

VCC

6

SUP_GND3

REFERENCE

OSC

IPK

Q

R

S

MC34063AD

7752

CIN_NEG

5

DCOL8

GND

10u

5754

REGULATOR

10u

5752

220u

5753

3754

1%3K3

1%1K0

3753

1R0

37523751

1R0

2758

16V470u

2755

4n7

16V470u

2756

470p

2757

3755

2753

16V470u

10K 100n

2751

PAN_VCC

47u

2752

16V

7753

L4940D2T12

2

13

2759

5759

5757

5755

3758

+12VSW

5756

15K

+3V3STBY

7755

3

1

2

PDTC114ET

I734

7754

I735

I733

I705

I732

F737

I731

F738

F736

+8VSW_TVL78M08CDT

2

1

3

+12VSW 5738 7738

47u 16V

2739

+VTUN

2738

47u 16V

SUP_GND1

SUP_GND1

7735

BC817-25

6736

BZX384-C33

6735

BAV99

1m0

5735

2736

22u

35V

470p

2735

3735

1K0

3734

2K2

SUP_GND1

+5VSW

+12VSW

2737

470u 16V

10u

5737

2730

10u

25V

SUP_GND1

I736

6

VREF

1%

3K3

3733

4COMP 5

FB

GND

7

3INH

1

OUT

2

SYNC

VCC

8

L5970D

7730

5733

220u

3732

1%1K0

SUP_GND1

SUP_GND1

SUP_GND1

SUP_GND1

SS14

220p

2733

6733

10u

5730

I742

I741I740

I716

I713

I715

I712

I714

I711

I710

I708

I706

I709 F710

SUP_GND2 SUP_GND2

F743

+12VSW

F701

7

9

3

1

2

8

6

SUP_GND2

L5973D

7710

Φ

4

5

LF33CPT

2

3

1

4

5

7708

2709

47u 16V

5713

10u

10u

2710 2711

10u

2716

5704

470u 16V

3713 16V

470u

2713

3K3

1%

3712

5K6

1%

33u

5712

SS36

6712

SUP_GND2

SUP_GND2 SUP_GND2

4K7

SUP_GND2

2715

22n

3716

SUP_GND2

220p

2714

10K

+3V3STBY

3708

27083709

6K8

SS14

6709

+12VUNREG

SS24

6708

SUP_GND2

10u

5709

+3V3STBY

SUP_GND2

3743

22K

3742

15K

BC847BW

7742

7741

BC847BW

2741

220n

3741

1K5

3740

1K5

6740

BZX384-C8V2

+12VUNREG

+12VUNREG

2706

16V10u

16V

2704

10u

SC_STANDBY

PANEL-PWR-CTL

POWER_DOWN

B6 B6

3139 123 6093.1

F_15270_016.eps

250505

Circuit Diagrams and PWB Layouts 35LC4.3E AA 7.

SSB: Diversity Tables B1-B6

TUNER & IF

B1

HERCULES

B2

SYNC INTERFACE

B3

AUDIO WITHOUT AMPLIFIER

B5

DC DC CONVERTER

B6

F_15270_069.eps

230505

Item

AP - non China

Europe

NAFTA/LT

AP - DVB

Europe - DVB

China

Description

1102 VTUN V+U PLL IEC BGDKM B

1102 VTUN V+U PLL IEC BGHIL B

1102 VTUNER UV1338/A F S H-4

1102 VTUNER UV1316E/A I H-4

1102 VV TUNER UV1318SD/A CP H N-4

1104 VV

FIL SAW SM 38MHZ9 OFWK3953L R

1104 VFIL SAW SM 38MHZ OFWM3956L R

1104 VFIL SAW SM 45MHZ75 OFWM1967L R

1104 VV

FIL SAW SM 38MHZ9 OFWK7265L R

1105 VFIL SAW SM 38MHZ OFWK3955L R

1106 VV

FIL SAW SM 38MHZ9 OFWK9656L R

1106 VFIL SAW SM 38MHZ OFWK9352L R

1106 VV

FIL SAW SM 38MHZ9 OFWK9361L R

3101 VV V

RST SM 0603 100R PM5 COL

3102 VV V

RST SM 0603 100R PM5 COL

3104 VV

RST SM 0603 10K PM5COL

3104 VVVV

RST SM 0603 JUMP. 0R05 COL

3107 VV VVV

RST SM 0603 6K8 PM5 COL

3108 VV VVV

RST SM 0603 2K2 PM5 COL

3109 VV VVV

RST SM 0603 2K2 PM5 COL

3110 VRST SM 0603 2K2 PM5 COL

3111 VV VVV

RST SM 0603 22K PM5 COL

3112 VV VVV

RST SM 0603 18K PM5 COL

3113 VRST SM 0603 22K PM5 COL

3114 VRST SM 0603 47K PM5 COL

4102 VVVVV RST SM 0603 JUMP. 0R05 COL

4103 VRST SM 0603 JUMP. 0R05 COL

4104 VV

RST SM 0603 JUMP. 0R05 COL

4106 VV VV

RST SM 0603 JUMP. 0R05 COL

4107 VRST SM 0603 JUMP. 0R05 COL

4108 VRST SM 0603 JUMP. 0R05 COL

4110 VV VVV

RST SM 0603 JUMP. 0R05 COL

4111 VV

RST SM 0603 JUMP. 0R05 COL

4113 VVV

RST SM 0603 JUMP. 0R05 COL

5101 VV VVV

FXDIND SM 0805 0U39 PM10 COL R

5101 VFXDIND SM 0805 0U68 PM10 COL R

5102 VVVV V

FXDIND SM 0805 12U PM10 COL R

5102 VFXDIND SM 1008 6U8 PM5 COL R

5107 VV FXDIND 0603 100MHZ 600R COL R

5107 VRST SM 0603 100R PM5 COL

5108 VV FXDIND 0603 100MHZ 600R COL R

5108 VRST SM 0603 100R PM5 COL

6103 VV

DIO SIG SM BAS316 (COL) R

6105 VDIO SIG SM 1SS356 (RHM0) R

7101 VV VVV

TRA SIG SM BC847BW (COL) R

7102 VTRA SIG SM BC847BW (COL) R

Item

LC4.3A AB (DVB-T)

LC4.3E AB/LC4.8E AB/LC4.9E AB (DVB-T)

LC4.3U/L

LC4.3E/LC4.8E/LC4.9E

LC4.3E W/O 3D COMB FILTER

LC4.3A - CHINA

LC4.3A - AP (non-China)

Description

2203 VV VVVV

ELCAP SM 16V 10U PM20 COL R

2229 VCER2 0805 X5R 6V3 10U PM10 R

2244 VV VV CER2 0402 Y5V 16V 100N COL

2245 VV VV CER2 0402 Y5V 16V 100N COL

2246 VV VV CER2 0402 Y5V 16V 100N COL

2255 VVVV VV

CER2 0402 Y5V 16V 100N COL

2286 VVVV VV

CER2 0402 Y5V 16V 100N COL

2289 VCER2 0805 Y5V 10V 4U7 P8020 R

2289 VRST SM 0603 150R PM5 COL

2290 VV VV CER2 0805 Y5V 10V 4U7 P8020 R

2291 VV V CER2 0402 Y5V 16V 100N COL

2292 VCER2 0402 Y5V 16V 100N COL

3250 V VVVV

RST SM 0402 100R PM5 COL

3251 V VVVV

RST SM 0402 100R PM5 COL

3252 V VVVV

RST SM 0402 100R PM5 COL

3253 V VVVV

RST SM 0402 100R PM5 COL

3255 V VVVV

RST SM 0402 JUMP. 0R05 COL

3256 V VVVV

RST SM 0402 JUMP. 0R05 COL

3257 V VVVV

RST SM 0402 JUMP. 0R05 COL

3258 V VVVV

RST SM 0402 1K PM5 COL

3259 V VVVV

RST SM 0402 1K PM5 COL

3260 V VVVV

RST SM 0402 1K PM5 COL

3270 RST SM 0402 10K PM5 COL

3282 VRST SM 0603 150R PM5 COL

3285 VVVV VV

RST SM 0402 JUMP. 0R05 COL

3286 VVVV VV

RST SM 0402 100R PM5 COL

3291 VRST SM 0402 47K PM5 COL

3292 VV RST SM 0402 12K PM5 COL

3292 VRST SM 0402 47K PM5 COL

3293 VRST SM 0402 47K PM5 COL

3294 VV V RST SM 0402 47K PM5 COL

3295 VV VVVV

RST SM 0402 100K PM5 COL

3296 VV RST SM 0402 100R PM5 COL

4206 VVVV

RST SM 0805 JUMP. 0R05 COL R

4213 VV RST SM 0402 JUMP. 0R05 COL

4214 VV RST SM 0402 JUMP. 0R05 COL

4215 VV RST SM 0402 JUMP. 0R05 COL

5218 VV V IND FXD 1206 EMI 100MHZ 120R R

6206 VV DIO SIG SM BAT54 SOD323 COL R

7208 V VVVV

TRA SIG SM BC847BW (COL) R

7209 V VVVV

TRA SIG SM BC847BW (COL) R

7210 V VVVV

TRA SIG SM BC847BW (COL) R

7217 VV

IC SM TDA15011H/N1BD0 (PHSE) Y

7217 VV VV V

IC SM TDA15021H/N1B91 (PHSE) Y

7219 VV V IC SM 74HC4053D (PHSE) R

Item

26/32PFxxxx - AP/NAFTA/LT

EU & AP DVB sets

LC4.3E/LC4.9x/LC4.8x/LC4.3A-China

26PF4310/10

Description

2449 VVV CER2 0402 Y5V 16V 100N COL

3432 VRST SM 0402 2K7 PM5 COL

3458 VVV RST SM 0402 100R PM5 COL

3459 VVV RST SM 0402 100R PM5 COL

3461 VVV RST SM 0402 100R PM5 COL

3462 VVV RST SM 0402 100R PM5 COL

4436 VRST SM 0402 JUMP. 0R05 COL

4437 VRST SM 0402 JUMP. 0R05 COL

4440 VVV RST SM 0402 JUMP. 0R05 COL

4441 VVV RST SM 0402 JUMP. 0R05 COL

6430 VVV

DIO REG SM PDZ2.4B (PHSE) R

6431 VVV

DIO SIG SM 1N4148WS (VISH) R

7436 VVV IC SM 74LVC14APW (PHSE) R

Item

26/32PF

37/42/50PF

Description

2612 VCER2 0603 Y5V 10V 1U COL

2613 VCER2 0603 Y5V 10V 1U COL

2616 VCER2 0603 X5R 6V3 2U2 PM10 R

2617 VCER2 0603 X5R 6V3 2U2 PM10 R

3615 VRST SM 0402 10K PM5 COL

3616 VRST SM 0402 1K PM5 COL

3617 VRST SM 0402 1K PM5 COL

3618 VRST SM 0402 22K PM5 COL

3619 VRST SM 0402 10K PM5 COL

3620 VRST SM 0402 10K PM5 COL

3623 VRST SM 0402 47K PM5 COL

3625 VRST SM 0402 3K3 PM5 COL

3627 VRST SM 0402 22K PM5 COL

3628 VRST SM 0402 10K PM5 COL

3629 VRST SM 0402 22K PM5 COL

3630 VRST SM 0402 330R PM5 COL

3630 VRST SM 0402 470R PM5 COL

3631 VRST SM 0402 330R PM5 COL

3631 VRST SM 0402 470R PM5 COL

3632 VRST SM 0402 RC31 39R PM5 R

3633 VRST SM 0402 RC31 39R PM5 R

4601 VRST SM 0603 JUMP. 0R05 COL

4602 VRST SM 0603 JUMP. 0R05 COL

4603 VRST SM 0603 JUMP. 0R05 COL

4606 VRST SM 0603 JUMP. 0R05 COL

4609 VRST SM 0603 JUMP. 0R05 COL

4610 VRST SM 0603 JUMP. 0R05 COL

4611 VRST SM 0603 JUMP. 0R05 COL

4612 VRST SM 0603 JUMP. 0R05 COL

4613 VRST SM 0603 JUMP. 0R05 COL

4614 VRST SM 0603 JUMP. 0R05 COL

4615 VRST SM 0603 JUMP. 0R05 COL

4616 VRST SM 0603 JUMP. 0R05 COL

4617 VRST SM 0603 JUMP. 0R05 COL

4618 VRST SM 0603 JUMP. 0R05 COL

4619 VRST SM 0603 JUMP. 0R05 COL

4620 VRST SM 0603 JUMP. 0R05 COL

4621 VRST SM 0603 JUMP. 0R05 COL

7603 VTRA SIG SM BC847BW (COL) R

7604 VTRA SIG SM BC847BW (COL) R

7607 VTRA SIG SM BC847BW (COL) R

Item

26/32PF LCD

37/42PF LCD

42/50PF PDP

DVB PDP 42PF

DVB LCD 37PF

Description

2701 VV V

CER1 0402 NP0 50V 100P COL

2706 VVVV

ELCAP SM 16V 10U PM20 COL R

2709 VVVV

ELCAP SM 16V 47U PM20 COL R

2710 VVVV

CER2 1210 Y5V 25V 10U P8020 R

2711 VVVV

CER2 1210 Y5V 25V 10U P8020 R

2713 VVVV

ELCAP SM SEV 16V 470U PM20 R

2714 VVVV

CER2 0402 X7R 50V 220P COL

2715 VVVV

CER2 0402 X7R 16V 22N PM10 R

2741 VVVV

CER2 0603 X7R 10V 220N COL

2751 VV V

CER2 0402 Y5V 16V 100N COL

2752 VV V

ELCAP SM 16V 47U PM20 COL R

2760 VV V

CER2 1206 X7R 25V 1U PM10 R

2761 VVVV

CER2 1206 X7R 25V 1U PM10 R

3708 VVVV

RST SM 0402 10K PM5 COL

3709 VVVV

RST SM 0402 6K8 PM5 COL

3712 VVVV

RST SM 0603 RC22H 5K6 PM1 R

3713 VVVV

RST SM 0603 RC22H 3K3 PM1 R

3716 VVVV

RST SM 0402 4K7 PM5 COL

3740 VVVV

RST SM 0402 1K5 PM5 COL

3741 VVVV

RST SM 0402 1K5 PM5 COL

3742 VVVV

RST SM 0402 15K PM5 COL

3743 VVVV

RST SM 0402 22K PM5 COL

3755 VV V

RST SM 0402 10K PM5 COL

3758 VV V

RST SM 0402 15K PM5 COL

3760 VV V

RST SM 0402 100R PM5 COL

3761 VVVV

RST SM 0402 100R PM5 COL

5700 VV V

IND FXD 1206 EMI 100MHZ 120R R

5704 VVVV

IND FXD SM 1206 10U PM20 R

5709 VVVV

IND FXD SM 7032 10U PM20 R

5712 VVVV

IND FXD SM 12565 33U PM20 R

5713 VVVV

INDFXD SM 10145 10U PM20 R

5756 VV V

IND FXD 1206 EMI 100MHZ 120R R

5757 VV V

IND FXD 1206 EMI 100MHZ 120R R

6708 VVVV

DIO REC SS24 COL R

6709 VVVV

DIO REC SS14 COL R

6712 VVVV

DIO REC SS36 COL R

6740 VVVV

DIO REG SM PDZ8.2B (PHSE) R

7708 VVVV

IC SM LF33CPT (ST00) R

7710 VVVV

IC SM E-L5973D (ST00) R

7741 VVVV

TRA SIG SM BC847BW (COL) R

7742 VVVV

TRA SIG SM BC847BW (COL) R

7754 VV V

FET POW SM SI2301BDS-E3(VISH)R

7755 VV V

TRA SIG SM PDTC114ET (COL) R

36LC4.3E AA 7.

Circuit Diagrams and PWB Layouts

SSB: Scaler

FS_2.5FS_2.5

SCALER

B7 B7

3139 123 6093.1 F_15270_017.eps

170505

TO FLASH CONTROL

FROM SDRAM

FOR SW TESTING

TO SCALER INTRF

(RES)

RES

FROM SDRAM

TO HDMI

TO FLASH / CONTROL

TO SDRAM

TO FLASH / CONTROL

(RESERVED) TO DC-DC CONVERTER

TO TUNER

NC

NC

TO HERCULES

TO FLASH / CONTROL

TO MUX-SYNC INTF

TO DIGITAL-IO

TO SCALER INTRF

TO HDMI

FROM SYNC INTERFACE

RES

(RESERVED FOR CINCH ONLY)

TO EPLD

TO ANALOG-IO

TO EPLD

(SCART)

/

(SCART) (CINCH)

FROM ANALOG-IO

(CINCH)

TO COLUMBUS

FROM COLUMBUS

FROM MUX-SYNC INTF

FROM HDMI

FROM MUX-SYNC INTF

RES

FROM HDMI

1234567891011121314

1234567891011121314

A

B

C

D

E

F

G

H

I

A

B

C

D

E

F

G

H

I

1801 B12

1802 G14

2800 A1

2801 A1

2802 A1

2803 A1

2804 A2

2805 A2

2806 A2

2807 A2

2808 A2

2809 A3

2810 A3

2811 A3

2812 A3

2813 B2

2814 B3

2815 A9

2816 A9

2817 A10

2818 A10

2819 A10

2820 A12

2821 A12

2822 A12

2823 A10

2824 A12

3800 B3

3801-1 C1

3801-2 C1

3801-3 C1

3801-4 C1

3802-1 C1

3802-2 C1

3802-3 C1

3802-4 C1

3803-1 D1

3803-2 D1

3803-3 C1

3803-4 C1

3804-1 D1

3804-2 D1

3804-3 D1

3804-4 D1

3805-1 D1

3805-2 D1

3805-3 D1

3805-4 D1

3806-1 D1

3806-2 E1

3806-3 E1

3806-4 E1

3807-1 E1

3807-2 E1

3807-3 E1

3807-4 E1

3808-1 E1

3808-2 E1

3808-3 E1

3808-4 E1

3809-1 B6

3809-2 B6

3809-3 B6

3809-4 B6

3810-1 B6

3810-2 B6

3810-3 B6

3810-4 B6

3811-1 C6

3811-2 C6

3811-3 C6

3811-4 C6

3812-1 C6

3812-2 C6

3812-3 C6

3812-4 C6

3813-1 C6

3813-2 D6

3813-3 D6

3813-4 D6

3814 D6

3815 D6

3816 D6

3817 D6

3818 E6

3819 F2

3820 F1

3822 G5

3823 F5

3824 B12

3825-1 F9

3825-2 F9

3825-3 F9

3825-4 F9

3826-1 F9

3826-2 F9

3826-3 F9

3826-4 F9

3827 F13

3828 F13

3829 F13

3830 H10

3831 I9

3832 I9

3833 I9

3834 G13

3835 G13

3836 G13

3837 G14

3838 G14

3839 G3

3840 I3

3841 H14

4801 H5

7801-11 A11

7801-12 A4

7801-4 C11

7801-5 E11

7801-6 F4

7801-9 G11

F800 A1

F801 B3

F802 A9

F803 G14

F804 G14

I800 G2

I801 B12

I802 F10

I803 F10

I804 E12

I805 E12

I806 F12

I807 F12

I808 F12

I809 G12

I810 G12

I811 G14

I812 F3

I813 A1

I815 G3

I816 G2

I817 H5

I818 F3

I819 I10

I820 I10

I821 I10

I822 G12

TO COLUMBUS

FROM DIGITAL-IO

(CINCH)

RESERVED

I822

I821

I819

I820

3841

+3V3_IO

10K

I817

I818

3823

3840

22R

4801

I816

I813

I815

3836 10K

10K3835

3834 10K

10K3829

3828 10K

10K3827

100R3832

3831 100R

100R

3839

100R3822

+3V3SW

3819

+3V3_PLL

+3V3_IO

3830

I805

I810

I811

I803

I807

I808 +3V3SW

F804

F803

I804

3833 10R

I809

I802

I800

I806

I812

45

I801

1802

B3B-PH-SM4-TBT(LF)

1

2

3

3820 10K

3826-1 1 8

27

36

3826-2

45

3826-3

8

3826-4

3825-1 1

3825-2 2 7

36

10K

45

3825-3

+3V3_IO

3825-4

3837

10K 10K

3838

+3V3SW

3818 10K

10K3817

22R18

22R3812-2 2 7

3812-1 22R3812-3 3 6

45

22R

3812-4 22R

3816

3814 22R

3815 22R

22R3813-1 1 8

22R3813-2 2 7

22R36

22R3813-4 4 5

3813-3

18

27

22R3811-1

6

22R3811-2

22R3811-3 3

3811-4 22R45

18

27

22R3810-1

36

3810-2 22R

3810-4 4 5

22R3810-3

8

22R

22R3809-1 1

22R3809-2 2 7

22R36

3809-4 4 5

3809-3

3801-1 22R18

22R

27

36

3801-2 22R

5

3801-3 22R

3801-4 22R4

3802-1 22R18

3802-2 2 7 22R3802-3 3 6 22R

45

18

22R3802-4

3803-1 22R

22R27

22R36

3803-2

22R45

3803-3

18

3803-4

27

22R3804-1

36

22R3804-2

522R3804-3 22R3804-4 4

3805-1 22R18

22R3805-2 2 7

22R3805-3 3 6

45

18

3805-4 22R

27

22R3806-1

22R3806-2

22R3806-3 3 6 22R45

18

3806-4

22R27

3807-1 22R

36

3807-2

45

3807-3 22R

8

22R3807-4

22R3808-1 1

27

36

22R3808-2

3808-4 4 5

22R3808-3

+3V3_PLL

22R

22p

2824

2823

22p

14M31818

1801

SMD-49

3824

FSVREF

3K3

+2V5_DDR +1V8_CORE

F802

F801

F800

2813

100n

16V

100n

2814

22u

2815 100n

28182817

100n100n

2816 28222821

100n 100n

100n

2820

2819

100n

+2V5_DDR +3V3_PLL

2802

100n 100n

28122811

100n100n

28102809

100n100n

28082807

100n100n

28062805

100n100n

28042803

100n

2800

100u16V 100n

2801

+2V5_DDR

3800

10K

T23

M3

IR0|GPIO_29

M4

IR1|GPIO_28

MSTR_SCL|GPI_03

P4

P3

MSTR_SDA|GPI_04

K1

RESET_

K23

VDDA18_DLL

K25

VSSA18_DLL

AA23

AB23

AC23

F23

H23

J23

L23

M23

P23

R23

J24

FSVREF1

W25

FSVREF2

K26

FSVREFVSS1

W24

FSVREFVSS2

V26

FSWE

E23

V23

W23

Y23

T26

FSDATA8

R25

FSDATA9

T25

FSDQM0

U25

FSDQM1

U26

FSDQM2

T24

FSDQM3

L26

FSDQS

V24

FSRAS

F24

FSDATA29

G26

FSDATA3

F25

FSDATA30

F26

FSDATA31

G24

FSDATA4

H26

FSDATA5

H24

FSDATA6

J25

FSDATA7

P25

FSDATA21

R26

FSDATA22

R24

FSDATA23

K24

FSDATA24

J26

FSDATA25

H25

FSDATA26

G23

FSDATA27

G25

FSDATA28

M25

FSDATA14

L24

FSDATA15

L25

FSDATA16

M26

FSDATA17

M24

FSDATA18

N25

FSDATA19

E26

FSDATA2

N23

FSDATA20

U23

FSCLKn

U24

FSCLKp

E24

FSDATA0

E25

FSDATA1

P24

FSDATA10

P26

FSDATA11

N24

FSDATA12

N26

FSDATA13

AA25

FSADDR6

AA26

FSADDR7

Y24

FSADDR8

AB25

FSADDR9

Y25

FSBKSEL0

Y26

FSBKSEL1

V25

FSCAS

W26

FSCKE

AD25

FSADDR0

AD26

FSADDR1

AC26

FSADDR10

AB24

FSADDR11

AC24

FSADDR2

AC25

FSADDR3

AB26

FSADDR4

AA24

FSADDR5

SYSTEM

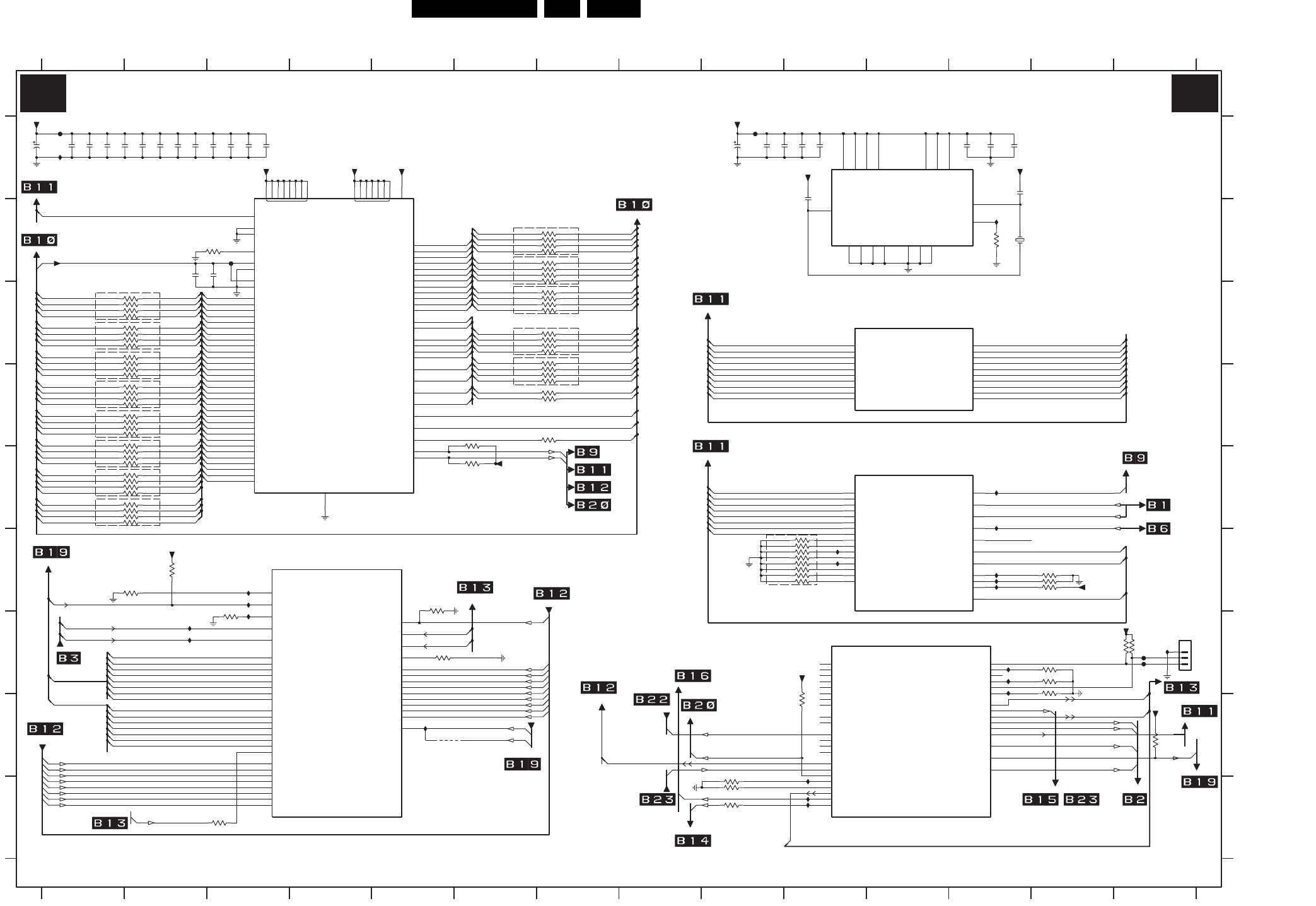

7801-12

GM1501-LF-BD

R4

EXTCLK|GPI_02

J2

VSSA33_DDDS

H4

VSSA33_FPLL

F3

VSSA33_RPLL

H2

VSSA33_SDDS

K4

VSSD33_DDDS

G2

VSSD33_PLL

J4

VSSD33_SDDS

XTAL

G4

G3

TCLK

J3

VDDA33_DDDS

G1

VDDA33_FPLL

F4

VDDA33_RPLL

H3

VDDA33_SDDS

J1

VDDD33_DDDS

F2

VDDD33_PLL

VDDD33_SDDS

H1

GM1501-LF-BD

7801-11

CLK-SYN

ACS_RSET_HD

K2

AF7

GPIO_G08_B4|JTAG_TDO|DOBLU0 AD8

GPIO_G08_B5|JTAG_RESET|DOBLU1

AE4

GPIO_G09_B0|DERED0 AF4

GPIO_G09_B1|DERED1 AC5

GPIO_G09_B2|DEGRN0 AD5

GPIO_G09_B3|DEGRN1 AE5

GPIO_G09_B4|DEBLU0 AF5

GPIO_G09_B5|DEBLU1

AE9 GPIO_G07_B4|DERED6

AF9 GPIO_G07_B5|DERED7

AD10 GPIO_G07_B6|DERED8

AE10 GPIO_G07_B7|DERED9

AD6

GPIO_G08_B0|JTAG_CLK|DORED0 AE6

GPIO_G08_B1|JTAG_MODE|DORED1 AF6

GPIO_G08_B2|JTAG_TDI|DOGRN0 AE7

GPIO_G08_B3|DVS|DOGRN1

AC18 GPIO_G06_B0|DORED2

AD18 GPIO_G06_B1|DORED3

AE18 GPIO_G06_B2|DORED4

AF18 GPIO_G06_B3|DORED5

GPIO_G07_B0|DERED2

AE8

AF8 GPIO_G07_B1|DERED3

AC9 GPIO_G07_B2|DERED4

AD9 GPIO_G07_B3|DERED5

AE24 GPIO_G04_B2|DOBLU4

AF24 GPIO_G04_B3|DOBLU5

AF25 GPIO_G04_B4|DOBLU6

AF26 GPIO_G04_B5|DOBLU7

AE25 GPIO_G04_B6|DOBLU8

AE26 GPIO_G04_B7|DOBLU9

AD21 GPIO_G05_B0|DOGRN2

AD22 GPIO_G05_B3|DOGRN5

AF17

GPIO_14|DHS

AD16

GPIO_15|DVS

AD7

GPIO_16|DEN

AD23 GPIO_G04_B0|DOBLU2

AD24 GPIO_G04_B1|DOBLU3

B18

VRED5|GPIO_G01_B5

A18

VRED6|GPIO_G01_B6

C17

VRED7|GPIO_G01_B7

C20

VVS|GPIO_05

GPIO

7801-9

GM1501-LF-BD

A21

VGRN7|GPIO_G02_B7

D19

VHS_CSYNC|GPIO_04

B20

VODD|HSOUT|GPIO_06

C19

VRED0|GPIO_G01_B0

B19

VRED1|GPIO_G01_B1

A19

VRED2|GPIO_G01_B2

D18

VRED3|GPIO_G01_B3

C18

VRED4|GPIO_G01_B4

D20

VDV|VSOG|GPIO07

A23

VGRN0|GPIO_G02_B0

C22

VGRN1|GPIO_G02_B1

B22

VGRN2|GPIO_G02_B2

A22

VGRN3|GPIO_G02_B3

D21

VGRN4|GPIO_G02_B4

C21

VGRN5|GPIO_G02_B5

B21

VGRN6|GPIO_G02_B6

D24

VBLU2|GPIO_G03_B2

C24

VBLU3|GPIO_G03_B3

B24

VBLU4|GPIO_G03_B4

A24

VBLU5|GPIO_G03_B5

C23

VBLU6|GPIO_G03_B6

B23

VBLU7|GPIO_G03_B7

B17

VCLAMP|GPIO_31

A20

VCLK|GPI_01

SVDATA6|GPIO_G00_B6

D14

SVDATA7|GPIO_G00_B7

A17

SVDV|VCOAST|GPIO_03

C14

SVHSYNC|GPIO_02

A14

SVODD|GPIO_00

B14

SVVSYNC|GPIO_01

B25

VBLU0|GPIO_G03_B0

A25

VBLU1|GPIO_G03_B1

D16

SVCLK|GPI_0

C16

SVDATA0|GPIO_G00_B0

B16

SVDATA1|GPIO_G00_B1

A16

SVDATA2|GPIO_G00_B2

D15

SVDATA3|GPIO_G00_B3

C15

SVDATA4|GPIO_G00_B4

B15

SVDATA5|GPIO_G00_B5

A15

ROM_CS_|GPI_9

R1

7801-6

GM1501-LF-BD

VIDEO

OCM_CS2_|GPIO_25

P2

OCM_INT1|GPIO_30

L2

OCM_INT2|GPI_10

L1

OCM_RE_

R2

OCM_TIMER1|PWM3|GPIO_13

D25

OCM_UDI|GPIO_27

M2

OCM_UDO|GPIO_26

M1

OCM_WE_

R3

AF2

OCMDATA5

AE2

OCMDATA6

AD2

OCMDATA7

AF1

OCMDATA8|GPIO_G10_B0

AE1

OCMDATA9|GPIO_G10_B1

AD1

OCM_CS0_|GPIO_23

T4

OCM_CS1_|GPIO_24

P1

OCMDATA11|GPIO_G10_B3

AC2

OCMDATA12|GPIO_G10_B4

AC3

OCMDATA13|GPIO_G10_B5

AB1

OCMDATA14|GPIO_G10_B6

AB2

OCMDATA15|GPIO_G10_B7

AB3

OCMDATA2

AE3

OCMDATA3

AD3

OCMDATA4

7801-5

GM1501-LF-BD

OCMDATA0

AD4

OCMDATA1

AF3

OCMDATA10|GPIO_G10_B2

AC1

OCMADDR4

Y2

OCMADDR5

Y3

OCMADDR6

W1

OCMADDR7|GPIO_18

W2

OCMADDR8|GPIO_G11_B0

W3

OCMADDR9|GPIO_G11_B1

V1

OCM_DATA

OCMADDR14|GPIO_G11_B6

U2

OCMADDR15|GPIO_G11_B7

U3

OCMADDR16|GPIO_19

U4

OCMADDR17|GPIO_20

T1

OCMADDR18|GPIO_21

T2

OCMADDR19|GPIO_22

T3

OCMADDR2

AA3

OCMADDR3

Y1

OCMADDR0

AA1

OCMADDR1

AA2

OCMADDR10|GPIO_G11_B2

V2

OCMADDR11|GPIO_G11_B3

V3

OCMADDR12|GPIO_G11_B4

V4

OCMADDR13|GPIO_G11_B5

U1

OCM-ADR

7801-4

GM1501-LF-BD

HDMI_Y(4)

HDMI_Y(3)

HDMI_Y(2)

HDMI_Y(1)

HDMI_Y(0)

HDMI_VCLK

COL_CLKASA

HDMI_CbCr(7)

FSADDR(9)

FSADDR(10)

FSADDR(11)

VS_ON

PDP_GO_UP

AV3_HDMI-AUDIO_SEL

SC2|AV2_SIDE_SW

SC2_OUT_SW

COL_RST

HDMI_HOTPLUG_RESET

CVI_VGA_SEL

POWER_UP_OK

COL_Do(8)_INV

HDMI_Y(6)

HDMI_Y(5)

PIXEL+_RESET

Y_NOTCH

TV_SC_COM

TV_IRQ

NVM_WP_SCALER

COL_Do(1:7)

COL_YB(1:8)

SD_HD_SEL

PC_HD_SEL

RGB|CVI_HDA_SEL

FSADDR(3)

FSADDR(4)

COL_YB(7)

COL_YB(8)

HDMI_CbCr(0)

HDMI_CbCr(1)

HDMI_CbCr(2)

HDMI_CbCr(3)

HDMI_CbCr(4)

HDMI_CbCr(5)

HDMI_CbCr(6)

COL_CLKASB

H_1FH

V_1FH

COL_DE

HDMI_VVS

HDMI_VHS

HDMI_VDV

HDMI_Y(7)

OCMADDR(0)

BU_LHT_ADJ1

UART_TX

UART_RX

POWER_DOWN

V-CHIP_INT

#OCM_WE

#OCM_RE

#ROM_CS

FSCLK-

SCL_IO

SDA_IO

COL_Do(1)

COL_Do(2)

COL_Do(3)

COL_Do(4)

COL_Do(5)

COL_Do(6)

COL_Do(7)

COL_YB(1)

COL_YB(2)

COL_YB(3)

COL_YB(4)

COL_YB(5)

COL_YB(6)

FSADDRU4

FSADDRU5

FSADDRU6

FSADDRU7

FSADDRU8

FSADDRU9

FSADDRU10

FSADDRU11

FSDQMU0

FSDQMU1

FSDQMU2

FSDQMU3

FSWEU

FSCASU

FSRASU

FSCKEU

FSBKSELU0

FSBKSELU1

FSCLK+

FSDATAU14

FSDATAU15

FSDATAU16

FSDATAU17

FSDATAU18

FSDATAU19

FSDATAU20

FSDATAU21

FSDATAU22

FSDATAU23

FSDATAU24

FSDATAU25

FSDATAU26

FSDATAU27

FSDATAU28

FSDATAU29

FSDATAU30

FSDATAU31

FSADDRU0

FSADDRU1

FSADDRU2

FSADDRU3

FSDQM(3)

FSDQM(1)

FSDQM(2)

FSDATAU0

FSDATAU1

FSDATAU2

FSDATAU3

FSDATAU4

FSDATAU5

FSDATAU6

FSDATAU7

FSDATAU8

FSDATAU9

FSDATAU10

FSDATAU11

FSDATAU12

FSDATAU13

HOT_PLUG

FSDATA(3)

FSDATA(5)

FSDATA(4)

FSDATA(6)

FSDQM(0)

FSCAS

FSWE

JTAG_CLK_SCL

JTAG_TDI_SDA

FSDATA(15)

FSDATA(14)

FSDATA(16)

FSDATA(18)

FSDATA(19)

FSDATA(21)

FSDATA(10)

FSDATA(11)

FSADDRU5 FSADDR(5)

FSADDRU6 FSADDR(6)

FSADDRU7 FSADDR(7)

FSADDRU8 FSADDR(8)

FSADDRU10

FSADDRU11

FSADDRU9

FSADDRU4

FSDQMU3

FSDQMU2

FSDQMU1

FSDQMU0

FSCKEU

FSRASU

FSCASU

FSWEU

FSDQS

FSBKSELU1

FSBKSELU0 FSBKSEL(1)

FSBKSEL(0)

FSCKE

FSRAS

FSDATAU29FSDATA(29) FSDATAU2FSDATA(2)

FSDATAU1FSDATA(1)

FSDATAU0FSDATA(0)

FSADDRU0 FSADDR(0)

FSADDRU1 FSADDR(1)

FSADDRU2 FSADDR(2)

FSADDRU3

FSDATAU15

FSDATAU16

FSDATAU18

FSDATAU14

FSDATAU19

FSDATAU10

FSDATAU11

FSDATAU21

FSDATAU24FSDATA(24)

FSDATAU25FSDATA(25)

FSDATAU7FSDATA(7) FSDATAU26FSDATA(26)

FSDATAU8FSDATA(8) FSDATAU9FSDATA(9)

FSDATAU22FSDATA(22)

FSDATAU23FSDATA(23)

FSDATAU13FSDATA(13)

FSDATAU12FSDATA(12)

FSDATAU20FSDATA(20) FSDATAU17FSDATA(17)

FSDATAU28FSDATA(28) FSDATAU27FSDATA(27)

FSDATAU31FSDATA(31)

FSDATAU30FSDATA(30)

FSDATAU3

FSDATAU4

FSDATAU6

FSDATAU5

#RESET

OCMADDR(1)

OCMADDR(2)

OCMADDR(3)

OCMADDR(4)

OCMADDR(5)

OCMADDR(6)

OCMADDR(19)

OCMADDR(18)

OCMDATA(3)

OCMDATA(2)

OCMADDR(17)

OCMADDR(16)

OCMADDR(15)

OCMADDR(14)

OCMADDR(13)

OCMADDR(12)

OCMADDR(11)

OCMADDR(10)

OCMADDR(9)

OCMADDR(8)

OCMADDR(7)

OCMDATA(7)

OCMDATA(6)

OCMDATA(5)

OCMDATA(4)

OCMDATA(1)

OCMDATA(0)

Circuit Diagrams and PWB Layouts 37LC4.3E AA 7.

SSB: Scaler

D_GND D_GND

D_GND

CORE_1.8

IO_3.3

NCNC

LBADC_GND

LBADC_33

DVI_1.8 DVI_3.3

DVI_GND

ADC_3.3

ADC_AGND ADC_DGND

ADC_1.8

COM

OUTIN

COM

OUTIN

SCALER

SUPPLY FOR SCALER NC

NC

NC

NC

NC

NC

(RES)

(RES)

RES

NC

FROM DC-DC CONVERTER

TO MUX-SYNC INTERFACE

TO DIGITAL-IO (SCART ONLY)

TO COLUMBUS HERCULES

TO TOP CONN.

&

RES RES

ADC

(RES)

F907 D10

F908 E9

F909 E10

F910 G9

I900 C2

I901 E1

I902 E2

I903 G6

I904 F4

I905 C4

I906 E6

3902 E8

3903 F8

3904 F8

4900 B9

5900 A1

5901 B1

5902 B1

5903 B1

5904 B1

5905 C1

5906 C1

5907 C1

5908 C2

5909 D2

5910 E2

5911 E2

7801-1 F9

7801-10 C9

7801-13 B6

7801-14 A10

7801-2 C6

7801-3 B10

7801-7 F5

7900 C1

7901 D1

F900 B2

F901 A4

F902 A7

F903 C5

F904 C7

F905 D10

F906 D10

2928 A9

2929 A9

2930 C5

2931 C5

2932 C5

2933 C5

2934 C7

2935 C7

2936 C7

2937 C8

2938 C8

2939 C8

2940 B9

2941 B10

2942 C9

2945 D10

2946 D11

2947 D11

2948 D11

2949 D11

2950 D10

2951 D11

2952 D11

2953 E8

2954 E8

2955 E10

2956 E10

2957 E10

2958 E11

2959 E11

3900 F4

3901 E8

D

E

F

G

2900 D1

2901 D2

2902 D2

2903 E1

2904 E2

2905 A4

2906 A4

2907 A4

2908 A4

2909 A4

2910 A5

2911 A5

2912 A5

2913 A5

2914 A6

2915 A6

2916 A6

2917 A7

2918 A7

2919 A7

2920 A7

2921 A7

2922 A8

2923 A8

2924 A8

2925 A8

2926 A9

2927 A9

F908

F903

1234567891011

1234567891011

A

B

C

D

E

F

G

A

B

C

100R3904

3903 100R

I905

I906

I903

I904

PWM0|GPIO_10

C26

PWM1|GPIO_11

C25 PWM2|GPIO_12 D26

3900 3K3

DCLK|GPIO_17 AC7

OEXTR

AC16

PBIAS|GPIO_09 B26

PPWR|GPIO_08 A26

CTRL

7801-7

GM1501-LF-BD

3902

+3V3STBY

3901

+3V3_ADC

GREENn

C1 GREENp

C2

REDn

D1 REDp

D2

SOG

C3

VGA_SCL|GPI_05

N2

VGA_SDA|GPI_06

N1

E1

E2

E4

A5

B4

AHSYNC

L4

AVSYNC

L3

BLUEn

B1 BLUEp

B2

A3

A4

A2

D3

E3

B3

C4

D4

+3V3_DVI

ANA-IN

7801-1

GM1501-LF-BD

A9 RX1p

B10 RX2n

RX2p

A10

B6 RXCn

A6 RXCp

+1V8_DVI

D7

D11

N4 DVI_SCL|GPI_07

N3 DVI_SDA|GPI_08

B11 REXT

B8 RX0n

A8 RX0p

B9 RX1n

C6

C8

C9

C10

C11

A7

A11

B5

B7

C7

7801-2

GM1501-LF-BD

DVI

D6

D8

D9

D10

4900

2942

100n

B12 LBADC_IN2

A12 LBADC_IN3

D12 LBADC_RETURN

+3V3_LBADC

ADC

GM1501-LF-BD

C13D13

C12 LBADC_IN1

A1

C5

D5

AC17

K3

F1

7801-3

7801-14

GM1501-LF-BD

NC

LVDSB_3.3_1 AD12

LVDSB_3.3_2 AD13

LVDSB_3.3_3 AC12

LVDSB_GND_1

AC13

LVDSB_GND_2

AC14

LVDSB_GND_3

AC15

VDDD33_LVDS AE17

VSSD33_LVDS

AD17

LVDSA_3.3_1 AD20

LVDSA_3.3_2 AC21

LVDSA_3.3_3 AC22

LVDSA_GND_1

AD19

LVDSA_GND_2

AC19

LVDSA_GND_3

AC20

DISPLAY PWR

7801-10

GM1501-LF-BD

I901

+3V3_IO +1V8_CORE

I900

I902

F900

+3V3_PLL

+3V3SW

+3V3SW

5900

+3V3_ADC

+1V8_ADC

+1V8

5901

5909

5911

+1V8_CORE

+1V8_DVI

5910

16V47u

2904

1

32

2903

100n

7901

LD1086D2T18

5908

+2V5_DDR

16V470u

29022901

1n0

2

13

100n

2900

+3V3SW

7900

LF25CDT

+3V3_LVDSA

+3V3_LVDSB

+3V3_LVDS

+3V3_DVI

+3V3_IO

+3V3_LBADC

5907

5906

5905

5904

5903

5902

AC8

AC10

D22

D23

W4

Y4

AA4

AB4

AC4

AC6

K14

U12

U13

U14

U15

AD15

K15

L10

L12

L13

D17

R13

R14

R15

R16

R17

T10

T12

T13

T14

T15

P11

P12

P13

P14

P15

P16

P17

R10

R11

R12

K13

M17

N10

N11

N12

N13

N14

N15

N16

N17

P10

K12

L14

L15

L17

M10

M11

M12

M13

M14

M15

M16

B13

U17

K11

K16

K17

L11

L16

T11

T16

T17

A13

GM1501-LF-BD

7801-13

SUPPLY

K10

U10

U11

U16

F902

F906

F907

F905

F901

F910

F904

F909

2940

47u 16V

2941

2949

100n

+3V3_LVDS

100n

100n

2952

+3V3_LVDSB

100n

2951

16V22u

2950

+3V3_LVDSA

2948

100n

2945

22u 16V 100n

2947

100n

2946

100n

2953

+1V8_ADC

2954

100n 2955 2958

100n

22u 16V 100n

29572956

100n

2933

2959

100n

100n100n

29322931

100n100n

2930

16V47u

2934 2938

100n 2939

100n100n

29372936

100n100n

2935

100n

2915 100n

2916

16V

100u

2905

100n

2913 2914

100n

2912

100n100n

29112910

100n100n

2909

100n

29082907

100n100n

2906

100n

2918

+3V3_IO

100n

2929

100n

2927 2928

100n

2926

100n100n

29252924

100n100n

29232922

100n100n

29212920

100n100n

2919

+1V8_CORE

16V

100u

2917

R_PR-

G_Y+

G_Y-

B_PB+

B_PB-

HD_FILTER BU_LHT_ADJ2

PANEL-PWR-CTL

LAMP_ON_OFFFAN_SPEED

AVSYNC

AHSYNC

SDA

SCL

SOG

R_PR+

RXC+IN

RX2-IN

RX2+IN

RX1-IN

RX1+IN

RX0-IN

RX0+IN

SDA_DVI

SCL_DVI

KEYBOARD

RXC-IN

B8 B8

3139 123 6093.1 F_15270_018.eps

170505

38LC4.3E AA 7.

Circuit Diagrams and PWB Layouts

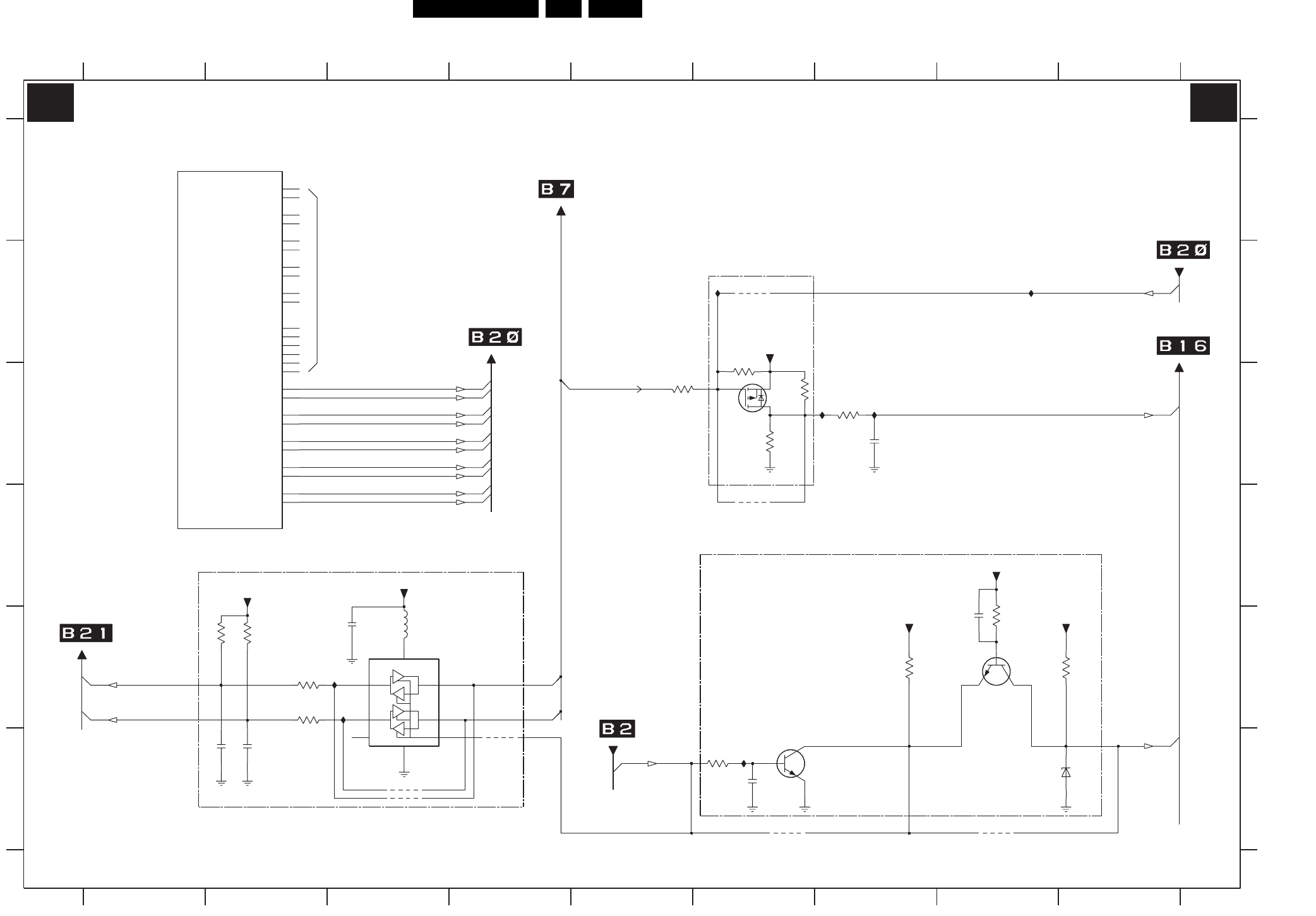

SSB: Scaler Interface

SCALER INTERFACE

TO SCALER

FROM HERCULES

RES

RES

FOR PDP ONLY

NC (PDP)

NC

FROM EPLD

TO TOP CONNECTORS

TO EPLD

TO EPLD

RES

RES

RES

RES

FOR UFD ONLY

RESERVED

4A01 F3

4A02 B6

4A03 D6

4A04 F4

4A05 F6

4A06 F8

5A00 E3

6A01 F8

7801-8 A2

7A00 E4

7A01 C6

7A02 F6

7A03 E8

IA00 C7

IA03 F6

IA05 B8

IA06 C7

IA07 B6

IA08 E3

IA09 E3

A

B

C

D

E

F

2A00 E3

2A01 F2

2A02 F2

2A03 C7

2A12 F6

2A13 E8

3A00 E2

3A01 E2

3A02 C5

3A03 C6

3A04 C6

3A05 C6

3A06 C7

3A07 E2

3A08 E2

3A10 F6

3A11 E7

3A13 E8

3A14 E9

123456789

123456789

A

B

C

D

E

F

IA09

4A00 F3

IA08

BZX384-C3V9

6A01

+5V

4A06

+3V3STBY

+3V3STBY

BC847BW

7A03

2A13

100n 10K

3A13

3A14

4K7

4K7

3A11

10K

+3V3SW

3A08

10K

3A07

IA06

IA07 IA05

4A02

SHIELD3|DEGRN5 AE11

SHIELD4|DEBLU2 AE13

SHIELD5|DEBLU5 AD14

B2p|DEBLU3 AF14

B3n|DEGRN7 AF12

B3p|DEGRN6 AF11

BCn|DEGRN9 AF13

BCp|DEGRN8 AE12

SHIELD0|DEGRN2 AF10

SHIELD1|DEGRN3 AC11

SHIELD2|DEGRN4 AD11

AE19

ACn|GPIO_G06_B7|DORED9 AF20

ACp|GPIO_G06_B6|DORED8 AE20

B0n|DEBLU9 AE16

B0p|DEBLU8 AF16

B1n|DEBLU7 AE15

B1p|DEBLU6 AF15

B2n|DEBLU4 AE14

A0n|GPIO_G05_B7|DOGRN9 AF23

A0p|GPIO_G05_B6|DOGRN8 AE23

A1n|GPIO_G05_B5|DOGRN7 AF22

A1p|GPIO_G05_B4|DOGRN6 AE22

A2n|GPIO_G05_B2|DOGRN4 AF21

A2p|GPIO_G05_B1|DOGRN3 AE21

A3n|GPIO_G06_B5|DORED7 AF19

A3p|GPIO_G06_B4|DORED6

GM1501-LF-BD

7801-8

LVDS

2A12

10n

3A03

IA03

4A04

4A01

4A00

2A00

100n 5A00

7 SCL1

3SDA06 SDA1

8

VCC

+3V3SW

PCA9515ADP

7A00

5EN

4

GND

1NC

SCL0 2

2A02

100p100p

2A01

3A01

68R

3A00

68R

3A04

3A05

+5VSWI

1K0

7A013

1

2

3A02

1K0

SI2301DS-T1

IA00

2A03

1u0

4A03

3A06

10K

4A05

BC847BW

3A10

7A02

10K

BACKLIGHT_DIM

BUF_ENABLE

SDA_DMA_BUS1_DISP SDA_IO

SCL_IO

TXBC-

TXB2+

TXB2-

TXB1+

TXB1-

TXB0-

TXB0+

SCL_DMA_BUS1_DISP

BACKLIGHT_CTRL

STANDBY

SC_STANDBY

BU_LHT_ADJ1

TXB3+

TXBC+

TXB3-

B9 B9

3139 123 6093.1 F_15270_019.eps

250505

Circuit Diagrams and PWB Layouts 39LC4.3E AA 7.

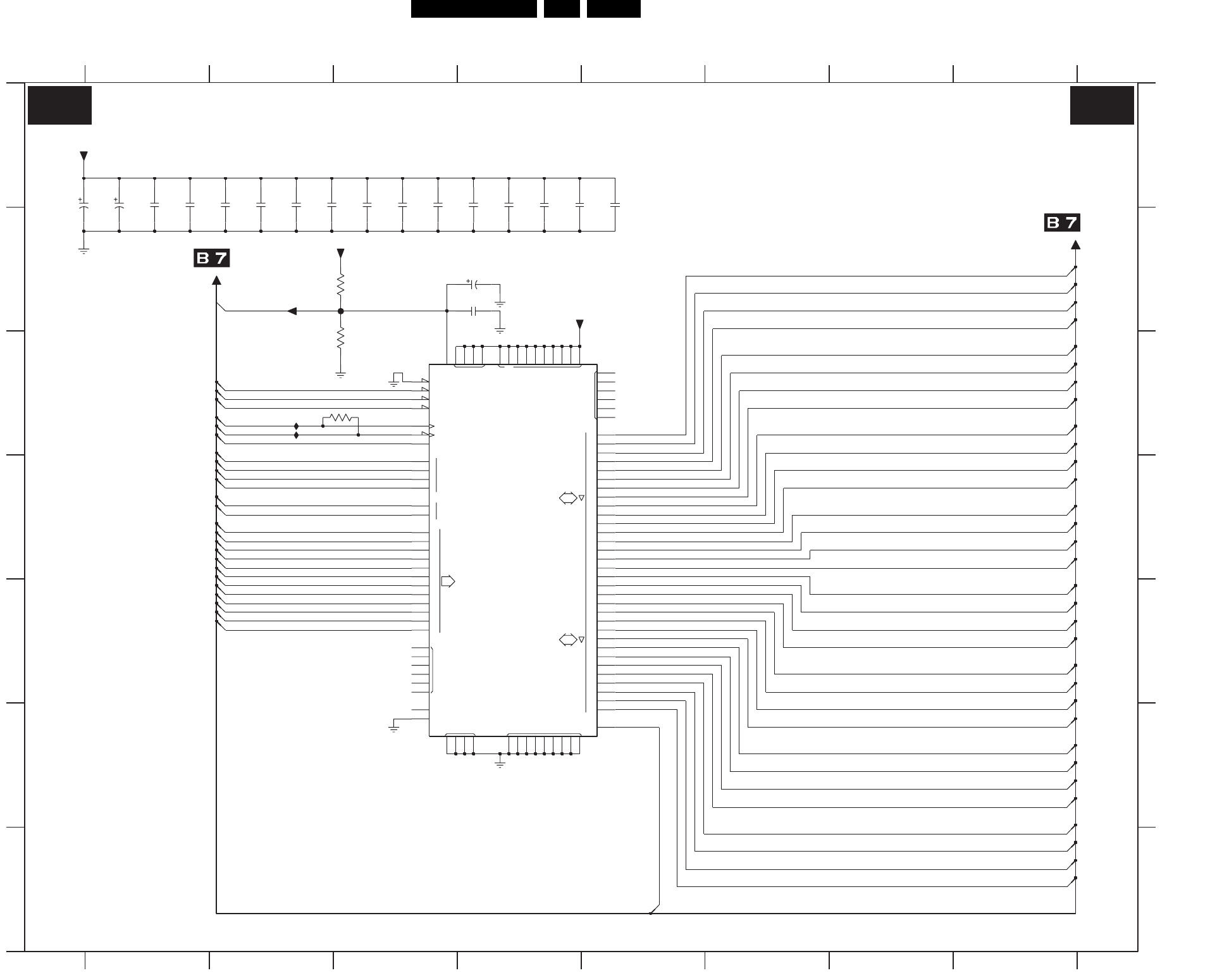

SSB: SDRAM

VREF

28

27

26

25

24

D

DQS

0

1

2

3

DM

11

RFU

12

9

8

9

10

2

3

4

21

20

19

18

17

16

31

30

6

1

0

A

11

14

CAS

RAS

29

5

6

7

8

VDDQVDD

WE

0

MCL

NC

13

NC

1BA

23

22

7

5

4

3

2

15

VSS VSSQ

10

CS

CKE

CK

D

0

1

CK

SDRAM

TO/FROM SCALER

TO/FROM SCALER

IB02 C2

IB03 C2

F

G

A

B

C

D

E

F

G

2B01 A1

2B02 A1

2B03 A1

2B04 A1

2B05 A2

2B06 A2

2B07 A2

2B08 A3

2B09 A3

2B10 A3

2B11 A3

2B12 A4

2B13 A4

2B14 A4

2B15 A5

2B16 A5

2B17 B4

2B18 B4

3B01 B3

12345678

12345678

A

B

C

D

E

3B02 B3

3B03 C2

7B01 C3

FB01 B3

B10 B10

3139 123 6093.1 F_15270_020.eps

170505

22u

2B18

FB01

16V

IB03

IB02

FSVREF

3B02

10K

1%

1%3B03 150R

100n

2B17

1%

10K

3B01

25

+2V5_DDR

+2V5_DDR

85

5

11

19

62

70

76

82

92

99

14

22

59

67

73

79

86

5816

46

66

87

8827

93

15

35

65

96

2

95

8

52

38

89

90

91

39

40

41

42

43

44

1

83

84

3

4

6

7

60

61

94

17

18

20

21

74

75

77

78

80

81

63

64

68

69

71

72

9

10

12

13

100

55

53

54

28

23

56

24

57

97

98

34

47

48

49

50

51

45

29

30

26

7B01

K4D263238F-UC50

1M X 32 X 4

SDRAM

Φ

31

32

36

37

33

+2V5_DDR

2B16

100n

2B15

100n100n

2B142B13

100n

2B11

100n 100n

2B12

100n

2B102B09

100n100n

2B082B07

100n100n

2B062B05

100n100n

2B042B03

100n

2B02

47u

6.3V

16V

47u

2B01

FSCLK-

FSCKE

FSDQM(0)

FSDQM(1)

FSDQM(2)

FSDQM(3)

FSRAS

FSCAS

FSWE

FSBKSEL(0)

FSBKSEL(1)

FSDATA(8)

FSDATA(9)

FSDQS

FSDATA(21)

FSDATA(22)

FSDATA(23)

FSDATA(24)

FSDATA(25)

FSDATA(26)

FSDATA(27)

FSDATA(28)

FSDATA(29)

FSDATA(3)

FSDATA(30)

FSDATA(31)

FSDATA(4)

FSDATA(5)

FSDATA(6)

FSDATA(7)

FSADDR(9)

FSCLK+

FSDATA(0)

FSDATA(1)

FSDATA(10)

FSDATA(11)

FSDATA(12)

FSDATA(13)

FSDATA(14)

FSDATA(15)

FSDATA(16)

FSDATA(17)

FSDATA(18)

FSDATA(19)

FSDATA(2)

FSDATA(20)

FSADDR(0)

FSADDR(1)

FSADDR(10)

FSADDR(11)

FSADDR(2)

FSADDR(3)

FSADDR(4)

FSADDR(5)

FSADDR(6)

FSADDR(7)

FSADDR(8)

40LC4.3E AA 7.

Circuit Diagrams and PWB Layouts

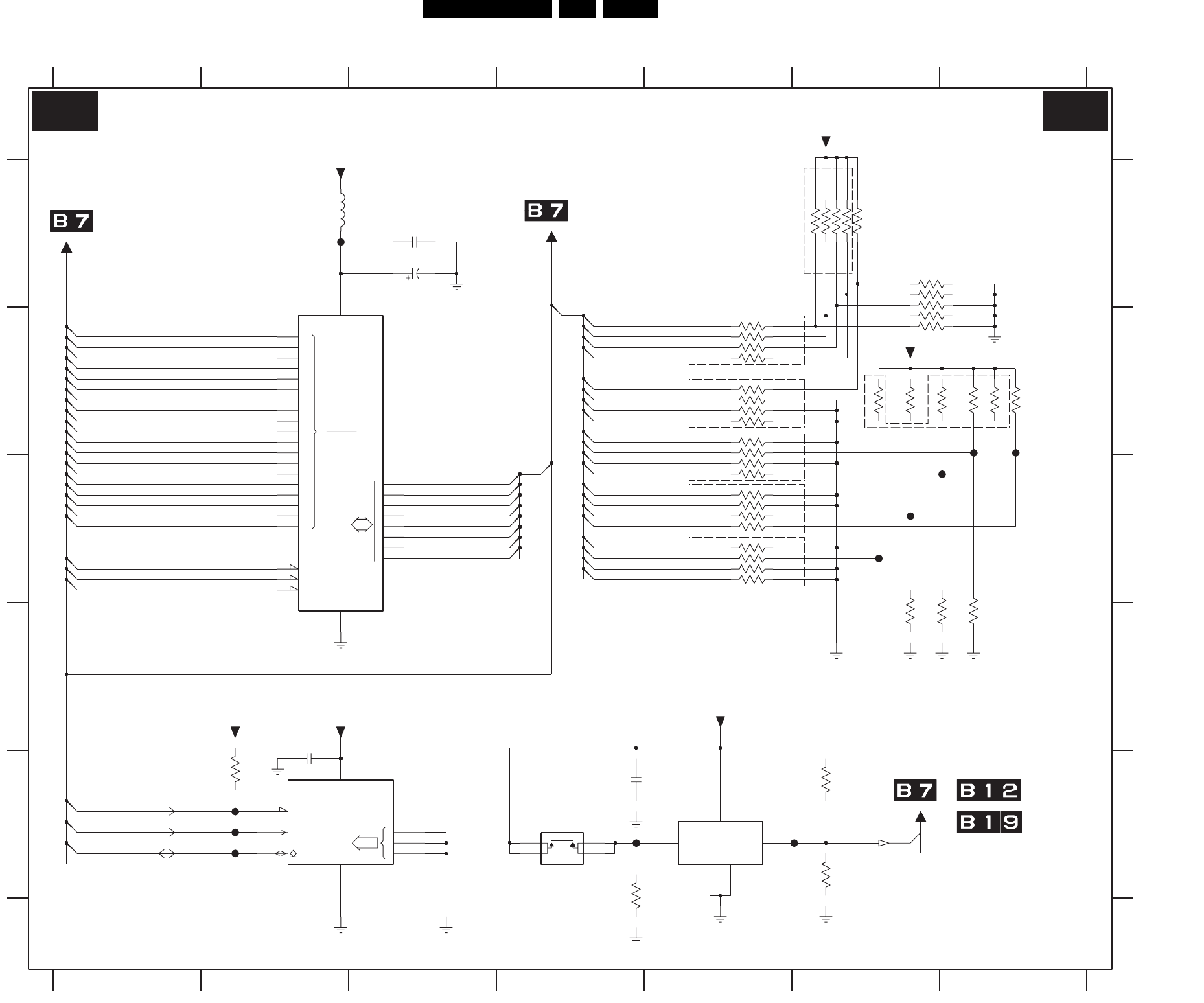

SSB: Flash / Control

12

CE

WE

14

17

18

6

5

4

3

2

1

0

15

0

10

9

8

7

OE

11

13

DQ

16

7

512K-1

0

A

SCL

ADR

0

1

2SDA

WC

FLASH / CONTROL

RES

TO SCALER

RES RES RES

TO HDMI

TO SCALER

RES

RES

RES

RES

RES

For Software

Development

only - (RES)

&

TO COLUMBUS

&

1234567

1234567

A

B

C

D

E

A

B

C

D

E

1C00 E4

2C00 A3

2C01 A3

2C02 E2

2C03 E5

3C00 E2

3C01 E5

3C02 E6

3C03 E6

3C04-1 A6

3C04-2 A6

3C04-3 A6

3C04-4 A6

3C05 A6

3C06-1 B5

3C06-2 B5

3C06-3 B5

3C06-4 B5

3C07-1 B5

3C07-2 B5

3C07-3 B5

3C07-4 B5

3C08-1 B5

3C08-2 B5

3C08-3 C5

3C08-4 C5

3C09-1 C5

3C09-2 C5

3C09-3 C5

3C09-4 C5

3C10-1 C5

3C10-2 C5

3C10-3 C5

3C10-4 C5

3C11 A6

3C12 A6

3C13 A6

3C14 B6

3C15 B6

3C16-1 B7

3C16-2 B7

3C16-3 B6

3C16-4 B6

3C17 B6

3C18 B7

3C19 C6

3C20 C7

3C21 C7

5C00 A3

7C00 A2

7C01 E3

7C02 E5

FC00 A3

FC01 E2

FC02 E2

FC03 E2

FC04 E4

FC05 E6

FC06 C6

FC07 C6

FC08 C7

FC09 B7

FC10 B7

TO SCALER

3V2

0V

3V2

3V2

3V2

3V20V

20

21

24

3216

31

27

26

22

13

14

15

17

18

19

3

2

30

1

10

9

8

7

6

5

7C00

M29W040B-55K1

12

11

23

25

4

28

29

[FLASH]

ROM

512Kx8

2

4

3C17

10K

1C00

SKQR

1

3

3C11

3C05 10K

+3V3_IO

3C12

3C13

3C14

3C15

10K

3C04-4 4 5

3C04-3 10K

36

10K

3C04-2 2 7

183C04-1 10K

FC10

FC07

FC06

FC09

FC08

FC05

FC04

FC02

FC03

FC01

+3V3SW

FC00

3C06-4 10K45

10K36

27

3C06-3

18

3C06-2 10K

45

3C06-1 10K

36

10K3C07-4

10K3C07-3

10K3C07-2 2 7

10K3C07-1 1 8

45

36

3C08-4 10K

27

3C08-3 10K

18

3C08-2 10K

3C08-1 10K

100n

2C00

3C18

10K

3C213C20

3C16-4

45

+3V3_IO

3C16-3

36

27

10K

18

3C16-2

3C16-1

3C19

45

36

3C10-4 10K

7

3C10-3 10K

3C10-2 10K2

3C10-1 10K18

10K3C09-4 4 5

10K3C09-3 3 6

3C09-2 2 7

18

10K

10K3C09-1

10K

3C01

5C00

2C01

+3V3_IO

16V10u

1K0

3C02

2C02

100n

100n

3C03

+3V3SW

2C03

+3V3SW

10K

3C00

5

8

4

7

7C01

EEPROM

Φ

(4Kx8)

M24C32-WMN6

1

2

3

6

GND

3

1MR

2SUB

VCC 5

4

VOUT

PST596J

7C02

OCMDATA(0:7)

OCMADDR(0:19)

OCMADDR(18)

OCMADDR(4)

OCMADDR(5)

OCMADDR(6)

OCMADDR(7)

OCMADDR(0)

OCMADDR(1)

OCMADDR(2)

OCMADDR(3)

OCMADDR(19)

OCMADDR(10)

OCMADDR(11)

OCMADDR(12)

OCMADDR(15)

OCMADDR(16)

OCMADDR(18)

OCMADDR(17)

OCMADDR(14)

OCMADDR(13)

OCMADDR(8)

OCMADDR(9)

OCMADDR(16)

OCMADDR(17)

OCMADDR(2)

OCMADDR(3)

OCMADDR(4)

OCMADDR(5)

OCMADDR(6)

OCMADDR(7)

OCMADDR(8)

OCMADDR(9)

#ROM_CS

OCMDATA(0)

OCMDATA(1)

OCMDATA(2)

OCMDATA(3)

OCMDATA(4)

OCMDATA(5)

OCMDATA(6)

OCMDATA(7)

#OCM_RE

#OCM_WE

SDA_IO

NVM_WP_SCALER

#RESET

OCMADDR(0)

OCMADDR(1)

OCMADDR(10)

OCMADDR(11)

OCMADDR(12)

OCMADDR(13)

OCMADDR(14)

OCMADDR(15)

SCL_IO

B11 B11

3139 123 6093.1

F_15270_021.eps

170505

Circuit Diagrams and PWB Layouts 41LC4.3E AA 7.

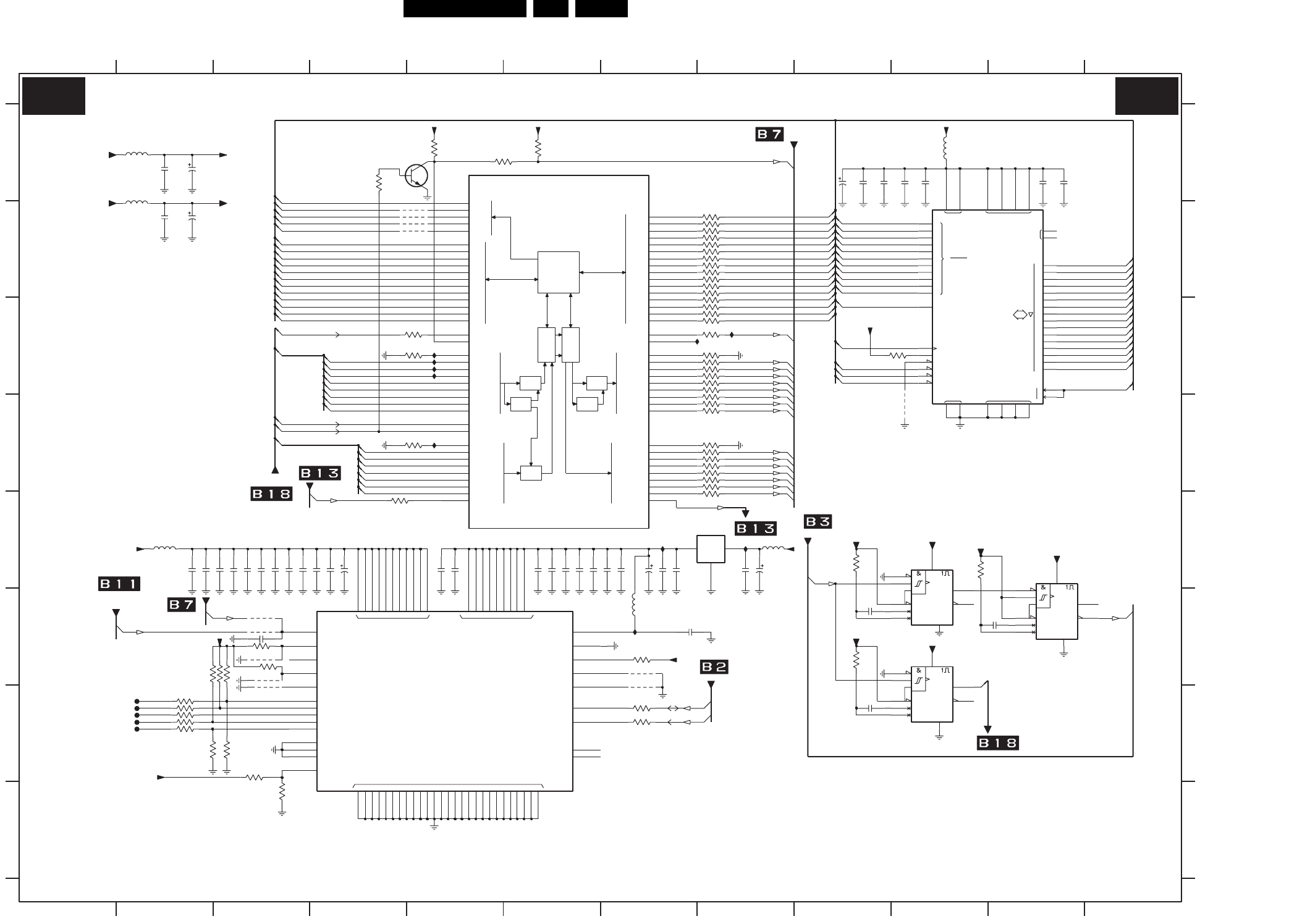

SSB: MUX-Sync Interface

4X1

G4

4X2

1

2

VDD

VEE VSS

NC

S2

IN1

D3

S3

D4

S4

D1

S1

NC

IN3

IN4

GND_HS

D2

IN2

VDD

GND

S2B

VSS

S2A

S3B

S1A

S3A

S1B

D3

EN

GND

A0

A1

A2

D1

D2

VDD

GND_HS

GINA|UINA

GINB|UINB

GSG1

RINB|YINB

RINA|YINA

VCC

GND

BOUT|VOUT

GOUT|UOUT

ROUT|YOUT

NC3

NC2

NC1

VCC

DISABLE

THROUGH

MUXSEL

GSR1

GSB1

BINA|VINA

BINB|VINB

RFC

VFC

MUX-SYNC INTERFACE

RES

TO SCALER

FROM SCALER

FROM HERCULES

TO SCALER

FROM HDMI

TO SCALER

FROM ANALOG-IO

FROM DIGITAL-IO

FROM DIGITAL-IO

5V4

3V3

0V6

2V7

0V8

0V4

2V7

TO SCALER

(NC)

RES

RES

/

(SCART) (CINCH)

/

(SCART) (CINCH)

/(CINCH)

(SCART)

TO HERCULES

FROM ADC

RESERVED

RES

RES

RES

SYNC INTERFACE

3V2

0V

3V2

0V

3V2

3V2

IE36 B7

IE37 B7

IE04 D7

IE05 A9

IE06 B9

IE07 B9

IE08 A10

IE09 E2

IE10 F2

IE11 F2

IE12 F2

IE13 C3

IE14 C3

IE15 C3

IE16 C3

IE17 A10

IE18 D2

IE19 C6

IE20 C7

IE21 D6

IE22 C7

IE23 D7

IE24 F7

IE25 C7

IE26 C7

IE27 E7

IE28 G6

IE29 A10

IE30 A10

IE31 E11

IE32 C10

IE33 C11

IE34 D10

IE35 B7

7E02 A10

7E03 E3

7E04-1 E5

7E04-2 E6

7E04-3 F5

7E04-4 F6

7E04-5 G5

7E04-6 G6

7E05-1 E9

7E05-2 E10

7E05-3 F9

7E05-4 F10

7E05-5 G9

7E05-6 G10

FE00 B2

FE01 B2

FE02 B2

FE03 C5

FE04 C7

FE05 D7

FE06 B8

FE07 D8

FE08 B11

FE09 C9

FE10 C9

FE11 C9

FE12 C9

FE13 D9

IE00 B4

IE01 B7

IE02 B7

IE03 D6

3E37 G4

3E38 F6

3E39 E6

3E41 E9

3E42 F9

3E43 G9

3E44 E11

3E45 F11

3E46 G11

3E49 G5

3E50 C3

3E51 C3

3E52 C3

3E53 D3

3E54 D3

3E55 D3

4E03 B6

4E10 E2

4E11 G3

4E12 D5

4E13 D5

4E14 D5

5E00 B4

5E01 B8

5E02 A10

5E03 E3

6E00 F2

6E01 F2

6E02 F2

6E03 F2

7E00 B4

7E01 B8

3E02 A2

3E06 C3

3E07 C3

3E08 C3

3E09 C3

3E10 C3

3E11 C3

3E12 C5

3E13 B6

3E14 B6

3E15 B6

3E16 B6

3E17 B6

3E18 B7

3E19 C6

3E20 C6

3E21 D6

3E22 D6

3E23 D7

3E24 C10

3E25 C10

3E26 C10

3E27 C10

3E28 C10

3E29 D10

3E30 D10

3E31 E2

3E32 F2

3E33 F2

3E34 F2

3E35 E5

3E36 F5

2E10 C7

2E11 D7

2E12 D7

2E13 D7

2E14 D7

2E15 A10

2E16 B8

2E17 B8

2E18 B8

2E19 B8

2E20 B8

2E21 A9

2E22 B9

2E23 B9

2E24 C10

2E25 C10

2E26 C10

2E27 C10

2E28 C10

2E29 D10

2E30 D10

2E31 E3

2E32 E6

2E33 C2

2E34 C2

2E35 D2

2E36 E10

2E37 B9

2E38 B9

2E39 B9

3E00 A2

3E01 A2

7891011

A

B

C

D

E

F

G

A

B

C

D

E

F

G

2E00 C2

2E01 C2

2E02 C2

2E03 B5

2E04 B7

2E05 B7

2E06 B7

2E07 C7

2E08 C7

2E09 C7

1234567891011

12

IE04

3456

2E39 15p

15p2E38

2E37 15p

4E13

4E14

4E12

3E53 47K

47K3E54

3E55 47K

47K3E50

3E51 47K

47K3E52

3E49

22R

IE34

IE32

IE33

IE31

IE29

IE30

IE28

IE37

IE35

IE36

IE26

IE27

IE25

IE23

IE24

IE22

IE20

IE21

IE19

IE17

IE18

IE16

IE14

IE15

IE13

IE11

IE12

IE10

IE09

4E10

4E11

330R

3E183E17

330R330R

3E16

56R3E00

56R3E01

56R3E02

2E35

4u7

4u7

2E33

2E34

4u7

IE07

IE08

IE06

IE05

FE08

5E02

100n

2E15

2E21 4u7

2E22 4u7

+5VSWI

2E23 4u7 12

4

13

7

6

8

10

16

18

20

2

14

1

15

11

5

3

21

19

17

9

Φ7E02

ADG781BCP

SWITCH

SPST

2E31 100n

+3V3SW

5E03

BZX384-C2V7

6E03

100R3E34

BZX384-C2V7

6E01

3E32 100R

13

1

3

12

2

5

14

15

4

6

11

10

9

16

7

8

MDX

7E03

74HC4053D

IE00

FE03

47K

47K

3E09

47K

3E10

+5VSWI

3E11

47K3E08

47K

3E07

3E06 47K

4u7

4u7

2E00

2E02 4u7

2E01

+5VSWI

10K3E12

2E03

100n

7

5E00

4

6

8

12

13

2

1

5

3

16

ADG733BRU

7E00

Φ11

10

9

14

15

BZX384-C2V7

6E02

BZX384-C2V7

6E00

100R3E31

100R3E33

100R

3E46

3E42

100R

3E41

100R

100R

3E43

100R

3E45

100R

3E44

+3V3SW

100n

2E36

13

7

14

12

14

10

7E05-6

74LVC14APW

7E05-5

74LVC14APW

11

7

7E05-4

74LVC14APW

9

7

14

8

74LVC14APW

5

7

14

6

7

14

4

7E05-3

7E05-2

74LVC14APW

3

7E05-1

74LVC14APW

1

7

14

2

FE13

2E11

33p

3E21 2E12

4u7

56R

33p

2E09 4u7

2E10

3E20

56R

2E07

33p

2E08

4u7

3E19

56R

3E14

3E15 330R

330R

3E13 330R

FE01

FE02

FE00

IE01

IE02

IE03

FE12

FE10

FE11

FE09

FE05

FE04

FE07

FE06

3E36

3E35

100R

100R

3E37

22R

1u0

2E04

4E03

2E05 1u0

1u0

2E06 2E16 100n

100n

2E17

2E18 100n

6.3V

2E20 47u

3E24 2E24 100n470R

2E26 100n

100n2E28

2E30 100n

22R

22R

3E26

3E30

3E28

22R

100n2E25

2E27 100n

100n2E29

3E25 39R

3E29 39R

3E27 39R

2E13

1u0

3E22

100K

820R

3E232E14

33p

100n

2E19

5E01

+5VSWI

23

18

15

12

24

21

2

26

22

4

8

28

20

25

27

17

1

3

16

13

10

19

29

30

14

6

Φ

5

7

11

9

3E39

100R

SM5301BS-G

7E01

3E38

100R

+3V3SW 2E32

100n

14

12

74LVC14APW

7E04-6

13

7

11

7

14

10

9

7

14

8

74LVC14APW

7E04-5

7

14

6

74LVC14APW

7E04-4

74LVC14APW

7E04-3

5

74LVC14APW

7E04-2

3

7

14

4

74LVC14APW

1

7

14

2

7E04-1

COL_Di(8)

COL_Di(8)_INV COL_Do(8)

RINA|Pr

GINA|YINA

BINA|Pb

SD_HD_SEL

H_PC

V_PC

PC_HD_SEL

SC1_CVI_DMMI_B_Pb_IN

SC1_CVI_DMMI_G_Y_IN

SC1_CVI_DMMI_R_Pr_IN

HDMI_VVSV_HDMI

H_HDMI

PC_HD_SEL

HDMI_VHS

RGB|CVI_HDA_SEL

Vsync_SDTV

SOG

B-PB-ADC

R-PR-ADC

G-Y-ADC

SC1_R_CVI_Pr_IN

SC1_B_CVI_Pb_IN

SC1_G_CVI_Y_IN

HD_FILTER

B_PB+

G_Y+

R_PR+

B_PB-

G_Y-

R_PR-

SD_HD_SEL

COL_Do(8)_INV

I_PC_HD_SEL

I_PC_HD_SEL

Hsync_SDTV

R_SDTV

B_SDTV

G_SDTV

AVSYNC

AHSYNC

B13 B13

3139 123 6093.1

F_15270_023.eps

250505

42LC4.3E AA 7.

Circuit Diagrams and PWB Layouts

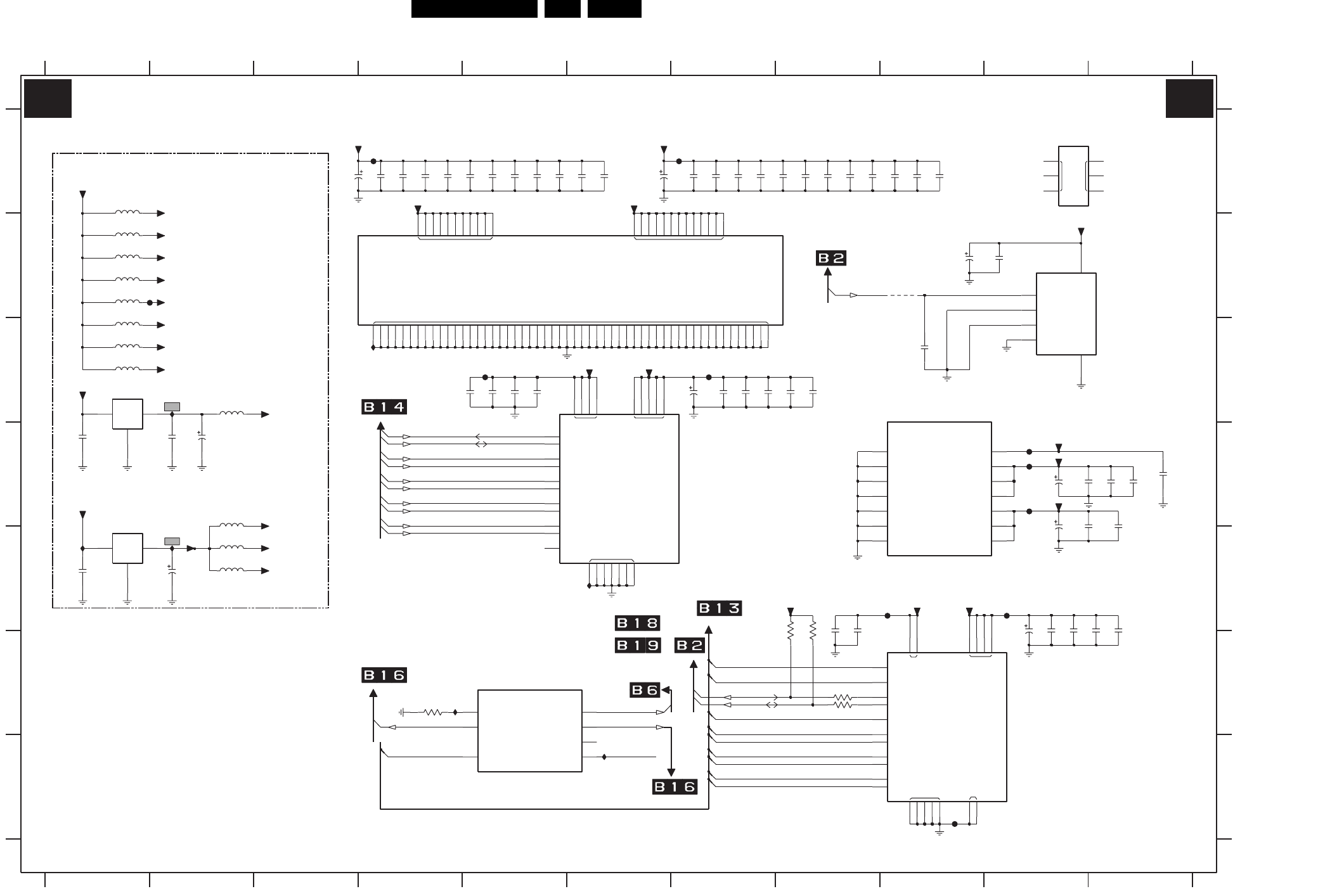

SSB: Digital I/O

SCL

ADR

0

1

2SDA

WC

DIGITAL IO

PC AUDIO IN To HERCULES

TO MUX-SYNC INTERFACE

TO SCALER

TO SCALER

RES

RES

RES

DVI INPUT

RGB/COMPONENT VIDEO

INPUT

5V

5V

5V

0V

DVI CONNECTOR

S002 B8

FF02 E1

FF03 E1

FF04 E1

FF05 E1

FF06 E1

FF07 F1

FF08 F1

FF09 F1

FF10 F1

FF11 G1

FF12 G1

FF13 G1

IF00 D3

IF01 F2

IF02 F4

IF03 F5

IF04 B8

IF05 B8

IF06 F1

IF07 F1

IF08 G1

IF11 A6

IF12 B1

IF13 B1

IF14 B2

IF15 B2

IF17 B6

IF20 C6

IF21 F5

IF22 B9

IF23 B9

S001 B8

2F12 F2

2F13 B9

2F14 B9

2F15 B9

2F16 B9

3F00 A2

3F09 B2

3F10 B3

3F11 C2

3F16 D4

3F17 D4

3F18 D4

3F19 E2

3F20 F2

3F21 F2

3F22 F3

3F23 F3

3F24 B8

3F25 B8

3F26 B9

3F27 B9

3F28 E2

3F29 E2

5F00 A3

5F01 B3

5F02 C3

5F03 F4

6F00 F4

6F01 F3

7F03 D2

FF00 D1

FF01 E1

8910

A

B

C

D

E

F

G

A

B

C

D

E

F

G

1F00-1 D1

1F00-2 E1

1F00-3 F1

1F00-4 B1

1F01 A7

2F00 A2

2F02 B2

2F04 B3

2F05 C2

2F07 C3

2F08 E2

2F09 E2

2F10 E3

2F11 F2

RX2-IN

12345678910

1234567

17

18

19

20

21

22

23

24

16

1F00-3

ROW_C

YKF45-7005

9

10

11

12

13

14

15

31

32

29

30

1F00-2

ROW_B

YKF45-7005

1F00-4

YKF45-7005

C125 C2 26

C327 C4 28

4

5

6

7

8

YKF45-7005

ROW_A

1F00-1

1

2

3

7

8

YKB21-5101A

1F01

1

2

3

4

5

3F29 100R

3F28 100R

IF23

IF20

IF22

IF15

IF17IF14

IF12

IF13

IF11

FF13

IF21

FF12

FF10

FF11

FF09

FF07

FF08

FF06

FF04

FF05

FF03

FF01

FF02

FF00

2F16 2u2

2u22F15

2F05

2F02

2F00

1R0

3F10

3F00

75R

3F09

75R

75R

3F11

100p

2F04

5F02

5F00

5F01

2F10

100p

1R03F19

IF00

1K0

3F23

IF08

IF03

IF02

IF06 IF01

3F21

IF07

1K0

2F11

DDC_5V

330p 330p

2F12

10K

3F18

330p

2F08

330p

2F09

3F17

10K

10K

3F16

5F03

DDC_5V

+5VSWI

100R

3F20

BAS316

6F01

DVI_5V 6F00

BAS316

10K

3F22

DDC_5V

6

5

8

4

7

100n

2F07

M24C02-WMN6

(256x8)

Φ

EEPROM

7F03

1

2

3

IF04

IF05

15K

3F27

15K

3F26

180p

2F14

10K

180p

2F13

3F24

3F25 10K

S002 S001

HOT_PLUG

V_PC

H_PC

AudioIN2L

AudioIN2R

RX2+IN

RX1-IN

RX1+IN

RX0-IN

RX0+IN

RXC+IN

RXC-IN

BINA|Pb

GINA|YINA

RINA|Pr

SDA_DVI

SCL_DVI

B14B14

3139 123 6093.1 F_15270_024.eps

170505

Circuit Diagrams and PWB Layouts 43LC4.3E AA 7.

SSB: SCART Analogue I/O

S1A

D2

S1B

IN1

IN2

S2B

D1

S2A

NC

S4B

D4

S4A

IN4

S3B

D3

S3A

IN3

VDD

GND VSS

4X1

G4

4X2

1

2

VDD

VEE VSS

4X1

G4

4X2

1

2

VDD

VEE VSS

SCART ANALOGUE IO

Audio-R_out

Audio-R_in

Audio-L_out

RGB-B_in

Function_Sw

RGB-G_in

Audio-L_in

RGB-R_in

RGB-BL_in

Video_in

Terr_CVBS_out

Audio-R_out

Audio-R_in

Audio-L_out

Function_Sw

Audio-L_in

RGB-R/YC-C_in

Video/YC-Y_in

CVBS_out

SCART 1

SCART 2

*

*

RES

RES

RGB-B_in

RGB-G_in

RES

RES

RES

RES

DMMI CONNECTOR

RESERVED FOR DMMI

TO HERCULES

B2

B2

B2

B2

B2

B2

B2

B2

B2

B2

B13

B2

B2

B2

B2

B2

B2/B6

B2

B2

RES

RES

RES RES

FROM SIDE CONNECTOR

FROM SCALER

RES

EMC

RES

EMC

NC

NC

NC

B17/B5

B2

B2

TO HERCULES

RESERVED FOR DMMI

RESERVED FOR DMMI

TO MUX-SYNC INTF

RES

RES

RES

RES

RES

RES

RES

RES

B2

RES

0V

5V2

3V 3V7

5V2

1V8 2V5

B2

B2

B2

B2

RES

RES

TO HERCULES

B2

B2

S028 G2

S029 H2

S030 H2

S031 H2

S032 I2

S033 I2

S034 I2

S035 J2

S036 K2

IG58 B13

IG59 D14

IG60 E11

IG61 F11

IG62 F11

IG63 F11

IG64 E12

IG67 F12

IG69 F12

IG73 I8

IG75 I9

IG76 J8

IG78 J9

IG79 K9

IG80 I10

S011 A2

S012 B2

S013 B2

S014 B2

S015 C2

S016 C2

S017 C3

S018 C2

S019 D2

S020 E2

S021 E2

S022 E2

S023 F2

S024 G3

S025 G3

S026 H3

S027 H2

IG11 E3

IG12 E4

IG13 E6

IG14 G4

IG15 G4

IG16 G5

IG17 G5

IG18 G4

IG19 H4

IG20 G5

IG21 H5

IG23 H5

IG24 J4

IG25 J5

IG26 J5

IG27 K5

IG28 D10

IG29 E11

IG30 F12

IG40 I4

IG42 I5

IG43 J4

IG46 I11

IG47 K9

IG49 B8

IG50 B11

IG52 C11

IG53 C11

IG54 C11

IG55 C11

IG56 D10

IG57 B13

FG33 G14

FG34 G14

FG35 G14

FG36 G14

FG37 H14

FG38 H14

FG39 H14

FG40 H15

FG41 H14

FG42 H14

FG43 H14

FG44 H14

FG45 H14

FG47 I14

FG48 I14

FG49 I14

FG50 I14

FG51 I14

FG53 I14

FG54 I14

FG56 I14

IG00 A4

IG01 A4

IG02 A5

IG03 B5

IG04 B4

IG05 B4

IG06 C6

IG07 C6

IG08 D6

IG09 D6

IG10 D6

7G10 J10

FG00 A2

FG01 A2

FG02 B1

FG03 B2

FG04 B2

FG05 C2

FG06 C2

FG07 C2

FG08 D2

FG09 E2

FG10 D2

FG11 E2

FG12 F2

FG13 F6

FG14 G2

FG15 G2

FG16 G1

FG17 G2

FG18 H2

FG19 H1

FG20 I2

FG21 H2

FG22 J2

FG23 J2

FG24 C1

FG25 C1

FG26 G2

FG27 H2

FG28 H2

FG30 I2

FG32 G14

4G11 D12

4G12 D12

4G13 D12

4G14 E9

4G15 F9

4G16 G11

4G17 G11

4G18 J5

4G19 H9

4G20 K9

4G21 I9

4G22 K10

4G26 E4

5G00 E4

5G01 D10

5G02 I11

6G00 F3

6G01 K3

6G02 B13

6G03 B2

6G04 C2

6G05 A2

6G06 B2

6G07 F2

6G08 F2

6G09 G2

6G10 G2

7G03 E4

7G05 J4

7G07 B11

7G08 B13

7G09 E11

3G75 E9

3G76 F9

3G77 F10

3G78 F10

3G79 D12

3G80 D13

3G81 D13

3G82 D13

3G83 E12

3G84 F12

3G85 F13

3G86 F13

3G87 F13

3G88 H12

3G89 F12

3G90 H11

3G91 H12

3G92 J9

3G93 K9

3G94 I9

3G95 I9

3G96 I9

3G99 I8

3S00 J9

3S01 G9

3S03 J8

4G00 A3

4G01 B3

4G05 G3

4G06 G3

4G09 B11

4G10 B11

3G39 G4

3G40 G4

3G41 G3

3G42 H3

3G43 H4

3G44 H4

3G45 I3

3G46 I3

3G47 I6

3G48 I6

3G51 H3

3G52 H4

3G53 J3

3G54 J4

3G55 I5

3G56 J5

3G57 K3

3G58 J3

3G59 J4

3G60 K4

3G63 B9

3G64 C9

3G65 B11

3G66 C9

3G67 C10

3G68 C10

3G69 B12

3G70 C12

3G71 C14

3G72 D10

3G73 D10

3G74 D10

2G56 J8

2G63 B10

2G64 C10

2G65 K9

2G66 I9

3G00 A3

3G01 A3

3G02 A4

3G03 B4

3G04 B3

3G05 B3

3G06 B4

3G07 B4

3G08 J5

3G09 I4

3G12 C3

3G13 C3

3G14 D3

3G15 C3

3G16 C3

3G17 D3

3G26 D2

3G27 D3

3G28 E3

3G29 E3

3G30 E3

3G31 F3

3G32 E4

3G33 F3

3G34 E5

3G37 G3

3G38 G3

2G20 G5

2G21 G4

2G22 H4

2G23 H4

2G24 G5

2G25 H4

2G26 I5

2G28 J4

2G29 B11

2G30 B11

2G31 C11

2G32 C11

2G33 C13

2G34 D11

2G35 D11

2G36 F9

2G37 F9

2G38 F12

2G39 E13

2G40 E13

2G41 F13

2G43 I14

2G45 I14

2G46 I14

2G47 J11

2G48 G3

2G49 G3

2G50 H3

2G51 H3

2G52 F2

2G53 K2

2G55 I8

I

J

K

1G01-1 A1

1G01-2 E1

1G02-1 F1

1G02-2 J1

1G03 G15

2G01 A3

2G02 A2

2G03 B3

2G04 B3

2G05 A3

2G06 B3

2G07 A4

2G08 A4

2G09 B3

2G10 B3

2G11 B4

2G12 B4

2G16 E4

2G17 E5

2G18 G4

2G19 G4

123456789101112131415

123456789101112131415

A

B

C

D

E

F

G

H

I

J

K

A

B

C

D

E

F

G

H

6G10

BZX384-C3V9

6G09

BZX384-C3V9

6G086G07

BZX384-C3V9

BZX384-C3V9

BZX384-C3V9

6G04

6G03

BZX384-C3V9

BZX384-C3V9

6G06

BZX384-C3V9

6G05

3G09

4G22

4G21

IG80

4G20

+5VSW

47K

3G95

47K

3G94

2G66

4u7

4G19

+5VSW

IG79

3G93

47K

3G92

47K

4u7

2G65

1G02-2

MT

HR-AR0761S-2

22

23

1G01-2

MT

HR-AR0761S-2

22

23

150R

3S01

9

3334

4G18

29

3

30

31

32

4

5

6

7

8

19

2

20

21

22

23

24

25

26

27

28

1

10

11

12

13

14

15

16

17

18

AF732L-N2G1A

1G03

2u2

2G64

2u22G63

IG76

+5VSW

IG78

3S03

47K

3S00

47K

2G56

4u7

IG75

IG73

+5VSW

47K

3G99

47K

3G96

2G55

4u7

3G91

75R75R

3G90

2G53

2G52

IG67

IG69

IG64

IG62

IG63

IG61

IG59

IG60

IG57

IG56

IG58

IG53

IG55

IG54

IG52

IG49 IG50

FG56

FG53

FG54

FG51

FG49

FG50

FG48

FG45

FG47

FG44

FG42

FG43

FG40

FG41

FG39

FG37

FG38

FG36

FG34

FG35

FG33

FG32

FG30

FG26

FG27

FG28

IG46

IG43

IG47

IG42

FG25

IG40

FG24

S029

2G47

100n

+5VSW

15

4

5G02

16

7

8

13

1

3

12

2

5

14

MDX

7G10

6

11

10

9

+5VSW

74HC4053D

47K

3G47

47K

4u7

2G26

3G48

+5VSW

3G60

47K

3G59

47K

2G28

4u7

20

21

3

4

5

6

7

8

9

11

12

13

14

15

16

17

18

19

2

1G02-1

HR-AR0761S-2

1

10

2

20

21

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

1G01-1

HR-AR0761S-2

1

3G66 3G67

15K

3G63 10K

3G88

75R

10K

3G64

3G68

15K

4G17

4G12

4G13

4G11

4G10

4G09

3G71

560R

47K

3G69

3G70

BAS316

6G02

47K

BC847B

7G08

2G33

220n

100n

2G302G29

16V

+5VSW

10u

10K3G65+5VSW

2G32 100n

100n 3

12

2

5

14

15

4

2G31

6

11

10

9

16

7

8

13

1

74HC4053D

7G07

MDX

IG29

IG28

IG30

3G72

10K

3G78

47K

47K

3G74

47K

3G87

3G82

47K

3G86

47K

47K

3G81

47K

3G77

3G73

47K

3G85

47K

47K

3G80

47K

3G89

47K

3G79

1u02G36

2G35

100n

1u0

2G39

2G38

1u0

2G37 4u7 2G41 4u7

2G40 4u7

100R

3G76

100R

3G75

100R

3G83

100R

3G84

10u

16V

5G01

2G34

+5VSW

4G15

4G16

7

12

14

19

17

16

5

4G14

6

1

10

11

20

15

2

4

9

ADG734BRU

SWITCH

SPDT

7G09

3

8

13

18

Φ

S032

S030

S028

2G45

1n0

2G43

1n0

+3V3STBY

2G46

1n0

IG23

IG21

IG20

100R

3G46

75R

3G45

FG20

S033

FG06

2G16

5G00

4G26

3G34

1K0

2G17

IG16

IG03

IG17

IG13

IG02

2G51

2G03

2G04

2G02

2G01

2G50

2G48

2G49

FG19

IG26

FG16

+5VSW

+5VSW

IG24

IG25

FG02

FG10

27K3G26

3G56

1K0

7G05

3G54

BC847BW 3G08

1K0

4G05

4G06

6G01

6G00

10u

16V

2G07 10u

2G11

16V

4G01 4G00

16V

16V

2G20 10u

2G24 10u

2u22G12

2G21

2u22G25

2u2

2u2

2G08

IG18

IG15

IG19

2G23

180p

3G44

15K

S027

3G42 10K

150R3G41

3G38 10K

S026 S025

330p

2G22

220K

3G43

2G19

180p

150R

3G40

15K

3G37

330p

2G18

220K

S024

3G39

3G17

330R

3G29

100R

100R3G16

75R

3G28

91R

3G14

91R

3G13

180p

2G10

15K

3G07

3G06

220K

2G09

330p

2G06

180p 15K

3G03

2G05

330p

3G05 10K

150R

3G01

3G04

10K

IG14

IG27

IG10

IG11

IG08

IG09

IG07

IG06

IG04

IG05

IG01

IG00

S031

S016

S015

FG14

FG22

FG15

FG17

FG21

FG18

FG11

FG23

FG12

FG01

FG00

FG03

FG05

FG04

FG08

FG07

FG09

IG12

3G58

FG13

100R

75R

3G57

S036

3G55

68R

S035

3G53

6K8

3G52

27K

3G51

S034

100R3G33

75R

3G31

S023

BC847BW

7G03

3G32

1K0

3G30

S022 S021

68R

S019 S018

6K8

3G27

91R

3G12

S020

3G15 100R

S017

3G00

S014

150R

S013

S012

S011

3G02

220K

FRONT_Y_CVBS_IN

FRONT_C_IN

SC2|AV2_SIDE_SW

AV2_DMMI_SW

SC2_AV3_C_IN

SC2_Y_IN

SC2_Y_IN

SC2_C_IN

SC2_L_IN_1

SC2_AV3_Y_IN

DMMI_CVBS_IN

SC2_Y_IN_1

AV2_DMMI_SW

SC2_R_IN_1

DMMI_RGB_SW

DMMI_RGB_SW

SC1_FBL_IN_1 SC1_CVI_DMMI_G_Y_IN

SC1_CVI_DMMI_B_Pb_IN

SC1_CVI_DMMI_R_Pr_IN

SW_I2C_SCL

POWER-DOWN_BOLT-ON

DMMI_R_IN

DMMI_R_IN

DMMI_L_IN

DMMI_L_IN

DMMI_B_Pb_IN

DMMI_G_Y_IN

DMMI_FBL_IN

DMMI_FBL_IN

DMMI_R_Pr_IN

DMMI_R_Pr_IN

SC2_L_MON_OUT

SC2_R_MON_OUT

IR

SC_STANDBY

SC2_R_IN

SC2_L_IN

SW_I2C_SDA

ITV_IR_SW_RESET

SC1_L_RF_OUT

SC1_CVBS_RF_OUT

HP_DET_R_DC

SC1_L

SC1_R

SC2_L

SC2_R

SC1_R_RF_OUT

SC2_R_MON_OUT

SC1_COMP_AV1_R_IN

SC1_CVBS_IN

SC1_FBL_IN

CVI_Pr_IN

CVI_Pr_IN

CVI_Y_IN

CVI_Y_IN

SC2_CVBS_MON_OUT

SC2_CVBS_MON_OUT

SC2_CVBS_MON_OUT

STATUS_1

CVI_Pb_IN

CVI_Pb_IN

STATUS_2

SC1_COMP_AV1_L_IN

SC2_L_MON_OUT

B15 B15

3139 123 6093.1 F_15270_025.eps

170505

44LC4.3E AA 7.

Circuit Diagrams and PWB Layouts

SSB: Top Connectors

+33V_TUN(NC)

5V(NC)

TEMP_SENSOR (NC)

FROM SCALER INTERFACE

UFD CONTROL

AMBIENT LIGHT

(TOP)

AMBIENT LIGHT

(BOTTOM)

FROM EPLD

FROM AUDIO

AUDIO-SW (NC)

TO/FROM 1002 OF

UFD SUPPLY

(SUPPLY FOR LCD)

TO DC-DC CONVERTER

CLASS-D AUDIO AMP

(+18V / +24V)

TOP CONNECTORS

(NC)

FOR UFD ONLY

(1M03)

(1M46)

(1M52)

RESERVED

FROM SCALER INTERFACE

FROM SCALER

FROM SCALER

FROM SCALER

RES

RES

RES

RES

RES

RES

NC

(NC)

NC

3V2

11V6

3V1

3V2

3V3

3V3

CLASS-D AUDIO AMPLIFIER

TO/FROM PSU

TO/FROM 1003 OF

RES

FJ19 D7

FJ20 D7

FJ21 E7

FJ22 E7

FJ23 E7

FJ24 E7

FJ25 E7

FJ26 E7

IJ01 B1

IJ02 B1

IJ03 B1

IJ04 B1

IJ05 B1

IJ06 B1

IJ07 B1

IJ08 E2

IJ09 E2

IJ10 E2

IJ11 E2

IJ12 B4

IJ13 E4

2J35 F2

2J36 C7

3J03 E3

3J04 E3

3J05 E3

3J06 B3

4J01 D2

4J02 C2

5J01 B7

5J02 B7

5J03 E2

5J04 C2

5J05 B3

FJ00 C1

FJ01 C1

FJ02 C1

FJ03 C1

FJ04 C1

FJ05 D1

FJ06 E2

FJ07 E2

FJ08 F1

FJ09 F2

FJ10 B7

FJ11 B8

FJ12 B7

FJ13 B7

FJ14 C7

FJ15 C7

FJ16 C7

FJ17 D7

FJ18 D7

1J07 C2

1J08 C2

2J02 F2

2J03 F2

2J04 D6

2J05 D7

2J06 D7

2J07 D7

2J08 D7

2J09 D7

2J10 E6

2J11 E7

2J12 E7

2J13 E7

2J14 E7

2J15 E7

2J16 C2

2J17 F3

2J18 F2

2J19 F3

2J20 C3

2J21 F3

2J22 F3

2J23 F3

2J26 C6

2J27 C7

2J28 C7

2J29 C7

2J30 F2

2J31 D2

2J33 C2

2J34 C3

B

C

D

E

F

A

B

C

D

E

F

1J00 B1

1J01 C1

1J02 D1

1J03 F1

1J04 B8

1J05 C8

1J06 E8

12345678

1

+5V

+12VUNREG

2345678

A

1n0

4J02

2J36

1J08

T3A

1J07

1n02J35

IJ12

IJ13

4J01

2J33

2J34

5J05

1n0

2J31

5J04

2J30 1n0

5J03

5J02

100p

2J27 2J28

100p100p

5J01

2J26

100p

2J29

2J02 1n0

2J23 100p

2J21 100p

2J22 100p

2J20

68R3J05

3J06

100p

2J19

100p2J17

68R3J04

2J18 100p

2J16

68R3J03

5

6

7

8

9

1J04

B9B-PH-K-S(LF)

1

2

3

4

1

2

3

4

5

6

7

7

B7B-PH-K-S(LF)

1J06

1

2

3

4

5

6

IJ11

B7B-PH-K-S(LF)

1J05

IJ09

IJ10

FJ07

FJ06

FJ09

IJ08

FJ08

FJ25

FJ26

FJ23

FJ24

FJ22

FJ20

FJ21

FJ19

FJ18

FJ16

FJ17

FJ15

GND_AUDIO

GND_AUDIO

GND_AUDIO

VP

2J03

1n0

2

3

4

5

6

7

8

9

1J02

1

10

11

12

+3V3STBY

B12P-PH-K-S(LF)

100p2J04

2J06 100p

100p2J05

2J08 100p

100p2J07

100p2J09

2J10

2J11 100p

100p

2J13 100p

100p2J12

100p2J14

2J15 100p

IJ07

IJ05

IJ06

IJ04

IJ02

IJ03

8

9

IJ01

1

10

2

3

4

5

6

7

1J00

FJ04

FJ05

FJ03

FJ01

FJ02

7

8

9

FJ00

1J01

1

10

11

2

3

4

5

6

1

2

3VP

1J03

B3B-PH-K-S(LF)

FJ14

FJ11

FJ12

FJ13

FJ10

BACKLIGHT_CTRL

+5V_UFD

G_RB_PWM

R_RB_PWM

POWER_DOWN

G_LT_PWM

R_LT_PWM

B_RT_PWM

G_RT_PWM

R_RT_PWM

B_RB_PWM

POWER_UP_OK_1 POWER_UP_OK

POR

FAN_SPEED

STANDBY

STANDBY_1

B_LB_PWM

G_LB_PWM

R_LB_PWM

B_LT_PWM

+12V_UFD

LAMP_ON_OFF_1

LAMP_ON_OFF

POR_AUDIO

SOUND_ENABLE_1

AUDIO-L

AUDIO-R

PROTECT_AUD

PROTECT_AUD

B16 B16

3139 123 6093.1 F_15270_026.eps

170505

Circuit Diagrams and PWB Layouts 45LC4.3E AA 7.

SSB: Side Connectors

(1M06)

OF SIDE I/O

(1M21)

SIDE CONNECTORS

(1M01)

TOP/SIDE KEYBOARD

2345678

2345678

A

B

C

D

E

F

A

B

C

D

E

F

RES

RES

FOR DISC/ ARCH CABINET

RES

RES

RESERVED IR/ LED

RES

1 2345678

1 2345678

A

B

C

D

E

F

A

B

C

D

E

F

1K00 A8

1K01 D1

1K02 E8

1K03 A1

1K04 D1

2K00 B7

2K01 B6

2K02 C3

2K03 C3

2K04 D3

2K05 D3

2K06 D3

2K07 D3

2K08 D4

2K10 E3

2K11 E3

2K12 E4

2K13 F3

2K14 E3

2K15 F3

2K16 F3

2K17 F3

2K18 E8

2K19 E3

2K20 E3

2K21 B6

2K22 B6

2K23 B6

2K24 B6

2K25 B7

2K26 B7

2K27 B7

2K28 B7

3K00 C3

3K01 C3

3K02 D3

3K03 D3

3K05 E3

3K06 E3

3K07 E3

3K08 F3

3K09 F3

3K11 A7

3K12 A7

3K13 B7

4K01 A7

4K02 F2

4K03 A7

4K04 A7

4K05 A7

4K06 B1

4K07 B1

5K00 A7

5K01 D3

5K02 A7

FK00 E1

FK01 E1

FK02 E1

FK03 E1

FK04 E1

FK05 E1

FK06 E1

FK07 E1

FK08 E8

FK09 E8

FK10 E1

FK11 B8

IK00 A8

IK01 A8

IK02 A8

IK03 B8

IK16 A7

IK17 D3

IK18 E3

3V3

3V3

TO/FROM 1540 OF

TO/FROM 1304

**

**

*

*

19

2

20

3

4

5

6

7

8

9

1

10

11

12

13

14

15

16

17

18

1K03

4K06

4K07

+3V3STBY_1

4K05

4K04

4K03

4K01

100p

2K28

2K27 100p

2K26

2K25 100p

100p

2K24 100p

2K22 100p

100p

2K23

100p

2K21

5K02 1u0

68R

3K13

3K12 68R

68R

3K11

2K19

1n0

2K20

1n0

1u0

5K01

2K18

100p

IK18

IK17

11

2

3

4

5

6

7

8

9

FK11

1

10

B6B-PH-K

1K00

1

2

3

4

5

6

1K04

+3V3STBY_1

+5VSW

4K02

+3V3STBY

2K01 2K00

1n01n0

5K00 1u0

B3B-PH-K-S(LF)

1

2

3

1K02

FK08

FK09

IK16

IK03

IK01

IK02

IK00

2K08

2u2

2u2

2K12

3K06

15K

15K

FK07

3K03

FK05

FK06

FK04

FK02

FK03

FK01

FK00

2K15

100p

68R

3K08

2K03

2K02

10p 10p

3K00

100R

2K17

100p

3K09

2K16

100p

39R

2K14

100p

100p

2K13

39R

3K07

2K11

100p

100p

3K05

2K10

10K

100p

2K06

2K07100p

10K

3K02

10p

2K05

10p

2K04

6

7

8

9

3K01

100R

1

10

11

12

2

3

4

5

FK10

1K01

LIGHT_SENSOR_1

LIGHT_SENSOR_1

PC-TV-LED

LED_SEL

IR

LIGHT_SENSOR

IR_1

ITV_IR_SW_RESET

KEYBOARD

PC-TV-LED_1

LED_SEL_1

LED_SEL_1

+3V3STBY_1

IR_1

PC-TV-LED_1

KEYBOARD

HP_ROUT_1

FRONT_Y_CVBS_IN_1

FRONT_Y_CVBS_IN

FRONT_L_IN

FRONT_R_IN

HP_DET_R_DC_1

HP_ROUT

HP_DET_R_DC

HP_LOUT

FRONT_C_IN_1

FRONT_C_IN

FRONT_L_IN_1

+5VSW_1

+5VSW_1

FRONT_R_IN_1

HP_LOUT_1

B17 B17

3139 123 6093.1 F_15270_027.eps

250505

46LC4.3E AA 7.

Circuit Diagrams and PWB Layouts

SSB: ADC

COM

OUTIN

0

3

4

5

6

7

GND

REF_BYPASS

MIDSCV

FILT

SDA

SCL

VSYNC

SOGIN

CLAMP

COAST

A0

GAIN

BAIN

HSYNC

RAIN

VD VDD PVD

RED

GREEN

0

1

2

3

4

5

6

7

BLUE

2

2

1

1

7

6

5

4

3

SOGOUT

VSOUT

HSOUT

DATACK

0

ADC

TO COLUMBUS

FROM SYNC INTERFACE

TO HERCULES

FROM HERCULES

RES

TO SCALER

SYNC INTF

0R

0R

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

3V3

5V4

0V9

1V5

5V4

0V9

1V5

0R

0R

9883(MSTAR)

RES

RES

0R

RES

RES

RES

7L05 A2

7L06 F2

7L07 F3

7L08 C3

IL01 C5

IL02 C5

IL03 C5

IL04 B1

IL05 C1

IL06 E1

IL07 C4

IL08 C4

IL09 E3

IL10 C7

IL11 C7

IL12 C7

IL13 D7

IL14 D7

IL15 D7

IL16 A3

IL17 B4

IL18 A5

IL19 B6

3L27-2 D7

3L27-3 D7

3L27-4 D7

3L28-1 D7

3L28-2 D7

3L28-3 D7

3L28-4 D7

3L30 E7

3L31 E7

3L32 E7

3L33 B3

3L34 C4

3L35 E3

3L36 E2

3L37 E3

3L38 C3

3L39 C4

4L00 D3

4L01 D3

4L02 C1

4L03 C1

4L04 C3

4L05 C4

5L00 B4

5L01 A5

5L02 A6

5L03 C3

5L04 C3

7L01 B3

7L02 C2

7L03 E2

7L04 C5

2L39 C3

3L00 B2

3L01 B2

3L03 B2

3L04 B3

3L05 B3

3L06 C1

3L07 C2

3L08 C3

3L09 C2

3L10 C2

3L11 C2

3L12 E1

3L13 D2

3L15 E2

3L16 E2

3L17 E3

3L18 E4

3L19 F3

3L20 F3

3L21 C4

3L22 D4

3L23 D4

3L24 D4

3L25-1 C7

3L25-2 C7

3L25-3 C7

3L25-4 C7

3L26-1 C7

3L26-2 C7

3L26-3 C7

3L27-1 D7

2L03 A7

2L04 A7

2L05 A8

2L06 A8

2L07 B7

2L08 B7

2L09 B7

2L10 B8

2L11 B8

2L13 C4

2L15 D4

2L17 E3

2L18 E4

2L19 E4

2L20 D4

2L21 D4

2L22 B5

2L23 B5

2L24 B5

2L26 C4

2L27 A8

2L28 B9

2L29 B4

2L30 A3

2L31 E4

2L32 E5

2L33 B8

2L34 B8

2L35 B2

2L36 E1

2L37 C3

2L38 C3

5L04

10u

9

A

B

C

D

E

F

A

B

C

D

E

F

2L02 A7

123456789

12345678

4L05

+5VSWIA

3L39

3L38

7L08

3L08

3L11

150R

7L02

BC847BW

+5VSWIA

IL19

IL17

IL18

IL16

2L38

4L04

5L03 10u

82p

2L39

68p

2L37

+3V3SWB

+3V3SWB

3L37

3K3

+3V3SWB

3K3

3L36

BSN20

7L07

3

1

23

1

2

7L06

BSN20

2L36

2L35

100n

2L33 2L34

100n

IL14

IL15

IL13

IL12

IL10

IL11

IL08

IL09

IL07

2L31

100u

16V 16V

100u

2L32

+3V3SWB

+5VSWIA

16V10u

2L30

7L05

LD1117DT33

1

32

4L03

3L35

220R

3L34

3L33

220R

IL06

IL04

IL05

IL02

IL03

IL01

4L02

7L03

BC847BW

+5VSWIA

+5VSWIA

4L01

4L00

2L29

10u16V

2L28

16V10u

2L27

10u 16V

+3V3SWB

+3V3SWB +3V3SWB

3L16

330R

3L10

3L04

BC847BW

7L01

3L15

3L09

3L03

22

23

69

78

79

64

31

49

65

39

42

45

46

51

52

59

62

11

77

76

75

74

73

72

71

70

58

56

57

3

2

66

30

37

26

27

34

35

54

24

25

28

32

36

9

8

7

6

5

4

53

60

61

63

68

10

80

20

21

29

67

33

48

1

40

41

44

47

50

43

19

18

17

16

15

14

13

12

38

Φ

7L04

AD9985KSTZ

FLAT PANEL DISPLAY

ANALOG INTERFACE FOR

55

2K23L32

2K23L22

5L02

3L21 2K2

2L08

100n 100n

2L092L07

100n

2L112L10

10u 100n

100n

2L03

100n

2L04 2L06

10u 100n

5L01

2L02

5L00

100n

2L22

10u

2L05

2L23

100n

2L24

100n

2L15

3L23

2L19 8n2

82n 2K72L18 3L18

150R3L20

150R

3L19

3L28-4 22R

3L28-2 22R

3L28-3 22R

3L28-1 22R

3L27-4 22R

3L27-3 22R

3L27-2 22R

22R

3L27-1

3L26-2

3L26-3 22R

22R

3L26-1 22R

3L25-4 22R

3L25-3 22R

3L25-2 22R

3L25-1 22R

3L24 2K2

1K0

3L12

150R

3L17

3L13

47n

2L17

3L06

3L07

2L26 220n

1K0

3L00

150R

3L05

3L01

2L13 47n

2L21 100n

22R3L31

3L30 22R

100n

2L20

CVBS_COMB

INTF_Y_OUT COL_Di(1)

COL_Di(2)

COL_Di(3)

COL_Di(4)

COL_Di(5)

COL_Di(6)

COL_Di(7)

SCL

SDA

Hsync_SDTV

Vsync_SDTV

COL_Di(1:7)

COL_YA(1:8)

COL_YA(1)

COL_YA(2)

COL_YA(3)

COL_YA(4)

COL_YA(5)

COL_YA(6)

COL_YA(7)

COL_YA(8)

COL_HREF

COL_HREF

COL_VACOL_VA

COL_Di(8)

INTF_V_OUT

INTF_U_OUT

CLAMP_ADC

COL_CLKASA

COL_CLKASA

B18 B18

3139 123 6093.1

F_15270_028.eps

170505

Circuit Diagrams and PWB Layouts 47LC4.3E AA 7.

SSB: Columbus

VCC

GND

CX

CX|RX

R

VCC

GND

CX

CX|RX

R

VCC

GND

CX

CX|RX

R

COM

OUT IN

BISTEN

AVS

VDDC

VSS

656SEL

A0IIC

CLKEXT

CLKSEL

RESET

TST1

TMS

TST3

TCK

TDO

TDI

TST2

NC_3

NC_2

AVD

SCL

SDA

SNRST

SNCL

SNDA

TRST

VDDS

MUX

MUX

656

Encod

3D Comb

SWAN 3D

Noise Reduct

Memory

Interface

A2

A3

A4

A5

A6

A8

A10

A9

A11

RAS_

CAS_

DQM

UVA2 / Di2

UVA3 / Di3

UVA4 / Di4

UVA7 / Di7

UVA0 / Di0

UVA1 / Di1

UVB0 / Do0

VA

HREF

UVB6 / Do6

UVB7 / Do7

UVB8 / Do8

UVB5 / Do5

UVB4 / Do4

UVB3 / Do3

UVB2 / Do2

UVB1 / Do1

MUX

656

Decod

DQ13

DQ12

DQ11

DQ10

DQ9

DQ14

DQ15

DQ16

DQ8

DQ6

DQ5

DQ4

DQ3

DQ2

DQ7

DQ1

CLKASA

WEA / DAVA

YA7

YA0 / Di9

YA1

YA2

YA3

YA4

YA5

YA6

YA8

CLK

WE_

A7

A0

A1

UVA5 / Di5

UVA6 / Di6

UVA8 / Di8

YB5

YB4

YB3

YB2

YB1

YB6

YB7

YB8

YB0 / Do9

WEB / DAVB

CLKASB

8

NC

L

U

10

16

1

2

3

4

5

9

10

11

12

13

512K-1

DQM

VDD

0

VSSQ

A

14

15

RAS

CAS

WE

A11

3

2

CLK

D

VSS

VDDQ

1

0

CKE

CS

9

8

7

6

5

4

6

7

COLUMBUS

RES

RES

FROM ADC

0R

0R

FROM FLASH/

RES

RES

FROM HERCULES

TO/FROM SYNC INTERFACE

TO ADC

TO SCALER

RES

0R

RES

RES

RES

CONTROL

FROM SCALER

RES

3V2

5V3

3V2

1V5

123456789101112

123456789101112

A

B

C

D

E

F

G

H

A

B

C

D

E

F

G

H

2M00 E2

2M01 E2

2M02 E3

2M03 E3

2M04 E3

2M05 E3

2M06 E3

2M07 E3

2M08 E3

2M09 E4

2M10 E4

2M11 E5

2M12 E5

2M13 E6

2M14 E6

2M15 E6

2M16 E6

2M17 E6

2M18 E7

2M19 E7

2M20 E7

2M21 E7

2M22 E8

2M23 E8

2M24 F7

2M25 A9

2M26 A10

2M27 A10

2M28 A10

2M29 A11

2M30 A11

2M31 E4

2M32 A9

2M33 F3

2M56 E7

2M60 F9

2M61 F11

2M62 G9

2M65 A2

2M66 A2

2M67 B2

2M68 B2

3M00 A4

3M01-1 B7

3M01-2 B7

3M01-3 B7

3M01-4 B7

3M02-1 B7

3M02-2 B7

3M02-3 B7

3M02-4 B7

3M03-1 B7

3M03-2 B7

3M03-3 B7

3M03-4 B7

3M04-1 C7

3M04-2 C7

3M04-3 C7

3M04-4 C7

3M06-1 C7

3M06-2 C7

3M06-3 C7

3M06-4 C7

3M07-1 C7

3M07-2 D7

3M07-3 D7

3M07-4 D7

3M08-1 D7

3M08-2 D7

3M08-3 D7

3M08-4 D7

3M09-1 D7

3M09-2 D7

3M09-3 E7

3M10 F3

3M11 F3

3M12 G3

3M13 H3

3M14 G7

3M15 G7

3M16 C9

3M26 C4

3M27 D4

3M28 C7

3M29 D7

3M50 G3

3M51 G3

3M52 G3

3M53 G2

3M54 G2

3M55 G2

3M56 G2

3M57 G2

3M58 G2

3M59 G2

3M68 E9

3M69 E11

3M71 F9

3M78 F7

3M79 A5

3M86 A6

3M87 A5

3M88 C8

3M89 C5

3M90 E4

4M00 B5

4M01 B5

4M02 B5

4M03 B5

4M04 F3

4M05 F3

4M06 F3

4M08 F7

4M09 F7

4M10 D10

4M16 F3

4M17 F3

5M00 E8

5M01 F7

5M02 E2

5M03 A2

5M04 A2

5M05 A10

7M00-1 A7

7M00-2 F4

7M01 B11

7M03 E8

7M14-1 E10

7M14-2 E11

7M15-1 F10

7M17 A4

FM01 G2

FM02 G2

FM03 G2

FM04 G2

FM05 G2

IM00 C8

IM01 E7

IM03 C5

IM04 C5

IM06 C5

IM07 C5

IM08 D5

IM09 E8

IM10 C8

IM11 F7

2M33 100p

IM11

IM08

IM09

IM07

IM04

IM06

IM01

IM03

FM05

FM04

FM02

FM03

FM01

47R3M59

10K

3M56

3M53 47R

47R3M54

3M50 10K

2M31 100u

16V

16V

100u

2M32

5M05

4M17

5M02

22R

3M89

3M90 22R

2M56

4M16

100u

16V

22R3M88

3M87

3M86

IM10

3M79

3K3

7M17

+5VSWI +5VSWIA

16V

100u

2M68

100n

2M67

5M04

3M58

10K

3M57 47R

3M55 47R

3M52 10K

3M51

10K

+3V3SW

2M66

100u

100n 16V

5M03

2M65

2M62

1n0

2K7

3M71

+5VSWIA

1

2

14

15

8

13

43

16

+5VSWIA

7M15-1

74HCT221D

1n0

2M61

2M60

1n0

10K

3M69

+5VSWIA

15K

+5VSWIA

3M68

+5VSWIA

10

6

7

8

5

12

11

16

+5VSWIA

16

7M14-2

74HCT221D

9

74HCT221D

1

2

14

15

8

13

4

3

7M14-1

3M28

3M293M27

3M26

IM00

3M00

5M01

5M00

4M09

4M08

3M78 1K0

2M19 100n

100n2M18

2M17 100n

2M16 100n

100n

2M15 100n

2M14

2M13 100n

100n2M12

2M11 100n

100n

2M09

2M10

100n

100n2M08

100n2M07

100n2M06

2M05 100n

100n2M04

2M03 100n

2M02 100n

2M01 100n

2M25

100n 100n

2M26 2M30

100n

100n

2M29

2M00 100n

22R36

22R27

3M09-3

18

3M09-2

5

22R3M09-1

3M08-4 22R4

22R3M08-3 3 6

3M08-2 22R27

22R18

45

3M08-1

3M07-3 3 6

3M07-4 22R

27

22R

8

22R3M07-2

3M07-1 22R1

22R45

3M06-3 3 6

3M06-4

3M06-2 2 7

22R

22R18

22R

3M06-1

4M04

2M21

2M22

2u2

7M03

LF15ABDT

2

13

100n

2M23

16V

100u

4M03

4M02

4M01

45

4M00

6

3M04-4 68R

7

3M04-3 68R

3

3M04-2 68R

2

3M04-1 1 8

68R

45

68R

68R

36

3M03-4

27

3M03-3

18

3M03-2 68R

3M03-1 68R

68R

45

3M02-3 68R

36

3M02-4

3M02-2 68R

27

18

68R

45

3M02-1 68R

36

3M01-4

27

3M01-3 68R

68R3M01-2

3M01-1 18

G2

F2

E2

E1

D2

D1

C2

C1

B1

68R

A1

B7

B9

A9

B10

A10

B11

A11

B12

A12

M1

L2

L1

K2

K1

J2

J1

H2

A13

J15

B13

A2

B3

A3

B4

A4

B5

A5

B6

A6

M2

R12

P11

P10

R10

P9

P8

R8

R13

L14

A14

K15

J14

H1 G1

P12

R14

R15

P15

N15

M14

M15

L15

R7

P7

P5

R5

R1

R2

R3

P3

R4

P4

K14

COLUMBUS_IO

7M00-1

COLUMBUS

P6

R6

3M15 100R

100R3M14

4M05

3M10

4M06

3M11 4K7

3M12

3M13

4K7

100n2M24

100n

C6

C13

D13

C9

M13

2M20

J3

J13

K13

L3

N5

N7

N10

R9

R11

C5

B2

C10

N4

N12

N13

P2

P14

B14

E3

F3

F13

C3

N14

P13

C12

G3

G13

L13

M3

N3

N8

N11

C8

C7

D3

C11

H13

E13

N6

N9

K3

C4

D14

C14

C15

D15

F15

E15

E14

F14

A8

F1

H3

G14

N1

P1

B8

H14

H15

D4

N2

G15

B15

A15

7M00-2

COLUMBUS

COLUMBUS_CTRL

A7

4M10

3M16 4K7

2M28

100n

41

47

15

2M27

100n

25

7

13

38

44

26

50

4

10

8

9

11

12

39

14

33

37

17

36

1

40

42

43

45

46

48

49

3

5

6

27

28

29

30

31

32

16

34

35

18

2

512K X 16 X 2

DRAM

21

22

20

19

23

24

7M01

MSM56V16160F-7T3

Φ

+3V3SWA +3V3SWA

COL_Do(8)

COL_DE

COL_Di(8)_INV

+3V3SWA

COL_RST

+3V3SWA

COL_Do(5)

COL_Do(7)

COL_Do(6)

CLAMP_ADC

+3V3SWA

H_DELAY

COL_DQ16

COL_YB(1)

COL_YB(2)

COL_YB(3)

COL_YB(4)

COL_YB(8)

COL_Di(1:7)

COL_CLKASA

COL_YA(1:8)

COL_CLKASB

COL_Do(4)

COL_Do(1)

COL_Do(3)

COL_Do(2)

+3V3SWA

Hsync_SDTV

+3V3SWA

+3V3SWA

COL_DQ1

COL_DQ2

COL_DQ3

COL_DQ4

COL_DQ5

COL_DQ6

COL_DQ7

COL_DQ8

COL_DQ9

COL_DQ10

COL_DQ11

COL_DQ12

COL_DQ13

COL_DQ14

COL_DQ15

COL_YA(5)

COL_YA(6)

COL_YA(7)

COL_YA(8)

COL_Di(1)

COL_Di(2)

COL_Di(3)

COL_Di(4)

COL_Di(5)

COL_Di(6)

COL_Di(7)

COL_A0

#RESET

COL_YB(5)

COL_YB(6)

COL_YB(7)

+3V3SWA

SDA

SCL

COL_A1

COL_A10

COL_A11

COL_A2

COL_A3

COL_A4

COL_A5

COL_A6

COL_A7

COL_A8

COL_A9

COL_DQM

COL_HREF

COL_VA

COL_YA(1)

COL_RAS

COL_CAS

COL_CLK

COL_WE

COL_YA(2)

COL_YA(3)

COL_YA(4) COL_WE

+3V3SWA

COL_A0

COL_A1

COL_A10

COL_A11

COL_A2

COL_A3

COL_A4

COL_A5

COL_A6

COL_A7

COL_A8

COL_A9

COL_CAS

COL_CLK

COL_DQ1

COL_DQ10

COL_DQ11

COL_DQ12

COL_DQ13

COL_DQ14

COL_DQ15

COL_DQ16

COL_DQ2

COL_DQ3

COL_DQ4

COL_DQ5

COL_DQ6

COL_DQ7

COL_DQ8

COL_DQ9

COL_DQM

COL_RAS

B19 B19

3139 123 6093.1

F_15270_029.eps

170505

48LC4.3E AA 7.

Circuit Diagrams and PWB Layouts

SSB: EPLD

INIT_DONE

CLKUSR

4

3

2

1

0

6

5

4

3

2

VCC

RA

RB

RC

RB-

RC+

RC-

RD+

RD-

RCLK+

RCLK-

PDWN

CLKOUT

PLLVCC

RD

GNDLVDSGND PLLGND

1

0

6

5

4

3

2

1

0

6

5

4

3

2

1

0

6

5

LVDSVCC

RA+

RA-

RB+

STATUS

2

1

0

CEO

TMS

TCK

TDO

TDI

SCAN

CLK

MSEL

3

ASDO

CSO

DCLK

DATA0

1

0

CE

CONFIG

CONF_DONE

DATA

GND

ASDI

DCLK

CS_

VCC

RES

RES

RES

RES

RES

EPLD

TO SCALER

TO SCALER

TO EPLD

TO SCALER INTERFACE

TO TOP CONN.

FOR DEBUGGING

LVDS IN

INTERFACE

123456789101112

123456789101112

A

B

C

D

E

F

G

H

A

B

C

D

E

F

G

H

1N01 A9

1N02 D11

1N03 F12

1N05 D5

2N01 A2

2N02 C1

2N03 C2

2N04 C2

2N05 D4

2N06 D4

2N07 D5

2N08 D5

2N09 D5

2N10 D6

2N11 B7

2N12 B7

2N13 B7

2N14 B7

2N15 B8

2N16 E11

2N17 F11

2N18 F11

2N19 F11

2N20 F11

3N01 A3

3N02 A3

3N03 A3

3N04 A3

3N05 A3

3N06 A3

3N07 C2

3N08 C2

3N09 B4

3N10 C2

3N11 C4

3N12 A5

3N13 A5

3N14 A5

3N15 B6

3N16 B6

3N17 B6

3N18 B6

3N19 C5

3N20 C5

3N21 E3

3N22 E3

3N23 E3

3N24 F3

3N25 F3

3N26 D4

3N27 D6

3N28 F8

3N29 E11

3N30 E11

3N31 E11

3N32 E11

3N33 E11

3N34 E11

3N35 E11

3N36 E11

3N37 E11

3N38 F11

3N39 F11

3N40 F11

3N41 F11

3N42 F11

3N43 F11

3N44 F11

3N45 F11

3N46 D10

3N47 D10

4N01 D2

4N02 D2

4N03 D2

4N04 D2

4N05 D2

4N06 D2

4N07 D2

4N08 D2

4N09 D2

4N10 D2

4N11 D2

4N12 D2

4N13 D2

4N14 D2

4N15 D3

4N16 D3

4N17 D3

4N18 D3

4N19 D3

4N20 D3

4N21 D9

4N22 D9

5N01 A8

5N02 D4

5N03 D4

5N04 D5

5N05 C6

6N01 F9

7N01 A2

7N02-1 A4

7N02-2 D7

7N02-5 D10

7N03-1 C3

7N03-2 C2

7N04 D5

FN01 B4

FN02 B6

FN03 C5

FN04 A8

FN05 B8

FN06 B8

FN07 B8

FN08 B8

FN09 B8

FN10 B8

FN11 D5

FN12 E5

FN13 E5

FN14 F5

FN15 F5

FN16 F5

FN17 G5

FN18 D9

FN19 D9

FN20 F9

FN21 F11

FN22 F11

FN23 F11

FN24 F12

FN25 F4

FN26 D2

FN27 D2

FN28 D2

FN29 D2

FN30 D2

FN31 D2

FN32 D2

FN33 D3

FN34 D3

FN35 D3

IN01 B3

IN02 B3

IN03 B3

IN04 B3

IN05 B3

IN06 C2

IN07 D4

IN08 C2

IN09 C2

IN10 B3

IN11 B4

IN12 C5

IN13 D5

IN14 D4

IN15 D11

IN16 D11

IN17 D11

IN18 D11

IN19 F9

FOR NON-

PIXEL+ SETS

RES

FOR DEVELOPMENT

USE ONLY

B21

FN34

FN35

FN33

FN31

FN32

FN30

FN28

FN29

FN27

FN26

IN18

IN19

IN17

IN15

IN16

IN14 IN13

IN12

IN10

IN11

IN09

3N47 100R

IN08

100R

3N46

4N13

4N17

4N19

4N15

4N09

4N07

4N11

4N05

4N01

4N03

3N25 100R

100R3N24

3N23 100R

100R3N22

3N21 100R

FN19

FN18

100p

2N16

100R

+3V3SW

3N45

100p

2N20

1

2

3

4

56

1N02

B4B-PH-SM4-TBT(LF)

4N21

4N22

100R

3N40

3N39

100R

100R

3N41

3N37 100R

100R3N36

100R

3N38

4N20

4N16

4N18

4N12

4N14

4N10

4N08

4N04

4N06

4N02

3N34 100R

3N33 100R

100R

3N35

3N31 100R

100R

100R3N30

3N32

4

5

67

1N03

BM05B-SRSS-TBT

1

2

3

2N18 100p

100R

2N17 100p

100R

3N43

3N42

100R

3N44

2N19 100p

FN23

FN24

FN21

FN22

3N29

FN20

100R

3N28

180R

3N27

47R

TLMG3100

+3V3-IO

T15

IO_88 R15

6N01

M11

IO_80 M12

P12

IO_81

IO_82 R12

IO_83 T13

IO_84 R13

IO_85 R14

IO_86 P13

IO_87

T11

IO_72 N10

IO_73 P10

IO_74 R11

IO_75 P11

IO_76 N11

IO_77 N12

IO_78 M9

IO_79

N8

IO_64

P8

IO_65 M10

IO_66 R9

IO_67 T9

IO_68 P9

IO_69 N9

IO_70 R10

IO_71

M7

IO_56

T6

IO_57

R7

IO_58

P7

IO_59

N7

IO_60

R8

IO_61

T8

IO_62

M8

IO_63

IO_47

IO_48

P5

IO_49

M5

IO_50

M6

IO_51

N5

IO_52

N6

IO_53

P6

IO_54

R6

IO_55

IO_41

R2

IO_42

T2

IO_43

R3

IO_44

P4

IO_45

R4

IO_46

T4

R5

IO_9 F5

Φ

BANK 4

EP1C12F256C8

7N02-5

IO_3 C2

IO_4 B1

IO_40

N4

IO_5 G5

IO_6 F4

IO_7 D3

IO_8 E4

IO_32

L5 IO_33

M4 IO_34

N3 IO_35

K5 IO_36

L4 IO_37

R1 IO_38

P2 IO_39

P3

IO_25

L1 IO_26

L2 IO_27

M1 IO_28

N1 IO_29

M2 IO_30

N2 IO_31

M3

IO_1 D4

IO_2 C3

IO_20 H5

IO_21

J1 IO_22

K2 IO_23

L3 IO_24

K1

IO_12 E2

IO_13 D1

IO_14 F3

IO_15 G3

IO_16 F2

IO_17 E1

IO_18 G2

IO_19 F1

Φ

IO_10 E3

IO_11 D2

IN07

7N02-2

EP1C12F256C8

BANK 1

5N02

5N04

5N03

100n

2N09

FN25

FN11

FN15

FN16

FN17

FN14

FN12

FN13

3N26

4K7

+3V3SW+3V3SW

100n2N06

+3V3SW

100n2N05

2N08 100n

100n2N07

2

31

40

48

56

18

17

20

19

7

34

41

42

49

50

47

51

16

15

53

54

55

1

3

5

6

33

35

3712

11 38

39

43

45

46

13

25

22

24 23

10

9

27

29

30

32

THC63LVDF84B

26

4

28

36

44

52

8

14

21

+3V3-IO

RECEIVER

INTERFACE

LCD PANEL

Φ

7N04

3N11

IN05

47R

IN06

FN01

FN09

IN04

IN02

IN03

5N01

IN01

5N05

33K

3N07

FN03

FN10

FN08

FN07

FN06

FN04

FN05

+3V3-IO

FN02

3N03 10K

3N02 10K

3N01

3N20

10K

+3V3-IO

47R

2N10

100n

1

4

3OC

14M31818

1N05

2

G4

H2

K4

J3

J2

J13

J14

H14

H15

J15

7N02-1

EP1C12F256C8

K3

H4

J4

G1

H1

G16

H16

H3

K13

CONTROL

Φ

2N04 1n0

2

6

1

4

7N03-1

BC847BS

BC847BS

7N03-2

5

3

100p

2N15

2N12

47R

3N18

2N11

47R

3N16

2N14

3N15

3N17 47R

47R

2N13

+3V3-IO

2N01 100n

5

1

26

4

3

7

8

Φ

SCD

7N01

EPCS4SI8

+3V3-IO+3V3-IO+3V3-IO

4

5

6

7

8

9

1N01

1

10

2

3

3N12 10K

1u02N03

3N10

33K

3N08 10K

3N19 10K 10K

3N09

1K0

3N13

+3V3-IO

10K3N04

3N06 10K

10K

3N14

3N05 10K

2N02 100n

SDA_IO

LVDSBp

LVDSBn

LVDSCp

LVDSCn

LVDSDp

LVDSDn

LVDSCLKp

LVDSCLKn

R_LB_PWM

B_LB_PWM

G_LB_PWM

R_RB_PWM

B_RB_PWM

G_RB_PWM

SCL_IO

R_LT_PWM

B_LT_PWM

G_LT_PWM

R_RT_PWM

B_RT_PWM

G_RT_PWM

LVDSAp

LVDSAn

TXB2+

TXB1+

TXB3+

DE_IN

B_IN(3)

VS_IN

B_IN(5)

HS_IN

LVDS_PWR_DWN

BACKLIGHT_DIM

R_IN(4)

R_IN(7)

R_IN(5)

G_IN(0)

G_IN(1)

G_IN(7)

G_IN(3)

B_IN(0)

G_IN(5)

B_IN(4)

B_IN(6)

R_IN(6)

B_IN(1)

B_IN(2)

PARITY_IN

TXBC+

TXB1-

HS_IN

PIXEL+_RESET

LED_OUT

B_IN(7)

G_IN(4)

G_IN(6)

G_IN(2)

R_IN(1)

R_IN(0)

R_IN(2)

R_IN(3)

R_IN(0)

R_IN(1)

R_IN(2)

R_IN(3)

R_IN(4)

R_IN(7)

R_IN(5)

R_IN(6)

G_IN(0)

G_IN(1)

G_IN(2)

G_IN(6)

G_IN(3)

G_IN(4)

G_IN(5)

B_IN(0)

B_IN(6)

B_IN(7)

B_IN(1)

B_IN(2)

B_IN(3)

B_IN(4)

B_IN(5)

TXBC-

TXB0-

TXB0+

TXB2-

TXB3-

PARITY_IN

G_IN(7)

VS_IN

DE_IN

CLK_REF

B20 B20

3139 123 6093.1 F_15270_030.eps

250505

Circuit Diagrams and PWB Layouts 49LC4.3E AA 7.

SSB: EPLD

COM

OUTIN

VCCA

GNDA

GNDG

GND

PLL2

BANK1

PLL2

PLL1

PLL1

VCCIO

PLL1

PLL2

BANK2

BANK3

BANK4

VCCINT

DEV_OE

DEV_CLR

0

6

0

6

TA

TB

TC

TD

CLKIN

TCLK

+

-

VCC

GND LVDS GND PLL GND

LVDS VCC PLL VCC

TA

+

-

-

+

-

+

-

+

R|F

PDWN

RS

TB

TC

TD

0

6

0

6

LVDS TRANSMITTER

EPLD

LVDS OUT

EAGLE INTERFACE

FOR LCD ONLY

(NC)

(NC)

FROM DC-DC CONVERTER

TO PLASMA PANEL (TIMING CONTROL)

FROM SCALER INTERFACE

FROM EPLD

TO LCD PANEL (TIMING CONTROL)

NC

(1G50)

FOR MFD ONLY

FOR UFD ONLY

N.C.

N.C.

(H=NORMAL)

*

*

B20

RES

RES

7N02-6 A8

7P01 B2

7P02 D7

FP01 A1

FP02 A4

FP03 B2

FP04 B3

FP05 C4

FP06 D4

FP07 E4

FP08 E4

FP09 E4

FP10 F4

FP11 F4

FP12 F4

FP13 F4

FP14 G4

FP15 D11

FP16 D11

FP17 E11

2P36 D8

2P37 E8

2P38 E8

2P39 E8

2P40 F8

2P41 F8

2P42 F8

2P43 F8

2P44 G8

2P45 G8

3P01 D5

3P03 E5

3P04 D9

3P05 D9

4P01 F10

4P02 F10

4P03 F10

4P04 F10

4P05 F10

4P06 F10

4P07 F10

4P08 F10

4P09 D9

4P10 E9

5P01 A3

5P02 B3

5P03 C3

5P04 D6

5P05 D6

5P06 D7

7N02-3 A6

7N02-4 E2

2P04 B3

2P05 B3

2P06 B3

2P07 B4

2P08 B4

2P09 B4

2P10 B4

2P11 B4

2P12 B4

2P13 B4

2P14 B5

2P15 B1

2P16 B1

2P17 B2

2P18 B3

2P19 B3

2P20 B3

2P21 B3

2P22 C3

2P23 C3

2P24 C3

2P25 C3

2P26 C3

2P27 C3

2P28 C4

2P29 C4

2P30 C4

2P31 C5

2P32 D5

2P33 D5

2P34 D6

2P35 D7

7891011

A

B

C

D

E

F

G

A

B

C

D

E

F

G

1P01 E8

1P02 E8

1P03 F8

1P04 F8

1P05 G8

1P06 A11

1P07 D11

2P01 B3

2P02 B3

2P03 B3

1234567891011

1234

1P07

+3V3SW

+3V3-IO

FI-WE31P-HFE-E1500

56

+3V3SW

4P10

+3V3SW

4P09

+3V3SW 4P07

4P08

+3V3SW 4P06

+3V3SW

4P05

4P04

4P03

3P04 100R

100R3P05

LVDS_VCC

29

3

30

4

5

6

7

8

9

31

32

20

21

22

23

24

25

26

27

28

10

11

12

13

14

15

16

17

18

19

2

1P06

0-1453230-3

1

4P02

+3V3SW 4P01

LVDS_VCC

FP16

FP17

FP15

6

7

8

9

3233

24

25

26

27

28

29

3

30

31

4

5

14

15

16

17

18

19

2

20

21

22

23

1

10

11

12

13

1

2

4

3

1

2

4

3

1P05

DLW21S

DLW21S

1P01

47R3P03

FP06

FP07

FP13

FP14

FP12

FP10

FP11

FP09

FP08

5P05

5P06

5P04

1

2

4

3

1

2

4

3

DLW21S

1P04

3

1P03

DLW21S

1

2

4

DLW21S

1P02

10p

2P36

2P37 10p

10p

2P44

10p

2P45

10p

2P42

2P43 10p

2P40 10p

10p

2P41

10p

2P38

2P39 10p

2P34 100n

100n2P31

2P35 100n

100n

2P33

100n

3P01

2P32

4K7

16

18

25

9

26

28

30

39

40

37

38

50

2

8

10

12

14

15

19

41

42

20

22

23

24

27

54

55

56

3

4

45

46

6

7

11

44

32

33

35 34

1

17

47

48

51

52

31

5

13

21

29

53

36

43

49

IO_99

M13

THC63LVDM83R

7P02

IO_93

N15

IO_94

N16

IO_95

K12

IO_96

K14

IO_97

L12

IO_98

N14

IO_129 C15

IO_130 C14

IO_131 D13

IO_89

N13

IO_90

P14

IO_91

P15

IO_92

R16

D15

IO_122 E14

IO_123 F12

IO_124 E13

IO_125 D14

IO_126 H13

IO_127 G12

IO_128 B16

IO_114 F16

IO_115 F14

IO_116 F13

IO_117 F15

IO_118 E16

IO_119 E15

IO_120 D16

IO_121

L16

IO_107

K16

IO_108

K15

IO_109

J16

IO_110

H12

IO_111 G14

IO_112 G13

IO_113 G15

IO_100

M14

IO_101

L13

IO_102

M15

IO_103

M16

IO_104

L14

IO_105

L15

IO_106

IO_179 B2

BANK 3

Φ

7N02-4

EP1C12F256C8

IO_171 E5

IO_172 C5

IO_173 B5

IO_174 A4

IO_175 B4

IO_176 C4

IO_177 B3

IO_178 A2

B7

IO_164 A6

IO_165 E7

IO_166 B6

IO_167 C6

IO_168 D6

IO_169 D5

IO_170 E6

E10

IO_156

C8

IO_157 D8

IO_158 E8

IO_159 A8

IO_160 B8

IO_161 D7

IO_162 C7

IO_163

A11

IO_148

B10

IO_149

C10

IO_150

D10

IO_151

A9

IO_152

B9

IO_153

D9

IO_154

C9

IO_155

C12

IO_140

E12

IO_141

E11

IO_142

E9

IO_143

D12

IO_144

D11

IO_145

C11

IO_146

B11

IO_147

IO_132

B15

IO_133

A15

IO_134

B14

IO_135

C13

IO_136

B13

IO_137

A13

IO_138

B12

IO_139

Φ

BANK 2

EP1C12F256C8

7N02-3

A3

P16

K11

C16

T3

L7

L10

T14

+3V3-IO

H9

J8

J10

K7

C1

G6

P1

A14

F10

F7

H6

H11

A7

K9

T7

T10

A10

G8

G10

H7

A5

A12

F6

F8

F9

F11

G7

J6

J11

J5

J12

K10

L6

A16

L8

L9

L11

T1

T5

T12

T16

POWER

A1

G9

G11

H8

H10

J7

J9

K6

K8

Φ

7N02-6

EP1C12F256C8

+3V3SW

+1V5-PLL

+1V5-INT

FP03 +1V5

FP01

2u2

2P17

3

100n

2P16

7P01

LF15ABDT

2

1

2P15

100u

16V

2P14 100n

100n2P12

2P13 100n

5P01

5P03

5P02

2P19 100n

100n

2P20

2P23 100n

100n2P24

2P25 100n

100n2P26

100n

100n2P02

2P03

100n2P04

2P05 100n

FP04

+1V5-PLL

2P18 2u2

100n

2P21

FP02

2P11 100n

FP05

100n2P10

2P09 100n

100n

2P08

2P07 100n

+3V3-IO

+1V5-INT

2u22P01

100n2P30

2P29 100n

100n

2P28

2P27 100n

2P22 2u2

100n

2P06

SCL_DMA_BUS1_DISP

SDA_DMA_BUS1_DISP

VDISP2

VDISP_2

CTRL_DISP1

CTRL_DISP2

LVDS_OPT

LVDS_OPT

LVDSA-

LVDSA+

LVDSB-

LVDSB+

LVDSC-

LVDSC+

LVDSCLK-

LVDSCLK+

LVDSD-

LVDSD+

CLK_OUT

LVDSBp

LVDSB-

LVDSBn

LVDSC+

LVDSCp

LVDSC-

LVDSCn

LVDSDp LVDSD+

LVDSDn

LVDSD-

DE_OUT

R(6)

R(3)

R(4)

R(7)

R(5)

G(0)

G(1)

G(2)

LVDSAp

LVDSA+

LVDSAn

LVDSA-

LVDSB+

G(4)

G(5)

B(0)

B(6)

B(7)

B(1)

B(2)

R(2)

B(3)

B(4)

B(5)

PARITY_OUT

HS_OUT

VS_OUT

LVDS_PWR_DWN LVDSCLKp

LVDSCLK+

LVDSCLKn

LVDSCLK-

R(0)

R(1)

G(6)

G(7)

G(3)

R(5)

G(6)

R(6)

B(6)

G(2)

G(1)

B(4)

B(5)

B(2)

B(3)

PARITY_OUT

HS_OUT

B(7)

B(0)

CLK_OUT

G(7)

G(3)G(4)

G(5)

B(1)

VS_OUT

DE_OUT

R(0)

R(1)

R(2)

R(3)

R(4)

G(0)

R(7)

B21 B21

3139 123 6093.1 F_15270_031.eps

250505

50LC4.3E AA 7.

Circuit Diagrams and PWB Layouts

SSB: Diversity Tables B9-B21

PIXEL PLUS&

B20 B21

ADC

B18

SIDE CONNECTORS

B17

SIDE CONNECTORS

B16

ANALOG I/O SCART

B15

MUX-SYNC INTERFACE

B13

MUX-SYNC INTERFACE

B9

Item

+LEXIP non 3.4CL

+LEXIP htiw 3.4CL

82/0237FP24

+LEXIP non 9.4CL/8.4CL

L

E

X

IP h

t

i

w

9.

4

CL/8

.4C

L

+

Description

1N02 VV V

CON V 4P M 2.00 SM PH R

1N05 VV V

OSC XTL SM 14M31818 15P OC R

1P06 VV CON V 30P M 1.25 SM 1453230 R

1P07 VVV

CON H 31P F 1.25 SM FI-WE R

2N01 VV V

CER2 0402 Y5V 16V 100N COL

2N02 VV V

CER2 0402 Y5V 16V 100N COL

2N03 VV V

CER2 0402 X5R 6V3 1U PM20 R

2N04 VV V

CER2 0402 X7R 50V 1N COL

2N05 VV V

CER2 0402 Y5V 16V 100N COL

2N06 VV V

CER2 0402 Y5V 16V 100N COL

2N07 VV V

CER2 0402 Y5V 16V 100N COL

2N08 VV V

CER2 0402 Y5V 16V 100N COL

2N09 VV V

CER2 0402 Y5V 16V 100N COL

2N10 VV V

CER2 0402 Y5V 16V 100N COL

2N11 VV V

CER1 0402 NP0 50V 100P COL

2N12 VV V

CER1 0402 NP0 50V 100P COL

2N13 VV V

CER1 0402 NP0 50V 100P COL

2N14 VV V

CER1 0402 NP0 50V 100P COL

2N15 VV V

CER1 0402 NP0 50V 100P COL

2N16 VV V

CER1 0402 NP0 50V 100P COL

2P01 VV V

CER2 0603 X5R 6V3 2U2 PM10 R

2P02 VV V

CER2 0402 Y5V 16V 100N COL

2P03 VV V

CER2 0402 Y5V 16V 100N COL

2P04 VV V

CER2 0402 Y5V 16V 100N COL

2P05 VV V

CER2 0402 Y5V 16V 100N COL

2P06 VV V

CER2 0402 Y5V 16V 100N COL

2P07 VV V

CER2 0402 Y5V 16V 100N COL

2P08 VV V

CER2 0402 Y5V 16V 100N COL

2P09 VV V

CER2 0402 Y5V 16V 100N COL

2P10 VV V

CER2 0402 Y5V 16V 100N COL

2P11 VV V

CER2 0402 Y5V 16V 100N COL

2P12 VV V

CER2 0402 Y5V 16V 100N COL

2P13 VV V

CER2 0402 Y5V 16V 100N COL

2P14 VV V

CER2 0402 Y5V 16V 100N COL

2P15 VV V

ELCAP SM 16V 100U PM20 COL R

2P16 VV V

CER2 0402 Y5V 16V 100N COL

2P17 VV V

CER2 0603 X5R 6V3 2U2 PM10 R

2P18 VV V

CER2 0603 X5R 6V3 2U2 PM10 R

2P19 VV V

CER2 0402 Y5V 16V 100N COL

2P20 VV V

CER2 0402 Y5V 16V 100N COL

2P21 VV V

CER2 0402 Y5V 16V 100N COL

2P22 VV V

CER2 0603 X5R 6V3 2U2 PM10 R

2P23 VV V

CER2 0402 Y5V 16V 100N COL

2P24 VV V

CER2 0402 Y5V 16V 100N COL

2P25 VV V

CER2 0402 Y5V 16V 100N COL

2P26 VV V

CER2 0402 Y5V 16V 100N COL

2P27 VV V

CER2 0402 Y5V 16V 100N COL

2P28 VV V

CER2 0402 Y5V 16V 100N COL

2P29 VV V

CER2 0402 Y5V 16V 100N COL

2P30 VV V

CER2 0402 Y5V 16V 100N COL

2P31 VV V

CER2 0402 Y5V 16V 100N COL

2P32 VV V

CER2 0402 Y5V 16V 100N COL

2P33 VV V

CER2 0402 Y5V 16V 100N COL

2P34 VV V

CER2 0402 Y5V 16V 100N COL

2P35 VV V

CER2 0402 Y5V 16V 100N COL

3N01 VV V

RST SM 0402 10K PM5 COL

3N02 VV V

RST SM 0402 10K PM5 COL

3N03 VV V

RST SM 0402 10K PM5 COL

3N04 VV V

RST SM 0402 10K PM5 COL

3N05 VV V

RST SM 0402 10K PM5 COL

3N06 VV V

RST SM 0402 10K PM5 COL

3N07 VV V

RST SM 0603 33K PM5 COL

3N08 VV V

RST SM 0402 10K PM5 COL

3N09 VV V

RST SM 0402 1K PM5 COL

3N10 VV V

RST SM 0402 33K PM5 COL

3N11 VV V

RST SM 0402 47R PM5 COL

3N12 VV V

RST SM 0402 10K PM5 COL

3N13 VV V

RST SM 0402 10K PM5 COL

3N14 VV V

RST SM 0402 10K PM5 COL

3N15 VV V

RST SM 0402 47R PM5 COL

3N16 VV V

RST SM 0402 47R PM5 COL

Item

+LEXIP non 3.4CL

+

LEXIP

htiw

3

.

4C

L

82/0237FP24

+LEXIP non 9.4CL/8.4CL

LEXIP htiw 9.4CL/8.4CL

+

Description

3N17 VV V

RST SM 0402 47R PM5 COL

3N18 VV V

RST SM 0402 47R PM5 COL

3N19 VV V

RST SM 0402 10K PM5 COL

3N20 VV V

RST SM 0402 47R PM5 COL

3N21 VV V

RST SM 0402 100R PM5 COL

3N22 VV V

RST SM 0402 100R PM5 COL

3N23 VV V

RST SM 0402 100R PM5 COL

3N24 VV V

RST SM 0402 100R PM5 COL

3N25 VV V

RST SM 0402 100R PM5 COL

3N26 VV V

RST SM 0402 4K7 PM5 COL

3N27 VV V

RST SM 0402 47R PM5 COL

3N28 VV V

RST SM 0603 180R PM5 COL

3N29 VV V

RST SM 0402 100R PM5 COL

3N30 VV V

RST SM 0402 100R PM5 COL

3N31 VV V

RST SM 0402 100R PM5 COL

3N32 VV V

RST SM 0402 100R PM5 COL

3N33 VV V

RST SM 0402 100R PM5 COL

3N34 VV V

RST SM 0402 100R PM5 COL

3N35 VV V

RST SM 0402 100R PM5 COL

3N46 VV V

RST SM 0402 100R PM5 COL

3N47 VV V

RST SM 0402 100R PM5 COL

3P01 VV V

RST SM 0402 4K7 PM5 COL

3P03 VV V

RST SM 0402 47R PM5 COL

3P04 VRST SM 0402 100R PM5 COL

3P04 VRST SM 0402 JUMP. 0R05 COL

3P05 VRST SM 0402 100R PM5 COL

3P05 VRST SM 0402 JUMP. 0R05 COL

4N01 VV

RST SM 0402 JUMP. 0R05 COL

4N02 VV

RST SM 0402 JUMP. 0R05 COL

4N03 VV

RST SM 0402 JUMP. 0R05 COL

4N04 VV

RST SM 0402 JUMP. 0R05 COL

4N05 VV

RST SM 0402 JUMP. 0R05 COL

4N06 VV

RST SM 0402 JUMP. 0R05 COL

4N07 VV

RST SM 0402 JUMP. 0R05 COL

4N08 VV

RST SM 0402 JUMP. 0R05 COL

4N09 VV

RST SM 0402 JUMP. 0R05 COL

4N10 VV

RST SM 0402 JUMP. 0R05 COL

4N11 VV

RST SM 0402 JUMP. 0R05 COL

4N12 VV

RST SM 0402 JUMP. 0R05 COL

4N13 VV

RST SM 0402 JUMP. 0R05 COL

4N14 VV

RST SM 0402 JUMP. 0R05 COL

4N15 VV

RST SM 0402 JUMP. 0R05 COL

4N16 VV

RST SM 0402 JUMP. 0R05 COL

4N17 VV

RST SM 0402 JUMP. 0R05 COL

4N18 VV

RST SM 0402 JUMP. 0R05 COL

4N19 VV

RST SM 0402 JUMP. 0R05 COL

4N20 VV

RST SM 0402 JUMP. 0R05 COL

4N21 VV V

RST SM 0402 JUMP. 0R05 COL

4N22 VV V

RST SM 0402 JUMP. 0R05 COL

4P01 RST SM 0402 JUMP. 0R05 COL

4P02 RST SM 0402 JUMP. 0R05 COL

4P07 VRST SM 0402 JUMP. 0R05 COL

5N01 VV V

FXDIND 0805 100MHZ 30R COL

R

5N02 VV V

FXDIND 0805 100MHZ 30R COL

R

5N03 VV V

FXDIND 0805 100MHZ 30R COL

R

5N04 VV V

FXDIND 0805 100MHZ 30R COL

R

5N05 VV V

FXDIND 0805 100MHZ 30R COL

R

5P01 VV V

FXDIND 0805 100MHZ 30R COL

R

5P02 VV V

FXDIND 0805 100MHZ 30R COL

R

5P03 VV V

FXDIND 0805 100MHZ 30R COL

R

5P04 VV V

FXDIND 0805 100MHZ 30R COL

R

5P05 VV V

FXDIND 0805 100MHZ 30R COL

R

5P06 VV V

FXDIND 0805 100MHZ 30R COL

R

6N01 VV V

LED VS SM TLMG3100 (VISH) R

7N01 VV V

IC SM EPCS4SI8N (ALT0) R

7N02 VV V

IC SM EP1C12F256C8N (ALT0)

Y

7N03 VV V

TRA SIG SM BC847BS (PHSE) R

7N04 VV V

IC SM THC63LVDF84B (THIN)

R

7P01 VV V

IC SM LF15ABDT (ST00) R

7P02 VV V

IC SM THC63LVDM83R (THIN)

R

Item

non-DVB sets with 3D Comb Filter

DVB sets with 3D Comb Filter

Description

3L38 VRST SM 0402 JUMP. 0R05 COL

4L05 VRST SM 0402 JUMP. 0R05 COL

5L04 VRST SM 0603 JUMP. 0R05 COL

Item

LC4.3x - ME5 styling

LC4.3x - Arch Styling

LC4.8x - LCD

LC4.9x - PDP

Description

1K00 VVV

CON V 6P M 2.00 PH B

1K01 VCON V 12P M 2.00 PH B

1K03 VCON V 20P F 1.25 FFC 0.3 B

1K04 VV

CON V 11P M 2.00 PH B

2K15 VV CER1 0402 NP0 50V 100P COL

3K08 VV RST SM 0402 68R PM5 COL

4K02 VV

RST SM 0603 JUMP. 0R05 COL

4K06 VRST SM 0402 JUMP. 0R05 COL

5K01 VV V

FXDIND SM 0603 1U PM10 COL R

Item

LC4.3x - CINCH

LC4.3E - SCART

LC4.9x - PDP

LC4.8x - LCD

Description

1J00 VV

CON V 10P M 2.00 PH B

1J01 VV

CON V 11P M 2.00 PH B

1J02 VV CON V 12P M 2.00 PH B

1J03 VV CON V 3P M 2.00 PH B

1J07 VV

FUSE SM T 3A 125V UL R

1J08 VV

FUSE SM F 630MA 50V UL R

2J31 VV

CER1 0402 NP0 50V 100P COL

3J03 VV V

RST SM 0402 68R PM5 COL

3J04 VV V

RST SM 0402 68R PM5 COL

4J01 VV

RST SM 0402 JUMP. 0R05 COL

5J04 VV

IND FXD 1206 EMI 100MHZ 120R R

Item

26/32PF

DVB.T 26/32PF

37/42PF

DVB.T 37/42PF

Description

1G01 VV SOC EURO H 21P F BK R-GRND B

1G01 VV

SOC EURO H 21P F SHD R-GRND Y

1G02 VV SOC EURO H 21P F BK R-GRND B

1G02 VV

SOC EURO H 21P F SHD R-GRND Y

1G03 VV

CON H 32P F 0.50 SM FPC 0.3 R

2G29 VV

ELCAP SM 16V 10U PM20 COL R

2G30 VV

CER2 0603 X7R 16V 100N COL

2G31 VV

CER2 0603 X7R 16V 100N COL

2G32 VCER2 0603 Y5V 25V 100N COL

2G33 VV

CER2 0603 Y5V 16V 220N COL

2G34 VV

ELCAP SM 16V 10U PM20 COL R

2G35 VV

CER2 0603 Y5V 25V 100N COL

2G36 VV

CER2 0603 Y5V 10V 1U COL

2G37 VV

RST SM 0603 330R PM5 COL

2G38 VV

CER2 0603 Y5V 10V 1U COL

2G39 VV

CER2 0603 Y5V 10V 1U COL

2G40 VV

RST SM 0603 JUMP. 0R05 COL

2G41 VV

RST SM 0603 330R PM5 COL

2G43 VV

CER2 0603 X7R 50V 1N COL

2G45 VV

CER2 0603 X7R 50V 1N COL

2G46 VV

CER2 0603 X7R 50V 1N COL

2G63 VV

CER2 0603 X5R 6V3 2U2 PM10 R

2G64 VV

CER2 0603 X5R 6V3 2U2 PM10 R

2G65 VV

CER2 0603 X5R 6V3 4U7 PM10 R

2G65 VV

CER2 0603 X5R 6V3 4U7 PM10 R

2G66 VV

CER2 0603 X5R 6V3 4U7 PM10 R

2G66 VV

CER2 0603 X5R 6V3 4U7 PM10 R

3G63 VV

RST SM 0603 10K PM5COL

3G64 VV

RST SM 0603 10K PM5COL

3G65 VV

RST SM 0603 10K PM5COL

3G66 VRST SM 0603 150R PM5 COL

3G67 VV

RST SM 0603 15K PM5 COL

3G68 VV

RST SM 0603 15K PM5 COL

3G69 VV

RST SM 0603 47K PM5 COL

3G70 VV

RST SM 0603 47K PM5 COL

3G71 VV

RST SM 0603 560R PM5 COL

3G72 VV

RST SM 0603 10K PM5COL

3G73 VV

RST SM 0603 47K PM5 COL

3G75 VV

RST SM 0603 100R PM5 COL

3G76 VV

RST SM 0603 100R PM5 COL

3G77 VV

RST SM 0603 47K PM5 COL

3G79 VV

RST SM 0603 47K PM5 COL

3G81 VV

RST SM 0603 47K PM5 COL

3G83 VV

RST SM 0603 100R PM5 COL

3G84 VV

RST SM 0603 100R PM5 COL

3G86 VV

RST SM 0603 47K PM5 COL

3G88 VV

RST SM 0603 75R PM5 COL

3G89 VV

RST SM 0603 47K PM5 COL

3G92 VV

RST SM 0603 47K PM5 COL

3G93 VV

RST SM 0603 47K PM5 COL

3G94 VV

RST SM 0603 47K PM5 COL

3G95 VV

RST SM 0603 47K PM5 COL

4G09 VV

RST SM 0603 JUMP. 0R05 COL

4G11 VV

RST SM 0603 JUMP. 0R05 COL

4G12 VV

RST SM 0603 JUMP. 0R05 COL

4G13 VV

RST SM 0603 JUMP. 0R05 COL

4G14 VV

RST SM 0603 JUMP. 0R05 COL

4G15 VV

RST SM 0603 JUMP. 0R05 COL

4G16 VV

RST SM 0603 JUMP. 0R05 COL

4G17 VV

RST SM 0603 JUMP. 0R05 COL

4G18 VV

RST SM 0603 JUMP. 0R05 COL

4G19 VV

RST SM 0603 JUMP. 0R05 COL

4G22 VV

RST SM 0603 JUMP. 0R05 COL

5G01 VV

FXDIND 0603 100MHZ 120R COL R

6G02 VV

DIO SIG SM BAS316 (COL) R

7G07 VV

IC SM 74HC4053D (PHSE) R

7G08 VV

TRA SIG SM BC847B (COL) R

7G09 VV

IC SM ADG734BRUZ (ANA0) R

ITEM

AP/EU/AP-DVB (with Teletext)

EU-DVB (with Teletext)

NAFTA/LT & China (non-Teletext)

DESCRIPTION

2E00 VV

CER2 0603 X5R 6V3 4U7 PM10 R

2E01 VV

CER2 0603 X5R 6V3 4U7 PM10 R

2E02 VV

CER2 0603 X5R 6V3 4U7 PM10 R

2E04 VV CER2 0402 X5R 6V3 1U PM20 R

2E05 VV CER2 0402 X5R 6V3 1U PM20 R

2E06 VV CER2 0402 X5R 6V3 1U PM20 R

3E06 VV

RST SM 0402 47K PM5 COL

3E07 VV

RST SM 0402 47K PM5 COL

3E08 VV

RST SM 0402 47K PM5 COL

3E13 VV RST SM 0402 330R PM5 COL

3E14 VV RST SM 0402 330R PM5 COL

3E15 VV RST SM 0402 330R PM5 COL

3E16 VV RST SM 0402 330R PM5 COL

3E17 VV RST SM 0402 330R PM5 COL

3E18 VV RST SM 0402 330R PM5 COL

Item

LC4.3x

LC4.8x

LC4.9x

Description

2A00 VCER2 0603 X7R 16V 100N COL

2A01 VCER1 0402 NP0 50V 100P COL

2A02 VCER1 0402 NP0 50V 100P COL

2A03 VCER2 0603 Y5V 10V 1U COL

2A12 VV

CER2 0402 X7R 16V 10N COL

2A13 VV

CER2 0402 Y5V 16V 100N COL

3A00 VRST SM 0402 68R PM5 COL

3A01 VRST SM 0402 68R PM5 COL

3A02 VV RST SM 0402 1K PM5 COL

3A06 VRST SM 0603 10K PM5COL

3A06 VRST SM 0603 JUMP. 0R05 COL

3A07 VRST SM 0402 10K PM5 COL

3A07 RST SM 0402 68R PM5 COL

3A08 VRST SM 0402 10K PM5 COL

3A10 VV

RST SM 0402 10K PM5 COL

3A11 VV

RST SM 0402 10K PM5 COL

3A13 VV

RST SM 0402 10K PM5 COL

3A14 VV

RST SM 0402 560R PM5 COL

4A03 VV RST SM 0603 JUMP. 0R05 COL

4A04 VRST SM 0402 JUMP. 0R05 COL

4A05 VRST SM 0402 JUMP. 0R05 COL

4A06 VRST SM 0402 JUMP. 0R05 COL

5A00 VFXDIND 0805 100MHZ 30R COL R

6A01 VV

DIO REG SM BZX384-C3V9 COL R

7A00 VIC SM PCA9515ADP (PHSE) R

7A02 VV

TRA SIG SM BC847BW (COL) R

7A03 VV

TRA SIG SM BC847BW (COL) R

F_15270_070.eps

240505

Circuit Diagrams and PWB Layouts 61LC4.3E AA 7.

Class D Audio Amplifier

NCNC

A

REF

K

IN+

VDDA

OUTIN-

VSSD

G

VSSA

HVPI

BOOT

VDDP

POWERUP

VSSP

STABI

HVP

OVP

CGND

DIAG

IN+

VDDA

OUTIN-

VSSD

G

VSSA

HVPI

BOOT

VDDP

POWERUP

VSSP

STABI

HVP

OVP

CGND

DIAG

L

-

+

-

+R

/ 2.7A

CLASS D AUDIO AMPLIFIER

/ 2.7A

EMC

EMC

EMC

0R

RES RES

RES

RES

PHASE INVERTER (UNITY GAIN)

SD2 ONLY

SD1 ONLY

RES

*Connection Inverted (R_CH)

POWER LINE FILTER

(Mounting Hole)

(Mounting Hole)

RESERVED

EMC

RES

FROM 1752 OF SSB BOARD TO/FROM X200 OF PSU

RES

RES

35V 35V

35V

25V

25V

35V

10u

10u

1 2 3 4 5 6 7 8 9 10 11 12

1 2 3 4 5 6 7 8 9 10 11 12

A

B

C

D

E

F

G

H

A

B

C

D

E

F

G

H

1001 E11

1002 C2

1003 A2

2001 B2

2002 B3

2003 B3

2004 B4

2006 C3

2007 C3

2008 C3

2009 C3

2010 C8

2011 C4

2012 A5

2013 B5

2014 A7

2015 A6

2016 A6

2017 B7

2018 C8

2019 C8

2020 A8

2021 B8

2022 C9

2023 C9

2024 C9

2026 C8

2027 D3

2028 D3

2029 F5

2030 D7

2031 E6

2032 F5

2033 F5

2034 E7

2035 E8

2036 E8

2037 F8

2038 F8

2039 F3

2040 G8

2041 F4

2042 F9

2043 F9

2044 G8

2045 F9

2047 C5

2048 B4

2051 C3

2052 E10

2053 E10

2054 E10

2055 E11

2060 F11

2061 F11

2062 B6

2063 E6

2064 B4

2065 F5

3001 A3

3003 C4

3004 B4

3005 B7

3006 A6

3007 B5

3008 B5

3009 B6

3010 B8

3011 C8

3012 B8

3013 C5

3014 C9

3019 F3

3020 F5

3021 G3

3022 E7

3023 E6

3024 F5

3025 F5

3026 E8

3027 E6

3028 F4

3029 F8

3030 E8

3031 F9

3032 E6

3033 F5

3034 F4

3037 B6

3038 C5

3039 C5

3040 C9

3041 F9

3042 C8

3043 F8

3044 D4

3045 D4

3046 D6

3047 G6

4001 E4

4003 D4

5001 A3

5002 C3

5003 C2

5004 B3

5005 D3

5006 C8

5007 F8

6001 C4

6002 C6

6003 G6

7000 C6

7001 F7

7004 F4

7005 D4

F001 A2

F002 B2

F003 C2

F004 C2

F005 C2

F006 C2

F007 A3

F008 A3

F009 E11

F010 E11

F011 E11

F012 E11

I001 B3

I002 B5

I003 B5

I004 C3

I005 C6

I006 C6

I007 C6

I008 D3

I009 D4

I010 D4

I011 B8

I012 C7

I013 C7

I014 C7

I015 C7

I016 F7

I017 C9

I019 E4

I020 F6

I021 F9

I022 G4

I023 F8

I024 F7

I025 D6

I026 G6

IXXX F3

IXXX F4

IXXX F4

IXXX F5

IXXX B6

IXXX B6

IXXX E6

IXXX E6

IXXX A7

IXXX C7

IXXX F7

IXXX F7

IXXX C8

IXXX E8

IXXX F8

2064

CGND PGND

3025

I042

I043

I041

I038

I040

I037

I035

I036

I034

I031

I033

I029

I030

I028

I027

2065

47n

2063

47n

2062

CGND

I026

2u2

5003

I025

3047

1K0

BAT54 COL

6003

1K0

3046

PGND

6002

BAT54 COL

PGND

2n2

2060

2061

2n2

PGNDPGND

2n2

2055

PGND

2054

2n22n2

20532052

2n2

PGND

I022

I024

I019

I023

I020

I021

I016

I017

I015

I013

I014

I012

I010

I011

I009

I006

I007

I008

I005

I002 I003I001

I004

F008

F011

F012

F010

F007

F009

PGND

10K

3045 BC847BW

7005

3044

33K

4003

2051

100p

PGND

3042 10K

3043 10K

1u0

2047

68K

3038

PGND

10K

3040

10K

3041

PGND

3039

5

31

2

4

10K

TL431ACDBV

7004

10R

3030

3012

10R

10R

3001

PGND

PGND

2044

100n

100n

2010

4001

VP

CGND

5001

2039 2041

10K

3019

10K

3028

4K7

3021

3K9

3034

220n

2045

PGND

220n

2022

2003

100n

18

21 10112015

8

713

19

3

4

16

12

614

5TDA8931

7001

Φ

POWER

COMPARATOR

17

9

518

2 1 10 1120159

8

713

19

3

4

16

12

614

Φ

POWER

COMPARATOR

7000

TDA8931

17

F002

PGND

F001

220u

2004

100n

2048

PGND

VP_SGN

100n

PGNDPGND

2002

220u

2K2

3029

2001

2K2

PGND

3011

PGND

100n

2027 2028

100n

2u2

5005

VP_SGN

PGND

PGND

3003

22K

2011

100n

BZX384-C5V6

PGND

PGND

6001

PGND

3020

1K0

PGND PGND

PGND

2007

100p

2u2

5002

100p

2006

100p

2u2

2009

5004

2008

100p

1K0

3004

220K

3027

3022

3009

220K

22R

PGND

3005

B3B-PH-K

1

2

3

VP

1003

F005

F006

F004

3

4

5

6

7

8

9

F003

1002

1

2

2024

PGND

1m0

470n

2023

22R

3014

5006

33u

VP

PGND

220p

2021

2020

220p

1K2

VP

3010

PGND

50V

VP_SGN

100n

2017

2u22019

15n

2018

220n

2026

PGND

PGND PGND PGND

2012

CGND

10K

CGND

220u

3013

2013

220n

3K9

3037

3n9

2014

3006

1K0

3n9

2015

2016

2n2

47K

3007

2K2

3

4

3008

1001

1

2

1m0

PGND

2042

470n

2043

3031

22R

33u

5007

220p

VP

PGND

220p

2035

2036

PGND

VP

3026

1K2

2034

VP_SGN

100n

2037 2u2

50V

PGND

2038

15n

2040

220n

CGND

PGND PGND PGND

2029

220u

10K

CGND

2033

3033

220n

3K9

3032

3n9

2030

1K0

3023

3n9

2031

2032

2n247K

3024

2K2

HVPI-L

HVPI-R

SOUND-ENABLE

AUDIO-L

AUDIO-R

L-

L+

HVPI-L

HVPI-L

R+

HVPI-R

HVPI-R

R-

F_15390_021.eps

270205

3139 123 5970.1

C C

Circuit Diagrams and PWB Layouts 63LC4.3E AA 7.

Keyboard Control Panel

KEYBOARD CONTROL

ON / OFFCH+ CH- VOL+ VOL-

TO 1402 OF SSB BD

RES

0R 0R

MENU

Diversity Resistor

RES

*****

12 3

12 3

A

B

C

D

E

A

B

C

D

E

1008 D1

1309 D2

1310 D2

1311 D3

1312 D3

1313 D3

1314 D2

1684 C1

3317 C1

3318 C2

3319 C2

3320 C3

3321 C3

3322 D3

3323 D3

3324 C2

3999 D1

6306 C1

F308 C1

F309 C1

F310 D1

F311 D1

I303 C2

I304 C2

I305 C2

I306 C3

I307 C3

I308 D3

I309 D3

I307

I308 I309

1314

SKQNAB

I303

F311F310 3999

3324

33233322

BZX384-C4V7

6306

3317

I306I304 I305

F308

F309

1312

SKQNAB

1311

SKQNABSKQNAB

13101309

SKQNAB

1313

SKQNAB

3321332033193318

1

2

3

KEYBOARD

S3B-PH-K

1684

E E

3139 123 5974.1

F_15390_030.eps

280205

HERCULES OTHERS

BASED

*

3318

3319

3324

3320

150R

390R

560R

1K8

620R

1K1

2K0

200R

3321 820R 390R

Personal Notes:

E_06532_012.eps

131004

Circuit Diagrams and PWB Layouts 65LC4.3E AA 7.

Side A/V Panel

S307 E2

S308 E2

S309 E2

L

R

EMC

TO 1K01 OF SSB BD

CVBS

B

C

D

E

1301 A1

1302-1 B1

1302-2 C1

1302-3 D1

1303 E1

1304 C8

123

RES

RES

RES

RES

S306 E2

S302 A2

S303 C2

S304 D2

S305 D2

34567

SIDE-AV

RES

SVHS

RES

RES

EMC

2301 A4

2302 A4

2303 A4

2304 A4

2305 C2

2306 D3

2307 D3

45678

12

(1M06)

HEADPHONE

3305 C3

3306 D3

3307 C3

3308 D3

3309 C2

8

A

B

C

D

E

A

RES

RES

6306 D2

6307 D2

6308 E2

7301 C3

I301 A2

RES

RES

2308 E3

2309 E3

2310 C3

3301 A2

3302 A4

3303 A4

3304 B3

I303 A3

I304 C8

I305 B3

I306 D8

I307 B1

I308 D3

I309 B3

I310 C8

I311 C8

I312 C8

I313 D8

I314 D8

I315 D8

I316 D8

I317 E2

I318 D2

I319 C3

I320 C2

S301 A2

3310 C3

3311 E3

6301 A3

6302 B3

6303 A3

6304 B3

6305 D2

I304

I302 A2

I309

3311

10K

+5VSW

I305

6308

+5VSW

6306

6305

6307

75R

3309

+5VSW

1u0

2310

8K2

3310

10K

3305 1K0

3307

7301

BC857B

I308

I312

I306

I302

S303

3306

15K

S304

2309

10n

330p

2306

S305

2305

S302

2307

330p

I317

47p

2304

I320

I318 I316

I319

I314

I315

I311

I313

I310

75R

3301

2301

2303

S301

6304

10n

2308

S307

RED

1302-3 5

6

WHITE

1302-2 3

4

S309

I301

6302

I303

11

12

2

3

4

5

6

7

8

9

1304

1

10

47p

2302

1

2

15K

3308

YELLOW

1302-1

6301 6303

S306

S308

1301

1

2

3

4

7

5

6

I307

5

3304

75R

6

7

1

2

3

4

TC38-103-01

1303

3303

10R

10R

3302

HEAD_PH_R

FRONT_Y__CVBS_IN

R_FRONT_IN

L_FRONT_IN

HP_DET_R_DC1

HEAD_PH_L

FRONT_C_IN

3139 123 5956.1 F_15270_037.eps

180505

G G

Circuit Diagrams and PWB Layouts 67LC4.3E AA 7.

IR-LED and Light Sensor Panel

IR/LED/LIGHT-SENSOR

TO 1320 OF SSB BD

3V5

3V5

RES

RES

RES

RES

RES

RES

TSOP34836LLIB

1 2 3 4

1 2 3 4

A

B

C

D

E

A

B

C

D

E

1870 B1

2801 C3

2802 C4

2803 E3

3801 B2

3802 A4

3803 C3

3807 E2

3808 E2

3809 E3

3810 E4

3811 E4

4807 E3

6801-1 B4

6801-2 B3

6802 E4

6803 C3

7801 B3

7802 C3

7803 B4

7804 C4

7807 E3

7808 E3

F801 C1

F802 C1

F803 B1

F804 B1

F805 B1

F806 B1

I801 B2

I802 B4

I803 B3

I804 C4

I805 B4

I806 B4

I809 E3

I810 D4

I811 E4

6803

+3V3STBY

I811

BZX384-C3V9

I810

+3V3STBY

3808

F806

I809

3807

3810

3809

2M2

6802

7807

BPW34

1u0

7808

2803

4807

3811

+3V3STBY

F803

330R

3802

I805

I806

2802

10u

3K3

3801

7804

BC847B

7803

BC847B

1

2

+3V3STBY

7801

BC857B

GREEN

32

6801-1

SPR-325MVW

RED

OUT

1

VS

3

6801-2

SPR-325MVW

7802

GND

2

I801

+3V3STBY

F802

F804

I804

I802

I803

F805

F801

2801

10u 6.3V

2

3

4

5

6

220R

3803

1870

1

PC-TV-LED

IR

LED_SEL

LIGHT-SENDOR-SDM

J J

F_15390_034.eps

070305

3139 123 5972.2

Layout IR-LED and Light Sensor Panel (Top Side)

Layout IR-LED and Light Sensor Panel (Bottom Side)

F_15390_036.eps

280205

3139 123 5972.1

1870 A1 6801 A1 7802 A1 7808 A1

F_15390_037.eps

280205

3139 123 5972.1

2801 A1

2802 A1

2803 A1

3801 A1

3802 A1

3803 A1

3807 A1

3808 A1

3809 A1

3810 A1

3811 A1

4807 A1

4815 A1

6802 A1

6803 A1

7801 A1

7803 A1

7804 A1

7807 A1

Alignments EN 69LC4.3E AA 8.

8. Alignments

Index of this chapter:

8.1 General Alignment Conditions

8.2 Hardware Alignments

8.3 Software Alignments

Note: Figures below can deviate slightly from the actual

situation, due to the different set executions.

General: The Service Default Mode (SDM) and Service

Alignment Mode (SAM) are described in chapter 5. Menu

navigation is done with the Cursor Up, Down, Left or Right keys

of the remote control transmitter.

8.1 General Alignment Conditions

Perform all electrical adjustments under the following

conditions:

Mains voltage and frequency: 100-240 V / 50/60 Hz.

Allow the set to warm up for approximately 10 minutes.

Test probe: Ri > 10 M:; Ci < 2.5 pF.

8.2 Hardware Alignments

There are no hardware alignments foreseen for the LCD-TV.

8.3 Software Alignments

With the software alignments of the Service Alignment Mode

(SAM) the geometry, white tone and tuner (IF) can be aligned.

To store the data: Use the RC button Menu to switch to the

main menu and next, switch to ‘Stand-by’ mode.

Alignments

EN 70 LC4.3E AA8.

8.3.1 SAM Menu

Figure 8-1 Overview SAM menu.

8.3.2 Tuner Adjustment

AGC (RF AGC Take Over Point)

• Activate the SAM menu.

• Go to the sub-menu Tuner.

• Select the AGC sub-menu.

• Adjust the AGC value to AGC = 27.

• Adjust the AGC L’ value to AGC L’ = 27 (Europe only).

• Adjust the IFPLL value to IFPLL = 32 (Europe only).

• Switch the set to standby to store the data.

8.3.3 DCXO (Digital Xtal Oscillator) Alignment (for NICAM sets

only)

• Input a Colour bar signal with a colour subcarier frequency

of 4.43 MHz on SCART1 or SCART2.

• Select as a signal source EXT1 or AV1.

• Go to the SAM menu and select Audio.

• Activate DCXO Alignment and wait until this process has

finished (DONE).

• Check if the NICAM audio reception is OK, if not: repeat the

procedure.

• Switch the set to standby to store the data.

SAM SAM

. OP1 0 . Delta Cool Red -3

. OP2 57 . Delta Cool Green -1

. OP3 140 . Delta Cool Blue 5

. OP4 32

. OP5 120

. OP6 128

. OP7 0

SAM SAM

. IFPLL 32 . Normal Red 32

. AGC 30 . Normal Green 35

. AGCL' 255 . Normal Blue 41

SAM SAM

. Cool . Delta Warm Red 2

. Normal . Delta Warm Green -3

. Warm . Delta Warm Blue -13

SAM

SAM

.ADR 0x0000 0

.VAL 0x0000 0

.Store Store ?

SAM

.ADR 0x0000 0

.VAL 0x0000 0

.Store Store ?

F_15270_006.eps

120505

100035 LC4XEP1 1.08/S4XGVX 1.10 CSM

2 CODES 0 0 0 0 0

3 OP 000 057 140 032 120 128 000

4

5

6 NOT TUNED

7 PAL

8 STEREO

9 CO 50 CL 50 BR 50

0 AVL Off

00035 LC4XEP1 1.08/S4XGVX 1.10 SDM

. QSS Off

. FMI On

. NICAM Alignment 63

. Lip Sync Off

. DBE Off

ERR 0 0 0 0 0

OP 000 057 140 032 120 128 000

00035 LC4XEP1 1.08/S4XGVX 1.10 SAM

ERR 0 0 0 0 0

OP 000 057 140 032 120 128 000

. Clear Clear ?

. Options

. Tuner

. White Tone

. Audio

. NVM Editor

. SC NVM Editor

. Test Pattern

. ComPair Mode On

Alignments EN 71LC4.3E AA 8.

8.3.4 ADC Gain, Grey Scale Alignment & Panel Size Settings

The table below shows a number of NVM settings used for

each model of TV set. Be sure to use the correct editor in the

SAM menu (NVM Editor or SC NVM Editor), because the first

one is used for the Hercules NVM, and the second one for the

SCALER (SC) part of the TV set. For further important NVM

settings, see also the other NVM tables elsewhere in this

manual.

Caution:

•Do not change the NVM settings without

understanding the function of each setting, because

incorrect NVM settings may seriously hamper the

correct functioning of the TV set!

•Do not change the Scaler NVM settings, as this will

hamper the DVI functionality of the TV set!

• Always note down the existing NVM settings, before

changing the settings. This will enable you to return to the

orgininal settings, if the new settings turn out to be

incorrect.

Table 8-1 ADC gain, grey scale alignment & panel size settings

SDTV ADC Gain settings: Use the NVM Editor in SAM to set these values in the Hercules NVM

These models are with ADC &

Columbus 3D Combfilter

Without ADC & 3D

Combfilter

Setting Hercules NVM Address (decimal

value)

32PF7320/10

32PF5320/10

26PF5320/10

Settings

Range

(decimal

value)

26PF4310/10

Settings

Range

(decimal

value)

NVM_ADC_GAIN_R 006 110 110 110 075 - 155 N.A. N.A.

NVM_ADC_GAIN_G 007 180 180 180 150 - 200 N.A. N.A.

NVM_ADC_GAIN_B 008 110 110 110 075 - 155 N.A. N.A.

SDTV Greyscale settings: Use the SC NVM Editor in SAM to set these values in the Scaler NVM

These models are with ADC &

Columbus 3D Combfilter

Without ADC & 3D

Combfilter

Setting Scaler NVM Address (decimal value)

32PF7320/10

32PF5320/10

26PF5320/10

Settings

Range

(decimal

value)

26PF4310/10

Settings

Range

(decimal

value)

ADC_RED_OFFSET2 338 080 080 080 050 - 110 080 050 - 110

ADC_GRN_OFFSET2 339 080 080 080 050 - 110 080 050 - 110

ADC_BLU_OFFSET2 340 080 080 080 050 - 110 080 050 - 110

ADC_RED_GAIN 341 065 065 065 040 - 095 170 135 - 190

ADC_GRN_GAIN 343 065 065 065 040 - 095 135 135 - 190

ADC_BLU_GAIN 345 065 065 065 040 - 095 170 135 - 190

PC Greyscale settings

These models are with ADC &

Columbus 3D Combfilter

Without ADC & 3D

Combfilter

Setting Scaler NVM Address (decimal value)

32PF7320/10

32PF5320/10

26PF5320/10

Settings

Range

(decimal

value)

26PF4310/10

Settings

Range

(decimal

value)

ADC_RED_OFFSET2 325 080 080 080 040 - 090 080 040 - 090

ADC_GRN_OFFSET2 326 080 080 080 040 - 090 080 040 - 090

ADC_BLU_OFFSET2 327 080 080 080 040 - 090 080 040 - 090

ADC_RED_GAIN 328 200 200 200 180 - 270 154 180 - 270

ADC_GRN_GAIN 330 200 200 200 180 - 270 154 180 - 270

ADC_BLU_GAIN 332 200 200 200 180 - 270 154 180 - 270

HD Greyscale settings

These models are with ADC &

Columbus 3D Combfilter

without ADC & 3D

Combfilter

Setting Scaler NVM Address (decimal value)

32PF7320/10

32PF5320/10

26PF5320/10

Settings

Range

(decimal

value)

26PF4310/10

Settings

Range

(decimal

value)

ADC_RED_OFFSET2 351 064 064 064 050 - 090 064 050 - 090

ADC_GRN_OFFSET2 352 082 082 082 050 - 090 082 050 - 090

ADC_BLU_OFFSET2 353 064 064 064 050 - 090 064 050 - 090

ADC_RED_GAIN 354 159 159 159 120 - 200 159 120 - 200

ADC_GRN_GAIN 356 144 144 144 120 - 200 144 120 - 200

ADC_BLU_GAIN 358 147 147 147 120 - 200 147 120 - 200

Panel size settings

WXGA 16x9 panel, brand: LPL WXGA 15x9 panel

Setting Scaler NVM Address (decimal value)

32PF7320/10

32PF5320/10

26PF5320/10

26PF4310/10, brand: QDI

26PF4310/10, brand: LPL

NVM_PANEL_SEL 320 015 015 026 025 027

Alignments

EN 72 LC4.3E AA8.

8.3.5 Sound

• For NICAM sets: see paragraph 8.3.3.

• For other sets: No adjustments needed for sound.

8.3.6 Options

Options OP1...OP7 in the SAM menu can be used for quickly

restoring 64 features or settings of the SCALER part of the TV

set to their orginal default factory values (8 groups of 8

features/settings each). When the decimal value of one option

byte OP1...OP7 is changed (see the first table below) then a

group of 8 bits, representing 8 SCALER options or features, is

changed as well (see the second table below for a detailed

description of the features or settings that are changed).

The second table shows which option byte (OP1...OP7)

represents which group of 8 option bits. Each bit (0...7)

switches a particular SCALER feature or setting ON or OFF,

depending on its value (1 or 0).

It is also possible to change the features or settings mentioned

in the second table directly at bit level, by means of the SC (i.e.,

SCALER) NVM Editor in the SAM menu. In the SC NVM Editor,

first the correct NVM address (ADR) has to be entered, then the

correct value (VAL, 1 or 0) for each bit (see second table), and

finally the settings have to be stored (STORE). For quickly

restoring the SCALER part of the TV set to its original factory

settings, however, it is more convenient to simply enter the

default factory settings OP1...OP7 that are given in the first

table below. How to do this, is described in the next paragraph.

How to Change an Option Byte

As has been explained above, an Option byte (OP) represents

a number of different SCALER options. Changing these bytes

directly makes it possible to set all SCALER options very fast.

All options are controlled via seven option bytes. Select the

option byte (OP1.. OP7) with the Menu Up/ Down keys, and

enter the new (decimal) value. For the correct Factory Default

settings, see the first table below. For more detailed

information, see the second table.

Leaving the Option submenu saves the changes in the Option

Byte settings. Some changes will only take effect after the set

has been switched “off” and “on” with the AC power switch (cold

start).

Table 8-2 Option codes OP1...OP7

How to Change Options at Bit Level

If you wish to know which features or settings of the SCALER

are changed via OP1...OP7, or if you want to change each

option or feature bit by bit, use the more detailed table below.

Note: the table below contains only part of the NVM settings

that can be changed (i.e., only part of the SCALER settings). A

second range of settings and features, belonging to the

HERCULES part of the TV set, can be found in Chapter 5 of

this manual, in Table 5-2. The HERCULES NVM settings

mentioned there can only be changed via the NVM editor, and

not via the SCALER “Options” OP1...OP7. For further settings,

see also the NVM settings in the Table “ADC Gain, Grey scale

alignment & panel size settings” elsewhere in this manual.

Option table for quickly restoring the SCALER to its

Factory Default settings

Model number

32PF7320/10

32PF5320/10

26PF5320/10

26PF4310/10

OP1 152 152 152 152

OP2 37 37 37 37

OP3 79 15 15 14

OP4 113 113 113 113

OP5 252 252 252 252

OP6 27 27 27 27

OP7 19 19 19 3

Options (can be changed only via the SAM menu)

Total decimal val-

ue for each option

per model number

Alignments EN 73LC4.3E AA 8.

Table 8-3 Option codes in detail, at bit level

Option byte & bit table for restoring the SCALER to its original Factory Default settings via the SC NVM Editor in the SAM menu

Model number

32PF7320/10

32PF5320/10

26PF5320/10

26PF4310/10

OP1 Description of feature/option to be switched ON or OFF

bit 7 (msb) OP_PHILIPS_TUNER 1111

bit 6 OP_FM_RADIO 0000

bit 5 OP_LNA 0000

bit 4 OP_ATS // for EU 1111

bit 3 OP_ACI 1111

bit 2 OP_UK_PNP 0000

bit 1 OP_VIRGIN_MODE 0000

bit 0 (lsb) OP_CHINA 0000

Total DEC Value 152 152 152 152

Total HEX Value 98 98 98 98

OP2

bit 7 (msb) OP_SC 0000

bit 6 OP_IBEX 0000

bit 5 OP_CHANNEL_NAMING 1111

bit 4 OP_LTI (Lum Transcient Improvmt) 0000

bit 3 OP_TILT 0000

bit 2 OP_FINE_TUNING 1111

bit 1 OP_PIP_PHILIPS_TUNER 0000

bit 0 (lsb) OP_HUE 1111

Total DEC Value 37 37 37 37

Total HEX Value 25 25 25 25

OP3

bit 7 (msb) OP_EW_FUNCTION 0000

bit 6 OP_PIXEL_PLUS 1000

bit 5 OP_PIP_SPLITTER // temp 0000

bit 4 OP_SPLITTER // temp 0000

bit 3 OP_VIRTUAL_DOLBY 1111

bit 2 OP_WIDE_SCREEN 1111

bit 1 OP_WSSB 1111

bit 0 (lsb) OP_OP_ME5 // OP_ME5 - 5/6 local buttons implementation 1110

Total DEC Value 79 15 15 14

Total HEX Value 4F 0F 0F 0E

OP4

bit 7 (msb) OP_LIP_SYNC 0000

bit 6 OP_HD 1111

bit 5 OP_ULTRA_BASS 1111

bit 4 OP_DELTA_VOLUME 1111

bit 3 OP_TAIWAN_KOREA 0000

bit 2 OP_VOLUME_LIMITER 0000

bit 1 OP_STEREO_DBX 0000

bit 0 (lsb) OP_STEREO_NICAM_2CS 1111

Total DEC Value 113 113 113 113

Total HEX Value 71 71 71 71

OP5

bit 7 (msb) OP_AV1 1111

bit 6 OP_AV2 1111

bit 5 OP_AV3 1111

bit 4 OP_CVI 1111

bit 3 OP_SVHS2 1111

bit 2 OP_SVHS3 1111

bit 1 OP_HOTEL_MODE 0000

bit 0 (lsb) OP_SIMPLY_FACTORY=OP_BTSC_AVSTEREO 0000

Total DEC Value 252 252 252 252

Total HEX Value FC FC FC FC

OP6

bit 7 (msb) OP_PERSONAL_ZAPPING 0000

bit 6 OP_SMART_SURF 0000

bit 5 OP_FMTRAP 0000

bit 4 OP_COMBFILTER 1111

bit 3 OP_ACTIVE_CONTROL 1111

bit 2 OP_VIDEO_TEXT 0000

bit 1 OP_LIGHT_SENSOR 1111

bit 0 (lsb) OP_TWIN_TEXT 1111

Total DEC Value 27 27 27 27

Total HEX Value 1B 1B 1B 1B

OP7

bit 7 (msb) OP_TIME_WIN1 0000

bit 6 OP_DVB_USB = OP_MALAY 0000

bit 5 OP_AMBILIGHT 0000

bit 4 OP_COLUMBUS 1110

bit 3 OP_DUMMY6 0000

bit 2 OP_DUMMY7 0000

bit 1 OP_WEST_EU 1111

bit 0 (lsb) OP_MULTI_STANDARD_EUR 1111

Total DEC Value 19 19 19 3

Total HEX Value 03 03 03 03

Circuit Descriptions, Abbreviation List, and IC Data Sheets

EN 74 LC4.3E AA9.

9. Circuit Descriptions, Abbreviation List, and IC Data Sheets

Index of this chapter:

9.1 Introduction

9.2 Block Diagram

9.3 Input/Output

9.4 Tuner and IF

9.5 Video: TV Part (Diagrams B1, B2, and B3)

9.6 Columbus

9.7 Video: Scaler Part (Diagram B7, B8 and B9)

9.8 Audio Processing

9.9 Control

9.10 Abbreviation List

9.11 IC Data Sheets

9.1 Introduction

The LC4.3 LCD TV is a global LCD TV for the year 2005. It is

the successor of the LC4.2 LCD TV and covers screens sizes

26 inch (in 15:9 and 16:9 ratio) and 32 inch (in 16:9 ratio) and

has a new styling, called ME5. There are three different picture

qualities available, depending on the model: Pixel Plus, Digital

Cristal Clear and Cristal Clear. The block diagram below

(Figure 2.1) shows the Pixel Plus architecture; the

architectures of the other models are shown in the block

diagram on the next page (Figure 2.2).

The architecture consists of a TV and Scaler panel, I/O panel,

Side I/O and Local Keyboard panel and Power Supply panel.

The functions for video/audio processing, microprocessor (P),

and CC/Teletext (TXT) decoder are all combined in one IC

(TDA150xx, item 7217), the so-called third generation Ultimate

One Chip (UOC-III) or “Hercules”. This chip has the following

features:

• Control, small signal, mono/stereo, and extensive Audio/

Video switching in one IC.

• Upgrade with digital sound & video processing.

• Alignment free IF, including SECAM-L/L1 and AM.

• FM sound 4.5/5.5/6.0/6.5, no traps/bandpass filters.

• Full multi-standard colour decoder.

• One Xtal reference for all functions (microprocessor, RCP,

TXT/CC, RDS, colour decoder, and stereo sound

processor).

9.2 Block Diagram

Figure 9-1 Block Diagram

The PLL tuner UV1318 delivers the IF-signal, via audio & video

SAW-filters, to the Video Signal Processor and FLASH

embedded TEXT/Control/Graphics Micro Controller TDA120x1

(item 7011, also called Hercules). This IC has the following

functions:

• Analogue Video Processing

• Sound Demodulation

• Audio Interfaces and switching

• Volume and tone control for loudspeakers

• Reflection and delay for loudspeaker channels

• Micro Controller

• Data Capture

• Display

The Hercules has one input for the internal CVBS signal and a

video switch with 3 external CVBS inputs and a CVBS output.

All CVBS inputs can be used as Y-input for Y/C signals.

However, only 2 Y/C sources can be selected because the

circuit has 2 chroma inputs. It is possible to add an additional

CVBS(Y)/C input (CVBS/YX and CX) when the YUV interface

and the RGB/YPRPB input are not needed. Two SCART-

connectors are used: SCART1 is for RGB-in, video in (CVBS)

and terrestrial out (CVBS), and SCART2 is meant for VCR

(CVBS out and Y/C in). The CVBS-out on pin 19 of SCART2

can be used for monitoring purposes: WYSIWYR (What You

See Is What You Record).

Depending on the model of the TV set, the Hercules delivers its

RGB signals either directly to the Scaler IC or indirectly, via a

Columbus chip (for 2D/3D comb filtering and spatial/temporal

noise reduction, for its description: see further down in this

text). The EPLD, which is present in Pixel Plus models,

provides additional sharpening to the picture. For a general

outline, see the table and the block diagrams below, in which

the architectures of the various models are given, together with

their electronic building blocks.

TUNER IF

CVBS CVBS,U,V A/D

AD9945

COLUM-

BUS

SCALER

LVDSRx

SDRAM

HDMI

NVM

FLASH

DDR

LCD

PANEL

601 INTERF. 601 INTERF.

DVI TMDS

601 INTERFACE

Y

CHERCULES

INTERNAL LIP SYNC CKT

SM5301

DVI-IHDMIDMMIHP

NVM

AUDIO

AMPLIFIER

ComPair

SCART/

CINCH

I/O

TO

AUDIO

AMP

EPLD

LVDSRx

F_15270_007.eps

200505

Circuit Descriptions, Abbreviation List, and IC Data Sheets EN 75LC4.3E AA 9.

Table 9-1 Models and picture quality

Figure 9-2 Block diagram of the internal building blocks

The Genesis GM1501 Malibu Scaler IC can receive two video

input signals: SDTV (directly from Hercules or via Columbus),

DVI (from an external DVI source), or PC (from external

computer).

After the video processing, the digital data is sent via a Low

Voltage Differential Signalling bus to the LCD panel. LVDS is

used to improve data speed and to reduce EMI significantly.

There are two I2C lines and two interrupt and communication

lines (TV_IRQ and TV_SC_COM) for the Scaler control. The

Scaler communicates with the Hercules as a slave device. To

avoid buffer overflow at the Scaler side, the TV_SC_COM line

provides the necessary hardware flow control. To allow bi-

directional communication, the Scaler can initiate a service

interrupt-request to the Hercules via the TV_IRQ line.

The Hercules, and EEPROM are supplied with 3.3 V, which is

also present during STANDBY.

The EEPROM, or NVM (Non Volatile Memory) is used to store

the settings.

The sound part is built up around the Hercules. The Source

Selection, Decoding and Processing are all done by the

Hercules.

Power supply input are several DC voltages coming from a

supply panel.

9.3 Input/Output

The I/O is divided over two parts: Rear I/O and Side I/O. The

rear has two SCART inputs, a PC/DVI-I input (VGA to DVI-I via

an external adaptor) and an Audio input. The side has a CVBS

and Y/C (SVHS) input, combined with L+R audio inputs, and

has also a headphone output.

EXT1: The input of SCART1 is CVBS + RGB + L/R and the

output is the video (+ sound) signal from the tuner

(SC1_CVBS_RF_OUT).

EXT2: The input of SCART2 is Y/C + CVBS + L/R. The output

signal is CVBS_SC2_MON_OUT (+ sound).

SCART2 is meant for VCR and has therefore some additional

signals in relation to EXT1 but no RGB: it has the possibility for

Y/C_in: Y_in on pin 20 and Chroma_in on pin 15.

The selection of the external I/O's is controlled by the Hercules.

PC in (DVI-I, or VGA via external VGA to DVI-I adaptor): This

input is directly going to the Scaler IC. See paragraph “Video:

Scaler Part”.

9.4 Tuner and IF

A Philips UV1318 Tuner is used in the TV board. The SIF

signals are decoded by the Hercules. Tuning is done via I2C.

9.4.1 Video IF Amplifier

The IF-filter is integrated in a SAW (Surface Acoustic Wave)

filter. One for filtering IF-video (1104, in some models: 1105)

and one for IF-audio (1106). The type of these filters depends

on the standard(s) that has/have to be received.

The output of the tuner is controlled via an IF-amplifier with

AGC-control. This is a voltage feedback from pin 31 of the

Hercules to pin 1 of the tuner. The AGC-detector operates on

top sync and top white level. AGC take-over point is adjusted

via the service alignment mode ’Tuner' - 'AGC’. If there is too

much noise in the picture, then it could be that the AGC setting

is wrong. The AGC-setting could also be mis-aligned if the

picture deforms with perfect signal; the IF-amplifier amplifies

too much.

Model Picture quality

32PF7320/10 Pixel Plus

32PF5320/10 Digital Crystal Clear

26PF5320/10 Digital Crystal Clear

26PF4310/10 Crystal Clear

HERCULESPIXEL PLUS ADC

CVBS

Pb, Pr COLUMBUS SCALER EPLD LVDS

HERCULES

DIGITAL

CRYSTAL CLEAR ADC

CVBS

Pb, Pr COLUMBUS SCALER LVDS

HERCULESCRYSTAL CLEAR R, G, B SCALER LVDS

F_15270_008.eps

240505

Circuit Descriptions, Abbreviation List, and IC Data Sheets

EN 76 LC4.3E AA9.

9.5 Video: TV Part (Diagrams B1, B2, and B3)

Figure 9-3 Block diagram video processing

B1

TUNER & VIF

B15

SCART ANALOG IO

B2

HERCULES

VIDEO

B17

SIDE

CONNECTIONS

D

SIDE AV

HERCULES

F_15270_067.eps

200505

1102

UX1318ST

RF

IN

TUNER

2106

11

1104 VIF1

VIF2

8

7

2

4513104 RF_AGC

SCL

SDA

DC

AC AGC

Detect

21

1

SCART 2

1102

20

15

SC2_Y_IN

SC2_Y_IN_1

SC2_C_IN

1101

20

7

8

16

15

11

SC1_CVBS_IN SC1_CVBS_IN

21

1

SCART 1

24

25

31

51

52

55

SC2_CVBS_MON_OUT

19

SC1_CVBS_RF_OUT

43

EF

7G03 77 78 79 80

EF

7208

EF

7209

EF

7210

85

86

87

74 75 76 70 71 72

22

67

RGB/Pr Pb Insert

YUV Interface

RGB Matrix

Blue & Black

Strech

Gamma Corr.

PAL/NTSC/

SECAM

Decoder &

Baseband

Delay

Sync Sep

H-OSC

H-Shift

H-Drive

Vertical &

East-West

Geometry

CVBS/Y

VDRB

H/V HOUT

RO

GO

BO

INSSW3

Chroma

Yint

R/Pr-3

G/Y3

B/Pb-3

YOUT

VOUT

UOUT

VIN

UIN

YIN

B_OSD

G_OSD

R_OSD

Fast Blanking

Peaking

SCAVEM

U/V Delay

Skin Tone

U/V Tint

Saturation

YUV

YUV in/out

SAT

SCAVEM

on text

Dig. 2H/4H

Combfilter

Y Delay Adj.

c

cvbs/y

Sound

Traps

Video

Switch

+

Control

Uint

Vint

CVBS1

QSS Mixer

AM Demod. AM

QSS/FM

1106 7

8

2

SIF1

SIF2

29

30

F108

IF-TER

7217

TDA15021H

RO

GO

BO

Vsync_SDTV

Hsync_SDTV

INTF_Y_OUT

INTF_U_OUT

INTF_V_OUT

SC1_B_CVI_Pb_IN

SC1_FBL_IN_1

SC1_R_CVI_Pr_IN

SC1_G_CVI_Y_IN

19

STATUS_2

8

STATUS_1

67

+5SW_a

+VTUN

7436-1

7436-2

2

4

1

3

N.C.

2

1304

(1M06) 1K01

2

44

1

5

SVHS

24

3

1080

1060

C

Y/CVBS

EF

7206

64

58

7G10

2

12

15

14

FRONT_Y_CVBS_IN

1

FRONT_C_IN

13

59

SC2_AV3_C_IN

SC1_FBL_IN

CVI_Pr_IN

CVI_Y_IN

CVI_Pb_IN

SC1_FBL_IN_1

SC1_CV1_DMMI_R_Pr_IN

SC1_CV1_DMMI_G_Y_IN

SC1_CV1_DMMI_B_Pb_IN

B2

B13

B13

B13

B15

B13

B13

B13

B13

B18

B13

B18

EF

7G05

7G19

48

13

12

14

4G18

Present only for

non DVB sets

4G13

4G14

4G15

4G17

4G16

B2

B2

FRONT_YCVBS_IN

FRONT_C_IN

CVBS_COMB

SC2_AV3_Y_IN

9

AV2_DMMI_SW

B7

SC2_OUT_SW

EXT 2

EXT 1

VIDEO

IN

S-VHS

B13

B18

B18

B13

B13

B18

Circuit Descriptions, Abbreviation List, and IC Data Sheets EN 77LC4.3E AA 9.

The video processing is completely handled by the Hercules

• IF demodulator.

• Chrominance decoder

• Sync separator.

• Horizontal & vertical drive.

• RGB processing.

• CVBS and SVHS source select.

It has also built-in features like:

•CTI.

• Black stretch.

• Blue stretch.

• White stretch.

• Slow start up.

• Dynamic skin tone correction etc.

Further, it also incorporates sound IF traps and filters, and

requires only one crystal for all systems.

9.6 Columbus

9.6.1 Introduction

The Columbus is a combination of:

•A 2D/3D Comb filter for both PAL and NTSC, and

•A spatial/temporal noise reduction system for both

colour and luminance signals.

The Columbus 3D Comb filter uses digitalised CVBS, U, and V

(or C) signals and can be used with or without an external 16

Mbit SDRAM. Without external 16Mbit SDRAM, 3D comb

filtering and temporal noise reduction are not possible.

The noise reduction part of the Columbus is controlled by the

FBX software using the SNERT interface. The 2D/3D Comb

filter part is controlled by the Main software using the I2C bus.

9.6.2 2D/3D Comb Filter

Introduction

The “3D Comb filter Columbus” is a combined 2D/3D Comb

filter function that is part of the Columbus chip (circuit diagram

B19, item 7M00). It is a comb filter for both PAL and NTSC.

The 3D Comb filter is used to separate chroma and luminance

components out of a CVBS signal. It is of no use when the

CVBS signal is a SECAM signal (SECAM signals cannot be

combed) The Columbus chip can be used with or without 16

Mbit external SDRAM (circuit diagram B10, item 7B01). When

an external SDRAM is connected to the IC, the Comb filter

function can work in combined 2D/3D processing (depending

on the detected pixel based motion). When no external

SDRAM is connected, only 2D Comb filtering is possible.

The Columbus can comb the following standard signals:

• PAL B, PAL G, PAL H, PAL I, PAL D, PAL K: Colour

standard PAL, Colour carrier at 4.43 MHz, field frequency:

50 Hz

• PAL M: Colour standard PAL, Colour carrier at 3.58 MHz,

field frequency: 60 Hz

• PAL N: Colour standard PAL, Colour carrier at 3.58 MHz,

field frequency: 50 Hz

• NTSC M: Colour standard NTSC, Colour carrier at 3.58

MHz, field frequency: 60 Hz

For NTSC signals, the PAL delay line must always be

bypassed.

The following signals CANNOT be combed:

• Double Window signals or Multi PIP. For these signals,

only one part or even no part of the signal is in relation with

the burst. The part that is not in relation with the burst can

become very blurred when combed by the Columbus

Comb filter. Such a signal must be bypassed. Notch mode

is not even an option since e.g. in double window, one part

can be a PAL signal while the other part is NTSC or

SECAM.

• In cases where a SECAM signal is presented to the

Columbus Comb filter; both the luminance and UV path

must be bypassed. The PAL delay line inside the

Columbus cannot be used for SECAM signals so it must

also be bypassed. The luminance path must have

luminance at its input instead of CVBS. A chroma delay line

outside Columbus must be used for SECAM signals.

Reason for this: the Columbus PAL delay line halves the

output of the chroma signals in case of SECAM.

• Y/C, YPbPr, and RGB signals do not have to be combed.

So both the luminance and UV path must be bypassed.

The PAL delay line will also be bypassed.

• In cases where the Columbus Comb filter does not receive

a CVBS signal with burst at the right place according to the

standard (this includes black and white signals without

burst), phase correction results become unpredictable and

the Comb filter must be set in bypass (= luminance path

bypassed, UV path bypassed, PAL delay line bypassed)

• VCR signals cannot be combed and must be processed in

notch mode, or bypassed.

Columbus Modes

The several modes of the Columbus 3D Comb filter are:

• Bypass mode.

• Band-Pass-Notch mode.

• 2D Comb filter modes.

– Simple median.

– Median.

• Field Comb filter mode.

• Frame Comb filter mode.

Bypass Mode

The 3D Comb filter can be set in bypass mode. In this mode,

the CVBS, U and V signals are just bypassed to the output.

Band-Pass-Notch Mode

This is a mode where no Comb filtering is applied. A “Band

Pass Filter” is used to filter the chroma information out of the

CVBS signal. A “Notch Filter” is used to subtract the sub carrier

out of the CVBS in order to make a luminance signal without

chroma sub carrier.

In terms of cross colour and cross luminance, this mode has

the worst performance of all. It is only used on these signals

where no comb filtering can be applied (non-standard signals

and most VCR signals for example).

2D Comb Filter Modes

A Comb filter does an action on a current pixel and a delayed

pixel. When the delayed pixel is a line-delayed pixel, we talk

about a “Spatial or 2D Comb Filter” (for NTSC the delay must

be 1 line, for PAL it must be 2 lines).

Spatial or 2D Comb filters show problems on vertical colour

transients and on single coloured lines. For these situations,

extra hardware is added in the Columbus chip to avoid these

kinds of problems. However even with these extra measures,

there are still situations where the 2D Comb filter does not

perform optimally (diagonal resolution and single lines with

equal luminance content). In order to restrict the working area

of the 2D Comb filter to the frequencies where the sub carrier

is present, a horizontal band pass filter always precedes a 2D

Comb filter.

When a 2D Comb filter has no extra hardware to avoid

problems at vertical colour transients (or this extra hardware is

switched “off”), the Comb filter is called a “simple median filter”.

When there is extra hardware to avoid these kinds of problems,

the filter is called a “median filter”.

Field Comb Filter Mode

A Comb filter does an action on a current pixel and a delayed

pixel. When the delayed pixel is a field-delayed pixel, we talk

Circuit Descriptions, Abbreviation List, and IC Data Sheets

EN 78 LC4.3E AA9.

about a “Field Comb Filter”. Field Comb filters are only for PAL

of commercial interest.

Field Comb filters show also problems on vertical colour

transients and on motion. For the vertical transients, a hanging

dots detector has been added, however the performance on

vertical transients of the field Comb filter, even with this

hanging dots detector, is worse than the performance of the 2D

Comb filter. On motion, the field Comb filter performs very

badly. A motion detector must detect the pixels where there is

motion and on these pixels, the Comb filter must be forced back

to 2D Comb filter mode. This switching back is not

implemented with a hard switch, but with a motion controlled

fader. When there is a lot of motion, the fader will take a lot of

the 2D Comb filter output, when there is less motion, more field-

combed signal will be taken.

A field Comb filter is also called a “vertical-temporal filter”

because it filters in the vertical and temporal direction.

Frame Comb Filter Mode

A Comb filter does an action on a current pixel and a delayed

pixel. When the delay is a frame, we talk about a “Frame Comb

Filter”. For NTSC we need a delay of one frame, for PAL

however the delay must be two frames.

Frame Comb filters have the best performance, but just like the

Field Comb filter, they perform very badly on motion. A motion

detector will have to detect motion and on these motion pixels,

2D Comb filtering will have to be applied. A frame Comb filter

is a pure “temporal filter”.

The Columbus needs an external memory connected to it,

before it can do a temporal or vertical-temporal Comb filter

action. When no external memory is connected, field or frame

Comb filtering is impossible.

Block Diagram

In the next block diagram, two main parts of the Columbus 2D/

3D Comb filter can be seen:

• The upper part is what is called the luminance Comb filter.

It tries to make an as clean as possible luminance signal

out of the CVBS signal at the input.

• The lower part receives U and V signals (sequentially) that

are normally only band pass filtered in front of the 3D Comb

filter. It filters all left over luminance signals out of it, in order

to make an as clean as possible U and V signal.

Figure 9-4 Columbus 2D/3D Comb Filter block diagram

The Comb filter has two inputs. One is the CVBS where clean

luminance (Y) will be extracted from; the other one is UV where

a clean U and V signal will be extracted. Both input signals are

digital signals.

The field or frame delay is used for the Field and Frame Comb

filter mode. An external memory connected to the Columbus IC

provides this delay.

Phase correction is done at the inputs of both the Comb filter

blocks. There is a phase correction for spatial filtering (called

the spatial phase corrector) and a separate phase correction

on the signals used for temporal (Frame or Field) Comb filtering

(called the temporal phase corrector).

The offset block receives the motion dependant 2D/3D Comb

filtered signal as input. The black level of the luminance signal

is restored and the result is output. The black level restoration

is corrected continuously. However, on VCR signals, this

restoration can become unstable. Therefore, on VCR signals,

a fixed black level restoration value must be forced.

A horizontal dynamic peaking can be done on the luminance

signal. This peaking is adaptive in order not to amplify any

cross luminance distortion. It detects where there could be left

over sub carrier in the luminance signal and reduces the

peaking over there. The detection of the left over cross

luminance is different depending on the pre-filter or post-filter

mode.

The amount of peaking and coring can be chosen. The peaking

algorithm behind it is a simplified copy of the luminance

peaking of picnic. After the peaking block, the signal is output

as clean luminance.

The bypass switches have the obvious purpose of bypassing

the input signal, in case no Comb filtering is wanted.

A PAL delay line is added in the UV path. This is done because

a delay line in front of the 3D Comb filter does need an extra

vertical filter action on the UV signals. This vertical filtering

deteriorates the vertical transient performance for colours. The

Columbus Comb filter cannot undo this. However, this

reduction in performance can be omitted by putting the PAL

delay line after the 3D Comb filter block.

For PAL signals, the PAL delay line in front of the Columbus 3D

Comb filter is bypassed and the Columbus delay line is

switched “on”. In cases where the delay line in front of

Columbus cannot be bypassed, the Columbus PAL delay line

is bypassed.

For NTSC signals, the PAL delay line is bypassed as usual.

LUMINANCE

COMB FILTER

FIELD/FRAME

DELAY

OFFSET

Y-OUT

UV-OUT

(EXTERNAL SDRAM)

PAL

DELAY

LINE

HORIZONTAL

DYN

PEAKING

UV

COMB FILTER

UV-IN

CVBS-IN

E_14600_043.eps

230304

Circuit Descriptions, Abbreviation List, and IC Data Sheets EN 79LC4.3E AA 9.

9.6.3 Noise Reduction and Noise Estimator

The noise reduction function is a sophisticated successor of the

noise reduction module from the PICNIC-chip, also known as

“LIMERIC”.

Besides the noise reduction part, the Columbus noise

reduction module also comprises a noise estimator. This noise

estimator (the LORE-noise estimator) is a new design with the

ambition of more accuracy and with less control complexity

than the existing noise estimators.

9.7 Video: Scaler Part (Diagram B7, B8 and B9)

The Genesis gm1501 Scaler is a dual channel graphics and

video processing IC for LCD monitors and televisions

incorporating Picture in Picture, up to SXGA output resolutions.

The Scaler controls the display processing in an LCD TV, e.g.

like the deflection circuit in a CRT-based TV. It controls all the

view modes (e.g. like "zooming" and "shifting"). Features like

PC (VGA) or HD inputs, are also handled by this part.

Figure 9-5 Block diagram scaler part

B14

DIGITAL IO

B13

MUX-SYNC INTERFACE

B7

SCALER

B11

FLASH/CONTROL

B10

SDRAM

B18

ADC

B19

COLUMBUS

(Dig. PAL/NTC Comb)

B20

EPLD

B21

EPLD

R_SDTV

G_SDTV

B_SDTV

7E01

SC1_R_CVI_Pr_IN

SC1_G_CVI_Y_IN

SC1_B_CVI_Pb_IN

27

3

7

25

1

5

R_PR+

G_Y+

B_PB+

17

14

11

V_PC 2

H_PC 12

7E03

1

13

Vsync_SDTV

Hsync_SDTV

AVSYNC

AHSYNC

15

14

7604

5

1

8

4L4

L3

1F00

15

16

18

23

24

17

+5VSWI

6

14

9

10

11

7

2

1

ANALOG

INPUT

PORT

DVI/HDMI

INPUT

PORT

7B010

K4D263238F

SDRAM

1Mx32x4

FSDATA

FSADDR

7401

GM1501

GRAPHIC

ZOOM

DISPLAY

TIMING

GEN.

VIDEO

ZOOM

OSD CONTROLLER

OUT BLENDER

BRIGHTNESS/CONTRAST/HUE/SAT

EXTERNAL

ROM

INTERFACE

7C00

MX29LV040QC

FLASH

ROM

512Kx8

OCMDATA

OCMADDR

1P06

1

11

10

12

14

13

15

19

18

20

27

26

28

22

21

23

LVDS_VCC

TXB0-

TXB3+

TXB0+

TXB1-

TXB1+

TXBC+

TXBC-

TXB2-

TXB2+

TXB3-

H_PC

V_PC

BINA|Pb

GINA|YINA

RINA|Pr

HOTPLUG

RX0-IN

RX0+IN

RXC+IN

RXC-IN

SCL_DVI

SDA_DVI

RX1-IN

RX1+IN

RX2+IN

RX2-IN

FRAME

STORE

CONTROL

MICRO

CONTROLLER

UART

INTERFACE

INTERNAL

RAM

7E02

14

2

11

15

1

12

F624

F625

F626

AE16

AF11

AF16

AF12

AE15

AF15

AE12

AF13

AE14

AF14

B10

A10

N4

N3

B9

A9

B8

A8

AL

B6

AE10

D2

C2

B2

Vsync_SDTV

Hsync_SDTV

INTF_Y_OUT

INTF_U_OUT

INTF_V_OUT

19 PC_HD_DET

DVI-D

CONNECTOR

18

916

17

24

C5

C1 C2

C3 C4

28

8

27

26

25

EF

7L01

EF

7L03

EF

7L02

7L04

MST9883C

A/D

CONV.

COL_Di(1-7)

COL_YA(1-7)

COL_A

COL_D

7M00

T6TU5XBG

COLUMBUS

DIGITAL COMB

FILTER

DRAM

512Kx16x2

7M01

MSM56V16

+2V5_DDR

95

F_15270_068.eps

200505

48

43

54

30

31

56

57

SCL

SDA

COL_Do(1-7)

COL_YB(1-7)

7E00

1

13

3

5

2

12

15

14

4

SD_HD_SEL

10,11

C3

SOG

BINA|Pb

GINA|YINA

RINA|Pr

SC1_CV1_DMMI_R_Pr_IN

SC1_CV1_DMMI_G_Y_IN

SC1_CV1_DMMI_B_Pb_IN

B13

B15

B15

B15

B13

B13

B13

B13

SC1_R_CVI_Pr_IN

SC1_G_CVI_Y_IN

SC1_B_CVI_Pb_IN

B2,B13

B2,B13

B2,B13

B13

B13

B13

B3

B3

B3

B14

B14

B14

B3

B13

B14

B14

B13

B3

B9

SCALER

LVDS

INTERFACE

RECEIVER

7N04

THC63LVDF84B

TXB0-

TXB3+

TXB0+

TXB1-

TXB1+

TXBC+

TXBC-

TXB2-

TXB2+

TXB3-

LVDS

TRANS-

MITTER

7P02

THC63LVDM83R

EPLD

PIXEL+

PROCESSOR

RGB

7N02

EP1C12F256C8N

OR

RGB

4N03

4N13

4N01

4N15

4N07

4N05

4N17

4N19

4N11

4N09

LVDSAp

LVDSAn

LVDSBp

LVDSBn

LVDSCp

LVDSCn

LVDSDp

LVDSDn

LVDSCLKp

LVDSCLKn

LVDSAp

LVDSAn

LVDSBp

LVDSCp

LVDSCn

LVDSDp

LVDSDn

LVDSCLKp

LVDSCLKn

LVDSBn

OR

LVDSA+

LVDSA-

LVDSB+

LVDSB-

LVDSC+

LVDSC-

LVDSD+

LVDSD-

LVDSCLK+

LVDSCLK-

1P07

1

11

12

13

14

15

16

17

18

19

20

24

25

26

21

22

LVDS_VCC

LVDSA+

LVDSA-

LVDSB+

LVDSB-

LVDSC+

LVDSC-

LVDSD+

LVDSD-

LVDSCLK+

LVDSCLK-

TO PLASMA PANELTO LCD PANEL

Only for sets with

PIXEL PLUS

9

9RGB|CVI_HDA_SEL

HDPCSide-AVEXT2EXT1TV

PC_HD_DET H H H H L H

SD_HD_SEL H H H H H H

RGB|CVI_HDA_SEL L H L L L L

SCALER

B7

B7

PC_HD_SEL

I_PC_HD_SEL

R-PR-ADC

G-Y-ADC

B-PB-ADC

B2

B2

B2

Circuit Descriptions, Abbreviation List, and IC Data Sheets

EN 80 LC4.3E AA9.

9.7.1 Teletext Path

In Pixel Plus and Digital Crystal Clear models, which have an

ADC (B18) and Columbus 3D combfilter (B19), the digital input

of the scaler is used for the digital video signal (Columbus

output), whereas the analogue RGB input input of the scaler is

used for teletext. This means that no mixed mode (video plus

teletext simultaneously) is possible. In Crystal Clear models,

which do not have an ADC and Columbus, the analogue RGB

input of scaler is used for both video and teletext (generated by

the Hercules). The digital input of the Scaler is not used in

Crystal Clear TV sets. See also the block diagrams at the

beginning of this chapter. When faultfinding, checking the

teletext path may be useful: if there is sound and teletext, but

no video and user menu (blank screen), the digital path

(Hercules - ADC - Columbus - Scaler) is faulty. If there is sound

but no teletext, the back-end part (Scaler - LCD panel) is faulty.

9.7.2 Features

The Scaler provides several key IC functions:

•Scaling.

• Auto-configuration/ Auto-Detection.

• Various Input Ports:

– Analog RGB.

– Video Graphics.

• Integrated LVDS Transmitter.

• On-chip Micro-controller

9.7.3 Inputs

Analog RGB

The RGB input is fed to pins B2, C2 and D2 of the Scaler IC

(Genesis GM1501, item 7801, see circuit diagram B8). This

input consists of either the Hercules RGB output or the RGB/

YpbPr input of the VGA connector. The Scaler can switch

between the two signals via the PC_HD_SEL signal and

selection IC SM5301 (see circuit diagram B13).

PC (VGA) Input

The VGA input is processed by the VGA block of the Scaler.

The Scaler supports pixel frequencies up to 165MHz.

YpbPr format is also supported via the VGA interface and

covers a resolution of 480p/560p/720p/1080i.

9.7.4 Output

The Display Output Port provides data and control signals that

permit the Scaler to connect to a variety of display devices

using a TTL or LVDS interface. The output interface is

configurable for single or dual wide TTL/LVDS in 18, 24 or 30-

bit RGB pixels format. All display data and timing signals are

synchronous with the DCLK output clock. The integrated LVDS

transmitter is programmable to allow the data and control

signals to be mapped into any sequence depending on the

specified receiver format.

9.8 Audio Processing

Figure 9-6 Block diagram audio processing

The audio decoding is done entirely via the Hercules. The IF

output from the Tuner is fed directly to either the Video-IF or the

Sound-IF input depending on the type of concept chosen.

There are mainly two types of decoder in the Hercules, an

analogue decoder that decodes only Mono, regardless of any

standards, and a digital decoder (or DEMDEC) that can decode

both Mono as well as Stereo, again regardless of any

standards.

In this chassis, the analogue decoder is used in two cases:

• It is used for AM Sound demodulation in the Europe

SECAM LL’ transmission.

• It is used for all FM demodulation in AV-Stereo sets.

9.8.1 Diversity

The diversity for the Audio decoding can be broken up into two

main concepts:

• The Quasi Split Sound concept used in Europe and some

AP sets.

• The Inter Carrier concept, used in NAFTA and LATAM.

The UOC-III family makes no difference anymore between

QSS- and Intercarrier IF, nearly all types are software-

switchable between the two SAW-filter constructions.

Simple data settings are required for the set to determine

whether it is using the Inter Carrier or the QSS concept. These

settings are done via the “QSS” and “FMI” bit found in SAM

mode. Due to the diversity involved, the data for the 2 bits are

placed in the NVM location and it is required to write once

during startup.

On top of that, it can be further broken down into various

systems depending on the region. The systems or region

chosen, will in turn affect the type of sound standard that is/are

allowed to be decoded.

• For the case of Europe, the standard consists of BG/DK/I/

LL’ for a Multi-System set. There are also versions of

Eastern Europe and Western Europe set and the standard

for decoding will be BG/DK and I/DK respectively. FM

Radio is a feature diversity for the Europe sets. The same

version can have either FM Radio or not, independent of

the system (e.g. sets with BG/DK/I/LL’ can have or not

have FM radio).

• For the case of NAFTA and LATAM, there is only one

transmission standard, which is the M standard. The

diversity then will be based on whether it has a dBx noise

reduction or a Non-dBx (no dBx noise reduction).

• For the case of AP, the standard consists of BG/DK/I/M for

a Multi-System set. The diversity here will then depend on

Side in

*All region

SCART1 out

*Europe only

SCART2 out

*Europe only

Monitor out

* Not available

SCART2 in

*Europe only

AV2 in

*AP/USA/Latam

AV1 in

*AP/USA/Latam

SCART1 in

*Europe only

Lip Sync

Circuit

2x

Amplifier

Amplifier

PC in

HDMI DAC

HEF4053

3X SPDT

PC_HDMI_AUD_SEL

(From Scaler,

GPIO_G07_B0)

AUDIO-OUTSL

AUDIO-OUTSR

AUDIO-OUTHPL

AUDIO-OUTHPR

Constant Level Out

*Europe only

AUDIO-LSL

AUDIO-LSR

Tuner

SIF

Is used on the DMMI

=> No SCART2/AV2 for

Bolt-on

AUDIO-IN5L

AUDIO-IN5R

AUDIO-IN3L

AUDIO-IN3R

AUDIOI-N4L

AUDIO-IN4R

AUDIO-IN2L

AUDIO-IN2R

SIF Input

106

105

103

P0.0/I2SDI1

P0.0/I2SDO1

P0.3/I2SCLK

I2S

FM SSIF Input

2x Stereo

Speaker

Headphone

Hercules

For iTV only

E_14490_061.eps

121104

Circuit Descriptions, Abbreviation List, and IC Data Sheets EN 81LC4.3E AA 9.

the region. AP China can have a Multi-System and I/DK

version. For India, it might only be BG standard.

9.8.2 Functionality

The features available in the Hercules are as follows:

• Treble and Bass Control.

• Surround Sound Effect that includes:

– Incredible Stereo.

– Incredible Mono.

– 3D Sound (not for AV Stereo).

– TruSurround (not for AV Stereo).

– Virtual Dolby Surround, VDS422 (not for AV Stereo).

– Virtual Dolby Surround, VDS423 (not for AV Stereo).

– Dolby Pro-Logic (not for AV Stereo).

• Bass Feature that includes:

– Dynamic Ultra-Bass.

– Dynamic Bass Enhancement.

– BBE (not for AV Stereo).

• Auto-Volume Leveler.

• 5 Band Equalizer.

• Loudness Control.

All the features stated are available for the Full Stereo versions

and limited features for the AV Stereo

9.8.3 Audio Amplifier

The audio amplifier part is very straightforward. It uses two

integrated TDA8931T power amplifiers for the L and R

channels; each amplifier IC is able to deliver a maximum output

of 20 WRMS continuously in a 4-6 ohm speaker without needing

a heatsink.

The operating supply for the amplifier may range from 12 V to

32 V; in the LC04x TV set, depending on the model, supply

voltages of 18 V (for the 5 W / 8 ohm version) or 24 V (for the

15 W / 4 ohm version) are used.

Muting is done via the SOUND_ENABLE line connected to pins

7 of both amplifier-ICs, which comes from the Hercules.

9.8.4 Audio: Lip Sync

No Lip Sync adjustments are neccessary in this model.

9.9 Control

9.9.1 Hercules

The System Board has two main micro-controllers on board.

These are:

• On-chip x86 micro-controller (OCM) from Genesis LCD TV/

Monitor Controller.

• On-chip 80C51 micro-controller from Philips

Semiconductor UOCIII (Hercules) series.

Each micro-controller has it own I2C bus which hosts its own

internal devices.

The Hercules is integrated with the Video and Audio Processor.

For dynamic data storage, such as SMART PICTURE and

SMART SOUND settings, an external NVM IC is being used.

Another feature includes an optional Teletext/Closed Caption

decoder with the possibility of different page storage depending

on the Hercules type number.

9.9.2 Block Diagram

The block diagram of the Micro Controller application is shown

below.

Figure 9-7 Micro Controller block diagram

9.9.3 Basic Specification

The Micro Controller operates at the following supply voltages:

• +3.3 VDC at pins 4, 88, 94, and 109.

• +1.8 VDC at pins 93, 96, and 117.

•I

2C pull up supply: +3.3VDC.

9.9.4 Pin Configuration and Functionality

The ports of the Micro Controller can be configured as follows:

• A normal input port.

• An input ADC port.

• An output Open Drain port.

• An output Push-Pull port.

• An output PWM port.

• Input/Output Port

The following table shows the ports used for the LC04 control:

Table 9-2 Micro Controller ports overview

The description of each functional pin is explained below:

Pin Name Description Configuration

97 INT0/ P0.5 IR INT0

98 P1.0/ INT1 TV_IRQ INT2

99 P1.1/ T0 TV_SC_COM P1.1

102 P0.4/ I2SWS EXT_MUTE P0.4

103 P0.3/ I2SCLK Lip Sync I2SCLK

104 P0.2/ I2SDO2 NVM_WP P0.2

105 P0.1/ I2SDO1 Lip Sync I2SDO1

106 P0.0/ I2SDI/O Lip Sync I2SDI/O

107 P1.3/ T1 PC-TV_LED P1.3

108 P1.6/ SCL SCL SCL

109 P1.7/ SDA SDA SDA

111 P2.0/ TPWM SOUND_ENABLE P2.0

112 P2.1/ PWM0 (for future use) -

113 P2.2/ PWM1 (for future use) -

114 P2.3/ PWM2 SEL_IF P2.3

115 P3.0/ ADC0 Light Sensor - SDM ADC0

116 P3.1/ ADC1 STATUS_1 ADC1

119 P3.2/ ADC2 STATUS_2 ADC2

120 P3.3/ ADC3 KEYBOARD ADC3

122 P2.4/ PWM3 STANDBY P2.4

123 P2.5/ PWM4 (for future use) -

126 P1.2/ INT2 (for future use) -

127 P1.4/ RX HERC_RESET -

128 P1.5/ TX POWER_DOWN P1.5

HERCULES

SCALER

Tuner

ComPair

NVM

Sound

Amp

MUX

NVM

GPROBE for Debug

or ComPair(Scaler)

SDA

SCL

TV_IRQ

TV_SC_COM

+3V3STBY

1407

1406

1405

PC_DET

SD_PCHD_SEL

PC_HD_SEL

POWER_DOWN

LAMP_ON_OFF

PANEL_PWR_CTL

HD_FILTER

BACK_LIGHT_ADJ1

Flash ROM

83

GPIO2

NVM_WP

IIC BUS 2

93

NVRAM

_SDA

92

NVRAM

_SCL

72 71 187193194

85

(GPIO4)

88

(GPIO5)

89

(GPIO6)

68

(PBIAS)

67

(PPWR)

99

(PWM1)

98

(GPIO11/

PWM0)

78 DDC_SDA_VGA

77 DDC_SCL_VGA

82 GPIO1

81 GPIO0

+3V3STBY

111

GPIO23

90 GPIO7

ROM_ADD0-17

ROM_DATA0-7

5 6 7

103 106 107 108

HIGH or

LOW

level input

IIC BUS1

NVM_WP

Sound_Enable

HREC

RST

Sel IF/

SDM

Status1

Light

Sense

TV_IR

RC

P50_LINE_ITV_IR_SW

EXT_MUTE Standby POWER

DOWN

127

P1.4

114

P2.3

116

ADC1

115

ADC0

123

P2.5

97

INT0

102

P0.4

122

P2.4

126

INT2

128

P1.5

SDA 109

SCL 108

INT1 98

P1.1 99

Keyboard

ADC3 120

111

P2.0

104

P0.2

E_14490_062.eps

160904

Circuit Descriptions, Abbreviation List, and IC Data Sheets

EN 82 LC4.3E AA9.

•LED. This signal is used as an indication for the Standby,

Remote and Error Indicator. Region diversity:

– During protection mode, the LED blinks and the set is

in standby mode.

– During error conditions it blinks at a predefined rate.

– After receiving a valid RC-5 or local keyboard

command it flashes once.

– For sets with error message indication, the LED blinks

when message is active and the set is in standby

mode.

•SCL. This is the clock wire of the two-wire single master bi-

directional I2C bus.

•SDA. This is the data wire of the two-wire single master bi-

directional I2C bus.

•STANDBY. The Hercules generates this signal. This can

enable the power supply in normal operation and disable it

during Standby. It is of logic “high” (3.3 V) under normal

operation and “low” (0 V) during Standby.

•IR. This input pin is connected to an RC5 remote control

receiver.

•SEL-IF. This is an output pin to switch the Video SAW filter

between M system and other systems.

– 0: NTSC M (default)

– 1: PAL B/G, DK, I, L

•NVM_WP. The global protection line is used to enable and

disable write protection to the NVM. When write to the

NVM is required, pin 7 of the NVM must be pulled to logic

‘0’ first (via Write_Protect of the micro-controller pin) before

a write is performed. Otherwise pin 7 of NVM must always

be at logic “1”

– 0: Disabled

– 1: Enabled (default)

•SOUND_ENABLE. This pin is used to MUTE the audio

amplifier. It is configured as push pull.

•STATUS_1. This signal is used to read the status of the

SCART 1 input.

•STATUS_2. This signal is used to read the status of the

SCART 2 input.

•HERC_RESET. This pin is used to switch the +1.8V

supply.

•POWER_DOWN. The power supply generates this signal.

Logic “high” (3.3 V) under normal operation of the TV and

goes “low” (0 V) when the Mains input voltage supply goes

below 70 VAC.

•KEYBOARD. Following are the Keyboard functions and

the step values (8 bit) for it.

Table 9-3 Local keyboard values

•TV_IRQ. This signal is the interrupt from the Scaler IC.

•TV_SC_COM. This signal is used for the communication

with the Scaler IC.

•EXT_MUTE. This signal is used to reduce the Switch-off

plop.

9.10 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV), 6

= play 16:9 format, 12 = play 4:3

format

1080i 1080 visible lines, interlaced

1080p 1080 visible lines, progressive scan

2CS 2 Carrier Sound (or 2 Channel Stereo)

480i 480 visible lines, interlaced

480p 480 visible lines, progressive scan

ACI Automatic Channel Installation:

algorithm that installs TV channels

directly from a cable network by

means of a predefined TXT page

ADC Analogue to Digital Converter

AFC Automatic Frequency Control; Control

signal used to tune and lock to the

correct frequency

AGC Automatic gain control (feedback)

signal to the tuner. This circuit ensures

a constant output amplitude

regardless of the input amplitude

AM Amplitude Modulation; A "data

encoding to a carrier" method, such

that the carrier amplitude is

proportional to the data value

AP or A/P Asia Pacific

AR Aspect Ratio: 4 by 3 or 16 by 9

ASD Automatic Standard Detection

AV External Audio Video

B-SC1-IN Blue SCART1/EXT1 in

B-SC2-IN Blue SCART2/EXT2 in

B-TXT Blue TeleteXT

B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz. B= VHF-

band, G= UHF-band

BOCMA Bimos one Chip Mid-end Architecture:

video and chroma decoder

C-FRONT Chrominance front input

CBA Circuit Board Assembly (also called

PCB or PWB)

CL Constant Level: audio output to

connect with an external amplifier

CLUT Colour Look-Up Table

COLUMBUS COLour LUMinance Baseband

Universal Subsystem. IC performing

noise reduction and 2D/3D comb

filtering

ComPair Computer aided rePair. A tool for

diagnosing a TV through a PC

controlled interface

CSM Customer Service Mode

CVBS Composite Video and Blanking Signal;

A single video signal that contains

luminance, colour, and timing

information

CVBS-EXT CVBS signal from external source

(VCR, VCD, etc.)

CVBS-INT CVBS signal from internal Tuner

CVBS-MON CVBS monitor signal

CVBS-TER-OUT CVBS TERrestrial OUTput signal

DAC Digital to Analogue Converter

DBE Dynamic Bass Enhancement: extra

low frequency amplification

DFU Directions For Use: Owner's manual

DNR Dynamic Noise Reduction / Digital

Noise Reduction; Noise reduction

feature of the set

DRAM Dynamic RAM; dynamically refreshed

RAM

DSP Digital Signal Processing

DST Dealer Service Tool; Special remote

control designed for dealers to enter

Function

Voltage

(VDC)

Step values

(8 bit)

NAFTA Standby 0 0 - 6

Ch + 0.43 7 - 33

Exit Factory (Ch- and Vol-) 0.69 34 - 53

Ch - 0.93 54 - 73

Menu (Vol - and Vol +) 1.19 74 - 96

Vol - 1.49 97 - 121

DVD Eject 1.8 122 - 147

Vol + 2.12 148 - 169

Circuit Descriptions, Abbreviation List, and IC Data Sheets EN 83LC4.3E AA 9.

e.g. service mode (a DST-emulator is

available in ComPair)

DTS Digital Theatre System; A multi-

channel surround sound format,

similar to Dolby Digital

DVD Digital Versatile Disc

EEPROM Electrically Erasable and

Programmable Read Only Memory

EPG Electronic Program Guide: system

used by broadcasters to transmit TV

guide information (= NexTView)

EU Europe

EXT EXTernal (source), entering the set by

SCART or by cinches (jacks)

FBL Fast BLanking; DC signal

accompanying RGB signals. To blank

the video signal when it is returning

from the right side of the screen to the

left side. The video level is brought

down below the black video level

FBL-SC1-IN Fast blanking signal for SCART1 in

FBL-SC2-IN Fast blanking signal for SCART2 in

FBL-TXT Fast Blanking Teletext

FM Field Memory; A memory chip that is

capable of storing one or more TV

picture fields / Frequency Modulation;

A technique that sends data as

frequency variations of a carrier signal

FMR Radio receiver that can receive the FM

Band 87.5 - 108 MHz

FRC Frame Rate Converter

FRONT-C Front input chrominance (SVHS)

FRONT-DETECT Control line for detection of

headphone insertion, Service Mode

jumper, power failure detection

FRONT-Y_CVBS Front input luminance or CVBS

(SVHS)

G-SC1-IN Green SCART1/EXT1 in

G-SC2-IN Green SCART2/EXT2 in

G-TXT Green teletext

H H_sync to the module

HA Horizontal Acquisition; horizontal sync

pulse

HD High Definition

HP HeadPhone

I Monochrome TV system. Sound

carrier distance is 6.0 MHz. VHF- and

UHF-band

I2C Integrated IC bus

I2S Integrated IC Sound bus

IC Integrated Circuit

IF Intermediate Frequency

Interlaced Scan mode where two fields are used

to form one frame. Each field contains

half the number of the total amount of

lines. The fields are written in "pairs",

causing line flicker.

IR Infra Red

IRQ Interrupt ReQuest

Last Status The settings last chosen by the

customer and read and stored in RAM

or in the NVM. They are called at start-

up of the set to configure it according

to the customer's preferences

LATAM LATin AMerica

LC04 Philips chassis name for LCD TV 2004

project

LCD Liquid Crystal Display

LED Light Emitting Diode; A semiconductor

diode that emits light when a current is

passed through it

LINE-DRIVE Horizontal (line) deflection drive signal

(for the Line transistor)

L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I

LS LoudSpeaker

LVDS Low Voltage Differential Signalling,

data transmission system for high

speed and low EMI communication.

M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz. M= 525

lines @ 60 Hz, N= 625 lines @ 50 Hz

MOSFET Metal Oxide Semiconductor Field

Effect Transistor

MPEG Motion Pictures Experts Group. An

ISO/IEC body that has given its name

to an image compressing scheme for

moving video

MSP Multi-standard Sound Processor: ITT

sound decoder

MUTE MUTE Line

NC Not Connected

NICAM Near Instantaneously Companded

Audio Multiplexing; This is a digital

sound system, mainly used in Europe

NTSC National Television Standard

Committee. Colour system used

mainly in North America and Japan.

Colour carrier NTSC M/N = 3.579545

MHz, NTSC 4.43 = 4.433619 MHz

(this is a VCR norm, it is not

transmitted off-air)

NVM Non Volatile Memory; IC containing

data such as alignment values, preset

stations

O/C Open Circuit

ON/OFF LED On/Off control signal for the LED

OSD On Screen Display

PAL Phase Alternating Line. Colour system

used mainly in Western Europe

(colour carrier = 4.433619 MHz) and

South America (colour carrier PAL M =

3.575612 MHz and PAL N = 3.582056

MHz)

PC Personal Computer

PCB Printed Circuit Board (or PWB)

PIG Picture In Graphic

PIP Picture In Picture

PLL Phase Locked Loop. Used, for

example, in FST tuning systems. The

customer can directly provide the

desired frequency

Progressive Scan Scan mode where all scan lines are

displayed in one frame at the same

time, creating a double vertical

resolution.

PWB Printed Wiring Board (also called PCB

or CBA)

RAM Random Access Memory

RC Remote Control transmitter

RC5 or 6 Remote Control system 5 or 6, the

signal from the remote control receiver

RGB Red, Green, and Blue colour space;

The primary colour signals for TV. By

mixing levels of R, G, and B, all colours

(Y/C) are reproduced

RGBHV Red, Green, Blue, Horizontal sync,

and Vertical sync

ROM Read Only Memory

SAM Service Alignment Mode

SC SandCastle: two-level pulse derived

from sync signals

SC-IN SCART in

SC-OUT SCART out

S/C Short Circuit

SCART Syndicat des Constructeurs

d'Appareils Radiorécepteurs et

Circuit Descriptions, Abbreviation List, and IC Data Sheets

EN 84 LC4.3E AA9.

Téléviseurs; This is a 21-pin connector

used in EU, that carries various audio,

video, and control signals (it is also

called Péritel connector)

SCL Serial CLock Signal on I2C bus

SD Standard Definition

SDA Serial DAta Signal on I2C bus

SDRAM Synchronous DRAM

SECAM SÉquence Couleur Avec Mémoire;

Colour system mainly used in France

and East Europe. The chroma is FM

modulated and the R-Y and B-Y

signals are transmitted line

sequentially. Colour carriers=

4.406250 MHz and 4.250000 MHz

SIF Sound Intermediate Frequency

SMPS Switched Mode Power Supply

SND SouND

SNDL-SC1-IN Sound left SCART1 in

SNDL-SC1-OUT Sound left SCART1 out

SNDL-SC2-IN Sound left SCART2 in

SNDL-SC2-OUT Sound left SCART2 out

SNDR-SC1-IN Sound right SCART1 in

SNDR-SC1-OUT Sound right SCART1 out

SNDR-SC2-IN Sound right SCART2 out

SNDR-SC2-OUT Sound right SCART2 out

SOPS Self Oscillating Power Supply

S/PDIF Sony Philips Digital InterFace; This is

a consumer interface used to transfer

digital audio

SRAM Static RAM

STBY STandBY

SVHS Super Video Home System

SW Software or Subwoofer or Switch

THD Total Harmonic Distortion

TXT Teletext; TXT is a digital addition to

analogue TV signals that contain

textual and graphical information (25

rows x 40 columns). The information is

transmitted within the first 25 lines

during the Vertical Blank Interval (VBI)

uP Microprocessor

VA Vertical Acquisition

VL Variable Level out: processed audio

output towards external amplifier

VCR Video Cassette Recorder

VGA Video Graphics Array; 640x480 (4:3)

WD Watch Dog

WYSIWYR What You See Is What You Record:

record selection that follows main

picture and sound

XTAL Quartz crystal

Y Luminance signal

Y/C Y consists of luminance signal,

blanking level and sync; C consists of

chroma (colour) signal

YPbPr This is a scaled version of the YUV

colour space. Y= Luminance, Pb/Pr=

Colour difference signals B-Y and R-Y,

other amplitudes w.r.t. to YUV

YUV Colour space used by the NTSC and

PAL video systems. Y is the luminance

and U/V are the colour difference

signals

Circuit Descriptions, Abbreviation List, and IC Data Sheets EN 85LC4.3E AA 9.

9.11 IC Data Sheets

This section shows the internal block diagrams and pin layouts

of ICs that are drawn as "black boxes" in the electrical diagrams

(with the exception of "memory" and "logic" ICs).

9.11.1 Diagram B2, Type TDA15021H (IC7217, Hercules)

Figure 9-8 Internal block diagram and pin configuration

EVIRD-V

DWE

OTH

E

FID

N

UOSS

S

Q

CGA

R

EXIMSSQ

ROTALUDOMEDMA

CFA/CGA/F

I

NOISIV

.DOMEDLLP

.PMAOEDIV

P

A

R

TDN

U

O

S

Y

AL

E

DP

U

OR

G

HCTI

W

SOED

I

V

.TNEDIOEDIV

S

R

E

TL

IF

O

E

D

IV

H4

/

H2

RETLIFBMOC

REDOCED

C

S

T

N

/MACES/L

A

PDNA

B

-ESAB

ENILYALED

.

PE

S

C

N

YSV

/

H

LLP+.

C

S

O

-H 2d

nPOOL

TFIHS-H

EV

I

RD-

H

LACITRE

V

YRTE

M

O

E

G

T

SE

W-T

S

AE&

N

I

B

VD/

N

IFIS

TUOCGA

NIFIV

3Y

/

3S

B

V

C

3

C/2

C

4Y

/

4S

B

VC

4

C

/OSBVC

FISS

TUOH

GNIKAEP

YTICOLEVNACS

PY/BGR RPBTRESN

I

E

CAFRE

T

N

IV

U

Y

.NOC

IRB

T

A

S

LORTNOCAMMAG

HCTERTSKCALB

µREDOCEDTXETELETDNAROSSECORP-

RCBGRLB

OR

OG

OB

NIL

C

B

NIKLB

LO

R

TNOCBGR

TRESNITXET/DSO

CCC

.JDA.P-ETIHW

NTH

G

IRB/RTNOC

XIRTAMBGR

PSDoiduahtiwros

secorpVT”oerets-VA“ehtfomargaidkcolB

MVS

sO/I

C

Y

V/H

O

RM

F

/

O

B

VD

HCTI

W

S

OFER

FER

.J

D

AYAL

E

DY

MEVACS TXETNO

ENOTNIKS

TNITV/U

Y

ALEDV/U

NOITARUTAS

NOITALUDOM

H

C

T

E

R

TSEULB

2Y/2SBVC

/

OV

S

/

O

V

F

I

CNYSY

YUV IN/OUT

MA

TUOMA/OSSQ

/OVFI/OBVD

LLP

D

NU

O

S

SISAHPMEED

SERUTAEFGNISSECORPLANGISLATIGID

LB Y/G

P/R

R

P/B B

1OWS LB Y/G

P/

BB

oUoV o

YiY iUiV

)xC()xY/xSBVC( P/R R

P

I

P

I

S

BVC

SDR

T

C

EL

ES

O

I

D

U

A

TUO/NIHCNIC/TRACS S2I TUO-SL

LR

LORTNOCOIDUA

EMULOV

SSAB/ELBBERT

SERUTAEF

CAD/CDA

sCAD

RL

TUO-PH

ORMF

L

A

T

I

G

I

D

Pin configuration “stereo” and “AV-stereo” versions with Audio DSP

69

70

81

80

79

78

77

76

75

74

73

72

71

88

87

86

85

84

83

82

65

66

68

67

89

96

95

94

93

92

91

90

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

9

10

11

12

29

31

32

30

5

6

7

8

1

2

3

4

1

4

24

34

44

54

64

74

84

94

15

25

35

45

65

55

3

3

4

3

5

3

63

73

8

3

93

04

75

85

95

06

16

26

4

6

36

05

QFP-128 0.8 mm pitch “face down version”

A

DNG

211

111

011

901

801

701

601

501

311

411

511

611

711

811

91

1

021

121

221

321

421

521

621

721

821

401

301

201

101

001

99

8

9

79

P0.1/I2SDO1

P0.2/I2SDO2

P0.0/I2SDI1

VSSC2

P0.3/I2SCLK

P0.4/I2SWS

VDDC2

VSSC3

)V3.3(3ADDV

)V8.1(

A

DD

V

VDDC3

P3.2/ADC2

P3.3/ADC3

VSSC1/P

INT0/P0.5

P3.0/ADC0

P3.1/ADC1

P2.3/PWM2

P1.6/SCL

P2.2/PWM1

P2.1/PWM0

P2.0/PMW

P1.7/SDA

P1.3/T1

P2.4/PWM3

VDDP(3.3V)

VDDC1(1.8)

LSL_SOP_FERV

)V3.3(2ADDV

P1.2/INT2

ARDV

1N

IF

IV

2NIFIV

CSV

LLPCES

GIDCED

FL1HP

G

B

C

E

D

DWE/LVA

BRDV

FERI

TU

O

CG

A

1NIFIS/1NIBVD

2NIFIS/2NIBVD

P1.4/RX

1PV

NILATX

TU

OL

A

TX

1

A

SS

V

FIDNG

LPH+RSL_SOP_FERV

R

P

H+LPH_

G

E

N

_FERV

RPH_SOP_FERV

RSL+LSL_GEN_FERV

YSC/OSIBF

CVBSO/PIP

AUDIOIN5L

M

V

S

GND2

DVBO//IFVO/FMRO

DVBO/FMRO

AGC2SIF

AUDIOIN4L

SIFAGC/DVBAGC

PLLIF

AUDIOIN5R

AUDOUTLSL

AUDOUTLSR

AUDIOIN4R

VCC8V

CVBS3/Y3

AUDIOIN2L/SSIF

AUDIOIN2R

CVBS4/Y4

AUDIOIN3L

AUDIOIN3R

C4

AUDOUTHPL

AUDOUTHPR

CVBS2/Y2

VP2

SVO/IFOUT/CVBSI

C2/C3

DECSDEM

AMOUT/QSSO/AUDEEM

OTHE

bmocDDV

)

.

V3.

3

(1A

D

D

V

OB

OG

OR

G

E

N

_DAFERV

TUOH

S

O

P_DAFERV

bmocSSV

3WSSNI

P

/

R

R

3-

NIKLB

NILCB

P/B

B

3-

3-

Y/

G

)X-Y/SBVC/2-Y/G(NIY

)1OWS(TUOV

)2-WSNI(TUOU

T

U

O

Y

NIU

P/R(NIV

R

)X-C/2-

P

/B(

B

)2-

C

N

Y

SY

3PV

3DNG

DAFERV

P1.O/INT1

P1.1/T0

)8.1(cdaDDV

cd

a

SSV

REFIN/REFOUT

OIWS/DRAUGV

P2.5/PWM4

DECV1V8

1DNG

AUDOUTSL

AUDOUTSR

P1.5/TX

4CDDV

4CSSV

2PSSV

AVL/SWO/SSIF/

FL2HP

E_14490_063.eps

240505

Block Diagram

Pin Configuration

Circuit Descriptions, Abbreviation List, and IC Data Sheets

EN 86 LC4.3E AA9.

9.11.2 Diagram B19, Type T6TU5XB (IC7M00, Columbus)

Figure 9-9 Pin configuration

123456789101112131415

AWEB/

DAVB

UVA0

/Di0

UVA2

/Di2

UVA4

/Di4

UVA6

/Di6

UVA8

/Di8 SEL656 TST1 YA2 YA4 YA6 YA8 VA HREF SDA A

BYB8 VSS UVA1

/Di1

UVA3

/Di3

UVA5

/Di5

UVA7

/Di7

YA 0

/Di9 BISTEN YA1 YA3 YA5 YA7 WEA/

DAVA VSS SCL B

CYB7 YB6 VSS VDDS VSS VSS VDDC VDDC VSS VSS VDDC VDDS VSS SNDA SNRST C

DYB5 YB4 VDDC N.C. VSS SNCL TCK D

EYB3 YB2 VSS VDDC TMS TDO E

FTST2 YB1 VSS VSS TRST TDI F

GCLKASB YB0

/Do9 VDDS COLUMBUS VDDS A0ICC RESET G

HCLKASA UVB8/

Do8 TST3 TOP-VIEW VDDC CLK

EXT CLKSEL H

JUVB7

/Do7

UVB6/

Do6 VSS VSS CLK WEN J

KUVB5

/Do5

UVB4/

Do4 VDDC PPA Version 2.7 VSS CASN RASN K

LUVB3

/Do3

UVB2

/Do2 VSS VDDS DQM DQ16 L

MUVB1

/Do1

UVB0

/Do0 VDDS VSS DQ14 DQ15 M

NAVD N.C. VDDS VSS VSS VDDC VSS VDDS VDDC VSS VDDS VSS VSS VDDS DQ13 N

PAVS VSS A7 A9 A2 A0 A11 DQ7 DQ6 DQ4 DQ3 DQ1 VDDS VSS DQ12 P

RA4 A5 A6 A8 A3 A1 A10 DQ8 VSS DQ5 VSS DQ2 DQ9 DQ10 DQ11 R

123456789101112131415

Figure 1 Package outline (top view)

E_14600_059.eps

200804

Circuit Descriptions, Abbreviation List, and IC Data Sheets EN 87LC4.3E AA 9.

9.11.3 Diagram B7+B8+B9, Type GM1501 (IC7401, Genesis)

Figure 9-10 Internal block diagram and pin configuration

Infra-red Rx Low

ndwid

DC

Ba th

A

Pulse Width

Modulator

DDC2Bi

DVI

8/16 bit video

4:2:2/CCIR656

8/16/24 bit

video

(4:4:4/4:2:2/

CCIR656)

Test Pattern

Generator

Ultra-Reliable

DVI Rx

DVI-Compliant

Input

Triple ADC

and PLL

14.318 MHz

Crystal

Reference


Capture

and

Measure

ment

RealColorTM

Graphics

Shrink

Filter

Clock

Generation

Frame

Store

Control

JTAG GPIO

2-wire

Serial I/F

External

ROM I/F

Internal

ROM

TTL/

LVDS

Tx

Display

Timing

Generator

OSD

Controller

Color Table

RAMs

Output

Blender

Video

Shrink

Filter

Motion

Adapt.

3:2/2:2

detection

Video

Zoom

Filter

Graphics

Zoom

Filter


Capture

and

Measure

ment

Internal

RAM

X186

Micro-

controller

Interface

Parallel

ROM

IF/external

micro

Analog RGB

Input

Panel Data

/Control

DDC2Bi

analog

DDR SDRAM

I/F

Block Diagram

Pin Configuration

ANC ADC_3.3 ADC_1.8 ADC_1.8 ADC_DGND RXC+ DVI_GND RX0+ RX1+ RX2+ DVI_GND LBADC_IN3 D_GND

BBLUE- BLUE+ ADC_3.3 ADC_DGND DVI_GND RXC- DVI_GND RX0- RX1- RX2- REXT LBADC_IN2 D_GND

CGREEN- GREEN+ SOG ADC_AGND NC DVI_3.3 DVI_GND DVI_3.3 DVI_3.3 DVI_3.3 DVI_3.3 LBADC_IN1 LBADC_33

DRED- RED+ ADC_3.3 ADC_AGND NC DVI_1.8 DVI_GND DVI_1.8 DVI_1.8 DVI_1.8 DVI_GND LBADC_

RETURN LBADC_GND

EADC_AGNDADC_AGND ADC_3.3 ADC_AGND

FNC VDDD33_

PLL

VSSA33_

RPLL

VDDA33_

RPLL

GVDDA33_

FPLL

VSSD33_

PLL TCLK XTAL

HVDDD33_

SDDS

VSSA33_

SDDS

VDDA33_

SDDS

VSSA33_

FPLL

JVDDD33_

DDDS

VSSA33_

DDDS

VDDA33_

DDDS

VSSD33_

SDDS

KRESETn ACS_

RSET_HD NC VSSD33_

DDDS CORE_1.8 CORE_1.8 D_GND D_GND

LOCM_INT2 OCM_INT1 AVSYNC AHSYNC D_GND CORE_1.8 D_GND D_GND

MOCM_UDO OCM_UDI IR0 IR1 D_GND D_GND D_GND D_GND

NVGA_SDA VGA_SCL DVI_SDA DVI_SCL D_GND D_GND D_GND D_GND

POCM_CS1n OCM_CS2n MSTR_SDA MSTR_SCL D_GND D_GND D_GND D_GND

RROM_CSn OCM_REn OCM_WEn EXTCLK D_GND D_GND D_GND D_GND

TOCMADDR

17

OCMADDR

18

OCMADDR

19 OCM_CS0n D_GND CORE_1.8 D_GND D_GND

UOCMADDR

13

OCMADDR

14

OCMADDR

15

OCMADDR

16 CORE_1.8 CORE_1.8 D_GND D_GND

VOCMADDR

9

OCMADDR

10

OCMADDR

11

OCMADDR

12

WOCMADDR

6

OCMADDR

7

OCMADDR

8IO_3.3

YOCMADDR

3

OCMADDR

4

OCMADDR

5IO_3.3

AA OCMADDR

0

OCMADDR

1

OCMADDR

2IO_3.3

AB OCMDATA13 OCMDATA14 OCMDATA15 IO_3.3

AC OCMDATA10 OCMDATA11 OCMDATA12 IO_3.3 GPIO_G09_ B2

(DEGRN0)IO_3.3 DCLK IO_3.3 GPIO_G07_ B2

(DERED4)IO_3.3 SHIELD[1]

(DEGRN3) LVDSB_3.3 LVDSB_GND

AD OCMDATA9 OCMDATA6 OCMDATA3 OCMDATA0 GPIO_G09_ B3

(DEGRN1)

GPIO_G08_ B0

(DORED0)DEN GPIO_G08_ B5

(DOBLU1)

GPIO_G07_ B3

(DERED5)

GPIO_G07_ B6

(DERED8)

SHIELD[2]

(DEGRN4) LVDSB_3.3 LVDSB_3.3

AE OCMDATA8OCMDATA5OCMDATA2GPIO_G09_ B0

(DERED0)

GPIO_G09_ B4

(DEBLU0)

GPIO_G08_ B1

(DORED1)

GPIO_G08_ B3

(DOGRN1)

GPIO_G07_ B0

(DERED2)

GPIO_G07_ B4

(DERED6)

GPIO_G07_ B7

(DERED9)

SHIELD[3]

(DEGRN5)

BC+

(DEGRN8)

SHIELD[4]

(DEBLU2)

AF OCMDATA7OCMDATA4OCMDATA1GPIO_G09_ B1

(DERED1)

GPIO_G09_ B5

(DEBLU1)

GPIO_G08_ B2

(DOGRN0)

GPIO_G08_ B4

(DOBLU0)

GPIO_G07_ B1

(DERED3)

GPIO_G07_ B5

(DERED7)

SHIELD[0]

(DEGRN2)

B3+

(DEGRN6)

B3-

(DEGRN7)

BC-

(DEGRN9)

12345678910111213

E_14490_099.eps

241204

Circuit Descriptions, Abbreviation List, and IC Data Sheets

EN 88 LC4.3E AA9.

9.11.4 Diagram B12, Type S9993CT (IC7D03, HDMI Panellink), Reserved

Figure 9-11 Internal block diagram and pin configuration

DACVCC1

100-Pin

TQFP

(Top View)

N/C

2DACGND

3

N/C4

DACGNDR5

DACVCCR6

AnRPr7

COMP8

RSET9

DACGNDG10

DACVCCG11

AnGY12

DACGNDB13

DACVCCB14

AnBPb15

GND16

VCC17

RSVDL18

RSVDO19

RSVDO20

OVCC21

PGND222

PVCC2

23

PLLIN

24

N/C25

MCLKOUT26

MCLKIN27

OGND28

SPDI F29

SD O30

WS31

SC K32

HSYN C33

VSYNC34

DE35

Q2336

Q2237

Q2138

Q20

39

VC C40

GND41

Q1942

Q1843

Q1744

OGND45

ODC K46

OVCC47

Q1648

Q1549

Q1450

75

Q1

74

OVCC

73

CSDA

72

Q3

71

Q4

70

Q5

69

Q6

68

Q7

67

Q8

66

OGND

65

OVCC

64

Q9

63

Q10

62

Q11

61

Q12

60

Q13

59

58

57

56

55

54

53

52

51

Q0

VC C 100

GND 99

AGND 9 8

RX2+ 97

RX2- 96

AVCC 95

AGND 9 4

AVCC 93

RX1+ 92

RX1- 91

AGND 90

AVCC 89

AGND 88

RX0+ 87

RX0- 86

AGND 85

RXC+ 84

RXC- 83

AVCC 82

EXT _RE S 81

PVCC1 80

PGND1 79

OGND 78

DSCL 77

DSDA 76

CSCL

RSVDL

Q2

RESET#

INT

OGND

VCC

GND

SiI 9993

Block Diagram

Pin Configuration

E_14620_149.eps

170305

HDCP

Decryption

Engine

HDCP

Keys

EEPROM

Registers

----------------

Configuration

Logic Block

XOR

Mask

Video

Color

Space

Converter

Up/Down

Sampling

control

signals

I2C

Slave

24

DE

Q[23:0]

DSDA

DSCL

R_EXT

RXC±

RX0±

RX1±

RX2±

INT

RESET#

Audio

Data

Decode

Logic

Block

SPDIF

MCLKOUT

PanelLink

TMDSTM

Digital

Core

MCLK

Gen

HSYNC

VSYNC

ODCK

SD0

SCK

WS

MCLKIN

Mode

Control

Aux Data

Logic

Block

control

signals

Video

DAC

30

AnGY

AnRPr

AnBPb

I2C

Slave

CSDA

CSCL

OMPC

SETR

Spare Parts List EN 89LC4.3E AA 10.

10. Spare Parts List

Set Level

Various

0032 3122 137 23171 Power Supply Unit (32

inch)

0032 3122 137 23191 Power Supply Unit (26

inch)

8188 2422 070 98151 MAINSCORD EUR 1M5

BK B

8903 3104 311 09141 Cable 4P/560

8903 3139 131 05771 Cable 04P/280

b

5213 2422 264 00506 Loudsp. 8: 5W fullrange

5213 2422 264 00536 Loudsp. 5W fullrange

Small Signal Board [B]

Various

0601 3139 127 04122 Hercules SW (check

Prod. Survey)

0611 3139 127 04112 Scaler SW (check Prod.

Survey)

1101 2422 025 18749 Connector 3p m

1102 3139 147 19801 Tuner UV1318S/A IH -3

1104 2422 549 44372 SAW 38.9MHz K3953L

1106 2422 549 44369 SAW 38.9MHz K9656L

1107 2422 025 18749 Connector 3p m

1202 2422 543 01414 Xtal 24.576MHz

1801 2422 543 01133 Xtal 14.32MHz 20pF

1F00 2422 033 00515 Socket DVI-I 29p f

1F01 2422 026 05703 Socket 1P f

1G01 4822 265 10703 Socket scart 21p

1G02 4822 265 10703 Socket scart 21p

1J02 2422 025 10772 Connector 12p m

1J03 2422 025 10768 Connector 3p m

1J04 2422 025 10769 Connector 9p m

1K00 2422 025 08149 Connector 6p m

1K01 2422 025 10772 Connector 12p m

1K02 2422 025 10768 Connector 3p m

1K03 2422 025 14531 20p f

1N01 2422 025 17274 Connector 10p m

1N02 2422 025 18779 Connector 4P m

1N05 2722 171 08825 Xtal 14.31818Mhz 15pF

1P01 2422 549 45325 Bead 67: at 100MHz

1P02 2422 549 45325 Bead 67: at 100MHz

1P03 2422 549 45325 Bead 67: at 100MHz

1P04 2422 549 45325 Bead 67: at 100MHz

1P05 2422 549 45325 Bead 67: at 100MHz

1P06 2422 025 18772 Connector 30p m

8J02 3139 131 05901 Cable 12P/280/12P

8J03 3139 110 27651 Cable 03P/100/03P

8J04 3104 311 09251 Cable 9P/140/9P

8K01 3139 131 05901 Cable 12P/280/12P

g

2101 4822 124 12095 100PF 20% 16V

2102 5322 126 11583 10nF 10% 50V 0603

2103 5322 126 11583 10nF 10% 50V 0603

2104 4822 122 33761 22pF 5% 50V

2105 4822 122 33761 22pF 5% 50V

2106 5322 126 11583 10nF 10% 50V 0603

2107 3198 024 44730 47nF 50V 0603

2109 5322 124 41945 22PF 20% 35V

2113 4822 124 12095 100PF 20% 16V

2203 4822 124 23002 10PF 16V

2206 2020 552 00035 2.2PF 6.3V 10% 0603

2207 2020 552 96718 220nF 10% 6.3V 0402

2208 4822 124 12084 1PF 20% 50V

2209 4822 124 23002 10PF 16V

2210 2020 552 96718 220nF 10% 6.3V 0402

2211 2020 552 96628 10nF 10% 16V 0402

2214 2020 552 96618 1nF 10% 50V 0402

2216 2020 552 96618 1nF 10% 50V 0402

2218 3198 035 71040 100nF 10% 16V 0402

2221 4822 124 12095 100PF 20% 16V

2223 2238 869 15101 100pF 5% 50V 0402

2225 2020 552 96618 1nF 10% 50V 0402

2226 3198 035 03320 3.3nF 5% 50V 0402

2227 2020 552 96618 1nF 10% 50V 0402

2228 3198 035 71040 100nF 10% 16V 0402

2230 3198 035 71040 100nF 10% 16V 0402

2231 2020 552 96718 220nF 10% 6.3V 0402

2232 3198 035 71040 100nF 10% 16V 0402

2233 4822 124 23002 10PF 16V

2234 2020 552 96718 220nF 10% 6.3V 0402

2235 2020 552 96718 220nF 10% 6.3V 0402

2236 4822 126 14076 220nF +80/-20% 25V

2237 2020 552 96718 220nF 10% 6.3V 0402

2238 2020 552 96718 220nF 10% 6.3V 0402

2239 3198 035 71040 100nF 10% 16V 0402

2240 2020 552 96718 220nF 10% 6.3V 0402

2241 2020 552 96718 220nF 10% 6.3V 0402

2242 3198 035 71040 100nF 10% 16V 0402

2243 4822 124 23002 10PF 16V

2244 3198 035 71040 100nF 10% 16V 0402

2245 3198 035 71040 100nF 10% 16V 0402

2246 3198 035 71040 100nF 10% 16V 0402

2250 2020 552 96618 1nF 10% 50V 0402

2251 2020 552 96656 10PF 20% 25V 1210

2252 3198 035 71040 100nF 10% 16V 0402

2253 3198 035 71040 100nF 10% 16V 0402

2254 3198 035 71040 100nF 10% 16V 0402

2255 3198 035 71040 100nF 10% 16V 0402

2256 4822 124 23002 10PF 16V

2257 3198 035 71040 100nF 10% 16V 0402

2258 2020 552 96637 10PF 10% 6.3V 0805

2259 3198 035 71040 100nF 10% 16V 0402

2260 2020 552 96637 10PF 10% 6.3V 0805

2262 4822 124 12082 10PF 20% 50V

2263 3198 035 26820 6.8nF 10% 16V 0402

2264 3198 017 44740 470nF 10V 0603

2265 3198 017 41050 1PF 10V 0603

2266 3198 035 71040 100nF 10% 16V 0402

2267 2020 552 96718 220nF 10% 6.3V 0402

2269 2020 012 00003 470PF 16V 20% SMD

2270 3198 035 71040 100nF 10% 16V 0402

2271 4822 124 12095 100PF 20% 16V

2272 3198 035 71040 100nF 10% 16V 0402

2273 2020 552 96718 220nF 10% 6.3V 0402

2274 3198 017 31540 150nF 10V 0603

2277 3198 035 71040 100nF 10% 16V 0402

2280 2020 552 00027 4.7PF 2% 6.3V 0603

2281 2020 552 00027 4.7PF 2% 6.3V 0603

2285 3198 035 71040 100nF 10% 16V 0402

2286 3198 035 71040 100nF 10% 16V 0402

2289 4822 051 30151 150: 5% 0.062W

2290 2222 240 59872 4.7PF 5% 10V 0805

2291 3198 035 71040 100nF 10% 16V 0402

2449 3198 035 71040 100nF 10% 16V 0402

2603 2020 552 96834 1PF 20% 6.3V 0402

2604 3198 035 04710 470pF 50V 0402

2605 2020 552 96834 1PF 20% 6.3V 0402

2608 2020 552 96834 1PF 20% 6.3V 0402

2609 3198 035 04710 470pF 50V 0402

2610 2020 552 96834 1PF 20% 6.3V 0402

2611 4822 124 12095 100PF 20% 16V

2613 3198 017 41050 1PF 10V 0603

2614 3198 035 71040 100nF 10% 16V 0402

2615 2020 012 00003 470PF 16V 20% SMD

2616 2020 552 00035 2.2PF 6.3V 10% 0603

2617 2020 552 00035 2.2PF 6.3V 10% 0603

2618 2020 012 00003 470PF 16V 20% SMD

2619 2020 552 96738 47PF 6.3V

2701 2238 869 15101 100pF 5% 50V 0402

2704 4822 124 23002 10PF 16V

2716 2020 012 00028 470PF 20% 16V

2730 2020 552 96656 10PF 20% 25V 1210

2731 2020 012 00003 470PF 16V 20% SMD

2733 3198 035 02210 220pF 5% 50V 0402

2734 2238 787 16641 22nF 10% 16V 0402

2735 3198 035 04710 470pF 50V 0402

2736 2022 031 00308 22PF 20% 35V

2737 2020 012 00003 470PF 16V 20% SMD

2738 4822 124 80151 47PF 16V

2739 4822 124 80151 47PF 16V

2750 2020 552 00035 2.2PF 6.3V 10% 0603

2751 3198 035 71040 100nF 10% 16V 0402

2752 4822 124 80151 47PF 16V

2753 2020 012 00003 470PF 16V 20% SMD

2755 3198 035 14720 4.7nF 5% 25V 0402

2756 3198 035 04710 470pF 50V 0402

2757 2020 012 00003 470PF 16V 20% SMD

2758 2020 012 00003 470PF 16V 20% SMD

2760 2020 552 96671 1PF 10% 25V

2800 2020 021 91557 100PF 20% 16V

2801 3198 035 71040 100nF 10% 16V 0402

2802 3198 035 71040 100nF 10% 16V 0402

2803 3198 035 71040 100nF 10% 16V 0402

2804 3198 035 71040 100nF 10% 16V 0402

2805 3198 035 71040 100nF 10% 16V 0402

2806 3198 035 71040 100nF 10% 16V 0402

2807 3198 035 71040 100nF 10% 16V 0402

2808 3198 035 71040 100nF 10% 16V 0402

2809 3198 035 71040 100nF 10% 16V 0402

2810 3198 035 71040 100nF 10% 16V 0402

2811 3198 035 71040 100nF 10% 16V 0402

2812 3198 035 71040 100nF 10% 16V 0402

2813 3198 035 71040 100nF 10% 16V 0402

2814 3198 035 71040 100nF 10% 16V 0402

2815 5322 124 41945 22PF 20% 35V

2816 3198 035 71040 100nF 10% 16V 0402

2817 3198 035 71040 100nF 10% 16V 0402

2818 3198 035 71040 100nF 10% 16V 0402

2819 3198 035 71040 100nF 10% 16V 0402

2820 3198 035 71040 100nF 10% 16V 0402

2821 3198 035 71040 100nF 10% 16V 0402

2822 3198 035 71040 100nF 10% 16V 0402

2823 4822 126 14519 22pF 5% 50V 0402

2824 4822 126 14519 22pF 5% 50V 0402

2900 3198 035 71040 100nF 10% 16V 0402

2901 2020 552 96618 1nF 10% 50V 0402

2902 2020 021 00046 470PF 20% 16V

2903 3198 035 71040 100nF 10% 16V 0402

2904 4822 124 80151 47PF 16V

2905 2020 021 91557 100PF 20% 16V

2906 3198 035 71040 100nF 10% 16V 0402

2907 3198 035 71040 100nF 10% 16V 0402

2908 3198 035 71040 100nF 10% 16V 0402

2909 3198 035 71040 100nF 10% 16V 0402

2910 3198 035 71040 100nF 10% 16V 0402

2911 3198 035 71040 100nF 10% 16V 0402

2912 3198 035 71040 100nF 10% 16V 0402

2913 3198 035 71040 100nF 10% 16V 0402

2914 3198 035 71040 100nF 10% 16V 0402

2915 3198 035 71040 100nF 10% 16V 0402

2916 3198 035 71040 100nF 10% 16V 0402

2917 2020 021 91557 100PF 20% 16V

2918 3198 035 71040 100nF 10% 16V 0402

2919 3198 035 71040 100nF 10% 16V 0402

2920 3198 035 71040 100nF 10% 16V 0402

2921 3198 035 71040 100nF 10% 16V 0402

2922 3198 035 71040 100nF 10% 16V 0402

2923 3198 035 71040 100nF 10% 16V 0402

2924 3198 035 71040 100nF 10% 16V 0402

2925 3198 035 71040 100nF 10% 16V 0402

2926 3198 035 71040 100nF 10% 16V 0402

2927 3198 035 71040 100nF 10% 16V 0402

2928 3198 035 71040 100nF 10% 16V 0402

2929 3198 035 71040 100nF 10% 16V 0402

2930 3198 035 71040 100nF 10% 16V 0402

2931 3198 035 71040 100nF 10% 16V 0402

2932 3198 035 71040 100nF 10% 16V 0402

2933 3198 035 71040 100nF 10% 16V 0402

2934 4822 124 80151 47PF 16V

2935 3198 035 71040 100nF 10% 16V 0402

2936 3198 035 71040 100nF 10% 16V 0402

2937 3198 035 71040 100nF 10% 16V 0402

2938 3198 035 71040 100nF 10% 16V 0402

2939 3198 035 71040 100nF 10% 16V 0402

2940 4822 124 80151 47PF 16V

2941 3198 035 71040 100nF 10% 16V 0402

2942 3198 035 71040 100nF 10% 16V 0402

2945 5322 124 41945 22PF 20% 35V

2946 3198 035 71040 100nF 10% 16V 0402

2947 3198 035 71040 100nF 10% 16V 0402

2948 3198 035 71040 100nF 10% 16V 0402

2949 3198 035 71040 100nF 10% 16V 0402

2950 5322 124 41945 22PF 20% 35V

2951 3198 035 71040 100nF 10% 16V 0402

2952 3198 035 71040 100nF 10% 16V 0402

2953 3198 035 71040 100nF 10% 16V 0402

2954 3198 035 71040 100nF 10% 16V 0402

2955 5322 124 41945 22PF 20% 35V

2956 3198 035 71040 100nF 10% 16V 0402

2957 3198 035 71040 100nF 10% 16V 0402

2958 3198 035 71040 100nF 10% 16V 0402

2959 3198 035 71040 100nF 10% 16V 0402

2B01 4822 124 80151 47PF 16V

2B02 4822 124 11131 47PF 6.3V

2B03 3198 035 71040 100nF 10% 16V 0402

2B04 3198 035 71040 100nF 10% 16V 0402

2B05 3198 035 71040 100nF 10% 16V 0402

2B06 3198 035 71040 100nF 10% 16V 0402

2B07 3198 035 71040 100nF 10% 16V 0402

2B08 3198 035 71040 100nF 10% 16V 0402

2B09 3198 035 71040 100nF 10% 16V 0402

2B10 3198 035 71040 100nF 10% 16V 0402

2B11 3198 035 71040 100nF 10% 16V 0402

2B12 3198 035 71040 100nF 10% 16V 0402

Spare Parts List

EN 90 LC4.3E AA10.

2B13 3198 035 71040 100nF 10% 16V 0402

2B14 3198 035 71040 100nF 10% 16V 0402

2B15 3198 035 71040 100nF 10% 16V 0402

2B16 3198 035 71040 100nF 10% 16V 0402

2B17 3198 035 71040 100nF 10% 16V 0402

2B18 5322 124 41945 22PF 20% 35V

2C00 3198 035 71040 100nF 10% 16V 0402

2C01 4822 124 23002 10PF 16V

2C02 3198 035 71040 100nF 10% 16V 0402

2C03 3198 035 71040 100nF 10% 16V 0402

2E00 2020 552 00005 4.7PF 10% 6.3V 0603

2E01 2020 552 00005 4.7PF 10% 6.3V 0603

2E02 2020 552 00005 4.7PF 10% 6.3V 0603

2E03 3198 035 71040 100nF 10% 16V 0402

2E04 2020 552 96834 1PF 20% 6.3V 0402

2E05 2020 552 96834 1PF 20% 6.3V 0402

2E06 2020 552 96834 1PF 20% 6.3V 0402

2E07 4822 126 14324 33pF 5% 50V 0402

2E08 2020 552 00005 4.7PF 10% 6.3V 0603

2E09 4822 126 14324 33pF 5% 50V 0402

2E10 2020 552 00005 4.7PF 10% 6.3V 0603

2E11 4822 126 14324 33pF 5% 50V 0402

2E12 2020 552 00005 4.7PF 10% 6.3V 0603

2E13 3198 017 41050 1PF 10V 0603

2E14 4822 126 14324 33pF 5% 50V 0402

2E15 3198 035 71040 100nF 10% 16V 0402

2E16 3198 035 71040 100nF 10% 16V 0402

2E17 3198 035 71040 100nF 10% 16V 0402

2E18 3198 035 71040 100nF 10% 16V 0402

2E19 3198 035 71040 100nF 10% 16V 0402

2E20 4822 124 11131 47PF 6.3V

2E21 2020 552 00005 4.7PF 10% 6.3V 0603

2E22 2020 552 00005 4.7PF 10% 6.3V 0603

2E23 2020 552 00005 4.7PF 10% 6.3V 0603

2E24 3198 035 71040 100nF 10% 16V 0402

2E25 3198 035 71040 100nF 10% 16V 0402

2E26 3198 035 71040 100nF 10% 16V 0402

2E27 3198 035 71040 100nF 10% 16V 0402

2E28 3198 035 71040 100nF 10% 16V 0402

2E29 3198 035 71040 100nF 10% 16V 0402

2E30 3198 035 71040 100nF 10% 16V 0402

2E31 3198 035 71040 100nF 10% 16V 0402

2E32 3198 035 71040 100nF 10% 16V 0402

2E33 2020 552 00005 4.7PF 10% 6.3V 0603

2E34 2020 552 00005 4.7PF 10% 6.3V 0603

2E35 2020 552 00005 4.7PF 10% 6.3V 0603

2E36 3198 035 71040 100nF 10% 16V 0402

2F04 2020 552 94427 100pF 5% 50V

2F07 2238 586 59812 100nF 20% 50V 0603

2F08 4822 126 14241 330pF 0603 50V

2F09 4822 126 14241 330pF 0603 50V

2F10 2020 552 94427 100pF 5% 50V

2F11 4822 126 14241 330pF 0603 50V

2F12 4822 126 14241 330pF 0603 50V

2F13 4822 126 14508 180pF 5% 50V 0603

2F14 4822 126 14508 180pF 5% 50V 0603

2F15 2020 552 00035 2.2PF 6.3V 10% 0603

2F16 2020 552 00035 2.2PF 6.3V 10% 0603

2G05 4822 126 14241 330pF 0603 50V

2G06 4822 126 14508 180pF 5% 50V 0603

2G07 4822 124 23002 10PF 16V

2G08 2020 552 00035 2.2PF 6.3V 10% 0603

2G09 4822 126 14241 330pF 0603 50V

2G10 4822 126 14508 180pF 5% 50V 0603

2G11 4822 124 23002 10PF 16V

2G12 2020 552 00035 2.2PF 6.3V 10% 0603

2G18 4822 126 14241 330pF 0603 50V

2G19 4822 126 14508 180pF 5% 50V 0603

2G20 4822 124 23002 10PF 16V

2G21 2020 552 00035 2.2PF 6.3V 10% 0603

2G22 4822 126 14241 330pF 0603 50V

2G23 4822 126 14508 180pF 5% 50V 0603

2G24 4822 124 23002 10PF 16V

2G25 2020 552 00035 2.2PF 6.3V 10% 0603

2G26 2020 552 00005 4.7PF 10% 6.3V 0603

2G28 2020 552 00005 4.7PF 10% 6.3V 0603

2G47 2238 586 59812 100nF 20% 50V 0603

2G55 2020 552 00005 4.7PF 10% 6.3V 0603

2G56 2020 552 00005 4.7PF 10% 6.3V 0603

2J02 2020 552 96618 1nF 10% 50V 0402

2J03 2020 552 96618 1nF 10% 50V 0402

2J17 2238 869 15101 100pF 5% 50V 0402

2J18 2238 869 15101 100pF 5% 50V 0402

2J19 2238 869 15101 100pF 5% 50V 0402

2J21 2238 869 15101 100pF 5% 50V 0402

2J22 2238 869 15101 100pF 5% 50V 0402

2J23 2238 869 15101 100pF 5% 50V 0402

2J26 2238 869 15101 100pF 5% 50V 0402

2J27 2238 869 15101 100pF 5% 50V 0402

2J28 2238 869 15101 100pF 5% 50V 0402

2J29 2238 869 15101 100pF 5% 50V 0402

2J30 2020 552 96618 1nF 10% 50V 0402

2J35 2020 552 96618 1nF 10% 50V 0402

2K00 2020 552 96618 1nF 10% 50V 0402

2K01 2020 552 96618 1nF 10% 50V 0402

2K02 2238 869 15109 10pF 5% 50V 0402

2K03 2238 869 15109 10pF 5% 50V 0402

2K04 2238 869 15109 10pF 5% 50V 0402

2K05 2238 869 15109 10pF 5% 50V 0402

2K06 2238 869 15101 100pF 5% 50V 0402

2K07 2238 869 15101 100pF 5% 50V 0402

2K08 2020 552 00035 2.2PF 6.3V 10% 0603

2K10 2238 869 15101 100pF 5% 50V 0402

2K11 2238 869 15101 100pF 5% 50V 0402

2K12 2020 552 00035 2.2PF 6.3V 10% 0603

2K13 2238 869 15101 100pF 5% 50V 0402

2K14 2238 869 15101 100pF 5% 50V 0402

2K15 2238 869 15101 100pF 5% 50V 0402

2K16 2238 869 15101 100pF 5% 50V 0402

2K17 2238 869 15101 100pF 5% 50V 0402

2K18 2238 869 15101 100pF 5% 50V 0402

2K19 2020 552 96618 1nF 10% 50V 0402

2K20 2020 552 96618 1nF 10% 50V 0402

2K21 2238 869 15101 100pF 5% 50V 0402

2K22 2238 869 15101 100pF 5% 50V 0402

2K23 2238 869 15101 100pF 5% 50V 0402

2K24 2238 869 15101 100pF 5% 50V 0402

2K25 2238 869 15101 100pF 5% 50V 0402

2K26 2238 869 15101 100pF 5% 50V 0402

2K27 2238 869 15101 100pF 5% 50V 0402

2K28 2238 869 15101 100pF 5% 50V 0402

2L02 2020 552 96637 10PF 10% 6.3V 0805

2L03 3198 035 71040 100nF 10% 16V 0402

2L04 3198 035 71040 100nF 10% 16V 0402

2L05 3198 035 71040 100nF 10% 16V 0402

2L06 3198 035 71040 100nF 10% 16V 0402

2L07 2020 552 96637 10PF 10% 6.3V 0805

2L08 3198 035 71040 100nF 10% 16V 0402

2L09 3198 035 71040 100nF 10% 16V 0402

2L10 3198 035 71040 100nF 10% 16V 0402

2L11 3198 035 71040 100nF 10% 16V 0402

2L13 3198 035 74730 47nF 5% 16V 0402

2L17 3198 035 74730 47nF 5% 16V 0402

2L20 3198 035 71040 100nF 10% 16V 0402

2L21 3198 035 71040 100nF 10% 16V 0402

2L22 2020 552 96637 10PF 10% 6.3V 0805

2L23 3198 035 71040 100nF 10% 16V 0402

2L24 3198 035 71040 100nF 10% 16V 0402

2L26 2020 552 96718 220nF 10% 6.3V 0402

2L27 4822 124 23002 10PF 16V

2L28 4822 124 23002 10PF 16V

2L29 4822 124 23002 10PF 16V

2L30 4822 124 23002 10PF 16V

2L31 4822 124 12095 100PF 20% 16V

2L32 4822 124 12095 100PF 20% 16V

2L33 3198 035 71040 100nF 10% 16V 0402

2L34 3198 035 71040 100nF 10% 16V 0402

2L37 4822 126 14524 68pF 5% 50V 0402

2L39 2238 869 15829 82pF 5% 50V 0402

2M00 3198 035 71040 100nF 10% 16V 0402

2M01 3198 035 71040 100nF 10% 16V 0402

2M02 3198 035 71040 100nF 10% 16V 0402

2M03 3198 035 71040 100nF 10% 16V 0402

2M04 3198 035 71040 100nF 10% 16V 0402

2M05 3198 035 71040 100nF 10% 16V 0402

2M06 3198 035 71040 100nF 10% 16V 0402

2M07 3198 035 71040 100nF 10% 16V 0402

2M08 3198 035 71040 100nF 10% 16V 0402

2M09 3198 035 71040 100nF 10% 16V 0402

2M10 3198 035 71040 100nF 10% 16V 0402

2M11 3198 035 71040 100nF 10% 16V 0402

2M12 3198 035 71040 100nF 10% 16V 0402

2M13 3198 035 71040 100nF 10% 16V 0402

2M14 3198 035 71040 100nF 10% 16V 0402

2M15 3198 035 71040 100nF 10% 16V 0402

2M16 3198 035 71040 100nF 10% 16V 0402

2M17 3198 035 71040 100nF 10% 16V 0402

2M18 3198 035 71040 100nF 10% 16V 0402

2M19 3198 035 71040 100nF 10% 16V 0402

2M20 3198 035 71040 100nF 10% 16V 0402

2M21 2020 552 00035 2.2PF 6.3V 10% 0603

2M22 3198 035 71040 100nF 10% 16V 0402

2M23 4822 124 12095 100PF 20% 16V

2M24 3198 035 71040 100nF 10% 16V 0402

2M25 3198 035 71040 100nF 10% 16V 0402

2M26 3198 035 71040 100nF 10% 16V 0402

2M27 3198 035 71040 100nF 10% 16V 0402

2M28 3198 035 71040 100nF 10% 16V 0402

2M29 3198 035 71040 100nF 10% 16V 0402

2M30 3198 035 71040 100nF 10% 16V 0402

2M31 4822 124 12095 100PF 20% 16V

2M32 4822 124 12095 100PF 20% 16V

2M56 4822 124 12095 100PF 20% 16V

2M65 3198 035 71040 100nF 10% 16V 0402

2M66 4822 124 12095 100PF 20% 16V

2M67 3198 035 71040 100nF 10% 16V 0402

2M68 4822 124 12095 100PF 20% 16V

2N01 3198 035 71040 100nF 10% 16V 0402

2N02 3198 035 71040 100nF 10% 16V 0402

2N03 2020 552 96834 1PF 20% 6.3V 0402

2N04 2020 552 96618 1nF 10% 50V 0402

2N05 3198 035 71040 100nF 10% 16V 0402

2N06 3198 035 71040 100nF 10% 16V 0402

2N07 3198 035 71040 100nF 10% 16V 0402

2N08 3198 035 71040 100nF 10% 16V 0402

2N09 3198 035 71040 100nF 10% 16V 0402

2N10 3198 035 71040 100nF 10% 16V 0402

2N11 2238 869 15101 100pF 5% 50V 0402

2N12 2238 869 15101 100pF 5% 50V 0402

2N13 2238 869 15101 100pF 5% 50V 0402

2N14 2238 869 15101 100pF 5% 50V 0402

2N15 2238 869 15101 100pF 5% 50V 0402

2N16 2238 869 15101 100pF 5% 50V 0402

2P01 2020 552 00035 2.2PF 6.3V 10% 0603

2P02 3198 035 71040 100nF 10% 16V 0402

2P03 3198 035 71040 100nF 10% 16V 0402

2P04 3198 035 71040 100nF 10% 16V 0402

2P05 3198 035 71040 100nF 10% 16V 0402

2P06 3198 035 71040 100nF 10% 16V 0402

2P07 3198 035 71040 100nF 10% 16V 0402

2P08 3198 035 71040 100nF 10% 16V 0402

2P09 3198 035 71040 100nF 10% 16V 0402

2P10 3198 035 71040 100nF 10% 16V 0402

2P11 3198 035 71040 100nF 10% 16V 0402

2P12 3198 035 71040 100nF 10% 16V 0402

2P13 3198 035 71040 100nF 10% 16V 0402

2P14 3198 035 71040 100nF 10% 16V 0402

2P15 4822 124 12095 100PF 20% 16V

2P16 3198 035 71040 100nF 10% 16V 0402

2P17 2020 552 00035 2.2PF 6.3V 10% 0603

2P18 2020 552 00035 2.2PF 6.3V 10% 0603

2P19 3198 035 71040 100nF 10% 16V 0402

2P20 3198 035 71040 100nF 10% 16V 0402

2P21 3198 035 71040 100nF 10% 16V 0402

2P22 2020 552 00035 2.2PF 6.3V 10% 0603

2P23 3198 035 71040 100nF 10% 16V 0402

2P24 3198 035 71040 100nF 10% 16V 0402

2P25 3198 035 71040 100nF 10% 16V 0402

2P26 3198 035 71040 100nF 10% 16V 0402

2P27 3198 035 71040 100nF 10% 16V 0402

2P28 3198 035 71040 100nF 10% 16V 0402

2P29 3198 035 71040 100nF 10% 16V 0402

2P30 3198 035 71040 100nF 10% 16V 0402

2P31 3198 035 71040 100nF 10% 16V 0402

2P32 3198 035 71040 100nF 10% 16V 0402

2P33 3198 035 71040 100nF 10% 16V 0402

2P34 3198 035 71040 100nF 10% 16V 0402

2P35 3198 035 71040 100nF 10% 16V 0402

2P36 2238 869 15109 10pF 5% 50V 0402

2P37 2238 869 15109 10pF 5% 50V 0402

2P38 2238 869 15109 10pF 5% 50V 0402

2P39 2238 869 15109 10pF 5% 50V 0402

2P40 2238 869 15109 10pF 5% 50V 0402

2P41 2238 869 15109 10pF 5% 50V 0402

2P42 2238 869 15109 10pF 5% 50V 0402

2P43 2238 869 15109 10pF 5% 50V 0402

2P44 2238 869 15109 10pF 5% 50V 0402

2P45 2238 869 15109 10pF 5% 50V 0402

f

3103 4822 117 13606 10k: 5% 0.01W 0402

3104 4822 051 30103 10k: 5% 0.062W

3105 4822 117 13548 1k: 5% 0402

3107 4822 051 30682 6.8: 5% 0.062W

3108 4822 051 30222 2.2k: 5% 0.062W

3109 4822 051 30222 2.2k: 5% 0.062W

3111 4822 051 30223 22k: 5% 0.062W

3112 4822 051 30183 18k: 5% 0.062W

3120 4822 117 13606 10k: 5% 0.01W 0402

3121 4822 117 13606 10k: 5% 0.01W 0402

3122 4822 117 13545 100: 1% 0402

3123 4822 117 13545 100: 1% 0402

3124 4822 117 13545 100: 1% 0402

3125 4822 117 13545 100: 1% 0402

3207 3198 031 06810 680: 5% 0.01W 0402

3208 4822 117 13545 100: 1% 0402

3209 4822 117 13545 100: 1% 0402

3210 4822 117 13545 100: 1% 0402

3211 4822 117 13545 100: 1% 0402

3212 4822 117 13545 100: 1% 0402

3213 4822 117 13545 100: 1% 0402

3214 3198 031 06810 680: 5% 0.01W 0402

3215 3198 031 02710 270: 5% 0.1W 0402

3216 4822 117 13597 330: 5% 0402 0.01W

3217 4822 117 13548 1k: 5% 0402

3218 4822 117 11297 100k: 5% 0.1W

3219 4822 117 13545 100: 1% 0402

3220 3198 031 04730 47: 5% 0402

3222 4822 117 13545 100: 1% 0402

3223 3198 031 01090 10: 5% 0.01W 0402

Spare Parts List EN 91LC4.3E AA 10.

3224 3198 031 04720 4.7k: 5% 0402

3225 3198 031 04720 4.7k: 5% 0402

3226 4822 117 13545 100: 1% 0402

3227 4822 117 13545 100: 1% 0402

3229 3198 031 04720 4.7k: 5% 0402

3230 4822 117 13606 10k: 5% 0.01W 0402

3231 4822 117 13602 2.2k: 5% 0.01W 0402

3232 3198 031 03320 3.3k: 5% 0402

3233 3198 031 03320 3.3k: 5% 0402

3234 3198 031 04720 4.7k: 5% 0402

3235 3198 031 04720 4.7k: 5% 0402

3236 3198 031 04720 4.7k: 5% 0402

3238 4822 117 13545 100: 1% 0402

3239 4822 117 13545 100: 1% 0402

3240 2322 704 61002 1k: 1%

3241 4822 117 13545 100: 1% 0402

3242 4822 117 13606 10k: 5% 0.01W 0402

3243 3198 031 04720 4.7k: 5% 0402

3245 3198 031 02240 220k: 5% 0.1W 0402

3246 3198 031 04720 4.7k: 5% 0402

3247 4822 117 13545 100: 1% 0402

3248 4822 117 13545 100: 1% 0402

3249 3198 031 04720 4.7k: 5% 0402

3250 4822 117 13545 100: 1% 0402

3251 4822 117 13545 100: 1% 0402

3252 4822 117 13545 100: 1% 0402

3253 4822 117 13545 100: 1% 0402

3255 4822 117 13605 Jumper 0402

3256 4822 117 13605 Jumper 0402

3257 4822 117 13605 Jumper 0402

3258 4822 117 13548 1k: 5% 0402

3259 4822 117 13548 1k: 5% 0402

3260 4822 117 13548 1k: 5% 0402

3262 4822 117 13601 22k: 5% 0402

3263 2322 702 70398 3.9: 5% 0603

3264 4822 117 13601 22k: 5% 0402

3265 2322 702 70398 3.9: 5% 0603

3266 3198 031 05620 5.6k: 5% 0.01W 0402

3267 3198 031 05620 5.6k: 5% 0.01W 0402

3268 4822 117 13545 100: 1% 0402

3272 3198 031 04720 4.7k: 5% 0402

3273 4822 117 13548 1k: 5% 0402

3274 3198 031 03910 390: 1% 0402

3275 4822 117 13545 100: 1% 0402

3276 3198 031 07590 75: 5% 0402

3277 3198 031 01520 1.2k: 5% 0.01W 0402

3280 4822 117 11151 1: 5%

3281 3198 031 03930 39k: 5% 0402

3285 4822 117 13605 Jumper 0402

3286 4822 117 13545 100: 1% 0402

3292 3198 031 01230 12k: 5% 0402

3294 3198 031 04730 47: 5% 0402

3295 4822 117 11297 100k: 5% 0.1W

3431 4822 117 13548 1k: 5% 0402

3451 3198 031 04720 4.7k: 5% 0402

3453 4822 117 13545 100: 1% 0402

3454 4822 117 13545 100: 1% 0402

3455 4822 117 13545 100: 1% 0402

3456 4822 117 13545 100: 1% 0402

3458 4822 117 13545 100: 1% 0402

3459 4822 117 13545 100: 1% 0402

3461 4822 117 13545 100: 1% 0402

3462 4822 117 13545 100: 1% 0402

3604 4822 117 13601 22k: 5% 0402

3605 4822 117 13601 22k: 5% 0402

3609 4822 117 13601 22k: 5% 0402

3610 4822 117 11297 100k: 5% 0.1W

3611 4822 117 11297 100k: 5% 0.1W

3612 4822 117 13601 22k: 5% 0402

3615 4822 117 13606 10k: 5% 0.01W 0402

3618 4822 117 13601 22k: 5% 0402

3623 3198 031 04730 47: 5% 0402

3625 3198 031 03320 3.3k: 5% 0402

3627 4822 117 13601 22k: 5% 0402

3630 4822 117 13597 330: 5% 0402 0.01W

3631 4822 117 13597 330: 5% 0402 0.01W

3732 2322 704 61002 1k: 1%

3733 2322 704 63302 3.3k: 1% 0603

3734 4822 117 13602 2.2k: 5% 0.01W 0402

3735 4822 117 13548 1k: 5% 0402

3736 3198 031 04720 4.7k: 5% 0402

3750 4822 117 13601 22k: 5% 0402

3751 3198 021 31080 1: 5% 0603

3752 3198 021 31080 1: 5% 0603

3753 2322 704 61002 1k: 1%

3754 2322 704 63302 3.3k: 1% 0603

3755 4822 117 13606 10k: 5% 0.01W 0402

3758 3198 031 01530 15k: 5% 0.01W 0402

3759 3198 031 01230 12k: 5% 0402

3760 4822 117 13545 100: 1% 0402

3800 4822 117 13606 10k: 5% 0.01W 0402

3801 2350 035 10229 4 x 22: 5% 1206

3802 2350 035 10229 4 x 22: 5% 1206

3803 2350 035 10229 4 x 22: 5% 1206

3804 2350 035 10229 4 x 22: 5% 1206

3805 2350 035 10229 4 x 22: 5% 1206

3806 2350 035 10229 4 x 22: 5% 1206

3807 2350 035 10229 4 x 22: 5% 1206

3808 2350 035 10229 4 x 22: 5% 1206

3809 2350 035 10229 4 x 22: 5% 1206

3810 2350 035 10229 4 x 22: 5% 1206

3811 2350 035 10229 4 x 22: 5% 1206

3812 2350 035 10229 4 x 22: 5% 1206

3813 2350 035 10229 4 x 22: 5% 1206

3814 3198 031 02290 22: 5% 0.1W 0402

3815 3198 031 02290 22: 5% 0.1W 0402

3816 3198 031 02290 22: 5% 0.1W 0402

3817 4822 117 13606 10k: 5% 0.01W 0402

3818 4822 117 13606 10k: 5% 0.01W 0402

3820 4822 117 13606 10k: 5% 0.01W 0402

3822 4822 117 13545 100: 1% 0402

3824 3198 031 03320 3.3k: 5% 0402

3825 3198 031 11030 4 x 10k: 5% 1206

3826 3198 031 11030 4 x 10k: 5% 1206

3827 4822 117 13606 10k: 5% 0.01W 0402

3828 4822 117 13606 10k: 5% 0.01W 0402

3829 4822 117 13606 10k: 5% 0.01W 0402

3831 4822 117 13545 100: 1% 0402

3832 4822 117 13545 100: 1% 0402

3833 3198 031 01090 10: 5% 0.01W 0402

3834 4822 117 13606 10k: 5% 0.01W 0402

3835 4822 117 13606 10k: 5% 0.01W 0402

3836 4822 117 13606 10k: 5% 0.01W 0402

3837 4822 117 13606 10k: 5% 0.01W 0402

3838 4822 117 13606 10k: 5% 0.01W 0402

3839 4822 117 13545 100: 1% 0402

3840 3198 031 02290 22: 5% 0.1W 0402

3841 4822 117 13606 10k: 5% 0.01W 0402

3900 3198 031 03320 3.3k: 5% 0402

3901 4822 117 13606 10k: 5% 0.01W 0402

3902 4822 117 13606 10k: 5% 0.01W 0402

3903 4822 117 13545 100: 1% 0402

3904 4822 117 13545 100: 1% 0402

3A02 4822 117 13548 1k: 5% 0402

3B01 4822 117 12706 10k: 1% 0.063W 0603

3B02 4822 117 12706 10k: 1% 0.063W 0603

3B03 2322 704 61501 150: 1% 0603

3C00 4822 117 13606 10k: 5% 0.01W 0402

3C01 4822 117 13606 10k: 5% 0.01W 0402

3C02 4822 117 13548 1k: 5% 0402

3C04 3198 031 11030 4 x 10k: 5% 1206

3C05 4822 117 13606 10k: 5% 0.01W 0402

3C06 3198 031 11030 4 x 10k: 5% 1206

3C07 3198 031 11030 4 x 10k: 5% 1206

3C08 3198 031 11030 4 x 10k: 5% 1206

3C09 3198 031 11030 4 x 10k: 5% 1206

3C10 3198 031 11030 4 x 10k: 5% 1206

3C16 3198 031 11030 4 x 10k: 5% 1206

3C17 4822 117 13606 10k: 5% 0.01W 0402

3C18 4822 117 13606 10k: 5% 0.01W 0402

3E00 2322 705 70569 56: 5% 0402

3E01 2322 705 70569 56: 5% 0402

3E02 2322 705 70569 56: 5% 0402

3E06 3198 031 04730 47: 5% 0402

3E07 3198 031 04730 47: 5% 0402

3E08 3198 031 04730 47: 5% 0402

3E09 3198 031 04730 47: 5% 0402

3E10 3198 031 04730 47: 5% 0402

3E11 3198 031 04730 47: 5% 0402

3E12 4822 117 13606 10k: 5% 0.01W 0402

3E13 4822 117 13597 330: 5% 0402 0.01W

3E14 4822 117 13597 330: 5% 0402 0.01W

3E15 4822 117 13597 330: 5% 0402 0.01W

3E16 4822 117 13597 330: 5% 0402 0.01W

3E17 4822 117 13597 330: 5% 0402 0.01W

3E18 4822 117 13597 330: 5% 0402 0.01W

3E19 2322 705 70569 56: 5% 0402

3E20 2322 705 70569 56: 5% 0402

3E21 2322 705 70569 56: 5% 0402

3E22 4822 117 13632 100k: 1% 0603 0.62W

3E23 3198 031 08210 820: 5% 0.5W

3E24 4822 117 13543 470: 5% 0402

3E25 2322 705 70399 39: 5% 0402

3E26 3198 031 02290 22: 5% 0.1W 0402

3E27 2322 705 70399 39: 5% 0402

3E28 3198 031 02290 22: 5% 0.1W 0402

3E29 2322 705 70399 39: 5% 0402

3E30 3198 031 02290 22: 5% 0.1W 0402

3E31 4822 117 13545 100: 1% 0402

3E32 4822 117 13545 100: 1% 0402

3E33 4822 117 13545 100: 1% 0402

3E34 4822 117 13545 100: 1% 0402

3E35 4822 117 13545 100: 1% 0402

3E36 4822 117 13545 100: 1% 0402

3E37 3198 031 02290 22: 5% 0.1W 0402

3E38 4822 117 13545 100: 1% 0402

3E39 4822 117 13545 100: 1% 0402

3E41 4822 117 13545 100: 1% 0402

3E42 4822 117 13545 100: 1% 0402

3E43 4822 117 13545 100: 1% 0402

3E44 4822 117 13545 100: 1% 0402

3E45 4822 117 13545 100: 1% 0402

3E49 3198 031 02290 22: 5% 0.1W 0402

3E50 3198 031 04730 47: 5% 0402

3E51 3198 031 04730 47: 5% 0402

3E52 3198 031 04730 47: 5% 0402

3E53 3198 031 04730 47: 5% 0402

3E54 3198 031 04730 47: 5% 0402

3E55 3198 031 04730 47: 5% 0402

3F00 4822 051 30759 75: 5% 0.062W

3F09 4822 051 30759 75: 5% 0.062W

3F10 3198 021 31080 1: 5% 0603

3F11 4822 051 30759 75: 5% 0.062W

3F16 4822 051 30103 10k: 5% 0.062W

3F17 4822 051 30103 10k: 5% 0.062W

3F18 4822 051 30103 10k: 5% 0.062W

3F19 3198 021 31080 1: 5% 0603

3F20 4822 051 30101 100: 5% 0.062W

3F21 4822 051 30102 1k: 5% 0.062W

3F22 4822 051 30103 10k: 5% 0.062W

3F23 4822 051 30102 1k: 5% 0.062W

3F24 4822 051 30103 10k: 5% 0.062W

3F25 4822 051 30103 10k: 5% 0.062W

3F26 4822 051 30153 15k: 5% 0.062W

3F27 4822 051 30153 15k: 5% 0.062W

3F28 4822 051 30101 100: 5% 0.062W

3F29 4822 051 30101 100: 5% 0.062W

3G00 4822 051 30151 150: 5% 0.062W

3G01 4822 051 30103 10k: 5% 0.062W

3G02 4822 117 12891 220k: 1%

3G03 4822 051 30153 15k: 5% 0.062W

3G04 4822 051 30151 150: 5% 0.062W

3G05 4822 051 30103 10k: 5% 0.062W

3G06 4822 117 12891 220k: 1%

3G07 4822 051 30153 15k: 5% 0.062W

3G08 4822 051 30151 150: 5% 0.062W

3G12 2122 118 06408 91: 5% 0603

3G13 2122 118 06408 91: 5% 0603

3G14 2122 118 06408 91: 5% 0603

3G15 4822 051 30101 100: 5% 0.062W

3G16 4822 051 30101 100: 5% 0.062W

3G17 4822 051 30101 100: 5% 0.062W

3G26 4822 051 30273 27k: 5% 0.062W

3G27 4822 051 30682 6.8: 5% 0.062W

3G28 4822 051 30759 75: 5% 0.062W

3G29 4822 051 30331 330: 5% 0.062W

3G30 4822 051 30689 68: 5% 0.063W 0603

3G31 4822 051 30759 75: 5% 0.062W

3G32 4822 051 30102 1k: 5% 0.062W

3G33 4822 051 30101 100: 5% 0.062W

3G34 4822 051 30102 1k: 5% 0.062W

3G37 4822 051 30151 150: 5% 0.062W

3G38 4822 051 30103 10k: 5% 0.062W

3G39 4822 117 12891 220k: 1%

3G40 4822 051 30153 15k: 5% 0.062W

3G41 4822 051 30151 150: 5% 0.062W

3G42 4822 051 30103 10k: 5% 0.062W

3G43 4822 117 12891 220k: 1%

3G44 4822 051 30153 15k: 5% 0.062W

3G45 4822 051 30759 75: 5% 0.062W

3G46 4822 051 30101 100: 5% 0.062W

3G47 4822 117 12925 47k: 1% 0.063W 0603

3G48 4822 117 12925 47k: 1% 0.063W 0603

3G51 4822 051 30273 27k: 5% 0.062W

3G52 4822 051 30682 6.8: 5% 0.062W

3G53 4822 051 30689 68: 5% 0.063W 0603

3G54 4822 051 30102 1k: 5% 0.062W

3G57 4822 051 30759 75: 5% 0.062W

3G58 4822 051 30101 100: 5% 0.062W

3G59 4822 117 12925 47k: 1% 0.063W 0603

3G60 4822 117 12925 47k: 1% 0.063W 0603

3G96 4822 117 12925 47k: 1% 0.063W 0603

3G99 4822 117 12925 47k: 1% 0.063W 0603

3J03 3198 031 06890 68: 5% 0402

3J04 3198 031 06890 68: 5% 0402

3J05 3198 031 06890 68: 5% 0402

3K00 4822 117 13545 100: 1% 0402

3K01 4822 117 13545 100: 1% 0402

3K02 4822 117 13606 10k: 5% 0.01W 0402

3K03 3198 031 01530 15k: 5% 0.01W 0402

3K05 4822 117 13606 10k: 5% 0.01W 0402

3K06 3198 031 01530 15k: 5% 0.01W 0402

3K07 2322 705 70399 39: 5% 0402

3K08 3198 031 06890 68: 5% 0402

3K09 2322 705 70399 39: 5% 0402

3K11 3198 031 06890 68: 5% 0402

3K12 3198 031 06890 68: 5% 0402

3K13 3198 031 06890 68: 5% 0402

3L00 4822 117 13548 1k: 5% 0402

3L04 4822 117 13605 Jumper 0402

3L05 3198 031 01510 150: 5% 0.01W 0402

3L06 4822 117 13605 Jumper 0402

Spare Parts List

EN 92 LC4.3E AA10.

3L10 4822 117 13597 330: 5% 0402 0.01W

3L11 3198 031 01510 150: 5% 0.01W 0402

3L12 4822 117 13548 1k: 5% 0402

3L16 4822 117 13605 Jumper 0402

3L17 3198 031 01510 150: 5% 0.01W 0402

3L19 3198 031 01510 150: 5% 0.01W 0402

3L20 3198 031 01510 150: 5% 0.01W 0402

3L21 4822 117 13602 2.2k: 5% 0.01W 0402

3L22 4822 117 13602 2.2k: 5% 0.01W 0402

3L24 4822 117 13602 2.2k: 5% 0.01W 0402

3L25 2350 035 10229 4 x 22: 5% 1206

3L26 2350 035 10229 4 x 22: 5% 1206

3L27 2350 035 10229 4 x 22: 5% 1206

3L28 2350 035 10229 4 x 22: 5% 1206

3L30 3198 031 02290 22: 5% 0.1W 0402

3L31 3198 031 02290 22: 5% 0.1W 0402

3L32 4822 117 13602 2.2k: 5% 0.01W 0402

3L33 4822 117 13596 220: 5% 0.01W 0402

3L34 4822 117 13605 Jumper 0402

3L35 4822 117 13596 220: 5% 0.01W 0402

3L36 3198 031 03320 3.3k: 5% 0402

3L37 3198 031 03320 3.3k: 5% 0402

3M01 2350 035 10689 4 x 68: 5%

3M02 2350 035 10689 4 x 68: 5%

3M03 2350 035 10689 4 x 68: 5%

3M04 2350 035 10689 4 x 68: 5%

3M06 2350 035 10229 4 x 22: 5% 1206

3M07 2350 035 10229 4 x 22: 5% 1206

3M08 2350 035 10229 4 x 22: 5% 1206

3M09 2350 035 10229 4 x 22: 5% 1206

3M11 3198 031 04720 4.7k: 5% 0402

3M13 3198 031 04720 4.7k: 5% 0402

3M14 4822 117 13545 100: 1% 0402

3M15 4822 117 13545 100: 1% 0402

3M16 3198 031 04720 4.7k: 5% 0402

3M26 4822 117 13605 Jumper 0402

3M27 4822 117 13605 Jumper 0402

3M50 4822 117 13606 10k: 5% 0.01W 0402

3M51 4822 117 13606 10k: 5% 0.01W 0402

3M52 4822 117 13606 10k: 5% 0.01W 0402

3M53 4822 117 13546 47: 5% 0402

3M54 4822 117 13546 47: 5% 0402

3M55 4822 117 13546 47: 5% 0402

3M56 4822 117 13606 10k: 5% 0.01W 0402

3M57 4822 117 13546 47: 5% 0402

3M58 4822 117 13606 10k: 5% 0.01W 0402

3M59 4822 117 13546 47: 5% 0402

3M78 4822 117 13548 1k: 5% 0402

3M79 3198 031 03320 3.3k: 5% 0402

3M87 4822 117 13605 Jumper 0402

3M89 3198 031 02290 22: 5% 0.1W 0402

3M90 3198 031 02290 22: 5% 0.1W 0402

3N01 4822 117 13606 10k: 5% 0.01W 0402

3N02 4822 117 13606 10k: 5% 0.01W 0402

3N03 4822 117 13606 10k: 5% 0.01W 0402

3N04 4822 117 13606 10k: 5% 0.01W 0402

3N05 4822 117 13606 10k: 5% 0.01W 0402

3N06 4822 117 13606 10k: 5% 0.01W 0402

3N07 4822 051 30333 33k: 5% 0.062W

3N08 4822 117 13606 10k: 5% 0.01W 0402

3N09 4822 117 13548 1k: 5% 0402

3N10 4822 117 13603 33k: 5% 0402

3N11 4822 117 13546 47: 5% 0402

3N12 4822 117 13606 10k: 5% 0.01W 0402

3N13 4822 117 13606 10k: 5% 0.01W 0402

3N14 4822 117 13606 10k: 5% 0.01W 0402

3N15 4822 117 13546 47: 5% 0402

3N16 4822 117 13546 47: 5% 0402

3N17 4822 117 13546 47: 5% 0402

3N18 4822 117 13546 47: 5% 0402

3N19 4822 117 13606 10k: 5% 0.01W 0402

3N20 4822 117 13546 47: 5% 0402

3N21 4822 117 13545 100: 1% 0402

3N22 4822 117 13545 100: 1% 0402

3N23 4822 117 13545 100: 1% 0402

3N24 4822 117 13545 100: 1% 0402

3N25 4822 117 13545 100: 1% 0402

3N26 3198 031 04720 4.7k: 5% 0402

3N27 4822 117 13546 47: 5% 0402

3N28 4822 051 30181 180: 5% 0.062W

3N29 4822 117 13545 100: 1% 0402

3N30 4822 117 13545 100: 1% 0402

3N31 4822 117 13545 100: 1% 0402

3N32 4822 117 13545 100: 1% 0402

3N33 4822 117 13545 100: 1% 0402

3N34 4822 117 13545 100: 1% 0402

3N35 4822 117 13545 100: 1% 0402

3N46 4822 117 13545 100: 1% 0402

3N47 4822 117 13545 100: 1% 0402

3P01 3198 031 04720 4.7k: 5% 0402

3P03 4822 117 13546 47: 5% 0402

3S00 4822 117 12925 47k: 1% 0.063W 0603

3S03 4822 117 12925 47k: 1% 0.063W 0603

4206 4822 051 20008 Jumper 0805

4211 4822 117 13605 Jumper 0402

4212 4822 117 13605 Jumper 0402

4436 4822 117 13605 Jumper 0402

4437 4822 117 13605 Jumper 0402

4440 4822 117 13605 Jumper 0402

4441 4822 117 13605 Jumper 0402

4801 4822 117 13605 Jumper 0402

4A05 4822 117 13605 Jumper 0402

4A06 4822 117 13605 Jumper 0402

4K04 4822 117 13605 Jumper 0402

4K05 4822 117 13605 Jumper 0402

4K06 4822 117 13605 Jumper 0402

4L02 4822 117 13605 Jumper 0402

4M00 4822 117 13605 Jumper 0402

4M01 4822 117 13605 Jumper 0402

4M02 4822 117 13605 Jumper 0402

4M03 4822 117 13605 Jumper 0402

4M05 4822 117 13605 Jumper 0402

4M08 4822 117 13605 Jumper 0402

4M09 4822 117 13605 Jumper 0402

4M10 4822 117 13605 Jumper 0402

4M16 4822 117 13605 Jumper 0402

4M17 4822 117 13605 Jumper 0402

4N01 4822 117 13605 Jumper 0402

4N02 4822 117 13605 Jumper 0402

4N03 4822 117 13605 Jumper 0402

4N04 4822 117 13605 Jumper 0402

4N05 4822 117 13605 Jumper 0402

4N06 4822 117 13605 Jumper 0402

4N07 4822 117 13605 Jumper 0402

4N08 4822 117 13605 Jumper 0402

4N09 4822 117 13605 Jumper 0402

4N10 4822 117 13605 Jumper 0402

4N11 4822 117 13605 Jumper 0402

4N12 4822 117 13605 Jumper 0402

4N13 4822 117 13605 Jumper 0402

4N14 4822 117 13605 Jumper 0402

4N15 4822 117 13605 Jumper 0402

4N16 4822 117 13605 Jumper 0402

4N17 4822 117 13605 Jumper 0402

4N18 4822 117 13605 Jumper 0402

4N19 4822 117 13605 Jumper 0402

4N20 4822 117 13605 Jumper 0402

4N21 4822 117 13605 Jumper 0402

4N22 4822 117 13605 Jumper 0402

b

5101 3198 018 33970 0.39PF 10% 0805

5103 4822 157 71334 0.68PH 5% 1008

5107 4822 051 30101 100: 5% 0.062W

5108 4822 051 30101 100: 5% 0.062W

5201 4822 157 11716 Bead 30: at 100MHz

5202 4822 157 11716 Bead 30: at 100MHz

5203 4822 157 11716 Bead 30: at 100MHz

5204 2422 549 42896 Bead 120: 100MHz

5205 4822 157 11716 Bead 30: at 100MHz

5206 4822 157 11716 Bead 30: at 100MHz

5207 2422 549 42896 Bead 120: 100MHz

5208 4822 157 11716 Bead 30: at 100MHz

5209 4822 157 11716 Bead 30: at 100MHz

5210 4822 157 11716 Bead 30: at 100MHz

5211 4822 157 11716 Bead 30: at 100MHz

5212 4822 157 11716 Bead 30: at 100MHz

5213 4822 157 11716 Bead 30: at 100MHz

5214 2422 536 00667 1000PF 20% 7032

5216 4822 157 11716 Bead 30: at 100MHz

5218 2422 549 45333 Bead 120: 100MHz

5700 2422 549 45333 Bead 120: 100MHz

5730 2422 535 94134 10PH 20% 0805

5733 2422 536 00689 220PF 20%

5735 2422 536 00667 1000PF 20% 7032

5737 2422 535 94134 10PH 20% 0805

5738 2422 549 45333 Bead 120: 100MHz

5752 2422 535 94134 10PH 20% 0805

5753 2422 536 00689 220PF 20%

5754 2422 535 94134 10PH 20% 0805

5756 2422 549 45333 Bead 120: 100MHz

5757 2422 549 45333 Bead 120: 100MHz

5900 2422 549 45333 Bead 120: 100MHz

5901 2422 549 45333 Bead 120: 100MHz

5902 2422 549 45333 Bead 120: 100MHz

5903 2422 549 45333 Bead 120: 100MHz

5904 2422 549 45333 Bead 120: 100MHz

5905 2422 549 45333 Bead 120: 100MHz

5906 2422 549 45333 Bead 120: 100MHz

5907 2422 549 45333 Bead 120: 100MHz

5908 2422 549 45333 Bead 120: 100MHz

5909 2422 549 45333 Bead 120: 100MHz

5910 2422 549 45333 Bead 120: 100MHz

5911 2422 549 45333 Bead 120: 100MHz

5C00 2422 549 45333 Bead 120: 100MHz

5E00 2422 549 45333 Bead 120: 100MHz

5E01 2422 549 45333 Bead 120: 100MHz

5E02 2422 549 45333 Bead 120: 100MHz

5E03 2422 549 45333 Bead 120: 100MHz

5F00 2422 549 45333 Bead 120: 100MHz

5F01 2422 549 45333 Bead 120: 100MHz

5F02 2422 549 45333 Bead 120: 100MHz

5F03 2422 549 45333 Bead 120: 100MHz

5G02 2422 549 45333 Bead 120: 100MHz

5J01 2422 549 42896 Bead 120: 100MHz

5J02 2422 549 42896 Bead 120: 100MHz

5J03 2422 549 45333 Bead 120: 100MHz

5L00 2422 549 45333 Bead 120: 100MHz

5L01 2422 549 45333 Bead 120: 100MHz

5L02 2422 549 45333 Bead 120: 100MHz

5M00 2422 549 45333 Bead 120: 100MHz

5M01 2422 549 45333 Bead 120: 100MHz

5M02 2422 549 45333 Bead 120: 100MHz

5M03 2422 549 45333 Bead 120: 100MHz

5M04 2422 549 45333 Bead 120: 100MHz

5M05 2422 549 45333 Bead 120: 100MHz

5N01 4822 157 11716 Bead 30: at 100MHz

5N02 4822 157 11716 Bead 30: at 100MHz

5N03 4822 157 11716 Bead 30: at 100MHz

5N04 4822 157 11716 Bead 30: at 100MHz

5N05 4822 157 11716 Bead 30: at 100MHz

5P01 4822 157 11716 Bead 30: at 100MHz

5P02 4822 157 11716 Bead 30: at 100MHz

5P03 4822 157 11716 Bead 30: at 100MHz

5P04 4822 157 11716 Bead 30: at 100MHz

5P05 4822 157 11716 Bead 30: at 100MHz

5P06 4822 157 11716 Bead 30: at 100MHz

d

6101 4822 130 11416 PDZ6.8B

6102 4822 130 11416 PDZ6.8B

6103 4822 130 11397 BAS316

6104 4822 130 11525 1SS356

6204 4822 130 80622 BAT54

6205 4822 130 80622 BAT54

6430 9340 548 42115 PDZ2.4B

6431 9965 000 20150 1N4148WS SOD-323

6601 4822 130 10838 UDZ3.3B

6733 9322 128 70685 SMSS14

6735 5322 130 34337 BAV99

6736 9340 548 71115 PDZ33B

6751 9322 128 70685 SMSS14

6E01 9322 102 64685 UDZ2.7B

6E03 9322 102 64685 UDZ2.7B

6F00 4822 130 11397 BAS316

6F01 4822 130 11397 BAS316

6G03 4822 130 11416 PDZ6.8B

6G04 4822 130 11416 PDZ6.8B

6G05 4822 130 11416 PDZ6.8B

6G06 4822 130 11416 PDZ6.8B

6G07 4822 130 11416 PDZ6.8B

6G08 4822 130 11416 PDZ6.8B

6G09 4822 130 11416 PDZ6.8B

6G10 4822 130 11416 PDZ6.8B

6N01 9322 085 77685 TLMG3100

ce

7101 3198 010 42310 BC847BW

7201 9340 550 49115 PUMH7

7202 9340 550 49115 PUMH7

7206 4822 130 60373 BC856B

7207 9322 214 45668 M24C16-WMN6P

7208 3198 010 42310 BC847BW

7209 3198 010 42310 BC847BW

7210 3198 010 42310 BC847BW

7214 9339 693 90135 BCP69-25

7215 9339 693 90135 BCP69-25

7216 9340 425 20115 BC847BS

7217 9352 780 22557 TDA15021H/N1B91

7219 4822 209 60792 74HC4053D

7430 4822 130 11155 PDTC114ET

7436 9352 607 39118 74LVC14APW

7601 9322 183 05668 TS482ID

7602 9351 742 70118 74HC08PW

7605 9340 310 50215 PDTA143ET

7606 9340 425 20115 BC847BS

7607 3198 010 42310 BC847BW

7730 9322 191 07668 IC SM L5970D

7735 4822 130 42804 BC817-25

7738 9322 163 24668 L78M08CDT

7752 5322 209 90529 MC34063AD

7754 9322 214 00668 SI2301BDS-E3

7755 4822 130 11155 PDTC114ET

7756 4822 130 11155 PDTC114ET

7758 9322 212 14668 SI4423DY

7801 9322 219 57671 GM1501H-LF-BD

Spare Parts List EN 93LC4.3E AA 10.

7900 9322 142 88668 LF25CDT

7901 9322 189 19668 LD1086D2T18

7B01 9322 214 42671 K4D263238F-QC50

7C00 9322 205 12671 MX29LV040QC-70G

7C01 9322 206 23668 M24C32-WMN6P

7C02 9322 215 39685 PST596JN

7E00 9322 195 23668 ADG733BRU

7E01 9322 199 80668 SM5301BS-G

7E02 9322 199 56668 ADG781BCP

7E03 4822 209 60792 74HC4053D

7E04 9352 607 39118 74LVC14APW

7E05 9352 607 39118 74LVC14APW

7F03 9322 206 24668 M24C02-WMN6P

7G03 3198 010 42310 BC847BW

7G05 3198 010 42310 BC847BW

7G10 4822 209 60792 74HC4053D

7L01 3198 010 42310 BC847BW

7L02 3198 010 42310 BC847BW

7L03 3198 010 42310 BC847BW

7L04 9322 212 77672 MST9883C-LF-110

7L05 4822 209 17398 LD1117DT33

7L06 9965 000 04199 BSN20

7L07 9965 000 04199 BSN20

7M00 9322 204 76671 T6TU5XBG-0001

7M01 9322 206 19672 MSM56V16160F-7T3-FG

7M03 9322 170 14668 LF15ABDT

7N01 9322 210 01668 EPCS4SI8N

7N02 9322 217 35671 EP1C12F256C8N

7N03 9340 425 20115 BC847BS

7N04 9322 210 59668 THC63LVDF84B

7P01 9322 170 14668 LF15ABDT

7P02 9322 201 03668 THC63LVDM83R

Audio Amplifier Panel [C]

Various

1001 2422 025 09406 Connector 4p m

1002 2422 025 10769 Connector 9p m

1003 2422 025 10768 Connector 3p m

g

2001 2020 024 00023 220P 35V

2002 2238 586 59812 100nF 20% 50V 0603

2003 2238 586 59812 100nF 20% 50V 0603

2004 2020 024 00023 220P 35V

2006 2020 552 94427 100pF 5% 50V

2007 2020 552 94427 100pF 5% 50V

2008 2020 552 94427 100pF 5% 50V

2009 2020 552 94427 100pF 5% 50V

2010 2238 586 59812 100nF 20% 50V 0603

2011 4822 051 30562 5.6k: 5% 0.063W 0603

2012 2020 024 00023 220P 35V

2013 4822 126 13879 220nF +80-20% 16V

2014 4822 126 14238 2.2nF 50V 0603

2015 4822 126 14238 2.2nF 50V 0603

2016 4822 126 14238 2.2nF 50V 0603

2017 2238 586 59812 100nF 20% 50V 0603

2018 3198 017 31530 15nF 20% 50V 0603

2019 3198 037 52280 2.2P 50V

2020 4822 126 13883 220pF 5% 50V

2021 4822 126 13883 220pF 5% 50V

2022 4822 126 14076 220nF +80/-20% 25V

2023 4822 121 51252 470nF 5% 63V

2024 2020 012 00036 1000P 25V

2026 4822 126 13879 220nF +80-20% 16V

2027 2238 586 59812 100nF 20% 50V 0603

2028 2238 586 59812 100nF 20% 50V 0603

2029 2020 024 00023 220P 35V

2030 4822 126 14238 2.2nF 50V 0603

2031 4822 126 14238 2.2nF 50V 0603

2032 4822 126 14238 2.2nF 50V 0603

2033 4822 126 13879 220nF +80-20% 16V

2034 2238 586 59812 100nF 20% 50V 0603

2035 4822 126 13883 220pF 5% 50V

2036 4822 126 13883 220pF 5% 50V

2037 3198 037 52280 2.2P 50V

2038 3198 017 31530 15nF 20% 50V 0603

2039 2020 552 96656 10PF 20% 25V 1210

2040 4822 126 13879 220nF +80-20% 16V

2041 2020 552 96656 10PF 20% 25V 1210

2042 4822 121 51252 470nF 5% 63V

2043 2020 012 00036 1000P 25V

2044 2238 586 59812 100nF 20% 50V 0603

2045 4822 126 14076 220nF +80/-20% 25V

2047 3198 017 41050 1PF 10V 0603

2048 2238 586 59812 100nF 20% 50V 0603

2051 2020 552 94427 100pF 5% 50V

2052 4822 126 14238 2.2nF 50V 0603

2053 4822 126 14238 2.2nF 50V 0603

2054 4822 126 14238 2.2nF 50V 0603

2055 4822 126 14238 2.2nF 50V 0603

2060 4822 126 14238 2.2nF 50V 0603

2061 4822 126 14238 2.2nF 50V 0603

2062 3198 017 34730 47nF 16V 0603

2063 3198 017 34730 47nF 16V 0603

2064 5322 126 11579 3.3nF 10% 63V

2065 5322 126 11579 3.3nF 10% 63V

f

3001 5322 117 11726 10: 5%

3003 4822 051 30223 22k: 5% 0.062W

3004 4822 051 30103 10k: 5% 0.062W

3006 4822 051 30102 1k: 5% 0.062W

3007 4822 117 12925 47k: 1% 0.063W 0603

3008 4822 051 30222 2.2k: 5% 0.062W

3009 4822 117 12891 220k: 1%

3010 4822 051 30682 6.8: 5% 0.062W

3011 4822 051 30222 2.2k: 5% 0.062W

3012 4822 051 20109 10: 5% 0.1W

3013 4822 051 30103 10k: 5% 0.062W

3014 2322 762 60229 22: 5% 1005

3019 4822 051 30103 10k: 5% 0.062W

3020 4822 051 30103 10k: 5% 0.062W

3021 4822 051 30472 4.7: 5% 0.062W

3022 9965 000 23109 22: 5% 0603

3023 4822 051 30102 1k: 5% 0.062W

3024 4822 117 12925 47k: 1% 0.063W 0603

3025 4822 051 30222 2.2k: 5% 0.062W

3026 4822 051 30682 6.8: 5% 0.062W

3027 4822 117 12891 220k: 1%

3028 4822 051 30103 10k: 5% 0.062W

3029 4822 051 30222 2.2k: 5% 0.062W

3030 4822 051 20109 10: 5% 0.1W

3031 2322 762 60229 22: 5% 1005

3032 4822 051 30392 3.9: 5% 0.063W 0603

3033 4822 051 30103 10k: 5% 0.062W

3034 4822 051 30392 3.9: 5% 0.063W 0603

3037 4822 051 30392 3.9: 5% 0.063W 0603

3039 4822 051 30103 10k: 5% 0.062W

3040 4822 051 30103 10k: 5% 0.062W

3041 4822 051 30103 10k: 5% 0.062W

3042 4822 051 30103 10k: 5% 0.062W

3043 4822 051 30103 10k: 5% 0.062W

3046 4822 051 30102 1k: 5% 0.062W

3047 4822 051 30102 1k: 5% 0.062W

b

5001 2422 549 44197 Bead 220: at 100MHz

5002 3198 018 52280 2.2PF 10% 1008

5003 3198 018 52280 2.2PF 10% 1008

5004 3198 018 52280 2.2PF 10% 1008

5005 3198 018 52280 2.2PF 10% 1008

5006 2422 536 01034 33P

5007 2422 536 01034 33P

d

6002 4822 130 80622 BAT54

6003 4822 130 80622 BAT54

ce

7000 9352 760 45118 TDA8931T/N1

7001 9352 760 45118 TDA8931T/N1

7004 9322 209 56685 TL431ACDBV

Keyboard Control Panel [E]

Various

0100 3139 129 90041 PROCESS BOX PCB

PNL LFS

0229 3122 120 01701 FACTORY PLATE

1309 4822 276 13775 Switch 1p 0.1A 12V

1310 4822 276 13775 Switch 1p 0.1A 12V

1311 4822 276 13775 Switch 1p 0.1A 12V

1312 4822 276 13775 Switch 1p 0.1A 12V

1313 4822 276 13775 Switch 1p 0.1A 12V

1314 4822 276 13775 Switch 1p 0.1A 12V

1684 4822 267 10459 Connector 3p

8684 3139 131 04421 Cable 03P/340/03P

f

3318 4822 051 30151 150: 5% 0.062W

3319 4822 051 30391 390: 5% 0.062W

3320 3198 021 31820 1.8k: 5% 0.062W 0603

3321 4822 117 12968 820: 5% 0.62W

3322 4822 051 30008 Jumper 0603

3323 4822 051 30008 Jumper 0603

3324 4822 051 30561 560: 5% 0.062W

d

6306 4822 130 11148 UDZ4.7B

Side AV Panel [G]

Various

1301 2422 025 14531 20p f

1301 4822 267 10484 YKF51-5359

1302 2422 025 10738 Connector 6p m

1302 2422 026 05655 Socket CINCH 3P F

RDWDYE

1303 2422 026 05059 Connector Phone

1304 2422 025 10772 Connector 12p m

1306 2422 026 05059 Connector Phone

1307 4822 267 10484 YKF51-5359

1308 2422 026 05513 Soc phone 1p

g

2301 3198 017 41050 1PF 10V 0603

2302 4822 126 11785 47pF 5% 50V 0603

2302 4822 126 14241 330pF 0603 50V

2303 3198 017 41050 1PF 10V 0603

2304 4822 126 11785 47pF 5% 50V 0603

2304 4822 126 14241 330pF 0603 50V

2305 4822 126 14241 330pF 0603 50V

2306 4822 126 14241 330pF 0603 50V

2307 4822 126 14241 330pF 0603 50V

2308 5322 126 11583 10nF 10% 50V 0603

2309 5322 126 11583 10nF 10% 50V 0603

2310h3198 017 41050 1PF 10V 0603

2326 3198 017 41050 1PF 10V 0603

f

3301 4822 051 30101 100: 5% 0.062W

3301 4822 051 30759 75: 5% 0.062W

3302 4822 051 30109 10: 5% 0.062W

3302 4822 051 30759 75: 5% 0.062W

3303 4822 051 30109 10: 5% 0.062W

3303 4822 051 30221 220: 5% 0.062W

3304 4822 051 30223 22k: 5% 0.062W

3304 4822 051 30759 75: 5% 0.062W

3305 4822 117 12925 47k: 1% 0.063W 0603

3305 4822 117 13632 100k: 1% 0603 0.62W

3306 4822 051 30153 15k: 5% 0.062W

3306 4822 051 30759 75: 5% 0.062W

3307 4822 051 30102 1k: 5% 0.062W

3307 4822 051 30223 22k: 5% 0.062W

3308 4822 051 30153 15k: 5% 0.062W

3308 4822 117 12925 47k: 1% 0.063W 0603

3309h4822 051 30759 75: 5% 0.062W

3310h4822 051 30563 56k: 5% 0.062W

3311 4822 051 30103 10k: 5% 0.062W

3325 4822 051 30759 75: 5% 0.062W

3326 4822 051 30102 1k: 5% 0.062W

3327 4822 117 13632 100k: 1% 0603 0.62W

3328 4822 051 30101 100: 5% 0.062W

3329 4822 051 30563 56k: 5% 0.062W

d

6301 9322 129 41685 BZM55-C12

6302 9322 129 41685 BZM55-C12

6303 9322 129 41685 BZM55-C12

6304 9322 129 41685 BZM55-C12

6305 9322 129 41685 BZM55-C12

6306 9322 129 41685 BZM55-C12

6307 9322 129 41685 BZM55-C12

6308 9322 129 41685 BZM55-C12

6310 4822 130 11416 PDZ6.8B

6311 4822 130 11416 PDZ6.8B

ce

7301h4822 130 60373 BC856B

7326 4822 130 60373 BC856B

Spare Parts List

EN 94 LC4.3E AA10.

IR/LED/Light-sensor Panel [J]

Various

0080 3139 120 10171 Light sensor holder

1540 2422 025 10738 Connector 6p m

1870 4822 265 31067 Connector 7p m

g

2540 4822 124 41643 100PF 20% 16V

2541 3198 017 41050 1PF 10V 0603

2801 2020 552 96637 10PF 10% 6.3V 0805

2802 2020 552 96637 10PF 10% 6.3V 0805

2803 3198 017 41050 1PF 10V 0603

f

3540 4822 051 30331 330: 5% 0.062W

3542 4822 051 30221 220: 5% 0.062W

3544 4822 051 30332 3.3: 5% 0.062W

3547 3198 021 32250 2.2M: 5% 0603

3801 4822 051 30332 3.3: 5% 0.062W

3802 4822 051 30331 330: 5% 0.062W

3803 4822 051 30221 220: 5% 0.062W

3809 3198 021 32250 2.2M: 5% 0603

d

6540 9322 192 35676 SPR-325MVW

6541 9322 207 16667 TSOP34836LL1B

6801 9322 192 35676 SPR-325MVW

6803 4822 130 11564 UDZ3.9B

ce

7540 4822 130 60373 BC856B

7541 5322 130 60159 BC846B

7542 5322 130 60159 BC846B

7543 9322 190 43682 BPW34

7801 4822 130 60373 BC856B

7802 9322 207 16667 TSOP34836LL1B

7803 5322 130 60159 BC846B

7804 5322 130 60159 BC846B

7808 9322 190 43682 BPW34

Revision List EN 95LC4.3E AA 11.

11. Revision List

Manual xxxx xxx xxxx.0

• First release.

Manual xxxx xxx xxxx.1

• Corrected several errors in the text, drawings and spare

parts list.

Manual xxxx xxx xxxx.2

• Corrected several errors in the text, drawings and spare

parts list.

www.s-manuals.com
