Philips Chassis LC7.1E LA Service Manual. Www.s Manuals.com. Tv Ch Manual

User Manual: LCD TV Philips LC7.1E LA Chassis - Service manuals and Schematics. Free.

Open the PDF directly: View PDF PDF.
Page Count: 93

Published by WS 0763 BG CD Customer Service Printed in the Netherlands Subject to modification EN 3122 785 16940
©
Copyright 2007 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic,
mechanical, photocopying, or otherwise without the prior permission of Philips.
Colour Television Chassis
LC7.1E
LA
H_16940_000.eps
080307
ME7
ME7
Contents Page Contents Page
1. Technical Specifications, Connections, and Chassis
Overview 2
2. Safety Instructions, Warnings, and Notes 6
3. Directions for Use 8
4. Mechanical Instructions 9
5. Service Modes, Error Codes, and Fault Finding 16
6. Block Diagrams, Test Point Overview, and
Waveforms
Wiring Diagram 32” 27
Wiring Diagram 37”-42” 28
Block Diagram Supply 29
Block Diagram Video 30
Block Diagram Audio 31
Block Diagram Control & Clock Signals 32
Test Point Overview SSB (Bottom Side) 33
I2C IC’s Overview 34
Supply Lines Overview 35
7. Circuit Diagrams and PWB Layouts Diagram PWB
SSB: DC/DC (B02) 36 52-61
SSB: Tuner & Demodulator (B03A) 37 52-61
SSB: Micro Processor (B04A) 43 52-61
SSB: Video Processor (B04B) 44 52-61
SSB: PNX2015: Audio Processor (B04C) 45 52-61
SSB: YPBPR & Rear IO (B06A) 46 52-61
SSB: I/O Scart 1 & 2 (B06B) 47 52-61
SSB: HDMI (B06C) 48 52-61
SSB: Headphone Amp & Muting (B06D) 49 52-61
SSB: Audio (B07) 50 52-61
SSB: SRP List 51 52-61
Side A/V Panel (D) 62 63
Keyboard Control Panel (E) 64 65
Front IR / LED Panel (J) 66 67
8. Alignments 69
9. Circuit Descriptions, Abbreviation List, and IC Data
Sheets 73
Abbreviation List 80
IC Data Sheets 83
10. Spare Parts List 88
11. Revision List 92
Technical Specifications, Connections, and Chassis Overview
EN 2 LC7.1E LA1.
1. Technical Specifications, Connections, and Chassis Overview
Index of this chapter:
1.1 Technical Specifications
1.2 Connection Overview
1.3 Chassis Overview
Notes:
• Figures can deviate due to the different set executions.
• Specifications are indicative (subject to change).
1.1 Technical Specifications
1.1.1 Vision
Display type : LCD
Screen size : 32” (82 cm), 16:9
: 42” (107 cm), 16:9
Resolution (HxV pixels) : 1366 x 768
Min. contrast ratio : 4000:1 (32”)
: 5000:1 (42”)
Min. light output (cd/m2) : 500
Typ. response time (ms) : 8 (32”)
: 5 (42”)
Viewing angle (HxV degrees) : 178x178
Tuning system : PLL
TV Colour systems : PAL B/G, D/K, I
: SECAM B/G, D/K, L/L’
Video playback : NTSC
: PAL
: SECAM
Supported computer formats : WXGA (1366x768)
Supported video formats : 640x480i - 1fH
: 720x576i - 1fH
: 640x480p - 2fH
: 720x576p - 2fH
: 1920x1080i - 2fH
: 1280x720p - 3fH
Presets/channels : 100 presets
Tuner bands : VHF
: UHF
: S-band
: Hyper-band
1.1.2 Sound
Sound systems : NICAM D/K, I, L/L’
: 2CS D/K, B/G
Equalizer : 7-bands
Maximum power (WRMS) : 2 x 10
1.1.3 Miscellaneous
Power supply:
- Mains voltage (VAC) : 220 - 240
- Mains frequency (Hz) : 50 / 60
Ambient conditions:
- Temperature range (°C) : +5 to +40
- Maximum humidity : 90% R.H.
Power consumption (values are indicative)
- Normal operation (W) : ≈ 140 (32”)
:≈ 240 (42”)
- Stand-by (W) : < 1
Dimensions (WxHxD cm) : 80.5x54.6x11.5 (32”)
: 104.5x68.6x11.6 (42”)
Weight (kg) : 15.5 (32”)
: 25 (42”)
Technical Specifications, Connections, and Chassis Overview EN 3LC7.1E LA 1.
1.2 Connection Overview

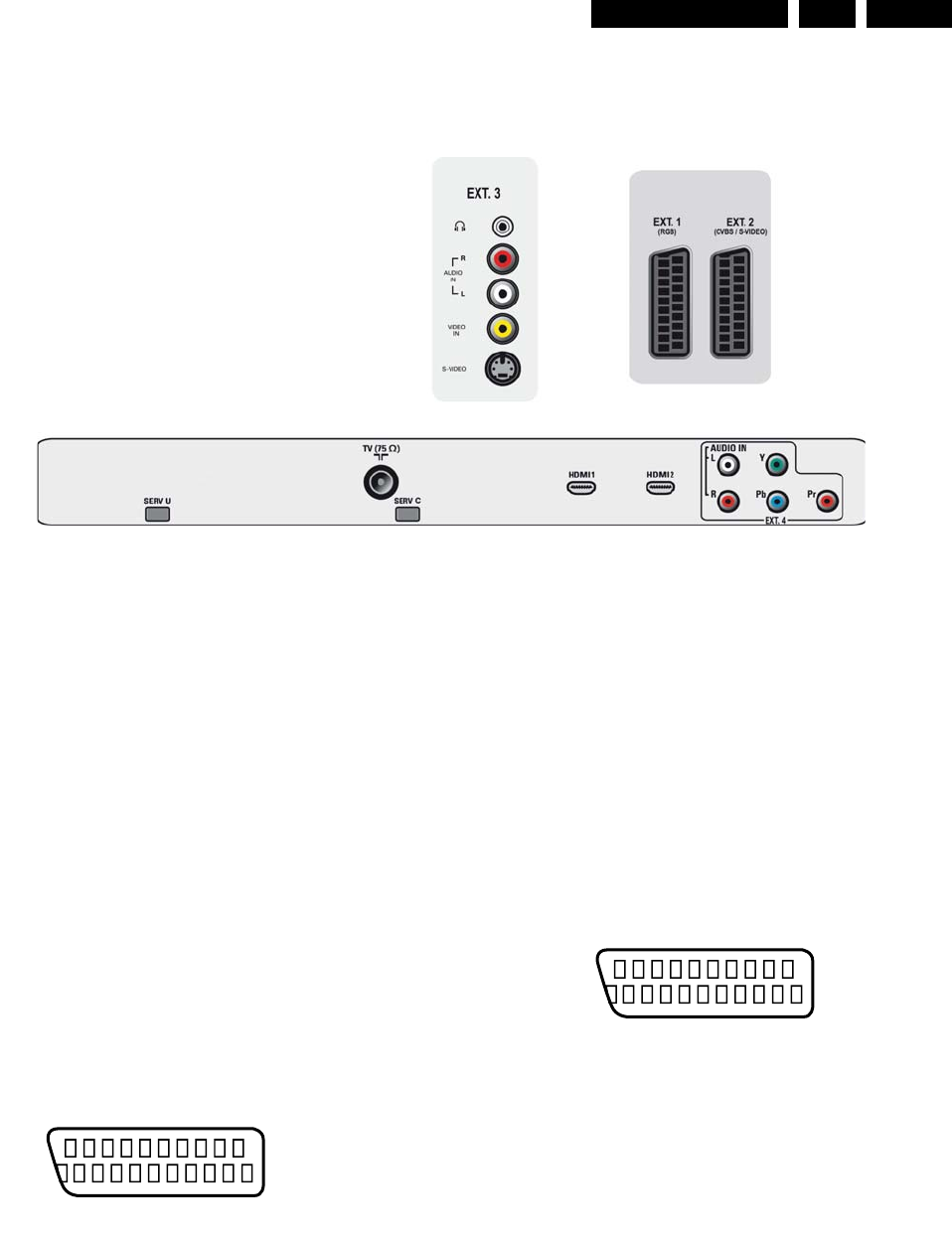

Figure 1-1 Side and rear I/O connections
Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, and Ye= Yellow.
1.2.1 Side Connections
EXT3: Headphone - Out
Bk - Headphone 32 - 600 ohm / 10 mW rt
EXT3: Cinch: Video CVBS - In, Audio - In
Rd - Audio R 0.5 VRMS / 10 kohm jq
Wh - Audio L 0.5 VRMS / 10 kohm jq
Ye - Video CVBS 1 VPP / 75 ohm jq
EXT3: S-Video (Hosiden): Video Y/C - In
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 VPP / 75 ohm j
4 - Video C 0.3 VPPP / 75 ohm j
1.2.2 Rear Connections
EXT1: Video RGB - In, CVBS - In/Out, Audio - In/Out
Figure 1-2 SCART connector
1 - Audio R 0.5 VRMS / 1 kohm k
2 - Audio R 0.5 VRMS / 10 kohm j
3 - Audio L 0.5 VRMS / 1 kohm k
4 - Ground Audio Gnd H
5 - Ground Blue Gnd H
6 - Audio L 0.5 VRMS / 10 kohm j
7 - Video Blue 0.7 VPP / 75 ohm j
8 - Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j
9 - Ground Green Gnd H
10 - Easylink P50 0 - 5 V / 4.7 kohm jk
11 - Video Green 0.7 VPP / 75 ohm j
12 - n.c.
13 - Ground Red Gnd H
14 - Ground P50 Gnd H
15 - Video Red 0.7 VPP / 75 ohm j
16 - Status/FBL 0 - 0.4 V: INT
1 - 3 V: EXT / 75 ohm j
17 - Ground Video Gnd H
18 - Ground FBL Gnd H
19 - Video CVBS 1 VPP / 75 ohm k
20 - Video CVBS 1 VPP / 75 ohm j
21 - Shield Gnd H
EXT2: Video YC - In, CVBS - In/Out, Audio - In/Out
Figure 1-3 SCART connector
1 - Audio R 0.5 VRMS / 1 kohm k
2 - Audio R 0.5 VRMS / 10 kohm j
3 - Audio L 0.5 VRMS / 1 kohm k
4 - Ground Audio Gnd H
5-n.c.
6 - Audio L 0.5 VRMS / 10 kohm j
7 - C-out 0.7 VPP / 75 ohm k
8 - Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j
9-n.c.
10 - Easylink P50 0 - 5 V / 4.7 kohm jk
11 - n.c.
12 - n.c.
13 - n.c.
14 - Ground P50 Gnd H
15 - C 0.7 VPP / 75 ohm j
16 - Status/FBL 0 - 0.4 V: INT
1 - 3 V: EXT / 75 ohm j
17 - Ground Video Gnd H
H_16940_005.eps
270207
21
20
1
2
E_06532_001.eps
050404
21
20
1
2
E_06532_001.eps
050404
Technical Specifications, Connections, and Chassis Overview
EN 4 LC7.1E LA1.
18 - Ground FBL Gnd H
19 - Video CVBS 1 VPP / 75 ohm k
20 - Video CVBS/Y 1 VPP / 75 ohm j
21 - Shield Gnd H
Service Connector (UART)
1 - UART_TX Transmit k
2 - Ground Gnd H
3 - UART_RX Receive j
Aerial - In
- - IEC-type (EU) Coax, 75 ohm D
Service Connector (ComPair)
1 - SDA-S I2C Data (0 - 5 V) jk
2-SCL-S I
2C Clock (0 - 5 V) j
3 - Ground Gnd H
HDMI 1 & 2: Digital Video, Digital Audio - In
Figure 1-4 HDMI (type A) connector
1 - D2+ Data channel j
2 - Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5 - Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8 - Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - n.c.
14 - n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
EXT4: Cinch: Video YPbPr - In, Audio - In
Gn - Video Y 1 VPP / 75 ohm jq
Bu - Video Pb 0.7 VPP / 75 ohm jq
Rd - Video Pr 0.7 VPP / 75 ohm jq
Wh - Audio L 0.5 VRMS / 10 kohm jq
Rd - Audio R 0.5 VRMS / 10 kohm jq

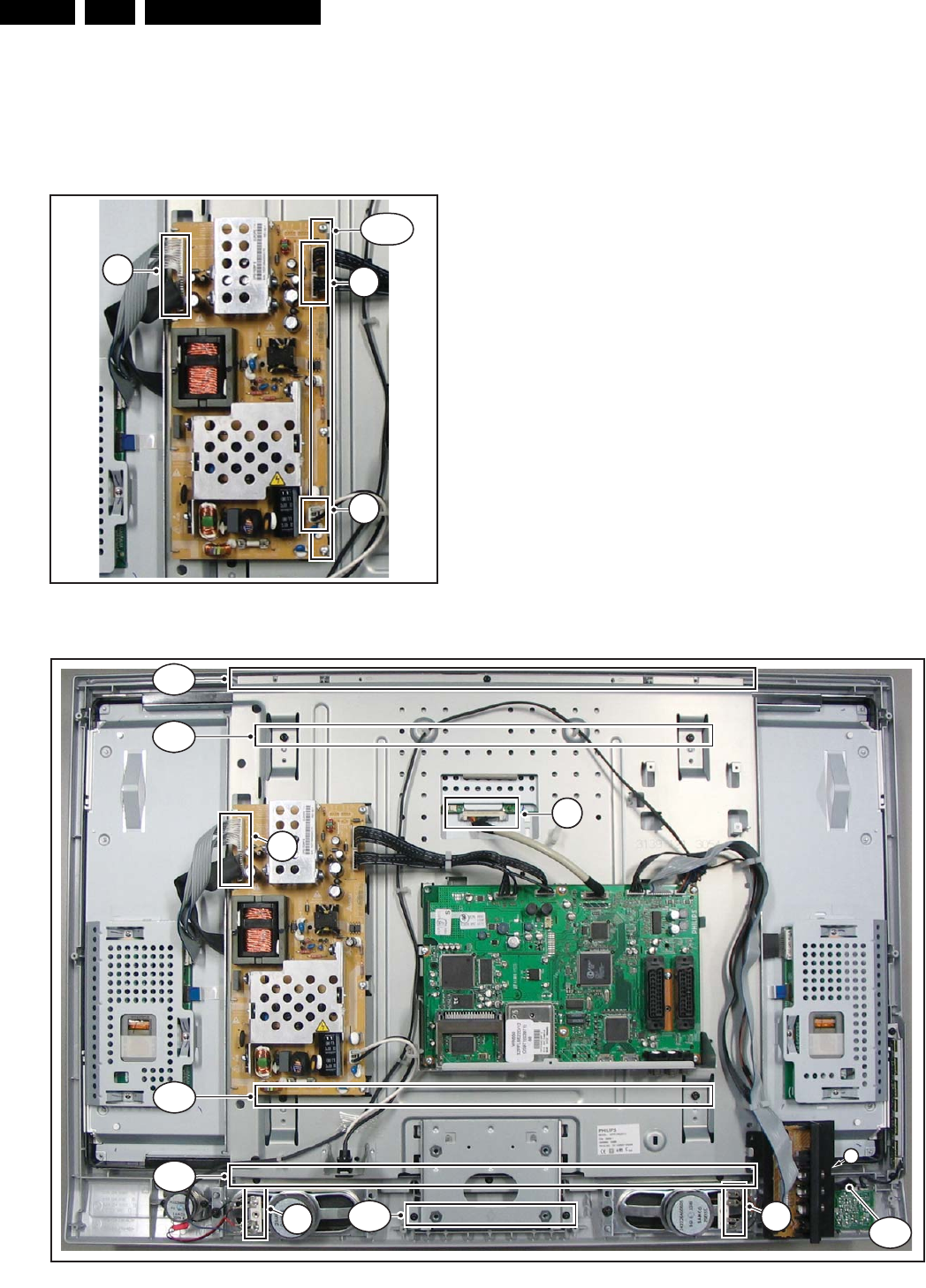

1.3 Chassis Overview

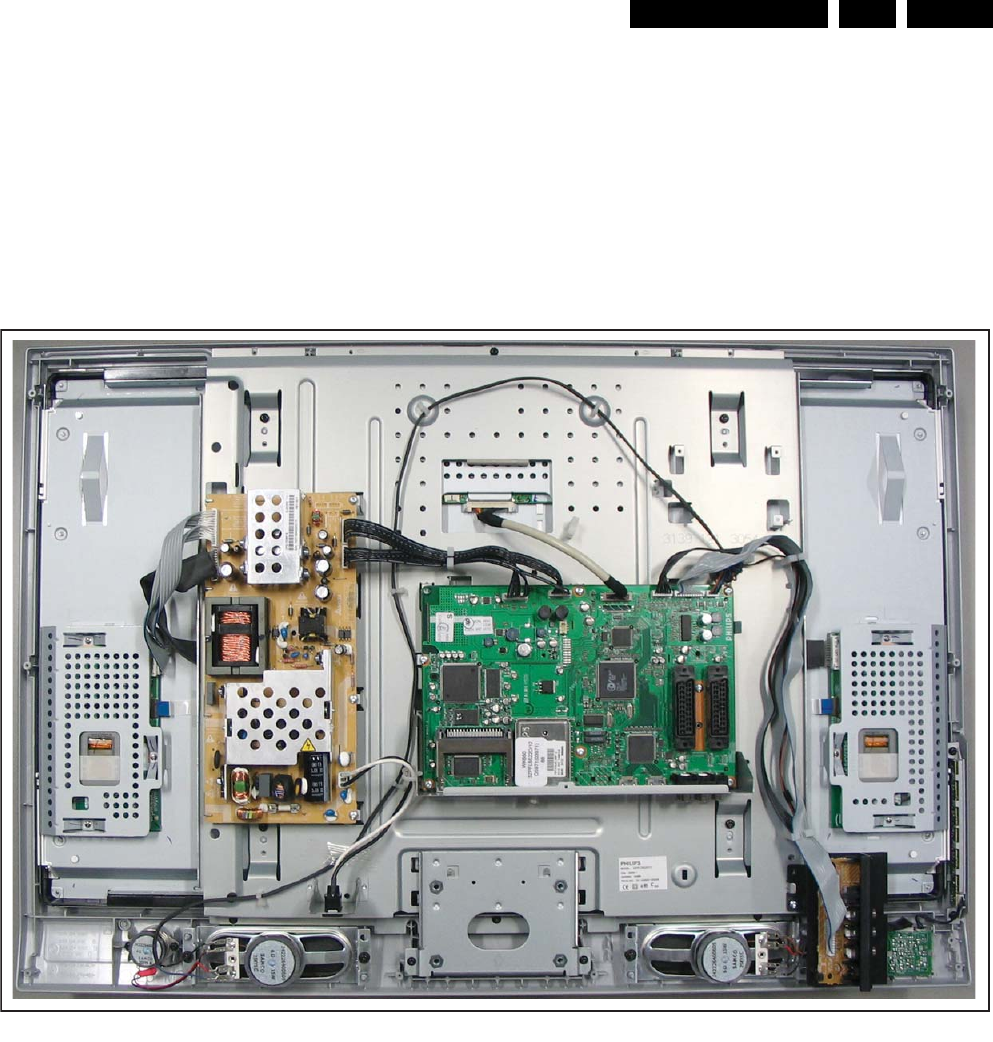

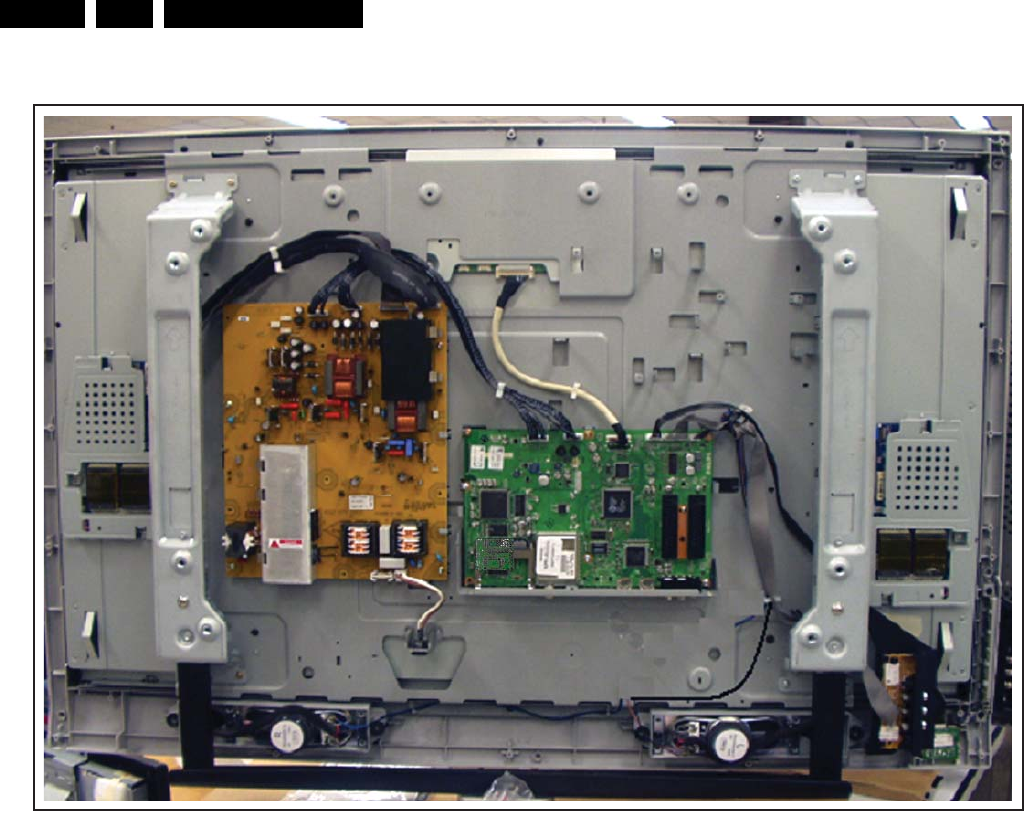

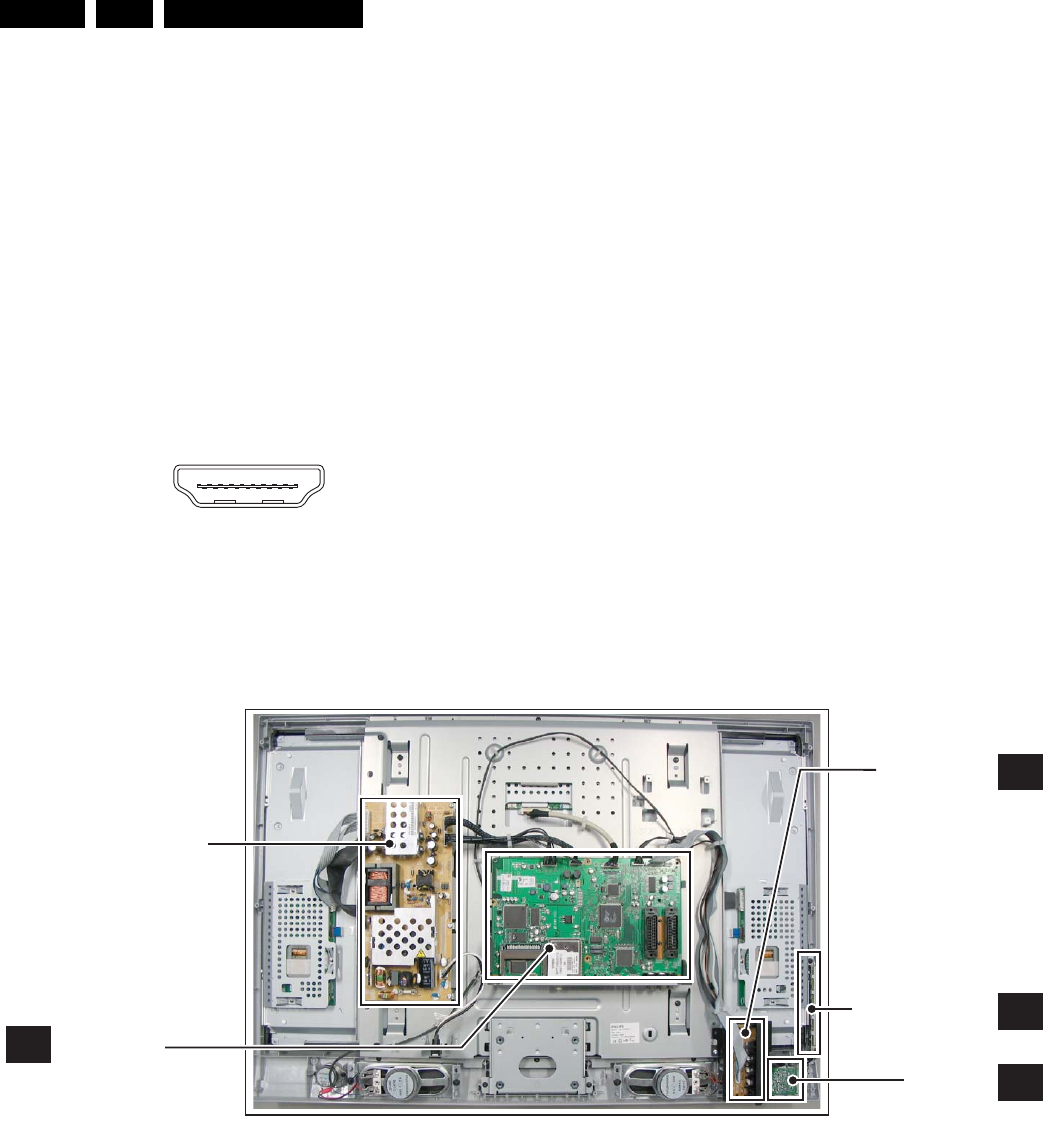

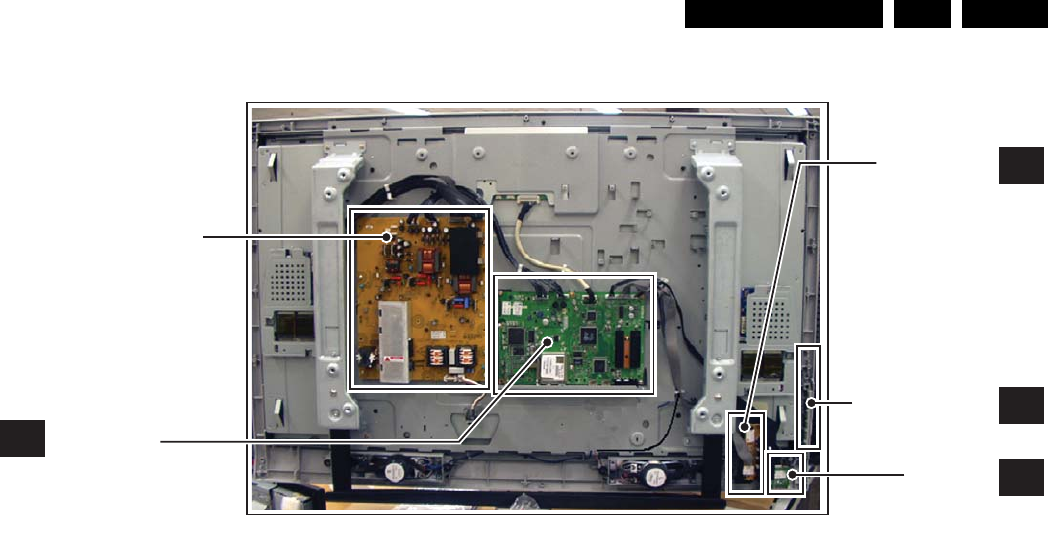

Figure 1-5 PWB/CBA locations (32” models)
19 1
18 2
E_06532_017.eps
250505
G_16860_047.eps
310107
B
POWER SUPPLY UNIT
D
SIDE I/O PANEL
SMALL SIGNAL
BOARD
J
LED PANEL
E
CONTROL BOARD
Technical Specifications, Connections, and Chassis Overview EN 5LC7.1E LA 1.

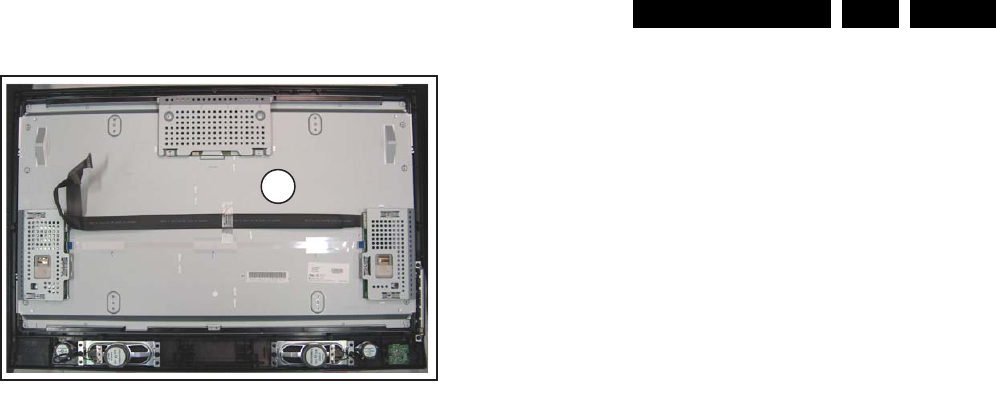

Figure 1-6 PWB/CBA locations (42” models)
H_16940_008.eps
050307
B
POWER SUPPLY UNIT
D
SIDE I/O PANEL
SMALL SIGNAL
BOARD
J
LED PANEL
E
CONTROL PANEL
Safety Instructions, Warnings, and Notes
EN 6 LC7.1E LA2.
2. Safety Instructions, Warnings, and Notes
Index of this chapter:
2.1 Safety Instructions
2.2 Warnings
2.3 Notes
2.1 Safety Instructions
Safety regulations require the following during a repair:
• Connect the set to the Mains/AC Power via an isolation
transformer (> 800 VA).
• Replace safety components, indicated by the symbol h,
only by components identical to the original ones. Any
other component substitution (other than original type) may
increase risk of fire or electrical shock hazard.
Safety regulations require that after a repair, the set must be
returned in its original condition. Pay in particular attention to
the following points:
• Route the wire trees correctly and fix them with the
mounted cable clamps.
• Check the insulation of the Mains/AC Power lead for
external damage.
• Check the strain relief of the Mains/AC Power cord for
proper function.
• Check the electrical DC resistance between the Mains/AC
Power plug and the secondary side (only for sets that have
a Mains/AC Power isolated power supply):
1. Unplug the Mains/AC Power cord and connect a wire
between the two pins of the Mains/AC Power plug.
2. Set the Mains/AC Power switch to the "on" position
(keep the Mains/AC Power cord unplugged!).
3. Measure the resistance value between the pins of the
Mains/AC Power plug and the metal shielding of the
tuner or the aerial connection on the set. The reading
should be between 4.5 Mohm and 12 Mohm.
4. Switch "off" the set, and remove the wire between the
two pins of the Mains/AC Power plug.
• Check the cabinet for defects, to prevent touching of any
inner parts by the customer.
2.2 Warnings
• All ICs and many other semiconductors are susceptible to
electrostatic discharges (ESD w). Careless handling
during repair can reduce life drastically. Make sure that,
during repair, you are connected with the same potential as
the mass of the set by a wristband with resistance. Keep
components and tools also at this same potential. Available
ESD protection equipment:
– Complete kit ESD3 (small tablemat, wristband,
connection box, extension cable and earth cable) 4822
310 10671.
– Wristband tester 4822 344 13999.
• Be careful during measurements in the high voltage
section.
• Never replace modules or other components while the unit
is switched "on".
• When you align the set, use plastic rather than metal tools.
This will prevent any short circuits and the danger of a
circuit becoming unstable.
2.3 Notes
2.3.1 General
• Measure the voltages and waveforms with regard to the
chassis (= tuner) ground (H), or hot ground (I), depending
on the tested area of circuitry. The voltages and waveforms
shown in the diagrams are indicative. Measure them in the
Service Default Mode (see chapter 5) with a colour bar
signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated
otherwise) and picture carrier at 475.25 MHz for PAL, or
61.25 MHz for NTSC (channel 3).
• Where necessary, measure the waveforms and voltages
with (D) and without (E) aerial signal. Measure the
voltages in the power supply section both in normal
operation (G) and in stand-by (F). These values are
indicated by means of the appropriate symbols.
• Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic” and the “double-D symbol”, are
trademarks of Dolby Laboratories.
2.3.2 Schematic Notes
• All resistor values are in ohms, and the value multiplier is
often used to indicate the decimal point location (e.g. 2K2
indicates 2.2 kohm).
• Resistor values with no multiplier may be indicated with
either an "E" or an "R" (e.g. 220E or 220R indicates 220
ohm).
• All capacitor values are given in micro-farads (μ= x10-6),
nano-farads (n= x10-9), or pico-farads (p= x10-12).
• Capacitor values may also use the value multiplier as the
decimal point indication (e.g. 2p2 indicates 2.2 pF).
• An "asterisk" (*) indicates component usage varies. Refer
to the diversity tables for the correct values.
• The correct component values are listed in the Spare Parts
List. Therefore, always check this list when there is any
doubt.
2.3.3 BGA (Ball Grid Array) ICs
Introduction
For more information on how to handle BGA devices, visit this
URL: www.atyourservice.ce.philips.com (needs subscription,
not available for all regions). After login, select “Magazine”,
then go to “Repair downloads”. Here you will find Information
on how to deal with BGA-ICs.
BGA Temperature Profiles
For BGA-ICs, you must use the correct temperature-profile,
which is coupled to the 12NC. For an overview of these profiles,
visit the website www.atyourservice.ce.philips.com (needs
subscription, but is not available for all regions)
You will find this and more technical information within the
"Magazine", chapter "Repair downloads".
For additional questions please contact your local repair help
desk.
2.3.4 Lead-free Soldering
Due to lead-free technology some rules have to be respected
by the workshop during a repair:
• Use only lead-free soldering tin Philips SAC305 with order
code 0622 149 00106. If lead-free solder paste is required,
please contact the manufacturer of your soldering
equipment. In general, use of solder paste within
workshops should be avoided because paste is not easy to
store and to handle.
• Use only adequate solder tools applicable for lead-free
soldering tin. The solder tool must be able:
– To reach a solder-tip temperature of at least 400°C.
– To stabilize the adjusted temperature at the solder-tip.
– To exchange solder-tips for different applications.
• Adjust your solder tool so that a temperature of around
360°C - 380°C is reached and stabilized at the solder joint.
Heating time of the solder-joint should not exceed ~ 4 sec.
Avoid temperatures above 400°C, otherwise wear-out of
tips will increase drastically and flux-fluid will be destroyed.
Safety Instructions, Warnings, and Notes EN 7LC7.1E LA 2.
To avoid wear-out of tips, switch “off” unused equipment or
reduce heat.
• Mix of lead-free soldering tin/parts with leaded soldering
tin/parts is possible but PHILIPS recommends strongly to
avoid mixed regimes. If this cannot be avoided, carefully
clear the solder-joint from old tin and re-solder with new tin.
2.3.5 Alternative BOM identification
The third digit in the serial number (example:
AG2B0335000001) indicates the number of the alternative
B.O.M. (Bill Of Materials) that has been used for producing the
specific TV set. In general, it is possible that the same TV
model on the market is produced with e.g. two different types
of displays, coming from two different suppliers. This will then
result in sets which have the same CTN (Commercial Type
Number; e.g. 28PW9515/12) but which have a different B.O.M.
number.
By looking at the third digit of the serial number, one can
identify which B.O.M. is used for the TV set he is working with.
If the third digit of the serial number contains the number “1”
(example: AG1B033500001), then the TV set has been
manufactured according to B.O.M. number 1. If the third digit is
a “2” (example: AG2B0335000001), then the set has been
produced according to B.O.M. no. 2. This is important for
ordering the correct spare parts!
For the third digit, the numbers 1...9 and the characters A...Z
can be used, so in total: 9 plus 26= 35 different B.O.M.s can be
indicated by the third digit of the serial number.
Identification: The bottom line of a type plate gives a 14-digit
serial number. Digits 1 and 2 refer to the production center (e.g.
AG is Bruges), digit 3 refers to the B.O.M. code, digit 4 refers
to the Service version change code, digits 5 and 6 refer to the
production year, and digits 7 and 8 refer to production week (in
example below it is 2006 week 17). The 6 last digits contain the
serial number.
Figure 2-1 Serial number (example)
2.3.6 Board Level Repair (BLR) or Component Level Repair
(CLR)
If a board is defective, consult your repair procedure to decide
if the board has to be exchanged or if it should be repaired on
component level.
If your repair procedure says the board should be exchanged
completely, do not solder on the defective board. Otherwise, it
cannot be returned to the O.E.M. supplier for back charging!
2.3.7 Practical Service Precautions
•It makes sense to avoid exposure to electrical shock.
While some sources are expected to have a possible
dangerous impact, others of quite high potential are of
limited current and are sometimes held in less regard.
•Always respect voltages. While some may not be
dangerous in themselves, they can cause unexpected
reactions that are best avoided. Before reaching into a
powered TV set, it is best to test the high voltage insulation.
It is easy to do, and is a good service precaution.
E_06532_024.eps
130606
MODEL :
PROD.NO:
~
S
32PF9968/10
MADE IN BELGIUM
220-240V 50/60Hz
128W
AG 1A0617 000001
VHF+S+H+UHF
BJ3.0E LA
Directions for Use
EN 8 LC7.1E LA3.
3. Directions for Use
You can download this information from the following websites:
http://www.philips.com/support
http://www.p4c.philips.com
Mechanical Instructions EN 9LC7.1E LA 4.
4. Mechanical Instructions
Index of this chapter:
4.1 Cable Dressing
4.2 Service Positions
4.3 Assy/Panel Removal
4.4 Set Re-assembly
Notes:
• Figures below can deviate slightly from the actual situation,
due to the different set executions.
• Follow the disassemble instructions in described order.
They apply to the 32” sets.
4.1 Cable Dressing
Figure 4-1 Cable dressing (32” models)
G_16860_064.eps
310107
Mechanical Instructions
EN 10 LC7.1E LA4.
Figure 4-2 Cable dressing (42” models)
H_16940_009.eps
050307
Mechanical Instructions EN 11LC7.1E LA 4.
4.2 Service Positions
For easy servicing of this set, there are a few possibilities
created:
• The buffers from the packaging.
• Foam bars (created for Service).
• Aluminium service stands (created for Service).
Note: the aluminium service stands can only be used when the
set is equipped with so-called “mushrooms”. Otherwise use the
original stand that comes with the set.
4.2.1 Foam Bars

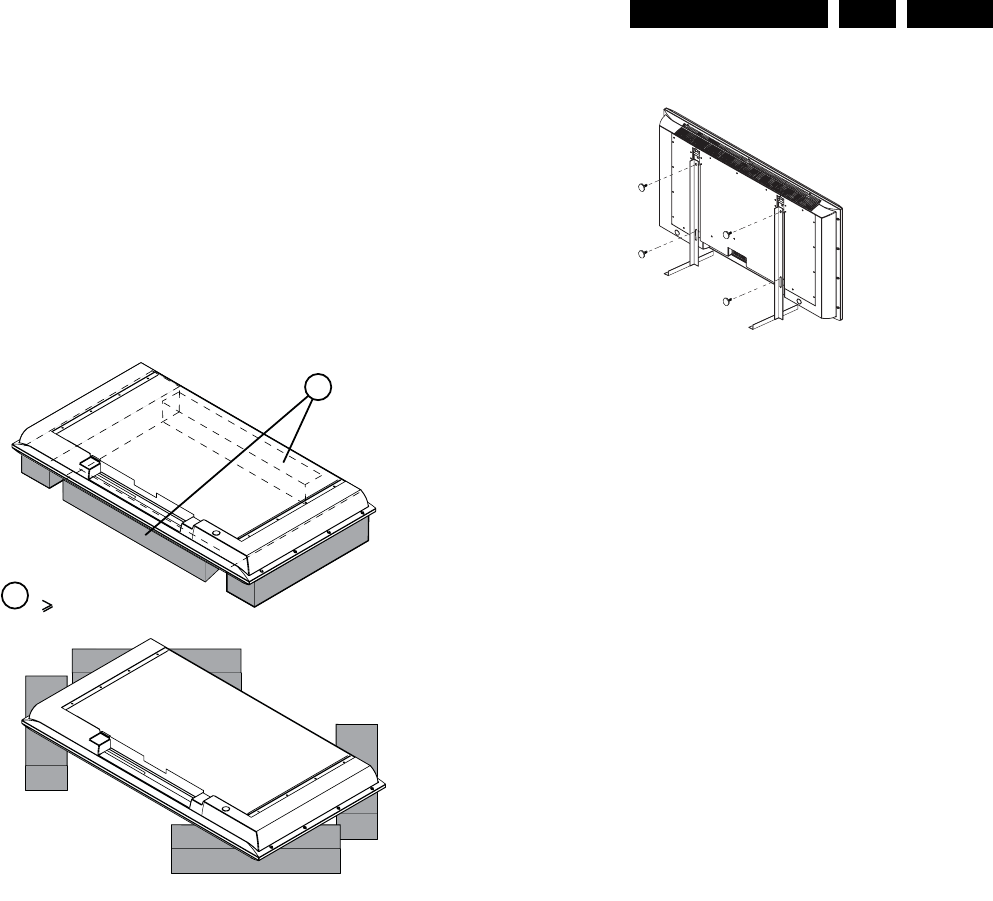

Figure 4-3 Foam bars
The foam bars (order code 3122 785 90580 for two pieces) can
be used for all types and sizes of Flat TVs. See figure “Foam
bars” for details. Sets with a display of 42” and larger, require
four foam bars [1]. Ensure that the foam bars are always
supporting the cabinet and never only the display. Caution:
Failure to follow these guidelines can seriously damage the
display!
By laying the TV face down on the (ESD protective) foam bars,
a stable situation is created to perform measurements and
alignments. By placing a mirror under the TV, you can monitor
the screen.
4.2.2 Aluminium Stands
Figure 4-4 Aluminium stands (drawing of MkI)
The new MkII aluminium stands (not on drawing) with order
code 3122 785 90690, can also be used to do measurements,
alignments, and duration tests. The stands can be
(dis)mounted quick and easy by means of sliding them in/out
the "mushrooms". The new stands are backwards compatible
with the earlier models.
Important: For (older) FTV sets without these "mushrooms", it
is obligatory to use the provided screws, otherwise it is possible
to damage the monitor inside!
4.3 Assy/Panel Removal
4.3.1 Rear Cover
Warning: Disconnect the mains power cord before you remove
the rear cover.
1. Place the TV set upside down on a table top, using the
foam bars (see part "Service Position").
2. Remove rear cover screws and the stand (if mounted).
3. Remove rear cover.

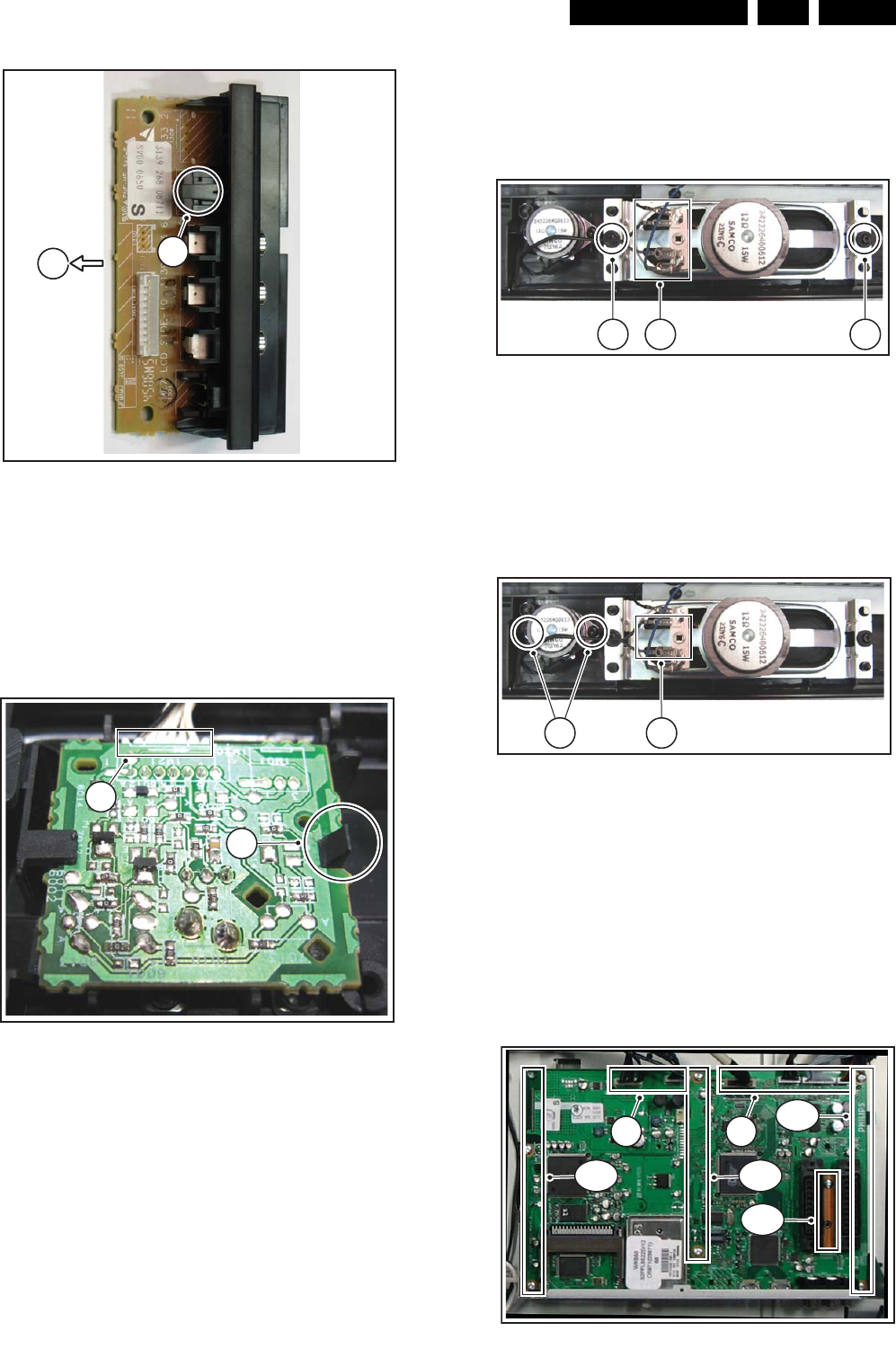

4.3.2 Keyboard Control Panel
1. Remove the rear cover, as described earlier.
2. Refer to fig. “Keyboard control panel“ below.
3. Remove the T10 parker screws [1].
4. Unplug connector [2].
5. Remove the unit.
6. Release clips [3] and remove the board.
When defective, replace the whole unit.
E_06532_018.eps
171106
1
Required for sets
42”
1
E_06532_019.eps
170504
Mechanical Instructions
EN 12 LC7.1E LA4.
Figure 4-5 Keyboard control panel
4.3.3 Side I/O Panel
1. Remove the rear cover, as described earlier.
2. Unplug connector [a].

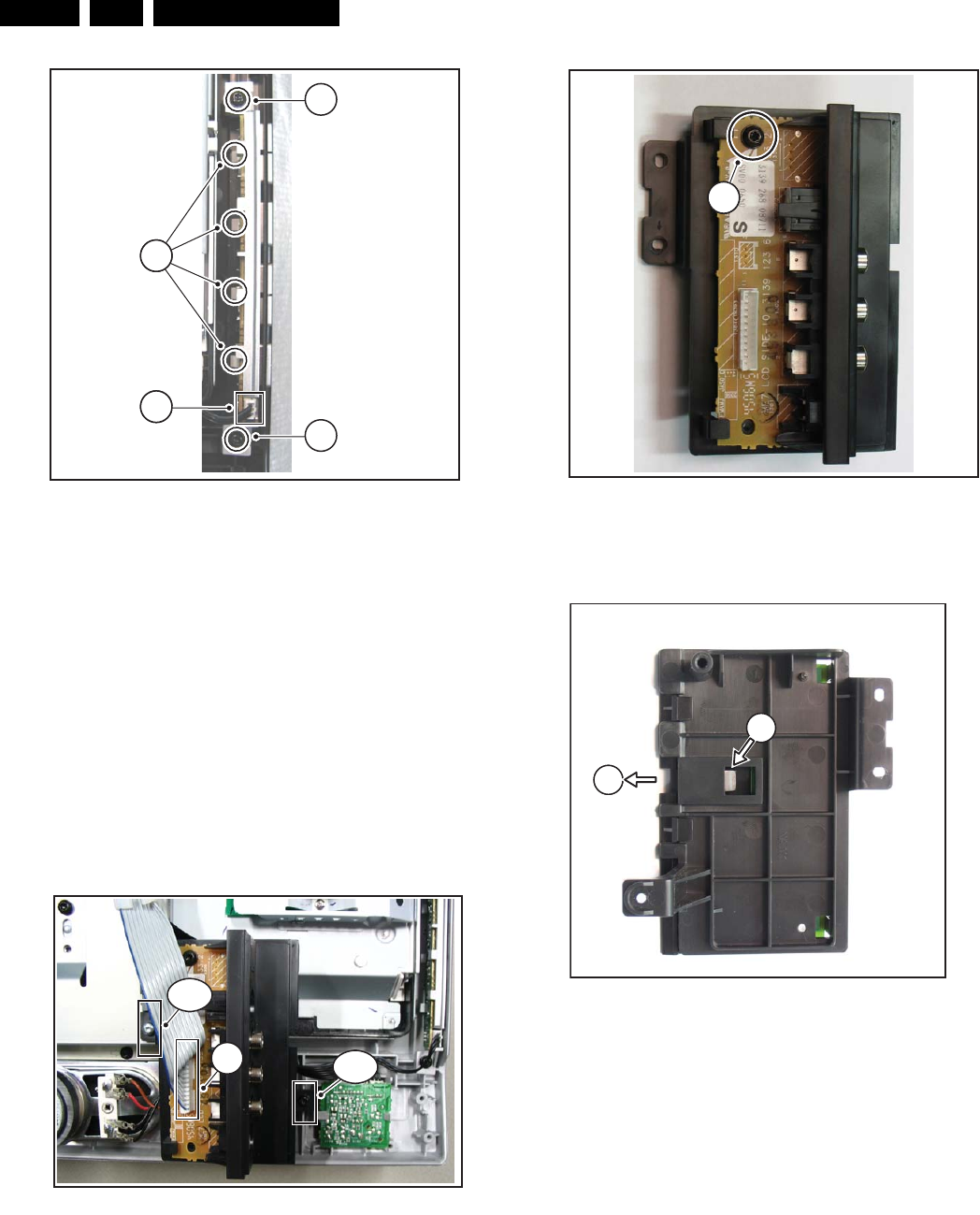

3. Remove screws [b] and remove the complete module. One
of the screws is T10 tapping, the other one is T10 parker.
See fig. “Side I/O module”.
4. Remove T10 parker screw [c]. See fig. “Side I/O panel 1”.
5. Push catch [d] (located at the underside of the bracket) and
slide the unit to the right from its bracket [e]. See fig. “Side
I/O panel 2”.
6. To remove the PWB from its bracket, you have to lift the
catch [f] loacted on top of the headphone connector. At the
same time, slide the PWB out of its bracket [g]. See fig.
“Side I/O panel 3”.
When defective, replace the whole unit.
Figure 4-6 Side I/O module
Figure 4-7 Side I/O panel [1/3] top side
Figure 4-8 Side I/O panel [2/3] bottom side
G_16850_007.eps
090207
1
1
2
3
G_16860_066.ep
01020
ab (1x)
b (1x)
G_16860_075.eps
010207
c
G_16860_076.eps
010207
2d
2e
Mechanical Instructions EN 13LC7.1E LA 4.
Figure 4-9 Side I/O panel [3/3]
4.3.4 IR/LED Panel
1. Remove the rear cover, as described earlier.
2. Refer to fig. “IR/LED panel“ below.
3. Unplug connector(s) [1].
4. Release clip [2] and remove the board.
When defective, replace the whole unit.
Figure 4-10 IR/LED panel
4.3.5 Mid-range Speakers
1. Remove the rear cover, as described earlier.
2. Refer to fig. “Mid-range speakers“ below.
3. Unplug connectors [1].
4. Remove T10 parker screws [2].
Figure 4-11 Mid-range speakers
4.3.6 Tweeters
1. Remove the rear cover, as described earlier.
2. Refer to fig. “Tweeters” below.
3. Unplug connectors [1].
4. Remove T10 parker screws [2].
Figure 4-12 Tweeters
4.3.7 Small Signal Board (SSB)
1. Remove the rear cover, as described earlier.
2. Refer to fig. “SSB removal“ below.
3. Disconnect all cables [a] on the SSB.
4. Remove the T10 tapping screws [b] that hold the SSB. See
Figure “SSB removal”.
5. Remove the screws that hold the CINCH and HDMI
connectors at the connector panel.
6. Lift the SSB from the set.
Figure 4-13 SSB removal
G_16860_077.eps
010207
2
gf
G_16850_009.eps
110107
1
2
G_16850_010.eps
110107
2 1 2
G_16850_011.eps
110107
2 1
G_16860_074.ep
s
01020
7
a a
b (2x)b (3x)
b (3x)
b (2x)
Mechanical Instructions
EN 14 LC7.1E LA4.
4.3.8 Main Supply Panel
1. Remove the rear cover, as described earlier.
2. Refer to fig. “Main supply panel“ below.
3. Unplug cables [a].
4. Remove the fixation screws [b].
5. Take the board out (it hinges at the left side).
Figure 4-14 Main supply panel
4.3.9 LCD Panel
1. Remove the rear cover, as described earlier.
2. Refer to fig. “LCD panel“ below.
3. Unplug the connectors on the Main Supply Panel [a] and
the LED & IR board [c].
4. Unplug the outer connectors [d] from the mid-range
loudspeakers.
5. Do NOT forget to unplug the LVDS connector [e] from the
SSB. Important: Be careful, as this is a very fragile
connector!
6. Remove T10 parker screw [b] that holds the Side I/O
module bracket.
7. Remove T10 parker screws [f] of the central sub-frame.
8. Remove LCD panel fixation screws [g] and lift the complete
central sub-frame from the set (incl. the PSU, SSB, and
Side I/O boards and wiring).
9. Lift the LCD panel [7] from the front cabinet.
Figure 4-15 LCD panel [1/2]
G_16860_065.ep
s
01020
7
a
a
a
b (3x)
dd
a
e
G_16860_067.eps
310107
c (1x)
g (2x)
f (3x)
f (2x)
f (1x)
g (2x)
b
Mechanical Instructions EN 15LC7.1E LA 4.
Figure 4-16 LCD panel [2/2]
4.4 Set Re-assembly
To re-assemble the whole set, execute all processes in reverse
order.
Notes:
• While re-assembling, make sure that all cables are placed
and connected in their original position. See figure "Cable
dressing".
• Pay special attention not to damage the EMC foams.
Ensure that EMC foams are mounted correctly (one is
located above the LVDS connector on the display, between
the LCD display and the metal sub-frame).
G_16850_015.eps
110107
7
Service Modes, Error Codes, and Fault Finding
EN 16 LC7.1E LA5.
5. Service Modes, Error Codes, and Fault Finding
Index of this chapter:
5.1 Test Points
5.2 Service Modes
5.3 Service Tools
5.4 Error Codes
5.5 The Blinking LED Procedure
5.7 Fault Finding and Repair Tips
5.1 Test Points
In the chassis schematics and layout overviews, the test points
(Fxxx) are mentioned. In the schematics, test points are
indicated with a rectangular box around “Fxxx” or “Ixxx”, in the
layout overviews with a “half-moon” sign.
As most signals are digital, it will be difficult to measure
waveforms with a standard oscilloscope. Several key ICs are
capable of generating test patterns, which can be controlled via
ComPair. In this way it is possible to determine which part is
defective.
Perform measurements under the following conditions:
• Service Default Mode.
• Video: Colour bar signal.
• Audio: 3 kHz left, 1 kHz right.
5.2 Service Modes
The Service Mode feature is split into four parts:
• Service Default Mode (SDM).
• Service Alignment Mode (SAM).
• Customer Service Mode (CSM) and Digital Customer
Service Mode (DCSM).
• Computer Aided Repair Mode (ComPair).
SDM and SAM offer features, which can be used by the Service
engineer to repair/align a TV set. Some features are:
• A pre-defined situation to ensure measurements can be
made under uniform conditions (SDM).
• Activates the blinking LED procedure for error identification
when no picture is available (SDM).
• The possibility to overrule software protections when SDM
was entered via the Service pins.
• Make alignments (e.g. white tone), (de)select options,
enter options codes, reset the error buffer (SAM).
• Display information (“SDM” or “SAM” indication in upper
right corner of screen, error buffer, software version,
operating hours, options and option codes, submenus).
The (D)CSM is a Service Mode that can be enabled by the
consumer. Instructions on how to enable the CSM can be given
by telephone by either the dealer or the P3C (Philips Customer
Care Center). The CSM displays diagnosis information, which
the customer can forward to the dealer/P3C. In CSM mode,
“CSM”, is displayed in the top right corner of the screen.
The information provided in CSM and the purpose of CSM is to:
• Increase the home repair hit rate
• Decrease the number of nuisance calls
• Solved customers' problem without home visit
ComPair Mode is used for communication between a computer
and a TV on I2C /UART level and can be used by a Service
engineer to quickly diagnose the TV set by reading out error
codes, read and write in NVMs, communicate with ICs and the
uP (PWM, registers, etc.), and by making use of a faultfinding
database. It will also be possible to up and download the
software of the TV set via I2C with help of ComPair. To do this,
ComPair has to be connected to the TV set via the ComPair
connector, which will be accessible through the rear of the set
(without removing the rear cover).
5.2.1 General
Some items are applicable to all Service Modes or are general.
These are listed below.
Life Timer
During the life time cycle of the TV set, a life timer is kept. This
life timer counts the normal operation hours, but not the Stand-
by hours. The actual value of the life timer is displayed in SDM
and CSM in a decimal value. Every two soft-resets should
increase the hour by +1. Minimal five digits are displayed.
Software Identification, Version, and Cluster
The software identification, version, and cluster will be shown
in the main menu display of SDM, SAM, and CSM.
The screen will show: “AAAABCD X.YY”, where:
•AAAA is the chassis name: LC71 for analogue range
(non-DVB), LC72 for digital range (DVB).
•B is the region indication: E= Europe, A= AP/China, U=
NAFTA, L= LATAM.
•C is the display indication: L= LCD, P= Plasma.
•D is the language/features indication: 1= standard, H=
1080p full HD.
•X is the main version number: The main version number is
updated with a major change of specification (incompatible
with the previous software version). Numbering will go from
1 - 9 then from A - Z.
– If the main version number changes, the new version
number is written in the NVM
– If the main version number changes, the default
settings are loaded
•YY is the sub version number: The sub version number is
updated with a minor change (backwards compatible with
the previous versions) Numbering will go from 00 - 99.
– If the sub version number changes, the new version
number is written in the NVM
– If the NVM is fresh, the software identification, version,
and cluster will be written to NVM
Service Modes, Error Codes, and Fault Finding EN 17LC7.1E LA 5.
Display Option Code Selection
When after a display exchange, the display option code is not
properly set, it will result in a TV with “no display”. Therefore, it
is required to set this display option code after such a repair.
To do so, press the following key sequence on a standard RC
transmitter: “062598” directly followed by MENU and “xxx”,
where “xxx” is a 3 digit decimal value of the panel type (see first
column in table “Display Code Overview” or sticker on the side/
bottom of the cabinet). When the value is properly accepted
and stored in NVM, the set will switch to Stand-by, to indicate
that the process has been completed successfully.

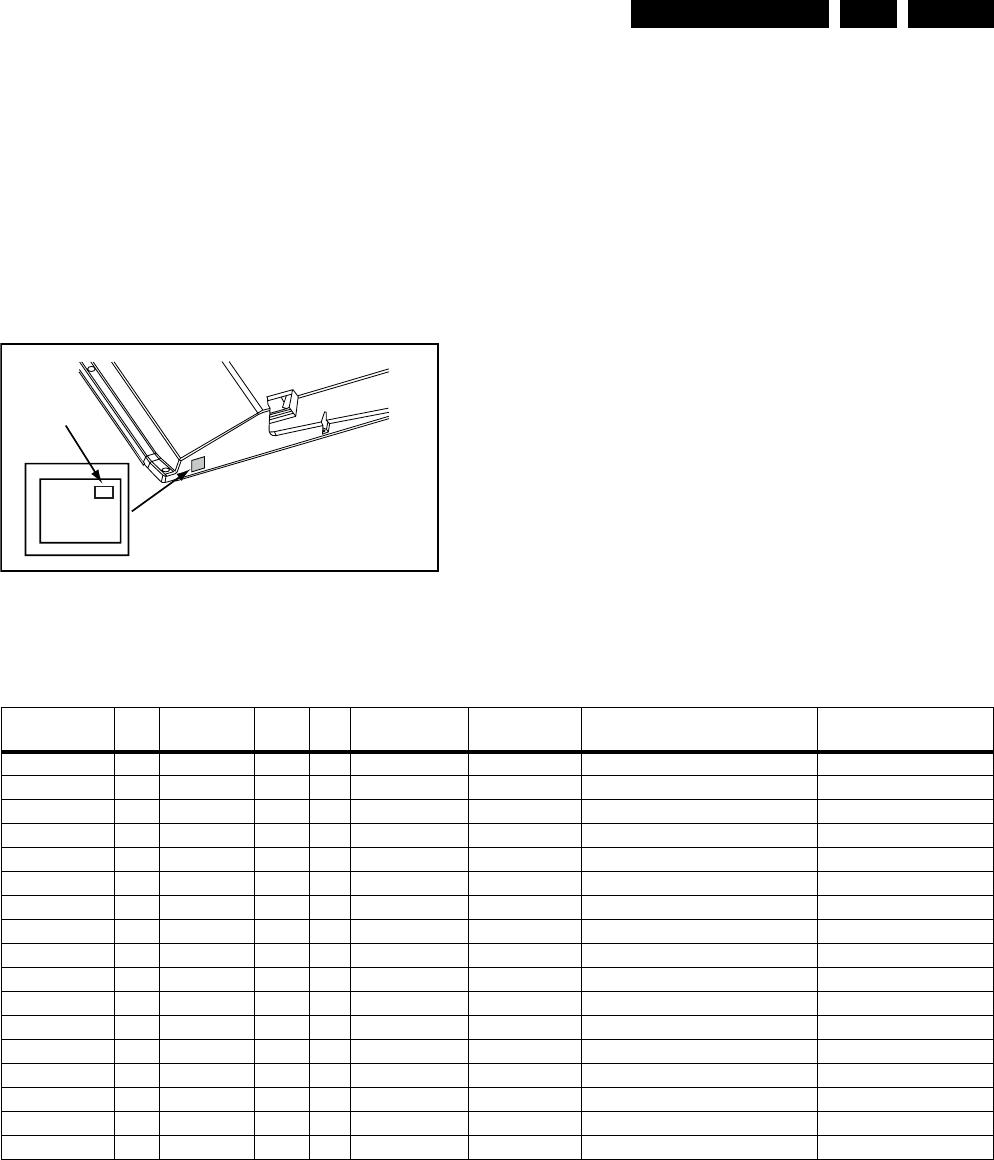

Figure 5-1 Location of Display Option Code sticker
During this algorithm, the NVM-content must be filtered,
because several items in the NVM are TV-related and not SSB-
related (e.g. Model and Prod. S/N). Therefore, “Model” and
“Prod. S/N” data is changed into “See Type Plate”.
In case a call centre or consumer reads “See Type Plate” in
CSM mode, he needs to look to the side/bottom sticker to
identify the set, for further actions.
Table 5-1 Display option code overview
PHILIPS
MODEL:
32PF9968/10
PROD.SERIAL NO:
AG 1A0620 000001
040
39mm
27mm
(CTN Sticker)
Display Option
Code
E_06532_038.eps
290107
Display
option HEX
Display
type Brand Size
Vert.
resolution
Hor.
resolution Type number 12 NC
045 2D LCD LPL 26 768p 1366 LC260WX2-SLB2 9322 234 13682
046 2E LCD LPL 32 768p 1366 LC320W01-SL06 9322 230 03682
068 44 LCD CMO 26 768p 1366 V260B1-L03 9322 249 37682
069 45 LCD CMO 32 768p 1366 V315B1 L05 9322 248 65682
070 46 LCD CPT 32 768p 1366 CLLAA320WB02P 9322 245 31682
071 47 LCD LPL 37 768p 1366 LC370WX1-SLB1 9322 246 96682
072 48 LCD AUO 37 768p 1366 T370XW02V5 9322 249 77682
073 49 LCD LPL 42 768p 1366 LC420WX3-SLA1 9322 246 97682
076 4B LCD AUO 42 768p 1366 T420XW01V8 9322 249 10682
083 53 PDP SDI 42 768p 1024 S42AX-YD04(PS-426-PH) 9322 246 76682
085 55 PDP SDI 50 768p 1366 S50HW-YD05(PS-506-PH) 9322 246 81682
091 5B LCD AUO 32 768p 1366 T315XW02VD 9322 249 06682
093 5D LCD LPL 42 1080p 1920 LC420WU2-SLA1 9322 246 84682
103 67 LCD LPL 20 480p 640 LC201V02-SDB1 9322 242 65682
105 69 LCD CMO 19 900p 1440 TPM190A1-L02 9965 000 43654
106 6A LCD AUO 23 768p 1366 T230XW01V3 9322 249 79682
107 6B LCD LPL 42 768p 1366 LC420WX5-SLD1 9322 249 09682
Service Modes, Error Codes, and Fault Finding
EN 18 LC7.1E LA5.
5.2.2 Service Default Mode (SDM)
Purpose
Set the TV in SDM mode in order to be able to:
• Create a predefined setting for measurements to be made.
• Override software protections.
• Start the blinking LED procedure.
• Read the error buffer.
• Check the life timer.
Specifications
Table 5-2 SDM default settings
• Set linear video and audio settings to 50 %, but volume to
25 %. Stored user settings are not affected.
• All service-unfriendly modes (if present) are disabled, since
they interfere with diagnosing/repairing a set.. These
service unfriendly modes are:
– (Sleep) timer.
– Blue mute/Wall paper.
– Auto switch “off” (when there is no “ident” signal).
– Hotel or hospital mode.
– Child lock or parental lock (manual or via V-chip).
– Skipping, blanking of “Not favourite”, “Skipped” or
“Locked” presets/channels.
– Automatic storing of Personal Preset or Last Status
settings.
– Automatic user menu time-out (menu switches back/
OFF automatically.
– Auto Volume levelling (AVL).
How to Activate
To activate SDM, use one of the following methods:
• Press the following key sequence on the remote control
transmitter: “062596” directly followed by the MENU button
(do not allow the display to time out between entries while
keying the sequence).
• Short one of the “Service” jumpers on the TV board during
cold start (see Figures “Service jumper”). Then press the
mains button (remove the short after start-up). Caution:
Activating SDM by shorting “Service” jumpers will override
the DC speaker protection (error 1), the General I2C error
(error 4), and the Trident video processor error (error 5).
When doing this, the service-technician must know exactly
what he is doing, as it could damage the television set.

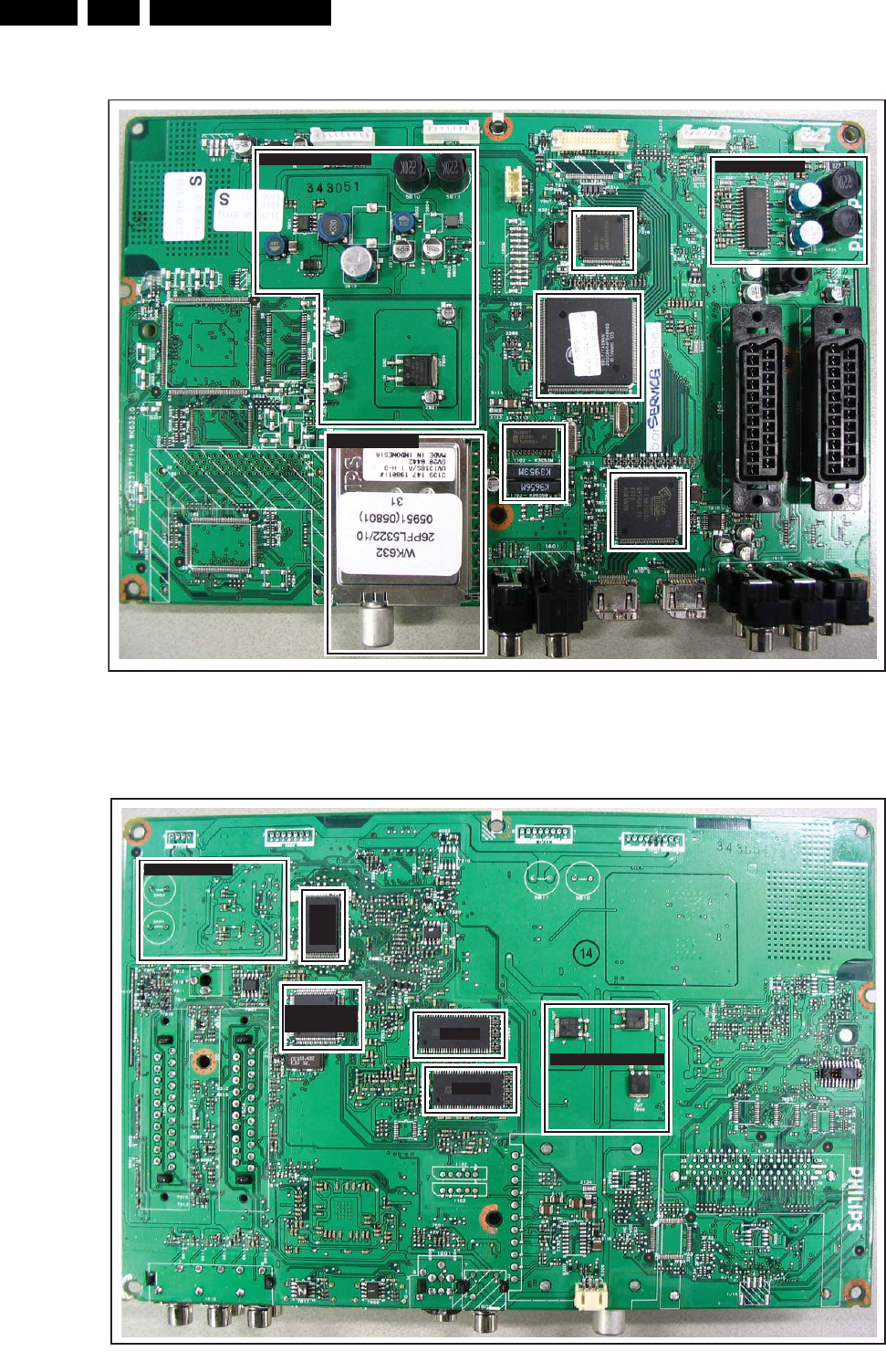

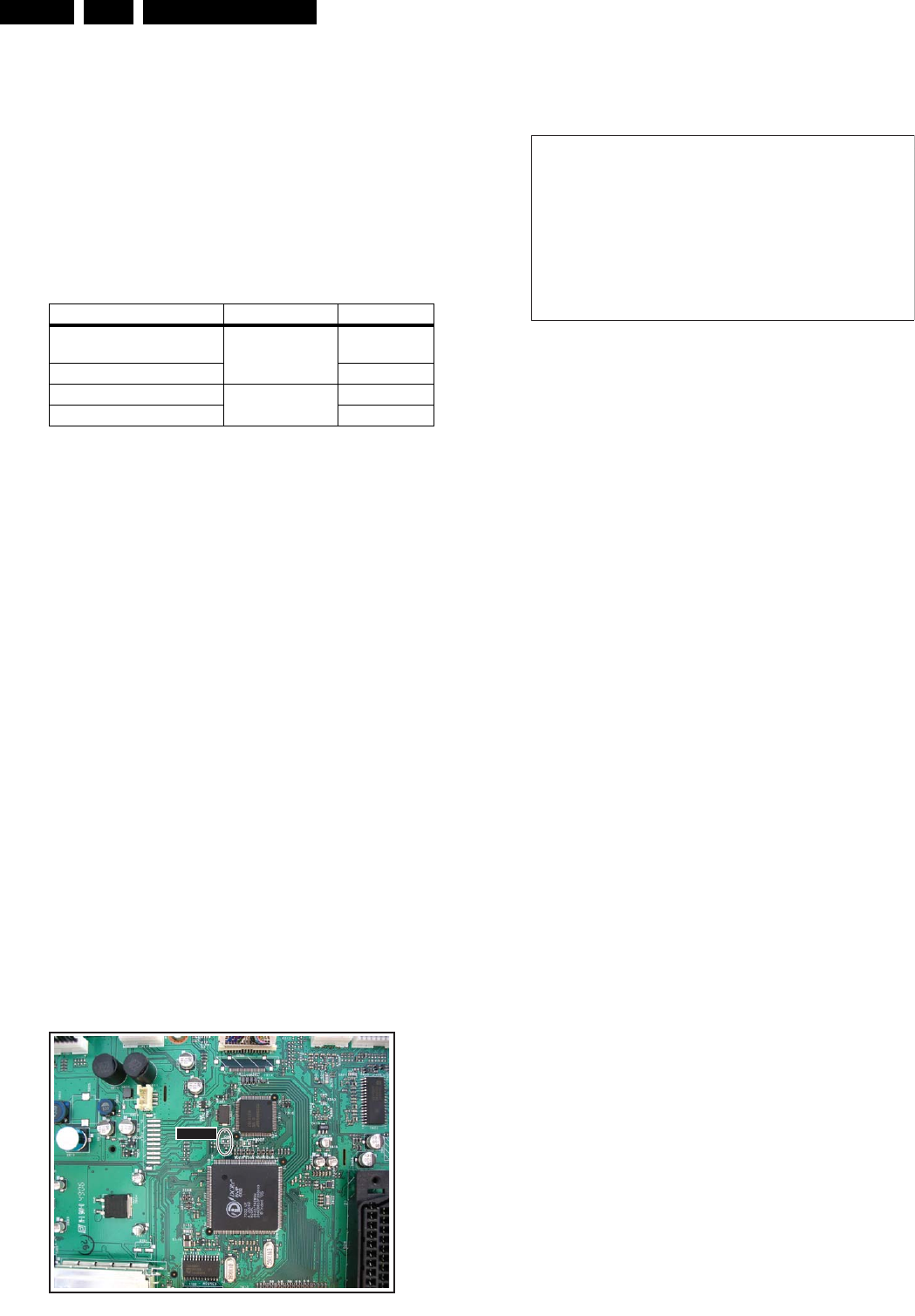

Figure 5-2 Service jumper (SSB component side)
On Screen Menu
After activating SDM, the following screen is visible, with SDM
in the upper right corner of the screen to indicate that the
television is in Service Default Mode.
Figure 5-3 SDM menu
Menu explanation:
•HHHHH: Are the operating hours (in decimal).
•AAAABCD-X.YY: See paragraph “Service Modes” ->
“General” -> “Software Identification, Version, and Cluster”
for the SW name definition.
•SDM: The character “SDM” to indicate that the TV set is in
Service mode.
•ERR: Shows all errors detected since the last time the
buffer was erased. Five errors possible.
•OP: Used to read-out the option bytes. See “Options” in the
Alignments section for a detailed description. Seven codes
are possible.
How to Navigate
As this mode is read only, there is not much to navigate. To
switch to other modes, use one of the following methods:
• Command MENU from the user remote will enter the
normal user menu (brightness, contrast, colour, etc...) with
“SDM” OSD remaining, and pressing MENU key again will
return to the last status of SDM again.
• To prevent the OSD from interfering with measurements in
SDM, command “OSD” (“STATUS” for NAFTA and
LATAM) from the user remote will toggle the OSD “on/off”
with “SDM” OSD remaining always “on”.
• Press the following key sequence on the remote control
transmitter: “062596” directly followed by the OSD/i+
button to switch to SAM (do not allow the display to time out
between entries while keying the sequence).
How to Exit
Switch the set to STANDBY by pressing the mains button on
the remote control transmitter or on the television set.
If you switch the television set “off” by removing the mains (i.e.,
unplugging the television), the television set will remain in SDM
when mains is re-applied, and the error buffer is not cleared.
The error buffer will only be cleared when the “clear” command
is used in the SAM menu.
Note:
• If the TV is switched “off” by a power interrupt while in SDM,
the TV will show up in the last status of SDM menu as soon
as the power is supplied again. The error buffer will not be
cleared.
• In case the set is in Factory mode by accident (with “F”
displayed on screen), by pressing and hold “VOL-“ and
“CH-” together should leave Factory mode.
Region Freq. (MHz) Default syst.
Europe (except France),
AP-PAL/-Multi
475.25 PAL B/G
France SECAM L
NAFTA, AP-NTSC 61.25 (channel 3) NTSC M
LATAM PAL M
G_16860_027.eps
260107
SDMSDM
SDM
HHHHH A A A A B C D- X . Y Y
ERR XX XX XX XX XX
O P X X X X X X X X X X X X X X X X X X
G_16860_030.ep
s
26010
7
Service Modes, Error Codes, and Fault Finding EN 19LC7.1E LA 5.
5.2.3 Service Alignment Mode (SAM)
Purpose
• To change option settings.
• To display / clear the error code buffer.
• To perform alignments.
Specifications
• Operation hours counter (maximum five digits displayed).
• Software version, error codes, and option settings display.
• Error buffer clearing.
• Option settings.
• Software alignments (Tuner, White Tone, and Audio).
• NVM Editor.
• ComPair Mode switching.
• Set the screen mode to full screen (all contents on screen
are viewable).
How to Activate
To activate SAM, use one of the following methods:
• Press the following key sequence on the remote control
transmitter: “062596" directly followed by the OSD/
STATUS/INFO/i+ button (it depends on region which
button is present on the RC). Do not allow the display to
time out between entries while keying the sequence.
• Or via ComPair.
After entering SAM, the following screen is visible, with SAM in
the upper right corner of the screen to indicate that the
television is in Service Alignment Mode.
Figure 5-4 SAM menu
Menu explanation:
1. LLLLL. This represents the run timer. The run timer counts
normal operation hours, but does not count Stand-by
hours.
2. AAAABCD-X.YY. See paragraph “Service Modes” ->
“General” -> “Software Identification, Version, and Cluster”
for the SW name definition.
3. SAM. Indication of the Service Alignment Mode.
4. ERR (ERRor buffer). Shows all errors detected since the
last time the buffer was erased. Five errors possible.
5. OP (Option Bytes). Used to read-out the option bytes. See
“Options” in the Alignments section for a detailed
description. Seven codes are possible.
6. Clear. Erases the contents of the error buffer. Select the
CLEAR menu item and press the MENU RIGHT key. The
content of the error buffer is cleared.
7. Options. Used to set the option bits. See “Options” in the
“Alignments” chapter for a detailed description.
8. Tuner. Used to align the tuner. See “Tuner” in the
“Alignments” chapter for a detailed description.
9. RGB Align. Used to align the White Tone. See “White
Tone” in the “Alignments” chapter for a detailed
description.
10. NVM Editor. Can be used to change the NVM data in the
television set. See also paragraph “Fault Finding and
Repair Tips” further on.
11. ComPaIr. Can be used to switch the television to “In
Application Programming” mode (IAP), for software
uploading via ComPair. Read paragraph “Service Tools” -
> “ComPair”. Caution: When this mode is selected without
ComPair connected, the TV will be blocked. Remove the
AC power to reset the TV.
12. SW Events. Only to be used by development to monitor
SW behaviour during stress test.
How to Navigate
• In the SAM menu, select menu items with the MENU UP/
DOWN keys on the remote control transmitter. The
selected item will be indicated. When not all menu items fit
on the screen, use the MENU UP/DOWN keys to display
the next / previous menu items.
• With the MENU LEFT/RIGHT keys, it is possible to:
– Activate the selected menu item.
– Change the value of the selected menu item.
– Activate the selected submenu.
• When you press the MENU button twice while in top level
SAM, the set will switch to the normal user menu (with the
SAM mode still active in the background). To return to the
SAM menu press the MENU button.
• Command “OSD/i+” key from the user remote will toggle
the OSD “on/off” with “SAM” OSD remaining always “on”.
• Press the following key sequence on the remote control
transmitter: “062596” directly followed by the MENU button
to switch to SDM (do not allow the display to time out
between entries while keying the sequence).
How to Store SAM Settings
To store the settings changed in SAM mode (except the
OPTIONS settings), leave the top level SAM menu by using the
POWER button on the remote control transmitter or the
television set.
How to Exit
Switch the set to STANDBY by pressing the mains button on
the remote control transmitter or the television set.
Note:
• When the TV is switched “off” by a power interrupt while in
SAM, the TV will show up in "normal operation mode" as
soon as the power is supplied again. The error buffer will
not be cleared.
• In case the set is in Factory mode by accident (with “F”
displayed on screen), by pressing and hold “VOL-“ and
“CH-” together should leave Factory mode.
5.2.4 Customer Service Mode (CSM)
Purpose
The Customer Service Mode shows error codes and
information on the TV’s operation settings. A call centre can
instruct the customer (by telephone) to enter CSM in order to
identify the status of the set. This helps them to diagnose
problems and failures in the TV before making a service call.
The CSM is a read-only mode; therefore, modifications are not
possible in this mode.
Specifications
• Ignore “Service unfriendly modes”.
• Line number for every line (to make CSM language
independent).
• Set the screen mode to full screen (all contents on screen
are viewable).
• After leaving the Customer Service Mode, the original
settings are restored.
• Possibility to use “CH+” or “CH-” for channel surfing, or
enter the specific channel number on the RC.
How to Activate
To activate CSM, press the following key sequence on the
remote control transmitter: “123654” (do not allow the display
to time out between entries while keying the sequence).
SAM
LLLL L A AAABCD- X. YY
ERR XX XX XX XX XX
O P X X X X X X X X X X X X X X X X X X
C l e a r > Y e s
O p t i o n s >
T u n e r >
R G B A l i g n >
N V M E d i t o r >
C o m p a i r >
S W E V E N T S >
G_16860_031.eps
260107
Service Modes, Error Codes, and Fault Finding
EN 20 LC7.1E LA5.
Upon entering the Customer Service Mode, the following
screen will appear:
Figure 5-5 CSM menu
Menu Explanation
1. MODEL. Type number, e.g. 32PFL5522D/10. (*)
2. PROD S/N. Product serial no., e.g. AG1A0712123456. (*)
3. SW ID. Software cluster and version is displayed.
4. OP. Option code information.
5. CODES. Error buffer contents.
6. SSB. Indication of the SSB factory identification code
(12nc). (*)
7. NVM. The NVM software version no.
8. Flash Data. PQ (picture quality) and AQ (audio quality)
data version. This is a sub set of the main SW.
9. LIFE TIMER. Operating hours indication.
10. TUNER. Indicates the tuner signal condition: “Weak” when
signal falls below threshold value, “Medium” when signal is
at mid-range, and “Strong” when signal falls above
threshold value.
11. SYSTEM. Gives information about the video system of the
selected transmitter (PAL/SECAM/NTSC).
12. SOUND. Gives information about the audio system of the
selected transmitter (MONO/STEREO/NICAM).
13. HDAU. HDMI audio stream detection. “YES” means audio
stream detected. “NO” means no audio stream present.
Only displayed when HDMI source is selected.
14. FORMAT. Gives information about the video format of the
selected transmitter (480i/480p/720p/1080i).
15. HD SW ID. Software version of the 1080p full HD module
(when present).
16. Reserved.
17. Reserved.
18. Reserved.
(*) If an NVM IC is replaced or initialised, this data must be re-
written to the NVM. ComPair will foresee in a possibility to do
this.
How to Exit
To exit CSM, use one of the following methods:
• Press the MENU button twice, or POWER button on the
remote control transmitter.
• Press the POWER button on the television set.
5.3 Service Tools
5.3.1 ComPair
Introduction
ComPair (Computer Aided Repair) is a Service tool for Philips
Consumer Electronics products. and offers the following:
1. ComPair helps you to quickly get an understanding on how
to repair the chassis in a short and effective way.
2. ComPair allows very detailed diagnostics and is therefore
capable of accurately indicating problem areas. You do not
have to know anything about I2C or UART commands
yourself, because ComPair takes care of this.
3. ComPair speeds up the repair time since it can
automatically communicate with the chassis (when the uP
is working) and all repair information is directly available.
4. ComPair features TV software up possibilities.
Specifications
ComPair consists of a Windows based fault finding program
and an interface box between PC and the (defective) product.
The (new) ComPair II interface box is connected to the PC via
an USB cable. For the TV chassis, the ComPair interface box
and the TV communicate via a bi-directional cable via the
service connector(s).
The ComPair fault finding program is able to determine the
problem of the defective television, by a combination of
automatic diagnostics and an interactive question/answer
procedure.
How to Connect
This is described in the chassis fault finding database in
ComPair.
Figure 5-6 ComPair II interface connection
Caution: It is compulsory to connect the TV to the PC as
shown in the picture above (with the ComPair interface in
between), as the ComPair interface acts as a level shifter. If
one connects the TV directly to the PC (via UART), ICs will be
blown!
How to Order
ComPair II order codes:
• ComPair II interface: 3122 785 91020.
• ComPair32 CD (update): 3122 785 60160.
• ComPair interface cable: 3122 785 90004.
• ComPair interface extension cable: 3139 131 03791.
• ComPair UART interface cable: 3122 785 90630.
Note: If you encounter any problems, contact your local
support desk
5.3.2 LVDS Tool
Introduction
This Service tool (also called “ComPair Assistant 1“) may help
you to identify, in case the TV does not show any picture,
whether the Small Signal Board (SSB) or the display of a Flat
TV is defective. Thus to determine if LVDS, RGB, and sync
signals are okay.
Furthermore it is possible to program EPLDs with this tool (Byte
blaster). Read the user manual for an explanation of this
feature.
When operating, the tool will show a small (scaled) picture on
a VGA monitor. Due to a limited memory capacity, it is not
possible to increase the size when processing high-resolution
CS M
1 M O D E L : 3 2 P F L 5 5 2 2 D / 1
2 P R O D S / N : AG1A0712123456
3 S W I D : L C 7 1 E L 1 - 1 . x x
4 O P : X X X X X X X X X X X X X X X X X X X X X
5 C O D E S : X X X X X X X X X X
6 S S B : 3 1 39 127 12341
7 N V M : X X X X X X X X
8 F l a s h D a t a : X X . X X . X X . X X
9 L I F E T I M E R : L L L L L
1 0 T U N E R : W E A K / G O O D / S T R O N G
1 1 S Y S T E M : P A L / N T S C / S E C A M
1 2 S O U N D : M O N O / S T E R E O / N I C A M
1 3 H D A U : Y E S / N O
1 4 F O R M A T : X X X X X X X X
G_16860_032.ep
s
21020
7
0
G_06532_036.eps
260107
TO
UART SERVICE
CONNECTOR
TO
I2C SERVICE
CONNECTOR
OR
TO TV
RS232 /UART
PC
HDMI
I
2
C only
Optional power
5V DC
ComPair II Developed by Philips Brugge
Multi
function
RC out
RC in
Optional
Switch
Power ModeLink/
Activity I
2
C
ComPair II
Service Modes, Error Codes, and Fault Finding EN 21LC7.1E LA 5.
LVDS signals (> 1280x960). Below this resolution, or when a
DVI monitor is used, the displayed picture will be full size.
How to Connect
Connections are explained in the user manual, which is packed
with the tool. The LVDS cables included in the package cover
most chassis. For some chassis, a separate cable must be
ordered.
Note: To use the LVDS tool, you must have ComPair release
2004-1 (or later) on your PC (engine version >= 2.2.05).
For every TV type number and screen size, one must choose
the proper settings via ComPair. The ComPair file will be
updated regularly with new introduced chassis information.
How to Order
• LVDS tool (incl. two LVDS cables: 31p and 20p, covering
chassis BJx.x, EJx.x, FJx.x and LC4.1):
3122 785 90671.
• LVDS tool Service Manual:
3122 785 00810.
• LVDS cable 20p/DF -> 20p/DF (standard with tool):
3122 785 90731.
• LVDS cable 31p/FI -> 31p/FI (standard with tool):
3122 785 90662.
For other chassis, a separare LVDS cable must be ordered.
Refer to table “LVDS cable order number” for an overview of all
deliverable cables.
Table 5-3 LVDS cable order number
Notes
1. Included in LVDS tool package (order code
3122 785 90671)
2. Pins 27 and 28 should be grounded or not connected.
5.4 Error Codes
5.4.1 Introduction
Error codes are required to indicate failures in the TV set. In
principle a unique error code is available for every:
• Activated protection.
• Failing I2C device.
• General I2C error.
• SDRAM failure.
The last five errors, stored in the NVM, are shown in the
Service menu’s. This is called the error buffer.
The error code buffer contains all errors detected since the last
time the buffer was erased. The buffer is written from left to
right. When an error occurs that is not yet in the error code
buffer, it is displayed at the left side and all other errors shift one
position to the right.
An error will be added to the buffer if this error differs from any
error in the buffer. The last found error is displayed on the left.
An error with a designated error code may never lead to a
deadlock situation. This means that it must always be
diagnosable (e.g. error buffer via OSD or blinking LED
procedure, ComPair to read from the NVM).
In case a failure identified by an error code automatically
results in other error codes (cause and effect), only the error
code of the MAIN failure is displayed.
Example: In case of a failure of the I2C bus (CAUSE), the error
code for a “General I2C failure” and “Protection errors” is
displayed. The error codes for the single devices (EFFECT) is
not displayed. All error codes are stored in the same error
buffer (TV’s NVM) except when the NVM itself is defective.
5.4.2 How to Read the Error Buffer
You can read the error buffer in 3 ways:
• On screen via the SAM/SDM/CSM (if you have a picture).
Example:
– ERROR: 0 0 0 0 0 : No errors detected
– ERROR: 6 0 0 0 0 : Error code 6 is the last and only
detected error
– ERROR: 9 6 0 0 0 : Error code 6 was detected first and
error code 9 is the last detected (newest) error
• Via the blinking LED procedure (when you have no
picture). See “The Blinking LED Procedure”.
•Via ComPair.
5.4.3 Error Codes
In case of non-intermittent faults, write down the errors present
in the error buffer and clear the error buffer before you begin
the repair. This ensures that old error codes are no longer
present.
If possible, check the entire contents of the error buffer. In
some situations, an error code is only the result of another error
and not the actual cause of the problem (for example, a fault in
the protection detection circuitry can also lead to a protection).
Chassis LVDS cable order number Remarks
BJ2.4 3122 785 906621
BJ2.5 3122 785 906621
BJ3.0 3122 785 906621
BJ3.1 3122 785 906621
EJ2.0 3122 785 906621
EJ3.0 3122 785 906621
EL1.1 3122 785 906621 / 3122 785 90821
FJ3.0 3122 785 906621
FTL2.4 3122 785 906621,2
LC4.1 3122 785 907311 / 3122 785 90851
LC4.3 3122 785 90821
LC4.31 3122 785 90821
LC4.41 3122 785 906621,2 / 3122 785 90851 only for 26 & 32” sets
LC4.8 3122 785 906621.2 / 3122 785 90851
LC4.9 3122 785 906621,2 / 3122 785 90851 MFD variant only
LC7.2 tbd
JL2.1 3122 785 90861
Service Modes, Error Codes, and Fault Finding
EN 22 LC7.1E LA5.
Table 5-4 Error code overview
Notes
1. Some of the error codes reported are depending on the
option code configurations.
2. This error means: no I2C device is responding to the
particular I2C bus. Possible causes: SCL/SDA shorted to
GND, SCL shorted to SDA, or SCL/SDA open (at uP pin).
The internal bus of the Trident platform should not cause
the entire system to halt as such an error can be reported.
5.4.4 How to Clear the Error Buffer
The error code buffer is cleared in the following cases:
• By using the CLEAR command in the SAM menu:
– To enter SAM, press the following key sequence on the
remote control transmitter: “062596” directly followed
by the OSD/i+ button (do not allow the display to time
out between entries while keying the sequence).
– Make sure the menu item CLEAR is selected. Use the
MENU UP/DOWN buttons, if necessary.
– Press the MENU RIGHT button to clear the error
buffer. The text on the right side of the “CLEAR” line will
change from “CLEAR?” to “CLEARED”
• If the contents of the error buffer have not changed for 50
hours, the error buffer resets automatically.
Note: If you exit SAM by disconnecting the mains from the
television set, the error buffer is not reset.
Error
code1) Description
Item
nr. Remarks
0 No error.
1 DC Protection of
speakers.
2 +12V protection error. 12V missing or "low".
3 Reserved.
4 General I2C error. note 2
5 Trident Video
Processor
communication error.
7202 When Trident IC is
defective, error 10
and 14 might also be
reported. Trident
communicates via
parallel bus, not via
the I2C bus. The I2C
bus of Trident is only
used in ComPair
mode.
6 I2C error while
communicating with
the NVM.
7315 The TV will not start-
up due to critical dta
not available from the
NVM, but the LED
will blink the error
code.
7 I2C error while
communicating with
the Tuner.
1101
8 I2C error while
communicating with
the IF Demodulator.
7113
9 I2C error
communicating with
the Sound Processor.
7411
10 SDRAM defective. 7204
11 I2C error while
communicating with
the HDMI IC.
7817
12 I2C error while
communicating with
the MOJO PNX8314.
7G00 if applicable
13 DVB HW
communication error.
7F01,
7K00,
7G00
if applicable
14 SDRAM defective. 7205
15 Reserved.
16 Reserved.
17 Reserved.
18 I2C error while
communicating with
the iBoard processor.
if applicable
19 I2C error while
communication with
1080p bolt-on module.
if applicable
Service Modes, Error Codes, and Fault Finding EN 23LC7.1E LA 5.
5.5 The Blinking LED Procedure
5.5.1 Introduction
The software is capable of identifying different kinds of errors.
Because it is possible that more than one error can occur over
time, an error buffer is available, which is capable of storing the
last five errors that occurred. This is useful if the OSD is not
working properly.
Errors can also be displayed by the blinking LED procedure.
The method is to repeatedly let the front LED pulse with as
many pulses as the error code number, followed by a period of
1.5 seconds in which the LED is “off”. Then this sequence is
repeated.
Example (1): error code 4 will result in four times the sequence
LED “on” for 0.25 seconds / LED “off” for 0.25 seconds. After
this sequence, the LED will be “off” for 1.5 seconds. Any RC5
command terminates the sequence. Error code LED blinking is
in red colour.
Example (2): the content of the error buffer is “12 9 6 0 0”
After entering SDM, the following occurs:
• 1 long blink of 5 seconds to start the sequence,
• 12 short blinks followed by a pause of 1.5 seconds,
• 9 short blinks followed by a pause of 1.5 seconds,
• 6 short blinks followed by a pause of 1.5 seconds,
• 1 long blink of 1.5 seconds to finish the sequence,
• The sequence starts again with 12 short blinks.
5.5.2 Displaying the Entire Error Buffer
Additionally, the entire error buffer is displayed when Service
Mode “SDM” is entered. In case the TV set is in protection or
Stand-by: The blinking LED procedure sequence (as in SDM-
mode in normal operation) must be triggered by the following
RC sequence: “MUTE” “062500” “OK”.
In order to avoid confusion with RC5 signal reception blinking,
this blinking procedure is terminated when a RC5 command is
received.
To erase the error buffer, the RC command “MUTE” “062599
“OK” can be used.
5.6 TV Main Software Upgrade
For instructions on how to upgrade the TV Main software, refer
to ComPair.
5.7 Fault Finding and Repair Tips
Notes:
• It is assumed that the components are mounted correctly
with correct values and no bad solder joints.
• Before any fault finding actions, check if the correct options
are set.
5.7.1 NVM Editor
In some cases, it can be convenient if one directly can change
the NVM contents. This can be done with the “NVM Editor” in
SAM mode. With this option, single bytes can be changed.
Caution:
•Do not change the NVM settings without
understanding the function of each setting, because
incorrect NVM settings may seriously hamper the
correct functioning of the TV set!
• Always write down the existing NVM settings, before
changing the settings. This will enable you to return to the
original settings, if the new settings turn out to be incorrect.
Table 5-5 NVM editor overview
5.7.2 Load Default NVM Values
It is possible to download default values automatically into the
NVM in case a blank NVM is placed or when the NVM first 20
address contents are "FF". After the default values are
downloaded, it is possible to start-up and to start aligning the
TV set. To initiate a forced default download the following
action has to be performed:
1. Switch “off” the TV set with the mains cord disconnected
from the wall outlet (it does not matter if this is from
"Standby" or "Off" situation).
2. Short-circuit the SDM jumpers on the SSB (keep short
circuited).
3. Press “P+” or “CH+” on the local keyboard (and keep it
pressed).
4. Reconnect the mains supply to the wall outlet.
5. Release the “P+” or “CH+” when the set is “on” or blue LED
is blinking.
When the downloading has completed successfully, the set
should be into Standby, i.e. red LED on.
Alternative method (1):
1. Go to SAM.
2. Select NVM Editor.
3. Select ADR (address) to 1 (dec).
4. Change the VAL (value) to 170 (dec).
5. Store the value.
6. Do a hard reset to make sure new default values took
place.
Alternative method (2):
It is also possible to upload the default values to the NVM with
ComPair in case the SW is changed, the NVM is replaced with
a new (empty) one, or when the NVM content is corrupted.
After replacing an EEPROM (or with a defective/no EEPROM),
default settings should be used to enable the set to start-up and
allow the Service Default Mode and Service Alignment Mode to
be accessed.
5.7.3 Start-up/Shut-down Flowcharts
Important note for DVB sets:
• When you put a DVB set into Stand-by mode with an RC,
the set will go to “Semi Stand-by” mode for 5 minutes. This,
to facilitate “Off the Air download” (OAD). If there is no
activity within these 5 minutes, the set will switch to Stand-
by mode. In “Semi Stand-by” mode, the LCD backlight and
Audio Amplifier are turned “off” but other circuits still work
as normal. The customer might think the set is in Stand-by.
However, in real Stand-by mode, only the uP and the NVM
are alive and all other circuits are switched “off”.
• If you press the mains switch at the local key board in a
DVB set, the set will switch to Stand-by mode.
On the next pages you will find start-up and shut-down
flowcharts, which might be helpful during fault finding.
It should be noted, that some events are only related to PDP
sets, and therefore not applicable to this LCD chassis.
Hex Dec Description
.ADR 0x000A 10 Existing value
.VAL 0x0000 0 New value
.Store Store?
Service Modes, Error Codes, and Fault Finding
EN 24 LC7.1E LA5.

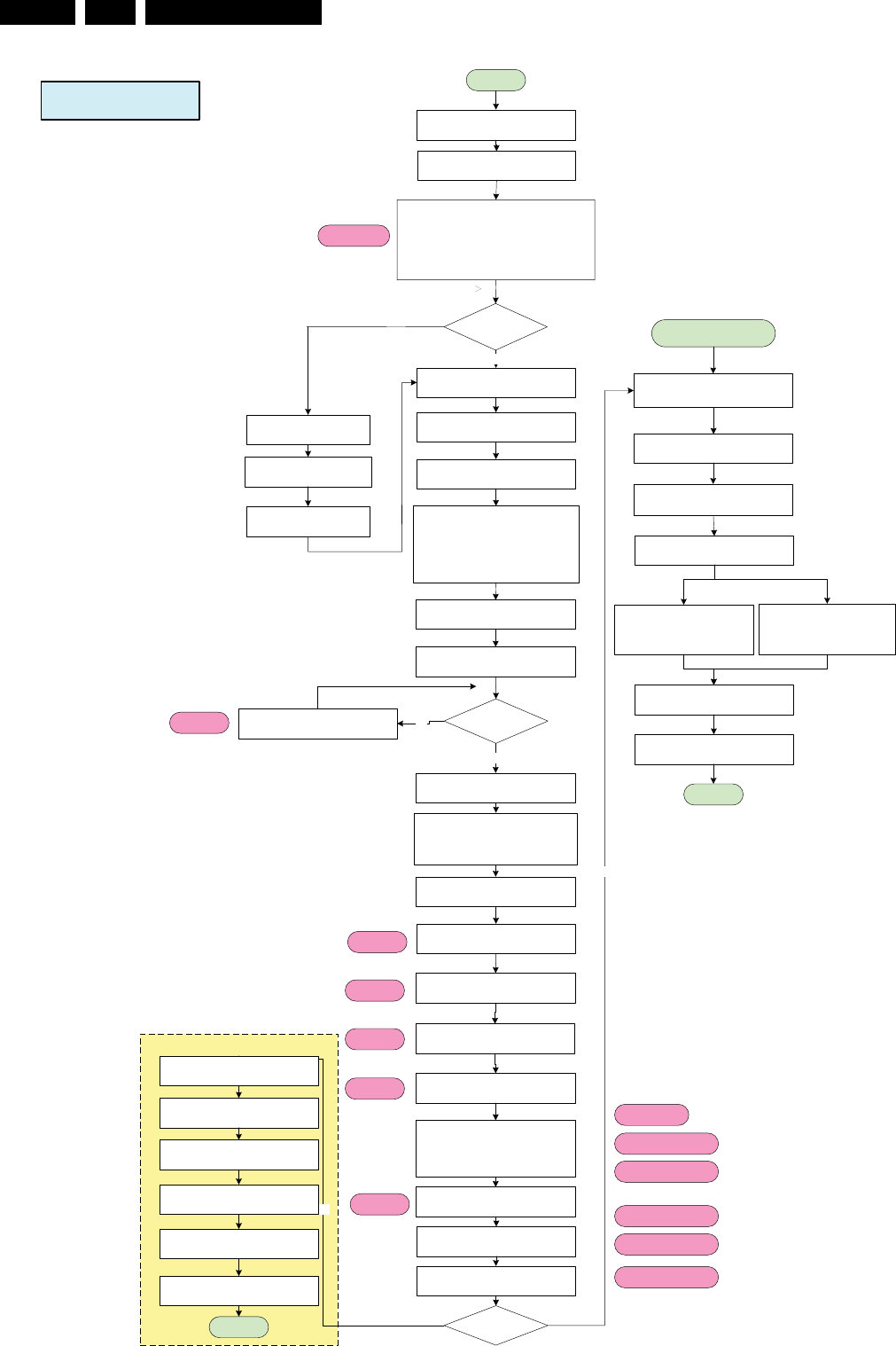

Figure 5-7 Start-up flowchart
AC ON
Start Up
M16C RST_H = HIGH
RST_HDMI = LOW
RST_AUD = LOW
RESET_n = LOW
LCD_PWR_ON = LOW
SDI PDP => CTRL_DISP1 = LOW
M16C RST_H to LOW
RST_HDMI = HIGH
RST_AUD = HIGH
RESET_n = HIGH
RENEAS POR by +3VSTBY (2)
STANDBYn = LOW
+5VSTBY & +3V3STBY Available (1)
Initialise Trident CX
BL_ADJ = HIGH (100% Duty Cycle)
DPTVInit( )
LCD_PWR_ON = HIGH
(Same function as CTRL-DISP2)
SDI PDP => CTRL_DISP1 = LOW
For LCD:
BL_ON_OFF = HIGH
* BL_ADJ keep 100% for 3000ms
before dimming.
Switch ON LVDS Signal
Wait for 20 ms
Init. Warm Component
(For software)
Initialise IF Demodulator, Afric
TDA9886T
Initialise Tuner
Initialise HDMI, Sil9023
Initialise Micronas
Mute Audio
Initialise FHP Panel
* For FHP PDP Sets only
Initialise Bolt-ON
* For iTV, 1080P, Ambi Light
Last status is ON?
End
Wait for RC key or
Wake up event
20ms
STANDBYn = HIGH
(Same function as CTRL-DISP3)
Is Power Down =
HIGH?
Enable Power Down INT
Enable DC_PROT INT
Wait for 500ms
Wait for 100ms
Time out = 2000msNo
Error 2
[Protection]
Wait for 100ms
Blank Picture
Picture Mode Setup & Detection
Error 5 - Trident
[Protection]
Yes
DVB recording mode
No
Yes
WP for NVM
STANDBYn = LOW
Standby
Normal Mode
Recording Mode finished
Software Shutdown:
LED = BLUE for Normal mode
LED = RED for Recording mode
User wake up the sets
in DVB recording mode
BLOCK RC Key
Enable RC Key
Yes
Error 7
Error 8
Error 9
Error 11
Error 3
[Protection]
Standby Normal Mode
(RED LED)
1000ms to
1500ms
500ms
100ms
1700ms
SDI PDP => CTRL_DISP1 = HIGH
For DVB Sets only (Semistandby)
Recording mode
Notes:
---------
1. LC07 TV software only start communication with IBOZ once
receive the INT message from IBOZ.
160ms
Port Assignment in STANDBY
Port Assignment in STANDBY
unBlank Picture &
UnMute Audio
Read NVM completed.
STOP I²C activities.
InitCold Component:
1. Check SDM port.
- If SDM pin = LOW and NVM first 20Byte =
0xFF, reload Software default NVM value.
2. Check Panel port.
- If Panel Pin = LOW and check slave address
0x65 = 0xA5, Enter Panel Mode.
Error 6 - NVM
[Protection]
Error 10 – SDRAM 7204
[Protection]
Error 14 – SDRAM 7205
[Protection]
Error 19 – 1080P
Error 17 – AmbiLight
Error 18 – iTV iFace
For PDP:
3000ms delay
No
(2) to be measured at pin 4
of BD45275G (item 7312)
(1) +5VSTBY to be measured
at PDTC114ET (item 7322)
G_16860_070.eps
220207
Service Modes, Error Codes, and Fault Finding EN 25LC7.1E LA 5.

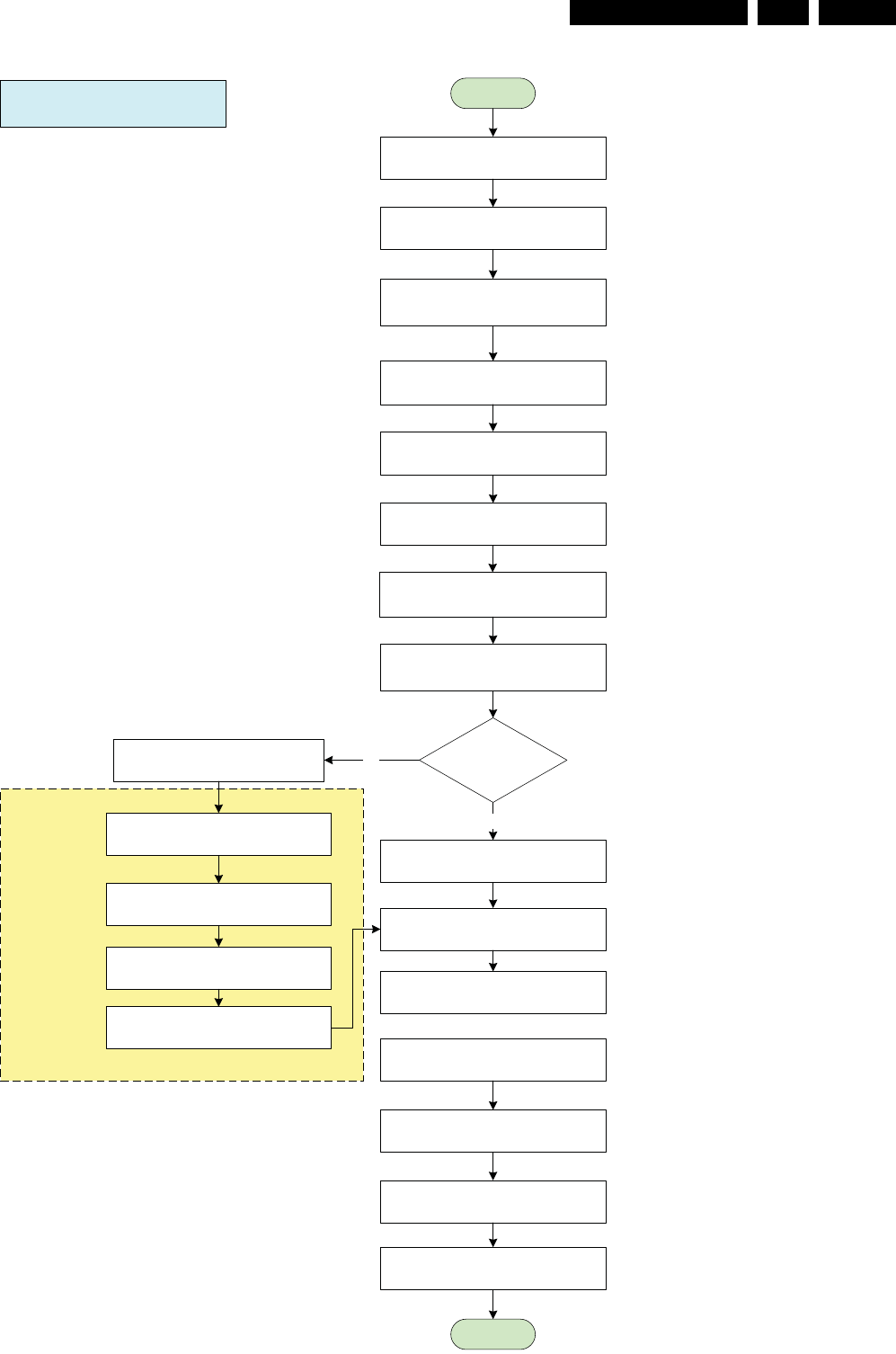

Figure 5-8 Semi Stand-by/Stand-by flowchart
SEMISTANDBY/ STANDBY
Start
Mute Audio
WriteProtect for NVM
STANDBYn = LOW
Software Shutdown:
BL_ON_OFF = LOW
Wait 300ms
Switch OFF LVDS
Wait 20ms
LCD_PWR_ON = LOW
End
LED = NO LED
for Standby soft mode
Standby using
“power key”
LED = RED No
Yes
For DVB Sets only (Semistandby)
SDI PDP => CTRL_DISP1 = HIGH
Off Air Downloading/ Recording Mode
IBOZ send shut down command
BL_ADJ stop dimming
(PWM duty cycle 100%)
Port Assignment in STANDBY
300ms
20ms
Total = 360ms
40ms
Wait for 3000ms
Sets go to standby here
Blocking for the next start up to ensure
power supply discard properly.
Disable Power Down INT &
DC_PROT_INT
Wait for 3000ms
Except power tact switch
BL_ADJ = LOW
(PWM duty cycle 0%)
G_16860_071.eps
220207
Service Modes, Error Codes, and Fault Finding
EN 26 LC7.1E LA5.
Figure 5-9 Power Down & DC_PROT flowchart
Start
WriteProtect for NVM
Mute Audio & VIdeo
Power Down INT:
AC OFF or Transient INT
DC_PROT INT
STANDBYn = LOW
Wait 5000 ms
Re-start: Start up
End
No
Notes:
1. Power Down INT will be based on fall edge triggering
2. +3V3STBY will stay for 15ms, software must perform
WriteProtect for NVM within 15ms.
Poll the Power Down
INT for 5 times
End
Avoid false trigger
Start
Mute Audio & VIdeo
No
End
Avoid false trigger
is DC_PROT = LOW
for 3 sec?
Log Error Code
STANDBYn = LOW
WriteProtect for NVM
Error 1
[Protection]
End
Yes
Yes
G_16860_072.eps
220207
Block Diagrams, Test Point Overview, and Waveforms 27LC7.1E LA 6.
6. Block Diagrams, Test Point Overview, and Waveforms

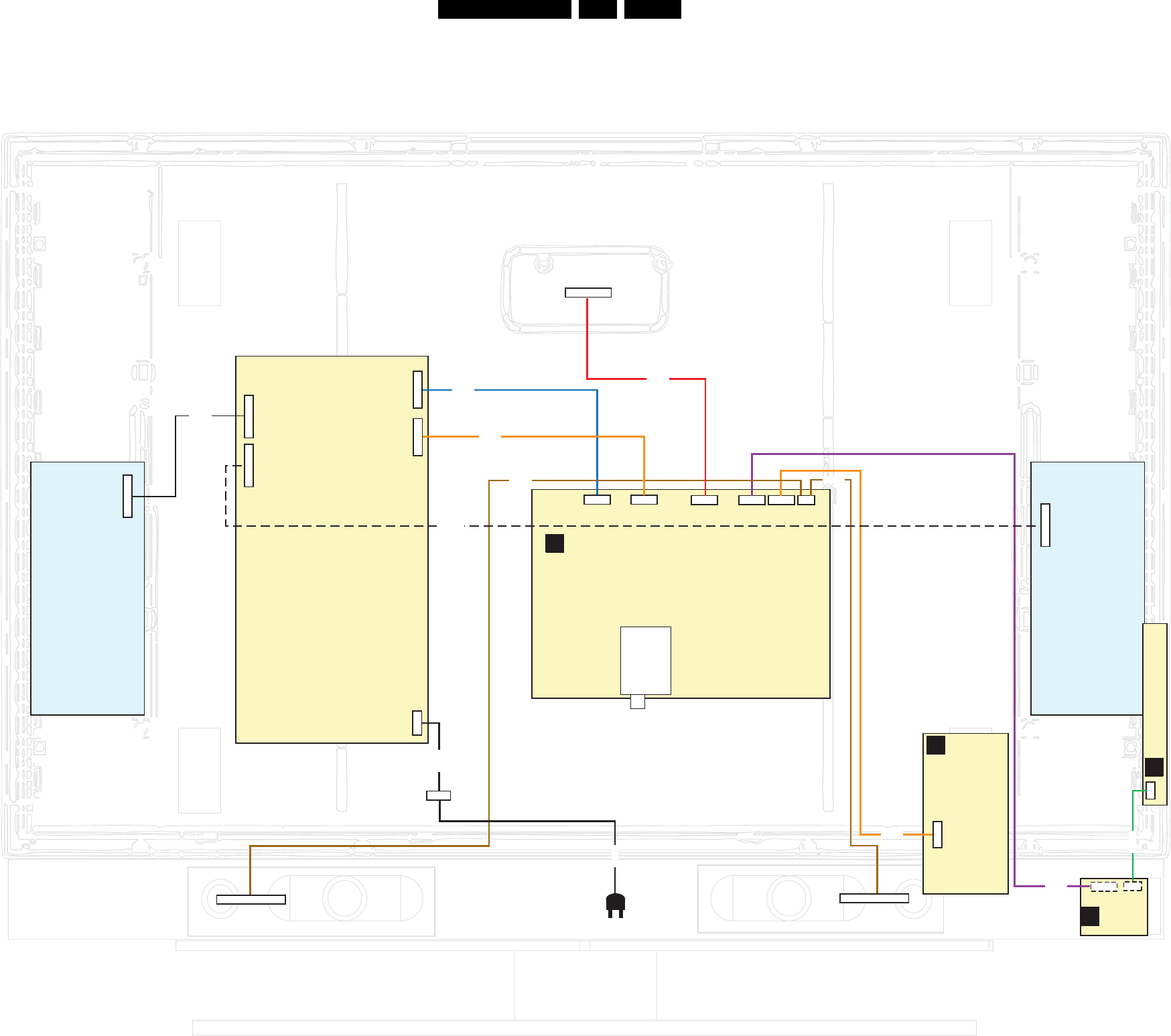

Wiring Diagram 32”
1304
11P
1G51
30P
1735
4P
1M20
7P
1C01
9P
1M01
3P
1M20
7P
1304
11P
CN1
2P3
INLET
CN7
8P
CN2
14P
CN3
12P
WIRING 32” LCD (STYLING ME7)
CN2
14P
CN3
12P
G_16860_034.eps
200207
RIGHT SPEAKER LEFT SPEAKER
BSSB
EKEYBOARD CONTROL
DSIDE I/O
J
IR/LED/LIGHT
SENSOR
8304
8M20
8C01
87358735
8521
8520
8002
CN6
9P
1M01
3P
8M01
LVDS
30P
1P11
8P
8P11
8G51
SUPPLY
INVERTER INVERTER
8191
8192(UK)
(1005)
(1116)
(1114)
(1112)
LCD DISPLAY
(1004)
28LC7.1E LA 6.
Block Diagrams, Test Point Overview, and Waveforms

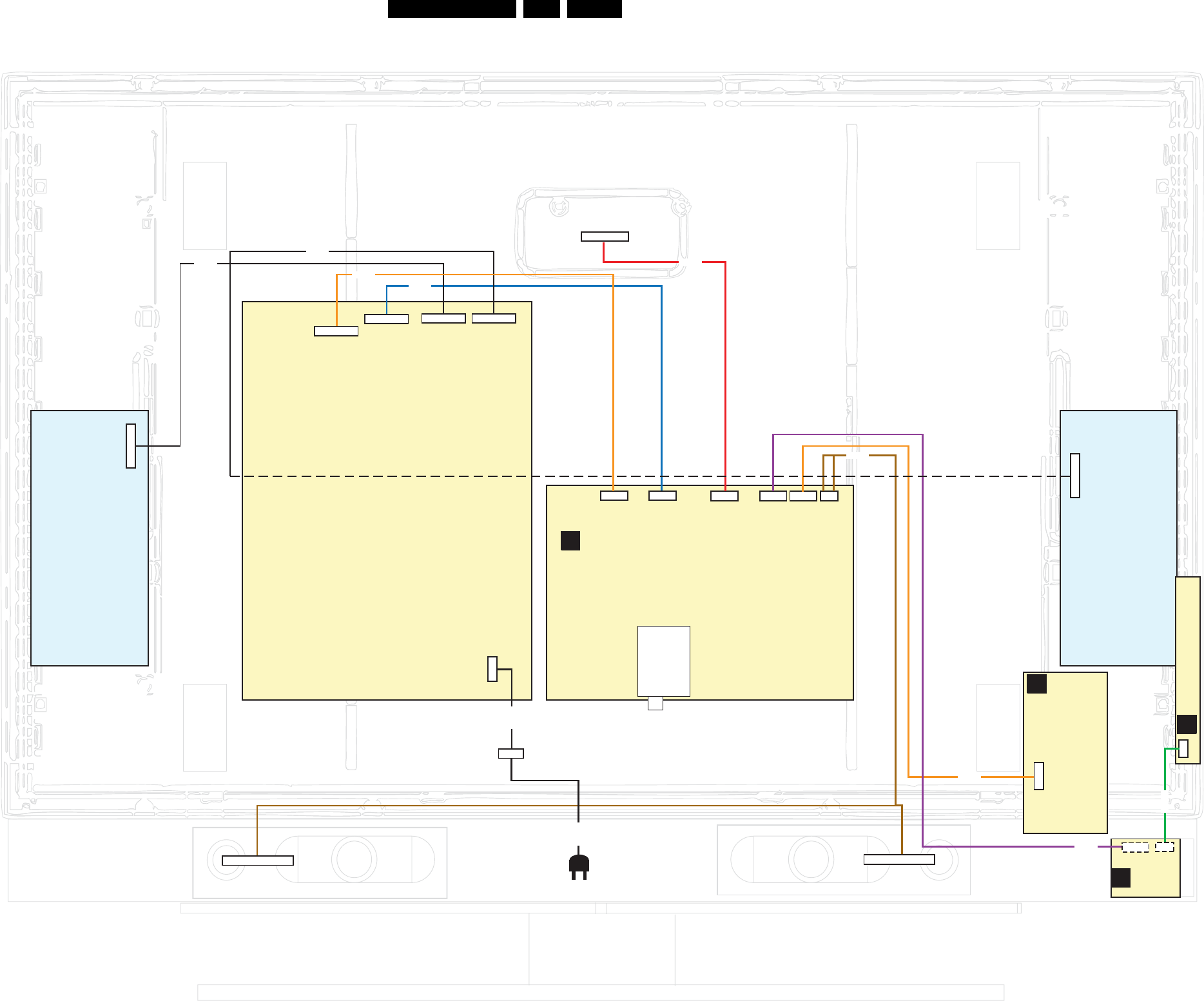

Wiring Diagram 37”-42”
1304
11P
1G51
30P
1735
4P
1M20
7P
1C01
9P
1M01
3P
1M20
7P
1304
11P
CN1
2P3
INLET
X403
12P
X404
14P
WIRING 37”- 42” LCD (STYLING ME7)
CN2
14P
CN3
12P
H_16940_012.eps
050307
RIGHT SPEAKER LEFT SPEAKER
BSSB
EKEYBOARD CONTROL
DSIDE I/O
J
IR/LED/LIGHT
SENSOR
8304
8M20
8735
8521
8520
8002
1M01
3P
8M01
LVDS
30P
1P11
8P
8G51
SUPPLY
INVERTER INVERTER
X406
8P
X412
9P
8C01
8P11
8191
8192(UK)
(1005)
(1116)
(1114)
(1112)
LCD DISPLAY
(1004)
Block Diagrams, Test Point Overview, and Waveforms 29LC7.1E LA 6.
Block Diagram Supply
CN1
CN2
DISPLAY SUPPLY
1. +24V
2. +24V
3. +24V
4. +24V
5. +24V
6. GND
7. GND
8. GND
9. GND
10. GND
11. DIM
12. BL-ON
13. PWM
14. N.C.
PRIMARY SIDE
AC-IN
SUPPLY 32” LCD
G_16860_035.eps
200207
CN3
DISPLAY SUPPLY
1. +24V
2. +24V
3. +24V
4. +24V
5. +24V
6. GND
7. GND
8. GND
9. GND
10. GND
11. N.C.
12. N.C.
SECONDARY SIDE
CN6
CONTROL:
1. BL-DIM
2. PG
3. BL-ON
4. GND
5. N.C.
6. PSON
7. N.C.
8. 12V.
CN7
CONTROL:
1. -12VA
2. +12VA
3. GND
4. 5.2VS
5. 5.2VS
6. 5.2VS
7. GND
8. GND.
9. GND
220 - 240V
50/60Hz
30LC7.1E LA 6.
Block Diagrams, Test Point Overview, and Waveforms

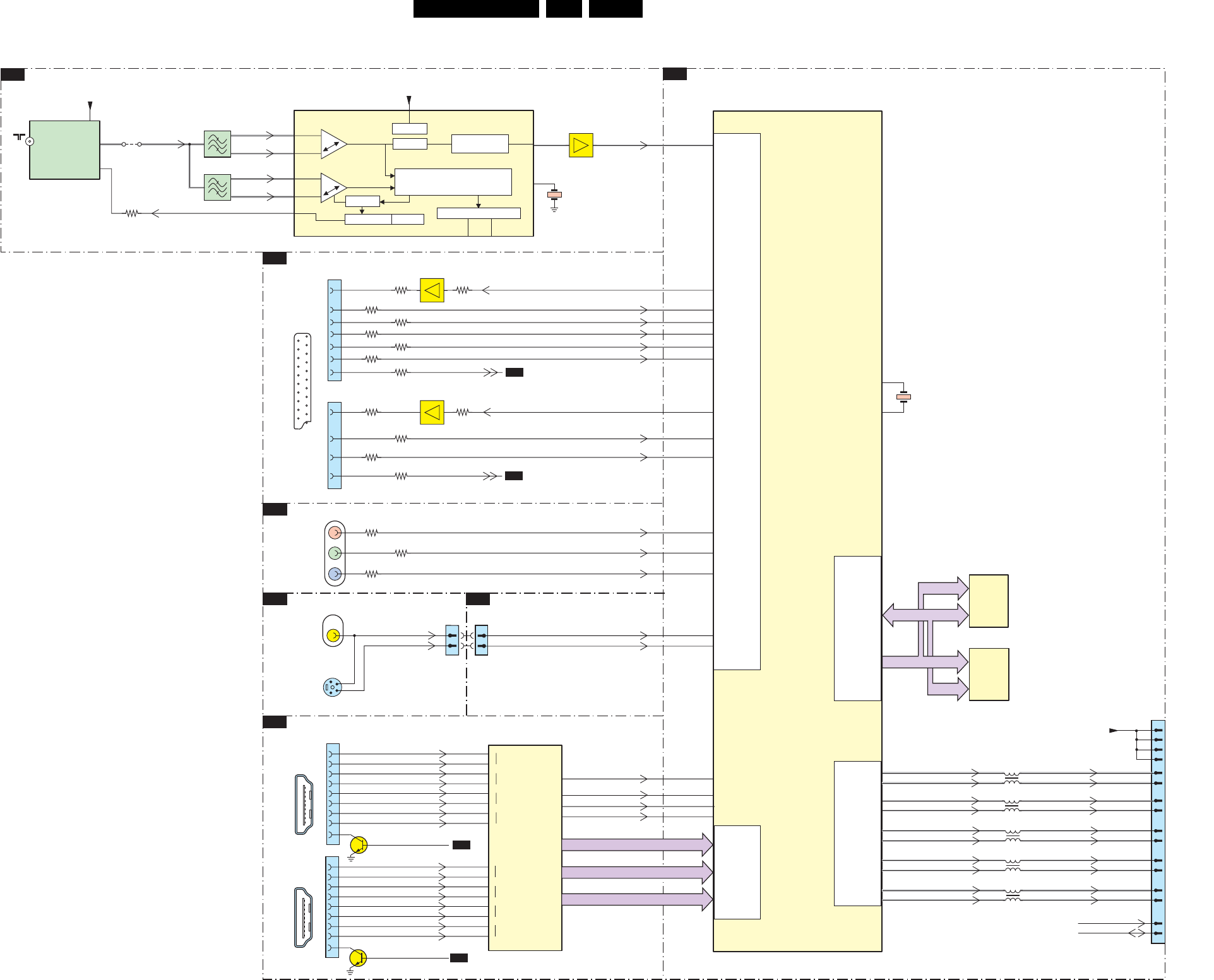

Block Diagram Video
VIDEO
ADC
HDMI
B06C
YPBPR & REAR IO
B06A
IO - SCART 1 & 2
B06B
VIDEO PROCESSOR
B04B
SIDE FACING SIDE AV
DMICROPROCESSOR
B04A
TUNER IF & DEMODULATOR
B03A
ANALOG
MUX
1
5
4
1102
SIF1
SIF2
VIF1
VIF2
23
24
1
2
17
CVBS
DEMODULATOR
7113
TDA9886T/V4
2
4
1304 1304
2
4
1
5
S VIDEO
24
3
1301
1302
FRONT_C_IN
FRONT_Y_CVBS_IN
IF_ATV
VIDEO
1101
TD1318S/A
MAIN
TUNER
11
IF_OUT3
14
1
VIF1
VIF2
1
5
4
1103 SIF1
SIF2
1504
20
11
15
21
1
2x SCART
19
7
EXT1
CVBS_RF
163
3535 EF
7503
189
1506
20
15
19
EXT2
EF
7114
SC1_B_IN
SC1_G_IN
SC1_R_IN
SC1_CVBS_IN
181
197
SC2_Y_CVBS_IN
SC2_C_IN
SC2_CVBS_MON_OUT
198
1615
Y
Pr
Pb
188
180
196
19 1
18 2
1
1810
3
4
7
9
10
12
6
19
RX2+A
RX2-A
RX1+A
RX1-A
RX0+A
RX0-A
RXC+A
RXC-A
2x HDMI
CONNECTOR
7814
HDMI_HOTPLUG_RESET
B04A
7817
SII9025CTU
182
192
FRONT_Y_CVBS_IN_T
FRONT_C_IN_T
HDMI
(MAIN)
H_16940_001.eps
270207
VIDEO
PROCESSOR
2
3
52
51
48
47
44
43
40
39
+
-R0X2
+
-R0X1
+
-R0X0
+
-R0XC
HDMI_H
HDMI_V
VSYNC
HSYNC
121 HDMI_VCLK
ODCK 23
8SC1_STATUS
16 SC1_FBL_IN
8SC2_STATUS
B04A
HD_Pr_IN
HD_Y_IN
HD_Pb_IN
CVBS_OUT1
Y_G2
PB_B3
FB1
PB_B2
1201
14M31
205
204
XTALI
XTALO
173
B04A
1
DE
19 1
18 2
1
1811
3
4
7
9
10
12
6
19
RX2+B
RX2-B
RX1+B
RX1-B
RX0+B
RX0-B
RXC+B
RXC-B
7860
HDMI_HOTPLUG_RESET
B04A
71
70
67
66
63
62
59
58
+
-R1X2
+
-R1X1
+
-R1X0
+
-R1XC
HDMI_Cb(0-7)
HDMI_Y(0-7)
HDMI_Cr(0-7)
HDMI_DE
7202
SVP CX32-LF
4
5
6
DP_HS
DP_HS
DP-CLK
DP_DE_FLD
7204
IS42S16400D-6TL
DRAM
1Mx16x4
7205
IS42S16400D-6TL
DRAM
1Mx16x4
DQ(0-31)
CX_MA
2
4
6
8
1G51
12
1212
TXCn
TXCp
TXCLKn
TXCLKp
TXDn
TXDp
1213
1214
TXAp
TXBn
TXBp
1210
1211
TXAn
14
18
20
24
26
51
50
49
48
45
44
43
42
41
40
LVDS
CONNECTOR
TO DISPLAY
1
3
5
7
27
29
BOLT_ON_SCL
BOLT_ON_SDA
TXCn1
TXCp1
TXCLKn1
TXCLKp1
TXDn1
TXDp1
TXAp1
TXBn1
TXBp1
TXAn1
TA1
TB1
TC1
TCLK1
TD1
VDISP
SC1_RF_OUT_CVBS
PR_R2
162
190 PR_R3
FS2
CVBS_OUT2
70
Y_G1
PB_B3
PR_R1
Y_G3
C
RF_AGC
169 CVBS1
MEMORY
8-BIT
SINGLE
LVDS TX
DIN_PORTD
(24BIT)
SOUND TRAPS
4.5 to 6.5 Mhz
VIF-PLL
SINGLE REFERENCE QSS MIXER
INTERCARRIER MIXER AND
AM-DEMODULATOR
TUNER AGC VIF AGC
TAG C
SIF AGC
I2C-BUS TRANSCEIVER
MAD
SCL
SDA
SUPPLY
+5VS
(16-31)
(0-15)
(0-11)
(0-11)
3528
3523
3516
3545
3528
3518
3522
3529
3552
3550
3537
EF
7500
3521
3617
3618
3619
4120
+VTUN
9
3111
15
1104
4M0
Block Diagrams, Test Point Overview, and Waveforms 31LC7.1E LA 6.

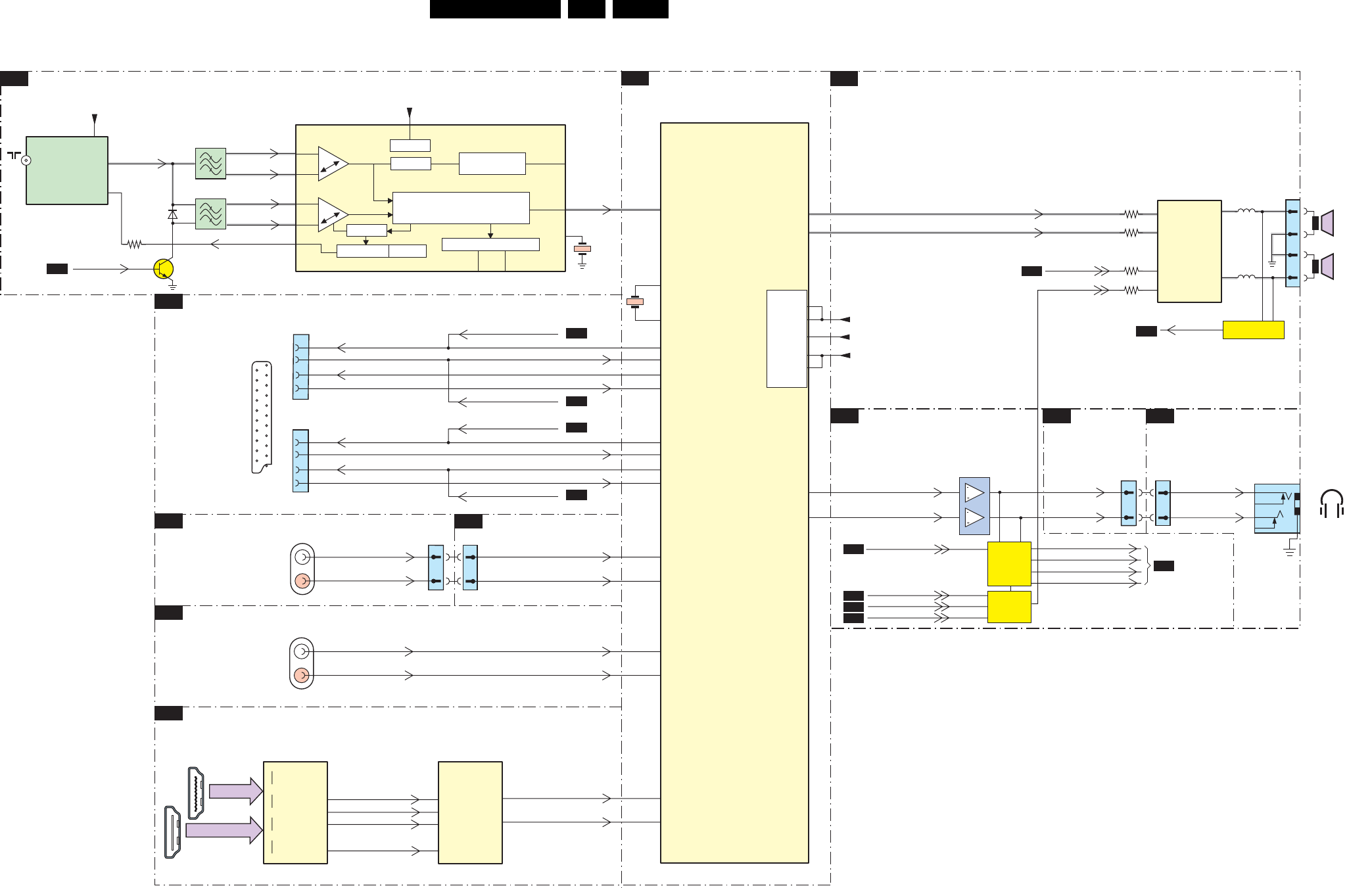

Block Diagram Audio
AUDIO
HEADPHONE AMP & MUTING
B06D
AUDIO
B07
HDMI
B06C
I0 - SCART 1 & 2
B06B
AUDIO PROCESSOR
B04C
YPBPR &REAR IO
B06A
MICROPROCESSOR
B04A
SIDE FACING SIDE AV
D
SIDE FACING SIDE AV
D
TUNER IF & DEMODULATOR
B03A
B04A MICRO
PROCESSOR
6
1304 1304
6
88
1
5
4
1102
23
24
1
2
12
6
1304 1304
6
88
IF-ATV
1101
TD1318S/A
MAIN
TUNER
11
IF_OUT3
14
RF_AGC
1
VIF1
VIF2
15
4
1103 SIF1
SIF2
1504
6
2
1
21
1
2x SCART
3
EXT1
7411
MSP4450P-VK-E8 000 Y
SIF 50
33
SC1_AUDIO _OUT_L
SC1_AUDIO_IN_R
SC1_AUDIO _OUT_R
SC1_AUDIO_IN_L
53
34
52
1302
48
49
19 1
18 2
2x HDMI
CONNECTOR
7817
SII9025CTU
HDMI
27
26
H_16940_002.eps
270207
SOUND
PROCESSOR
+
-RX2
+
-RX1
+
-RX0
+
-RXC
58 SC5-IN-R
L_FRONT_IN
R_FRONT_IN
ANA-IN1+
SC2-OUT-R
SC2-IN-R
SC2-OUT-L
SC2-IN-L
DACM-L
DACM-R
1506
6
2
1
3
EXT2
SC1_AUDIO _OUT_L
SC2_AUDIO_IN_R
SC2_AUDIO _OUT_R
SC2_AUDIO_IN_L
36 SC1-OUT-R
53 SC1-IN-R
37 SC1-OUT-L
54 SC1-IN-L
AUDIO
L/R IN
SIDE_AUDIO_IN_L_CON
SIDE_AUDIO_IN_R_CON
RXxxA
1615
COMP_AUDIO_IN_L
COMP_AUDIO_IN_R
AUDIO
L/R IN
7810
UDA1334ATS/N2
HDMI_AUDIO_IN_L
HDMI_AUDIO_IN_R
57 SC5-IN-L
50 SC3-IN-L
51 SC3-IN-R
AUDIO-LS_L
AUDIO-LS_R
7A01
TDA8932T/N1
CLASS D
POWER
AMPLIFIER
9
1
27
22
ENGAGE 5
1
2
RIGHT
SPEAKER
HDMI_I2S_SCK
1
86
HDNI_I2S_WS
2
85
HDMI_I2S_SD
3
84
8
77
BCK
WS
DATAI
MUTE
SCK
WS
SD0
MUTE
AUDIO
DAC
1735
3
4
LEFT
SPEAKER
DC-DETECTION
STANDBYn 6
3A19
3A03
3A11
7901
HP_AUDIO_OUT_L
HP_AUDIO_OUT_R
HP_LOUT
HP_ROUT
MUTING
ANTI_PLOP
19 1
18 2
RXxxB
14
16
VOUTL
VOUTR
SC1_AUDIO _MUTE_R
SC1_AUDIO _MUTE_L
SC2_AUDIO _MUTE_R
SC2_AUDIO _MUTE_L
B06D
B06D
B06D
B06D
24
23
DACA-L
DACA-R
COMP_AUDIO_IN_L
COMP_AUDIO_IN_R
SC4-IN-L
SC4-IN-R
1303
2
3
5
HEAD_PH_L
HEAD_PH_R
HEADPHONE
CONTROL
POWER_DOWN
STANDBY
MUTEn
B04A
B04A
B04A
B04A
B04A
DC_PROT
B04A
4CL
7DA1
5WS
SIF1
SIF2
VIF1
VIF2
CVBS
DEMODULATOR
7113
TDA9886T/V4
SOUND TRAPS
4.5 to 6.5 Mhz
VIF-PLL
SINGLE REFERENCE QSS MIXER
INTERCARRIER MIXER AND
AM-DEMODULATOR
TUNER AGC VIF AGC
TAGC
SIF AGC
I2C-BUS TRANSCEIVER
MAD
SCL
SDA
SUPPLY
12
SIOMAD
+5VS
7109
B04A
SAW_SW
6103
1411
18M432
67
68
XTALIN
XTALOUT
3A26
5A03
5A04
SC1_AUDIO _MUTE_R
SC1_AUDIO _MUTE_L
SC2_AUDIO _MUTE_R
SC2_AUDIO _MUTE_L
B06B
+VTUN
9
3111 15
1104
4M0
SUPPLY
+5V_D
+8V
+5V_AUD
12
13
38
40
39
7A05÷7A07
32LC7.1E LA 6.
Block Diagrams, Test Point Overview, and Waveforms

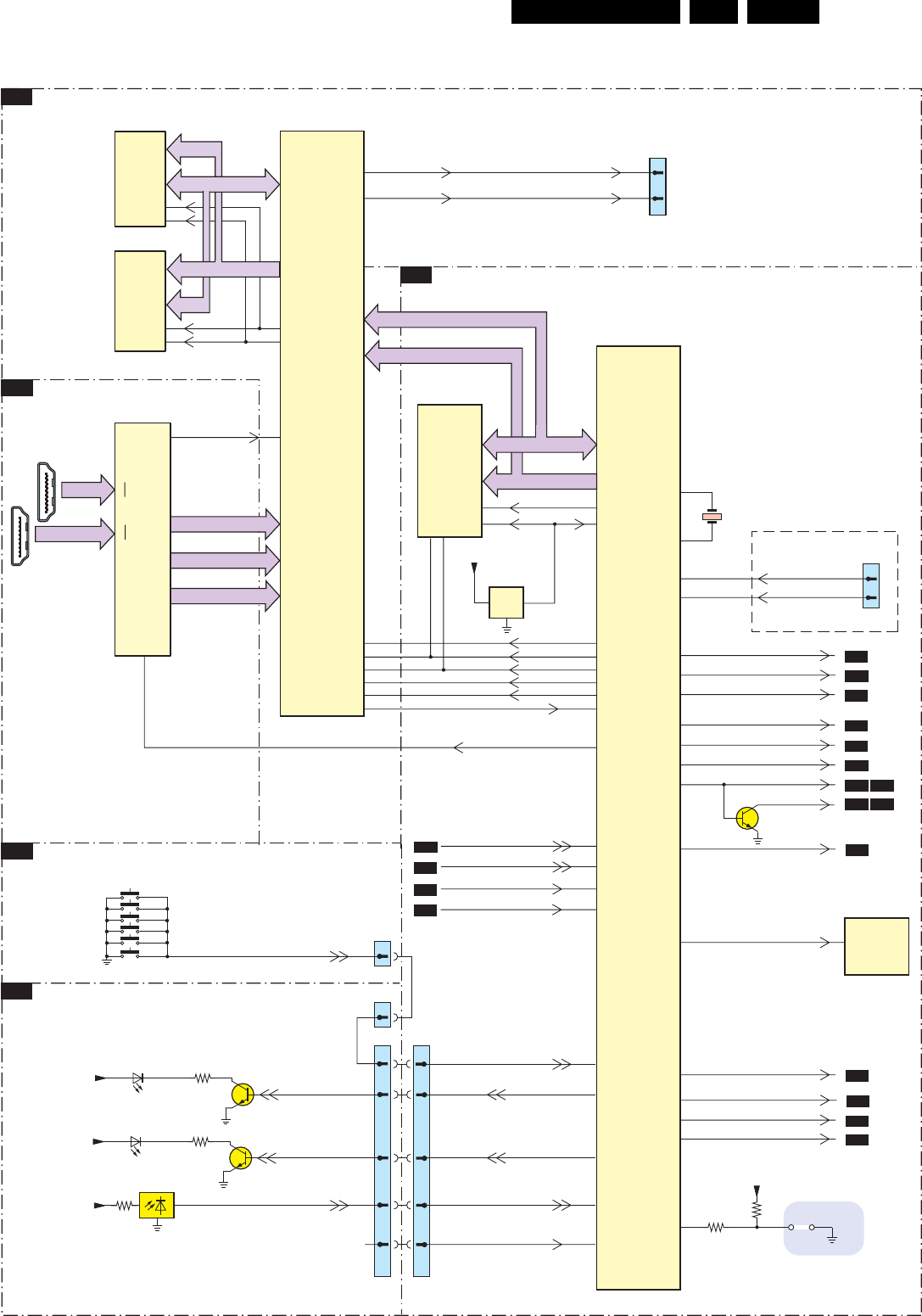

Block Diagram Control & Clock Signals
MICROPROCESSOR
B04A
KEYBOARD CONTROL
E
IR/LED/LIGHT-SENSOR
J
VIDEO PROCESSOR
B04B
HDMI
B06C
CONTROL & CLOCK SIGNALS
1G51
18
18
93
95
87
7311
M30300SAGP
MICRO
PROCESSOR
KEYBOARD
LED1
IR
SENSOR
RC
1M20 1M20
66
33
44
7011
+5V2_STBY
7010
3010
6010
LED1
BLEU
+5V2-STBY
3012
1M01
2
1M01
2
77
1011
1012
1013
1014
1015
1016
ON / OFF
CHANNEL -
VOLUME +
VOLUME -
CHANNEL +
MENU
LED2
7012
6011
LED2
RED
+5V2-STBY
3013
LED1
LED2
REMOTE
KEYB
25 4301 SDM
3361
3366
+3V3_STBY
1301
10M
13
11
7202
SVP CX32-LF
VIDEO
PROCESSOR
7204
IS42S16400D-6TL
DRAM
1Mx16x4
7205
IS42S16400D-6TL
DRAM
1Mx16x4
DQ(0-31)
CX_MA(0-11)
+
-R0
HDMI_Cb(0-7)
HDMI_Y(0-7)
HDMI_Cr(0-7)
19 1
18 2
2x HDMI
CONNECTOR
RXxxA
19 1
18 2
RXxxB
7817
SII9025CTU
+
-R1
37
38
37
38
112
111
CX_MCLK
CX_CLKE
HDMI_CCLK
121 23
TXCLKn
43
TXCLKn1
20
TXCLKP
42
TXCLKP1 TO DISPLAY
(LVDS)
1312
6
ITV_SPI_CLK
9
ITV_CONNECTOR A
2
11 LIGHT_DENSOR
N.C.
91
SC1_STATUS
B06B
90
SC2_STATUS
B06B
89 HDMI_HOTPLUG_RESET
B06C
88 RST_AUD
B04C
3STANDBYn
B04B
7322 STANDBY
B07
B02 B06D
4RST_H
B04B
100 E_PAGE
7315
M24C64-WMN6P
EEPROM
8Kx8
7
99 LCD_PWR_ON
B04B
19 DCC_RESET
B06C
5
ITV_SPI_DATA_IN
8
23 SAW_SW
B03A
21 DVB_SW
B03A
36
RST
102
78 MUTEn
B06D
75 BL_ON_OFF
B02
74 ANTI_PLOP
B06D
72 POWER_DOWN
B6D
71
DC_PROT
B07
104
HDMI_INT
B06C
H_16940_003.eps
270207
7310
M29W800DT
EPROM
1Mx8
512Kx16
A(0-19)
AD(0-7)
A(0-7)
AD(0-7)
86 4
RST_H
56 18
INT
61 45
CS
63 42
RD
62 44
WR
84 38
ALE_EMU
CPU_RST
12
10
26
48
CE
11 28
7312
BD45275G
4
(3V3)
VOUT
2,3
+3V3_STBY
5
Block Diagrams, Test Point Overview, and Waveforms 33LC7.1E LA 6.

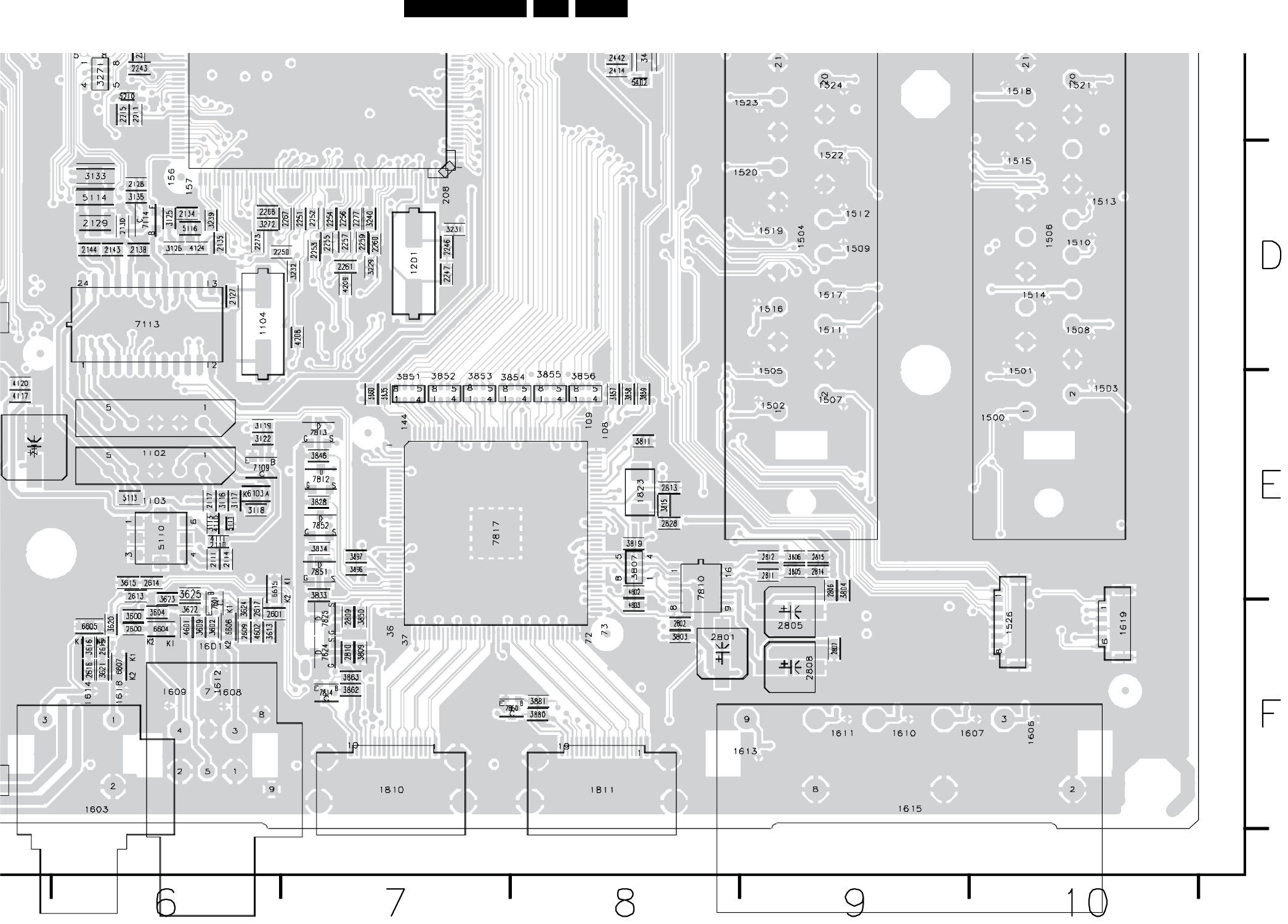

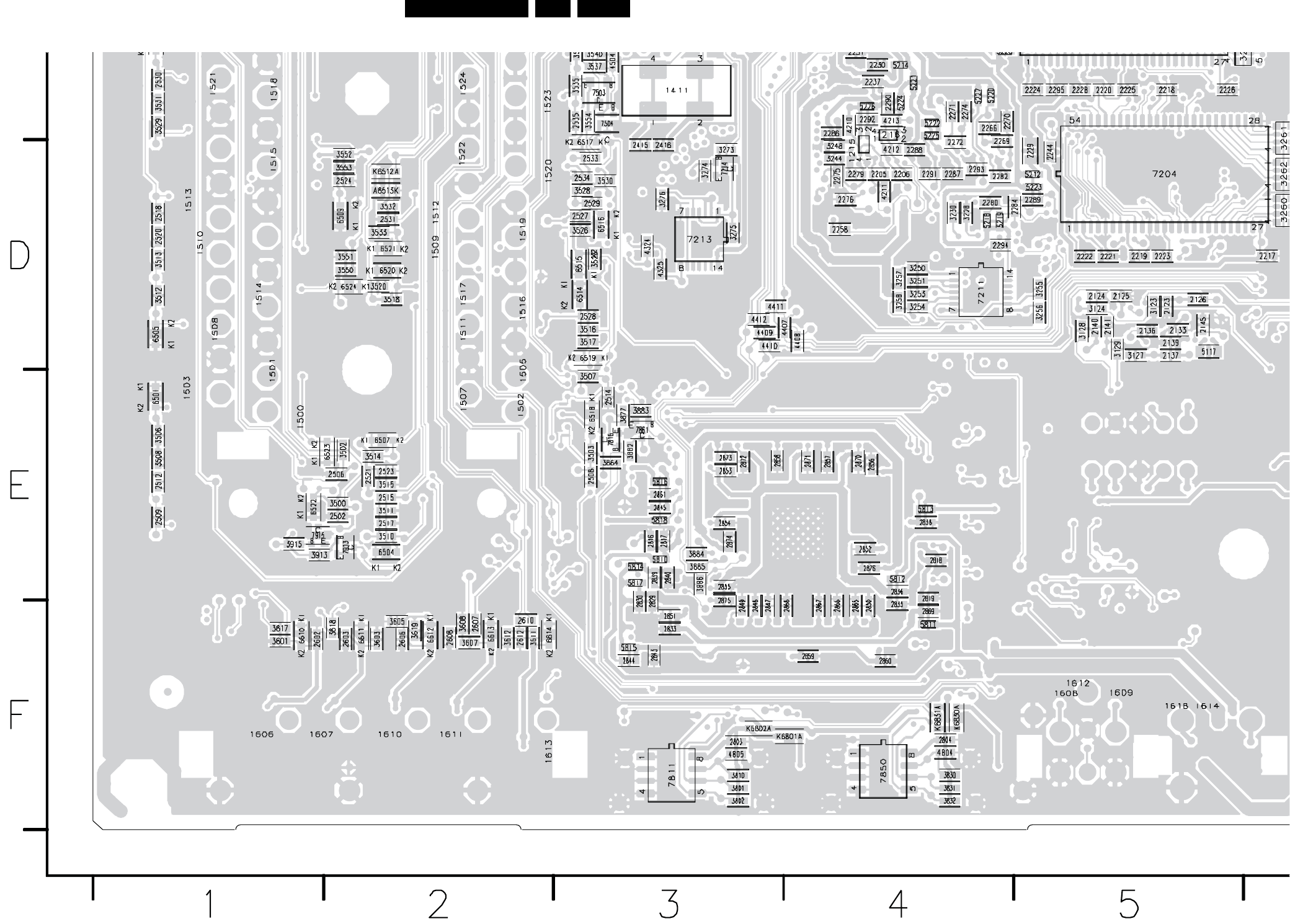

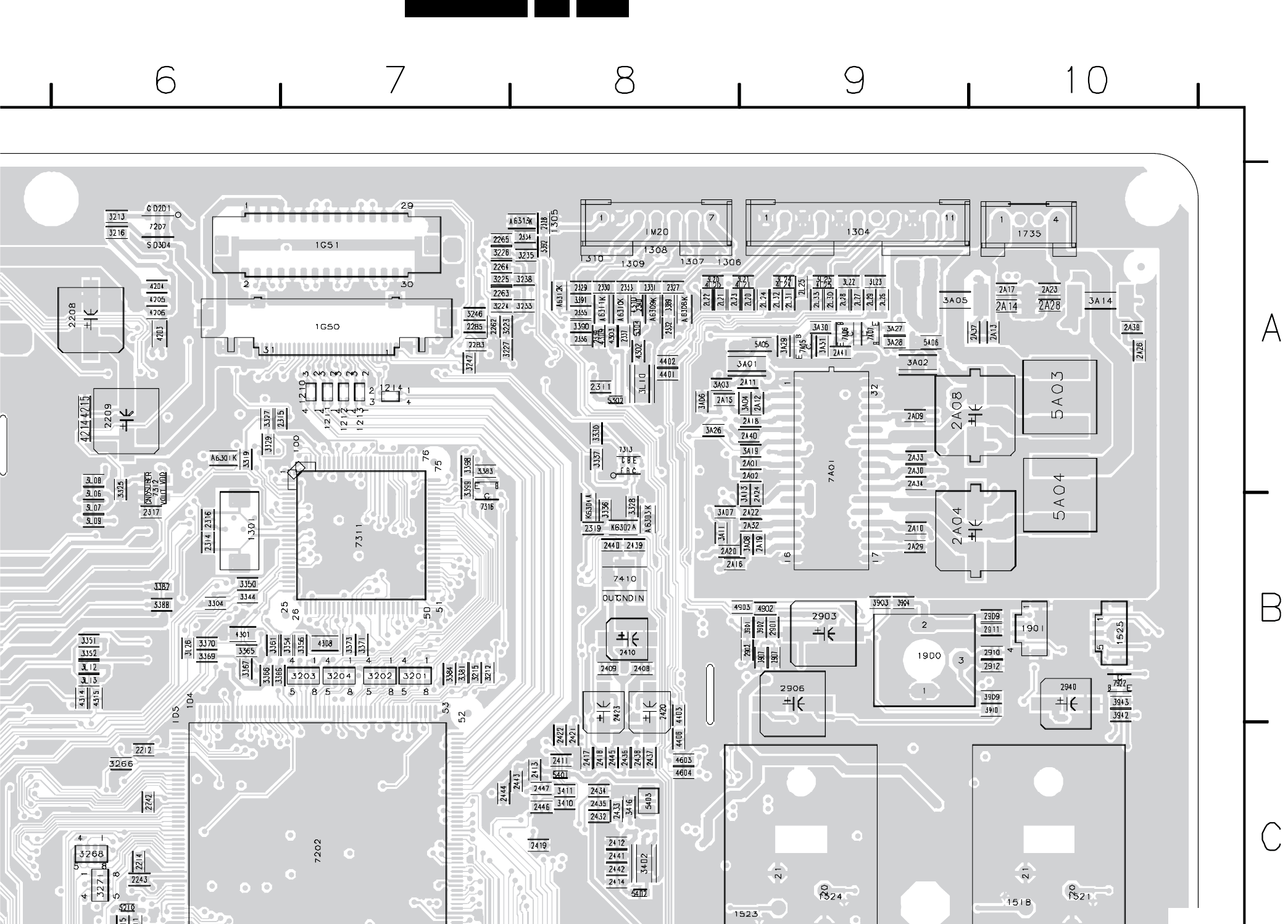

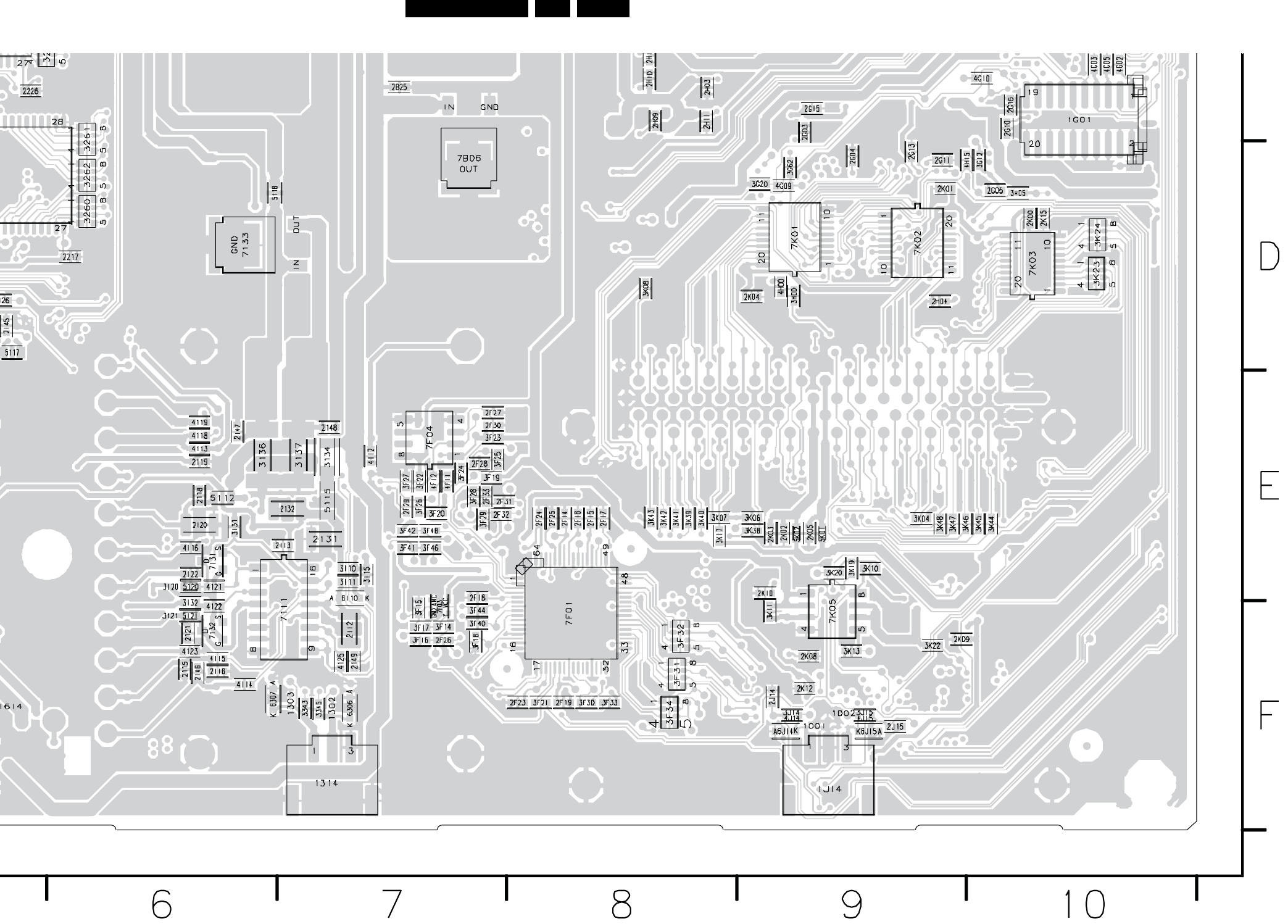

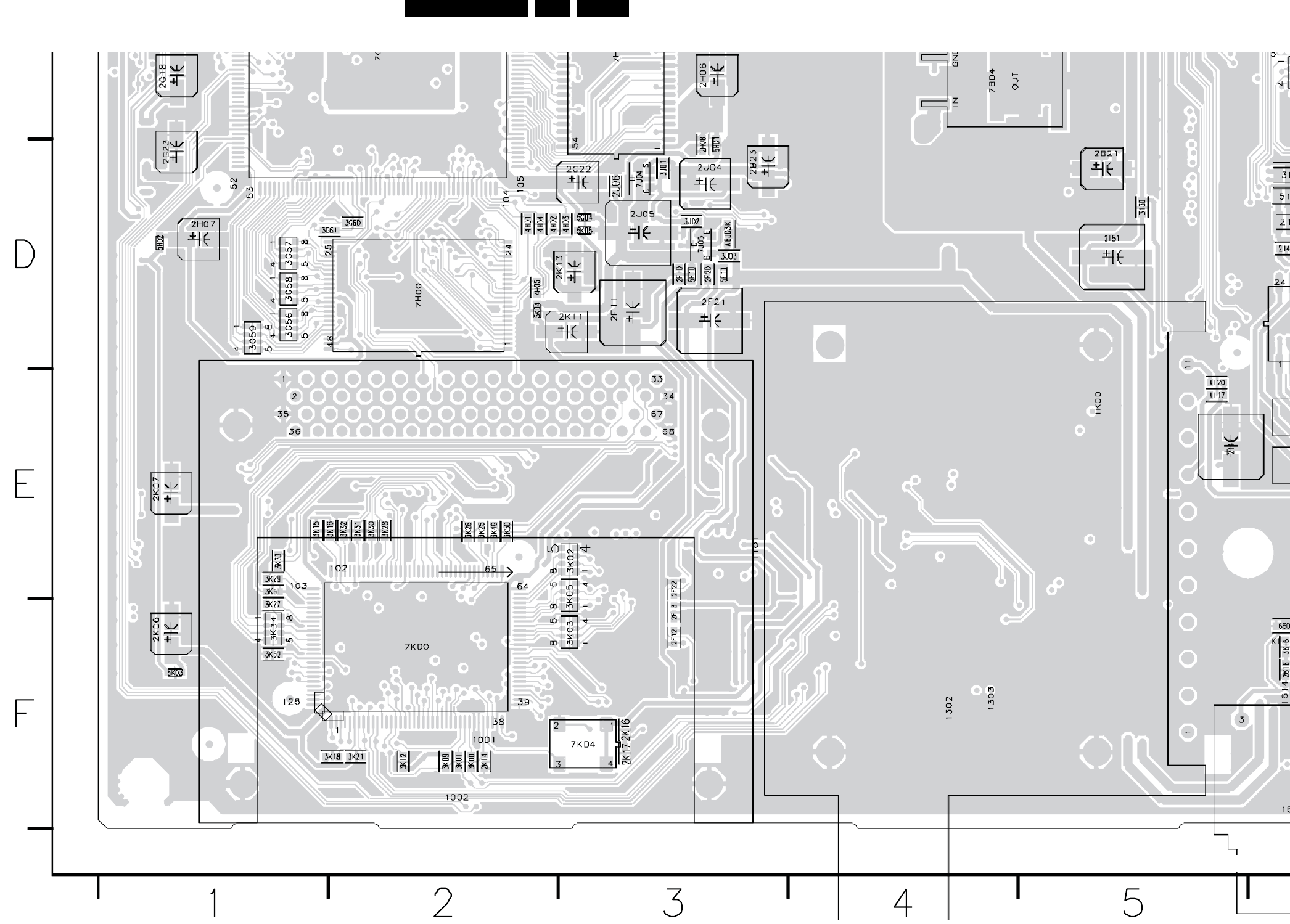

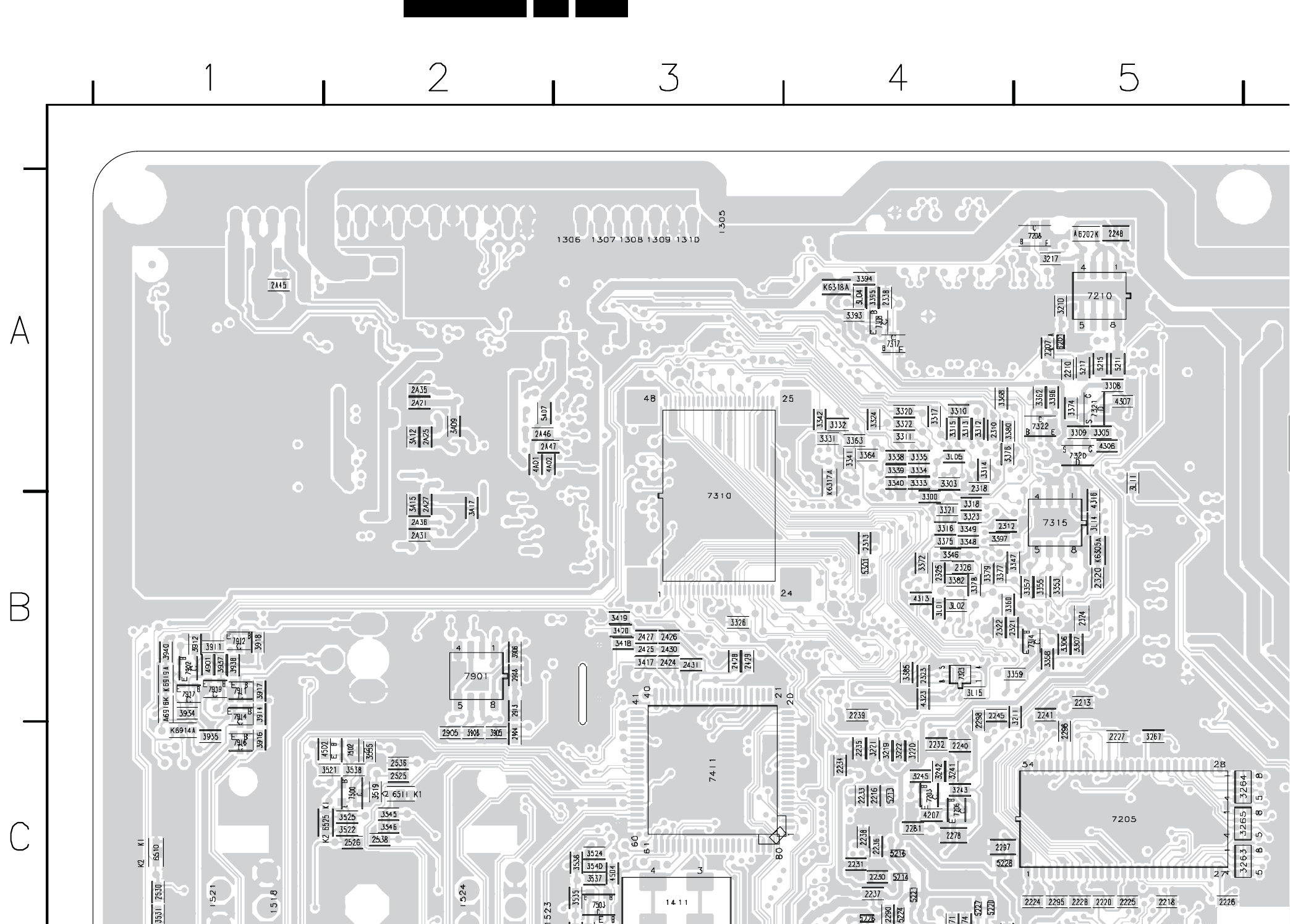

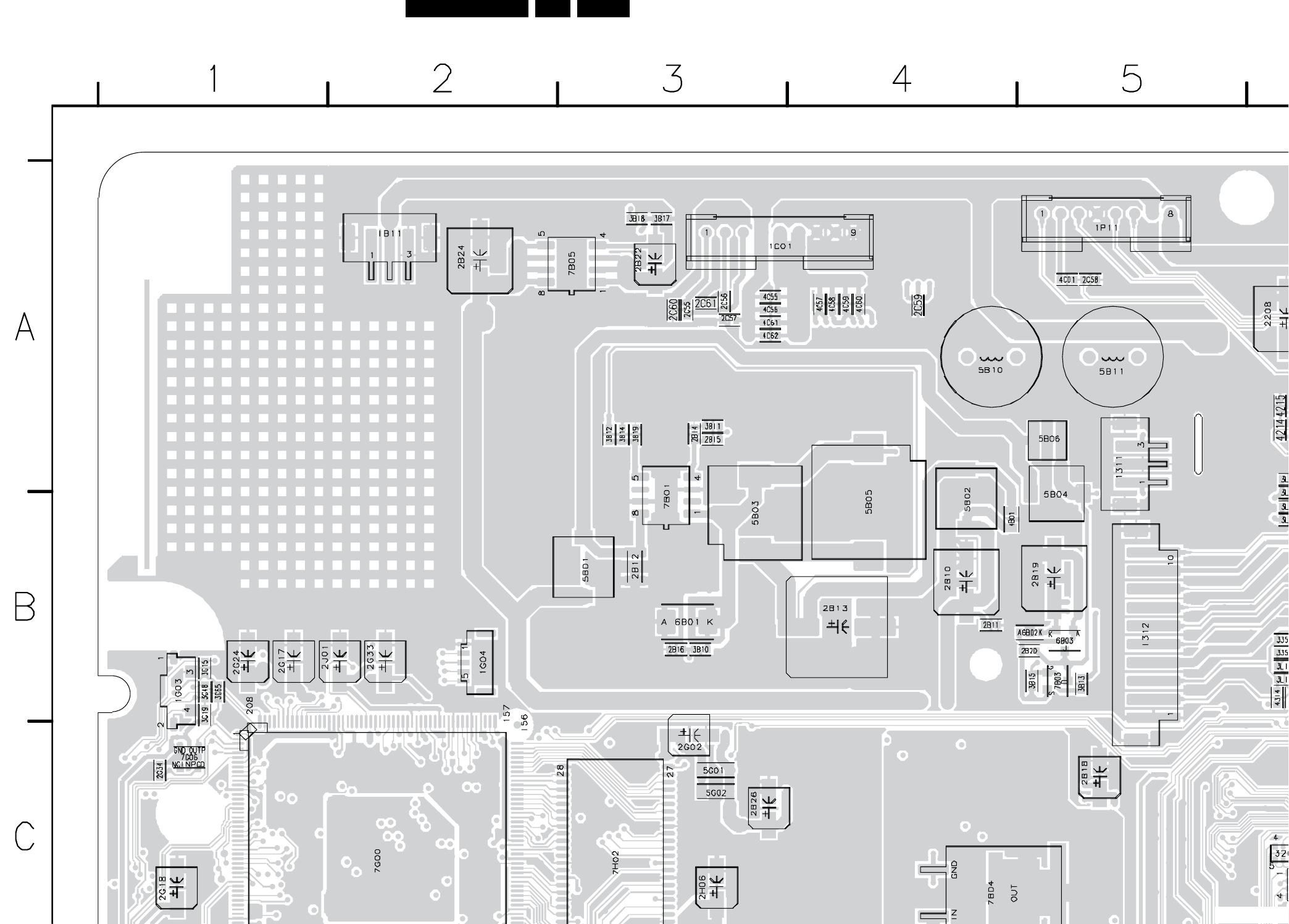

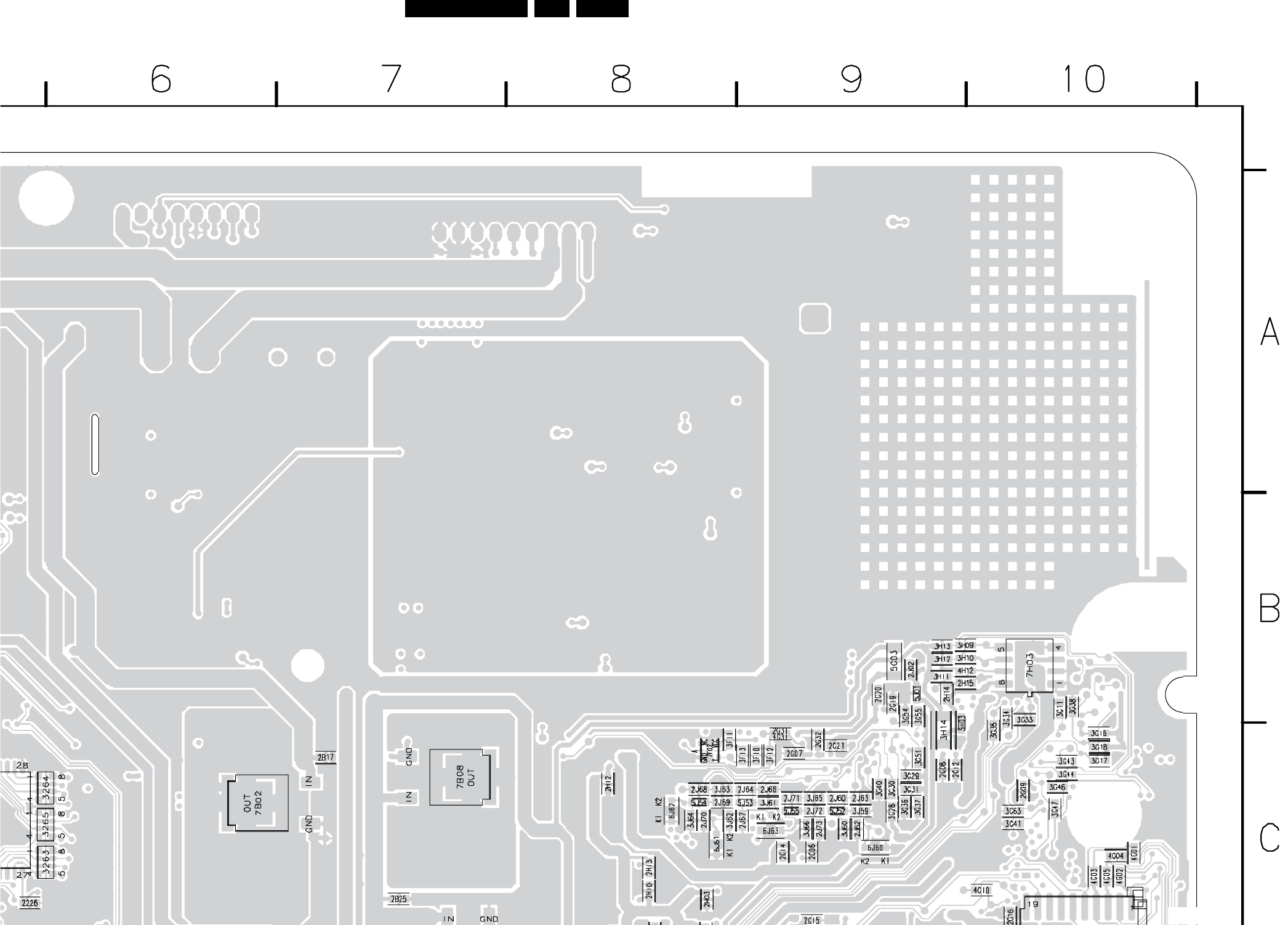

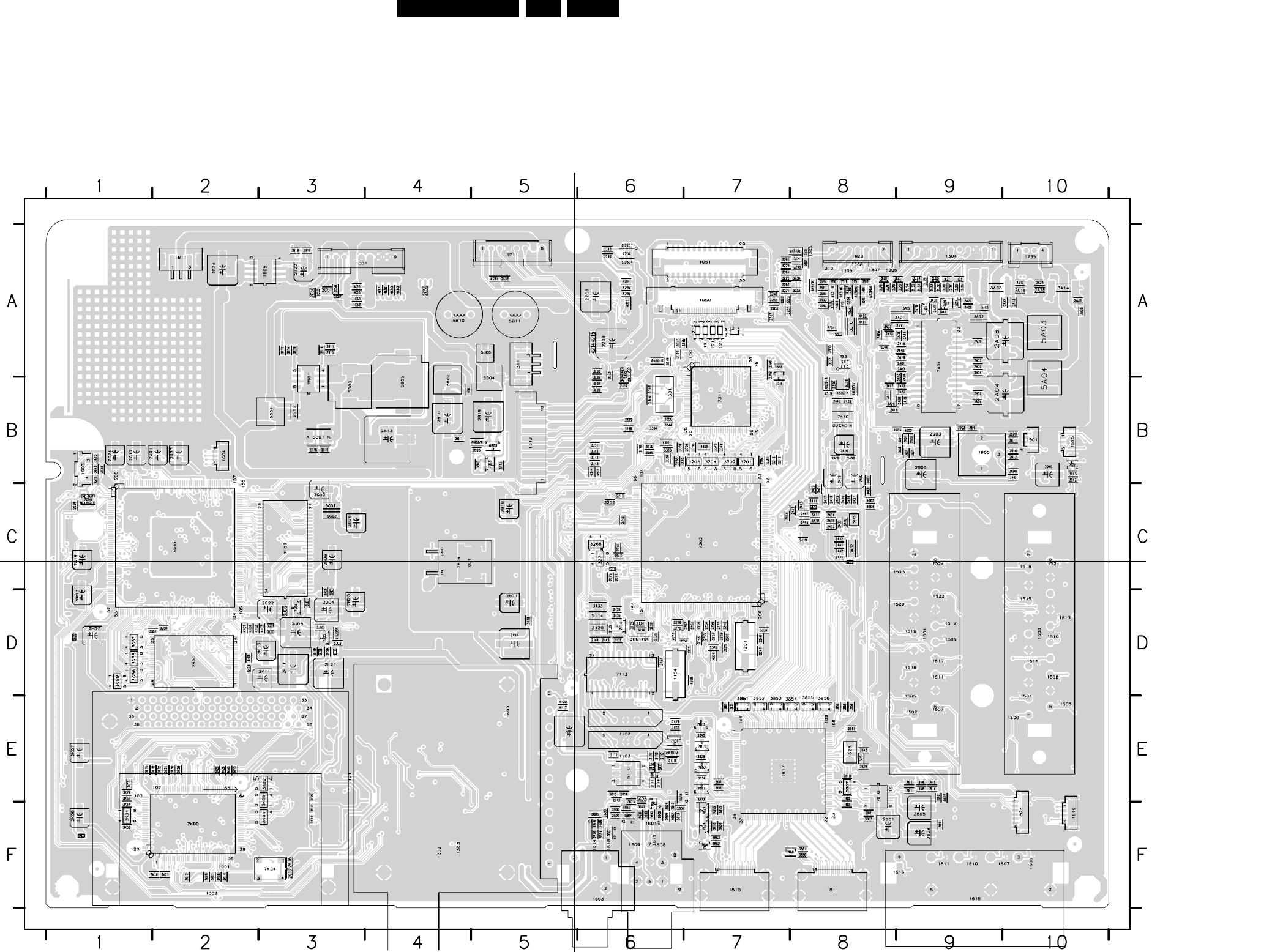

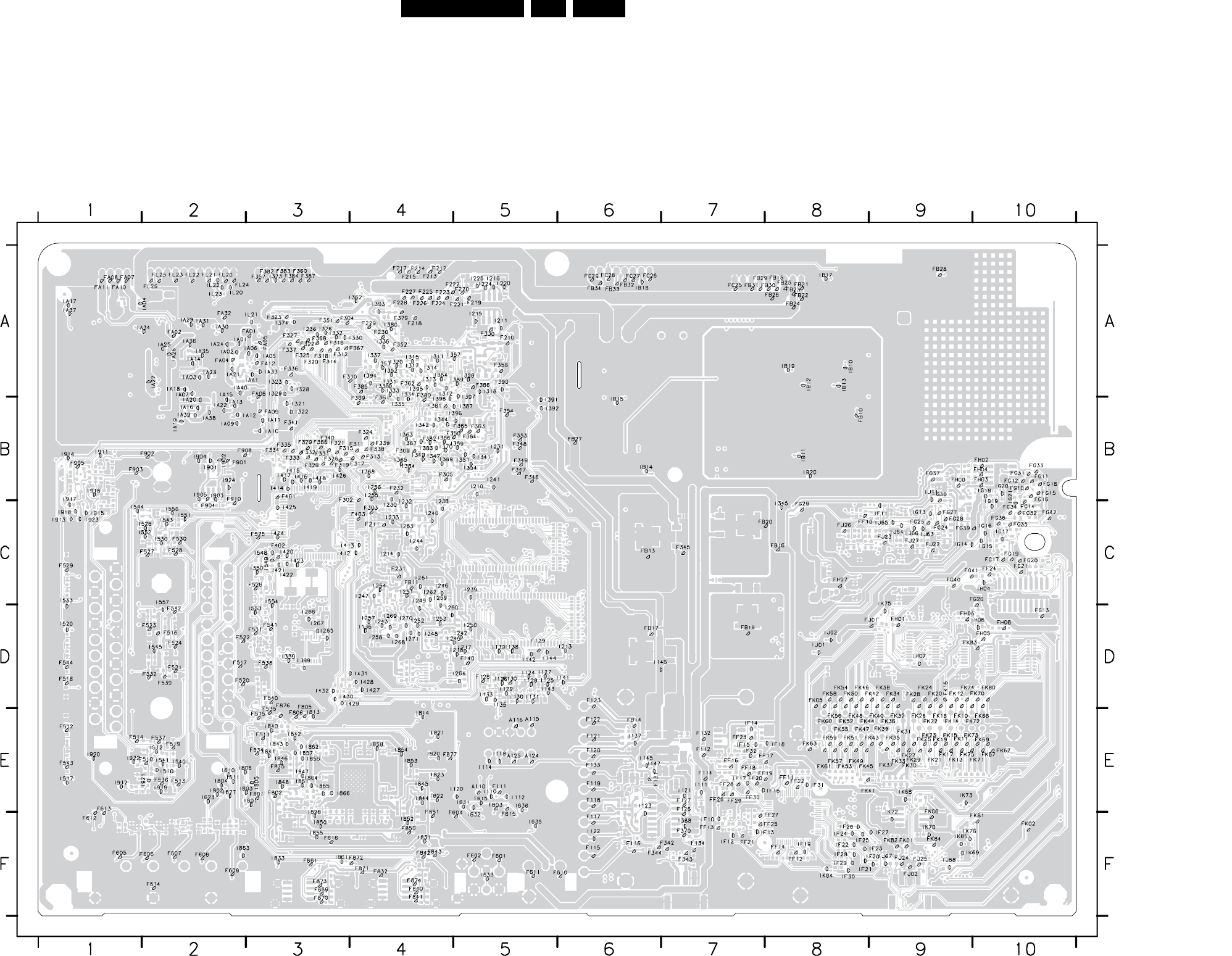

Test Point Overview SSB (Bottom Side)
3139 123 6261.1 G_16860_018.eps
240107
A110 E5
A115 E5
A116 E5
A124 E5
A125 E5
F111 E5
F112 E7
F114 E7
F115 F6
F116 F6
F117 F6
F118 E6
F119 E6
F120 E6
F121 E6
F122 E6
F123 D6
F126 E7
F127 E7
F128 D5
F129 D5
F130 D5
F131 E6
F132 E7
F133 E6
F134 F7
F140 D5
F210 A5
F211 C4
F212 A4
F213 A4
F214 A4
F215 A4
F217 A4
F218 A4
F219 A5
F220 A5
F221 A5
F222 A4
F223 A4
F224 A4
F225 A4
F226 A4
F227 A4
F228 A4
F229 A4
F230 A4
F231 C4
F232 B4
F302 B3
F303 C4
F304 A3
F305 B4
F309 B4
F310 A4
F311 B4
F312 A3
F313 B4
F314 A3
F315 B3
F316 A3
F317 B4
F318 A3
F319 B3
F320 A3
F321 B3
F322 A3
F323 A3
F324 B4
F325 A3
F326 B3
F327 A3
F328 B3
F329 B3
F330 A5
F331 B3
F332 B3
F333 B3
F334 B3
F335 B3
F336 A3
F337 A3
F338 B4
F339 B4
F340 B3
F341 B3
F342 F7
F343 F7
F344 F6
F345 C7
F346 B5
F347 B5
F348 B5
F349 B5
F350 B5
F351 A3
F352 A4
F353 B5
F354 B5
F356 A5
F357 A3
F360 A3
F361 B4
F362 A4
F363 B5
F364 B5
F365 B5
F366 B3
F367 A4
F368 A3
F369 B4
F370 F7
F379 A4
F380 A4
F381 B4
F382 A3
F383 A3
F384 A3
F385 A4
F386 A5
F387 A3
F401 B3
F402 C3
F403 C4
F510 E2
F511 E3
F512 E1
F513 E2
F514 E1
F515 E3
F516 D2
F517 D2
F518 D1
F519 E2
F520 D2
F521 D2
F522 D2
F523 D2
F524 D2
F525 C3
F526 C3
F527 C2
F528 C2
F529 C1
F530 C2
F531 D3
F532 D2
F534 E3
F535 E3
F536 E2
F537 E2
F538 D3
F539 D2
F540 D3
F541 D3
F542 D2
F543 E1
F544 D1
F601 F5
F602 F5
F603 E5
F604 F5
F605 F1
F606 F2
F607 F2
F608 F2
F609 F2
F610 F6
F611 F5
F612 F1
F613 E1
F614 F2
F615 F5
F616 F3
F801 E3
F802 E3
F805 D3
F806 E3
F832 F4
F840 F4
F841 F4
F842 F4
F843 F4
F850 F4
F851 E4
F861 F3
F869 F3
F870 F3
F871 F4
F872 F4
F873 F3
F874 F4
F875 E3
F876 D3
F877 E4
F901 B2
F902 B2
F903 B1
F904 C2
F905 B1
F908 B2
F910 B2
FA01 A3
FA02 A2
FA04 A2
FA05 A3
FA06 A3
FA07 A1
FA08 A1
FA09 B3
FA10 A1
FA11 A1
FA12 A3
FA32 A2
FB10 B8
FB11 C4
FB13 C6
FB14 E6
FB15 A8
FB16 C8
FB17 D6
FB19 D7
FB20 C8
FB21 A8
FB22 A8
FB23 A8
FB24 A8
FB25 A8
FB26 A8
FB27 B6
FB28 A9
FB29 A7
FB30 A8
FB31 A7
FB32 A6
FB33 A6
FB34 A6
FC25 A7
FC26 A6
FC27 A6
FC28 A6
FC29 A6
FF10 C8
FF11 E8
FF12 F8
FF13 F7
FF14 F8
FF16 E7
FF17 E8
FF18 E7
FF19 E8
FF20 E7
FF21 F7
FF22 E8
FF23 E7
FF24 C10
FF25 F8
FF26 E7
FF27 F8
FF28 E7
FF29 E7
FF30 E7
FG10 B10
FG11 B10
FG12 B10
FG13 D10
FG14 C10
FG15 B10
FG16 B10
FG17 C10
FG18 B10
FG19 C10
FG20 C10
FG21 C10
FG24 C9
FG25 C9
FG26 C10
FG27 C9
FG28 C9
FG29 C8
FG30 B9
FG31 B10
FG32 C10
FG33 B10
FG34 C10
FG35 C10
FG36 C10
FG37 B9
FG39 C9
FG40 C9
FG41 C9
FG42 C10
FH00 B9
FH01 D9
FH02 B10
FH03 B10
FH04 B10
FH05 D10
FH06 D9
FH07 C8
FH08 D10
FJ01 D9
FJ02 F9
FJ22 C9
FJ23 C9
FJ24 F9
FJ25 F9
FJ26 C8
FJ27 C9
FK01 F9
FK02 F10
FK05 D8
FK06 E9
FK10 E9
FK11 E9
FK12 D9
FK13 E9
FK14 E9
FK15 E9
FK16 D9
FK17 E9
FK18 E9
FK19 E9
FK20 D9
FK21 E9
FK22 E9
FK23 E9
FK24 D9
FK25 E9
FK26 E9
FK27 E9
FK28 D9
FK29 E9
FK30 E9
FK31 E9
FK32 E9
FK33 E9
FK34 D9
FK35 E9
FK36 E9
FK37 E9
FK38 D9
FK39 E9
FK40 E9
FK41 E8
FK42 D9
FK43 E9
FK44 E8
FK45 E8
FK46 D8
FK47 E8
FK48 E8
FK49 E8
FK50 D8
FK51 E8
FK52 E8
FK53 E8
FK54 D8
FK55 E8
FK56 E8
FK57 E8
FK58 D8
FK59 E8
FK60 E8
FK61 E8
FK62 E10
FK63 E8
FK67 E10
FK68 E10
FK69 E10
FK70 D10
FK71 E10
FK72 E10
FK73 E9
FK74 D9
FK75 E9
FK80 D10
FK81 F10
FK82 F9
FK83 D9
FK84 F9
FL20 A2
FL21 A2
FL22 A2
FL23 A2
FL24 A2
FL25 A2
FL26 A2
I110 E5
I111 E7
I112 E5
I114 E5
I118 E5
I120 E5
I121 E7
I122 F6
I123 E6
I124 D5
I125 D5
I126 D5
I127 D5
I128 D5
I129 D5
I130 D5
I131 D5
I133 D5
I135 D5
I136 D4
I137 E6
I138 D5
I139 D5
I141 D6
I142 D5
I143 D5
I144 D5
I145 E6
I146 D6
I147 E6
I210 B5
I211 A5
I213 D6
I214 C4
I215 A5
I216 A5
I217 D5
I218 D5
I220 A5
I224 A5
I225 A5
I230 C4
I231 B5
I232 C4
I233 C4
I236 A3
I238 C4
I239 C5
I240 C4
I241 B5
I242 D5
I243 D4
I244 C4
I245 D5
I246 C4
I247 C4
I248 D4
I249 C4
I250 D5
I251 C4
I252 D4
I253 D4
I254 C4
I255 B4
I256 B4
I257 D4
I258 D4
I259 C4
I260 D4
I261 C4
I262 C4
I263 C4
I264 D5
I265 D3
I266 D3
I267 D3
I268 D4
I269 D4
I270 D4
I271 D4
I311 A4
I312 A4
I313 A4
I314 A4
I315 A4
I317 A4
I318 A5
I320 A4
I321 B3
I322 B3
I323 A3
I326 A5
I328 A3
I329 A3
I330 A4
I331 A4
I332 A3
I333 A4
I334 A4
I335 B4
I336 A4
I337 A4
I338 A4
I339 D3
I341 B5
I342 B4
I344 B4
I345 C8
I347 B4
I349 B4
I351 B5
I352 A4
I353 A4
I354 B5
I357 A5
I359 B5
I362 A4
I363 B4
I364 A4
I365 B4
I366 B4
I367 B4
I368 B4
I369 B4
I370 B4
I373 A3
I374 A3
I376 A3
I380 A4
I382 B4
I383 B4
I384 B4
I387 B5
I388 F7
I389 A5
I390 A5
I391 B5
I392 B5
I393 A4
I394 A4
I395 A4
I396 B5
I397 A5
I398 B4
I399 D3
I412 C3
I413 C3
I414 B3
I415 B3
I416 B3
I417 B3
I418 B3
I419 B3
I420 C3
I421 C3
I422 C3
I423 C3
I424 C3
I425 C3
I426 B3
I427 D4
I428 D4
I429 D4
I430 D3
I431 D4
I432 D3
I510 E2
I512 E2
I517 E1
I520 D1
I528 C2
I530 C2
I533 C1
I540 E2
I541 E2
I543 C2
I544 C1
I545 D2
I548 C3
I549 C3
I550 C3
I551 C2
I552 C2
I553 D3
I554 C3
I556 C2
I557 C2
I610 E2
I611 E2
I615 E5
I623 E2
I627 E2
I631 E5
I632 F5
I633 F5
I635 F5
I636 E5
I801 E3
I802 E2
I803 E2
I804 E2
I805 E3
I806 E2
I813 E3
I814 E4
I820 E4
I821 E4
I822 E4
I823 E4
I828 F3
I831 F4
I833 F3
I840 E3
I841 E3
I842 E3
I843 E3
I844 E4
I845 E4
I846 E3
I847 E3
I848 E3
I850 F3
I851 E3
I852 F4
I853 E4
I854 E4
I855 F3
I856 E3
I857 E3
I858 E4
I861 F3
I862 E3
I863 F2
I864 E3
I865 E3
I866 E3
I901 B2
I902 B2
I903 B2
I904 B2
I905 B2
I911 B1
I912 E1
I913 C1
I914 B1
I915 C1
I916 B1
I917 B1
I918 C1
I919 E2
I920 E1
I921 E2
I922 E1
I923 C1
I924 B2
IA01 A2
IA02 A2
IA03 A2
IA04 A2
IA05 A3
IA06 A3
IA07 A2
IA09 B2
IA10 B3
IA11 B3
IA12 B3
IA13 B2
IA14 A2
IA15 A2
IA16 B2
IA17 A1
IA18 A2
IA19 B2
IA20 B2
IA21 A2
IA22 B2
IA23 A2
IA24 A2
IA25 A2
IA26 A2
IA27 A2
IA29 A2
IA30 A2
IA31 A2
IA33 A3
IA34 A2
IA35 A2
IA36 A2
IA37 A1
IA38 B2
IA39 B2
IA40 A2
IA41 A3
IB10 A8
IB11 B8
IB12 A8
IB13 A8
IB14 B6
IB15 B6
IB17 A8
IB18 A6
IB19 A8
IB20 B8
IF10 F7
IF11 C9
IF12 F7
IF13 F8
IF14 E7
IF15 E7
IF16 E8
IF17 E7
IF18 E8
IF19 F8
IF20 F9
IF21 F8
IF22 F8
IF23 F9
IF24 F8
IF25 F8
IF26 F8
IF27 F9
IF28 F8
IF29 F8
IF30 F8
IF31 E8
IF32 E7
IG13 C9
IG14 C9
IG15 C10
IG16 C10
IG17 C10
IG18 B10
IG19 C10
IG20 B10
IG21 B10
IH04 C10
IH06 D10
IH07 D9
IJ01 D8
IJ02 D8
IJ11 B9
IJ63 C9
IJ64 C9
IJ65 C9
IJ66 C9
IJ67 F9
IJ68 F9
IK68 E9
IK69 F9
IK70 F9
IK72 E9
IK73 E9
IK75 C9
IK76 F9
IK84 F8
IK85 F9
IL20 A2
IL21 A3
IL22 A2
IL23 A2
34LC7.1E LA 6.
Block Diagrams, Test Point Overview, and Waveforms

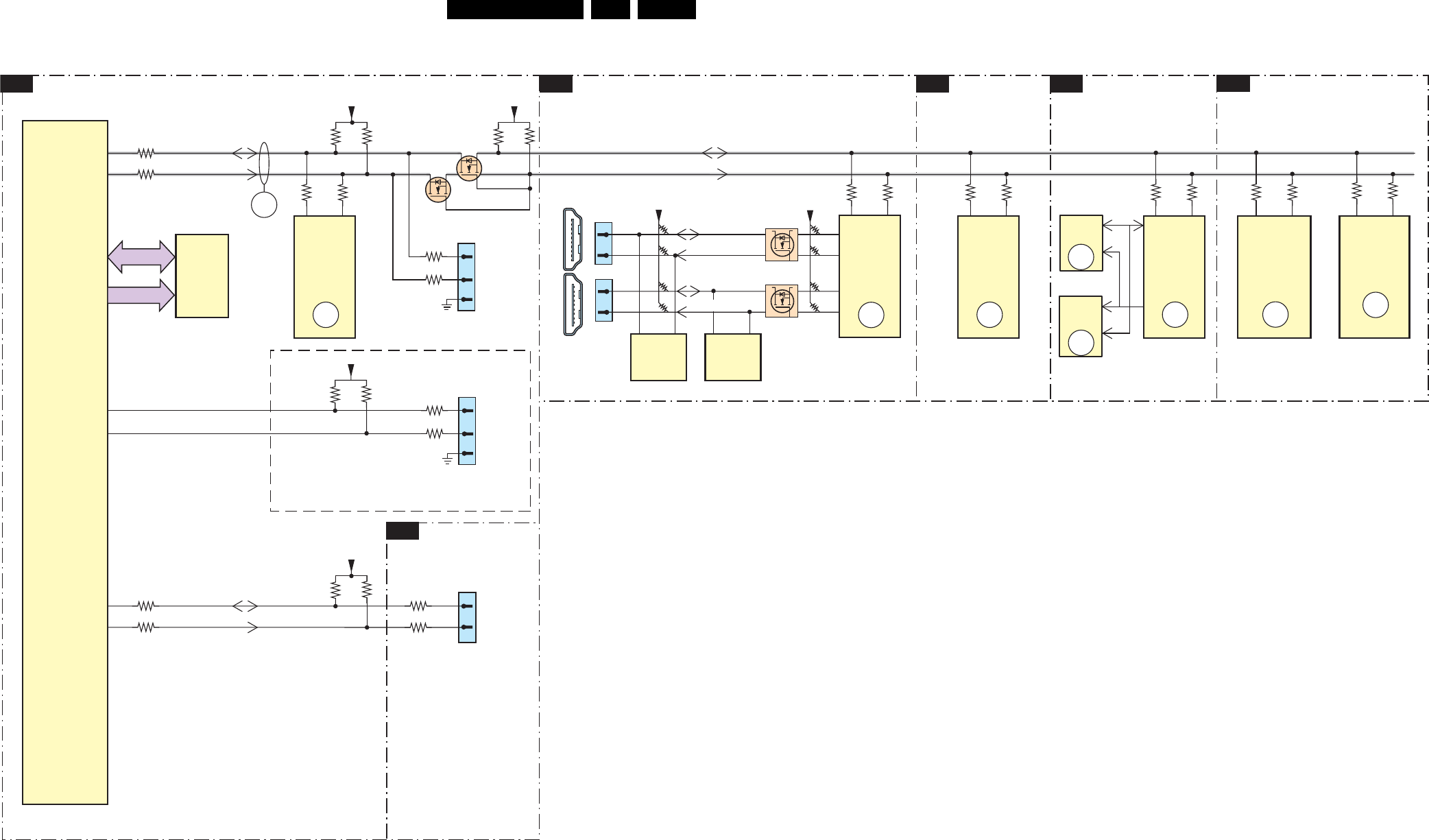

I2C IC’s Overview
I²C
MICROPROCESSOR
B04A B06C
AUDIO PROCESSOR
B04C
VIDEO PROCESSOR
B04B
VIDEOPROCESSOR
B04B
TUNER IF & DEMODULATOR
B03A
HDMI
IIC_SDA_up
IIC_SCL_up
28
7311
M30300SAGP
MICRO
PROCESSOR
27
27 28
+3V3_STBY
3379
3377
IIC_SDA
IIC_SCL
3897
3896
3382
3378
BOLT_ON_SDA
BOLT_ON_SCL
33
34
3354
3356
19 1
18 2
2x HDMI
CONNECTOR
1810
16
15
7850
M24C02
EEPROM
56
DOC_SDAA
DOC_SCLA
54
1101
TD1316AF/IHP
TUNER
ERR
07
SDA2
SCL2
RXD0
TXD0
PROT
04
H_16940_004.eps
270207
3120
3121
32
7411
MSP4450P
SOUND
PROCESSOR
3411
3410
+3V3_STBY
3351
3352
19 1
18 2
1811
16
15
DOC_SDAB
7817
SII9025CTU
HDMI
CONTROL
7811
M24C02
EEPROM
56
DOC_SCLB
31
32
29
30
1G51
27
29
3246
3247
ERR
11
7851-7852
7812-7813
ERR
09
58 57
7202
SVP CX32-LF
VIDEO
PROCESSOR
3215
3212
ERR
05
1314
1
3
COMPAIR
SERVICE
CONNECTOR
2
3343
3345
1311
1
3
UART
CONNECTOR
(FOR DEVELOPMENT ONLY)
2
3L09
3L08
+3V3_STBY
3L07
3L06
29
30
TXD1
RXD1
10 11
7113
TDA9886T/V4
DEMODULATOR
3129
3128
ERR
08
56
7315
M24C64
EEPROM
(NVM)
3357
3355
ERR
06
7320
7321
+3V3_SW
3388
3305
(LVDS CONNECTOR)
(NOT STUFFED)
7204
IS42S16400D
DRAM
1Mx16x4
7205
IS42S16400D
DRAM
1Mx16x4
ERR
10
ERR
14
7310
M29W800DT
EPROM
1Mx8
512Kx16
A(0-19)
AD(0-7)
+5V_SW +3V3_SW
Block Diagrams, Test Point Overview, and Waveforms 35LC7.1E LA 6.

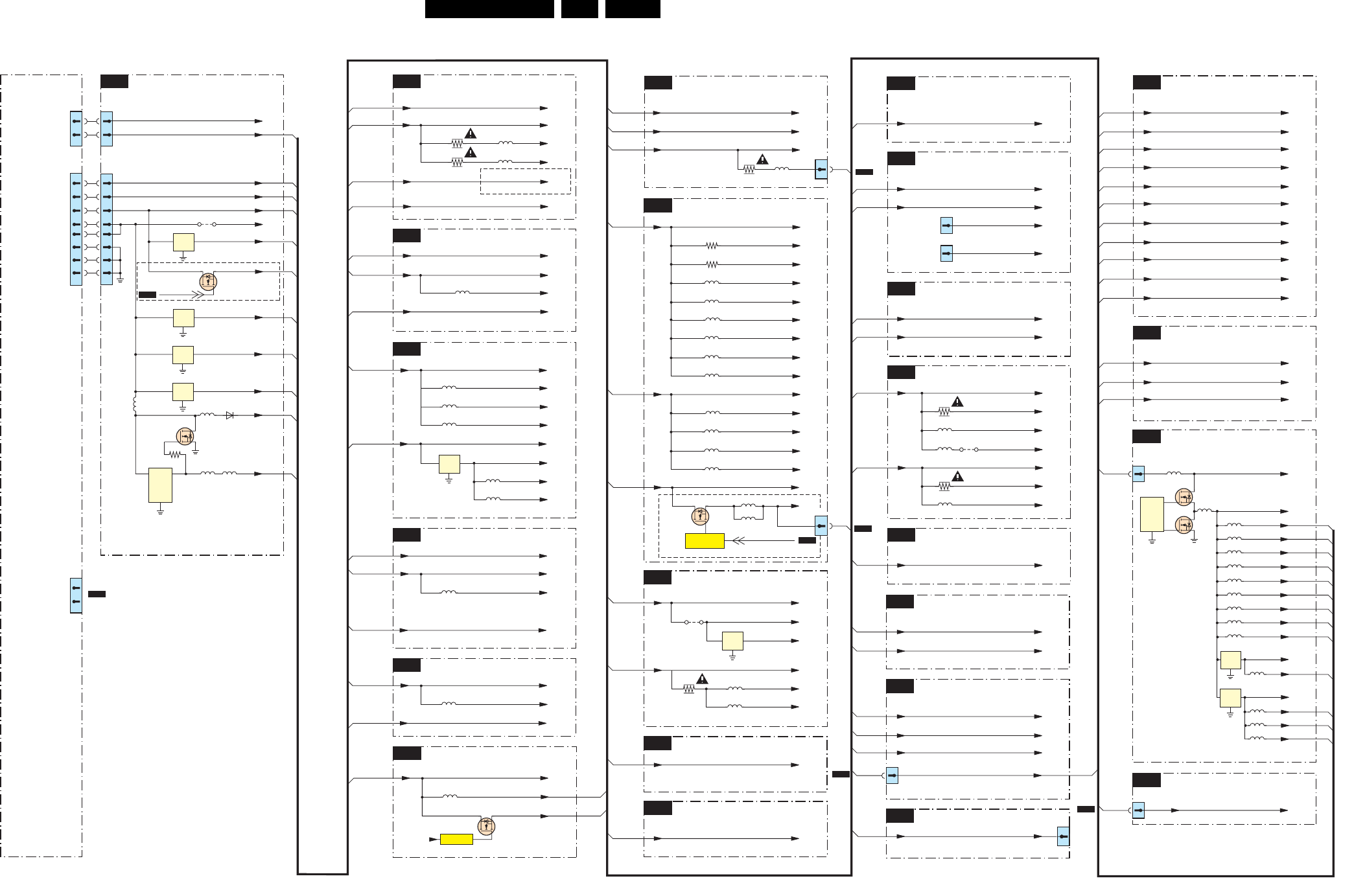

Supply Lines Overview
SUPPLY LINES OVERVIEW
B02
DC-DC
B03C
DVB-COMMON INTERFACE
B03D
DVB-MOJO
B03E
DVB-MOJO MEMORY
B04A
MICROPROCESSOR
B04B
VIDEO PROCESSOR
B06A
YPBPR & REAR IO
B06C
HDMI
B06D
HEADPHONE AMP & MUTING
B07
AUDIO
B03A
TUNER IF & DEMODULATOR
B03B
DVB-DEMODULATOR
B06B
IO - SCART 1 & 2
J
IR/LED/LIGHT-SENSOR
F1
OCM ON CHIP MICROCONTROLLER
F2
FLASH & NVM
F3
LVDS IN
F4
LVDS OUT
F5
SUPPLY IN
F6
LVDS IN
F7
DC POWER SUPPLY
B04C
AUDIO PROCESSOR
B06B
IO - SCART 1 & 2
1M20
5
SUPPLY
+3V3+3V3
+1V2_MOJO +1V2_MOJO
+3V3_VDDP
5G04
+3V3+3V3
+3V3_STBY +3V3_STBY
+3V3_SW+3V3_SW
+5V_SW +5V_SW
+5V_SW +5V_SW
+3V3_SW+3V3_SW
B02
B02
B02
B03f
B02
B02
44
66
77
88
99
B02
B03f
1CO1
11
22
-AUDIO_POWER
+AUDIO_POWER
B07
B07
+5V_STANDBY
B04a,B06d
55 +5V_SW
B03a,b,c,e,
B04c,
B06a,b,c,d
77
88
1P11
+5V_STANDBY
+12V_DISP
B04b,c
7B02
IN OUT
COM
+3V3_STBY
7B05
STANDBY
+5V_SW
7B04
IN OUT
COM
+3V3_SW
7B06
IN OUT
COM
+3V3_MOJO
7B08
IN OUT
COM
+1V2_MOJO
STEP
DOWN
REG.
7B01 5B035B02
+1V8S_SW
+VTUN
5B06
6B03
7B03(34V)
3B13
+3V3_SW+3V3_SW
+5V_SW +5V_SW
5115 +5V_IF
+5VS
5114
B02
B02
3133
3134
+VTUN +VTUN
B02
+12V_DISP +12V_DISP
B02
+3V3+3V3
5F10 +3V3FE
B03f
+1V8S_SW +1V8S_SW
B02
+5V_SW +5V_SW
B02
+3V3_BUF
5K05
+3V3_STV
5K03
+3V3_CORE
5K04
+5V_SW +5V_SW
B02
PCMCIA_5V
7K05
IN OUT
COM
5K02
PCMCIA_VPP
5K01
PCMCIA_AVCC
+3V3clean+3V3clean
B03f
+3V3_NOR48
5H02
+3V3+3V3
B03f
+5V_SW +5V_SW
B02
+5V_STANDBY +5V_STANDBY
B02
+1V8S_SW +1V8S_SW
CX_PAVDD1
CX_PAVDD
CX_PAVDD2
CX_PDVDD
5224
5226
B02
3244
3248
CX_AVDD_ADC4
5227
CX_AVDD_ADC3
CX_AVDD_ADC1
CX_AVDD_ADC2
5222
5225
5220
+3V3_SW+3V3_SW
B02
CX_AVDD3_ADC2
5221
CX_AVDD3_ADC1
CX_AVDD3_BG_ASS
CX_AVDD3_OUTBUF
5223
5218
5219
VDISP
+12V_DISP +12V_DISP
7210
B02
5215
7208
CONTROL
5217
+5V_SW +5V_SW
B02
+5VHDMI_A
18
HDMI
CONNECTOR-1
+5VHDMI_B
1811
18
HDMI
CONNECTOR-2
1810
+5V_SW +5V_SW
+3V3_STBY +3V3_STBY
B02
B02
+AUDIO_POWER +AUDIO_POWER
+AUDIO_POWER_+12V_DISP
B02
4A01
RES
VDDA
VDD
5A05
3A01
-AUDIO_POWER -AUDIO_POWER
B02
VSSA
VSS
5A06
3A02
B04a
B03a,f,B04a,b,
B06c
B03f
B03d
B03a
B03b,B04b
CN7
X412
CN6
X406
3L10 1M20
5
+5V_STANDBY +5V_STANDBY
B04A
1M20
SSB
J
1M20
IR/LED
B04A
4C57÷4C60
ONLY FOR LCD
5B01
1
3
7
ONLY FOR ANALOG TV
5304
LCD_PWR_ON
B04A
ONLY FOR LCD
5A07
RES
+3V3_SW+3V3_SW
F7
+3V3_IO +3V3_IO
F7
+3V3_SW+3V3_SW
F7
+3V3_LVDSA+3V3_LVDSA
F7
+3V3_LVDSVCC +3V3_LVDSVCC
F7
+3V3_LVDSD+3V3_LVDSD
F7
1G51
40 +VDISP
F7
TO 1710
1080P
F3
1G52
41
+1V8_CORE +1V8_CORE
F7
+1V8_DVI +1V8_DVI
F7
+1V8_ADC +1V8_ADC
F7
+3V3_IO +3V3_IO
F7
+3V3_ADC +3V3_ADC
F7
+3V3_SW+3V3_SW
F7
+3V3_PLL +3V3_PLL
F7
+3V3_LVDSA+3V3_LVDSA
F7
+3V3_LVDSD+3V3_LVDSD
F7
+3V3_LBADC +3V3_LBADC
F7
+3V3_DVI +3V3_DVI
F7
+1V8_CORE +1V8_CORE
F7
+2V5_DDR_MAL +2V5_DDR_MAL
F7
+3V3_SW+3V3_SW
F7
STEP
DOWN
REG.
7710
7701-2
11
7
1710
1+12V
5A07
7701-1
14
+3V3
5A07
+3V3_IO
5716
5717
5718
5719
5720
5721
+3V3_LVDSA
+3V3_LVDSD
+3V3_LBADC
+3V3_ADC
+3V3_SW
5722 +3V3_DVI
5723+3V3_PLL
5724 +3V3_LVDSVCC
7714
IN OUT
COM
+1V8
5712
5713
5714
+1V8_CORE
+1V8_ADC
+1V8_DVI
+2V5
7713
IN OUT
COM
5715 +2V5_DDR_MAL
B03F
DVB-MOJO ANALOF BACK END
+3V3clean
5JO1
+3V3_MOJO +3V3_MOJO
B02
7J04
+3V3
IJ01
CONTROL
+1V8S_SW
B03b,c,d
B03d
+12V_DISP +12V_DISP
+AUDIO_POWER_+12V_DISP
+5V_SW +5V_SW
+5V_AUD
+5V_D
5401
B02
B02
4401
+8V
7410
IN OUT
COM
3402
5402
+5V_SW +5V_SW
B02
B04B
1G51
SSB
TO
SUPPLY
F2,F5
F3,F5
F3,F5
F5
F5
F1,F2,
F5,F6
F5
F5
F3
F6
F5,F6
F5
F5
G_16860_040.eps
090307
TO
DISPLAY
F4
F3
1G51
1080P
1G51
1
1
2
X405
+VDISP+VDISP
(ONLY FOR 1080P)
(ONLY FOR 1080P)
(ONLY FOR 1080P)
(ONLY FOR 1080P)
(ONLY FOR 1080P)
(ONLY FOR 1080P)
(ONLY FOR 1080P)
36LC7.1E LA 7.
Circuit Diagrams and PWB Layouts
7. Circuit Diagrams and PWB Layouts

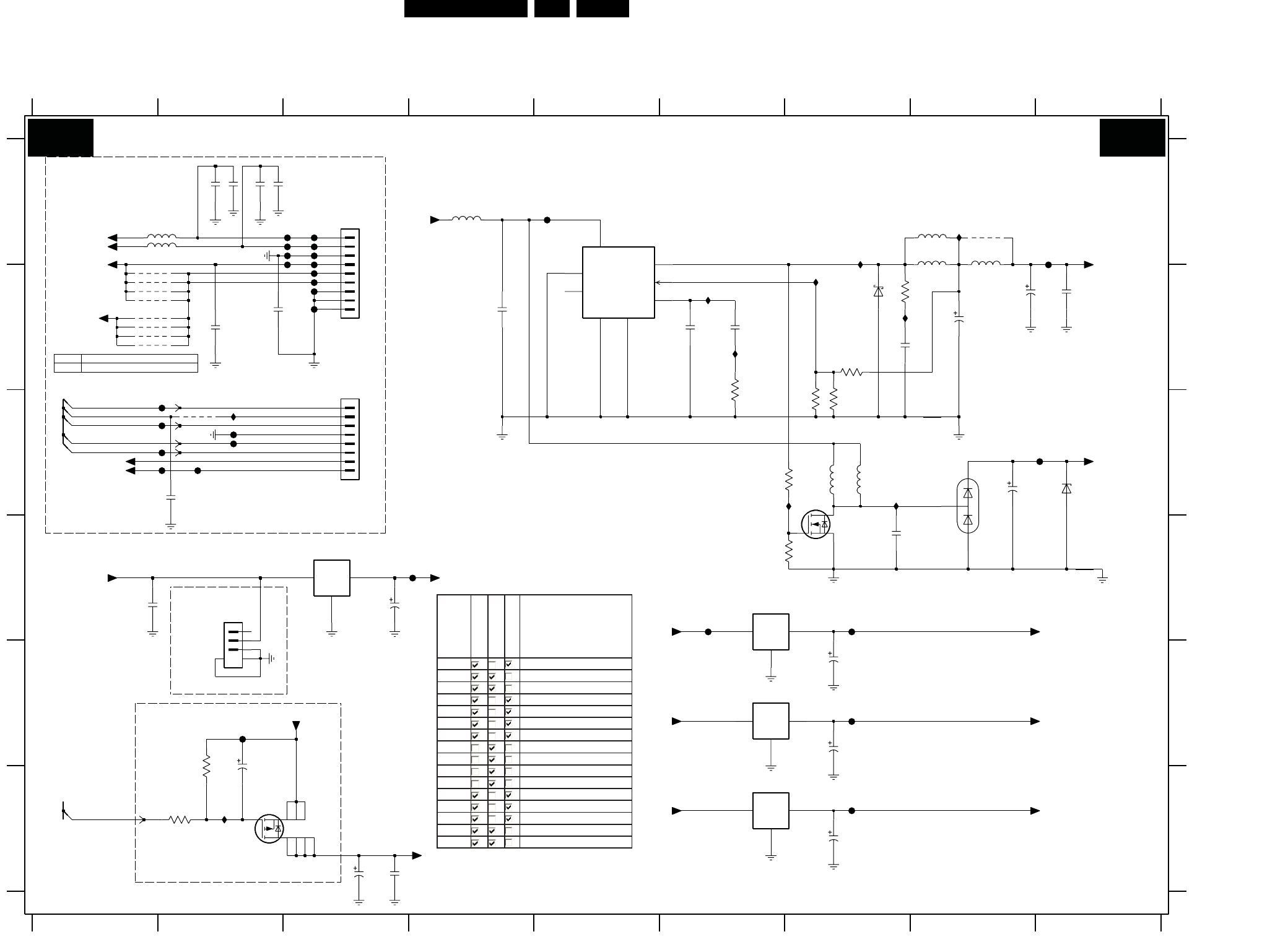

SSB: DC/DC
COM
OUTIN
COM
OUTIN
COM
OUTIN
COM
OUTIN
FB
OUT
COMP
VREFVCC
INH
SYNC
GND GND_HS
DC - DC
ITV Connector
RES RES
RES
ONLY FOR LCD
LCD
PDP
4C55 / 4C56 / 4C61 / 4C62
4C57 / 4C58 / 4C59 / 4C60
RES
RES
RES
RES
RES
RES
RES
TO / FROM PSU
5V2
-12V2
+12V2
TO / FROM PSU
2V9
2V8
1V6
0V(5V)
0V(5V)
(---V) MEASURED IN STANDBY
34V
*
*
*
*
*
*
*
*
*
123456789
123456789
A
B
C
D
E
F
A
B
C
D
E
F
1B11 D2
1C01 A3
1P11 C3
2B10 B8
2B11 B9
2B12 B4
2B13 B8
2B14 B6
2B15 B6
2B16 B7
2B17 D1
2B18 D3
2B19 C8
2B20 D7
2B21 E7
2B22 F2
2B23 E7
2B24 F3
2B25 F3
2B26 F7
2C55 A2
2C56 A2
2C57 B2
2C58 C2
2C59 B2
2C60 A2
2C61 A2
3B10 B7
3B11 C6
3B12 B7
3B13 C6
3B14 C7
3B15 D6
3B17 F2
3B18 F2
3B19 C7
4B01 A8
4C01 C2
4C55 B1
4C56 B1
4C57 B1
4C58 B1
4C59 B1
4C60 B1
4C61 B1
4C62 B1
5B01 A4
5B02 A8
5B03 A8
5B04 C7
5B05 A8
5B06 C7
5B10 A1
5B11 A1
6B01 B7
6B02 C9
6B03 C8
7B01 A5
7B02 D3
7B03 D7
7B04 D6
7B05 F3
7B06 E6
7B08 F6
FB10 A5
FB11 A9
FB13 D4
FB14 C9
FB15 E2
FB16 D6
FB17 D7
FB19 E7
FB20 F7
FB21 A3
FB22 A3
FB23 A3
FB24 A3
FB25 A3
FB26 A3
FB27 A3
FB28 A3
FB29 B3
FB30 B3
FB31 B3
FB32 C2
FB33 C2
FB34 C2
FC25 B3
FC26 C1
FC27 C1
FC28 C1
FC29 C1
IB10 A8
IB11 A7
IB12 B6
IB13 B7
IB14 C6
IB15 C7
IB17 F2
IB18 C2
IB19 B6
IB20 B8
LD1117DT33C
7B02
10n
2C61
10n
2C60
100n
2C59
4C60
4C62
4C59
4C61
FB34
5B11 22u
22u
5B10
IB20
IB18
IB19
FB33
FB32
FB30
FB31
FB29
FB28FB27
FB25
FB23
FB26
FB24
FB21
5B06
FB22
68u
10K
3B19
5B05
33u
2C58
1n0
4C01
+5V_SW 4C57
4C58
4C56
4C55
GNDSND GNDSND
+5V_STANDBY
FC28
FC29
FC27
FC26
FC25
2C56 1n0
1n0
2C57 2C55 1n0
-AUDIO_POWER
+AUDIO_POWER
GNDSND
7
8
+12V_DISP
+5V_STANDBY
1
2
3
4
5
6
8
9
B8B-PH-K-S
1P11
1
2
3
4
5
6
7
1C01
B9B-PH-K
2B19
22u 35V
1B11
1
2
345
B3B-PH-SM4-TBT(LF)
6K8
3B18
FB14
IB15
3B10
IB14
GNDTUN
2B20
100p
1K0
3B15
6B02
BZX384-C33
+VTUN
6B03BAV99
5B04
100u
7B03
2N7002
220R
3B13
2B16
10n
2B11
100n
2B25
4B01
3B11
4K7
10u
5B02
5B03
33u
100n
2B17
16V470u
2B13
IB17
FB15
FB10
FB11
IB12
IB10
6K8
3B17
35V4u7
2B22
2
3
+5V_SW
+5V_STANDBY
5
6
7
8
4
1
+1V8S_SW
7B05
SI4423DY
SS24
470R
3B12
6B01
+5V_SW
1%1K0
3B14
IB11
IB13
2B14
220p
2B15
22n
GNDDC
10u
5B01
2B12
22u
4
5
7
9
3
1
2
8
6
L5973D
7B01
Φ
+1V2_MOJO
+5V_SW
+5V_SW
FB20
2B26
16V10u
FB19
+3V3_MOJO
FB16
+3V3_SW
10u
2B23
16V 16V
FB17
+3V3_STBY
+5V_SW
10u
2B21
FB13
LD1117DT
7B08
1
32
16V
2B10
100u
1
32
47u
7B06
LD1117DT33C
2B18
10u 16V
16V
2B24
LD1085D2T33
7B04
1
32
+5V_STANDBY
1
32
POWER_DOWN
STANDBY
BACKLIGHT_BOOST
BL_ADJUST
BL_ON_OFF
STANDBY
B02 B02
3139 123 6261.1
G_16860_001.eps
250107
Item
EU-LCD
EU-PDP
EU iTV - LCD
Description
R LOC 02MP 7U4 V53 MS PACLE22B2
R LOC 02MP U01 V61 MS PACLE32B2
R LOC 02MP U01 V61 MS PACLE62B2
LOC 5MP
8K6 3060 MS TSR71B3
LOC 5MP 8K6 3060 MS TSR81B3
LOC 50R0 .PMUJ 3060 MS TSR55C4
LOC 50R0 .PMUJ 3060 MS TS
R65C4
LOC 50R0 .PMUJ 3060 MS TSR75C4
LOC 50R0 .PMUJ 3060 MS TSR85C4
LOC 50R0 .PMUJ 3060 MS TSR95C4
LOC 50
R0 .PMUJ 3060 MS TSR06C4
LOC 50R0 .PMUJ 3060 MS TSR16C4
LOC 50R0 .PMUJ 3060 MS TSR26C4
R)HSIV(50B7
R )00T
S( C33TD7111DL MS CI60B7
R )00TS( TD7111DL MS CI80B7
Circuit Diagrams and PWB Layouts 37LC7.1E LA 7.

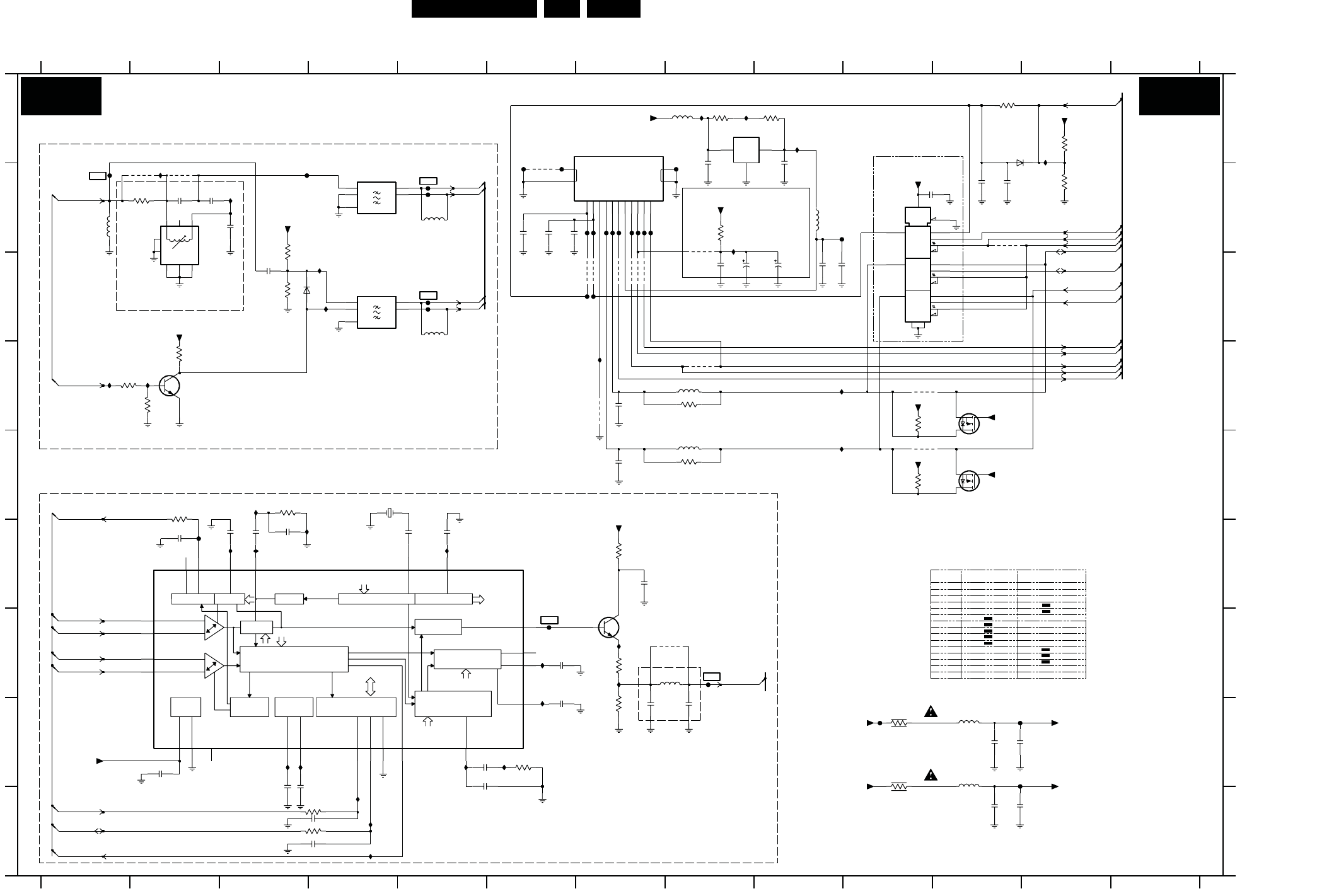

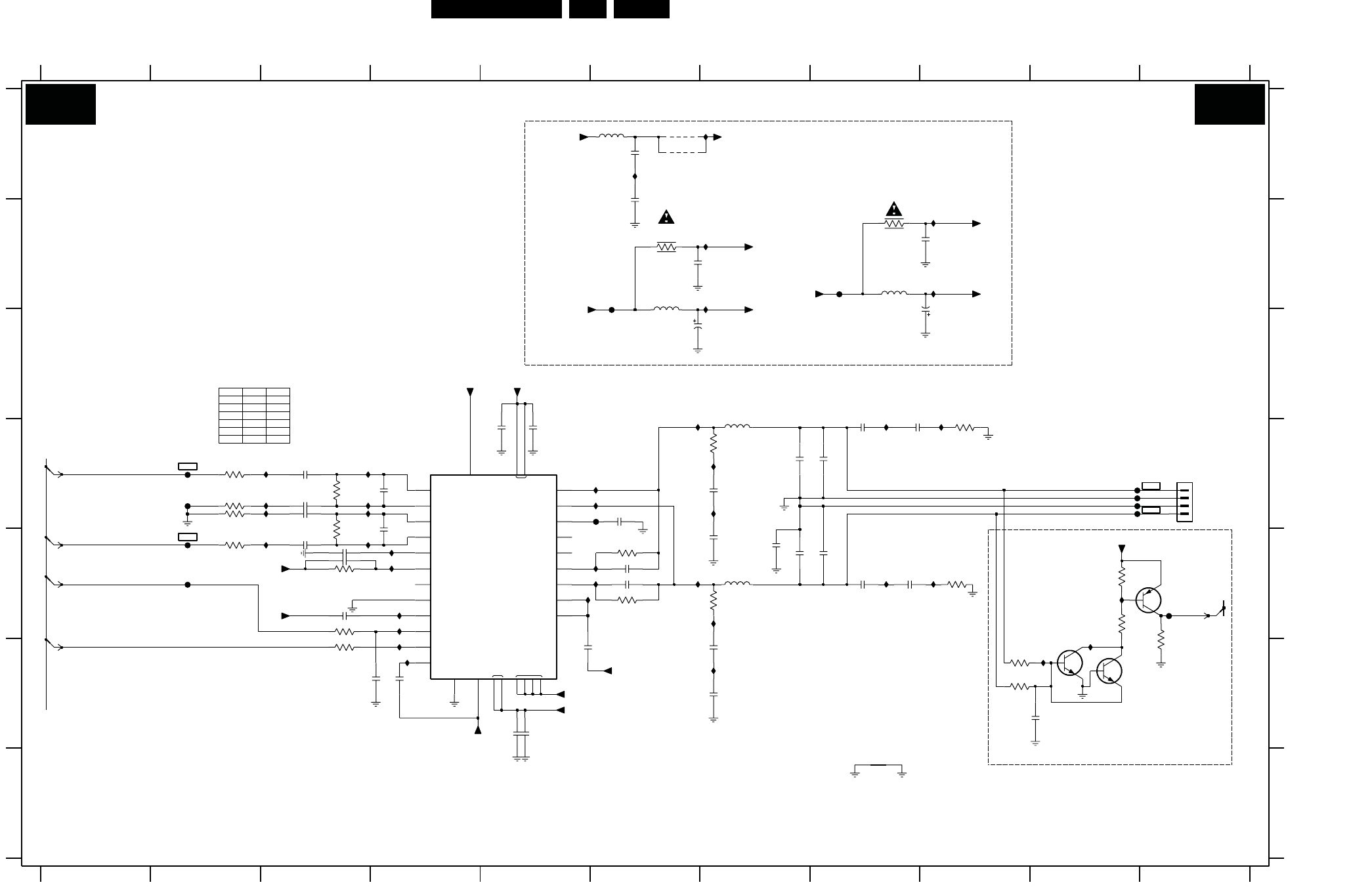

SSB: Tuner & Demodulator
COM
OUTIN
I
O2ISWI
O1
GND
I
O2IGND
O1
GND
4X1
G4
4X2
1
2
VDD
VEEVSS
MTMT
SIF
AGC
AFC DETECTOR
PORTS
INTERCARRIER MIXER AND
AM-DEMODULATOR
I C-BUS TRANSCEIVER
2
RC VCO
NARROW-BAND FM-PLL
DIGITAL VCO CONTROL
SOUND TRAPS
4.5 to 6.5 Mhz
AUDIO PROCESSING
MAD
TUNER AGC VIF AGC
SUPPLY OUTPUT
VIF-PLL
SINGLE REFERENCE QSS MIXER
AND SWITCHES
DEMODULATOR
TUNER IF & DEMODULATOR
RES
RES
DEMODULATOR
TUNER
SAW FILTERS DVB ONLY
ANALOG DIGITAL
4110
4111
4112
4113
4114
4115
Y
Y
Y
4116
4117
4118
4119
RES
RES
RESERVED
40.4MHz
Trap
3113/4110 & 2110/4111
at same position
RES
4120
4121
4122
4123
4124
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
ONLY FOR ANALOG TV
RES
RES
RES RES
RES
RES
RES
RES
1V3
1V3
4V9
4V3
2V
2V
2V
2V
0V
2V1
1V5
2V1
2V3
**
*
*
** ***
*
*
*
**
*
*
*
*
*
12345678910111213
12345678910111213
A
B
C
D
E
F
G
H
I
A
B
C
D
E
F
G
H
I
1101 A6
1102 B4
1103 C4
1104 E4
2110 B2
2111 B2
2112 B11
2113 B10
2114 B2
2115 B6
2116 B6
2117 C3
2118 C10
2119 C8
2120 C9
2121 E7
2122 D7
2123 F3
2124 F2
2125 F3
2126 F3
2127 F5
2128 F7
2129 H11
2130 H11
2131 I11
2132 I11
2133 G6
2134 H7
2135 H8
2136 H6
2137 H5
2138 H2
2139 H5
2140 I3
2141 I3
2142 C9
2143 F5
2144 I3
2145 I3
2146 B6
2147 A8
2148 A9
2149 B11
2151 C9
3110 A12
3111 A11
3113 B2
3115 B12
3116 B3
3117 C3
3118 D2
3119 D1
3120 D8
3121 E8
3122 D2
3123 E3
3124 E2
3125 G7
3126 H7
3127 H6
3128 I4
3129 I3
3130 B8
3131 D10
3132 E10
3133 H10
3134 H10
3135 F7
3136 A8
3137 A9
4110 B2
4111 B2
4112 B6
4113 B8
4114 C7
4115 C7
4116 C7
4117 C7
4118 C7
4119 C7
4120 D8
4121 D10
4122 E10
4123 D7
4124 G8
4125 B11
5110 B2
5111 B1
5112 B9
5113 C5
5114 H11
5115 H11
5116 G8
5117 B5
5118 A8
5120 D8
5121 E8
6103 C3
6110 A11
7109 D2
7111 B10
7113 F2
7114 G7
7131 D11
7132 E11
7133 A8
A110 B1
A115 B5
A116 B5
A124 C5
A125 C5
F111 B3
F112 B6
F114 H10
F115 B7
F116 B7
F117 B7
F118 B7
F119 B7
F120 B7
F121 B7
F122 B7
F123 B7
F126 C7
F127 C7
F128 F2
F129 H11
F130 G6
F131 H11
F132 B6
F133 B9
F134 A8
F140 G8
I110 B2
I111 A12
I112 B3
I114 C4
I118 C4
I120 D2
I121 D10
I122 D7
I123 E10
I124 E3
I125 F4
I126 F3
I127 F3
I128 G6
I129 G6
I130 H6
I131 H5
I133 I4
I135 I4
I136 I4
I137 B8
I138 G7
I139 G7
I141 D1
I142 F5
I143 H3
I144 H4
I145 A9
I146 A8
I147 A8
I131
7109
BC847B
4125
5121 120R
5120 120R
I147I146
2149
2u2
50V
10u
2151
I145
5118
220R
+12V_DISP
100n
2148
330n
2147
47R
3137
3
47R
3136
7133
L78M05CDT
2
1
1u0
2146
3135
15R
I143 I144
I142
+5V_IF
I141
3134
1R0
1R0
3133
2144 10n
1n0
2143
2145 1n0
5114
5115
10u
10u
220R
5112
I139 F140
I138
I136
I137
+3V3_SW
+5V_IF
7132
BSH111
4K7
3132
+3V3_SW
BSH111
7131
3131
4K7
+5V_IF
F132
50V
2142
10u
1K0
3130
5117
RES
4124
5u6
5116
2135
15p
15p
2134
I110
I112
180R
3126
A116
A115
F112
F130
41114110
I111
I123
F134
I121
F115
F116
2128
10n
1u0
2115
2116
1u0
F111
2114
3p3
2111
68p
2110
220p
3113
47R
34
5
6
7
8
5110
1
2
A125
A124
150R
3125
+5VS
BC847B
7114
4
3
15
F114
38M9
1102
OFWK3953M
4123
OFWK9656M
1103
38M9
3
15
4
F123
F122
F121
F119
F120
F118
I120
F117
I114
I118
+5V_IF
F131
6K8
3116
2K2
3117
2117
10n
5113
RES
10n
2113
2120
22u
15p
2121
4122
4121
4116
2122
15p
100n
2119
+5V_IF
2131
22u 2132
+5V_SW
22u
SCL
4
SDA
5
6XTAL_OUT
4112
IF_AGC
9IF_OUT1
8
IF_OUT2
10
11 IF_OUT3
12
1314
15
RF_AGC
2
TUNER
7+5V
CS
3
DC_PWR
1
TD1316AF/IHP-2
1101
4120
+VTUN
4113
4118
4119
4117
4115
5
14
15
4
4114
9
16
7
8
13
1
3
12
2
74HCT4053D
7111
MDX 6
11
10
F127
F126
3120 10R
F133
I122
3121 10R
10n
2118
3110
+5V_IF
3111 5K6
8K2
BAS316
6110
39K
3115
10u
2112
A110
+5V_IF
3118
2K2
6103
5111
390n
1SS356
3119
22K
3122
18K
I130
I128
I129
I125
I133
+5VS
F128
+5VS
+5V_SW
9TOP
VAGC 16
1VIF1
2VIF2
19VPLL
20 Vp
OP2
15REF
11 SCL
10 SDA
23 SIF1
24 SIF2
12 SIOMAD
14TAGC
AGND
8AUD
17CVBS
5DEEM
7 DGND
4 FMPLL
13 NC
3 OP1
22
TDA9886T/V4
7113
21AFC
6AFD
18
2136
470n
10n
2133
3127
5K6
10n
2137
390p
2139
I126
I127
I135
I124
F129
2141
2140
22u
2129 2130
10n
100R
100R3129
10n
3128
2138
22p
4M0
1104
2127
330R
3123
1n5
2123
2125
470n
220n
2126
100R
22n
2124
3124
+12V_DISP
I2C_TDA_SDA
CVBS_RF
IF_ATV
DVB_SW
WAGC_SW
IIC_SDA
IIC_SCL
I2C_TDA_SCL
VIP_IBO
VIM_IBO
RF_AGC_IBO
IF_AGC_IBO
4MHZ_CLK
SAW_SW
SIF1
RF_AGC
IF_ATV VIF2
VIF1
SIF2
VIF2
VIF1
SIF2
SIF1
SIF
RF_AGC
IIC_SCL
IIC_SDA
B03A B03A
3139 123 6261.1
G_16860_002.eps
240107
38LC7.1E LA 7.
Circuit Diagrams and PWB Layouts

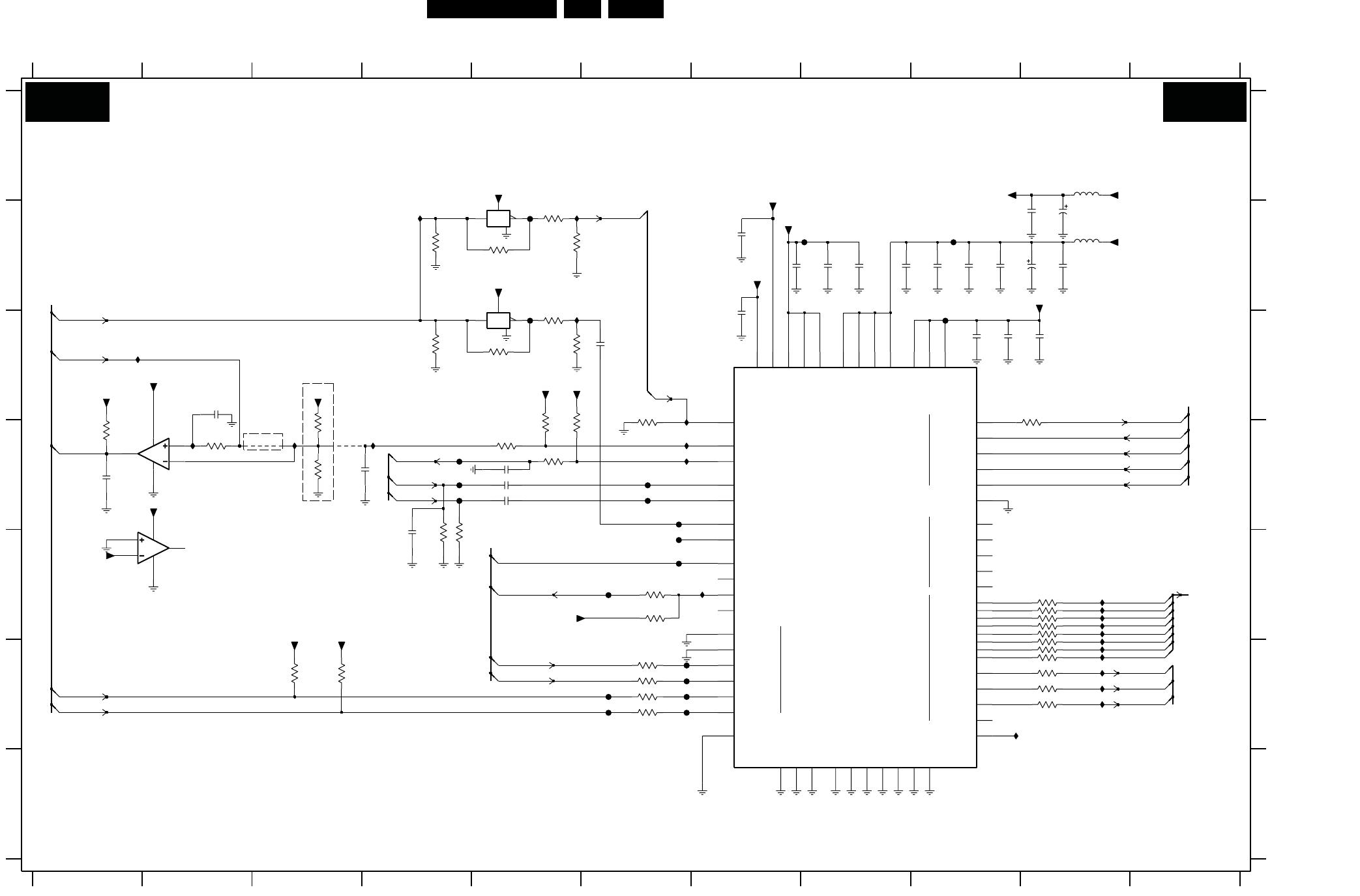

SSB: DVB - Demodulator (Not implemented in this chassis)
MPEG-TS (PARALLEL)
I2C
MPEG-TS (SERIAL)
MPEG-TS (SERIAL)
JTAG
NC
1
NC
1
DVB - DEMODULATOR
COFDM
CHANNEL DECODER
3V2
1V3 1V6
3V2
1V3 1V6
2V8
1V3
1V5
1V5
0V7
0V6
2V3
3V2
4V6
4V6
5V
5V
0V
0V
0V
2V4
2V4
2V2
2V2
2V2
2V2
2V2
2V2
2V2
2V2
1V7
1V3
0V
0V
2V2
3V3
3V3
3V2
IF11 B6
IF12 C5
IF13 C7
IF14 D3
IF15 D4
IF16 D6
IF17 D6
IF18 D2
IF19 E6
IF20 E10
IF21 E10
IF22 E10
IF23 E10
IF24 E10
IF25 E10
IF26 F10
IF27 F10
IF28 F10
IF29 F10
IF30 F10
IF31 F9
IF32 C1
3F46 F6
3F48 F6
4F11 D3
4F12 D3
5F10 A10
5F11 B10
7F01 C7
7F02 B4
7F03 B4
7F04-1 C2
7F04-2 D2
FF10 B5
FF11 B8
FF12 B9
FF13 C5
FF14 C9
FF16 D4
FF17 D6
FF18 D4
FF19 D6
FF20 D4
FF21 D6
FF22 E6
FF23 E6
FF24 E6
FF25 F6
FF26 F6
FF27 F6
FF28 F6
FF29 F6
FF30 F6
IF10 B4
3F15 C4
3F16 C6
3F17 C5
3F18 C6
3F19 C5
3F20 C6
3F21 C10
3F22 D3
3F23 D1
3F24 D2
3F25 D5
3F26 D5
3F27 D3
3F28 D4
3F29 D5
3F30 E6
3F31-1 E9
3F31-2 E9
3F31-3 E9
3F31-4 E9
3F32-1 F9
3F32-2 F9
3F32-3 F9
3F32-4 E9
3F33 E6
3F34-1 F9
3F34-2 F9
3F34-3 F9
3F40 F6
3F41 F3
3F42 F3
3F44 F6
E
F
G
2F10 B10
2F11 B10
2F12 B7
2F13 B9
2F14 B8
2F15 B8
2F16 B8
2F17 B9
2F18 B10
2F19 B9
2F20 B9
2F21 B10
2F22 C7
2F23 C9
2F24 C10
2F25 C10
2F26 C6
2F27 C2
2F28 D3
2F29 D5
2F30 D1
2F31 D5
2F32 D5
2F33 D4
3F10 B5
3F11 B4
3F12 B6
3F13 B5
3F14 C5
TDA_DAT(0:7)
123456
TDA10046AHT
7891011
1234567891011
A
B
C
D
E
F
G
A
B
C
D
IF32
+3V3FE
2F10
100n
+3V3
5F10
60R
16V
2F11
47u
FF14
FF12
FF30
FF11
FF29
FF27
FF19
FF25
FF13
FF17
FF10
2F18
+5V_SW
+3V3
100n
+5V_SW
+5V_SW
+3V3FE
+5V_SW
+3V3FE
10K
3F33
IF12
74AHC1GU04GW
2
3
1
5
4
330R
7F03
3F12
220K3F17
330R
3F14
680K
3F15
IF11
+3V3
74AHC1GU04GW
2
3
1
5
4
7F02
390R
3F16
220K3F13
330R
3F10
680K
+3V3FE
+3V3FE
+1V8S_SW
3F11
+5V_SW +5V_SW
+1V8S_SW
+5V_SW
+5V_SW +5V_SW
IF18 IF17
2F16
100n
3F21
33R
FF16
FF20
FF24
FF18
FF21
33R
3F30
IF29
IF30
33R
3F34-3 36
IF28
33R
27
18
3F34-2
18
33R
3F34-1
33R3F32-1
33R27
33R3F32-3 3 6
3F32-2
3F32-4 4 5
18
33R
27
3F31-1 33R
3F31-2 33R
33R3F31-3 3 6
33R45
10p
2F33
3F31-4
100n
2F30
4K7
3F23
IF31
4F11
100n
2F27
3F24
100K
5
6
7
8
4
4
LM393D
7F04-2
LM393D
7F04-1
3
2
1
8
60R
5F11
IF26
IF27
IF25
IF24
IF22
IF23
IF21
FF28
IF20
FF26
FF22
IF10
IF13
IF16IF15
4F12
IF14
1K0
4K7
3F20
100n
3F26
2F29
3F48 100R
100R3F46
16V47u
2F21
3F44 100R
100R
3F40
100n
2F26
680K
100n
2F28
100K
3F223F27
4K7
3F19
100K
3F25
100K
3F28 3F29
100K
FF23
2F31
IF19
2F32 100n
100n
2K7
3F41 3F42
2K7
2F15
100n
100n
2F14
2F12
100n
100n
2F20
2F17
100n
2F19
100n
100n
2F13
2F24
100n
2F25
100n
2F23
100n
100n
2F22
3F18
10K
VSSA_OSCVSSA_OSC
VSS_PLL_ADCVSS_PLL_ADC
58
XIN
54 XIN
55 XOUTXOUT
7
VSS1
15
VSS2VSS2
VSS3
24
VSS3
29
VSS4VSS4
VSS5VSS5
40
VSS6
45
VSS6
VSS7
52
VSS7
63
VSSA_ADCVSSA_ADC
56
VDDE33_2VDDE33_2
VDDE33_3VDDE33_3
475
VDDI18_1VDDI18_1
VDDI18_2VDDI18_2
22
VDDI18_3
42
VDDI18_3
50
VDDI18_4VDDI18_4
VIM
61 VIM
VIP
62 VIP
VSS1
TRST
UNCOR 33
UNCOR
VDD18_PLL_ADC
59
VDD18_PLL_ADC
64
VDD33_ADCVDD33_ADC
VDDA18_OSC
53
VDDA18_OSC
VDDA18_PLL
57
VDDA18_PLL
60
VDDA33_ADCVDDA33_ADC
19
VDDE33_1VDDE33_1
34
S_PSYNC
S_PSYNC
S_UNCORS_UNCOR 27
TCKTCK 18
TDI 17
TDI
TDO 20
TDO
TEST
12 TEST
16
TMSTMS
TRST 14
SADDR1SADDR1
SCLSCL
6
SCL_TUNSCL_TUN
3
SDA
8SDA
4SDA_TUNSDA_TUN
30
S_DENS_DEN
32
S_DOS_DO
S_OCLKS_OCLK 31
28
GPIO0
21
GPIO1GPIO1
23
GPIO2
25 GPIO2
GPIO3GPIO3
26
OCLK 37
OCLK
PSYNC 35
PSYNC
SACLK 51
SACLK
SADDR0
11 SADDR0
10
DO2 41
DO2
DO3DO3 43
44
DO4DO4
DO5DO5 46
DO6 48
DO6
DO7 49
DO7
ENSERI 13
ENSERI
GPIO0
7F01
AGC_IF
2AGC_IF
AGC_TUNAGC_TUN
1
9CLR_CLR_
DEN 36
DEN
DO0 38
DO0
DO1 39
DO1
4MHZ_CLK
TDA_CLK
TDA_VALID
TDA_SYNC
FE_LOCK
TDA_DAT(1)
TDA_DAT(2)
TDA_DAT(3)
TDA_DAT(4)
TDA_DAT(5)
TDA_DAT(6)
TDA_DAT(7)
COMP_OUT
IF_AGC_IBO
4MHz_MOJO
TDA_DAT(0)
I2C_TDA_SCL
I2C_TDA_SDA
VIP_IBO
VIM_IBO
RF_AGC_IBO
I2C_LOCAL_SDA
I2C_LOCAL_SCL
STV_TDO
10046_TDO
JTAG_TMS
JTAG_TRST
RES
RES
RESET_FE_n
COMP_OUT
JTAG_TCK
B03B B03B
3139 123 6261.1 G_16860_003.eps
240107
Circuit Diagrams and PWB Layouts 39LC7.1E LA 7.

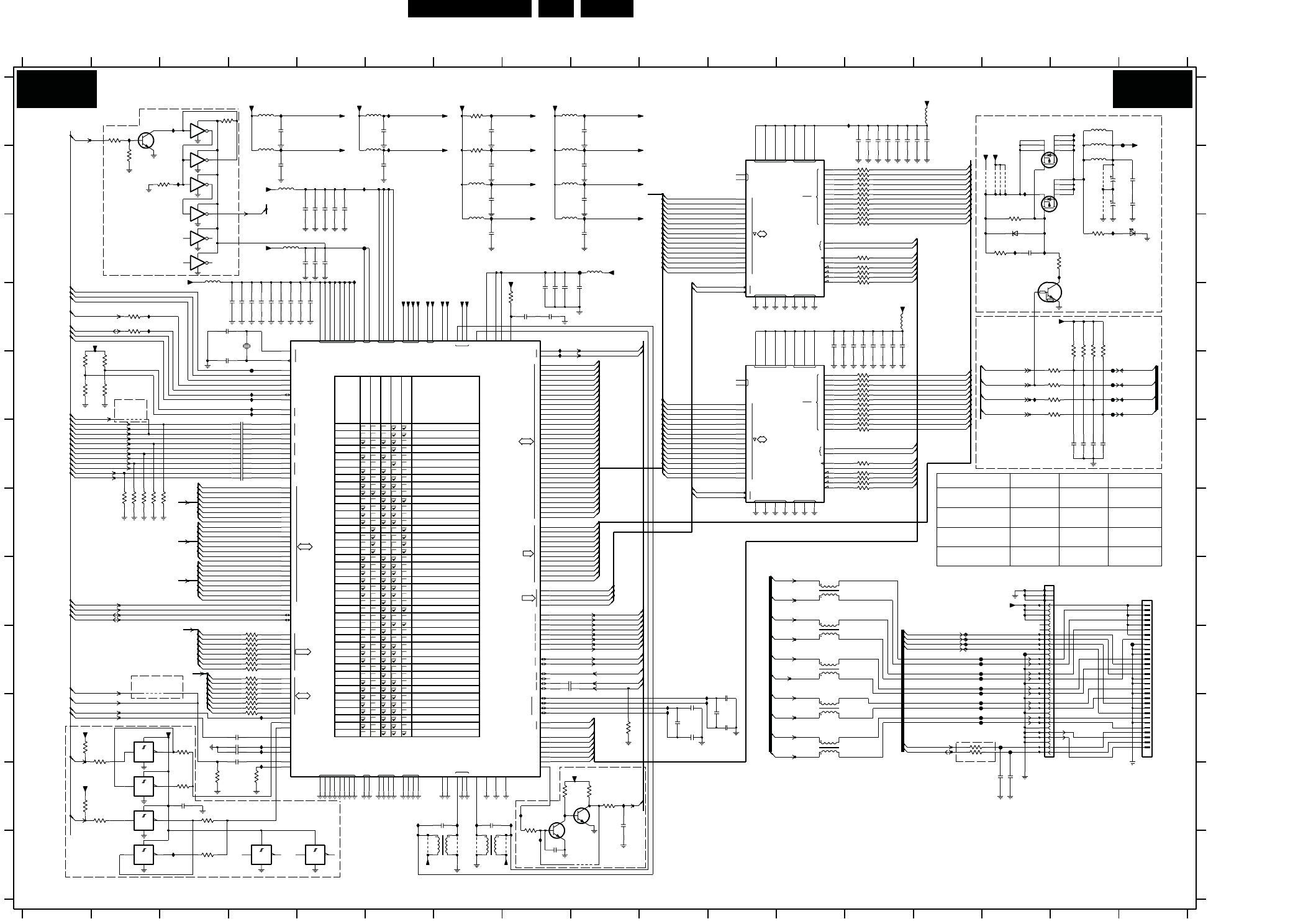

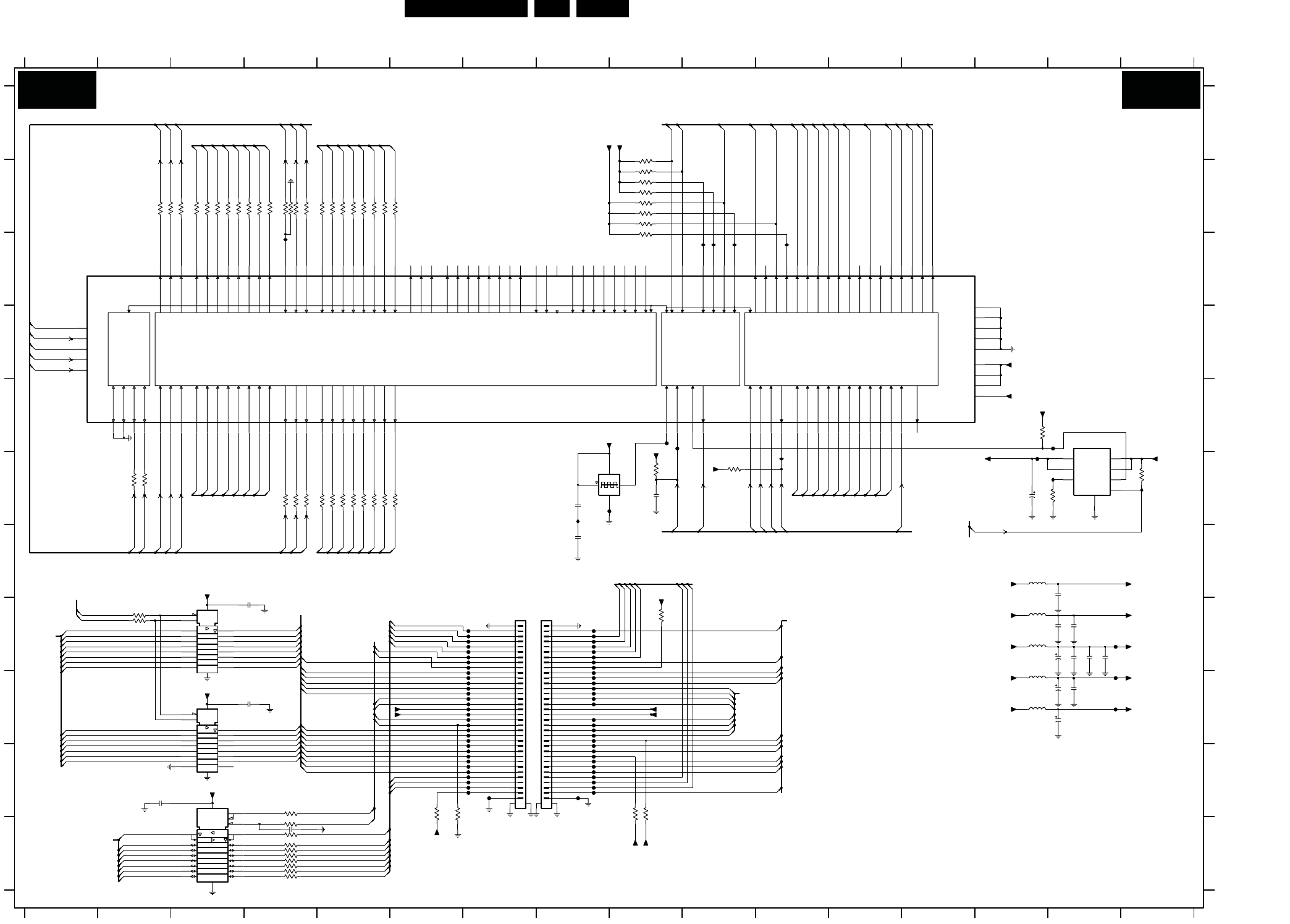

SSB: DVB - Common Interface (Not implemented in this chassis)
G3
1
2
3EN2
3EN1
INTERRUPTS
UCSG
INTERFACE
TS INTERFACE
I C
2
MANAGEMENT
EN
C1
1D
EN
C1
1D
PCMCIA
CONTROLLER
68p PCMCIA
CONNECTOR
LATCH
LATCH
BUS TRANSCEIVER
CURRENT
SWITCH
DVB-COMMON INTERFACE
0V
3V2
3V2
3V2
3V2
0V
3V2
3V2
3V2
0V
0V
3V2
3V2
3V2
3V2
0V
3V2
3V2
0V
3V2
3V2
3V2
0V
0V
0V
0V
0V
3V2
0V
0V
3V2
0V
3V2
3V2
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
2V8
0V
0V
0V
0V
0V
0V
0V
0V
0V
4V6
4V6
1V6
0V
2V2
2V2
2V2
2V2
2V2
2V2
2V2
1V3
2V2
1V5
0V
1V3
2V2
2V2
2V2
2V2
2V2
2V2
2V2
2V2
2V5
0V
3V2
3V2
3V2
0V
0V
3V2
3V2
3V2
3V2
3V2
3V2
0V
0V
3V2
3V2
3V2
0V
0V
0V
0V
0V
0V
0V
0V
0V
3V2
3V2
3V2
3V2
3V2
3V2
3V2
5V
5V
0V
5V
5V
3V2
3V2
3V2
3V2
5V
5V
1%
EMC
EMC
FK74 H7
FK75 H8
FK80 H7
FK81 H15
FK82 I15
FK83 I15
FK84 E15
IK68 C10
IK69 C10
IK70 F15
IK72 F16
IK73 C10
IK75 F11
IK76 C11
IK84 F8
IK85 C4
FK39 I8
FK40 I7
FK41 I8
FK42 I7
FK43 I8
FK44 J7
FK45 J8
FK46 J7
FK47 J8
FK48 J7
FK49 J8
FK50 J7
FK51 J8
FK52 J7
FK53 J8
FK54 J7
FK55 J8
FK56 J7
FK57 J8
FK58 J7
FK59 J8
FK60 J7
FK61 J8
FK62 J8
FK63 J7
FK67 H8
FK68 H7
FK69 H8
FK70 H7
FK71 H8
FK72 H7
FK73 H8
FK02 E10
FK05 F9
FK06 F14
FK10 H7
FK11 H8
FK12 H7
FK13 H8
FK14 H7
FK15 H8
FK16 H7
FK17 H8
FK18 I7
FK19 I8
FK20 I7
FK21 I8
FK22 I7
FK23 I8
FK24 I7
FK25 I8
FK26 I7
FK27 I8
FK28 I7
FK29 I8
FK30 I7
FK31 I7
FK32 I7
FK33 I8
FK34 I7
FK35 I8
FK36 I7
FK37 I8
FK38 I7
3K33 B3
3K34-1 B3
3K34-2 C3
3K34-3 C4
3K34-4 C4
3K38 B4
3K39 B4
3K40 B4
3K41 B5
3K42 B5
3K43 B5
3K44 B5
3K45 B5
3K46 B5
3K47 B5
3K48 B6
3K49 H2
3K50 H2
3K51 J6
3K52 B4
5K01 G14
5K02 H14
5K03 H14
5K04 I14
5K05 I14
7K00 E1
7K01 H3
7K02 I3
7K03 J3
7K04 F8
7K05 E15
FK01 E9
3K06 J9
3K07 J9
3K08 J6
3K09 F9
3K10 E14
3K11 F16
3K12 F10
3K13 F14
3K15 B9
3K16 B9
3K17 B9
3K18 B9
3K19 B9
3K20 B9
3K21 B9
3K22 B9
3K23-1 K4
3K23-2 K4
3K23-3 K4
3K23-4 K4
3K24-1 K4
3K24-2 K4
3K24-3 K4
3K24-4 K4
3K25 J4
3K26 K4
3K27 B2
3K28 B2
3K29 B3
3K30 B3
3K31 B3
3K32 B3
2K00 H4
2K01 I4
2K02 H15
2K03 H15
2K04 J2
2K05 G15
2K06 H15
2K07 F14
2K08 H15
2K09 H15
2K10 H15
2K11 I15
2K12 I15
2K13 I15
2K14 F9
2K15 K4
2K16 F8
2K17 G8
3K00 F2
3K01 F2
3K02-1 F4
3K02-2 F4
3K02-3 F4
3K03-1 F5
3K03-2 F5
3K03-3 F5
3K03-4 F5
3K04 H9
3K05-1 F5
3K05-2 F5
3K05-3 F5
3K05-4 F6
9 10111213141516
A
B
C
D
E
F
G
H
I
J
K
A
B
C
D
E
F
G
H
I
J
K
1K00-A H7
1K00-B H8
1 2 3 4 5 6 7 8 9 10111213141516
12345678
IK85
IK84
47n
2K17 2K16
47n
FK83
FK81
FK82
+3V3_BUF
+3V3_CORE
+3V3
+3V3_CORE
2K13
10u 16V
60R
5K05
+3V3
100n
2K12
10u
2K11
16V
5K04
60R
+3V3 +3V3_STV
2K10
100n
100n
2K09
2K08
100n
2K06
10u 16V
60R
5K03
33R
3K50
33R3K49
4K7
3K51
4K7
3K52
4
5
3
6
47R3K34-4
2
7
47R3K34-3
47R
3K34-2
47R3K48
3K47 47R
47R3K46
3K45
47R3K44
47R
3K43 47R
47R3K42
3K41 47R
47R3K40
3K39 47R
3K38
1
8
47R
47R
3K34-1
3K33 47R
47R3K32
47R3K31
47R3K30
3K29 47R
47R3K28
3K27 47R
2K15 100p
33R3K26
3K25
45
33R
36
33R3K24-4 33R3K24-3
33R3K24-2 2 7 33R3K24-1 1 8
45
36
33R3K23-4
27
33R3K23-3
8
33R
3K23-2 33R
3K23-1 1
PCMCIA_AVCC
PCMCIA_VPP
PCMCIA_AVCC
+3V3_STV
PCMCIA_5V
PCMCIA_VPP
GND
10
19
VCC
20
+3V3_BUF
+3V3_BUF
+3V3_BUF
9
18
17
16
15
14
13
12
11
1
7K03
2
3
4
5
6
7
8
PCMCIA_5V
74LVC245A
+3V3_STV
+3V3_STV
+3V3_STV
+3V3_STV
+5V_SW
2K14
1n0 FK01
FK02
+3V3_STV
FK05
10K
9
OE
16
RDY|BSY
17
VCC1
18
VPP1
WE|P 15
WP|IOIS16 33
3K09
2
3
D4
4
D5
5
D6
6
D7
1
GND1
GND2 34
6970
22
A7
A8 12
11
A9
7
CE1
30
D0
31
D1
32
D2
D3
14
A14
20
A15 19
A16
27
A2 26
A3 25
A4 24
A5
A6 23
ROW_A
1K00-A
29
A0 28
A1
A10 8
10
A11
21
A12
13
A13
43
VS2
57
WAIT
59
IORD
44 IOWR
45
7172
REG
61
RESET
58
VCC2
51 VPP2
52
VS1
39 D13
D14
40 D15
41
D8
64 D9
65
GND3
35
GND4
68
INPACK
60
63
BVD2|SPKR
62
CD1
36
CD2
67
CE2
42
D10
66
D11
37
38 D12
A19
48 A20
49 A21
50
A22
53 A23
54 A24
55 A25
56
BVD1|STSCHG
ROW_B
1K00-B
A17
46 A18
47
FK63
FK67
FK62
FK80
FK69
FK71
FK68
FK70 FK73
FK75
FK72
FK74
FK11
FK13
FK10
FK12
FK15
FK17
FK14
FK16 FK19
FK21
FK18
FK20
FK23
FK25
FK22
FK24
FK27
FK29
FK26
FK28
FK31
FK30
FK33
FK32
FK34 FK35
FK37FK36
FK38 FK39
FK41FK40
FK42 FK43
FK45FK44
FK46 FK47
FK49FK48
FK50 FK51
FK53FK52
FK54 FK55
FK57FK56
FK58 FK59
FK61
IK68
FK60
IK69
IK73
IK75 IK76
FK84
FK06
IK72
IK70
1
4
VDD 3
+5V_SW
27M
7K04
OC
GND
2
33R
3K05-4
3K12
10K
3K05-3 33R
33R
3K05-2
3K05-1 33R
3K03-4
3K03-3 33R
33R
33R
3K03-2
3K03-1 33R
33R
3K02-3
33R
3K02-1
3K02-2 33R
100n
2K03 100n
2K05
2K02
100n
5K01 PCMCIA_AVCC
PCMCIA_VPP
60R
5K02
60R
PCMCIA_5V
5SET
10K
3K06
8
FAULT_
GND
4
IN1 1
IN2 2
3
ON_
OUT1
7
6OUT2
ST890C
7K05
2K0
3K13
2K07
10u
3K01
PCMCIA_5V
100R
100R
3K00
3K07
10K
10K
+3V3_STV
3K04
3K08
+3V3_STV
10K
2K00
100n
100n
2K01
100n
2K04
15Q4
14Q5
13Q6 12Q7
20
VCC
7
8D6
9D7
10
GND
11
OE_1
19Q0 18Q1
17Q2
16Q3
2D0
3D1
4D2
5D3
6D4
D5
Q2
Q3 16
15Q4
14Q5
13Q6 12Q7
20
VCC
7K01
74LVC573ADB
6D4
7D5
8D6
9D7
10
GND
11
1 OE_
Q0 19
18Q1
17
7K02
74LVC573ADB
2D0
D13
4D2
5D3
10K
3K11
3K16 10K
10K
3K15
10K
3K22
3K17 10K
3K20 10K
10K
3K18
3K21 10K
10K
3K19
10K
3K10
121
WAITB_
WAIT|ACK
15
WE_ 97
WR|STR
16
+3V3_STV
65
TRST_
8
VCC-CORE 36
109
VCC-PROC
VCC-TSI 51
VCC-TSO 64
VCCEN 70
WAITA_ 122
119
32 SA0
SA1
33
31 SCL
SDA
30
TCK
11
TDI
38
TDO
10
TMS
88
OE_
RDY|IRQA_ 101
RDY|IRQB_ 100
17 RD|DIR
REG_ 123
RESET
34
RSTA 120
RSTB
63 118
MOCLKA
MOCLKB 117
MOSTRT
62 MOSTRTA 127
126
MOSTRTB
MOVAL
61 MOVALA 125
MOVALB 124
108
MICLKB
MISTRT
49 MISTRTA 92
MISTRTB 91
MIVAL
48 105
MIVALA
MIVALB 104
MOCLK
4
MDOB2
MDOB3 73
MDOB4 75
MDOB5 77
MDOB6 79
MDOB7 83
50 MICLK MICLKA 110
5
MDOA2
MDOA3 74
MDOA4 76
MDOA5 78
MDOA6 80
MDOA7 84
MDOB0 128
MDOB1 2
55
MDO3
56
57 MDO4
MDO5
58
MDO6
59
MDO760
MDOA0 1
MDOA1 3
98
102
MDIB3
MDIB4 106
MDIB5 111
MDIB6 113
MDIB7 115
MDO0
53
MDO1
54
MDO2
99
103
MDIA3
MDIA4 107
MDIA5 112
MDIA6 114
MDIA7 116
MDIB0 93
MDIB1 95
MDIB2
42
43 MDI3
MDI4
44
MDI5
45
MDI6
46
MDI747
MDIA0 94
96
MDIA1
MDIA2
39
GND-TSI
GND-TSO 52
INT
14
IORD_ 89
IOW_R 90
MDI0
40
41 MDI1
MDI2
18 CS
DATDIR 68
DATOE_ 69
EXTCS
13
EXTINT
12
GND-CORE 37
GND-DVB2 86
GND-PROC 9
71
CD1B_
CD2A_ 7
CD2B_ 6
CE1A_ 82
CE1B_ 81
CE2A_ 87
CE2B_ 85
CLK
35
A21
25
A22
26
A23
27
A24
28
A25
29
ADLE 66
ADOE_ 67
CD1A_ 72
A15
19
A16
20
A17
21
A18
22
A19
23
A20
24
A_MDO(0:7)
A_MDI(0:7)
STV0700L
7K00
|DATOE
DATDIR
TDA_DAT(0:7)
TS_DATA(0:7)
TS_SYNC
TS_CLK
TS_VALID
A_MOSTRT
A_MOVAL
A_MISTRT
A_MOCLK
A_RESET
A_|WAIT
A_|INPACK
PCMCIA_|REG
A_MOVAL
A_MOSTRT
A_|CD2
A_MOCLK
A_|RDY|IRQ
A_MIVAL
A_MICLK
A_|IOIS16
A_|CD1
A_|CE2
A_|VS1
PCMCIA_|IORD
PCMCIA_|IOWR
|ADOE
ADLE
A_|CE1
PCMCIA_|OE
PCMCIA_|WE
I2C_LOCAL_SCL
I2C_LOCAL_SDA
VCCEN
JTAG_TMS
JTAG_TRST
VCCEN
A_|WAIT
PCMCIA_|WE
A_MISTRT
A_MICLK
A_MIVAL
PCMCIA_|OE
A_|RDY|IRQ
PCMCIA_|REG
RESET_STV
A_RESET
JTAG_TCK
STV_TDI
STV_TDO
MIU_ADDR(20)
STV_A25
ADLE
|ADOE
A_|CD1
A_|CD2
A_|CE1
A_|CE2
DATDIR
|DATOE
STV_INT
PCMCIA_|IORD
PCMCIA_|IOWR
STV_CS
MIU_DATA(0:15)
MIU_DATA(0)
MIU_DATA(1)
MIU_DATA(2)
MIU_DATA(7)
MIU_DATA(6)
MIU_DATA(5)
MIU_DATA(4)
MIU_DATA(3)
TDA_VALID
TDA_SYNC
MIU_ADDR(0)
MIU_ADDR(1)
MIU_ADDR(2)
MIU_ADDR(3)
MIU_ADDR(4)
MIU_ADDR(5)
MIU_ADDR(6)
MIU_ADDR(7)
MIU_WEN
MIU_OEN
MIU_RDY
MIU_ADDR(21)
MIU_ADDR(22)
MIU_ADDR(23)
MIU_ADDR(24)
MIU_ADDR(12)
MIU_ADDR(10)
MIU_ADDR(11)
MIU_ADDR(8)
MIU_ADDR(9)
MIU_ADDR(14)
MIU_ADDR(13)
TS_DATA(6)
TS_DATA(5)
TS_DATA(4)
TS_DATA(3)
TS_DATA(2)
TS_DATA(1)
TS_DATA(0)
MIU_ADDR(0:24)
MIU_ADDR(0:24)
MIU_ADDR(15)
MIU_ADDR(16)
MIU_ADDR(17)
MIU_ADDR(18)
MIU_ADDR(19)
PCMCIA_A(1)
PCMCIA_A(0)
PCMCIA_A(10)
PCMCIA_A(11)
PCMCIA_A(9)
PCMCIA_A(8)
PCMCIA_A(13)
PCMCIA_A(14)
PCMCIA_A(12)
TDA_DAT(0)
TDA_DAT(1)
TDA_DAT(2)
TDA_DAT(3)
TDA_DAT(4)
TDA_DAT(5)
TDA_DAT(6)
TDA_DAT(7)
TDA_CLK
TS_DATA(7)
A_MDO(2)
A_MDI(0)
A_MDI(1)
A_MDI(2)
A_MDI(3)
A_MDI(4)
A_MDI(5)
A_MDI(6)
A_MDI(7)
PCMCIA_A(7)
PCMCIA_A(6)
PCMCIA_A(5)
PCMCIA_A(4)
PCMCIA_A(3)
PCMCIA_A(2)
PCMCIA_A(1)
PCMCIA_A(0) PCMCIA_D(0)
PCMCIA_D(1)
PCMCIA_D(2)
A_MDO(3)
A_MDO(4)
A_MDO(5)
A_MDO(6)
A_MDO(7)
A_MDO(0)
A_MDO(1)
PCMCIA_D(5)
PCMCIA_D(6)
PCMCIA_D(7)
PCMCIA_A(0:14)
PCMCIA_A(10)
PCMCIA_A(11)
PCMCIA_A(9)
PCMCIA_A(8)
PCMCIA_A(13)
PCMCIA_A(14)
PCMCIA_A(12)
PCMCIA_A(7)
PCMCIA_A(6)
PCMCIA_A(5)
PCMCIA_A(4)
PCMCIA_A(3)
PCMCIA_A(2)
A_MDI(0:7)
A_MDI(0)
A_MDI(1)
A_MDI(2)
A_MDI(3)
A_MDI(4)
A_MDI(5)
A_MDI(6)
A_MDI(7)
A_MDO(0:7)
A_MDO(0)
A_MDO(1)
A_MDO(2)
A_MDO(3)
A_MDO(4)
A_MDO(5)
A_MDO(6)
A_MDO(7)
PCMCIA_D(0:7)
PCMCIA_D(0)
PCMCIA_D(1)
PCMCIA_D(2)
PCMCIA_D(7)
PCMCIA_D(6)
PCMCIA_D(5)
PCMCIA_D(4)
PCMCIA_D(3)
PCMCIA_D(3)
PCMCIA_D(4)
B03C B03C
3139 123 6261.1
G_16860_004.eps
240107
40LC7.1E LA 7.
Circuit Diagrams and PWB Layouts

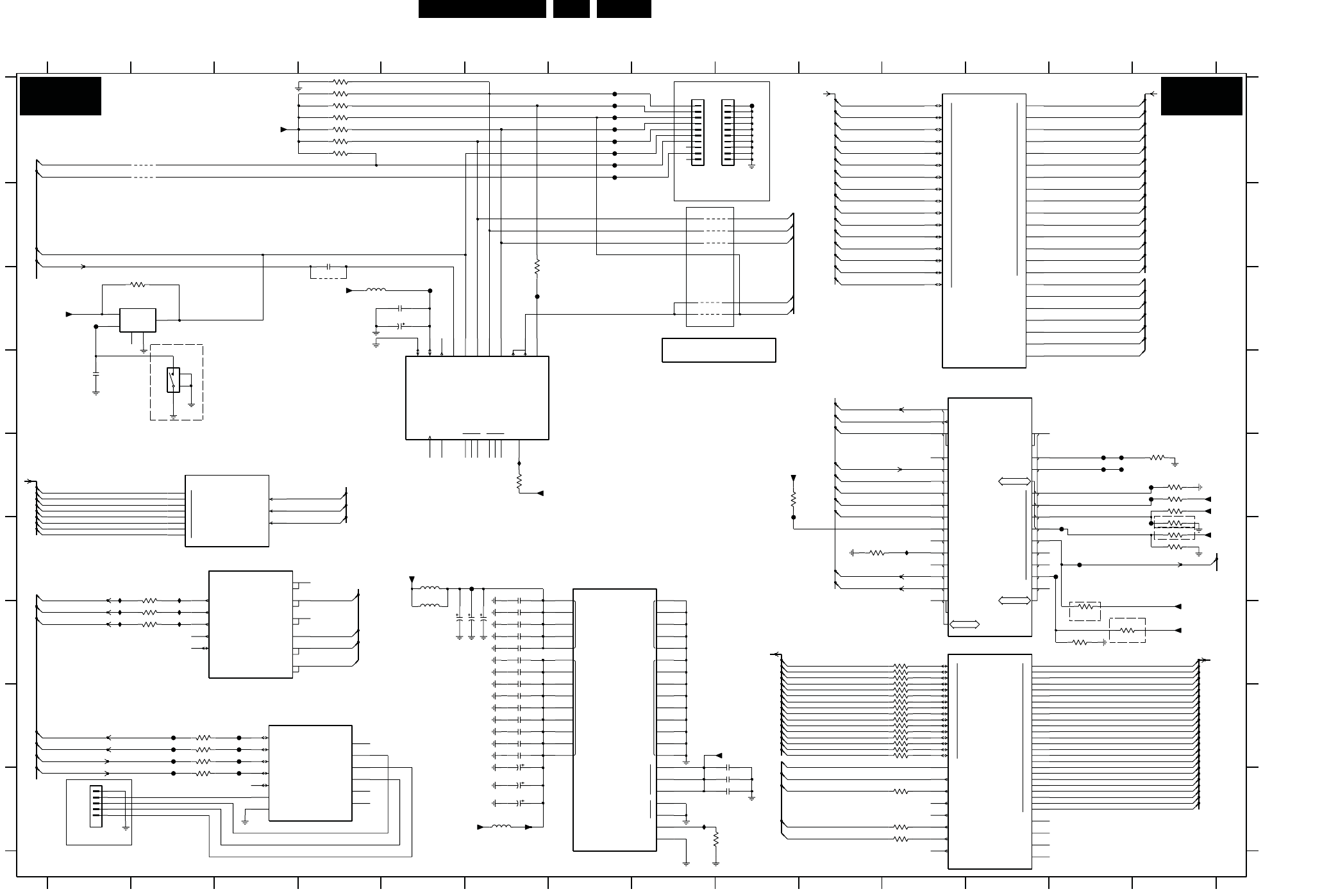

SSB: DVB - Mojo (Not implemented in this chassis)
2
AVDD
1
2
IDUMP
(PWR)
VDDC
VDDP
VSSC
VSSP
0
1
TS_DATA
(TS)
0
1
2
3
4
5
6
7
TS_VAL
TS_STROBE
TS_SYNC
Y
C
CVBS
G
R
SD_OUT
SCK_OUT
WS_OUT
SPDIF
FSCLK
Y
CVBS
CVBS
Y
C
(AV)
B
DQM0
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
8
9
10
11
12
13
(SDRAM)
14
15
0
1
2
3
4
5
6
7
SDRAM_DATA
SDRAM_ADDR
HSCKB
CKE
WE
RAS
CAS
DQM1
0
4
5
6
7
8
9
MIU_CS_N3
MIU_OE_N
MIU_WEN
MIU_MASK0
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
MIU_DATA
MIU_LBA
MIU_BAA
MIU_CLK
24
MIU_ADDR
(MIU)
3
2
1
18
19
20
21
22
23
MIU_MASK1
10
11
12
13
14
15
MIU_RDY
MIU_CS_N0
MIU_CS_N1
MIU_CS_N2
SC0_CCK
USB_DM
USB_DP
USB_PWR
SC0_CMDVCC
(I2C-USB-SCO)
SCL1
SDA0
SCL0
SDA1
SC0_DA
USB_OVRCUR
SC0_OFF
SC0_RST
PIO <0:15>
VS
SC1_DA
SC1_CMDVCC
SC1_RST
SC1_OFF
SC1_CCK
CTS0
RTS0
RX0
TX0
DCD0
PLL_OUTX0
VCXO_CLOCK
BOOT <0:3>
PIO <16:27>
ITU_OUT
(GPIO)
TX1
DTR0
RX1
ITU_CLOCK
7
6
5
4
3
2
1
0
IR_IN
IR_OUT
PWM
VPP
C4
C8
DSU_TPC0
1
2
0
1
2
SYS_RESETN
TDI
TDO
PCST0
PCST1
TMS
TRST
TCK
RESETN
XTAL_IN
XTAL_OUT
AVDD_PLL
AVSS_PLL
(JTAG-ETAG-SYS)
DSU_CLK
DSU_TPC1
0
DVB-MOJO
100MHz
100MHz
100MHz
1%
2V2
2V2
2V2
2V2
2V2
2V2
2V2
2V2
0V
1V6
1V3
0V
1V
1V6
0V
0V
0V
0V
4V6
4V6
3V3
3V3
3V2
3V2
3V3
3V3
0V
3V3
0V
1V2
1V2
3V3
1V2
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
2V1
3V1
3V
3V
2V9
3V3
1V5
2V3
2V3
2V3
0V
2V5
0V
2V5
2V9
2V3
3V3
0V
4V6
3V3
0V
0V
0V
3V3
0V
0V
0V
0V
0V
3V3
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
3V3
3V3
3V3
3V3
3V3
3V3
3V3
3V3
3V3
3V3
3V3
3V3
3V3
3V3
3V3
3V3
3V3
0V
0V
0V
0V
0V
3V3
0V
0V
0V
0V
0V
0V
0V
2V6
2V6
2V6
2V6
2V6
RES
0V
0V
3V3
3V3
3V2
POWER ON RESET
FOR DEV. ONLY
3V3
3V3
RES
FOR DVE. ONLY
PRO. FOR USB
CONFIGURABLE
RES
4G05 FOR DEVELOPMENT ONLY
4G01, 4G02, 4G03,4G04 FOR PRODUCTION
RES
RES
RES
RES
RES
RES
RES
1234567891011121314
1234567891011121314
A
B
C
D
E
F
G
H
I
A
B
C
D
E
F
G
H
I
1G01-1 A8
1G01-2 A9
1G03 D2
1G04 I1
2G02 G5
2G03 G6
2G04 G6
2G05 G6
2G06 H6
2G07 H6
2G08 H6
2G09 H6
2G10 H6
2G11 H6
2G12 F6
2G13 G6
2G14 G6
2G15 G6
2G16 G6
2G17 G6
2G18 G6
2G19 H9
2G20 I9
2G21 I9
2G22 H6
2G23 I6
2G24 I6
2G31 B4
2G32 C5
2G33 C5
2G34 D1
3G11 E6
3G12 E9
3G15 A4
3G16 A4
3G17 A4
3G18 A4
3G19 A4
3G20 A4
3G28 E14
3G29 F14
3G30 E14
3G31 E14
3G33 G2
3G34 G2
3G35 F2
3G36 F14
3G37 F14
3G38 A4
3G40 I8
3G41 E14
3G43 H2
3G44 H2
3G46 H2
3G47 I2
3G48 C6
3G51 G13
3G54 G13
3G55 G13
3G56-1 H10
3G56-2 H10
3G56-3 H10
3G56-4 H10
3G57-1 G10
3G57-2 H10
3G57-3 G10
3G57-4 H10
3G58-1 G10
3G58-2 H10
3G58-3 G10
3G58-4 H10
3G59-1 H10
3G59-2 H10
3G59-3 H10
3G59-4 H10
3G60 I11
3G61 I11
3G62 I11
3G63 F10
3G65 C2
4G01 B9
4G02 B9
4G03 B9
4G04 C8
4G05 C8
4G09 A2
4G10 A2
4G31 C4
5G01 F5
5G02 G5
5G03 C4
5G04 I6
7G00-1 F7
7G00-2 E3
7G00-3 F3
7G00-4 A12
7G00-5 G12
7G00-6 H4
7G00-7 D12
7G00-8 D7
7G06 C1
FG10 A7
FG11 A7
FG12 A7
FG13 A9
FG14 A7
FG15 A7
FG16 A7
FG17 H2
FG18 C6
FG19 H2
FG20 E13
FG21 E13
FG22 E13
FG23 E13
FG24 E14
FG25 E14
FG26 E9
FG27 F14
FG28 F13
FG29 F13
FG30 F13
FG31 H2
FG32 H3
FG33 H2
FG34 H3
FG35 H3
FG36 I3
FG37 C5
FG39 F6
FG40 A7
FG41 A7
FG42 C1
IG13 I8
IG14 F1
IG15 G1
IG16 G1
IG17 F11
IG18 F2
IG19 G2
IG20 G2
IG21 E6
FG26
FG10
FG11
IG21
FG21
FG20
4G31
100n
2G31
100n
IG19
IG20
2G32
IG18
4G05
4G04
4G03
4G02
4G01
2
3
4
567
BM05B-SRSS-TBT
1G04
1
FG13
20
4
6
8
10
12
14
16
18
FTSH
ROW_2
1G01-2
21
19
3
5
7
9
11
13
15
17
FG42
FTSH
ROW_1
1G01-1
+3V3_VDDP
+3V3_VDDP
+3V3_VDDP
3G11
10K
IG17
IG15
IG16
IG14
3G20 10K
4G10
4G09 FG40
FG41
10u
2G24
16V
2G23
10u 16V
2G22
16V10u
3G18
60R
10K
10u
5G04
16V2G18
2G17 16V10u
FG27
FG28
FG25
FG24
FG35
FG36
FG34
FG32
FG18
FG39
FG37
+3V3
+3V3
3G65
1K0
1
33n
2G34
NCP303LSN30
7G06
CD
5
GND
3
INP
2
4
NC
OUTP
34
12
+3V3
+3V3
SKQTLB
1G03
+3V3
+3V3
10K
FG29
3G54
3G55
10K
10K
3G51
FG30
3G37
10K3G36
10K
10K3G31
3G28 +3V3
3G29
10K
10K
10K
3G30
3G63 10K
3G62
3G61
33R
3G60
33R
45
33R
7
3G59-4 33R
3G59-2 2
3G56-4 45
33R
3G56-2 27
33R
3G58-4 45
33R
45
33R
733R3G57-4
3G58-2 33R
2
3G57-2 33R
27
33R
18
36
3G59-1 36
3G56-3 33R
18
33R3G59-3
6
33R3G56-1
3G58-3 333R3G58-1 1
8
33R
33R
36
33R18
3G57-3
+1V2_MOJO
3G57-1
3G15
+1V2_MOJO
FG16
10K FG12
FG15
FG14
+3V3
3G40
1K2
FG33
FG31
10u 16V
2G33
IG13
10K
3G12
3G48 33R
10K
3G38
3G19 10K
5G03
100n2G11
2G10
2G09
100n
100n
100n
2G06
2G07 100n
2G08
2G03 100n
100n
100n
2G04
100n
2G05
2G14 100n
100n
100n
2G16
2G15
2G12 100n
5G02
100n
2G13
5G01
2G02 10u 16V
+3V3clean
2G21 100n
100n2G20
100n2G19
159
196
195 4
5
3
208
207
1
2
158
157
160
186
187
194
189
188
197
45
46
47
48
7G00-8
PNX8314HS
178
179
180
181
182
183
184
185
33
34
35
13
14
15
16
17
18
19
176
32
177
7G00-7
PNX8314HS
31
49
12
39
38
6
8
7
9
201
200
198
199
7G00-6
PNX8314HS
40
37
36
53
68
66
110
106
107
70
109
108
64
62
58
56
54
52
65
63
59
57
55
87
88
50
51
74
73
72
71
69
67
101
102
103
104
105
82
83
84
85
86
89
90
91
92
93
96
97
98
99
100
81
7G00-5
75
80
123
115
116
117
118
121
122
132
129
139
PNX8314HS
147
146
145
144
113
114
128
127
126
125
124
154
152
143
142
150
151
155
156
149
148
7G00-4
PNX8314HS
140
137
138
133
136
141
153
203
202
206
204 170
163
168
172
205 165
167
25
26
27
29
30
28
PNX8314HS
7G00-3
20
21
22
23
24
44
61
77
95
112
131
162
193
PNX8314HS
7G00-2
130
161
190
173
42
79
120
135
192
11
174
41
78
119
134
191
10
43
60
76
94
111
7G00-1
175
169
164
171
166
10K
PNX8314HS
3G16
10K
3G17
3G35 22R
3G33 22R
3G41 10K
FG22
FG23
22R
FG17
3G34
FG19
3G44 100R
100R3G43
3G47 100R
4MHZ_MOJO
JTAG_TCK
JTAG_TRST
JTAG_TMS
STV_TDI
100R
3G46
TS_DATA(0:7)
SDRAM_DATA(0:15) SDRAM_ADDR(0:14)
MIU_ADDR(0:24)
MIU_DATA(0:15)
MIU_WEN
NOR_RYBY
PIO21|ITU_OUT2|BOOT2
IBO_IRQ
DSW_I2C_enable
MOJO_TDI
10046_TDO
10046_TDO
PIO19|ITU_OUT0|BOOT0
PIO20|ITU_OUT1|BOOT1
PIO22|ITU_OUT3|BOOT3
TS_CLK
TS_SYNC
TS_VALID DSW_n
MIU_DATA(13)
MIU_DATA(12)
MIU_DATA(11)
MIU_DATA(10)
MIU_DATA(9)
MIU_DATA(8)
MIU_DATA(7)
MIU_DATA(6)
MIU_DATA(5)
MIU_DATA(4)
MIU_DATA(3)
MIU_DATA(2)
MIU_DATA(1)
MIU_DATA(0)
MIU_OEN
STV_CS
NOR_CS
RXD0
TXD0
USB_DM
USB_DP
USB_OVRCUR
USB_PWR
MOJO_TCK
MOJO_TCK
MOJO_TMS
MOJO_TMS
MOJO_TRST
MOJO_TRST
RESET_n
RESET_n
RESET_n
MIU_DATA(15)
MIU_DATA(14)
MIU_ADDR(0)
MIU_ADDR(1)
MIU_ADDR(10)
MIU_ADDR(11)
MIU_ADDR(12)
MIU_ADDR(13)
MIU_ADDR(14)
MIU_ADDR(15)
MIU_ADDR(16)
MIU_ADDR(17)
MIU_ADDR(18)
MIU_ADDR(19)
MIU_ADDR(2)
MIU_ADDR(20)
MIU_ADDR(21)
MIU_ADDR(22)
MIU_ADDR(23)
MIU_ADDR(24)
MIU_ADDR(3)
MIU_ADDR(4)
MIU_ADDR(5)
MIU_ADDR(6)
MIU_ADDR(7)
MIU_ADDR(8)
MIU_ADDR(9)
1V2_CORE
MOJO_I2S_OUT_SD
MIU_RDY
NOR_RYBY
SDRAM_CKE
SDRAM_DQM0
SDRAM_CAS
SDRAM_WE
1V2clean
SDRAM_ADDR(12)
SDRAM_ADDR(13)
MIU_WEN
MOJO_I2S_OUT_WS
STV_A25
STV_INT
NOR_WP
C_CVBS
B|Pb
G|Y
R|Pr
SDRAM_DQM1
SDRAM_RAS
SDRAM_CLK
SDRAM_ADDR(1)
SDRAM_ADDR(2)
SDRAM_ADDR(3)
SDRAM_ADDR(4)
SDRAM_ADDR(5)
SDRAM_ADDR(6)
SDRAM_ADDR(7)
SDRAM_ADDR(8)
SDRAM_ADDR(9)
SDRAM_ADDR(10)
SDRAM_ADDR(11)
SDRAM_ADDR(14)
SDRAM_DATA(0)
SDRAM_DATA(1)
SDRAM_DATA(2)
SDRAM_DATA(3)
SDRAM_DATA(4)
SDRAM_DATA(5)
SDRAM_DATA(6)
SDRAM_DATA(7)
SDRAM_DATA(8)
SDRAM_DATA(9)
SDRAM_DATA(10)
SDRAM_DATA(11)
SDRAM_DATA(12)
SDRAM_DATA(13)
SDRAM_DATA(14)
SDRAM_DATA(15)
FE_LOCK
user_EEPROM_WP
SDRAM_ADDR(0)
TS_DATA(1)
TS_DATA(2)
TS_DATA(3)
TS_DATA(4)
TS_DATA(5)
TS_DATA(6)
TS_DATA(7)
RESET_STV
RX_ZAP
TX_ZAP
I2C_LOCAL_SCL
I2C_LOCAL_SDA
RES
RES
RES
RES
RESET_FE_n
IIC_SCL
IIC_SDA
MOJO_I2S_OUT_SCK
TS_DATA(0)
B03D B03D
3139 123 6261.1
G_16860_005.eps
240107
Circuit Diagrams and PWB Layouts 41LC7.1E LA 7.

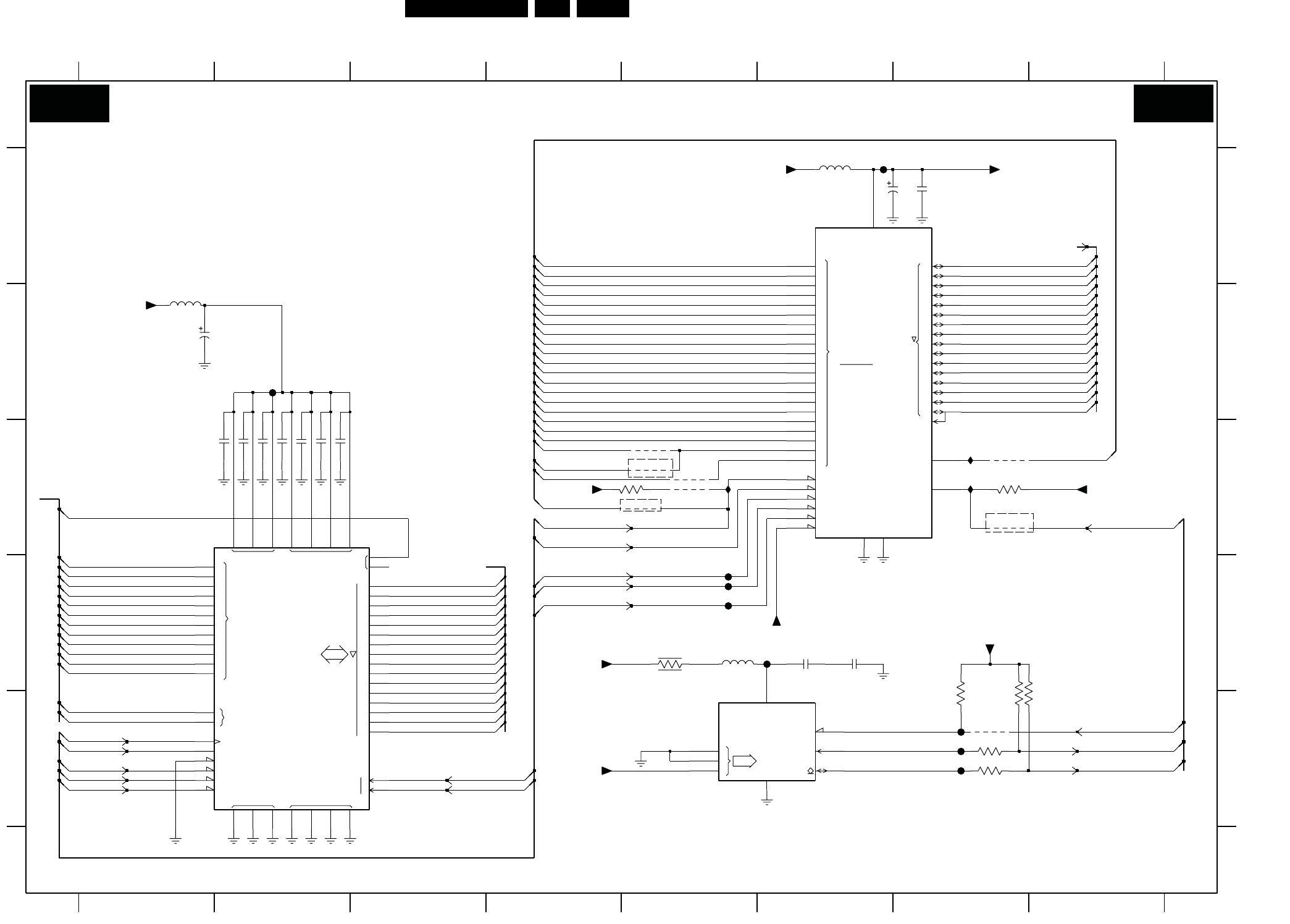

SSB: DVB - Mojo Memory (Not implemented in this chassis)
SCL
ADR
0
1
2SDA
WC
10
4
9
8
7
6
0
32M-1
0
A
D
5
11
2
1
17
OE
12
13
14
15
VPP/WP_
20
19
18
16
RB
4
3
2
CE
7
6
WE
RP
1
0
BYTE
3
NC
5
8
9
10
11
12
13
14
15
A-1
U
11
6
1
11
D
A
DQM L
2
3
9
3
7
8
9
10
CLK
4
BA
CS
5
RAS
2
CAS
WE
15
7
1
0
NC
6
12
8
1
VSS VSSQ
0
10
0
VDD VDDQ
13
14
CKE
4
5
2/4/8MB
NOR
FLASH
I2C ADDRESS:A0
DVB-MOJO MEMORY
100MHz
100MHz
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
1V5
3V3
3V
3V
3V
0V
1V3
1V3
1V
1V3
1V3
1V2
0V
1V4
1V3
1V3
1V
1V4
1V4
1V3
1V2
0V7
3V3
2V2
5V
5V
4V6
4V6
4V6
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
3V2
3V2
3V2
3V2
3V2
3V2
3V2
3V2
3V2
3V2
3V2
3V2
3V2
3V2
3V2
3V2
3V2
3V2
3V2
0V
0V
0V
0V
0V
0V
0V
0V
0V
100MHz
12345678
12345678
A
B
C
D
E
A
B
C
D
E
2H03 C2
2H04 A7
2H06 B1
2H07 A6
2H08 C2
2H09 C2
2H10 C2
2H11 C2
2H12 C2
2H13 C2
2H14 D6
2H15 D6
3H00 C4
3H05 C7
3H09 E7
3H10 E7
3H11 E7
3H12 E7
3H13 E7
3H14 D5
4H00 C5
4H01 C5
4H02 C5
4H03 C5
4H04 C5
4H05 C7
4H12 E7
4H15 C7
5H01 B1
5H02 A6
5H03 D5
7H00 A6
7H02 C1
7H03 D5
FH00 E7
FH01 D5
FH02 E7
FH03 D6
FH04 E7
FH05 D5
FH06 D5
FH07 B2
FH08 A6
IH04 C5
IH06 C7
IH07 C7
100n
2H03
FH03
FH05
3H14
1R0
2H15
220n
FH08
IH07
+3V3_NOR48
16V10u
2H07
+5V_SW
+5V_SW
220n
2H14
3H13 3K3
3K33H12
10K
3H11
+3V3 5H02
FH04
FH02
+3V3
+5V_SW
+3V3_NOR48
+3V3_NOR48
+3V3_NOR48
FH01
IH04
4H04
4H01
3H00 4H003K3
13
28
15
12
37
14
27 46
11
43
45
33
35
38
40
42
44
30
32
18
8
7
47
26
29
31
34
36
39
41
1
48
17
16
9
23
10
22
21
20
19
4Mx8/2Mx16
25
24
6
5
4
3
2
EPROM
M29W320ET70N
7H00
FH00
4H12
3H09
100R
8
4
7
100R
3H10
M24C64-WMN6
7H03
1
2
3
6
5
(8Kx8)
Φ
EEPROM
5H03
4H02
4H03
4H05
FH06
IH06
4H15
10K
3H05
2H04
100n
FH07
43 49
28 41 54 6 12 46 52
16
15
36
40
18
39
114 27 3 9
50
51
53
5
7
8
10
11
13
42
44
20
21
17
37
38
19
2
4
45
47
48
22
35
25
26
29
30
31
32
33
34
EDS1216AGTA
SYNC
Φ
4x2Mx16
SDRAM
23
24
5H01
7H02
16V10u
2H06
2H11 100n
2H08
100n2H12
100n
100n2H09
100n
2H10
2H13 100n
NOR_RYBY
MIU_ADDR(20)
MIU_ADDR(21)
SDRAM_ADDR(0:14)
SDRAM_DATA(0:15)
MIU_DATA(0:15)
I2C_LOCAL_SCL
I2C_LOCAL_SDA
user_EEPROM_WP
MIU_DATA(1)
NOR_CS
NOR_WP
MIU_DATA(8)
MIU_DATA(9)
MIU_DATA(10)
MIU_DATA(11)
MIU_DATA(12)
MIU_DATA(13)
MIU_DATA(14)
MIU_WEN
MIU_ADDR(0:24)
MIU_ADDR(12)
MIU_ADDR(13)
MIU_ADDR(14)
MIU_ADDR(15)
MIU_ADDR(16)
MIU_ADDR(17)
MIU_DATA(15)
MIU_DATA(0)
MIU_DATA(2)
MIU_DATA(3)
MIU_DATA(4)
MIU_DATA(5)
MIU_DATA(6)
MIU_DATA(7)
MIU_ADDR(18)
MIU_ADDR(19)
MIU_ADDR(20)
MIU_ADDR(22)
MIU_ADDR(22)
MIU_OEN
RESET_n
SDRAM_ADDR(6)
SDRAM_ADDR(5)
SDRAM_ADDR(4)
SDRAM_ADDR(3)
SDRAM_ADDR(2)
SDRAM_ADDR(1)
SDRAM_ADDR(0)
SDRAM_ADDR(14)
SDRAM_ADDR(13)
MIU_ADDR(1)
MIU_ADDR(2)
MIU_ADDR(3)
MIU_ADDR(4)
MIU_ADDR(5)
MIU_ADDR(6)
MIU_ADDR(7)
MIU_ADDR(8)
MIU_ADDR(9)
MIU_ADDR(10)
MIU_ADDR(11)
SDRAM_DATA(5)
SDRAM_DATA(6)
SDRAM_DATA(7)
SDRAM_DATA(8)
SDRAM_DATA(9)
SDRAM_DATA(10)
SDRAM_DATA(11)
SDRAM_DATA(12)
SDRAM_DATA(13)
SDRAM_DATA(14)
SDRAM_DATA(15)
SDRAM_ADDR(11)
SDRAM_ADDR(10)
SDRAM_ADDR(9)
SDRAM_ADDR(8)
SDRAM_ADDR(7)
SDRAM_ADDR(12)
SDRAM_DQM1
SDRAM_DQM0
SDRAM_WE
SDRAM_CAS
SDRAM_RAS
SDRAM_CKE
SDRAM_CLK
SDRAM_DATA(0)
SDRAM_DATA(1)
SDRAM_DATA(2)
SDRAM_DATA(3)
SDRAM_DATA(4)
RES
RES
RES
B03E B03E
3139 123 6261.1
G_16860_006.eps
240107
42LC7.1E LA 7.
Circuit Diagrams and PWB Layouts

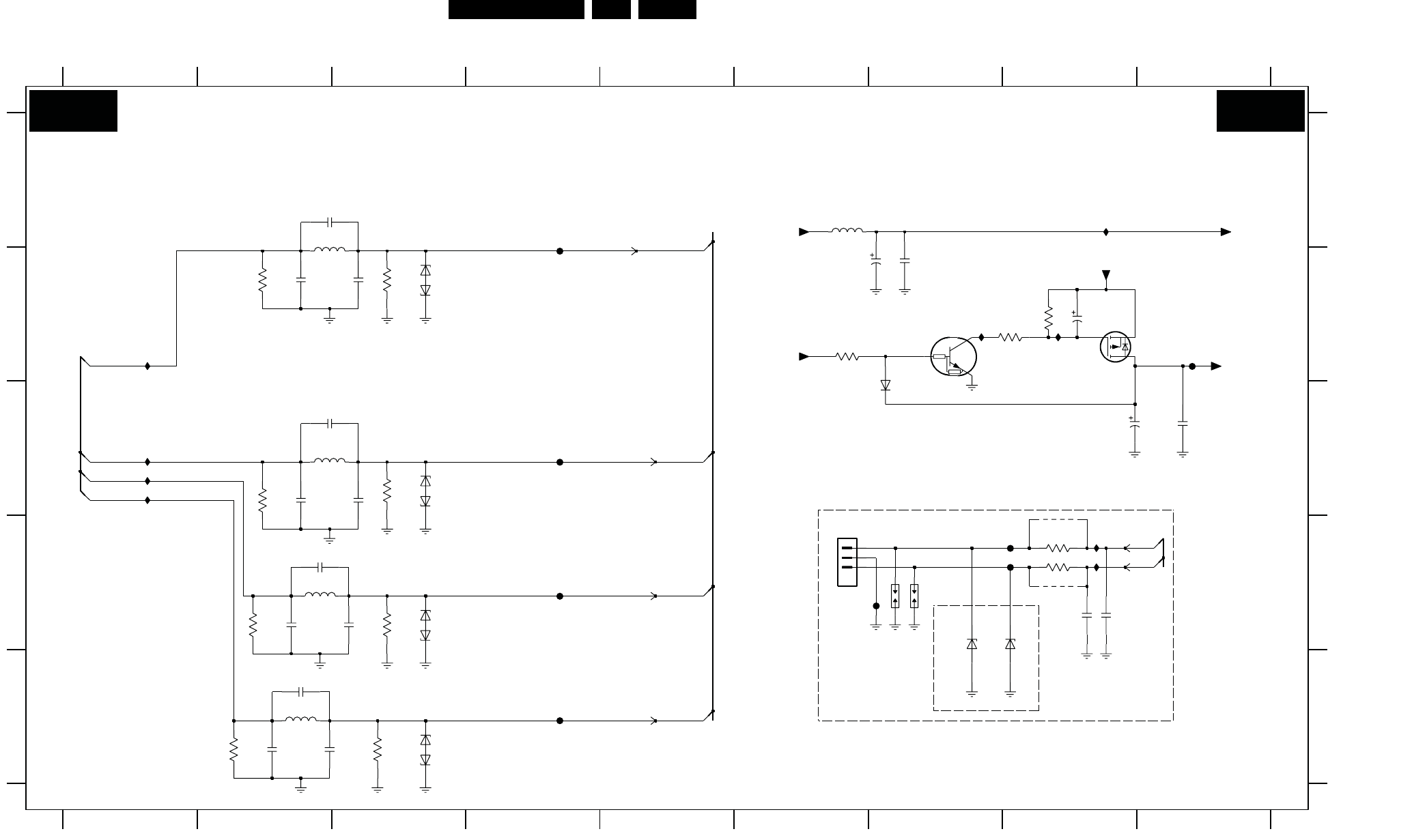

SSB: DVB - Mojo Analog Back End (Not implemented in this chassis)
DVB-MOJO ANALOG BACK END
ESD Protection
UART CON FOR COMPAIR ONLY
RES
RES
RES RES
RES
RES
RES
RES
RES
EMC
RESRES RES
1V8
1V2
123456789
123456789
A
B
C
D
E
A
B
C
D
E
1001 D7
1002 D7
1J14 D6
2J01 B7
2J02 B7
2J04 B8
2J05 C8
2J06 C9
2J14 D8
2J15 D8
2J60 A2
2J62 B3
2J63 B2
2J64 C2
2J66 C2
2J67 C3
2J68 D2
2J69 D2
2J70 D3
2J71 E2
2J72 E2
2J73 E2
3J01 B8
3J02 B8
3J03 B6
3J14 D8
3J15 D8
3J59 B2
3J60 B3
3J61 C2
3J62 C3
3J63 D2
3J64 D3
3J65 E2
3J66 E3
4J14 D8
4J15 D8
5J01 A6
5J52 A2
5J53 C2
5J54 D2
5J55 E2
6J03 C7
6J14 D7
6J15 D8
6J60 B3
6J61 C3
6J62 D3
6J63 E3
7J04 B9
7J05 B7
FJ01 B9
FJ02 D6
FJ22 A4
FJ23 C4
FJ24 D8
FJ25 D8
FJ26 D4
FJ27 E4
IJ01 B7
IJ02 B8
IJ11 A8
IJ63 B1
IJ64 C1
IJ65 C1
IJ66 C1
IJ67 D8
IJ68 D8
FJ22
PESD5V0S1BA
6J63 6J62
PESD5V0S1BA PESD5V0S1BA
6J61 6J60
PESD5V0S1BA
BAS316
6J03
3J03
100R
IJ68
IJ67
2J06
100n
FJ23
IJ11
FJ02
FJ01
IJ02
IJ01
1002
1001
4J14
4J15
FJ25
FJ24
330p
330p
2J14
100R3J15
2J15
3J14 100R
6J15
BZX384-C6V8
345
BZX384-C6V8
6J14
1J14
S3B-PH-SM4-TB
1
2
2J01
10u 16V
60R
5J01
+3V3clean
2J02
100n
+3V3_MOJO
+1V8S_SW
+3V3
SI2301BDS
7J04
2J05
100u 16V
2J04
22u 16V
22K
3J01
3J02
12K
+3V3_MOJO
7J05
PDTC114ET
FJ27
FJ26
47R
3J66
3J64
47R 47R
3J62
47R
3J60
2J71
22p
22p
2J68
2J64
22p
22p
2J73
2J60
68p
2J72
180p
68p
2J70
2J69
180p
68p
2J67
180p
2J66
2J62
180p
68p
2J63
180R
3J61
3u3
5J53
3J65
5J55
3u3
180R
3J59
3u3
180R
5J52
3J63
180R
3u3
5J54
IJ66
IJ64
IJ65
IJ63
TXD0
RXD0
IBO_G_IN
IBO_B_IN
IBO_CVBS_IN
IBO_R_IN
B|Pb
R|Pr
C_CVBS
G|Y
B03F B03F
3139 123 6261.1
G_16860_007.eps
240107
Circuit Diagrams and PWB Layouts 43LC7.1E LA 7.

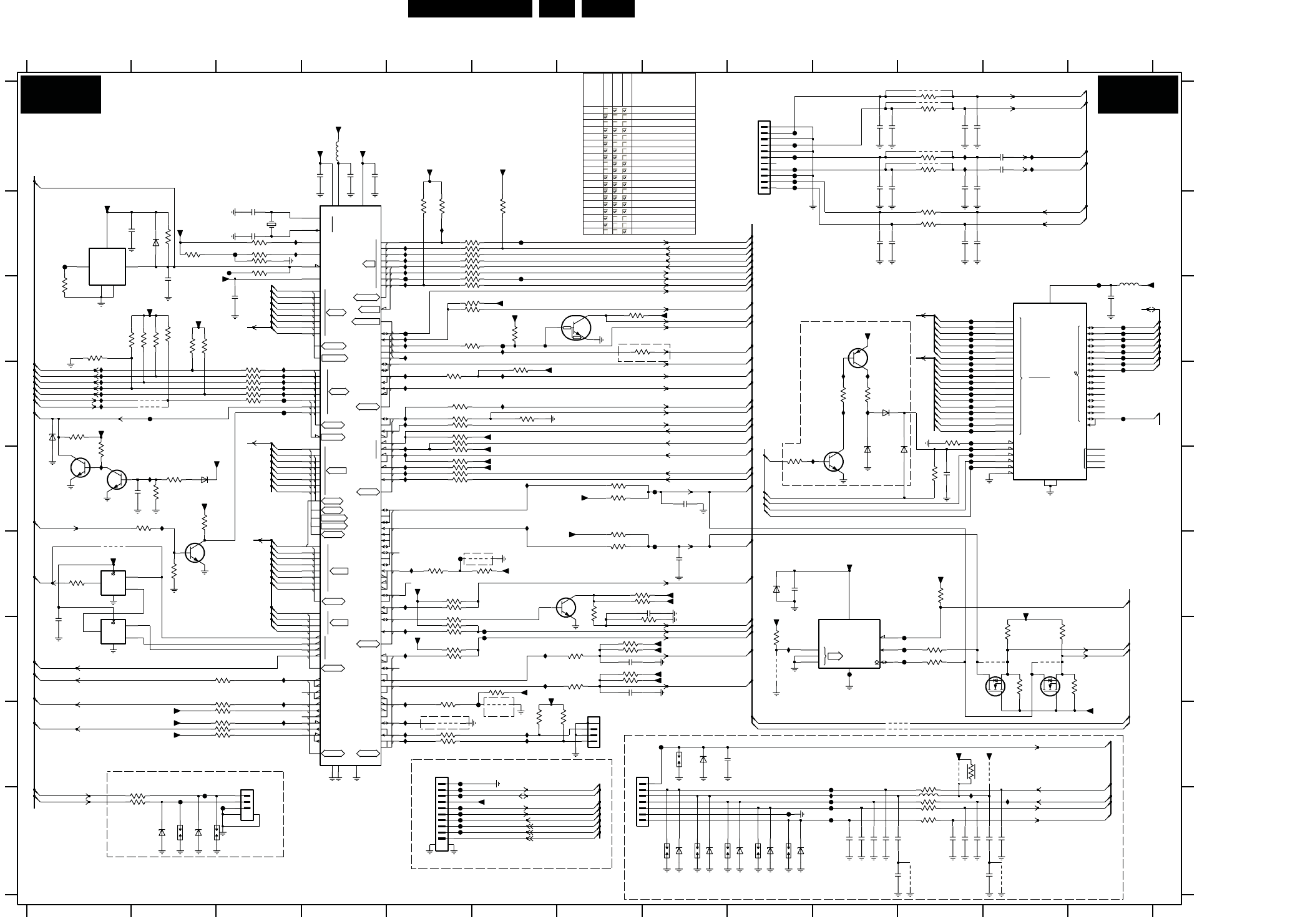

SSB: Micro Processor
18
16
RB
4
3
2
CE
7
6
WE
RP
1
0
BYTE
3
NC
5
8
9
10
11
12
13
14
15
A-1
10
4
9
8
7
6
0
8M-1
0
AD
5
11
2
1
17
OE
12
13
14
15
DA1
8
TA3OUT
W
9
W
ADDR
V
P1<0:7>
4
ANEX0
HLDA
6
HOLD
RXD1
INT<3:5>
7
TA2IN
XTAL
TA4OUT
RESET
SOUT4
CLK4
AVCC
TA1IN
VSS
TA2OUT
SIN4
TXD1
BYTE
8
9
10
11
P9<0:7>
6
CLK3
CTS1
SDA2
RDY
WRL
4
5
6
NMI
3
TA3IN
CLK1
1
2
TA1OUT
TB5IN
TA0OUT
17
SIN3
ANEX1
DA0
5
2
3
3
2
1
3
P6<0:7>
TA4IN
INT
D<0:7>
ADDR
0
1
2
0
KI<0:3>
AN0<0:7>
WRH
BHE
RD
U
7
P3<0:7>
RTS1
19
P7<0:7>
DATA
CLK2
V
CTS2
RTS2
D<0:7>
TBIN<0:4>5
0
VCC
16
CLKOUT
P4<0:7>
ALE
P5<0:7>
OUT
AVSS
P0<0:7> SOUT3
IN
12
BCLK
ADDR
ADTRG
CNVSS
13
TA0IN
RXD2
SCL2
XCOUT
A<0:7>
P2<0:7>
4
WR
AN
18
U
P8<0:7>
SDA1
SDA0
SCL1
CTS0
ZP
RTS0
CTS0
CLK0
7
CLKS1
VREF
10
11
12
13
CS
TXD0
RXD0
TXD2
V
DATA
P10<0:7>
XCIN
14
15
14
15
0
1
0
2
1
AN2<0:7>
SCL1
SUB
ER
GND
VOUT
VDD
SCL
ADR
0
1
2SDA
WC
MICROPROCESSOR
RES
SDM
COMPAIR
ITV_Connector A:
EMC
EMC
EMC
EMC
EMC
EMC
TO / FROM IR/ LED & KEYBOARD
RES
RES
RES
RES
RES
RES
RES
RES
RES
RES
RES
RES
RES
RES
RES
RES
RES
RES
RES
RES
RES
RES
RES
RES
RES
RES
RES RES
RES FOR PSU_STBY
NC
RES
RES
For Development only
BOOT LOADER
RES
RES
RES
RES
RES
RES
RES
RES
RES
RES
RES
RES
RES
UART CON
PANEL
RES
RES
RES
RES
RES
RES
RES
RES
RES
RES
FOR DVB ONLY
RES FOR BDS
RES FOR BDS
RES
RES
RES
RES
RES
TO / FROM SIDE IO
RES
RES
RES
RES
RES
RES
RES
*
**
*
*
*
*
*
FOR EMC
RES
*
RES
*
RES
*
RES
RES
RES
*
RES
*
RES
*
RES
*
RES
1V5
1V5
3V3
0V8
3V2
3V3
3V3
3V2
1 2345678910111213
1 2345678910111213
A
B
C
D
E
F
G
H
I
A
B
C
D
E
F
G
H
I
1301 B3
1302 I2
1303 I2
1304 A9
1305 I9
1306 H8
1307 I8
1308 I8
1309 I8
1310 I9
1311 H7
1312 H5
1314 I3
1M20 H8
2310 A4
2311 C13
2312 A4
2313 A4
2314 B3
2315 B1
2316 B3
2317 B2
2318 C3
2319 E11
2320 F9
2321 G7
2322 G7
2323 G1
2324 F7
2325 F8
2326 E8
2327 H9
2328 I10
2329 I10
2330 I10
2331 I10
2332 I12
2333 I10
2334 I11
2335 I11
2336 I11
2337 I12
2338 E2
2339 I12
2340 I10
2L20 A10
2L21 A10
2L22 A11
2L23 A11
2L24 A12
2L25 A12
2L26 B10
2L27 B10
2L28 B11
2L29 B11
2L30 B10
2L31 B10
2L32 B11
2L33 B11
3300 C1
3303 B5
3304 D6
3305 G12
3306 F7
3307 G7
3308 G12
3309 G12
3310 B6
3311 B5
3312 B5
3313 B5
3314 B3
3315 B5
3316 B2
3317 B5
3318 B3
3319 B2
3320 B5
3321 B3
3322 B5
3323 B3
3324 C5
3325 C1
3326 D11
3327 C5
3328 D10
3329 C5
3330 D10
3331 C2
3332 D2
3333 C1
3334 C2
3335 C2
3336 E11
3337 E9
3338 D3
3339 D3
3340 D3
3341 D3
3342 D3
3343 I1
3344 D5
3345 I1
3346 D5
3347 D5
3348 D5
3349 E5
3350 E5
3351 G7
3352 G7
3353 F11
3354 G7
3355 G11
3356 G7
3357 G11
3358 F7
3359 F7
3360 G5
3361 F5
3362 C6
3363 D2
3364 D3
3365 F5
3366 F5
3367 F5
3368 C5
3369 G5
3370 G5
3371 G5
3372 H2
3373 G5
3374 G13
3375 H2
3376 D6
3377 E7
3378 F7
3379 E7
3380 D5
3381 G2
3382 E7
3383 F2
3384 H2
3385 H2
3386 H2
3387 E5
3388 E5
3389 I11
3390 I11
3391 I11
3392 I11
3393 E1
3394 D1
3395 E2
3396 C7
3397 E5
3398 E2
3399 E2
3L01 G6
3L02 H5
3L04 E2
3L05 B5
3L06 H6
3L07 H7
3L08 H5
3L09 H5
3L10 H11
3L11 C7
3L12 G7
3L13 G7
3L14 G9
3L15 F1
3L20 A11
3L21 A11
3L22 B11
3L23 B11
3L24 A11
3L25 A11
3L26 D5
4301 F6
4302 H11
4303 H12
4306 G12
4307 G12
4308 H5
4309 I12
4310 I11
4313 H6
4314 H11
4315 H11
4316 G9
4323 F1
4324 D2
4325 D2
4L20 A11
4L21 A11
4L24 A11
4L25 A11
5301 A4
5302 C13
5304 I11
6301 B2
6302 D10
6303 E10
6304 E10
6305 F9
6306 I2
6307 I2
6308 H8
6309 I8
6310 I8
6311 I9
6312 I9
6313 I9
6317 D1
6318 E2
7308 E1
7310 C12
7311 B3
7312 B1
7313-1 D9
7313-2 C10
7314 F6
7315 F10
7316 F2
7317 E1
7320 H11
7321 H12
7322 C7
7323-1 G1
7323-2 F1
F302 C6
F303 G6
F304 C6
F305 F5
F309 H5
F310 C11
F311 C11
F312 C13
F313 C11
F314 C13
F315 C11
F316 C13
F317 C11
F318 C13
F319 C11
F320 C13
F321 C11
F322 C13
F323 B6
F324 D11
F325 D13
F326 D11
F327 D13
F328 D11
F329 D11
F330 B1
F331 D11
F332 D11
F333 D11
F334 D11
F335 D11
F336 D11
F337 D13
F338 D11
F339 D11
F340 D11
F341 E11
F342 I2
F343 I2
F344 I3
F345 G10
F346 H5
F347 I5
F348 I5
F349 I5
F350 F8
F351 I5
F352 I5
F353 I5
F354 I5
F356 E8
F357 H8
F360 I9
F361 D3
F362 C5
F363 G11
F364 G11
F365 G11
F366 E11
F367 E11
F368 C13
F369 E11
F370 G6
F379 D2
F380 B3
F381 B3
F382 I10
F383 I10
F384 I10
F385 D3
F386 C5
F387 I10
FL20 A9
FL21 A9
FL22 A9
FL23 A9
FL24 A9
FL25 A9
FL26 A9
I311 B5
I312 B3
I313 B5
I314 B5
I315 B5
I317 B5
I318 G9
I320 C5
I321 D10
I322 D10
I323 D10
I326 C5
I328 D10
I329 E9
I330 D1
I331 D3
I332 D1
I333 D3
I334 D1
I335 D3
I336 D5
I337 D1
I338 D3
I339 D1
I341 D5
I342 D5
I344 D5
I345 E5
I347 G6
I349 G6
I351 F5
I352 D3
I353 D1
I354 F5
I357 C5
I359 G5
I362 D6
I363 G5
I364 D5
I365 G3
I366 E6
I367 E6
I368 G3
I369 H5
I370 H5
I373 I10
I374 I11
I376 I12
I380 E1
I382 G5
I383 H5
I384 H3
I387 B3
I388 D6
I389 C5
I390 C6
I391 H6
I392 H6
I393 E2
I394 E2
I395 B5
I396 E5
I397 E5
I398 E5
I399 D1
IL20 A11
IL21 A12
IL22 A11
IL23 A12
I388
100R3L26
I399 4325
4324
4L20
4L21
4L25
4L24
IL22
IL20
IL23
IL21
3L24
33R
33R
3L25
1n02L33
2L32 1n0
2L31 1n0
1n02L30
10
11
2
3
4
5
6
7
8
9
B11B-PH-K
1304
1
2L24 220n
220n2L25
FL26
FL23
FL25
FL22
FL21
FL20
2L22 10p
10p
2L21
3L20 100R
22n
2L26
2L29
3L23
100p
33R
22n
2L28
100p2L27
33R3L22
10p
2L23
10p
2L20
100R3L21
FL24
330R
3L15
4323
100n
2323
+3V3_STBY
5
6
48
3
1
2
48
7
NL27WZ08USG
7323-2
NL27WZ08USG
7323-1
I397
I398
I396
I394
I395
I393
4310
4309
2339 1n0
1n02340
I391
I392
I390
I318
4316 3L14
+3V3_STBY
F302
10K
3K33L13
+3V3_STBY
+3V3_STBY
3L12 3K3
100R
I389
3L11
4314
4315
1R0
3L10
4313
F361
F362
F386
100R
100R3L09
3L08
5
4308
1311
1
2
3
4
10K
3L07
+3V3_STBY
10K
3L06
3L05 100R
6318
PDZ6.2-B
+12V_DISP
220n
2338
3L04
1K5
7308
BC847BW
+3V3_STBY
BZX384-C3V3
6317
F309
+3V3_STBY
100R3L02
3L01
1K23300
4K7
+3V3_STBY
3397 47K
3396 +5V_STANDBY
1K0
PDTC114ET
7322
+3V3_SW
+3V3_SW
4306 4307
3K3
3308
3305
3K3
3374
3309
3
1
2
7320
3
1
2
7321
BSH111
+3V3_SW
BSH111
+3V3_STBY
+3V3_SW
+3V3_STBY
4K73372
+3V3_SW
+3V3_STBY
3321 1K0
4K7
3375
+3V3_STBY
47K
3385
+3V3_STBY
3307
3306
1K0
3304 1K5
3303 100R
+3V3_SW
I387
I384 I383
+3V3_STBY
I382
47K
3383
100K
3398
BC847BW
7316
3399
10K
I380
F379
7317
BC847BW
22K
3394
3395
3393
1K5
15K
1307
6309
BZX384-C6V8
1308
BZX384-C6V8
1309
6310
6311
BZX384-C6V8
1310
BZX384-C6V8
6312
1305
6313
BZX384-C6V8
1306
BZX384-C6V8
6308
F363
F365
F364
+5V_SW
2324 22u
4K7 +3V3_SW
3359
3358 4K7
100R
1
3
23360
+5V_STANDBY
BC847BW
7314
F305
I374
4301
I376
4303
+5V_STANDBY
4302
10n
F357
2327
+3V3_STBY
I373
1n02328
2329 1n0
2330 1n0
1n0
2331
2334 1n0
1n02335
2336 1n0
1n02332
3390 47R
47R3392
3391 47R
47R3389
7
F360
B7B-PH-K
1
2
3
4
5
6
1M20
1n02337
2333 1n0
5304 220R
F384
F387
F383
F382
1303
BZX384-C6V8
6307
1302
6306
BZX384-C6V8
100R3345
3343 100R
100p2321
3K3 +3V3_SW
3352
3351 3K3
3355 100R
F352
3384
3381 22R
22R
3386 100R
3318 100R
I321
I329
I322
I323
F356
I328
F350
F346
F343 F344
F342
2318
100n
+3V3_STBY
+3V3_STBY
2322 100p
100R
100R3356
3354
I362
F303
F304
F370
I313
I353
I314
I317
I315
I320
I336
I326
I344
I341
I351
I342
I352
I354
I359
I357
I369
I364
I370
I339
I337
I332
I334
I330
I338
F385
I335
1N4148
6304
1N4148
6302
F353
F348
F349
F351
F347
12
F354
10
2
3
4
5
6
7
8
9
11
B10B-PH-SM4-TBT(LF)
1312
1
3326 100R
+3V3_STBY
+5V_STANDBY
S3B-PH-SM4-TB
1
2
3
4
5
1314
3371 10K
3373 100R
3331 10K
100R3342
3334 10K
10K3335
100R3338
3339 100R
100R
3388
3387 100R
3369 10K
3370 100R
10K
3332
3333
100R3340
10K
3341 100R
5302
60R
100R
3344
100R
100R
3346
3315
F339
3317 330R
14
28
15
12
37
27
46
11
33
35
38
40
42
44
30
32
9
10
13
7
47
26
29
31
34
36
39
41
43
4548
17
16
23
22
21
20
19
18
8
25
24
6
5
4
3
2
1
M29W800DT-70N6
7310
1Mx8/512Kx16
EPROM
100n
2310
2312
100n
100R
3329
I368
I347
I363 I349
I345
I333
I311
F340
I331
F323
3347 10K
14
60
96
12
62
13
11
8
5
4
3
2
1
100
99
98
10
24
23
22
21
20
19
18
17
16
15
9
34
33
32
31
30
29
28
27
26
25
44
43
42
41
40
39
38
37
36
35
54
53
52
51
50
49
48
47
46
45
67
66
65
64
63
61
59
58
57
56
55
77
76
75
74
73
72
71
70
69
68
80
79
95
93
92
91
90
89
88
87
78
97
94
6
7
86
85
84
83
82
81
7311
M30300SAGP
Φ
+3V3_STBY
+3V3_STBY
+3V3_STBY
+3V3_STBY
1K0
3350 10K
3310
3327 10K
100n2319
F337
F327
F322
F325
F320
F316
F318
F314
F312
F338
F341
F336
F334
F335
F333
F332
F331
F328
F329
F326
F321
F324
F319
F315
F317
F313
F310
F311
+3V3_STBY
+3V3_STBY
I366
I367
I365
I312
10K
3330
7313-2
5
3
4
26
1
BC847BPN
+12V_DISP
7313-1
BC847BPN
3337
100R
100R
3336
6303
BZX384-C12
3328
47K
2313
100n
60R
5301
F330
10K
3325
100n
2317
6301 BAS316
F380
F368
F381
F369
F367
F366
F345
47R
10u
3348
3311
2311
+3V3_STBY
10K
+3V3_STBY
+3V3_STBY
+3V3_STBY
+3V3_STBY
+3V3_STBY
+3V3_STBY
+3V3_STBY
100R3323
+3V3_STBY
10K3363
3362
10K
10K
3367
3313 330R
3319 10K
100n
2315
2
5
4
Φ
BD45275G
7312
1
3
3361 100R
100R3364
3365 100R
100R3368
10K3349
100p
10K
3316
2325
2326 100p
3382 100R
3379 3K3
100R
3K3
3378
100R
3377
3380
3376
10K3366
10K
100R3320
3322 100R
3324 330R
3314 10K
10K3312
15p
2314
2316 15p
3357 100R
10M
1301
10K
3353
6305
BZX384-B5V1
4
7
16V100n
2320
(8Kx8)
1
2
3
6
5
8
ESD_INT WAGC_SW
Φ
EEPROM
7315
M24C64-WMN6
HEAD_PH_R
FRONT_Y_CVBS_IN FRONT_Y_CVBS_IN_T
SIDE_AUDIO_IN_R_CON
SIDE_AUDIO_IN_L_CON
HP_ROUT
HP_LOUT
FRONT_C_IN
FRONT_C_IN_T
L_FRONT_IN
R_FRONT_IN
HEAD_PH_L
BOLT_ON_SDA IIC_SDA
BOLT_ON_SCL IIC_SCL
RESET_n
RST_AUD
STANDBY
DC_PROT
SAW_SW
ITV_SPI_CLK
ITV_SPI_DATA_IN
HDMI_HOTPLUG_RESET
BACKLIGHT_BOOST
KEYB
LED1
LED2
REMOTE
LIGHT_SENSOR
IIC_SCL
BOLT_ON_SCL
BOLT_ON_SDA
ITV_SPI_CLK
REMOTE
STANDBY
BOLT_ON_SCL
BOLT_ON_SDA
SC1_CVBS_RF_OUT
CPU_RST
CTRL_DISP1_up
ITV_SPI_DATA_IN
IIC_SDA_up
IIC_SCL_up
ANTI_PLOP
BL_ON_OFF
DVB_SW
CTRL_DISP4_up A(10)
A(9)
A(8)
A(19)
DDC_RESET
BL_ADJUST
A(17)
A(16)
A(15)
A(14)
A(13)
A(12)
A(11)
A(1:7)
A(8:19)
RST_H
A(18)
LCD_PWR_ON
IBO_IRQ
REMOTE
E_PAGE
IBO_RESET
CE
A(19)
A(18)
A(17)
A(16)
A(0)
A(0:7)
A(15)
A(13)
A(12)
A(11)
A(10)
A(9)
A(8)
A(14)
A(8:19)
CS
A(7)
A(6)
A(5)
A(4)
A(3)
A(2)
A(1)
AD(0)
POWER_DOWN
HDMI_INT
AD(7)
AD(6)
AD(5)
AD(4)
AD(3)
AD(2)
AD(1)
ESD_RST
CPU_RST
CPU_RST
ISP
ISP
AD(2)
AD(3)
AD(4)
AD(5)
AD(6)
AD(7)
RST
LED1
IIC_SCL_up
IIC_SDA_up
AD(0)
AD(1)
CNVSS
STANDBYn
MUTEn
WR
AD(0:7)
INT
AD(0:7)
LED2
SC2_STATUS
SC1_STATUS
LIGHT_SENSOR
KEYB
WR
ALE_EMU
CE
RD
RD
IIC_SDA
E_PAGE
A(0)
A(1)
A(2)
A(3)
A(4)
A(5)
A(6)
A(7)
B04A B04A
3139 123 6261.1
G_16860_008.eps
250107
Item
iTV
with Side AV
Other region
Description
B HP 00.2 M P11 V NOC4031
R HP MS 00.2 M P01 V NOC2131
B HP 00.2 M P6 V NOC5131
B HP 00.2 M P7 V NOC02M1
LOC P22 V05 0PN 3060 1REC1232
LOC P22 V05 0PN 3060 1REC2232
LOC 5MP R001 3060 MS TSR0233
LOC 5MP R001 30
60 MS TSR2233
LOC 5MP 3K3 3060 MS TSR1533
LOC 5MP 3K3 3060 MS TSR2533
LOC 5MP R001 3060 MS TSR4533
LOC 5M
P R001 3060 MS TSR6533
LOC 5MP R001 3060 MS TSR0733
LOC 5MP R001 3060 MS TSR80L3
LOC 5MP R001 3060 MS TS
R90L3
R 5MP R1 6021 ESUF MS TSR01L3
LOC 5MP K01 3060 MS TSR21L3
LOC 5MP K01 3060 MS TSR31L3
LOC 50R0 .PMU
J 3060 MS TSR90L4
44LC7.1E LA 7.
Circuit Diagrams and PWB Layouts
SSB: Video Processor
P
M
P
M
TA1
TB1
VDDC
N_1
2
1
2
1
9
10
1
2
3
4
5
12
0
2
1
12
RD_
SCL
SDA
INTN
14
13
RESET
P
VDDH VDDM
AVDD3_ADC
AVDD_ADC
PAVDD
12
VSSC VSSH VSSM AVSS_ADC PAVSS
11
10
9
8
7
6
16
5
6
7
ALE
AIN_HS
AIN_VS
DP_HS
DP_VS
CVBS1
PLF2
MLF1
DP_CLK
5
4
3
2
1
WR_
O
PC_G
3
2
1
1
0
PB_B
1
2
3
Y_G
CVBS_OUT
4
8
9
10
11
12
13
14
15
16
17
18
19
DP_DE_FLD
C
TESTMODE
V5SF
LVDSVDDP
LVDSVCC
DP
ADDR
A_D
MA
DQM
FB
FS
M
TCLK1
VREF
1
0
BA
N_2
I
0
31
30
29
28
27
26
25
24
23
22
6
7
8
3
2
1
LVDSGND
XTAL
GPIO
PR_R
1
2
3
6
7
0
1
2
3
15
11
3
2
1
PC_B
0
1
2
3
4
5
6
20
21
22
23
0
PC_R
PLL_VCC
M
P
M
TC1
TD1
P
7
CS
PDVDD
AVDD3_OUTBUF
AVDD3_BG_ASS
MCK
WE_
CAS_
RAS_
CS0_
P_2
CLKE
PWM0
P_1
21
20
19
18
17
MD
0
PLL_GND
PDVSS
AVSS_BG_ASS
AVSS_OUTBUF
4
5
11
1
0
13
12
9
8
9
10
VSS
VDDQ
1M-1
DQM
VDD
VSSQ
0A
BA 1
6
H
0
WE
L
NC
CAS
RAS
7
5
4
3
2
15
14
11
10
CS
CKE
CLK
D
0
1
2
3
4
5
6
7
8
11
1
0
13
12
9
8
9
10
VSS
VDDQ
1M-1
DQM
VDD
VSSQ
0A
BA 1
6
H
0
WE
L
NC
CAS
RAS
7
5
4
3
2
15
14
11
10
CS
CKE
CLK
D
0
1
2
3
4
5
6
7
8
RES
VIDEO PROCESSOR
RES
VDISP-SWITCH
CPU-GO
PDP-GO
PDWIN
RESET
DISPLAY CONTROL
LVDS
CONNECTOR
RES
RES
RES
RES RES
RES
RES
RES
RES
RES
RES
RES
RES
RES
RES
FHPSDI
LGE
CTRL-DISP1
CTRL-DISP2(LCD_PWR_on)
CTRL-DISP3(Rev_Standby)
CTRL-DISP4
Semi standby : H
Normal and off : L
On time : H
Off time : Don’t care On time : H
Off time : Don’t care
On time : H
Off time : Don’t care
On time : H
Semi standby : L
Off time : Don’t care
RES
FOR ITV ONLY
DISPEN
RES
RES
RES
RES
RES
RES
RES
LCD
PDP
RES
RES
RES
RES
RES
FOR NON
SIDE IO
FOR NON SIDE IO
RES RES
RES
RES
RES
RES
12V1
0V
3V2
RES
RES
FOR LCD ONLY
FOR LCD ONLY
RES RES
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
A
B
C
D
E
F
G
H
I
J
K
L
A
B
C
D
E
F
G
H
I
J
K
L
1201 D4
1210 H12
1211 I12
1212 I12
1213 J12
1214 J12
1215 L7
1216 L7
1G50 H15
1G51 H17
2205 K7
2206 K7
2207 B17
2208 B16
2209 B16
2210 B17
2211 C5
2212 C5
2213 C5
2214 C5
2215 C5
2216 D9
2217 B13
2218 B13
2219 B13
2220 B13
2221 B13
2222 B13
2223 B14
2224 E12
2225 E12
2226 E13
2227 E13
2228 E13
2229 B14
2230 C5
2231 C5
2232 C5
2233 D8
2234 D8
2235 D8
2236 D3
2237 D4
2238 D4
2239 D4
2240 D4
2241 D4
2242 D4
2243 D5
2244 D5
2245 D8
2246 D3
2247 E3
2248 C15
2250 F4
2251 F4
2252 F4
2253 F4
2254 F4
2255 F4
2256 F4
2257 F4
2258 F4
2259 F4
2260 F4
2261 F4
2262 F16
2263 F16
2264 F16
2265 F16
2266 J11
2267 I8
2268 I8
2269 J11
2270 J11
2271 J10
2272 J10
2273 J3
2274 J10
2275 J3
2276 J3
2277 J3
2278 K9
2279 A7
2280 A6
2281 L8
2282 A9
2283 K15
2284 A4
2285 K15
2286 B7
2287 B9
2288 B6
2289 B4
2290 B7
2291 B9
2292 C7
2293 C9
2294 K3
2295 E13
2296 E13
2297 E13
2298 D8
3201-1 I4
3201-2 I4
3201-3 I4
3201-4 I4
3202-1 I4
3202-2 I4
3202-3 I4
3202-4 I4
3203-1 I4
3203-2 I4
3203-3 I4
3203-4 I4
3204-1 J4
3204-2 J4
3204-3 J4
3204-4 J4
3210 C16
3211 D8
3212 D2
3213 C15
3215 D2
3216 C15
3217 C16
3219 E1
3220 E2
3221 E1
3222 E2
3223 E16
3224 E16
3225 E16
3226 E16
3227 E16
3228 G2
3229 G2
3230 G2
3231 G2
3232 G3
3233 E16
3235 E16
3238 E16
3239 K4
3240 K3
3241 K9
3242 K9
3243 K9
3244 A7
3245 K8
3246 J14
3247 J14
3248 B7
3250 J2
3251 J3
3253 K3
3254 K2
3255 K3
3256 L3
3257 J1
3258 K1
3260-1 B12
3260-2 B12
3260-3 B12
3260-4 B12
3261-1 B12
3261-2 B12
3261-3 B12
3261-4 B12
3262-1 B12
3262-2 B12
3262-3 C12
3262-4 C12
3263-1 E12
3263-2 E12
3263-3 E12
3263-4 E12
3264-1 E12
3264-2 E12
3264-3 E12
3264-4 E12
3265-1 E12
3265-2 E12
3265-3 F12
3265-4 F12
3266 C12
3267 F13
3268-1 F12
3268-2 C12
3268-3 F12
3268-4 C12
3271-1 C12
3271-2 F12
3271-3 C12
3271-4 F12
3272 J9
3273 A2
3274 B2
3275 A3
3276 B3
4203 B14
4204 B15
4205 B15
4206 B15
4207 L9
4208 E2
4209 I2
4210 L6
4211 L7
4212 L7
4213 L8
4214 B16
4215 B16
5210 B4
5211 A16
5212 A14
5213 C9
5214 C4
5215 A16
5216 C3
5217 B16
5218 A6
5219 A4
5220 A8
5221 B6
5222 B8
5223 B4
5224 B7
5225 B8
5226 C7
5227 C8
5228 D13
6201 C17
6202 C15
7202 D4
7203 L9
7204 B11
7205 E11
7206 K9
7207 B16
7208 C15
7210 A15
7211-1 J2
7211-2 K2
7211-3 K2
7211-4 L2
7211-5 L4
7211-6 L5
7213-1 A3
7213-2 B3
7213-3 B3
7213-4 B3
7213-5 C3
7213-6 C3
7214 A2
F210 A17
F211 C9
F212 E16
F213 E16
F214 E16
F215 E16
F217 I17
F218 I15
F219 I15
F220 I15
F221 I15
F222 I15
F223 I15
F224 I15
F225 J15
F226 J15
F227 J15
F228 J15
F229 J15
F230 J15
F231 C5
F232 E4
I210 B5
I211 A16
I213 A13
I214 C5
I215 C16
I216 B15
I217 D8
I218 E8
I220 C15
I224 C15
I225 C16
I230 E4
I231 E4
I232 E4
I233 E4
I236 E15
I238 J4
I239 K4
I240 K8
I241 K9
I242 A6
I243 A7
I244 L8
I245 A4
I246 A9
I247 B7
I248 A6
I249 B9
I250 B4
I251 B7
I252 B9
I253 C9
I254 C7
I255 D2
I256 D2
I257 J4
I258 J4
I259 J10
I260 J10
I261 J10
I262 J10
I263 K8
I264 L3
I265 A3
I266 A2
I267 B3
I268 K6
I269 K7
I270 K7
I271 K8
4215 4214
I271
I269
I270
4212
I268
4213
2206
DLW21S
1216
4211
4210
2205
1215
DLW21S
I266
I267
I265
3276
560R
560R
3275
3274
10K
10K
3273 7214
BC847BW
7213-6
74LVC04APW
13
714
12
11
714
10
14
8
7213-5
74LVC04APW
7213-4
74LVC04APW
9
7
7213-3
74LVC04APW
5
714
6
74LVC04APW
3
714
4
714
2
7213-2
7213-1
74LVC04APW
1
4208
4209
BC847BW
7206
2298
100n
100n
2207
100u 16V16V100u
2208 2209
4207
I264
22R
3267
3272
150R
12
3266 22R
4205
4206
147
132
62
205
204
180
181
182
54
75
97
120
137
161
20
73
99
110
135
72
98
108
134
146
175
185
174
184
13
28
85
12
27
53
74
96
119
136
160
19
50
49
48
45
44
43
42
41
40
157
188
189
190
55
130
63
86
57
58
51
196
197
198
199
183
191
200201
2
38 39
148
145
144
207
202
208
3
203
206
1
94
93
92
91
90
152
89
88
151
150
149
107
106
105
104
153
103
102
101
100
95
114
113
111
155
154
143
142
141
140
139
138
124
123
125
126
122
121
118
117
116
115
87
173
172
171
170
60
59
56
47 46
52
30
29
26
23
6
4
5
156
133
109
14
11
35
10
9
8
7
34
33
32
31
162
37
36
25
24
22
21
18
17
16
15
76
128
127
192
131
112
61
129169
163
194
179
167
164
83
82
81
80
79
78
77
84
168
195
166
165
177
186
193
178
176
187
64
65
66
67
68
69
70
71
158
159
VIDEO PROCESSOR
SVP CX32
7202
22R
3271-4
45
22R
3271-3
36
22R
3271-2
27
18
5
22R3271-1
22R
3268-4
4
3268-3 22R
36
3268-2 22R
27
18
3265-4
45
3268-1 22R
36
22R
7
3265-3 22R
3265-2 22R
2
18
22R
3264-4
45
3265-1 22R
36
3264-2
27
22R
3264-3
18
22R
22R3264-1
3263-4 22R
45
3263-3 22R
36
3263-2
27
18
22R
45
3263-1 22R
22R
3262-4 22R
3262-3
36
27
18
22R
3262-2
3261-4 22R
45
22R3262-1
36
7
3261-3 22R
3261-2 22R
2
3261-1 22R
18
45
22R
3260-3
36
22R
3260-4
27
18
22R
3260-2 22R3260-1
2295 100n
100n2296
2229 5212
60R
+3V3_SW
22u
6.3V
28
41
54
6
12
46
52
16
36
40
18
1
14
27
3
9
43
49
5
7
8
10
11
13
42
44
39
15
37
38
19
2
4
45
47
48
50
51
53
25
26
29
30
31
32
33
34
20
21
17
1M X 16 X 4
23
24
22
35
41
54
6
12
46
52
16
7205
IS42S16400D-6TL
Φ
DRAM
18
1
14
27
3
9
43
49
28
7
8
10
11
13
42
44
39
15
36
40
19
2
4
45
47
48
50
51
53
5
29
30
31
32
33
34
20
21
17
37
38
7204
IS42S16400D-6TL
Φ23
24
22
35
25
26
13
714
12
DRAM
1M X 16 X 4
10
74LCX14T
7211-6
74LCX14T
11
714
+5V_SW
7211-5
+5V_SW
3257
4K7
+3V3_SW
4K7
3258
2294
100n
22R
22R
3250
3254
22R
3256
22R
3255
22R
3253
22R
3251
7211-4
9
714
8
714
6
74LCX14T
74LCX14T
7211-3
5
74LCX14T
7211-2
3
714
4
1
714
2
+5V_STANDBY
74LCX14T
7211-1
I263
I261
I262
I260
I258
I259
I257
I256
I255
I236
I253
60R
5227
10u
2293
I252
5225
60R
2291
10u
60R
5222 I249
10u
2287
I248
10u
2288
60R
5221
100R3247 100R3246
8
9
32 33
34 35
36 37
27
28
29
3
30
31
4
5
6
7
18
19
2
20
21
22
23
24
25
26
1G50
1
10
11
12
13
14
15
16
17
1214
DLW21S DLW21S
1213 1212
DLW21S DLW21S
1211 1210
DLW21S
F217
F218
F230
F229
2285 100p
100p
2283
9
31
32
27
28
29
3
30
4
5
6
7
8
18
19
2
20
21
22
23
24
25
26
1
10
11
12
13
14
15
16
17
0-1453230-3
1G51
VDISP
F228
F227
F226
F225
F223
F224
F222
F221
F219
F220
I215
100R
3238
7210
SI4835BDY
4K7
2263 100p 3224
I211
4203
4204
+5V_STANDBY
F213
I225
I216
I220
100R
3235
3233
100R
3227
100R
6201
SML-310
1K0
F210
3210
220R
5217
5211
220R
5215
220R
2210
100n
SI3441BDV
+3V3_SW
7207
3225 4K7
4K7
3223
2264
2265
100p
F212
100p
F214
VDISP
F215
100p
2262
I224
3226 4K7
1u0
2248
47R
3216
+12V_DISP
BZX384-C5V6
6202
PDTC114ET
7208
3217
47K
3213
47K
150R
3232
150R3229
3228 150R
3231 150R
150R3230
3240
150R
I213
F211
F231
I239
I218
I240
I217
I241
I250
I244
I242I245
I251
I254
I247
I246
I243
I238
I233
I231
I232
I230
I214
F232
5
I210
100R
3202-4 4
3202-3 100R36
3202-2 100R
27
3202-1 100R18
+3V3_SW
3204-4 220R45
3204-3 36
220R
27
220R
18
3204-2 220R3204-1
220R
3203-4 45
3203-3 36
27
220R
18
3203-2 220R
45
3203-1 220R
6100R
3201-4
3201-3 100R3
3201-2 100R
27
100R183201-1
5214 60R
10u
2281
+3V3_SW
+3V3_SW
10u
2280
+1V8S_SW
5220
60R
2282
10u
14M31818
1201
+3V3_SW
4K7
3221
3222
4K7
3219
3220
+3V3_SW
+3V3_SW
+3V3_SW
5213
60R
+1V8S_SW
60R
5210
30R
5216
+3V3_SW +1V8S_SW
22u
2278
22u
2297 6.3V
100n2223
2224 100n
100n2227
2226 100n
100n2225
2228 100n
60R
5228
100n2217
100n2218
2221 100n
100n
2219 100n
2220
100n2222
10K
3245
3211
100R
1K0
3215
3212
100R
2n72276
2286
10u
22R
3248
2279
2275 2n7
10u
22R
3244
5219
60R
2284
10u
10u
2289
5223
60R
5218
60R
2236 10u
10u2230
60R
5226
2292
10u
5224
60R
10u
2290
2211 10u
100n2212
2215
2213 100n
100n
100n2214
2232 100n
100n
2231
2237 100n
2238
100n
100n
2241
100n2240
2239 100n
100n2244
2243 100n
100n2242
4K7
3242 220R
3241
100R
3243
7203
BC847BW
100n
2245
100n
2266
100n
2270
2269 100n
2274
100n
100n
2271
100n
2272
10u
2216
2235 100n
100n2234
2233 100n
20p2246
20p2247
100R
3239
2268 100n
2258
100n2267
100n
100n2261
2260
2259 100n
2277 100n
100n
2257 100n
2256
2255 100n
100n
100n2254
2253 100n
100n2252
2251 100n
100n2273
100n2250
ESD_INT
ESD_RST
DQ(24)
DQ(25)
DQ(26)
DQ(27)
DQ(28)
DQ(29)
DQ(30)
DQ(31)
CX_DQM(1)
CX_DQM(0)
FRONT_C
FRONT_Y_CVBS
DQ(2)
DQ(1)
DQ(0)
DQ(5)
DQ(6)
DQ(7)
DQ(10)
DQ(11)
DQ(12)
DQ(13)
DQ(14)
DQ(15)
DQ(8)
DQ(9)
DQ(16)
DQ(17)
DQ(18)
DQ(19)
DQ(20)
DQ(21)
DQ(22)
DQ(23)
CX_MA(0)
CX_MA(1)
CX_MA(10)
CX_MA(2)
CX_MA(3)
CX_MA(4)
CX_MA(5)
CX_MA(6)
CX_MA(7)
CX_MA(8)
CX_MA(9)
CX_MA(11)
CX_MCLK
CX_CLKE
CX_CS0#
CX_WE#
CX_CAS#
CX_RAS#
DQ(4)
DQ(3)
CX_BA0
CX_BA1
CX_AVDD_ADC2
CX_AVDD_ADC3
CX_AVDD_ADC4
CX_AVDD_ADC2
CX_AVDD_ADC3
CX_AVDD_ADC4
HDMI_Y(0:7)
HDMI_Cb(0:7)
HDMI_Cr(0:7)
TXDn1
BOLT_ON_SCL
BOLT_ON_SDA
CX_AVDD3_ADC2
CX_AVDD3_ADC2
TXDn
TXDp1
TXCLKn1
TXCLKp
CTRL_DISP4
TXCLKn
CTRL_DISP3
TXDp
TXCp1
TXCLKp1
TXCn
TXBn
CTRL_DISP1
TXBn1
TXCp
TXAn1
TXBp CTRL_DISP2
TXBp1
TXCn1
TXAp1
TXAn
CTRL_DISP1_up
CTRL_DISP4_up
STANDBYn
TXAp
LCD_PWR_ON
CTRL_DISP1
CTRL_DISP3
CTRL_DISP4
CTRL_DISP2
SC1_FBL_IN
ALE_EMU
VGA_H
VGA_V
FRONT_C_IN_T
TXCLKp
TXCn
TXCp
TXDn
TXDp
CX_AVDD_ADC1
TXAn
TXAp
TXBn
TXBp
CX_MA(11)
CX_BA1
CX_BA0
CX_BA0
CVBS_RF
DQ(27)
DQ(26)
DQ(25)
DQ(24)
CX_MCLK
CX_CLKE
CX_CS0#
CX_WE#
CX_CAS#
CX_RAS#
DQ(7)
DQ(6)
DQ(5)
DQ(4)
DQ(3)
DQ(2)
DQ(1)
DQ(0)
DQ(23)
DQ(22)
DQ(21)
DQ(20)
DQ(19)
DQ(18)
DQ(17)
DQ(16)
DQ(31)
DQ(30)
DQ(29)
DQ(28) CX_DQM(2)
CX_DQM(3)
HDMI_H
HDMI_V
HDMI_VCLK
HDMI_DE
DQ(0:31)
DQ(0:31)
DQ(15)
DQ(14)
DQ(13)
DQ(12)
DQ(11)
DQ(10)
DQ(9)
DQ(8)
CX_MA(0)
CX_MA(1)
CX_MA(10)
CX_MA(2)
CX_MA(3)
CX_MA(4)
CX_MA(5)
CX_MA(6)
CX_MA(7)
CX_MA(8)
CX_MA(9)
CX_BA1
CX_DQM(0)
CX_DQM(1)
CX_CS0#
CX_RAS#
CX_CAS#
CX_WE#
CX_MCLK
CX_CLKE
CX_AVDD3_BG_ASS
CX_AVDD3_OUTBUF
CX_AVDD3_ADC1
CX_AVDD_ADC1
CX_PAVDD
CX_PAVDD1
CX_PAVDD2
CX_PDVDD
IIC_SCL
IIC_SDA
CX_MA(0)
CX_MA(0:11)
CX_MA(1)
CX_MA(2)
CX_MA(3)
CX_MA(4)
CX_MA(5)
CX_MA(6)
CX_MA(7)
CX_MA(8)
CX_MA(9)
CX_MA(10)
CX_MA(11)
CX_DQM(0:3)
CX_DQM(2)
CX_DQM(3)
CX_PAVDD1
CX_PAVDD2
A(0:7)
AD(0:7)
CX_AVDD3_ADC1
CX_AVDD3_OUTBUF
CX_AVDD3_BG_ASS
CX_PDVDD
CX_PAVDD
INT
RST_H
BL_ADJUST
AD(3)
AD(4)
AD(5)
AD(6)
AD(7)
WR
RD
AD(0)
AD(1)
AD(2)
A(0)
A(1)
A(2)
A(3)
A(4)
A(5)
A(6)
A(7)
TXCLKn
SC1_RF_OUT_CVBS
SC2_CVBS_MON_OUT
SC1_B_IN
SC1_CVBS_IN
IBO_B_IN
IBO_CVBS_IN
SC2_C_IN
HD_PR_IN
SC1_R_IN
SC2_Y_CVBS_IN
IBO_R_IN
HD_PB_IN
HD_Y_IN
SC1_G_IN
FRONT_Y_CVBS_IN_T
IBO_G_IN
HDMI_Y(2)
HDMI_Cr(4)
HDMI_Cr(5)
HDMI_Cr(6)
HDMI_Cr(7)
HDMI_Y(3)
HDMI_Y(4)
HDMI_Y(5)
HDMI_Y(6)
HDMI_Y(7)
HDMI_Cb(0)
HDMI_Cb(1)
PC_VGA_H
PC_VGA_V
CS
HDMI_Y(0)
HDMI_Y(1)
HDMI_Cb(2)
HDMI_Cb(3)
HDMI_Cb(4)
HDMI_Cb(5)
HDMI_Cb(6)
HDMI_Cb(7)
HDMI_Cr(0)
HDMI_Cr(1)
HDMI_Cr(2)
HDMI_Cr(3)
B04B B04B
3139 123 6261.1
G_16860_009.eps
250107
Item
EU LCD
EU PDP
EU/US LCD-iTV
AP/CH/LT LCD
AP/CH/LT PDP
Description
1217 FIL CM SM 50V 100MHZ 67R R
1218 FIL CM SM 50V 100MHZ 67R R
2207 CER2 0603 X7R 16V 100N COL
2208 ELCAP SM SEV 25V 100U PM20 R
ELCAP SM 16V 100U PM20 COL R
2209 ELCAP SM SEV 25V 100U PM20 R
ELCAP SM 16V 100U PM20 COL R
2210 CER2 0603 X7R 16V 100N COL
2248 CER2 0805 X7R 16V 1U PM10 R
2267 CER2 0603 X7R 16V 100N COL
2294 CER2 0603 X7R 16V 100N COL
3213 RST SM 0603 47K PM5 COL
3216 RST SM 0603 47R PM5 COL
3217 RST SM 0603 47K PM5 COL
3227 RST SM 0603 100R PM5 COL
3233 RST SM 0603 100R PM5 COL
3235 RST SM 0603 100R PM5 COL
3238 RST SM 0603 100R PM5 COL
3241 RST SM 0603 220R PM5 COL
3242 RST SM 0603 4K7 PM5 COL
3243 RST SM 0603 100R PM5 COL
3245 RST SM 0603 10K PM5 COL
3246 RST SM 0603 100R PM5 COL
3247 RST SM 0603 100R PM5 COL
3250 RST SM 0603 22R PM5 COL
3253 RST SM 0603 22R PM5 COL
3254 RST SM 0603 22R PM5 COL
3256 RST SM 0603 22R PM5 COL
3257 RST SM 0603 10K PM5 COL
3258 RST SM 0603 10K PM5 COL
4204 RST SM 0603 JUMP. 0R05 COL
4205 RST SM 0603 JUMP. 0R05 COL
4206 RST SM 0603 JUMP. 0R05 COL
4208 RST SM 0603 JUMP. 0R05 COL
4209 RST SM 0603 JUMP. 0R05 COL
5215 IND FXD 0805 EMI 100MHZ 220R R
5217 IND FXD 0805 EMI 100MHZ 220R R
6202 DIO REG SM BZX384-C5V6 COL R
7203 TRA SIG SM BC847BW (COL) R
7206 TRA SIG SM BC847BW (COL) R
7208 TRA SIG SM PDTC114ET (COL) R
7210
E3(VISH)R
7211 IC SM 74LCX14T (COL) R
Circuit Diagrams and PWB Layouts 45LC7.1E LA 7.

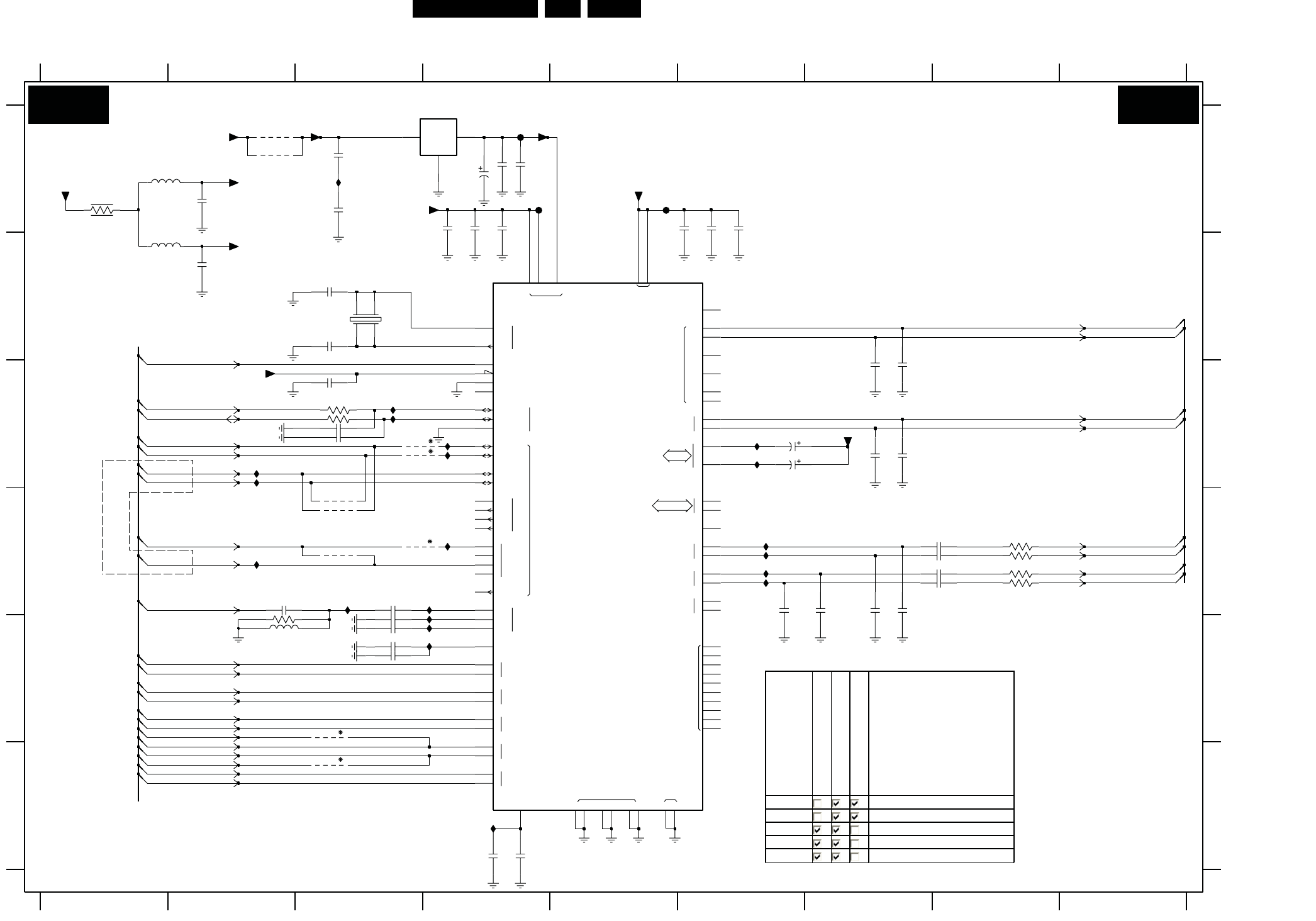

SSB: PNX2015: Audio Processor
WS
OUT
IN
C
SR
SL
L
R
SC3_OUT
A
DEL
L
R
L
R
L
CL3
TP
1
R
2AH
AH
L
R
L
R
VREFTOP
L
R
RESETQ
SUB
ADR_SEL
TESTEN
AD
XTAL
I2C
DA
I2S
ANA
SC1_IN
SC2_IN
SC3_IN
SC4_IN
VSS VREF
NC
L
R
3
IN-
IN1+
IN2+
DA
L
RSC5_IN
CL
CL
4
SPDIF_OUT
AUD_CL_OUT
1
0
DVSUP
STNDBYQ
A
IN
OUT
SC2_OUT
SC1_OUT
DCTR_IO
DACM
DACA
CAPL
SUP
WS3
2
DA_OUT
1
CL
WS
L
R
M
AGNDC
COM
OUTIN
AUDIO PROCESSOR
RES
RES
RES
RES
RES
RES
RES
2V4
2V4
1V4
1V6
1V5
2V6
0V6
0V6
0V2
0V2
6V7
6V3
3V8
3V8
3V8
3V8
123456789
123456789
A
B
C
D
E
F
A
B
C
D
E
F
1411 B3
2408 A4
2409 A4
2410 A4
2411 A2
2412 A4
2413 A6
2414 B2
2415 B3
2416 B3
2417 B7
2418 B7
2419 C3
2420 C6
2421 C7
2422 C7
2423 C6
2424 D7
2425 D7
2426 D7
2427 D7
2428 D6
2429 D7
2430 D7
2431 D7
2432 D2
2433 D3
2434 E3
2435 E3
2436 E3
2437 F4
2438 F4
2439 A3
2440 A3
2441 A4
2442 A4
2443 A6
2444 A6
2445 E3
2446 C3
2447 C3
3402 A1
3410 C3
3411 C3
3416 E2
3417 D8
3418 D8
3419 D8
3420 D8
4401 A2
4402 A2
4403 E3
4406 F3
4407 C3
4408 C3
4409 D3
4410 D3
4411 D3
4412 D3
5401 A1
5402 B1
5403 E2
7410 A4
7411 B4
F401 A4
F402 A4
F403 A5
I412 C3
I413 C3
I414 C6
I415 C6
I416 D6
I417 D6
I418 D6
I419 D6
I420 D3
I421 D4
I422 D4
I423 E4
I424 E4
I425 F4
I426 A3
I427 C4
I428 C4
I429 C2
I430 C2
I431 D4
I432 D2
I432
I431
I430
I428
I429
I427
4411
4412
4410
4409
4407
4408
4406
4403
2408 470p
2409 1n5
I426
2447 100p
100p
2446
470p
2444
470p
2442
2443
1n5
1n5
2441
100n2445
2440
470n 470n
2439
3420 100R
100R3419
3418 100R
100R3417
1R0
4402
3402
4401
+12V_DISP
I425
I417
I416
I418
I419
I414
I415
I413
I412
2424 10u
10u2425
10u2426
10u2427
58
76
80
66
69
35
25
56
67
68
53
34
33
50
51
42
41
48
49
57
47
71
72
73
74
19
54
55
37
36
52
8
9
11
5
18
1
75
22
32
46
2
3
4
17
7
16
20
21
6
10
27
26
31
30
29
78
77
14
15 12
13
59
60
61
62
38
40
24
23
28
79
45
43
44
39
64
63
65
70
Φ
MULTISTANDARD
SOUND PROCESSOR
MSP4450P-VK-E8 000
7411
2413
220p
220p
2412
100n 2419
I421I420
10u
2436 I424
100n
10u
2437
2438
+5V_D
5401
120R
10u
2411
+5V_SW
+5V_AUD
120R
5402
2414
10u
+5V_AUD
+5V_D
2433 330p
+8V
F401
F402 F403
I422
+5V_AUD
+8V
I423
+AUDIO_POWER_+12V_DISP
16V
10u
2410
2
31
16V
7410
L78L08ACU
2423 10u
2
3
16V10u2420
1411
18M432
1
4
22u5403
470R3416
56p2432
330p2435
330p
2417
330p
2418
330p
2421 2422
330p
2430
100p 100p
24312428
100p 100p
2429
2416
3p3
3p3
2415
3410 100R
100R3411
330p2434
SIDE_AUDIO_IN_R_CON
SIDE_AUDIO_IN_L_CON
MOJO_I2S_OUT_SD
MOJO_I2S_OUT_WS
MOJO_I2S_OUT_SCK
SC2_AUDIO_OUT_L
SC2_AUDIO_OUT_R
SC1_AUDIO_OUT_L
SC1_AUDIO_OUT_R
SC2_AUDIO_IN_R
SC1_AUDIO_IN_R
SC1_AUDIO_IN_L
HP_AUDIO_OUT_R
HP_AUDIO_OUT_L
HDMI_AUDIO_IN_L
HDMI_AUDIO_IN_R
SIDE_AUDIO_IN_R
COMP_AUDIO_IN_R
COMP_AUDIO_IN_L
SC2_AUDIO_IN_L
HDMI_WS
HDMI_SCK
HDMI_SD
RST_AUD
AUDIO_LS_R
SIDE_AUDIO_IN_L
IIC_SCL
AUDIO_LS_L
SIF
XTALIN
XTALOUT
IIC_SDA
B04C B04C
3139 123 6261.1
G_16860_010.eps
250107
Item
iTV
Description
4403 RST SM 0603 JUMP. 0R05 COL
4406 RST SM 0603 JUMP. 0R05 COL
4407 RST SM 0603 JUMP. 0R05 COL
4408 RST SM 0603 JUMP. 0R05 COL
4411 RST SM 0603 JUMP. 0R05 COL
EU- with Side AV
AP/CH/LT with Side AV
46LC7.1E LA 7.
Circuit Diagrams and PWB Layouts

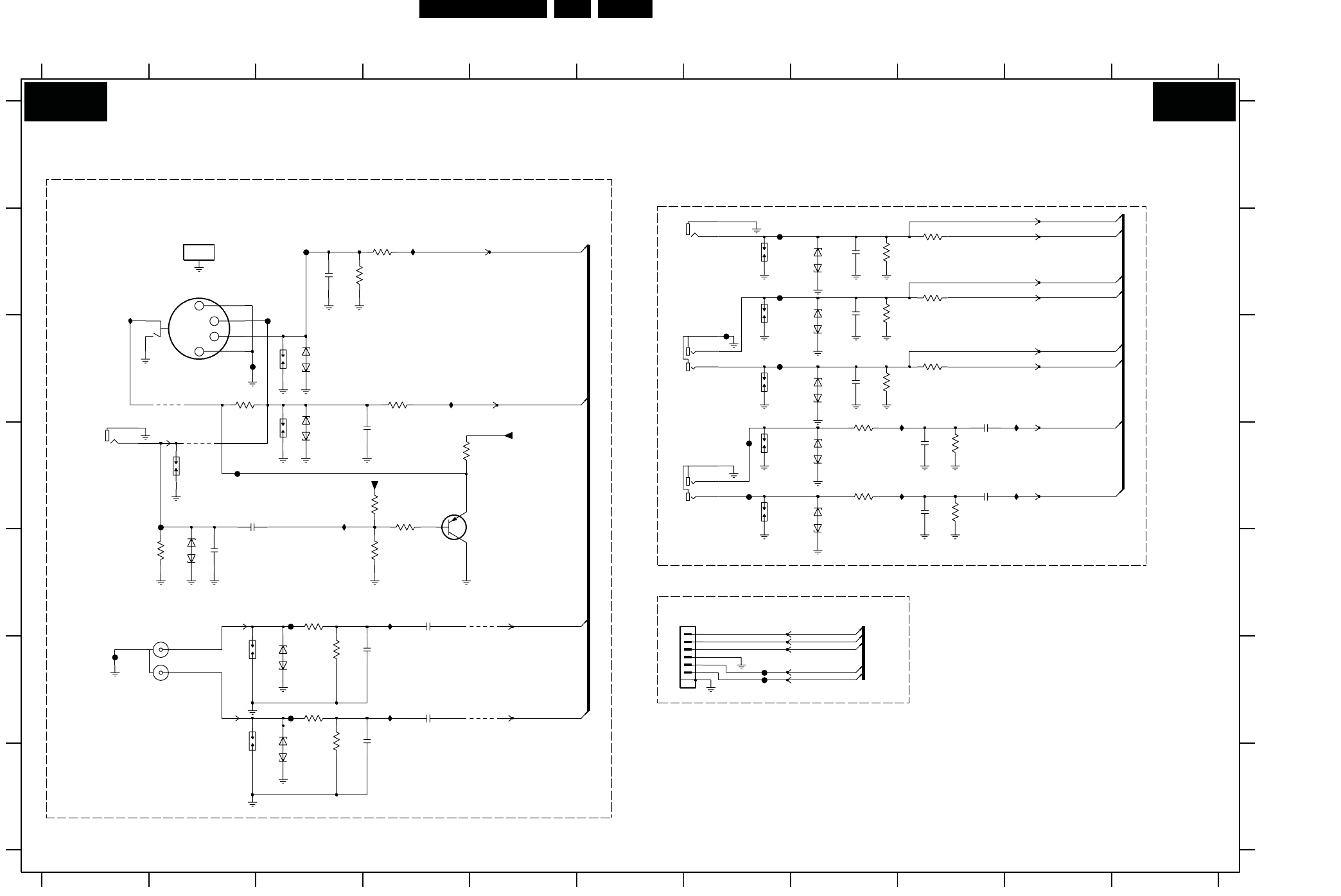

SSB: YPBPR & Rear IO
YPBPR & REAR IO
R
L
CVBS
SVHS YPbPr
ITV Connector D
RES
RES
RES
RES
RES
RES
RES
L
R
PR
Y
PB
FOR NON SIDE IO / ITV
RES
RES
RES
RES
RES
RES
RES
RES
RES
F603 D2
F604 D1
F605 B7
F606 B7
F607 C7
F608 D7
F609 D7
F610 F3
F611 E3
F612 F7
F613 F7
F614 C7
F615 C2
F616 F1
I610 C10
I611 D10
I615 B4
I623 D9
I627 D9
I631 C4
I632 D3
I633 B1
I635 E4
I636 F4
3609 C2
3611 D8
3612 D9
3613 E1
3615 F3
3616 F3
3617 B9
3618 B9
3619 C9
3620 F3
3621 E3
3622 D4
3623 D4
3624 E4
3625 D4
4601 C2
4602 D2
4603 E5
4604 F5
6604 C3
6605 G3
6606 D3
6607 F3
6610 B8
6611 C8
6612 C8
6613 D8
6614 D8
6615 E2
7601 D4
F601 B3
F602 C3
1611 D7
1612 D2
1613 D7
1614 F2
1615-1 B7
1615-2 C7
1615-3 D7
1618 F2
1619 E7
2600 B3
2601 E2
2602 B8
2603 B8
2606 C8
2607 C9
2608 D9
2609 D4
2610 D9
2612 D9
2613 F4
2614 F4
2615 E4
2616 F4
2617 D2
3600 B4
3601 B8
3602 C4
3603 B8
3604 B4
3605 C8
3607 D8
3608 D9
7891011
A
B
C
D
E
F
G
A
B
C
D
E
F
G
1601-1 B2
1601-2 D1
1601-3 B2
1603 E2
1606 B7
1607 C7
1608 D3
1609 C3
1610 C7
1234567891011
123456
3625
100R
PESD5V0S1BA
6615
4604
4603
MSD-242V-01 NIDIP (765A) LF
3
12
I636
1603
I635
3616
33K
33K
3615
3612
33K
33K
3608
150R
3611
150R
3607
150R
3621
9
150R
3620
6
GND
1601-3
1601-1
1
2
3
4
5
8
7
1601-2
I633
3619
100R
3618
100R
3617
100R
F615
F616
F613
F614
F612
I611
I610
F606
F607
F605
F609
F610
F608
F611
6606
PESD5V0S1BA
PESD5V0S1BA
6604
+5V_SW
+5V_SW
F602
F601
I631
F603
I632
F604
1K0
3622
100K
3623
56K
3624
2617
1u0 7601
BC857BW
4602
4601 3609
75R
3604
75R
2600
3600
10R
2615 220n
8
2614 220n
1
2
3
4
5
67
1619
BM06B-SRSS-TBT
PESD5V0S1BA
6614
6613
PESD5V0S1BA PESD5V0S1BA
6612
6611
PESD5V0S1BA PESD5V0S1BA
6610
7
9
8
4
6
5
MSD-246V1-145 NIDIP
1615-3
2
3
MSD-246V1-145 NIDIP
1615-2
MSD-246V1-145 NIDIP
1615-1
I623
I627
16111613 1607 16061610
2603 3603
75R
3601
2602
75R
2606 3605
75R
2607
220n
220n
2610
3n3
2608
2612
3n3
PESD5V0S1BA
6607
6605
PESD5V0S1BA
75R
3613 2601
1608
I615
3n3
2613
1614
2616
3n3
1618
3602
10R
1609
1612
2609
HD_PB_IN
SIDE_AUDIO_IN_L
SIDE_AUDIO_IN_R
HD_PR_IN
HD_Y_IN
HD_PR_IN_ITV
HD_Y_IN_ITV
HD_PB_IN_ITV
VGA_V
VGA_H
COMP_AUDIO_IN_L
HD_PB_IN_ITV
HD_PR_IN_ITV
HD_Y_IN_ITV
COMP_AUDIO_IN_R
FRONT_C
FRONT_Y_CVBS
B06A B06A
3139 123 6261.1
G_16860_011.eps
240107
Circuit Diagrams and PWB Layouts 47LC7.1E LA 7.

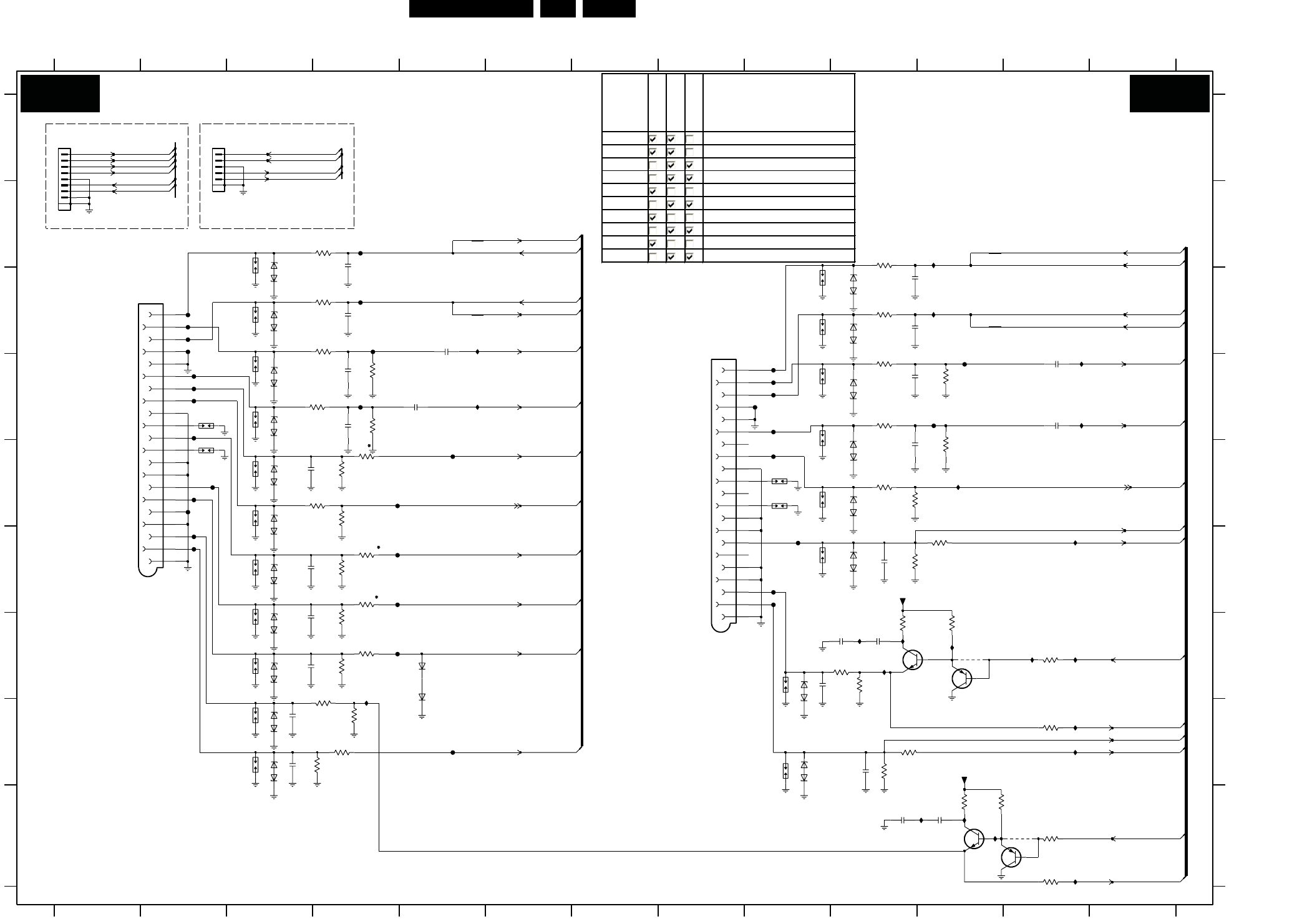

SSB: I/O Scart 1 & 2
Audio-R_out
Audio-R_in
Audio-L_out
RGB-B_in
Function_Sw
RGB-G_in
Audio-L_in
RGB-R_in
RGB-BL_in
Video_in
Terr_CVBS_out
Audio-R_out
Audio-R_in
Audio-L_out
Function_Sw
Audio-L_in
RGB-R_out/YC-C_in
Video/YC-Y_in
CVBS_out
SCART 1
SCART 2
5V2
3V
3V7
IO - SCART 1 & 2
ITV-Connector B ITV-Connector C
RES
RES
RES
RES
RES
RES
RES
RES
RES
RES
RES
RESRESRESRES
RESRESRES
RES
RESRESRES
RES
RES
RES
RES
RES
RES
12345678910111213
12345678910111213
A
B
C
D
E
F
G
H
I
A
B
C
D
E
F
G
H
I
1500 C9
1501 C9
1502 C3
1503 D9
1504 C2
1505 C3
1506 D8
1507 D3
1508 E9
1509 D2
1510 E9
1511 D3
1512 E2
1513 E9
1514 E9
1515 F9
1516 E3
1517 E3
1518 G9
1519 F3
1520 G3
1521 H9
1522 G3
1523 H3
1524 H3
1525 A2
1526 A1
2502 C10
2506 C10
2508 B4
2509 D12
2512 D10
2514 C4
2515 C5
2517 D4
2518 D12
2520 E10
2521 D5
2523 D4
2524 F10
2525 G10
2526 G10
2527 F4
2528 E4
2529 F4
2530 H10
2531 G4
2533 I11
2534 I10
2535 H3
2536 G10
2538 H3
3500 B10
3502 C10
3503 B4
3506 D10
3507 C4
3508 D11
3510 C4
3511 D4
3512 D10
3513 E11
3514 D4
3515 D4
3516 E4
3517 E4
3518 E3
3519 G10
3520 E4
3521 G12
3522 G10
3523 F4
3524 I11
3525 G10
3526 F4
3528 F4
3529 H10
3530 G4
3531 H10
3532 G4
3533 G4
3535 H3
3536 H4
3537 I12
3538 G11
3540 I12
3545 H4
3546 H4
3550 E10
3551 E10
3552 F11
3553 F11
3554 I12
3555 H12
4502 G11
4504 I12
6501 D10
6504 D3
6505 E10
6507 D3
6509 F10
6510 H9
6511 H3
6512 G5
6513 G5
6514 E3
6515 F3
6516 G3
6517 H3
6518 C3
6519 C3
6520 E3
6521 G3
6522 C10
6523 C10
6524 E10
6525 G9
7500 G10
7502 G11
7503 I11
7504 I11
F510 D9
F511 C2
F512 D9
F513 C2
F514 D9
F515 C2
F516 D9
F517 C2
F518 D9
F519 D2
F520 D2
F521 D2
F522 D2
F523 F9
F524 E2
F525 E2
F526 F2
F527 F9
F528 F2
F529 F9
F530 H5
F531 E2
F532 E9
F534 B4
F535 C4
F536 C4
F537 D4
F538 E5
F539 E4
F540 F4
F541 F5
F542 G4
F543 D11
F544 D11
I510 B11
I512 C11
I517 D12
I520 D12
I528 G12
I530 G10
I533 H12
I540 C5
I541 D5
I543 G10
I544 G12
I545 E11
I548 I11
I549 I11
I550 G4
I551 G10
I552 G11
I553 I11
I554 I12
I556 H12
I557 F12
PESD5V0S1BA
6525
6524
PESD5V0S1BA PESD5V0S1BA
6523 6522
PESD5V0S1BA
PESD5V0S1BA
65206521
PESD5V0S1BA
6519
PESD5V0S1BA
6518
PESD5V0S1BA
6517
PESD5V0S1BA
6516
PESD5V0S1BA
6515
PESD5V0S1BAPESD5V0S1BA
6514
4504
BC857BW
7504
4502
BC857BW
7502
3540
4K7
4K7
3538
I556
I557
3555
68R
I553
I554
I552
I551
1N4148
6513
1N4148
6512
220n
2534
2536
220n
3
4
5
6
7
8
9
12
13
14
15
16
17
18
19
2
20
21
PPTV/55
1506
1
10
11
21
3
4
5
6
7
8
9
13
14
15
16
17
18
19
2
20
1504
PPTV/55
1
10
11
12
33K
3515
3511
33K
33K
3513 3508
33K
3512
150R
3506
150R
3514
150R
3510
150R
68R
3554
I550
I548
I549
15R
3524
2533
220n
+5V_SW
7503
BC847B 1K0
3537
3536
1K0
1
2
3
4
567
10
1525
1
2
3
4
5
6
7
8
9
1526
F532
F531
I544
I543
I541
I545
I540
F536
2528
6510
PESD5V0S1BA
PESD5V0S1BA
6511
100R
3552
3553
75R
6K8
3551
3550
27K
3520
6K8
220n
2518
220n
2509
3n3
2520
3n3
2512 2506
330p 330p
2502
3533
75R 75R
3530 3526
75R
3517
75R
220n
2521
220n
2515
3n3
2523
3n3
2517
330p
2514
330p
2508
3502
150R
150R
3500
3507
150R
3503
150R
3519
15R
220n
2525
2526
2524
2535
2531
2529
2527
I528
1518
PESD5V0S1BA
6509
PESD5V0S1BA
6505
PESD5V0S1BA
6501
PESD5V0S1BA
6507
PESD5V0S1BA
6504
2530
2538
1510
I520
F523
F522
1515
F516
I517
I530
+5V_SW
F525
F517
3518
27K
3525
1K0 BC847B
7500
3521
1K0
I512
F543
F544
1508 1501
1503 1500
3532
1K0
100R
3528
3523
100R
I510
I533
F542
F541
F539
F540
F538
F537
F535
F534
1513
1512
1509
F527
F512
F510
F518
F514
F529
F526
F511
F528
F515
F513
F519
F520
F524
F521
F530 100R
3529
75R
3531
1521
3522
68R
1514
100R
3545
75R
3546
1524 1523
3535 68R
1522 1520 1519 1517
100R
3516
1516 1511 1505
1507 1502
SC1_AUDIO_OUT_L
SC1_AUDIO_OUT_R
SC1_CVBS_RF_OUT
SC2_CVBS_MON_OUT_ITV
SC2_Y_CVBS_IN_ITV
SC2_C_IN_ITV
SC2_AUDIO_MUTE_L
SC1_AUDIO_MUTE_R
SC1_AUDIO_MUTE_L
SC2_AUDIO_MUTE_R
SC1_RF_OUT_CVBS
SC2_STATUS
SC2_C_IN
SC1_B_IN
SC1_G_IN
SC1_R_IN
SC1_FBL_IN
SC2_AUDIO_IN_R
SC2_AUDIO_IN_L
SC1_AUDIO_IN_R
SC2_CVBS_MON_OUT
SC1_FBL_IN
SC1_AUDIO_IN_L
SC2_Y_CVBS_IN
SC2_AUDIO_OUT_R
SC2_C_IN_ITV
SC2_Y_CVBS_IN_ITV
SC1_AUDIO_OUT_L
SC2_AUDIO_OUT_L
SC1_G_IN
SC1_STATUS
SC1_B_IN
SC1_AUDIO_OUT_R
SC2_AUDIO_IN_R
SC2_AUDIO_IN_L
SC1_CVBS_IN
SC1_R_IN
B06B B06B
3139 123 6261.1 G_16860_012.eps
250107
Item
non-iTV
Description
1504 SOC EURO V 21P F BK R-GRND B
1506 SOC EURO V 21P F BK R-GRND B
1525 CON V 5P M 1.00 SM SR R
1526 CON V 8P M 1.00 SM SR R
3516 RST SM 0603 100R PM5 COL
RST SM 0603 680R PM5 COL
3523 RST SM 0603 100R PM5 COL
RST SM 0603 680R PM5 COL
3528 RST SM 0603 100R PM5 COL
RST SM 0603 680R PM5 COL
iTV Analog
iTV-Digital
48LC7.1E LA 7.
Circuit Diagrams and PWB Layouts
SSB: HDMI
VOUTR
SFOR
PLL1
CLKOUT
VOUTL
VDDD
VDDA
BCK
SYSCLK
DATAI
PLL0
0
1
WS
MUTE
VSSA
VSSD
VREF_DAC
DEEM
SCL
ADR
0
1
2 SDA
WC
R0X0
R0X1
R0X2
-
+
R1X0
-
+
R1X1
-
+
R1X2
-
+
R1XC
NC
Q
PWR5V
+
-
+
SCK
R0XC
MCLKOUT
XTALOUT
XTALIN
SCDT
RSVDL
RSVD_A
-
+
INT
RESET
DSCL0
DSDA0
DSCL1
DSDA1
CSCL
CSDA
CLK48B
EVNODD
R0
R1
-
+
-
WS
SD0
SPDIF
MUTEOUT
ODCK
VSYNC
HSYNC
DE
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
01
TMDS GND_HS
CGND IOGND
CVCC18 IOVCC
PVCC
REGVCC
AUDPVCC18AVCC
AGND AUDPGND PGND
XTALVCC
VIA
VIA
VIA
VIA
SCL
ADR
0
1
2 SDA
WC
NC
NC
NC
NC
NC
HDMI CONNECTOR-1
HDMI CONNECTOR-2
A
B
AUDIO DAC
RES
RESRES
RES
12345678910111213
12345678910111213
A
B
C
D
E
F
G
H
I
A
B
C
D
E
F
G
H
I
1810 A1
1811 D1
1823 H8
2801 G3
2802 H3
2803 C7
2804 A7
2805 G3
2806 H3
2807 H2
2808 H2
2809 H8
2810 H6
2811 H2
2812 I2
2813 H8
2814 I2
2815 I2
2816 B11
2817 B11
2818 C11
2819 B11
2828 H8
2829 B10
2830 B10
2833 B11
2835 B12
2836 B12
2838 B12
2839 B12
2840 B12
2843 B13
2844 B13
2845 B13
2847 C10
2848 C10
2849 C11
2850 C11
2851 C11
2852 C11
2853 C12
2854 C12
2855 C12
2856 C12
2857 C12
2858 C13
2859 C13
2860 C13
2861 C13
2865 C10
2866 C10
2867 C11
2868 C11
2869 C11
2870 C12
2871 C12
2872 C12
2873 C12
2874 C12
2875 C13
2876 C13
3801 C6
3802 C7
3803 G3
3804 G3
3805 I2
3806 I2
3807-1 I5
3807-2 I5
3807-3 I5
3807-4 I5
3809 H5
3810 C6
3811 H8
3815 H8
3819 I8
3828 D7
3830 A6
3831 A6
3832 A7
3833 B7
3834 B7
3835 E11
3846 E7
3850 H7
3851-1 E11
3851-2 E11
3851-3 E11
3851-4 F11
3852-1 F11
3852-2 F11
3852-3 F11
3852-4 F11
3853-1 F11
3853-2 F11
3853-3 G11
3853-4 G11
3854-1 G11
3854-2 G11
3854-3 G11
3854-4 G11
3855-1 H11
3855-2 H11
3855-3 H11
3855-4 H11
3856-1 H11
3856-2 H11
3856-3 H11
3856-4 I11
3857 I11
3858 I11
3859 I11
3860 I11
3862 B2
3863 C2
3864 C2
3877 C3
3880 E2
3881 F2
3882 F2
3883 F3
3884 I6
3885 I7
3886 I7
3896 G5
3897 G5
4802 H6
4803 H6
4804 A6
4805 C6
5810 A11
5811 A11
5812 A11
5813 A12
5814 A12
5815 A13
5816 A13
5817 A10
5818 A13
6801 C5
6802 C5
6830 A5
6831 A5
7810 I3
7811 C5
7812 D7
7813 E7
7814 C2
7816 C3
7817-1 E9
7817-2 D10
7817-3 C9
7824 H5
7825 H7
7850 A5
7851 B7
7852 B7
7860 F2
7861 F3
F801 G3
F802 H4
F805 I12
F806 I12
F832 A1
F840 B1
F841 B1
F842 B1
F843 B1
F850 H6
F851 H7
F861 D1
F869 E1
F870 E1
F871 E1
F872 E1
F873 C6
F874 A6
F875 D13
F876 F6
F877 G6
I801 H2
I802 H2
I803 H3
I804 I2
I805 I2
I806 I2
I813 I12
I814 I12
I820 D7
I821 E7
I822 B7
I823 C7
I828 I6
I831 C2
I833 C2
I840 C3
I841 C3
I842 F3
I843 F3
I844 G6
I845 G6
I846 H8
I847 H9
I848 I8
I850 A10
I851 A11
I852 A11
I853 A12
I854 A12
I855 A13
I856 A13
I857 A13
I858 A11
I861 F2
I862 H9
I863 H3
I864 I7
I865 I7
I866 I7
I866
I864
I865
+5V_SW
6802
BAT54 COL
6801
BAT54 COL
BAT54 COL
6831
+5V_SW
6830
BAT54 COL
33R
3886
3885
33R
33R
3884
I863
I862
3803
1R0
+3V3_SW
2801
6.3V 47u
I801
+3V3_SW 48034802
15
5
2
8
10
11
7
6
13
4
14
16
12
DAC
UDA1334ATS
7810
1
3
9
I805
Φ
I806
2815
10n
F802
F801
I803
I804
I802
3806
220R
2812 10u
10n
220R
2814
10u2811
3805
2808
6.3V 47u
2807
100n
1R0
3804
100n
2802
+3V3_SW
2805
6.3V 47u
100n
2806
45
3807-3 36
3807-4 33R
27
33R
8
33R
3807-2
33R
3807-1 1
33R18
33R27
3856-1
33R36
3856-2
45
3856-3
8
3856-4 33R
33R3855-1 1
33R27
33R36
3855-2
33R45
3855-3
3855-4
8
33R3835
33R3854-1 1
3854-2 2 7
33R36
33R
45
3854-3
18
33R3854-4
27
33R3853-1
33R3853-2
3853-3 33R36
33R3853-4 4 5
18
27
33R
3851-1
36
33R
3851-2
8
33R3851-3
33R1
3852-2 33R27
3852-1
3852-3 3 6
33R45
33R
45
3852-4
3851-4 33R
F877
F876
F875
I822
I823
I820
I821
I856I857I855I853 I854
I858
I852I850 I851
F874
F851
F873
F850
I847
I848
I845
I846
I841
I844
I843
I840
I842
4805 4804
2816
+1V8S_SW
2223
1n0
19
2
3
4
5
6
7
8
9
2021
10
11
12
13
14
15
16
17
18
1811
1
10n
2809
10K
3850
7825
BSN20
3
1
2
+3V3_SW
+5VHDMI_B
4K7
3834
+3V3_SW
+3V3_SW
+3V3_SW
3833
4K7
7851
BSN20
BSN20
+3V3_SW
7852
3830
4K7
+5VHDMI_B
100n
2804
47K
3831 3832
47K
4
7
1
2
3
6
5
8
7850
(256x8)
Φ
EEPROM
M24C02-WMN6
2K2
3883
100R
3882
7861
BC847BW
8
9
2021
2223
I861
15
16
17
18
19
2
3
4
5
6
7
1810
DC1R019JBAR190
1
10
11
12
13
14
2K2
3881
BC847BW
1K0
3880
7860
F861
F872
F871
F869
F870
+5VHDMI_B
1823
28M322
3877
2K2
3864
100R
7816
BC847BW
I831
I833
2K2
3863
BC847BW
7814
3862 1K0
F832
F842
F843
F841
F840
+3V3_SW
+5VHDMI_A
3846
4K7
4K7
3828
+3V3_SW
167
168
169
170
148
149
150
151
152
153
154
158
159
160
161
162
163
164
147
165
166
SII9025CTU
7817-3
VIA
146
155
156
157
122
134
37
55
99
54
98
90
108
120
135
5
16
26
76
89
109
79
92
105
114
128
139
145
4
15
25
75
73
80
91
106
115
127
22
23
35
74
46
50
57
61
65
69
21
138
24
36
45
49
53
60
64
68
72
95 94
38
42
7817-2
SII9025CTU
POWER
41
102
101
56
103
86
84
78
3
85
97
96
40
39
33
63
62
67
66
71
70
59
58
133
132
131
34
44
43
48
47
52
51
117
116
142
113
112
111
110
141
140
137
136
144
143
130
129
126
125
124
123
119
118
93
100
7
8
10
11
12
13
14
17
121
104
88
77
6
18
19
20
81
82
83
87
107
28
27
1
32
30
31
29
9
2
+3V3_SW
7817-1
SII9025CTU
MAIN
7812
+3V3_SW
BSN20
7813
BSN20
3859
3858 33R
33R
2861 1n0 100n
2845 120R
5816 +3V3_SW
2860 1n0
2859 1n0
100n
2844
+3V3_SW
100n
2843
5815
120R
2869 1n0
+1V8S_SW
2817 100n 5810
120R
1n0
2856 100n
2839
2840 100n
2857
1n0
2858
1n0
1n0
2873
1n0
2874
2876 1n0
2875
5814 +3V3_SW
1n0
120R
100n
2836
100n
1n0
2855
2835
2854 1n0
1n0
2853
2852 1n0
2871
2872 1n0
1n0
2870 1n0
2818 100n
2838 100n 120R +3V3_SW
5813
28192833 100n +1V8S_SW
100n
120R
5811
+3V3_SW
+3V3_SW
2868 1n0
3811
4K7
10n
2810
3809
10K
3
1
2
+3V3_SW
+5VHDMI_A
BSN20
7824
18p
2828
2813
18p
I828
3819 33R
1M0
120R
3815
5818
100n
2830
100n
28292847 1n0
1n0
2851
3810
4K7
1n0
2867
2866 1n0 2848 1n0
+5VHDMI_A
2803
100n47K
3802
3801
47K
1
2
3
6
5
84
7
7811
M24C02-WMN6
EEPROM
Φ
(256x8)
I813
I814
F806
F805
33R3860
33R3857
2849 1n0
5812
120R
3897 100R
3896
5817
100R
120R
2865 1n0
2850 1n0
HDMI_Cb(5)
HDMI_Cb(6)
HDMI_Cb(7) HDMI_Y(0:7)
HDMI_Cb(0:7)
HDMI_Cr(0:7)
HDMI_SCK
HDMI_WS
HDMI_SD
HDMI_Cr(2)
HDMI_Cr(3)
HDMI_Cr(4)
HDMI_Cr(5)
HDMI_Cr(6)
HDMI_Cr(7)
HDMI_Cb(0)
HDMI_Cb(1)
HDMI_Cb(2)
HDMI_Cb(3)
HDMI_Cb(4)
HDMI_Y(0)
HDMI_Y(1)
HDMI_Y(2)
HDMI_Y(3)
HDMI_Y(4)
HDMI_Y(5)
HDMI_Y(6)
HDMI_Y(7)
HDMI_Cr(0)
HDMI_Cr(1)
HDMI_AUDIO_IN_R
HDMI_I2S_SCK
HDMI_I2S_SD
HDMI_I2S_WS
HDMI_AUDIO_IN_L
DOC_SDAB
DDC_RESET
DOC_SCLB
DOC_SDAB
DOC_SCLB
RX1-B
RX2+B
RX2-B
RXC+B
RXC-B
DDC_RESET
HDMI_HOTPLUG_RESET
RX0+B
RX0-B
RX1+B
DOC_SDAA
RXC-A
DOC_SCLA
RX1+A
RX1-A
RX2+A
RX2-A
RXC+A
HDMI_HOTPLUG_RESET
RX0+A
RX0-A
RX1-B
RX0+B
RX0-B
RXC+B
RXC-B
HDMI_INT
RST
RX0+A
RX0-A
RXC+A
RXC-A
RX1+A
RX1-A
RX2+A
RX2-A
RX2+B
RX2-B
RX1+B
DOC_SCLA
DOC_SDAA
HDMI_H
HDMI_V
IIC_SCL
IIC_SDA
HDMI_DE
HDMI_VCLK
B06C B06C
3139 123 6261.1
G_16860_013.eps
240107
HDMI
Circuit Diagrams and PWB Layouts 49LC7.1E LA 7.
SSB: Headphone Amp & Muting
HEADPHONE AMP & MUTING
MUTING CIRCUIT
2V6
2V6 2V6
5V3
2V6
2V6 2V6
5V3
ITV Connector E
EMC
EMC
EMC
EMC
RES
RES
RES
FOR NON SIDE IO
3V3
0V
0V
0V
0V
3V3
1234567
1234567
A
B
C
D
E
F
A
B
C
D
E
F
1900 B7
1901 B2
2901 A4
2902 A2
2903 B5
2904 C2
2905 B4
2906 C5
2907 C3
2908 B5
2909 A7
2910 C7
2911 A7
2912 C7
2913 B5
2940 E2
3901 A3
3902 A4
3903 A6
3904 B6
3905 C3
3906 B3
3907 C3
3908 B4
3909 B6
3910 C6
3911 D2
3912 D4
3913 D4
3914 E4
3915 E4
3916 F4
3917 C4
3918 D4
3934 E3
3935 E2
3937 E1
3938 E2
3940 F3
3942 F5
3943 F6
4901 D3
4902 A7
4903 C7
6914 E2
6916 E3
6919 F4
7901-1 A4
7901-2 B4
7902 D3
7911 C5
7912 D5
7913 D5
7914 E5
7915 E5
7916 F5
7917 E3
7919 E2
7922 F6
F901 B3
F902 B6
F903 C6
F904 C3
F905 D2
F908 A2
F910 B2
I901 A3
I902 B5
I903 C5
I904 B6
I905 C5
I911 D2
I912 D3
I913 E2
I914 E1
I915 E2
I916 E2
I917 E3
I918 E4
I919 D6
I920 E6
I921 E6
I922 F6
I923 F6
I924 B5
4903
4902
I924
2913
220n
1K0
3916
1K0
3915
1K0
3914
1K0
3913
1K0
3918
3917
1K0
10K
3912
3938
10K
10n
2912
2911
10n
I923
I922
I920
I921
I919
I918
I915
I917
I914
I916
I913
4901
BAS316
6919
3940
+3V3_STBY
10K
BAT54 COL
6914
7922
BC847BW
10K
3943
1K0
3942
3937
BC847BW
10K
7919
6916
BAS316
BC857BW
7917
6.3V47u
2940
3935
4K7
3934
+3V3_STBY
4K7 3
2
2
BC847BW
7914
1
7915
BC847BW
1
3
I911
I912
F905
10n
2909
6
2910
10n
1
2
3
4
5
F903
1901
F902
2
13
YKB21-5157N
1900
470n
2907
3911
10K
7916
BC847BW
1
3
2
7913
BC847BW
1
3
2
7911
BC847BW
1
3
2
3
2
7912
BC847BW
1
3909
33R
3903
33R
2905
2901
33p
33p
3910
33R
33R
3904
I901
F910
F908
2908
220n
4
+5V_SW
7901-1
TS482IDT
3
2
1
8
6
7
84
7901-2
TS482IDT
5
F904
F901
I905
I904
I902
I903
3907
100K
3902 120K
3905
47K
3901
47K
3906
100K
470n
120K3908
2902
2904
470n
16V100u
2903
16V
2906
100u
7902
BC857BW
+3V3_STBY
ENGAGE
MUTEn
SC2_CVBS_MON_OUT_ITV
HP_LOUT
HP_ROUT
SC2_AUDIO_MUTE_R
SC2_AUDIO_MUTE_L
POWER_DOWN
STANDBY
HPIC_RIN
ANTI_PLOP
SC1_AUDIO_MUTE_L
SC1_AUDIO_MUTE_R
HPIC_ROUT
HPIC_LOUT
HPIC_LINHP_AUDIO_OUT_L
HP_AUDIO_OUT_R
B06D B06D
3139 123 6261.1 G_16860_014.eps
250107
Item Description
1901 CON V 4P M 1.00 SM SR R
2901 CER1 0603 NP0 50V 33P COL
2902 CER2 0603 Y5V 10V 470N COL
2903 ELCAP SM 16V 100U PM20 COL R
2904 CER2 0603 Y5V 10V 470N COL
2905 CER1 0603 NP0 50V 33P COL
2906 ELCAP SM 16V 100U PM20 COL R
2907 CER2 0603 Y5V 10V 470N COL
2909 CER2 0603 X7R 50V 10N COL
2910 CER2 0603 X7R 50V 10N COL
2911 CER2 0603 X7R 50V 10N COL
2912 CER2 0603 X7R 50V 10N COL
3901 RST SM 0603 47K PM5 COL
3902 RST SM 0603 RC21 120K PM5 R
3904 RST SM 0603 33R PM5 COL
3905 RST SM 0603 47K PM5 COL
3906 RST SM 0603 100K PM5 COL
3907 RST SM 0603 100K PM5 COL
3908 RST SM 0603 RC21 120K PM5 R
3910 RST SM 0603 33R PM5 COL
3917 RST SM 0603 1K PM5 COL
3918 RST SM 0603 1K PM5 COL
4902 RST SM 0603 JUMP. 0R05 COL
4903 RST SM 0603 JUMP. 0R05 COL
7901 IC SM TS482ID (ST00) R
7911 TRA SIG SM BC847BW (COL) R
7912 TRA SIG SM BC847BW (COL) R
EU iTV
non-iTV
US iTV
50LC7.1E LA 7.
Circuit Diagrams and PWB Layouts
SSB: Audio
VSSD|HW
IN1N
IN2P
IN2N
INREF
OSCREF
OSCIO
HVPREF
DREF
ENGAGE
POWERUP
TEST
VDDP
VSSP
VDDA
STAB2
STAB1
BOOT2
BOOT1
HVP2
HVP1
DIAG
OUT2
OUT1
CGND VSSA
IN1P
NC
NC
NC
LEFT +
GND
GND
RIGHT -
EMC
EMC
AUDIO
DC-DETECTION
RES
RES
11V9
12V2
-12V2
+12V2
TO SPEAKERS
2V6
8V9
3V9
-1V3
-2V8
-2V8
-2V8
-2V8
-7V6
-8V2
4V7
3V2
-2V6
*
*
*
*
*
*
*
LCD PDP
3A03
3A04
3A06
3A07
3A08
3A11
10K 6K8
12K 22K
10K 6K8
10K 6K8
12K 22K
10K 6K8
IA38 E7
IA39 F7
IA40 A7
IA41 A6
IA03 D6
IA04 D9
IA05 D3
IA06 D4
IA07 D6
IA09 D4
IA10 D3
IA11 E3
IA12 E3
IA13 E4
IA14 E6
IA15 E4
IA16 E6
IA17 E9
IA18 E5
IA19 E4
IA20 E6
IA21 F4
IA22 F4
IA23 D6
IA24 B7
IA25 B9
IA26 B7
IA27 B9
IA29 F10
IA30 E10
IA31 E10
IA33 E4
IA34 C8
IA35 D7
IA36 D7
IA37 E8
3A19 F3
3A26 E3
3A27 F9
3A28 F9
3A29 E10
3A30 E10
3A31 F11
4A01 A6
4A02 A6
5A03 C7
5A04 E7
5A05 B6
5A06 B8
5A07 A6
7A01 D4
7A05 E11
7A06 F10
7A07 F10
FA01 C6
FA02 B8
FA04 D6
FA05 D2
FA06 D2
FA07 D11
FA08 D11
FA09 E2
FA10 D11
FA11 D11
FA12 E2
FA32 E11
IA01 D3
IA02 D3
2A27 E6
2A28 E8
2A29 E3
2A30 F6
2A31 F7
2A32 F4
2A33 F5
2A34 F5
2A35 E7
2A36 F7
2A37 D8
2A38 E8
2A40 F3
2A41 F9
2A45 E7
2A46 A6
2A47 B6
3A01 B6
3A02 B8
3A03 D2
3A04 D3
3A05 D9
3A06 D2
3A07 D2
3A08 D3
3A09 D7
3A11 E2
3A12 E6
3A13 E3
3A14 E9
3A15 E6
3A17 E7
10 11
A
B
C
D
E
F
G
A
B
C
D
E
F
G
1735 D11
2A01 B7
2A02 B9
2A04 C7
2A08 B9
2A09 D5
2A10 D5
2A11 D3
2A12 D4
2A13 D8
2A14 D8
2A15 D3
2A16 D3
1234567891011
123456789
5A04
22u
2A17 D8
2A18 D6
2A19 D4
2A20 E3
2A21 D7
2A22 E3
2A23 E8
2A24 E3
2A25 E6
2A26 E8
22u
IA41
5A03
GNDSND
47n
2A47 2A46
47n
+AUDIO_POWER
60R
5A07
+AUDIO_POWER_+12V_DISP
IA40
4A02
4A01
VSS
VSSA
VSSA
GNDSND
IA39
IA38
IA37
IA36
IA35
IA34
IA33
470n
2A28
470n
2A14
2A45
1n0
FA32
IA31
IA29
IA30
220u
2A04
220u 25V
25V
GNDSND
2A08
GNDSND
GNDSND
2A41
1u0
3A28
220K
3A27
220K
7A06
BC847BW
7A07
BC847BW
3A31
10K
BC857BW
7A05
47K
3A30 3A29
47K
2A40
470n
GNDSND
VDD
3A26 22K
2A38
220n
GNDSND
220n
2A37
1n0
2A35
1n0
2A36
GNDSND
GNDSNDGNDSND
GNDSND
GNDSND
GNDSND
GNDSND
GNDSND
GNDSND
GNDSND
GNDSND
GNDSND
GNDSND
GNDSND
IA25
IA27
IA26
IA24
IA17
IA23 IA04
IA20
IA16
IA18
IA14
IA03
FA04
IA07
IA19
IA22
IA21
IA13
IA15
IA11 IA12
IA09
IA06
IA10
IA01
IA05
FA07
FA10
FA08
FA11
FA02
FA01
FA09
FA12
FA06
FA05 IA02
3A07 1u0
3A06
2A16
2A15 1u0
100n
2A02
2A01
100n
2A17
1n0
2A23
1M0
3A15
1n0
3A12 1M0
VDD
10K
3A19
VSS
220n
2A26 3A14
22R
2A13
220n 22R
3A05
10R
3A17
10R
3A09
2A18
1n0
2A32
1n0
VSS
5A06 30R
30R
5A05
3A11
3A03
3A08
220p
3A04
2A19
2A12
220p
10R
VDDA
VSSA
10R
3A02
-AUDIO_POWER
3A01
1735
1
2
3
4
+AUDIO_POWER
B4B-PH-K
2A31
1n0
2A21
1n0
2A34 100n
VDD
100n2A09
2A25 15n
2A30
100n
2A27 15n
100n2A33
2A10
100n
100n
2A20
2A29
2A22 100n
1u0
VSSA
GNDSND
3A13 39K
100n2A24
VDDA
VSSA
2A11 1u0
29
20
9
1
16
17
32
26
23
15
12
31
10
27
22
6
25
24
13
8
7
4
18
5
30
19
11
3
2
14
Φ
7A01
TDA8932T
AMPLIFIER
POWER
CLASS D
28
21
DC_PROT
AUDIO_LS_R
ENGAGE
AUDIO_LS_L
STANDBYn
B07 B07
3139 123 6261.1
G_16860_015.eps
240107
Circuit Diagrams and PWB Layouts 51LC7.1E LA 7.
SSB: SRP List
3104 313 6261.1
G_16860_026.eps
250107
Netname Schematic
+12V_DISP B02 (1x)
+12V_DISP B04A (1x)
+12V_DISP B04B (1x)
+1V2_MOJO B02 (1x)
+1V2_MOJO B03D (2x)
+1V8S_SW B02 (1x)
+1V8S_SW B03B (2x)
+1V8S_SW B03F (1x)
+1V8S_SW B04B (3x)
+1V8S_SW B06C (3x)
+3V3 B03B (3x)
+3V3 B03C (3x)
+3V3 B03D (8x)
+3V3 B03E (2x)
+3V3 B03F (1x)
+3V3_BUF B03C (4x)
+3V3_CORE B03C (2x)
+3V3_MOJO B02 (1x)
+3V3_MOJO B03F (2x)
+3V3_NOR48 B03E (4x)
+3V3_STBY B02 (1x)
+3V3_STBY B04A (30x)
+3V3_STBY B06D (3x)
+3V3_STV B03C (10x)
+3V3_SW B02 (1x)
+3V3_SW B04A (8x)
+3V3_SW B04B (13x)
+3V3_SW B06C (19x)
+3V3_VDDP B03D (3x)
+3V3clean B03D (1x)
+3V3clean B03F (1x)
+3V3FE B03B (5x)
+5V_AUD B04C (3x)
+5V_D B04C (2x)
+5V_IF B03A (4x)
+5V_STANDBY B02 (4x)
+5V_STANDBY B04A (4x)
+5V_STANDBY B04B (2x)
+5V_SW B02 (6x)
+5V_SW B03A (4x)
+5V_SW B03B (9x)
+5V_SW B03C (2x)
+5V_SW B03E (3x)
+5V_SW B04A (1x)
+5V_SW B04B (2x)
+5V_SW B04C (2x)
+5V_SW B06A (2x)
+5V_SW B06B (2x)
+5V_SW B06D (1x)
+5VHDMI_A B06C (3x)
+5VHDMI_B B06C (3x)
+5VS B03A (3x)
+8V B04C (2x)
+AUDIO_POWER B02 (1x)
+AUDIO_POWER B04C (1x)
+AUDIO_POWER B06A (1x)
+AUDIO_POWER B07 (1x)
+IO_POWER B06A (10x)
+IO_POWER B06B (7x)
+VTUN B02 (1x)
+VTUN B03A (1x)
+VTUN B04A (1x)
10046_TDO B03B (1x)
10046_TDO B03D (1x)
4MHZ_CLK B03A (1x)
4MHZ_CLK B03B (1x)
4MHz_MOJO B03B (1x)
4MHz_MOJO B03D (1x)
A(0) B04A (1x)
A(0) B04B (1x)
A(0:7) B04A (1x)
A(0:7) B04B (1x)
A(1) B04A (2x)
A(1) B04B (1x)
A(1:7) B04A (1x)
A(10) B04A (2x)
A(11) B04A (2x)
A(12) B04A (2x)
A(13) B04A (2x)
A(14) B04A (2x)
A(15) B04A (2x)
A(16) B04A (2x)
A(17) B04A (2x)
A(18) B04A (2x)
A(19) B04A (2x)
A(2) B04A (2x)
A(2) B04B (1x)
A(3) B04A (2x)
A(3) B04B (1x)
A(4) B04A (2x)
A(4) B04B (1x)
A(5) B04A (2x)
A(5) B04B (1x)
A(6) B04A (2x)
A(6) B04B (1x)
A(7) B04A (2x)
A(7) B04B (1x)
A(8) B04A (2x)
A(8:19) B04A (2x)
A(9) B04A (2x)
A_MICLK B03C (1x)
A_MISTRT B03C (1x)
A_MIVAL B03C (1x)
A_MOCLK B03C (1x)
A_MOSTRT B03C (1x)
A_MOVAL B03C (1x)
AD(0) B04A (2x)
AD(0) B04B (1x)
AD(0:7) B04A (2x)
AD(0:7) B04B (1x)
AD(1) B04A (2x)
AD(1) B04B (1x)
AD(2) B04A (2x)
AD(2) B04B (1x)
AD(3) B04A (2x)
AD(3) B04B (1x)
AD(4) B04A (2x)
AD(4) B04B (1x)
AD(5) B04A (2x)
AD(5) B04B (1x)
AD(6) B04A (2x)
AD(6) B04B (1x)
AD(7) B04A (2x)
AD(7) B04B (1x)
ALE_EMU B04A (1x)
ALE_EMU B04B (1x)
ANTI_PLOP B04A (1x)
ANTI_PLOP B06D (1x)
AUDIO_LS_L B04C (1x)
AUDIO_LS_L B07 (1x)
AUDIO_LS_R B04C (1x)
AUDIO_LS_R B07 (1x)
-AUDIO_POWER B02 (1x)
-AUDIO_POWER B07 (1x)
BACKLIGHT_BOOST B02 (1x)
BACKLIGHT_BOOST B04A (1x)
BL_ADJUST B02 (1x)
BL_ADJUST B04A (1x)
BL_ADJUST B04B (1x)
BL_ON_OFF B02 (1x)
BL_ON_OFF B04A (1x)
BOLT_ON_SCL B04A (2x)
BOLT_ON_SDA B04A (2x)
CE B04A (1x)
COMP_AUDIO_IN_L B04C (1x)
COMP_AUDIO_IN_L B06A (1x)
COMP_AUDIO_IN_R B04C (1x)
COMP_AUDIO_IN_R B06A (1x)
CPU_RST B04A (1x)
CS B04A (1x)
CS B04B (1x)
CTRL_DISP1 B04B (2x)
CTRL_DISP1_up B04A (1x)
CTRL_DISP1_up B04B (1x)
CTRL_DISP2 B04B (2x)
CTRL_DISP3 B04B (2x)
CTRL_DISP4 B04B (2x)
CTRL_DISP4_up B04A (1x)
CTRL_DISP4_up B04B (1x)
CVBS_RF B03A (1x)
CVBS_RF B04B (1x)
CX_AVDD_ADC1 B04B (2x)
CX_AVDD_ADC2 B04B (2x)
CX_AVDD_ADC3 B04B (2x)
CX_AVDD_ADC4 B04B (2x)
CX_AVDD3_ADC1 B04B (2x)
CX_AVDD3_ADC2 B04B (2x)
CX_AVDD3_BG_ASS B04B (2x)
CX_AVDD3_OUTBUF B04B (2x)
CX_PAVDD B04B (2x)
CX_PAVDD1 B04B (2x)
CX_PAVDD2 B04B (2x)
CX_PDVDD B04B (2x)
DC_PROT B04A (1x)
DC_PROT B07 (1x)
DDC_RESET B04A (1x)
DDC_RESET B06C (2x)
DVB_SW B03A (1x)
DVB_SW B04A (1x)
E_PAGE B04A (1x)
ENGAGE B06D (1x)
ENGAGE B07 (1x)
FE_LOCK B03B (1x)
FE_LOCK B03D (1x)
FRONT_C_IN B04B (1x)
FRONT_C_IN B06A (1x)
FRONT_Y_CVBS_IN B04B (1x)
FRONT_Y_CVBS_IN B06A (1x)
GNDDC B02 (1x)
GNDSND B02 (3x)
GNDSND B07 (21x)
GNDTUN B02 (1x)
HD_PB_IN B04B (1x)
HD_PB_IN B06A (2x)
HD_PR_IN B04B (1x)
HD_PR_IN B06A (2x)
HD_Y_IN B04B (1x)
HD_Y_IN B06A (2x)
HDMI_AUDIO_IN_L B04C (1x)
HDMI_AUDIO_IN_L B06C (1x)
HDMI_AUDIO_IN_R B04C (1x)
HDMI_AUDIO_IN_R B06C (1x)
HDMI_Cb(0) B04B (1x)
HDMI_Cb(0) B06C (1x)
HDMI_Cb(0:7) B04B (1x)
HDMI_Cb(0:7) B06C (1x)
HDMI_Cb(1) B04B (1x)
HDMI_Cb(1) B06C (1x)
HDMI_Cb(2) B04B (1x)
HDMI_Cb(2) B06C (1x)
HDMI_Cb(3) B04B (1x)
HDMI_Cb(3) B06C (1x)
HDMI_Cb(4) B04B (1x)
HDMI_Cb(4) B06C (1x)
HDMI_Cb(5) B04B (1x)
HDMI_Cb(5) B06C (1x)
HDMI_Cb(6) B04B (1x)
HDMI_Cb(6) B06C (1x)
HDMI_Cb(7) B04B (1x)
HDMI_Cb(7) B06C (1x)
HDMI_Cr(0) B04B (1x)
HDMI_Cr(0) B06C (1x)
HDMI_Cr(0:7) B04B (1x)
HDMI_Cr(0:7) B06C (1x)
HDMI_Cr(1) B04B (1x)
HDMI_Cr(1) B06C (1x)
HDMI_Cr(2) B04B (1x)
HDMI_Cr(2) B06C (1x)
HDMI_Cr(3) B04B (1x)
HDMI_Cr(3) B06C (1x)
HDMI_Cr(4) B04B (1x)
HDMI_Cr(4) B06C (1x)
HDMI_Cr(5) B04B (1x)
HDMI_Cr(5) B06C (1x)
HDMI_Cr(6) B04B (1x)
HDMI_Cr(6) B06C (1x)
HDMI_Cr(7) B04B (1x)
HDMI_Cr(7) B06C (1x)
HDMI_DE B04B (1x)
HDMI_DE B06C (1x)
HDMI_H B04B (1x)
HDMI_H B06C (1x)
HDMI_HOTPLUG_RESET B04A (1x)
HDMI_HOTPLUG_RESET B06C (2x)
HDMI_INT B04A (1x)
HDMI_INT B06C (1x)
HDMI_V B04B (1x)
HDMI_V B06C (1x)
HDMI_VCLK B04B (1x)
HDMI_VCLK B06C (1x)
HDMI_Y(0) B04B (1x)
HDMI_Y(0) B06C (1x)
HDMI_Y(0:7) B04B (1x)
HDMI_Y(0:7) B06C (1x)
HDMI_Y(1) B04B (1x)
HDMI_Y(1) B06C (1x)
HDMI_Y(2) B04B (1x)
HDMI_Y(2) B06C (1x)
HDMI_Y(3) B04B (1x)
HDMI_Y(3) B06C (1x)
HDMI_Y(4) B04B (1x)
HDMI_Y(4) B06C (1x)
HDMI_Y(5) B04B (1x)
HDMI_Y(5) B06C (1x)
HDMI_Y(6) B04B (1x)
HDMI_Y(6) B06C (1x)
HDMI_Y(7) B04B (1x)
HDMI_Y(7) B06C (1x)
HP_AUDIO_OUT_L B04C (1x)
HP_AUDIO_OUT_L B06D (1x)
HP_AUDIO_OUT_R B04C (1x)
HP_AUDIO_OUT_R B06D (1x)
I2C_LOCAL_SCL B03B (1x)
I2C_LOCAL_SCL B03C (1x)
I2C_LOCAL_SCL B03D (1x)
I2C_LOCAL_SCL B03E (1x)
I2C_LOCAL_SDA B03B (1x)
I2C_LOCAL_SDA B03C (1x)
I2C_LOCAL_SDA B03D (1x)
I2C_LOCAL_SDA B03E (1x)
I2C_TDA_SCL B03A (1x)
I2C_TDA_SCL B03B (1x)
I2C_TDA_SDA B03A (1x)
I2C_TDA_SDA B03B (1x)
IBO_B_IN B03F (1x)
IBO_B_IN B04B (1x)
IBO_CVBS_IN B03F (1x)
IBO_CVBS_IN B04B (1x)
IBO_G_IN B03F (1x)
IBO_G_IN B04B (1x)
IBO_IRQ B03D (1x)
IBO_IRQ B04A (1x)
IBO_R_IN B03F (1x)
IBO_R_IN B04B (1x)
IF_AGC_IBO B03A (1x)
IF_AGC_IBO B03B (1x)
IF_ATV B03A (2x)
IIC_SCL B03A (2x)
IIC_SCL B03D (1x)
IIC_SCL B04A (1x)
IIC_SCL B04B (2x)
IIC_SCL B04C (1x)
IIC_SCL B06C (1x)
IIC_SCL_up B04A (2x)
IIC_SDA B03A (2x)
IIC_SDA B03D (1x)
IIC_SDA B04A (1x)
IIC_SDA B04B (2x)
IIC_SDA B04C (1x)
IIC_SDA B06C (1x)
IIC_SDA_up B04A (2x)
INT B04A (1x)
INT B04B (1x)
ISP B04A (1x)
ITV_SPI_CLK B04A (2x)
ITV_SPI_DATA_IN B04A (2x)
JTAG_TCK B03B (1x)
JTAG_TCK B03C (1x)
JTAG_TCK B03D (1x)
JTAG_TMS B03B (1x)
JTAG_TMS B03C (1x)
JTAG_TMS B03D (1x)
JTAG_TRST B03B (1x)
JTAG_TRST B03C (1x)
JTAG_TRST B03D (1x)
KEYB B04A (2x)
LCD_PWR_ON B04A (1x)
LCD_PWR_ON B04B (1x)
LED1 B04A (2x)
LED2 B04A (2x)
LIGHT_SENSOR B04A (2x)
MIU_ADDR(0) B03C (1x)
MIU_ADDR(0) B03D (1x)
MIU_ADDR(0:24) B03D (1x)
MIU_ADDR(1) B03C (1x)
MIU_ADDR(1) B03D (1x)
MIU_ADDR(1) B03E (1x)
MIU_ADDR(10) B03C (1x)
MIU_ADDR(10) B03D (1x)
MIU_ADDR(10) B03E (1x)
MIU_ADDR(11) B03C (1x)
MIU_ADDR(11) B03D (1x)
MIU_ADDR(11) B03E (1x)
MIU_ADDR(12) B03C (1x)
MIU_ADDR(12) B03D (1x)
MIU_ADDR(12) B03E (1x)
MIU_ADDR(13) B03C (1x)
MIU_ADDR(13) B03D (1x)
MIU_ADDR(13) B03E (1x)
MIU_ADDR(14) B03C (1x)
MIU_ADDR(14) B03D (1x)
MIU_ADDR(14) B03E (1x)
MIU_ADDR(15) B03C (1x)
MIU_ADDR(15) B03D (1x)
MIU_ADDR(15) B03E (1x)
MIU_ADDR(16) B03C (1x)
MIU_ADDR(16) B03D (1x)
MIU_ADDR(16) B03E (1x)
MIU_ADDR(17) B03C (1x)
MIU_ADDR(17) B03D (1x)
MIU_ADDR(17) B03E (1x)
MIU_ADDR(18) B03C (1x)
MIU_ADDR(18) B03D (1x)
MIU_ADDR(18) B03E (1x)
MIU_ADDR(19) B03C (1x)
MIU_ADDR(19) B03D (1x)
MIU_ADDR(19) B03E (1x)
MIU_ADDR(2) B03C (1x)
MIU_ADDR(2) B03D (1x)
MIU_ADDR(2) B03E (1x)
MIU_ADDR(20) B03C (1x)
MIU_ADDR(20) B03D (1x)
MIU_ADDR(20) B03E (1x)
MIU_ADDR(21) B03C (1x)
MIU_ADDR(21) B03D (1x)
MIU_ADDR(21) B03E (1x)
MIU_ADDR(22) B03C (1x)
MIU_ADDR(22) B03D (1x)
MIU_ADDR(22) B03E (1x)
MIU_ADDR(23) B03C (1x)
MIU_ADDR(23) B03D (1x)
MIU_ADDR(24) B03C (1x)
MIU_ADDR(24) B03D (1x)
MIU_ADDR(3) B03C (1x)
MIU_ADDR(3) B03D (1x)
MIU_ADDR(3) B03E (1x)
MIU_ADDR(4) B03C (1x)
MIU_ADDR(4) B03D (1x)
MIU_ADDR(4) B03E (1x)
MIU_ADDR(5) B03C (1x)
MIU_ADDR(5) B03D (1x)
MIU_ADDR(5) B03E (1x)
MIU_ADDR(6) B03C (1x)
MIU_ADDR(6) B03D (1x)
MIU_ADDR(6) B03E (1x)
MIU_ADDR(7) B03C (1x)
MIU_ADDR(7) B03D (1x)
MIU_ADDR(7) B03E (1x)
MIU_ADDR(8) B03C (1x)
MIU_ADDR(8) B03D (1x)
MIU_ADDR(8) B03E (1x)
MIU_ADDR(9) B03C (1x)
MIU_ADDR(9) B03D (1x)
MIU_ADDR(9) B03E (1x)
MIU_DATA(0) B03C (1x)
MIU_DATA(0) B03D (1x)
MIU_DATA(0) B03E (1x)
MIU_DATA(0:15) B03D (1x)
MIU_DATA(0:15) B03E (1x)
MIU_DATA(1) B03C (1x)
MIU_DATA(1) B03D (1x)
MIU_DATA(1) B03E (1x)
MIU_DATA(10) B03D (1x)
MIU_DATA(10) B03E (1x)
MIU_DATA(11) B03D (1x)
MIU_DATA(11) B03E (1x)
MIU_DATA(12) B03D (1x)
MIU_DATA(12) B03E (1x)
MIU_DATA(13) B03D (1x)
MIU_DATA(13) B03E (1x)
MIU_DATA(14) B03D (1x)
MIU_DATA(14) B03E (1x)
MIU_DATA(15) B03D (1x)
MIU_DATA(15) B03E (1x)
MIU_DATA(2) B03C (1x)
MIU_DATA(2) B03D (1x)
MIU_DATA(2) B03E (1x)
MIU_DATA(3) B03C (1x)
MIU_DATA(3) B03D (1x)
MIU_DATA(3) B03E (1x)
MIU_DATA(4) B03C (1x)
MIU_DATA(4) B03D (1x)
MIU_DATA(4) B03E (1x)
MIU_DATA(5) B03C (1x)
MIU_DATA(5) B03D (1x)
MIU_DATA(5) B03E (1x)
MIU_DATA(6) B03C (1x)
MIU_DATA(6) B03D (1x)
MIU_DATA(6) B03E (1x)
MIU_DATA(7) B03C (1x)
MIU_DATA(7) B03D (1x)
MIU_DATA(7) B03E (1x)
MIU_DATA(8) B03D (1x)
MIU_DATA(8) B03E (1x)
MIU_DATA(9) B03D (1x)
MIU_DATA(9) B03E (1x)
MIU_OEN B03C (1x)
MIU_OEN B03D (1x)
MIU_OEN B03E (1x)
MIU_RDY B03C (1x)
MIU_RDY B03D (1x)
MIU_WEN B03C (1x)
MIU_WEN B03D (1x)
MIU_WEN B03E (1x)
MOJO_I2S_OUT_SCK B03D (1x)
MOJO_I2S_OUT_SCK B04C (1x)
MOJO_I2S_OUT_SD B03D (1x)
MOJO_I2S_OUT_SD B04C (1x)
MOJO_I2S_OUT_WS B03D (1x)
MOJO_I2S_OUT_WS B04C (1x)
MUTEn B04A (1x)
MUTEn B06D (1x)
NOR_CS B03D (1x)
NOR_CS B03E (1x)
NOR_RYBY B03D (1x)
NOR_RYBY B03E (1x)
NOR_WP B03D (1x)
NOR_WP B03E (1x)
PCMCIA_5V B03C (4x)
PCMCIA_AVCC B03C (3x)
PCMCIA_VPP B03C (3x)
POWER_DOWN B02 (1x)
POWER_DOWN B04A (1x)
POWER_DOWN B06D (1x)
RD B04A (1x)
RD B04B (1x)
REMOTE B04A (3x)
RESET_FE_n B03B (1x)
RESET_FE_n B03D (1x)
RESET_n B03D (1x)
RESET_n B03E (1x)
RESET_STV B03C (1x)
RESET_STV B03D (1x)
RF_AGC B03A (2x)
RF_AGC_IBO B03A (1x)
RF_AGC_IBO B03B (1x)
RST B04A (1x)
RST B06C (1x)
RST_AUD B04A (1x)
RST_AUD B04C (1x)
RST_H B04A (1x)
RST_H B04B (1x)
RXD0 B03D (1x)
RXD0 B03F (1x)
SAW_SW B03A (1x)
SAW_SW B04A (1x)
SC1_AUDIO_IN_L B04C (1x)
SC1_AUDIO_IN_L B06B (1x)
SC1_AUDIO_IN_R B04C (1x)
SC1_AUDIO_IN_R B06B (1x)
SC1_AUDIO_MUTE_L B06B (1x)
SC1_AUDIO_MUTE_L B06D (1x)
SC1_AUDIO_MUTE_R B06B (1x)
SC1_AUDIO_MUTE_R B06D (1x)
SC1_AUDIO_OUT_L B04C (1x)
SC1_AUDIO_OUT_L B06B (2x)
SC1_AUDIO_OUT_R B04C (1x)
SC1_AUDIO_OUT_R B06B (2x)
SC1_B_IN B04B (1x)
SC1_B_IN B06B (2x)
SC1_CVBS_IN B04B (1x)
SC1_CVBS_IN B06B (1x)
SC1_CVBS_RF_OUT B04A (1x)
SC1_CVBS_RF_OUT B06B (1x)
SC1_FBL_IN B04B (1x)
SC1_FBL_IN B06B (2x)
SC1_G_IN B04B (1x)
SC1_G_IN B06B (2x)
SC1_R_IN B04B (1x)
SC1_R_IN B06B (2x)
SC1_RF_OUT_CVBS B04B (1x)
SC1_RF_OUT_CVBS B06B (1x)
SC1_STATUS B04A (1x)
SC1_STATUS B06B (1x)
SC2_AUDIO_IN_L B04C (1x)
SC2_AUDIO_IN_L B06B (2x)
SC2_AUDIO_IN_R B04C (1x)
SC2_AUDIO_IN_R B06B (2x)
SC2_AUDIO_MUTE_L B06B (1x)
SC2_AUDIO_MUTE_L B06D (1x)
SC2_AUDIO_MUTE_R B06B (1x)
SC2_AUDIO_MUTE_R B06D (1x)
SC2_AUDIO_OUT_L B04C (1x)
SC2_AUDIO_OUT_L B06B (1x)
SC2_AUDIO_OUT_R B04C (1x)
SC2_AUDIO_OUT_R B06B (1x)
SC2_C_IN B04B (1x)
SC2_C_IN B06B (2x)
SC2_CVBS_MON_OUT B04B (1x)
SC2_CVBS_MON_OUT B06B (1x)
SC2_CVBS_MON_OUT B06D (1x)
SC2_STATUS B04A (1x)
SC2_STATUS B06B (1x)
SC2_Y_CVBS_IN B04B (1x)
SC2_Y_CVBS_IN B06B (2x)
SDRAM_ADDR(0) B03D (1x)
SDRAM_ADDR(0) B03E (1x)
SDRAM_ADDR(0:14) B03D (1x)
SDRAM_ADDR(1) B03D (1x)
SDRAM_ADDR(1) B03E (1x)
SDRAM_ADDR(10) B03D (1x)
SDRAM_ADDR(10) B03E (1x)
SDRAM_ADDR(11) B03D (1x)
SDRAM_ADDR(11) B03E (1x)
SDRAM_ADDR(12) B03D (1x)
SDRAM_ADDR(12) B03E (1x)
SDRAM_ADDR(13) B03D (1x)
SDRAM_ADDR(13) B03E (1x)
SDRAM_ADDR(14) B03D (1x)
SDRAM_ADDR(14) B03E (1x)
SDRAM_ADDR(2) B03D (1x)
SDRAM_ADDR(2) B03E (1x)
SDRAM_ADDR(3) B03D (1x)
SDRAM_ADDR(3) B03E (1x)
SDRAM_ADDR(4) B03D (1x)
SDRAM_ADDR(4) B03E (1x)
SDRAM_ADDR(5) B03D (1x)
SDRAM_ADDR(5) B03E (1x)
SDRAM_ADDR(6) B03D (1x)
SDRAM_ADDR(6) B03E (1x)
SDRAM_ADDR(7) B03D (1x)
SDRAM_ADDR(7) B03E (1x)
SDRAM_ADDR(8) B03D (1x)
SDRAM_ADDR(8) B03E (1x)
SDRAM_ADDR(9) B03D (1x)
SDRAM_ADDR(9) B03E (1x)
SDRAM_CAS B03D (1x)
SDRAM_CAS B03E (1x)
SDRAM_CKE B03D (1x)
SDRAM_CKE B03E (1x)
SDRAM_CLK B03D (1x)
SDRAM_CLK B03E (1x)
SDRAM_DATA(0) B03D (1x)
SDRAM_DATA(0) B03E (1x)
SDRAM_DATA(0:15) B03D (1x)
SDRAM_DATA(1) B03D (1x)
SDRAM_DATA(1) B03E (1x)
SDRAM_DATA(10) B03D (1x)
SDRAM_DATA(10) B03E (1x)
SDRAM_DATA(11) B03D (1x)
SDRAM_DATA(11) B03E (1x)
SDRAM_DATA(12) B03D (1x)
SDRAM_DATA(12) B03E (1x)
SDRAM_DATA(13) B03D (1x)
SDRAM_DATA(13) B03E (1x)
SDRAM_DATA(14) B03D (1x)
SDRAM_DATA(14) B03E (1x)
SDRAM_DATA(15) B03D (1x)
SDRAM_DATA(15) B03E (1x)
SDRAM_DATA(2) B03D (1x)
SDRAM_DATA(2) B03E (1x)
SDRAM_DATA(3) B03D (1x)
SDRAM_DATA(3) B03E (1x)
SDRAM_DATA(4) B03D (1x)
SDRAM_DATA(4) B03E (1x)
SDRAM_DATA(5) B03D (1x)
SDRAM_DATA(5) B03E (1x)
SDRAM_DATA(6) B03D (1x)
SDRAM_DATA(6) B03E (1x)
SDRAM_DATA(7) B03D (1x)
SDRAM_DATA(7) B03E (1x)
SDRAM_DATA(8) B03D (1x)
SDRAM_DATA(8) B03E (1x)
SDRAM_DATA(9) B03D (1x)
SDRAM_DATA(9) B03E (1x)
SDRAM_DQM0 B03D (1x)
SDRAM_DQM0 B03E (1x)
SDRAM_DQM1 B03D (1x)
SDRAM_DQM1 B03E (1x)
SDRAM_RAS B03D (1x)
SDRAM_RAS B03E (1x)
SDRAM_WE B03D (1x)
SDRAM_WE B03E (1x)
SIDE_AUDIO_IN_L B04C (1x)
SIDE_AUDIO_IN_L B06A (1x)
SIDE_AUDIO_IN_R B04C (1x)
SIDE_AUDIO_IN_R B06A (1x)
SIF B03A (1x)
SIF B04C (1x)
SIF1 B03A (2x)
SIF2 B03A (2x)
STANDBY B02 (2x)
STANDBY B04A (2x)
STANDBY B06D (1x)
STANDBYn B04A (1x)
STANDBYn B04B (1x)
STANDBYn B07 (1x)
STV_A25 B03C (1x)
STV_A25 B03D (1x)
STV_CS B03C (1x)
STV_CS B03D (1x)
STV_INT B03C (1x)
STV_INT B03D (1x)
STV_TDO B03B (1x)
STV_TDO B03C (1x)
TDA_CLK B03B (1x)
TDA_CLK B03C (1x)
TDA_DAT(0) B03B (1x)
TDA_DAT(0) B03C (1x)
TDA_DAT(0:7) B03B (1x)
TDA_DAT(1) B03B (1x)
TDA_DAT(1) B03C (1x)
TDA_DAT(2) B03B (1x)
TDA_DAT(2) B03C (1x)
TDA_DAT(3) B03B (1x)
TDA_DAT(3) B03C (1x)
TDA_DAT(4) B03B (1x)
TDA_DAT(4) B03C (1x)
TDA_DAT(5) B03B (1x)
TDA_DAT(5) B03C (1x)
TDA_DAT(6) B03B (1x)
TDA_DAT(6) B03C (1x)
TDA_DAT(7) B03B (1x)
TDA_DAT(7) B03C (1x)
TDA_SYNC B03B (1x)
TDA_SYNC B03C (1x)
TDA_VALID B03B (1x)
TDA_VALID B03C (1x)
TS_CLK B03C (1x)
TS_CLK B03D (1x)
TS_DATA(0) B03C (1x)
TS_DATA(0) B03D (1x)
TS_DATA(0:7) B03D (1x)
TS_DATA(1) B03C (1x)
TS_DATA(1) B03D (1x)
TS_DATA(2) B03C (1x)
TS_DATA(2) B03D (1x)
TS_DATA(3) B03C (1x)
TS_DATA(3) B03D (1x)
TS_DATA(4) B03C (1x)
TS_DATA(4) B03D (1x)
TS_DATA(5) B03C (1x)
TS_DATA(5) B03D (1x)
TS_DATA(6) B03C (1x)
TS_DATA(6) B03D (1x)
TS_DATA(7) B03C (1x)
TS_DATA(7) B03D (1x)
TS_SYNC B03C (1x)
TS_SYNC B03D (1x)
TS_VALID B03C (1x)
TS_VALID B03D (1x)
TXAn B04B (2x)
TXAp B04B (2x)
TXBn B04B (2x)
TXBp B04B (2x)
TXCLKn B04B (2x)
TXCLKp B04B (2x)
TXCn B04B (2x)
TXCp B04B (2x)
TXD0 B03D (1x)
TXD0 B03F (1x)
TXDn B04B (2x)
TXDp B04B (2x)
user_EEPROM_WP B03D (1x)
user_EEPROM_WP B03E (1x)
VCCEN B03C (1x)
VDD B07 (3x)
VDDA B07 (2x)
VDISP B04B (2x)
VGA_H B04B (1x)
VGA_H B06A (1x)
VGA_V B04B (1x)
VGA_V B06A (1x)
VIF1 B03A (2x)
VIF2 B03A (2x)
VIM_IBO B03A (1x)
VIM_IBO B03B (1x)
VIP_IBO B03A (1x)
VIP_IBO B03B (1x)
VSS B07 (3x)
VSSA B07 (5x)
WR B04A (1x)
WR B04B (1x)
1.1. Introduction
SRP (Service Reference Protocol) is a software tool that creates a list with all references to signal lines. The list contains
references to the signals within all schematics of a PWB. It replaces the text references currently printed next to the signal
names in the schematics. These printed references are created manually and are therefore not guaranteed to be 100%
correct. In addition, in the current crowded schematics there is often none or very little place for these references.
Some of the PWB schematics will use SRP while others will still use the manual references. Either there will be an SRP
reference list for a schematic, or there will be printed references in the schematic.
1.2. Non-SRP Schematics
There are several different signals available in a schematic:
1.2.1. Power Supply Lines
All power supply lines are available in the supply line overview (see chapter 6). In the schematics (see chapter 7) is not
indicated where supplies are coming from or going to.
It is however indicated if a supply is incoming (created elsewhere), or outgoing (created or adapted in the current schematic).
+5V +5V
Outgoing Incoming
1.2.2. Normal Signals
For normal signals, a schematic reference (e.g. B14b) is placed next to the signals.
signal_name
B14b
1.2.3. Grounds
For normal and special grounds (e.g. GNDHOT or GND3V3 etc.), nothing is indicated.
1.3. SRP Schematics
SRP is a tool, which automatically creates a list with signal references, indicating on which schematic the signals are used.
A reference is created for all signals indicated with an SRP symbol, these symbols are:
+5V +5V
Power supply line.
name name
Stand alone signal or switching line (used as less as possible).
name name
Signal line into a wire tree.
name name
Switching line into a wire tree.
name
Bi-directional line (e.g. SDA) into a wire tree.
name
Signal line into a wire tree, its direction depends on the circuit (e.g. ingoing for PDP, outgoing for LCD sets).
Remarks:
• When there is a black dot on the "signal direction arrow" it is an SRP symbol, so there will be a reference to the signal
name in the SRP list.
• All references to normal grounds (Ground symbols without additional text) are not listed in the reference list, this to keep
it concise.
• Signals that are not used in multiple schematics, but only once or several times in the same schematic, are included
in the SRP reference list, but only with one reference.
Additional Tip:
When using the PDF service manual file, you can very easily search for signal names and follow the signal over all the
schematics. In Adobe PDF reader:
• Select the signal name you want to search for, with the "Select text" tool.
• Copy and paste the signal name in the "Search PDF" tool.
• Search for all occurrences of the signal name.
• Now you can quickly jump between the different occurrences and follow the signal over all schematics. It is advised to
"zoom in" to e.g. 150% to see clearly, which text is selected. Then you can zoom out, to get an overview of the complete
schematic.
PS. It is recommended to use at least Adobe PDF (reader) version 6.x, due to better search possibilities in this version.
52LC7.1E LA 7.
Circuit Diagrams and PWB Layouts
Layout Small Signal Board (Overview Top Side)
3139 123 6261.1
G_16860_016.eps
240107
Part 1
G_16860_016a.eps
Part 2
G_16860_016b.eps
Part 4
G_16860_016d.eps
Part 3
G_16860_016c.eps
1101 E3
1102 E6
1103 E6
1104 D6
1201 D7
1210 A7
1211 A7
1212 A7
1213 A7
1214 A7
1301 B6
1304 A9
1305 A8
1306 A8
1307 A8
1308 A8
1309 A8
1310 A8
1311 A5
1312 B5
1500 E10
1501 E10
1502 E9
1503 E10
1504 D9
1505 E9
1506 D10
1507 E9
1508 D10
1509 D9
1510 D10
1511 D9
1512 D9
1513 D10
1514 D10
1515 D10
1516 D9
1517 D9
1518 C10
1519 D9
1520 D9
1521 C10
1522 D9
1523 C9
1524 C9
1525 B10
1526 F10
1601 F6
1603 F6
1606 F10
1607 F10
1608 F6
1609 F6
1610 F9
1611 F9
1612 F6
1613 F9
1614 F6
1615 F9
1618 F6
1619 F10
1735 A10
1810 F7
1811 F8
1823 E8
1900 B9
1901 B10
1B11 A2
1C01 A3
1G03 B1
1G04 B2
1G50 A7
1G51 A7
1K00 E5
1M20 A8
1P11 A5
2110 E6
2111 E6
2114 E6
2117 E6
2127 D6
2128 D6
2129 D6
2130 D6
2134 D6
2135 D6
2138 D6
2142 E5
2143 D6
2144 D6
2151 D5
2208 A6
2209 A6
2211 C6
2212 C6
2214 C6
2215 C6
2242 C6
2243 C6
2246 D7
2247 D7
2250 D7
2251 D7
2252 D7
2253 D7
2254 D7
2255 D7
2256 D7
2257 D7
2259 D7
2260 D7
2261 D7
2262 A7
2263 A7
2264 A7
2265 A7
2267 D7
2268 D6
2273 D6
2277 D7
2283 A7
2285 A7
2311 A8
2314 B6
2315 A6
2316 B6
2317 B6
2319 B8
2327 A8
2328 A8
2329 A8
2330 A8
2331 A8
2332 A8
2333 A8
2334 A8
2335 A8
2336 A8
2337 A8
2339 A8
2340 A8
2408 B8
2409 B8
2410 B8
2411 C8
2412 C8
2413 C8
2414 C8
2417 C8
2418 C8
2419 C8
2420 B8
2421 C8
2422 C8
2423 B8
2432 C8
2433 C8
2434 C8
2435 C8
2436 C8
2437 C8
2438 C8
2439 B8
2440 B8
2441 C8
2442 C8
2443 C8
2444 C7
2445 C8
2446 C8
2447 C8
2600 F6
2601 F6
2609 F6
2613 E6
2614 E6
2615 F6
2616 F6
2617 F6
2801 F8
2802 F8
2805 F9
2806 E9
2807 F9
2808 F9
2809 F7
2810 F7
2811 E9
2812 E9
2813 E8
2814 E9
2815 E9
2828 E8
2901 B9
2902 B9
2903 B9
2906 B9
2907 B9
2909 B10
2910 B10
2911 B10
2912 B10
2940 B10
2A01 A9
2A02 A9
2A04 B9
2A08 A9
2A09 A9
2A10 B9
2A11 A9
2A12 A9
2A13 A10
2A14 A10
2A15 A8
2A16 B8
2A17 A10
2A18 A9
2A19 B9
2A20 B8
2A22 B9
2A23 A10
2A24 B9
2A26 A10
2A28 A10
2A29 B9
2A30 A9
2A32 B9
2A33 A9
2A34 A9
2A37 A10
2A38 A10
2A40 A9
2A41 A9
2B10 B4
2B11 B4
2B12 B3
2B13 B4
2B14 A3
2B15 A3
2B16 B3
2B18 C5
2B19 B5
2B20 B5
2B21 D5
2B22 A3
2B23 D3
2B24 A2
2B26 C3
2C55 A3
2C56 A3
2C57 A3
2C58 A5
2C59 A4
2C60 A3
2C61 A3
2F10 D3
2F11 D3
2F12 F3
2F13 F3
2F20 D3
2F21 D3
2F22 E3
2G02 C3
2G17 B1
2G18 C1
2G22 D3
2G23 D1
2G24 B1
2G33 B2
2G34 C1
2H06 C3
2H07 D1
2H08 D3
2J01 B1
2J04 D3
2J05 D3
2J06 D3
2K06 F1
2K07 E1
2K11 D3
2K13 D3
2K14 F2
2K16 F3
2K17 F3
2L20 A9
2L21 A8
2L22 A8
2L23 A8
2L24 A9
2L25 A9
2L26 A9
2L27 A9
2L28 A9
2L29 A9
2L30 A9
2L31 A9
2L32 A9
2L33 A9
3113 E6
3116 E6
3117 E6
3118 E6
3119 E6
3122 E6
3125 D6
3126 D6
3130 D5
3133 D6
3135 D6
3201 B7
3202 B7
3203 B7
3204 B7
3212 B7
3213 A6
3215 B7
3216 A6
3223 A7
3224 A7
3225 A7
3226 A7
3227 A7
3229 D7
3231 D7
3232 D7
3233 A8
3235 A8
3238 A8
3239 D6
3240 D7
3246 A7
3247 A7
3266 C6
3268 C6
3271 C6
3272 D6
3304 B6
3319 A6
3325 A6
3327 A6
3328 B8
3329 A6
3330 A8
3336 B8
3337 A8
3344 B6
3350 B6
3351 B6
3352 B6
3354 B7
3356 B7
3361 B6
3365 B6
3366 B6
3367 B6
3369 B6
3370 B6
3371 B7
3373 B7
3381 B7
3383 A7
3384 B7
3386 B6
3387 B6
3388 B6
3389 A8
3390 A8
3391 A8
3392 A8
3398 A7
3399 A7
3402 C8
3410 C8
3411 C8
3416 C8
3600 F6
3602 F6
3604 F6
3609 F6
3613 F6
3615 E6
3616 F6
3620 F6
3621 F6
3622 F6
3623 E6
3624 F6
3625 E6
3803 F8
3804 E9
3805 E9
3806 E9
3807 E8
3809 F7
3811 E8
3815 E8
3819 E8
3828 E7
3833 E7
3834 E7
3835 E7
3846 E7
3850 F7
3851 E7
3852 E7
3853 E7
3854 E8
3855 E8
3856 E8
3857 E8
3858 E8
3859 E8
3860 E7
3862 F7
3863 F7
3880 F8
3881 F8
3896 E7
3897 E7
3901 B9
3902 B9
3903 B9
3904 B9
3907 B9
3909 B10
3910 B10
3942 B10
3943 B10
3A01 A9
3A02 A9
3A03 A8
3A04 A9
3A05 A9
3A06 A8
3A07 B8
3A08 B9
3A11 B8
3A13 B9
3A14 A10
3A19 A9
3A26 A8
3A27 A9
3A28 A9
3A29 A9
3A30 A9
3A31 A9
3B10 B3
3B11 A3
3B12 A3
3B13 B5
3B14 A3
3B15 B5
3B17 A3
3B18 A3
3B19 A3
3G15 B1
3G19 B1
3G48 B1
3G56 D1
3G57 D1
3G58 D1
3G59 D1
3G60 D2
3G61 D2
3G65 B1
3J01 D3
3J02 D3
3J03 D3
3K00 F2
3K01 F2
3K02 E3
3K03 F3
3K05 E3
3K09 F2
3K12 F2
3K15 E1
3K16 E2
3K18 F2
3K21 F2
3K25 E2
3K26 E2
3K27 F1
3K28 E2
3K29 E1
3K30 E2
3K31 E2
3K32 E2
3K33 E1
3K34 F1
3K49 E2
3K50 E2
3K51 E1
3K52 F1
3L06 B6
3L07 B6
3L08 A6
3L09 B6
3L10 A8
3L12 B6
3L13 B6
3L20 A8
3L21 A9
3L22 A9
3L23 A9
3L24 A9
3L25 A9
3L26 B6
4110 E6
4111 E6
4117 E5
4120 E5
4124 D6
4203 A6
4204 A6
4205 A6
4206 A6
4208 D7
4209 D7
4214 A6
4215 A6
4301 B6
4302 A8
4303 A8
4308 B7
4309 A8
4310 A8
4314 B6
4315 B6
4401 A8
4402 A8
4403 B8
4406 C8
4601 F6
4602 F6
4603 C8
4604 C8
4802 E8
4803 F8
4902 B9
4903 B9
4B01 B4
4C01 A5
4C55 A3
4C56 A3
4C57 A4
4C58 A4
4C59 A4
4C60 A4
4C61 A3
4C62 A3
4H01 D2
4H02 D2
4H03 D3
4H04 D2
4H05 D2
4L20 A8
4L21 A9
4L24 A9
4L25 A9
5110 E6
5111 E6
5113 E6
5114 D6
5116 D6
5210 C6
5302 A8
5304 A8
5401 C8
5402 C8
5403 C8
5A03 A10
5A04 B10
5A05 A9
5A06 A9
5B01 B3
5B02 B4
5B03 B3
5B04 B5
5B05 B4
5B06 A5
5B10 A4
5B11 A5
5F10 D3
5F11 D3
5G01 C3
5G02 C3
5G04 D3
5H01 D3
5H02 D1
5K03 F1
5K04 D2
5K05 D3
6103 E6
6301 A6
6302 B8
6303 B8
6304 B8
6308 A8
6309 A8
6310 A8
6311 A8
6312 A8
6313 A8
6604 F6
6605 F6
6606 F6
6607 F6
6615 E6
6B01 B3
6B02 B5
6B03 B5
6J03 D3
7109 E6
7113 D6
7114 D6
7202 C7
7207 A6
7311 B7
7312 A6
7313 A8
7316 B7
7410 B8
7601 F6
7810 E8
7812 E7
7813 E7
7814 F7
7817 E7
7824 F7
7825 F7
7851 E7
7852 E7
7860 F8
7922 B10
7A01 A9
7A05 A9
7A06 A9
7A07 A9
7B01 B3
7B03 B5
7B04 C4
7B05 A3
7G00 C2
7G06 C1
7H00 D2
7H02 C3
7J04 D3
7J05 D3
7K00 F2
7K04 F3
Circuit Diagrams and PWB Layouts 53LC7.1E LA 7.
Layout Small Signal Board (Part 1 Top Side)
G_16860_016a.eps
240107
Part 1
54LC7.1E LA 7.
Circuit Diagrams and PWB Layouts
Layout Small Signal Board (Part 2 Top Side)
G_16860_016b.eps
240107
Part 2
Circuit Diagrams and PWB Layouts 55LC7.1E LA 7.
Layout Small Signal Board (Part 3 Top Side)
G_16860_016c.eps
240107
Part 3
56LC7.1E LA 7.
Circuit Diagrams and PWB Layouts
Layout Small Signal Board (Part 4 Top Side)
G_16860_016d.eps
240107
Part 4
Circuit Diagrams and PWB Layouts 57LC7.1E LA 7.
Layout Small Signal Board (Overview Bottom Side)
3139 123 6261.1
G_16860_017.eps
240107
Part 1
G_16860_017a.eps
Part 2
G_16860_017b.eps
Part 4
G_16860_017d.eps
Part 3
G_16860_017c.eps
1001 F9
1002 F9
1215 D4
1216 C4
1302 F7
1303 F7
1314 F7
1411 C3
1G01 C10
1J14 F9
2112 F7
2113 E7
2115 F6
2116 F6
2118 E6
2119 E6
2120 E6
2121 F6
2122 E6
2123 D5
2124 D5
2125 D5
2126 D5
2131 E7
2132 E7
2133 D5
2136 D5
2137 D5
2139 D5
2140 D5
2141 D5
2145 D5
2146 F6
2147 E6
2148 E7
2149 F7
2205 D4
2206 D4
2207 A5
2210 A5
2213 B5
2216 C4
2217 D6
2218 C5
2219 D5
2220 C5
2221 D5
2222 D5
2223 D5
2224 C5
2225 C5
2226 C5
2227 C5
2228 C5
2229 D5
2230 C4
2231 C4
2232 C4
2233 C4
2234 C4
2235 C4
2236 C4
2237 C4
2238 C4
2239 B4
2240 C4
2241 B5
2244 D5
2245 B4
2248 A5
2258 D4
2266 C4
2269 D4
2270 C4
2271 C4
2272 D4
2274 C4
2275 D4
2276 D4
2278 C4
2279 D4
2280 D4
2281 C4
2282 D4
2284 D5
2286 C4
2287 D4
2288 D4
2289 D5
2290 C4
2291 D4
2292 C4
2293 D4
2294 D4
2295 C5
2296 C5
2297 C4
2298 B4
2310 A4
2312 B4
2313 B4
2318 A4
2320 B5
2321 B4
2322 B4
2323 B4
2324 B5
2325 B4
2326 B4
2338 A4
2415 D3
2416 D3
2424 B3
2425 B3
2426 B3
2427 B3
2428 B3
2429 B3
2430 B3
2431 B3
2502 E2
2506 E2
2508 E3
2509 E1
2512 E1
2514 E3
2515 E2
2517 E2
2518 D1
2520 D1
2521 E2
2523 E2
2524 D2
2525 C2
2526 C2
2527 D3
2528 D3
2529 D3
2530 C1
2531 D2
2533 D3
2534 D3
2535 C3
2536 C2
2538 C2
2602 F1
2603 F2
2606 F2
2607 F2
2608 F2
2610 F2
2612 F2
2803 F3
2804 F4
2816 E3
2817 E3
2818 E4
2819 E4
2829 F3
2830 F3
2833 F3
2835 F4
2836 E4
2838 E4
2839 E3
2840 E3
2843 F3
2844 F3
2845 E3
2847 F3
2848 F3
2849 F3
2850 F4
2851 F3
2852 E4
2853 E3
2854 E3
2855 E3
2856 E4
2857 E4
2858 E3
2859 F4
2860 F4
2861 E3
2865 F4
2866 F4
2867 F4
2868 F4
2869 F4
2870 E4
2871 E4
2872 E3
2873 E3
2874 E3
2875 F3
2876 E4
2904 C2
2905 C2
2908 B2
2913 B2
2A21 A2
2A25 A2
2A27 B2
2A31 B2
2A35 A2
2A36 B2
2A45 A1
2A46 A2
2A47 A2
2B17 C7
2B25 C7
2F14 E8
2F15 E8
2F16 E8
2F17 E8
2F18 E7
2F19 F8
2F23 F8
2F24 E8
2F25 E8
2F26 F7
2F27 E7
2F28 E7
2F29 E7
2F30 E7
2F31 E7
2F32 E7
2F33 E7
2G03 C9
2G04 D9
2G05 D10
2G06 C9
2G07 C9
2G08 C9
2G09 C10
2G10 C10
2G11 D9
2G12 C9
2G13 D9
2G14 C9
2G15 C9
2G16 C10
2G19 B9
2G20 B9
2G21 C9
2G31 C9
2G32 C9
2H03 C8
2H04 D9
2H09 C8
2H10 C8
2H11 C8
2H12 C8
2H13 C8
2H14 B9
2H15 B9
2J02 B9
2J14 F9
2J15 F9
2J60 C9
2J62 C9
2J63 C9
2J64 C9
2J66 C9
2J67 C9
2J68 C8
2J69 C8
2J70 C8
2J71 C9
2J72 C9
2J73 C9
2K00 D10
2K01 D9
2K02 E9
2K03 E9
2K04 D9
2K05 E9
2K08 F9
2K09 F9
2K10 E9
2K12 F9
2K15 D10
3110 E7
3111 E7
3115 E7
3120 E6
3121 F6
3123 D5
3124 D5
3127 D5
3128 D5
3129 D5
3131 E6
3132 F6
3134 E7
3136 E6
3137 E7
3210 A5
3211 B5
3217 A5
3219 C4
3220 C4
3221 C4
3222 C4
3228 D4
3230 D4
3241 C4
3242 C4
3243 C4
3244 D4
3245 C4
3248 D4
3250 D4
3251 D4
3253 D4
3254 D4
3255 D5
3256 D5
3257 D4
3258 D4
3260 D6
3261 C6
3262 D6
3263 C5
3264 C5
3265 C5
3267 C5
3273 D3
3274 D3
3275 D3
3276 D3
3300 B4
3303 A4
3305 A5
3306 B5
3307 B5
3308 A5
3309 A5
3310 A4
3311 A4
3312 A4
3313 A4
3314 A4
3315 A4
3316 B4
3317 A4
3318 B4
3320 A4
3321 B4
3322 A4
3323 B4
3324 A4
3326 B3
3331 A4
3332 A4
3333 A4
3334 A4
3335 A4
3338 A4
3339 A4
3340 A4
3341 A4
3342 A4
3343 F7
3345 F7
3346 B4
3347 B4
3348 B4
3349 B4
3353 B5
3355 B5
3357 B5
3358 B5
3359 B5
3360 B4
3362 A5
3363 A4
3364 A4
3368 A4
3372 B4
3374 A5
3375 B4
3376 A4
3377 B4
3378 B4
3379 B4
3380 A4
3382 B4
3385 B4
3393 A4
3394 A4
3395 A4
3396 A5
3397 B4
3417 B3
3418 B3
3419 B3
3420 B3
3500 E2
3502 E2
3503 E3
3506 E1
3507 E3
3508 E1
3510 E2
3511 E2
3512 D1
3513 D1
3514 E2
3515 E2
3516 D3
3517 D3
3518 D2
3519 C2
3520 D2
3521 C2
3522 C2
3523 D3
3524 C3
3525 C2
3526 D3
3528 D3
3529 C1
3530 D3
3531 C1
3532 D2
3533 D2
3535 C3
3536 C3
3537 C3
3538 C2
3540 C3
3545 C2
3546 C2
3550 D2
3551 D2
3552 D2
3553 D2
3554 C3
3555 C2
3601 F1
3603 F2
3605 F2
3607 F2
3608 F2
3611 F2
3612 F2
3617 F1
3618 F2
3619 F2
3801 F3
3802 F3
3810 F3
3830 F4
3831 F4
3832 F4
3864 E3
3877 E3
3882 E3
3883 E3
3884 E3
3885 E3
3886 E3
3905 C2
3906 B2
3908 C2
3911 B1
3912 B1
3913 E1
3914 B1
3915 E1
3916 C1
3917 B1
3918 B1
3934 B1
3935 C1
3937 B1
3938 B1
3940 B1
3A09 A2
3A12 A2
3A15 B2
3A17 B2
3F10 C9
3F11 C8
3F12 C9
3F13 C9
3F14 F7
3F15 F7
3F16 F7
3F17 F7
3F18 F7
3F19 E7
3F20 E7
3F21 F8
3F22 E7
3F23 E7
3F24 E7
3F25 E7
3F26 E7
3F27 E7
3F28 E7
3F29 E7
3F30 F8
3F31 F8
3F32 F8
3F33 F8
3F34 F8
3F40 F7
3F41 E7
3F42 E7
3F44 F7
3F46 E7
3F48 E7
3G11 B10
3G12 D10
3G16 C10
3G17 C10
3G18 C10
3G20 D9
3G28 C9
3G29 C9
3G30 C9
3G31 C9
3G33 B10
3G34 B10
3G35 C10
3G36 C9
3G37 C9
3G38 B10
3G40 C9
3G41 C10
3G43 C10
3G44 C10
3G46 C10
3G47 C10
3G51 C9
3G54 B9
3G55 B9
3G62 D9
3G63 C10
3H00 D9
3H05 D10
3H09 B9
3H10 B9
3H11 B9
3H12 B9
3H13 B9
3H14 C9
3J14 F9
3J15 F9
3J59 C9
3J60 C9
3J61 C9
3J62 C8
3J63 C8
3J64 C8
3J65 C9
3J66 C9
3K04 E9
3K06 E9
3K07 E8
3K08 D8
3K10 E9
3K11 F9
3K13 F9
3K17 E8
3K19 E9
3K20 E9
3K22 F9
3K23 D10
3K24 D10
3K38 E9
3K39 E8
3K40 E8
3K41 E8
3K42 E8
3K43 E8
3K44 E10
3K45 E10
3K46 E9
3K47 E9
3K48 E9
3L01 B4
3L02 B4
3L04 A4
3L05 A4
3L11 A5
3L14 B5
3L15 B4
4112 E7
4113 E6
4114 F6
4115 F6
4116 E6
4118 E6
4119 E6
4121 E6
4122 F6
4123 F6
4125 F7
4207 C4
4210 C4
4211 D4
4212 D4
4213 C4
4306 A5
4307 A5
4313 B4
4316 B5
4323 B4
4324 D3
4325 D3
4407 D4
4408 D4
4409 D3
4410 D3
4411 D3
4412 D3
4502 C2
4504 C3
4804 F4
4805 F3
4901 B1
4A01 A2
4A02 A2
4F11 E7
4F12 E7
4G01 C10
4G02 C10
4G03 C10
4G04 C10
4G05 C10
4G09 D9
4G10 C10
4G31 C9
4H00 D9
4H12 B9
4H15 D10
4J14 F9
4J15 F9
5112 E6
5115 E7
5117 D5
5118 D6
5120 E6
5121 F6
5211 A5
5212 D5
5213 C4
5214 C4
5215 A5
5216 C4
5217 A5
5218 D4
5219 D4
5220 C4
5221 C4
5222 C4
5223 D5
5224 C4
5225 C4
5226 C4
5227 C4
5228 C4
5301 B4
5810 E3
5811 F4
5812 E4
5813 E4
5814 E3
5815 F3
5816 E3
5817 E3
5818 E3
5A07 A2
5G03 B9
5H03 C9
5J01 B9
5J52 C9
5J53 C9
5J54 C8
5J55 C9
5K01 E9
5K02 E9
6110 E7
6201 A5
6202 A5
6305 B5
6306 F7
6307 F6
6317 A4
6318 A4
6501 E1
6504 E2
6505 D1
6507 E2
6509 D2
6510 C1
6511 C2
6512 D2
6513 D2
6514 D3
6515 D3
6516 D3
6517 D3
6518 E3
6519 D3
6520 D2
6521 D2
6522 E1
6523 E2
6524 D2
6525 C2
6610 F1
6611 F2
6612 F2
6613 F2
6614 F2
6801 F4
6802 F3
6830 F4
6831 F4
6914 C1
6916 B1
6919 B1
6J14 F9
6J15 F9
6J60 C9
6J61 C8
6J62 C8
6J63 C9
7111 F7
7131 E6
7132 F6
7133 D6
7203 C4
7204 D5
7205 C5
7206 C4
7208 A5
7210 A5
7211 D4
7213 D3
7214 D3
7308 A4
7310 B3
7314 B5
7315 B5
7317 A4
7320 A5
7321 A5
7322 A5
7323 B4
7411 C3
7500 C2
7502 C2
7503 C3
7504 C3
7811 F3
7816 E3
7850 F4
7861 E3
7901 B2
7902 B1
7911 B1
7912 B1
7913 E2
7914 B1
7915 E1
7916 C1
7917 B1
7919 B1
7B02 C6
7B06 D7
7B08 C7
7F01 F8
7F02 C8
7F03 F7
7F04 E7
7H03 B10
7K01 D9
7K02 D9
7K03 D10
7K05 F9
58LC7.1E LA 7.
Circuit Diagrams and PWB Layouts
Layout Small Signal Board (Part 1 Bottom Side)
Part 1
G_16860_017a.eps
050307
Circuit Diagrams and PWB Layouts 59LC7.1E LA 7.
Layout Small Signal Board (Part 2 Bottom Side)
Part 2
G_16860_017b.eps
050307
60LC7.1E LA 7.
Circuit Diagrams and PWB Layouts
Layout Small Signal Board (Part 3 Bottom Side)
Part 3
G_16860_017c.eps
050307
Circuit Diagrams and PWB Layouts 61LC7.1E LA 7.
Layout Small Signal Board (Part 4 Bottom Side)
G_16860_017d.eps
050307
Part 4
62LC7.1E LA 7.
Circuit Diagrams and PWB Layouts
Side A/V Panel
HEADPHONE
R
L
CVBS
SVHS
SIDE FACING SIDE AV
TO 1M60 OF EBJ SSB
USB
TO 1M36 OF BJ/EBJ SSB
TO 1H01 OF BJ SSB /
2313
2314
3314
3315
3308
3310
3309
3311
EBJ 2K7 BJ 2K7
NA 680p
NA 680p
NA 33K
NA 33K
100R 1K
100R 1K
100K NA
100K NA
DIVERSITY TABLE
**
** **
**
**
** **
**
**
LC07
1n
1n
150R
150R
33K
33K
**
**
2305
2306
100p 100p
100p 100p
1n
1n
NA
NA
S305 E2
S306 F2
S307 F2
S308 F2
S310 E8
S311 E8
S312 E8
6301 B3
6302 B3
6303 C3
6304 D3
6305 E3
6306 F3
6307 F3
I303 A3
I306 C2
I308 D2
I309 E2
I311 F2
I312 F2
I314 B7
I315 B7
I316 B7
I317 B7
I318 C7
I319 C7
I320 C7
I321 B9
I325 D8
I326 D8
I327 E8
I328 E8
I330 D7
I331 D7
I332 E7
S301 A2
S302 A2
S303 C2
S304 D2
A
B
C
D
E
F
A
B
C
D
E
F
1301 A1
1302-1 C1
1302-2 D1
1302-3 E1
1303 E1
1304 B9
1308 D9
1309 D7
1310 D9
2301 A4
2302 A4
2303 A2
2304 B4
2305 D4
2306 E4
2307 F4
2308 F4
2309 F4
2310 F4
123456789
123456789
2311 C2
2312 D8
2313 D3
2314 E3
3301 B2
3302 A4
3303 A4
3304 A5
3305 B4
3306 B5
3307 C5
3308 D4
3309 D4
3310 E4
3311 E4
3312 F5
3313 F5
3314 D4
3315 E4
4301 D2
4302 D2
4303 E8
4304 A5
4306 B5
4307 C5
4308 F4
4309 F4
4310 E7
4311 E7
5300 D7
2313 3314
2314 3315
3
4
5
7
8
YKB21-5101A
1303
1
2
1
2
3
1310
B3B-PH-K
2312 100u
16V
4311
22p
2311
4310
I330
I331
I332
1
2
3
4
5
5300 220R
B5B-PH-K
1309
I328
I326
I327
I325
I311
I312
I309
I308
3
12
6306
DF3A6.8
3
12
DF3A6.8
6307
4307
6305
DF3A6.8
3
12
3
1212
DF3A6.8
6304 6303
DF3A6.8
3
4303
S312
S310
S311
1
2
3
4
56
292303-4
1308
4304
4306
100R
3304
3306
100R
47p
23022301
47p
47p
2304
2303
22p
10R
3305
12
3303
10R
DF3A6.8
6301
3
4302
12
4301
6302
DF3A6.8
3
33133312
10K 10K10n
2310
4309
2309
10n
4308
3310
3
4
2
3308
1301
YKF51-5564
5
1
I306
I303
S302
1
2100R
3307
1302-1
YELLOW
3302
75R
S301
S303
9
7
8
6
4
5
1302-3
RED
1302-2
WHITE
23053309
S304
23063311
S305
I317
I320
I319
I321
I314
I315
8
9
1
10
11
2
3
4
5
6
7
1304
2308
22n
S306
22n
2307
S307
I316
S308
I318
75R
3301
C
FRONT_Y_CVBS_IN
Y_CVBS
FRONT_DETECT
FRONT_C_IN
L_FRONT_IN
R_FRONT_IN
HEAD_PH_R
HEAD_PH_L
D D
G_16850_023.eps
110107
3139 123 6229.1
Circuit Diagrams and PWB Layouts 63LC7.1E LA 7.
Layout Side A/V Panel (Top Side)
Layout Side A/V Panel (Bottom Side)
1301 A1 1302 A2 1303 A3 1304 A2 1308 A4 1309 A3 1310 A3
G_16850_026.eps
120107
3139 123 6229.1
G_16850_027.eps
020207
3139 123 6229.1
2301 A4
2302 A4
2303 A4
2304 A3
2305 A3
2306 A3
2307 A2
2308 A2
2309 A2
2310 A2
2311 A4
2312 A1
2313 A3
2314 A3
3301 A4
3302 A4
3303 A4
3304 A4
3305 A3
3306 A3
3307 A3
3308 A3
3309 A3
3310 A3
3311 A3
3312 A2
3313 A2
3314 A3
3315 A3
4301 A3
4302 A3
4303 A1
4304 A4
4306 A3
4307 A3
4308 A2
4309 A2
4310 A1
4311 A1
5300 A2
6301 A4
6302 A4
6303 A4
6304 A3
6305 A2
6306 A2
6307 A2
64LC7.1E LA 7.
Circuit Diagrams and PWB Layouts
Keyboard Control Panel
KEYBOARD CONTROL
Diversity Resistor
RES
VOLUME-
VOLUME+
MENU
CHANNEL-
CHANNEL+
ON / OFF
0R
0R
0R
*LC06 Jaguar
3012
3014
3011
3013
3010
150R
390R
560R
1K8
820R
6011
6013
6012
YES
NO
YES
NO
YES
NO
RES
150R
390R
560R
1K8
820R
1234
1234
A
B
C
D
A
B
C
D
1001 C1
1002 C1
1003 C1
1004 C2
1005 C2
1011 C1
1012 C1
1013 C2
1014 C2
1015 C2
1016 C3
1M01 A4
2001 B3
3010 B1
3011 B2
3012 B2
3013 B1
3014 B2
3015 B1
3016 B2
3017 B2
3099 D1
4001 B4
5001 B4
6011 B3
6012 C3
6013 B3
6014 C1
6015 C1
6016 C1
6017 C2
6018 C2
F001 B4
F002 B3
F310 D1
F311 D1
I110 B3
I111 B1
I112 B1
I113 B2
I114 B2
I115 B2
I116 C1
I117 C2
I118 C2
SKQNAB
1005
1004
1003
1002
1001
6018 BZX384-C5V6
BZX384-C5V66017
6014 BZX384-C5V6
6016 BZX384-C5V6
BZX384-C5V66015
5001
4001
270R
1K8
3012
820R
3014
560R
3011
390R
3010
150R
3013
BZX384-C3V9
6013
2001
470p
BZX384-C3V9
1
2
3
6012
S3B-PH-K
1M01
3016
3017
3015
BZX384-C3V9
6011
I118I116 I117
I110
1016
SKQNAB
1015
SKQNAB
1014
SKQNAB
SKQNAB
1013
1012
SKQNAB
I115I114I112 I113I111
F002
F001
1011
F310 F311
3099
KEYBOARD
E E
G_16850_024.eps
110107
3139 123 6219.1
Personal Notes:
E_06532_012.eps
131004
Circuit Diagrams and PWB Layouts 65LC7.1E LA 7.
Layout Keyboard Control Panel (Top Side)
Layout Keyboard Control Panel (Bottom Side)
1011 A5 1012 A6 1013 A3 1014 A2 1015 A1 1016 A7 1M01 A8
G_16850_028.eps
120107
3139 123 6219.1
G_16850_029.eps
020207
3139 123 6219.1
2001 A1
3010 A4
3011 A6
3012 A8
3013 A5
3014 A7
3015 A3
3016 A6
3017 A7
3099 A8
4001 A1
5001 A1
6011 A2
6012 A3
6013 A1
6014 A4
6015 A3
6016 A5
6017 A6
6018 A8
66LC7.1E LA 7.
Circuit Diagrams and PWB Layouts
Front IR / LED Panel
IR/LED/LIGHT-SENSOR
LS
RESERVED
RES
0R
RES
Bi- LED
ITV
RES
ITV
RES
IR Tx
ITV
MFD
MFD
MFD
MFD ITVREF
820R 180R3013
YN4010
YN4015
NY4013
NY4014
NY4011
N Bi-GR/RD6001
BLUE LED N6010
RED LED N6011
N IR ED6002
YN4017
RES
RES
ITV
ITV
MFD
YN4012
RES
RES
RES
ITV
MFD
ITV
FOR LIGHT SENSOR ONLY
YN4018
YN4019
3K3 82R
3012
F015 E2
F016 E2
12345
12345
A
B
C
D
E
F
A
B
C
D
E
F
1M01 E1
1M20 E1
1M21 E1
2001 A2
2002 D2
3010 A2
S7B-PH-K
3011 A2
3012 B4
3013 B4
3014 B2
3015 C2
3016 C3
3017 D2
3018 D3
3019 E3
3020 E3
3021 C3
3022 C5
4010 A4
4011 B5
4012 D3
4013 D4
4014 D5
4015 D5
4016 D2
4017 B4
4018 B4
4019 B5
6001-1 D5
6001-2 D4
6002 B4
6010 B3
6011 B4
6012 B2
6013 B3
6014 D2
6015 E2
6016 E2
7010 B1
7011 C4
7012 B5
7013 C2
7014 C2
F010 E2
F011 E2
F012 E2
F013 E2
F014 E2
4018
4019
1
2
L-174A2F3BT
6002
10K
3022
3021
10K
4017 4010
4011
6001-2
SPR-325MVW
GREEN
32
SPR-325MVW
RED
12
4015
6001-1
4012
4014
L-934F3BT
4013
6013
BZX384-C5V6
6014
F010
F011
F012
F014
F013
F016
F015
1
2
3
4
5
6
S6B-PH-K
1M21
2M2
3016
6012
BZX384-C4V7
BZX384-C4V7
6015
6016
BZX384-C4V7
BC847B
7012
1
3
2
7011
BC847B
820R
22u
2001
3013
4016
6K8
3012
+5V_STANDBY
3014
10K 6K8
3011
330R
3010
GP1UE260RKVF
7010
3
GND
4
5
1
OUT
2
VS
+5V_STANDBY+5V_STANDBY
BPW34
7013
4M7
3018
2002
1u0
3015
3017
10K
7014
+5V_STANDBY +5V_STANDBY
BC847B
3019 150R
1
2
150R3020
L-174A2PBC-A
6010
BLUE
L-174A2IT
1
2
RED
6011
S3B-PH-K
1M01
1
2
3
6
7
+5V_STANDBY
1M20
1
2
3
4
5
LED1
RC
LIGHT_SENSOR
KEYBOARD
LED2
RC
J J
G_16850_025.eps
110107
3139 123 6210.1
Personal Notes:
E_06532_012.eps
131004
Circuit Diagrams and PWB Layouts 67LC7.1E LA 7.
Layout Front IR / LED Panel (Top Side)
G_16850_030.eps
020207
3139 123 6210.1
1M01 D4
1M20 D2
1M21 D2
6001 B2
6002 B1
6010 B2
6011 B1
6013 A1
7010 A3
7013 B4
Layout Front IR / LED Panel (Bottom Side)
G_16850_031.eps
020207
3139 123 6210.1
2001 C2
2002 B1
3010 C2
3011 C3
3012 B4
3013 B4
3014 B2
3015 B1
3016 A2
3017 C1
3018 B1
3019 C3
3020 C3
3021 C3
3022 C3
4001 D3
4002 C3
4004 C2
4005 C2
4010 A3
4011 B4
4012 B3
4013 B3
4014 B4
4015 C4
4016 C1
4017 A4
4018 A3
4019 B4
6012 D3
6014 D4
6015 C3
6016 C2
7011 B3
7012 C4
7014 C1
68LC7.1E LA 7.
Circuit Diagrams and PWB Layouts
Personal Notes:
E_06532_013.eps
131004
Alignments EN 69LC7.1E LA 8.
8. Alignments
Index of this chapter:
8.1 General Alignment Conditions
8.2 Hardware Alignments
8.3 Software Alignments
8.4 Option Settings
Note: Figures below can deviate slightly from the actual
situation, due to the different set executions.
General: The Service Default Mode (SDM) and Service
Alignment Mode (SAM) are described in chapter 5. Menu
navigation is done with the CURSOR UP, DOWN, LEFT or
RIGHT keys of the remote control transmitter.
8.1 General Alignment Conditions
Perform all electrical adjustments under the following
conditions:
• Power supply voltage (depends on region):
– AP-NTSC: 120 VAC or 230 VAC / 50 Hz (± 10%).
– AP-PAL-multi: 120 - 230 VAC / 50 Hz (± 10%).
– EU: 230 VAC / 50 Hz (± 10%).
– LATAM-NTSC: 120 - 230 VAC / 50 Hz (± 10%).
– US: 120 VAC / 60 Hz (± 10%).
• Connect the set to the mains via an isolation transformer
with low internal resistance.
• Allow the set to warm up for approximately 15 minutes.
• Measure voltages and waveforms in relation to correct
ground (e.g. measure audio signals in relation to
AUDIO_GND).
Caution: It is not allowed to use heatsinks as ground.
• Test probe: Ri > 10 Mohm, Ci < 20 pF.
• Use an isolated trimmer/screwdriver to perform
alignments.
8.2 Hardware Alignments
There are no hardware alignments foreseen for this chassis,
but below find an overview of the most important DC voltages
on the SSB. These can be used for checking proper functioning
of the DC/DC converters.
8.3 Software Alignments
With the software alignments of the Service Alignment Mode
(SAM) the Tuner and RGB settings can be aligned.
To store the data: Use the RC button “Menu” to switch to the
main menu and next, switch to “Stand-by” mode.
8.3.1 Tuner Adjustment (RF AGC Take Over Point)
Purpose: To keep the tuner output signal constant as the input
signal amplitude varies.
The LC7.xx chassis comes with two tuner types: the UV1318S
for the analogue sets (LC7.1x) and the TD1316AF for the
hybrid sets (LC7.2x).
For the digital tuner TD1316AF, no alignment is necessary, as
the AGC alignment is done automatically (standard value:
“15”), even during analogue reception.
The analogue tuner UV1318S can also use the default value of
“15”, however in case of problems use the following method
(use multimeter and RF generator):
• Apply a vision IF carrier of 38.9 MHz (105 dBuV = 178
mVrms) to test point F111 (input via 50 ohm coaxial cable
terminated with an RC network of series 10nF with 120
ohm to ground).
• Measure voltage on pin 1 of the tuner.
• Adjust AGC (via SAM menu: TUNER -> AGC), until voltage
on pin 1 is 3.3 +0.5/-1.0 V.
• Store settings and quit SAM.
8.3.2 RGB Alignment
Before alignment, choose “TV MENU” -> “Picture” and set:
• “Brightness” to “50”.
• “Colour” to “50”.
• “Contrast” to “100”.
White Tone Alignment:
• Activate SAM.
• Select “RGB Align.” -> “White Tone” and choose a colour
temperature.
• Use a 100% white screen as input signal and set the
following values:
– All “White point” values initial to “256”.
– All “BlackL Offset” values to “0”.
In case you have a colour analyser:
• Measure with a calibrated (phosphor- independent) colour
analyser (e.g. Minolta CA-210) in the centre of the screen.
Consequently, the measurement needs to be done in a
dark environment.
• Adjust the correct x,y coordinates (while holding one of the
White point registers R, G or B on “256”) by means of
decreasing the value of one or two other white points to the
correct x,y coordinates (see table “White D alignment
values”). Tolerance: dx: ± 0.004, dy: ± 0.004.
• Repeat this step for the other colour Temperatures that
need to be aligned.
• When finished return to the SAM root menu and press
STANDBY on the RC to store the aligned values to the
NVM.
Table 8-1 White D alignment values
If you do not have a colour analyser, you can use the default
values. This is the next best solution. The default values are
average values coming from production (statistics).
• Set the RED, GREEN and BLUE default values per
temperature according to the values in the “Tint settings”
table.
Description Test Point
Specifications (V)
DiagramMin. Typ. Max.
+AUDIO_POWER FB21 11.40 12.00 12.60 B02_DC-DC
-AUDIO_POWER FB23 -11.40 -12.00 -12.60 B02_DC-DC
+12V_DISP FB34 11.40 12.00 12.60 B02_DC-DC
+8V F401 7.60 8.00 8.40 B04C_Audio Proc.
+5V_STANDBY FB27 4.94 5.20 5.46 B02_DC-DC
+5V_SW FB16 4.93 5.19 5.45 B02_DC-DC
+5V_D I411 4.75 5.00 5.25 B04C_Audio Proc.
+5V_AUD I410 4.75 5.00 5.25 B04C_Audio Proc.
+5V_TUN I115 4.75 5.00 5.25 B03_Tuner IF
+3V3_STBY FB13 3.10 3.30 3.50 B02_DC-DC
+3V3_SW FB17 3.1 3.3 3.5 B02_DC-DC
+3V3_MOJO FB19 3.1 3.3 3.5 B02_DC-DC
+3V3 FJ01 3.2 3.27 3.4 B03F_DVB-MOJO
+3V3FE FF14 3.2 3.27 3.4 B03B_DVB-Demod
+1V8S_SW FB11 1.70 1.80 1.90 B02_DC-DC
+1V2_MOJO FB20 1.18 1.25 1.31 B02_DC-DC
+1V2_CORE FG39 1.14 1.24 1.34 B03D_DVB-MOJO
VDISP F210 11.40 12.00 12.60 B04B_Video proc.
Value Cool (11000 K) Normal (9000 K) Warm (6500 K)
x 0.278 0.289 0.314
y 0.278 0.291 0.319
Alignments
EN 70 LC7.1E LA8.
• When finished return to the SAM root menu and press
STANDBY on the RC to store the aligned values to the
NVM.
Table 8-2 Tint settings
Black Level Offset Alignment
• Activate SAM.
• Select “RGB Align.” -> “BlackL Offset” and choose a colour.
• Set all “BlackL Offset” values to “0”.
• When finished return to the SAM root menu and press
STANDBY on the RC to store the aligned values to the
NVM.
Note: For models with “Pixel Plus”, the “Black Offset” (black
level offset) should NOT be changed in SAM. These offset
values of RGB should be set to “0”, and should NOT be
adjusted. Any adjustment of these values will affect the low
light white balance.
ADC YPbPr Gray Scale Alignment
When the grey scale is not correct, use this alignment:
• Activate SAM.
• Select “NVM Editor”.
• Enter address “ 26(dec)” (ADR).
• Set value (VAL) to “197(dec) ± 25”.
• Store (STORE) the value.
8.4 Option Settings
8.4.1 Introduction
The microprocessor communicates with a large number of I2C
ICs in the set. To ensure good communication and to make
digital diagnosis possible, the microprocessor has to know
which ICs to address. The presence/absence of these specific
ICs (or functions) is made known by the option codes.
Notes:
• After changing the option(s), save them with the STORE
command.
• The new option setting becomes active after the TV is
switched "off" and "on" again with the mains switch (the
EAROM is then read again).
8.4.2 How To Set Option Codes
When the NVM is replaced, all options will require resetting. To
be certain that the factory settings are reproduced exactly, you
must set all option numbers. You can find the correct option
numbers in table “Option Codes OP1...OP7“ below.
How to Change Options Codes
An option code (or “option byte”) represents eight different
options (bits). When you change these numbers directly, you
can set all options very quickly. All options are controlled via
seven option numbers (OP1... OP7).
Activate SAM and select “Options”. Now you can select the
option byte (OP1.. OP7) with the CURSOR UP/ DOWN keys,
and enter the new 3 digit (decimal) value. For the correct
factory default settings, see the table “Option codes
OP1...OP7“ below. For more detailed information, see the
second table “Option codes at bit level“. If an option is set
(value “1”), it represents a certain decimal value.
When all the correct options (bits) are set, the sum of the
decimal values of each Option Byte (OP) will give the option
code.
Figure 8-1 Option codes OP1...OP7 (for all LC7.1E models)
Colour Temp. R G B
Cool 249 241 246
Normal 251 238 229
Warm 246 222 199
H_16940_006.eps
090307
LPL : LC260WX2-SLB2 045
CMO : V260B1-L03 068
867000025487 26PFL5322/10
AUO : T260XW03 V1 067
000
LPL : LC320W01-SL06 046
AUO : T315XW02 VD 091
867000025408 32PFL5322/10
CMO : V315B1-L05 069
001
LPL : LC370WX1-SLB1 071
867000025489 37PFL5322/10 AUO : T370XW02 V5 072
LPL : LC420WX3-SLA1 073
AUO : T420XW01 V8 076
867000025492 42PFL5322/10
LPL : LC420WX5-SLD1 107
003 023 010 223 009 000
002
LC07_EU_ATV_LCD_Pan Europe (/12)
LPL : LC260WX2-SLB2 045
CMO : V260B1-L03 068
867000025488 26PFL5322/12
AUO : T260XW03 V1 067
000
LPL : LC320W01-SL06 046
AUO : T315XW02 VD 091
867000025439 32PFL5322/12
CMO : V315B1-L05 069
001
LPL : LC370WX1-SLB1 071
867000025491 37PFL5322/12 AUO : T370XW02 V5 072
LPL : LC420WX3-SLA1 073
AUO : T420XW01 V8 076
867000025493 42PFL5322/12
LPL : LC420WX5-SLD1 107
003 023 010 223 009 000
002
LC07_EU_ATV_PDP_Europe (/10)
SDI : 42 HD W2 083
867000025494 42PFP5332/10 LG : 42 HD X4 084 003 007 011 223 009 000 003
LC07_EU_ATV_PDP_Pan Europe
(/12)
SDI : 42 HD W2 083
867000025495 42PFP5332/12 LG : 42 HD X4 084 003 007 011 223 009 000 003
Sets 12NC Sets Type Panel Type
Panel
Code
(Dec)
Option Byte
Group 1 Group 2
1 2 3 4 5 6 7
LC07_EU_ATV_LCD_Europe (/10)
Alignments EN 71LC7.1E LA 8.
Option Bit Overview
Below find an overview of the Option Codes on bit level.
Table 8-3 Option codes at bit level (OP1-OP4)
Option Byte & Bit Dec. Value Option Name Description
Byte OP1
Bit 7 (MSB) 128 Reserved Not Used (Reserved)
Bit 6 64 CHINA ON = SW is for CHINA only OFF = SW is for Non-China AP cluster
Bit 5 32 DTV_CHINA ON = DTV_CHINA will be available (Reserved) OFF = DTV_CHINA will not be available
Bit 4 16 DTV_EU ON = DTV will be available OFF = DTV will not be available
Bit 3 8 UK_PNP ON = UK PNP is available OFF = UK PNP is not available
Bit 2 4 VIRGIN_MODE ON = Virgin Mode (PNP) is available OFF = Virgin Mode (PNP) is not available
Bit 1 2 ACI ON = ACI is available OFF = ACI is not available
Bit 0 (LSB) 1 ATS ON = ATS is available OFF = ATS is not available
Total DEC Value
Byte OP2
Bit 7 (MSB) 128 1080P ON = 1080p is available OFF = 1080p is not available
Bit 6 64 LIGHT_SENSOR ON = Light Sensor is available OFF = Light Sensor is not available
Bit 5 32 AMBILIGHT ON = Ambilight Feature will be available OFF = Ambilight Feature will not be available
Bit 4 16 BACKLIGHT_DIMMING ON = Backlight Dimming is available OFF = Backlight Dimming is not available
Bit 3 8 HUE ON = Hue is available OFF = Hue is not available
Bit 2 4 2D3DCF ON = 3D Comb Filter is available OFF = 2D Comb Filter is available
Bit 1 2 WSSB ON = WSS is available OFF = WSS is not available
Bit 0 (LSB) 1 WIDE_SCREEN ON = TV is 16x9 set OFF = TV is 4x3 set
Total DEC Value
Byte OP3
Bit 7 (MSB) 128 CVI2 ON=CVI1 (YPbPr) (For ROW)
Bit 6 64 Reserved Not Used (Reserved)
Bit 5 32 Reserved Not Used (Reserved)
Bit 4 16 VCHIP ON = VChip is available OFF = VChip is not available
Bit 3 8 VIDEO_TEXT ON = Video-TXT is available OFF = Video-TXT is not available
Bit 2 4 STEREO_DBX ON = Stereo DBX detection is available (LATAM) OFF = Stereo DBX detection is not available
Bit 1 2 STEREO_NICAM_2CS ON = Stereo NICAM 2CS detection is available (EU/AP/China) OFF = Stereo NICAM 2CS
detection is not available
Bit 0 (LSB) 1 LIP_SYNC ON = Lip Sync is available OFF = Lip Sync is not available
Total DEC Value
Byte OP4
Bit 7 (MSB) 128 HDMI2 ON = HDMI2 is available OFF = HDMI2 is not available
Bit 6 64 HDMI1 ON = HDMI1 is available OFF = HDMI1 is not available
Bit 5 32 VGA ON = VGA is available OFF = VGA is not available
Bit 4 16 SVHS3 ON = SVHS3 is available OFF = SVHS3 is not available
Bit 3 8 AV3 ON = AV3 is available OFF = AV3 is not available
Bit 2 4 CVI ON = CVI is available OFF = CVI is not available
Bit 1 2 SVHS2 ON = SVHS2 is available OFF = SVHS2 is not available
Bit 0 (LSB) 1 AV2 ON = AV2 is available OFF = AV2 is not available
Total DEC Value
Alignments
EN 72 LC7.1E LA8.
Table 8-4 Option codes at bit level (OP5-OP7)
Option Byte & Bit Dec. Value Option Name Description
Byte OP5
Bit 7 (MSB) 128 NVM_CHECK ON = NVM (range) checking is available OFF = NVM (range) checking is not available
Bit 6 64 Reserved Not Used (Reserved)
Bit 5 32 Reserved Not Used (Reserved)
Bit 4 16 MP_ALIGN ON = Using multi-point alignment for Gamma & White Point OFF = Using old way for Gamma (pre-
defined) & WP alignment
Bit 3 8 SYS_RECVRY ON = System Recovery is available OFF = System Recovery is not available
Bit 2 4 SL_WIRED ON = BDS Smart Loader Wired is available OFF = BDS Smart Loader Wired is not available
Bit 1 2 HOTEL ON = Hotel/BDS is available OFF = Hotel/BDS is not available
Bit 0 (LSB) 1 SS_DEMO ON = Split Screen Demo is available OFF = Split Screen is not available
Total DEC Value
Byte OP6
Bit 7 (MSB) 128 Reserved Not Used (Reserved)
Bit 6 64 Reserved Not Used (Reserved)
Bit 5 32 Reserved Not Used (Reserved)
Bit 4 16 Reserved Not Used (Reserved)
Bit 3 8 TUNER PROFILE 0 = ATV_EU_PHILIPS UV1318S/AIH-3 1 = ATV_EU_Panasonic EN57K28G3F2 =
DTV_EU_PHILIPS TD1316AF/IHP-24 = ATV_AP_PHILIPS UV1316E/AIH-45 = ATV_AP_Tuner2
(Reserved)6 = ATV_CHINA_ALPS TEDE9-286B7 = ATV_CHINA_Tuner2 (Reserved)8 =
ATV_LATAM_PHILIPS UV1338/AIH-4 9 = ATV_LATAM_Tuner2 (Reserved)10 =
DTV_CHINA_Tuner1 (Reserved)11 = DTV_CHINA_Tuner2 (Reserved)12 = Not Used
(Reserved)13 = Not Used (Reserved)14 = Not Used (Reserved)15 = Not Used (Reserved)
Bit 2 4
Bit 1 2
Bit 0 (LSB) 1
Total DEC Value
Byte OP7
Bit 7 (MSB) 128 Reserved Not Used (Reserved)
Bit 6 64 Reserved Not Used (Reserved)
Bit 5 32 Reserved Not Used (Reserved)
Bit 4 16 CABINET PROFILE 0 = Cabinet_Profile_26_LCD_ME7 1 = Cabinet_Profile_32_LCD_ME7 2 =
Cabinet_Profile_37_42_47_LCD_ME73 = Cabinet_Profile_42_50_PDP_ME7 4 =
Cabinet_Profile_26_LCD_ME5P5 - 32 = Reserved
Bit 3 8
Bit 2 4
Bit 1 2
Bit 0 (LSB) 1
Total DEC Value
Circuit Descriptions, Abbreviation List, and IC Data Sheets EN 73LC7.1E LA 9.
9. Circuit Descriptions, Abbreviation List, and IC Data Sheets
Index of this chapter:
9.1 Introduction
9.2 LCD Power Supply
9.3 DC/DC converters
9.4 Front-End
9.5 Video Processing
9.6 Memory addressing
9.7 Audio Processing
9.8 HDMI
9.9 Abbreviation List
9.10 IC Data Sheets
Notes:
•Only new circuits (circuits that are not published recently)
are described.
• Figures can deviate slightly from the actual situation, due
to different set executions.
• For a good understanding of the following circuit
descriptions, please use the Wiring, Block (chapter 6) and
Circuit Diagrams (chapter 7). Where necessary, you will
find a separate drawing for clarification.
9.1 Introduction
The LC7.x (development name “LC07”) is a new global chassis
for the year 2007 (LC7.1 is the analogue range, LC7.2 is the
digital range). It covers a screen size of 26 to 47 inch for LCD
and 42 to 50 inch for Plasma sets with a new styling called
“ME7”. Some key components are:
•Audio: Sound processing is performed by a multi-standard
sound processor MSP4450 (item 7411)
•Video: Video processing is performed by the Trident video
processor SVP CV32-LF (item 7202).
For analogue reception, a standard IF demodulator is used,
whereas digital input signals (DVB-T) are processed through a
COFDM channel decoder together with an MPEG decoder. A
so-called “Reneas” microprocessor performs the control
functionality.
Important features of this chassis are:
•AmbiLight: LED AmbiLight (where applicable) is
introduced as the successor of glass-tube AmbiLight
•1080p Full HD (where applicable).
Circuit Descriptions, Abbreviation List, and IC Data Sheets
EN 74 LC7.1E LA9.
9.1.1 SSB Cell Layout
Figure 9-1 SSB top view
Figure 9-2 SSB bottom view
H_16940_010.eps
060307
DC-DC CONVERSION
TRIDENT
VIDEO
PROC.
RENEAS
uP
AUDIO CLASS D
ANALOG TUNER IF DEM
HDMI
VIF SAW
SIF SAW
H_16940_011.eps
060307
DC-DC CONVERSION
AUDIO CLASS D
FLASH
MEM
SDRAM
SDRAM
MICRONAS
AUDIO PROC.
Circuit Descriptions, Abbreviation List, and IC Data Sheets EN 75LC7.1E LA 9.
9.2 LCD Power Supply
The Power Supply Unit (PSU) in this chassis is a buy-in and is
a black-box for Service. When defective, a new panel must be
ordered and the defective panel must be sent for repair, unless
the main fuse of the unit is broken. Always replace the fuse with
one with the correct specifications! This part is available in the
regular market.
Three different PSU can be used in this chassis:
• 26 and 32 inch sets use a “Delta” PSU
• 37 and 42 inch sets use a “PPS” (Philips Power Solutions)
PSU
• 47 inch sets use a “Delta” PSU.
Figure “Overview of PSU connectivity” shows the connectivity
of the Power Supply Unit with the other panels in the set.
Figure 9-3 Overview of PSU connectivity
All Power Supply Units deliver the following voltages to the
chassis:
• +24 V to the inverters
• +12 V to SSB
• +12 V and -12 V to Audio Supply
• 12 V to Bolt-on Supply (where applicable)
• +5.2 V Standby voltage.
9.3 DC/DC converters
A switch generates the +5.2 V (+5V_SW) from the +5.2 V
(+5V_STANDBY) supply voltage. For LCD sets, this switch is
mounted on-board the SSB. For PDP sets, this switch is
mounted on the Power Supply Panel. This results in the
+5V_STANDBY (and +5V_SW for PDP sets) voltage(s),
coming from the Power Supply Unit, is (are) used as input for
the on-board DC/DC converters.
They deliver the following voltages to the board:
• +3.3 V (+3V3_STBY)
• +5.2 V (+5V_SW) (only for LCD sets)
• +1.8 V (+1V8S_SW)
• +34 V (+VTUN)
• +3.3 V (+3V3_SW)
• +3.3 V (+3V3_MOJO)
• +1.2 V (+1V2_MOJO)
An overview can be found in figure “DC-DC converter block
diagram”.
Figure 9-4 DC-DC converter block diagram
9.4 Front-End
This chassis uses different tuners depending on the region and
execution. An overview of the different executions can be found
in table “Tuner diversity”.
Table 9-1 Tuner diversity
For a general outline of tuner applications in this chassis see
figure “Tuner IF diagram”.
Figure 9-5 Tuner IF diagram
In the LC7.1x chassis (analogue sets), the signal coming from
the tuner is fed to the IF demodulator (through the SAW filters)
and then passed to the Trident Video Processor.
In the LC7.2x chassis (digital sets), the TD1316AF hybrid tuner
is used which is capable of receiving both analogue and digital
(DVB-T) signals. While receiving analogue signals, the signal
coming from the tuner is fed to the IF demodulator (through the
SAW filters) and then passed to the Trident Video Processor.
While receiving digital signals, the signal coming from the tuner
is first fed to the channel decoder, then to the MPEG decoder
and then to the Trident Video Processor.
G_16860_051.eps
310107
Region Tuner Type
Europe TD1316AF hybrid
UV1318S analogue
AP UV1316E analogue
China TEDE9 analogue
Latam UV1338 analogue
G_16860_063.eps
310107
Tuner
Video
SAW filter
Audio
SAW filter
Switch IC
IF Demodulator
CVBS
2
nd
SIF
Digital IF
36.16MHz
4MHz
RFAGC
RF AGC_analogue
I2C
IF AGC
Supply
+5V/+33V
RF AGC_digital
I2C_analogue
I2C_digital
G_16860_054.eps
020207
Circuit Descriptions, Abbreviation List, and IC Data Sheets
EN 76 LC7.1E LA9.
9.4.1 Video IF Amplifier
The IF-filter is integrated in a SAW (Surface Acoustic Wave)
filter. One for filtering IF-video (item 1102) and one for IF-audio
(item 1103). The type of these filters depends on the
standard(s) received (region-dependency). Some filters can be
switched to another standard, what makes them suitable for
applications in multi-standard platforms. An overview of the
SAW filter diversity can be found in table “SAW filter diversity”.
Table 9-2 SAW filter diversity
Switching is done by the microcontroller via SAW_SW. In table
“SAW filter switching” is explained how to address the different
system standards.
Table 9-3 SAW filter switching
The hybrid tuner TDA1316AF, used in Europe sets, needs to
be switched between digital and analogue mode. This is done
by the microcontroller via DVB_SW. Refer to table “Hybrid
tuner digital/analogue switching” for details.
Table 9-4 Hybrid tuner digital/analogue switching
The pin assignment of all analogue tuners is equal and can be
found in table “Pin assignment analogue tuners”.
Table 9-5 Pin assignment analogue tuners
The pin assignment of the hybrid tuner can be found in table
“Pin assignment hybrid tuner”.
Table 9-6 Pin assignment hybrid tuner
9.4.2 Automatic Gain Control
In the LC7.2x chassis (digital sets), the automatic gain control
depends on if the set is receiving a digital or an analogue
signal. During analogue reception, the hybrid tuner receives an
external AGC voltage, coming from the demodulator, to
perform automatic gain control. During digital reception, no
external AGC voltage is used but the tuners internal AGC loop
is used.
In the LC7.1x chassis (analogue sets), the tuner receives an
external AGC voltage, coming from the demodulator, to
perform automatic gain control.
9.5 Video Processing
The video processing is completely handled by the Trident SVP
CX32 video processor which features:
• CVBS-input for analogue signals
• RGB-input for digital (DVB-T) signals
• Motion and “edge-adaptive” deinterlacing
• Integrated ADC
• Built-in 8-bit LVDS transmitter
• Colour stretch
• Skin colour enhancement
• 3D Digital Comb Video Decoder
• Interlaced and Progressive Scan refresh
• Teletext decoding
• OSD and VBI/Closed Caption.
SAW filter Switching Y/N Region Video/Audio
OFWK3953M No Europe Video
OFWK9656M Yes Europe Audio
OFWK7265L Yes AP Video
OFWK9361L No AP Sound
OFWK3956L No China Video
OFWK3955L No China Video
OFWK9352L No China Audio
OFWM1967L No LATAM Video/Audio
Region SAW_SW System
Europe 1 L’
0 other systems
AP 1 B/G, D/K, I
0M/N
China 1 B/G, D/K, I
0M/N
LATAM n.a. M/N
Region DVB_SW Mode
Europe 1 analogue reception
0 Digital reception
Pin
number Description DC voltage (V)
1 RF AGC voltage 3.3 - 4.5 (weak or no
signal) < 3.3 (strong signal)
2n.c.
3I
2C-bus address select 0
4 SCL 0 to 3.3
5 SDA 0 to 3.3
6n.c.
7 supply voltage 5 ±0.25
8n.c.
9 tuning supply voltage 33
10 n.c.
11 TV IF output
Pin
number Description DC voltage (V)
1n.c.
2 RF AGC voltage 3.3 - 4.5 (weak or no
signal) < 3.3 (strong signal)
3I
2C-bus address select 0
4 SCL 0 to 3.3
5 SDA 0 to 3.3
6 4 MHz reference
output
7 supply voltage 5 ±0.25
8 broadband IF output
9 IF AGC voltage 0 to 3
10 narrowband IF output
11 narrowband IF output
Pin
number Description DC voltage (V)
Circuit Descriptions, Abbreviation List, and IC Data Sheets EN 77LC7.1E LA 9.
9.5.1 Region-dependent applications
Figure 9-6 Block diagram video processing - EU version
“Block diagram video processing - EU version” shows the input
and output signals to and from the Trident Video Processor in
EU applications.
During analogue reception, a CVBS signal coming from the
analogue front-end is fed to the video processor via pin
CVBS1. During digital reception, the video signal coming from
the MPEG decoder (MOJO) is fed to the video processor via
pins FS1, PC_B, PC_G and PC_R.
The video processor also interfaces the SCART1 & 2 input,
side AV, EXT4 (HD where applicable) and HDMI1 & 2 input.
Through the SCART1 & 2 connectors, a monitor output is
foreseen.
Figure 9-7 Block diagram video processing - AP version
IB O _ R _IN
Trident
Video Processor
SVP CX32
( D V B-T
demodulator
Digital Front End
and decoder)
CVBS
SCART1
SC1_R_IN
SC1_CVBS_IN
SC1_FBL_IN
HD_Y_IN
SCART2
SIDE AV
FRONT_Y_CVBS_IN_T
SC2_Y_CVBS_IN
EXT4
HDMI
Decoder
HDMI1
HDMI2
HDMI_Y(0:7)
HDMI_Cb(0:7)
HDMI_Cr(0:7)
SCART2 Monitor out
On board EXT3
CVBS
SCART1 Monitor out
PR_R2
PB_B2
Y_G2
SC1_G_IN
SC1_B_IN
PB_B3
FB1
IB O _G _IN
IB O _B _IN
IB O _C V B S_ IN
PC_R
PC_G
PC_B
FS1
HD_PB_IN
HD_PR_IN
Y_G1
PB_B1
PR_R1
SC2_C_IN
FRONT_C_IN_T Y_G3
C
PR_R3
FS2
CVBS_OUT1
CVBS_OUT2
Analogue
Front End
CVBS_RF CVBS1
G_16860_060.eps
310107
IBO _R_IN
MUX
CVBS
PC VGA
SC1_R_IN
PC_VGA_H
PC_VGA_V
HD_Y_IN
AV1
SIDE AV
FRONT_Y_CVBS_IN_T
SC2_Y_CVBS_IN
CVI2
HDMI1
HDMI2
HDMI_Y(0:7)
HDMI_Cb(0:7)
HDMI_Cr(0:7)
CINCH Monitor out
PR_R2
PB_B2
Y_G2
SC1_G_IN
SC1_B_IN
AIN_HS
AIN_VS
IBO _G _IN
IBO _B _IN
IBO _CVBS_IN
PC_R
PC_G
PC_B
FS1
HD_PB_IN
HD_PR_IN
Y_G1
PB_B1
PR_R1
SC2_C_IN
FRONT_C_IN_T Y_G3
C
PR_R3
FS2
CVBS_OUT2
Analogue
Front End
CVBS_RF CVBS1
DMMI YPbPr IN
CVI YPbPr
CVI1
DMMI connector CVI_DTV_SEL
Trident
Video Processor
SVP CX32
HDMI
Decoder
G_16860_061.eps
310107
Circuit Descriptions, Abbreviation List, and IC Data Sheets
EN 78 LC7.1E LA9.
“Block diagram video processing - AP version” shows the input
and output signals to and from the Trident Video Processor in
AP applications.
During analogue reception, a CVBS signal coming from the
analogue front-end is fed to the video processor via pin
CVBS1. No digital reception (DVB-T) reception is foreseen in
AP region. However, an internal DMMI connector is
implemented for future digital reception applications in
combination with IBO. CVI_DTV_SEL is a control signal from
the microprocessor. When this signal is LOW, then the MUX
passes the CVI1 YPbPr input signal to the Trident Video
Processor. When this signal is HIGH, then the YPbPr input
signal coming from the DMMI connector is passed to the video
processor. Currently, this signal is always LOW since no IBO is
used.
The video processor also interfaces the AV1 and Side AV
input, CVI2 (HD), VGA(PC), HDMI1 & 2. A cinch output
connector for Monitor output is foreseen.
9.6 Memory addressing
Figure “Memory block diagram” shows the interconnection
between the microprocessor, the FLASH memory, the Trident
Video Processor and the SDRAM.
Figure 9-8 Memory block diagram
Control signals CPU_RST, WR, RD and CE, address lines
A[0:19] and data lines D[0:7] are used for transferring data
between the microprocessor (item 7311) and the flash memory
(item 7310). Control signals CS, WR and RD, address lines
A[0:7] and data lines D[0:7] are used for transferring data
between the Trident Video Processor (item 7202) and the
microprocessor (item 7311). Control signals CX_BA0,
CX_BA1, CX_MCLK, CX_CLKE, CX_CS0, CX_RAS, CX_CAS
and CX_WE, address lines CX_MA[0:11] and data lines
DQ[0:15] are used for transferring data between the Trident
Video Processor and the SDRAM ICs (items 7204 and 7205).
9.7 Audio Processing
The audio decoding is done entirely via the Multistandard
Sound Processor (MSP) 4450P (item 7411).
This processor covers the processing of both analogue and
(NICAM) digital input signals by processing the (analogue) IF
signal-in to processed (analogue) AF-out (baseband audio). An
internal 40 ms (stereo) audio delay line (LIP SYNC) is foreseen
and therefore no external delay line is necessary.
All internal clock signals are derived from an external
18.432 MHz oscillator, which, in NICAM or I2S-mode, on its
turn is locked to the corresponding source.
The following functionality is included:
• Automatic Standard Detection (ASD) automatically detects
the actual broadcasted TV standard
• Automatic Sound Select (ASS) automatically switches
(without any I2C-bus action) between mono/stereo/
bilingual mode when the broadcast mode changes.
9.7.1 Region-dependent applications
Figure 9-9 Block diagram audio processing - EU application
In EU applications, the MSP features:
• Sound IF input for signals coming from the analogue front-
end
• Three I2S-inputs for signals (“DATA”, “CLK” and “WS”)
coming from the MOJO in case of digital reception
• Five analogue inputs: for EXT1 to EXT4 and HDMI
• Loudspeaker output path
• Headphone output path
• SCART-1 output path (RF)
• SCART-2 output path (WYSIWYG = monitor).
Digital audio signals coming from HDMI sources are fed to a
digital-to-analogue converter and then fed to the MSP.
In case of reception of digital TV signals, digital audio signals
coming from the MOJO are directly fed to the MSP via the
I2S_DA_IN1, I2S_WS1 and I2S_CL1 lines. This ensures a
“true digital path”.
Figure 9-10 Block diagram audio processing - AP application
In AP applications, the MSP features:
• Sound IF input for signals coming from the analogue front-
end
7311
7202
7310
7204
7205
micro-
processor
1MB
Flash Memory
Trident CX
8MB
SDRAM
8MB
SDRAM
CPU_RST/WR/RD/CE
D[0:7]
A[0:19]
A[0:7]
D[0:7]
CS/WR/RD
CX_BA0/BA1/MCLK/
CLKE/CS0/RAS/CAS/WE
CX_MA[0:11]
DQ[0:15]
DQ[16:31]
CX_MA[0:11]
CX_BA0/BA1/MCLK/
CLKE/CS0/RAS/CAS/WE
Reneas
G_16860_062
220207
ANALOGUE
FRONT END
DVB / MOJO
(if present)
HDMI IN
SCART 1 IN
SCART 2 IN
COMP IN SC3-IN
SC4-IN
SC5-IN
CLASS D
AMPLIFIER
HP AMPLIFIER
SCART 1 OUT
LOUDSPEAKER
MSP 4450P
DACM
DACA
SC1-OUT
I2S_DA_IN1
I2S_WS
I2S_CL
ANA_IN1+
SIDE IN
AUDIO
DAC
SC1-IN
SC2-IN
SC2-OUT SCART 2 OUT
HDMI
IC
2nd SIF
I2S1
G_16860_055.eps
090307
ANALOGUE
FRONT END
HDMI AUDIO
PC AUDIO IN
AV 2 IN
CVI 1 IN SC3-IN
SC4-IN
SC5-IN
CLASS D
AMPLIFIER
HP AMPLIFIER
LOUDSPEAKER
HEADPHONE
MSP 4450P
DACM
DACA
SC1-OUT
I2S_DA_IN3
I2S_WS3
I2S_CL3
ANA_IN1+
AV 1 IN
SC1-IN
SC2-IN
SC2-OUT MONITOR OUT
2nd SIF
I2S3
AUDIO
MUX
CVI2 IN
** FOR AP ANALOGUE &
LATAM SET
CHINA DTV IN
G_16860_056.eps
090307
Circuit Descriptions, Abbreviation List, and IC Data Sheets EN 79LC7.1E LA 9.
• Three I2S-inputs for signals (“DATA”, “CLK” and “WS”)
coming from the HDMI interface
• Five analogue inputs: for CVI1, CVI2, AV1, AV2, DTV
(China) and PC audio
• Loudspeaker output path
• Headphone output path
• Monitor output path (WYSIWYG).
Digital audio signals coming from HDMI sources are directly
fed to the MSP via the I2S_DA_IN3, I2S_WS3 and I2S_CL3
lines. This ensures a “true digital path”.
In case of reception of digital TV signals, a multiplexer is used
to switch between China DTV or DVI2 audio. In China sets, the
audio signal coming from the DTV module is in analogue
format. The output from the multiplexer is fed to the MSP via
the SC5-input.
In both applications, the microprocessor (item 7311) controls
the audio part with the following control lines:
• MUTEn: used to mute the Class D amplifiers
• ANTI_PLOP: used to detect any DC failure in the Class D
amplifiers
• DC_PROT: used to detect any DC failure in the Class D
amplifiers.
9.7.2 Audio Amplifier
The audio amplifier is an integrated class-D amplifier
(TDA8932T, item 7A01). It combines a good performance with
a high efficiency, resulting in a big reduction in heat generation.
Principle
Figure 9-11 Principle Class-D Amplifier
The Class D amplifier works by varying the duty cycle of a
Pulse Width Modulated (PWM) signal.
By comparing the input voltage to a triangle wave, the amplifier
increases duty cycle to increase output voltage, and decreases
duty cycle to decrease output voltage.
The output transistors of a Class D amplifier switch from 'full off'
to 'full on' (saturated) and then back again, spending very little
time in the linear region in between. Therefore, very little power
is lost to heat. If the transistors have a low 'on' resistance
(RDS(ON)), little voltage is dropped across them, further
reducing losses.
A Low Pass Filter at the output passes only the average of the
output wave, which is an amplified version of the input signal.
In order to keep the distortion low, negative feedback is
applied.
The advantage of Class D is increased efficiency (= less heat
dissipation). Class D amplifiers can drive the same output
power as a Class AB amplifier using less supply current.
The disadvantage is the large output filter. The main reason
for this filter is that the switching waveform results in maximum
current flow. This causes more loss in the load, which causes
lower efficiency. An LC filter with a cut-off frequency less than
the Class D switching frequency, allows the switching current
to flow through the filter instead of the load, thus reducing the
overall loss and increasing the efficiency.
DC-protection
A DC-detection circuit is foreseen to protect the speakers. It is
built around three transistors (items 7A05 to 7A07) and
generates a protection signal (DC_PROT) to the
microprocessor in case of a DC failure in the Class D
amplifiers.
9.8 HDMI
9.8.1 Introduction
Note: Text below is an excerpt from the ”HDMI Specification”
that is issued by the HDMI founders (see http://www.hdmi.org).
The High-Definition Multimedia Interface is developed for
transmitting digital signals from DVD players, set-top boxes
and other audiovisual sources to television sets, projectors and
other video displays.
HDMI can carry high quality multi-channel audio data and can
carry all standard and high-definition consumer electronics
video formats. Content protection technology is available.
HDMI can also carry control and status information in both
directions.
HDMI is backward compatible with DVI (1.0). Compared with
DVI, HDMI offers extra:
• YUV 4:4:4 (3 x 8-bit) or 4:2:2 (up to 2 x 12-bit), where DVI
offers only RGB 4:4:4 (3 x 8 bit).
• Digital audio in CD quality (16-bit, 32/44.1/48 kHz), higher
quality available (8 channels, 192 kHz).
• Remote control via CEC bus (Consumer Electronics
Control): allows user to control all HDMI devices with the
TV's remote control and menus.
• Smaller connector (SCART successor).
• Less cables: e.g. from 10 audio/9 video cables to 3 HDMI
cables.
9.8.2 Implementation
The IC used is the Sil 9025 (Silicon Image) third generation
HDMI receiver, item 7817 on the SSB.
It has the following features:
• Dual HDMI input connector
• Two EEPROMS to support EDID
• HDMI audio
•I
2S output to low-cost DACs which operate at a frequency
of 32 to 192 kHz
• Integrated HDCP decryption engine
• Built-in pre-programmed HDCP keys for highest level of
copy-protection security
• Colour space conversion RGB to YCbCr
• “Hot Plug Reset” signal.
Figure “HDMI implementation” shows the HDMI configuration
in this chassis.
G_16860_080.eps
020207
+V
-V
Circuit Descriptions, Abbreviation List, and IC Data Sheets
EN 80 LC7.1E LA9.
Figure 9-12 HDMI implementation
HDMI connectors 1 and 2 are connected to resp. ports 1 and 2
of the HDMI receiver. The ports cannot be activated at the
same moment. Switching is controlled by software.
“Hot Plug Reset” and “DDC Reset” are controlled by the
microprocessor.
The HDMI receiver will convert all RGB or YCbCr 4:2:2 signals
to 24-bit YCbCr 4:4:4. When it receives a YCbCr 4:4:4 signal it
will just pass the signal directly to the Trident Video Processor.
9.9 Abbreviation List
1080i 1080 visible lines, interlaced
1080p 1080 visible lines, progressive scan
2CS 2 Carrier Sound
2DNR Spatial (2D) Noise Reduction
3DNR Temporal (3D) Noise Reduction
480i 480 visible lines, interlaced
480p 480 visible lines, progressive scan
AARA Automatic Aspect Ratio Adaptation:
algorithm that adapts aspect ratio to
remove horizontal black bars; keeping
up the original aspect ratio
ACI Automatic Channel Installation:
algorithm that installs TV channels
directly from a cable network by
means of a predefined TXT page
ADC analogue to Digital Converter
AFC Automatic Frequency Control: control
signal used to tune to the correct
frequency
AGC Automatic Gain Control: algorithm that
controls the video input of the feature
box
AM Amplitude Modulation
AUO Acer Unipack Optronics
AP Asia Pacific
AR Aspect Ratio: 4 by 3 or 16 by 9
ASD Automatic Standard Detection
AV Audio Video
B/G Monochrome TV system. Sound
carrier distance is 5.5 MHz
BTSC Broadcast Television System
Committee
CAM Conditional Access Module
CBA Circuit Board Assembly (or PWB)
CEC Consumer Electronics Control bus;
remote control bus on HDMI
connections
CI Common Interface; E.g PCMCIA slot
for a CAM in a set top box
CL Constant Level: audio output to
connect with an external amplifier
CLUT Colour Look Up Table
ComPair Computer aided rePair
COFDM Coded Orthogonal Frequency Division
Multiplexing; A multiplexing technique
that distributes the data to be
transmitted over many carriers
CSM Customer Service Mode
CVBS Composite Video Blanking and
Synchronisation
CVBS-MON CVBS monitor signal
CVBS-TER-OUT CVBS terrestrial out
CVI Component Video Input
DAC Digital to analogue Converter
DBE Dynamic Bass Enhancement: extra
low frequency amplification
DDC Display Data Channel; is a part of the
"Plug and Play" feature
DFU Directions For Use: owner's manual
DNR Dynamic Noise Reduction
DRAM Dynamic RAM
DSP Digital Signal Processing
DST Dealer Service Tool: special
(European) remote control designed
for service technicians
DTS Digital Theatre Sound
DVB(T) Digital Video Broadcast; An MPEG2
based standard for transmitting digital
audio and video. T= Terrestrial
DVD Digital Versatile Disc
DVI Digital Visual Interface
DW Double Window
HDMI 2
HDMI 1
HDMI
Receiver
Sil9025
EDID
EDID
Hot plug
Reset
Trident
CX32
H and V Sync
24 bits YCbCr 4:4:4
I2S DAC
I2S
HDMI_Audio LR
Audio Processor
Micronas MSP4450P
COMP_AUDIO LR
for DVI audio input
only
Microprocessor
HDMI_HOTPLUG_RESET
DDC Reset
DDC_RESET
Data Enable
HDMI CLK
RST
I2C
(Port 2)
(Port 1)
G_16860_078.eps
010207
Circuit Descriptions, Abbreviation List, and IC Data Sheets EN 81LC7.1E LA 9.
ED Enhanced Definition: 480p, 576p
EDID Extended Display Identification Data
(VESA standard)
EEPROM Electrically Erasable and
Programmable Read Only Memory
EU EUrope
EXT EXTernal (source), entering the set by
SCART or by cinches (jacks)
FBL Fast Blanking: DC signal
accompanying RGB signals
FBL-TXT Fast Blanking Teletext
FLASH FLASH memory
FM Field Memory / Frequency Modulation
FMR FM Radio
FRC Frame Rate Converter
FTV Flat TeleVision
H H_sync to the module
HD High Definition: 720p, 1080i, 1080p
HDCP High-bandwidth Digital Content
Protection; A "key" encoded into the
HDMI/DVI signal that prevents video
data piracy. If a source is HDCP coded
and connected via HDMI/DVI without
the proper HDCP decoding, the
picture is put into a "snow vision"
mode or changed to a low resolution.
For normal content distribution, the
source and the display device must be
enabled for HDCP "software key"
decoding
HDMI High Definition Multimedia Interface,
digital audio and video interface
HP Head Phone
I Monochrome TV system. Sound
carrier distance is 6.0 MHz
I2C Integrated IC bus
I2S Integrated IC Sound bus
IBO(Z) Intelligent Bolt On module. Z= Zapper;
module for DVB reception.
IC Integrated Circuit
IF Intermediate Frequency
IR Infra Red
IRQ Interrupt ReQuest
Last Status The settings last chosen by the
customer and read and stored in RAM
or in the NVM. They are called at start-
up of the set to configure it according
the customers wishes
LATAM LATin AMerica
LC07 Philips chassis name for LCD TV 2007
project
LCD Liquid Crystal Display
LED Light Emitting Diode
L/L' Monochrome TV system. Sound
carrier distance is 6.5 MHz. L' is Band
I, L is all bands except for Band I
LPL LG Philips LCD
LS Loud Speaker
LVDS Low Voltage Differential Signalling,
data transmission system for high
speed and low EMI communication.
M/N Monochrome TV system. Sound
carrier distance is 4.5 MHz
MOSFET Metal Oxide Semiconductor Field
Effect Transistor
MPEG Motion Pictures Experts Group
MSP Multi-standard Sound Processor: ITT
sound decoder
MUTE MUTE Line
NAFTA North American Free Trade
Association: Trade agreement
between Canada, USA and Mexico
NC Not Connected
NICAM Near Instantaneous Compounded
Audio Multiplexing. This is a digital
sound system, used mainly in Europe.
NTSC National Television Standard
Committee. Colour system used
mainly in North America and Japan.
Colour carrier NTSC M/N = 3.579545
MHz, NTSC 4.43 = 4.433619 MHz
(this is a VCR norm, it is not
transmitted off-air)
NVM Non Volatile Memory: IC containing
TV related data (for example, options)
O/C Open Circuit
ON/OFF LED On/Off control signal for the LED
OAD Over the Air Download
OSD On Screen Display
PAL Phase Alternating Line. Colour system
used mainly in Western Europe
(colour carrier = 4.433619 MHz) and
South America (colour carrier PAL M =
3.575612 MHz and PAL N = 3.582056
MHz)
PC Personal Computer
PCB Printed Circuit Board (or PWB)
PDP Plasma Display Panel
PIG Picture In Graphic
PIP Picture In Picture
PLL Phase Locked Loop. Used, for
example, in FST tuning systems. The
customer can directly provide the
desired frequency
PSU Power Supply Unit
PWB Printed Wiring Board (or PCB)
RAM Random Access Memory
RC Remote Control transmitter
RC5 (6) Remote Control system 5 (6), the
signal from the remote control receiver
RF Radio Frequency
RGB Red, Green, and Blue. The primary
colour signals for TV. By mixing levels
of R, G, and B, all colours (Y/C) are
reproduced.
RGBHV Red, Green, Blue, Horizontal sync,
and Vertical sync
ROM Read Only Memory
SAM Service Alignment Mode
SC SandCastle: two-level pulse derived
from sync signals
SC1-OUT SCART output of the MSP audio IC
SC2-OUT SCART output of the MSP audio IC
S/C Short Circuit
SCL Clock signal on I2C bus
SD Standard Definition: 480i, 576i
SDA Data signal on I2C bus
SDI Samsung Display Industry
SDM Service Default Mode
SDRAM Synchronous DRAM
SECAM SEequence Couleur Avec Memoire.
Colour system used mainly in France
and Eastern Europe. Colour carriers =
4.406250 MHz and 4.250000 MHz
SIF Sound Intermediate Frequency
SMPS Switch Mode Power Supply
SND SouND
SOPS Self Oscillating Power Supply
S/PDIF Sony Philips Digital InterFace
SRAM Static RAM
SSB Small Signal Board
STBY Stand-by
SVHS Super Video Home System
SW Sub Woofer / SoftWare
THD Total Harmonic Distortion
TXT TeleteXT
uP Microprocessor
Circuit Descriptions, Abbreviation List, and IC Data Sheets
EN 82 LC7.1E LA9.
VL Variable Level out: processed audio
output toward external amplifier
VCR Video Cassette Recorder
VGA Video Graphics Array
WD Watch Dog
WYSIWYR What You See Is What You Record:
record selection that follows main
picture and sound
XTAL Quartz crystal
YPbPr Component video (Y= Luminance, Pb/
Pr= Colour difference signals B-Y and
R-Y, other amplitudes w.r.t. to YUV)
Y/C Video related signals: Y consists of
luminance signal, blanking level and
sync; C consists of colour signal.
Y-OUT Luminance-signal
YUV Baseband component video (Y=
Luminance, U/V= Colour difference
signals)
Circuit Descriptions, Abbreviation List, and IC Data Sheets EN 83LC7.1E LA 9.
9.10 IC Data Sheets
This section shows the internal block diagrams and pin layouts
of ICs that are drawn as "black boxes" in the electrical diagrams
(with the exception of "memory" and "logic" ICs).
9.10.1 Diagram B06C, Type SIL9025CTU(IC7817) (HDMI)
Figure 9-13 Internal block diagram and pin configuration
Block Diagram
Pin Configuration
G_16860_073.eps
300107
Circuit Descriptions, Abbreviation List, and IC Data Sheets
EN 84 LC7.1E LA9.
9.10.2 Diagram B06C, Type UDA1334ATS (IC7810) (audio DAC)
Figure 9-14 Internal block diagram and pin configuration
DAC
UDA1334ATS
NOISE SHAPER
INTERPOLATION FILTER
DE-EMPHASIS
14
15
DAC
6
DIGITAL INTERFACE PLL
16
3
2
1
45
11
7
13 12
VOUTR
BCK
VSSA
WS
VOUTL
DATAI
VDDA
VDDD
10
PLL0
Vref(DAC)
VSSD
SFOR0
SYSCLK/PLL1 8
MUTE 9
DEEM/CLKOUT
SFOR1
UDA1334ATS
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
VOUTR
BCK
VSSA
WS
VOUTL
DATAI
VDDA
VDDD
Vref(DAC)
VSSD
SFOR0SYSCLK/PLL1
PLL0SFOR1
DEEM/CLKOUTMUTE
Block Diagram
Pin Configuration
G_16860_081.eps
220207
Circuit Descriptions, Abbreviation List, and IC Data Sheets EN 85LC7.1E LA 9.
9.10.3 Diagram B07, Type TDA8932T (IC7A01) (audio amplifier)
Figure 9-15 Internal block diagram and pin configuration
Block Diagram
Pin Configuration
G_16860_045.eps
300107
2
81301
28
29
27
3
12
TDA8932
OSCILLATOR
26
BOOT1
V
DDP1
OUT1
V
SSP1
PWM
MODULATOR
DRIVER
HIGH
DRIVER
LOW
CTRL
MANAGER
CTRL
PWM
MODULATOR
PROTECTIONS:
OVP, OCP, OTP,
UVP, TF, WP
STABILIZER 11 V
STABILIZER 11 V
REGULATOR 5 V
MODE
V
DDA
15
14
IN1P
VOICSOFERCSO
DDA
V
SSD
IN1N
INREF
IN2P
IN2N
6
POWERUP
4
DIAG
7
CGND
21
20
22
23
BOOT2
V
DDP2
OUT2
25 STAB1
24 STAB2
18
11
DREF
HVPREF
30 HVP1
19 HVP2
V
SSP2
DRIVER
HIGH
DRIVER
LOW
V
DDA
V
SSP1
V
SSP2
V
SSD
V
DDA
V
SSA
HALF SUPPLY VOLTAGE
5
ENGAGE
13
9
TEST
V
SSA
1, 16, 17, 32
V
SSD(HW)
TDA8932T
V
SSD(HW)
V
SSD(HW)
OICSOP1NI
1PVHN1NI
VGAID
DDP1
1TOOBEGAGNE
1TUOPUREWOP
VDNGC
SSP1
V
DDA
STAB1
V
SSA
STAB2
OSCREF V
SSP2
2TUOFERPVH
2TOOBFERNI
VTSET
DDP2
2PVHN2NI
FERDP2NI
V
SSD(HW)
V
SSD(HW)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
18
17
20
19
22
21
24
23
26
25
32
31
30
29
28
27
Circuit Descriptions, Abbreviation List, and IC Data Sheets
EN 86 LC7.1E LA9.
9.10.4 Diagram B04B, Type SVP CX32 (IC7202) (Trident video processor)
Figure 9-16 Internal block diagram and pin configuration
Block Diagram
Pin Configuration
G_16860_042.eps
220207
ADC 3D Video
Decoder
8/16 bit
CPU bus
SDR
Analog Mux
PWM
5 CVBS
2 Chroma
PC RGB x 1
(up to SXGA 60Hz)
Ypbpr x 2 (up to 1080i)
Din_portD
(24bit)
24bit Digital or 8/10 bit
CCIR656/601
ASS/DSS
UMAC
Memory Control
ICSC Color
Management
3D motion
Deinterlacer
6th
Generation
Scaler
Noise
Reduction
Sharpness
Control
CRTC
10bit Gama
LCD Over
Drive
CSC
MCU
Interface GPIO I2C PWM
VBI
Slicer
OSD
Engine
I2C
GPIO
External
MCU
CVBS_OUT
CVBS Out
8bit Single
LVDS Tx
LVDS Out
Dynamic
Contrast
16/32
r
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
104
103
102
101
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
MD19
MD20
MD21
MS22
MD23
VDDM
VSSC
VDDC
MD24
MD25
MD26
MD27
MD28
MD29
MD30
MD31
DQM3
RESET
V5SF
ALE
A_D0
A_D1
VSSM
A_D2
A_D3
A_D4
A_D5
A_D6
A_D7
VSSC
VDDC
VSSH
VDDH
ADDR7
ADDR6
ADDR5
ADDR4
ADDR3
ADDR2
ADDR1
ADDR0
RD#
WR#
CS
GPIO0
GPIO1
SDA
SCL
INTN
PWM0
VSSC
VDDC
DQM0
MD0
MD1
MD2
MD3
MD4
MD5
MD6
MD7
VSSM
VDDM
MD8
MD9
MD10
MD11
MD12
MD13
MD14
MD15
DQM1
WE#
CAS#
RAS#
CS0#
BA0
BA1
MA11
MA10
MA0
MA1
MA2
MA3
VSSC
VDDC
MA4
MA5
MA6
MA7
MA8
MA9
CLKE
MCK
VSSM
DQM2
VDDM
MD16
MD17
MD18
SVPTMCX32
.
TESTMODE
AIN_HS
AIN_VS
VDDC
VSSC
CVBS_OUT2
CVBS_OUT1
AVSS_OUTBUF
AVDD3_OUTBUF
AVDD3_BG_ASS
AVSS_BG_ASS
AVDD3_ADC1
CVBS1
FS2
FS1
FB2
FB1
VREFP_1
VREFN_1
AVSS_ADC1
AVDD_ADC1
AVDD_ADC4
AVSS_ADC4
Y_G1
Y_G2
Y_G3
PC_G
VREFP_2
VREFN_2
AVDD_ADC2
AVSS_ADC2
PR_R1
PR_R2
PR_R3
PC_R
C
AVDD_ADC3
AVSS_ADC3
AVDD3_AD2
PB_B1
PB_B2
PB_B3
PC_B
PDVDD
PDVSS
PAVDD
PAVSS
XTALI
XTALO
PAVDD1
MLF1
PAVSS1
AVSS33_2
PAVSS2
PLF2
PAVDD2
ADVDD33
AVSS33_1
VM
R
G
B
HSG
IRSET
AVDD33
AVSS33_3
HSD
DP23
DP22
DP9
VDDC
VSSH
VSSC
DP7
DP8
FBLANK
DP_HS
DP_VS
DP_DE_FLD
VDDC
VSSC
HFLB
DP14
DP13
DP12
DP_CLK
DP11
DP10
DP21
DP20
DP19
VDDH
DP6
DP5
DP4
DP3
DP2
DP1
DP0
DP15
DP17
DP16
DP18
VSG
VSSM
VDDM
VSSC
VDDC
Circuit Descriptions, Abbreviation List, and IC Data Sheets EN 87LC7.1E LA 9.
9.10.5 Diagram B04C, Type MSP4450P (IC7411) (Micronas sound processor)
Figure 9-17 Internal block diagram
Source Select
SCART1
SCART2
SCART1
SCART2
SCART4
SCART3
De-
modulator
Headphone
I2S
Sound
Processing
DAC/
DAC
L
DAC
DAC
Subwoofer
Sound IF1
Sound IF2
R
Headphone
SCART
DSP
Input
Select SCART
Output
Select
I
2
S2
I
2
S1 I
2
S
I
2
S
I
2
S3
(2..8-channel)
I
2
S
Prescale
SL
SR
Center
SCART3
SCART5
S/PDIF
ADC
Prescale
ADC
internal /
external
Audio Delay
I
2
S5
/
/
12
16
Loud-
speaker
Sound
Processing High-
Resolution
PWM
Loudspeaker
Pre-
processing
Surround
Processing
I
2
S4
Block Diagram
G_16860_041.eps
300107
Spare Parts List
EN 88 LC7.1E LA10.
10. Spare Parts List
Set Level per Model Number (CTN)
32PFL5322/10
0815 3139 127 09075 Main Software
0816 3139 127 09093 Main NVM Software
0821 3139 127 09103 HDMI-1 Software
0822 3139 127 09113 HDMI-2 Software
1004h9322 230 03682 LC320W01-SL06
1005h3139 128 78521 Power Supply Unit
1112 3139 268 05931 IR/LED Assy [J]
1114 3139 268 05921 Keyboard Assy [E]
1116 3139 268 08851 Side IO Assy [D]
8002 3104 311 07121 Cable 2p3/220/Inlet
8304 3104 311 08031 Cable 11p/480/11p
8520 3104 311 10701 Cable 12p/680/12p
8521 3104 311 12431 Cable 14p/180/14p
8735 3139 131 08671 Cable 4p/480 1000/2ft
8C01 3139 131 08541 Cable 9p/220/9p Bk
8G51 3139 131 08281 Cable 30p/180/30p Fi-x
8M01 3139 131 08601 Cable 3p/80/3p Bk
8M20 3139 131 08691 Cable 7p/560/7p Bk
8P11 3139 131 08581 Cable 8p/220/8p Bk
b
5213 2422 264 00605 Loudsp. 6Ω 15W FR
5215 2422 264 00607 Loudsp. 6Ω 15W Tw
32PFL5322/12
0815 3139 127 09075 Main Software
0816 3139 127 09093 Main NVM Software
0821 3139 127 09103 HDMI-1 Software
0822 3139 127 09113 HDMI-2 Software
1004h9322 230 03682 LC320W01-SL06
1005h3139 128 78521 Power Supply Unit
1112 3139 268 05931 IR/LED Assy [J]
1114 3139 268 05921 Keyboard Assy [E]
1116 3139 268 08851 Side IO Assy [D]
8002 3104 311 07121 Cable 2p3/220/Inlet
8304 3104 311 08031 Cable 11p/480/11p
8520 3104 311 10701 Cable 12p/680/12p
8521 3104 311 12431 Cable 14p/180/14p
8735 3139 131 08671 Cable 4p/480 1000/2ft
8C01 3139 131 08541 Cable 9p/220/9p Bk
8G51 3139 131 08281 Cable 30p/180/30p Fi-x
8M01 3139 131 08601 Cable 3p/80/3p Bk
8M20 3139 131 08691 Cable 7p/560/7p Bk
8P11 3139 131 08581 Cable 8p/220/8p Bk
b
5213 2422 264 00605 Loudsp. 6Ω 15W FR
5215 2422 264 00607 Loudsp. 6Ω 15W Tw
42PFL5322/10
0815 3139 127 09075 Main Software
0816 3139 127 09093 Main NVM Software
0821 3139 127 09103 HDMI-1 Software
0822 3139 127 09113 HDMI-2 Software
1004h9322 246 97682 LC420WX3-SLA1
1005 3122 427 24571 Power Supply Unit
1112 3139 268 05931 IR/LED Assy [J]
1114 3139 268 05921 Keyboard Assy [E]
1116 3139 268 08961 Side IO Assy [D] 42
8002 3104 311 08071 Cable 2P3/140
8304 3104 311 07951 Cable 11p/680/11p
8520 3104 311 08191 Cable 12p/1200/12p
8521 3104 311 12481 Cable 14p/400/14p Wh
8735 3139 131 08041 Cable 4p/560 820/2ft
8C01 3139 131 08521 Cable 9p/400/9p Bk
8G51 3139 131 08291 Cable 30p/280/30p Fi-x
8M01 3139 131 08601 Cable 3p/80/3p Bk
8M20 3104 311 13091 Cable 7p/560/7p Wh
8P11 3139 131 08561 Cable 8p/400/8p Bk
b
5211 2422 264 00618 Loudsp. 6Ω 15W R
5212 2422 264 00617 Loudsp. 6Ω 15W L
42PFL5322/12
0815 3139 127 09075 Main Software
0816 3139 127 09093 Main NVM Software
0821 3139 127 09103 HDMI-1 Software
0822 3139 127 09113 HDMI-2 Software
1004h9322 246 97682 LC420WX3-SLA1
1005h3122 427 24571 Power Supply Unit
1112 3139 268 05931 IR/LED Assy [J]
1114 3139 268 05921 Keyboard Assy [E]
1116 3139 268 08961 Side IO Assy [D] 42
8002 3104 311 08071 Cable 2P3/140
8304 3104 311 07951 Cable 11p/680/11p
8735 3139 131 08041 Cable 4p/560 820/2ft
8C01 3139 131 08521 Cable 9p/400/9p Bk
8G51 3139 131 08291 Cable 30p/280/30p Fi-x
8M01 3139 131 08601 Cable 3p/80/3p Bk
8M20 3104 311 13091 Cable 7p/560/7p Wh
8P11 3139 131 08561 Cable 8p/400/8p Bk
b
5211 2422 264 00618 Loudsp. 6Ω 15W R
5212 2422 264 00617 Loudsp. 6Ω 15W L
Small Signal Board [B]
Various
1101 3139 147 19801 Tuner UV1318S/A IH -3
1102 9322 042 72682 SAW 38.9MHz K3953M
1103 2422 549 44341 SAW 38.9MHz K9656M
1104 2422 543 01386 Xtal 4MHz 20p
1201 2422 543 01133 Xtal 14.32MHz 20pF
1210 2422 549 45325 Bead 67Ω at 100MHz
1211 2422 549 45325 Bead 67Ω at 100MHz
1212 2422 549 45325 Bead 67Ω at 100MHz
1213 2422 549 45325 Bead 67Ω at 100MHz
1214 2422 549 45325 Bead 67Ω at 100MHz
1215 2422 549 45325 Bead 67Ω at 100MHz
1216 2422 549 45325 Bead 67Ω at 100MHz
1301 2422 543 01526 Xtal 10MHz 12p NX8045
1304 2422 025 10655 Connector 11p m
1314 2422 025 18749 Connector 3p m
1411 2422 543 01461 Xtal 18.432MHz 12p
1504 2422 025 20251 SCART V 21p F Bk
1506 2422 025 20251 SCART V 21p F Bk
1615 2422 026 05894 Socket CINCH
1735 2422 025 09406 Connector 4p m
1810 2422 033 00617 Socket HDMI
1811 2422 033 00617 Socket HDMI
1823 2422 543 01517 Xtal 28M322 18p NX5032
1C01 2422 025 10769 Connector 9p m
1G51 2422 025 18772 Connector 30p m
1M20 4822 267 10618 Connector 7p
1P11 4822 265 11352 Connector 8p
g
2112 2020 552 00343 22μF 10% 16V
2117 5322 126 11583 10nF 10% 50V 0603
2118 5322 126 11583 10nF 10% 50V 0603
2119 2020 552 96863 100nF 50V 0603
2120 2020 552 00343 22μF 10% 16V
2121 3198 016 31590 15pF 10% 50V 0603
2122 3198 016 31590 15pF 10% 50V 0603
2123 4822 126 14247 1.5nF 50V 0603
2125 3198 017 44740 470nF 10V 0603
2126 3198 017 42240 220nF 16V Y5V 0603
2127 4822 122 33761 22pF 5% 50V
2128 5322 126 11583 10nF 10% 50V 0603
2129 2020 552 00343 22μF 10% 16V
2130 5322 126 11583 10nF 10% 50V 0603
2131 2020 552 00343 22μF 10% 16V
2132 2020 552 00343 22μF 10% 16V
2133 5322 126 11583 10nF 10% 50V 0603
2136 3198 017 44740 470nF 10V 0603
2137 5322 126 11583 10nF 10% 50V 0603
2138 5322 126 11583 10nF 10% 50V 0603
2139 4822 126 14315 390pF 5% 50V 0603
2143 5322 126 11578 1nF 10% 50V 0603
2144 5322 126 11583 10nF 10% 50V 0603
2145 5322 126 11578 1nF 10% 50V 0603
2147 2238 786 19856 330nF 20% 160V 0603
2148 2238 586 59812 100nF 20% 50V 0603
2149 2020 552 00132 2.2μF 10% 10V
2151 3198 030 81090 10μF 20% 50V
2207 2238 586 59812 100nF 20% 50V 0603
2208 4822 124 12095 100μF 20% 16V
2209 4822 124 12095 100μF 20% 16V
2210 2238 586 59812 100nF 20% 50V 0603
2211 2020 552 00291 10μF 20% 6V3 0603
2212 2238 586 59812 100nF 20% 50V 0603
2213 2238 586 59812 100nF 20% 50V 0603
2214 2238 586 59812 100nF 20% 50V 0603
2215 2238 586 59812 100nF 20% 50V 0603
2216 2020 552 00291 10μF 20% 6V3 0603
2217 2238 586 59812 100nF 20% 50V 0603
2218 2238 586 59812 100nF 20% 50V 0603
2219 2238 586 59812 100nF 20% 50V 0603
2220 2238 586 59812 100nF 20% 50V 0603
2221 2238 586 59812 100nF 20% 50V 0603
2222 2238 586 59812 100nF 20% 50V 0603
2223 2238 586 59812 100nF 20% 50V 0603
2224 2238 586 59812 100nF 20% 50V 0603
2225 2238 586 59812 100nF 20% 50V 0603
2226 2238 586 59812 100nF 20% 50V 0603
2227 2238 586 59812 100nF 20% 50V 0603
2228 2238 586 59812 100nF 20% 50V 0603
2229 2020 552 00134 22μF 20% 6.3V 0805
2230 2020 552 00291 10μF 20% 6V3 0603
2231 2238 586 59812 100nF 20% 50V 0603
2232 2238 586 59812 100nF 20% 50V 0603
2233 2238 586 59812 100nF 20% 50V 0603
2234 2238 586 59812 100nF 20% 50V 0603
2235 2238 586 59812 100nF 20% 50V 0603
2236 2020 552 00291 10μF 20% 6V3 0603
2237 2238 586 59812 100nF 20% 50V 0603
2238 2238 586 59812 100nF 20% 50V 0603
2239 2238 586 59812 100nF 20% 50V 0603
2240 2238 586 59812 100nF 20% 50V 0603
2241 2238 586 59812 100nF 20% 50V 0603
2242 2238 586 59812 100nF 20% 50V 0603
2243 2238 586 59812 100nF 20% 50V 0603
2244 2238 586 59812 100nF 20% 50V 0603
2245 2238 586 59812 100nF 20% 50V 0603
2246 2020 552 96749 20pF 5% 50V 0603
2247 2020 552 96749 20pF 5% 50V 0603
2248 2022 552 05679 1μF 10% 16V 0805
2250 2238 586 59812 100nF 20% 50V 0603
2251 2238 586 59812 100nF 20% 50V 0603
2252 2238 586 59812 100nF 20% 50V 0603
2253 2238 586 59812 100nF 20% 50V 0603
2254 2238 586 59812 100nF 20% 50V 0603
2255 2238 586 59812 100nF 20% 50V 0603
2256 2238 586 59812 100nF 20% 50V 0603
2257 2238 586 59812 100nF 20% 50V 0603
2258 2238 586 59812 100nF 20% 50V 0603
2259 2238 586 59812 100nF 20% 50V 0603
2260 2238 586 59812 100nF 20% 50V 0603
2261 2238 586 59812 100nF 20% 50V 0603
2266 2238 586 59812 100nF 20% 50V 0603
2267 2238 586 59812 100nF 20% 50V 0603
2268 2238 586 59812 100nF 20% 50V 0603
2269 2238 586 59812 100nF 20% 50V 0603
2270 2238 586 59812 100nF 20% 50V 0603
2271 2238 586 59812 100nF 20% 50V 0603
2272 2238 586 59812 100nF 20% 50V 0603
2273 2238 586 59812 100nF 20% 50V 0603
2274 2238 586 59812 100nF 20% 50V 0603
2275 2238 586 15628 2.7nF 10% 50V 0603
2276 2238 586 15628 2.7nF 10% 50V 0603
2277 2238 586 59812 100nF 20% 50V 0603
2279 2020 552 00291 10μF 20% 6V3 0603
2280 2020 552 00291 10μF 20% 6V3 0603
2282 2020 552 00291 10μF 20% 6V3 0603
2284 2020 552 00291 10μF 20% 6V3 0603
2286 2020 552 00291 10μF 20% 6V3 0603
2287 2020 552 00291 10μF 20% 6V3 0603
2288 2020 552 00291 10μF 20% 6V3 0603
2289 2020 552 00291 10μF 20% 6V3 0603
2290 2020 552 00291 10μF 20% 6V3 0603
2291 2020 552 00291 10μF 20% 6V3 0603
2292 2020 552 00291 10μF 20% 6V3 0603
2293 2020 552 00291 10μF 20% 6V3 0603
2295 2238 586 59812 100nF 20% 50V 0603
2296 2238 586 59812 100nF 20% 50V 0603
2297 2020 552 00134 22μF 20% 6.3V 0805
2298 2238 586 59812 100nF 20% 50V 0603
2310 2238 586 59812 100nF 20% 50V 0603
2311 2020 552 00291 10μF 20% 6V3 0603
2312 2238 586 59812 100nF 20% 50V 0603
2313 2238 586 59812 100nF 20% 50V 0603
2314 3198 016 31590 15pF 10% 50V 0603
2315 2238 586 59812 100nF 20% 50V 0603
Spare Parts List EN 89LC7.1E LA 10.
2316 3198 016 31590 15pF 10% 50V 0603
2317 2238 586 59812 100nF 20% 50V 0603
2318 2238 586 59812 100nF 20% 50V 0603
2320 2238 586 59812 100nF 20% 50V 0603
2323 2238 586 59812 100nF 20% 50V 0603
2327 5322 126 11583 10nF 10% 50V 0603
2329 5322 126 11578 1nF 10% 50V 0603
2330 5322 126 11578 1nF 10% 50V 0603
2331 5322 126 11578 1nF 10% 50V 0603
2332 5322 126 11578 1nF 10% 50V 0603
2333 5322 126 11578 1nF 10% 50V 0603
2335 5322 126 11578 1nF 10% 50V 0603
2336 5322 126 11578 1nF 10% 50V 0603
2337 5322 126 11578 1nF 10% 50V 0603
2338 4822 126 13879 220nF +80-20% 16V
2408 4822 126 13881 470pF 5% 50V
2409 4822 126 14247 1.5nF 50V 0603
2410 4822 124 23002 10μF 16V
2411 2020 552 00291 10μF 20% 6V3 0603
2412 4822 126 13883 220pF 5% 50V
2413 4822 126 13883 220pF 5% 50V
2414 2020 552 00291 10μF 20% 6V3 0603
2415 3198 016 33380 3.3pF 50V 0603
2416 3198 016 33380 3.3pF 50V 0603
2417 4822 126 14241 330pF 0603 50V
2418 4822 126 14241 330pF 0603 50V
2419 2238 586 59812 100nF 20% 50V 0603
2420 4822 124 23002 10μF 16V
2421 4822 126 14241 330pF 0603 50V
2422 4822 126 14241 330pF 0603 50V
2423 4822 124 23002 10μF 16V
2424 2020 552 00291 10μF 20% 6V3 0603
2425 2020 552 00291 10μF 20% 6V3 0603
2426 2020 552 00291 10μF 20% 6V3 0603
2427 2020 552 00291 10μF 20% 6V3 0603
2428 2020 552 94427 100pF 5% 50V
2429 2020 552 94427 100pF 5% 50V
2430 2020 552 94427 100pF 5% 50V
2431 2020 552 94427 100pF 5% 50V
2432 4822 126 14225 56pF 5% 50V 0603
2433 4822 126 14241 330pF 0603 50V
2434 4822 126 14241 330pF 0603 50V
2435 4822 126 14241 330pF 0603 50V
2436 2020 552 00291 10μF 20% 6V3 0603
2437 2020 552 00291 10μF 20% 6V3 0603
2438 2238 586 59812 100nF 20% 50V 0603
2439 2020 552 00247 470nF 10% 25V
2440 2020 552 00247 470nF 10% 25V
2441 4822 126 14247 1.5nF 50V 0603
2442 4822 126 13881 470pF 5% 50V
2443 4822 126 14247 1.5nF 50V 0603
2444 4822 126 13881 470pF 5% 50V
2445 2238 586 59812 100nF 20% 50V 0603
2502 4822 126 14241 330pF 0603 50V
2506 4822 126 14241 330pF 0603 50V
2508 4822 126 14241 330pF 0603 50V
2509 4822 126 13879 220nF +80-20% 16V
2512 5322 126 11579 3.3nF 10% 63V
2514 4822 126 14241 330pF 0603 50V
2515 4822 126 13879 220nF +80-20% 16V
2517 5322 126 11579 3.3nF 10% 63V
2518 4822 126 13879 220nF +80-20% 16V
2520 5322 126 11579 3.3nF 10% 63V
2521 4822 126 13879 220nF +80-20% 16V
2523 5322 126 11579 3.3nF 10% 63V
2525 4822 126 13879 220nF +80-20% 16V
2533 4822 126 13879 220nF +80-20% 16V
2534 4822 126 13879 220nF +80-20% 16V
2536 4822 126 13879 220nF +80-20% 16V
2607 4822 126 13879 220nF +80-20% 16V
2608 5322 126 11579 3.3nF 10% 63V
2610 4822 126 13879 220nF +80-20% 16V
2612 5322 126 11579 3.3nF 10% 63V
2801 4822 124 11131 47μF 6.3V
2802 2238 586 59812 100nF 20% 50V 0603
2803 2238 586 59812 100nF 20% 50V 0603
2804 2238 586 59812 100nF 20% 50V 0603
2805 4822 124 11131 47μF 6.3V
2806 2238 586 59812 100nF 20% 50V 0603
2807 2238 586 59812 100nF 20% 50V 0603
2808 4822 124 11131 47μF 6.3V
2809 5322 126 11583 10nF 10% 50V 0603
2810 5322 126 11583 10nF 10% 50V 0603
2811 2020 552 00291 10μF 20% 6V3 0603
2812 2020 552 00291 10μF 20% 6V3 0603
2813 4822 126 14507 18pF 5% 50V 0603
2814 5322 126 11583 10nF 10% 50V 0603
2815 5322 126 11583 10nF 10% 50V 0603
2816 5322 126 11578 1nF 10% 50V 0603
2817 2238 586 59812 100nF 20% 50V 0603
2818 2238 586 59812 100nF 20% 50V 0603
2819 2238 586 59812 100nF 20% 50V 0603
2828 4822 126 14507 18pF 5% 50V 0603
2829 2238 586 59812 100nF 20% 50V 0603
2830 2238 586 59812 100nF 20% 50V 0603
2833 2238 586 59812 100nF 20% 50V 0603
2835 2238 586 59812 100nF 20% 50V 0603
2836 2238 586 59812 100nF 20% 50V 0603
2838 2238 586 59812 100nF 20% 50V 0603
2839 2238 586 59812 100nF 20% 50V 0603
2840 2238 586 59812 100nF 20% 50V 0603
2843 2238 586 59812 100nF 20% 50V 0603
2844 2238 586 59812 100nF 20% 50V 0603
2845 2238 586 59812 100nF 20% 50V 0603
2847 5322 126 11578 1nF 10% 50V 0603
2848 5322 126 11578 1nF 10% 50V 0603
2849 5322 126 11578 1nF 10% 50V 0603
2850 5322 126 11578 1nF 10% 50V 0603
2851 5322 126 11578 1nF 10% 50V 0603
2852 5322 126 11578 1nF 10% 50V 0603
2853 5322 126 11578 1nF 10% 50V 0603
2854 5322 126 11578 1nF 10% 50V 0603
2855 3198 016 31020 1nF 25V 0603
2856 5322 126 11578 1nF 10% 50V 0603
2857 5322 126 11578 1nF 10% 50V 0603
2858 5322 126 11578 1nF 10% 50V 0603
2859 5322 126 11578 1nF 10% 50V 0603
2860 5322 126 11578 1nF 10% 50V 0603
2861 5322 126 11578 1nF 10% 50V 0603
2865 3198 016 31020 1nF 25V 0603
2866 5322 126 11578 1nF 10% 50V 0603
2867 5322 126 11578 1nF 10% 50V 0603
2868 5322 126 11578 1nF 10% 50V 0603
2869 5322 126 11578 1nF 10% 50V 0603
2870 5322 126 11578 1nF 10% 50V 0603
2871 5322 126 11578 1nF 10% 50V 0603
2872 5322 126 11578 1nF 10% 50V 0603
2873 5322 126 11578 1nF 10% 50V 0603
2874 3198 016 31020 1nF 25V 0603
2875 5322 126 11578 1nF 10% 50V 0603
2876 5322 126 11578 1nF 10% 50V 0603
2901 2020 552 96664 33pF 50V 0603
2902 3198 017 44740 470nF 10V 0603
2903 4822 124 12095 100μF 20% 16V
2904 3198 017 44740 470nF 10V 0603
2905 2020 552 96664 33pF 50V 0603
2906 4822 124 12095 100μF 20% 16V
2907 3198 017 44740 470nF 10V 0603
2908 4822 126 13879 220nF +80-20% 16V
2913 4822 126 13879 220nF +80-20% 16V
2940 4822 124 11131 47μF 6.3V
2A01 2238 586 59812 100nF 20% 50V 0603
2A02 2238 586 59812 100nF 20% 50V 0603
2A04 2020 021 00215 220μF 20% 25V
2A08 2020 021 00215 220μF 20% 25V
2A09 2238 586 59812 100nF 20% 50V 0603
2A10 2238 586 59812 100nF 20% 50V 0603
2A11 2020 552 96807 1μF 10% 10V 0603
2A12 4822 126 13883 220pF 5% 50V
2A13 3198 017 42240 220nF 16V Y5V 0603
2A14 2020 552 00247 470nF 10% 25V
2A15 2020 552 96807 1μF 10% 10V 0603
2A16 2020 552 96807 1μF 10% 10V 0603
2A17 3198 016 31020 1nF 25V 0603
2A18 3198 016 31020 1nF 25V 0603
2A19 4822 126 13883 220pF 5% 50V
2A20 2020 552 96807 1μF 10% 10V 0603
2A21 3198 016 31020 1nF 25V 0603
2A22 2238 586 59812 100nF 20% 50V 0603
2A23 3198 016 31020 1nF 25V 0603
2A24 2238 586 59812 100nF 20% 50V 0603
2A25 3198 017 31530 15nF 20% 50V 0603
2A26 3198 017 42240 220nF 16V Y5V 0603
2A27 3198 017 31530 15nF 20% 50V 0603
2A28 2020 552 00247 470nF 10% 25V
2A29 2238 586 59812 100nF 20% 50V 0603
2A30 2238 586 59812 100nF 20% 50V 0603
2A31 3198 016 31020 1nF 25V 0603
2A32 3198 016 31020 1nF 25V 0603
2A33 2238 586 59812 100nF 20% 50V 0603
2A34 2238 586 59812 100nF 20% 50V 0603
2A35 3198 016 31020 1nF 25V 0603
2A36 3198 016 31020 1nF 25V 0603
2A37 3198 017 42240 220nF 16V Y5V 0603
2A38 3198 017 42240 220nF 16V Y5V 0603
2A40 2020 552 00247 470nF 10% 25V
2A41 2020 552 96807 1μF 10% 10V 0603
2A45 3198 016 31020 1nF 25V 0603
2A46 3198 024 44730 47nF 50V 0603
2A47 3198 024 44730 47nF 50V 0603
2B10 4822 124 12095 100μF 20% 16V
2B11 5322 126 11583 10nF 10% 50V 0603
2B12 2020 552 00343 22μF 10% 16V
2B13 2022 031 00373 470μF 20% 16V
2B14 4822 126 13883 220pF 5% 50V
2B15 2238 916 15641 22nF 10% 25V 0603
2B17 2238 586 59812 100nF 20% 50V 0603
2B18 4822 124 23002 10μF 16V
2B19 2022 031 00308 22μF 20% 35V
2B20 2020 552 94427 100pF 5% 50V
2B21 4822 124 23002 10μF 16V
2B22 3198 030 74780 4u7 20% 35V
2B24 2020 012 93822 47μF 20% 16V
2B25 2238 586 59812 100nF 20% 50V 0603
2C55 5322 126 11578 1nF 10% 50V 0603
2C56 5322 126 11578 1nF 10% 50V 0603
2C57 5322 126 11578 1nF 10% 50V 0603
2L24 4822 126 13879 220nF +80-20% 16V
2L25 4822 126 13879 220nF +80-20% 16V
f
3110 3198 021 38220 8.2kΩ 5% 0.062W 0603
3111 4822 051 30562 5.6kΩ 5% 0.063W 0603
3115 4822 051 30393 39kΩ 5% 0.062W
3116 4822 051 30682 6.8Ω 5% 0.062W
3117 4822 051 30222 2.2kΩ 5% 0.062W
3118 4822 051 30222 2.2kΩ 5% 0.062W
3119 4822 051 30223 22kΩ 5% 0.062W
3120 2422 549 42896 Bead 120Ω 100MHz
3121 2422 549 42896 Bead 120Ω 100MHz
3122 4822 051 30183 18kΩ 5% 0.062W
3123 4822 051 30151 150Ω 5% 0.062W
3124 4822 051 30101 100Ω 5% 0.062W
3125 4822 051 30151 150Ω 5% 0.062W
3126 4822 051 30181 180Ω 5% 0.062W
3127 4822 051 30562 5.6kΩ 5% 0.063W 0603
3128 4822 051 30101 100Ω 5% 0.062W
3129 4822 051 30101 100Ω 5% 0.062W
3130 4822 051 30102 1kΩ 5% 0.062W
3133 4822 117 11151 1Ω 5%
3134 4822 117 11151 1Ω 5%
3135 4822 117 12971 15Ω 5% 0603 0.62W
3136 2322 762 60479 47Ω 5% 2512
3137 2322 762 60479 47Ω 5% 2512
3201 3198 031 11010 4 x 100Ω 5% 1206
3202 3198 031 11010 4 x 100Ω 5% 1206
3203 4822 117 13523 220Ω 5% 0.63W
3204 4822 117 13523 220Ω 5% 0.63W
3211 4822 051 30102 1kΩ 5% 0.062W
3212 4822 051 30101 100Ω 5% 0.062W
3213 4822 117 12925 47kΩ 1% 0.063W 0603
3215 4822 051 30101 100Ω 5% 0.062W
3216 4822 051 30479 47Ω 5% 0.062W
3217 4822 117 12925 47kΩ 1% 0.063W 0603
3221 4822 051 30472 4.7Ω 5% 0.062W
3222 4822 051 30472 4.7Ω 5% 0.062W
3239 4822 051 30101 100Ω 5% 0.062W
3241 4822 051 30221 220Ω 5% 0.062W
3242 4822 051 30472 4.7Ω 5% 0.062W
3243 4822 051 30101 100Ω 5% 0.062W
3244 3198 021 32290 22Ω 5% 0603
3245 4822 051 30103 10kΩ 5% 0.062W
3246 4822 051 30101 100Ω 5% 0.062W
3247 4822 051 30101 100Ω 5% 0.062W
3248 3198 021 32290 22Ω 5% 0603
3260 2350 035 10229 4 x 22Ω 5% 1206
3261 2350 035 10229 4 x 22Ω 5% 1206
3262 2350 035 10229 4 x 22Ω 5% 1206
3263 2350 035 10229 4 x 22Ω 5% 1206
3264 2350 035 10229 4 x 22Ω 5% 1206
3265 2350 035 10229 4 x 22Ω 5% 1206
3266 3198 021 32290 22Ω 5% 0603
3267 3198 021 32290 22Ω 5% 0603
3268 2350 035 10229 4 x 22Ω 5% 1206
3271 2350 035 10229 4 x 22Ω 5% 1206
3300 4822 117 11817 1.2kΩ 1% 0.0625W
3303 4822 051 30101 100Ω 5% 0.062W
3305 4822 051 30332 3.3Ω 5% 0.062W
3308 4822 051 30332 3.3Ω 5% 0.062W
3310 4822 051 30102 1kΩ 5% 0.062W
3313 4822 051 30331 330Ω 5% 0.062W
3314 4822 051 30103 10kΩ 5% 0.062W
3315 4822 051 30101 100Ω 5% 0.062W
3316 4822 051 30103 10kΩ 5% 0.062W
3318 4822 051 30101 100Ω 5% 0.062W
3319 4822 051 30103 10kΩ 5% 0.062W
3320 4822 051 30101 100Ω 5% 0.062W
3322 4822 051 30101 100Ω 5% 0.062W
3323 4822 051 30101 100Ω 5% 0.062W
3324 4822 051 30331 330Ω 5% 0.062W
3325 4822 051 30103 10kΩ 5% 0.062W
3329 4822 051 30101 100Ω 5% 0.062W
3336 4822 051 30101 100Ω 5% 0.062W
3338 4822 051 30101 100Ω 5% 0.062W
3339 4822 051 30101 100Ω 5% 0.062W
3340 4822 051 30101 100Ω 5% 0.062W
3341 4822 051 30101 100Ω 5% 0.062W
3342 4822 051 30101 100Ω 5% 0.062W
3343 4822 051 30101 100Ω 5% 0.062W
3345 4822 051 30101 100Ω 5% 0.062W
Spare Parts List
EN 90 LC7.1E LA10.
3346 4822 051 30101 100Ω 5% 0.062W
3347 4822 051 30103 10kΩ 5% 0.062W
3348 4822 051 30479 47Ω 5% 0.062W
3349 4822 051 30103 10kΩ 5% 0.062W
3350 4822 051 30103 10kΩ 5% 0.062W
3351 4822 051 30332 3.3Ω 5% 0.062W
3352 4822 051 30332 3.3Ω 5% 0.062W
3353 4822 051 30103 10kΩ 5% 0.062W
3354 4822 051 30101 100Ω 5% 0.062W
3355 4822 051 30101 100Ω 5% 0.062W
3356 4822 051 30101 100Ω 5% 0.062W
3357 4822 051 30101 100Ω 5% 0.062W
3361 4822 051 30101 100Ω 5% 0.062W
3364 4822 051 30101 100Ω 5% 0.062W
3365 4822 051 30101 100Ω 5% 0.062W
3366 4822 051 30103 10kΩ 5% 0.062W
3368 4822 051 30101 100Ω 5% 0.062W
3370 4822 051 30101 100Ω 5% 0.062W
3372 4822 051 30472 4.7Ω 5% 0.062W
3373 4822 051 30101 100Ω 5% 0.062W
3375 4822 051 30472 4.7Ω 5% 0.062W
3377 4822 051 30332 3.3Ω 5% 0.062W
3378 4822 051 30101 100Ω 5% 0.062W
3379 4822 051 30332 3.3Ω 5% 0.062W
3380 4822 051 30101 100Ω 5% 0.062W
3381 3198 021 32290 22Ω 5% 0603
3382 4822 051 30101 100Ω 5% 0.062W
3383 4822 117 12925 47kΩ 1% 0.063W 0603
3384 3198 021 32290 22Ω 5% 0603
3385 4822 117 12925 47kΩ 1% 0.063W 0603
3386 4822 051 30101 100Ω 5% 0.062W
3387 4822 051 30101 100Ω 5% 0.062W
3388 4822 051 30101 100Ω 5% 0.062W
3389 4822 051 30479 47Ω 5% 0.062W
3390 4822 051 30479 47Ω 5% 0.062W
3391 4822 051 30479 47Ω 5% 0.062W
3393 4822 051 30153 15kΩ 5% 0.062W
3394 4822 051 30223 22kΩ 5% 0.062W
3395 4822 051 30152 1.5Ω 5% 0.062W
3396 4822 051 30102 1kΩ 5% 0.062W
3397 4822 117 12925 47kΩ 1% 0.063W 0603
3398 4822 117 13632 100kΩ 1% 0603 0.62W
3399 4822 051 30103 10kΩ 5% 0.062W
3402h4822 117 11151 1Ω 5%
3410 4822 051 30101 100Ω 5% 0.062W
3411 4822 051 30101 100Ω 5% 0.062W
3417 4822 051 30101 100Ω 5% 0.062W
3418 4822 051 30101 100Ω 5% 0.062W
3419 4822 051 30101 100Ω 5% 0.062W
3420 4822 051 30101 100Ω 5% 0.062W
3500 4822 051 30151 150Ω 5% 0.062W
3502 4822 051 30151 150Ω 5% 0.062W
3503 4822 051 30151 150Ω 5% 0.062W
3506 4822 051 30151 150Ω 5% 0.062W
3507 4822 051 30151 150Ω 5% 0.062W
3508 4822 051 30333 33kΩ 5% 0.062W
3510 4822 051 30151 150Ω 5% 0.062W
3511 4822 051 30333 33kΩ 5% 0.062W
3512 4822 051 30151 150Ω 5% 0.062W
3513 4822 051 30333 33kΩ 5% 0.062W
3514 4822 051 30151 150Ω 5% 0.062W
3515 4822 051 30333 33kΩ 5% 0.062W
3516 4822 051 30101 100Ω 5% 0.062W
3517 4822 051 30759 75Ω 5% 0.062W
3518 4822 051 30273 27kΩ 5% 0.062W
3519 4822 117 12971 15Ω 5% 0603 0.62W
3520 4822 051 30682 6.8Ω 5% 0.062W
3521 4822 051 30102 1kΩ 5% 0.062W
3522 4822 051 30689 68Ω 5% 0.063W 0603
3523 4822 051 30101 100Ω 5% 0.062W
3524 4822 117 12971 15Ω 5% 0603 0.62W
3525 4822 051 30102 1kΩ 5% 0.062W
3526 4822 051 30759 75Ω 5% 0.062W
3528 4822 051 30101 100Ω 5% 0.062W
3529 4822 051 30101 100Ω 5% 0.062W
3530 4822 051 30759 75Ω 5% 0.062W
3531 4822 051 30759 75Ω 5% 0.062W
3532 4822 051 30102 1kΩ 5% 0.062W
3533 4822 051 30759 75Ω 5% 0.062W
3535 4822 051 30689 68Ω 5% 0.063W 0603
3536 4822 051 30102 1kΩ 5% 0.062W
3537 4822 051 30102 1kΩ 5% 0.062W
3538 4822 051 30472 4.7Ω 5% 0.062W
3540 4822 051 30472 4.7Ω 5% 0.062W
3545 4822 051 30101 100Ω 5% 0.062W
3546 4822 051 30759 75Ω 5% 0.062W
3550 4822 051 30273 27kΩ 5% 0.062W
3551 4822 051 30682 6.8Ω 5% 0.062W
3552 4822 051 30101 100Ω 5% 0.062W
3553 4822 051 30759 75Ω 5% 0.062W
3554 4822 051 30689 68Ω 5% 0.063W 0603
3555 4822 051 30689 68Ω 5% 0.063W 0603
3601 4822 051 30759 75Ω 5% 0.062W
3603 4822 051 30759 75Ω 5% 0.062W
3605 4822 051 30759 75Ω 5% 0.062W
3607 4822 051 30151 150Ω 5% 0.062W
3608 4822 051 30333 33kΩ 5% 0.062W
3611 4822 051 30151 150Ω 5% 0.062W
3612 4822 051 30333 33kΩ 5% 0.062W
3617 4822 051 30101 100Ω 5% 0.062W
3618 4822 051 30101 100Ω 5% 0.062W
3619 4822 051 30101 100Ω 5% 0.062W
3801 4822 117 12925 47kΩ 1% 0.063W 0603
3802 4822 117 12925 47kΩ 1% 0.063W 0603
3803 3198 021 31080 1Ω 5% 0603
3804 3198 021 31080 1Ω 5% 0603
3805 4822 051 30221 220Ω 5% 0.062W
3806 4822 051 30221 220Ω 5% 0.062W
3807 3198 031 13390 4 x 33Ω 5% 1206
3809 4822 051 30103 10kΩ 5% 0.062W
3810 4822 051 30472 4.7Ω 5% 0.062W
3811 4822 051 30472 4.7Ω 5% 0.062W
3815 4822 051 30105 1MΩ 5% 0.062W
3819 4822 051 30339 33Ω 5% 0.062W
3828 4822 051 30472 4.7Ω 5% 0.062W
3830 4822 051 30472 4.7Ω 5% 0.062W
3831 4822 117 12925 47kΩ 1% 0.063W 0603
3832 4822 117 12925 47kΩ 1% 0.063W 0603
3833 4822 051 30472 4.7Ω 5% 0.062W
3834 4822 051 30472 4.7Ω 5% 0.062W
3835 4822 051 30339 33Ω 5% 0.062W
3846 4822 051 30472 4.7Ω 5% 0.062W
3850 4822 051 30103 10kΩ 5% 0.062W
3851 3198 031 13390 4 x 33Ω 5% 1206
3852 3198 031 13390 4 x 33Ω 5% 1206
3853 3198 031 13390 4 x 33Ω 5% 1206
3854 3198 031 13390 4 x 33Ω 5% 1206
3855 3198 031 13390 4 x 33Ω 5% 1206
3856 3198 031 13390 4 x 33Ω 5% 1206
3857 4822 051 30339 33Ω 5% 0.062W
3858 4822 051 30339 33Ω 5% 0.062W
3859 4822 051 30339 33Ω 5% 0.062W
3860 4822 051 30339 33Ω 5% 0.062W
3862 4822 051 30102 1kΩ 5% 0.062W
3863 4822 051 30222 2.2kΩ 5% 0.062W
3864 4822 051 30101 100Ω 5% 0.062W
3877 4822 051 30222 2.2kΩ 5% 0.062W
3880 4822 051 30102 1kΩ 5% 0.062W
3881 4822 051 30222 2.2kΩ 5% 0.062W
3882 4822 051 30101 100Ω 5% 0.062W
3883 4822 051 30222 2.2kΩ 5% 0.062W
3896 4822 051 30101 100Ω 5% 0.062W
3897 4822 051 30101 100Ω 5% 0.062W
3901 4822 117 12925 47kΩ 1% 0.063W 0603
3902 4822 051 30124 120kΩ 5% 0.062W
3904 4822 051 30339 33Ω 5% 0.062W
3905 4822 117 12925 47kΩ 1% 0.063W 0603
3906 4822 117 13632 100kΩ 1% 0603 0.62W
3907 4822 117 13632 100kΩ 1% 0603 0.62W
3908 4822 051 30124 120kΩ 5% 0.062W
3910 4822 051 30339 33Ω 5% 0.062W
3911 4822 051 30103 10kΩ 5% 0.062W
3912 4822 051 30103 10kΩ 5% 0.062W
3913 4822 051 30102 1kΩ 5% 0.062W
3914 4822 051 30102 1kΩ 5% 0.062W
3915 4822 051 30102 1kΩ 5% 0.062W
3916 4822 051 30102 1kΩ 5% 0.062W
3917 4822 051 30102 1kΩ 5% 0.062W
3918 4822 051 30102 1kΩ 5% 0.062W
3934 4822 051 30472 4.7Ω 5% 0.062W
3935 4822 051 30472 4.7Ω 5% 0.062W
3937 4822 051 30103 10kΩ 5% 0.062W
3938 4822 051 30103 10kΩ 5% 0.062W
3942 4822 051 30102 1kΩ 5% 0.062W
3943 4822 051 30103 10kΩ 5% 0.062W
3A01 5322 117 11726 10Ω 5%
3A02 5322 117 11726 10Ω 5%
3A03 4822 051 30103 10kΩ 5% 0.062W
3A04 4822 051 30123 12kΩ 5% 0.1W
3A05 2322 762 60229 22Ω 5% 1005
3A06 4822 051 30103 10kΩ 5% 0.062W
3A07 4822 051 30103 10kΩ 5% 0.062W
3A08 4822 051 30123 12kΩ 5% 0.1W
3A09 4822 051 30109 10Ω 5% 0.062W
3A11 4822 051 30103 10kΩ 5% 0.062W
3A12 4822 051 30105 1MΩ 5% 0.062W
3A13 4822 051 30393 39kΩ 5% 0.062W
3A14 2322 762 60229 22Ω 5% 1005
3A15 4822 051 30105 1MΩ 5% 0.062W
3A17 4822 051 30109 10Ω 5% 0.062W
3A19 4822 051 30103 10kΩ 5% 0.062W
3A26 4822 051 30223 22kΩ 5% 0.062W
3A27 4822 117 12891 220kΩ 1%
3A28 4822 117 12891 220kΩ 1%
3A29 4822 117 12925 47kΩ 1% 0.063W 0603
3A30 4822 117 12925 47kΩ 1% 0.063W 0603
3A31 4822 051 30103 10kΩ 5% 0.062W
3B11 4822 051 30472 4.7Ω 5% 0.062W
3B12 5322 117 13049 470Ω 1% 0.063W 0603
3B13 4822 051 30221 220Ω 5% 0.062W
3B14 2322 704 61002 1kΩ 1%
3B15 4822 051 30102 1kΩ 5% 0.062W
3B17 4822 051 30682 6.8Ω 5% 0.062W
3B18 4822 051 30682 6.8Ω 5% 0.062W
3B19 4822 051 30103 10kΩ 5% 0.062W
3L01 4822 051 30472 4.7Ω 5% 0.062W
3L02 4822 051 30101 100Ω 5% 0.062W
3L04 4822 051 30152 1.5Ω 5% 0.062W
3L05 4822 051 30101 100Ω 5% 0.062W
3L10h4822 117 11151 1Ω 5%
3L11 4822 051 30101 100Ω 5% 0.062W
3L15 4822 051 30331 330Ω 5% 0.062W
3L22 4822 051 30008 Jumper 0603
3L23 4822 051 30008 Jumper 0603
4110 4822 051 30008 Jumper 0603
4111 4822 051 30008 Jumper 0603
4112 4822 051 30008 Jumper 0603
4113 4822 051 30008 Jumper 0603
4114 4822 051 30008 Jumper 0603
4120 4822 051 30008 Jumper 0603
4121 4822 051 30008 Jumper 0603
4122 4822 051 30008 Jumper 0603
4123 4822 051 30008 Jumper 0603
4124 4822 051 30008 Jumper 0603
4204 4822 051 30008 Jumper 0603
4205 4822 051 30008 Jumper 0603
4206 4822 051 30008 Jumper 0603
4309 4822 051 30008 Jumper 0603
4310 4822 051 30008 Jumper 0603
4316 4822 051 30008 Jumper 0603
4401 4822 051 30008 Jumper 0603
4402 4822 051 30008 Jumper 0603
4403 4822 051 30008 Jumper 0603
4406 4822 051 30008 Jumper 0603
4407 4822 051 30008 Jumper 0603
4408 4822 051 30008 Jumper 0603
4411 4822 051 30008 Jumper 0603
4803 4822 051 30008 Jumper 0603
4901 4822 051 30008 Jumper 0603
4902 4822 051 30008 Jumper 0603
4903 4822 051 30008 Jumper 0603
4C55 4822 051 30008 Jumper 0603
4C56 4822 051 30008 Jumper 0603
4C61 4822 051 30008 Jumper 0603
4C62 4822 051 30008 Jumper 0603
4L20 4822 051 30008 Jumper 0603
4L21 4822 051 30008 Jumper 0603
4L24 4822 051 30008 Jumper 0603
4L25 4822 051 30008 Jumper 0603
b
5111 2422 536 01057 0.39μH 5% 0603
5112 2422 549 44197 Bead 220Ω at 100MHz
5114 2422 536 01521 10μH 10% 1207
5115 2422 536 01521 10μH 10% 1207
5118 2422 549 44197 Bead 220Ω at 100MHz
5210 4822 157 11499 Bead 60Ω at 100MHz
5212 4822 157 11499 Bead 60Ω at 100MHz
5213 4822 157 11499 Bead 60Ω at 100MHz
5214 4822 157 11499 Bead 60Ω at 100MHz
5215 2422 549 44197 Bead 220Ω at 100MHz
5216 2422 549 43769 Bead 30Ω at 100MHz
5217 2422 549 44197 Bead 220Ω at 100MHz
5218 4822 157 11499 Bead 60Ω at 100MHz
5219 4822 157 11499 Bead 60Ω at 100MHz
5220 4822 157 11499 Bead 60Ω at 100MHz
5221 4822 157 11499 Bead 60Ω at 100MHz
5222 4822 157 11499 Bead 60Ω at 100MHz
5223 4822 157 11499 Bead 60Ω at 100MHz
5224 4822 157 11499 Bead 60Ω at 100MHz
5225 4822 157 11499 Bead 60Ω at 100MHz
5226 4822 157 11499 Bead 60Ω at 100MHz
5227 4822 157 11499 Bead 60Ω at 100MHz
5228 4822 157 11499 Bead 60Ω at 100MHz
5301 4822 157 11499 Bead 60Ω at 100MHz
5302 4822 157 11499 Bead 60Ω at 100MHz
5304 2422 549 01397 Bead 220Ω at 100MHz
5401 2422 549 42896 Bead 120Ω 100MHz
5402 2422 549 42896 Bead 120Ω 100MHz
5403 3198 018 62290 22μH 5% 1008
5810 2422 549 42896 Bead 120Ω 100MHz
5811 2422 549 42896 Bead 120Ω 100MHz
5812 2422 549 42896 Bead 120Ω 100MHz
5813 2422 549 42896 Bead 120Ω 100MHz
5814 2422 549 42896 Bead 120Ω 100MHz
5815 2422 549 42896 Bead 120Ω 100MHz
5816 2422 549 42896 Bead 120Ω 100MHz
5817 2422 549 42896 Bead 120Ω 100MHz
5818 2422 549 42896 Bead 120Ω 100MHz
5A03 2422 536 01564 22μH 20%
Spare Parts List EN 91LC7.1E LA 10.
5A04 2422 536 01564 22μH 20%
5A05 4822 157 11716 Bead 30Ω at 100MHz
5A06 4822 157 11716 Bead 30Ω at 100MHz
5A07 2422 549 45186 Bead 100MHz 0805
5B01 2422 535 94134 10μH 20% 0805
5B02 2422 536 00779 10μH 20%
5B03 2422 536 00707 33μH 20%
5B06 2422 536 01516 68μF 20%
5B10 2422 536 01495 22μH 10%
5B11 2422 536 01495 22μH 10%
d
6103 4822 130 11525 1SS356
6110 4822 130 11397 BAS316
6202 3198 020 55680 BZX384-C5V6
6301 4822 130 11397 BAS316
6306 4822 130 11416 PDZ6.8B
6307 4822 130 11416 PDZ6.8B
6318 9340 548 54115 PDZ6.2B
6511 9340 580 04115 PESD5V0S1BA
6512 9965 000 20150 1N4148WS SOD-323
6513 9965 000 20150 1N4148WS SOD-323
6517 9340 580 04115 PESD5V0S1BA
6801 4822 130 80622 BAT54
6802 4822 130 80622 BAT54
6830 4822 130 80622 BAT54
6831 4822 130 80622 BAT54
6914 4822 130 80622 BAT54
6916 4822 130 11397 BAS316
6919 4822 130 11397 BAS316
6B01 3198 010 10720 SS24
6B02 9340 548 71115 PDZ33B
6B03 5322 130 34337 BAV99
ce
7109 5322 130 60159 BC846B
7113 9352 723 71118 TDA9886T/V4
7114 5322 130 60159 BC846B
7133 9322 104 47668 L78M05CDT
7202 9322 240 94671 CX32-LF
7203 3198 010 42310 BC847BW
7204 9322 245 45668 IS42S16400D-6TL
7205 9322 245 45668 IS42S16400D-6TL
7206 3198 010 42310 BC847BW
7208 4822 130 11155 PDTC114ET
7210 9322 204 71668 SI4835BDY
7308 3198 010 42310 BC847BW
7310 For SW see item 0815
7311 9322 245 53671 M30300SAGP
7312 9322 229 46685 BD45275G
7315 For SW see item 0816
7316 3198 010 42310 BC847BW
7317 3198 010 42310 BC847BW
7320 9340 560 36235 BSH111
7321 9340 560 36235 BSH111
7322 4822 130 11155 PDTC114ET
7323 9322 246 85685 NL27WZ08USG
7410 9322 198 11685 L78L08ACU
7411 9322 243 36671 MSP4450P-VK-E8
7500 5322 130 60159 BC846B
7502 3198 010 42320 BC857BW
7503 5322 130 60159 BC846B
7504 3198 010 42320 BC857BW
7810 9352 668 39118 UDA1334ATS/N2
7811 For SW see item 0822
7812 9965 000 04199 BSN20
7813 9965 000 04199 BSN20
7814 3198 010 42310 BC847BW
7816 3198 010 42310 BC847BW
7817 9322 245 55671 SII9025CTU
7824 9965 000 04199 BSN20
7825 9965 000 04199 BSN20
7850 For SW see item 0821
7851 9965 000 04199 BSN20
7852 9965 000 04199 BSN20
7860 3198 010 42310 BC847BW
7861 3198 010 42310 BC847BW
7901 9322 183 05668 TS482ID
7902 3198 010 42320 BC857BW
7911 3198 010 42310 BC847BW
7912 3198 010 42310 BC847BW
7913 3198 010 42310 BC847BW
7914 3198 010 42310 BC847BW
7915 3198 010 42310 BC847BW
7916 3198 010 42310 BC847BW
7917 3198 010 42320 BC857BW
7919 3198 010 42310 BC847BW
7922 3198 010 42310 BC847BW
7A01 9352 796 42518 TDA8932T/N1
7A05 3198 010 42320 BC857BW
7A06 3198 010 42310 BC847BW
7A07 3198 010 42310 BC847BW
7B01 9322 202 34668 L5973D
7B02 4822 209 17398 LD1117DT33
7B03 4822 130 11057 2N7002
7B04 9322 175 62687 LD1085D2T33
7B05 9322 212 14668 SI4423DY
Side I/O Panel [D]
Various
1301 2422 026 05133 Connector SVHS 4p f
1302 2422 026 05807 Soc. Cinch 3p f YeWhRd
1303 4822 267 31014 Socket Headphone
1304 2422 025 10655 Connector 11p m
g
2301 4822 126 11785 47pF 5% 50V 0603
2302 4822 126 11785 47pF 5% 50V 0603
2303 4822 122 33761 22pF 5% 50V
2304 4822 126 11785 47pF 5% 50V 0603
2305 3198 016 31020 1nF 25V 0603
2306 3198 016 31020 1nF 25V 0603
2307 2238 916 15641 22nF 10% 25V 0603
2308 2238 916 15641 22nF 10% 25V 0603
2309 5322 126 11583 10nF 10% 50V 0603
2310 5322 126 11583 10nF 10% 50V 0603
2311 3198 016 36890 68pF 50V 0603
2313 3198 016 31020 1nF 25V 0603
2314 3198 016 31020 1nF 25V 0603
f
3301 4822 051 30759 75Ω 5% 0.062W
3302 4822 051 30759 75Ω 5% 0.062W
3303 4822 051 30109 10Ω 5% 0.062W
3304 4822 051 30101 100Ω 5% 0.062W
3305 4822 051 30109 10Ω 5% 0.062W
3306 4822 051 30101 100Ω 5% 0.062W
3308 4822 051 30151 150Ω 5% 0.062W
3309 4822 051 30333 33kΩ 5% 0.062W
3310 4822 051 30151 150Ω 5% 0.062W
3311 4822 051 30333 33kΩ 5% 0.062W
3312 4822 051 30103 10kΩ 5% 0.062W
3313 4822 051 30103 10kΩ 5% 0.062W
4308 2422 549 42896 Bead 120Ω 100MHz
4309 2422 549 42896 Bead 120Ω 100MHz
d
6301 9322 146 61685 DF3A6.8FU
6302 9322 146 61685 DF3A6.8FU
6303 9322 146 61685 DF3A6.8FU
6304 9322 146 61685 DF3A6.8FU
6305 9322 146 61685 DF3A6.8FU
6306 9322 146 61685 DF3A6.8FU
6307 9322 146 61685 DF3A6.8FU
Keyboard Control Panel [E]
Various
1011 4822 276 13775 Switch 1p 0.1A 12V
1012 4822 276 13775 Switch 1p 0.1A 12V
1013 4822 276 13775 Switch 1p 0.1A 12V
1014 4822 276 13775 Switch 1p 0.1A 12V
1015 4822 276 13775 Switch 1p 0.1A 12V
1016 4822 276 13775 Switch 1p 0.1A 12V
1M01 2422 025 10775 Connector 3p m
g
2001 4822 126 13881 470pF 5% 50V
f
3010 4822 051 30391 390Ω 5% 0.062W
3011 4822 051 30561 560Ω 5% 0.062W
3012 3198 021 31820 1.8kΩ 5% 0.062W 0603
3013 4822 051 30151 150Ω 5% 0.062W
3014 4822 117 12968 820Ω 5% 0.62W
3015 4822 051 30008 Jumper 0603
3016 4822 051 30008 Jumper 0603
3017 4822 051 30008 Jumper 0603
4001 4822 051 30008 Jumper 0603
d
6011 4822 130 11564 UDZ3.9B
6012 4822 130 11564 UDZ3.9B
6014 3198 020 55680 BZX384-C5V6
6015 3198 020 55680 BZX384-C5V6
6016 3198 020 55680 BZX384-C5V6
6017 3198 020 55680 BZX384-C5V6
6018 3198 020 55680 BZX384-C5V6
IR LED Panel [J]
Various
1M01 2422 025 10775 Connector 3p m
1M01 2422 025 18146 Connector 3p m Wh
1M20 2422 025 18151 Connector 7p m Wh
1M20 4822 265 41343 Connector 7p m
g
2001 2020 552 00134 22μF 20% 6.3V 0805
f
3010 4822 051 30331 330Ω 5% 0.062W
3011 4822 051 30682 6.8Ω 5% 0.062W
3012 4822 051 30682 6.8Ω 5% 0.062W
3013 4822 117 12968 820Ω 5% 0.62W
3014 4822 051 30103 10kΩ 5% 0.062W
3019 4822 051 30151 150Ω 5% 0.062W
3020 4822 051 30151 150Ω 5% 0.062W
4001 4822 051 30008 Jumper 0603
4002 4822 051 30008 Jumper 0603
4004 4822 051 30008 Jumper 0603
4005 4822 051 30008 Jumper 0603
4010 4822 051 30008 Jumper 0603
4012 4822 051 30008 Jumper 0603
4015 4822 051 30008 Jumper 0603
4017 4822 051 30008 Jumper 0603
4019 4822 051 30008 Jumper 0603
d
6010 9322 243 77676 LED L-174A2PBC
6011 9322 244 07676 LED L-174A2IT-TNB5-19
6012 4822 130 11148 UDZ4.7B
ce
7010 9322 243 06671 IR Receiver
7011 5322 130 60159 BC846B
7012 5322 130 60159 BC846B
Revision List
EN 92 LC7.1E LA11.
11. Revision List
Manual xxxx xxx xxxx.0
• First release.
www.s-manuals.com

Navigation menu
