Introduction
Programming the PicoScope 3000 Series (A API) oscilloscopes
Device features
API functions
Wrapper functions
Programming examples
Reference

Programmer's Guide

ps3000apg.en r14

PC Oscilloscopes and MSOs

PicoScope® 3000 Series

IPicoScope 3000 Series (A API) Programmer's Guide

Contents

1 Introduction ................................................................................................................................ 1

1 Overview ............................................................................................................................................ 1

2 License agreement .............................................................................................................................. 2

3 Trademarks ........................................................................................................................................ 2

2 Programming the PicoScope 3000 Series (A API) oscilloscopes ................................................. 3

1 Drivers ............................................................................................................................................... 3

2 Minimum PC requirements ................................................................................................................. 3

3 USB port requirements ....................................................................................................................... 3

3 Device features ........................................................................................................................... 4

1 Power options .................................................................................................................................... 4

2 Voltage ranges .................................................................................................................................... 5

3 MSO digital data ................................................................................................................................. 6

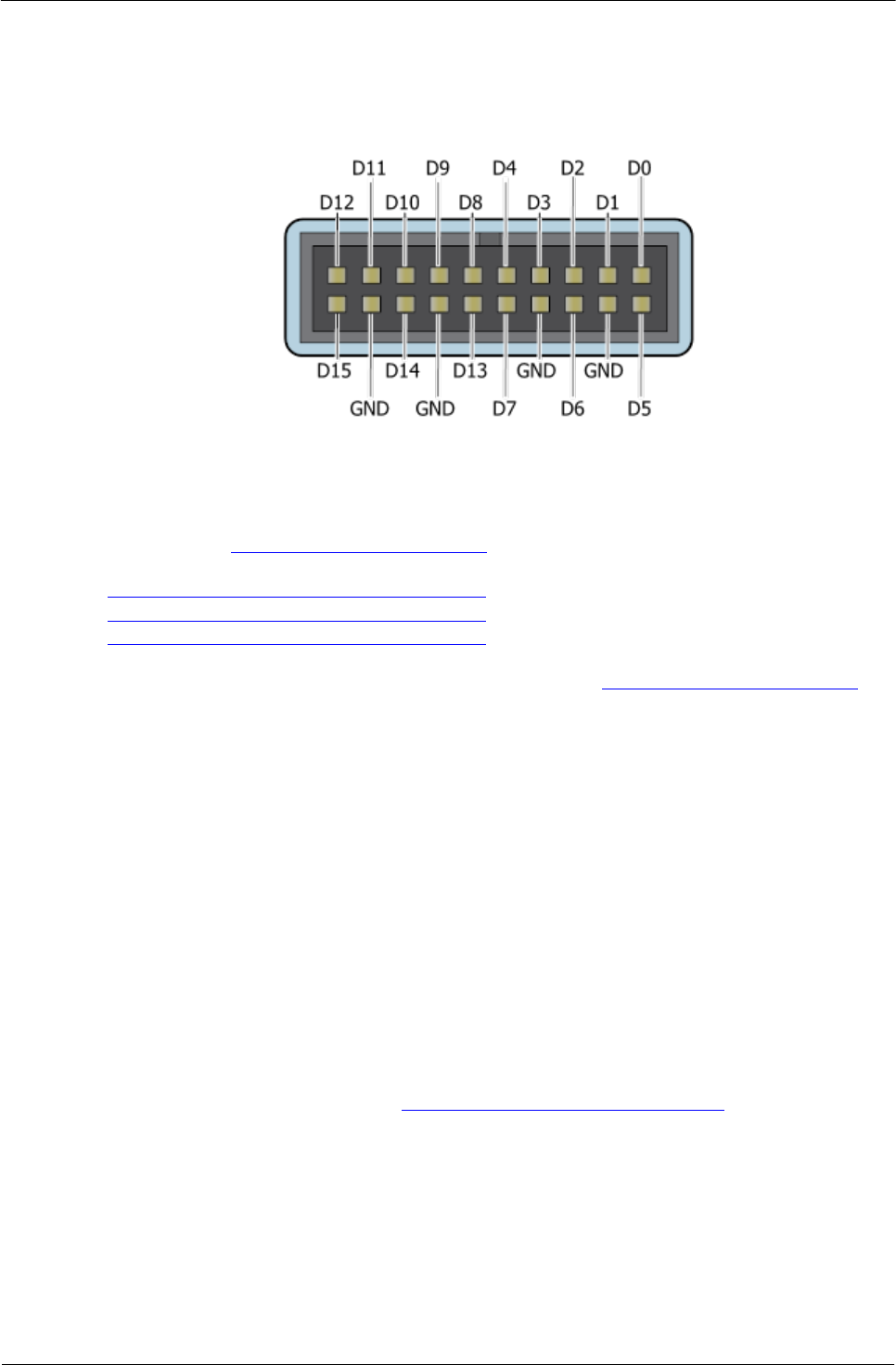

4 MSO digital connector ........................................................................................................................ 7

5 Triggering ........................................................................................................................................... 7

6 Timebases .......................................................................................................................................... 8

7 Sampling modes .................................................................................................................................. 9

1 Block mode .......................................................................................................................... 10

2 Rapid block mode ................................................................................................................. 13

3 ETS (Equivalent Time Sampling) ............................................................................................ 19

4 Streaming mode .................................................................................................................... 21

5 Retrieving stored data ........................................................................................................... 23

8 Combining several oscilloscopes ........................................................................................................ 23

4 API functions ............................................................................................................................ 24

1 ps3000aBlockReady (callback) .......................................................................................................... 26

2 ps3000aChangePowerSource ............................................................................................................ 27

3 ps3000aCloseUnit ............................................................................................................................ 28

4 ps3000aCurrentPowerSource ............................................................................................................ 29

5 ps3000aDataReady (callback) ........................................................................................................... 30

6 ps3000aEnumerateUnits ................................................................................................................... 31

7 ps3000aFlashLed .............................................................................................................................. 32

8 ps3000aGetAnalogueOffset ............................................................................................................... 33

9 ps3000aGetChannelInformation ........................................................................................................ 34

10 ps3000aGetMaxDownSampleRatio .................................................................................................. 35

11 ps3000aGetMaxEtsValues ............................................................................................................... 36

12 ps3000aGetMaxSegments ............................................................................................................... 37

13 ps3000aGetNoOfCaptures .............................................................................................................. 38

14 ps3000aGetNoOfProcessedCaptures ............................................................................................... 39

15 ps3000aGetStreamingLatestValues .................................................................................................. 40

16 ps3000aGetTimebase ...................................................................................................................... 41

17 ps3000aGetTimebase2 .................................................................................................................... 42

18 ps3000aGetTriggerInfoBulk ............................................................................................................ 43

ContentsII

19 ps3000aGetTriggerTimeOffset ........................................................................................................ 44

20 ps3000aGetTriggerTimeOffset64 .................................................................................................... 45

21 ps3000aGetUnitInfo ....................................................................................................................... 46

22 ps3000aGetValues .......................................................................................................................... 47

1 Downsampling modes ........................................................................................................... 48

23 ps3000aGetValuesAsync ................................................................................................................. 49

24 ps3000aGetValuesBulk ................................................................................................................... 50

25 ps3000aGetValuesOverlapped ........................................................................................................ 51

26 ps3000aGetValuesOverlappedBulk .................................................................................................. 52

1 Using the GetValuesOverlapped functions .............................................................................. 53

27 ps3000aGetValuesTriggerTimeOffsetBulk ....................................................................................... 54

28 ps3000aGetValuesTriggerTimeOffsetBulk64 .................................................................................... 55

29 ps3000aHoldOff ............................................................................................................................. 56

30 ps3000aIsReady .............................................................................................................................. 57

31 ps3000aIsTriggerOrPulseWidthQualifierEnabled ............................................................................. 58

32 ps3000aMaximumValue .................................................................................................................. 59

33 ps3000aMemorySegments ............................................................................................................... 60

34 ps3000aMinimumValue ................................................................................................................... 61

35 ps3000aNoOfStreamingValues ........................................................................................................ 62

36 ps3000aOpenUnit .......................................................................................................................... 63

37 ps3000aOpenUnitAsync .................................................................................................................. 64

38 ps3000aOpenUnitProgress .............................................................................................................. 65

39 ps3000aPingUnit ............................................................................................................................ 66

40 ps3000aRunBlock ........................................................................................................................... 67

41 ps3000aRunStreaming .................................................................................................................... 69

42 ps3000aSetBandwidthFilter ............................................................................................................. 71

43 ps3000aSetChannel ........................................................................................................................ 72

44 ps3000aSetDataBuffer .................................................................................................................... 73

45 ps3000aSetDataBuffers ................................................................................................................... 74

46 ps3000aSetDigitalPort .................................................................................................................... 75

47 ps3000aSetEts ................................................................................................................................ 76

48 ps3000aSetEtsTimeBuffer ............................................................................................................... 77

49 ps3000aSetEtsTimeBuffers .............................................................................................................. 78

50 ps3000aSetNoOfCaptures ............................................................................................................... 79

51 ps3000aSetPulseWidthDigitalPortProperties ................................................................................... 80

52 ps3000aSetPulseWidthQualifier ...................................................................................................... 81

1 PS3000A_PWQ_CONDITIONS structure ............................................................................. 83

53 ps3000aSetPulseWidthQualifierV2 .................................................................................................. 84

1 PS3000A_PWQ_CONDITIONS_V2 structure ....................................................................... 86

54 ps3000aSetSigGenArbitrary ............................................................................................................ 87

1 AWG index modes ............................................................................................................... 89

2 Calculating deltaPhase ........................................................................................................... 89

55 ps3000aSetSigGenBuiltIn ................................................................................................................ 91

56 ps3000aSetSigGenBuiltInV2 ............................................................................................................ 94

IIIPicoScope 3000 Series (A API) Programmer's Guide

57 ps3000aSetSigGenPropertiesArbitrary ............................................................................................. 95

58 ps3000aSetSigGenPropertiesBuiltIn ................................................................................................. 96

59 ps3000aSetSimpleTrigger ................................................................................................................ 97

60 ps3000aSetTriggerChannelConditions ............................................................................................. 98

1 PS3000A_TRIGGER_CONDITIONS structure ....................................................................... 99

61 ps3000aSetTriggerChannelConditionsV2 ....................................................................................... 100

1 PS3000A_TRIGGER_CONDITIONS_V2 structure ............................................................... 101

62 ps3000aSetTriggerChannelDirections ............................................................................................ 102

63 ps3000aSetTriggerChannelProperties ............................................................................................ 103

1 PS3000A_TRIGGER_CHANNEL_PROPERTIES structure ..................................................... 104

64 ps3000aSetTriggerDelay ............................................................................................................... 106

65 ps3000aSetTriggerDigitalPortProperties ........................................................................................ 107

1 PS3000A_DIGITAL_CHANNEL_DIRECTIONS structure ..................................................... 108

66 ps3000aSigGenArbitraryMinMaxValues ......................................................................................... 109

67 ps3000aSigGenFrequencyToPhase ................................................................................................. 110

68 ps3000aSigGenSoftwareControl .................................................................................................... 111

69 ps3000aStop ................................................................................................................................. 112

70 ps3000aStreamingReady (callback) ................................................................................................ 113

5 Wrapper functions ................................................................................................................. 114

1 Using the wrapper functions for streaming data capture ................................................................... 114

2 AutoStopped .................................................................................................................................. 116

3 AvailableData ................................................................................................................................. 117

4 BlockCallback ................................................................................................................................. 118

5 ClearTriggerReady .......................................................................................................................... 119

6 decrementDeviceCount ................................................................................................................... 120

7 getDeviceCount .............................................................................................................................. 121

8 GetStreamingLatestValues .............................................................................................................. 122

9 initWrapUnitInfo ............................................................................................................................ 123

10 IsReady ......................................................................................................................................... 124

11 IsTriggerReady .............................................................................................................................. 125

12 resetNextDeviceIndex ................................................................................................................... 126

13 RunBlock ...................................................................................................................................... 127

14 setAppAndDriverBuffers ............................................................................................................... 128

15 setMaxMinAppAndDriverBuffers ................................................................................................... 129

16 setAppAndDriverDigiBuffers ......................................................................................................... 130

17 setMaxMinAppAndDriverDigiBuffers ............................................................................................. 131

18 setChannelCount .......................................................................................................................... 132

19 setDigitalPortCount ...................................................................................................................... 133

20 setEnabledChannels ...................................................................................................................... 134

21 setEnabledDigitalPorts .................................................................................................................. 135

22 SetPulseWidthQualifier ................................................................................................................. 136

23 SetPulseWidthQualifierV2 ............................................................................................................ 137

24 SetTriggerConditions .................................................................................................................... 138

25 SetTriggerConditionsV2 ................................................................................................................ 139

ContentsIV

26 SetTriggerProperties ..................................................................................................................... 140

27 StreamingCallback ........................................................................................................................ 141

6 Programming examples .......................................................................................................... 142

7 Reference ............................................................................................................................... 143

1 Numeric data types ......................................................................................................................... 143

2 Enumerated types, constants and structures ..................................................................................... 143

3 Driver status codes ......................................................................................................................... 143

4 Glossary ......................................................................................................................................... 148

Index ......................................................................................................................................... 151

PicoScope 3000 Series (A API) Programmer's Guide 1

1 Introduction

1.1 Overview

The PicoScope 3000A, 3000B and 3000D Series Oscilloscopes and MSOs from

Pico Technology are a range of high-specification, real-time measuring instruments

that connect to the USB port of your computer. The series covers various options of

portability, deep memory, fast sampling rates and high bandwidth, making it a highly

versatile range that suits a wide range of applications. The range includes Hi-Speed

USB 2.0 and SuperSpeed USB 3.0 devices.

This manual explains how to use the ps3000a API (application programming interface)

functions to develop your own programs to collect and analyze data from these

oscilloscopes.

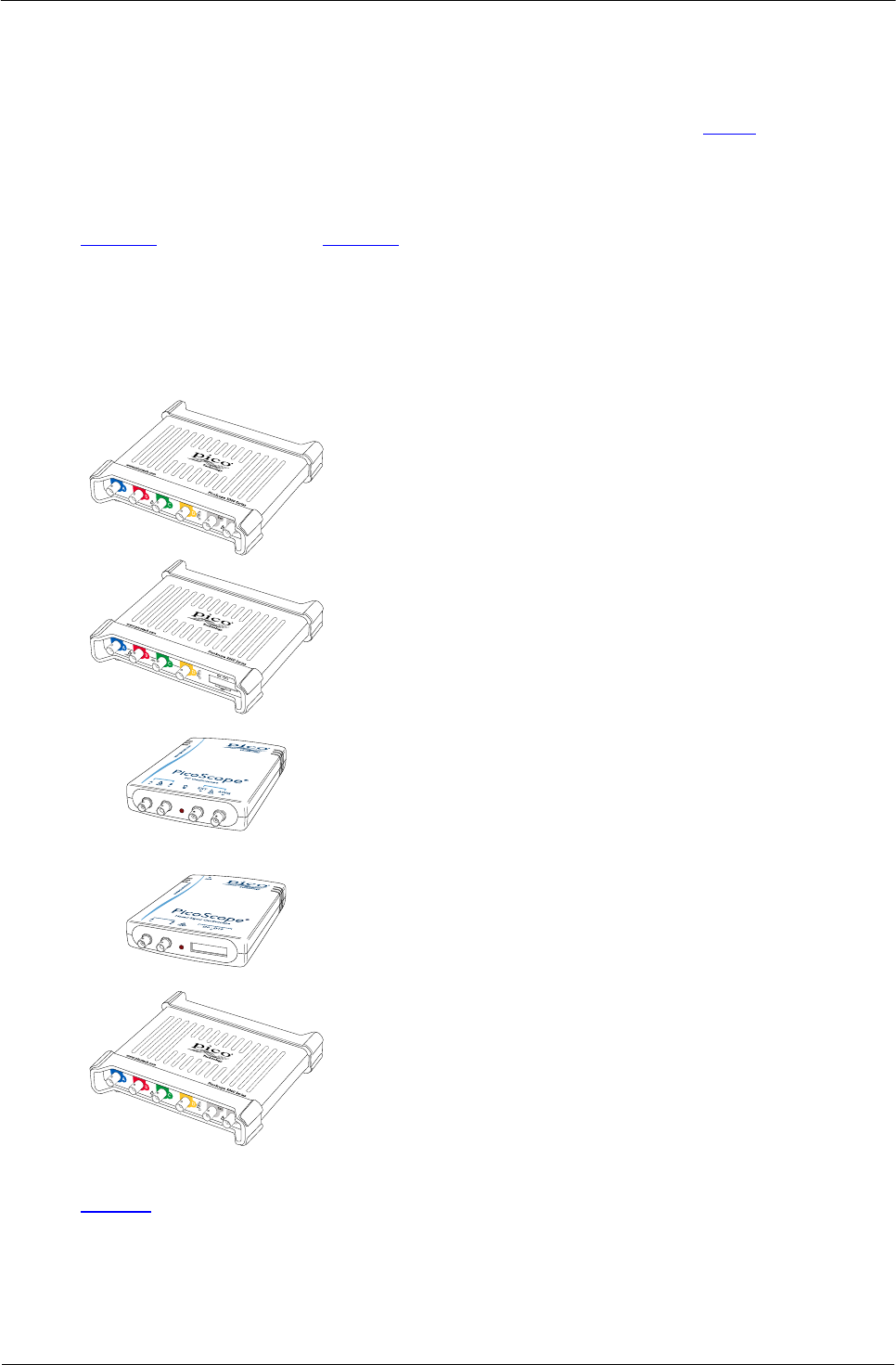

The information in this manual applies to the following oscilloscopes:

PicoScope 3203D to 3206D

PicoScope 3403D to 3406D

USB 3.0 2-channel and 4-channel oscilloscopes

3000D models have an arbitrary waveform generator.

PicoScope 3203D MSO to 3206D MSO

PicoScope 3403D MSO to 3406D MSO

USB 3.0 mixed-signal oscilloscopes

3000D MSO models have 2 or 4 analog inputs, 16 digital

inputs and an arbitrary waveform generator.

PicoScope 3204A/B to 3207A/B

High-speed 2-channel oscilloscopes (discontinued)

3000A Series models have a function generator; 3000B

Series models have an arbitrary waveform generator.

PicoScope 3204 MSO to 3206 MSO

USB 2.0 mixed-signal oscilloscopes (discontinued)

3000 MSO models have 2 or 4 analog inputs, 16 digital

inputs and an arbitrary waveform generator.

PicoScope 3404A/B to 3406A/B

High-speed 4-channel oscilloscopes (discontinued)

3000A Series models have a function generator; 3000B

Series models have an arbitrary waveform generator.

For information on any of the above oscilloscopes, refer to the data sheets on our

website.

For programming information on PicoScope 3000 Series oscilloscopes and MSOs not

listed above, refer to the PicoScope 3000 Series Programmer's Guide available from

www.picotech.com.

Introduction2

1.2 License agreement

Grant of license. The material contained in this release is licensed, not sold. Pico

Technology Limited ('Pico') grants a license to the person who installs this software,

subject to the conditions listed below.

Access. The licensee agrees to allow access to this software only to persons who have

been informed of and agree to abide by these conditions.

Usage. The software in this release is for use only with Pico products or with data

collected using Pico products.

collected using Pico products. You may copy and distribute the SDK without restriction,

as long as you do not remove any Pico Technology copyright statements. The example

programs in the SDK may be modified, copied and distributed for the purpose of

developing programs to collect data using Pico products.

Liability. Pico and its agents shall not be liable for any loss or damage, howsoever

caused, related to the use of Pico equipment or software, unless excluded by statute.

Fitness for purpose. No two applications are the same, so Pico cannot guarantee

that its equipment or software is suitable for a given application. It is therefore the

user's responsibility to ensure that the product is suitable for the user's application.

Mission-critical applications. Because the software runs on a computer that may be

running other software products, and may be subject to interference from these other

products, this license specifically excludes usage in 'mission-critical' applications, for

example life-support systems.

Viruses. This software was continuously monitored for viruses during production.

However, the user is responsible for virus checking the software once it is installed.

Support. No software is ever error-free, but if you are dissatisfied with the

performance of this software, please contact our technical support staff.

Upgrades. We provide upgrades, free of charge, from our web site at

www.picotech.com. We reserve the right to charge for updates or replacements sent

out on physical media.

1.3 Trademarks

Pico Technology and PicoScope are trademarks of Pico Technology Limited,

registered in the United Kingdom and other countries.

PicoScope and Pico Technology are registered in the U.S. Patent and Trademark

Office.

Windows and Visual Basic for Applications are registered trademarks or

trademarks of Microsoft Corporation in the USA and other countries.

PicoScope 3000 Series (A API) Programmer's Guide 3

2Programming the PicoScope 3000 Series (A API)

oscilloscopes

The ps3000a.dll dynamic link library (DLL) in the SDK allows you to program any

supported oscilloscope using standard C function calls.

A typical program for capturing data consists of the following steps:

·Open the scope unit.

·Set up the input channels with the required voltage ranges and coupling type.

·Set up triggering.

·Start capturing data. (See Sampling modes, where programming is discussed in

more detail.)

·Wait until the scope unit is ready.

·Stop capturing data.

·Copy data to a buffer.

·Close the scope unit.

Numerous example programs are included in the SDK. These demonstrate how to use

the functions of the driver software in each of the modes available.

2.1 Drivers

Your application communicates with two drivers—ps3000a.dll and picoipp.dll—

which are supplied in 32-bit and 64-bit versions. ps3000a.dll exports the ps3000a

function definitions in standard C format but this does not limit you to programming in

C. You can use the API with any programming language that supports standard C calls.

The two DLLs depend on a low-level (kernel) driver called WinUsb.sys. This is installed

by the SDK and configured when you plug the oscilloscope into each USB port for the

first time.

2.2 Minimum PC requirements

To ensure that your PicoScope operates correctly, you must have a computer with at

least the minimum system requirements to run one of the supported operating

systems, as shown in the following table. The performance of the oscilloscope will be

better with a more powerful PC, and will benefit from a multicore processor.

Item

Specification

Operating system

Windows 7, 8 or 10 (32-bit or 64-bit)

Or Linux

Or OS X (Mac)

Processor

As required by operating system

Memory

Free disk space

Ports

USB 2.0 port

2.3 USB port requirements

The ps3000a driver offers four different methods of recording data, all of which

support both USB 1.1, USB 2.0, and USB 3.0 connections. The USB 2.0 oscilloscopes

are Hi-Speed devices, so transfer rate will not increase by using USB 3.0, but it will

decrease when using USB 1.1. The USB 3.0 oscilloscopes are SuperSpeed devices, so

should be used with a USB 3.0 port for optimal performance.

Device features4

3Device features

3.1 Power options

PicoScope 3000 Series oscilloscopes can be powered in several ways depending on the

model:

USB 2.0

cable

USB 2.0

double-

headed

cable

USB 3.0

cable

USB 2.0

cable +

power

supply

PicoScope 3200A & 3200B

2-channel USB 2.0 oscilloscopes

PicoScope 3400A & 3400B

4-channel USB 2.0 oscilloscopes

PicoScope 3207A & 3207B

2-channel USB 3.0 oscilloscopes

PicoScope 3200D MSO

2-channel USB 3.0 MSOs

PicoScope 3200D

2-channel USB 3.0 oscilloscopes

PicoScope 3400D MSO

4-channel USB 3.0 MSOs

PicoScope 3400D

4-channel USB 3.0 oscilloscopes

Data retention

If the power source is changed (power supply connected or disconnected) while the

oscilloscope is in operation, any unsaved data is lost. The application must then

reconfigure the oscilloscope before data capture can continue.

API functions

The following functions are used to control the flexible power feature:

·ps3000aChangePowerSource

·ps3000aCurrentPowerSource

If you want the device to run on USB power only, instruct the driver by calling

ps3000aChangePowerSource after calling ps3000aOpenUnit. If you call

ps3000aOpenUnit without the power supply connected, the driver returns either

PICO_POWER_SUPPLY_NOT_CONNECTED (for 4-channel scopes) or

PICO_USB3_0_DEVICE_NON_USB3_0_PORT (for 2-channel USB 3.0 scopes plugged into a

non-USB 3.0 port).

If the supply is connected or disconnected during use, the driver returns the relevant

status code and you must then call ps3000aChangePowerSource before you can

continue running the scope.

PicoScope 3000 Series (A API) Programmer's Guide 5

3.2 Voltage ranges

Analog input channels

You can set a device input channel to any voltage range from ±50 mV to ±20 V with

ps3000aSetChannel. Each sample is scaled to 16 bits so that the values returned to

your application are as follows:

Function

Voltage

Value returned

decimal

hex

ps3000aMaximumValue

maximum

32 512

7F00

0 V

0000

ps3000aMinimumValue

minimum

–32 512

8100

Example

1. Call

ps3000aSetChannel

with range set to

PS3000A_1V.

2. Apply a sine wave

input of 500 mV

amplitude to the

oscilloscope.

3. Capture some data

using the desired

sampling mode.

4. The data will be

encoded as shown

opposite.

External trigger input

The PicoScope 3000 Series D models have an external trigger input (marked Ext).

This external trigger input is scaled to a 16-bit value as follows:

Constant

Voltage

Value returned

decimal

hex

PS3000A_EXT_MAX_VALUE

+5 V

+32 767

7FFF

0 V

0000

PS3000A_EXT_MIN_VALUE

–32 767

8001

Device features6

3.3 MSO digital data

Applicability: mixed-signal oscilloscope (MSO) devices only

A PicoScope MSO has two 8-bit digital ports—PORT0 and PORT1—making a total of 16

digital channels.

The data from each port is returned in a separate buffer that is set up by the

ps3000aSetDataBuffer and ps3000aSetDataBuffers functions. For compatibility with

the analog channels, each buffer is an array of 16-bit words. The 8-bit port data

occupies the lower 8 bits of the word while the upper 8 bits of the word are undefined.

PORT1 buffer

PORT0 buffer

Sample0

[XXXXXXXX,D15...D8]0

[XXXXXXXX,D7...D0]0

...

Samplen–1

[XXXXXXXX,D15...D8]n–1

[XXXXXXXX,D7...D0]n–1

Retrieving stored digital data

The following C code snippet shows how to combine data from the two 8-bit ports into

a single 16-bit word, and then how to extract individual bits from the 16-bit word.

// Mask Port 1 values to get lower 8 bits

portValue = 0x00ff & appDigiBuffers[2][i];

// Shift by 8 bits to place in upper 8 bits of 16-bit word

portValue <<= 8;

// Mask Port 0 values to get lower 8 bits,

// then OR with shifted Port 1 bits to get 16-bit word

portValue |= 0x00ff & appDigiBuffers[0][i];

for (bit = 0; bit < 16; bit++)

{

// Shift value 32768 (binary 1000 0000 0000 0000).

// AND with value to get 1 or 0 for channel.

// Order will be D15 to D8, then D7 to D0.

bitValue = (0x8000 >> bit) & portValue? 1 : 0;

}

PicoScope 3000 Series (A API) Programmer's Guide 7

3.4 MSO digital connector

The PicoScope 3000 Series and 3000D Series MSOs have a digital input connector. The

following pinout of the 20-pin IDC header plug is drawn as you look at the front panel

of the device.

3.5 Triggering

PicoScope oscilloscopes can either start collecting data immediately, or be

programmed to wait for a trigger event to occur. In both cases you need to use the

trigger function ps3000aSetSimpleTrigger, which in turn calls:

·ps3000aSetTriggerChannelConditions

·ps3000aSetTriggerChannelDirections

·ps3000aSetTriggerChannelProperties

These can also be called individually, rather than using ps3000aSetSimpleTrigger, in

order to set up advanced trigger types such as pulse width.

A trigger event can occur when one of the signal or trigger input channels crosses a

threshold voltage on either a rising or a falling edge. It is also possible to combine up

to four inputs using the logic trigger function.

The driver supports these triggering methods:

·Simple edge

·Advanced edge

·Windowing

·Pulse width

·Logic

·Delay

·Drop-out

·Runt

The pulse width, delay and drop-out triggering methods additionally require the use of

the pulse width qualifier function, ps3000aSetPulseWidthQualifier.

Device features8

3.6 Timebases

The API allows you to select one of 232 different timebases*. The timebases allow slow

enough sampling in block mode to overlap the streaming sample intervals, so that you

can make a smooth transition between block mode and streaming mode.

ps3000aGetTimebase will tell you the sampling interval for a given timebase number.

PicoScope 3000A and 3000B Series 2-Channel USB 2.0 Oscilloscopes

Timebase

(n)

Sample interval formula

Sample

interval

Notes

2n / 500,000,000

2 ns

Only one channel enabled

4 ns

8 ns

...

232–1

(n–2) / 62,500,000

16 ns

...

~ 68.7 s

PicoScope 3000 Series USB 2.0 MSOs

Timebase

(n)

Sample interval formula

Sample

interval

Notes

2n / 500,000,000

2 ns

No more than one analog

channel and one digital

port enabled

4 ns

...

232–1

(n–1) / 125,000,000

8 ns

...

~ 34.4 s

PicoScope 3000A and 3000B Series 4-Channel USB 2.0 Oscilloscopes

PicoScope 3207A and 3207B USB 3.0 Oscilloscopes

PicoScope 3000D Series USB 3.0 Oscilloscopes and MSOs

Timebase

(n)

Sample interval formula

Sample

interval

Notes

2n / 1,000,000,000

1 ns

Only one analog channel

enabled

2 ns

No more than two analog

channels or digital ports

enabled

4 ns

No more than four analog

channels or digital ports

enabled

...

232–1

(n–2) / 125,000,000

8 ns

...

~ 34.4 s

* The fastest timebase available depends on the number of channels and digital ports

enabled, as specified in the data sheet. In streaming mode it also depends on the

oscilloscope model.

PicoScope 3000 Series (A API) Programmer's Guide 9

3.7 Sampling modes

PicoScope oscilloscopes can run in various sampling modes:

·Block mode. In this mode, the scope stores data in its buffer memory and then

transfers it to the PC. When the data has been collected it is possible to examine the

data, with an optional downsampling factor. The data is lost when a new capture is

started, the settings are changed, or the scope is powered down.

·ETS mode. In this mode, it is possible to increase the effective sampling rate of the

scope when capturing repetitive signals. It is a modified form of block mode.

·Rapid block mode. This is a variant of block mode that allows you to capture more

than one waveform at a time with a minimum of delay between captures. You can

use downsampling in this mode if you wish.

·Streaming mode. In this mode, data is passed directly to the PC without being

stored in the scope's buffer memory. This enables long periods of slow data

collection for chart recorder and data-logging applications. Streaming mode supports

downsampling and triggering, while providing fast streaming at up these rates:

Number of active

channels or ports*

Max. sampling rate (min. sample time)

USB 2.0

USB 3.0

31.25 MS/s (32 ns)

125 MS/s (8 ns)

15.625 MS/s (64 ns)

62.5 MS/s (16 ns)

3 or 4

7.8125 MS/s (128 ns)

31.25 MS/s (32 ns)

More than 4

15.625 MS/s (64 ns)

*Note: A port is a block of 8 digital channels, available on MSOs only.

In all sampling modes, the driver returns data asynchronously using a callback. This is

a call to one of the functions in your own application. When you request data from the

scope, you pass to the driver a pointer to your callback function. When the driver has

written the data to your buffer, it makes a callback (calls your function) to signal that

the data is ready. The callback function then signals to the application that the data is

available.

Because the callback is called asynchronously from the rest of your application, in a

separate thread, you must ensure that it does not corrupt any global variables while it

runs.

In programming environments not supporting callbacks, you may poll the driver in

block mode or use one of the wrapper functions provided.

Device features10

3.7.1 Block mode

In block mode, the computer prompts the oscilloscope to collect a block of data into

its internal memory. When the oscilloscope has collected the whole block, it signals

that it is ready and then transfers the whole block to the computer's memory through

the USB port.

·Block size. The maximum number of values depends upon the size of the

oscilloscope's memory. The memory buffer is shared between the enabled channels,

so if two channels are enabled, each receives half the memory. If three or four

channels are enabled, each receives a quarter of the memory. These calculations

are handled transparently by the driver. The block size also depends on the number

of memory segments in use (see ps3000aMemorySegments).

For the PicoScope 3000 and 3000D Series MSOs, the memory is shared between

the digital ports and analog channels. If one or more analog channels is enabled at

the same time as one or more digital ports, the memory per channel is one quarter

of the buffer size.

·Sampling rate. A ps3000a oscilloscope can sample at a number of different rates

according to the selected timebase and the combination of channels that are

enabled. See the PicoScope 3000 Series Data Sheet for the specifications that apply

to your scope model.

·Setup time. The driver normally performs a number of setup operations, which can

take up to 50 milliseconds, before collecting each block of data. If you need to

collect data with the minimum time interval between blocks, use rapid block mode

and avoid calling setup functions between calls to ps3000aRunBlock, ps3000aStop

and ps3000aGetValues.

·Downsampling. When the data has been collected, you can set an optional

downsampling factor and examine the data. Downsampling is a process that

reduces the amount of data by combining adjacent samples. It is useful for zooming

in and out of the data without having to repeatedly transfer the entire contents of

the scope's buffer to the PC.

·Memory segmentation. The scope's internal memory can be divided into

segments so that you can capture several waveforms in succession. Configure this

using ps3000aMemorySegments.

·Data retention. The data is lost when a new run is started in the same segment,

the settings are changed, or the scope is powered down or the power source is

changed (for flexible power devices).

See Using block mode for programming details.

PicoScope 3000 Series (A API) Programmer's Guide 11

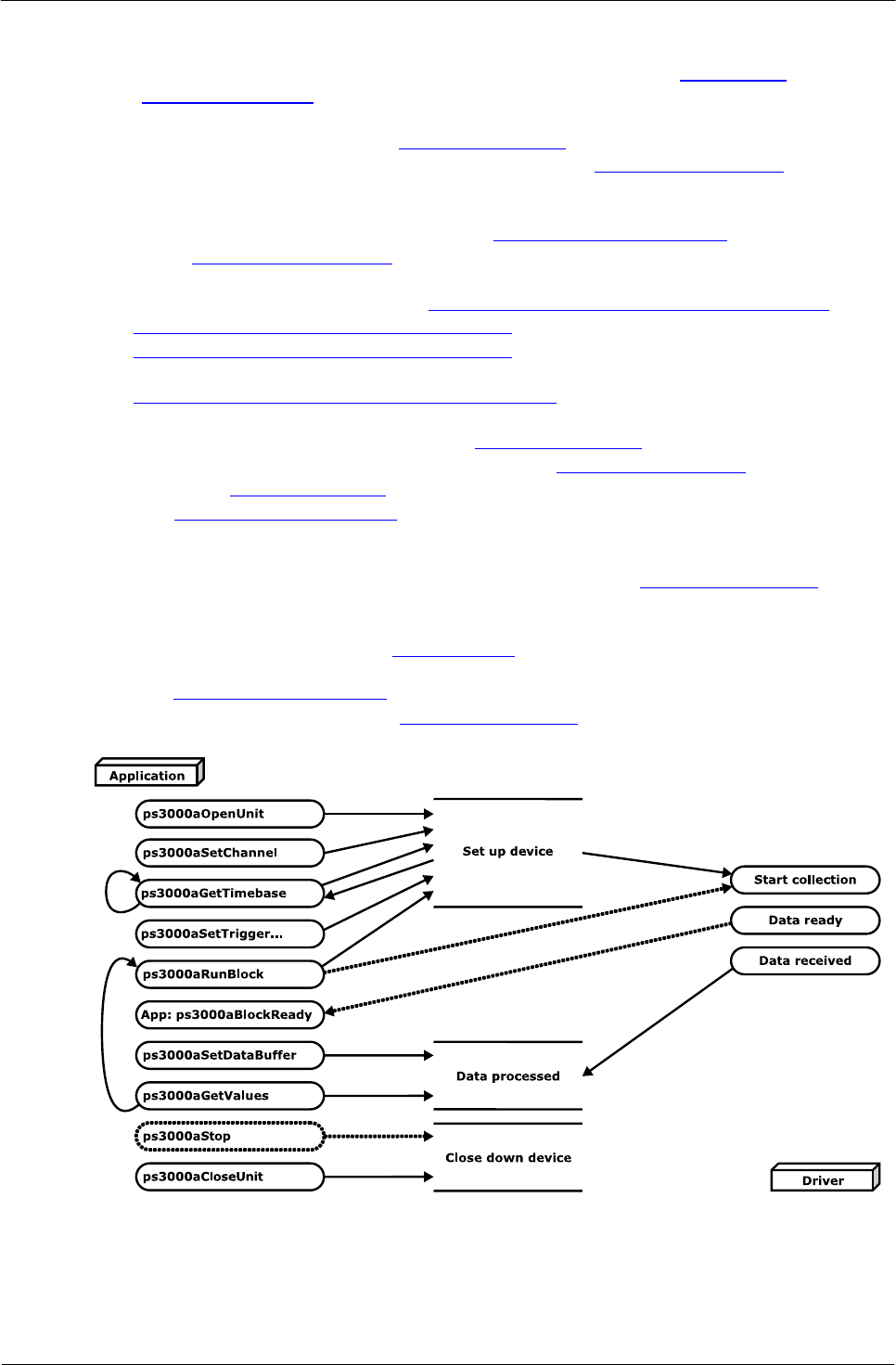

3.7.1.1 Using block mode

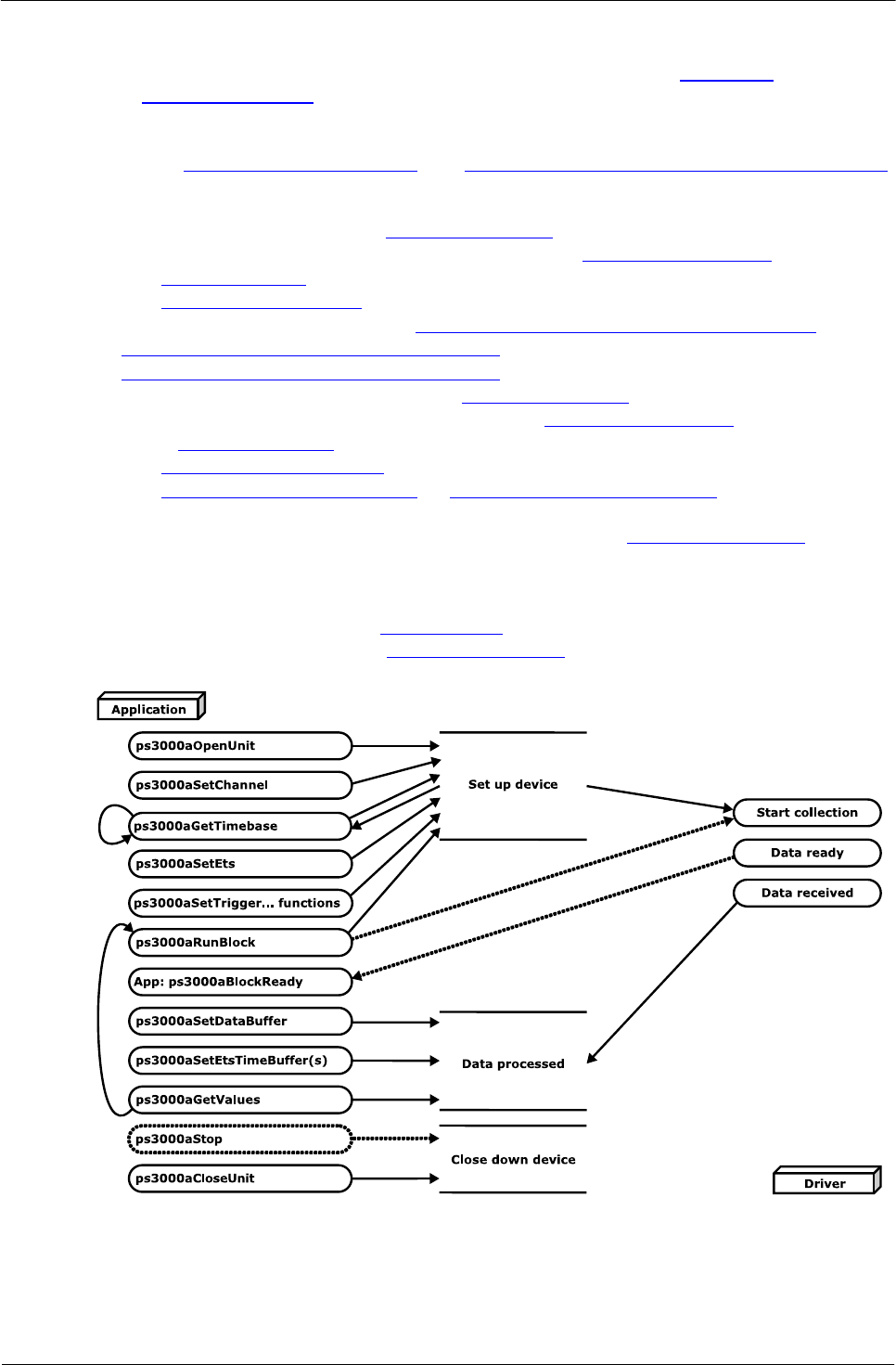

This is the general procedure for reading and displaying data in block mode using a

single memory segment:

1. Open the oscilloscope using ps3000aOpenUnit.

2. Select channel ranges and AC/DC coupling using ps3000aSetChannel. All

channels are enabled by default, so if you wish to allocate the buffer memory to

fewer channels you must disable those that are not required.

3. [MSOs only] Set the digital port using ps3000aSetDigitalPort.

4. Using ps3000aGetTimebase, select timebases until the required number of

nanoseconds per sample is located.

5. Use the trigger setup functions ps3000aSetTriggerChannelConditionsV2,

ps3000aSetTriggerChannelDirections and

ps3000aSetTriggerChannelProperties to set up the trigger if required.

6. [MSOs only] Use the trigger setup functions

ps3000aSetTriggerDigitalPortProperties to set up the digital trigger if

required.

7. Start the oscilloscope running using ps3000aRunBlock.

8. Wait until the oscilloscope is ready using the ps3000aBlockReady callback (or

poll using ps3000aIsReady).

9. Use ps3000aSetDataBuffer to tell the driver where your memory buffer is. For

greater efficiency when doing multiple captures, you can call this function

outside the loop, after step 6.

10. Transfer the block of data from the oscilloscope using ps3000aGetValues.

11. Display the data.

12. Repeat steps 7 to 11.

13. Stop the oscilloscope using ps3000aStop.

14. Request new views of stored data using different downsampling parameters:

see Retrieving stored data.

15. Close the oscilloscope using ps3000aCloseUnit.

Device features12

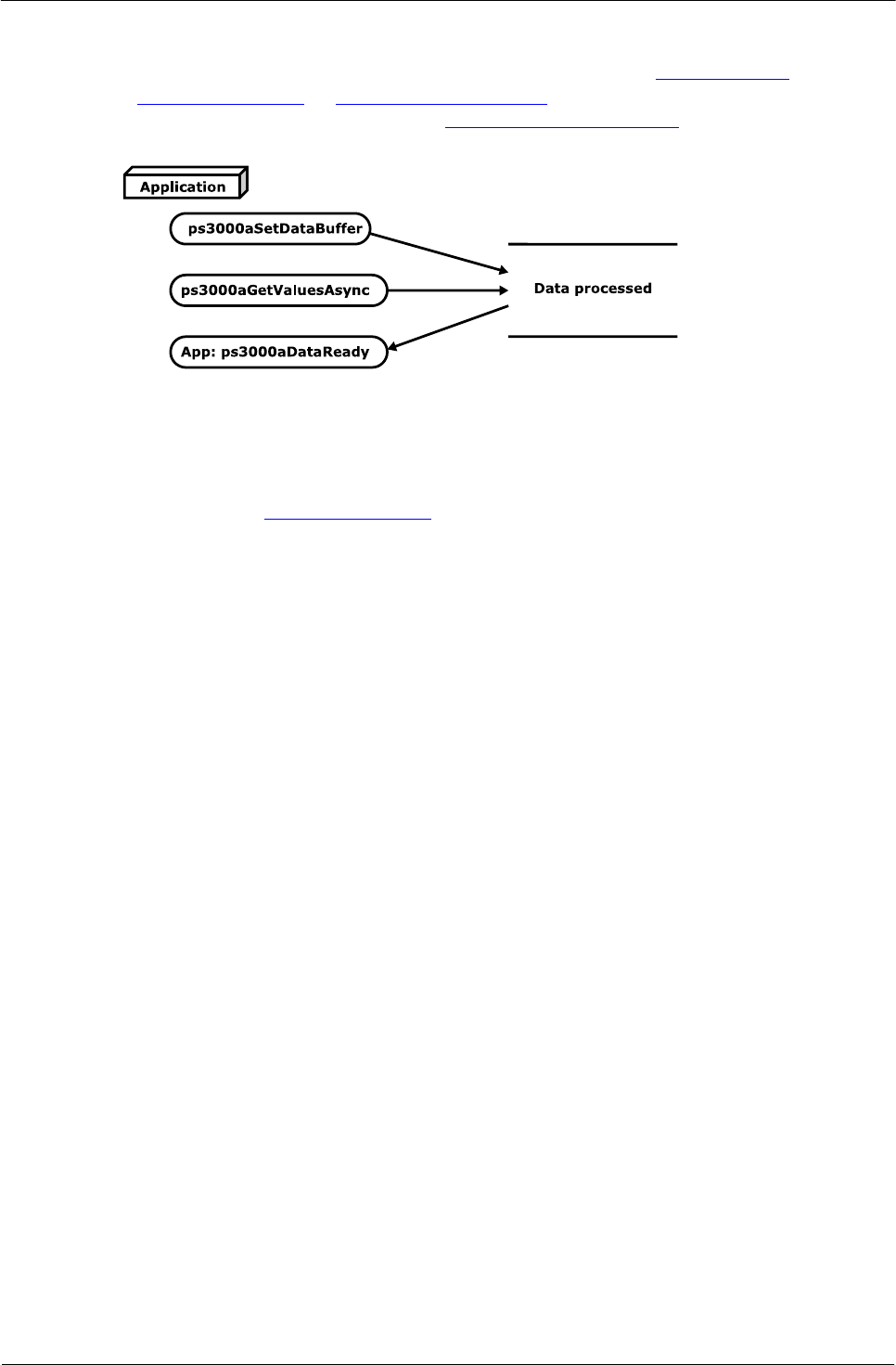

3.7.1.2 Asynchronous calls in block mode

ps3000aGetValues may take a long time to complete if a large amount of data is

being collected. For example, it can take several seconds to retrieve the full 512 M

samples from a PicoScope 3206D using a USB 3.0 connection, or several minutes on

USB 1.1. To avoid hanging the calling thread, it is possible to call

ps3000aGetValuesAsync instead. This immediately returns control to the calling

thread, which then has the option of waiting for the data or calling ps3000aStop to

abort the operation.

PicoScope 3000 Series (A API) Programmer's Guide 13

3.7.2 Rapid block mode

In normal block mode, the oscilloscope collects one waveform at a time. You start the

the device running, wait until all samples are collected by the device, and then

download the data to the PC or start another run. There is a time overhead of tens of

milliseconds associated with starting a run, causing a gap between waveforms. When

you collect data from the device, there is another minimum time overhead which is

most noticeable when using a small number of samples.

Rapid block mode allows you to sample several waveforms at a time with the

minimum time between waveforms. It reduces the gap from milliseconds to less than

2 microseconds (on fastest timebase).

See Using rapid block mode for details.

3.7.2.1 Using rapid block mode

You can use rapid block mode with or without aggregation. With aggregation, you

need to set up two buffers for each channel to receive the minimum and maximum

values.

Without aggregation

1. Open the oscilloscope using ps3000aOpenUnit.

2. Select channel ranges and AC/DC coupling using ps3000aSetChannel.

3. [MSOs only] Set the digital port using ps3000aSetDigitalPort.

4. Set the number of memory segments equal to or greater than the number of

captures required using ps3000aMemorySegments. Use ps3000aSetNoOfCaptures

before each run to specify the number of waveforms to capture.

5. Using ps3000aGetTimebase, select timebases until the required sampling

interval is located. The function will indicate the number of samples per channel

available for each segment. If you do not need to know the segment size limit

(because you are capturing a small number of samples) you can optionally call

this function before step 4.

6. Use the trigger setup functions ps3000aSetTriggerChannelConditionsV2,

ps3000aSetTriggerChannelDirections and

ps3000aSetTriggerChannelProperties to set up the trigger if required.

7. [MSOs only] Use the trigger setup functions

ps3000aSetTriggerDigitalPortProperties to set up the digital trigger if

required.

8. Start the oscilloscope running using ps3000aRunBlock.

9. Wait until the oscilloscope is ready using the ps3000aIsReady or wait on the

callback function.

10. Use ps3000aSetDataBuffer to tell the driver where your memory buffers are.

Call the function once for each channel/segment combination for which you

require data. For greater efficiency when doing multiple captures, you can call

this function outside the loop, after step 7.

11. Transfer the blocks of data from the oscilloscope using ps3000aGetValuesBulk.

12. Retrieve the time offset for each data segment using

ps3000aGetValuesTriggerTimeOffsetBulk64.

13. Display the data.

14. Repeat steps 8 to 13 if necessary.

15. Stop the oscilloscope using ps3000aStop.

16. Close the oscilloscope using ps3000aCloseUnit.

Device features14

With aggregation

To use rapid block mode with aggregation, follow steps 1 to 9 above, then proceed as

follows:

10a. Call ps3000aSetDataBuffer or (ps3000aSetDataBuffers) to set up one pair of

buffers for every waveform segment required.

11a. Call ps3000aGetValuesBulk for each pair of buffers.

12a. Retrieve the time offset for each data segment using

ps3000aGetValuesTriggerTimeOffsetBulk64.

Continue from step 13 above.

PicoScope 3000 Series (A API) Programmer's Guide 15

3.7.2.2 Rapid block mode example 1: no aggregation

#define MAX_SAMPLES 1000

Set up the device up as usual.

·Open the device

·Channels

·Trigger

·Number of memory segments (this should be equal or more than the number of

captures required)

// Set the number of waveforms to 100

ps3000aSetNoOfCaptures(handle, 100);

pParameter = false;

ps3000aRunBlock

(

handle,

0, // noOfPreTriggerSamples

10000, // noOfPostTriggerSamples

1, // timebase to be used

1, // not used

&timeIndisposedMs,

0, // segment index

lpReady,

&pParameter

);

Comment: these variables have been set as an example and can be any valid value.

pParameter will be set true by your callback function lpReady.

while (!pParameter) Sleep (0);

for (int32_t i = 0; i < 10; i++)

{

for (int32_t c = PS3000A_CHANNEL_A; c <= PS3000A_CHANNEL_B; c++)

{

ps3000aSetDataBuffer

(

handle,

buffer[c][i],

MAX_SAMPLES,

PS3000A_RATIO_MODE_NONE

);

}

Comments: buffer has been created as a two-dimensional array of pointers to

int16_t, which will contain 1000 samples as defined by MAX_SAMPLES. There are only

10 buffers set, but it is possible to set up to the number of captures you have

requested.

Device features16

ps3000aGetValuesBulk

(

handle,

&noOfSamples, // set to MAX_SAMPLES on entry

0, // fromSegmentIndex

9, // toSegmentIndex

1, // downsampling ratio

PS3000A_RATIO_MODE_NONE, // downsampling ratio mode

overflow // an array of size 10 int16_t

)

Comments: the number of samples could be up to noOfPreTriggerSamples +

noOfPostTriggerSamples, the values set in ps3000aRunBlock. The samples are

always returned from the first sample taken, unlike the ps3000aGetValues function

which allows the sample index to be set. The above segments start at 0 and finish at 9

inclusive. It is possible for the segment index to wrap around from the last segment to

the first segment and end at toSegmentIndex, if for example fromSegmentIndex is

98 and toSegmentIndex is 7.

ps3000aGetValuesTriggerTimeOffsetBulk64

(

handle,

times,

timeUnits,

)

Comments: the above segments start at 0 and finish at 9 inclusive. As mentioned in

the previous comment, it is possible for the segment index to wrap around from the

last segment to the first segment and continue until toSegmentIndex.

PicoScope 3000 Series (A API) Programmer's Guide 17

3.7.2.3 Rapid block mode example 2: using aggregation

#define MAX_SAMPLES 1000

Set up the device up as usual.

·Open the device

·Channels

·Trigger

·Number of memory segments (this should be equal or more than the number of

captures required)

// Set the number of waveforms to 100

ps3000aSetNoOfCaptures(handle, 100);

pParameter = false;

ps3000aRunBlock

(

handle,

0, // noOfPreTriggerSamples,

1000000, // noOfPostTriggerSamples,

1, // timebase to be used,

1, // not used

&timeIndisposedMs,

0, // segment index

lpReady,

&pParameter

);

Comments: the setup for running the device is exactly the same whether or not

aggregation will be used when you retrieve the samples.

for (int32_t segment = 10; segment < 20; segment++)

{

for (int32_t c = PS3000A_CHANNEL_A; c <= PS3000A_CHANNEL_D; c++)

{

ps3000aSetDataBuffers

(

handle,

bufferMax[c],

bufferMin[c],

MAX_SAMPLES,

segment,

PS3000A_RATIO_MODE_AGGREGATE

);

}

Comments: since only one waveform will be retrieved at a time, you only need to set

up one pair of buffers; one for the maximum samples and one for the minimum

samples. Again, the buffer sizes are 1000 samples.

Device features18

ps3000aGetValues

(

handle,

&noOfSamples, // set to MAX_SAMPLES on entry

1000,

downSampleRatioMode, // set to RATIO_MODE_AGGREGATE

index,

overflow

);

ps3000aGetTriggerTimeOffset64

(

handle,

&time,

&timeUnits,

index

)

}

Comments: each waveform is retrieved one at a time from the driver with an

aggregation of 1000.

PicoScope 3000 Series (A API) Programmer's Guide 19

3.7.3 ETS (Equivalent Time Sampling)

ETS is a way of increasing the effective sampling rate of the scope when capturing

repetitive signals. It is a modified form of block mode, and is controlled by the trigger

functions and ps3000aSetEts.

Overview: ETS works by capturing several cycles of a repetitive waveform, then

combining them to produce a composite waveform that has a higher effective sampling

rate than the individual captures. The result is a larger set of samples spaced by a

small fraction of the original sampling interval. The maximum effective sampling rates

that can be achieved with this method are listed in the User's Guide for the scope

device.

Trigger stability: Because of the high sensitivity of ETS mode to small time

differences, the trigger must be set up to provide a stable waveform that varies as

little as possible from one capture to the next.

Callback: ETS mode calls the ps3000aBlockReady callback function when a new

waveform is ready for collection. Your application should then call ps3000aGetValues

to retrieve the waveform from the data buffer and the sample times from the ETS

times buffer.

Applicability

Available in block mode only.

Not suitable for one-shot (non-repetitive) signals.

Aggregation is not supported.

Edge-triggering only.

Auto trigger delay (autoTriggerMilliseconds) is ignored.

Digital ports (on MSOs) cannot be used in ETS mode.

Refer to product specifications for availability of ETS triggering on

specific devices.

Device features20

3.7.3.1 Using ETS mode

This is the general procedure for reading and displaying data in ETS mode using a

single memory segment:

When using ETS mode you must consider if a digital port has previously been active. If

it has, call ps3000aSetDigitalPort and ps3000aSetTriggerDigitalPortProperties

to ensure these are not active when using ETS.

1. Open the oscilloscope using ps3000aOpenUnit.

2. Select channel ranges and AC/DC coupling using ps3000aSetChannel.

3. Use ps3000aSetEts to enable ETS and set the parameters.

4. Use ps3000aGetTimebase to verify the number of samples to be collected.

5. Use the trigger setup functions ps3000aSetTriggerChannelConditionsV2,

ps3000aSetTriggerChannelDirections and

ps3000aSetTriggerChannelProperties to set up the trigger if required.

6. Start the oscilloscope running using ps3000aRunBlock.

7. Wait until the oscilloscope is ready using the ps3000aBlockReady callback (or poll

using ps3000aIsReady).

8. Use ps3000aSetDataBuffer to tell the driver where your memory buffer is.

8a. Use ps3000aSetEtsTimeBuffer or ps3000aSetEtsTimeBuffers to tell the driver

where to store the sample times.

9. Transfer the block of data from the oscilloscope using ps3000aGetValues.

10. Display the data.

11. While you want to collect updated captures, repeat steps 7 to 10.

12. Repeat steps 6 to 11.

13. Stop the oscilloscope using ps3000aStop.

14. Close the oscilloscope using ps3000aCloseUnit.

PicoScope 3000 Series (A API) Programmer's Guide 21

3.7.4 Streaming mode

Streaming mode can capture data without the gaps that occur between blocks when

using block mode. Streaming mode supports downsampling and triggering, while

providing fast streaming (for example, with USB 2.0, at up to 31.25 MS/s or 32 ns per

sample) when one channel is active, depending on the computer's performance. This

makes it suitable for high-speed data acquisition, allowing you to capture long data

sets limited only by the computer's memory.

·Aggregation. The driver returns aggregated readings while the device is streaming.

If aggregation is set to 1 then only one buffer is used per channel. When aggregation

is set above 1 then two buffers (maximum and minimum) per channel are used.

·Memory segmentation. The memory can be divided into segments to reduce the

latency of data transfers to the PC. However, this increases the risk of losing data if

the PC cannot keep up with the device's sampling rate.

See Using streaming mode for programming details when using the API. When using

the wrapper DLL, see Using the wrapper functions for streaming data capture.

Device features22

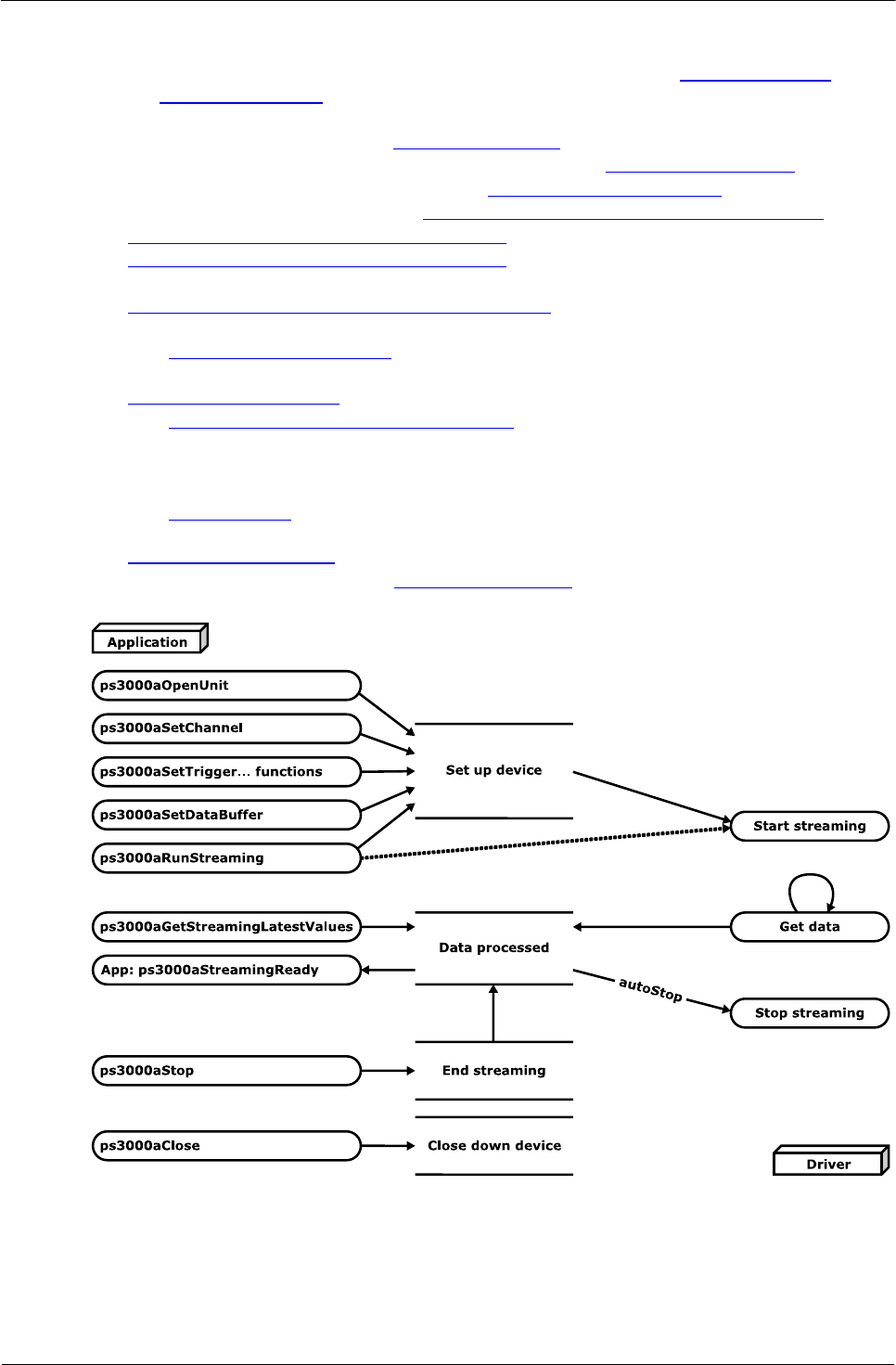

3.7.4.1 Using streaming mode

This is the general procedure for reading and displaying data in streaming mode using

a single memory segment:

1. Open the oscilloscope using ps3000aOpenUnit.

2. Select channels, ranges and AC/DC coupling using ps3000aSetChannel.

3. [MSOs only] Set the digital port using ps3000aSetDigitalPort.

4. Use the trigger setup functions ps3000aSetTriggerChannelConditionsV2,

ps3000aSetTriggerChannelDirections and

ps3000aSetTriggerChannelProperties to set up the trigger if required.

5. [MSOs only] Use the trigger setup functions

ps3000aSetTriggerDigitalPortProperties to set up the digital trigger if

required.

6. Call ps3000aSetDataBuffer to tell the driver where your data buffer is.

7. Set up aggregation and start the oscilloscope running using

ps3000aRunStreaming.

8. Call ps3000aGetStreamingLatestValues to get data.

9. Process data returned to your application's function. This example is using

autoStop, so after the driver has received all the data points requested by the

application, it stops the device streaming.

10. Call ps3000aStop, even if autoStop is enabled.

11. Request new views of stored data using different downsampling parameters: see

Retrieving stored data.

12. Close the oscilloscope using ps3000aCloseUnit.

PicoScope 3000 Series (A API) Programmer's Guide 23

3.7.5 Retrieving stored data

You can collect data from the ps3000a driver with a different downsampling factor

when ps3000aRunBlock or ps3000aRunStreaming has already been called and has

successfully captured all the data. Use ps3000aGetValuesAsync.

3.8 Combining several oscilloscopes

It is possible to collect data using up to 64 PicoScope oscilloscopes at the same time,

depending on the capabilities of the PC. Each oscilloscope must be connected to a

separate USB port. ps3000aOpenUnit returns a handle to an oscilloscope. All the other

functions require this handle for oscilloscope identification. For example, to collect data

from two oscilloscopes at the same time:

CALLBACK ps3000aBlockReady(...)

// Define callback function specific to application

handle1 = ps3000aOpenUnit

handle2 = ps3000aOpenUnit

ps3000aSetChannel(handle1)

// Set up unit 1

ps3000aSetDigitalPort // MSO models only

ps3000aRunBlock(handle1)

ps3000aSetChannel(handle2)

// Set up unit 2

ps3000aSetDigitalPort // MSO models only

ps3000aRunBlock(handle2)

// data will be stored in buffers

// and application will be notified using callback

ready = FALSE

while not ready

ready = handle1_ready

ready &= handle2_ready

ps3000aCloseUnit(handle1)

ps3000aCloseUnit(handle2)

API functions24

4API functions

The ps3000a API exports the following functions for you to use in your own

applications. All functions are C functions using the standard call naming convention

(__stdcall). They are all exported with both decorated and undecorated names. An

additional set of wrapper functions is provided for use with programming languages

that do not support callbacks.

ps3000aBlockReady

indicate when block-mode data ready

ps3000aChangePowerSource

configure the unit's power source

ps3000aCloseUnit

close a scope device

ps3000aCurrentPowerSource

indicate the current power state of the device

ps3000aDataReady

indicate when post-collection data ready

ps3000aEnumerateUnits

find all connected oscilloscopes

ps3000aFlashLed

flash the front-panel LED

ps3000aGetAnalogueOffset

query the permitted analog offset range

ps3000aGetChannelInformation

query which ranges are available on a device

ps3000aGetMaxDownSampleRatio

query the aggregation ratio for data

ps3000aGetMaxEtsValues

obtain limits for the ETS parameters

ps3000aGetMaxSegments

query the maximum number of segments

ps3000aGetNoOfCaptures

find out how many captures are available

ps3000aGetNoOfProcessedCaptures

query number of captures processed

ps3000aGetStreamingLatestValues

get streaming data while scope is running

ps3000aGetTimebase

find out what timebases are available

ps3000aGetTimebase2

find out what timebases are available

ps3000aGetTriggerInfoBulk

get rapid block trigger timings

ps3000aGetTriggerTimeOffset

find out when trigger occurred (32-bit)

ps3000aGetTriggerTimeOffset64

find out when trigger occurred (64-bit)

ps3000aGetUnitInfo

read information about scope device

ps3000aGetValues

retrieve block-mode data with callback

ps3000aGetValuesAsync

retrieve streaming data with callback

ps3000aGetValuesBulk

retrieve data in rapid block mode

ps3000aGetValuesOverlapped

set up data collection ahead of capture

ps3000aGetValuesOverlappedBulk

set up data collection in rapid block mode

ps3000aGetValuesTriggerTimeOffsetBulk

get rapid-block waveform timings (32-bit)

ps3000aGetValuesTriggerTimeOffsetBulk64

get rapid-block waveform timings (64-bit)

ps3000aHoldOff

not currently used

ps3000aIsReady

poll driver in block mode

ps3000aIsTriggerOrPulseWidthQualifierEnabled

find out whether trigger is enabled

ps3000aMaximumValue

query the max. ADC count in GetValues calls

ps3000aMemorySegments

divide scope memory into segments

ps3000aMinimumValue

query the min. ADC count in GetValues calls

ps3000aNoOfStreamingValues

get number of samples in streaming mode

ps3000aOpenUnit

open a scope device

ps3000aOpenUnitAsync

open a scope device without waiting

ps3000aOpenUnitProgress

check progress of OpenUnit call

ps3000aPingUnit

check communication with device

ps3000aQueryOutputEdgeDetect

query the output edge detect mode

ps3000aRunBlock

start block mode

ps3000aRunStreaming

start streaming mode

ps3000aSetBandwidthFilter

control the bandwidth limiter

ps3000aSetChannel

set up input channels

ps3000aSetDataBuffer

ps3000aSetDataBuffers

ps3000aSetDigitalPort

enable the digital port and set the logic level

ps3000aSetEts

set up equivalent-time sampling

ps3000aSetEtsTimeBuffer

set up buffer for ETS timings (64-bit)

ps3000aSetEtsTimeBuffers

set up buffer for ETS timings (32-bit)

ps3000aSetNoOfCaptures

set number of captures to collect in one run

ps3000aSetOutputEdgeDetect

switch output edge detect mode on or off

ps3000aSetPulseWidthDigitalPortProperties

set up pulse width triggering on digital port

ps3000aSetPulseWidthQualifier

set up pulse width triggering

ps3000aSetPulseWidthQualifierV2

set up pulse width triggering (digital condition)

PicoScope 3000 Series (A API) Programmer's Guide 25

ps3000aSetSigGenArbitrary

set up arbitrary waveform generator

ps3000aSetSigGenBuiltIn

set up standard signal generator

ps3000aSetSigGenBuiltInV2

set up signal generator (double precision)

ps3000aSetSigGenPropertiesArbitrary

set arbitrary waveform generator properties

ps3000aSetSigGenPropertiesBuiltIn

set signal generator properties

ps3000aSetSimpleTrigger

set up level triggers only

ps3000aSetTriggerChannelConditions

specify which channels to trigger on

ps3000aSetTriggerChannelConditionsV2

specify trigger channels for MSOs

ps3000aSetTriggerChannelDirections

set up signal polarities for triggering

ps3000aSetTriggerChannelProperties

set up trigger thresholds

ps3000aSetTriggerDelay

set up post-trigger delay

ps3000aSetTriggerDigitalPortProperties

set individual digital channels trigger directions

ps3000aSigGenArbitraryMinMaxValues

query AWG parameter limits

ps3000aSigGenFrequencyToPhase

calculate AWG phase from frequency

ps3000aSigGenSoftwareControl

trigger the signal generator

ps3000aStop

stop data capture

ps3000aStreamingReady

indicate when streaming-mode data ready

API functions26

4.1 ps3000aBlockReady (callback)

typedef void (CALLBACK *ps3000aBlockReady)

(

int16_t handle,

PICO_STATUS status,

void * pParameter

)

This callback function is part of your application. You register it with the ps3000a

driver using ps3000aRunBlock, and the driver calls it back when block-mode data is

ready. You can then download the data using ps3000aGetValues.

Applicability

Block mode only

Arguments

handle, device identifier returned by ps3000aOpenUnit

status, indicates whether an error occurred during collection of the

data

* pParameter, a void pointer passed from ps3000aRunBlock. Your

callback function can write to this location to send any data, such as

a status flag, back to your application.

Returns

nothing

PicoScope 3000 Series (A API) Programmer's Guide 27

4.2 ps3000aChangePowerSource

PICO_STATUS ps3000aChangePowerSource

(

int16_t handle,

PICO_STATUS powerstate

)

This function selects the power supply mode. You must call this function if any of the

following conditions arises:

·USB power is required

·The power supply is connected or disconnected during use

·A 2-channel USB 3.0 scope is plugged into a USB 2.0 port (indicated if any function

returns the PICO_USB3_0_DEVICE_NON_USB3_0_PORT status code)

Whenever the power supply mode is changed, all data and settings in the scope device

are lost. You must then reconfigure the device before restarting capture.

Applicability

All modes. 4-channel and USB 3.0 oscilloscopes only.

Arguments

handle, device identifier returned by ps3000aOpenUnit

powerstate, the required state of the unit. One of the following:

PICO_POWER_SUPPLY_CONNECTED – to use power from the external

power supply

PICO_POWER_SUPPLY_NOT_CONNECTED – to use power from the USB

port

PICO_USB3_0_DEVICE_NON_USB3_0_PORT – to use power from a

non-USB 3.0 port

Returns

PICO_OK

PICO_POWER_SUPPLY_REQUEST_INVALID

PICO_INVALID_PARAMETER

PICO_NOT_RESPONDING

PICO_INVALID_HANDLE

API functions28

4.3 ps3000aCloseUnit

PICO_STATUS ps3000aCloseUnit

(

int16_t handle

)

This function shuts down an oscilloscope.

Applicability

All modes

Arguments

handle, the device identifier, returned by ps3000aOpenUnit, of the

scope device to be closed

Returns

PICO_OK

PICO_HANDLE_INVALID

PICO_USER_CALLBACK

PICO_DRIVER_FUNCTION

PicoScope 3000 Series (A API) Programmer's Guide 29

4.4 ps3000aCurrentPowerSource

PICO_STATUS ps3000aCurrentPowerSource

(

int16_t handle

)

This function returns the current power state of a 4-channel device. If called for a 2-

channel device, it always returns PICO_OK.

Applicability

All modes. Intended for for 4-channel devices.

Arguments

handle, device identifier returned by ps3000aOpenUnit

Returns

PICO_POWER_SUPPLY_CONNECTED – the device is powered by the

external power supply

PICO_POWER_SUPPLY_NOT_CONNECTED – the device is powered by the

USB port

PICO_OK – the device has 2 channels

API functions30

4.5 ps3000aDataReady (callback)

typedef void (CALLBACK *ps3000aDataReady)

(

int16_t handle,

PICO_STATUS status,

uint32_t noOfSamples,

int16_t overflow,

void * pParameter

)

This is a callback function that you write to collect data from the driver. You supply a

pointer to the function when you call ps3000aGetValuesAsync, and the driver calls

your function back when the data is ready.

Applicability

All modes

Arguments

handle, device identifier returned by ps3000aOpenUnit

status, a PICO_STATUS code returned by the driver

noOfSamples, the number of samples collected

overflow, a set of flags that indicates whether an overvoltage has

occurred and on which channels. It is a bit field with bit 0

representing Channel A.

* pParameter, a void pointer passed from ps3000aGetValuesAsync.

The callback function can write to this location to send any data, such

as a status flag, back to the application. The data type is defined by

the application programmer.

Returns

nothing

PicoScope 3000 Series (A API) Programmer's Guide 31

4.6 ps3000aEnumerateUnits

PICO_STATUS ps3000aEnumerateUnits

(

int16_t * count,

int8_t * serials,

int16_t * serialLth

)

This function counts the number of unopened ps3000a-compatible scopes connected to

the computer and returns a list of serial numbers as a string. It does not detect

devices that have already been opened in another process.

Applicability

All modes

Arguments

* count, on exit, the number of unopened ps3000a-compatible

units found

* serials, on exit, a list of serial numbers separated by commas

and terminated by a final null. Example:

AQ005/139,VDR61/356,ZOR14/107. Can be NULL on entry if serial

numbers are not required.

* serialLth, on entry, the length of the int8_t buffer pointed to

by serials; on exit, the length of the string written to serials

Returns

PICO_OK

PICO_BUSY

PICO_NULL_PARAMETER

PICO_FW_FAIL

PICO_CONFIG_FAIL

PICO_MEMORY_FAIL

PICO_CONFIG_FAIL_AWG

PICO_INITIALISE_FPGA

API functions32

4.7 ps3000aFlashLed

PICO_STATUS ps3000aFlashLed

(

int16_t handle,

int16_t start

)

This function flashes the LED on the front of the scope without blocking the calling

thread. Calls to ps3000aRunStreaming and ps3000aRunBlock cancel any flashing

started by this function. It is not possible to set the LED to be constantly illuminated,

as this state is used to indicate that the scope has not been initialized.

Applicability

All modes

Arguments

handle, device identifier returned by ps3000aOpenUnit

start, the action required: -

< 0

flash the LED indefinitely.

stop the LED flashing.

> 0

flash the LED start times. If the LED is already flashing

on entry to this function, the flash count will be reset to

start.

Returns

PICO_OK

PICO_HANDLE_INVALID

PICO_BUSY

PICO_DRIVER_FUNCTION

PICO_NOT_RESPONDING

PicoScope 3000 Series (A API) Programmer's Guide 33

4.8 ps3000aGetAnalogueOffset

PICO_STATUS ps3000aGetAnalogueOffset

(

int16_t handle,

PS3000A_RANGE range,

PS3000A_COUPLING coupling,

float * maximumVoltage,

float * minimumVoltage

)

This function is used to get the maximum and minimum allowable analog offset for a

specific voltage range.

Applicability

Al models

Arguments

handle, device identifier returned by ps3000aOpenUnit

range, the voltage range to be used when gathering the min and

max information

coupling, the type of AC/DC coupling used

* maximumVoltage, a pointer to a float, an out parameter set to the

maximum voltage allowed for the range, may be NULL

* minimumVoltage, a pointer to a float, an out parameter set to the

minimum voltage allowed for the range, may be NULL

If both maximumVoltage and minimumVoltage are set to NULL the

driver will return PICO_NULL_PARAMETER.

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_DRIVER_FUNCTION

PICO_INVALID_VOLTAGE_RANGE

PICO_NULL_PARAMETER

API functions34

4.9 ps3000aGetChannelInformation

PICO_STATUS ps3000aGetChannelInformation

(

int16_t handle,

PS3000A_CHANNEL_INFO info,

int32_t probe,

int32_t * ranges,

int32_t * length,

int32_t channels

)

This function queries which ranges are available on a scope device.

Applicability

All modes

Arguments

handle, device identifier returned by ps3000aOpenUnit

info, the type of information required. The following value is

currently supported:

PS3000A_CI_RANGES

probe, not used, must be set to 0

* ranges, an array that will be populated with available

PS3000A_RANGE values for the given info. If NULL, length is set to the

number of ranges available.

* length, on input: the length of the ranges array; on output: the

number of elements written to ranges array

channels, the channel for which the information is required

Returns

PICO_OK

PICO_HANDLE_INVALID

PICO_BUSY

PICO_DRIVER_FUNCTION

PICO_NOT_RESPONDING

PICO_NULL_PARAMETER

PICO_INVALID_CHANNEL

PICO_INVALID_INFO

PicoScope 3000 Series (A API) Programmer's Guide 35

4.10 ps3000aGetMaxDownSampleRatio

PICO_STATUS ps3000aGetMaxDownSampleRatio

(

int16_t handle,

uint32_t noOfUnaggregatedSamples,

uint32_t * maxDownSampleRatio,

PS3000A_RATIO_MODE downSampleRatioMode,

uint32_t segmentIndex

)

This function returns the maximum downsampling ratio that can be used for a given

number of samples in a given downsampling mode.

Applicability

All modes

Arguments

handle, device identifier returned by ps3000aOpenUnit

noOfUnaggregatedSamples, the number of unprocessed samples to

be downsampled

* maxDownSampleRatio, the maximum possible downsampling ratio

output

downSampleRatioMode, the downsampling mode. See

ps3000aGetValues.

segmentIndex, the memory segment where the data is stored

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_NO_SAMPLES_AVAILABLE

PICO_NULL_PARAMETER

PICO_INVALID_PARAMETER

PICO_SEGMENT_OUT_OF_RANGE

PICO_TOO_MANY_SAMPLES

API functions36

4.11 ps3000aGetMaxEtsValues

PICO_STATUS ps3000aGetMaxEtsValues

(

int16_t handle,

int16_t * etsCycles,

int16_t * etsInterleave

)

This function returns the maximum number of cycles and maximum interleaving factor

that can be used for the selected scope device in ETS mode. These values are the

upper limits for the etsCycles and etsInterleave arguments supplied to

ps3000SetEts.

Applicability

All modes

Arguments

handle, device identifier returned by ps3000aOpenUnit

etsCycles, the maximum value of the etsCycles argument

supplied to ps3000SetEts

etsInterleave, the maximum value of the etsInterleave

argument supplied to ps3000SetEts

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_DRIVER_FUNCTION

PICO_NULL_PARAMETER - if etsCycles and etsInterleave are both

NULL

PicoScope 3000 Series (A API) Programmer's Guide 37

4.12 ps3000aGetMaxSegments

PICO_STATUS ps3000aGetMaxSegments

(

int16_t handle,

uint32_t * maxsegments

)

This function returns the maximum number of segments allowed for the opened

device. This number is the maximum value of nsegments that can be passed to

ps3000aMemorySegments.

Applicability

All modes

Arguments

handle, device identifier returned by ps3000aOpenUnit

* maxsegments, on exit, the maximum number of segments allowed

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_DRIVER_FUNCTION

PICO_NULL_PARAMETER

API functions38

4.13 ps3000aGetNoOfCaptures

PICO_STATUS ps3000aGetNoOfCaptures

(

int16_t handle,

uint32_t * nCaptures

)

This function returns the number of waveforms that the device has captured. It can be

called during waveform capture.

It can be called in rapid block mode after ps3000aRunBlock has been called and either

the collection completed or the collection of waveforms was interrupted by calling

ps3000aStop. The returned value (nCaptures) can then be used to iterate through the

number of segments using ps3000aGetValues, or in a single call to

ps3000aGetValuesBulk where it is used to calculate the toSegmentIndex parameter.

Applicability

Rapid block mode

Arguments

handle, device identifier returned by ps3000aOpenUnit

* nCaptures, output: the number of available captures that has

been collected from calling ps3000aRunBlock

Returns

PICO_OK

PICO_DRIVER_FUNCTION

PICO_INVALID_HANDLE

PICO_NOT_RESPONDING

PICO_NO_SAMPLES_AVAILABLE

PICO_NULL_PARAMETER

PICO_INVALID_PARAMETER

PICO_SEGMENT_OUT_OF_RANGE

PICO_TOO_MANY_SAMPLES

PicoScope 3000 Series (A API) Programmer's Guide 39

4.14 ps3000aGetNoOfProcessedCaptures

PICO_STATUS ps3000aGetNoOfProcessedCaptures

(

int16_t handle,

uint32_t * nProcessedCaptures

)

This function gets the number of captures collected and processed in one run of rapid

block mode. It enables your application to start processing captured data while the

driver is still transferring later captures from the device to the computer.

The function returns the number of captures the driver has processed since you called

ps3000aRunBlock. It is for use in rapid block mode, alongside the

ps3000aGetValuesOverlappedBulk function, when the driver is set to transfer data

from the device automatically as soon as the ps3000aRunBlock function is called. You

can call ps3000aGetNoOfProcessedCaptures during device capture, after collection

has completed or after interrupting waveform collection by calling ps3000aStop.

The returned value (nProcessedCaptures) can then be used to iterate through the

number of segments using ps3000aGetValues, or in a single call to

ps3000aGetValuesBulk, where it is used to calculate the toSegmentIndex parameter.

When capture is stopped

If nProcessedCaptures = 0, you will also need to call ps3000aGetNoOfCaptures, in

order to determine how many waveform segments were captured, before calling

ps3000aGetValues or ps3000aGetValuesBulk.

Applicability

Rapid block mode

Arguments

handle, the handle of the device.

* nProcessedCaptures, on exit, the number of waveforms captured

and processed.

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_INVALID_PARAMETER

API functions40

4.15 ps3000aGetStreamingLatestValues

PICO_STATUS ps3000aGetStreamingLatestValues

(

int16_t handle,

ps3000aStreamingReady lpPs3000AReady,

void * pParameter

)

This function instructs the driver to return the next block of values to your

ps3000aStreamingReady callback. You must have previously called

ps3000aRunStreaming beforehand to set up streaming.

Applicability

Streaming mode only

Arguments

handle, device identifier returned by ps3000aOpenUnit

lpPs3000AReady, a pointer to your ps3000aStreamingReady

callback

* pParameter, a void pointer that will be passed to the

ps3000aStreamingReady callback. The callback may optionally use

this pointer to return information to the application.

Returns

PICO_OK

PICO_POWER_SUPPLY_CONNECTED

PICO_POWER_SUPPLY_NOT_CONNECTED

PICO_INVALID_HANDLE

PICO_NO_SAMPLES_AVAILABLE

PICO_INVALID_CALL

PICO_BUSY

PICO_NOT_RESPONDING

PICO_DRIVER_FUNCTION

PicoScope 3000 Series (A API) Programmer's Guide 41

4.16 ps3000aGetTimebase

PICO_STATUS ps3000aGetTimebase

(

int16_t handle,

uint32_t timebase,

int32_t noSamples,

int32_t * timeIntervalNanoseconds,

int16_t oversample,

int32_t * maxSamples,

uint32_t segmentIndex

)

This function calculates the sampling rate and maximum number of samples for a

given timebase under the specified conditions. The result will depend on the number of

channels enabled by the last call to ps3000aSetChannel.

This function is provided for use with programming languages that do not support the

float data type. The value returned in the timeIntervalNanoseconds argument is

restricted to integers. If your programming language supports the float type, we

recommend that you use ps3000aGetTimebase2 instead.

To use ps3000aGetTimebase or ps3000aGetTimebase2, first estimate the timebase

number that you require using the information in the timebase guide. Next, call one of

these functions with the timebase that you have just chosen and verify that the

timeIntervalNanoseconds argument that the function returns is the value that you

require. You may need to iterate this process until you obtain the time interval that

you need.

Applicability

All modes

Arguments

handle, device identifier returned by ps3000aOpenUnit

timebase, see timebase guide. This value can be supplied to

ps3000aRunBlock to define the sampling interval.

noSamples, the number of samples required

* timeIntervalNanoseconds, on exit, the time interval between

readings at the selected timebase. Use NULL if not required.

oversample, not used

* maxSamples, on exit, the maximum number of samples available.

The scope allocates a certain amount of memory for internal

overheads and this may vary depending on the number of segments,

number of channels enabled, and the timebase chosen. Use NULL if

not required.

segmentIndex, the index of the memory segment to use

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_TOO_MANY_SAMPLES

PICO_INVALID_CHANNEL

PICO_INVALID_TIMEBASE

PICO_INVALID_PARAMETER

PICO_SEGMENT_OUT_OF_RANGE

PICO_DRIVER_FUNCTION

API functions42

4.17 ps3000aGetTimebase2

PICO_STATUS ps3000aGetTimebase2

(

int16_t handle,

uint32_t timebase,

int32_t noSamples,

float * timeIntervalNanoseconds,

int16_t oversample,

int32_t * maxSamples,

uint32_t segmentIndex

)

This function is an upgraded version of ps3000aGetTimebase, and returns the time

interval as a float rather than an int32_t. This allows it to return sub-nanosecond

time intervals. See ps3000aGetTimebase for a full description.

Applicability

All modes

Arguments

* timeIntervalNanoseconds, a pointer to the time interval between

readings at the selected timebase. If a null pointer is passed, nothing

will be written here.

All other arguments: see ps3000aGetTimebase.

Returns

See ps3000aGetTimebase.

PicoScope 3000 Series (A API) Programmer's Guide 43

4.18 ps3000aGetTriggerInfoBulk

PICO_STATUS ps3000aGetTriggerInfoBulk

(

int16_t handle,

PS3000A_TRIGGER_INFO * triggerInfo,

uint32_t fromSegmentIndex,

uint32_t toSegmentIndex

)

This function returns trigger information in rapid block mode.

Applicability

Rapid block mode.

PicoScope 3207A and 3207B only.

Arguments

handle, device identifier returned by ps3000aOpenUnit

triggerInfo, an array of pointers to PS3000A_TRIGGER_INFO

structures that, on exit, will contain information on each trigger

event. There will be one structure for each segment in the range

[fromSegmentIndex, toSegmentIndex].

fromSegmentIndex, the number of the first memory segment for

which information is required

toSegmentIndex, the number of the last memory segment for which

information is required

Returns

PICO_NOT_SUPPORTED_BY_THIS_DEVICE

PICO_NO_SAMPLES_AVAILABLE

PICO_NULL_PARAMETER

PICO_SEGMENT_OUT_OF_RANGE

PICO_NOT_USED_IN_THIS_CAPTURE_MODE

PICO_ETS_MODE_SET

PICO_OK

PICO_NOT_RESPONDING

PICO_INVALID_HANDLE

PICO_DRIVER_FUNCTION

API functions44

4.19 ps3000aGetTriggerTimeOffset

PICO_STATUS ps3000aGetTriggerTimeOffset

(

int16_t handle,

uint32_t * timeUpper,

uint32_t * timeLower,

PS3000A_TIME_UNITS * timeUnits,

uint32_t segmentIndex

)

This function gets the trigger time offset for waveforms obtained in block mode or

rapid block mode. The trigger time offset is an adjustment value used for correcting

jitter in the waveform, and is intended mainly for applications that wish to display the

waveform with reduced jitter. The offset is zero if the waveform crosses the threshold

at the trigger sampling instant, or a positive or negative value if jitter correction is

required. The value should be added to the nominal trigger time to get the corrected

trigger time.

Call this function after data has been captured or when data has been retrieved from a

previous capture.

This function is provided for use in programming environments that do not support 64-

bit integers. Another version of this function, ps3000aGetTriggerTimeOffset64, is

available that returns the time as a single 64-bit value.

Applicability

Block mode, rapid block mode

Arguments

handle, device identifier returned by ps3000aOpenUnit

* timeUpper, on exit, the upper 32 bits of the trigger time offset

* timeLower, on exit, the lower 32 bits of the trigger time offset

* timeUnits, returns the time units in which timeUpper:timeLower

is measured. The allowable values are:

PS3000A_FS

PS3000A_PS

PS3000A_NS

PS3000A_US

PS3000A_MS

PS3000A_S

segmentIndex, the number of the memory segment for which the

information is required

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_DEVICE_SAMPLING

PICO_SEGMENT_OUT_OF_RANGE

PICO_NOT_USED_IN_THIS_CAPTURE_MODE

PICO_NOT_RESPONDING

PICO_NULL_PARAMETER

PICO_NO_SAMPLES_AVAILABLE

PICO_DRIVER_FUNCTION

PicoScope 3000 Series (A API) Programmer's Guide 45

4.20 ps3000aGetTriggerTimeOffset64

PICO_STATUS ps3000aGetTriggerTimeOffset64

(

int16_t handle,

int64_t * time,

PS3000A_TIME_UNITS * timeUnits,

uint32_t segmentIndex

)

This function gets the trigger time offset for a waveform. It is equivalent to

ps3000aGetTriggerTimeOffset except that the time offset is returned as a single 64-

bit value instead of two 32-bit values.

Applicability

Block mode, rapid block mode

Arguments

handle, device identifier returned by ps3000aOpenUnit

* time, on exit, the time at which the trigger point occurred

* timeUnits,

segmentIndex, see ps3000aGetTriggerTimeOffset

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_DEVICE_SAMPLING

PICO_SEGMENT_OUT_OF_RANGE

PICO_NOT_USED_IN_THIS_CAPTURE_MODE

PICO_NOT_RESPONDING

PICO_NULL_PARAMETER

PICO_NO_SAMPLES_AVAILABLE

PICO_DRIVER_FUNCTION

API functions46

4.21 ps3000aGetUnitInfo

PICO_STATUS ps3000aGetUnitInfo

(

int16_t handle,

int8_t * string,

int16_t stringLength,

int16_t * requiredSize,

PICO_INFO info

)

This function retrieves information about the specified oscilloscope. If the device fails

to open or no device is opened, only the driver version is available.

Applicability

All modes

Arguments

handle, the identifier of the device to query. If an invalid handle is

passed, only the driver versions can be read.

* string, on exit, the information string selected specified by the

info argument. If string is NULL, only requiredSize is returned.

stringLength, on entry, the maximum number of int8_t that may

be written to string

* requiredSize, on exit, the required length of the string array

info, a number specifying what information is required. The

possible values are listed in the table below.

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_NULL_PARAMETER

PICO_INVALID_INFO

PICO_INFO_UNAVAILABLE

PICO_DRIVER_FUNCTION

info

Example

PICO_DRIVER_VERSION

Version number of PicoScope ps3000a DLL

1.0.0.1

PICO_USB_VERSION

Type of USB connection to device: 1.1, 2.0 or 3.0

2.0

PICO_HARDWARE_VERSION

Hardware version of device

PICO_VARIANT_INFO

Variant number of device

3206B

PICO_BATCH_AND_SERIAL

Batch and serial number of device

KJL87/006

PICO_CAL_DATE

Calibration date of device

30Sep09

PICO_KERNEL_VERSION

Version of kernel driver

1.0

PICO_DIGITAL_HARDWARE_VERSION

Hardware version of the digital section

PICO_ANALOGUE_HARDWARE_VERSION

Hardware version of the analog section

PICO_FIRMWARE_VERSION_1

1.0.0.0

PICO_FIRMWARE_VERSION_2

1.0.0.0

PicoScope 3000 Series (A API) Programmer's Guide 47

4.22 ps3000aGetValues

PICO_STATUS ps3000aGetValues

(

int16_t handle,

uint32_t startIndex,

uint32_t * noOfSamples,

uint32_t downSampleRatio,

PS3000A_RATIO_MODE downSampleRatioMode,

uint32_t segmentIndex,

int16_t * overflow

)

This function returns block-mode data, with or without downsampling, starting at the

specified sample number. It is used to get the stored data from the scope after data

collection has stopped.

Applicability

Block mode, rapid block mode

Arguments

handle, device identifier returned by ps3000aOpenUnit

startIndex, a zero-based index that indicates the start point for

data collection. It is measured in sample intervals from the start of

the buffer.

* noOfSamples, on entry, the number of samples required. On exit,

the actual number retrieved. The number of samples retrieved will

not be more than the number requested, and the data retrieved

starts at startIndex.

downSampleRatio, the downsampling factor that will be applied to

the raw data

downSampleRatioMode, which downsampling mode to use. The

available values are: -

PS3000A_RATIO_MODE_NONE (downSampleRatio is ignored)

PS3000A_RATIO_MODE_AGGREGATE

PS3000A_RATIO_MODE_AVERAGE

PS3000A_RATIO_MODE_DECIMATE

AGGREGATE, AVERAGE, DECIMATE are single-bit constants that can be

ORed to apply multiple downsampling modes to the same data

segmentIndex, the zero-based number of the memory segment

where the data is stored

* overflow, on exit, a set of flags that indicate whether an

overvoltage has occurred on any of the channels. It is a bit field with

bit 0 denoting Channel A.

API functions48

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_POWER_SUPPLY_CONNECTED

PICO_POWER_SUPPLY_NOT_CONNECTED

PICO_NO_SAMPLES_AVAILABLE

PICO_DEVICE_SAMPLING

PICO_NULL_PARAMETER

PICO_SEGMENT_OUT_OF_RANGE

PICO_STARTINDEX_INVALID

PICO_ETS_NOT_RUNNING

PICO_BUFFERS_NOT_SET

PICO_INVALID_PARAMETER

PICO_TOO_MANY_SAMPLES

PICO_DATA_NOT_AVAILABLE

PICO_STARTINDEX_INVALID

PICO_INVALID_SAMPLERATIO

PICO_INVALID_CALL

PICO_NOT_RESPONDING

PICO_MEMORY

PICO_RATIO_MODE_NOT_SUPPORTED

PICO_DRIVER_FUNCTION

4.22.1 Downsampling modes

Various methods of data reduction, or downsampling, are possible with PicoScope

oscilloscopes. The downsampling is done at high speed by dedicated hardware inside

the scope, making your application faster and more responsive than if you had to do

all the data processing in software.

You specify the downsampling mode when you call one of the data collection functions

such as ps3000aGetValues. The following modes are available:

PS3000A_RATIO_MODE_NONE

No downsampling. Returns the raw data

values.

PS3000A_RATIO_MODE_AGGREGATE

Reduces every block of n values to just two

values: a minimum and a maximum. The

minimum and maximum values are

returned in two separate buffers.

PS3000A_RATIO_MODE_DECIMATE

Reduces every block of n values to just the

first value in the block, discarding all the

other values.

PS3000A_RATIO_MODE_AVERAGE

Reduces every block of n values to a single

value representing the average (arithmetic

mean) of all the values.

PicoScope 3000 Series (A API) Programmer's Guide 49

4.23 ps3000aGetValuesAsync

PICO_STATUS ps3000aGetValuesAsync

(

int16_t handle,

uint32_t startIndex,

uint32_t noOfSamples,

uint32_t downSampleRatio,

PS3000A_RATIO_MODE downSampleRatioMode,

uint32_t segmentIndex,

void * lpDataReady,

void * pParameter

)

This function returns data either with or without downsampling, starting at the

specified sample number. It is used to get the stored data from the device (in block

mode) or the driver (in streaming mode) after data collection has stopped. It returns

the data using a callback.

Applicability

Streaming mode and block mode

Arguments

handle, device identifier returned by ps3000aOpenUnit

startIndex,

noOfSamples,

downSampleRatio,

downSampleRatioMode,

segmentIndex: see ps3000aGetValues

* lpDataReady, a pointer to the user-supplied function that will be

called when the data is ready. This will be ps3000aDataReady for

block-mode data or ps3000aStreamingReady for streaming-mode

data.

* pParameter, a void pointer that will be passed to the callback

function. The data type is determined by the application.

Returns

PICO_OK

PICO_POWER_SUPPLY_CONNECTED

PICO_POWER_SUPPLY_NOT_CONNECTED

PICO_INVALID_HANDLE

PICO_NO_SAMPLES_AVAILABLE

PICO_DEVICE_SAMPLING

PICO_NULL_PARAMETER

PICO_STARTINDEX_INVALID

PICO_SEGMENT_OUT_OF_RANGE

PICO_INVALID_PARAMETER

PICO_DATA_NOT_AVAILABLE

PICO_INVALID_SAMPLERATIO

PICO_INVALID_CALL

PICO_DRIVER_FUNCTION

API functions50

4.24 ps3000aGetValuesBulk

PICO_STATUS ps3000aGetValuesBulk

(

int16_t handle,

uint32_t * noOfSamples,

uint32_t fromSegmentIndex,

uint32_t toSegmentIndex,

uint32_t downSampleRatio,

PS3000A_RATIO_MODE downSampleRatioMode,

int16_t * overflow

)

This function retrieves waveforms captured using rapid block mode. The waveforms

must have been collected sequentially and in the same run.

Applicability

Rapid block mode

Arguments

handle, device identifier returned by ps3000aOpenUnit

* noOfSamples, on entry, the number of samples required; on exit,

the actual number retrieved. The number of samples retrieved will

not be more than the number requested. The data retrieved always

starts with the first sample captured.

fromSegmentIndex, the first segment from which the waveform

should be retrieved

toSegmentIndex, the last segment from which the waveform should

be retrieved

downSampleRatio,

downSampleRatioMode, see ps3000aGetValues

* overflow, an array of integers equal to or larger than the number

of waveforms to be retrieved. Each segment index has a

corresponding entry in the overflow array, with overflow[0]

containing the flags for the segment numbered fromSegmentIndex

and the last element in the array containing the flags for the segment

numbered toSegmentIndex. Each element in the array is a bit field as

described under ps3000aGetValues.

Returns

PICO_OK

PICO_POWER_SUPPLY_CONNECTED

PICO_POWER_SUPPLY_NOT_CONNECTED

PICO_INVALID_HANDLE

PICO_INVALID_PARAMETER

PICO_INVALID_SAMPLERATIO

PICO_ETS_NOT_RUNNING

PICO_BUFFERS_NOT_SET

PICO_TOO_MANY_SAMPLES

PICO_SEGMENT_OUT_OF_RANGE

PICO_NO_SAMPLES_AVAILABLE

PICO_NOT_RESPONDING

PICO_DRIVER_FUNCTION

PicoScope 3000 Series (A API) Programmer's Guide 51

4.25 ps3000aGetValuesOverlapped

PICO_STATUS ps3000aGetValuesOverlapped

(

int16_t handle,

uint32_t startIndex,

uint32_t * noOfSamples,

uint32_t downSampleRatio,

PS3000A_RATIO_MODE downSampleRatioMode,

uint32_t segmentIndex,

int16_t * overflow

)

This function allows you to make a deferred data-collection request in block mode. The

request will be executed, and the arguments validated, when you call

ps3000aRunBlock. The advantage of this function is that the driver makes contact with

the scope only once, when you call ps3000aRunBlock, compared with the two contacts

that occur when you use the conventional ps3000aRunBlock, ps3000aGetValues

calling sequence. This slightly reduces the dead time between successive captures in

block mode.

After calling ps3000aRunBlock, you can optionally use ps3000aGetValues to request

further copies of the data. This might be required if you wish to display the data with

different data reduction settings.

See also: Using the GetValuesOverlapped functions.

Applicability

Block mode

Arguments

handle, device identifier returned by ps3000aOpenUnit

startIndex,

* noOfSamples,

downSampleRatio,

downSampleRatioMode,

segmentIndex: see ps3000aGetValues

* overflow, see ps3000aGetValuesBulk

Returns

PICO_OK

PICO_POWER_SUPPLY_CONNECTED

PICO_POWER_SUPPLY_NOT_CONNECTED

PICO_INVALID_HANDLE

PICO_INVALID_PARAMETER

PICO_DRIVER_FUNCTION

API functions52

4.26 ps3000aGetValuesOverlappedBulk

PICO_STATUS ps3000aGetValuesOverlappedBulk

(

int16_t handle,

uint32_t startIndex,

uint32_t * noOfSamples,

uint32_t downSampleRatio,

PS3000A_RATIO_MODE downSampleRatioMode,

uint32_t fromSegmentIndex,

uint32_t toSegmentIndex,

int16_t * overflow

)

This function requests data from multiple segments in rapid block mode. It is similar to

calling ps3000aGetValuesOverlapped multiple times, but more efficient.

See also: Using the GetValuesOverlapped functions.

Applicability

Rapid block mode

Arguments

handle, device identifier returned by ps3000aOpenUnit

startIndex,

* noOfSamples,

downSampleRatio,

downSampleRatioMode: see ps3000aGetValues

fromSegmentIndex,

toSegmentIndex,

* overflow: see ps3000aGetValuesBulk

Returns

PICO_OK

PICO_POWER_SUPPLY_CONNECTED

PICO_POWER_SUPPLY_NOT_CONNECTED

PICO_INVALID_HANDLE

PICO_INVALID_PARAMETER

PICO_DRIVER_FUNCTION

PicoScope 3000 Series (A API) Programmer's Guide 53

4.26.1 Using the GetValuesOverlapped functions

1. Open the oscilloscope using ps3000aOpenUnit.

2. Select channel ranges and AC/DC coupling using ps3000aSetChannel.

3. Using ps3000aGetTimebase, select timebases until the required sampling interval

is located.

4. Use the trigger setup functions ps3000aSetTriggerChannelDirections and

ps3000aSetTriggerChannelProperties to set up the trigger if required.

5. Use ps3000aSetDataBuffer to tell the driver where your memory buffer is.

6. Set up the transfer of the block of data from the oscilloscope using

ps3000aGetValuesOverlapped.

7. Start the oscilloscope running using ps3000aRunBlock.

8. Wait until the oscilloscope is ready using the ps3000aBlockReady callback (or poll

using ps3000aIsReady).

9. Display the data.

10. Repeat steps 7 to 9 if needed.

11. Stop the oscilloscope using ps3000aStop.

A similar procedure can be used with rapid block mode using the

ps3000aGetValuesOverlappedBulk function.

API functions54

4.27 ps3000aGetValuesTriggerTimeOffsetBulk

PICO_STATUS ps3000aGetValuesTriggerTimeOffsetBulk

(

int16_t handle,

uint32_t * timesUpper,

uint32_t * timesLower,

PS3000A_TIME_UNITS * timeUnits,

uint32_t fromSegmentIndex,

uint32_t toSegmentIndex

)

This function retrieves the trigger time offset for multiple waveforms obtained in block

mode or rapid block mode. It is a more efficient alternative to calling

ps3000aGetTriggerTimeOffset once for each waveform required. See

ps3000aGetTriggerTimeOffset for an explanation of trigger time offsets.

There is another version of this function,

ps3000aGetValuesTriggerTimeOffsetBulk64, that returns trigger time offsets as 64-

bit values instead of pairs of 32-bit values.

Applicability

Block mode, rapid block mode

Arguments

handle, device identifier returned by ps3000aOpenUnit

* timesUpper, * timesLower, two arrays of integers. On exit, they hold the most

significant 32 bits and least significant 32 bits of the trigger time offset for each

requested segment index. timesUpper[0] and timesLower[0] hold the

fromSegmentIndex time offset and the last timesUpper and timesLower elements

hold the toSegmentIndex time offset. The arrays must be long enough to hold the

number of requested times.

* timeUnits, an array of integers. On exit, timeUnits[0] contains the time unit for

fromSegmentIndex and the last element contains the time unit for toSegmentIndex.

Refer to ps3000aGetTriggerTimeOffset for allowable values. The array must be long

enough to hold the number of requested times.

fromSegmentIndex, the first segment for which the time offset is required

toSegmentIndex, the last segment for which the time offset is required. If

toSegmentIndex is less than fromSegmentIndex, the driver will wrap around from the

last segment to the first.

Returns

PICO_OK

PICO_POWER_SUPPLY_CONNECTED

PICO_POWER_SUPPLY_NOT_CONNECTED

PICO_INVALID_HANDLE

PICO_NOT_USED_IN_THIS_CAPTURE_MODE

PICO_NOT_RESPONDING

PICO_NULL_PARAMETER

PICO_DEVICE_SAMPLING

PICO_SEGMENT_OUT_OF_RANGE

PICO_NO_SAMPLES_AVAILABLE

PICO_DRIVER_FUNCTION

PicoScope 3000 Series (A API) Programmer's Guide 55

4.28 ps3000aGetValuesTriggerTimeOffsetBulk64

PICO_STATUS ps3000aGetValuesTriggerTimeOffsetBulk64

(

int16_t handle,

int64_t * times,

PS3000A_TIME_UNITS * timeUnits,

uint32_t fromSegmentIndex,

uint32_t toSegmentIndex

)

This function is equivalent to ps3000aGetValuesTriggerTimeOffsetBulk but retrieves

the trigger time offsets as 64-bit values instead of pairs of 32-bit values.

Applicability

Block mode, rapid block mode

Arguments

handle, device identifier returned by ps3000aOpenUnit

* times, an array of integers. On exit, this holds the trigger time

offset for each requested segment index. Each value is equivalent to

the timesUpper:timesLower value returned by

ps3000aGetValuesTriggerTimeOffsetBulk. See the description of

that function for more information.

* timeUnits,

fromSegmentIndex,

toSegmentIndex, see ps3000aGetValuesTriggerTimeOffsetBulk

Returns

PICO_OK

PICO_POWER_SUPPLY_CONNECTED

PICO_POWER_SUPPLY_NOT_CONNECTED

PICO_INVALID_HANDLE

PICO_NOT_USED_IN_THIS_CAPTURE_MODE

PICO_NOT_RESPONDING

PICO_NULL_PARAMETER

PICO_DEVICE_SAMPLING

PICO_SEGMENT_OUT_OF_RANGE

PICO_NO_SAMPLES_AVAILABLE

PICO_DRIVER_FUNCTION

API functions56

4.29 ps3000aHoldOff

PICO_STATUS ps3000aHoldOff

(

int16_t handle,

uint64_t holdoff,

PS3000A_HOLDOFF_TYPE type

)

This function is for backward compatibility only and does nothing.

Applicability

None

Arguments

handle, device identifier returned by ps3000aOpenUnit

holdoff, not used

type, not used

Returns

Undefined

PicoScope 3000 Series (A API) Programmer's Guide 57

4.30 ps3000aIsReady

PICO_STATUS ps3000aIsReady

(

int16_t handle,

int16_t * ready

)

This function may be used instead of a callback function to receive data from

ps3000aRunBlock. To use this method, pass a NULL pointer as the lpReady argument

to ps3000aRunBlock. You must then poll the driver to see if it has finished collecting

the requested samples.

Applicability

Block mode

Arguments

handle, device identifier returned by ps3000aOpenUnit

* ready, output: indicates the state of the collection. If zero, the

device is still collecting. If non-zero, the device has finished

collecting and ps3000aGetValues can be used to retrieve the data.

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_DRIVER_FUNCTION

PICO_NULL_PARAMETER

PICO_NO_SAMPLES_AVAILABLE

PICO_CANCELLED

PICO_NOT_RESPONDING

API functions58

4.31 ps3000aIsTriggerOrPulseWidthQualifierEnabled

PICO_STATUS ps3000aIsTriggerOrPulseWidthQualifierEnabled

(

int16_t handle,

int16_t * triggerEnabled,

int16_t * pulseWidthQualifierEnabled

)

This function discovers whether a trigger, or pulse width triggering, is enabled.

Applicability

Call after setting up the trigger, and just before calling either

ps3000aRunBlock or ps3000aRunStreaming.

Arguments

handle, device identifier returned by ps3000aOpenUnit

* triggerEnabled, on exit, indicates whether the trigger will

successfully be set when ps3000aRunBlock or ps3000aRunStreaming

is called. A non-zero value indicates that the trigger is set, zero that

the trigger is not set.

* pulseWidthQualifierEnabled, on exit, indicates whether the

pulse width qualifier will successfully be set when ps3000aRunBlock

or ps3000aRunStreaming is called. A non-zero value indicates that

the pulse width qualifier is set, zero that the pulse width qualifier is

not set.

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_NULL_PARAMETER

PICO_DRIVER_FUNCTION

PicoScope 3000 Series (A API) Programmer's Guide 59

4.32 ps3000aMaximumValue

PICO_STATUS ps3000aMaximumValue

(

int16_t handle,

int16_t * value

)

This function returns the maximum ADC count returned by calls to get values.

Applicability

All modes

Arguments

handle, device identifier returned by ps3000aOpenUnit

* value, returns the maximum ADC value

Returns

PICO_OK

PICO_USER_CALLBACK

PICO_INVALID_HANDLE

PICO_TOO_MANY_SEGMENTS

PICO_MEMORY

PICO_DRIVER_FUNCTION

API functions60

4.33 ps3000aMemorySegments

PICO_STATUS ps3000aMemorySegments

(

int16_t handle,

uint32_t nSegments,

int32_t * nMaxSamples

)

This function sets the number of memory segments that the scope will use.

When the scope is opened, the number of segments defaults to 1, meaning that each

capture fills the scope's available memory. This function allows you to divide the

memory into a number of segments so that the scope can store several waveforms

sequentially.

Applicability

All modes

Arguments

handle, device identifier returned by ps3000aOpenUnit

nSegments, the number of segments required, from 1 to the value

of maxsegments returned by ps3000aGetMaxSegments

* nMaxSamples, on exit, the number of samples available in each

segment. This is the total number over all channels, so if more than

one channel is in use, the number of samples available to each

channel is nMaxSamples divided by 2 (for 2 channels) or 4 (for 3 or 4

channels).

Returns

PICO_OK

PICO_USER_CALLBACK

PICO_INVALID_HANDLE

PICO_TOO_MANY_SEGMENTS

PICO_MEMORY

PICO_DRIVER_FUNCTION

PicoScope 3000 Series (A API) Programmer's Guide 61

4.34 ps3000aMinimumValue

PICO_STATUS ps3000aMinimumValue

(

int16_t handle,

int16_t * value

)

This function returns the minimum ADC count returned by calls to ps3000aGetValues

and related functions

Applicability

All modes

Arguments

handle, device identifier returned by ps3000aOpenUnit

* value, returns the minimum ADC value

Returns

PICO_OK

PICO_USER_CALLBACK

PICO_INVALID_HANDLE

PICO_TOO_MANY_SEGMENTS

PICO_MEMORY

PICO_DRIVER_FUNCTION

API functions62

4.35 ps3000aNoOfStreamingValues

PICO_STATUS ps3000aNoOfStreamingValues

(

int16_t handle,

uint32_t * noOfValues

)

This function returns the number of samples available after data collection in

streaming mode. Call it after calling ps3000aStop. The maximum number possible is

the sum of the maxPreTriggerSamples + maxPostTriggerSamples arguments passed

to ps3000aRunStreaming.

Applicability

Streaming mode

Arguments

handle, device identifier returned by ps3000aOpenUnit

* noOfValues, on exit, the number of samples

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_NULL_PARAMETER

PICO_NO_SAMPLES_AVAILABLE

PICO_NOT_USED

PICO_BUSY

PICO_DRIVER_FUNCTION

PicoScope 3000 Series (A API) Programmer's Guide 63

4.36 ps3000aOpenUnit

PICO_STATUS ps3000aOpenUnit

(

int16_t * handle,

int8_t * serial

)

This function opens a PicoScope 3000 Series oscilloscope attached to the computer.

The maximum number of units that can be opened depends on the operating system,

the kernel driver and the computer.

If the function returns PICO_POWER_SUPPLY_NOT_CONNECTED, call

ps3000aChangePowerSource to switch from the external power supply to USB power.

If the return value is PICO_USB3_0_DEVICE_NON_USB3_0_PORT, call

ps3000aChangePowerSource to tell the driver to power the device from a USB 2.0 or

USB 1.1 port.

Applicability

All modes

Arguments

* handle, on exit, the result of the attempt to open a scope:

–1 : if the scope fails to open

0: if no scope is found

> 0 : a number that uniquely identifies the scope

If a valid handle is returned, it must be used in all subsequent calls

to API functions to identify this scope.

* serial, on entry, a null-terminated string containing the serial

number of the scope to be opened. If serial is NULL then the

function opens the first scope found; otherwise, it tries to open the

scope that matches the string.

Returns

PICO_OK

PICO_OS_NOT_SUPPORTED

PICO_OPEN_OPERATION_IN_PROGRESS

PICO_EEPROM_CORRUPT

PICO_KERNEL_DRIVER_TOO_OLD

PICO_FPGA_FAIL

PICO_MEMORY_CLOCK_FREQUENCY

PICO_FW_FAIL

PICO_MAX_UNITS_OPENED

PICO_NOT_FOUND (if the specified unit was not found)

PICO_NOT_RESPONDING

PICO_MEMORY_FAIL

PICO_ANALOG_BOARD

PICO_CONFIG_FAIL_AWG

PICO_INITIALISE_FPGA

PICO_POWER_SUPPLY_NOT_CONNECTED (if the device is a 4-channel

scope with no power supply connected)

PICO_USB3_0_DEVICE_NON_USB3_0_PORT (if the device is a 2-channel

USB 3.0 scope connected to a non-USB 3.0 port)

API functions64

4.37 ps3000aOpenUnitAsync

PICO_STATUS ps3000aOpenUnitAsync

(

int16_t * status,

int8_t * serial

)

This function opens a scope without blocking the calling thread. You can find out when

it has finished by periodically calling ps3000aOpenUnitProgress until that function

returns a non-zero value.

Applicability

All modes

Arguments

* status, a status code:

0 if the open operation was disallowed because another open

operation is in progress

1 if the open operation was successfully started

* serial, see ps3000aOpenUnit

Returns

PICO_OK

PICO_OPEN_OPERATION_IN_PROGRESS

PICO_OPERATION_FAILED

PicoScope 3000 Series (A API) Programmer's Guide 65

4.38 ps3000aOpenUnitProgress

PICO_STATUS ps3000aOpenUnitProgress

(

int16_t * handle,

int16_t * progressPercent,

int16_t * complete

)

This function checks on the progress of a request made to ps3000aOpenUnitAsync to

open a scope.

If the function returns PICO_POWER_SUPPLY_NOT_CONNECTED or

PICO_USB3_0_DEVICE_NON_USB3_0_PORT, call ps3000aChangePowerSource to select a

new power source.

Applicability

Use after ps3000aOpenUnitAsync

Arguments

* handle, see ps3000aOpenUnit. This handle is valid only if the

function returns PICO_OK.

* progressPercent, on exit, the percentage progress towards

opening the scope. 100% implies that the open operation is

complete.

* complete, set to 1 when the open operation has finished

Returns

PICO_OK

PICO_NULL_PARAMETER

PICO_OPERATION_FAILED

PICO_POWER_SUPPLY_NOT_CONNECTED

PICO_USB3_0_DEVICE_NON_USB3_0_PORT

API functions66

4.39 ps3000aPingUnit

PICO_STATUS ps3000aPingUnit

(

int16_t handle

)

This function can be used to check that the already opened device is still connected to

the USB port and communication is successful.

Applicability

All modes

Arguments

handle, device identifier returned by ps3000aOpenUnit

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_DRIVER_FUNCTION

PICO_BUSY

PICO_NOT_RESPONDING

PICO_POWER_SUPPLY_UNDERVOLTAGE

PICO_POWER_SUPPLY_NOT_CONNECTED

PICO_POWER_SUPPLY_CONNECTED

PICO_USB3_0_DEVICE_NON_USB3_0_PORT

PicoScope 3000 Series (A API) Programmer's Guide 67

4.40 ps3000aRunBlock

PICO_STATUS ps3000aRunBlock

(

int16_t handle,

int32_t noOfPreTriggerSamples,

int32_t noOfPostTriggerSamples,

uint32_t timebase,

int16_t oversample,

int32_t * timeIndisposedMs,

uint32_t segmentIndex,

ps3000aBlockReady lpReady,

void * pParameter

)

This function starts collecting data in block mode. For a step-by-step guide to this

process, see Using block mode.

The number of samples is determined by noOfPreTriggerSamples and

noOfPostTriggerSamples (see below for details). The total number of samples must

not be more than the size of the segment referred to by segmentIndex.

Applicability

Block mode, rapid block mode

Arguments

handle, device identifier returned by ps3000aOpenUnit

noOfPreTriggerSamples, the number of samples to return before the trigger event.

If no trigger has been set, then this argument is added to noOfPostTriggerSamples

to give the maximum number of data points (samples) to collect.

noOfPostTriggerSamples, the number of samples to return after the trigger event.

If no trigger event has been set, then this argument is added to

noOfPreTriggerSamples to give the maximum number of data points to collect. If a

trigger condition has been set, this specifies the number of data points to collect after

a trigger has fired, and the number of samples to be collected is:

noOfPreTriggerSamples + noOfPostTriggerSamples

timebase, a number in the range 0 to 232–1. See the guide to calculating timebase

values. In ETS mode this argument is ignored and the driver chooses the timebase

automatically.

oversample, not used

* timeIndisposedMs, on exit, the time, in milliseconds, that the scope will spend

collecting samples. This does not include any auto trigger timeout. If this pointer is

null, nothing will be written here.

segmentIndex, zero-based, specifies which memory segment to use

lpReady, a pointer to the ps3000aBlockReady callback function that the driver will

call when the data has been collected. To use the ps3000aIsReady polling method

instead of a callback function, set this pointer to NULL.

* pParameter, a void pointer that is passed to the ps3000aBlockReady callback

function. The callback can use this pointer to return arbitrary data to the application.

Returns

PICO_OK

PICO_POWER_SUPPLY_CONNECTED

PICO_POWER_SUPPLY_NOT_CONNECTED

API functions68

PICO_BUFFERS_NOT_SET (in overlapped mode)

PICO_INVALID_HANDLE

PICO_USER_CALLBACK

PICO_SEGMENT_OUT_OF_RANGE

PICO_INVALID_CHANNEL

PICO_INVALID_TRIGGER_CHANNEL

PICO_INVALID_CONDITION_CHANNEL

PICO_TOO_MANY_SAMPLES

PICO_INVALID_TIMEBASE

PICO_NOT_RESPONDING

PICO_CONFIG_FAIL

PICO_INVALID_PARAMETER

PICO_NOT_RESPONDING

PICO_TRIGGER_ERROR

PICO_DRIVER_FUNCTION

PICO_FW_FAIL

PICO_NOT_ENOUGH_SEGMENTS (in bulk mode)

PICO_PULSE_WIDTH_QUALIFIER

PICO_SEGMENT_OUT_OF_RANGE (in overlapped mode)

PICO_STARTINDEX_INVALID (in overlapped mode)

PICO_INVALID_SAMPLERATIO (in overlapped mode)

PICO_CONFIG_FAIL

PicoScope 3000 Series (A API) Programmer's Guide 69

4.41 ps3000aRunStreaming

PICO_STATUS ps3000aRunStreaming

(

int16_t handle,

uint32_t * sampleInterval,

PS3000A_TIME_UNITS sampleIntervalTimeUnits,

uint32_t maxPreTriggerSamples,

uint32_t maxPostTriggerSamples,

int16_t autoStop,

uint32_t downSampleRatio,

PS3000A_RATIO_MODE downSampleRatioMode,

uint32_t overviewBufferSize

)

This function tells the oscilloscope to start collecting data in streaming mode. When

data has been collected from the device it is downsampled if necessary and then

delivered to the application. Call ps3000aGetStreamingLatestValues to retrieve the

data. See Using streaming mode for a step-by-step guide to this process.

Whether a trigger is set or not, the total number of samples stored in the driver is

always maxPreTriggerSamples + maxPostTriggerSamples. If autoStop is false, this

becomes the maximum number of samples without downsampling.

Applicability

Streaming mode

Arguments

handle, device identifier returned by ps3000aOpenUnit

* sampleInterval, on entry, the requested time interval between samples, in units

of sampleIntervalTimeUnits; on exit, the actual time interval used.

sampleIntervalTimeUnits, the unit of time used for sampleInterval. Use one of

these enumerated types:

PS3000A_FS

PS3000A_PS

PS3000A_NS

PS3000A_US

PS3000A_MS

PS3000A_S

maxPreTriggerSamples, the maximum number of raw samples before a trigger event

for each enabled channel.

maxPostTriggerSamples, the maximum number of raw samples after a trigger event

for each enabled channel.

autoStop, a flag that specifies if the streaming should stop when all of

maxPreTriggerSamples + maxPostTriggerSamples have been captured.

downSampleRatio,

downSampleRatioMode: see ps3000aGetValues

overviewBufferSize, the size of the overview buffers. These are temporary buffers

used for storing the data before returning it to the application. The size is the same as

the bufferLth value passed to ps3000aSetDataBuffer.

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_ETS_MODE_SET

PICO_USER_CALLBACK

PICO_NULL_PARAMETER

PICO_INVALID_PARAMETER

API functions70

PICO_STREAMING_FAILED

PICO_NOT_RESPONDING

PICO_POWER_SUPPLY_CONNECTED

PICO_POWER_SUPPLY_NOT_CONNECTED

PICO_TRIGGER_ERROR

PICO_INVALID_SAMPLE_INTERVAL

PICO_INVALID_BUFFER

PICO_DRIVER_FUNCTION

PICO_FW_FAIL

PICO_MEMORY

PicoScope 3000 Series (A API) Programmer's Guide 71

4.42 ps3000aSetBandwidthFilter

PICO_STATUS ps3000aSetBandwidthFilter

(

int16_t handle,

PS3000A_CHANNEL channel,

PS3000A_BANDWIDTH_LIMITER bandwidth

)

This function sets the bandwidth limiter for a specified channel.

Applicability

All modes. PicoScope 3400, 3000D, and 3000D MSO scopes only.

Arguments

handle, device identifier returned by ps3000aOpenUnit

channel, the channel to be configured. Use one of the following

enumerated types:

PS3000A_CHANNEL_A: Channel A input

PS3000A_CHANNEL_B: Channel B input

PS3000A_CHANNEL_C: Channel C input (if present)

PS3000A_CHANNEL_D: Channel D input (if present)

bandwidth, either one of these values:

PS3000A_BW_FULL

PS3000A_BW_20MHZ

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_INVALID_CHANNEL

PICO_INVALID_BANDWIDTH

API functions72

4.43 ps3000aSetChannel

PICO_STATUS ps3000aSetChannel

(

int16_t handle,

PS3000A_CHANNEL channel,

int16_t enabled,

PS3000A_COUPLING type,

PS3000A_RANGE range,

float analogueOffset

)

This function specifies whether an input channel is to be enabled, its input coupling

type, voltage range and analog offset.

Applicability

All modes

Arguments

handle, device identifier returned by ps3000aOpenUnit

channel, the channel to be configured. Use one of the following

enumerated types:

PS3000A_CHANNEL_A: Channel A input

PS3000A_CHANNEL_B: Channel B input

PS3000A_CHANNEL_C: Channel C input

PS3000A_CHANNEL_D: Channel D input

enabled, whether or not to enable the channel (TRUE or FALSE)

type, the impedance and coupling type. The values are:

PS3000A_AC: 1 megohm impedance, AC coupling. The channel

accepts input frequencies from about 1 hertz up to its maximum

–3 dB analog bandwidth.

PS3000A_DC: 1 megohm impedance, DC coupling. The scope

accepts all input frequencies from zero (DC) up to its maximum

–3 dB analog bandwidth.

range, the input voltage range, one of these enumerated types:

PS3000A_50MV: ±50 mV

PS3000A_100MV: ±100 mV

PS3000A_200MV: ±200 mV

PS3000A_500MV: ±500 mV

PS3000A_1V: ±1 V

PS3000A_2V: ±2 V

PS3000A_5V: ±5 V

PS3000A_10V: ±10 V

PS3000A_20V: ±20 V

analogueOffset, a voltage to add to the input channel before

digitization. The allowable range of offsets depends on the input

range selected for the channel, as obtained from

ps3000aGetAnalogueOffset.

Returns

PICO_OK

PICO_USER_CALLBACK

PICO_INVALID_HANDLE

PICO_INVALID_CHANNEL

PICO_INVALID_VOLTAGE_RANGE

PICO_INVALID_COUPLING

PICO_INVALID_ANALOGUE_OFFSET

PICO_DRIVER_FUNCTION

PicoScope 3000 Series (A API) Programmer's Guide 73

4.44 ps3000aSetDataBuffer

PICO_STATUS ps3000aSetDataBuffer

(

int16_t handle,

PS3000A_CHANNEL channel,

int16_t * buffer,

int32_t bufferLth,

uint32_t segmentIndex,

PS3000A_RATIO_MODE mode

)

This function tells the driver where to store the data, either unprocessed or

downsampled, that will be returned after the next call to one of the GetValues

functions. The function allows you to specify only a single buffer, so for aggregation

mode, which requires two buffers, you need to call ps3000aSetDataBuffers instead.

You must allocate memory for the buffer before calling this function.

Applicability

Block, rapid block and streaming modes. All downsampling modes

except aggregation.

Arguments

handle, device identifier returned by ps3000aOpenUnit

channel, the channel you want to use with the buffer. Use one of

these enumerated types:

PS3000A_CHANNEL_A

PS3000A_CHANNEL_B

PS3000A_CHANNEL_C

PS3000A_CHANNEL_D

To set the buffer for a digital port, use one of these enumerated

types:

PS3000A_DIGITAL_PORT0 = 0x80

PS3000A_DIGITAL_PORT1 = 0x81

* buffer, the location of the buffer

bufferLth, the size of the buffer array

segmentIndex, the number of the memory segment to be used

mode, the downsampling mode. See ps3000aGetValues for the

available modes, but note that a single call to ps3000aSetDataBuffer

can only associate one buffer with one downsampling mode. If you

intend to call ps3000aGetValues with more than one downsampling

mode activated, then you must call ps3000aSetDataBuffer several

times to associate a separate buffer with each downsampling mode.

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_INVALID_CHANNEL

PICO_RATIO_MODE_NOT_SUPPORTED

PICO_SEGMENT_OUT_OF_RANGE

PICO_DRIVER_FUNCTION

PICO_INVALID_PARAMETER

API functions74

4.45 ps3000aSetDataBuffers

PICO_STATUS ps3000aSetDataBuffers

(

int16_t handle,

PS3000A_CHANNEL channel,

int16_t * bufferMax,

int16_t * bufferMin,

int32_t bufferLth,

uint32_t segmentIndex,

PS3000A_RATIO_MODE mode

)

This function tells the driver the location of one or two buffers for receiving data. You

need to allocate memory for the buffers before calling this function. If you do not need

two buffers, because you are not using aggregate mode, then you can optionally use

ps3000aSetDataBuffer instead.

Applicability

Block and streaming modes with aggregation.

Arguments

handle, device identifier returned by ps3000aOpenUnit

channel, the channel for which you want to set the buffers. Use one

of these constants:

PS3000A_CHANNEL_A

PS3000A_CHANNEL_B

PS3000A_CHANNEL_C

PS3000A_CHANNEL_D

To set the buffer for a digital port, use one of these enumerated

types:

PS3000A_DIGITAL_PORT0 = 0x80

PS3000A_DIGITAL_PORT1 = 0x81

* bufferMax, a buffer to receive the maximum data values in

aggregation mode, or the non-aggregated values otherwise

* bufferMin, a buffer to receive the minimum aggregated data

values. Not used in other downsampling modes.

bufferLth, the size of the bufferMax and bufferMin arrays

segmentIndex, the number of the memory segment to be used

mode, see ps3000aGetValues

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_INVALID_CHANNEL

PICO_RATIO_MODE_NOT_SUPPORTED

PICO_SEGMENT_OUT_OF_RANGE

PICO_DRIVER_FUNCTION

PICO_INVALID_PARAMETER

PicoScope 3000 Series (A API) Programmer's Guide 75

4.46 ps3000aSetDigitalPort

PICO_STATUS ps3000aSetDigitalPort

(

int16_t handle,

PS3000A_DIGITAL_PORT port,

int16_t enabled,

int16_t logiclevel

)

This function is used to enable the digital port and set the logic level (the voltage at

which the state transitions from 0 to 1).

Applicability

Block and streaming modes with aggregation.

MSOs only.

Arguments

handle, device identifier returned by ps3000aOpenUnit

port, identifies the port for digital data:

PS3000A_DIGITAL_PORT0 = 0x80 (digital channels 0–7)

PS3000A_DIGITAL_PORT1 = 0x81 (digital channels 8–15)

enabled, whether or not to enable the channel. The values are:

TRUE: enable

FALSE: do not enable

logiclevel, the voltage at which the state transitions between 0

and 1. Range: –32767 (–5 V) to 32767 (5 V).

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_INVALID_CHANNEL

PICO_RATIO_MODE_NOT_SUPPORTED

PICO_SEGMENT_OUT_OF_RANGE

PICO_DRIVER_FUNCTION

PICO_INVALID_PARAMETER

API functions76

4.47 ps3000aSetEts

PICO_STATUS ps3000aSetEts

(

int16_t handle,

PS3000A_ETS_MODE mode,

int16_t etsCycles,

int16_t etsInterleave,

int32_t * sampleTimePicoseconds

)

This function is used to enable or disable ETS (equivalent-time sampling) and to set

the ETS parameters. See ETS overview for an explanation of ETS mode.

Applicability

Block mode

Arguments

handle, device identifier returned by ps3000aOpenUnit

mode, the ETS mode. Use one of these values:

PS3000A_ETS_OFF - disables ETS

PS3000A_ETS_FAST - enables ETS and provides etsCycles of data, which may

contain data from previously returned cycles

PS3000A_ETS_SLOW - enables ETS and provides fresh data every etsCycles. This

mode takes longer to provide each data set, but the data sets are more stable and

are guaranteed to contain only new data.

etsCycles, the number of cycles to store: the driver then selects etsInterleave

cycles to give the most uniform spread of samples. Range: between two and five

times the value of etsInterleave, and not more than the etsCycles value returned

by ps3000aGetMaxEtsValues.

etsInterleave, the number of waveforms to combine into a single ETS capture. The

maximum allowed value for the selected device is returned by

ps3000aGetMaxEtsValues in the etsInterleave argument.

* sampleTimePicoseconds, on exit, the effective sampling interval of the ETS data.

For example, if the captured sample time is 4 ns and etsInterleave is 10, the

effective sample time in ETS mode is 400 ps.

Returns

PICO_OK

PICO_USER_CALLBACK

PICO_INVALID_HANDLE

PICO_INVALID_PARAMETER

PICO_DRIVER_FUNCTION

PicoScope 3000 Series (A API) Programmer's Guide 77

4.48 ps3000aSetEtsTimeBuffer

PICO_STATUS ps3000aSetEtsTimeBuffer

(

int16_t handle,

int64_t * buffer,

int32_t bufferLth

)

This function tells the driver where to find your application's ETS time buffers. These

buffers contain the 64-bit timing information for each ETS sample after you run a

block-mode ETS capture.

Applicability

ETS mode only.

If your programming language does not support 64-bit data, use the

32-bit version ps3000aSetEtsTimeBuffers instead.

Arguments

handle, device identifier returned by ps3000aOpenUnit

* buffer, an array of 64-bit words, each representing the time in

femtoseconds (10–15 seconds) at which the sample was captured

bufferLth, the size of the buffer array

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_NULL_PARAMETER

PICO_DRIVER_FUNCTION

API functions78

4.49 ps3000aSetEtsTimeBuffers

PICO_STATUS ps3000aSetEtsTimeBuffers

(

int16_t handle,

uint32_t * timeUpper,

uint32_t * timeLower,

int32_t bufferLth

)

This function tells the driver where to find your application's ETS time buffers. These

buffers contain the timing information for each ETS sample after you run a block-mode

ETS capture. There are two buffers containing the upper and lower 32-bit parts of the

timing information, to allow programming languages that do not support 64-bit data to

retrieve the timings.

Applicability

ETS mode only.

If your programming language supports 64-bit data then you can use

ps3000aSetEtsTimeBuffer instead.

Arguments

handle, device identifier returned by ps3000aOpenUnit

* timeUpper, an array of 32-bit words, each representing the upper

32 bits of the time in femtoseconds (10–15 seconds) at which the

sample was captured

* timeLower, an array of 32-bit words, each representing the lower

32 bits of the time in femtoseconds (10–15 seconds) at which the

sample was captured

bufferLth, the size of the timeUpper and timeLower arrays

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_NULL_PARAMETER

PICO_DRIVER_FUNCTION

PicoScope 3000 Series (A API) Programmer's Guide 79

4.50 ps3000aSetNoOfCaptures

PICO_STATUS ps3000aSetNoOfCaptures

(

int16_t handle,

uint32_t nCaptures

)

This function sets the number of captures to be collected in one run of rapid block

mode. If you do not call this function before a run, the driver will capture only one

waveform. Once a value has been set, the value remains constant unless changed.

Applicability

Rapid block mode

Arguments

handle, device identifier returned by ps3000aOpenUnit

nCaptures, the number of waveforms to capture in one run

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_INVALID_PARAMETER

PICO_DRIVER_FUNCTION

API functions80

4.51 ps3000aSetPulseWidthDigitalPortProperties

PICO_STATUS ps3000aSetPulseWidthDigitalPortProperties

(

int16_t handle,

PS3000A_DIGITAL_CHANNEL_DIRECTIONS * directions

int16_t nDirections

)

This function will set the individual digital channels' pulse-width trigger directions.

Each trigger direction consists of a channel name and a direction. If the channel is not

included in the array of PS3000A_DIGITAL_CHANNEL_DIRECTIONS the driver assumes

the digital channel's pulse-width trigger direction is PS3000A_DIGITAL_DONT_CARE.

Applicability

All modes.

PicoScope 3000D MSO models only.

Arguments

handle, device identifier returned by ps3000aOpenUnit

* directions, a pointer to an array of

PS3000A_DIGITAL_CHANNEL_DIRECTIONS structures describing the

requested properties. The array can contain a single element

describing the properties of one channel, or a number of elements

describing several digital channels. If directions is NULL, digital

pulse-width triggering is switched off. A digital channel that is not

included in the array will be set to PS3000A_DIGITAL_DONT_CARE.

nDirections, the number of digital channel directions being passed

to the driver

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_DRIVER_FUNCTION

PICO_INVALID_DIGITAL_CHANNEL

PICO_INVALID_DIGITAL_TRIGGER_DIRECTION

PicoScope 3000 Series (A API) Programmer's Guide 81

4.52 ps3000aSetPulseWidthQualifier

PICO_STATUS ps3000aSetPulseWidthQualifier

(

int16_t handle,

PS3000A_PWQ_CONDITIONS * conditions,

int16_t nConditions,

PS3000A_THRESHOLD_DIRECTION direction,

uint32_t lower,

uint32_t upper,

PS3000A_PULSE_WIDTH_TYPE type

)

This function sets up pulse-width qualification, which can be used on its own for pulse-

width triggering or combined with level triggering or window triggering to produce

more complex triggers. The pulse-width qualifier is set by defining one or more

structures that are then ORed together. Each structure is itself the AND of the states of

one or more of the inputs. This AND-OR logic allows you to create any possible

Boolean function of the scope's inputs.

Applicability

All modes

Arguments

handle, device identifier returned by ps3000aOpenUnit

* conditions, an array of PS3000A_PWQ_CONDITIONS structures* specifying the

conditions that should be applied to each channel. In the simplest case, the array

consists of a single element. When there are several elements, the overall trigger

condition is the logical OR of all the elements. If conditions is NULL then the pulse-

width qualifier is not used.

nConditions, the number of elements in the conditions array. If nConditions is

zero then the pulse-width qualifier is not used.

Range: 0 to PS3000A_MAX_PULSE_WIDTH_QUALIFIER_COUNT.

direction, the direction of the signal required for the pulse width trigger to fire.

See PS3000A_THRESHOLD_DIRECTION constants for the list of possible values. Each

channel of the oscilloscope (except the EXT input) has two thresholds for each

direction—for example, PS3000A_RISING and PS3000A_RISING_LOWER—so that one

can be used for the pulse-width qualifier and the other for the level trigger. The driver

will not let you use the same threshold for both triggers; so, for example, you cannot

use PS3000A_RISING as the direction argument for both

ps3000aSetTriggerConditions and ps3000aSetPulseWidthQualifier at the same

time. There is no such restriction when using window triggers.

lower, the lower limit of the pulse-width counter, measured in samples

upper, the upper limit of the pulse-width counter, measured in samples. This

parameter is used only when the type is set to PS3000A_PW_TYPE_IN_RANGE or

PS3000A_PW_TYPE_OUT_OF_RANGE.

Arguments

type, the pulse-width type, one of these constants:

PS3000A_PW_TYPE_NONE: do not use the pulse width qualifier

PS3000A_PW_TYPE_LESS_THAN: pulse width less than lower

PS3000A_PW_TYPE_GREATER_THAN: pulse width greater than lower

PS3000A_PW_TYPE_IN_RANGE: pulse width between lower and

upper

PS3000A_PW_TYPE_OUT_OF_RANGE: pulse width not between lower

and upper

Returns

PICO_OK

API functions82

PICO_INVALID_HANDLE

PICO_USER_CALLBACK

PICO_CONDITIONS

PICO_PULSE_WIDTH_QUALIFIER

PICO_DRIVER_FUNCTION

*Note: using this function the driver will convert the PS3000A_PWQ_CONDITIONS into a

PS3000A_PWQ_CONDITIONS_V2 and will set the condition for digital to

PS3000A_DIGITAL_DONT_CARE.

PicoScope 3000 Series (A API) Programmer's Guide 83

4.52.1 PS3000A_PWQ_CONDITIONS structure

A structure of this type is passed to ps3000aSetPulseWidthQualifier in the

conditions argument to specify the trigger conditions. It is defined as follows:

typedef struct tPS3000APwqConditions

{

PS3000A_TRIGGER_STATE channelA;

PS3000A_TRIGGER_STATE channelB;

PS3000A_TRIGGER_STATE channelC;

PS3000A_TRIGGER_STATE channelD;

PS3000A_TRIGGER_STATE external;

PS3000A_TRIGGER_STATE aux;

} PS3000A_PWQ_CONDITIONS

Each structure is the logical AND of the states of the scope's inputs. The

ps3000aSetPulseWidthQualifier function can OR together a number of these

structures to produce the final pulse width qualifier, which can therefore be any

possible Boolean function of the scope's inputs.

The structure is byte-aligned. In C++, for example, you should specify this using the

#pragma pack () instruction.

Applicability

All models*

Elements

channelA, channelB, channelC**, channelD**, external, the

type of condition that should be applied to each channel. Use these

constants: -

PS3000A_CONDITION_DONT_CARE

PS3000A_CONDITION_TRUE

PS3000A_CONDITION_FALSE

The channels that are set to PS3000A_CONDITION_TRUE or

PS3000A_CONDITION_FALSE must all meet their conditions

simultaneously to produce a trigger. Channels set to

PS3000A_CONDITION_DONT_CARE are ignored.

aux, not used

*Note: using this function the driver will convert the PS3000A_PWQ_CONDITIONS into a

PS3000A_PWQ_CONDITIONS_V2 and will set the condition for digital to

PS3000A_DIGITAL_DONT_CARE.

**Note: applicable to 4-channel oscilloscopes only.

API functions84

4.53 ps3000aSetPulseWidthQualifierV2

PICO_STATUS ps3000aSetPulseWidthQualifierV2

(

int16_t handle,

PS3000A_PWQ_CONDITIONS_V2 * conditions,

int16_t nConditions,

PS3000A_THRESHOLD_DIRECTION direction,

uint32_t lower,

uint32_t upper,

PS3000A_PULSE_WIDTH_TYPE type

)

This function sets up pulse-width qualification, which can be used on its own for pulse-

width triggering or combined with level triggering or window triggering to produce

more complex triggers. The pulse-width qualifier is set by defining one or more

structures that are then ORed together. Each structure is itself the AND of the states of

one or more of the inputs. This AND-OR logic allows you to create any possible

Boolean function of the scope's inputs.

Applicability

All modes

Arguments

handle, device identifier returned by ps3000aOpenUnit

* conditions, an array of PS3000A_PWQ_CONDITIONS_V2 structures specifying the

conditions that should be applied to each channel. In the simplest case, the array

consists of a single element. When there are several elements, the overall trigger

condition is the logical OR of all the elements. If conditions is NULL then the pulse-

width qualifier is not used.

nConditions, the number of elements in the conditions array. If nConditions is

zero then the pulse-width qualifier is not used.

Range: 0 to PS3000A_MAX_PULSE_WIDTH_QUALIFIER_COUNT.

direction, the direction of the signal required for the pulse width trigger to fire.

See PS3000A_THRESHOLD_DIRECTION constants for the list of possible values. Each

channel of the oscilloscope (except the EXT input) has two thresholds for each

direction—for example, PS3000A_RISING and PS3000A_RISING_LOWER—so that one

can be used for the pulse-width qualifier and the other for the level trigger. The driver

will not let you use the same threshold for both triggers; so, for example, you cannot

use PS3000A_RISING as the direction argument for both

ps3000aSetTriggerConditionsV2 and ps3000aSetPulseWidthQualifierV2 at the

same time. There is no such restriction when using window triggers.

lower, the lower limit of the pulse-width counter, measured in samples

upper, the upper limit of the pulse-width counter, measured in samples. This

parameter is used only when the type is set to PS3000A_PW_TYPE_IN_RANGE or

PS3000A_PW_TYPE_OUT_OF_RANGE.

Arguments

type, the pulse-width type, one of these constants:

PS3000A_PW_TYPE_NONE: do not use the pulse width qualifier

PS3000A_PW_TYPE_LESS_THAN: pulse width less than lower

PS3000A_PW_TYPE_GREATER_THAN: pulse width greater than lower

PS3000A_PW_TYPE_IN_RANGE: pulse width between lower and

upper

PS3000A_PW_TYPE_OUT_OF_RANGE: pulse width not between lower

and upper

Returns

PICO_OK

PicoScope 3000 Series (A API) Programmer's Guide 85

PICO_INVALID_HANDLE

PICO_USER_CALLBACK

PICO_CONDITIONS

PICO_PULSE_WIDTH_QUALIFIER

PICO_DRIVER_FUNCTION

API functions86

4.53.1 PS3000A_PWQ_CONDITIONS_V2 structure

A structure of this type is passed to ps3000aSetPulseWidthQualifierV2 in the

conditions argument to specify the trigger conditions. It is defined as follows:

typedef struct tPS3000APwqConditionsV2

{

PS3000A_TRIGGER_STATE channelA;

PS3000A_TRIGGER_STATE channelB;

PS3000A_TRIGGER_STATE channelC;

PS3000A_TRIGGER_STATE channelD;

PS3000A_TRIGGER_STATE external;

PS3000A_TRIGGER_STATE aux;

PS3000A_TRIGGER_STATE digital;

} PS3000A_PWQ_CONDITIONS_V2

Each structure is the logical AND of the states of the scope's inputs. The

ps3000aSetPulseWidthQualifierV2 function can OR together a number of these

structures to produce the final pulse width qualifier, which can therefore be any

possible Boolean function of the scope's inputs.

The structure is byte-aligned. In C++, for example, you should specify this using the

#pragma pack () instruction.

Applicability

All models

Elements

channelA, channelB, channelC*, channelD*, external, the type

of condition that should be applied to each channel. Use these

constants: -

PS3000A_CONDITION_DONT_CARE

PS3000A_CONDITION_TRUE

PS3000A_CONDITION_FALSE

The channels that are set to PS3000A_CONDITION_TRUE or

PS3000A_CONDITION_FALSE must all meet their conditions

simultaneously to produce a trigger. Channels set to

PS3000A_CONDITION_DONT_CARE are ignored.

aux, not used

*Note: applicable to 4-channel analog devices only.

PicoScope 3000 Series (A API) Programmer's Guide 87

4.54 ps3000aSetSigGenArbitrary

PICO_STATUS ps3000aSetSigGenArbitrary

(

int16_t handle,

int32_t offsetVoltage,

uint32_t pkToPk,

uint32_t startDeltaPhase,

uint32_t stopDeltaPhase,

uint32_t deltaPhaseIncrement,

uint32_t dwellCount,

int16_t * arbitraryWaveform,

int32_t arbitraryWaveformSize,

PS3000A_SWEEP_TYPE sweepType,

PS3000A_EXTRA_OPERATIONS operation,

PS3000A_INDEX_MODE indexMode,

uint32_t shots,

uint32_t sweeps,

PS3000A_SIGGEN_TRIG_TYPE triggerType,

PS3000A_SIGGEN_TRIG_SOURCE triggerSource,

int16_t extInThreshold

)

This function programs the signal generator to produce an arbitrary waveform.

The arbitrary waveform generator uses direct digital synthesis (DDS). It maintains a

32-bit phase accumulator that indicates the present location in the waveform. The top

bits of the phase accumulator are used as an index into a buffer containing the

arbitrary waveform. The remaining bits act as the fractional part of the index, enabling

high-resolution control of output frequency and allowing the generation of lower

frequencies.

The phase accumulator initially increments by startDeltaPhase. If the AWG is set to

sweep mode, the phase increment is increased at specified intervals until it reaches

stopDeltaPhase. The easiest way to obtain the values of startDeltaPhase and

stopDeltaPhase necessary to generate the desired frequency is to call

ps3000aSigGenFrequencyToPhase. Alternatively, see Calculating deltaPhase below for

more information on how to calculate these values.

Applicability

All modes. All models with AWG.

Arguments

handle, device identifier returned by ps3000aOpenUnit

offsetVoltage, the voltage offset, in microvolts, to be applied to the waveform

pkToPk, the peak-to-peak voltage, in microvolts, of the waveform signal. Note that if

the signal voltages described by the combination of offsetVoltage and pkToPk

extend outside the voltage range of the signal generator, the output waveform will be

clipped.

startDeltaPhase, the initial value added to the phase accumulator as the generator

begins to step through the waveform buffer. Calculate this value from the information

above, or use ps3000aSigGenFrequencyToPhase.

stopDeltaPhase, the final value added to the phase accumulator before the

generator restarts or reverses the sweep. When frequency sweeping is not required,

set equal to startDeltaPhase.

API functions88

deltaPhaseIncrement, the amount added to the delta phase value every time the

dwellCount period expires. This determines the amount by which the generator

sweeps the output frequency in each dwell period. When frequency sweeping is not

required, set to zero.

dwellCount, the time, in units of dacPeriod, between successive additions of

deltaPhaseIncrement to the delta phase accumulator. This determines the rate at

which the generator sweeps the output frequency.

Minimum value: PS3000A_MIN_DWELL_COUNT

* arbitraryWaveform, a buffer that holds the waveform pattern as a set of samples

equally spaced in time. If pkToPk is set to its maximum (4 V) and offsetVoltage is

set to 0 V:

a sample of minArbitraryWaveformValue corresponds to 2 V

a sample of maxArbitraryWaveformValue corresponds to +2 V

where minArbitraryWaveformValue and maxArbitraryWaveformValue are the

values returned by ps3000aSigGenArbitraryMinMaxValues.

arbitraryWaveformSize, the size of the arbitrary waveform buffer, in samples, in

the range:

[minArbitraryWaveformSize, maxArbitraryWaveformSize]

where minArbitraryWaveformSize and maxArbitraryWaveformSize are the values

returned by ps3000aSigGenArbitraryMinMaxValues.

sweepType, determines whether the startDeltaPhase is swept up to the

stopDeltaPhase, or down to it, or repeatedly swept up and down. Use one of these

enumerated types: -

PS3000A_UP

PS3000A_DOWN

PS3000A_UPDOWN

PS3000A_DOWNUP

operation, the type of waveform to be produced, specified by one of the following

enumerated types:

PS3000A_ES_OFF, normal signal generator operation specified by wavetype.

PS3000A_WHITENOISE, the signal generator produces white noise and ignores all

settings except pkToPk and offsetVoltage.

PS3000A_PRBS, produces a pseudorandom random binary sequence with a bit rate

specified by the start and stop frequency.

indexMode, specifies how the signal will be formed from the arbitrary waveform

data. Single and dual index modes are possible. Use one of these constants:

PS3000A_SINGLE

PS3000A_DUAL

shots,

sweeps,

triggerType,

triggerSource,

extInThreshold: see ps3000aSigGenBuiltIn

Returns

PICO_OK

PICO_AWG_NOT_SUPPORTED

PICO_POWER_SUPPLY_CONNECTED

PICO_POWER_SUPPLY_NOT_CONNECTED

PICO_BUSY

PICO_INVALID_HANDLE

PICO_SIG_GEN_PARAM

PICO_SHOTS_SWEEPS_WARNING

PicoScope 3000 Series (A API) Programmer's Guide 89

PICO_NOT_RESPONDING

PICO_WARNING_EXT_THRESHOLD_CONFLICT

PICO_NO_SIGNAL_GENERATOR

PICO_SIGGEN_OFFSET_VOLTAGE

PICO_SIGGEN_PK_TO_PK

PICO_SIGGEN_OUTPUT_OVER_VOLTAGE

PICO_DRIVER_FUNCTION

PICO_SIGGEN_WAVEFORM_SETUP_FAILED

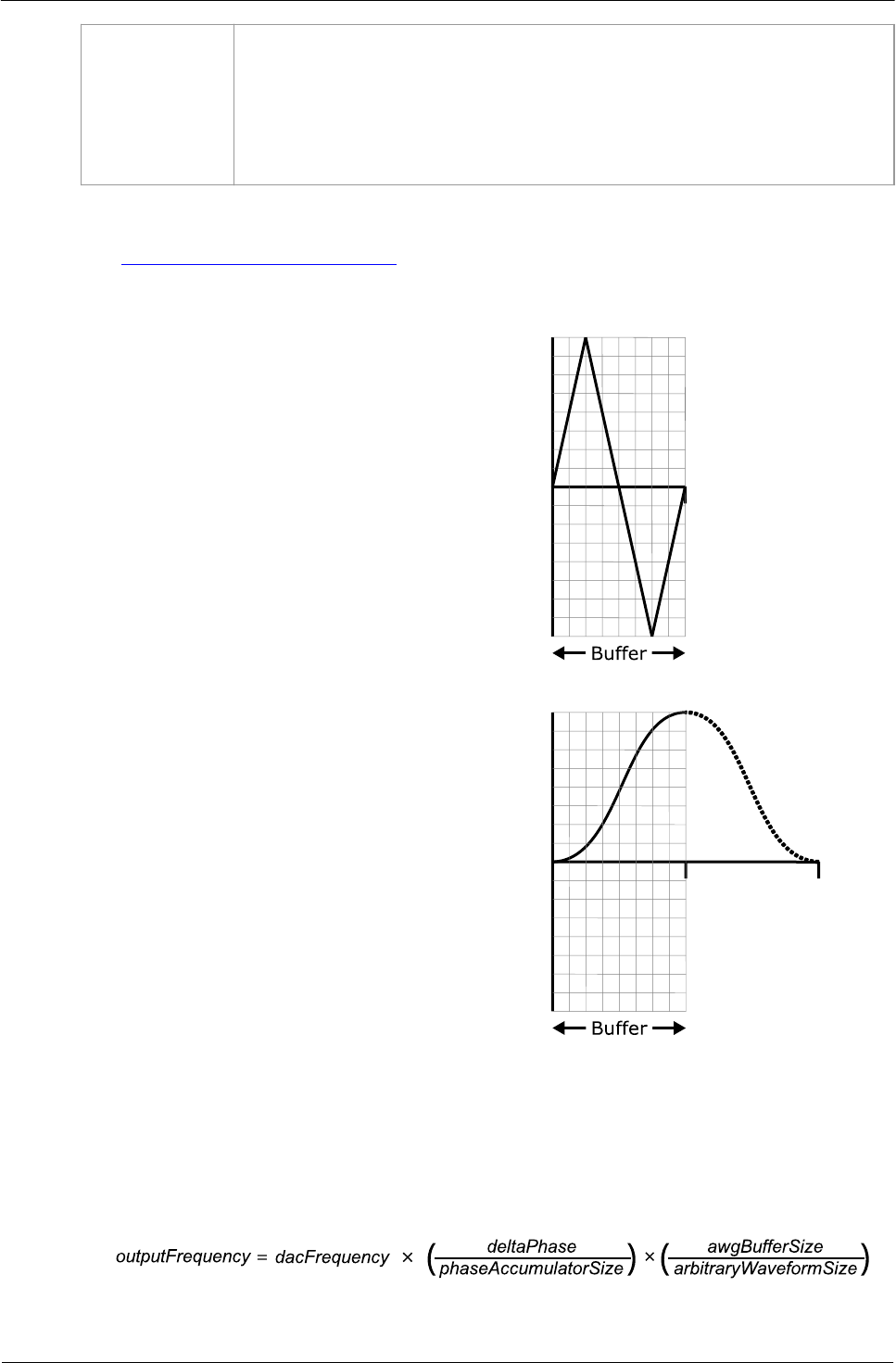

4.54.1 AWG index modes

The arbitrary waveform generator supports single and dual index modes to help you

make the best use of the waveform buffer.

Single mode. The generator outputs the raw

contents of the buffer repeatedly. This mode is

the only one that can generate asymmetrical

waveforms. You can also use this mode for

symmetrical waveforms, but the dual mode

makes more efficient use of the buffer

memory.

Dual mode. The generator outputs the

contents of the buffer from beginning to end,

and then does a second pass in the reverse

direction through the buffer. This allows you

to specify only the first half of a waveform

with twofold symmetry, such as a Gaussian

function, and let the generator fill in the other

half.

4.54.2 Calculating deltaPhase

The arbitrary waveform generator (AWG) steps through the waveform buffer by adding

a deltaPhase value between 1 and phaseAccumulatorSize–1 to the phase accumulator

every dacPeriod (1 / dacFrequency). If the deltaPhase is constant, the generator

produces a waveform at a constant frequency that can be calculated as follows:

API functions90

where:

outputFrequency = repetition rate of the complete arbitrary waveform

dacFrequency = DAC update rate for specific oscilloscope model (see

data sheet)

deltaPhase = calculated from startDeltaPhase and

deltaPhaseIncrement (we recommend that you use

ps3000aSigGenFrequencyToPhase to calculate

deltaPhase)

phaseAccumulatorSize = 232 for all models

awgBufferSize = AWG buffer size for specific oscilloscope model (see

data sheet)

arbitraryWaveformSize = length in samples of the user-defined waveform

It is also possible to sweep the frequency by continually modifying the deltaPhase.

This is done by setting up a deltaPhaseIncrement that the oscilloscope adds to the

deltaPhase at intervals specified by dwellCount.

PicoScope 3000 Series (A API) Programmer's Guide 91

4.55 ps3000aSetSigGenBuiltIn

PICO_STATUS ps3000aSetSigGenBuiltIn

(

int16_t handle,

int32_t offsetVoltage,

uint32_t pkToPk,

PS3000A_WAVE_TYPE waveType,

float startFrequency,

float stopFrequency,

float increment,

float dwellTime,

PS3000A_SWEEP_TYPE sweepType,

PS3000A_EXTRA_OPERATIONS operation,

uint32_t shots,

uint32_t sweeps,

PS3000A_SIGGEN_TRIG_TYPE triggerType,

PS3000A_SIGGEN_TRIG_SOURCE triggerSource,

int16_t extInThreshold

)

This function sets up the signal generator to produce a signal from a list of built-in

waveforms. If different start and stop frequencies are specified, the device will sweep

either up, down or up and down.

Applicability

All models

Arguments

handle, device identifier returned by ps3000aOpenUnit

offsetVoltage, the voltage offset, in microvolts, to be applied to the waveform

pkToPk, the peak-to-peak voltage, in microvolts, of the waveform signal. Note that if

the signal voltages described by the combination of offsetVoltage and pkToPk

extend outside the voltage range of the signal generator, the output waveform will be

clipped.

waveType, the type of waveform to be generated.

PS3000A_SINE

sine wave

PS3000A_SQUARE

square wave

PS3000A_TRIANGLE

triangle wave

PS3000A_DC_VOLTAGE

DC voltage

The following waveTypes apply to B and MSO models only.

PS3000A_RAMP_UP

rising sawtooth

PS3000A_RAMP_DOWN

falling sawtooth

PS3000A_SINC

sin (x)/x

PS3000A_GAUSSIAN

Gaussian

PS3000A_HALF_SINE

half (full-wave rectified) sine

startFrequency, the frequency that the signal generator will initially produce. For

allowable values see PS3000A_SINE_MAX_FREQUENCY and related values.

stopFrequency, the frequency at which the sweep reverses direction or returns to

the initial frequency

increment, the amount of frequency increase or decrease in sweep mode

dwellTime, the time for which the sweep stays at each frequency, in seconds

API functions92

sweepType, whether the frequency will sweep from startFrequency to

stopFrequency, or in the opposite direction, or repeatedly reverse direction. Use one

of these constants:

PS3000A_UP

PS3000A_DOWN

PS3000A_UPDOWN

PS3000A_DOWNUP

operation, the type of waveform to be produced, specified by one of the following

enumerated types (MSO and B models only):

PS3000A_ES_OFF, normal signal generator operation specified by wavetype.

PS3000A_WHITENOISE, the signal generator produces white noise and ignores all

settings except pkToPk and offsetVoltage.

PS3000A_PRBS, produces a pseudorandom binary sequence with bit rate specified

by the start and stop frequencies.

shots,

0: sweep the frequency as specified by sweeps

1...PS3000A_MAX_SWEEPS_SHOTS: the number of cycles of the waveform to be

produced after a trigger event. sweeps must be zero.

PS3000A_SHOT_SWEEP_TRIGGER_CONTINUOUS_RUN: start and run continuously after

trigger occurs

sweeps,

0: produce number of cycles specified by shots

1..PS3000A_MAX_SWEEPS_SHOTS: the number of times to sweep the frequency after

a trigger event, according to sweepType. shots must be zero.

PS3000A_SHOT_SWEEP_TRIGGER_CONTINUOUS_RUN: start a sweep and continue after

trigger occurs

triggerType, the type of trigger that will be applied to the signal generator:

PS3000A_SIGGEN_RISING

trigger on rising edge

PS3000A_SIGGEN_FALLING

trigger on falling edge

PS3000A_SIGGEN_GATE_HIGH

run while trigger is high

PS3000A_SIGGEN_GATE_LOW

run while trigger is low

triggerSource, the source that will trigger the signal generator:

PS3000A_SIGGEN_NONE

run without waiting for trigger

PS3000A_SIGGEN_SCOPE_TRIG

use scope trigger

PS3000A_SIGGEN_EXT_IN

use EXT input

PS3000A_SIGGEN_SOFT_TRIG

wait for software trigger provided by

ps3000aSigGenSoftwareControl

PS3000A_SIGGEN_TRIGGER_RAW

reserved

If a trigger source other than P3000A_SIGGEN_NONE is specified, then either shots

or sweeps, but not both, must be non-zero.

extInThreshold, sets trigger level for external trigger (see Voltage ranges)

Returns

PICO_OK

PICO_BUSY

PICO_POWER_SUPPLY_CONNECTED

PICO_POWER_SUPPLY_NOT_CONNECTED

PICO_INVALID_HANDLE

PICO_SIG_GEN_PARAM

PICO_SHOTS_SWEEPS_WARNING

PICO_NOT_RESPONDING

PICO_WARNING_AUX_OUTPUT_CONFLICT

PicoScope 3000 Series (A API) Programmer's Guide 93

PICO_WARNING_EXT_THRESHOLD_CONFLICT

PICO_NO_SIGNAL_GENERATOR

PICO_SIGGEN_OFFSET_VOLTAGE

PICO_SIGGEN_PK_TO_PK

PICO_SIGGEN_OUTPUT_OVER_VOLTAGE

PICO_DRIVER_FUNCTION

PICO_SIGGEN_WAVEFORM_SETUP_FAILED

PICO_NOT_RESPONDING

API functions94

4.56 ps3000aSetSigGenBuiltInV2

PICO_STATUS ps3000aSetSigGenBuiltInV2

(

int16_t handle,

int32_t offsetVoltage,

uint32_t pkToPk,

PS3000A_WAVE_TYPE waveType,

double startFrequency,

double stopFrequency,

double increment,

double dwellTime,

PS3000A_SWEEP_TYPE sweepType,

PS3000A_EXTRA_OPERATIONS operation,

uint32_t shots,

uint32_t sweeps,

PS3000A_SIGGEN_TRIG_TYPE triggerType,

PS3000A_SIGGEN_TRIG_SOURCE triggerSource,

int16_t extInThreshold

)

This function is an upgraded version of ps3000aSetSigGenBuiltIn with double-

precision frequency arguments for more precise control at low frequencies.

Applicability

All models

Arguments

See ps3000aSetSigGenBuiltIn

Returns

See ps3000aSetSigGenBuiltIn

PicoScope 3000 Series (A API) Programmer's Guide 95

4.57 ps3000aSetSigGenPropertiesArbitrary

PICO_STATUS ps3000aSetSigGenPropertiesArbitrary

(

int16_t handle,

uint32_t startDeltaPhase,

uint32_t stopDeltaPhase,

uint32_t deltaPhaseIncrement,

uint32_t dwellCount,

PS3000A_SWEEP_TYPE sweepType,

uint32_t shots,

uint32_t sweeps,

PS3000A_SIGGEN_TRIG_TYPE triggerType,

PS3000A_SIGGEN_TRIG_SOURCE triggerSource,

int16_t extInThreshold

)

This function reprograms the arbitrary waveform generator. All values can be

reprogrammed while the signal generator is waiting for a trigger.

Applicability

All modes

Arguments

See ps3000aSetSigGenArbitrary

Returns

0: if successful.

Error code: if failed

API functions96

4.58 ps3000aSetSigGenPropertiesBuiltIn

PICO_STATUS ps3000aSetSigGenPropertiesBuiltIn

(

int16_t handle,

double startFrequency,

double stopFrequency,

double increment,

double dwellTime,

PS3000A_SWEEP_TYPE sweepType,

uint32_t shots,

uint32_t sweeps,

PS3000A_SIGGEN_TRIG_TYPE triggerType,

PS3000A_SIGGEN_TRIG_SOURCE triggerSource,

int16_t extInThreshold

)

This function reprograms the signal generator. Values can be changed while the signal

generator is waiting for a trigger.

Applicability

All modes

Arguments

See ps3000aSetSigGenBuiltIn

Returns

0: if successful.

Error code: if failed

PicoScope 3000 Series (A API) Programmer's Guide 97

4.59 ps3000aSetSimpleTrigger

PICO_STATUS ps3000aSetSimpleTrigger

(

int16_t handle,

int16_t enable,

PS3000A_CHANNEL source,

int16_t threshold,

PS3000A_THRESHOLD_DIRECTION direction,

uint32_t delay,

int16_t autoTrigger_ms

)

This function simplifies arming the trigger. It supports only the LEVEL trigger types

and does not allow more than one channel to have a trigger applied to it. Any previous

pulse width qualifier is cancelled.

Applicability

All modes

Arguments

handle, device identifier returned by ps3000aOpenUnit

enable, zero to disable the trigger; any other value to set the trigger

source, the channel on which to trigger

threshold, the ADC count at which the trigger will fire

direction, the direction in which the signal must move to cause a

trigger. The following directions are supported: ABOVE, BELOW,

RISING, FALLING and RISING_OR_FALLING.

delay, the time between the trigger occurring and the first sample.

For example, if delay = 100, the scope would wait 100 sample

periods before sampling. At a timebase of 500 MS/s, or 2 ns per

sample, the total delay would then be 100 x 2 ns = 200 ns. Range: 0

to MAX_DELAY_COUNT.

autoTrigger_ms, the number of milliseconds the device will wait if

no trigger occurs. If this is set to zero, the scope device will wait

indefinitely for a trigger.

Returns

PICO_OK

PICO_INVALID_CHANNEL

PICO_INVALID_PARAMETER

PICO_MEMORY

PICO_CONDITIONS

PICO_INVALID_HANDLE

PICO_USER_CALLBACK

PICO_DRIVER_FUNCTION

API functions98

4.60 ps3000aSetTriggerChannelConditions

PICO_STATUS ps3000aSetTriggerChannelConditions

(

int16_t handle,

PS3000A_TRIGGER_CONDITIONS * conditions,

int16_t nConditions

)

This function sets up trigger conditions on the scope's inputs. The trigger is defined by

one or more PS3000A_TRIGGER_CONDITIONS structures that are then ORed together.

Each structure is itself the AND of the states of one or more of the inputs. This AND-

OR logic allows you to create any possible Boolean function of the scope's inputs.

If complex triggering is not required, use ps3000aSetSimpleTrigger.

Applicability

All modes

Arguments

handle, device identifier returned by ps3000aOpenUnit

* conditions, an array of PS3000A_TRIGGER_CONDITIONS

structures* specifying the conditions that should be applied to each

channel. In the simplest case, the array consists of a single element.

When there is more than one element, the overall trigger condition is

the logical OR of all the elements.

nConditions, the number of elements in the conditions array. If

nConditions is zero then triggering is switched off.

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_USER_CALLBACK

PICO_CONDITIONS

PICO_MEMORY

PICO_DRIVER_FUNCTION

*Note: using this function the driver will convert the PS3000A_TRIGGER_CONDITIONS

into a PS3000A_TRIGGER_CONDITIONS_V2 and will set the condition for digital to

PS3000A_DIGITAL_DONT_CARE.

PicoScope 3000 Series (A API) Programmer's Guide 99

4.60.1 PS3000A_TRIGGER_CONDITIONS structure

A structure of this type is passed to ps3000aSetTriggerChannelConditions in the

conditions argument to specify the trigger conditions, and is defined as follows: -

typedef struct tPS3000ATriggerConditions

{

PS3000A_TRIGGER_STATE channelA;

PS3000A_TRIGGER_STATE channelB;

PS3000A_TRIGGER_STATE channelC;

PS3000A_TRIGGER_STATE channelD;

PS3000A_TRIGGER_STATE external;

PS3000A_TRIGGER_STATE aux;

PS3000A_TRIGGER_STATE pulseWidthQualifier;

} PS3000A_TRIGGER_CONDITIONS

Each structure is the logical AND of the states of the scope's inputs. The

ps3000aSetTriggerChannelConditions function can OR together a number of these

structures to produce the final trigger condition, which can be any possible Boolean

function of the scope's inputs.

The structure is byte-aligned. In C++, for example, you should specify this using the

#pragma pack () instruction.

Elements

channelA, channelB, channelC, channelD, external,

pulseWidthQualifier, the type of condition that should be applied

to each channel. Use these constants:

PS3000A_CONDITION_DONT_CARE

PS3000A_CONDITION_TRUE

PS3000A_CONDITION_FALSE

The channels that are set to PS3000A_CONDITION_TRUE or

PS3000A_CONDITION_FALSE must all meet their conditions

simultaneously to produce a trigger. Channels set to

PS3000A_CONDITION_DONT_CARE are ignored.

aux, not used

API functions100

4.61 ps3000aSetTriggerChannelConditionsV2

PICO_STATUS ps3000aSetTriggerChannelConditionsV2

(

int16_t handle,

PS3000A_TRIGGER_CONDITIONS_V2 * conditions,

int16_t nConditions

)

This function sets up trigger conditions on the scope's inputs. The trigger is defined by

one or more PS3000A_TRIGGER_CONDITIONS_V2 structures that are then ORed

together. Each structure is itself the AND of the states of one or more of the inputs.

This AND-OR logic allows you to create any possible Boolean function of the scope's

inputs.

If complex triggering is not required, use ps3000aSetSimpleTrigger.

Applicability

All modes

Arguments

handle, device identifier returned by ps3000aOpenUnit

* conditions, an array of PS3000A_TRIGGER_CONDITIONS_V2

structures specifying the conditions that should be applied to each

channel. In the simplest case, the array consists of a single element.

When there is more than one element, the overall trigger condition is

the logical OR of all the elements.

nConditions, the number of elements in the conditions array. If

nConditions is zero then triggering is switched off.

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_USER_CALLBACK

PICO_CONDITIONS

PICO_MEMORY

PICO_DRIVER_FUNCTION

PicoScope 3000 Series (A API) Programmer's Guide 101

4.61.1 PS3000A_TRIGGER_CONDITIONS_V2 structure

A structure of this type is passed to ps3000aSetTriggerChannelConditionsV2 in the

conditions argument to specify the trigger conditions, and is defined as follows: -

typedef struct tPS3000ATriggerConditionsV2

{

PS3000A_TRIGGER_STATE channelA;

PS3000A_TRIGGER_STATE channelB;

PS3000A_TRIGGER_STATE channelC;

PS3000A_TRIGGER_STATE channelD;

PS3000A_TRIGGER_STATE external;

PS3000A_TRIGGER_STATE aux;

PS3000A_TRIGGER_STATE pulseWidthQualifier;

PS3000A_TRIGGER_STATE digital;

} PS3000A_TRIGGER_CONDITIONS_V2;

Each structure is the logical AND of the states of the scope's inputs.

ps3000aSetTriggerChannelConditionsV2 can OR together a number of these

structures to produce the final trigger condition, which can be any possible Boolean

function of the scope's inputs.

The structure is byte-aligned. In C++, for example, you should specify this using the

#pragma pack() instruction.

Elements

channelA, channelB, channelC, channelD, external,

pulseWidthQualifier, the type of condition that should be applied

to each channel. Use these constants:

PS3000A_CONDITION_DONT_CARE

PS3000A_CONDITION_TRUE

PS3000A_CONDITION_FALSE

The channels that are set to PS3000A_CONDITION_TRUE or

PS3000A_CONDITION_FALSE must all meet their conditions

simultaneously to produce a trigger. Channels set to

PS3000A_CONDITION_DONT_CARE are ignored.

aux, not used

API functions102

4.62 ps3000aSetTriggerChannelDirections

PICO_STATUS ps3000aSetTriggerChannelDirections

(

int16_t handle,

PS3000A_THRESHOLD_DIRECTION channelA,

PS3000A_THRESHOLD_DIRECTION channelB,

PS3000A_THRESHOLD_DIRECTION channelC,

PS3000A_THRESHOLD_DIRECTION channelD,

PS3000A_THRESHOLD_DIRECTION ext,

PS3000A_THRESHOLD_DIRECTION aux

)

This function sets the direction of the trigger for each channel.

Applicability

All modes

Arguments

handle, device identifier returned by ps3000aOpenUnit

channelA, channelB, channelC, channelD, ext, the direction in

which the signal must pass through the threshold to activate the

trigger. See the table below for allowable values. If using a level

trigger in conjunction with a pulse-width trigger, see the description

of the direction argument to ps3000aSetPulseWidthQualifierV2

for more information.

aux, not used

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_USER_CALLBACK

PICO_INVALID_PARAMETER

PS3000A_THRESHOLD_DIRECTION constants

PS3000A_ABOVE

for gated triggers: above the upper threshold

PS3000A_ABOVE_LOWER

for gated triggers: above the lower threshold

PS3000A_BELOW

for gated triggers: below the upper threshold

PS3000A_BELOW_LOWER

for gated triggers: below the lower threshold

PS3000A_RISING

for threshold triggers: rising edge, using upper

threshold

PS3000A_RISING_LOWER

for threshold triggers: rising edge, using lower

threshold

PS3000A_FALLING

for threshold triggers: falling edge, using upper

threshold

PS3000A_FALLING_LOWER

for threshold triggers: falling edge, using lower

threshold

PS3000A_RISING_OR_FALLING

for threshold triggers: either edge

PS3000A_INSIDE

for window-qualified triggers: inside window

PS3000A_OUTSIDE

for window-qualified triggers: outside window

PS3000A_ENTER

for window triggers: entering the window

PS3000A_EXIT

for window triggers: leaving the window

PS3000A_ENTER_OR_EXIT

for window triggers: either entering or leaving

the window

PS3000A_POSITIVE_RUNT

for window-qualified triggers

PS3000A_NEGATIVE_RUNT

for window-qualified triggers

PS3000A_NONE

no trigger

PicoScope 3000 Series (A API) Programmer's Guide 103

4.63 ps3000aSetTriggerChannelProperties

PICO_STATUS ps3000aSetTriggerChannelProperties

(

int16_t handle,

PS3000A_TRIGGER_CHANNEL_PROPERTIES * channelProperties,

int16_t nChannelProperties,

int16_t auxOutputEnable,

int32_t autoTriggerMilliseconds

)

This function is used to enable or disable triggering and set its parameters.

Applicability

All modes

Arguments

handle, device identifier returned by ps3000aOpenUnit

* channelProperties, a pointer to an array of

TRIGGER_CHANNEL_PROPERTIES structures describing the requested

properties. The array can contain a single element describing the

properties of one channel, or a number of elements describing several

channels. If NULL is passed, triggering is switched off.

nChannelProperties, the size of the channelProperties array. If

zero, triggering is switched off.

auxOutputEnable, not used

autoTriggerMilliseconds, the time in milliseconds for which the

scope device will wait before collecting data if no trigger event occurs.

If this is set to zero, the scope device will wait indefinitely for a

trigger.

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_USER_CALLBACK

PICO_TRIGGER_ERROR

PICO_MEMORY

PICO_INVALID_TRIGGER_PROPERTY

PICO_DRIVER_FUNCTION

PICO_INVALID_PARAMETER

API functions104

4.63.1 PS3000A_TRIGGER_CHANNEL_PROPERTIES structure

A structure of this type is passed to ps3000aSetTriggerChannelProperties in the

channelProperties argument to specify the trigger mechanism, and is defined as

follows: -

typedef struct tPS3000ATriggerChannelProperties

{

int16_t thresholdUpper;

uint16_t thresholdUpperHysteresis;

int16_t thresholdLower;

uint16_t thresholdLowerHysteresis;

PS3000A_CHANNEL channel;

PS3000A_THRESHOLD_MODE thresholdMode;

} PS3000A_TRIGGER_CHANNEL_PROPERTIES

The structure is byte-aligned. In C++, for example, you should specify this using the

#pragma pack() instruction.

Upper and lower thresholds

The digital triggering hardware in your PicoScope has two independent trigger

thresholds called upper and lower. For some trigger types you can freely choose which

threshold to use. The table in ps3000aSetTriggerChannelDirections shows which

thresholds are available for use with which trigger types. Dual thresholds are used for

pulse-width triggering, when one threshold applies to the level trigger and the other to

the pulse-width qualifier; and for window triggering, when the two thresholds define

the upper and lower limits of the window.

Each threshold has its own trigger and hysteresis settings.

PicoScope 3000 Series (A API) Programmer's Guide 105

Hysteresis

Each trigger threshold (upper and lower) has an accompanying parameter called

hysteresis. This defines a second threshold at a small offset from the main threshold.

The trigger fires when the signal crosses the trigger threshold, but will not fire again

until the signal has crossed the hysteresis threshold and then returned to cross the

trigger threshold again. This double-threshold mechanism reduces unwanted trigger

events caused by noisy or slowly changing signals.

For a rising-edge trigger the hysteresis threshold is below the trigger threshold. After

one trigger event, the signal must fall below the hysteresis threshold before the trigger

is enabled for the next event. Conversely, for a falling-edge trigger, the hysteresis

threshold is always above the trigger threshold. After a trigger event, the signal must

rise above the hysteresis threshold before the trigger is enabled for the next event.

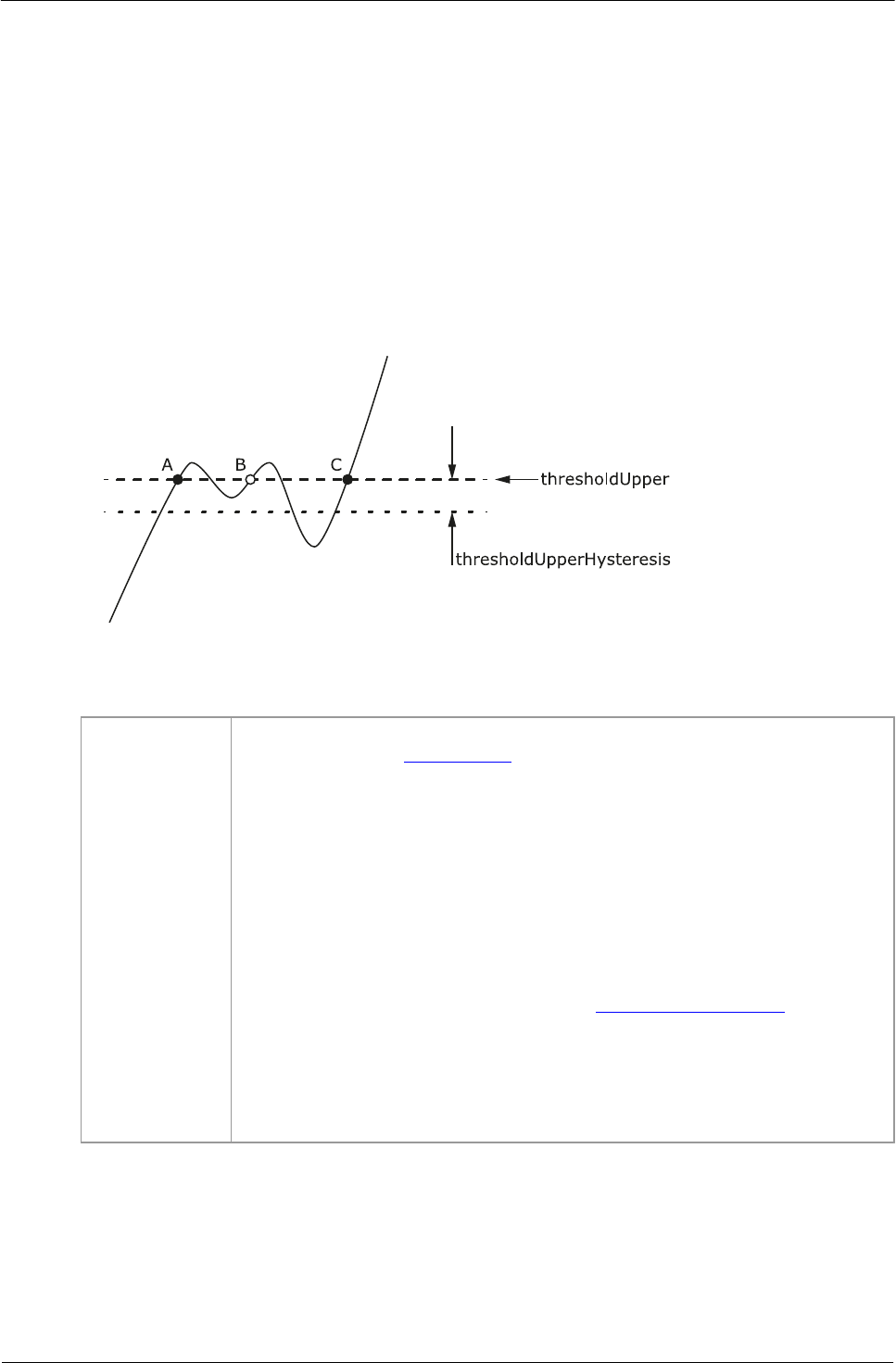

Hysteresis – The

trigger fires at A as

the signal rises past

the trigger threshold.

It does not fire at B

because the signal

has not yet dipped

below the hysteresis

threshold. The

trigger fires again at

C after the signal has

dipped below the

hysteresis threshold

and risen again past

the trigger threshold.

Elements

thresholdUpper, the upper threshold at which the trigger fires. This

is scaled in 16-bit ADC counts at the currently selected range for that

channel.

thresholdUpperHysteresis, the distance between the upper trigger

threshold and the upper hysteresis threshold, scaled in 16-bit counts.

thresholdLower, thresholdLowerHysteresis, the settings for the

lower threshold: see thresholdUpper and

thresholdUpperHysteresis.

channel, the channel to which the properties apply. This can be one

of the four input channels listed under ps3000aSetChannel, or

PS3000A_TRIGGER_EXT for the Ext input fitted to some models.

thresholdMode, either a level or window trigger. Use one of these

constants:

PS3000A_LEVEL

PS3000A_WINDOW

API functions106

4.64 ps3000aSetTriggerDelay

PICO_STATUS ps3000aSetTriggerDelay

(

int16_t handle,

uint32_t delay

)

This function sets the post-trigger delay, which causes capture to start a defined time

after the trigger event.

Applicability

All modes (but delay is ignored in streaming mode)

Arguments

handle, device identifier returned by ps3000aOpenUnit

delay, the time between the trigger occurring and the first sample.

For example, if delay=100 then the scope would wait 100 sample

periods before sampling. At a timebase of 500 MS/s, or 2 ns per

sample, the total delay would be 100 x 2 ns = 200 ns.

Range: 0 to MAX_DELAY_COUNT

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_USER_CALLBACK

PICO_DRIVER_FUNCTION

PicoScope 3000 Series (A API) Programmer's Guide 107

4.65 ps3000aSetTriggerDigitalPortProperties

PICO_STATUS ps3000aSetTriggerDigitalPortProperties

(

int16_t handle,

PS3000A_DIGITAL_CHANNEL_DIRECTIONS * directions

int16_t nDirections

)

This function will set the individual digital channels' trigger directions. Each trigger

direction consists of a channel name and a direction. If the channel is not included in

the array of PS3000A_DIGITAL_CHANNEL_DIRECTIONS the driver assumes the digital

channel's trigger direction is PS3000A_DIGITAL_DONT_CARE.

Applicability

PicoScope 3000D MSO models only.

Arguments

handle, device identifier returned by ps3000aOpenUnit

* directions, a pointer to an array of

PS3000A_DIGITAL_CHANNEL_DIRECTIONS structures describing the

requested properties. The array can contain a single element

describing the properties of one channel, or a number of elements

describing several digital channels. If directions is NULL, digital

triggering is switched off. A digital channel that is not included in the

array will be set to PS3000A_DIGITAL_DONT_CARE. The outcomes of

all the DIRECTIONS structures in the array are ORed together to

produce the final trigger signal.

nDirections, the number of digital channel directions being passed

to the driver

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_DRIVER_FUNCTION

PICO_INVALID_DIGITAL_CHANNEL

PICO_INVALID_DIGITAL_TRIGGER_DIRECTION

API functions108

4.65.1 PS3000A_DIGITAL_CHANNEL_DIRECTIONS structure

A structure of this type is passed to ps3000aSetTriggerDigitalPortProperties in

the directions argument to specify the trigger mechanism, and is defined as follows:

pragma pack(1)

typedef struct tPS3000ADigitalChannelDirections

{

PS3000A_DIGITAL_CHANNEL channel;

PS3000A_DIGITAL_DIRECTION direction;

} PS3000A_DIGITAL_CHANNEL_DIRECTIONS;

#pragma pack ()

typedef enum enPS3000ADigitalChannel

{

PS3000A_DIGITAL_CHANNEL_0,

PS3000A_DIGITAL_CHANNEL_1,

PS3000A_DIGITAL_CHANNEL_2,

PS3000A_DIGITAL_CHANNEL_3,

PS3000A_DIGITAL_CHANNEL_4,

PS3000A_DIGITAL_CHANNEL_5,

PS3000A_DIGITAL_CHANNEL_6,

PS3000A_DIGITAL_CHANNEL_7,

PS3000A_DIGITAL_CHANNEL_8,

PS3000A_DIGITAL_CHANNEL_9,

PS3000A_DIGITAL_CHANNEL_10,

PS3000A_DIGITAL_CHANNEL_11,

PS3000A_DIGITAL_CHANNEL_12,

PS3000A_DIGITAL_CHANNEL_13,

PS3000A_DIGITAL_CHANNEL_14,

PS3000A_DIGITAL_CHANNEL_15,

PS3000A_DIGITAL_CHANNEL_16,

PS3000A_DIGITAL_CHANNEL_17,

PS3000A_DIGITAL_CHANNEL_18,

PS3000A_DIGITAL_CHANNEL_19,

PS3000A_DIGITAL_CHANNEL_20,

PS3000A_DIGITAL_CHANNEL_21,

PS3000A_DIGITAL_CHANNEL_22,

PS3000A_DIGITAL_CHANNEL_23,

PS3000A_DIGITAL_CHANNEL_24,

PS3000A_DIGITAL_CHANNEL_25,

PS3000A_DIGITAL_CHANNEL_26,

PS3000A_DIGITAL_CHANNEL_27,

PS3000A_DIGITAL_CHANNEL_28,

PS3000A_DIGITAL_CHANNEL_29,

PS3000A_DIGITAL_CHANNEL_30,

PS3000A_DIGITAL_CHANNEL_31,

PS3000A_MAX_DIGITAL_CHANNELS

} PS3000A_DIGITAL_CHANNEL;

typedef enum enPS3000ADigitalDirection

{

PS3000A_DIGITAL_DONT_CARE,

PS3000A_DIGITAL_DIRECTION_LOW,

PS3000A_DIGITAL_DIRECTION_HIGH,

PS3000A_DIGITAL_DIRECTION_RISING,

PS3000A_DIGITAL_DIRECTION_FALLING,

PS3000A_DIGITAL_DIRECTION_RISING_OR_FALLING,

PS3000A_DIGITAL_MAX_DIRECTION

} PS3000A_DIGITAL_DIRECTION;

The structure is byte-aligned. In C++, for example, you should specify this using the

#pragma pack () instruction.

PicoScope 3000 Series (A API) Programmer's Guide 109

4.66 ps3000aSigGenArbitraryMinMaxValues

PICO_STATUS ps3000aSigGenArbitraryMinMaxValues

(

int16_t handle,

int16_t * minArbitraryWaveformValue,

int16_t * maxArbitraryWaveformValue,

uint32_t * minArbitraryWaveformSize,

uint32_t * maxArbitraryWaveformSize

)

This function returns the range of possible sample values and waveform buffer sizes

that can be supplied to ps3000aSetSignGenArbitrary for setting up the arbitrary

waveform generator (AWG). These values vary between different models in the

PicoScope 3000 Series.

Applicability

All models with AWG

Arguments

handle, device identifier returned by ps3000aOpenUnit

minArbitraryWaveformValue, on exit, the lowest sample value

allowed in the arbitraryWaveform buffer supplied to

ps3000aSetSignGenArbitrary

maxArbitraryWaveformValue, on exit, the highest sample value

allowed in the arbitraryWaveform buffer supplied to

ps3000aSetSignGenArbitrary

minArbitraryWaveformSize, on exit, the minimum value allowed

for the arbitraryWaveformSize argument supplied to

ps3000aSetSignGenArbitrary

maxArbitraryWaveformSize, on exit, the maximum value allowed

for the arbitraryWaveformSize argument supplied to

ps3000aSetSignGenArbitrary

Returns

PICO_OK

PICO_NOT_SUPPORTED_BY_THIS_DEVICE, if the device does not have

an arbitrary waveform generator.

PICO_NULL_PARAMETER, if all the parameter pointers are NULL.

PICO_INVALID_HANDLE

PICO_DRIVER_FUNCTION

API functions110

4.67 ps3000aSigGenFrequencyToPhase

PICO_STATUS ps3000aSigGenFrequencyToPhase

(

int16_t handle,

double frequency,

PS3000A_INDEX_MODE indexMode,

uint32_t bufferLength,

uint32_t * phase

)

This function converts a frequency to a phase count for use with the arbitrary

waveform generator (AWG). The value returned depends on the length of the buffer,

the index mode passed and the device model. The phase count can then be sent to the

driver through ps3000aSetSigGenArbitrary or

ps3000aSetSigGenPropertiesArbitrary.

Applicability

All models with AWG

Arguments

handle, device identifier returned by ps3000aOpenUnit

frequency, the required AWG output frequency

indexMode, see AWG index modes

bufferLength, the number of samples in the AWG buffer

phase, on exit, the deltaPhase argument to be sent to the AWG

setup function

Returns

PICO_OK

PICO_NOT_SUPPORTED_BY_THIS_DEVICE, if the device does not have

an AWG.

PICO_SIGGEN_FREQUENCY_OUT_OF_RANGE, if the frequency is out of

range.

PICO_NULL_PARAMETER, if phase is a NULL pointer.

PICO_SIG_GEN_PARAM, if indexMode or bufferLength is out of range.

PICO_INVALID_HANDLE

PICO_DRIVER_FUNCTION

PicoScope 3000 Series (A API) Programmer's Guide 111

4.68 ps3000aSigGenSoftwareControl

PICO_STATUS ps3000aSigGenSoftwareControl

(

int16_t handle,

int16_t state

)

This function causes a trigger event, or starts and stops gating. It is used when the

signal generator is set to SIGGEN_SOFT_TRIG.

Gating occurs when the trigger type is set to either PS3000A_SIGGEN_GATE_HIGH or

PS3000A_SIGGEN_GATE_LOW. With other trigger types, calling this function causes the

signal generator to trigger immediately.

Applicability

Use with ps3000aSetSigGenBuiltIn or

ps3000aSetSigGenArbitrary.

Arguments

handle, device identifier returned by ps3000aOpenUnit

state, sets the trigger gate high or low:

0: gate low condition

<> 0: gate high condition

Ignored if trigger type is not set to either

PS3000A_SIGGEN_GATE_HIGH or PS3000A_SIGGEN_GATE_LOW.

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_NO_SIGNAL_GENERATOR

PICO_SIGGEN_TRIGGER_SOURCE

PICO_DRIVER_FUNCTION

PICO_NOT_RESPONDING

API functions112

4.69 ps3000aStop

PICO_STATUS ps3000aStop

(

int16_t handle

)

This function stops the scope device from sampling data. If this function is called

before a trigger event occurs, the oscilloscope may not contain valid data.

The function is mainly used in streaming mode to stop a streaming capture. It can

optionally be used in block mode to stop a capture early, either before or after

triggering; and in rapid block mode to stop a sequence of captures. If a block mode

capture is interrupted, ps3000aGetValues will indicate that no samples are available

and the buffer will contain no data.

Always call this function after the end of a capture to ensure that the scope is ready

for the next capture.

Applicability

All modes

Arguments

handle, device identifier returned by ps3000aOpenUnit

Returns

PICO_OK

PICO_INVALID_HANDLE

PICO_USER_CALLBACK

PICO_DRIVER_FUNCTION

PicoScope 3000 Series (A API) Programmer's Guide 113

4.70 ps3000aStreamingReady (callback)

typedef void (CALLBACK *ps3000aStreamingReady)

(

int16_t handle,

int32_t noOfSamples,

uint32_t startIndex,

int16_t overflow,

uint32_t triggerAt,

int16_t triggered,

int16_t autoStop,

void * pParameter

)

This callback function is part of your application. You register it with the driver using

ps3000aGetStreamingLatestValues, and the driver calls it back when streaming-

mode data is ready. You can then download the data using the

ps3000aGetValuesAsync function.

Your callback function should do nothing more than copy the data to another buffer

within your application. To maintain the best application performance, the function

should return as quickly as possible without attempting to process or display the data.

Applicability

Streaming mode only

Arguments

handle, device identifier returned by ps3000aOpenUnit

noOfSamples, the number of samples to collect

startIndex, an index to the first valid sample in the buffer. This is

the buffer that was previously passed to ps3000aSetDataBuffer.

overflow, returns a set of flags that indicate whether an

overvoltage has occurred on any of the channels. It is a bit pattern

with bit 0 denoting Channel A.

triggerAt, an index to the buffer indicating the location of the

trigger point relative to startIndex. This parameter is valid only

when triggered is non-zero.

triggered, a flag indicating whether a trigger occurred. If non-zero,

a trigger occurred at the location indicated by triggerAt.

autoStop, the flag that was set in the call to ps3000aRunStreaming

* pParameter, a void pointer passed from

ps3000aGetStreamingLatestValues. The callback function can write

to this location to send any data, such as a status flag, back to the

application.

Returns

nothing

Wrapper functions114

5Wrapper functions

The wrapper functions are for use with programming languages that do not support

features of C such as callback functions.

To use the wrapper functions you must include the ps3000aWrap.dll library, which is

supplied in the SDK, in your project.

For all other functions, see the list of API functions.

5.1 Using the wrapper functions for streaming data capture

1. Open the oscilloscope using ps3000aOpenUnit.

1a. Register the handle with the wrapper and obtain a device index for use with

some wrapper function calls by calling initWrapUnitInfo.

1b. Inform the wrapper of the number of channels on the device by calling

setChannelCount.

1c. [MSOs only] Inform the wrapper of the number of digital ports on the

device by calling setDigitalPortCount.

2. Select channels, ranges and AC/DC coupling using ps3000aSetChannel.

2a. Inform the wrapper which channels have been enabled by calling

setEnabledChannels.

2b. [MSOs only] Inform the wrapper which digital ports have been enabled by

calling setEnabledDigitalPorts.

3. [MSOs only] Set the digital port using ps3000aSetDigitalPort.

4. Use the trigger setup functions ps3000aSetTriggerChannelConditionsV2,

ps3000aSetTriggerChannelDirections and

ps3000aSetTriggerChannelProperties to set up the trigger if required. For

programming languages that do not support structures, use the wrapper's

SetTriggerConditionsV2 in place of ps3000aSetTriggerCHannelConditionsV2

and SetTriggerProperties in place of ps3000aSetTriggerChannelProperties.

5. [MSOs only] Use the trigger setup function

ps3000aSetTriggerDigitalPortProperties to set up the digital trigger if

required.

6. Call ps3000aSetDataBuffer to tell the driver where your data buffer is.

6a. Register the data buffer(s) with the wrapper and set the application buffer

into which the data will be copied.

- For analog channels: Call setAppAndDriverBuffers or

setMaxMinAppAndDriverBuffers.

- [MSOs Only] For digital ports: Call setAppAndDriverDigiBuffers or

setMaxMinAppAndDriverDigiBuffers.

7. Set up aggregation and start the oscilloscope running using

ps3000aRunStreaming.

8. Loop and call GetStreamingLatestValues and IsReady to get data and flag when

the wrapper is ready for data to be retrieved.

8a. Call the wrapper’s AvailableData function to obtain information on the

number of samples collected and the start index in the buffer.

8b. Call the wrapper’s IsTriggerReady function for information on whether a

trigger has occurred and the trigger index relative to the start index in the

buffer.

PicoScope 3000 Series (A API) Programmer's Guide 115

9. Process data returned to your application's function.

10. Call ps3000aStop, even if Auto Stop is enabled.

11. To disconnect a device, call ps3000aCloseUnit followed by the wrapper's

decrementDeviceCount function.

12. Call the resetNextDeviceIndex wrapper function.

Wrapper functions116

5.2 AutoStopped

int16_t AutoStopped

(

uint16_t deviceIndex

)

This function indicates if the device has stopped after collecting of the number of

samples specified in the call to ps3000aRunStreaming. This occurs only if the

ps3000aRunStreaming function's autoStop flag is set.

Applicability

Streaming mode

Arguments

deviceIndex, identifies the required device

Returns

0 – if streaming has not stopped or deviceIndex is out of range

<> 0 – if streaming has stopped automatically

PicoScope 3000 Series (A API) Programmer's Guide 117

5.3 AvailableData

uint32_t AvailableData

(

uint16_t deviceIndex,

uint32_t * startIndex

)

This function indicates the number of samples returned from the driver and shows the

start index of the data in the buffer when collecting data in streaming mode.

Applicability

Streaming mode

Arguments

deviceIndex, identifies the required device

startIndex, on exit, an index to the first valid sample in the buffer

(when data is available)

Returns

0 – data is not yet available or the device index is invalid

<>0 – the number of samples returned from the driver

Wrapper functions118

5.4 BlockCallback

void BlockCallback

(

int16_t handle,

PICO_STATUS status,

void * pParameter

)

This is a wrapper for the ps3000aBlockReady callback. The driver calls it back when

block-mode data is ready.

Applicability

Block mode

Arguments

See ps3000aBlockReady

Returns

Nothing

PicoScope 3000 Series (A API) Programmer's Guide 119

5.5 ClearTriggerReady

PICO_STATUS ClearTriggerReady

(

uint16_t deviceIndex

)

This function clears the triggered and triggeredAt flags for use with streaming-

mode capture.

Applicability

Streaming mode

Arguments

deviceIndex, identifies the device to use

Returns

PICO_OK, if successful

PICO_INVALID_PARAMETER, if deviceIndex is out of bounds

Wrapper functions120

5.6 decrementDeviceCount

PICO_STATUS decrementDeviceCount

(

uint16_t deviceIndex

)

Reduces the count of the number of PicoScope devices being controlled by the

application.

Note: This function does not close the connection to the device being controlled. Use

the ps3000aCloseUnit function for this.

Applicability

All modes

Arguments

deviceIndex, identifies the device to use

Returns

PICO_OK, if successful

PICO_INVALID_PARAMETER, if deviceIndex is out of bounds

PicoScope 3000 Series (A API) Programmer's Guide 121

5.7 getDeviceCount

uint16_t getDeviceCount

(

void

)

This function returns the number of PicoScope 3000 Series devices being controlled by

the application.

Applicability

All modes

Arguments

None

Returns

The number of PicoScope 3000 Series devices being controlled

Wrapper functions122

5.8 GetStreamingLatestValues

PICO_STATUS GetStreamingLatestValues

(

uint16_t deviceIndex

)

This function returns the next block of values to your application when capturing data

in streaming mode. Use with programming languages that do not support callback

functions.

Applicability

Streaming mode

Arguments

deviceIndex, identifies the required device

Returns

PICO_INVALID_PARAMETER, if deviceIndex is invalid

See also ps3000aGetStreamingLatestValues return values

PicoScope 3000 Series (A API) Programmer's Guide 123

5.9 initWrapUnitInfo

PICO_STATUS initWrapUnitInfo

(

int16_t handle,

uint16_t * deviceIndex

)

This function initializes a WRAP_UNIT_INFO structure for a PicoScope 3000 Series

device and places it in the g_deviceInfo array at the next available index.

The wrapper supports a maximum of 4 devices.

Your main application should map the handle to the index starting with the first handle

corresponding to index 0.

Applicability

All modes

Arguments

deviceIndex, on exit, the index at which the WRAP_UNIT_INFO

structure will be stored in the g_deviceInfo array

Returns

PICO_OK, if successful

PICO_INVALID_HANDLE, if the handle is less than or equal to 0

PICO_MAX_UNITS_OPENED, if the wrapper already has records for the

maximum number of devices that it will support

Wrapper functions124

5.10 IsReady

int16_t IsReady

(

uint16_t deviceIndex

)

This function polls the driver to verify that streaming data is ready to be received. You

must call the RunBlock or GetStreamingLatestValues before calling this function.

Applicability

Streaming mode. (In block mode, we recommend using

ps3000aIsReady instead.)

Arguments

deviceIndex, the index assigned by the wrapper corresponding to

the required device

Returns

0 – data is not yet available or deviceIndex is out of range

<>0 – data is ready to be collected

PicoScope 3000 Series (A API) Programmer's Guide 125

5.11 IsTriggerReady

int16_t IsTriggerReady

(

uint16_t deviceIndex

uint32_t * triggeredAt

)

This function indicates whether a trigger has occurred when collecting data in

streaming mode, and provides the location of the trigger point in the buffer.

Applicability

Streaming mode

Arguments

deviceIndex, the index assigned by the wrapper corresponding to

the required device

triggeredAt, on exit, the index of the sample in the buffer where

the trigger occurred, relative to the first valid sample index. This

value is set to 0 when the function returns 0.

Returns

0 – the device has not triggered, or deviceIndex is invalid

<>0 – the device has been triggered

Wrapper functions126

5.12 resetNextDeviceIndex

PICO_STATUS resetNextDeviceIndex

(

void

)

This function is used to reset the index used to determine the next point at which to

store a WRAP_UNIT_INFO structure.

Call this function only after the devices have been disconnected.

Applicability

All modes

Arguments

None

Returns

PICO_OK

PicoScope 3000 Series (A API) Programmer's Guide 127

5.13 RunBlock

PICO_STATUS RunBlock

(

uint16_t deviceIndex,

int32_t preTriggerSamples,

int32_t postTriggerSamples,

uint32_t timebase,

uint32_t segmentIndex

)

This function starts collecting data in block mode without the requirement for

specifying callback functions. Use the IsReady function to poll the driver once this

function has been called.

Applicability

Block mode

Arguments

deviceIndex, the index assigned by the wrapper corresponding to

the required device

preTriggerSamples,

postTriggerSamples, see noOfPreTriggerSamples in

ps3000aRunBlock

timebase,

segmentIndex, see ps3000aRunBlock

Returns

See ps3000aRunBlock return values

Wrapper functions128

5.14 setAppAndDriverBuffers

PICO_STATUS setAppAndDriverBuffers

(

uint16_t deviceIndex,

int16_t channel,

int16_t * appBuffer,

int16_t * driverBuffer,

uint32_t bufferLength

)

This function sets the application buffer and corresponding driver buffer in order for

the streaming callback to copy the data for the analog channel from the driver buffer

to the application buffer.

Applicability

Streaming mode

Arguments

deviceIndex, the index assigned by the wrapper corresponding to

the required device

channel, the channel number (should be a numerical value

corresponding to a PS3000A_CHANNEL enumeration value)

appBuffer, the application buffer

driverBuffer, the buffer set by the driver

bufferLength, the length of the buffers (the lengths of the buffers

must be equal)

Returns

PICO_OK, if successful

PICO_INVALID_PARAMETER, if deviceIndex is out of bounds

PICO_INVALID_CHANNEL, if channel is not valid

PicoScope 3000 Series (A API) Programmer's Guide 129

5.15 setMaxMinAppAndDriverBuffers

PICO_STATUS setMaxMinAppAndDriverBuffers

(

uint16_t deviceIndex,

int16_t channel,

int16_t * appMaxBuffer,

int16_t * appMinBuffer,

int16_t * driverMaxBuffer,

int16_t * driverMinBuffer,

uint32_t bufferLength

)

Set the application buffer and corresponding driver buffer in order for the streaming

callback to copy the data for the analog channel from the driver maximum and

minimum buffers to the respective application buffers for aggregated data collection.

Applicability

Streaming mode

Arguments

deviceIndex, the index assigned by the wrapper corresponding to

the required device

channel, the channel number (should be a numerical value

corresponding to a PS3000A_CHANNEL enumeration value)

appMaxBuffer, the application buffer for maximum values (the 'max

buffer')

appMinBuffer, the application buffer for minimum values (the 'min

buffer')

driverMaxBuffer, the max buffer set by the driver

driverMinBuffer, the min buffer set by the driver

bufferLength, the length of the buffers (the lengths of the buffers

must be equal)

Returns

PICO_OK, if successful

PICO_INVALID_PARAMETER, if deviceIndex is out of bounds

PICO_INVALID_CHANNEL, if channel is not valid

Wrapper functions130

5.16 setAppAndDriverDigiBuffers

PICO_STATUS setAppAndDriverDigiBuffers

(

uint16_t deviceIndex,

int16_t digiPort,

int16_t * appDigiBuffer,

int16_t * driverDigiBuffer,

uint32_t bufferLength

)

This function sets the application buffer and corresponding driver buffer in order for

the streaming callback to copy the data for the digital port from the driver buffer to

the application buffer.

Applicability

Streaming mode. PicoScope 3000 MSO and 3000D MSO models only.

Arguments

deviceIndex, the index assigned by the wrapper corresponding to

the required device

digiPort, the digital port number (0 or 1)

appDigiBuffer, the application buffer for the digital port

driverDigitalBuffer, the buffer for the digital port set by the

driver

bufferLength, the length of the buffers (the lengths of the buffers

must be equal)

Returns

PICO_OK, if successful

PICO_INVALID_PARAMETER, if deviceIndex is out of bounds

PICO_INVALID_DIGITAL_PORT, if digiPort is not 0 (Port 0) or 1

(Port 1)

PicoScope 3000 Series (A API) Programmer's Guide 131

5.17 setMaxMinAppAndDriverDigiBuffers

PICO_STATUS setMaxMinAppAndDriverDigiBuffers

(

uint16_t deviceIndex,

int16_t digiPort,

int16_t * appMaxDigiBuffer,

int16_t * appMinDigiBuffer,

int16_t * driverMaxDigiBuffer,

int16_t * driverMinDigiBuffer,

uint32_t bufferLength

)

This functions sets the application buffers and corresponding driver buffers in order for

the streaming callback to copy the data for the digital port from the driver 'max' and

'min' buffers to the respective application buffers for aggregated data collection.

Applicability

Streaming mode. PicoScope 3000 MSO and 3000D models only.

Arguments

deviceIndex, the index assigned by the wrapper corresponding to

the required device

digiPort, the digital port number (0 or 1)

appMaxDigiBuffer, the application max. buffer for the digital port

appMinDigiBuffer, the application min. buffer for the digital port

driverMaxDigiBuffer, the max. buffer set by the driver for the

digital port

driverMinDigiBuffer, the min. buffer set by the driver for the

digital port

bufferLength, the length of the buffers (the lengths of the buffers

must be equal)

Returns

PICO_OK, if successful

PICO_INVALID_PARAMETER, if deviceIndex is out of bounds

PICO_INVALID_DIGITAL_PORT, if digiPort is not 0 (Port 0) or 1

(Port 1)

Wrapper functions132

5.18 setChannelCount

PICO_STATUS setChannelCount

(

uint16_t deviceIndex,

int16_t channelCount

)

This function sets the number of analog channels on the device. This is used to assist

with copying data in the streaming callback.

You must call initWrapUnitInfo before calling this function.

Applicability

Streaming mode

Arguments

deviceIndex, the index assigned by the wrapper corresponding to

the required device

channelCount, the number of channels on the device

Returns

PICO_OK, if successful

PICO_INVALID_PARAMETER, if deviceIndex is out of bounds or

channelCount is not 2 or 4

PicoScope 3000 Series (A API) Programmer's Guide 133

5.19 setDigitalPortCount

PICO_STATUS setDigitalPortCount

(

uint16_t deviceIndex,

int16_t digitalPortCount

)

Set the number of digital ports on the device. This is used to assist with copying data

in the streaming callback.

You must call initWrapUnitInfo before calling this function.

Applicability

Streaming mode

Arguments

deviceIndex, the index assigned by the wrapper corresponding to

the required device

digitalPortCount, the number of digital ports on the device. Set to

2 for the PicoScope 3000 MSO and 3000D MSO devices and 0 for

other models.

Returns

PICO_OK, if successful

PICO_INVALID_PARAMETER, deviceIndex is out of bounds or

digitalPortCount is invalid

Wrapper functions134

5.20 setEnabledChannels

PICO_STATUS setEnabledChannels

(

uint16_t deviceIndex,

int16_t * enabledChannels

)

Set the number of enabled analog channels on the device. This is used to assist with

copying data in the streaming callback.

You must call setChannelCount before calling this function.

Applicability

Streaming mode

Arguments

deviceIndex, the index assigned by the wrapper corresponding to

the required device

enabledChannels, an array of 4 elements representing the channel

states

Returns

PICO_OK, if successful

PICO_INVALID_PARAMETER, if deviceIndex is out of bounds or

channelCount is not 2 or 4

PicoScope 3000 Series (A API) Programmer's Guide 135

5.21 setEnabledDigitalPorts

PICO_STATUS setEnabledDigitalPorts

(

uint16_t deviceIndex,

int16_t * enabledDigitalPorts

)

This function sets the number of enabled digital ports on the device. This is used to

assist with copying data in the streaming callback.

For PicoScope 3000 MSO and 3000D MSO models, you must call

setDigitalPortCount first.

Applicability

Streaming mode

Arguments

deviceIndex, the index assigned by the wrapper corresponding to

the required device

enabledDigitalPorts, an array of 4 elements representing the

digital port states

Returns

PICO_OK, if successful

PICO_INVALID_PARAMETER, if deviceIndex is out of bounds, or

digitalPortCount is invalid

Wrapper functions136

5.22 SetPulseWidthQualifier

PICO_STATUS SetPulseWidthQualifier

(

int16_t handle,

uint32_t * pwqConditionsArray,

int16_t nConditions,

uint32_t direction,

uint32_t lower,

uint32_t upper,

uint32_t type

)

This function sets up pulse-width qualification, which can be used on its own for pulse-

width triggering or combined with level triggering or window triggering to produce

more complex triggers.

The pulse-width qualifier is defined by one or more sets of integers corresponding to

PS3000A_PWQ_CONDITIONS structures which are then converted and passed to

ps3000aSetPulseWidthQualifier.

Use this function with programming languages that do not support structs.

Applicability

Analog-input models only (for MSOs, use

SetPulseWidthQualifierV2)

Arguments

handle, the handle of the required device

pwqConditionsArray, an array of integer values specifying the

conditions for each channel

nConditions, the number that will be passed after the wrapper

code has created its structures (i.e. the number of

pwqConditionsArray elements / 6)

direction, the direction of the signal required for the pulse width

trigger to fire (see PS3000A_THRESHOLD_DIRECTION enumerations)

lower, the lower limit of the pulse-width counter, measured in

samples

upper, the upper limit of the pulse-width counter, measured in

samples

type, the pulse-width type (see PS3000A_PULSE_WIDTH_TYPE

enumerations)

Returns

See ps3000aSetPulseWidthQualifier return values

PicoScope 3000 Series (A API) Programmer's Guide 137

5.23 SetPulseWidthQualifierV2

PICO_STATUS SetPulseWidthQualifierV2

(

int16_t handle,

uint32_t * pwqConditionsArrayV2,

int16_t nConditions,

uint32_t direction,

uint32_t lower,

uint32_t upper,

uint32_t type

)

This function sets up pulse-width qualification, which can be used on its own for pulse-

width triggering or combined with level triggering or window triggering to produce

more complex triggers.

The pulse-width qualifier is defined by one or more sets of integers corresponding to

PS3000A_PWQ_CONDITIONS_V2 structures which are then converted and passed to

ps3000aSetPulseWidthQualifierV2.

Use this function with programming languages that do not support structs.

Applicability

All models

Arguments

handle, the handle of the required device

pwqConditionsArray, an array of integer values specifying the

conditions for each channel

nConditions, the number that will be passed after the wrapper

code has created its structures (i.e. the number of

pwqConditionsArrayV2 elements / 6)

direction, the direction of the signal required for the pulse width

trigger to fire (see PS3000A_THRESHOLD_DIRECTION enumerations)

lower, the lower limit of the pulse-width counter, measured in

samples

upper, the upper limit of the pulse-width counter, measured in

samples

type, the pulse-width type (see PS3000A_PULSE_WIDTH_TYPE

enumerations)

Returns

See ps3000aSetPulseWidthQualifier return values

Wrapper functions138

5.24 SetTriggerConditions

PICO_STATUS SetTriggerConditions

(

int16_t handle,

int32_t * conditionsArray,

int16_t nConditions

)

This function sets up trigger conditions on the scope's inputs. The trigger is defined by

one or more sets of integers corresponding to PS3000A_TRIGGER_CONDITIONS

structures which are then converted and passed to

ps3000aSetTriggerChannelConditions.

Use this function with programming languages that do not support structs.

Applicability

Analog-input models only ( for MSOs use SetTriggerConditionsV2)

Arguments

handle, the handle of the required device

conditionsArray, an array of integer values specifying the

conditions for each channel

nConditions, the number that will be passed after the wrapper

code has created its structures (i.e. the number of conditionsArray

elements divided by 7)

Returns

See ps3000aSetTriggerChannelConditions return values

Examples

Below are examples for using the function in Visual Basic.

To trigger off channels A OR B

Dim conditionsArray(13) As Integer

conditionsArray(0) = 1 ' channel A

conditionsArray(1) = 0 ' channel B

conditionsArray(2) = 0 ' channel C

conditionsArray(3) = 0 ' channel D

conditionsArray(4) = 0 ' external

conditionsArray(5) = 0 ' aux

conditionsArray(6) = 0 ' pulse width qualifier

' *** OR'ed with

conditionsArray(7) = 0 ' channel A

conditionsArray(8) = 1 ' channel B

conditionsArray(9) = 0 ' channel C

conditionsArray(10) = 0 ' channel D

conditionsArray(11) = 0 ' external

conditionsArray(12) = 0 ' aux

conditionsArray(13) = 0 ' pulse width qualifier

status = SetTriggerConditions(handle, conditionsArray(0), 2)

To trigger off channels A AND B

Dim conditionsArray(6) As Integer

conditionsArray(0) = 1 ' channel A

conditionsArray(1) = 1 ' channel B

conditionsArray(2) = 0 ' channel C

conditionsArray(3) = 0 ' channel D

conditionsArray(4) = 0 ' external

conditionsArray(5) = 0 ' aux

conditionsArray(6) = 0 ' pulse width qualifier

status = SetTriggerConditions(handle, conditionsArray(0), 1)

PicoScope 3000 Series (A API) Programmer's Guide 139

5.25 SetTriggerConditionsV2

PICO_STATUS SetTriggerConditionsV2

(

int16_t handle,

int32_t * conditionsArrayV2,

int16_t nConditions

)

This function sets up trigger conditions on the scope's inputs. The trigger is defined by

one or more sets of integers corresponding to PS3000A_TRIGGER_CONDITIONS_V2

structures which are then converted and passed to

ps3000aSetTriggerChannelConditionsV2.

Use this function with programming languages that do not support structs.

Applicability

All models

Arguments

handle, the handle of the required device

conditionsArrayV2, an array of integer values specifying the

conditions for each channel

nConditions, the number that will be passed after the wrapper

code has created its structures (i.e. the number of conditionsArray

elements divided by 8)

Returns

See ps3000aSetTriggerChannelConditionsV2 return values

Wrapper functions140

5.26 SetTriggerProperties

PICO_STATUS SetTriggerProperties

(

int16_t handle,

int32_t * propertiesArray,

int16_t nProperties,

int32_t autoTrig

)

This function is used to enable or disable triggering and set its parameters. This is

done by assigning the values from the propertiesArray to an array of

PS3000A_TRIGGER_CHANNEL_PROPERTIES structures which are then passed to the

ps3000aSetTriggerChannelProperties function with the other parameters.

Use this function with programming languages that do not support structs.

Applicability

All modes

Arguments

handle, the handle of the required device

propertiesArray, an array of sets of integers corresponding to

PS3000A_TRIGGER_CHANNEL_PROPERTIES structures describing the

required properties to be set. See also channelProperties in

ps3000aSetTriggerChannelProperties.

nProperties, the number that will be passed after the wrapper

code has created its structures (i.e. the number of propertiesArray

elements divided by 6)

autoTrig, see autoTriggerMilliseconds in

ps3000aSetTriggerChannelProperties

Returns

See ps3000aSetTriggerChannelProperties return values

Example

Here is an example for using the function in Visual Basic:

Dim propertiesArray(11) As Integer

'channel A

propertiesArray(0) = 1500 ' Upper

propertiesArray(1) = 300 ' UpperHysteresis

propertiesArray(2) = 0 ' Lower

propertiesArray(3) = 0 ' LowerHysteresis

propertiesArray(4) = 0 ' channel (0=ChA, 1=ChB, 2=ChC, 3=ChD)

propertiesArray(5) = 0 ' thresholdMode (Level=0, Window=1)

'channel B

propertiesArray(6) = 1500 ' Upper

propertiesArray(7) = 300 ' UpperHysteresis

propertiesArray(8) = 0 ' Lower

propertiesArray(9) = 0 ' LowerHysteresis

propertiesArray(10) = 1 ' channel (0=ChA, 1=ChB, 2=ChC, 3=ChD)

propertiesArray(11) = 0 ' thresholdMode (Level=0, Window=1)

status = SetTriggerProperties(handle, propertiesArray(0), 2, 0, 1000)

PicoScope 3000 Series (A API) Programmer's Guide 141

5.27 StreamingCallback

void StreamingCallback

(

int16_t handle,

int32_t noOfSamples,

uint32_t startIndex,

int16_t overflow,

uint32_t triggerAt,

int16_t triggered,

int16_t autoStop,

void * pParameter

)

This is a wrapper for the ps3000aStreamingReady callback. The driver calls it back

when streaming-mode data is ready.

Applicability

Streaming mode

Arguments

See ps3000aStreamingReady

Returns

Nothing

Programming examples142

6Programming examples

Your PicoScope SDK installation includes example code in a number of programming

languages and development environments. Please refer to the SDK for details.

PicoScope 3000 Series (A API) Programmer's Guide 143

7 Reference

7.1 Numeric data types

Here is a list of the sizes and ranges of the numeric data types used in the ps3000a

API.

Type

Bits

Signed or unsigned?

int8_t

signed

int16_t

signed

uint16_t

unsigned

enum

enumerated

int32_t

signed

uint32_t

unsigned

float

signed (IEEE 754)

double

signed (IEEE 754)

int64_t

signed

uint64_t

unsigned

7.2 Enumerated types, constants and structures

The enumerated types, constants and structures used in the ps3000a API are defined

in the file ps3000aApi.h. We recommend that you refer to these constants by name

unless your programming language allows only numerical values.

7.3 Driver status codes

Every function in the ps3000a driver returns a driver status code from the following list

of PICO_STATUS values. These definitions can also be found in the file PicoStatus.h,

which is included in the inc subdirectory of the ps3000a SDK. Not all codes apply to

the ps3000a API.

Code

(hex)

Symbol and meaning

PICO_OK

The PicoScope is functioning correctly

PICO_MAX_UNITS_OPENED

An attempt has been made to open more than PS3000A_MAX_UNITS.

PICO_MEMORY_FAIL

Not enough memory could be allocated on the host machine

PICO_NOT_FOUND

No PicoScope could be found

PICO_FW_FAIL

Unable to download firmware

PICO_OPEN_OPERATION_IN_PROGRESS

PICO_OPERATION_FAILED

PICO_NOT_RESPONDING

The PicoScope is not responding to commands from the PC

PICO_CONFIG_FAIL

The configuration information in the PicoScope has become corrupt or is

missing

PICO_KERNEL_DRIVER_TOO_OLD

The picopp.sys file is too old to be used with the device driver

PICO_EEPROM_CORRUPT

The EEPROM has become corrupt, so the device will use a default setting

PICO_OS_NOT_SUPPORTED

Reference144

The operating system on the PC is not supported by this driver

PICO_INVALID_HANDLE

There is no device with the handle value passed

PICO_INVALID_PARAMETER

A parameter value is not valid

PICO_INVALID_TIMEBASE

The timebase is not supported or is invalid

PICO_INVALID_VOLTAGE_RANGE

The voltage range is not supported or is invalid

PICO_INVALID_CHANNEL

The channel number is not valid on this device or no channels have been set

PICO_INVALID_TRIGGER_CHANNEL

The channel set for a trigger is not available on this device

PICO_INVALID_CONDITION_CHANNEL

The channel set for a condition is not available on this device

PICO_NO_SIGNAL_GENERATOR

The device does not have a signal generator

PICO_STREAMING_FAILED

Streaming has failed to start or has stopped without user request

PICO_BLOCK_MODE_FAILED

Block failed to start - a parameter may have been set wrongly

PICO_NULL_PARAMETER

A parameter that was required is NULL

PICO_DATA_NOT_AVAILABLE

No data is available from a run block call

PICO_STRING_BUFFER_TOO_SMALL

The buffer passed for the information was too small

PICO_ETS_NOT_SUPPORTED

ETS is not supported on this device

PICO_AUTO_TRIGGER_TIME_TOO_SHORT

The auto trigger time is less than the time it will take to collect the pre-trigger

data

PICO_BUFFER_STALL

The collection of data has stalled as unread data would be overwritten

PICO_TOO_MANY_SAMPLES

Number of samples requested is more than available in the current memory

segment

PICO_TOO_MANY_SEGMENTS

Not possible to create number of segments requested

PICO_PULSE_WIDTH_QUALIFIER

A null pointer has been passed in the trigger function or one of the

parameters is out of range

PICO_DELAY

One or more of the hold-off parameters are out of range

PICO_SOURCE_DETAILS

One or more of the source details are incorrect

PICO_CONDITIONS

One or more of the conditions are incorrect

PICO_USER_CALLBACK

The driver's thread is currently in the ps3000a...Ready callback function and

therefore the action cannot be carried out

PICO_DEVICE_SAMPLING

An attempt is being made to get stored data while streaming. Either stop

streaming by calling ps3000aStop, or use ps3000aGetStreamingLatestValues

PICO_NO_SAMPLES_AVAILABLE

...because a run has not been completed

PicoScope 3000 Series (A API) Programmer's Guide 145

PICO_SEGMENT_OUT_OF_RANGE

The memory index is out of range

PICO_BUSY

Data cannot be returned yet

PICO_STARTINDEX_INVALID

The start time to get stored data is out of range

PICO_INVALID_INFO

The information number requested is not a valid number

PICO_INFO_UNAVAILABLE

The handle is invalid so no information is available about the device. Only

PICO_DRIVER_VERSION is available.

PICO_INVALID_SAMPLE_INTERVAL

The sample interval selected for streaming is out of range

PICO_TRIGGER_ERROR

PICO_MEMORY

Driver cannot allocate memory

PICO_SIG_GEN_PARAM

Incorrect parameter passed to the signal generator

PICO_SHOTS_SWEEPS_WARNING

Conflict between the shots and sweeps parameters sent to the signal

generator

PICO_WARNING_EXT_THRESHOLD_CONFLICT

Attempt to set different EXT input thresholds for signal generator and

oscilloscope trigger

PICO_SIGGEN_OUTPUT_OVER_VOLTAGE

The combined peak to peak voltage and the analog offset voltage exceed the

allowable voltage the signal generator can produce

PICO_DELAY_NULL

NULL pointer passed as delay parameter

PICO_INVALID_BUFFER

The buffers for overview data have not been set while streaming

PICO_SIGGEN_OFFSET_VOLTAGE

The analog offset voltage is out of range

PICO_SIGGEN_PK_TO_PK

The analog peak to peak voltage is out of range

PICO_CANCELLED

A block collection has been cancelled

PICO_SEGMENT_NOT_USED

The segment index is not currently being used

PICO_INVALID_CALL

The wrong GetValues function has been called for the collection mode in use

PICO_NOT_USED

The function is not available

PICO_INVALID_SAMPLERATIO

The aggregation ratio requested is out of range

PICO_INVALID_STATE

Device is in an invalid state

PICO_NOT_ENOUGH_SEGMENTS

The number of segments allocated is fewer than the number of captures

requested

PICO_DRIVER_FUNCTION

You called a driver function while another driver function was still being

processed

PICO_RESERVED

PICO_INVALID_COUPLING

An invalid coupling type was specified in ps3000aSetChannel

Reference146

PICO_BUFFERS_NOT_SET

An attempt was made to get data before a data buffer was defined

PICO_RATIO_MODE_NOT_SUPPORTED

The selected downsampling mode (used for data reduction) is not allowed

PICO_INVALID_TRIGGER_PROPERTY

An invalid parameter was passed to ps3000aSetTriggerChannelProperties

PICO_INTERFACE_NOT_CONNECTED

The driver was unable to contact the oscilloscope

PICO_SIGGEN_WAVEFORM_SETUP_FAILED

A problem occurred in ps3000aSetSigGenBuiltIn or

ps3000aSetSigGenArbitrary

PICO_FPGA_FAIL

PICO_POWER_MANAGER

PICO_INVALID_ANALOGUE_OFFSET

An impossible analog offset value was specified in ps3000aSetChannel

PICO_PLL_LOCK_FAILED

Unable to configure the PicoScope

PICO_ANALOG_BOARD

The oscilloscope's analog board is not detected, or is not connected to the

digital board

PICO_CONFIG_FAIL_AWG

Unable to configure the signal generator

PICO_INITIALISE_FPGA

The FPGA cannot be initialized, so unit cannot be opened

PICO_EXTERNAL_FREQUENCY_INVALID

The frequency for the external clock is not within ±5% of the stated value

PICO_CLOCK_CHANGE_ERROR

The FPGA could not lock the clock signal

PICO_TRIGGER_AND_EXTERNAL_CLOCK_CLASH

You are trying to configure the AUX input as both a trigger and a reference

clock

PICO_PWQ_AND_EXTERNAL_CLOCK_CLASH

You are trying to congfigure the AUX input as both a pulse width qualifier and

a reference clock

PICO_UNABLE_TO_OPEN_SCALING_FILE

The scaling file set can not be opened.

PICO_MEMORY_CLOCK_FREQUENCY

The frequency of the memory is reporting incorrectly.

PICO_I2C_NOT_RESPONDING

The I2C that is being actioned is not responding to requests.

PICO_NO_CAPTURES_AVAILABLE

There are no captures available and therefore no data can be returned.

PICO_NOT_USED_IN_THIS_CAPTURE_MODE

The capture mode the device is currently running in does not support the

current request.

103

PICO_GET_DATA_ACTIVE

Reserved

104

PICO_IP_NETWORKED

The device is currently connected via the IP Network socket and thus the call

made is not supported.

105

PICO_INVALID_IP_ADDRESS

An IP address that is not correct has been passed to the driver.

106

PICO_IPSOCKET_FAILED

The IP socket has failed.

107

PICO_IPSOCKET_TIMEDOUT

The IP socket has timed out.

PicoScope 3000 Series (A API) Programmer's Guide 147

108

PICO_SETTINGS_FAILED

The settings requested have failed to be set.

109

PICO_NETWORK_FAILED

The network connection has failed.

10A

PICO_WS2_32_DLL_NOT_LOADED

Unable to load the WS2 dll.

10B

PICO_INVALID_IP_PORT

The IP port is invalid

10C

PICO_COUPLING_NOT_SUPPORTED

The type of coupling requested is not supported on the opened device.

10D

PICO_BANDWIDTH_NOT_SUPPORTED

Bandwidth limit is not supported on the opened device.

10E

PICO_INVALID_BANDWIDTH

The value requested for the bandwidth limit is out of range.

10F

PICO_AWG_NOT_SUPPORTED

The arbitrary waveform generator is not supported by the opened device.

110

PICO_ETS_NOT_RUNNING

Data has been requested with ETS mode set but run block has not been

called, or stop has been called.

111

PICO_SIG_GEN_WHITENOISE_NOT_SUPPORTED

White noise is not supported on the opened device.

112

PICO_SIG_GEN_WAVETYPE_NOT_SUPPORTED

The wave type requested is not supported by the opened device.

113

PICO_INVALID_DIGITAL_PORT

A port number that does not evaluate to either PS3000A_DIGITAL_PORT0 or

PS3000A_DIGITAL_PORT1, the ports that are supported.

114

PICO_INVALID_DIGITAL_CHANNEL

The digital channel is not in the range PS3000A_DIGITAL_CHANNEL0 to

PS3000_DIGITAL_CHANNEL15, the digital channels that are supported.

115

PICO_INVALID_DIGITAL_TRIGGER_DIRECTION

The digital trigger direction is not a valid trigger direction and should be equal

in value to one of the PS3000A_DIGITAL_DIRECTION enumerations.

116

PICO_SIG_GEN_PRBS_NOT_SUPPORTED

Siggen does not generate pseudo-random bit stream.

117

PICO_ETS_NOT_AVAILABLE_WITH_LOGIC_CHANNELS

When a digital port is enabled, ETS sample mode is not available for use.

118

PICO_WARNING_REPEAT_VALUE

Not applicable to this device.

119

PICO_POWER_SUPPLY_CONNECTED

4-Channel only - The DC power supply is connected.

11A

PICO_POWER_SUPPLY_NOT_CONNECTED

4-Channel only - The DC power supply isn’t connected.

11B

PICO_POWER_SUPPLY_REQUEST_INVALID

Incorrect power mode passed for current power source.

11C

PICO_POWER_SUPPLY_UNDERVOLTAGE

The supply voltage from the USB source is too low.

11D

PICO_CAPTURING_DATA

The oscilloscope is in the process of capturing data.

11E

PICO_USB3_0_DEVICE_NON_USB3_0_PORT

A USB 3.0 device is connected to a non-USB 3.0 port.

Reference148

7.4 Glossary

Aggregation. The ps3000a driver can use a method called aggregation to reduce the

amount of data your application needs to process. This means that for every block of

consecutive samples, it stores only the minimum and maximum values. You can set

the number of samples in each block, called the aggregation parameter, when you call

ps3000aRunStreaming for real-time capture, and when you call

ps3000aGetStreamingLatestValues to obtain post-processed data.

Aliasing. An effect that can cause digital oscilloscopes to display fast-moving

waveforms incorrectly, by showing spurious low-frequency signals ("aliases") that do

not exist in the input. To avoid this problem, choose a sampling rate that is at least

twice the frequency of the fastest-changing input signal.

Analog bandwidth. All oscilloscopes have an upper limit to the range of frequencies

at which they can measure accurately. The analog bandwidth of an oscilloscope is

defined as the frequency at which a measured sine wave has half the power (or about

71% of the amplitude) of the input sine wave.

AWG. Arbitrary waveform generator. On selected models, the signal generator output

marked Gen or AWG can produce an arbitrary waveform defined by the user. Define

this waveform by calling ps3000aSetSigGenArbitrary and related functions.

Block mode. A sampling mode in which the computer prompts the oscilloscope to

collect a block of data into its internal memory before stopping the oscilloscope and

transferring the whole block into computer memory. This mode of operation is

effective when the input signal being sampled is high frequency. Note: To avoid

aliasing effects, the maximum input frequency must be less than half the sampling

rate.

Buffer size. The size, in samples, of the oscilloscope buffer memory. The buffer

memory is used by the oscilloscope to temporarily store data before transferring it to

the PC.

ETS. Equivalent Time Sampling. ETS constructs a representation of a repetitive signal

by accumulating information over many similar cycles. This allows the oscilloscope to

capture fast-repeating signals that have a higher frequency than the maximum

sampling rate. Note: ETS cannot be used for one-shot or non-repetitive signals.

External trigger. This is the BNC socket marked Ext. It can be used as a signal to

start data capture, but not as an analog input.

Flexible power. The 4-channel 3000 Series oscilloscopes can be powered by either

the USB port or the power supply supplied. A two-headed USB cable, available

separately, can be used to obtain power from two USB ports.

Maximum sampling rate. The maximum number of samples the oscilloscope is

capable of acquiring per second. Maximum sample rates are given in MS/s

(megasamples per second). The higher the sampling capability of the oscilloscope, the

more accurate the representation of the high frequencies in a fast signal.

MSO (Mixed signal oscilloscope). An oscilloscope that has both analog and digital

inputs.

Overvoltage. Any input voltage to the oscilloscope must not exceed the overvoltage

limit, measured with respect to ground, otherwise the oscilloscope may be

permanently damaged.

PicoScope 3000 Series (A API) Programmer's Guide 149

Signal generator. This is a feature of some oscilloscopes which allows a signal to be

generated without an external input device being present. The signal generator output

is the BNC socket marked Gen on the oscilloscope. If you connect a BNC cable

between this and one of the channel inputs, you can send a signal into one of the

channels. It can generate a sine, square or triangle wave that can be swept back and

forth.

Streaming mode. A sampling mode in which the oscilloscope samples data and

returns it to the computer in an unbroken stream. This mode of operation is effective

when the input signal being sampled contains only low frequencies.

USB 1.1. USB (Universal Serial Bus) is a standard port that enables you to connect

external devices to PCs. A USB 1.1 port supports data transfer rates up to 12 megabits

per second, much faster than an RS-232 port.

USB 2.0. A USB 2.0 port supports data transfer rates up to 480 Mbps and is

backward-compatible with USB 1.1.

USB 3.0. A USB 3.0 port supports data transfer rates up to 5 Gbps and is backward-

compatible with USB 2.0 and USB 1.1.

Vertical resolution. A value, in bits, indicating the degree of precision with which the

oscilloscope can turn input voltages into digital values.

Voltage range. The voltage range is the difference between the maximum and

minimum voltages that can be accurately measured by the oscilloscope.

PicoScope 3000 Series (A API) Programmer's Guide 151

Index

AC adaptor 4

AC/DC coupling 72

Access 2

ADC count 59, 61

Aggregation 21

Analog offset 33, 72

Arbitrary waveform generator 87, 89

AWG

buffer lengths 109

sample values 109

Bandwidth limiter 72

Block mode 7, 9, 10, 11

asynchronous call 12

callback 26

polling status 57

running 67

Callback function 9, 19

block mode 26

for data 30

streaming mode 113

Channels

enabling 72

settings 72

Closing units 28

Communication 66

Connection 66

Constants 143

Coupling type, setting 72

Data acquisition 21

Data buffers

declaring 73

declaring, aggregation mode 74

Data retention 4, 10

deltaPhase argument (AWG) 89

Digital connector 7

Digital data 6

Digital port 6

Downsampling 10, 47

maximum ratio 35, 36

modes 48

Driver 3

Enabling channels 72

Enumerated types 143

Enumerating oscilloscopes 31

ETS 9

overview 19

setting time buffers 77, 78

setting up 76

using 20

Fitness for purpose 2

Functions

list of 24

ps3000aBlockReady 26

ps3000aChangePowerSource 27

ps3000aCloseUnit 28

ps3000aCurrentPowerSource 29

ps3000aDataReady 30

ps3000aEnumerateUnits 31

ps3000aFlashLed 32

ps3000aGetAnalogueOffset 33

ps3000aGetChannelInformation 34

ps3000aGetMaxDownSampleRatio 35

ps3000aGetMaxEtsValues 36

ps3000aGetMaxSegments 37

ps3000aGetNoOfCaptures 38, 39

ps3000aGetStreamingLatestValues 40

ps3000aGetTimebase 8, 41

ps3000aGetTimebase2 42

ps3000aGetTriggerInfoBulk 43

ps3000aGetTriggerTimeOffset 44

ps3000aGetTriggerTimeOffset64 45

ps3000aGetUnitInfo 46

ps3000aGetValues 12, 47

ps3000aGetValuesAsync 12, 49

ps3000aGetValuesBulk 50

ps3000aGetValuesOverlapped 51

ps3000aGetValuesOverlappedBulk 52

ps3000aGetValuesTriggerTimeOffsetBulk 54

ps3000aGetValuesTriggerTimeOffsetBulk64

ps3000aHoldOff 56

ps3000aIsReady 57

ps3000aIsTriggerOrPulseWidthQualifierEnabled

Index152

Functions

ps3000aMaximumValue 5, 59

ps3000aMemorySegments 60

ps3000aMinimumValue 5, 61

ps3000aNoOfStreamingValues 62

ps3000aOpenUnit 63

ps3000aOpenUnitAsync 64

ps3000aOpenUnitProgress 65

ps3000aPingUnit 66

ps3000aRunBlock 67

ps3000aRunStreaming 69

ps3000aSetChannel 5, 72

ps3000aSetDataBuffer 73

ps3000aSetDataBuffers 74

ps3000aSetDigitalPort 75

ps3000aSetEts 19, 76

ps3000aSetEtsTimeBuffer 77

ps3000aSetEtsTimeBuffers 78

ps3000aSetNoOfCaptures 79

ps3000aSetPulseWidthDigitalPortProperties

ps3000aSetPulseWidthQualifier 81

ps3000aSetPulseWidthQualifierV2 84

ps3000aSetSigGenArbitrary 87

ps3000aSetSigGenBuiltIn 91

ps3000aSetSigGenBuiltInV2 94

ps3000aSetSigGenPropertiesArbitrary 95

ps3000aSetSigGenPropertiesBuiltIn 96

ps3000aSetSimpleTrigger 7, 97

ps3000aSetTriggerChannelConditions 7, 98

ps3000aSetTriggerChannelConditionsV2 100

ps3000aSetTriggerChannelDirections 7, 102

ps3000aSetTriggerChannelProperties 7, 103

ps3000aSetTriggerDelay 106

ps3000aSetTriggerDigitalPortProperties 107

ps3000aSigGenArbitraryMinMaxValues 109

ps3000aSigGenFrequencyToPhase 110

ps3000aSigGenSoftwareControl 111

ps3000aStop 12, 112

ps3000aStreamingReady 113

Grant of license 2

Hysteresis 104, 108

Index modes 89

Information, reading from units 46

Input range, selecting 72

Intended use 1

LED

flashing 32

Legal information 2

Liability 2

Memory in scope 10

Memory segments 10, 11, 21, 60

Mission-critical applications 2

Multi-unit operation 23

Numeric data types 143

One-shot signals 19

Opening a unit 63

checking progress 65

without blocking 64

PC oscilloscope 1

PC requirements 3

PICO_STATUS enum type 143

PicoScope 3000 MSO Series 1

PicoScope 3000A Series 1

PicoScope 3000B Series 1

PicoScope 3000D MSO Series 1

PicoScope 3000D Series 1

PicoScope software 1, 3, 143

Ports

enabling 75

PORT0, PORT1 6

settings 75

Power source 4, 27, 29

ps3000a API 3

ps3000a.dll 3

PS3000A_CONDITION_ constants 83

PS3000A_CONDITION_V2 constants 86

PS3000A_LEVEL constant 104, 108

PS3000A_PWQ_CONDITIONS structure 83

PS3000A_PWQ_CONDITIONS_V2 structure 86

PS3000A_RATIO_MODE_AGGREGATE 48

PS3000A_RATIO_MODE_AVERAGE 48

PicoScope 3000 Series (A API) Programmer's Guide 153

PS3000A_RATIO_MODE_DECIMATE 48

PS3000A_TIME_UNITS constant 44, 45

PS3000A_TRIGGER_CHANNEL_PROPERTIES

structure 104, 108

PS3000A_TRIGGER_CONDITION constants 99

PS3000A_TRIGGER_CONDITION_V2 constants

101

PS3000A_TRIGGER_CONDITIONS 98

PS3000A_TRIGGER_CONDITIONS structure 99

PS3000A_TRIGGER_CONDITIONS_V2 100

PS3000A_TRIGGER_CONDITIONS_V2 structure

101

PS3000A_WINDOW constant 104, 108

Pulse-width qualifier 81

conditions 83

requesting status 58

Pulse-width qualifierV2 84

conditions 86

Ranges 34

Rapid block mode 9, 13, 13, 38, 39

aggregation 17

no aggregation 15

setting number of captures 79

Retrieving data 47, 49

block mode, deferred 51

rapid block mode 50

rapid block mode, deferred 52

stored 23

streaming mode 40

Retrieving times

rapid block mode 54, 55

Sampling rate

block mode 10

streaming mode 9

Scaling 5

Serial numbers 31

Setup time 10

Signal generator

arbitrary waveforms 87

built-in waveforms 91, 94

calculating phase 110

software trigger 111

Spectrum analyzer 1

Status codes 143

Stopping sampling 112

Streaming mode 9, 21

callback 113

getting number of samples 62

retrieving data 40

running 69

using 22

Structures 143

Support 2

Threshold voltage 7

Time buffers

setting for ETS 77, 78

Timebase 8

calculating 41, 42

Trademarks 2

Trigger 7

channel properties 80, 103, 107

conditions 98, 99, 100, 101

delay 106

digital port pulse width 80

digital ports 107

directions 102

external 5

pulse-width qualifier 81

pulse-width qualifier conditions 83

pulse-width qualifierV2 84

pulse-width qualifierV2 conditions 86

requesting status 58

setting up 97

stability 19

time offset 44, 45

time offsets in rapid mode 43

Upgrades 2

Usage 2

USB 1, 3, 3

hub 23

powering 4

Viruses 2

Voltage range 5

selecting 72

WinUsb.sys 3

Wrapper functions

AutoStopped 116

AvailableData 117

Index154

Wrapper functions

ClearTriggerReady 119

decrementDeviceCount 120

GetStreamingLatestValues 122

IsReady 124

IsTriggerReady 125

resetNextDeviceIndex 126

RunBlock 127

setAppAndDriverBuffers 128

setAppAndDriverDigiBuffers 130

setChannelCount 132

setDigitalPortCount 133

setEnabledChannels 134

setEnabledDigitalPorts 135

setMaxMinAppAndDriverBuffers 129

setMaxMinAppAndDriverDigiBuffers 131

SetPulseWidthQualifier 136

SetPulseWidthQualifierV2 137

SetTriggerConditions 138

SetTriggerConditionsV2 139

SetTriggerProperties 140

StreamingCallback 141

using 114
