ORDER NO.

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

PIONEER CORPORATION 2007

CRT3909

AV RECEIVER/DVD PLAYER 6.5 INCH WIDE DISPLAY

AVH-P4900DVD

/UC

This service manual should be used together with the following manual(s) listed below.

For the parts numbers, adjustments, etc. which are not shown in this manual,

refer to the following manual(s).

Model No. Order No. Mech.Module Remarks

AVH-P5700DVD/EW CRT3425

CX-3078 CRT3257 MS-3V1 DVD Mech. Module:Circuit Description, Mech. Description, Disassembly

K-ZZW. FEB. 2007 Printed in Japan

is a trademark of DVD Format/Logo Licensing Corporation.

AVH-P4900DVD/UC2

1234

1234

C

D

F

A

B

E

SAFETY INFORMATION

CAUTION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.

Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair

complex products such as those covered by this manual.

and refer the repair to a qualified service technician.

WARNING

This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of

California to cause cancer, birth defects or other reproductive harm.

Health & Safety Code Section 25249.6 - Proposition 65

This product contains mercury. Disposal of this material may be regulated due to environmental considerations.

For disposal or recycling information, please contact your local authorities or the Electronics Industries

Alliance: www.eiae.org.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.

If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so

- Service Precautions

1. Note becoming the high temperature while the main body is operating.

2. Peel off the name label carefully when you confirm the voltage of the fan motor.

The purpose of the reason is to try to paste the same thing again.

EXPLODED VIEWS AND PARTS LIST

PACKING(Page 14)

PACKING SECTION PARTS LIST

*:Non spare part

Mark No. Description AVH-P5700DVD/UC AVH-P4900DVD/UC

1 Carton CHG5494 CHG6096

3 Contain Box CHL5494 CHL6096

21 Accessory Assy CEA4771 CEA7517

24 Bush CNV1917 CNV3930

27-2 Owner’s Manual CRB2053 CRB2343

27-3 Owner’s Manual CRB2054 CRB2344

27-4 Installation Manual CRD3966 CRD4195

* 27-7 Card ARY1048 Not used

* 27-8 Warranty Card Not used CRY1246

AVH-P4900DVD/UC 3

5 678

5678

C

D

F

A

B

E

EXTERIOR(1)(Page 18)

EXTERIOR(1) SECTION PARTS LIST

Mark No. Description AVH-P5700DVD/UC AVH-P4900DVD/UC

7 Button(EJECT) CAC9051 CAI1299

8 Button(A-BM) CAC9052 CAI1300

15 Panel CNB3102 CNB3423

23 Lever Unit CXC4211 CXC7973

29 Flexible PCB CNP8806 CNP9694

33 Mother Unit CWM9809 CWN2610

48 Connector(CN171) CKS3751 CKS5627

52 Connector(CN175) CKS4068 CKS5572

70 RGB Unit CWM9816 CWN2614

71 Connector(CN951) CKS4497 Not used

75 Detach Grille Assy CXC4193 CXC7949

80 DVD Mechanism Module(MS-3V1) CXK6418 CXK6421

85 Grille CNS8174 CNS9048

87 Grille Unit CXC4206 CXC7971

95 Panel CNS7797 CNS9047

97 Grille Assy CXC4188 CXC7947

EXTERIOR(2)(Page 20)

EXTERIOR(2) SECTION PARTS LIST

Mark No. Description AVH-P5700DVD/UC AVH-P4900DVD/UC

180 Cover Unit CXC5118 CXC7975

EXTERIOR(3)(Page 24)

EXTERIOR(3) SECTION PARTS LIST

Mark No. Description AVH-P5700DVD/UC AVH-P4900DVD/UC

12 Monitor Unit CWM9821 CWN2616

13 Connector(CN4541) CKS3968 CKS5637

23 LCD Module CWX3151 CWX3519

24 Grille Unit CXC4201 CXC7969

DVD MECHANISM MODULE(MS-3V1)(Page 26)

DVD MECHANISM MODULE(MS-3V1) SECTION PARTS LIST

Mark No. Description AVH-P5700DVD/UC AVH-P4900DVD/UC

1 DVD Core Unit CWX3170 CWX3372

3 Connector(CN1201) CKS4067 CKS5043

5 Connector(CN1231) CKS4624 CKS5017

7 Connector(CN1101) CKS4625 CKS4842

8 Connector(CN1901) CKS3971 CKS5054

36 Pickup Unit(Service) CXX1770 CXX1945

AVH-P4900DVD/UC4

1234

1234

C

D

F

A

B

E

ELECTRICAL PARTS LIST(Page 96)

MOTHER UNIT

Circuit Symbol and No. Part Name AVH-P5700DVD/UC AVH-P4900DVD/UC

IC151 IC TC4S81F Not used

IC241 IC PAL007B PAL007C

IC441 IC TA2050FS1 Not used

IC461 IC NJM2138V Not used

IC571 IC NJM2136V Not used

IC601 IC PE5485A PE5621A

Q151 Transistor 2SC4081 Not used

Q241 Transistor DTC124EU DTC124EUA

Q242 Transistor DTC144EU DTC144EUA

Q301 Transistor IMD2A Not used

Q302 Transistor DTC323TU Not used

Q303 Transistor DTC124EU Not used

Q461 Transistor 2SC4081 Not used

Q571 Transistor 2SC4081 Not used

Q601 Transistor DTC124EU DTC124EUA

Q691 Transistor DTA114EU DTA114EUA

Q692 Transistor DTC144EU DTC144EUA

Q693 Transistor DTC114EU Not used

Q694 Transistor 2SC4081 Not used

Q696 Transistor 2SC4081 Not used

Q702 Transistor DTC114EU DTC114EUA

Q703 Transistor 2SA1576 2SA1576A

Q706 Transistor 2SA1576 2SA1576A

Q752 Transistor DTC144EU DTC144EUA

Q755 Transistor 2SA1577 Not used

Q756 Transistor DTC144EU Not used

Q772 Transistor DTC144EU DTC144EUA

Q774 Transistor DTC144EU DTC144EUA

Q783 Transistor DTC114EU DTC114EUA

Q805 Transistor DTC124EU DTC124EUA

Q806 Transistor DTC114EU DTC114EUA

D151 Diode Network DA204U Not used

D152 Diode Network DA204U Not used

D691 Diode 1SS355 Not used

L441 Chip Ferrite Bead CTF1399 Not used

L461 Chip Ferrite Bead CTF1399 Not used

L571 Chip Ferrite Bead CTF1399 Not used

>

FU151 Fuse 3 A CEK1286 RS1/16S0R0J

>

FU152 Fuse 3 A CEK1286 RS1/16S0R0J

R151 RS1/16S750J Not used

R152 RS1/16S750J Not used

AVH-P4900DVD/UC 5

5 678

5678

C

D

F

A

B

E

Circuit Symbol and No. Part Name AVH-P5700DVD/UC AVH-P4900DVD/UC

R153 RS1/16S750J Not used

R154 RS1/16S750J Not used

R155 RS1/16S681J Not used

R156 RS1/16S473J Not used

R157 RS1/16S473J Not used

R158 RS1/16S681J Not used

R301 RS1/16S101J Not used

R302 RS1/16S473J Not used

R303 RS1/16S473J Not used

R304 RS1/16S472J RS1/16S0R0J

R305 RS1/16S472J RS1/16S0R0J

R306 RS1/16S473J Not used

R307 RS1/16S103J RS1/16S0R0J

R308 RS1/16S103J RS1/16S0R0J

R309 RS1/16S821J Not used

R310 RS1/16S473J Not used

R321 RS1/16S104J RS1/16S0R0J

R324 RS1/16S473J Not used

R325 RS1/16S102J Not used

R441 RS1/16S102J Not used

R442 RS1/16S102J Not used

R443 RS1/16S181J Not used

R444 RS1/16S181J Not used

R445 RS1/16S223J Not used

R446 RS1/16S223J Not used

R447 RS1/16S562J Not used

R448 RS1/16S562J Not used

R461 RS1/16S472J RS1/16S0R0J

R462 RS1/16S472J RS1/16S0R0J

R463 RS1/16S472J Not used

R464 RS1/16S472J Not used

R465 RS1/16S472J RS1/16S0R0J

R466 RS1/16S472J RS1/16S0R0J

R467 RS1/16S472J Not used

R468 RS1/16S472J Not used

R469 RS1/16S472J RS1/16S0R0J

R470 RS1/16S472J RS1/16S0R0J

R471 RS1/16S472J Not used

R472 RS1/16S472J Not used

R473 RS1/16S472J RS1/16S0R0J

AVH-P4900DVD/UC6

1234

1234

C

D

F

A

B

E

Circuit Symbol and No. Part Name AVH-P5700DVD/UC AVH-P4900DVD/UC

R474 RS1/16S472J RS1/16S0R0J

R475 RS1/16S472J Not used

R476 RS1/16S472J Not used

R477 RS1/16S101J RS1/16S0R0J

R478 RS1/16S101J RS1/16S0R0J

R479 RS1/16S101J RS1/16S0R0J

R480 RS1/16S101J RS1/16S0R0J

R481 RS1/16S102J Not used

R482 RS1/16S272J Not used

R483 RS1/16S472J Not used

R571 RS1/16S750J Not used

R572 RS1/16S472J Not used

R573 RS1/16S472J Not used

R574 RS1/16S101J Not used

R575 RS1/16S472J Not used

R576 RS1/16S472J Not used

R577 RS1/16S102J Not used

R578 RS1/16S272J Not used

R579 RS1/16S472J Not used

R580 RS1/16S0R0J Not used

R648 RS1/16S681J Not used

R694 RS1/16S472J Not used

R696 RS1/16S473J Not used

R697 RS1/16S473J Not used

R755 RS1/16S472J Not used

R756 RS1/16S223J Not used

C152 Not used RS1/16S0R0J

C153 CKSRYB104K50 CKSRYB103K50

C301 CKSRYB105K6R3 Not used

C302 CKSRYB105K6R3 Not used

C309 CKSRYB104K50 Not used

C310 CKSRYB104K50 Not used

C441 CKSRYB105K6R3 Not used

C442 CKSRYB105K6R3 Not used

C443 CKSRYB105K6R3 Not used

C444 CKSRYB105K6R3 Not used

C445 CKSRYB105K6R3 Not used

C446 CKSRYB105K6R3 Not used

C447 CKSYB475K16 Not used

C448 CEVLW100M16 Not used

AVH-P4900DVD/UC 7

5 678

5678

C

D

F

A

B

E

Circuit Symbol and No. Part Name AVH-P5700DVD/UC AVH-P4900DVD/UC

C449 CKSRYB104K50 Not used

C461 CKSYB106K6R3 RS1/4SA0R0J

C462 CKSYB106K6R3 Not used

C463 CKSYB106K6R3 Not used

C464 CKSYB106K6R3 RS1/4SA0R0J

C465 CKSYB106K6R3 Not used

C466 CKSYB106K6R3 RS1/4SA0R0J

C467 CKSYB106K6R3 Not used

C468 CKSYB106K6R3 RS1/4SA0R0J

C469 CCSRCH6R0D50 Not used

C470 CCSRCH6R0D50 Not used

C471 CCSRCH6R0D50 Not used

C472 CCSRCH6R0D50 Not used

C473 CKSRYB104K50 Not used

C474 CKSRYB102K50 Not used

C475 CKSRYB104K50 Not used

C571 CKSYB106K6R3 Not used

C572 CKSYB106K6R3 Not used

C574 CCSRCH6R0D50 Not used

C575 CKSRYB104K50 Not used

C576 10 µF CCG1171 Not used

C577 CKSRYB104K50 Not used

C578 CKSRYB104K50 Not used

C753 CKSRYB104K50 Not used

RGB UNIT

Circuit Symbol and No. Part Name AVH-P5700DVD/UC AVH-P4900DVD/UC

D951 Diode HZU2R7(B1) Not used

D952 Diode HZU2R7(B1) Not used

D953 Diode HZU2R7(B1) Not used

D954 Diode HZU2R7(B1) Not used

D955 Diode HZU2R7(B1) Not used

D956 Diode HZU2R7(B1) Not used

D957 Diode HZU2R7(B1) Not used

D958 Diode HZU2R7(B1) Not used

D959 Diode HZU2R7(B1) Not used

D960 Diode HZU2R7(B1) Not used

D961 Diode UDZS5R6(B) Not used

D962 Diode UDZS5R6(B) Not used

D963 Diode UDZS5R6(B) Not used

D964 Diode UDZS5R6(B) Not used

D965 Diode UDZS5R6(B) Not used

R951 Not used RS1/16S0R0J

AVH-P4900DVD/UC8

1234

1234

C

D

F

A

B

E

MONITOR UNIT

Circuit Symbol and No. Part Name AVH-P5700DVD/UC AVH-P4900DVD/UC

IC4001 IC TC90A96AFG TC90A96BFGSING

IC4601 IC PEG087A PEG400A

Q4441 Transistor 2SA1576 2SA1576A

D4351 LED CL-195PG-CD CL-195SR-CD

D4352 LED CL-195PG-CD CL-195SR-CD

D4353 LED CL-195PG-CD CL-195SR-CD

D4354 LED CL-195PG-CD CL-195SR-CD

D4371 LED CL-190UB2-X Not used

D4372 LED CL-190UB2-X Not used

D4373 LED CL-190UB2-X Not used

D5201 LED CL-195PG-CD CL-195SR-CD

D5202 LED CL-195PG-CD CL-195SR-CD

D5203 LED CL-195PG-CD CL-195SR-CD

VR5341 Semi-fixed 15 k

Ω

(B) CCP1424 CCP1490

EF4401 EMI Filter CCG1082 Not used

EF4402 EMI Filter CCG1082 Not used

EF4403 EMI Filter CCG1082 Not used

R4080 Not used RS1/16S0R0J

R4081 Not used RS1/16S0R0J

R4082 Not used RS1/16S0R0J

R4351 RS1/16S271J RS1/16S391J

R4352 RS1/16S271J RS1/16S391J

R4353 RS1/16S331J RS1/16S361J

R4354 RS1/16S331J RS1/16S361J

R4355 RS1/16S271J RS1/16S391J

R4356 RS1/16S271J RS1/16S391J

R4357 RS1/16S331J RS1/16S361J

R4358 RS1/16S331J RS1/16S361J

R4371 RS1/16S101J Not used

R4372 RS1/16S101J Not used

R4373 RS1/16S101J Not used

R4374 RS1/16S221J Not used

R4375 RS1/16S221J Not used

R4376 RS1/16S221J Not used

R4377 RS1/16S221J Not used

R4378 RS1/16S221J Not used

R5223 RS1/16SS101J RS1/16SS121J

R5224 RS1/16SS101J RS1/16SS121J

R5348 RS1/16S563J RS1/16S5602D

C4371 CKSRYB104K50 Not used

C4372 CKSRYB104K50 Not used

C4373 CKSRYB104K50 Not used

AVH-P4900DVD/UC 9

5 678

5678

C

D

F

A

B

E

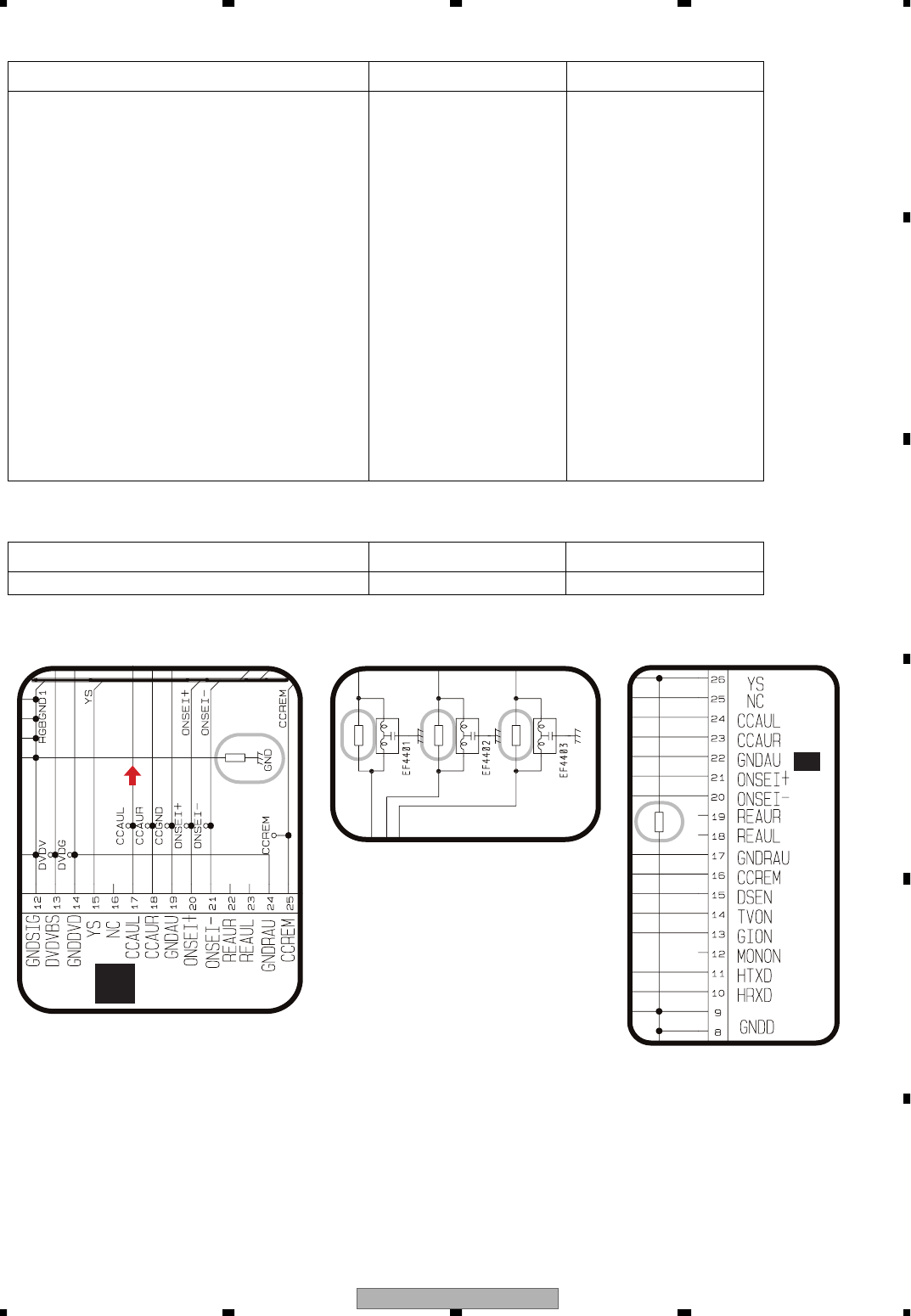

KEYBOARD UNIT

Circuit Symbol and No. Part Name AVH-P5700DVD/UC AVH-P4900DVD/UC

D5510 LED CL-195PG-CD CL-195SR-CD

D5512 LED CL-195PG-CD CL-195SR-CD

D5514 LED CL-195PG-CD CL-195SR-CD

D5516 LED CL-195PG-CD CL-195SR-CD

D5518 LED CL-195PG-CD CL-195SR-CD

D5520 LED CL-195PG-CD CL-195SR-CD

D5522 LED CL-195PG-CD CL-195SR-CD

D5524 LED CL-195PG-CD CL-195SR-CD

D5526 LED CL-195PG-CD CL-195SR-CD

R5530 RS1/16S121J RS1/16S151J

R5531 RS1/16S121J RS1/16S151J

R5532 RS1/16S121J RS1/16S151J

R5533 RS1/16S121J RS1/16S151J

R5534 RS1/16S121J RS1/16S151J

R5535 RS1/16S121J RS1/16S151J

DVD CORE UNIT

Circuit Symbol and No. Part Name AVH-P5700DVD/UC AVH-P4900DVD/UC

IC1602 IC TC7SH86FU TC7SH86FUS1

GCN954

NAVI:+2.2dBs

C152

0R0

CN151

1/2

A

R951

0R0

R4080

0R0

R4081

0R0

R4082

0R0

Page 43 Address 6F Page 69 Address 8DPage 51 Address 6C
