PL-2303HX Edition
USB to Serial Bridge Controller
Product Datasheet
Document Revision: 1.5F
Document Release: May 23, 2006
Prolific Technology Inc.
7F, No. 48, Sec. 3, Nan Kang Rd.
Nan Kang, Taipei 115, Taiwan, R.O.C.
Telephone: +886-2-2654-6363
Fax: +886-2-2654-6161
E-mail: sales@prolific.com.tw
Website: http://www.prolific.com.tw
Revision Date:
May 23, 2006
ds_pl2303HX_v15F.doc
Disclaimer
All the information in this document is subject to change without prior notice. Prolific Technology Inc.
does not make any representations or any warranties (implied or otherwise) regarding the accuracy
and completeness of this document and shall in no event be liable for any loss of profit or any other
commercial damage, including but not limited to special, incidental, consequential, or other damages.
Trademarks
The Prolific logo is a registered trademark of Prolific Technology Inc. All brand names and product
names used in this document are trademarks or registered trademarks of their respective holders.
Copyrights
Copyright © 2006 Prolific Technology Inc. All rights reserved.
No part of this document may be reproduced or transmitted in any form by any means without the
express written permission of Prolific Technology Inc.
PL-2303HX Product Datasheet - 2 - Document Version 1.5F
Revision Date:
May 23, 2006
ds_pl2303HX_v15F.doc
Revision History
Revision Description Date
1.5F Modify Features section for Lead (Pb) Free information May 23, 2006
1.5E Added Operating Current information (Sec 8.2) December 6, 2005
1.5D Modify Operating Temperature Characteristics (Sec 8.4) April 26, 2005
1.5C
Modify Features section
Modify List of Tables
Modify notes for Pin Assignment section
Modify DC and Temperature Characteristics section
March 11, 2005
1.5B Added Lead-Free Ordering Information March 8, 2005
1.5
Added List of Figures and List of Tables
Modify Features section (Sec 1.0)
Improve clarity of Functional Block diagram (Sec 2.0) and
Pin Assignment diagram (Sec 4.0)
Change Minimum Operating Temperature to 0oC.
January 27, 2005
1.4B Added IC quantity per reel information (Sec 10.1)
Added Ordering Information (Sec 11.0) January 19, 2005
1.4 Added Reel Packing Information January 6, 2005
1.3 Modify Minimum Operating Voltage Range to 4.4V
Correct some spelling errors October 21, 2004
1.2
Correct page 6 (3.0 Introduction) by removing 5V range:
“Flexible signal level requirement on the RS232-like serial
port side also allows PL-2303HX to connect directly to any
3.3V~1.8V range devices.”
April 23, 2004
1.1
Added notes on Pin Assignment and Description section
regarding level and driving capabilities
Modify DC Characteristics table
February 18, 2004
1.0 PL-2303HX Product Datasheet – Formal Release February 2004
PL-2303HX Product Datasheet - 3 - Document Version 1.5E
Revision Date:
May 23, 2006
ds_pl2303HX_v15F.doc
Table of Contents
1.0 FEATURES .........................................................................................................6
2.0 FUNCTIONAL BLOCK DIAGRAM .....................................................................7
3.0 INTRODUCTION.................................................................................................8
4.0 PIN ASSIGNMENT OUTLINE.............................................................................9
5.0 PIN ASSIGNMENT & DESCRIPTION...............................................................10
6.0 USB STANDARD DESCRIPTORS ...................................................................11
6.1 Device Descriptor...................................................................................................11
6.2 Configuration Descriptor ........................................................................................11
6.3 Interface Descriptor................................................................................................12
6.4 Endpoint 1 Descriptor: Interrupt Input Endpoint......................................................12
6.5 Endpoint 2 Descriptor: Bulk Data Output endpoint .................................................12
6.6 Endpoint 3 Descriptor: Bulk Data Input endpoint....................................................13
6.7 String Descriptors...................................................................................................13
7.0 USB STANDARD REQUESTS .........................................................................14
8.0 DC & TEMPERATURE CHARACTERISTICS...................................................15
8.1 Absolute Maximum Ratings....................................................................................15
8.2 DC Characteristics .................................................................................................15
8.3 Clock Characteristics .............................................................................................17
8.4 Temperature Characteristics ..................................................................................17
8.5 Leakage Current and Capacitance.........................................................................17
8.6 Power-On Reset ....................................................................................................18
9.0 OUTLINE DIAGRAM..........................................................................................19
9.1 SSOP28 Package..................................................................................................19
10.0 REEL PACKING INFORMATION.....................................................................20
10.1 Carrier Tape (SSOP-28).......................................................................................20
10.2 Reel Dimension....................................................................................................21
11.0 ORDERING INFORMATION .............................................................................21
PL-2303HX Product Datasheet - 4 - Document Version 1.5F
Revision Date:
May 23, 2006
ds_pl2303HX_v15F.doc
List of Figures
Figure 2-1 Block Diagram of PL-2303HX ................................................................................7
Figure 4-1 Pin Assignment Outline of PL-2303HX...................................................................9

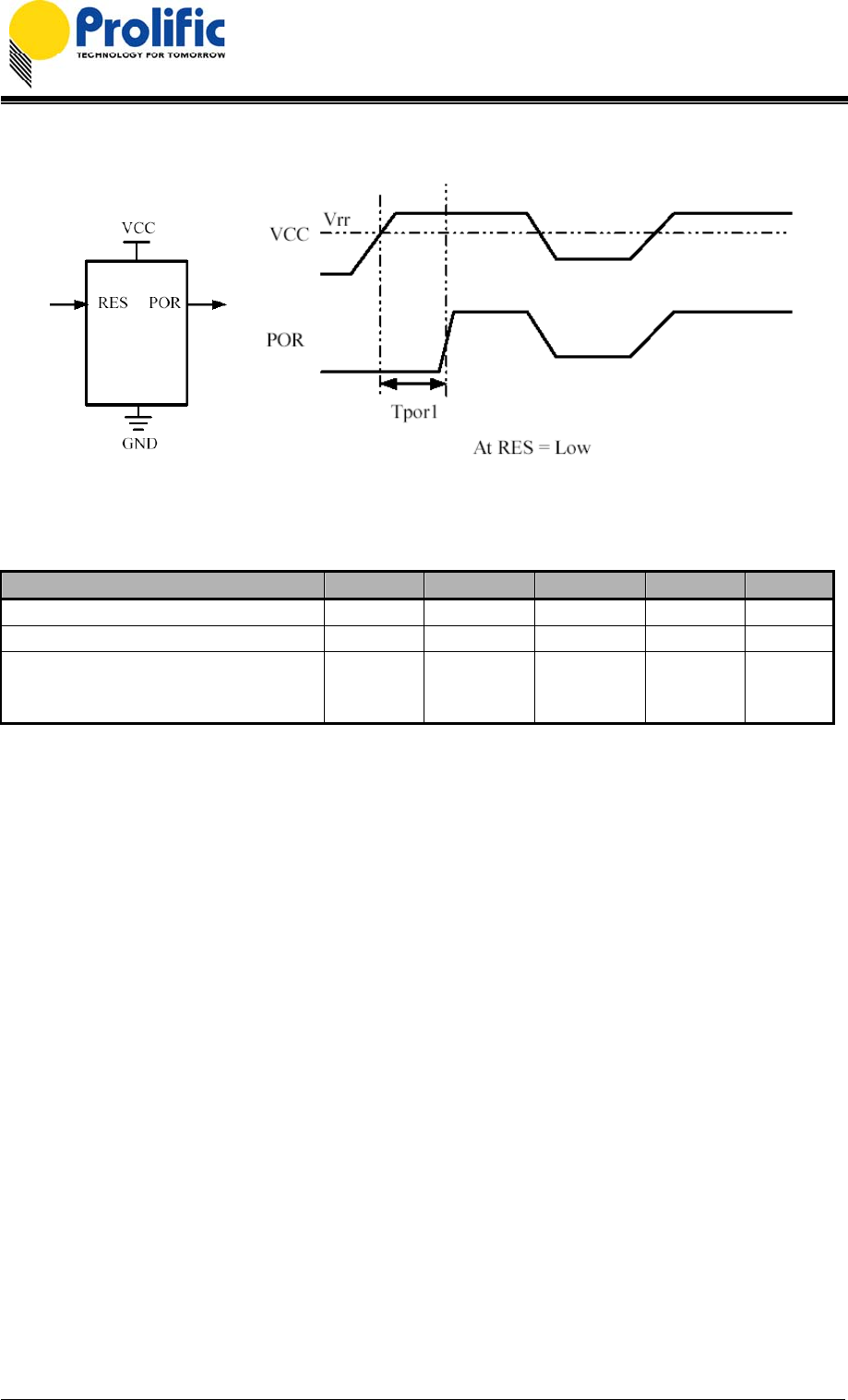

Figure 8-1 Power-On Reset Diagram ....................................................................................18

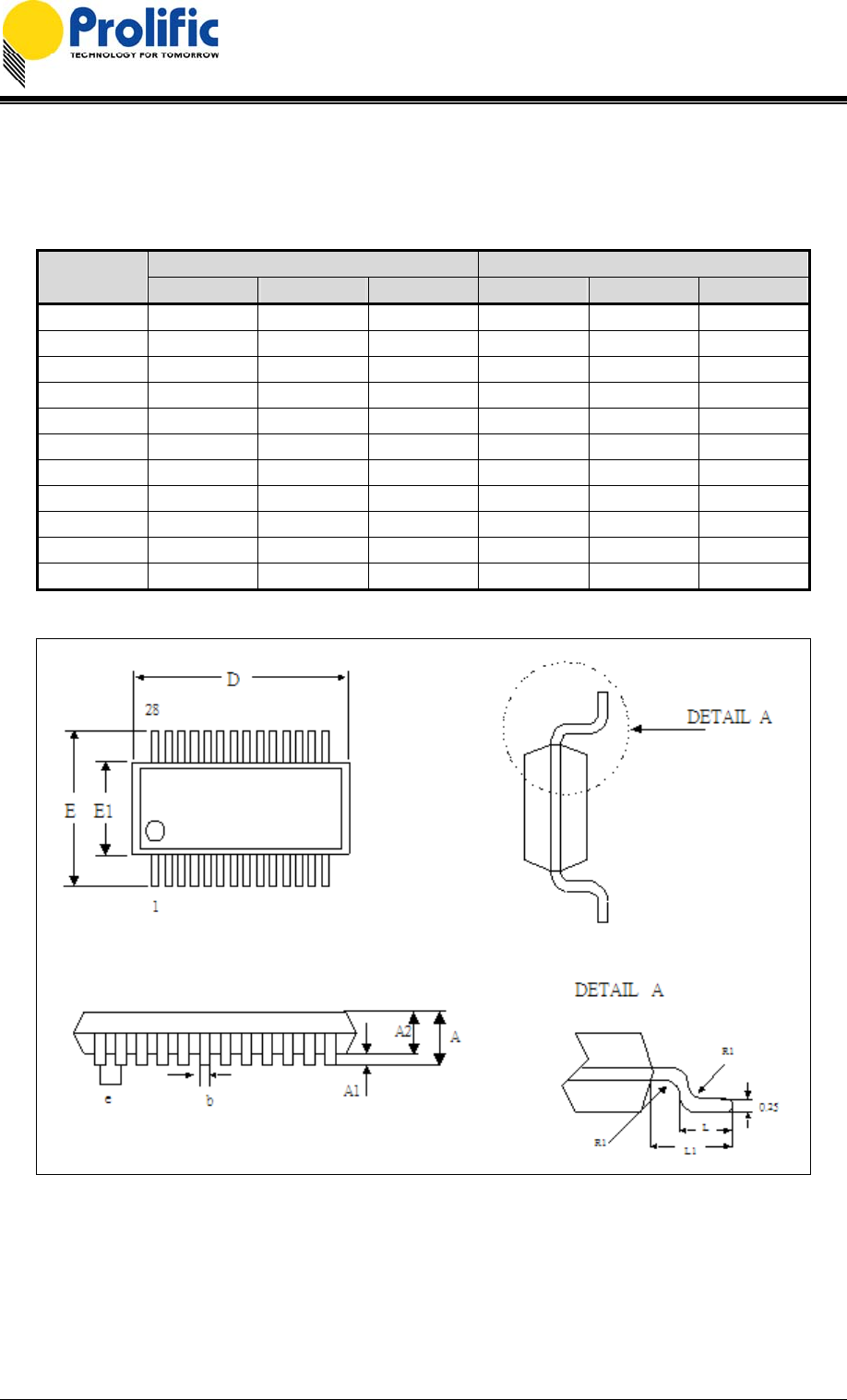

Figure 9-1 Outline Diagram of PL-2303HX SSOP28 .............................................................19

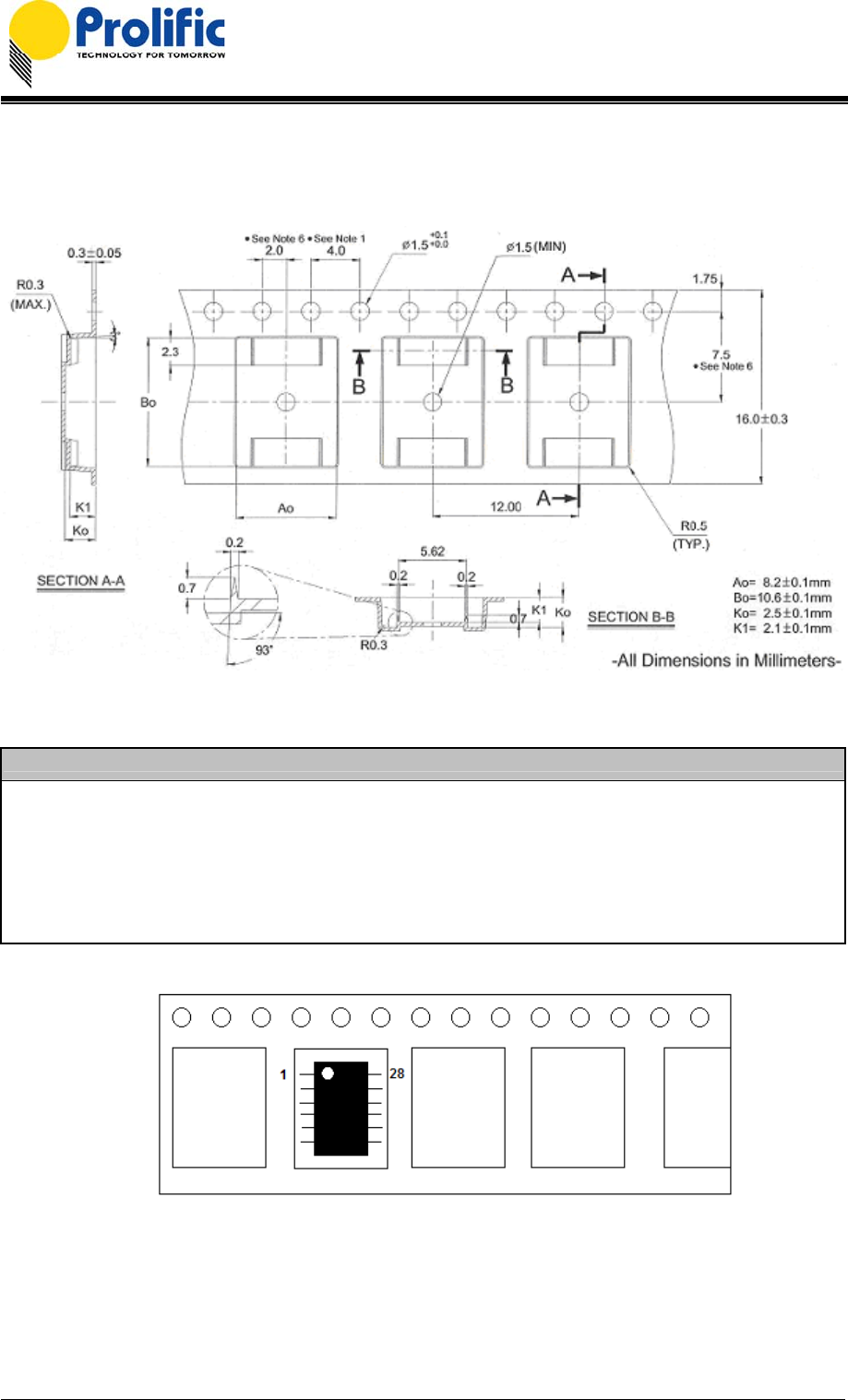

Figure 10-1a SSOP28 Carrier Tape ......................................................................................20
Figure 10-1b IC Reel Placements .........................................................................................20

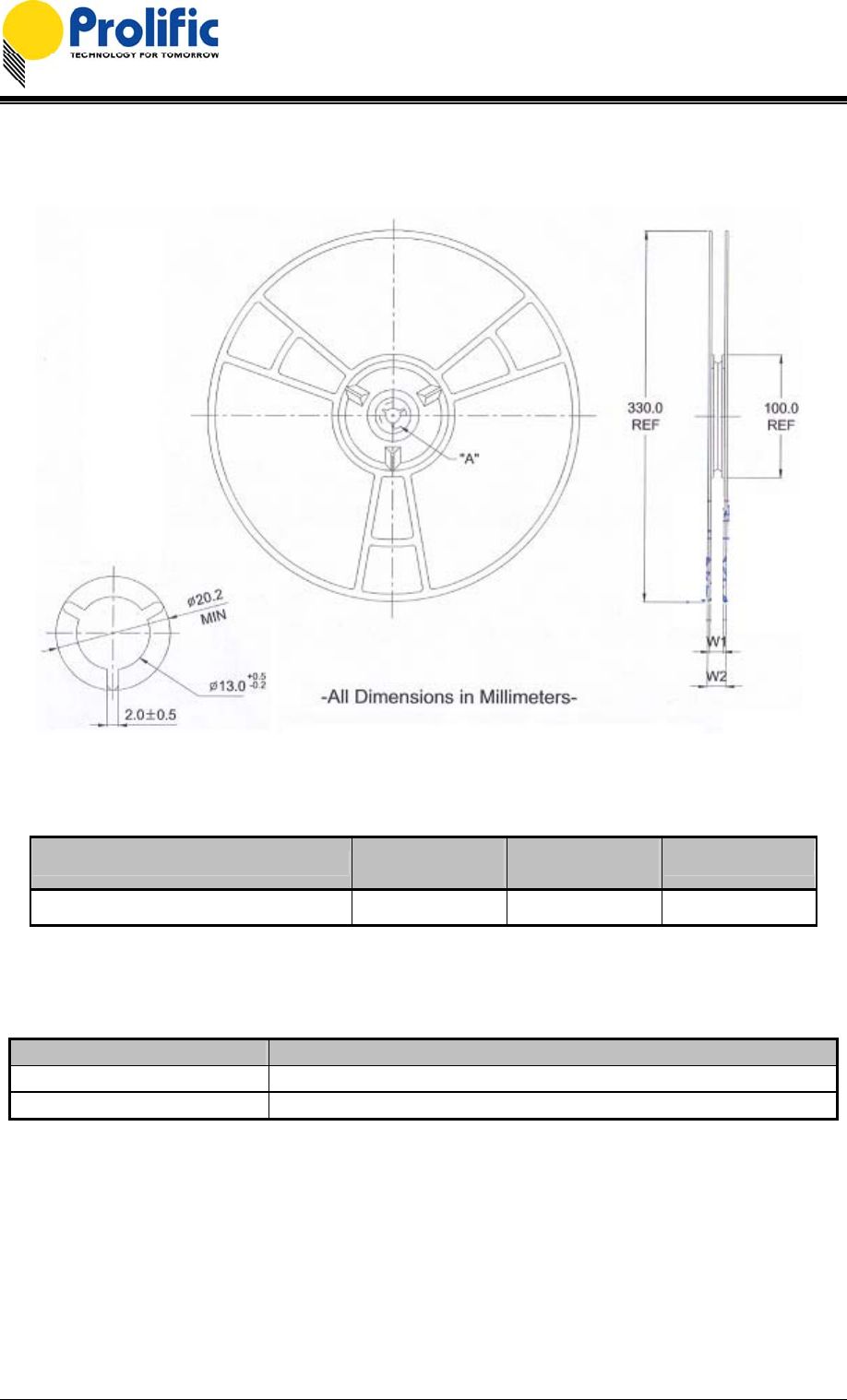

Figure 10-2 Reel Dimension..................................................................................................21
List of Tables
Table 5-1 Pin Assignment & Description................................................................................10
Table 6-1 Device Descriptor ..................................................................................................11
Table 6-2 Configuration Descriptor........................................................................................11
Table 6-3 Interface Descriptor ...............................................................................................12
Table 6-4 Endpoint1 Descriptor .............................................................................................12
Table 6-5 Endpoint2 Descriptor .............................................................................................12
Table 6-6 Endpoint3 Descriptor .............................................................................................13
Table 6-7-1 String Descriptor – Language ID.........................................................................13
Table 6-7-2 String Descriptor – Manufacturer........................................................................13
Table 6-7-3 String Descriptor – Product.................................................................................14
Table 6-7-4 String Descriptor – Serial Number ......................................................................14
Table 8-1 Absolute Maximum Ratings ...................................................................................15
Table 8-2 Operating Voltage and Suspend Current ...............................................................15
Table 8-2-1 3.3V I/O Pins ......................................................................................................15
Table 8-2-2a VDD_325@3.3V Serial I/O Pins .......................................................................16
Table 8-2-2b VDD_325@2.5V Serial I/O Pins .......................................................................16
Table 8-2-2c VDD_325@1.8V Serial I/O Pins .......................................................................16
Table 8-3 Clock Characteristics.............................................................................................17
Table 8-4 Temperature Characteristics..................................................................................17
Table 8-5 Leakage Current and Capacitance ........................................................................17
Table 8-6 Power-On Reset....................................................................................................18
Table 9-1 Package Dimension...............................................................................................19
Table 10-2 Reel Part Number Information .............................................................................21
Table 11-1 Ordering Information............................................................................................21
PL-2303HX Product Datasheet - 5 - Document Version 1.5E
Revision Date:
May 23, 2006
ds_pl2303HX_v15F.doc
1.0 Features
Fully Compliant with USB Specification v2.0 (Full-Speed)
On Chip USB 1.1 transceiver, 5V3.3V regulator, and 12 MHz crystal oscillator
Supports RS232-like Serial Interface
o Full-duplex transmitter and receiver (TXD and RXD)
o Six MODEM control pins (RTS, CTS, DTR, DSR, DCD, and RI)
o 5, 6, 7 or 8 data bits
o Odd, Even, Mark, Space, or None parity mode
o One, one and a half, or two stop bits
o Parity error, frame error, and serial break detection
o Programmable baud rate from 75 bps to 6 Mbps
o External RS232 driver power down control
o Independent power source for serial interface
Extensive Flow Control Mechanism
o Adjustable high/low watermark level
o Automatic flow control with CTS/RTS
o Automatic flow control with XON/XOFF
o Inbound data buffer overflow detection
Configurable 512-byte bi-directional data buffer
o 256-byte outbound buffer and 256-byte inbound buffer; or
o 128-byte outbound buffer and 384-byte inbound buffer
Supports remote wake-up from MODEM input signals
Two general purpose I/O (GPIO) pins
Optional external EEPROM for startup device configurations
Provides drivers support for Windows, Mac OS, Linux, and WinCE
Designed for Windows XP Certified Logo Drivers
USB-IF Logo Compliant with TID 40002448
Small footprint 28-pin SSOP IC package
PL-2303HX LF (Lead-Free or Pb-Free) is ROHS compliant
PL-2303HX Product Datasheet - 6 - Document Version 1.5F
Revision Date:
May 23, 2006
ds_pl2303HX_v15F.doc

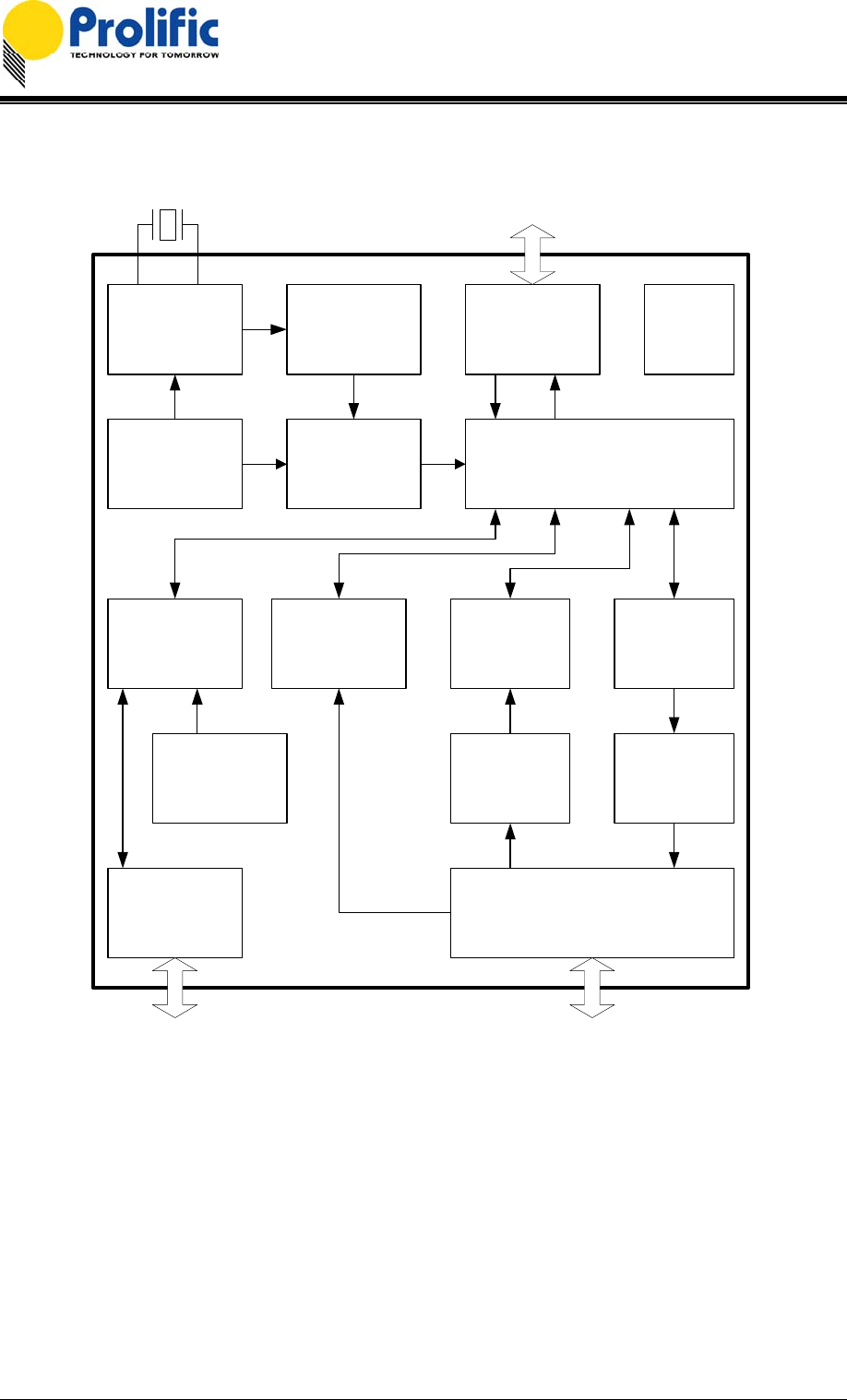

2.0 Functional Block Diagram
12 MHz Oscillator 4X Phase Lock
Loop USB Transceiver 5 to 3.3V
Regulator
Power
Management USB Digital Lock
Loop USB Serial Interface Engine
Control Endpoint Interrupt Endpoint Bulk-in
Endpoint Bulk-Out
Endpoint
256/384Byte
Inbound Data
Buffer
256/128Byte
Outbound Data
Buffer
RS232-Like Serial Interface Engine
256-Byte
Configuration
Mask ROM
2-Wire Serial
EEPROM I/F
PL-2303HX
2-Wire EEPROM RS232-Like I/F
USB 1.1 / 2.0 (Full-Speed)
Figure 2-1 Block Diagram of PL-2303HX
PL-2303HX Product Datasheet - 7 - Document Version 1.5E
Revision Date:
May 23, 2006
ds_pl2303HX_v15F.doc
3.0 Introduction
PL-2303HX provides a convenient solution for connecting an RS232-like full-duplex asynchronous
serial device to any Universal Serial Bus (USB) capable host. PL-2303HX highly compatible drivers
could simulate the traditional COM port on most operating systems allowing the existing applications
based on COM port to easily migrate and be made USB ready.
By taking advantage of USB bulk transfer mode, large data buffers, and automatic flow control,
PL-2303HX is capable of achieving higher throughput compared to traditional UART (Universal
Asynchronous Receiver Transmitter) ports. When real RS232 signaling is not required, baud rate
higher than 115200 bps could be used for even higher performance. The flexible baud rate generator of
PL-2303HX could be programmed to generate any rate between 75 bps and 6M bps.
PL-2303HX is exclusively designed for mobile and embedded solutions in mind, providing a small
footprint that could easily fit in to any connectors and handheld devices. With very small power
consumption in either operating or suspend mode, PL-2303HX is perfect for bus powered operation
with plenty of power left for the attached devices. Flexible signal level requirement on the RS232-like
serial port side also allows PL-2303HX to connect directly to any 3.3V~1.8V range devices.
PL-2303HX Product Datasheet - 8 - Document Version 1.5F
Revision Date:
May 23, 2006
ds_pl2303HX_v15F.doc

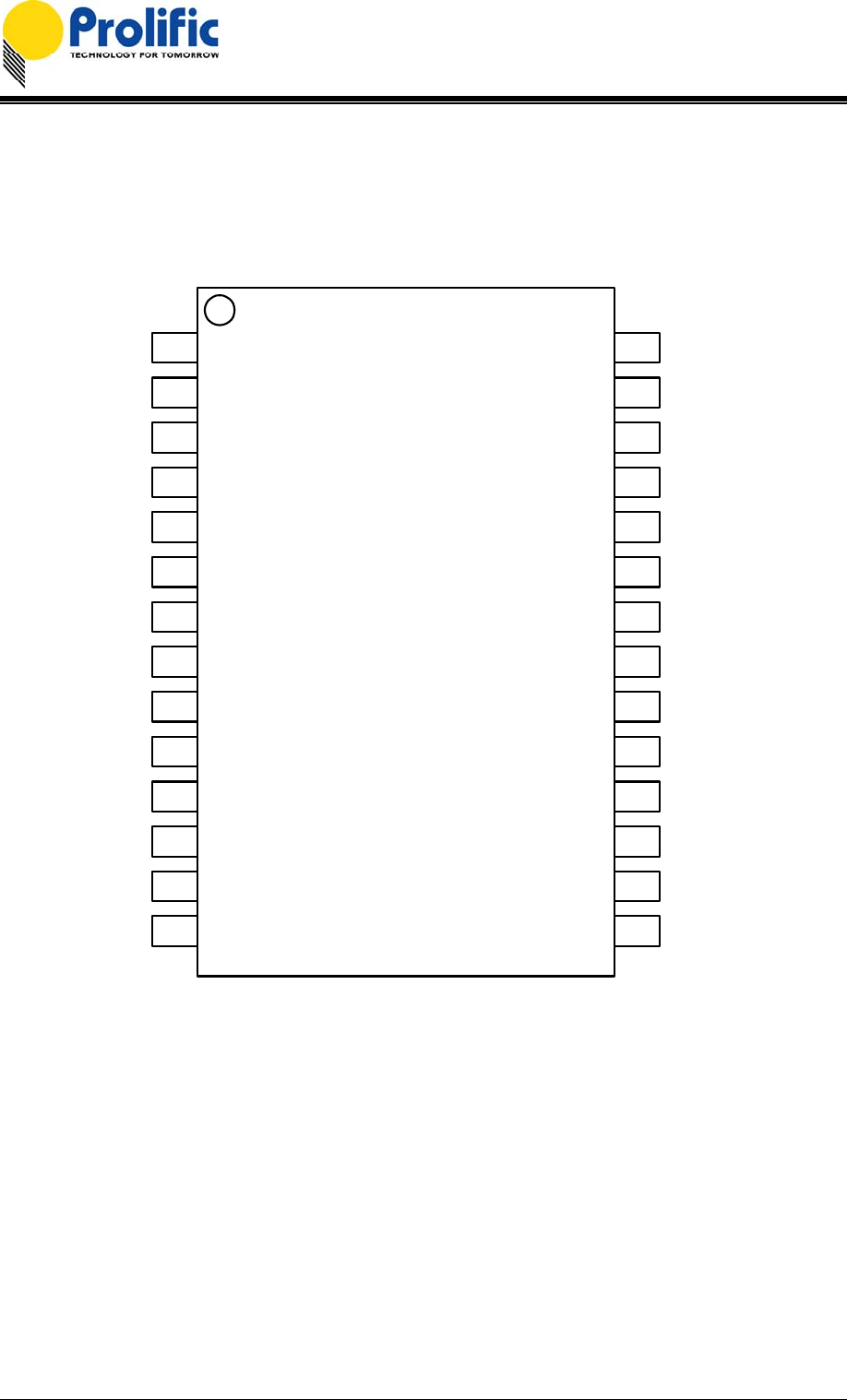

4.0 Pin Assignment Outline
PL-2303HX
1TXD
2DTR_N
3RTS_N
4 VDD_325
5RXD
6RI_N
7GND
8NC
9DSR_N
10 DCD_N
11 CTS_N
12 SHTD_N
13 EE_CLK
14 EE_DATA
28OSC2
27OSC1
26PLL_TEST
25GND_A
24NC
23GP1
22GP0
21GND
20VDD_5
19NC
18GND
17VO_33
16DM
15DP
Figure 4-1 Pin Assignment Outline of PL-2303HX
PL-2303HX Product Datasheet - 9 - Document Version 1.5E
Revision Date:
May 23, 2006
ds_pl2303HX_v15F.doc
5.0 Pin Assignment & Description
Table 5-1 Pin Assignment & Description
Pin # Name Type Description
1 TXD O (1) Serial port (Transmitted Data)
2 DTR_N O (1) Serial port (Data Terminal Ready)
3 RTS_N O (1) Serial port (Request To Send)
4 VDD_325 P RS232 VDD. The power pins for the serial port signals.
When the serial port is 3.3V, this should be 3.3V. When
the serial port is 2.5V, this should be 2.5V.
5 RXD I (2) Serial port (Received Data)
6 RI_N I/O (3) Serial port (Ring Indicator)
7 GND P Ground
8 NC No Connect
9 DSR_N I/O (3) Serial port (Data Set Ready)
10 DCD_N I/O (3) Serial port (Data Carrier Detect)
11 CTS_N I/O (3) Serial port (Clear To Send)
12 SHTD_N O (4) RS232 Transceiver Shut Down Control
13 EE_CLK I/O (5) 2-Wire Serial EEPROM Clock
14 EE_DATA I/O (5) 2-Wire Serial EEPROM Data
15 DP I/O USB port D+ signal
16 DM I/O USB port D- signal
17 VO_33 P Regulator Power Output, 3.3V
18 GND P Ground
19 NC No Connect
20 VDD_5 P USB port VBUS, 5V Power.
21 GND P Ground
22 GP0 I/O (7) General Purpose I/O Pin 0
23 GP1 I/O (7) General Purpose I/O Pin 1
24 NC No Connect
25 GND_A P Analog Ground for PLL
26 PLL_TEST I (6) PLL test mode control
27 OSC1 I Crystal oscillator input
28 OSC2 I/O Crystal oscillator output
Notes:
(1) – CMOS Out, Output Pad. Level and Driving Capability decided by VDD_325.
(2) – SCHMITT In, 5V Tolerant, Input Pad. Level and Driving Capability decided by VDD_325.
(3) – SCHMITT In/CMOS Out, 5V Tolerant, Bi-directional Pad. Level and Driving Capability decided by VDD_325.
(4) – CMOS Out, 3.3V, Output Pad, 4mA Output Driving Capability.
(5) – SCHMITT In/CMOS Out, 5V Tolerant, Bi-directional Pad with internal resistor pulling-up to 3.3V, 4mA Output Driving
Capability.
(6) – LVTTL In, 3.3V, Input Pad.
(7) – SCHMITT In/CMOS Out, 5V Tolerant, Bi-directional Pad, 4mA Output Driving Capability.
PL-2303HX Product Datasheet - 10 - Document Version 1.5F
Revision Date:
May 23, 2006
ds_pl2303HX_v15F.doc
6.0 USB Standard Descriptors
PL-2303HX supports one configuration with one interface and four endpoints. The descriptors are
basically stored in an internal Mask ROM. However, some fields could be optionally modified by
properly programmed external 2-wire serial EEPROM. The contents of all descriptors are shown in the
following sections.
6.1 Device Descriptor
Table 6-1 Device Descriptor
Offset Field Size Value Description
0 bLength Byte 12H Size of this descriptor (in bytes)
1 bDescriptorType Byte 01H DEVICE descriptor type
2 bcdUSB Word 0110H USB Specification Release Number 1.1
4 bDeviceClass Byte 00H
5 bDeviceSubClass Byte 00H
6 bDeviceProtocol Byte 00H
7 bMaxPacketSize0 Byte 40H Maximum packet size for endpoint zero is 64
8 idVender Word 067BH Vender ID (1)
10 idProduct Word 2303H Product ID (1)
12 bcdDevice Word 0300H Device Release Number (1)
14 iManufacturer Byte 01H Manufacturer string descriptor index
15 iProduct Byte 02H Product name string descriptor index
16 iSerialNumber Byte 00H/03H Serial number string descriptor index (2)
17 bNumConfigurations Byte 01H One configuration.
Notes:
(1) – The Vender ID, Product ID, and Device Release Number could be replaced by the contents of external EEPROM.
(2) – The serial number string descriptor index could be defined by the contents of external EEPROM. If specified, the index will
be 3 instead of 0.
6.2 Configuration Descriptor
Table 6-2 Configuration Descriptor
Offset Field Size Value Description
0 bLength Byte 09h Size of this descriptor (in bytes)
1 bDescriptorType Byte 02h CONFIGURATION descriptor type
2 wTotalLength Word 0027h Total length of data returned for this
configuration.
4 bNumInterface Byte 01h One interface for this device.
5 bConfigurationValue Byte 01h
6 iConfiguration Byte 00h
7 bmAttributes Byte A0h/80h
Characteristic attributes (3)
8 MaxPower Byte 32h/FAh Maximum power consumption (4)
Notes:
(3) – The Remote Wakeup attribute (bit 5) depends on the settings of the Remote Wakeup Enable (Setting in the Device
Configuration Registers, DCR, of PL-2303HX). If all remote wakeup sources are disabled, the bmAttributes will be 80h.
Otherwise, A0h is returned to indicate that this device is Remote Wakeup capable.
PL-2303HX Product Datasheet - 11 - Document Version 1.5E
Revision Date:
May 23, 2006
ds_pl2303HX_v15F.doc
(4) – The value of maximum power consumption can be configured initially by setting DCR on the external EEPROM. If it is set
to 1, the MaxPower byte will be FAh to indicate 500mA required from the USB host. Otherwise, it is 32h that indicates
100mA required.
6.3 Interface Descriptor
Table 6-3 Interface Descriptor
Offset Field Size Value Description
0 BLength Byte 09h Size of this descriptor (in bytes)
1 BDescriptorType Byte 04h INTERFACE descriptor type
2 BInterfaceNumber Byte 00h One interface only
3 BAlternateSetting Byte 00h No alternate interface
4 BNumEndpoints Byte 03h Three endpoints (excluding control endpoint)
5 BInterfaceClass Byte FFh Vendor Specific Class
6 BInterfaceSubClass Byte 00h
7 BInterfaceProtocol Byte 00h
8 IInterface Byte 00h
6.4 Endpoint 1 Descriptor: Interrupt Input Endpoint
Table 6-4 Endpoint1 Descriptor
Offset Field Size Value Description
0 bLength Byte 07h Size of this descriptor (in bytes)
1 bDescriptorType Byte 05h ENDPOINT descriptor type
2 bEndpointAddress Byte 81h Input endpoint
3 bmAttributes Byte 03h Transfer type is INTERRUPT
4 wMaxPacketSize Word 000Ah Ten Bytes
6 bInterval Byte 01h Polling on every 1 ms interval
6.5 Endpoint 2 Descriptor: Bulk Data Output endpoint
Table 6-5 Endpoint2 Descriptor
Offset Field Size Value Description
0 bLength Byte 07h Size of this descriptor (in bytes)
1 bDescriptorType Byte 05h ENDPOINT descriptor type
2 bEndpointAddress Byte 02h Output endpoint
3 bmAttributes Byte 02h Transfer type is BULK
4 wMaxPacketSize Word 0040h 64 bytes
6 bInterval Byte 00h Ignored field
PL-2303HX Product Datasheet - 12 - Document Version 1.5F
Revision Date:
May 23, 2006
ds_pl2303HX_v15F.doc
6.6 Endpoint 3 Descriptor: Bulk Data Input endpoint
Table 6-6 Endpoint3 Descriptor
Offset Field Size Value Description
0 bLength Byte 07h Size of this descriptor (in bytes)
1 bDescriptorType Byte 05h ENDPOINT descriptor type
2 bEndpointAddress Byte 83h Input endpoint
3 bmAttributes Byte 02h Transfer type is BULK
4 wMaxPacketSize Word 0040h 64 bytes
6 bInterval Byte 00h Ignored field
6.7 String Descriptors
PL-2303HX supports four string descriptors:
Language ID
Manufacturer
Product
Serial Number
Except for Serial Number, the other three string descriptors are stored in the internal Mask ROM, i.e.
their contents are fixed. Serial Number is a special case. If the External EEPROM were not present, or
not properly programmed, then Serial Number would be hidden from the system. If the External
EEPROM is presented and properly programmed, then Serial Number will be read from the EEPROM.
The following tables demonstrate the current defined value for each descriptor:
6.7.1 String Descriptor 0 – Language ID
Table 6-7-1 String Descriptor – Language ID
Offset Field Size Value Description
0 bLength Byte 04h Size of this descriptor (in bytes)
1 bDescriptorType Byte 03h STRING descriptor type
2 bLANGID[0] Word 0409h English (United States)
6.7.2 String Descriptor 1 – Manufacturer
Table 6-7-2 String Descriptor – Manufacturer
Offset Field Size Value Description
0 BLength Byte 32h Size of this descriptor (in bytes)
1 bDescriptorType Byte 03h STRING descriptor type
2 bSTRING ⎯ ⇒ “Prolific Technology Inc.” in UNICODE
PL-2303HX Product Datasheet - 13 - Document Version 1.5E
Revision Date:
May 23, 2006
ds_pl2303HX_v15F.doc
6.7.3 String Descriptor 2 - Product
Table 6-7-3 String Descriptor – Product
Offset Field Size Value Description
0 Blength Byte 2Ch Size of this descriptor (in bytes)
1 bDescriptorType Byte 03h STRING descriptor type
2 bSTRING ⎯ ⇒ “USB-Serial Controller” in UNICODE
6.7.4 String Descriptor 3 – Serial Number
Table 6-7-4 String Descriptor – Serial Number
Offset Field Size Value Description
0 bLength Byte 12h Size of this descriptor (in bytes)
1 bDescriptorType Byte 03h STRING descriptor type
2 bSTRING ⎯ ⇒ “X7X6X5X4X3X2X1X0” in UNICODE
Note:
The size of Serial Number is fixed in PL-2303HX design. It must be exactly 8 UNICODE characters (or 16 bytes). Note that in
USB Specification, this serial number must be unique for each device.
7.0 USB Standard Requests
PL-2303HX supports the following USB standard requests. For non-supported requests or requests
with invalid parameters, PL-2303HX will respond with STALL packet.
Clear Feature
Get Configuration
Get Descriptor
Get Status
o Device Status
o Interface Status
o Endpoint 0, 1, 2, and 3 Status
Set Address
Set Configuration
Set Feature
PL-2303HX Product Datasheet - 14 - Document Version 1.5F
Revision Date:
May 23, 2006
ds_pl2303HX_v15F.doc
8.0 DC & Temperature Characteristics
8.1 Absolute Maximum Ratings
Table 8-1 Absolute Maximum Ratings
Items Ratings
Power Supply Voltage -0.3 to 5.5 V
Input Voltage of 3.3V I/O -0.3 to VO_33 + 0.3 V
Input Voltage of 3.3V I/O with 5V Tolerance I/O -0.3 to VDD_5 + 0.3V
Output Voltage of 3.3V I/O -0.3 to VO_33 + 0.3 V
Storage Temperature -40 to 150 oC
8.2 DC Characteristics
Table 8-2 Operating Voltage and Suspend Current
Parameter Symbol Min Typ Max Unit
Operating Voltage Range VDD_5 3.6 5 5.5 V
Regulator Output Driving Current (VDD_5= 5V) ILOAD - - 150 mA
Operating Current(1) (Power Consumption) IDD - 10 15 mA
Suspend Current ISUS - 400 450 µA
Note: (1) – No device connected.
8.2.1 3.3V I/O Pins
Table 8-2-1 3.3V I/O Pins
Parameter Symbol Min Typ Max Unit
Output Driving Capability IDD -- 4 -- mA
Output Voltage of Regulator VO_33 3.0 3.3 3.6 V
Input Voltage (CMOS)
Low
High
VIL
VIH
--
0.7* VO_33
--
--
0.3* VO_33
--
V
V
Input Voltage (LVTTL)
Low
High
VIL
VIH
--
2.0
--
--
0.8
--
V
V
Schmitt Trigger Threshold Voltage
Negative going
Positive going
Vt-
Vt+
0.9
--
1.2
2.1
--
2.5
V
V
Output Voltage, 3.3V
Low
High
VOL
VOH
--
2.4
--
--
0.4
--
V
V
PL-2303HX Product Datasheet - 15 - Document Version 1.5E
Revision Date:
May 23, 2006
ds_pl2303HX_v15F.doc
8.2.2 Serial I/O Pins
Table 8-2-2a VDD_325@3.3V Serial I/O Pins
Parameter Symbol Min Typ Max Unit
Output Driving Capability IDD -- 4 -- mA
Power Supply for Serial I/O Pins VDD_325 3.0 3.3 3.6 V
Input Voltage
Low
High
VIL
VIH
--
2.0
--
--
0.8
--
V
V
Schmitt Trigger Threshold Voltage
Negative going
Positive going
Vt-
Vt+
0.8
--
1.1
1.6
--
2.0
V
V
Output Voltage
Low
High
VOL
VOH
--
2.4
--
--
0.4
--
V
V
Table 8-2-2b VDD_325@2.5V Serial I/O Pins
Parameter Symbol Min Typ Max Unit
Output Driving Capability IDD -- 2.6 -- mA
Power Supply for Serial I/O Pins VDD_325 2.25 2.5 2.75 V
Input Voltage
Low
High
VIL
VIH
--
0.7* VDD_325
--
--
0.25* VDD_325
--
V
V
Schmitt Trigger Threshold Voltage
Negative going
Positive going
Vt-
Vt+
0.25* VDD_325
--
0.84
1.31
--
0.7* VDD_325
V
V
Output Voltage
Low
High
VOL
VOH
--
1.85
--
--
0.4
--
V
V
Table 8-2-2c VDD_325@1.8V Serial I/O Pins
Parameter Symbol Min Typ Max Unit
Output Driving Capability IDD -- 1.4 -- mA
Power Supply for Serial I/O Pins VDD_325 1.65 1.8 1.95 V
Input Voltage
Low
High
VIL
VIH
--
0.7* VDD_325
--
--
0.25* VDD_325
--
V
V
Schmitt Trigger Threshold Voltage
Negative going
Positive going
Vt-
Vt+
0.25* VDD_325
--
0.6
1.04
--
0.7* VDD_325
V
V
Output Voltage
Low
High
VOL
VOH
--
1.25
--
--
0.4
--
V
V
PL-2303HX Product Datasheet - 16 - Document Version 1.5F
Revision Date:
May 23, 2006
ds_pl2303HX_v15F.doc
8.3 Clock Characteristics
Table 8-3 Clock Characteristics
Parameter Min Typ Max Units
Frequency of Operation 11.976 12.000 12.024 MHz
Clock Period 83.1 83.3 83.5 ns
Duty Cycle 45 50 55 %
8.4 Temperature Characteristics
Table 8-4 Temperature Characteristics
Parameter Symbol Min Typ Max Unit
Operating Temperature -- -40(1) -- 85(1) oC
Junction Operation Temperature TJ-40 25 125 oC
Note: (1) – Test condition: Baud rate 115200 bps loop testing (4096 bytes/loop, random/fix 0xFF data transfer) over 30 minutes.
8.5 Leakage Current and Capacitance
Table 8-5 Leakage Current and Capacitance
Parameter Symbol Min Typ Max Unit
Input Leakage Current*1 IL-10 ±1 10 µA
Tri-state Leakage Current Ioz -10 ±1 10 µA
Input Capacitance CIN -- 2.8 -- pF
Output Capacitance COUT 2.7 -- 4.9 pF
Bi-directional Buffer Capacitance CBID 2.7 -- 4.9 pF
Note:
*1. No pull-up or pull-down resistor.
PL-2303HX Product Datasheet - 17 - Document Version 1.5E
Revision Date:
May 23, 2006
ds_pl2303HX_v15F.doc
8.6 Power-On Reset
Figure 8-1 Power-On Reset Diagram
Table 8-6 Power-On Reset
Description and Condition Symbol Min Typ Max Unit
Power supply voltage VCC 2.8 3.3 4.0 V
VCC rise relax voltage Vrr 1.8 2.3 2.8 V
Power output low duration
VCC | rise @ Vrr to POR | rise @ 1/2*VCC
(VCC slew rate = 1V/1us)
Tpor1 2.6 3.7 4.8
µS
PL-2303HX Product Datasheet - 18 - Document Version 1.5F
Revision Date:
May 23, 2006
ds_pl2303HX_v15F.doc
9.0 Outline Diagram
9.1 SSOP28 Package
Table 9-1 Package Dimension
Millimeter Inch Symbol
Min Nom Max Min Nom Max
b 0.22 0.38 0.009 0.015
E 7.40 7.80 8.20 0.291 0.307 0.323
E1 5.00 5.30 5.60 0.197 0.209 0.220
L 0.55 0.75 0.95 0.021 0.030 0.037
R1 0.09 0.004
D 9.9 10.2 10.5 0.390 0.402 0.413
A 2.0 0.079
e 0.65 0.0256
L1 1.25 0.050
A1 0.05 0.020
A2 1.65 1.75 1.85 0.065 0.069 0.073
Figure 9-1 Outline Diagram of PL-2303HX SSOP28
PL-2303HX Product Datasheet - 19 - Document Version 1.5E
Revision Date:
May 23, 2006
ds_pl2303HX_v15F.doc
10.0 Reel Packing Information
10.1 Carrier Tape (SSOP-28)
Figure 10-1a SSOP28 Carrier Tape
Notes:
1. 10 sprocket hole pitch cumulative tolerance ±0.2
2. Camber not to exceed 1mm in 100mm.
3. Material: Black Polystyrene.
4. Ao and Bo measured on a plane 0.3mm above the bottom of the pocket.
5. Ko measured from a plane on the inside bottom of the pocket to the top surface of the carrier.
6. Pocket position relative to sprocket hole measured as true position of pocket, not pocket hole.
7. IC quantity per one reel: 1,000 (min) ~ 2,000 (max)
Figure 10-1b IC Reel Placements
PL-2303HX Product Datasheet - 20 - Document Version 1.5F
Revision Date:
May 23, 2006
ds_pl2303HX_v15F.doc
10.2 Reel Dimension
Figure 10-2 Reel Dimension
Table 10-2 Reel Part Number Information
Part Number Normal Hub
Width W1 +0.3mm
-0.2mm W2 Max
RD33008SW-T + RD33008SW-T 16mm 16.8mm 22.2mm
11.0 Ordering Information
Table 11-1 Ordering Information
Part Number Package Type
PL-2303HX 28-pin SSOP
PL-2303HX LF 28-pin SSOP (Lead-Free or Pb-Free)
PL-2303HX Product Datasheet - 21 - Document Version 1.5E

Navigation menu
