Advanced Guide
®
Pocket POD®
Express
Electrophonic Limited Edition
An in-depth guide to the features and functionality of the
Pocket POD Express.
Pocket POD Express Advanced Guide © 2008 Line 6, Inc.
Please Note:
Line 6, POD and Pocket POD Express are trademarks
of Line 6, Inc. All other product names, trademarks
and artists’ names are the property of their respective
owners, which are in no way associated or affiliated
with Line 6. Product names, images, and artists’
names are used solely to identify the products whose
tones and sounds were studied during Line 6’s sound
model development for this product. The use of these
products, trademarks, images, and artists’ names does
not imply any cooperation or endorsement.
Table of Contents
Overview ................................................................................. 1•1
Tuner Tips....................................................................................................... 1•1
Amp Models ................................................................................................... 1•2
Mod FX ........................................................................................................... 1•3
Delay & Reverb .............................................................................................. 1•4
Inputs & Outputs ........................................................................................... 1•5
Power Options ................................................................................................ 1•6
Appendix : FAQ ..................................................................... A•1
Questions & Answers ................................................................................... A•1
Overview
1•1
Tuner
To enter Tuner mode, press and hold TAP for a few seconds, then tune up as follows:
Tune your low E string; both LEDs will flash rapidly at the same time when the E is •
in tune. If only the flat [b] LED flashes, tune your E string up a bit; if only the sharp
[#] LED flashes, tune it down a bit. When both LEDs flash together, you’re good.
With your low E string in tune, tune the other 5 strings by ear, using the ‘5th fret •
method’. For example, fret your low E string at the 5th fret, then tune your open
A string to that note. Now fret your A string at the 5th fret, and tune your open D
string to that note. Tune your other strings in pairs the same way, with the exception
of the open B string, which should tune to your G string fretted at the 4th fret,
instead of the 5th.
Ov e r v i e w

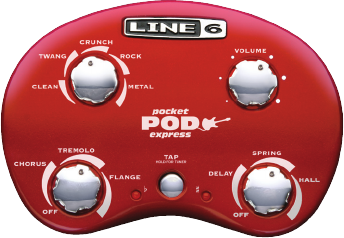

Welcome to the Pocket POD Express Advanced Guide, a supplement to the Pilot’s
Handbook. In the following pages we’ll take a closer look at your POD’s features and
functionality.
The Pocket POD Express is simple to operate, so this guide will be brief. In this chapter,
we’ll include tips on using the Tuner, details on the Amp Models, Effects, Inputs and
Outputs, and a few words about your power options. Let’s start with the Tuner.
When the other 5 strings are in good tune with the low E, fine-tune each string by •
observing the red LEDs. If only the flat LED lights up, tune up a bit. If only the
sharp LED lights up, tune down. They’ll both light up solid when you’re in tune.
With all 6 strings in tune, exit Tuner mode by briefly pressing the • TAP button.
Overview
1•2

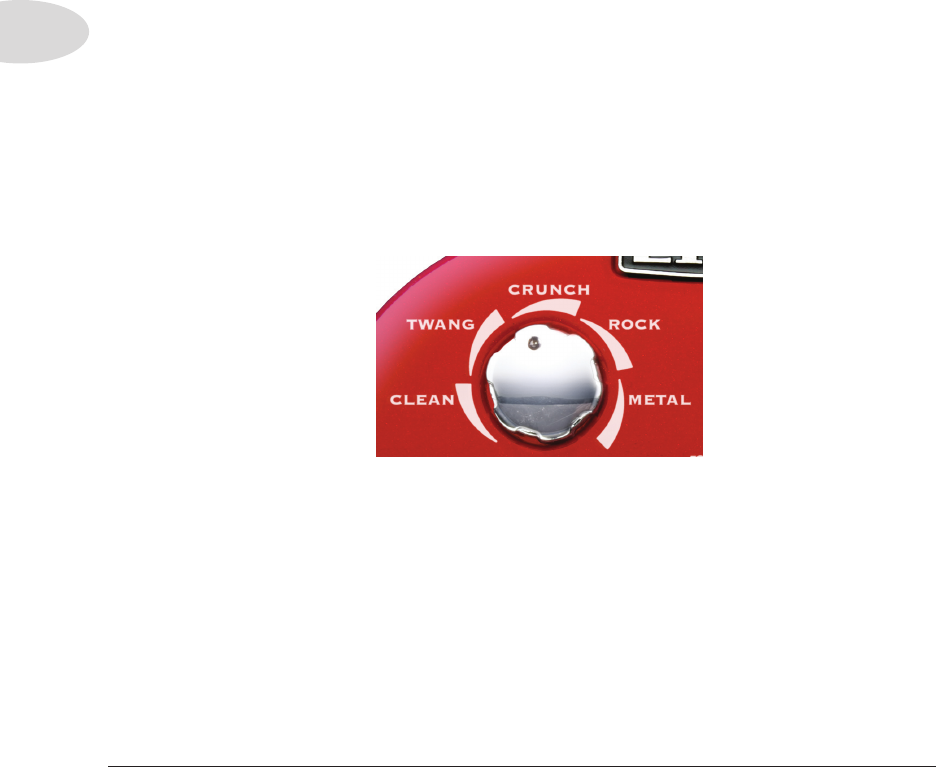

Amp Models
Your Pocket POD Express features 5 Amp Models taken from the Pocket POD and the
legendary POD 2.0, as listed below.
As with our Smart FX controls, there are actually several pre-programmed presets within
each Amp Model’s sweep range. These include subtle changes to Drive, Bass, Mid, Treble
and Channel Volume.
In general terms, you can think of the Amp Model Select knob as a ‘less to more’ control.
With the knob set at the lowest point of each Amp Model’s sweep, you get less of that
model’s characteristic sound. At the top of the sweep, you get more of it.
For example, when you turn the knob clockwise to the maximum setting for the Metal
model, you’ll get maximum overdrive for that model. Turn the knob down a bit, and you’ll
get a little less overdrive.
Here’s a list of the Amp Models included in your Pocket POD Express:
Clean• : based on a 1964 Fender® Twin Reverb® (Black Panel alternate model)
Twang• : based on a 1964 Fender® Deluxe Reverb® (Black Panel)
Crunch• :basedonaVox®AC30TopBoost(BritClassA)
Rock• : based on a Marshall® JCM 800 (Brit Hi Gain)
Metal• : based on a 1994 Mesa Boogie® Dual Rectifier Tremoverb (Treadplate)
* All product names are trademarks of their respective owners, which are in no way associated or affiliated with Line 6. These product names are provided for the sole purpose of identifying
the specific products that were studied during Line 6’s sound model development. Fender, Deluxe Reverb and Twin Reverb are registered trademarks of Fender Musical Instruments Corp.
Mesa/Boogie is a registered trademark of Mesa/Boogie, Limited. Marshall is a registered trademark of Marshall Amplification Plc. Vox is a registered trademark of Vox R&D Ltd.
Overview
1•3
* All product names are trademarks of their respective owners, which are in no way associated or affiliated with Line 6. These product names and descriptions are provided for the sole
purpose of identifying the specific products that were studied during Line 6’s sound model development. Fender is a registered trademarks of Fender Musical Instruments Corp.
Mod FX
There are 3 Mod FX onboard the Pocket POD Express. These feature our Smart FX
settings. Similar to the Amp Models’ sweep knob, as described on the previous page, when
you turn the Mod FX sweep knob clockwise, the intensity of each effect will increase from
less to more.
For example, listen to the Chorus effect thru your headphones. At the minimum setting,
you’ll hear a slow, smooth stereo chorus. As you turn the knob up towards the maximum
setting, the chorus depth increases, and the speed of the oscillation gets faster and faster.
Likewise with the Tremolo effect. The more you turn the knob clockwise, the faster the
speed of the tremolo.
Flange responds similar to Chorus. The more sweep the knob clockwise, the deeper and
faster the flanging sounds, but still very musical at its maximum setting.
Here’s a list of the Mod FX Models included in your Pocket POD Express:
Chorus• : based on Chorus 1 in POD 2.0, modulated by a square wave
Tremolo• : based on the classic Fender® tremolo effect
Flange• : based on Flanger 1 in POD 2.0, a light flange with no pre-delay
Overview
1•4

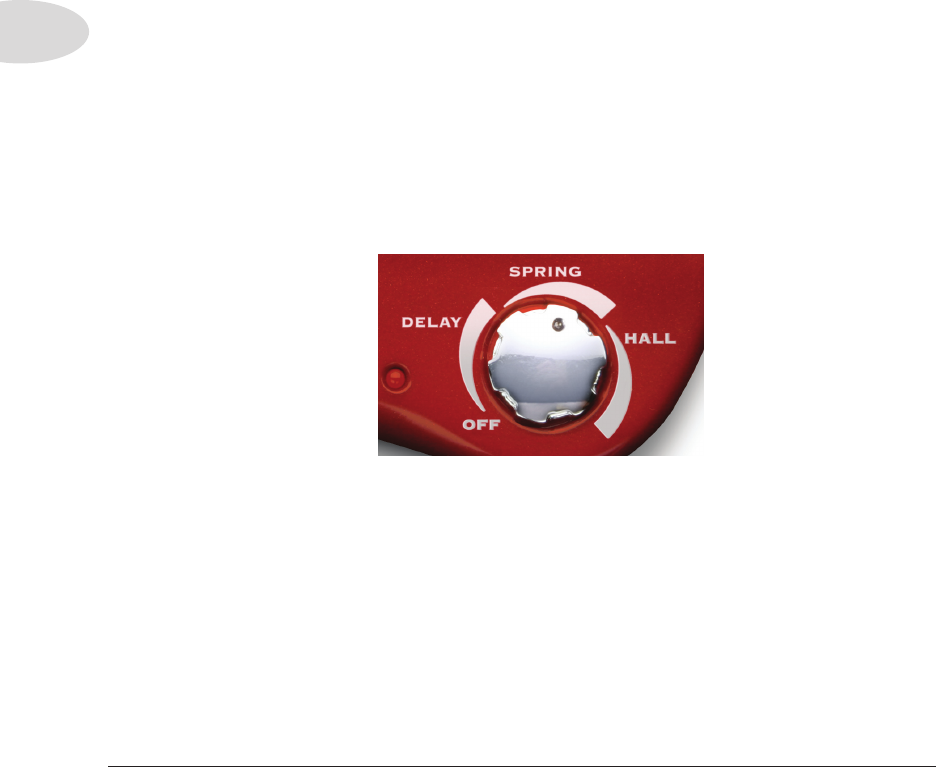

Delay & Reverb
InthelowerrightofyourPocketPODExpressyou’llnd3moreSmartFXModels:a
digital delay and 2 different flavors of reverb. For the Delay model, you can set the delay
time using the TAP button. Simply press it twice to set the desired delay time.
As with the Mod FX, when you sweep the Selector knob clockwise, each effect increases
in intensity from less to more.
Starting with the Delay, at its minimum setting the delay sound will be fairly quiet as
compared to your dry guitar signal. If you’re wearing headphones, you’ll notice the delayed
guitar sound is in wide stereo, with your dry guitar in the middle. As you turn up the sweep
knob, the delayed guitar gets louder and louder, with the repeats increasing moderately.
The Spring model is similar to a guitar amp’s mono spring reverb, while the Hall model is
in wide stereo. As you turn the sweep knob clockwise, the wet reverb level will increase.
Here’salistofthe3DelayandReverbModelsincludedwithyourPocketPODExpress:
Delay• : a stereo Digital Delay model from POD 2.0
Spring• : based on a Fender® style Spring Reverb model from POD 2.0
Hall• : a POD 2.0 Hall Reverb model in stereo
* All product names are trademarks of their respective owners, which are in no way associated or affiliated with Line 6. These product names are provided for the sole purpose of identifying
the specific products that were studied during Line 6’s sound model development. Fenderis a registered trademarks of Fender Musical Instruments Corp.
Overview
1•5

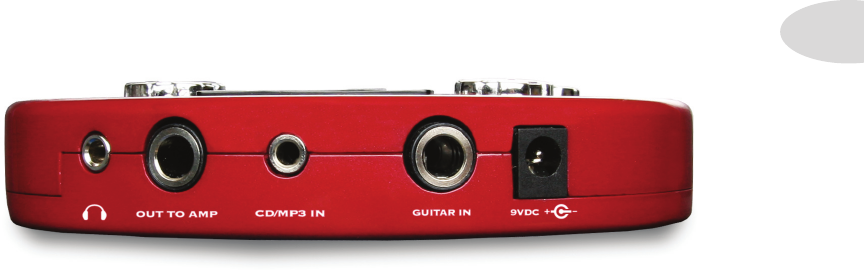

Inputs & Outputs
As illustrated in the Pilot’s Handbook, the Pocket POD Express has 2 Inputs and 2 Outputs,
plus of course the power jack for plugging in the optional DC-1 Power Supply.
Inadditiontoyour1/4-inchguitarinput,youhaveaCD/MP31/8-inchinput.Thisenables
youtoplaybackaCD,forexample,andjamalongwithitonyourguitar.TheCD/MP3
will play ‘straight thru’, meaning it will not be processed by the Amp Models or FX.
Your outputs include a 1/4-inch mono output to your guitar amplifier, and a 1/8-inch
stereo headphone output for headphone jamming. Both outputs are controlled by the
POD’s Volume knob. Headphones are recommended for full stereo sound, but the Pocket
POD Express sounds great feeding the input of a guitar amplifier as well.
You can also use the headphones output to send your Pocket POD Express stereo audio to
a computer or dedicated recording device for recording.
Overview
1•6

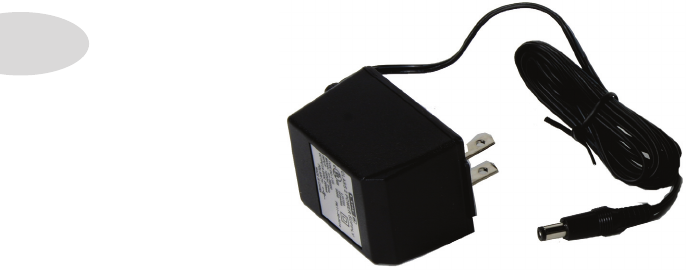

Power Options
You can use 4 AAA batteries or an optional Line 6 DC-1 Power Supply to power your
Pocket POD Express. When batteries are low, the red LEDs will flash on and off. Consult
your Pilot’s Guide for an illustration of battery position (+ and -) when you install them.
Always unplug your guitar when not in use; when the 1/4” guitar cable is plugged in, •
it will drain the batteries, even if the Pocket POD Express is turned off.
You can expect approximately 6 hours of playing time when using batteries.•
Appendix : FAQ
A•1
Ap p e n d i x : FAQ
The following are a few questions and answers about Pocket POD Express that you might
find useful:
Amp Bypass
Q: The Amp Models sound great for electric guitar, but sometimes I like to plug my
acoustic/electric into the Pocket POD Express and use the Chorus and Reverb. The
problem is, even if I use the Clean Amp Model, when I turn it up to get some good
level it overdrives my acoustic sound a bit too much. How can I get a cleaner sound?
A: If you turn the Amp Model Select knob to OFF, it will essentially set your sound to
Amp Bypass, which is a clean, direct signal. You can then turn up the main Volume
knob to get a good level, and use the Chorus and Reverb at the same time.
Tuner LEDs Flashing / Not Flashing
Q: I noticed that when I’m tuning my guitar the LEDs flash on and off quickly when I
tune some strings, but on others they stay on and don’t flash at all. Do they indicate
I’m on the wrong string or out of tune?
A: The LEDs will flash on and off in Tuner mode when you’re tuning your E string
only. This is intentional, to indicate the E string is a ‘special case’, in the sense that
the Tuner is programmed to be much more sensitive to the E string. That’s why we
recommend you tune your E string first, and tune your other strings in reference to it.
Amp Models Not Lining Up Properly With Silkscreen
Q: On my Pocket POD Express, when I’m using the Twang model and I sweep the
Amp knob, before I get to the Twang’s maximum setting the Crunch model kicks in.
I’m worried that I’m missing some of the Twang model’s sounds. Is my unit broken?
A: No. What’s happening is the Amp Model Select knob is slightly out of alignment
with the silkscreen on your unit. This is due to a small amount of variation inherent
in the knobs, but it’s a minor alignment problem and nothing to worry about. You still
get all of the sounds we created for Pocket POD Express.
Appendix : FAQ
A•2
Amp Model Quality For Recording
Q: I heard the Pocket POD Express is based on the POD 2.0, which I know was used on
quite a few professional recordings over the years. Can my inexpensive Pocket POD
ExpressgivemethesamequalityofsoundasthePOD2.0orPODX3forrecording?
A: In general terms, yes. The Pocket POD Express Amp Models and FX are derived
directly from the POD 2.0 and Pocket POD Amp Models. They should sound very
similar.OfcoursewhenyoumoveuptothePODX3,forexample,youhavemore
expensive hardware built in so you will get higher quality when recording. However,
the sound of the Amp Models, when set to a good input level at your recording device,
should give you excellent results.
Getting A Good Volume Balance With My MP3 Player
Q:IhaveasmallMP3playerandwhenIsetmyguitarvolumetoacomfortablelevel
onheadphones,myMP3playerisn’tloudenough.WhenIturndownmyAmpModel
volume to get in balance, it gets too clean. What am I doing wrong?
A: ThebestwaytojamalongwithyourMP3playeristocontrolitsvolumefromthe
device itself. For example, set your guitar volume the way it sounds good to you, then
playbackatrackonyourMP3player.Ifit’stooquiet,turnupthevolumeusingthe
MP3player’svolumecontrol.Itshouldhaveenoughvolumeontaptogetinbalance
with your guitar.
