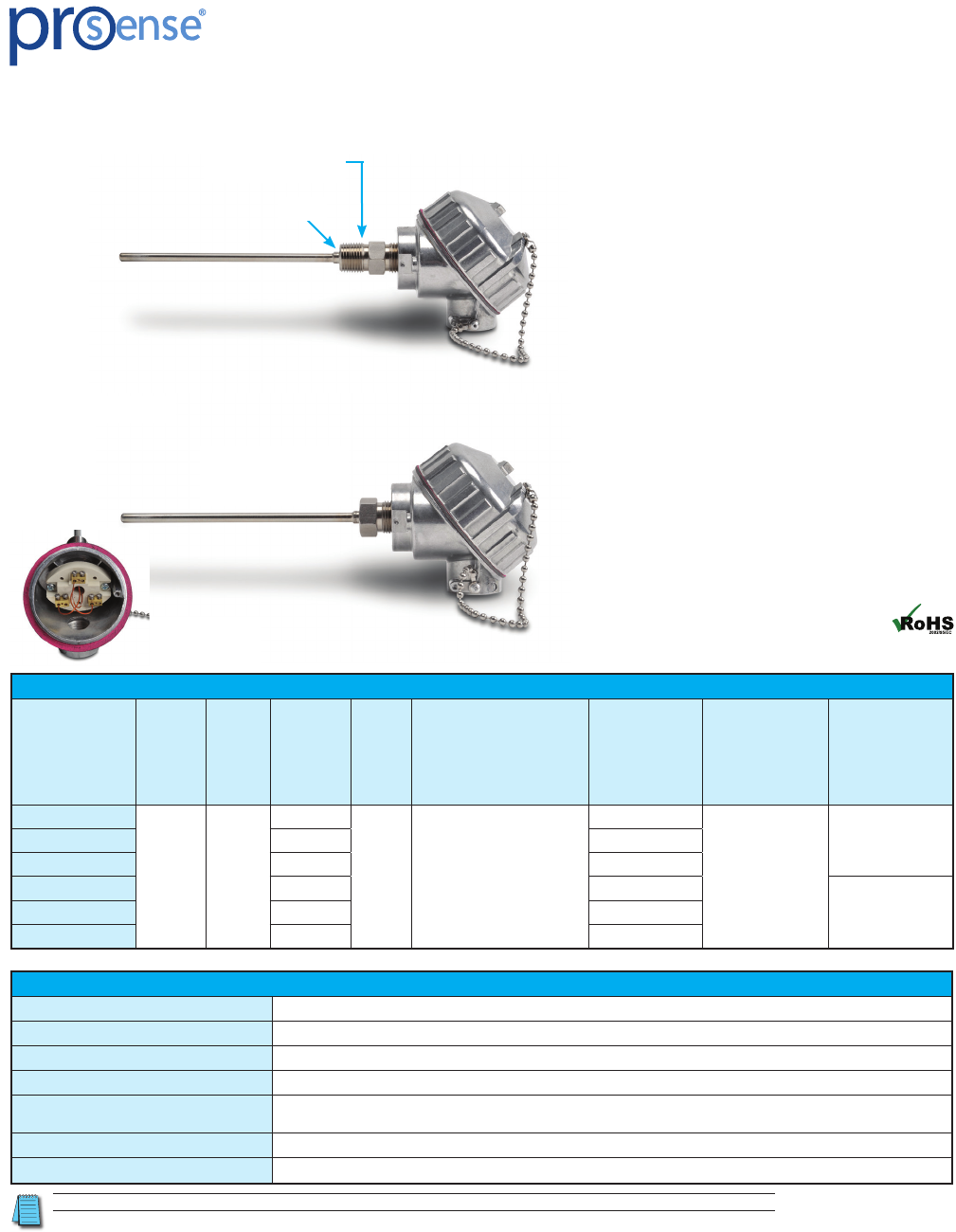

RTD Probes with Connection Head
Note: CheCk the ChemiCal Compatibility of the seNsor’s wetted parts with the medium to be measured.
RTD Probes with Connection Head
Part Number Pcs/Pkg Wt (lb) Price RTD
Type Probe Diameter (O.D.) Probe Length Temperature
Sensing Range Mounting
RTD1-C06-01
11.3
$71.00
PT 100,
3-wire 1/4”
6”
-50 to 300°C
(-58 to 572°F)
Integral 1/2” x 1/2” NPT
Hex Nipple,
316 SS
RTD1-C12-01 $73.00 12”
RTD1-C18-01 $76.00 18”
RTD1-C06-02 $66.00 6” ProSense compression
fitting (see accessories -
purchased separately)
RTD1-C12-02 $68.00 12”
RTD1-C18-02 $71.00 18”
Technical Specifications
Sensing Element Single 100 ohm platinum (Pt 100), 3-wire; TCR = 0.00385 ohm/ohm/°C
Initial Accuracy Class A w[0.15 +0.002 |t|] °C
Probe ø1/4”, 316 stainless steel sheath, single RTD is embedded in alumina powder
Minimum Installation Depth 3” (76 mm)
Connection Head Die-cast aluminum, screw cover with stainless steel chain, compressed graphite gasket, NEMA 4X, IP66, 3/4” NPT conduit opening, max
temp. 400°F (204°C)
Response Time 7 seconds, 63% of a 25 to 77°C step change (ASTM E1137)
Wiring Ceramic terminal base with brass terminals and stainless steel screws (recommended tightening torque 3-4 lb-in)
Weld
Open head
RTD1-CXX-01
RTD1-CXX-02
1/2” x 1/2” NPT Hex
Nipple
Use ProSense
Compression Fittings
for Mounting
Overview
• All temperature sensors are pre-built stock items
- 100 ohm platinum RTD 3-wire element
- Class A accuracy
- 1/4” diameter, 316 SS sealed sheath to protect
against harsh environments
- RTD element encased in alumina powder insulation
provides excellent vibration dampening and heat
transfer
- 6”, 12” or 18” probe length
• Connection Head
- Cast aluminum NEMA 4X, IP66 screw cover
head with gasket
- One turn cover removal & installation eliminates
cross threading and saves time
- 3/4 NPT conduit opening with internal stop to
prevent overtightening and installation damage
- Gripping ribs on cover edge
- Stainless steel cover chain
• Wiring
- Ceramic terminal base
- Brass terminals with stainless steel screws eliminate
the need to wrap connections around screws
- Elevated terminal block for easy wire
termination
• Made in the USA
1-800-633-0405
eTE-46 Temperature Sensors
Book 2 (14.3)
For the latest prices, please check AutomationDirect.com.
RTD Probes with Connection Head
RTD1-CXX-02
RTD1-CXX-01
Accessories
Part No. Description Pcs/Pkg Price
BCF14-125N Compression fitting, brass, for 1/4 inch diameter temperature probes,1/8 inch NPT male thread 1$2.50
BCF14-25N Compression fitting, brass, for 1/4 inch diameter temperature probes,1/4 inch NPT male thread 1$3.00
BCF14-50N Compression fitting, brass, for 1/4 inch diameter temperature probes,1/2 inch NPT male thread 1$4.50
CF14-125N Compression fitting, 316 stainless steel, for 1/4 inch diameter temperature probes,1/8 inch NPT male thread 1$6.25
CF14-25N Compression fitting, 316 stainless steel, for 1/4 inch diameter temperature probes,1/4 inch NPT male thread 1$7.25
CF14-50N Compression fitting, 316 stainless steel, for 1/4 inch diameter temperature probes,1/2 inch NPT male thread 1$10.75
CFTF-14 Teflon ferrule for brass or stainless steel compression fittings and 1/4 diameter temperature probes 5$6.50
Note: RTD extension lead wire available at the end of this section.
See end of section for full listing of accessories and dimension information.
Wiring Information
• Ignore polarity marks
on terminal base
• Recommended screw
terminal tightening
torque 3-4 lb-in
White tracer
Red tracer
Red tracer
White tracer
Red tracer
Red
tracer

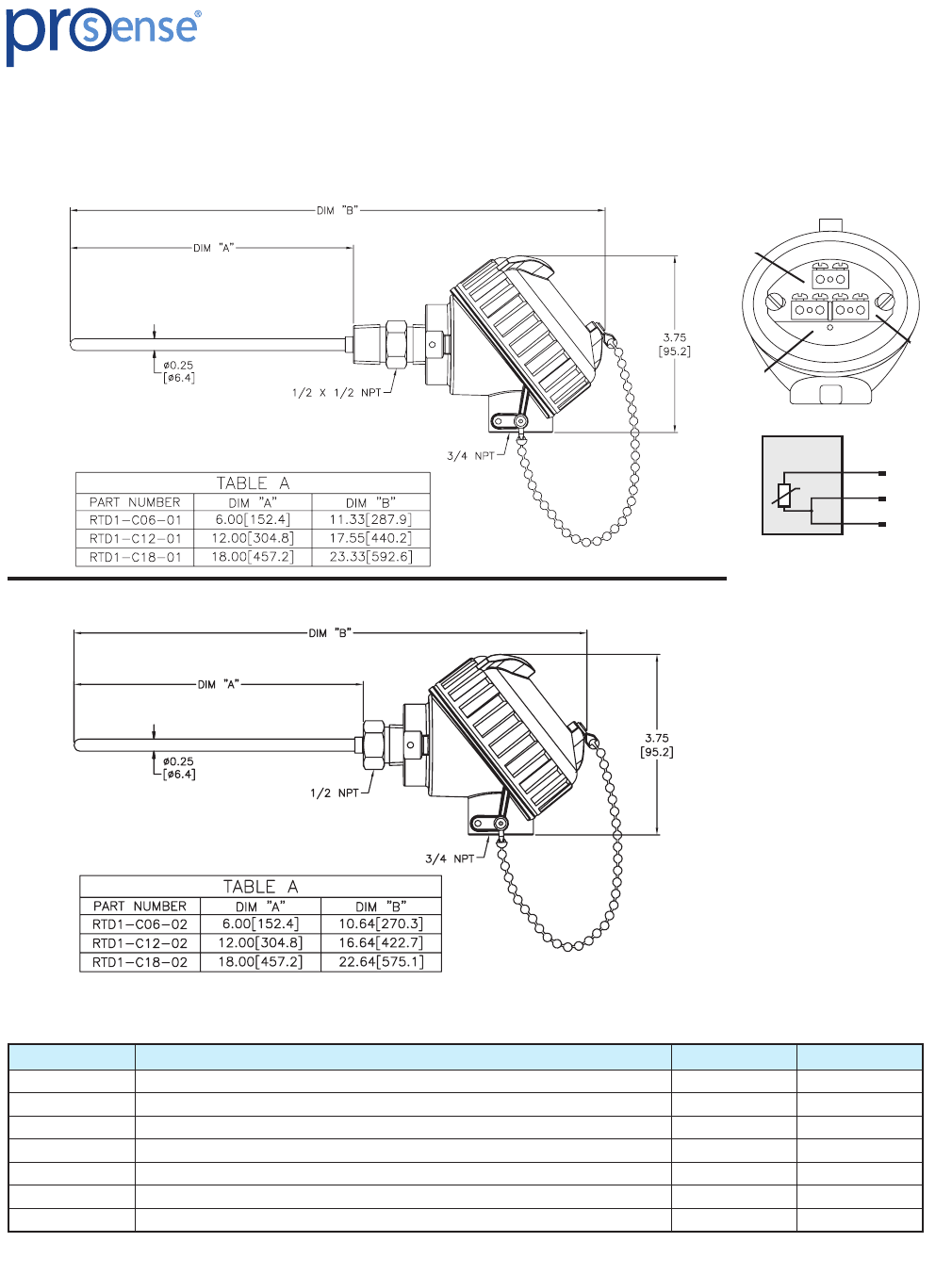

Dimensions
inches [mm]
www.automationdirect.com/temperature-sensors Temperature Sensors eTE-47
Book 2 (14.3)
For the latest prices, please check AutomationDirect.com.

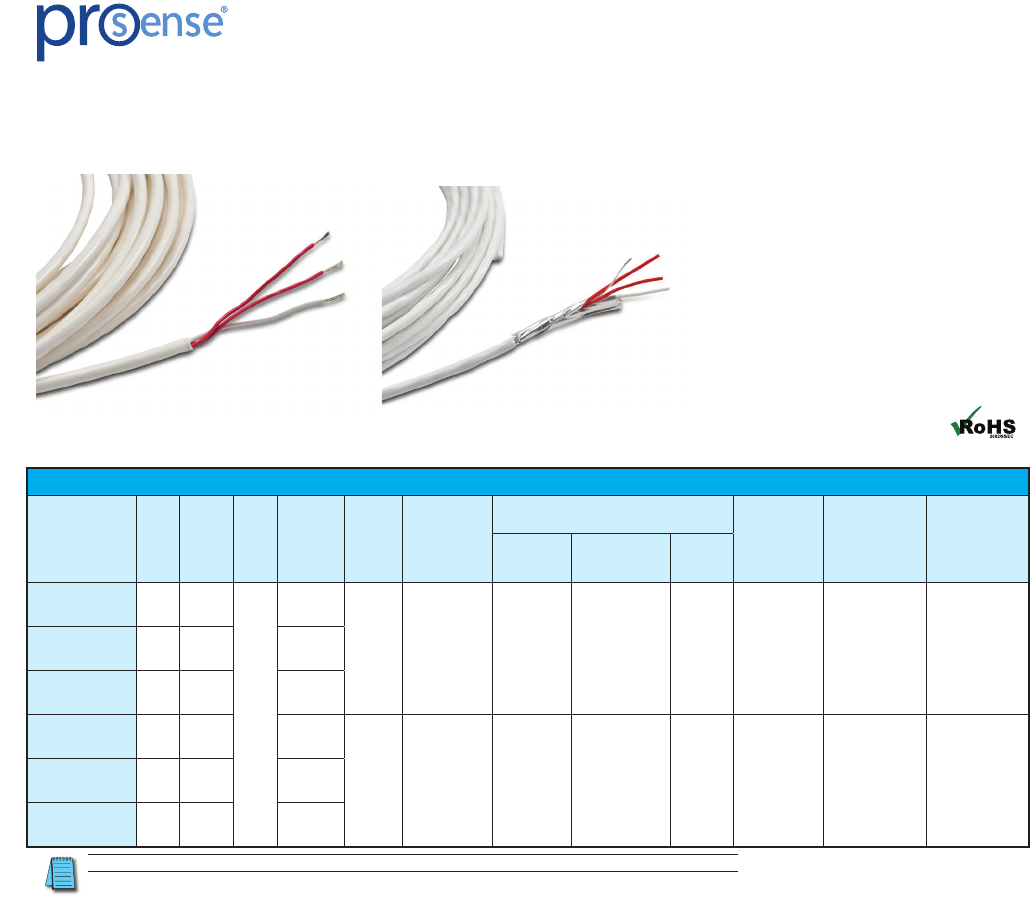

RTD Extension Wire
Overview
• Specialized construction for use as RTD
extension wire offers superior perfor-
mance compared to “off-the-shelf” cable
• Available insulation types include PVC
and FEP Teflon with aluminum Mylar
shield and copper drain wire
• Convenient 50, 100 and 200 foot lengths
RTD Extension Wire
Part Number Wt
(lb) Price Type Length
(ft)/Pkg
Gauge,
AWG Conductors
Insulation Type / Color Ohms/Triple
Foot@68°F
(20°C)
Continuous
Temperature
Rating
Nominal Size
(inches)
Each
Conductor Inner Jacket Outer
Jacket
RTDW-50-01 0.9 $22.00
RTD
50
22 3, stranded
tinned copper PVC, 2 red,
1 white None PVC, white 0.044 -20°F to 221°F
(-29°C to 105°C) 0.160 O.D.
RTDW-100-01 1.5 $43.00 100
RTDW-200-01 3.0 $86.00 200
RTDW-50-02 0.9 $57.00 50
24 3, twisted,
stranded tinned
copper
FEP Teflon,
2 red, 1 white
Aluminum Mylar
shield and copper
drain wire
FEP Teflon,
white 0.066 -328°F to 400°F
(-200°C to 204°C) 0.150 O.D.
RTDW-100-02 1.5 $113.00 100
RTDW-200-02 3.0 $228.00 200
RTDW-XX-01 RTDW-XX-02
Note: maximum reCommeNded distaNCe betweeN rtd aNd CoNtrol deviCe is 300 feet.
1-800-633-0405
eTE-84 Temperature Sensors
Book 2 (14.3)
For the latest prices, please check AutomationDirect.com.

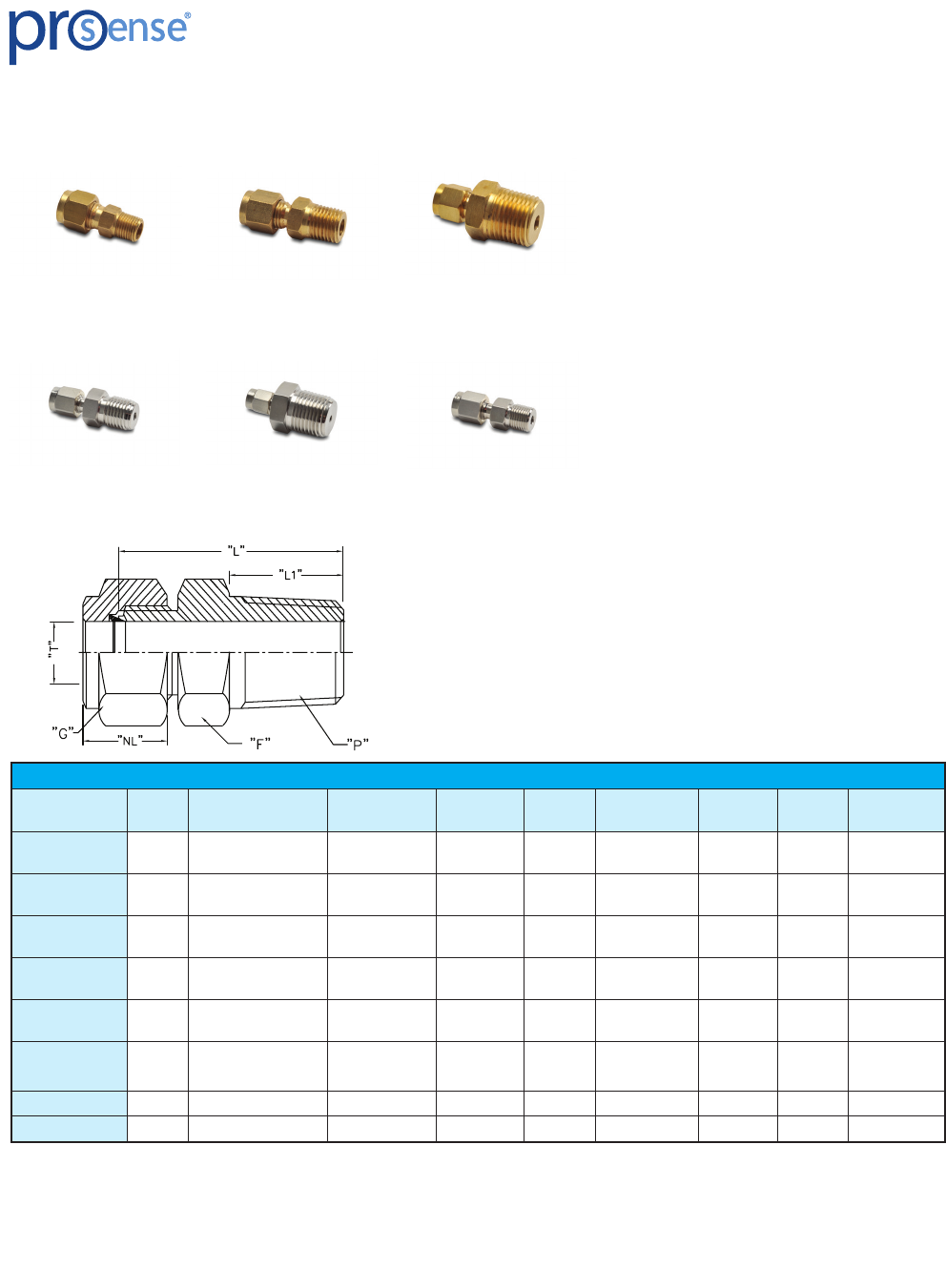

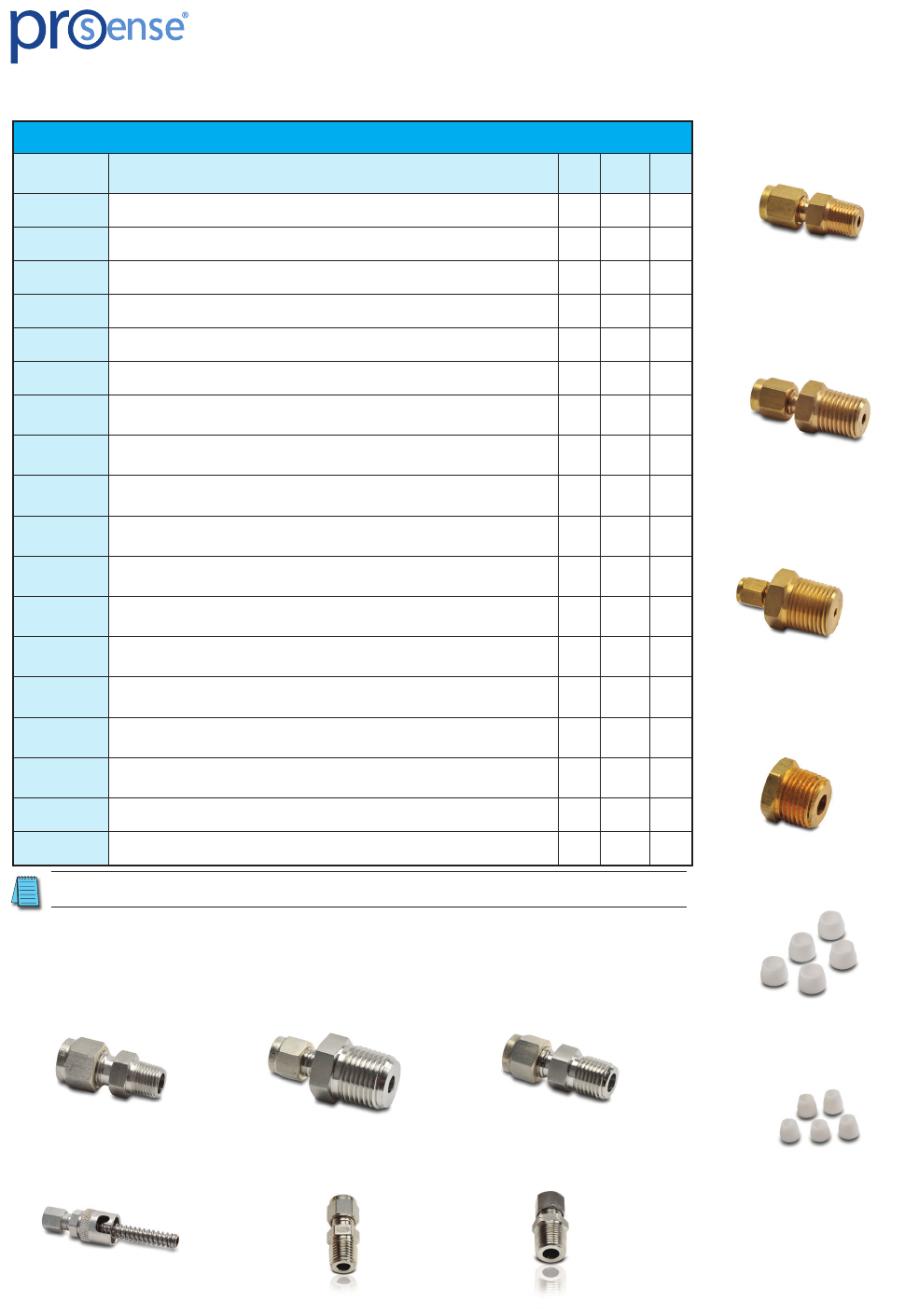

Compression Mounting Fittings
for Temperature Probes
Compression Mounting Fittings for Temperature Probes
Part Number Description Pcs/
Pkg Wt(lb) Price
BCF18-125N Compression fitting, brass, for 1/8 inch diameter temperature probes,1/8 inch NPT male thread 10.5 $2.50
BCF14-125N Compression fitting, brass, for 1/4 inch diameter temperature probes,1/8 inch NPT male thread 10.5 $2.50
BCF18-25N Compression fitting, brass, for 1/8 inch diameter temperature probes,1/4 inch NPT male thread 10.5 $3.00
BCF14-25N Compression fitting, brass, for 1/4 inch diameter temperature probes,1/4 inch NPT male thread 10.5 $3.00
BCF18-50N Compression fitting, brass, for 1/8 inch diameter temperature probes,1/2 inch NPT male thread 10.5 $4.50
BCF14-50N Compression fitting, brass, for 1/4 inch diameter temperature probes,1/2 inch NPT male thread 10.5 $3.00
CF18-125N Compression fitting, 316 stainless steel, for 1/8 inch diameter temperature probes,1/8 inch NPT
male thread 10.5 $6.25
CF14-125N Compression fitting, 316 stainless steel, for 1/4 inch diameter temperature probes,1/8 inch NPT
male thread 10.5 $6.25
CF18-25N Compression fitting, 316 stainless steel, for 1/8 inch diameter temperature probes,1/4 inch NPT
male thread 10.5 $7.25
CF14-25N Compression fitting, 316 stainless steel, for 1/4 inch diameter temperature probes,1/4 inch NPT
male thread 10.5 $7.25
CF18-50N Compression fitting, 316 stainless steel, for 1/8 inch diameter temperature probes,1/2 inch NPT
male thread 10.5 $10.75
CF14-50N Compression fitting, 316 stainless steel, for 1/4 inch diameter temperature probes,1/2 inch NPT
male thread 10.5 $10.75
CFTF-18 Teflon™ ferrule for brass or stainless steel compression fittings and 1/8 diameter
temperature probes 50.5 $6.00
CFTF-14 Teflon ferrule for brass or stainless steel compression fittings and 1/4 diameter
temperature probes 50.5 $6.50
CF06-25N 1/4 NPT stainless steel compression fitting for 0.24 inch (6 mm) diameter RTD probe with M12
connector. 10.18 $24.00
CF10-50N 1/2 NPT stainless steel compression fitting for 10 mm (0.4 inch) diameter RTD probe with M12
connector. 10.20 $25.00
CF18-BC Bayonet compression fitting, for 1/8” diameter probe sheath sensors 10.1 $8.00
BB125N-50N Reducing bushing, brass, 1/2 MNPT x 1/8 FNPT, hex head 10.1 $4.25
Note: CheCk the ChemiCal Compatibility of the seNsor’s wetted parts with the medium to
be measured.
BCF18-125N
BCF18-25N
BCF18-50N
CF14-125N CF14-25N
CF14-50N
CF18-BC
BB125N-50N
CF06-25N CF10-50N
CFTF-18
CFTF-14
* Working pressure of compression fitting should not exceed 500 psi. However we recommend
any pressure application use a thermowell
1-800-633-0405
eTE-86 Temperature Sensors
Book 2 (14.3)
For the latest prices, please check AutomationDirect.com.
Note: Once the compression fitting has been fully tightened on the probe, the ferrule will be locked onto the
probe and cannot be removed or reused.
* Working pressure of compression fitting should not exceed 500 psi. However we recommend any pressure
application use a thermowell
Compression Mounting Fittings
for Temperature Probes
ProSense Compression Fittings
Part No. Weight
(lb) Description “T” Tube O.D. “P” NPT(M) “L” Body
Length*
“L1” Thread
Length**
“F” Body
Hex**
“G” Nut
Hex**
“NL” Nut
Length**
BCF18-125N/
CF18-125N 0.5 1/8” OD x 1/8” NPT(M) 0.128/0.132 1/8” NPT(M) 0.909” 0.393” 0.5” 0.433” 0.492”
BCF14-125N/
CF14-125N 0.5 1/4” OD x 1/8” NPT(M) 0.253/0.257 1/8”NPT(M) 1.0” 0.393” 0.5” 0.559” 0.5”
BCF18-25N/
CF18-25N 0.5 1/8” OD x 1/4” NPT(M) 0.128/0.132 1/4” NPT(M) 1.114” 0.551” 0.551” 0.433” 0.492”
BCF14-25N/
CF14-25N 0.5 1/4” OD x 1/4” NPT(M) 0.253/0.257 1/4” NPT(M) 1.188” 0.551” 0.551” 0.559” 0.5”
BCF18-50N/
CF18-50N 0.5 1/8” OD x 1/2” NPT(M) 0.128/0.132 1/2” NPT(M) 1.377” 0.748” 0.866” 0.433” 0.492”
BCF14-50N/
CF14-50N 0.5 1/4” OD x 1/2” NTP(M) 0.253/0.257 1/2” NPT(M) 1.437” 0.748” 0.866” 0.559” 0.5”
CF06-25N 0.18 6 mm OD x 1/4” NPT(M) 0.236/0.240 1/4” NPT(M) 1.174” 0.59” 0.67” 0.55” 0.587”
CF10-50N 0.20 10 mm OD x 1/2” NPT(M) 0.394/0.399 1/2” NPT(M) 1.458” 0.55” 1.06” 0.75” 0.608”
Note: All dimensions are in inches
* w 0.07
** w 0.03
Note: All threaded connections should
be hand tightened and then turned 1 to
2 full turns for proper sealing.
BCF14-125N BCF14-25N BCF14-50N
CF18-125N
CF18-25N CF18-50N
Dimensions
Actual torque required for a proper seal of NPT threads
is influenced by tolerance, sealant, lubricant, etc.
www.automationdirect.com/temperature-sensors Temperature Sensors eTE-87
Book 2 (14.3)
For the latest prices, please check AutomationDirect.com.

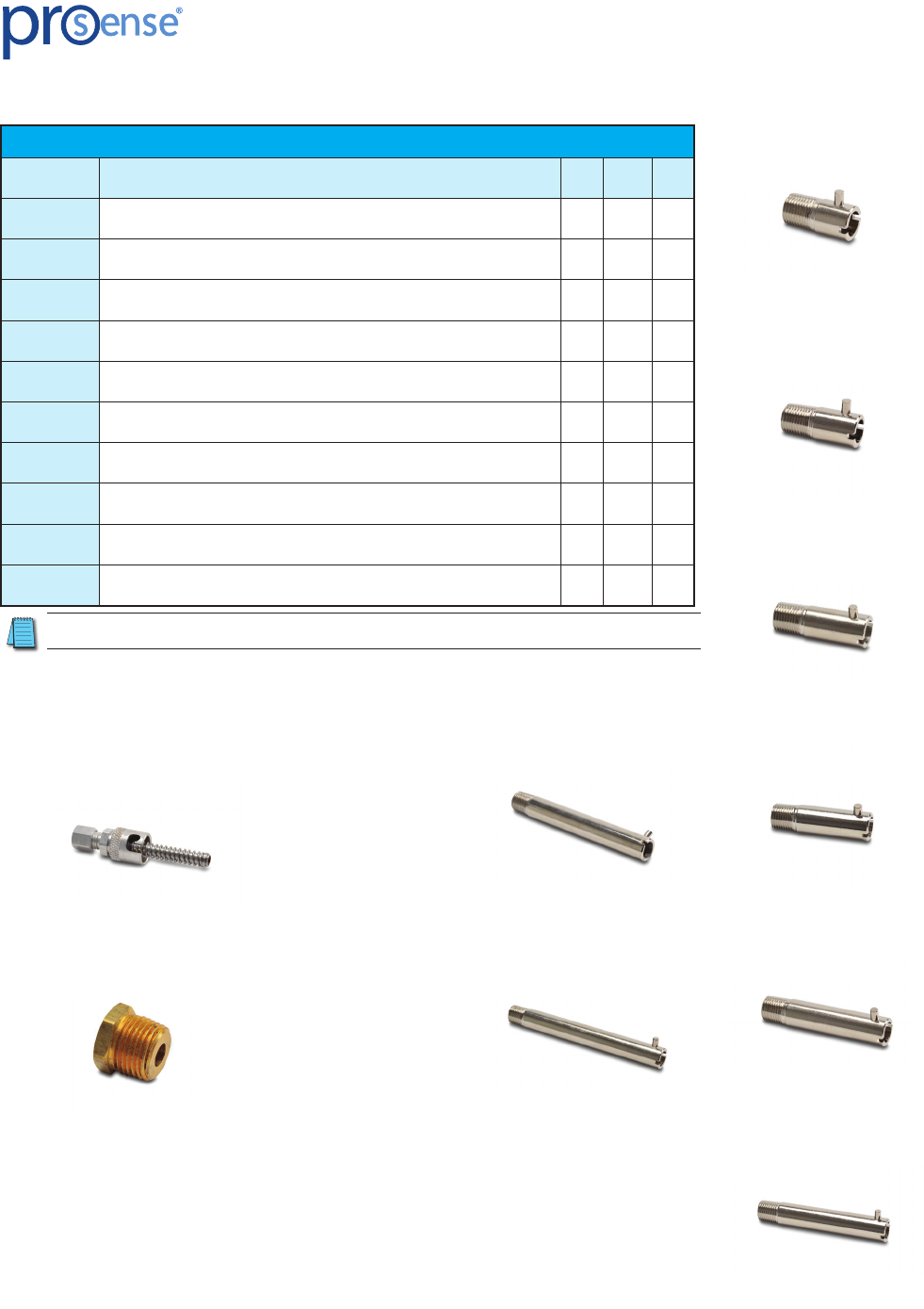

Bayonet Mounting Adapter for Temperature Sensors
Part Number Description Pcs/
Pkg Wt(lb) Price
BA-078 Bayonet adapter, 7/8 inch long, 7/16 inch outside diameter, 9/32 inch inside diameter, 1/8 inch
MNPT 10.5 $1.25
BA-100 Bayonet adapter, 1 inch long, 7/16 inch outside diameter, 9/32 inch inside diameter, 1/8 inch
MNPT 10.5 $1.25
BA-114 Bayonet adapter, 1-1/4 inch long, 7/16 inch outside diameter, 9/32 inch inside
diameter, 1/8 inch MNPT 10.5 $1.50
BA-112 Bayonet adapter, 1-1/2 inch long, 7/16 inch outside diameter, 9/32 inch inside
diameter,1/8 inch MNPT 10.5 $1.75
BA-200 Bayonet adapter, 2 inch long, 7/16 inch outside diameter, 9/32 inch inside diameter, 1/8 inch
MNPT 10.5 $2.00
BA-212 Bayonet adapter, 2-1/2 long, 7/16 inch outside diameter, 9/32 inch inside diameter, 1/8 inch
MNPT 10.5 $2.25
BA-300 Bayonet adapter, 3 inch long, 7/16 inch outside diameter, 9/32 inch inside diameter, 1/8 inch
MNPT 10.5 $2.50
BA-312 Bayonet adapter, 3-1/2 long, 7/16 inch outside diameter, 9/32 inch inside diameter, 1/8 inch
MNPT 10.5 $2.75
CF18-BC Adjustable bayonet compression fitting, for 1/8” diameter probe sheath sensors 10.1 $8.00
BB125N-50N Reducing bushing, brass, 1/2 MNPT x 1/8 FNPT, hex head 10.1 $4.25
Note: CheCk the ChemiCal Compatibility of the seNsor’s wetted parts with the medium to be
measured.
Bayonet Mounting Adapter for
Temperature Sensors
BA-078
BA-100
BA-114
BA-112
BA-200
BA-212
CF18-BC
BB125N-50N
BA-300
BA-312
1-800-633-0405
eTE-88 Temperature Sensors
Book 2 (14.3)
For the latest prices, please check AutomationDirect.com.
Pipe Clamp Adapters for ProSense Adjustable Immersion Sensors
Part Number Description Pcs/
Pkg Wt(lb) Price
PCA-125 ProSense pipe clamp adapter, 1-1/16 to 1-1/4 inch adjustable diameter, 2-inch attached bayonet
adapter with 7/16 inch outside diameter and 9/32 inch inside diameter. Use with Prosense
adjustable immersion sensors. 10.1 $14.00
PCA-200 ProSense pipe clamp adapter with 1-1/16 to 2 inch adjustable diameter, 2-inch attached bayonet
adapter with 7/16 inch outside diameter and 9/32 inch inside diameter. Use with Prosense
adjustable immersion sensors. 10.1 $12.00
PCA-300 ProSense pipe clamp adapter with 2-1/16 to 3 inch adjustable diameter, 2-inch attached bayonet
adapter with 7/16 inch outside diameter and 9/32 inch inside diameter. Use with Prosense
adjustable immersion sensors. 10.1 $16.00
PCA-425 ProSense pipe clamp adapter with 3-5/16 to 4-1/4 inch adjustable diameter, 2-inch attached bay-
onet adapter with 7/16 inch outside diameter and 9/32 inch inside diameter. Use with Prosense
adjustable immersion sensors. 10.1 $17.00
PCA-500 ProSense pipe clamp adapter with 4-1/8 to 7 inch adjustable diameter, 2-inch attached bayonet
adapter with 7/16 inch outside diameter and 9/32 inch inside diameter. Use with Prosense
adjustable immersion sensors. 10.1 $17.00
Pipe Clamp Adapters
Overview
• For use with ProSense adjustable immersion thermo-
couple and RTD sensors
• Available in adjustable diameters from 1-1/16 to 7 inches
• Provides an easy means of sensing temperature on the
outside of a pipe
Dimensions
inches [mm]
PCA-300
Shown with optional adjustable immersion sensor
www.automationdirect.com/temperature-sensors Temperature Sensors eTE-89
Book 2 (14.3)
For the latest prices, please check AutomationDirect.com.

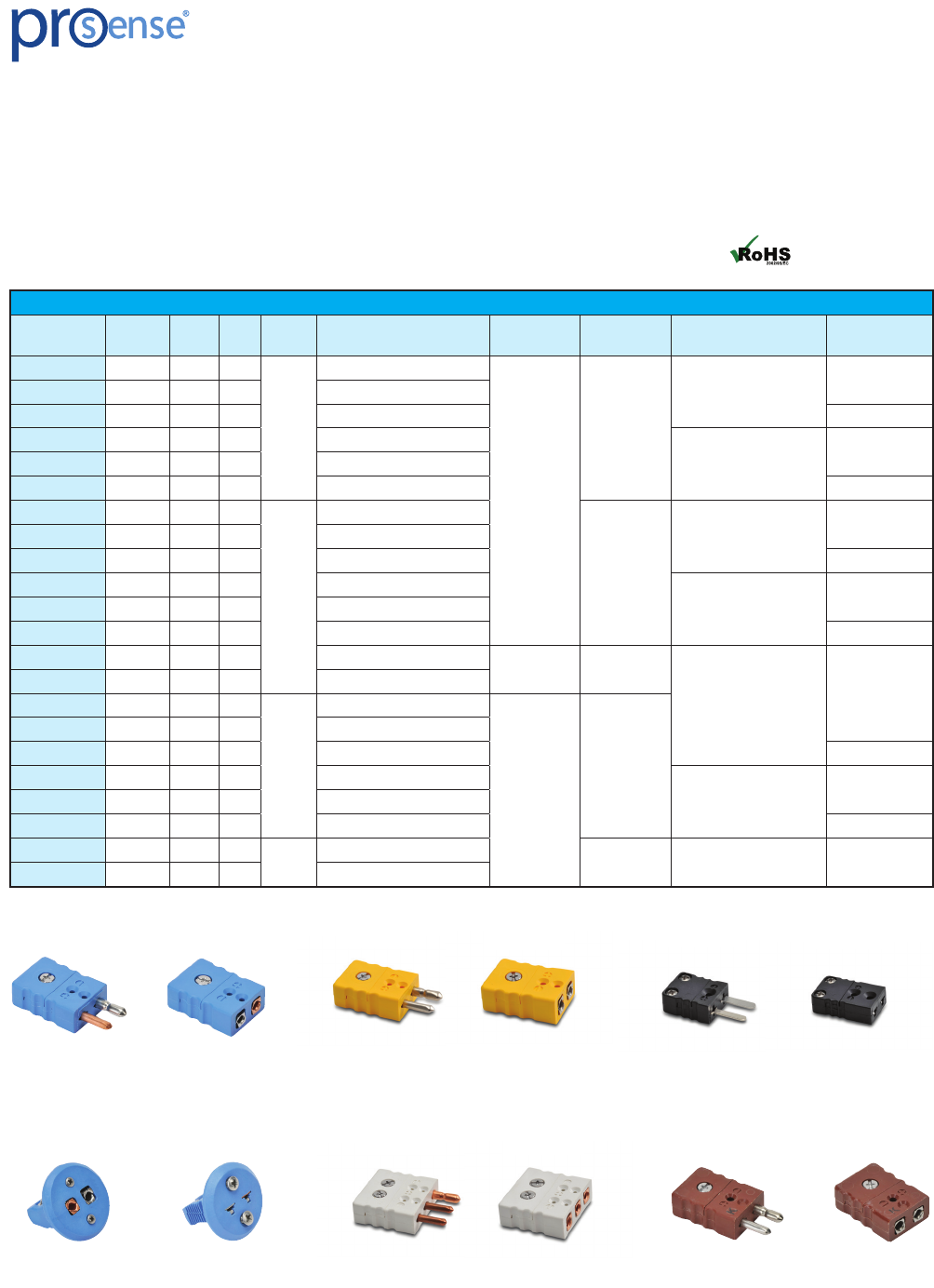

Overview
• Glass-filled high quality thermoplastic body with original
thermocouple material pins and spring-loaded inserts
• Polarized pins
• Molded barriers prevent short circuit
• Captive central cover screw for easy assembly
• Easy wire connection pressure plate
construction
• Stainless steel screws with combination head (Slotted
and Phillips)
• 3-pin standard connectors have a third pin for ground or
continuous shield, or for 3-wire RTDs
Thermocouple and RTD
Connectors
Thermocouple and RTD Connectors
Part Number Pcs/ Pkg Wt(lb) Price Sensor
Type Connector Type Temperature
Rating Body Color Wire Size Wire Cable
Clamp Bracket
THMJ-SP 10.5 $3.25
J
Standard round pin plug
Max continuous
400°F (200°C)
Black
32 AWG (0.2 mm) to 14 AWG
maximum (2.0 mm)
WCB-S
THMJ-SJ 10.5 $4.25 Standard round pin jack
THMJ-SPJ 10.5 $7.75 Standard round direct mount jack –
THMJ-MP 10.5 $3.00 Miniature flat pin plug
40 AWG (0.08 mm) to 20 AWG
maximum (0.8 mm)
WCB-M
THMJ-MJ 10.5 $3.50 Miniature flat pin jack
THMJ-MPJ 10.5 $5.00 Miniature round direct mount jack –
THMK-SP 10.5 $3.75
K
Standard round pin plug
Yellow
32 AWG (0.2 mm) to 14 AWG
maximum (2.0 mm)
WCB-S
THMK-SJ 10.5 $4.50 Standard round pin jack
THMK-SPJ 10.5 $7.50 Standard round direct mount jack –
THMK-MP 10.5 $3.25 Miniature flat pin plug
40 AWG (0.08 mm) to 20 AWG
maximum (0.8 mm)
WCB-M
THMK-MJ 10.5 $3.50 Miniature flat pin jack
THMK-MPJ 10.5 $5.50 Miniature round direct mount jack –
THMK-HSP 10.5 $8.50 Standard hi-temp round pin plug Max continuous
662°F (350°C) Brown
32 AWG (0.2 mm) to 14 AWG
maximum (2.0 mm)
WCB-S
THMK-HSJ 10.5 $10.00 Standard hi-temp round pin jack
THMT-SP 10.5 $3.50
T
Standard round pin plug
Max continuous
400°F (200°C)
Blue
THMT-SJ 10.5 $4.75 Standard round pin jack
THMT-SPJ 10.5 $7.50 Standard round direct mount jack –
THMT-MP 10.5 $3.25 Miniature flat pin plug
40 AWG (0.08 mm) to 20 AWG
maximum (0.8 mm)
WCB-M
THMT-MJ 10.5 $3.75 Miniature flat pin jack
THMT-MPJ 10.5 $5.75 Miniature round direct mount jack –
RTD-SP 10.5 $6.50 RTD Standard round pin plug White 32 AWG (0.2 mm) to 14 AWG
maximum (2.0 mm) WCB-S
RTD-SJ 10.5 $8.50 Standard round pin jack
THMT-SP THMT-SJ THMK-SP THMK-SJ THMJ-MP THMJ-MJ
THMT-SPJ THMT-MPJ RTD-SP RTD-SJ THMK-HSP THMK-HSJ
1-800-633-0405
eTE-90 Temperature Sensors
Book 2 (14.3)
For the latest prices, please check AutomationDirect.com.

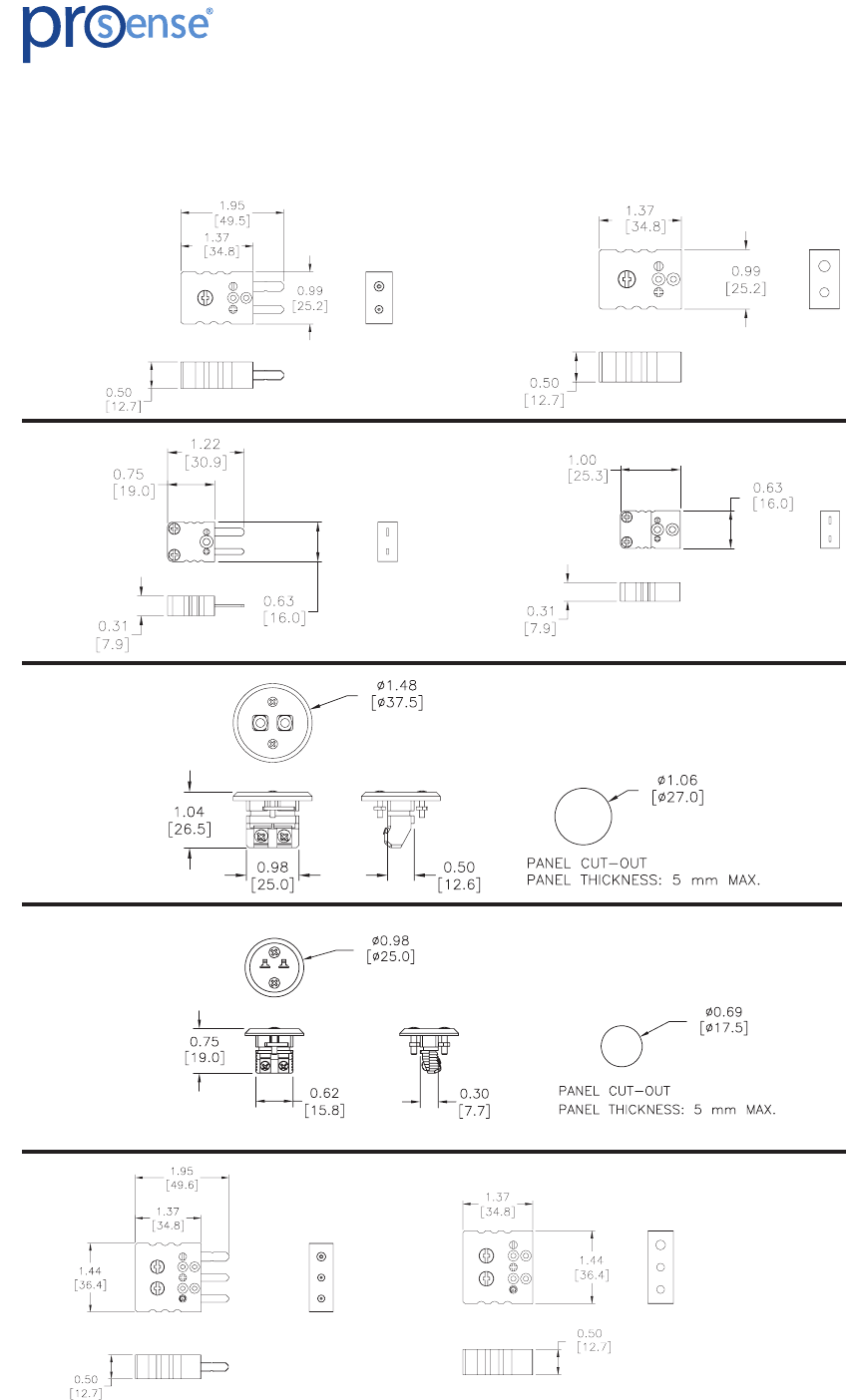

Thermocouple and RTD
Connectors
THMJ, K, T, & H-SJTHMJ, K, T, & H-SP
THMJ, K, & T-MJ
THMJ, K, & T-MP
RTD-SJRTD-SP
THMJ, K, & T-SPJ
THMJ, K, & T-MPJ
Dimensions
inches [mm]
www.automationdirect.com/temperature-sensors Temperature Sensors eTE-91
Book 2 (14.3)
For the latest prices, please check AutomationDirect.com.
Thermocouple and RTD
Connectors

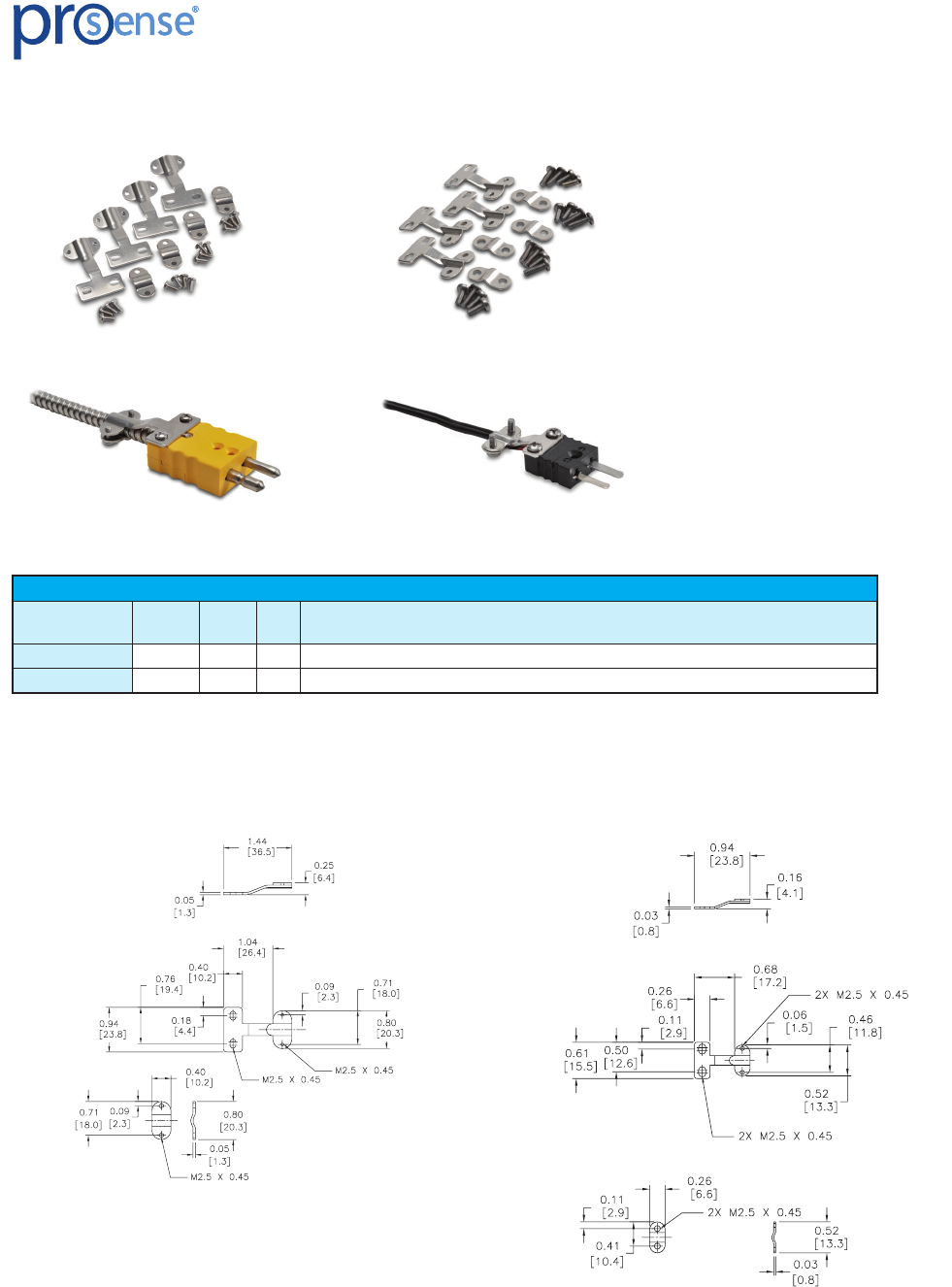

WCB-S WCB-M
Thermocouple and RTD Connectors Accessories
Part Number Pcs/ Pkg Wt(lb) Price Description
WCB-S 40.5 $5.00 Wire / cable clamp bracket for use with standard thermocouple and RTD connectors.
WCB-M 40.5 $5.00 Wire / cable clamp bracket for use with miniature thermocouple connectors.
WCB-S WCB-M
WCB-S Application WCB-M Application
Dimensions
inches [mm]
1-800-633-0405
eTE-92 Temperature Sensors
Book 2 (14.3)
For the latest prices, please check AutomationDirect.com.
Thermocouple and RTD
Temperature Range
Thermocouple Temperature Range
THMK-C06-04
32 to 2100°F (0 to 1149°C)
THMK-C12-04
THMK-C18-04
THMK-H06L01-03
THMK-H12L01-03
THMK-H18L01-03
THMK-T06L06-03 32 to 2100°F (0 to 1149°C)
lead wire transition rated to
204°C (400°F)
THMK-T12L06-03
THMK-T18L06-03
TTD25C-20-0300F-H 0 to 300°F (-17.8 to 148.9°C)
TTD25N-20-0300F-H
THMJ-A01L04-01
32 to 900°F (0 to 482°C)
THMJ-A01L06-01
THMJ-A01L10-01
THMJ-A01L10-02
THMJ-B01L06-01
THMJ-B01L06-02
THMJ-B02L06-01
THMJ-B02L06-02
THMJ-D08L04-01
THMJ-D08L06-01
THMJ-D08L10-01
THMJ-D08L10-02
THMK-A01L04-01
THMK-A01L06-01
THMK-A01L10-01
THMK-A01L10-02
THMK-B01L06-01
THMK-B01L06-02
THMK-D08L04-01
THMK-D08L06-01
THMK-D08L10-01
THMK-D08L10-02
THMJ-T06L06-01 32 to 970°F (0 to 521°C), lead
wire transition rated to 400 °F
(204 °C)
THMJ-T12L06-01
THMJ-T18L06-01
THMJ-P06-01 32 to 970°F (0 to 521°C), plug
rated to 400 °F (204 °C)
THMJ-P12-01
THMJ-P18-01
THMJ-C04-03
32 to 1330°F (0 to 720°C)
THMJ-C04R-03
THMJ-C06-01
THMJ-C06-02
THMJ-C06-03
THMJ-C06R-03
THMJ-C12-01
THMJ-C12-02
THMJ-C12-03
THMJ-C12R-03
THMJ-C18-01
THMJ-C18-02
THMJ-H04L01-02
THMJ-H06L01-01
THMJ-H06L01-02
THMJ-H12L01-01
THMJ-H12L01-02
THMJ-H18L01-01
Thermocouple Temperature Range
THMJ-T06L06-02 32 to 1330°F (0 to 720°C)
lead wire transition rated to
400 °F (204 °C)
THMJ-T12L06-02
THMJ-T18L06-02
THMJ-P06-02 32 to 1330°F (0 to 720°C)
plug rated to 400 °F (204 °C)
THMJ-P12-02
THMJ-P18-02
THMK-C04-03
32 to 1700°F (0 to 927°C)
THMK-C04R-03
THMK-C06-01
THMK-C06-02
THMK-C06-03
THMK-C06R-03
THMK-C12-01
THMK-C12-02
THMK-C12-03
THMK-C12R-03
THMK-C18-01
THMK-C18-02
THMK-H04L01-02
THMK-H06L01-01
THMK-H06L01-02
THMK-H12L01-01
THMK-H12L01-02
THMK-H18L01-01
THMK-T06L06-01
32 to 1700°F (0 to 927°C)
lead wire transition rated to
400 °F (204 °C)
THMK-T06L06-02
THMK-T12L06-01
THMK-T12L06-02
THMK-T18L06-01
THMK-T18L06-02
THMK-P06-01
32 to 1700°F (0 to 927°C)
plug rated to 400 °F (204 °C)
THMK-P06-02
THMK-P12-01
THMK-P12-02
THMK-P18-01
THMK-P18-02
THMK-B02L06-01 32° to 900°F (0° to 482°C)
THMK-B02L06-02
THMT-P06-01 -328 to 700°F (-200 to
371°C) plug rated to 400 °F
(204 °C)
THMT-P12-01
THMT-P18-01
THMT-T06L06-01 -328 to 700°F (-200 to
371°C), lead wire transition
rated to 400 °F (204 °C)
THMT-T12L06-01
THMT-T18L06-01
TTD25C-20-0100C-H 32 to 212°F (0 to 100°C)
TTD25N-20-0100C-H
TSD25N-0P-0284-H -4 to 284°F (-20 to 140°C)
TSD25N-AP-0284-H
RTD Temperature Range
RTD1-R01-01 40 to 185°F (-40 to 85°C)
RTD1-S04-01
-58 to 572°F (-50 to 300°C)
RTD1-S04-02
RTD1-S04-03
RTD1-S04-04
RTD1-B01L06-01
RTD1-B02L06-01
RTD1-C04-03
RTD1-C04R-03
RTD1-C06-01
RTD1-C06-03
RTD1-C06R-03
RTD1-C12-01
RTD1-C12-02
RTD1-C12-03
RTD1-C12R-03
RTD1-C18-01
RTD1-C18-02
RTD1-H04L01-02
RTD1-H06L01-01
RTD1-H06L01-02
RTD1-H12L01-01
RTD1-H12L01-02
RTD1-H18L01-01
RTD1-P06-01 -58 to 572°F (-50 to 300°C)
Plug rated to 400°F (204°C)
RTD1-P12-01
RTD1-P18-01
RTD1-D08L10-01
-58 to 572°F (-50 to 300°C),
lead wire transition rated to
400°F (204°C)
RTD1-T06L06-01
RTD1-T12L06-01
RTD1-T18L06-01
J, K, & T Thermocouple Color Code
J
White +
Red -
K
Yellow +
Red -
T
Blue +
Red -
www.automationdirect.com/temperature-sensors Temperature Sensors eTE-93
Book 2 (14.3)

Navigation menu
