RayPak RP2100 Heater Owner's Manual RoyalSwimmingPools.com RP2100, P R185A, R405A, C R405A

User Manual: RP2100, P-R185A, P-R405A, C-R185A, P-R405A

Open the PDF directly: View PDF .
Page Count: 43

Part No. 240612

CATALOG NO. 6000.52-Z

Effective: 11-01-01

Replaces: 08-01-01

INSTALLATION

AND OPERATING

INSTRUCTIONS

Models

P-R185A to P-R405A

C-R185A to P-R405A

Low NOx

P-R185AL to P-R405AL

C-R185AL to C-R405AL

RP2100

SWIMMING POOL

and

SPA HEATER

This manual should be maintained in legible condition and kept adjacent to the

heater or kept in a safe place for future reference.

WARNING: If the information in these instructions are not followed exactly, a fire or

explosion may result causing property damage, personal injury or death.

—WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor's phone. Follow the gas

supplier's instructions.

• If you cannot reach your gas supplier, call the fire department.

—Installation and service must be performed by a qualified installer, service agency or

the gas supplier.

—Do not store or use gasoline or other flammable vapors and liquids in the vicinity of

this or any other appliance.

TO WHOM IT MAY CONCERN:

The new Raypak series RP2100 pool heaters have been designed to eliminate

the need for conventional heat sinks (high temperature piping). The initial

connection to the heater is made with a 2" PVC union adapter to which PVC

may then be connected with appropriate cement.

This newly authorized piping arrangement is described in the installation

manual provided by Raypak, and has been successfully tested by Raypak to

assure its acceptability.

Larry J. Ashton, P.E.

Vice President of Engineering

and Technical Services

CONTENTS

4 PART ONE

OWNER'S OPERATING INSTRUCTIONS

4 SECTION 1

START-UP PROCEDURES

4 Before Start-Up

5 Lighting Instructions & Shut-Off Procedure

(Manually Lighted Pilot MV)

6 Operating Instruction & Shut-Off Procedures

(Automatically Lighted Pilot IID)

7 After Start-Up

7 SECTION 2

CAUTION

7 SECTION 3

MAINTENANCE & CARE PROCEDURE

8 Pool & Spa Water Chemistry

8 Cold Weather Operation

9 Winterizing the Pool & Spa Heater

9 PART TWO

INSTALLATION/SERVICE INSTRUCTIONS

9SECTION 1

RECEIVING EQUIPMENT

9 SECTION 2

GENERAL SPECIFICATIONS

10 SECTION 3

INSTALLATION INSTRUCTIONS

12 Indoor Heater

13 Combustion Air

14 Vent Piping

14 Gas Supply Connections

15 Plumbing For Water Connections

18 RP2100 Heat Exchanger Reversal Procedure

20 Electrical Wiring

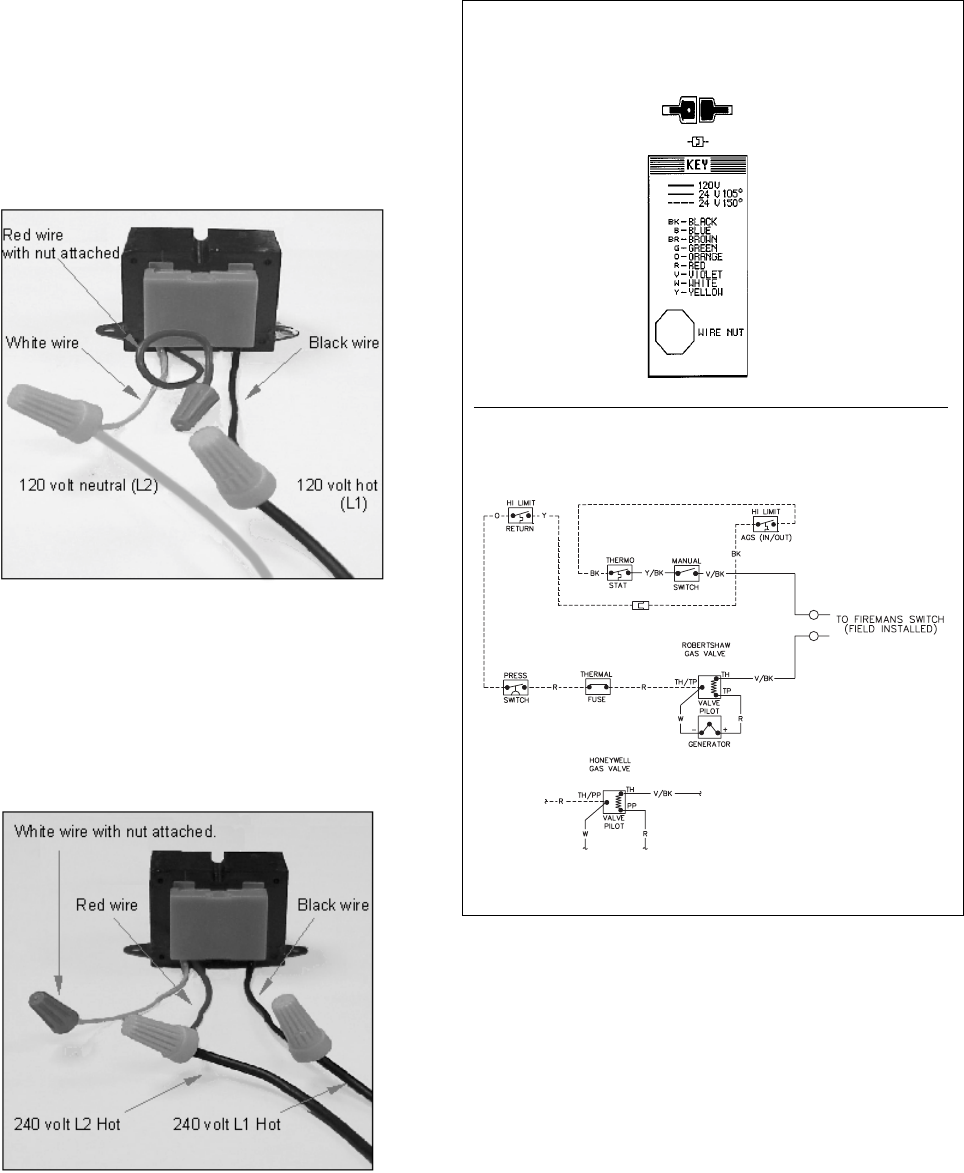

21 Wiring Diagram-Millivolt

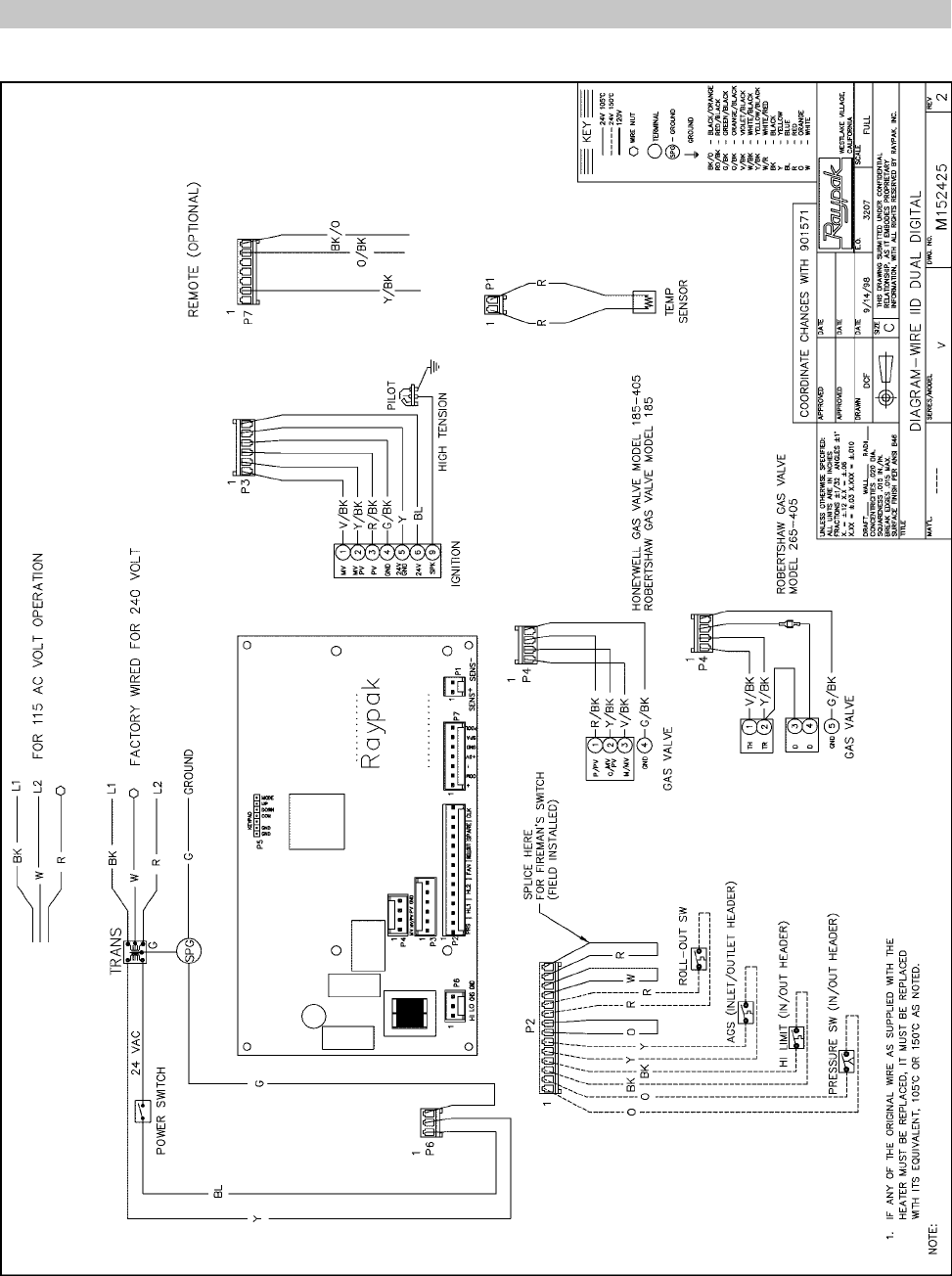

22 Wiring Diagram-Electronic Ignition

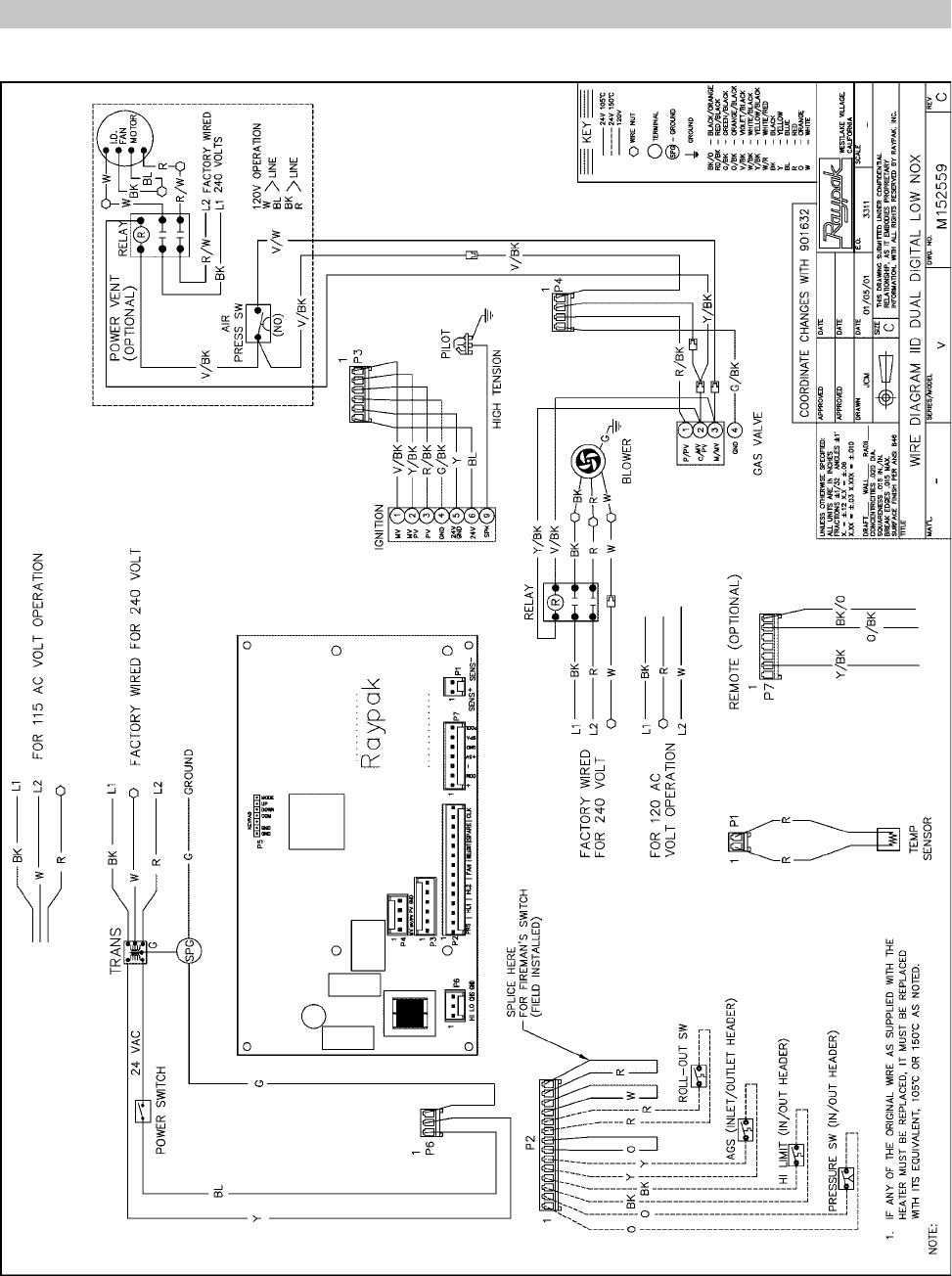

23 Wiring Diagram- Low NOx

24 SECTION 4

SERVICING INSTRUCTIONS

24 General Location of Controls

24 Control Adjustments/Replacements

25 Electronic Controls

26 Remote Control Installation

27 Pressure Switch Adjustment

27 Flame Roll-Out Safety Switch

27 High Limit Removal

27 Pilot Safety Millivolt and IID

28 Burner Drawer Removal

27 Gas Valve Removal

27 Main Burner and Orifice Removal

27 Pilot Removal and Cleaning

28 Heat Exchanger Removal

29 Tube Cleaning Procedure

29 Desooting Procedure

29 Control Immersion Well replacement

29 Unitherm Governor (U.G.) Replacement

30 Low Nox Addenda

32 SECTION 5

TROUBLE SHOOTING GUIDE

32 Mechanical

33 Electrical MV Units

34 Electrical IID Units

35 Digital Diagnostics

36 SECTION 6

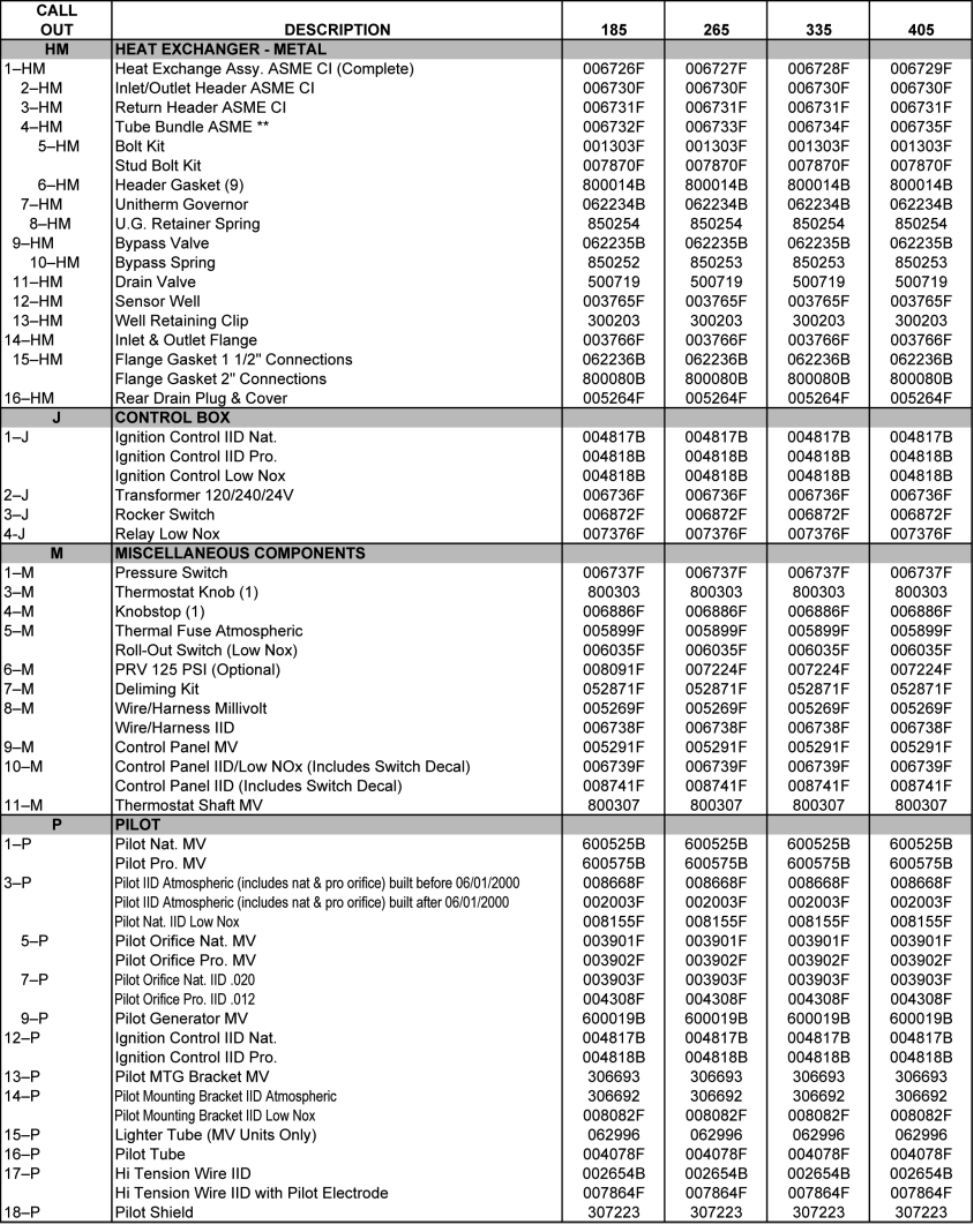

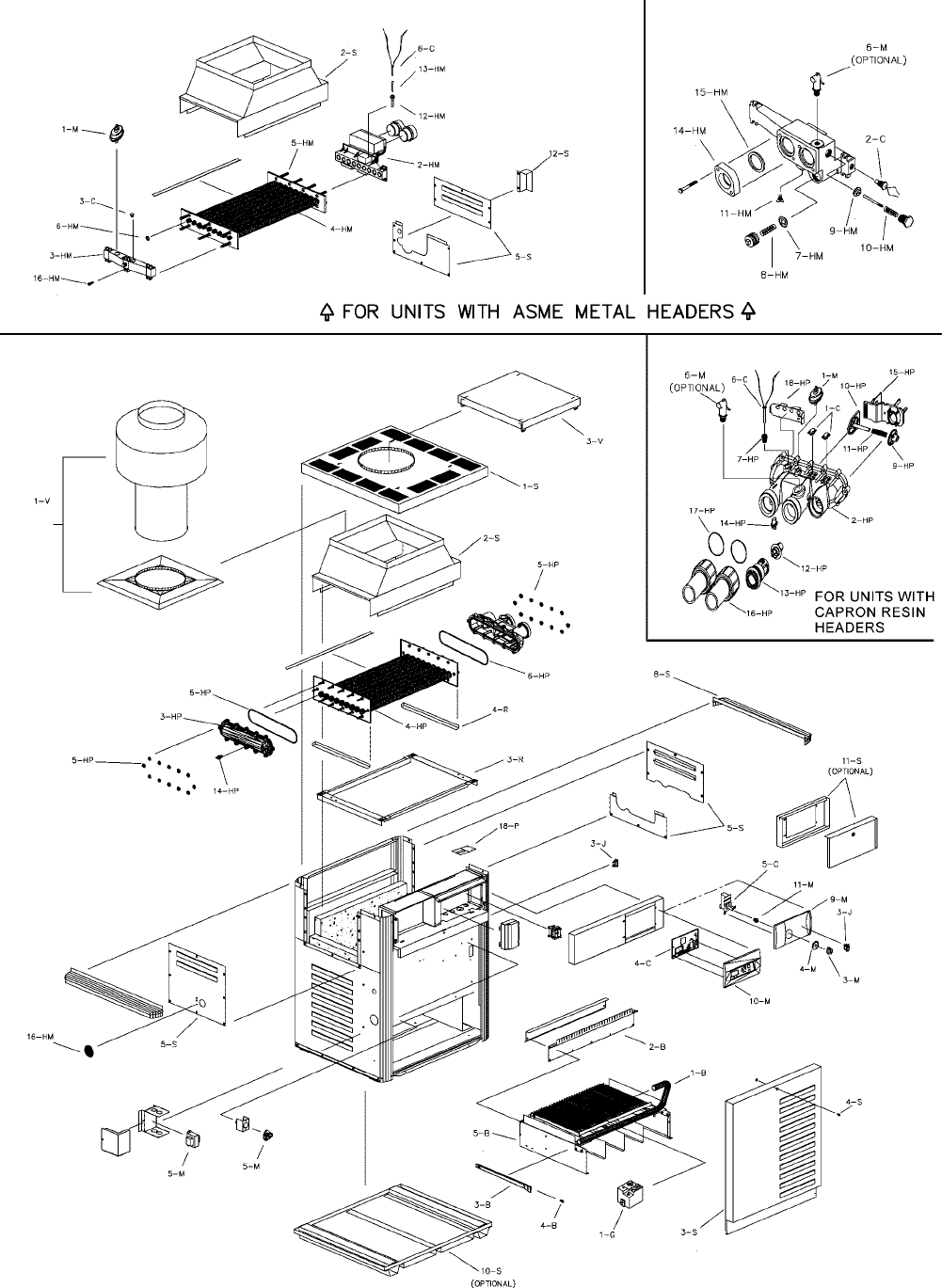

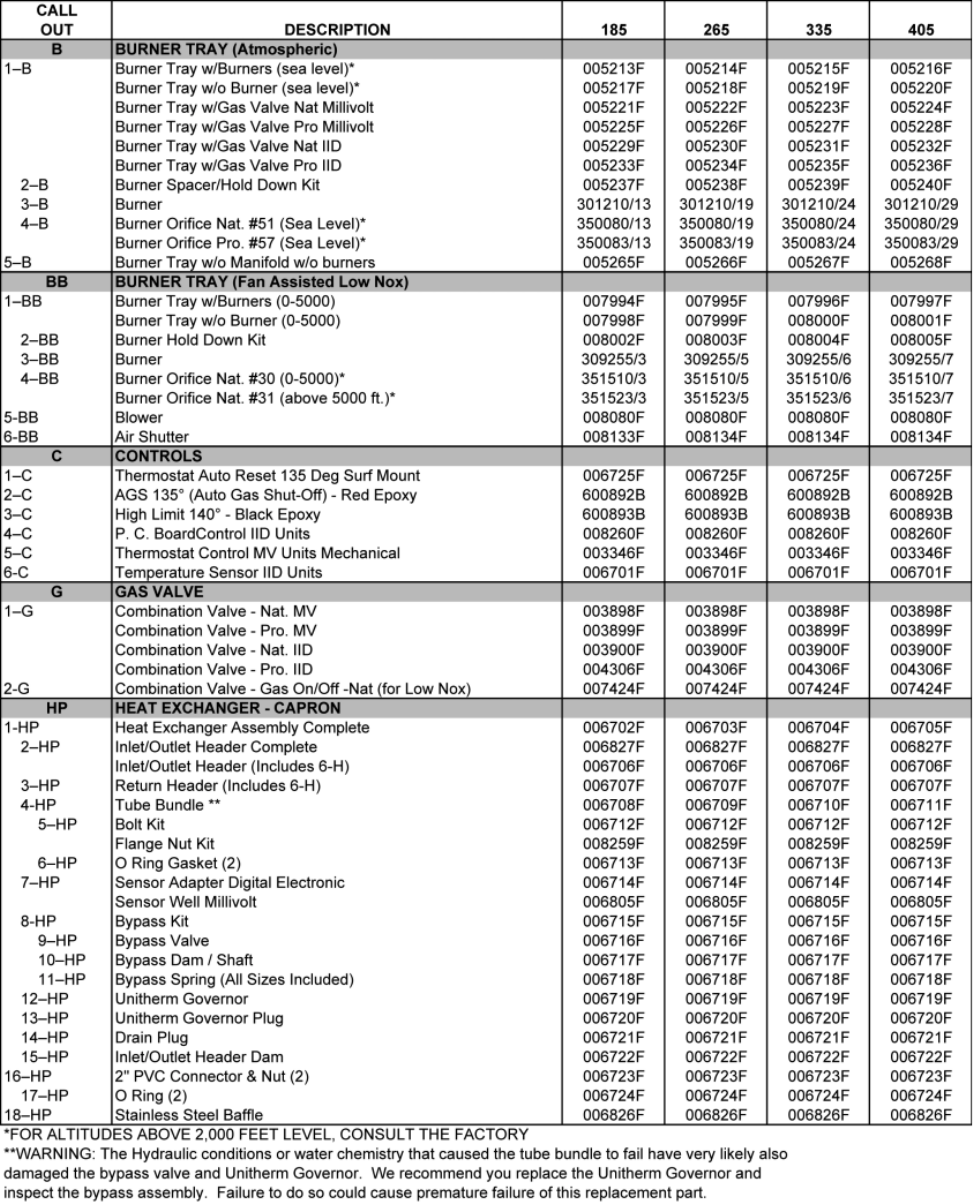

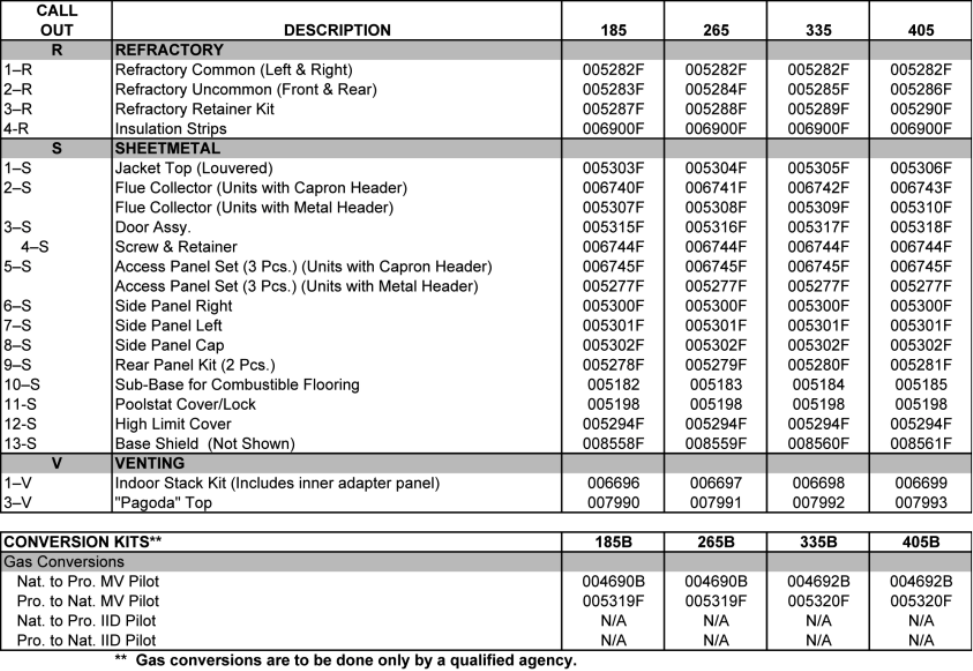

REPLACEMENT PARTS

42 Warranty

PART ONE - OWNER'S OPERATING INSTRUCTIONS

FOR YOUR SAFETY - READ BEFORE OPERATING

WARNING: IF YOU DO NOT FOLLOW THESE

INSTRUCTIONS EXACTLY, A FIRE OR

EXPLOSION MAY RESULT, CAUSING

PROPERTY DAMAGE, PERSONAL INJURY OR

LOSS OF LIFE.

SECTION 1 / START-UP PROCEDURES

Your Raypak Pool/Spa heater has been designed for years of safe and reliable pool/spa water heating. It is

available in millivolt or electronic control options. ASME certified units, typical used in commercial applications,

are also available. This manual provides operation, installation, maintenance, and service information for these

heaters.

If your heater has been installed correctly, operating the heater is an easy task. The upper front panel of the

heater contains the control center that allows you to turn the heater on or off and adjust the temperature settings

for the pool or spa. The temperature range is 65°F (18°C) to 104°F (40°C). The heater with the electronic control

option also has a manual switch located on the right cabinet side to allow you to turn the heater off. Section 4

contains more details about the use of the controls in the Controls Adjustments/Replacements sub-section.

BEFORE START-UP

BURNERS

Clean main burners, combustion fan and air louvers

of dust, lint and debris. Keep heater area clear and free

from combustibles, flammable liquids and chemicals. Do

not obstruct the flow of combustion and ventilating air.

WATER

Water must be flowing through the heater during

operation. Insure that system is filled with water and have

pump operating.

RP2100 DIGITAL IID CAPRON RP2100 DIGITAL IID ASME

4. Push the gas control knob slightly and turn

clockwise to "Off". Do not force.

5. Replace heater door panel.

1. Set the thermostat to the lowest setting.

2. Turn On/Off switch to the "Off" position.

3. Remove heater door panel.

TO TURN OFF GAS TO APPLIANCE

A. This appliance has a pilot that must be lighted

by hand. When lighting the pilot, follow these

instructions exactly.

B. BEFORE LIGHTING smell all around the

appliance area for gas. Be sure to smell next

to the floor because some gas is heavier than

air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS:

*Do not try to light any appliance.

*Do not touch any electric switch; do not use

any phone in your building.

*Immediately call your gas supplier from a

neighbor's phone. Follow the gas supplier's

instructions.

*If you cannot reach your gas supplier, call

the fire department.

C. Use only your hand to push in or turn the gas

control knob. Never use tools. If the knob will

not push in or turn by hand, do not try to repair

it. Call a qualified service technician. Force or

attempted repair may result in a fire or explo-

sion.

D. Do not use this appliance if any part has been

underwater. Immediately call a qualified serv-

ice technician to inspect the appliance and to

replace any part of the control system and any

gas control which has been underwater.

LIGHTING INSTRUCTIONS AND SHUT-OFF PROCEDURES

MANUALLY LIGHTED PILOTS

MILLIVOLT SYSTEM

LIGHTING INSTRUCTIONS

1. STOP! Read the safety information above.

2. Set the thermostat on the lowest setting.

3. Turn On/Off switch to the "Off" position.

4. Remove heater door panel.

5. Push in gas control knob slightly and turn

clockwise to "Off".

NOTE:Knob cannot be turned from "Pilot" to Off"

unless knob is pushed in slightly. Do not

force.

6. Wait 5 minutes to clear out any gas. If you then

smell gas, STOP! Follow "B" in the safety

information above. If you don't smell gas, go

to the next step.

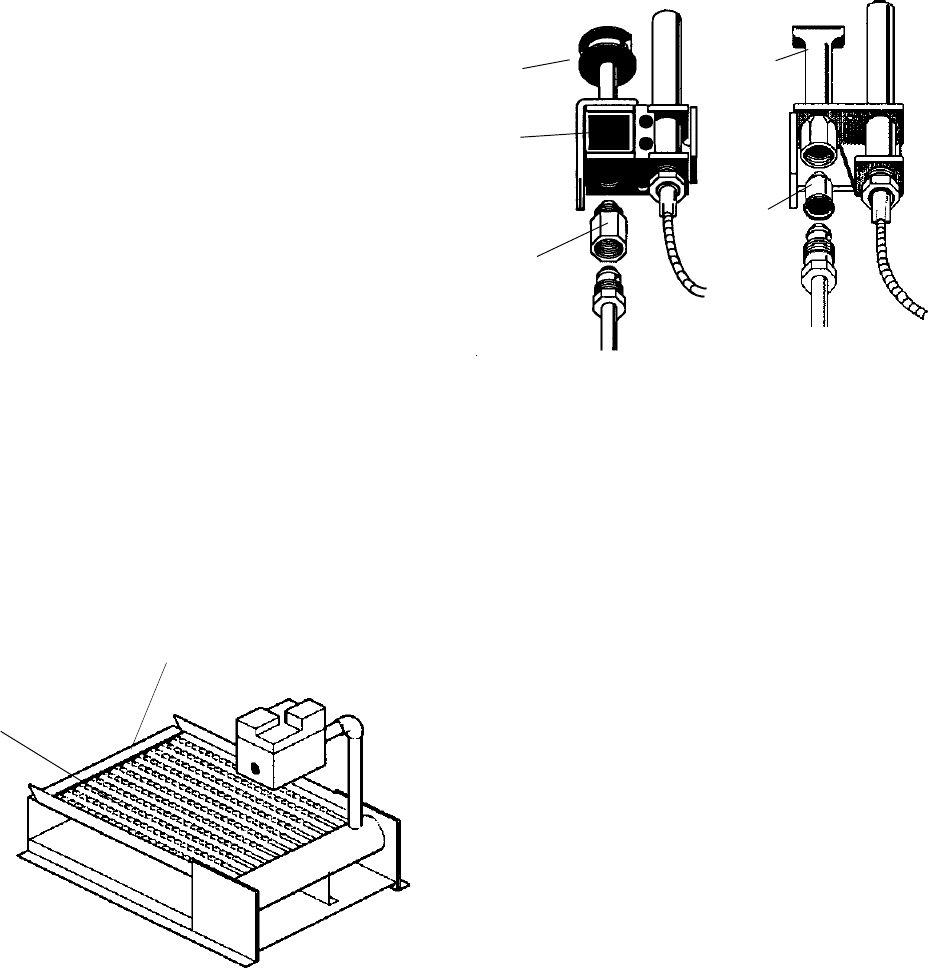

7. Locate pilot mounted on the right side panel of

the burner drawer. For burner drawer location,

see location of control section, page 20.

HONEYWELL PILOT ROBERTSHAW PILOT

CAUTION: Propane gas is heavier than air and will settle on the ground. Since propane can accumulate in

confined areas, extra care should be exercised when lighting propane heaters.

8. Turn knob on gas control counter-clockwise

to "Pilot"

9. Place flame to end of pilot tube. Push in

control knob all the way and hold to light pilot.

Continue to hold control knob in for about one

minute after the pilot is lighted, release knob

and it will pop back up. Pilot should remain

lighted. If it goes out, repeat steps 5 through 9.

*If knob does not pop up when released, stop

and immediately call your service technician

or gas supplier.

10. Stand to the side of the heater and turn the gas

control knob counter clockwise to "On".

11. Replace heater door panel.

12. Turn On/Off switch to the "On" position.

13. Set thermostat to the desired setting.

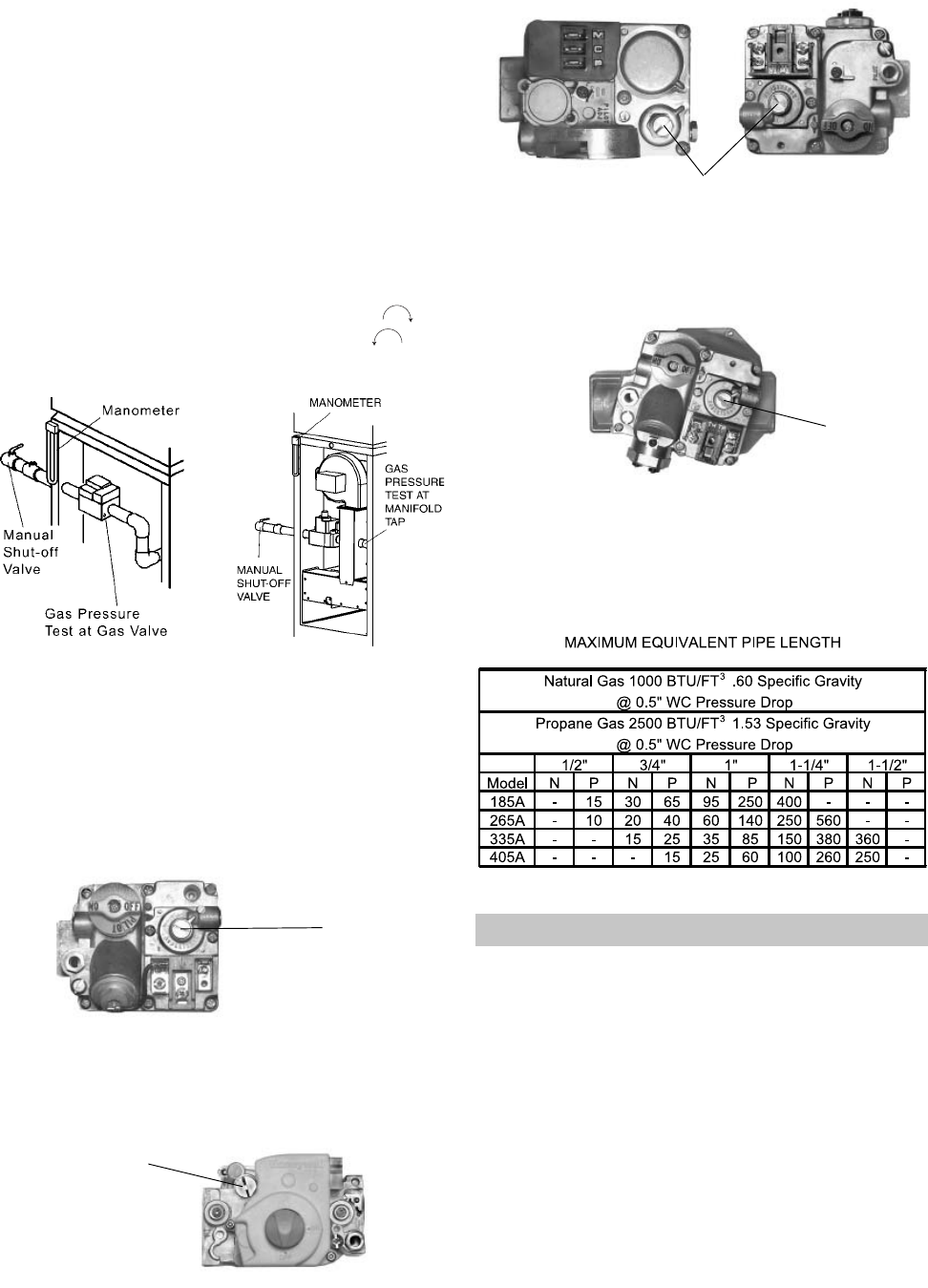

Fig. # 8083.0 Fig. # 8084.1

GAS CONTROL KNOB SHOWN IN OFF POSITION

HONEYWELL

GAS VALVE

MILLIVOLT

ROBERTSHAW

GAS VALVE

MILLIVOLT

Fig. # 8081.0

Fig. # 8079.0

A. This appliance is equipped with an ignition

device which automatically lights the pilot. Do

not try to light the pilot by hand.

B. BEFORE OPERATING, smell all around the

appliance area for gas. Be sure to smell next

to the floor because some gas is heavier than

air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS:

*Do not try to light any appliance.

*Do not touch any electric switch; do not use

any phone in your building

*Immediately call your gas supplier from a

neighbor's phone. Follow the gas supplier's

instructions.

OPERATING INSTRUCTIONS AND SHUT-OFF PROCEDURES

AUTOMATICALLY LIGHTED PILOTS

ELECTRONIC IGNITIONS SYSTEMS

to "Off". Make sure knob rest against stop.

For Robertshaw 7200 gas valve.

Push in and move gas control lever counter-

clockwise to "Off" position.

5. Replace heater door panel.

CAUTION: Propane gas is heavier than air and will settle on the ground. Since propane can accumulate in

confined areas, extra care should be exercised when lighting propane heaters.

*If you cannot reach your gas supplier, call the fire

department.

C. Use only your hand to push in or turn the gas

control knob. Never use tools. If the knob will

not push in or turn by hand, don't try to repair

it; call a qualified service technician. Force or

attempted repair may result in fire or explo-

sion.

D. Do not use this appliance if any part has been

underwater. Immediately call a qualified serv-

ice technician to inspect the appliance and to

replace any part of the control system and any

gas control which has been underwater.

OPERATING INSTRUCTIONS

1.STOP! Read the safety information above.

2. Set the thermostat to the lowest setting.

3. Turn off all electric power to the appliance.

4. This appliance is equipped with an ignition

device which automatically lights the pilot.

Do not try to light the pilot by hand.

5. Remove heater door panel.

6. For Honeywell Valve: Turn gas control

knob clockwise to "Off".

For Robertshaw valve: Turn gas control

knob clockwise to "Off".(Models

265-405) Push in and move gas control

lever counter-clockwise to "Off"

position. (Model 185)

7. Wait 5 minutes to clear out any gas. If you

then smell gas STOP! Follow "B" in the

safety information previously stated. If you

don't smell gas, go to the next step.

8. Turn gas control knob counter-clockwise

to "On". (Honeywell VR 8300 and

Robertshaw 7000)

9. Replace heater door panel.

10. Turn on all electric power to the appliance.

11. Set thermostat to desired setting.

12. If the appliance will not operate, follow the

instructions "To Turn Off Gas To Appliance"

and call your service technician or gas

supplier. TO TURN OFF GAS TO APPLIANCE

1. Set the thermostat at the lowest setting.

2. Turn off all the electric power to the appliance

if service is to be performed.

3. Remove heater door panel.

4. For Honeywell VR 8300 and Robertshaw

7000 gas valve.

Turn gas control knob clockwise

GAS CONTROL KNOB SHOWN IN "ON" POSITION

GAS

INLET

HONEYWELL

VR 8300 GAS

VALVE IID

ROBERTSHAW

7200 GAS VALVE

IID MODEL 185

GAS CONTROL

LEVER SHOWN

IN "OFF"

POSITION

GAS

INLET

ROBERTSHAW 7000

GAS VALVE IID

MODEL 265-405

Fig. # 8080.0

Fig. # 8934.1

AFTER START-UP

Feel the inlet and outlet pipes. Outlet pipe should be

only slightly warmer than the inlet. It should not be hot.

WARNING: Should overheating occur or the gas

supply fail to shut off, turn off the manual gas control to

the appliance.

VISUAL INSPECTION

With the heater on, remove the door and make a

visual check of the pilot and burner.

The flame should be blue with a well-defined

pattern.

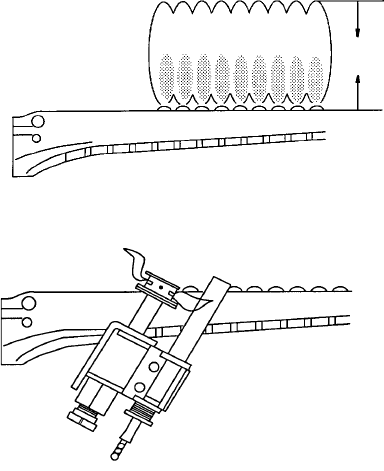

4" MAX

Fig. # 8205.2

MAIN BURNER FLAME

Fig. # 8964.1

PILOT BURNER FLAME

A yellow or "floating" flame indicates restricted air

openings or incorrect orifice size. Should this occur,

shut the heater off and contact your installer or gas

supplier.

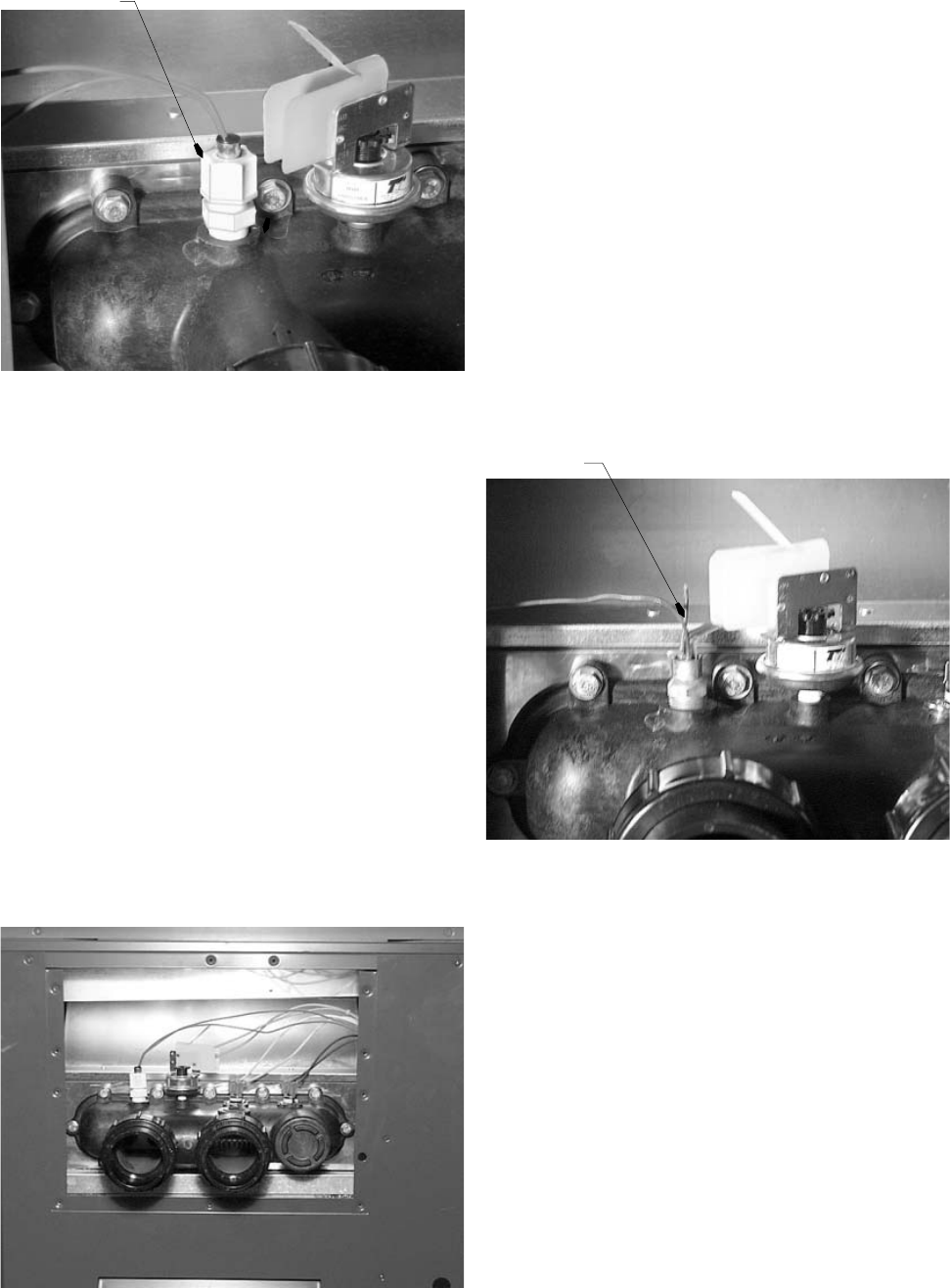

WATER PRESSURE SWITCH

A water pressure switch is provided in the heater to

shut off the burners in the event that water supply to the

heater is interrupted. It is very important to verify that

the switch electrically opens and shuts off the gas valve

when water flow to the heater is interrupted. Otherwise,

rapid and severe damage will likely occur to the heater.

(The water pressure switch should be checked and

adjusted for proper operation by a qualified service

person at the time of installation and periodically

checked thereafter. Refer to pressure switch servicing

instruction in Section 4 of this manual).

WARNING: Operation of the heater without water circu-

lation will cause rapid and severe damage to the heater.

SECTION 2/CAUTION

Elevated water temperature can be hazardous, and

the U. S. Consumer Product Safety Commission rec-

ommends the following guidelines:

1. Spa or hot tub water temperatures should never

exceed 104°F (40°C). A temperature of 100°F (38°C)

is considered safe for a healthy adult. Special

caution is suggested for young children.

2. Drinking of alcoholic beverages before or during spa

or hot tub use can cause drowsiness which could

lead to unconsciousness and subsequently result in

drowning.

3. Pregnant Women Beware! Soaking in water over

102°F (39°C) can cause fetal damage during the first

three months of pregnancy resulting in the birth of a

brain-damaged or deformed child. Pregnant women

should stick to the 100°F (38°C) maximum rule.

4. Before entering the spa or hot tub, users should

check the water temperature with an accurate ther-

mometer; spa or hot tub thermostats may err in

regulating water temperatures by as much as 4°F

(2.2°C).

5. Persons with a medical history of heart disease,

circulatory problems, diabetes, or blood pressure

problems should obtain a physician's advice before

using pools or hot tubs.

6. Persons taking medications which induce drowsi-

ness, such as tranquilizers, antihistamines, or anti-

coagulant, should not use spas or hot tubs.

SECTION 3/MAINTENANCE AND

CARE PROCEDURES

To be followed one month after start-up and then

semi-annually.

1. Inspect top of heater and drafthood for soot, a sticky

black substance around finned tubes and "V"

baffles), and open flue gas passage ways. Any visible

soot should be cleaned for proper operation.

CAUTION: Soot may be combustible. Wet sooted

surfaces completely prior to cleaning. Do not use steel

wire brush.

2. Clean main burners and pilot burner of dust and lint.

3. Inspect and operate all controls, gas valve and

pressure relief valve.

4. Make visual check of the burner and pilot flame.

Flame pattern on the main burner and pilot is indi-

cated in the previous illustration. Yellow flame

means restriction of the air openings. Lifting or

blowing flame indicates high gas pressure. Low

flame means low gas pressure. Should this occur,

shut the heater off and contact your gas supplier or

qualified service agency.

5. On indoor heaters, clean room intake openings to

assure adequate flow of combustion and ventilation

air.

CAUTION: Combustion air must not be contaminated by

corrosive chemical fumes which can damage the heater

and void the warranty.

6. Keep area around heater clear and free from combus-

tible materials, gasoline and other flammable and

corrosive vapors and liquids.

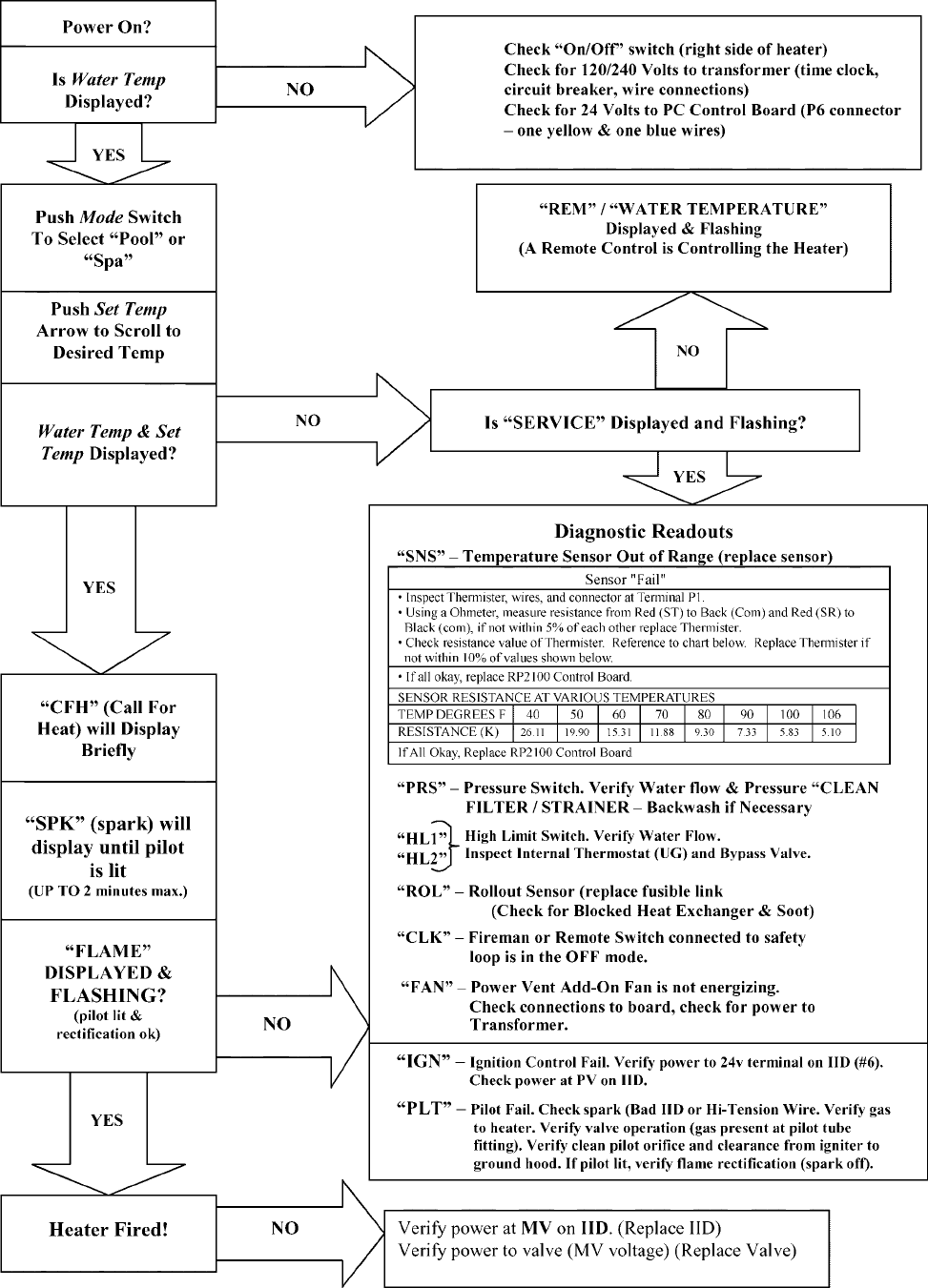

BASIC TIPS IF HEATER WILL NOT FIRE:

1. If you have no electrical power; it may be your "circuit

breakers" have tripped. Try re-setting them.

2 If you have electrical power but the heater will not fire

check the following:

3. The time clock must be moved to the "ON" position.

4. Your pump strainer basket may be full. If so remove

debris.

5. Your filter may be dirty. If so, backwash or clean

filter. (To tell if your filter is dirty, look to see if the

filter pressure will be higher than usual).

6. The pump may have lost it's prime. It may be run-

ning dry, check the pressure on the filter. If there is

no pressure; then you are not moving water (or your

gauge is broken). Try to get the pump to run at it's

normal flow rate.

POOL & SPA WATER CHEMISTRY

Chemical imbalance can cause severe damage to

your heater and associated equipment. Maintain your

water pH between 7.4 and 7.8 and total alkalinity between

100 and 150 p.p.m. If the mineral content and dissolved

solids in the water become too high, scale forms inside

the heat exchanger tubes, reducing heater efficiency and

also damaging the heater. If the pH drops below 7.2, the

heater will be severely damaged. This will result in

corrosion of the heat exchanger. Heat exchanger

damage resulting from chemical imbalance is not

covered by the warranty.

AUTOMATIC CHLORINATORS AND CHEMICAL FEED-

ERS

All chemicals must be introduced and completely

diluted into the pool or spa water before being circulated

through the heater. Do not place chlorine tablets or

bromine sticks in the skimmer. High chemical concen-

trations will result when the pump is not running (i.e.

overnight).

Chlorinators must feed downstream of the heater and

have an anti-siphoning device to prevent chemical back-

up into the heater when the pump is shut off.

NOTE: High chemical concentrates from feeders and

chlorinators that are out of adjustment will cause very

rapid corrosion to the heat exchanger. Such damage is

not covered under the warranty.

COLD WEATHER OPERATION

MODERATE CLIMATE: Heater operation can continue

during short term cold spells. When temperatures are

below freezing, flow (continuous pump operation) must

be maintained.

CAUTION: Do not use the heater to maintain water

temperatures just above freezing or for freeze protection.

When heater is used during freezing weather, care must

be taken to avoid freeze ups. Continuous pump opera-

tion is a must. Additional protection may be required.

The heater is not warranted against freeze ups.

COLD CLIMATE: Prolonged operation with water tem-

peratures below 50°F is not recommended. When

starting the heater with pool temperatures below 50°F

operate the heater continuously until higher tempera-

tures are reached. Operating the heater for prolonged

periods with pool water below 50°F can seriously damage

the heater, and is not covered by the warranty.

For cold climate areas, please follow the winterizing

procedures listed.

WINTERIZING THE POOL & SPA HEATER

When heaters installed outdoors in freezing climate

areas are to be shut down for the winter, observe the

following step-by-step procedure:

1. Turn off gas valve, manual gas valve, and

electrical supply to the heater.

2. Open drain plug located on the inlet/outlet

header, (under water pipes). Remove the heat

exchanger inspection panel on the side op-

posite water piping to gain access to the drain

plug on the return header. Open drain plug on

return header.

Return Header

Drain Plug

Fig. #2001

Disconnect compression fittings from the pressure

switch and return header that connects to the 1/4"

copper tube and allow the tube to drain. For ASME

Heaters only.

PART 2 - INSTALLATION/SERVICE INSTRUCTION

SECTION 1 / RECEIVING EQUIPMENT

On receipt of your equipment it is suggested that you visually check for external damage to the carton. If the

carton is damaged, a note should be made on the Bill of Lading when signing for equipment. Remove the heater

from the carton and if it is damaged, report the damage to the carrier immediately. Save the carton.

These items are shipped loose inside the carton with the heater:

STANDARD UNIT ASME UNIT

1. "Pagoda" Top 1. "Pagoda" Top

2. 2" PVC Union with "O" rings (2) 2. In/Out Flanges (2)

3. Plastic pipe finish flange for gas line 3. 1-1/2" Flange Gaskets (2)

4. Bonding lug with mounting screw 4. 2" Flange Gaskets (2)

(IID units only) 5. Flange Bolts (4)

6. Pressure Relief Valve

7. 2" CPVC Adapters (2)

8. Plastic pipe finish flange for gas line.

9. Bonding lug with mounting screw. (IID units only).

Be sure that you receive the number of packages indicated on the Bill of Lading.

When ordering parts, you must specify model and serial number of heater. When ordering under warranty

conditions, you must also specify date of installation.

Raypak recommends that this manual be reviewed thoroughly before installing your Raypak pool/spa heater. If

there are any questions that this manual does not answer, please contact the factory or your local Raypak

representative.

SECTION 2 / GENERAL SPECIFICATIONS

These heaters are design certified and tested under the requirements of ANSI Z21.56 / CSA 4.7 American

National Standard / CSA Standard for Gas-Fired Pool Heaters. All heaters are inter-changeable and can be used

either indoor or outdoors. The appropriate top designated for that type of use is required. If desired, the top can

be changed at a later date to change from outdoor to indoor or vice versa. Millivolt heater contains a self-generating

electrical system operating between .25 and .75 volts.

Ambient Temperature Rating of Heater Components

Millivolt Heater with Honeywell Gas Valve +32°F to +175°F

Millivolt Heater with Robertshaw Gas Valve 0°F to +175°F

Electronic Ignition Heaters* -32°F to + 175°F

*Requires 120V or 240V Power Supply

Rated inputs suitable for up to 2000 feet elevation. For elevations above 2000 feet, reduce input 4% for each

1000 feet above sea level, as high elevation reduces combustion performance.

12"

Minimu

12"

inimum

Minimum

HEATER

Sheet Metal

24 Gauge

SECTION 3 / INSTALLATION INSTRUCTIONS

IMPORTANT NOTICE

These instructions are intended for the use of quali-

fied personnel only, specifically trained and experienced

in the installation of this type of heating equipment and

related system components. Installation and service

personnel may be required by some states to be licensed.

If your state is such, be sure your contractor bears the

appropriate license. Persons not qualified shall not

attempt to fix this equipment nor attempt repairs accord-

ing to these instructions.

WARNING:

Improper installation, adjustment, alteration, ser-

vice or maintenance may damage the equipment,

create a hazard resulting in asphyxiation, explosion or

fire, and will void the warranty.

CODE REQUIREMENTS

NOTE: The heater should not be located in an area

where possible water leakage will result in damage to

the area adjacent to the appliance or to the structure.

When such locations cannot be avoided, it is recom-

mended that a suitable drain pan, adequately drained,

be installed under the appliance. The pan must not

restrict combustion air flow.

Installation must be in accordance with local codes,

or, in the absence of local codes, with the latest edition

of the National Fuel Gas Code, ANSI Z223.1 and National

Electrical Code, ANSI/NFPA 70, and for Canada, the

latest edition of CAN/CGA-B149.1 and B149.2, and

Canadian Electrical Code, CSA C22.1 Part 1 and Part

BASE INSTALLATION

Heater must be mounted on a level base, such as

cement slab, cement blocks or other non-combustible

surface. An optional non-combustible base is available

for all models. An alternative method for providing a base

for combustible floors is illustrated below. Heaters must

not be installed on carpeting.

Fig. # 8148.1

Utilize hollow concrete cinder blocks, align holes and

leave ends open.

CLEARANCES

ALL HEATERS

For clearances from combustible surfaces, see the

chart below.

CLEARANCE FROM COMBUSTIBLE CONSTRUCTION

INDOOR INSTALLATIONS:

Top*(Drafthood) - 30" Back - 6"

Front - Alcove Right Side-(Water Side) 12"

Vent - 6" Left Side-(Opposite Water

side) 6"

OUTDOOR INSTALLATION:

Top* (Stackless top or outdoor stack) - Unobstructed

Back - 6"

Side - 6"

*Clearance from top of vent terminal.

When installed according to the listed minimum

clearances from combustible construction materials, the

Raypak pool heaters can still be serviced without remov-

ing permanent structural construction around the heater.

However for ease of servicing, we recommend a

clearance of at least 24" in the front, and at least 18" on

the water connection side. This will enable the heater to

be serviced in its installed location, that is, without

movement or removal of the heater.

Clearances less than these (6" minimum), may

require removal of the heater to service either the heat

exchanger or the burner tray. In either case, the heater

must be installed in a manner that will enable the heater

to be serviced without removing any structure around the

heater.

OUTDOOR HEATERS

These heaters are design certified for outdoor

installation, when equipped with the approved tops des-

ignated for outdoor use.

WARNING: The heater shall not be located in an area

where water sprinklers, or other devices, may cause

water to spray through the cabinet louvers and into the

heater. This could cause internal rusting or damage

some electrical components, and this would void the

warranty.

WARNING: Do not install within 3 feet of a heat pump or

an outdoor condensing unit. Strong air intake from these

equipment can disturb the combustion process and

cause damage or personal injury.

Heaters must not be installed under an overhang of less than three (3) feet from the top of the heater. Three

(3) sides must be open in the area under the overhang. Roof water drainage must be diverted away from the

heaters installed under overhangs with the use of gutters.

For U.S. installations,the point from where the flue products exit the heater must be a minimum of four (4) feet

below, four (4) feet horizontally from, or one (1) foot above any door, window or gravity inlet into any building. The

top surface of the heater shall be at least three (3) feet above any forced air inlet, or intake ducts located within ten

(10) feet horizontally.

For installations in Canada, pool heaters shall not be installed with the top of the vent assembly within 10 feet

below, or to either side, of any opening into the building. Refer to the latest revisions of CAN/CGA-B149.1 and B149.2.

VENT TERMINAL (Outdoor) Stackless Top Installation

1. Insert tabs into keyhole (4 places).

Pagoda Top

(Shipped

Loose with

Heater)

2. Snap tabs into keyholes so as not to pull out.

Fig. #RP8280.1

Fig. # 8278.1

HEATER WITH OUTDOOR STACKLESS TOP

utdoor Top

foot

Minimum

foot

Minimum

foot

Minimum

foot

Minimum

foot

Minimum

foot

Minimum

Forced Air Inlet

Fig# 8245.1

U.S. Installations only

INDOOR HEATER

The design is also certified for indoor installation when equipped with the approved draft hood.

For Canada, indoor installation is restricted to an enclosure that is not occupied and does not directly

communicate with occupied area. Refer to the latest edition of CAN/CGA-B149.1 and B149.2 for specific

requirements.

Locate heater as close as practical to a chimney or gas vent. Heater must always be vented to the outside. See

Vent Piping Section for venting details. Minimum allowable space is shown on the nameplate.

Fig. #8246.5

6. Attach the three (3) mounting brackets to the

stack using the screws provided and the holes

that are pre-drilled in the stack. Make sure the

brackets are positioned with the flange near the

top side of the stack (see illustration).

Caution must be taken not to over tighten and

strip the screw threads.

7. Turn the assembled stack and jacket top, right side

up. The jacket top will be trapped between the

brackets and the top of the stack. Place the stack

over the inner adapter panel flanged hole and lower

the louvered jacket top panel back into its original

position. Reinstall the four (4) green #10 flat head

screws removed in step 1 above.

VENT TERMINAL/INDOOR STACK INSTALLATION

WARNING:

Indoor boilers require a drafthood that must be connected to a vent pipe and properly vented to the outside. Failure

to follow this procedure can cause fire or fatal carbon monoxide poisioning.

1. Remove the louvered jacket top by removing

four (4) #10 flat head screws.

2. If originally installed, remove "Pagoda" top

from the louvered jacket top.

3. Place the inner stack adapter panel over the

flue collector inside the heater. Make sure

the flanged side of the flue opening is up.

4. Turn the stack (draft hood) up side

down and set it down bottom side up.

5. Turn the jacket top panel (removed in step 1) up

side down and place it through the stack.

DRAFTHOOD

JACKET TOP PANEL

(part of the heater)

#10 SHEET METAL SCREW (3)

MOUNTING BRACKET (3)

FLUE COLLECTOR

(part of heater)

CREW HOLE

OCATION

3-1/4"

INNER STACK ADAPTER PANE

SPECIFICATIONS AND DIMENSIONS

*Electrical Connection On Left Side is 19-1/8".

a. All Air From Inside The Building:

Each opening shall have a minimum net free square

inches as noted:

Model Square Inches Model Square Inches

185 181 335 333

265 264 405 399

b. All Air From Outdoors:

When air is supplied directly from outside of building,

each opening shall have a minimum net free square

inches as noted:

Model Square Inches

185 46

265 66

335 84

405 100

COMBUSTION AIR (Indoor Units Only)

Air For Combustion And Ventilation

(Indoor Units Only)

The heater must have both combustion and ventila-

tion air. Minimum requirements for net free air supply

openings, one 12 inches from ceiling for ventilation and

one 12 inches from the floor for combustion air as

outlined in the latest edition of the National Fuel Gas

Code, ANSI Z2231(Canada-CAN/CGA-B149.1 and

B149.2) and any local codes that may have jurisdiction.

CAUTION: Combustion air must not be contaminated

by corrosive chemical fumes which can damage the

heater and void the warranty.

*Designation for Propane is "EP", Natural gas is "EN". Prefix "C" is for Cast Iron (ASME) Headers; "P" is for Plastic (Capron)

Headers. Above input ratings are per A.G.A. specifications. Reduce input 4% for each 1000 ft. above sea level when installed above

2000 ft. elevation. For Canada, no de-rate is required for elevations up to 4500 feet. Manufactured under Patent No. 3,623,458.

Note: Plastic (Capron) Headers cannot be used for ASME installations.

VENT PIPING

WARNING:

Indoor boilers require a drafthood that must be

connected to a vent pipe and properly vented to the

outside. Failure to follow this procedure can cause fire

or fatal carbon monoxide poisoning.

Vent piping the same size as the draft hood outlet is

recommended, however, when the total vent height is at

least ten (10) feet (draft hood relief opening to vent

terminal), the vent pipe size may be reduced as speci-

fied in Chapter 10 of the National Fuel Gas Code, ANSI

Z 223.1. (Canada-CAN/CGA-B149.1 and B149.2) As

much as possible avoid long horizontal runs of vent pipe

and too many elbows. If installation requires horizontal

non-vertical runs, the vent pipe must have a minimum of

1/4 inch per foot rise and should be supported at not less

than five foot intervals. Plumbers tape, criss-crossed, will

serve to space both horizontal and vertical piping. Gas

vents supported only by the flashing and extending above

the roof more than five feet should be securely guyed or

braced to withstand snow and wind loads. We recom-

mend use of insulated vent pipe spacer through the roofs

and walls. Another option for installation that requires

horizontal runs is using the D-2 powervent kit option. The

powervent is certified for catagory III venting up to 40 ft.

equivalent 4" diameter venting.

For protection against rain or blockage by snow, the

vent pipe must terminate with a vent cap which complies

with the local codes or, in the absence of such codes, to

the latest edition of the National Fuel Gas Code, ANSI

Z223.1. (Canada-CAN/CGA-B149.1 and B149.2)

The discharge opening must be a minimum of two feet

vertically from the roof surface and at least two feet

higher than any part of the building within ten feet. Vent

stack shall be at least five feet in vertical height above

the drafthood outlet. The vent cap location shall have a

minimum clearance of 4 feet horizontally from, and in no

case below, unless a 4-foot horizontal distance is main-

tained, from electric meters, gas meters regulators and

relief equipment.

The weight of the vent stack or chimney must not

rest on heater draft hood. Support must be provided in

compliance with applicable codes. The heater top and

draft hood must be readily removable for maintenance

and inspection. Vent pipe should be adequately sup-

ported to maintain proper clearances from combustible

construction.

Type "B" double wall or equivalent vent pipe is

recommended. However single wall metal vent pipe

may be used as specified in the latest edition of the

National Flue Gas Code ANSI Z 223.1. (Canada-CAN/

CGA-B149.1 and B149.2)

Fig. #RP 8119.2

GAS SUPPLY CONNECTIONS

Gas piping must have a sediment trap ahead of the

heater gas controls, and a manual shut-off valve located

outside the heater jacket. All gas piping should be

tested after installation in accordance with local codes.

Gas Inlet Gas Valve

Manual Shut-Off Heater Jacket

Valve

Sediment Trap

Union

Fig. #8090.0

CAUTION: The heater and its manual shut off valve

must be disconnected from the gas supply during any

pressure testing of that system at test pressures in

excess of 1/2 psig (3.45 KPA). Dissipate test pressure

in the gas supply line before reconnecting the heater

and its manual shut off valve to gas supply line. FAIL-

URE TO FOLLOW THIS PROCEDURE MAY DAMAGE

THE GAS VALVE. OVER PRESSURED GAS VALVES

ARE NOT COVERED BY WARRANTY. The heater and

its gas connections shall be leak tested before placing

the appliance in operation. Use soapy water for leak

test. DO NOT use open flame.

Fig. # 8149

NOTE: Do not use teflon tape on gas line pipe thread. A

flexible sealant is recommended.

A minimum of 7" W.C. and a maximum of 14" W.C.

upstream pressure under load, and no load conditions

must be provided for natural gas or a minimum of 12"

W.C. and a maximum of 14" for propane gas.

GAS PRESSURE REGULATOR

The gas pressure regulator is preset at 4" W. C. for

natural gas, and 11" W. C. for propane gas. The pressure

at the gas valve, taken with a manometer, should be about

3.7" W. C. natural gas (3.9" W.C. for Low NOx) and 10.5"

W. C. propane gas. If an adjustment is needed, remove

seal and turn adjustment screw clockwise to

increase pressure or counter-clockwise to

decrease pressure.

PIPE SIZING FOR GAS CONNECTIONS

Low NOx units are not available in propane.

PLUMBING FOR WATER CONNECTIONS

LOCATION

The RP 2100 heater requires water flow and positive

pressure to fire and operate properly. It must therefore

be installed downstream of the discharge side of the filter

pump. A typical installation is plumbed as follows:

1. The inlet side of the filter is plumbed directly to the

discharge side of the filter pump;

2. The outlet side of the filter is then plumbed to the inlet

of the heater; and

3. The outlet of the heater is plumbed to the return line

to the pool or spa. The pump, filter and heater are

thus plumbed in series.

Gas

Pressure

Adjustment

GAS PRESSURE ADJUSTMENT LOCATIONS

MILLIVOLT GAS VALVES

ELECTRONIC IGNITION GAS VALVES

Robertshaw 7000

Models 185 thru 405

Gas

Pressure

Adjustment

Honeywell VR8304

Models 185 thru 405

Robertshaw 7200

Model 185

ELECTRONIC IGNITION GAS VALVES-CONTINUED

Robertshaw 7000 BDER

Model 265-335

Robertshaw 7000 DERHC

Model 405

Gas

Pressure

Adjustment

Gas

Pressure

Adjustment

Fig # 9263

Fig # 9264

Fig # 9328

Fig # 9327

Fig # 9329

Fig. # 9365

ATMOSHPERIC LOW NOx

Heater must be located so that any water leaks will not

damage the structure of adjacent area. PVC pipe may

be glued directly into header unions.

FLOW RATES

MODEL PIPE SIZE MIN.GPM *MAX.GPM

185 1-1/4"-1-1/2" - 2 20 125

265 1-1/4"-1-1/2" - 2 25 125

335 1-1/4"-1-1/2" - 2 35 125

405 1-1/4"-1-1/2" - 2 40 125

*When flow rates exceed maximum GPM an external

auxiliary bypass valve is required. See external bypass

valve section for details.

CONNECTIONS

Before attaching the 2-inch unions to the inlet/outlet

header, make sure the o-rings are properly seated in the

grooves. Use AquaLube or equivalent non-petroleum

based lubricant on the o-ring. Tighten the unions hand

tight. Glue PVC piping directly to the unions.

INLET/OUTLET HEADER

Flange Gasket

Fig. #2002.1

UNITHERM GOVERNOR OPERATION

The patented Unitherm Governor is a thermostatic

mixing valve specifically designed to maintain constant

heater internal temperature between 105° to 115°F

despite continually changing flow rates from the filter

and changing pool temperatures. This narrow range is

needed to prevent damaging condensation on the burn-

ers which will occur if the heater runs for any length of

time below 100°F. It is also needed to inhibit scale

formation in the tubes by maintaining temperatures

well below accelerated scaling temperatures.

INTERNAL AUTOMATIC BY-PASS VALVE

In addition to the Unitherm Governor, a built-in

automatic by-pass valve is provided in the in/out

header. While the Unitherm Governor responds to the

changes in water temperature in the heater, the internal

by-pass valve automatically responds to changes in

water pressure in the piping system. Proper amount of

water flow is maintained through the heater under

varying pressures dictated by the conditions of the

pump and filter.

Fig.#2003

EXTERNAL AUXILIARY BYPASS VALVE

(Where Required)

An auxiliary bypass valve should be used when flow

rates exceed 125 GPM (usually a high performance

pump size larger than two horsepower will exceed this

flow rate). This valve is required to complement the

function of the automatic bypass valve, particularly

when starting the heater in winter or early spring when

the spa or pool temperature is down below 50°F. It also

serves to eliminate needless pressure drop through the

heater and accompanying reduction in the flow rate to

the spa jets, etc.

From Heater To Heater

To Pool From Pool

AUXILLARY BYPASS VALVE

(DO NOT USE GATE VALVE)

Fig. # 8150.0s

AUXILIARY BYPASS VALVE ADJUSTMENT

To set bypass: With clean filter, adjustment is made

by feeling the inlet and outlet pipes at the heater. Outlet

pipes should be slightly warmer than inlet and comfort-

able to the touch. If pipe is hot, close bypass; if cold,

open bypass.

Plumbing from the heater back to the pool must not have

any valves or restriction that could prevent flow when the

pump is operating.

CAUTION: A source of additional heated water, i.e. solar

systems, must be connected to the heater outlet pipe. If

this is connected to the heater inlet, incorrect pool water

temperature readings will be displayed on the heater

control panel.

Header Flange

Inlet

PRESSURE RELIEF VALVE INSTALLATION

To conform to local building codes, it may be

necessary to install a pressure relief valve. A 3/4"

pressure relief valve having a capacity equal to BTU/HR

output of the model to be installed is recommended for

this appliance. The maximum acceptable pressure re-

lief valve setting is 125 psi.

A 3/4" NPT connection is provided in the inlet/outlet

header for installation of a pressure relief valve. The

valve shall be installed in a vertical position. Do not over

tighten. Install pressure relief valve hand tight plus 1/2

turn.

Pressure Relief Valve

PRV Discharge

Connection

Inlet/Outlet Header

Fig. #2004

NOTE: To avoid water damage or scalding due to valve

operation, drain pipe must be connected to valve outlet

and run to a safe place of discharge. Drain pipe must be

the same size as the valve discharge connection

throughout its entire length and must pitch downward

from the valve. No shutoff valve shall be installed

between the relief valve and the drain line. Valve lever

should be tripped at least once a year to ensure that

waterways are clear.

RP2100+ Heat Exchanger Reversal Procedure

(Capron Resin Header Models)

1. Remove right and left side access panels (Figure 1).

2. Disconnect wires at high limit, AGS (automatic gas shutoff), and pressure switch on the inlet/outlet header

(Figure 2).

3. Electronic Ignition Heaters: Remove the thermostat temperature sensor by loosening the compression-

fitting nut (Figure 3). Reroute the sensor to the left side of the heater.

4. Millivolt Heaters: Remove the temperature sensor bulb and retainer clip from the sensor well (Figure 4).

Reroute the sensor bulb to the left side of the heater.

5. Remove (12) bolts holding the inlet/outlet and return headers to the tube sheets. Clean off tube sheet area

where the gasket seats. Also clean off the header and its gasket. Apply a non-petroleum based lubricant

to the gasket such as Aqua Lube. Reattach the headers to the opposite sides, making sure they are installed

in an upright position (Figure 5). Do not over tighten. Torque should not exceed 7 ft/lbs.

6. Reconnect high limit, AGS, and pressure switch wires.

7. Electronic Ignition Heaters: Insert the temperature sensor in the compression fitting and tighten 1/2 turn

past hand tight.

8. Millivolt Heaters: Insert sensor bulb and retainer clip into sensor well.

9. Allow for water flow through the heater and check for leaks.

10. Reattach access panels to the opposite sides.

For ASME Models call your factory representative.

ACCESS PANEL Fig. #1

Fig. #2

PRESS SWITCH AGS HI-LIMIT

Fig. #4

Fig. #5

Fig. #3

JACO FITTING

BULB & CLIP

RE-INSTALLED IN/OUT HEADER ON OPPOSITE SIDE.

ELECTRICAL WIRING

NOTE: If it is necessary to replace any of the original

wiring, it must be replaced with 105° C wire or its

equivalent, and /or 150° C wire or its equivalent as

originally built.

MILLIVOLT SYSTEM

The Millivolt System residential heater is equipped

with a self-generating electrical system in which the

electric current is provided by means of a pilot genera-

tor. No external electrical connections are required.

ELECTRONIC INTERMITTENT IGNITION DEVICE

SYSTEM (IID)

NOTE: Heaters are factory wired for 240V power sup-

ply.

The standard field wiring connection is on the right side

of the heater.

To wire the heater from the left side, follow the steps

below:

1. Remove the two (2) screws that hold down the

junction box to the sway brace. Untie excess yellow

wires located behind the junction box.

2. Move the junction box to the left side of unit and

attach the box to the sway brace.

3. Secure 24V yellow wires to sway brace panel with

existing wire retainers.

4. Connect the wires inside the junction box, either

120V or 240V depending on the field wiring.

NOTE: 7/8" Dia. holes not utilized on jacket and control

box can be used for fireman switch or auxiliary control

interface wiring.

NOTE: Heater must be electrically grounded and

bonded. Bonding lug is provided loose with the unit.

Install bonding lug on lower right or left side of jacket as

necessary for bonding the unit. Mounting hole is

provided on the jacket.

Option Location For Left

Side Field Wiring

Sway

Brace

Bonding Lug

(Standard Location)

Bonding Lug

(Optional Location)

Fig. # 9030.1

Control Box

(Factory Mounted Location)

The Electronic Intermittent Ignition Device automati-

cally lights the pilot and main burners upon a call for the

heat. The heater is supplied with a dual voltage trans-

former for 120V or 240V input power hookup.

NOTE: IID Propane Units and IID Low NOx natural gas

units only

Heater is equipped with an electronic ignition device with

a 100% safety lockout feature. If the heater fails to start

or lockout, reset the ignition device by interrupting the

power to the heater for 60 seconds.

Caution: If service replacement of the electronic igni-

tion device is required, replace only with a 100% safety

lockout device with 90 second trial for pilot ignition.

HONEYWELL

IGNITION

CONTROL

Fig. # 8929.1

LOW NOx

ATMOSPHERIC

WIRING DIAGRAM KEY

PINK CONNECTOR BLUE CONNECTOR

Fig. # RP8096

*If required by Local Code, install at this location.

Fig. #2353

For 120 V input power to the unit, connect the black

wire to the “L1” or hot leg of the power supply. Connect

the white wire to the “L2” or neutral leg of the power

supply. Attach the wire nut to the red wire. There should

be no connection to the red wire for 120V operation. For

Low NOx pool heaters wire nut each red wire indepen-

dently.

Fig. #9240

For 240 V input power to the unit, connect the black

wire to the “L1” or hot leg of the power supply. Connect

the red wire to the “L2” or second hot leg of the power

supply. Attach the wire nut to the white wire. There should

be no connection to the white wire for 240V operation.

for Low NOx pool heaters wire nut each white wire inde-

pendently.

Fig. # 9241

Heater must be electrically grounded and bonded in

accordance with local codes, or, in the absence of local

codes, with the latest edition of the National Electrical

code, ANSI/NFPA 70. (Canada- Canadian Electrical

Code, CSA C22.1, Part 1 and Part 2.)

NOTE: Input power to the heater (120/240V) can be

supplied from the load (Pump) side of time clock or

directly from the switch/GFCI power source. If a remote

device (supplied by others) is to be used, the direct from

switch/GFCI power source method is preferred. When

a remote device is utilized, the direct power source will

allow the Safety Faults to be displayed including the

"REM", if the remote device is not in a "CALL FOR HEAT"

mode.

WIRING DIAGRAM MILLIVOLT UNITS

WITH MECHANICAL THERMOSTAT

WIRING DIAGRAM - IID UNITS (atmospheric)

WIRING DIAGRAM - IID UNITS (Low NOx)

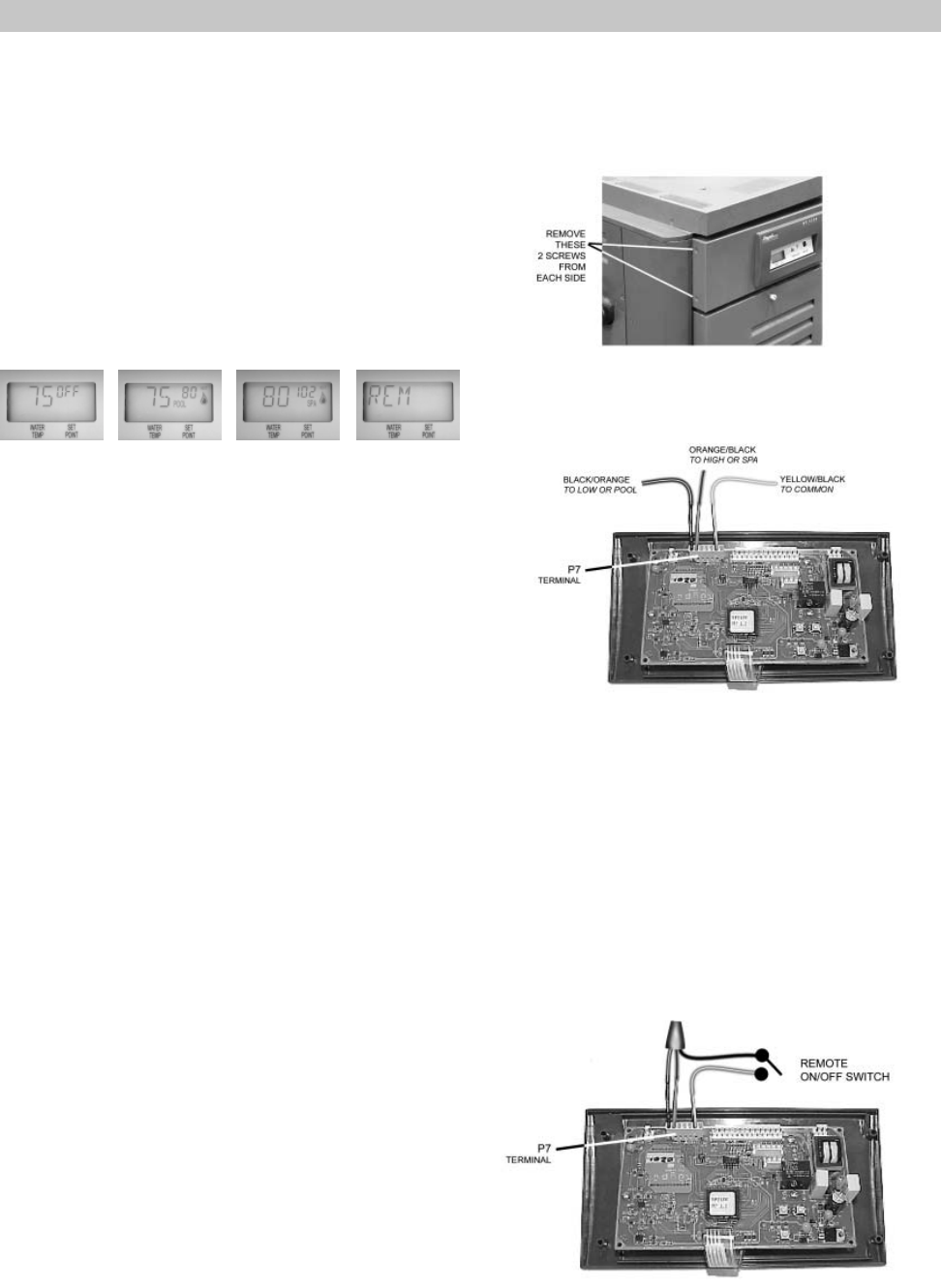

Control Panel

Mounting Screws (4)

Fig. #RP 8267

CONTROLS/ADJUSTMENTS/REPLACEMENTS

Temperature

Adjust Buttons

Mode Button

LCD Display

Fig. #2000

MILLIVOLT CONTROLS

The pool or spa water temperature is controlled by

the pool heater thermostat on the upper front panel of

the heater. The control center contains an On/Off

switch and one or two thermostats.

Thermostats are fitted with a means of limiting the

upper temperature limit below the maximum level. The

knob stop adjustment ring illustrated below is adjustable

by loosening the set screw, rotating the knobstop ring to

the desired location and retightening the set screw.

SPA TEMPERATURE RANGE POOL TEMPERATURE RANGE

STAND-BY

TEMPRATURE

SET SCREW

KNOB STOP RING

Fig. #8103.2

KNOB STOP SHOWN ABOVE IS

IN THE SPA TEMPERATURE RANGE

Bypass

Hi Limit

(Located

in Return

Header)

AGS Hi-

Limit

(Located

in Inlet/

Oulet

Header)

Unitherm

Governor

Drain Plug

Fig #2005

SECTION 4 / SERVICING INSTRUCTIONS

GENERAL LOCATION OF CONTROLS

Drain Plug

(Located in

Return

Header)

Ignition

Control (IID)

Digital

Thermostat

Module

Roll-Out

Switch

Gas Valve

Pilot

CONTROL PANEL REMOVAL

1. Remove (4) screws from sides of control panel.

2. Rotate control panel down until panel stops. Do

not force.

NOTE: Caution must be taken not to damage controls

or wiring.

On-Off Switch

Transformer

To adjust the desired pool or spa temperature

setting, make sure the control is in the appropriate mode

(POOL or SPA) and push the UP or DOWN buttons to

get the desired set point temperature.

If there is a safety fault, a fault code will be displayed

along with a service indication. If the PRS fault code is

displayed, it indicates that there is insufficient flow

through the heater. Make sure the pool filter and pump

strainer are clean before calling a service representa-

tive.

Remote control operation is possible by connection

to the remote terminals on the control board. (P7) When

the remote control is operating the heater, the display will

alternatively indicate REM and the actual water tempera-

ture.

A list of the status and service codes are shown

below:

DISPLAY STATUS

CFH – CALL FOR HEAT

SPK – SPARK

SERVICE – CALL YOUR LOCAL INSTALLER/SERVICE

CONTRACTOR/ FACTORY FOR SERVICE

HEAT – HEATING

REM – REMOTE CONTROL

CLK – HEATER IN COOL DOWN CYCLE

OR FIREMAN SWITCH OPEN

DISPLAY FAULTS

BRD – BOARD FAILURE

SNS – 1) SENSOR IS FAULTY

2) TEMPERATURE IS ABOVE 110°F

3) TEMPERATURE IS BELOW 36°F

PRS – PRESSURE SWITCH OPEN

HL 1 – HI LIMIT–1 SWITCH OPEN

HL 2 – HI LIMIT–2 SWITCH OPEN

ROL – HEAT ROLL-OUT SAFETY SWITCH OPEN

IGN – IGNITION CONTROL FAILURE

PLT – PILOT FAILURE

LOW – WATER TEMP BETWEEN 36°F AND 44°F

ELECTRONIC CONTROLS

The pool heater thermostat on the upper front panel

of the heater controls the pool/spa water temperature.

This control center contains a mode button, up and

down temperature adjustment buttons, and a LCD

display. The MODE button functions as a means to turn

the heater off or on in either the pool or spa temperature

setting. The LCD display indicates the mode the heater

is in and the actual water temperature. If the mode is in

POOL or SPA, the desired pool or spa temperature will

also be displayed and may be changed using the UP or

DOWN buttons. A manual switch is also provided on the

right side heater cabinet to allow the heater to be turned

off. If there is a problem in operating the heater, the fault

will be displayed and a service indicator will flash.

The electronic thermostat cannot be set above

selected maximum set points. The maximum set points

are factory selected at 104°F for spa and 90°F for pool.

These can be changed to a higher or lower value to suit

your needs, but can never be set above 107°F. In order

to change the maximum set point, push the MODE

button to the OFF mode. Open the front panel as shown

in the previous section. Find the SETMAX button on the

back of the circuit board. Push the SETMAX button until

the display indicates SET. Either POOL or SPA will be

displayed with the upper temperature limit. If the

desired mode is not being displayed, press the MODE

button to switch to the desired mode. Using the UP or

DOWN arrow buttons, adjust the upper temperature to

the desired maximum setting. If a button is not pushed

for 5 seconds, the control will return to the OFF mode.

Fig #2007

The RP2100 Spa/Pool Digital Control Panel fea-

tures an LCD display that provides status and service

information. During normal operation, the heater can be

in the POOL, SPA, or OFF modes.

In the OFF mode, the actual water temperature is

displayed.

In the POOL or SPA modes, the actual water

temperature is displayed along with the desired pool or

spa temperature. If the heater is firing, a flame icon will

be visible.

TEMPERATURE DISPLAY-Fahrenheit vs. Centigrade

The RP2100 digital heaters will display metric (Cen-

tigrade) units. The factory default setting is Farenheit. If

you open up the front panel so you are looking at the front

of the digital board, you will find two small round buttons,

labled S1 and S2. S1 is labeled "C of F". Hold down the

S1 button for several seconds, until the board displays

"CCC", this will set the board to display in Centigrade.

Repeating the process will return the board to "FFF"

which is Fahrenheit.

RP2100 REMOTE CONTROL INSTALLATION

CAUTION: Before installing remote controls to the

RP2100 Digital Heater, read the following:

The Raypak RP 2100 Digital Heater is remote ready in

most cases. The digital liquid crystal (LCD) display

shows the actual pool temperature, operating status,

and service codes (See examples below). The touch

pad on the control panel allows you to select the desired

pool or spa temperature. It also indicates when a remote

system is controlling the heater by displaying REM in

the display. When connecting the RP2100 Digital to a

remote system, identify whether it is a two or three wire

remote system. Select the appropriate instruction listed

below to properly install the remote to the heater.

Important Installation Notes for

Remote or external wiring configuration

• Remote wiring must be run in separate conduit.

• Remote wiring must not be run parallel to High Voltage

lines.

• For runs of under 30 feet, remote wiring should have

stranded conductors with a minimum of 22 AWG,

600V, cable twisting 1.5 to 2.5 and jacketed.

• For runs over 30 feet, the conductors should be a

minimum of 20 AWG, 600V, cable twisting 1.5 to 2.5

inch lay that is shielded and jacketed.

• Maximum cable length of 200 feet.

• For both Two and Three wire remote systems, the

provided P-7 wiring connector must be utilized. Please

refer to the wiring instructions.

Two-Wire Remote Systems:

To remotely select either pool or spa operation (3-wire/2-

function) requires 3 wires to be connected to the heater.

A switch mechanism that will provide contact closure

between HIGH/SPA or LOW/POOL and common, needs

to be supplied. This mechanism can be a 3-way switch

or any other remote control system that provides dry

contact closure for either setting. See remote wiring

instructions on this page.

Two or Three-Wire Remote Operation:

To remotely select a single operating ON/OFF mode (2

wire/single function) requires two wires to be connected

to the heater. This requires a switching mechanism that

can be a 2-way switch or a remote control system with a

single dry contact closure. See remote wiring instruc-

tions on this page.

NOTE: Do Not connect wiring to fireman switch

location.

OFF Mode Heating in the

POOL Mode

Heating in the

SPA Mode

Remote Mode

Remote Wiring Instructions

1.Turn off power to the heater.

2.Turn off gas to the heater.

3.Remove the four screws on the side of the heater

holding the control panel (see figure # 9375)

4.Lay control panel forward towards you. This will provide

access to the back of the temperature control board.

5.Install the remote wire harness on the P7 terminal (see

figure # 9373).

6.For a 3-wire/2 function configuration, connect the

HIGH/SPA wire to the orange wire with the black stripe;

the LOW/POOL wire to the black wire with the orange

stripe; and the common wire to the yellow wire with the

black stripe (see figure # 9373).

7.For the 2-wire/1 function configuration, connect the

orange/black and black/orange wires to one contact

and the yellow/black wire to the other contact (see

figure # 9374).

8.Verify the mode button is in the "OFF" position.

Fig # 9375

Fig # 9373

Fig # 9374

THREE WIRE TWO FUNCTION

TWO WIRE ONE FUNCTION ON/OFF ONLY

PRESSURE SWITCH

The pressure switch, or heater actuator, insures

that the heater operates only when the filter pump is in

operation. It is located on the inlet/outlet header. It is

factory set at 1.75 PSI for deck level installations.

When the heater is located below the level of the spa or

pool, it may be necessary to reset the pressure switch

to compensate for the no-flow static head. If it is

necessary to reset the pressure switch, utilize the

following procedure:

PRESSURE SWITCH ADJUSTMENT:

1. With pump and heater on, turn adjustment

knob (clockwise) until a click is heard from

the gas valve.

2. Turn adjustment knob (counter clockwise)

1/4 turn.

3. Turn pump off and on several times. Heater

should shut off immediately. If it does not,

repeat steps above until proper adjustments

made.

Adjustment

Knob

Fig. #2008

PRESSURE SWITCH ADJUSTMENT RANGE

HEAT EXCHANGER HEIGHT

Fig. # 8152.0s

NOTE: If heater is installed outside of the limits shown,

a flow switch mounted and wired adjacent to the heater

must be used in place of the pressure switch.

TWO SPEED PUMPS

In some cases, the flow on the low speed is

insufficient to operate the heater. This is apparent when

the pressure switch cannot be further adjusted or if the

heater makes banging noises or goes off on high limit.

In these cases, the pump must be run at high speed

when heating the water.

CAUTION: Do not operate the heater without the func-

tion of a properly adjusted pressure switch or flow

switch.

5' Max

FLAME ROLL-OUT SAFETY SWITCH

The heater is equipped with a thermal cutoff device

to prevent flame roll-out in the event the heat exchanger

becomes blocked. This is a "Single-use" type fusible

link or thermal fuse, that must be replaced when dis-

abled by an over temperature condition, caused by

excessive restriction in the heat exchanger flue pas-

sage.

Fig. #9177

HIGH LIMITS

The heater is equipped with two automatic high

limits. Both are located in the inlet/outlet header. Both

are set to open at 135°F.

NOTE: An erratic high limit is often characteristic of

internal heat exchanger problem, i.e. scale buildup,

defective bypass. Refer to troubleshooting sections.

Fig. # 2009

HIGH LIMIT REMOVAL

1. Shut off main electrical power switch to heater.

2. Remove inlet/outlet inspection panel.

3. Remove defective high limit and replace with a new

high limit.

4. Replace inspection panel.

PILOT SAFETY (Millivolt)

The heaters equipped with the standing pilot (milli-

volt system), have pilot generators which act as a safety

device to shut off the flow of gas to the main burners and

the pilot burner in case the pilot flame is extinguished.

The pilot burner must be manually relighted to place the

heater in operation again. Refer to the lighting instruc-

tions provided on the heater label.

PILOT SAFETY (Electronic)

The heater employs a pilot safety which closes the

main gas valve within 8/10ths of a second whenever the

pilot flame is interrupted. Pilot flame is automatically lit

when the device is powered. Unit performs its own

safety check and opens the main valve only after the

pilot is proven to be lit.

BURNER DRAWER REMOVAL

1. Shut off main electrical power switch to heater.

2. Shut off gas upstream of heater.

3. Remove front door.

4. Disconnect gas line from gas valve.

5. Remove (2) screws that mount burner tray to unit,

and (2) screws that secure gas valve to jacket.

6. Disconnect wires that terminate at gas valve.

7. Slide out burner tray.

8. Reverse above procedure to reinstall.

GAS VALVE REMOVAL

1. Shut off gas supply to the heater. Remove gas piping

to gas valve inlet.

2. Disconnect wires, pilot tubing and bleed line, if

required.

3. Turn vertical gas pipe from manifold slightly and

unscrew gas valve.

4. Reverse above procedure to re-install.

MAIN BURNER AND ORIFICE REMOVAL

1. Remove burner drawer. See burner drawer removal

procedure.

2. Remove screws and burner hold down bracket.

NOTE: If the heat exchanger is sooted badly, the

burner hold down bracket and spacer can become

distorted from direct flame impingement and this usually

necessitates replacement of these parts.

3. Lift burners from slotted spacers and slide from

orifices. Clean with a wire brush.

4. Orifices usually do not need to be replaced. To clean,

run either copper wire or wood toothpick through

orifice. Do not enlarge hole. To remove orifice, use

a socket wrench and remove from manifold. DO NOT

overtighten when reinstalling.

Burner Hold Down Bracket

Burner

8057.0

PILOT REMOVAL AND CLEANING

1. Disconnect pilot tubing, and wires from gas valve.

2. Remove pilot assembly from burner tray.

3. Remove pilot from bracket.

4. Remove pilot orifice and air opening (Honeywell MV

unit only), and clean with wire or small brush.

CAUTION! Do not enlarge hole in pilot orifice.

5. Reverse above procedure to re-install.

HONEYWELL PILOT ROBERTSHAW PILOT

Pilot Pilot

Air

Opening

Orifice

Fig. # 8045.1 Fig. # 8102.0

HEAT EXCHANGER REMOVAL

1. Shut water, gas and electricity off, close valves and

relieve pressure, remove relief valve. Remove side

inspection panels.

2. Remove top holding screws.

3. Remove draft diverter, lift and remove top and flue

collector. Remove inspection panels.

4. Disconnect wires from high limits and pressure

switch. Remove temperature sensor.

5. Disconnect flange nuts on inlet-outlet header, loosen

union(s) at gas pipe and slide boiler away from piping.

6. Lift heat exchanger straight up using caution not to

damage refractory.

7. Reverse above procedure to reinstall. Make sure the

insulation strips are properly replaced on top of the

refractory retainer.

TUBE CLEANING PROCEDURE

Establish a regular inspection schedule, frequency

depending on local water condition and severity of

service. Do not let the tubes clog up solidly. Clean out

deposits over 1/16" in thickness.

The heater may be cleaned from the return header

side, without breaking pipe connections. It is prefer-

able, however, to remove both headers for better visibil-

ity through the tubes and to be sure the ground-up lime

dust does not get into the system.

Note that you do not remove the top panel or the

heater exchanger, generally.

After reaming, mount the wire brush in place of the

auger and clean out debris remaining in the tubes.

Another method is to remove the heat exchanger,

ream tubes and immerse heat exchanger in non-inhib-

ited de-scale solvent for severe scale build-up.

DESOOTING PROCEDURE

CAUTION: SOOT IS COMBUSTIBLE. EXERCISE

EXTREME CARE:

Soot will clog areas between fins and cause even-

tual tube failure. Any sign of soot at the base of the

burners or around the outer jacket indicates a need for

cleaning.

1. Remove top and flue collector from cabinet.

2. Remove "V" baffles from heat exchanger.

3. Remove burner drawer. (See burner tray removal).

4. Remove heat exchanger from the heater and wash

with a garden hose, making sure soot is removed

from spaces between fins.

5. Reverse above procedure to re-install.

NOTE: In extreme cases it may be necessary to do

steam cleaning at the local car wash. DO NOT

WIREBRUSH.

COMBUSTION CHAMBER REMOVAL

To remove combustion chamber, you must first

have removed the heat exchanger. Unbolt metal com-

bustion chamber retainer from top and remove combus-

tion chamber panels individually.

REFRACTORY PANELS TOP VIEW

Fig. #RP 8155.0

Extension Pieces (2) Auger with Carbide Tip Wire Brush Fig. # 8154.0

CONTROL IMMERSION WELL REPLACEMENT

(Millivolt and ASME)

1. Shut water off to heater and drain heat exchanger.

2. Remove access panel on water connection side of

heater.

3. Remove old control well with bushing and sleeve.

4. Install in header.

NOTE: Installation in plastic should be hand tight plus

1/2 turn.

Well Assembly

Fig. #2010

UNITHERM GOVERNOR (U.G.) REPLACEMENT

1. Shut water, gas and electricity off, close valves and

relieve pressure.

2. Drain heat exchanger.

3. Remove retainer plug located next to the outlet pipe

connection.

4. Remove old U.G. from retainer plug. It is snapped in

place. Snap in new U.G.

5. Reinstall retainer plug, taking care to lubricate gas-

ket with a non-petroleum based grease such as

AquaLube.

Retainer Plug

U.G.

Spring

Gasket

Fig. #2011

To test the operation of the Unitherm Governor, place in

hot water (over 100°F) and watch for movement against

spring. If there is no movement, replace unit.

The Raypak Low Nox Pool Heaters are certified and

tested under the ANSI Z21.56.CSA 4.7 Standards for gas

fired pool heaters.

The heater should be installed to meet all local codes, the

latest editions of the National Fuel Gas Code Z223.1 and

the National Electrical Code, ANSI/NFPA 70.

OPERATION

On call for heat, the ignition system, consisting of an

electronic spark module, gas pilot system is energized.

Providing pilot is proven blower will start running, the

main gas valve will open and the heater will operate.

When the operating control is satisfied the heater will

shut down.

START-UP PROCEDURES (S8610B)

1.Turn on power to the heater with gas supply off.

2.Check ignition module as follows:

a. Set the thermostat or controller to call for heat.

b. Watch for continuous spark at the pilot burner.

c. Check the ignition spark operation. Time must be

within the lockout timing period (15 or 90 seconds).

d. Turn control down to end call for heat and wait 60

seconds on lockout models before beginning step

3.Turn on gas supply.

4.Set controller to call for heat.

5.System should start as follows:

a. Spark will turn on and pilot gas valve will open and

the blower will begin running.

b. Heater will operate until call for heat is satisfied.

ADDENDA: LOW NOx POOL HEATERS

Fig # 9361

FLAME ROLL-OUT SAFETY SWITCH

The heater is equipped with a cutoff device to prevent

flame roll-out in the event the heat exchanger becomes

blocked. This is a "manual reset" type roll-out switch that

must be reset by a service technician after any over

temperature conditions have been fixed. Excessive

restriction in the heat exchanger flue passage may cause

the switch to disable the heater.

BURNER ADJUSTMENT

This burner assembly does not require any primary air

adjustments.

VISUAL INSPECTION

Flame can be observed through the slot opening above

the plenum. Flame color is blue and evenly spread on the

top surface of the burner. At least every three months a

visual inspection should be made of the burners. In case

flame lifting is observed on the burner, check gas pres-

sure on manifold. Gas pressure in manifold should be

3.9" W.C.

ELECTRICAL

Be sure that electrical service to the boiler has proper

overload fuse or circuit breaker protection, wire size and

connections which comply with all applicable codes.

BURNER DRAWER REMOVAL

1. Shut off main electrical power switch to heater.

2. Shut off gas upstream of heater.

3. Remove front door.

4. Disconnect gas line from gas valve.

5. Remove (2) screws that mount burner tray to the

base of the unit, and (2) screws that secure gas

valve to jacket.

6. Disconnect wires that terminate at gas valve.

7. Unscrew (4) screws that secure the control box.

8. Disconnect pilot wire from the ignition module.

9. Disconnect wire harness from the combustion blower.

10. Carefully slide out the burner tray assembly.

11. Reverse above procedure to reinstall.

GAS VALVE REMOVAL

1. Remove burner drawer. See burner removal

procedure.

2. Disconnect, pilot tubing from gas valve.

3. Turn vertical gas pipe from manifold slightly and

unscrew gas valve.

4. Reverse above procedure to re-install.

MAIN BURNER AND ORIFICE REMOVAL

1. Remove burner drawer. See burner drawer removal

procedure.

2. Remove pilot. See pilot removal procedure.

3. Remove (8) total screws from the hold down brack-

ets, front and rear of tray.

4. Remove (8) total screws from the left and right sides

of the Manifold assembly. Detach the manifold as-

sembly from the burner tray assembly.

5. Remove burners by raising the bracket on the back

end of the burners up and out of their slots.

ADDENDA: LOW NOX HEATERS (CONTINUED)

Fig # 9362

PILOT REMOVAL

1. Disconnect pilot tubing from gas valve.

2. Remove (4) screws from control box. Open the

control box.

3. Remove the pilot wire from the ignition wire.

4. Remove (2) screws that mount the pilot bracket

to the air manifold assembly.

5. Pull the pilot bracket slightly, then drop and pull

downwards and outwards.

6. Reverse above procedure to re-install. Make sure

the pilot bracket is all the way up on the pilot side,

see drawing below.

Fig # 9363

IID PILOT

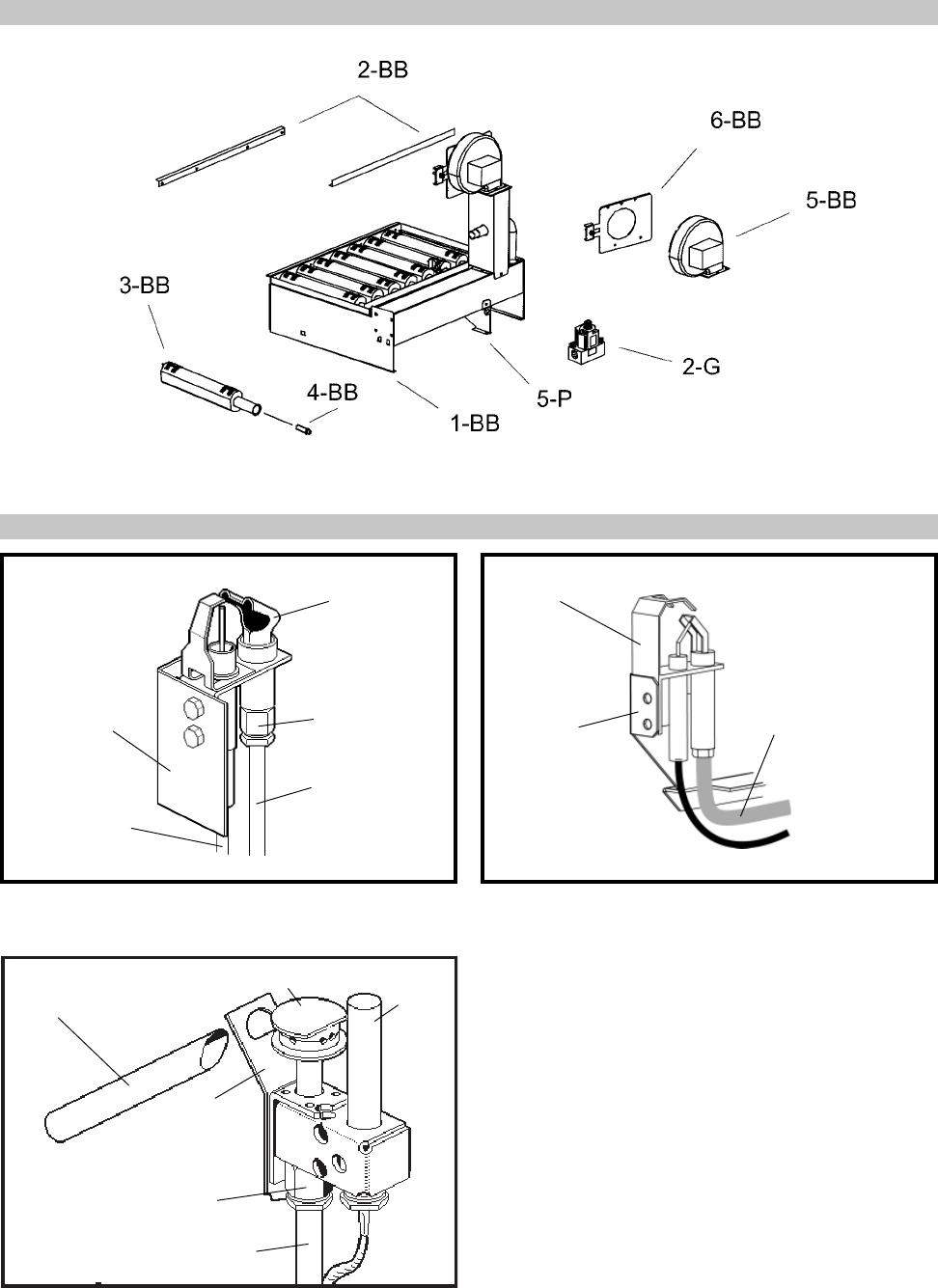

LOW NOx BURNER TRAY ASSEMBLY

COMBUSTION FAN REMOVAL

1. Remove burner drawer. See burner drawer

removal procedure.

2. Remove (4) screws the mount the combustion

blower to the manifold assembly.

3. Reverse above procedure to re-install.

6. Use a long 9/16” socket wrench to remove orifices

from the gas manifold.

7. Reverse above procedure to re-install.

Fig# 9368

MECHANICAL (FOR QUALIFIED SERVICE PERSONNEL ONLY)

IMPORTANT NOTICE These instructions are primarily intended for the use of qualified personnel specifically trained and experienced in

the installation of this type of heating equipment and related system components. Installation and service personnel may be required by

some states to be licensed. Persons not qualified shall not attempt to install this equipment nor attempt repairs according to these instructions.

PROBLEM CAUSE SOLUTION

Harmonics, or whining noise U.G. inoperative.................................... Check movement by putting in hot water (110°F or hig

higher). If no movement, replace.

*Debris or restriction in system............ Locate the restriction and remove. Flush system

and clean.

*Debris in gas line................................. Remove debris or blow out gas line.

Low flow.............................................. Scale forming in heat exchanger - clean heat

exchanger and check pool pH and total alkalinity.

Heater going on and off Dirty filter.............................................. Backwash filter.

continously Low water level in pool........................ Raise water level.

External bypass setting out of

adjustment............................................ Adjust bypass

*Pressure switch out of

adjustment............................................. Adjust pressure switch

Liming or scale forming on Pool water............................................. Recommended pH should be between 7.4 and 7.8

heat exchanger Total alkalinity 100-150 PPM maximum.

Hardness 150-400 PPM maximum.

Sooting High flow rates..................................... Reduce by adding manual bypass valve. Adjust

manual bypass valve until heater outlet water

temperature is between 105° and 110°F.

U.G. Inoperative.................................... Check movement by putting in hot water (110°F

or higher). If no movement, replace.

*Air starvation....................................... Refer to installation instructions.

*Improper venting.................................. Follow recommended installation instructions.

*Insects or debris clogging

burner intake ports............................... Clean burners.

Pilot outage Low gas pressure................................ Adjust gas pressure.

Restricted pilot...................................... Clean pilot.

Weak pilot generator............................. Replace pilot.

Yellow lazy flame Low gas pressure................................ Adjust gas pressure.

*Insects or debris clogging

burner intake ports............................... Clean burners.

Outer jacket very hot *Broken refractory caused by

(paint blistered) shipping damage or improper

combustion.......................................... Replace refractory panels.

Excessive sooting of heat

exchanger........................................... Determine cause of sooting & correct.

Takes long time to heat Calculate temperature in °/hr................ Heat rise (°/hr.)= Htr. output_____

pool or spa. Pool gallonage x 8.33

or refer to heater sizing chart. This does not take into

account heat loss due to weather.

Filter not running long enough............... Reset time clock.

Dirty filter............................................... Clean filter.

Gas line or meter undersized................ Refer to installation instructions.

Liming Bypassing too much water................... Inspect bypass for movement, if no movement,

replace.

U.G. not functioning.............................. Replace if no movement when heated.

Leaking at well. Overacid............................................... Replace well and maintain water chemistry properly.

Leaking at heat exchanger. Overacid............................................... Replace heat exchanger and maintain chemistry

properly.

Gasket brittle and leaking - Heater running after pump

(overheated). shuts off............................................... See pressure switch adjustment.

Refractory damage............................... Replace refractory.

Sooted heater....................................... Determine cause of sooting and correct.

Combustion fan not running Fan relay............................................... Replace fan relay

Fan........................................................ Loose connection or failed motor

Burned motor ....................................... Incorrect wiring, replace blower

SECTION 5 / TROUBLE SHOOTING GUIDE

(* Indicates symptom usually occurs on initial start-up.)

If pilot burner remains lit.

Jump across pressure

switch terminals

If main burner does not

fire, remove jumper

Check for adequate water

flow from filter

Replace pressure switch

Jump across thermostat

If main burner fires,

remove jumper

If main burner does

NOT fire...

Jump across each high

limit and remove jumper

Replace thermostat

Replace high limit that

caused heater to fire

Jump across both "TH"

wires on gas valves

Check gas supply, gas

line size, gas pressure.

Also check for insects

or debris in pilot output.

If pilot burner

does not light

Light pilot

If pilot burner goes out

when main burner lights

or when gas valve knob

is released

If burner does not remain

lit, attach millivolt meter

and read pilot output.

If below 500mV, check

gas pressure. Also check

for insects or debris in

the pilot burner

If main burner fires,

remove jumper

Replace

gas

valve

If main burner does not

fire, remove jumper

Remove both "TH"

wires from gas valve.

Relight pilot

If pilot burner stays on

Problem is a wire or

component short to

cabinet or low gas

pressure

If above 500mV,

replace gas valve

Clean filter

If main burner fires,

remove jumper

ELECTRICAL ( STANDING PILOT MILLIVOLT)

If output is still low,

replace pilot generator.

CAUTION: For qualified service personnel only.

1. Filter must be on with adequate water flow through heater.

2. Gas valve must be "ON" position. Thermostat set higher

than pool water temperature.

3. Jumpers are for temporary check only. If left in place,

they could cause the heater to burn up.

RAYPAK POOL OR SPA HEATER

ELECTRICAL CHECK WITH MV GAS VALVE

WARNING HIGH VOLTAGE

For qualified Technicians ONLY

NOTE: Some heaters may be equipped with an ignition module that shuts off pilot gas

if pilot fails to light. To reset, interrupt power to heater.

Intermittent Pilot System

TROUBLESHOOTING HONEYWELL S8600

NOTE:Before troubleshooting, familiarize yourself with the startup and checkout

procedure.

Check line voltage power, low voltage transformer, limit controller, thermostat

(controller) and wiring.

Pull ignition lead and check spark at module.

Spark Okay?

YES

• Check ignition cable, ground wiring, ceramic insulator and gap, and correct.

• Check boot of the ignition cable for signs of melting or buckling. Take protective

action to shield cable and boot from excessive temperatures.

• Check that all manual gas valves are open, supply tubing and pressures are good,

and pilot burner orifice is not blocked.

• Check electrical connections between module and pilot operator on gas control.

• Check for 24 Vac across PV-MV/PV terminals on module. If voltage is okay,

replace gas control; if not, replace module.

NOTE:If S8600H goes into lockout, reset system. Lockout is used on L.P.G. models.

• Check continuity of ignition cable and ground wire.

• Clean flame rod.

• Check electrical connections between flame rod and module.

• Check for cracked ceramic flame rod insulator.

• Check that pilot flame covers flame rod and is steady and blue.

• Adjust pilot flame.

• If problem persists, replace module.

• Check for 24 Vac across MV-MV/PV terminals. If no voltage, replace module.

• Check electrical connections between module and gas control. If okay, replace

gas valve or gas control operator, i.e. pilot gas valve, flow switch etc.

NOTE: IF S8600H goes into lockout, reset system.

• Check continuity of ignition cable and ground wire.

NOTE: If ground is poor or erratic, shutdowns may occur occasionally even though

operation is normal at the time of checkout.

• Check that pilot flame covers flame rod and is steady and blue.

• If checks are okay, replace module.

• Check for proper thermostat (controller) operation.

• Remove MV lead at module; if valve closes, recheck temperature controller and

wiring; if not, replace gas valve.

START

TURN GAS SUPPLY OFF.

TURN THERMOSTAT

(CONTROLLER) TO CALL

FOR HEAT

POWER TO MODULE

(24 V NOMINAL)

YES

SPARK ACROSS

IGNITER/SENSOR GAP

YES

TURN GAS SUPPLY ON

PILOT BURNER LIGHTS?

YES

SPARK STOPS WHEN

PILOT IS LIT?

YES

MAIN BURNER LIGHTS?

YES

SYSTEM RUNS UNTIL

CALL FOR HEAT ENDS?

YES

CALL FOR HEAT ENDS

SYSTEM SHUTS OFF?

YES

TROUBLESHOOTING

ENDS

Repeat procedure until troublefree operation is obtained.

ELECTRICAL

(ELECTRONIC IGNITION IID)

SECTION 6/REPLACEMENT PARTS LIST

NOTE: To supply the correct part it is important that

you state the model number, serial number

and type of gas when applicable.

Any part returned for replacement under standard

company warranties must be properly tagged with

RAYPAK return parts tag, completely filled in with the

heater serial number, model number, etc., and shipped

to the Company freight prepaid.

If determined defective by the Company and within

warranty, the part will be returned in kind or equal

substitution, freight collect. Credit will not be issued.

RAYPAK, INC

2151 Eastman Avenue

Oxnard, CA 93030

For Canada:

RAYPAK CANADA LTD.

2805 SLOUGH STREET

MISSISSAUGA, ONTARIO

L4T 1G2

Fig. #8124

Honeywell MV Fig. #8107

Fig. #9369

13-P

5-P

16-P

15-P

1-P

9-P

3-P

Low NOx BURNER TRAY

PILOT ASSEMBLIES

14-P 16-P

3-P

7-P

16-P

3-P

17-P

Honeywell IID Atmospheric units

for units produced prior to 06/01/2000

Honeywell IID Low NOx and Atmospheric units

for units produced after to 06/01/2000

Use KIT Number 008155F for Low NOx units

Use KIT Number 002003F for Atmospheric units

LIMITED WARRANTY

RAYPAK RESIDENTIAL SWIMMING POOL AND SPA HEATERS

GAS MODELS 185, 265, 335 & 405 MILLIVOLT

185, 265, 335 & 405 ELECTRONIC

GENERAL

Raypak, Inc. warrants that the cabinet, burner tray (minus controls) and refractory will be free from defects in materials and workmanship

under normal use and service for a period of FIVE YEARS FROM THE DATE OF ORIGINAL PURCHASE FOR A SINGLE FAMILY RESIDENCE

(ONE YEAR IF OTHER THAN FOR SINGLE FAMILY RESIDENCE USE). All other parts of this product are warranted by Raypak to be free

from defects in materials and workmanship under normal use and service for a period of TWO YEARS FROM THE DATE OF ORIGINAL

PURCHASE FOR A SINGLE FAMILY RESIDENCE (ONE YEAR IF OTHER THAN FOR SINGLE FAMILY RESIDENCE USE). In accordance

with the terms of this warranty, we will furnish a Raypak replacement for any defective part or repair the part at our option. The replacement

or repair will be warranted for only the unexpired portion of the original warranty. Labor costs for removal or reinstallation of parts are

not covered by this warranty, nor are shipping charges to or from Raypak's designated repair center. This warranty does not cover rusting

or corrosion on cabinet or burners that does not affect heater's operation.

WARRANTY CONDITIONS

This warranty applies only to the heater at its original place of installation. This warranty will be void if the heater is installed in violation

of applicable local codes and ordinances or if the rating plate or serial number is altered or removed.

WARRANTY EXCLUSION

This warranty does not cover defects or malfunctions resulting from:

1. Failure to properly install, operate or maintain the heater in accordance with our printed instructions;

2. Abuse, alteration, accident, fire, flood, freeze and the like:

3. Misuse or neglect, including but not limited to, freeze-ups, operating the heater with the cabinet door off, having

flow restrictions or obstructions between the heater outlet and the pool/spa, or not maintaining a proper chemical

balance (PH level must be between 7.4 and 7.8 and total alkalinity between 100 and 150 PPM. Total dissolved solids

(TDS) must be no greater than 3000 PPM);

4. Use of non-factory authorized accessories or other components in conjunction with the heater.

HOW TO MAKE A CLAIM

Immediately notify the dealer from whom the heater was purchased, supplying model and serial numbers of the unit, date of purchase, and

a description of the problem. The dealer should then promptly contact Raypak about the warranty claim, and for the location of Raypak's

nearest designated repair center. (If the dealer for any reason is not available, call or write Raypak directly at the address shown below,

Attention: Warranty Service). After such notification has been given and Raypak has advised the location of its designated repair center

(which may be the dealer), bring or ship, transportation prepaid, the defective part for replacement or repair to the designated repair center.

However, Raypak reserves the right at all times to inspect the claimed defect and verify warranty coverage at its factory.

MISCELLANEOUS

No one is authorized to make any other warranties on our behalf, ANY IMPLIED WARRANTIES, INCLUDING MERCHANTABILITY OR FITNESS

FOR A PARTICULAR PURPOSE, SHALL NOT EXTEND BEYOND THE APPLICABLE WARRANTY PERIODS SPECIFIED ABOVE. RAYPAK'S

SOLE LIABILITY WITH RESPECT TO ANY DEFECT SHALL BE AS SET FORTH IN THIS WARRANTY AND ANY CLAIMS FOR INCIDENTAL OR

CONSEQUENTIAL DAMAGES (INCLUDING DAMAGE FROM WATER LEAKAGE) ARE EXCLUDED. Some states do not allow limitations on

how long an implied warranty lasts, or for the exclusion of incidental or consequential damages, so the above limitation or exclusion may

not apply to you.

We suggest you immediately complete the information below and retain this Warranty Certificate in the event warranty service is needed.

Reasonable proof of the effective date of the warranty must be presented; otherwise, the effective date will be based upon the date of

manufacture plus THIRTY (30) Days.

This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

________________________________________________ ________________________________________________

Name of Owner Name of Dealer

________________________________________________ ________________________________________________

Address Address

________________________________________________ ________________________________________________

Model No. Serial No.

Date of Purchase____________________________________________________________________________________

RAYPAK, INC., 2151 Eastman Avenue, Oxnard, CA 93030 • (805) 278-5300 FAX (800) 872-9725

RAYPAK CANADA LTD., 2805 Slough Street, Mississauga, Ontario L4T 1G2 (905) 677-7999 FAX (905) 677-8036

Raypak, Inc., 2151 Eastman Avenue, Oxnard, CA 93030 (805) 278-5300 FAX (800) 872-9725

Raypak Canada LTD, 2805 Slough Street, Mississauga, Ontario, Canada L4T 1G2 (905) 677-7999 FAX (905) 677-8036

Raypak Australia Pty. Ltd, 7 Geddes St., Mulgrave, Victoria, Australia 3170 (6139) 560 4944 FAX (6139) 560 4974

Litho in U.S.A.

www.raypak.com

RayPak RP2100 Heater Owner's Manual RoyalSwimmingPools.com RP2100, P R185A, R405A, C R405A

Navigation menu

Versions of this User Manual:

Views

Navigation
