Intel® vPro™ Technology

Module for Microsoft* Windows PowerShell*:

Direct Access to Intel® AMT enables the

Ability to Fix Problems on the Fly

5

Agenda

•Introduction

•Using Windows PowerShell*

•Intel® vPro™ Technology Module for

Microsoft* Windows PowerShell*

•GUI Editor Tool

•Next Steps

6

6

Intel® vPro™ Technology Module for

Microsoft Windows PowerShell*

Introduction

7

Ways to Implement an Intel® AMT

Application

•Intel AMT SDK

The Intel AMT SDK provides the necessary APIs

and libraries to use Intel AMT features. Intel

expects effective and collaborative participation

from ISVs.

•Intel AMT High Level API (HLAPI)

The HLAPI provides an easier to use interface for

developing applications that work with systems

equipped with Intel AMT.

•Intel vPro Technology Module for

Microsoft* Windows PowerShell*

Provides IT Professionals an easy, scriptable

mechanism to interact with Intel AMT.

Ease of Use

8

Microsoft* Windows PowerShell*

•Microsoft’s implementation of Windows PowerShell* allows IT professionals to

achieve greater control and productivity

•Standard / Simple / Flexible for an IT Professionals

•Adapts many different type systems and data formats to a common user

experience

•Provides IT Shops the tools to solve day to day real world opportunities

PowerShell

Standard

Environment

Fast

Development

cycle

Easy

to

Adopt

9

9

Why use Microsoft*

Windows PowerShell*?

Simple

Free

10

10

Intel® vPro™ Technology Module for

Microsoft* Windows PowerShell*

Using Windows PowerShell*

11

MS-DOS

Batch Files

VBScripts

MS-DOS to Windows PowerShell*

Windows

PowerShell*

12

Windows PowerShell*

Prerequisites

•Windows PowerShell* is natively included

-Windows 7

-Windows Server 2008 R2

•It is released for

-Windows XP with Service Pack 3

- Windows Server 2003 with Service Pack 2

- Windows Vista with Service Pack 1

-Windows Server 2008

•Windows Management Framework Core package

download link

http://support.microsoft.com/kb/968930

13

Setting up the Environment

a) Download the Intel vPro Technology Module for Windows

PowerShell* from http://intel.com/go/powershell and install the

package.

b) Start -> All Programs -> Accessories -> Windows PowerShell

c) Run Set-ExecutionPolicy remotesigned

-Need to install PowerShell *version 2.0 before the

Intel vPro Technology PowerShell module can be installed.

14

14

Intel® vPro™ Technology Module

for Microsoft Windows PowerShell*

Intel® vPro™ Technology Module for

Microsoft Windows PowerShell*

15

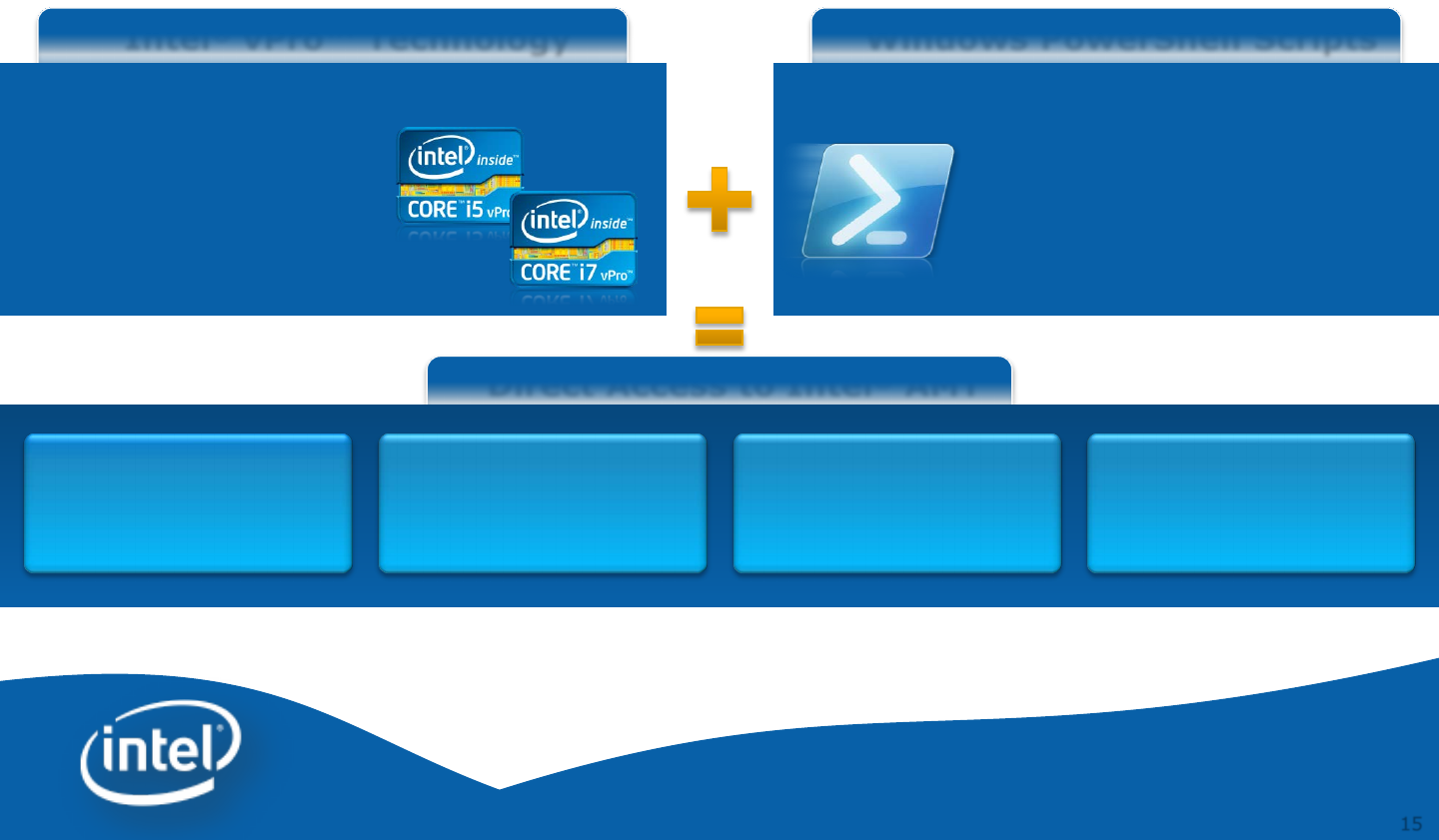

Direct Access to Intel® AMT

Windows PowerShell Scripts

Windows PowerShell* and Intel® vPro™

Technology: Direct Access to Intel® AMT enables

an IT Department to Fix Problems on the Fly

Lower TCO, Reduce Desk Side Visits,

and Improve End-user Productivity

Intel® vPro™ Technology

•Remote power management

(turn on and off)

•IDE-redirection

•Serial over LAN

•KVM

•Intel ® AMT configuration

parameters dynamically set

•Integrate into existing tools

•Enables easy automation

•Can access the alarm clock

•Enable features not available

in an existing management

console

Automate Power

Control on Demand

with Automatic

Boot Up

Can Wake Up System

at Given Time w/o

Any Network

Connection Before

IT Shop Can Solve

Problems with No

Wait Time

Can “On the Fly”

Adjust/Change Intel

AMT Parameters

16

Intel® vPro™ Technology Module for

Microsoft* Windows PowerShell*

•What is it?

Provides programming resources and scripts in a standard package

that can be deployed and used by Windows PowerShell*

All the programming resource are built in the entirely in the .NET

framework and all scripts are standard Windows PowerShell .ps1 text)

files

Exposes a late-binding CIM client for accessing Intel® AMT over the

WS-MAN protocol

Exposes HECI driver to Windows PowerShell* scripts

Provides Intel® AMT drive abstraction for treating AMT firmware

settings as a virtual file system that can be enumerated and copied

both locally and remotely

Provides scriptable certificate enrollment and Kerberos integration

services for enterprise setup and configuration

Scripts for invoking Intel® AMT use cases

17

Module Versions

•Version 1

–Core CIM client feature complete

–Module Installer

–Features:

–Power Control (Power On, Off,

Restart)

–Force Boot (Local Hard drive, CD-

ROM, PXE)

–Alarm Clock Configuration

–System Defense

–3PDS (Reading, Writing and

Clearing)

•Version 2

–Extended Features

–Force Boot IDER Support

–Serial over LAN

–Light Weight GUI built completely with

Windows PowerShell

–Treat 3PDS, HW Inventory, Audit and

Event Logs as file system

–Local or remote manipulation of Intel®

AMT Configuration

18

Prerequisites

•Any PC with Microsoft

Windows XP * or later with

–Microsoft .NET Framework 3.5

–Windows PowerShell * 2.0

installed

–Intel® vPro™ Technology Module

for Windows PowerShell*

installed

–Windows Remote Management

(WinRM)

•Intel® vPro™ based PC with

Microsoft Windows XP * or later

with

–Microsoft .NET Framework 3.5

–Windows PowerShell* 2.0

installed

–Intel® vPro™ Technology Module

for Windows PowerShell* (Only

needed if running locally)

–Windows Remote Management

•Intel® Active Management

Technology (Intel® AMT) 3.0 or

higher

•Intel® Management Engine is

provisioned

IT Console

Client PC

Install the module on Client PC only when you want to run it locally

19

Setup the Environment

Import the Module

PS C:\> Import-Module IntelvPro

•%UserProfile%\My Documents\WindowsPowerShell\profile.ps1

This profile applies only to the current user, but affects all shells.

Profile.ps1

Import-Module IntelvPro

20

Information Cmdlets (command-

let)

•Get FW version

PS C:\> Get-AMTFirmwareVersion 192.168.1.2 –username admin –

password P@ssw0rd

•Get Power State

PS C:\> Get-AMTPowerState 192.168.1.2 –username admin –

password P@ssw0rd

•Get Event Log

PS C:\> Get-AMTEventLog 192.168.1.2 –username admin –password

P@ssw0rd

•Get Hardware Asset

PS C:\> Get-AMTHardwareAsset 192.168.1.2 –username admin –

password P@ssw0rd

21

Secure Intel® AMT Credential in

Storage

•This secure storage lets us put the Intel® AMT credentials

safely into Windows PowerShell* to be retrieved later when

running the Cmdlets.

PS C:\> $cred = Get-Credential

PS C:\> Write-AmtCredential -Username

$cred.UserName -Password $cred.Password

•Now you can read Intel AMT credential on different PS session

by using “–credential $cred” instead of the long parameter “-

username” and “-password”

PS C:\> import-module intelvPro

PS C:\> Read-AmtCredential

PS C:\> Get-AMTFirmwareVersion –computername

192.168.1.2 -Credential $cred

You may utilize profile.ps1 to read predefined credentials.

22

Windows PowerShell* Drive

•Windows PowerShell* has ability to map Intel® AMT system

as a Windows PowerShell* drive

PS C:\> Get-PSDrive

•Map PS drive to client system

–Map Intel® AMT system as a PS drive

PS C:\> new-psdrive -name amt -psprovider AmtSystem –

root "\" -computername 192.168.1.2 -credential $cred

–Retrieve Intel® AMT logs

PS C:\> Get-Content amt:\logs\EventLog

–Enable KVM

PS C:\> cd amt:\config\kvm

PS C:\> Set-Item AccessPointEnabled –Value True

PS C:\> Set-Item RFBPassword –Value P@ssw0rd

PS C:\> Set-Item UseStandardPort –Value True

PS C:\> Set-Item ConsentRequired –Value True

23

•List Power Policy Schemes

PS C:\> cd amt:\config\etc\PowerPolicy\Schemes

PS C:\> ls

Name Value Type

---- ----- ----

Desktop: ON in S0 12834f94-10fb-dc4f-968e-1e232b0c9065 System.Guid

Desktop: ON in S0, ME Wake in S3 46732273-dc23-2f43-a98a-13d37982d855 System.Guid

•Change power package

PS C:\> Cd amt:\config\etc\PowerPolicy\

PS C:\> Set-Item .\ActiveScheme –value 12834f94-10fb-

dc4f-968e-1e232b0c9065

PS C:\> Set-Item .\ActiveScheme –value 46732273-dc23-

2f43-a98a-13d37982d855

Power Packages

6.x/7.0

Desktop Desktop: ON in S0 {12834F94-10FB-DC4F-968E-1E232B0C9065}

Desktop: ON in S0; ME Wake in S3, S4-S5 {46732273-DC23-2F43-A98A-13D37982D855}

6.x/7.0

Mobile Mobile: ON in S0 {11973976-560B-4350-88709812F391B560}

Mobile: ON in S0; ME Wake in S3/AC, S4-S5/AC {EE0D8030-C009-4378-AF287868A2DBBE3A}

- You may use either PS C:\> ls or PS C:\> dir to check

available items in a directory.

24

Piping Capability

•Remote Power Control

PS C:\> Invoke-AMTPowerManagement 192.168.1.2 –username

admin –password P@ssw0rd -operation reset

•Windows PowerShell * piping capability allows performing

operations on a large number of Intel® AMT systems at once

PS C:\> type Computers.txt

192.168.1.2

192.168.1.3

PS C:\> Get-Content computers.txt | invoke-

amtpowermanagement -operation poweron -Credential $cred

25

One-to-One / One-to-Many IDER

•Perform Intel® AMT IDER and reboot to remote CD/DVD


PS C:\> Start-AMTIDER 192.168.1.2 –iderpath:c:\psmdemo\boot.iso –

operation:reset –credential:$cred

PS C:\> Get-AMTIDER

PS C:\> Stop-AMTIDER

•Perform Intel® AMT IDER on multiple client PCs

PS C:\> type Computers.txt

192.168.1.2

192.168.1.3

PS C:\> Get-Content computers.txt | Start-AMTIDER

-iderpath:c:\dos_gold.iso –operation:reset -credential:$cred

PS C:\> Get-AMTIDER

PS C:\> Stop-AMTIDER PS C:\> Get-AMTIDER | Stop-AMTIDER

26

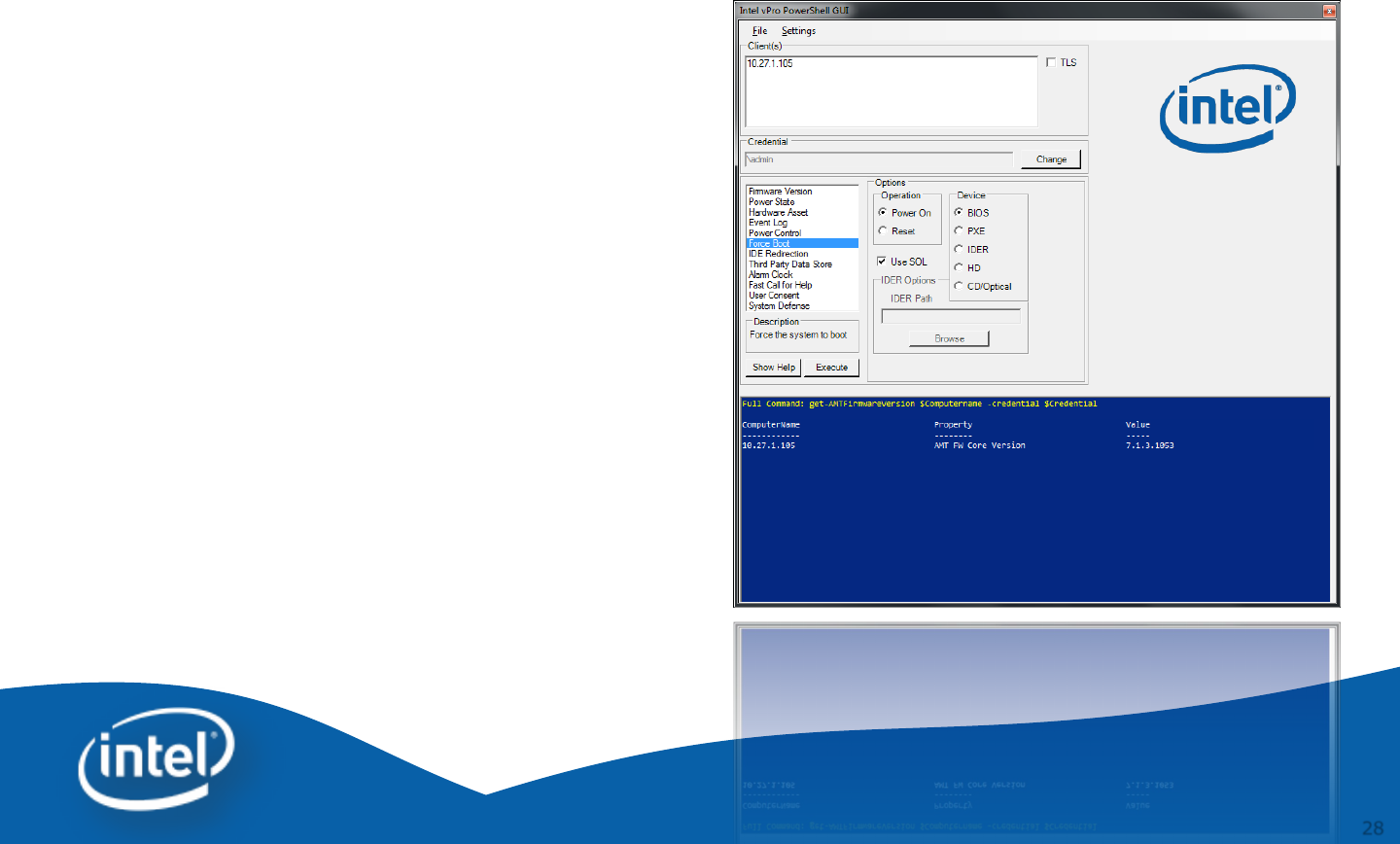

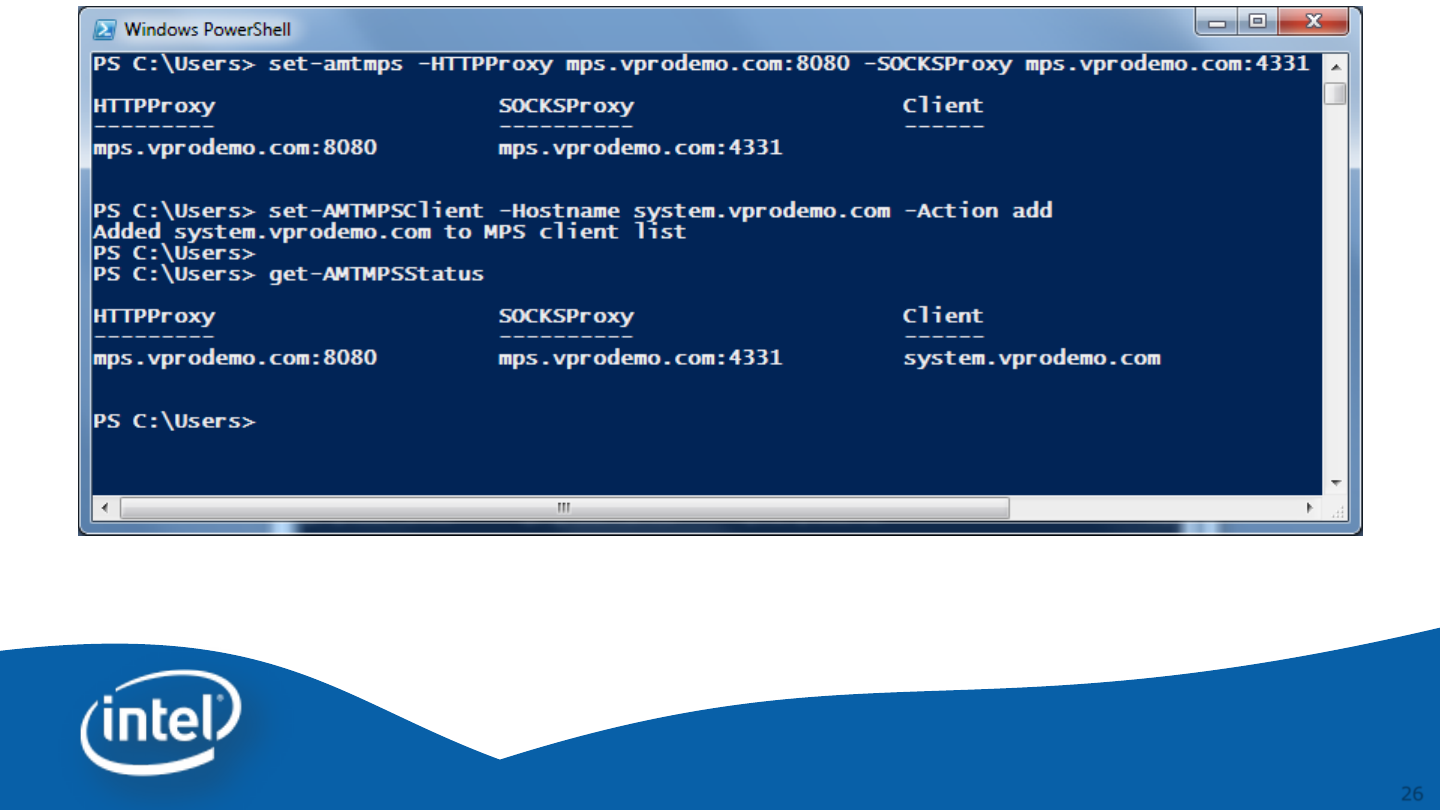

Intel ® Fast Call for Help interface

27

27

GUI Editor Tool

Intel® vPro™ Technology Module for

Microsoft* Windows PowerShell*

28

Intel® vPro™ Technology Module for Microsoft*

Windows PowerShell* GUI Editor Tool

•Provides GUI with easy access to the

Intel® vPro Technology scripts

•Easily extensible to call any

executable, script or cmdlet

•The appearance and behaviour can be

greatly customized with the invoke-

AMTGUI Editor tool

•Supports digest, Kerberos, non-TLS

and TLS modes

•Supports Intel vPro Technology

clients with Intel® AMT firmware 3.2

or later

29

Introduction

•The Intel® vPro™ Technology Module for Microsoft*

Windows PowerShell * GUI Editor Tool enables an IT

practitioner to design and customize the GUI that is

displayed by the invoke-AMTGUI script from the

Intel® vPro™ Technology Module for Microsoft

Windows PowerShell *

•The invoke-AMTGUI Editor Tool creates an XML

configuration file which the invoke-AMTGUI cmdlet

interprets and displays

30

Download and install package

a) Download the Intel® vPro™ Technology Module

for Microsoft Windows Powershell GUI Editor Tool

from http://www.intel.com/go/powershell

b) Start -> All Programs -> Intel PowerShell invoke-

AMTGUI Editor

31

Windows PowerShell * invoke-

AMTGUI Editor

Controls

GUI

Properties

To launch AMT GUI Editor, please click on Start -> All Programs

-> Intel PowerShell invoke-AMTGUI Editor -> PowerShell invoke-AMTGUI Editor

32

Controls - Label

Use the label control to place a text label on the GUI.

The text, font, and color can be edited. One usage of

the label is to display information or simple

commands to the user.

33

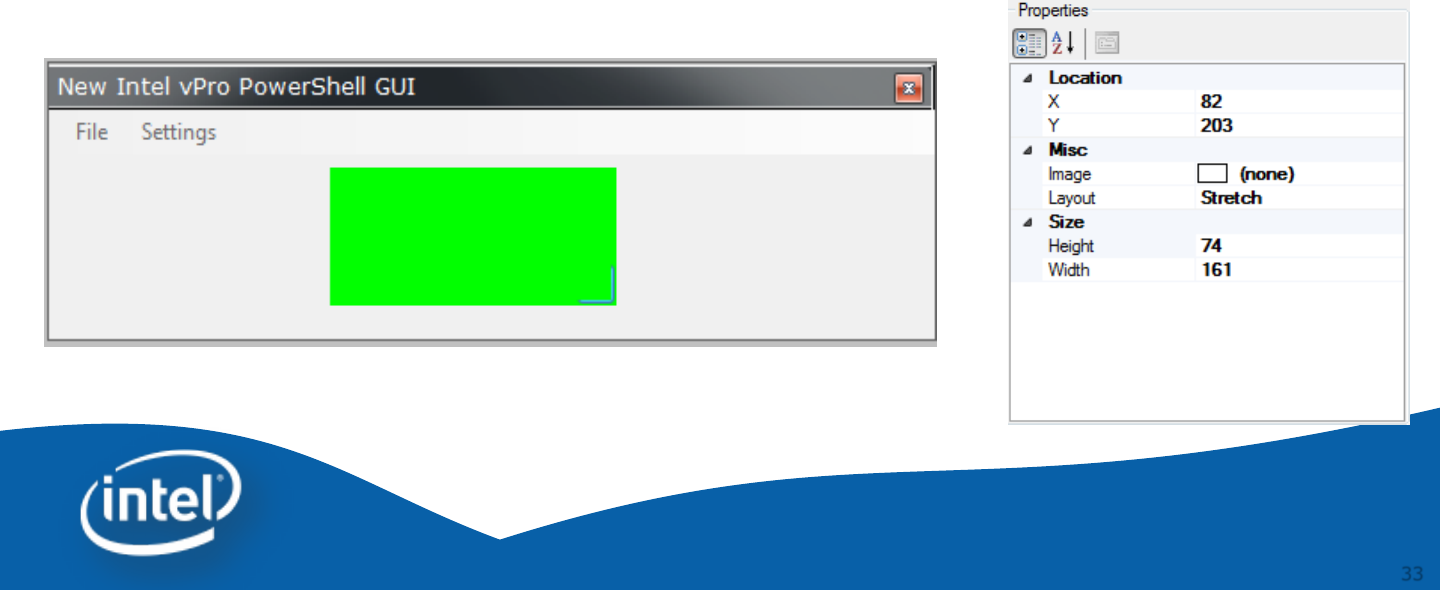

Controls - Image

Use the image control to place an image on the GUI.

Select an image by clicking on “Image” under

properties. The layout property is used to determine

how the image is displayed. Images are directly

embedded into the XML file so there is no need to

distribute them.

34

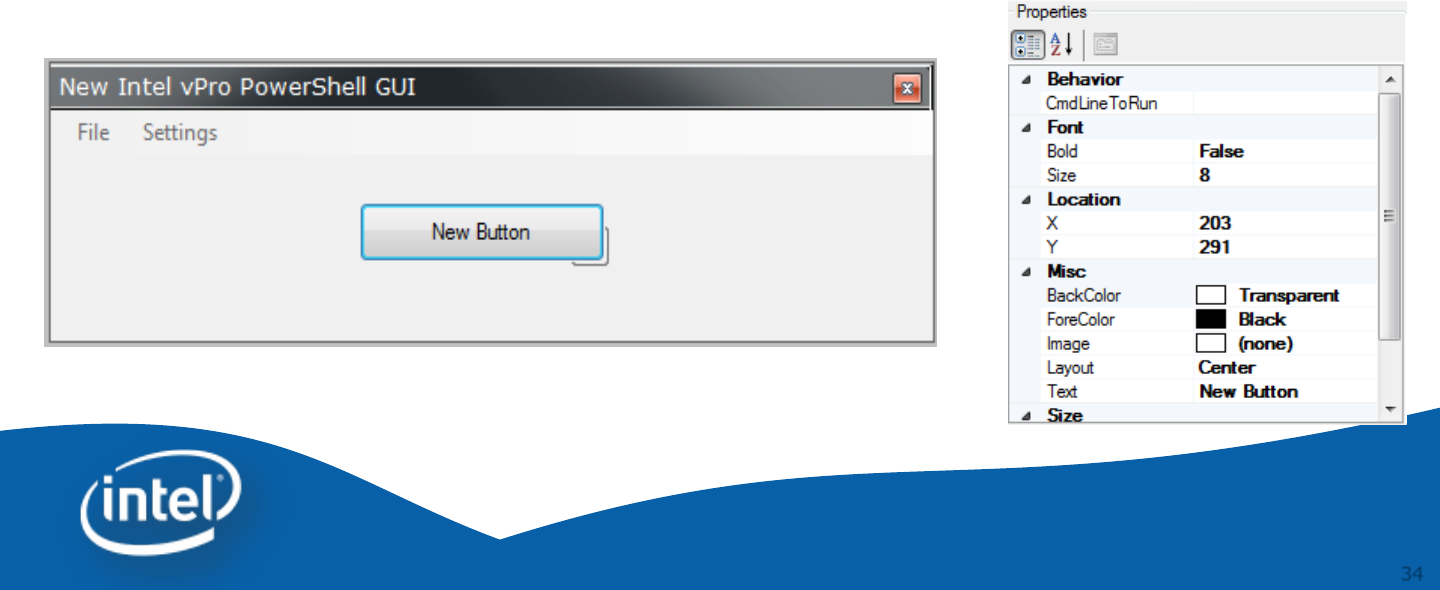

Controls – Generic Button

The generic button control can call any script or

executable. Set the CmdLineToRun property to the

script, cmdlet or executable to run. Change the text

of the button by using the Text property. The color

can be edited and an image can be added.

35

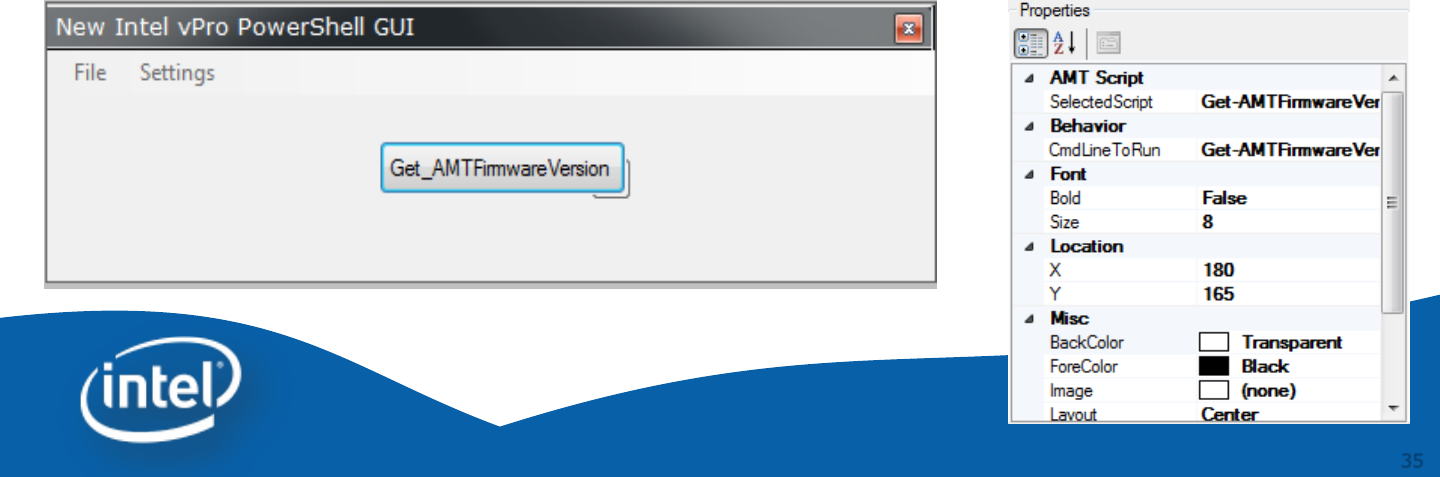

Controls – Intel vPro Button

The Intel vPro button control allows the easy use of

the Intel® vPro™ Technology scripts in the Intel®

vPro™ Technology Module for Microsoft Windows

PowerShell*. Choose the script the button runs

through the SelectedScript property. If a script has

parameters they are displayed below the Properties

window. This allows for the customization of the

script. These parameters are hardcoded into the

button and are used when the user presses the

button.

36

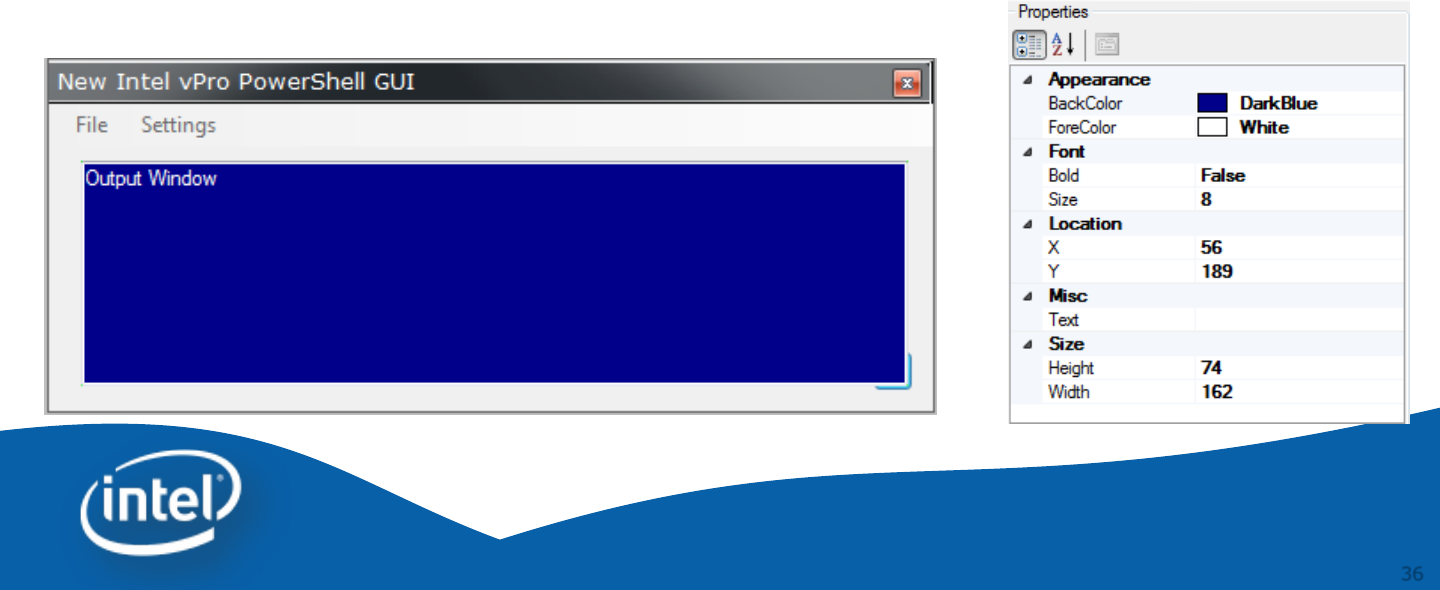

Controls – Output Window

The output window control displays the output from

scripts and applications run from the GUI.

37

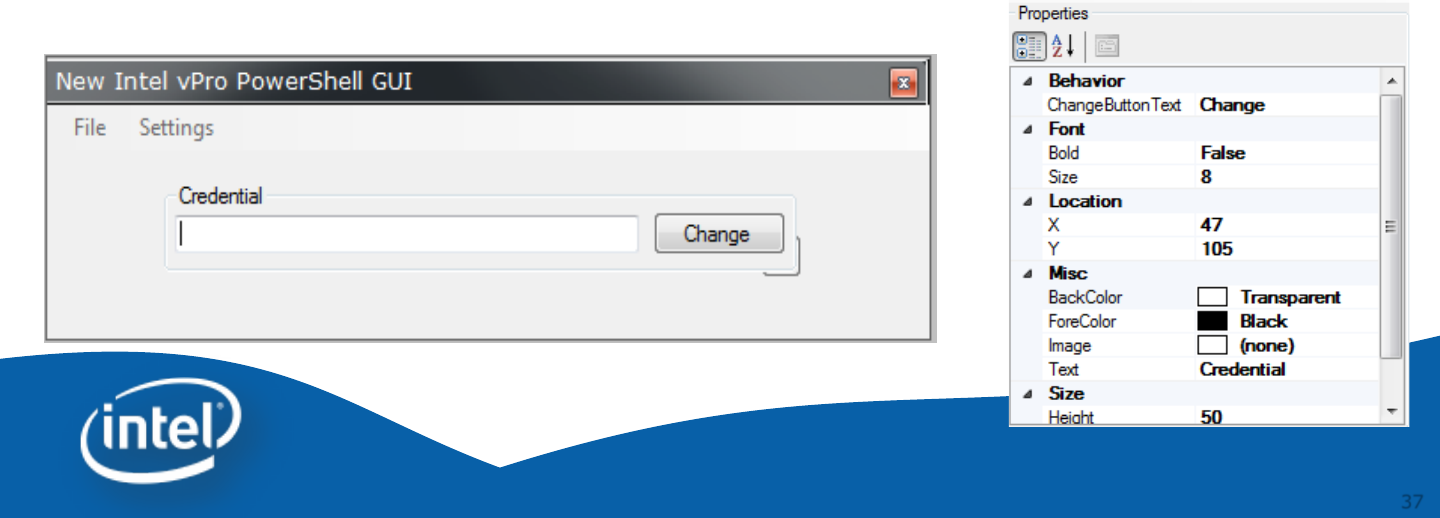

Controls – Credential Input Box

There is a built in variable $credential that is passed

to all built in Intel® vPro™ Technology scripts. If a

credential input box is added then the user can edit

the credential variable at runtime. It is not necessary

to add this control since the credentials can be

passed into the invoke-AMTGUI script when it is run.

Any script can use the $credential variable.

38

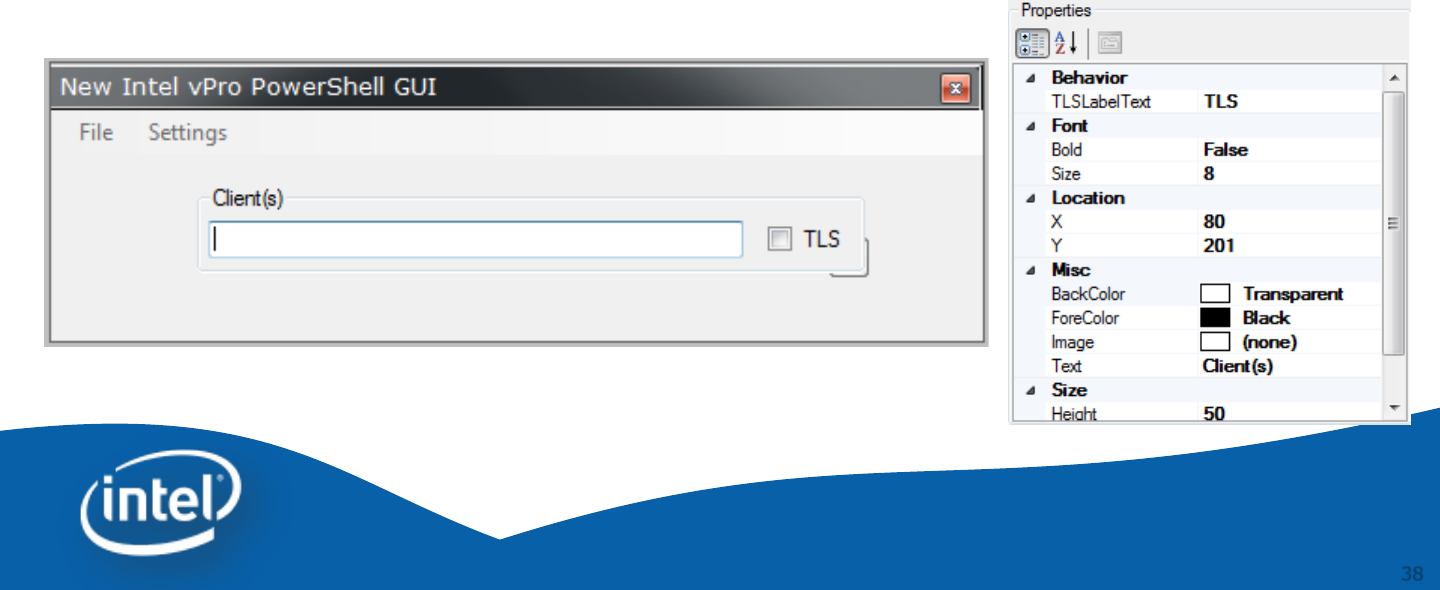

Controls – Computer Name Input

Box

Adding the computer name input box to the GUI

allows the user to enter in hostnames. Any hosts in

this box are automatically used by the Intel® vPro™

Technology scripts. The computer names are stored

in the variable $computerName that is available to

any script.

39

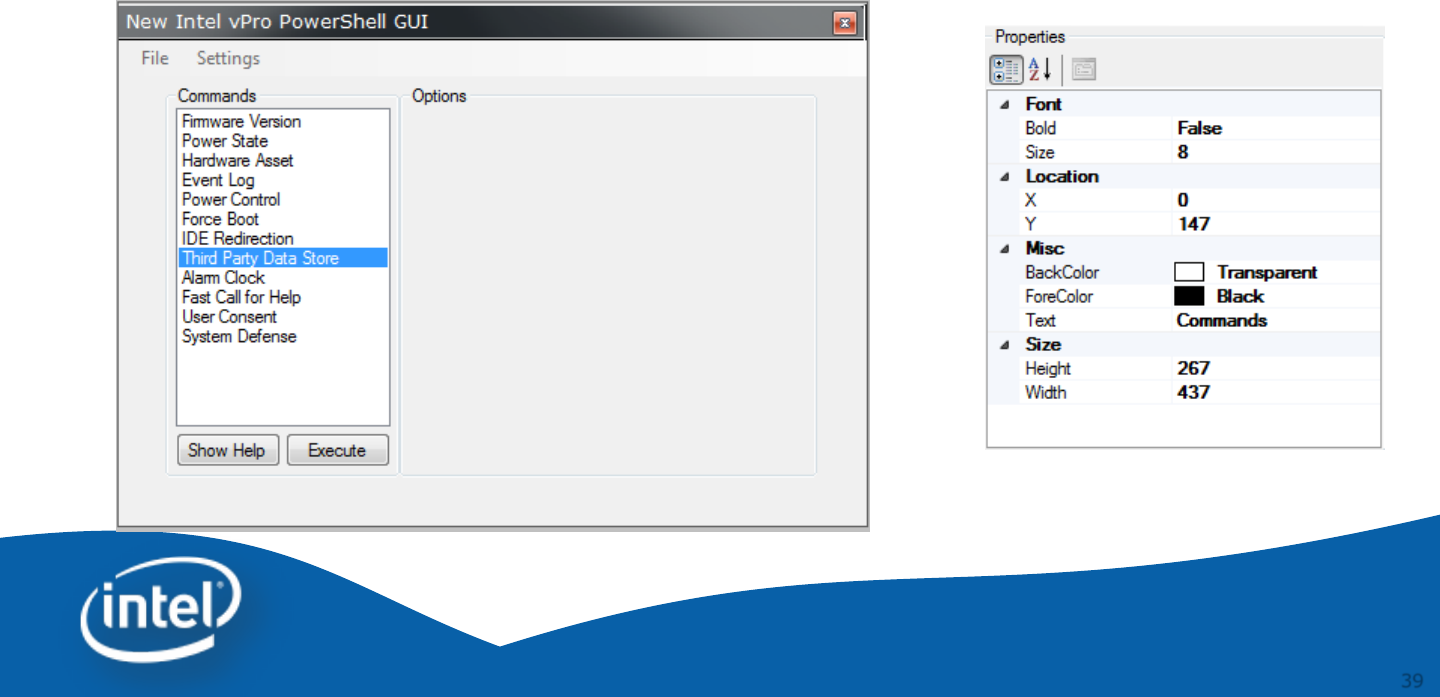

Controls – Intel vPro Command List Box

The Intel vPro Command List Box control contains all

the Intel® vPro™ Technology scripts. The contents of

this control are not editable. Use this control to give

the user access to all the Intel® vPro™ Technology

scripts and their settings.

40

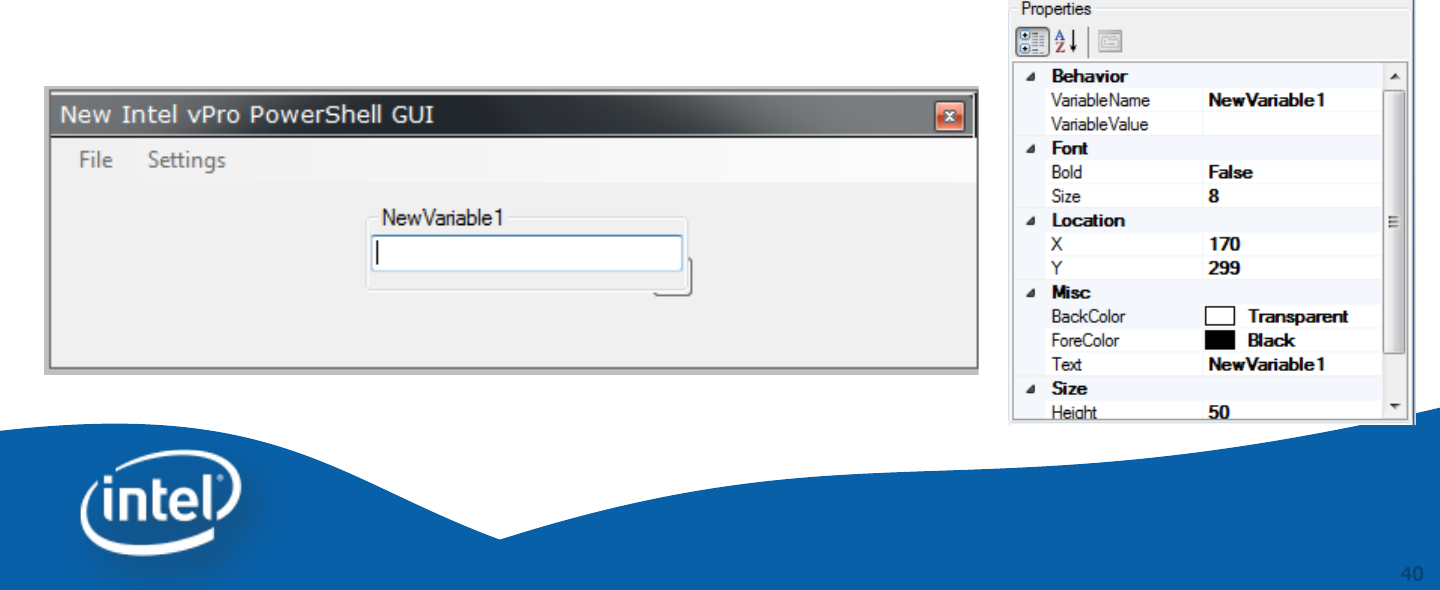

Controls – Variable Input Box

If you have a custom variable that you would like to

allow the user to edit it can be exposed using the

variable input box.

41

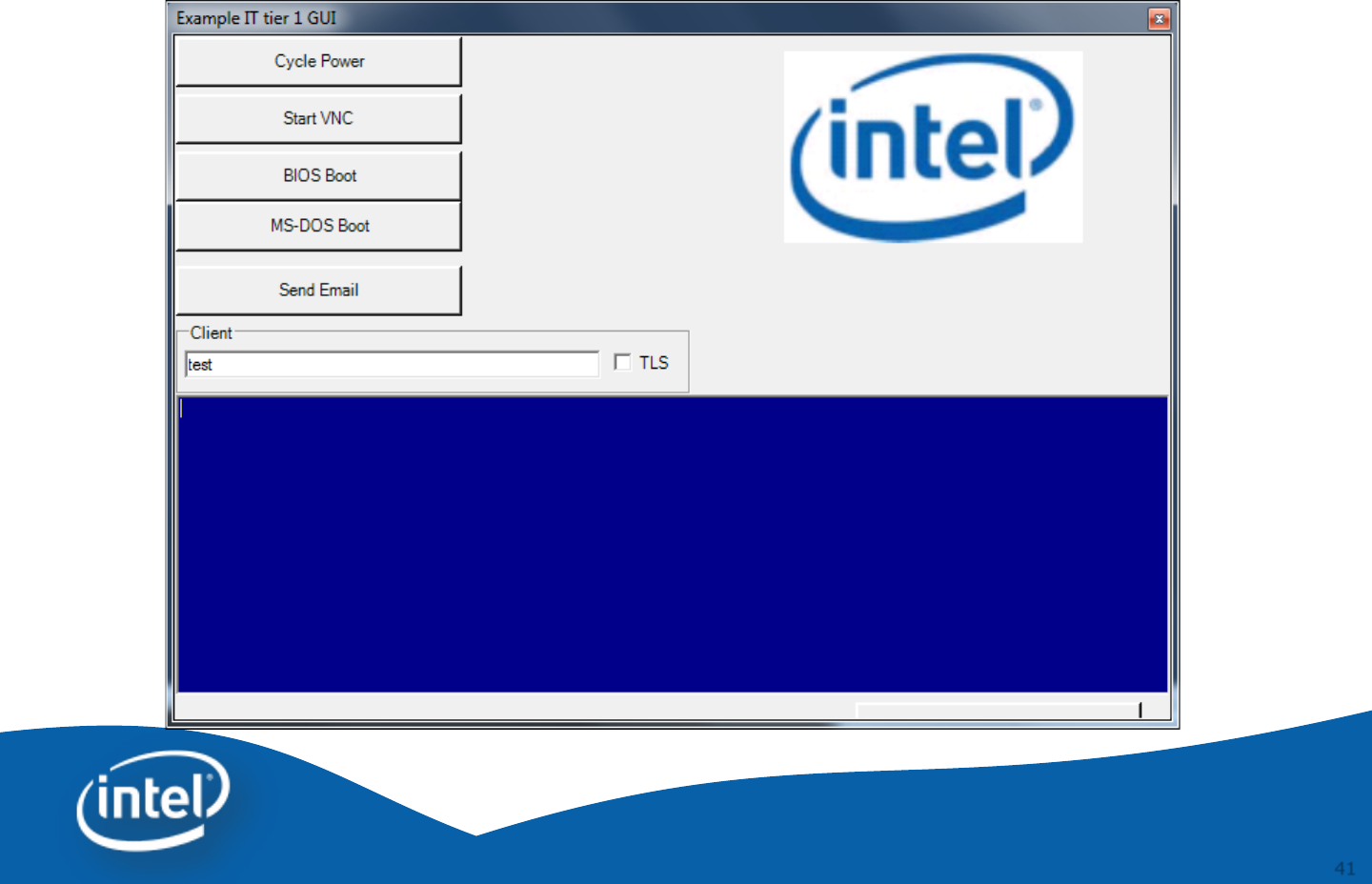

Example IT Tier 1 GUI

42

How to load a GUI XML file

Import-Module IntelvPro

Invoke-AMTGUI –xmlConfig fileName.xml

43

Intel® vPro™ Technology Module

for Microsoft* Windows PowerShell*

44

44

Q&A

Intel® vPro™ Technology Module for

Microsoft* Windows PowerShell*

45

45

Backup

Intel® vPro™ Technology Module for

Microsoft *Windows PowerShell*

46

Links

•Intel® vPro™ Technology module for

Microsoft* Windows PowerShell* and GUI

Editor

–http://www.intel.com/go/powershell

•Intel PowerShell Blogs

–http://communities.intel.com/people/cdpiper?view=overview

•PowerShell – Microsoft Script Center

–http://technet.microsoft.com/en-us/scriptcenter/bb410849
