- D129/D130 PARTS CATALOG
- LEGEND
- DOCUMENTATION HISTORY
- D129/D130 PARTS LOCATION AND LIST
- LOCATIONS OF UNITS
- Exterior 1 (D129/D130)
- Exterior 2 (D129/D130)
- Operation Panel (D129/D130)
- Operation Pane2 (D129/D130)
- ARDF Exterior (D129/D130)
- Original Feed 1 (D129/D130)
- Original Feed 2 (D129/D130)
- Original Feed 3 (D129/D130)
- Original Transfer 1 (D129/D130)
- Original Transfer 2 (D129/D130)
- Original Transfer 3 (D129/D130)
- ARDF Drive Section 1 (D129/D130)
- ARDF Drive Section 2 (D129/D130)
- ARDF Electrical Section (D129/D130)
- ARDF Frame Section (D129/D130)
- Scanner Section 1 (D129/D130)
- Scanner Section 2 (D129/D130)
- Scanner Section 3 (D129/D130)
- Scanner Section 4 (D129/D130)
- LD Unit (D129/D130)
- Paper Tray (D129/D130)
- Paper Feed Section (D129/D130)
- By-pass Feed Section 1 (D129/D130)
- By-pass Feed Section 2 (D129/D130)
- Paper Registration (D129/D130)
- Toner Supply Unit (D129/D130)
- PCDU 1 (D129/D130)
- PCDU 2 (D129/D130)
- Transfer Belt Unit 1 (D129/D130)
- Transfer Belt Unit 2 (D129/D130)
- Fusing Unit 1 (D129/D130)
- Fusing Unit 2 (D129/D130)
- Fusing Unit 3 (D129/D130)
- Duplex Unit 1 (D129/D130)
- Duplex Unit 2 (D129/D130)
- Duplex Unit 3 (D129/D130)
- Duplex Unit 4 (D129/D130)
- Duplex Unit 5 (D129/D130)
- Paper Exit Section 1 (D129/D130)
- Paper Exit Section 2 (D129/D130)
- Drive Section 1 (D129/D130)
- Drive Section 2 (D129/D130)
- Drive Section 3 (D129/D130)
- Drive Section 4 (D129/D130)
- Electrical Section 1 (D129/D130)
- Electrical Section 2 (D129/D130)
- Electrical Section 3 (D129/D130)
- Electrical Section 4 (D129/D130)
- Electrical Section 5 (D129/D130)
- Controller Section 1 (D129/D130)
- Controller Section 2 (D129/D130)
- Frame Section (D129/D130)
- Decals and Documents (D129/D130)
- Special Tools (D129/D130)
- D129/D130 PARTS INDEX
D129/D130
PARTS CATALOG
It is the reader's responsibility when discussing the information contained
within this document to maintain a level of confidentiality that is in the best
interest of Ricoh Americas Corporation and its member companies.
NO PART OF THIS DOCUMENT MAY BE REPRODUCED IN ANY
FASHION AND DISTRIBUTED WITHOUT THE PRIOR
PERMISSION OF RICOH AMERICAS CORPORATION.
All product names, domain names or product illustrations, including desktop images,
used in this document are trademarks, registered trademarks or the property of their
respective companies.
They are used throughout this book in an informational or editorial fashion only and for
the benefit of such com
panies. No such use, or the use of any trade name, or web
site is intended to convey endorsement or other affiliation with Ricoh products.
2012 RICOH Americas Corporation. All rights reserved.
LEGEND
PRODUCT CODE COMPANY
LANIER RICOH SAVIN
D129-17 MP 4002 Aficio MP 4002 MP 4002
D129-57 MP 4002SP Aficio MP 4002SP MP 4002SP
D130-17 MP 5002 Aficio MP 5002 MP 5002
D130-57 MP 5002SP Aficio MP 5002SP MP 5002SP
D129-99 D129/D130 Controller Options
D629-31 Fax Option Type 5002
D630 ARDF DF3070
D631 LCIT RT3020
D632 1 Bin Tray BN3100
D633 Internal Shift Tray SH3060
D634 Bridge Unit BU3060
D635 Side Tray Type C5502
D636 3000 Sheet Finisher SR3120
D637 2000 Sheet Finisher - Booklet Finisher SR3110
D593-01 Platen Cover Type 3352
D580 Paper Feed Unit PB3130
D538/D581 LCIT PB3140
DOCUMENTATION HISTORY
REV. NO.
DATE
COMMENTS
*
01/2012
Original Printing
D129/D130
PARTS LOCATION AND LIST
This section shows you the part numbers and descriptions used on this machine.
D129/D130 2 Location of Units

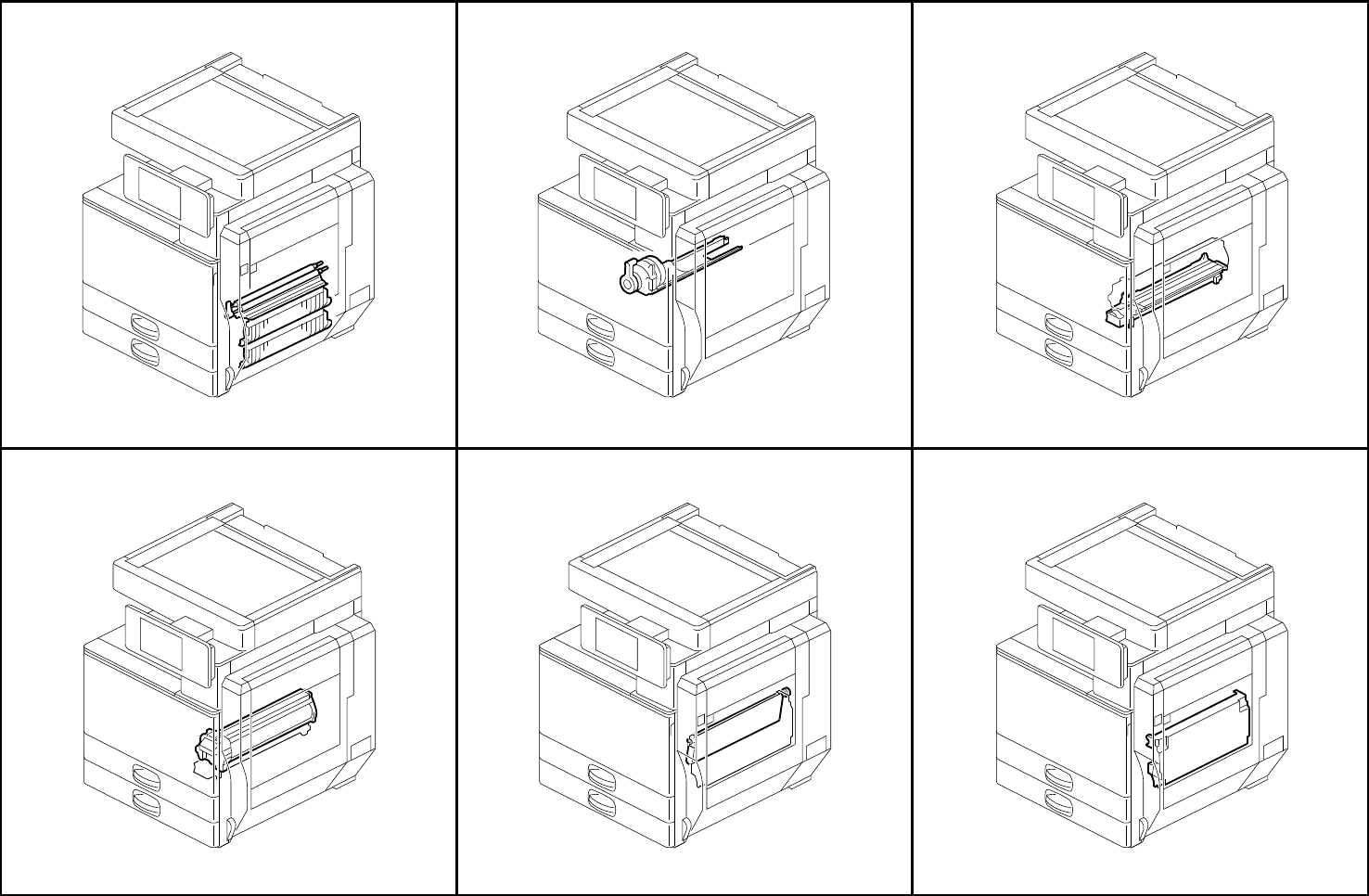

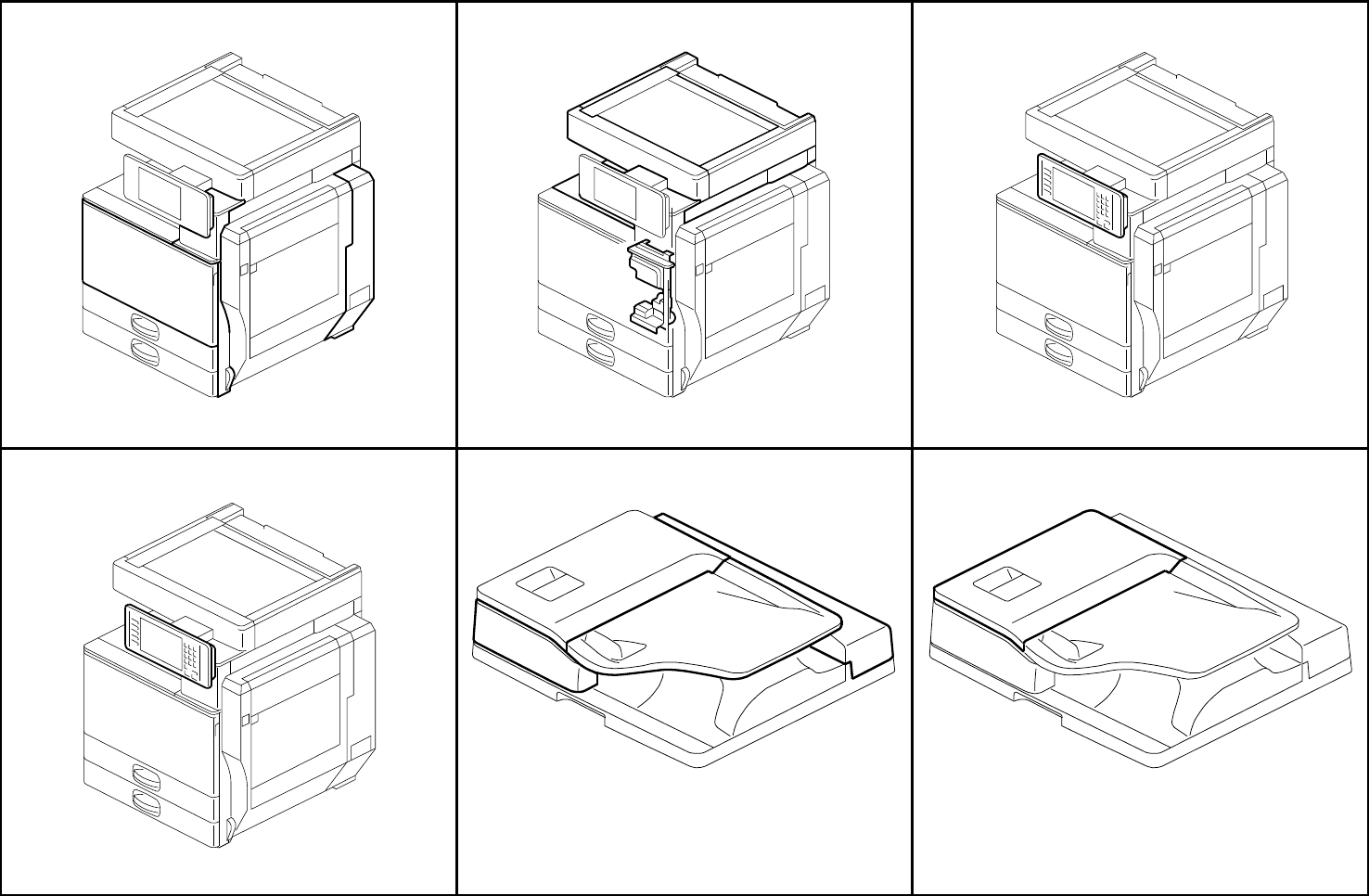

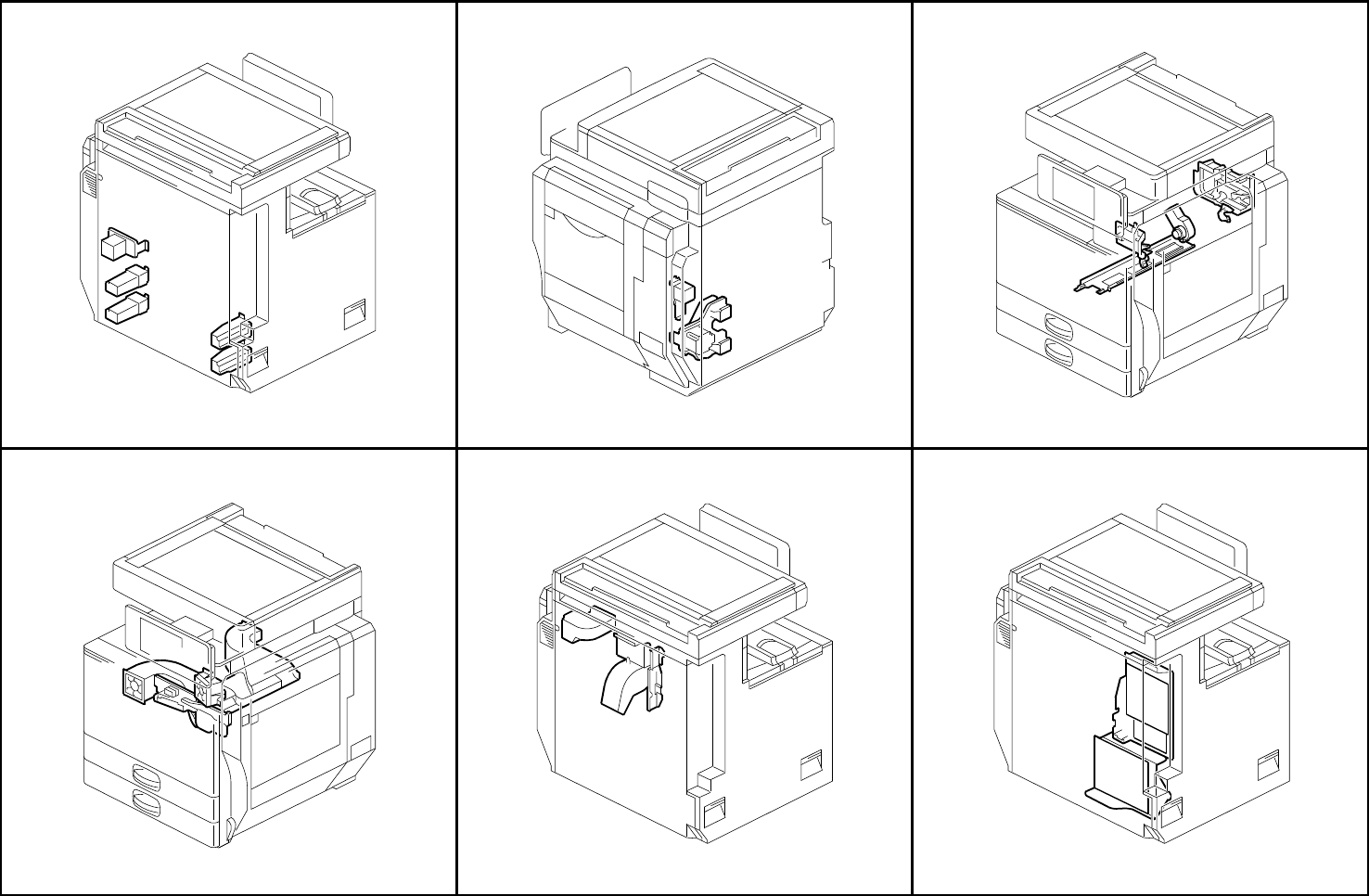

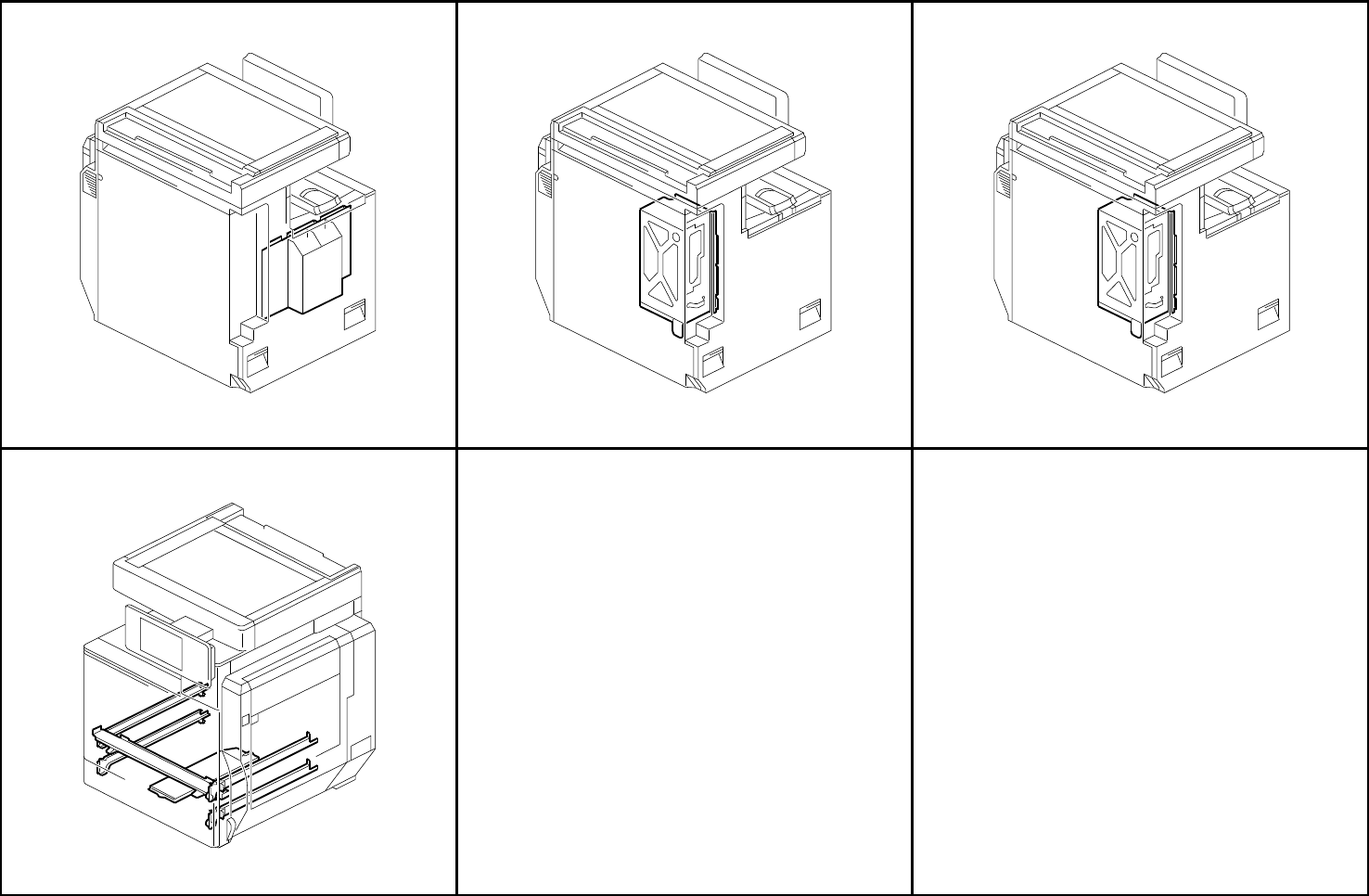

LOCATIONS OF UNITS LOCATIONS OF UNITS
1. Exterior 1 (D129/D130)
See Page 13
2. Exterior 2 (D129/D130)
See Page 15
3. Operation Panel (D129/D130)
See Page 17
LOCATIONS OF UNITS
4. Operation Pane2 (D129/D130)
See Page 19
LOCATIONS OF UNITS
5. ARDF Exterior (D129/D130)
See Page 21
6. Original Feed 1 (D129/D130)
See Page 23
D129/D130 3 Location of Units
LOCATIONS OF UNITS LOCATIONS OF UNITS
7. Original Feed 2 (D129/D130)
See Page 25
8. Original Feed 3 (D129/D130)
See Page 27
9. Original Transfer 1 (D129/D130)
See Page 29
LOCATIONS OF UNITS
10. Original Transfer 2 (D129/D130)
See Page 31
LOCATIONS OF UNITS
11. Original Transfer 3 (D129/D130)
See Page 33
12. ARDF Drive Section 1 (D129/D130)
See Page 35
D129/D130 4 Location of Units
LOCATIONS OF UNITS LOCATIONS OF UNITS
13. ARDF Drive Section 2 (D129/D130)
See Page 37
14. ARDF Electrical Section (D129/D130)
See Page 39
15. ARDF Frame Section (D129/D130)
See Page 41
LOCATIONS OF UNITS
16. Scanner Section 1 (D129/D130)
See Page 43
LOCATIONS OF UNITS
17. Scanner Section 2 (D129/D130)
See Page 45
18. Scanner Section 3 (D129/D130)
See Page 47
D129/D130 5 Location of Units
LOCATIONS OF UNITS LOCATIONS OF UNITS
19. Scanner Section 4 (D129/D130)
See Page 49
20. LD Unit (D129/D130)
See Page 51
21. Paper Tray (D129/D130)
See Page 53
LOCATIONS OF UNITS
22. Paper Feed Section (D129/D130)
See Page 55
LOCATIONS OF UNITS
23. By-pass Feed Section 1 (D129/D130)
See Page 57
24. By-pass Feed Section 2 (D129/D130)
See Page 59
D129/D130 6 Location of Units
LOCATIONS OF UNITS LOCATIONS OF UNITS
25. Paper Registration (D129/D130)
See Page 61
26. Toner Supply Unit (D129/D130)
See Page 63
27. PCDU 1 (D129/D130)
See Page 65
LOCATIONS OF UNITS
28. PCDU 2 (D129/D130)
See Page 67
LOCATIONS OF UNITS
29. Transfer Belt Unit 1 (D129/D130)
See Page 69
30. Transfer Belt Unit 2 (D129/D130)
See Page 71
D129/D130 7 Location of Units
LOCATIONS OF UNITS LOCATIONS OF UNITS
31. Fusing Unit 1 (D129/D130)
See Page 73
32. Fusing Unit 2 (D129/D130)
See Page 75
33. Fusing Unit 3 (D129/D130)
See Page 77
LOCATIONS OF UNITS
34. Duplex Unit 1 (D129/D130)
See Page 79
LOCATIONS OF UNITS
35. Duplex Unit 2 (D129/D130)
See Page 81
36. Duplex Unit 3 (D129/D130)
See Page 83
D129/D130 8 Location of Units
LOCATIONS OF UNITS LOCATIONS OF UNITS
37. Duplex Unit 4 (D129/D130)
See Page 85
38. Duplex Unit 5 (D129/D130)
See Page 87
39. Paper Exit Section 1 (D129/D130)
See Page 89
LOCATIONS OF UNITS
40. Paper Exit Section 2 (D129/D130)
See Page 91
LOCATIONS OF UNITS
41. Drive Section 1 (D129/D130)
See Page 93
42. Drive Section 2 (D129/D130)
See Page 95
D129/D130 9 Location of Units
LOCATIONS OF UNITS LOCATIONS OF UNITS
43. Drive Section 3 (D129/D130)
See Page 97
44. Drive Section 4 (D129/D130)
See Page 99
45. Electrical Section 1 (D129/D130)
See Page 101
LOCATIONS OF UNITS
46. Electrical Section 2 (D129/D130)
See Page 103
LOCATIONS OF UNITS
47. Electrical Section 3 (D129/D130)
See Page 105
48. Electrical Section 4 (D129/D130)
See Page 107
D129/D130 10 Location of Units
LOCATIONS OF UNITS LOCATIONS OF UNITS
49. Electrical Section 5 (D129/D130)
See Page 109
50. Controller Section 1 (D129/D130)
See Page 111
51. Controller Section 2 (D129/D130)
See Page 113
LOCATIONS OF UNITS
52. Frame Section (D129/D130)
See Page 115
LOCATIONS OF UNITS
D129/D130 11 Parts Location and List

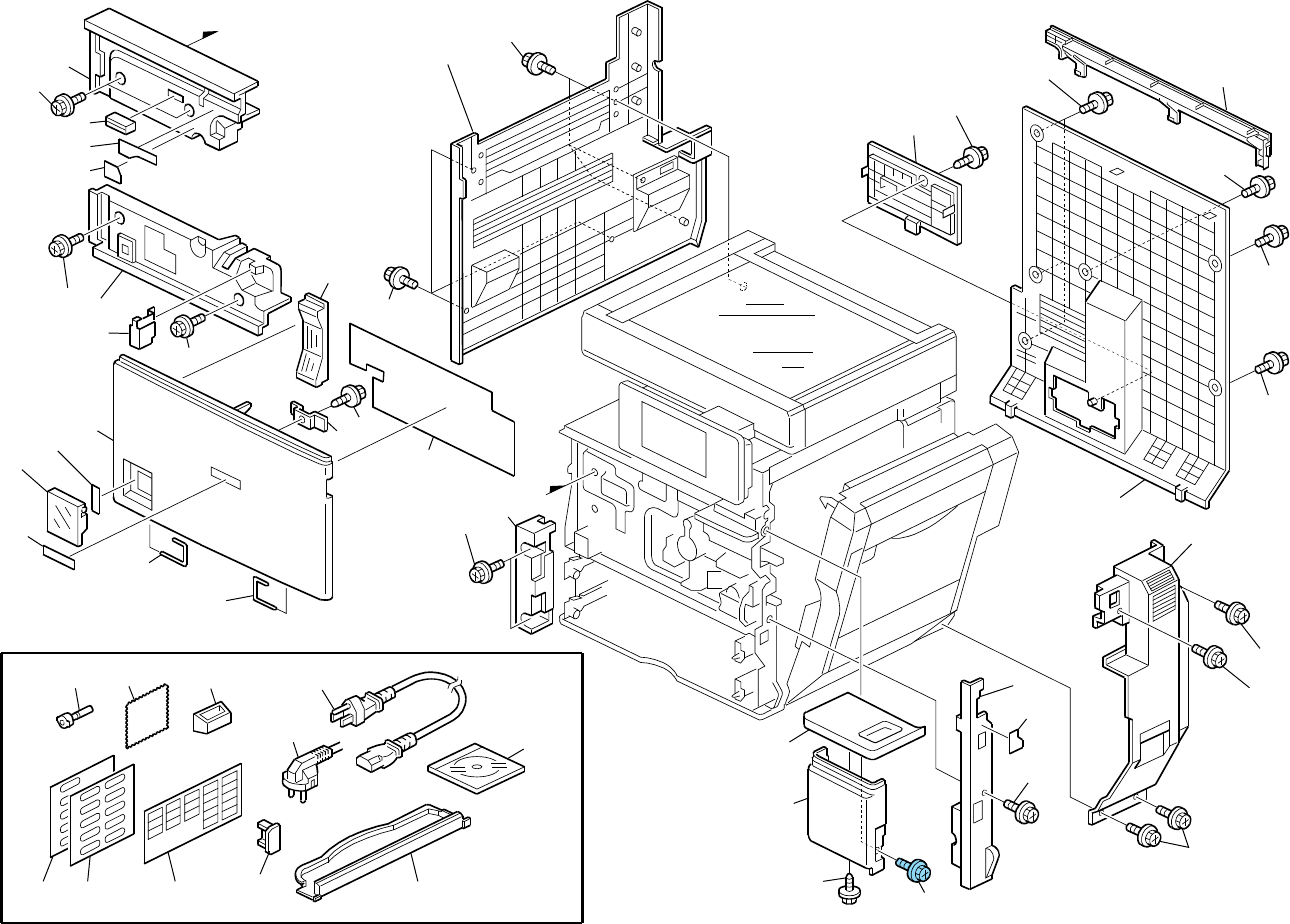

1.Exterior 1 (D129/D130)
3
26
25
21
10
101
101
102
19
101
23
22
101
101
101
24 103
101
101
101
101
1
4
5
6
27
16
17 18
15
9
8
12
13
13
292030 105
20
101
101
101
101
101
104
16
14
27
11
31
28
31
D129/D130 12 Parts Location and List
1 D129 1241 Inner Cover: Upper: Left 1
2 D129 1244 Inner Cover: Middle 1
3 D129 1281 Cover: Left 1
4 AG07 1012 Magnet Catch: Ass'y 1
5 D129 3268 Decal: Toner Bottle: Lock 1
6 D129 3269 Decal: Toner Bottle: Release 1
7 B004 1325 Cover - Shield Glass 1
8 D129 1255 Cover: Main Switch: C3 1
9 D120 8868 Decal: Main Switch: On-Standby: DOM: NA 1
9 D011 1252 Decal: Main Switch: On-Standby 1
9 D011 1251 Decal: Main Switch: O-I 1
9 D120 8867 Decal: Main Switch: On-Standby: EU 1
9 D144 6849 Decal: Main Switch: On-Standby: CHN 1
10 D129 1242 Inner Cover: Left 1
11 G179 5854 Bracket: Power Supply Cord: Stay 1
12 AA00 1564 Plate: Logotype: RIC 1
12 AA00 1565 Plate: Logotype: LAN 1
12 AA00 1567 Plate: Logotype: GES 1
12 D120 1551 Sheet: Logo 1
12 D129 6601 Model Name Plate: Aficio: 4002 1
12 D129 6602 Model Name Plate: Aficio: 5002 1
12 D129 6603 Model Name Plate: Aficio: 4002sp 1
12 D129 6604 Model Name Plate: Aficio: 5002SP 1
12 D129 6629 Model Name Plate: LAN: 4002: NA 1
12 D129 6630 Model Name Plate: LAN: 5002: NA 1
12 D129 6633 Model Name Plate: GES: 4002: AA 1
12 D129 6634 Model Name Plate: GES: 5002: AA 1
12 D129 6635 Model Name Plate: LAN: 5002SP: AA 1
12 D129 6636 Model Name Plate: GES: 4002sp: AA 1
12 D129 6637 Model Name Plate: LAN: 4002SP: AA 1
12 D129 6638 Model Name Plate: GES: 5002SP: AA 1
13 G179 1032 Shaft: Hinge 2
14 B238 2524 Decal - Paper Size 1
15 D129 1251 Cover: Front 1
16 GZ00 0005 Power Cord - 230V 1
17 B024 1264 Magnet Catch 1
18 D129 6616 Sheet: Misfeed Removal: C1 1
19 D129 1264 Cover: Front Right 1
20 B065 1374 Cloth - DF Exposure Glass 1
21 D129 1272 Cover: Right: Rear 1
22 D129 1271 Cover: Right: Front 1
23 D129 6605 Decal: Misfeed Removal: B1: AL-C2 1
24 D120 1336 Cap: Cover 1
24 D129 1293 Cover: Rear 1
25 D129 1292 Cover: Rear: Upper 1
26 D129 1291 Cover: Rear 1
27 D120 2874 Decal: Size Indication: Paper Tray 1
28 D129 5891 Cap: USB 1
29 B065 1371 Cloth Holder (CHN) 1
29 D144 1396 Holder: Exposure Glass: Ig: Ass'y 1
30 H511 5007 Stamp 1
31 D129 1269 Cover: Front Right: Upper 1
32 D129 7895 CD-ROM: AL-C2: Drv: AA: Ass'y 1
101 0451 3008N Tapping Screw - M3x8
102 0454 3008Q Tapping Screw: 3x8
103 0450 3012N Tapping Screw: 3x12
105 1150 0438 Power Supply Code: 125V: 15A: NA
105 1150 0377 Power Supply Code: 250V: 10A: EU
105 1150 0409 Power Supply Code: 125V: 15A: TWN
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
1.Exterior 1 (D129/D130)
D129/D130 13 Parts Location and List

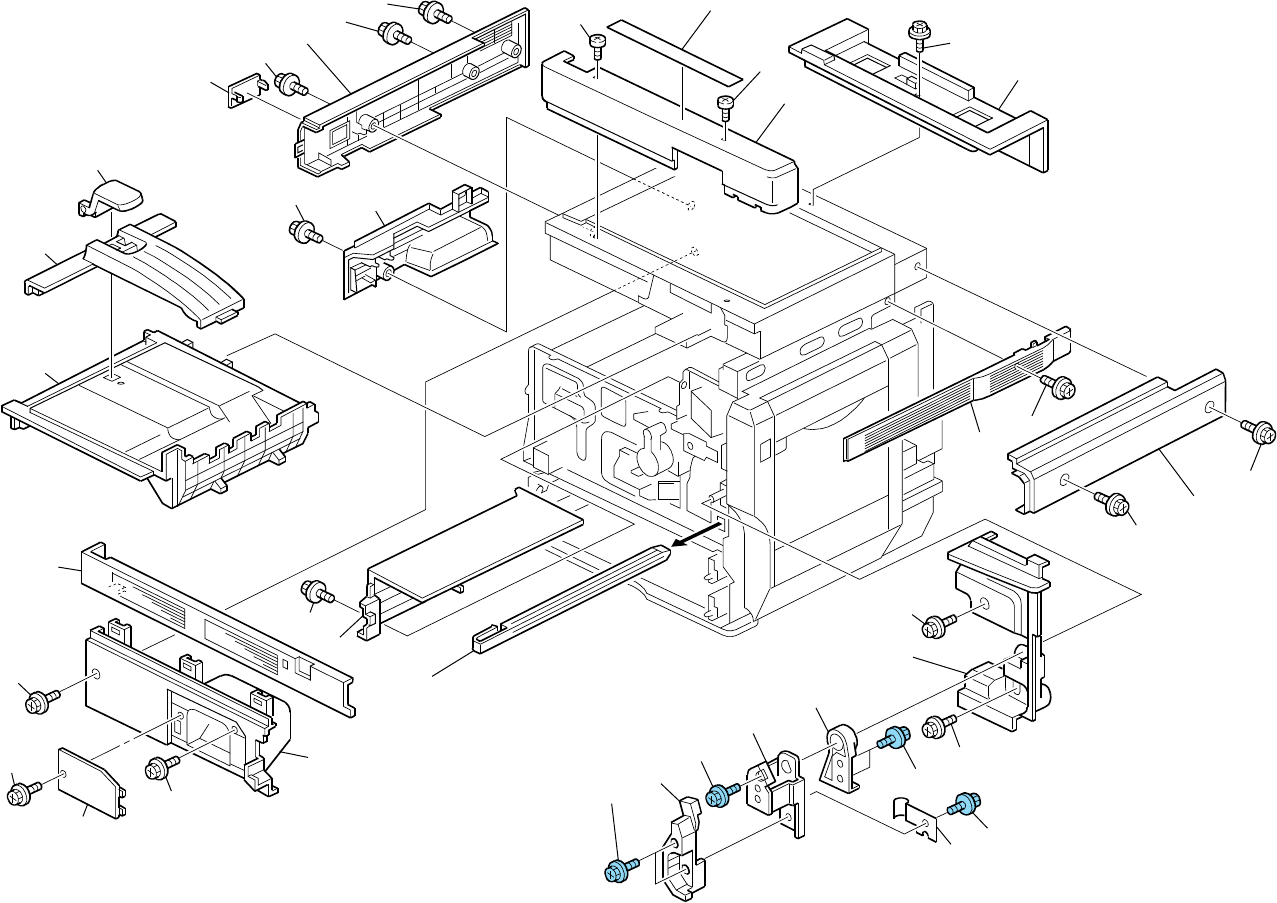

2.Exterior 2 (D129/D130)
101 2
3
4
5
6
7
8
101 12
101
11 101
101
10
18
103 13
14
16
103
103
17
15
102 9
101
101101
1
19
104
104
20
101
101
101
101
103 101
21
D129/D130 14 Parts Location and List
1 D144 1334 Cover: Scanner: Left: EXP 1
2 D129 1282 Cover: Left: Upper 1
3 D129 4487 End Fence: Exit 1
4 D129 4486 Tray: Exit 1
5 D144 1261 Cover: Upper 1
6 D129 1262 Cover: Inner Back: Upper: EXP 1
7 D144 1274 Cover: Inner Back: Middle: EXP 1
8 D129 1263 Cover: Inner Back 1
9 D144 1266 Cover: Paper Exit Sub-unit: Upper 1
10 D129 1273 Cover: Right: Upper Middle 1
11 D129 1545 Sheet: Side: NA/AA 1
11 D144 1336 Cover: Scanner: Right: EXP 1
12 D144 1338 Cover: Scanner: Rear: EXP 1
13 D129 2247 Cover: Lever: Lock: PCD 1
14 D009 2254 Base - Lock Lever 1
15 D009 2249 Spring Plate - Lock Lever 1
16 D129 2248 Guide Plate: Lever: Lock: PCD 1
17 D129 1243 Inner Cover: Upper: Right 1
18 D129 2616 Case: Remove Paper Dust 1
19 D129 1318 Cover: Scanner: Front 1
20 D129 1283 Cover: Left: Cover 1
21 D129 6610 Decal: Caution: Original: English 1
101 0451 3008N Tapping Screw - M3x8
102 0454 3008Q Tapping Screw: 3x8
103 0454 3006Q Tapping Screw - M3x6
104 0353 0050N Screw-M3x5
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
2.Exterior 2 (D129/D130)
D129/D130 15 Parts Location and List

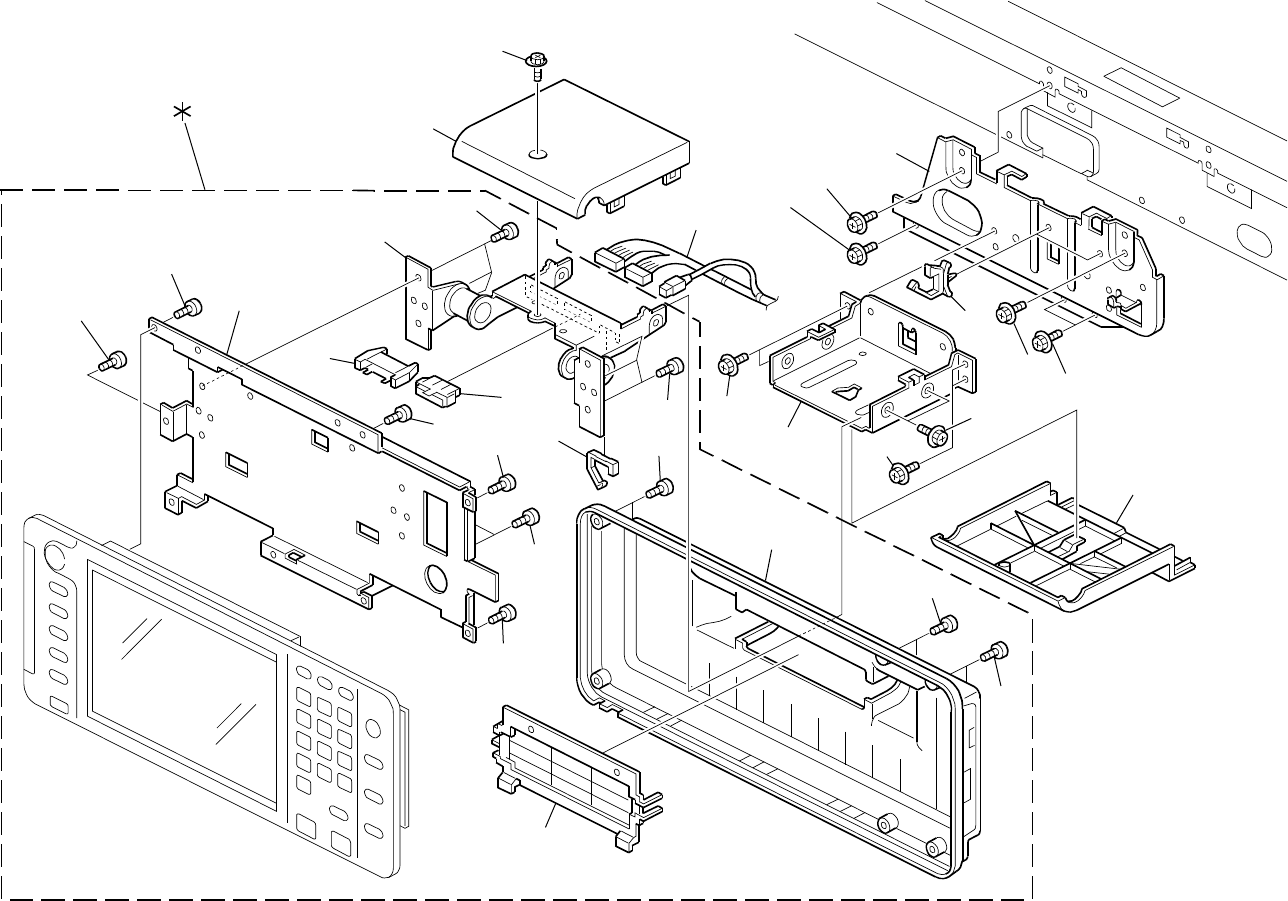

3.Operation Panel (D129/D130)
105 105
105 105
103
105
105
105
5
6
7
9
8
102
102
102
102
102
102
102
102
102
102
102
107
106
104
2
1
101
4
3
D129/D130 16 Parts Location and List
* D129 1401 Operation Panel: NA: Ass'y 1
* D129 1402 Operation Panel: EU: Ass'y 1
* D129 1403 Operation Panel: AA: Ass'y 1
* D129 1404 Operation Panel: CHN: Ass'y 1
* D129 1405 Operation Panel: TWN: Ass'y 1
1 D129 1321 Cover: Bracket: Operation Panel: Upper 1
2 D129 1530 Hinge: AA-C3: Ass'y 1
3 D129 1517 Bracket: Base: Hinge 1
4 D129 1437 Cable: OPE: USB 1
5 D129 1394 Supporting Plate: Bracket: Operation Panel 1
6 D129 1396 Bracket: Operation Panel 1
7 D129 1322 Cover: Bracket: Operation Panel: Lower 1
8 D129 1512 Cover: Rear: Small 1
9 D129 1511 Cover: Rear: Large 1
101 0459 3010N Binding Head Tapping Screw: 3x10
102 0353 0040N Screw - M3x4
103 1105 0598 Clamp: LWSS-1N
104 1105 0723 Clamps: WES-0507
105 0451 3006N Tapping Screw - 3x6
106 1102 6253 Relay Connector
107 1103 3657 Connector: 55482-1319
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
3.Operation Panel (D129/D130)
D129/D130 17 Parts Location and List

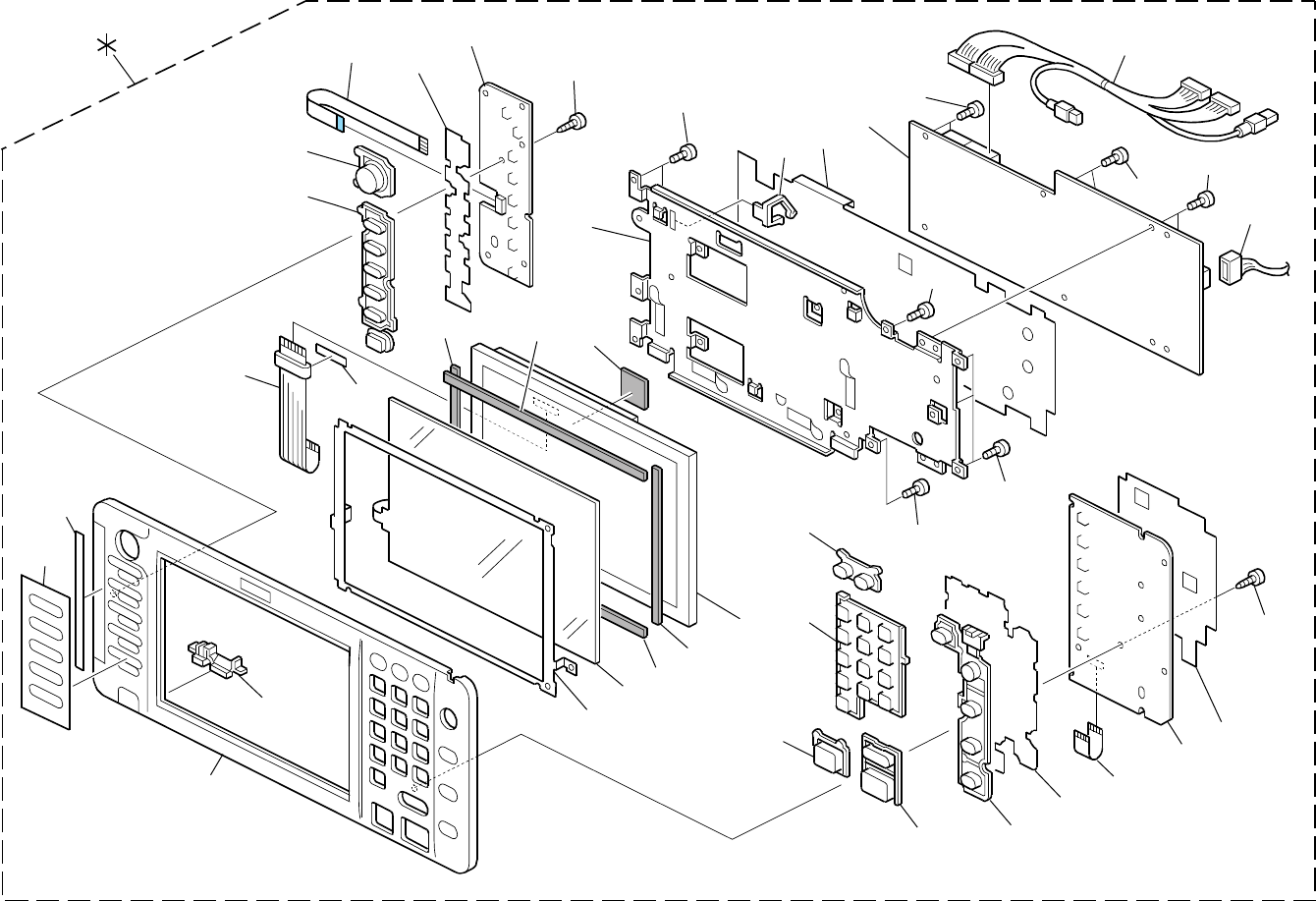

4.Operation Pane2 (D129/D130)
101 101
101 101
102 25 26
27
1
2
3
4
5
6
7
13 12 28
24
103
13
12
11
10
15
16
17 18
19 20
21 22
23
14
101
101
101
103
9
8
30
29
31
D129/D130 18 Parts Location and List
* D129 1401 Operation Panel: NA: Ass'y 1
* D129 1402 Operation Panel: EU: Ass'y 1
* D129 1403 Operation Panel: AA: Ass'y 1
* D129 1404 Operation Panel: CHN: Ass'y 1
* D129 1405 Operation Panel: TWN: Ass'y 1
1 D129 1459 PCB: OP-L: Ass'y 1
2 D129 1528 Sheet: Keytop: Left 1
3 D129 1431 Cable: FFC: OOL 1
4 D129 1508 Keytop: Home 1
5 D129 1509 Keytop: Left 1
6 D009 1511 Stopper: Core 1
7 D129 1432 Cable: FFC: LCD 1
8 D129 1531 Cover: Upper: NA/AA 1
8 D129 1532 Cover: Upper: EU/CHN/TWN 1
8 D130 1500 Cover: Upper: CHN 1
9 D129 1510 Lens: Front 1
10 D129 1513 Shadeing Plate: Touch Panel 1
11 D129 1422 Touch Panel: WVGA: MV 1
12 B238 1535 LCD Spacer B 2
13 B238 1534 LCD Spacer A 2
14 D129 1533 Keytop: 10key: NA 1
14 D129 1534 Keytop: 10key: EU 1
14 D129 1535 Keytop: 10key: AA 1
15 D129 1423 LCD: TFT: WVGA: LED: SH 1
16 D129 1503 Keytop: Stop 1
17 D129 1502 Keytop: Start 1
18 D129 1507 Keytop: Power Source 1
19 D129 1527 Sheet: Keytop: Right 1
20 D129 1430 Cable: FFC: OPR 1
21 D129 1458 PCB: OP-R: Ass'y 1
22 D129 1529 Sheet: OP-R 1
23 D129 1506 Keytop: Reset Switch 1
24 D129 1514 Bracket: LCDC: Ass'y 1
25 D129 1526 Sheet: LCDC 1
26 D129 1441 PCB: LCDC: NA: FT 1
26 D129 1442 PCB: LCDC: EU: FT 1
26 D129 1443 PCB: LCDC: AA/TWN: FT 1
26 D129 1444 PCB: AL-C2: LCDC: CHN: FT 1
27 D129 5515 Harness: Operation Sub-unit: Ass'y 1
28 M052 1553 Cushion: Core 1
29 D129 1566 Sheet: Application: Multi-language: NA 1
29 D129 1567 Sheet: Application: Multi-language: EU 1
29 D129 1568 Sheet: Application: Multi-language: Blank 1
30 D129 1536 Sheet: Journal: NA/AA 1
31 D129 1435 Harness: OPE: LVDS 1
101 0353 0040N Screw - M3x4
102 1105 0598 Clamp: LWSS-1N
103 0459 3010N Binding Head Tapping Screw: 3x10
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
4.Operation Pane2 (D129/D130)
D129/D130 19 Parts Location and List

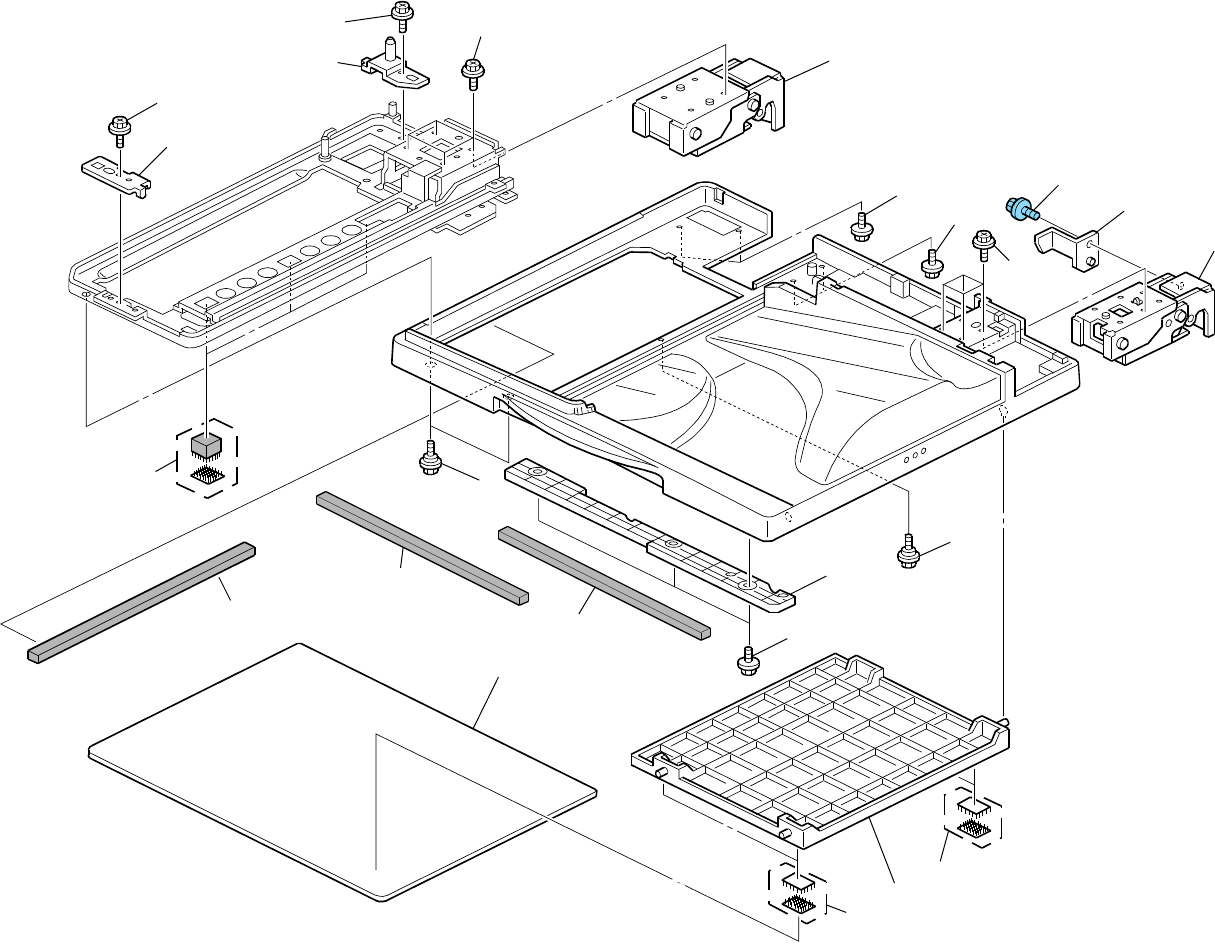

5.ARDF Exterior (D129/D130)
7
7
101
8
11 12
101
14
15
45102
6
102
1
10
9
101
17 18 20
21
19
19
22
23
23
24
25
102
102
16
13 2 3 26 27
D129/D130 20 Parts Location and List
1 AG07 0513 Magnet Catch 1
2 A859 7211 Stepped Screw 2
3 D540 6121 Full Dug Point Screw: Fix: Hinge 2
4 D630 4411 Cover: Front 1
5 D630 6013 Decal: Display: Misfeed Removal: P1 1
6 5215 2621 Snap Ring - M6 1
7 B802 4712 Sound Proofing Material: Cover: Rear 3
8 D630 4511 Cover: Rear 1
9 B802 2551 Stay: Original Table: Contact Point 1
10 B802 2581 Stopper: Original Table 1
11 D630 2526 Side Fence 1
12 D578 6031 Decal - Original Table 1
13 D630 2522 Original Table: Face Front 1
14 B802 2536 Slider: Side Fence 1
15 B802 2532 Spring Plate: Side Fence 1
16 D630 6011 Decal: Side Fence 1
17 B802 2571 Spring Plate: 0.2T 3
18 A858 4676 Spring Plate - Pressure Roller 1
19 A858 4671 Roller Driven 4
20 GW01 0007 Photo Refiection Sensor: Exit 1
21 D630 2541 Guide: Original Insert 1
22 B802 5880 Harness: Sensor: Original Table 1
23 AW01 0129 Photo Refiection Sensor 3
24 B802 2562 Plate: Contact Point 1
25 D630 2512 Original Table 1
26 H511 5007 Stamp 1
27 AA14 3542 Screw: M3: DIA4X5.6 1
101 0451 3006N Tapping Screw - 3x6
102 0450 3008N Tapping Screw - M3x8
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
5.ARDF Exterior (D129/D130)
D129/D130 21 Parts Location and List
6.Original Feed 1 (D129/D130)
7
101
104 102
15
103 16
17
17
18
18 18 16 103
20
21
22
20
19
58
6
10
9
11
13
14
1
23
4
101
12
23
24
102
26
25
102
102
D129/D130 22 Parts Location and List
1 D630 4121 Cover: Paper Feed 1
2 D630 4152 Grip: Cover: Paper Feed 1
3 D630 6013 Decal: Display: Misfeed Removal: P1 1
4 D578 6021 Decal: Size: Original 1
5 B802 4712 Sound Proofing Material: Cover: Rear 5
6 B802 4154 Hook: Grip: Cover: Front 1
7 B802 4155 Hook: Grip: Cover: Inner Back 1
8 B802 4158 Shaft: Grip: Cover 1
9 AA06 2262 Tension Spring 1
10 D630 4241 Bracket: Cover: Paper Feed: Front: Ass'y 1
11 D630 4231 Bracket: Cover: Paper Feed: Inner Back: Ass'y 1
12 B802 4162 Stopper: Cover 1
13 AA14 3789 Shaft: Cleaner 1
14 AA14 3788 Pin: Guide Plate: Paper Feed 1
15 B802 4252 Bracket: Paper Size Sensor 1
16 D630 5870 Harness: Sensor: Paper Feed 1
17 AW02 0154 Photointerruptor: Entrance 2
18 AW02 0155 Photointerruptor: Paper Size Sensor 3
19 GW01 0007 Photo Refiection Sensor: Exit 1
20 AW01 0091 Photo Reflection Sensor 2
21 AW02 0198 Photointerruptor: LG2A14Nl1 1
22 B802 4263 Feeler: Original Sensor 1
23 GA14 3003 Screw: MM5: 2.5mm 3
24 D630 4141 Cover: Upper: Paper Feed 1
25 D630 4142 Cover: Left: Paper Feed 1
26 D630 4221 Bracket: Cover: Paper Feed: Middle 1
101 0451 3010N Tapping Screw: 3x10
102 0450 3008N Tapping Screw - M3x8
103 0451 3006N Tapping Screw - 3x6
104 1105 0516 Clamp
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
6.Original Feed 1 (D129/D130)
D129/D130 23 Parts Location and List
7.Original Feed 2 (D129/D130)
101 102
107
39
38
40
101
39
41
32
34
36
36103
35
34
33
32
31
10317 1819 20
104
19
105 21104 21 22
23
21
24
30
103
28
106
17
26
25
21
27
16
15
15
13
14 12
11 32
26
78910
1
23
45
29
108
37
42
43
44
D129/D130 24 Parts Location and List
1 B802 4311 Paper Feed: Unit 1
2 5447 2681 Snap Ring 3
3 AA08 2101 Bushing - 6x10x6 2
4 B802 4357 Gear: Z19 1
5 B802 4358 Timing Pulley: Gear: T19/Z22 1
6 B802 4361 Roller: Pickup 1
7 B387 2163 Pickup Collar 1
8 B802 4372 Timing Pulley: T21 1
9 AA04 3328 Timing Belt: 40S2M130 1
10 B802 4352 Shaft: Pickup 1
11 B802 4355 Bracket: Pickup 1
12 B802 4359 Cushion: Pickup 1
13 A859 2112 Drive Shaft - Paper Feed Belt 1
14 B387 2113 Roller - Paper Feed Belt 1
15 B386 3320 Spring: Belt: Paper Feed: 8N 2
16 B802 4333 Bracket: Paper Feed Belt 1
17 B802 4326 Collar: Shaft 2
18 AA08 2104 Bushing - 8x12x7 1
19 AA13 2013 Spacer 2
20 AA06 3435 Compression Spring: Paper Feed: Joint 1
21 A628 1225 Bushing - 8mm 4
22 B789 2114 Paper Feed Belt Roller 1
23 A806 1295 Feed Belt 1
24 B802 4322 Shaft: Drive 1
25 B652 3174 Tension Spring 1
26 B802 4323 Holder 1
27 B802 4325 Lever: Pickup: Release 1
28 B802 4328 Gear: Z20 1
29 B802 4228 Drum Stay: Upper: Front 1
30 B802 4227 Drum Stay: Upper: Inner Back 1
31 B802 4229 Sheet: Guide: Upper 1
32 B802 4224 Spring Plate: Upper 2
33 B802 4222 Guide: Upper 1
34 AA08 0288 Bushing: DIA6 2
35 B802 4295 Driven Roller: Pull Out 1
36 AA06 3441 Compression Spring 2
37 B802 4282 Bracket: Driven Roller: Pull Out 1
38 B802 4292 Ground Plate: Driven Roller: Pull Out 1
39 G052 4892 Discharge Brush: Exit: Small 2
40 B802 4265 Ground Plate 1
41 B802 4225 Sheet: Driven Roller: Pull Out 1
101 0450 3008N Tapping Screw - M3x8
102 0451 3006N Tapping Screw - 3x6
103 0720 0040E Retaining Ring - M4
104 0720 0060E Retaining Ring - M6
105 0805 0088 Retaining Ring - M6
106 0632 0100G Pin - 2x10mm
107 1105 0516 Clamp
108 0741 3506 Ball Bearing - 6x12x4mm
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
7.Original Feed 2 (D129/D130)
D129/D130 25 Parts Location and List

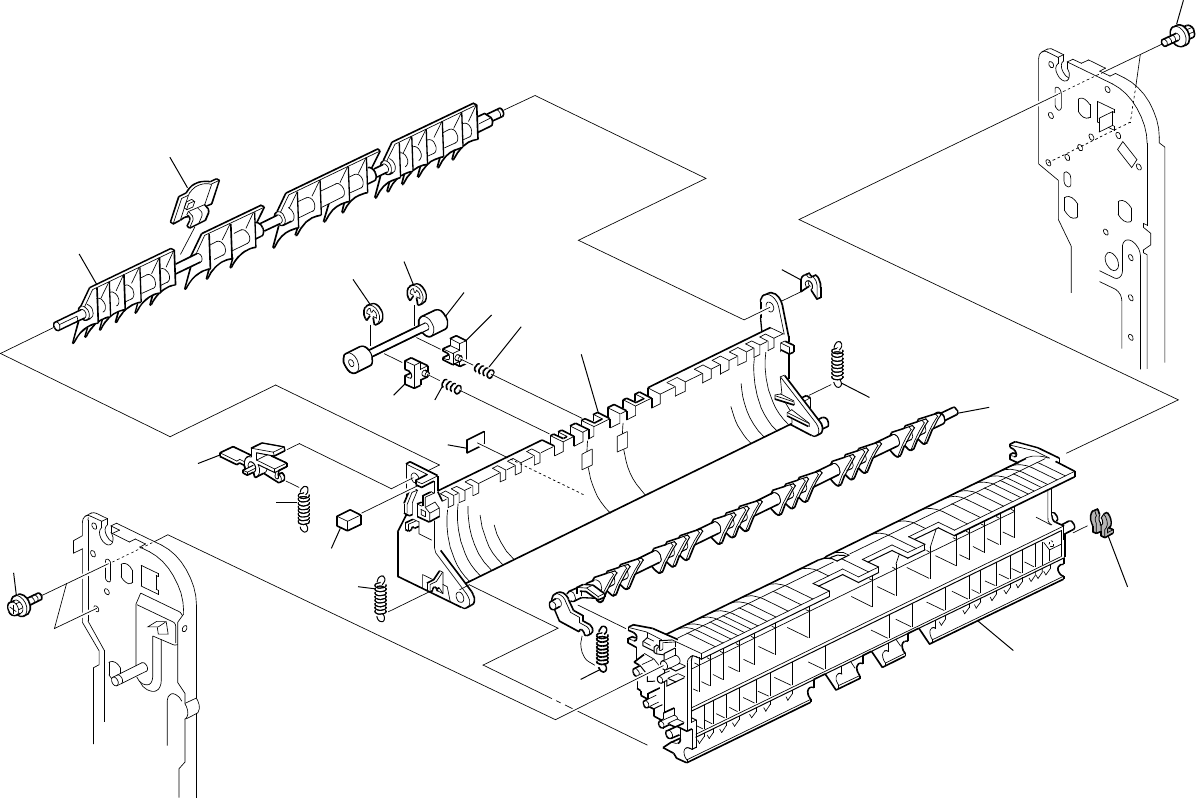

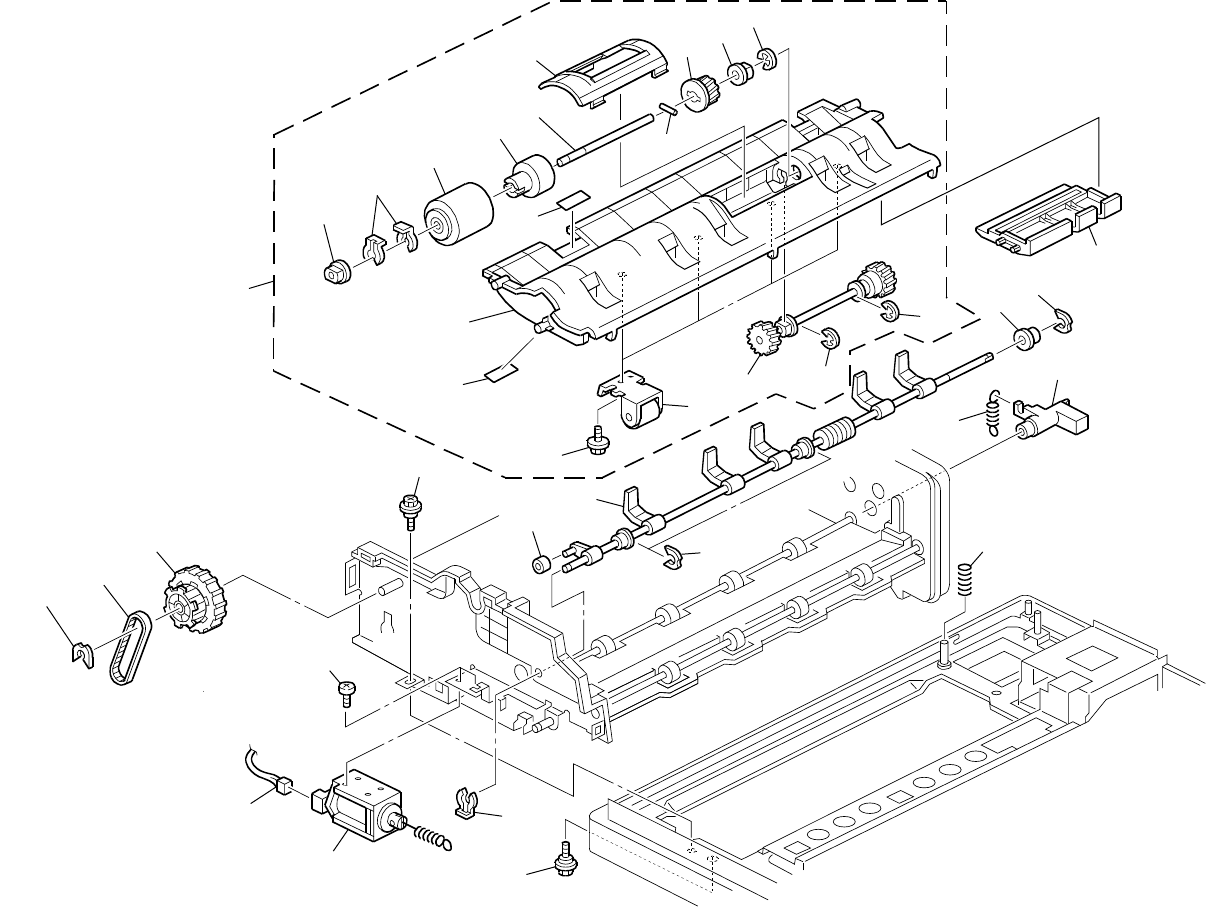

8.Original Feed 3 (D129/D130)
3
1
101
101
14
13
12
11
8
10
104
15 10
21
18 101
1
3
105
105
20
19
103
5
23
22
101 9
24
8
7
6
102
4
2
16
17
105
101
26
25
D129/D130 26 Parts Location and List
1 B802 2115 Lever: Stopper Pawl 1
2 D630 1777 Knob: Misfeed Removal: T27 1
3 AA06 0843 Tension Spring 1
4 B802 1774 Timing Belt: 40S3M186 1
5 AA14 3823 Tapping Screw 1
6 B802 5790 Harness: Solenoid 1
7 B802 3811 DC Solenoid: 24V 1
8 5447 2681 Snap Ring 3
9 AA06 3919 Spring: Pressure 1
10 AA08 2101 Bushing - 6x10x6 2
11 A859 2241 Reverse Roller 1
12 B802 2255 Torque Limiter Mechanical Clutch: Separator 1
13 B802 2252 Shaft: Roller: Reverse 1
14 B802 2225 Drum Stay: Guide: Reverse 1
15 B802 2253 Gear: Z20 1
16 B802 2228 Guide: Reverse: Open And Close 1
17 D630 6014 Decal: Display: Misfeed Removal: P2 1
18 AA08 0265 Bushing: 6x8x5 1
19 B802 2285 Roller: Reverse Exit: Driven 4
20 B802 2231 Shaft: Reverse: Drive: Press Fit 1
21 B802 2227 Guide: Reverse: Open And Close: Behind 1
22 A458 2251 Cushion - Bin Solenoid Lever 1
23 B802 2111 Stopper Pawl: Paper Feed 1
24 AA14 3790 Screw: Contact Point 1
25 B802 2223 Sheet: Guard 2
26 B802 2229 Guide: Reverse: Open And Close: Sub-Ass'y 1
101 0805 0089 Retaining Ring - M4
102 0353 0040N Screw - M3x4
103 0450 3008N Tapping Screw - M3x8
104 0632 0120G Parallel Pin - 2x12
105 0720 0040E Retaining Ring - M4
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
8.Original Feed 3 (D129/D130)
D129/D130 27 Parts Location and List

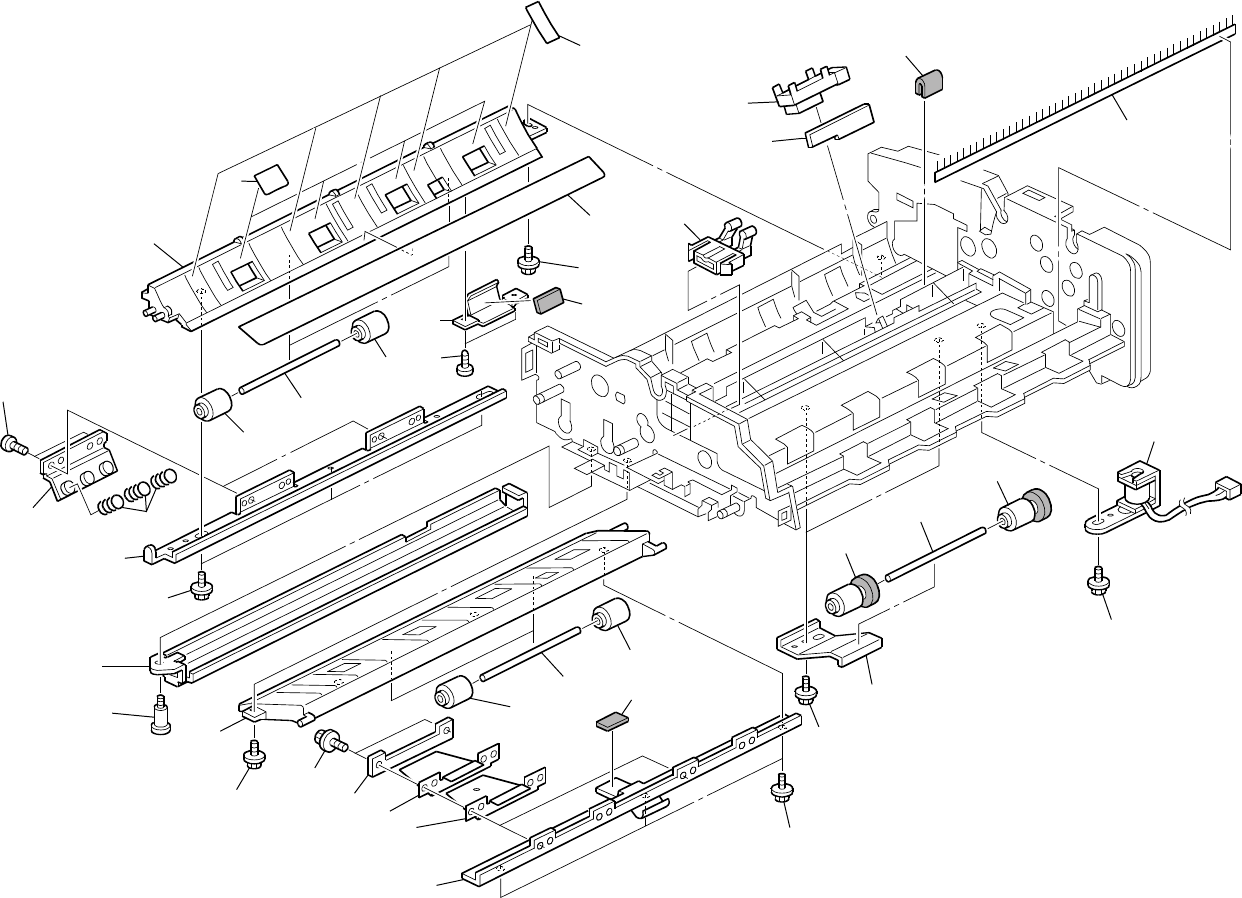

9.Original Transfer 1 (D129/D130)
1
2
102
67
8
4
5
4
3
101
17
18
19
16
20
24
22
23
22
101
101
21
101
4
25
416
15
14
13
12
103
101
11
10
9
101
26
104
27 16
D129/D130 28 Parts Location and List
1 B802 3415 Guide: Scanning: Entrance: Lower 1
2 B802 3413 Sheet: Roller: Scanning: Entrance 4
3 D630 3413 Sheet: Scanning: Entrance 1
4 B802 3471 Roller: Scanning: Driven 8
5 B802 3492 Shaft: Driven: Entrance 2
6 B802 3431 Bracket: Entrance: Pressure: Ass'y 2
7 B802 3435 Compression Spring: 3.3n 6
8 B802 3422 Stay: Scanning: Entrance: Lower 1
9 B802 3511 Guide Plate: Scanning 1
10 AA14 3569 Screw 1
11 B802 3553 Guide: Scanning: Exit: Lower 1
12 B802 3566 Plate: Exit: Pressure: Auxiliary 2
13 B802 3567 Spring Plate: Scanning: Exit: Driven: Upper 2
14 B802 3569 Spring Plate: Scanning: Exit: Driven: Lower 2
15 B802 3561 Stay: Scanning: Exit: Lower 1
16 A422 1063 Seal - 0.7x13x20 3
17 B802 2291 Stopper: Guide: Reverse 1
18 GW01 0007 Photo Refiection Sensor: Exit 1
19 B802 3851 Bracket: Sensor: Scanning: Exit 1
20 B802 3755 Discharge Brush: Reverse 1
21 B802 3711 Spring Plate 2
22 B789 3712 Exit Driven Roller 4
23 B789 3491 Scanning Driven Shaft 2
24 B714 5006 DC Solenoid: Transmited Rubber Stamp 1
25 B802 3592 Shaft: Driven: Exit 2
26 B802 3417 Sheet: Auxiliary: Scanning: Entrance 5
27 B802 3442 Sensor Barcket 1
101 0450 3008N Tapping Screw - M3x8
102 0453 3006N Tapping Screw - M3x6
103 0451 3006N Tapping Screw - 3x6
104 0452 3006N Binding Self-tapping Screw: 3x6
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
9.Original Transfer 1 (D129/D130)
D129/D130 29 Parts Location and List

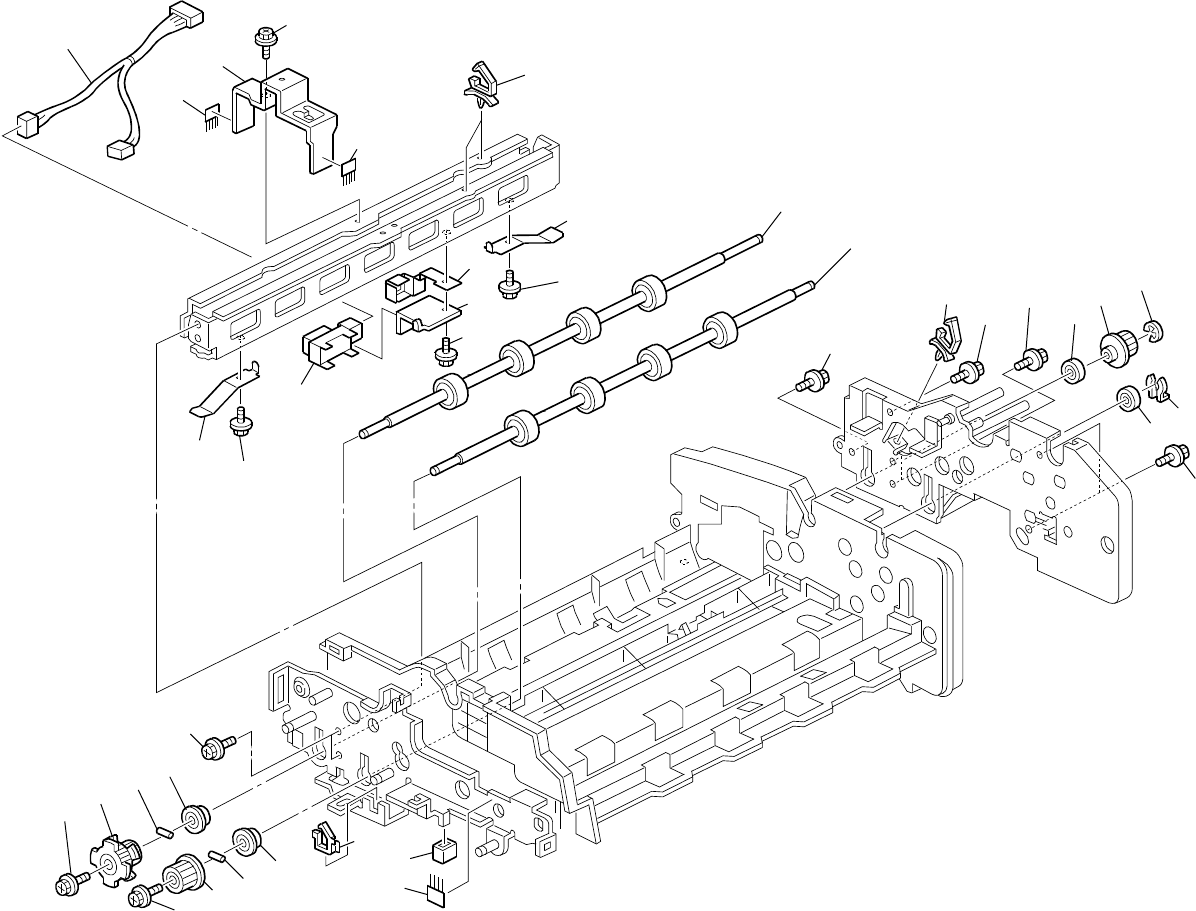

10.Original Transfer 2 (D129/D130)
101
3
1101
105
4
2
5101
6
7
8
101
101
59
10
101
104
106
11
101
104
106
12
101
10713
4
101
105 102 101 10414 103
104 3
102
4
D129/D130 30 Parts Location and List
1 B802 5810 Harness: Registration Sensor 1
2 B802 3382 Bracket: Guide: Paper Feed: Lower 1
3 5447 2681 Snap Ring 1
4 G052 4892 Discharge Brush: Exit: Small 3
5 B802 3145 Spring Plate 2
6 GW01 0007 Photo Refiection Sensor: Exit 1
7 B802 3833 Shielding Plate: Sensor 1
8 B802 3834 Bracket: Registration Sensor 1
9 B802 3231 Roller: Scanning: Entrance 1
10 B802 3251 Roller: Scanning: Exit 1
11 B802 3235 Timing Pulley: T33-T24 1
12 B802 3252 Timing Pulley: T33 1
13 A697 2102 Damper - Junction Gate Solenoid 1
14 B802 3233 Timing Pulley: T33 1
101 0451 3006N Tapping Screw - 3x6
102 0450 3008N Tapping Screw - M3x8
103 0720 0040E Retaining Ring - M4
104 0741 3506 Ball Bearing - 6x12x4 mm
105 1105 0511 Harness Clamp - LWS-0306ZC
106 0632 0100G Pin - 2x10mm
107 1105 0514 Edge Saddle - EDS-0607l
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
10.Original Transfer 2 (D129/D130)
D129/D130 31 Parts Location and List

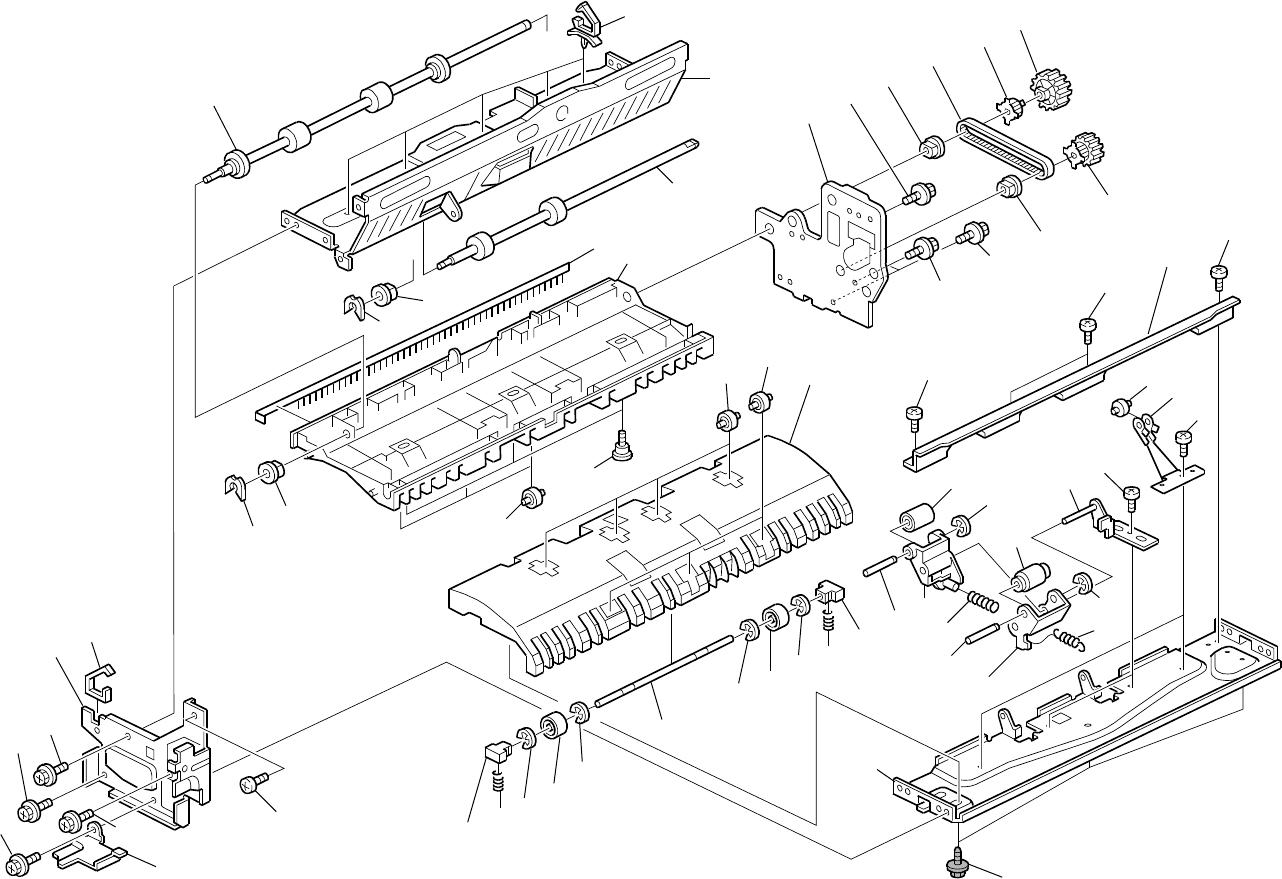

11.Original Transfer 3 (D129/D130)
101
2
1
102 3
4
1
15 101
16
17
103
105
5
67102
8
104
9
10
611
12 13
101
18
20
21 22 23
18
1
13 6
101
102 24 6
16
19 14 3
101
2
1
4
25
D129/D130 32 Parts Location and List
1 AA14 3790 Screw: Contact Point 3
2 B802 1752 Timing Pulley: T31: Idler: Ass'y 1
3 B802 3331 Roller: Reverse 1
4 AA06 0842 Tension Spring 1
5 AA04 3321 Timing Belt: 40S1.5M378 1
6 5447 2681 Snap Ring 4
7 B802 1768 Pulley: Idler: DIA16: Ass'y 1
8 B802 3312 Timing Pulley: T26 1
9 AA06 2260 Tension Spring 1
10 B802 3631 Link: Solenoid 1
11 B802 3615 Lever: Exchange Powl: Reverse 1
12 G020 1160 Snap Ring 1
13 AA08 2101 Bushing - 6x10x6 2
14 B802 3751 Stay: Reverse 1
15 B802 3351 Guide: Paper Feed: Lower 1
16 A422 1063 Seal - 0.7x13x20 2
17 B802 3211 Roller: Pull Out 1
18 5215 2621 Snap Ring - M6 2
19 B802 3756 Discharge Brush: Exit 1
20 B802 3653 Guide: Exit: Upper 1
21 B802 3311 Roller: Exit 1
22 B802 3612 Cushion: Exchange Powl 1
23 B802 3611 Exchange Powl: Reverse 1
24 B802 3332 Timing Pulley: T23 1
25 D630 6015 Decal: Display: Misfeed Removal: P3 1
101 0451 3006N Tapping Screw - 3x6
102 0741 3506 Ball Bearing - 6x12x4mm
103 0720 0060E Retaining Ring - M6
104 0720 0030E Retaining Ring - M3
105 0742 3808 Ball Bearing - 8x16x5
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
11.Original Transfer 3 (D129/D130)
D129/D130 33 Parts Location and List

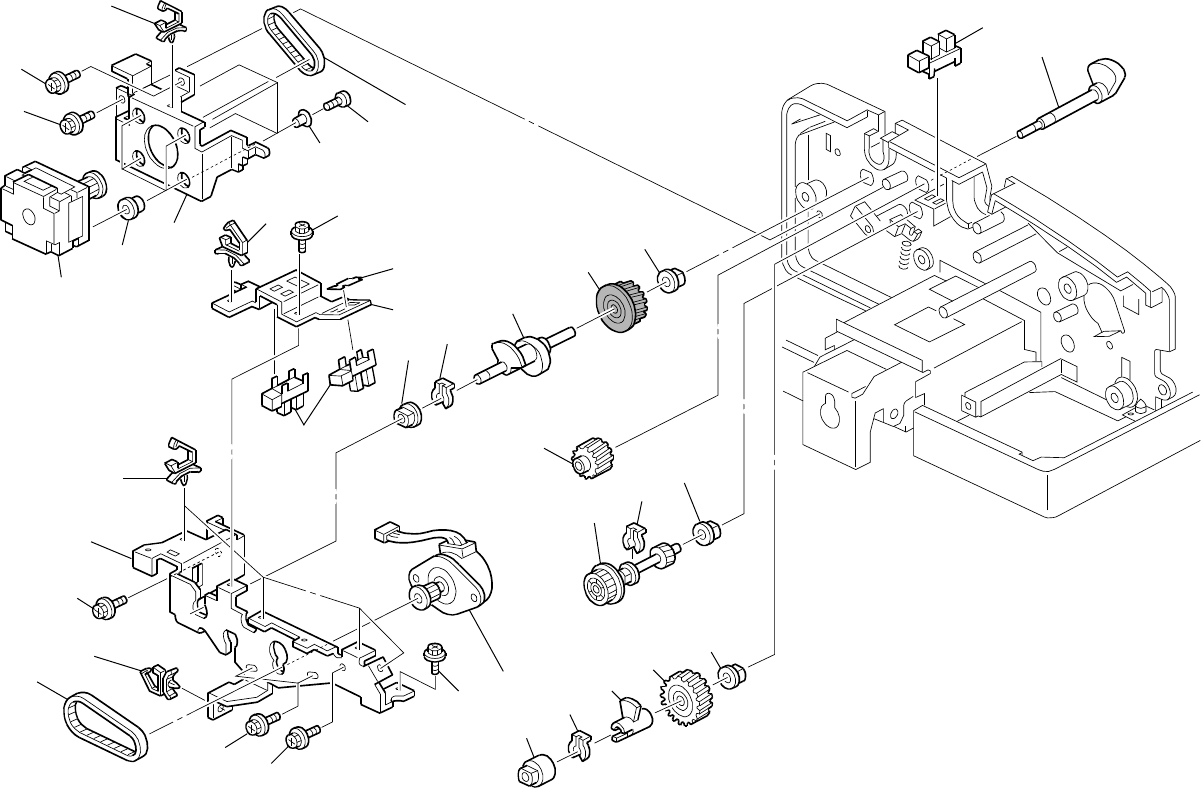

12.ARDF Drive Section 1 (D129/D130)
101
101
1
23
4102 5
103
104 101
6
7
8
104
10
101
103
9
101 101
101 11
12 13
14
15
12
16
12
13
17
18 19 20 21 12
822
D129/D130 34 Parts Location and List
1 B802 1812 Stepper Motor: DC4.08V 2.4W 1
2 AA10 1021 Rubber Bushing - 6 45HS 4
3 B802 1815 Bracket: Reverse: Drive 1
4 B044 1825 Collar 4
5 J503 3116 Timing Belt: 40S2M128 1
6 G570 1225 Sensor Shielding Plate 1
7 B802 1985 Bracket: Sensor: Pickup 1
8 AW02 0198 Photointerruptor: LG2A14Nl1 3
9 AA04 3323 Timing Belt: 40S2M120 1
10 B802 1925 Bracket: Pickup: Drive 1
11 B700 5805 Stepper Motor: PM: S2M: T15: Ass'y 1
12 AA08 2101 Bushing - 6x10x6 4
13 5447 2681 Snap Ring 2
14 B802 1951 Cam: Stopper Pawl 1
15 B802 1956 Gear: Stopper: Original Insert: Z25 1
16 B351 1781 Gear - 18Z 1
17 B802 1931 Timing Pulley: T33-Z17 1
18 B802 1942 Stopper: Cam: Pickup 1
19 5206 2686 Snap Ring 1
20 B802 1943 Feeler: Cam: Pickup 1
21 B802 1946 Gear: Drive: Arm: Pickup 1
22 B802 1941 Cam: Pickup 1
101 0451 3006N Tapping Screw - 3x6
102 0353 0060N Bind Screw - M3x6
103 1105 0511 Harness Clamp - LWS-0306ZC
104 1105 0516 Clamp
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
12.ARDF Drive Section 1 (D129/D130)
D129/D130 35 Parts Location and List

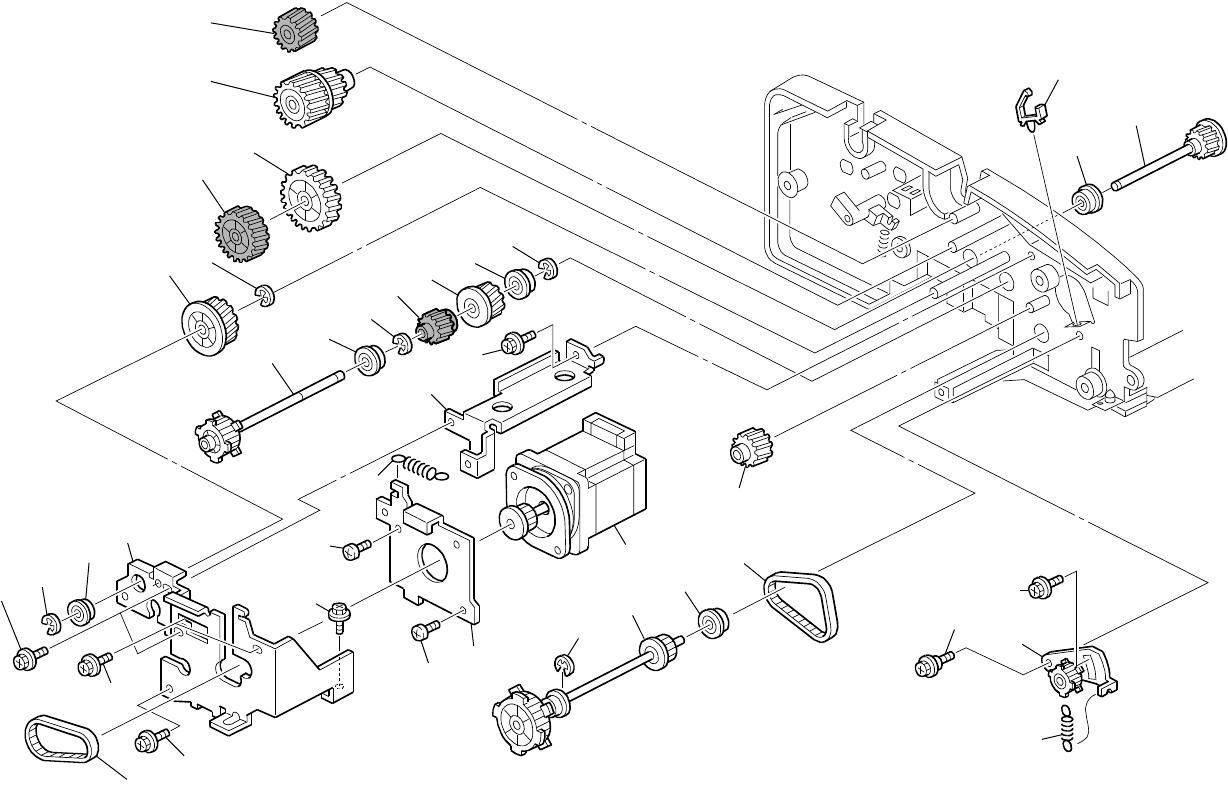

13.ARDF Drive Section 2 (D129/D130)
101
20
12
103 18 19
1
2
34
5103
6
103 78104 103
101
13
101 103 104 10
101
101
101
9
102
102 11
12
14
15
103 16 104 17
105
104
18
101
20
19
12
104
D129/D130 36 Parts Location and List
1 B802 1671 Gear: Z17 1
2 B802 1661 Gear: Z21/Z23 1
3 B802 1642 Gear: Z37 1
4 B802 1643 Gear: Z26 1
5 B802 1651 Gear: Z25 1
6 B802 1631 Timing Pulley: T31 1
7 B802 1632 Gear: Z18 1
8 B802 1633 Gear: Z19 1
9 AA04 3320 Timing Belt: 40S1.5M150 1
10 B802 1715 Bracket: Stepper Motor 1
11 B802 1731 Stay: Motor: Scanning 1
12 AA06 0842 Tension Spring 2
13 B802 1736 Bracket: Protect: Drive 1
14 D540 1721 Stepper Motor: Scanning: DC 72W 1
15 B802 1681 Gear: Z18 1
16 B802 1741 Timing Pulley: T31/T61 1
17 AA04 3322 Timing Belt: 40S1.5M157.5 1
18 B802 1641 Gear: Z18 1
19 AA14 3790 Screw: Contact Point 1
20 B802 1752 Timing Pulley: T31: Idler: Ass'y 1
101 0451 3006N Tapping Screw - 3x6
102 0453 4006N Binding Self Tapping Screw: 4x6
103 0720 0040E Retaining Ring - M4
104 0741 3506 Ball Bearing - 6x12x4mm
105 1105 0511 Harness Clamp - LWS-0306ZC
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
13.ARDF Drive Section 2 (D129/D130)
D129/D130 37 Parts Location and List

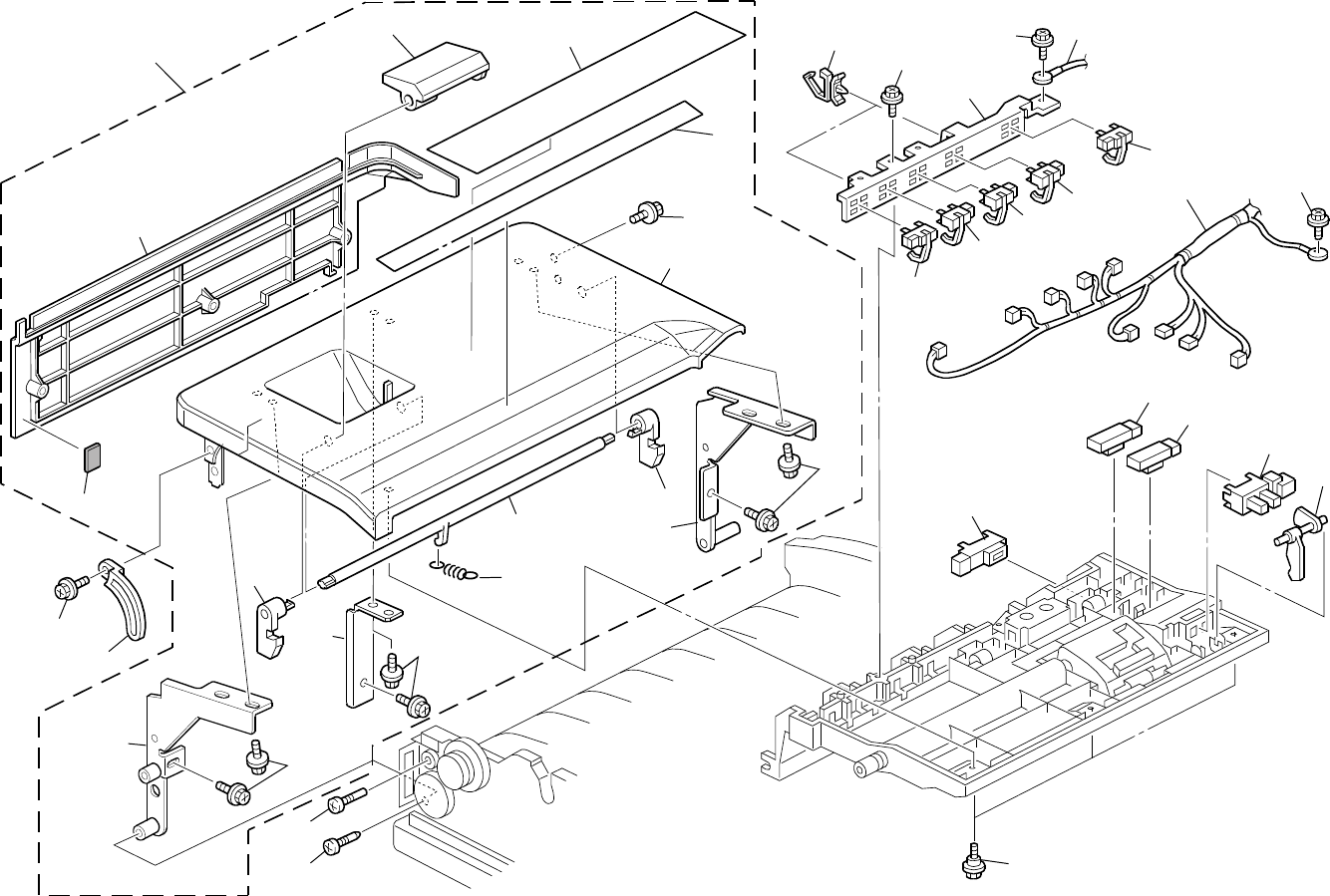

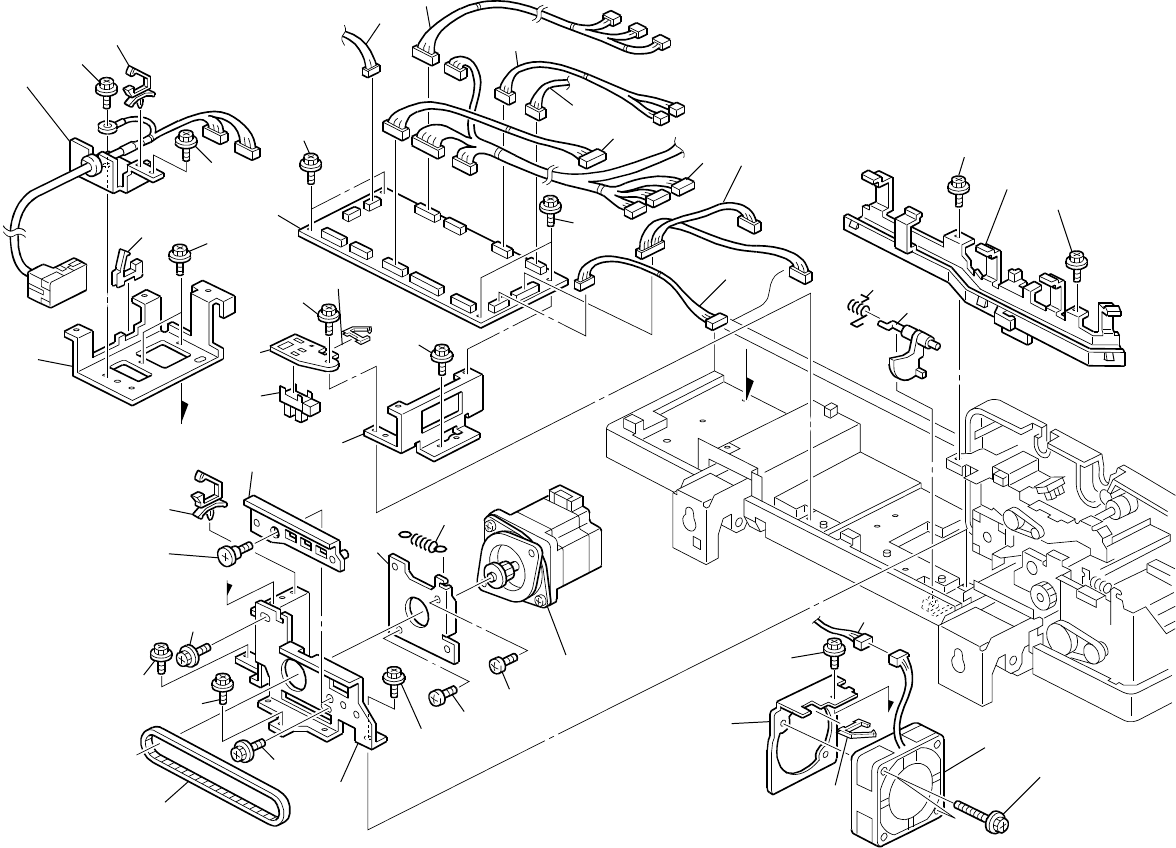

14.ARDF Electrical Section (D129/D130)
101 104
101
1
102
105
2
101
34
5
678 9
101
11
10
102107
12
13
14
102
18
106
17
102
101
102
101
102 103 103
21
20
19
16
15
101
24 101
22 23
27
101
25
107
108
26
D129/D130 38 Parts Location and List
1 B802 5710 Harness: Interface 1
2 B802 1231 Bracket: PCB: Right 1
3 B802 5780 Harness: Lift_Up 1
4 B802 5730 Harness: Paper Feed 1
5 B802 5800 Harness: Solenoid 1
6 B802 5770 Harness: Motor: Reverse 1
7 B802 5880 Harness: Sensor: Original Table 1
8 D630 5870 Harness: Sensor: Paper Feed 1
9 D540 5763 Harness: Motor: Scanning: Jst 1
10 B802 5820 Harness: Motor: Pick Up 1
11 D630 5500 PCB: Main Control Board:
Document Feeder: Ass'y 1
12 B802 1246 Bracket: On Off Detector 1
13 AW02 0198 Photointerruptor: LG2A14Nl1 1
14 B802 1236 Bracket: PCB: Left 1
15 B703 1165 Timing Belt: B40S2M390 1
16 B802 1612 Bracket: Motor 1
17 AA14 3802 Screw: 6x1.7 1
18 B802 1624 Bracket: Coupling 1
19 B802 1616 Stay: Motor 1
20 AA06 0842 Tension Spring 1
21 B802 1621 Stepper Motor: DC24V 4.8W 1
22 B387 1951 Spring - Paper Size Sensor 1
23 D630 1252 Feeler: Paper Size Sensor: Pressure Plate 1
24 B802 1412 Plate: Harness: Guide 1
25 D540 5851 Harness: Connecting: DC Fan Motor 1
26 AX64 0202 Fan: MM40x15: NIDEC: H 1
27 D540 1629 Bracket: Fan: Fix: 0.8mm 1
101 0451 3006N Tapping Screw - 3x6
102 0450 3008N Tapping Screw - M3x8
103 0453 4006N Binding Self Tapping Screw: 4x6
104 1105 0511 Harness Clamp - LWS-0306ZC
105 1105 0522 Edge Saddle - LES0510
106 1105 0487 Harness Clamp
107 1105 0514 Edge Saddle - EDS-0607l
108 0451 3020N Tapping Screw: 3x20
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
14.ARDF Electrical Section (D129/D130)
D129/D130 39 Parts Location and List
15.ARDF Frame Section (D129/D130)
101
1
101
2
101
4
5
6
7
3
13 12 13
9
10
102
101
101
101
8
11
103
5
5
D129/D130 40 Parts Location and List
1 B802 1121 Positioning Plate: Front 1
2 B802 1131 Positioning Plate: Rear 1
3 B802 4611 Pressure Plate 1
4 B802 4632 Cushion: Pressure Plate: Left 3
5 B802 4712 Sound Proofing Material: Cover: Rear 3
6 D630 1261 Grip: Lower 1
7 AA14 3790 Screw: Contact Point 2
8 B802 1321 Hinge: Left: Ass'y 1
9 B802 1361 Damper: Hinge: Right: Ass'y 1
10 A859 1841 Filter - DF Open Sensor 1
11 AA14 3520 Shoulder Screw - M3 1
12 D630 4621 Drum Stay: Pressure Plate 1
13 B477 2715 Pressure Plate Tape 4
101 0451 3006N Tapping Screw - 3x6
102 0454 3006Q Tapping Screw - M3x6
103 0450 3008N Tapping Screw - M3x8
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
15.ARDF Frame Section (D129/D130)
D129/D130 41 Parts Location and List

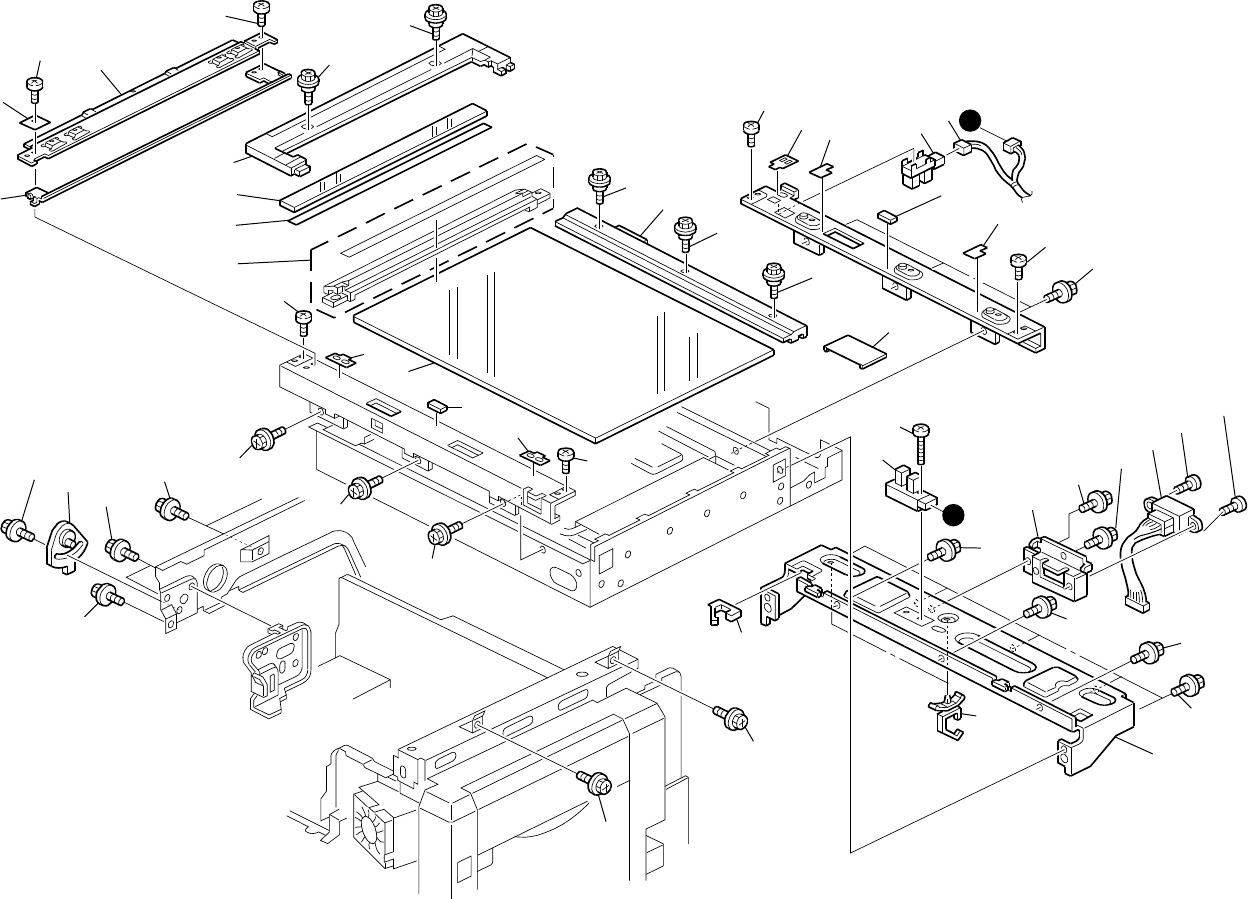

16.Scanner Section 1 (D129/D130)
101
17 101
18 106 106
105
16
108
107
104
104 101
13 14
10
15
9
20
20
101
12 11
10
104
4
5
6
104
7
3
12
8
21
21
22
104
104 1
2
102
102
102
101
103 19
102
A
A
101
12
12
12
101
101
101
101
101
D129/D130 42 Parts Location and List
1 D009 1731 Bracket A - Left Scale 1
2 D129 1732 Bracket: Scale: Left: B 1
3 D129 1773 Scale: Machine Or Copier 1
4 BC01 2002 Exposure Glass: Sheet Through: 344x20 1
5 B223 1774 Seal: Sheet Through 1
6 D129 1779 Scale: Left: NA: Ass'y 1
6 D129 1777 Scale: Left: EU/AA/CHN: Ass'y 1
7 A250 1752 Exposure Glass 1
8 B223 1784 Optical Filter: Infrared: 76x36.5: Ass'y 1
9 B223 1806 Bracket: Document Feeder: Holder 1
10 5442 1924 Exposure Glass Cushion 1
11 D129 1782 Scale: Rear: Printing 1
12 AA14 3520 Shoulder Screw - M3 5
13 A193 1793 Scanner Home Sensor Stopper 1
14 AW02 0145 Photointerruptor: Flat 1
15 D029 5212 Harness: SIO: Sensor 1
16 AW02 0146 Photointerruptor: Flat: PICH2mm: M4 1
17 B223 1808 Document Feeder: Connector: Bracket 1
18 D029 5213 Harness: SIO: ARDF 1
19 B223 1116 Cam: Guide Plate: Scanner: Left 1
20 B223 1833 Seal: Exposure Glass: Rear 3
21 B238 1845 Seal: Exposure Glass 2
22 D029 1774 Seal: Guard: Exposure Glass:
Document Feeder 1
101 0451 3006N Tapping Screw - 3x6
102 0451 3008N Tapping Screw - M3x8
103 0451 3010N Tapping Screw: 3x10
104 0453 3006N Tapping Screw - M3x6
105 0314 0120N Screw - M4x12
106 0453 3008N Binding Self Tapping Screw: 3x8
107 1105 0522 Edge Saddle - LES0510
108 1105 0511 Harness Clamp - LWS-0306ZC
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
16.Scanner Section 1 (D129/D130)
D129/D130 43 Parts Location and List
17.Scanner Section 2 (D129/D130)
1
2
5
5
6
7
8
8
8
8
9
10
11
104
104
11
15
16
17
101
17
101
15
19
103
18
20
101
17
101
17
19
103
18
20
16
22
102
13
102
102
105
103
23
14
21
4
24
25
3
12
D129/D130 44 Parts Location and List
1 A193 1766 Wire Clamp 1
2 A193 1769 Clamp - Rear Wire 1
3 D129 5541 Harness: FFC: LED 1
4 D129 1721 Carriage: No.1: Ass'y 1
5 M026 1815 Clamp: Mirror: No.1 2
6 AC03 0169 Mirror: No.1 1
7 D129 1731 Carriage: No.2: Ass'y 1
8 G404 2810 Spring Plate - 2nd Mirror 4
9 D029 1736 Mirror: No.2: Concave: Ass'y 1
10 D029 1737 Mirror: No.2: Convax: Ass'y 1
11 B238 1807 Pulley 2
12 G570 2730 Slider - Scanner 4
13 M026 1778 Guide: FFC 1
14 D129 1801 Guide: Flat Cable 1
15 A193 1816 1st Slide Rail 2
16 B180 1734 Slide Rail: No.2 2
17 B238 1806 Idler Pulley 4
18 AA06 0980 Tension Spring: Tension: 11300mN 2
19 D029 1747 Drive Were: Carriage: DIA1.0 2
20 D089 1741 Bracket: Tension: Drive Wire 2
21 D129 1722 Illumination Unit: LED: Ass'y 1
22 D120 1711 Guide: FFC: Carriage: No.2 1
23 D120 1710 Guide: FFC: Carriage: No.1 1
24 D120 1705 Reflector: Scanner 1
25 D120 1700 Carriage: No.1: Sub-ass'y 1
101 0451 3006N Tapping Screw - 3x6
102 0353 0050N Screw-M3x5
103 0802 5299 Tapping Screw - M3x8
104 0720 0040E Retaining Ring - M4
105 0353 0060N Bind Screw - M3x6
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
17.Scanner Section 2 (D129/D130)
D129/D130 45 Parts Location and List

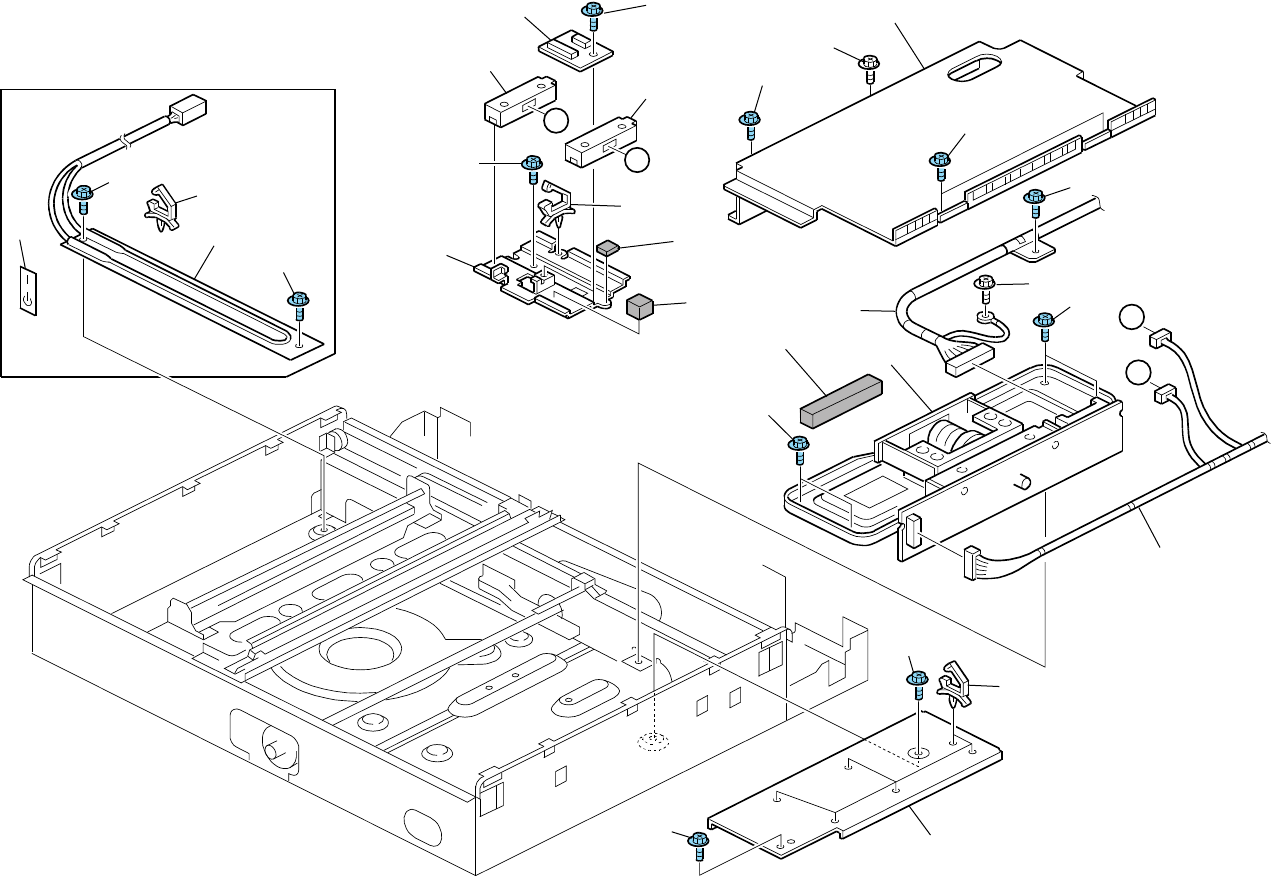

18.Scanner Section 3 (D129/D130)
Option A
B
A
B
101
101
101
101
101
101
101
1
2
2
3
4
5
6
102
7
8
9
10
101
101 11
102
103
103
104
101
101
12
13
D129/D130 46 Parts Location and List
1 D129 5350 PCB: SCNB 1
2 AW01 0133 Original Sensor - 66mm 2
3 D129 1815 Bracket: Original Sensor: SUB Scanning 1
4 D029 1830 Gasket: 13x17x35: R 1
5 D029 1832 Gasket: 9x3x10 1
6 D029 1831 Gasket: 13x17x10: R 1
7 D029 1789 Inner Cover: Ground Plate: Peen 1
8 D129 5531 Interface Cable: Scanner: LVDS: Ass'y 1
9 D129 1771 Lens: Holder: Ass'y 1
10 D089 5217 Harness: SIO: Scanner Unit 1
11 D129 1816 Bracket: Guide: Harness: Base 1
12 B229 1687 Heater: Option: 120V: 9W 1
12 B229 1688 Heater: Option: 230V: 9W 1
13 D011 1253 Decal: Main Switch: On-Standby: EU 1
101 0454 3006Q Tapping Screw - M3x6
102 1105 0511 Harness Clamp - LWS-0306ZC
103 0451 3006N Tapping Screw - 3x6
104 1105 0460 Clamp
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
18.Scanner Section 3 (D129/D130)
D129/D130 47 Parts Location and List

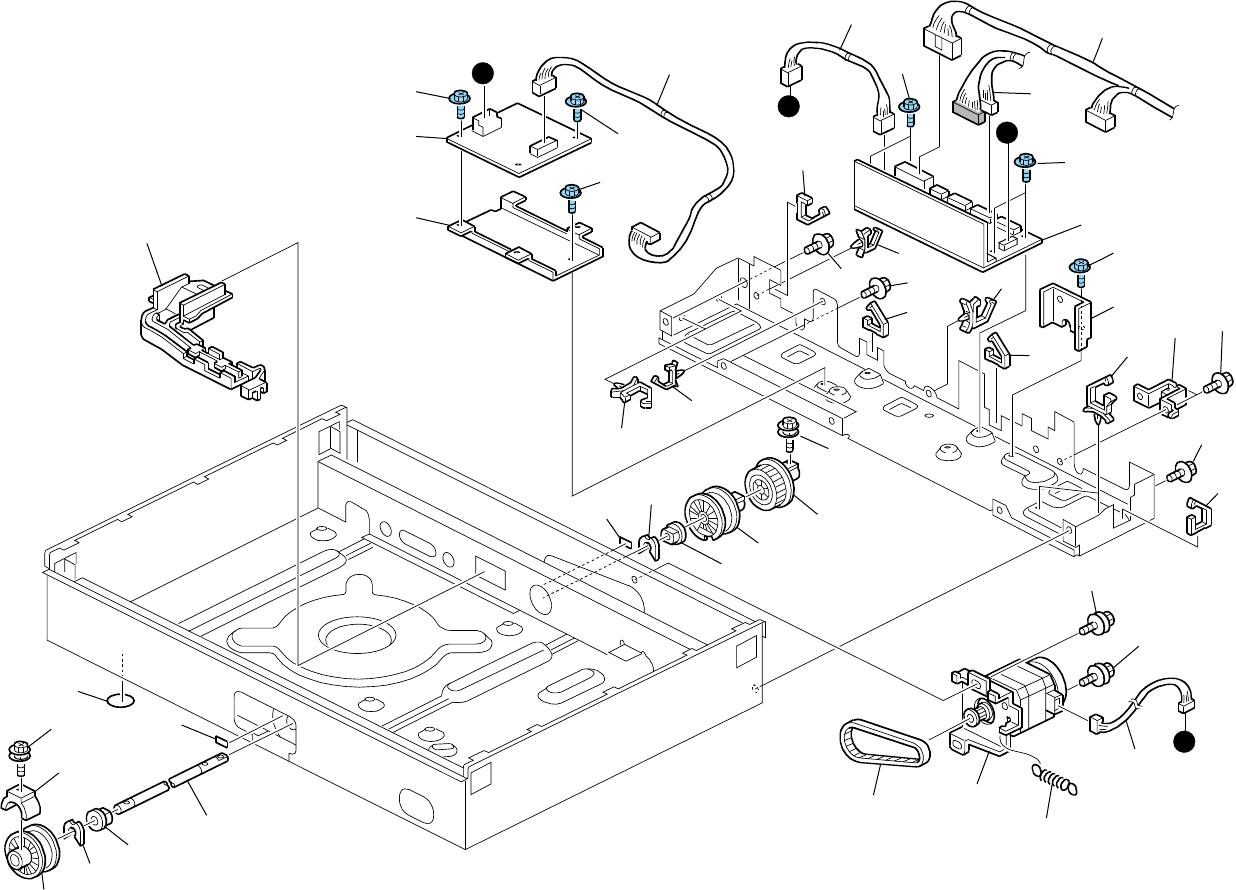

19.Scanner Section 4 (D129/D130)
B
B
A
A101
101
101
101
101
101 19
18
16
17
15
14
13
911
10
12
103
103
7
8
20
104
103
6
20
104
5
4
103
22
32
1105
102 102
105
105
106
106
107
107
107
102
102
105
21
21
D129/D130 48 Parts Location and List
1 D129 5342 PCB: LED-DB 1
2 D129 1821 Bracket: LED Control Board 1
3 D129 1803 Guide: Harness: Led Control Board 1
4 D029 1749 Pulley: Protection 1
5 D029 1745 Pulley: DriveE Were: Front 1
6 B180 1814 Shaft: Scanner: Drive 1
7 G570 1133 Timing Pulley 73 1
8 D029 1748 Pulley: Drive Were: Rear: Ass'y 1
9 B238 1792 Timing Belt - 157ST1.5-4.0 1
10 AA06 0979 Tension Spring: Tension: 14720MN 1
11 B180 1713 Stepper Motor: Ass'y 1
12 D029 5215 Harness: SIO: STM 1
13 B223 1779 Cover: Stepper Motor: Rear 1
14 B223 1807 Bracket: Exterior: Rear 2
15 D129 5138 PCB: SIO 1
16 D089 5217 Harness: SIO: Scanner Unit 1
17 D129 5535 Harness: SIO: BCU 1
18 D029 5214 Harness: SIO: Lamp Regulator 1
19 D129 5534 Harness: Led-db: Scnb 1
20 AA08 2144 Bushing - 8x12x7 2
21 G570 1160 Spacer Bushing 2
22 B223 1824 Seal: Scanner: Frame: Base 1
101 0454 3006Q Tapping Screw - M3x6
102 0451 3006N Tapping Screw - 3x6
103 0802 5299 Tapping Screw - M3x8
104 0805 0088 Retaining Ring - M6
105 1105 0516 Clamp
106 1105 0488 Harness Clamp
107 1105 0511 Harness Clamp - LWS-0306ZC
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
19.Scanner Section 4 (D129/D130)
D129/D130 49 Parts Location and List

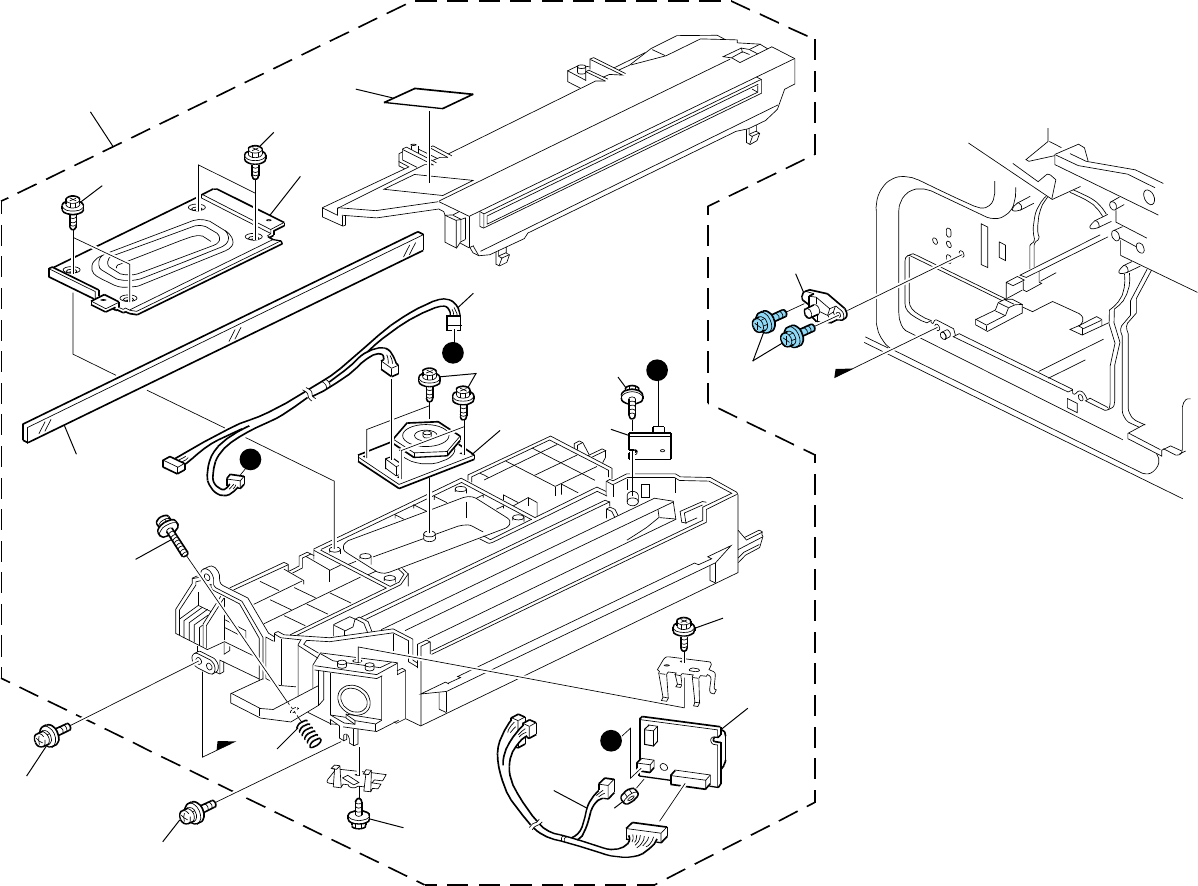

20.LD Unit (D129/D130)
11
106
1
101
101
2
3
4
6
102
5
102
7
104
103
103
10
102
102
8
105
9
A
BB
A
D129/D130 50 Parts Location and List
1 D129 1860 Optical Writing Unit: Ass'y 1
2 D009 1861 Cover - Polygon Motor 1
3 G029 1980 Decal - LD 1
4 AC01 5025 Shield Glass 1
5 AX06 0416 Polygon Scanner Motor: DC: Brushless: 16.8W 1
6 D009 5570 Harness - Imaging Unit 1
7 D009 5325 SYNC Detector Board 1
8 D129 1870 Laser Diode Unit: Ass'y 1
9 D009 5571 Harness: Laser Diode Control 1
10 AA06 3445 Spring - Laser Diode Unit 1
11 A232 1937 Positioning Pin - Laser Unit Ass'y 1
101 0450 3010N Tapping Screw - M3x10
102 0450 3008N Tapping Screw - M3x8
103 0951 3008N Screw: Polished Round: M3x8
104 0951 3020N Screw: Polished Round: M3x20
105 0712 0030N Hexagonal Nut: M3
106 0454 3006Q Tapping Screw - M3x6
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
20.LD Unit (D129/D130)
D129/D130 51 Parts Location and List
21.Paper Tray (D129/D130)
18
22
21
20
19
17
3
11
10 12
13
103
104
15
1
2
101
16
16
624
25
102
23
101
16
14
22
21 30
26
27
28
29
4
5
31
7
8
9
32
D129/D130 52 Parts Location and List
* D580 2900 Paper Tray: No.2: Ass'y 1
1 B223 2910 Link - Paper Size Sensor 1
2 B223 2911 Spacer 1
3 D580 2523 Decal: Paper Set Direction: Tray: No.2 1
4 D089 2940 Tray Bottom Plate: Ass'y 1
5 AF01 3016 Bottom Plate Pad 1
6 B223 2919 Ground Plate - Paper Tray No.2 1
7 D580 2946 Cover: Paper Tray: No.2 1
8 D580 2870 Grip: Paper Tray 1
9 D120 2872 Decal: Paper Tray: No.1 1
9 D120 2873 Decal: Paper Tray: No.2 1
10 B223 2862 Lever - Release Inner 1
11 AA06 1014 Tension Spring: Grip 1
12 D029 2863 Release Shaft 1
13 B223 2861 Grip Holder 1
14 AA06 1003 Tension Spring: Side Fence: Rear 1
15 B223 2868 Lever: Release: Paper Tray: Outer 1
16 A232 2987 Roller - Paper Tray 4
17 D120 2832 End Fence: Ass'y 1
18 D129 2920 Side Fence: Front: Ass'y 1
19 D120 2924 Stopper Lever - Front 1
20 B004 2923 Spring Plate - Release Lever 1
21 B223 2935 Plate - Side Fence Right 2
22 B223 2934 Plate - Side Fence 2
23 B223 2936 Gear - 16Z 1
24 B223 2865 Rise No.1 Shaft 1
25 B223 2918 Rise Lever 1
26 D129 2930 Side Fence: Rear: Ass'y 1
27 D120 2864 Lever: Stopper: Positioning 1
28 A267 2857 Spring Plate - Side Fence 1
29 A267 2859 Side Fence Stopper 1
30 D120 2875 Decal: Side Fence: Rear 1
31 B180 2782 Seal: Tray 1
32 D129 2747 Decal: Paper Set Direction: Tray: Right: EXP 2
101 0450 4008N Tapping Screw - M4x8
102 0453 3008N Binding Self Tapping Screw: 3x8
103 0450 3012N Tapping Screw: 3x12
104 0720 0080E Retaining Ring - M8
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
21.Paper Tray (D129/D130)
D129/D130 53 Parts Location and List

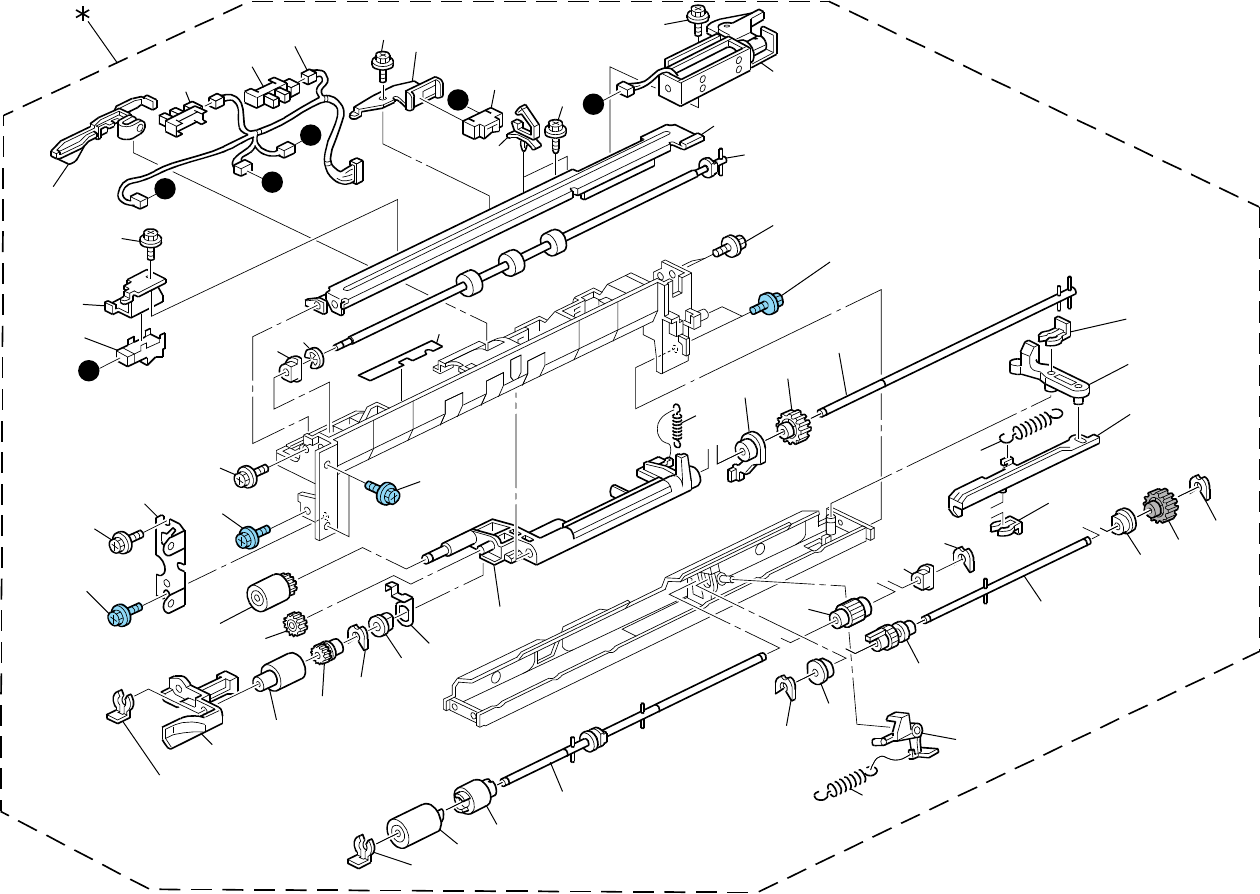

22.Paper Feed Section (D129/D130)
1
223101 6
7
5
4
101
102
105
8
101
10
9
101
12
11 104
101
13 101
14 15
16
17 18 19 103
21
20
106
24 25 26
23
36
37
38
39
36
11 35 103
103
11
103 11
30
33
34
32
31
16 27 28
29
22
A
A
B
C
BC
106
106
106
D129/D130 54 Parts Location and List
* D129 2750 Paper Feed Unit: Ass'y 2
1 D089 2767 Feeler: Paper End 1
2 AW02 0145 Photointerruptor: Flat 2
3 D029 2773 Harness - Paper Feed Unit 1
4 D089 2778 Bracket: Sensor: Feed 1
5 AW01 0128 Paper Feed Sensor 1
6 D089 2781 Bracket: Sensor 1
7 AW01 0122 Paper Feed Sensor 1
8 B223 2780 DC Solenoid 24V 1
9 B223 2776 Stay 1
10 D009 2757 Transport Roller: Drive: Ass'y 1
11 AA08 2143 Bushing - 6x10x6 4
12 B223 2772 Harness Sheet 1
13 B223 2786 Ground Plate - Front 1
14 AF03 0090 Paper Feed Roller: Pickup 1
15 AB01 1252 Gear - 20Z 1
16 AA10 0014 Retaining Ring C - Separate 2
17 D089 2829 Guide: Feed 1
18 AF03 1090 Paper Feed Roller: Feed 1
19 AB01 1218 Gear - Roller Clutch 1
20 AA08 2150 Plain Shaft Bearing: M6 1
21 B223 2765 Ground Plate - Feed 1
22 D089 2761 Arm: Pickup 1
23 AA06 0691 Tension Spring 1
24 G065 2767 Lever - Feed 1
25 B223 2764 Gear-24Z 1
26 B223 2762 Feed Shaft 1
27 AF03 2090 Paper Feed Roller: Separate 1
28 D129 2783 Torque Limiter Mechanical Clutch:
40mnm: DIA18 1
29 B223 2810 Separate Driven Shaft 1
30 AB01 0157 Gear: Separate: Drive 1
31 AA06 0693 Tension Spring 1
32 G065 2774 Pressure Lever 1
33 AB01 0156 Gear: Separate: Drive 1
34 B223 2815 Separate Drive Shaft 1
35 B223 2819 Gear - 22Z 1
36 5206 2686 Snap Ring 1
37 G065 2776 Release Lever 1
38 G065 2775 Link Lever 1
39 AA06 2259 Spring - Release 1
101 0451 3006N Tapping Screw - 3x6
102 0450 3008N Tapping Screw - M3x8
103 0805 0089 Retaining Ring - M4
104 0720 0040E Retaining Ring - M4
105 1105 0511 Harness Clamp - LWS-0306ZC
106 0454 3008Q Tapping Screw: 3x8
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
22.Paper Feed Section (D129/D130)
D129/D130 55 Parts Location and List
23.By-pass Feed Section 1 (D129/D130)
10
1
4
3
101
102
11
12 11
102
13
2
101
101
5
8
6
7
14
A
BA
B
9
18
15
16
D129/D130 56 Parts Location and List
* D129 2740 Manual Feed Table: Ass'y 1
1 D129 2674 Side Fence: Front 1
2 D129 2673 Side Fence: Rear 1
3 D129 2726 Grip: Side Fence: Manual Feed 1
4 B223 2668 Spring Plate: Stopper 1
5 D129 2675 Decal: Side Fence: Manual Feed 1
6 D129 2745 Decal: Paper Set Direction: Manual Feed: EXP 1
7 D129 2661 Cover: Manual Feed 1
8 D129 2748 Decal: Scale: Manual Feed 1
9 D029 2769 Harness: Paper Size Sensor: Manual Feed 1
10 AW50 0031 Paper Size Sensor 1
11 B223 2713 Rack: Manual Feed 2
12 B223 2666 Gear: 16Z 1
13 D129 2667 Extension Tray: Manual Feed 1
14 D129 2662 Manual Feed Table 1
15 D029 2664 Feeler: Paper Size Sensor: Manual Feed 1
16 AW02 0204 Photointerruptor: LGRC102 1
17 D129 2743 Decal: Tray: Manual Feed: Extension Tray: EXP 1
18 D029 2710 Cover: Harness: Manual Feed Table 1
101 0450 3008N Tapping Screw - M3x8
102 0805 0089 Retaining Ring - M4
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
23.By-pass Feed Section 1 (D129/D130)
D129/D130 57 Parts Location and List

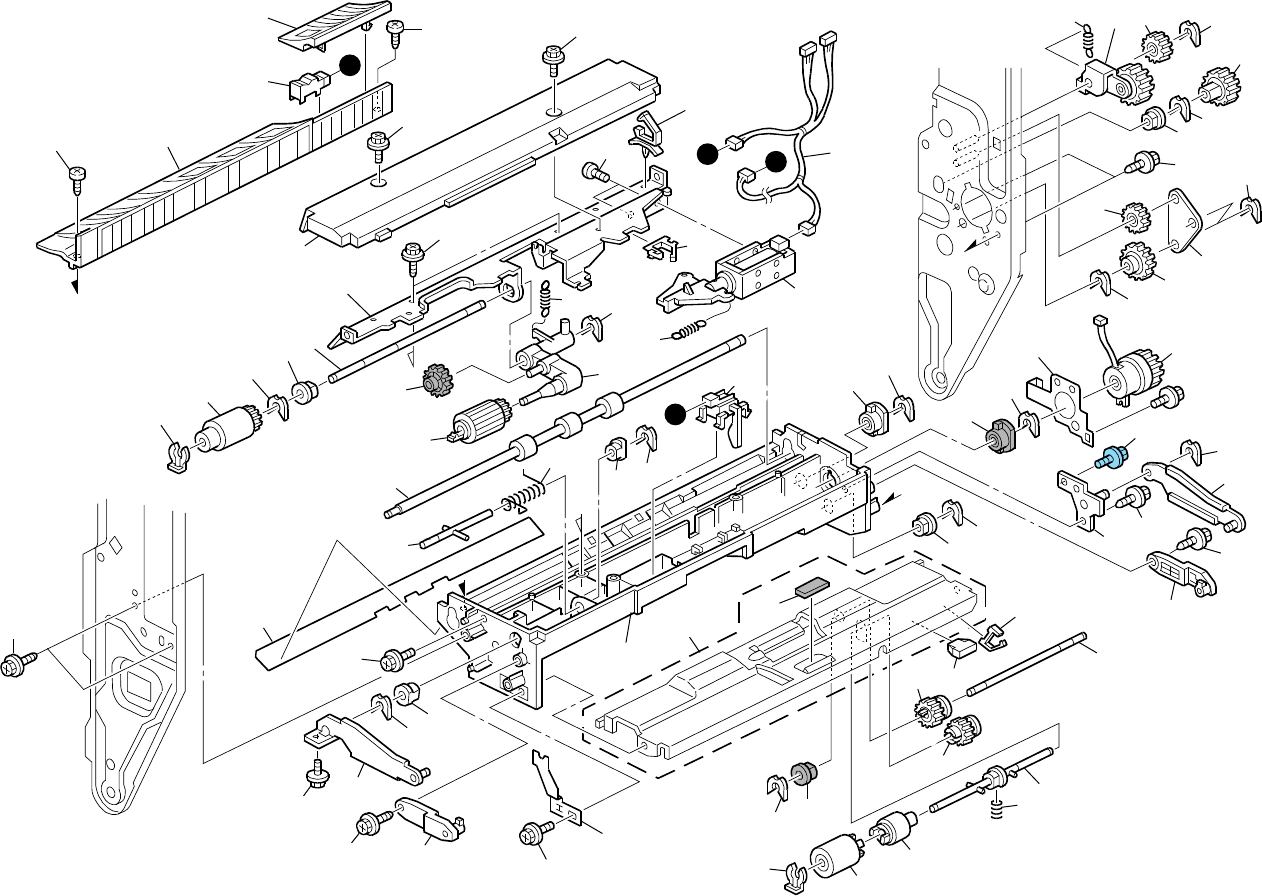

24.By-pass Feed Section 2 (D129/D130)
1
2
103
103
4
101
101
102
9
113
104 16
14
15
112
10
11
13
12
20
18
19
7108
21 28 108
102
56
78
17
106
25
107
102
22
105
24
10823
26 27
7108
108
5
35
39
40
41
42
110
38
36
37
111
47
48 49
108
43 44 45 108
7109
46
102
105 108
101
33
102
34
32
29
30 108
31
3
108
108
50
108
B
B
A
A
D129/D130 58 Parts Location and List
1 B223 2623 Cover: Guide Plate: Exit 1
2 AW01 0107 Paper Feed Sensor 1
3 B223 2622 Guide Plate: Exit 1
4 D129 2621 Cover: Manual Feed Unit 1
5 AA10 0014 Retaining Ring C - Separate 2
6 AF03 1046 Feed Roller - Manual Feed 1
7 AA08 2101 Bushing - 6x10x6 4
8 AA14 0777 Shaft: Feed 1
9 B223 2629 Stay: Feed 1
10 AB01 1387 Gear - 23Z 1
11 AF03 0049 Pick-up Roller 1
12 AA06 3568 Pressure Spring 1
13 G060 2932 Pick-up Arm - Manual Feed 1
14 B223 2632 DC Solenoid: Pickup 1
15 B223 2633 Spring: Release: Pickup 1
16 B223 2659 Harness: Manual Feed 1
17 D009 2552 Guide Sheet - Manual Feed 1
18 D009 2555 Transport Roller - Duplex Exit 1
19 B223 2634 Support Stay: Arm 1
20 B223 2636 Torsion Spring: 27N 1
21 AW50 0035 Paper End Sensor 1
22 B223 2651 Arm: Manual Feed: Front 1
23 AA08 2102 Bushing - 6x10x6 1
24 D129 2657 Arm: Manual Feed: Short: Front 1
25 D029 2612 Ground Plate: Front: Manual Feed 1
26 D029 2709 Guide Plate: Separator: Ass'y 1
27 AF01 3016 Bottom Plate Pad 1
28 AA08 3018 Roller Clutch - 6x14x10 1
29 D029 2611 Ground Plate: Rear: Manual Feed 1
30 AA08 3014 One-way Clutch 1
31 AX20 2007 Magnetic Clutch 1
32 B223 2637 Bracket: Arm: Manual Feed: Rear 1
33 B223 2652 Arm: Manual Feed: Rear 1
34 D129 2658 Arm: Manual Feed: Short: Rear 1
35 A259 6754 Bushing - 6 6mm 1
36 AB01 1416 Gear - 20Z 1
37 B223 2608 Gear: Z16 1
38 AA14 0778 Shaft: Separator: Drive 1
39 AF03 2046 Separation Roller - Manual Feed 1
40 D129 2783 Torque Limiter Mechanical Clutch:
40mnm: DIA18 1
41 B180 2871 Shaft: Separator: Driven: Ass'y 1
42 AA06 3499 Pressure Spring 1
43 AA06 0872 Spring 1
44 B223 2681 Arm: Tightener 1
45 AB01 1223 Idler Gear - 25Z 1
46 B223 2686 Gear: Z31 1
47 B223 2683 Gear: 25Z 1
48 B223 2689 Gear: Z28 1
49 B223 2696 Drum Stay: Drive 1
50 AA08 3018 Roller Clutch - 6x14x10 1
101 0451 3006N Tapping Screw - 3x6
102 0450 3008N Tapping Screw - M3x8
103 0452 3008N Tapping Screw - M3x8
104 0353 0040N Screw - M3x4
105 0454 3008Q Tapping Screw: 3x8
106 0451 3008N Tapping Screw - M3x8
107 0360 3006N Screw - M3x6
108 0805 0089 Retaining Ring - M4
109 0805 0088 Retaining Ring - M6
110 1105 0522 Edge Saddle - LES0510
111 1102 6248 Connector - 5P
112 1105 0551 Clamp: LES-0505
113 1105 0511 Harness Clamp - LWS-0306ZC
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
24.By-pass Feed Section 2 (D129/D130)
D129/D130 59 Parts Location and List

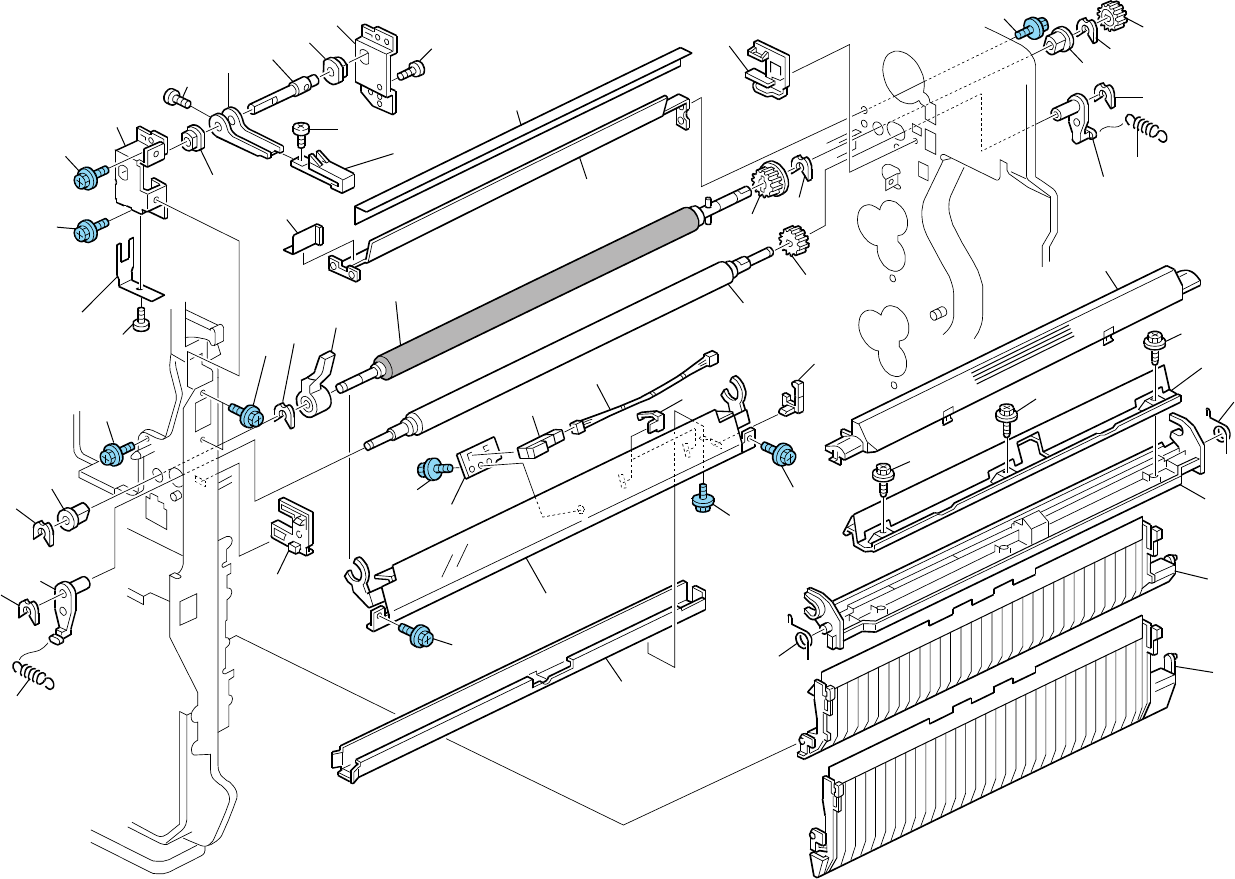

25.Paper Registration (D129/D130)
102
102
104
29
28
24
104 27 25 24 23
104
26
10
103
103 7
8
10210317
14
16 103
18
13
15
22
102
102
102
105
105
19
20
21
102
12
11
10 1039
78
103
6
101
101
101
5
4
4
3
2
1
102
30
102
32
31
104
D129/D130 60 Parts Location and List
1 D129 2841 Guide Plate: Swivel: No.2: Ass'y 1
2 D129 2836 Guide Plate: Swivel: Ass'y 1
3 D009 2617 Upper Guide Plate - Registration 1
4 D009 2650 Torsion Spring - Registration 2
5 D009 2638 Stay - Paper Dust Removal 1
6 D009 2618 Cover - Paper Dust Removal 1
7 D009 2607 Bushing - Driven Registration 2
8 D009 2636 Tension Spring 2
9 D009 2603 Gear - 28Z 1
10 AA08 2074 Bushing - M8 2
11 D009 2612 Case Supporter - Remove Paper Dust 1
12 D009 2624 Lower Guide Plate - Registration 1
13 D009 2606 Registration Roller - Driven 1
14 D009 2600 Registration Roller - Drive 1
15 B238 2655 Gear - 16Z 1
16 D009 2602 Gear - 18Z 1
17 D129 2604 Knob: Registration Roller 1
18 D009 2623 Rear Positioning Guide 1
19 D009 2626 Harness - Registration Sensor 1
20 AW01 0107 Paper Feed Sensor 1
21 D009 2614 Bracket - Registration Sensor 1
22 D009 2622 Front Positioning Guide 1
23 D009 2240 Rear Flange - Lock 1
24 AA08 2158 Plain Shaft Bearing: Mm8 2
25 D009 2243 Shaft - Lock 1
26 D129 2245 Cover: Stopper: Lock: PCD 1
27 D009 2244 Stopper - Lock 1
28 D009 2241 Front Flange - Lock 1
29 D009 2242 Spring Plate - Lock 1
30 D009 3858 Entrance Guide Plate - Transfer 1
31 D009 3107 Seal: Shielding Plate 1
32 D009 3108 Seal: Guide Plate 1
101 0450 3006N Tapping Screw - M3x6
102 0454 3006Q Tapping Screw - M3x6
103 0805 0089 Retaining Ring - M4
104 0453 3006N Tapping Screw - M3x6
105 1105 0568 Clamp: LWSS-0504
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
25.Paper Registration (D129/D130)
D129/D130 61 Parts Location and List

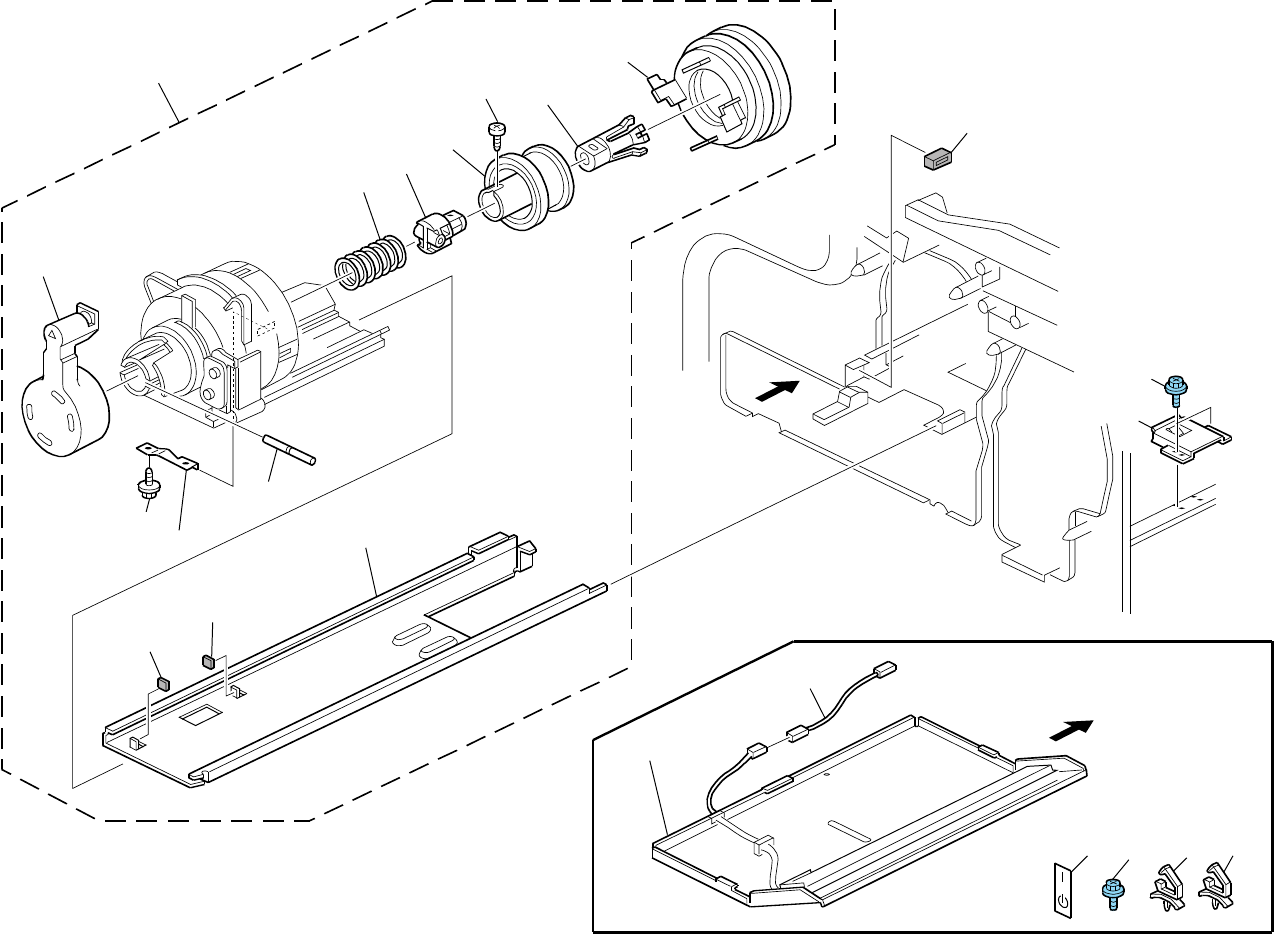

26.Toner Supply Unit (D129/D130)
12
3
3
2
1
102 10
11
876
101 5
4
13
103
14
15
16
9 103 104 105
Option
D129/D130 62 Parts Location and List
1 D129 3209 Toner Supply Unit 1
2 B077 3262 Slide Rail: Toner Supply Unit 1
3 A232 3266 Seal - Slide Rail 2
4 A232 3240 Cover - Toner Bottle Ass'y 1
5 A134 3180 Bottle Chuck 1
6 A232 3252 Slider Ass'y 1
7 A232 3251 Chuck Shaft 1
8 AA06 3566 Pressure Spring 1
9 D011 1252 Decal: Main Switch: On-standby 1
9 D011 1253 Decal: Main Switch: On-standby: EU 1
10 A232 3263 Spring Plate - Toner Bottle 1
11 D009 3265 Shaft - Slide 1
12 A232 3264 Stopper - Slide Rail 1
13 D009 5892 Heater Stopper 1
15 D011 5841 Heater: PCD: NA: Sub-ass'y 1
15 D011 5842 Heater: PCD: EU: Sub-ass'y 1
16 D009 5611 Harness: AC: Heater 1
101 0452 3010N Binding Self-tapping Screw: 3x10
102 0456 3008N Tapping Screw - M3x8
103 0454 3006Q Tapping Screw - M3x6
104 1105 0487 Harness Clamp
105 1105 0516 Clamp
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
26.Toner Supply Unit (D129/D130)
D129/D130 63 Parts Location and List

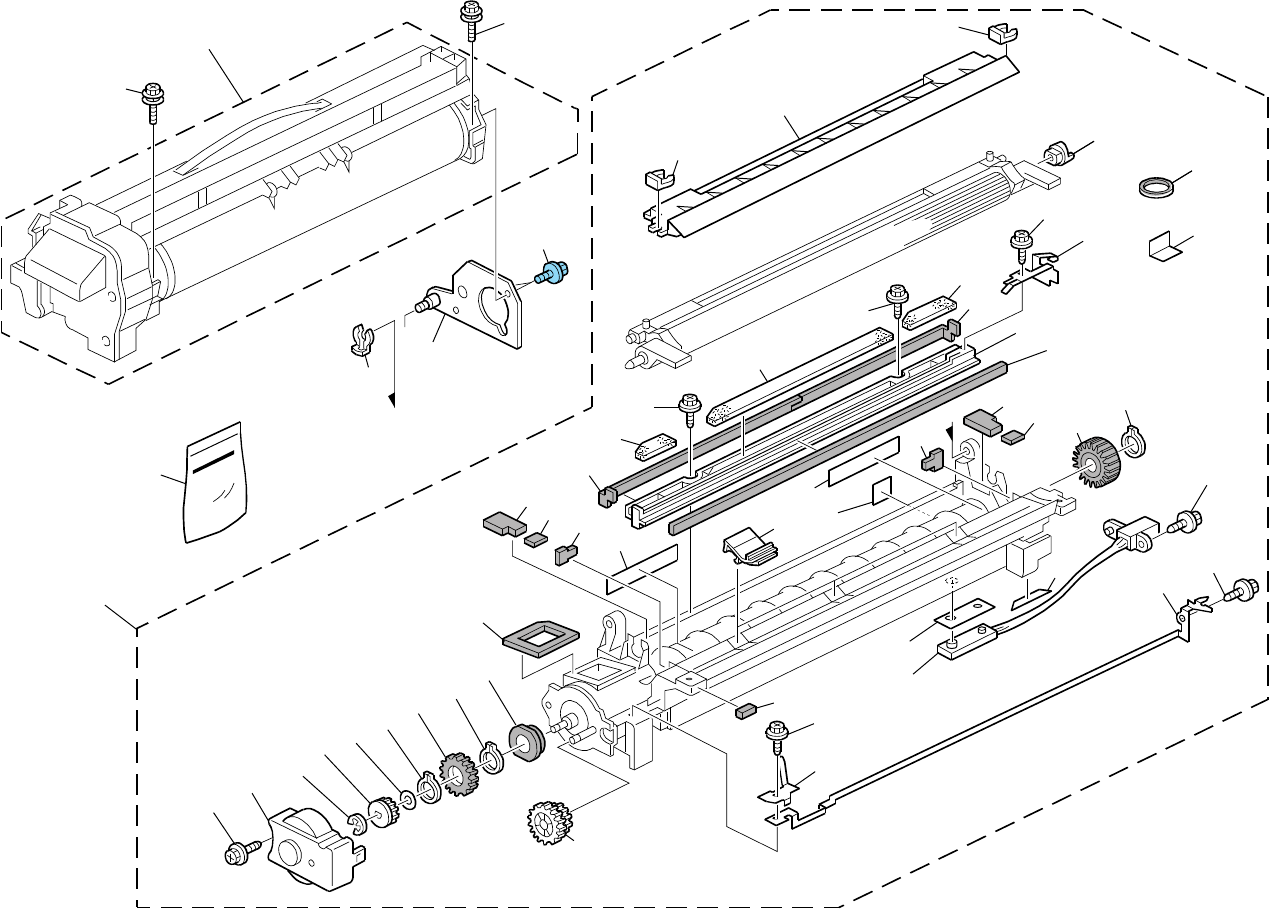

27.PCDU 1 (D129/D130)
104
32
32
1
3
2
101
31
31
30
102 26
102
102
25
33
23 22
24
17 18 19
20 18
19
21
16
15 104
102
102
13
14
102
11
12
10
9
104
8
7
103
102 6
5
4
35
34
36
36
37
38
40
39
2727
29
28
D129/D130 64 Parts Location and List
1 D129 2110 PCU: Alex-C2: EXP: Service: Ass'y 1
2 D009 2389 Rear Side Plate - Coupling 1
3 G065 2681 Snap Ring - M6 1
4 D009 2301 Development Unit 1
5 B296 9640 Developer - Black 1
6 A232 3155 Front Cover - Development Unit 1
7 AB01 4061 Gear - 13Z 1
8 A232 3077 Spacer - M5 1
9 AB01 4060 Gear - 21Z 1
10 AB01 4062 Gear - 17Z/25Z 1
11 D009 3068 Front Bias Terminal 1
12 D009 3069 Rear Bias Terminal 1
13 A232 3067 Tape - TD Sensor 1
14 B213 3065 Density Sensor: Development: C4 1
15 D009 3078 Joint- Paddle 1
16 D009 3066 Entrance Seal - Toner Supply 1
17 D009 3205 Seal: Side Plate: Front 1
18 AA15 3095 Shield - Development - Center 2
19 B082 3123 Shield: Case: Development: Front Rear: C3 2
20 D009 3206 Seal: Side Plate: Rear 1
21 D009 3072 Seal - Density Sensor Harness 1
22 D009 3053 Upper Case Seal 1
23 D009 3070 Upper Cover - Development Unit 1
24 D009 3204 Front Seal - Upper Cover 1
25 D009 3086 Development Filter 1
26 D009 3162 Ground Plate: Doctor Blade 1
27 D009 1155 Joint: Development Sleeve: Ass'y 1
28 D009 3130 Spacer: Guide Plate: 0.05 2
29 AA15 3062 Sponge - M46 1
30 D009 3152 Entrance Seal Ass'y 1
31 5206 2686 Snap Ring 2
32 D009 2480 Screw - M3x10 2
33 D009 3203 Rear Seal - Upper Cover 1
34 D009 3102 Upper Cap - Development Case 3
35 AA08 0281 Bushing - 12x18x5.5 1
36 D009 3101 Seal: Development 2
37 D009 3106 Sponge 1
38 D009 3178 Seal: Slide 1
39 D009 3084 Development Filter: Front 1
40 D009 3085 Development Filter: Rear 1
101 0454 3006Q Tapping Screw - M3x6
102 0456 3008N Tapping Screw - M3x8
103 0720 0030E Retaining Ring - M3
104 0725 0110E C Ring - M11
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
27.PCDU 1 (D129/D130)
D129/D130 65 Parts Location and List
28.PCDU 2 (D129/D130)
1
5
6
7
8
103
103
9
101
4
10428 29
14
10
11
13
49
25
10
11 15
12
13
102
102
101
3
2
21 30 31 32 102
20
102
102
102
16
17
18
19 2110422
20
105
105
26 27 23
24
33
38
105 39 40 41
42 43
44
45
46
18 37
48
8
34
42 43
44
45
47
35 36 103
50
51
52
D129/D130 66 Parts Location and List
1 D129 2212 Frame: PCU: Upper: C2: Ass'y 1
2 D009 2389 Rear Side Plate - Coupling 1
3 D129 2390 Side Plate: Idler: Ass'y 1
4 D009 2317 Electrode Plate - Charge 1
5 D009 2445 Handle - PCU 1
6 D009 2380 Front Side Plate - Coupling 1
7 D009 2279 Seal: Toner Supply: Entrance: Upper 1
8 D009 3267 Seal: Toner Supply: Entrance: Front 1
9 D009 2633 Cap - Toner Supply 1
10 A232 2399 Seal - Blade 13x9.5x3 2
11 D009 2205 Seal: Blade: Upper Rear: Small 2
12 D009 2201 Seal: Drum: Front 1
13 D009 2203 Seal: Drum: Entrance 2
14 D009 2202 Seal: Drum: Rear 1
15 D009 2204 Seal: Blade: Upper: Case 1
16 B213 2316 Stud: Contact Point: Cleaning 1
17 G065 2354 Electrode Plate: Charge: Front 1
18 G065 2681 Snap Ring - M6 2
19 D009 2331 Front Arm - Pressure/Charge 1
20 AA06 3648 Pressure Spring 2
21 A232 2421 Bushing - 6x10x3 2
22 A232 2315 Front Bushing - Cleaning Bracket 1
23 B213 2312 Bracket: Cleaning Blade 1
24 D009 2351 Cleaning Blade 1
25 D009 2318 Spring Plate - Electrode 1
26 AA06 2348 Pressure Spring 1
27 AA06 2300 Tension Spring 1
28 AB01 1380 Cam - Cleaning Blade 1
29 AB01 1379 Gear - 19Z 1
30 D009 2336 Rear Arm - Pressure/Charge 1
31 G065 2308 Electrode Plate: Charge: Rear 1
32 B082 2333 Terminale: Brush Roller 1
33 A232 2318 Collar - Cleaning 1
34 D009 2426 Seal - 24.5x68.5 1
35 D129 2415 Cover: Spring Plate: Front 1
36 D009 2414 Spring Plate: Cover: PCU: Front 1
37 AD02 7012 Roller: Charge: Apply 1
38 D009 2303 Drum Hold Plate 1
39 AA14 3549 Screw: DIA10: M3x8 1
40 A232 3553 Ball Bearing - 8x16x5 1
41 D009 9510 OPC Drum 1
42 AA06 2310 Pressure Spring 2
43 A232 2340 Holder - Pick-Off Pawl 2
44 AD02 5021 Pick-Off Pawl 2
45 A232 2339 Spur 2
46 G790 2329 Brush Roller: Cleaner: Charge:
Amabuki: Ass'y 1
47 D009 2412 Seal: Cover: PCU: Front 1
48 D009 3104 Seal: Level 1
49 D129 2411 Cover: PCU: Front: C2 1
50 D009 2433 Seal: Cover: Shutter 1
51 A232 2292 Bushing - Toner Collection Coil 1
52 AB01 1377 Gear - 14Z 1
101 0454 3006Q Tapping Screw - M3x6
102 0456 3008N Tapping Screw - M3x8
103 0457 3008N Tapping Screw - M3x8
104 0720 0040E Retaining Ring - M4
105 0360 3006N Screw - M3x6
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
28.PCDU 2 (D129/D130)
D129/D130 67 Parts Location and List

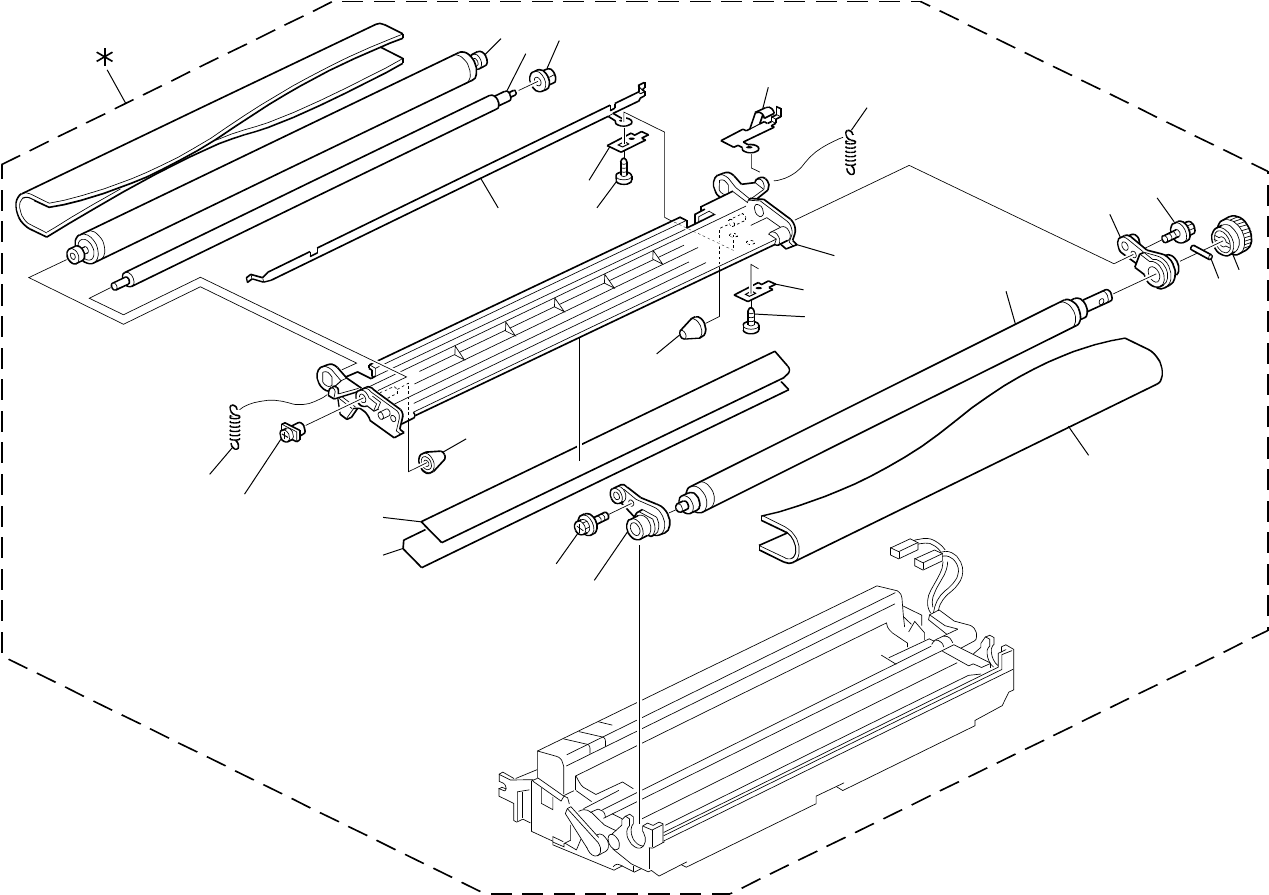

29.Transfer Belt Unit 1 (D129/D130)
123
4
5
101
67
16
5
101
9
9
8
7
11
12 102 17
17 102
13 14
10
15
D129/D130 68 Parts Location and List
* D009 3806 Transfer Unit: EXP: Ass'y 1
1 A232 3885 Driven Roller - Transfer Unit 1
2 B213 3889 Roller: Bias 1
3 AA08 2054 Bushing - M4 1
4 D009 3935 Earth Terminal - Transfer Belt 1
5 D009 3937 Terminal - Transfer Belt 1
6 D009 3934 Bias Terminal - Transfer Belt 1
7 AA06 1020 Spring: Release: Transfer Belt 2
8 D009 3890 Front Bushing - Bias Roller 1
9 A232 3926 Transfer Belt Roller 2
10 D009 3894 Drive Roller - Transfer Belt 1
11 D009 3954 Sheet: Preventfence: Transfer Belt 1
12 D009 3948 Scraper - Drive Roller 1
13 G024 1314 Pulley Pin 1
14 AB01 1282 Gear - 31Z 1
15 A232 3880 Transfer Belt 1
16 D009 3883 Frame - Transfer Belt 1
17 D009 3893 Arm - Transfer Belt 2
101 0452 3006N Binding Self-tapping Screw: 3x6
102 0451 3006N Tapping Screw - 3x6
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
29.Transfer Belt Unit 1 (D129/D130)
D129/D130 69 Parts Location and List

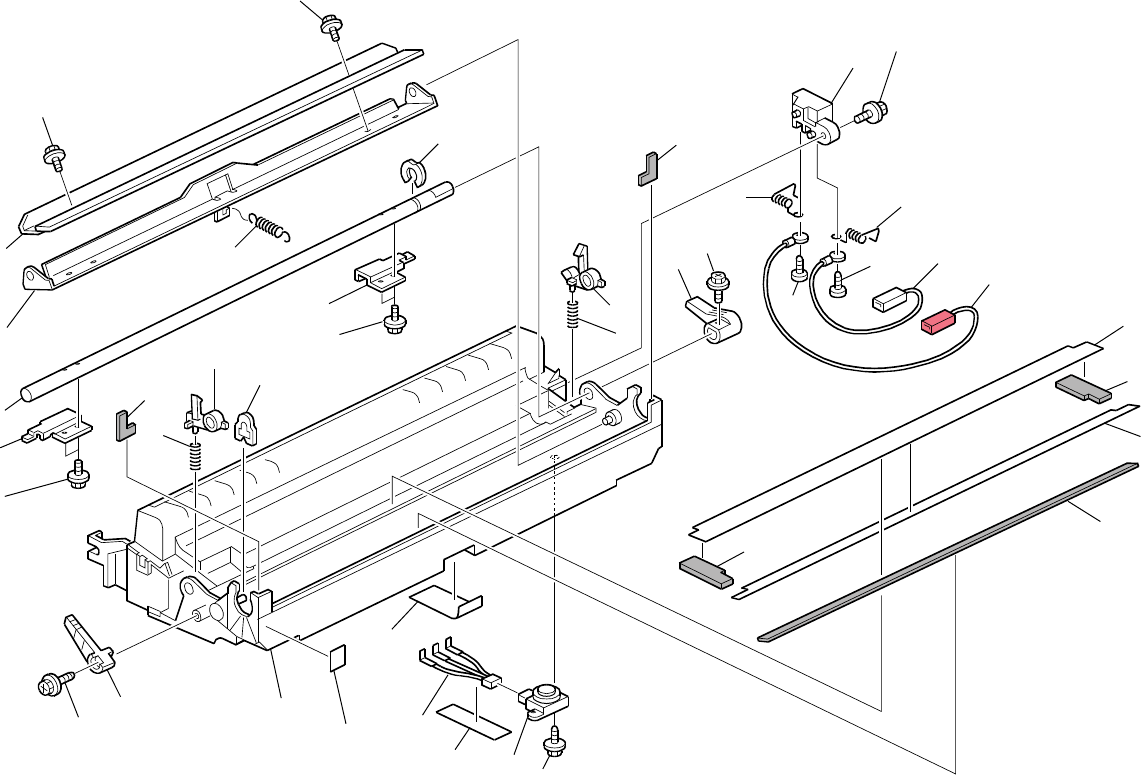

30.Transfer Belt Unit 2 (D129/D130)
101
101
2
1
5
4
3
6
101
101
7
811
9
102 12 16 15
14102
17 101
101
13
10
9
18 20
103
103 21 19
22
24
23
25
26
27
29
28
30 31
D129/D130 70 Parts Location and List
1 AD04 1135 Cleaning Blade - Transfer Belt 1
2 D009 3943 Bracket: Cleaning Blade: Transfer Belt 1
3 AA06 1100 Spring: Pressure: Cleaning Blade 1
4 D009 3919 Release Lever Shaft 1
5 B223 6172 Retaining Rings-E 1
6 D009 3920 Front Release Plate 1
7 D009 3921 Rear Release Plate 1
8 D009 3916 Front Lever - Transfer Belt 1
9 AA06 3447 Spring - Transfer Belt 2
10 D009 3917 Rear Lever - Transfer Belt 1
11 G102 3837 Stopper: Blade 1
12 D009 3899 Set Lever - Transfer Unit 1
13 D009 3918 Release Lever 1
14 GW23 0001 Toner End Sensor 1
15 D009 3872 Harness - Used Toner Sensor 1
16 D009 3803 Case - Transfer Unit 1
17 D009 3992 Receptacle Housing - Transfer Unit 1
18 AA06 6380 Spring 1
19 D009 3876 Earth Harness - Transfer Unit 1
20 AA06 6381 Spring 1
21 D009 3875 Harness - Transfer Unit Bias 1
22 D009 3907 Seal - Transfer Belt Exit 1
23 D009 3953 Front Seal - Cleaning Blade 1
24 D009 3952 Rear Seal - Cleaning Blade 1
25 D009 3906 Seal - Rear Transfer Exit 1
26 B082 3867 Shield: Remove Paper Dust 1
27 AA15 0423 Seal - Cleaning Pressure 1
28 A232 3909 Seal - Front Case 1
29 A232 3908 Seal - Rear Case 1
30 B234 3177 Decal: Positioning Display: Development 1
31 B082 3867 Shield: Remove Paper Dust 1
101 0451 3006N Tapping Screw - 3x6
102 0456 3008N Tapping Screw - M3x8
103 0452 3008N Tapping Screw - M3x8
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
30.Transfer Belt Unit 2 (D129/D130)
D129/D130 71 Parts Location and List
31.Fusing Unit 1 (D129/D130)
1
23
4
101
101
5
7
6
22
20
21
8
9
101
101 13
10
10
11
11
12
101
14 101
15
16
17
101
101
16
15
18
19
23
102
102
102
102
102
102
102
102
102
102
102 102
D129/D130 72 Parts Location and List
* D130 4002 Fusing Unit: NA: Service: Ass'y 1
* D130 4003 Fusing Unit: EU: Service: Ass'y 1
* D130 4004 Fusing Unit: TWN: Ass'y 1
1 D009 4244 Knob 2
2 D009 4243 Exit Guide - Pressure Roller Unit 1
3 D009 4248 Knob Bracket 1
4 AA06 1023 Compression Spring - Knob 1
5 D129 4059 Fusing Cover: Upper: Front 1
6 D129 4055 Fusing Cover: Lower: Front 1
7 B223 1317 Screw 1
8 D129 4062 Fusing Cover: Upper: Rear 1
9 D129 4057 Fusing Cover: Lower: Rear 1
10 AA06 1022 Spring - Driven Roller 2
11 AA08 0352 Bushing - Driven Roller 2
12 D009 4664 Driven Roller 1
13 D009 4238 Bracket - Driven Roller 1
14 D009 4225 Stay - Pressure Roller Unit 1
15 AA06 1099 Compression Spring: Cleaning Roller 2
16 AA08 0351 Bushing - Cleaning Roller 2
17 AE04 2098 Cleaning Roller: Ass'y 1
18 D009 4066 Fusing Cover - Duplex Guide 1
19 AA14 3520 Shoulder Screw - M3 1
20 D009 4069 Entrance Guide Plate - Fusing 1
21 AA14 3520 Shoulder Screw - M3 1
22 D129 4053 Fusing Cover: Lower: Middle: Ass'y 1
23 D129 2705 Decal: H-temp Warning 1
101 0360 3006N Screw - M3x6
103 0804 6123 Hexagonal Bolt: W/Washer: M3x8
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
31.Fusing Unit 1 (D129/D130)
D129/D130 73 Parts Location and List

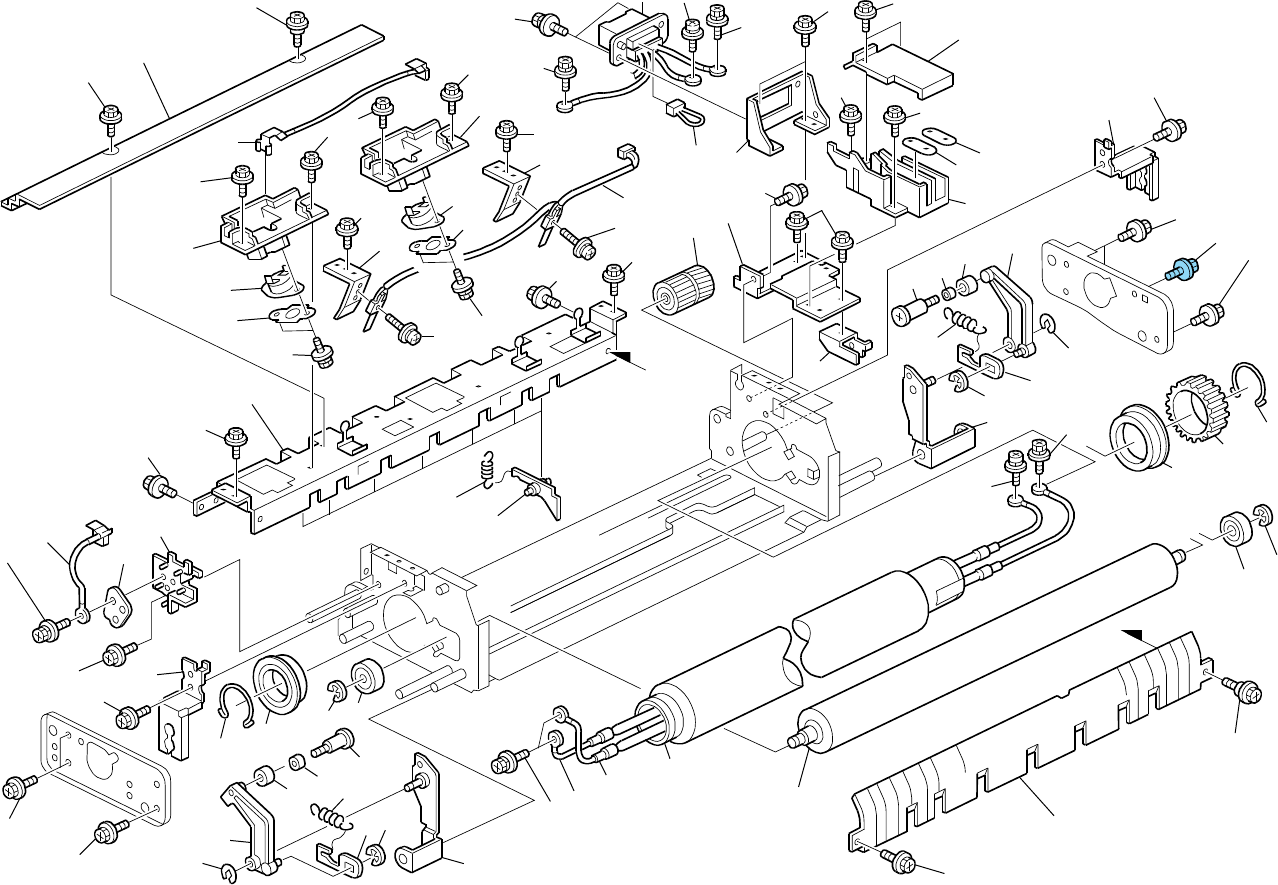

32.Fusing Unit 2 (D129/D130)
45
101 18
19
101
101
101
20
21
22
102
20
101
101
24
24
23
22
103
103
25
102
101 101
15
101
101
16 17
102 12
101
13
14
101 1
101
101
23108 4
8
7
6
5
9107
10
11
10241 42 40
43
101
44
45
4108
104
102
339 2
38
107 9
5
8
737
101
101
105
10
102 104
102 101 101
101
101
33
34
27 28
29
26
3132
30
101
101 101
36
35
102
106
106
D129/D130 74 Parts Location and List
1 D009 4126 Front Heater Bracket 1
2 D009 4156 Retaining Rings-C - Hot Roller 2
3 AE03 0099 Ball Bearing - 30x42x7 2
4 AE03 0098 Ball Bearing - 8x22x7 2
5 B238 4166 End Ring: Spring: DIA4 2
6 D009 4271 Front Lever - Pressure Release 1
7 B238 4194 Roller: Lever: Pressure 2
8 AA14 3792 Screw: Drawer 2
9 D009 4274 Pressure Lock Lever 2
10 AA06 1024 Tension Spring - Pressure 2
11 D009 4275 Front Pressure Lever 1
12 D009 4196 Harness 1 - Thermostat 1
13 D009 4143 Electrode Plate 3 1
14 D009 4135 Terminal - AC 1
15 D009 4152 Stay: Fusing Sub-unit: Fusing Exit: Peen 1
16 AA06 0948 Tension Spring: Stripper Pawls: 50mN 7
17 AE04 4099 Stripper Pawls 7
18 D129 4165 Cover: Fusing Sub-unit 1
19 D009 4197 Harness 2 - Thermostat 1
20 D009 4193 Housing - Thermostat 2
21 AW11 0098 Thermostat - 220C 1
22 D009 4195 Spacer - Thermostat 2
23 AW11 0099 Thermostat - 219C 1
24 D009 4178 Thermistor Bracket 2
25 D009 4177 Thermistor 1
26 D009 4099 Harness - Fusing Unit 1
27 D009 4095 Harness: Set Sensor: TWN: C1P1 1
27 D009 4097 Harness - Set Sensor NA 1
27 D009 4098 Set Sensor Harness - 230V 1
28 D009 4125 Connector Bracket 2 1
29 D009 4132 Terminal Cover 1
30 D009 4131 Terminal - AC/DC 1
31 D009 4142 Electrode Plate 2 1
32 D009 4141 Electrode Plate 1 1
33 D009 4124 Connector Bracket 1 1
34 AB01 0172 Gear - 24Z/25Z 1
35 D009 4123 Bracket: Side Plate: Auxiliary 1
36 D009 4127 Rear Heater Bracket 1
37 D009 4291 Rear Lever - Pressure Release 1
38 D009 4295 Front Pressure Lever 1
39 AB01 0171 Gear - 40Z 1
40 AE01 1132 Hot Roller 1
41 AX43 0112 Heater - 120V 550W 1
41 AX43 0113 Heater - 230V 550W 1
41 AX43 0114 Heater: 110V: CE 1
42 AX44 0252 Heater - 120V 750W 1
42 AX44 0253 Heater - 230V 750W 1
42 AX44 0254 Heater: 110V: Si 1
43 AE02 0199 Pressure Roller 1
44 D009 4163 Exit Guide - Hot Roller Unit 1
45 AA14 3520 Shoulder Screw - M3 2
101 0360 3006N Screw - M3x6
102 0804 6123 Hexagonal Bolt: W/Washer: M3x8
103 0954 3010N Screw: Polished Round/Spring: M3x10
104 0957 4008N Screw: Small Round/Spring: M4x8
105 0454 3006Q Tapping Screw - M3x6
106 0733 0408 Bushing: 4x8
107 0720 0030E Retaining Ring - M3
108 0720 0080E Retaining Ring - M8
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.

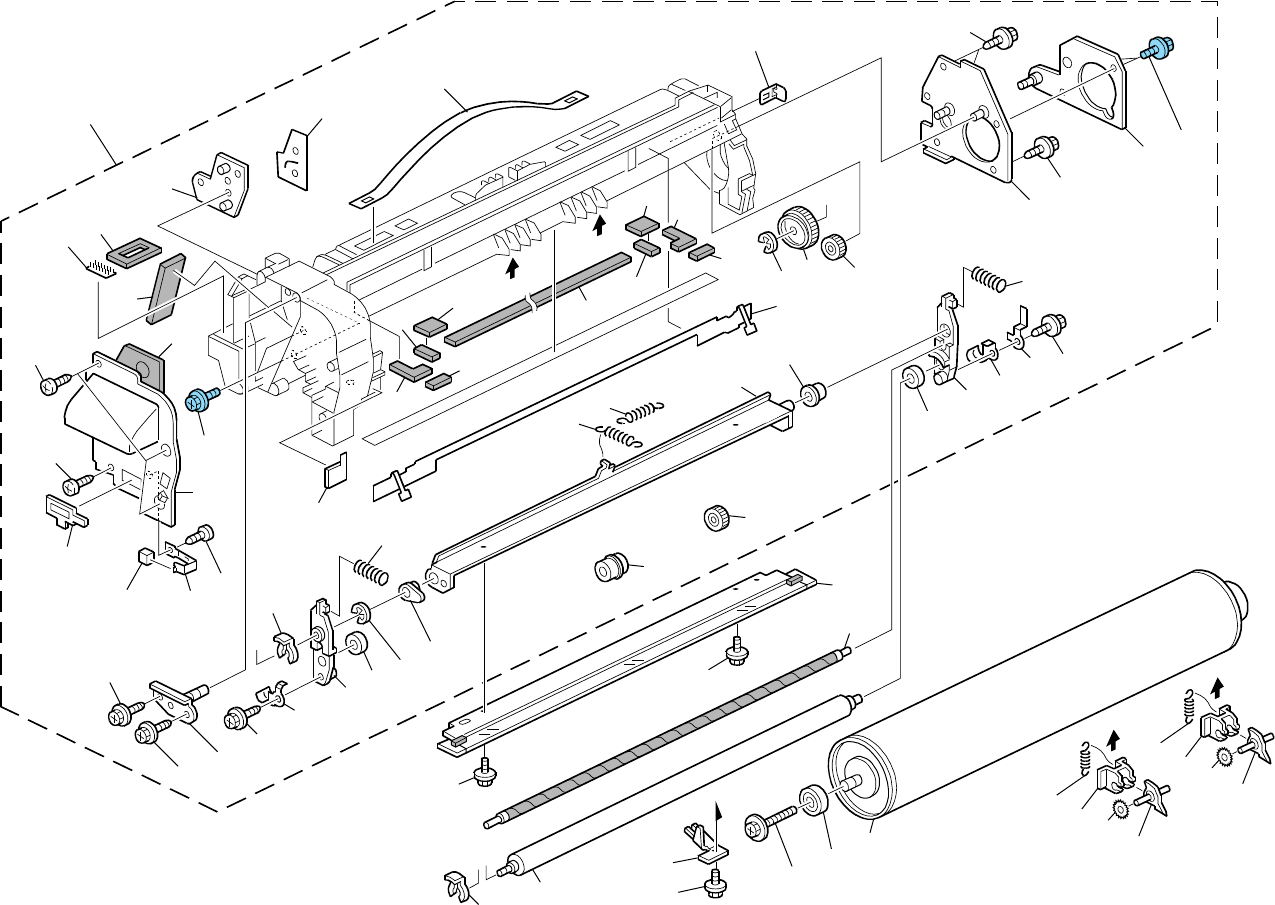

32.Fusing Unit 2 (D129/D130)
D129/D130 75 Parts Location and List

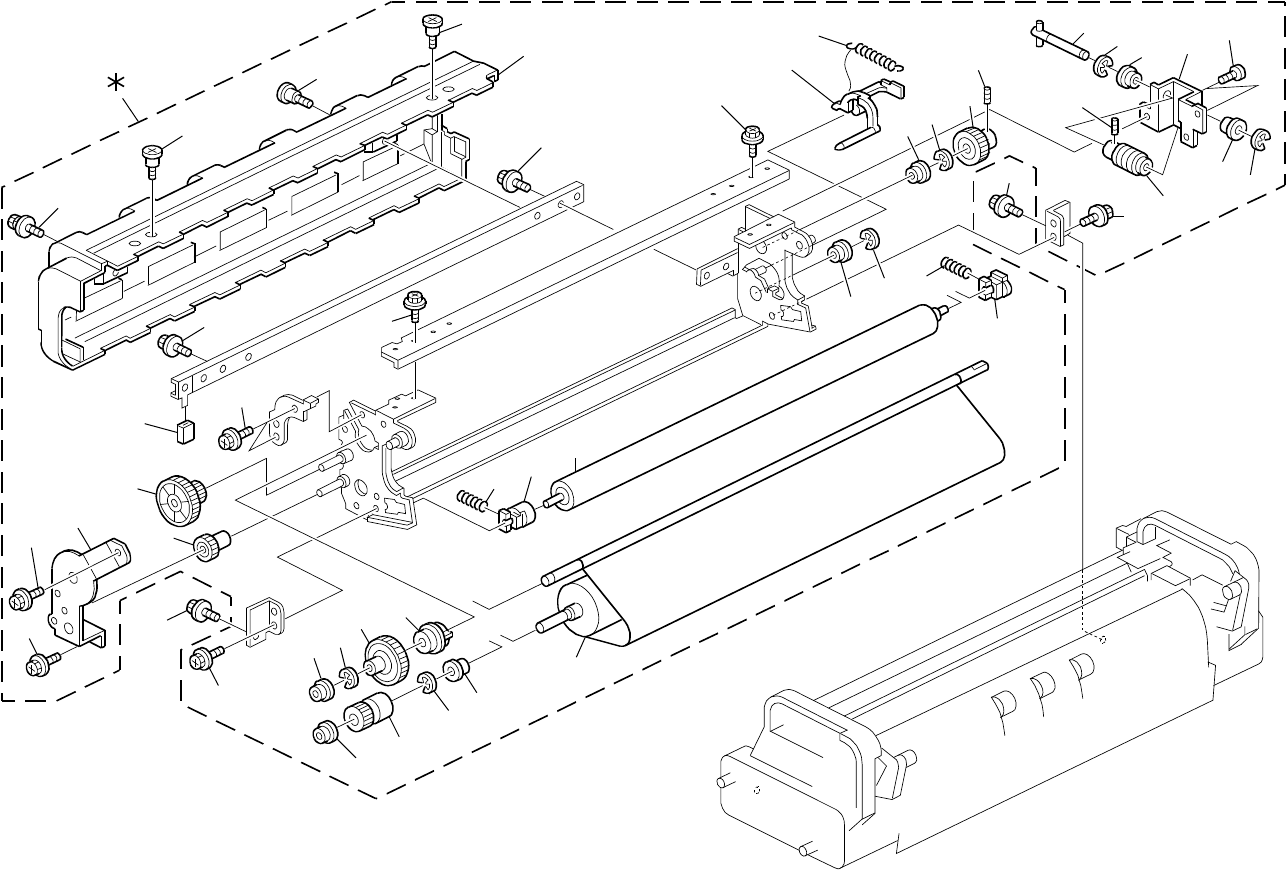

33.Fusing Unit 3 (D129/D130)
1
1
1
2
102
102
4
102
102
5
6
3
102
102 102
102
191032021
19 22
10317
18
9
8
7
102
10
11
10316
17
17103 7
23
102
102 15
13103
12 10313 14
104
104
101
105
D129/D130 76 Parts Location and List
* D129 4305 Cleaning Unit: Ass'y 1
1 AA14 3812 Screw - Scale 2
2 D129 4307 Cover: Cleaning Unit 1
3 D009 4369 Bracket - Cleaning Unit Drive 1
4 B065 4247 Brake Pad 1
5 AB01 0174 Gear - 20Z/50Z 1
6 AB01 0175 Gear - 24Z 1
7 AA06 3886 Spring 2
8 D009 4355 Roller Clutch 2
9 AE04 0099 Holder Roller 1
10 D009 4393 Feeler - Web 1
11 B065 4221 Feeler Spring 1
12 D009 4378 Worm Gear Shaft 1
13 AA08 0355 Bushing - 7mm 2
14 D009 4377 Worm Gear Bracket 1
15 AB01 0178 Worm Gear 1
16 AB01 0177 Gear - 32Z 1
17 AA08 0356 Bushing - 6mm 3
18 AE04 5099 Cleaning Web 1
19 AA08 0354 Bushing - 6mm 2
20 AB01 0173 Gear - 60Z 1
21 D009 4388 Roller Clutch 1
22 AB01 0176 Gear - 24Z 1
23 AA08 0353 Bushing - 4mm 1
101 0353 0050N Screw-M3x5
102 0360 3006N Screw - M3x6
103 0720 0030E Retaining Ring - M3
104 0573 0030E Hexagonal Set Screw - M3x3
105 0804 6123 Hexagonal Bolt: W/Washer: M3x8
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
33.Fusing Unit 3 (D129/D130)
D129/D130 77 Parts Location and List
34.Duplex Unit 1 (D129/D130)
102 8910
10
9
11 12
13
103
103
14
14
15
2101
16
17
3
5
4
103
101
101 101
101 1
6
103
7
103
101
101
D129/D130 78 Parts Location and List
1 D129 4534 Inner Cover: Duplex: Front 1
2 D129 4533 Inner Cover: Duplex: Rear 1
3 D129 4579 Grip: Open And Close: Duplex Unit 1
4 D009 4590 Stopper Hook - Duplex Unit 1
5 D009 4532 Tension Spring - Stopper Hook 1
6 D009 4537 Front Release Arm 1
7 D009 4538 Rear Release Arm 1
8 D009 4664 Driven Roller 1
9 AA08 0254 Bushing - M4 2
10 B223 4538 Compression Spring 2
11 AG07 0514 Magnet Catch 1
12 D129 4531 Guide Plate: Cover: Open And Close 1
13 D129 4540 Cover: Duplex 1
14 B223 2665 Spring: Cover: Manual Feed 2
15 D129 2664 Cover: Manual Feed: Entrance 1
16 B223 4539 Sheet: Cover: Duplex 1
17 B223 4525 Tension Spring: Wire: 180N 1
101 0451 3006N Tapping Screw - 3x6
102 0720 0030E Retaining Ring - M3
103 0451 3008N Tapping Screw - M3x8
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
34.Duplex Unit 1 (D129/D130)
D129/D130 79 Parts Location and List
35.Duplex Unit 2 (D129/D130)
1
10 12
103
14
13
34511
45
6
9
8
10
2
101
102
101
7
102
102
D129/D130 80 Parts Location and List
1 D009 4483 Upper Gate 1
2 D129 4481 Grip: Gate Pawl: Upper 1
3 D009 4489 Driven Roller 1
4 D009 4485 Bushing - Gate 2
5 D009 4543 Tension Spring - Duplex Gate 2
6 D009 4486 Lever - Upper Gate 1
7 D009 4409 Sheet - Gate 1
8 B223 4494 Stopper - Uppergate Pawl 1
9 B223 4479 Tension Spring: Gate Pawl: 1.6N 1
10 D009 4488 Right Spring - Guide Plate 2
11 D009 4482 Right Guide Plate - Open/Close 1
12 D009 4577 Duplex Gate 1
13 D009 4522 Tension Spring - Duplex Gate 1
14 D009 4503 Guide Plate - Left Upper 1
101 0450 3008N Tapping Screw - M3x8
102 0805 0092 Retaining Ring - 3M
103 0805 0097 Ring Separator
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
35.Duplex Unit 2 (D129/D130)
D129/D130 81 Parts Location and List
36.Duplex Unit 3 (D129/D130)
1
1
2
101
10145
6
106
106
8
7
9
107
102
12 13
14
101316
316
15
10
11
10
17 18 19
22 103
20 104 21
101
23
101
102
3
108
108 3
25
105
105
101
105
24
27
101
109
26
D129/D130 82 Parts Location and List
1 AA14 3807 Screw: A 2
2 D009 4504 Upper Guide Plate - Gate 1
3 AA08 2104 Bushing - 8x12x7 4
4 B223 4566 Bracket: Sensor: Entrance 1
5 AW01 0107 Paper Feed Sensor 1
6 D009 4664 Driven Roller 1
7 B223 4560 Tension Spring: Driven Roller 2
8 B223 4552 Bushing: DIA4 2
9 AW02 0145 Photointerruptor: Flat 1
10 D009 4661 Reverse Roller - Feed 2
11 AB01 4161 Reverse Roller Gear 1
12 B223 4562 Tightener 1
13 B044 1847 Shoulder Screw 1
14 B223 4564 Spring: Tightener 1
15 B223 4526 Timing Belt: 30S2M268 1
16 B223 4586 Pulley: T30 2
17 B223 4572 Stepper Motor: DC4.29V 1.7W 1
18 AA10 1021 Rubber Bushing - 6 45HS 4
19 B223 4575 Bracket: Stepper Motor 1
20 B223 4571 Gear: Pulley: Z24/T40 1
21 B223 4573 Timing Belt: 30S2M128 1
22 B044 1825 Collar 4
23 B223 4501 Guide Plate: Right 1
24 D009 4521 Harness Bracket 1
25 D129 4483 Decal: Guide: Right 1
26 D009 4652 Motor Harness 1
27 B223 4567 Stay: Transport: Upper: Peen 1
101 0451 3006N Tapping Screw - 3x6
102 0454 3006Q Tapping Screw - M3x6
103 0353 0100N Screw-M3x10
104 0720 0040E Retaining Ring - M4
105 1105 0511 Harness Clamp - LWS-0306ZC
106 0720 0030E Retaining Ring - M3
107 1105 0551 Clamp: LES-0505
108 0805 0088 Retaining Ring - M6
109 0802 5299 Tapping Screw - M3x8
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
36.Duplex Unit 3 (D129/D130)
D129/D130 83 Parts Location and List

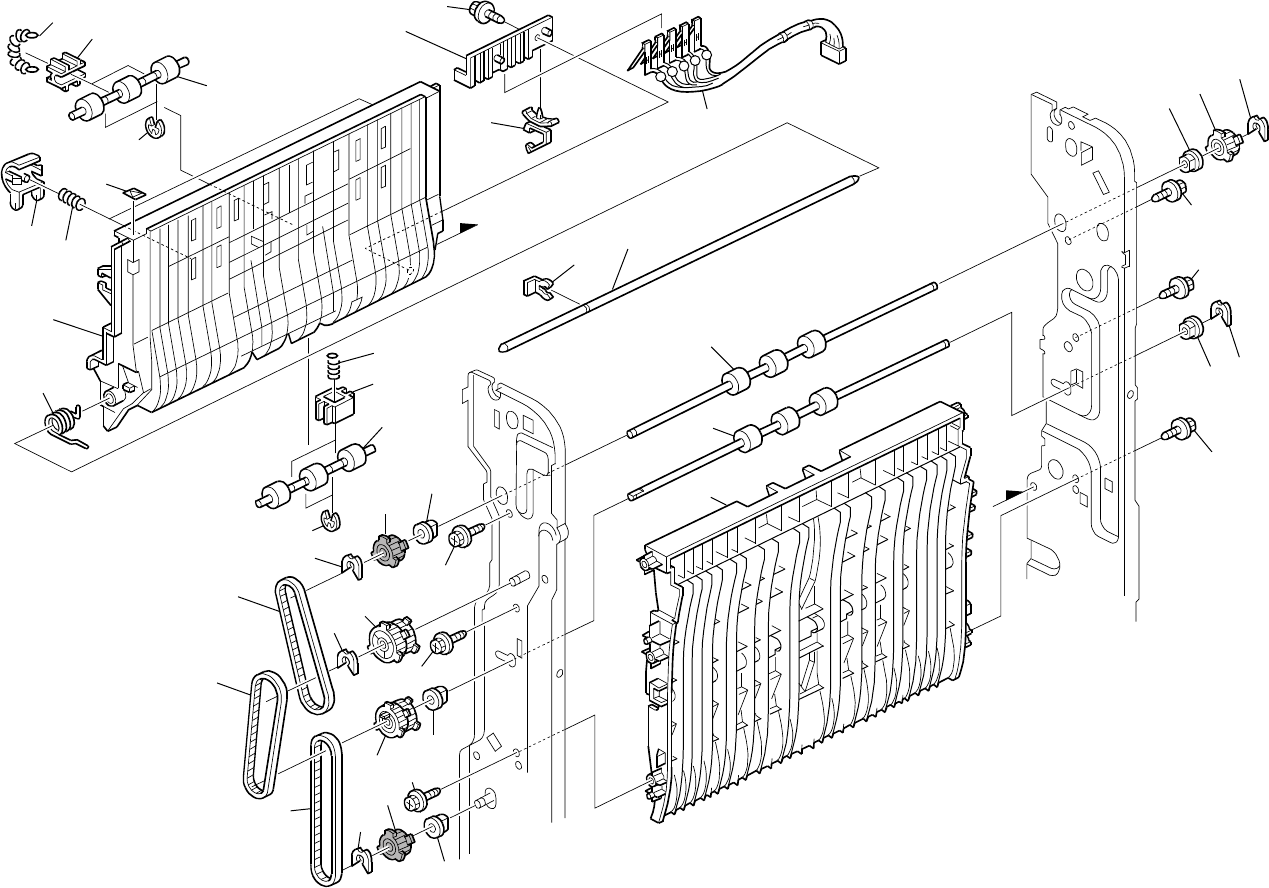

37.Duplex Unit 4 (D129/D130)
13 14
16 17
103
15
19 101
104 20
18
21
24
25
15
103
3
4
5
102
102
102
610
101
101
101
10
10
9
8
7
22 23
1
2
12
101
101
101
102
10
10 11 102
26
WRB
Y
Bk
D129/D130 84 Parts Location and List
1 D009 4662 Transport Roller 1 1
2 D009 4663 Transport Roller 2 1
3 B223 4512 Timing Belt: 30S2M182 1
4 B223 4536 Timing Belt: 30S2M234 1
5 B223 4511 Timing Belt: 30S2M312 1
6 B223 4529 Roller Clutch: T24 1
7 B223 4544 Pulley: T35/T33 1
8 B223 4527 Pulley: T26/T24 1
9 B223 4535 Roller Clutch: T26 1
10 AA08 2101 Bushing - 6x10x6 5
11 B223 4514 Roller Clutch: T24 1
12 B223 4502 Guide Plate: Left Lower 1
13 B223 4553 Tension Spring: Driven Roller 2
14 B223 4552 Bushing: DIA4 2
15 D009 4664 Driven Roller 2
16 D009 3860 Spring Cover - Transfer Unit 2
17 AA06 3448 Pressure Spring - Transfer Unit 2
18 D009 4551 Guide Plate - Holder 1
19 D009 3861 Terminal Holder - Transfer Unit 1
20 D009 3884 Sensor Harness 1
21 D009 4541 Front Torsion Spring 1
22 AA10 0014 Retaining Ring C - Separate 1
23 D009 4545 Holder Shaft - Transfer Unit 1
24 AA06 3303 Pressure Spring 2
25 AA08 0254 Bushing - M4 2
26 B234 3177 Decal: Positioning Display: Development 1
101 0450 3008N Tapping Screw - M3x8
102 0805 0089 Retaining Ring - M4
103 0720 0030E Retaining Ring - M3
104 1105 0623 Clamp - LBWS-0206S-V0
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
37.Duplex Unit 4 (D129/D130)
D129/D130 85 Parts Location and List
38.Duplex Unit 5 (D129/D130)
1
2
87
6
34
34
9
10
5
102
101
11
13
103
3
15
15
314
27
24
26
25
101 28
101
23
22
21
12
102
101
20
101
19
18
106
16
105
103
104
104
17
D129/D130 86 Parts Location and List
1 D009 2554 Guide Sheet - Vertical Transport 1
2 D009 2563 Guide Plate - Vertical Transport 1
3 G060 2652 Bushing - M4 6
4 B223 2676 Spring - 11N 4
5 D009 2571 Holder - Vertical Transport 1
6 D029 2677 Transport Belt: Driven: Vertical Transport 1
7 D009 2574 Pulley - Idler 1
8 D009 2573 Pulley - Vertical Transport 1
9 D009 2576 Shaft - Vertical Transport 1
10 D009 2575 Shaft - Idler 1
11 D009 2511 Guide Plate: Feed Paper Again: Exit: Adhesion 1
12 B223 4524 Wire: Stopper: DIA1.5 1
13 B223 2648 Guide Plate: Transport Unit: Exit 1
14 D009 2560 Driven Roller 1
15 B223 2649 Spring: Pressure: 5N 2
16 D009 4535 Harness Guide 1
17 D129 4651 Harness: Duplex Unit 1
18 B223 4595 Pulley: DIA13 1
19 D009 4597 Bracket - Wire Pulley Shaft 1
20 B223 4594 Shaft: Pulley: Wire 1
21 D009 4599 Shaft - Duplex Unit 1
22 D009 4598 Spring - Set Shaft 1
23 D009 4589 Guide - Set Shaft 1
24 D009 4588 Stopper Bracket - Spring 1
25 AA14 3183 Stepped Screw 1
26 D009 4593 Stepped Screw - M3 1
27 D009 4587 Tension Spring - Release Bracket 1
28 B223 4522 Spacer: Wire: Stopper 1
101 0451 3006N Tapping Screw - 3x6
102 0450 3008N Tapping Screw - M3x8
103 0450 3010N Tapping Screw - M3x10
104 0954 3008N Screw - M3x8
105 1105 0487 Harness Clamp
106 0720 0040E Retaining Ring - M4
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
38.Duplex Unit 5 (D129/D130)
D129/D130 87 Parts Location and List

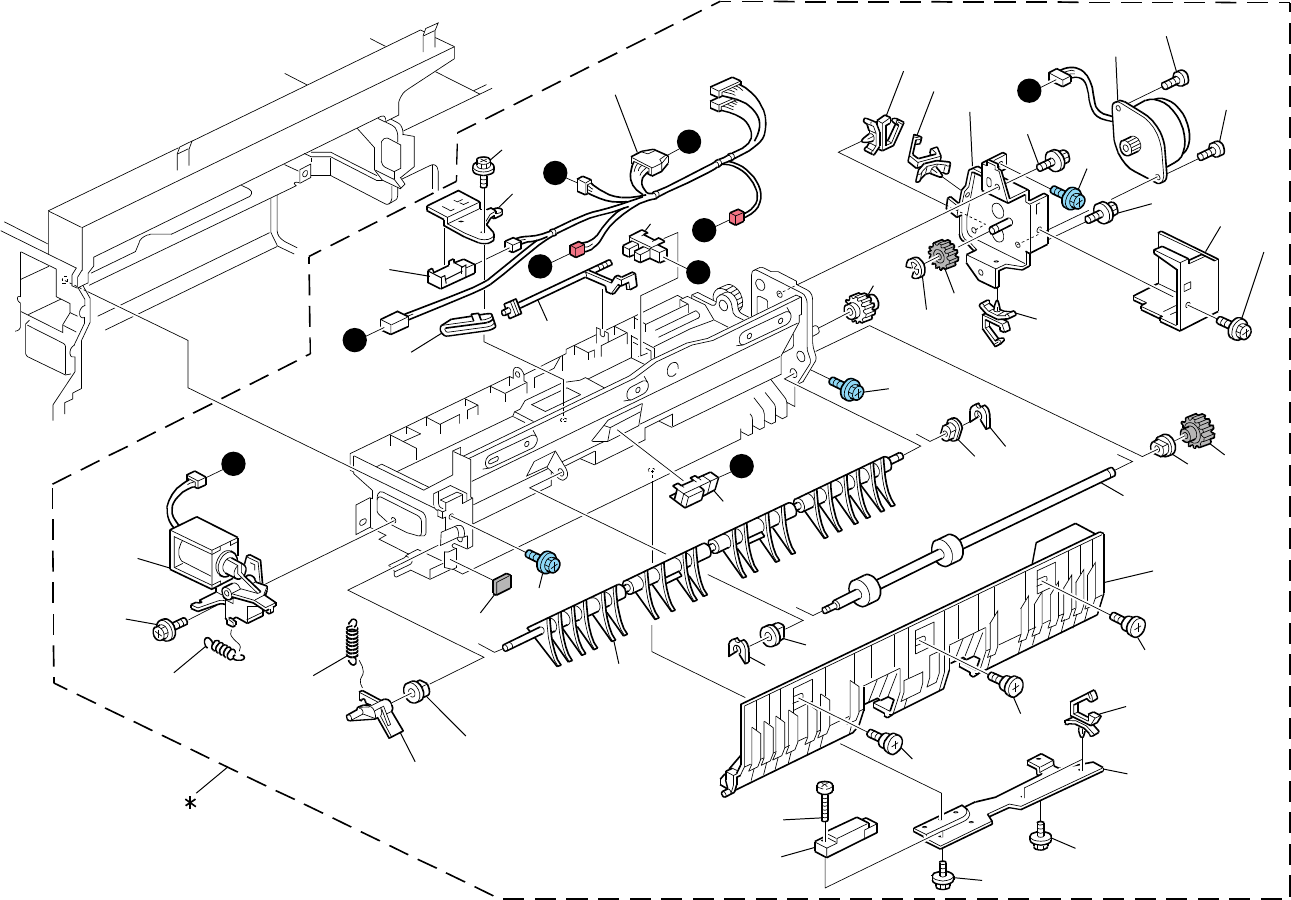

39.Paper Exit Section 1 (D129/D130)
109
15
6
17
18
19
16
1
101
2
3
4
5102
7
102
103
4
8
103
814
9
10
11
11
11
107
12
101
101
104
13
20
21
106
107
10822 101
101
102
105
105
24
23 101
107
6
25
B
B
A
D
E
C
D
E
A
D129/D130 88 Parts Location and List
* D009 4420 Paper Exit Unit: Main: Ass'y 1
1 D009 4430 DC Solenoid - Exit 1
2 D009 4457 Tension Spring Release 1
3 D009 4438 Lever - Entrance Gate 1
4 D009 4439 Bushing - 4mm 2
5 D009 4455 Cushion - DC Solenoid 1
6 AW01 0107 Paper Feed Sensor 2
7 D009 4436 Entrance Gate 1
8 H053 2208 Bushing - M4 2
9 D009 4445 Transport Roller 1
10 D009 4441 Exit Guide Plate - Upper Right 1
11 D009 4418 Stepped Tapping Screw - M3 3
12 D009 4408 Bracket - Fusing Exit Sensor 1
13 AW01 0127 Paper Feed Sensor 1
14 D009 4464 Gear - 22Z 1
15 D009 4447 Exit Sensor Bracket 1
16 D009 4499 Harness - Paper Exit Unit 1
17 D009 4407 Feeler - Overflow 1
18 B223 4497 Shaft: Feeler: Overflow 1
19 AW02 0145 Photointerruptor: Flat 1
20 D009 4461 Gear - 17Z 1
21 D009 4469 Gear - 17Z 1
22 D009 4471 Stepper Motor Bracket 1
23 D009 4490 Exit Motor Cover 1
24 D009 4547 Stepper Motor - DC 5.79W 1
25 D009 4448 Tension Spring - Gate Pawl 1
101 0451 3006N Tapping Screw - 3x6
102 0454 3006Q Tapping Screw - M3x6
103 0805 0092 Retaining Ring - 3M
104 0353 0100N Screw-M3x10
105 0453 3006N Tapping Screw - M3x6
106 0720 0040E Retaining Ring - M4
107 1105 0511 Harness Clamp - LWS-0306ZC
108 1105 0516 Clamp
109 0450 3006N Tapping Screw - M3x6
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
39.Paper Exit Section 1 (D129/D130)
D129/D130 89 Parts Location and List
40.Paper Exit Section 2 (D129/D130)
1
108
2
3
4
106
57
6
106 8
9
13 14 12
107
10
101
101
101
11
102 18 17103
103
16
15
103
103
16
17 18
19
105
21
26
25
104
20
21 22
23
104
24
27 102
102
28
8
102
102
102
29
30
6
6
31 32 33
34
101
101
101
101
D129/D130 90 Parts Location and List
1 D009 4444 Exit Roller 1
2 D009 4428 Upper Stay 1
3 D009 4445 Transport Roller 1
4 H053 2208 Bushing - M4 1
5 D009 4443 Discharge Brush - Exit 1
6 AA08 2101 Bushing - 6x10x6 3
7 D009 4442 Exit Guide Plate - Upper 1
8 AF04 0575 Driven Roller 3
9 5206 2684 Shoulder Screw - M3 3
10 D009 4434 Front Side Plate 1
11 D009 4406 Separation Plate - Paper Exit 1
12 D009 4412 Lower Guide Plate - Exit 1
13 AF04 0571 Guide Roller 1
14 B223 4428 Roller: Guide: pFA 1
15 D009 4422 Driven Roller Shaft 1
16 B223 4435 Roller: Auxiliary: Driven: DIA16: pFA 1
17 D009 4419 Spring - Lower Guide Plate 2
18 D009 4498 Bushing - Lower Guide Plate 2
19 D009 4413 Lower Stay - Exit 1
20 D009 4477 Spring - Exit Pressure 1
21 B213 4460 Shaft: Pressure Roller 2
22 D009 4491 Entrance Arm 1
23 D009 4476 Spring - Entrance Pressure 1
24 AF04 0601 Pressure Roller: Entrance 1
25 D009 4492 Exit Arm 1
26 AF04 0599 Pressure Roller: 15 1
27 D009 4493 Bracket - Contact Point 1
28 D009 4496 Spring Plate - Exit Roller 1
29 D009 4478 Lower Supporting Plate 1
30 D009 4431 Rear Side Plate 1
31 D009 4466 Timing Belt - 30S2M172 1
32 D009 4465 Timing Pulley - 22T 1
33 D009 4462 Gear - 22Z 1
34 D009 4463 Gear/Pulley - 22Z/22T 1
101 0451 3006N Tapping Screw - 3x6
102 0353 0040N Screw - M3x4
103 0720 0025E Retaining Ring - M2.5
104 0720 0030E Retaining Ring - M3
105 0450 3008P Tapping Screw 3x8
106 0805 0092 Retaining Ring - 3M
107 1105 0551 Clamp: LES-0505
108 1105 0511 Harness Clamp - LWS-0306ZC
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
40.Paper Exit Section 2 (D129/D130)
D129/D130 91 Parts Location and List
41.Drive Section 1 (D129/D130)
101
101
13
12
101
76
5
4102
11
10
10
9103
104 8
14
15
101
101
16
106
17 106 22 23 105
20 21 22
19
18 105
101
101
101
106
25
24
26
106
107
108
28
101
101
101
101
27
109
29 30 31 102 29
32
101
101
33
101 123
101
101
D129/D130 92 Parts Location and List
1 D009 1182 Joint Cover 1
2 D009 1183 Joint - Cleaning 1
3 AA13 2208 Spacer - M6 1
4 AB01 4284 Gear - 24Z 1
5 AB01 4283 Gear - 24Z 1
6 AB01 4280 Gear - 26Z/90Z 1
7 AB01 4281 Gear - 40Z 1
8 D009 1090 Connector Bracket - Fusing 1
9 D009 5620 AC Harness - Fusing 1
10 AA14 3744 Stepped Screw 2
11 AB01 4282 Gear - 26Z/30Z 1
12 D009 1164 Shaft - Paddle Rooler Drive 1
13 AX06 0356 Brushless Motor: DC24V 18W 1
14 AW02 0150 Photointerruptor: Flat: 7mm 1
15 D009 5500 Interface Harness - Web Sensor 1
16 D009 1193 Sensor Bracket 1
17 D009 1187 Bracket - Fusing Cleaning Drive 1
18 AB01 1523 Gear - 24Z 1
19 AB01 1524 Gear - 36Z 1
20 AB01 1526 Gear - 24Z 1
21 AB01 1525 Gear - 32Z 1
22 AB01 1527 Gear - 14Z/32Z 2
23 AB01 1528 Gear - 14Z/32Z 1
24 D009 1194 Motor Holder 1
25 D009 1195 Motor Bracket 1
26 AX04 0167 Motor: DC5V 0.71W 1
27 AX06 0355 Brushless Motor - DC 11W 1
28 D009 1161 Bracket - Paddle Roller Drive 1
29 AA08 0347 Bushing - 8mm 2
30 AB03 0815 Timing Pulley - 24T 1
31 AA04 3656 Timing Belt - 60S3M177 1
32 AB01 7743 Gear - 20Z 1
33 D009 1158 Holder - Paddle Roller Drive 1
101 0454 3006Q Tapping Screw - M3x6
102 0720 0060E Retaining Ring - M6
103 0957 4008N Screw: Small Round/Spring: M4x8
104 0454 3008Q Tapping Screw: 3x8
105 0805 0089 Retaining Ring - M4
106 1105 0511 Harness Clamp - LWS-0306ZC
107 1105 0522 Edge Saddle - LES0510
108 1105 0487 Harness Clamp
109 1105 0613 Clamp: EDS-1010L-V0
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
41.Drive Section 1 (D129/D130)
D129/D130 93 Parts Location and List
42.Drive Section 2 (D129/D130)
D
C
101101
101
101
102
2
13
103
103
10
9
7
104
109
101
101
101
101 8
4
108
108
101
101
101
5
6
11
101
101
12 13
15
14
23
22
21
20
19
101
101
101
18
105
17
16
104
31
29
29
107
107
27
27
26
25
106 28 30
10628
24
10132
101
101
11033
34
101
A
B
D
C
A
B
D129/D130 94 Parts Location and List
1 D009 5420 Harness - High Voltage Cable 1
2 AZ32 0177 Power Pack: CBT 1
3 D009 5854 Bracket - Power Pack 1
4 AX06 0415 Brushless Motor: Drive: Drum: DC 10W 1
5 AX06 0355 Brushless Motor - DC 11W 1
6 D009 1120 Rear Drive Bracket - Engine 1
7 B242 1161 Ball Bearing - 8x22x7 1
8 D009 1121 Ground Plate - Drum 1
9 AB01 0379 Gear: Drum 1
10 D009 1113 Drive Unit- Transfer On-Off 1
11 D009 1123 Drive Bracket - Transfer 1
12 AB01 7752 Gear - 27TZ/42Z 1
13 D009 1148 Collar - 6x18.8mm 1
14 AB03 0821 Pulley - 31T 1
15 AB01 0141 Gear - 46Z 1
16 AB03 0820 Pulley - 31T 1
17 AA14 5294 Parallel Pin - 2x12mm 1
18 D009 1141 Ground Plate - Drum 1
19 D009 1145 Drum Shaft Holder 1
20 D009 1155 Joint: Development Sleeve: Ass'y 1
21 D009 1147 Terminal - Development Roller 1
22 AA06 3432 Spring - Intermediate Drawer 1
23 D009 1111 Drum Shaft 1
24 D009 1139 Front Drive Bracket - Engine 1
25 AB01 0140 Gear - 90Z 1
26 D009 1142 Pulley - 48T/90T 1
27 AA04 3658 Timing Belt - 60S2M300 2
28 D009 1127 Roller - Tightener 2
29 D009 1128 Spring - Tightener 2
30 D009 1135 Tightener Bracket - Development 1
31 D009 1125 Tightener Bracket - Transfer 1
32 B004 1936 Plate - Optical Housing Unit 2
33 D009 3831 Receptacle Housing - Transfer 1
34 D009 3832 Receptacle Terminal - Transfer 2
101 0454 3006Q Tapping Screw - M3x6
102 1105 0367 Spacer
103 0454 3020Q Tapping Screw: 3x20
104 0805 0088 Retaining Ring - M6
105 0740 3808 Ball Bearing - 8x16x5MM
106 0805 0089 Retaining Ring - M4
107 0954 3010N Screw: Polished Round/Spring: M3x10
108 1105 0534 Clamp
109 1105 0623 Clamp - LBWS-0206S-V0
110 0451 3008N Tapping Screw - M3x8
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
42.Drive Section 2 (D129/D130)
D129/D130 95 Parts Location and List
43.Drive Section 3 (D129/D130)
12101
101 101
101
345
101
6
7
102
101
101
8
9
102
102
10
11
12
102
15 15 14
102
13
101
103
D129/D130 96 Parts Location and List
1 B223 1350 Stepper Motor DC5.06V 1
2 A232 4666 Cushion - Stepper Motor 1
3 D009 1151 Bracket - Registration Drive Unit 1
4 AB03 0744 Timing Pulley - 27Z/40T 1
5 AA04 3601 Timing Belt - B40S2M118 1
6 B238 1089 Cover - Positioning Pin 1
7 B238 2541 Tray Cover - Right 2
8 AX04 0154 DC Motor 24V 2
9 D009 5851 Bracket - IO Board 1
10 B223 2721 Bracket: Push Switch 1
11 AW50 0038 Push Switch: Paper Size Sensor 1
12 B238 2543 Cover - Tray Left 1
13 B238 1066 Rubber Foot Cover 1
14 D009 5440 Harness - Development Drawer 1
15 AA14 3579 Screw - M3 2
101 0454 3006Q Tapping Screw - M3x6
102 0454 3008Q Tapping Screw: 3x8
103 0720 0040E Retaining Ring - M4
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
43.Drive Section 3 (D129/D130)
D129/D130 97 Parts Location and List
44.Drive Section 4 (D129/D130)
1
2
3
3
101
101
101
4
9
6
5
8
7
6
5
10
102
11
12
13 14
101
102
13 104
102
102
105
15
103
106
16
17
18 108 20
102 23
22
102
21
19
101
107
107
102
26
24
102
10225
109
D129/D130 98 Parts Location and List
1 B223 1189 Feed Drive Shaft 1
2 B223 1183 Grip Shaft 1
3 B223 1186 Drive Joint 2
4 B223 1354 Drum Stay: Drive Unit 1
5 AB01 7699 Gear - 33Z/44Z 2
6 AB01 1258 Gear - 38Z 2
7 AA04 3585 Timing Belt: 40S3M162 1
8 AB03 0781 Timing Pulley - 28Z/30T 1
9 AB01 1259 Gear - 32Z 1
10 B223 1180 Bracket: Paper Feed 1
11 AX20 0289 Magnetic Clutch - 32Z 2
12 B223 1187 Magnetic Clutch Bracket 2
13 AA08 0346 Bushing: Flange Type: DIA6 2
14 5447 2681 Snap Ring 2
15 AA16 1180 Cushion: DC Stepper Motor 1
16 B223 1188 Stepper Motor DC24V 1
17 B700 2649 Timing Belt: 40S2M144 1
18 AB01 7493 Gear Pulley 1
19 B223 2694 Guide: Gear 1
20 B044 1825 Collar 4
21 B223 2691 Bracket: Stepper Motor 1
22 B223 2745 Stepper Motor: Ass'y 1
23 AA10 1021 Rubber Bushing - 6 45HS 4
24 AX31 0045 Total Counter: 7FIG: 24V 1
25 D009 1088 Grip Bracket - Right Rear 1
26 B223 5846 Bracket: Total Counter 1
101 0451 3006N Tapping Screw - 3x6
102 0454 3006Q Tapping Screw - M3x6
103 0451 4008N Tapping Screw: 4x8
104 0805 0089 Retaining Ring - M4
105 1105 0488 Harness Clamp
106 0434 0100N Tapping Screw - 4x10
107 0720 0040E Retaining Ring - M4
108 0353 0080N Screw: M3x8
109 1105 0511 Harness Clamp - LWS-0306ZC
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
44.Drive Section 4 (D129/D130)
D129/D130 99 Parts Location and List
45.Electrical Section 1 (D129/D130)
1
2
3
4
5
101
101 103
19
102
102
102
101 16
15
14 11
12 12 11
12
17
18
21
101
101
101 20
101
78
6102
102 102
102
9
12
11
13
10
104
12
22
105
105
22
12
A
A
D129/D130 100 Parts Location and List
1 D009 5505 Harness - Toner Supply Motor 1
2 AX05 0329 DC Motor: Toner Bottle: Ass'y 1
3 B004 7667 Holder: Toner Bottle: EU 1
4 D129 3210 Guide: Toner Supply: Ass'y 1
5 A096 2065 Slider Ring 1
6 D009 5481 Interface Harness - IOB-Switch 1
7 AW50 0023 Push Switch 1
8 D009 4351 Rear Lock Lever 1
9 D009 3865 Holder - Density Sensor 1
10 D009 2367 Density Sensor 1
11 AA14 3579 Screw - M3 4
12 B004 2310 Spur 4
13 A232 1284 Spring Holder 1
14 D009 3866 Guide - Separation/Transport 1
15 D009 4350 Front Lock Lever 1
16 B238 1119 Lever - Front Upper 1
17 B213 2362 LED Array QL Ass'y 1
18 D009 5510 Harness - Quenching Lamp 1
19 AW01 0199 Entrance Sensor 1
20 D009 3856 Guide: Standard: Transfer Unit: Rear 1
21 D009 3857 Guide: Standard: Transfer Unit: Front 1
22 D009 4356 Washer: DIA3.5 2
101 0454 3008Q Tapping Screw: 3x8
102 0454 3008Q Tapping Screw: 3x8
103 0450 3010N Tapping Screw - M3x10
104 0451 3008N Tapping Screw - M3x8
105 0802 5299 Tapping Screw - M3x8
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
45.Electrical Section 1 (D129/D130)
D129/D130 101 Parts Location and List
46.Electrical Section 2 (D129/D130)
101
101
3
5
4
101
107
101
1
2
105
106
108
102
102
18
14
15
104
17
16
104
104
12
12 13
102
102
7103 103
7
11 10
8
9102
19
20
101
6
21
D129/D130 102 Parts Location and List
1 D009 1366 Middle Exhaust Duct - Upper 1
2 D009 1367 Middle Exhaust Duct - Lower 1
3 D009 1368 Front Upper Duct 1
4 D009 1369 Front Lower Duct 1
5 B223 1332 Fan Motor - MM60 DC24V 1
6 D009 5898 Harness Guide - Safety Switch 1
7 D009 5866 Base - Right Safety Switch 1
8 D009 5869 Right Lower Lever - Safety Switch 1
9 D009 5867 Guide Plate - Safety Switch 1
10 D009 5896 Spring - Right Safety Switch 1
11 D009 5868 Right Lever - Safety Switch 1
12 D009 5857 Shaft - Safety Switch 2
13 D009 5864 Middle Lever - Safety Switch 1
14 D009 5865 Cam - Safety Switch 1
15 D009 5858 Left/Right Lever - Safety Switch 1
16 D009 5863 Left Lever - Safety Switch 1
17 D009 5895 Tension Spring: Safety Switch: Left 1
18 D009 5840 Base - Left Safety Switch 1
19 AX64 0194 Fan Motor - DC 2.16W 1
20 D009 1371 Exit Duct - MM60 1
21 D009 5425 Harness - Safety Switch 1
101 0454 3008Q Tapping Screw: 3x8
102 0454 3006Q Tapping Screw - M3x6
103 0450 3008N Tapping Screw - M3x8
104 0805 0092 Retaining Ring - 3M
105 0451 3025N Tapping Screw: M3x25
106 1204 2612 Micro Switch: D3V-16506-3C25
107 1105 0487 Harness Clamp
108 1105 0534 Clamp
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
46.Electrical Section 2 (D129/D130)
D129/D130 103 Parts Location and List
47.Electrical Section 3 (D129/D130)
101
101 101
101
101
2
1
3
104
4
103
103
101
101
6
7
101
8
101
10
105
101
12
102
102
102
102
13
13
107
101
101 11
5
5
1
14
9
106
108
104
15
15
D129/D130 104 Parts Location and List
1 AX64 0159 Fan Motor MM80 2
2 D009 1351 Upper Fusing Duct 1
3 D009 1352 Lower Fusing Duct 1
4 D009 5852 Connector Bracket 1
5 D009 1358 Sponge: Duct: Exhaust: 1 2
6 D009 5876 Small Bracket - BICU 1
7 B238 1088 Cover - Connector 1
8 B223 1065 Connector Bracket 1
9 D009 5615 AC Harness - Heater 1
10 D009 5856 Bracket - Heater Connector 1
11 D009 1355 Rear Exhaust Duct - Left 1
12 B223 5848 Bracket: Base: Connector 1
13 D009 2527 Cover - Electrical Components 2
14 D009 1354 Rear Exhaust Duct - Right 1
15 D009 1359 Sponge: Duct: Exhaust: 2 2
101 0454 3006Q Tapping Screw - M3x6
102 0454 3008Q Tapping Screw: 3x8
103 1105 0488 Harness Clamp
104 1105 0489 Harness Clamp - LWS 1316
105 1105 0487 Harness Clamp
106 1102 8534 Connector - QR/P17-14S-B
107 1105 0522 Edge Saddle - LES0510
108 1102 9782 Connector: 51405-1819
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
47.Electrical Section 3 (D129/D130)
D129/D130 105 Parts Location and List
48.Electrical Section 4 (D129/D130)
101
101
101
101
101
101
101
2
13
101
101
101
101
101
8
19
9
5
6105
7
101
101
4
101
101
101
101
11
14
12
15
10
13
16
101
101
101
106
104
103
103 102
101
103
18
101
102
17
D129/D130 106 Parts Location and List
1 D009 5470 Harness - BICU-IDB 1
2 D129 5242 PCB: IPU: Type-ISA 1
3 D129 5531 Interface Cable: Scanner: LVDS: Ass'y 1
4 D009 5877 Guide - Mother Board 1
5 D129 5446 Harness: BCU: Image Processing Unit 1
6 D129 5465 Harness: BCU: SIO 1
7 D129 5461 Harness: BCU: IOB: FFC 1
8 D129 5081 PCB: BCU: Ass'y 1
9 D129 5452 Harness: Image Processing Unit: BCU: FFC: 30 1
10 D009 5495 Harness - IOB-Lift Motor 1
11 D009 5480 Harness - IOB Upper 1
12 D009 5520 Harness - IOB-Motor 1
13 D129 5157 PCB: IOB 1
14 D129 5486 Harness: IOB: Lower 1
15 D009 5490 Harness - IOB Lower Behind 1
16 D009 5851 Bracket - IO Board 1
17 D009 5875 Bracket - BICU 1
18 D009 5876 Small Bracket - BICU 1
19 D129 5453 Harness: Image Processing Unit: BCU: FFC: 50 1
101 0454 3006Q Tapping Screw - M3x6
102 1105 0724 Clamps: WES-1210
103 1105 0489 Harness Clamp - LWS 1316
104 1105 0367 Spacer
105 1407 7677 EEPROM: BR24T64-W
106 1105 0487 Harness Clamp
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
48.Electrical Section 4 (D129/D130)
D129/D130 107 Parts Location and List
49.Electrical Section 5 (D129/D130)
A
B
A
B
101
104
105
105
107
9
101
10
103
102
7
8
6
101
101
4
5
3
1
2
101
106
D129/D130 108 Parts Location and List
1 D129 5853 Bracket: Main Switch 1
2 AZ24 0204 Power Supply Unit: 353W: NA/TWN 1
2 AZ24 0205 Power Supply Unit: 353W: EU/AA/CHN 1
3 D129 5605 Harness: Power Supply Unit: SDSW 1
4 D129 5443 Harness: MB: SSW 1
5 D009 5425 Harness - Safety Switch 1
6 D009 5602 Harness: AC: Inlet 1
7 D009 5610 AC Harness - Heater 1
8 D129 5431 Harness: DC Power Supply: IOB: Right 1
9 D009 5602 Harness: AC: Inlet 1
10 D009 5855 Bracket - Inlet 1
101 0454 3006Q Tapping Screw - M3x6
102 1105 0724 Harness Clamp
103 0360 3006N Screw - M3X6
104 0451 3006N Tapping Screw - 3x6
105 0451 3008N Tapping Screw - M3x8
106 1204 2903 Rocker Switch: A8gs-tgp85kr
107 1102 8502 Connector - 54679-1615
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
49.Electrical Section 5 (D129/D130)
D129/D130 109 Parts Location and List
50.Controller Section 1 (D129/D130)
104
104
104
104
104
104
104
105
104
11
12
101
101
103
1
102
2
102
104
13
A
A
102
102
102 102
102
102
104
104
3
4
5
6
78
10
9
9
9
9
10
10 10
103
D129/D130 110 Parts Location and List
1 D009 5879 Bracket - Mother Board 1
2 D129 5250 PCB: MB 1
3 D129 5852 Bracket: Base: SATIE 1
4 D129 5719 Cable: HDD: Sata: Power: 2P 1
5 D129 5713 Cable: HDD: Sata: 135 1
6 D129 5710 PCB: SATIE2 1
7 D129 5850 Bracket: HDD: Large 1
8 D124 5298 HDD: WD: 320GB: WD3200BUCT 1
9 AA14 3848 Stepped Screw - M3 4
10 AA16 1167 Rubber Cushion 4
11 AX64 0195 Fan Motor - DC 2.16W 1
12 B154 5861 Guard: Fan 1
13 D009 5886 Ground Plate- C/T Box 1
101 0360 3006N Screw - M3x6
102 0451 3006N Tapping Screw - 3x6
103 0452 3008N Tapping Screw - M3x8
104 0454 3006Q Tapping Screw - M3x6
105 0353 0060N Bind Screw - M3x6
Description Q’ty Per
Assembly
Part No.
Index
No.
Description Q’ty Per
Assembly
Part No.
Index
No.
50.Controller Section 1 (D129/D130) Rev. 3/5/2012
D129/D130 111 Parts Location and List
51.Controller Section 2 (D129/D130)
102
102
102
102
102
14
1
2
3
4
5
6
7
102
101
102
102
102
103
103
9
8
10
12
13
11 102
102
102
14
15
D129/D130 112 Parts Location and List
1 D009 5881 Guide - Fax Control Unit 1
2 D129 5725 PCB: CTL: 50 1
2 D129 5726 PCB: CTL: 40 1
3 B154 5865 Cap: Connector: USB 1
4 D129 5740 SD-Card: P/S Unit: Ass'y 1
5 D009 5899 Right Rail - Small 1
6 D009 5891 Left Rail - Fax Control Unit 1
7 M052 5391 PCB: Memory: 512MB 1
9 D129 5870 Grip: C/T Box: Upper: IG 1
10 B154 5869 Panel: Interface: SECC 1
11 D144 5885 Grip: Control Board: IG 1
12 D129 5872 Cover: Fax Control Unit: Large 1
13 D129 5890 Cover: Control Unit 1
14 D129 9590 NVRAM 1
15 B129 5008 Cap - LAN Connector 1
101 0353 0060N Bind Screw - M3x6
102 0360 3006N Screw - M3X6
103 0457 3008N Tapping Screw - M3x8
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
51.Controller Section 2 (D129/D130)
D129/D130 113 Parts Location and List
52.Frame Section (D129/D130)
1
2
101
101
101
101
101
101
Optin
105
18
106
17
101
101
101
16 101
101
101
7
7
104
14
101
101 102
102
9
8
12
10
7
11
4
3
5
101
101
103 6
101
103
19 13
15
101
101
101
19
20
D129/D130 114 Parts Location and List
1 B223 2710 Supporter - Left No.2 1
2 D009 5475 Interface Harness - BICU-LDB 1
3 B223 2715 Supporter - Right 1
4 B223 2714 Positioning Cap - Short 1
5 AA16 1163 Cushion 1
6 B223 4524 Wire: Stopper: DIA1.5 1
7 B101 1097 Rubber Foot: H5 6
8 D009 4595 Rear Guide - Duplex Unit Set 1
9 D009 4594 Front Guide - Duplex Unit Set 1
10 AA14 3404 Stepped Screw - M4 1
11 D009 4512 Link: Stopper 1
12 B223 1120 Bracket: Paper Feed Unit 1
13 D009 4513 Compression Spring: Earth: Duplex Unit 2
14 B223 1101 Grip: Front 1
15 D009 4511 Spacer: DIA8.0: 1.5mm 1
16 D009 1093 Stopper Bracket - Grip 1
17 B223 2702 Heat Sink: Heater: NA 1
17 B223 2703 Heat Sink: Heater: EU 1
18 D120 8867 Decal: Main Switch: On-standby: EU 1
18 D011 1252 Decal: Main Switch: On-standby 1
19 B223 2848 Cover: Harness 1
20 B223 2846 Bracket: Cover: Harness 1
101 0454 3006Q Tapping Screw - M3x6
102 0451 3008N Tapping Screw - M3x8
103 0805 0088 Retaining Ring - M6
104 0802 5305 Tapping Screw - M3x6
105 1105 0522 Edge Saddle - LES0510
106 0802 5299 Tapping Screw - M3x8
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
52.Frame Section (D129/D130)
D129/D130 115 Parts Location and List
53.Decals and Documents (D129/D130)
D129/D130 116 Parts Location and List
53.Decals and Documents (D129/D130)
12 13 14
17
15
18
16
20
D129/D130 117 Parts Location and List
53.Decals and Documents (D129/D130)
28 29 30
D129/D130 118 Parts Location and List
1 B234 3177 Decal: Positioning Display: Development 1
2 B238 2524 Decal - Paper Size 1
3 B652 2379 Decal: Caution: Original: 5-Lang 2
4 D011 1251 Decal: Main Switch: O-I 1
5 D011 1252 Decal: Main Switch: On-standby 1
6 D011 1253 Decal: Main Switch: On-standby: EU 1
7 D120 2872 Decal: Paper Tray: No.1 1
8 D120 2873 Decal: Paper Tray: No.2 1
9 D120 2874 Decal: Size Indication: Paper Tray 1
10 D120 8868 Decal: Main Switch: On-standby: DOM: NA 1
11 D129 2675 Decal: Side Fence: Manual Feed 1
12 D129 2705 Decal: H-temp Warning 1
13 D129 2743 Decal: Tray: Manual Feed: Extension Tray: EXP 1
14 D129 2745 Decal: Paper Set Direction: Manual Feed: EXP 1
15 D129 2747 Decal: Paper Set Direction: Tray: Right: EXP 1
16 D129 3268 Decal: Toner Bottle: Lock 1
17 D129 3269 Decal: Toner Bottle: Release 1
18 D129 6605 Decal: Misfeed Removal: B1: Al-C2 1
19 D129 2748 Decal: Scale: Manual Feed 1
20 D129 6610 Decal: Caution: Original: English 1
21 D144 6849 Decal: Main Switch: On-standby: CHN 1
22 D578 6021 Decal: Size: Original 1
23 D578 6031 Decal: Original Table 1
24 D580 2523 Decal: Paper Set Direction: Tray: No.2 1
25 D630 6011 Decal: Side Fence 1
26 D630 6013 Decal: Display: Misfeed Removal: P1 1
27 D630 6014 Decal: Display: Misfeed Removal: P2 1
28 D630 6015 Decal: Display: Misfeed Removal: P3 1
29 D630 6022 Decal: Caution: Original: Many Languages 1
30 G029 1980 Decal - LD 1
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
53.Decals and Documents (D129/D130)
D129/D130 119 Parts Location and List
54.Special Tools (D129/D130)
1 32 4 5
7 10986
D129/D130 120 Parts Location and List
1 A006 9104 Scanner Positioning Pin (4PCS/Set) 1
2 A292 9500 Test Chart - S5S (10PCS/Set) 1
3 VSSM 9000 Digital Multimater - FLUKE 187 1
4 A230 9003 Adjustment Cam - Laser Unit 1
5 A230 9004 Positioning Pin - Laser Unit 1
6 B645 5010 SD Card 1
7 B645 6820 SD-Card: USB: Writer: BN-SDCGTY 1
8 A257 9300 Grease Barrierta - S552R 1
9 5203 9502 Silicon Grease G-501 1
10 G021 9350 Loop Back Connector 1
Description
Q’ty Per
Assembly
Part No.
Index
No.
Description
Q’ty Per
Assembly
Part No.
Index
No.
54.Special Tools (D129/D130)
D129/D130
PARTS INDEX
This section shows you the part numbers and descriptions used on this machine.
D129/D130 2 Parts Index
PCDU 1 (D129/D130) B296 9640 Developer - Black Developer - Black 1 65 - 5
PCDU 1 (D129/D130) D009 3086 Development Filter Development Filter 1 65 - 25
PCDU 1 (D129/D130) D009 3084 Development Filter: Front Development Filter: Front 1 65 - 39
PCDU 1 (D129/D130) D009 3085 Development Filter: Rear Development Filter: Rear 1 65 - 40
PCDU 2 (D129/D130) D009 2351 Cleaning Blade Cleaning Blade 1 67 - 24
PCDU 2 (D129/D130) AD02 7012 Roller: Charge: Apply Roller: Charge: Apply 1 67 - 37
PCDU 2 (D129/D130) D009 9510 OPC Drum OPC Drum 1 67 - 41
PCDU 2 (D129/D130) AD02 5021 Pick-Off Pawl Pick-Off Pawl 1 67 - 44
PCDU 2 (D129/D130) G790 2329 Brush Roller: Cleaner: Charge: Amabuki Brush Roller: Cleaner: Charge: 1 67 - 46
Transfer Belt Unit 1 (D129/D130) A232 3880 Transfer Belt Transfer Belt 1 69 - 15
Transfer Belt Unit 2 (D129/D130) AD04 1135 Cleaning Blade - Transfer Belt Cleaning Blade - Transfer Belt 1 71 - 1
Fusing Unit 2 (D129/D130) AE04 4099 Stripper Pawls Stripper Pawls 1 75 - 17
Fusing Unit 2 (D129/D130) D009 4177 Thermistor Thermistor 1 75 - 25
Fusing Unit 1 (D129/D130) AE01 0099 Hot Roller Hot Roller 1 73 - 40
Fusing Unit 2 (D129/D130) AE02 0199 Pressure Roller Pressure Roller 1 75 - 43
Fusing Unit 3 (D129/D130) B065 4247 Brake Pad Brake Pad 1 77 - 4
Fusing Unit 3 (D129/D130) AE04 0099 Holder Roller Holder Roller 1 77 - 9
Fusing Unit 3 (D129/D130) AE04 5099 Cleaning Web Cleaning Web 1 77 - 18
PM Parts Index
Description in Service Manual
Part No.
Section Name
Page and
Index No.
Q’ty Per
Assembly
Description in Parts Catalog
D129/D130 3 Parts Index
D129 1241 Inner Cover: Upper: Left 13 - 1
D129 1242 Inner Cover: Left 13 - 10
D129 1243 Inner Cover: Upper: Right 15 - 17
D129 1244 Inner Cover: Middle 13 - 2
D129 1251 Cover: Front 13 - 15
D129 1255 Cover: Main Switch: C3 13 - 8
D129 1262 Cover: Inner Back: Upper: EXP 15 - 6
D129 1263 Cover: Inner Back 15 - 8
D129 1264 Cover: Front Right 13 - 19
D129 1269 Cover: Front Right: Upper 13 - 31
D129 1271 Cover: Right: Front 13 - 22
D129 1272 Cover: Right: Rear 13 - 21
D129 1273 Cover: Right: Upper Middle 15 - 10
D129 1281 Cover: Left 13 - 3
D129 1282 Cover: Left: Upper 15 - 2
D129 1283 Cover: Left: Cover 15 - 20
D129 1291 Cover: Rear 13 - 26
D129 1292 Cover: Rear: Upper 13 - 25
D129 1293 Cover: Rear 13 - 24
D129 1318 Cover: Scanner: Front 15 - 19
D129 1321 Cover: Bracket: Operation Panel: Upper 17 - 1
D129 1322 Cover: Bracket: Operation Panel: Lower 17 - 7
D129 1394 Supporting Plate: Bracket: Operation Panel 17 - 5
D129 1396 Bracket: Operation Panel 17 - 6
D129 1401 Operation Panel: NA: Ass'y 19 - *
D129 1401 Operation Panel: NA: Ass'y 17 - *
D129 1402 Operation Panel: EU: Ass'y 17 - *
D129 1402 Operation Panel: EU: Ass'y 19 - *
D129 1403 Operation Panel: AA: Ass'y 17 - *
D129 1403 Operation Panel: AA: Ass'y 19 - *
D129 1404 Operation Panel: CHN: Ass'y 19 - *
D129 1404 Operation Panel: CHN: Ass'y 17 - *
D129 1405 Operation Panel: TWN: Ass'y 17 - *
D129 1405 Operation Panel: TWN: Ass'y 19 - *
D129 1422 Touch Panel: WVGA: MV 19 - 11
D129 1423 LCD: TFT: WVGA: LED: SH 19 - 15
D129 1430 Cable: FFC: OPR 19 - 20
D129 1431 Cable: FFC: OOL 19 - 3
D129 1432 Cable: FFC: LCD 19 - 7
D129 1435 Harness: OPE: LVDS 19 - 31
D129 1437 Cable: OPE: USB 17 - 4
D129 1441 PCB: LCDC: NA: FT 19 - 26
D129 1442 PCB: LCDC: EU: FT 19 - 26
D129 1443 PCB: LCDC: AA/TWN: FT 19 - 26
D129 1444 PCB: AL-C2: LCDC: CHN: FT 19 - 26
D129 1458 PCB: OP-R: Ass'y 19 - 21
D129 1459 PCB: OP-L: Ass'y 19 - 1
D129 1502 Keytop: Start 19 - 17
D129 1503 Keytop: Stop 19 - 16
D129 1506 Keytop: Reset Switch 19 - 23
D129 1507 Keytop: Power Source 19 - 18
D129 1508 Keytop: Home 19 - 4
D129 1509 Keytop: Left 19 - 5
D129 1510 Lens: Front 19 - 9
D129 1511 Cover: Rear: Large 17 - 9
D129 1512 Cover: Rear: Small 17 - 8
D129 1513 Shadeing Plate: Touch Panel 19 - 10
D129 1514 Bracket: LCDC: Ass'y 19 - 24
D129 1517 Bracket: Base: Hinge 17 - 3
D129 1526 Sheet: LCDC 19 - 25
D129 1527 Sheet: Keytop: Right 19 - 19
D129 1528 Sheet: Keytop: Left 19 - 2
D129 1529 Sheet: OP-R 19 - 22
D129 1530 Hinge: AA-C3: Ass'y 17 - 2
D129 1531 Cover: Upper: NA/AA 19 - 8
D129 1532 Cover: Upper: EU/CHN/TWN 19 - 8
D129 1533 Keytop: 10key: NA 19 - 14
D129 1534 Keytop: 10key: EU 19 - 14
D129 1535 Keytop: 10key: AA 19 - 14
D129 1536 Sheet: Journal: NA/AA 19 - 30
Parts Index
Description
Page and
Index No.
Part No.
Description
Page and
Index No.
Part No.
D129/D130 4 Parts Index
D129 1545 Sheet: Side: NA/AA 15 - 11
D129 1566 Sheet: Application: Multi-language: NA 19 - 29
D129 1567 Sheet: Application: Multi-language: EU 19 - 29
D129 1568 Sheet: Application: Multi-language: Blank 19 - 29
D129 1721 Carriage: No.1: Ass'y 45 - 4
D129 1722 Illumination Unit: LED: Ass'y 45 - 21
D129 1731 Carriage: No.2: Ass'y 45 - 7
D129 1732 Bracket: Scale: Left: B 43 - 2
D129 1771 Lens: Holder: Ass'y 47 - 9
D129 1773 Scale: Machine Or Copier 43 - 3
D129 1777 Scale: Left: EU/AA/CHN: Ass'y 43 - 6
D129 1779 Scale: Left: NA: Ass'y 43 - 6
D129 1782 Scale: Rear: Printing 43 - 11
D129 1801 Guide: Flat Cable 45 - 14
D129 1803 Guide: Harness: Led Control Board 49 - 3
D129 1815 Bracket: Original Sensor: SUB Scanning 47 - 3
D129 1816 Bracket: Guide: Harness: Base 47 - 11
D129 1821 Bracket: LED Control Board 49 - 2
D129 1860 Optical Writing Unit: Ass'y 51 - 1
D129 1870 Laser Diode Unit: Ass'y 51 - 8
D129 2110 PCU: Alex-C2: EXP: Service: Ass'y 65 - 1
D129 2212 Frame: PCU: Upper: C2: Ass'y 67 - 1
D129 2245 Cover: Stopper: Lock: PCD 61 - 26
D129 2247 Cover: Lever: Lock: PCD 15 - 13
D129 2248 Guide Plate: Lever: Lock: PCD 15 - 16
D129 2390 Side Plate: Idler: Ass'y 67 - 3
D129 2411 Cover: PCU: Front: C2 67 - 49
D129 2415 Cover: Spring Plate: Front 67 - 35
D129 2604 Knob: Registration Roller 61 - 17
D129 2616 Case: Remove Paper Dust 15 - 18
D129 2621 Cover: Manual Feed Unit 59 - 4
D129 2657 Arm: Manual Feed: Short: Front 59 - 24
D129 2658 Arm: Manual Feed: Short: Rear 59 - 34
D129 2661 Cover: Manual Feed 57 - 7
D129 2662 Manual Feed Table 57 - 14
D129 2664 Cover: Manual Feed: Entrance 79 - 15
D129 2667 Extension Tray: Manual Feed 57 - 13
D129 2673 Side Fence: Rear 57 - 2
D129 2674 Side Fence: Front 57 - 1
D129 2675 Decal: Side Fence: Manual Feed 117 - 11
D129 2675 Decal: Side Fence: Manual Feed 57 - 5
D129 2705 Decal: H-temp Warning 73 - 23
D129 2705 Decal: H-temp Warning 117 - 12
D129 2726 Grip: Side Fence: Manual Feed 57 - 3
D129 2740 Manual Feed Table: Ass'y 57 - *
D129 2743 Decal: Tray: Manual Feed: Extension Tray: EXP 117 - 13
D129 2743 Decal: Tray: Manual Feed: Extension Tray: EXP 57 - 17
D129 2745 Decal: Paper Set Direction: Manual Feed: EXP 57 - 6
D129 2745 Decal: Paper Set Direction: Manual Feed: EXP 117 - 14
D129 2747 Decal: Paper Set Direction: Tray: Right: EXP 117 - 15
D129 2747 Decal: Paper Set Direction: Tray: Right: EXP 53 - 32
D129 2748 Decal: Scale: Manual Feed 57 - 8
D129 2748 Decal: Scale: Manual Feed 117 - 19
D129 2750 Paper Feed Unit: Ass'y 55 - *
D129 2783 Torque Limiter Mechanical Clutch:
40mnm: DIA18 59 - 40
D129 2783 Torque Limiter Mechanical Clutch:
40mnm: DIA18 55 - 28
D129 2836 Guide Plate: Swivel: Ass'y 61 - 2
D129 2841 Guide Plate: Swivel: No.2: Ass'y 61 - 1
D129 2920 Side Fence: Front: Ass'y 53 - 18
D129 2930 Side Fence: Rear: Ass'y 53 - 26
D129 3209 Toner Supply Unit 63 - 1
D129 3210 Guide: Toner Supply: Ass'y 101 - 4
D129 3268 Decal: Toner Bottle: Lock 117 - 16
D129 3268 Decal: Toner Bottle: Lock 13 - 5
D129 3269 Decal: Toner Bottle: Release 117 - 17
D129 3269 Decal: Toner Bottle: Release 13 - 6
D129 4053 Fusing Cover: Lower: Middle: Ass'y 73 - 22
D129 4055 Fusing Cover: Lower: Front 73 - 6
Description
Page and
Index No.
Part No.
Description
Page and
Index No.
Part No.
D129/D130 5 Parts Index
D129 4057 Fusing Cover: Lower: Rear 73 - 9
D129 4059 Fusing Cover: Upper: Front 73 - 5
D129 4062 Fusing Cover: Upper: Rear 73 - 8
D129 4165 Cover: Fusing Sub-unit 75 - 18
D129 4305 Cleaning Unit: Ass'y 77 - *
D129 4307 Cover: Cleaning Unit 77 - 2
D129 4481 Grip: Gate Pawl: Upper 81 - 2
D129 4483 Decal: Guide: Right 83 - 25
D129 4486 Tray: Exit 15 - 4
D129 4487 End Fence: Exit 15 - 3
D129 4531 Guide Plate: Cover: Open And Close 79 - 12
D129 4533 Inner Cover: Duplex: Rear 79 - 2
D129 4534 Inner Cover: Duplex: Front 79 - 1
D129 4540 Cover: Duplex 79 - 13
D129 4579 Grip: Open And Close: Duplex Unit 79 - 3
D129 4651 Harness: Duplex Unit 87 - 17
D129 5081 PCB: BCU: Ass'y 107 - 8
D129 5138 PCB: SIO 49 - 15
D129 5157 PCB: IOB 107 - 13
D129 5242 PCB: IPU: Type-ISA 107 - 2
D129 5250 PCB: MB 111 - 2
D129 5342 PCB: LED-DB 49 - 1
D129 5350 PCB: SCNB 47 - 1
D129 5431 Harness: DC Power Supply: IOB: Right 109 - 8
D129 5443 Harness: MB: SSW 109 - 4
D129 5446 Harness: BCU: Image Processing Unit 107 - 5
D129 5452 Harness: Image Processing Unit: BCU: FFC: 30 107 - 9
D129 5453 Harness: Image Processing Unit: BCU: FFC: 50 107 - 19
D129 5461 Harness: BCU: IOB: FFC 107 - 7
D129 5465 Harness: BCU: SIO 107 - 6
D129 5486 Harness: IOB: Lower 107 - 14
D129 5515 Harness: Operation Sub-unit: Ass'y 19 - 27
D129 5531 Interface Cable: Scanner: LVDS: Ass'y 47 - 8
D129 5531 Interface Cable: Scanner: LVDS: Ass'y 107 - 3
D129 5534 Harness: Led-db: Scnb 49 - 19
D129 5535 Harness: SIO: BCU 49 - 17
D129 5541 Harness: FFC: LED 45 - 3
D129 5605 Harness: Power Supply Unit: SDSW 109 - 3
D129 5710 PCB: SATIE2 111 - 6
D129 5713 Cable: HDD: Sata: 135 111 - 5
D129 5719 Cable: HDD: Sata: Power: 2P 111 - 4
D129 5725 PCB: CTL: 50 113 - 2
D129 5726 PCB: CTL: 40 113 - 2
D129 5740 SD-Card: P/S Unit: Ass'y 113 - 4
D129 5784 HDD: 160GB: WD1600BUCT: AF2 111 - 8
D129 5850 Bracket: HDD: Large 111 - 7
D129 5852 Bracket: Base: SATIE 111 - 3
D129 5853 Bracket: Main Switch 109 - 1
D129 5870 Grip: C/T Box: Upper: IG 113 - 9
D129 5872 Cover: Fax Control Unit: Large 113 - 12
D129 5890 Cover: Control Unit 113 - 13
D129 5891 Cap: USB 13 - 28
D129 6601 Model Name Plate: Aficio: 4002 13 - 12
D129 6602 Model Name Plate: Aficio: 5002 13 - 12
D129 6603 Model Name Plate: Aficio: 4002sp 13 - 12
D129 6604 Model Name Plate: Aficio: 5002SP 13 - 12
D129 6605 Decal: Misfeed Removal: B1: AL-C2 13 - 23
D129 6605 Decal: Misfeed Removal: B1: Al-C2 117 - 18
D129 6610 Decal: Caution: Original: English 117 - 20
D129 6610 Decal: Caution: Original: English 15 - 21
D129 6616 Sheet: Misfeed Removal: C1 13 - 18
D129 6629 Model Name Plate: LAN: 4002: NA 13 - 12
D129 6630 Model Name Plate: LAN: 5002: NA 13 - 12
D129 6633 Model Name Plate: GES: 4002: AA 13 - 12
D129 6634 Model Name Plate: GES: 5002: AA 13 - 12
D129 6635 Model Name Plate: LAN: 5002SP: AA 13 - 12
D129 6636 Model Name Plate: GES: 4002sp: AA 13 - 12
D129 6637 Model Name Plate: LAN: 4002SP: AA 13 - 12
D129 6638 Model Name Plate: GES: 5002SP: AA 13 - 12
D129 7895 CD-ROM: AL-C2: Drv: AA: Ass'y 13 - 32
Description
Page and
Index No.
Part No.
Description
Page and
Index No.
Part No.
D129/D130 6 Parts Index
D129 9590 NVRAM 113 - 14
D130 1500 Cover: Upper: CHN 19 - 8
D130 4002 Fusing Unit: NA: Service: Ass'y 73 - *
D130 4003 Fusing Unit: EU: Service: Ass'y 73 - *
D130 4004 Fusing Unit: TWN: Ass'y 73 - *
A006 9104 Scanner Positioning Pin (4PCS/Set) 119 - 1
A096 2065 Slider Ring 101 - 5
A134 3180 Bottle Chuck 63 - 5
A193 1766 Wire Clamp 45 - 1
A193 1769 Clamp - Rear Wire 45 - 2
A193 1793 Scanner Home Sensor Stopper 43 - 13
A193 1816 1st Slide Rail 45 - 15
A230 9003 Adjustment Cam - Laser Unit 119 - 4
A230 9004 Positioning Pin - Laser Unit 119 - 5
A232 1284 Spring Holder 101 - 13
A232 1937 Positioning Pin - Laser Unit Ass'y 51 - 11
A232 2292 Bushing - Toner Collection Coil 67 - 51
A232 2315 Front Bushing - Cleaning Bracket 67 - 22
A232 2318 Collar - Cleaning 67 - 33
A232 2339 Spur 67 - 45
A232 2340 Holder - Pick-Off Pawl 67 - 43
A232 2399 Seal - Blade 13x9.5x3 67 - 10
A232 2421 Bushing - 6x10x3 67 - 21
A232 2987 Roller - Paper Tray 53 - 16
A232 3067 Tape - TD Sensor 65 - 13
A232 3077 Spacer - M5 65 - 8
A232 3155 Front Cover - Development Unit 65 - 6
A232 3240 Cover - Toner Bottle Ass'y 63 - 4
A232 3251 Chuck Shaft 63 - 7
A232 3252 Slider Ass'y 63 - 6
A232 3263 Spring Plate - Toner Bottle 63 - 10
A232 3264 Stopper - Slide Rail 63 - 12
A232 3266 Seal - Slide Rail 63 - 3
A232 3553 Ball Bearing - 8x16x5 67 - 40
A232 3880 Transfer Belt 69 - 15
A232 3885 Driven Roller - Transfer Unit 69 - 1
A232 3908 Seal - Rear Case 71 - 29
A232 3909 Seal - Front Case 71 - 28
A232 3926 Transfer Belt Roller 69 - 9
A232 4666 Cushion - Stepper Motor 97 - 2
Description
Page and
Index No.
Part No.
Description
Page and
Index No.
Part No.
D129/D130 7 Parts Index
A250 1752 Exposure Glass 43 - 7
A257 9300 Grease Barrierta - S552R 119 - 8
A259 6754 Bushing - 6 6mm 59 - 35
A267 2857 Spring Plate - Side Fence 53 - 28
A267 2859 Side Fence Stopper 53 - 29
A292 9500 Test Chart - S5S (10PCS/Set) 119 - 2
A422 1063 Seal - 0.7x13x20 29 - 16
A422 1063 Seal - 0.7x13x20 33 - 16
A458 2251 Cushion - Bin Solenoid Lever 27 - 22
A628 1225 Bushing - 8mm 25 - 21
A697 2102 Damper - Junction Gate Solenoid 31 - 13
A806 1295 Feed Belt 25 - 23
A858 4671 Roller Driven 21 - 19
A858 4676 Spring Plate - Pressure Roller 21 - 18
A859 1841 Filter - DF Open Sensor 41 - 10
A859 2112 Drive Shaft - Paper Feed Belt 25 - 13
A859 2241 Reverse Roller 27 - 11
A859 7211 Stepped Screw 21 - 2
B004 1325 Cover - Shield Glass 13 - 7
B004 1936 Plate - Optical Housing Unit 95 - 32
B004 2310 Spur 101 - 12
B004 2923 Spring Plate - Release Lever 53 - 20
B004 7667 Holder: Toner Bottle: EU 101 - 3
B024 1264 Magnet Catch 13 - 17
B044 1825 Collar 99 - 20
B044 1825 Collar 83 - 22
B044 1825 Collar 35 - 4
B044 1847 Shoulder Screw 83 - 13
B065 1371 Cloth Holder (CHN) 13 - 29
B065 1374 Cloth - DF Exposure Glass 13 - 20
B065 4221 Feeler Spring 77 - 11
B065 4247 Brake Pad 77 - 4
B077 3262 Slide Rail: Toner Supply Unit 63 - 2
B082 2333 Terminale: Brush Roller 67 - 32
B082 3123 Shield: Case: Development: Front Rear: C3 65 - 19
B082 3867 Shield: Remove Paper Dust 71 - 31
B082 3867 Shield: Remove Paper Dust 71 - 26
B101 1097 Rubber Foot: H5 115 - 7
B129 5008 Cap - LAN Connector 113 - 15
B154 5861 Guard: Fan 111 - 12
B154 5865 Cap: Connector: USB 113 - 3
B154 5869 Panel: Interface: SECC 113 - 10
B180 1713 Stepper Motor: Ass'y 49 - 11
B180 1734 Slide Rail: No.2 45 - 16
B180 1814 Shaft: Scanner: Drive 49 - 6
B180 2782 Seal: Tray 53 - 31
B180 2871 Shaft: Separator: Driven: Ass'y 59 - 41
B213 2312 Bracket: Cleaning Blade 67 - 23
B213 2316 Stud: Contact Point: Cleaning 67 - 16
B213 2362 LED Array QL Ass'y 101 - 17
B213 3065 Density Sensor: Development: C4 65 - 14
B213 3889 Roller: Bias 69 - 2
B213 4460 Shaft: Pressure Roller 91 - 21
B223 1065 Connector Bracket 105 - 8
B223 1101 Grip: Front 115 - 14
B223 1116 Cam: Guide Plate: Scanner: Left 43 - 19
B223 1120 Bracket: Paper Feed Unit 115 - 12
B223 1180 Bracket: Paper Feed 99 - 10
B223 1183 Grip Shaft 99 - 2
B223 1186 Drive Joint 99 - 3
B223 1187 Magnetic Clutch Bracket 99 - 12
B223 1188 Stepper Motor DC24V 99 - 16
B223 1189 Feed Drive Shaft 99 - 1
B223 1317 Screw 73 - 7
B223 1332 Fan Motor - MM60 DC24V 103 - 5
B223 1350 Stepper Motor DC5.06V 97 - 1
B223 1354 Drum Stay: Drive Unit 99 - 4
B223 1774 Seal: Sheet Through 43 - 5
B223 1779 Cover: Stepper Motor: Rear 49 - 13
B223 1784 Optical Filter: Infrared: 76x36.5: Ass'y 43 - 8
Description
Page and
Index No.
Part No.
Description
Page and
Index No.
Part No.
D129/D130 8 Parts Index
B223 1806 Bracket: Document Feeder: Holder 43 - 9
B223 1807 Bracket: Exterior: Rear 49 - 14
B223 1808 Document Feeder: Connector: Bracket 43 - 17
B223 1824 Seal: Scanner: Frame: Base 49 - 22
B223 1833 Seal: Exposure Glass: Rear 43 - 20
B223 2608 Gear: Z16 59 - 37
B223 2622 Guide Plate: Exit 59 - 3
B223 2623 Cover: Guide Plate: Exit 59 - 1
B223 2629 Stay: Feed 59 - 9
B223 2632 DC Solenoid: Pickup 59 - 14
B223 2633 Spring: Release: Pickup 59 - 15
B223 2634 Support Stay: Arm 59 - 19
B223 2636 Torsion Spring: 27N 59 - 20
B223 2637 Bracket: Arm: Manual Feed: Rear 59 - 32
B223 2648 Guide Plate: Transport Unit: Exit 87 - 13
B223 2649 Spring: Pressure: 5N 87 - 15
B223 2651 Arm: Manual Feed: Front 59 - 22
B223 2652 Arm: Manual Feed: Rear 59 - 33
B223 2659 Harness: Manual Feed 59 - 16
B223 2665 Spring: Cover: Manual Feed 79 - 14
B223 2666 Gear: 16Z 57 - 12
B223 2668 Spring Plate: Stopper 57 - 4
B223 2676 Spring - 11N 87 - 4
B223 2681 Arm: Tightener 59 - 44
B223 2683 Gear: 25Z 59 - 47
B223 2686 Gear: Z31 59 - 46
B223 2689 Gear: Z28 59 - 48
B223 2691 Bracket: Stepper Motor 99 - 21
B223 2694 Guide: Gear 99 - 19
B223 2696 Drum Stay: Drive 59 - 49
B223 2702 Heat Sink: Heater: NA 115 - 17
B223 2703 Heat Sink: Heater: EU 115 - 17
B223 2710 Supporter - Left No.2 115 - 1
B223 2713 Rack: Manual Feed 57 - 11
B223 2714 Positioning Cap - Short 115 - 4
B223 2715 Supporter - Right 115 - 3
B223 2721 Bracket: Push Switch 97 - 10
B223 2745 Stepper Motor: Ass'y 99 - 22
B223 2762 Feed Shaft 55 - 26
B223 2764 Gear-24Z 55 - 25
B223 2765 Ground Plate - Feed 55 - 21
B223 2772 Harness Sheet 55 - 12
B223 2776 Stay 55 - 9
B223 2780 DC Solenoid 24V 55 - 8
B223 2786 Ground Plate - Front 55 - 13
B223 2810 Separate Driven Shaft 55 - 29
B223 2815 Separate Drive Shaft 55 - 34
B223 2819 Gear - 22Z 55 - 35
B223 2846 Bracket: Cover: Harness 115 - 20
B223 2848 Cover: Harness 115 - 19
B223 2861 Grip Holder 53 - 13
B223 2862 Lever - Release Inner 53 - 10
B223 2865 Rise No.1 Shaft 53 - 24
B223 2868 Lever: Release: Paper Tray: Outer 53 - 15
B223 2910 Link - Paper Size Sensor 53 - 1
B223 2911 Spacer 53 - 2
B223 2918 Rise Lever 53 - 25
B223 2919 Ground Plate - Paper Tray No.2 53 - 6
B223 2934 Plate - Side Fence 53 - 22
B223 2935 Plate - Side Fence Right 53 - 21
B223 2936 Gear - 16Z 53 - 23
B223 4428 Roller: Guide: PFA 91 - 14
B223 4435 Roller: Auxiliary: Driven: DIA16: PFA 91 - 16
B223 4479 Tension Spring: Gate Pawl: 1.6N 81 - 9
B223 4494 Stopper - Uppergate Pawl 81 - 8
B223 4497 Shaft: Feeler: Overflow 89 - 18
B223 4501 Guide Plate: Right 83 - 23
B223 4502 Guide Plate: Left Lower 85 - 12
B223 4511 Timing Belt: 30S2M312 85 - 5
B223 4512 Timing Belt: 30S2M182 85 - 3
Description
Page and
Index No.
Part No.
Description
Page and
Index No.
Part No.
D129/D130 9 Parts Index
B223 4514 Roller Clutch: T24 85 - 11
B223 4522 Spacer: Wire: Stopper 87 - 28
B223 4524 Wire: Stopper: DIA1.5 115 - 6
B223 4524 Wire: Stopper: DIA1.5 87 - 12
B223 4525 Tension Spring: Wire: 180N 79 - 17
B223 4526 Timing Belt: 30S2M268 83 - 15
B223 4527 Pulley: T26/T24 85 - 8
B223 4529 Roller Clutch: T24 85 - 6
B223 4535 Roller Clutch: T26 85 - 9
B223 4536 Timing Belt: 30S2M234 85 - 4
B223 4538 Compression Spring 79 - 10
B223 4539 Sheet: Cover: Duplex 79 - 16
B223 4544 Pulley: T35/T33 85 - 7
B223 4552 Bushing: DIA4 83 - 8
B223 4552 Bushing: DIA4 85 - 14
B223 4553 Tension Spring: Driven Roller 85 - 13
B223 4560 Tension Spring: Driven Roller 83 - 7
B223 4562 Tightener 83 - 12
B223 4564 Spring: Tightener 83 - 14
B223 4566 Bracket: Sensor: Entrance 83 - 4
B223 4567 Stay: Transport: Upper: Peen 83 - 27
B223 4571 Gear: Pulley: Z24/T40 83 - 20
B223 4572 Stepper Motor: DC4.29V 1.7W 83 - 17
B223 4573 Timing Belt: 30S2M128 83 - 21
B223 4575 Bracket: Stepper Motor 83 - 19
B223 4586 Pulley: T30 83 - 16
B223 4594 Shaft: Pulley: Wire 87 - 20
B223 4595 Pulley: DIA13 87 - 18
B223 5846 Bracket: Total Counter 99 - 26
B223 5848 Bracket: Base: Connector 105 - 12
B223 6172 Retaining Rings-E 71 - 5
B229 1687 Heater: Option: 120V: 9W 47 - 12
B229 1688 Heater: Option: 230V: 9W 47 - 12
B234 3177 Decal: Positioning Display: Development 117 - 1
B234 3177 Decal: Positioning Display: Development 71 - 30
B234 3177 Decal: Positioning Display: Development 85 - 26
B238 1066 Rubber Foot Cover 97 - 13
B238 1088 Cover - Connector 105 - 7
B238 1089 Cover - Positioning Pin 97 - 6
B238 1119 Lever - Front Upper 101 - 16
B238 1534 LCD Spacer A 19 - 13
B238 1535 LCD Spacer B 19 - 12
B238 1792 Timing Belt - 157ST1.5-4.0 49 - 9
B238 1806 Idler Pulley 45 - 17
B238 1807 Pulley 45 - 11
B238 1845 Seal: Exposure Glass 43 - 21
B238 2524 Decal - Paper Size 117 - 2
B238 2524 Decal - Paper Size 13 - 14
B238 2541 Tray Cover - Right 97 - 7
B238 2543 Cover - Tray Left 97 - 12
B238 2655 Gear - 16Z 61 - 15
B238 4166 End Ring: Spring: DIA4 75 - 5
B238 4194 Roller: Lever: Pressure 75 - 7
B242 1161 Ball Bearing - 8x22x7 95 - 7
B296 9640 Developer - Black 65 - 5
B351 1781 Gear - 18Z 35 - 16
B386 3320 Spring: Belt: Paper Feed: 8N 25 - 15
B387 1951 Spring - Paper Size Sensor 39 - 22
B387 2113 Roller - Paper Feed Belt 25 - 14
B387 2163 Pickup Collar 25 - 7
B477 2715 Pressure Plate Tape 41 - 13
B645 5010 SD Card 119 - 6
B645 6820 SD-Card: USB: Writer: BN-SDCGTY 119 - 7
B652 2379 Decal: Caution: Original: 5-Lang 117 - 3
B652 3174 Tension Spring 25 - 25
B700 2649 Timing Belt: 40S2M144 99 - 17
B700 5805 Stepper Motor: PM: S2M: T15: Ass'y 35 - 11
B703 1165 Timing Belt: B40S2M390 39 - 15
B714 5006 DC Solenoid: Transmited Rubber Stamp 29 - 24
B789 2114 Paper Feed Belt Roller 25 - 22
Description
Page and
Index No.
Part No.
Description
Page and
Index No.
Part No.
D129/D130 10 Parts Index
B789 3491 Scanning Driven Shaft 29 - 23
B789 3712 Exit Driven Roller 29 - 22
B802 1121 Positioning Plate: Front 41 - 1
B802 1131 Positioning Plate: Rear 41 - 2
B802 1231 Bracket: PCB: Right 39 - 2
B802 1236 Bracket: PCB: Left 39 - 14
B802 1246 Bracket: On Off Detector 39 - 12
B802 1321 Hinge: Left: Ass'y 41 - 8
B802 1361 Damper: Hinge: Right: Ass'y 41 - 9
B802 1412 Plate: Harness: Guide 39 - 24
B802 1612 Bracket: Motor 39 - 16
B802 1616 Stay: Motor 39 - 19
B802 1621 Stepper Motor: DC24V 4.8W 39 - 21
B802 1624 Bracket: Coupling 39 - 18
B802 1631 Timing Pulley: T31 37 - 6
B802 1632 Gear: Z18 37 - 7
B802 1633 Gear: Z19 37 - 8
B802 1641 Gear: Z18 37 - 18
B802 1642 Gear: Z37 37 - 3
B802 1643 Gear: Z26 37 - 4
B802 1651 Gear: Z25 37 - 5
B802 1661 Gear: Z21/Z23 37 - 2
B802 1671 Gear: Z17 37 - 1
B802 1681 Gear: Z18 37 - 15
B802 1715 Bracket: Stepper Motor 37 - 10
B802 1731 Stay: Motor: Scanning 37 - 11
B802 1736 Bracket: Protect: Drive 37 - 13
B802 1741 Timing Pulley: T31/T61 37 - 16
B802 1752 Timing Pulley: T31: Idler: Ass'y 33 - 2
B802 1752 Timing Pulley: T31: Idler: Ass'y 37 - 20
B802 1768 Pulley: Idler: DIA16: Ass'y 33 - 7
B802 1774 Timing Belt: 40S3M186 27 - 4
B802 1812 Stepper Motor: DC4.08V 2.4W 35 - 1
B802 1815 Bracket: Reverse: Drive 35 - 3
B802 1925 Bracket: Pickup: Drive 35 - 10
B802 1931 Timing Pulley: T33-Z17 35 - 17
B802 1941 Cam: Pickup 35 - 22
B802 1942 Stopper: Cam: Pickup 35 - 18
B802 1943 Feeler: Cam: Pickup 35 - 20
B802 1946 Gear: Drive: Arm: Pickup 35 - 21
B802 1951 Cam: Stopper Pawl 35 - 14
B802 1956 Gear: Stopper: Original Insert: Z25 35 - 15
B802 1985 Bracket: Sensor: Pickup 35 - 7
B802 2111 Stopper Pawl: Paper Feed 27 - 23
B802 2115 Lever: Stopper Pawl 27 - 1
B802 2223 Sheet: Guard 27 - 25
B802 2225 Drum Stay: Guide: Reverse 27 - 14
B802 2227 Guide: Reverse: Open And Close: Behind 27 - 21
B802 2228 Guide: Reverse: Open And Close 27 - 16
B802 2229 Guide: Reverse: Open And Close: Sub-Ass'y 27 - 26
B802 2231 Shaft: Reverse: Drive: Press Fit 27 - 20
B802 2252 Shaft: Roller: Reverse 27 - 13
B802 2253 Gear: Z20 27 - 15
B802 2255 Torque Limiter Mechanical Clutch: Separator 27 - 12
B802 2285 Roller: Reverse Exit: Driven 27 - 19
B802 2291 Stopper: Guide: Reverse 29 - 17
B802 2532 Spring Plate: Side Fence 21 - 15
B802 2536 Slider: Side Fence 21 - 14
B802 2551 Stay: Original Table: Contact Point 21 - 9
B802 2562 Plate: Contact Point 21 - 24
B802 2571 Spring Plate: 0.2T 21 - 17
B802 2581 Stopper: Original Table 21 - 10
B802 3145 Spring Plate 31 - 5
B802 3211 Roller: Pull Out 33 - 17
B802 3231 Roller: Scanning: Entrance 31 - 9
B802 3233 Timing Pulley: T33 31 - 14
B802 3235 Timing Pulley: T33-T24 31 - 11
B802 3251 Roller: Scanning: Exit 31 - 10
B802 3252 Timing Pulley: T33 31 - 12
B802 3311 Roller: Exit 33 - 21
Description
Page and
Index No.
Part No.
Description
Page and
Index No.
Part No.
D129/D130 11 Parts Index
B802 3312 Timing Pulley: T26 33 - 8
B802 3331 Roller: Reverse 33 - 3
B802 3332 Timing Pulley: T23 33 - 24
B802 3351 Guide: Paper Feed: Lower 33 - 15
B802 3382 Bracket: Guide: Paper Feed: Lower 31 - 2
B802 3413 Sheet: Roller: Scanning: Entrance 29 - 2
B802 3415 Guide: Scanning: Entrance: Lower 29 - 1
B802 3417 Sheet: Auxiliary: Scanning: Entrance 29 - 26
B802 3422 Stay: Scanning: Entrance: Lower 29 - 8
B802 3431 Bracket: Entrance: Pressure: Ass'y 29 - 6
B802 3435 Compression Spring: 3.3n 29 - 7
B802 3442 Sensor Barcket 29 - 27
B802 3471 Roller: Scanning: Driven 29 - 4
B802 3492 Shaft: Driven: Entrance 29 - 5
B802 3511 Guide Plate: Scanning 29 - 9
B802 3553 Guide: Scanning: Exit: Lower 29 - 11
B802 3561 Stay: Scanning: Exit: Lower 29 - 15
B802 3566 Plate: Exit: Pressure: Auxiliary 29 - 12
B802 3567 Spring Plate: Scanning: Exit: Driven: Upper 29 - 13
B802 3569 Spring Plate: Scanning: Exit: Driven: Lower 29 - 14
B802 3592 Shaft: Driven: Exit 29 - 25
B802 3611 Exchange Powl: Reverse 33 - 23
B802 3612 Cushion: Exchange Powl 33 - 22
B802 3615 Lever: Exchange Powl: Reverse 33 - 11
B802 3631 Link: Solenoid 33 - 10
B802 3653 Guide: Exit: Upper 33 - 20
B802 3711 Spring Plate 29 - 21
B802 3751 Stay: Reverse 33 - 14
B802 3755 Discharge Brush: Reverse 29 - 20
B802 3756 Discharge Brush: Exit 33 - 19
B802 3811 DC Solenoid: 24V 27 - 7
B802 3833 Shielding Plate: Sensor 31 - 7
B802 3834 Bracket: Registration Sensor 31 - 8
B802 3851 Bracket: Sensor: Scanning: Exit 29 - 19
B802 4154 Hook: Grip: Cover: Front 23 - 6
B802 4155 Hook: Grip: Cover: Inner Back 23 - 7
B802 4158 Shaft: Grip: Cover 23 - 8
B802 4162 Stopper: Cover 23 - 12
B802 4222 Guide: Upper 25 - 33
B802 4224 Spring Plate: Upper 25 - 32
B802 4225 Sheet: Driven Roller: Pull Out 25 - 41
B802 4227 Drum Stay: Upper: Inner Back 25 - 30
B802 4228 Drum Stay: Upper: Front 25 - 29
B802 4229 Sheet: Guide: Upper 25 - 31
B802 4252 Bracket: Paper Size Sensor 23 - 15
B802 4263 Feeler: Original Sensor 23 - 22
B802 4265 Ground Plate 25 - 40
B802 4282 Bracket: Driven Roller: Pull Out 25 - 37
B802 4292 Ground Plate: Driven Roller: Pull Out 25 - 38
B802 4295 Driven Roller: Pull Out 25 - 35
B802 4311 Paper Feed: Unit 25 - 1
B802 4322 Shaft: Drive 25 - 24
B802 4323 Holder 25 - 26
B802 4325 Lever: Pickup: Release 25 - 27
B802 4326 Collar: Shaft 25 - 17
B802 4328 Gear: Z20 25 - 28
B802 4333 Bracket: Paper Feed Belt 25 - 16
B802 4352 Shaft: Pickup 25 - 10
B802 4355 Bracket: Pickup 25 - 11
B802 4357 Gear: Z19 25 - 4
B802 4358 Timing Pulley: Gear: T19/Z22 25 - 5
B802 4359 Cushion: Pickup 25 - 12
B802 4361 Roller: Pickup 25 - 6
B802 4372 Timing Pulley: T21 25 - 8
B802 4611 Pressure Plate 41 - 3
B802 4632 Cushion: Pressure Plate: Left 41 - 4
B802 4712 Sound Proofing Material: Cover: Rear 21 - 7
B802 4712 Sound Proofing Material: Cover: Rear 23 - 5
B802 4712 Sound Proofing Material: Cover: Rear 41 - 5
B802 5710 Harness: Interface 39 - 1
Description
Page and
Index No.
Part No.
Description
Page and
Index No.
Part No.
D129/D130 12 Parts Index
B802 5730 Harness: Paper Feed 39 - 4
B802 5770 Harness: Motor: Reverse 39 - 6
B802 5780 Harness: Lift_Up 39 - 3
B802 5790 Harness: Solenoid 27 - 6
B802 5800 Harness: Solenoid 39 - 5
B802 5810 Harness: Registration Sensor 31 - 1
B802 5820 Harness: Motor: Pick Up 39 - 10
B802 5880 Harness: Sensor: Original Table 39 - 7
B802 5880 Harness: Sensor: Original Table 21 - 22
D009 1088 Grip Bracket - Right Rear 99 - 25
D009 1090 Connector Bracket - Fusing 93 - 8
D009 1093 Stopper Bracket - Grip 115 - 16
D009 1111 Drum Shaft 95 - 23
D009 1113 Drive Unit- Transfer On-Off 95 - 10
D009 1120 Rear Drive Bracket - Engine 95 - 6
D009 1121 Ground Plate - Drum 95 - 8
D009 1123 Drive Bracket - Transfer 95 - 11
D009 1125 Tightener Bracket - Transfer 95 - 31
D009 1127 Roller - Tightener 95 - 28
D009 1128 Spring - Tightener 95 - 29
D009 1135 Tightener Bracket - Development 95 - 30
D009 1139 Front Drive Bracket - Engine 95 - 24
D009 1141 Ground Plate - Drum 95 - 18
D009 1142 Pulley - 48T/90T 95 - 26
D009 1145 Drum Shaft Holder 95 - 19
D009 1147 Terminal - Development Roller 95 - 21
D009 1148 Collar - 6x18.8mm 95 - 13
D009 1151 Bracket - Registration Drive Unit 97 - 3
D009 1155 Joint: Development Sleeve: Ass'y 95 - 20
D009 1155 Joint: Development Sleeve: Ass'y 65 - 27
D009 1158 Holder - Paddle Roller Drive 93 - 33
D009 1161 Bracket - Paddle Roller Drive 93 - 28
D009 1164 Shaft - Paddle Rooler Drive 93 - 12
D009 1182 Joint Cover 93 - 1
D009 1183 Joint - Cleaning 93 - 2
D009 1187 Bracket - Fusing Cleaning Drive 93 - 17
D009 1193 Sensor Bracket 93 - 16
D009 1194 Motor Holder 93 - 24
D009 1195 Motor Bracket 93 - 25
D009 1351 Upper Fusing Duct 105 - 2
D009 1352 Lower Fusing Duct 105 - 3
D009 1354 Rear Exhaust Duct - Right 105 - 14
D009 1355 Rear Exhaust Duct - Left 105 - 11
D009 1358 Sponge: Duct: Exhaust: 1 105 - 5
D009 1359 Sponge: Duct: Exhaust: 2 105 - 15
D009 1366 Middle Exhaust Duct - Upper 103 - 1
D009 1367 Middle Exhaust Duct - Lower 103 - 2
D009 1368 Front Upper Duct 103 - 3
D009 1369 Front Lower Duct 103 - 4
D009 1371 Exit Duct - MM60 103 - 20
D009 1511 Stopper: Core 19 - 6
D009 1731 Bracket A - Left Scale 43 - 1
D009 1861 Cover - Polygon Motor 51 - 2
D009 2201 Seal: Drum: Front 67 - 12
D009 2202 Seal: Drum: Rear 67 - 14
D009 2203 Seal: Drum: Entrance 67 - 13
D009 2204 Seal: Blade: Upper: Case 67 - 15
D009 2205 Seal: Blade: Upper Rear: Small 67 - 11
D009 2240 Rear Flange - Lock 61 - 23
D009 2241 Front Flange - Lock 61 - 28
D009 2242 Spring Plate - Lock 61 - 29
D009 2243 Shaft - Lock 61 - 25
D009 2244 Stopper - Lock 61 - 27
D009 2249 Spring Plate - Lock Lever 15 - 15
D009 2254 Base - Lock Lever 15 - 14
D009 2279 Seal: Toner Supply: Entrance: Upper 67 - 7
D009 2301 Development Unit 65 - 4
D009 2303 Drum Hold Plate 67 - 38
D009 2317 Electrode Plate - Charge 67 - 4
D009 2318 Spring Plate - Electrode 67 - 25
Description
Page and
Index No.
Part No.
Description
Page and
Index No.
Part No.
D129/D130 13 Parts Index
D009 2331 Front Arm - Pressure/Charge 67 - 19
D009 2336 Rear Arm - Pressure/Charge 67 - 30
D009 2351 Cleaning Blade 67 - 24
D009 2367 Density Sensor 101 - 10
D009 2380 Front Side Plate - Coupling 67 - 6
D009 2389 Rear Side Plate - Coupling 65 - 2
D009 2389 Rear Side Plate - Coupling 67 - 2
D009 2412 Seal: Cover: PCU: Front 67 - 47
D009 2414 Spring Plate: Cover: PCU: Front 67 - 36
D009 2426 Seal - 24.5x68.5 67 - 34
D009 2433 Seal: Cover: Shutter 67 - 50
D009 2445 Handle - PCU 67 - 5
D009 2480 Screw - M3x10 65 - 32
D009 2511 Guide Plate: Feed Paper Again: Exit: Adhesion 87 - 11
D009 2527 Cover - Electrical Components 105 - 13
D009 2552 Guide Sheet - Manual Feed 59 - 17
D009 2554 Guide Sheet - Vertical Transport 87 - 1
D009 2555 Transport Roller - Duplex Exit 59 - 18
D009 2560 Driven Roller 87 - 14
D009 2563 Guide Plate - Vertical Transport 87 - 2
D009 2571 Holder - Vertical Transport 87 - 5
D009 2573 Pulley - Vertical Transport 87 - 8
D009 2574 Pulley - Idler 87 - 7
D009 2575 Shaft - Idler 87 - 10
D009 2576 Shaft - Vertical Transport 87 - 9
D009 2600 Registration Roller - Drive 61 - 14
D009 2602 Gear - 18Z 61 - 16
D009 2603 Gear - 28Z 61 - 9
D009 2606 Registration Roller - Driven 61 - 13
D009 2607 Bushing - Driven Registration 61 - 7
D009 2612 Case Supporter - Remove Paper Dust 61 - 11
D009 2614 Bracket - Registration Sensor 61 - 21
D009 2617 Upper Guide Plate - Registration 61 - 3
D009 2618 Cover - Paper Dust Removal 61 - 6
D009 2622 Front Positioning Guide 61 - 22
D009 2623 Rear Positioning Guide 61 - 18
D009 2624 Lower Guide Plate - Registration 61 - 12
D009 2626 Harness - Registration Sensor 61 - 19
D009 2633 Cap - Toner Supply 67 - 9
D009 2636 Tension Spring 61 - 8
D009 2638 Stay - Paper Dust Removal 61 - 5
D009 2650 Torsion Spring - Registration 61 - 4
D009 2757 Transport Roller: Drive: Ass'y 55 - 10
D009 3053 Upper Case Seal 65 - 22
D009 3066 Entrance Seal - Toner Supply 65 - 16
D009 3068 Front Bias Terminal 65 - 11
D009 3069 Rear Bias Terminal 65 - 12
D009 3070 Upper Cover - Development Unit 65 - 23
D009 3072 Seal - Density Sensor Harness 65 - 21
D009 3078 Joint- Paddle 65 - 15
D009 3084 Development Filter: Front 65 - 39
D009 3085 Development Filter: Rear 65 - 40
D009 3086 Development Filter 65 - 25
D009 3101 Seal: Development 65 - 36
D009 3102 Upper Cap - Development Case 65 - 34
D009 3104 Seal: Level 67 - 48
D009 3106 Sponge 65 - 37
D009 3107 Seal: Shielding Plate 61 - 31
D009 3108 Seal: Guide Plate 61 - 32
D009 3130 Spacer: Guide Plate: 0.05 65 - 28
D009 3152 Entrance Seal Ass'y 65 - 30
D009 3162 Ground Plate: Doctor Blade 65 - 26
D009 3178 Seal: Slide 65 - 38
D009 3203 Rear Seal - Upper Cover 65 - 33
D009 3204 Front Seal - Upper Cover 65 - 24
D009 3205 Seal: Side Plate: Front 65 - 17
D009 3206 Seal: Side Plate: Rear 65 - 20
D009 3265 Shaft - Slide 63 - 11
D009 3267 Seal: Toner Supply: Entrance: Front 67 - 8
D009 3803 Case - Transfer Unit 71 - 16
Description
Page and
Index No.
Part No.
Description
Page and
Index No.
Part No.
D129/D130 14 Parts Index
D009 3806 Transfer Unit: EXP: Ass'y 69 - *
D009 3831 Receptacle Housing - Transfer 95 - 33
D009 3832 Receptacle Terminal - Transfer 95 - 34
D009 3856 Guide: Standard: Transfer Unit: Rear 101 - 20
D009 3857 Guide: Standard: Transfer Unit: Front 101 - 21
D009 3858 Entrance Guide Plate - Transfer 61 - 30
D009 3860 Spring Cover - Transfer Unit 85 - 16
D009 3861 Terminal Holder - Transfer Unit 85 - 19
D009 3865 Holder - Density Sensor 101 - 9
D009 3866 Guide - Separation/Transport 101 - 14
D009 3872 Harness - Used Toner Sensor 71 - 15
D009 3875 Harness - Transfer Unit Bias 71 - 21
D009 3876 Earth Harness - Transfer Unit 71 - 19
D009 3883 Frame - Transfer Belt 69 - 16
D009 3884 Sensor Harness 85 - 20
D009 3890 Front Bushing - Bias Roller 69 - 8
D009 3893 Arm - Transfer Belt 69 - 17
D009 3894 Drive Roller - Transfer Belt 69 - 10
D009 3899 Set Lever - Transfer Unit 71 - 12
D009 3906 Seal - Rear Transfer Exit 71 - 25
D009 3907 Seal - Transfer Belt Exit 71 - 22
D009 3916 Front Lever - Transfer Belt 71 - 8
D009 3917 Rear Lever - Transfer Belt 71 - 10
D009 3918 Release Lever 71 - 13
D009 3919 Release Lever Shaft 71 - 4
D009 3920 Front Release Plate 71 - 6
D009 3921 Rear Release Plate 71 - 7
D009 3934 Bias Terminal - Transfer Belt 69 - 6
D009 3935 Earth Terminal - Transfer Belt 69 - 4
D009 3937 Terminal - Transfer Belt 69 - 5
D009 3943 Bracket: Cleaning Blade: Transfer Belt 71 - 2
D009 3948 Scraper - Drive Roller 69 - 12
D009 3952 Rear Seal - Cleaning Blade 71 - 24
D009 3953 Front Seal - Cleaning Blade 71 - 23
D009 3954 Sheet: Preventfence: Transfer Belt 69 - 11
D009 3992 Receptacle Housing - Transfer Unit 71 - 17
D009 4066 Fusing Cover - Duplex Guide 73 - 18
D009 4069 Entrance Guide Plate - Fusing 73 - 20
D009 4095 Harness: Set Sensor: TWN: C1P1 75 - 27
D009 4097 Harness - Set Sensor NA 75 - 27
D009 4098 Set Sensor Harness - 230V 75 - 27
D009 4099 Harness - Fusing Unit 75 - 26
D009 4123 Bracket: Side Plate: Auxiliary 75 - 35
D009 4124 Connector Bracket 1 75 - 33
D009 4125 Connector Bracket 2 75 - 28
D009 4126 Front Heater Bracket 75 - 1
D009 4127 Rear Heater Bracket 75 - 36
D009 4131 Terminal - AC/DC 75 - 30
D009 4132 Terminal Cover 75 - 29
D009 4135 Terminal - AC 75 - 14
D009 4141 Electrode Plate 1 75 - 32
D009 4142 Electrode Plate 2 75 - 31
D009 4143 Electrode Plate 3 75 - 13
D009 4152 Stay: Fusing Sub-unit: Fusing Exit: Peen 75 - 15
D009 4156 Retaining Rings-C - Hot Roller 75 - 2
D009 4163 Exit Guide - Hot Roller Unit 75 - 44
D009 4177 Thermistor 75 - 25
D009 4178 Thermistor Bracket 75 - 24
D009 4193 Housing - Thermostat 75 - 20
D009 4195 Spacer - Thermostat 75 - 22
D009 4196 Harness 1 - Thermostat 75 - 12
D009 4197 Harness 2 - Thermostat 75 - 19
D009 4225 Stay - Pressure Roller Unit 73 - 14
D009 4238 Bracket - Driven Roller 73 - 13
D009 4243 Exit Guide - Pressure Roller Unit 73 - 2
D009 4244 Knob 73 - 1
D009 4248 Knob Bracket 73 - 3
D009 4271 Front Lever - Pressure Release 75 - 6
D009 4274 Pressure Lock Lever 75 - 9
D009 4275 Front Pressure Lever 75 - 11
Description
Page and
Index No.
Part No.
Description
Page and
Index No.
Part No.
D129/D130 15 Parts Index
D009 4291 Rear Lever - Pressure Release 75 - 37
D009 4295 Front Pressure Lever 75 - 38
D009 4350 Front Lock Lever 101 - 15
D009 4351 Rear Lock Lever 101 - 8
D009 4355 Roller Clutch 77 - 8
D009 4356 Washer: DIA3.5 101 - 22
D009 4369 Bracket - Cleaning Unit Drive 77 - 3
D009 4377 Worm Gear Bracket 77 - 14
D009 4378 Worm Gear Shaft 77 - 12
D009 4388 Roller Clutch 77 - 21
D009 4393 Feeler - Web 77 - 10
D009 4406 Separation Plate - Paper Exit 91 - 11
D009 4407 Feeler - Overflow 89 - 17
D009 4408 Bracket - Fusing Exit Sensor 89 - 12
D009 4409 Sheet - Gate 81 - 7
D009 4412 Lower Guide Plate - Exit 91 - 12
D009 4413 Lower Stay - Exit 91 - 19
D009 4418 Stepped Tapping Screw - M3 89 - 11
D009 4419 Spring - Lower Guide Plate 91 - 17
D009 4420 Paper Exit Unit: Main: Ass'y 89 - *
D009 4422 Driven Roller Shaft 91 - 15
D009 4428 Upper Stay 91 - 2
D009 4430 DC Solenoid - Exit 89 - 1
D009 4431 Rear Side Plate 91 - 30
D009 4434 Front Side Plate 91 - 10
D009 4436 Entrance Gate 89 - 7
D009 4438 Lever - Entrance Gate 89 - 3
D009 4439 Bushing - 4mm 89 - 4
D009 4441 Exit Guide Plate - Upper Right 89 - 10
D009 4442 Exit Guide Plate - Upper 91 - 7
D009 4443 Discharge Brush - Exit 91 - 5
D009 4444 Exit Roller 91 - 1
D009 4445 Transport Roller 89 - 9
D009 4445 Transport Roller 91 - 3
D009 4447 Exit Sensor Bracket 89 - 15
D009 4448 Tension Spring - Gate Pawl 89 - 25
D009 4455 Cushion - DC Solenoid 89 - 5
D009 4457 Tension Spring Release 89 - 2
D009 4461 Gear - 17Z 89 - 20
D009 4462 Gear - 22Z 91 - 33
D009 4463 Gear/Pulley - 22Z/22T 91 - 34
D009 4464 Gear - 22Z 89 - 14
D009 4465 Timing Pulley - 22T 91 - 32
D009 4466 Timing Belt - 30S2M172 91 - 31
D009 4469 Gear - 17Z 89 - 21
D009 4471 Stepper Motor Bracket 89 - 22
D009 4476 Spring - Entrance Pressure 91 - 23
D009 4477 Spring - Exit Pressure 91 - 20
D009 4478 Lower Supporting Plate 91 - 29
D009 4482 Right Guide Plate - Open/Close 81 - 11
D009 4483 Upper Gate 81 - 1
D009 4485 Bushing - Gate 81 - 4
D009 4486 Lever - Upper Gate 81 - 6
D009 4488 Right Spring - Guide Plate 81 - 10
D009 4489 Driven Roller 81 - 3
D009 4490 Exit Motor Cover 89 - 23
D009 4491 Entrance Arm 91 - 22
D009 4492 Exit Arm 91 - 25
D009 4493 Bracket - Contact Point 91 - 27
D009 4496 Spring Plate - Exit Roller 91 - 28
D009 4498 Bushing - Lower Guide Plate 91 - 18
D009 4499 Harness - Paper Exit Unit 89 - 16
D009 4503 Guide Plate - Left Upper 81 - 14
D009 4504 Upper Guide Plate - Gate 83 - 2
D009 4511 Spacer: DIA8.0: 1.5mm 115 - 15
D009 4512 Link: Stopper 115 - 11
D009 4513 Compression Spring: Earth: Duplex Unit 115 - 13
D009 4521 Harness Bracket 83 - 24
D009 4522 Tension Spring - Duplex Gate 81 - 13
D009 4532 Tension Spring - Stopper Hook 79 - 5
Description
Page and
Index No.
Part No.
Description
Page and
Index No.
Part No.
D129/D130 16 Parts Index
D009 4535 Harness Guide 87 - 16
D009 4537 Front Release Arm 79 - 6
D009 4538 Rear Release Arm 79 - 7
D009 4541 Front Torsion Spring 85 - 21
D009 4543 Tension Spring - Duplex Gate 81 - 5
D009 4545 Holder Shaft - Transfer Unit 85 - 23
D009 4547 Stepper Motor - DC 5.79W 89 - 24
D009 4551 Guide Plate - Holder 85 - 18
D009 4577 Duplex Gate 81 - 12
D009 4587 Tension Spring - Release Bracket 87 - 27
D009 4588 Stopper Bracket - Spring 87 - 24
D009 4589 Guide - Set Shaft 87 - 23
D009 4590 Stopper Hook - Duplex Unit 79 - 4
D009 4593 Stepped Screw - M3 87 - 26
D009 4594 Front Guide - Duplex Unit Set 115 - 9
D009 4595 Rear Guide - Duplex Unit Set 115 - 8
D009 4597 Bracket - Wire Pulley Shaft 87 - 19
D009 4598 Spring - Set Shaft 87 - 22
D009 4599 Shaft - Duplex Unit 87 - 21
D009 4652 Motor Harness 83 - 26
D009 4661 Reverse Roller - Feed 83 - 10
D009 4662 Transport Roller 1 85 - 1
D009 4663 Transport Roller 2 85 - 2
D009 4664 Driven Roller 73 - 12
D009 4664 Driven Roller 85 - 15
D009 4664 Driven Roller 83 - 6
D009 4664 Driven Roller 79 - 8
D009 5325 SYNC Detector Board 51 - 7
D009 5420 Harness - High Voltage Cable 95 - 1
D009 5425 Harness - Safety Switch 109 - 5
D009 5425 Harness - Safety Switch 103 - 21
D009 5440 Harness - Development Drawer 97 - 14
D009 5470 Harness - BICU-IDB 107 - 1
D009 5475 Interface Harness - BICU-LDB 115 - 2
D009 5480 Harness - IOB Upper 107 - 11
D009 5481 Interface Harness - IOB-Switch 101 - 6
D009 5490 Harness - IOB Lower Behind 107 - 15
D009 5495 Harness - IOB-Lift Motor 107 - 10
D009 5500 Interface Harness - Web Sensor 93 - 15
D009 5505 Harness - Toner Supply Motor 101 - 1
D009 5510 Harness - Quenching Lamp 101 - 18
D009 5520 Harness - IOB-Motor 107 - 12
D009 5570 Harness - Imaging Unit 51 - 6
D009 5571 Harness: Laser Diode Control 51 - 9
D009 5602 Harness: AC: Inlet 109 - 6
D009 5602 Harness: AC: Inlet 109 - 9
D009 5610 AC Harness - Heater 109 - 7
D009 5611 Harness: AC: Heater 63 - 16
D009 5615 AC Harness - Heater 105 - 9
D009 5620 AC Harness - Fusing 93 - 9
D009 5840 Base - Left Safety Switch 103 - 18
D009 5851 Bracket - IO Board 97 - 9
D009 5851 Bracket - IO Board 107 - 16
D009 5852 Connector Bracket 105 - 4
D009 5854 Bracket - Power Pack 95 - 3
D009 5855 Bracket - Inlet 109 - 10
D009 5856 Bracket - Heater Connector 105 - 10
D009 5857 Shaft - Safety Switch 103 - 12
D009 5858 Left/Right Lever - Safety Switch 103 - 15
D009 5863 Left Lever - Safety Switch 103 - 16
D009 5864 Middle Lever - Safety Switch 103 - 13
D009 5865 Cam - Safety Switch 103 - 14
D009 5866 Base - Right Safety Switch 103 - 7
D009 5867 Guide Plate - Safety Switch 103 - 9
D009 5868 Right Lever - Safety Switch 103 - 11
D009 5869 Right Lower Lever - Safety Switch 103 - 8
D009 5875 Bracket - BICU 107 - 17
D009 5876 Small Bracket - BICU 107 - 18
D009 5876 Small Bracket - BICU 105 - 6
D009 5877 Guide - Mother Board 107 - 4
Description
Page and
Index No.
Part No.
Description
Page and
Index No.
Part No.
D129/D130 17 Parts Index
D009 5879 Bracket - Mother Board 111 - 1
D009 5881 Guide - Fax Control Unit 113 - 1
D009 5886 Ground Plate- C/T Box 111 - 13
D009 5891 Left Rail - Fax Control Unit 113 - 6
D009 5892 Heater Stopper 63 - 13
D009 5895 Tension Spring: Safety Switch: Left 103 - 17
D009 5896 Spring - Right Safety Switch 103 - 10
D009 5898 Harness Guide - Safety Switch 103 - 6
D009 5899 Right Rail - Small 113 - 5
D009 9510 OPC Drum 67 - 41
D011 1251 Decal: Main Switch: O-I 117 - 4
D011 1251 Decal: Main Switch: O-I 13 - 9
D011 1252 Decal: Main Switch: On-standby 63 - 9
D011 1252 Decal: Main Switch: On-standby 115 - 18
D011 1252 Decal: Main Switch: On-Standby 13 - 9
D011 1252 Decal: Main Switch: On-standby 117 - 5
D011 1253 Decal: Main Switch: On-standby: EU 117 - 6
D011 1253 Decal: Main Switch: On-Standby: EU 47 - 13
D011 1253 Decal: Main Switch: On-standby: EU 63 - 9
D011 5841 Heater: PCD: NA: Sub-ass'y 63 - 15
D011 5842 Heater: PCD: EU: Sub-ass'y 63 - 15
D029 1736 Mirror: No.2: Concave: Ass'y 45 - 9
D029 1737 Mirror: No.2: Convax: Ass'y 45 - 10
D029 1745 Pulley: DriveE Were: Front 49 - 5
D029 1747 Drive Were: Carriage: DIA1.0 45 - 19
D029 1748 Pulley: Drive Were: Rear: Ass'y 49 - 8
D029 1749 Pulley: Protection 49 - 4
D029 1774 Seal: Guard: Exposure Glass:
Document Feeder 43 - 22
D029 1789 Inner Cover: Ground Plate: Peen 47 - 7
D029 1830 Gasket: 13x17x35: R 47 - 4
D029 1831 Gasket: 13x17x10: R 47 - 6
D029 1832 Gasket: 9x3x10 47 - 5
D029 2611 Ground Plate: Rear: Manual Feed 59 - 29
D029 2612 Ground Plate: Front: Manual Feed 59 - 25
D029 2664 Feeler: Paper Size Sensor: Manual Feed 57 - 15
D029 2677 Transport Belt: Driven: Vertical Transport 87 - 6
D029 2709 Guide Plate: Separator: Ass'y 59 - 26
D029 2710 Cover: Harness: Manual Feed Table 57 - 18
D029 2769 Harness: Paper Size Sensor: Manual Feed 57 - 9
D029 2773 Harness - Paper Feed Unit 55 - 3
D029 2863 Release Shaft 53 - 12
D029 5212 Harness: SIO: Sensor 43 - 15
D029 5213 Harness: SIO: ARDF 43 - 18
D029 5214 Harness: SIO: Lamp Regulator 49 - 18
D029 5215 Harness: SIO: STM 49 - 12
D089 1741 Bracket: Tension: Drive Wire 45 - 20
D089 2761 Arm: Pickup 55 - 22
D089 2767 Feeler: Paper End 55 - 1
D089 2778 Bracket: Sensor: Feed 55 - 4
D089 2781 Bracket: Sensor 55 - 6
D089 2829 Guide: Feed 55 - 17
D089 2940 Tray Bottom Plate: Ass'y 53 - 4
D089 5217 Harness: SIO: Scanner Unit 47 - 10
D089 5217 Harness: SIO: Scanner Unit 49 - 16
D120 1336 Cap: Cover 13 - 24
D120 1551 Sheet: Logo 13 - 12
D120 1700 Carriage: No.1: Sub-ass'y 45 - 25
D120 1705 Reflector: Scanner 45 - 24
D120 1710 Guide: FFC: Carriage: No.1 45 - 23
D120 1711 Guide: FFC: Carriage: No.2 45 - 22
D120 2832 End Fence: Ass'y 53 - 17
D120 2864 Lever: Stopper: Positioning 53 - 27
D120 2872 Decal: Paper Tray: No.1 53 - 9
D120 2872 Decal: Paper Tray: No.1 117 - 7
D120 2873 Decal: Paper Tray: No.2 53 - 9
D120 2873 Decal: Paper Tray: No.2 117 - 8
D120 2874 Decal: Size Indication: Paper Tray 13 - 27
D120 2874 Decal: Size Indication: Paper Tray 117 - 9
D120 2875 Decal: Side Fence: Rear 53 - 30
Description
Page and
Index No.
Part No.
Description
Page and
Index No.
Part No.
D129/D130 18 Parts Index
D120 2924 Stopper Lever - Front 53 - 19
D120 8867 Decal: Main Switch: On-standby: EU 115 - 18
D120 8867 Decal: Main Switch: On-Standby: EU 13 - 9
D120 8868 Decal: Main Switch: On-standby: DOM: NA 117 - 10
D120 8868 Decal: Main Switch: On-Standby: DOM: NA 13 - 9
D144 1261 Cover: Upper 15 - 5
D144 1266 Cover: Paper Exit Sub-unit: Upper 15 - 9
D144 1274 Cover: Inner Back: Middle: EXP 15 - 7
D144 1334 Cover: Scanner: Left: EXP 15 - 1
D144 1336 Cover: Scanner: Right: EXP 15 - 11
D144 1338 Cover: Scanner: Rear: EXP 15 - 12
D144 1396 Holder: Exposure Glass: Ig: Ass'y 13 - 29
D144 5885 Grip: Control Board: IG 113 - 11
D144 6849 Decal: Main Switch: On-standby: CHN 117 - 21
D144 6849 Decal: Main Switch: On-Standby: CHN 13 - 9
D540 1629 Bracket: Fan: Fix: 0.8mm 39 - 27
D540 1721 Stepper Motor: Scanning: DC 72W 37 - 14
D540 5763 Harness: Motor: Scanning: Jst 39 - 9
D540 5851 Harness: Connecting: DC Fan Motor 39 - 25
D540 6121 Full Dug Point Screw: Fix: Hinge 21 - 3
D578 6021 Decal: Size: Original 23 - 4
D578 6021 Decal: Size: Original 117 - 22
D578 6031 Decal: Original Table 117 - 23
D578 6031 Decal - Original Table 21 - 12
D580 2523 Decal: Paper Set Direction: Tray: No.2 117 - 24
D580 2523 Decal: Paper Set Direction: Tray: No.2 53 - 3
D580 2870 Grip: Paper Tray 53 - 8
D580 2900 Paper Tray: No.2: Ass'y 53 - *
D580 2946 Cover: Paper Tray: No.2 53 - 7
D630 1252 Feeler: Paper Size Sensor: Pressure Plate 39 - 23
D630 1261 Grip: Lower 41 - 6
D630 1777 Knob: Misfeed Removal: T27 27 - 2
D630 2512 Original Table 21 - 25
D630 2522 Original Table: Face Front 21 - 13
D630 2526 Side Fence 21 - 11
D630 2541 Guide: Original Insert 21 - 21
D630 3413 Sheet: Scanning: Entrance 29 - 3
D630 4121 Cover: Paper Feed 23 - 1
D630 4141 Cover: Upper: Paper Feed 23 - 24
D630 4142 Cover: Left: Paper Feed 23 - 25
D630 4152 Grip: Cover: Paper Feed 23 - 2
D630 4221 Bracket: Cover: Paper Feed: Middle 23 - 26
D630 4231 Bracket: Cover: Paper Feed: Inner Back: Ass'y 23 - 11
D630 4241 Bracket: Cover: Paper Feed: Front: Ass'y 23 - 10
D630 4411 Cover: Front 21 - 4
D630 4511 Cover: Rear 21 - 8
D630 4621 Drum Stay: Pressure Plate 41 - 12
D630 5500 PCB: Main Control Board:
Document Feeder: Ass'y 39 - 11
D630 5870 Harness: Sensor: Paper Feed 39 - 8
D630 5870 Harness: Sensor: Paper Feed 23 - 16
D630 6011 Decal: Side Fence 21 - 16
D630 6011 Decal: Side Fence 117 - 25
D630 6013 Decal: Display: Misfeed Removal: P1 23 - 3
D630 6013 Decal: Display: Misfeed Removal: P1 21 - 5
D630 6013 Decal: Display: Misfeed Removal: P1 117 - 26
D630 6014 Decal: Display: Misfeed Removal: P2 117 - 27
D630 6014 Decal: Display: Misfeed Removal: P2 27 - 17
D630 6015 Decal: Display: Misfeed Removal: P3 117 - 28
D630 6015 Decal: Display: Misfeed Removal: P3 33 - 25
D630 6022 Decal: Caution: Original: Many Languages 117 - 29
G020 1160 Snap Ring 33 - 12
G021 9350 Loop Back Connector 119 - 10
G024 1314 Pulley Pin 69 - 13
G029 1980 Decal - LD 117 - 30
G029 1980 Decal - LD 51 - 3
G052 4892 Discharge Brush: Exit: Small 31 - 4
G052 4892 Discharge Brush: Exit: Small 25 - 39
G060 2652 Bushing - M4 87 - 3
G060 2932 Pick-up Arm - Manual Feed 59 - 13
Description
Page and
Index No.
Part No.
Description
Page and
Index No.
Part No.
D129/D130 19 Parts Index
G065 2308 Electrode Plate: Charge: Rear 67 - 31
G065 2354 Electrode Plate: Charge: Front 67 - 17
G065 2681 Snap Ring - M6 67 - 18
G065 2681 Snap Ring - M6 65 - 3
G065 2767 Lever - Feed 55 - 24
G065 2774 Pressure Lever 55 - 32
G065 2775 Link Lever 55 - 38
G065 2776 Release Lever 55 - 37
G102 3837 Stopper: Blade 71 - 11
G179 1032 Shaft: Hinge 13 - 13
G179 5854 Bracket: Power Supply Cord: Stay 13 - 11
G404 2810 Spring Plate - 2nd Mirror 45 - 8
G570 1133 Timing Pulley 73 49 - 7
G570 1160 Spacer Bushing 49 - 21
G570 1225 Sensor Shielding Plate 35 - 6
G570 2730 Slider - Scanner 45 - 12
G790 2329 Brush Roller: Cleaner: Charge:
Amabuki: Ass'y 67 - 46
H053 2208 Bushing - M4 89 - 8
H053 2208 Bushing - M4 91 - 4
H511 5007 Stamp 13 - 30
H511 5007 Stamp 21 - 26
J503 3116 Timing Belt: 40S2M128 35 - 5
M026 1778 Guide: FFC 45 - 13
M026 1815 Clamp: Mirror: No.1 45 - 5
M052 1553 Cushion: Core 19 - 28
M052 5391 PCB: Memory: 512MB 113 - 7
Description
Page and
Index No.
Part No.
Description
Page and
Index No.
Part No.
D129/D130 20 Parts Index
AA00 1564 Plate: Logotype: RIC 13 - 12
AA00 1565 Plate: Logotype: LAN 13 - 12
AA00 1567 Plate: Logotype: GES 13 - 12
AA04 3320 Timing Belt: 40S1.5M150 37 - 9
AA04 3321 Timing Belt: 40S1.5M378 33 - 5
AA04 3322 Timing Belt: 40S1.5M157.5 37 - 17
AA04 3323 Timing Belt: 40S2M120 35 - 9
AA04 3328 Timing Belt: 40S2M130 25 - 9
AA04 3585 Timing Belt: 40S3M162 99 - 7
AA04 3601 Timing Belt - B40S2M118 97 - 5
AA04 3656 Timing Belt - 60S3M177 93 - 31
AA04 3658 Timing Belt - 60S2M300 95 - 27
AA06 0691 Tension Spring 55 - 23
AA06 0693 Tension Spring 55 - 31
AA06 0842 Tension Spring 37 - 12
AA06 0842 Tension Spring 33 - 4
AA06 0842 Tension Spring 39 - 20
AA06 0843 Tension Spring 27 - 3
AA06 0872 Spring 59 - 43
AA06 0948 Tension Spring: Stripper Pawls: 50mN 75 - 16
AA06 0979 Tension Spring: Tension: 14720MN 49 - 10
AA06 0980 Tension Spring: Tension: 11300mN 45 - 18
AA06 1003 Tension Spring: Side Fence: Rear 53 - 14
AA06 1014 Tension Spring: Grip 53 - 11
AA06 1020 Spring: Release: Transfer Belt 69 - 7
AA06 1022 Spring - Driven Roller 73 - 10
AA06 1023 Compression Spring - Knob 73 - 4
AA06 1024 Tension Spring - Pressure 75 - 10
AA06 1099 Compression Spring: Cleaning Roller 73 - 15
AA06 1100 Spring: Pressure: Cleaning Blade 71 - 3
AA06 2259 Spring - Release 55 - 39
AA06 2260 Tension Spring 33 - 9
AA06 2262 Tension Spring 23 - 9
AA06 2300 Tension Spring 67 - 27
AA06 2310 Pressure Spring 67 - 42
AA06 2348 Pressure Spring 67 - 26
AA06 3303 Pressure Spring 85 - 24
AA06 3432 Spring - Intermediate Drawer 95 - 22
AA06 3435 Compression Spring: Paper Feed: Joint 25 - 20
AA06 3441 Compression Spring 25 - 36
AA06 3445 Spring - Laser Diode Unit 51 - 10
AA06 3447 Spring - Transfer Belt 71 - 9
AA06 3448 Pressure Spring - Transfer Unit 85 - 17
AA06 3499 Pressure Spring 59 - 42
AA06 3566 Pressure Spring 63 - 8
AA06 3568 Pressure Spring 59 - 12
AA06 3648 Pressure Spring 67 - 20
AA06 3886 Spring 77 - 7
AA06 3919 Spring: Pressure 27 - 9
AA06 6380 Spring 71 - 18
AA06 6381 Spring 71 - 20
AA08 0254 Bushing - M4 79 - 9
AA08 0254 Bushing - M4 85 - 25
AA08 0265 Bushing: 6x8x5 27 - 18
AA08 0281 Bushing - 12x18x5.5 65 - 35
AA08 0288 Bushing: DIA6 25 - 34
AA08 0346 Bushing: Flange Type: DIA6 99 - 13
AA08 0347 Bushing - 8mm 93 - 29
AA08 0351 Bushing - Cleaning Roller 73 - 16
AA08 0352 Bushing - Driven Roller 73 - 11
AA08 0353 Bushing - 4mm 77 - 23
AA08 0354 Bushing - 6mm 77 - 19
AA08 0355 Bushing - 7mm 77 - 13
AA08 0356 Bushing - 6mm 77 - 17
AA08 2054 Bushing - M4 69 - 3
AA08 2074 Bushing - M8 61 - 10
AA08 2101 Bushing - 6x10x6 33 - 13
AA08 2101 Bushing - 6x10x6 25 - 3
AA08 2101 Bushing - 6x10x6 35 - 12
AA08 2101 Bushing - 6x10x6 27 - 10
Description
Page and
Index No.
Part No.
Description
Page and
Index No.
Part No.
D129/D130 21 Parts Index
AA08 2101 Bushing - 6x10x6 59 - 7
AA08 2101 Bushing - 6x10x6 91 - 6
AA08 2101 Bushing - 6x10x6 85 - 10
AA08 2102 Bushing - 6x10x6 59 - 23
AA08 2104 Bushing - 8x12x7 83 - 3
AA08 2104 Bushing - 8x12x7 25 - 18
AA08 2143 Bushing - 6x10x6 55 - 11
AA08 2144 Bushing - 8x12x7 49 - 20
AA08 2150 Plain Shaft Bearing: M6 55 - 20
AA08 2158 Plain Shaft Bearing: Mm8 61 - 24
AA08 3014 One-way Clutch 59 - 30
AA08 3018 Roller Clutch - 6x14x10 59 - 28
AA08 3018 Roller Clutch - 6x14x10 59 - 50
AA10 0014 Retaining Ring C - Separate 59 - 5
AA10 0014 Retaining Ring C - Separate 55 - 16
AA10 0014 Retaining Ring C - Separate 85 - 22
AA10 1021 Rubber Bushing - 6 45HS 35 - 2
AA10 1021 Rubber Bushing - 6 45HS 99 - 23
AA10 1021 Rubber Bushing - 6 45HS 83 - 18
AA13 2013 Spacer 25 - 19
AA13 2208 Spacer - M6 93 - 3
AA14 0777 Shaft: Feed 59 - 8
AA14 0778 Shaft: Separator: Drive 59 - 38
AA14 3183 Stepped Screw 87 - 25
AA14 3404 Stepped Screw - M4 115 - 10
AA14 3520 Shoulder Screw - M3 73 - 21
AA14 3520 Shoulder Screw - M3 73 - 19
AA14 3520 Shoulder Screw - M3 43 - 12
AA14 3520 Shoulder Screw - M3 75 - 45
AA14 3520 Shoulder Screw - M3 41 - 11
AA14 3542 Screw: M3: DIA4X5.6 21 - 27
AA14 3549 Screw: DIA10: M3x8 67 - 39
AA14 3569 Screw 29 - 10
AA14 3579 Screw - M3 101 - 11
AA14 3579 Screw - M3 97 - 15
AA14 3744 Stepped Screw 93 - 10
AA14 3788 Pin: Guide Plate: Paper Feed 23 - 14
AA14 3789 Shaft: Cleaner 23 - 13
AA14 3790 Screw: Contact Point 37 - 19
AA14 3790 Screw: Contact Point 33 - 1
AA14 3790 Screw: Contact Point 27 - 24
AA14 3790 Screw: Contact Point 41 - 7
AA14 3792 Screw: Drawer 75 - 8
AA14 3802 Screw: 6x1.7 39 - 17
AA14 3807 Screw: A 83 - 1
AA14 3812 Screw - Scale 77 - 1
AA14 3823 Tapping Screw 27 - 5
AA14 3848 Stepped Screw - M3 111 - 9
AA14 5294 Parallel Pin - 2x12mm 95 - 17
AA15 0423 Seal - Cleaning Pressure 71 - 27
AA15 3062 Sponge - M46 65 - 29
AA15 3095 Shield - Development - Center 65 - 18
AA16 1163 Cushion 115 - 5
AA16 1167 Rubber Cushion 111 - 10
AA16 1180 Cushion: DC Stepper Motor 99 - 15
AB01 0140 Gear - 90Z 95 - 25
AB01 0141 Gear - 46Z 95 - 15
AB01 0156 Gear: Separate: Drive 55 - 33
AB01 0157 Gear: Separate: Drive 55 - 30
AB01 0171 Gear - 40Z 75 - 39
AB01 0172 Gear - 24Z/25Z 75 - 34
AB01 0173 Gear - 60Z 77 - 20
AB01 0174 Gear - 20Z/50Z 77 - 5
AB01 0175 Gear - 24Z 77 - 6
AB01 0176 Gear - 24Z 77 - 22
AB01 0177 Gear - 32Z 77 - 16
AB01 0178 Worm Gear 77 - 15
AB01 0379 Gear: Drum 95 - 9
AB01 1218 Gear - Roller Clutch 55 - 19
AB01 1223 Idler Gear - 25Z 59 - 45
Description
Page and
Index No.
Part No.
Description
Page and
Index No.
Part No.
D129/D130 22 Parts Index
AB01 1252 Gear - 20Z 55 - 15
AB01 1258 Gear - 38Z 99 - 6
AB01 1259 Gear - 32Z 99 - 9
AB01 1282 Gear - 31Z 69 - 14
AB01 1377 Gear - 14Z 67 - 52
AB01 1379 Gear - 19Z 67 - 29
AB01 1380 Cam - Cleaning Blade 67 - 28
AB01 1387 Gear - 23Z 59 - 10
AB01 1416 Gear - 20Z 59 - 36
AB01 1523 Gear - 24Z 93 - 18
AB01 1524 Gear - 36Z 93 - 19
AB01 1525 Gear - 32Z 93 - 21
AB01 1526 Gear - 24Z 93 - 20
AB01 1527 Gear - 14Z/32Z 93 - 22
AB01 1528 Gear - 14Z/32Z 93 - 23
AB01 4060 Gear - 21Z 65 - 9
AB01 4061 Gear - 13Z 65 - 7
AB01 4062 Gear - 17Z/25Z 65 - 10
AB01 4161 Reverse Roller Gear 83 - 11
AB01 4280 Gear - 26Z/90Z 93 - 6
AB01 4281 Gear - 40Z 93 - 7
AB01 4282 Gear - 26Z/30Z 93 - 11
AB01 4283 Gear - 24Z 93 - 5
AB01 4284 Gear - 24Z 93 - 4
AB01 7493 Gear Pulley 99 - 18
AB01 7699 Gear - 33Z/44Z 99 - 5
AB01 7743 Gear - 20Z 93 - 32
AB01 7752 Gear - 27TZ/42Z 95 - 12
AB03 0744 Timing Pulley - 27Z/40T 97 - 4
AB03 0781 Timing Pulley - 28Z/30T 99 - 8
AB03 0815 Timing Pulley - 24T 93 - 30
AB03 0820 Pulley - 31T 95 - 16
AB03 0821 Pulley - 31T 95 - 14
AC01 5025 Shield Glass 51 - 4
AC03 0169 Mirror: No.1 45 - 6
AD02 5021 Pick-Off Pawl 67 - 44
AD02 7012 Roller: Charge: Apply 67 - 37
AD04 1135 Cleaning Blade - Transfer Belt 71 - 1
AE01 1132 Hot Roller 75 - 40
AE02 0199 Pressure Roller 75 - 43
AE03 0098 Ball Bearing - 8x22x7 75 - 4
AE03 0099 Ball Bearing - 30x42x7 75 - 3
AE04 0099 Holder Roller 77 - 9
AE04 2098 Cleaning Roller: Ass'y 73 - 17
AE04 4099 Stripper Pawls 75 - 17
AE04 5099 Cleaning Web 77 - 18
AF01 3016 Bottom Plate Pad 53 - 5
AF01 3016 Bottom Plate Pad 59 - 27
AF03 0049 Pick-up Roller 59 - 11
AF03 0090 Paper Feed Roller: Pickup 55 - 14
AF03 1046 Feed Roller - Manual Feed 59 - 6
AF03 1090 Paper Feed Roller: Feed 55 - 18
AF03 2046 Separation Roller - Manual Feed 59 - 39
AF03 2090 Paper Feed Roller: Separate 55 - 27
AF04 0571 Guide Roller 91 - 13
AF04 0575 Driven Roller 91 - 8
AF04 0599 Pressure Roller: 15 91 - 26
AF04 0601 Pressure Roller: Entrance 91 - 24
AG07 0513 Magnet Catch 21 - 1
AG07 0514 Magnet Catch 79 - 11
AG07 1012 Magnet Catch: Ass'y 13 - 4
AW01 0091 Photo Reflection Sensor 23 - 20
AW01 0107 Paper Feed Sensor 83 - 5
AW01 0107 Paper Feed Sensor 89 - 6
AW01 0107 Paper Feed Sensor 59 - 2
AW01 0107 Paper Feed Sensor 61 - 20
AW01 0122 Paper Feed Sensor 55 - 7
AW01 0127 Paper Feed Sensor 89 - 13
AW01 0128 Paper Feed Sensor 55 - 5
AW01 0129 Photo Refiection Sensor 21 - 23
Description
Page and
Index No.
Part No.
Description
Page and
Index No.
Part No.
D129/D130 23 Parts Index
AW01 0133 Original Sensor - 66mm 47 - 2
AW01 0199 Entrance Sensor 101 - 19
AW02 0145 Photointerruptor: Flat 43 - 14
AW02 0145 Photointerruptor: Flat 89 - 19
AW02 0145 Photointerruptor: Flat 83 - 9
AW02 0145 Photointerruptor: Flat 55 - 2
AW02 0146 Photointerruptor: Flat: PICH2mm: M4 43 - 16
AW02 0150 Photointerruptor: Flat: 7mm 93 - 14
AW02 0154 Photointerruptor: Entrance 23 - 17
AW02 0155 Photointerruptor: Paper Size Sensor 23 - 18
AW02 0198 Photointerruptor: LG2A14Nl1 23 - 21
AW02 0198 Photointerruptor: LG2A14Nl1 35 - 8
AW02 0198 Photointerruptor: LG2A14Nl1 39 - 13
AW02 0204 Photointerruptor: LGRC102 57 - 16
AW11 0098 Thermostat - 220C 75 - 21
AW11 0099 Thermostat - 219C 75 - 23
AW50 0023 Push Switch 101 - 7
AW50 0031 Paper Size Sensor 57 - 10
AW50 0035 Paper End Sensor 59 - 21
AW50 0038 Push Switch: Paper Size Sensor 97 - 11
AX04 0154 DC Motor 24V 97 - 8
AX04 0167 Motor: DC5V 0.71W 93 - 26
AX05 0329 DC Motor: Toner Bottle: Ass'y 101 - 2
AX06 0355 Brushless Motor - DC 11W 95 - 5
AX06 0355 Brushless Motor - DC 11W 93 - 27
AX06 0356 Brushless Motor: DC24V 18W 93 - 13
AX06 0415 Brushless Motor: Drive: Drum: DC 10W 95 - 4
AX06 0416 Polygon Scanner Motor: DC: Brushless: 16.8W 51 - 5
AX20 0289 Magnetic Clutch - 32Z 99 - 11
AX20 2007 Magnetic Clutch 59 - 31
AX31 0045 Total Counter: 7FIG: 24V 99 - 24
AX43 0112 Heater - 120V 550W 75 - 41
AX43 0113 Heater - 230V 550W 75 - 41
AX43 0114 Heater: 110V: CE 75 - 41
AX44 0252 Heater - 120V 750W 75 - 42
AX44 0253 Heater - 230V 750W 75 - 42
AX44 0254 Heater: 110V: Si 75 - 42
AX64 0159 Fan Motor MM80 105 - 1
AX64 0194 Fan Motor - DC 2.16W 103 - 19
AX64 0195 Fan Motor - DC 2.16W 111 - 11
AX64 0202 Fan: MM40x15: NIDEC: H 39 - 26
AZ24 0204 Power Supply Unit: 353W: NA/TWN 109 - 2
AZ24 0205 Power Supply Unit: 353W: EU/AA/CHN 109 - 2
AZ32 0177 Power Pack: CBT 95 - 2
BC01 2002 Exposure Glass: Sheet Through: 344x20 43 - 4
GA14 3003 Screw: MM5: 2.5mm 23 - 23
GW01 0007 Photo Refiection Sensor: Exit 29 - 18
GW01 0007 Photo Refiection Sensor: Exit 31 - 6
GW01 0007 Photo Refiection Sensor: Exit 23 - 19
GW01 0007 Photo Refiection Sensor: Exit 21 - 20
GW23 0001 Toner End Sensor 71 - 14
GZ00 0005 Power Cord - 230V 13 - 16
Description
Page and
Index No.
Part No.
Description
Page and
Index No.
Part No.
D129/D130 24 Parts Index
VSSM 9000 Digital Multimater - FLUKE 187 119 - 3
0314 0120N Screw - M4x12 43 - 105
0353 0040N Screw - M3x4 17 - 102
0353 0040N Screw - M3x4 91 - 102
0353 0040N Screw - M3x4 59 - 104
0353 0040N Screw - M3x4 19 - 101
0353 0040N Screw - M3x4 27 - 102
0353 0050N Screw-M3x5 45 - 102
0353 0050N Screw-M3x5 77 - 101
0353 0050N Screw-M3x5 15 - 104
0353 0060N Bind Screw - M3x6 35 - 102
0353 0060N Bind Screw - M3x6 45 - 105
0353 0060N Bind Screw - M3x6 111 -105
0353 0060N Bind Screw - M3x6 113 -101
0353 0080N Screw: M3x8 99 - 108
0353 0100N Screw-M3x10 83 - 103
0353 0100N Screw-M3x10 89 - 104
0360 3006N Screw - M3x6 67 - 105
0360 3006N Screw - M3x6 111 -101
0360 3006N Screw - M3X6 109 -103
0360 3006N Screw - M3x6 59 - 107
0360 3006N Screw - M3x6 73 - 101
0360 3006N Screw - M3x6 75 - 101
0360 3006N Screw - M3X6 113 -102
0360 3006N Screw - M3x6 77 - 102
0434 0100N Tapping Screw - 4x10 99 - 106
0450 3006N Tapping Screw - M3x6 61 - 101
0450 3006N Tapping Screw - M3x6 89 - 109
0450 3008N Tapping Screw - M3x8 85 - 101
0450 3008N Tapping Screw - M3x8 31 - 102
0450 3008N Tapping Screw - M3x8 81 - 101
0450 3008N Tapping Screw - M3x8 41 - 103
0450 3008N Tapping Screw - M3x8 39 - 102
0450 3008N Tapping Screw - M3x8 27 - 103
0450 3008N Tapping Screw - M3x8 87 - 102
0450 3008N Tapping Screw - M3x8 29 - 101
Description
Page and
Index No.
Part No.
Description
Page and
Index No.
Part No.
D129/D130 25 Parts Index
0450 3008N Tapping Screw - M3x8 51 - 102
0450 3008N Tapping Screw - M3x8 59 - 102
0450 3008N Tapping Screw - M3x8 103 -103
0450 3008N Tapping Screw - M3x8 57 - 101
0450 3008N Tapping Screw - M3x8 55 - 102
0450 3008N Tapping Screw - M3x8 21 - 102
0450 3008N Tapping Screw - M3x8 25 - 101
0450 3008N Tapping Screw - M3x8 23 - 102
0450 3008P Tapping Screw 3x8 91 - 105
0450 3010N Tapping Screw - M3x10 51 - 101
0450 3010N Tapping Screw - M3x10 87 - 103
0450 3010N Tapping Screw - M3x10 101 -103
0450 3012N Tapping Screw: 3x12 13 - 103
0450 3012N Tapping Screw: 3x12 53 - 103
0450 4008N Tapping Screw - M4x8 53 - 101
0451 3006N Tapping Screw - 3x6 39 - 101
0451 3006N Tapping Screw - 3x6 83 - 101
0451 3006N Tapping Screw - 3x6 45 - 101
0451 3006N Tapping Screw - 3x6 69 - 102
0451 3006N Tapping Screw - 3x6 43 - 101
0451 3006N Tapping Screw - 3x6 71 - 101
0451 3006N Tapping Screw - 3x6 59 - 101
0451 3006N Tapping Screw - 3x6 41 - 101
0451 3006N Tapping Screw - 3x6 29 - 103
0451 3006N Tapping Screw - 3x6 111 -102
0451 3006N Tapping Screw - 3x6 87 - 101
0451 3006N Tapping Screw - 3x6 17 - 105
0451 3006N Tapping Screw - 3x6 31 - 101
0451 3006N Tapping Screw - 3x6 47 - 103
0451 3006N Tapping Screw - 3x6 89 - 101
0451 3006N Tapping Screw - 3x6 109 -104
0451 3006N Tapping Screw - 3x6 55 - 101
0451 3006N Tapping Screw - 3x6 21 - 101
0451 3006N Tapping Screw - 3x6 37 - 101
0451 3006N Tapping Screw - 3x6 79 - 101
0451 3006N Tapping Screw - 3x6 25 - 102
0451 3006N Tapping Screw - 3x6 99 - 101
0451 3006N Tapping Screw - 3x6 35 - 101
0451 3006N Tapping Screw - 3x6 91 - 101
0451 3006N Tapping Screw - 3x6 49 - 102
0451 3006N Tapping Screw - 3x6 23 - 103
0451 3006N Tapping Screw - 3x6 33 - 101
0451 3008N Tapping Screw - M3x8 79 - 103
0451 3008N Tapping Screw - M3x8 13 - 101
0451 3008N Tapping Screw - M3x8 59 - 106
0451 3008N Tapping Screw - M3x8 95 - 110
0451 3008N Tapping Screw - M3x8 101 -104
0451 3008N Tapping Screw - M3x8 43 - 102
0451 3008N Tapping Screw - M3x8 115 -102
0451 3008N Tapping Screw - M3x8 15 - 101
0451 3008N Tapping Screw - M3x8 109 -105
0451 3010N Tapping Screw: 3x10 23 - 101
0451 3010N Tapping Screw: 3x10 43 - 103
0451 3020N Tapping Screw: 3x20 39 - 108
0451 3025N Tapping Screw: M3x25 103 -105
0451 4008N Tapping Screw: 4x8 99 - 103
0452 3006N Binding Self-tapping Screw: 3x6 29 - 104
0452 3006N Binding Self-tapping Screw: 3x6 69 - 101
0452 3008N Tapping Screw - M3x8 111 -103
0452 3008N Tapping Screw - M3x8 71 - 103
0452 3008N Tapping Screw - M3x8 59 - 103
0452 3010N Binding Self-tapping Screw: 3x10 63 - 101
0453 3006N Tapping Screw - M3x6 61 - 104
0453 3006N Tapping Screw - M3x6 89 - 105
0453 3006N Tapping Screw - M3x6 43 - 104
0453 3006N Tapping Screw - M3x6 29 - 102
0453 3008N Binding Self Tapping Screw: 3x8 43 - 106
0453 3008N Binding Self Tapping Screw: 3x8 53 - 102
0453 4006N Binding Self Tapping Screw: 4x6 37 - 102
0453 4006N Binding Self Tapping Screw: 4x6 39 - 103
Description
Page and
Index No.
Part No.
Description
Page and
Index No.
Part No.
D129/D130 26 Parts Index
0454 3006Q Tapping Screw - M3x6 61 - 102
0454 3006Q Tapping Screw - M3x6 103 -102
0454 3006Q Tapping Screw - M3x6 83 - 102
0454 3006Q Tapping Screw - M3x6 115 -101
0454 3006Q Tapping Screw - M3x6 89 - 102
0454 3006Q Tapping Screw - M3x6 111 -104
0454 3006Q Tapping Screw - M3x6 93 - 101
0454 3006Q Tapping Screw - M3x6 65 - 101
0454 3006Q Tapping Screw - M3x6 95 - 101
0454 3006Q Tapping Screw - M3x6 75 - 105
0454 3006Q Tapping Screw - M3x6 97 - 101
0454 3006Q Tapping Screw - M3x6 109 -101
0454 3006Q Tapping Screw - M3x6 63 - 103
0454 3006Q Tapping Screw - M3x6 99 - 102
0454 3006Q Tapping Screw - M3x6 105 -101
0454 3006Q Tapping Screw - M3x6 107 -101
0454 3006Q Tapping Screw - M3x6 67 - 101
0454 3006Q Tapping Screw - M3x6 49 - 101
0454 3006Q Tapping Screw - M3x6 15 - 103
0454 3006Q Tapping Screw - M3x6 47 - 101
0454 3006Q Tapping Screw - M3x6 41 - 102
0454 3006Q Tapping Screw - M3x6 51 - 106
0454 3008Q Tapping Screw: 3x8 103 -101
0454 3008Q Tapping Screw: 3x8 97 - 102
0454 3008Q Tapping Screw: 3x8 59 - 105
0454 3008Q Tapping Screw: 3x8 101 -101
0454 3008Q Tapping Screw: 3x8 101 -102
0454 3008Q Tapping Screw: 3x8 93 - 104
0454 3008Q Tapping Screw: 3x8 55 - 106
0454 3008Q Tapping Screw: 3x8 105 -102
0454 3008Q Tapping Screw: 3x8 15 - 102
0454 3008Q Tapping Screw: 3x8 13 - 102
0454 3020Q Tapping Screw: 3x20 95 - 103
0456 3008N Tapping Screw - M3x8 65 - 102
0456 3008N Tapping Screw - M3x8 67 - 102
0456 3008N Tapping Screw - M3x8 71 - 102
0456 3008N Tapping Screw - M3x8 63 - 102
0457 3008N Tapping Screw - M3x8 67 - 103
0457 3008N Tapping Screw - M3x8 113 -103
0459 3010N Binding Head Tapping Screw: 3x10 19 - 103
0459 3010N Binding Head Tapping Screw: 3x10 17 - 101
0573 0030E Hexagonal Set Screw - M3x3 77 - 104
0632 0100G Pin - 2x10mm 31 - 106
0632 0100G Pin - 2x10mm 25 - 106
0632 0120G Parallel Pin - 2x12 27 - 104
0712 0030N Hexagonal Nut: M3 51 - 105
0720 0025E Retaining Ring - M2.5 91 - 103
0720 0030E Retaining Ring - M3 79 - 102
0720 0030E Retaining Ring - M3 91 - 104
0720 0030E Retaining Ring - M3 65 - 103
0720 0030E Retaining Ring - M3 85 - 103
0720 0030E Retaining Ring - M3 83 - 106
0720 0030E Retaining Ring - M3 75 - 107
0720 0030E Retaining Ring - M3 33 - 104
0720 0030E Retaining Ring - M3 77 - 103
0720 0040E Retaining Ring - M4 25 - 103
0720 0040E Retaining Ring - M4 89 - 106
0720 0040E Retaining Ring - M4 37 - 103
0720 0040E Retaining Ring - M4 99 - 107
0720 0040E Retaining Ring - M4 87 - 106
0720 0040E Retaining Ring - M4 67 - 104
0720 0040E Retaining Ring - M4 55 - 104
0720 0040E Retaining Ring - M4 45 - 104
0720 0040E Retaining Ring - M4 83 - 104
0720 0040E Retaining Ring - M4 31 - 103
0720 0040E Retaining Ring - M4 97 - 103
0720 0040E Retaining Ring - M4 27 - 105
0720 0060E Retaining Ring - M6 33 - 103
0720 0060E Retaining Ring - M6 25 - 104
0720 0060E Retaining Ring - M6 93 - 102
Description
Page and
Index No.
Part No.
Description
Page and
Index No.
Part No.
D129/D130 27 Parts Index
0720 0080E Retaining Ring - M8 53 - 104
0720 0080E Retaining Ring - M8 75 - 108
0725 0110E C Ring - M11 65 - 104
0733 0408 Bushing: 4x8 75 - 106
0740 3808 Ball Bearing - 8x16x5MM 95 - 105
0741 3506 Ball Bearing - 6x12x4mm 25 - 108
0741 3506 Ball Bearing - 6x12x4mm 37 - 104
0741 3506 Ball Bearing - 6x12x4 mm 31 - 104
0741 3506 Ball Bearing - 6x12x4mm 33 - 102
0742 3808 Ball Bearing - 8x16x5 33 - 105
0802 5299 Tapping Screw - M3x8 101 -105
0802 5299 Tapping Screw - M3x8 83 - 109
0802 5299 Tapping Screw - M3x8 115 -106
0802 5299 Tapping Screw - M3x8 45 - 103
0802 5299 Tapping Screw - M3x8 49 - 103
0802 5305 Tapping Screw - M3x6 115 -104
0804 6123 Hexagonal Bolt: W/Washer: M3x8 77 - 105
0804 6123 Hexagonal Bolt: W/Washer: M3x8 73 - 103
0804 6123 Hexagonal Bolt: W/Washer: M3x8 75 - 102
0805 0088 Retaining Ring - M6 49 - 104
0805 0088 Retaining Ring - M6 115 -103
0805 0088 Retaining Ring - M6 59 - 109
0805 0088 Retaining Ring - M6 25 - 105
0805 0088 Retaining Ring - M6 95 - 104
0805 0088 Retaining Ring - M6 83 - 108
0805 0089 Retaining Ring - M4 99 - 104
0805 0089 Retaining Ring - M4 27 - 101
0805 0089 Retaining Ring - M4 93 - 105
0805 0089 Retaining Ring - M4 61 - 103
0805 0089 Retaining Ring - M4 95 - 106
0805 0089 Retaining Ring - M4 55 - 103
0805 0089 Retaining Ring - M4 85 - 102
0805 0089 Retaining Ring - M4 59 - 108
0805 0089 Retaining Ring - M4 57 - 102
0805 0092 Retaining Ring - 3M 89 - 103
0805 0092 Retaining Ring - 3M 81 - 102
0805 0092 Retaining Ring - 3M 103 -104
0805 0092 Retaining Ring - 3M 91 - 106
0805 0097 Ring Separator 81 - 103
0951 3008N Screw: Polished Round: M3x8 51 - 103
0951 3020N Screw: Polished Round: M3x20 51 - 104
0954 3008N Screw - M3x8 87 - 104
0954 3010N Screw: Polished Round/Spring: M3x10 75 - 103
0954 3010N Screw: Polished Round/Spring: M3x10 95 - 107
0957 4008N Screw: Small Round/Spring: M4x8 93 - 103
0957 4008N Screw: Small Round/Spring: M4x8 75 - 104
1102 6248 Connector - 5P 59 - 111
1102 6253 Relay Connector 17 - 106
1102 8502 Connector - 54679-1615 109 -107
1102 8534 Connector - QR/P17-14S-B 105 -106
1102 9782 Connector: 51405-1819 105 -108
1103 3657 Connector: 55482-1319 17 - 107
1105 0367 Spacer 95 - 102
1105 0367 Spacer 107 -104
1105 0460 Clamp 47 - 104
1105 0487 Harness Clamp 39 - 106
1105 0487 Harness Clamp 63 - 104
1105 0487 Harness Clamp 93 - 108
1105 0487 Harness Clamp 107 -106
1105 0487 Harness Clamp 87 - 105
1105 0487 Harness Clamp 103 -107
1105 0487 Harness Clamp 105 -105
1105 0488 Harness Clamp 105 -103
1105 0488 Harness Clamp 49 - 106
1105 0488 Harness Clamp 99 - 105
1105 0489 Harness Clamp - LWS 1316 107 -103
1105 0489 Harness Clamp - LWS 1316 105 -104
1105 0511 Harness Clamp - LWS-0306ZC 59 - 113
1105 0511 Harness Clamp - LWS-0306ZC 35 - 103
1105 0511 Harness Clamp - LWS-0306ZC 89 - 107
Description
Page and
Index No.
Part No.
Description
Page and
Index No.
Part No.
D129/D130 28 Parts Index
1105 0511 Harness Clamp - LWS-0306ZC 37 - 105
1105 0511 Harness Clamp - LWS-0306ZC 91 - 108
1105 0511 Harness Clamp - LWS-0306ZC 93 - 106
1105 0511 Harness Clamp - LWS-0306ZC 39 - 104
1105 0511 Harness Clamp - LWS-0306ZC 55 - 105
1105 0511 Harness Clamp - LWS-0306ZC 83 - 105
1105 0511 Harness Clamp - LWS-0306ZC 43 - 108
1105 0511 Harness Clamp - LWS-0306ZC 47 - 102
1105 0511 Harness Clamp - LWS-0306ZC 49 - 107
1105 0511 Harness Clamp - LWS-0306ZC 99 - 109
1105 0511 Harness Clamp - LWS-0306ZC 31 - 105
1105 0514 Edge Saddle - EDS-0607l 39 - 107
1105 0514 Edge Saddle - EDS-0607l 31 - 107
1105 0516 Clamp 23 - 104
1105 0516 Clamp 49 - 105
1105 0516 Clamp 25 - 107
1105 0516 Clamp 63 - 105
1105 0516 Clamp 89 - 108
1105 0516 Clamp 35 - 104
1105 0522 Edge Saddle - LES0510 43 - 107
1105 0522 Edge Saddle - LES0510 115 -105
1105 0522 Edge Saddle - LES0510 93 - 107
1105 0522 Edge Saddle - LES0510 59 - 110
1105 0522 Edge Saddle - LES0510 39 - 105
1105 0522 Edge Saddle - LES0510 105 -107
1105 0534 Clamp 95 - 108
1105 0534 Clamp 103 -108
1105 0551 Clamp: LES-0505 59 - 112
1105 0551 Clamp: LES-0505 83 - 107
1105 0551 Clamp: LES-0505 91 - 107
1105 0568 Clamp: LWSS-0504 61 - 105
1105 0598 Clamp: LWSS-1N 17 - 103
1105 0598 Clamp: LWSS-1N 19 - 102
1105 0613 Clamp: EDS-1010L-V0 93 - 109
1105 0623 Clamp - LBWS-0206S-V0 85 - 104
1105 0623 Clamp - LBWS-0206S-V0 95 - 109
1105 0723 Clamps: WES-0507 17 - 104
1105 0724 Harness Clamp 109 -102
1105 0724 Clamps: WES-1210 107 -102
1150 0377 Power Supply Code: 250V: 10A: EU 13 - 105
1150 0409 Power Supply Code: 125V: 15A: TWN 13 - 105
1150 0438 Power Supply Code: 125V: 15A: NA 13 - 105
1204 2612 Micro Switch: D3V-16506-3C25 103 -106
1204 2903 Rocker Switch: A8gs-tgp85kr 109 -106
1407 7677 EEPROM: BR24T64-W 107 -105
5203 9502 Silicon Grease G-501 119 - 9
5206 2684 Shoulder Screw - M3 91 - 9
5206 2686 Snap Ring 65 - 31
5206 2686 Snap Ring 55 - 36
5206 2686 Snap Ring 35 - 19
5215 2621 Snap Ring - M6 21 - 6
5215 2621 Snap Ring - M6 33 - 18
5442 1924 Exposure Glass Cushion 43 - 10
5447 2681 Snap Ring 33 - 6
5447 2681 Snap Ring 31 - 3
5447 2681 Snap Ring 27 - 8
5447 2681 Snap Ring 25 - 2
5447 2681 Snap Ring 99 - 14
5447 2681 Snap Ring 35 - 13
Description
Page and
Index No.
Part No.
Description
Page and
Index No.
Part No.
