siemens.com/s7-1500
Product
portfolio
overview
The Ultimate Plus in Automation
SIMATIC S7-1500 plus TIA Portal
Power + Efficiency
Intuitive, efficient, proven –
The TIA Portal redefines engineering
SIMATIC S7-1500 – Highest efficiency
and maximum usability for complex
automation tasks
SIMATIC S7-1500 plus TIA Portal
The SIMATIC® S7-1500 controller set new standards in
system performance and usability. This also applies to
the two youngest members of the controller family,
CPU 1511C and CPU 1512C. These especially compact
advanced controllers deliver a powerful performance
despite their slim dimensions while also featuring
integrated technology functions – thus rounding out
the S7-1500 portfolio. At the same time, the Totally
Integrated Automation Portal (TIA Portal) redefines
the topic of efficiency in engineering, configuring and
operation. As a team, SIMATIC S7-1500 and TIA Portal
are unbeatable. Together, they ensure enhanced plant
availability as well as setting standards for the future.
Seamless integration of the SIMATIC S7-1500 controller
into the TIA Portal makes it possible to access a common
database, and provides a uniform operating concept and
shared centralized services, making it especially easy to
use system-wide functions. The controller is quick and
easy to install and connect, and with its short system
response times, it boosts productivity in the twinkling of
an eye. For you, this means more flexibility in handling,
shorter time-to-market, and a fast rate of return on your
plant.
Scalable performance and functionality for every
application
In terms of performance and functionality, the SIMATIC
S7-1500 Controller supports scalable and therefore cost-
efficient automation solutions in every case. It builds
on the functionality of the less sophisticated SIMATIC
S7-1200 controller, meaning you benefit from consistent
processes and maximum efficiency in engineering, oper-
ation, and maintenance, and when migrating systems.
2
Siemens offers the right controller for an extremely wide range of automation requirements. The new generation of SIMATIC
Controller, comprising Basic, Advanced, Distributed and Software Controllers, leaves a lasting impression with its scalability and
continuous functionality.
Engineered with TIA Portal
Application complexity
System performance
Advanced Controller
SIMATIC S7-1500 Software Controller
SIMATIC S7-1500
Distributed Controller
SIMATIC ET 200SP CPU
Basic Controller
SIMATIC S7-1200
Totally Integrated Automation Portal – the common engineering framework

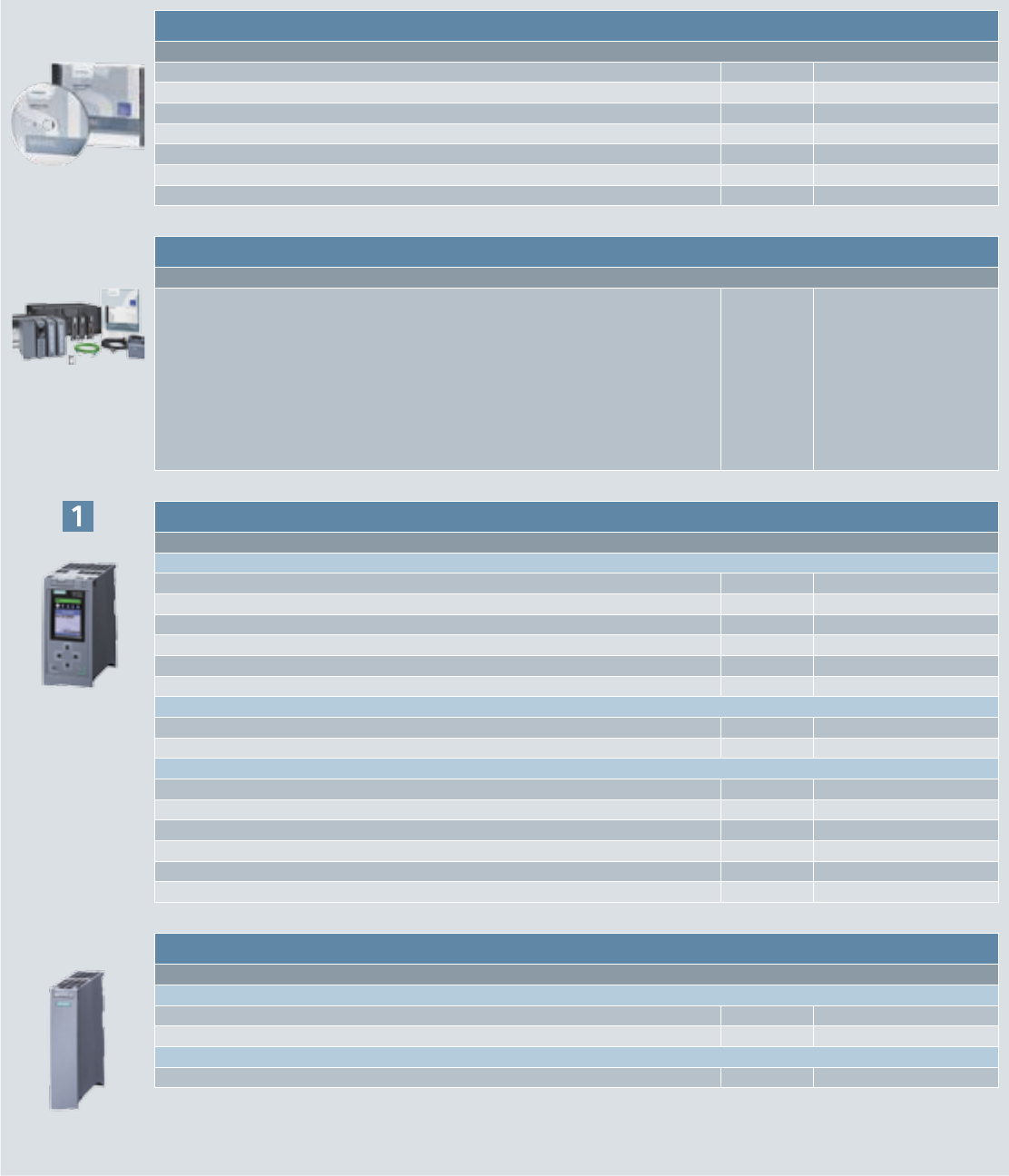

Software packages
SIMATIC STEP 7 PROFESSIONAL V13 SP1 DVD 6ES7822-1AA03-0YA5
SIMATIC STEP 7 PROFESSIONAL V13 SP1 Download 6ES7822-1AE03-0YA5
SIMATIC WinCC COMFORT V13 SP1 DVD 6AV2101-0AA03-0AA5
SIMATIC WinCC COMFORT V13 SP1 Download 6AV2101-0AA03-0AH5
SIMATIC STEP 7 SAFETY ADVANCED V13 SP1 DVD 6ES7833-1FA13-0YA5
SIMATIC STEP 7 SAFETY ADVANCED V13 SP1 Download 6ES7833-1FA13-0YH5
SINAMICS STARTDRIVE V13 SP1 6SL3072-4DA02-0XG0
Starter Kit
Starter Kit
SIMATIC S7-1500 Starter Kit
Contains: STEP 7 Professional V13 SP1, 365-day license,
SIMATIC S7-1500 CPU 1511-1 PN,
SIMATIC Memory Card 4 MB, digital input module DI 16x 24 V DC,
digital output module DO 16x 24 V DC/0.5 A ST
Mounting rail 160 mm, front connector, power module PM 70 W 120/230 V AC
SIMATIC TOP connect: front connector module, push-in
SIMATIC TOP connect: connecting cable
SIMATIC TOP connect: 3-wire connection module
Standard Ethernet CAT 5 cable, screwdriver
6ES7511-1AK01-4YB5
Central systems
CPUs
Standard CPUs
CPU 1511-1 PN 6ES7511-1AK00-0AB0
CPU 1513-1 PN 6ES7513-1AL00-0AB0
CPU 1515-2 PN 6ES7515-2AM00-0AB0
CPU 1516-3 PN/DP 6ES7516-3AN00-0AB0
CPU 1517-3 PN/DP 6ES7517-3AP00-0AB0
CPU 1518-4 PN/DP 6ES7518-4AP00-0AB0
Compact CPUs
CPU 1511C-1 PN 6ES7511-1CK00-0AB0
CPU 1512C-1 PN 6ES7512-1CK00-0AB0
Fail-safe CPUs
CPU 1511F-1 PN 6ES7511-1FK00-0AB0
CPU 1513F-1 PN 6ES7513-1FL00-0AB0
CPU 1515F-2 PN 6ES7515-2FM00-0AB0
CPU 1516F-3 PN/DP 6ES7516-3FN00-0AB0
CPU 1517F-3 PN/DP 6ES7517-3FP00-0AB0
CPU 1518F-4 PN/DP 6ES7518-4FP00-0AB0
Interface modules
ET 200MP
PROFINET
IM 155-5 PN ST 6ES7155-5AA00-0AB0
IM 155-5 PN HF 6ES7155-5AA00-0AC0
PROFIBUS
IM 155-5 DP ST (incl. PROFIBUS connector) 6ES7155-5BA00-0AB0
Current ordering data, plus terms and conditions of sale and delivery can be found in Catalogs ST 70 and ST 80/ST PC or on the Internet at
www.siemens.com/industrymall

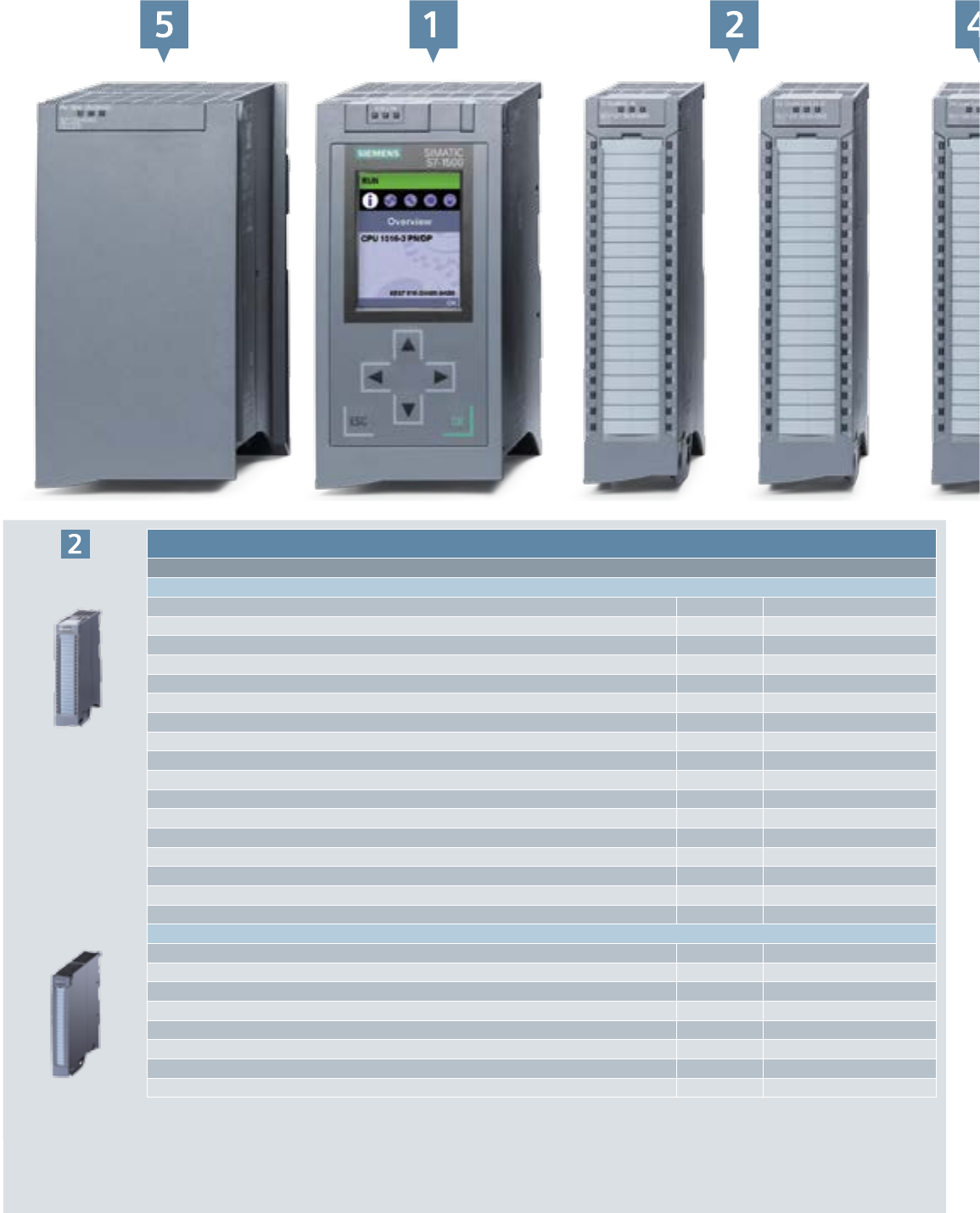

IO modules
IO modules
35-mm wide modules (without front connector)
DI 16x 24 V DC HF 6ES7521-1BH00-0AB0
DI 32x 24 V DC HF 6ES7521-1BL00-0AB0
DI 16x 24 V DC SRC BA 6ES7521-1BH50-0AA0
DI 16x 230 V AC BA 6ES7521-1FH00-0AA0
DO 16x 24 V DC/0.5 A ST 6ES7522-1BH00-0AB0
DO 32x 24 V DC/0.5 A ST 6ES7522-1BL00-0AB0
DO 8x 24 V DC/2 A HF 6ES7522-1BF00-0AB0
DO 8x 230 V AC/2 A ST 6ES7522-5FF00-0AB0
DO 8x 230 V AC/5 A ST 6ES7522-5HF00-0AB0
DO 16x 230 V AC/1 A ST (Triac) 6ES7522-5FH00-0AB0
DO 16x 230 V AC/2 A ST (Relay) 6ES7522-5HH00-0AB0
AI 8x U/I/RTD/TC ST * 6ES7531-7KF00-0AB0
AI 8x U/I HS 6ES7531-7NF10-0AB0
AO 4x U/I ST 6ES7532-5HD00-0AB0
AO 8x U/I HS 6ES7532-5HF00-0AB0
F-DI 16x 24 V DC PROFIsafe 6ES7526-1BH00-0AB0
F-DQ 8x 24 V DC / 2 A PPM PROFIsafe 6ES7526-2BF00-0AB0
25-mm wide modules (incl. front connector)
DI 16x 24 V DC BA 6ES7521-1BH10-0AA0
DI 32x 24 V DC BA 6ES7521-1BL10-0AA0
DO 16x 24 V DC/0.5 A ST 6ES7522-1BH10-0AA0
DO 32x 24 V DC/0.5 A ST 6ES7522-1BL10-0AA0
DI 16x 24 V DC/DO 16x 24 V DC/0.5 A BA 6ES7523-1BL00-0AA0
AI 4x U/I/RTD/TC ST * 6ES7531-7QD00-0AB0
AO 2x U/I ST 6ES7532-5NB00-0AB0
AI/AO 4x U/I/RTD/TC / 2x U/I ST * 6ES7534-7QE00-0AB0
* Half of channels for RTD
5
Communication
PtP
CM PtP, RS232 BA 6ES7540-1AD00-0AA0
CM PtP, RS232 HF 6ES7540-1AD00-0AB0
CM PtP, RS422/485 BA 6ES7541-1AB00-0AA0
CM PtP, RS422/485 HF 6ES7541-1AB00-0AB0
Communication modules for point-to-point or multipoint communication with the protocols
Freeport, 3964(R), Modbus RTU or USS. Transfer rates up to 115.2 kbit/s are supported.
PROFIBUS
CM 1542-5 PROFIBUS communication module 6GK7542-5DX00-0XE0
CP 1542-5 PROFIBUS communications processor 6GK7542-5FX00-0XE0
Communication modules for PROFIBUS with DP master or DP slave function (CP/CM)
and larger quantity structure, as well as dataset routing (CM).
Ethernet
CP 1543-1, Ethernet security 6GK7543-1AX00-0XE0
CM 1542-1, PROFINET communications processor 6GK7542-1AX00-0XE0
Communication modules for Industrial Ethernet with Security Integrated by means of VPN and
firewall (CP), or for additional PROFINET interfaces (CM).
Technology modules
Technology modules
TMs
TM Count 2x24V 6ES7550-1AA00-0AB0
TM PosInput 2 6ES7551-1AB00-0AB0
TM Timer DIDQ 16x24V 6ES7552-1AA00-0AB0
Modules for counter functions up to 200 kHz or 1 MHz, with measuring functions for frequency,
period duration or speed, for position detection with incremental or absolute encoders as well as
for implementing cam controllers and especially precise response times.
6

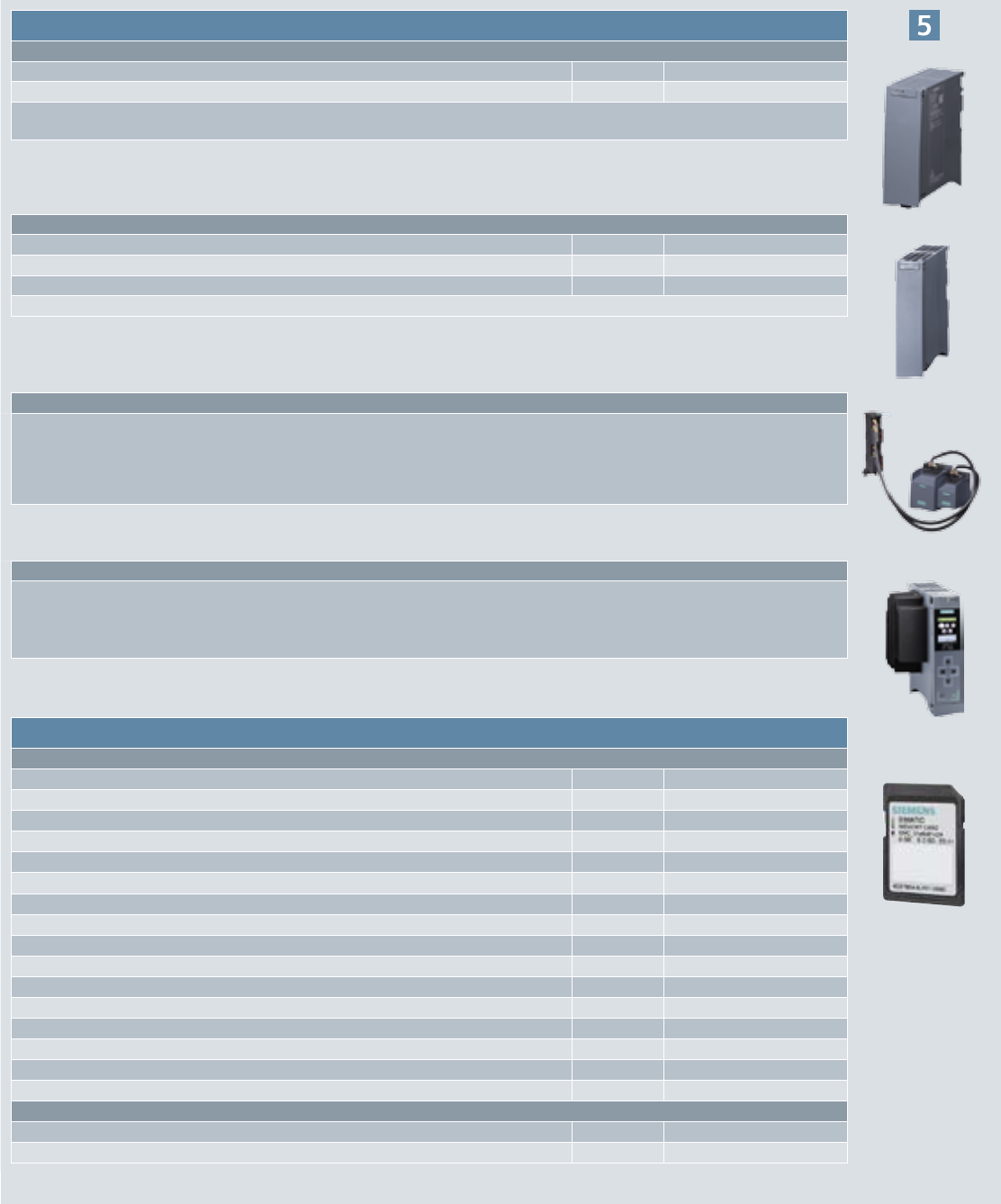

Power supply and system wiring
PM load current supply
PM 70 W, 120/230 V AC 6EP1332-4BA00
PM 190 W, 120/230 V AC 6EP1333-4BA00
The load current supply (PM) provides 24 V power for SIMATIC S7-1500 modules such as CPU,
system power supplies, IO circuits of the peripheral modules and, where required, sensors and actuators.
PS system power supply
System power supply 25 W, 24 V DC 6ES7505-0KA00-0AB0
System power supply 60 W, 24/48/60 V DC 6ES7505-0RA00-0AB0
System power supply 60 W, 120/230 V AC/DC 6ES7507-0RA00-0AB0
The system power supply (PS) provides the power for the S7-1500 modules via the backplane bus.
SIMATIC TOP connect system wiring
Fully modular connection: front connector module for IO modules, connecting cables and terminal modules for connecting field
sensors/actuators.
Flexible connection: front connector with single wires, for connecting sensors/actuators in the control cabinet.
You will find more information about SIMATIC TOP connect in the Siemens Industry Mall or at
http://www.siemens.com/simatic-tc
SIPLUS extreme
Individually customized products, systems and solutions for all aspects of automation and drives engineering, for
dependable operation even under difficult to extreme rated conditions. You can find information on SIPLUS extreme
in the Siemens Industry Mall or at http://www.siemens.com/siplus-extreme
Accessories and spare parts
Accessories
Mounting rail, 160 mm (with drill hole) 6ES7590-1AB60-0AA0
Mounting rail, 245 mm (with drill hole) 6ES7590-1AC40-0AA0
Mounting rail, 482 mm (with drill hole) 6ES7590-1AE80-0AA0
Mounting rail, 530 mm (with drill hole) 6ES7590-1AF30-0AA0
Mounting rail, 830 mm (with drill hole) 6ES7590-1AJ30-0AA0
Mounting rail, 2000 mm (without drill hole) for self-customizing 6ES7590-1BC00-0AA0
PE connection element for mounting rail 2000 mm (spare part), 20 pcs. 6ES7590-5AA00-0AA0
Front connector for 35-mm wide modules; screw terminal, 40-pin 6ES7592-1AM00-0XB0
Front connector for 35-mm wide modules; push-in terminal, 40-pin 6ES7592-1BM00-0XB0
SIMATIC Memory Card 4 MB 6ES7954-8LC02-0AA0
SIMATIC Memory Card 12 MB 6ES7954-8LE02-0AA0
SIMATIC Memory Card 24 MB 6ES7954-8LF02-0AA0
SIMATIC Memory Card 256 MB 6ES7954-8LL02-0AA0
SIMATIC Memory Card 2 GB 6ES7954-8LP01-0AA0
SIMATIC Memory Card 32 GB 6ES7954-8LT02-0AA0
Front cover for DP interface of the CPU 1518-4 PN/DP, 1 unit 6ES7591-8AA00-0AA0
Spare parts
Display for CPU 1511(F), CPU 1511C, CPU 1512C and CPU 1513(F) 6ES7591-1AA00-0AA0
Display for CPU 1515(F), CPU 1516(F), CPU 1517(F) and CPU 1518(F) 6ES7591-1BA00-0AA0
Your plus of power and efficiency
Enhanced usability through innovative design
and handling
• Commissioning and diagnostics are simplified by
built-in CPU display showing system diagnostics mes-
sages in plaintext, as well as changes of IP addresses,
for example.
• A standardized front connector and convenient wiring
solutions enable simple installation and reduced parts
logistics.
Increased productivity through lower cycle times and
top-speed troubleshooting
• High-speed backplane bus, terminal-terminal response
times of less than 100 µs, and command processing of
up to 1 ns result in extremely short execution times.
• With integral system diagnostics, a trace function, and
a standardized display concept in the TIA Portal, the
HMI, the Webserver and the display of the S7-1500,
faults can be located and corrected efficiently.
Protection for intellectual property and the machine
through Security Integrated
• Your intellectual property and the investment it
represents are perfectly protected thanks to integrated
know-how, copy and tampering protection as well as
additional password protection for access to program
contents and secure communication.
• Extended access protection thanks to integrated fire-
wall via Security CP 1543-1.
Simple creation and implementation of motion and
closed-loop control applications
• Integrated motion control functions for flexible
connection of drives via PROFINET, PROFIBUS or
analog interfaces, as well as programming of motion
sequences with PLCopen motion blocks.
• Configuration of continuous and discrete pulse width
modulation thanks to integrated PID control.
Easy CPU selection due to one automation system for
standard and fail-safe
• Safety Integrated applies to all S7-1500 Standard CPUs
and enables simple connection of PROFIsafe device
via PROFIBUS and PROFINET. It was designed for us
in safety-related applications to SIL 3 according to
IEC 62061, and PL e according to ISO 13849
Efficient engineering thanks to comprehensive
software and hardware functions
• The innovative engineering framework TIA Portal
integrates HMI, controllers, distributed IO, motion
control and drives seamlessly into one engineering
environment.
• Integration of the SIMATIC S7-1500 controllers in the
TIA Portal provides complete symbolic programming,
an optimized compiler for enhanced performance, and
the same range of commands for all programming
languages.
“Dieffenbacher provides
automation from the indi-
vidual machine right up
to entire plants. Therefore
the free scalability of the
SIMATIC S7-1500 is the
perfect basis for us.”
Ulf Könekamp (German company Dieffenbacher)
7
Subject to change without prior notice
Article No.: E20001-A930-P210-V1-7600
Dispo 06303
21/62440 WS 03153.0
Printed in Germany
© Siemens AG 2015
The information provided in this brochure contains
merely general descriptions or characteristics of per-
formance which in case of actual use do not always
apply as described or which may change as a result
of further development of the products.
An obligation to provide the respective characteris-
tics shall only exist if expressly agreed in the terms
of contract.
All product designations may be trademarks or prod-
uct names of Siemens AG or supplier companies
whose use by third parties for their own purposes
could violate the rights of the owners.
Siemens offers automation and drives products with
industrial security functions that support safe opera-
tion of the plant or machine. They are an important
component in a holistic industrial security concept.
With this in mind, our products undergo continuous
development. We therefore recommend that you
keep yourself informed with respect to our product
updates, and that you only use the latest versions in
each case.
You can find information on this at:
http://support.automation.siemens.com.
There you can also register for a newsletter specifi-
cally about these products. To ensure the secure
operation of a plant or machine, it is also necessary
to take suitable preventive action (e.g. cell protec-
tion concept) and to integrate the automation and
drive components into a state-of-the-art, holistic
industrial security policy for the entire plant or
machine. Products used from other manufacturers
should also be taken into account here.
For more information, go to
www.siemens.com/industrialsecurity
Siemens AG
Digital Factory
P.O. Box 48 48
90026 Nürnberg
GERMANY
Follow us on:
twitter.com/siemensindustry
youtube.com/siemens
SIMATIC
S7-1500 –
take a look!
Experience
everything about
SIMATIC S7-1500:
In video form: Design over-
view and videos showing the
main highlights
As a 360° animation:
Experience all the benefits
directly on the product
All about the outstanding
engineering efficiency
thanks to TIA Portal
The latest references and
podcasts
Discover more:
www.siemens.com/s7-1500
CPU 1511C and CPU 1512C
So strong and so compact
Space-saving versions of the SIMATIC S7-1500 Advanced Controller
siemens.com/s7-1500
Engineered
in the
TIA Portal
Added value, small space requirement
The two S7-1500 compact CPUs 1511C and CPU 1512C
round off the SIMATIC S7-1500 product line. These
CPUs are designed for an application where space-
saving is a requirement, as in OEM machine manu-
facturing.
Both S7-1500 compact CPUs are characterized by high
performance. Technology functions such as counting,
measuring and positioning are integrated in the hard-
ware. The engineering is performed using TIA Portal –
with its uniform control concept for consistent func-
tionality.
The 1500C provides the further customer benefits of
low acquisition costs with integrated technological
functions and IO. No additional modules need to be
purchased for this functionality. The result is reduced
inventory.
Highlights
• CPU as well as inputs and outputs in one enclosure
• High bit performance: CPU 1511C-1 PN with 60 ns
and CPU 1512C-1 PN with 48 ns
• Efficient engineering in the TIA Portal
• Functional consistency and scalability within
the Advanced Controllers – in both price and
performance
The information provided in this brochure contains merely general
descriptions or characteristics of performance which in case of actual
use do not always apply as described or which may change as a result
of further development of the products. An obligation to provide the
respective characteristics shall only exist if expressly agreed in the
terms of contract.
All product designations may be trademarks or product names of
Siemens AG or supplier companies whose use by third parties for
their own purposes could violate the rights of the owners.
Subject to change without prior notice, 03/15
Article No.: DFFA-B10011-00-7600
Dispo 06303
170/66811 SB 04153.0
Printed in Germany
© Siemens AG 2015
Siemens AG
Digital Factory
Factory Automation
P.O. Box 48 48
90026 Nuremberg
Germany
Progress within narrow confines:
CPU 1511C and CPU 1512C
With a width of 85 mm, the CPU 1511C-1 PN provides
32 digital IO ports as well as 5 analog inputs and
2 analog outputs. The CPU 1512C-1 PN is a mere
110 mm wide and features 64 digital IO connections,
5 analog inputs and 2 analog outputs.

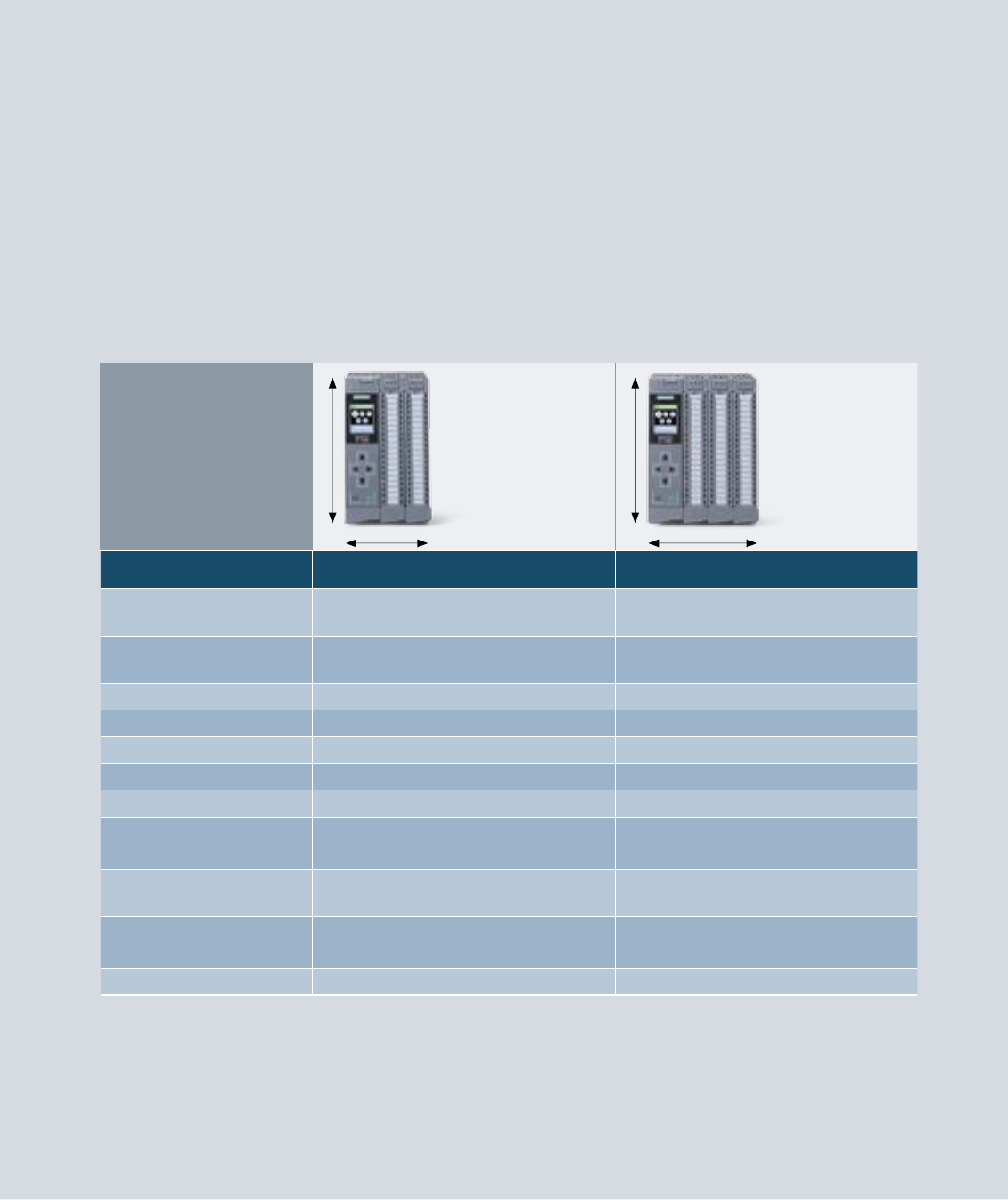

Technical specifications
CPU 1511C-1 PN CPU 1512C-1 PN
Width 85 mm (extendable
using 25/35 mm IO modules)
110 mm (extendable
using 25/35 mm IO modules)
PROFINET interface
with 2 ports
Yes Yes
PROFINET IRT Yes Yes
Web server Yes Yes
Display Yes Yes
Work memory 175 kB program, 1 MB data 250 kB program, 1 MB data
Bit performance 60 ns 48 ns
Integral digital
inputs/outputs
• 16 DI
• 16 DO
• 32 DI
• 32 DO
Integral analog
inputs/outputs
4 AI (U/I) + 1 AI RTD, 2 AO (U/I) 4 AI (U/I) + 1 AI RTD, 2 AO (U/I)
Technology integration • 6 x HSC, 100 kHz
• 4 x PTOs / PWMs, 100 kHz*
• 6 x HSC, 100 kHz
• 4 x PTOs / PWMs, 100 kHz*
Configurable with STEP 7 V13 SP1 Update 4 STEP 7 V13 SP1 Update 4
*not in the first stage of delivery (possible with later firmware version)
If required, they can be expanded to include additional
connections using signal modules to make them a per-
fect fit for your specific requirements.
147 mm
85 mm
147 mm
110 mm
