TFT-LCD MONITOR
GH17LS
GH17ES
Manual
SERVICE
TFT-LCD MONITOR CONTENTS
1. Precautions
2. Product Specifications
3. Disassembly & Reassembly
4. Alignments & Adjustments
5. Troubleshooting

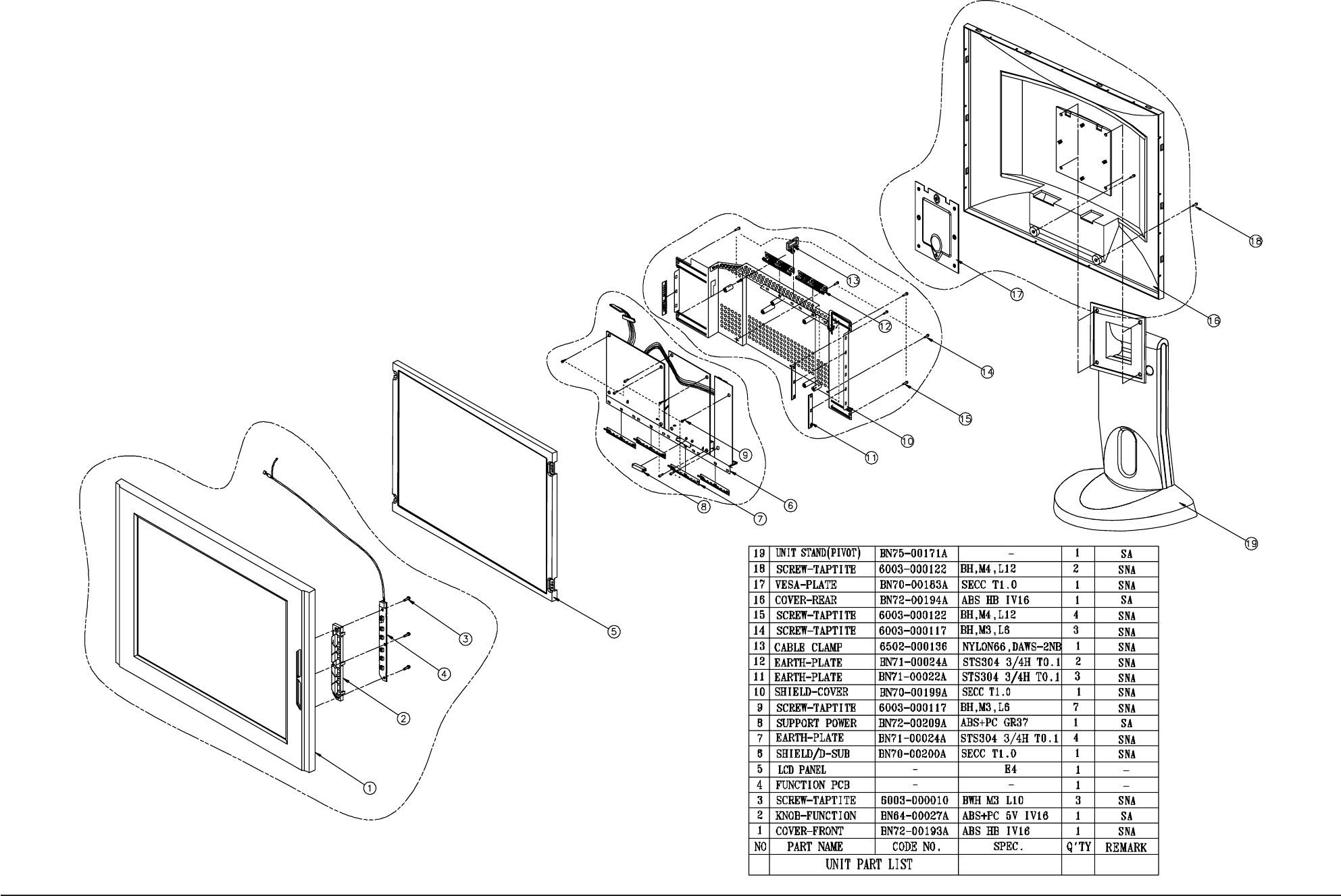

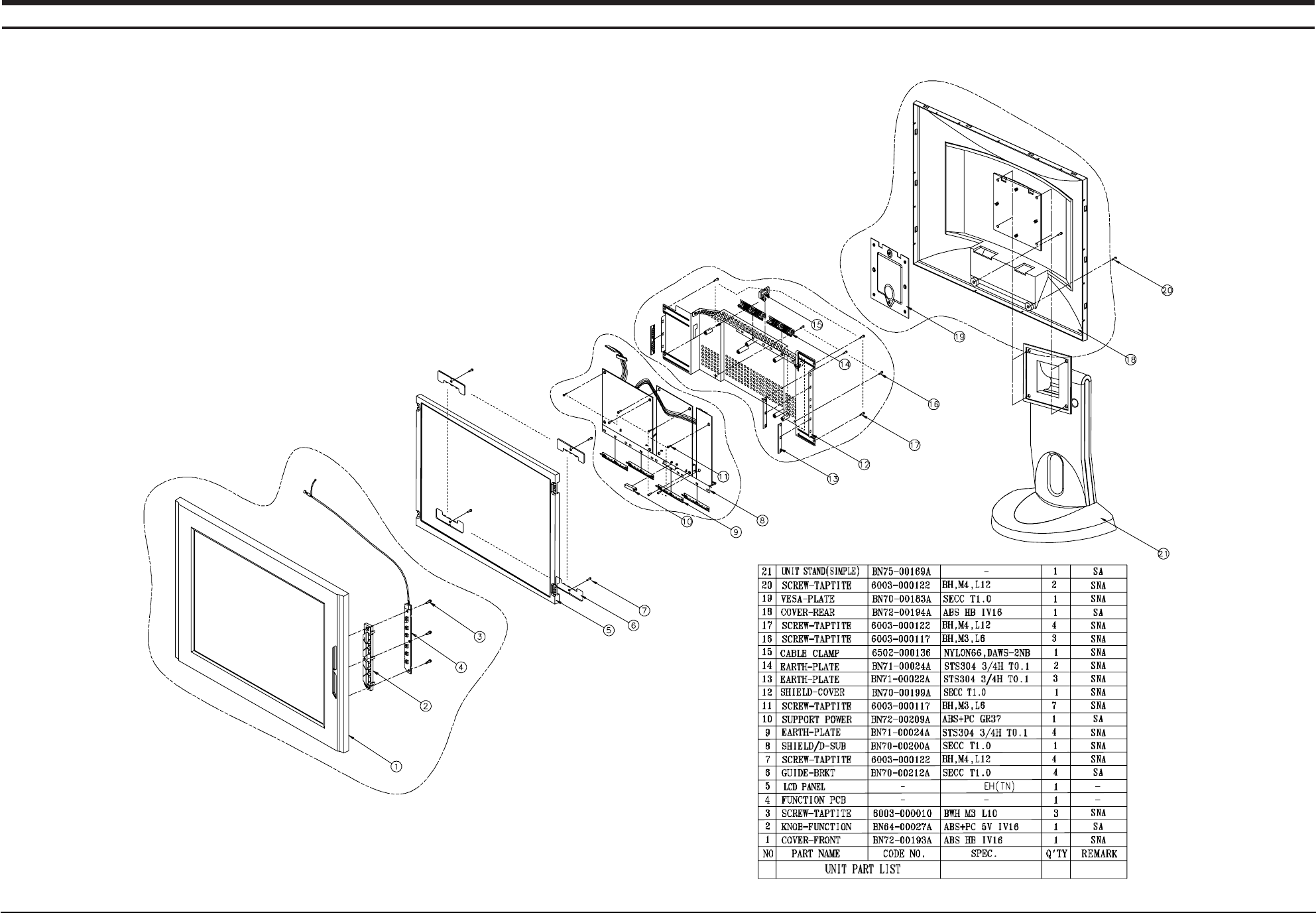

6. Exploded View & Parts List
7. Electrical Parts List
8. Block Diagram

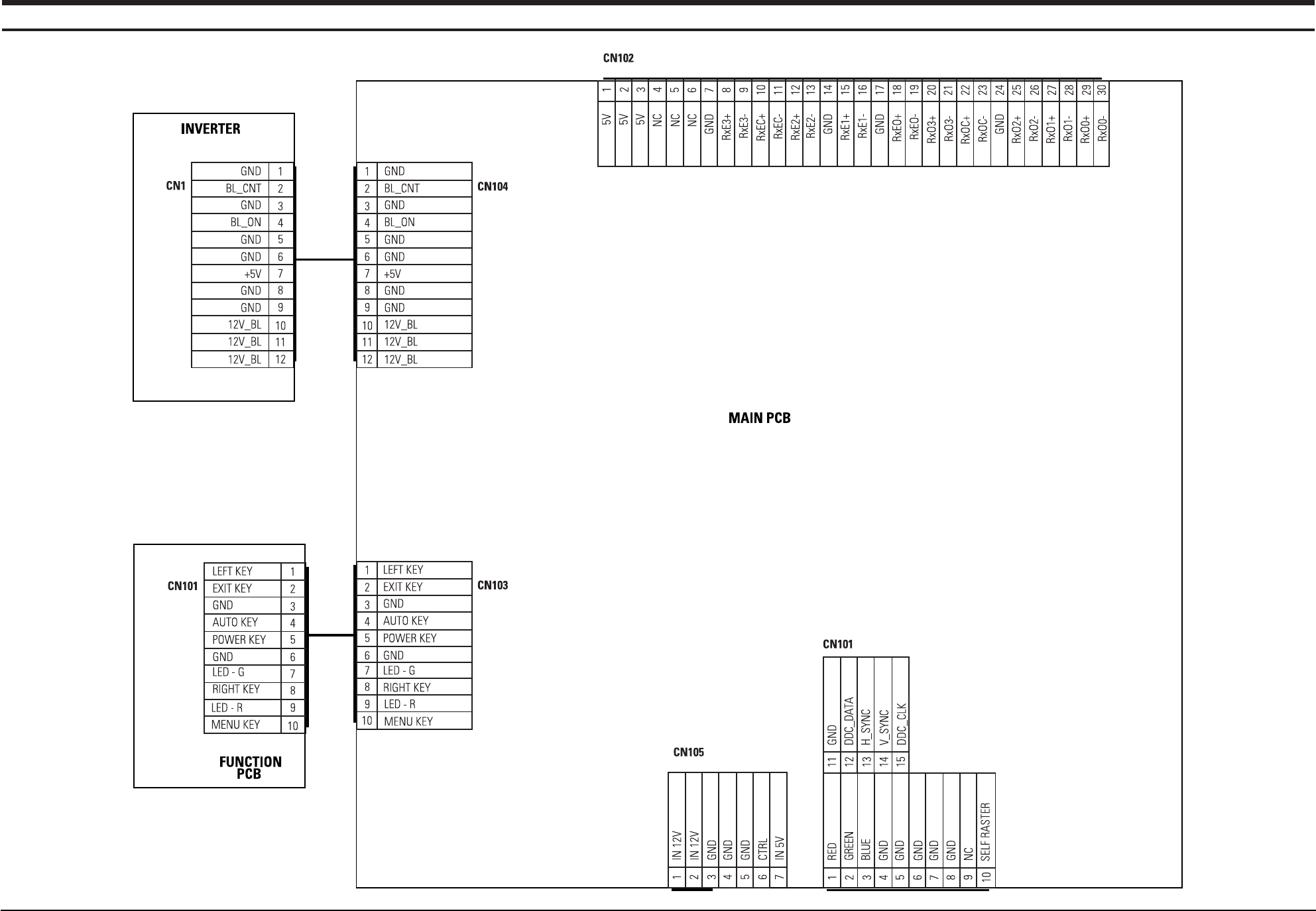

9. Wiring Diagram
10. Schematic Diagrams
11. Panel Description
Samsung Electronics Co.,Ltd.
416, Maetan-3Dong, Paldal-Gu, Suwon City, Kyungki-Do, Korea.
Printed in Korea
P/N : BN68-00225C-00
http://www.samsungmonitor.com (SyncMaster Worldwide)
http://www.samsung-monitor.com (SyncMaster USA)
http://www.sec.co.kr/monitor (Korea)
ii GH17LS/GH17ES
Copyright
© 2001 by Samsung Electronics Co., Ltd.
All rights reserved.
This manual may not, in whole or in part, be
copied, photocopied, reproduced, translated, or
converted to any electronic or machine readable
form without prior written permission of
Samsung Electronics Co., Ltd.
GH17LS/GH17ES Service Manual
First edition July 2001.
Printed in Korea.
Trademarks
Samsung is the registered trademark of Samsung
Electronics Co., Ltd.
GH17LS/GH17ES and MacMaster Cable Adapter
are trademarks of Samsung Electronics Co., Ltd.
Macintosh, Centris, Quadra, Duo Douk, and
Power Macintosh are trademarks of Apple
Computer, Inc.
All other trademarks are the property of their
respective owners.
GH17LS/GH17ES 1-1
1-1-1 Warnings
1. For continued safety, do not attempt to modify the
circuit board.
2. Disconnect the AC power and DC power jack
before servicing.
1-1-2 Servicing the LCD Monitor
1. When servicing the LCD Monitor, Disconnect the
AC line cord from the AC outlet.
2. It is essential that service technicians have an
accurate voltage meter available at all times. Check
the calibration of this meter periodically.
1-1-3 Fire and Shock Hazard
Before returning the monitor to the user, perform the
following safety checks:
1. Inspect each lead dress to make certain that the
leads are not pinched or that hardware is not
lodged between the chassis and other metal parts in
the monitor.
2. Inspect all protective devices such as nonmetallic
control knobs, insulating materials, cabinet backs,
adjustment and compartment covers or shields,
isolation resistor-capacitor networks, mechanical
insulators, etc.
3. Leakage Current Hot Check (Figure 1-1):
WARNING:
Do not use an isolation transformer during this test.
Use a leakage current tester or a metering system
that complies with American National Standards
Institute (ANSI C101.1, Leakage Current for
Appliances), and Underwriters Laboratories (UL
Publication UL1410, 59.7).

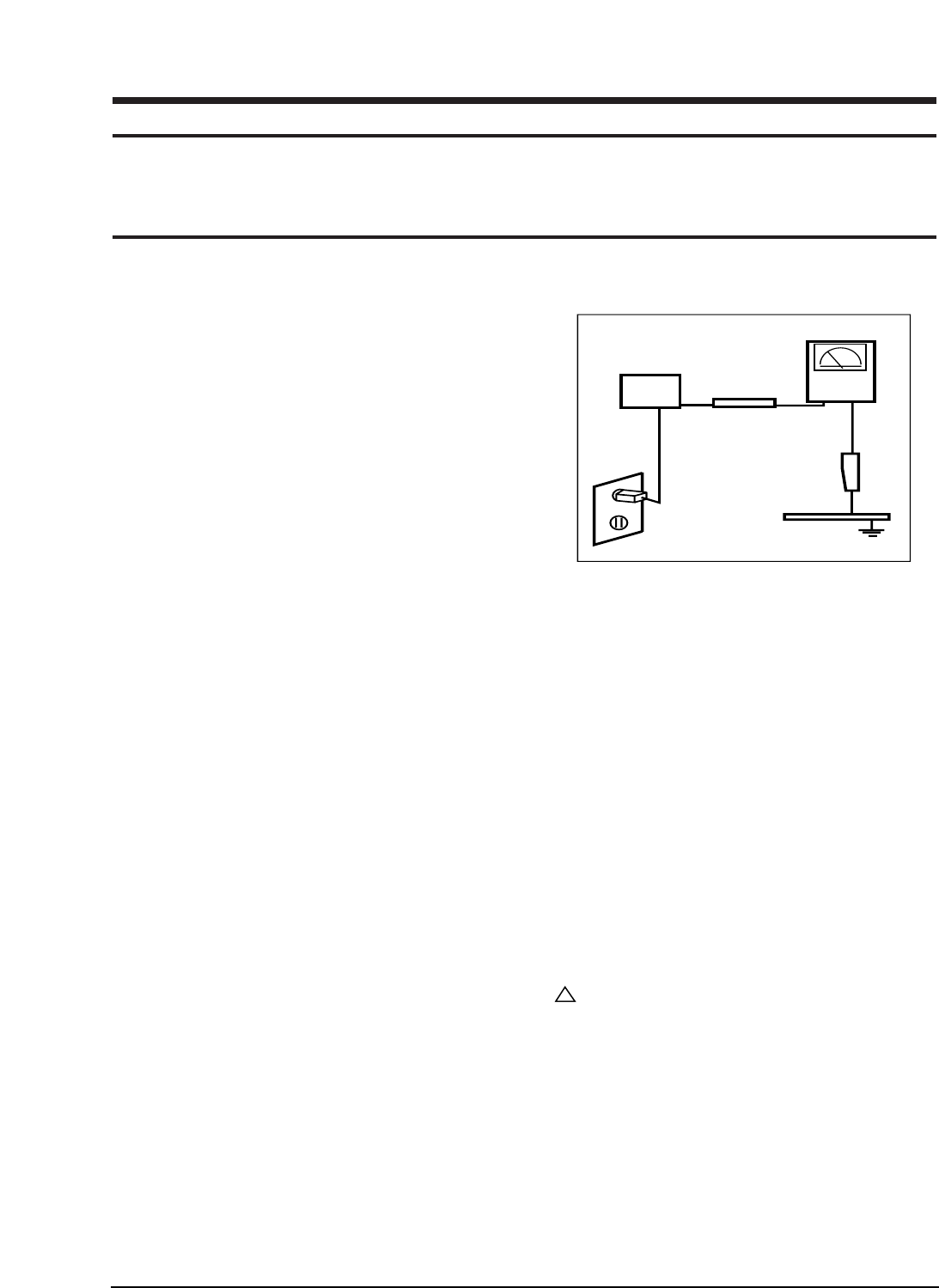

Figure 1-1. Leakage Current Test Circuit
4. With the unit completely reassembled, plug the AC
line cord directly into a 120V AC outlet. With the
unit’s AC switch first in the ON position and then
OFF, measure the current between a known earth
ground (metal water pipe, conduit, etc.) and all
exposed metal parts, including: metal cabinets,
screwheads and control shafts. The current
measured should not exceed 0.5 milliamp. Reverse
the power-plug prongs in the AC outlet and repeat
the test.
1-1-4 Product Safety Notices
Some electrical and mechanical parts have special
safety-related characteristics which are often not
evident from visual inspection. The protection they give
may not be obtained by replacing them with
components rated for higher voltage, wattage, etc. Parts
that have special safety characteristics are identified by
on schematics and parts lists. A substitute
replacement that does not have the same safety
characteristics as the recommended replacement part
might create shock, fire and / or other hazards. Product
safety is under review continuously and new
instructions are issued whenever appropriate.
1 Precautions
Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as
electrical shock.
1-1 Safety Precautions
DEVICE
UNDER
TEST
TEST ALL
EXPOSED METAL
SURFACES
(READING SHOULD
NOT BE ABOVE 0.5mA)
LEAKAGE
CURRENT
TESTER
2-WIRE CORD
*ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED) EARTH
GROUND
!
1-2-1 General Servicing Precautions
1. Always unplug the unit’s AC power cord from the
AC power source and disconnect the DC Power
Jack before attempting to:
(a) remove or reinstall any component or assembly,
(b) disconnect PCB plugs or connectors, (c) connect
a test component in parallel with an electrolytic
capacitor.
2. Some components are raised above the printed
circuit board for safety. An insulation tube or tape
is sometimes used. The internal wiring is
sometimes clamped to prevent contact with
thermally hot components. Reinstall all such
elements to their original position.
3. After servicing, always check that the screws,
components and wiring have been correctly
reinstalled. Make sure that the area around the
serviced part has not been damaged.
1. Immediately before handling any semiconductor
components or assemblies, drain the electrostatic
charge from your body by touching a known earth
ground. Alternatively, wear a discharging wrist-
strap device. To avoid a shock hazard, be sure to
remove the wrist strap before applying power to
the monitor.
2. After removing an ESD-equipped assembly, place it
on a conductive surface such as aluminum foil to
prevent accumulation of an electrostatic charge.
3. Do not use freon-propelled chemicals. These can
generate electrical charges sufficient to damage
ESDs.
4. Use only a grounded-tip soldering iron to solder or
desolder ESDs.
5. Use only an anti-static solder removal device. Some
solder removal devices not classified as “anti-static”
can generate electrical charges sufficient to damage
ESDs.
4. Check the insulation between the blades of the AC
plug and accessible conductive parts (examples:
metal panels, input terminals and earphone jacks).
5. Insulation Checking Procedure: Disconnect the
power cord from the AC source and turn the power
switch ON. Connect an insulation resistance meter
(500 V) to the blades of the AC plug.
The insulation resistance between each blade of the
AC plug and accessible conductive parts (see
above) should be greater than 1 megohm.
6. Always connect a test instrument’s ground lead to
the instrument chassis ground before connecting
the positive lead; always remove the instrument’s
ground lead last.
6. Do not remove a replacement ESD from its
protective package until you are ready to install it.
Most replacement ESDs are packaged with leads
that are electrically shorted together by conductive
foam, aluminum foil or other conductive materials.
7. Immediately before removing the protective
material from the leads of a replacement ESD,
touch the protective material to the chassis or
circuit assembly into which the device will be
installed.
Caution: Be sure no power is applied to the
chassis or circuit and observe all
other safety precautions.
8. Minimize body motions when handling
unpackaged replacement ESDs. Motions such as
brushing clothes together, or lifting your foot from
a carpeted floor can generate enough static
electricity to damage an ESD.
1 Precautions
1-2 GH17LS/GH17ES
1-3 Electrostatically Sensitive Devices (ESD) Precautions
Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly
called Electrostatically Sensitive Devices (ESD). Examples of typical ESD devices are integrated circuits and some field-
effect transistors. The following techniques will reduce the incidence of component damage caused by static electricity.
1-2 Servicing Precautions
WARNING: An electrolytic capacitor installed with the wrong polarity might explode.
Caution: Before servicing units covered by this service manual, read and follow the Safety Precautions
section of this manual.
Note: If unforeseen circumstances create conflict between the following servicing precautions and any of the
safety precautions, always follow the safety precautions.
2 Product Specifications
2-1 Specifications
LCD Panel TFT-LCD panel, RGB vertical stripe, normally black transmissive,
17-Inch viewable, 0.264 (H) x 0.264 (V) mm pixel pitch
Scanning Frequency Horizontal : 30 kHz ~ 81 kHz (Automatic)
Vertical : 56 Hz ~ 85 Hz (~XGA), 76 Hz (SXGA); GH17ES
Vertical : 56 Hz ~ 76 Hz; GH17LS
Display Colors 16,7 Million colors
Maximum Resolution Horizontal : 1280 Pixels
Vertical : 1024 Pixels
Input Video Signal Analog, 0.714 Vp-p ± 5% positive at 75 Ω,
internally terminated
Input Sync Signal Type : Seperate H/V sync, Composite H/V, Sync-on-Green
Level : TTL level (V high ≥2.0 V, V low ≤0.8 V), Sync-on-Green (≤–0.25 V)
Maximum Pixel Clock rate 135 MHz
Active Display
Horizontal/Vertical 338 ± 3 mm/270 ± 3 mm
AC power voltage & Frequency AC 90 ~ 264 Volts, 60/50 Hz ± 3 Hz
Power Consumption 42 W (max), 40W (normal)
Dimensions
Unit (W x D x H) 17.5 x 18.0 x 8.2 Inches (444 x 457 x 208.4 mm)
Carton (W x D x H) 20.7 x 10.7 x 20.9 Inches (527 x 271 x 532 mm)
Weight (Net/Gross)
Environmental Considerations Operating Temperature : 50°F ~ 104°F (10°C ~ 35°C)
Humidity : 10 % ~ 80 %
Storage Temperature : -68°F ~ 113°F (-20°C ~ 45°C)
Humidity : 5 % ~ 95 %
• GH17LS/GH17ES comply with SWEDAC (MPRII) recommendations for reduced electromagnetic fields.
• Designs and specifications are subject to change without prior notice.
Description
GH17LS
5.4 kg (11.9 lbs) / 7.9 kg (17.4 lbs)
GH17ES
5.8 kg (12.8 lbs) / 8.3 kg (18.3 lbs)
GH17LS/GH17ES 2-1
Item
2 Product Specifications
2-2 GH17LS/GH17ES
2-2 Pin Assignments
Sync
Type
Pin No.
15-Pin D-Sub Signal Cable Connector
Separate Composite
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Red
Green
Blue
GND
DDC Return (GND)
GND-R
GND-G
GND-B
DDC Power Input (+5V)
Self Raster
GND
Bi-Dr Data (SDA)
H-Sync.
V-Sync.
DDC Clock (SCL)
Red
Green
Blue
GND
DDC Return (GND)
GND-R
GND-G
GND-B
DDC Power Input (+5V)
Self Raster
GND
Bi-Dr Data (SDA)
H/V-Sync.
Not Used
DDC Clock (SCL)
Red
Green + H/V Sync.
Blue
GND
DDC Return (GND)
GND-R
GND-G
GND-B
DDC Power Input (+5V)
Self Raster
GND
Bi-Dr Data (SDA)
Not Used
Not Used
DDC Clock (SCL)
Sync-on-green
2 Product Specifications
GH17LS/GH17ES 2-3
QRS
P
O
Video
Sync Sync
Horizontal Vertical
CDE
P
O
B
A
Video
Sync Sync
Separate Sync

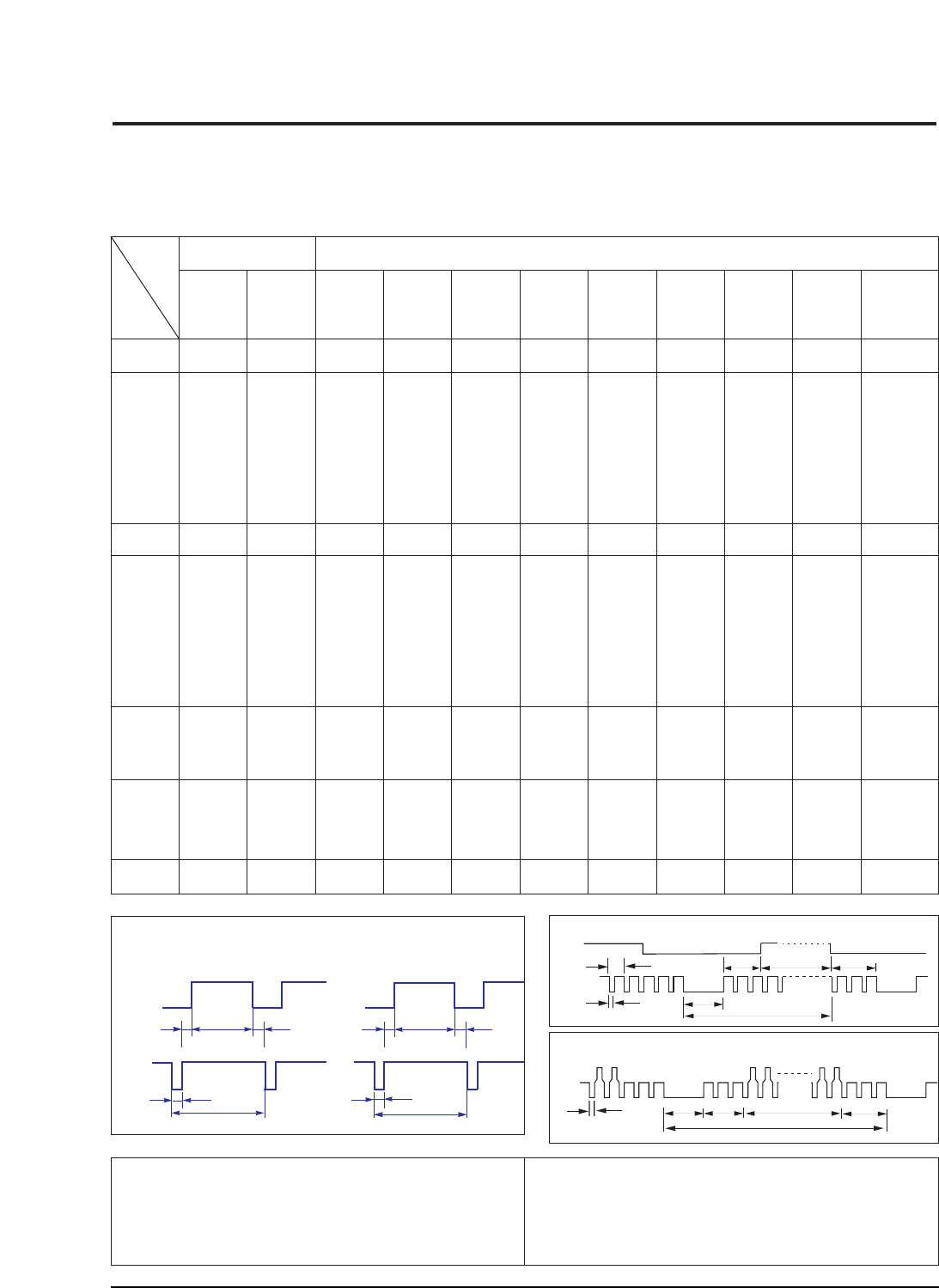

2-3 Timing Chart
This section of the service manual describes the timing that the computer industry recognizes as standard
for computer-generated video signals.
C D
AO
E
BP
Video
Sync Sync
Video
Q R S
A : Line time total B : Horizontal sync width O : Frame time total P : Vertical sync width
C : Back porch D : Active time Q : Back porch R : Active time
E : Front porch S : Front porch
VIDEO
A
BO
P
QRS
Horizontal Vertical
B
Green
Vertical
PQRS
O
Horizontal
H/V Composite Sync
Sync-on-Green
79.976
12.504
1.067
1.837
9.481
0.119
75.025
13.329
0.038
0.475
12.804
0.013
135.000
Positive
Positive
Separate
81.129
16.640
6.400
2.880
3.200
76.106
10.660
0.080
3.200
0.020
135.000
Negative
Negative
Com.
68.677
14.561
1.016
2.201
10.836
0.508
84.997
11.765
0.044
0.524
11.183
0.015
94.500
Positive
Positive
Separate
1024/85Hz
1024x768
1280/76Hz
1280x1024
1280/75Hz
1280x1024
1024/75Hz
1024 x 768
60.023
16.660
1.219
2.235
13.003
0.203
75.029
13.328
0.050
0.466
12.795
0.017
78.750
Positive
Positive
Separate
31.469
31.777
3.813
1.589
26.058
0.318
70.087
14.268
0.064
0.858
13.155
0.191
28.322
Negative
Positive
Separate
fH (kHz)
A µsec
B µsec
C µsec
D µsec
E µsec
fV (Hz)
O msec
P msec
Q msec
R msec
S msec
Clock
Freq.
(MHz)
Polarity
H.Sync
V.Sync
Remark
IBM
640/75 Hz
640 x 480
640/85 Hz
640 x 480
800/75 Hz
800 x 600
800/85 Hz
800 x 600
1024/60Hz
1024 x 768
VGA2/
70 Hz
720 x 400
VGA3/
60 Hz
640 x 480
Table 2-1. Timing Chart
31.469
31.778
3.813
1.589
26.058
0.318
59.940
16.683
0.064
0.794
15.761
0.064
25.175
Negative
Negative
Separate
37.500
26.667
2.032
3.810
20.317
0.508
75.000
13.333
0.080
0.427
12.800
0.027
31.500
Negative
Negative
Separate
43.269
23.111
1.556
2.222
17.778
1.556
85.008
11.764
0.671
0.578
11.093
0.023
49.500
Negative
Negative
Separate
46.875
21.333
1.616
3.232
16.162
0.323
75.000
13.333
0.064
0.448
12.800
0.021
49.500
Positive
Positive
Separate
53.674
18.631
1.138
2.702
14.222
0.569
85.061
11.756
0.056
0.503
11.179
0.019
56.250
Positive
Positive
Separate
48.363
20.677
2.092
2.462
15.754
0.369
60.004
16.666
0.124
0.600
15.880
0.062
75.000
Negative
Negative
Separate
Mode VESA
Timing (Analog Only) (Analog Only)
2 Product Specifications
2-4 GH17LS/GH17ES
Memo
3-1-1 Removing the Stand
1. With a pad beneath it, stand the monitor on its
front with the screen facing downward and
the base close to you. Make sure nothing will
damage the screen.
2. Remove the 4 screws on the Stand.
Caution: Be careful. The signal cable and
power cable are still attached to the
monitor.
3. Disconnect the Signal Cable and Power Cord.
3-1-2 Main Body Disassembly
1. Remove 2 screws on the Rear Cover.
2. Pull the Rear Cover up and off the monitor.
3. Remove 7 screws on the PCB Shield.
4. Disconnect the Function PCB wire (10P)
between the Function PCB and the CN103
connector on the Main PCB.
5. Disconnect 4 Inverter wires between the Panel
and the CN2, 3, 4, 5 connectors on the Inverter
PCB.
6. Disconnect the interface wire (30P) between
the Panel and the CN102 connector on the
Main PCB.
7. Remove 3 screws on the Main PCB and 2
screws on the Inverter PCB and 2 screws on
the Power Adapter PCB.
8. Disconnect the 12P harness between CN1
connector on the inverter and CN104
connector on the Main PCB.
9. Carefully lift the Main PCB Assembly and
Inverter PCB and place them on a flat, level
surface that is protected from static electricity.
10. Remove 4 screws on the Bracket Guide.
(GH17LS only)
11. Remove 3 screws on the Function PCB from
the Front Cover and remove the Function PCB
and Function Knob.
GH17LS/GH17ES 3-1
3 Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the
GH17LS/GH17ES TFT-LCD monitors.
WARNING: This monitor contains electrostatically sensitive devices. Use caution when handling
these components.
3-1 Disassembly
Cautions:1. Disconnect the monitor from the power source before disassembly.
2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.
3 Disassembly and Reassembly
3-2 GH17LS/GH17ES
3-2 Reassembly
Reassembly procedures are in the reverse order of Disassembly procedures.
4-1 Required Equipment
The following equipment is necessary for
adjusting the monitor:
• Computer with Windows 95 , Windows 98 ,
or Windows NT .
• RS232 JIG.
4-2 RS232 Jig Setup
1. Install Hyper Terminal program from
windows system.
2. Configure Baud rate to 19200, select
appropriate COM port.
3. Make the Hardware setup as per
figure shown.
4. Establish the connection by selecting
“Connect” from hyper Terminal.
5. Power on the board, now you see messages in
the application window.
If no messages than check for 1, 2 and 3 again.
Message :
Gogh 17*** fw. copyright (c) 2000, 2001 Sage.
Date : ****. **. **.
Chip ID : b1.
Panel : Samsung 17 SXGA.
4-3 Changing Board
Before replacing the AD Board, read all Panel
information data by using RS232 JIG and hyper
terminal.
1. Type character `B`.
Service Menu for Gogh 17 Model.
1. Read.
2. Modify upper Back Light Value.
3. Modify Lower back Light Value.
4. Modify Panel On Time Value.
5. Exit Service Menu
Enter 1
Upper Backlight Time Expired (in hours) : ***
Lower Backlight Time Expired (in hours) : ***
Panel On Time (in hours) : ***
Please note down these values. Than change to
new board. Execute the command `B`, read the
values. You will see these are set to default
values. Change the values to the recorded
values. Exit the service menu by `B` command.
2. Color Auto Adjustment
After function `1`. Assemble the monitor.
And display 16-Gray pattern or black and white
mixed pattern. Then push “Exit”, “-” and “+”
key of function same time.
During normal execution of Auto Algorithm
the screen image may changed.
4-4 Program memory (IC110) change
Follow same method as changing Board (4-3).
GH17LS/GH17ES 4-1
4 Alignments and Adjustments

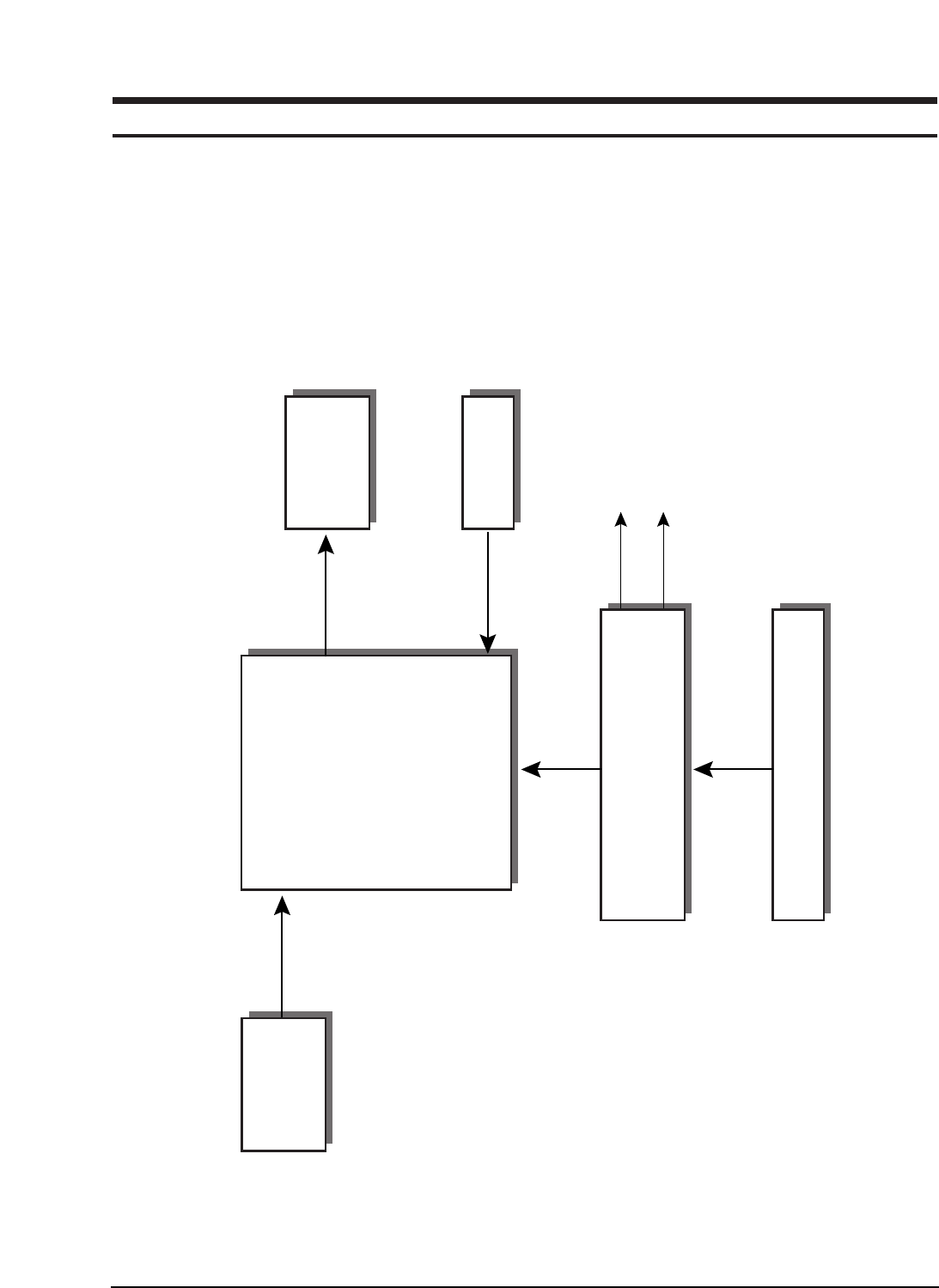

This section of the service manual explains how to use the RS232 JIG.
This function is needed when AD Board Change and program memory (IC110) change.
PC
Serial cable
Function
Board
Power
cable
RS232
JIG
Power
Adapter
AD
Board

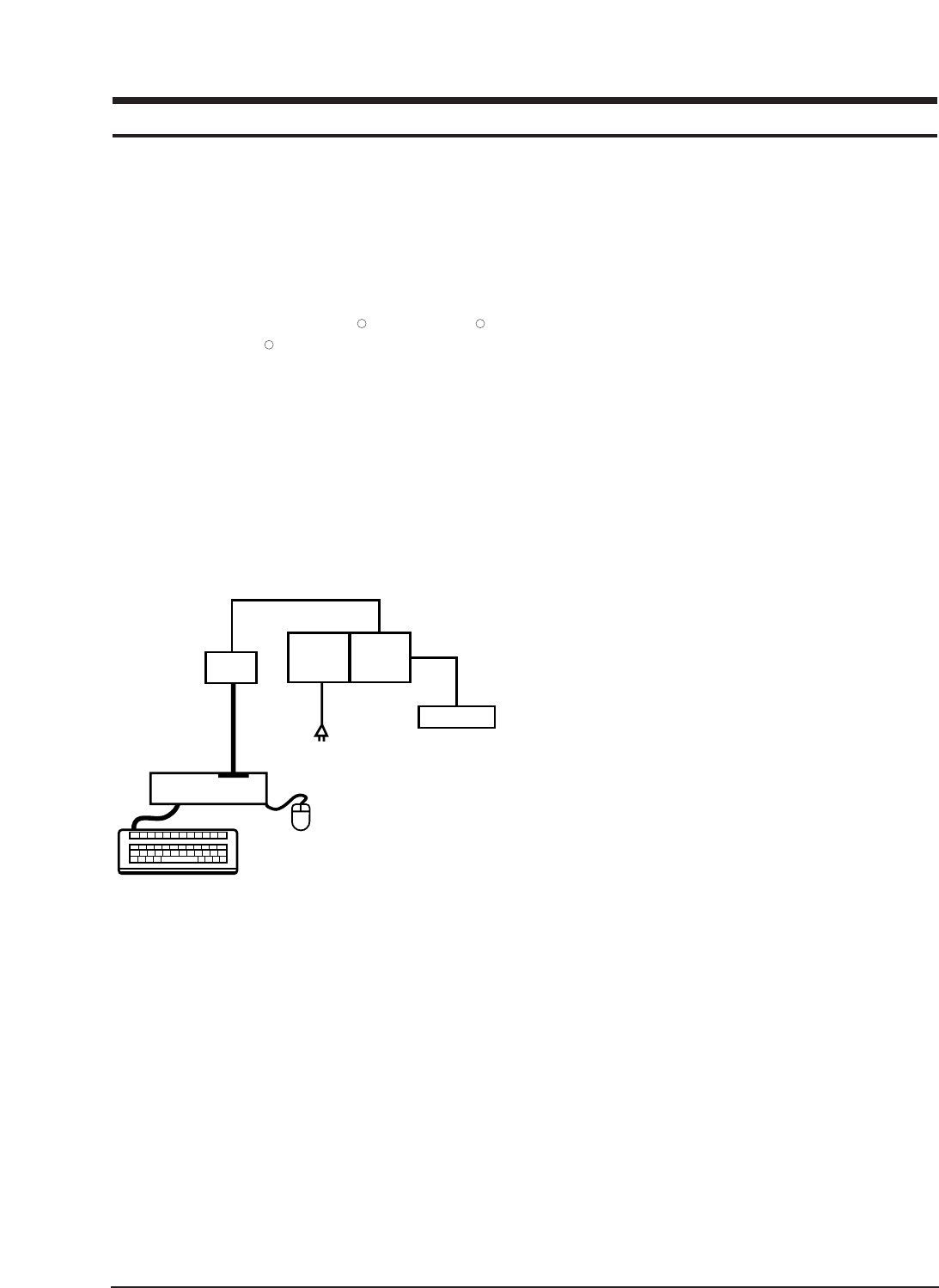

Figure 4-1.
R R
R
Memo
4 Alignments and Adjustments
4-2 GH17LS/GH17ES
GH17LS/GH17ES 5-1
5 Troubleshooting
Notes: 1. Before troubleshooting, setup the PC’s display as below.
• Resolution: 1280 x 1024
• H-frequency: 64 kHz
• V-frequency: 60 Hz
2. If no picture appears, make sure the power cord is correctly connected.
3. If you push and hold the EXIT button for more than 5 seconds, the monitor automatically turns back
to the factory preset.
5-1-1 No Power
When Pin 6 of CN105 is 0V
does proper DC 12V, 5V
appear at Pin 1, 2 and 7 of
CN105 seperately?
Change power Adaptor.
Yes
No
Does proper DC 5 V appear at
Pin 3 of IC115? Check IC115 and related circuit.
Yes
No
Does proper DC 3.3 V appear at
Pin 3 of IC112? Check IC112 and related circuit.
No
Yes
Does proper DC 2.5 V appear at
Pin 2 of IC116 and IC117?
Check IC116, IC117
and related circuit.
No
❇
❇ 0V means power on state.
5 Troubleshooting
5-2 GH17LS/GH17ES
5-1-2 No Power
When Pin 6 of CN105 is
around 2V, does proper DC 8V,
3V appear at Pin 1 and 7 of
CN105 seperately?
Change power Adaptor.
Yes
Yes
No
Push Power button.
Does proper 0V at Pin 6 of
CN105?
Check function PCB Assy
and related circuit.
Yes
No
Does proper DC 3.3 V appear at
Pin 3 of IC112? Check IC112 and related circuit.
No
Yes
Does proper DC 2.5 V appear at
Pin 2 of IC116, IC117?
Check IC116, IC117
and related circuit.
No
Does proper DC 5 V appear at
Pin 3 of IC115? Check IC115 and related circuit.
No
❇❇ 2V means soft power off or DPMS state.
❇❇
There sync. and data output are
R260, R261, R211, R213, and RA201 ~ RA212?
5 Troubleshooting
GH17LS/GH17ES 5-3

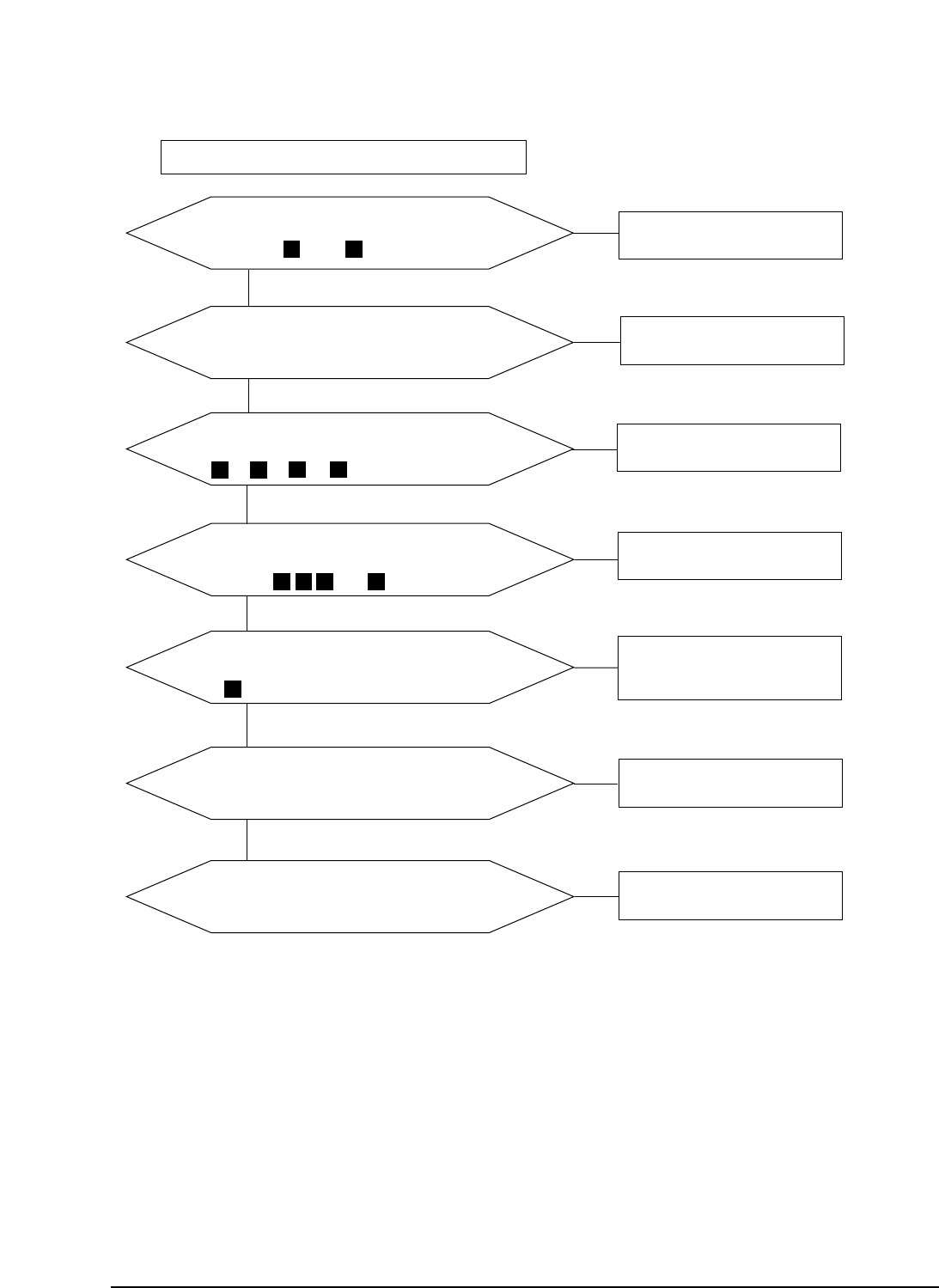

5-2 No Video
Check signal cable connection and power.
Check IC102 and related circuit.
Yes
No
There proper signal input are
Pin 66, 65, 64, and 11 of IC102?
Yes
Check the LVDS_EN at
R118 is high or not.
Normal state is high.
Does the output signal appear at
R121 ~ R130 R132, R135, R136, and R138 ~ R144?
Yes
No
Check the Power
and related circuit.
No
Please check the Inverter
and related circuit.
No
There are DC 5V at Pin 1, 2 and 3 of CN102?
Yes
There are DC 12V, DC5V and DC 3.3V at
Pin 10, 11, 12 ; Pin 7 and Pin 4 of CN104?
3 4 5
7
Does the X101 and X201 oscillate properly?
Yes
There R, G, B input are at R103, R107 and R108?
Replace that or
check related circuit.
No
Check input part.
No
Please check the power related
IC202 and output part.
No
Yes
12
6
3 4
56
5 Troubleshooting
5-4 GH17LS/GH17ES

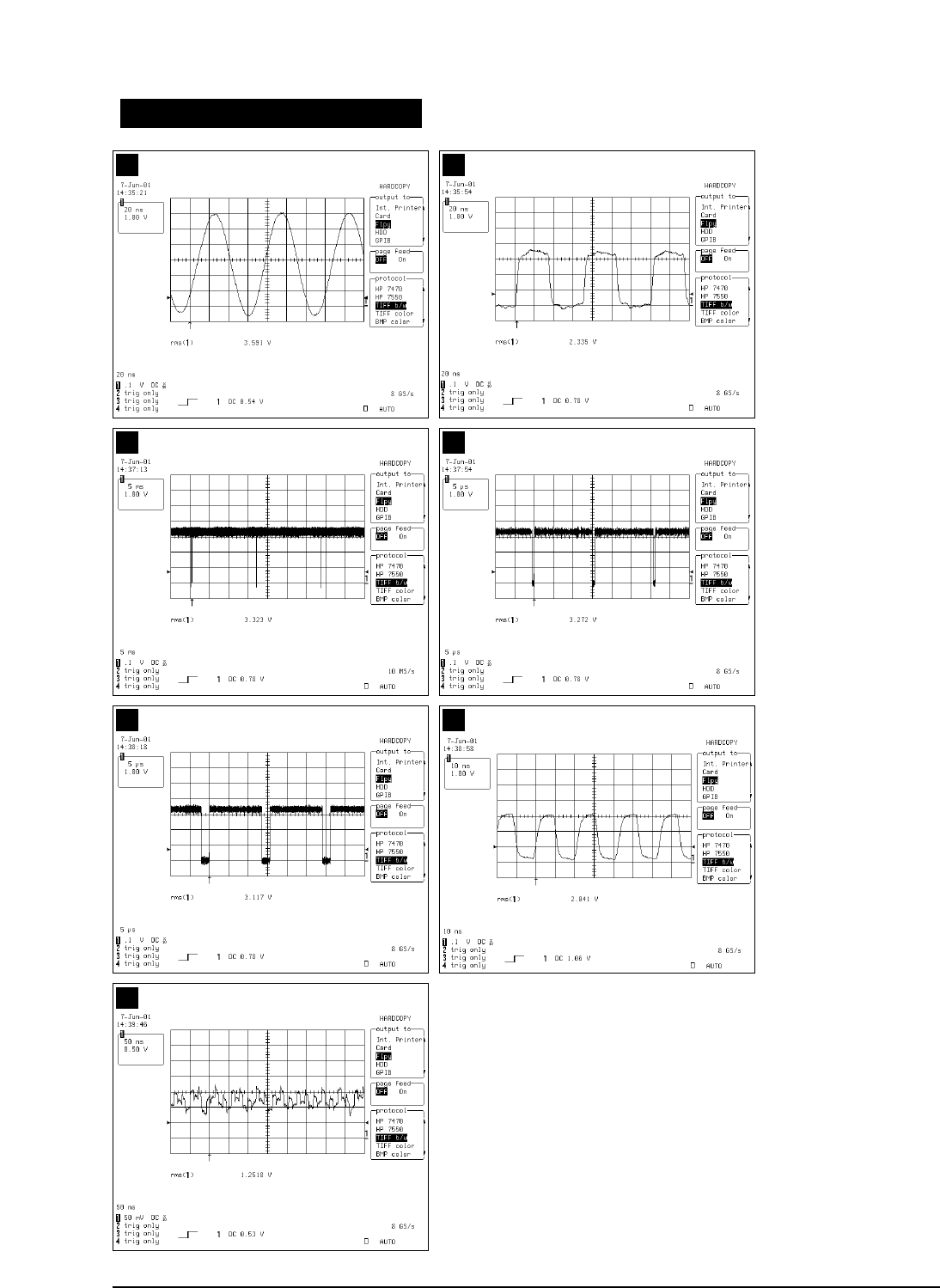

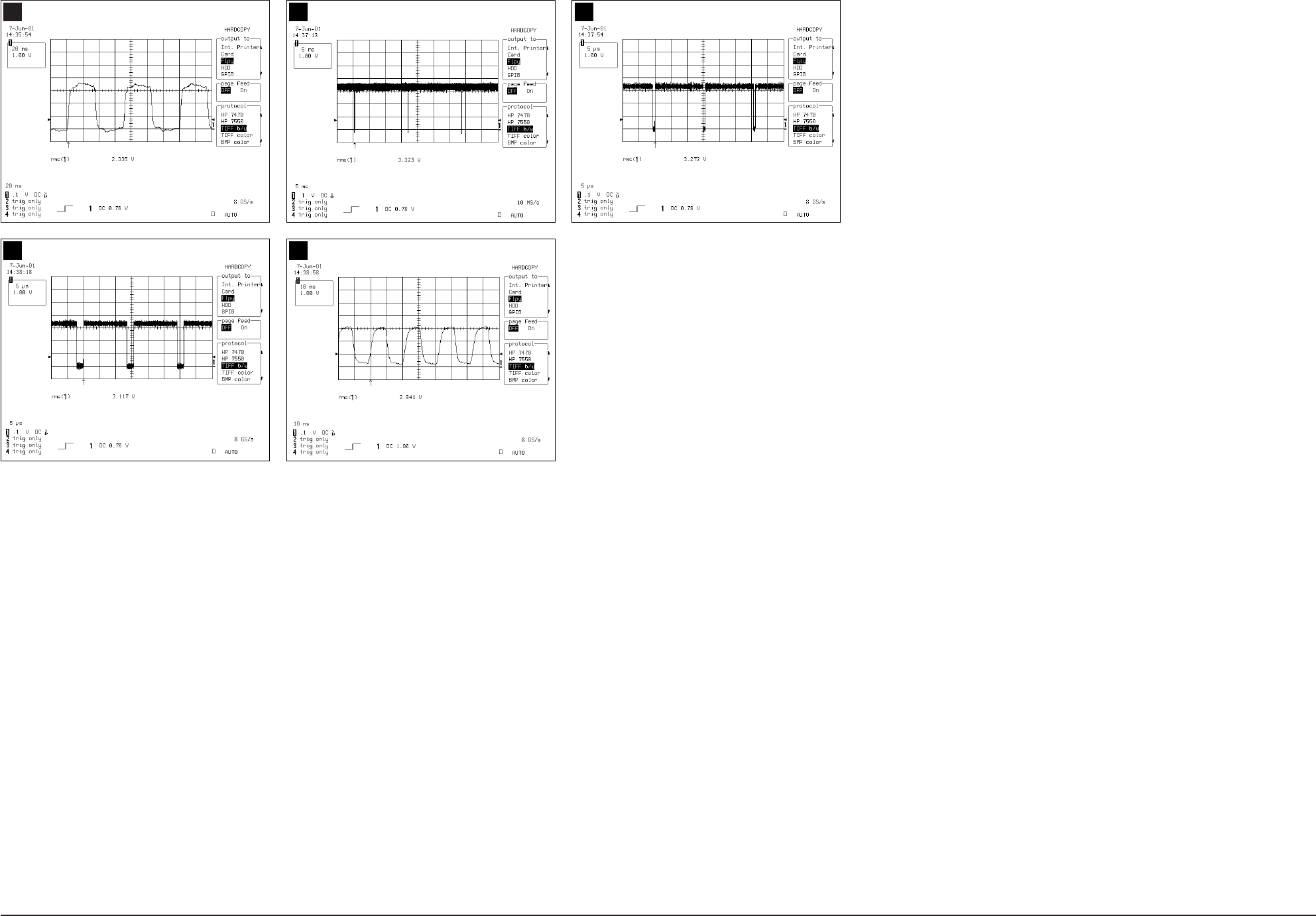

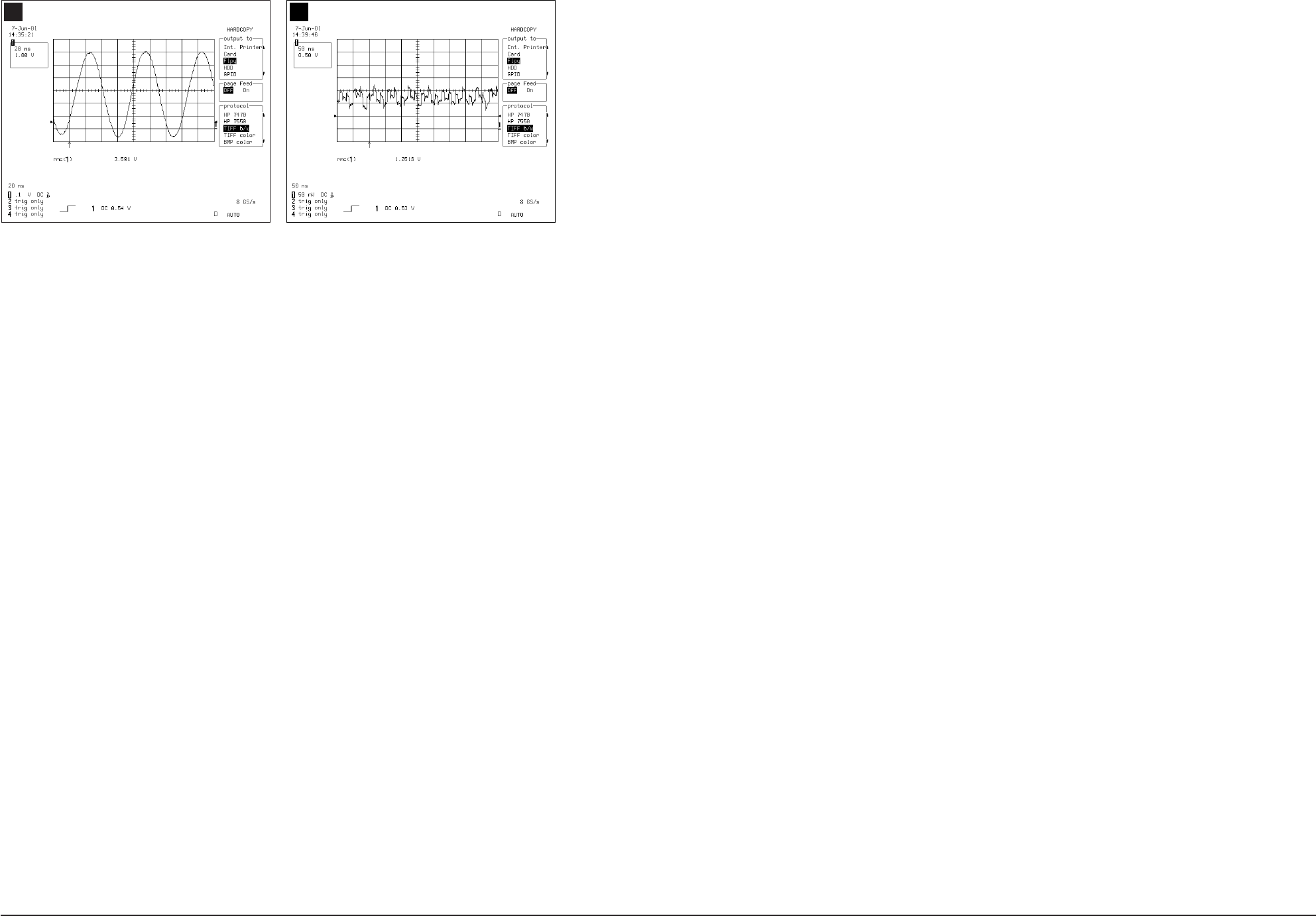

WAVEFORMS
1
3
5
7
2
4
6
GH17LS/GH17ES 6-1
6 Exploded View and Parts List
6-1 GH17LS
6 Exploded View & Parts List
6-2 GH17LS/GH17ES
6-2 GH17ES
CIS 0201-001223 ADHESIVE-TS HT-130S,RED,700+/- 50,- SNA
CIS 0202-001044 SOLDER-WIRE. S63S-W3.0,S63S,D3,63Sn/37Pb,- SNA
CIS 0202-001046 SOLDER-WIRE FLUX CF-110VH-2A,-,-,-,- SNA
CIS 0202-001162 SOLDER-CREAM RMA-20-21L,S63,-,SN63/PB36.6/AG0.4,FLUX9.5% SNA
CIS 0202-001172 SOLDER-WIRE FLUX RS-107,RS60,D1.2,SN60/PB40,- SNA
CIS 0204-001095 THINNER #4520,-,-,- SNA
CIS BN44-00054A ADAPTOR
DPA34L,170S,100-240VAC,47-63HZ,12V/5V,2A/2A,-,34W,AC-DC,-10~+40C,-,-
CIS BN72-00209A SUPPORT-POWER GH15LS,ABS+PC,GR37,-,5V,-,-,- SNA
CIS BN75-00177A UNIT-SHIELD/DSUB GH17LS,-,SPTE T0.5,-,-,-,- SNA
CIS BN46-00008H MICOM-S/W,GOGH GH17LS,-,-,-,-,-,- SNA
CN101 3701-001219 CONNECTOR-DSUB 15P,3R,FEMALE,ANGLE,AUF
CN105 3711-004853 CONNECTOR-HEADER BOX,7P,1R,2MM,ANGLE,SN,WHT SNA
CN106 3711-000056 CONNECTOR-HEADER BOX,2P,1R,2.5mm,ANGLE,SN SNA
CN108 3711-001465 CONNECTOR-HEADER NOWALL,3P,1R,2.54mm,STRAIGHT,A SNA
IC110 1102-001097 IC-EPROM
27C010,128KX8BIT,PLCC,32P,-,90NS,5V,10%,PLASTIC,0TO+70C,0.1MA,CMOS,TR
BD101 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
BD104 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
BD105 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
BD106 3301-001163 CORE-FERRITE BEAD AB,80ohm,2x1.25x1mm,300mA,TP,FERRITE,0.08ohm SNA
BD107 3301-001163 CORE-FERRITE BEAD AB,80ohm,2x1.25x1mm,300mA,TP,FERRITE,0.08ohm SNA
BD108 3301-001163 CORE-FERRITE BEAD AB,80ohm,2x1.25x1mm,300mA,TP,FERRITE,0.08ohm SNA
C101 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C102 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C103 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C104 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C105 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C106 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C107 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4
C111 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4
C112 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C113 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C114 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C115 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4
C116 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C117 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C118 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C121 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608
C122 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4
C123 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608
C124 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4
C125 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C126 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm
C127 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C128 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C129 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C130 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608
C131 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4
C132 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4
GH17LS/GH17ES 7-1
Loc. No. Code No. Description Specification Remarks
7 Electrical Parts List
7-1 Main PCB Parts
C136 2203-000626 C-CERAMIC,CHIP 0.022nF,5%,50V,NP0,TP,1608
C143 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608
C144 2402-001044 C-AL,SMD 100uF,20%,25V,-,TP,8.3x8.3x6.3
C145 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C146 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C147 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608
C148 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608
C149 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608
C150 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608
C151 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608
C152 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608
C153 2203-000626 C-CERAMIC,CHIP 0.022nF,5%,50V,NP0,TP,1608
C162 2203-005533 C-CERAMIC,CHIP 1000nF,20%,6.3V,X7R,TP,1608
C163 2203-005533 C-CERAMIC,CHIP 1000nF,20%,6.3V,X7R,TP,1608
C164 2203-005533 C-CERAMIC,CHIP 1000nF,20%,6.3V,X7R,TP,1608
C165 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C166 2402-000144 C-AL,SMD 3.3uF,20%,50V,GP,TP,4.3x4.3x5.
C168 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4
C169 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C170 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C171 2402-000179 C-AL,SMD 47uF,20%,16V,GP,TP,6.6x6.6x5.4
C172 2402-000179 C-AL,SMD 47uF,20%,16V,GP,TP,6.6x6.6x5.4
C173 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C174 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C175 2409-001029 C-ORGANIC 120uF,20%,6.3V,WT,TP,10.3x10.3x10.3mm,9
C176 2402-000179 C-AL,SMD 47uF,20%,16V,GP,TP,6.6x6.6x5.4
C177 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C178 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C179 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4
C180 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C181 2402-000179 C-AL,SMD 47uF,20%,16V,GP,TP,6.6x6.6x5.4
C182 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C183 2203-000236 C-CERAMIC,CHIP 0.1nF,5%,50V,NP0,TP,1608
C184 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C185 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4
C187 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C188 2203-000697 C-CERAMIC,CHIP 0.002nF,0.25pF,50V,NP0,TP,1608
C189 2203-000697 C-CERAMIC,CHIP 0.002nF,0.25pF,50V,NP0,TP,1608
C190 2203-000697 C-CERAMIC,CHIP 0.002nF,0.25pF,50V,NP0,TP,1608
C191 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C192 2402-001044 C-AL,SMD 100uF,20%,25V,-,TP,8.3x8.3x6.3
C193 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4
C194 2402-000179 C-AL,SMD 47uF,20%,16V,GP,TP,6.6x6.6x5.4
C201 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C202 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4
C207 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C208 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4
C209 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C210 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4
C211 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C212 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4
7 Electrical Parts List
7-2 GH17LS/GH17ES
Loc. No. Code No. Description Specification Remarks
C213 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C214 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4
C216 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4
C218 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4
C219 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C220 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4
C221 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4
C222 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C223 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C224 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C225 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C226 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C227 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C228 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C229 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C230 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C231 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C236 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C237 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C238 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C239 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C240 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C241 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C242 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C243 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C244 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,-
C245 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C246 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C247 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4
C248 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,-
C249 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C250 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C251 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C252 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C253 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,-
C254 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,-
C255 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4
C256 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,-
C257 2402-001006 C-AL,SMD 4.7uF,20%,25V,GP,TP,3.6x6.3x3.
C258 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,-
C259 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C260 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4
C264 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C265 2402-001006 C-AL,SMD 4.7uF,20%,25V,GP,TP,3.6x6.3x3.
C267 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C268 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4
C269 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C270 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C271 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C272 2409-001029 C-ORGANIC 120uF,20%,6.3V,WT,TP,10.3x10.3x10.3mm,9
CN102 3711-004070 CONNECTOR-HEADER BOX,30P,1R,1.25mm,SMD-A,SN SNA
7 Electrical Parts List
GH17LS/GH17ES 7-3
Loc. No. Code No. Description Specification Remarks
CN103 3711-002050 CONNECTOR-HEADER BOX,10P,1R,1.25mm,SMD-A,SN SNA
CN104 3711-000556 CONNECTOR-HEADER BOX,12P,1R,1.25mm,SMD-A,SN SNA
CN107 3711-002049 CONNECTOR-HEADER BOX,6P,1R,1.25mm,SMD-A,SN SNA
D101 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP
D102 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP
D103 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP
D104 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP
D105 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP
D106 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP
D107 0402-000553 DIODE-RECTIFIER SS24,40V,2.0A,DO-214AA
FT101 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1
FT102 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1
FT103 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1
FT104 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1
FT105 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1
FT106 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1
FT109 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
FT110 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
FT112 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
FT113 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
FT201 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
FT202 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
FT203 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
FT204 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
FT205 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
IC101 1103-001164 IC-EEPROM
24LC21A,128X8BIT,SOP,8P,150MIL,-,5V,10%,PLASTIC,0 TO +70C,100UA,CMOS,TP
IC102 1205-001870 IC-TRANSMITTER
DS90C387VJD,QFP,100P,550MIL,PLASTIC,3.6V,2.8W,-10to+70C,TR,Dual Pixel LVDS
IC103 1103-000138 IC-EEPROM 24C16,2Kx8BIT,SOP,8P,150MIL,10
IC104 0803-000106 IC-TTL 74F132,TRIGGER,SOP,14P,150MIL,
IC105 1203-001109 IC-VOL. DETECTOR 7045,SOT-89,3P,-,PLASTIC,4.3/4
IC106 0903-001215 IC-MICROCONTROLLER
80C32X2,8Bit,PLCC,44P,-,40MHz,TR,CMOS,PLASTIC,5V,1W,0to+70C,256BYTE,-,8Bit,300nS
SNA
IC107 0505-001170 FET-SILICON SI9933ADY-T1,P,-20V,3.4A,0.06ohm,2W,SO-8
IC109 0802-001108 IC-BICMOS LOGIC
74ABT573,LATCH,TSSOP,20P,173MIL,8,TR,PLASTIC,3-STATE,-,0.55V,-65TO+150C,-,0.8V,5
IC110_SOCK 3704-000249 SOCKET-IC 32P,PLCC,SN,1.27mm
IC112 1203-001293 IC-POSI.FIXED REG. 033,T0-252,3P,6.5MIL,PLASTIC,3
IC115 1203-001488 IC-POSI.FIXED REG. 7805,T0-252,3P,-,PLASTIC,4.8/5
IC116 1203-001465 IC-POSI.ADJUST REG. 317,TO-263,3P,-,PLASTIC,1.2/37
IC117 1203-001465 IC-POSI.ADJUST REG. 317,TO-263,3P,-,PLASTIC,1.2/37
IC118 0505-001170 FET-SILICON SI9933ADY-T1,P,-20V,3.4A,0.06ohm,2W,SO-8
IC202 1205-002028 IC-LCD CONTROLLER
JAGASM,BGA,388P,208MIL,PALATIC,3.45V,2.5W,-40TO+125C,TR,DIGITAL DISPLAY PRO.
L201 2703-001778 INDUCTOR-SMD 3.3UH,20%,3.2X2.5X2.2MM
L206 2703-001778 INDUCTOR-SMD 3.3UH,20%,3.2X2.5X2.2MM
L207 2703-001778 INDUCTOR-SMD 3.3UH,20%,3.2X2.5X2.2MM
MP1.0 BN41-00089A PCB MAIN GH17LS,FR4,4L,1.0,1.6,120X110,GH17LS,-,-,-
Q101 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270
Q103 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270
Q105 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270
Q106 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270
Q107 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270
Q108 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270
Q109 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270
7 Electrical Parts List
7-4 GH17LS/GH17ES
Loc. No. Code No. Description Specification Remarks
Q110 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270
Q111 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270
Q201 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270
R101 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R102 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R103 2007-000309 R-CHIP 10ohm,5%,1/16W,DA,TP,1608
R104 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R105 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R106 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R107 2007-000309 R-CHIP 10ohm,5%,1/16W,DA,TP,1608
R108 2007-000309 R-CHIP 10ohm,5%,1/16W,DA,TP,1608
R109 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R110 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R111 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R112 2007-001167 R-CHIP 75ohm,5%,1/16W,DA,TP,1608
R113 2007-001167 R-CHIP 75ohm,5%,1/16W,DA,TP,1608
R114 2007-001167 R-CHIP 75ohm,5%,1/16W,DA,TP,1608
R115 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R116 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R117 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R118 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R119 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R120 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R121 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R122 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R123 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R124 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R125 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R126 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R127 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R128 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R129 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R130 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R131 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R132 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R133 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R134 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R135 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R136 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R137 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R138 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R139 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R140 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R141 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R142 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R143 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R144 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R145 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R146 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R147 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R148 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
7 Electrical Parts List
GH17LS/GH17ES 7-5
Loc. No. Code No. Description Specification Remarks
R149 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R150 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R151 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R152 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608
R153 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R154 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R155 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R156 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R157 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R158 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R159 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R160 2007-000102 R-CHIP 100Kohm,5%,1/16W,DA,TP,1608
R162 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R165 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R166 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R167 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R168 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R169 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R170 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R171 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R172 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R173 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R174 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R175 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R176 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R184 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R185 2007-000102 R-CHIP 100Kohm,5%,1/16W,DA,TP,1608
R187 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R188 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R189 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R190 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R191 2007-000132 R-CHIP 180Kohm,5%,1/16W,DA,TP,1608
R192 2007-000132 R-CHIP 180Kohm,5%,1/16W,DA,TP,1608
R193 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R194 2007-000125 R-CHIP 3.9Kohm,5%,1/16W,DA,TP,1608
R195 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R196 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R197 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R198 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R199 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R201 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R202 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R204 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R208 2007-000075 R-CHIP 220ohm,5%,1/16W,DA,TP,1608
R211 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R212 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R213 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R214 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R215 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R216 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R217 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
7 Electrical Parts List
7-6 GH17LS/GH17ES
Loc. No. Code No. Description Specification Remarks
R219 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R220 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R221 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R222 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R223 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R224 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R225 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R226 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R227 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R228 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R229 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R230 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R231 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R232 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R233 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R234 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R235 2007-000124 R-CHIP 2.2Kohm,5%,1/16W,DA,TP,1608
R236 2007-000134 R-CHIP 33Kohm,5%,1/16W,DA,TP,1608
R237 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R238 2007-000309 R-CHIP 10ohm,5%,1/16W,DA,TP,1608
R239 2007-000309 R-CHIP 10ohm,5%,1/16W,DA,TP,1608
R240 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R242 2007-000309 R-CHIP 10ohm,5%,1/16W,DA,TP,1608
R243 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R244 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R245 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R246 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R247 2007-000088 R-CHIP 7.5Kohm,5%,1/16W,DA,TP,1608
R248 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R249 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R250 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R251 2007-000102 R-CHIP 100Kohm,5%,1/16W,DA,TP,1608
R253 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R254 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R255 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R259 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R260 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R261 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608
R263 2007-000077 R-CHIP 470ohm,5%,1/16W,DA,TP,1608
R264 2007-000077 R-CHIP 470ohm,5%,1/16W,DA,TP,1608
R265 2007-000077 R-CHIP 470ohm,5%,1/16W,DA,TP,1608
R266 2007-000077 R-CHIP 470ohm,5%,1/16W,DA,TP,1608
R267 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R268 2007-001167 R-CHIP 75ohm,5%,1/16W,DA,TP,1608
R269 2007-000102 R-CHIP 100Kohm,5%,1/16W,DA,TP,1608
R270 2007-000119 R-CHIP 560ohm,5%,1/16W,DA,TP,1608
R273 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R274 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R275 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R276 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R277 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
7 Electrical Parts List
GH17LS/GH17ES 7-7
Loc. No. Code No. Description Specification Remarks
R278 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R279 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R297 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R298 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R299 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R307 2007-000076 R-CHIP 330ohm,5%,1/16W,DA,TP,1608
R309 2007-001002 R-CHIP 510ohm,5%,1/16W,DA,TP,1608
R310 2007-001002 R-CHIP 510ohm,5%,1/16W,DA,TP,1608
R311 2007-001002 R-CHIP 510ohm,5%,1/16W,DA,TP,1608
R315 2007-000076 R-CHIP 330ohm,5%,1/16W,DA,TP,1608
R316 2007-000076 R-CHIP 330ohm,5%,1/16W,DA,TP,1608
R317 2007-001002 R-CHIP 510ohm,5%,1/16W,DA,TP,1608
R318 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608
R327 2007-000077 R-CHIP 470ohm,5%,1/16W,DA,TP,1608
R328 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608
R330 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R331 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R332 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R333 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R338 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R339 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R340 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R344 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R345 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608
R347 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R348 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R360 3301-001236 CORE-FERRITE BEAD AB,60ohm,1.6x0.8x0.8mm,200mA,TP,H,0.7ohm
R361 3301-001236 CORE-FERRITE BEAD AB,60ohm,1.6x0.8x0.8mm,200mA,TP,H,0.7ohm
R362 3301-001236 CORE-FERRITE BEAD AB,60ohm,1.6x0.8x0.8mm,200mA,TP,H,0.7ohm
RA201 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP
RA202 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP
RA203 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP
RA204 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP
RA205 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP
RA206 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP
RA207 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP
RA208 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP
RA209 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP
RA210 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP
RA211 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP
RA212 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP
RA213 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP
RA214 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP
X101 2801-003667 CRYSTAL-SMD 14.3182MHZ,50PPM,28-AAN,16,50OHM,TP
X201 2804-001474 OSCILLATOR-CLOCK 14.31818MHZ,100PPM,30PF,TP,3.3V,15MA
ZD101 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23
ZD102 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23
ZD103 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23
ZD104 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23
ZD105 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23
ZD106 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23
7 Electrical Parts List
7-8 GH17LS/GH17ES
Loc. No. Code No. Description Specification Remarks
7 Electrical Parts List
GH17LS/GH17ES 7-9
CIS BN39-00114A CBF-SIGNAL NL150MO,15P/15P,2990,1830MM,UL2990,IVORY,D-SUB
CIS BN44-00029A INVERTER
SIC1801,4LAMP,SIC1801,18.1,14V DC,160x45x17
CIS BN41-00045A PCB MAIN
CEZANNE-II,FR-4 ,4,-,1.6T,117.0*172.4*1.6,CN,-,-,-,CN17MS,-,-,-,1.6+,223x118.9,-,-,-,-
CN301+PAN BN39-00102A CBF-HARNESS
CN17MSS,UL1571,UL/CSA,30P,90MM,BLU/WHT,AWG30,DF14-30S-1.25C,F1-X30H,-,-,-,-,-,-
CN302+INV BN39-00002A CBF-HARNESS -,60,BLU/WHT,-,26,-
Loc. No. Code No. Description Specification Remarks
7-2 Others
7 Electrical Parts List
7-10 GH17LS/GH17ES
Memo
GH17LS/GH17ES 8-1
8 Block Diagram
ANALOG
PC
Scaller + ADC
LCD
Panel I/F
CLOCK
MCU
Setup Data & User I/F
User Key
Jag - ASM
Back Light Control
Power Sequence Control
8 Block Diagrams
8-2 GH17LS/GH17ES
Memo
GH17LS/GH17ES 9-1
9 Wiring Diagram
Memo
9 Wiring Diagram
9-2 GH17LS/GH17ES
GH17LS/GH17ES 10-1
10 Schematic Diagrams

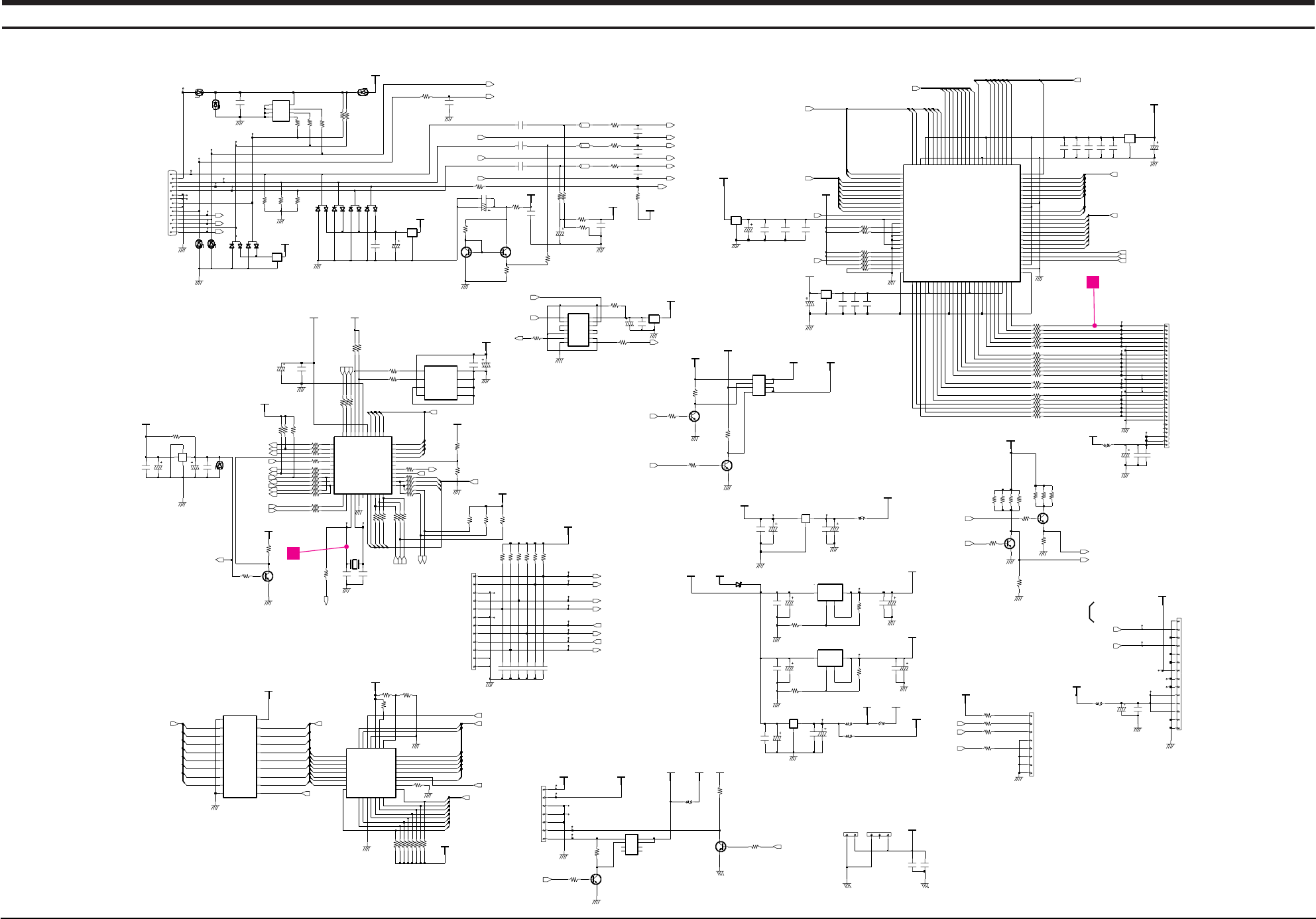

10-1 Main Part Schematic Diagram
RxO0-
RxO0+
RxO1-
RxO1+
RxO2-
RxO2+
GND
RxOC-
RxOC+
RxO3-
RxO3+
RxE0-
RxE0+
GND
RxE1-
RxE1+
GND
RxE2-
RxE2+
RxEC-
RxEC+
RxE3-
GND
RxE3+
NC
NC
NC
5V
5V
5V
12V_BL
H:WHITE
L:BLACK
BASIC TOUCH SCREEN
H:NORMAL
L:DPMS
R258
10K10K
R257
+5V
1
R256
10K
TP137
1
TP138
1
TP139
560
R270
10nF
C121
CPU+5V
F
7G
8H
10uF
C122
NM24C17FM8X
IC103
1
A
2
B
3
C
4
D
5E
6
R346
0
+5V
TP153
1
TP156
1
TP146
1
TP163
1
TP161
1
TP162
1
1
TP159
1
TP160
1
1
TP157
1
TP158
1
TP154
1
TP155
1
TP151
1
TP152
TP148
1
TP149
1
TP150
TP145
1
TP147
1
TP143
1
TP144
1
1
TP141
1
TP142
1
1
TP166
1
TP140
1
TP164
1
TP165
TP167
100
100
R330
R334
R336 R337 100
100
100
100
R335
R342
R343
CPU+5V
R341 100
100
1K
R344
4.7K
2SC2412K-Q
Q111
B
C
E
R345
R262
22
0R338
R339 0
0
0
R340
0
R332
R333
R331 0
510
1/16W
1/16W
330
R315
R310
R317
1/16W
510
R311
1/16W
510
R309
510
1/16W
1K
1/16W
R328
Q109
2SC2412K-Q
B
C
E
R307
330
1/16W
R316
1/16W
470
R327
1/16W
1K
1/16W
330
2SC2412K-Q
Q110
B
C
E
R318
R192
R191
180K 180K
FT113
A
1
B
2
3.3VJP
slcon3p
CN108
1
2
3
16V
47uF
C194
B
16V
10uF
C193
BD107
B
BD108
BD106
B
100
R107
R108 100
R103 100
C189
C190
0.002nF
0.002nF
100uF
25V
C188
0.002nF
R296
1K
CPU+5V
C192
CPU+5V
R297
10K
10K 4.7K
R298
100nF
C191
R299
1
100nF
C187
1
TP132
1
TP133
1
TP130
1
TP128
TP126
1
TP135
1
TP136
TP134
1
TP125
1
TP129
1
TP131
1
TP109
1
TP127
1
TP107
1
TP108
1
1
TP102
1
TP101
1
1
TP104
1
TP103
1
TP106
1
TP105
1
TP123
1
TP124
TP117
1
TP121
1
TP122
TP114
1
TP115
1
TP112
1
TP113
1
TP110
1
TP 111
1
1
TP119
1
TP120
1
TP116
1
TP118
+12V_INVERTER+12V_MAIN
10uF
C185
R204 100
C184
100nF
2.5VJA1
R202 22
100K
R201 10K
S2
3
2SC2412K-Q
Q108
B
C
E
R269
SI9933ADY-T1
IC118
8
D1
D1_1
7
6
D2
D2_1
5
2
G1
4
G2
S1
1
75R268
+5V
+5V
C183
100pF
3.3uF
C166
+5V
CPU+5V
CPU+5V
C145
100nF
MAIN5V
SS24
D107
CPU+5V
CPU+5V
10K
MAIN5V
Q107
B
C
E
R199
GND
IN OUT
R251
100K
FT109
1
A
2
B
IC115
BA17805FP
B
FT110
A
1
B
2
+3.3V
LVDS3.3V
FT112
1
A
2
C181
47uF
C180
100nF
C182
100nF
IN OUT
C179
10uF
+5V
BA033FP
IC112
GND
C177
100nF
120uF
C175 C176
47uF
+2.5V
100nF
C178
R265
470
R266
ADJ
3
1
VIN
2
VOUT_1
4
VOUT_2
470
100nF
C173
IC117
LM317SX
47uF
C172C171
47uF
PLL_2.5V
C174
100nF
470
R264 470
LM317SX
IC116
3
ADJ
VIN
1
VOUT_1
2
VOUT_2
4 R263
C169
100nF
100nF
C170
C168
10uF
CPU+5V
+12V_MAIN
CPU+5V
R198 4.7K
R250
4.7K
R197
R249 4.7K
4.7K
4.7K
R248
4.7K
R193 4.7K
4.7K
R245
R246
10K
R195
1000nF
C164
1000nF
C162
C163 1000nF
2.5VJA1
3.9K
R194
100nF
C165
R185
100K
7.5K
R247
E
10K
R184
B
C
E
Q106
B
C
CPU+5V
Q105
0
0R190
R188
R189
8
R187 0
0
slcon8p
CN107
1
2
3
4
5
6
7
R176 10K
10K
R175
10K
R173
R174 10K
R172 10K
C150
10K
R171
10nF
10nF
10nF
C151 C152C149 C148
10nF
10nF 10nF
CPU+5V
CPU+5V
C147
10K
1/16W
10K
R110
100R168
R167
R147 100
100
100R146
100R159
R145
R158 100
100
100R157
100R155
R156
R154 100
100
100R153
100R150
R151
R149 100
1
A
2
B
I+5V
100R148
10K
CPU+5V
BD105 4.7K
R170
Q103
2SC2412K-Q
B
C
E
R169
6
5
D2_1
G1
2
G2
4
1
S1
3
S2
LCD+5V
IC107
SI9933ADY-T1
D1
8
7
D1_1
D2
R160
10K
R162
Q101
B
C
E
100K
100nF
C146
10
11
12
slcon2p
CN106
1
2
1
2
3
4
5
6
7
8
9
4
5
6
7
+5V
+12V_INVERTER
slcon12p
CN103
I+5V
slcon7p
CN105
1
2
3
BD104
BLM41P600S
1
A
2
B
10nF
C143
10
11
12
13
14
C144
100uF
25V
1
2
3
4
5
6
7
8
9
CN104
slcon14p_1
C123
10nF
CPU+5V
CPU+5V
R166R165
4.7K
28
A14 29
NC/A17
30
*WE
31
VCC
32
4.7K
20
DQ7 21
*CE 22
A10 23
*OE 24
A11 25
A9 26
A8 27
A13
DQ0
13
DQ1
14
DQ2
15
VSS
16
DQ3
17
DQ4
18
DQ5
19
DQ6
A7
5
A6
6
A5
7
A4
8
A3
9
A2
10
A1
11
A0
12
20
IC110
AT27C010-90JC
VPP
1
A16
2
A15
3
A12
4
12
M
13
N
14
15
O
16
P
17
Q
18
R
S
19
T
4
E
5
F
6
7
G
H
8
I
9
J
10
K
11
L
IC109
SN74ABT573
A
1
B
2
C
3
D
1K
CPU+5V
ZD106
A
1
2
B
3
C
R152
C130
10nF
R208
C132
10uF
10uF
C131
CPU+5V
220
OUT
C129
100nF
CPU+5V
KIA7045RTF
IC105
GND_1
GND_2
IN
4.7KR134
R137
R133 4.7K
100
100
22pF
C136
R131
X101
Q0 Q1
22pF
C153
32
RST
10
VCC
44
35
VPP
22
VSS
1
VSS1
21
XTAL1
20
XTAL2
P2_6
30
P2_7
31
P3_0
11
13
P3_1
14
P3_2
15
P3_3
16
P3_4
17
P3_5
18
P3_6
19
P3_7
PSEN_
5
P1_3
6
P1_4
P1_5
7
P1_6
8
P1_7
9
P2_0
24
P2_1
25
P2_2
26
P2_3
27
P2_4
28
P2_5
29
43
P0_1
42
P0_2
41
P0_3
40
39
P0_4
38
P0_5
37
P0_6
36
P0_7
2
P1_0
3
P1_1
4
P1_2
IC106
TS80C32X2-MCB
ALE
33
NIC1
12
NIC2
23
34
NIC3
P0_0
C128
100nF
C127
100nF
100nF
C114
C126
100uF
100nF
C112 C113
100nF
18
19
20
21
22
23
24
25
26
C111
10uF
8
9
10
11
12
13
14
15
16
17
27
28
29
30
1
2
3
4
5
6
7
R123 0
CN102
slcon30p
0R122
R121 0
0
R126 0
R124 0
R125
R144 0
0R142
R143 0
0R141
R140 0
0
R139 0
R136 0
R138
0R135
0R130
0R132
0R129
R127
0R128
47
R118
0
10K
LVDS3.3V
10KR119
R120
R116
R117 10K
10K
10K
10KR111
R115
SGM32F1E104-2A
FT102
A
12
B
C
3
LVDS3.3V
C117
100nF 100nF
C118
100nF
C116
C115
10uF
LVDS3.3V
100nF
SGM32F1E104-2A
FT104
1
A
B
2
3
C
C102 C104
100nF
C103
100nF
C106
100nF
C105
10uF
C107
LVDS3.3V
100nF
SGM32F1E104-2A
FT101
A
12
B
C
3
77 76
R26
R27
75
R_FB
20
21
R_FDE
Vcc_1
53
Vcc_2
67
82
Vcc_3
Vcc_4
97
Vsync
55
7
R13
R14
6
5
R15
R16
4
3
R17
84
R20
R21
81 80
R22
R23
79 78
R24
R25
22
PLLGND_1
16
17
PLLGND_2
19
PLLGND_3
15
PLLSEL
PLLVCC_1
12
PLLVCC_2
18
PRE
14
R10
10
9
R11
R12
8
GND_2
GND_3
8398
GND_4
54
Hsync
25
LVDSGND_1
35
LVDSGND_2
43
LVDSGND_3
LVDSGND_4
51
LVDSVCC_1
30
LVDSVCC_2
40
LVDSVCC_3
48
PD_
74
G20
G21
73
72
G22
G23
71
70
G24
G25
69
66
G26
G27
65
13
GND
52
GND_1
68
CLKIN
56
DE
23
DUAL
G10
2
1
G11
100
G12
G13
99 96
G14
G15
95 94
G16
G17
93
B22
B23
61
60
B24
B25
59
58
B26
B27
57
BAL
24
CLK1M
4241
CLK1P
27
CLK2M
CLK2P
26
11
92
B10
B11
9190
B12
B13
89 88
B14
B15
87 86
B16
B17
85
64
B20
B21
63
62
4439
A3M
A3P
3837
A4M
A4P
36
A5M
3433
A5P
A6M
3231
A6P
29
A7M
A7P
28
DS90C387VJD
IC102
A0M
5049
A0P
47
A1M
A1P
4645
A2M
A2P
LCD+5V
BD101
1
AB
2
R196 100
C125
100nF
C124
10uF
VCC
14
FT106
SGM32F1E104-2A
A
12
B
C
3
IN
4
A2 13
A3 10
B0
IN
2
B1
IN
5
B2
12
B3 9
GND
IN
7O_1
IN
6
O_2
11
O_3 8
B
2
C
3
74F132D(REEL)
IC104
0_0
IN
3
A0
IN
1
A1
ZD102
1
A
B
2
C
3
ZD103
1
A
ZD101
1
A
B
2
C
3
100nF
C101
R101
100
R104
4.7K
4.7K
100
R106
R102
4
7
WC_
R105
100
24LC21AT-/SN
IC101
NC_1
1
NC_2
2
NC_3
36
SCL
5
SDA
8
VCC
VSS
6
7
8
9
10
11
12
13
14
15
CN101
d_sub15p
1
2
3
4
5
12
3
100R109
FT103
A
12
B
C
3
D104
3
D102
12
3
12
3
D103
12
D105
12
3
D101
3
FT105
1
A
B
2
3
C
1
2
3
D106
12
1
2
3
ZD105
R114
75
ZD104
75
R113R112
75
LED1
LED
LED_R
LED_G
CREF
CTRL
LED1
SELFRAST_D_SUB
PANEL_ON_OFF
BL_ON
AUTO
MCALE
MAIN_ON_OFF
MAIN_ON_OFF
JAG_RST
AHS
CTRL
LED_R
MENU
GREEN1N
BLUE1N
BLUE1N
AUTO
POWER
LEFT
EXIT
RXD
TXD
RESET
MCA16
RIGHT
LED_G
MENU
PANEL_ON_OFF
RED1P
GREEN1P
BLUE1P
CTRL
MCAD(3)
MCRD
RED1N
RED1N
GREEN1N
MCA(11)
MCA(9)
MCA(8)
MCA(13)
MCA(14)
MCA(8:15)
MCAD(3)
MCA(7)
MCAD(0:7)
MCA(8:15)
MCA(0:7)
LEFT
LED
POWER
RXD
TXD
BL_ON
BL_CNT
MCA(6)
MCA(6)
MCA(5)
MCA(5)
MCA(4)
MCA(4)
MCA(3)
MCA(3)
MCA(2)
MCA(2)
MCA(1)
MCA(1)
MCA(0)MCA(0)
MCALE
MCAD(0:7)
MCA16
MCAD(0)
MCAD(4)
MCAD(5)
*PSEN
MCAD(0:7)
MCAD(1)
MCAD(2)
MCAD(6)
MCAD(7)
MCA(15)
MCA(12)
MCA(10)
MCA(10)
MCA(11)
MCA(12)
MCA(13)
MCA(14)
MCA(15)
CTRL
MCWR
*PSEN
RESET
MCAD(7)
MCAD(5)
MCAD(3)
MCAD(1)
MCAD(6)
MCAD(4)
MCAD(2)
MCAD(0)
MCA(7)
DCLK
LVDS_EN
MCALE
MCAD(0)
MCAD(1)
MCAD(2)
MCAD(4)
MCAD(5)
MCAD(6)
MCAD(7)
RIGHT
EXIT
MCA(8)
MCA(9)
DAGRN(4)
DAGRN(5)
DAGRN(6)
DAGRN(7)
DABLU(0:7)
DABLU(0)
DABLU(1)
DABLU(2)
DABLU(3)
DABLU(4)
DABLU(5)
DABLU(6)
DABLU(7)
DEN
DVS
DHS
DBGRN(0:7)
DBGRN(0)
DBGRN(1)
DBGRN(2)
DBGRN(3)
DBGRN(4)
DBGRN(5)
DBGRN(6)
DBGRN(7)
DBBLU(0:7)
DBBLU(0)
DBBLU(1)
DBBLU(2)
DBBLU(3)
DBBLU(4)
DBBLU(5)
DBBLU(6)
DBBLU(7)
DARED(0:7)
DARED(0)
DARED(1)
DARED(2)
DARED(3)
DARED(4)
DARED(5)
DARED(6)
DARED(7)
DAGRN(0:7)
DAGRN(0)
DAGRN(1)
DAGRN(2)
DAGRN(3)
AHS
AVS
V_SYNC
H*V_SYNC
DBRED(0:7)
DBRED(0)
DBRED(1)
DBRED(2)
DBRED(3)
DBRED(4)
DBRED(5)
DBRED(6)
DBRED(7)
RED1N
GREEN1N
BLUE1N
SELFRAST_D_SUB
AVS
1
7
10 Schematic Diagrams
10-2 GH17LS/GH17ES
1 7
10 Schematic Diagrams
GH17LS/GH17ES 10-3

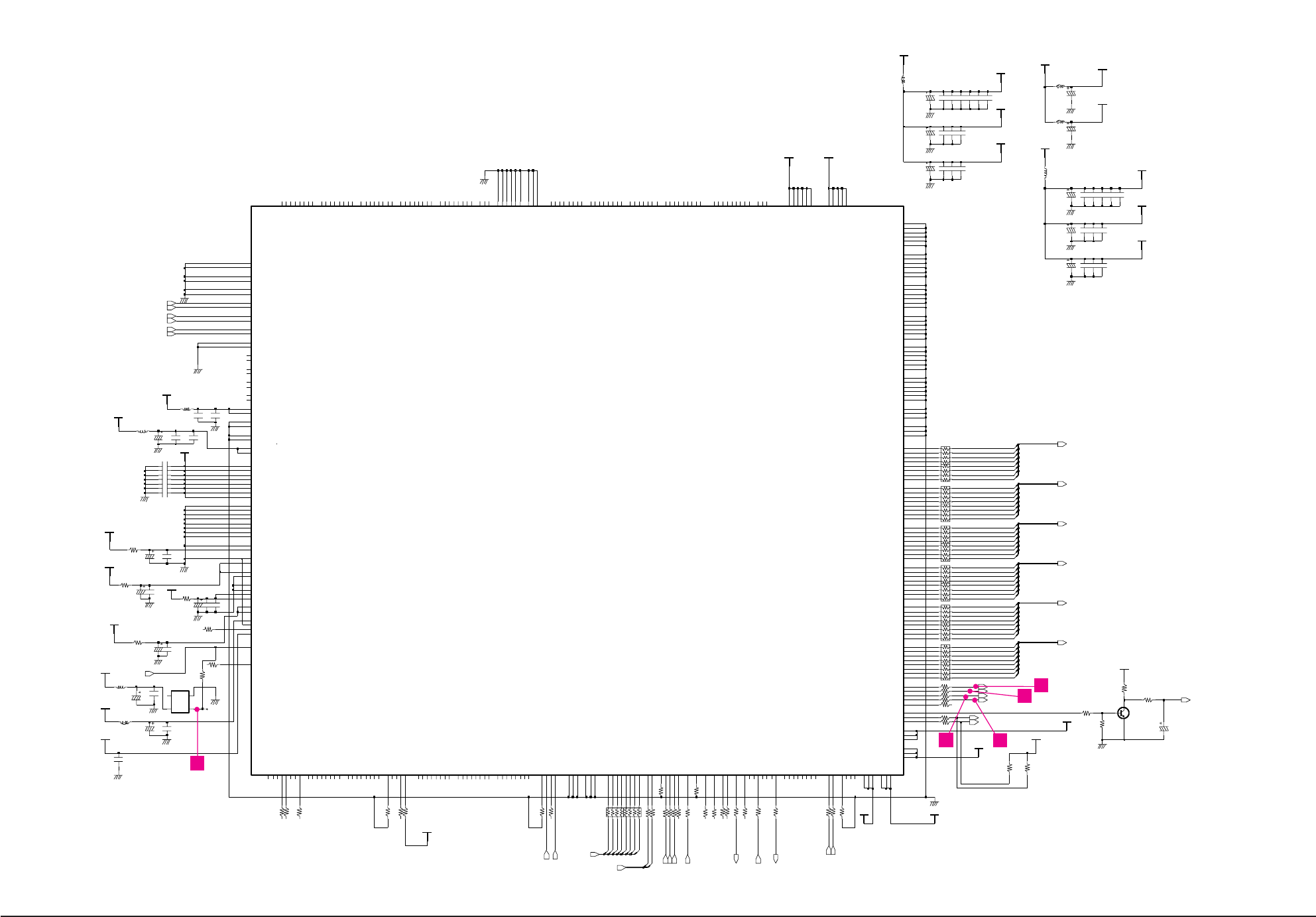

10-2 Main Part Schematic Diagram
1
10K
+5V
TP168
10K
R347 R348
FT205
A
1
B
2
6.3V
120uF
C272
L201
3.3UH
R224 0
3.3VJF
22
R255
1
A
2
B
100nF
C267
R243
22
FT203
X201
GND
2
NC
1
OUT
3
VDC
4
100
R254
R278 10K
10KR279
0
R253 10K
0R274
R273
R275 0
0
0R276
N4
Y4 VSSC8
A22 VSSP1
D22 VSSP2
XIN
A6
XOUT
A7
XVDD
D7 XVSS
B7
R277
VSS49
VSS5 L16
VSS50
AC5
M11
VSS6
VSS7 M12
M13
VSS8
VSS9 M14
VSSC3 G23
N23
VSSC4
VSSC5 W23
D4 VSSC6
VSSC7
T15
VSS34
VSS35 T16
VSS39 A23
L15
VSS4
VSS40 F26
VSS41 L26
VSS42 R26
VSS43 AC26
VSS44 AF23
VSS48
C1
N1
VSS24
VSS25 R12
R13
VSS26
VSS27 R14
R15
VSS28
VSS29 R16
VSS3 L14
T11
VSS30
VSS31 T12
T13
VSS32
VSS33 T14
VSS14
VSS15 N14
N15
VSS16
VSS17 N16
P11
VSS18
VSS19 P12
L13
VSS2
P13
VSS20
VSS21 P14
P15
VSS22
VSS23 P16
R11
VDDC8
H4
R4 VDDC9
B22 VDDP1
C22 VDDP2
L11
VSS0
VSS1 L12
M15
VSS10
VSS11 M16
N11
VSS12
VSS13 N12
N13
AF26
VDD9
A5
AC20
VDDC0
VDDC1 AC14
VDDC10
AB4
AC8
VDDC2
D23
VDDC3
VDDC4 K23
T23
VDDC5
VDDC6 AB23
D21
VDDC7
D1
VDD0 AF21
AF16
VDD1
K1 VDD10
AA1 VDD11
VDD2 AF10
A26
VDD3
VDD4 J26
N26
VDD5
VDD6 U26
Y26
VDD7
VDD8
SDD62 A24
A25
SDD63
SDD7 AE24
SDD8 AF24
SDD9 AC25
SDRAS P24
R25
SDWE
D19 SVDD
B19 SVSS
E1 SYSRST
TEST
D25
D26
SDD53
SDD54 C23
C24
SDD55
SDD56 C25
C26
SDD57
SDD58 B23
B24
SDD59
SDD6 AD24
SDD60 B25
B26
SDD61
G25
G26
SDD43
SDD44 F23
F24
SDD45
SDD46 F25
E23
SDD47
SDD48 E24
E25
SDD49
SDD5 AC24
SDD50 E26
D24
SDD51
SDD52
K26
SDD33
SDD34 J23
J24
SDD35
SDD36 J25
H23
SDD37
SDD38 H24
H25
SDD39
SDD4 AE23
SDD40 H26
G24
SDD41
SDD42
Y24
SDD24 Y25
SDD25 W24
SDD26 W25
SDD27 W26
SDD28 L23
SDD29 L24
SDD3 AD23
SDD30 L25
SDD31 K24
SDD32 K25
AD26
SDD14 AE26
SDD15 AB24
SDD16 AB25
SDD17 AB26
SDD18 AA23
SDD19 AA24
SDD2 AC23
SDD20 AA25
SDD21 AA26
SDD22 Y23
SDD23
SDCKE R24
T25
SDCKFB
P23
SDCKN
SDCKP R23
SDCS0 M26
SDD0 AD22
SDD1 AE22
SDD10 AD25
SDD11 AE25
SDD12 AF25
SDD13
V24
SDA10 N25
SDA2 V25
SDA3 V26
SDA4 U23
SDA5 U24
SDA6 U25
SDA7 P25
SDA8 P26
SDA9 N24
T26
SDCAS
R2P
C15 RREFH
C14 RREFL
D14 RVDD1
D13 RVDD2
B14 RVSS1
B13 RVSS2
SCDT_GPIO0
E2
SCL
F3
F4 SDA
SDA0 V23
SDA1
PHSYNC AE21
AF12
PNLCLK
PSHFCLK AC13
D20 PVDD1
B20 PVSS1
AC21
PVSYNC
PWM1 B1
A12 R1N
A13 R1P
A10 R2N
A11
PD6
PD60 AC22
AC17
PD61
PD62 AC11
AF19
PD63
PD64 AF13
AF8
PD65
PD7 AE15
AF15
PD8
PD9 AC16
AF20
PDE
AC10
AF14
PD4
AD10
PD40
PD41 AE10
AD11
PD42
PD43 AE11
AF11
PD44
PD45 AC12
AD12
PD46
PD47 AE12
PD5 AC15
AD15
PD3 AE14
AD7
PD30
PD31 AE7
AF7
PD32
PD33 AD8
AE8
PD34
PD35 AC9
AD9
PD36
PD37 AE9
AF9
PD38
PD39
PD2
AD19
PD20
PD21 AE19
AD20
PD22
PD23 AE20
AF5
PD24
PD25 AC6
AD6
PD26
PD27 AE6
AF6
PD28
PD29 AC7
AE13
AD16
PD10
PD11 AE16
AD17
PD12
PD13 AE17
AF17
PD14
PD15 AC18
AD18
PD16
PD17 AE18
AF18
PD18
PD19 AC19
AD14
AD2 PC9
PCFIELD_GPIO3
AE5
AB2 PCHREF
PCHSYNC
AB3
PCLKA
G4
PCLKB
P4
PCLKC
AA4
AD5 PCVREF_GPIO2
AB1 PCVSYNC
AD13
PD0
PD1
AC1
AC2 PC13
PC14
AC3
AC4 PC15
PC2
AF3
AF4 PC3
PC4
AE1
AE2 PC5
PC6
AE3
AE4 PC7
PC8
AD1
Y3
PB5
W1
PB6
W2
PB7
W3
PB8
W4
PB9
V1
P3 PBVSYNC
PC0
AF1
AF2 PC1
PC10
AD3
AD4 PC11
PC12
PB16
U4
PB17
T1
PB18
T2
PB19
T3
PB2
Y1
PB20
T4
R1 PB21
PB22
R2
R3 PB23
PB3
Y2
PB4
M4
PA8
L1
PA9
L2
PB0
AA2
PB1
AA3
PB10
V2
PB11
V3
PB12
V4
PB13
U1
PB14
U2
PB15
U3
J4
PA19
H1
PA2
N2
PA20
H2
PA21
H3
PA22
G1
PA23
G2
PA3
N3
PA4
M1
PA5
M2
PA6
M3
PA7
PA0
P1
PA1
P2
PA10
L3
PA11
L4
PA12
K2
PA13
K3
PA14
K4
PA15
J1
PA16
J2
PA17
J3
PA18
A4
B4 MCAD5
MCAD6
A3
B3 MCAD7
MCAD8
C3
A2 MCAD9
D3 MCALE
MCCS
C4
MCRD
E3
E4 MCWR
MEMCLK T24
D2
C13 IREFH
C12 IREFL
D12 IVDD1
D11 IVDD2
B12 IVSS1
B11 IVSS2
MCAD0
B6
B5 MCAD1
MCAD2
C5
D5 MCAD3
MCAD4
D16 GVDD1
D15 GVDD2
B16 GVSS1
B15 GVSS2
HSYNC0
F2
D6 HSYNC1
HSYNC2
C6
HSYNCOUT
C2
A8 I1
A9 I2
INTR
AF22
AD21
ENVDD
A16 G1N
A17 G1P
A14 G2N
A15 G2P
B2 GPIO4
C21 GPVDD
B21 GPVSS
C17 GREFH
C16 GREFL
CLAMPOUT
CVDD1
D9 CVDD2
D8 CVSS1
B9 CVSS2
B8
DEIN
F1
M23
DQM
M25
DQS
DVDD
D10
DVSS
B10
DVSYNC
G3
ENBKL
A21 B1P
A18 B2N
A19 B2P
BANK M24
C19 BREFH
C18 BREFL
D18 BVDD1
D17 BVDD2
B18 BVSS1
B17 BVSS2
A1
C10 AVDD1
AVDD2
C11
AVDD3
C8
AVDD4
C9
C20 AVSS1
AVSS2
C7
A20 B1N
IC202
JAGASM
100
100nF
R267
100nF
C242
C241
C238 C239
100nF
100nF
100nF
2.5VJA2
+2.5V
PLL_2.5V
2.5VJS
2.5VJS
C240
L207
3.3UH
3.3UH
L206
2.5VJA1
C218
10uF
10uF
C216
1
A
2
B
100
R244
FT202
A1
B2
FT204
10uF
C247
100nF
C245
FT201
1
A
2
B
C246
100nF
100nF
C243
3.3VJF
C244
1nF
10uF
C268
C270
100nF
10
100nF
C269
4.7uF
C265
R242
C264
100nF
R240
47
2.5VJA2
100nF
C271
10uF
C260
C259
100nF
R239 10
2.5VJA1
C257
4.7uF
2.5VJA1
C258
1nF
10
R238 1nF
C256
C255
10uF
100nF
C252
2.5VJA1
100nF
C250
C251 100nF
C249 100nF
1nFC254
1nFC248
C253 1nF
2.2K
+5V
33KR236
R235
C
E
R237
10K
3.3VJF
Q201
B
C236 C237
100nF100nF
100nF
C230
C231
100nF
C228 C229
100nF100nF
100nF
C226 C227
100nF
C225
100nF
100nF
C223 C224
100nF100nF
100nF
C219
C222
100nF
C211
C213
100nF
100nF
100nF
C207
C209
R221
C201
100nF
R223 100
100
100
R222
R219
R225 0
R259
0
0100
R220
4
5
6
7
8
7
8
RA212
1
2
31
2
3
4
5
6
1
2
3
4
5
6
7
8
RA211
3
4
5
6
7
8
RA210
6
7
8
RA209
1
28
RA208
1
2
3
4
51
2
3
4
5
6
71
2
3
4
5
6
7
8
RA207
4
5
6
7
8
RA206
6
7
8
RA205
1
2
3
RA204
1
2
3
4
51
2
3
4
5
6
7
82
3
4
5
6
7
8
RA203
5
6
7
8
RA202
1
RA201
1
2
3
4
C221
10uF
R214
100R215
R216 0
100
0R217
100
R232 100
R233
R234
R231
100
R230 100
100
R228
100R229
3
4
5
6
7
8
100
6
7
8
RA214
1
2
RA213
1
2
3
4
5
R227 100
3.3VJF
100R226
3.3VJP
10uF
C210
+3.3V
3.3VJS
C208
10uF
2.5VJF
10uF
C202
10uF
C214
2.5VJP
C220
10uF
2.5VJA2
2.5VJF
3.3VJS
3.3VJP
3.3VJF
2.5VJS
2.5VJP
2.5VJS
2.5VJA1 0
C212
10uF
22R212
R213
R211 22
22
22R261
R260
DABLU(4)
DABLU(5)
DABLU(6)
DABLU(7)
LVDS_EN
AUTO
PANEL_ON_OFF
SELFRAST_D_SUB
MENU
LED1
DBGRN(0:7)
DBGRN(0)
DBGRN(1)
DBGRN(2)
DBGRN(3)
DBGRN(4)
DBGRN(5)
DBGRN(6)
DBGRN(7)
DBBLU(0:7)
DBBLU(0)
DBBLU(1)
DBBLU(2)
DBBLU(3)
DBBLU(4)
DBBLU(5)
DBBLU(6)
DBBLU(7)
DBRED(0:7)
DBRED(0)
DBRED(1)
DBRED(2)
DBRED(3)
DBRED(4)
DBRED(5)
DBRED(6)
DBRED(7)
DABLU(0:7)
DABLU(0)
DABLU(1)
DABLU(2)
DABLU(3)
MCAD(4)
MCAD(5)
MCAD(6)
MCAD(7)
MCALE
MCRD
MCWR
JAG_RST
BL_CNT
BL_ON
MCA(8:15)
DARED(0:7)
DARED(0)
DARED(1)
DARED(2)
DARED(3)
DARED(4)
DARED(5)
DARED(6)
DARED(7)
DAGRN(0:7)
DAGRN(0)
DAGRN(1)
DAGRN(2)
DAGRN(3)
DAGRN(4)
DAGRN(5)
DAGRN(6)
DAGRN(7)
CREF
DVS
DHS
DEN
DCLK
H*V_SYNC
V_SYNC
MCA(8)
MCA(9)
MCAD(0:7)
MCAD(0)
MCAD(1)
MCAD(2)
MCAD(3)
BLUE1N
BLUE1P
GREEN1N
GREEN1P
RED1N
RED1P
2
3
56
4
10 Schematic Diagrams
10-4 GH17LS/GH17ES
2
5
3
6
4
SEC LT140X1-002 SA
SEC LT150XS-L01 SB L01
SEC LT150XS-L01-B SC L01-B
SEC LTM150XS-L02 SD L02
SEC LT181E2-132 SE E2(18.1)-132
SEC LT150XS-T01 SF T01
SEC LTM181E3-132 SG E3(18.1)
SEC LT170E2-131 SH E2
SEC LT181E2-131 SJ E2-131
SEC LTM170E4-L01 SK E4
SEC LTM240W1-L01 SL L01
SEC LTM213U3-L01 SM L01
TOSHIBA LTM15C419 TA 419
TOSHIBA LTM15C423 TB 423
TOSHIBA LTM18C161 TC
HANNSTAR HSD150MX41A NA
TORISAN TM150XG-22L03 RA
SHARP LQ181E1DG11 PA
HITACHI TX38D12VC0CAA HA
IBM ITSX94S IA
UNIPAC UM170E01 UA
SEC LTM17ØEH-LØ1 SS
Acer L17Ø E3-1 AA
GH17LS/GH17ES 11-1
Maker VENDOR P/N PANEL_ABB Description
11 Panel Description
11 Panel Description
11-2 GH17LS/GH17ES
Memo
www.s-manuals.com

Navigation menu
