GSM TELEPHONE
GT-i9100
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Level 2Repair
8. Level 3Repair
9. Reference data
Notice :
All functionality, features, specifications and other
product information provided in this document inclu
ding, but not limited to, the benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice or obligation. Samsung reserves the right to
make changes to this document and the product
described herein, at anytime, without obligation on
Samsung to provide notification of such change.
GSM TELEPHONE CONTENTS
This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2011. 04. Rev.1.0
ⓒ
SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in shield box during detailed tuning.
Take specially care of tuning or test because the specification of mobile phone is sensitive for
surrounding interference(RF noise).
―Be careful to use akind of magnetic object or tool because performance of parts is damaged by
the influence of the magnetic force.
―Surely use astandard screwdriver when you disassemble this product.
―Use athicken twisted wire when you measure level because athicken twisted wire has low
resistance.
―Repair after separate test pack and set because of short danger (for example an overcurrent and
furious flames of parts etc) when you repair the board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering iron because the board of the PCB is small and weak in heat.
―Surely tune on/off while using AC power plug because arepair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling the charger.
―Don't use the unauthorised materialsexcept for the replacement registered on SEC System.
Otherwise the engineer isn't charged with issues that you don't keep.
SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductorsmay be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
Protect you from ESD damage by static electricity.
―Remove electrical charges emitted by the human body before you touch semiconductorsor parts.
There are ways that you touch an earthed place or wear static electricity prevention string on wrist
to prevent these problems.
―Use aearthed soldering steel when you connect or disconnect ESD.
―Use asoldering removing tool equipped with static electricity isolation.O
therwise ESD will be
damaged by static electricity.
―Don't unpack product until you set up ESD in the product. Because most of the ESD is packed by
box and aluminum plate to have conductive power, it is prevented from static electricity.
―You must maintain electric contact between ESD and apart to be set up until ESD is connected
completely to the proper place or acircuit board.
2. Specification
2-1
2-1. GSM General Specification
GSM850 EGSM 900 DCS1800 PCS1900 WCDMA
2100
WCDMA
1900
WCDMA
900
WCMDA
850
Freq.
Band[MHz]
Uplink/
Downlink
824~849
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
1922~1977
2112~2167
1852~1907
1932~1987
880~915
925~960
824~849
869~894
ARFCN
range 128~251 0~124 &
975~1023 512~885 512~810
UL:
9612~9888
DL:
10562~1083
8
UL:
9262~9538
DL:
9662~9938
UL:
2712~2863
DL:
2937~3088
UL:
4132~4233
DL:
4357~4458
Tx/Rx
spacing 45MHz 45MHz 95MHz 80MHz 190MHz 80MHz 45MHz 45MHz
Mod. Bit
rate/
Bit Period
270.833kbp
s
3.692us
270.833kbp
s
3.692us
270.833kbp
s
3.692us
270.833kbp
s
3.692us
3.84Mcps 3.84Mcps 3.84Mcps 3.84Mcps
Time Slot
Period/
Frame
Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
FrameLengt
h:
10ms
Slotlength:
0.667ms
FrameLengt
h:
10ms
Slotlength:
0.667ms
FrameLengt
h:
10ms
Slotlength:
0.667ms
FrameLengt
h:
10ms
Slotlength:
0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSKHQPS
K
QPSKHQPS
K
QPSKHQPS
K
QPSKHQPS
K
MS Power 33dBm~5dB
m
33dBm~5dB
m
30dBm~0dB
m
30dBm~0dB
m
24dBm~
-50dBm
24dBm~
-50dBm
24dBm~
-50dBm
24dBm~
-50dBm
Power
Class
5pcl ~
19pcl 5pcl ~19
pcl 0pcl ~15
pcl 0pcl ~15
pcl 3(max+24dB
m)
3(max+24dB
m)
3(max+24dB
m)
3(max+24dB
m)
Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm -106.7dBm -106.7dBm -106.7dBm
TDMA Mux 8 8 8 8 8888
Cell Radius 35Km 35Km 2Km 2Km 2Km 2Km 2Km 2Km
Specification
2-2
2-2. GSM Tx Power Class
TX Power
control
level
GSM850
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
•Android OS: Gingerbread
•HSPA+ 21Mbps /HSUPA 5.7Mbps
•8
MP AF with LED Flash
•4.27
WVGA Super AMOLED Plus (C-Type)
•A-GPS /BT v3.0 USB v2.0 /WiFi (802.11 a/b/g/n) /OTG
•Recording 1080p / Playback 1080p
•Sensors: Acceleration, Magnetic, Gyro, Light, Proximity
•Additional :
-1.2
GHz Dual Core CPU
-Application store /Precise Motion UI
-Seamless Sharing Experience.
SAMSUNG Proprietary-Contents may change without notice
4. Exploded View and Parts List
4-1
This Document can not be used without Samsung's authorization

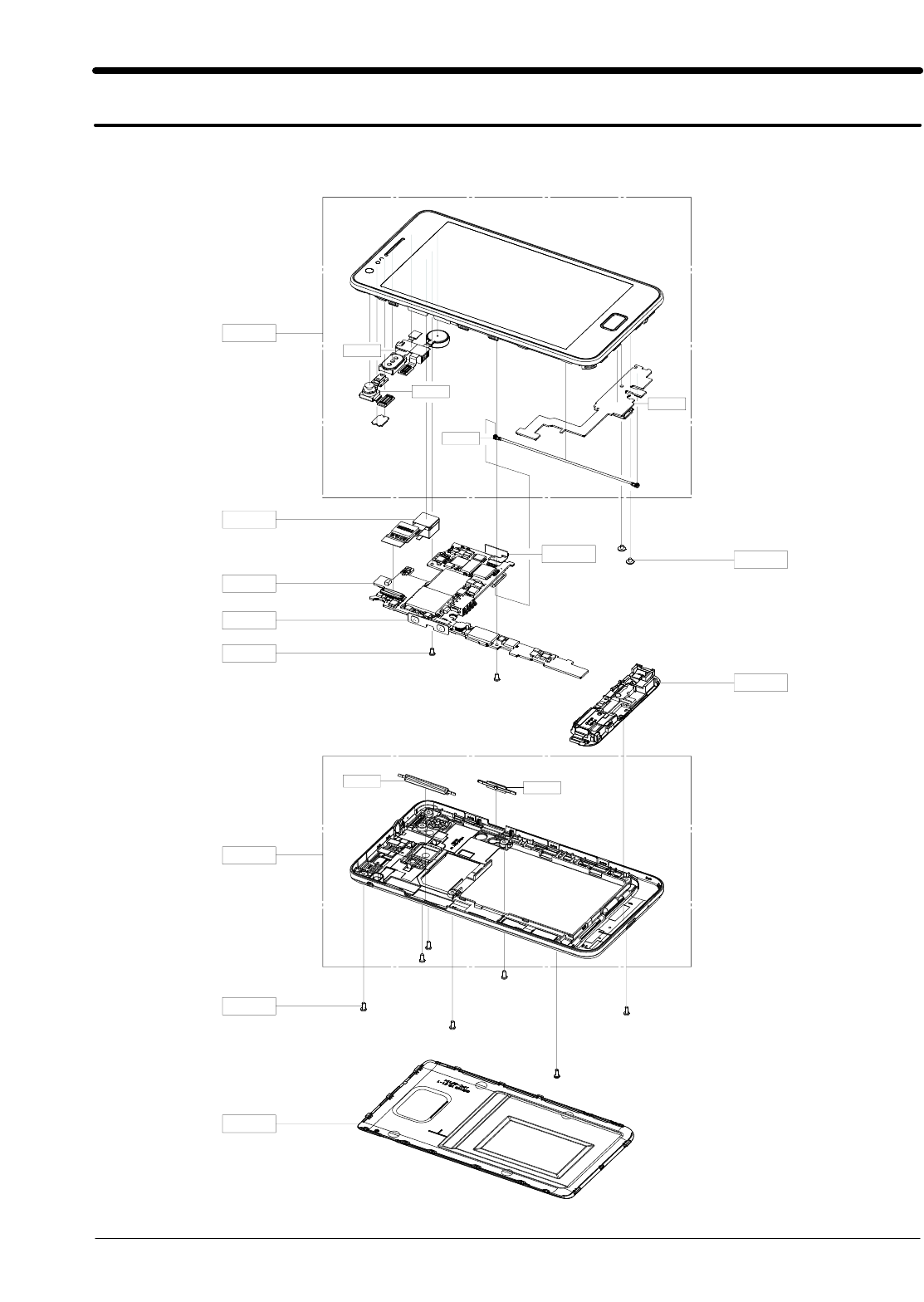

4-1. Cellular phone Exploded View
QRE01
QCR03
QBC00
QVK01
QCA01
QMP01
QCR12
QFR01
QCA02
QCR96
QSP01
QVK02
QME02
QCK01
QCB01
QAR01
QVO01
SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
4-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QCR12 SCREW-MACHINE 6001-001530
QCR03 SCREW-MACHINE 6001-001811
QCR96 SCREW-MACHINE 6001-002259
QVK02 KEY FPCB-POWER KEY(GT_9100) GH59-10916A
QSP01 MODULE-SPK+INT(GT_I9100) GH59-10917A
QVK01 KEY FPCB-VOLUME KEY(GT_9100) GH59-10921A
QMP01 A/S ASSY-PBA MAIN(COMM)GT_I9100 GH82-05732A
QCA01 ASSY CAMERA-MODULE,8M (GT_I9100) GH96-05139A
QBC00 ASSY COVER-BATT GH98-19595A
QFR01 MEA FRONT-OCTA LCD ASSY(OPEN) GH97-12175A
QCB01 CBF COAXIAL CABLE-75.5MM (GT_I9100) GH39-01475A
QAR01 MODULE-RCV+MOT+MIC+E/JACK FPCB(GT_I9100) GH59-10935A
QME02 ASSY ETC-SUB FPCB(GT_I9100) GH59-10949A
QCA02 CAMERA MODULE-GT-I9100_2M CAM GH59-10986A
QRE01 ASSY CASE-REAR GH98-19594A
QVO01 ASSY KEY-VOL GH98-19806A
QCK01 ASSY KEY-PWR GH98-19807A
4-2. Cellular phone Parts list
SAMSUNG Proprietary-Contents may change without notice
5. MAIN Electrical Parts List
5-1
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
0403-001688 D500 DIODE-ZENER
0404-001245 D501 DIODE-SCHOTTKY
0406-001446 ZD700,ZD701 DIODE-TVS
0407-001002 D502 DIODE-ARRAY
0505-002388 Q500 FET-SILICON
0601-003079 LED500 LED
0801-003024 U300 IC
0801-003031 U400 IC
0908-002766 UCP400 IC
1001-001481 U502 IC
1001-001635 U600 IC
1001-001699 U709 IC
1003-002100 U203 IC
1108-000424 UME300 IC
1201-003139 PAM200 IC
1201-003217 PAM100 IC
1202-001068 U706 IC
1202-001118 U603 IC
1203-004339 U704 IC
1203-004802 U707 IC
1203-004819 U609,U610,U611,U703 IC
1203-004819 U711,U720 IC
1203-005044 U702 IC
1203-005244 U710 IC
1203-005574 U701 IC
1203-005580 U206 IC
1203-006651 U718 IC
1203-006794 U503 IC
1203-006801 U104 IC
1203-006802 U103 IC
1203-006847 U303 IC
1203-006851 U501 IC
1203-006884 U504 IC
1204-003167 U601 IC
1204-003171 U202 IC
1204-003176 U205 IC
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-2
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
1205-004174 U602 IC
1205-004195 U100 IC
1205-004213 UCP300 IC
1205-004233 U708 IC
1209-001997 U607 IC
1209-002041 U608 IC
1209-002045 U606 IC
1404-001221 TH300,TH400,TH401 THERMISTOR
1405-001183 VR600,VR602,VR603 VARISTOR
1405-001183 VR604,VR605,VR607 VARISTOR
2007-000143 R421,R422 R-CHIP
2007-007107 R322 R-CHIP
2007-007133 R529,R531 R-CHIP
2007-007137 R446 R-CHIP
2007-007312 R474,R475 R-CHIP
2007-007468 R527 R-CHIP
2007-007488 R525 R-CHIP
2007-007517 R425,R428,R472,R473 R-CHIP
2007-007741 R515,R516 R-CHIP
2007-007942 R625 R-CHIP
2007-008040 R603,R604 R-CHIP
2007-008045 R704 R-CHIP
2007-008048 R730,R731 R-CHIP
2007-008052 R312,R408,R409,R410 R-CHIP
2007-008052 R411,R464,R468,R469 R-CHIP
2007-008052 R517,R722 R-CHIP
2007-008055 R341,R429,R431,R432 R-CHIP
2007-008055 R434,R438,R456,R457 R-CHIP
2007-008055 R459,R460,R461,R501 R-CHIP
2007-008055 R528,R530,R546,R605,R619 R-CHIP
2007-008055 R711 R-CHIP
2007-008296 R524 R-CHIP
2007-008312 R348,R626 R-CHIP
2007-008391 R532 R-CHIP
2007-008403 R514 R-CHIP
2007-008419 R216,R308,R309,R423 R-CHIP
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-3
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2007-008419 R424,R426,R427,R454 R-CHIP
2007-008419 R455,R466,R467,R477 R-CHIP
2007-008419 R478,R609,R611,R615 R-CHIP
2007-008419 R616 R-CHIP
2007-008420 R214,R215,R351,R479 R-CHIP
2007-008420 R480,R523,R600,R623 R-CHIP
2007-008420 R734,R735,R737 R-CHIP
2007-008465 R533 R-CHIP
2007-008483 R300,R301,R302,R303 R-CHIP
2007-008483 R305 R-CHIP
2007-008486 R710 R-CHIP
2007-008502 R526 R-CHIP
2007-008516 R203,R210,R211,R232 R-CHIP
2007-008516 R304,R323,R325,R404 R-CHIP
2007-008516 R405,R406,R448,R449 R-CHIP
2007-008516 R450,R463,R465,R508 R-CHIP
2007-008516 R509,R510,R511,R513 R-CHIP
2007-008516 R617,R618,R628,R702 R-CHIP
2007-008516 R715,R721,R725,R729 R-CHIP
2007-008516 R732 R-CHIP
2007-008531 R201,R420,R629,R630 R-CHIP
2007-008531 R703 R-CHIP
2007-008579 R208 R-CHIP
2007-008588 R337,R338,R339,R470 R-CHIP
2007-008588 R471 R-CHIP
2007-008800 R433,R440 R-CHIP
2007-009084 R602,R709,R712,R713 R-CHIP
2007-009111 R346,R633,R634 R-CHIP
2007-009155 R350 R-CHIP
2007-009157 R349,R402,R403,R441 R-CHIP
2007-009157 R481,R482 R-CHIP
2007-009158 R727,R728 R-CHIP
2007-009171 R313,R314,R315,R316 R-CHIP
2007-009171 R317,R318,R319,R320 R-CHIP
2007-009212 R622 R-CHIP
2007-009315 R344 R-CHIP
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-4
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2007-009408 R414,R415,R701 R-CHIP
2007-009801 R101,R102 R-CHIP
2007-009964 R442,R444 R-CHIP
2007-009969 R624 R-CHIP
2007-010029 R418 R-CHIP
2007-010202 R204,R205,R206,R207 R-CHIP
2007-010233 R330 R-CHIP
2203-000233 C219 C-CERAMIC,CHIP
2203-000725 C557 C-CERAMIC,CHIP
2203-005138 C441,C447 C-CERAMIC,CHIP
2203-005281 C223 C-CERAMIC,CHIP
2203-005446 C201 C-CERAMIC,CHIP
2203-005682 C107,C124,C125,C126 C-CERAMIC,CHIP
2203-005682 C181,C346,C347,C348 C-CERAMIC,CHIP
2203-005682 L102 C-CERAMIC,CHIP
2203-005717 C102,C752,C758,C759 C-CERAMIC,CHIP
2203-005725 C439,C440 C-CERAMIC,CHIP
2203-005726 C100,C101,C129 C-CERAMIC,CHIP
2203-005729 C355,C520,C529,C613 C-CERAMIC,CHIP
2203-005729 C614,C639 C-CERAMIC,CHIP
2203-005731 C354 C-CERAMIC,CHIP
2203-005734 C637,C640 C-CERAMIC,CHIP
2203-005736 C220,C265 C-CERAMIC,CHIP
2203-005779 C217,C218 C-CERAMIC,CHIP
2203-005789 L106 C-CERAMIC,CHIP
2203-005806 C113 C-CERAMIC,CHIP
2203-006048 C448,C644 C-CERAMIC,CHIP
2203-006194 C121,C302,C305,C641 C-CERAMIC,CHIP
2203-006208 C531,C533,C534,C535 C-CERAMIC,CHIP
2203-006260 C162 C-CERAMIC,CHIP
2203-006305 C442 C-CERAMIC,CHIP
2203-006324 C567 C-CERAMIC,CHIP
2203-006348 C504,C566 C-CERAMIC,CHIP
2203-006379 C109 C-CERAMIC,CHIP
2203-006399 C656 C-CERAMIC,CHIP
2203-006423 C136,C137,C140,C141 C-CERAMIC,CHIP
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-5
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2203-006423 C142,C144,C145,C146 C-CERAMIC,CHIP
2203-006423 C147,C148,C163,C215 C-CERAMIC,CHIP
2203-006423 C216,C300,C303,C306 C-CERAMIC,CHIP
2203-006423 C307,C313,C314,C326 C-CERAMIC,CHIP
2203-006423 C328,C329,C330,C331 C-CERAMIC,CHIP
2203-006423 C334,C335,C337,C338 C-CERAMIC,CHIP
2203-006423 C339,C342,C343,C344 C-CERAMIC,CHIP
2203-006423 C359,C405,C409,C412 C-CERAMIC,CHIP
2203-006423 C414,C416,C419,C424 C-CERAMIC,CHIP
2203-006423 C443,C445,C446,C540 C-CERAMIC,CHIP
2203-006423 C559,C607,C610,C643 C-CERAMIC,CHIP
2203-006423 C647,C715,C716,C727 C-CERAMIC,CHIP
2203-006423 C728,C731,C734,C737 C-CERAMIC,CHIP
2203-006423 C741 C-CERAMIC,CHIP
2203-006474 C351,C353 C-CERAMIC,CHIP
2203-006556 C760,C761 C-CERAMIC,CHIP
2203-006562 C135,C173,C211,C213 C-CERAMIC,CHIP
2203-006562 C254,C356,C357,C358 C-CERAMIC,CHIP
2203-006562 C501,C502,C516,C518 C-CERAMIC,CHIP
2203-006562 C713,C723,C746,C757 C-CERAMIC,CHIP
2203-006562 C764 C-CERAMIC,CHIP
2203-006611 C120 C-CERAMIC,CHIP
2203-006642 C404,C407 C-CERAMIC,CHIP
2203-006647 C143,C149,C150,C151 C-CERAMIC,CHIP
2203-006647 C166,C624,C626 C-CERAMIC,CHIP
2203-006648 C122,C621,C622 C-CERAMIC,CHIP
2203-006668 C410,C411,C611,C612 C-CERAMIC,CHIP
2203-006707 C127 C-CERAMIC,CHIP
2203-006815 C112,C114 C-CERAMIC,CHIP
2203-006824 C179,C180 C-CERAMIC,CHIP
2203-006839 C117,C138,C157,C158 C-CERAMIC,CHIP
2203-006839 C208,C253,C255,C517 C-CERAMIC,CHIP
2203-006839 C519,C562,C605,C655 C-CERAMIC,CHIP
2203-006839 C657,C659 C-CERAMIC,CHIP
2203-006841 C571 C-CERAMIC,CHIP
2203-006872 C139,C159,C160,C175 C-CERAMIC,CHIP
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-6
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2203-006872 C202,C209,C210,C266 C-CERAMIC,CHIP
2203-006872 C301,C308,C542,C545 C-CERAMIC,CHIP
2203-006872 C547,C548,C551,C552 C-CERAMIC,CHIP
2203-006872 C553,C623,C704,C718 C-CERAMIC,CHIP
2203-006872 C719,C726,C730,C733 C-CERAMIC,CHIP
2203-006872 C736 C-CERAMIC,CHIP
2203-006890 C530,C645,C646 C-CERAMIC,CHIP
2203-006979 C103,C116,C214,C318 C-CERAMIC,CHIP
2203-006979 C558,C627,C630 C-CERAMIC,CHIP
2203-007133 C720,C753,C754 C-CERAMIC,CHIP
2203-007194 C241 C-CERAMIC,CHIP
2203-007210 C164,C176,C304,C310 C-CERAMIC,CHIP
2203-007210 C315,C319,C324,C327 C-CERAMIC,CHIP
2203-007210 C332,C336,C340,C341 C-CERAMIC,CHIP
2203-007210 C345,C360,C511,C632 C-CERAMIC,CHIP
2203-007210 C633 C-CERAMIC,CHIP
2203-007270 C155,C156,C262,C724 C-CERAMIC,CHIP
2203-007270 C725 C-CERAMIC,CHIP
2203-007271 C167,C408,C413,C415 C-CERAMIC,CHIP
2203-007271 C418,C430,C438,C601 C-CERAMIC,CHIP
2203-007271 C706,C707,C708,C717 C-CERAMIC,CHIP
2203-007279 C309,C320,C539 C-CERAMIC,CHIP
2203-007317 C172,C178,C417,C420 C-CERAMIC,CHIP
2203-007317 C425,C427,C435 C-CERAMIC,CHIP
2203-007391 C573,C642 C-CERAMIC,CHIP
2203-007393 C134,C169,C506,C507 C-CERAMIC,CHIP
2203-007393 C508,C509,C510,C521 C-CERAMIC,CHIP
2203-007393 C522,C523,C524,C525 C-CERAMIC,CHIP
2203-007393 C526,C527,C537,C701 C-CERAMIC,CHIP
2203-007393 C762 C-CERAMIC,CHIP
2203-007449 C174,C321,C322,C323 C-CERAMIC,CHIP
2203-007449 C325,C333,C349,C350 C-CERAMIC,CHIP
2203-007449 C400,C401,C402,C403 C-CERAMIC,CHIP
2203-007449 C406,C421,C422,C423 C-CERAMIC,CHIP
2203-007449 C426,C428,C429,C432 C-CERAMIC,CHIP
2203-007449 C433,C436,C437,C500 C-CERAMIC,CHIP
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-7
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2203-007449 C541,C543,C544,C546 C-CERAMIC,CHIP
2203-007449 C549,C550,C554,C555 C-CERAMIC,CHIP
2203-007449 C556,C572,C600,C602 C-CERAMIC,CHIP
2203-007449 C603,C604,C606,C608 C-CERAMIC,CHIP
2203-007449 C609,C615,C617,C618 C-CERAMIC,CHIP
2203-007449 C625,C628,C629,C631 C-CERAMIC,CHIP
2203-007449 C658,C660,C703,C705 C-CERAMIC,CHIP
2203-007449 C709,C710,C711,C712 C-CERAMIC,CHIP
2203-007449 C714,C739,C742,C744 C-CERAMIC,CHIP
2203-007449 C747,C748,C755,C756 C-CERAMIC,CHIP
2203-007449 C763,C765 C-CERAMIC,CHIP
2203-007701 C171,C311,C312,C431 C-CERAMIC,CHIP
2203-007701 C505,C532,C538 C-CERAMIC,CHIP
2203-007781 C564,C565 C-CERAMIC,CHIP
2203-007840 C206 C-CERAMIC,CHIP
2404-001496 TA600 C-TA,CHIP
2404-001506 TA501,TA502,TA503 C-TA,CHIP
2409-001127 C168 C-POLYMER,CHIP
2409-001166 BAT500 C-EDL
2703-000213 L201 INDUCTOR-SMD
2703-001231 L509 INDUCTOR-SMD
2703-001285 L606 INDUCTOR-SMD
2703-001750 C104 INDUCTOR-SMD
2703-002199 L206 INDUCTOR-SMD
2703-002313 C203 INDUCTOR-SMD
2703-002596 L120,L127 INDUCTOR-SMD
2703-002901 C132 INDUCTOR-SMD
2703-002907 L114 INDUCTOR-SMD
2703-002955 C118 INDUCTOR-SMD
2703-002958 C130,C133,L113 INDUCTOR-SMD
2703-002961 L200,L205 INDUCTOR-SMD
2703-003004 L207 INDUCTOR-SMD
2703-003476 L211 INDUCTOR-SMD
2703-003545 L202 INDUCTOR-SMD
2703-003686 L503 INDUCTOR-SMD
2703-003755 L119,L121,L122 INDUCTOR-SMD
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-8
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2703-003770 L703 INDUCTOR-SMD
2703-003869 L302,L303 INDUCTOR-SMD
2703-003892 L504 INDUCTOR-SMD
2703-003897 L704 INDUCTOR-SMD
2703-003909 L501,L502,L506 INDUCTOR-SMD
2703-003911 L118,L500,L508 INDUCTOR-SMD
2703-004000 L107 INDUCTOR-SMD
2703-004012 C128,L110 INDUCTOR-SMD
2703-004034 L103,L104 INDUCTOR-SMD
2703-004035 L109 INDUCTOR-SMD
2703-004038 C111 INDUCTOR-SMD
2703-004039 L117 INDUCTOR-SMD
2703-004052 L507 INDUCTOR-SMD
2801-004339 OSC300,OSC500 CRYSTAL-SMD
2801-004458 OSC400 CRYSTAL-SMD
2801-005051 OSC201 CRYSTAL-SMD
2809-001348 OSC200 OSCILLATOR-VCTCXO
2809-001369 OSC100 OSCILLATOR-VCTCXO
2901-001413 F700,F701,F702,F704 FILTER-EMI SMD
2901-001413 F707,F709 FILTER-EMI SMD
2901-001625 F706 FILTER-EMI SMD
2901-001647 F703,F705 FILTER-EMI SMD
2910-000125 F100 DUPLEXER-SAW
2911-000166 U101 DUPLEXER-SAW
3301-001729 L705,L706,L707,L708 BEAD-SMD
3301-001876 L209,L210 BEAD-SMD
3301-001885 L213 BEAD-SMD
3301-001912 L212 BEAD-SMD
3301-001929 L601 BEAD-SMD
3301-001956 L300,L301 BEAD-SMD
3301-002062 L116 BEAD-SMD
3301-002065 L204,L600,L607,L608 BEAD-SMD
3301-002065 L609,L614 BEAD-SMD
3301-002066 L700,L701,L702 BEAD-SMD
3301-002078 L602,L604 BEAD-SMD
3705-001448 ANT100 CONNECTOR-COAXIAL
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-9
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
3705-001731 RFS100 CONNECTOR-COAXIAL
3708-002162 HDC700 CONNECTOR-FPC
3709-001575 CD300 CONNECTOR-CARD EDGE
3709-001626 SIM300 CONNECTOR-CARD EDGE
3711-006483 HDC701 HEADER-BOARD TO BOARD
3711-006925 HDC704 HEADER-BOARD TO BOARD
3711-007173 HDC702 HEADER-BOARD TO BOARD
3711-007295 HDC703 HEADER-BOARD TO BOARD
3711-007806 BTC500 HEADER-BATTERY
3711-007810 HDC600 HEADER-BOARD TO BOARD
3712-001348 ANT200,ANT201 CONNECTOR-TERMINAL
4709-001987 MOD201 IC
GH62-00015A PORON202 PAD GAP-PCB GASKET
GH70-07467A SC100,SC101,SC102 ICT SHIELD-CAN CLIP
GH70-07467A SC103,SC104,SC105 ICT SHIELD-CAN CLIP
GH70-07467A SC107,SC109,SC110 ICT SHIELD-CAN CLIP
GH70-07467A SC111,SC112,SC113 ICT SHIELD-CAN CLIP
GH70-07467A SC114,SC115,SC116 ICT SHIELD-CAN CLIP
GH70-07467A SC117,SC118,SC119 ICT SHIELD-CAN CLIP
GH70-07467A SC120,SC121,SC122 ICT SHIELD-CAN CLIP
GH80-03320A R353 Solder Bridge PAD
GH80-03321A C651,R212,R310,R328 Solder Bridge PAD
GH80-03321A R329,R331,R719,R720 Solder Bridge PAD
GH80-03321A R741 Solder Bridge PAD
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's part list.
SAMSUNG Proprietary-Contents may change without notice
6. Level 1Repair
6-1
This Document can not be used without Samsung's authorization
6-1. S/W Download

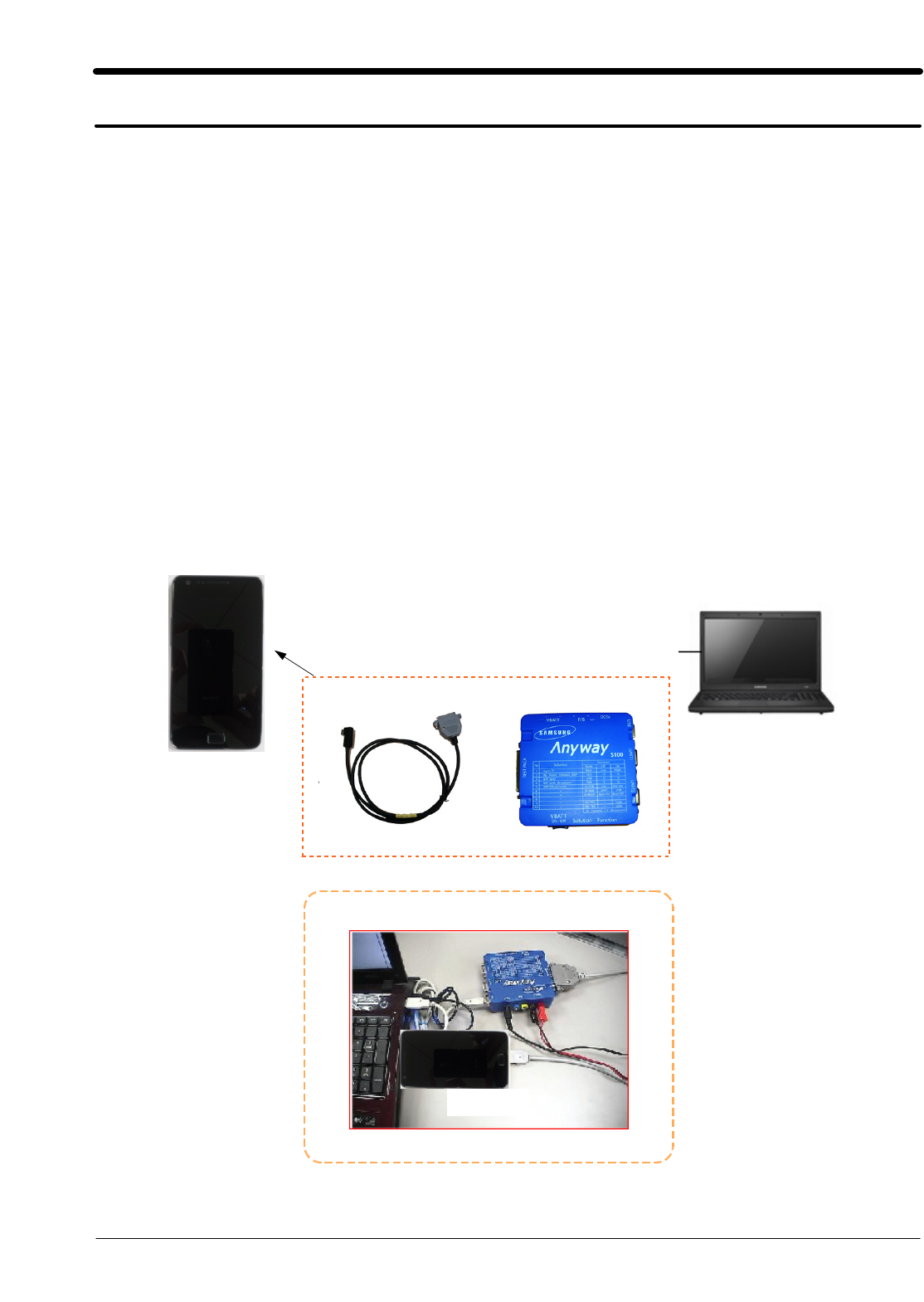

6-1-1. Pre-requisite for S/W Downloading
Downloader Program (Odin3 v1.83.exe)
GT-I9100 Mobile Phone
Data Cable
JIG BOX (GH99-36900A)
•JIG Cable (GH39-01339A)
•Adapter (GH99-38251A)
•Serial Cable
Binary files
※Settings
Connect to ANYWAY JIG BOX
&JIG CABLE (Phone to JIG)
Or PC to Phone Using Data Cable
SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-2
This Document can not be used without Samsung's authorization

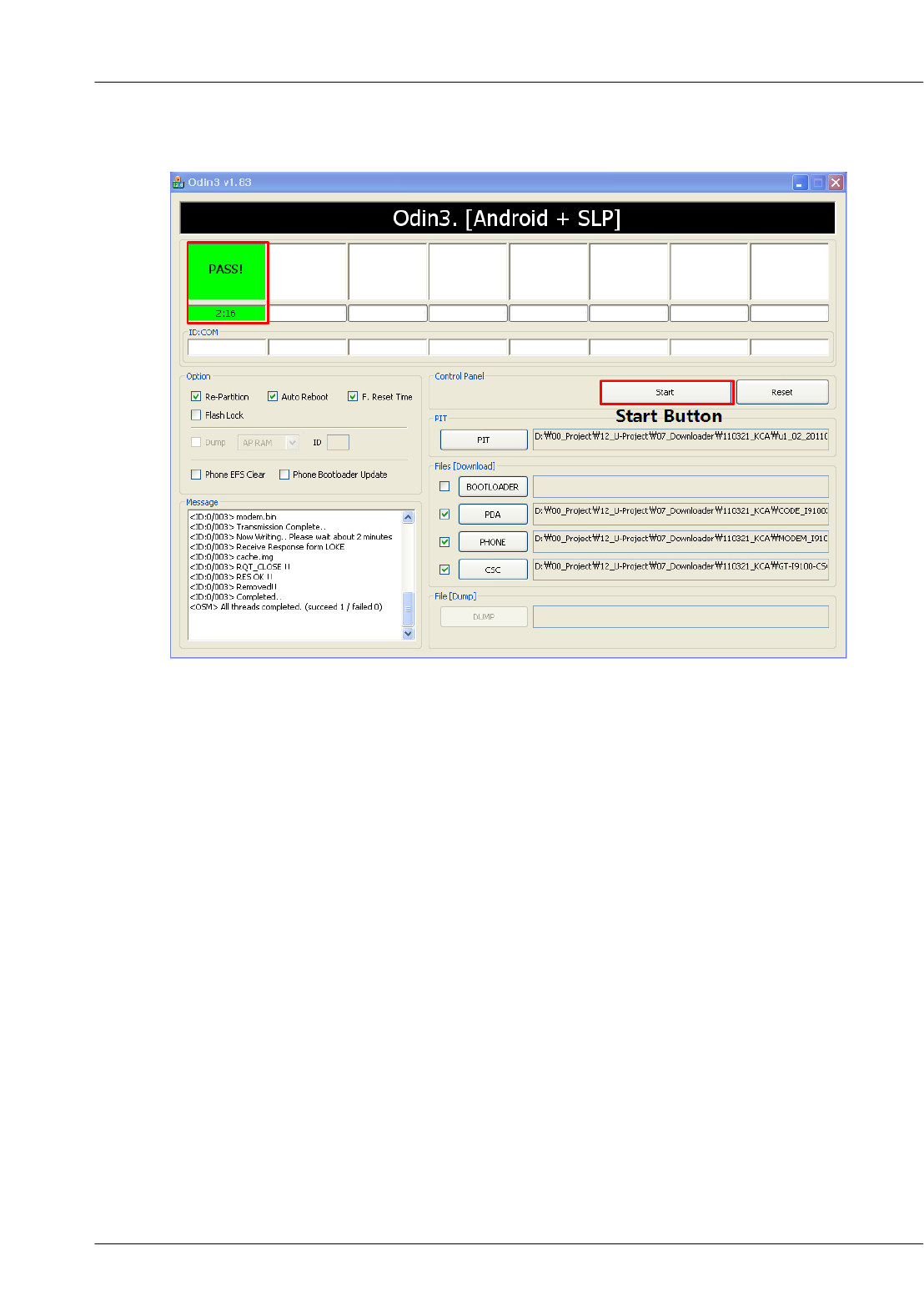

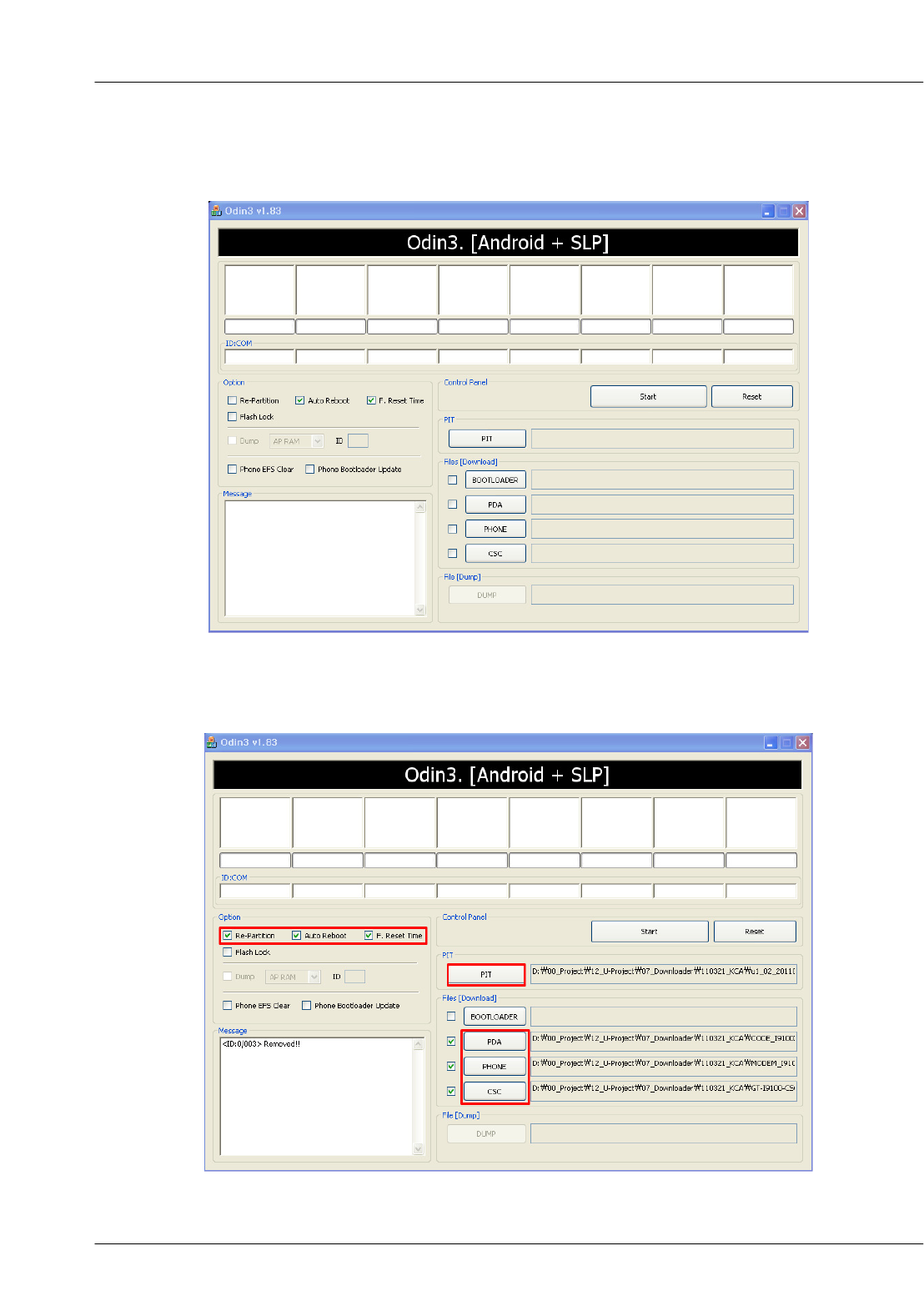

6-1-2. S/W Downloader Program
Load the binary download program by executing the
"Odin3 v1.83.exe" Run this file.
1.Option Selection
-Check Re-Partition, Auto Reboot and F. Reset Time, then select PIT, PDA,
PHONE and CSC Files.
SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-3
This Document can not be used without Samsung's authorization

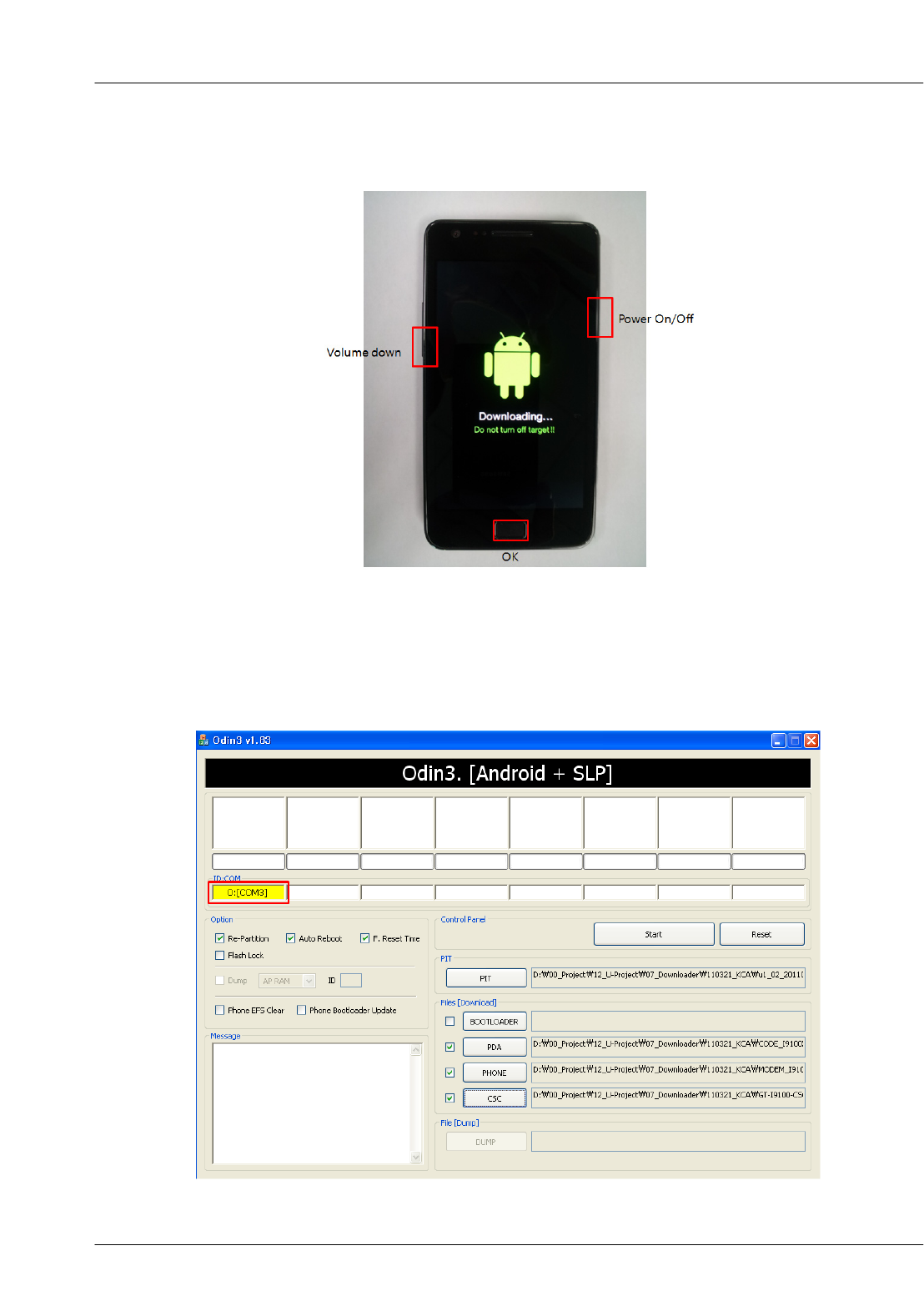

2.Enter Device into Download Mode
-Enter the device into Download Mode by pressing down on Volume Down button
and OK button, and pressing down on Power ON/OFF Button.
3.Connect the Handset to PC via Data Cable.
Make sure ID:COM box highlighted yellow that the Handset is connected to the PC.
SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-4
This Document can not be used without Samsung's authorization
4.Start Downloading binary files by clicking Start Button. Then wait for "Pass" to be
appear on the screen.
5. Disconnect the Handset to Data cable.
6.Once the device boots up, confirm the downloaded version name and etc. :
*#1234#
Full Reset :
*2767*3855#
SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-1
This Document can not be used without Samsung's authorization

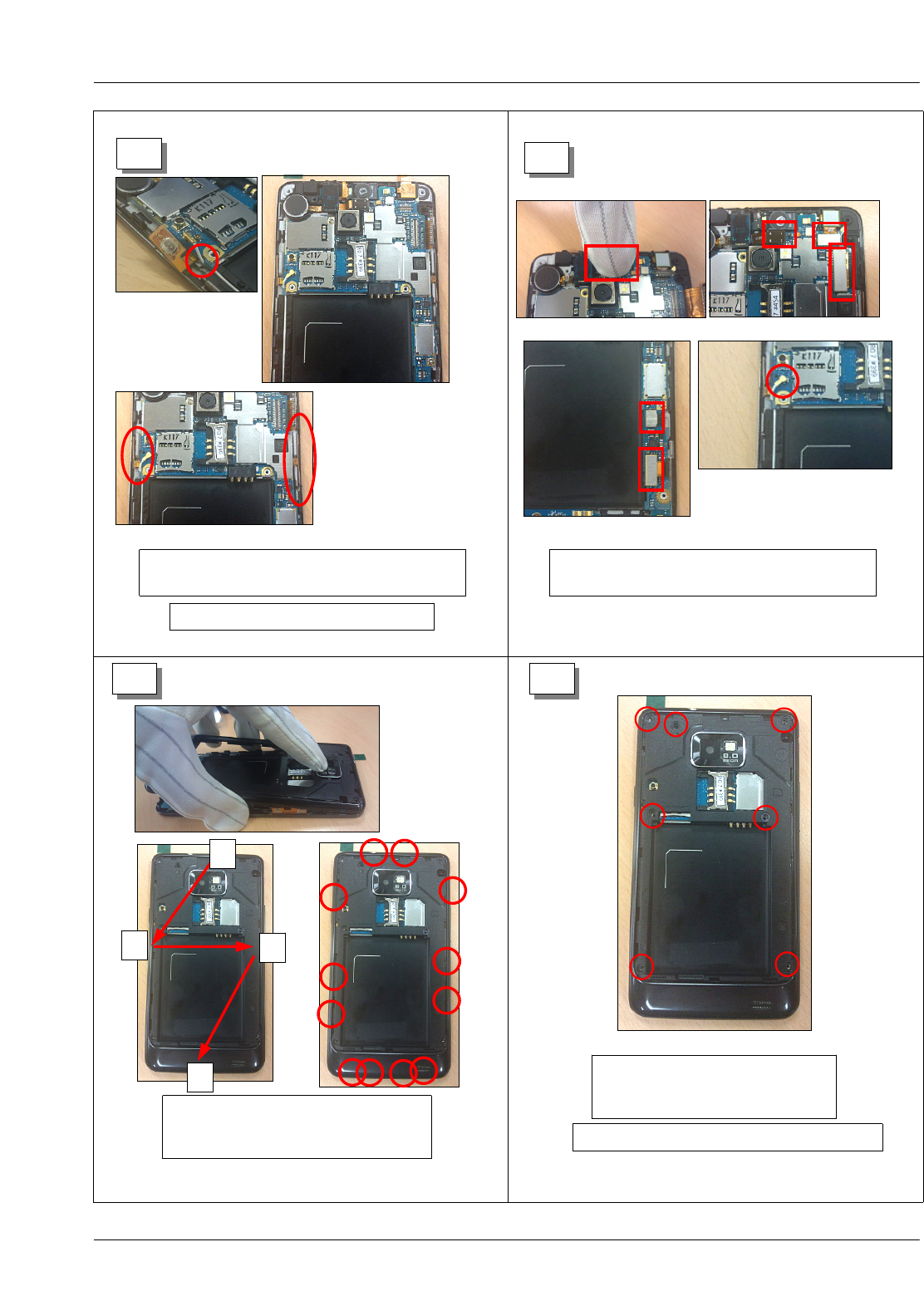

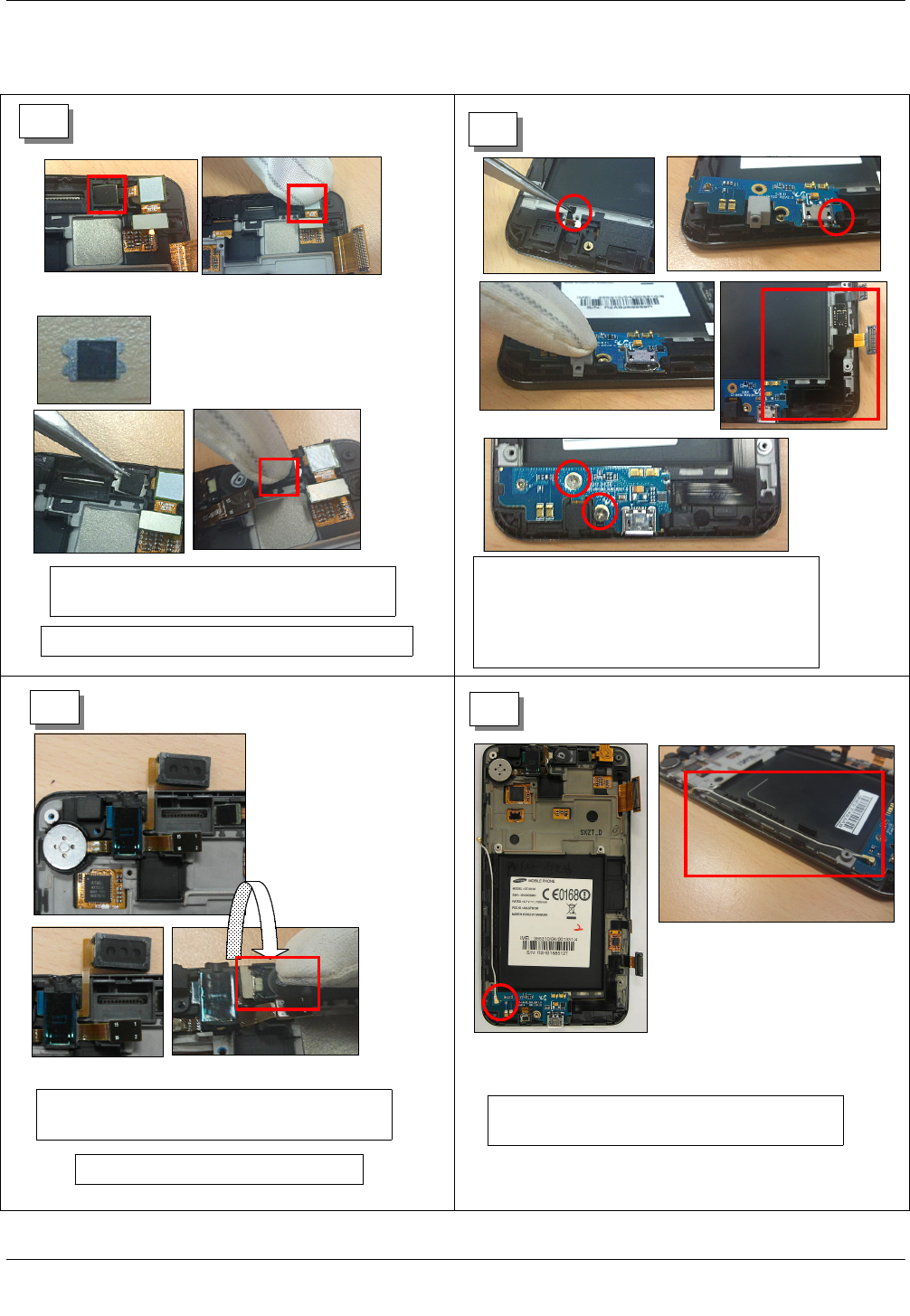

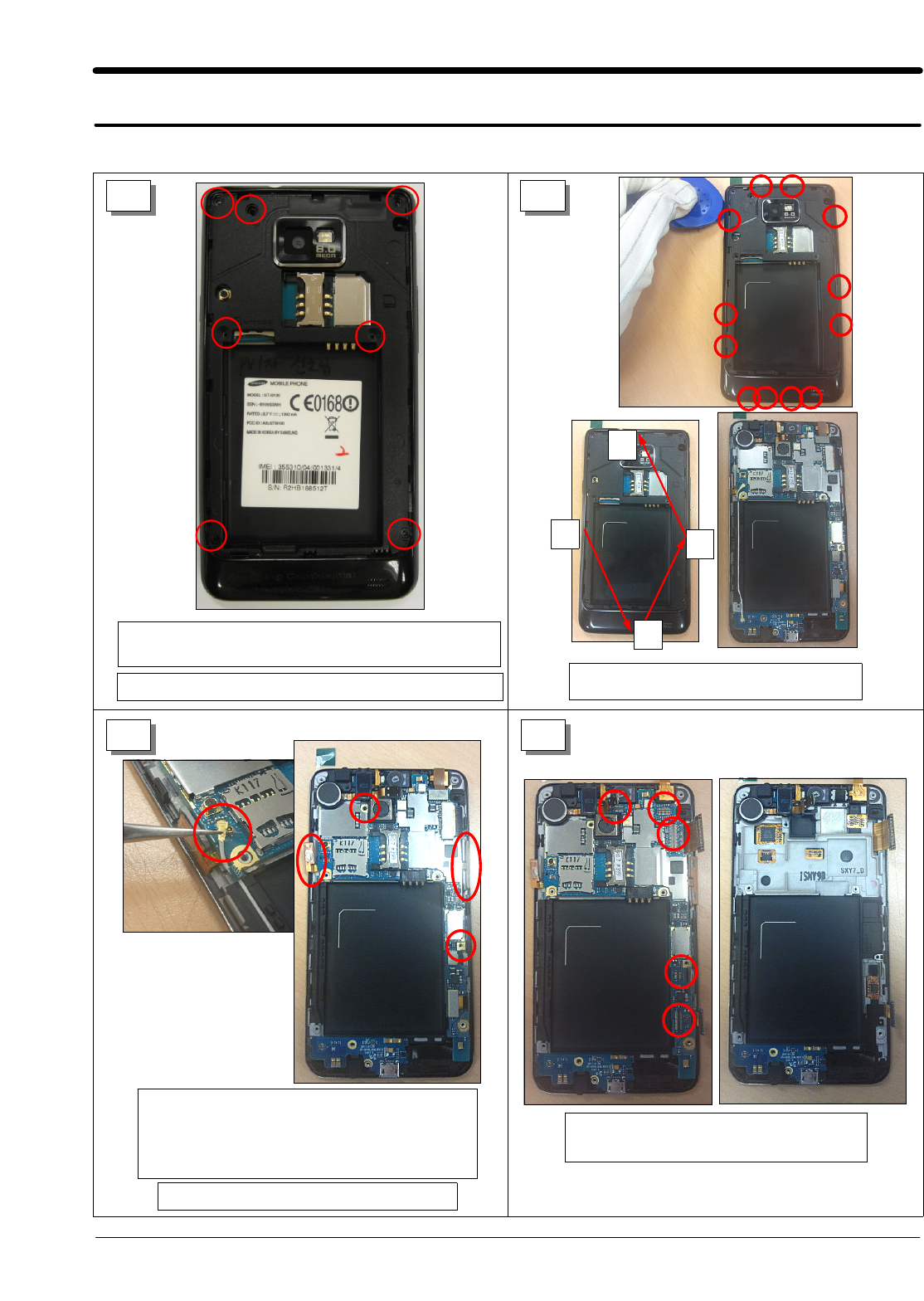

7-1. Disassembly
2
3 4
Release the screws at 7points.
(Torque: 1.1±0.1 kgf.cm) (Size: M1.4*L3)
Be careful not to scratch rear cover.
1
Separate the cable from the PBA.
Release the screw 2point(Size: M1.4*L3)
(Torque: 1.1±0.1 kgf.cm)
Detach the side FPCBs from the Bracket.
Be careful not to damage the FPCBs.
Disjoint hook 12 points at the rear
(Follow the order)
Separate all connectors from the PBA.
Separete the PBA fromt the Front.
1
2
3
4
SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-2
This Document can not be used without Samsung's authorization

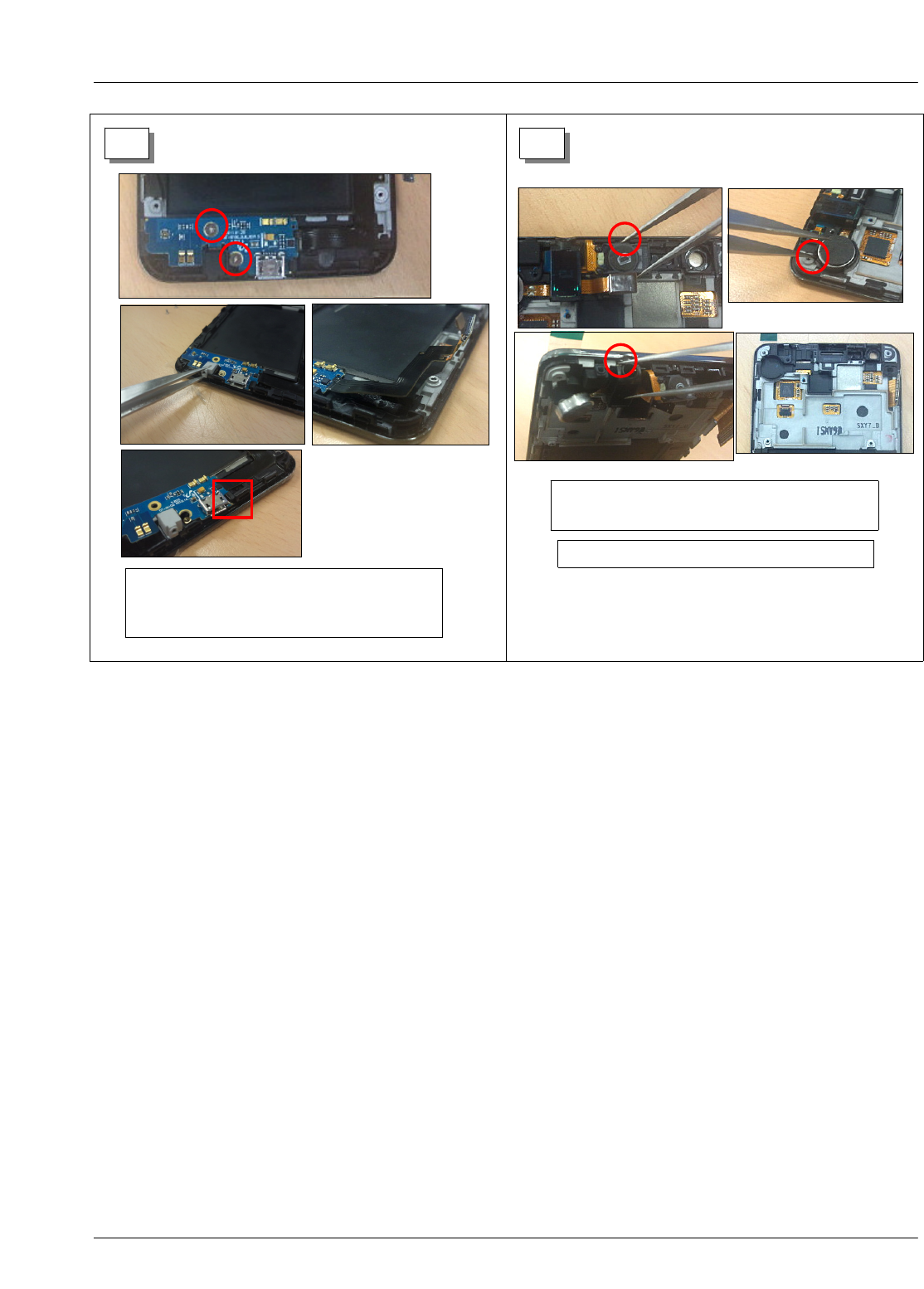

Release the screw 2point(Size: M1.4*L2)
(Torque: 1.1±0.1 kgf.cm)
Separate the sub PBA from the PBA.
5 6
Separate the Receiver Ass'y from the Front.
(Insert atool into the holes.)
Be careful not to damage the FPCBs.
SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-3
This Document can not be used without Samsung's authorization
7-2. Assembly
1
4
3
2
Be careful not to damage the camera FPCB.
Be careful to damage the FPCB.
Insert the VGA Ass'y in the Front.
Put the chassis on the sensor.
Attach the FPCB on the Front.
Insert the sub PBA in the hook.
Attach the FPCB on the Front.
Screw 2points.(Size: M1.4*L2)
(Torque: 1.1±0.1 kgf.cm)
Put the Receiver Ass'y on the Front.
Furl the Receiver and put it on the Front. Connect the cable on the sub PBA.
Organize the cable on the Front
SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-4
This Document can not be used without Samsung's authorization
7
6
8
5
Put the PBA on the Front.
Attach the side FPCBs on the Bracket.
Be careful to damage the cable.
Screws at 7points.
(Torque: 1.1±0.1 kgf.cm)
(Size: M1.4*L3)
Be careful not to scratch rear cover.
Joint the Rear and the Front.
(Follow the order)
Hook at the 12 points.
Connect all the connector on the PBA.
Connect the cable on the PBA.
1
23
4
SAMSUNG Proprietary-Contents may change without notice
8. Level 3Repair
8-1
This Document can not be used without Samsung's authorization

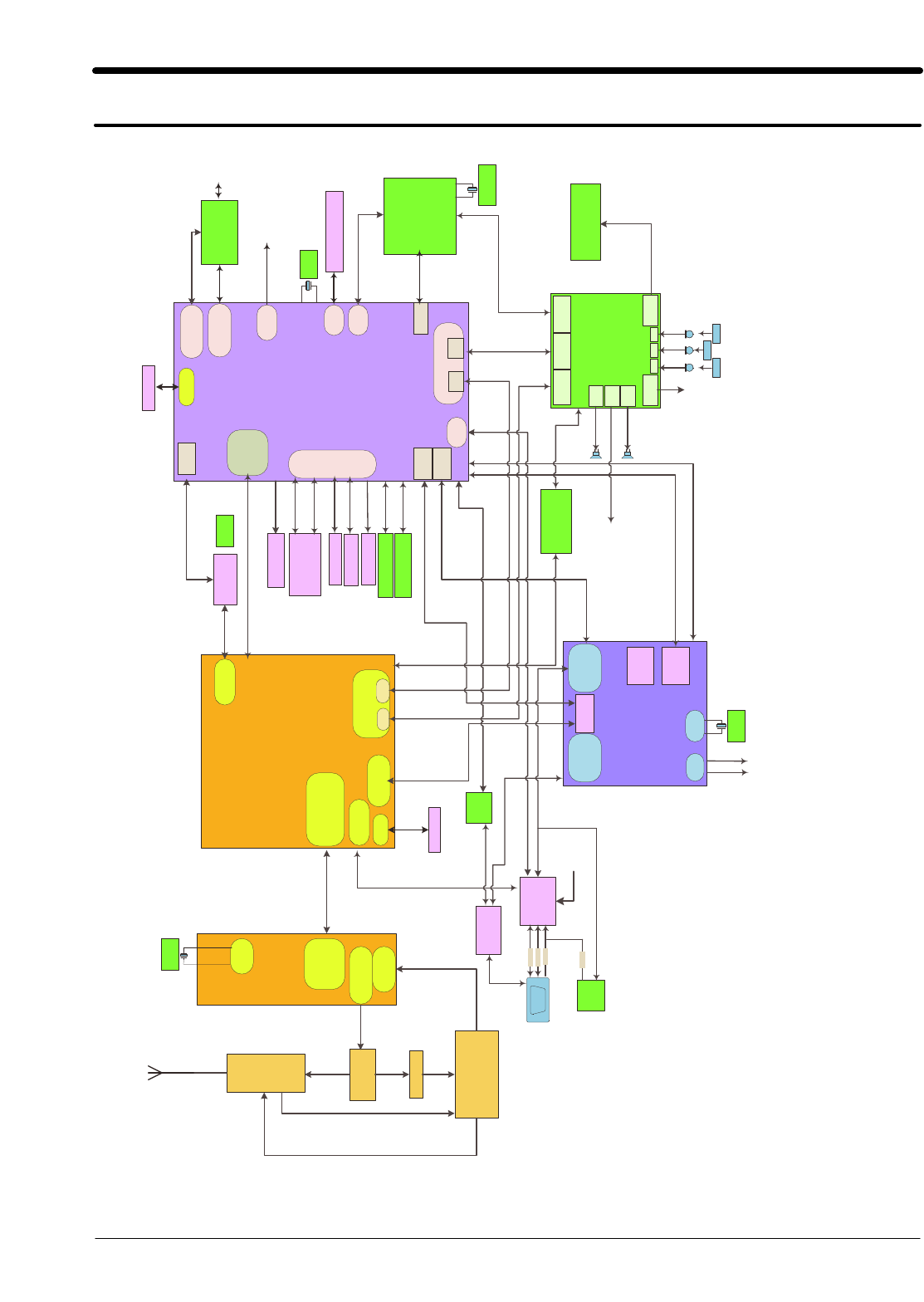

8-1. Block Diagram
Application Processor
+ Memory
(POP)
POP
MCP
MEMORY
(4G/4G/1G)
AUDIO
I2S1I2S0
MIPI
LCD IF
MMC
0/1
UART 2
MMC3
UART 0
UART 3
GPIO
Audio Codec
EAR
AMP
PCM / I2S
IF Port 2
PCM / I2S
IF Port 1
PCM / I2S
IF Port 3
RCV
AMP
SPK
AMP
MIC1
LINE1
L/R
MM_I2S_CLK
MM_I2S_SYNC
MM_I2S_DI
MM_I2S_DO
BT/Wifi
Module
BT_UART_RXD
BT_UART_TXD
BT_UART_CTS
BT_UART_RTS
BT_PCM_CLK
BT_PCM_DIN
BT_PCM_DOUT
BT_PCM_SYNC
CP +CP PMIC
AUDIO
SIMI2S1I2S2
UART
USB
GPS
interface
SPEECH_PCM_CLK
SPEECH_PCM_IN
SPEECH_PCM_OUT
SPEECH_PCM_SYNC
REC_PCM_CLK
REC_PCM_IN
REC_PCM_OUT
REC_PCM_SYNC
Main mic_P/N
Ear mic_P/N
MICBIAS
LDO
MICBIAS_LDO_2.8V
3.5phi Ear MIC
3.5ø
EAR
SPK_OUT_P
SPK_OUT_N
EAR_L
EAR_R
RCV_OUT_P
RCV_OUT_N
24-BIT
RGB IF(1.8V)
24MHz
TCXO
AP_FLM_RXD_2.8V
AP_FLM_TXD_2.8V
AP_FLM_RXD
AP_FLM_TXD
CP_RXD_1.8V
CP_TXD_1.8V
AP PMIC
A/S 1
AP_RXD
AP_TXD
CP_RXD
CP_TXD
MICRO
USB S/W IC
IF_RXD
IF_TXD
GPS reciever
UART 1
GPS_UART_RXD
GPS_UART_TXD
GPS_UART_RTS
GPS_UART_CTS
VT CAMERA
/PROXY sensor
VT_CAM_SCL_2.8V
VT_CAM_SDA_2.8V
PS_ALS_SCL_2.8V
PS_ALS_SDA_2.8V
TOUCH KEY
TOUCH_SCL_2.8V
TOUCH_SDA_2.8V
WiFi 2.8V
GYRO
SENSOR
SENSE_SCL_2.8V
SENSE_SDA_2.8V
ACC SENSOR
MAGNETIC
SENSOR
16G i/Movinand
(2.8V)
ISP
MEMORY 16-BIT IF
GPIO
MEGA_CAM_SCL_2.8V
MEGA_CAM_SDA_2.8V
8M
AP_PMIC_SCL
AP_PMIC_SDA
RESET
IC
RTC
32.768
KHz
OVP
USB_VBUS_CP_5V
USB_VBUS_AP_5V
LINE2
L/R
MICRO USB
USB_DP
USB_DM
USB_ID
JTAG
FOG
USB_ID
JTAG_RXD
JTAG_TXD
CP_D+
CP_D-
USB
AP_D+/-
SIM CARD
Digital RF interface
TRANSCEIVER
OSC
control
Digital RF
2G/3G Rx
2G/3G Tx
2G/3G PAM
PM_L
PM_H
ASM
2G_TX_LB
2G_TX_HB
DUP/SAW BANK
BAND S/W
3G_LB
3G_HB
3G_TX
RX
3G_TX
2G/3G_RX
A/S 2
RADIO_L
RADIO_R
VPS_P
VPS_N
VPS_P
VPS_N
26MHz
26MHz
FM Radio
X-TAL
37.4MHz
T-FLASH
T-FLASH
LV.
SHIFTER
FUEL_I2C
FUEL
GAUGE
Charger IC
USB_OTG
MIC2MIC3
Sub mic_P/N
MICBIAS
LDO
MICBIAS
LDO
Main MIC
Sub MIC
2-MIC Chip
SPEECH_PCM_IN/OUTSPEECH_PCM_IN/OUT_
CODEC
2MIC_I2C_1.8V_CP

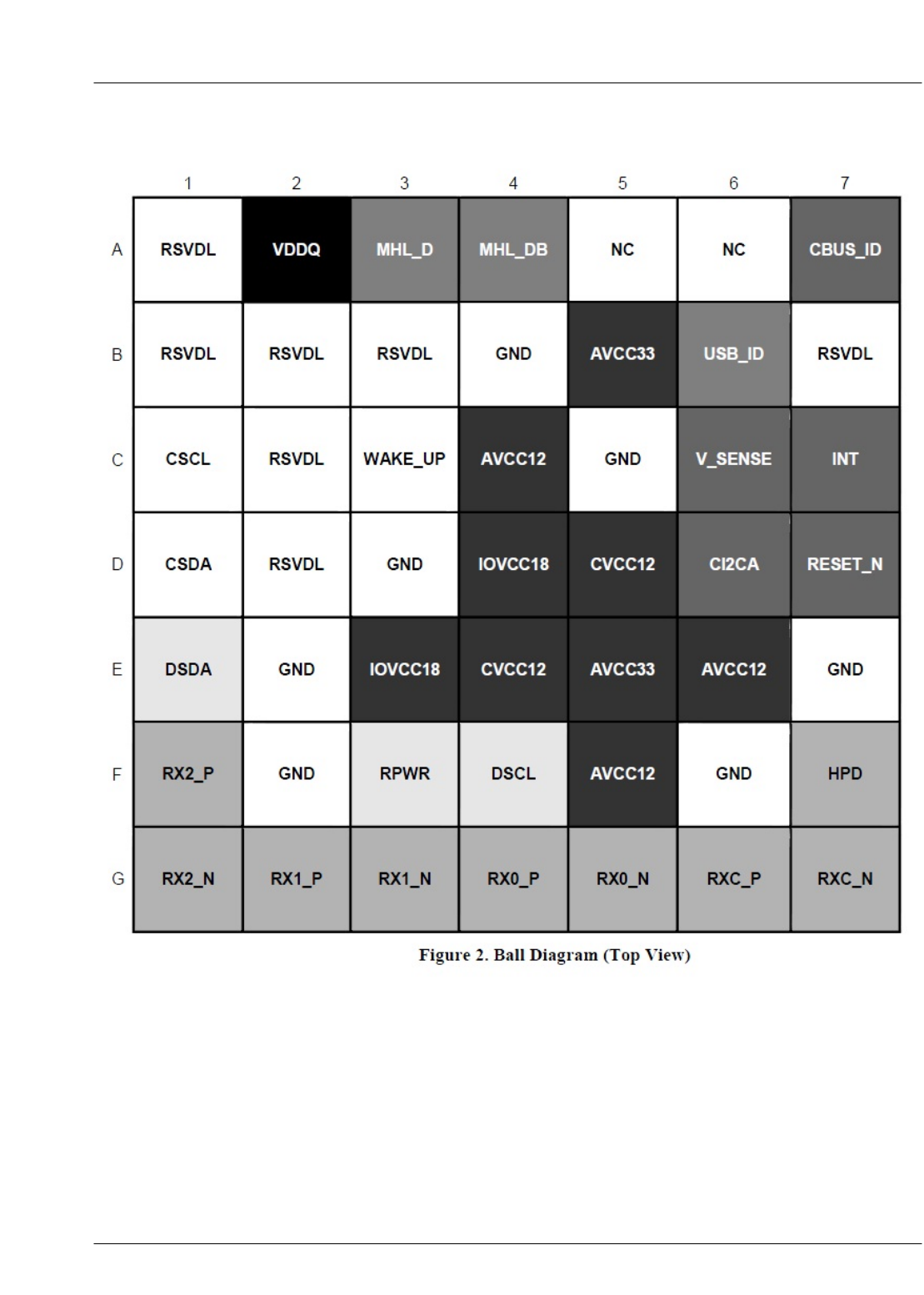

MHL
MHL_DM/DP/IDMHL_I2C/MSENSOR_MHL_I2C
Switch IC
USB_DP/DMPMIC_DP/DM
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-2
This Document can not be used without Samsung's authorization

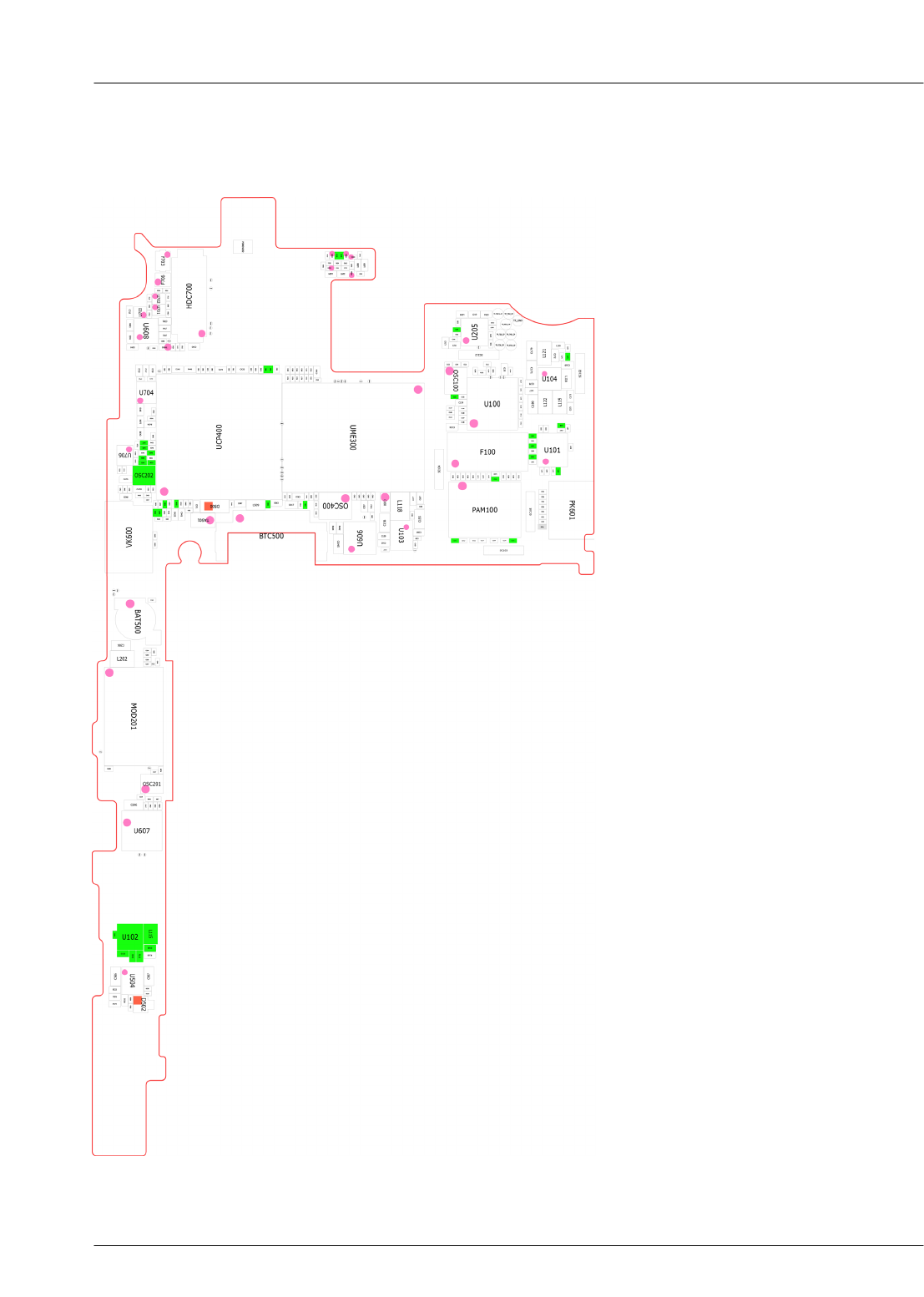

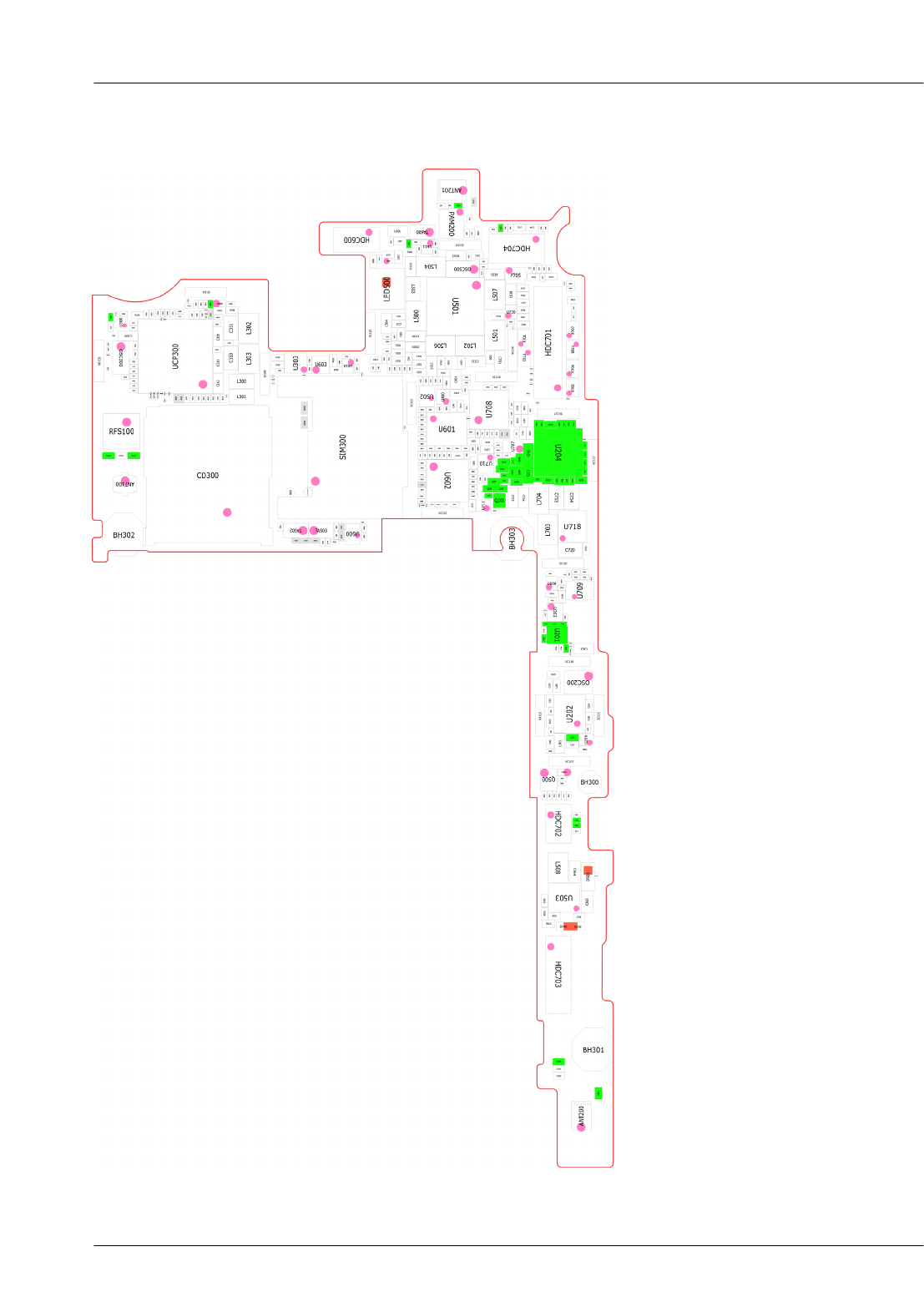

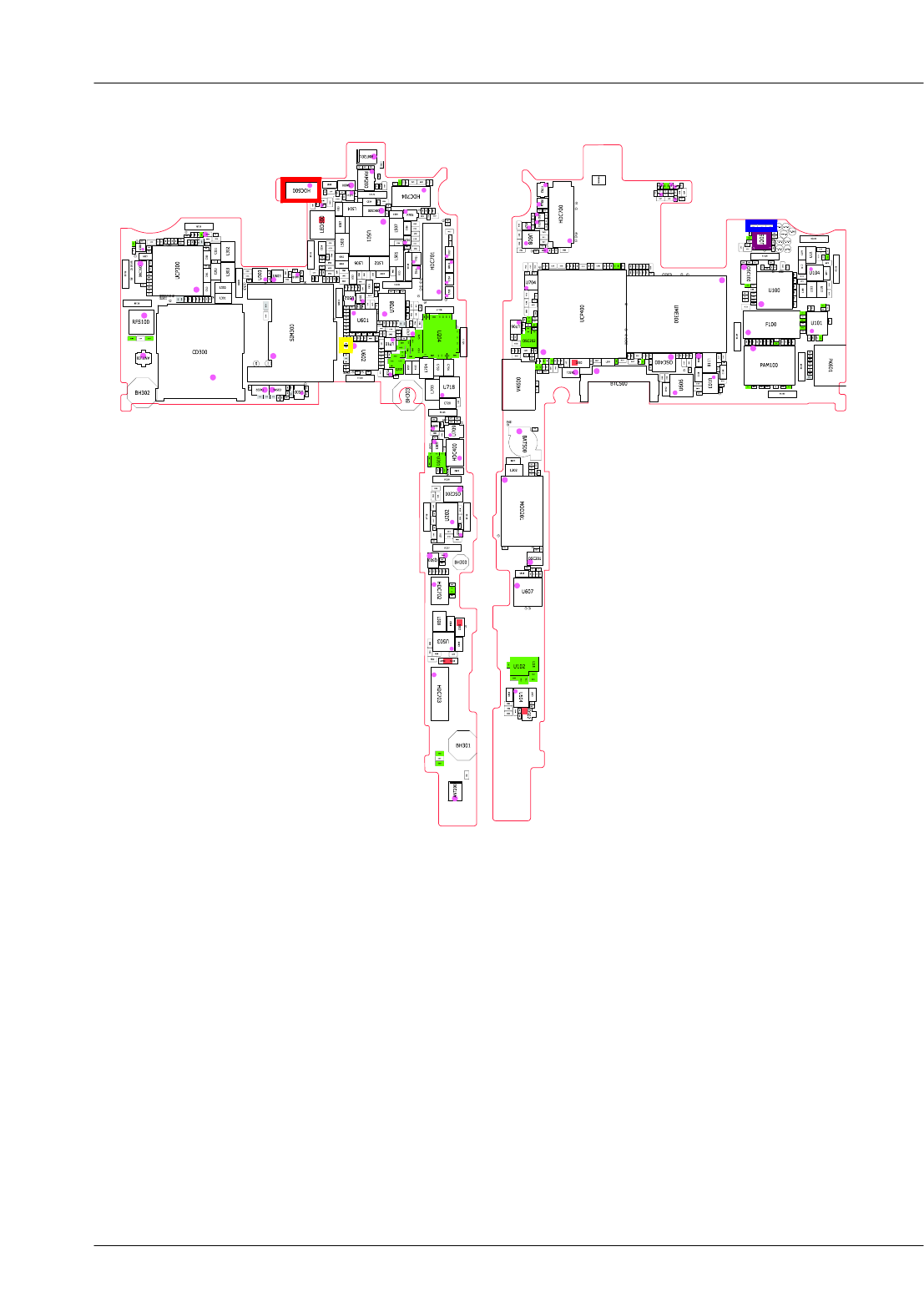

8-2. PCB Diagrams
8-2-1. Top
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-3
This Document can not be used without Samsung's authorization
8-2-2. Bottom
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-4
This Document can not be used without Samsung's authorization
8-3. Flow Chart of Troubleshooting

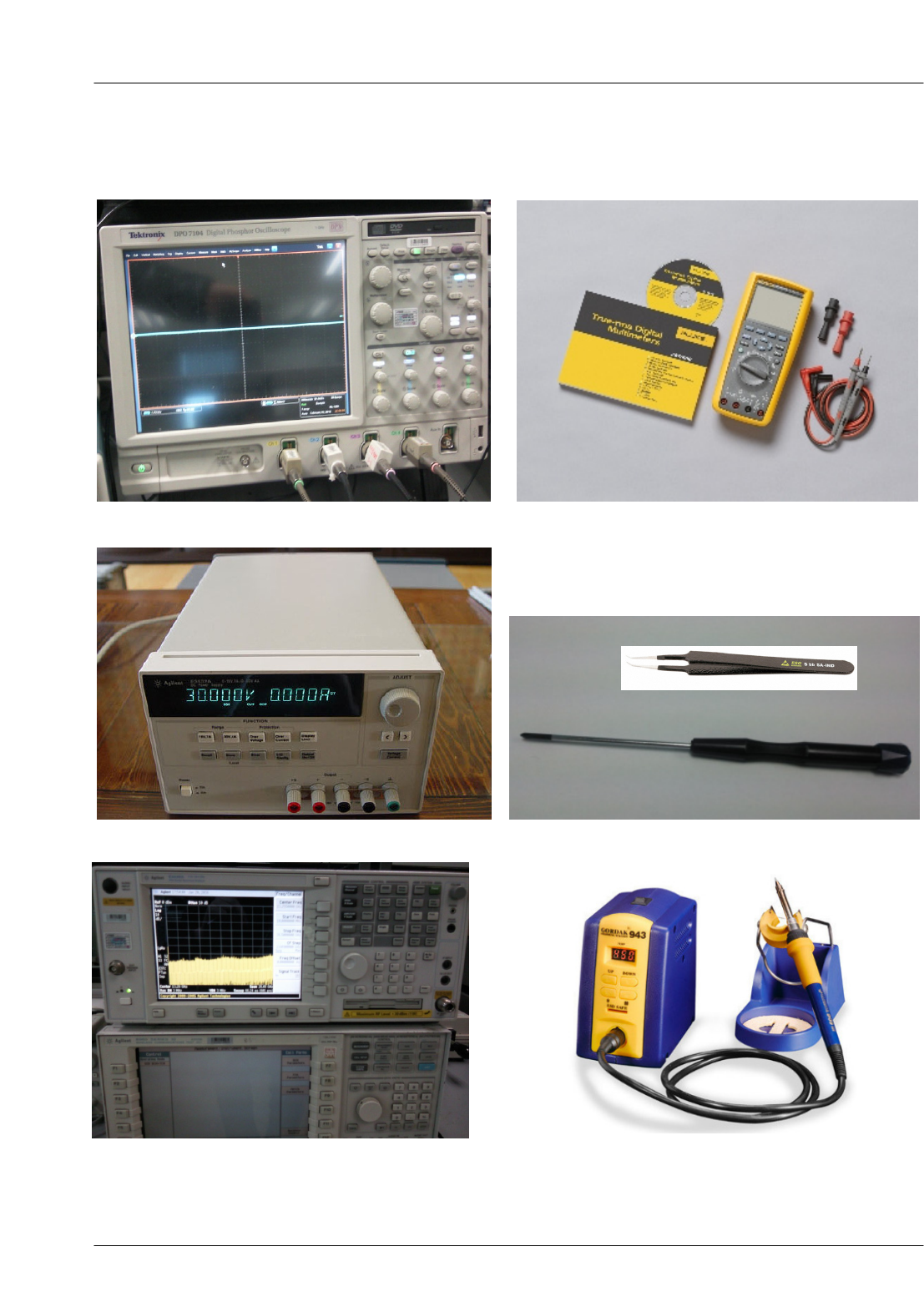

Equipments
Oscilloscope áDigital Multimeter
áPower Supply á+driver, ESD Safe Tweezer
8960 & Spectrum Analyzer áSoldering iron
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-5
This Document can not be used without Samsung's authorization

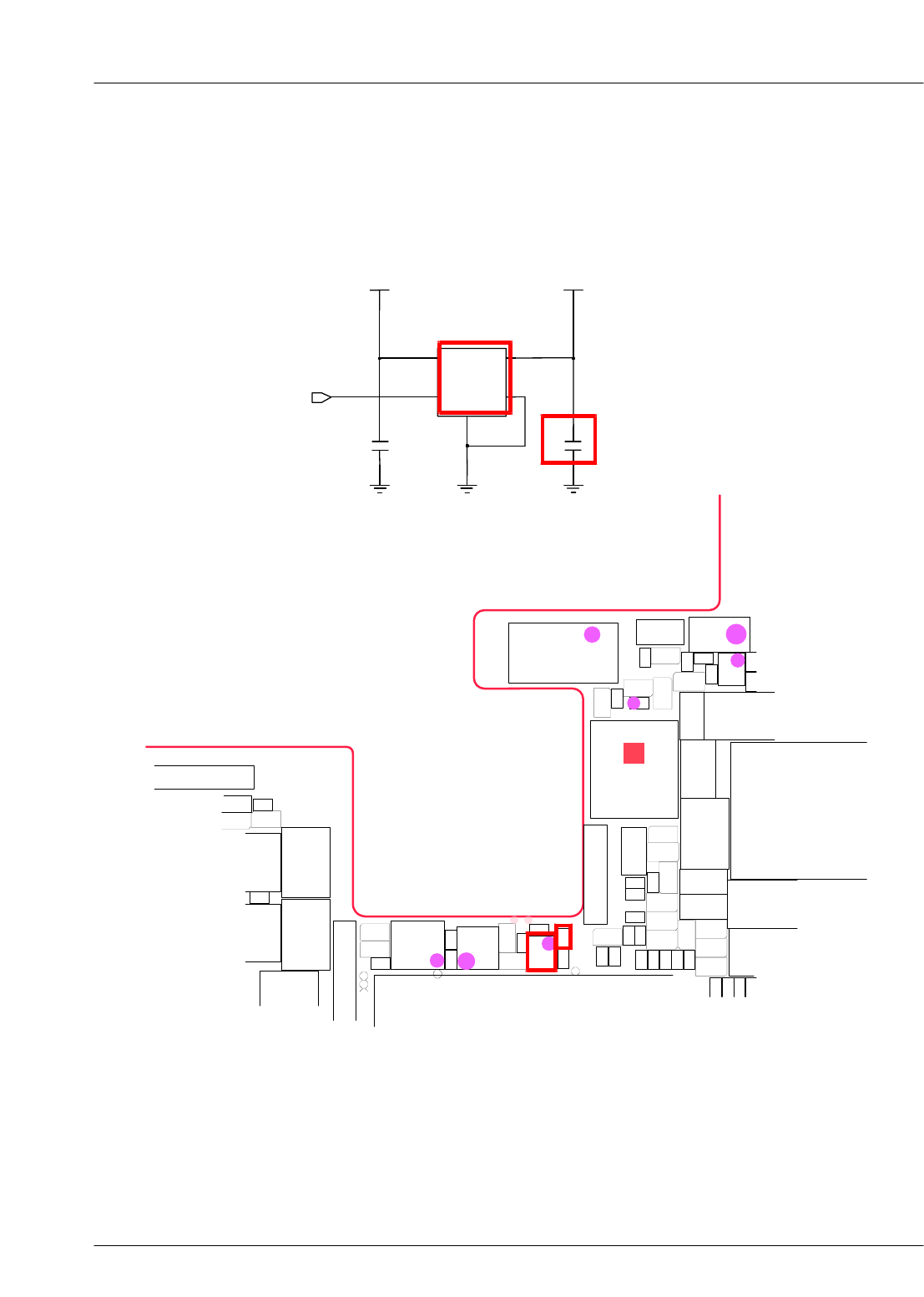

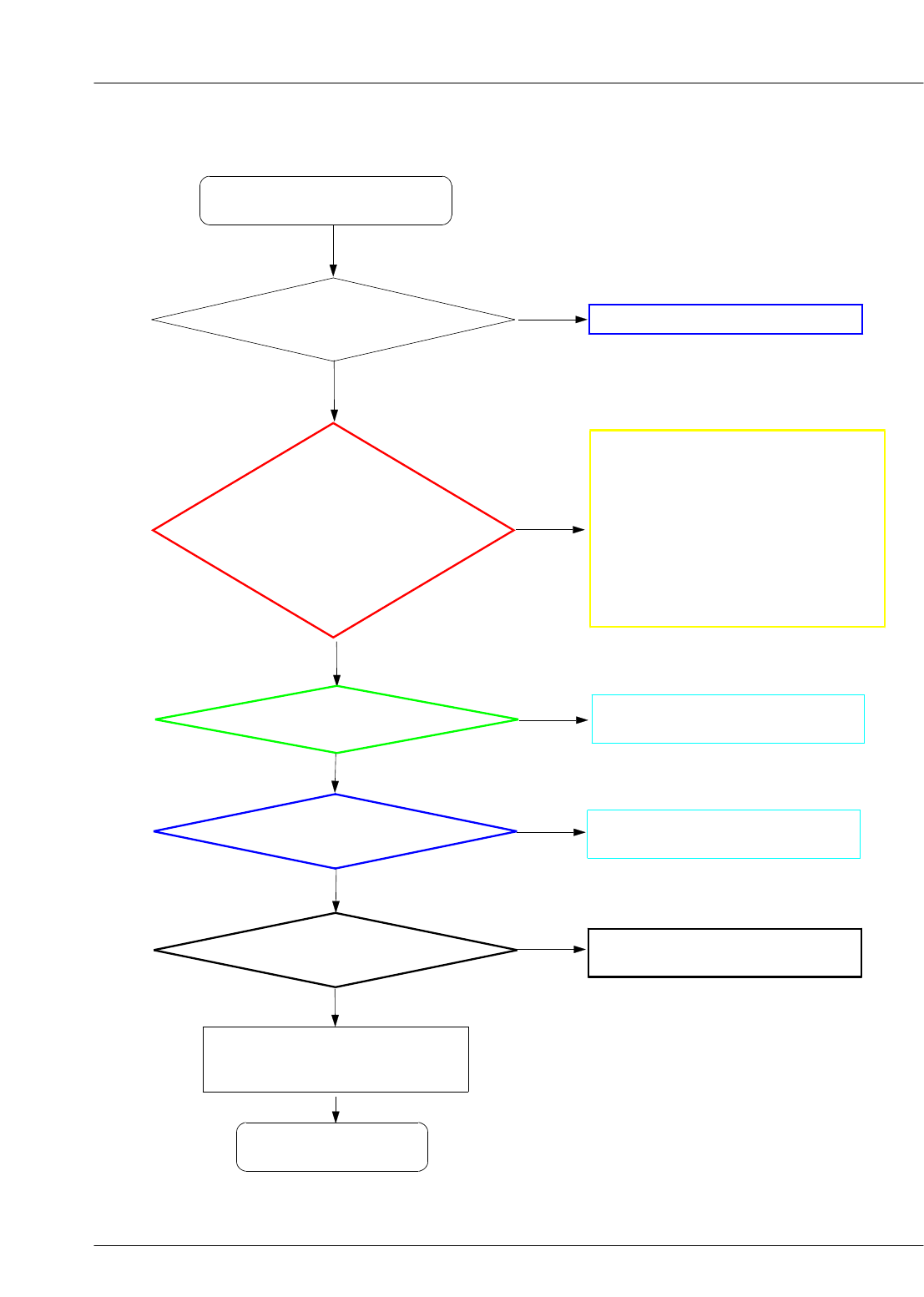

8-3-1. Power On
Check the PK601
(soldering crack, open, etc)
Cell-phone can`t power on.
Change the PK601(Power-key FPCB)
And retry to the power-on operation.
END
No
Yes
Check the U501 output voltage
(C535 >2.0
V, C554 >1.2
V)
If the output voltage is not satisfied with normal
condition, Change the U501.
※Each voltage level has ±10% margin.
No
Yes
Check the U501 output signal
(AP_PS_HOLD(TP) >2.8
V)
If the output voltage is not satisfied with normal.
condition, Change the U501.
※Each voltage level has ±10% margin.
No
Yes
Check the Battery Voltage.
Is it more than 3.6V?
Charging the battery by TA.
If its voltage level is extremely low(under 3.0V),
Change the battery.
check the initial operation
Yes
Abnormal
Check the Clock OSC500(TP213)
Is that frequency 32Khz?
Change the OSC500.
If OSC400 does not still work, Change the U501
This problem is internal oscillator of U501.
※Test condition (Oscilloscope setting)
:20.0
us.div (time division)
No
Yes
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-6
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-7
This Document can not be used without Samsung's authorization

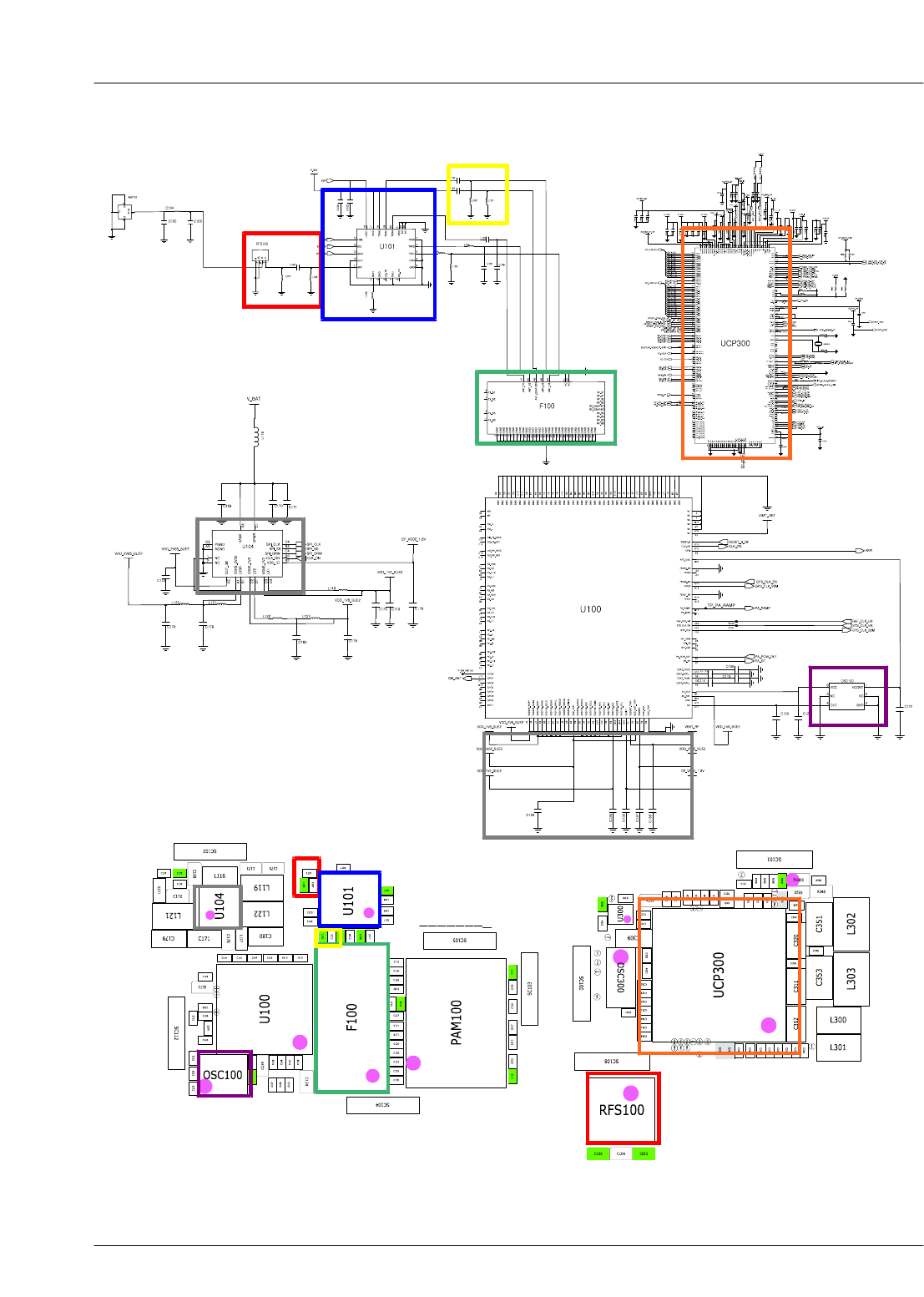

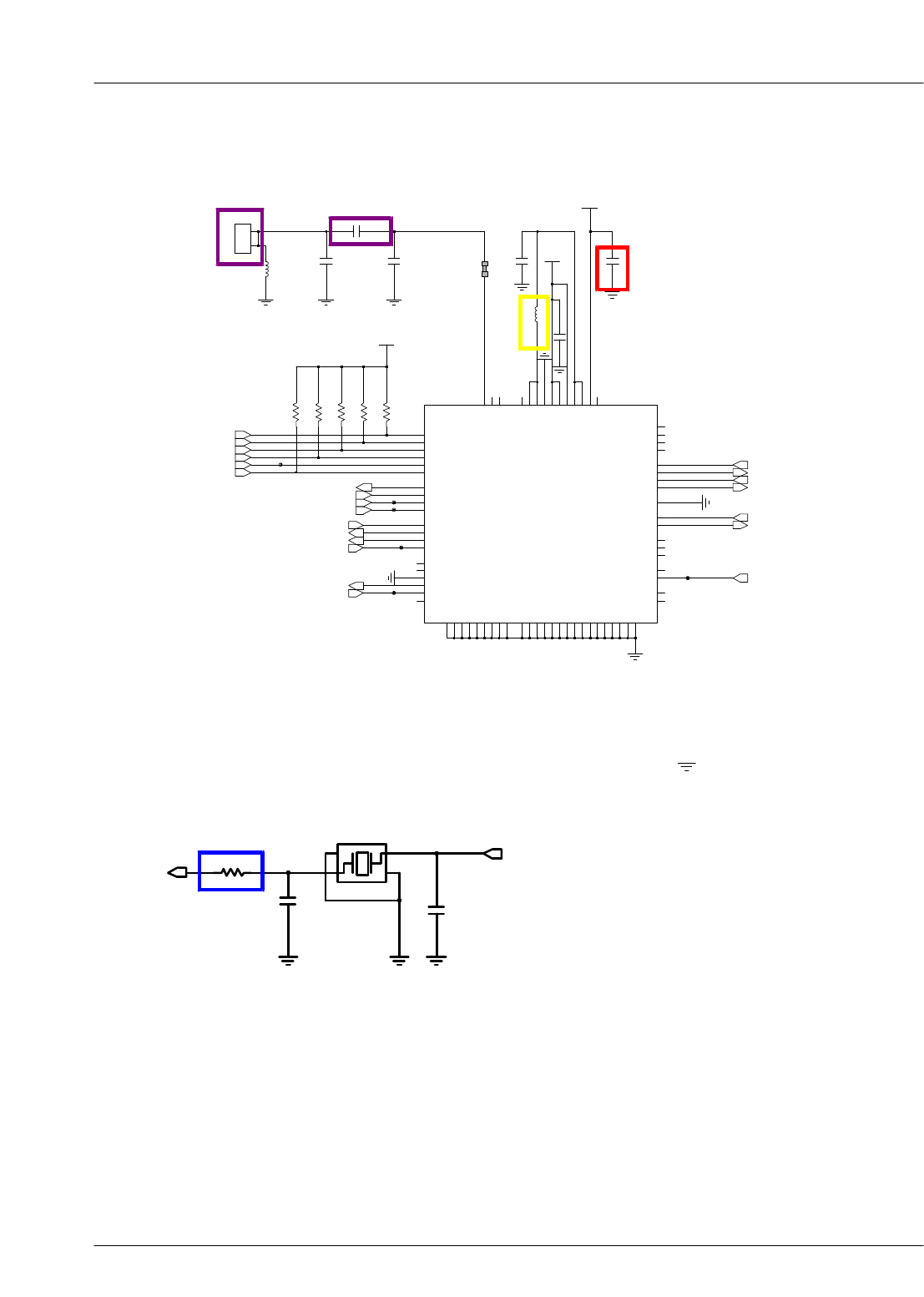

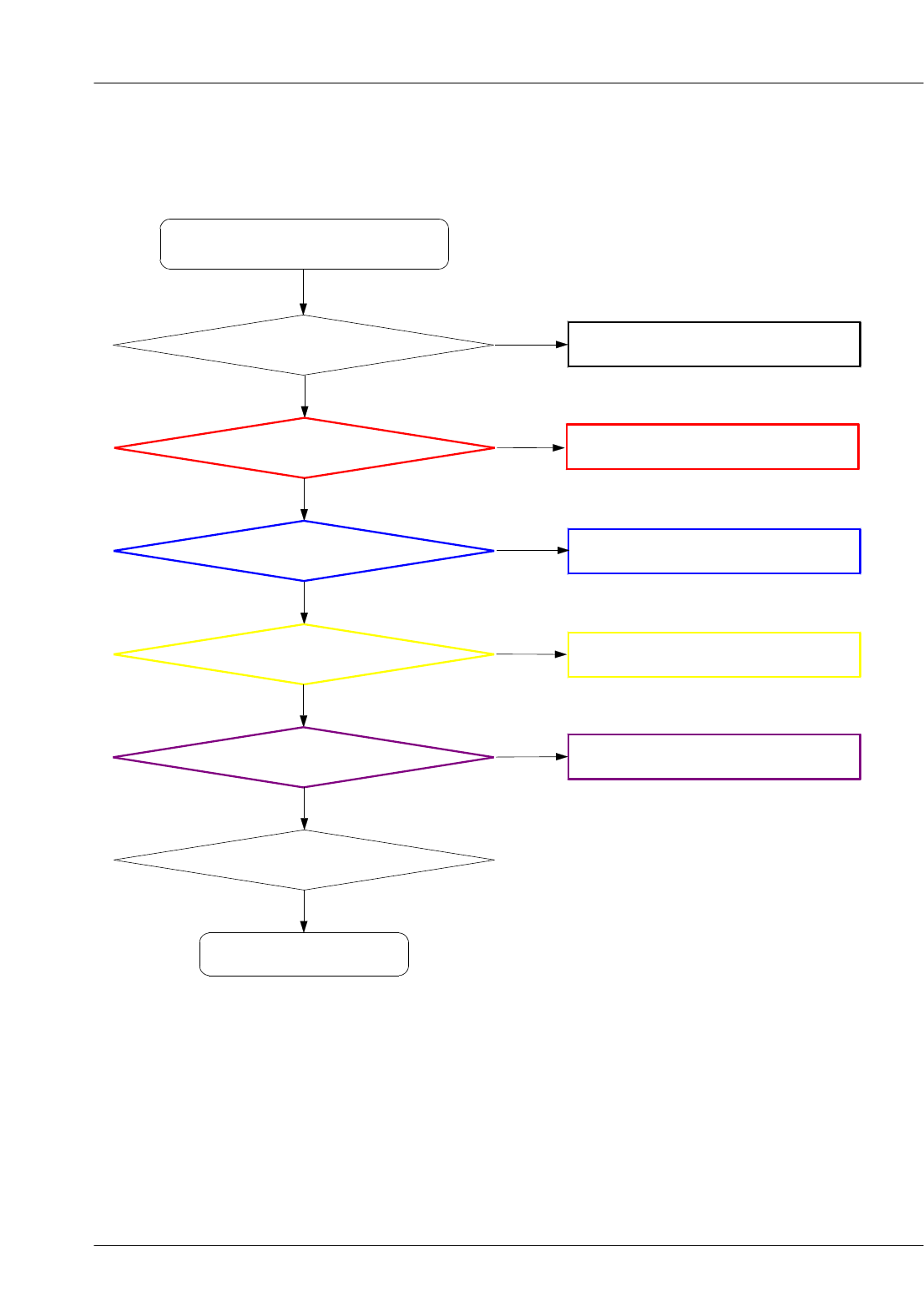

8-3-2. Initial
Check the CP Reset
(TP :RESET_PWRDWN_N) =0
V(LOW)
Initial Failure
Check the UCP300 (short, crack, etc.)
※Probing the Test point of UCP300
END
No
Yes
Check the AP Reset
AP_N_RST_IN(R513) =0
V(LOW)
Yes
Check the U501 and R513 (crack, open, etc.)
Yes
No
Check the oscillator clock waveforms.
32.768KHz :OSC500(TP213),
24Mhz :OSC400(C440)
Check the OSC500, OSC400 and R418.
(Crack, open etc.)
Check the output clock waveforms and frequency.
※Test condition (Oscilloscope setting)
:20.0
us.div (time division)
Is the LCD display on?
Does the speaker make asound?
Check the LCD part(short, crack, etc.)
Check the Audio Part(short, crack, etc.)
Abnormal
No
No
Yes
Normal
Yes
Check the CP active signal.
PDA_ACTIVE(TP_PDA_ACTIVE),
PHONE_ACTIVE(PHONE_ACTIVE) >=
1.8V(HIGH)
Check the UCP300 (short, crack, etc.)
※Probing the Test point of UCP300
No
Yes
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-8
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-9
This Document can not be used without Samsung's authorization

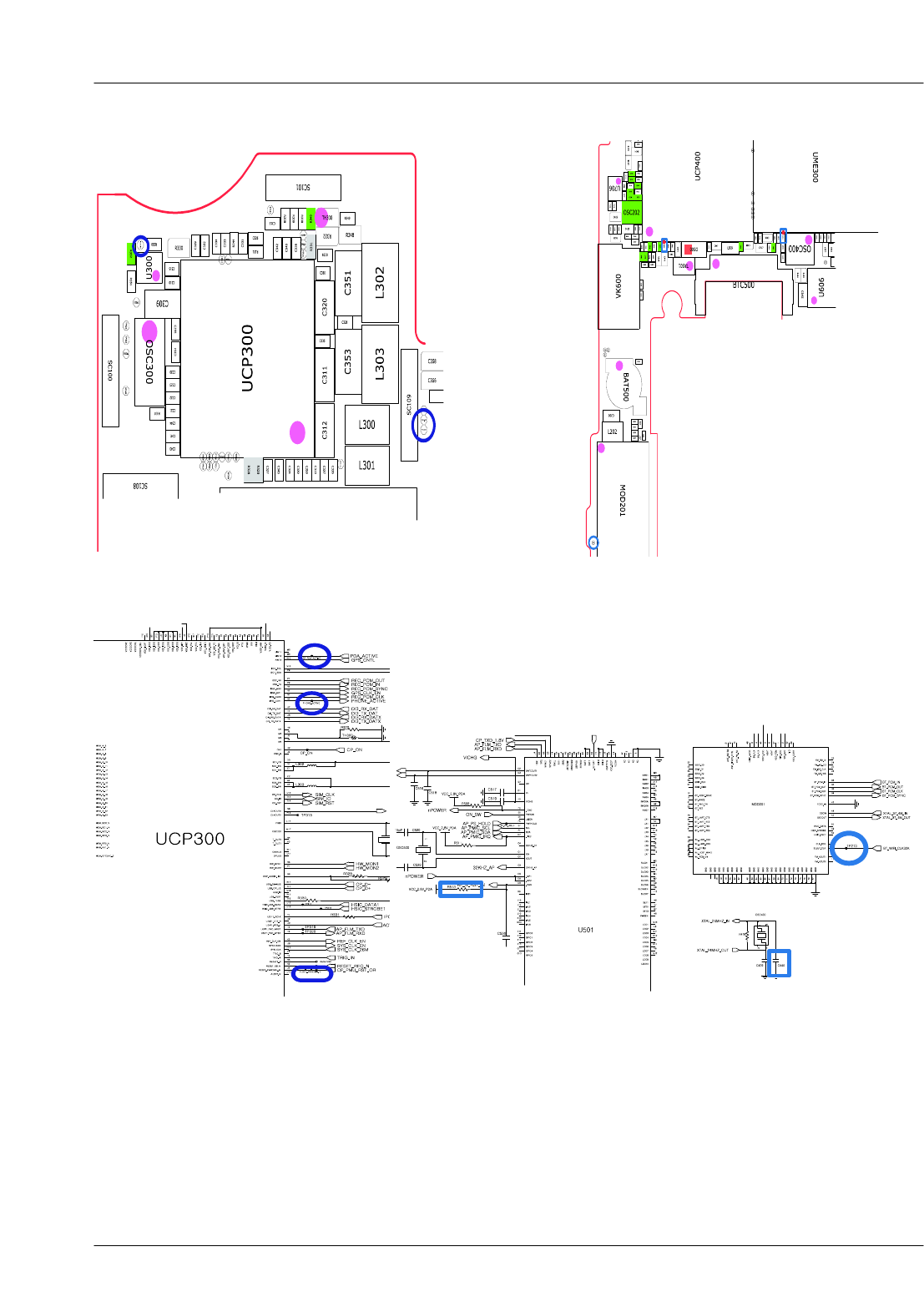

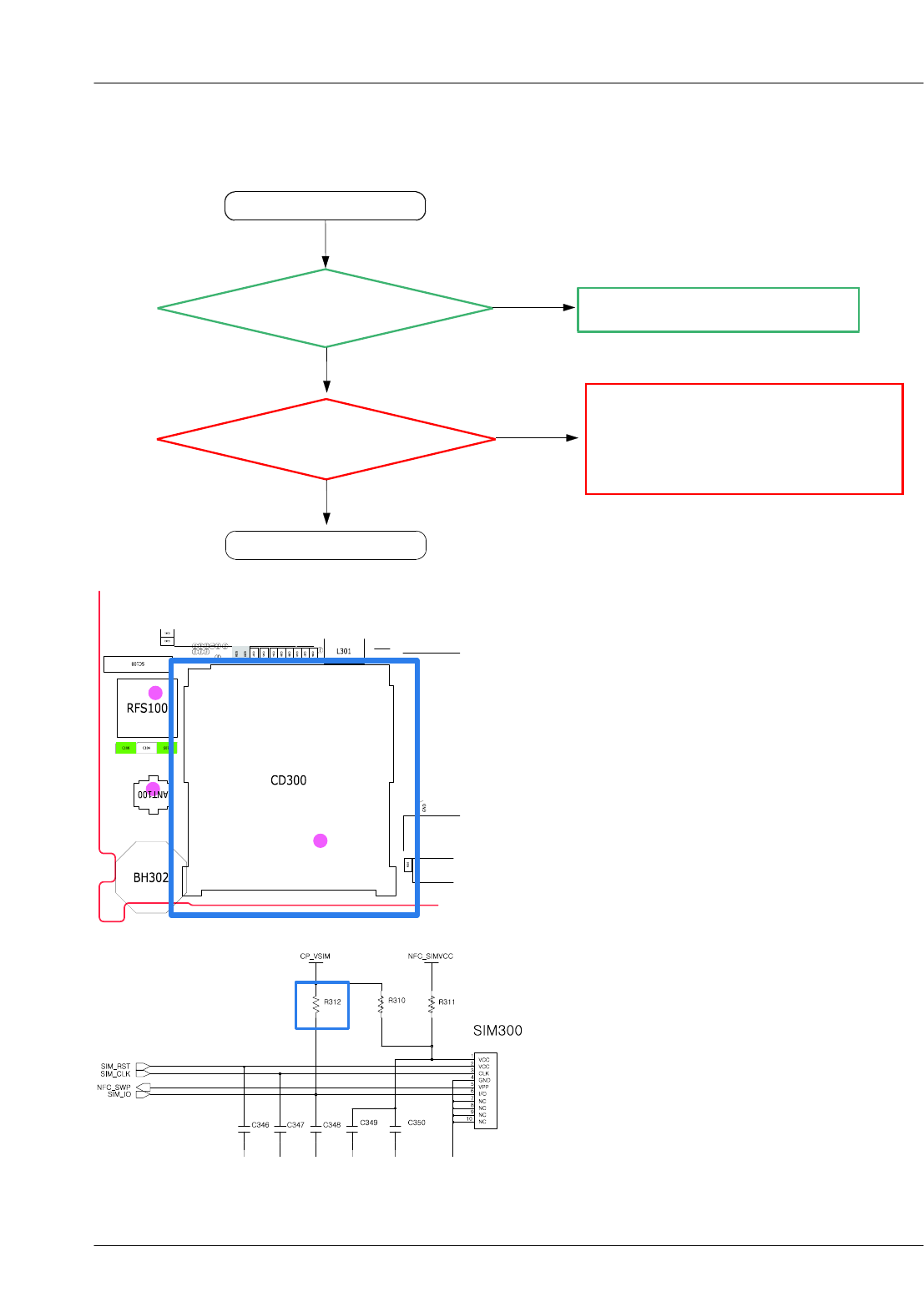

8-3-3. Sim Part
Insert SIM card
Check the Pin Soldering
of SIM300
Yes
Yes
No
END
Check the SIM Voltage.
(R312) >= 3.0?
Resoldering and recheck
Change to the new SIM card.
If it doesn`t still work SIM card after changeing
the SIM card, Check the UCP300 (Crack etc)
Yes
No
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-10
This Document can not be used without Samsung's authorization

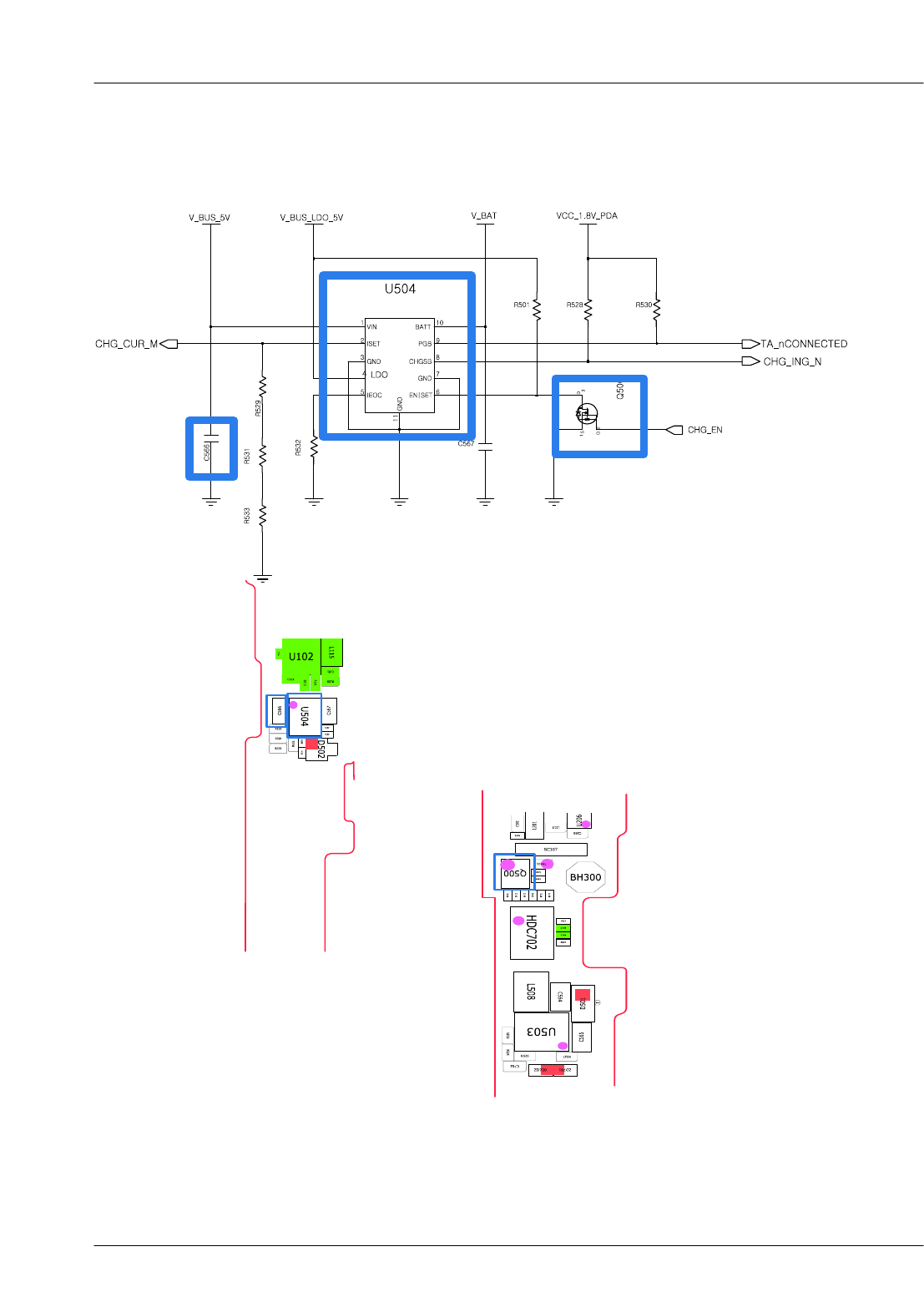

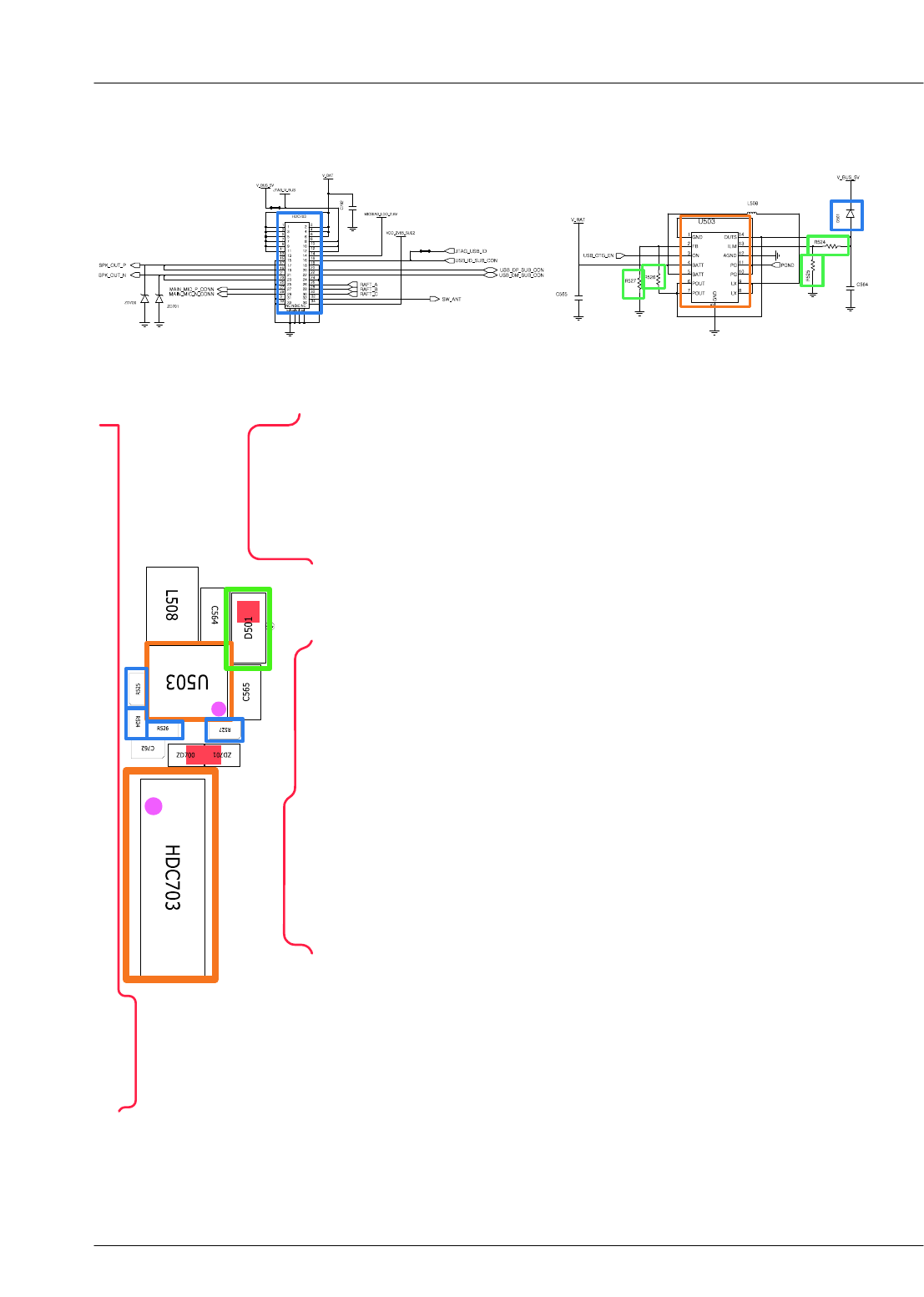

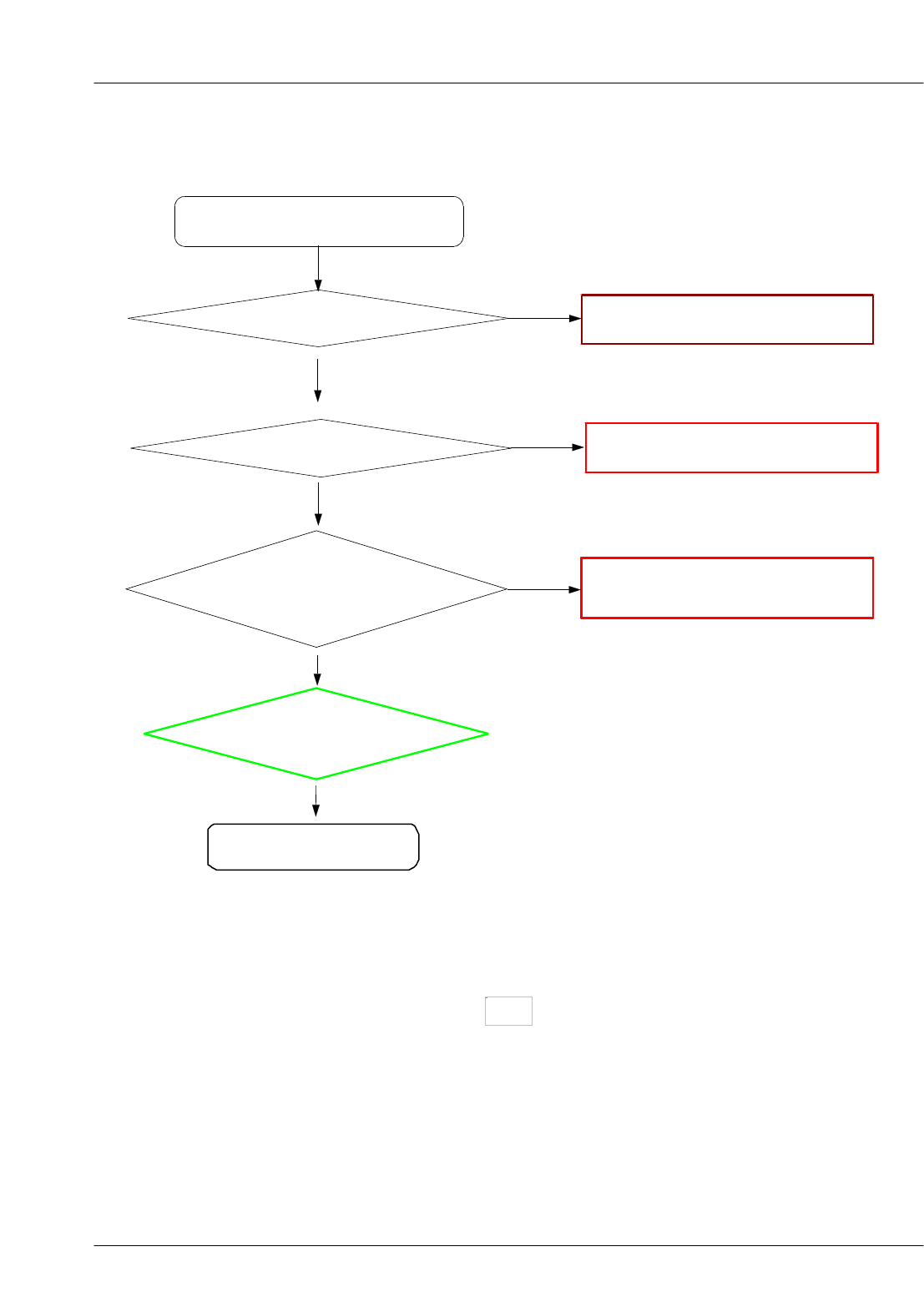

8-3-4. Charging Part
TA /USB Insert
Yes
END
Charging Sequence Start
Vin =5V
No Check R566(Vin) =5
V,
or may not connected TA /USB
Yes
Check EN/SET No Resolder and Replace Q500
Yes
Check PGB /CHGSB =
0V(LOW)
No Resolder or Replace U504
Yes
Battery is Charging? No Resolder or Replace U504
Yes
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-11
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-12
This Document can not be used without Samsung's authorization

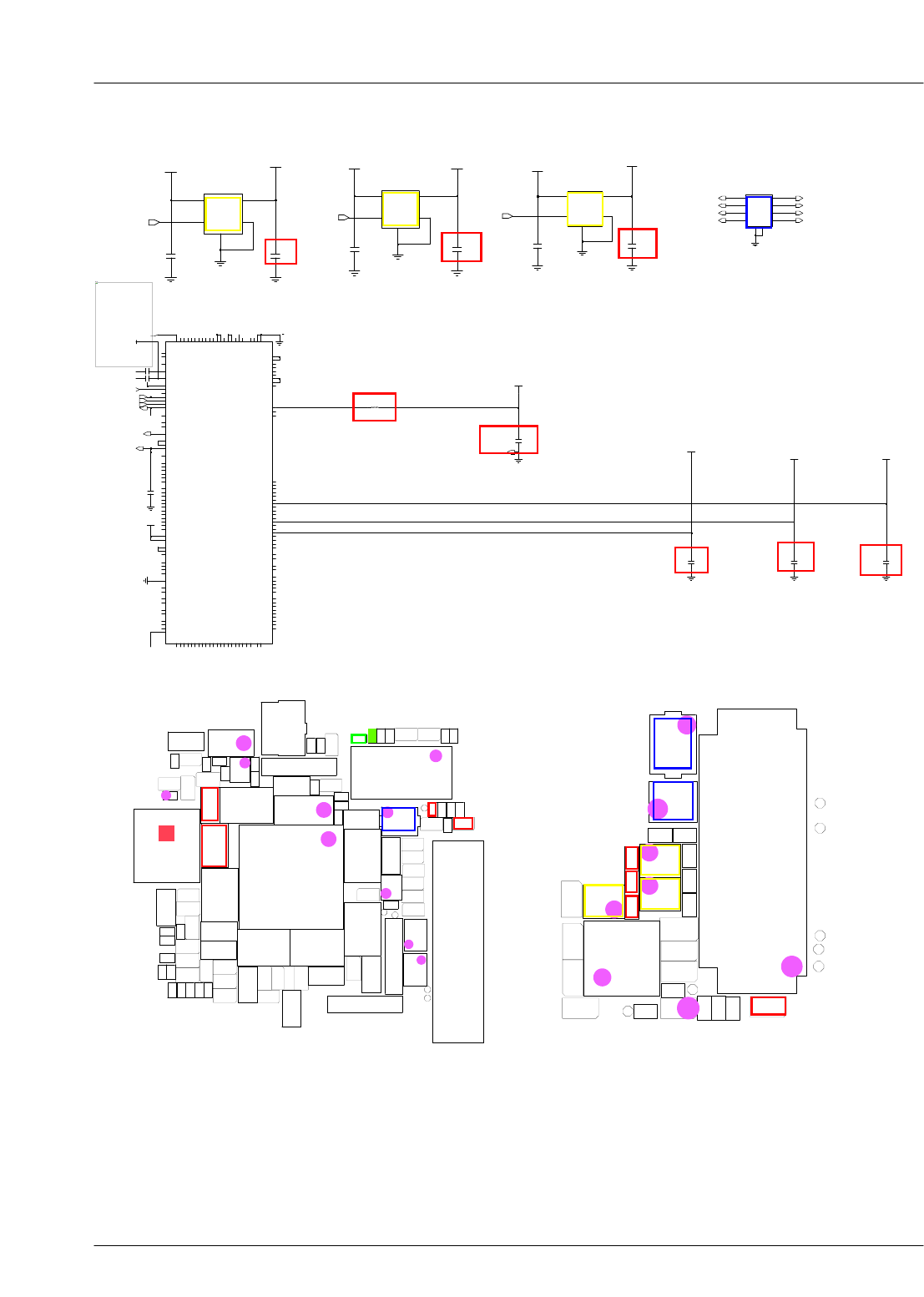

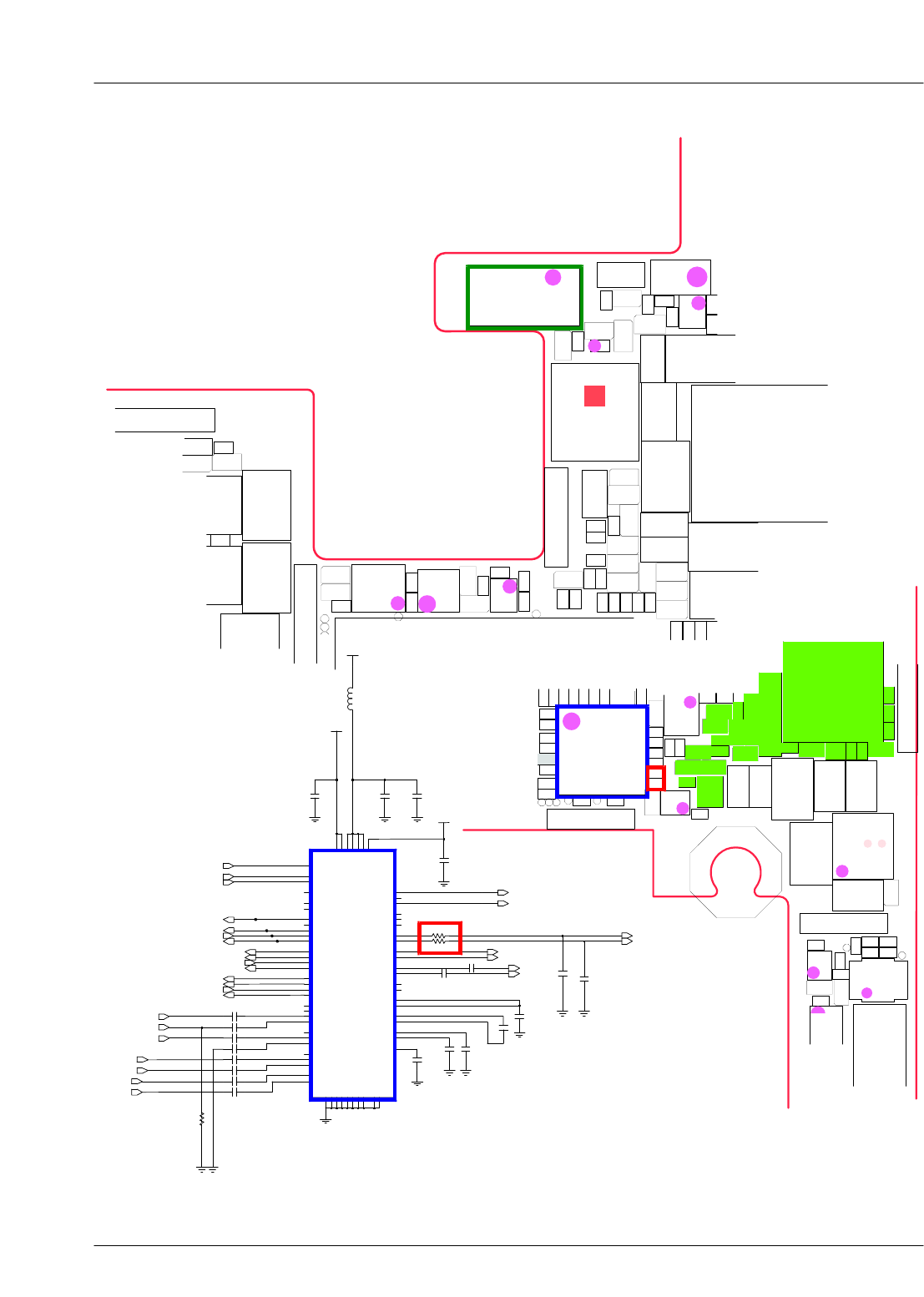

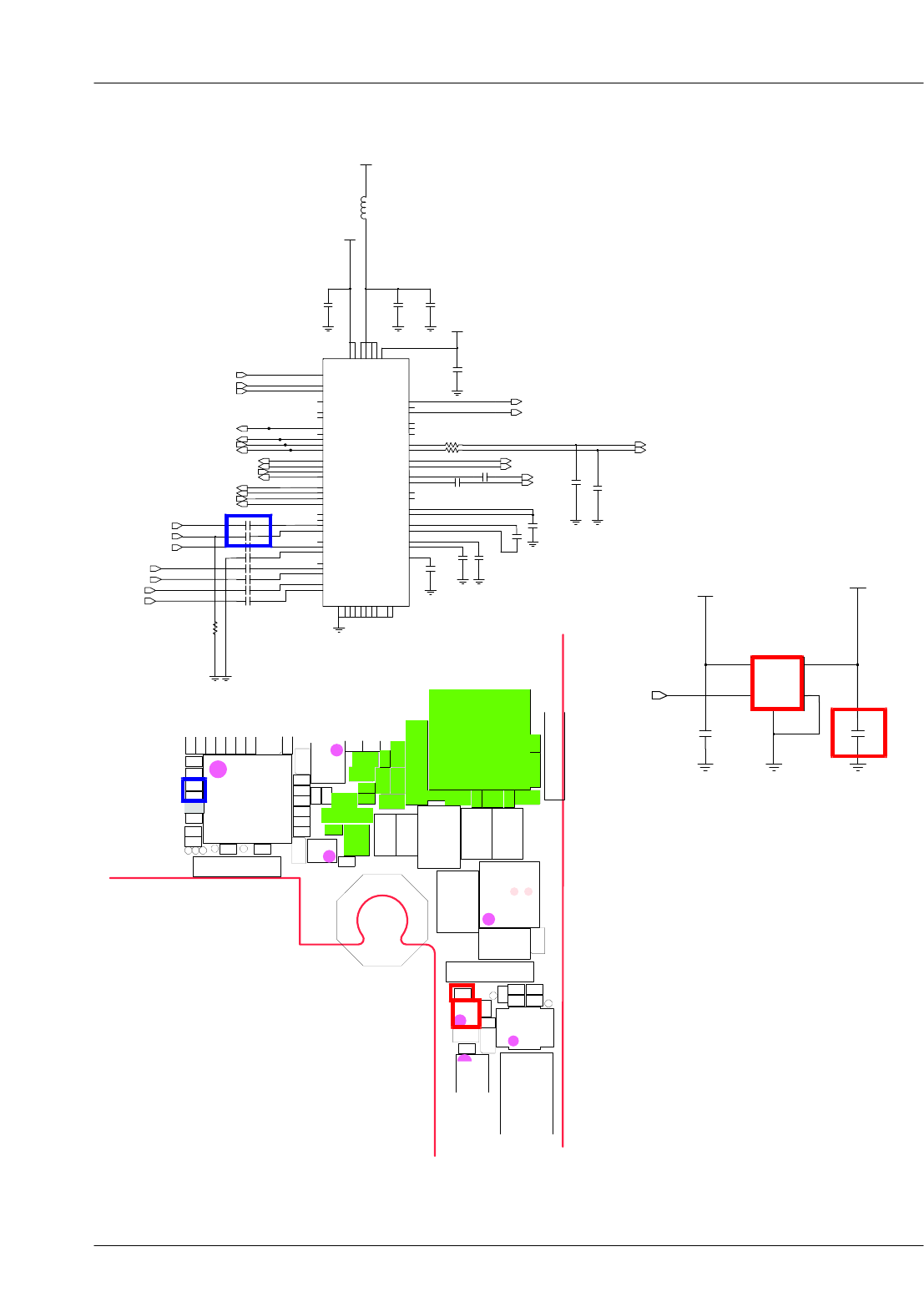

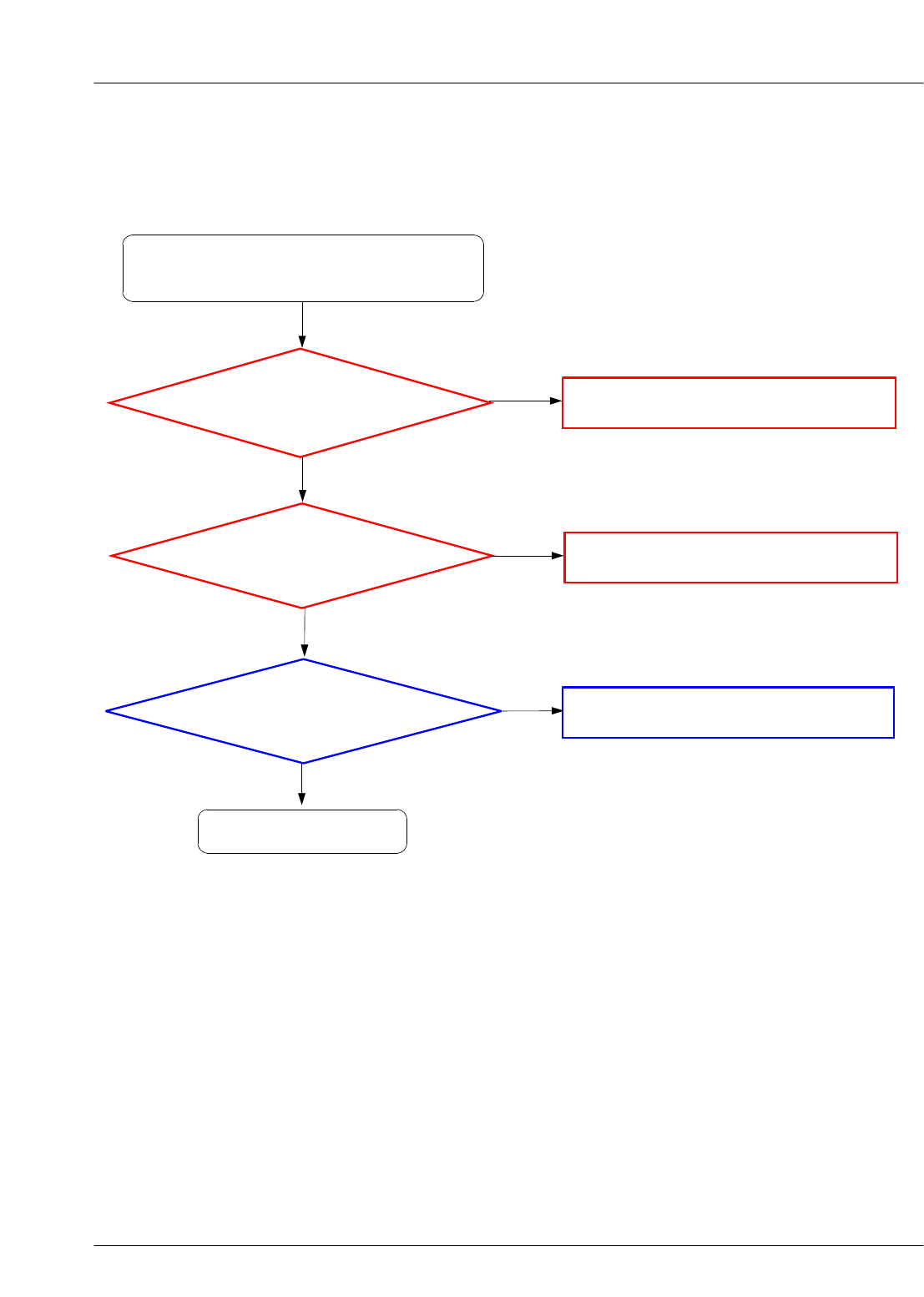

8-3-5. Microphone Part (Main MIC)
Check Sub-PCB module
where main MIC is placed
for any damage (Tear in FPC,
etc)
Check component soldering
statuses of C621, C622
Change the Sub-PCB module
Resolder or replace C621, C622
END
No
Yes
Yes
Yes
No
Check main microphone function
in voice call receiver mode
or in Voice Recording mode
Check the voltage at
C656 =2.8V Resolder or replace U609
No
Yes
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-13
This Document can not be used without Samsung's authorization

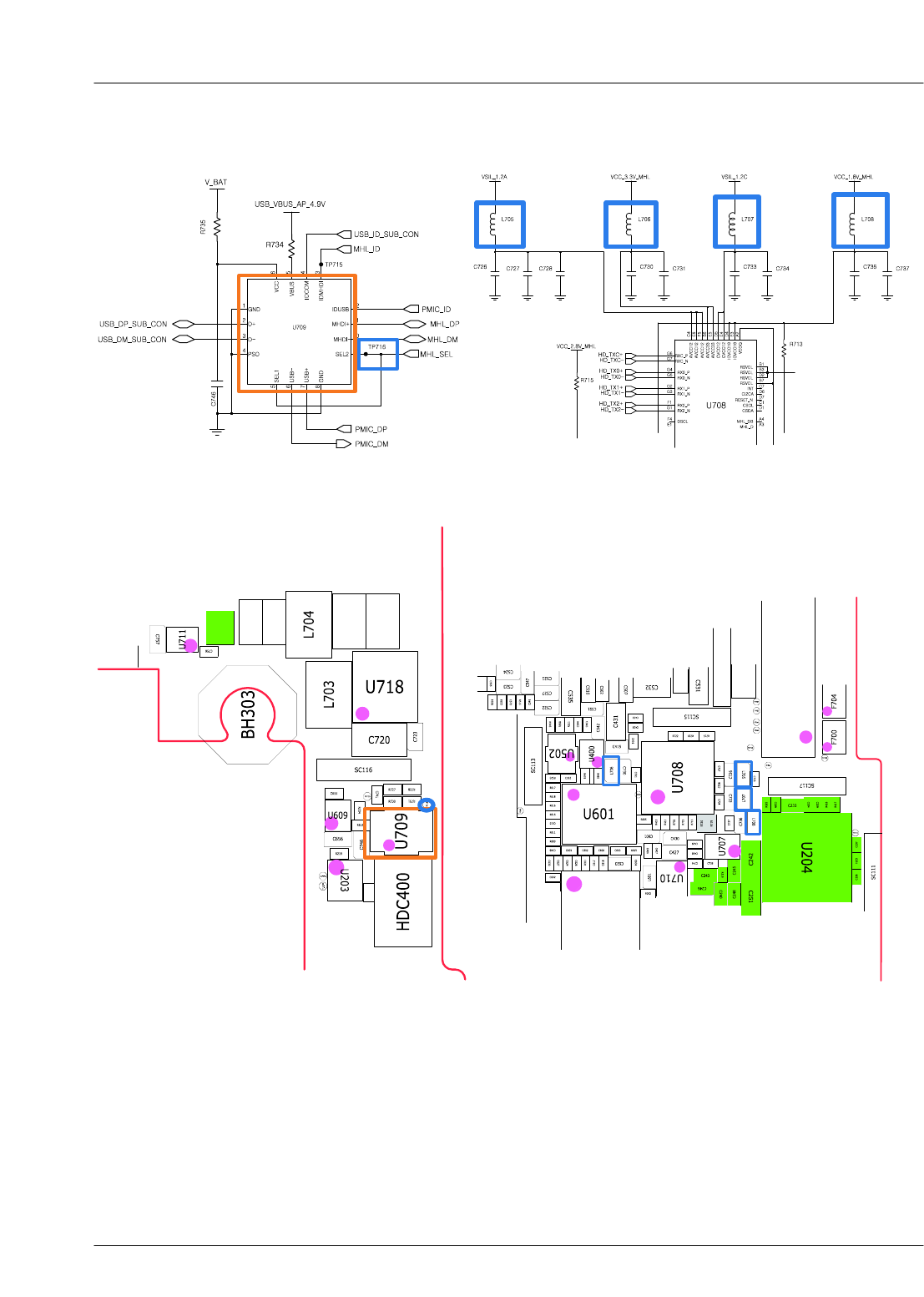

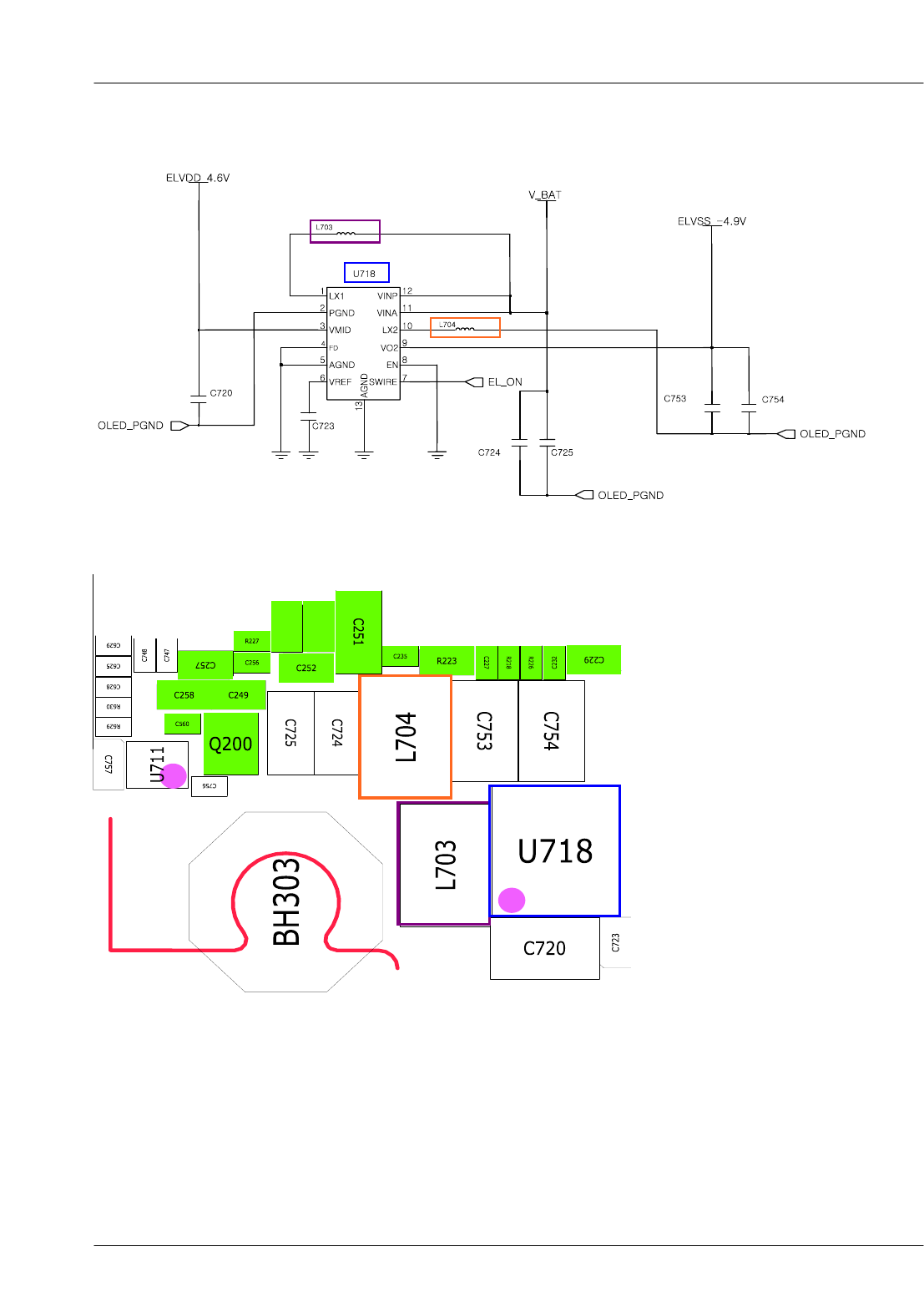

BH303
C227
C229
C231
C232
C235
C236
C240
C242
C243
C245
C246
C248
C249
C251
C252
C256
C257
C258
C560
C604
C605
C606
C607
C615
C617
C618
C621
C622
C623
C624
C625
C626
C627
C628
C629
C630
C631
C632
C633
C651
C655
C656
C720
C723
C724
C725
C739
C741
C744
C746
C747
C748
C753
C754
C756
C757
L601
L703
L704
Q200
R215
R217
R218
R219
R223
R226
R227
R468
R469
R629
R630
R727
R728
R730
R731
R734
R735
SC110
SC111
SC116
TP611
TP612
TP613
TP614
TP715
TP716
U204
U602
U609
U709
U710
U711
U718
XTAL_400
C655
4VDD1
VOUT
U609
3CE
GND
5
GND
2
MICBIAS_LDO_2.8V
V_BAT
C656
MICBIAS_EN
C622
TP612
C631
C628
C621
C626
C620
C623
TP611
C629
R629
C615
C605C607

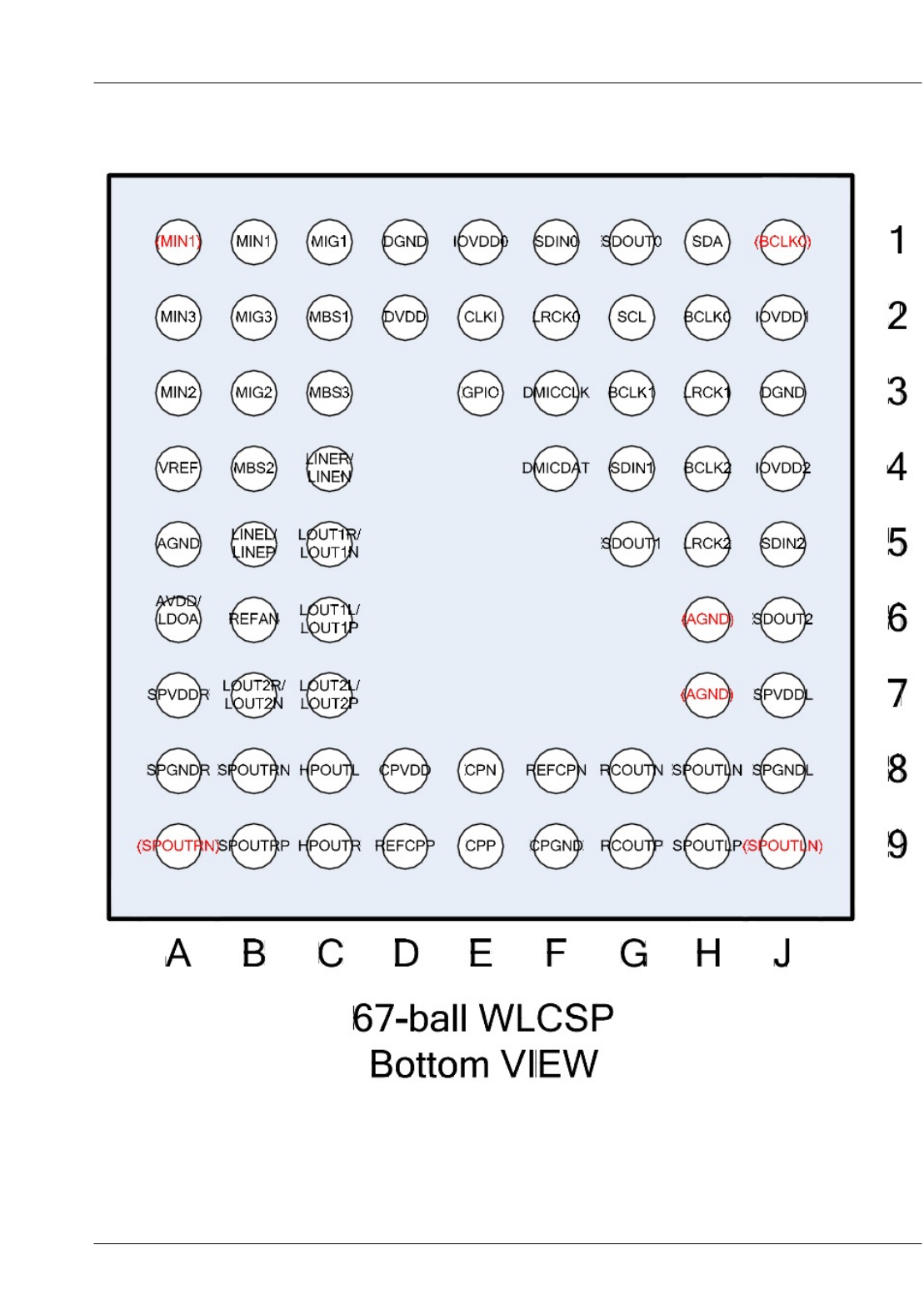

IOVDD2
J4
J5SDIN2
SDOUT2
J6
SPVDDL
J7
SPGNDL
J8
SPOUTLNJ9
LRCK2
H5
AGNDH6
AGNDH7
SPOUTLNH8
SPOUTLPH9
BCLK0
J1
IOVDD1
J2
DGND
J3
SDIN1
G4
SDOUT1
G5
RCOUTNG8
RCOUTPG9
SDA
H1
BCLK0
H2
LRCK1
H3
BCLK2
H4
LRCK0
F2
DMICCLK
F3
F4DMICDAT
REFCPNF8
CPGND
F9
SDOUT0
G1
SCL
G2
BCLK1
G3
CPVDD
D8
REFCPPD9
IOVDD0
E1
E2CLK1
GPIO
E3
CPNE8
CPPE9
SDIN0
F1
LINER|LINEN
C4
LOUT1R|LOUT1NC5
LOUT1L|LOUT1PC6
LOUT2L|LOUT2PC7
HPOUTLC8
HPOUTRC9
DGND
D1
DVDD
D2
MBS2
LINEL|LINEP
B5
REFANB6
LOUT2R|LOUT2NB7
SPOUTRNB8
SPOUTRPB9
MIG1
C1
MBS1
C2
MBS3
C3
LDOA|AVDDA6
SPVDDR
A7
SPGNDR
A8
SPOUTRNA9
MIN1
B1
MIG3
B2
MIG2
B3
B4
U602
NC 1
NC 2
MIN1
A1
MIN3
A2
MIN2
A3
VREFA4
AGNDA5
C632
C627
C651
C633
TP614
C606
C618
TP613
C630
C624
R630
V_BAT
VCC_2.8V_PDA
C619
L601
VCC_1.8V_PDA
C617
C625
RADIO_L_SI
RADIO_R_SI
SUB_MIC_N
SUB_MIC_P
MAIN_MIC_N_CONN
SPEECH_PCM_IN_CODEC
SPEECH_PCM_CLK
SPEECH_PCM_SYNC
XTAL_24MHZ_AP
CODEC_SDA_1.8V
CODEC_SCL_1.8V
SPK_OUT_N
SPEECH_PCM_OUT_CODEC
MAIN_MIC_P_CONN
VPS_R
VPS_L
EAROUT_L
EAROUT_R
RCV_N
RCV_P
SPK_OUT_P
EAR_MIC_P
BT_PCM_CLK
BT_PCM_SYNC
BT_PCM_IN
BT_PCM_OUT
MM_I2S_CLK
MM_I2S_DI
MM_I2S_DO
MM_I2S_SYNC
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-14
This Document can not be used without Samsung's authorization
8-3-5-1. Microphone Part (Sub MIC)
Check RCV-Earjack module
where Sub MIC is placed
for any damage (Tear in FPC,
etc)
Check component soldering
statuses of C627, C630
Replace the RCV-Earjack module
Resolder or replace C627, C630
END
No
Yes
Yes
Yes
No
Check Sub microphone function
in voice call loudSPK mode
or in camcording mode
Check the voltage at
C658 =2.8V Resolder or replace U610
No
Yes
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-15
This Document can not be used without Samsung's authorization

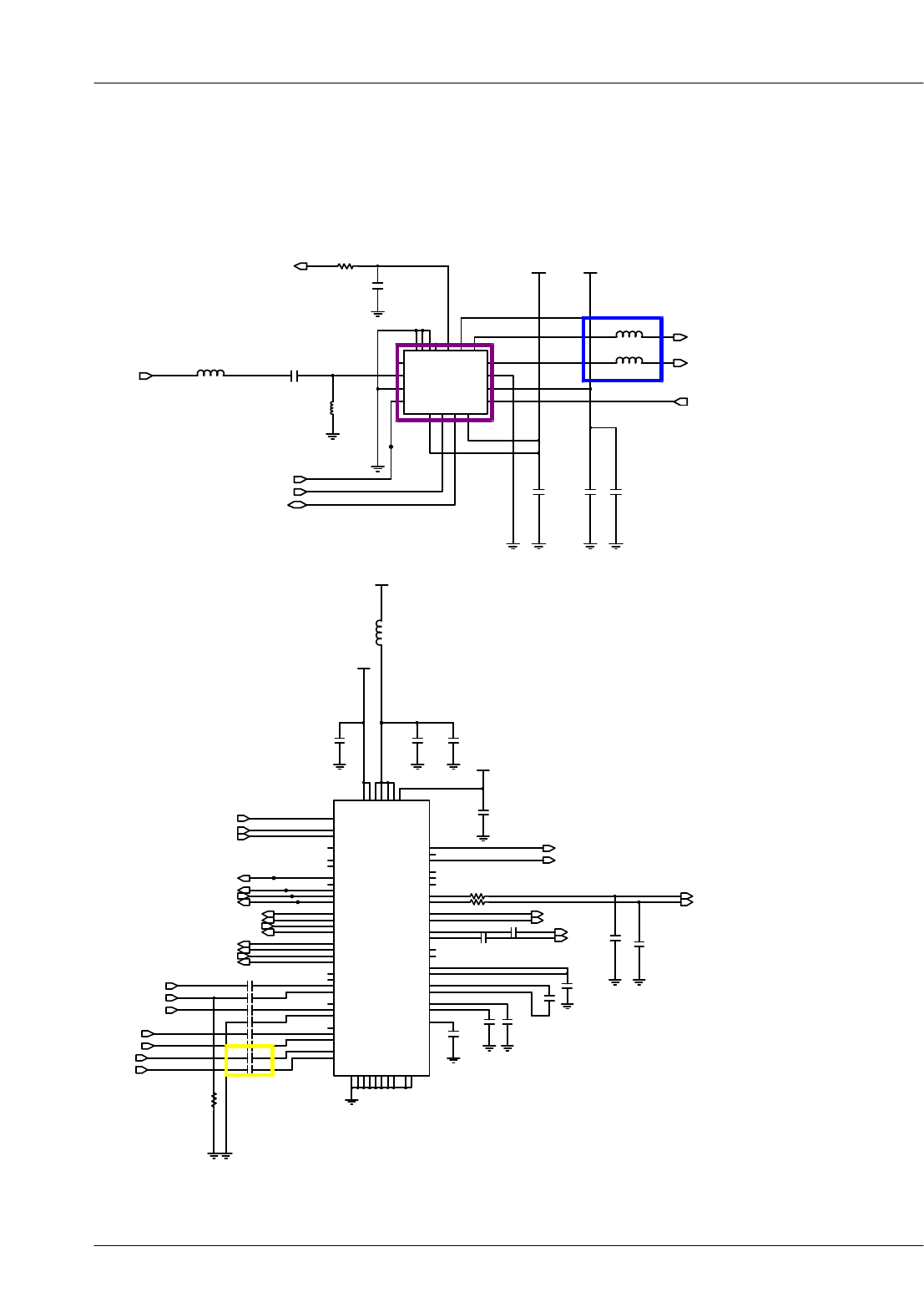

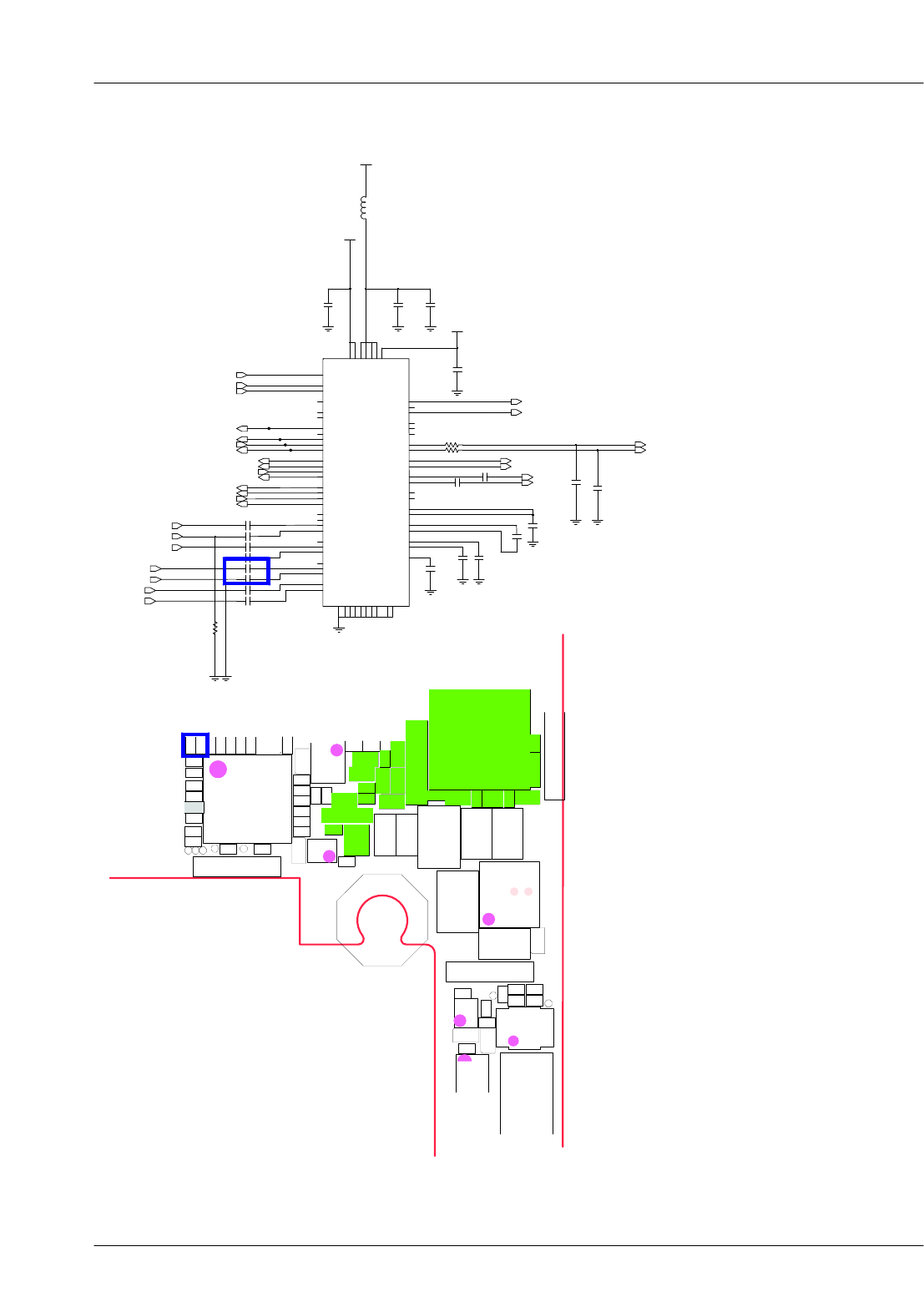

SUB_MICBIAS_LDO_2.8V
V_BAT
C657C658
GND
VDD
4VOUT1
U610
CE
3
5
GND
2
SUB_MICBIAS_EN
AP_PMIC_EN
C300
C304
C328
C351
C353
C356
C358
C405
C413
C414
C504
C505
C508
C509
C521
C522
C523
C524
C525
C526
C527
C530
C533
C535
C537
C541
C544
C546
C547
C550
C552
C554
C555
C556
C558
C573
C637
C638
C657
C658
C659
C660
HDC600
L300
L302
L303
L500
L503
L504
L506
L600
L606
L607
L614
LED500
PHONE_ACTIVE
R348
R349
R408
R409
R508
R511
R515
R516
R517
R546
R602
R622
R623
R624
R625
R626
RESET_REQ_N
SC109
SC121
TA600
TP_eMMC_EN
U303
U603
U610
U611
VR607
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-16
This Document can not be used without Samsung's authorization
BH303
C227
C229
C231
C232
C235
C236
C240
C242
C243
C245
C246
C248
C249
C251
C252
C256
C257
C258
C560
C604
C605
C606
C607
C615
C617
C618
C621
C622
C623
C624
C625
C626
C627
C628
C629
C630
C631
C632
C633
C651
C655
C656
C720
C723
C724
C725
C739
C741
C744
C746
C747
C748
C753
C754
C756
C757
L601
L703
L704
Q200
R215
R217
R218
R219
R223
R226
R227
R468
R469
R629
R630
R727
R728
R730
R731
R734
R735
SC110
SC111
SC116
TP611
TP612
TP613
TP614
TP715
TP716
U204
U602
U609
U709
U710
U711
U718
XTAL_400
C622
TP612
C631
C628
C621
C626
C620
C623
TP611
C629
R629
C615
C605C607
IOVDD2
J4
J5SDIN2
SDOUT2
J6
SPVDDL
J7
SPGNDL
J8
SPOUTLNJ9
LRCK2
H5
AGNDH6
AGNDH7
SPOUTLNH8
SPOUTLPH9
BCLK0
J1
IOVDD1
J2
DGND
J3
SDIN1
G4
SDOUT1
G5
RCOUTNG8
RCOUTPG9
SDA
H1
BCLK0
H2
LRCK1
H3
BCLK2
H4
LRCK0
F2
DMICCLK
F3
F4DMICDAT
REFCPNF8
CPGND
F9
SDOUT0
G1
SCL
G2
BCLK1
G3
CPVDD
D8
REFCPPD9
IOVDD0
E1
E2CLK1
GPIO
E3
CPNE8
CPPE9
SDIN0
F1
LINER|LINEN
C4
LOUT1R|LOUT1NC5
LOUT1L|LOUT1PC6
LOUT2L|LOUT2PC7
HPOUTLC8
HPOUTRC9
DGND
D1
DVDD
D2
MBS2
LINEL|LINEP
B5
REFANB6
LOUT2R|LOUT2NB7
SPOUTRNB8
SPOUTRPB9
MIG1
C1
MBS1
C2
MBS3
C3
LDOA|AVDDA6
SPVDDR
A7
SPGNDR
A8
SPOUTRNA9
MIN1
B1
MIG3
B2
MIG2
B3
B4
U602
NC 1
NC 2
MIN1
A1
MIN3
A2
MIN2
A3
VREFA4
AGNDA5
C632
C627
C651
C633
TP614
C606
C618
TP613
C630
C624
R630
V_BAT
VCC_2.8V_PDA
C619
L601
VCC_1.8V_PDA
C617
C625
RADIO_L_SI
RADIO_R_SI
SUB_MIC_N
SUB_MIC_P
MAIN_MIC_N_CONN
SPEECH_PCM_IN_CODEC
SPEECH_PCM_CLK
SPEECH_PCM_SYNC
XTAL_24MHZ_AP
CODEC_SDA_1.8V
CODEC_SCL_1.8V
SPK_OUT_N
SPEECH_PCM_OUT_CODEC
MAIN_MIC_P_CONN
VPS_R
VPS_L
EAROUT_L
EAROUT_R
RCV_N
RCV_P
SPK_OUT_P
EAR_MIC_P
BT_PCM_CLK
BT_PCM_SYNC
BT_PCM_IN
BT_PCM_OUT
MM_I2S_CLK
MM_I2S_DI
MM_I2S_DO
MM_I2S_SYNC
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-17
This Document can not be used without Samsung's authorization

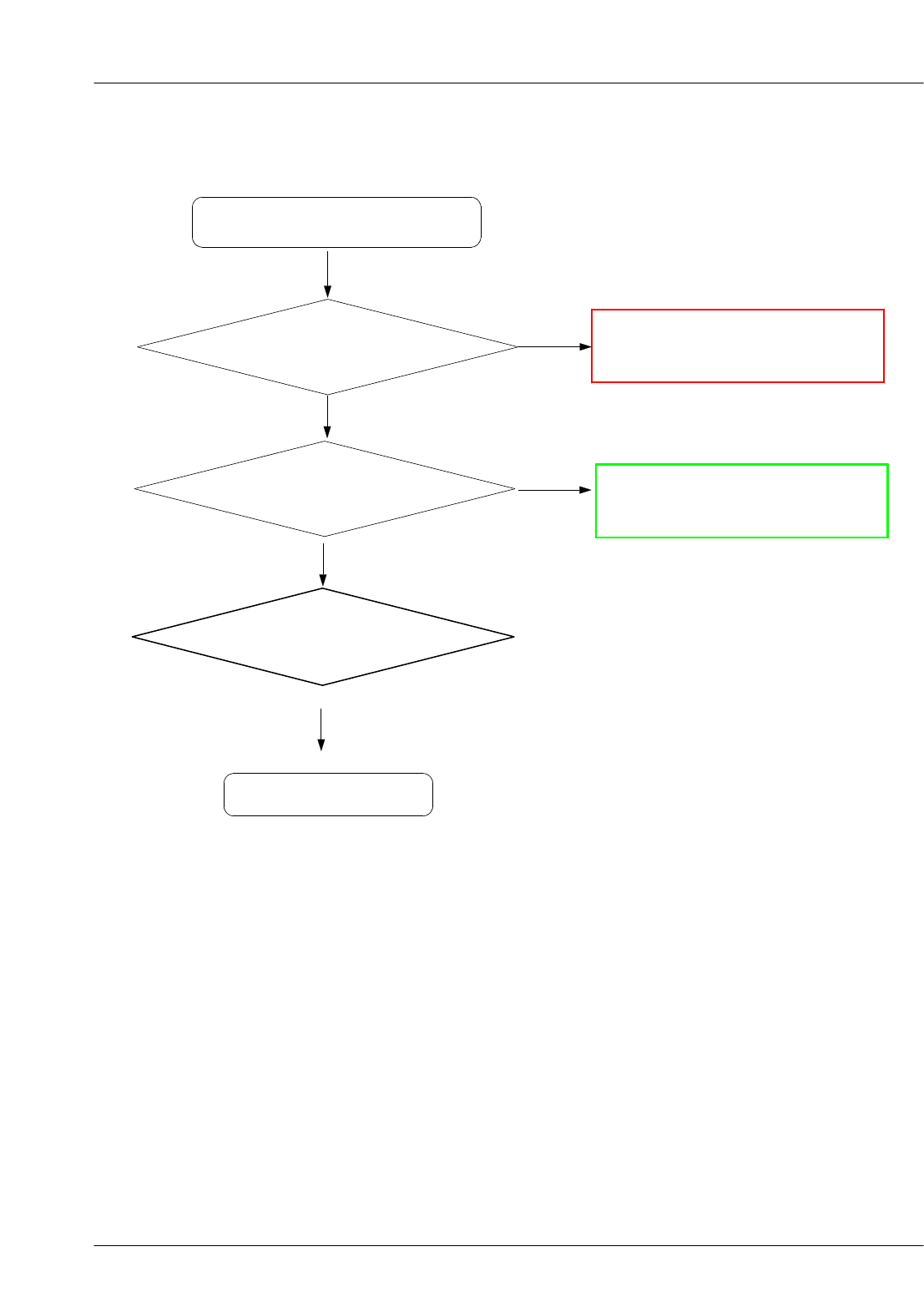

8-3-6. Speaker Part
Check the signals on
ZD700, ZD701
Check speaker function.
Play MP3 with maximum volume level.
No
Resolder or replace U602
END
Yes
Yes
Replace the speaker
module
Yes
Check the connection of
HEA703
Yes
No
Reconnect HEA703
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-18
This Document can not be used without Samsung's authorization

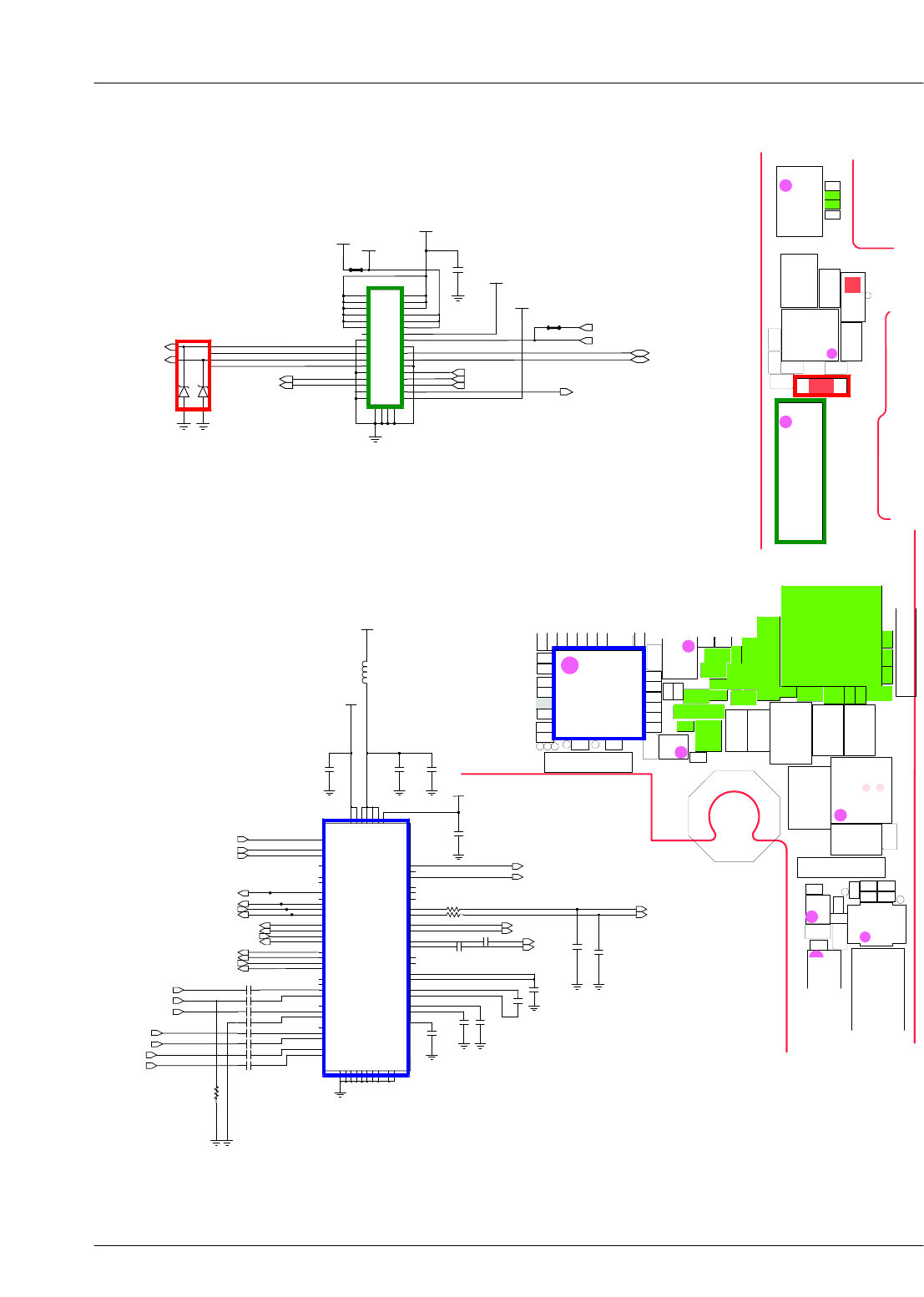

C564
C565
C760
C761
C762
D501
HDC702HDC703
L508
R412
R413
R524
R525
R526
R527
TP_USB_OTG_EN
U503
ZD700
ZD701
BH303
C227
C229
C231
C232
C235
C236
C240
C242
C243
C245
C246
C248
C249
C251
C252
C256
C257
C258
C560
C604
C605
C606
C607
C615
C617
C618
C621
C622
C623
C624
C625
C626
C627
C628
C629
C630
C631
C632
C633
C651
C655
C656
C720
C723
C724
C725
C739
C741
C744
C746
C747
C748
C753
C754
C756
C757
L601
L703
L704
Q200
R215
R217
R218
R219
R223
R226
R227
R468
R469
R629
R630
R727
R728
R730
R731
R734
R735
SC110
SC111
SC116
TP611
TP612
TP613
TP614
TP715
TP716
U204
U602
U609
U709
U710
U711
U718
XTAL_400
C622
TP612
C631
C628
C621
C626
C620
C623
TP611
C629
R629
C615
C605C607
IOVDD2
J4
J5SDIN2
SDOUT2
J6
SPVDDL
J7
SPGNDL
J8
SPOUTLNJ9
LRCK2
H5
AGNDH6
AGNDH7
SPOUTLNH8
SPOUTLPH9
BCLK0
J1
IOVDD1
J2
DGND
J3
SDIN1
G4
SDOUT1
G5
RCOUTNG8
RCOUTPG9
SDA
H1
BCLK0
H2
LRCK1
H3
BCLK2
H4
LRCK0
F2
DMICCLK
F3
F4DMICDAT
REFCPNF8
CPGND
F9
SDOUT0
G1
SCL
G2
BCLK1
G3
CPVDD
D8
REFCPPD9
IOVDD0
E1
E2CLK1
GPIO
E3
CPNE8
CPPE9
SDIN0
F1
LINER|LINEN
C4
LOUT1R|LOUT1NC5
LOUT1L|LOUT1PC6
LOUT2L|LOUT2PC7
HPOUTLC8
HPOUTRC9
DGND
D1
DVDD
D2
MBS2
LINEL|LINEP
B5
REFANB6
LOUT2R|LOUT2NB7
SPOUTRNB8
SPOUTRPB9
MIG1
C1
MBS1
C2
MBS3
C3
LDOA|AVDDA6
SPVDDR
A7
SPGNDR
A8
SPOUTRNA9
MIN1
B1
MIG3
B2
MIG2
B3
B4
U602
NC 1
NC 2
MIN1
A1
MIN3
A2
MIN2
A3
VREFA4
AGNDA5
C632
C627
C651
C633
TP614
C606
C618
TP613
C630
C624
R630
V_BAT
VCC_2.8V_PDA
C619
L601
VCC_1.8V_PDA
C617
C625
RADIO_L_SI
RADIO_R_SI
SUB_MIC_N
SUB_MIC_P
MAIN_MIC_N_CONN
SPEECH_PCM_IN_CODEC
SPEECH_PCM_CLK
SPEECH_PCM_SYNC
XTAL_24MHZ_AP
CODEC_SDA_1.8V
CODEC_SCL_1.8V
SPK_OUT_N
SPEECH_PCM_OUT_CODEC
MAIN_MIC_P_CONN
VPS_R
VPS_L
EAROUT_L
EAROUT_R
RCV_N
RCV_P
SPK_OUT_P
EAR_MIC_P
BT_PCM_CLK
BT_PCM_SYNC
BT_PCM_IN
BT_PCM_OUT
MM_I2S_CLK
MM_I2S_DI
MM_I2S_DO
MM_I2S_SYNC
MICBIAS_LDO_2.8V
ZD700
C762
VDD_2V85_SUE2
JTAG_V_BUS
7788
9
9
35
NCNC
36
NC
3738
NC
30
30
31
313232
33
333434
44
5
56
6
23232424
252526
26
27
272828
2929
33
1616
17
1718
18
1919
2
2
2020
21
2122
22
HDC703
1
1
10
10
11111212
13
1314
14
1515
V_BUS_5V
V_BAT
ZD701
RAFT_B
RAFT_C
SPK_OUT_P
SPK_OUT_N
MAIN_MIC_P_CONN
MAIN_MIC_N_CONN
USB_DP_SUB_CON
USB_DM_SUB_CON
USB_ID_SUB_CON
JTAG_USB_ID
SW_ANT
RAFT_A
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-19
This Document can not be used without Samsung's authorization
8-3-6. Receiver Part
Check the signals on
R629, R630
Check receiver function
in voice call receiver mode.
No
Resolder or replace U602
END
Yes
Yes
Check the connection of
HDC600
Yes
No
Reconnect HDC600
Check RCV-Earjack
module where RCV's placed
for any damage (Tear in
FPC, etc)
Yes
No
Replace the RCV-Earjack module
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-20
This Document can not be used without Samsung's authorization
C622
TP612
C631
C628
C621
C626
C620
C623
TP611
C629
R629
C615
C605C607
IOVDD2
J4
J5SDIN2
SDOUT2
J6
SPVDDL
J7
SPGNDL
J8
SPOUTLNJ9
LRCK2
H5
AGNDH6
AGNDH7
SPOUTLNH8
SPOUTLPH9
BCLK0
J1
IOVDD1
J2
DGND
J3
SDIN1
G4
SDOUT1
G5
RCOUTNG8
RCOUTPG9
SDA
H1
BCLK0
H2
LRCK1
H3
BCLK2
H4
LRCK0
F2
DMICCLK
F3
F4DMICDAT
REFCPNF8
CPGND
F9
SDOUT0
G1
SCL
G2
BCLK1
G3
CPVDD
D8
REFCPPD9
IOVDD0
E1
E2CLK1
GPIO
E3
CPNE8
CPPE9
SDIN0
F1
LINER|LINEN
C4
LOUT1R|LOUT1NC5
LOUT1L|LOUT1PC6
LOUT2L|LOUT2PC7
HPOUTLC8
HPOUTRC9
DGND
D1
DVDD
D2
MBS2
LINEL|LINEP
B5
REFANB6
LOUT2R|LOUT2NB7
SPOUTRNB8
SPOUTRPB9
MIG1
C1
MBS1
C2
MBS3
C3
LDOA|AVDDA6
SPVDDR
A7
SPGNDR
A8
SPOUTRNA9
MIN1
B1
MIG3
B2
MIG2
B3
B4
U602
NC 1
NC 2
MIN1
A1
MIN3
A2
MIN2
A3
VREFA4
AGNDA5
C632
C627
C651
C633
TP614
C606
C618
TP613
C630
C624
R630
V_BAT
VCC_2.8V_PDA
C619
L601
VCC_1.8V_PDA
C617
C625
RADIO_L_SI
RADIO_R_SI
SUB_MIC_N
SUB_MIC_P
MAIN_MIC_N_CONN
SPEECH_PCM_IN_CODEC
SPEECH_PCM_CLK
SPEECH_PCM_SYNC
XTAL_24MHZ_AP
CODEC_SDA_1.8V
CODEC_SCL_1.8V
SPK_OUT_N
SPEECH_PCM_OUT_CODEC
MAIN_MIC_P_CONN
VPS_R
VPS_L
EAROUT_L
EAROUT_R
RCV_N
RCV_P
SPK_OUT_P
EAR_MIC_P
BT_PCM_CLK
BT_PCM_SYNC
BT_PCM_IN
BT_PCM_OUT
MM_I2S_CLK
MM_I2S_DI
MM_I2S_DO
MM_I2S_SYNC
AP_PMIC_EN
C300
C304
C328
C351
C353
C356
C358
C405
C413
C414
C504
C505
C508
C509
C521
C522
C523
C524
C525
C526
C527
C530
C533
C535
C537
C541
C544
C546
C547
C550
C552
C554
C555
C556
C558
C573
C637
C638
C657
C658
C659
C660
HDC600
L300
L302
L303
L500
L503
L504
L506
L600
L606
L607
L614
LED500
PHONE_ACTIVE
R348
R349
R408
R409
R508
R511
R515
R516
R517
R546
R602
R622
R623
R624
R625
R626
RESET_REQ_N
SC109
SC121
TA600
TP_eMMC_EN
U303
U603
U610
U611
VR607
BH303
C227
C229
C231
C232
C235
C236
C240
C242
C243
C245
C246
C248
C249
C251
C252
C256
C257
C258
C560
C604
C605
C606
C607
C615
C617
C618
C621
C622
C623
C624
C625
C626
C627
C628
C629
C630
C631
C632
C633
C651
C655
C656
C720
C723
C724
C725
C739
C741
C744
C746
C747
C748
C753
C754
C756
C757
L601
L703
L704
Q200
R215
R217
R218
R219
R223
R226
R227
R468
R469
R629
R630
R727
R728
R730
R731
R734
R735
SC110
SC111
SC116
TP611
TP612
TP613
TP614
TP715
TP716
U204
U602
U609
U709
U710
U711
U718
XTAL_400
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-21
This Document can not be used without Samsung's authorization
8-3-7. BT/WIFI
BT/WiFi is not working
Check BT or WiFi function
ON
No Enable BT or WiFi Function
Yes
END
Check the Voltage on C208 =
2.8V
No Check the U501(crack, open, damaged, etc.)
Yes
Check 37.4MHz Clock at
R208
No Check the OSC201(crack, open, etc.)
Yes
Check the Voltage on L202 =
1.5V
No Resolder or change the L202
Yes
Check the Status of
C201, ANT200
No Resolder or Replace C201, ANT200
Yes
Resolder or Replace MOD201
Yes
Yes
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-22
This Document can not be used without Samsung's authorization
V_BAT
C203
8GND
BT_WAKE
9
VCC_2.8V_PDA
70GND
GND
71
72
GND
GND
73
74GND
GND
75
76
GND
GND
77
GND
63
64GND
GND
65
66
GND
GND
67
68GND
GND
69
CLK_REQ
7
56
SDIO_D1
SDIO_CMD
57
58 SDIO_D3
SDIO_D2
59
6
VBAT
60 WL_REG_ON
BT_REG_ON
61
62 BT_RST
HSIC_STROBE 49
VBAT
5
50
HSIC_PREF
HSIC_DATA 51
52
VIO
VDD_CORE
53
54 SDIO_CLK
SDIO_D0
55
WL_WAKE
41
42
TCXO_VDD
TCXO_IN 43
44
OSCIN
OSCOUT
45
46
GND
ANT_DIVER_CTRL47
48
HSIC_AVDD
34
BT_PCM_SYNC
BT_PCM_OUT
35
36
BT_PCM_IN
WL_GPIO6
37
38
WL_UART_TXD
WL_UART_RXD
39
4
SR_VLX
40 WL_HOST_WAKE
VDD_FEM27
28
BT_UART_CTS
BT_UART_TXD
29
SR_VLX3
30
BT_UART_RTS
BT_UART_RXD
31
32
GND
BT_PCM_CLK
33
2
VIN_LDO
20GND
ANT_2G|5G21
22
GND
FM_I2S_DI 23
24
FM_I2S_DO
FM_I2S_CLK
25
26
FM_I2S_WS
12
FM_AOUT1
GND
13
14
ANT_FM_RX
GND
15
16
GND
SLEEP_CLK
17
18
GND
GND
19
MOD201
VIN_LDO1
10
BT_HOST_WAKE
FM_AOUT2
11
C261
VCC_2.8V_PDA
R207
C208
C262
1005
R206
C201
C204
L202
TP217
R205
TP211
R203
TP200
R204
C206
TP207
1
1
22
ANT200
R230
TP206
TP213
BT_UART_RTS
BT_UART_TXD
WLAN_EN
XTAL_37_4M_IN
XTAL_37_4M_OU
T
BT_PCM_SYNC
BT_PCM_CLK
BT_PCM_IN
BT_PCM_OUT
BT_WIFI_CLK32K
WLAN_SDIO_CMD
WLAN_SDIO_D(2)
WLAN_SDIO_D(3)
WLAN_SDIO_CLK
WLAN_SDIO_D(1)
WLAN_SDIO_D(0)
BT_WAKE
BT_HOST_WAKE
BT_EN
BT_nRST
WLAN_HOST_WAKE
BT_UART_CTS
BT_UART_RXD
C218
C217
2
43
1
OSC201
R208
XTAL_37_4M_IN
XTAL_37_4M_OUT
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-23
This Document can not be used without Samsung's authorization
ANT200
BH301
C201
C203
C204
C261
C206
C208
C217
L202
MOD201
OSC201
R203
R204
R205
R206
R207
R208
R230
TP200
TP211
TP213
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-24
This Document can not be used without Samsung's authorization
8-3-8. FM RADIO
FM Radio is not working
END
Check the Connection of
HDC600
No Connect Earjack Ass'y correctly to HDC600
Yes
Check the Audio Signal at
L209, L210
No Check Earphone (crack, open, etc.)
Yes
Check the Audio Signal at
C632, C633
No Check Audio Codec IC (U602)
Resold and Replace U205
Yes
Yes
Yes
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-25
This Document can not be used without Samsung's authorization
C254 C255
L210
C241
L211
L212
VCC_2.8V_PDAVCC_2.8V_PDA
6
SCLK
SDIO
7
14
VA
10
VD
8
VIO
4_RST
5
_SEN
GPO
13
LOUT
1NC
NC
16
18
NC
19
NC
RCLK 9
RFGND
3
12
ROUT
U205
FMI
211
GND
17
GND
15
C253
FM_RST
C238
R216
L209
FM_SCL_2.8V
FM_SDA_2.8V
FM_RADIO_ANT
FM_CLK32K
FM_RST
RADIO_L_SI
RADIO_R_SI
FM_INT
C622
TP612
C631
C628
C621
C626
C620
C623
TP611
C629
R629
C615
C605 C607
IOVDD2J4
J5 SDIN2
SDOUT2
J6
SPVDDLJ7
SPGNDL
J8
SPOUTLN J9
LRCK2
H5
AGND
H6
AGND
H7
SPOUTLN H8
SPOUTLP H9
BCLK0
J1
IOVDD1J2
DGND
J3
SDIN1
G4
SDOUT1
G5
RCOUTN G8
RCOUTP G9
SDA
H1
BCLK0
H2
LRCK1
H3
BCLK2
H4
LRCK0
F2
DMICCLK
F3
F4 DMICDAT
REFCPN F8
CPGND
F9
SDOUT0
G1
SCL
G2
BCLK1
G3
CPVDDD8
REFCPP D9
IOVDD0E1
E2 CLK1
GPIO
E3
CPN E8
CPP E9
SDIN0
F1
LINER|LINEN
C4
LOUT1R|LOUT1N C5
LOUT1L|LOUT1P C6
LOUT2L|LOUT2P C7
HPOUTL C8
HPOUTR C9
DGND
D1
DVDDD2
MBS2
LINEL|LINEP
B5
REFAN B6
LOUT2R|LOUT2N B7
SPOUTRN B8
SPOUTRP B9
MIG1
C1
MBS1
C2
MBS3
C3
LDOA|AVDD A6
SPVDDRA7
SPGNDR
A8
SPOUTRN A9
MIN1
B1
MIG3
B2
MIG2
B3
B4
U602
NC
1
NC
2
MIN1
A1
MIN3
A2
MIN2
A3
VREF A4
AGND
A5
C632
C627
C651
C633
TP614
C606
C618
TP613
C630
C624
R630
V_BAT
VCC_2.8V_PDA
C619
L601
VCC_1.8V_PDA
C617
C625
RADIO_L_SI
RADIO_R_SI
SUB_MIC_N
SUB_MIC_P
MAIN_MIC_N_CONN
SPEECH_PCM_IN_CODEC
SPEECH_PCM_CLK
SPEECH_PCM_SYNC
XTAL_24MHZ_AP
CODEC_SDA_1.8V
CODEC_SCL_1.8V
SPK_OUT_N
SPEECH_PCM_OUT_CODEC
MAIN_MIC_P_CONN
VPS_R
VPS_L
EAROUT_L
EAROUT_R
RCV_N
RCV_P
SPK_OUT_P
EAR_MIC_P
BT_PCM_CLK
BT_PCM_SYNC
BT_PCM_IN
BT_PCM_OUT
MM_I2S_CLK
MM_I2S_DI
MM_I2S_DO
MM_I2S_SYNC
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-26
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-27
This Document can not be used without Samsung's authorization

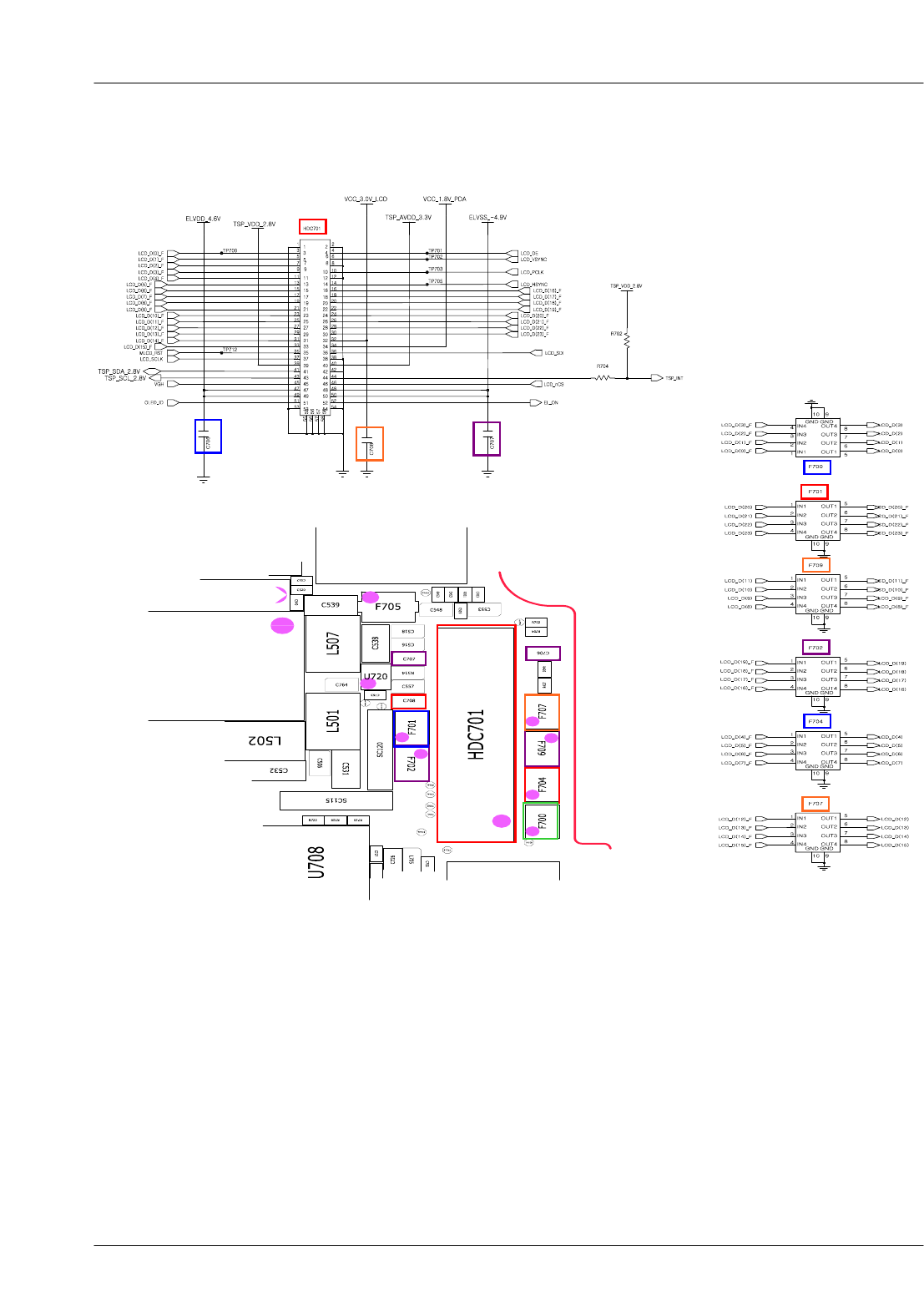

8-3-8. LCD
LCD is still off after PWR ON
Yes
No
Reconnect the HDC 701
Check the connection of
HDC 701
Yes
END
No
Resolder or Replace the PMIC(U501)
Check the soldering status of
EMI Filters
Yes
Check VCC_3.0V_LCD =
3.0V(C708),
VCC_1.8V_PDA =1.8
V(C552),
Yes
Yes
Replace LCD
Module
No Resoldering EMI Filters
(F700, F701, F702, F704, F707, F709)
Yes
Check ELVDD_4.6V =
4.6V(C706), ELVSS_-4.9V =3.
0~4.4V(C707)
Resoldering L703, L704
No
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-28
This Document can not be used without Samsung's authorization

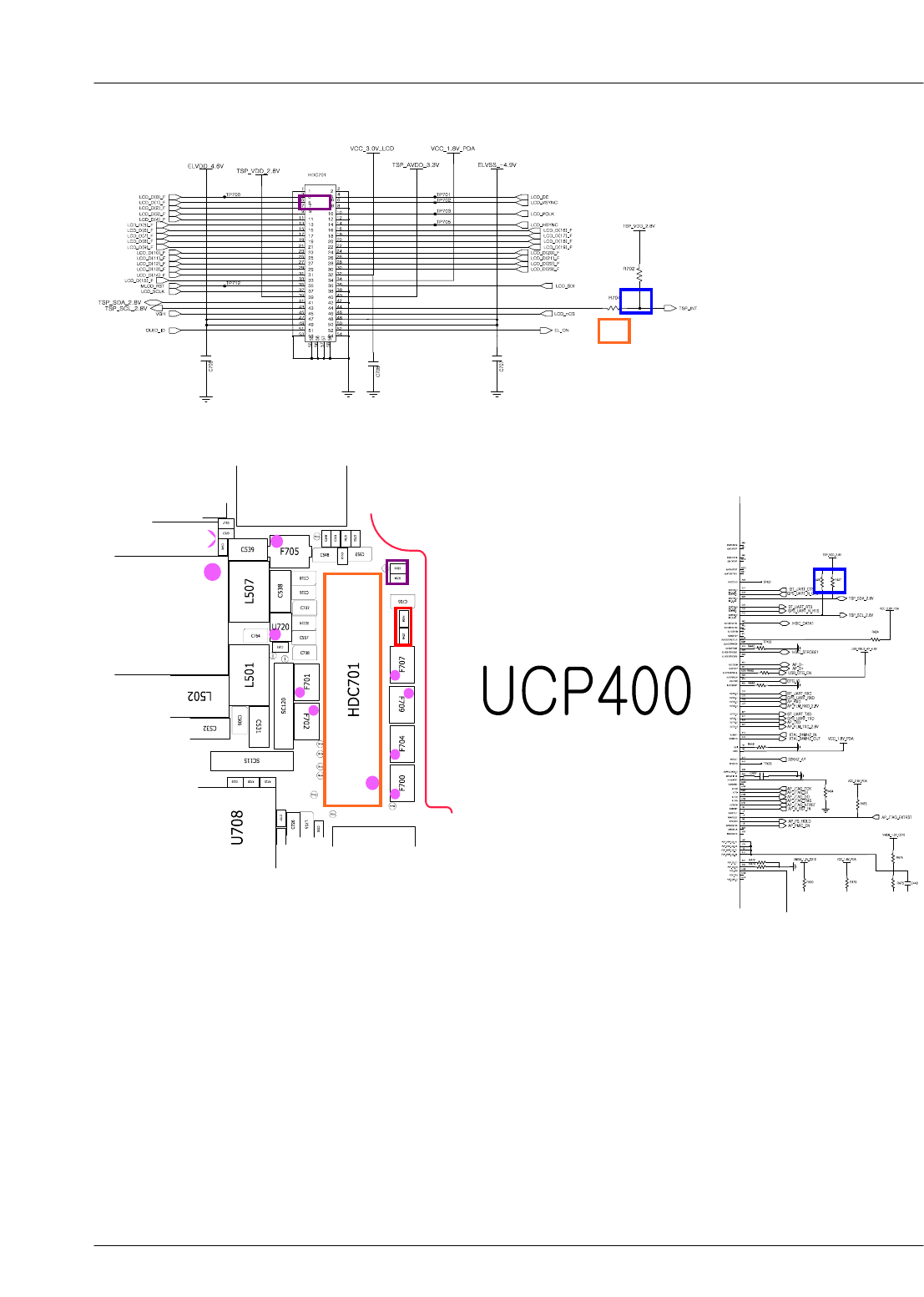

SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-29
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-30
This Document can not be used without Samsung's authorization
8-3-9. TSP
Touch Screen does not work
Yes
No
Reconnect the HDC701
Check TSP Connector on
Main PBA
Yes
END
Yes
No
Reconnect TSP Connector
Check the TSP connector on
LCD Module
Yes
Replace LCD Module
Yes
Check the I2C signal(R426,
R427) and int signal(R702,
R704)
Yes
Resolder R426, R427, R702, R704
No
No
U704 Pin 6=2.8
V(C718)
and Pin 8=3.3
V(C719) Resolder or Replace U704
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-31
This Document can not be used without Samsung's authorization

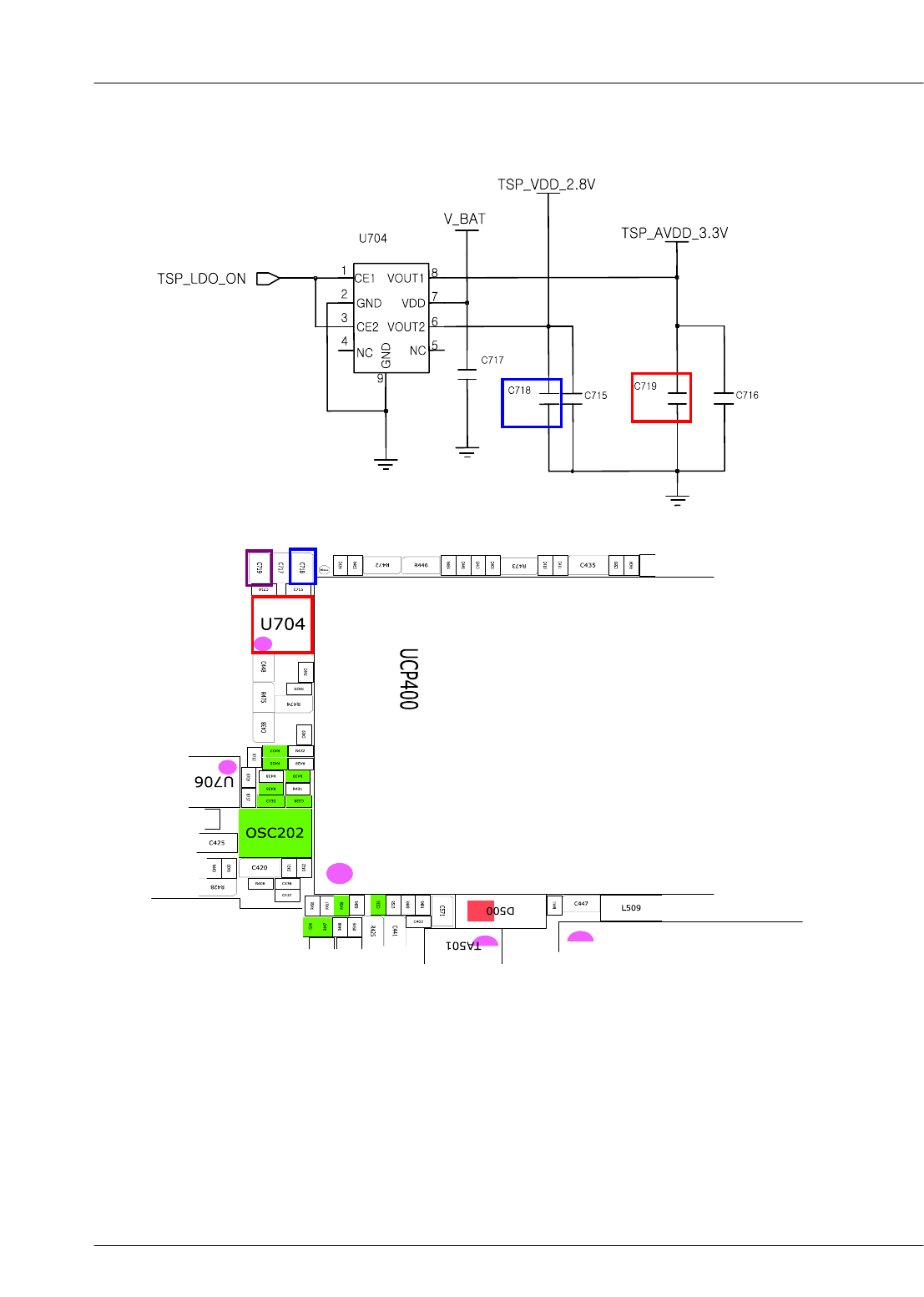

SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-32
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-33
This Document can not be used without Samsung's authorization
8-3-10. 8M CAM
Yes
Check the Camera
connector on Main PBA Reconnect the HDC700
No
Check the voltage
C533 =1.2
V,
C709 =1.2V
C714 =2.8V
C712 =1.5V
C549 =1.8V
C553 =1.8V
C545 =1.8V
Yes
Resolder L503, C533
Resolder U701, C709, C710
Resolder U703, C713, C714
Resolder U702, C711, C712
Resolder C549
Resolder C553
Resolder C545
Replace the PBA
No
Yes
Resolder R703
Replace the PBA.
No
Check R703 is 24MHz
Yes
END
Replace the camera module
"Camera" function does not work
Check F703, F706
No
Yes
Yes
Resolder F703, F706
Replace the PBA.
Check L700, L701 is OK
Yes
No Resolder L700, L701
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-34
This Document can not be used without Samsung's authorization

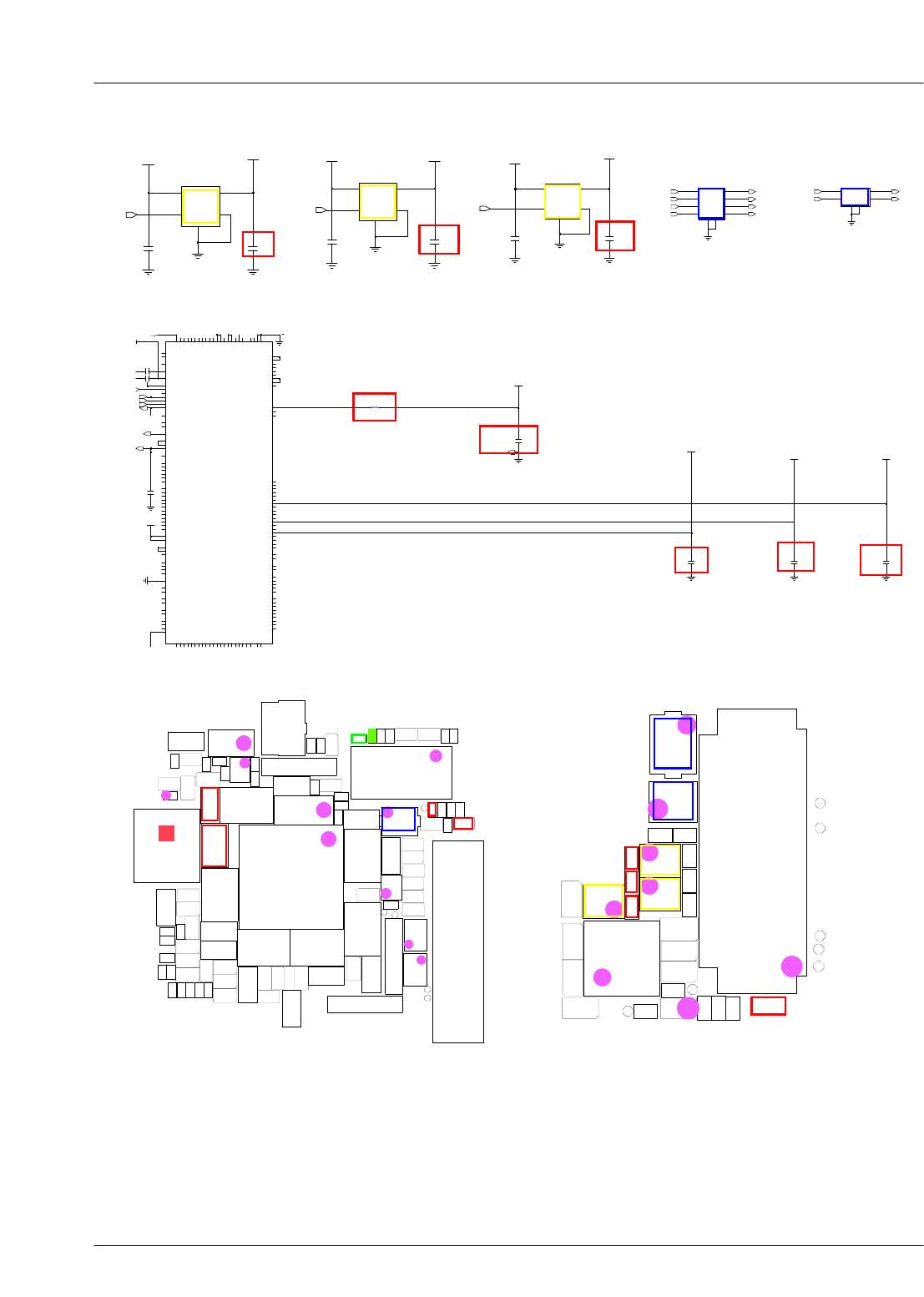

C545C644
C701
C705
C709
C710
C711
C712
C713
C714
C765
F703
F706
HDC700
L700
L701
MOTOR_P
R402
R403
R421
R422
R423
R424
R454
R455
TH400
TP402
TP602
TP704TP706
TP709
TP711
U608
U701
U702
U703
C553
C536
C519
INB04
N3
N4
LX4
PGND4
N5
N6
PGND1
LX1
N8
INB01
N9
LDO7
INB01
M8
M9
LDO5
NC
N1
N10
INL5
LDO6
N11
N12
LDO4
NC
N13
N2
LX5
M11
LDO8 M12
M13
LDO1
BUCK5
M3
INB05
BUCK4
BUCK1
PGND1
M6
LX1
L4
SDAFG
L5
L6KVSS
SNS
L7
L8
LDO2
LDO10 L9
M1
PGND5
INL6
M10
LDO3
K9
UID
L1
L10
INL4
INL3
L11
L12 INL2
INL1
L13
L2
IDB
BOOT
L3
28R2
K13
MIC_USB
K2
K3
18T2
28RCOM2K4
K5
ALRT
VBFG
K6
K7
SCAFG
LDO21
K8
IN21
J6
AIN
J7
J8
VTT
LDO13
J9
K1
COMP2
LDO18
K10
K11
LDO14
LDO16 K12
LDO15
J10
LDO11
J11
J12
LDO17
LDO9 J13
J2 SR2
UR2
J3
J4
18R1
VBATTFG
J5
THRM
H3
28TNO2
H4
H5
28TCOM1
28RNO1
H6
SET2
SET1
PWREN
COMN1
J1
LDO12
GPIO11
G9
GPIO10
H1 DP2
GPIO_GND
H10
H11DGND1
AGND
H12
H13
GND
SL1
H2
UT1
PGND7
PGND7
G13
G2 BC
18TNC2
G3
G4
28T1
18RNC1G5
G6
CB
SET3
G8
PWRHOLD
_ONO
F6
F7 SDA
GPIO9
F8
F9
GPIO8
DN1
G1
G10 GPIO5
GPIO4
G11
G12
DCIN
GPIO3
F10
F11
GPIO2
BUCK7
LX7
DCIN
F2
F3
VICHG
18VLL
F4
F5
BATT
_DETBATE3
E4
VCOIN
PWRON
E5
E6
JIGON
SCL
E7
E8 GPIO7
GPIO6
E9
F1
_IRQ1
_MR2
D8
D9
_MR1
BATT
E1
E10 GPIO1
GPIO0
E11
E12
INB03
INB07 E13
E2
IN_GPIO1
BUCK3
LX3
SAFEOUT1
D2
D3
SAFEOUT2
VCC_32CP
D4
COMP
D5
_RSO
D6
D7
32KHZ_CP
FLED_EN
C5
C6
GSMB
REFINPA
C7
BUCK6EN
BUCK6
VL
D1
IN_GPIO2
D10
D11
INB06B
XIN
C1
C10
MPWM
MGAIN
C11
C12
PGND2
PGND3
C13
C2 XOUT
C3
32KHZ_AP
C4
FGND
B2
B3DGND2
OUTF
B4
B5
LXF
PGNDF
B6
B7
PGND6
LX6
B9
PGND6
A7
A8
LX6
INB06A
A9
B1
FGND
MDN
B10
B11
MDP
BUCK2
LX2
INMOTOR A11
A12
INB02
NC
A13
A2 FLED2
FLED1
A3
A4
OUTF
LXF A5
A6PGNDF
U501
NC
1
NC2
NC
A1
A10GNDM
L503
C533
L506
C549
CAM_SENSOR_IO_1.8V
CAM_ISP_1.8V
C545
V_BAT
C517
CAM_ISP_CORE_1.2V
AP_PS_HOLD
VT_CAM_1.8V
BUCK4_GND
8M_AP_2.8V_EN
C215
C265
C414
C501
C502
C504
C505
C506
C507
C508
C509
C510
C516
C517
C518
C519
C520
C521
C522
C523
C524
C525
C526
C527
C529
C530
C531
C532
C533
C534
C535
C537
C538
C539
C540
C541
C543
C546
C547
C548
C549
C550
C551
C552
C553
C554
C555
C556
C557
C558
C573
C637
C638
C657
C660
C700
C703
C704
C707
C708
C763
C764
F701
F702
F705
HDC701
HDC704
L204
L500
L501
L502
L503
L504
L506
L507
L606
L607
L614
L702
LED500
OSC500
PAM200
R414
R415
R470
R471
R514
R515
R516
R622
R624
R701
R703
SC119
SC120
TA600
TP705
TP710
U501
U611
U720
VIBTONE_PWM
VR607
I|O
GND
I|O 1
2
I|O
I|O 3
4
I|OI|O
5
6I|O
I|O
7
8
F703
GND
9
10
5GND
GND
6
1
I|O
I|O 23 I|O
I|O
4
F706
8M_CAM_CLK_P_F
8M_CAM_D1_
P
8M_CAM_CLK_N_F
8M_CAM_D1_
N
8M_CAM_D0_P_F
8M_CAM_D0_N_F
8M_CAM_CLK_N
8M_CAM_D1_N_F
8M_CAM_CLK_P
8M_CAM_D1_P_F
8M_CAM_D0_N
8M_CAM_D0_P
3CE
GND
5
GND 2
4VDD 1
VOUT
U702
VCC_SUB_2.0V
VT_CORE_1.5
V
C712
C711
VT_CAM_1.5V_EN
C710
VCC_SUB_2.0V
C709
GND
2
4VDD 1
VOUT
U701
3CE
GND
5
CAM_SENSOR_CORE_1.2
V
8M_1.2V_EN
C713
V_BAT CAM_SENSOR_A2.8
V
CE
3
5
GND
2
GND
VDD
4VOUT 1
U703
C714
CAM_IO_EN
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-35
This Document can not be used without Samsung's authorization
8-3-11. 2M CAM
Yes
Check the Camera
connector on Main PBA Reconnect the HDC704
No
Check the voltage
C533 =1.2V
C714 =2.8V
C712 =1.5V
C549 =1.8V
C553 =1.8V
Yes
No
Yes
Yes
END
Replace the camera module
"Camera" function does not work
No
Yes
Resolder U903,R905,R907,L903
Resolder U703, C713, C714
Resolder U702, C711, C712
Resolder C549
Resolder C553
Check R703 is 24MHz Resolder R703
Replace the PBA.
No
Check F705 Resolder F705
Replace the PBA.
Yes
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-36
This Document can not be used without Samsung's authorization
C545C644
C701
C705
C709
C710
C711
C712
C713
C714
C765
F703
F706
HDC700
L700
L701
MOTOR_P
R402
R403
R421
R422
R423
R424
R454
R455
TH400
TP402
TP602
TP704TP706
TP709
TP711
U608
U701
U702
U703
3CE
GND
5
GND 2
4VDD 1
VOUT
U702
VCC_SUB_2.0V
VT_CORE_1.5
V
C712
C711
VT_CAM_1.5V_EN
C710
VCC_SUB_2.0V
C709
GND
2
4VDD 1
VOUT
U701
3CE
GND
5
CAM_SENSOR_CORE_1.2
V
8M_1.2V_EN
C713
V_BAT CAM_SENSOR_A2.8
V
CE
3
5
GND
2
GND
VDD
4VOUT 1
U703
C714
CAM_IO_EN
C553
C536
C519
INB04
N3
N4
LX4
PGND4
N5
N6
PGND1
LX1
N8
INB01
N9
LDO7
INB01
M8
M9
LDO5
NC
N1
N10
INL5
LDO6
N11
N12
LDO4
NC
N13
N2
LX5
M11
LDO8 M12
M13
LDO1
BUCK5
M3
INB05
BUCK4
BUCK1
PGND1
M6
LX1
L4
SDAFG
L5
L6KVSS
SNS
L7
L8
LDO2
LDO10 L9
M1
PGND5
INL6
M10
LDO3
K9
UID
L1
L10
INL4
INL3
L11
L12 INL2
INL1
L13
L2
IDB
BOOT
L3
28R2
K13
MIC_USB
K2
K3
18T2
28RCOM2K4
K5
ALRT
VBFG
K6
K7
SCAFG
LDO21
K8
IN21
J6
AIN
J7
J8
VTT
LDO13
J9
K1
COMP2
LDO18
K10
K11
LDO14
LDO16 K12
LDO15
J10
LDO11
J11
J12
LDO17
LDO9 J13
J2 SR2
UR2
J3
J4
18R1
VBATTFG
J5
THRM
H3
28TNO2
H4
H5
28TCOM1
28RNO1
H6
SET2
SET1
PWREN
COMN1
J1
LDO12
GPIO11
G9
GPIO10
H1 DP2
GPIO_GND
H10
H11DGND1
AGND
H12
H13
GND
SL1
H2
UT1
PGND7
PGND7
G13
G2 BC
18TNC2
G3
G4
28T1
18RNC1G5
G6
CB
SET3
G8
PWRHOLD
_ONO
F6
F7 SDA
GPIO9
F8
F9
GPIO8
DN1
G1
G10 GPIO5
GPIO4
G11
G12
DCIN
GPIO3
F10
F11
GPIO2
BUCK7
LX7
DCIN
F2
F3
VICHG
18VLL
F4
F5
BATT
_DETBATE3
E4
VCOIN
PWRON
E5
E6
JIGON
SCL
E7
E8 GPIO7
GPIO6
E9
F1
_IRQ1
_MR2
D8
D9
_MR1
BATT
E1
E10 GPIO1
GPIO0
E11
E12
INB03
INB07 E13
E2
IN_GPIO1
BUCK3
LX3
SAFEOUT1
D2
D3
SAFEOUT2
VCC_32CP
D4
COMP
D5
_RSO
D6
D7
32KHZ_CP
FLED_EN
C5
C6
GSMB
REFINPA
C7
BUCK6EN
BUCK6
VL
D1
IN_GPIO2
D10
D11
INB06B
XIN
C1
C10
MPWM
MGAIN
C11
C12
PGND2
PGND3
C13
C2 XOUT
C3
32KHZ_AP
C4
FGND
B2
B3DGND2
OUTF
B4
B5
LXF
PGNDF
B6
B7
PGND6
LX6
B9
PGND6
A7
A8
LX6
INB06A
A9
B1
FGND
MDN
B10
B11
MDP
BUCK2
LX2
INMOTOR A11
A12
INB02
NC
A13
A2 FLED2
FLED1
A3
A4
OUTF
LXF A5
A6PGNDF
U501
NC
1
NC2
NC
A1
A10GNDM
L503
C533
L506
C549
CAM_SENSOR_IO_1.8V
CAM_ISP_1.8V
C545
V_BAT
C517
CAM_ISP_CORE_1.2V
AP_PS_HOLD
VT_CAM_1.8V
BUCK4_GND
8M_AP_2.8V_EN
C215
C265
C414
C501
C502
C504
C505
C506
C507
C508
C509
C510
C516
C517
C518
C519
C520
C521
C522
C523
C524
C525
C526
C527
C529
C530
C531
C532
C533
C534
C535
C537
C538
C539
C540
C541
C543
C546
C547
C548
C549
C550
C551
C552
C553
C554
C555
C556
C557
C558
C573
C637
C638
C657
C660
C700
C703
C704
C707
C708
C763
C764
F701
F702
F705
HDC701
HDC704
L204
L500
L501
L502
L503
L504
L506
L507
L606
L607
L614
L702
LED500
OSC500
PAM200
R414
R415
R470
R471
R514
R515
R516
R622
R624
R701
R703
SC119
SC120
TA600
TP705
TP710
U501
U611
U720
VIBTONE_PWM
VR607
I|O
5
6I|O
I|O
7
8I|O
GND
9
10GND
I|O 1
2
I|O
I|O 3
4
I|O
F705
VT_CAM_CLK_P
VT_CAM_D0_N_F
VT_CAM_D0_P_F
VT_CAM_CLK_P_
F
VT_CAM_CLK_N_
F
VT_CAM_D0_P
VT_CAM_D0_N
VT_CAM_CLK_N
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-37
This Document can not be used without Samsung's authorization
Check C107 ≤-65dBm ?
8-3-12. GSM1800 RX
NORMAL CONDITION
catch the channel?
Check the voltage at
{C138 =VOUT_CHARGER ?}
&{
C169, C170, C171
=VOUT_CHARGER?}
&{
C137, C174 = 2.85V ?}
&{
C134, C176 = 2.65V ?}
&{
C136, C178 =1.8
V?}
&{
C135, C175, C173 =1.2
V?}
Check the Voltage at
C102 =VOUT_CHARGER
Check component
soldering status OK at
F100
CHECK soldered
RFS100, L107,C107,L108
Resolder or change
U101, C102
Resolder or change
F100
Resolder or change
U104
Check the freq. at C123
:26
MHz ?
Change or resolder
OSC100
Check C101, L101
≥-65dBm ?
Resolder or change
C101, L101
GSM1800 Receiver is O.K? Resolder or change
UCP300
END
NO
YES
NO
NO
YES
NO
YES
NO
YES
NO
YES
NO
YES
NO
Check F100 PIN 18, 19
≥-65dBm
Resolder or change
F100
NO
YES
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-38
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-39
This Document can not be used without Samsung's authorization
Check C107 ≤-65dBm ?

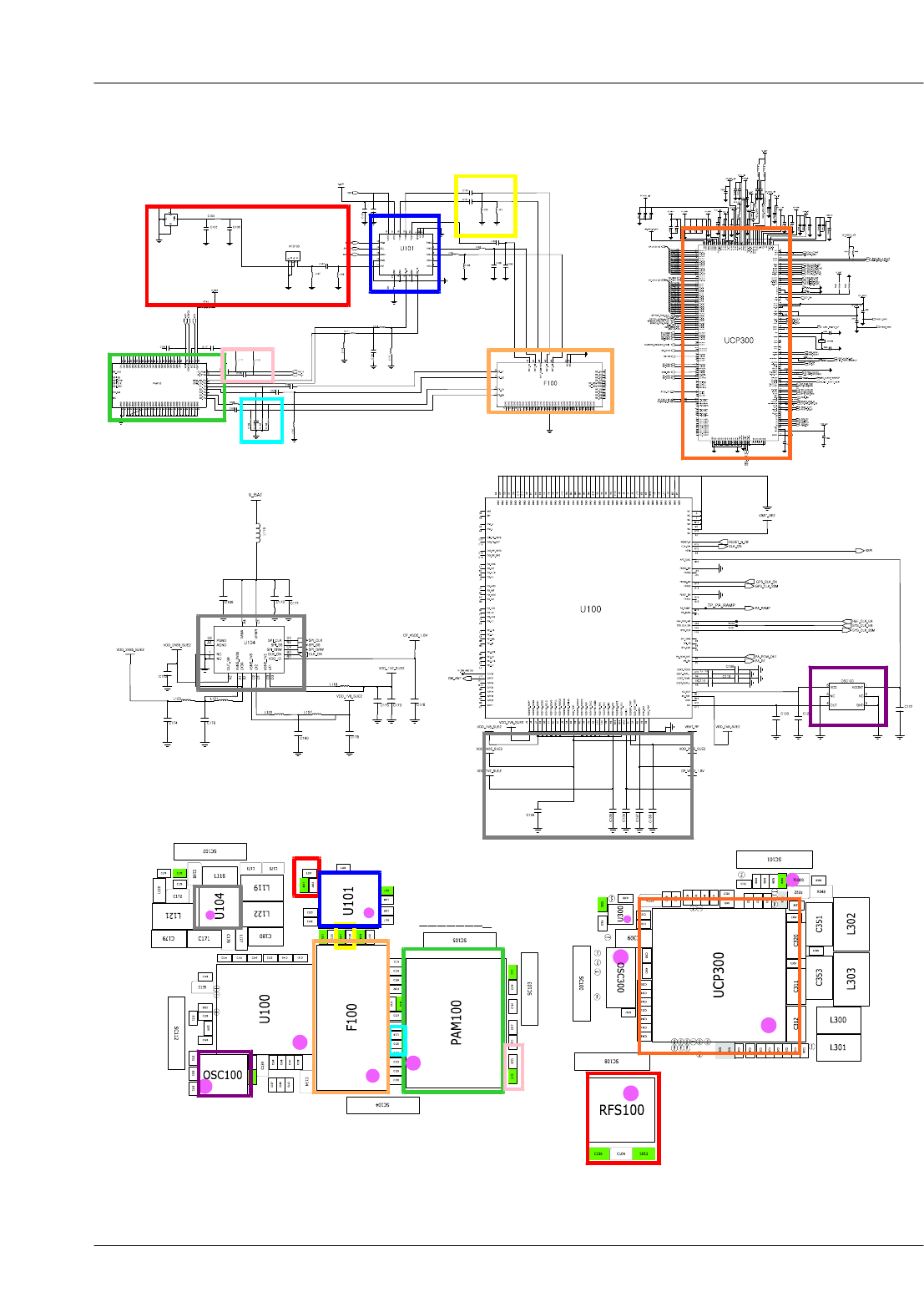

8-3-13. WCDMA Band1 RX
NORMAL CONDITION
catch the channel?
Check the voltage at
{C138 =VOUT_CHARGER ?}
&{
C169, C170, C171
=VOUT_CHARGER?}
&{
C137, C174 = 2.85V ?}
&{
C134, C176 = 2.65V ?}
&{
C136, C178 =1.8
V?}
&{
C135, C175, C173 =1.2
V?}
Check the Voltage at
C102 =VOUT_CHARGER
Check component
soldering status OK at
F100
CHECK soldered
RFS100, L107,C107,L108
Resolder or change
U101, C102
Resolder or change
F100
Resolder or change
U104
Check the freq. at C123
:26
MHz ?
Change or resolder
OSC100
Check C108, L102
≥-65dBm ?
Resolder or change
C108, L102
WCDMA band1 Receiver is O.K? Resolder or change
UCP300
END
NO
YES
NO
NO
YES
NO
YES
NO
YES
NO
YES
NO
YES
NO
Check F100 PIN 14, 15
≥-65dBm
Resolder or change
F100
NO
YES
CONTINUOUS RX ON
RF INPUT : 10700CH
AMP :-50
dBm
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-40
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-41
This Document can not be used without Samsung's authorization
Check C107 ≤-65dBm ?

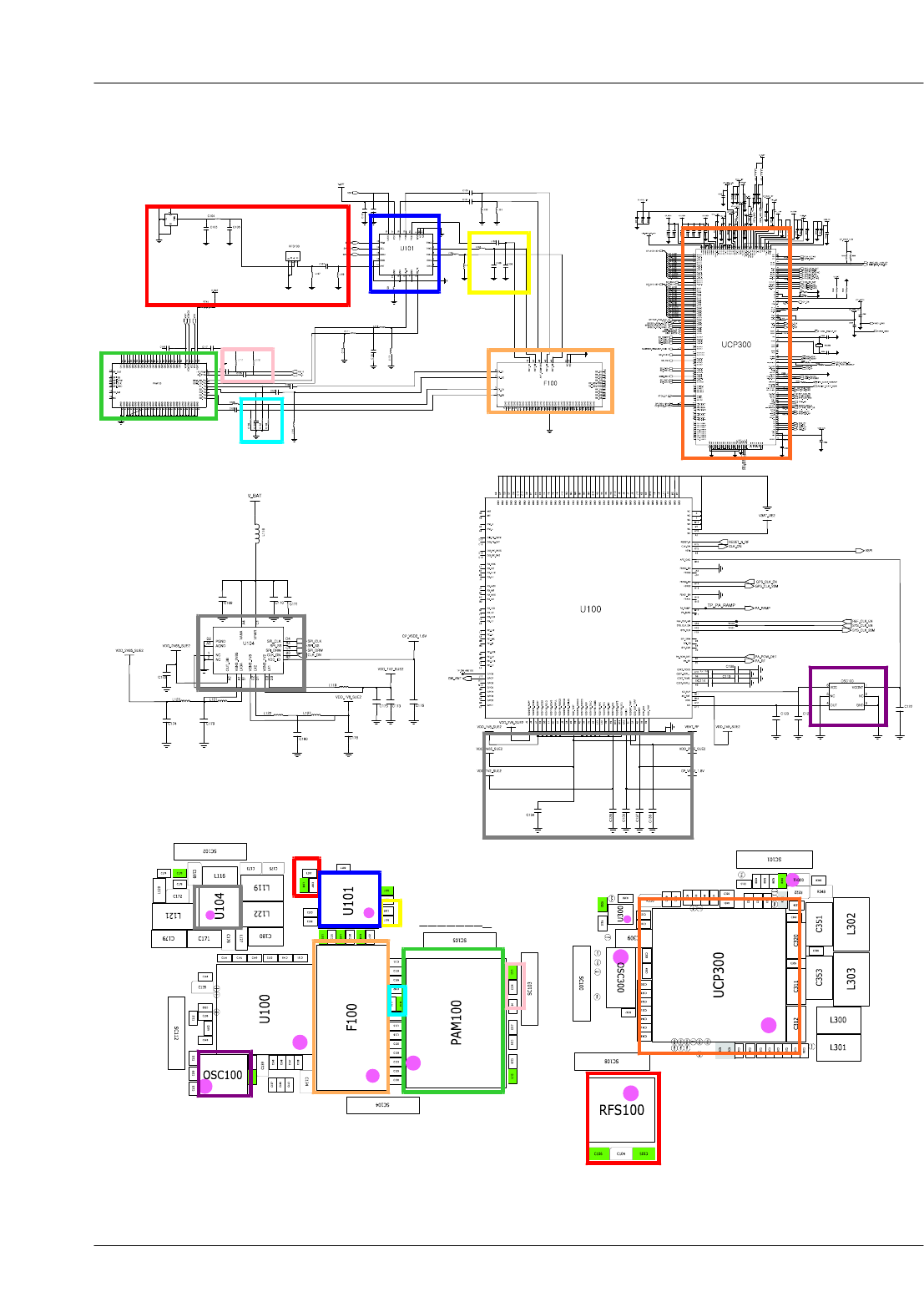

8-3-14. WCDMA Band2 /GSM1900 RX
NORMAL CONDITION
catch the channel?
Check the voltage at
{C138 =VOUT_CHARGER ?}
&{
C169, C170, C171
=VOUT_CHARGER?}
&{
C137, C174 = 2.85V ?}
&{
C134, C176 = 2.65V ?}
&{
C136, C178 =1.8
V?}
&{
C135, C175, C173 =1.2
V?}
Check the Voltage at
C102 =VOUT_CHARGER
Check component
soldering status OK at
F100
CHECK soldered
RFS100, L107,C107,L108
Resolder or change
U101, C102
Resolder or change
F100
Resolder or change
U104
Check the freq. at C123
:26
MHz ?
Change or resolder
OSC100
Check L103, L106
≥-65dBm ?
Resolder or change
L103, L106
WCDMA band2/GSM1900
Receiver is O.K?
Resolder or change
UCP300
END
NO
YES
NO
NO
YES
NO
YES
NO
YES
NO
YES
NO
YES
NO
Check F100 PIN 16, 17
≥-65dBm
Resolder or change
F100
NO
YES
CONTINUOUS RX ON
RF INPUT : 9880CH
AMP :-50
dBm
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-42
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-43
This Document can not be used without Samsung's authorization
Check C107 ≤-65dBm ?
8-3-15. WCDMA Band5 /GSM 850 RX
NORMAL CONDITION
catch the channel?
Check the voltage at
{C138 =VOUT_CHARGER ?}
&{
C169, C170, C171
=VOUT_CHARGER?}
&{
C137, C174 = 2.85V ?}
&{
C134, C176 = 2.65V ?}
&{
C136, C178 =1.8
V?}
&{
C135, C175, C173 =1.2
V?}
Check the Voltage at
C102 =VOUT_CHARGER
Check component
soldering status OK at
F100
CHECK soldered
RFS100, L107,C107,L108
Resolder or change
U101, C102
Resolder or change
F100
Resolder or change
U104
Check the freq. at C123
:26
MHz ?
Change or resolder
OSC100
Check C100, L100
≥-65dBm ?
Resolder or change
C100, L100
WCDMA band5/GSM850
Receiver is O.K?
Resolder or change
UCP300
END
NO
YES
NO
NO
YES
NO
YES
NO
YES
NO
YES
NO
YES
NO
Check F100 PIN 20, 21
≥-65dBm
Resolder or change
F100
NO
YES
CONTINUOUS RX ON
RF INPUT : 4408CH
AMP :-50
dBm
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-44
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-45
This Document can not be used without Samsung's authorization
Check C107 ≤-65dBm ?
8-3-16. WCDMA Band8 /GSM900 RX
NORMAL CONDITION
catch the channel?
Check the voltage at
{C138 =VOUT_CHARGER ?}
&{
C169, C170, C171
=VOUT_CHARGER?}
&{
C137, C174 = 2.85V ?}
&{
C134, C176 = 2.65V ?}
&{
C136, C178 =1.8
V?}
&{
C135, C175, C173 =1.2
V?}
Check the Voltage at
C102 =VOUT_CHARGER
Check component
soldering status OK at
F100
CHECK soldered
RFS100, L107,C107,L108
Resolder or change
U101, C102
Resolder or change
F100
Resolder or change
U104
Check the freq. at C123
:26
MHz ?
Change or resolder
OSC100
Check L104, L105
≥-65dBm ?
Resolder or change
L104, L105
WCDMA band8/GSM900
Receiver is O.K?
Resolder or change
UCP300
END
NO
YES
NO
NO
YES
NO
YES
NO
YES
NO
YES
NO
YES
NO
Check F100 PIN 22, 23
≥-65dBm
Resolder or change
F100
NO
YES
CONTINUOUS RX ON
RF INPUT : 3013CH
AMP :-50
dBm
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-46
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-47
This Document can not be used without Samsung's authorization
U101 PIN11 :About
30dBm ?

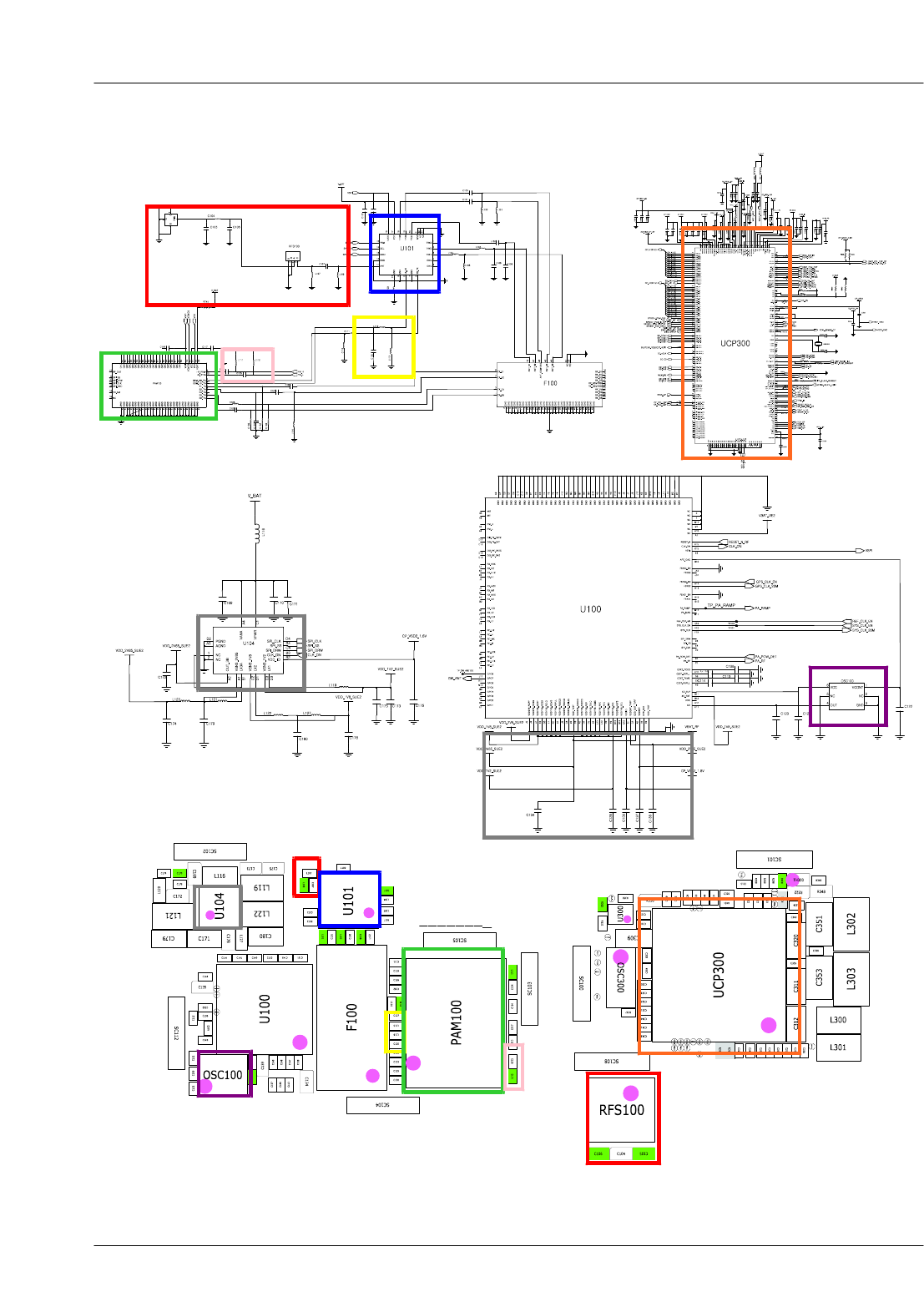

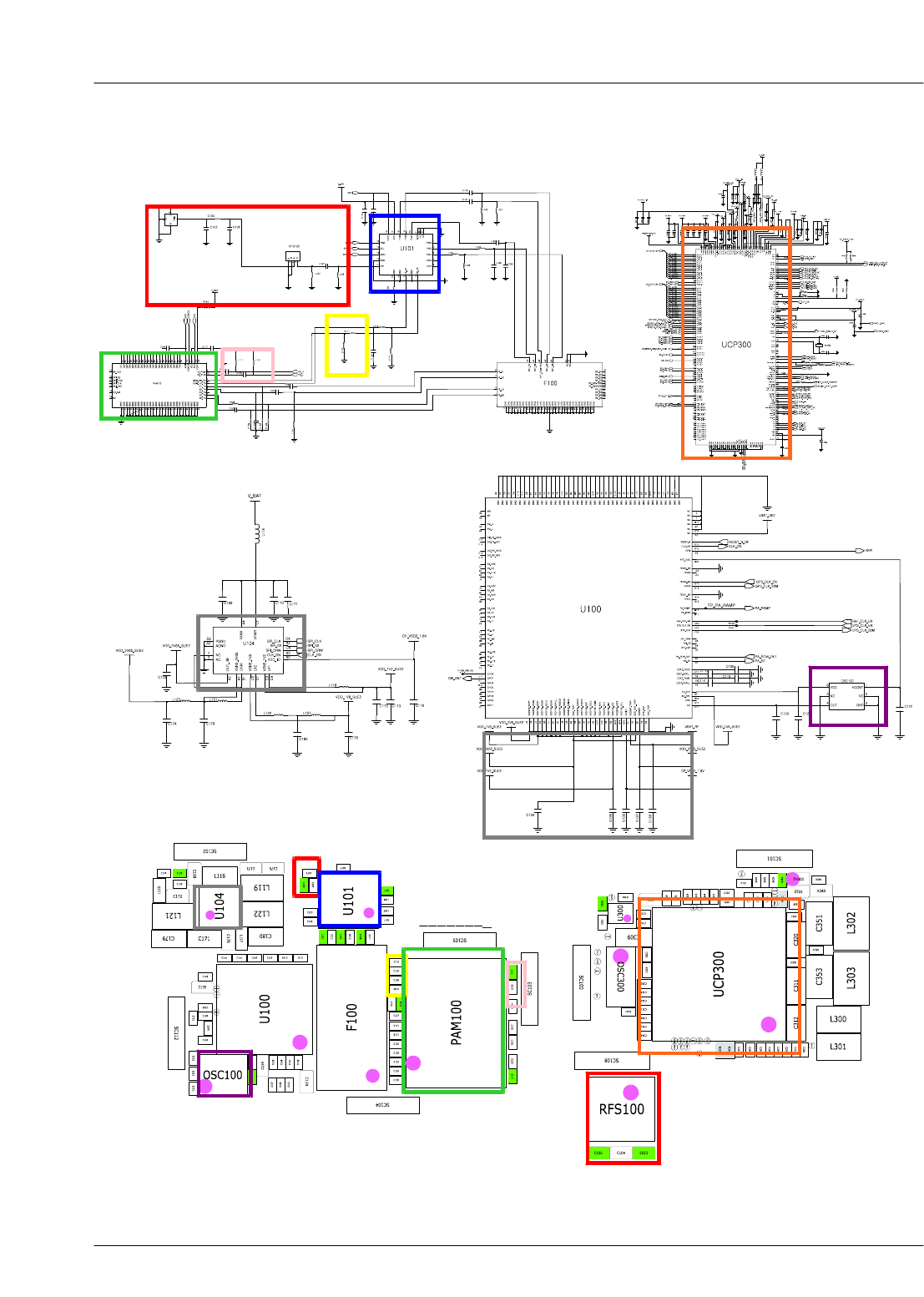

8-3-17. GSM850/GSM900 TX
Check the Voltage at
C102 =VOUT_CHARGER?
Check the Voltage at
R741,C117=VOUT_CHARGER?
CHECK soldered
-RFS100,L107,C107,L108,
C106,C104,C105,ANT100
Resolder or change
U101, C102
Resolder or change
PAM100, R741, C117
Check C120, L110, L113
:About 30dBm ?
Resolder or change
C120, L110, L113
YES
NO
NO
YES
YES
NO
NO
YES
Check C125, L112 :
About 0dBm ?
Resolder or change
C125, L112
YES
YES
Check the voltage at
{C138 =VOUT_CHARGER ?}
&{
C169, C170, C171
=VOUT_CHARGER?}
&{
C137, C174 = 2.85V ?}
&{
C134, C176 = 2.65V ?}
&{
C136, C178 =1.8
V?}
&{
C135, C175, C173 =1.2
V?}
Resolder or change
U104
Check the freq. at C123
:26
MHz ?
Change or resolder
OSC100
GSM850/900 Transmitter is O.K? Resolder or change
UCP300
END
NO
YES
NO
YES
NO
CONTINOUS TX ON CONDITION
TX POWER DAC:14500 CODE
APPLIED
GSM850 CH : 190
GSM900 CH :62
RBW : 100KHz
VBW : 100KHz
SPAN :10
MHz
REF LEV. :10
dBm
ATT. :20
dB
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-48
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-49
This Document can not be used without Samsung's authorization
U101 PIN11 :About
27dBm ?
8-3-18. DCS/PCS TX
Check the Voltage at
C102 =VOUT_CHARGER?
Check the Voltage at
R741,C117=VOUT_CHARGER?
CHECK soldered
-RFS100,L107,C107,L108,
C106,C104,C105,ANT100
Resolder or change
U101, C102
Resolder or change
PAM100, R741, C117
Check C111, C118 :
About 27dBm ?
Resolder or change
C111, ,C118
YES
NO
NO
YES
YES
NO
NO
YES
Check C124, L111 :
About -4dBm ?
Resolder or change
C124, L111
YES
YES
Check the voltage at
{C138 =VOUT_CHARGER ?}
&{
C169, C170, C171
=VOUT_CHARGER?}
&{
C137, C174 = 2.85V ?}
&{
C134, C176 = 2.65V ?}
&{
C136, C178 =1.8
V?}
&{
C135, C175, C173 =1.2
V?}
Resolder or change
U104
Check the freq. at C123
:26
MHz ?
Change or resolder
OSC100
DCS/PCS Transmitter is O.K? Resolder or change
UCP300
END
NO
YES
NO
YES
NO
CONTINOUS TX ON CONDITION
TX POWER DAC:14500 CODE
APPLIED
DCS CH : 685
PCS CH : 661
RBW : 100KHz
VBW : 100KHz
SPAN :10
MHz
REF LEV. :10
dBm
ATT. :20
dB
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-50
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-51
This Document can not be used without Samsung's authorization
Check U101 PIN11 :
About 22 dBm ?
8-3-19. WCDMA BAND1 TX
Check the Voltage at
C102 =VOUT_CHARGER?
Resolder or change
U101, C102
Check C108, L102 :
About 22dBm ?
Resolder or change
C108, L102
YES
NO
NO
YES
YES
CHECK soldered
-RFS100,L107,C107,L108,
C106,C104,C105,ANT100
NO
Check component
soldering status OK at
F100
Resolder or change
F100
NO
YES
Check C132, C126 :
About 22dBm ?
Resolder or change
C132, C126
YES
NO
Check the Voltage at
R741,C117=VOUT_CHARGER?
Resolder or change
PAM100, R741, C117
NO
YES
Check C124, L111
About 0dBm ?
Resolder or change
C124, L111
YES
YES
Check the voltage at
{C138 =VOUT_CHARGER ?}
&{
C169, C170, C171
=VOUT_CHARGER?}
&{
C137, C174 = 2.85V ?}
&{
C134, C176 = 2.65V ?}
&{
C136, C178 =1.8
V?}
&{
C135, C175, C173 =1.2
V?}
Resolder or change
U104
Check the freq. at C123
:26
MHz ?
Change or resolder
OSC100
NO
YES
NO
YES
CONTINOUS TX ON CONDITION
TX POWER DAC:14500 CODE
APPLIED
WCDMA Band1 CH : 10700
RBW : 100KHz
VBW : 100KHz
SPAN :10
MHz
REF LEV. :10
dBm
ATT. :20
dB
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-52
This Document can not be used without Samsung's authorization
WCDMA band1 Transmitter is O.K? Resolder or change
UCP300
END
YES
NO
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-53
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-54
This Document can not be used without Samsung's authorization
Check U106 PIN11 :
About 22 dBm ?
8-3-20. WCDMA BAND2 TX
CONTINOUS TX ON CONDITION
TX POWER DAC:14500 CODE
APPLIED
WCDMA Band2 CH : 9880
RBW : 100KHz
VBW : 100KHz
SPAN :10
MHz
REF LEV. :10
dBm
ATT. :20
dB
Check the Voltage at
C102 =VOUT_CHARGER?
Resolder or change
U101, C102
Check L103, L106 :
About 22dBm ?
Resolder or change
L103, L106
YES
NO
NO
YES
YES
CHECK soldered
-RFS100,L107,C107,L108,
C106,C104,C105,ANT100
NO
Check component
soldering status OK at
F100
Resolder or change
F100
NO
YES
Check C131, C127, L114 :
About 22dBm ?
Resolder or change
C131, C127, L114
YES
NO
Check the Voltage at
R741,C117=VOUT_CHARGER?
Resolder or change
PAM100, R741, C117
NO
YES
Check C124, L111
About 0dBm ?
Resolder or change
C124, L111
YES
YES
Check the voltage at
{C138 =VOUT_CHARGER ?}
&{
C169, C170, C171
=VOUT_CHARGER?}
&{
C137, C174 = 2.85V ?}
&{
C134, C176 = 2.65V ?}
&{
C136, C178 =1.8
V?}
&{
C135, C175, C173 =1.2
V?}
Resolder or change
U104
Check the freq. at C123
:26
MHz ?
Change or resolder
OSC100
NO
YES
NO
YES
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-55
This Document can not be used without Samsung's authorization
WCDMA band2 Transmitter is O.K? Resolder or change
UCP300
END
YES
NO
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-56
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-57
This Document can not be used without Samsung's authorization
Check U101 PIN11 :
About 22 dBm ?
8-3-21. WCDMA BAND5 TX
CONTINOUS TX ON CONDITION
TX POWER DAC:14500 CODE
APPLIED
WCDMA Band5 CH : 4408
RBW : 100KHz
VBW : 100KHz
SPAN :10
MHz
REF LEV. :10
dBm
ATT. :20
dB
Check the Voltage at
C102 =VOUT_CHARGER?
Resolder or change
U101, C102
Check C100, L100 :
About 22dBm ?
Resolder or change
C100, L100
YES
NO
NO
YES
YES
CHECK soldered
-RFS100,L107,C107,L108,
C106,C104,C105,ANT100
NO
Check component
soldering status OK at
F100
Resolder or change
F100
NO
YES
Check C128, C133
About 22dBm ?
Resolder or change
C128, C133
YES
NO
Check the Voltage at
R741,C117=VOUT_CHARGER?
Resolder or change
PAM100, R741, C117
NO
YES
Check C125, L112 :
About 0dBm ?
Resolder or change
C125, L112
YES
YES
Check the voltage at
{C138 =VOUT_CHARGER ?}
&{
C169, C170, C171
=VOUT_CHARGER?}
&{
C137, C174 = 2.85V ?}
&{
C134, C176 = 2.65V ?}
&{
C136, C178 =1.8
V?}
&{
C135, C175, C173 =1.2
V?}
Resolder or change
U104
Check the freq. at C123
:26
MHz ?
Change or resolder
OSC100
NO
YES
NO
YES
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-58
This Document can not be used without Samsung's authorization
WCDMA band5 Transmitter is O.K? Resolder or change
UCP300
END
YES
NO
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-59
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-60
This Document can not be used without Samsung's authorization
Check U101 PIN11 :
About 22 dBm ?
8-3-22. WCDMA BAND8 TX
CONTINOUS TX ON CONDITION
TX POWER DAC:14500 CODE
APPLIED
WCDMA Band2 CH : 3013
RBW : 100KHz
VBW : 100KHz
SPAN :10
MHz
REF LEV. :10
dBm
ATT. :20
dB
Check the Voltage at
C102 =VOUT_CHARGER?
Resolder or change
U101, C102
Check L104, L105 :
About 22dBm ?
Resolder or change
L104, L105
YES
NO
NO
YES
YES
CHECK soldered
-RFS100,L107,C107,L108,
C106,C104,C105,ANT100
NO
Check component
soldering status OK at
F100
Resolder or change
F100
NO
YES
Check C129, C130 :
About 22dBm ?
Resolder or change
C129, C130
YES
NO
Check the Voltage at
R741,C117=VOUT_CHARGER?
Resolder or change
PAM100, R741, C117
NO
YES
Check C125, L112 :
About 0dBm ?
Resolder or change
C125, L112
YES
YES
Check the voltage at
{C138 =VOUT_CHARGER ?}
&{
C169, C170, C171
=VOUT_CHARGER?}
&{
C137, C174 = 2.85V ?}
&{
C134, C176 = 2.65V ?}
&{
C136, C178 =1.8
V?}
&{
C135, C175, C173 =1.2
V?}
Resolder or change
U104
Check the freq. at C123
:26
MHz ?
Change or resolder
OSC100
NO
YES
NO
YES
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-61
This Document can not be used without Samsung's authorization
WCDMA band8 Transmitter is O.K? Resolder or change
UCP300
END
YES
NO
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-62
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-63
This Document can not be used without Samsung's authorization
8-3-8. MHL
D:\PROJECT\P3\회로도관련\회로도\REAL\P7100_R E V 0.6\ Un ti tl ed -2.e ps
MHL Does not work
Yes
No
Check if HDC703 is well connected
Check if MHL_SEL(TP716)
goes High
Yes
No Check the LDOs(707, 710, 711)
Check if U709 works properly
Yes
Check the voltage of
L705(1.2V), L706(3.3V),
L707(1.2V), L708(1.8V),
C756(2.8V)
Replace U708
Yes
No Change U709
END
Yes
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-64
This Document can not be used without Samsung's authorization
8-3-8. MHL
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-65
This Document can not be used without Samsung's authorization
8-3-9. OTG
OTG does not work
Yes
No Check if HDC703 is well connected
Check if TP_USB_OTG_EN
goes High
Yes
END
Yes
No Check if D501, R524, R525, R526, R527 is
well mounted
Check V_BUS_5V (D501)
Yes
Replace U503(MAX8627)
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-66
This Document can not be used without Samsung's authorization
8-3-9. OTG
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-67
This Document can not be used without Samsung's authorization
8-4. Service Schematics
-NC Point(Top View)
UCP400
:NC

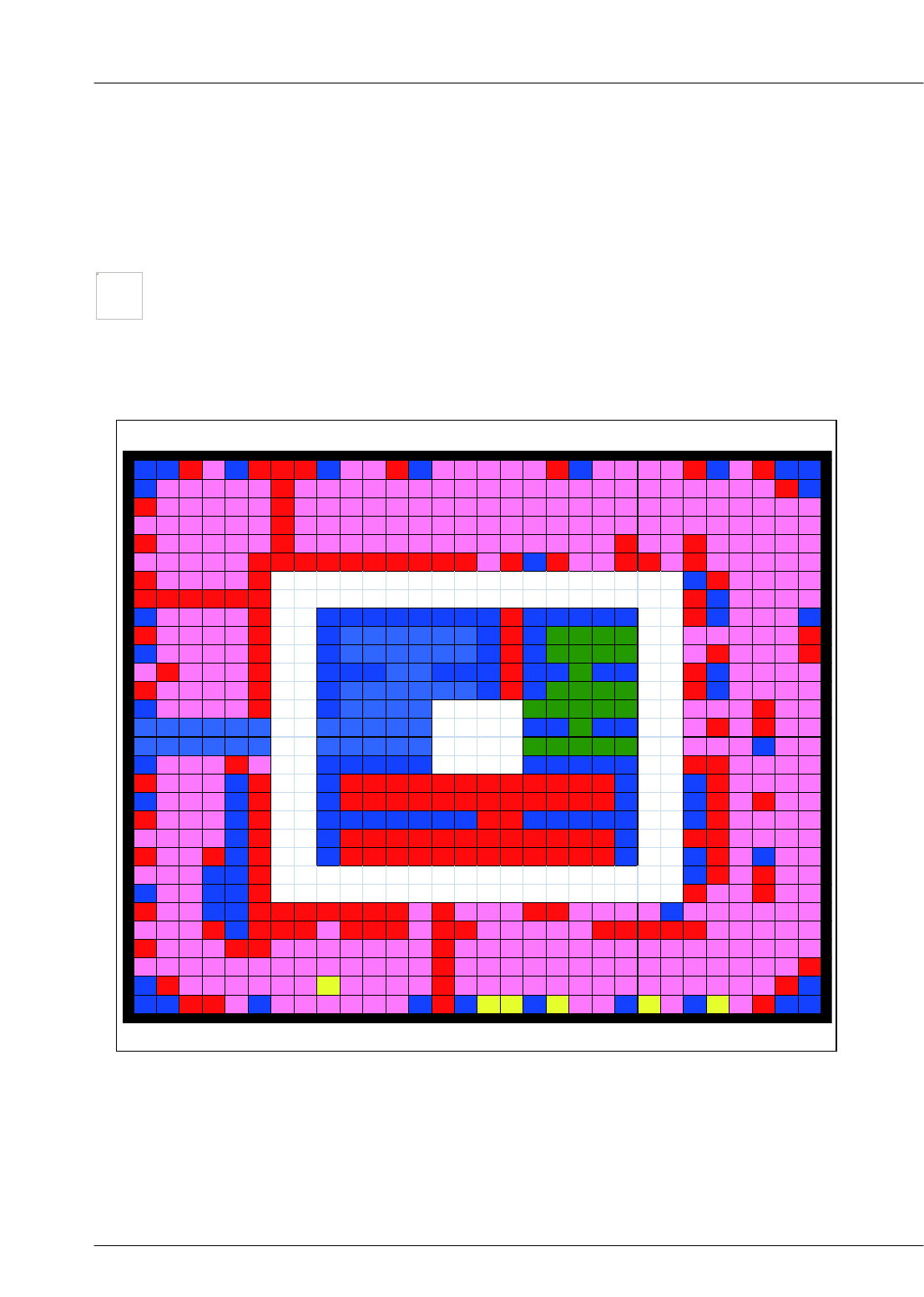

2.1 Pin Ass ignm ent Diagr am
Fig ure 2-1 S5PC210 Pin Map(756-FCMSP) Top View
1 2 3 4 5 6 7 8 9 101112131415161718192021222324252627282930
AVSS VSS VDD
1_E
XEIN
T _23 VSS VDD
Q_E2
VDD
Q_M2
VDD
Q_E2 VSS XMDMA
DDR_2
XM DMA
DDR_0
VDD
Q_E2 VSS XMDMD
ATA_0
XMDMD
ATA_6
XMDMD
ATA_8
XMDMD
ATA_14
XM D
MRN
VDD
Q_E2 VSS XVV
D_10
XVV
DEN
XVV
D_0
XVSY
S_OE
VDD
Q_E2 VSS XUT
XD_3
VDD
2_E VSS VSS A
BVSS XEIN
T_22
XEIN
T_24
XEIN
T _30
XEIN
T_17
XEI
NT_8
VDD
Q_M2
XADC
AIN_4
XADC
AIN_8
XADC
AIN_3
XM DMA
DDR_6
XMDMA
DDR_7
XM DMA
DDR_13
XMDMD
ATA_5
POP_VR
E
F_DQ_E2
XMDMD
ATA_15
XMDMD
ATA_11
XM DM
ADVN
XVV
D_3
XVV
D_14
XVV
D_1
XVVSY
NC_LDI
XVV
SYNC
XSPI
CSN_1
XUT
XD_2
XUCT
SN_2
XSPI
CLK_1
XSPIM
OSI_1
VDD
1_E VSS B
CVDD
2_E
XEIN
T_13
XEIN
T_31
XEIN
T _27
XEIN
T_12
XEI
NT_2
VDD
Q_M2
XADC
AIN_5
XADC
AIN_0
XADC
AIN_9
XM DMA
DDR_5
XMDMA
DDR_12
XM DMA
DDR_10
XMDMD
ATA_13
XMDMD
ATA_3
XMDMD
ATA_2
XMD
MCSN
XVV
D_9
XVV
D_6
XVV
CLK
XVV
D_4
XVV
D_22
XVV
D_23
XSPI
CSN_0
XURT
SN_2
XUR
XD_0
XSPI
CLK_0
XSPIM
ISO_0
XUR
XD_1
XURT
SN_1 C
DXEI
NT_6
XEIN
T_26
XEIN
T_18
XEIN
T _25
XEIN
T_14
XEI
NT_5
VDD
Q_M2
XADC
AIN_1
XADC
AIN_7
XADC
AIN_2
XM DMA
DDR_4
XMDMA
DDR_9
XM DMA
DDR_1
XMDMD
ATA_1
XMDMD
ATA_10
XMDM
IRQN
XMD
MWEN
XVV
D_15
XVV
D_5
XVV
D_7
XVV
D_21
XVV
D_8
XVV
D_19
XVH
SYNC
XSPIM
OSI_0
XURT
SN_0
XPWMT
OUT_2
XPWMT
OUT_0
XHDM
IXT O
XHDM
IXT I D
EVDD
Q_E1
XEIN
T_20
XEIN
T_29
XEIN
T _21
XEI
NT_4
XEI
NT_0
VDD
Q_M2
XEI
NT_1
XADC
AIN_6
XM 2
VREF
XM DMA
DDR_3
XMDMA
DDR_8
XM DMA
DDR_11
XMDMD
ATA_7
XMDMD
ATA_9
XMDMD
ATA_4
XMDMD
ATA_12
XVV
D_13
XVV
D_20
XVV
D_17
XVV
D_11
VDDQ
_EX T 1
XVV
D_12
XVV
D_2
VDDQ
_SBUS
XSBU
SCLK
XUT
XD_0
XPWMT
OUT_3
XHDM
ITX2P
XHDM
ITX 2N E
FXEIN
T_28
XEIN
T_11
XEIN
T_16
XEIN
T _15
XEIN
T_10
VDD
Q_M 2
VDD
Q_M2
VDD
Q_M 2
VDD
Q_M2
VDD
Q_M2
VDD
Q_M2
VDD
Q_M2
VDD
Q_M2
VDD
Q_M2
VDD
Q_M2 XM 2ZQ VDD3
3_ADC
VSS
_ADC
VDDQ_
MODEM
XVV
D_16
XVV
D_18
VDDQ
_EX T 2
VDDQ
_EX T 0
XSPIM
ISO_1
VDDQ
_AUD0
XSBU
SDATA
XUT
XD_1
XPWMT
OUT_1
XHDM
ITX1P
XHDM
ITX 1N F
GVDD
Q_E1
XEI
NT_3
XEI
NT_9
XEIN
T _19
XEI
NT_7
VDD
Q_M 1
VSS_HD
MI_OSC
VDD33_H
DMI_OS
C
XUCT
SN_0
XUCT
SN_1
XHDM
ITX0P
XHDM
ITX 0N G
HVDD
Q_M1
VDD
Q_M 1
VDD
Q_M1
VDD
Q_M1
VDD
Q_M1
VDD
Q_M 1
VDD11_H
DM I _PL L
VSS_
HDM I
XUR
XD_3
XUR
XD_2
XHDM
IT XC P
XHDM
ITXCN H
JVSS XOM_3 XOM_2 XOM_5 XOM_4 VDD
Q_M 1 VSS VSS VSS VSS VSS VSS VSS VSS VDD
_INT VSS VSS V SS VSS VSS VDD11
_HDM I
VSS_
HDM I
XHDM
IREXT
XI2S2
CDCLK
POP_VR
E
F_CA_E1
VSS J
KVDD
Q_E1 XOM_0 XOM_6 XOM_1 XCL
KOUT
VDD
Q_M 1 VSS VDD
_ARM
VDD
_ARM
VDD
_AR M
VDD
_ARM
VDD
_AR M
VDD
_ARM VSS VDD
_INT VSS VDD
_G3D
VDD
_G3D
VDD
_G3D
VDD
_G3D
XI2C
0SC L
XI2S
2LRCK
XI2S
1SDO
XI2S
1SC L K
XI2S
1SDI
VDD
2_E K
LVSS XNWR
ESET
XPWR
RGT O N
XNRS
TOUT
XM1
VREF
VDD
Q_M 1 VSS VDD
_ARM
VDD
_ARM
VDD
_AR M
VDD
_ARM
VDD
_AR M
VDD
_ARM VSS VDD
_INT VSS VDD
_G3D
VDD
_G3D
VDD
_G3D
VDD
_G3D
XI2C
0SDA
VDD33
A_DAC
XI2S
1LRC K
XI2S1
CDCLK
XI2S
2SDO
VDDC
A_E1 L
MXXTI VDD18
_TS
XPS
HOLD
XNR
ESET
XGNSS_
RF_RST
N
VDD
Q_M 1 VSS VSS VSS VDD
_AR M
VDD
_ARM VSS VSS VSS VDD
_INT VSS VSS VDD
_G3D VSS VSS VDD3
3_DAC
VSSA
_DA C
XI2C
1SCL
XI2S
2SDI
XMIP
IM DN0
XMIP
IM DP0 M
NVDD
Q_E1
XGNSS
_EPOCH
XGNS
S_SCL
XGNSS
_M CL K
XGNSS
_IM AG
VDD
Q_M 1 VSS VDD
_ARM
VDD
_ARM
VDD
_AR M
VDD
_ARM
VDD
_AR M
VDD
_ARM VSS VDD
_INT VSS VDD
_G3D
VDD
_G3D
VDD
_G3D
VDD
_G3D
VDD3
3_AB B
VSS
_DAC
XI2C
1SDA
XI2S
2SC L K
XMIP
IM DN1
XMIP
IM DP1 N
PVSS XGNSS_
GPIO_2
XGNSS_
CLKREQ
XGNSS_
RT C _OU
T
XGNSS
_ISIGN
VDD
Q_M 1 VSS VDD
_ARM
VDD
_ARM
VDD
_AR M
VDD
_ARM
VDD
_G3D
VDD
_G3D
VDD
_G3D
VDD
_G3D
VDD
_G3D
XDAC
IREF
XDAC
VREF
POP_
ZQ_E1
VDDC
A_E1
XMIPI
MDNCLK
XM IPI
MDPCLK P
RVDD
_ARM
VDD
_AR M
VDD
_ARM
VDD
_AR M
VDD
_ARM
VDD
_ARM
VDD
_ARM
VDD
_ARM
VDD
_ARM
VDD
_AR M
VDD
_ARM VSS VSS VDD
_G3D VSS VSS XDAC
COMP
VDDQ
_L C D
XDA
COUT
VDD
1_E
XMIP
IM DN2
XMIP
IM DP2 R
TVDD
_ARM
VDD
_AR M
VDD
_ARM
VDD
_AR M
VDD
_ARM
VDD
_ARM
VDD
_ARM
VDD
_ARM
VDD
_ARM
VDD
_AR M
VDD
_ARM
VDD
_G3D
VDD
_G3D
VDD
_G3D
VDD
_G3D
VDD
_G3D
XCID
ATA_5
XCID
ATA_2
XCID
ATA_0 VSS XMIP
IM DN3
XMIP
IM DP3 T
UVSS XGNSS
_QM AG
XGNSS_
GPIO_4
XGNS
S_SDA
VDD3
3_ABB XM 1ZQ VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VDD18
_M IP I
VDD11_
M
IPI_PL L
XCID
ATA_3
POP_VR
E
F_CA_E2
XMIP
ISDN0
XMIP
ISDP0 U
VVDD
1_E
POP_VR
E
F_DQ_E1
XGNSS
_SY NC
XGNSS_
GPIO_3
VSS_
APLL
VDD11
_AP LL VSS VDD
_INT
VDD
_INT
VDD
_INT
VDD
_INT
VDD
_INT
VDD
_INT
VDD
_IN T
VDD
_INT
VDD
_INT
VDD
_IN T
VDD
_INT
VDD
_INT VSS VSS_
MIPI
VDD11
_M IP I
XM IPIV R
EG _0P4V
POP_
ZQ_E2
XMIP
ISDN1
XMIP
ISDP1 V
WVSS XGNSS_
GPIO_5
XGNSS_
GPIO_6
XGNSS_
GPIO_1
VSS_
MPLL
VDD11
_M PL L VSS VDD
_INT
VDD
_INT
VDD
_INT
VDD
_INT
VDD
_INT
VDD
_INT
VDD
_IN T
VDD
_INT
VDD
_INT
VDD
_IN T
VDD
_INT
VDD
_INT VSS VSS_
MIPI
VDD11
_M IP I
XCIF
IELD
VDD
2_E
XMIPI
SDNCLK
XMIPI
SDPCLK W
YVDD
2_E
XGNSS_
GPIO_7
XGNSS_
GPIO_0
XVPLL
FILT ER
VSS_
VPLL
VDD11
_VP LL VSS VSS VSS VSS VSS VSS VSS VDD
_IN T
VDD
_INT VSS VSS V SS VSS VSS VSS_
MIPI
VDD11
_M IP I
XCID
ATA_7
XCI
PCLK
XMIP
ISDN2
XMIP
ISDP2 Y
AA XTSEXT
_RES
XUHOS
TDATA2
XGNSS
_QSIGN
XEPL L
FILT ER
VSS_
EPLL
VDD11
_EP LL VSS VDD
_INT
VDD
_INT
VDD
_INT
VDD
_INT
VDD
_INT
VDD
_INT
VDD
_IN T
VDD
_INT
VDD
_INT
VDD
_IN T
VDD
_INT
VDD
_INT VSS VDDQ
_CAM
VDD11_
MI
PI2L_PLL
XCID
ATA_4
XCI
HREF
XMIP
ISDN3
XMIP
ISDP3 AA
AB VDD
Q_E1
XUHOS
TDATA1
XEFFSO
URCE_0
VDD11H
_UHOST
VSS12
_UHOST
VDD12
_UHOS T VSS VDD
_INT
VDD
_INT
VDD
_INT
VDD
_INT
VDD
_INT
VDD
_INT
VDD
_IN T
VDD
_INT
VDD
_INT
VDD
_IN T
VDD
_INT
VDD
_INT VSS VSS_M
IPI2L
VDD11_
MIPI2L
XCIV
SYNC VSS XM IPI
2LM D N0
XMIPI
2LM D P0 AB
AC XUHO
STDP
XUHO
STDM
XUHOST
STROBE
2
VSSH_
UHOST
VSSAC
_UHOST
VDD33
_UHOS T
VSS_M
IPI2L
VDD11_
MIPI2L
XM IP I2L
V
REG_0P4
VDDC
A_E2
XMIPI2
LMDNCL
K
XM IP I2
LMDPCL
K
AC
AD VSS XUOT
GVBUS
XUHOST
STROBE
1
VSSD_
UHOST
VSSA_
UHOST
VDD11
_UHOS T
VDD18_
MIPI2L
XCIC
LKENB
XCID
ATA_6
VDD
1_E
XMIPI
2LM D N1
XMIPI
2LM D P1 AD
AE VDD
Q_E1
XUOT
GREXT
XUHOS
TREXT
VSSAC
_UOT G
VSSA
_UOT G
VDD33
_UOT G
VDDQ
_SY S0
VDD_
ALIVE
VDDQ
_SYS1
VDDQ
_AUD1
VDD11
D_SATA
VDD33
A_SATA
XM0A
DDR_3
VDD
_INT
XM0F
RNB_1
XM0
OEN
XM0D
ATA_2
VDD
Q_M0
VDD
Q_M 0
XMM C1
DAT A_1
XMM C0
DATA_3
XMM C
0CM D
XMM C
3CLK VSS XJTDO
XUHOST
OVERCU
R
XUHOS
TPWREN
XCID
ATA_1
XMIPI
2LS DN 0
XM IPI
2LSDP0 AE
AF XUO
TGDP
XUO
TGDM
XUO
TGID
VDD
_RTC
VSSD
_UOT G
VDDQ
_CK O
VDD11
_UOT G
VDDQ
_KE Y
XM0A
DDR_7
VDDQ
_GPS0
VDD11
T_SATA
VDD11
A_SATA
XM 0AD
DR_14
VDD
_INT
VDDQ
_GP S1
XM0F
RNB _3
XM0D
ATA_1
XM 0D
ATA_7
XM0D
ATA_6
XMM C1
DAT A_3
VDDQ_
MM C01
VDDQ
_MM C 3
VDDQ
_MM C2
VDDQ
_SYS0
VDDQ
_CAM XJTCK XJT
RST N XJTM S
XM IPI2
LSDNCL
K
XM IPI2
LSDPCL
K
AF
AG VDD
Q_E1
XI2S0
SDO_1
XI2S0
SDO_0
XRTC
CLKO
VDDQ_
CKEM 1
VDDQ_
CKEM2
XM0AD
DR_13
XM0AD
DR_15
XM0C
SN_1
XM0AD
DR_12
XSAT A
REFRE S
XSATA
ATEST
XM0A
DDR_6
VDD
_INT
XM0A
DDR_2
XM0C
SN_0
XM0D
ATA_9
XM 0D
ATA_8
XM 0DA
TA_14
XM0D
ATA_3
XMM C
1C M D
XMM C0
DAT A_2
XMM C0
DAT A _0
XMM C
3CDN
XMM C3
DATA_1
XMM C2
DAT A_1 XJT DI XUOTGD
RVV B US
XMIPI
2LS DN 1
XM IPI
2LSDP1 AG
AH XUS
BXTI
XUS
BXTO
XI2S
0SC L K
XI2S
0SDI
XI2S0
SDO_2
XRT
CXTO
XRT
CXTI
XM0AD
DR_10
XM0A
DDR_4
XM 0A
DDR_9
XM0A
DDR_1
XM0A
DDR_5
XM 0B
EN_1
VDD
_INT
XM0F
RNB_0
XM0
WEN
XM 0DA
TA_11
XM0DA
TA_10
XM0D
ATA_0
XM0DA
TA_15
XMM C1
DATA_0
XMM C
0CDN
XMM C3
DAT A _2
XMM C3
DAT A _0
XMM C3
DATA_3
XMM C2
DAT A_0
XMM C
2CDN
XJDB
GSEL
POP
_T Q1
VDD
2_E AH
AJ VSS VDD
2_E
XI2S
0LRCK
XI2S0
CDCLK
XM0
FCLE
XM0F
RNB_2
XM0AD
DR_11
XM0A
DDR_8 VCC_O POP_
CEB_O
XM 0B
EN_0
XM0A
DDR_0
XM 0C
SN_2
VDD
_INT
XM 0W
AITN
XM0C
SN_3
XM 0DA
TA_12
XM 0D
ATA_4
XM 0DA
TA_RDN
XM0D
ATA_5
XMM C1
DATA_2
XMM C0
DAT A_1
XMM C
0CLK
XMM C
1CLK
XMM C2
DATA_3
XMM C2
DAT A_2
XMM C
2C M D
POP
_TQ0
VDD
1_E VSS AJ
AK VSS VSS VDD
1_E
VDD
Q_E1
XM0
FALE VSS XSAT
ARX2P
XSAT
ARX2M
XSAT
ATX2M
XSAT
ATX2P
XSATAR
EFCLKP
XSATAR
EFCLKM VSS VDD
_INT VSS VCC
Q_O VCC_O VSS VCC
Q_O
XM0DA
TA_13
XMM C
1CDN VSS VCC
Q_O
XMM C
3C M D VSS VCC_O XMM C
2CL K
VDDC
A_E2 VSS VSS AK
1 2 3 4 5 6 7 8 9 101112131415161718192021222324252627282930
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-68
This Document can not be used without Samsung's authorization
UCP300
17 16 15 14 13 12 11 10 9 8 765432 1
ANC MEM_A_8 MEM_BFC
LKO_1
MEM_SDC
LKO MEM_A_0 MEM_BC0
_n MEM_A_1 MEM_A_2 MEM_A_3 MEM_A_4 MEM_AD_
9
FCDP_RB
nVPLL VDD_ VBA
T_SD2 SD2_SW SD2_SW NC A
BMEM_A_9 MEM_A_2
3
MEM_BFC
LKO_0
MEM_CK
E
MEM_RD_
n
MEM_WR
_n VDD_I O 1 8 MEM_BC2
_n MEM_A_6 FWP MEM_CAS
_n
DSP_AUDI
O_IN1 xVIO_12 xx
VSS_SD2 B
CMEM_A_1
0
MEM_A_2
2xx x MEM_A_5 xx
MEM_A_7 xxxx
VUSB_PD VD D_VS D
2SD2_FB VDD_VBA
T_SD1 C
DMEM_A_1
1
MEM_A_2
1xVSS MEM_AD_
13
MEM_AD_
12
MEM_AD_
11
MEM_AD_
7VSS MEM_AD_
3xxx
ANAMON SD1_FB xSD1_SW D
EMEM_A_1
2
MEM_A_2
0xMEM_RAS
_n VDDCO RE VDDCO RE
_EBU
MEM_AD_
8VDDCORE MEM_AD_
6
MEM_AD_
5xxx
VSS FSS xSD1_SW E
FMEM_A_1
3
MEM_BC1
_n VDD_IO18 VSS MEM_AD_
15 xx x MEM_AD_
4xx
TRIG_B xVRTC VDD _ VB A
T_PMU
VUSB_AN
AVSS_SD1 F
GMEM_A_1
4
MEM_BC3
_n
MEM_A_1
9
MEM_BE0
_n
MEM_BE1
_n xMEM_AD_
1
MEM_AD
V_n
MEM_AD_
2VSS x xxx x VPMU VSIM G
HMEM_A_1
5
MEM_A_1
7xMEM_CS2
_n
MEM_CS3
_n xMEM_AD_
0
MEM_AD_
10 VDDCORE RESERVE
DxM1 xx
AGND ON1 VUSB_IO H
JVDD_IO18 MEM_A_1
6
MEM_A_1
8
MEM_CS0
_n
MEM_CS1
_n
MEM_AD_
14 VSS xx
VSS xM2 M3 M4
RESET_P
WRDWN_
N
ON2_N VREF J
KMEM_WA
IT_n VDD_MIPI xVDDCORE VSS xVDD_IO18 EINT3 VDDCORE VDD_IO18 ETM11_T
RACECLK x
ETM11_T
RACEPKT
4
TM_EN REF_CLK
_EN
RESET_B
B_N
ETM11_T
RACEPKT
7
K
LF32K VSS xVS S MIPI_HSI
_
RX_RD Y xMIPI_HSI
_
TX_FLG VSS
ETM11_T
RACEPKT
5
VDD _MM
C
MMCI1_C
MD x
ETM11_T
RACEPKT
6
ETM11_T
RACEPKT
2
x
ETM11_T
RACEPKT
3
ETM11_T
RACEPKT
1
L
MOSC32K VSS MIPI_HSI
_
TX_RDY
MIPI_HSI
_
RX_FLG
MIPI_HSI
_
TX_WAKE xx x EINT1 EINT2 xMMCI1_D
AT_3
MMCI1_D
AT_0
MMCI1_D
AT_2
MMCI1_C
LK
MMCI1_D
AT_1
ETM11_T
RACEPKT
0
M
NVDD_RTC USB_I D xVSS_USB MIPI_HSI
_
RX_DATA
MIPI_HSI
_
TX_DATA VDD_IO18 I2C1_SCL VPP CLKOUT0 xx
MMCI1_C
DT_OUT0 xI2S2_CLK
1
I2S2_CLK
0N
PUSB_TEST VBUS xVDD_USB
_ANA
MIPI_HSI
_
RX_WAK
E
SYS_CLK VSS_PLL CLKOUT2 I2C1_SDA VSS HW_MON
2xx x T_OUT1 I2S2_TX I2S2_RX P
RUSB_DMI
NUS
VDD_USBI
Oxx x VDD_PLL xx
VSS V DDCORE xHW_MON
1RESET2_N NC xI2S2_WA1 I2S2_WA0 R
TUSB_DPL
US
USB_TUN
E
VDD_USB
_PD CC_RST CC_IO VDD_SIM DMINUS VDD_DIG
RF
XRESET_
N
Di3_TX_D
ATX
Di3_TX_D
AT TCK TRIG_IN TRST_n USIF1_TX
D_MTSR
USIF1_RX
D_MRST
USIF1_SC
LK T
UNC VSS VDD_IO12 CC_CLK HSIC_USB
_DATA
HSIC_USB
_STRB DPLUS ALERT_N SYSCLKE
N
Di3_RX_D
ATX
Di3_RX_D
AT TMS TDI TDO USIF1_RT
S_N
USIF1_CT
S_N NC U
17 16 15 14 13 12 11 10 9 8 765432 1
XG626 Ba ll Map (Bottom View) 6 / 15/2010 7.5x7.5 FBGA
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-69
This Document can not be used without Samsung's authorization
U501
TOP VIEW
A
B
C
D
E
F
G
H
J
K
OUTF LXF PGN
DF
PGN
D6 LX6 INB
06A
GND
M
I N_
MOTOR
INB
02
NC
MDN
INB
06B
LDO
13
PGN
D6
PGND
F
LXFOUTF
D
GND2
FGNDFGND
M
PWM
GPIO
6
MR2\
IRQ1\
GSMB
FLED
_EN
32kHz
CP
32kHz
AP
XOUTXIN
IN_
GPIO2
BUCK
6
GPIO
7
SCL
RSO\COMP
VCC_
32CP
SAFE
OUT2
SAFE
OUT1
VL
GPIO
1
MR1\
GPIO
9
SDA
JIG
ON
PWR
ON
V
COIN
DET
BAT\
BATTBATT
GPIO
3
GPIO
8
GPIO
11
SET3
ONO\
PWR
HOLD
18
VLL
VIC H
G
DCINDCIN
GPIO
5
GPIO
10
SET1SET2
CB
18R
NC1
28T1
18T
NC2
BCDN1
GPIO
_GND
PWR
EN
VTTAIN
28R
NO1
28T
COM1
28T
NO2
UT1SL1DP2
LDO
12
LDO
21
SCA
FG
REF
INPA
THRM
VBAT
TFG
18R1UR2SR2
COM
N1
LDO
18
INL
21
LX6
BUCK
6EN
VBFG
ALRT
28R
COM2
18T2
MIC_
USB
COM
P2
10987654321
L
M
11 12 13
N
FLED
1
FLED
2NC
INL
4
LDO
10
LDO
2
SNSKVSS
SDA
FG
28R2BOOTIDBUID INL
3
INL
2
INL
1
INL
6
LDO
5
INB
01
LX1
PGN
D
1
BUCK
1
BUCK
4
INB
05
BUCK
5
PGN
D
5
LDO
3
LDO
8
LDO
1
INL
5
LDO
7
INB
01
LX1
PGN
D
1
PGN
D
4
LX4
INB
04
LX5NC LDO
6
LDO
4NC
MDP
M
GAI N
IN_
GPIO1
GPIO
0
GPIO
2
GPIO
4
D
GND1
LDO
11
LDO
14
BUC K
2
PGN
D2
BUC K
3
INB
03
BUC K
7
PGN
D
7
A
GND
LDO
17
LDO
16
LX2
PGN
D3
LX3
INB
07
LX7
PGN
D
7
GND
LDO
9
LDO
15
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-70
This Document can not be used without Samsung's authorization

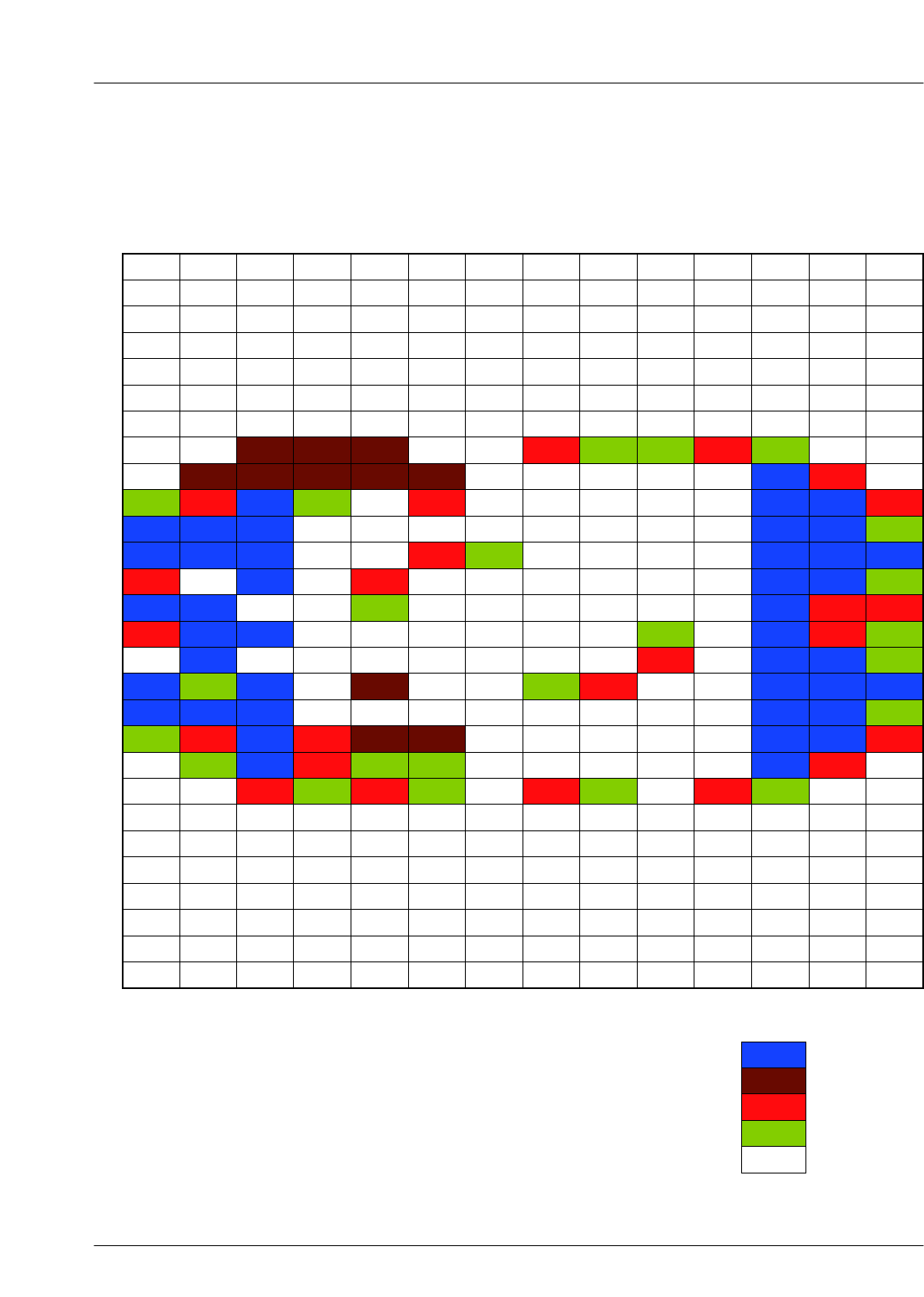

UME300
3. PIN CONFIGUR
A
TION
169 FBGA: Top View (Ball Down )
-1 2 3 4567 8 9 10 11 12 13 14
A---DNU -DNU --DNU -DNU ---
B-DNU - ---- - --- - DNU -
C- - - ---- - ---- - -
DDNU - - ---- - ---- - DNU
E- - - ---- - ---- - -
F- - - ---- - ---- - -
G- - - ---- - ---- - -
HDNU NC DAT0m DAT1m DAT2m NC NC VDDQd VSSQd VSSd VDDd VSSQd NC DNU
JNC
DAT3m DAT4m DAT5m DAT6m DAT7m NC NC NC NC NC DQ15d VDDQd NC
KVSSd VDDIm A4d VSSQm NC VDDQm NC NC NC NC NC DQ14d DQ13d VDDQd
LA5d A6d A7d NC --- - -- - DQ11d DQ12d VSSQd
MA12d A11d A8d - NC VDDm VSSm NC NC NC -DQ10d DQ9d DQ8d
NVDDd NC A9d - VDDm -- - - NC -UDQSd UDMd VSSQd
PCKEd /CSd NC -VSSm -- - - NC -CKd VDDQd VDDd
RVDDQd /RASd /WEd - NC -- - - VSSm - /CKd VDDQd VSSd
TNC /CASd NC -NC -- - - VDDm -LDQSd LDMd VSSQd
UBA1d VSSd A10d - RSTm NC NC VSSm VDDm NC -DQ5d DQ6d DQ7d
VBA0d A0d A1d ---- - -- - DQ3d DQ4d VSSQd
WVSSd VDDd A2d VDDQm CMDm CLKm NC NC NC NC NC DQ1d DQ2d VDDQd
YNC
VSSQm A3d VDDQm VSSQm VSSQd NC NC NC NC NC DQ0d VDDQd NC
AA DNU NC VDDQm VSSQm VDDQm VSSQm NC VDDQd VSSQd NC VDDd VSSQd NC DNU
AB - - - ---- - ---- - -
AC - - - ---- - ---- - -
AD - - - ---- - ---- - -
AE DNU - - ---- - ---- - DNU
AF - - - ---- - ---- - -
AG -DNU - ---- - --- - DNU -
AH ---DNU -DNU --DNU -DNU ---
Mobi le SDRAM
moviNAND
Pow er
Ground
NC / DNU
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-71
This Document can not be used without Samsung's authorization

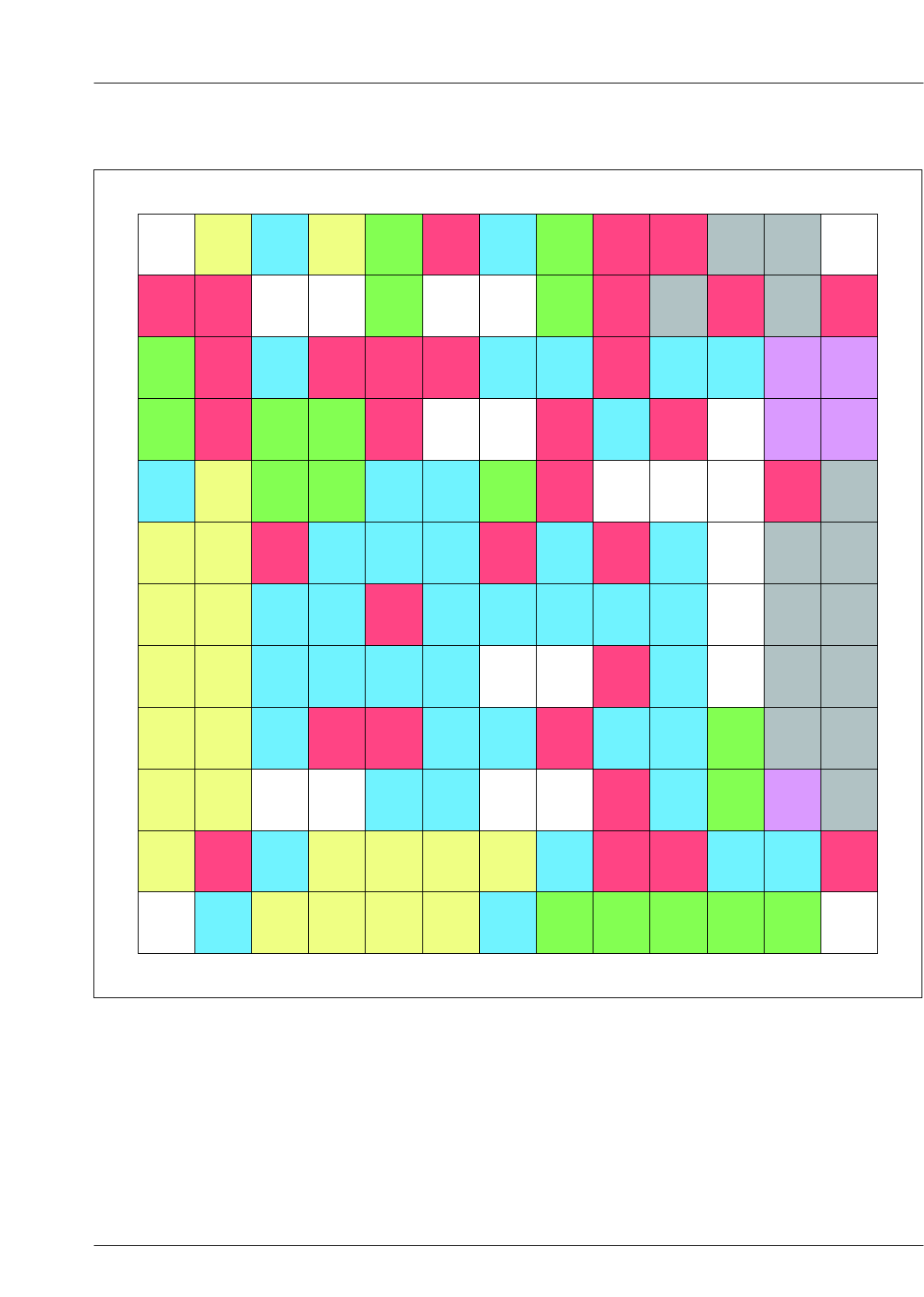

U100
Figure 2 Ball Diagram PG-WFWLB- 138- 2 (Top View)
A A
B B
C C
D D
E E
F F
G G
H H
J J
K K
L L
M M
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
RD_L1 RD_L1X
RD_L2 RD_L2X RD_M RD_MX
RD_H RD_HX
RX_L1
RX_L1XRX_L2
RX_L2X RX_M1
RX_M1XRX_M2
RX_M2X RX_H1
RX_H1XRX_H2
RX_H2X
PM_LPM_H
PA_RF
PA_PO
W_DET
VSPI
SPI_CL
K
SPI_SS
SPI_DR
W
GPO1
GPO2
GPO3
GPO4 GPO5 GPO6
GPO7
GPO8
PA_BIA
S
PA_RA
MP
MI1
MI2
DI3_TX_
DAT
DI3_TX_
DATX
DI3_RX_
DAT
DI3_RX_
DATX
RESET_
N
AFC_DA
C
SYS_CL
K
SYS_CL
K_EN
REF_CL
K_EN
FSYS1 FSYS1_
EN
FSYS2FSYS2_
EN
FSYS3 FSYS3_
EN
XO XOX
CLK_O
N
XO_EXT
VDD2V5
_RCRF
VDD2V5
_RCBB
VDD1V8
_RCRF
VDD1V8
_RCBB
VDD1V8
_RCLO
VDD1V8
_RCMS
VDD1V8
_RXPLL
VDD1V8
_RXDC
O
VDD2V5
_RXDC
O
VDD2V5
_TXBIA
S
VDD_TX
RF
VDD2V5
_TXDCO
VDD1V8
_TXDCO
VDD1V8
_FBR
VDD1V8
_TXLO
VDD1V8
_TXMS
VDD1V8
_RFC
VDD2V5
_RFC
VDD1V8
_DIG
VDD1V2
_DIG
VDD2V5
_FSYS
VDD1V8
_SCU
VDDIO
XO_SUP
CEXT_R
XPLL
CEXT_T
XMS
CEXT_T
XPLL
CEXT_D
CXO
VDDBA
T_TXRF
D2B_OU
T_TXRF
VDDBA
T
D2B_OU
T
VDD_TE
ST
DNGDNG
DNGDNGDNGDNGDNG
GND
DNGDNGDNG
GND GND GND GND GND
GND GND GND GND GND GND GND
DNGDNGDNGDNGDNG
DNGDNGDNGDNGDNG
DNGDNGDNG
DNGDNGDNGDNG
DNGDNG
NC NC
NC NC
NB NB NB NB
BNBNBN
NB NB
NB
NB
BNBNBN
BNBNBNBN
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-72
This Document can not be used without Samsung's authorization
U103
Pin Out
B2
VDD_IO
B4
SPI_SS
D4
SPI_
CLK
C4
SPI_
DRW
A1
VSNS_
2V85
C2
VSNS_
1V8
A2
OUT
3B
C3
VSNS_
1V2
B1
LX3A
D3
LX1
C1
VPWR
D1
LX2
A4
VANA
B3
CLK_
ON
D2
PGND
A3
AGND
Bumps Down
U104
Pin Out
B2
VDD_IO
B4
SPI_SS
D4
SPI_
CLK
C4
SPI_
DRW
A1
VSNS_
2V85
C2
VSNS_
1V8
A2
OUT
3B
C3
VSNS_
1V2
B1
LX3A
D3
LX1
C1
VPWR
D1
LX2
A4
VANA
B3
CLK_
ON
D2
PGND
A3
AGND
Bumps Down
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-73
This Document can not be used without Samsung's authorization

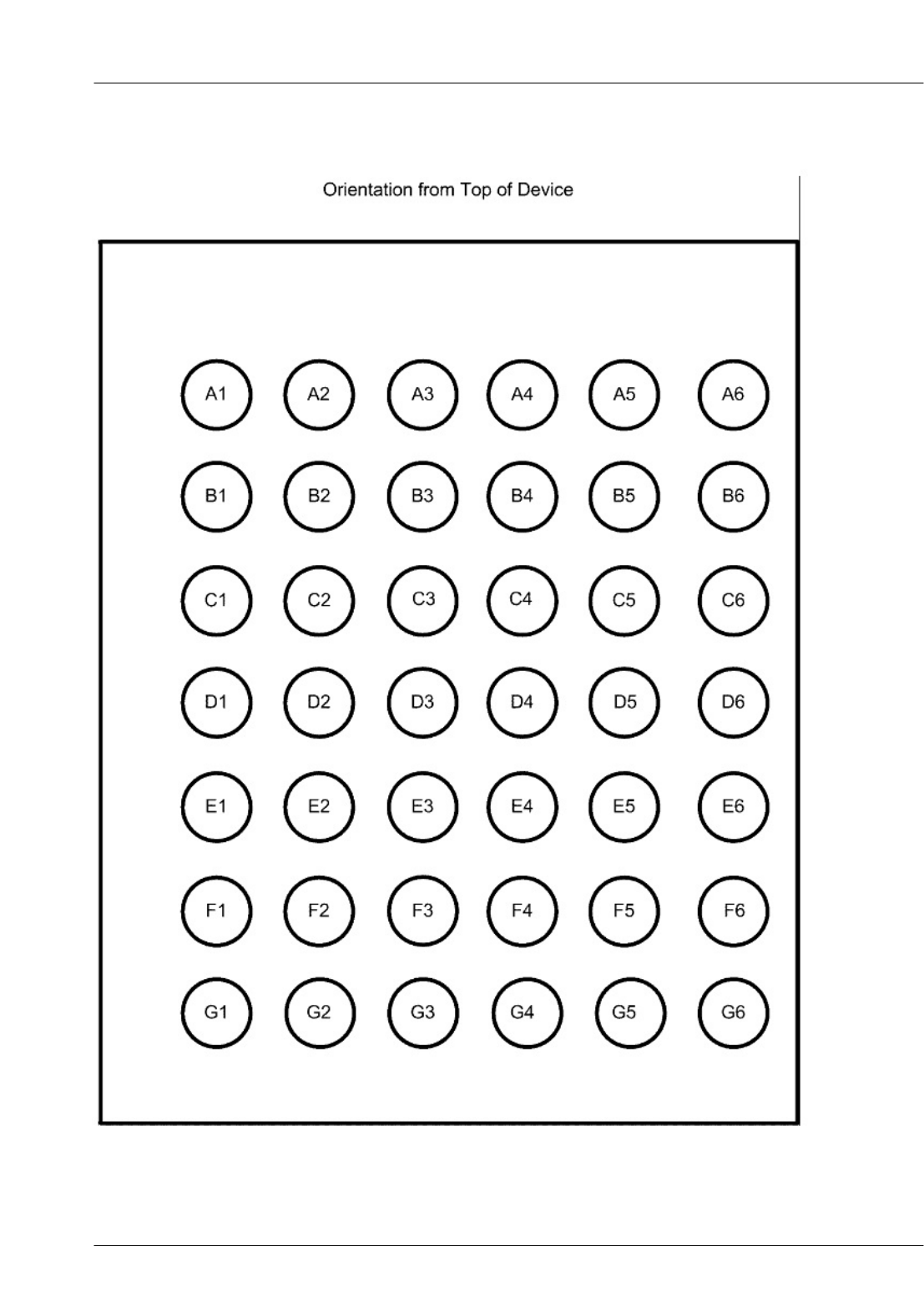

U708
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-74
This Document can not be used without Samsung's authorization

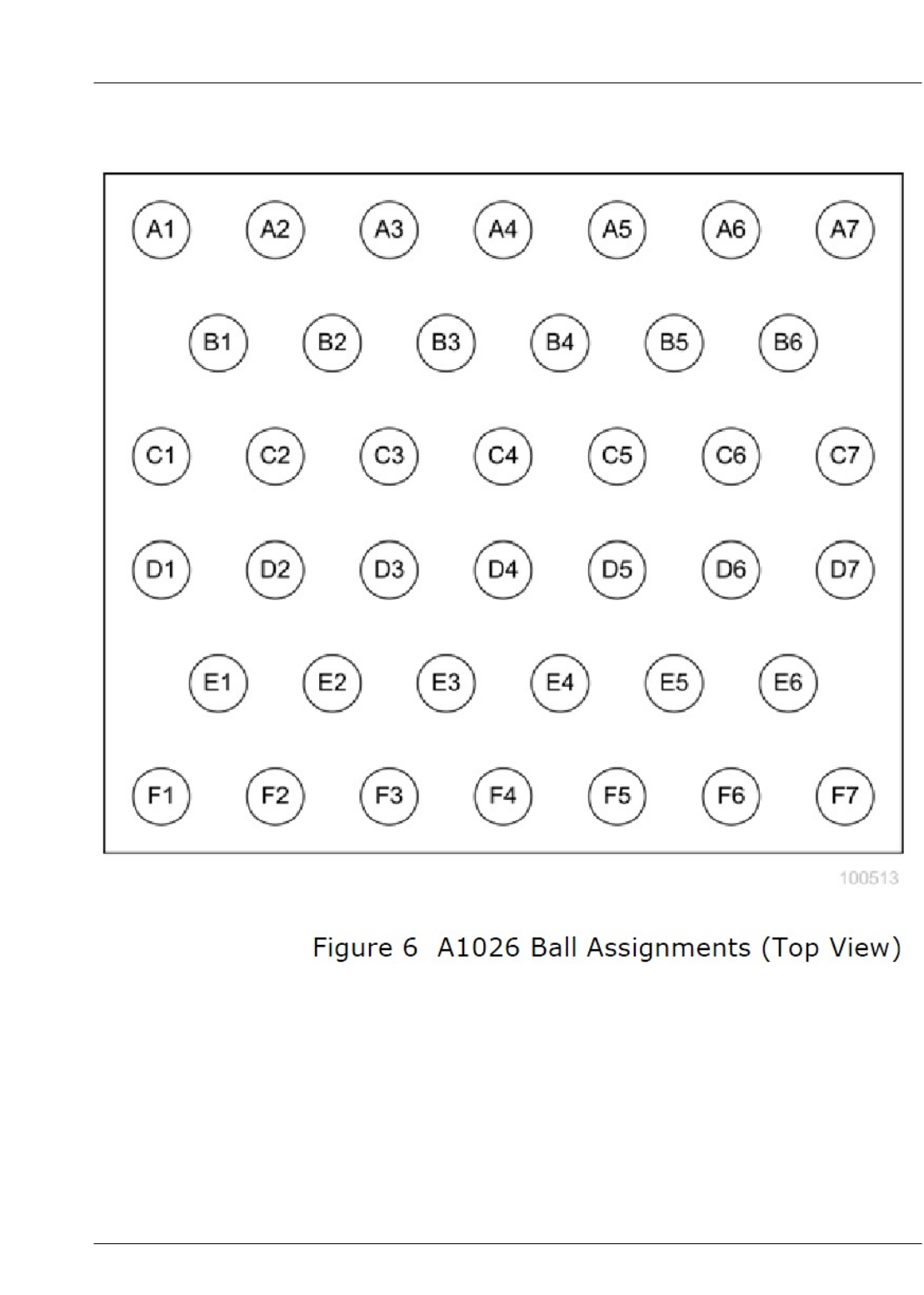

U601
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-75
This Document can not be used without Samsung's authorization
U602
SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-76
This Document can not be used without Samsung's authorization
U202
SAMSUNG Proprietary-Contents may change without notice
9. Reference Abbreviate
This Document can not be used without Samsung's authorization
9-1
Reference Abbreviate
―AAC:Advanced Audio Coding.
―AVC :Advanced Video Coding.
―BER :Bit Error Rate
―BPSK:Binary Phase Shift Keying
―CA :Conditional Access
―CDM :Code Division Multiplexing
―C/I :Carrier to Interference
―DMB :Digital Multimedia Broadcasting
―EN :European Standard
―ES :Elementary Stream
―ETSI:European Telecommunications Standards Institute
―MPEG:Moving Picture Experts Group
―PN :Pseudo-random Noise
―PS :Pilot Symbol
―QPSK:Quadrature Phase Shift Keying
―RS :Reed-Solomon
―SI :Service Information
―TDM :Time Division Multiplexing
―TS :Transport Stream
