GSM TELEPHONE
SGH-i560V
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts List
6. Main Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Flow Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
Instructions
Samsung Electronics Co.,Ltd.
2007. 11 Rev.1.0
ⓒ
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast & Africa mea.samsungportal.com
GSPN (Global Service Partner Network)
SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test, because the specification of cellular phone is sensitive for
surrounding interference(RF noise).
●Be careful to use a kind of magnetic object or tool, because performance of parts is damaged by the
influence of magnetic force.
●Surely use a standard screwdriver when you disassemble this product, otherwise screw will be worn
away.
●Use a thicken twisted wire when you measure level.
A thicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because a repair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembling charger.
●Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.
SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. , otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum
plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is connected
completely to the proper place or a circuit board.
SAMSUNG Proprietary-Contents may change without notice
2. Specification
This Document can not be used without Samsung's authorization
2-1
EGSM 900 DCS 1800 PCS 1900 WCDMA 2100
Freq. Band[MHz]
Uplink/Downlink
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
1920~1980
2110~2170
ARFCN range 0~124 &
975~1023 512~885 512~810 UL:9612~9888
DL:10562~10838
Tx/Rx spacing 10MHz 20MHz 20MHz 130MHz
Mod. Bit rate/
Bit Period
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
3.84Mcps
(chip rate)
Time Slot Period/
Frame Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
Frame length : 10ms
Slot length : 0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK QPSK
HPSK
MS Power 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm 24dBm~-50dBm
Power Class 4
(max +33dBm)
1
(max +30dBm)
1
(max +30dBm)
3
(max +24dBm)
Sensitivity -102dBm -100dBm -100dBm -106.7dBm
TDMAMux888
Cell Radius 35Km 2Km 2Km 2Km
2-1. GSM General Specification
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
2-2
TX Power
control level PCS1900
030±3dBm
128±3dBm
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level
GSM850
GSM900
533±2dBm
631±2dBm
729±2dBm
827±2dBm
925±2dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3 dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
030±3dBm
128±3dBm
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
2-2. GSM TX power class
SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
HSDPA/UMTS, EDGE, GPRS
Bluetooth v2.0 + EDR
USB v2.0 HS compatible
Camera 3Mega x 9 Digital Zooming and camcorder
FMRadio
Instant Messaging capability
E-mail
Featured applications provide alarms, calendar, calculator, record audio, converter, timer, stopwatch,
and world time.
File viewer (MS office, PDF)
Multimedia Message Service (MMS)
Multimedia capability (with included Media player)
PhotocallerID
Speakerphone capability
WEB/WAP browser (HTMS, xHTML, WML)
SAMSUNG Proprietary-Contents may change without notice
Product Function
3-2
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
4-1. Software Adjustments
- There is 2 set to download the binary image into your device.
[First set]
1. JIG BOX (UMTS TEST JIG; GH80-03308A)
2. USB Cable : JIG to PC
3. Test Cable : JIG to SGH-i560 (GH39-00890A)
4. Power Cable : JIG to power supply
5. Serial Cable : SGH-i560 to PC
6. Power Supply
7. Rf Cable : SGH-i560 to Agilent 8960 or CMU200 (GH39-00397A)
8. Test Cable : JIG to SGH-i560 (GH39-00886A)
8
SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
[Second Set]

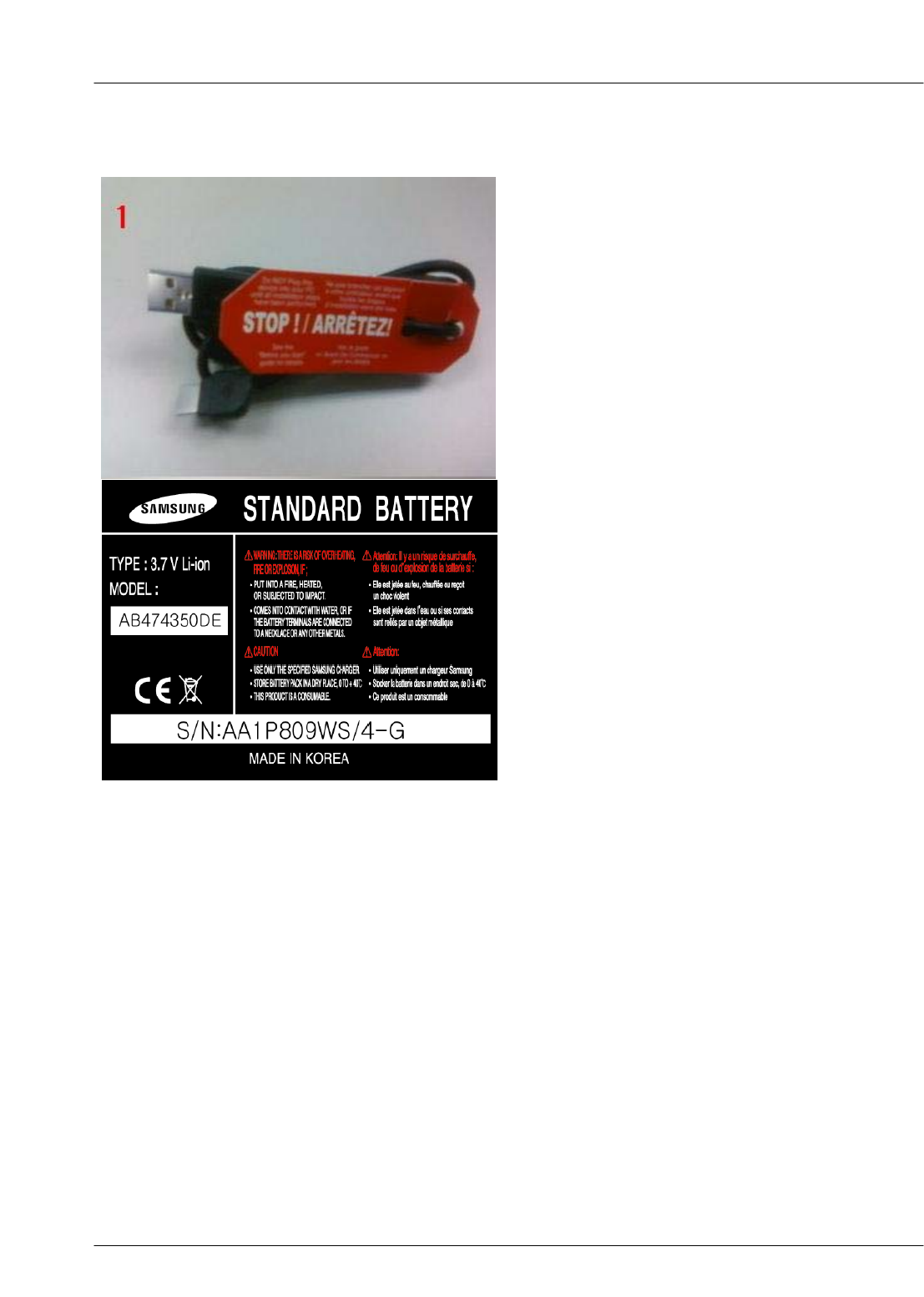

USB Data Link Cable : SGH-i560 to PC (GH39-00922A)
Standard Battery for SGH-i560 (GH43-02992A)
SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
4-2. Software Download
4-2-1. Pre-requisite for Download
SGH - i560 Mobile Device
Apollo v4.01.exe : Downloader Application for SGH-i560
USB Download Driver : SS60_Downloader_Driver.zip
Rom Image : PDA(*.IMG), MODEM(*.BIN) images
Equipment set for Download.
SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization
4-2-2. Concupts & cautions.
You can download PDA or MODEM separately. But We are always recommended to
download both at the same time using same version of rom image.
To download an image, the phone need to be set to a proper download mode.
There are 3 download modes.
PDA download : Hold 1, 4 keys and power on -> Blue screen with some information.
MODEM download : Hold 7, * keys and power on -> Blinking "MODEM DOWNLOAD"
on blue screen
All download : Hold 4, 7 keys and power on -> Blinking "ALL DOWNLOAD" on blue screen
For PDA image download, the phone shows download progress on the screen
For MODEM image download, the phone shows RGBW/B Screen.
For All download mode, MODEM image is downloaded first and then PDA
downloading starts.
After downloading PDA, the phone will be reboot.
Do NOT interrupt downloading process or the phone will be damaged. You would be
unable to boot up the phone or to re-flash the phone. Let it finish downloading
process even though you are flashing wrong images.
SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization
4-2-3. USB Driver installation for PDA
Execution Apollo.exe.
SGH-i560 connect to the Host computer using download equipment set.
Hold “1+4” key and insert power supplied test cable when use equipment set 1
or Hold “1+4” key and press power on key when use equipment set 2.
Install PDA side driver.
Follow New H/W Installation Manager.
Select ‘IBootHostUSB.inf’file under ‘i560_Apollo_Drivers\PDA_driver’ folder when
Windows asks for new h/w driver. It is safe to choose “Yes” for the waring window.

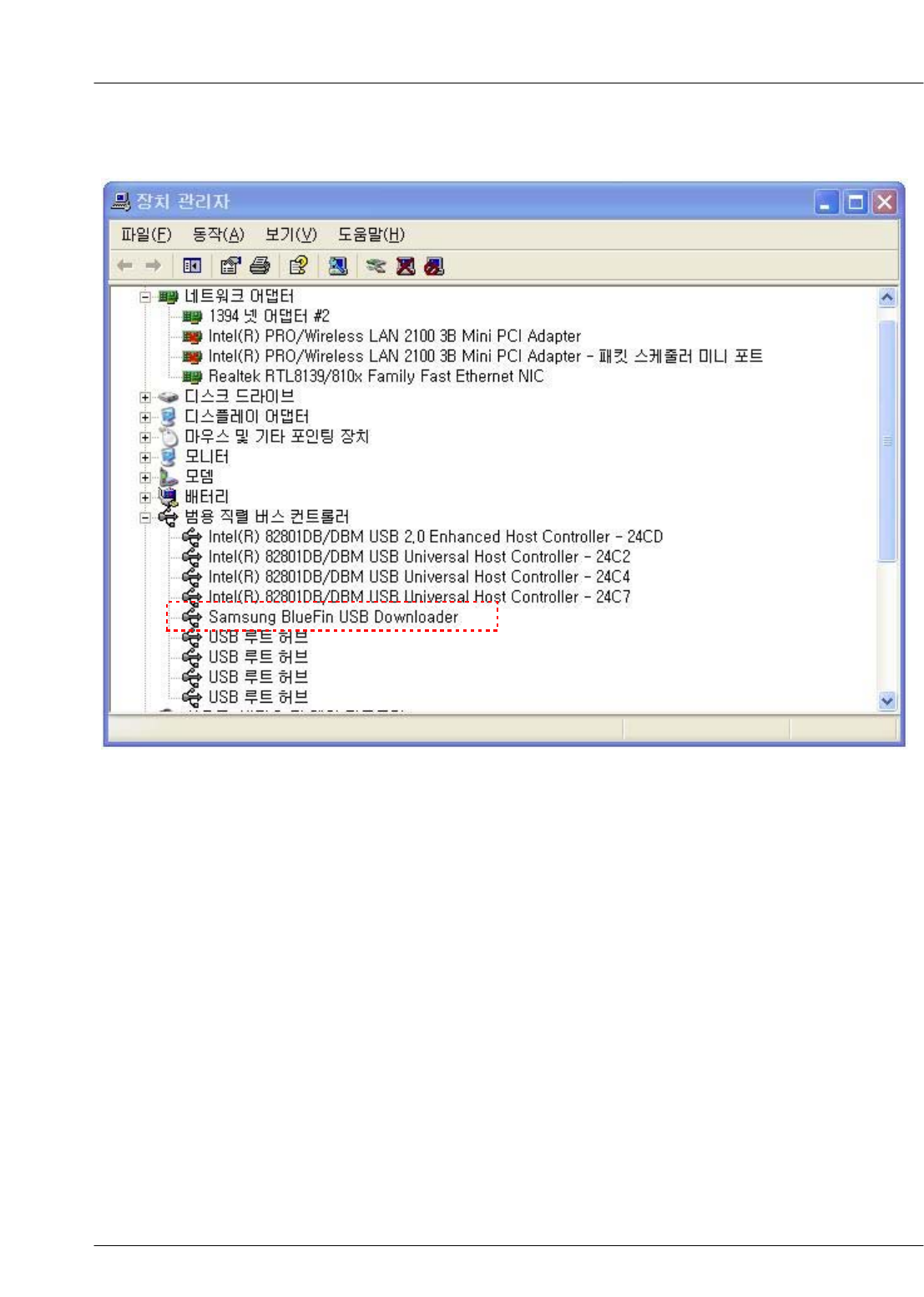

Confirm “SAMSUNG BlueFin USB Downloader” Installed.
Refer to Next Page.
** If Windows doesn’t ask for USB driver, it means USB driver installation was
failed before. Open Hardware Manager then delete devices with?or!mark then try
again. If it doesn’t work, you need to right click on the device then try Driver
Update.

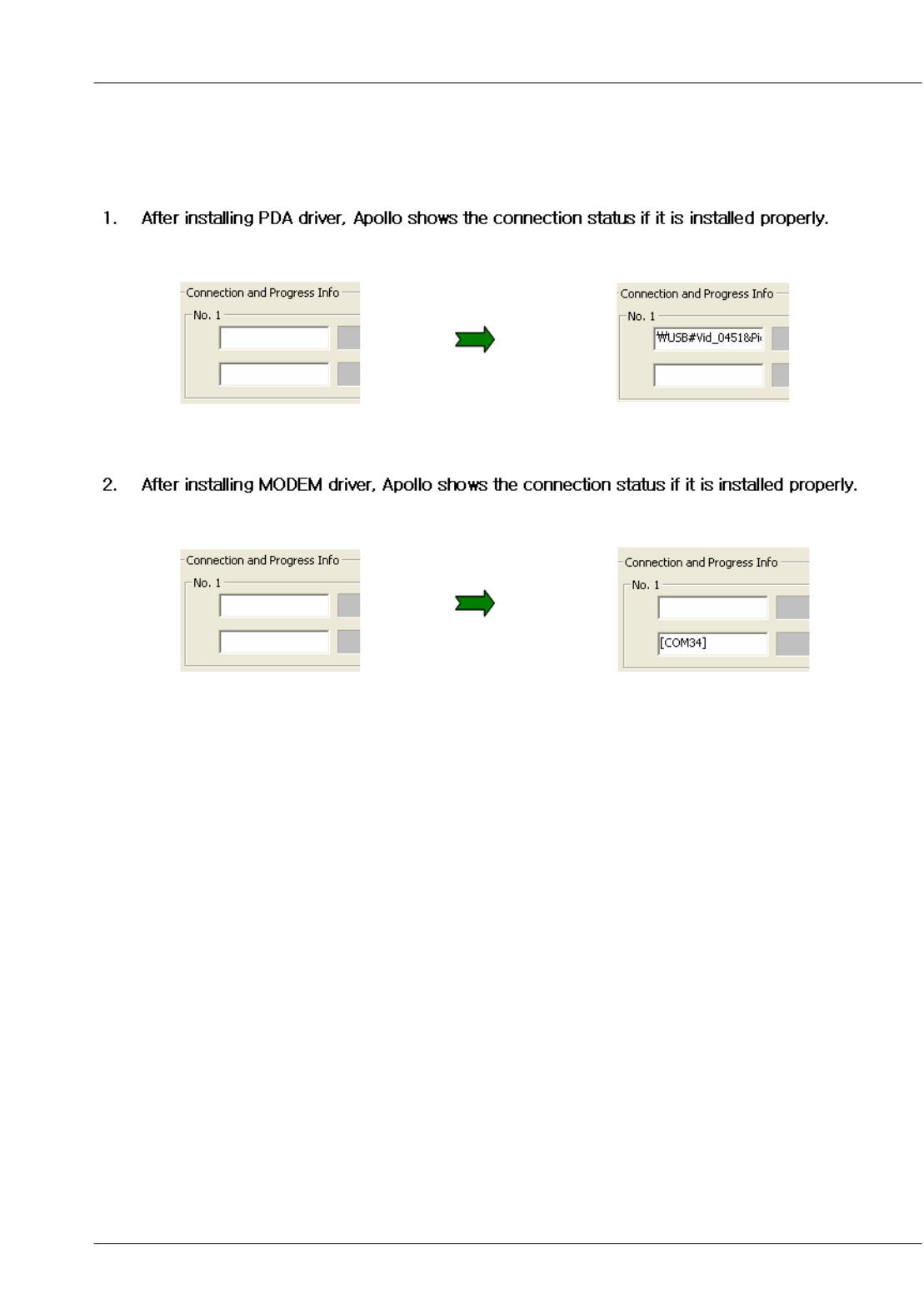

After installing PDA driver, Apollo shows the connection status if it is installed
properly.
SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
Array course control
4-7
This Document can not be used without Samsung's authorization
4-2-4. USB Driver installation for MODEM
Hold “7 + *” key and insert power supplied test cable when use equipment set 1 or
Hold “7+ *” key and press power on key when use equipment set 2.
Install Modem side driver.
Execute ‘Setup.exe’file under ‘i560_Apollo_Drivers\PHONE_driver’ folder when
Windows asks for new h/w driver.

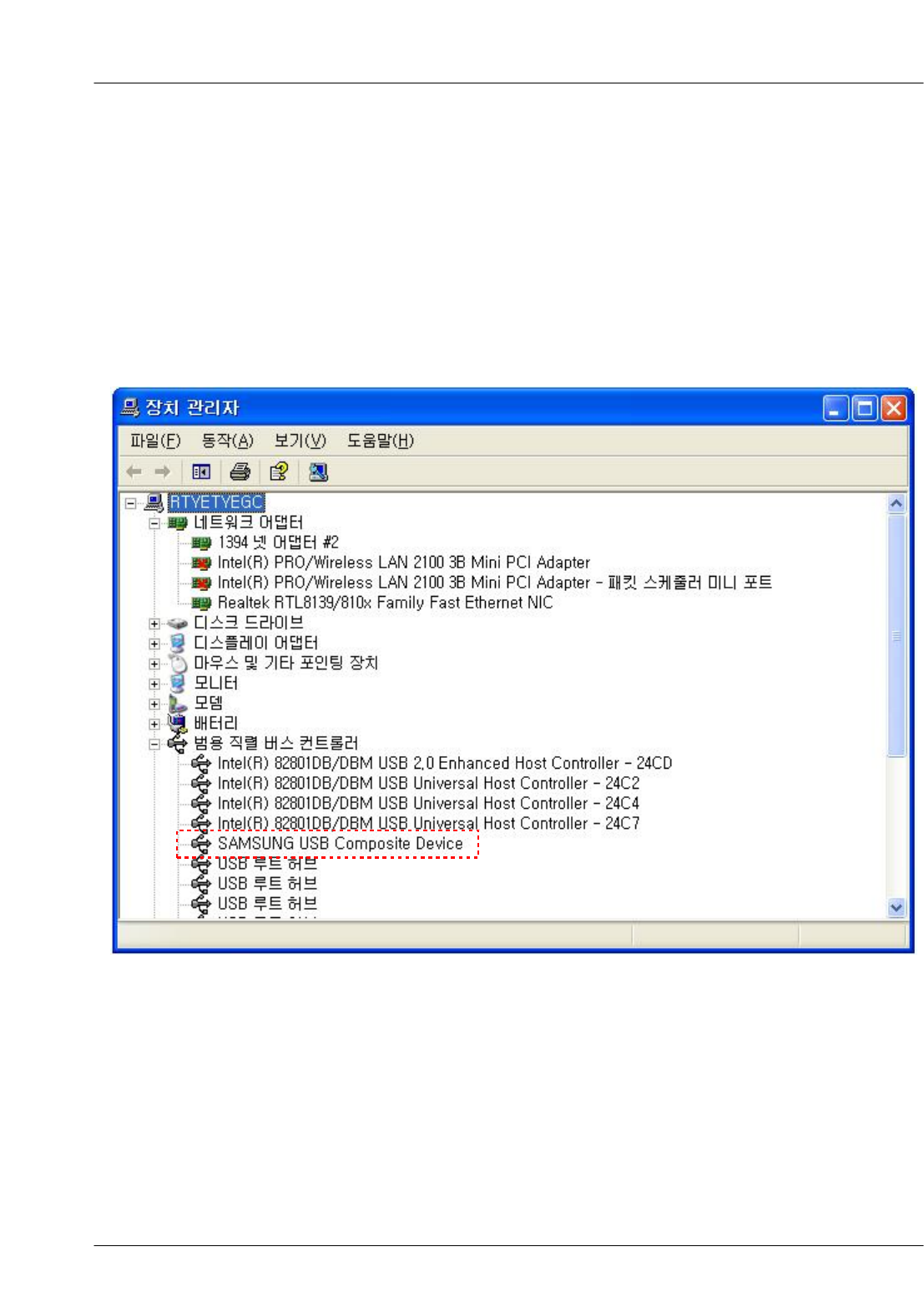

Confirm “SAMSUNG USB Composite Device” Installed.
SAMSUNG Proprietary-Contents may change without notice
Array course control
4-8
This Document can not be used without Samsung's authorization
4-2-5. USB Driver installation
SAMSUNG Proprietary-Contents may change without notice
Array course control
4-9
This Document can not be used without Samsung's authorization

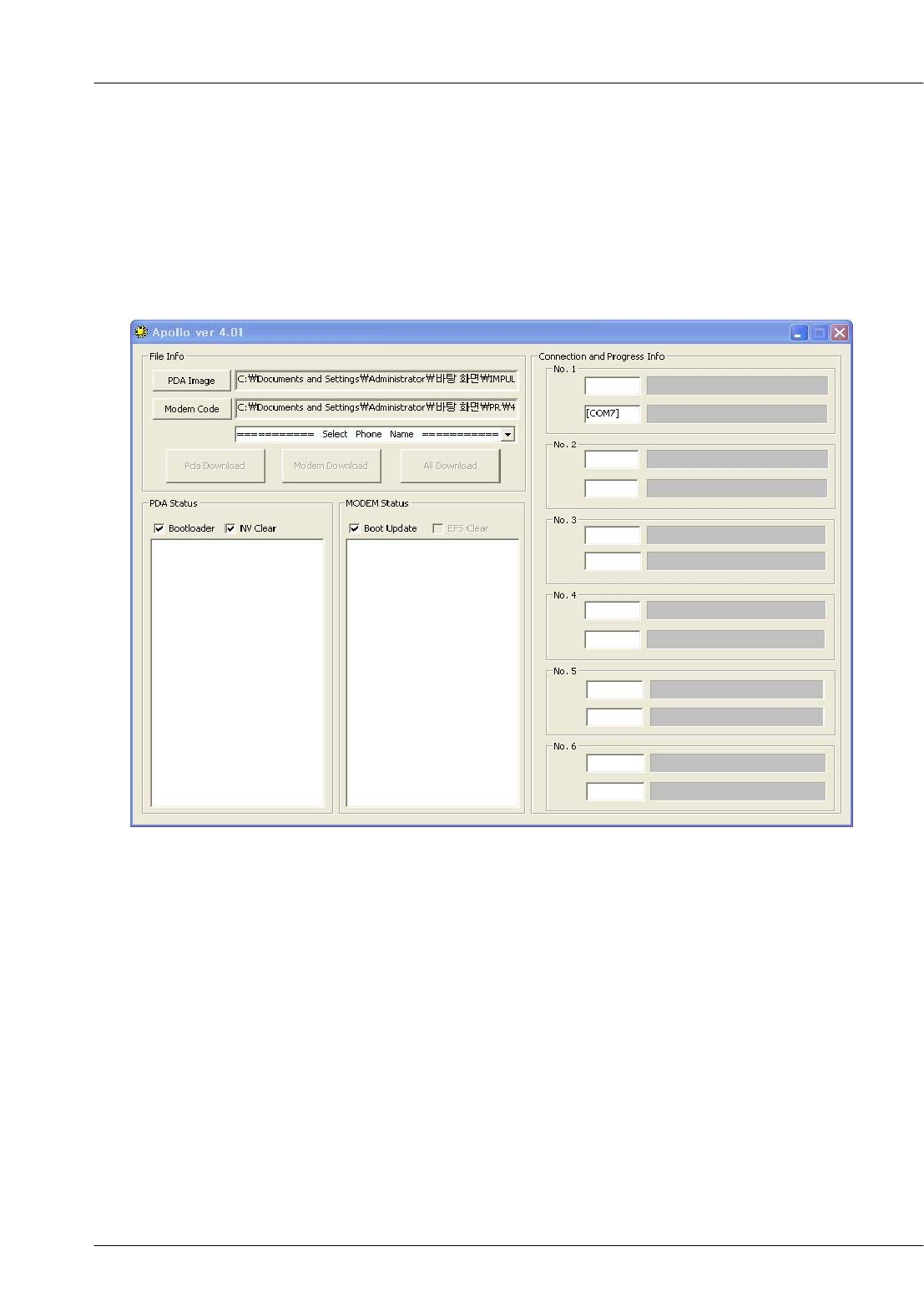

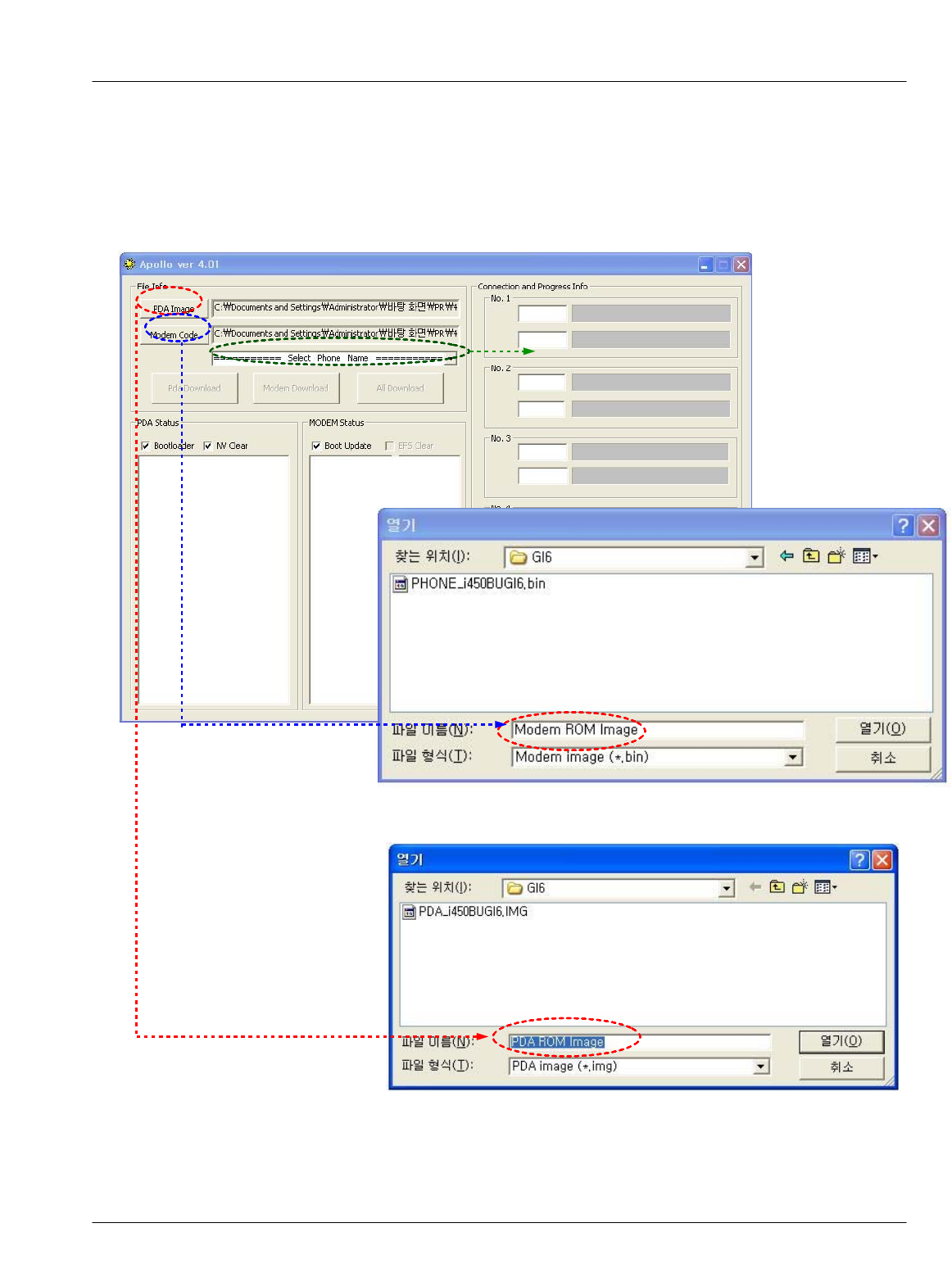

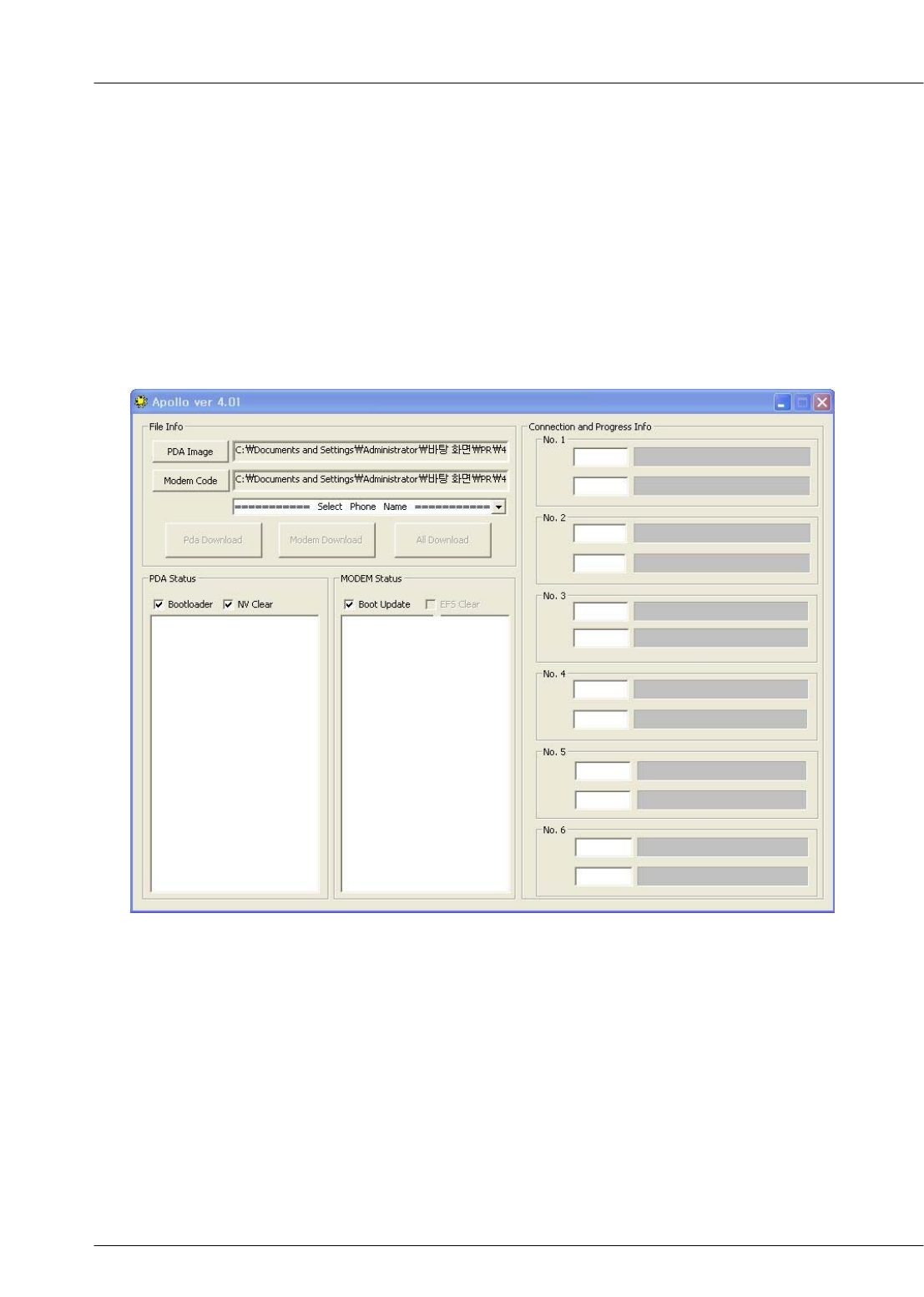

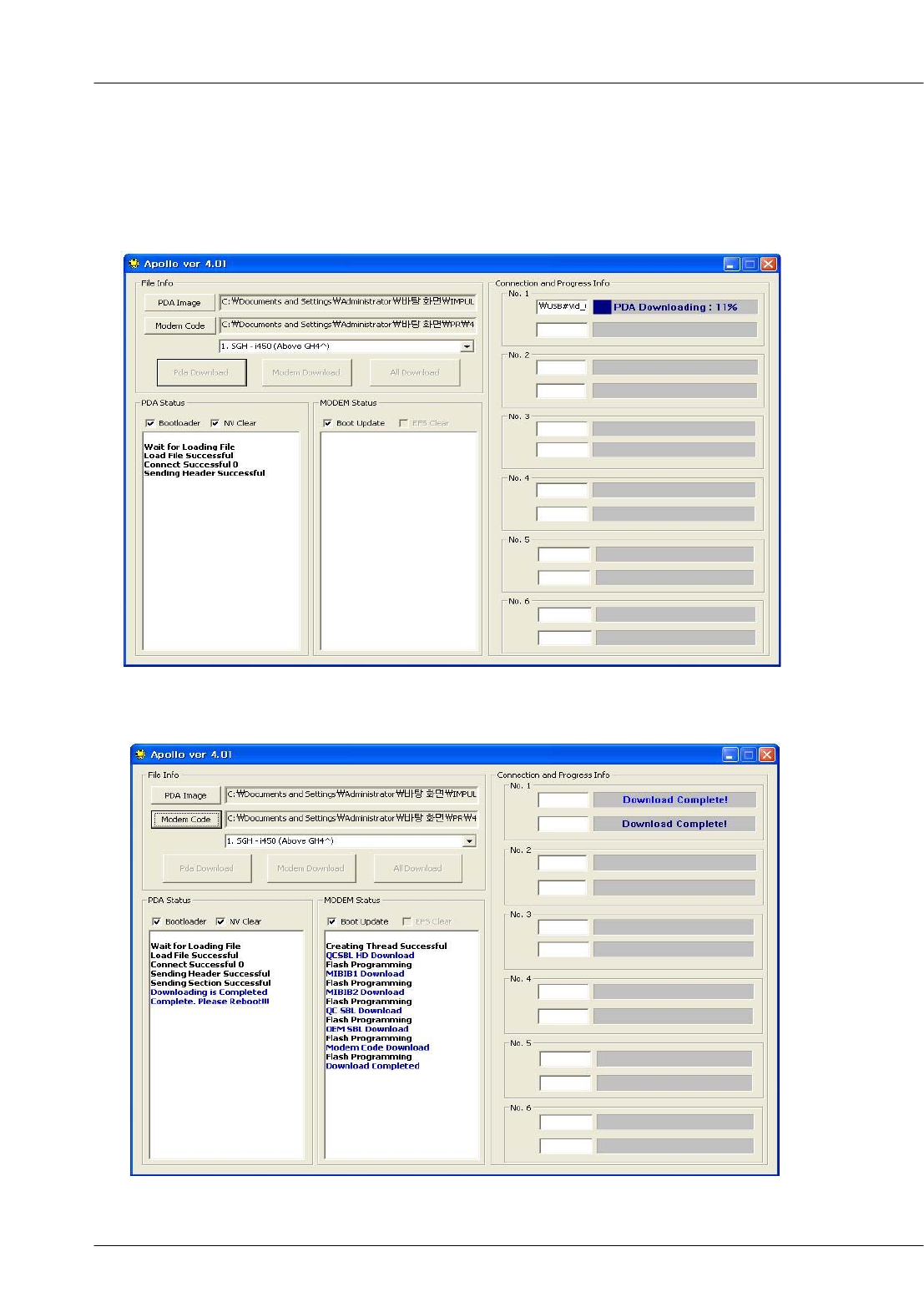

4-2-6. Download the image using APOLLO
Execution Apollo.exe.
Select a Rom Image to download
Check this field : 4. SGH-i560(Martini)
SAMSUNG Proprietary-Contents may change without notice
Array course control
4-10
This Document can not be used without Samsung's authorization

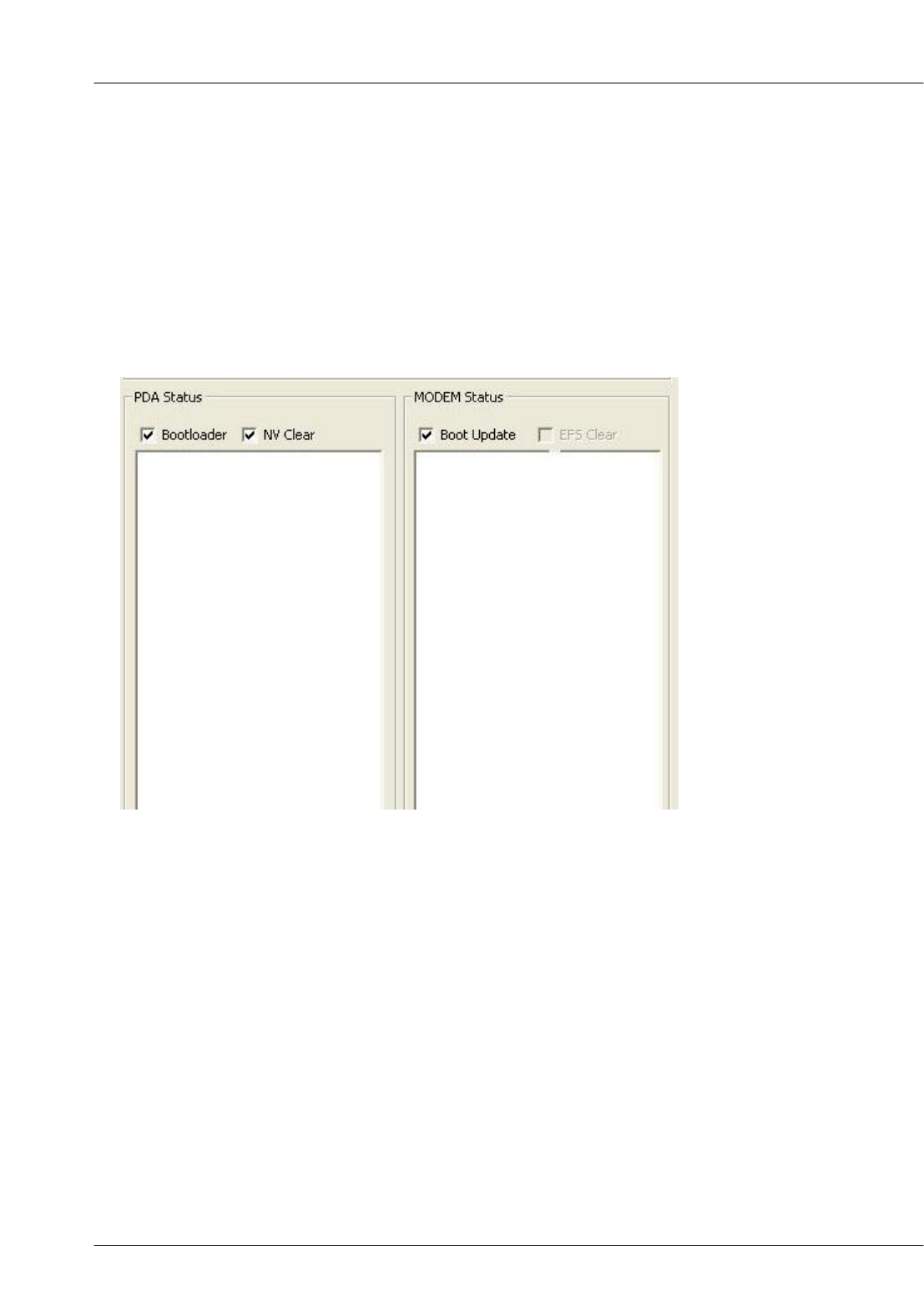

Select the proper check option .
PDA stasus
- Bootloader : Update PDA Bootloader section.
- NV Clear : IMEI section erase.
You can see following message when you click this option
MODEM Status
- Boot Update : Update Modem Bootloader section.
SAMSUNG Proprietary-Contents may change without notice
Array course control
4-11
This Document can not be used without Samsung's authorization
Make sure that phone and host computer connection, click proper download
button.
PDA download : Hold 1, 4 keys and power on -> Blue screen with some information.
MODEM download : Hold 7, * keys and power on -> Blinking "MODEM DOWNLOAD"
on blue screen
All download : Hold 4, 7 keys and power on -> Blinking "ALL DOWNLOAD" on blue screen
SAMSUNG Proprietary-Contents may change without notice
Array course control
4-12
This Document can not be used without Samsung's authorization
Do NOT interrupt downloading process.
- Pda download time: About 1 min.
- Modem download time : About 2 min.
- All download time: About 3 min.
Confirm Download Complete.
-SGH-i560 will be reboot when PDA download complete.
SAMSUNG Proprietary-Contents may change without notice
Array course control
4-13
This Document can not be used without Samsung's authorization
4-2-7. Troubleshooting
Unable to install USB driver.
Try another Download equipment
Try another SGH-i560.
Consult to R&D team.
Download stops in the middle.
Close and launch Apollo again then try again.
Check the battery is charged enough.
Download doesn’t start
Check the connection between Apollo and a SGH-i560.
Check the image that is not damaged.
Select an image and download again.
Phone doesn’t boot up after downloading.
Check the release version of PDA and MODEM. They should be same.
Make sure that rom image, and then try to download.
SAMSUNG Proprietary-Contents may change without notice
Array course control
4-14
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization

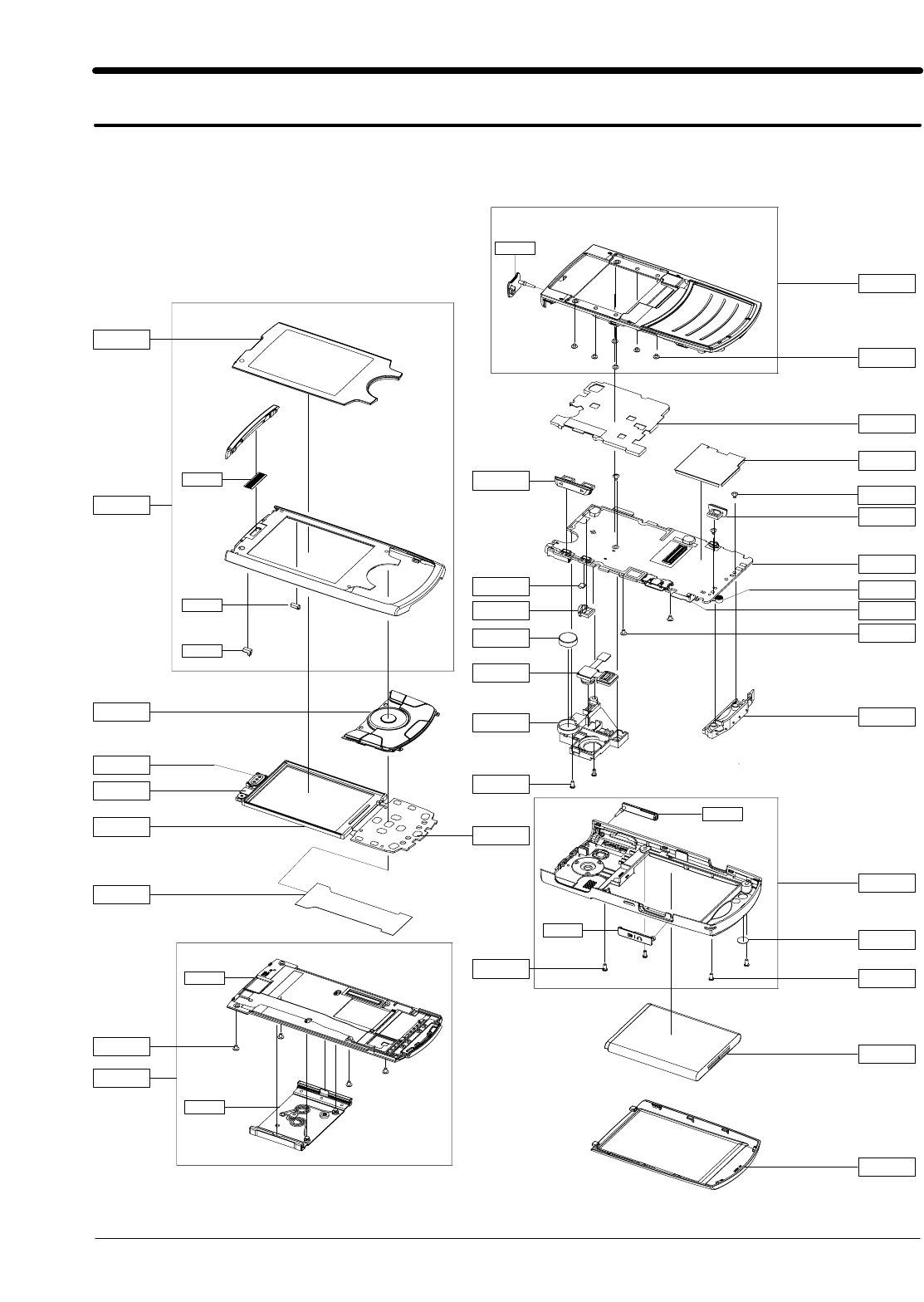

5-1. Cellular phone Exploded View
QFU01
QMW02
QMO01
QCA01
QSP01
QCR06
QME02
QCK02
QVO01
QCR67
QAN11
QAR01
QKP02
QCA10
QLC01
QPC01
QFL01
QCR12
QFR01
QCR73
QSH01
QCK01
QCR12
QCR72
QSH02
QMP01
QMI01
QAN03
QAN02
QRE01
QRF01
QCR06
QBA01
QBA00
QSD01
QIF01
QSC05
QSC06
QSP05
QRF03
QFL02
QHI01
SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QAN02 INTENNA-SGHI560V GH42-01423A
QAN03 INTENNA-SGHI560V BT FPCB GH42-01451A
QAN11 ASSY-CUSHION-CUSHION RUBBER IN GH98-01077A
QAR01 AUDIO-RECEIVER 3009-001300
QBA00 PMO COVER-BATT GH72-44575A
QBA01 INNER BATTERY PACK-1200MAH , B GH43-02992A
QCA01 CAMERA MODULE-1/4" 3.1M CMOS GH59-05024A
QCA10 CAMERA MODULE-1/24" VT CMOS GH59-05022A
QCK01 PMO KEY-CAMERA GH72-44572A
QCK02 PMO KEY-POWER GH72-44573A
QCR06 SCREW-MACHINE 6001-001155
QCR06 SCREW-MACHINE 6001-001155
QCR12 SCREW-MACHINE 6001-001530
QCR12 SCREW-MACHINE 6001-001530
QCR67 SCREW-MACHINE 6001-002083
QCR72 SCREW-MACHINE 6001-002051
QCR73 SCREW-MACHINE 6001-002102
QKP02 ASSY KEYPAD-SUB(VOD/BLK) GH98-06756A
QLC01 LCD-SGHI560V GH07-01211A
QME02 DOME SHEET-SGHI560V SUB 12KEY GH59-05042A
QMI01 MICROPHONE-ASSY-SGHI560V GH30-00438A
QMO01 MOTOR LINEAR VIBRATION-SGHI560 GH31-00384A
QMP01 PBA MAIN-SGHI560V GH92-04151A
QMW02 PMO WINDOW-MAIN(VOD) GH72-44581A
QPC01 MEA-FPCBKIT GH97-08391A
QRF01 TAPE-RF GH74-35878A
QSH01 ASSY BRACKET-SHIELD CAN GH98-06755A
QSH02 ICT BRACKET-SHIELD COVER GH70-03059A
QSP01 ASSY ETC-SPEAKER MODULE GH59-05123A
5-2. Cellular phone Parts List
SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-3
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QVO01 PMO KEY-VOLUME GH72-44574A
QFL01 ASSY CASE-LOWER GH98-06414A
QFL02 ASSY CASE-SLIDE LOWER GH98-06754A
QHI01 ASSY HINGE-SLIDE GH98-06412A
QFR01 ASSY CASE-FRONT GH98-06417A
QRF03 PMO COVER-EAR GH72-44576A
QFU01 ASSY CASE-UPPER(AL) GH98-07148A
QSC05 ASSY RUBBER-SLIDE UP L GH98-06892A
QSC06 ASSY RUBBER-SLIDE UP R GH98-06893A
QSP05 ASSY DECO-SPK GH98-06757A
QRE01 ASSY CASE-REAR GH98-06416A
QIF01 PMO COVER-IF GH72-44578A
QSD01 PMO COVER-SD GH72-44579A
SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-4
This Document can not be used without Samsung's authorization
Description SEC CODE
BAG PE 6902-000634
CBF INTERFACE-DLC APCBS10BBE(S GH39-00922A
ADAPTOR-ATADS10EBE,BLK,EU GH44-01702A
S/W CD-SGHI560V SAMSUNG PC 7.0 GH46-00550A
S/W CD-SGHI560V USER GUIDE 1.0 GH46-00560A
EARPHONE-SGHE210,AAEP405MBE,A GH59-04535A
LABEL(P)-UNIT SEAL GH68-00518B
LABEL(R)-WATER SOAK GH68-09361A
MANUAL USERS-VODA SPANISH QRG GH68-16620A
LABEL(R)-MAIN(EU) GH68-16810A
CUSHION-CASEVODA) GH69-06153A
BOX-UNIT(EU) GH69-06183A
TAPE-PBA GH74-35879A
TAPE GASK-LCD CON GH74-36274A
SPONGE-SPK STRUCTURE GH74-36280A
TAPE-BB ABSORBER GH74-36305A
TAPE ELEC-FRONT BB GH74-36306A
TAPE ELEC-FRONT GH74-36307A
VINYL-BOHO UPPER GH74-36310A
TAPE INSU-SIM SOKET GH74-36385A
TAPE INSU-LCD CON GH74-36393A
TAPE-CK GH74-36394A
TAPE INSU-FLASH FPCB GH74-36396A
SPONGE-SUB SLIDE GH74-36491A
VINYL-BOHO MAIN WINDOW GH74-36749A
SAMSUNG Proprietary-Contents may change without notice
6. Main Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description STATUS
0403-001547 D502 DIODE-ZENER SA
0406-001150 ZD700 DIODE-TVS SA
0406-001197 ZD708 DIODE-TVS SA
0406-001208 ZD802 DIODE-TVS SA
0406-001208 ZD808 DIODE-TVS SA
0406-001208 ZD811 DIODE-TVS SA
0406-001231 ZD600 DIODE-TVS SA
0406-001231 ZD601 DIODE-TVS SA
0406-001231 ZD602 DIODE-TVS SA
0406-001231 ZD603 DIODE-TVS SA
0406-001254 ZD200 DIODE-TVS SA
0406-001254 ZD500 DIODE-TVS SA
0406-001254 ZD505 DIODE-TVS SA
0406-001254 ZD604 DIODE-TVS SA
0406-001254 ZD803 DIODE-TVS SA
0406-001254 ZD804 DIODE-TVS SA
0406-001254 ZD805 DIODE-TVS SA
0406-001254 ZD806 DIODE-TVS SA
0406-001254 ZD807 DIODE-TVS SA
0406-001254 ZD809 DIODE-TVS SA
0406-001254 ZD810 DIODE-TVS SA
0406-001254 ZD812 DIODE-TVS SA
0406-001256 ZD501 DIODE-TVS SA
0406-001256 ZD502 DIODE-TVS SA
0406-001267 ZD1000 DIODE-TVS SA
0406-001267 ZD1001 DIODE-TVS SA
0406-001267 ZD1003 DIODE-TVS SA
0406-001267 ZD1005 DIODE-TVS SA
0406-001267 ZD1006 DIODE-TVS SA
0406-001267 ZD300 DIODE-TVS SA
0406-001267 ZD301 DIODE-TVS SA
0406-001267 ZD701 DIODE-TVS SA
0406-001267 ZD702 DIODE-TVS SA
0406-001267 ZD703 DIODE-TVS SA
0406-001267 ZD704 DIODE-TVS SA
0406-001267 ZD705 DIODE-TVS SA
0406-001267 ZD706 DIODE-TVS SA
0406-001267 ZD707 DIODE-TVS SA
0407-000115 D800 DIODE-ARRAY SA
0407-001002 D500 DIODE-ARRAY SA
0407-001002 D501 DIODE-ARRAY SA
0407-001007 D503 DIODE-ARRAY SA
0504-001113 TR500 TR-DIGITAL SA
0504-001113 TR501 TR-DIGITAL SA
0504-001113 TR503 TR-DIGITAL SA
0505-001165 TR502 FET-SILICON SA
0801-002294 U401 IC-CMOS LOGIC SA
0801-002294 U513 IC-CMOS LOGIC SA
0801-002294 U514 IC-CMOS LOGIC SA
0801-002321 U1000 IC-CMOS LOGIC SA
0801-003012 U511 IC-CMOS LOGIC SA
0801-003013 U402 IC-CMOS LOGIC SA
0801-003052 U400 IC-CMOS LOGIC SA
0801-003124 U512 IC-CMOS LOGIC SA
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description STATUS
0801-003205 U509 IC-CMOS LOGIC SA
0904-002295 UCP900 IC-DSP SA
1001-001336 U706 IC-ANALOG SWITCH SA
1001-001362 U603 IC-ANALOG SWITCH SA
1001-001401 U1004 IC-ANALOG SWITCH SA
1001-001436 U1002 IC-ANALOG SWITCH SA
1001-001461 U601 IC-ANALOG SWITCH SA
1001-001483 U800 IC-ANALOG SWITCH SA
1001-001483 U801 IC-ANALOG SWITCH SA
1001-001483 U802 IC-ANALOG SWITCH SA
1001-001483 U803 IC-ANALOG SWITCH SA
1001-001483 U804 IC-ANALOG SWITCH SA
1001-001483 U805 IC-ANALOG SWITCH SA
1009-001027 U702 IC-HALL EFFECT S/W SA
1106-001511 UME1000 IC-SRAM SA
1108-000127 UME400 IC-MCP SA
1108-000135 UCP900UP IC-MCP SA
1201-002180 U1003 IC-AUDIO AMP SA
1201-002233 U605 IC-AUDIO AMP SA
1201-002531 U303 IC-POWER AMP SA
1201-002570 U202 IC-POWER AMP SA
1201-002581 F304 IC-RF AMP SA
1202-001068 U1001 IC-VOLTAGE COMP. SA
1203-002716 U510 IC-VOL. DETECTOR SA
1203-003643 U703 IC-MULTI REG. SA
1203-003643 U705 IC-MULTI REG. SA
1203-003737 U700 IC-POSI.FIXED REG. SA
1203-003737 U704 IC-POSI.FIXED REG. SA
1203-003737 U710 IC-POSI.FIXED REG. SA
1203-003978 U707 IC-DC/DC CONVERTER SA
1203-004430 U505 IC-VOL. DETECTOR SA
1203-004464 U515 IC-VOL. DETECTOR SA
1203-004607 U701 IC-MULTI REG. SA
1203-004621 U602 IC-POWER SUPERVISOR SA
1203-004778 U501 IC-POWER SUPERVISOR SA
1203-004838 U500 IC-BATTERY SA
1204-002746 U308 IC-TUNER SA
1205-002767 U504 IC-SWITCH SA
1205-003169 MOD200 IC-DATA COMM./GEN. SA
1205-003281 UCP400 IC-MODEM SA
1205-003297 U201 IC-TRANSCEIVER SA
1404-001221 TH400 THERMISTOR-NTC SA
1405-001138 VR800 VARISTOR SA
1405-001138 VR801 VARISTOR SA
1405-001138 VR802 VARISTOR SA
1405-001138 VR803 VARISTOR SA
1405-001138 VR804 VARISTOR SA
1405-001138 VR805 VARISTOR SA
1405-001138 VR806 VARISTOR SA
1405-001138 VR807 VARISTOR SA
1405-001138 VR808 VARISTOR SA
1405-001138 VR809 VARISTOR SA
1405-001138 VR810 VARISTOR SA
1405-001138 VR811 VARISTOR SA
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-3
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description STATUS
2007-000137 R419 R-CHIP SA
2007-000138 R1040 R-CHIP SA
2007-000138 R1043 R-CHIP SA
2007-000138 R310 R-CHIP SA
2007-000138 R642 R-CHIP SA
2007-000138 R643 R-CHIP SA
2007-000138 R720 R-CHIP SA
2007-000138 R722 R-CHIP SA
2007-000140 R1032 R-CHIP SA
2007-000148 R210 R-CHIP SA
2007-000148 R405 R-CHIP SA
2007-000148 R407 R-CHIP SA
2007-000148 R412 R-CHIP SA
2007-000148 R523 R-CHIP SA
2007-000157 R530 R-CHIP SA
2007-000159 R909 R-CHIP SA
2007-000161 R305 R-CHIP SA
2007-000162 R1004 R-CHIP SA
2007-000162 R1007 R-CHIP SA
2007-000162 R1019 R-CHIP SA
2007-000162 R1021 R-CHIP SA
2007-000162 R500 R-CHIP SA
2007-000162 R510 R-CHIP SA
2007-000162 R511 R-CHIP SA
2007-000162 R527 R-CHIP SA
2007-000162 R537 R-CHIP SA
2007-000162 R602 R-CHIP SA
2007-000162 R701 R-CHIP SA
2007-000162 R716 R-CHIP SA
2007-000162 R903 R-CHIP SA
2007-000164 R700 R-CHIP SA
2007-000165 R518 R-CHIP SA
2007-000165 R639 R-CHIP SA
2007-000169 R1029 R-CHIP SA
2007-000170 R1026 R-CHIP SA
2007-000170 R1027 R-CHIP SA
2007-000170 R1028 R-CHIP SA
2007-000170 R422 R-CHIP SA
2007-000170 R519 R-CHIP SA
2007-000171 R1002 R-CHIP SA
2007-000171 R205 R-CHIP SA
2007-000171 R211 R-CHIP SA
2007-000171 R214 R-CHIP SA
2007-000171 R221 R-CHIP SA
2007-000171 R300 R-CHIP SA
2007-000171 R301 R-CHIP SA
2007-000171 R304 R-CHIP SA
2007-000171 R311 R-CHIP SA
2007-000171 R312 R-CHIP SA
2007-000171 R313 R-CHIP SA
2007-000171 R317 R-CHIP SA
2007-000171 R319 R-CHIP SA
2007-000171 R538 R-CHIP SA
2007-000171 R922 R-CHIP SA
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-4
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description STATUS
2007-001119 R603 R-CHIP SA
2007-001119 R604 R-CHIP SA
2007-001285 R207 R-CHIP SA
2007-001285 R208 R-CHIP SA
2007-001290 R418 R-CHIP SA
2007-001292 R414 R-CHIP SA
2007-001298 R209 R-CHIP SA
2007-001298 R215 R-CHIP SA
2007-001298 R303 R-CHIP SA
2007-001298 R402 R-CHIP SA
2007-001306 R212 R-CHIP SA
2007-001306 R213 R-CHIP SA
2007-001306 R216 R-CHIP SA
2007-001306 R217 R-CHIP SA
2007-001316 R517 R-CHIP SA
2007-001339 R715 R-CHIP SA
2007-001339 R806 R-CHIP SA
2007-007009 R306 R-CHIP SA
2007-007014 R506 R-CHIP SA
2007-007014 R520 R-CHIP SA
2007-007107 R220 R-CHIP SA
2007-007107 R423 R-CHIP SA
2007-007107 R425 R-CHIP SA
2007-007107 R705 R-CHIP SA
2007-007132 R1013 R-CHIP SA
2007-007132 R1045 R-CHIP SA
2007-007136 R625 R-CHIP SA
2007-007136 R629 R-CHIP SA
2007-007136 R923 R-CHIP SA
2007-007139 R624 R-CHIP SA
2007-007139 R626 R-CHIP SA
2007-007142 R509 R-CHIP SA
2007-007190 R902 R-CHIP SA
2007-007190 R921 R-CHIP SA
2007-007306 R302 R-CHIP SA
2007-007306 R307 R-CHIP SA
2007-007307 R1030 R-CHIP SA
2007-007307 R1031 R-CHIP SA
2007-007307 R721 R-CHIP SA
2007-007307 R726 R-CHIP SA
2007-007309 R202 R-CHIP SA
2007-007309 R526 R-CHIP SA
2007-007315 R516 R-CHIP SA
2007-007316 R421 R-CHIP SA
2007-007317 R539 R-CHIP SA
2007-007317 R900 R-CHIP SA
2007-007317 R901 R-CHIP SA
2007-007468 R505 R-CHIP SA
2007-007528 R610 R-CHIP SA
2007-007528 R614 R-CHIP SA
2007-007698 R508 R-CHIP SA
2007-007766 R515 R-CHIP SA
2007-007791 R704 R-CHIP SA
2007-008045 R1044 R-CHIP SA
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-5
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description STATUS
2007-008045 R749 R-CHIP SA
2007-008052 R904 R-CHIP SA
2007-008052 R905 R-CHIP SA
2007-008052 R906 R-CHIP SA
2007-008052 R907 R-CHIP SA
2007-008055 R514 R-CHIP SA
2007-008055 R601 R-CHIP SA
2007-008419 R733 R-CHIP SA
2007-008419 R734 R-CHIP SA
2007-008419 R737 R-CHIP SA
2007-008483 R521 R-CHIP SA
2007-008483 R522 R-CHIP SA
2007-008483 R524 R-CHIP SA
2007-008483 R525 R-CHIP SA
2007-008516 R314 R-CHIP SA
2007-008516 R640 R-CHIP SA
2007-008516 R641 R-CHIP SA
2007-008542 R634 R-CHIP SA
2007-008542 R735 R-CHIP SA
2007-008542 R736 R-CHIP SA
2007-008588 R218 R-CHIP SA
2007-008806 R507 R-CHIP SA
2007-008806 R528 R-CHIP SA
2007-008806 R529 R-CHIP SA
2007-008806 R532 R-CHIP SA
2007-008806 R533 R-CHIP SA
2007-008806 R534 R-CHIP SA
2007-008806 R535 R-CHIP SA
2007-008806 R541 R-CHIP SA
2007-008806 R605 R-CHIP SA
2007-009157 R1005 R-CHIP SA
2007-009157 R1006 R-CHIP SA
2007-009157 R1009 R-CHIP SA
2007-009157 R1010 R-CHIP SA
2007-009157 R738 R-CHIP SA
2007-009793 R1011 R-CHIP SA
2007-009793 R1012 R-CHIP SA
2203-000233 C1014 C-CER,CHIP SA
2203-000233 C207 C-CER,CHIP SA
2203-000233 C209 C-CER,CHIP SA
2203-000233 C218 C-CER,CHIP SA
2203-000233 C220 C-CER,CHIP SA
2203-000233 C234 C-CER,CHIP SA
2203-000233 C239 C-CER,CHIP SA
2203-000233 C247 C-CER,CHIP SA
2203-000233 C256 C-CER,CHIP SA
2203-000233 C279 C-CER,CHIP SA
2203-000233 C325 C-CER,CHIP SA
2203-000233 C512 C-CER,CHIP SA
2203-000233 C513 C-CER,CHIP SA
2203-000233 C520 C-CER,CHIP SA
2203-000254 C225 C-CER,CHIP SA
2203-000254 C253 C-CER,CHIP SA
2203-000254 C276 C-CER,CHIP SA
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-6
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description STATUS
2203-000254 C315 C-CER,CHIP SA
2203-000254 C317 C-CER,CHIP SA
2203-000254 C321 C-CER,CHIP SA
2203-000254 C443 C-CER,CHIP SA
2203-000254 C656 C-CER,CHIP SA
2203-000254 C658 C-CER,CHIP SA
2203-000278 C600 C-CER,CHIP SA
2203-000278 C626 C-CER,CHIP SA
2203-000278 C633 C-CER,CHIP SA
2203-000278 C642 C-CER,CHIP SA
2203-000311 C200 C-CER,CHIP SA
2203-000311 C202 C-CER,CHIP SA
2203-000311 C203 C-CER,CHIP SA
2203-000311 C205 C-CER,CHIP SA
2203-000330 C268 C-CER,CHIP SA
2203-000330 C273 C-CER,CHIP SA
2203-000330 C282 C-CER,CHIP SA
2203-000330 C283 C-CER,CHIP SA
2203-000330 C304 C-CER,CHIP SA
2203-000386 C264 C-CER,CHIP SA
2203-000386 C306 C-CER,CHIP SA
2203-000386 C680 C-CER,CHIP SA
2203-000386 C681 C-CER,CHIP SA
2203-000386 C682 C-CER,CHIP SA
2203-000438 C259 C-CER,CHIP SA
2203-000438 C316 C-CER,CHIP SA
2203-000438 C464 C-CER,CHIP SA
2203-000489 C402 C-CER,CHIP SA
2203-000627 C217 C-CER,CHIP SNA
2203-000627 C222 C-CER,CHIP SNA
2203-000627 C224 C-CER,CHIP SNA
2203-000627 C228 C-CER,CHIP SNA
2203-000627 C230 C-CER,CHIP SNA
2203-000627 C232 C-CER,CHIP SNA
2203-000627 C233 C-CER,CHIP SNA
2203-000627 C254 C-CER,CHIP SNA
2203-000627 C260 C-CER,CHIP SNA
2203-000679 C238 C-CER,CHIP SA
2203-000679 C244 C-CER,CHIP SA
2203-000812 C1012 C-CER,CHIP SA
2203-000812 C1013 C-CER,CHIP SA
2203-000812 C214 C-CER,CHIP SA
2203-000812 C236 C-CER,CHIP SA
2203-000812 C237 C-CER,CHIP SA
2203-000812 C241 C-CER,CHIP SA
2203-000812 C243 C-CER,CHIP SA
2203-000812 C255 C-CER,CHIP SA
2203-000812 C262 C-CER,CHIP SA
2203-000812 C275 C-CER,CHIP SA
2203-000812 C305 C-CER,CHIP SA
2203-000812 C320 C-CER,CHIP SA
2203-000812 C328 C-CER,CHIP SA
2203-000812 C330 C-CER,CHIP SA
2203-000812 C332 C-CER,CHIP SA
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-7
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description STATUS
2203-000812 C527 C-CER,CHIP SA
2203-000812 C528 C-CER,CHIP SA
2203-000812 C531 C-CER,CHIP SA
2203-000812 C627 C-CER,CHIP SA
2203-000812 C635 C-CER,CHIP SA
2203-000812 C643 C-CER,CHIP SA
2203-000812 C652 C-CER,CHIP SA
2203-000812 C653 C-CER,CHIP SA
2203-000812 C720 C-CER,CHIP SA
2203-000995 C1008 C-CER,CHIP SA
2203-000995 C1009 C-CER,CHIP SA
2203-000995 C300 C-CER,CHIP SA
2203-000995 C401 C-CER,CHIP SA
2203-000995 C469 C-CER,CHIP SA
2203-000995 C663 C-CER,CHIP SA
2203-000995 C664 C-CER,CHIP SA
2203-000995 C678 C-CER,CHIP SA
2203-000995 C751 C-CER,CHIP SA
2203-000995 C752 C-CER,CHIP SA
2203-001153 C201 C-CER,CHIP SA
2203-001153 C204 C-CER,CHIP SA
2203-001259 C601 C-CER,CHIP SA
2203-002668 C303 C-CER,CHIP SA
2203-002668 C334 C-CER,CHIP SA
2203-002709 C503 C-CER,CHIP SA
2203-002709 C506 C-CER,CHIP SA
2203-002709 C515 C-CER,CHIP SA
2203-002709 C517 C-CER,CHIP SA
2203-002968 C250 C-CER,CHIP SA
2203-003054 C1006 C-CER,CHIP SA
2203-003054 C1007 C-CER,CHIP SA
2203-005053 C272 C-CER,CHIP SA
2203-005053 C274 C-CER,CHIP SA
2203-005056 C291 C-CER,CHIP SA
2203-005234 C280 C-CER,CHIP SA
2203-005281 C263 C-CER,CHIP SA
2203-005281 C265 C-CER,CHIP SA
2203-005281 C322 C-CER,CHIP SA
2203-005395 C271 C-CER,CHIP SA
2203-005480 C463 C-CER,CHIP SA
2203-005482 C301 C-CER,CHIP SA
2203-005482 C312 C-CER,CHIP SA
2203-005482 C326 C-CER,CHIP SA
2203-005482 C336 C-CER,CHIP SA
2203-005482 C406 C-CER,CHIP SA
2203-005482 C413 C-CER,CHIP SA
2203-005482 C420 C-CER,CHIP SA
2203-005482 C444 C-CER,CHIP SA
2203-005482 C450 C-CER,CHIP SA
2203-005482 C461 C-CER,CHIP SA
2203-005482 C462 C-CER,CHIP SA
2203-005482 C941 C-CER,CHIP SA
2203-005682 C231 C-CER,CHIP SA
2203-005682 C329 C-CER,CHIP SA
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-8
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description STATUS
2203-005682 C611 C-CER,CHIP SA
2203-005682 C631 C-CER,CHIP SA
2203-005682 C637 C-CER,CHIP SA
2203-005682 C644 C-CER,CHIP SA
2203-005683 C1025 C-CER,CHIP SA
2203-005725 C211 C-CER,CHIP SA
2203-005725 C212 C-CER,CHIP SA
2203-005727 C510 C-CER,CHIP SA
2203-005729 C508 C-CER,CHIP SA
2203-005732 C266 C-CER,CHIP SA
2203-005736 C213 C-CER,CHIP SA
2203-005736 C816 C-CER,CHIP SA
2203-005736 C817 C-CER,CHIP SA
2203-005736 C818 C-CER,CHIP SA
2203-005736 C819 C-CER,CHIP SA
2203-005806 C226 C-CER,CHIP SNA
2203-006048 C277 C-CER,CHIP SA
2203-006048 C278 C-CER,CHIP SA
2203-006048 C538 C-CER,CHIP SA
2203-006048 C700 C-CER,CHIP SA
2203-006048 C701 C-CER,CHIP SA
2203-006137 C313 C-CER,CHIP SA
2203-006194 C439 C-CER,CHIP SA
2203-006194 C447 C-CER,CHIP SA
2203-006194 C466 C-CER,CHIP SA
2203-006194 C468 C-CER,CHIP SA
2203-006208 C509 C-CER,CHIP SA
2203-006208 C516 C-CER,CHIP SA
2203-006208 C519 C-CER,CHIP SA
2203-006261 C339 C-CER,CHIP SA
2203-006324 C465 C-CER,CHIP SA
2203-006324 C500 C-CER,CHIP SA
2203-006324 C521 C-CER,CHIP SA
2203-006324 C650 C-CER,CHIP SA
2203-006324 C736 C-CER,CHIP SA
2203-006324 C737 C-CER,CHIP SA
2203-006324 C738 C-CER,CHIP SA
2203-006348 C535 C-CER,CHIP SA
2203-006348 C536 C-CER,CHIP SA
2203-006377 C719 C-CER,CHIP SA
2203-006399 C1017 C-CER,CHIP SA
2203-006399 C284 C-CER,CHIP SA
2203-006399 C285 C-CER,CHIP SA
2203-006399 C286 C-CER,CHIP SA
2203-006399 C287 C-CER,CHIP SA
2203-006399 C288 C-CER,CHIP SA
2203-006399 C407 C-CER,CHIP SA
2203-006399 C408 C-CER,CHIP SA
2203-006399 C409 C-CER,CHIP SA
2203-006399 C410 C-CER,CHIP SA
2203-006399 C418 C-CER,CHIP SA
2203-006399 C617 C-CER,CHIP SA
2203-006399 C623 C-CER,CHIP SA
2203-006399 C625 C-CER,CHIP SA
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-9
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description STATUS
2203-006399 C740 C-CER,CHIP SA
2203-006399 C805 C-CER,CHIP SA
2203-006399 C960 C-CER,CHIP SA
2203-006399 C963 C-CER,CHIP SA
2203-006423 C1002 C-CER,CHIP SA
2203-006423 C1003 C-CER,CHIP SA
2203-006423 C1004 C-CER,CHIP SA
2203-006423 C1005 C-CER,CHIP SA
2203-006423 C327 C-CER,CHIP SA
2203-006423 C417 C-CER,CHIP SA
2203-006423 C419 C-CER,CHIP SA
2203-006423 C436 C-CER,CHIP SA
2203-006423 C440 C-CER,CHIP SA
2203-006423 C451 C-CER,CHIP SA
2203-006423 C452 C-CER,CHIP SA
2203-006423 C539 C-CER,CHIP SA
2203-006423 C610 C-CER,CHIP SA
2203-006423 C612 C-CER,CHIP SA
2203-006423 C674 C-CER,CHIP SA
2203-006423 C741 C-CER,CHIP SA
2203-006423 C900 C-CER,CHIP SA
2203-006423 C901 C-CER,CHIP SA
2203-006423 C902 C-CER,CHIP SA
2203-006423 C903 C-CER,CHIP SA
2203-006423 C904 C-CER,CHIP SA
2203-006423 C905 C-CER,CHIP SA
2203-006423 C906 C-CER,CHIP SA
2203-006423 C907 C-CER,CHIP SA
2203-006423 C908 C-CER,CHIP SA
2203-006423 C909 C-CER,CHIP SA
2203-006423 C910 C-CER,CHIP SA
2203-006423 C919 C-CER,CHIP SA
2203-006423 C920 C-CER,CHIP SA
2203-006423 C921 C-CER,CHIP SA
2203-006423 C922 C-CER,CHIP SA
2203-006423 C923 C-CER,CHIP SA
2203-006423 C924 C-CER,CHIP SA
2203-006423 C925 C-CER,CHIP SA
2203-006423 C926 C-CER,CHIP SA
2203-006423 C955 C-CER,CHIP SA
2203-006423 C961 C-CER,CHIP SA
2203-006423 C962 C-CER,CHIP SA
2203-006474 C522 C-CER,CHIP SA
2203-006474 C541 C-CER,CHIP SA
2203-006562 C1000 C-CER,CHIP SA
2203-006562 C1001 C-CER,CHIP SA
2203-006562 C1011 C-CER,CHIP SA
2203-006562 C1018 C-CER,CHIP SA
2203-006562 C1019 C-CER,CHIP SA
2203-006562 C1020 C-CER,CHIP SA
2203-006562 C1021 C-CER,CHIP SA
2203-006562 C1022 C-CER,CHIP SA
2203-006562 C1023 C-CER,CHIP SA
2203-006562 C314 C-CER,CHIP SA
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-10
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description STATUS
2203-006562 C400 C-CER,CHIP SA
2203-006562 C432 C-CER,CHIP SA
2203-006562 C433 C-CER,CHIP SA
2203-006562 C434 C-CER,CHIP SA
2203-006562 C435 C-CER,CHIP SA
2203-006562 C438 C-CER,CHIP SA
2203-006562 C442 C-CER,CHIP SA
2203-006562 C467 C-CER,CHIP SA
2203-006562 C507 C-CER,CHIP SA
2203-006562 C511 C-CER,CHIP SA
2203-006562 C540 C-CER,CHIP SA
2203-006562 C603 C-CER,CHIP SA
2203-006562 C604 C-CER,CHIP SA
2203-006562 C605 C-CER,CHIP SA
2203-006562 C606 C-CER,CHIP SA
2203-006562 C607 C-CER,CHIP SA
2203-006562 C608 C-CER,CHIP SA
2203-006562 C609 C-CER,CHIP SA
2203-006562 C613 C-CER,CHIP SA
2203-006562 C615 C-CER,CHIP SA
2203-006562 C616 C-CER,CHIP SA
2203-006562 C622 C-CER,CHIP SA
2203-006562 C647 C-CER,CHIP SA
2203-006562 C648 C-CER,CHIP SA
2203-006562 C649 C-CER,CHIP SA
2203-006562 C659 C-CER,CHIP SA
2203-006562 C662 C-CER,CHIP SA
2203-006562 C666 C-CER,CHIP SA
2203-006562 C667 C-CER,CHIP SA
2203-006562 C668 C-CER,CHIP SA
2203-006562 C702 C-CER,CHIP SA
2203-006562 C705 C-CER,CHIP SA
2203-006562 C706 C-CER,CHIP SA
2203-006562 C709 C-CER,CHIP SA
2203-006562 C715 C-CER,CHIP SA
2203-006562 C716 C-CER,CHIP SA
2203-006562 C729 C-CER,CHIP SA
2203-006562 C745 C-CER,CHIP SA
2203-006562 C750 C-CER,CHIP SA
2203-006562 C810 C-CER,CHIP SA
2203-006562 C812 C-CER,CHIP SA
2203-006562 C813 C-CER,CHIP SA
2203-006562 C814 C-CER,CHIP SA
2203-006562 C911 C-CER,CHIP SA
2203-006562 C912 C-CER,CHIP SA
2203-006562 C927 C-CER,CHIP SA
2203-006562 C928 C-CER,CHIP SA
2203-006585 C630 C-CER,CHIP SA
2203-006585 C636 C-CER,CHIP SA
2203-006681 C206 C-CER,CHIP SA
2203-006681 C208 C-CER,CHIP SA
2203-006681 C210 C-CER,CHIP SA
2203-006681 C215 C-CER,CHIP SA
2203-006681 C216 C-CER,CHIP SA
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-11
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description STATUS
2203-006681 C223 C-CER,CHIP SA
2203-006681 C227 C-CER,CHIP SA
2203-006681 C229 C-CER,CHIP SA
2203-006681 C235 C-CER,CHIP SA
2203-006681 C240 C-CER,CHIP SA
2203-006681 C248 C-CER,CHIP SA
2203-006681 C257 C-CER,CHIP SA
2203-006681 C261 C-CER,CHIP SA
2203-006681 C318 C-CER,CHIP SA
2203-006681 C654 C-CER,CHIP SA
2203-006712 C657 C-CER,CHIP SA
2203-006712 C660 C-CER,CHIP SA
2203-006824 C504 C-CER,CHIP SA
2203-006824 C505 C-CER,CHIP SA
2203-006824 C524 C-CER,CHIP SA
2203-006824 C703 C-CER,CHIP SA
2203-006824 C704 C-CER,CHIP SA
2203-006825 C671 C-CER,CHIP SA
2203-006825 C672 C-CER,CHIP SA
2203-006825 C673 C-CER,CHIP SA
2203-006838 C1026 C-CER,CHIP SA
2203-006838 C514 C-CER,CHIP SA
2203-006838 C518 C-CER,CHIP SA
2203-006838 C523 C-CER,CHIP SA
2203-006838 C545 C-CER,CHIP SA
2203-006838 C746 C-CER,CHIP SA
2203-006838 C747 C-CER,CHIP SA
2203-006838 C748 C-CER,CHIP SA
2203-006838 C913 C-CER,CHIP SA
2203-006838 C929 C-CER,CHIP SA
2203-006841 C529 C-CER,CHIP SA
2203-006841 C530 C-CER,CHIP SA
2203-006841 C958 C-CER,CHIP SA
2203-006890 C707 C-CER,CHIP SA
2203-006890 C708 C-CER,CHIP SA
2203-006890 C710 C-CER,CHIP SA
2203-006890 C711 C-CER,CHIP SA
2404-001339 TA201 C-TA,CHIP SA
2404-001339 TA611 C-TA,CHIP SA
2404-001377 TA609 C-TA,CHIP SA
2404-001381 TA300 C-TA,CHIP SA
2404-001381 TA600 C-TA,CHIP SA
2404-001381 TA604 C-TA,CHIP SA
2404-001381 TA608 C-TA,CHIP SA
2404-001381 TA700 C-TA,CHIP SA
2404-001381 TA808 C-TA,CHIP SA
2404-001474 TA200 C-TA,CHIP SA
2404-001492 TA500 C-TA,CHIP SA
2404-001492 TA502 C-TA,CHIP SA
2404-001497 TA602 C-TA,CHIP SA
2703-001180 L205 INDUCTOR-SMD SA
2703-001231 L702 INDUCTOR-SMD SNA
2703-001513 L1004 INDUCTOR-SMD SA
2703-001722 L208 INDUCTOR-SMD SA
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-12
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description STATUS
2703-001749 L218 INDUCTOR-SMD SA
2703-001750 L315 INDUCTOR-SMD SA
2703-002170 L220 INDUCTOR-SMD SA
2703-002170 L221 INDUCTOR-SMD SA
2703-002170 L308 INDUCTOR-SMD SA
2703-002203 L206 INDUCTOR-SMD SA
2703-002204 L201 INDUCTOR-SMD SA
2703-002207 L303 INDUCTOR-SMD SA
2703-002208 L312 INDUCTOR-SMD SA
2703-002314 L202 INDUCTOR-SMD SA
2703-002314 L203 INDUCTOR-SMD SA
2703-002314 L316 INDUCTOR-SMD SA
2703-002365 L304 INDUCTOR-SMD SA
2703-002367 L219 INDUCTOR-SMD SA
2703-002369 L215 INDUCTOR-SMD SA
2703-002506 L310 INDUCTOR-SMD SA
2703-002596 L210 INDUCTOR-SMD SA
2703-002782 L500 INDUCTOR-SMD SA
2703-002782 L501 INDUCTOR-SMD SA
2703-002782 L502 INDUCTOR-SMD SA
2703-002906 L200 INDUCTOR-SMD SA
2703-002918 L306 INDUCTOR-SMD SA
2703-003103 L212 INDUCTOR-SMD SA
2703-003298 L600 INDUCTOR-SMD SA
2703-003298 L608 INDUCTOR-SMD SA
2801-004339 OSC500 CRYSTAL-SMD SA
2801-004455 OSC200 CRYSTAL-SMD SA
2801-004466 OSC600 CRYSTAL-SMD SA
2804-001748 OSC601 OSCILLATOR-CLOCK SA
2809-001324 OSC602 OSCILLATOR-VCTCXO SA
2901-001337 F801 FILTER-EMI/ESD SA
2901-001337 F804 FILTER-EMI/ESD SA
2901-001389 F800 FILTER-EMI/ESD SA
2901-001389 F802 FILTER-EMI/ESD SA
2901-001389 F803 FILTER-EMI/ESD SA
2904-001609 F205 FILTER-SAW SA
2904-001635 F206 FILTER-SAW SA
2904-001665 F300 FILTER-SAW SA
2904-001702 F200 FILTER-SAW SA
2904-001703 F201 FILTER-SAW SA
2904-001719 F202 FILTER-SAW SA
2904-001759 F303 FILTER-SAW SA
2910-000031 DUF300 DUPLEXER-SAW SA
3301-001342 L700 BEAD-SMD SA
3301-001534 L607 BEAD-SMD SA
3301-001534 L609 BEAD-SMD SA
3301-001534 L610 BEAD-SMD SA
3301-001729 L1000 BEAD-SMD SA
3301-001729 L1001 BEAD-SMD SA
3301-001729 L701 BEAD-SMD SA
3301-001729 L703 BEAD-SMD SA
3301-001756 L307 BEAD-SMD SA
3301-001756 L601 BEAD-SMD SA
3301-001756 L602 BEAD-SMD SA
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-13
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description STATUS
3301-001756 L603 BEAD-SMD SA
3301-001756 L604 BEAD-SMD SA
3404-001152 TAC500 SWITCH-TACT SA
3404-001152 TAC800 SWITCH-TACT SA
3404-001152 TAC801 SWITCH-TACT SA
3404-001152 TAC802 SWITCH-TACT SA
3705-001358 RFS200 CONNECTOR-COAXIAL SA
3709-001453 CD500 CONNECTOR-CARD EDGE SA
3710-002081 SPK600 SOCKET-BOARD TO BOARD SA
3710-002568 IFC700 SOCKET-INTERFACE SA
3711-005643 HEA700 HEADER-BOARD TO BOARD SA
3711-005945 HEA801 HEADER-BOARD TO BOARD SA
3711-005976 HEA800 HEADER-BOARD TO BOARD SA
3711-006025 BTC500 HEADER-BATTERY SA
3722-002609 EAR1000 JACK-EAR PHONE SA
4302-001181 BAT501 BATTERY-LI(2ND) SA
4709-001338 F204 BALUN SA
4709-001399 F301 COUPLER-DIRECTION SA
GH71-06262A ANT301 NPR-ANTENNA CONTACT V2 SA
GH71-07941A SC300 NPR SHIELD-FRAME SA
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's
part list.
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-14
This Document can not be used without Samsung's authorization
7. Block Diagrams
7-1

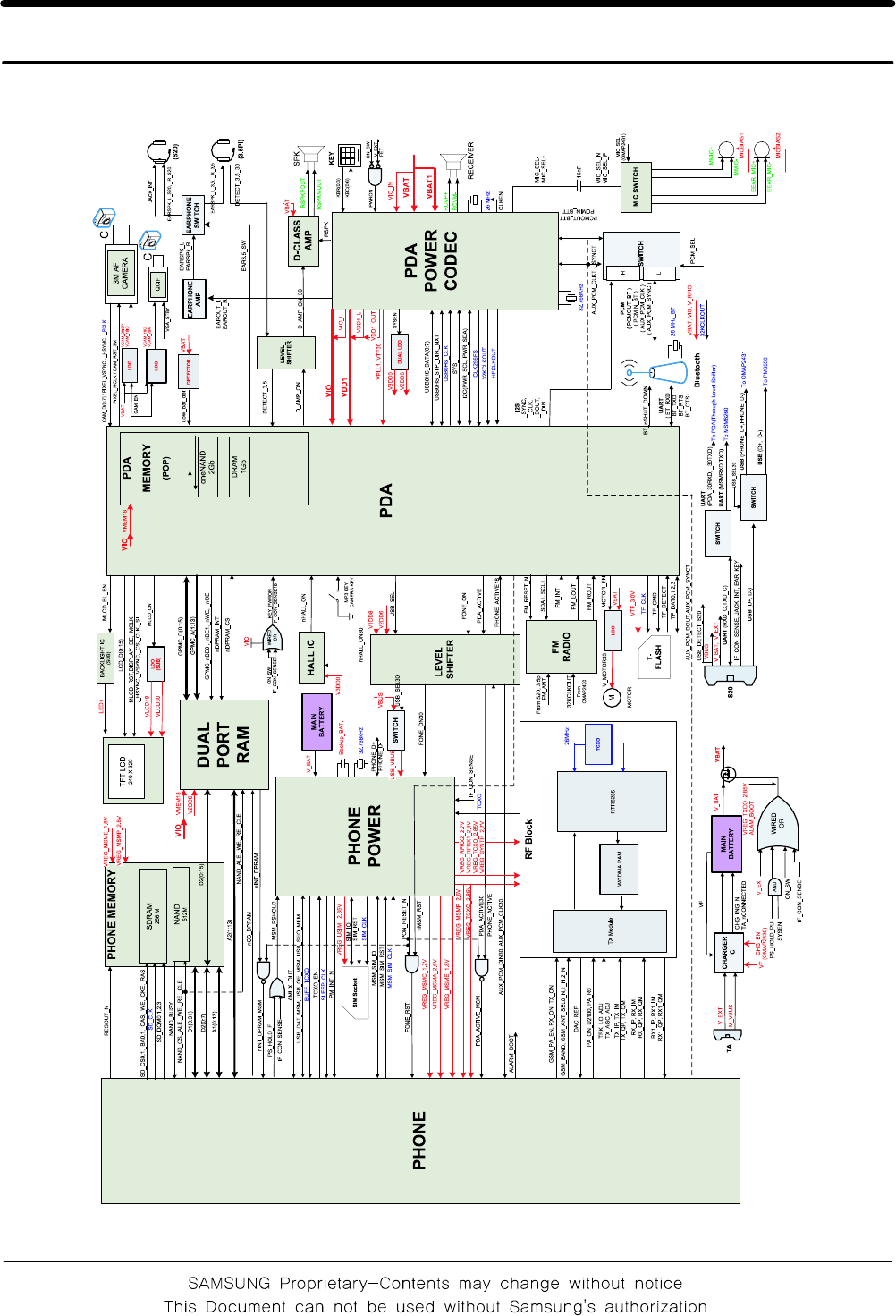

7-1. Main Block Diagram
Block Diagrams
7-2

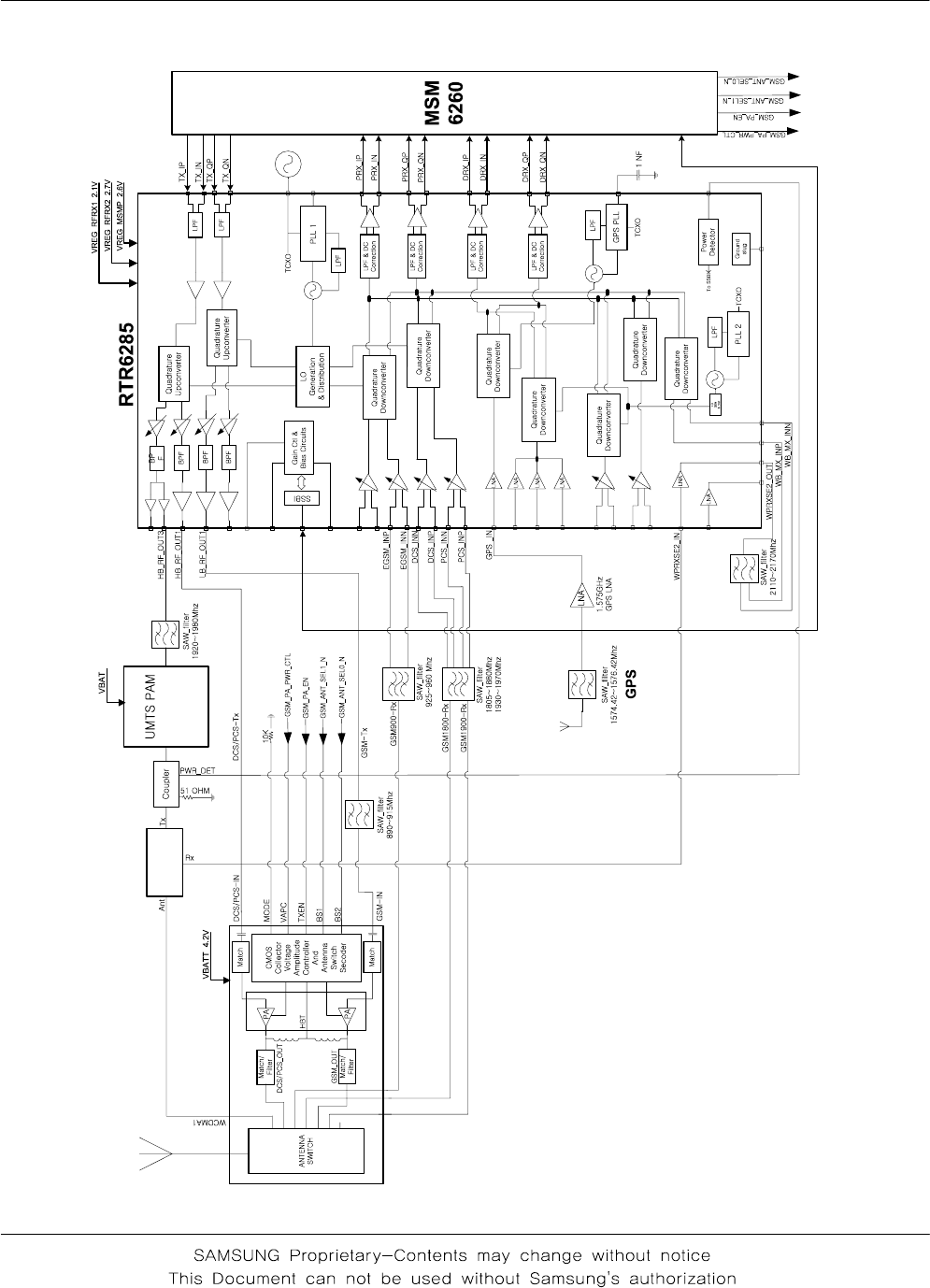

7-2. RF Solution Block Diagram
8. PCB Diagrams
8-1

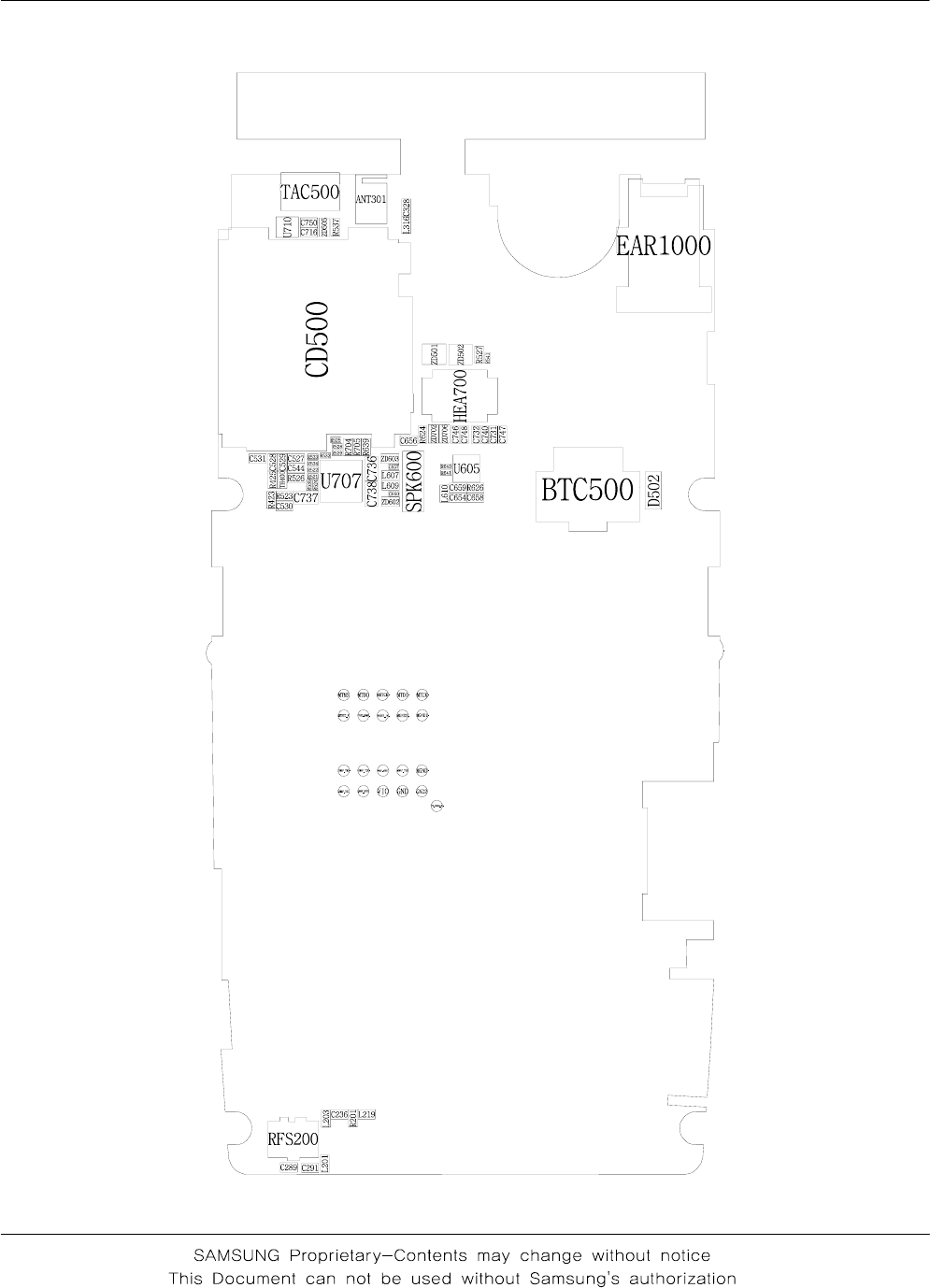

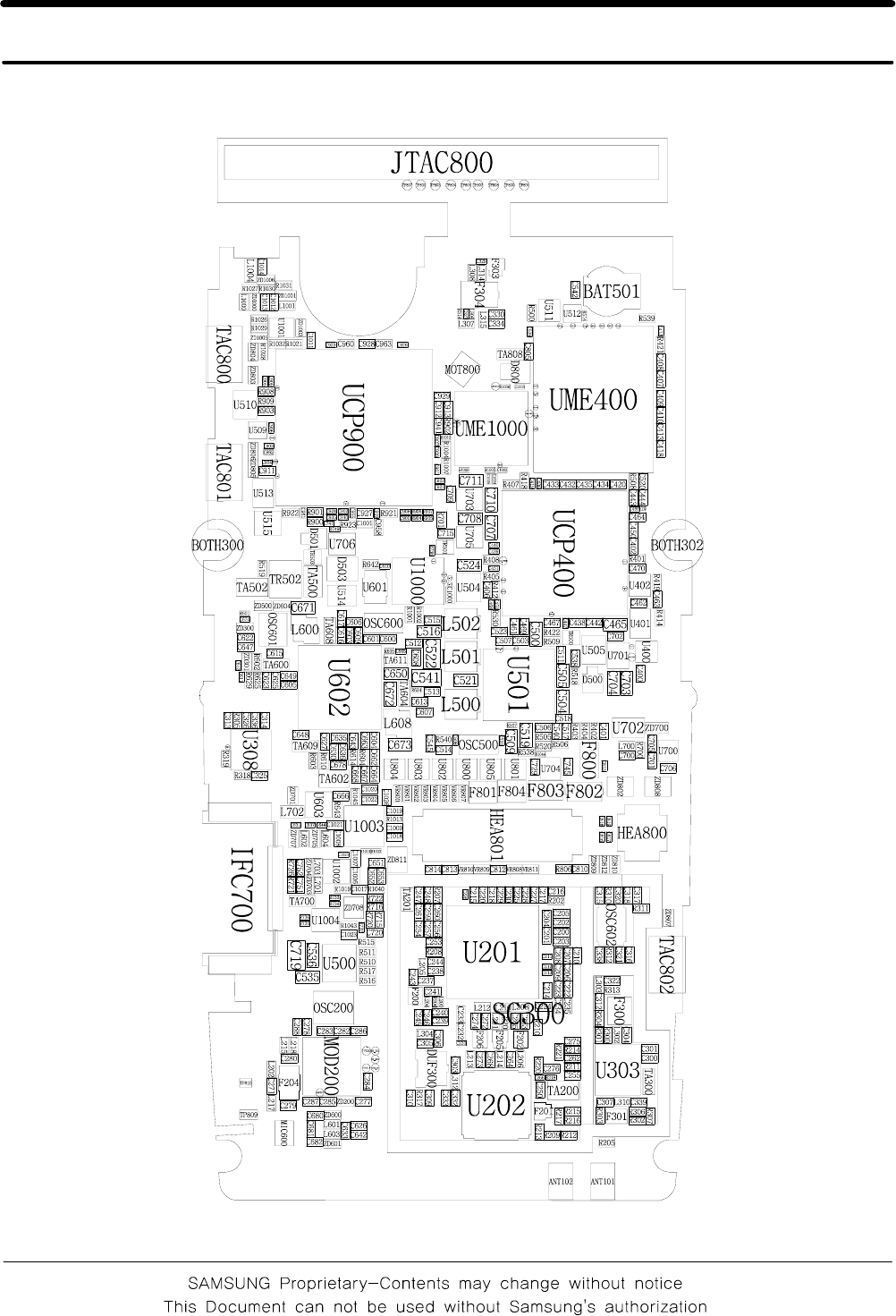

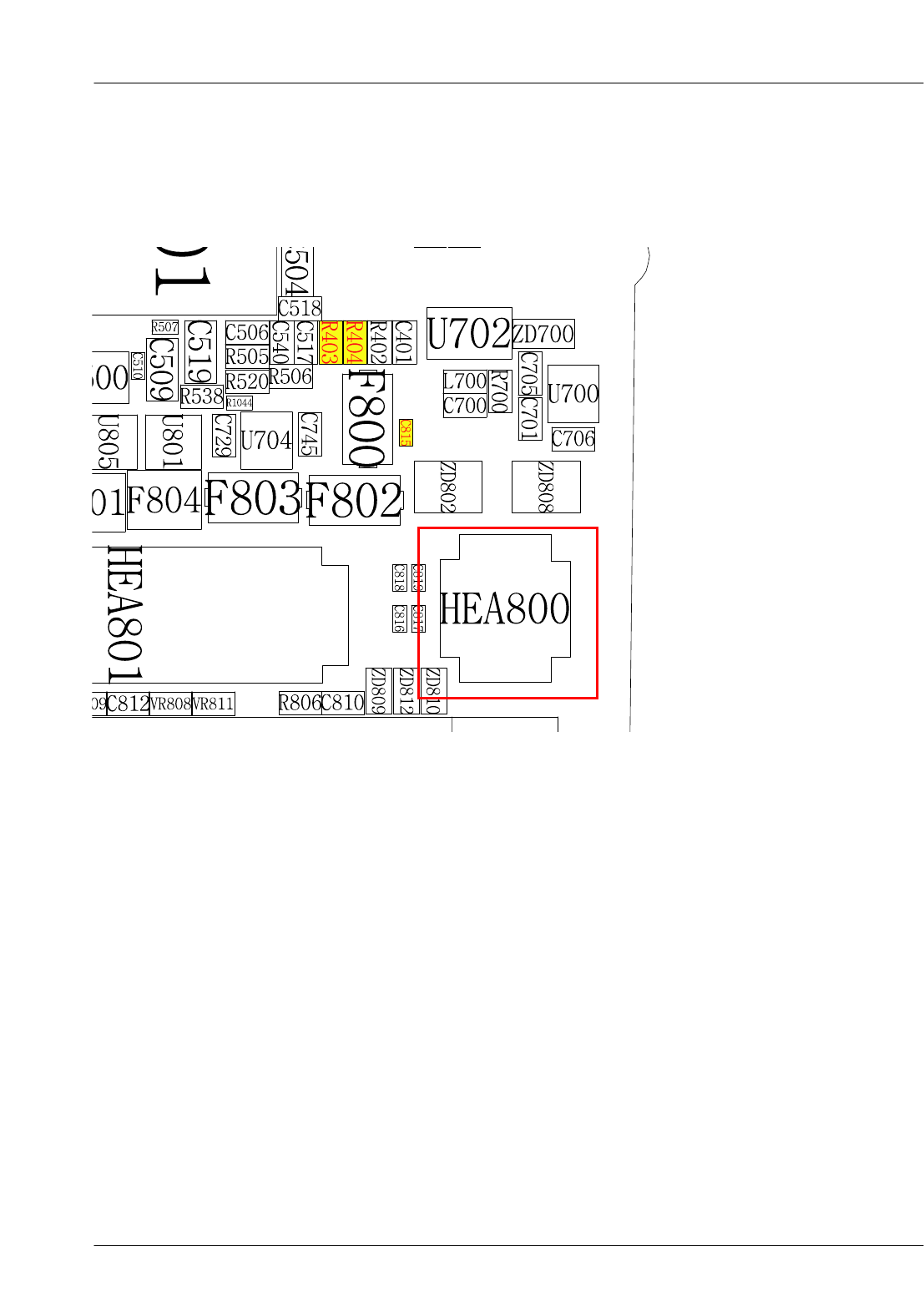

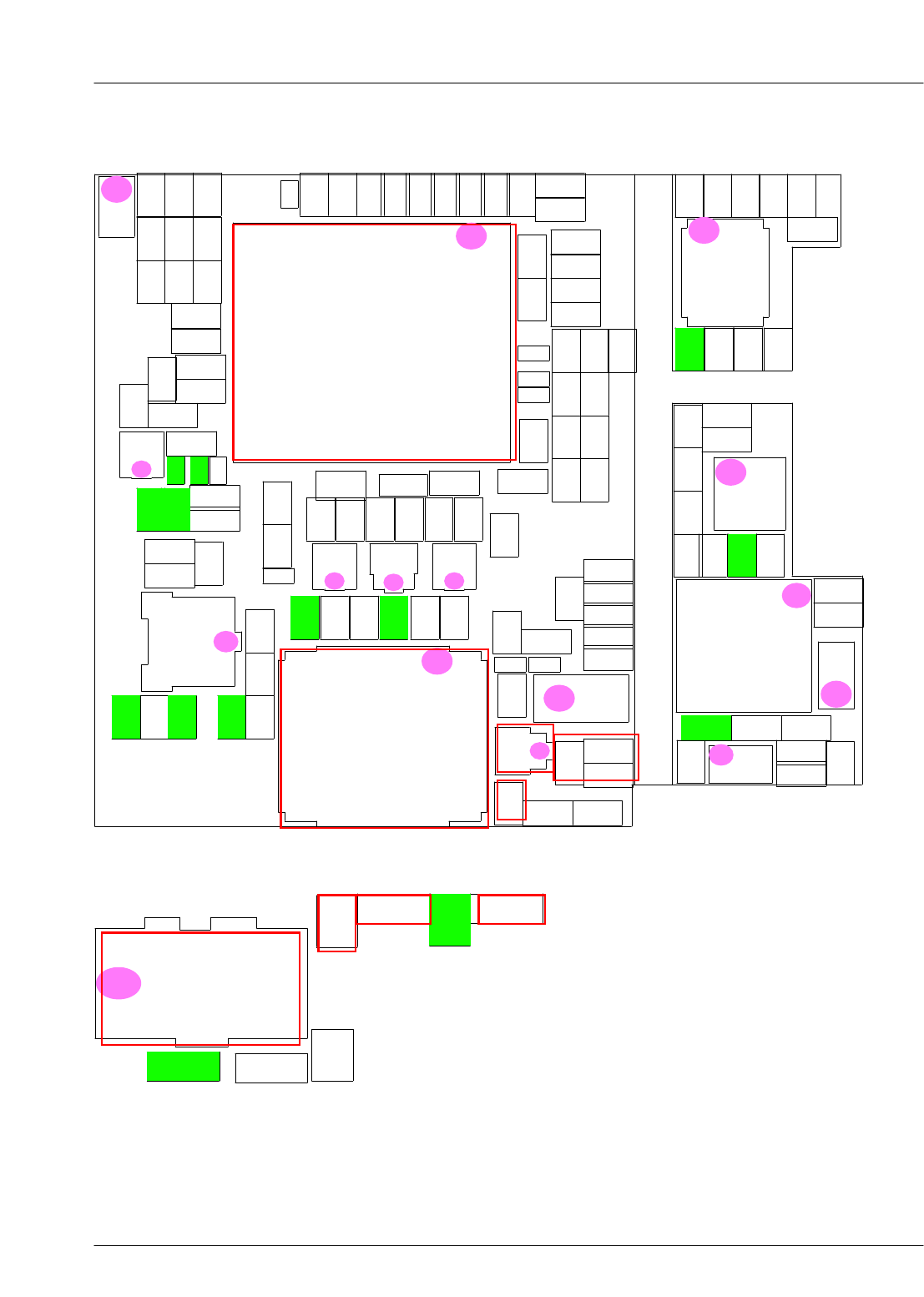

Main top view
PCB Diagrams
8-2

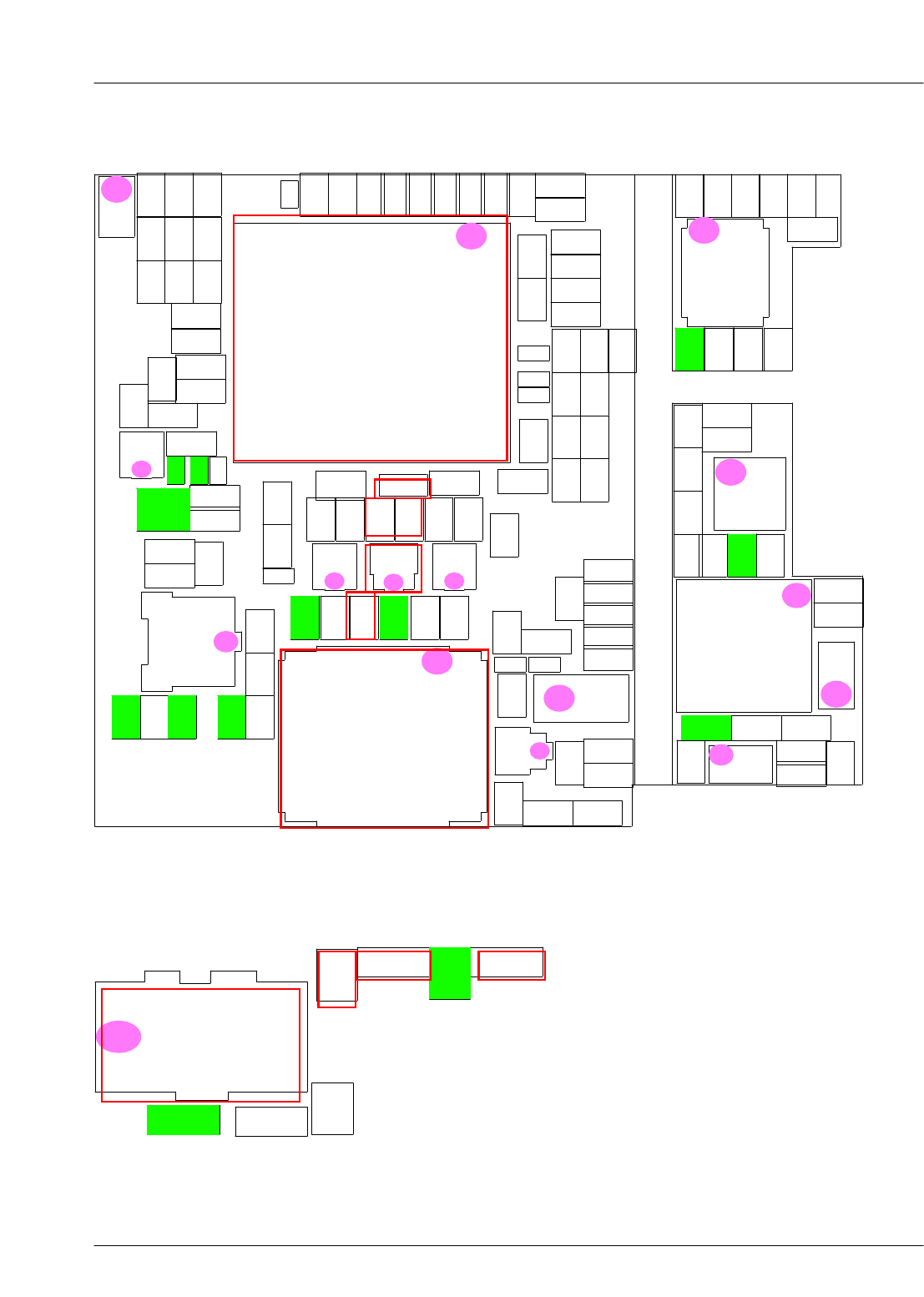

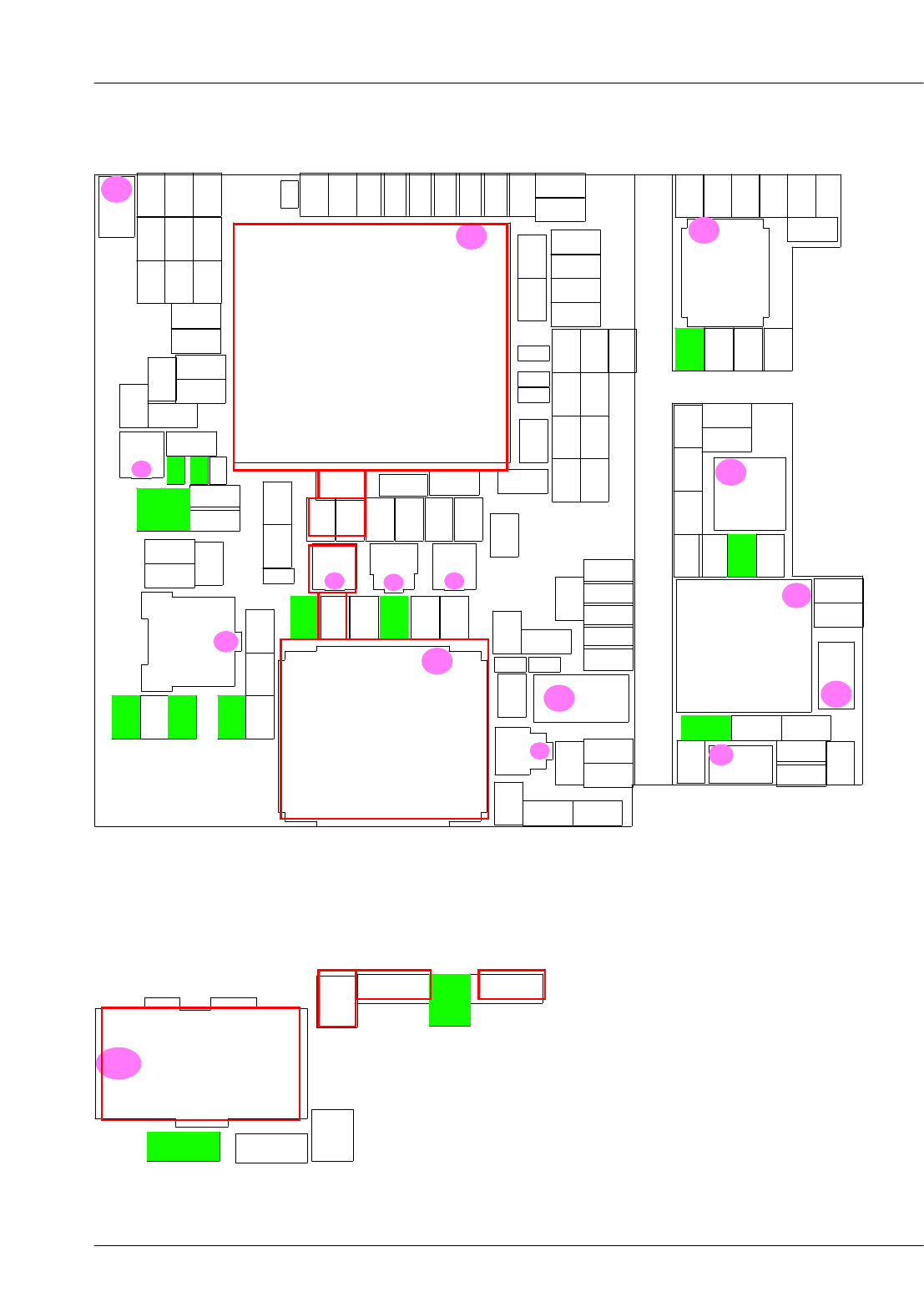

Main bottom view
SAMSUNG Proprietary-Contents may change without notice

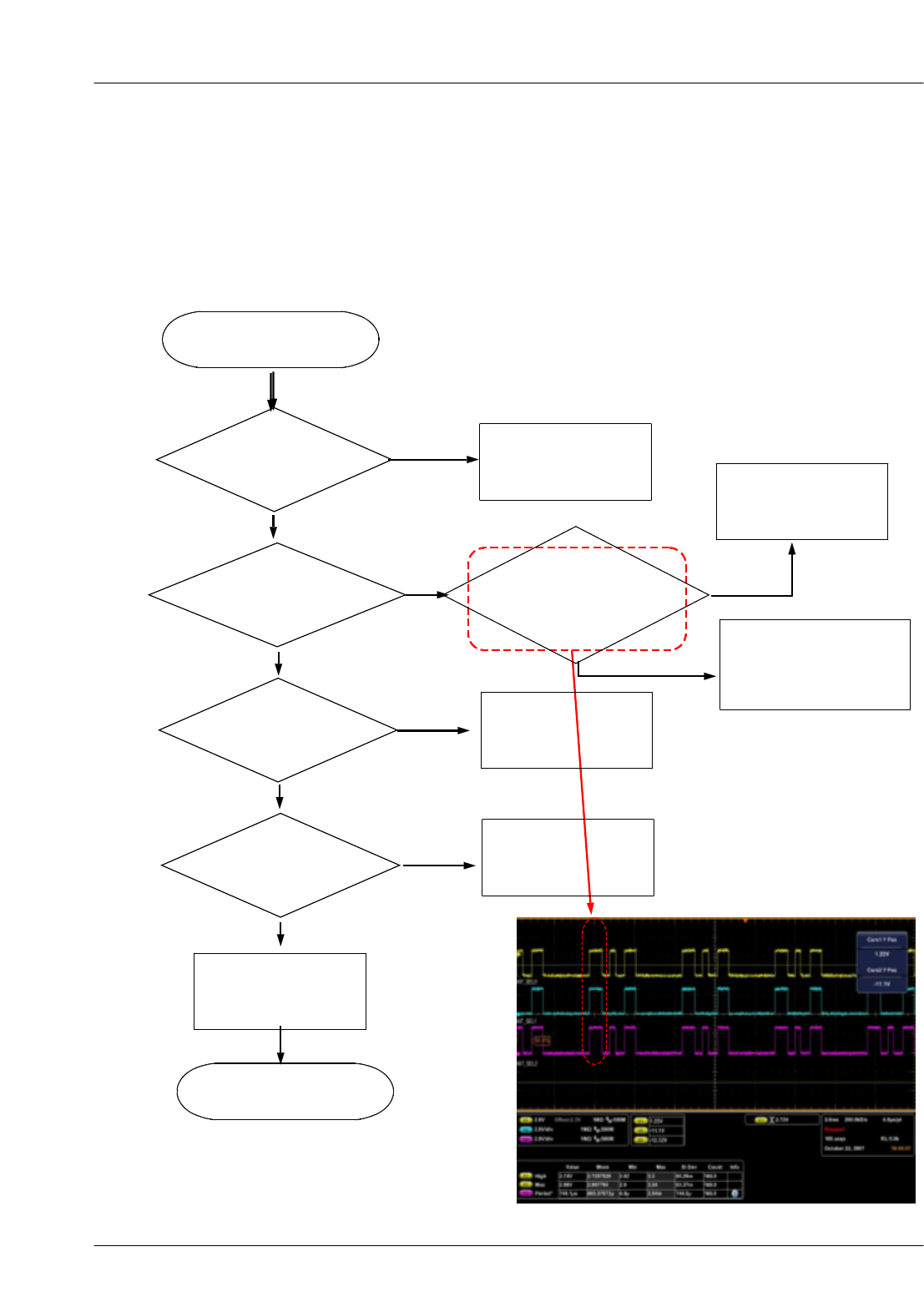

9. Flow Chart of TroubleShooting
9-1. Logic Section

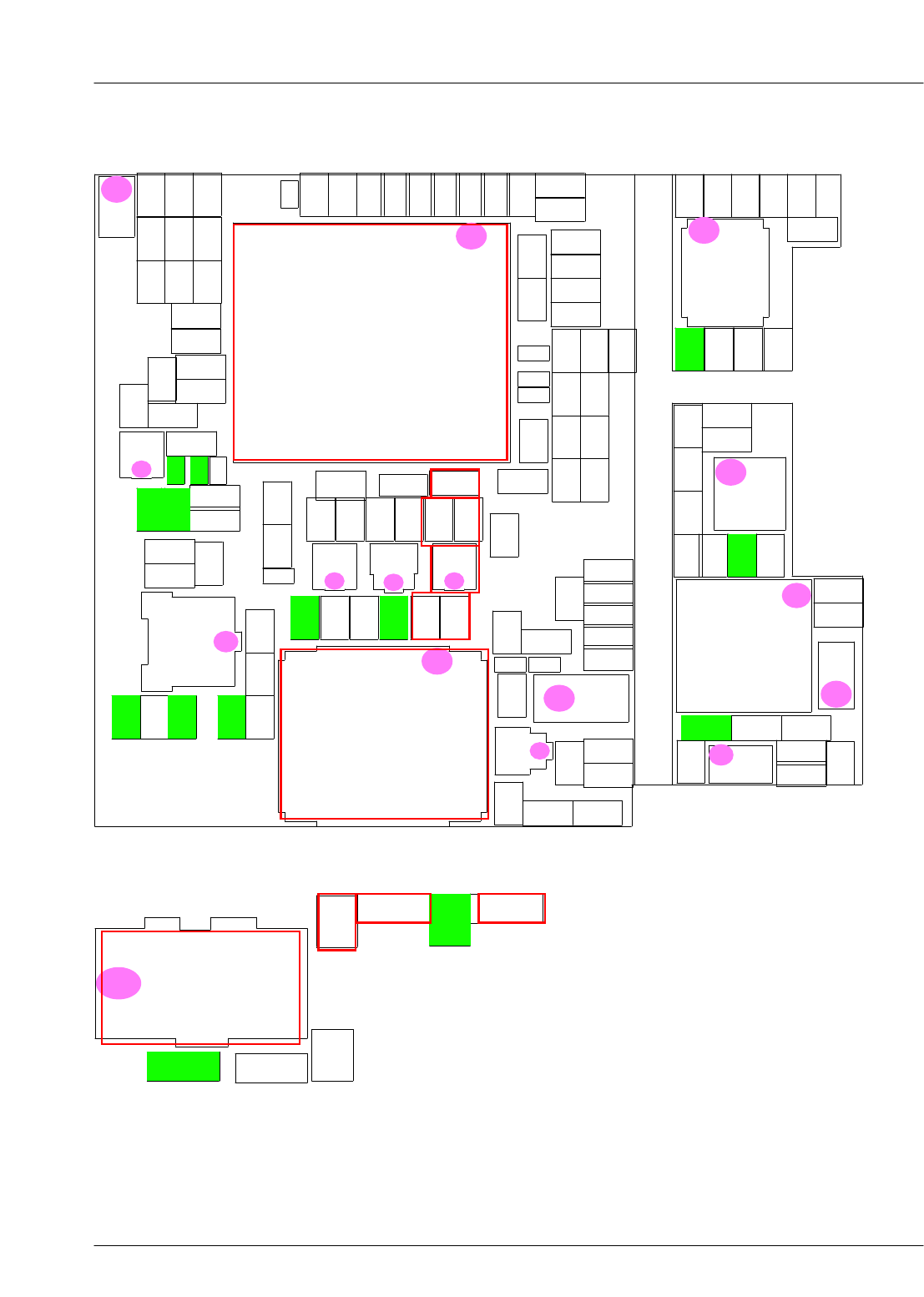

SAMSUNG Proprietary-Contents may change without notice

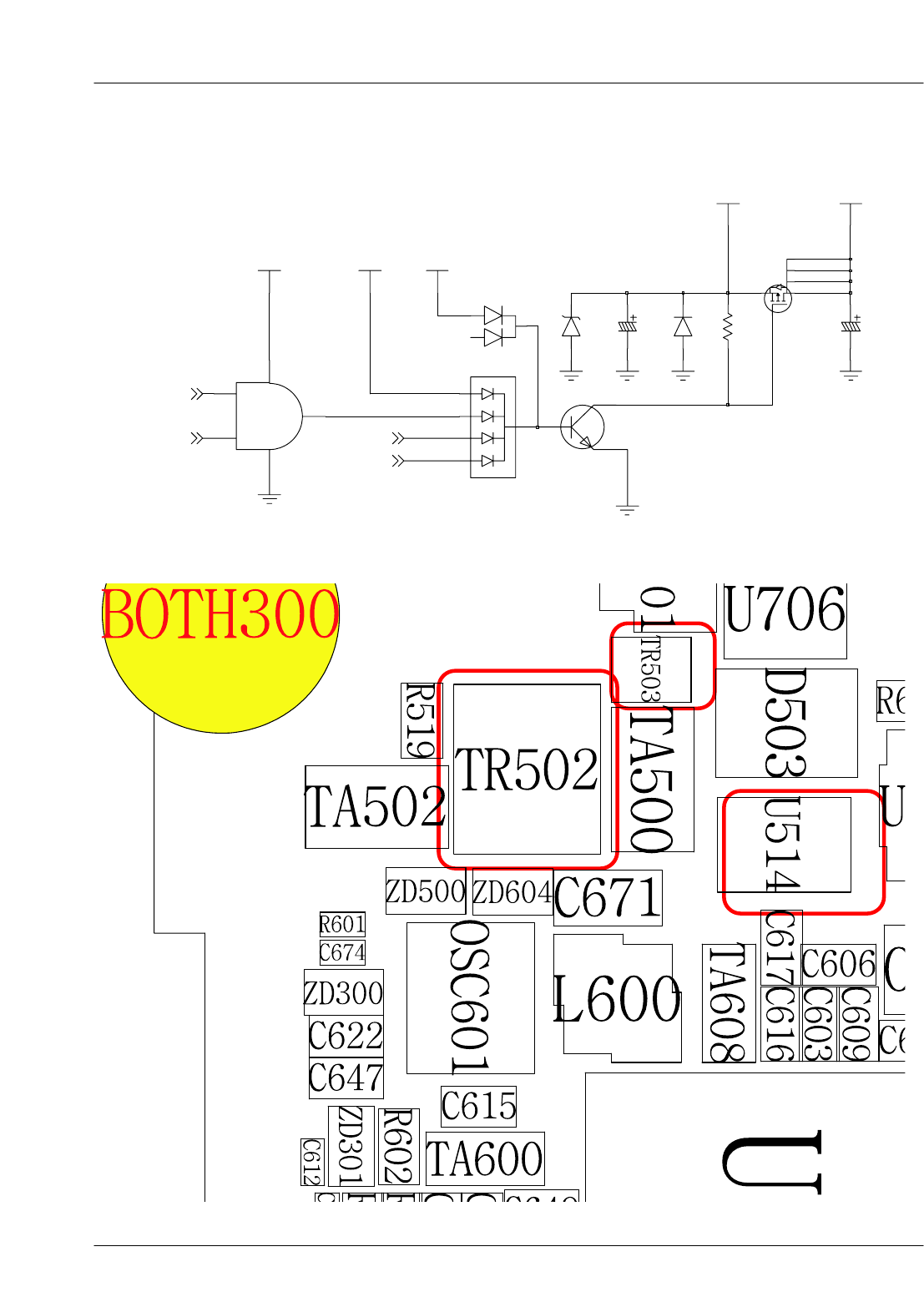

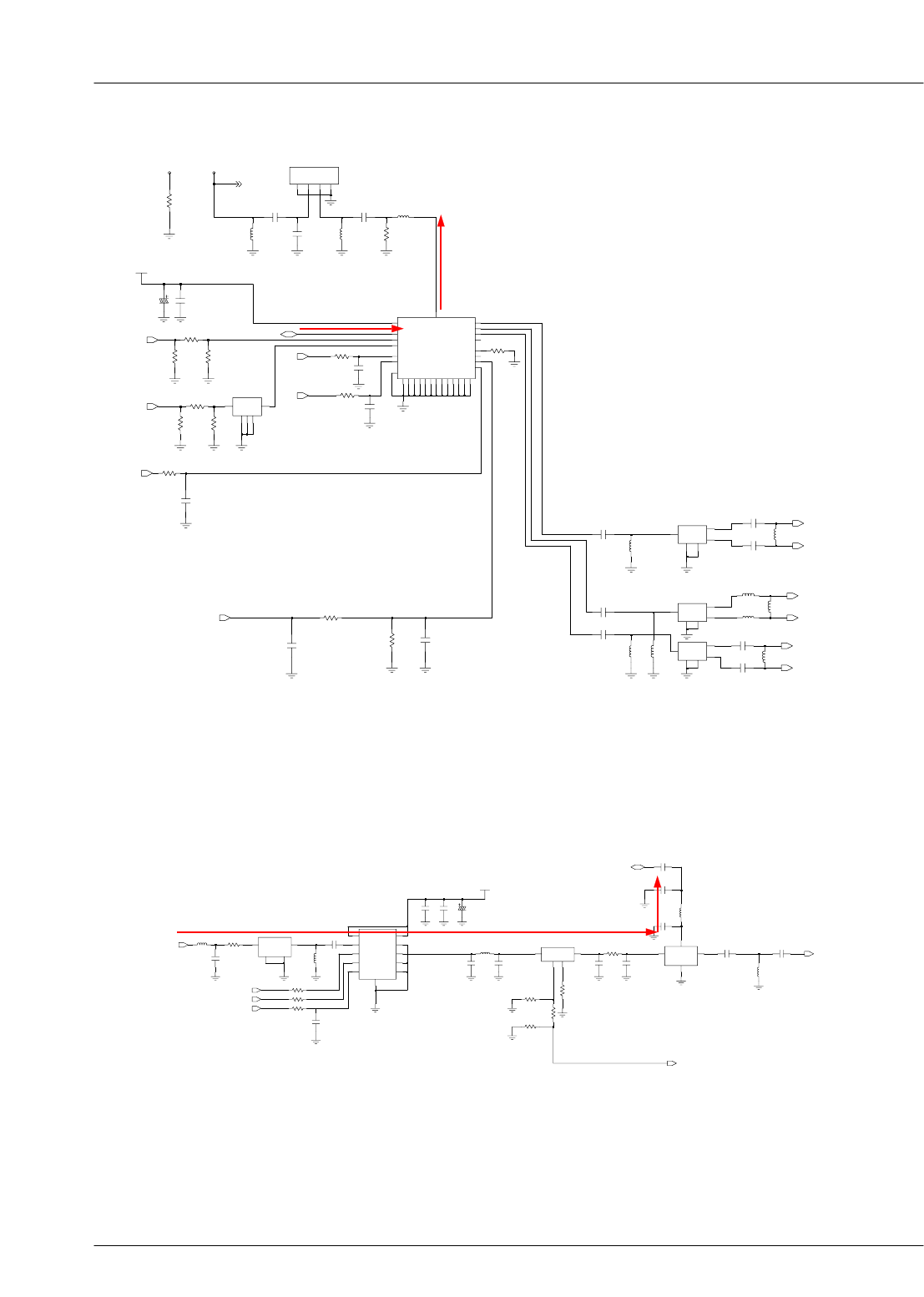

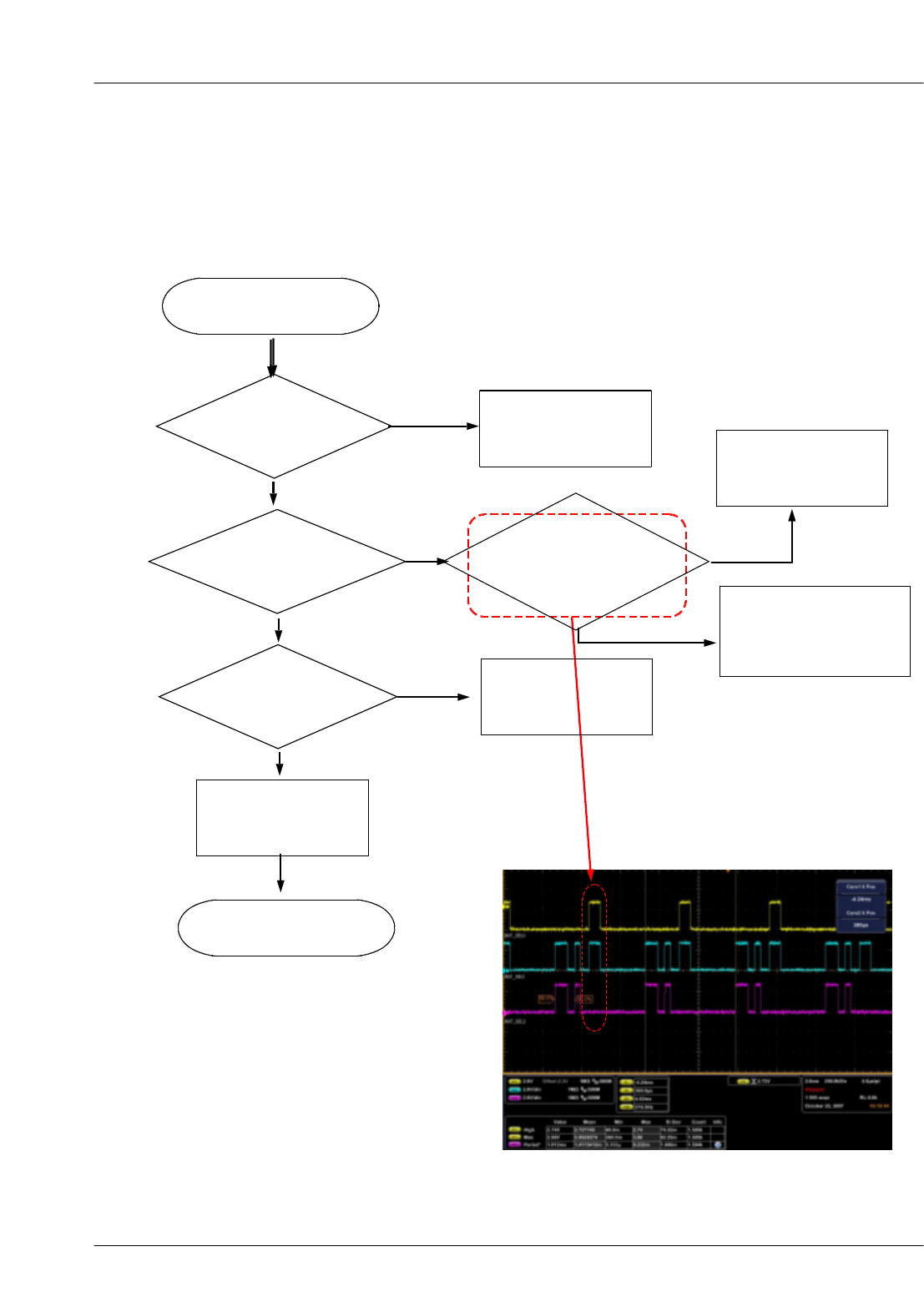

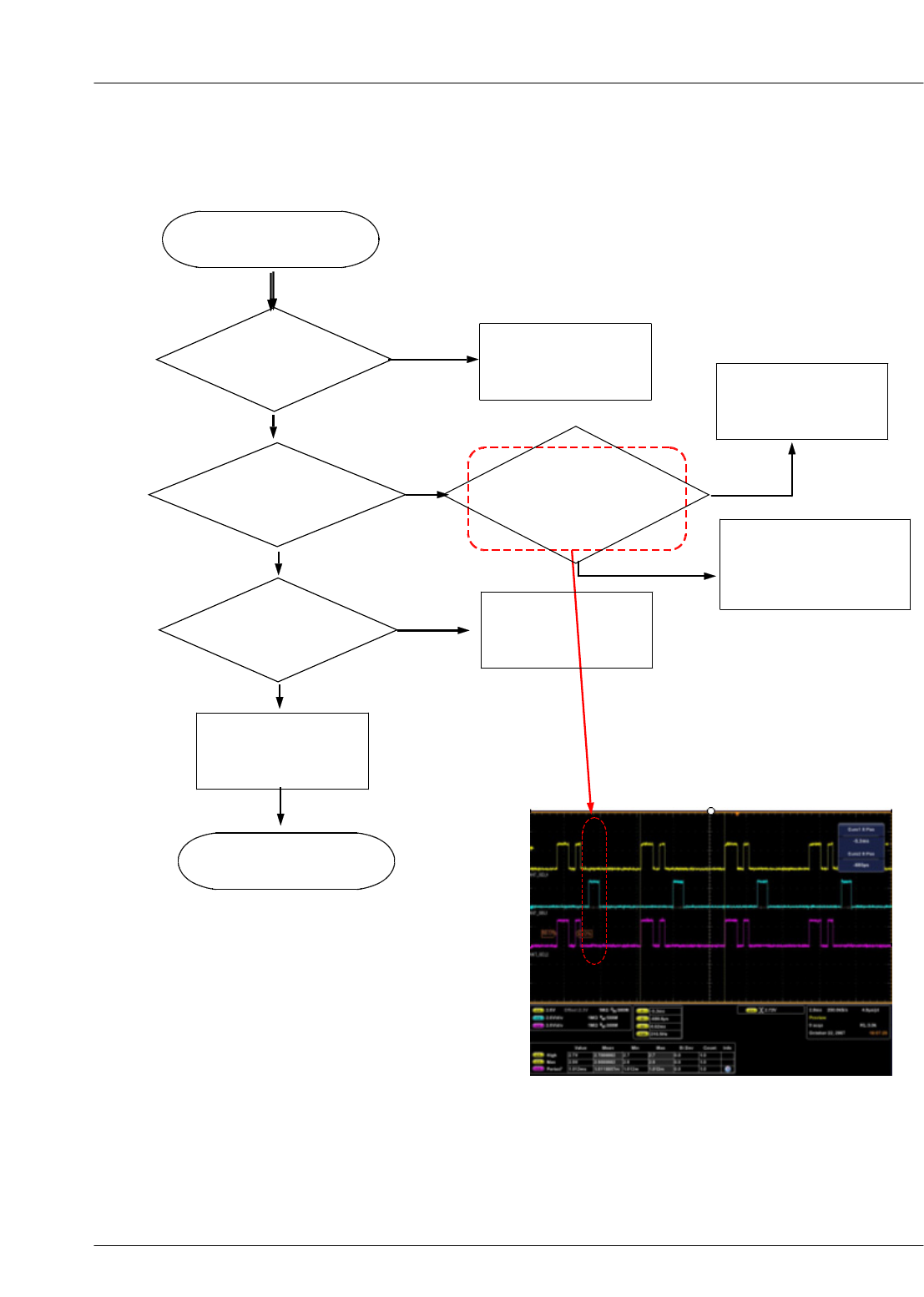

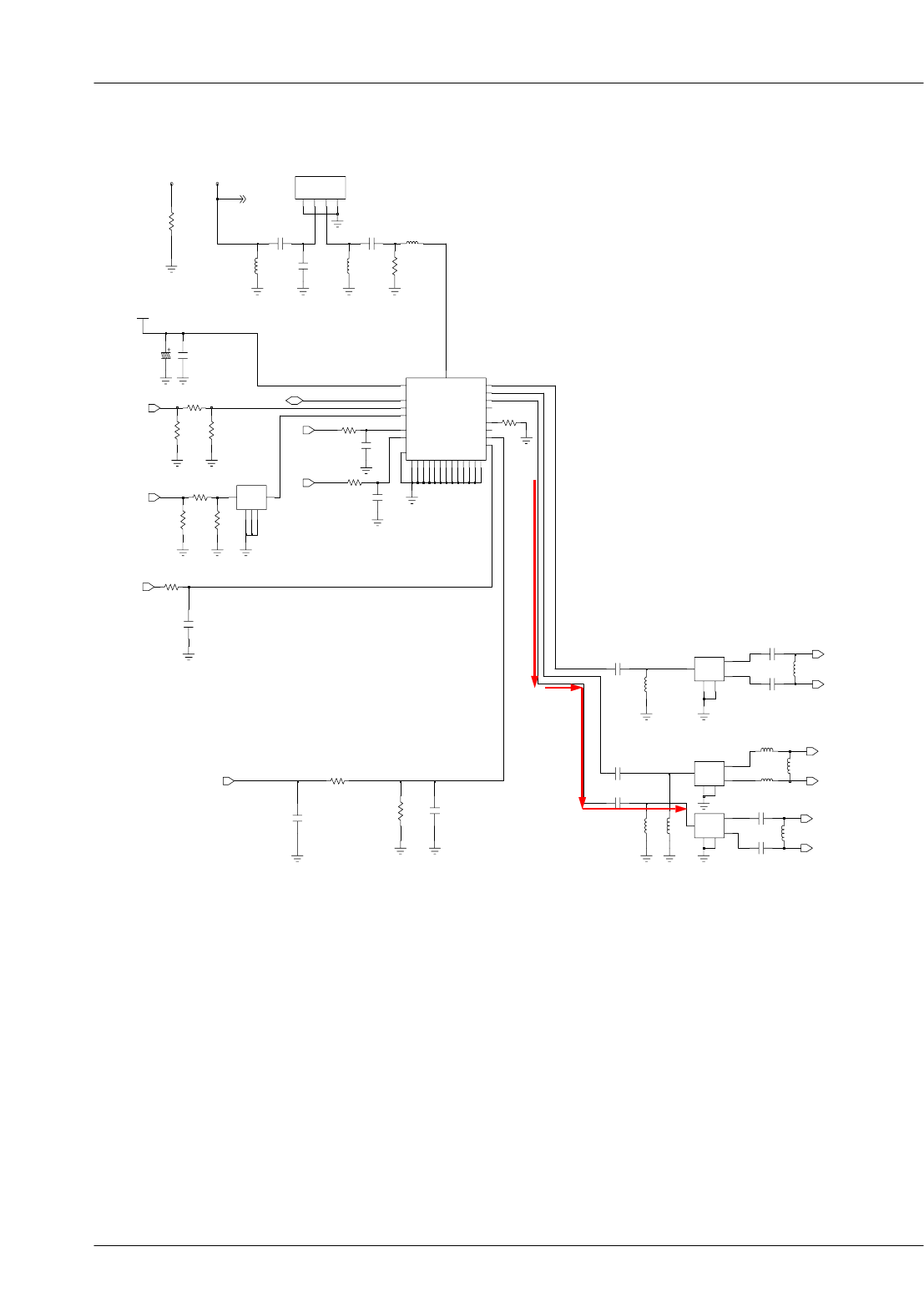

Flow Chart of Troubleshooting
VREG_TCXO_2.85V 6
G3
4
TR502
1
2
5
TA500
ZD500
D503
1
2
3
4
5
VIO
TR503
13
2
3
1
2
D501
D502 R519
V_EXT
3
1
2
5
4
U514
VBAT
TA502
V_BAT
PS_HOLD_PU
SYSEN
IF_CON_SENSE
ON_SW
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
SAMSUNG Proprietary-Contents may change without notice

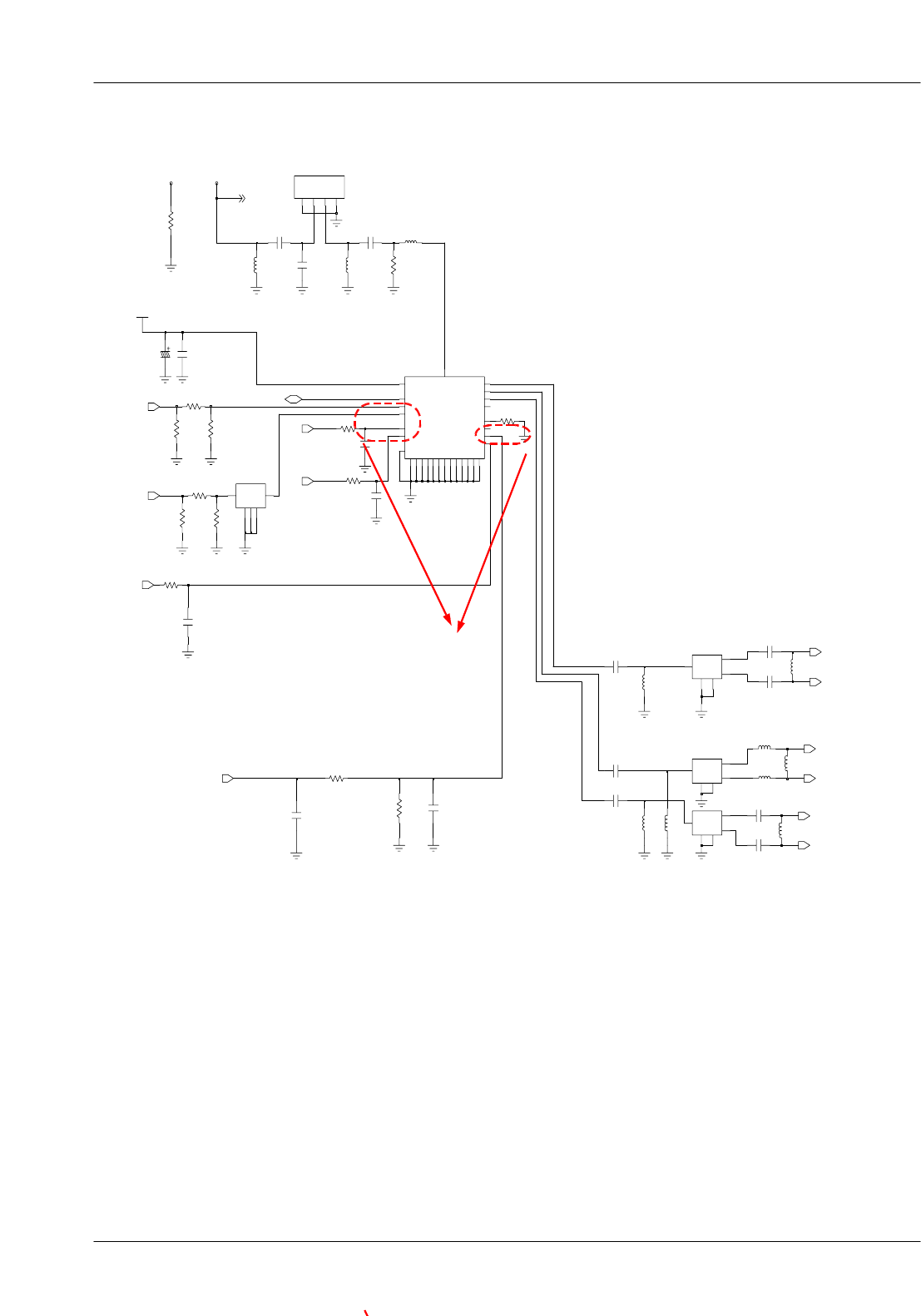

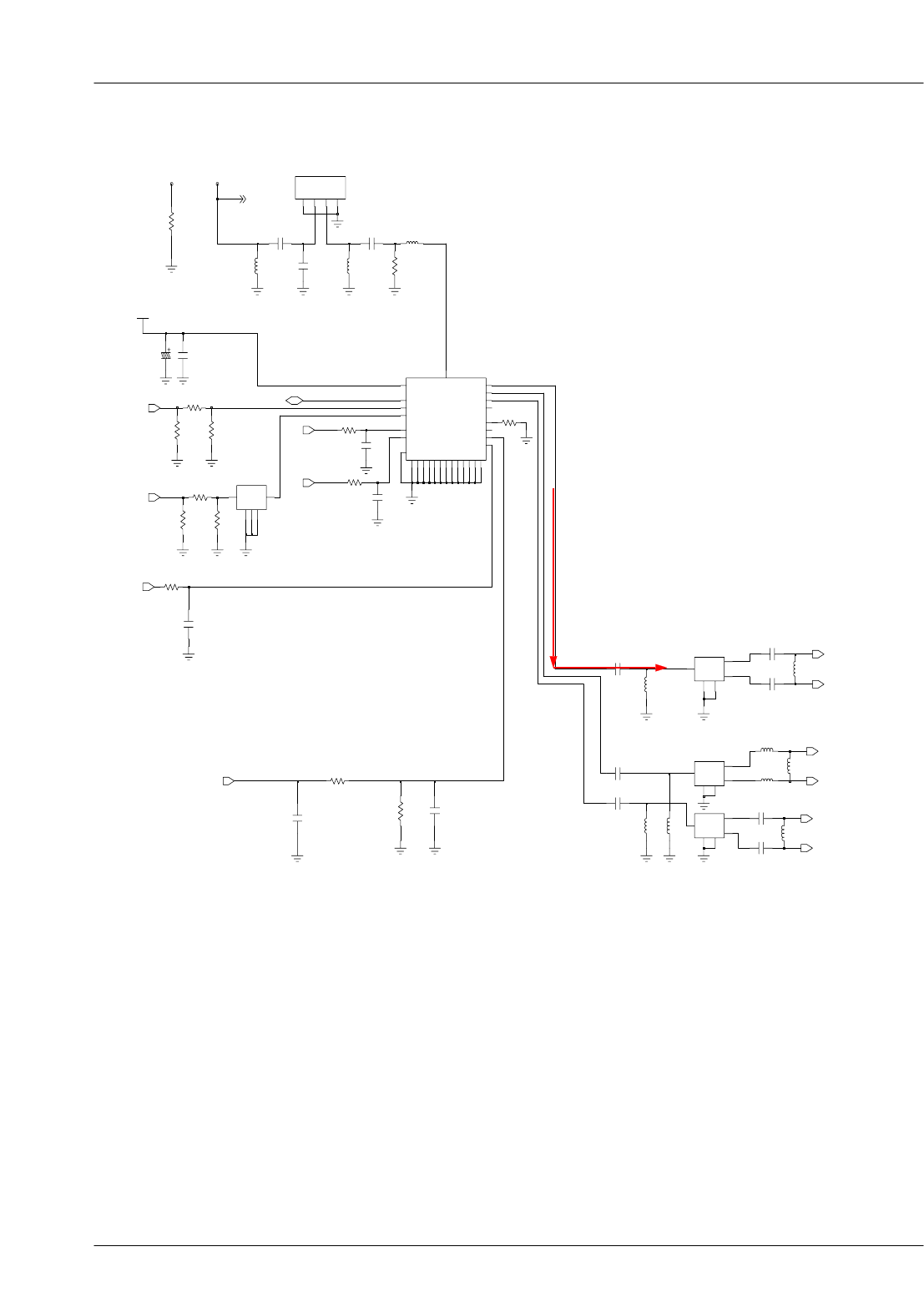

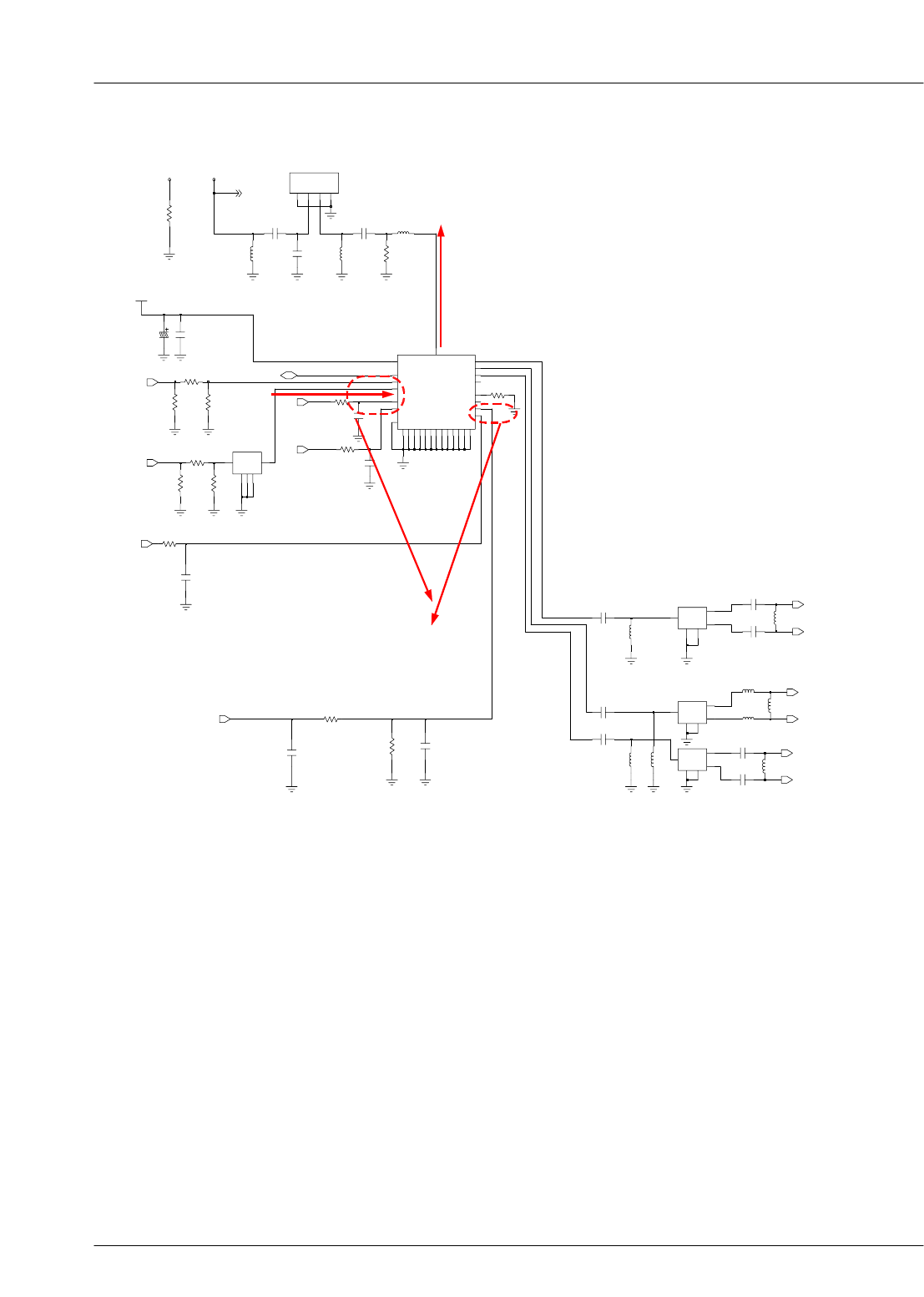

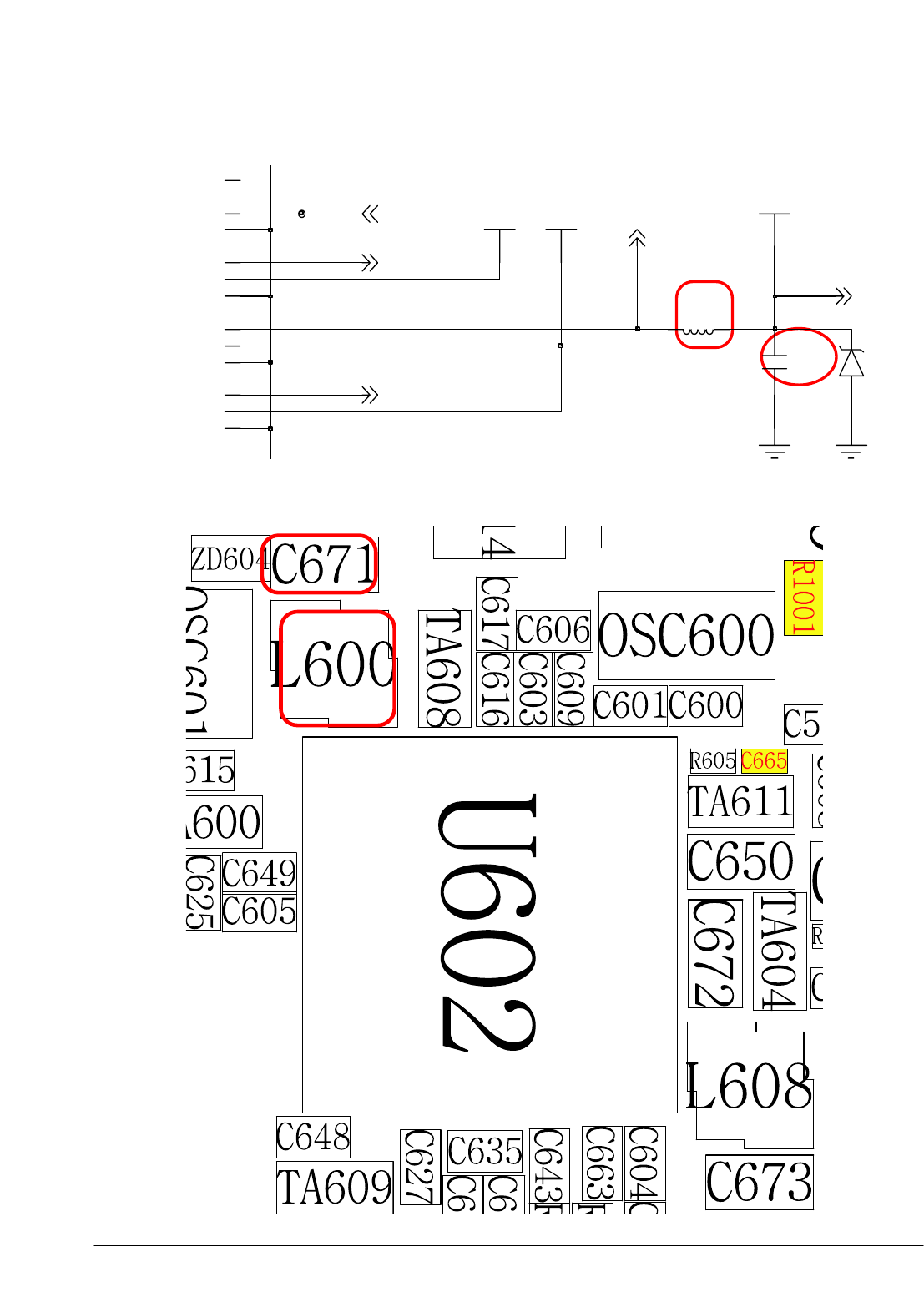

Flow Chart of Troubleshooting
C601
OSC600
2
1
VBAT
32KOUT
T6 CP_CAPM
T7 CP_CAPP
R6 CP_GND
R7 CP_IN
P16
32KXIN
P2 ICTLAC2
P6 ICTLUSB1
P1 ICTLUSB2
P15 32KXOUT
N7 ICTLAC1
N10 32KCLKOUT
G10 CLKREQ
D7 CLKEN2
D13 CLK256FS
C6 CLKEN
C650
TA604
C600
CLK256FS
32KCLKOUT
CLKEN
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
VIO_IN
ZD604
T3
VIO_GND
VIO_L T4
VIO_IN R4
D
D2_L
D
D2_GND
D
D2_IN
K2
VSIM_OUT
F8
VMODE1
VDD1_IN E14
VHSMIC
_
OUT
D6
VMODE2|I2C_SR_SCL
D14
VDD1_IN
VDD1_L D15
VDD1_L C14
C15
VDD1_GND
VDD1_GND B15
C
C671
L600
VBAT1
VDD1
VMODE
VDD1_OUT
SYS_VMODE
VDD1_L
VIO_L
VDD1_L
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting

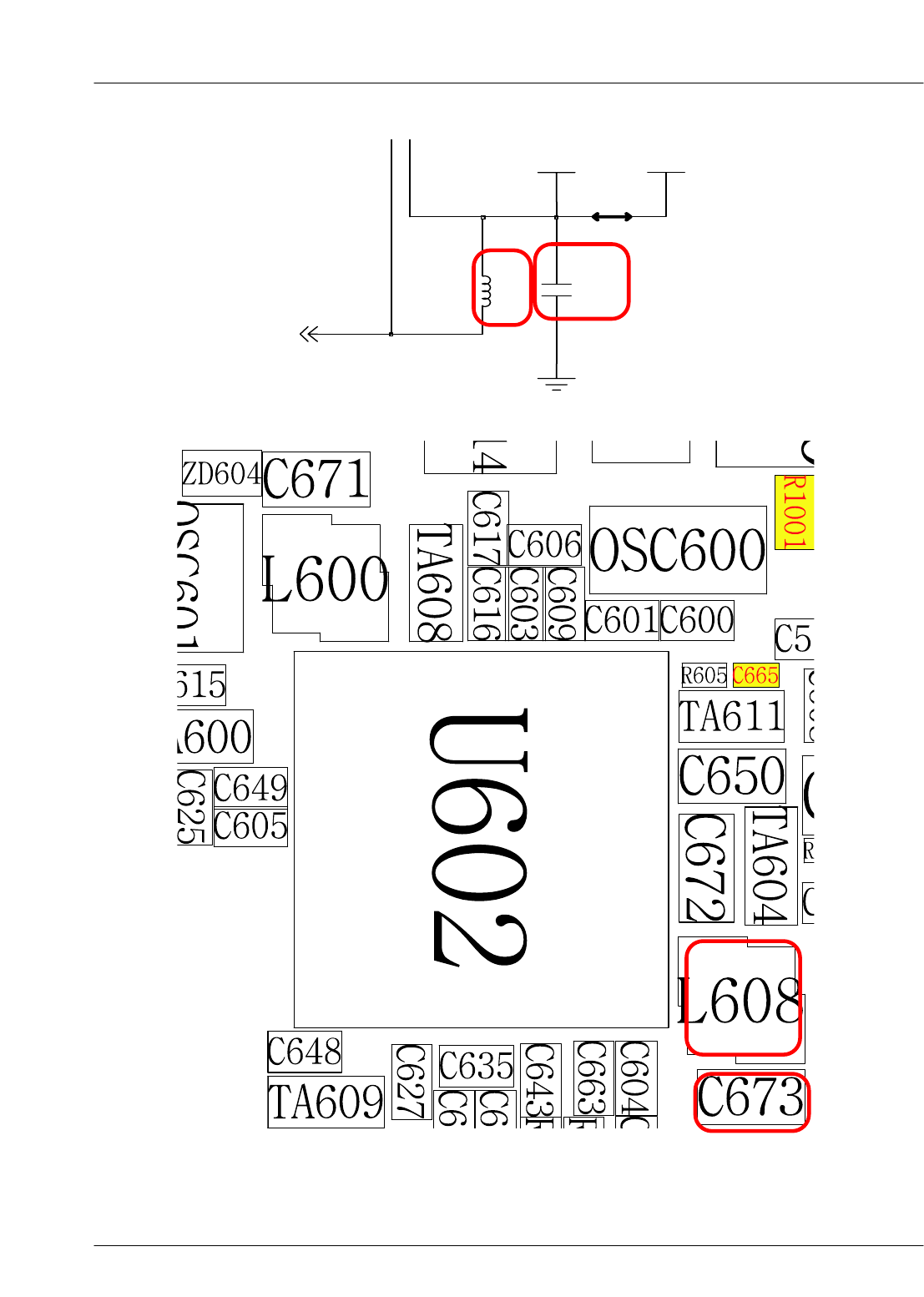

L608
VIO
C673
V1DD8
VIO_L
SAMSUNG Proprietary-Contents may change without notice

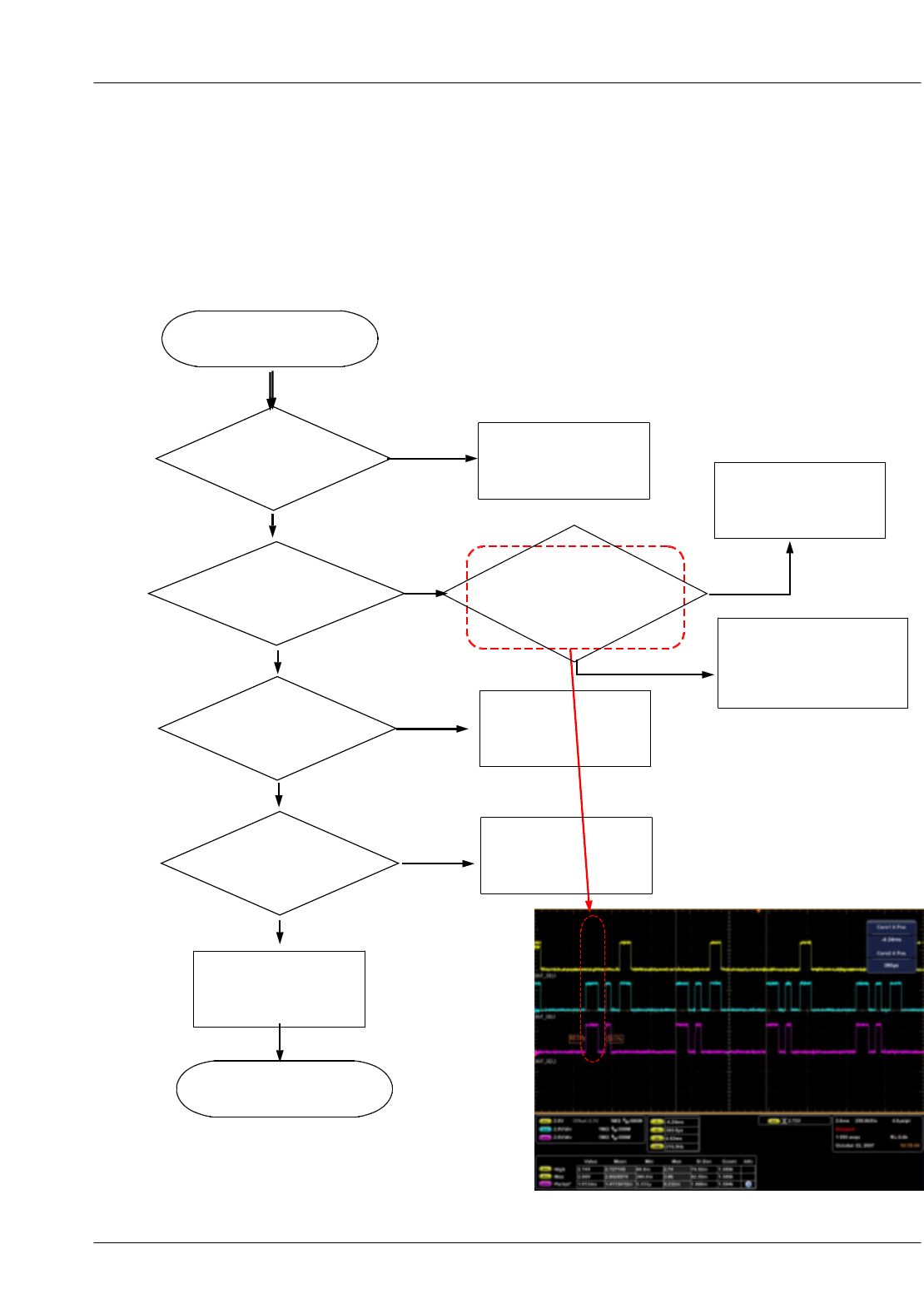

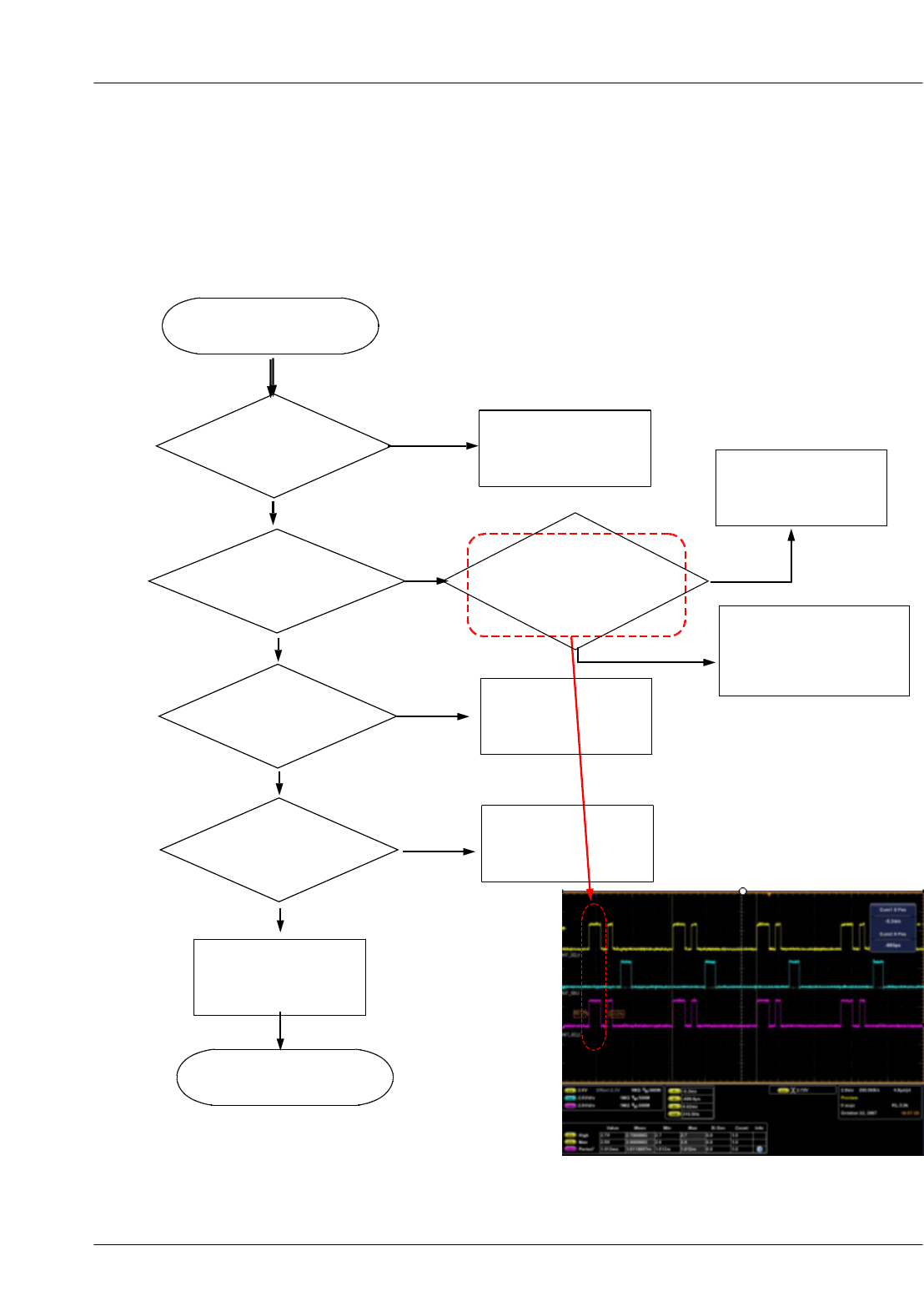

Flow Chart of Troubleshooting

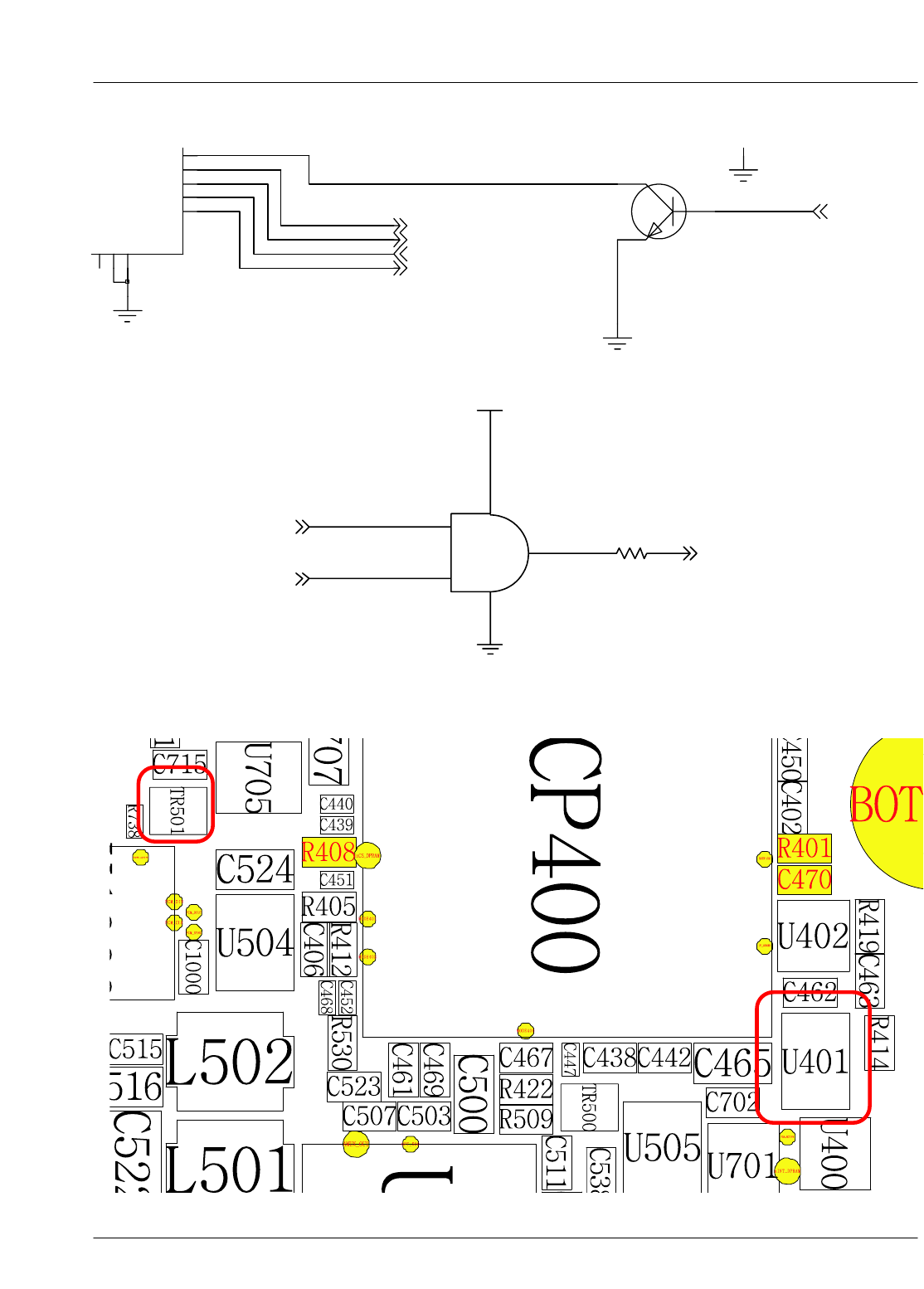

L4
KPD_PWR_N
K9
SLEEP_CLK
G10
PON_RESET_N F10
PS_HOLD
D1
1
DNC
C10
MSM_INT_N
1NC
2NC
1
3
2
TR501
PM_INT_N
MSM_PSHOLD
PON_RESET_N
SLEEP_CLK
FONE_ON3
0
1
2
5
4
U401
3
V2DD6
R414
PON_RESET_N
nMSM_RST
FONE_RST
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting

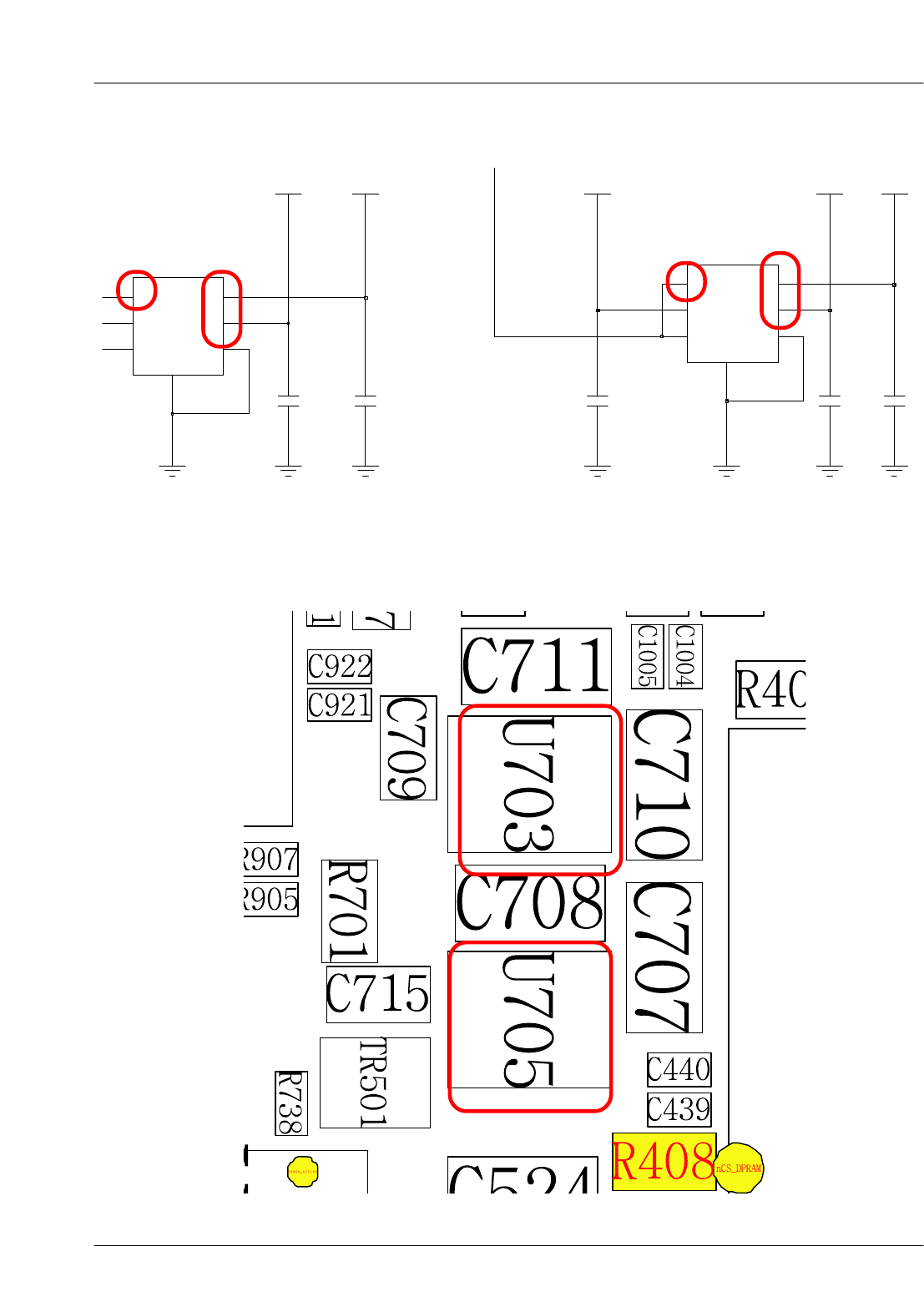

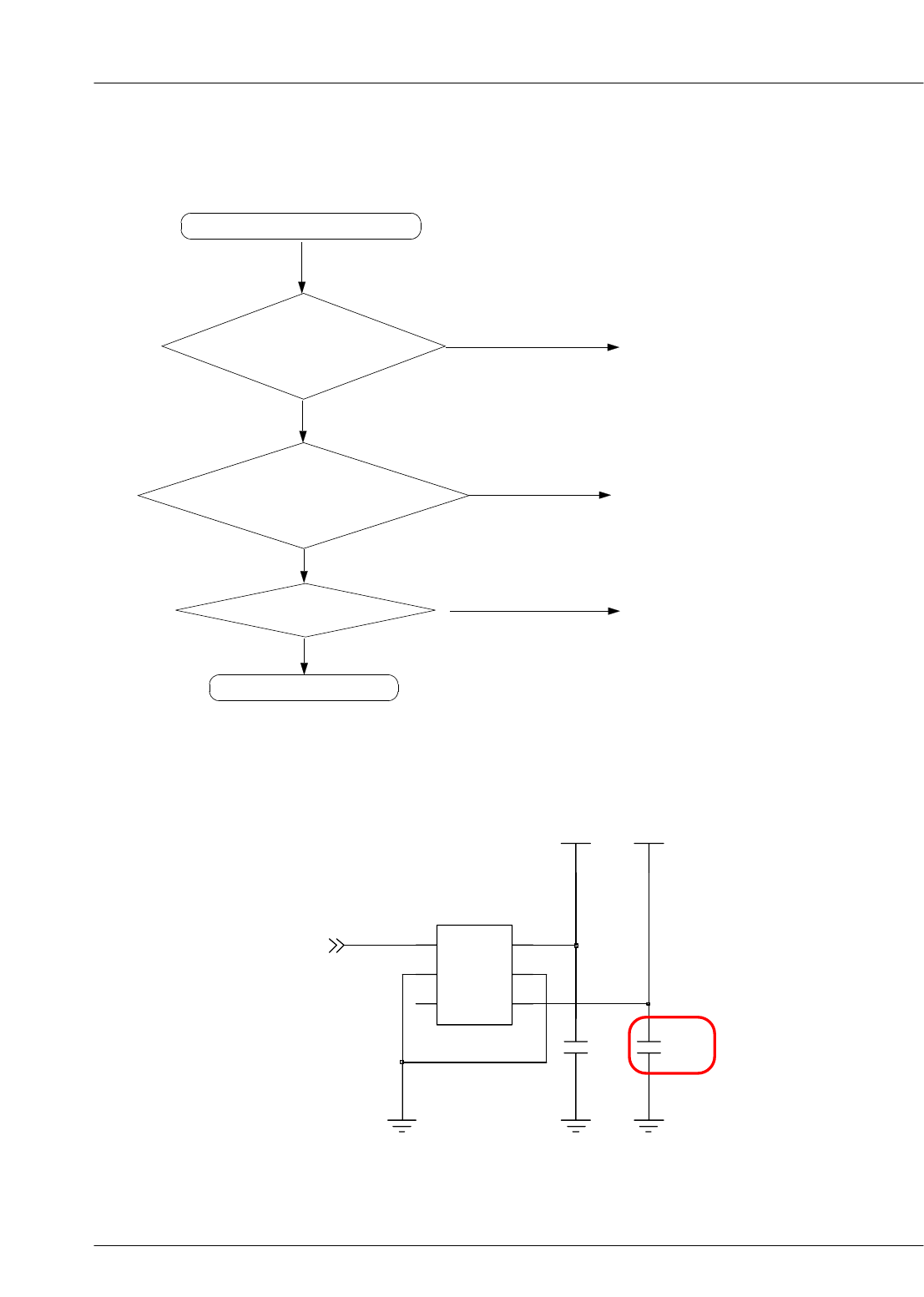

C707
VCAM_28A
3
1EN2
GND
7
2VIN 5
VOUT1
6
VOUT2
4
VSS
VCAM_18C
U703
EN1
VSS 4
3
EN1
EN2
1
7
GND
VIN
2VOUT1 5
VOUT2 6
U705
VCAM_28ISP
C710 C71
1
C709C708
VCAM_18IO VBAT
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting

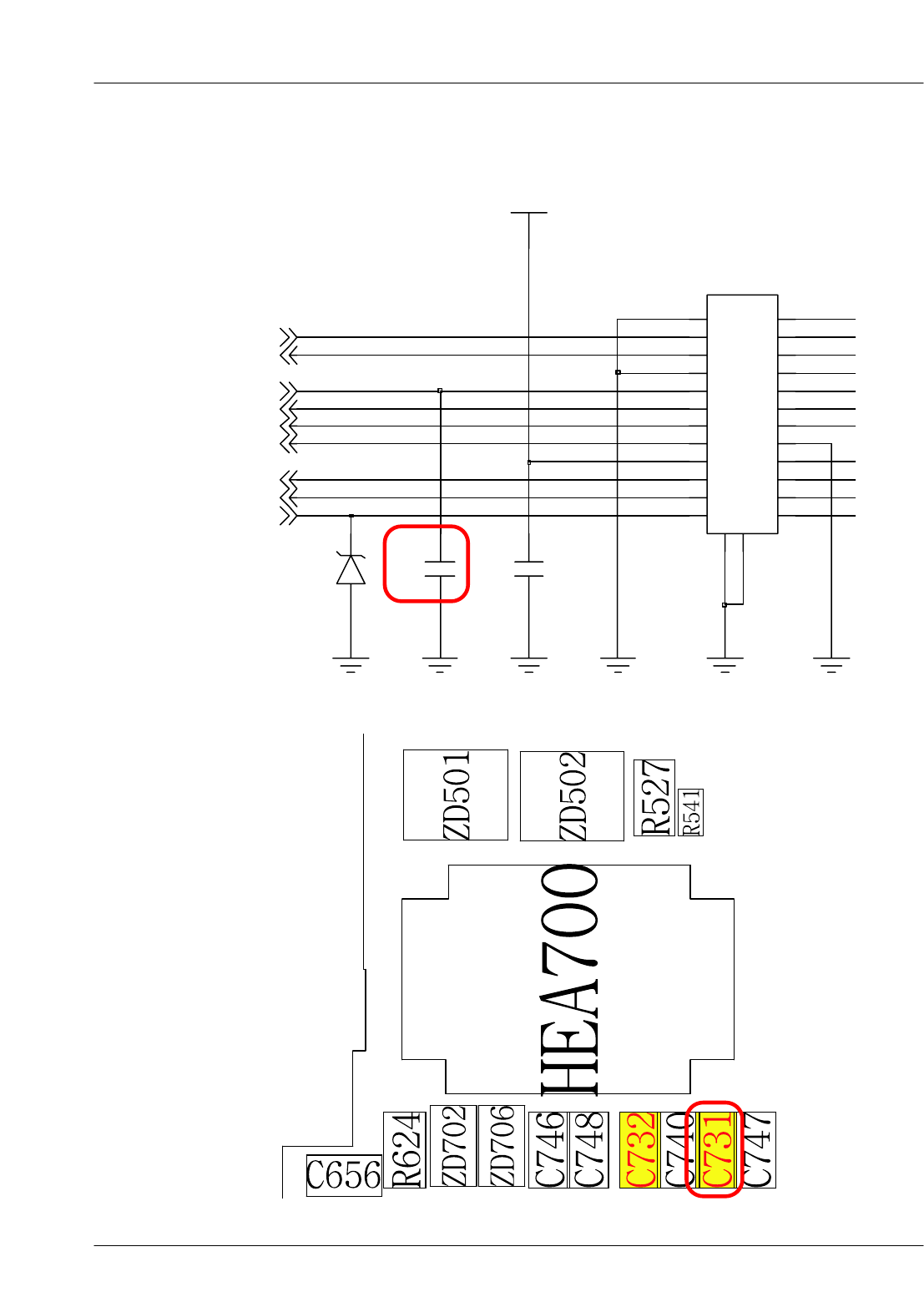

7
78
8
99
NC
25 26
NC
21 22 22
23
23 24
24
3
34
4
5566
14 14
15
15 16
16
17 17 18 18
19
19
22
20
20
21
HEA700
11
10 10
11
11 12
12
13 13
C748ZD702 C731
VCAM_18IO
C
FLASH_OUT
CAM_D0
CAM_D2
SCL1
PIXEL_VSYNC
PIXEL_MCLK
CAM_D3
CAM_D5
CAM_D7
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting

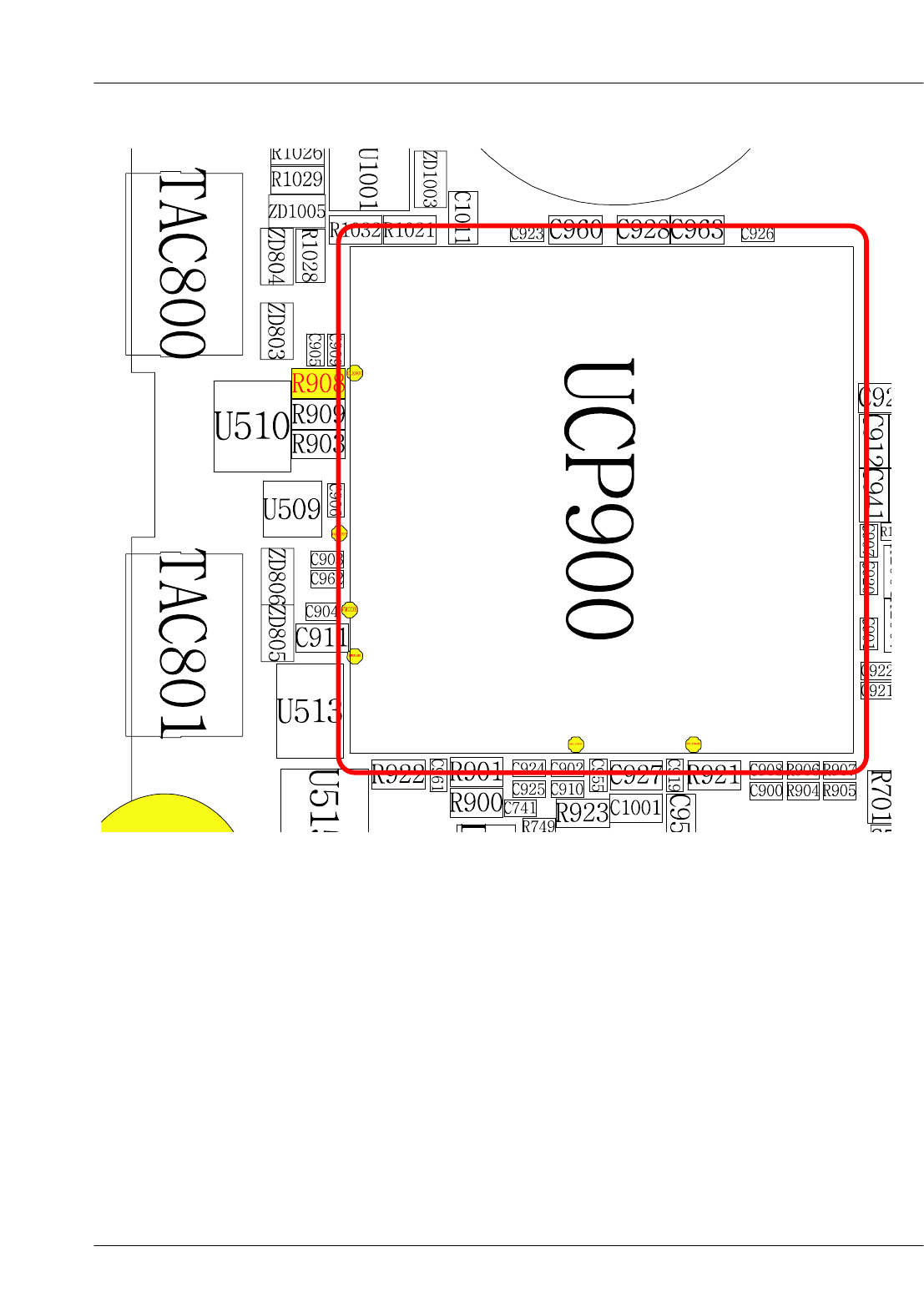

VIO

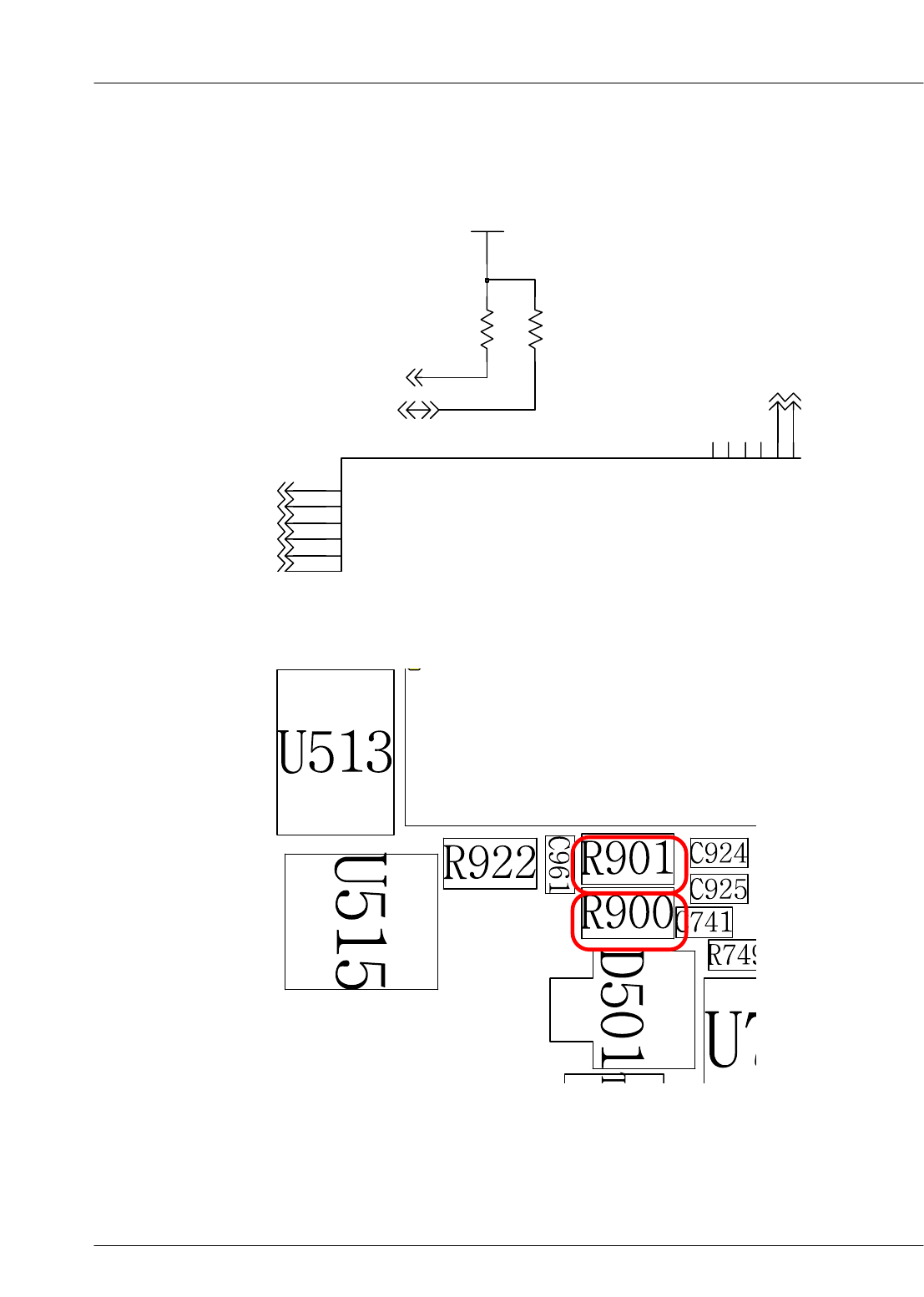

R901R900
DSS_DATA4|RFBI_DA4
V3
DSS_DATA0|RFBI_DA0
V8
DSS_DATA1|RFBI_DA1
W1
U4
U8 DSS_DATA2|RFBI_DA2
CAM_D5|ETK_D7V1
CAM_D4|ETK_D6U2
CAM_D3|ETK_D5U3
DSS_DATA3|RFBI_DA3
T3
CAM_D1|ETK_D3T4
CAM_D0|ETK_D2T8
CAM_D2|ETK_D4R2
DSS
DATA5|RFBI
DA5
AA4
LCD_D(1)
LCD_D(0)
LC
DD
(5
)
LCD_D(4)
LCD_D(3)
LCD_D(2)
CAM_D1
CAM_D0
SDA1
SCL1
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
C819
ZD808
1
2
34
5
6
6
6
778 8
99
17NC
NC
18
13 13 1414
15
15 16 16
2
2
334 4
55
HEA800
11
10
10
1111 12
12
C817
C818
C816
VCC_KEY_3.3V
34
5
6
ZD802
1
2
KBC2
KBC0 KBR0
KBC1
KBR2
KBR1
KBR3
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting

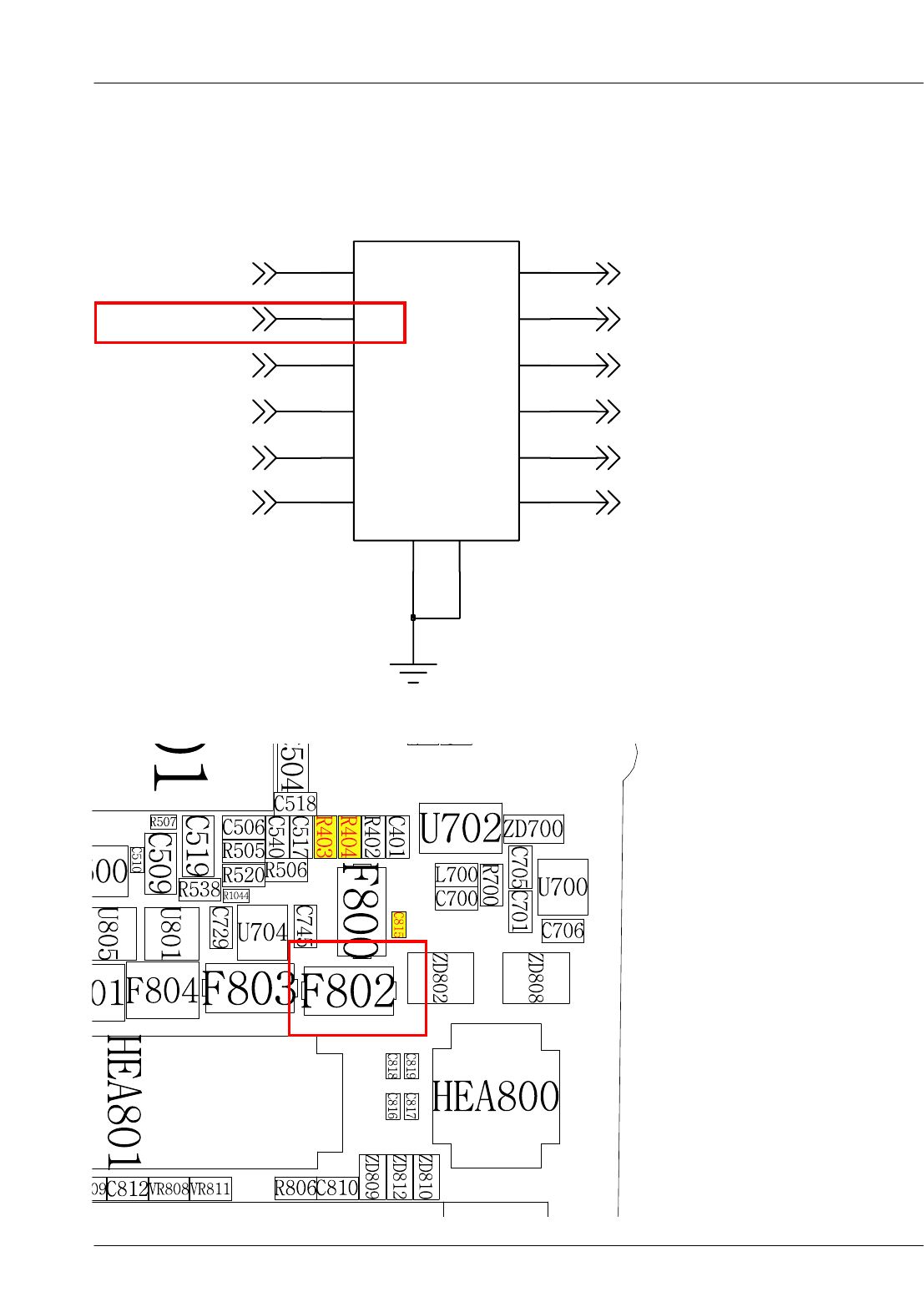

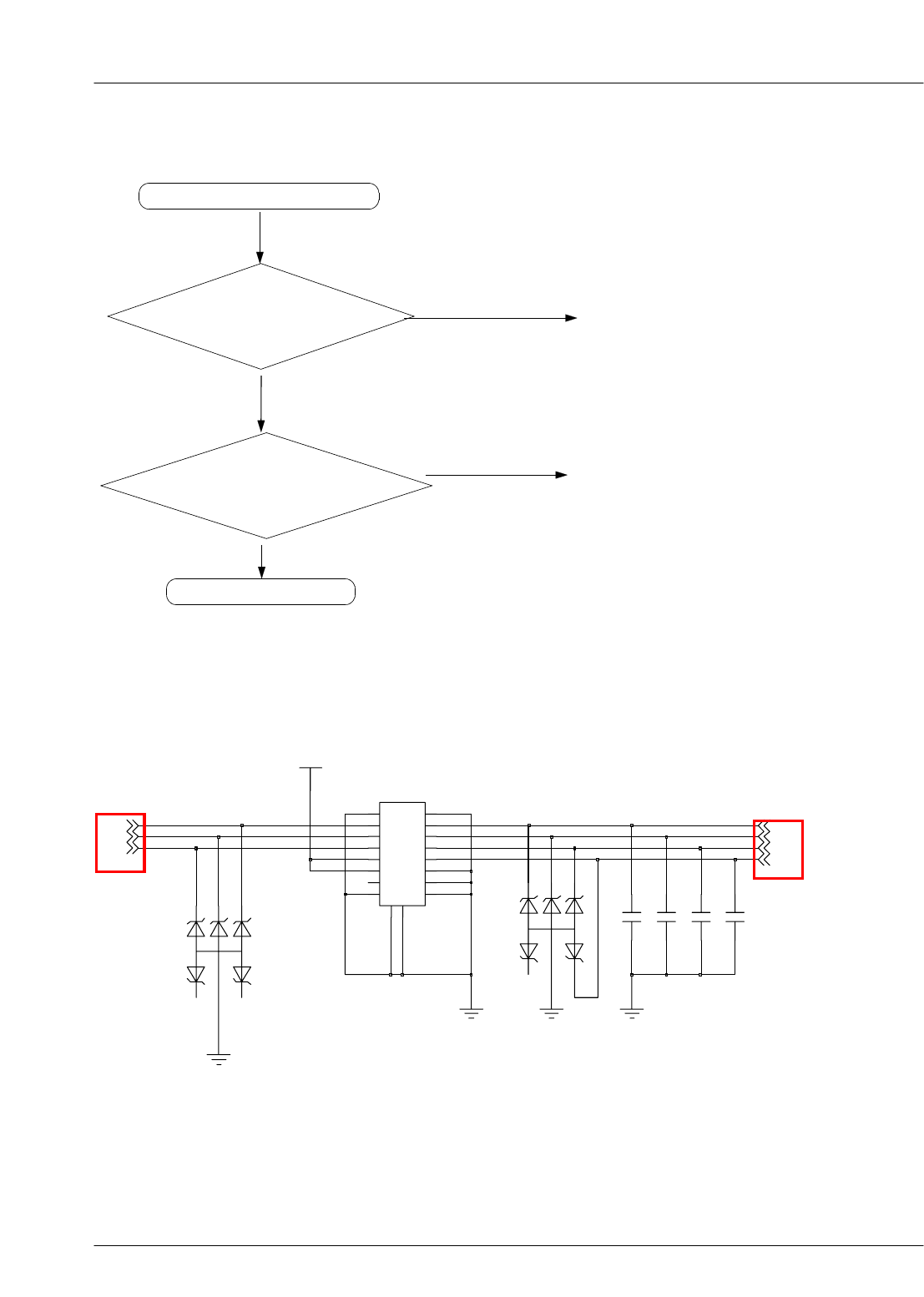

OUT6
5IN5
IN6
6
12
OUT1
OUT211
10
OUT3
OUT4 9
OUT5 8
7
F802
13
GND GND
14
1IN1
IN2
2
3IN3
IN4
4
_D9
DISPLAY_VSYNC_F
DISPLAY_MCLK_F
LCD_D0
LCD_D1
LCD_D2
LCD_D3
LCD_D(2)
LCD_D(0)
DISPLAY_MCLK
DISPLAY_VSYNC_D4
_D5
_D6
_D7
_D8
LCD_D(3)
LCD_D(1)
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting

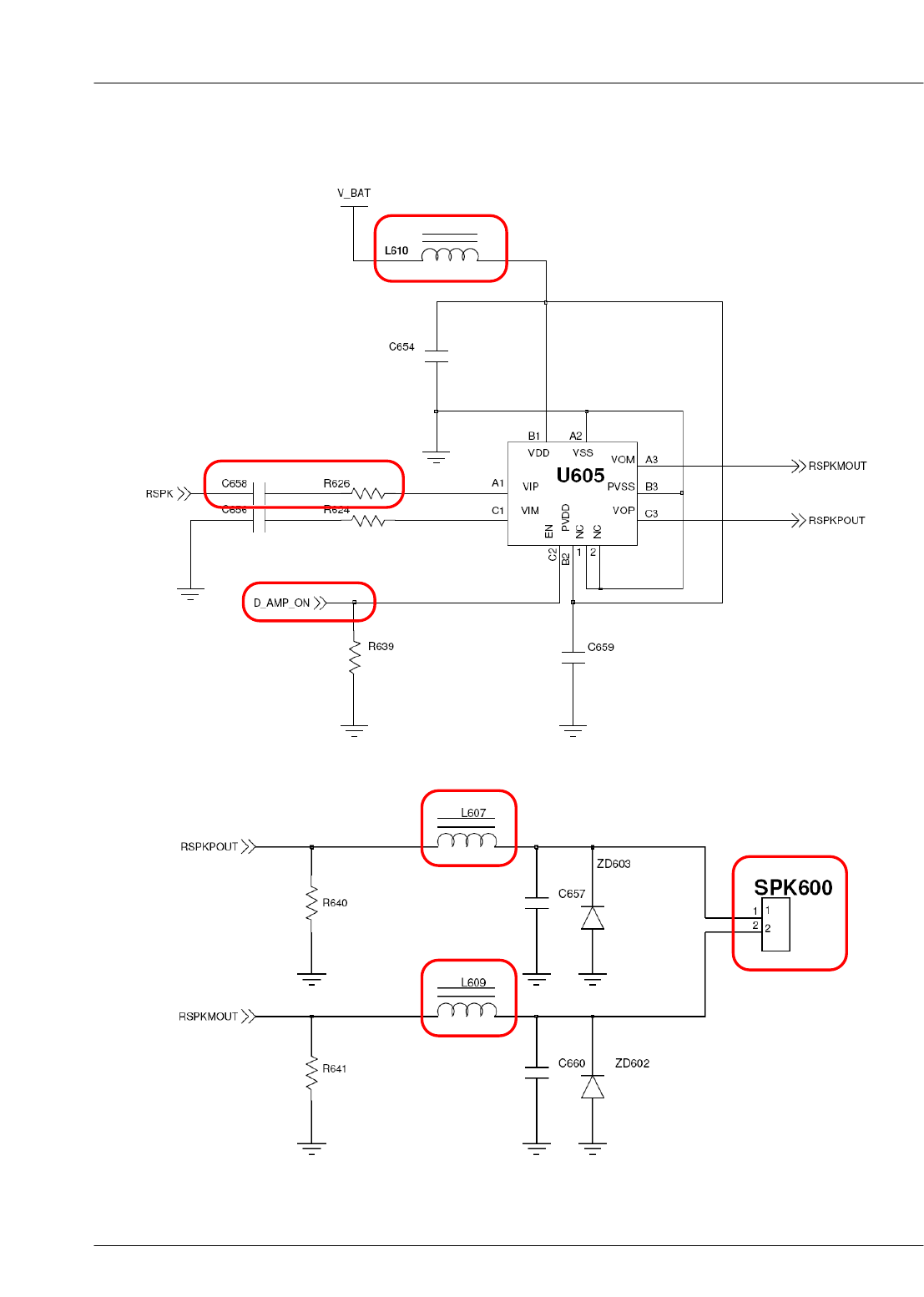

C65 4
C65 6
C65 7
C65 8
C65 9
C66 0
1
3
7
C
2
3
7
C
6
3
7
C
8
3
7
C
0
4
7
C
6
4
7
C
7
4
7
C
8
4
7
C
7
A
E
H
L60 7
L60 9
0
1
6
L
4
2
6
R
R62 6
9
3
6
R
R64 0
R64 1
4
0
7
R
5
0
7
R
0
0
6
K
P
S
U60 5
U70 7
ZD60 2
ZD60 3
2
0
7
D
Z
6
0
7
D
Z
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting

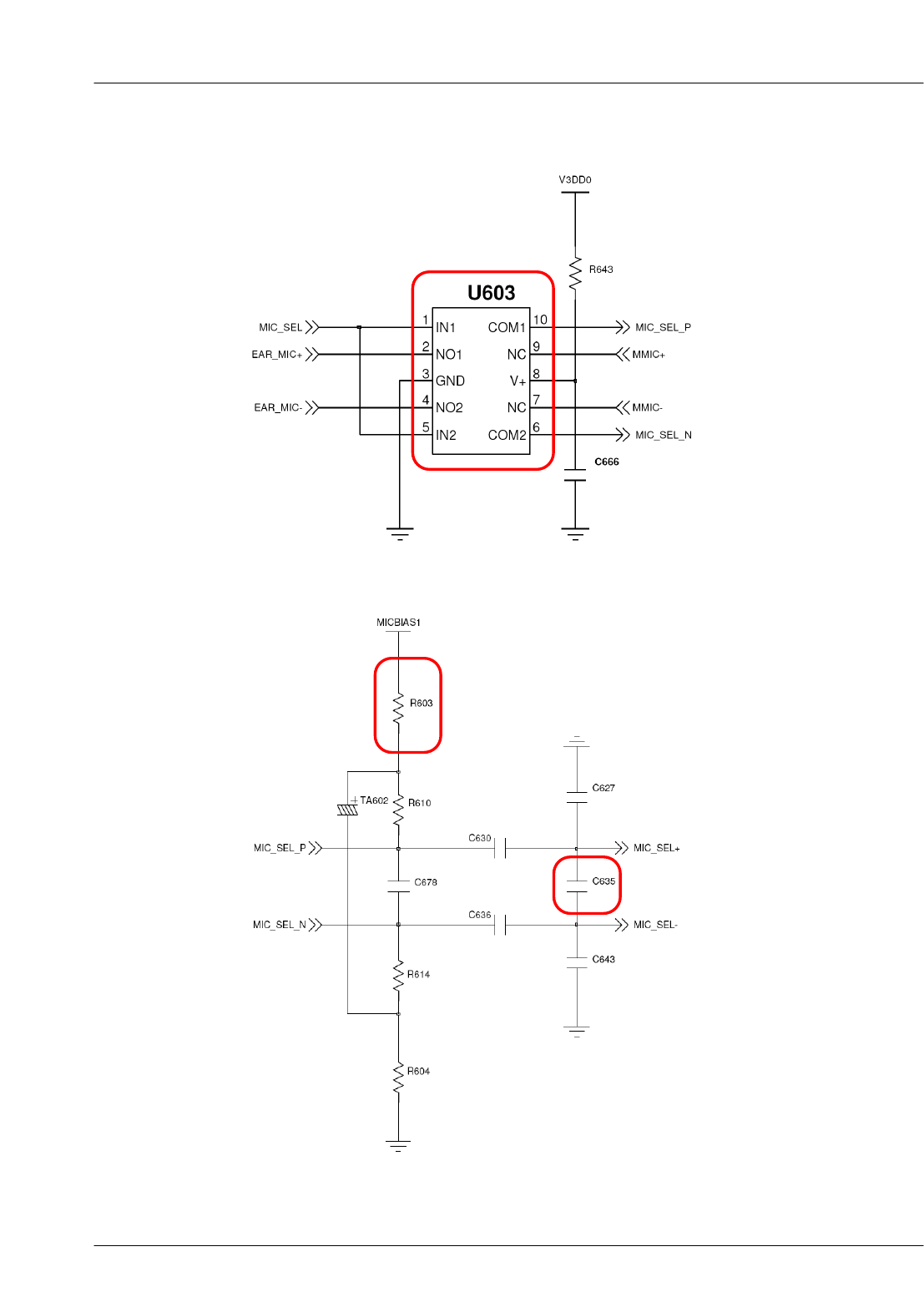

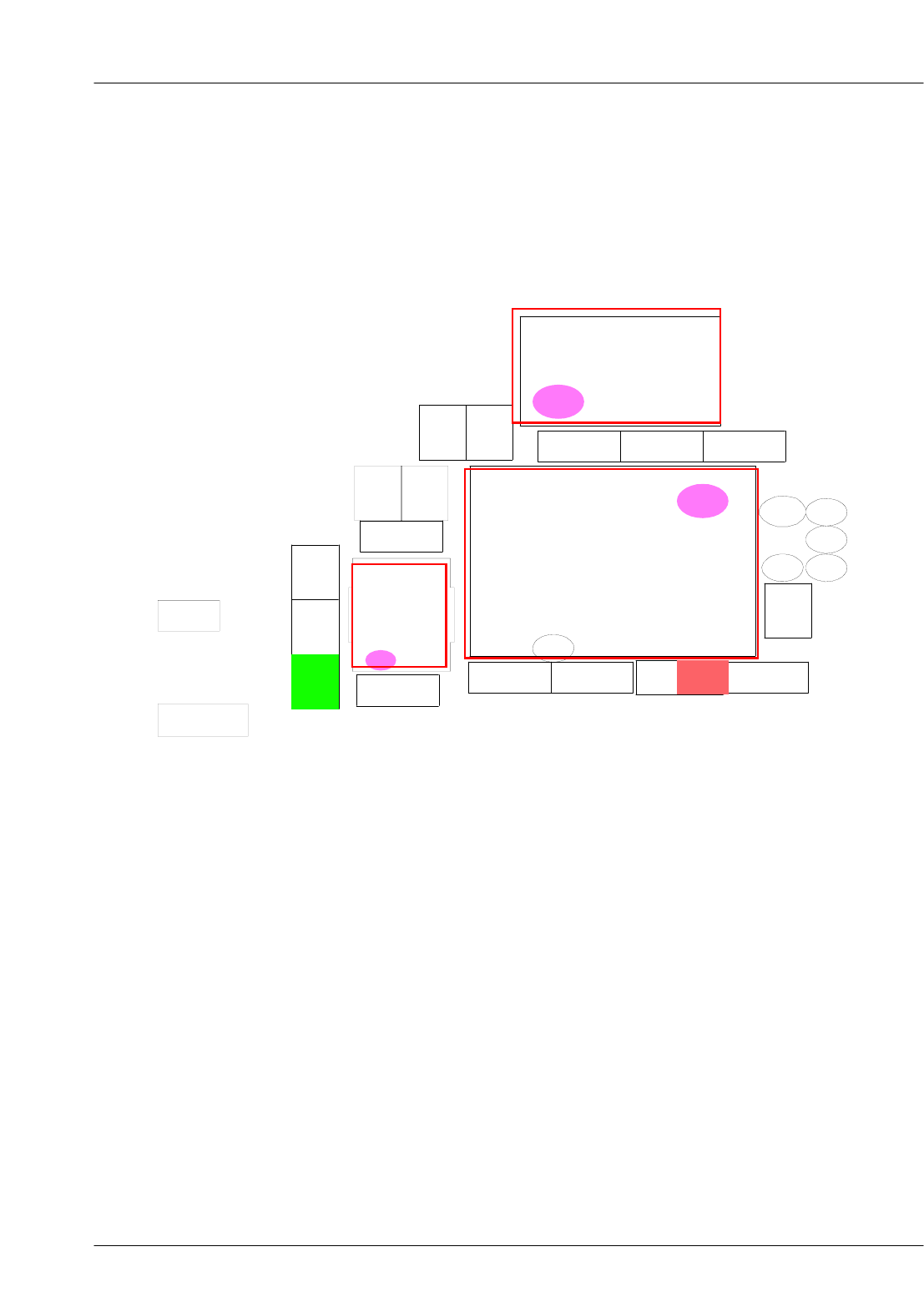

C1019
C1020
C1021
C1022
6
2
0
1
C
4
0
6
C
C605
7
2
6
C
0
3
6
C
C635
6
3
6
C
3
4
6
C
C648
C649 C650
2
6
6
C
3
6
6
C
4
6
6
C
C666
7
6
6
C
8
6
6
C
2
7
6
C
C673
C678
L60 8
L702 R1013
5
4
0
1
R
3
0
6
R
4
0
6
R
0
1
6
R
4
1
6
R
3
4
6
R
TA602
4
0
6
A
T
TA609
TA61 1
U1003
3
0
6
U
4
0
8
U
0
0
8
R
V
1
0
8
R
V
1
0
7
D
Z
0
0
0
1
C
6
0
4
C
C524
PCM_CLK
PCM_DI N
PCM_DOUT
PCM_SYNC
PHONE_ACTIV E
R
R405
R408
U504
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting

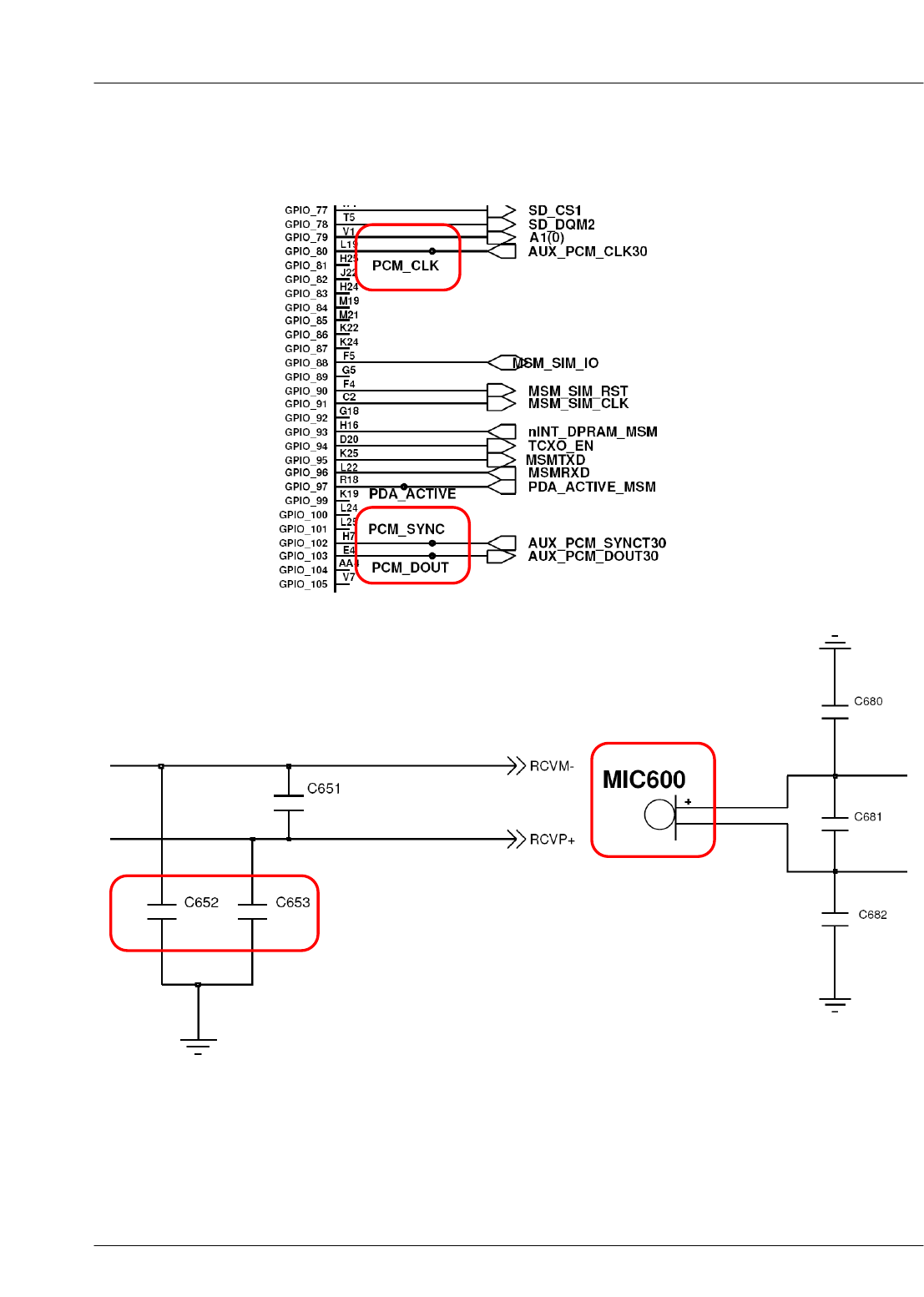

6
0
0
1
C
7
0
0
1
C
C1017
C1025
C651
2
5
6
C
3
5
6
C
0
7
L
3
0
7
L
R1011 R1012
R1019 R1040
2
0
0
1
U
C626
3
3
6
C
C642
C680
1
8
6
C
C682
L60 1
L60 3
0
0
6
C
I
M
ZD600
ZD601
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting

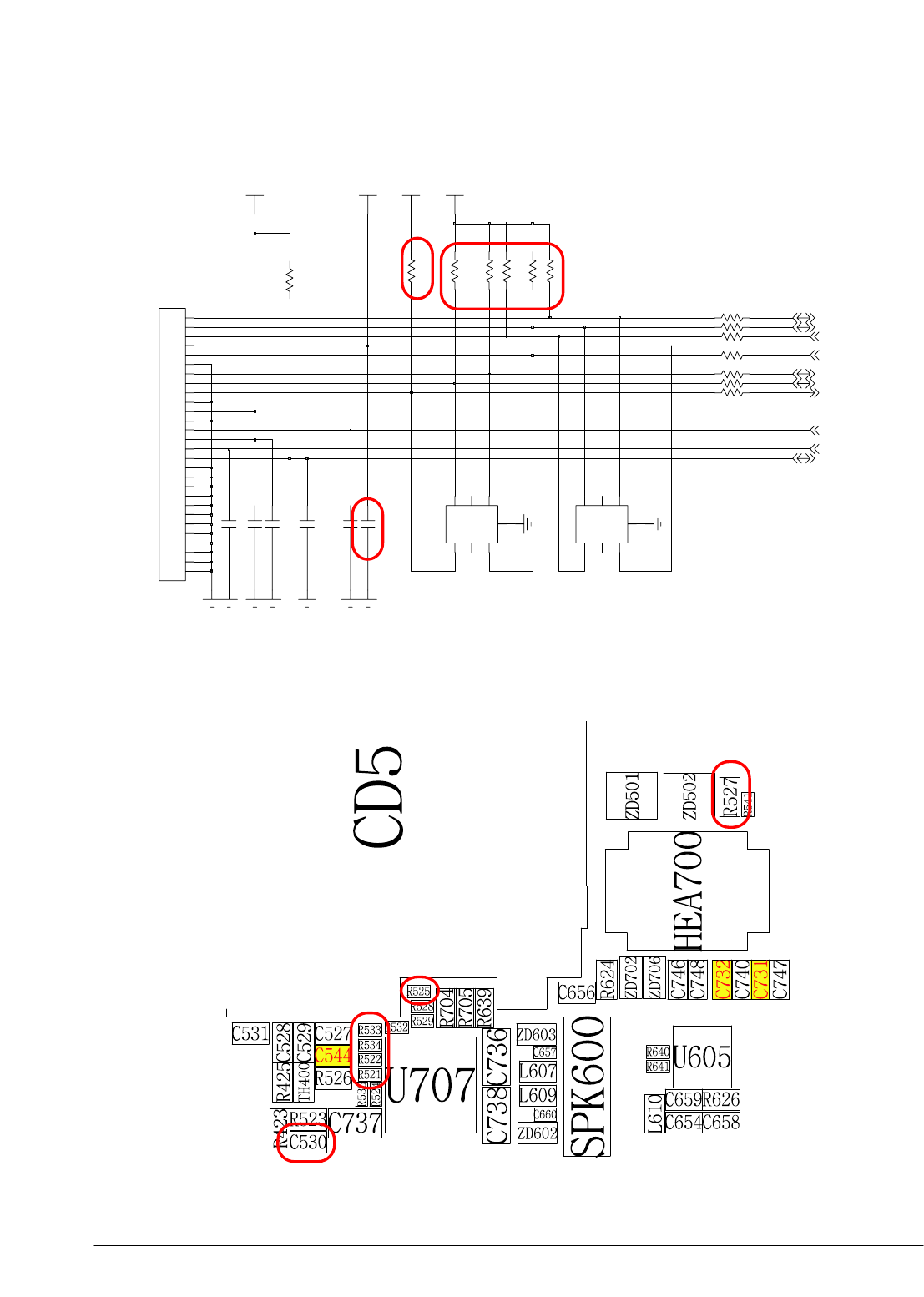

C531
C530
R521
R534
R533
R526
R527
R528
R522
R535
VTF_3.0V
R525
R523
VTF_3.0V
NC 23
24
NC
NC 25
NC 27
28
NC
NC 18
19
NC
NC 20
NC 21
22
NC
33
4
4
55
6
6
77
8
8
99
NC 17
26
NC
11 11
12
12
13 13
14
14
15
15
16 16
2
2
CD500
11
10
10
C544
C529
V1DD8
C528
IO4
IO6
NC
2
ZD502
5
5V
7
GND
1IO
3IO
R532
VREG_USIM_2.85V
R524
C527
1IO
3IOIO4
IO6
NC
2
ZD501
5
5V
7
GND
R541
R529
TF_DETECT
TF_DAT1
TF_DAT0
TF_CLK
TF_CMD
TF_DAT3
TF_DAT2
SIM_RST
SIM_CLK
SIM_IO
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting

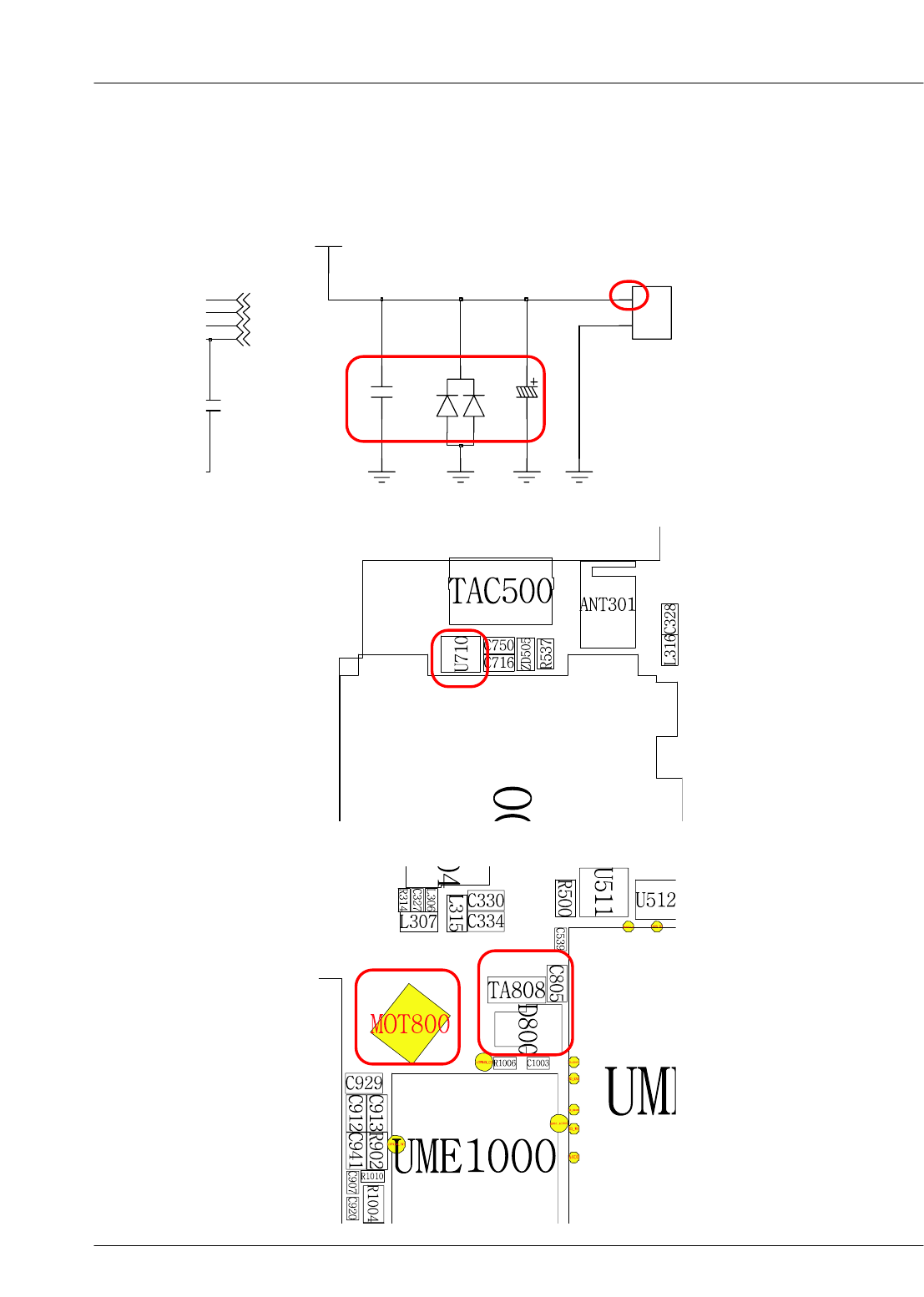

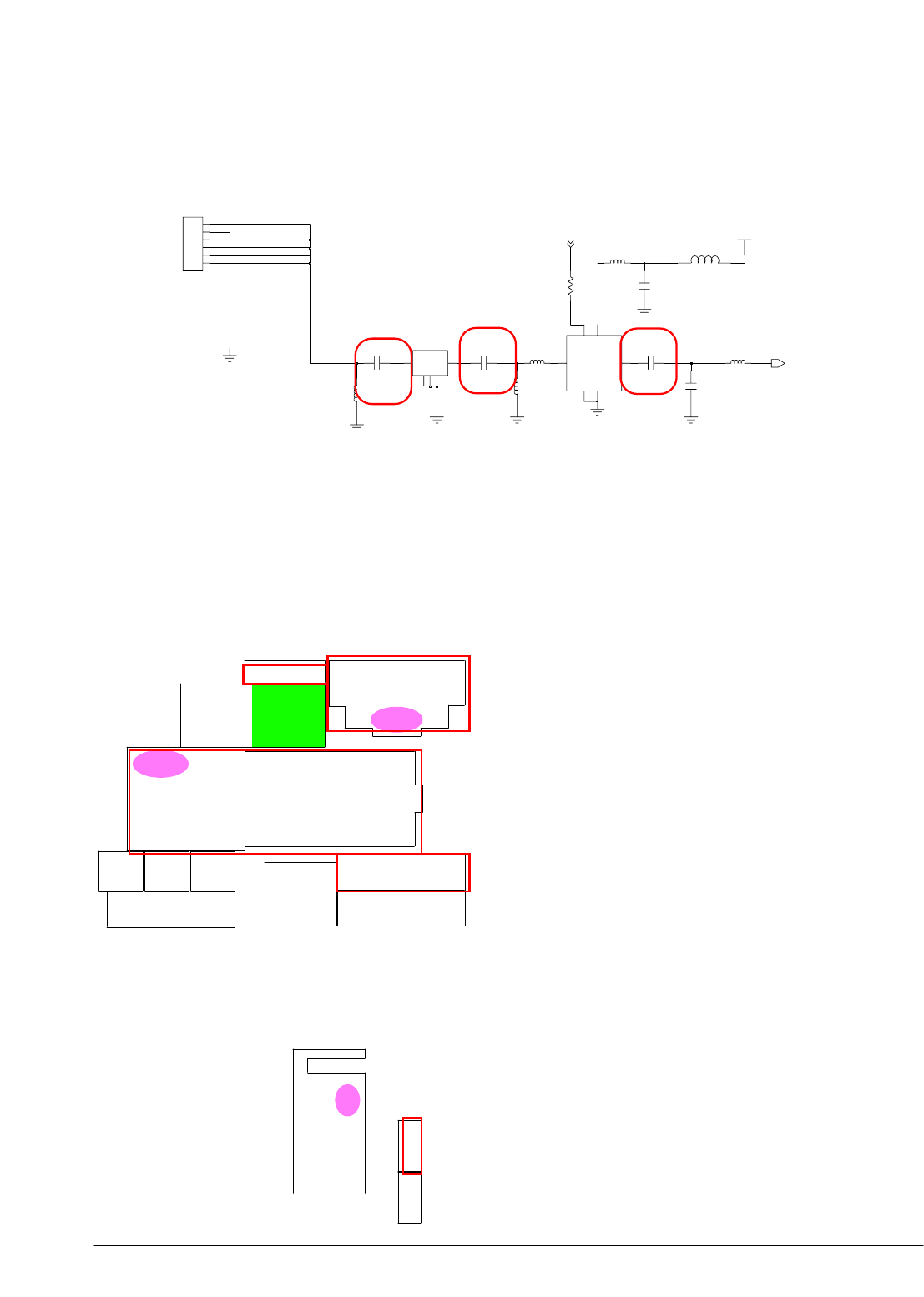

V_MOTOR33
CE
GND 2
GND
5
4NC
1
VDD
VOUT 3
U710
6
C750
V_BAT
C716
MOTOR_EN
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
B
TA808
D800
3
1
2
1
1
2
2
MOT800
V_MOTOR33
C805
KBR0
KBR2
KBR1
KBR3
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
9-2. RF Section
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
TP809TP810
BT_RXD
BT_TXD
C278
C277 ZD200
C271
L217L202
BTPCM_OUT
BTPCM_IN
L218
C280
BLANCE
2
DC G
56
G
1IN
L215
TP200
F204
BLANCE 3
4
V_RFIO
H4
VSSA
H5
FLDO_OUT
NC
H6
H7
VSS
H8
NC
V_BAT VIO
G4
IO17|SCL
G5
NC
G6
PMTEST
G7
VDD_IO
VSS
G8
H1
RFP
H2
RFM
H3
VDD_IN_OSC
F4
VSS_HVM
F5
VDD_IN_BB
F6
SLOW_CLK_IN
F7
IO15|EXT_CLK_REQ_IN
F8
BB_LDO_OUT
G1
VSSA
G2
VSSA
OSC_LDO_OUT
G3
E4
E5
HCI_TX|SDIO_DATA
E6
JTAG_TDO
E7
HCI_RTS|SDIO_IRQ
E8
HCI_CTS
F1
VDD_IN_RFIO
F2
RFIO_LDO_OUT
F3
VSSA
D4
JTAG_TCK
IO3|SDA
D5
D6
CLK_MODE_SEL
D7
IO0|EXT_CLK_REQ_OUT
D8
VDD_IO
E1
XTALM
E2
XTALP|FAST_CLK_IN
E3
nSHUT_DOWN
HCI_RX|SDIO_CMD
C3
C4
IO5
C5
AUD_IN
C6
IO1
AUD_OUT
C7
C8
IO7|SDIO_CLK
VSSA
D1
D2
ANA_OUT
B3
PA_CTRL
B4
IO14
B5
JTAG_TMS
B6
AUD_CLK
B7
IO2
B8
VSS
C1
ANATEST2
C2
VDD_DAC
JTAG_TDI
A3
VDD_IO
A4
BB_LDO_OUT
A5
VSS
A6
IO4
AUD_FSYNC
A7
A8
TX_DBG
B1
BGAP_V|I
B2
ANATEST1
MOD200
1
NC
NC
2
A1
IO16
A2
VSS
C284
C285
C279
V_RFIO
C283
C288
C282
3
1
OSC200
2
4
C287
C286
32KCLKOUT
AUX_PCM_SYNC
BT_TXDG
AUX_PCM_CLK
PCMOUT_BT
PCMIN_BT
BT_nSHUTDOWN
BT_TXD
BT_RXD
BT_CTS
BT_RTS
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
T
U
O
K
2
3
BT_RXD
BT_TXD
N
I
_
M
C
P
T
B
BTPCM_OUT
1
7
2
C
C277
8
7
2
C
C279
C280
C282C283
4
8
2
C
C285
C286
C287
8
8
2
C
4
0
2
F
T
-
1
0
0
B
1
7
F
B
D
2
0
2
L
5
1
2
L
7
1
2
L
8
1
2
L
MOD200
BRF6300CZSLR
OSC200
SQ3D02600B2IBA
TP200
TP809
TP810
ZD200
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting

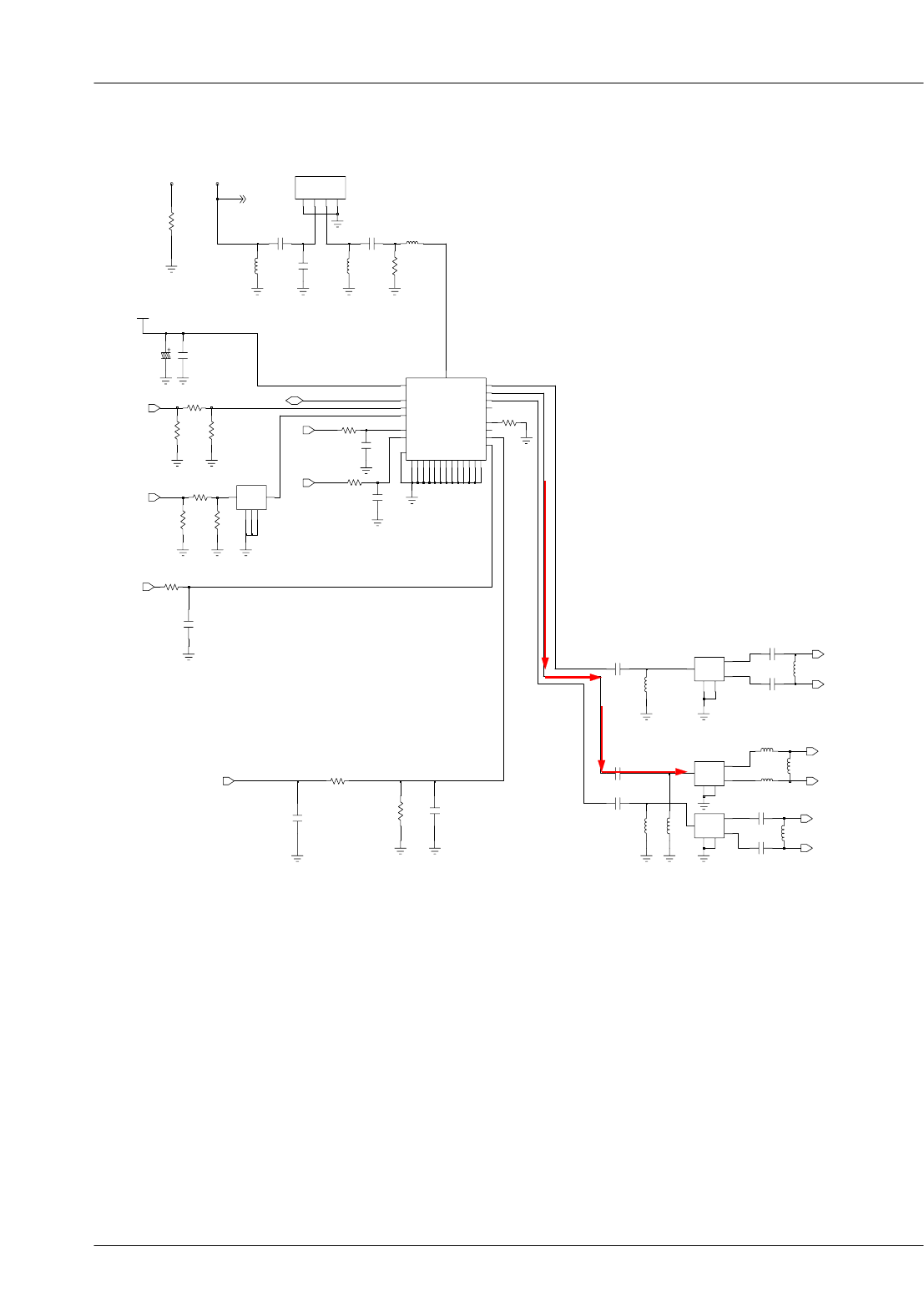

C255
TA200
V_BAT
C268
RFS200
A
2
3C
G
1
4G
L213
L206
R217
R211
C291
R210
G
1IN
OUT 3
4
OUT
F205
G
25
C262
L220
C265
L210
C273
F206
2
GG
5
IN
1
3
OUT
OUT 4
R212
1
TP
ANT101
G
2
G
3
G
5
1IN 4
OUT
F201
C263
L219
L203
C275
R209
L208
R205
C272
R214
C264
C250
L212
L214
R220
L201
R221
C266
C236
R216
C289
R215
RX1 7
ANT
8
9GND
26 VBATT
27 BS2
28 BS1
GND29
RSVD 3
RX4 4
5
RX3 6
RX2
GND
19
MODE 2
20GND
DCS|PCS_IN
21
22GND
GSM_IN
23
24GND
VAPC 25
GND
11
12GND
13GND
14GND
15GND
GND
16
GND
17
GND
18
U202
1
_TXEN
WCDMA1
10
L221
C276
ANT102
TP
R218
C274
OUT 4
F202
2
GG
5
IN
1
3
OUT
R201
R213
JTAG_ANT
DCS_RXM
DCS_RXP
GSM_RXM
GSM_RXP
PCS_RXM
PCS_RXP
UMTS_TRX
GSM_ANT_SEL0_N
GSM_ANT_SEL1_N
GSM_PA_PWR_CTL
GSM_ANT_SEL2_N
DCS1800_PCS1900_TX
GSM_TX
C300
ANT
1
4
GND
2
RX
3
TX
DUF300
C322
3
OUT
F300
2
GND1 GND2
4
1IN
R302
4
3VMODE2
7
6
GND
11
GND
RFIN
2
RFOUT 8
VBATT
1VCC 10
VENA
5
VMODE1
U303
9
GND
GND
TA300
C306
V_BAT
C332
C307
C312
C301
C310
R304
50OHM
34
COUP
IN 1
OUT
2
F301
R307
C303
C333
R300
L310
C309
R303
R306
L312
L302
R301
L303
C339
R313
R317
C304
C305
L304
UMTS_TX_2100
PA_R0
PA_R1
PA_ON_U2100
UMTS_TRX
PWR_DET
UMTS_RX_2100
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
C200
1
0
2
C
C202
C203
4
0
2
C
C205
6
0
2
C
7
0
2
C
9
0
2
C
8
0
2
C
0
1
2
C
C211
C212
C213
4
1
2
C
5
1
2
C
C216
7
1
2
C
8
1
2
C
0
2
2
C
2
2
2
C
3
2
2
C
C224
5
2
2
C
6
2
2
C
7
2
2
C
8
2
2
C
9
2
2
C
0
3
2
C
C231
2
3
2
C
3
3
2
C
4
3
2
C
5
3
2
C
C237
C238
C239
C240
C241
3
4
2
C
C244
5
4
2
C
6
4
2
C
7
4
2
C
8
4
2
C
0
5
2
C
C253
4
5
2
C
C255
6
5
2
C
7
5
2
C
9
5
2
C
0
6
2
C
1
6
2
C
C262
3
6
2
C
4
6
2
C
5
6
2
C
C266
8
6
2
C
2
7
2
C
3
7
2
C
4
7
2
C
C275
C276
C300
C301
3
0
3
C
4
0
3
C
C305
6
0
3
C
C307
9
0
3
C
0
1
3
C
2
1
3
C
5
1
3
C
6
1
3
C
7
1
3
C
8
1
3
C
0
2
3
C1
2
3
C
C322
2
3
3
C
3
3
3
C
8
3
3
C
C339
0
0
3
F
U
D
1
0
5
R
P
0
5
G
X
F
S
0
0
2
F
F201
2
0
2
F
5
0
2
F
6
0
2
F
0
0
3
F
1
3
0
9
B
F301
0
0
2
L
4
0
2
L
5
0
2
L
6
0
2
L
L208
L210
L212
3
1
2
L
4
1
2
L
0
2
2
L
1
2
2
L
2
0
3
L
3
0
3
L
L304
L310
2
1
3
L
2
0
6
C
S
O
A
1
3
-
H
L
0
1
0
5
-
G
T
R202
6
0
2
R
7
0
2
R
R208
R209
0
1
2
R
R211
R212
3
1
2
R
R214
R215
R216
7
1
2
R
R218
0
2
2
R
1
2
2
R
0
0
3
R
1
0
3
R
R302
3
0
3
R
4
0
3
R
R306
7
0
3
R
0
1
3
R
R311
2
1
3
R
R313
7
1
3
R
SC300
TA200
1
0
2
A
T
0
0
3
A
T
U201
RTR6285
2
0
2
U
1
1
-
9
1
5
7
7
Y
K
S
3
0
3
U
8
P
0
2
M
R
9
7
2
6
T
W
A
C236
C289 C291
1
0
2
L
3
0
2
L
L219
1
0
2
R
RFS200
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
C255
TA200
V_BAT
C268
RFS200
A
2
3C
G
1
4G
L213
L206
R217
R211
C291
R210
G
1IN
OUT 3
4
OUT
F205
G
25
C262
L220
C265
L210
C273
F206
2
GG
5
IN
1
3
OUT
OUT 4
R212
1
TP
ANT101
G
2
G
3
G
5
1IN 4
OUT
F201
C263
L219
L203
C275
R209
L208
R205
C272
R214
C264
C250
L212
L214
R220
L201
R221
C266
C236
R216
C289
R215
RX1 7
ANT
8
9GND
26 VBATT
27 BS2
28 BS1
GND29
RSVD 3
RX4 4
5
RX3 6
RX2
GND
19
MODE 2
20GND
DCS|PCS_IN
21
22GND
GSM_IN
23
24GND
VAPC 25
GND
11
12GND
13GND
14GND
15GND
GND
16
GND
17
GND
18
U202
1
_TXEN
WCDMA1
10
L221
C276
ANT102
TP
R218
C274
OUT 4
F202
2
GG
5
IN
1
3
OUT
R201
R213
JTAG_ANT
DCS_RXM
DCS_RXP
GSM_RXM
GSM_RXP
PCS_RXM
PCS_RXP
UMTS_TRX
GSM_ANT_SEL0_N
GSM_ANT_SEL1_N
GSM_PA_PWR_CTL
GSM_ANT_SEL2_N
DCS1800_PCS1900_TX
GSM_TX
C300
ANT
1
4
GND
2
RX
3
TX
DUF300
C322
3
OUT
F300
2
GND1 GND2
4
1IN
R302
4
3VMODE2
7
6
GND
11
GND
RFIN
2
RFOUT 8
VBATT
1VCC 10
VENA
5
VMODE1
U303
9
GND
GND
TA300
C306
V_BAT
C332
C307
C312
C301
C310
R304
50OHM
34
COUP
IN 1
OUT
2
F301
R307
C303
C333
R300
L310
C309
R303
R306
L312
L302
R301
L303
C339
R313
R317
C304
C305
L304
UMTS_TX_2100
PA_R0
PA_R1
PA_ON_U2100
UMTS_TRX
PWR_DET
UMTS_RX_2100
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting

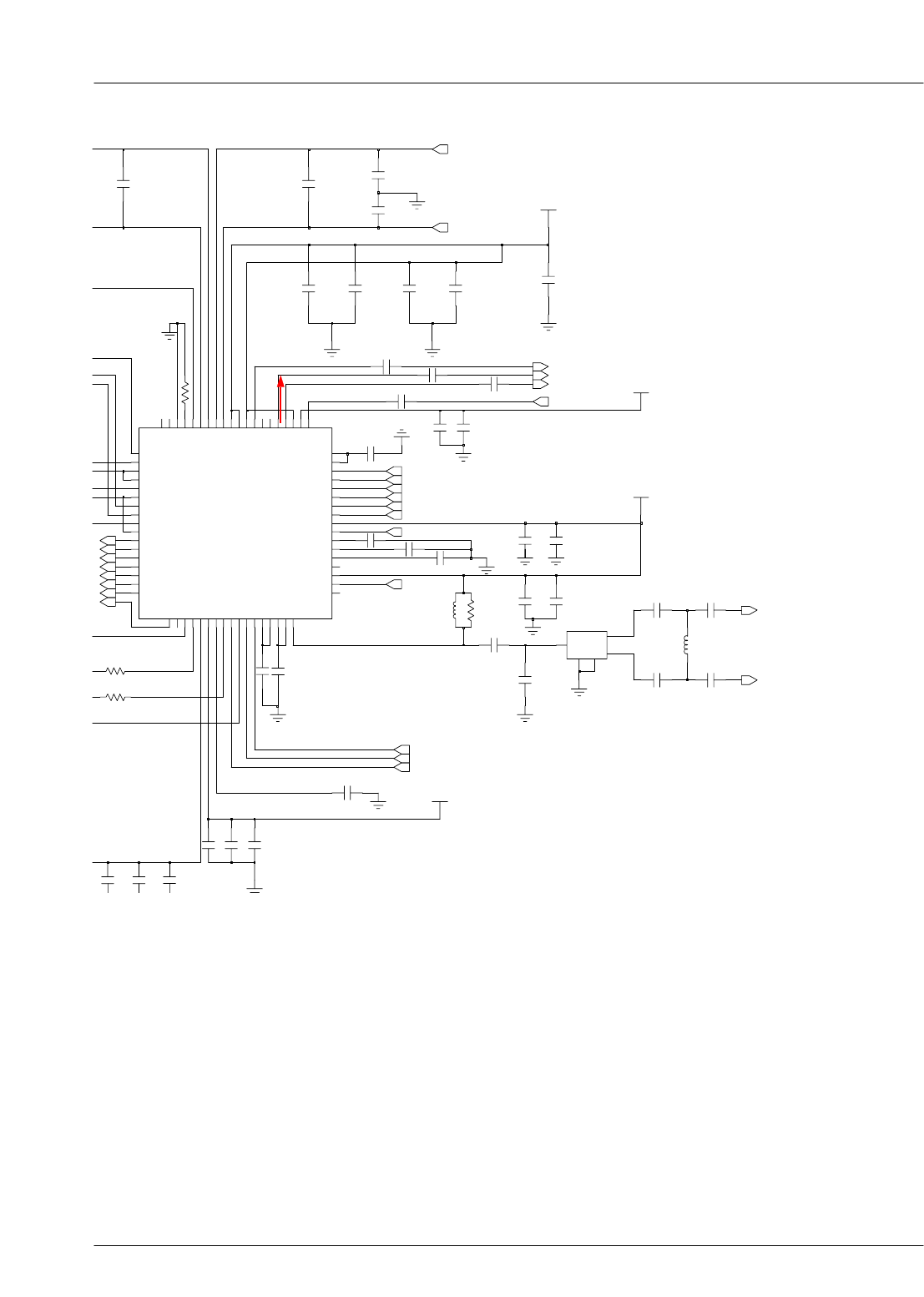

VREG_MSMP_2.6V
C214
C244
C209 C210
C239
C208
L205
C237
C257
9
C223
TX_QP
67
DAC_IREF
68
TX_RBIAS
69
GND_SLUG
7VDDA2
70
NC
71
NC
8VDDA2
VTUNE_GPS
HB_RF_OUT3
6VDDA1
60
VDDA2
61
VDDA2
62
VDDA2
63
TX_IN
64
TX_IP
65
TX_QN
66
51
PDET_IN
52
53
VDDA1
54
VDDA2
55
LB_RF_OUT1
56
HB_RF_OUT1
57
LB_RF_OUT2
58
HB_RF_OUT2
59
GPCS_INP
GPCS_INN 45
46
DCS_INP
47
DCS_INN
48
EGSM_INP
49
EGSM_INN
5VTUNE1
50
GCELL_INP
GCELL_INN
VDDA2
38
WPRXSE1
39
WDRXHB2
4VDDA1
40
WDRXHB1
41
WDRXLB
42
GPS_IN
43
VDDA2
44
VDDA1
30WPRXLBP
31WPRXLBM
32WPRXHBP
33WPRXHBM
34WPRXSE2_OUT
35
WPRXSE1_OUT
36
WPRXSE2
37
VDDA1
VDDM
23
24VTUNE2
25VDDA2
26RF_ON
27VDDA2
28WB_MX_INP
29WB_MX_INM
3
DRX_QP
16 DRX_QN
17 DRX_IP
DRX_IN
18
N|C
19
2TCXO
20SBDT
21VDDA2
22
1VDDA2
VDDA1
10
11 PRX_QP
12 PRX_QN
13 PRX_IN
14 PRX_IP
15
U201
C207
C222
C232
C206
L200 C238
C213
C260
C246
C235
C261
C212
R207 C241
C224
R208
C234
IN
OUT 3
4
OUT
VREG_RFRX1_2.1V
F200
G
25
G
1
VREG_RFRX2_2.7V
C203
C254 C256
C204 C201
R202
C245
C240
C211
C231
C200
L204
VREG_RFRX1_2.1V
5
9
C253
C243
R206
C233
M
P
M
M
P
UMTS_RXP_2100
UMTS_RXM_2100
R
UMTS_TX_2100
UMTS_RXP_2100
UMTS_RXM_2100
RF_ON_TX_ON
TX_IM
TX_IP
GSM_RXP
GSM_RXM
PCS_RXP
PCS_RXM
DCS_RXP
DCS_RXM
PWR_DET
RX_GPS
UMTS_RX_2100
GSM_TX
DCS1800_PCS1900_TX
P
M
P
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
C200
1
0
2
C
C202
C203
4
0
2
C
C205
6
0
2
C
7
0
2
C
9
0
2
C
8
0
2
C
0
1
2
C
C211
C212
C213
4
1
2
C
5
1
2
C
C216
7
1
2
C
8
1
2
C
0
2
2
C
2
2
2
C
3
2
2
C
C224
5
2
2
C
6
2
2
C
7
2
2
C
8
2
2
C
9
2
2
C
0
3
2
C
C231
2
3
2
C
3
3
2
C
4
3
2
C
5
3
2
C
C237
C238
C239
C240
C241
3
4
2
C
C244
5
4
2
C
6
4
2
C
7
4
2
C
8
4
2
C
0
5
2
C
C253
4
5
2
C
C255
6
5
2
C
7
5
2
C
9
5
2
C
0
6
2
C
1
6
2
C
C262
3
6
2
C
4
6
2
C
5
6
2
C
C266
8
6
2
C
2
7
2
C
3
7
2
C
4
7
2
C
C275
C276
C300
C301
3
0
3
C
4
0
3
C
C305
6
0
3
C
C307
9
0
3
C
0
1
3
C
2
1
3
C
5
1
3
C
6
1
3
C
7
1
3
C
8
1
3
C
0
2
3
C1
2
3
C
C322
2
3
3
C
3
3
3
C
8
3
3
C
C339
0
0
3
F
U
D
1
0
5
R
P
0
5
G
X
F
S
0
0
2
F
F201
2
0
2
F
5
0
2
F
6
0
2
F
0
0
3
F
1
3
0
9
B
F301
0
0
2
L
4
0
2
L
5
0
2
L
6
0
2
L
L208
L210
L212
3
1
2
L
4
1
2
L
0
2
2
L
1
2
2
L
2
0
3
L
3
0
3
L
L304
L310
2
1
3
L
2
0
6
C
S
O
A
1
3
-
H
L
0
1
0
5
-
G
T
R202
6
0
2
R
7
0
2
R
R208
R209
0
1
2
R
R211
R212
3
1
2
R
R214
R215
R216
7
1
2
R
R218
0
2
2
R
1
2
2
R
0
0
3
R
1
0
3
R
R302
3
0
3
R
4
0
3
R
R306
7
0
3
R
0
1
3
R
R311
2
1
3
R
R313
7
1
3
R
SC300
TA200
1
0
2
A
T
0
0
3
A
T
U201
RTR6285
2
0
2
U
1
1
-
9
1
5
7
7
Y
K
S
3
0
3
U
8
P
0
2
M
R
9
7
2
6
T
W
A
C236
C289 C291
1
0
2
L
3
0
2
L
L219
1
0
2
R
RFS200
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
PIN28
PIN27
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
C255
TA200
V_BAT
C268
RFS200
A
2
3C
G
1
4G
L213
L206
R217
R211
C291
R210
G
1IN
OUT 3
4
OUT
F205
G
25
C262
L220
C265
L210
C273
F206
2
GG
5
IN
1
3
OUT
OUT 4
R212
1
TP
ANT101
G
2
G
3
G
5
1IN 4
OUT
F201
C263
L219
L203
C275
R209
L208
R205
C272
R214
C264
C250
L212
L214
R220
L201
R221
C266
C236
R216
C289
R215
RX1 7
ANT
8
9GND
26 VBATT
27 BS2
28 BS1
GND29
RSVD 3
RX4 4
5
RX3 6
RX2
GND
19
MODE 2
20GND
DCS|PCS_IN
21
22GND
GSM_IN
23
24GND
VAPC 25
GND
11
12GND
13GND
14GND
15GND
GND
16
GND
17
GND
18
U202
1
_TXEN
WCDMA1
10
L221
C276
ANT102
TP
R218
C274
OUT 4
F202
2
GG
5
IN
1
3
OUT
R201
R213
JTAG_ANT
DCS_RXM
DCS_RXP
GSM_RXM
GSM_RXP
PCS_RXM
PCS_RXP
UMTS_TRX
GSM_ANT_SEL0_N
GSM_ANT_SEL1_N
GSM_PA_PWR_CTL
GSM_ANT_SEL2_N
DCS1800_PCS1900_TX
GSM_TX
PIN28 : LOW
PIN27 : HIGH
PIN1 : LOW
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
VREG_MSMP_2.6V
C214
C244
C209 C210
C239
C208
L205
C237
C257
9
C223
TX_QP
67
DAC_IREF
68
TX_RBIAS
69
GND_SLUG
7VDDA2
70
NC
71
NC
8VDDA2
VTUNE_GPS
HB_RF_OUT3
6VDDA1
60
VDDA2
61
VDDA2
62
VDDA2
63
TX_IN
64
TX_IP
65
TX_QN
66
51
PDET_IN
52
53
VDDA1
54
VDDA2
55
LB_RF_OUT1
56
HB_RF_OUT1
57
LB_RF_OUT2
58
HB_RF_OUT2
59
GPCS_INP
GPCS_INN 45
46
DCS_INP
47
DCS_INN
48
EGSM_INP
49
EGSM_INN
5VTUNE1
50
GCELL_INP
GCELL_INN
VDDA2
38
WPRXSE1
39
WDRXHB2
4VDDA1
40
WDRXHB1
41
WDRXLB
42
GPS_IN
43
VDDA2
44
VDDA1
30WPRXLBP
31WPRXLBM
32WPRXHBP
33WPRXHBM
34WPRXSE2_OUT
35
WPRXSE1_OUT
36
WPRXSE2
37
VDDA1
VDDM
23
24VTUNE2
25VDDA2
26RF_ON
27VDDA2
28WB_MX_INP
29WB_MX_INM
3
DRX_QP
16 DRX_QN
17 DRX_IP
DRX_IN
18
N|C
19
2TCXO
20SBDT
21VDDA2
22
1VDDA2
VDDA1
10
11 PRX_QP
12 PRX_QN
13 PRX_IN
14 PRX_IP
15
U201
C207
C222
C232
C206
L200 C238
C213
C260
C246
C235
C261
C212
R207 C241
C224
R208
C234
IN
OUT 3
4
OUT
VREG_RFRX1_2.1V
F200
G
25
G
1
VREG_RFRX2_2.7V
C203
C254 C256
C204 C201
R202
C245
C240
C211
C231
C200
L204
VREG_RFRX1_2.1V
5
9
C253
C243
R206
C233
M
P
M
M
P
UMTS_RXP_2100
UMTS_RXM_2100
R
UMTS_TX_2100
UMTS_RXP_2100
UMTS_RXM_2100
RF_ON_TX_ON
TX_IM
TX_IP
GSM_RXP
GSM_RXM
PCS_RXP
PCS_RXM
DCS_RXP
DCS_RXM
PWR_DET
RX_GPS
UMTS_RX_2100
GSM_TX
DCS1800_PCS1900_TX
P
M
P
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
C200
1
0
2
C
C202
C203
4
0
2
C
C205
6
0
2
C
7
0
2
C
9
0
2
C
8
0
2
C
0
1
2
C
C211
C212
C213
4
1
2
C
5
1
2
C
C216
7
1
2
C
8
1
2
C
0
2
2
C
2
2
2
C
3
2
2
C
C224
5
2
2
C
6
2
2
C
7
2
2
C
8
2
2
C
9
2
2
C
0
3
2
C
C231
2
3
2
C
3
3
2
C
4
3
2
C
5
3
2
C
C237
C238
C239
C240
C241
3
4
2
C
C244
5
4
2
C
6
4
2
C
7
4
2
C
8
4
2
C
0
5
2
C
C253
4
5
2
C
C255
6
5
2
C
7
5
2
C
9
5
2
C
0
6
2
C
1
6
2
C
C262
3
6
2
C
4
6
2
C
5
6
2
C
C266
8
6
2
C
2
7
2
C
3
7
2
C
4
7
2
C
C275
C276
C300
C301
3
0
3
C
4
0
3
C
C305
6
0
3
C
C307
9
0
3
C
0
1
3
C
2
1
3
C
5
1
3
C
6
1
3
C
7
1
3
C
8
1
3
C
0
2
3
C1
2
3
C
C322
2
3
3
C
3
3
3
C
8
3
3
C
C339
0
0
3
F
U
D
1
0
5
R
P
0
5
G
X
F
S
0
0
2
F
F201
2
0
2
F
5
0
2
F
6
0
2
F
0
0
3
F
1
3
0
9
B
F301
0
0
2
L
4
0
2
L
5
0
2
L
6
0
2
L
L208
L210
L212
3
1
2
L
4
1
2
L
0
2
2
L
1
2
2
L
2
0
3
L
3
0
3
L
L304
L310
2
1
3
L
2
0
6
C
S
O
A
1
3
-
H
L
0
1
0
5
-
G
T
R202
6
0
2
R
7
0
2
R
R208
R209
0
1
2
R
R211
R212
3
1
2
R
R214
R215
R216
7
1
2
R
R218
0
2
2
R
1
2
2
R
0
0
3
R
1
0
3
R
R302
3
0
3
R
4
0
3
R
R306
7
0
3
R
0
1
3
R
R311
2
1
3
R
R313
7
1
3
R
SC300
TA200
1
0
2
A
T
0
0
3
A
T
U201
RTR6285
2
0
2
U
1
1
-
9
1
5
7
7
Y
K
S
3
0
3
U
8
P
0
2
M
R
9
7
2
6
T
W
A
C236
C289 C291
1
0
2
L
3
0
2
L
L219
1
0
2
R
RFS200
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
PIN28
PIN27
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
C255
TA200
V_BAT
C268
RFS200
A
2
3C
G
1
4G
L213
L206
R217
R211
C291
R210
G
1IN
OUT 3
4
OUT
F205
G
25
C262
L220
C265
L210
C273
F206
2
GG
5
IN
1
3
OUT
OUT 4
R212
1
TP
ANT101
G
2
G
3
G
5
1IN 4
OUT
F201
C263
L219
L203
C275
R209
L208
R205
C272
R214
C264
C250
L212
L214
R220
L201
R221
C266
C236
R216
C289
R215
RX1 7
ANT
8
9GND
26 VBATT
27 BS2
28 BS1
GND29
RSVD 3
RX4 4
5
RX3 6
RX2
GND
19
MODE 2
20GND
DCS|PCS_IN
21
22GND
GSM_IN
23
24GND
VAPC 25
GND
11
12GND
13GND
14GND
15GND
GND
16
GND
17
GND
18
U202
1
_TXEN
WCDMA1
10
L221
C276
ANT102
TP
R218
C274
OUT 4
F202
2
GG
5
IN
1
3
OUT
R201
R213
JTAG_ANT
DCS_RXM
DCS_RXP
GSM_RXM
GSM_RXP
PCS_RXM
PCS_RXP
UMTS_TRX
GSM_ANT_SEL0_N
GSM_ANT_SEL1_N
GSM_PA_PWR_CTL
GSM_ANT_SEL2_N
DCS1800_PCS1900_TX
GSM_TX
PIN28 : HIGH
PIN27 : HIGH
PIN1 : LOW
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
VREG_MSMP_2.6V
C214
C244
C209 C210
C239
C208
L205
C237
C257
9
C223
TX_QP
67
DAC_IREF
68
TX_RBIAS
69
GND_SLUG
7VDDA2
70
NC
71
NC
8VDDA2
VTUNE_GPS
HB_RF_OUT3
6VDDA1
60
VDDA2
61
VDDA2
62
VDDA2
63
TX_IN
64
TX_IP
65
TX_QN
66
51
PDET_IN
52
53
VDDA1
54
VDDA2
55
LB_RF_OUT1
56
HB_RF_OUT1
57
LB_RF_OUT2
58
HB_RF_OUT2
59
GPCS_INP
GPCS_INN 45
46
DCS_INP
47
DCS_INN
48
EGSM_INP
49
EGSM_INN
5VTUNE1
50
GCELL_INP
GCELL_INN
VDDA2
38
WPRXSE1
39
WDRXHB2
4VDDA1
40
WDRXHB1
41
WDRXLB
42
GPS_IN
43
VDDA2
44
VDDA1
30WPRXLBP
31WPRXLBM
32WPRXHBP
33WPRXHBM
34WPRXSE2_OUT
35
WPRXSE1_OUT
36
WPRXSE2
37
VDDA1
VDDM
23
24VTUNE2
25VDDA2
26RF_ON
27VDDA2
28WB_MX_INP
29WB_MX_INM
3
DRX_QP
16 DRX_QN
17 DRX_IP
DRX_IN
18
N|C
19
2TCXO
20SBDT
21VDDA2
22
1VDDA2
VDDA1
10
11 PRX_QP
12 PRX_QN
13 PRX_IN
14 PRX_IP
15
U201
C207
C222
C232
C206
L200 C238
C213
C260
C246
C235
C261
C212
R207 C241
C224
R208
C234
IN
OUT 3
4
OUT
VREG_RFRX1_2.1V
F200
G
25
G
1
VREG_RFRX2_2.7V
C203
C254 C256
C204 C201
R202
C245
C240
C211
C231
C200
L204
VREG_RFRX1_2.1V
5
9
C253
C243
R206
C233
M
P
M
M
P
UMTS_RXP_2100
UMTS_RXM_2100
R
UMTS_TX_2100
UMTS_RXP_2100
UMTS_RXM_2100
RF_ON_TX_ON
TX_IM
TX_IP
GSM_RXP
GSM_RXM
PCS_RXP
PCS_RXM
DCS_RXP
DCS_RXM
PWR_DET
RX_GPS
UMTS_RX_2100
GSM_TX
DCS1800_PCS1900_TX
P
M
P
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
C200
1
0
2
C
C202
C203
4
0
2
C
C205
6
0
2
C
7
0
2
C
9
0
2
C
8
0
2
C
0
1
2
C
C211
C212
C213
4
1
2
C
5
1
2
C
C216
7
1
2
C
8
1
2
C
0
2
2
C
2
2
2
C
3
2
2
C
C224
5
2
2
C
6
2
2
C
7
2
2
C
8
2
2
C
9
2
2
C
0
3
2
C
C231
2
3
2
C
3
3
2
C
4
3
2
C
5
3
2
C
C237
C238
C239
C240
C241
3
4
2
C
C244
5
4
2
C
6
4
2
C
7
4
2
C
8
4
2
C
0
5
2
C
C253
4
5
2
C
C255
6
5
2
C
7
5
2
C
9
5
2
C
0
6
2
C
1
6
2
C
C262
3
6
2
C
4
6
2
C
5
6
2
C
C266
8
6
2
C
2
7
2
C
3
7
2
C
4
7
2
C
C275
C276
C300
C301
3
0
3
C
4
0
3
C
C305
6
0
3
C
C307
9
0
3
C
0
1
3
C
2
1
3
C
5
1
3
C
6
1
3
C
7
1
3
C
8
1
3
C
0
2
3
C1
2
3
C
C322
2
3
3
C
3
3
3
C
8
3
3
C
C339
0
0
3
F
U
D
1
0
5
R
P
0
5
G
X
F
S
0
0
2
F
F201
2
0
2
F
5
0
2
F
6
0
2
F
0
0
3
F
1
3
0
9
B
F301
0
0
2
L
4
0
2
L
5
0
2
L
6
0
2
L
L208
L210
L212
3
1
2
L
4
1
2
L
0
2
2
L
1
2
2
L
2
0
3
L
3
0
3
L
L304
L310
2
1
3
L
2
0
6
C
S
O
A
1
3
-
H
L
0
1
0
5
-
G
T
R202
6
0
2
R
7
0
2
R
R208
R209
0
1
2
R
R211
R212
3
1
2
R
R214
R215
R216
7
1
2
R
R218
0
2
2
R
1
2
2
R
0
0
3
R
1
0
3
R
R302
3
0
3
R
4
0
3
R
R306
7
0
3
R
0
1
3
R
R311
2
1
3
R
R313
7
1
3
R
SC300
TA200
1
0
2
A
T
0
0
3
A
T
U201
RTR6285
2
0
2
U
1
1
-
9
1
5
7
7
Y
K
S
3
0
3
U
8
P
0
2
M
R
9
7
2
6
T
W
A
C236
C289 C291
1
0
2
L
3
0
2
L
L219
1
0
2
R
RFS200
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
PIN28
PIN27
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
C255
TA200
V_BAT
C268
RFS200
A
2
3C
G
1
4G
L213
L206
R217
R211
C291
R210
G
1IN
OUT 3
4
OUT
F205
G
25
C262
L220
C265
L210
C273
F206
2
GG
5
IN
1
3
OUT
OUT 4
R212
1
TP
ANT101
G
2
G
3
G
5
1IN 4
OUT
F201
C263
L219
L203
C275
R209
L208
R205
C272
R214
C264
C250
L212
L214
R220
L201
R221
C266
C236
R216
C289
R215
RX1 7
ANT
8
9GND
26 VBATT
27 BS2
28 BS1
GND29
RSVD 3
RX4 4
5
RX3 6
RX2
GND
19
MODE 2
20GND
DCS|PCS_IN
21
22GND
GSM_IN
23
24GND
VAPC 25
GND
11
12GND
13GND
14GND
15GND
GND
16
GND
17
GND
18
U202
1
_TXEN
WCDMA1
10
L221
C276
ANT102
TP
R218
C274
OUT 4
F202
2
GG
5
IN
1
3
OUT
R201
R213
JTAG_ANT
DCS_RXM
DCS_RXP
GSM_RXM
GSM_RXP
PCS_RXM
PCS_RXP
UMTS_TRX
GSM_ANT_SEL0_N
GSM_ANT_SEL1_N
GSM_PA_PWR_CTL
GSM_ANT_SEL2_N
DCS1800_PCS1900_TX
GSM_TX
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
VREG_MSMP_2.6V
C214
C244
C209 C210
C239
C208
L205
C237
C257
9
C223
TX_QP
67
DAC_IREF
68
TX_RBIAS
69
GND_SLUG
7VDDA2
70
NC
71
NC
8VDDA2
VTUNE_GPS
HB_RF_OUT3
6VDDA1
60
VDDA2
61
VDDA2
62
VDDA2
63
TX_IN
64
TX_IP
65
TX_QN
66
51
PDET_IN
52
53
VDDA1
54
VDDA2
55
LB_RF_OUT1
56
HB_RF_OUT1
57
LB_RF_OUT2
58
HB_RF_OUT2
59
GPCS_INP
GPCS_INN 45
46
DCS_INP
47
DCS_INN
48
EGSM_INP
49
EGSM_INN
5VTUNE1
50
GCELL_INP
GCELL_INN
VDDA2
38
WPRXSE1
39
WDRXHB2
4VDDA1
40
WDRXHB1
41
WDRXLB
42
GPS_IN
43
VDDA2
44
VDDA1
30WPRXLBP
31WPRXLBM
32WPRXHBP
33WPRXHBM
34WPRXSE2_OUT
35
WPRXSE1_OUT
36
WPRXSE2
37
VDDA1
VDDM
23
24VTUNE2
25VDDA2
26RF_ON
27VDDA2
28WB_MX_INP
29WB_MX_INM
3
DRX_QP
16 DRX_QN
17 DRX_IP
DRX_IN
18
N|C
19
2TCXO
20SBDT
21VDDA2
22
1VDDA2
VDDA1
10
11 PRX_QP
12 PRX_QN
13 PRX_IN
14 PRX_IP
15
U201
C207
C222
C232
C206
L200 C238
C213
C260
C246
C235
C261
C212
R207 C241
C224
R208
C234
IN
OUT 3
4
OUT
VREG_RFRX1_2.1V
F200
G
25
G
1
VREG_RFRX2_2.7V
C203
C254 C256
C204 C201
R202
C245
C240
C211
C231
C200
L204
VREG_RFRX1_2.1V
5
9
C253
C243
R206
C233
M
P
M
M
P
UMTS_RXP_2100
UMTS_RXM_2100
R
UMTS_TX_2100
UMTS_RXP_2100
UMTS_RXM_2100
RF_ON_TX_ON
TX_IM
TX_IP
GSM_RXP
GSM_RXM
PCS_RXP
PCS_RXM
DCS_RXP
DCS_RXM
PWR_DET
RX_GPS
UMTS_RX_2100
GSM_TX
DCS1800_PCS1900_TX
P
M
P
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
C200
1
0
2
C
C202
C203
4
0
2
C
C205
6
0
2
C
7
0
2
C
9
0
2
C
8
0
2
C
0
1
2
C
C211
C212
C213
4
1
2
C
5
1
2
C
C216
7
1
2
C
8
1
2
C
0
2
2
C
2
2
2
C
3
2
2
C
C224
5
2
2
C
6
2
2
C
7
2
2
C
8
2
2
C
9
2
2
C
0
3
2
C
C231
2
3
2
C
3
3
2
C
4
3
2
C
5
3
2
C
C237
C238
C239
C240
C241
3
4
2
C
C244
5
4
2
C
6
4
2
C
7
4
2
C
8
4
2
C
0
5
2
C
C253
4
5
2
C
C255
6
5
2
C
7
5
2
C
9
5
2
C
0
6
2
C
1
6
2
C
C262
3
6
2
C
4
6
2
C
5
6
2
C
C266
8
6
2
C
2
7
2
C
3
7
2
C
4
7
2
C
C275
C276
C300
C301
3
0
3
C
4
0
3
C
C305
6
0
3
C
C307
9
0
3
C
0
1
3
C
2
1
3
C
5
1
3
C
6
1
3
C
7
1
3
C
8
1
3
C
0
2
3
C1
2
3
C
C322
2
3
3
C
3
3
3
C
8
3
3
C
C339
0
0
3
F
U
D
1
0
5
R
P
0
5
G
X
F
S
0
0
2
F
F201
2
0
2
F
5
0
2
F
6
0
2
F
0
0
3
F
1
3
0
9
B
F301
0
0
2
L
4
0
2
L
5
0
2
L
6
0
2
L
L208
L210
L212
3
1
2
L
4
1
2
L
0
2
2
L
1
2
2
L
2
0
3
L
3
0
3
L
L304
L310
2
1
3
L
2
0
6
C
S
O
A
1
3
-
H
L
0
1
0
5
-
G
T
R202
6
0
2
R
7
0
2
R
R208
R209
0
1
2
R
R211
R212
3
1
2
R
R214
R215
R216
7
1
2
R
R218
0
2
2
R
1
2
2
R
0
0
3
R
1
0
3
R
R302
3
0
3
R
4
0
3
R
R306
7
0
3
R
0
1
3
R
R311
2
1
3
R
R313
7
1
3
R
SC300
TA200
1
0
2
A
T
0
0
3
A
T
U201
RTR6285
2
0
2
U
1
1
-
9
1
5
7
7
Y
K
S
3
0
3
U
8
P
0
2
M
R
9
7
2
6
T
W
A
C236
C289 C291
1
0
2
L
3
0
2
L
L219
1
0
2
R
RFS200
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
PIN28
PIN27
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
C255
TA200
V_BAT
C268
RFS200
A
2
3C
G
1
4G
L213
L206
R217
R211
C291
R210
G
1IN
OUT 3
4
OUT
F205
G
25
C262
L220
C265
L210
C273
F206
2
GG
5
IN
1
3
OUT
OUT 4
R212
1
TP
ANT101
G
2
G
3
G
5
1IN 4
OUT
F201
C263
L219
L203
C275
R209
L208
R205
C272
R214
C264
C250
L212
L214
R220
L201
R221
C266
C236
R216
C289
R215
RX1 7
ANT
8
9GND
26 VBATT
27 BS2
28 BS1
GND29
RSVD 3
RX4 4
5
RX3 6
RX2
GND
19
MODE 2
20GND
DCS|PCS_IN
21
22GND
GSM_IN
23
24GND
VAPC 25
GND
11
12GND
13GND
14GND
15GND
GND
16
GND
17
GND
18
U202
1
_TXEN
WCDMA1
10
L221
C276
ANT102
TP
R218
C274
OUT 4
F202
2
GG
5
IN
1
3
OUT
R201
R213
JTAG_ANT
DCS_RXM
DCS_RXP
GSM_RXM
GSM_RXP
PCS_RXM
PCS_RXP
UMTS_TRX
GSM_ANT_SEL0_N
GSM_ANT_SEL1_N
GSM_PA_PWR_CTL
GSM_ANT_SEL2_N
DCS1800_PCS1900_TX
GSM_TX
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
VREG_MSMP_2.6V
C214
C244
C209 C210
C239
C208
L205
C237
C257
9
C223
TX_QP
67
DAC_IREF
68
TX_RBIAS
69
GND_SLUG
7VDDA2
70
NC
71
NC
8VDDA2
VTUNE_GPS
HB_RF_OUT3
6VDDA1
60
VDDA2
61
VDDA2
62
VDDA2
63
TX_IN
64
TX_IP
65
TX_QN
66
51
PDET_IN
52
53
VDDA1
54
VDDA2
55
LB_RF_OUT1
56
HB_RF_OUT1
57
LB_RF_OUT2
58
HB_RF_OUT2
59
GPCS_INP
GPCS_INN 45
46
DCS_INP
47
DCS_INN
48
EGSM_INP
49
EGSM_INN
5VTUNE1
50
GCELL_INP
GCELL_INN
VDDA2
38
WPRXSE1
39
WDRXHB2
4VDDA1
40
WDRXHB1
41
WDRXLB
42
GPS_IN
43
VDDA2
44
VDDA1
30WPRXLBP
31WPRXLBM
32WPRXHBP
33WPRXHBM
34WPRXSE2_OUT
35
WPRXSE1_OUT
36
WPRXSE2
37
VDDA1
VDDM
23
24VTUNE2
25VDDA2
26RF_ON
27VDDA2
28WB_MX_INP
29WB_MX_INM
3
DRX_QP
16 DRX_QN
17 DRX_IP
DRX_IN
18
N|C
19
2TCXO
20SBDT
21VDDA2
22
1VDDA2
VDDA1
10
11 PRX_QP
12 PRX_QN
13 PRX_IN
14 PRX_IP
15
U201
C207
C222
C232
C206
L200 C238
C213
C260
C246
C235
C261
C212
R207 C241
C224
R208
C234
IN
OUT 3
4
OUT
VREG_RFRX1_2.1V
F200
G
25
G
1
VREG_RFRX2_2.7V
C203
C254 C256
C204 C201
R202
C245
C240
C211
C231
C200
L204
VREG_RFRX1_2.1V
5
9
C253
C243
R206
C233
M
P
M
M
P
UMTS_RXP_2100
UMTS_RXM_2100
R
UMTS_TX_2100
UMTS_RXP_2100
UMTS_RXM_2100
RF_ON_TX_ON
TX_IM
TX_IP
GSM_RXP
GSM_RXM
PCS_RXP
PCS_RXM
DCS_RXP
DCS_RXM
PWR_DET
RX_GPS
UMTS_RX_2100
GSM_TX
DCS1800_PCS1900_TX
P
M
P
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
C200
1
0
2
C
C202
C203
4
0
2
C
C205
6
0
2
C
7
0
2
C
9
0
2
C
8
0
2
C
0
1
2
C
C211
C212
C213
4
1
2
C
5
1
2
C
C216
7
1
2
C
8
1
2
C
0
2
2
C
2
2
2
C
3
2
2
C
C224
5
2
2
C
6
2
2
C
7
2
2
C
8
2
2
C
9
2
2
C
0
3
2
C
C231
2
3
2
C
3
3
2
C
4
3
2
C
5
3
2
C
C237
C238
C239
C240
C241
3
4
2
C
C244
5
4
2
C
6
4
2
C
7
4
2
C
8
4
2
C
0
5
2
C
C253
4
5
2
C
C255
6
5
2
C
7
5
2
C
9
5
2
C
0
6
2
C
1
6
2
C
C262
3
6
2
C
4
6
2
C
5
6
2
C
C266
8
6
2
C
2
7
2
C
3
7
2
C
4
7
2
C
C275
C276
C300
C301
3
0
3
C
4
0
3
C
C305
6
0
3
C
C307
9
0
3
C
0
1
3
C
2
1
3
C
5
1
3
C
6
1
3
C
7
1
3
C
8
1
3
C
0
2
3
C1
2
3
C
C322
2
3
3
C
3
3
3
C
8
3
3
C
C339
0
0
3
F
U
D
1
0
5
R
P
0
5
G
X
F
S
0
0
2
F
F201
2
0
2
F
5
0
2
F
6
0
2
F
0
0
3
F
1
3
0
9
B
F301
0
0
2
L
4
0
2
L
5
0
2
L
6
0
2
L
L208
L210
L212
3
1
2
L
4
1
2
L
0
2
2
L
1
2
2
L
2
0
3
L
3
0
3
L
L304
L310
2
1
3
L
2
0
6
C
S
O
A
1
3
-
H
L
0
1
0
5
-
G
T
R202
6
0
2
R
7
0
2
R
R208
R209
0
1
2
R
R211
R212
3
1
2
R
R214
R215
R216
7
1
2
R
R218
0
2
2
R
1
2
2
R
0
0
3
R
1
0
3
R
R302
3
0
3
R
4
0
3
R
R306
7
0
3
R
0
1
3
R
R311
2
1
3
R
R313
7
1
3
R
SC300
TA200
1
0
2
A
T
0
0
3
A
T
U201
RTR6285
2
0
2
U
1
1
-
9
1
5
7
7
Y
K
S
3
0
3
U
8
P
0
2
M
R
9
7
2
6
T
W
A
C236
C289 C291
1
0
2
L
3
0
2
L
L219
1
0
2
R
RFS200
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
PIN28
PIN27
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
C255
TA200
V_BAT
C268
RFS200
A
2
3C
G
1
4G
L213
L206
R217
R211
C291
R210
G
1IN
OUT 3
4
OUT
F205
G
25
C262
L220
C265
L210
C273
F206
2
GG
5
IN
1
3
OUT
OUT 4
R212
1
TP
ANT101
G
2
G
3
G
5
1IN 4
OUT
F201
C263
L219
L203
C275
R209
L208
R205
C272
R214
C264
C250
L212
L214
R220
L201
R221
C266
C236
R216
C289
R215
RX1 7
ANT
8
9GND
26 VBATT
27 BS2
28 BS1
GND29
RSVD 3
RX4 4
5
RX3 6
RX2
GND
19
MODE 2
20GND
DCS|PCS_IN
21
22GND
GSM_IN
23
24GND
VAPC 25
GND
11
12GND
13GND
14GND
15GND
GND
16
GND
17
GND
18
U202
1
_TXEN
WCDMA1
10
L221
C276
ANT102
TP
R218
C274
OUT 4
F202
2
GG
5
IN
1
3
OUT
R201
R213
JTAG_ANT
DCS_RXM
DCS_RXP
GSM_RXM
GSM_RXP
PCS_RXM
PCS_RXP
UMTS_TRX
GSM_ANT_SEL0_N
GSM_ANT_SEL1_N
GSM_PA_PWR_CTL
GSM_ANT_SEL2_N
DCS1800_PCS1900_TX
GSM_TX
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
VREG_MSMP_2.6V
C214
C244
C209 C210
C239
C208
L205
C237
C257
9
C223
TX_QP
67
DAC_IREF
68
TX_RBIAS
69
GND_SLUG
7VDDA2
70
NC
71
NC
8VDDA2
VTUNE_GPS
HB_RF_OUT3
6VDDA1
60
VDDA2
61
VDDA2
62
VDDA2
63
TX_IN
64
TX_IP
65
TX_QN
66
51
PDET_IN
52
53
VDDA1
54
VDDA2
55
LB_RF_OUT1
56
HB_RF_OUT1
57
LB_RF_OUT2
58
HB_RF_OUT2
59
GPCS_INP
GPCS_INN 45
46
DCS_INP
47
DCS_INN
48
EGSM_INP
49
EGSM_INN
5VTUNE1
50
GCELL_INP
GCELL_INN
VDDA2
38
WPRXSE1
39
WDRXHB2
4VDDA1
40
WDRXHB1
41
WDRXLB
42
GPS_IN
43
VDDA2
44
VDDA1
30WPRXLBP
31WPRXLBM
32WPRXHBP
33WPRXHBM
34WPRXSE2_OUT
35
WPRXSE1_OUT
36
WPRXSE2
37
VDDA1
VDDM
23
24VTUNE2
25VDDA2
26RF_ON
27VDDA2
28WB_MX_INP
29WB_MX_INM
3
DRX_QP
16 DRX_QN
17 DRX_IP
DRX_IN
18
N|C
19
2TCXO
20SBDT
21VDDA2
22
1VDDA2
VDDA1
10
11 PRX_QP
12 PRX_QN
13 PRX_IN
14 PRX_IP
15
U201
C207
C222
C232
C206
L200 C238
C213
C260
C246
C235
C261
C212
R207 C241
C224
R208
C234
IN
OUT 3
4
OUT
VREG_RFRX1_2.1V
F200
G
25
G
1
VREG_RFRX2_2.7V
C203
C254 C256
C204 C201
R202
C245
C240
C211
C231
C200
L204
VREG_RFRX1_2.1V
5
9
C253
C243
R206
C233
M
P
M
M
P
UMTS_RXP_2100
UMTS_RXM_2100
R
UMTS_TX_2100
UMTS_RXP_2100
UMTS_RXM_2100
RF_ON_TX_ON
TX_IM
TX_IP
GSM_RXP
GSM_RXM
PCS_RXP
PCS_RXM
DCS_RXP
DCS_RXM
PWR_DET
RX_GPS
UMTS_RX_2100
GSM_TX
DCS1800_PCS1900_TX
P
M
P
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
C200
1
0
2
C
C202
C203
4
0
2
C
C205
6
0
2
C
7
0
2
C
9
0
2
C
8
0
2
C
0
1
2
C
C211
C212
C213
4
1
2
C
5
1
2
C
C216
7
1
2
C
8
1
2
C
0
2
2
C
2
2
2
C
3
2
2
C
C224
5
2
2
C
6
2
2
C
7
2
2
C
8
2
2
C
9
2
2
C
0
3
2
C
C231
2
3
2
C
3
3
2
C
4
3
2
C
5
3
2
C
C237
C238
C239
C240
C241
3
4
2
C
C244
5
4
2
C
6
4
2
C
7
4
2
C
8
4
2
C
0
5
2
C
C253
4
5
2
C
C255
6
5
2
C
7
5
2
C
9
5
2
C
0
6
2
C
1
6
2
C
C262
3
6
2
C
4
6
2
C
5
6
2
C
C266
8
6
2
C
2
7
2
C
3
7
2
C
4
7
2
C
C275
C276
C300
C301
3
0
3
C
4
0
3
C
C305
6
0
3
C
C307
9
0
3
C
0
1
3
C
2
1
3
C
5
1
3
C
6
1
3
C
7
1
3
C
8
1
3
C
0
2
3
C1
2
3
C
C322
2
3
3
C
3
3
3
C
8
3
3
C
C339
0
0
3
F
U
D
1
0
5
R
P
0
5
G
X
F
S
0
0
2
F
F201
2
0
2
F
5
0
2
F
6
0
2
F
0
0
3
F
1
3
0
9
B
F301
0
0
2
L
4
0
2
L
5
0
2
L
6
0
2
L
L208
L210
L212
3
1
2
L
4
1
2
L
0
2
2
L
1
2
2
L
2
0
3
L
3
0
3
L
L304
L310
2
1
3
L
2
0
6
C
S
O
A
1
3
-
H
L
0
1
0
5
-
G
T
R202
6
0
2
R
7
0
2
R
R208
R209
0
1
2
R
R211
R212
3
1
2
R
R214
R215
R216
7
1
2
R
R218
0
2
2
R
1
2
2
R
0
0
3
R
1
0
3
R
R302
3
0
3
R
4
0
3
R
R306
7
0
3
R
0
1
3
R
R311
2
1
3
R
R313
7
1
3
R
SC300
TA200
1
0
2
A
T
0
0
3
A
T
U201
RTR6285
2
0
2
U
1
1
-
9
1
5
7
7
Y
K
S
3
0
3
U
8
P
0
2
M
R
9
7
2
6
T
W
A
C236
C289 C291
1
0
2
L
3
0
2
L
L219
1
0
2
R
RFS200
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
4
FILT_OUT
GND
3
GND
6
1RF_IN
S|D2
5
VDD
F304
L314
C330C329C328 L308
L307
R314
1IN 4
OUT
F303
G
2
G
3
G
5
L315
44
5
5
66
C334
ANT301
1
1
22
33
L306
VREG_RFRX2_2.7V
C327
L316
GLNA_ON
RX_GPS
7
2
3
C
C329
C330
C334
3
0
3
F
F304
6
0
3
L
L307
8
0
3
L
4
1
3
L5
1
3
L
4
1
3
R
ANT301
8
2
3
C6
1
3
L
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
SAMSUNG Proprietary-Contents may change without notice
10. Reference data
10-1
This Document can not be used without Samsung's authorization
Reference Abbreviate
－AAC: Advanced Audio Coding.
－AVC : Advanced Video Coding.
－BER : Bit Error Rate
－BPSK: Binary Phase Shift Keying
－CA : Conditional Access
－CDM : Code Division Multiplexing
－C/I : Carrier to Interference
－DMB : Digital Multimedia Broadcasting
－EN : European Standard
－ES : Elementary Stream
－ETSI: European Telecommunications Standards Institute
－MPEG: Moving Picture Experts Group
－PN : Pseudo-random Noise
－PS :PilotSymbol
－QPSK: Quadrature Phase Shift Keying
－RS : Reed-Solomon
－SI : Service Information
－TDM : Time Division Multiplexing
－TS : Transport Stream
SAMSUNG Proprietary-Contents may change without notice
Reference data
10-2
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
11. Disassembly and Assembly Instructions
11-1
This Document can not be used without Samsung's authorization
1) Handle with care not to have scratches and
not to be damaged.
1) Handle with care not to have scratches and
not to damage the molds.
2) Watch out the rear frame not to have strains
when disassembled.
3) Use the disassembling tool by all means.
1) Handle with care the FPCB not to be torn or
damaged.
1) Do not damage the chip.
2) Do not damage the speaker connector.
3) Do not damage the camera LED FPCB.
11-1. Disassembly Instructions
1) Unscrew at the four points and seperate
the rear frame and the upper parts.
11) Press the side parts using
disassembling tool and unlock the hook.
2
1) Detach BT antenna from the rib.
2) Detach Key FPCB and LCD Connector from
Upper slide parts.
341) Unscrew at the four points.
2) Detach the speaker connector from the
header.
3) Take off the camera LED and seperate the
shieldCAN.
SAMSUNG Proprietary-Contents may change without notice
Disassembly and Assembly Instructions
11-2
This Document can not be used without Samsung's authorization

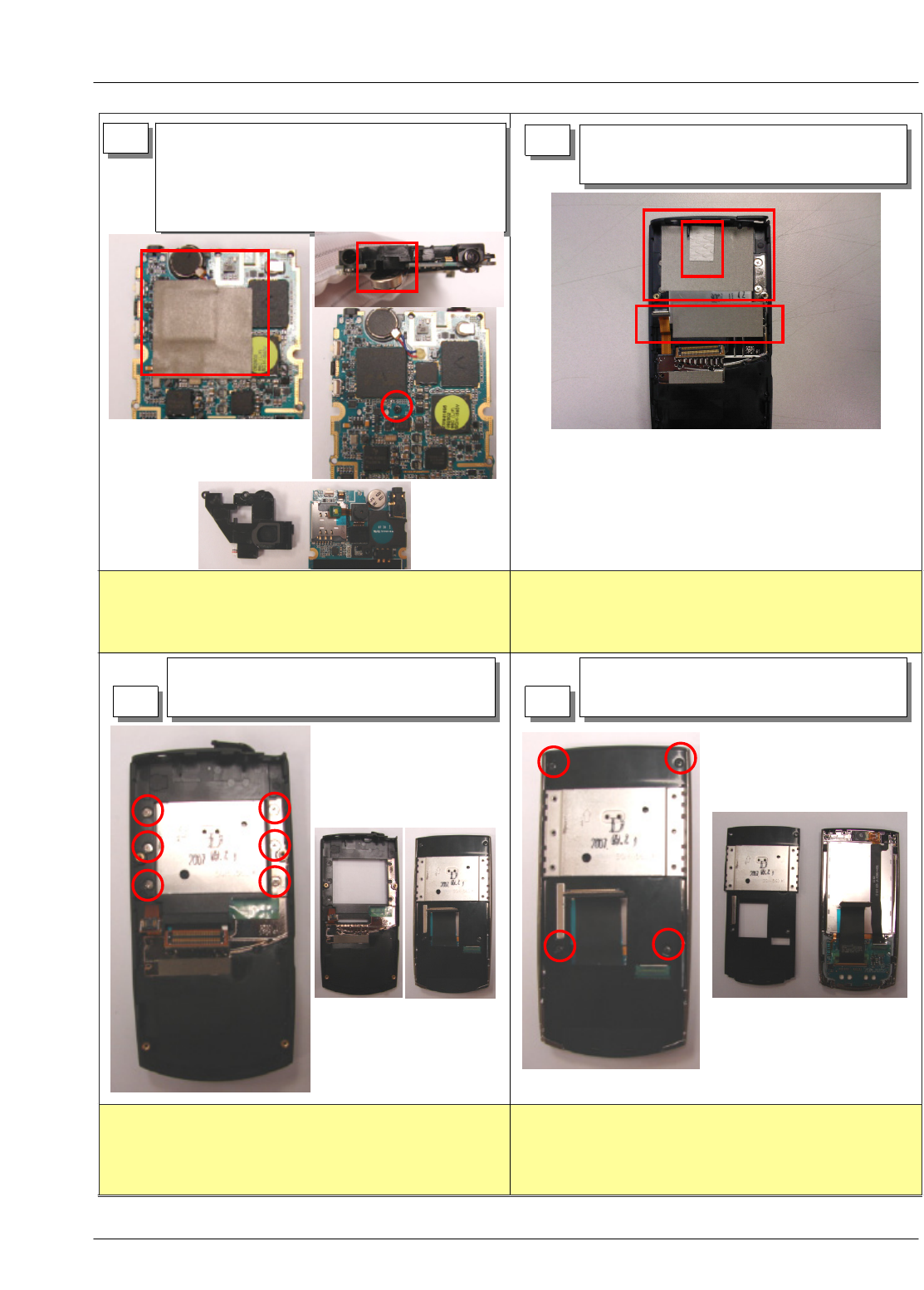

1) Do not damage the chip.
1) Take care not to be torn of the tape
2) Handle with care the FPCB not to be torn or
damaged.
7
1) Unscrew at the six points and seperate
the Front frame from the upper parts. 8
1) Unscrew at the four points and seperate
the Lower frame from the upper parts.
1) Handle with care not to have scratches and
not to damage the molds.
2) Handle with care the FPCB not to be torn or
damaged.
1) Handle with care not to have scratches and
not to damage the molds.
2) Handle with care the FPCB not to be torn or
damaged.
1) Remove the absorber tape and detach the
motor from speaker.
2) Unscrew at one point then seperate the SPK
from the PBA.
51) Remove the three electric conduction
tape
6
SAMSUNG Proprietary-Contents may change without notice
Disassembly and Assembly Instructions
11-3
This Document can not be used without Samsung's authorization
1) Handle with care not to have scratches and
not to damage the molds.
2) Handle with care the FPCB not to be torn or
damaged.
1) Handle with care not to have scratches and
not to damage the molds.
2) Handle with care the FPCB not to be torn or
damaged.
1) Handle with care the FPCB not to be torn or
damaged.
1) Assemble the SPK box fit firmly.
2) Before fitting the motor, twist the wire
twice.
3) The wire of the motor should not be above the
gold line.
4) Handle with care not to damage the camera
FPCB and the chip.
5) Attach the absorber tape as guided in the
picture.
11-2. Assembly Instructions
1) Fit the lower frame to the Upper parts.
2) Screw down the lower frame.
11) Assemble the upper parts and the front
frame
2) Screw down the front frame at six
points.
2
31) Attach the three electric conduction
tape as below.
41) Fit the Power key to be right part higher.
2) Assemble the SPK box the right hooker first.
3) Fit the motor to speaker box, and screw
down in one point.
4) Attach the absorber tape.
SAMSUNG Proprietary-Contents may change without notice
Disassembly and Assembly Instructions
11-4
This Document can not be used without Samsung's authorization

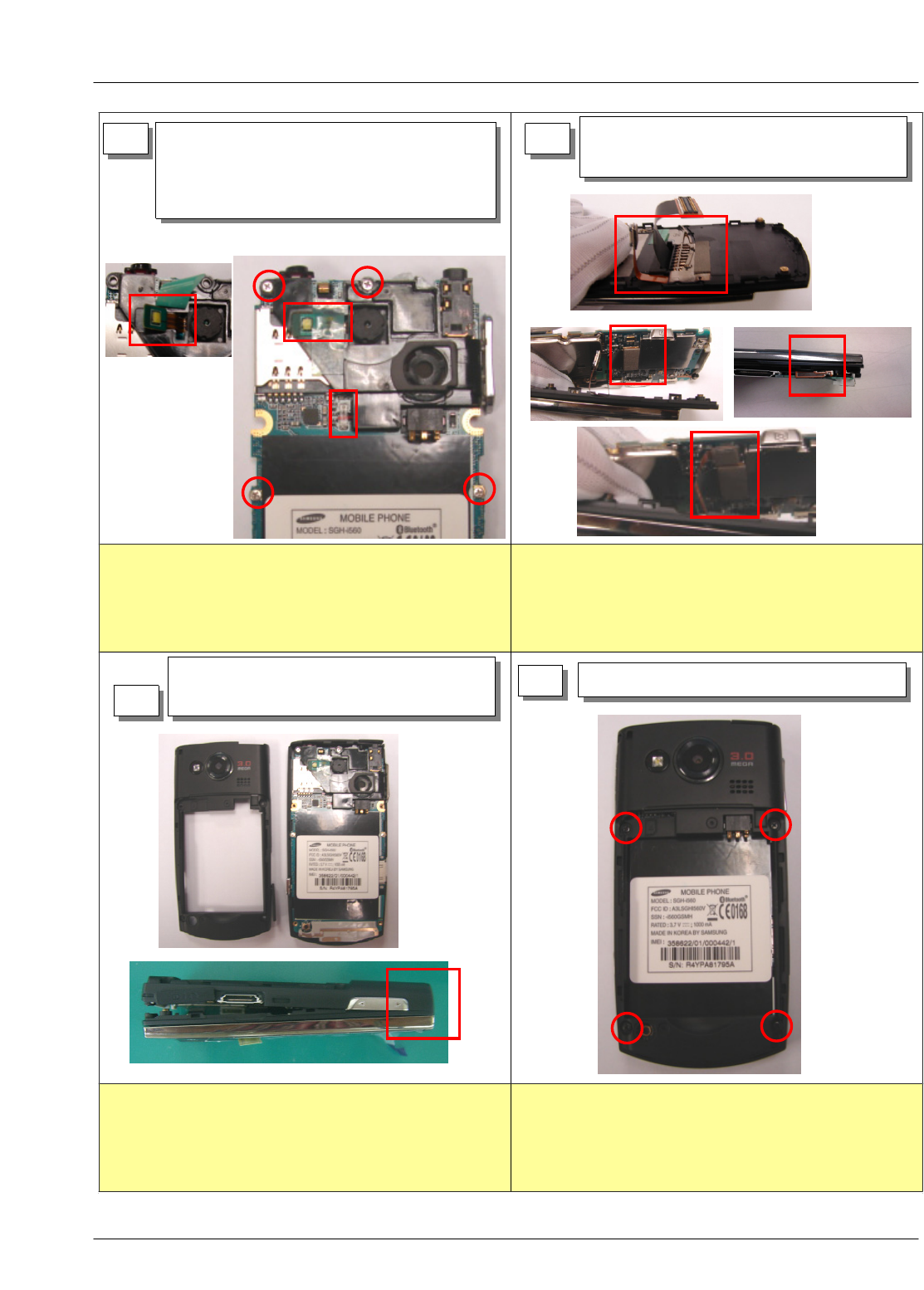

1) Watch out not to damage the chip.
1) Watch out not to damage the chip and BT ant.
2) Watch out the connectorto fit firmly.
3) Handle with care the FPCB not to be torn or
damaged.
7
1) Set the PBA on the slide upper parts.
2) Assemble the Rear frame from the top.
1) Handle with care not to have scratches and
not to damage the molds.
1) Handle with care not to have scratches and
not to damage the molds.
Attach the camera LED at guide hole.
2) Attach the insulation tape and fit the
SPK Connector to header.
3) Put the SHIELDCAN at right position and
screw down at four points.
51) Slide up a little bit and connect the
LCD connector first,Key FPCB connector and
BT antenna between rib.
6
1) Screw down at four points.
8
