GSM TELEPHONE
SGH-U600
GSM TELEPHONE CONTENTS
1. Specification
2. Exploded View and Parts list
3. Chart of Troubleshooting
4. Array course control
5. Block Diagrams
6. PCB Diagrams
7. MAIN Electrical Parts List
8. Reference data
9. Safety Precautions
10. Product Function
Contents
1. Specification
1-1. GSM/CDMA General Specification ...........................................................................1-1
1-2. GSM TX power class ...............................................................................................1-2
2. Exploded View and Parts list
2-1. Cellular phone Exploded View ..................................................................................2-1
2-2. Cellular phone Parts list ............................................................................................2-2
2-3. Disassembly ...............................................................................................................2-4
2-4. Assembly ....................................................................................................................2-8
3. ChartofTroubleshooting
3-1. Baseband ............................................................................................................3-1
3-1-1. Power ON .....................................................................................................3-1
3-1-2. System Initial ................................................................................................3-6
3-1-3. SIM Part .......................................................................................................3-8
3-1-4. Charging Part .............................................................................................3-10
3-1-5. Microphone Part .........................................................................................3-13
3-1-6. Speaker Part ..............................................................................................3-16
3-1-7. Receiver Part .............................................................................................3-20
3-1-8. Camera Part ..............................................................................................3-22
1) 2Mega Camera .....................................................................................3-22
2) VGA Camera .........................................................................................3-23
3-1-9. LCD .............................................................................................................3-26
3-2. RF ......................................................................................................................3-13
3-2-1. EGSM Receiver .........................................................................................3-30
3-2-2. EGSM Transmitter .....................................................................................3-31
3-2-3. DCS Receiver ............................................................................................3-32
3-2-4. DCS Transmitter ........................................................................................3-33
3-2-5. PCS Receiver .............................................................................................3-34
3-2-6. PCS Transmitter .........................................................................................3-35
3-2-7. UMTS Receiver ..........................................................................................3-40
3-2-8. UMTS Transmitter ......................................................................................3-41
3-2-9. BLUETOOTH ..............................................................................................3-45
Contents
4. Array course control
4-1. Downloading Binary Files ......................................................................................4-2
4-2. Pre-requsite for Downloading ................................................................................4-2
4-3. S/W Downloader Program .....................................................................................4-3
5. Block Diagrams
6. PCB Diagrams
7. MAIN Electrical Parts List
8. Reference data
8-1. Reference Abbreviate ..............................................................................................8-1
9. Safety Precautions
9-1. Repair Precaution ......................................................................................................9-1
9-2. ESD(Electrostaically Sensitive Devices) Precaution ................................................9-2
10. Product Function
SAMSUNG Proprietary-Contents may change without notice
1. Specification
1-1
This Document can not be used without Samsung's authorization
1-1. GSM/DCS1800/PCS1900 General Specification
EGSM 850
Phase 2
EGSM 900
Phase 2
DCS1800
Phase 1 PCS1900
Freq. Band[MHz]
Uplink/Downlink
824~849
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range 128 ~251 0~124 &
975~1023 512~885 512~810
Tx/Rx spacing 45 MHz 45 MHz 95 MHz 80 MHz
Mod. Bit rate/
Bit Period
270.833 kbps
3.692 us
270.833 kbps
3.692 us
270.833 kbps
3.692 us
270.833 kbps
3.692 us
Time Slot
Period/Frame
Period
576.9 us
4.615 ms
576.9 us
4.615 ms
576.9 us
4.615 ms
576.9 us
4.615 ms
Modulation 0.3 GMSK 0.3 GMSK 0.3 GMSK 0.3 GMSK
MS Power 33 dBm~5 dBm 33 dBm~5 dBm 30 dBm~0 dBm 30 dBm~0 dBm
Power Class 5 pcl ~19pcl 5pcl ~19pcl 0pcl ~15pcl 0pcl ~15pcl
Sensitivity -102 dBm -102 dBm -100 dBm -100 dBm
TDMA Mux 8 8 8 8
Cell Radius 35 Km 35 Km 2Km -
SAMSUNG Proprietary-Contents may change without notice
Specification
1-2
This Document can not be used without Samsung's authorization
1-2. GSM TX power class
TX Power
control level
GSM850/
EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9± 3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
SAMSUNG Proprietary-Contents may change without notice
2. Exploded View and Parts List
2-1
This Document can not be used without Samsung's authorization
2-1. Cellular phone Exploded View
QCR68
QFR01
QFU01
QMP01
QAN02
QCR04
QAN06
QAN07
QSD01
QCK01
QVO01
QRF03
QBA00
QRE01
QBA01
QCR12
QMI03
QSP01
QLC01
QFL01
QPC01
QHI01
QCR58
QVO02
QRF01
QCA01
SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
2-2
This Document can not be used without Samsung's authorization
2-2. Cellular phone Parts list
Design LOC Discirption SEC CODE
QAN02 INTENNA-SGHU600 GH42-01133A
QAN06 ASSY COVER-INTENNA GH98-04083A
QAN07 PMO-INTENNA DUMMY GH72-36571A
QBA00 ASSY COVER-BATTERY GH98-04770A
QBA01 INNER BATTERY PACK-690MAH,BLK, GH43-02834A
QCA01 UNIT-SGHU600 CAMERA GH59-04163A
QCR04 SCREW-MACHINE 6001-001479
QCR12 SCREW-MACHINE 6001-001530
QCR58 SCREW-MACHINE 6001-001870
QCR68 SCREW-MACHINE 6001-002067
QFU01 ASSY COVER-SLIDE UPPER GH98-03317A
QLC01 LCD-MODULE SGHU600 GH07-01087A
QMP01 PBA MAIN-SGHU600 GH92-03347A
QPC01 MEA-SLIDE FPCB KIT GH97-07452A
QRF01 PMO-COVER RF GH72-36573A
QSP01 UNIT-SGHU600 SPEAKER MODULE GH59-04046A
QFR01 ASSY CASE-FRONT PLATE GH98-04811A
QMI03 RMO-RUBBER MIC HOLDER GH73-08776A
QFL01 ASSY COVER-SLIDE LOWER GH98-04051A
QHI01 ASSY HINGE-SLIDE GH98-03319A
QVO02 PMO-POWER KEY GH72-38555A
QRE01 ASSY CASE-REAR GH98-04052A
QCK01 PMO-KEY CAMERA GH72-37516A
QRF03 PMO-COVER EAR/IF GH72-36576A
QSD01 PMO-COVER MICRO SD GH72-36575A
QVO01 PMO-VOLUME KEY GH72-37517A
SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
2-3
This Document can not be used without Samsung's authorization
Discirption SEC CODE
BAG PE 6902-000297
CBF INTERFACE-DLC,X830,BLK,PCB GH39-00720A
ADAPTOR-SGHE690,BLK,EU,A_TYPE GH44-01361A
S/W CD-SGHU600 PC STUDIO 3.1 GH46-00384A
UNIT-SGHU600,HEADSET,BLK,A TYP GH59-04446A
LABEL(R)-WATER SOAK GH68-09361A
LABEL(P)-OPEN MP3 GH68-11246A
LABEL(R)-MAIN(FRANCE) GH68-14054F
MANUAL USERS-EU FRENCH GH68-14139A
BOX(P)-UNIT MAIN(EU) GH69-05115A
CUSHION-CASE TA2 MA2 GH69-05116A
RMO-RUBBER TACT SWITCH GH73-09461A
MPR-TAPE PBA AGH74-16066A
MPR-VINYL BOHO MAIN WINDOW GH74-30725A
MPR-INSU TAPE LCD PCB GH74-30734A
MPR-TAPE 3X4 KEY IN GH74-30763A
MPR-TAPE C2C IN GH74-30764A
MPR-INSU TAPE GH74-30765A
MPR-GASK TAPE GH74-30766A
MPR-VINYL BOHO KEY SUB GH74-30847A
MPR-VINYL BOHO MAIN WINDOW 2GH74-31274A
MPR-INSU TAPE SPK MODULE GH74-31527A
MPR-ELEC TAPE GH74-31528A
MPR-TAPE BATTERY ROOM GH74-31712A
MPR-ELEC TAPE GH74-31714A
MPR-INSU TAPE GH74-31884A
MPR-ELEC TAPE CON TO CON BGH74-32141A
AS-LCD WINDOW TAPE GH81-06188A
SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
2-4
This Document can not be used without Samsung's authorization

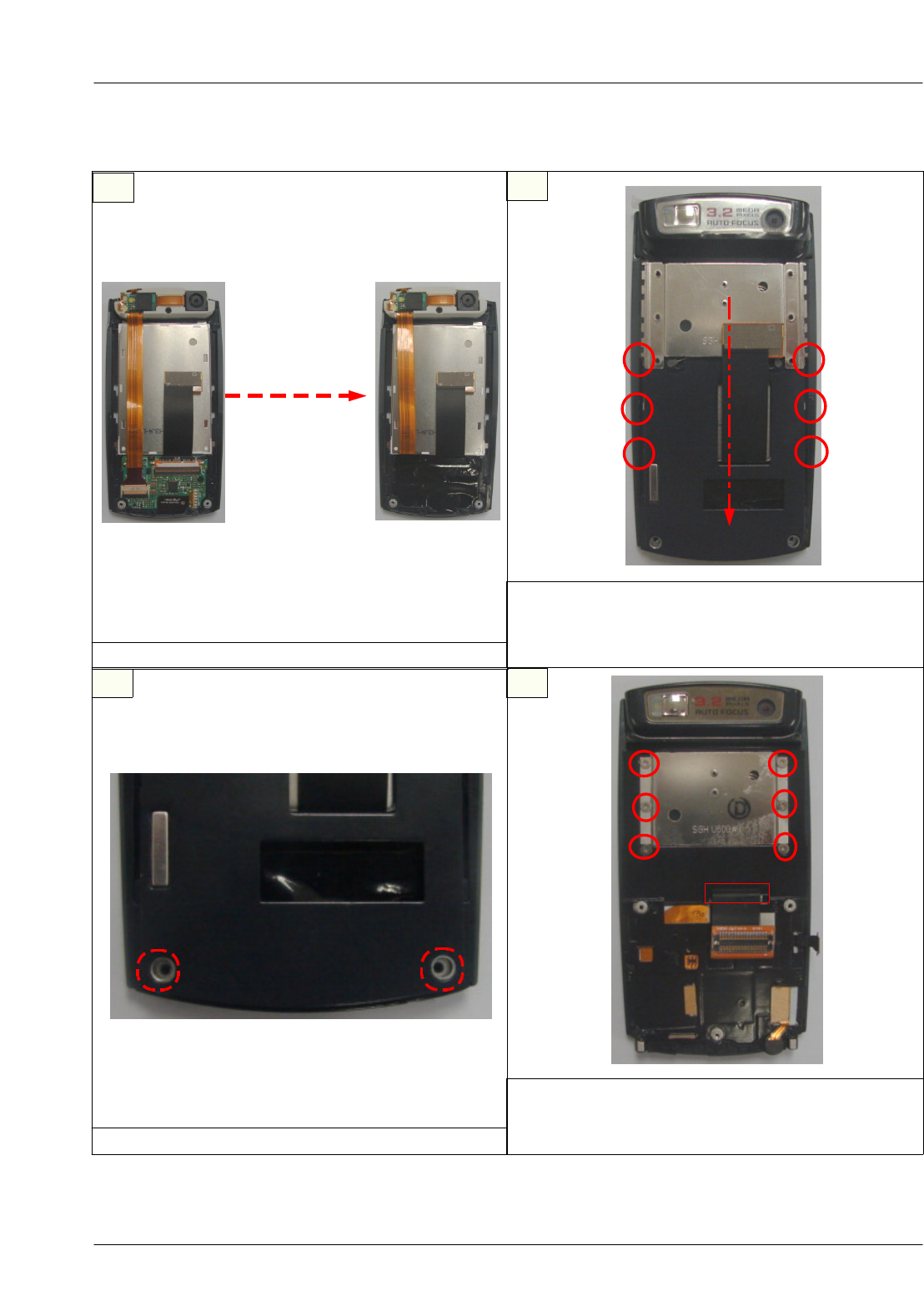

2-3. Disassembly
1
43
2
1) Take off IMEI lable 1) UNSCREW the 5POINTS
1) Open the RF COVER from the REAR case 1) Open the intenna cover dummy
SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
2-5
This Document can not be used without Samsung's authorization
5
87
6
1) Remove the number key tape
2) Open the actuator and take out the FPCB
1) Separate the PBA with taking off the slide
FPCB on the other side
1) Unscrew the 2POINTS from the intenna cover
1) Take off the REAR case
2) Separate the Intenna cover from the PBA
SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
2-6
This Document can not be used without Samsung's authorization
9
1211
10
1) Open the Slide lower cover with lifting the case
1) Remove the Black shield tape on the
components
1) Unscrew the 6POINTS
2) Saparate Front cover from the slide upper ass'y 1) UNSCREW the 2POINTS
SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
2-7
This Document can not be used without Samsung's authorization
2-4. Assembly
1
43
2
1) SCREW the 2POINTS
1) Put the front cover on the slide ass'y
2) Check the slide FPCB is right
3) SCREW the 6POINTS
1) Put the black insulated tape on the components
1) Put the slide lower cover with checking the
lockers and LCD FPCB
2) Push the cover following an arrow
SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
2-8
This Document can not be used without Samsung's authorization
5
87
6
1) Insert the numeric key FPCB
2) Put the insulate tape on the connector.
1) Put the intenna cover
-Handle with case, the intenna could be
damaged
1) Let the slide FPCB in the main board socket
-The connector must be firmly pressed
1) PUT the PBA on the cover
-check the Front Damper
SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
2-9
This Document can not be used without Samsung's authorization
9
1211
10
1) Combine the REAR cover with checking the
locker
2) Press the connector to lock the cover 1) SCREW the 5POINTS
1) SCREW the 2POINTS 1) Set the IMEI lable
SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
2-10
This Document can not be used without Samsung's authorization
13
1) Combine the REAR cover with checking the
locker
2) Press the connector to lock the cover 1) SCREW the 5POINTS
14
3. Flow Chart of Troubleshooting
3-1
3-1 BASEBAND

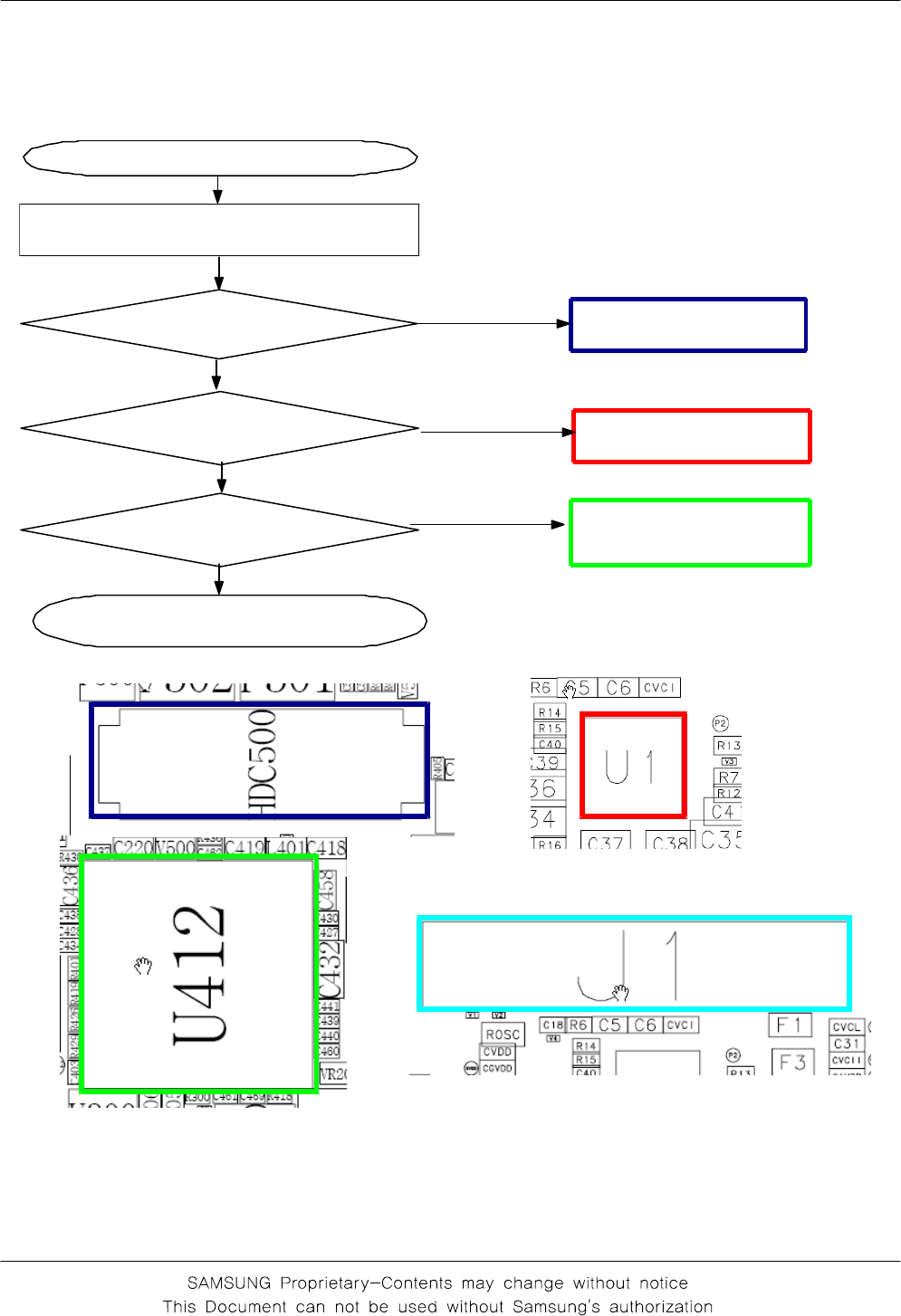

3-1-1. Power ON
'Power On' does not work
Yes
Check the current
consumption more
than 100mA
Download again
No
Yes
Charge the Battery
Check the VBAT
more than 3.3V
No
Yes
①
Check the
VLDO7_1.8V
of UCP300 is more
than 1.8V
Check UCP300 and C314
No
Yes
Check U201
②
Check U201
pin 1 = 1.8V
pin 4 = 1.6V
pin 7,9 = 1.5V
No
③
Yes
Check VRF of
UCP300=2.9V
Check UCP300
and C315
No
Yes
④
Check C131
Freq =13
MHz
Vp-p >0.8V Check the clock C131
No
Yes
Check the initial operation
Yes
END
Flow Chart of Troubleshooting
3-2
Flow Chart of Troubleshooting
3-3
C211
D200
2
D
N
G
11
MODE|DATA
2
SW1 6
SW2 10
VIN
3
ADJ2
1
DEF_1
5EN1 7
EN2 9
FB1
4GND 8
U201
L201
R214
C210
VBAT
C213
VCCD_1.8VHP_CORE_1.6V
L200
C212
VLDO1_1.5V
Flow Chart of Troubleshooting
3-4
C318
C302
VRTC_1.5V
VCCD_2.9V
VBAT
C313
VRF_2.9V
VRF_2.9V
R306
VBAT
C303
C301
VCCD_1.8V
C314
VBAT
VCCD_1.8V_PSC
R307
C317
VCCD_2.9V
R308
BAT300
2
G
E
N
1
S
O
P
C312
R305
VCCA_2.9V
C321
C316
VR301
C307
VCCB_2.9V
C311
VCCA_2.9V
C315
C323
C320
Q
A
N
E
O
X
1
D
VLDO_7C12
VREFA10
N
G
E
R
V
4
1
R
P
G
E
R
V
3
1
M
VRTCH11
VSIM K12
1
S
S
V5
G
2
S
S
V4
K
3
S
S
V2
R
4
S
S
V6
P
M
C
V
X
V
3
1
R
N
E
_
G
N
R
_
B
I
V
9
L
VL4S_AA12
VL4S_BB11
VL5S_AD10
C9
VL5S_B
VLDO_1G11
VLDO_2J12
VLDO_3A13
VLDO_4B12
VLDO_5B10
VLDO_6A14
5
D
D
V0
1
C
7
6
D
D
V3
1
B
B
D
D
V6
A
D
D
D
V1
1
N
V
D
D
V1
1
L
1
O
I
_
D
D
V5
N
2
O
I
_
D
D
V4
J
L
T
C
O
_
D
D
V4
C
VEXTE14
VIB_DRVF15
P
X
T
7
E
UP_CLKN9
UP_IOP10
UP_RSTR10
VACCF14
VBATE13
1
D
D
V3
J
VDD12J13
2
D
D
V3
M
3
D
D
V6
N
VDD34C11
7
C
SCLK_PSCL8
M7
SDI_PSC
SDO_PSCN7
C2SERCK
C1SERDA
B1SERLE1
SERLE2
A2
SIM_CLKK14
SIM_IOJ11
SIM_RSTK11
6
B
2
F
E
R
A
R
5
B
R3RESETN_CSP
O
_
T
E
S
E
R
9
K
RING_DRVF13
RTC_ALMNH10
K
L
C
_
C
T
R
4
N
RWN
L2
N
I
X
T
X
R
6
D
PI
X
T
X
R
7
D
N
Q
X
T
X
R
6
C
P
Q
X
T
X
R
OCTL2
F5
E5OCTL3
OCTL4
A4
G6OCTL5
B3OCTL6
A3OCTL7
F
U
B
_
1
W
S
P
7
L
P
E
E
K
_
R
W
P
9
M
N
1
W
S
_
R
W
P
5
1
C
2
W
S
_
R
W
P
4
1
C
1
F
E
R
A
R
G12
C
M
6
R
N
NI
CI
M
4
1
M
P
NI
CI
M
4
1
N
N
T
U
O
CI
M
5
1
P
P
T
U
O
CI
M
5
1
N
0
1
NE
D
O
M
1
5
C
N
6
C
N2
OCTL0
E6
C5OCTL1
9
G
8
S
D
N
G0
1
G
9
S
D
N
G6
H
V
D
N
G3
1
P
R
U
C
H
_
D
N
G1
1
F
L
T
C
O
_
D
N
G4
B
1
C
S
P
_
D
N
G5
1
B
2
C
S
P
_
D
N
G5
1
K
Q
R
T
N
I
0
1
L
L3I|O
LED1_DRVG13
LED2_DRV
3
1
S
D
N
G7
J
4
1
S
D
N
G8
J
5
1
S
D
N
G9
J
6
1
S
D
N
G0
1
J
7
1
S
D
N
G0
1
K
2
S
D
N
G8
F
9
F
3
S
D
N
G
4
S
D
N
G0
1
F
5
S
D
N
G7
G
6
S
D
N
G8
G
7
S
D
N
G
G4
DB8
F4
DB9
F1
R
T
N
I
D
3
P
B
D
N
G6
F
D
D
N
G0
1
M
Q
D
N
G8
E
1
S
D
N
G7
F
0
1
S
D
N
G7
H
1
1
S
D
N
G8
H
9
H
2
1
S
D
N
G
F2
DB11
F3
DB12
E2
DB13
E3
DB14
D3
DB15
D2
DB2
K3
J5DB3
DB4
J6
DB5
H5
DB6
G3
DB7
CH_ISENF12
CH_RESD14
E9
CREF
K8
CSN_PSC
K
C
I
A
D
4
R
I
D
I
A
D
6
L
O
D
I
A
D
6
M
N
RI
A
D
4
P
DB0
K1
K2DB1
DB10
9
D
N
A
T
U
O
A
2
1
N
P
A
T
U
O
A
1
1
P
N
B
T
U
O
A
2
1
P
P
B
T
U
O
A
2
1
R
N
NI
X
U
A
4
1
L
P
NI
X
U
A
5
1
M
N
T
U
O
X
U
A
3
1
L
P
T
U
O
X
U
A
3
1
K3
C
D
A
_
X
U
A3
1
D
E11
CH_BDRV
AB1
AB2
L5
N1AB3
AB4
N2
M2AB5
AB6
M1
K7AB7
AB8
K5
ADC_AUX1E10
ADC_AUX2D15
4
X
U
A
_
C
D
A
5
P
C
F
A
C304
UCP300
AB0
K6
P1
C310
VLDO1_1.5V
VCCB_2.9V
C322
C319
CF
SX_EN
DCS_TX_EN
GSM_TX_EN
N
O
_
G
I
J
ICHRG
P
A
T
U
O
A
N
B
T
U
O
A
P
B
T
U
O
A
N
T
U
O
X
U
A
N
N
I
X
U
A
P
T
U
O
X
U
A
P
N
I
X
U
A
N
T
U
O
CI
M
N
N
I
CI
M
P
NI
CI
M
P
T
U
O
CI
M
RST
EAR_CHECK
C
P
A
V
P
Q
X
T
R
N
Q
X
T
R
PI
X
T
R
NI
X
T
R
N
O
_
R
W
P
C
M
_
M
3
1
K
L
C
KEY_BL_MAIN
C
F
A
MOD_SEL
SERLE
SERDAT
SERCLK
N
A
T
U
O
A
Q
A
N
E
O
X
VSIM
RX_EN
PAC_EN
BAND_SEL
UP_CS
T
N
I
_
P
S
D
INTRQ
F
U
B
_
1
W
S
P
PWR_KEEP
RTCALARM
K
2
3
K
L
C
UP_SCLK
UP_SDI
UP_SDO
SIM_CLK
SIM_IO
SIM_RST
SIMCLK
SIMDATA
SIMRST
DSP_DB(0)
DSP_AB(0:8)
DSP_AB(8)
DSP_AB(7)
DSP_AB(6)
DSP_AB(5)
DSP_AB(4)
DSP_AB(3)
DSP_AB(2)
DSP_AB(1)
DSP_AB(0)
DSP_IO
DSP_RWN
FLASH_RESET
TX_EN
XOENA
DSP_DB(15)
DSP_DB(0:15)
DSP_DB(14)
DSP_DB(13)
DSP_DB(12)
DSP_DB(11)
DSP_DB(10)
DSP_DB(9)
DSP_DB(8)
DSP_DB(7)
DSP_DB(6)
DSP_DB(5)
DSP_DB(4)
DSP_DB(3)
DSP_DB(2)
DSP_DB(1)
Flow Chart of Troubleshooting
3-5
9-2-2. Initial
Initial Failure
Yes
①
Check VCCD,
VCCD_1.8V of UCP300
"High" when the phone
is boot on`
No Check UCP300
Yes
②
Check
the HP_CORE_1.6V of
U201 is "High"
No Check U201
③
Yes
No Check HDC500 and LCD part
LCD display is O.K?
Yes
Check audio part
Sound is O.K? No
Yes
END
Flow Chart of Troubleshooting
3-6
0
0
5
V
VCAM_2.8V
1
0
5
V
VMOT_3.3V VBAT
R535
VCCD_2.9V
88
99
C
N
1
6
C
N
2
6
3
6C
N
4
6C
N
55
55 56
56
57
57 58
58
59
59
66
60
60
77
48
48
49
49
55
50
50
51
51 52
52
53
53 54
54
40 40
41
41 42
42
43
43 44
44
45
45 46
46
47
47
33 33 34 34
35 35 36 36
37 37 38 38
39 39
44
26
26
27
27 28
28
29
29
33
30 30
31 31 32 32
19 19
22
20 20
21 21 22 22
23 23 24 24
25
25
11 11 12 12
13 13 14 14
15 15 16 16
17 17 18 18
HDC500
11
10 10
R533
VCAM_1.8V
R534
2
0
5
V
VCCD_2.9V 3.1V_TOUCH
LCD_FLM
P_CLK
M_CLK
PWR_ON
FLASH_EN
LCD_READ
VCAM_EN
SPK_P_CON
LCD_DO(13)
LCD_DO(7)
LCD_DO(5)
LCD_DO(15)
LCD_DO(11)
LCD_DO(9)
LCD_DO(3)
LCD_DO(1)
LCD_DO(14)
LCD_DO(12)
LCD_DO(6)
LCD_DO(4)
LCD_DO(10)
LCD_DO(8)
LCD_DO(2)
LCD_DO(0)
LCD_ADS_O
LCD_WEN_O
MLCD_CS_O
CAM_RST
C_SDAC_SCL
CAM_HSYNC
CAM_VSYNC
CAM_D(5)
CAM_D(7)
CAM_D(1)
CAM_D(3)
CAM_D(4)
CAM_D(0)
CAM_D(2)
CAM_D(6)
SPK_N_CON
TOUCH_RST TOUCH_IRQ
VCA_3.3V
SCL_TOUCH_M SDA_TOUCH_M
MLCD_BL_EN
Flow Chart of Troubleshooting
3-7

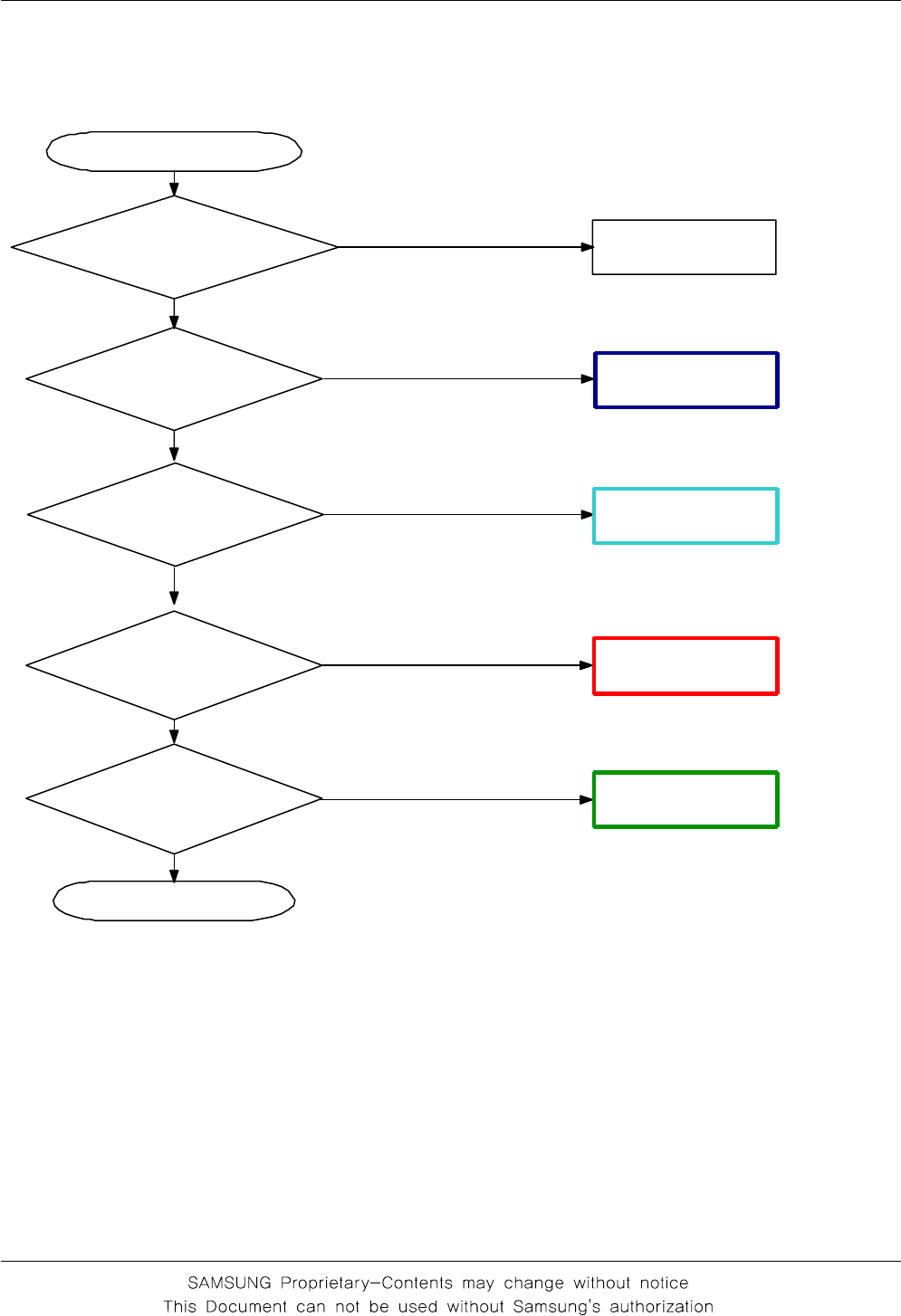

3-1-3. Sim Part
Phone can't access
SIM card
①
Check the pin 1 of
SIM300
Voltage = 3V
NO Check the circuit related to
UCP300
YES
Check the SIM
connector's
(SIM300)
connector's to SIM
card
②
resolder or change
SIM300
NO
③
YES
Check the circuit aroun d SIM30 0
input circuitry
NO Check the related circuit of
SIM300
④
YES
NO Check the related circuit of
UCP300
Check the circuit around
UCP300 output
and voltage supply circuitry
YES
END
Flow Chart of Troubleshooting
3-8
C333 16
G
5
5
66
7
7
88
99 G
1314
GG
15
11
1010
11 11
1212
22
33 4
4
SIM300
C334
C331C330 C332
SIM_RST
SIM_CLK
VSIM
SIM_IO
Flow Chart of Troubleshooting
3-9
3-1-4. Charging Part
Abnormal charging part
①
Battery Contact at
BTC500?
Yes
Battery Check BTC500
No
Yes ②
Check the IFC500
Charger input of
IFC500 ?
No
Yes
END
Flow Chart of Troubleshooting
3-10
R531
C520
ZD504
ZD503
C519
L500
L501
R524
1
2
34
5
6
7
8
ZD500
C518
VCCD_1.8V
R527
23 NC
NC
24
25
NC
NC 26
NC 27
28
NC
3
44
5
5
66
7
7
88
9
9
NC
21
22 NC
15
15
16 16
17
17
18 18
19
19
22
20 20
3
IFC500
11
10 10
11
11
12 12
13 13
14 14
TA502
2
3
4
5
6
7
8
ZD502
1
R530
TA501
R529
VBAT
C517
R525
1
0
5
D
Z
R528
TA_VEXT
EAR_CHECK
EAR_SWITCH
EAR_MICP
T_OPT
USB_D+
USB_D-
SDS_RXD_B
JIG_ON_IF_B
EAR_R
EAR_L
EAR_MICN
SDS_RXD
JACK_IN
USB_5.0V
JIG_ON_IF
R_ANT
VBAT
C508
1
22
3
3
NC
4
5NC
6NC
NC
7
BTC500
1
C509 TA500
CF
Flow Chart of Troubleshooting
3-11
3-1-5. Microphone Part
Microphone does not work
Check the
assembled status of
microphone.
Reassemblage microphone
NO
YES
resolder or change
(R409,
TA403,C431,R411)
Check the reference
voltage on mic path
R409=2.9V
NO
Is microphone ok?
YES
Check UCP300
NO
YES
END
Flow Chart of Troubleshooting
3-12
VCCA_2.9V
R456
C443
C448
C423
C449
C424
R455
C425
C431
2
A
D
D
V
A1
J
MONO_LOP
J2
MONO_LOM
J3
LEFT_LOP
J4
LEFT_LOM
J5
RIGHT_LOP
J6
RIGHT_LOM
J7
GPIO2 J8
GPIO1 J9
HPROUT G1
C
A
D
_
S
S
V
A
2
G
MCLK G8
BCLK G9
1
A
D
D
V1
H
C
A
D
_
S
S
V
A
2
H
/RESET H8
D
D
V
D9
H
S
S
V
R
D
2
E
SELECT E8
DIN E9
HPRCOM F1
S
S
V
R
D
2
F
DOUT F8
WCLK F9
C
D
A
_
S
S
V
A
2
C
SCL C8
D
D
V
O
I9
C
HPLOUT D1
C
D
A
_
S
S
V
A
2
D
SDA D8
S
S
V
D
9
D
HPLCOM E1
MIC3L
B3
LINE2RP
B4
LINE2LM
B5
LINE1RM
B6 LINE1RP
B7
MFP0
B8 MFP1
B9
1
A
D
D
V1
C
LINE2LP
A4
A5 LINE1LM
LINE1LP
A6
NC A7
MFP2
A8 MFP3
A9
1
A
D
D
V1
B
MICDET
B2
U408
NC 1
NC 2
MIC3R
A1 MICBIAS
A2
LINE2RM
A3
TA401
R411
R409
TA403
C426
C444
C442
VAUDIO_3.1V
TI_1.8V
TA402
R414
EAR_R
EAR_L
AOUTBP
MSPK+
CSP_MICP
TI_SDOUT
AOUTBN
RADIO_L
YMU_EAR_L
RADIO_R
YMU_EAR_R
MIC-
MIC+
MSPK-
SCL
SDA
TI_SDIN
TI_LRCK
TI_MSCK
TI_BCK
TI_RESET
CSP_MICN
SPK_P
SPK_N
C329
R320
R318
C335
R317
C336
R319
C337
MICOUTP
MICINP
MICINN
MICOUTN
CSP_MICP
CSP_MICN
Flow Chart of Troubleshooting
3-13
3-1-6. Speaker Part
Speaker does not work
Is the terminal of
Speaker OK? NO check the specker connector
HDC500
YES
①
Check the
pin 58,59 of HDC500
"HIGH"
Change or resolder
HDC500
NO
YES
②
Check the circuit
around U409 Change or resolder
around U409
NO
YES
③
Check the voltage of
R420, R431 is high Check UCP300
NO
YES
YES
END
Change speakerNO
Is speaker OK?
Flow Chart of Troubleshooting
3-14
C471
R432
C472C470
R420
C473
7
2NO1
10
2
O
N
1VCC
U409
3
1
M
O
C
9
2
M
O
C
6
GND
4
1
N
I
8
2
N
I
1
C
N
5
NC
VBAT
R431
SPK_P_CON
SPK_N_CON
SPK_P_OUT
SPK_N_OUT
AMP_EN
AOUTAP
AOUTAN
Flow Chart of Troubleshooting
3-15
3-1-7. LCD
LCD does not Display
First, Check the connection of HDC500 and LCD
①
Have a some problem of
connector (HDC500, J1)
YES Replace a connector (HDC 500,
J1)
②
NO
NO Check of U1
(pin 19, 20)
③
NO
Check U412
Backlight does work
YES
try with the new LCD module and
change
check the data line from
HDC500
YES
Flow Chart of Troubleshooting
3-16
VCCD_1.8V
C439
VCCD_1.8
V
C437
CORE_1.2
VCAM_2.8V
USB_3.3CV
R435
C436
C430
C428
R419
C440
VDD_TV_2.8V USB_3.3TVVCCD_2.9VVCAM_2.8V
R428R427
R418
C462
C461
C433
CORE_1.2V_PLL
C438
R430
USB_3.3CV
CORE_1.2V_O
C435
R429
USB_1.2V
C432 C434
C458
VCCD_1.8V
R434
C479 C480
R457
C441
C427
VDD_TV_2.8V
2
4
3
1
OSC400
NC P7
N_CLE P8
GPIO1_D2 P9
USB_5.0V
D_SDATAOUT
P12
SD_CLK P13
GPIO1_D7 P14
NC P2
P3
NC
NC P4
NC P5
N_CS_N P6
GPIO1_D6 N5
N_RDY N6
NC N7
N_ALE N8
N9
GPIO1_D3
NC P1
GPIO1_D5 P10
D_BCK
P11
D_SDA
N10
D_MSCK
N11
SD_D1 N12
SD_D0 N13
N14
SD_CMD
L_RD_N
N2
NC N3
NC N4
L_WR_N
M3
GPIOL_D13
M4
GPIO1_D0 M5
N_RE_N M6
M7
NC
N_WE_N M8
1
g
D
D
V9
M
L_PCLK
N1
GPIO1_D4 L9
L_DA1
M1
D_SCK
M10 D_LRCK
M11
M12
SD_WP
SD_D3 M13
SD_D2 M14
L_DA0
M2
USB_DP L14
L_DA4
L2 L_DA3
L3 L_DA2
L4
L5 LS_CS_N
NC L6
NC L7
GPIO1_D1 L8
L_DA7
K3 L_DA6
K4
d
c
l
D
D
V5
K
L_DA5
L1
L10 D_SDATAIN
d
s
D
D
V1
1
L
b
s
u
2
1
D
D
V2
1
L
USB_VBUS_DRV L13
Q
S
S
V
9
J
L_DA9
K1
c
a
D
D
V0
1
K
USB_ID K11
K12
USB_VBUS
USB_REXT K13
USB_DM K14
L_DA8
K2
T
3
3
A
S
S
V
3
1
J
C
3
3
A
S
S
V
4
1
J
L_DA12
J2 L_DA11
J3
J4 L_DA10
S
S
V
6
J
i
D
D
V7
J
R
D
D
V8
J
L_DA14
H4
S
S
V
6
H
c
D
D
V7
H
c
D
D
V8
H
9
HS
S
V
L_DA13
J1
TESTMODE J11
T
3
3
A
S
S
V
2
1
J
l
l
p
S
S
V
9
G
L_DA17
H1
T
3
3
A
D
D
V1
1
H
T
3
3
A
D
D
V2
1
H
3
1
H
C
3
3
A
D
D
V
XIN
H14
L_DA16
H2 L_DA15
H3
NC G13
XOUT
G14
T_VRO G2
L_ADS
G3
G4 L_CS_N
S
S
V
6
G
c
D
D
V7
G
ll
p
D
D
V8
G
v
t
S
S
V
A
4
F
Q
S
S
V
6
FR
D
D
V7
F
i
D
D
V8
F
9
FS
S
V
T_VREF G1
M_SD0
G11
G_INT G12
s
D
D
V5
E
GPIOS_D15
F1
M_SD4
F11 M_SD3
F12
F13 M_SD2
MASTER0 F14
T_OUT F2
v
t
D
D
V
A3
F
0
C
D
D
V0
1
E
M_SD8
E11 M_SD7
E12
M_SD5
E13
E14 M_SD1
C_D6
E2
C_D7
E3
NC E4
C_D2
D3
C_D3
D4
C_D4
D5
TDO D6
D7
NC
XRTS0 D8
M_WR_N
D9
C_D5
E1
SOUT0 C9
C_D0
D1
M_RESET_N
D10
M_SD12
D11
D12 M_SD11
M_SD10
D13
M_SD6
D14
C_D1
D2
M_SD9
C14
C_MCLK
C2
C_SDA
C3
C_SCK
C4
C5 C_PCLK
NC C6
N_D2 C7
N_D7 C8
N_D1 B7
N_D5 B8
SIN0 B9
C_VS
C1
C10 M_RD_N
M_SA2
C11
M_SD15
C12
M_SD13
C13
M_INTR
B12
M_SA1
B13
M_SD14
B14
STROBE B2
B3 C_RST
C_HS
B4
RTCK B5
NC B6
NC A5
N_D0 A6
N_D3 A7
N_D4 A8
A9
N_D6
C_PWDN B1
M_CS_N
B10
MS_CS_N
B11
XCTS0 A10
PWR_STRB A11
M_HOLD
A12
M_ADS
A13
A14 M_SA0
TRST A2
TMS A3
TCK A4
U412
NC 1
NC 2
TDI A1
C459
C460
R436
C_SCL
C_SDA
M_CLK
LCD_FLM
LCD_READ
TOUCH_RST
D(8)
D(7)
D(6)
D(5)
D(4)
D(3)
D(2)
D(1)
D(0)
D[0:15]
LCD_D(3)
LCD_D(2)
LCD_D(1)
LCD_D(0)
LCD_D(0:15)
CAM_D(7)
CAM_D(6)
CAM_D(5)
CAM_D(4)
CAM_D(3)
CAM_D(2)
CAM_D(1)
CAM_D(0)
CAM_D(0:7)
D(15)
D(14)
D(13)
D(12)
D(11)
D(10)
D(9)
LCD_D(15)
LCD_D(14)
LCD_D(13)
LCD_D(12)
LCD_D(11)
LCD_D(10)
LCD_D(9)
LCD_D(8)
LCD_D(7)
LCD_D(6)
LCD_D(5)
LCD_D(4)
HERA_RST
A(8)
HERA_CS
CP_OEN
HERA_INT
CP_WEN
M_HOLD
MLCD_CS
LCD_WEN
LCD_ADS
TV_EN
PWR_STRB
A(2)
A(1)
SCL
SDA
GOLD_TV_OUT
CAM_VSYNC
CAM_HSYNC
P_CLK
TI_SDOUT
TI_SDIN
TI_MSCK
TI_LRCK
TI_BCK
A(18)
CAM_RST
USB_EN
VCAM_EN
USB_HERA+
USB_HERA-
CHG_OFF
USB_CHG_ON
Flow Chart of Troubleshooting
3-17
3-1-8. Camera
Camera does not work
Check camera FPCB
and J2
YES
Check the voltage
pin 4 of U413
(Pin 4 : 3.3V)
YES
END
YES
Check pinC5, C2 of
U412
(C5 :48MHz,C2 :24MHz)
NO
NO
Check of U412
Change U413
Change camera module and
check of J2
NO
Check the connection of J2 and CAMERA Module
Flow Chart of Troubleshooting
3-18
C476
VBAT
C477
GND
2
GND
6
5
NC
STBY
1
3VIN
4
VOUT
U413
C478
VCA_3.3VVCAM_EN
Flow Chart of Troubleshooting
3-19

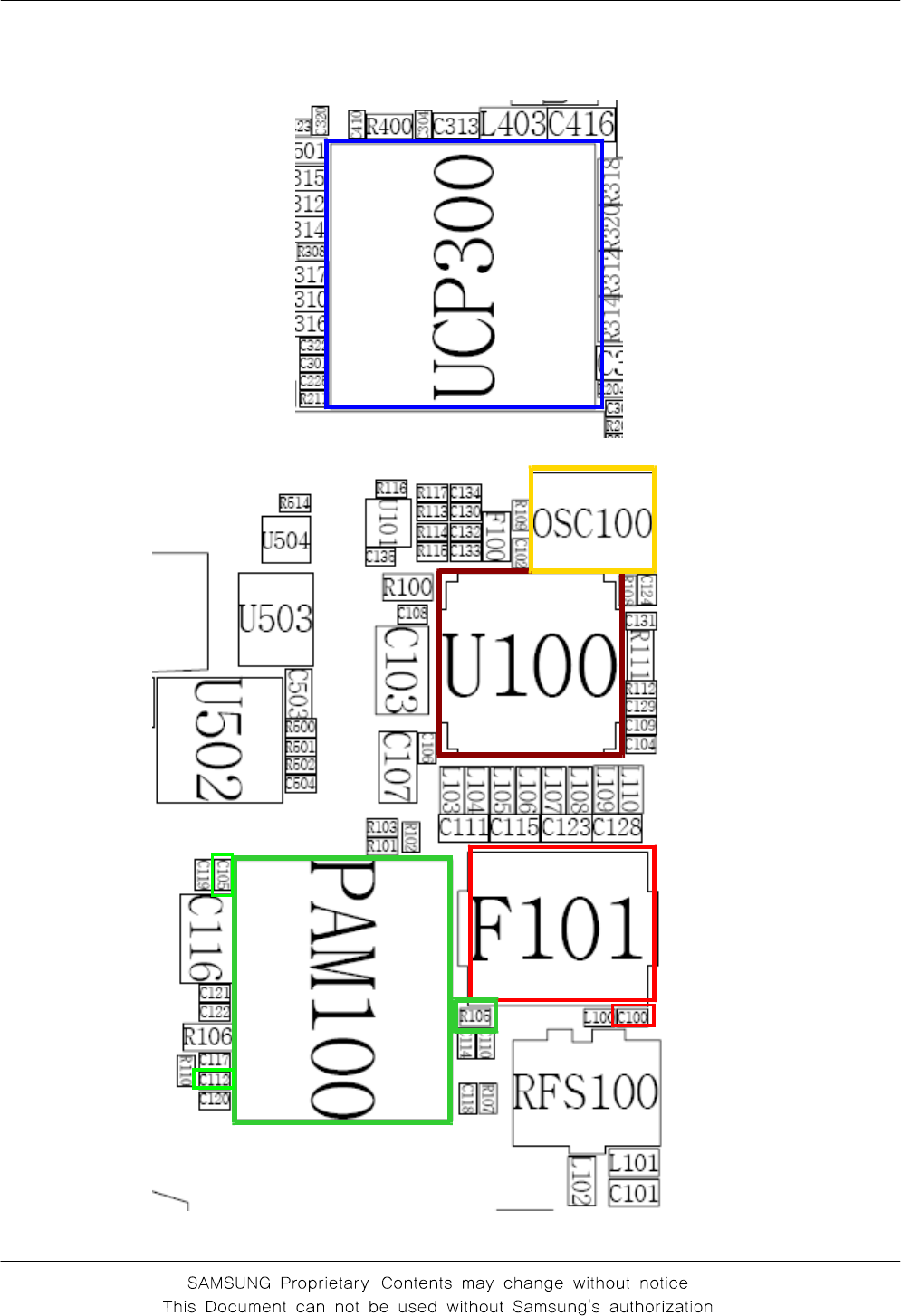

3-2. RF
3-2-1. GSM850 Receiver
CONTINUOS RX ON
RF INPUT : 190CH
Cell power : -50dBm
NORMAL CONDITION
cat ch th e c ha nne l?
CHECK
C100
NO 1
YES
F101 CHECK
pin6 ≥-65dBm?
RFS100
resolder or change
2
NO
YES
F101 CHECK
pi n18, 19 ≥-F101
resolder or change
NO 3
U100 CHECK
pin2,3 ≥-65dBm?
YES
L103, L104, C111
resolder or change
NO 4
YES
check battery contact
NO
the power source
of U100
5
6
YES
check OSC100 and
change
U100 CHECK
Pin15,17:13MHz
NO
YES
END
GSM Receiver is ok? GSM RX path component
resolder or change
NO
Flow Chart of Troubleshooting
3-20
3-2-2. GSM900 Receiver
CONTINUOS RX ON
RF INPUT : 62CH
Cell power : -50dBm
NORMAL CONDITION
cat ch th e c ha nne l?
CHECK
C100
NO 1
YES
F101 CHECK
pin6 ≥-65dBm?
RFS100
resolder or change
2
NO
YES
F101 CHECK
pi n17, 18 ≥-
65dBm?
F101
resolder or change
NO 3
U100 CHECK
pin4,5 ≥-65dBm?
YES
L105, L106, C115
resolder or change
NO 4
YES
check battery contact
NO
the power source
of U100
5
6
YES
check OSC100 and
change
U100 CHECK
Pin15,17:13MHz
NO
YES
END
GSM Receiver is ok? GSM RX path component
resolder or change
NO
Flow Chart of Troubleshooting
3-21
3-2-3. DCS Receiver
CONTINUOS RX ON
RF INPUT : 698CH
Cell power : -50dBm
NORMAL CONDITION
cat ch th e c ha nne l?
CHECK
C100
NO 1
YES
F101 CHECK
pin6 ≥-65dBm?
RFS100
resolder or change
2
NO
YES
F101 CHECK
pi n14, 15 ≥-
65dBm?
F101
resolder or change
NO 3
U100 CHECK
pin6,7 ≥-65dBm?
YES
L107, L108
resolder or change
NO 4
YES
check battery contact
NO
the power source
of U100
5
6
YES
check OSC100 and
change
U100 CHECK
Pin15,17:13MHz
NO
YES
END
GSM Receiver is ok? GSM RX path component
resolder or change
NO
Flow Chart of Troubleshooting
3-22
3-2-4. PCS Receiver
CONTINUOS RX ON
RF INPUT : 698CH
Cell power : -50dBm
NORMAL CONDITION
cat ch th e c ha nne l?
CHECK
C100
NO 1
YES
F101 CHECK
pin6 ≥-65dBm?
RFS100
resolder or change
2
NO
YES
F101 CHECK
pi n12, 13 ≥-
65dBm?
F101
resolder or change
NO 3
U100 CHECK
pin8,9 ≥-65dBm?
YES
L109, L110
resolder or change
NO 4
YES
check battery contact
NO
the power source
of U100
5
6
YES
check OSC100 and
change
U100 CHECK
Pin15,17:13MHz
NO
YES
END
GSM Receiver is ok? GSM RX path component
resolder or change
NO
Flow Chart of Troubleshooting
3-23
Flow Chart of Troubleshooting
3-24
5900LNA_P
61800LNA_M
1800LNA_P
7
36COMPN_CALOUT_TEST_ERRM
SXENA37
38
CHIPENA
39MODE_LON
4900LNA_M
40
VDIGENA_LOP
NC
41
3850LNA_P
TX_QP30
31TXLB
32TXHB
33VPC
34
TXENA
35PA_SAT_DET_TEST_ERRP
21
LATCHENABLE
22
NC|RX_IM_IFTESTM_IFMORRX_QM
23
NC|RX_QP_IFTESTP_IFPORRX_QP
24
NC|TICVTUNE?_RX_IM_NC6_IMTICVTUNE
NC|UHFTUNE+_RX_IP_NC7_IPUHFVTUNE
25
6
2
3
C
C
V
27
TX_IP
28
TX_IM
29
TX_QM
14LPFADJ
15
XBUF16
XTUNE
17
XTAL
8
1
2
C
C
V
19
DATAIN
2850LNA_M
20
CLK
SKY74138
1
1
C
C
V
10
RXENA
1
1
4
C
C
V
12TXRFIN
13
VAPC
U100
C124
10nF
GND1
2
4
GND2
1
HOT
HOT
3
TN4-26374
OSC100
ANT100
2.2UF
C107
R100
1
VBAT
1G
4G
L104
10nH
R108
KMS-512
RFS100
A
2
3C
10K
L103
10nH
0.75PF
C111
R119
L101
18nH
0
C128
NC4.7nH
ANT101
L110
100nF
C102
0.01NF
C127
L106
C115
0.75PF10nH
22pF
C108100PF
C109
10nF
C106
12
PCS_RX
13
PCS_RX
6VC1
VC2
21
L102
3PF
2
GG
34
GG
79
GG
10
G
11
G
20
5
G
1
G
2324
GG
25
G
26
G
27
G
28
18
19
850_RX
ANT
8
DCS_RX14
DCS_RX15
22DCS|PCS_TX
EGSM_RX16
17
EGSM_RX
EGSM_TX
FEMGEDPBD5440EGG
F101
850_RX
10nH
L105
C101
NC
10V
C103
10UF
L100
C126
39nH
0.01NF
R112
10K
C123
NC
4.7nH
L109
C129
0.12nF
100nF
C104
L107
6.2nH
C100
22pF
39K,1%
R111
L108
6.2nH
0
R109
ANT
GSM_OUT
GSM_TX_EN
DCS_TX_EN
DPCS_OUT
RTXIP
GSM74138_OUT
VPC
TX_EN
RX_EN
TX_FB
VAPC
AFC
13M_BUF
SAT_DET
DCS74138_OUT
MOD_SELXOENA
SX_EN
SERCLK
SERLE
SERDAT
RTXQP
RTXQN
RTXIN
Flow Chart of Troubleshooting
3-25
3-2-5. GSM850 Transmitter
F101
pin 6 : 2.8V
CONTINUS TX ON
CONDITION
MS TX level 19
CH : 190
RBW : 100KHz
VBW : 100KHz
SPAN : 10MHz
REF LEV. : 10dBm
ATT. : 20dB
UCP300
check &
change
2
NO NO
YES
PAM100 pin7
3~6dBm?
YES
F101, C100
check & change
NO
1
PAM100/R105 check & change
YES
3
PAM100 pin 4 : 3.7V NO BATTERY, BATTERY CONNECTOR
check & change
4
YES
PAM100 pin3: 'LOW' NO 5
UCP300 check & change
YES
6
UCP300
check & change
PAM100
pin 1 : 'HI G H'
NO
YES
PAM100
pin 6 : 1.2V
?
NO
YES
NO
PAM101 pin
12
:-5dBm?
YES
PAM100
change & r e s o l d e r
7
U100
pin31 :
7~11dBm?
U100
pin17 13MHz
Vp-p :950mV
U100 change or
resolder
U100
pin27,28,29,30
1.7V
U100
check &
change
C112
change or resolder
OSC100
pin 3 : 13MHz
Vp-p : 950mV
OSC100
change or resolder
U100
change or
resolder
NO
NO
NO YES
YES
YES NO
YES
NO
8
UCP300
change
910
11
F101 pin 8
about
2~5dBm?
Flow Chart of Troubleshooting
3-26
3-2-6. GSM900 Transmitter
F101
pin 6 : 2.8V
CONTINUS TX ON
CONDITION
MS TX level 19
CH : 62
RBW : 100KHz
VBW : 100KHz
SPAN : 10MHz
REF LEV. : 10dBm
ATT. : 20dB
UCP300
check &
change
2
NO NO
YES
PAM100 pin7
3~6dBm?
YES
F101, C100
check & change
NO
1
PAM100/R105 check & change
YES
3
PAM100 pin 4 : 3.7V NO BATTERY, BATTERY CONNECTOR
check & change
4
YES
PAM100 pin3: 'LOW' NO 5
UCP300 check & change
YES
6
UCP300
check & change
PAM100
pin 1 : 'HI G H'
NO
YES
PAM100
pin 6 : 1.2V
?
NO
YES
NO
PAM101 pin
12
:-5dBm?
YES
PAM100
change & r e s o l d e r
7
U100
pin31 :
7~11dBm?
U100
pin17 13MHz
Vp-p :950mV
U100 change or
resolder
U100
pin27,28,29,30
1.7V
U100
check &
change
C112
change or resolder
OSC100
pin 3 : 13MHz
Vp-p : 950mV
OSC100
change or resolder
U100
change or
resolder
NO
NO
NO YES
YES
YES NO
YES
NO
8
UCP300
change
910
11
F101 pin 8
about
2~5dBm?
Flow Chart of Troubleshooting
3-27
3-2-7. DCS Transmitter
F101
pin 21 : 2.8V
CONTINUS TX ON
CONDITION
MS TX level 12
CH : 698
RBW : 100KHz
VBW : 100KHz
SPAN : 10MHz
REF LEV. : 10dBm
ATT. : 20dB
UCP300
check &
change
2
NO NO
YES
PAM100 pin2
3~6dBm?
YES
F101, C100
check & change
NO
1
PAM100 check & change
YES
3
PAM100 pin 4 : 3.7V NO BATTERY, BATTERY CONNECTOR
check & change
4
YES
PAM100 pin3: 'LOW' NO 5
UCP300 check & change
YES
6
UCP300
check & change
PAM100
pin 1 : 'HI G H'
NO
YES
PAM100
pin 6 : 1.2V
?
NO
YES
NO
PAM101 pin
14
:-5dBm?
YES
PAM100
change & r e s o l d e r
7
U100
pin32 :
7~11dBm?
U100
pin17 13MHz
Vp-p :950mV
U100 change or
resolder
U100
pin27,28,29,30
1.7V
U100
check &
change
C105
change or resolder
OSC100
pin 3 : 13MHz
Vp-p : 950mV
OSC100
change or resolder
U100
change or
resolder
NO
NO
NO YES
YES
YES NO
YES
NO
8
UCP300
change
910
11
F101 pin 8
about
2~5dBm?
Flow Chart of Troubleshooting
3-28
3-2-8. PCS Transmitter
F101
pin 21 : 2.8V
CONTINUS TX ON
CONDITION
MS TX level 12
CH : 660
RBW : 100KHz
VBW : 100KHz
SPAN : 10MHz
REF LEV. : 10dBm
ATT. : 20dB
UCP300
check &
change
2
NO NO
YES
PAM100 pin2
3~6dBm?
YES
F101, C100
check & change
NO
1
PAM100 check & change
YES
3
PAM100 pin 4 : 3.7V NO BATTERY, BATTERY CONNECTOR
check & change
4
YES
PAM100 pin3: 'LOW' NO 5
UCP300 check & change
YES
6
UCP300
check & change
PAM100
pin 1 : 'HI G H'
NO
YES
PAM100
pin 6 : 1.2V
?
NO
YES
NO
PAM101 pin
14
:-5dBm?
YES
PAM100
change & r e s o l d e r
7
U100
pin32 :
7~11dBm?
U100
pin17 13MHz
Vp-p :950mV
U100 change or
resolder
U100
pin27,28,29,30
1.7V
U100
check &
change
C105
change or resolder
OSC100
pin 3 : 13MHz
Vp-p : 950mV
OSC100
change or resolder
U100
change or
resolder
NO
NO
NO YES
YES
YES NO
YES
NO
8
UCP300
change
910
11
F101 pin 8
about
2~5dBm?
Flow Chart of Troubleshooting
3-29
Flow Chart of Troubleshooting
3-30
3-2-9. Bluetooth Part
NO check UCP200
Exchange U103
YES
NO Resolder or change
AN102
Check the
assembled status of
AN102
YES
Check 32KHz Clock on
U103
Check the voltage of
C137 is around 1.8V
Check BT function ON
END
BT connection disable
YES
YES
YES
NO Check U103 or
Ini tial part
NO Check U102 and change
NO Enable BT function
Flow Chart of Troubleshooting
3-31
2200nF
C139C137
1000nF
VBAT
R118
47K
330nF
C136
CE 6
2GND 5
GND
NC 4
VDD
1
3VOUT
U102
R1114D181D-TR-F
VBT_1.8V
VBT_EN
Flow Chart of Troubleshooting
3-32
VBT_1.8V
9
VDD_REG
27
PIO6
28 PCM_IN
3PCM_CLK
4UART_TX
5USB_DP
6
VDD_1.8V
7UART_CTS
8UART_RX
2USB_DN
20 PCM_SYNC
21
PIO1
22
PIO7
23
VDD_PIO
24
PIO5
25
PIO4
26 RESETB
12
PIO9
13
PIO0
14
PIO2
5
1D
N
G6
1
T
N
A
7
1D
N
G
18
PIO3
19 PCM_OUT
U103
BTTM46C2SA
1UART_RTS
0
1D
N
G
11
PIO8
C138
2200nF
132
ACS2450EBAEC
ANT102
PCM_OUT
PCM_IN
PCM_SYNC
PCM_CLK
BT_RXD
BT_TXD
SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
Test Jig (GH80-03307A)
RF Test Cable (GH39-00182A)
Test Cable (GH39-00478A)
SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
Software Downloading
4-1. Downloading Binary Files
•Three binary files for downloading U600.
–U600XXYY.s3 :Main source code binary.
4-2. Pre-requsite for Downloading
•Downloader Program(OptiFlash.exe)
•U600 Mobile Phone
•Data Cable
•Binary files
SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
4-3. S/W Downloader Program
1. Load the binary download program by executing the “OptiFlash.exe”
2. Select the “Options”->“
Settings”->“
Generic”->“
Specify hardware platform”.
Choose hardware platform for the downloader file setting.
Set the everything else as the default values which are shown below
1.
SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization
3. Select the COM port when the download cable is connected
Up to twelve ports are supported. Additionally you can select the
maximum transfer speed OptiFlash will use to communicate with
the phone. However, OptiFlash will use aslower speed if either the
PC’s or the phone’s serial hardware is incapable of handling the
selected speed
SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization
4. Select the“Flash&Verify”->“
Browse”
Set the directory path and choose the latest s/w binary, for example “
U600XXYY.s3”, for the downloader binary setting.
The reserved memory regions are included in optiflash program, platform.def.
SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization
5. Click “OK”button then press “Flash”.
(Before pressing ‘Flash’button, push the button ‘*’and ‘END’at the same time.Then
press ‘Flash’.)
Downloader will upload the binary file as below for the downloading.
6. When downloading is finished successfully, there is a“
All is well”message.
7. After finishing downloading, Certain memory resets should be done to guarantee the
normal performance.
8. Confirm the downloaded version name and etc. :
*#1234#
Full Reset :
*2767*3855#
SAMSUNG Proprietary-Contents may change without notice
5. Block Diagrams
5-1
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
6. PCB Diagrams
6-1
This Document can not be used without Samsung's authorization
ANT100
ANT101 ANT102
BAT300
D200
F101
G500 G501
G502
0
0
3
C
D
H
JTAG100
OSC100
0
0
1
M
A
P
RFS100
SIM300
TA400
1
0
4
A
T
2
0
4
A
T
TA502
TP500
U100
1
0
1
U
U103
0
0
2
U
U201
4
0
2
U
1
0
3
U
0
0
4
U
2
0
4
U
U403
4
0
4
U
U406
U407
1
1
4
U
U500
1
0
5
U
2
0
5
U
3
0
5
U
U504
U505
U506
VR301
2
0
3
R
V
3
0
3
R
V
4
0
3
R
V
5
0
3
R
V
6
0
3
R
V
7
0
3
R
V
8
0
3
R
V
9
0
3
R
V
0
1
3
R
V
0
0
3
D
Z
ZD500
ZD502
SAMSUNG Proprietary-Contents may change without notice
PCB Diagrams
6-2
This Document can not be used without Samsung's authorization
BTC500
CD500
F500 F501F502
0
0
5
C
D
H
0
0
5
C
F
I
0
0
2
C
S
O0
0
4
C
S
O
0
0
3
A
T
3
0
4
A
T
4
0
4
A
T
TA500
1
0
5
A
T
C
_
W
S
C
A
T
P
U
_
W
S
C
A
T
W
D
_
W
S
C
A
T
TP505 TP507 TP509 TP510TP512 TP513TP514 TP516
2
0
1
U
U202
U203
U300
U401
5
0
4
U
U408
U409
U410
2
1
4
U
U413
U507
0
0
2
P
C
U0
0
3
P
C
U
V500 V501
V502
VR200
VR311
ZD501
3
0
5
D
Z
ZD504
SAMSUNG Proprietary-Contents may change without notice
7. MAIN Electrical Parts List
7-1
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
0403-001547 ZD300 DIODE-ZENER SA
0403-001547 ZD503 DIODE-ZENER SA
0404-001172 D200 DIODE-SCHOTTKY SA
0406-001190 ZD500 DIODE-TVS SA
0406-001190 ZD502 DIODE-TVS SA
0406-001200 U503 DIODE-TVS SA
0406-001210 ZD504 DIODE-TVS SA
0406-001239 ZD501 DIODE-TVS SA
0505-002207 U406 FET-SILICON SA
0801-002958 U101 IC-CMOS LOGIC SA
0801-002958 U504 IC-CMOS LOGIC SA
0801-002995 U500 IC-CMOS LOGIC SA
1001-001231 U506 IC-ANALOG SWITCH SA
1001-001401 U300 IC-ANALOG SWITCH SA
1001-001410 U409 IC-ANALOG SWITCH SA
1006-001322 U202 IC-LINE TRANSCEIVER SA
1009-001020 U203 IC-HALL EFFECT S/W SA
1108-000063 UCP200 IC-MCP SA
1201-002147 U411 IC-VIDEO AMP SA
1201-002233 U410 IC-AUDIO AMP SA
1201-002368 PAM100 IC-POWER AMP SA
1203-003340 U200 IC-POSI.FIXED REG. SA
1203-003340 U403 IC-POSI.FIXED REG. SA
1203-003432 U404 IC-POSI.FIXED REG. SA
1203-003688 U102 IC-POSI.FIXED REG. SA
1203-003737 U204 IC-POSI.FIXED REG. SA
1203-003754 U400 IC-POSI.FIXED REG. SA
1203-003754 U413 IC-POSI.FIXED REG. SA
1203-003787 U401 IC-POSI.FIXED REG. SA
1203-003789 U502 IC-POWER SUPERVISOR SA
1203-004119 UCP300 IC-POWER SUPERVISOR SA
1203-004394 U402 IC-MULTI REG. SA
1203-004482 U201 IC-DC/DC CONVERTER SA
1203-004518 U501 IC-BATTERY SA
1203-004554 U405 IC-DC/DC CONVERTER SA
1204-002138 U407 IC-MELODY SA
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
7-2
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
1204-002746 U505 IC-TUNER SA
1205-002272 U301 IC-TRANSCEIVER SA
1205-002946 U408 IC-CODEC SA
1205-003203 U100 IC-TRANSCEIVER SA
1205-003210 U412 IC-CODEC SA
1404-001165 VR301 THERMISTOR-NTC SA
1405-001082 V500 VARISTOR SA
1405-001082 V501 VARISTOR SA
1405-001082 V502 VARISTOR SA
1405-001082 VR200 VARISTOR SA
1405-001133 VR300 VARISTOR SA
1405-001133 VR302 VARISTOR SA
1405-001133 VR303 VARISTOR SA
1405-001133 VR304 VARISTOR SA
1405-001133 VR305 VARISTOR SA
1405-001133 VR306 VARISTOR SA
1405-001133 VR307 VARISTOR SA
1405-001133 VR308 VARISTOR SA
1405-001133 VR309 VARISTOR SA
1405-001133 VR310 VARISTOR SA
1405-001133 VR311 VARISTOR SA
2007-000141 R310 R-CHIP SA
2007-000141 R316 R-CHIP SA
2007-000171 R119 R-CHIP SA
2007-000171 R322 R-CHIP SA
2007-000171 R323 R-CHIP SA
2007-000171 R432 R-CHIP SA
2007-000171 R533 R-CHIP SA
2007-000171 R534 R-CHIP SA
2007-000172 R536 R-CHIP SA
2007-000172 R537 R-CHIP SA
2007-001119 R309 R-CHIP SA
2007-001244 R312 R-CHIP SA
2007-001244 R314 R-CHIP SA
2007-001306 R439 R-CHIP SA
2007-007009 R438 R-CHIP SA
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
7-3
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
2007-007132 R513 R-CHIP SA
2007-007134 R111 R-CHIP SA
2007-007134 R422 R-CHIP SA
2007-007134 R425 R-CHIP SA
2007-007156 R100 R-CHIP SA
2007-007317 R106 R-CHIP SA
2007-007590 R318 R-CHIP SA
2007-007590 R320 R-CHIP SA
2007-007741 R112 R-CHIP SA
2007-007741 R311 R-CHIP SA
2007-007741 R313 R-CHIP SA
2007-007741 R317 R-CHIP SA
2007-007741 R319 R-CHIP SA
2007-007741 R440 R-CHIP SA
2007-007741 R441 R-CHIP SA
2007-007741 R504 R-CHIP SA
2007-007741 R506 R-CHIP SA
2007-008040 R455 R-CHIP SA
2007-008040 R456 R-CHIP SA
2007-008044 R110 R-CHIP SA
2007-008045 R114 R-CHIP SA
2007-008045 R117 R-CHIP SA
2007-008045 R300 R-CHIP SA
2007-008045 R532 R-CHIP SA
2007-008051 R417 R-CHIP SA
2007-008051 R429 R-CHIP SA
2007-008052 R208 R-CHIP SA
2007-008052 R308 R-CHIP SA
2007-008052 R430 R-CHIP SA
2007-008053 R512 R-CHIP SA
2007-008055 R207 R-CHIP SA
2007-008055 R212 R-CHIP SA
2007-008055 R213 R-CHIP SA
2007-008055 R216 R-CHIP SA
2007-008055 R508 R-CHIP SA
2007-008055 R509 R-CHIP SA
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
7-4
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
2007-008055 R510 R-CHIP SA
2007-008055 R515 R-CHIP SA
2007-008055 R517 R-CHIP SA
2007-008055 R525 R-CHIP SA
2007-008419 R523 R-CHIP SA
2007-008419 R527 R-CHIP SA
2007-008419 R528 R-CHIP SA
2007-008419 R529 R-CHIP SA
2007-008419 R530 R-CHIP SA
2007-008419 R531 R-CHIP SA
2007-008420 R303 R-CHIP SA
2007-008420 R304 R-CHIP SA
2007-008478 R302 R-CHIP SA
2007-008478 R414 R-CHIP SA
2007-008483 R118 R-CHIP SA
2007-008483 R206 R-CHIP SA
2007-008483 R210 R-CHIP SA
2007-008483 R301 R-CHIP SA
2007-008483 R401 R-CHIP SA
2007-008483 R403 R-CHIP SA
2007-008483 R404 R-CHIP SA
2007-008483 R433 R-CHIP SA
2007-008483 R436 R-CHIP SA
2007-008483 R437 R-CHIP SA
2007-008483 R500 R-CHIP SA
2007-008483 R501 R-CHIP SA
2007-008483 R502 R-CHIP SA
2007-008483 R507 R-CHIP SA
2007-008483 R535 R-CHIP SA
2007-008486 R514 R-CHIP SA
2007-008516 R108 R-CHIP SA
2007-008516 R211 R-CHIP SA
2007-008516 R450 R-CHIP SA
2007-008531 R204 R-CHIP SA
2007-008542 R107 R-CHIP SA
2007-008542 R109 R-CHIP SA
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
7-5
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
2007-008542 R324 R-CHIP SA
2007-008542 R457 R-CHIP SA
2007-008542 R458 R-CHIP SA
2007-008544 R409 R-CHIP SA
2007-008579 R101 R-CHIP SA
2007-008579 R103 R-CHIP SA
2007-008587 R113 R-CHIP SA
2007-008588 R305 R-CHIP SA
2007-008588 R427 R-CHIP SA
2007-008588 R428 R-CHIP SA
2007-008588 R434 R-CHIP SA
2007-008588 R435 R-CHIP SA
2007-008774 R214 R-CHIP SA
2007-008808 R410 R-CHIP SA
2007-009084 R418 R-CHIP SA
2007-009108 R413 R-CHIP SA
2007-009111 R420 R-CHIP SA
2007-009111 R421 R-CHIP SA
2007-009111 R424 R-CHIP SA
2007-009111 R431 R-CHIP SA
2007-009115 R102 R-CHIP SA
2007-009157 R419 R-CHIP SA
2007-009166 R306 R-CHIP SA
2007-009167 R307 R-CHIP SA
2007-009168 R215 R-CHIP SA
2007-009168 R503 R-CHIP SA
2007-009169 R511 R-CHIP SA
2007-009170 R524 R-CHIP SA
2007-009171 R412 R-CHIP SA
2007-009233 R505 R-CHIP SA
2007-009314 R116 R-CHIP SA
2007-009402 R411 R-CHIP SA
2203-000233 C217 C-CER,CHIP SA
2203-000438 C466 C-CER,CHIP SA
2203-000438 C467 C-CER,CHIP SA
2203-000438 C500 C-CER,CHIP SA
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
7-6
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
2203-000812 C325 C-CER,CHIP SA
2203-000812 C326 C-CER,CHIP SA
2203-000812 C328 C-CER,CHIP SA
2203-000812 C335 C-CER,CHIP SA
2203-000812 C337 C-CER,CHIP SA
2203-000870 L102 C-CER,CHIP SA
2203-001405 C319 C-CER,CHIP SA
2203-002677 C111 C-CER,CHIP SA
2203-002677 C115 C-CER,CHIP SA
2203-002709 C512 C-CER,CHIP SA
2203-002709 C513 C-CER,CHIP SA
2203-002982 C445 C-CER,CHIP SA
2203-005481 C329 C-CER,CHIP SA
2203-005481 C336 C-CER,CHIP SA
2203-005482 C412 C-CER,CHIP SA
2203-005682 C122 C-CER,CHIP SA
2203-005682 C132 C-CER,CHIP SA
2203-005682 C134 C-CER,CHIP SA
2203-005682 C332 C-CER,CHIP SA
2203-005682 C333 C-CER,CHIP SA
2203-005682 C334 C-CER,CHIP SA
2203-005682 C509 C-CER,CHIP SA
2203-005682 C518 C-CER,CHIP SA
2203-005682 C519 C-CER,CHIP SA
2203-005683 C508 C-CER,CHIP SA
2203-005719 C472 C-CER,CHIP SA
2203-005719 C473 C-CER,CHIP SA
2203-005725 C100 C-CER,CHIP SA
2203-005725 C108 C-CER,CHIP SA
2203-005727 C226 C-CER,CHIP SA
2203-005727 C227 C-CER,CHIP SA
2203-005729 C112 C-CER,CHIP SA
2203-005729 C448 C-CER,CHIP SA
2203-005736 C109 C-CER,CHIP SA
2203-005736 C118 C-CER,CHIP SA
2203-005736 C311 C-CER,CHIP SA
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
7-7
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
2203-005736 C318 C-CER,CHIP SA
2203-005736 C423 C-CER,CHIP SA
2203-005736 C426 C-CER,CHIP SA
2203-005736 C510 C-CER,CHIP SA
2203-005789 C114 C-CER,CHIP SA
2203-005806 C219 C-CER,CHIP SNA
2203-005806 C455 C-CER,CHIP SNA
2203-006048 C300 C-CER,CHIP SA
2203-006048 C306 C-CER,CHIP SA
2203-006048 C502 C-CER,CHIP SA
2203-006120 C140 C-CER,CHIP SA
2203-006121 C117 C-CER,CHIP SA
2203-006194 C106 C-CER,CHIP SA
2203-006194 C121 C-CER,CHIP SA
2203-006194 C124 C-CER,CHIP SA
2203-006194 C200 C-CER,CHIP SA
2203-006194 C202 C-CER,CHIP SA
2203-006194 C205 C-CER,CHIP SA
2203-006194 C207 C-CER,CHIP SA
2203-006194 C208 C-CER,CHIP SA
2203-006194 C218 C-CER,CHIP SA
2203-006194 C301 C-CER,CHIP SA
2203-006194 C304 C-CER,CHIP SA
2203-006194 C321 C-CER,CHIP SA
2203-006194 C463 C-CER,CHIP SA
2203-006194 C464 C-CER,CHIP SA
2203-006257 C312 C-CER,CHIP SA
2203-006257 C431 C-CER,CHIP SA
2203-006260 C324 C-CER,CHIP SA
2203-006260 C327 C-CER,CHIP SA
2203-006305 C126 C-CER,CHIP SA
2203-006305 C127 C-CER,CHIP SA
2203-006305 C130 C-CER,CHIP SA
2203-006305 C131 C-CER,CHIP SA
2203-006305 C459 C-CER,CHIP SA
2203-006305 C461 C-CER,CHIP SA
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
7-8
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
2203-006324 C107 C-CER,CHIP SA
2203-006361 C116 C-CER,CHIP SA
2203-006361 C210 C-CER,CHIP SA
2203-006377 C501 C-CER,CHIP SA
2203-006377 C505 C-CER,CHIP SA
2203-006423 C102 C-CER,CHIP SA
2203-006423 C104 C-CER,CHIP SA
2203-006423 C135 C-CER,CHIP SA
2203-006423 C201 C-CER,CHIP SA
2203-006423 C203 C-CER,CHIP SA
2203-006423 C204 C-CER,CHIP SA
2203-006423 C206 C-CER,CHIP SA
2203-006423 C209 C-CER,CHIP SA
2203-006423 C215 C-CER,CHIP SA
2203-006423 C222 C-CER,CHIP SA
2203-006423 C225 C-CER,CHIP SA
2203-006423 C302 C-CER,CHIP SA
2203-006423 C303 C-CER,CHIP SA
2203-006423 C308 C-CER,CHIP SA
2203-006423 C309 C-CER,CHIP SA
2203-006423 C322 C-CER,CHIP SA
2203-006423 C331 C-CER,CHIP SA
2203-006423 C403 C-CER,CHIP SA
2203-006423 C404 C-CER,CHIP SA
2203-006423 C416 C-CER,CHIP SA
2203-006423 C424 C-CER,CHIP SA
2203-006423 C427 C-CER,CHIP SA
2203-006423 C428 C-CER,CHIP SA
2203-006423 C429 C-CER,CHIP SA
2203-006423 C430 C-CER,CHIP SA
2203-006423 C434 C-CER,CHIP SA
2203-006423 C435 C-CER,CHIP SA
2203-006423 C437 C-CER,CHIP SA
2203-006423 C439 C-CER,CHIP SA
2203-006423 C440 C-CER,CHIP SA
2203-006423 C441 C-CER,CHIP SA
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
7-9
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
2203-006423 C444 C-CER,CHIP SA
2203-006423 C449 C-CER,CHIP SA
2203-006423 C451 C-CER,CHIP SA
2203-006423 C454 C-CER,CHIP SA
2203-006423 C460 C-CER,CHIP SA
2203-006423 C462 C-CER,CHIP SA
2203-006423 C465 C-CER,CHIP SA
2203-006423 C471 C-CER,CHIP SA
2203-006423 C475 C-CER,CHIP SA
2203-006423 C477 C-CER,CHIP SA
2203-006423 C504 C-CER,CHIP SA
2203-006466 C517 C-CER,CHIP SA
2203-006556 C223 C-CER,CHIP SA
2203-006562 C137 C-CER,CHIP SA
2203-006562 C216 C-CER,CHIP SA
2203-006562 C220 C-CER,CHIP SA
2203-006562 C224 C-CER,CHIP SA
2203-006562 C305 C-CER,CHIP SA
2203-006562 C310 C-CER,CHIP SA
2203-006562 C313 C-CER,CHIP SA
2203-006562 C314 C-CER,CHIP SA
2203-006562 C315 C-CER,CHIP SA
2203-006562 C316 C-CER,CHIP SA
2203-006562 C317 C-CER,CHIP SA
2203-006562 C323 C-CER,CHIP SA
2203-006562 C330 C-CER,CHIP SA
2203-006562 C400 C-CER,CHIP SA
2203-006562 C405 C-CER,CHIP SA
2203-006562 C417 C-CER,CHIP SA
2203-006562 C418 C-CER,CHIP SA
2203-006562 C419 C-CER,CHIP SA
2203-006562 C420 C-CER,CHIP SA
2203-006562 C421 C-CER,CHIP SA
2203-006562 C422 C-CER,CHIP SA
2203-006562 C433 C-CER,CHIP SA
2203-006562 C436 C-CER,CHIP SA
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
7-10
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
2203-006562 C438 C-CER,CHIP SA
2203-006562 C442 C-CER,CHIP SA
2203-006562 C443 C-CER,CHIP SA
2203-006562 C447 C-CER,CHIP SA
2203-006562 C450 C-CER,CHIP SA
2203-006562 C458 C-CER,CHIP SA
2203-006562 C474 C-CER,CHIP SA
2203-006562 C503 C-CER,CHIP SA
2203-006562 C506 C-CER,CHIP SA
2203-006562 C507 C-CER,CHIP SA
2203-006562 C514 C-CER,CHIP SA
2203-006562 C521 C-CER,CHIP SA
2203-006620 C446 C-CER,CHIP SNA
2203-006626 C136 C-CER,CHIP SA
2203-006626 C411 C-CER,CHIP SA
2203-006626 C414 C-CER,CHIP SA
2203-006626 C468 C-CER,CHIP SA
2203-006626 C469 C-CER,CHIP SA
2203-006626 C476 C-CER,CHIP SA
2203-006648 C320 C-CER,CHIP SA
2203-006648 C520 C-CER,CHIP SA
2203-006824 C307 C-CER,CHIP SA
2203-006824 C432 C-CER,CHIP SA
2203-006825 C211 C-CER,CHIP SA
2203-006825 C212 C-CER,CHIP SA
2203-006825 C213 C-CER,CHIP SA
2203-006838 C214 C-CER,CHIP SA
2203-006838 C221 C-CER,CHIP SA
2203-006838 C401 C-CER,CHIP SA
2203-006838 C402 C-CER,CHIP SA
2203-006872 C138 C-CER,CHIP SA
2203-006872 C139 C-CER,CHIP SA
2203-006872 C406 C-CER,CHIP SA
2203-006872 C407 C-CER,CHIP SA
2203-006872 C408 C-CER,CHIP SA
2203-006872 C413 C-CER,CHIP SA
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
7-11
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
2203-006872 C415 C-CER,CHIP SA
2203-006872 C425 C-CER,CHIP SA
2203-006872 C478 C-CER,CHIP SA
2203-006896 C129 C-CER,CHIP SA
2203-006979 C409 C-CER,CHIP SA
2404-001268 C103 C-TA,CHIP SA
2404-001339 TA400 C-TA,CHIP SA
2404-001352 TA403 C-TA,CHIP SA
2404-001353 TA401 C-TA,CHIP SA
2404-001353 TA402 C-TA,CHIP SA
2404-001381 C511 C-TA,CHIP SA
2404-001381 TA300 C-TA,CHIP SA
2404-001381 TA404 C-TA,CHIP SA
2404-001396 TA501 C-TA,CHIP SA
2404-001406 TA500 C-TA,CHIP SA
2404-001406 TA502 C-TA,CHIP SA
2703-002200 L101 INDUCTOR-SMD SA
2703-002586 L107 INDUCTOR-SMD SA
2703-002586 L108 INDUCTOR-SMD SA
2703-002597 L103 INDUCTOR-SMD SA
2703-002597 L104 INDUCTOR-SMD SA
2703-002597 L105 INDUCTOR-SMD SA
2703-002597 L106 INDUCTOR-SMD SA
2703-002700 L109 INDUCTOR-SMD SA
2703-002700 L110 INDUCTOR-SMD SA
2703-002819 L200 INDUCTOR-SMD SA
2703-002819 L201 INDUCTOR-SMD SA
2703-002858 C105 INDUCTOR-SMD SA
2703-002906 R105 INDUCTOR-SMD SA
2703-002910 L100 INDUCTOR-SMD SA
2703-003002 L403 INDUCTOR-SMD SA
2703-003196 L500 INDUCTOR-SMD SA
2801-004458 OSC400 CRYSTAL-SMD SA
2801-004466 OSC200 CRYSTAL-SMD SA
2801-004552 OSC100 CRYSTAL-SMD SA
2901-001348 F501 FILTER-EMI/ESD SA
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
7-12
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
2901-001348 F502 FILTER-EMI/ESD SA
2901-001349 F500 FILTER-EMI/ESD SA
2911-000049 F101 DUPLEXER-FEM SA
3301-001158 L405 BEAD-SMD SA
3301-001158 L406 BEAD-SMD SA
3301-001341 L202 BEAD-SMD SA
3301-001341 L400 BEAD-SMD SA
3301-001341 L401 BEAD-SMD SA
3301-001341 L402 BEAD-SMD SA
3301-001341 L404 BEAD-SMD SA
3301-001879 L501 BEAD-SMD SA
3404-001303 TACSW_DW SWITCH-TACT SA
3404-001303 TACSW_UP SWITCH-TACT SA
3404-001320 TACSW_C SWITCH-TACT SA
3705-001358 RFS100 CONNECTOR-COAXIAL SA
3708-002283 HDC300 CONNECTOR-FPC/FFC/PIC SA
3709-001447 SIM300 CONNECTOR-CARD EDGE SA
3709-001464 CD500 CONNECTOR-CARD EDGE SA
3710-002306 IFC500 SOCKET-INTERFACE SA
3711-006323 HDC500 HEADER-BOARD TO BOARD SA
3711-006329 BTC500 HEADER-BATTERY SA
4202-001283 ANT102 ANTENNA-CHIP SA
4302-001158 BAT300 BATTERY-LI(2ND) SA
4709-001413 U103 BLUETOOTH MODULE SA
GH09-00045A UCP200 IC MICOM SA
SAMSUNG Proprietary-Contents may change without notice
8. Reference data
8-1
This Document can not be used without Samsung's authorization
8-1. Reference Abbreviate
AAC:Advanced Audio Coding.
AVC :Advanced Video Coding.
BER :Bit Error Rate
BPSK:Binary Phase Shift Keying
CA :Conditional Access
CDM :Code Division Multiplexing
C/I :Carrier to Interference
DMB :Digital Multimedia Broadcasting
EN :European Standard
ES :Elementary Stream
ETSI:European Telecommunications Standards Institute
MPEG:Moving Picture Experts Group
PN :Pseudo-random Noise
PS :Pilot Symbol
QPSK:Quadrature Phase Shift Keying
RS :Reed-Solomon
SI :Service Information
TDM :Time Division Multiplexing
TS :Transport Stream
SAMSUNG Proprietary-Contents may change without notice
9. Safety Precautions
9-1
This Document can not be used without Samsung's authorization
9-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specipicty of cellular phone is sensitive for surrounding interference(RF noise).
●Be careful to use akind of magnetic object or tool,
because performance of parts is damaged by the influence of manetic force.
●Surely use astandard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because arepair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembing charger.
●Don't use as you pleases after change other material than replacement registered on SEC
System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.
SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
9-2
This Document can not be used without Samsung's authorization
9-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easilly by static electricity. Such parts are called by
ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box
and aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.
SAMSUNG Proprietary-Contents may change without notice
10. Product Function
10-1
This Document can not be used without Samsung's authorization
Main Function
-Camera and camcorder
-Synchronisation with Windows Media Player
-Music player
-Image editor
-Photo printing
-Phone to TV
-Offline mode
-FM radio
-Bluetooth
-File viewer
-SOS message
This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2007. 03. Rev.1.0
ⓒ
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast & Africa mea.samsungportal.com
GSPN (Global Service Partner Network)
www.s-manuals.com

Navigation menu
