SPH-A900
CDMA TELEPHONE
CDMA TELEPHONE CONTENTS
1. General Introduction
2. Circuit Description
3. Installation
4. NAM Programming

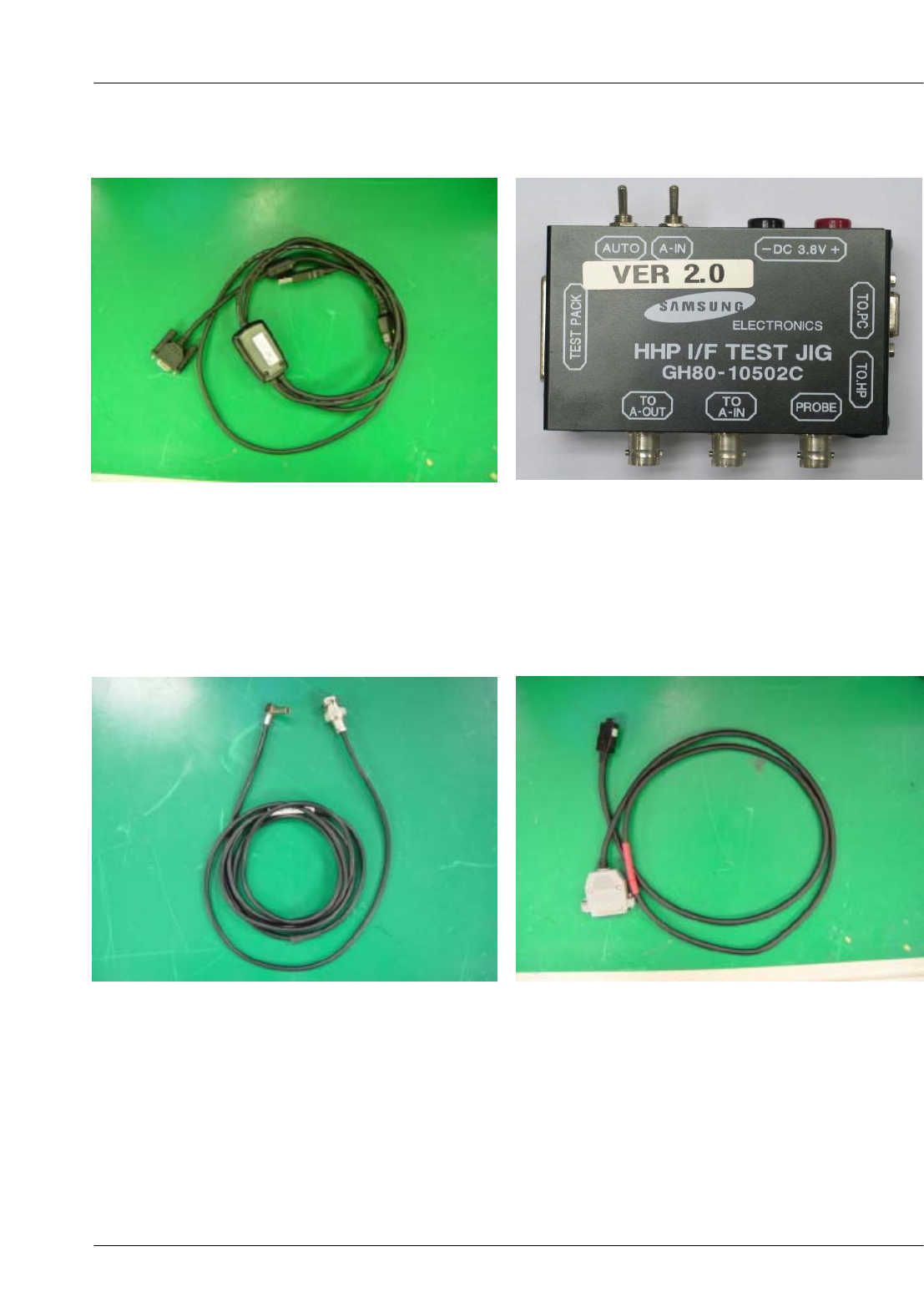

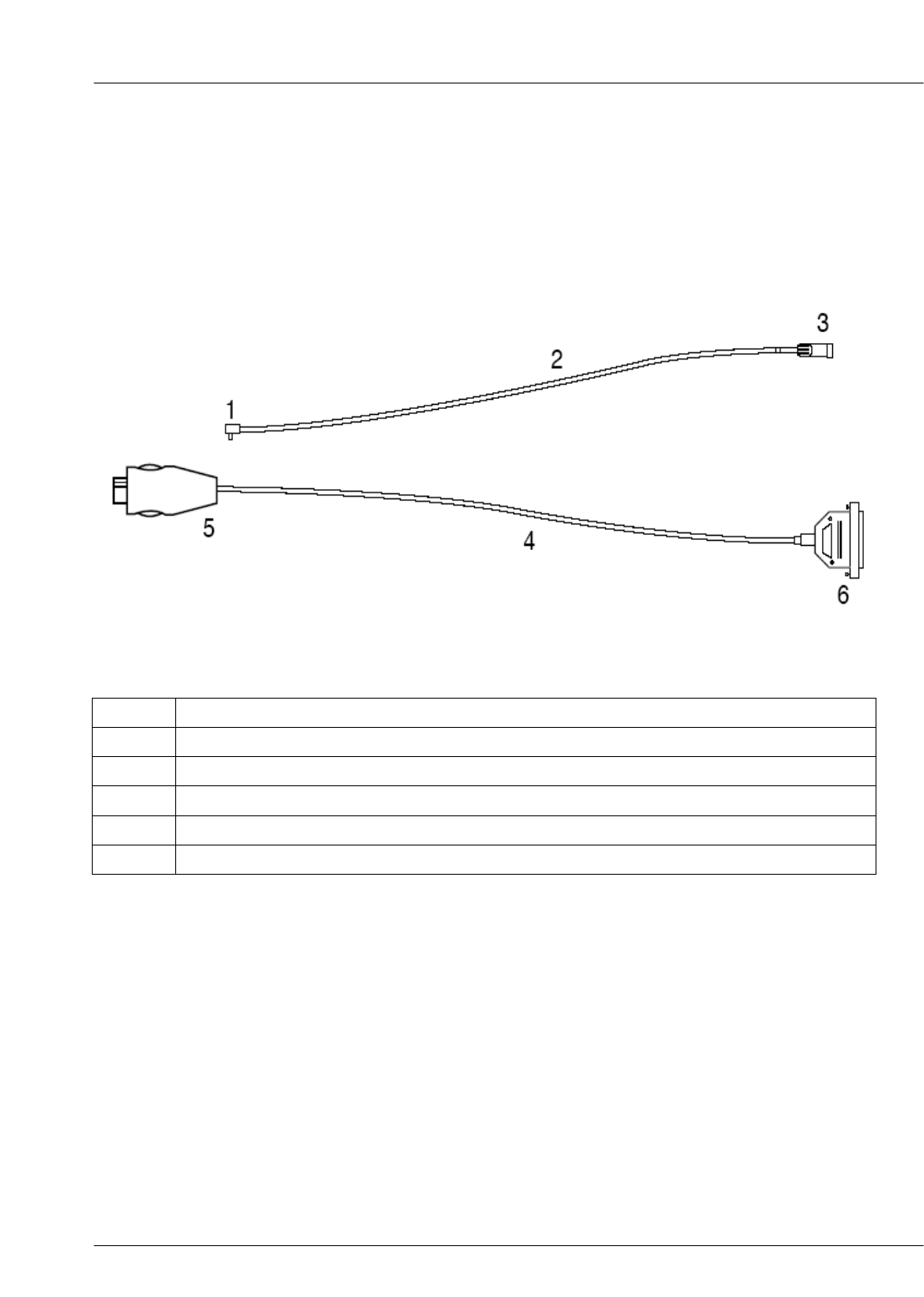

5. Product Support Tools
6. Test Procedure

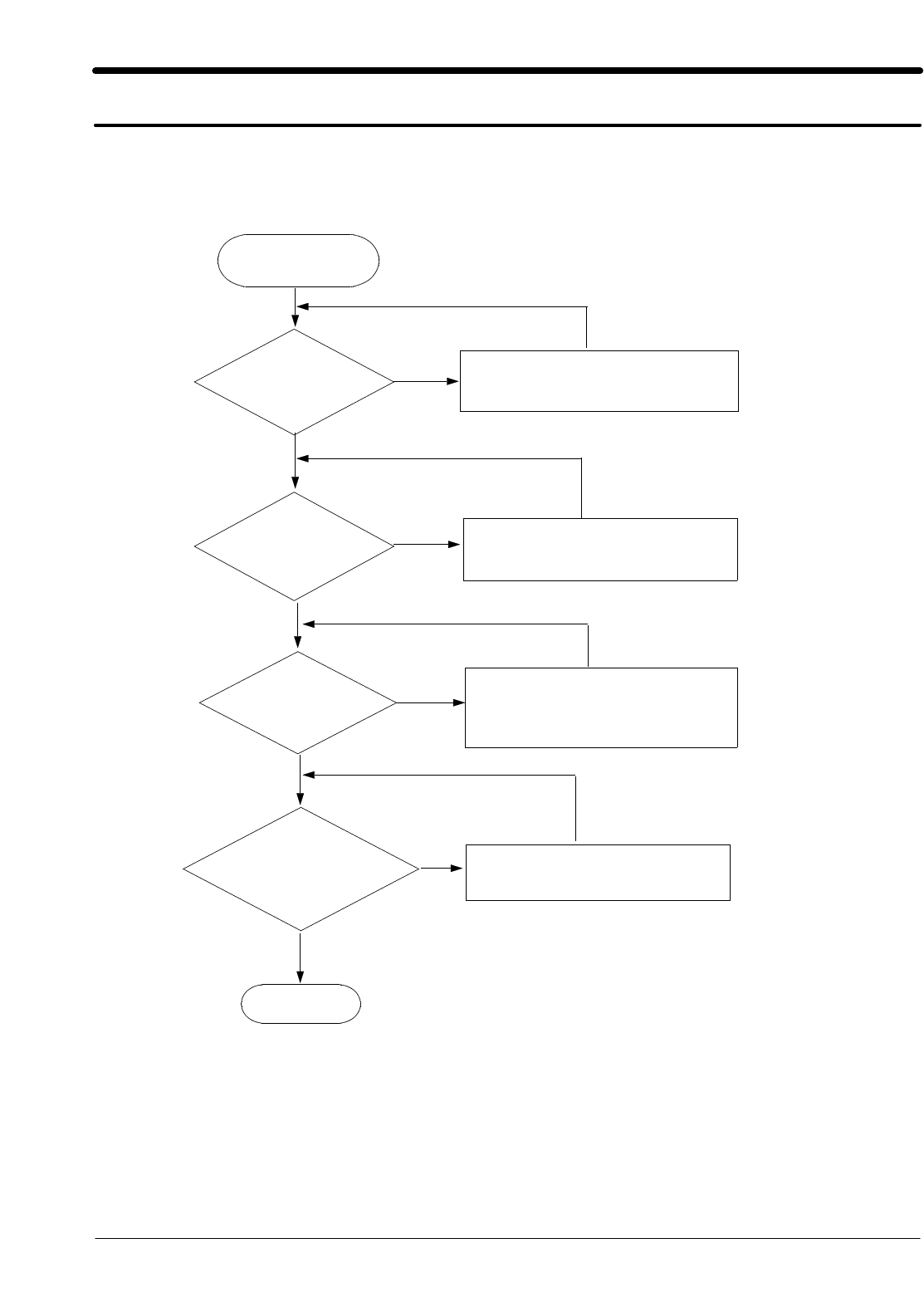

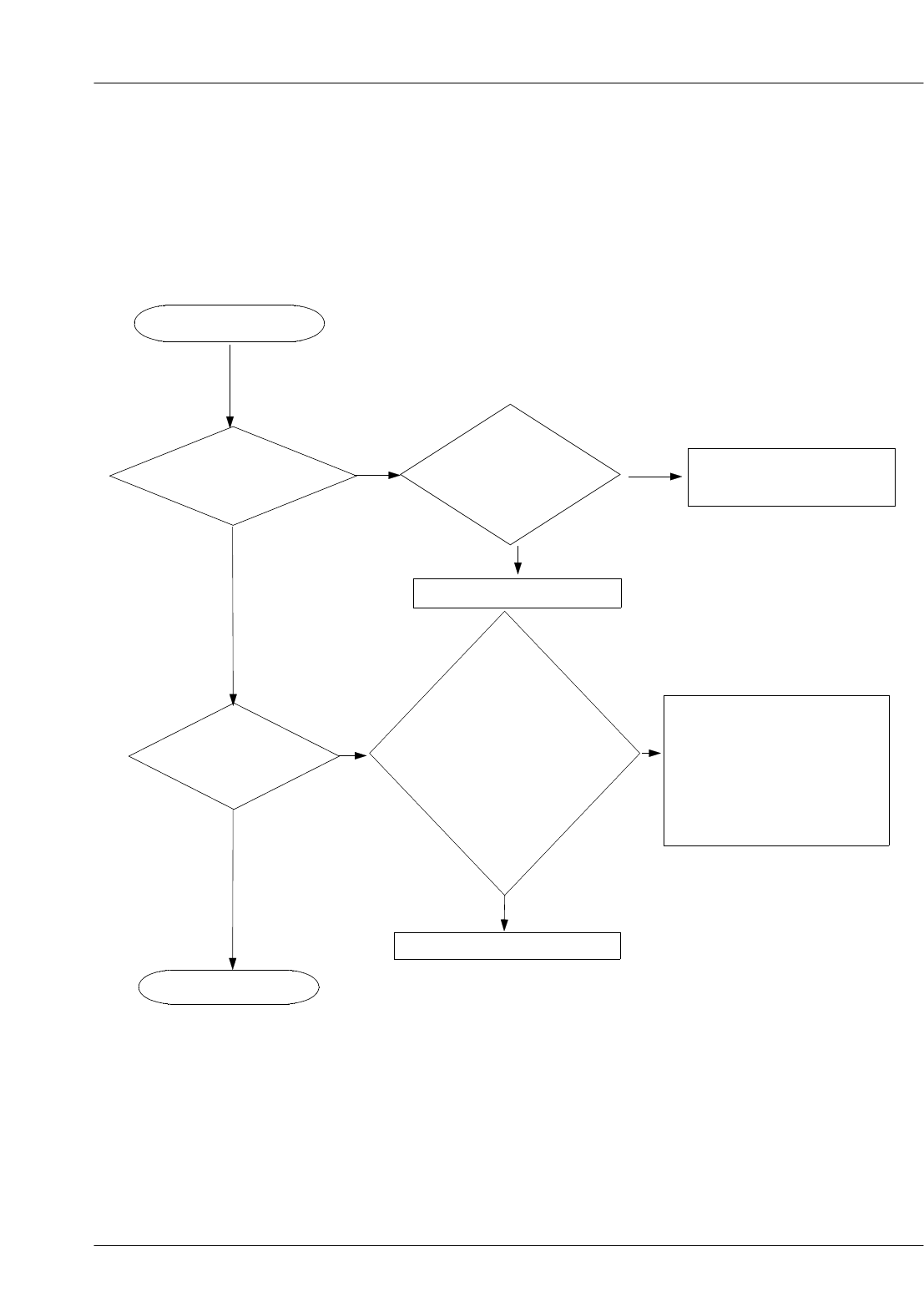

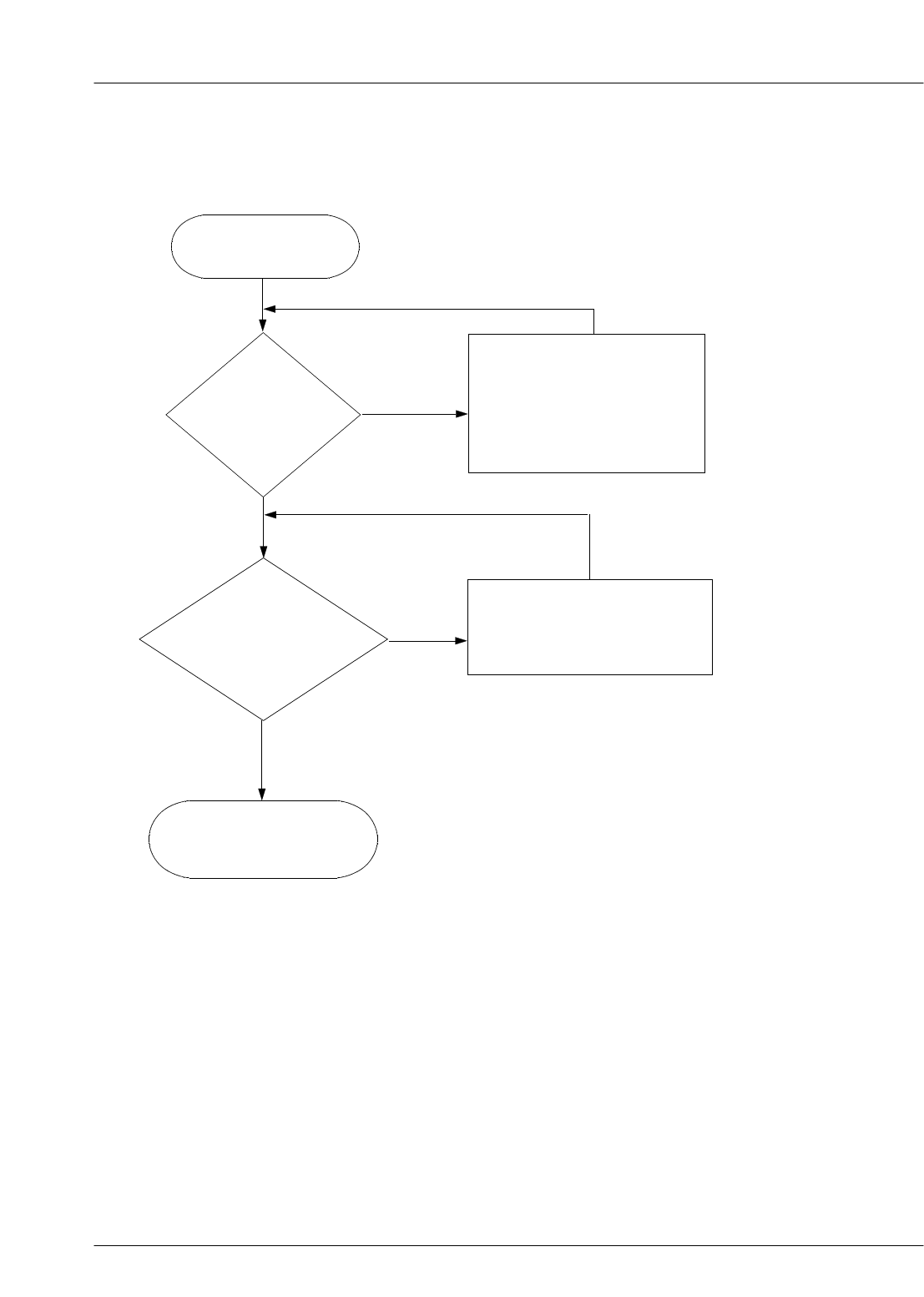

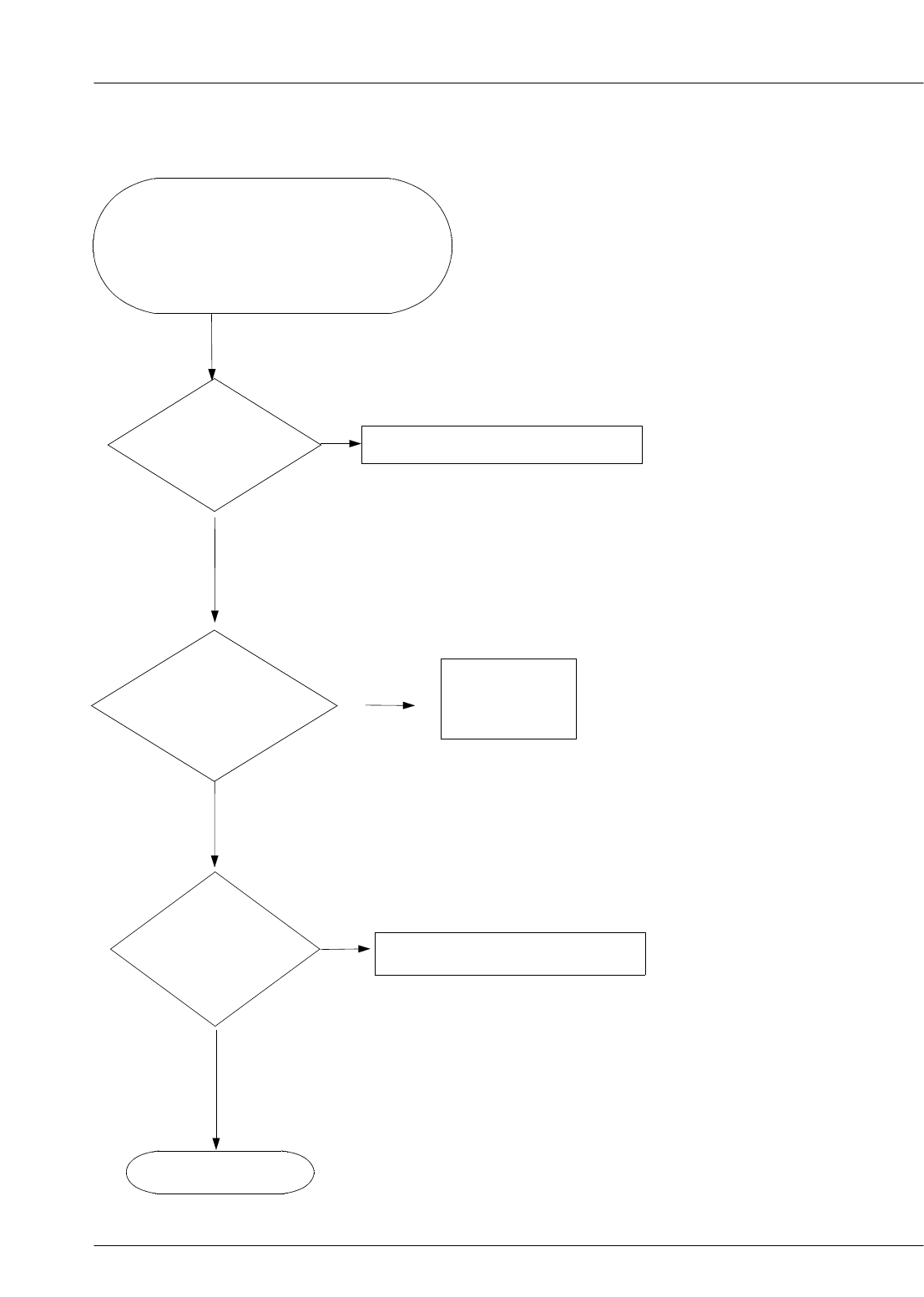

7. Flow Chart of Troubleshooting

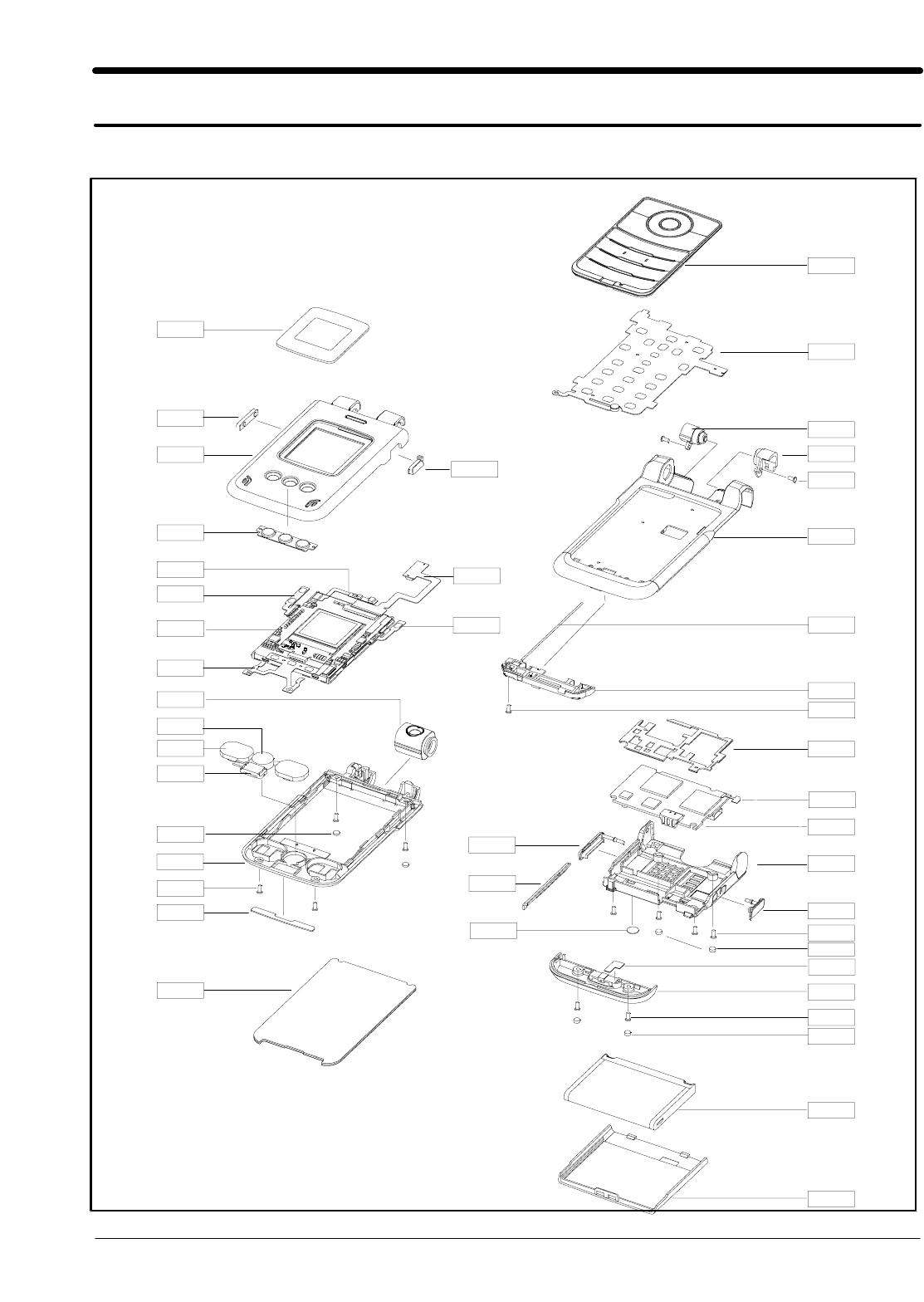

8. Exploded Views and Parts List
9. Block Diagram
10. Electrical Parts List

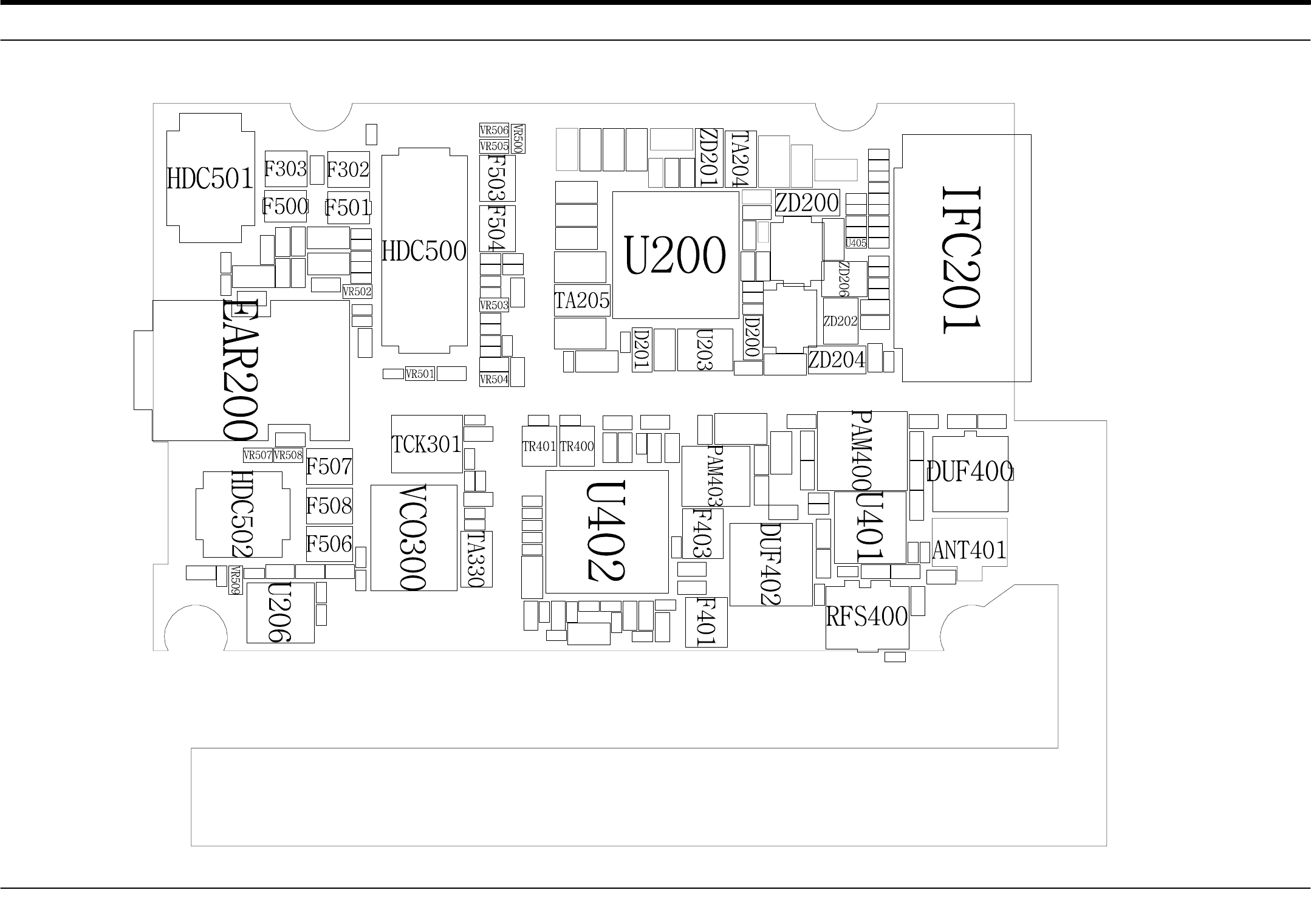

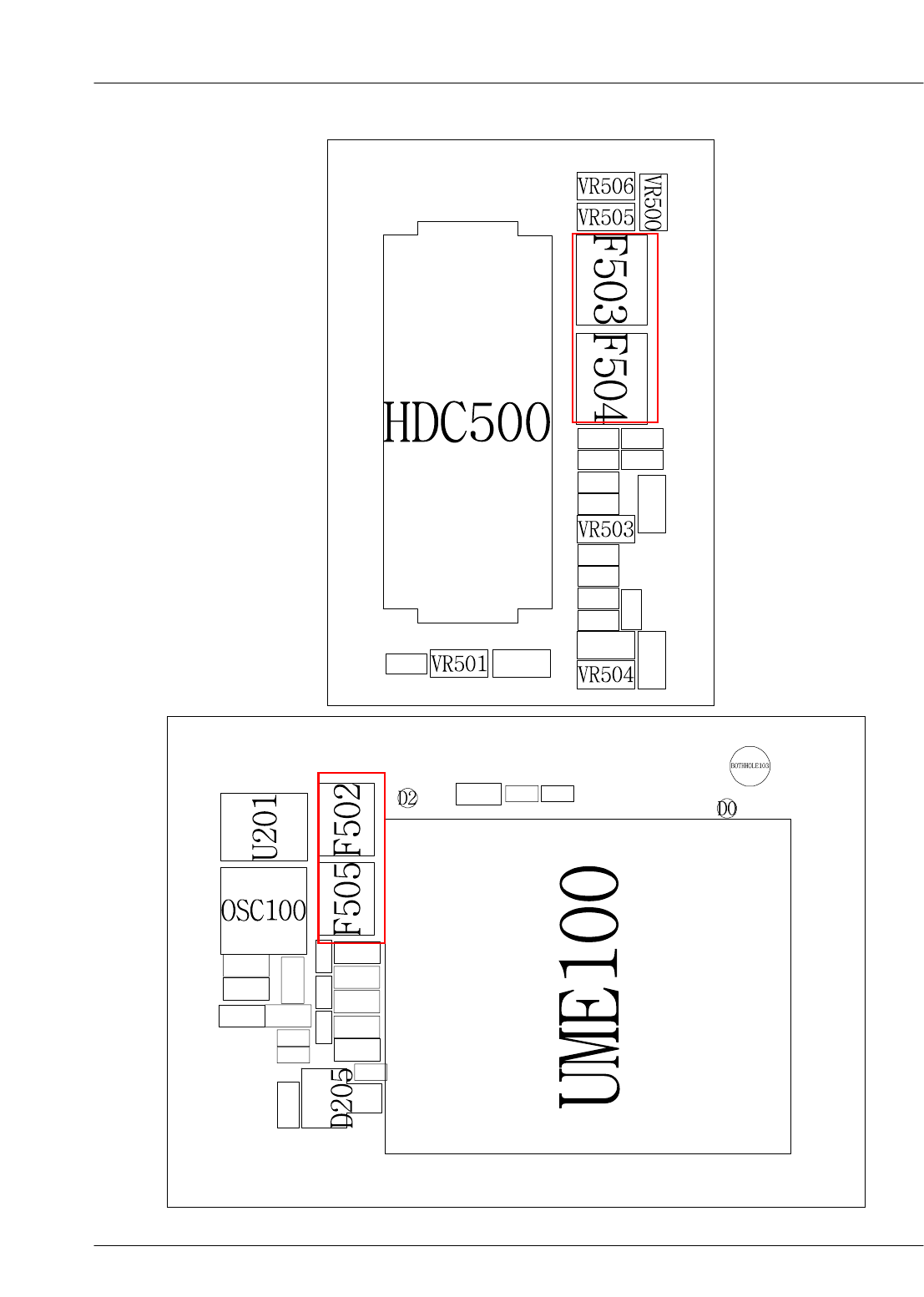

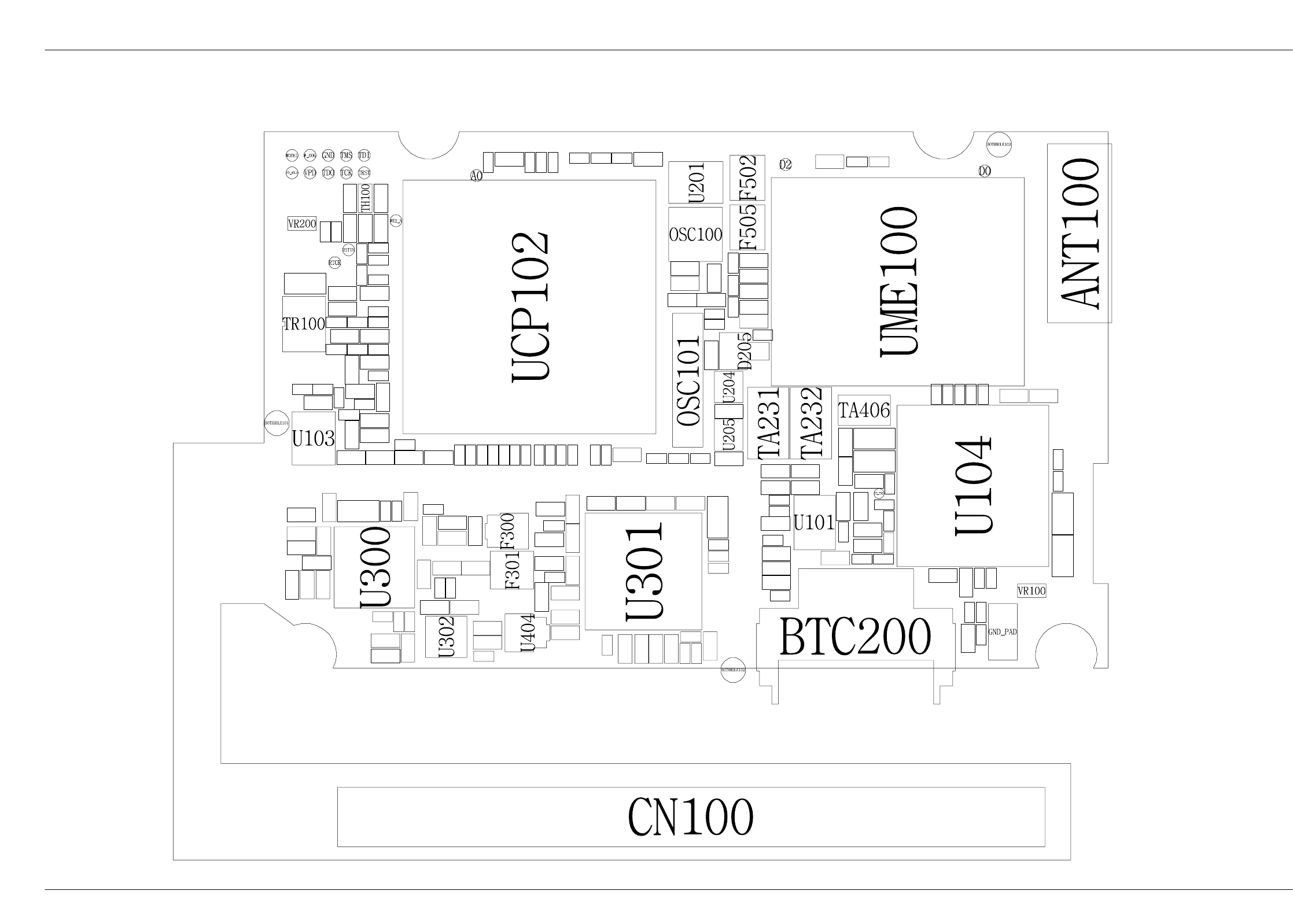

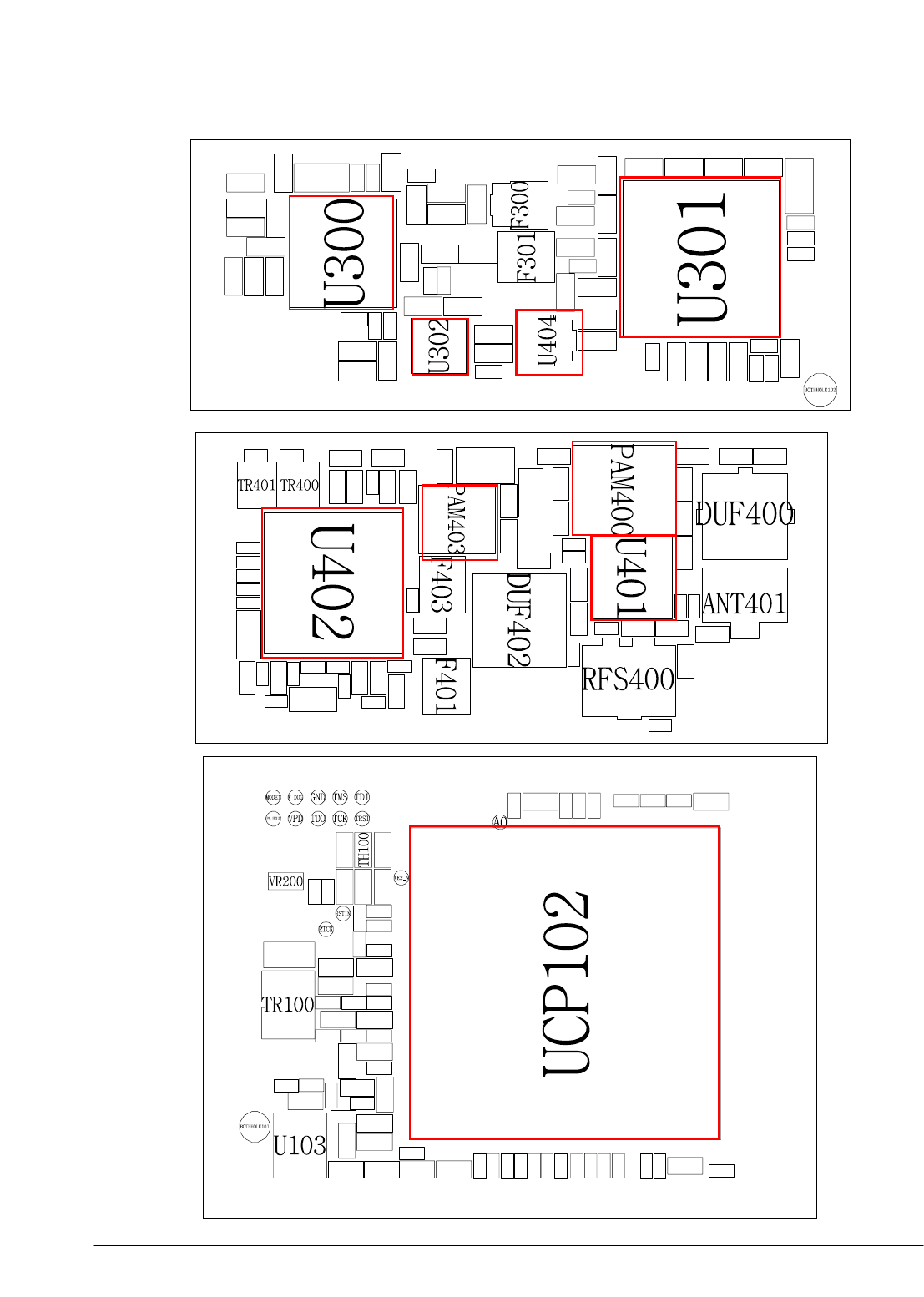

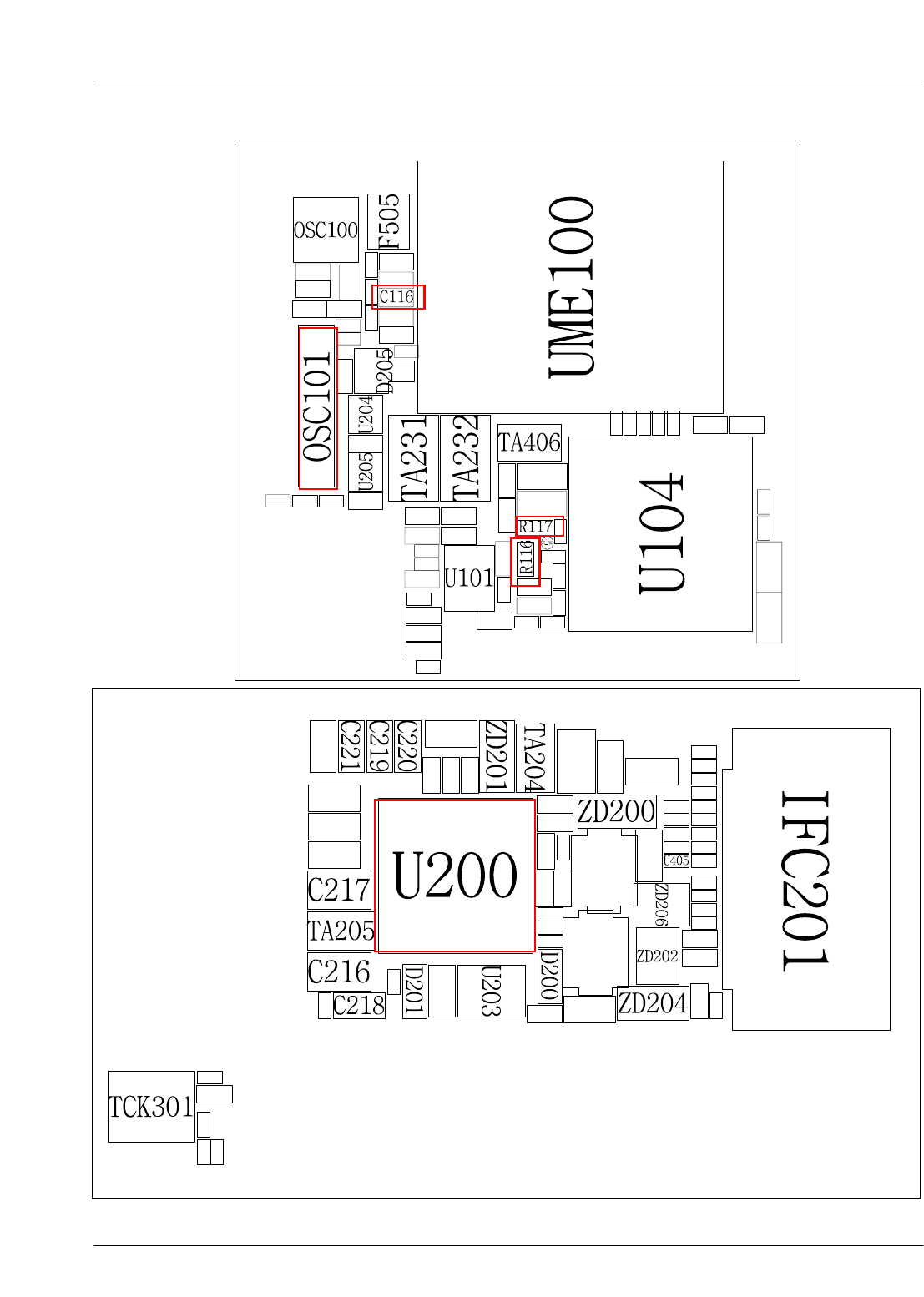

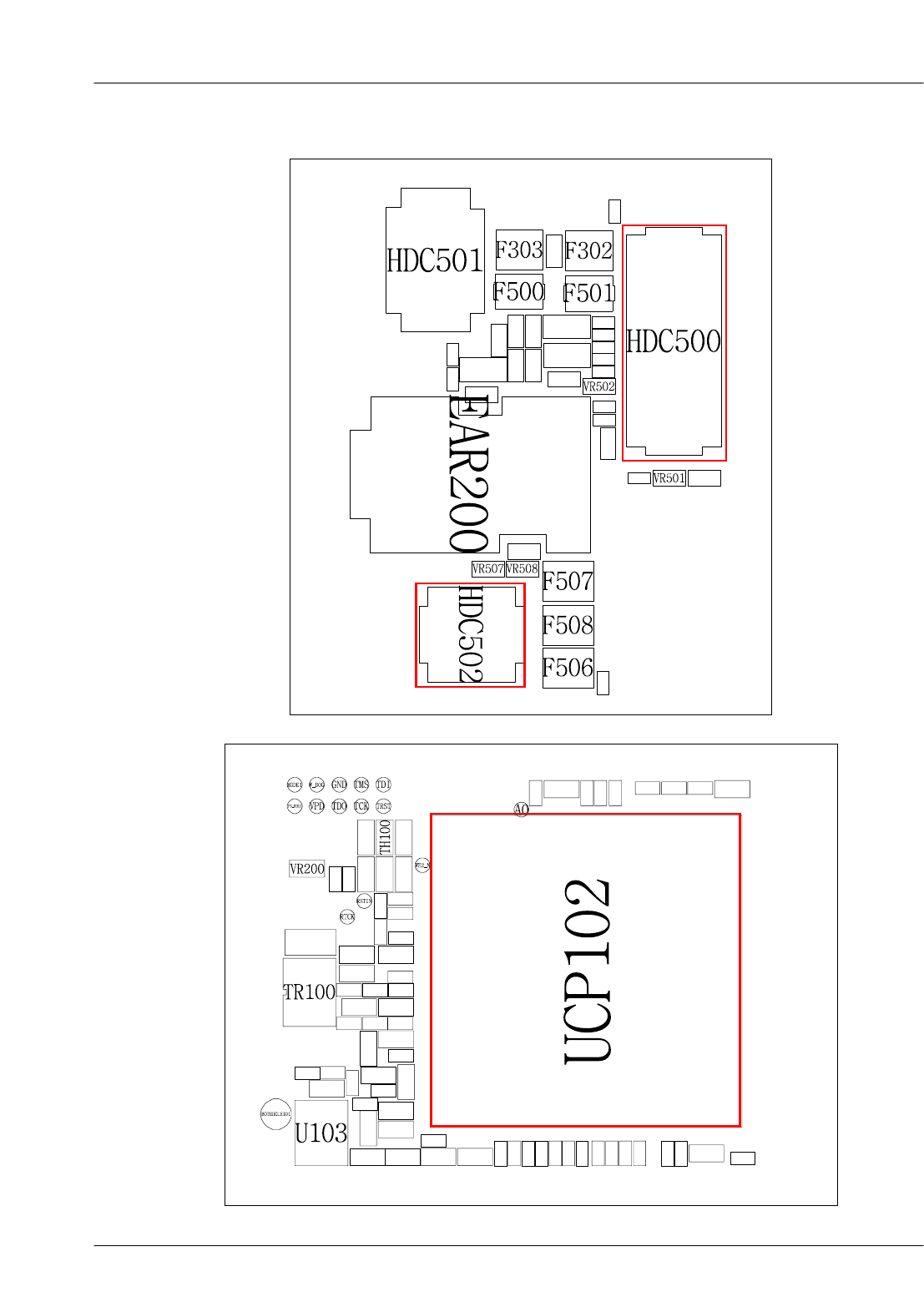

11. PCB Diagrams
SamsungElectronicsCo.,Ltd. December.2005
Printed in Korea.
Code No.: GH68-08836A
BASIC.
ⓒ
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
SAMSUNG Proprietary-Contents may change without notice
1. General Introduction
1-1
This Document can not be used without Samsung's authorization
1-1. General Instruction
The SPH-A900 enables mobile users to communicate 3G CDMA2000 1X service into a single handset.
For CDMA/PCS mode, The SPH-A900 supports Release A of the CDMA2000 1X standard.
The SPH-A900 also features EV-DO high-speed data, Bluetooth as well as a swiveling 1.3 megapixel
digital camera.
This stylish clamshell phone supports dual color displays, Bluetooth, MMS, voice dialing, airplane mode
and EV-DO services.
SAMSUNG Proprietary-Contents may change without notice
General Introduction
1-2
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
2. Circuit Description
2-1
This Document can not be used without Samsung's authorization
2-1. Logic Section
2-1-1. Power Supply
Press "END" key to turn on the phone and then the V_BAT and ON_SW signals will be connected. This
turns on the inner regulators(V_MSMCORE, V_MSMC, VPD, VPA) of u200(MAX1526).
The V_BAT applied to ON_SW will change ON_SW_SENSE signal from HIGH to LOW.
MSM6500(UCP102) sends out PS_HOLD(logical HIGH) to keep the inner regulators on even after the
"END" key is released. V_RFRX can be turned on/off by the RX_CTRL signal. V_TCXO canbeturned
on/off by the TCXO_CTRL signal. The other regulators(VDD2.6,V_SYNTH,V_RFTX,MOTOR_EN
)willbe
in the ON/OFF state by I2C-compatible 2 wire serial interface.
The regulated Voltage(u200, V_MSMCORE) are used in the core of MSM.
The regulated Voltage(u200, V_MSMC) are used in the digital part of MSM.
The regulated Voltage(u200, VPD) are used in the digital part and memory of MSM.
The regulated Voltage(u200, VPA) is used in the analog part of MSM.
The regulated Voltage(u200, V_RFTX) is used in the Tx RF part.
The regulated Voltage(u200, V_RFRX) is used in the Rx RF part.
The regulated Voltage(u200, V_TCXO) is used in the TCXO.
The regulated Voltage(u200, V_SYNTH) is used in the PLL part.
The regulated Voltage(u200, VDD2.6) is used in the voltage of camera .
The regulated Voltage(u200, MOTOR_EN) is used in the MOTOR.
2-1-2. Inner Charging Circuit Part
The most important function of the charger shall be done in the PMIC(Power Management Circuit u200).
When the phone with a battery is connected with a travel charging adapter, the inner charging circuit of
the PMIC(u200) will charge the battery by constant fast charge mode.
When battery reaches regulation voltage of 4.2V (default charging voltage for Li+mode), the charge
current drops quickly to 0mA
- Input voltage range : 4.25～6.5V
- Charging Temperature : 0°C～40°C
- Charging Method : Constant Voltage/Current -Charging Current : Normal 550mA
- Charging Time : Standard (800mAh) 2.5 ~ 3 Hrs
-ChargingMode:①Charging ②Completion
SAMSUNG Proprietary-Contents may change without notice
Circuit Description
2-2
This Document can not be used without Samsung's authorization
- Charging Battery Regulation Voltage
①Min 4.158V, Typical 4.2V, Max 4.242V(at TA:0°Cto+85°C)
②Min 4.137V, Typical 4.2V, Max 4.263V(at TA:-40°Cto+85°C)
Universal Serial Bus Interface
SPH-A900 supports a Universal Serial Bus(USB) interface by the MSM6500, to provide an efficient
interconnection between the mobile phone and a Personal Computer(PC).
The MSM6500's USB interface is designed to comply with the Universal Serial Bus Specification,
Revision 2.0. An external USB transceiver(u200) is required to implement the USB interface.
2-1-3. Logic Part
The logic part consists of MSM, MEMORY,EL Keypad, LCD, CAMERA and other input and output
peripherals.
MOBILE SYSTEM MODEM(ucp102:MSM6500)
Industry standard ARM926EJ-S microprocessor is embedded. The MSM6500 chipset integrates
CDMA2000 1x and 1xEVDO service. The 1xEVDO solution can support High-speed peak data rates of
2.4Mbps on forward link and 153kbps on reverse link.
The MSM6500 device is offered in a 409 ball, 0.5mm pitch, CSP production package. Subsystems within
the MSM6500 device include a CDMA processor, a QDSP for voice compression, an ARM9TDMI
microprocessor.AlsointegratedintheMSM6500device are analog functions such as an audio voice
codec, PLL, transmit DACS,ADC
S, memories, USB controller, peripheral interfaces, and an enhanced
clock. It is one of the most important components of the CDMA cellular phone.
The interface circuitry consists of reset circuit, dual address/data bus and memory controls. The TCXO
clock of 19.2Mhz is used as the main clock of SPH-A900 model.
MCP : NAND FLASH and SDRAM (UME100(KBE00F003A))
MCP is consist of two 512Mbit(64M*8) NAND FLASH and two 256Mbit(4M*16*4Banks) Mobile SDRAM.
NAND FLASH is used to store the Font data and program. EFS area is used to store ESN, NAM
information, telephone directory, SMS messages and other important information of the phone, and also
to store application programs and downloaded stuffs such as BREW applications and MP3. MCP is also
used to excute the DMSS(Dual Mode Subscriber system) software.
Using the down-loading program, the program can be changed even after the terminal is fully assembled.
SAMSUNG Proprietary-Contents may change without notice
Circuit Description
This Document can not be used without Samsung's authorization
2-3
EL Keypad
For key recognition, key matrix is operated by using SCAN(0:6) and KEYSENCE(0:3) of the input ports
of MSM. EL(Electro Luminescence) is included in the keypad for easy operation in the dark.
LCD Module
LCD is composed of a Transmissive with Micro Reflective(TMR) type Main TFT-LCD Panel, Transflective
type Sub TFT-LCD Panel, a driver circuit and a back-light unit.
The resolution of a 2.22" Main LCD contains 240 * 320 pixels, the resolution of a 1.07" Sub
LCD(Transflective) contains 96 * 96 pixels.
Clock
CPU clock : 19.2MHz. Clock signal from the TCXO
Sleep clock : 32.768KHz. Clock signal for sleep.
TCXO/N : 19.2/N MHz. This clock source is used by various blocks of the MSM6500 device, such
as the ARM9CORE, UARTs, general-purpose PDMs and TCXO is also used by the
MSM6500 device to produce CHIPX8.
USB clock : 48MHz. Clock signal for the USB interface
CAMERA
The camera module consists of 1/4 CIS type 1.3 Mega (1310K) Pixels CMOS sensor. The camera
module provides Auto IRIS, and Auto White-Balance functionality.
Bluetooth module
Bluetooth module is a BluetoothTM 1.1 and 1.2 compliant, stand-alone baseband processor with an
integrated 2.4GHz transceiver. Bluetooth module supports any voice and/or data application that requires
the Bluetooth SIG standard Host Controller Interface (HCI) via UART and PCM audio interfaces.
Operation Clock: 26MHz
Low-Power Clock: 32.768KHz
SAMSUNG Proprietary-Contents may change without notice
Circuit Description
2-4
This Document can not be used without Samsung's authorization
2-1-4. RF Interface Part
CDMA Data Interface
- TX_Q_P, TX_Q_N, TX_I_P, TX_I_N (U402) : Tx analog signal used during CDMA
- RX_I_P, RX_Q_P, RX_I_N, RX_Q_N (U301) : RX analog signal used during CDMA
RF Interface
- TX : TX_AGC_ADJ(ucp102) is used to control the TX power,
PA_ON_PCS(ucp102) is used to control the PCS power amplifier and
PA_ON_CELL(ucp102) is used to control the CDMA power amplifier.
- RX : TRK_LO_ADJ(ucp102) is used to adjust the TCXO module.
2-1-5. Audio Part
The MSM6500 device integrates a stereo wideband voice/audio CODEC into the Mobile Station Modem.
The integrated CODEC contains all of the required conversion and amplification stages for the
audio front end.
The CODEC operates as a 13bit linear CODEC with the transmit(TX) and receive(RX) filters designed
to meet ITU-T G.712 requirements. The CODEC contains the software controlled amplifier for both the
receiving and transmitting sections. Also, the vocoding schemes used will be 13kbps QCELP and 8Kbps
EVRC. The QCELP vocoder is based in the MSM internally.
2-1-6. Tx Audio Path
The voice signal from the microphone is filtered and amplified by the internal OP-AMP and is converted
to PCM data by the internal CODEC in the MSM. And then these signals are applied to the the
MSM(ucp102)'s internal vocoder.
2-1-7. Rx Audio Path
The PCM data from the MSM(ucp102) is inputted to the internal CODEC and the data will be decoded
by the internal DAC. Audio levels are adjusted by the amplifier. And then audio is sent to the receiver.
SAMSUNG Proprietary-Contents may change without notice
Circuit Description
This Document can not be used without Samsung's authorization
2-5
2-1-8. Speaker Path
When the MSM(ucp102) receives the data, its internal CMX generates bell and melody. The CMX bell
and melody generated in MSM6500 are sent to SAPA1D2.
The SAPA1D2 (stereo class - D audio power amplifier) is a high quality audio power conversion chip
generating 2.5W RMS output directly from the V_BAT supply. It is a high efficiency audio amplifier for
mobile applications. The gain of amplifier in SPH-A900 set to 4(V/V) . The output generated in SAPA1D2
is intended to drive two speakers.
2-1-9. Key Tone Generator
The CODEC data out from the MSM6500 is converted to DTMF signal by TONE generator of internal
CODEC, which is then amplified by the internal audio amplifier to be sent to the speaker units.
2-2. PCS Section
2-2-1. Receiver
LOW NOISE AMPLIFIER (U300)
The low noise amplifier(It is included in RFL6000 : U300) amplifies a weak signal received from the base
station to obtain the optimum signal level.
RF BAND PASS FILTER (F300)
The RF BPF(F300) passes only a specific frequency(1960±30 MHz) from the signal received from the
mobile station. The bandwidth is 60 MHz.
VOLTAGE CONTROLLED OSCILLATOR(VCO300)
The VCO(VCO300) generates the signal having 1715 ~ 1788MHz frequency range.
The VCO's output frequency is changed by control voltage. The PLL in S1M8690X generates this control
signal and this signal is changed into DC control voltage by R-C Loop filter.
SAMSUNG Proprietary-Contents may change without notice
Circuit Description
2-6
This Document can not be used without Samsung's authorization
Frequency Synthesizer Circuit
The PLL(Phased Locked Loop) block consists of VC-TCXO(TCK301), PLL in S1M8690X and
VCO(VCO300). Input reference frequency is generated at VC-TCXO(TCK301) and the RF local signal is
generated at VCO. PLL compares the two signals and generates the desired signal with a
preprogrammed counter which controls voltage.
VOLTAGE CONTROLLED TEMPERATURE COMPENSATED CRYSTAL OSCILLATOR (TCK301)
The VC-TCXO (TCK301) is a reference source of the frequency synthesizer. It provides 19.2MHz
reference frequency to PLL-IC. It is a voltage controlled temperature compensated crystal
oscillator having 19.2MHz ±2.5ppm frequency stability over all useful temperature range.
A correct frequency tuning is made by the control voltage.
2-2-2. Transmitter
Intenna
Intenna sends signal to the base station and receives the signal from the base station.
It is a tri-band Intenna and covers PCS band, CDMA band and GPS band.
RF Switch
It(U401:TQP4M3018) is used to switch the PCS path and CDMA path and the GPS
path. The RF signal passes through PCS path when PCS_MODE is high(2.6V). The RF signal
passes through CDMA path when CELL_MODE is high(2.6V). The RF signal passes through
GPS path when GPS_MODE is high(2.6V). PCS_MODE, CELL_MODE and GPS_MODE are
digital signals from MSM6500 GPIO.
Duplexer
Duplexer(DUF400) allows to transmit only the signals within acceptable Tx frequency range
(1880 ± 30 MHz) through the Intenna.
It provides the appropriate attenuation of transmitted signal at the receiver input and the appropriate
rejection of the transmit-generated noise in the Receiver band.
Power Amp
Power amplifier module(PAM400:WS1413) amplifiers signal to be sent to the base station
through the antenna.
SAMSUNG Proprietary-Contents may change without notice
Circuit Description
This Document can not be used without Samsung's authorization
2-7
Driver Amp
The driver amp(U402 ; included in S1M8690X) allows the signal to be inputted to the power
amp(PAM400) as a specified level.
Up-converter(Mixer)
The up-converter(U402 ; also included in S1M8690X) receives the local signal FTx * 0.7999
and signal controlled by TX AGC amp(in S1M8690X) to generate Tx RF signal 1880±30MHz
which signal comes out from the mixer output by adding FTx * 0.7999 local signal.
FTx means TX RF signal Frequency.
Automatic Gain Control Amp
The TX IF AGC amp (in S1M8690X) controls gain of AGC to deliver power level needed at
driver amp. Its control voltage varies from 0.2V to 2.5V.
2-3. CDMA Section
2-3-1. Receiver
Low Noise Amplifier(LNA)
The low noise amplifier(It is included RFL6000 : U300) amplifies a weak signal received from
the base station to obtain the optimum signal level.
RF Band Pass Filter(Rx RF SAW Filter)
The RF BPF in F300 passes only a specific frequency(881.49±12.5 MHz) from the signal
received from the mobile station. The bandwidth is 25 MHz.
Voltage Controlled Oscillator
The VCO(VCO300) generates the signal having 1715 ~ 1788MHz frequency range.
The VCO's output frequency is changed by control voltage. The PLL in S1M8690X generates this control
signal and this signal is changed into DC control voltage by R-C Loop filter.
SAMSUNG Proprietary-Contents may change without notice
Circuit Description
2-8
This Document can not be used without Samsung's authorization
Frequency Synthesizer Circuit
The PLL(Phased Locked Loop) block consists of VC-TCXO(TCK301), PLL in S1M8690X and
VCO(VCO300). Input reference frequency is generated at VC-TCXO(TCK301) and the RF
local signal is generated at VCO. PLL compares the two signals and generates the desired
signal with a preprogrammed counter which controls voltage.
VC-TCXO
The VC-TCXO (TCK301) is a reference source of the frequency synthesizer. It provides 19.2MHz
reference frequency to PLL-IC. It is a voltage controlled temperature compensated crystal
oscillator having 19.2MHz ±2.5ppm frequency stability over all useful temperature range.
A correct frequency tuning is made by the control voltage.
2-3-2. Transmitter
Intenna
Intenna sends signal to the base station and receives the signal from the base station.
It is a tri-band Intenna and covers PCS band, CDMA band and GPS band.
RF Switch
It(U401:TQP4M3018) is used to switch the PCS path and CDMA path and the GPS
path. The RF signal passes through PCS path when PCS_MODE is high(2.6V). The RF signal
passes through CDMA path when CELL_MODE is high(2.6V). The RF signal passes through
GPS path when GPS_MODE is high(2.6V). PCS_MODE, CELL_MODE and GPS_MODE are
digital signals from MSM6500 GPIO.
Duplexer
Duplexer(DUF402) passes the RF signal of Rx frequency range(881.49 ±12.5 MHz) and Tx frequency
range
(836.49 ±12.5 MHz). It provides appropriate attenuation of transmitted signal at the receiver input and
appropriate rejection of the transmit-generated noise in the Receiver band.
It also matches LNA input in receiving part and PAM(PAM400:WS1102) output in transmitting part with
the Intenna.
SAMSUNG Proprietary-Contents may change without notice
Circuit Description
This Document can not be used without Samsung's authorization
2-9

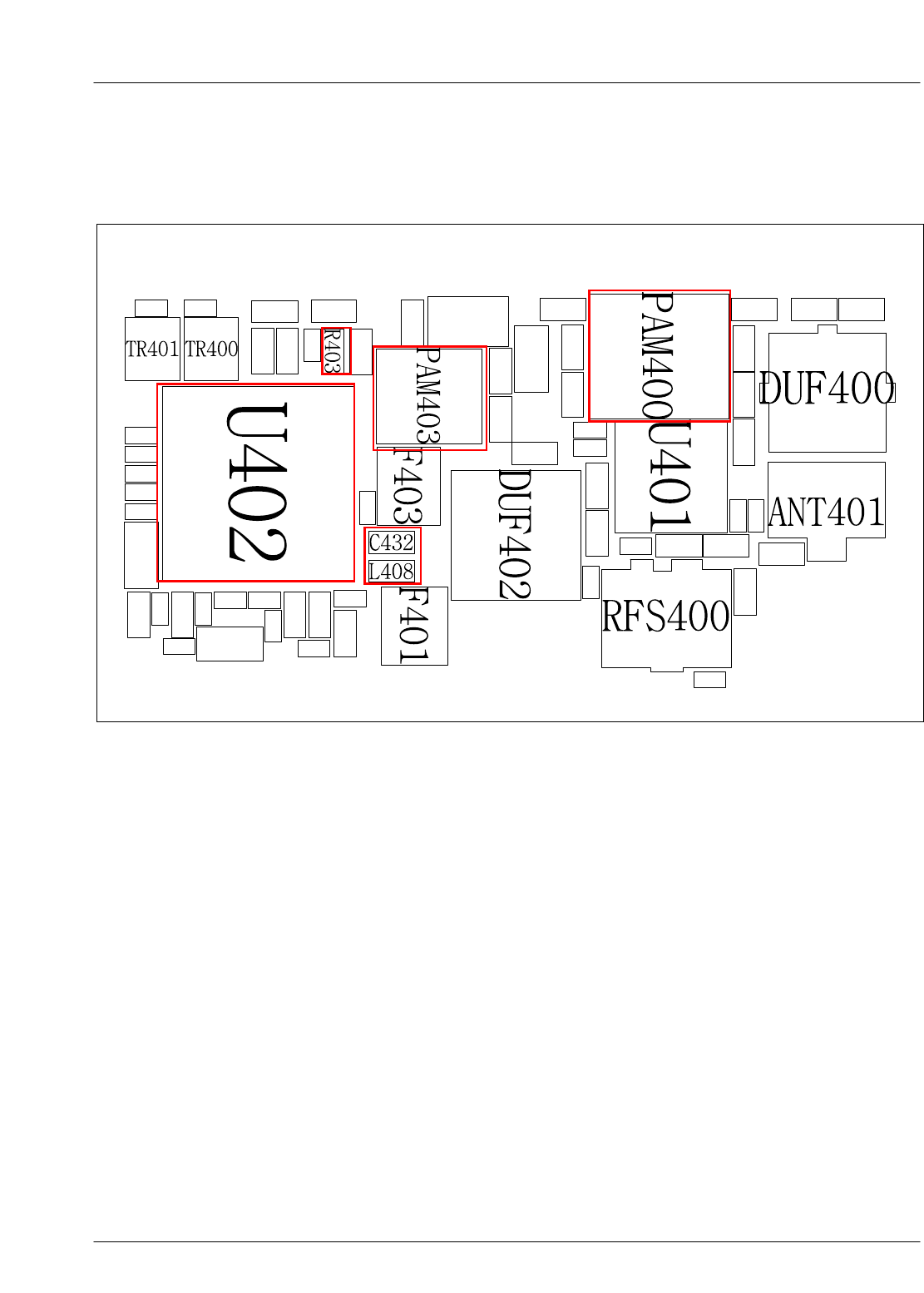

Power Amp
Power amplifier module(PAM400:WS1102 amplifiers signal to be sent to the base station
through the antenna.
RF Band Pass Filter(Tx RF SAW Filter)
The RF BPF(F403) passes only specific frequency(836.49 ±12.5MHz) to send it to power
amp(PAM400:WS1102).
Driver Amp
The driver amp(U402 ; It is included in S1M8690X) allows the signal to be inputted to the
power amp(PAM400) as a specified level.
Up-Converter(Mixer)
The up-converter(U402 ; It is also included in S1M8690X) receives the local signal FTx * 1.6666
and the signal controlled by TX AGC amp(in S1M8690X) to generate Tx RF signal
836.49±12.5MHz signal comes out from the mixer output by adding FTx * 1.6666 local signal.
FTx means TX RF signal Frequency.
Automatic Gain Control Amp
The TX IF AGC amp in S1M8690X controls gain of AGC to deliver power level to be needed
at Driver amp. Its control voltage varies from 0.2V to 2.5V.
SAMSUNG Proprietary-Contents may change without notice
Circuit Description
2-10
This Document can not be used without Samsung's authorization
2-4. GPS Section
Intenna
Intenna receives a signal from GPS satellites.
It is a tri-band Intenna and covers PCS band, CDMA band and GPS band.
RF Switch
It(U401:TQP4M3018) is used to switch the PCS path and CDMA path and the GPS
path. The RF signal passes through PCS path when PCS_MODE is high(2.6V). The RF signal
passes through CDMA path when CELL_MODE is high(2.6V). The RF signal passes through
GPS path when GPS_MODE is high(2.6V). PCS_MODE, CELL_MODE and GPS_MODE are
digital signals from MSM6500 GPIO.
Low Noise Amplifier Module(LNA)
The low noise amplifier(U302:ALM1106) amplifies a weak signal received from artificial satellite to
obtain the optimum signal level.
RF Band Pass Filter(Rx RF SAW Filter)
The RF BPF(U404:B9000) passes only a specific frequency(1575.42±1MHz) from the signal received
from the satellite. The bandwidth is 2 MHz.
SAMSUNG Proprietary-Contents may change without notice
3. Installation
3-1
This Document can not be used without Samsung's authorization
3-1 Installing and Removing the Battery
To install, open the battery cover and insert the
battery into the phone. Put on the battery cover.
Make sure the cover on the back are inserted into
the matching slots in the phone. Press down until
the latchsnaps into place.
To remove, make sure the power is off. Push the
battery cover latch release up completely. Pull and
lift the battery away from the phone.
Specifications using TA (Travel Adapter)
Battery Type Standard Battery
(Li-ion, 800mAh)
Charging < 3 hours
SEC Code GH43-02101A
SAMSUNG Proprietary-Contents may change without notice
Installation
This Document can not be used without Samsung's authorization
3-2
SAMSUNG Proprietary-Contents may change without notice
4. NAM Programming
4-1
This Document can not be used without Samsung's authorization
NAM program can be changed as following table:
Notes:
- In the NAM program mode, each item show you the currently stored data. you can modify the data
by entering a new data.
-Youcanmovetonextwindowbypressing"
OK"key.
- When you press a wrong number, press "BACK" key to delete the last number or press and hold
"BACK " key to delete all number
-You can move to menu screen by pressing "MENU" key.
- You can change some selection option keys by pressing "Left" or "Right" navigation.
4-1. Single NAM
4-1-1. General Setup
LCD Display Key in Funtion
Enter
##MSL# ##222222# Enter the NAM Mode. Enter random 6-digit code (MSL) and
222222 is a default value.
SVC Menu
1: View
2: Edit
3: Done
1ViewPhoneNumberandMSID
Phone Number
1234567890 Right key or Down
key Phone number is displayed
MSID 1234567890 MENU or BACK Mobile ID is displayed
SVC Menu
1: View
2: Edit
3: Done
2 Choose'Edit'tochangePhoneNumberandMSID
Phone Number
1234567890 OK - Phone number setup
- To change phone number, enter phone #
-Storeit
MSID 1234567890 OK - Mobile ID setup
- To change phone number, enter phone #
- Store it
SVC Menu
1: View
2: Edit
3: Done
3 Choose 'Done' to exit the NAM mode
SAMSUNG Proprietary-Contents may change without notice
NAM Programming
4-2
This Document can not be used without Samsung's authorization
4-1-2. NAM Mode Display
LCD Display Key in Funtion
#,#,3,2,8,2,# Enter the Data Program screen
3G Data Prog
1. User Name
2: Browser
3: IOTA Prog.
4: Camera URL
5: Advanced
6: Multimedia
7: Restore
5 Display the 3G Data program.
Enter Service Code
?????? 222222 Enter random 6-digit code (MSL) - 222222 is a default value
Advanced
1: View
2: Edit 1 Choose "VIEW" to dispaly the Advanced NAM Information
ESN B0000000 Right key or Down
key Electronic Serial Number of the phone is displayed
CERT Right key or Down
key Java security - Dormant Certificate Wakeup(On), and
Sleep(off) status is displayed
P_REV 6Right key or Down
key Common Air Interface version is displayed
VOCODER SVCOPT
EVRC Right key or Down
key 13K or EVRC
SCM 01101010 Right key or Down
key Station Class Mark displays the power class,
transmission, slotted class, dual mode.
Lock Code 0016 Right key or Down
key Lock code, current status is displayed
Slot Mode YES Right key or Down
key Slot mode. 'Yes' indicates the slot mode.
Slot Index 2Right key or Down
key Slot mode index. The high number means longer
sleeping time
HOME SID 4139 Right key or Down
key SID written in the list,current status is displayed.
HOME NID 65535 Right key or Down
key NID written in the list,current status is displayed.
MCC 310 Right key or Down
key ImsI Mobile Country Code, current code is displayed.
MNC 00 Right key or Down
key ImsI Mobile Network Code, current code is displayed.
ACCOLC 6Right key or Down
key CDMA Access Overload Class, current status is displayed
SAMSUNG Proprietary-Contents may change without notice
NAM Programming
4-3
This Document can not be used without Samsung's authorization
NAM CDMA
Home Sys Reg
Yes
Right key or Down
key CDMA Home system ID, current status is displayed
NAM CDMA
FSID Reg Yes
Right key or Down
key CDMA foreign SID, current status is displayed.
NAM CDMA
FNID Reg Yes MENU or BACK CDMA foreign NID,current status is displayed.
4-1-3. NAM Mode Setup
LCD Display Key in Funtion
#,#,3,2,8,2,# Enter the Data Program screen ('##DATA')
3G Data Prog
1. User Name
2: Browser
3: IOTA Prog.
4: Camera URL
5: Advanced
6: Multimedia
7: Restore
5 Display the 3G dara program.
Enter Service Code
?????? 222222 Enter random 6-digit code (MSL) - 222222 is a default
value
Advanced
1: View
2: Edit 2 Choose "EDIT" to change the Advanced NAM information
ESN B0000000 Right key or Down
key Electronic Serial Number of the phone is displayed
CERT Right key or Down
key Java security - Dormant Certificate Wakeup(On), and
Sleep(off)
P_REV 6Right key or Down
key Common Air Interface version is displayed
VOCODER SVC OPT
EVRC Right key or Down
key
Origination Service Option is displayed
-ChangeServiceOption
-Storeit
SCM 01101010 Right key or Down
key Station Class Mark displays the power class,
transmission, slotted class, dual mode.
Lock Code
0016 4-digit Code
OK
Lock code, current status is displayed
- To change Lock Code, enter a new code
-Storeit
Slot ModeYES Left or Right key
OK
Slot mode. 'Yes' indicates the slot mode.
- Change status
-Storeit
SAMSUNG Proprietary-Contents may change without notice
NAM Programming
4-4
This Document can not be used without Samsung's authorization
Slot Index20~7
OK
Slot mode index. The high number means longer sleeping
time
- To change Slot Index, enter new one
-Storeit
HOME SID4139 number
OK
SID written in the list,current status is displayed.
- Enter new one to change code
-Storeit
HOME NID65535 number
OK
NID written in the list,current status is displayed.
- Enter new one to change code
-Storeit
MCC 310 number
OK
ImsI Mobile Country Code, current code is displayed.
- Enter new one to change code
-Storeit
MNC 00 number
OK
ImsI Mobile Network Code, current code is displayed.
- Enter new one to change code
-Storeit
ACCOLC 6class number
OK
CDMA Access Overload Class, current status is displayed
- Enter new one to change code
-Storeit
NAM CDMA
Home Sys Reg
Yes
Left or Right key
OK
CDMA Home system ID, current status is displayed
- Change status
-Storeit
NAM CDMA
FSID Reg Yes
Left or Right key
OK
CDMA foreign SID, current status is displayed.
- Change status
-Storeit
NAM CDMA
FNID Reg Yes
Left or Right key
OK
CDMA foreign NID,current status is displayed.
- Change status
-Storeit
SAMSUNG Proprietary-Contents may change without notice

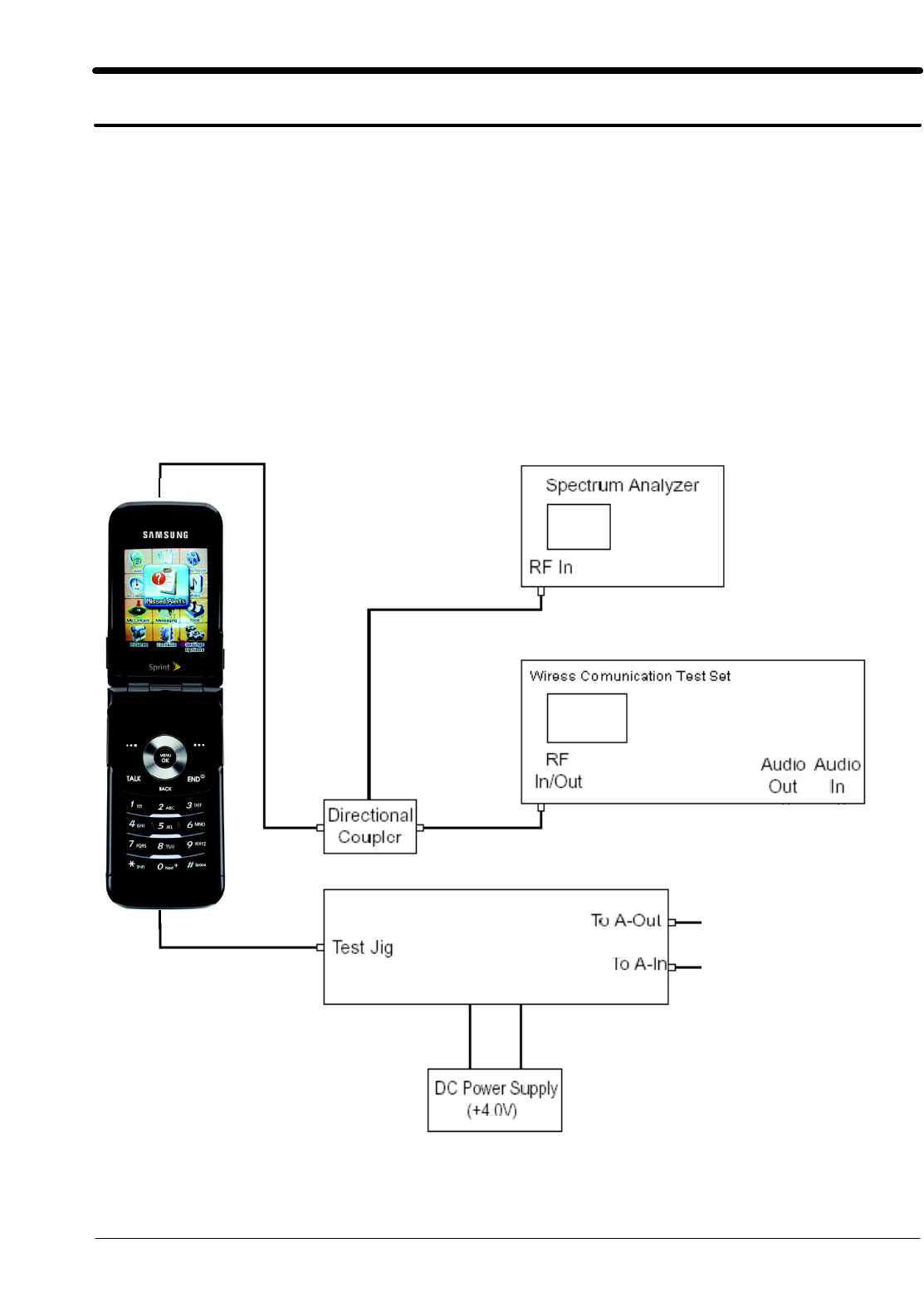

6. Test Procedure
6-1
This Document can not be used without Samsung's authorization
6-1 List of Equipment
●DC Power Supply
●Test Jig
●Test Cable
●CDMA Mobile Station Test Set HP8285A, HP8960, CMD-80, etc
●Spectrum Analyzer(include CDMA Test Mode) HP8596E,
6-2 Configuration of Test
SAMSUNG Proprietary-Contents may change without notice
Test Procedure
6-2
This Document can not be used without Samsung's authorization
6-3 TEST CABLE CONNECTIONS
6-3-1 TEST CABLE
6-3-2 TEST CABLE CONNECTIONS
1MHC172
2 RF CABLE (1.4dB Loss for CDMA, 2.1dB Loss for PCS, 1.8dB Loss for GPS)
3 BNC CONNECTOR (RF)
4DATACABLE
5 Plug Connect to SPH-A900
6 Dsub 25PIN CONNECTOR (DATA)
SAMSUNG Proprietary-Contents may change without notice
Test Procedure
6-3
This Document can not be used without Samsung's authorization

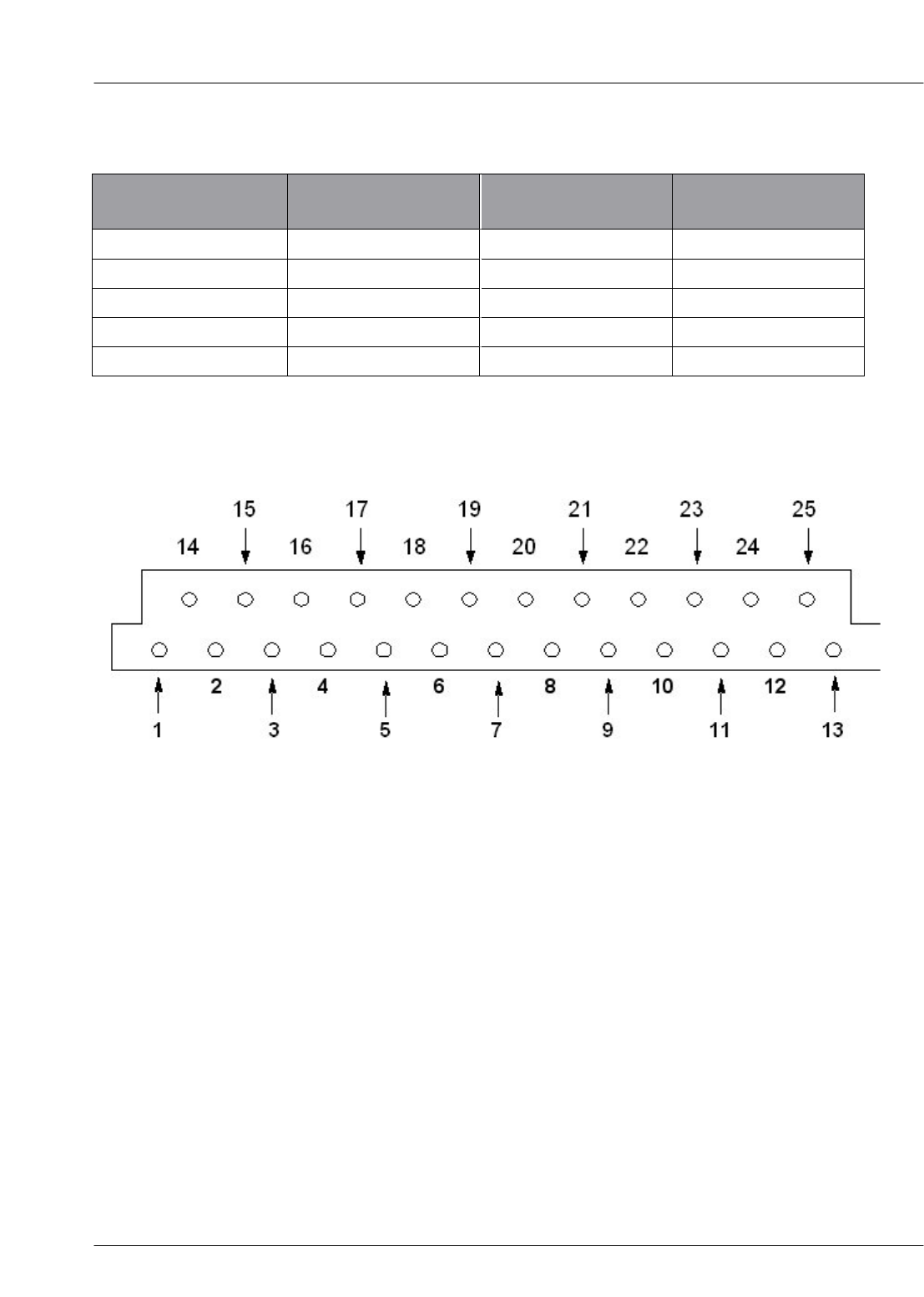

6-3-3 Dsub 25 PIN CONNECTOR PIN DESCRIPTION (TEST CABLE 1, BACK SIDE)
DATA DESCRIPTION Dsub CONN.
PIN NO. DATA DESCRIPTION Dsub CONN.
PIN NO.
GND 13 GND 24,25 (SHORT)
VBATT 4 VBATT 5,6 (SHORT)
HP_PWR 7 DP_RX_DATA 21
RX_AUDIO 12 DP_TX_DATA 22
TX_AUDIO 10
SAMSUNG Proprietary-Contents may change without notice
Test Procedure
6-4
This Document can not be used without Samsung's authorization
6-3-4 CONVERSION TABLE OF FREQUENCY vs CHANNEL
- CDMA/PCS
TYPE CHANNEL CONVERSION EQUATION REMARK
TX
FREQUENCY
990 ≤N≤1023
1≤N≤779
F=0.03 × (N-1023) + 825.00
F=0.03 × N + 825.00
N ; CH NUMBER
F ; FREQUENCY
(CDMA)
RX
FREQUENCY
990 ≤N≤1023
1≤N≤779
F=0.03 × (N-1023) + 875.00
F=0.03 × N + 875.00
TX
FREQUENCY 0≤N≤1199 F=0.05 × N + 1850.00 N ; CH NUMBER
F ; FREQUENCY
(PCS)
RX
FREQUENCY 0≤N≤1199 F=0.05 × N + 1930.00
SAMSUNG Proprietary-Contents may change without notice
Test Procedure
6-5
This Document can not be used without Samsung's authorization
6-4 Test Procedure
6-4-1 CDMA/PCS mode
- Change the test mode
A. To change the phone's state from Normal Mode to Test Mode, You should enter the following keys.
:Press[47*869#1235]
B. The command "0 0 1" is Suspend.
C. The command "0 2 2" is mode and channel change.
"20363"
Channel number
Mode:CDMA
"30600"
Channel number
Mode:PCS
and press enter key from the soft key board to save mode/channel value..
D. The command "0 0 1" is Suspend.
E. To finish the Test Mode, You should enter the command "0 0 2".
- Channel selection and Tx power output level control
CDMA
A. EntertoTestMode[47*869#1235]
B. "0 0 1" : Suspend.
C. The command "0 2 2" is mode and channel change
"20363"
Channel number
Mode:CDMA
Push the [OK] key to save.
SAMSUNG Proprietary-Contents may change without notice
Test Procedure
6-6
This Document can not be used without Samsung's authorization
D. To finish the Test Mode, You should enter the command "0 0 2".
E. EntertoTestMode[47*869#1235]
F. "0 0 1" : Suspend.
G. "0 1 1" : Carrier_On.
H. "014":CDATA.
I. "0 1 0" : PA_R1(0:LOW GAIN MODE, 1:HIGH GAIN MODE)
J. "0 1 9" : Adjust RF power level.
PCS
A. EntertoTestMode[47*869#1235]
B. "0 0 1" : Suspend.
C. The command "022" is mode and channel change
"30600"
Channel number
Mode:PCS
Push the [enter] key to save.
D. To finish the Test Mode, You should enter the command "0 0 2".
E. EntertoTestMode[47*869#1235]
F. "0 0 1" : Suspend.
G. "0 1 1" : Carrier_On.
H. "014":CDATA.
I. "0 1 0" : PA_R1(0:LOW GAIN MODE, 1:HIGH GAIN MODE)
J. "0 1 9" : Adjust RF power level.
SAMSUNG Proprietary-Contents may change without notice
Test Procedure
6-7
This Document can not be used without Samsung's authorization
- CDMA Test items
TEST ITEMS PROCEDURE
1. PREPARANCE Set test equipments up.
[47*869#1235]: EntertheTestMode
"001" :Suspend
Confirm that the phone is in the "CDMA Mode".
(If not CDMA Mode, Use Test Command "022""2XXXX" and Push
the " " Key to "OK", and enter "0 0 2" to restart)
If you select a wrong key, press " # ", then enter new command.
ToexittheTestModeatanytime,justpress[002].
2. FREQUENCY
ACCURACY
"001" :Suspend.
"0130363*":Setchannel to 363.
"0 1 1" : Carrier On.
"019XXX'END[PushandHold]'":SetAGCCode(XXX)level.
Measure the TX frequency : 835.89MHz±300Hz.
3. OCCUPIED CDMA
BANDWIDTH
"001" :Suspend.
"0130363*":Setchannel to 363.
"0 1 1" : Carrier On.
"0 1 4" : Spread spectrum.
"019XXX'END[PushandHold]'":EnterAGCCode(XXX) to adjust
RF Output Power.
Measure the bandwidth (spec: 1.23MHz).
4. LIMITATIONS ON
EMISSIONS
"001" :Suspend.
"0130363*":Setchannel to 363.
"0 1 1" : Carrier On.
"0 1 4" : Spread spectrum.
"010Select1 *":SetPA_R1toHighGainMode
"0 1 9 X X X ' END[Push and Hold] ' " : Enter AGC Code(XXX) to adjust
RF Output Power.
Measure the spurious at FC±900kHz, FC±1.98MHz, 2FC, 3FC, 1/2FC.
spec: FC±900kHz below 42dBc/30kHz
FC±1.98MHz below 54dBc/30kHz
Outside Receive Band 43+10log (PY)
PY: Mean Output Power in watts
5. GATED POWER &
TIME
Set the service option 2.
Set the data rate Eighth (1200bps).
Registering: HHP →HP8924C.
Call : HP8924C →HHP.
Measure the Gated Power & Time.
spec : Gated Power - at least 20dB
Gated Time - Rising Time : below 6㎲
Falling Time : below 6㎲
Burst Time : below 1.25㎳
SAMSUNG Proprietary-Contents may change without notice
Test Procedure
6-8
This Document can not be used without Samsung's authorization
- PCS Test items
TEST ITEMS PROCEDURE
1. PREPARANCE Set test equipments up.
[47*869#1235]: EntertheTestMode
"001" :Suspend
Confirm that the phone is in the "PCS Mode".
(If not PCS Mode, Use Test Command "022""3XXXX" and Push
the [OK] Key,andenter"002"torestart)
If you select a wrong key, press " # ", then enter new command.
ToexittheTestModeatanytime,justpress[002].
2. FREQUENCY
ACCURACY
"001" :Suspend.
"0130600*":Setchannel to 600.
"0 1 1" : Carrier On.
"019XXX'END[PushandHold]'":SetAGCCode(XXX)level.
Measure the TX frequency : 1880.00MHz±300Hz.
3. OCCUPIED CDMA
BANDWIDTH
"001" :Suspend.
"0130600*":Setchannel to 600.
"0 1 1" : Carrier On.
"0 1 4" : Spread spectrum.
"019XXX'END[PushandHold]'":EnterAGCCode(XXX) to adjust
RF Output Power.
Measure the bandwidth (spec: 1.23MHz).
4. LIMITATIONS ON
EMISSIONS
"001" :Suspend.
"0130600*":Setchannel to 600.
"0 1 1" : Carrier On.
"0 1 4" : Spread spectrum.
"010Select1 *":SetPA_R1toHighGainMode
"019XXX'END[PushandHold]'":EnterAGCCode(XXX) to adjust
RF Output Power.
Measure the spurious at FC±1.25MHz
spec: FC±1.25MHz below 42dBc/30kHz
5. GATED POWER &
TIME
Set the service option 2.
Set the data rate Eighth (1200bps).
Registering: HHP →HP8924C.
Call : HP8924C →HHP.
Measure the Gated Power & Time.
spec : Gated Power - at least 20dB
Gated Time - Rising Time : below 6㎲
Falling Time : below 6㎲
Burst Time : below 1.247㎳
SAMSUNG Proprietary-Contents may change without notice
7. Flow Chart of TroubleShooting
7-1
This Document can not be used without Samsung's authorization
7-1 Logic Section
7-1-1 Power On
Insert Power
power on
properly?
U200
pin41=high?
C216 =
2.7V?
C122
19.2MHz?
END
Check Phone power on section
Check IFC201 and it's
neighboring circuits
Check
C217,C218,C219,C220,C221 and
U200's neighboring circuits
Check TCK301,U101 and it's
neighboring circuits
YES
YES
YES
YES
NO
NO
NO
NO
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
7-2
This Document can not be used without Samsung's authorization

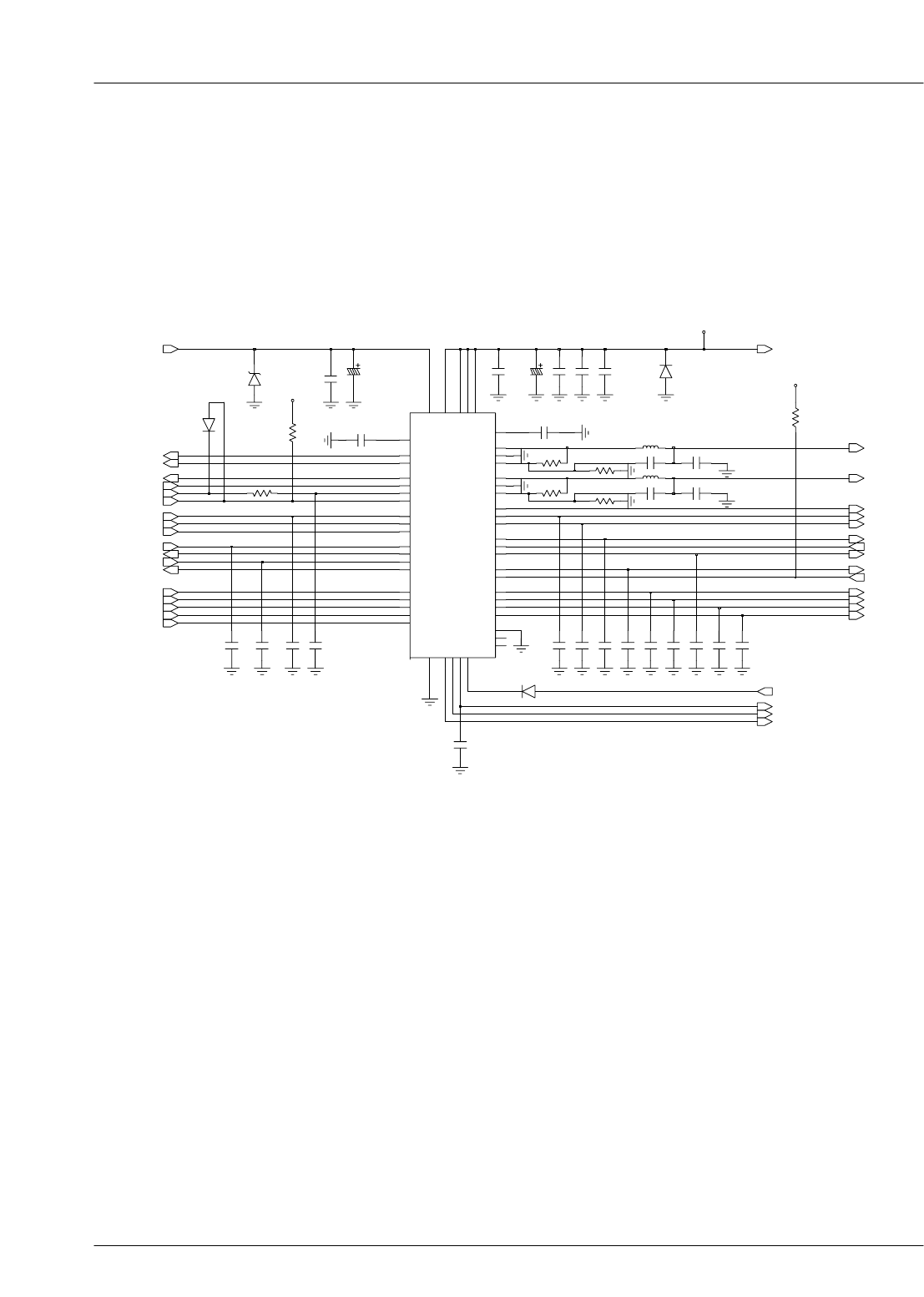

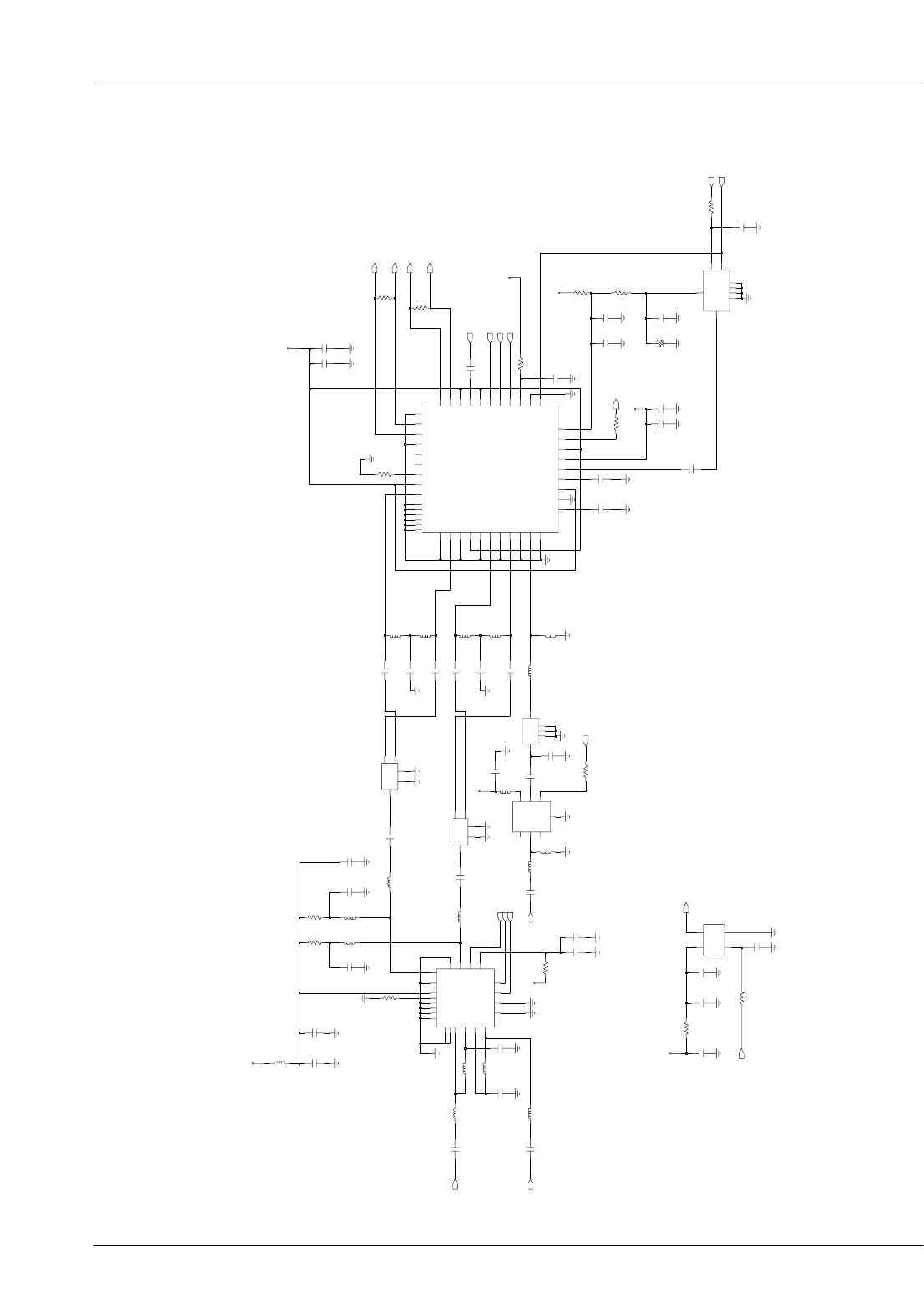

C217 C219
L201
C228
C207
ZD201
C212
C202
C225
C210
C226
D201
C216
R201
TA205
TDZ5.6
ZD200
C215
R205
C208
R202
C220C218 C222
VPD
C209
C224
C201
R203
C206
C203
C200
L200
VPD
_HRESET
42
_OE
16
2_ONO
_RESET 48
17 SUSPEND
39
TCXO_EN
VICHG
37
36 VL
VM
22
21 VP
VTRM
1918
VUSB
_AC_OK
38
6
OUT9
32
PGND1
PGND2 28
41 PWR_HOLD
PWR_ON
46
RCV
20
REFBP 45
43
RX_EN
10
OUT1
OUT2 8
13
OUT3
OUT4 7
OUT5 1
OUT6 47
3
OUT7
OUT8 5
9
IN2
IN3
4
11 INV1
INV2
15
LX1 31
29
LX2
NC 50
51
NC
23
D-
25 DATA
FB1 33
27
FB2
GND
44
49
GND
HP_PWR
26
IN1
30
U200
34
BATT
CHG_IN
35
CLK
40
COMP1
12
14 COMP2
D+
24
TA204
C211
C223
S3.6
C227
R200
D200
C221
R204
R206
V_SYNTH
V_RFTX
VDD2.6
MOTOR_EN
V_BUS
HP_PWR
EAR_REF
EAR_MIC+
USB_OE_N
USB_DATA
USB_VPO
USB_VMO
USB_SUSPEND
EAR_DET
SEND_END
SCL_PM
SDA_PM
HRESET
ON_SW
ON_SW_SENSE
DC_SENS
VICHG
PS_HOLD
V_BAT
VDD_LCD_2.85
DC_VOLT
D+_IN
D-_IN
VPA
V_RFRX
TCXO_CTRL
VPULL
V_MSMCORE
V_MSMC
RESETIN_N
VPD
RX_CTRL
V_TCXO
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
7-3
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
7-4
This Document can not be used without Samsung's authorization
7-1-2 LCD Working
Insert Power
Main LCD Back
-light On?
LCD Display
OK?
Check pulse
of HDC500's
pin18
Check HDC500,
F502, F503
F504,F505 and
it's Short=?
Yes
Yes
NoNo
Yes
No
No
Yes
Check HDC500 and it's
neighboring circuits
Replace HDC500,
F502, F503 F504,F505and
it's neighboring circuits
Change LCD
Change LCD
END
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
7-5
This Document can not be used without Samsung's authorization

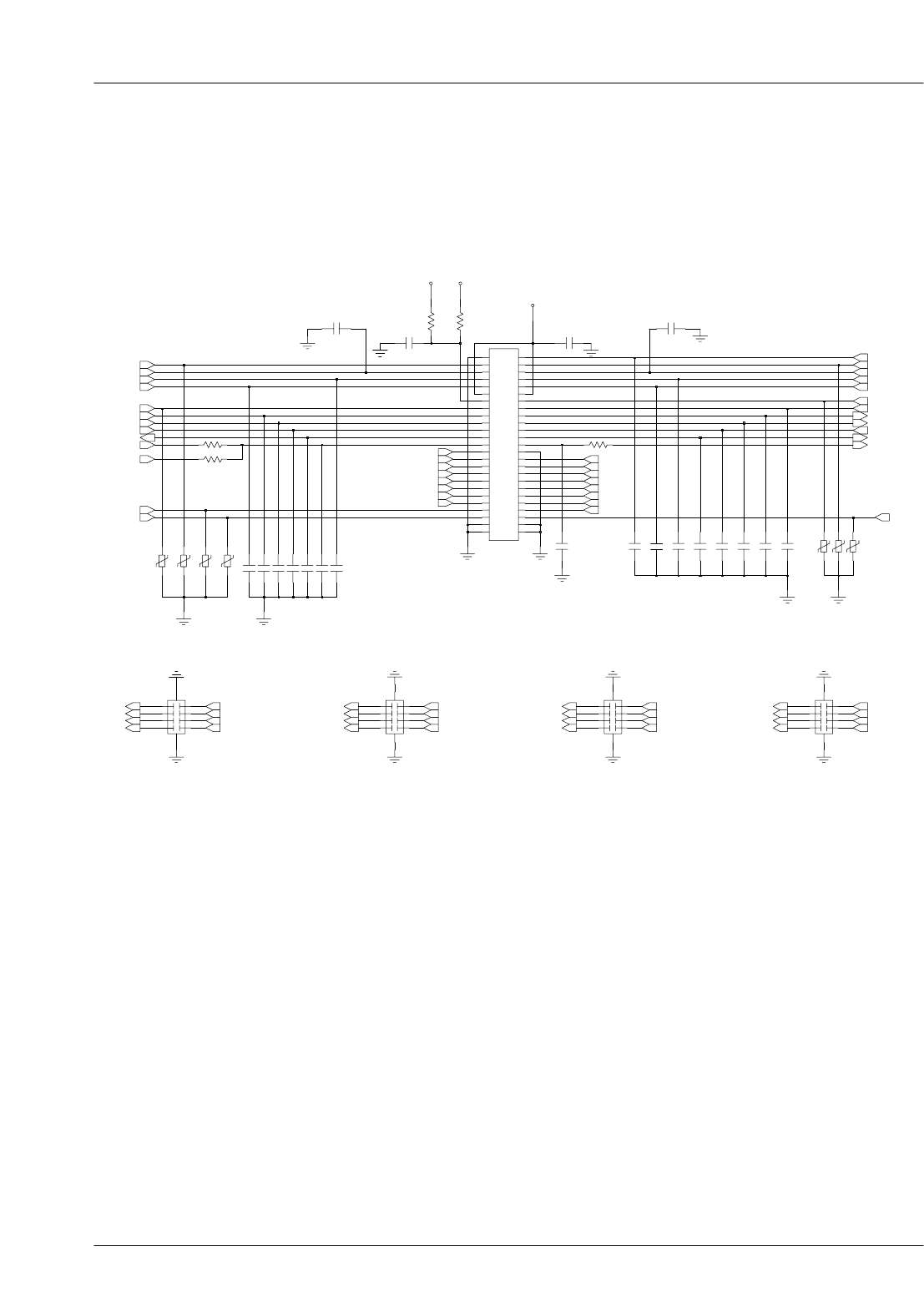

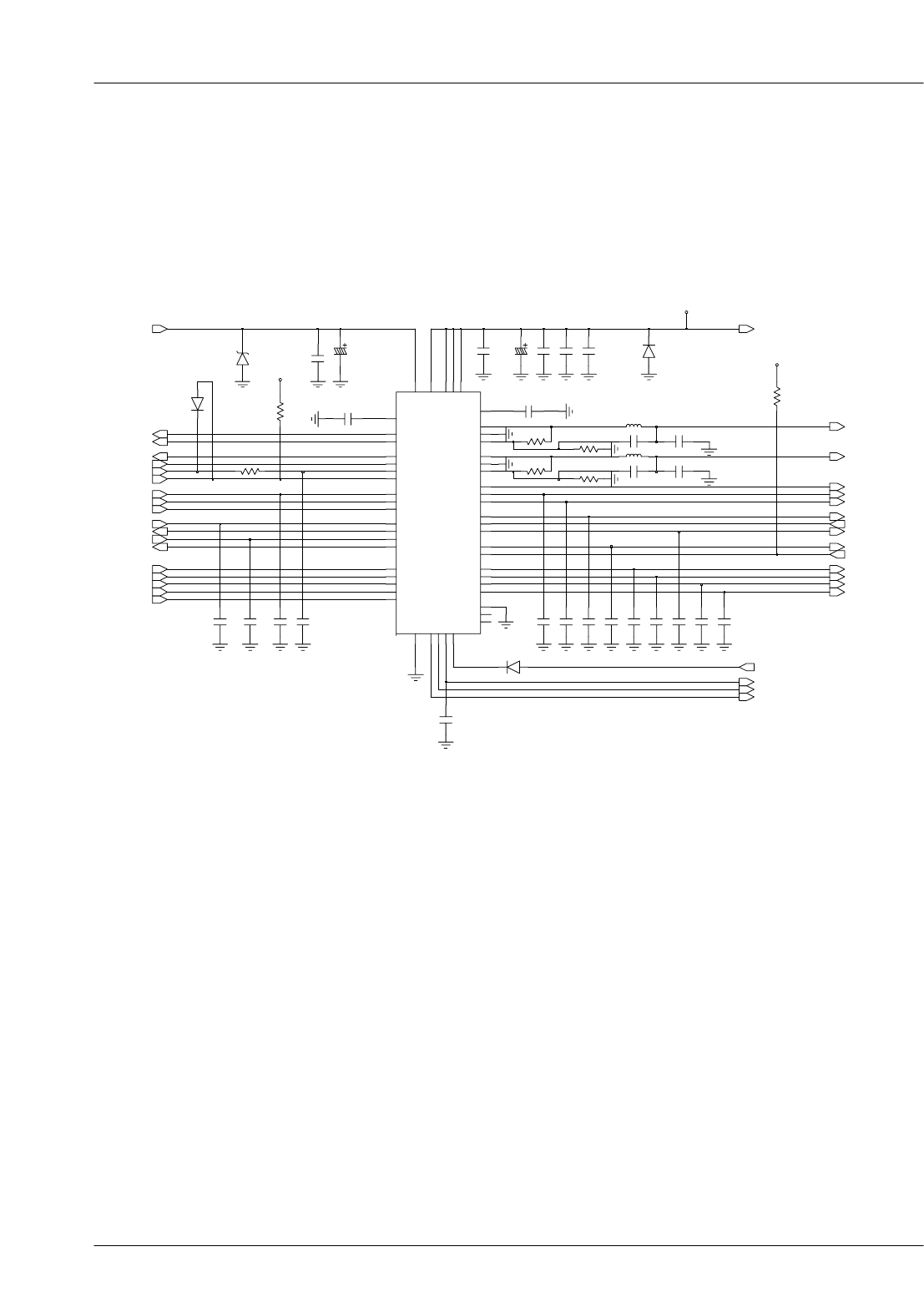

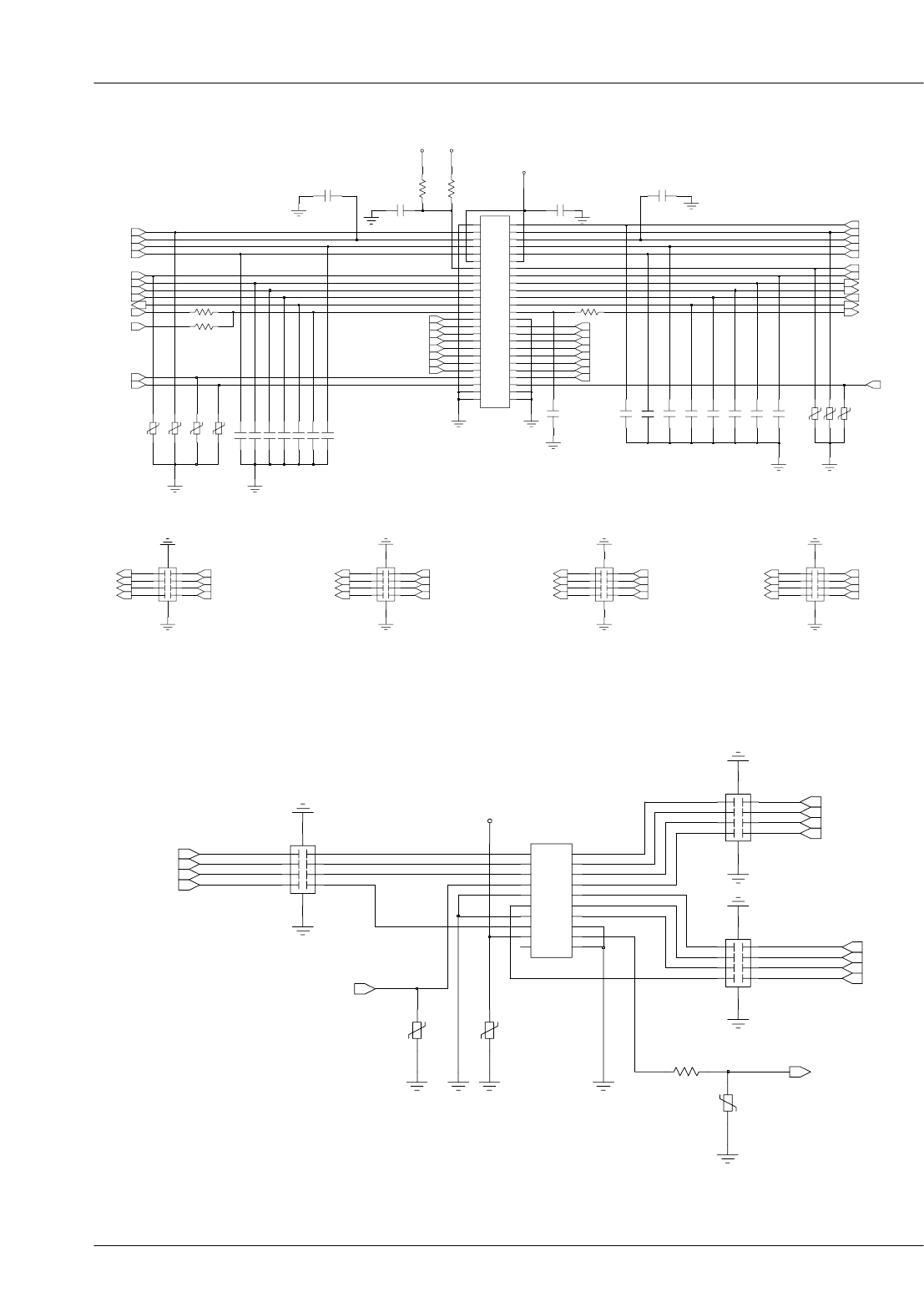

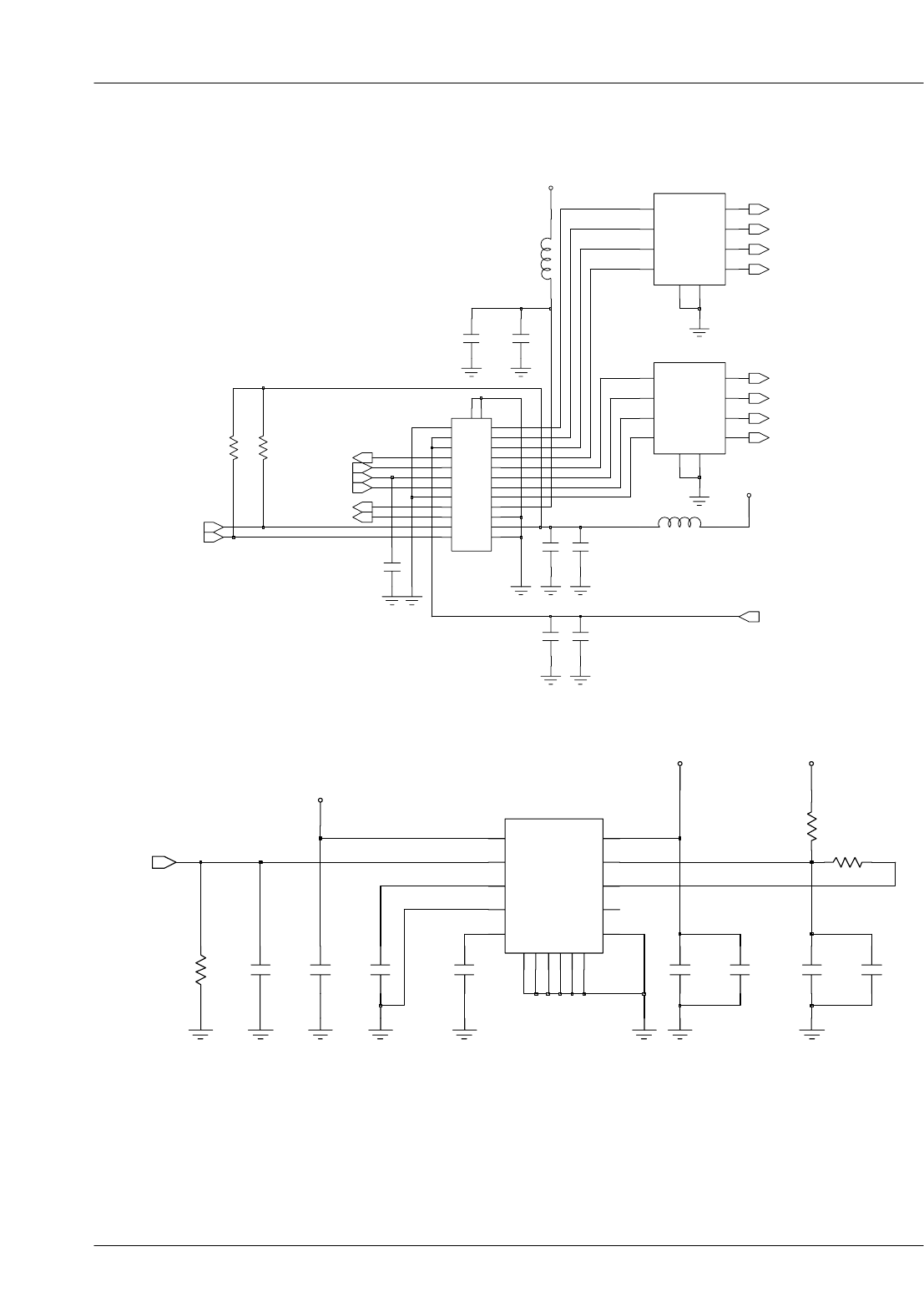

50 PIN LCD CONNECTER
C509
C507
VR500
VR503
R502
C515
6
7
8
9
F504
1
10
2
3
45
5
5
50
50
6
6
778 8
9
9
42 42
43
43 44
44
45
45 46
46
47
47 48
48
49
49
36 36
37
37 38
38
39 39
44
40 40
41 41
28 28
29
29
33
30
30
31 31 32 32
33
33 34
34
35 35
20 20
21
21 22
22
23 23 24 24
25
25 26
26
27 27
13
13 14
14
15 15 16 16
17
17 18
18
19 19
2
2
HDC500
1
1
10
10
11 11 12 12
R501
C500
VR504
C511
S3.6
C526
C513
C510
C501
VR502
VR501
VR505
C506
C514
VR506
C517
C516
C512
7
8
9
F505
1
10
2
3
45
6
C528
C527
C529
1
10
2
3
45
6
7
8
9
F502
R504
R503
C505
10
2
3
45
6
7
8
9
F503
1
C504
VDD_LCD_2.85 VPD
R500
C508
26K_EN
D2(3)
D2(1)
ED2(14)
ED2(12)
ED2(10)
ED2(8)
ED2(6)
ED2(4)
ED2(2)
ED2(0)
D2(12)
D2(14)
D2(8)
D2(10)
D2(4)
D2(6)
D2(2)
D2(0)
ED2(9)
ED2(7)
D2(9)
D2(7) ED2(15)
ED2(13)
ED2(11)
ED2(5)
ED2(3)
ED2(1)
D2(13)
D2(15)
D2(11)
D2(5)
ED2(0) SCAN2
RE2_N
LCD_RESET
KEYSENSE3
SCAN3
KEYSENSE2
HPH_RHPH_L
RCV+
MOTOR_EN
FLASH_EN
M_DIM
WE2_N
LRS
RESOUT_N
ALERT_LED_G
ALERT_LED_R
ED2(14)
ED2(12)
ED2(10)
ED2(8)
ED2(6)
ED2(4)
ED2(2)
SCAN4
RCV-
AUDIO_EN
FLASH_STROBE
LCD_BACKLIGHT
REED_SW
MAIN_LCD_CS
SUB_LCD_CS
ED2(15)
ED2(13)
ED2(11)
ED2(9)
ED2(7)
ED2(5)
ED2(3)
ED2(1)
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
7-6
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
7-7
This Document can not be used without Samsung's authorization
7-1-3 Speaker, Receiver and Mic Checking
Check HDC500
and Receiver
Check mic path from
HDC502 to UCP102
and it's neighboring
circuits.
Check TP25,26,30 and 39(SPK_R,
SPK_L) on LCD signal OK?
Replace receiver
Check KEY FPCB
Insert Power
Receiver is
OK?
MIC is OK?
Check
HDC502 pin8
signal on?
Check HDC500
pin 5, 6
signal OK?
Check HDC500
pin3(HPH_L),
pin4(HPH_R)
signal OK?
NO
NO
END
YES
YES
YES
YES
YES
YES
Speaker is
OK?
YES
NO
NO
NO
Replace Speaker
YES
Check LCD
FPCB
NO
Check HDC500
pin3(HPH_L),
pin4(HPH_R)
signal OK? NO
Check U4 on
LCD and
Speaker
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
7-8
This Document can not be used without Samsung's authorization
50 PIN LCD CONNECTER
C509
C507
VR500
VR503
R502
C515
6
7
8
9
F504
1
10
2
3
45
5
5
50
50
6
6
778 8
9
9
42 42
43
43 44
44
45
45 46
46
47
47 48
48
49
49
36 36
37
37 38
38
39 39
44
40 40
41 41
28 28
29
29
33
30
30
31 31 32 32
33
33 34
34
35 35
20 20
21
21 22
22
23 23 24 24
25
25 26
26
27 27
13
13 14
14
15 15 16 16
17
17 18
18
19 19
2
2
HDC500
1
1
10
10
11 11 12 12
R501
C500
VR504
C511
S3.6
C526
C513
C510
C501
VR502
VR501
VR505
C506
C514
VR506
C517
C516
C512
7
8
9
F505
1
10
2
3
45
6
C528
C527
C529
1
10
2
3
45
6
7
8
9
F502
R504
R503
C505
10
2
3
45
6
7
8
9
F503
1
C504
VDD_LCD_2.85 VPD
R500
C508
26K_EN
D2(3)
D2(1)
ED2(14)
ED2(12)
ED2(10)
ED2(8)
ED2(6)
ED2(4)
ED2(2)
ED2(0)
D2(12)
D2(14)
D2(8)
D2(10)
D2(4)
D2(6)
D2(2)
D2(0)
ED2(9)
ED2(7)
D2(9)
D2(7) ED2(15)
ED2(13)
ED2(11)
ED2(5)
ED2(3)
ED2(1)
D2(13)
D2(15)
D2(11)
D2(5)
ED2(0) SCAN2
RE2_N
LCD_RESET
KEYSENSE3
SCAN3
KEYSENSE2
HPH_RHPH_L
RCV+
MOTOR_EN
FLASH_EN
M_DIM
WE2_N
LRS
RESOUT_N
ALERT_LED_G
ALERT_LED_R
ED2(14)
ED2(12)
ED2(10)
ED2(8)
ED2(6)
ED2(4)
ED2(2)
SCAN4
RCV-
AUDIO_EN
FLASH_STROBE
LCD_BACKLIGHT
REED_SW
MAIN_LCD_CS
SUB_LCD_CS
ED2(15)
ED2(13)
ED2(11)
ED2(9)
ED2(7)
ED2(5)
ED2(3)
ED2(1)
20PIN KEYPAD CONNECTER
VR509
VR508VR507
7
88
9
9
18
18 19 19
2
2
20 20
33
44
5
5
6
6
7
10
10 11 11
12 12
13
13
14 14
15 15
16 16
17
17
HDC502
1
1
F506
1
10
2
3
45
6
7
8
9
2
3
45
6
7
89
F508
1
10
1
10
2
3
45
6
7
8
9
F507
R510
S3.6
SCAN3
SCAN4
SCAN1
SCAN0
EL_EN
KEYSENSE0
KEYSENSE1
KEYSENSE2
KEYSENSE3
SCAN5
SCAN6
SCAN2
ON_SW
MIC+
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
7-9
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
7-10
This Document can not be used without Samsung's authorization
7-2. RX
7-2-1 CDMA/PCS mode
START
CDMA/PCS mode
SVC &
ROAM OK?
Check CDMA/PCS
Rx Path
Call OK? DVGA value
Check OK?
Tx Path
Check OK?
Adjust DVGA by
program
S1M8690X(U402)
Check Adjust TX by
program
FER OK? Check RFR6000(U301),
MSM6500(UCP102)
End
NO
NO
NO
NO
NO
YES
YES
YES
YES
YES
1. visual check! (soldering)
2. S/W Mode Check : CDMA Mode Check
3. VCTCXO(TCK301) Check : 19.2MHz
4. VCO(OSC301) voltage/frequence level check
Frequence : 1715MHz < f < 1788MHz
Supply Voltage: 2.75 ± 0.1V
Control Voltage: 0.4 ~ 2.3V
5. U300 LNA gain check
6. PAM400, PAM403 Check
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
7-11
This Document can not be used without Samsung's authorization
7-2-2 GPS Mode
START GPS
GPS RF
Path Check
OK?
U401 Logic Check
pin1 pin6 pin9
GPS H L L
U404 Check
GPS_NV_ITEM
Check OK?
Adjust by program
End
YES
NO
YES
NO
1. visual check! (soldering)
2. S/W Test Mode Check : GPS Mode
3. VCTCXO(TCK301) Check : 19.2MHz
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
7-12
This Document can not be used without Samsung's authorization
(2.6V)
0 : GPS_ENABLE
1 : GPS_DISABLE
C316
5
IN
1
3
OUT
OUT 4
F300
856302
2
GG
L314
C327
R307
C313
C300
C338
4VDDA11
17
VDDA12
VDDA13
18
29
VDDA14
14
VDDA21
VDDA22
39
VDDA3 27
VDDA4
20
VDDM 23
8
PCS_INP
6
RX_IM 30
31
RX_IP
RX_QM
33
RX_QP
34
R_BIAS
38
SBCK 25
SBDT 26
SBST 24
28
TCXO
32
10 GPS_INM
GPS_INP
12
21
GVCO_TUNE
LO_INM
15 16
LO_INP
19
LO_OUT
NC1
3637
NC2
NC3
4546
NC4
PCS_INM
GND12
42
GND13
4344
GND14
3GND2
GND3
5
7GND4
9GND5
GND6
11
13
GND7
GND8 22
GND9
U301
CELL_INM
40
2CELL_INP
1GND1
GND10
35
GND11
41
L308
R309
C329
L311
C314
V_TCXO
R303
R302
C334
C326
C332
C302
C309
C310
R311
R300
L301
R308
G
8
OUT
1
7
VCC
C328
VCO300
5
CONTROL
ENABLE 3
2
GG
4
G
6
R304
L315
R313
5
IN
1
3
OUT
OUT 4
L307
F301
2
GG
L310
C311
4
11
PLNA_OUT
16
R_BIAS
7
SBCK
10
SBDT
SBST
8
VDDA
15
VDDM 9
14
GND
GND
1718
GND
19
GND
GND
20
21 NC
NC22
3PLNA_BIAS
PLNA_IN
RFL6000
U300
2CLNA_BIAS
CLNA_IN
1
13
CLNA_OUT
6
FM_STEP
GND
5
GND 12
V_RFRX
C325
G
2
G
35
G
4IN 1
OUT
C331
B9000
U404
VPD
C308
C337
V_TCXO
C317
C322
L306
C525
C320
R314
C321
R306
TA330
4
VSD
L313
GND
7
1NC
NC
3
2RFIN 5
RFOUT
6
VDD
U302
R310
R305
R301
C304
C307
C305
L302
C318
C312
C324
C301
L317
L300
L304
C339
C306
C319
C303
L303
L316
L305
C333
V_RFRX
TCK301
2
GND
3
OUTVCC
4
1
VCON
C336
VPD
R312
C323
C335
L309
V_RFRX
V_TCXO
C315
TCXO
TRK_LO_ADJ
EXT_VCO_EN
GPS_MODE
CP_RX
L312
RX_Q_N
RX_Q_P
RX_I_P
RX_I_N
UHF_LO_BUFF
GPS_RX
SBI_ST
SBI_CK
SBI_DT
CELL_RX
PCS_RX
SBI_CK
SBI_ST
SBI_DT
TCXO
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
7-13
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
7-14
This Document can not be used without Samsung's authorization
7-3 Tx
7-3-1 CDMA/PCS mode
Check
S1M8690X(U402)
pin30(R403)
OK?
Check
S1M8690X(U402)
P_OUTB(L408)
C_OUT(C432)
RF OUT Level
OK?
YES
NO
Check
PLL
OK?
Check
PCS:PA(PAM400)
CDMA:PA
(PAM403)
Output Level
CDMA/PCS Abnormal
Transmitter section
NO
NO
NO
NO
End
YES
NO
YES
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
7-15
This Document can not be used without Samsung's authorization
C429
C434
L502
V_SYNTH
C413
C419
C421
C411
R400
2
2
33
C420
ANT401
11
V_RFTX
C428
C409
V_RFTX
L503
L408
C401
C424
C444
C417
C436
RFOUT
1
VCC1 VCC2
10
4
VCONT
VREF
5
C408
3
GND 9
GND
7
GND
GND 6
11
GND
RFIN
2
8
WS1413
R406
L403
R407
C402
C438
C423
C439
C433
C418
C431
C426
24
GND2
IN
1OUT 3
C442
C435
F401
GND1 C406
V_RFTX
C430
L405
C410
2
GND1 GND2
4
1IN 3
OUT
1
G4
F403
RFS400
2
A
C3
G
100nF
C440
C425
C403
5
GND
9
GND
RFIN
2RFOUT 7
1VCC1 8
VCC2
3VCONT
VREF
4
PAM403
GND 6
L406
C422
R408
R401
C404
R403
R405
L400
3
ANT
GND
4
RX 2
TX
1
C400
DUF400
2
5
6
3
1
4
L407
TR400
C412
R402
C432
V1 9
6
V2
1V3
7
NC
NC
10
NC
1214
NC
NC
15
8
RF1
5
RF2
2RF3
U401
11
ANT
GND
13
NC
3
4
NC
R404
TR401
2
5
6
3
1
4
V_SYNTH
VDDA32
39
VDDA39
40
VDDA40
7VDDA7
1VDDM
C437
14
VDDA14
16
VDDA16
17
VDDA17
22
VDDA22
24
VDDA24
26
VDDA26
28
VDDA28
31
VDDA31
32
3SBCK
4SBDT
5SBST
8TCXO
10 TX_CP
30
VCNTL
12
VDDA12
13
VDDA13
NC
20
NC
21
NC
2PA_ON
25
P_OUTA
27
P_OUTB
19
RX_CP
15
RX_LO
IREF
36
I_IN
35
I_IP
34
I_QN
33
I_QP
6LOCK
9NC
11 NC
18
U402
38
BIAS
23
C_OUT
41
GND
42
GND
43
GND
29
GND
37
C441
L404
G9
12
5
RX
11 TX
C443
1
G1
G2
23
G3
G4
46
G5
G6
79
G7
10
G8
DUF402
ANT
8
C445
C407
VPD
PA_ON_PCS
PCS_RX
GPS_RX
GPS_MODE
ANT
PCS_MODE
CDMA_MODE
DAC_REF
TX_I_N
TX_I_P
TX_Q_N
TX_Q_P
CP_RX
UHF_LO_BUFF
PA_R1
PA_ON_CELL
V_BAT
CELL_RX
SYNTH_LOCK
AUX_SBI_CK
AUX_SBI_DT
AUX_SBI_ST
TX_ON
TCXO
TX_AGC_ADJ
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
7-16
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
7-17
This Document can not be used without Samsung's authorization
7-4 Camera checking
Try again
Insert Power
YES
Check HDC501,
V_CAM_1.5(L500),
V_CAM_2.8IO(L501)
and
VDD2.6(C521,C522)
OK?
Camera
Preview is
OK?
Check U200 and
U206
NO
NO
YES
YES
YES
END
NO
Camera
Flash is OK?
Replace Camera module
YES
NO
Replace Flash FPCB
Replace LCD
FPCB
Check TP21,22
on LCD
OK?
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
7-18
This Document can not be used without Samsung's authorization
C255
C254
8
5SET
SW
4
1VIN VOUT1 10
9
VOUT2
2
GND 6
11
GND
GND
1213
GND
GND
1415
GND
GND
16
POR
U206
3BYP
7
DRV
EN
C248
S3.6
C247
V_CAM_2.8IOV_CAM_1.5
C258 C259C257C256R234
C249
CAM_EN
C250
L500
C522
V_CAM_1.5
1
IN
2
3IN
4IN
OUT 5
6
OUT
7
OUT
OUT 8
F500
9
GG
10
IN
C518
V_CAM_2.8IO
R509 R508
C503
NC
2526
NC 23 2324 24
334 4
5
56
6778 8
9
9
17
1718
18 19 19
2
2
20 20
21
2122
22
1
1
10 10
11 1112 12
13
1314
14 15 1516 16
HDC501
C521
C519
C520
5
6
OUT
7
OUT
OUT 8
9
GG
10
IN
1
IN
2
3IN
4IN
OUT
F501
C502
L501
VDD2.6
STBY
Y(6)
Y(5)
Y(4)
Y(3)
Y(2)
Y(1)
Y(0)
SENSOR_RESET
SDA_CAM
SCL_CAM
PCLK
HREF
VSYNC
Y(7)
TCXO_CLK
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
7-19
This Document can not be used without Samsung's authorization
76.8K
C217 C219
L201
C228
C207
ZD201
C212
C202
C225
C210
C226
D201
C216
R201
TA205
ZD200
C215
R205
C208
R202
C220C218 C222
VPD
C209
C224
C201
R203
C206
C203
C200
L200
VPD
_HRESET
42
_OE
16
2_ONO
_RESET 48
17 SUSPEND
39
TCXO_EN
VICHG
37
36 VL
VM
22
21 VP
VTRM
1918
VUSB
_AC_OK
38
6
OUT9
32
PGND1
PGND2 28
41 PWR_HOLD
PWR_ON
46
RCV
20
REFBP 45
43
RX_EN
10
OUT1
OUT2 8
13
OUT3
OUT4 7
OUT5 1
OUT6 47
3
OUT7
OUT8 5
9
IN2
IN3
4
11 INV1
INV2
15
LX1 31
29
LX2
NC 50
51
NC
23
D-
25 DATA
FB1 33
27
FB2
GND
44
49
GND
HP_PWR
26
IN1
30
U200
34
BATT
CHG_IN
35
CLK
40
COMP1
12
14 COMP2
D+
24
TA204
C211
C223
S3.6
C227
R200
D200
SDS511Q
C221
R204
R206
V_SYNTH
V_RFTX
VDD2.6
MOTOR_EN
V_BUS
HP_PWR
EAR_REF
EAR_MIC+
USB_OE_N
USB_DATA
USB_VPO
USB_VMO
USB_SUSPEND
EAR_DET
SEND_END
SCL_PM
SDA_PM
HRESET
ON_SW
ON_SW_SENSE
DC_SENS
VICHG
PS_HOLD
V_BAT
VDD_LCD_2.85
DC_VOLT
D+_IN
D-_IN
VPA
V_RFRX
TCXO_CTRL
VPULL
V_MSMCORE
V_MSMC
RESETIN_N
VPD
RX_CTRL
V_TCXO
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
7-20
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
7-21
This Document can not be used without Samsung's authorization
7-5 Bluetooth checking
Sleep Xtal
(R135) OK?
Check PMIC
U200
Replace Sleep Xtal OSC101
Replace U104
Insert Power
Enter Test Mode
(4,7,＊8,6,9,#,1,2,3,5)
BT RF On (001→027)
Check
2.6DV_BT(R116)
OK?
BT module
(pin 28) OK?
END
YES
YES
YES
YES
NO
NO
NO
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
7-22
This Document can not be used without Samsung's authorization
C137
C156
R117
R129
C154
R136
L101
C168
C155
C165
C138
R149
2.6DV_BT
R515
C162
R135
C164
4USB_DP
5UART_RXD
6REQ_CTRL
7EEPROM_CLK|COEX_3
8VDD_IO
9GND
USB_DN
30 UART_CTS_N
31 PCM_OUT
32 UART_RTS_N
33 PCM_IN
34 UART_TXD
35 VDD_COR E
36 GND
GND
37
RESET_N
23
TX_PU_TDD_N
24
GND
25
PCM_SYNC
26
GND
27
GND
28 ANT
29 GND
3
BT_WAKE
16
TM0_HIGH
17
GND
18
GND
19
TM1|2_HIGH
2VDD_USB
20
TM3_LOW
21
VDD_RF
22
1PCM_BCLK
10
XTAL_PD|COEX_1
11
USB_DETACH|GPIO_7
12
LPO_IN
13
EEPROM_DATA|GPIO_6
14
HOST_WAKE
15
U104
C167
C158
C163
BT_TXD
C161
VPD 1.8DV_BT
C160
132
ANT100
2.6DV_BT
R116
C136
1.8DV_BT
C159
V_MSMC
C524
R106
C139
BT_CLK_EN
BT_CTS
AUX_PCM_DOUT_BT
BT_RXD
BT_RTS
AUX_PCM_SYNC_BT
BT_RESET
AUX_PCM_CLK_BT
BT_TXD
AUX_PCM_DIN_BT HOST_WAKE
BT_WAKE
SLEEP_XTAL_OUT
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
7-23
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
7-24
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
8. Exploded Views and Parts List
8-1
This Document can not be used without Samsung's authorization
8-1. Exploded Views
QWD02
QV001
QFU01
QVO02
QVK01
QLC01
QCK01
QME04 QME03
QSP02
QCA01
QFL01
QSC12
QMW01
QKP01
QCA02
QME01
QHI01
QCR03
QHI03
QFR01
QSH01
QMP01
QME08
QRE01
QAN02
QCR06
QPC01
QBA01
QBA00
QCB03
QIF01
QRF03
QSC13
QSC14
QCR12
QCR03
QCR03
QSC13
QSP01
QAU01
QMO01
QMI03
QRE03
QRF01
SAMSUNG Proprietary-Contents may change without notice
Exploded views and Parts List
8-2
This Document can not be used without Samsung's authorization
8-2. Parts List
QAN02 　INTENNA-SPHA900 GH42-00716A
QBA00 　ASSY MEC-COVER BATTERY V2 GH75-09081A
QBA01 　INNER BATTERY PACK-800MAH,BLK, GH43-02101A
QCA01 　UNIT-CAMERA GH59-02668A
QCA02 　UNIT-CAMERA KEY GH59-02173A
QCB03 　ASSY MEC-CABLE COVER GH75-07382B
QCK01 　PMO-CAMERA KEY GH72-22531B
QCR03 　SCREW-MACHINE 6001-001811
QCR03 　SCREW-MACHINE 6001-001811
QCR06 　SCREW-MACHINE 6001-001155
QCR12 　SCREW-MACHINE 6001-001530
QCW02 　ASSY MEC-FLASH WINDOW GH75-07219A
QFL01 　NDC-CASE LOWER FOLDER GH71-05928A
QFL01 　MEA-LOWER(SVC) GH97-05855A
QFR01 　NDC-FRONT COVER GH71-05692A
QFR01 　MEA-FRONT(SVC) GH97-05858A
QFU01 　NDC-CASE UPPER FOLDER GH71-05927A
QFU01 　MEA-UPPER(SVC) GH97-05854A
QHI01 　ASSY MEC-HINGE GH75-07205A
QHI03 　NDC-HINGE DUMMY GH71-05105A
QKP01 　ASSY MEC-KEYPAD(XAR/ZKS) GH75-08316A
QME01 　UNIT-EL KEYPAD GH59-02664A
QME03 　UNIT-CON TO CON ASSY GH59-02175A
QME04 　UNIT-FLASH FPCB GH59-02176A
QME08 　UNIT-BT ANT DUMMY FPCB GH59-02681A
QMI03 　RMO-RUBBER MIC GH73-04934A
QMP01 　PBA MAIN-SPHA900 PLUS GH92-02721A
QMW01 　ASSY-COVER-MAIN WINDOW(PLUS) GH98-01078A
QPC01 　CBF COAXIAL CABLE GH39-00440A
QRE03 　ASSY MEC-COVER REAR INT V2 GH75-09082A
QRF01 　MPR-TAPE RF SWITCH GH74-18895A
QSC12 　ASSY MEC-FOLDER SCREW COVER GH75-07381A
QSC13 　RMO-REAR SCREW CAP1 GH73-04824B
QSC13 　RMO-REAR SCREW CAP1 GH73-04824B
QSC14 　PMO-FOLDER SCREW CAP GH72-23132B
QSH01 　ASSY MEC-SHIELD COVER GH75-07882A
QSP02 　UNIT-SPK MOT FPCB GH59-02202A
QVK01 　UNIT-VOLUME KEY GH59-02172A
QVO01 　PMO-VOLUME KEY GH72-22530B
QVO02 　ASSY MEC-VOD KEY GH75-07220B
QWD02 　PCT-SUB WINDOW GH72-25511A
QRE01 　ASSY MEC-REAR TOP COVER GH75-07880A
　QRF03 PMO-EAR COVER GH72-25508A
　QIF01 PMO-IF COVER GH72-25509A
QSP01 　SPEAKER 3001-001784
　QAU01 AUDIO-RECEIVER 3009-001127
　QMO01 MOTOR DC-SGHZ130 GH31-00154C
QLC01 　LCD-LCD MODULE GH07-00806A
　QLC02 AS-LCD SUB GH81-01816A
SAMSUNG Proprietary-Contents may change without notice
Exploded views and Parts List
8-3
This Document can not be used without Samsung's authorization
BAG PE 6902-000297
BAG PE 6902-000378
BAG PE 6902-000461
CBF SIGNAL-SPHA940 DANPLA GH39-00466A
ADAPTOR-SGHD500 BLK GH44-00955A
UNIT-EARPHONE GH59-02482A
LABEL(P)-GUIDE(SPRINT) GH68-02023A
LABEL(P)-WATER SOAK GH68-02026A
MANUAL USERS-NOA ENGLISH GH68-09872A
MANUAL USERS-NOA ENGLISH GH68-11503A
BOX-UNIT(PLUS) GH69-03154C
CUSHION-CASE(NEW) GH69-03396A
ICT-MAGNETIC GH70-00571A
ICT-RECEIVER GRILL GH70-00574A
ICT-LCD GUIDE GH70-00954A
NPR-HINGE CONTACT GH71-05182A
RMO-SPK BLOCK R GH73-05123A
RMO-SPK BLOCK L GH73-05124A
RMO-SPONGE SPEAKER GH73-05125A
RMO-RUBBER FRONT GH73-05907A
MPR-VOL KEY BOHO VINYL GH74-07312A
MPR-TAPE SUB PBA BACK GH74-12934A
MPR-TAPE MAGNETIC GH74-15173A
MPR-TAPE FRONT SUPPORT B GH74-15175A
MPR-TAPE FRONT SUPPORT C GH74-15176A
MPR-NON WOVEN MIC GH74-15177A
MPR-SPONGE LCD CONN SUPP GH74-15234A
MPR-TAPE MAIN WINDOW GH74-15239A
MPR-TAPE RECEIVER GRILL GH74-15240A
MPR-TAPE SUB WINDOW GH74-15243A
MPR-TAPE SPK GRILL GH74-15244A
MPR-SPONGE SUB WINDOW GH74-15246A
MPR-BOHO VINYL LCD CONN GH74-15350A
MPR-TAPE HINGE DUST GH74-15575A
MPR-SHEET FRONT COVER GH74-15576B
MPR-TAPE FOLDER KEY GH74-15646A
MPR-TAPE HINGE DUMMY GH74-15647A
MPR-TAPE CONNECTOR SOUND GH74-15648A
MPR-TAPE LCD LEFT GH74-15650A
MPR-TAPE LCD RIGHT GH74-15651A
MPR-TAPE CONN BASE 1 GH74-15652A
MPR-TAPE CONNECTOR UPPER GH74-15654A
MPR-BOHO VINYL SUB WIN GH74-15655A
MPR-TAPE MAGNETIC UPPER GH74-15659A
MPR-TAPE FRONT ANTI SHOR GH74-15660A
MPR-BOHO VINYL SUB WIN GH74-16263A
MPR-TAPE MAIN PCB SIDE GH74-16372A
MPR-SPONGE HINGE DUMMY GH74-16467A
MPR-TAPE J TAG GH74-16475A
MPR-NON WOVEN RECEIVER GH74-16549A
MPR-GASKET CAMERA HINGE GH74-16636A
MPR-BOHO VINYL F-PCB FIX GH74-17063A
SAMSUNG Proprietary-Contents may change without notice
Exploded views and Parts List
8-4
This Document can not be used without Samsung's authorization
MPR-TAPE IF HOLDER GH74-17165A
MPR-TAPE APS GH74-17967A
MPR-GASKET IF JACK GH74-18874A
MPR-TAPE KEYPAD GH74-19159A
MPR-BOHO VINYL VIEW GH74-19308A
MPR-TAPE LCD CON GH74-19321A
MPR-TAPE BATT INSULATION GH74-19386A
MPR-GASKET SUB LCD GH74-19762A
MPR-GASKET FOLDER UPPER GH74-19763A
MPR-TAPE SUB LCD GH74-19764A
MPR-TAPE SUPPORT MIC GH74-20107A
MPR-TAPE FPCB INSUL GH74-21393A
MPR-TAPE 1 (FPCB) GH74-23612A
MPR-TAPE 2 (FPCB) GH74-23613A
MPR-TAPE 3 (FPCB) GH74-23614A
MPR-TAPE BOSS GH74-24257A
MPR-SPONGE VOLUME KEY GH74-26019A
AS-MAIN LCD GH81-02629A
AS-MOD KEY DOME SHEET GH81-03951A
MEA FRONT-COVERUNIT_EL KEYPA GH97-05502A
MEA-UPPER(SVC R) GH97-05854B
MEA-LOWER(SVC R) GH97-05855B
MEA-FRONT(SVC R) GH97-05858B
SAMSUNG Proprietary-Contents may change without notice
Exploded views and Parts List
8-5
This Document can not be used without Samsung's authorization
8-3 DM Cable(GH39-00129A) 8-4 Test JIG
8-5 RF Cable(GH39-00397A) 8-6 Test Jig Cable(GH39-00399A)
SAMSUNG Proprietary-Contents may change without notice
9. Block Diagrams
9-1
This Document can not be used without Samsung's authorization
GPS LNA
SIM8690X
BLUETOOT
HMODULE
MSM6500
ANT
CDMA PA
CDMA
SAMSUNG Proprietary-Contents may change without notice
10. Electrical Parts List
10-1
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE STATUS
ANT401 CONNECTOR-COAXIAL 3705-001225 SA
BTC200 CONNECTOR-BATTERY 3711-006003 SA
C100 C-CER,CHIP 2203-005393 SA
C101 C-CER,CHIP 2203-005393 SA
C102 C-CER,CHIP 2203-006423 SA
C103 C-CER,CHIP 2203-006093 SA
C104 C-CER,CHIP 2203-005682 SA
C105 C-CER,CHIP 2203-005682 SA
C106 C-CER,CHIP 2203-006423 SA
C107 C-CER,CHIP 2203-006194 SA
C108 C-CER,CHIP 2203-006423 SA
C109 C-CER,CHIP 2203-006194 SA
C110 C-CER,CHIP 2203-006423 SA
C111 C-CER,CHIP 2203-006423 SA
C112 C-CER,CHIP 2203-006194 SA
C113 C-CER,CHIP 2203-006423 SA
C114 C-CER,CHIP 2203-006194 SA
C115 C-CER,CHIP 2203-006423 SA
C117 C-CER,CHIP 2203-001072 SA
C118 C-CER,CHIP 2203-006194 SA
C119 C-CER,CHIP 2203-006423 SA
C120 C-CER,CHIP 2203-006194 SA
C121 C-CER,CHIP 2203-006423 SA
C122 C-CER,CHIP 2203-000438 SA
C123 C-CER,CHIP 2203-006194 SA
C124 C-CER,CHIP 2203-001437 SA
C125 C-CER,CHIP 2203-005736 SA
C126 C-CER,CHIP 2203-006194 SA
C127 C-CER,CHIP 2203-006194 SA
C128 C-CER,CHIP 2203-006194 SA
C129 C-CER,CHIP 2203-006194 SA
C130 C-CER,CHIP 2203-006423 SA
C131 C-CER,CHIP 2203-000254 SA
C132 C-CER,CHIP 2203-005717 SA
C133 C-CER,CHIP 2203-005717 SA
C134 C-CER,CHIP 2203-006093 SA
C135 C-CER,CHIP 2203-005061 SA
C136 C-CER,CHIP 2203-005682 SA
C137 C-CER,CHIP 2203-005682 SA
C138 C-CER,CHIP 2203-006208 SA
C139 C-CER,CHIP 2203-006201 SA
C140 C-CER,CHIP 2203-001405 SA
C141 C-CER,CHIP 2203-001405 SA
C143 C-CER,CHIP 2203-001405 SA
C144 C-CER,CHIP 2203-001405 SA
C145 C-CER,CHIP 2203-006423 SA
C146 C-CER,CHIP 2203-006423 SA
C147 C-CER,CHIP 2203-006091 SA
C148 C-CER,CHIP 2203-006091 SA
C149 C-CER,CHIP 2203-006423 SA
C150 C-CER,CHIP 2203-006423 SA
C151 C-CER,CHIP 2203-006423 SA
C152 C-CER,CHIP 2203-006423 SA
C153 C-CER,CHIP 2203-006423 SA
C154 C-CER,CHIP 2203-006093 SA
C155 C-CER,CHIP 2203-006208 SA
C156 C-CER,CHIP 2203-006201 SA
SAMSUNG Proprietary-Contents may change without notice
Electrical Parts List
This Document can not be used without Samsung's authorization
10-2
Design LOC Description SEC CODE STATUS
C157 C-CER,CHIP 2203-006423 SA
C158 C-CER,CHIP 2203-005682 SA
C159 C-CER,CHIP 2203-005682 SA
C160 C-CER,CHIP 2203-005682 SA
C161 C-CER,CHIP 2203-005682 SA
C162 C-CER,CHIP 2203-005682 SA
C163 C-CER,CHIP 2203-005682 SA
C164 C-CER,CHIP 2203-005682 SA
C165 C-CER,CHIP 2203-005682 SA
C166 C-CER,CHIP 2203-006423 SA
C167 C-CER,CHIP 2203-005682 SA
C168 C-CER,CHIP 2203-005682 SA
C169 C-CER,CHIP 2203-005736 SA
C170 C-CER,CHIP 2203-006194 SA
C171 C-CER,CHIP 2203-006194 SA
C172 C-CER,CHIP 2203-006438 SA
C173 C-CER,CHIP 2203-006194 SA
C174 C-CER,CHIP 2203-006348 SA
C175 C-CER,CHIP 2203-005682 SA
C200 C-CER,CHIP 2203-005664 SA
C201 C-CER,CHIP 2203-006201 SA
C202 C-CER,CHIP 2203-006201 SA
C203 C-CER,CHIP 2203-006201 SA
C206 C-CER,CHIP 2203-005061 SA
C207 C-CER,CHIP 2203-000254 SA
C208 C-CER,CHIP 2203-001652 SA
C209 C-CER,CHIP 2203-006120 SA
C210 C-CER,CHIP 2203-006201 SA
C211 C-CER,CHIP 2203-006120 SA
C212 C-CER,CHIP 2203-006201 SA
C213 C-CER,CHIP 2203-006194 SA
C214 C-CER,CHIP 2203-006423 SA
C215 C-CER,CHIP 2203-006423 SA
C216 C-CER,CHIP 2203-005664 SA
C217 C-CER,CHIP 2203-005664 SA
C218 C-CER,CHIP 2203-006201 SA
C219 C-CER,CHIP 2203-006053 SA
C220 C-CER,CHIP 2203-006053 SA
C221 C-CER,CHIP 2203-006201 SA
C222 C-CER,CHIP 2203-006201 SA
C223 C-CER,CHIP 2203-006201 SA
C224 C-CER,CHIP 2203-006201 SA
C225 C-CER,CHIP 2203-006423 SA
C226 C-CER,CHIP 2203-006423 SA
C228 C-CER,CHIP 2203-006053 SA
C230 C-CER,CHIP 2203-005682 SA
C233 C-CER,CHIP 2203-006423 SA
C234 C-CER,CHIP 2203-005682 SA
C235 C-CER,CHIP 2203-005682 SA
C236 C-CER,CHIP 2203-005682 SA
C238 C-CER,CHIP 2203-006423 SA
C240 C-CER,CHIP 2203-005682 SA
C241 C-CER,CHIP 2203-005736 SA
C242 C-CER,CHIP 2203-005736 SA
C245 C-CER,CHIP 2203-005682 SA
C246 C-CER,CHIP 2203-005682 SA
C247 C-CER,CHIP 2203-006093 SA
SAMSUNG Proprietary-Contents may change without notice
Electrical Parts List
This Document can not be used without Samsung's authorization
10-3
Design LOC Description SEC CODE STATUS
C248 C-CER,CHIP 2203-006093 SA
C249 C-CER,CHIP 2203-001072 SA
C250 C-CER,CHIP 2203-006194 SA
C251 C-CER,CHIP 2203-005061 SA
C252 C-CER,CHIP 2203-005061 SA
C253 C-CER,CHIP 2203-005061 SA
C254 R-CHIP 2007-008542 SA
C255 R-CHIP 2007-008516 SA
C256 C-CER,CHIP 2203-006194 SA
C257 C-CER,CHIP 2203-006423 SA
C258 C-CER,CHIP 2203-006093 SA
C259 C-CER,CHIP 2203-006423 SA
C300 C-CER,CHIP 2203-006201 SA
C301 C-CER,CHIP 2203-006423 SA
C302 C-CER,CHIP 2203-006201 SA
C303 C-CER,CHIP 2203-000995 SA
C304 C-CER,CHIP 2203-005736 SA
C306 C-CER,CHIP 2203-005736 SA
C307 C-CER,CHIP 2203-001178 SA
C308 C-CER,CHIP 2203-000386 SA
C309 C-CER,CHIP 2203-006423 SA
C310 C-CER,CHIP 2203-001178 SA
C311 C-CER,CHIP 2203-000438 SA
C312 C-CER,CHIP 2203-005446 SA
C313 C-CER,CHIP 2203-005806 SA
C314 C-CER,CHIP 2203-006423 SA
C315 C-CER,CHIP 2203-005056 SA
C316 C-CER,CHIP 2203-000233 SA
C317 C-CER,CHIP 2203-000233 SA
C318 C-CER,CHIP 2203-005446 SA
C319 C-CER,CHIP 2203-000438 SA
C320 C-CER,CHIP 2203-000233 SA
C321 C-CER,CHIP 2203-000233 SA
C323 C-CER,CHIP 2203-006423 SA
C324 C-CER,CHIP 2203-006423 SA
C325 C-CER,CHIP 2203-005736 SA
C326 C-CER,CHIP 2203-000995 SA
C327 C-CER,CHIP 2203-005736 SA
C328 C-CER,CHIP 2203-006423 SA
C329 C-CER,CHIP 2203-000995 SA
C331 C-CER,CHIP 2203-006423 SA
C332 C-CER,CHIP 2203-006423 SA
C333 C-CER,CHIP 2203-000995 SA
C334 C-CER,CHIP 2203-000995 SA
C335 C-CER,CHIP 2203-006093 SA
C336 C-CER,CHIP 2203-006423 SA
C337 C-CER,CHIP 2203-005736 SA
C338 C-CER,CHIP 2203-006194 SA
C339 C-CER,CHIP 2203-006423 SA
C400 C-CER,CHIP 2203-005729 SA
C401 C-CER,CHIP 2203-000585 SA
C402 C-CER,CHIP 2203-000995 SA
C403 C-CER,CHIP 2203-006423 SA
C404 C-CER,CHIP 2203-000585 SA
C406 C-CER,CHIP 2203-002677 SA
C408 C-CER,CHIP 2203-006194 SA
C409 C-CER,CHIP 2203-005740 SA
SAMSUNG Proprietary-Contents may change without notice
Electrical Parts List
This Document can not be used without Samsung's authorization
10-4
Design LOC Description SEC CODE STATUS
C410 C-CER,CHIP 2203-000995 SA
C411 C-CER,CHIP 2203-006423 SA
C412 C-CER,CHIP 2203-006201 SA
C413 C-CER,CHIP 2203-000233 SA
C417 C-CER,CHIP 2203-000425 SA
C418 C-CER,CHIP 2203-000885 SA
C419 C-CER,CHIP 2203-006201 SA
C420 C-CER,CHIP 2203-000585 SA
C421 C-CER,CHIP 2203-000885 SA
C422 C-CER,CHIP 2203-000233 SA
C423 C-CER,CHIP 2203-000233 SA
C424 C-CER,CHIP 2203-006423 SA
C425 C-CER,CHIP 2203-006194 SA
C426 C-CER,CHIP 2203-005740 SA
C428 C-CER,CHIP 2203-006379 SA
C429 C-CER,CHIP 2203-006194 SA
C430 C-CER,CHIP 2203-005740 SA
C431 C-CER,CHIP 2203-005806 SA
C432 C-CER,CHIP 2203-001259 SA
C434 C-CER,CHIP 2203-002668 SA
C435 C-CER,CHIP 2203-005736 SA
C436 C-CER,CHIP 2203-002687 SA
C437 C-CER,CHIP 2203-006194 SA
C438 C-CER,CHIP 2203-006190 SA
C439 C-CER,CHIP 2203-005480 SA
C440 C-CER,CHIP 2203-006423 SA
C441 C-CER,CHIP 2203-006423 SA
C442 C-CER,CHIP 2203-006201 SA
C443 C-CER,CHIP 2203-006423 SA
C444 C-CER,CHIP 2203-006674 SNA
C445 C-CER,CHIP 2203-005281 SA
C500 C-CER,CHIP 2203-001072 SA
C501 C-CER,CHIP 2203-001072 SA
C502 C-CER,CHIP 2203-006053 SA
C503 C-CER,CHIP 2203-005482 SA
C504 C-CER,CHIP 2203-006556 SA
C505 C-CER,CHIP 2203-006556 SA
C506 C-CER,CHIP 2203-006556 SA
C507 C-CER,CHIP 2203-005717 SA
C508 C-CER,CHIP 2203-006556 SA
C509 C-CER,CHIP 2203-006556 SA
C510 C-CER,CHIP 2203-006556 SA
C511 C-CER,CHIP 2203-006556 SA
C512 C-CER,CHIP 2203-005717 SA
C513 C-CER,CHIP 2203-006556 SA
C514 C-CER,CHIP 2203-006556 SA
C515 C-CER,CHIP 2203-006556 SA
C516 C-CER,CHIP 2203-006556 SA
C517 C-CER,CHIP 2203-006556 SA
C518 C-CER,CHIP 2203-006093 SA
C519 C-CER,CHIP 2203-006053 SA
C520 C-CER,CHIP 2203-006190 SA
C521 C-CER,CHIP 2203-006053 SA
C522 C-CER,CHIP 2203-006093 SA
C524 C-CER,CHIP 2203-000233 SA
C525 C-CER,CHIP 2203-000233 SA
C526 C-CER,CHIP 2203-006556 SA
SAMSUNG Proprietary-Contents may change without notice
Electrical Parts List
This Document can not be used without Samsung's authorization
10-5
Design LOC Description SEC CODE STATUS
C527 C-CER,CHIP 2203-006556 SA
C528 C-CER,CHIP 2203-006556 SA
C529 C-CER,CHIP 2203-006556 SA
D200 DIODE-SWITCHING 0401-001110 SA
D201 DIODE-SWITCHING 0401-001110 SA
D205 DIODE-SWITCHING 0401-001086 SA
DUF400 DUPLEXER-FBAR 2910-000009 SA
DUF402 DUPLEXER-SAW 2909-001244 SA
EAR200 JACK-EAR PHONE 3722-002315 SA
F300 FILTER-SAW 2904-001533 SA
F301 FILTER-SAW 2904-001519 SA
F302 VARISTOR 1405-001119 SA
F303 VARISTOR 1405-001119 SA
F401 FILTER-SAW 2904-001499 SA
F403 FILTER-SAW 2904-001474 SA
F500 FILTER-EMI SMD 2901-001268 SA
F501 FILTER-EMI SMD 2901-001268 SA
F502 FILTER-EMI/ESD 2901-001362 SA
F503 FILTER-EMI/ESD 2901-001362 SA
F504 FILTER-EMI/ESD 2901-001362 SA
F505 FILTER-EMI/ESD 2901-001362 SA
F506 VARISTOR 1405-001158 SA
F507 VARISTOR 1405-001158 SA
F508 VARISTOR 1405-001158 SA
HDC500 HEADER-BOARD TO BOARD 3711-005490 SA
HDC501 HEADER-BOARD TO BOARD 3711-005643 SA
HDC502 HEADER-BOARD TO BOARD 3711-005456 SA
IFC201 CONNECTOR-INTERFACE 3710-001611 SA
L100 BEAD-SMD 3301-001342 SA
L101 INDUCTOR-SMD 2703-002207 SA
L200 INDUCTOR-SMD 2703-002775 SA
L201 INDUCTOR-SMD 2703-002775 SA
L202 BEAD-SMD 3301-001342 SA
L300 INDUCTOR-SMD 2703-001723 SA
L301 INDUCTOR-SMD 2703-002198 SA
L302 INDUCTOR-SMD 2703-002204 SA
L303 INDUCTOR-SMD 2703-002268 SA
L304 INDUCTOR-SMD 2703-002170 SA
L305 INDUCTOR-SMD 2703-002170 SA
L306 INDUCTOR-SMD 2703-002208 SA
L307 INDUCTOR-SMD 2703-002369 SA
L308 INDUCTOR-SMD 2703-002314 SA
L309 INDUCTOR-SMD 2703-002208 SA
L310 INDUCTOR-SMD 2703-002200 SA
L311 INDUCTOR-SMD 2703-002208 SA
L312 INDUCTOR-SMD 2703-002200 SA
L313 INDUCTOR-SMD 2703-002208 SA
L314 INDUCTOR-SMD 2703-001729 SA
L315 INDUCTOR-SMD 2703-002281 SA
L400 INDUCTOR-SMD 2703-001749 SA
L403 INDUCTOR-SMD 2703-002206 SA
L404 BEAD-SMD 3301-001120 SA
L405 INDUCTOR-SMD 2703-002206 SA
L406 INDUCTOR-SMD 2703-002207 SA
L407 INDUCTOR-SMD 2703-002281 SA
L408 INDUCTOR-SMD 2703-002207 SA
L409 INDUCTOR-SMD 2703-002207 SA
SAMSUNG Proprietary-Contents may change without notice
Electrical Parts List
This Document can not be used without Samsung's authorization
10-6
Design LOC Description SEC CODE STATUS
L500 BEAD-SMD 3301-001729 SA
L501 BEAD-SMD 3301-001729 SA
L503 INDUCTOR-SMD 2703-002204 SA
OSC100 RESONATOR-CERAMIC 2802-001182 SA
OSC101 CRYSTAL-SMD 2801-003856 SA
PAM400 IC-POWER AMP 1201-002268 SA
PAM403 IC-POWER AMP 1201-002259 SA
R100 R-CHIP 2007-001313 SA
R101 R-CHIP 2007-000171 SA
R102 R-CHIP 2007-000171 SA
R105 R-CHIP 2007-000171 SA
R106 R-CHIP 2007-008542 SA
R107 R-CHIP 2007-000171 SA
R109 R-CHIP 2007-008052 SA
R110 R-CHIP 2007-008531 SA
R111 R-CHIP 2007-008542 SA
R113 R-CHIP 2007-000171 SA
R114 R-CHIP 2007-008055 SA
R115 R-CHIP 2007-000141 SA
R116 R-CHIP 2007-000171 SA
R120 R-CHIP 2007-000140 SA
R121 R-CHIP 2007-001319 SA
R122 R-CHIP 2007-001339 SA
R123 R-CHIP 2007-008516 SA
R124 R-CHIP 2007-000169 SA
R127 R-CHIP 2007-008516 SA
R128 R-CHIP 2007-001339 SA
R129 R-CHIP 2007-000171 SA
R131 R-CHIP 2007-008419 SA
R132 R-CHIP 2007-000156 SA
R133 R-CHIP 2007-008516 SA
R134 R-CHIP 2007-002796 SA
R135 R-CHIP 2007-000165 SA
R136 R-CHIP 2007-000169 SA
R137 R-CHIP 2007-007529 SA
R138 R-CHIP 2007-007107 SA
R139 R-CHIP 2007-007313 SA
R140 R-CHIP 2007-000775 SA
R141 R-CHIP 2007-008052 SA
R142 R-CHIP 2007-008516 SA
R143 R-CHIP 2007-008419 SA
R144 R-CHIP 2007-001308 SA
R147 R-CHIP 2007-008806 SA
R200 R-CHIP 2007-000162 SA
R201 R-CHIP 2007-000148 SA
R202 R-CHIP 2007-007107 SA
R203 R-CHIP 2007-007488 SA
R204 R-CHIP 2007-007107 SA
R205 R-CHIP 2007-008516 SA
R206 R-CHIP 2007-007139 SA
R207 R-CHIP 2007-007309 SA
R208 R-CHIP 2007-007137 SA
R209 R-CHIP 2007-007107 SA
R213 R-CHIP 2007-003006 SA
R219 R-CHIP 2007-008419 SA
R220 R-CHIP 2007-008419 SA
R222 R-CHIP 2007-003006 SA
SAMSUNG Proprietary-Contents may change without notice
Electrical Parts List
This Document can not be used without Samsung's authorization
10-7
Design LOC Description SEC CODE STATUS
R228 R-CHIP 2007-000140 SA
R229 R-CHIP 2007-000148 SA
R230 R-CHIP 2007-000242 SA
R231 R-CHIP 2007-000758 SA
R232 R-CHIP 2007-001313 SA
R233 R-CHIP 2007-001313 SA
R234 R-CHIP 2007-000156 SA
R300 R-CHIP 2007-009115 SA
R301 R-CHIP 2007-009115 SA
R302 R-CHIP 2007-007491 SA
R303 R-CHIP 2007-007314 SA
R304 R-CHIP 2007-007314 SA
R305 R-CHIP 2007-007314 SA
R306 R-CHIP 2007-008045 SA
R307 R-CHIP 2007-008045 SA
R308 R-CHIP 2007-008542 SA
R309 R-CHIP 2007-008531 SA
R310 R-CHIP 2007-000171 SA
R311 R-CHIP 2007-008531 SA
R312 R-CHIP 2007-008806 SA
R313 R-CHIP 2007-008419 SA
R314 R-CHIP 2007-000138 SA
R400 R-CHIP 2007-007309 SA
R401 R-CHIP 2007-001325 SA
R402 R-CHIP 2007-008531 SA
R403 R-CHIP 2007-000140 SA
R404 R-CHIP 2007-008516 SA
R405 R-CHIP 2007-008419 SA
R406 R-CHIP 2007-008478 SA
R407 R-CHIP 2007-008531 SA
R408 R-CHIP 2007-008587 SA
R500 R-CHIP 2007-008542 SA
R502 R-CHIP 2007-008542 SA
R503 R-CHIP 2007-008542 SA
R508 R-CHIP 2007-008052 SA
R509 R-CHIP 2007-008052 SA
R510 R-CHIP 2007-008483 SA
R512 R-CHIP 2007-003010 SA
R513 R-CHIP 2007-003010 SA
R514 R-CHIP 2007-003010 SA
R515 R-CHIP 2007-008542 SA
RFS400 CONNECTOR-COAXIAL 3705-001358 SA
TA204 C-TA,CHIP 2404-001268 SA
TA205 C-TA,CHIP 2404-001268 SA
TA231 C-TA,CHIP 2404-001151 SA
TA232 C-TA,CHIP 2404-001151 SA
TA330 C-TA,CHIP 2404-001268 SA
TA406 C-TA,CHIP 2404-001105 SA
TCK301 OSCILLATOR-VCTCXO 2809-001277 SA
TH100 THERMISTOR-NTC 1404-001165 SA
TR100 FET-SILICON 0505-001889 SA
TR400 TR-DIGITAL 0504-001176 SA
TR401 TR-DIGITAL 0504-001176 SA
U101 IC-CMOS LOGIC 0801-002345 SA
U103 IC-VOL. DETECTOR 1203-003408 SA
U104 BLUETOOTH MODULE 4709-001410 SA
U200 IC-POWER SUPERVISOR 1203-003495 SA
SAMSUNG Proprietary-Contents may change without notice
Electrical Parts List
This Document can not be used without Samsung's authorization
10-8
Design LOC Description SEC CODE STATUS
U201 IC-CMOS LOGIC 0801-002661 SA
U203 DIODE-ARRAY 0407-001038 SA
U204 IC-ANALOG MULTIPLEX 1001-001215 SA
U205 IC-ANALOG MULTIPLEX 1001-001215 SA
U206 IC-MULTI REG. 1203-003517 SA
U300 IC-RF AMP 1201-001964 SA
U301 IC-RECEIVER 1205-002265 SA
U302 IC-RF AMP 1201-002291 SA
U401 IC-ANALOG SWITCH 1001-001303 SA
U402 IC-TRANSMITTER 1205-002497 SA
U404 FILTER-SAW 2904-001414 SA
U405 C-CER,CHIP 2203-005682 SA
UCP102 IC-MODEM 1205-002521 SA
UME100 IC-MCP 1108-000044 SNA
VCO300 OSCILLATOR-VCO 2806-001335 SA
VR100 VARISTOR 1405-001110 SA
VR200 VARISTOR 1405-001110 SA
VR500 VARISTOR 1405-001138 SA
VR501 VARISTOR 1405-001138 SA
VR502 VARISTOR 1405-001138 SA
VR503 VARISTOR 1405-001138 SA
VR504 VARISTOR 1405-001138 SA
VR505 VARISTOR 1405-001138 SA
VR506 VARISTOR 1405-001138 SA
VR507 VARISTOR 1405-001110 SA
VR508 VARISTOR 1405-001110 SA
VR509 VARISTOR 1405-001110 SA
ZD200 DIODE-ZENER 0403-001547 SA
ZD201 DIODE-ZENER 0403-001427 SA
ZD202 DIODE-TVS 0406-001208 SA
ZD204 DIODE-ZENER 0403-001339 SA
ZD206 DIODE-TVS 0406-001208 SA
SAMSUNG Proprietary-Contents may change without notice
11. PCB Diagrams
11-1
This Document can not be used without Samsung's authorization
11-1. Main PCB Top Diagram
SAMSUNG Proprietary-Contents may change without notice
PCB Diagrams
11-2
This Document can not be used without Samsung's authorization
11-2. Main PCB Bottom Diagram
www.s-manuals.com

Navigation menu
