PLASMA MONITORSERVICE MANUAL

FILE NO.

Model No. PDP-42WV1

PDP-42WV1S

(EUROPE, ASIA)

PDP42WV1A

PDP-42WV1AS

(U.S.A.)

ORIGINAL VERSION

PRODUCT CODE

1 110 017 00 PDP-42WV1, J3TF

1 110 023 00 PDP-42WV1A, J3TFA

1 110 043 00 PDP-42WV1S, J3TG

1 110 044 00 PDP-42WV1AS, J3TGA

REFERENCE NO. SM5110505-00

Chassis No. PDP-42WV1-00

(PDP-42WV1)

NOTE: Match the Chassis No. on the

unit’s back cover with the Chassis

No. in the Service Manual.

If the Original Version Service

Manual Chassis No. does not

match the unit’s, additional

Service Literature is required. You

must refer to “Notices” to the

Original Service Manual prior to

servicing the unit.

CONTENTS Pages

SAFETY INSTRUCTIONS --------------------------------------------------------------------- 2

TECHNICAL SPECIFICATIONS ------------------------------------------------------------- 3

DIMENSIONS AND OPTIONS---------------------------------------------------------------- 3

BATTERY REPLACEMENT ------------------------------------------------------------------- 4

MECHANICAL DISASSEMBLIES ------------------------------------------------------- 5 - 8

ADJUSTMENT ------------------------------------------------------------------------------ 9 - 16

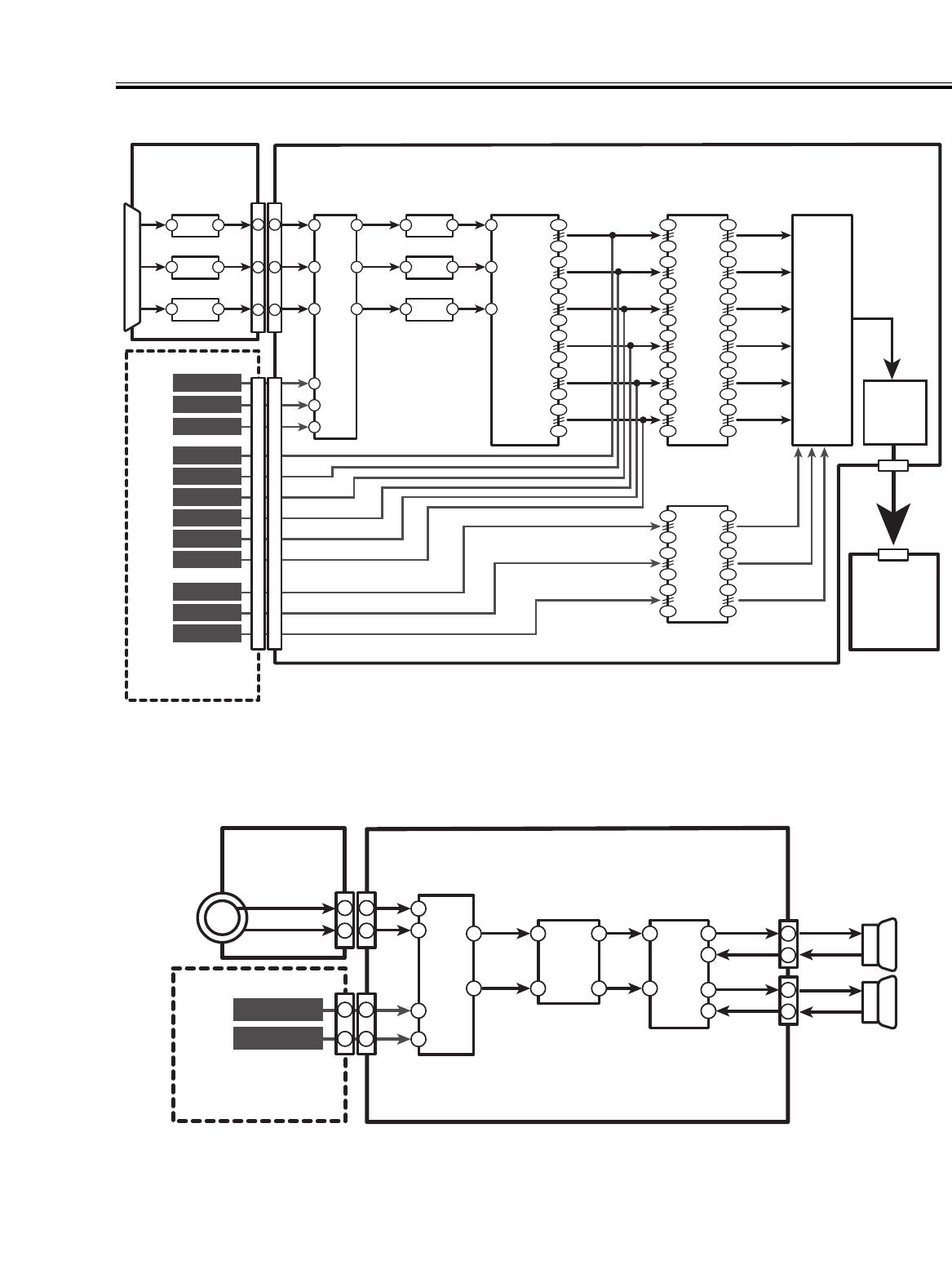

CIRCUIT BLOCK DIAGRAM----------------------------------------------------------------- 17

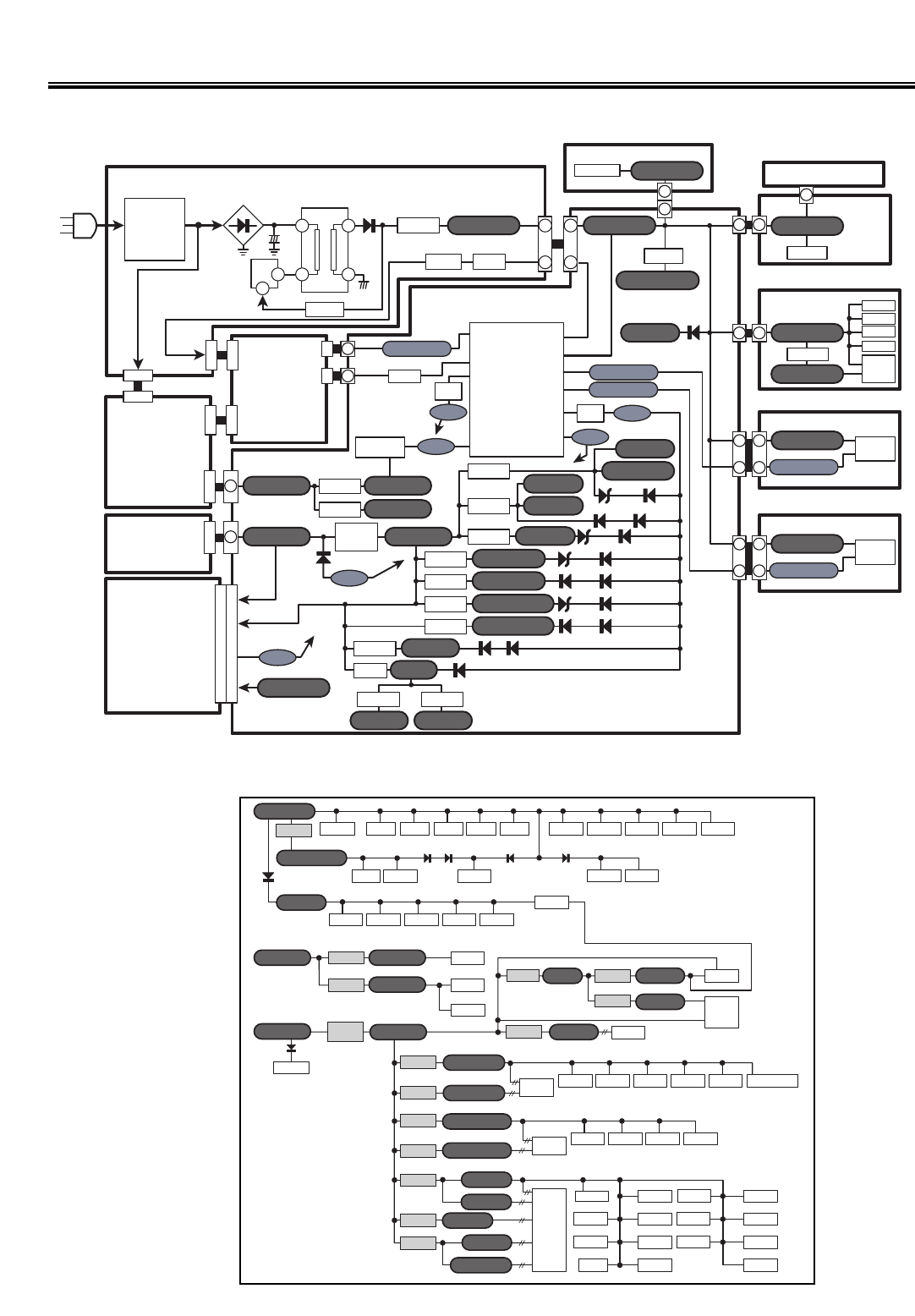

POWER SUPPLY LINES --------------------------------------------------------------------- 18

POWER FAIL CIRCUIT ----------------------------------------------------------------- 19 - 21

TROUBLESHOOTING ------------------------------------------------------------------------ 22

CONTROL PORT FUNCTIONS ------------------------------------------------------ 23 - 24

PIN DESCRIPTION OF DIODE, TRANSISTOR AND IC----------------------------- 25

PARTS LIST ------------------------------------------------------------------------------- 26 - 43

PARTS DESCRIPTION AND READING IN SCHEMATIC DIAGRAM ------------ 44

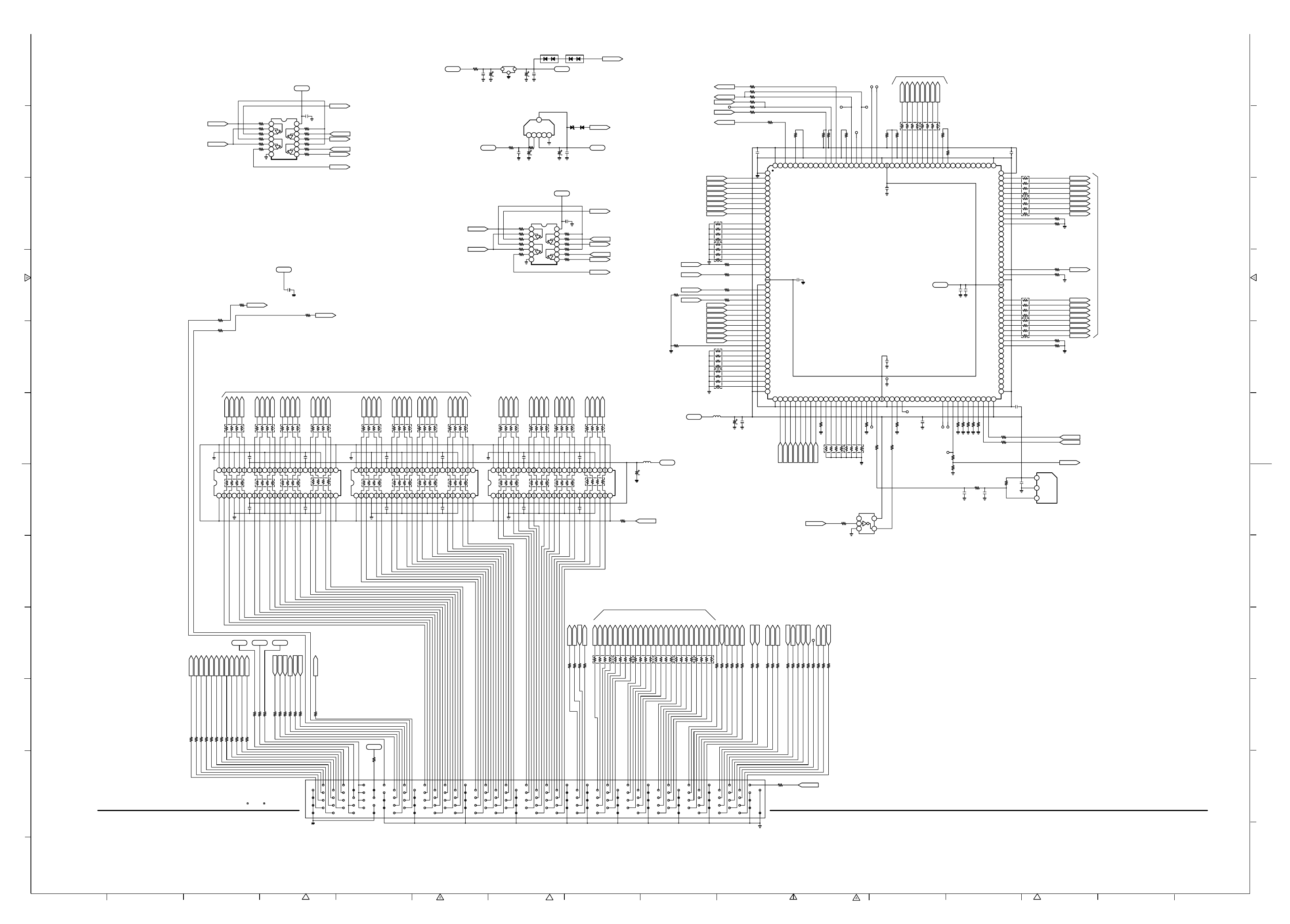

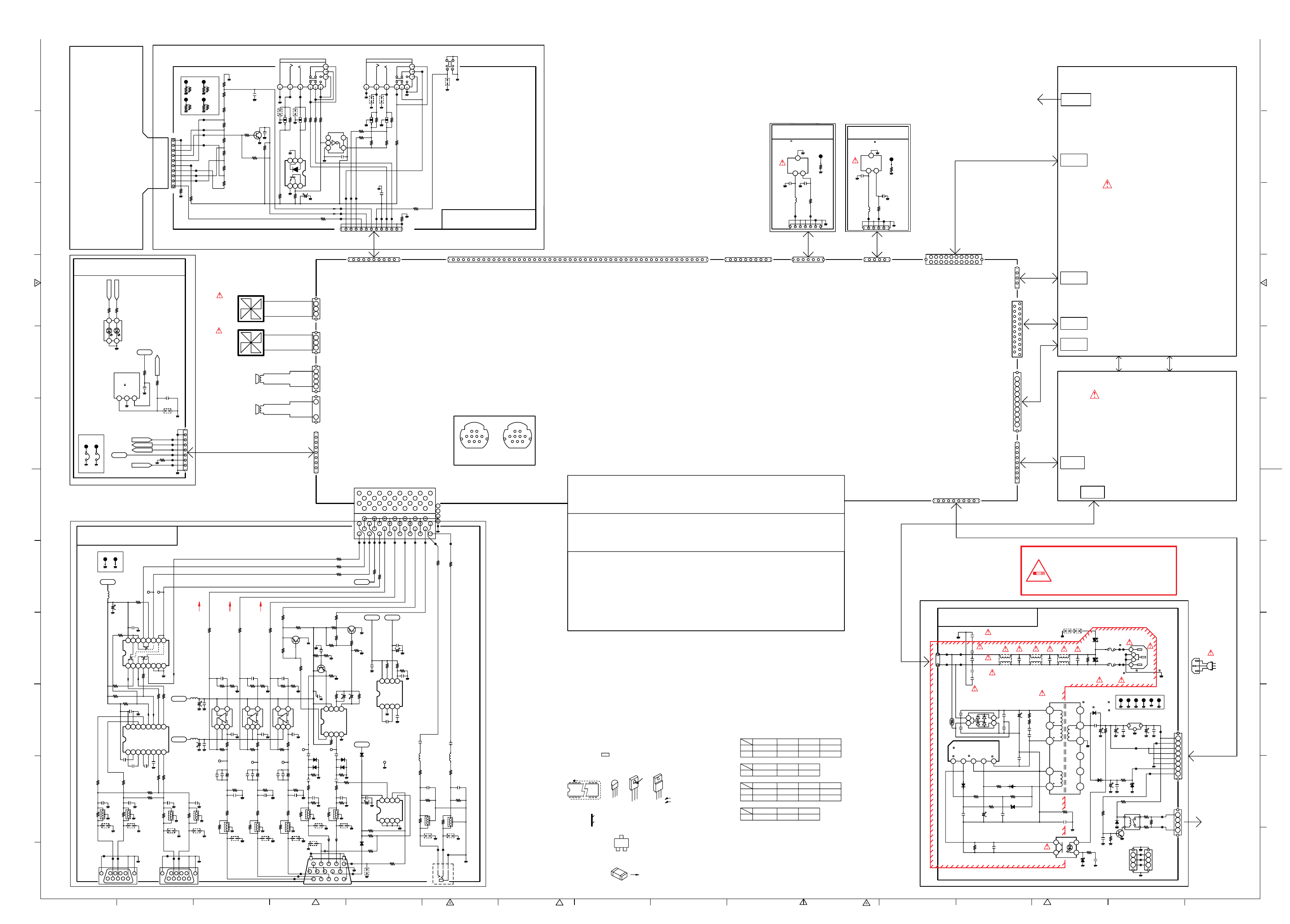

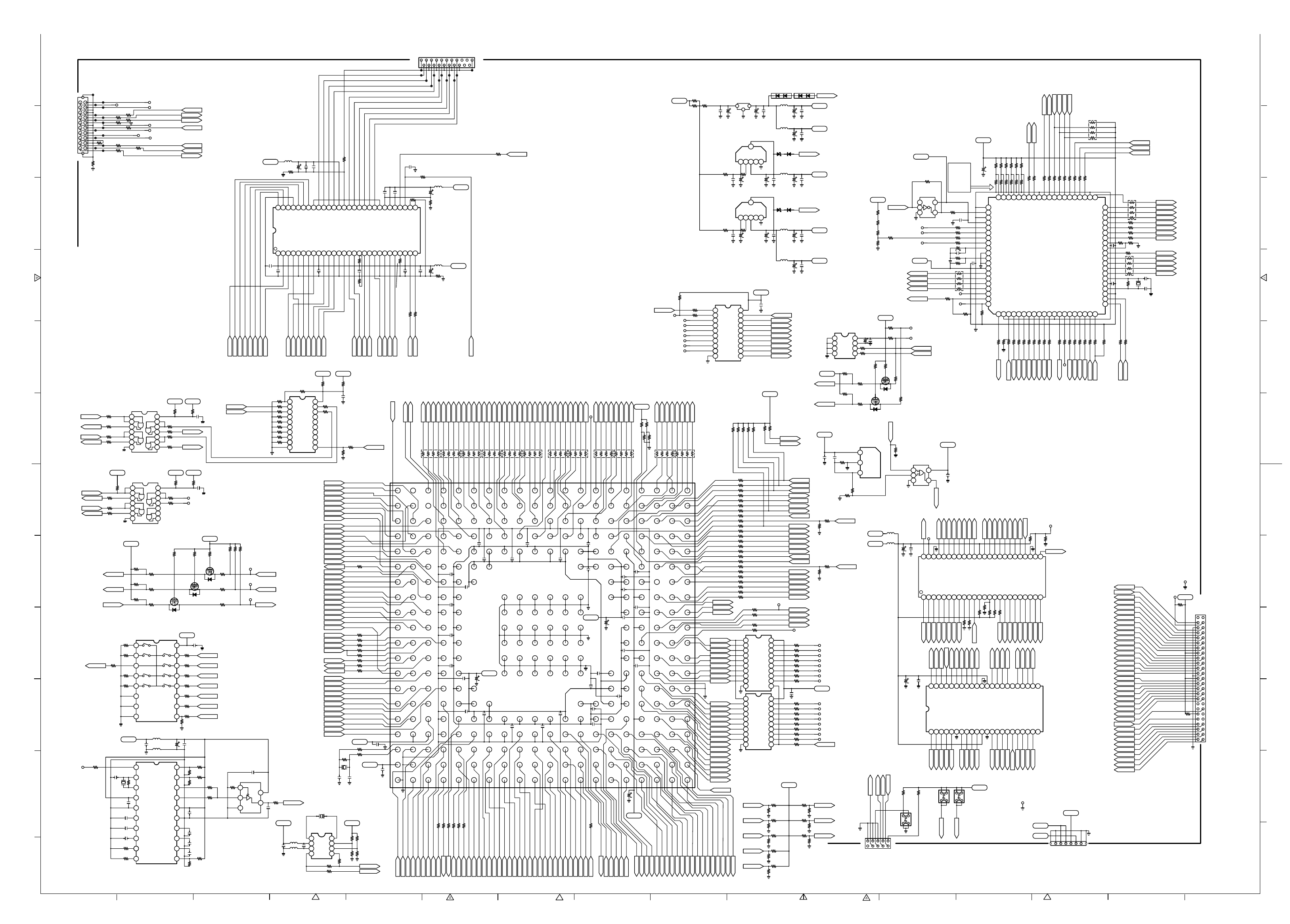

SCHEMATIC DIAGRAMS---------------------------------------------------------- A-1 - A-15

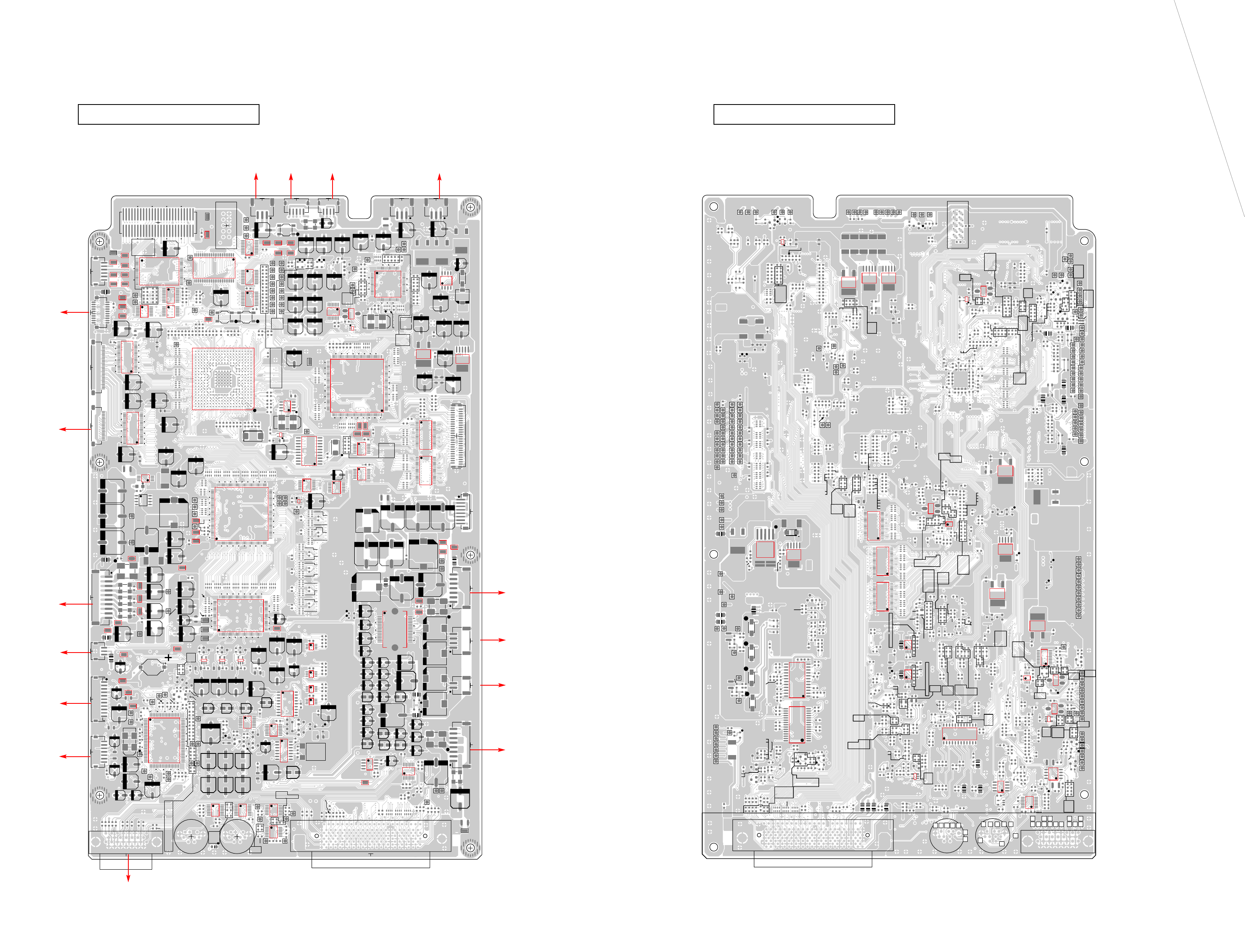

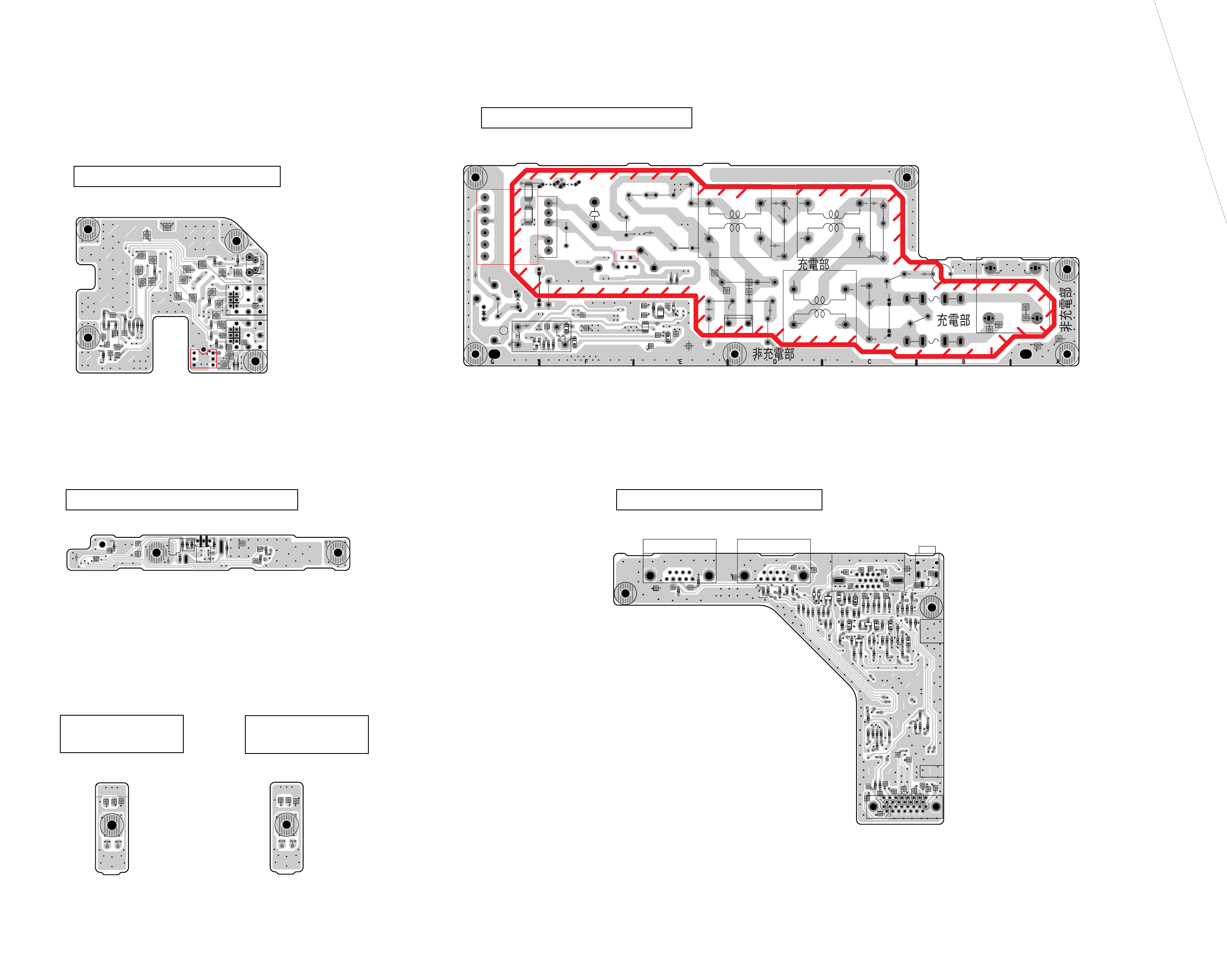

PRINTED WIRING BOARD DIAGRAMS ------------------------------------- A-16 - A-24

Chassis No. PDP-42WV1S-00

(PDP-42WV1S)

Chassis No. J3T-42WV1A00

(PDP-42WV1A)

Chassis No. J3T-42WV1AS00

(PDP-42WV1AS)

-2-

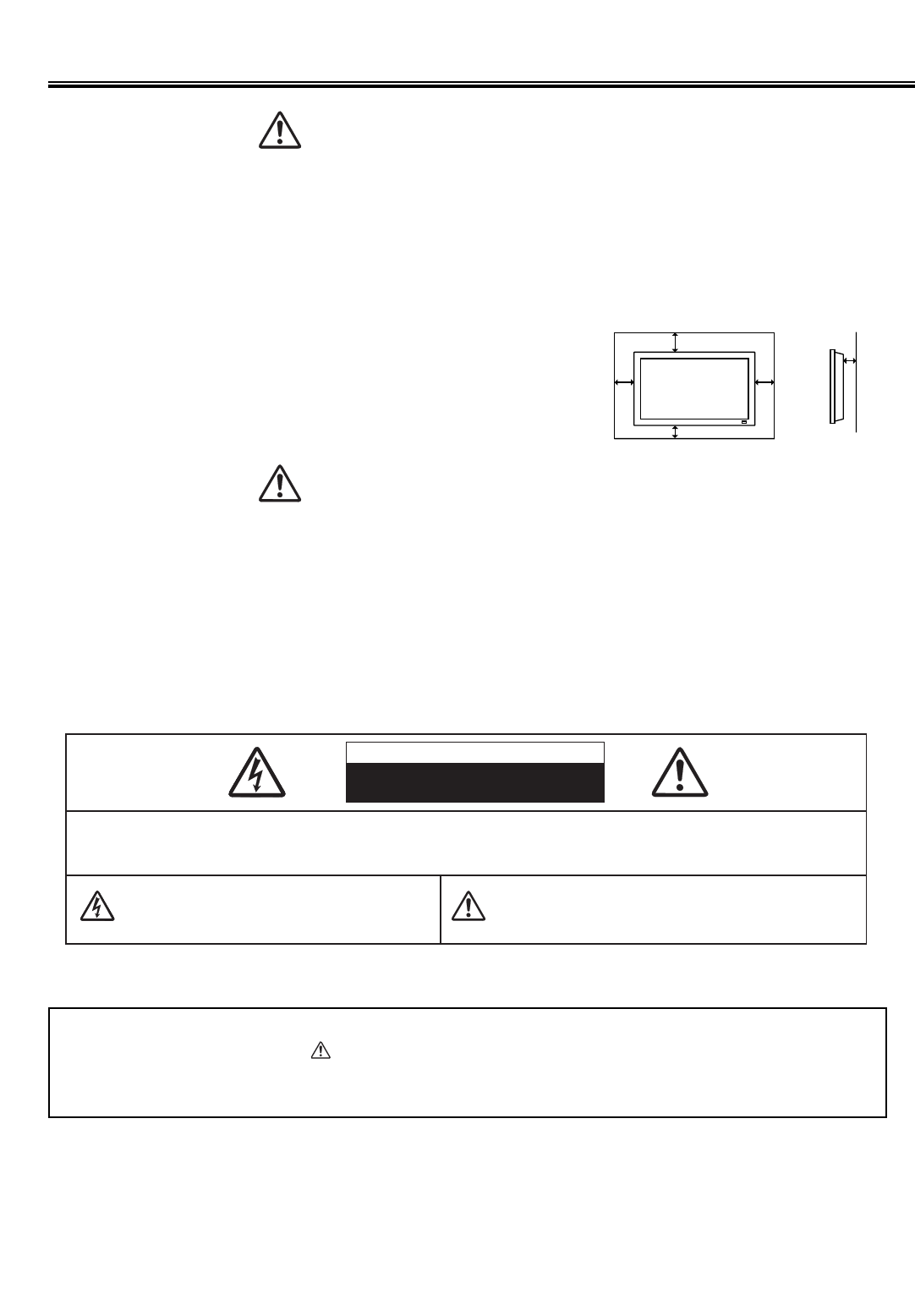

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-

SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS

VOLTAGE CONSTITUTING A RISK OF ELECTRIC

SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT

OPERATING AND MAINTENANCE INSTRUCTIONS IN THE

OWNER'S MANUAL WITH THIS UNIT.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

SAFETY PRECAUTIONS

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO

RAIN OR MOISTURE.

●This Plasma Monitor should be set in the way indicated. If not, it may result in a fire hazard.

●Take appropriate space on the top, sides and rear of the Plasma Monitor cabinet for allowing air circulation and

cooling the Plasma Monitor. Minimum clearance must be maintained. If the Plasma Monitor is to be built into

a compartment or similarly enclosed, the minimum distances must

be maintained. Do not cover the ventilation slot on the Plasma

Monitor. Heat build-up can reduce the life of your Plasma

Monitor, and can also be dangerous.

●If the Plasma Monitor is not to be used for an extended time,

unplug the Plasma Monitor from the power outlet.

READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.

SIDE, TOP and BOTTOM REAR

CAUTION IN INSTALLING

●Handle the Plasma Monitor carefully when installing it and do not drop.

●Locate set away from heat, excessive dust, and direct sunlight.

●For correct installation and mounting it is strongly recommended to use a trained, authorized dealer. Failure to

follow correct mounting procedures could result in damage to the equipment or injury to the installer.

10 cm

10 cm

10 cm

3 cm

NOTE :

When Plasma Monitor is not used for a long period of time, unlighting dots may be observed. This is caused by

characteristic of the Plasma Monitor. If this occurs, turn the Plasma Monitor on and leave it on about 1 hour. These

dots will gradually disappear.

6 cm

■Safety Instructions

Product safety should be considered when a component replacement is made in any area of the monitor.

Components indicated by mark in the parts list and the schematic diagram designate components in

which safety can be of special significance. It is, therefore, particularly recommended that the replacement of

there parts must be made by exactly the same parts.

PRODUCT SAFETY NOTICE

-3-

1022

(40.2)

1022

(40.2)

610

(24.0)

610

(24.0)

85

(3.4)

102

(4.0)

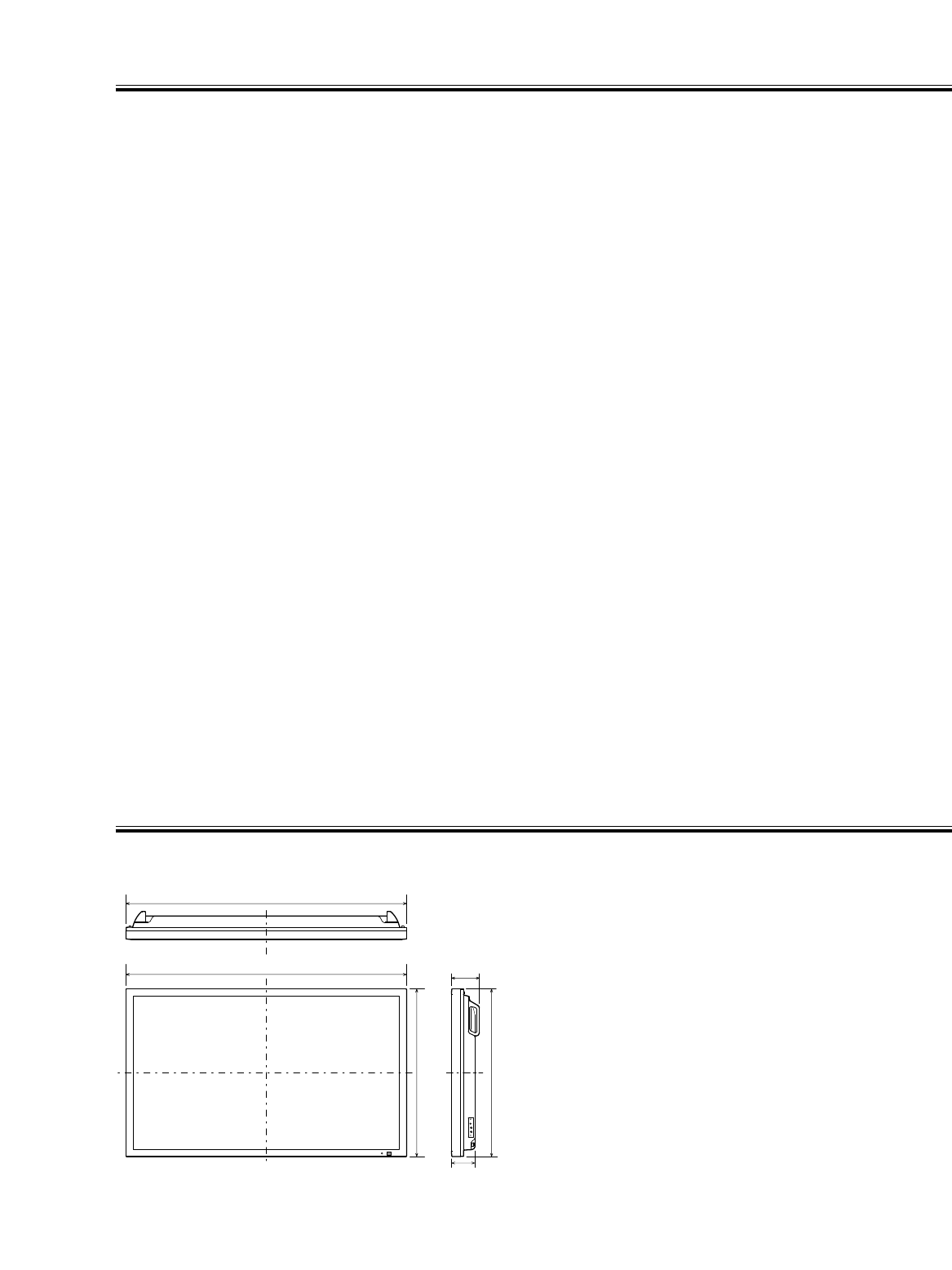

■Dimensions and Options

MEASUREMENT OPTIONS

Size in mm (inch)

The products listed below are optionally supplied.

When ordering these products, give name and Type No. to

sales dealer.

Speaker unit KA-SX-42V (R and L)

(Color: Black)

KA-SX-42VS (R and L)

(Color: Silver)

Table top stand KA-TD-42V

Tilt mount unit KA-TI-42V

Wall mount unit KA-WA-42V

Contact the sales dealer for other available options.

■Technical Specifications

Screen Diagonal 42V

Product name Multimedia Plasma Monitor

Panel type Plasma Display Panel (16 x 9)

Display area 920 mm (W) x 518 mm (H)

Resolution / Color 852 x 480 pixels

PC Interface RGB

Capability Up to SXGA

Plug & Play VESA DDC2B

Power Management VESA DPMS

Audio Amp 10W + 10W (8 )

Terminals

PC IN RGB (D-SUB 15pin)

AUDIO R / L (Stereo Mini jack)

WIRED RC IN / OUT Mini Jack

EXT. SP OUT R and L, 10W (8 ), Push type

POWER SUPPLY AC 200 - 240V 50/60 Hz (PDP-42WV1/PDP-42WV1S)

AC 100 - 120V 50/60 Hz (PDP-42WV1A/PDP-42WV1AS)

DIMENSION (W x H x D) 1022 x 610 x 85 mm (402.4" x 240.2" x 33.5" ) (not including handles)

WEIGHT (NET) 29.8 kg (65.7 lbs ) (Plasma Monitor only)

Regulations FCC CLASS-A, UL (PDP-42WV1A/PDP-42WV1S), CE (PDP-42WV1/PDP-42WV1S)

Environmental Considerations

Operating Temperature 0˚C ~ 40˚C (32˚F ~ 104˚F )

Humidity 20 ~ 80%

Storage Temperature -10˚C ~ 50˚C (14˚F ~ 122˚F)

Humidity 20 ~ 80 %

Accessories Owner’s Manual

AC Power Cord

Wired/Wireless Remote Control Transmitter and Batteries

Remote Control Cable

Ferrite Cores (x2)

-4-

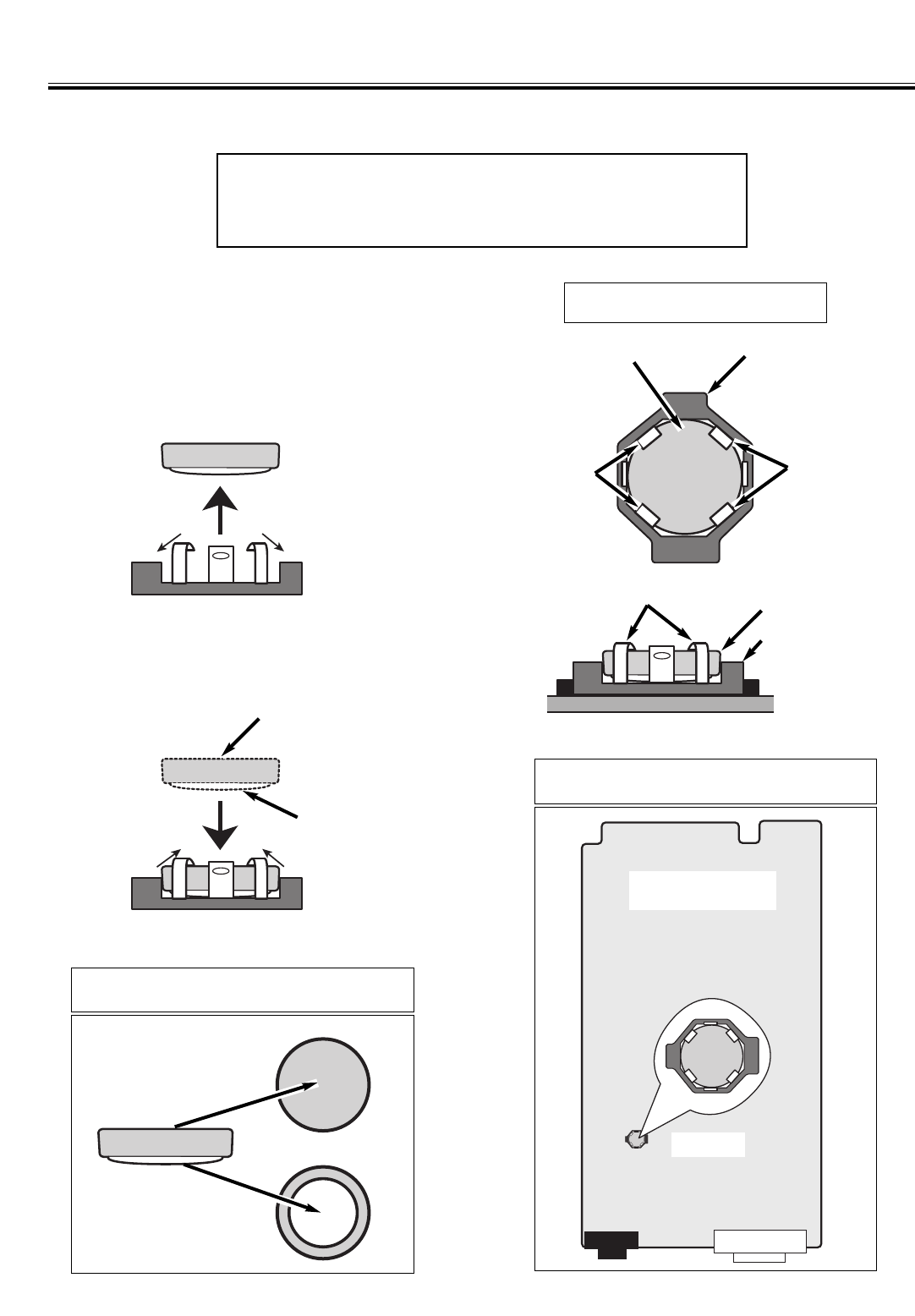

■Battery Replacement

This Plasma Monitor is used a battery for Clock Function.

■ Battery Replacement

The battery is fixed to Main Board with Battery

Holder.

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type.

Battery Holder

Battery

Hook

Hook

Battery

Battery Holder

Hook

Main Board

Location of Battery

(+) Side

(-) Side

(1) Remove the battery from battery holder to bent

hooks slightly.

(2) Mount a new battery by correct polarity and

bent hooks back.

Polarity of Battery

(+) Side

(-) Side

Main Board

Battery

Parts No.: 645 059 8302

C

-5-

■Mechanical Disassemblies

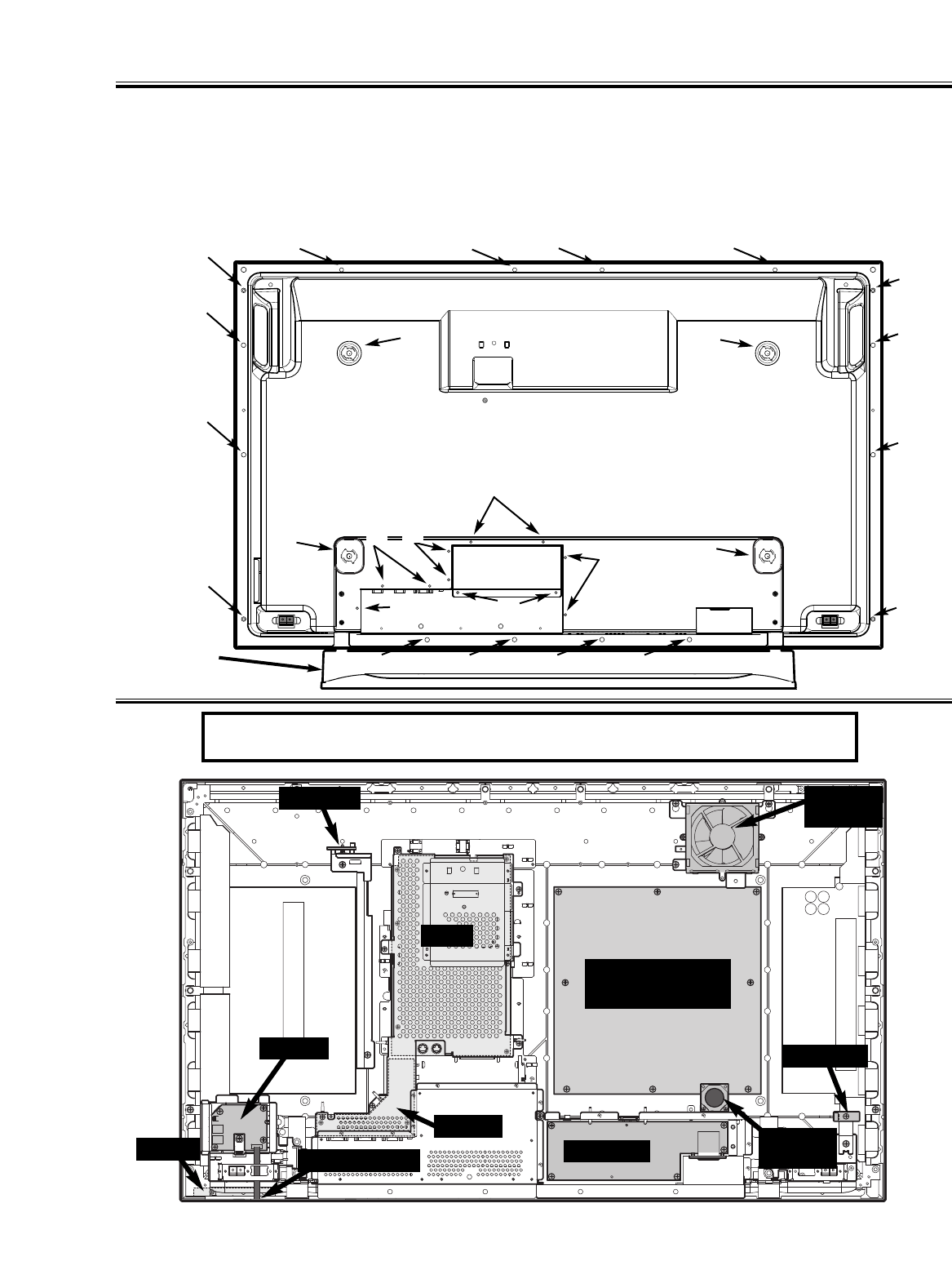

1. Cabinet Back Removal (Fig. 1)

Remove screws (A, B, C) and remove Cabinet Back as Fig. 1.

Note: For removal Option Slot Cocer, remove screws (D) and slide down.

A (4pcs: 8X20), B (9pcs: 3X6), C (16pcs: Special Screw), D (2pcs: 3X6)

Fig. 1

A

AA

A

B

B

B

B

B

C

C

C

CCC C

C

C

C

C

CC C C

Option

Stand

D

Option

Slot Cover

Location of Circuit Board and Electric Parts

Main

Power

Main Power

Module

Jack-A

Jack-B Sensor-A

Sensor-B Fan

(FN1901)

Fan

(FN1903)

Control Membrane SW

Note: Control Board and Membrane Switch are fixed at Cabinet Front. Fig. 2

-6-

Mechanical Disassemblies

2. Chassis Removal

[ATTENTION]

This PDP monitor is used the different kind of screw.

Using correct screw is needed to avoid the damage.

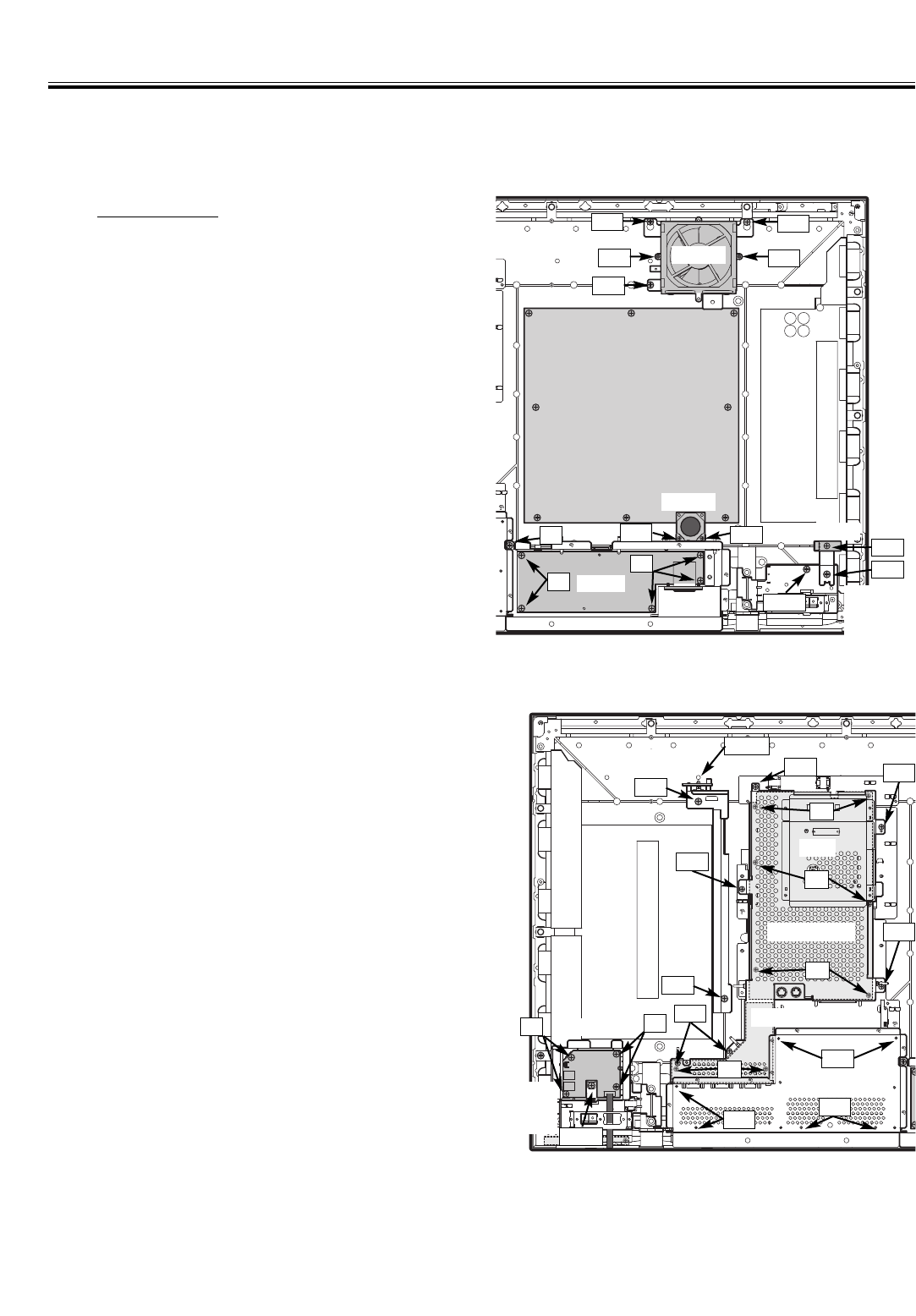

2-1 Fans Removal (Fig. 3)

FN1901

1) Remove screws (FN1: 3pcs) and take Fan (FN1901)

with the holder off.

2) Remove screws (FN2: 2pcs) and take Fan from the

holder.

FN1903

1) Remove screws (FN3: 2pcs) and take Fan (FN1903)

with the holder off.

2-2 Power Board Removal (Fig. 3)

1) Remove screws (P1: 5pcs) and take Power Board

off.

✽Remove screw (P2: 1pc) and take Power Board with

the holder off.

2-3 Sensor-A Board Removal (Fig. 3)

1) Remove screw (SA1: 1pc) and take Sensor-A Board

off.

✽Remove screw (SA2: 1pc) and take Sensor-A Board

with the plate off.

✽✽ Remove screw (STB1: 1pc) and take Speaker

Terminal Base (R) with the Sensor-A Board and

holder off.

2-4 Sensor-B Board Removal (Fig. 4)

1) Remove Sensor-B Board from the Hook.

✽Remove screws (SB1: 2pcs) and take Sensor-B

Board with the plate off.

2-5 Jack-B Board Removal (Fig. 4)

1) Remove screw (B1: 4pcs) and take Jack-B Board

with the holder off.

✽Remove screw (STB2: 1pc) and take Speaker

Terminal Base (R) with the Jack-B Board and holder

off.

2-6 Main and Jack-A Boards Removal (Fig. 4)

1) Remove screws (SP1: 6pcs) and take Shield Plate

(for Main and Jack-A board) off.

2) Remove screws (M1: 6pcs) and take Main board off.

3) Remove screws (TP1: 6pcs) and nut-screws of the

terminals on Jack-A board (6pcs), and take Terminal

Plate off.

4) Remove screws (A1: 2pcs) and take Jack-A board

off.

Note: If the cable is fixed by ferrite core or CV band

(fixer), remove it as the need arises. After servic-

ing, it is necessary to be fixed again to previous

position.

Power

Sensor-A

FN1901

FN1903

Speaker

Terminal

Base(R)

SA1

SA2

STB1

FN2

FN2

FN1

FN1

FN1

FN3 FN3

P2

P1

P1

Fig. 3

Fig. 4

Sensor-B

SB1

Hook

Speaker

Terminal

Base(L)

STB2

Jack-B B1

B1

SB1

Jack-A

Main

Shield Plate

Terminal Plate

SP1 SP1

SP1

SP1

SP1

A1

M1

M1

M1

TP1 TP1

TP1

-7-

3. Cabinet Front and Optical Filter Removal

4. Panel Module Removal

Fig. 6

1) Proceed 1to 3to remove Cabinet Back,

Chassis and Cabinet Front.

2) Remove screws (8pcs) of Chassis Base and take it

from Panel Module. (Fig. 7)

Note: Units of Fig.8 are included with Panel for PDP

Module. Do not remove them from Panel. For

removal of Panel, it is necessary to change

these all units together. Main Power Module is

included with Panel Module too. Do not

remove Main Power Module from Panel Module.

Mechanical Disassemblies

Fig. 5

Mounting Filter Plate-U

Mounting Filter Plate-D

Mounting Filter Plate-L

Mounting Filter Plate-R

C1 C1

Cabinet Front includes Optical Filter to protect the dam-

age of Panel, improve picture quality, or prevent expo-

sure of interference.

Note: The Optical Filter is easy to be damaged. Do not

touch directly by hand. If there is the dust,

remove it by watery neutral detergent.

3-1 Cabinet Front Removal (Fig. 5)

1) Remove the lead wire of Control board from Main

Board (K8J).

2) Remove the lead wire of Membrane Switch from

Jack-B board (K1104).

✽Membrane Switch is fixed on the Cabinet Front by

two-sided tape.

3) Remove screws (2pcs) of Fig.5 and take Cabinet

Front off.

3-2 Control Board and Optical Filter Removal

(Fig. 6)

1) Remove screws (C1: 2pcs, Others: 7pcs) of

Mounting Filter Plate-D and take Mounting Filter

Plate-D and Control Board off.

2) Remove screws (16pcs) of Mounting Filter Plate-A,

B and C and take Mounting Filter Plate-A, B and C

and Optical Filter off.

Control Membrane

Switch

Main

K8J

K1104

Fig. 7

Chassis Base

PDP Module

Fig. 8

PDP Module

Main Power

Module

-8-

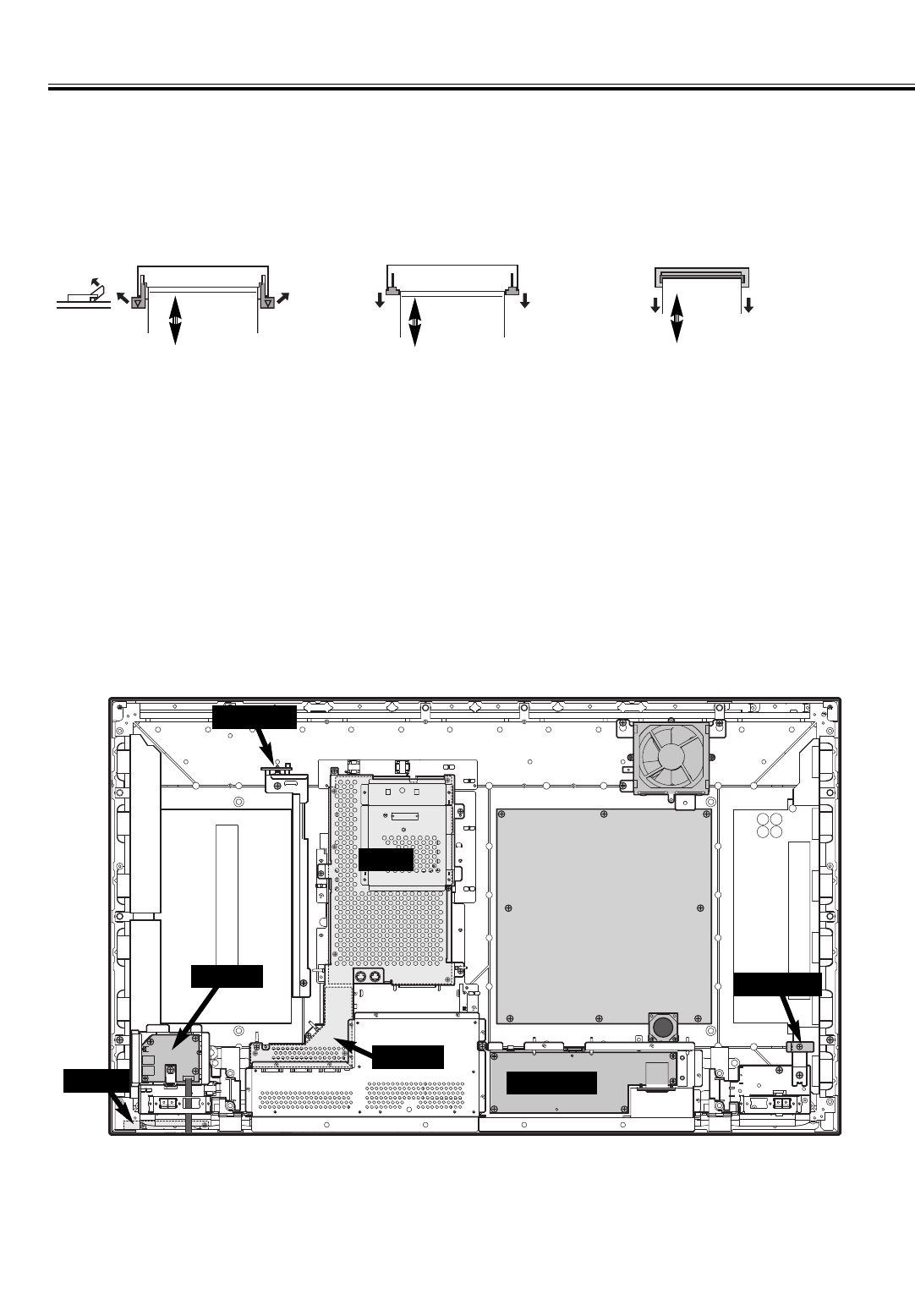

■Flat Cable Removal

This set is used 3 kinds of connector for flat cable. For removal of cable, refer as below not to damage.

■For Gasket

The gasket is provided to prevent exposure of interference for other radio and television receptions.

The gasket should be replaced on previous positions after servicing.

For removal of flat cable, slide hook of

both sides.

For insert and fixing, slide hook to pre-

vious position after inserting the flat

cable.

Type A Type B Type C

For removal of flat cable, lift up hook of

both sides.

For insert and fixing, hold down hook

after inserting the flat cable.

For removal of flat cable, pull off only.

For fixing , insert into socket.

Cable Cable Cable

Mechanical Disassemblies

■Notice for service of Board

In below boards, can be repaired inside parts or unit itself. Order service parts for repair.

Main

Power

Jack-A

Jack-B Sensor-A

Sensor-B

Control

Note: Control Board and Membrane Switch are fixed at Cabinet Front.

-9-

■Adjustment

Before Adjustment

This adjustment is done to enter Service Mode by Remote

Control Unit.

■ To enter Service Mode

Quick operation is needed to enter Service Mode.

(1) Turn the monitor on.

(2) Press and hold the MENU button on the monitor.

(3) Keep item (2) and press the STATUS button and

release the both buttons.

(4) Within 2 seconds after item (3), press the MUTE

button to appear the Service Mode Display.

■ Service Mode Display

■ To return to the Normal Mode

Once turn the Monitor off by pressing “POWER” button on the monitor or remote control unit and turn it on again.

VOLUME

OK

INPUTMENU

MENU Button

ON-OFF

INPUT

MENU

V

O

L

U

M

E

V

O

L

U

M

E

LOCAT 2-Win SIZE

STATUS

WIDE ON-OFF

BACK

➡

OK

F


MUTE

PIP

7/ 8

Data Setting

(-) / (+)

To enter

Service Mode

STATUS

e

To select :

Adjustment

Item

d

To select :

Adjustment

Item

Sub-Image

Sub-Cont

0

PC

Main

42WV1

CAUTION

The each circuit has been made by the fine adjustment at factory. Do not attempt to adjust

the following adjustments except requiring the readjustments in servicing otherwise it may

cause loss of performance and product safety.

To enter

Service Mode

MUTE

1ah(26)

215

Model 215(WV1)

Sub 138

Temp1 27

Temp2 10

PDP Time 10h

-10-

■ To adjust

The next 5 pages show Data for adjustment.

To select adjustment item, press eor dbutton on the remote control unit.

To adjust data, press 7or 8button on the remote control unit.

The all data adjusted in service mode memorizes into non-volatile memory IC.

Note: In the explanation all buttons are indicated for remote control unit without any notice.

Service Mode Display

Sub-Image

1) Select adjustment item by ebut-

ton.

Adjustment item is displayed in order. To

reverse adjustment item, press dbutton.

Selected by eor dButton Adjusted by 7

or 8Button.

3) To exit the Service Mode.

To exit the service mode, press POWER ON-

OFF button on the monitor or remote control

unit.

2) Adjust the data by 7or 8button.

Sub-Cont PC 1ah(26)

Adjustment Item Adjustment Data

Number

Adjustment

Sub-Image

Sub-Cont

0

PC

Main

42WV1

1ah(26)

215

Model 215(WV1)

Sub 138

Temp1 27

Temp2 23

PDP Time 10h

0

Adjustment Mode

Adjustment Name

✽This menu is for factory data,

not used for servicing.

✽

-11-

■ Service Adjustment Data Table

Adjustment

• All data except in gray box area is fixed. Do not change for correct operating.

• Data in gray box area is initial. Can be set according to adjustment information.

0 Sub Image PC Sub-Cont 1ah(26)

1 Sub-Bright 80h(128)

2 Sub-Color 23h(35)

3 Sub-Tint 80h(128)

4 Component Sub-Cont 1ch(28)

5 Sub-Bright 26h(38)

6 Sub-Color 1ch(28)

7 Sub-Tint 80h(128)

8 NTSC Sub-Cont 1ch(28)

9 Sub-Bright 80h(128)

10 Sub-Color 1fh(31)

11 Sub-Tint 80h(128)

12 PAL Sub-Cont 1bh(27)

13 Sub-Bright 80h(128)

14 Sub-Color 1fh(31)

15 Sub-Tint 80h(128)

16 SECAM Sub-Cont 1bh(27)

17 Sub-Bright 80h(128)

18 Sub-Color 1fh(31)

19 Sub-Tint 80h(128)

20 D PC Sub-Cont 15h(21)

21 Sub-Bright 80h(128)

22 Sub-Color 23h(35)

23 Sub-Tint 80h(128)

24 TEL TEXT Sub-Cont 1ch(28)

25 Sub-Bright 80h(128)

26 Sub-Color 20h(32)

27 Sub-Tint 80h(128)

28 HDCP Sub-Cont 15h(21)

29 Sub-Bright 80h(128)

30 Sub-Color 23h(35)

31 Sub-Tint 80h(128)

32 PC Sub-Sharp 09h(9)

33 Component D1 Sub-Sharp 15h(21)

34 Component D2 Sub-Sharp 15h(21)

35 Component D3 Sub-Sharp 15h(21)

36 Component D4 Sub-Sharp 15h(21)

37 NTSC YC Sub-Sharp 0ch(12)

38 PAL YC Sub-Sharp 0ch(12)

39 SECAM YC Sub-Sharp 0ch(12)

40 NTSC VBS Sub-Sharp 0dh(13)

41 PAL VBS Sub-Sharp 0dh(13)

42 SECAM VBS Sub-Sharp 0dh(13)

43 SCART Sub-Sharp 00h(0)

44 TEL TEXT Sub-Sharp 0ch(12)

45 Image Menu Standard AV Contrast 34h(52)

46 Bright 1fh(31)

47 Color 1fh(31)

48 Tint 00h(0)

49 Sharp 08h(8)

50 Gamma 03h(3)

51 Dynamic AV Contrast 3fh(63)

52 Bright 1fh(31)

53 Color 23h(35)

54 Tint 00h(0)

55 Sharp 08h(8)

NO. Name Mode Item Initial Data Note

-12-

Adjustment

56 Gamma 05h(5)

57 Cinema AV Contrast 1fh(31)

58 Bright 1fh(31)

59 Color 1bh(27)

60 Tint 00h(0)

61 Sharp 08h(8)

62 Gamma 00h(0)

63 Standard PC Contrast 2fh(47)

64 Bright 1fh(31)

65 Color 1fh(31)

66 Tint 00h(0)

67 Sharp 08h(8)

68 Gamma 03h(3)

69 Graphics PC Contrast 3fh(63)

70 Bright 1fh(31)

71 Color 23h(35)

72 Tint 00h(0)

73 Sharp 0ch(12)

74 Gamma 05h(5)

75 Text PC Contrast 28h(40)

76 Bright 1fh(31)

77 Color 19h(25)

78 Tint 00h(0)

79 Sharp 07h(7)

80 Gamma 07h(7)

81 VPC3230D AV AB Low Byte 1ch(28)

82 AB High Byte 02h(2)

83 AC Low Byte 1ch(28)

84 AC High Byte 02h(2)

85 BE 06h(6)

86 PLL 02h(2)

87 AD9884 540p Phase 10h(16)

88 540p(50) Phase 10h(16)

89 525i Phase 12h(18)

90 625i Phase 12h(18)

91 525p Phase 10h(16)

92 625p Phase 10h(16)

93 1035i / 1080i Phase 10h(16)

94 1080i(50) Phase 10h(16)

95 720p Phase 16h(22)

96 720p(50) Phase 10h(16)

97 Out 525i On/Off 01h(1)

98 Out 625i On/Off 01h(1)

99 Color Balance White:VBS/YC Red 80h(128)

100 Green 80h(128)

101 Blue 80h(128)

102 Black:VBS/YC Red 00h(0)

103 Green 00h(0)

104 Blue 00h(0)

105 White:Component Red 80h(128)

106 Green 80h(128)

107 Blue 80h(128)

108 Black:Component Red 00h(0)

109 Green 00h(0)

110 Blue 00h(0)

111 White:PC Red 75h(117)

112 Green 80h(128)

113 Blue 75h(117)

114 Black:PC Red 00h(0)

115 Green 00h(0)

NO. Name Mode Item Initial Data Note

-13-

Adjustment

116 Blue 00h(0)

117 White:DVI/HDCP Red 80h(128)

118 Green 80h(128)

119 Blue 80h(128)

120 Black:DVI/HDCP Red 00h(0)

121 Green 00h(0)

122 Blue 00h(0)

123 Color Temp AV High Red 76h(118)

124 Green 7ah(122)

125 Blue 80h(128)

126 AV Mid Red 80h(128)

127 Green 80h(128)

128 Blue 80h(128)

129 AV Low Red 80h(128)

130 Green 7eh(126)

131 Blue 73h(115)

132 PC High Red 76h(118)

133 Green 7ah(122)

134 Blue 80h(128)

135 PC Mid Red 80h(128)

136 Green 80h(128)

137 Blue 80h(128)

138 PC Low Red 80h(128)

139 Green 7eh(126)

140 Blue 73h(115)

141 Sound Device Sound AGC On/Off 00h(0)

142 Level 01h(1)

143 Sound BCSB/Bass Sub-Set 01h(1)

144 Sound BCST/Treb Sub-Set 01h(1)

145 Wide Pc Just Width +/- Flag 00h(0)

146 Data High 00h(0)

147 Data Low 00h(0)

148 Video Just Width +/- Flag 00h(0)

149 Data High 27h(39)

150 Data Low 00h(0)

151 PDP Error Diffusion On/Off SW 02h(2)

152 H Start Pos 1 Data 20h(32)

153 H Start Width 1 Data bah(186)

154 H Start Pos 2 Data 96h(150)

155 H Start Width 2 Data 40h(64)

156 Threshold PC MPD 01h(1)

157 AV MPD 01h(1)

158 50Hz / 50Hz - 100 F SW 04h(4)

159 ABL Level Hi Data 23h(35)

160 ABL Level Lo Data 19h(25)

161 H Start Width Top 1 Bit 01h(1)

162 H Start Width Top 2 Bit 01h(1)

163 Side Bar Off Border Color Type 1 Red 00h(0)

164 Green 00h(0)

165 Blue 00h(0)

166 Side Bar On Border Color Type 2 Red 40h(64)

167 Green 40h(64)

168 Blue 40h(64)

169 Over Scan 525i VBS H Start + 1fh(31)

170 V Start + 09h(9)

171 Width + 09h(9)

172 Height + 07h(7)

173 525i YC H Start + 1fh(31)

174 V Start + 09h(9)

175 Width + 09h(9)

NO. Name Mode Item Initial Data Note

-14-

Adjustment

176 Height + 07h(7)

177 525i Component H Start + 19h(25)

178 V Start + 0fh(15)

179 Width + 07h(7)

180 Height + 05h(5)

181 525p Component H Start + 1dh(29)

182 V Start + 0ah(10)

183 Width + 07h(7)

184 Height + 05h(5)

185 625i VBS H Start + 14h(20)

186 V Start + 1fh(31)

187 Width + 0ah(10)

188 Height + 07h(7)

189 625i YC H Start + 14h(20)

190 V Start + 1fh(31)

191 Width + 0ah(10)

192 Height + 07h(7)

193 625i Component H Start + 2fh(47)

194 V Start + 14h(20)

195 Width + 08h(8)

196 Height + 06h(6)

197 625p Component H Start + 2fh(47)

198 V Start + 14h(20)

199 Width + 08h(8)

200 Height + 08h(8)

201 1080i Component H Start + 2ch(44)

202 V Start + 20h(32)

203 Width + 05h(5)

204 Height + 05h(5)

205 1080i(50) Component H Start + 2dh(45)

206 V Start + 18h(24)

207 Width + 05h(5)

208 Height + 04h(4)

209 720p Component H Start + 1dh(29)

210 V Start + 12h(18)

211 Width + 05h(5)

212 Height + 05h(5)

213 720p(50) Component H Start + 2ch(44)

214 V Start + 13h(19)

215 Width + 05h(5)

216 Height + 05h(5)

217 540p Component H Start + 2ch(44)

218 V Start + 10h(16)

219 Width + 05h(5)

220 Height + 06h(6)

221 540p(50) Component H Start + 2dh(45)

222 V Start + 0eh(14)

223 Width + 05h(5)

224 Height + 06h(6)

225 Image AGC VPC Start Value 27h(39)

226 Limit Value 3fh(63)

227 Step Size 01h(1)

228 Stop Range 08h(8)

229 AD9884 Start Value a7h(167)

230 Limit Value 6ah(106)

231 Step Size 04h(4)

232 Stop Range 08h(8)

233 Max Peak PC Peak e6h(230)

234 TV/VBS/YC d7h(215)

235 D2 - D4 Peak d7h(215)

NO. Name Mode Item Initial Data Note

-15-

Adjustment

236 Min Ratio —- 00h(0)

237 Avail Ratio —- 0fh(15)

238 AGC On/Off Active 01h(1)

239 AGCD1 On/Off Active 01h(1)

240 Main Ver Main Ver No. d1h(209)

241 Power State Power Fail State 00h(0)

242 Power PDP Fail State 00h(0)

243 Fan Control Mode Command 01h(1)

244 Field Control Condition - 1 Field Begin 00h(0)

245 Field End 01h(1)

246 Condition - 2 Field Begin 00h(0)

247 Field End 02h(2)

248 Condition - 3 Field Begin 00h(0)

249 Field End 03h(3)

250 Condition - 4 Field Begin 00h(0)

251 Field End 04h(4)

252 Condition - 5 Field Begin 00h(0)

253 Field End 05h(5)

254 Condition - 6 Field Begin 00h(0)

255 Field End 06h(6)

256 Color Filter Control PC Red 1 1fh(31)

257 Red 2 1fh(31)

258 Green 1 1fh(31)

259 Green 2 1fh(31)

260 Blue 1 1fh(31)

261 Blue 2 1fh(31)

262 DVI Red 1 1fh(31)

263 Red 2 1fh(31)

264 Green 1 1fh(31)

265 Green 2 1fh(31)

266 Blue 1 1fh(31)

267 Blue 2 1fh(31)

268 Component Red 1 1fh(31)

269 Red 2 1fh(31)

270 Green 1 1fh(31)

271 Green 2 1fh(31)

272 Blue 1 1fh(31)

273 Blue 2 1fh(31)

274 VBS/YC Red 1 1fh(31)

275 Red 2 1fh(31)

276 Green 1 1fh(31)

277 Green 2 1fh(31)

278 Blue 1 1fh(31)

279 Blue 2 1fh(31)

NO. Name Mode Item Initial Data Note

-16-

■Setting the fixed data

(1) Receive the good quality signal.

(2) Enter the Service Mode

(3) Confirm fixed data to be same as data table. If it is different, change to

correct data.

(4) Return to the Normal Mode

This adjustment is controlled by the Sub CPU (IC801) thorough the IIC Data Bus Line in the chassis, and

those adjustment data are memorized into the memory IC (IC804). Therefore, SUB CPU Board or the

memory IC (IC808) is replaced, data of those will be disappeared. Readjustment should be made. Initial

data is provided in the CPU ROM ,when memory IC (IC804) is replaced with new one, CPU ROM data is

loaded into the memory. (Data list will be shown in previous 5 pages.) Initial data is provided to operating

the monitor basically. For operating the monitor quality performance, further adjustment required following

chassis electrical adjustment.

■ White Balance Adjustment

Pattern : White Pattern

Condition : Screen Size : FULL, Picture Image Level : STANDARD

Adjustment : Enter the service mode, select item No. 111 [ Red ], 112 [ Green ] or 113 [ Blue ]

(White:PC), and adjust a proper white balance.

Note : After adjustment, confirm white balance again by normal picture.

Adjustment

-17-

■ Circuit Block Diagram

Analog PC

IC701

LVDS

Interface

PDP

Module

K1501

D-SUB K1505 K8R

K8L

K8L

IC1504

AMP

3

RR

1

IC1506

3

GG

1

IC1505

3

B

IC1771

Video

SW

IC4101

A/D

Converter

IC5001

MATRIX 1

7

R

9

G

11

21

15

B

1

R/CR

7112

105

R/CR

CRA0-7

15

G/Y

22

B/CB

B

1

6

8

10

6

8

10

AMP

AMP

IC4104

AMP

3

SEL-

R/CR

SEL-

G/Y

SEL-

B/CB

1

IC4106

3 1

IC4107

3 1

AMP

AMP

19

IC3001

Main Scaler

(Pixel Works)

2

9

102

95

CRZ0-7 11

18

92

85

YA0-7 27

34

82

75

YZ0-7 36

43

72

65

CBA0-7 46

53

62

55

CBZ0-7

151

144

GRE0-7

141

134

GRO0-7

131

124

GGE0-7

IC5101

MATRIX 2

VRA0-7 2

9

VGA0-7 27

34

VBA0-7 46

53

151

144

VR0-7

131

124

VG0-7

107

100

VB0-7

121

114

GGO0-7

107

100

GBE0-7

97

90

GBO0-7

55

62

BNC R/CR

3

Y/G

BNC Y/G

5

B/CB

BNC B/CB

CRA0-7

CRA0-7

CRZ0-7

CRZ0-7

YA0-7

YA0-7

YZ0-7

YZ0-7

CBA0-7

CBA0-7

CBZ0-7

CBZ0-7

VRA0-7

VRA0-7

VGA0-7

VGA0-7

VBA0-7

VBA0-7

RGB/Component

Input (Analog)

DVI Input (Digital)

Video/S-Video

Input (Decoded)

Main

Interface Board

(Option)

K7V

D1

■ Video

■ Audio

Analog PC

K1504 K1505 K8R

K8L

K8L

R

L

IC131

Audio

SW IC101

Speaker R

(Option)

Speaker L

(Option)

Audio

AMP

7

R

9

L

13

1

L

15

R

11

L

15

30

15

30

IC031

30

SEL-R

SEL-L

23 R

24

27

1 8

Audio

Control

3

SLOT L

12

R

SLOT R Main

Interface Board

(Option)

3

47

3

47

1

4

L

31

28

1

2

KSP9R

KSP9L

-18-

■ Power Supply Lines

Fuse

F601/2

Line Filter

LF601/2/3

AC IN

POWER

MAIN

MAIN

POWER

MODULE

D659

D654 K6C

K16C

K18J

K19J K11F

K8F

K6A

T651

Switching

Transformer

IC801

Sub CPU

IC101

Audio AMP

PF-3

IC651

Switching

Regulator


Coupler

AC

POWER ON/OFF

DC 1

3

11

10

5

2

PC651

IC1652

Q651RL651

5V_Standby

IC1651

3.3V_Standby

5V_Standby

5V_Standby

5V_Standby

27V_Audio 12V_Audio

1

8

K6Q

OPTION

SLOT

(INTERFACE

BOARD)

1

8

Power

ON/OFF

VCC

PDP GO

Power

Fail 3

Power

Fail 2

Power

Fail 1

T-Sensor-1

T-Sensor-2

RELAY

49

16, 62, 99

PDP

MODULE

PDP

MODULE

IC751 4

5

25,26,30

6

86

84

PF-4

Power

Fail 4

85

Panel

Fail

78

11

1

PDP

ON/OFF

K30W

K8Q

D3

1

D8

D26

P9

P6

SS34

K16P

IC1602

13V_Power 5V_Digital

1

K16D

K8L

K8L

Q601

IC1604

19

9V_Analog

IC1603

5V_Standby

PF-4

PF-2

42

5, 49

93, 137

6, 50, 94, 138

Q803

Q804

D603

PF-2

83

82

93

92

RC Pre-AMP

5V_AD

-5V_AD1

L4111

IC4102

-5V_AD2

IC4108

2.5V_Matrix

IC5009

3.3V_Matrix

IC5008

2.5V_PIX

IC8072

IC8073

IC8071

2.5V_Matrix2

IC5107

3.3V_Matrix2

IC5106

3.3V_AD

IC4109

3.3V_PIX

1.5V_PIX_P

3.3V_AP

1.5V_PIX

D4101

D4102 D4103

D5101 D5103

D5001 D5003

D8076

D8074

D5102 D5104

D5004 D5002

D8071 D8077

D8072

D8073

Q801

Q802 PF-1

44

JACK-B

MEMBRANE SW

IC1101

5

5K1104

K1015

K18N

K8N

K8M

5V_Standby

-5V_D-SUB

18

JACK-A

SENSOR-A

IC1509

IC1501

16

IC1502

8

IC1510

8

IC1503

16

IC1504

IC1505

IC1506

5

2

1

2

K8R

CONTROL

3

3

A1902A 3

18

5V_Standby

4

4

2

2Temperature

Sensor

IC1891

T-SENSOR-1

T-SENSOR-1

K18M SENSOR-B

1

2

5V_Standby

5

5

2

2Temperature

Sensor

IC1881

T-SENSOR-2

T-SENSOR-2

5V_SYNC

D1711

PANEL_FAIL

IC5009

Reg

IC1651

5V_Standby

3.3V_Standby

27V_Audio 12V_Audio

13V_Power 5V_Digital

9V_Analog 5V_AD

IC801

D1884 D1883 D1101

D1851

D1882

16, 62 99

Sub CPU

Reg

Q601

IC1604

Reg

IC802

1

Reset

Sync SEP Sync SW Sync SEP

IC803

5

IC806

16

IC807

5

IC8402

16

IC5002

5

IC5003

1

IC5004

8

IC5006

14

IC5007

14

IC8101/2/3

7,18,31,42

IC1882

1

IC751

14

IC8421

14

IC1941

8

IC1761

16

IC1771

20

IC804

8

EEPROM

IC753

20

IC3104

5

IC1712

13

IC1713

1

IC1714

Audio AMP

IC101

Audio SW

IC131

Matrix_1

Reset

Reset

Reset

Flash ROM

SRAM

IC5001

16

16

Audio Control

IC031

16

20, 26,

30

IC1716

8

IC1717

IC4107

IC4101

8

8

8

2

2

IC1711

52

IC1881

1

D1711

5V_SYNC

Sync SW Video SW

IC1602

L4111

Reg

IC1603

Reg

IC4108

Reg

IC4102

Reg

IC4109

Reg

IC5008

Reg

AD Converter

FAN Control

IC1851

8

-5V_AD2

-5V_AD1

3.3V_Matrix

2.5V_Matrix

2.5V_Matrix2

3.3V_AD

IC4104

IC4106

IC5107

Reg

IC5104

5

IC701 IC3151

1,9,26,34

IC5108

1

IC5102

14

16

IC3152

4,16

IC3153

5

IC3154

2

IC5103

14

Matrix_2

IC5101

IC5106

Reg

IC8073

Reg

IC8072

Reg

IC8071

Reg

3.3V_Matrix2

2.5V_PIX

3.3V_PIX

1.5V_PIX_P

3.3V_AP

1.5V_PIX

Pixel Works

LVDS

I/O

IC3001

IC752 14

IC8422 14

IC8001 73

IC3141

37

IC3142

33,11

IC3002

20

IC3003

20

IC3101 20

IC3103 1

IC3102 8

■ Power Supply Lines

■ Power Source of IC (Main Board)

-19-

■ Power Fail Circuit

Sub CPU (IC801) is programmed that the set goes to standby mode when there is circuit fail

as below. (Refer to "Power Supply Lines: P18)

1. Power Fail 1 : Detected the low voltage fail in Main board. (From 1.5V to 5V)

2. Power Fail 2 : Detected the High voltage fail in Main board. (13V)

3. Power Fail 3 : Detected the fail of Audio AMP IC (IC101).

4. Power Fail 4 : Detected the voltage fail of Interface Board (Option).

5. Temperature Fail : Detected the fail of Temperature Sensor IC (IC1881/1891).

6. Panel Fail (ALARM) : Detected the fail of PDP Module.

Note: In case of Panel Fail (ALARM), the set does not go to standby mode. (Only "PDP_GO" line is off.)

IC801

83

Sound AMP. Fail Detect (To IC101 19 )

(Low: Normal, High: Fail)

P FAIL 2

84

P FAIL 3

82 Low Voltage (1.5V - 5V) Fail Detect

(High: Normal, Low: Fail)

High Voltage (13V) Fail Detect

(High: Normal, Low: Fail)

85

P FAIL 4 (Option) Interface Board Voltage Fail Detect

(High: Normal, Low: Fail)

79

PANEL FAIL Panel Module Fail Detect

(High: Normal, Low: Fail)

49

POWER

ON/OFF

Standby ON/OFF

(High: ON, Low: OFF)

86

PDP GO PDP Module ON/OFF

(High: ON, Low: OFF)

P FAIL 1

92 Temperature Fail Detect (To IC1891 2 )

TEM. FAIL 1

93 Temperature Fail Detect (To IC1881 2 )

TEM. FAIL 2

-20-

Power Fail Circuit

When operating the Power Fail Circuit, On-Screen-Display message or LED flashing time is

shown as below.

On-Screen-Display Message

1. TEMPERATURE FAIL

When the internal temperature exceeds normal ( approximately more than 80 degrees ), below message is

displayed for 10 seconds and the Plasma monitor will be turned off automatically.

LED Flashing

1. PANEL & TEMPERATURE FAIL: The color of LED is ‘RED’.

2. POWER FAIL 1& 2: The color of LED is ‘GREEN’.

3. POWER FAIL 3& 4: The color of LED is ‘YELLOW’.

Warning!

Internal temperature is too high.

Times of flashing Fail Name

1 Power Fail 1

2 Power Fail 2

3 Power Fail 1 & 2

Note:

1. In case of overlapped fail, 1 to 3 is repeated in turn.

2. If power fail is detected 3 times in 15 minutes, the monitor will stop operating.

Note:If pull off the AC cord, the information of these fails will be disappeared.

Times of flashing Fail Name

1 Panel Fail

2 Temperature Fail

3 Panel & Temperature Fail

Times of flashing Fail Name

1 Power Fail 3

2 Power Fail 4

3 Power Fail 3 & 4

-21-

Power Fail Circuit

When finishing the repair or stopping Power Fail, can be checked the history of the past fails.

To see the history

1. Enter the service mode. (Refer to "Adjustment" P9 - P10.)

2. Check the Item No.241 or No.242 of Service Adjustment Data Table. (Refer to P15.)

1. History of Power Fail (Item No. 241)

Fail Name Data

No Fail 00h(0)

Power Fail 1 01h(1)

Power Fail 2 02h(2)

Power Fail 3 04h(4)

Power Fail 4 08h(8)

Panel Fail (ALARM) 10h(16)

Temperature Fail 20h(32)

2. History of Panel Fail (Item No. 242)

Fail Name Data

No Panel Fail 00h(0)

Voltage Fail (5V) 01h(1)

Voltage Fail (3V) 02h(2)

Panel Driver Fail 04h(4)

Note: If counted the overlapped fail, the sum of

each data is displayed.

For example:

Power Fail 2 & Panel Fail (ALARM)

02h + 10h = 12h(18)

Note: If counted the overlapped fail, the sum of

each data is displayed.

For example:

Voltage Fail (5V) & Panel Driver Fail

01h + 04h = 05h(5)

Attention: After finishing the service, their data should be reset to "00h(0)".

-22-

■ Troubleshooting

No Power

Refer to Schematic Diagram or Power Supply Line, find out the part of trouble.

Before opening Cabinet Back, check the AC cord and power source.

No

Ye s

No

Ye s

Ye s

(or the voltage of some

lines is not supplied.)

After few seconds,

the set is switched off.

Check 'Fail' Circuit to refer service

manual 'Power Fail Circuit'.

Is LED flashed?

No

(All 0V)

Is

the voltage of

all lines in Power Unit

supplied?

Is

fuse (F601/602)

in Power Board

broken?

Main Power Module is

broken.

Check D659 or IC651 in

Power Board.

Check arround Sub CPU

(IC801) in Main Board.

Main Power Module is

broken.

Check PTH651 in Power

Board.

Check '5V_Standby' line

from Power Board to Main

Board.

Check VA601 in Power

Board.

-23-

●System Control (Sub-CPU : IC801)

■ Control Port Functions

1 P96/ANEX1/SOUT4 RTC_DATAOUT O For real time clock

2 P95/ANEX0/CLK4 RTC_CLK O For real time clock

3 P94/DA1/TB4IN FAN-CTRL1 O Fan control 1 D/A

4 P93/DA0/TB3IN FAN-CTRL2 O Fan control 2 D/A

5 P92/TB2IN/SOUT3 Not used (Output: Low)

6 P91/TB1IN/SIN3 HS_DET I (Analog)PC-HSYNC IN DPMS input

7 P90/TB0IN/CLK3 Not used (Output: Low)

8 BYTE

9 CNVss CNVSS For writing

10 P87/XCIN Not used (Output: Low)

11 P86/XCOUT Not used (Output: Low)

12 RESET CPURST IC reset

13 XOUT

14 VSS

15 XIN

16 VCC

17 P85/NMI

18 P84/INT2 RC I RC input RC input

19 P83/INT1 Not used (Output: Low)

20 P82/INT0 VS_DET I (Analog)PC-VSYNC IN DPMS input

21 P81/TA4IN/U Not used (Output: Low)

22 P80/TA4OUT/U Not used (Output: Low)

23 P77/TA3IN Not used (Output: Low)

24 P76/TA3OUT Not used (Output: Low)

25 P75/TA2IN/W Not used (Output: Low)

26 P74/TA2OUT/W Not used (Output: Low)

27 P73/CTS2/RTS2/TA1IN/V Not used (Output: Low)

28 P72/CLK2/TA1OUT/V Not used (Output: Low)

29 P71/RxD2/SCL/TA0IN/TB5IN RXD2 I UART for option board Not used (Output: Low)

30 P70/TXD2/SDA/TA0OUT TXD2 O UART for option board Not used (Output: Low)

31 P67/TXD1 UARTTX O UART for PIX TX

32 P66/RxD1 UARTRX I UART for PIX RX

33 P65/CLK1 SCLCK I For writing Output: Low

34 P64/CTS1/RTS1/CLKS1 BUSY I For writing Output: Low

35 P63/TXD0 RS232C_RX O Control for RS232C RX

36 P62/RxD0 RS232C_TX I Control for RS233C TX

37 P61/CLK0 Not used (Output: Low)

38 P60/CTS0/RTS0 Not used (Output: Low)

39 P57/RDY/CLKOUT Not used (Output: Low)

40 P56/ALE Not used (Output: Low)

41 P55/HOLD EPM For writing Input

42 P54/HLDA DVI HOT DVI HOT High:Permisson

43 P53/BCLK Not used (Output: Low)

44 P52/RD Not used (Output: Low)

45 P51/WRH/BHE Not used (Output: Low)

46 P50/WRL/WR CE For writing Not used (Output: Low)

47 P47/CS3 Not used (Output: Low)

48 P46/CS2 RTC_CE For real time clock High:Communication

49 P45/CS1 STB O Power ON/OFF High:ON, Low:OFF

50 P44/CS0 AMP-MUTE1 O Low:Mute

51 P43/A19 RS232C_A O Mode SW for RS232C 51Pin /52Pin:

H/H:Multi-monitor,

52 P42/A18 RS232C_B O Mode SW for RS233C H/L:Inter-communication,

L/H:Through, L/L:Not used

53 P41/A17 Not used (Output: Low)

54 P40/A16 Not used (Output: Low)

55 P37/A15 SCL EEPROM

56 P36/A14 SDA EEPROM

57 P35/A13 Not used (Output: Low)

58 P34/A12 SCDT_ST1 I Low:No signal

59 P33/A11 Not used (Output: Low)

60 P32/A10 L-RED O High:ON, LowOFF

Pin NO. Pin Name Signal Name I/O Note Data

-24-

Control Port Functions

61 P31/A9 L-GREEN O High:ON, LowOFF

62 VCC

63 P30/A8(/-/D7) Not used (Output: Low)

64 Vss

65 P27/A7(/D7/D6) Not used (Output: Low)

66 P26/A6(/D6/D5) Not used (Output: Low)

67 P25/A5(/D5/D4) Not used (Output: Low)

68 P24/A4(/D4/D3) Input

69 P23/A3(/D3/D2) Input

70 P22/A2(/D2/D1) Input

71 P21/A1(/D1/D0) Not used (Output: Low)

72 P20/A0(/D0/-) RESET_SW I Externai reset SW (Input) Low:Reset

73 P17/D15/INT5 FCOM O For real time clock Low:Fixed

74 P16/D14/INT4 AIRQ I For real time clock Not used (Input)

75 P15/D13/INT3 YIRQ I For real time clock

76 P14/D12 Not used (Output: Low)

77 P13/D11 FAN-LOCK1 I Fan Lock Input High:Normal, Low:Locked

78 P12/D10 PANEL-LED I Panel LED (Fail Detection)

79 P11/D9 ALARM I Panel Fail High:Normal, Low:Fail

80 P10/D8 PW_RST O PIX reset (Output) High:Reset

81 P07/D7 LINE OFF I Power OFF Detection Low:AC OFF

82 P06/D6 P-FAIL1 I 1.5V,2.5V,3.3V,5V High:Normal, Low:Fail

83 P05/D5 P-FAIL2 I 9V,12,13V High:Normal, Low:Fail

84 P04/D4 P-FAIL3 I For Audio AMP IC High:Fail, Low:Normal

85 P03/D3 P-FAIL4 I For Option Board (Slot) High:Normal, Low:Fail

86 P02/D2 PDPGO_5 O Panel ON/OFF High:ON, Low:OFF

87 P01/D1 PWRSW I Power SW

88 P00/D0 FAN-LOCK2 I Fan Lock Input High:Normal, Low:Locked

89 P107/AN7/KI3 Not used (Output: Low)

90 P106/AN6/KI2 Not used (Output: Low)

91 P105/AN5/KI1 Not used (Output: Low)

92 P104/AN4/KI0 T-SENSOR1 I Temp-Sensor (Analog input) A/D

93 P103/AN3 T-SENSOR2 I Temp-Sensor (Analog input) A/D

94 P102/AN2 Not used (Output: Low)

95 P101/AN1 KEY-IN I Key Input A/D

96 AVSS Not used (Output: Low)

97 P100/AN0 Not used (Output: Low)

98 VREF Not used (Output: Low)

99 AVcc Not used (Output: Low)

100 P97/ADTRG/SIN4 RTC_DATA I For real time clock

Pin NO. Pin Name Signal Name I/O Note Data

-25-

■ Pin Description of Diode, Transistor and IC

A

K

C

BE

C2

C1

B1 B2

E

C

CBE

KA

C

B

E

B2

B1

C1 C2

E

E

B

C

B2

B1

C1 C2

E

B2

B1

C1

C2

E1

E2

K

AA

A

KK

K

A

K

A

C

B

ECB

EC

B

E

1

2

3

4

5

6

Index

12

N

Index Index

12

N

2

13

(IN) (OUT)

(GND)

21 4

2

1

3

Index

1

N

Index 1

N

Index 1

N

Index 1

N

Index 1

N

Index

1N

2

1

3

1

232

1

3

RESET GND

Vdd

5

3

D

G

SD

G

S

K: Cathode

A: Anode

C: Collector

B: Base

E: Emitter

D: Drain

G: Gate

S: Source

● Diode

● Transistor/FET

● IC

E1

C2

E2 C1

B2

B1

Index

-26-

■Parts List

MECHANICAL PARTS

1610 305 4827 ASSY,CABINET BACK-J3TF

2610 305 2373 CABINET FRONT-J3TF

(PDP-42WV1 / PDP-42WV1A)

610 308 6705 CABINET FRONT-J3TG

(PDP-42WV1S / PDP-42WV1AS)

3610 306 3508 COVER-J3TF

4610 308 6378 COVER SHEET-J3TF

5610 305 4353 HANDLE L-J3TF

6610 305 4360 HANDLE R-J3TF

7610 305 7422 DEC SHEET-J3TF

8610 305 7439 DEC SHEET R-J3TF

9610 305 7446 DEC SHEET AC IN-J3TF

10 610 305 2427 DEC INLAY-J3TF

11 610 305 2410 DEC IND-J3TF

ACCESSORY

645 059 8050 ASSY,REMOCON JXMZA

610 306 2532 RC-BATTERY LID-CXPH

645 051 2322 RC CABLE,FXAF

645 023 4958 CORE,CLAMP

645 054 1162 CORD,POWER-3.0MK (US)

645 054 1155 CORD,POWER-3.0MK (EU, ASIA)

645 054 1148 CORD,POWER-3.138MK (UK)

OWNERS MANUAL

610 305 7934 OWNERS MANUAL-J3TF (English)

610 305 7941 OWNERS MANUAL-J3TF-D (Germany)

610 305 7958 OWNERS MANUAL-J3TF-F (French)

610 305 7965 OWNERS MANUAL-J3TF-I (Italian)

610 305 7972 OWNERS MANUAL-J3TF-E (Spanish)

!

!

!

Fig. No. Part No. Description Part No. Description

Button (Membrane SW)

See Electric Parts.

1

2

3

4

7

89

65

11

10

-27-

Electrical Parts List

Product safety should be considered when a component replacement is made in any area of a PDP monior.

Components indicated by a mark in this parts list and the circuit diagram show components whose value have

special significance to product safety. It is particularly recommended that only parts specified on the following parts

list be used for components replacement pointed out by the mark.

!

Read description in the Capacitor and Resistor as follows:

CAPACITOR CERAMIC 100P K 50V

Rated Voltage

Tolerance Symbols:

Less than 10pF

A : Not specified B : ±0.1pF C : ±0.25pF

D : ±0.5pF E : +0 -1pF F : ±1PF 

G : ±2pF H : +0.1 -0pF L : +0 -0.1pF

R : ±0.25 -0pF S : +0-0.25pF

More than 10pF

A : Not specified B : ±0.1% C : ±0.25%

D : ±0.5% F : ±1% G : ±2%

H : ±3% J : ±5% K : ±10%

L : ±15% M : ±20% N : ±30%

P : +100-0% Q : +30-10% T : +50-10%

U : +75-10% V : +20-10% W : +100-10%

X : +40-20% Y : +150-10% Z : +80-20%

Rated value: P=pico farad, U=micro farad

Material:

CERAMIC...........Ceramic

MT-PAPER.........Metallized Paper

POLYESTER......Polyester

MT-POLYEST.....Metallized Polyester

POLYPRO..........Polypropylene

MT-POLYPRO....Metallized Polypropylene

COMPO FILM.....Composite film

MT-COMPO........Metallized Composite

STYRENE...........Styrene

TA-SOLID...........Tantalum Oxide Solid Electrolytic

AL-SOLID...........Aluminium Solid Electrolytic

ELECT................Aluminum Foil Electrolytic

NP-ELECT..........Non-polarised Electrolytic

OS-SOLID..........Aluminium Solid with Organic Semiconductive Electrolytic

POS-SOLID........Polymerized Organic Semiconductive 

DL-ELECT..........Double Layered Electrolytic

PPS-FILM...........Polyphenylene Sulfide Film

MT-PPS-FILM.....Metalized Polyphenylene Sulfide Film

MT-PEN-FILM.....Metalized Polyethylenenaphthalate Film

CAPACITOR.......Other

CARBON 4.7K J A 1/4W

Rated Wattage

Performance Symbols:

A: General B: Non flammable Z: Low noise

Other: Temperature coefficient

Tolerance Symbols:

A: ±0.05% B: ±0.1% C: ±0.25% D: ±0.5%

F: ±1% G: ±2% J: ±5% K: ±10%

M: ±20% P: +5-15%Z: 0 ohm

Rated value, ohms:

K: 1,000, M: 1,000,000

Material:

CARBON...........Carbon

MT-FILM............Metal Film

OXIDE-MT.........Oxide Metal Film

SOLID................Composition

MT-GLAZE.........Metal Glaze

WIRE WOUND...Wire Wound

CERAMIC RES..Ceramic

FUSIBLE RES....Fusible

RESISTOR ........Other

T: ±10ppm/°C U: ±25ppm/°C C: ±50ppm/°C

D: ±100ppm/°C E: ±200ppm/°C F: ±250ppm/°C

G: ±350ppm/°C H: ±1000ppm/°C±10%W: ±1200ppm/°C±10%

Y: ±1400ppm/°C±10%J: ±2000ppm/°C±10% K: ±2400ppm/°C±10%

L: ±2700ppm/°C±10% M: ±3000ppm/°C±10%N: ±3300ppm/°C±10%

P: ±3600ppm/°C±10%Q: ±3900ppm/°C±10%R: ±4200ppm/°C±10%

S: ±4300ppm/°C±10%V: ±4500ppm/°C±10%X: ±8000ppm/°C±10%

RESISTOR



●Read Description in the parts list

Electrical Parts List

-28-

MISCELLANEOUS

EL901 645 059 6131 PDP MODULE

(For PDP-42WV1 / PDP-42WV1S)

EL901 645 059 5424 PDP MODULE

(For PDP-42WV1A / PDP-42WV1AS)

EL902 645 059 6117 OPTICAL FILTER

FN901 645 057 8649 MOTOR,FAN DC 1.8W

FN903 645 062 2458 MOTOR,FAN DC 0.744W

M901 610 305 6487 BUTTON-42-J3TF (MENBRANE SW)

(For PDP-42WV1 / PDP-42WV1A)

M901 610 308 1120 BUTTON-42-J3TA (MENBRANE SW)

(For PDP-42WV1S / PDP-42WV1AS)

SPL 645 061 8086 SPEAKER TERMINAL,BOARD

SPR 645 061 8086 SPEAKER TERMINAL,BOARD

W7V-D1 610 305 9235 CORD 21P 1.25MM(LVDS CABLE)

610 305 0775 ASSY,PWB,MAIN-J3TF 1AA0B10N04000

TRANSISTOR

Q101 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q131 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q132 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q133 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q134 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q1601 405 151 2000 TR FSS134-TL

Q1711 405 134 5905 TR 2SA1037AK-T146-R

405 147 2205 TR 2SA1037AK-S-T146

405 002 0308 TR 2SA1037K T146 R

405 002 0407 TR 2SA1037K T146 S

405 002 6706 TR 2SA1179-M6-TB

405 002 6904 TR 2SA1179-M7-TB

405 163 1503 TR 2SA1179N-M6-TB

405 163 2708 TR 2SA1179N-M7-TB

405 173 9605 TR 2SA1235A1E

405 173 9704 TR 2SA1235A1F

Q1712 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q1713 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q1714 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q1715 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q1716 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q1717 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q1771 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q1772 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q1773 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q1774 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

!

!

!

!

Key No. Part No. Description Key No. Part No. Description

-29-

Electrical Parts List

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q1851 405 148 2907 TR 2SC5103 TL P

405 148 3003 TR 2SC5103 TL Q

Q1853 405 148 2907 TR 2SC5103 TL P

405 148 3003 TR 2SC5103 TL Q

Q1854 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q1855 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q1931 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q1932 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q3101 405 045 8705 TR 2SK536-TB

Q3102 405 045 8705 TR 2SK536-TB

Q4101 405 079 1505 TR 2SC4269-4-TB

Q4102 405 079 1505 TR 2SC4269-4-TB

Q4103 405 079 1505 TR 2SC4269-4-TB

Q751 405 045 8705 TR 2SK536-TB

Q752 405 045 8705 TR 2SK536-TB

Q753 405 045 8705 TR 2SK536-TB

Q801 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q802 405 134 5905 TR 2SA1037AK-T146-R

405 147 2205 TR 2SA1037AK-S-T146

405 002 0308 TR 2SA1037K T146 R

405 002 0407 TR 2SA1037K T146 S

405 002 6706 TR 2SA1179-M6-TB

405 002 6904 TR 2SA1179-M7-TB

405 163 1503 TR 2SA1179N-M6-TB

405 163 2708 TR 2SA1179N-M7-TB

405 173 9605 TR 2SA1235A1E

405 173 9704 TR 2SA1235A1F

Q803 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q804 405 134 5905 TR 2SA1037AK-T146-R

405 147 2205 TR 2SA1037AK-S-T146

405 002 0308 TR 2SA1037K T146 R

405 002 0407 TR 2SA1037K T146 S

405 002 6706 TR 2SA1179-M6-TB

405 002 6904 TR 2SA1179-M7-TB

405 163 1503 TR 2SA1179N-M6-TB

405 163 2708 TR 2SA1179N-M7-TB

405 173 9605 TR 2SA1235A1E

405 173 9704 TR 2SA1235A1F

Q891 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

INTEGRATED CIRCUIT

IC031 409 526 7409 IC NJW1138M

IC101 409 539 8004 IC TA2024

IC131 409 438 5500 IC TC4052BFT

IC1602 409 550 1404 IC PQ1CY1032ZP

IC1603 409 533 3302 IC PQ1CZ41H2ZP

IC1604 409 531 6206 IC FA7701V-TE1

IC1651 409 416 6406 IC BA033FP-E2

IC1711 409 461 7304 IC AD8057ART

IC1712 409 441 8406 IC LA7217M-T-TRM

IC1713 409 484 2003 IC BA7078AF-E2

IC1714 409 438 5500 IC TC4052BFT

IC1716 409 428 8405 IC TC7WT125FU-TE12L

IC1717 409 428 8405 IC TC7WT125FU-TE12L

IC1761 410 358 1503 IC TC74HC4053AFT(EL)

IC1771 409 501 0906 IC BA7657F

IC1851 409 039 6609 IC NJM2904-T2

IC1881 409 431 7808 IC RTC-4574JE

IC1882 409 496 9601 IC PST600IM

IC1941 409 428 8405 IC TC7WT125FU-TE12L

IC3001 409 547 6306 IC PW181-10V

IC3002 410 346 8804 IC TC74LCX574FT

IC3003 410 346 8804 IC TC74LCX574FT

IC307A 410 354 3808 IC MBM29LV800TA-90PFTN

IC3101 410 362 6501 IC TC74LCX541FT

IC3102 409 533 6006 IC 24LC32AT-I/SN

IC3103 409 480 1307 IC PST573IM

IC3104 409 458 2305 IC TC7SZ32FU-TE85L

IC3141 410 497 9200 IC MBM29LV800TA90NC205A

IC3142 410 397 0406 IC IC61LV6416-15T

IC3151 409 536 9301 IC CD4051BPW

409 439 5509 IC TC4051BFT

IC3152 409 428 7101 IC AV9155C

IC3153 409 487 5704 IC TC7SZ125FU

IC3154 409 501 9107 IC ICS512MT

IC4101 410 353 1805 IC AD9884AKS-140

IC4102 409 448 5903 IC BD6111FV-E2

IC4104 409 461 7304 IC AD8057ART

IC4106 409 461 7304 IC AD8057ART

IC4107 409 461 7304 IC AD8057ART

IC4108 409 448 5903 IC BD6111FV-E2

IC4109 409 416 6406 IC BA033FP-E2

IC5001 409 528 6608 IC LC749400W

IC5002 409 462 2308 IC TC7SZ04FU-TE852

IC5003 409 496 9601 IC PST600IM

IC5004 409 439 8906 IC TC7WH125FU

IC5006 410 348 7409 IC TC74LCX125FT(EL)

IC5007 410 348 7409 IC TC74LCX125FT(EL)

IC5008 409 416 6406 IC BA033FP-E2

IC5009 409 499 1701 IC PQ025EZ01ZP

409 461 7700 IC PQ2TZ15

IC5101 409 528 6608 IC LC749400W

Key No. Part No. Description Key No. Part No. Description

Electrical Parts List

-30-

IC5102 410 348 7409 IC TC74LCX125FT(EL)

IC5103 410 348 7409 IC TC74LCX125FT(EL)

IC5104 409 462 2308 IC TC7SZ04FU-TE852

IC5106 409 416 6406 IC BA033FP-E2

IC5107 409 499 1701 IC PQ025EZ01ZP

409 461 7700 IC PQ2TZ15

IC5108 409 496 9601 IC PST600IM

IC701 410 423 7201 IC THC63LVDM83R

IC751 409 438 5609 IC TC74ACT08FT

IC752 409 432 9108 IC TC74LCX08FT-(EL)

IC753 410 482 1202 IC TC74LCX573FT

IC8001 409 533 4804 IC TE7780

IC8002 409 462 2308 IC TC7SZ04FU-TE852

IC801 410 497 9408 IC M30624FGAFP-C207B

IC801A 409 536 3804 IC M30624FGAFP

IC802 409 325 4203 IC PST600DMT

IC803 409 152 5404 IC TC7S08F-TE85L

IC804 409 392 7503 IC 24LC08BT/SN

IC806 410 358 1503 IC TC74HC4053AFT(EL)

IC807 409 155 8006 IC TC7S04F-TE85L

IC8071 409 546 9803 IC PQ015EZ01ZP

IC8072 409 499 1701 IC PQ025EZ01ZP

409 461 7700 IC PQ2TZ15

IC8073 409 416 6406 IC BA033FP-E2

IC8101 410 321 8300 IC TC74VCX16244FT

IC8102 410 321 8300 IC TC74VCX16244FT

IC8103 410 321 8300 IC TC74VCX16244FT

IC8402 410 358 1503 IC TC74HC4053AFT(EL)

IC8421 409 438 5609 IC TC74ACT08FT

IC8422 409 432 9108 IC TC74LCX08FT-(EL)

CAPACITOR

C009 403 267 0606 NP-ELECT 4.7U M 16V

C010 403 267 0606 NP-ELECT 4.7U M 16V

C031 403 164 0204 CERAMIC 0.1U Z 25V

C032 403 377 1500 ELECT 1000U M 10V

C033 403 338 2300 ELECT 4.7U M 35V

C034 403 338 2300 ELECT 4.7U M 35V

C035 403 338 2300 ELECT 4.7U M 35V

C036 403 338 2300 ELECT 4.7U M 35V

C037 403 342 3300 CERAMIC 0.1U K 25V

C038 403 338 2300 ELECT 4.7U M 35V

C039 403 338 2300 ELECT 4.7U M 35V

C040 403 342 3300 CERAMIC 0.1U K 25V

C041 403 342 3300 CERAMIC 0.1U K 25V

C042 403 342 3300 CERAMIC 0.1U K 25V

C043 403 155 2309 CERAMIC 4700P K 50V

C044 403 155 2309 CERAMIC 4700P K 50V

C045 403 267 0606 NP-ELECT 4.7U M 16V

C046 403 267 0606 NP-ELECT 4.7U M 16V

C047 403 267 0606 NP-ELECT 4.7U M 16V

C048 403 267 0606 NP-ELECT 4.7U M 16V

C101 403 342 3300 CERAMIC 0.1U K 25V

C102 403 345 6605 CERAMIC 1U M 10V

C104 403 155 2200 CERAMIC 3300P K 50V

C105 403 346 8509 ELECT 680U M 16V

C107 403 348 5803 CERAMIC 0.47U K 10V

C108 403 348 5803 CERAMIC 0.47U K 10V

C109 403 325 6304 CERAMIC 0.22U K 10V

C110 403 321 7404 ELECT 100U M 16V

C111 403 325 6304 CERAMIC 0.22U K 10V

C112 403 164 0204 CERAMIC 0.1U Z 25V

C114 403 345 6605 CERAMIC 1U M 10V

C115 403 164 0204 CERAMIC 0.1U Z 25V

C116 403 348 5803 CERAMIC 0.47U K 10V

C117 403 348 5803 CERAMIC 0.47U K 10V

C119 403 345 6605 CERAMIC 1U M 10V

C120 403 155 2200 CERAMIC 3300P K 50V

C121 403 164 0204 CERAMIC 0.1U Z 25V

C122 403 348 5803 CERAMIC 0.47U K 10V

C123 403 348 5803 CERAMIC 0.47U K 10V

C124 403 325 6304 CERAMIC 0.22U K 10V

C125 403 325 6304 CERAMIC 0.22U K 10V

C126 403 164 0204 CERAMIC 0.1U Z 25V

C127 403 348 5803 CERAMIC 0.47U K 10V

C128 403 348 5803 CERAMIC 0.47U K 10V

C129 403 164 0204 CERAMIC 0.1U Z 25V

C130 403 164 0204 CERAMIC 0.1U Z 25V

C131 403 342 3300 CERAMIC 0.1U K 25V

C132 403 345 6605 CERAMIC 1U M 10V

C133 403 164 0204 CERAMIC 0.1U Z 25V

C134 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

C135 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

C136 403 304 2105 ELECT 47U M 6.3V

C137 403 149 9208 CERAMIC 0.01U Z 50V

C1601 403 149 9208 CERAMIC 0.01U Z 50V

C1608 403 378 3008 ELECT 330U M 35V

C1609 403 378 3008 ELECT 330U M 35V

C1611 403 164 0204 CERAMIC 0.1U Z 25V

C1612 403 343 3408 ELECT 10U M 25V

C1613 403 224 7006 CERAMIC 0.047U Z 50V

C1614 403 378 3008 ELECT 330U M 35V

C1615 403 343 4900 ELECT 470U M 25V

C1621 403 286 8201 ELECT 1000U M 6.3V

C1627 403 164 0204 CERAMIC 0.1U Z 25V

C1636 403 378 3008 ELECT 330U M 35V

C1637 403 164 0204 CERAMIC 0.1U Z 25V

C1638 403 378 2209 ELECT 470U M 25V

C1641 403 378 2209 ELECT 470U M 25V

C1642 403 378 2209 ELECT 470U M 25V

C1643 403 208 0702 TA-SOLID 4.7U M 16V

C1644 403 164 0204 CERAMIC 0.1U Z 25V

C1646 403 113 3805 CERAMIC 1000P K 50V

C1647 403 377 1500 ELECT 1000U M 10V

C1648 403 164 0204 CERAMIC 0.1U Z 25V

C1651 403 164 0204 CERAMIC 0.1U Z 25V

C1652 403 334 8603 ELECT 220U M 6.3V

C1653 403 334 8603 ELECT 220U M 6.3V

C1654 403 164 0204 CERAMIC 0.1U Z 25V

C1711 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C1712 403 164 0204 CERAMIC 0.1U Z 25V

C1713 403 334 8603 ELECT 220U M 6.3V

C1715 403 266 8207 NP-ELECT 10U M 16V

C1716 403 304 2105 ELECT 47U M 6.3V

C1718 403 164 0204 CERAMIC 0.1U Z 25V

C1719 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C1720 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C1721 403 345 6605 CERAMIC 1U M 10V

C1722 403 215 2201 CERAMIC 0.01U K 50V

C1723 403 334 8603 ELECT 220U M 6.3V

C1724 403 237 8700 CERAMIC 0.056U Z 50V

C1725 403 267 0606 NP-ELECT 4.7U M 16V

C1726 403 205 2808 CERAMIC 0.047U K 25V

C1727 403 314 5905 CERAMIC 0.47U K 16V

C1728 403 345 6605 CERAMIC 1U M 10V

C1729 403 323 8805 CERAMIC 2.2U Z 16V

403 255 7907 CERAMIC 2.2U Z 16V

C1730 403 345 6605 CERAMIC 1U M 10V

C1731 403 157 6909 CERAMIC 820P K 50V

C1732 403 224 6603 CERAMIC 0.022U Z 50V

C1733 403 157 3601 CERAMIC 100P J 50V

C1734 403 164 0204 CERAMIC 0.1U Z 25V

C1735 403 334 8603 ELECT 220U M 6.3V

C1736 403 164 0204 CERAMIC 0.1U Z 25V

C1737 403 164 0204 CERAMIC 0.1U Z 25V

C1740 403 149 9208 CERAMIC 0.01U Z 50V

C1741 403 164 0204 CERAMIC 0.1U Z 25V

C1742 403 164 0204 CERAMIC 0.1U Z 25V

C1752 403 149 9208 CERAMIC 0.01U Z 50V

C1754 403 149 9208 CERAMIC 0.01U Z 50V

C1756 403 149 9208 CERAMIC 0.01U Z 50V

C1758 403 149 9208 CERAMIC 0.01U Z 50V

Key No. Part No. Description Key No. Part No. Description

-31-

Electrical Parts List

C1760 403 149 9208 CERAMIC 0.01U Z 50V

C1762 403 149 9208 CERAMIC 0.01U Z 50V

C1763 403 164 0204 CERAMIC 0.1U Z 25V

C1764 403 286 8201 ELECT 1000U M 6.3V

C1765 403 149 9208 CERAMIC 0.01U Z 50V

C1771 403 282 1206 NP-ELECT 22U M 16V

C1772 403 282 1206 NP-ELECT 22U M 16V

C1773 403 282 1206 NP-ELECT 22U M 16V

C1774 403 282 1206 NP-ELECT 22U M 16V

C1776 403 282 1206 NP-ELECT 22U M 16V

C1777 403 282 1206 NP-ELECT 22U M 16V

C1781 403 153 9300 CERAMIC 82P J 50V

C1782 403 153 9300 CERAMIC 82P J 50V

C1783 403 153 9300 CERAMIC 82P J 50V

C1851 403 343 3408 ELECT 10U M 25V

C1852 403 164 0204 CERAMIC 0.1U Z 25V

C1853 403 149 9208 CERAMIC 0.01U Z 50V

C1855 403 149 9208 CERAMIC 0.01U Z 50V

C1856 403 321 7503 ELECT 220U M 16V

C1858 403 321 7503 ELECT 220U M 16V

C1881 403 343 3408 ELECT 10U M 25V

C1882 403 164 0204 CERAMIC 0.1U Z 25V

C1885 403 164 0204 CERAMIC 0.1U Z 25V

C1887 403 164 0204 CERAMIC 0.1U Z 25V

C1932 403 343 3408 ELECT 10U M 25V

C1941 403 343 3408 ELECT 10U M 25V

C1942 403 164 0204 CERAMIC 0.1U Z 25V

C3001 403 157 2604 CERAMIC 30P J 50V

C3002 403 145 9905 CERAMIC 22P J 50V

C3003 403 164 0204 CERAMIC 0.1U Z 25V

C3004 403 164 0204 CERAMIC 0.1U Z 25V

C3005 403 164 0204 CERAMIC 0.1U Z 25V

C3006 403 164 0204 CERAMIC 0.1U Z 25V

C3007 403 164 0204 CERAMIC 0.1U Z 25V

C3008 403 164 0204 CERAMIC 0.1U Z 25V

C3009 403 164 0204 CERAMIC 0.1U Z 25V

C3010 403 164 0204 CERAMIC 0.1U Z 25V

C3011 403 164 0204 CERAMIC 0.1U Z 25V

C3012 403 334 8603 ELECT 220U M 6.3V

C3013 403 164 0204 CERAMIC 0.1U Z 25V

C3014 403 164 0204 CERAMIC 0.1U Z 25V

C3015 403 164 0204 CERAMIC 0.1U Z 25V

C3016 403 164 0204 CERAMIC 0.1U Z 25V

C3017 403 164 0204 CERAMIC 0.1U Z 25V

C3018 403 164 0204 CERAMIC 0.1U Z 25V

C3019 403 164 0204 CERAMIC 0.1U Z 25V

C3020 403 164 0204 CERAMIC 0.1U Z 25V

C3021 403 164 0204 CERAMIC 0.1U Z 25V

C3022 403 164 0204 CERAMIC 0.1U Z 25V

C3023 403 164 0204 CERAMIC 0.1U Z 25V

C3024 403 164 0204 CERAMIC 0.1U Z 25V

C3025 403 164 0204 CERAMIC 0.1U Z 25V

C3026 403 164 0204 CERAMIC 0.1U Z 25V

C3027 403 164 0204 CERAMIC 0.1U Z 25V

C3028 403 334 8603 ELECT 220U M 6.3V

C3029 403 164 0204 CERAMIC 0.1U Z 25V

C3030 403 164 0204 CERAMIC 0.1U Z 25V

C3031 403 164 0204 CERAMIC 0.1U Z 25V

C3032 403 164 0204 CERAMIC 0.1U Z 25V

C3033 403 164 0204 CERAMIC 0.1U Z 25V

C3034 403 334 8603 ELECT 220U M 6.3V

C3035 403 164 0204 CERAMIC 0.1U Z 25V

C3036 403 164 0204 CERAMIC 0.1U Z 25V

C3037 403 164 0204 CERAMIC 0.1U Z 25V

C3038 403 164 0204 CERAMIC 0.1U Z 25V

C3101 403 164 0204 CERAMIC 0.1U Z 25V

C3102 403 164 0204 CERAMIC 0.1U Z 25V

C3103 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C3104 403 343 3408 ELECT 10U M 25V

C3105 403 164 0204 CERAMIC 0.1U Z 25V

C3106 403 164 0204 CERAMIC 0.1U Z 25V

C3141 403 334 8603 ELECT 220U M 6.3V

C3142 403 330 7709 ELECT 47U M 25V

C3143 403 164 0204 CERAMIC 0.1U Z 25V

C3144 403 164 0204 CERAMIC 0.1U Z 25V

C3151 403 157 2505 CERAMIC 27P J 50V

C3155 403 164 0204 CERAMIC 0.1U Z 25V

C3156 403 164 0204 CERAMIC 0.1U Z 25V

C3157 403 334 8603 ELECT 220U M 6.3V

C3158 403 164 0204 CERAMIC 0.1U Z 25V

C3159 403 164 0204 CERAMIC 0.1U Z 25V

C3163 403 164 0204 CERAMIC 0.1U Z 25V

C3164 403 164 0204 CERAMIC 0.1U Z 25V

C3166 403 164 0204 CERAMIC 0.1U Z 25V

C3167 403 164 0204 CERAMIC 0.1U Z 25V

C4101 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C4102 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C4103 403 164 0204 CERAMIC 0.1U Z 25V

C4105 403 345 6605 CERAMIC 1U M 10V

C4106 403 164 0204 CERAMIC 0.1U Z 25V

C4108 403 345 6605 CERAMIC 1U M 10V

C4109 403 164 0204 CERAMIC 0.1U Z 25V

C4111 403 345 6605 CERAMIC 1U M 10V

C4112 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C4113 403 334 8603 ELECT 220U M 6.3V

C4114 403 334 8603 ELECT 220U M 6.3V

C4115 403 315 6802 CERAMIC 4.7U Z 16V

C4116 403 334 8603 ELECT 220U M 6.3V

C4117 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C4118 403 164 0204 CERAMIC 0.1U Z 25V

C4119 403 164 0204 CERAMIC 0.1U Z 25V

C4120 403 321 7404 ELECT 100U M 16V

C4121 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C4122 403 334 8603 ELECT 220U M 6.3V

C4123 403 164 0204 CERAMIC 0.1U Z 25V

C4124 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C4125 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C4126 403 334 8603 ELECT 220U M 6.3V

C4127 403 164 0204 CERAMIC 0.1U Z 25V

C4128 403 304 2105 ELECT 47U M 6.3V

C4129 403 157 3106 CERAMIC 56P J 50V

C4130 403 157 3106 CERAMIC 56P J 50V

C4131 403 157 3106 CERAMIC 56P J 50V

C4132 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C4133 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C4134 403 315 6802 CERAMIC 4.7U Z 16V

C4135 403 334 8603 ELECT 220U M 6.3V

C4136 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C4137 403 164 0204 CERAMIC 0.1U Z 25V

C4138 403 334 8603 ELECT 220U M 6.3V

C4139 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

C4140 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

C4141 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

C4142 403 334 8603 ELECT 220U M 6.3V

C4143 403 157 3601 CERAMIC 100P J 50V

C4144 403 164 0204 CERAMIC 0.1U Z 25V

Key No. Part No. Description Key No. Part No. Description

Electrical Parts List

-32-

C4145 403 157 3601 CERAMIC 100P J 50V

C4146 403 157 3601 CERAMIC 100P J 50V

C4147 403 164 0204 CERAMIC 0.1U Z 25V

C4148 403 164 0204 CERAMIC 0.1U Z 25V

C4149 403 164 0204 CERAMIC 0.1U Z 25V

C4150 403 164 0204 CERAMIC 0.1U Z 25V

C4151 403 164 0204 CERAMIC 0.1U Z 25V

C4152 403 343 3408 ELECT 10U M 25V

C4153 403 164 0204 CERAMIC 0.1U Z 25V

C4154 403 343 3408 ELECT 10U M 25V

C4155 403 164 0204 CERAMIC 0.1U Z 25V

C4157 403 298 9609 CERAMIC 0.1U K 16V

C4158 403 215 2201 CERAMIC 0.01U K 50V

C4159 403 164 0204 CERAMIC 0.1U Z 25V

C4160 403 164 0204 CERAMIC 0.1U Z 25V

C4161 403 298 9609 CERAMIC 0.1U K 16V

C4162 403 298 9609 CERAMIC 0.1U K 16V

C4163 403 164 0204 CERAMIC 0.1U Z 25V

C4164 403 164 0204 CERAMIC 0.1U Z 25V

C4165 403 164 0204 CERAMIC 0.1U Z 25V

C4166 403 164 0204 CERAMIC 0.1U Z 25V

C4167 403 164 0204 CERAMIC 0.1U Z 25V

C4168 403 164 0204 CERAMIC 0.1U Z 25V

C4169 403 164 0204 CERAMIC 0.1U Z 25V

C5001 403 334 8603 ELECT 220U M 6.3V

C5002 403 164 0204 CERAMIC 0.1U Z 25V

C5003 403 164 0204 CERAMIC 0.1U Z 25V

C5004 403 164 0204 CERAMIC 0.1U Z 25V

C5005 403 164 0204 CERAMIC 0.1U Z 25V

C5006 403 164 0204 CERAMIC 0.1U Z 25V

C5007 403 164 0204 CERAMIC 0.1U Z 25V

C5008 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C5009 403 164 0204 CERAMIC 0.1U Z 25V

C5011 403 157 3601 CERAMIC 100P J 50V

C5012 403 164 0204 CERAMIC 0.1U Z 25V

C5013 403 164 0204 CERAMIC 0.1U Z 25V

C5014 403 164 0204 CERAMIC 0.1U Z 25V

C5015 403 164 0204 CERAMIC 0.1U Z 25V

C5016 403 164 0204 CERAMIC 0.1U Z 25V

C5017 403 164 0204 CERAMIC 0.1U Z 25V

C5018 403 164 0204 CERAMIC 0.1U Z 25V

C5019 403 164 0204 CERAMIC 0.1U Z 25V

C5020 403 334 8603 ELECT 220U M 6.3V

C5021 403 334 8603 ELECT 220U M 6.3V

C5022 403 334 8603 ELECT 220U M 6.3V

C5023 403 334 8603 ELECT 220U M 6.3V

C5024 403 164 0204 CERAMIC 0.1U Z 25V

C5025 403 164 0204 CERAMIC 0.1U Z 25V

C5099 403 164 0204 CERAMIC 0.1U Z 25V

C5101 403 164 0204 CERAMIC 0.1U Z 25V

C5102 403 164 0204 CERAMIC 0.1U Z 25V

C5103 403 334 8603 ELECT 220U M 6.3V

C5104 403 164 0204 CERAMIC 0.1U Z 25V

C5105 403 164 0204 CERAMIC 0.1U Z 25V

C5106 403 164 0204 CERAMIC 0.1U Z 25V

C5107 403 164 0204 CERAMIC 0.1U Z 25V

C5108 403 164 0204 CERAMIC 0.1U Z 25V

C5109 403 164 0204 CERAMIC 0.1U Z 25V

C5110 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C5111 403 164 0204 CERAMIC 0.1U Z 25V

C5113 403 157 3601 CERAMIC 100P J 50V

C5114 403 164 0204 CERAMIC 0.1U Z 25V

C5115 403 164 0204 CERAMIC 0.1U Z 25V

C5116 403 164 0204 CERAMIC 0.1U Z 25V

C5117 403 164 0204 CERAMIC 0.1U Z 25V

C5118 403 334 8603 ELECT 220U M 6.3V

C5119 403 164 0204 CERAMIC 0.1U Z 25V

C5120 403 334 8603 ELECT 220U M 6.3V

C5121 403 334 8603 ELECT 220U M 6.3V

C5122 403 164 0204 CERAMIC 0.1U Z 25V

C5123 403 334 8603 ELECT 220U M 6.3V

C5124 403 164 0204 CERAMIC 0.1U Z 25V

C701 403 149 9208 CERAMIC 0.01U Z 50V

C702 403 164 0204 CERAMIC 0.1U Z 25V

C703 403 321 7404 ELECT 100U M 16V

C704 403 164 0204 CERAMIC 0.1U Z 25V

C705 403 149 9208 CERAMIC 0.01U Z 50V

C706 403 164 0204 CERAMIC 0.1U Z 25V

C707 403 149 9208 CERAMIC 0.01U Z 50V

C708 403 149 9208 CERAMIC 0.01U Z 50V

C709 403 164 0204 CERAMIC 0.1U Z 25V

C710 403 164 0204 CERAMIC 0.1U Z 25V

C712 403 164 0204 CERAMIC 0.1U Z 25V

C713 403 321 7404 ELECT 100U M 16V

C714 403 321 7404 ELECT 100U M 16V

C751 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C752 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C753 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C8001 403 164 0204 CERAMIC 0.1U Z 25V

C8003 403 164 0204 CERAMIC 0.1U Z 25V

C8004 403 164 0204 CERAMIC 0.1U Z 25V

C8005 403 334 8603 ELECT 220U M 6.3V

C8006 403 164 0204 CERAMIC 0.1U Z 25V

C8007 403 164 0204 CERAMIC 0.1U Z 25V

C8008 403 145 9905 CERAMIC 22P J 50V

C8009 403 139 7108 CERAMIC 12P J 50V

C801 403 113 4109 CERAMIC 2200P K 50V

C802 403 321 7404 ELECT 100U M 16V

C803 403 149 9208 CERAMIC 0.01U Z 50V

C804 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C805 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C806 403 164 0204 CERAMIC 0.1U Z 25V

C807 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C8071 403 164 0204 CERAMIC 0.1U Z 25V

C8072 403 334 8603 ELECT 220U M 6.3V

C8073 403 164 0204 CERAMIC 0.1U Z 25V

C8074 403 164 0204 CERAMIC 0.1U Z 25V

C8075 403 334 8603 ELECT 220U M 6.3V

C8076 403 334 8603 ELECT 220U M 6.3V

C8077 403 334 8603 ELECT 220U M 6.3V

C8078 403 164 0204 CERAMIC 0.1U Z 25V

C8079 403 334 8603 ELECT 220U M 6.3V

C808 403 149 9208 CERAMIC 0.01U Z 50V

C8080 403 334 8603 ELECT 220U M 6.3V

C8081 403 164 0204 CERAMIC 0.1U Z 25V

C8082 403 164 0204 CERAMIC 0.1U Z 25V

C8083 403 334 8603 ELECT 220U M 6.3V

C8084 403 334 8603 ELECT 220U M 6.3V

C8085 403 334 8603 ELECT 220U M 6.3V

C8086 403 334 8603 ELECT 220U M 6.3V

C8087 403 334 8603 ELECT 220U M 6.3V

C8088 403 164 0204 CERAMIC 0.1U Z 25V

C8089 403 164 0204 CERAMIC 0.1U Z 25V

C809 403 157 1607 CERAMIC 6P D 50V

C8090 403 164 0204 CERAMIC 0.1U Z 25V

C8091 403 164 0204 CERAMIC 0.1U Z 25V

C8092 403 164 0204 CERAMIC 0.1U Z 25V

C810 403 157 1607 CERAMIC 6P D 50V

C8101 403 334 8603 ELECT 220U M 6.3V

C8102 403 164 0204 CERAMIC 0.1U Z 25V

C8103 403 164 0204 CERAMIC 0.1U Z 25V

C8104 403 164 0204 CERAMIC 0.1U Z 25V

Key No. Part No. Description Key No. Part No. Description

-33-

Electrical Parts List

C8105 403 164 0204 CERAMIC 0.1U Z 25V

C8106 403 164 0204 CERAMIC 0.1U Z 25V

C8107 403 164 0204 CERAMIC 0.1U Z 25V

C8108 403 164 0204 CERAMIC 0.1U Z 25V

C8109 403 164 0204 CERAMIC 0.1U Z 25V

C811 403 149 9208 CERAMIC 0.01U Z 50V

C8110 403 164 0204 CERAMIC 0.1U Z 25V

C8111 403 164 0204 CERAMIC 0.1U Z 25V

C8112 403 164 0204 CERAMIC 0.1U Z 25V

C8113 403 164 0204 CERAMIC 0.1U Z 25V

C812 403 149 9208 CERAMIC 0.01U Z 50V

C813 403 149 9208 CERAMIC 0.01U Z 50V

C814 403 113 4109 CERAMIC 2200P K 50V

C819 403 164 0204 CERAMIC 0.1U Z 25V

C8401 403 149 9208 CERAMIC 0.01U Z 50V

C8421 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C8422 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C8423 403 304 2105 ELECT 47U M 6.3V

C851 403 345 6605 CERAMIC 1U M 10V

C852 403 345 6605 CERAMIC 1U M 10V

RESISTOR

RB3013 645 037 0663 R-NETWORK 22X4 0.063W

645 021 4943 R-NETWORK 22X4 1/16W

RB3014 645 037 0663 R-NETWORK 22X4 0.063W

645 021 4943 R-NETWORK 22X4 1/16W

RB3015 645 037 0663 R-NETWORK 22X4 0.063W

645 021 4943 R-NETWORK 22X4 1/16W

RB3017 645 037 0663 R-NETWORK 22X4 0.063W

645 021 4943 R-NETWORK 22X4 1/16W

RB3019 645 037 0663 R-NETWORK 22X4 0.063W

645 021 4943 R-NETWORK 22X4 1/16W

RB3021 645 037 0663 R-NETWORK 22X4 0.063W

645 021 4943 R-NETWORK 22X4 1/16W

RB3023 645 037 0663 R-NETWORK 22X4 0.063W

645 021 4943 R-NETWORK 22X4 1/16W

RB3025 645 037 0663 R-NETWORK 22X4 0.063W

645 021 4943 R-NETWORK 22X4 1/16W

RB3027 645 037 0663 R-NETWORK 22X4 0.063W

645 021 4943 R-NETWORK 22X4 1/16W

RB3028 645 037 0663 R-NETWORK 22X4 0.063W

645 021 4943 R-NETWORK 22X4 1/16W

RB3029 645 037 0663 R-NETWORK 22X4 0.063W

645 021 4943 R-NETWORK 22X4 1/16W

RB3030 645 037 0663 R-NETWORK 22X4 0.063W

645 021 4943 R-NETWORK 22X4 1/16W

RB4101 645 037 0663 R-NETWORK 22X4 0.063W

645 021 4943 R-NETWORK 22X4 1/16W

RB4102 645 037 0663 R-NETWORK 22X4 0.063W

645 021 4943 R-NETWORK 22X4 1/16W

RB4103 645 037 0663 R-NETWORK 22X4 0.063W

645 021 4943 R-NETWORK 22X4 1/16W

RB4104 645 037 0663 R-NETWORK 22X4 0.063W

645 021 4943 R-NETWORK 22X4 1/16W

RB4105 645 037 0663 R-NETWORK 22X4 0.063W

645 021 4943 R-NETWORK 22X4 1/16W

RB4106 645 037 0663 R-NETWORK 22X4 0.063W

645 021 4943 R-NETWORK 22X4 1/16W

RB4107 645 037 0663 R-NETWORK 22X4 0.063W

645 021 4943 R-NETWORK 22X4 1/16W

RB4108 645 037 0663 R-NETWORK 22X4 0.063W

645 021 4943 R-NETWORK 22X4 1/16W

RB4109 645 037 0663 R-NETWORK 22X4 0.063W

645 021 4943 R-NETWORK 22X4 1/16W

RB4110 645 037 0663 R-NETWORK 22X4 0.063W

645 021 4943 R-NETWORK 22X4 1/16W

RB4111 645 037 0663 R-NETWORK 22X4 0.063W

645 021 4943 R-NETWORK 22X4 1/16W

RB4112 645 037 0663 R-NETWORK 22X4 0.063W

645 021 4943 R-NETWORK 22X4 1/16W

RB5013 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB5014 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB5015 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB5016 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB5017 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB5018 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB5019 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB5020 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB5021 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB5022 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB5023 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB5024 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB5103 645 037 0656 R-NETWORK 0X4 0.063W

645 024 7477 R-NETWORK 0X4 1/16W

RB5104 645 037 0656 R-NETWORK 0X4 0.063W

645 024 7477 R-NETWORK 0X4 1/16W

RB5107 645 037 0656 R-NETWORK 0X4 0.063W

645 024 7477 R-NETWORK 0X4 1/16W

RB5108 645 037 0656 R-NETWORK 0X4 0.063W

645 024 7477 R-NETWORK 0X4 1/16W

RB5111 645 037 0656 R-NETWORK 0X4 0.063W

645 024 7477 R-NETWORK 0X4 1/16W

RB5112 645 037 0656 R-NETWORK 0X4 0.063W

645 024 7477 R-NETWORK 0X4 1/16W

RB5113 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB5114 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB5117 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB5118 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB5121 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB5122 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB8001 645 037 0656 R-NETWORK 0X4 0.063W

645 024 7477 R-NETWORK 0X4 1/16W

RB8002 645 020 7822 R-NETWORK 10KX4 0.063W

645 025 5380 R-NETWORK 10KX4 1/16W

RB8003 645 037 0656 R-NETWORK 0X4 0.063W

645 024 7477 R-NETWORK 0X4 1/16W

RB8004 645 037 0656 R-NETWORK 0X4 0.063W

645 024 7477 R-NETWORK 0X4 1/16W

RB8116 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB8117 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB8118 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB8119 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB8121 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB8122 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB8131 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB8132 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB8133 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

Key No. Part No. Description Key No. Part No. Description

Electrical Parts List

-34-

RB8134 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB8136 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB8137 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB8138 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB8139 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB8141 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB8142 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB8143 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

RB8144 645 037 0670 R-NETWORK 47X4 0.063W

645 018 8930 R-NETWORK 47X4 1/16W

R014 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R016 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R017 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R018 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R031 401 105 0405 MT-GLAZE 100 JA 1/16W

R032 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R033 401 105 0306 MT-GLAZE 10 JA 1/16W

R034 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R037 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R038 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R101 401 105 2607 MT-GLAZE 22 JA 1/16W

R102 401 105 2805 MT-GLAZE 2.2K JA 1/16W

R103 401 105 1105 MT-GLAZE 12K JA 1/16W

R106 401 105 3406 MT-GLAZE 27K JA 1/16W

R108 401 105 0603 MT-GLAZE 10K JA 1/16W

R109 401 105 0504 MT-GLAZE 1K JA 1/16W

R111 401 105 0603 MT-GLAZE 10K JA 1/16W

R112 401 258 9904 MT-GLAZE 10 JA 1/3W

R113 401 105 0603 MT-GLAZE 10K JA 1/16W

R114 401 105 1105 MT-GLAZE 12K JA 1/16W

R116 401 105 3406 MT-GLAZE 27K JA 1/16W

R118 401 105 2805 MT-GLAZE 2.2K JA 1/16W

R119 401 105 7404 MT-GLAZE 8.2K JA 1/16W

R121 401 258 9904 MT-GLAZE 10 JA 1/3W

R131 401 105 1105 MT-GLAZE 12K JA 1/16W

R132 401 105 1600 MT-GLAZE 15K JA 1/16W

R133 401 105 3000 MT-GLAZE 220K JA 1/16W

R134 401 105 3000 MT-GLAZE 220K JA 1/16W

R135 401 105 3000 MT-GLAZE 220K JA 1/16W

R136 401 105 3000 MT-GLAZE 220K JA 1/16W

R140 401 105 3000 MT-GLAZE 220K JA 1/16W

R141 401 105 5400 MT-GLAZE 47K JA 1/16W

R142 401 105 3000 MT-GLAZE 220K JA 1/16W

R143 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R144 401 105 3000 MT-GLAZE 220K JA 1/16W

R145 401 105 2805 MT-GLAZE 2.2K JA 1/16W

R146 401 105 5400 MT-GLAZE 47K JA 1/16W

R147 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R148 401 105 2805 MT-GLAZE 2.2K JA 1/16W

R151 401 105 0603 MT-GLAZE 10K JA 1/16W

R152 401 105 0603 MT-GLAZE 10K JA 1/16W

R1601 401 202 4009 MT-GLAZE 10K FA 1/16W

R1602 401 230 2503 MT-GLAZE 1K FA 1/16W

R1603 401 218 4406 MT-GLAZE 1.2K FA 1/16W

R1604 401 212 0503 MT-GLAZE 6.8K FA 1/16W

R1606 401 212 0404 MT-GLAZE 680 FA 1/16W

R1607 401 218 4406 MT-GLAZE 1.2K FA 1/16W

R1608 401 105 6100 MT-GLAZE 560K JA 1/16W

R1609 401 105 2904 MT-GLAZE 22K JA 1/16W

R1611 401 105 2904 MT-GLAZE 22K JA 1/16W

R1612 401 105 0603 MT-GLAZE 10K JA 1/16W

R1613 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1614 401 218 4604 MT-GLAZE 5.6K FA 1/16W

R1616 401 218 4406 MT-GLAZE 1.2K FA 1/16W

R1617 401 225 7605 MT-GLAZE 1 JA 1W

R1619 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1621 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1622 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1625 401 257 7406 MT-GLAZE 120 JA 1/3W

R1713 401 105 8203 MT-GLAZE 68K JA 1/16W

R1714 401 105 0405 MT-GLAZE 100 JA 1/16W

R1715 401 105 0504 MT-GLAZE 1K JA 1/16W

R1716 401 105 6407 MT-GLAZE 68 JA 1/16W

R1718 401 105 2003 MT-GLAZE 1.8K JA 1/16W

R1719 401 105 2003 MT-GLAZE 1.8K JA 1/16W

R1720 401 105 0405 MT-GLAZE 100 JA 1/16W

R1721 401 105 4205 MT-GLAZE 33K JA 1/16W

R1722 401 105 5400 MT-GLAZE 47K JA 1/16W

R1723 401 105 0504 MT-GLAZE 1K JA 1/16W

R1724 401 105 0504 MT-GLAZE 1K JA 1/16W

R1725 401 105 4601 MT-GLAZE 3.9K JA 1/16W

R1726 401 105 1709 MT-GLAZE 150K JA 1/16W

R1727 401 105 7305 MT-GLAZE 820 JA 1/16W

R1728 401 105 8005 MT-GLAZE 1M JA 1/16W

R1729 401 177 2109 MT-GLAZE 4.7M JA 1/16W

R1730 401 105 0504 MT-GLAZE 1K JA 1/16W

R1731 401 105 0504 MT-GLAZE 1K JA 1/16W

R1732 401 105 0504 MT-GLAZE 1K JA 1/16W

R1733 401 105 0504 MT-GLAZE 1K JA 1/16W

R1734 401 105 2805 MT-GLAZE 2.2K JA 1/16W

R1735 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R1736 401 105 5400 MT-GLAZE 47K JA 1/16W

R1737 401 105 2102 MT-GLAZE 18K JA 1/16W

R1738 401 105 4601 MT-GLAZE 3.9K JA 1/16W

R1739 401 105 0405 MT-GLAZE 100 JA 1/16W

R1740 401 105 0405 MT-GLAZE 100 JA 1/16W

R1741 401 105 0603 MT-GLAZE 10K JA 1/16W

R1742 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R1743 401 105 2805 MT-GLAZE 2.2K JA 1/16W

R1744 401 105 0504 MT-GLAZE 1K JA 1/16W

R1745 401 105 0504 MT-GLAZE 1K JA 1/16W

R1746 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1747 401 105 0405 MT-GLAZE 100 JA 1/16W

R1748 401 105 0405 MT-GLAZE 100 JA 1/16W

R1749 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1750 401 105 2607 MT-GLAZE 22 JA 1/16W

R1753 401 105 1501 MT-GLAZE 1.5K JA 1/16W

R1755 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1756 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1761 401 105 2607 MT-GLAZE 22 JA 1/16W

R1762 401 105 1501 MT-GLAZE 1.5K JA 1/16W

R1774 401 105 0306 MT-GLAZE 10 JA 1/16W

R1775 401 105 0306 MT-GLAZE 10 JA 1/16W

R1776 401 105 0306 MT-GLAZE 10 JA 1/16W

R1777 401 105 0306 MT-GLAZE 10 JA 1/16W

R1778 401 105 0306 MT-GLAZE 10 JA 1/16W

R1779 401 105 0306 MT-GLAZE 10 JA 1/16W

R1780 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1781 401 105 0306 MT-GLAZE 10 JA 1/16W

R1782 401 105 0306 MT-GLAZE 10 JA 1/16W

R1783 645 050 8363 IMPEDANCE,60 OHM P

R1784 645 050 8363 IMPEDANCE,60 OHM P

R1786 645 050 8363 IMPEDANCE,60 OHM P

R1787 401 105 0306 MT-GLAZE 10 JA 1/16W

R1788 401 105 0306 MT-GLAZE 10 JA 1/16W

R1792 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R1793 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R1794 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R1795 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R1797 401 105 5400 MT-GLAZE 47K JA 1/16W

R1798 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1799 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1851 401 105 0702 MT-GLAZE 100K JA 1/16W

R1852 401 105 0405 MT-GLAZE 100 JA 1/16W

R1854 401 105 1709 MT-GLAZE 150K JA 1/16W

R1855 401 105 0405 MT-GLAZE 100 JA 1/16W

R1856 401 105 0702 MT-GLAZE 100K JA 1/16W

R1858 401 105 1709 MT-GLAZE 150K JA 1/16W

R1859 401 105 0504 MT-GLAZE 1K JA 1/16W

R1861 401 105 0504 MT-GLAZE 1K JA 1/16W

Key No. Part No. Description Key No. Part No. Description

-35-

Electrical Parts List

R1863 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R1864 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R1866 401 105 0603 MT-GLAZE 10K JA 1/16W

R1867 401 105 0603 MT-GLAZE 10K JA 1/16W

R1868 401 105 0603 MT-GLAZE 10K JA 1/16W

R1869 401 105 0603 MT-GLAZE 10K JA 1/16W

R1870 401 105 0603 MT-GLAZE 10K JA 1/16W

R1871 401 105 0603 MT-GLAZE 10K JA 1/16W

R1876 401 105 0306 MT-GLAZE 10 JA 1/16W

R1882 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1883 401 105 0603 MT-GLAZE 10K JA 1/16W

R1884 401 105 0603 MT-GLAZE 10K JA 1/16W

R1885 401 105 0504 MT-GLAZE 1K JA 1/16W

R1886 401 105 5509 MT-GLAZE 470K JA 1/16W

R1887 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1888 401 105 0603 MT-GLAZE 10K JA 1/16W

R1889 401 105 0504 MT-GLAZE 1K JA 1/16W

R1931 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1932 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1937 401 105 0504 MT-GLAZE 1K JA 1/16W

R1938 401 105 0504 MT-GLAZE 1K JA 1/16W

R1941 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1942 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1943 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1944 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1946 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1947 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1948 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1951 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1952 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1955 401 105 0306 MT-GLAZE 10 JA 1/16W

R3001 401 105 8005 MT-GLAZE 1M JA 1/16W

R3002 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3003 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3004 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3005 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3006 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3007 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3008 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3009 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3010 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3011 401 105 0405 MT-GLAZE 100 JA 1/16W

R3012 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3013 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3014 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3015 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3016 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3017 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3018 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3019 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3021 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3022 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3024 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3025 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3026 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3027 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3028 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3029 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3030 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3031 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3032 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3033 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3034 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3035 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3036 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3037 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3038 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3039 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3040 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3041 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3042 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3043 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3044 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3045 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3046 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3047 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3049 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3051 401 105 0603 MT-GLAZE 10K JA 1/16W

R3053 401 105 0603 MT-GLAZE 10K JA 1/16W

R3054 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3055 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3056 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3057 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3058 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3059 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3060 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3061 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3062 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3063 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3064 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3065 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3066 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3067 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3068 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3069 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3070 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3071 401 105 0603 MT-GLAZE 10K JA 1/16W

R3077 401 105 0603 MT-GLAZE 10K JA 1/16W

R3078 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3079 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3081 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3083 401 105 0603 MT-GLAZE 10K JA 1/16W

R3084 401 105 0603 MT-GLAZE 10K JA 1/16W

R3085 401 105 0603 MT-GLAZE 10K JA 1/16W

R3086 401 105 0603 MT-GLAZE 10K JA 1/16W

R3087 401 105 0603 MT-GLAZE 10K JA 1/16W

R3089 401 105 0603 MT-GLAZE 10K JA 1/16W

R3096 401 105 2805 MT-GLAZE 2.2K JA 1/16W

R3097 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R3098 401 105 2805 MT-GLAZE 2.2K JA 1/16W

R3099 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R3101 401 105 0603 MT-GLAZE 10K JA 1/16W

R3102 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3103 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3107 401 105 2003 MT-GLAZE 1.8K JA 1/16W

R3109 401 105 2003 MT-GLAZE 1.8K JA 1/16W

R3110 401 105 5400 MT-GLAZE 47K JA 1/16W

R3111 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R3112 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R3114 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3115 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3116 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3117 401 105 3901 MT-GLAZE 33 JA 1/16W

R3118 401 105 3901 MT-GLAZE 33 JA 1/16W

R3119 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3120 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3121 401 105 2003 MT-GLAZE 1.8K JA 1/16W

R3122 401 105 2003 MT-GLAZE 1.8K JA 1/16W

R3123 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3124 401 105 5400 MT-GLAZE 47K JA 1/16W

R3125 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3143 401 105 0603 MT-GLAZE 10K JA 1/16W

R3145 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3146 401 105 0603 MT-GLAZE 10K JA 1/16W

R3147 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3149 401 105 0603 MT-GLAZE 10K JA 1/16W

R3151 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3152 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3153 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3154 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3155 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3156 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3157 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3159 401 105 8005 MT-GLAZE 1M JA 1/16W

R3160 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3161 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3162 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3163 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

Key No. Part No. Description Key No. Part No. Description

Electrical Parts List

-36-

R3164 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3165 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3166 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3168 401 105 0603 MT-GLAZE 10K JA 1/16W

R3170 401 105 0603 MT-GLAZE 10K JA 1/16W

R3172 401 105 0603 MT-GLAZE 10K JA 1/16W

R3173 401 105 2607 MT-GLAZE 22 JA 1/16W

R3175 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3176 401 105 5103 MT-GLAZE 47 JA 1/16W

R3178 401 105 5103 MT-GLAZE 47 JA 1/16W

R3179 401 105 2607 MT-GLAZE 22 JA 1/16W

R3181 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3182 401 105 0603 MT-GLAZE 10K JA 1/16W

R4101 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R4102 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R4103 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R4104 401 105 0603 MT-GLAZE 10K JA 1/16W

R4105 401 105 0603 MT-GLAZE 10K JA 1/16W

R4106 401 105 0603 MT-GLAZE 10K JA 1/16W

R4107 401 105 7404 MT-GLAZE 8.2K JA 1/16W

R4108 401 105 7404 MT-GLAZE 8.2K JA 1/16W

R4109 401 105 7404 MT-GLAZE 8.2K JA 1/16W

R4111 401 105 2904 MT-GLAZE 22K JA 1/16W

R4112 401 105 0603 MT-GLAZE 10K JA 1/16W

R4114 401 105 0405 MT-GLAZE 100 JA 1/16W

R4115 401 105 0405 MT-GLAZE 100 JA 1/16W

R4116 401 105 0405 MT-GLAZE 100 JA 1/16W

R4118 401 105 2706 MT-GLAZE 220 JA 1/16W

R4119 401 105 2706 MT-GLAZE 220 JA 1/16W

R4120 401 105 2706 MT-GLAZE 220 JA 1/16W

R4121 401 105 4601 MT-GLAZE 3.9K JA 1/16W

R4122 401 105 4601 MT-GLAZE 3.9K JA 1/16W

R4123 401 105 4601 MT-GLAZE 3.9K JA 1/16W

R4124 401 105 5806 MT-GLAZE 56 JA 1/16W

R4125 401 105 5806 MT-GLAZE 56 JA 1/16W

R4126 401 105 2607 MT-GLAZE 22 JA 1/16W

R4128 401 105 2904 MT-GLAZE 22K JA 1/16W

R4129 401 105 0603 MT-GLAZE 10K JA 1/16W

R4133 401 105 6506 MT-GLAZE 680 JA 1/16W

R4134 401 105 6506 MT-GLAZE 680 JA 1/16W

R4135 401 105 6506 MT-GLAZE 680 JA 1/16W

R4136 401 105 6506 MT-GLAZE 680 JA 1/16W

R4137 401 105 6506 MT-GLAZE 680 JA 1/16W

R4138 401 105 6506 MT-GLAZE 680 JA 1/16W

R4141 401 105 3901 MT-GLAZE 33 JA 1/16W

R4142 401 105 3901 MT-GLAZE 33 JA 1/16W

R4143 401 105 2607 MT-GLAZE 22 JA 1/16W

R4144 401 105 2607 MT-GLAZE 22 JA 1/16W

R4145 401 105 2607 MT-GLAZE 22 JA 1/16W

R4147 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R4151 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R4152 401 105 0405 MT-GLAZE 100 JA 1/16W

R4154 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R4155 401 105 2607 MT-GLAZE 22 JA 1/16W

R4157 401 105 0603 MT-GLAZE 10K JA 1/16W

R4158 401 105 0603 MT-GLAZE 10K JA 1/16W

R4159 401 105 1501 MT-GLAZE 1.5K JA 1/16W

R4160 401 105 0405 MT-GLAZE 100 JA 1/16W

R4161 401 105 0405 MT-GLAZE 100 JA 1/16W

R4162 401 105 5103 MT-GLAZE 47 JA 1/16W

R5001 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5002 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5003 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5004 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5005 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5006 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5008 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5010 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5012 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5014 401 105 0405 MT-GLAZE 100 JA 1/16W

R5015 401 105 0405 MT-GLAZE 100 JA 1/16W

R5016 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5017 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5018 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5019 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5020 401 105 0405 MT-GLAZE 100 JA 1/16W

R5021 401 105 0405 MT-GLAZE 100 JA 1/16W

R5023 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5024 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5025 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5026 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R5027 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R5028 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5029 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5030 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5031 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5033 401 105 3901 MT-GLAZE 33 JA 1/16W

R5034 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5035 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5036 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5037 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5041 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5042 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5043 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5044 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5045 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5046 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5047 401 105 0405 MT-GLAZE 100 JA 1/16W

R5048 401 105 0405 MT-GLAZE 100 JA 1/16W

R5049 401 105 0702 MT-GLAZE 100K JA 1/16W

R5050 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5051 401 105 0306 MT-GLAZE 10 JA 1/16W

R5052 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5053 401 105 5103 MT-GLAZE 47 JA 1/16W

R5054 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5055 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5056 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5057 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5058 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5059 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5060 401 105 0306 MT-GLAZE 10 JA 1/16W

R5061 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5062 401 105 5103 MT-GLAZE 47 JA 1/16W

R5063 401 105 5103 MT-GLAZE 47 JA 1/16W

R5064 401 105 5103 MT-GLAZE 47 JA 1/16W

R5065 401 105 5103 MT-GLAZE 47 JA 1/16W

R5066 401 105 5103 MT-GLAZE 47 JA 1/16W

R5067 401 105 5103 MT-GLAZE 47 JA 1/16W

R5068 401 105 5103 MT-GLAZE 47 JA 1/16W

R5069 401 105 5103 MT-GLAZE 47 JA 1/16W

R5070 401 105 5103 MT-GLAZE 47 JA 1/16W

R5071 401 105 5103 MT-GLAZE 47 JA 1/16W

R5072 401 105 5103 MT-GLAZE 47 JA 1/16W

R5073 401 105 5103 MT-GLAZE 47 JA 1/16W

R5074 401 105 5103 MT-GLAZE 47 JA 1/16W

R5075 401 105 5103 MT-GLAZE 47 JA 1/16W

R5076 401 105 5103 MT-GLAZE 47 JA 1/16W

R5077 401 105 5103 MT-GLAZE 47 JA 1/16W

R5078 401 105 5103 MT-GLAZE 47 JA 1/16W

R5079 401 105 5103 MT-GLAZE 47 JA 1/16W

R5080 401 105 5103 MT-GLAZE 47 JA 1/16W

R5081 401 105 5103 MT-GLAZE 47 JA 1/16W

R5082 401 105 5103 MT-GLAZE 47 JA 1/16W

R5083 401 105 5103 MT-GLAZE 47 JA 1/16W

R5084 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5085 401 105 5103 MT-GLAZE 47 JA 1/16W

R5086 401 225 7605 MT-GLAZE 1 JA 1W

R5087 401 225 7605 MT-GLAZE 1 JA 1W

R5088 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5090 401 105 2607 MT-GLAZE 22 JA 1/16W

R5096 401 105 0405 MT-GLAZE 100 JA 1/16W

R5097 401 105 0405 MT-GLAZE 100 JA 1/16W

R5099 401 105 2607 MT-GLAZE 22 JA 1/16W

R5101 401 105 5103 MT-GLAZE 47 JA 1/16W

R5102 401 105 5103 MT-GLAZE 47 JA 1/16W

R5103 401 105 5103 MT-GLAZE 47 JA 1/16W

R5104 401 105 5103 MT-GLAZE 47 JA 1/16W

R5105 401 105 5103 MT-GLAZE 47 JA 1/16W

Key No. Part No. Description Key No. Part No. Description

-37-

Electrical Parts List

R5106 401 105 5103 MT-GLAZE 47 JA 1/16W

R5107 401 105 5103 MT-GLAZE 47 JA 1/16W

R5108 401 105 5103 MT-GLAZE 47 JA 1/16W

R5109 401 105 5103 MT-GLAZE 47 JA 1/16W

R5110 401 105 5103 MT-GLAZE 47 JA 1/16W

R5111 401 105 7206 MT-GLAZE 82 JA 1/16W

R5112 401 105 5103 MT-GLAZE 47 JA 1/16W

R5113 401 105 5103 MT-GLAZE 47 JA 1/16W

R5114 401 105 5103 MT-GLAZE 47 JA 1/16W

R5115 401 105 5103 MT-GLAZE 47 JA 1/16W

R5116 401 105 5103 MT-GLAZE 47 JA 1/16W

R5117 401 105 5103 MT-GLAZE 47 JA 1/16W

R5118 401 105 5103 MT-GLAZE 47 JA 1/16W

R5119 401 105 5103 MT-GLAZE 47 JA 1/16W

R5120 401 105 5103 MT-GLAZE 47 JA 1/16W

R5121 401 105 5103 MT-GLAZE 47 JA 1/16W

R5122 401 105 5103 MT-GLAZE 47 JA 1/16W

R5123 401 105 5103 MT-GLAZE 47 JA 1/16W

R5124 401 105 5103 MT-GLAZE 47 JA 1/16W

R5125 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5126 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5127 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5128 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5129 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5130 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5132 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5133 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5136 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5137 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5138 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5139 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R5140 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R5141 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5142 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5143 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5144 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5146 401 105 3901 MT-GLAZE 33 JA 1/16W

R5147 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5148 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5149 401 105 0603 MT-GLAZE 10K JA 1/16W

R5153 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5154 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5155 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5156 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5157 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5158 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5159 401 105 0702 MT-GLAZE 100K JA 1/16W

R5160 401 105 0405 MT-GLAZE 100 JA 1/16W

R5161 401 105 0405 MT-GLAZE 100 JA 1/16W

R5162 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5163 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5164 401 105 5103 MT-GLAZE 47 JA 1/16W

R5165 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5166 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5167 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5168 401 225 7605 MT-GLAZE 1 JA 1W

R5169 401 225 7605 MT-GLAZE 1 JA 1W

R5170 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5171 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R701 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

R702 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R703 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R706 401 105 0405 MT-GLAZE 100 JA 1/16W

R707 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R708 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

R709 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

R711 401 105 2607 MT-GLAZE 22 JA 1/16W

R713 401 105 2607 MT-GLAZE 22 JA 1/16W

R714 401 105 2607 MT-GLAZE 22 JA 1/16W

R716 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R717 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R718 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R719 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R720 401 105 0603 MT-GLAZE 10K JA 1/16W

R721 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R722 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R723 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R724 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R725 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R726 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R727 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R728 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R729 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R746 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R751 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R752 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R753 401 105 0504 MT-GLAZE 1K JA 1/16W

R754 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R755 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R756 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R758 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R759 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R760 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R761 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R762 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R763 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R764 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R765 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R766 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R767 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R768 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R769 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R771 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R773 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R774 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R775 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R776 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R777 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R778 401 105 2003 MT-GLAZE 1.8K JA 1/16W

R779 401 105 2003 MT-GLAZE 1.8K JA 1/16W

R780 401 105 2003 MT-GLAZE 1.8K JA 1/16W

R783 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R784 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

R791 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R792 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R793 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R794 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R796 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R797 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R798 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R799 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8006 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8007 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8008 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8009 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R801 401 105 0603 MT-GLAZE 10K JA 1/16W

R8010 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8011 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8012 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8014 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R8016 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8017 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8019 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R802 401 105 5400 MT-GLAZE 47K JA 1/16W

R8022 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8023 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8025 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8026 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8028 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R803 401 105 5400 MT-GLAZE 47K JA 1/16W

R8030 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8031 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8032 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8033 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8034 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8035 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8036 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8037 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

Key No. Part No. Description Key No. Part No. Description

Electrical Parts List

-38-

R8038 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8039 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R804 401 105 8005 MT-GLAZE 1M JA 1/16W

R8040 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8041 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8042 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8043 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8044 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8045 401 105 0306 MT-GLAZE 10 JA 1/16W

R8046 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8047 401 105 0306 MT-GLAZE 10 JA 1/16W

R8048 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8049 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R805 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R8050 401 105 0306 MT-GLAZE 10 JA 1/16W

R8051 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8052 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8054 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8055 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8056 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8057 401 105 8005 MT-GLAZE 1M JA 1/16W

R8058 401 105 0306 MT-GLAZE 10 JA 1/16W

R8059 401 105 0306 MT-GLAZE 10 JA 1/16W

R806 401 105 1501 MT-GLAZE 1.5K JA 1/16W

R8060 401 105 0306 MT-GLAZE 10 JA 1/16W

R8061 401 105 0306 MT-GLAZE 10 JA 1/16W

R8062 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8063 401 105 0306 MT-GLAZE 10 JA 1/16W

R8064 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8066 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8067 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8068 401 105 0603 MT-GLAZE 10K JA 1/16W

R807 401 105 8005 MT-GLAZE 1M JA 1/16W

R8071 401 225 7605 MT-GLAZE 1 JA 1W

R8072 401 225 7605 MT-GLAZE 1 JA 1W

R8073 401 225 7605 MT-GLAZE 1 JA 1W

R8074 401 225 7605 MT-GLAZE 1 JA 1W

R8075 401 225 7605 MT-GLAZE 1 JA 1W

R8076 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8077 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R808 401 105 8005 MT-GLAZE 1M JA 1/16W

R8081 401 105 0603 MT-GLAZE 10K JA 1/16W

R809 401 105 3307 MT-GLAZE 2.7K JA 1/16W

R810 401 105 0603 MT-GLAZE 10K JA 1/16W

R8101 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R811 401 105 0504 MT-GLAZE 1K JA 1/16W

R8111 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8112 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8113 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8114 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8116 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8117 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8118 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8119 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R812 401 105 0504 MT-GLAZE 1K JA 1/16W

R8120 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8121 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8122 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8123 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8124 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

R8125 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

R8126 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

R8127 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8128 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8129 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R813 401 105 0504 MT-GLAZE 1K JA 1/16W

R8130 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8131 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8132 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8133 401 105 5103 MT-GLAZE 47 JA 1/16W

R8134 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8135 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

R8136 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8137 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8138 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8139 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R814 401 105 0504 MT-GLAZE 1K JA 1/16W

R8141 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8142 401 105 5103 MT-GLAZE 47 JA 1/16W

R8143 401 105 5103 MT-GLAZE 47 JA 1/16W

R8144 401 105 5103 MT-GLAZE 47 JA 1/16W

R8146 401 105 5103 MT-GLAZE 47 JA 1/16W

R8147 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8148 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8149 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R815 401 105 0504 MT-GLAZE 1K JA 1/16W

R8151 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8152 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8153 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8154 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8156 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8157 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8158 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8159 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R816 401 105 0504 MT-GLAZE 1K JA 1/16W

R8164 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R817 401 105 0504 MT-GLAZE 1K JA 1/16W

R818 401 105 2607 MT-GLAZE 22 JA 1/16W

R819 401 105 2607 MT-GLAZE 22 JA 1/16W

R820 401 105 0405 MT-GLAZE 100 JA 1/16W

R821 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R822 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R8221 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R8222 401 105 0504 MT-GLAZE 1K JA 1/16W

R823 401 105 0504 MT-GLAZE 1K JA 1/16W

R8231 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R8232 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R8236 401 105 0603 MT-GLAZE 10K JA 1/16W

R824 401 105 0603 MT-GLAZE 10K JA 1/16W

R825 401 105 2607 MT-GLAZE 22 JA 1/16W

R826 401 105 5400 MT-GLAZE 47K JA 1/16W

R827 401 105 0504 MT-GLAZE 1K JA 1/16W

R828 401 105 0504 MT-GLAZE 1K JA 1/16W

R829 401 105 0504 MT-GLAZE 1K JA 1/16W

R830 401 105 3307 MT-GLAZE 2.7K JA 1/16W

R831 401 105 0603 MT-GLAZE 10K JA 1/16W

R832 401 105 5202 MT-GLAZE 470 JA 1/16W

R833 401 105 0603 MT-GLAZE 10K JA 1/16W

R834 401 105 0504 MT-GLAZE 1K JA 1/16W

R835 401 105 2607 MT-GLAZE 22 JA 1/16W

R836 401 105 0504 MT-GLAZE 1K JA 1/16W

R838 401 105 0603 MT-GLAZE 10K JA 1/16W

R839 401 105 0504 MT-GLAZE 1K JA 1/16W

R840 401 105 2607 MT-GLAZE 22 JA 1/16W

R8401 401 105 0504 MT-GLAZE 1K JA 1/16W

R8402 401 105 5806 MT-GLAZE 56 JA 1/16W

R8403 401 105 5806 MT-GLAZE 56 JA 1/16W

R8404 401 105 5806 MT-GLAZE 56 JA 1/16W

R8405 401 105 5806 MT-GLAZE 56 JA 1/16W

R8406 401 105 5806 MT-GLAZE 56 JA 1/16W

R8407 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8408 401 105 5806 MT-GLAZE 56 JA 1/16W

R8409 401 105 5806 MT-GLAZE 56 JA 1/16W

R8410 401 105 5806 MT-GLAZE 56 JA 1/16W

R8411 401 105 5806 MT-GLAZE 56 JA 1/16W

R8414 401 105 2904 MT-GLAZE 22K JA 1/16W

R8415 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R842 401 105 0504 MT-GLAZE 1K JA 1/16W

R8421 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8422 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8423 401 105 0504 MT-GLAZE 1K JA 1/16W

R8424 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8425 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8426 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8427 401 105 0603 MT-GLAZE 10K JA 1/16W

R8428 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R843 401 105 0504 MT-GLAZE 1K JA 1/16W

R8432 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

Key No. Part No. Description Key No. Part No. Description

-39-

Electrical Parts List

R8433 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8436 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8437 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8439 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R844 401 105 0405 MT-GLAZE 100 JA 1/16W

R845 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R846 401 105 0603 MT-GLAZE 10K JA 1/16W

R847 401 105 0603 MT-GLAZE 10K JA 1/16W

R8471 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8472 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8473 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8474 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8475 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8476 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8477 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8478 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8479 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R848 401 105 2607 MT-GLAZE 22 JA 1/16W

R8480 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8481 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8482 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R849 401 105 2607 MT-GLAZE 22 JA 1/16W

R850 401 105 2904 MT-GLAZE 22K JA 1/16W

R851 401 105 2607 MT-GLAZE 22 JA 1/16W

R852 401 105 2904 MT-GLAZE 22K JA 1/16W

R853 401 105 0504 MT-GLAZE 1K JA 1/16W

R854 401 105 0504 MT-GLAZE 1K JA 1/16W

R855 401 105 0603 MT-GLAZE 10K JA 1/16W

R856 401 105 5400 MT-GLAZE 47K JA 1/16W

R857 401 105 2805 MT-GLAZE 2.2K JA 1/16W

R858 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R859 401 105 0504 MT-GLAZE 1K JA 1/16W

R860 401 105 2607 MT-GLAZE 22 JA 1/16W

R861 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R862 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R863 401 105 0504 MT-GLAZE 1K JA 1/16W

R864 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R865 401 105 0504 MT-GLAZE 1K JA 1/16W

R866 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R867 401 105 0504 MT-GLAZE 1K JA 1/16W

R868 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R869 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R870 401 105 0504 MT-GLAZE 1K JA 1/16W

R871 401 105 0504 MT-GLAZE 1K JA 1/16W

R872 401 105 0504 MT-GLAZE 1K JA 1/16W

R873 401 105 0603 MT-GLAZE 10K JA 1/16W

R874 401 105 0504 MT-GLAZE 1K JA 1/16W

R876 401 105 2607 MT-GLAZE 22 JA 1/16W

R877 401 105 2607 MT-GLAZE 22 JA 1/16W

R878 401 105 0603 MT-GLAZE 10K JA 1/16W

R879 401 105 2607 MT-GLAZE 22 JA 1/16W

R881 401 105 2904 MT-GLAZE 22K JA 1/16W

R882 401 105 2904 MT-GLAZE 22K JA 1/16W

R883 401 105 0603 MT-GLAZE 10K JA 1/16W

R884 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R885 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R886 401 105 0504 MT-GLAZE 1K JA 1/16W

R887 401 105 5806 MT-GLAZE 56 JA 1/16W

R888 401 105 5806 MT-GLAZE 56 JA 1/16W

R889 401 105 5806 MT-GLAZE 56 JA 1/16W

R890 401 105 5806 MT-GLAZE 56 JA 1/16W

R891 401 105 0504 MT-GLAZE 1K JA 1/16W

R892 401 105 0504 MT-GLAZE 1K JA 1/16W

R894 401 105 1501 MT-GLAZE 1.5K JA 1/16W

R895 401 105 0504 MT-GLAZE 1K JA 1/16W

R898 401 105 4205 MT-GLAZE 33K JA 1/16W

R899 401 105 5400 MT-GLAZE 47K JA 1/16W

COIL

L031 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

L101 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

L102 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

L104 645 050 3924 INDUCTOR,10U M

L105 645 050 3924 INDUCTOR,10U M

L106 645 050 3924 INDUCTOR,10U M

L107 645 050 3924 INDUCTOR,10U M

L109 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

L1601 645 044 3343 INDUCTOR,150U M

L1603 645 037 4500 INDUCTOR,1000 OHM

L1607 645 037 4500 INDUCTOR,1000 OHM

L1609 645 023 2978 INDUCTOR,800 OHM

L1611 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

L1613 645 023 2978 INDUCTOR,800 OHM

L1614 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

L1616 645 038 4561 INDUCTOR,100U M

L1617 645 037 7396 INDUCTOR,22U M

L1711 645 040 3101 INDUCTOR,3.3U M

645 026 1008 INDUCTOR,3.3U M

L1712 645 040 3101 INDUCTOR,3.3U M

645 026 1008 INDUCTOR,3.3U M

L1771 645 040 3101 INDUCTOR,3.3U M

645 026 1008 INDUCTOR,3.3U M

L1851 645 033 7918 INDUCTOR,10U M

L1931 645 047 8154 INDUCTOR,390 OHM

L1941 645 040 3088 INDUCTOR,2.2U M

645 026 0988 INDUCTOR,2.2U M

L3142 645 036 3894 INDUCTOR,220 OHM

L3151 645 019 0971 INDUCTOR,600 OHM

L3152 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

L3153 645 019 0971 INDUCTOR,600 OHM

L3154 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

L4101 645 040 3088 INDUCTOR,2.2U M

645 026 0988 INDUCTOR,2.2U M

L4102 645 040 3088 INDUCTOR,2.2U M

645 026 0988 INDUCTOR,2.2U M

L4103 645 040 3088 INDUCTOR,2.2U M

645 026 0988 INDUCTOR,2.2U M

L4104 645 040 3101 INDUCTOR,3.3U M

645 026 1008 INDUCTOR,3.3U M

L4105 645 040 3088 INDUCTOR,2.2U M

645 026 0988 INDUCTOR,2.2U M

L4106 645 040 3088 INDUCTOR,2.2U M

645 026 0988 INDUCTOR,2.2U M

L4111 645 040 3101 INDUCTOR,3.3U M

645 026 1008 INDUCTOR,3.3U M

L5001 645 040 3088 INDUCTOR,2.2U M

645 026 0988 INDUCTOR,2.2U M

L5101 645 040 3088 INDUCTOR,2.2U M

645 026 0988 INDUCTOR,2.2U M

L701 645 019 0971 INDUCTOR,600 OHM

L702 645 019 0971 INDUCTOR,600 OHM

L703 645 019 0971 INDUCTOR,600 OHM

L801 645 040 3101 INDUCTOR,3.3U M

645 026 1008 INDUCTOR,3.3U M

L8071 645 036 3894 INDUCTOR,220 OHM

L8072 645 019 0971 INDUCTOR,600 OHM

L8073 645 036 3894 INDUCTOR,220 OHM

L8074 645 019 0971 INDUCTOR,600 OHM

L8075 645 019 0971 INDUCTOR,600 OHM

L8101 645 040 3088 INDUCTOR,2.2U M

645 026 0988 INDUCTOR,2.2U M

L821 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

DIODE

D031 407 210 5403 DIODE RB551V-30-TE-17

D101 407 201 2701 DIODE RB051L-40-TE25

D102 407 149 0807 DIODE 1SS355-TE-17

D103 407 201 2701 DIODE RB051L-40-TE25

D104 407 201 2701 DIODE RB051L-40-TE25

D105 407 201 2701 DIODE RB051L-40-TE25

D1101 407 210 5403 DIODE RB551V-30-TE-17

D1601 407 213 8500 DIODE SPB-G56SVR

D1603 407 210 5403 DIODE RB551V-30-TE-17

D1606 407 124 0709 DIODE SFPB-64-V

D1607 407 213 8500 DIODE SPB-G56SVR

D1711 407 210 5403 DIODE RB551V-30-TE-17

D1851 407 201 2701 DIODE RB051L-40-TE25

D1852 407 149 0807 DIODE 1SS355-TE-17

Key No. Part No. Description Key No. Part No. Description

Electrical Parts List

-40-

D1854 407 149 0807 DIODE 1SS355-TE-17

D1882 407 210 5601 DIODE RB500V-40-TE-17

D1883 407 210 5403 DIODE RB551V-30-TE-17

D1884 407 210 5601 DIODE RB500V-40-TE-17

D1931 407 149 0807 DIODE 1SS355-TE-17

D3101 407 149 0807 DIODE 1SS355-TE-17

D3102 407 149 0807 DIODE 1SS355-TE-17

D4101 407 149 0807 DIODE 1SS355-TE-17

D4102 407 004 1000 DIODE DCC010-TB

D4103 407 004 1000 DIODE DCC010-TB

D5001 407 004 1000 DIODE DCC010-TB

D5002 407 149 0807 DIODE 1SS355-TE-17

D5003 407 004 1000 DIODE DCC010-TB

D5004 407 187 7400 ZENER DIODE UDZ3.0B-TE-17

D5101 407 004 1000 DIODE DCC010-TB

D5102 407 187 7400 ZENER DIODE UDZ3.0B-TE-17

D5103 407 004 1000 DIODE DCC010-TB

D5104 407 149 0807 DIODE 1SS355-TE-17

D751 407 149 0807 DIODE 1SS355-TE-17

D752 407 149 0807 DIODE 1SS355-TE-17

D753 407 149 0807 DIODE 1SS355-TE-17

D8071 407 187 7400 ZENER DIODE UDZ3.0B-TE-17

D8072 407 179 6305 ZENER DIODE UDZ-TE-173.6B

D8073 407 149 0807 DIODE 1SS355-TE-17

D8074 407 004 1000 DIODE DCC010-TB

D8076 407 004 1000 DIODE DCC010-TB

D8077 407 149 0807 DIODE 1SS355-TE-17

D891 407 203 7704 LED SML-210DT T86 L

MISCELLANEOUS

B1883A 645 059 8302 BATTERY,LITHIUM

K801 645 037 9956 SOCKET,DIN 9P

K8401 645 037 9956 SOCKET,DIN 9P

SW8221 645 024 3851 SWITCH,PUSH

SW8222 645 024 3851 SWITCH,PUSH

SW8223 645 024 3851 SWITCH,PUSH

X1711 645 035 8838 OSC,CERAMIC 500.0KHZ

X3001 645 030 5863 OSC,CRISTAL,14.318MHZ

X3151 645 060 2313 OSC,CRYSTAL 15.45MHZ

X3152 645 037 9352 OSC,CRYSTAL 24.000MHZ

X8001 645 055 8795 OSC,CRYSTAL 9830.4KHZ

X801 645 024 7859 OSC,CRYSTAL 16.000MHZ

610 305 1802 ASSY,PWB,POWER,J3TF 1AA0B10N0410A

TRANSISTOR

Q651 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

INTEGRATED CIRCUIT

IC651 409 558 8405 IC MR1722-4101

IC652 409 416 6505 IC BA05FP-E2

CAPACITOR

C601 404 094 2009 MT-POLYEST 0.47U K 275V

C602 404 073 2303 CERAMIC 1500P M 250V

C603 404 094 2009 MT-POLYEST 0.47U K 275V

C604 404 094 2009 MT-POLYEST 0.47U K 275V

C605 404 094 2009 MT-POLYEST 0.47U K 275V

C606 404 073 2303 CERAMIC 1500P M 250V

C650 403 269 1809 CERAMIC 470P K 1K

C651 403 222 1303 CERAMIC 1000P K 1K

C652 403 222 1303 CERAMIC 1000P K 1K

C653 403 222 1303 CERAMIC 1000P K 1K

C654 403 222 1303 CERAMIC 1000P K 1K

C655 404 057 1308 ELECT 68U M 400V

C656 403 269 1809 CERAMIC 470P K 1K

C657 403 324 3304 CERAMIC 220P K 2K

C658 403 113 4109 CERAMIC 2200P K 50V

C659 403 343 5501 ELECT 68U M 35V

C660 403 157 3601 CERAMIC 100P J 50V

C661 403 113 3805 CERAMIC 1000P K 50V

C662 403 222 1303 CERAMIC 1000P K 1K

C663 403 384 1005 ELECT 2200U M 16V

C664 401 105 0702 MT-GLAZE 100K JA 1/16W

C665 403 164 0204 CERAMIC 0.1U Z 25V

C667 403 162 6208 ELECT 1U M 50V

C668 403 164 0204 CERAMIC 0.1U Z 25V

C669 403 164 0204 CERAMIC 0.1U Z 25V

C670 403 378 2209 ELECT 470U M 25V

C671 403 286 8201 ELECT 1000U M 6.3V

C672 403 164 0204 CERAMIC 0.1U Z 25V

RESISTOR

R601 401 009 7401 CARBON 330K JA 1/2W

R651 401 199 4303 MT-GLAZE 180 JA 1W

R652 401 199 4303 MT-GLAZE 180 JA 1W

R653 401 258 9904 MT-GLAZE 10 JA 1/3W

R654 401 105 1600 MT-GLAZE 15K JA 1/16W

R655 401 105 0603 MT-GLAZE 10K JA 1/16W

R656 401 105 1600 MT-GLAZE 15K JA 1/16W

R657 401 105 3406 MT-GLAZE 27K JA 1/16W

R658 401 218 9203 MT-GLAZE 100 JA 1/3W

R659 401 230 8000 MT-GLAZE 1K JA 1/3W

R661 401 105 0405 MT-GLAZE 100 JA 1/16W

R670 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

R671 401 105 6001 MT-GLAZE 5.6K JA 1/16W

R672 401 105 4205 MT-GLAZE 33K JA 1/16W

R673 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

R674 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

VARISTOR

VA601 407 130 2902 VARISTOR ENC471D-14A

TRANSFORMER

T651 645 059 3123 TRANS,POWER,PULSE

COIL

LF601 645 057 2395 LINE FILTER

LF602 645 057 2395 LINE FILTER

LF603 645 057 2395 LINE FILTER

DIODE

D651 407 190 4106 DIODE SFPL-52V

D652 407 190 4106 DIODE SFPL-52V

D653 407 221 7106 ZENER DIODE UDZS-TE-1712B

D654 407 223 9009 DIODE FMB-G16L

407 223 9108 DIODE YG811S06R

D655 407 190 4106 DIODE SFPL-52V

D656 407 209 4509 ZD UDZS-TE-176.8B

D658 407 206 6308 ZD UDZS-TE-175.1B

D659 407 231 7509 DIODE S1WB(A)80

D660 407 149 0807 DIODE 1SS355-TE-17

MISCELLANEOUS

F601 423 025 1201 FUSE 250V 8A

F602 423 025 1201 FUSE 250V 8A

K602 645 059 5356 UNIT,NOISE FILTER

RL651 645 040 3583 RELAY

PC651 407 223 7302 PC TLP421F(D4-GB-TP4)

407 223 8309 PC TLP421F(D4-GR-TP4)

PTH651 408 037 4600 THERMISTOR NTH11D8R0LA

!

!

!

!

!

!

!

!

!

!

!

!

!

!

!

!

Key No. Part No. Description Key No. Part No. Description

-41-

Electrical Parts List

610 305 1819 ASSY,PWB,JACK-A,J3TF 1AA0B10N0410B

TRANSISTOR

Q1501 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q1502 405 134 5905 TR 2SA1037AK-T146-R

405 147 2205 TR 2SA1037AK-S-T146

405 002 0308 TR 2SA1037K T146 R

405 002 0407 TR 2SA1037K T146 S

405 002 6706 TR 2SA1179-M6-TB

405 002 6904 TR 2SA1179-M7-TB

405 163 1503 TR 2SA1179N-M6-TB

405 163 2708 TR 2SA1179N-M7-TB

405 173 9605 TR 2SA1235A1E

405 173 9704 TR 2SA1235A1F

Q1503 405 134 5905 TR 2SA1037AK-T146-R

405 147 2205 TR 2SA1037AK-S-T146

405 002 0308 TR 2SA1037K T146 R

405 002 0407 TR 2SA1037K T146 S

405 002 6706 TR 2SA1179-M6-TB

405 002 6904 TR 2SA1179-M7-TB

405 163 1503 TR 2SA1179N-M6-TB

405 163 2708 TR 2SA1179N-M7-TB

405 173 9605 TR 2SA1235A1E

405 173 9704 TR 2SA1235A1F

INTEGRATED CIRCUIT

IC1501 410 358 1503 IC TC74HC4053AFT(EL)

IC1502 409 462 0304 IC 24LC21AT/SN

IC1503 409 475 4900 IC SP202ECN

IC1504 409 461 7304 IC AD8057ART

IC1505 409 461 7304 IC AD8057ART

IC1506 409 461 7304 IC AD8057ART

IC1509 409 448 5903 IC BD6111FV-E2

IC1510 409 526 5306 IC BD7600FV

CAPACITOR

C1507 403 343 3408 ELECT 10U M 25V

C1511 403 164 0204 CERAMIC 0.1U Z 25V

C1516 403 164 0204 CERAMIC 0.1U Z 25V

C1517 403 164 0204 CERAMIC 0.1U Z 25V

C1518 403 164 0204 CERAMIC 0.1U Z 25V

C1519 403 164 0204 CERAMIC 0.1U Z 25V

C1522 403 345 6605 CERAMIC 1U M 10V

C1523 403 345 6605 CERAMIC 1U M 10V

C1524 403 157 1508 CERAMIC 3P C 50V

C1525 403 157 1508 CERAMIC 3P C 50V

C1526 403 157 1508 CERAMIC 3P C 50V

C1527 403 334 8603 ELECT 220U M 6.3V

C1528 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C1529 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C1530 403 164 0204 CERAMIC 0.1U Z 25V

C1531 403 164 0204 CERAMIC 0.1U Z 25V

C1532 403 157 3601 CERAMIC 100P J 50V

C1533 403 157 3601 CERAMIC 100P J 50V

C1534 403 157 3601 CERAMIC 100P J 50V

C1535 403 334 8603 ELECT 220U M 6.3V

C1536 403 164 0204 CERAMIC 0.1U Z 25V

C1537 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C1538 403 315 6802 CERAMIC 4.7U Z 16V

C1539 403 334 8603 ELECT 220U M 6.3V

C1540 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C1541 403 164 0204 CERAMIC 0.1U Z 25V

C1542 403 343 3408 ELECT 10U M 25V

C1543 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

C1545 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

C1547 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

C1552 403 380 0101 CERAMIC 47U M 6.3V

C1553 403 363 3501 CERAMIC 22U M 6.3V

C1554 403 379 9801 CERAMIC 10U K 6.3V

C1555 403 323 1301 CERAMIC 0.47U Z 10V

C1556 403 164 0204 CERAMIC 0.1U Z 25V

C1557 403 321 7404 ELECT 100U M 16V

C1558 403 353 2705 ELECT 22U M 25V

C1559 403 298 9609 CERAMIC 0.1U K 16V

RESISTOR

R1501 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R1502 401 105 2607 MT-GLAZE 22 JA 1/16W

R1503 401 105 2607 MT-GLAZE 22 JA 1/16W

R1504 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R1505 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R1519 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1520 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1521 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1522 401 105 0702 MT-GLAZE 100K JA 1/16W

R1523 401 105 0702 MT-GLAZE 100K JA 1/16W

R1524 401 037 2805 MT-GLAZE 75 JA 1/8W

R1525 401 037 2805 MT-GLAZE 75 JA 1/8W

R1526 401 037 2805 MT-GLAZE 75 JA 1/8W

R1527 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1528 401 105 0405 MT-GLAZE 100 JA 1/16W

R1530 401 105 0405 MT-GLAZE 100 JA 1/16W

R1531 401 105 5103 MT-GLAZE 47 JA 1/16W

R1532 401 105 5103 MT-GLAZE 47 JA 1/16W

R1534 401 105 6001 MT-GLAZE 5.6K JA 1/16W

R1535 401 105 6001 MT-GLAZE 5.6K JA 1/16W

R1539 401 105 4502 MT-GLAZE 390 JA 1/16W

R1540 401 105 4502 MT-GLAZE 390 JA 1/16W

R1541 401 105 4502 MT-GLAZE 390 JA 1/16W

R1542 401 105 1402 MT-GLAZE 150 JA 1/16W

R1543 401 105 0504 MT-GLAZE 1K JA 1/16W

R1544 401 105 0504 MT-GLAZE 1K JA 1/16W

R1546 401 105 0504 MT-GLAZE 1K JA 1/16W

R1548 401 105 0504 MT-GLAZE 1K JA 1/16W

R1550 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R1551 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R1552 401 105 1402 MT-GLAZE 150 JA 1/16W

R1553 401 105 1402 MT-GLAZE 150 JA 1/16W

R1554 401 105 1402 MT-GLAZE 150 JA 1/16W

R1556 401 105 1402 MT-GLAZE 150 JA 1/16W

R1557 401 105 1402 MT-GLAZE 150 JA 1/16W

R1558 401 105 2904 MT-GLAZE 22K JA 1/16W

R1559 401 105 0603 MT-GLAZE 10K JA 1/16W

R1560 401 105 5103 MT-GLAZE 47 JA 1/16W

R1561 401 105 5103 MT-GLAZE 47 JA 1/16W

R1562 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1564 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1565 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1566 401 105 0504 MT-GLAZE 1K JA 1/16W

R1567 401 105 0504 MT-GLAZE 1K JA 1/16W

R1568 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R1569 401 105 5103 MT-GLAZE 47 JA 1/16W

R1571 401 105 5103 MT-GLAZE 47 JA 1/16W

R1572 401 105 5103 MT-GLAZE 47 JA 1/16W

R1573 401 105 5103 MT-GLAZE 47 JA 1/16W

R1577 401 105 2904 MT-GLAZE 22K JA 1/16W

R1578 401 105 0504 MT-GLAZE 1K JA 1/16W

R1579 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R1580 401 105 0702 MT-GLAZE 100K JA 1/16W

R1581 401 105 0504 MT-GLAZE 1K JA 1/16W

R1582 401 105 0504 MT-GLAZE 1K JA 1/16W

R1585 401 105 0603 MT-GLAZE 10K JA 1/16W

R1586 401 105 0603 MT-GLAZE 10K JA 1/16W

Key No. Part No. Description Key No. Part No. Description

Electrical Parts List

-42-

R1591 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1592 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

COIL

L1521 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

L1522 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

L1523 645 026 0988 INDUCTOR,2.2U M

L1524 645 026 0988 INDUCTOR,2.2U M

L1525 645 026 0988 INDUCTOR,2.2U M

DIODE

D1501 407 210 5403 DIODE RB551V-30-TE-17

D1502 407 210 5403 DIODE RB551V-30-TE-17

D1505 407 149 0807 DIODE 1SS355-TE-17

D1506 407 149 0807 DIODE 1SS355-TE-17

D1507 407 149 0807 DIODE 1SS355-TE-17

D1508 407 149 0807 DIODE 1SS355-TE-17

MISCELLANEOUS

K1501 645 050 8011 SOCKET,D-SUB 15P

K1502 645 053 4935 PLUG,D-SUB 9P

K1503 645 053 4935 PLUG,D-SUB 9P

K1504 645 007 7456 JACK,PHONE D3.5

SC1501 645 055 3202 SURGE-ABSORBER

SC1502 645 055 3202 SURGE-ABSORBER

SC1503 645 055 3202 SURGE-ABSORBER

SC1504 645 055 3202 SURGE-ABSORBER

SC1505 645 055 3202 SURGE-ABSORBER

SC1506 645 055 3202 SURGE-ABSORBER

SC1507 645 055 3202 SURGE-ABSORBER

SC1508 645 055 3202 SURGE-ABSORBER

SC1509 645 055 3202 SURGE-ABSORBER

SC1510 645 055 3202 SURGE-ABSORBER

SC1511 645 055 3202 SURGE-ABSORBER

SC1512 645 055 3202 SURGE-ABSORBER

SC1513 645 055 3202 SURGE-ABSORBER

XL1501 645 045 6183 FILTER,EMI 25MHZ

XL1502 645 045 6183 FILTER,EMI 25MHZ

XL1503 645 045 6183 FILTER,EMI 25MHZ

XL1504 645 045 6183 FILTER,EMI 25MHZ

XL1505 645 045 6183 FILTER,EMI 25MHZ

XL1506 645 045 6183 FILTER,EMI 25MHZ

XL1507 645 044 8843 FILTER,EMI 200MHZ

XL1508 645 044 8843 FILTER,EMI 200MHZ

XL1509 645 044 8843 FILTER,EMI 200MHZ

XL1510 645 045 6183 FILTER,EMI 25MHZ

XL1511 645 045 6183 FILTER,EMI 25MHZ

610 305 1826 ASSY,PWB,CONTROL,J3TF 1AA0B10N0410C

CAPACITOR

C1902 403 113 3805 CERAMIC 1000P K 50V

C1903 403 113 3805 CERAMIC 1000P K 50V

RESISTOR

R1912 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1917 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1918 401 105 0405 MT-GLAZE 100 JA 1/16W

DIODE

D1901 407 199 1809 LED SML-020MLT-T86

MISCELLANEOUS

A1902 645 062 2434 UNIT,REMOCON RECEIVER

SC1902 645 055 3202 SURGE-ABSORBER

610 305 1840 ASSY,PWB,SENSOR-A,J3TF 1AA0B10N0410E

INTEGRATED CIRCUIT

IC1891 409 491 9002 IC LM50BIM3

CAPACITOR

C1891 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C1892 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

RESISTOR

R1891 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

COIL

L1891 645 026 0988 INDUCTOR,2.2U M

610 305 1857 ASSY,PWB,SENSOR-B,J3TF 1AA0B10N041B0

INTEGRATED CIRCUIT

IC1881 409 491 9002 IC LM50BIM3

CAPACITOR

C1881 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

C1882 403 283 6309 CERAMIC 1U Z 10V

403 309 1400 CERAMIC 1U Z 10V

403 336 5600 CERAMIC 1U Z 10V

RESISTOR

R1881 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

COIL

L1881 645 026 0988 INDUCTOR,2.2U M

610 305 1864 ASSY,PWB,JACK-B,J3TF 1AA0B10N0410G

TRANSISTOR

Q1101 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

INTEGRATED CIRCUIT

IC1101 409 155 8006 IC TC7S04F-TE85L

CAPACITOR

C1101 403 164 0204 CERAMIC 0.1U Z 25V

C1102 403 164 0204 CERAMIC 0.1U Z 25V

C1103 403 343 3408 ELECT 10U M 25V

C1104 403 164 0204 CERAMIC 0.1U Z 25V

C1105 403 164 0204 CERAMIC 0.1U Z 25V

RESISTOR

R1102 401 105 6001 MT-GLAZE 5.6K JA 1/16W

R1106 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1107 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1108 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1109 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1110 401 036 2707 MT-GLAZE 270 JA 1/8W

R1111 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1112 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1113 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1114 401 105 2904 MT-GLAZE 22K JA 1/16W

R1115 401 105 3406 MT-GLAZE 27K JA 1/16W

R1116 401 105 0603 MT-GLAZE 10K JA 1/16W

R1117 401 105 6001 MT-GLAZE 5.6K JA 1/16W

R1118 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R1119 401 105 2805 MT-GLAZE 2.2K JA 1/16W

!

!

Key No. Part No. Description Key No. Part No. Description

-43-

Electrical Parts List

R1120 401 105 2003 MT-GLAZE 1.8K JA 1/16W

R1121 401 105 0504 MT-GLAZE 1K JA 1/16W

R1122 401 105 0603 MT-GLAZE 10K JA 1/16W

R1123 401 105 2904 MT-GLAZE 22K JA 1/16W

R1124 401 105 0603 MT-GLAZE 10K JA 1/16W

R1129 401 105 1402 MT-GLAZE 150 JA 1/16W

R1130 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

MISCELLANEOUS

K1101 610 009 8053 JACK,PHONE D3.6

K1103 610 009 8053 JACK,PHONE D3.6

PC1101 407 105 8700 PHOTO COUPLE PC113B

SC1101 645 055 3202 SURGE-ABSORBER

SC1102 645 055 3202 SURGE-ABSORBER

SC1103 645 055 3202 SURGE-ABSORBER

SC1104 645 055 3202 SURGE-ABSORBER

SC1105 645 055 3202 SURGE-ABSORBER

SW1101 610 245 1931 SWITCH,PUSH

XL1101 645 045 6183 FILTER,EMI 25MHZ

XL1102 645 045 6183 FILTER,EMI 25MHZ

XL1103 645 045 6183 FILTER,EMI 25MHZ

XL1104 645 045 6183 FILTER,EMI 25MHZ

Key No. Part No. Description Key No. Part No. Description

JUL / 2003 Printed in Japan SANYO Electric Co., Ltd.

■Parts Description and Reading in Schematic Diagram

1. The parts specification of resistors, capacitors and

coils are expressed in designated code. Please check

the parts description by the following code table.

2. Some of transistors and diodes are indicated in mark

for the substitution of parts name. Please check the

parts name by the following code table.

3.Voltages and waveforms were taken with a video color

bar signal(1Vp-p at 75 ohms terminated) and controls

to normal.

4. Voltages were taken with a high-impedance digital

voltmeter.

Example 2000 K K 1000 BG

Characteristic

Example 160 E M 10

Capacitance value

Tolerance

Type

Rated voltage

Excepting electric capacitors, all

capacitance values of less than 1

are expressed in µF and more

than 1 are in pF.

Example L2 C1 4R7 K N

Tolerance

Inductance value

Manufacture code

Unique code

Mark Material

E Electrolytic

PElectrolytic (non-polarized)

CCeramic (temperature compensation)

K Ceramic

FPolyester

NPolypropylene

MMetalized polypropylene

HMetalized polypromylar

BCeramic (semiconductor)

GMetalized polyestel

YComposite film

S Styrol

TTantalum oxide solid electrolytic

UOrganic semiconductive electrolyte

DElectric double layer electrolytic

Mark Tolerance

Anot specified

B±0.1

C±0.25

D±0.5

F±1

G±2

E±2.5

H±3

J±5

K±0

M±20

N±30

P +100 -0

Q +30 -10

T +50 -10

U +75 -10

V +20 -10

W +100 -10

X +40 -20

Y +150 -10

Z +80 -20

Mark Tolerance (nH) Mark Tolerance (%)

C±0.25 G ±2

D±0.5 J ±5

S±0.3 K ±10

A±0.2 L ±15

M±20

Coil Reading

Capacitor Reading

Example 1/2 DJ 10KB

Example 6 WK 8.2

Example 1/2 CK 1M

Resistor Reading

Characteristic

Z (Carbon fuse)

B (Non-burnable)

Resistance value

Tolerance (see below table)

Material (see below table)

Rated wattage (W)

K indicates in K

M indicate in M

Note: Resistor which is indicated with resistance value only are

1/6W carbon resistor. Resistor which is indicated with materi-

al, tolerance and value are 1/4W rated wattage.

Mark Material

D Carbon

NMetal film

SOxide metal film

C Solid

GMetal glaze

WWire wounding or cement

H Ceramic

F Fusible

Mark Tolerance

A±0.05

B±0.1

C±0.25

D±0.5

F±1

G±2

J±5

K±10

M±20

P+5-15

Zused in 0 ohm

Tolerance table



Material table

Material table

Mark Type number

R 1S2076A,1S2473,1N4148

AA 1S2076A,1S2473,1SS133,1N4148

Diode

Mark Type number

-- 2SC536 2SC945A 2SC1815 2SC1740S

AD NF, NG PA, QA Y, GR Q, R, S

AE NF, NG PA, QA, RA O, Y, GR Q, R, S

Transistor

(1) NPN type

Diode/Transistor Type Reading

Mark Type number

-- 2SA608 2SA564A 2SA1015 2SA933S

AB NF R Y, GR R

AC NF Q, R O, Y, GR Q, R

(2) PNP type

Mark Type number

-- 2SA1179/N 2SA1037K 2SA1037AK 2SC2812/N 2SC2412K

AJ M6, M7 R, S R, S

AH L6, L7 R, S

(3) Chip type

Tolerance table

A- 3 A- 1 A- 2

J11SN300N

K8R

30

31 32

10

11

12

13

14

15

16

17

18

19

1

2

3

20

21

4

22

5

23

6

24

7

25

8

26

9

27

28

29

J10EG090G

K8F

1

1

2

3

4

5

6

6

7

8

9

9

J10EP040G

KSP9L

1

2

J10EP040G

KSP9R

1

2

3

4

J10EP030G

KFN3

1

2

3

J10EP030G

KFN1

1

2

3

J10EG040G

K8N

1

1

2

3

4

4

J10EG050G

K8M

1

1

2

3

4

5

5

J10EP100G

K16D

11

2

3

4

5

6

7

8

9

10

11

12 12

J10EP080G

K16C

1

1

2

3

4

5

6

7

8

8

J10PS210G

K7V

1

1

2

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

21

J10B1640M

K8L

J10B1640M

K8L

J11XB500G

K8H

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

J10ES086G

K8G

1

1

2

3

4

5

6

7

8

8

J11B3690N

K8401

12

3456

7

10

9

11

8

J11B3690N

K801

12

3456

7

10

9

11

8

1

2

1

2

AC_CORD

J10EG070G

K8J

1

1

2

3

4

5

6

7

7

J10EP070G

K16P

1

1

2

3

4

5

6

7

7

LIST OF REPLACEABLE TRANSISTORS

AC

AB

7T200182

7T200181

2SA564A2SA10152SA933S

Q,R

R

O,Y,GR

Y,GR

Q,R

R

14TH CODE

AJ

7T200221

2SA1179 2SA1037

M6,M7

R,S

14TH CODE

(2SA1037K CHIP TYPE)

(2SA933S TYPE)

AE

AD

7QT00202

7T200183

2SC945A 2SC1815

2SC1740S

RA,QA,PA

QA,PA

O,Y,GR

Y,GR

14TH CODE

AH

7T200220

2SC2812

2SC2412K

L6,L7

R,S

14TH CODE

(2SC1740S TYPE)

(2SC2412K CHIP TYPE)

Q,R,S

Q,R,S

B

C

E

B:

C:

E:

123

12 x 10 (12kohm)

3

8.CHIP TRANSISTORS

BASE

COLLECTOR

EMITTER

9.CHIP RESISTORS

NOTES;

1. RESISTORS SPECIFIED WITH RESISTANCE VALUE ARE

2. RESISTORS SPECIFIED WIITH TYPE OF RESISTOR, TO

.

3. ALL CAPACITORS ARE 50WV RATING UNLESS OTHERWIS

4. PARTS MARKED WITH ARE RELATED WITH X-RADI

5. THICK LINES ARE 15WATTS SUPPLY LINE.

6. BOTTOM VIEW OF TR & IC.

7. ISOLATION BOARDER LINE.

COLD SIDE HOT SIDE

N

1

TOP VIEW

LETTER

SIDE

BCE

EEC

CB

B

123

IC CASE OF TR

IN CASE OF IC

(Top View)

AND RESISTANCE VALLUE ARE "1/4".

1

1

33

OMCE080

8YDX3R0

C611

275GK0.47VBB

C604

250KM1500XN

C606

275GK

0.47VBB

C601 275GK

0.47VBB

C603 275GK

0.47VBB

C605 ENC471

D14A

VA601

1

2

U20B61300

K602

1

23

4

J20B0

040N

F601B

J20B0

040N

F601A

250KM1500XN

C602

8YDX3R0

C610

F35B

1090N

LF602

1

2

3

4

F35B

1090N

LF601

1

2

3

4

8A250VTC

F601

X

C601A

X

C603A

X

C605A

X

C604A

F35B

1090N

LF603

1

2

3

4

J10EM

020N

K6A

1

2

X

VA602

1

2

TLP421F-GBP

PC651

;TLP421F-GRP

12

34

1000KK

1000NH

C651

1000KK1000NH

C652

1000KK

1000NH

C653

1000KK

1000NH

C654

400EM

68X

C655

1000KK

470CRD

C656

2000KK

220CRD

C657

SFPL-52P

D652

UDZS12BG

D653

SFPL-52P

D651

CJ100CGQ

C660

KK2200

GQ

C658

KK1000GQ

C661

35EM

68WV

C659

1000KK

1000NH

C662

16EM

22002F

C663

SFPL-52P

D655

C664

1/16GJ

100KC

UDZS

6.8BG

D656 25KZ

0.1GQF

C665

X

C666

UDZS

5.1BG

D658

S1WB(A)80G

D659

1

2

34

EM1D

C667

J10QF

080G

K6C

11

2

3

4

5

6

7

8

25KZ

0.1GQF

C668

25EM

4703C

C670

8A250VTC

F602

J20B0

040N

F602B

J20B0

040N

F602A

S20B0630N

RL651

1

34

2

AH

Q651

1SS

355

D660

25KZ

0.1GQF

C672

1

2

3

6.3EM

1000D

C671

25KZ

0.1GQF

C669

SC02

SC01 SC04 SC05 SC06

1000KK

470CRD

C650

X

K6F1

1

2

3

X

K6F2

1

2

3

J10QF

040G

K6Q

1

2

3

4

X

SC601

1

2

X

SC602

1

2

FMB-G

16L

D654

D654H

1AA2HEF0141--

SM2PW308R0SE-

D654S1

SN2H1N30SE

D654S2

;SN2H1N30ZE

ZB13

D654Z

;ZB29

SM2PW308R0SE-

IC651S1

ZB13

IC651Z

;ZB29

SN2H1N30SE

IC651S2

;SN2H1N30ZE

IC651H

1AA2HEF0141--

1AA9W01BH007F

K602A

81L08K2R0

K602B

1

2

3

4

5

12

NC

1

2

3

5

NC

67

NC

8

NC

10

9

NC

11

1/16GJ

5.6KC

R671

1/16GJ

33KC

R672

1/8GZ

000

R673

1GJ180

R651

1/8GZ000

R670

1GJ180

R652

X

R675

1/16GJ

10KC

R655

1/3GJ10

R653

1/16GJ

15KC

R654 1/16GJ

15KC

R656

1/3GJ

100

R658

1/3GJ

1000

R659

1/16GJ

27KC

R657

X

R660

1/16GJ

100C

R661

R601

1/2DJ

330K

1/8GZ

000

R674

K6A_3

K6A_4

K602_1

K602_2

K602_3

K602_4

K602_6

K602_5

K6A_1

K6A_2

K6Q_1

K6Q_3

K6C_8

K6C_7

K6C_1

K6C_3

K6C_2

K6F1_1

K6F1_2

K6F1_3

DHXAVB

002

PTH651

SC04A

SIGN438

PB1891

A4B10300;1A4B10N0300E

1/16G

Z0C

R1891

L2PD

2R2MG

L1891

10KZ1UGQF

C1891

;10KZ1ULZF

;10KZ1UMAF

1

+VS

2

V0

3

GND

10KZ1UGQF

C1892

:10KZ1ULZF

:10KZ1UMAF

J10ES046G

K18N

1

1

2

3

4

4

K18N_4

K18N_2

K18N_1

1/16GZ0C

J1891

SC15

PB1891

A4B10300;1A4B10N0390F

1/16GZ0C

R1881

L2PD

2R2MG

L1881

10KZ1UGQF

C1881

;10KZ1ULZF

;10KZ1UMAF

1

+VS

2

V0

3

GND

J10ES056G

K18M

1

1

2

3

4

5

5

10KZ1UGQF

C1882

;10KZ1ULZF

;10KZ1UMAF

K18M_5

K18M_1

K18M_2

1/16GZ0C

J1881

SC16

SIGN467

H-SYNC

DSUB-B

DSUB-G

RX_CPU

V-SYNC

A_PC-L

A_PC-R

DSUB-R

SIGN526

SIGN549

SIGN550

RS232C_B

RS232C_A

J11B2731N

K1501

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15 16

17

J30A00102

TP1506

CJ100

CGQ

C1533

CJ100

CGQ

C1532

CC3CGQ

C1524

J30A00102

TP1505

CJ100

CGQ

C1534

CC3CGQ

C1525

CC3CGQ

C1526

J30A00102

TP1507

J30A00102

TP1510

25KZ

0.1GQF

C1536

6.3EM

220WV

C1535

25KZ

0.1GQF

C1530

RB551

V-30G

D1501

J30A00102

TP1508

RB551

V-30G

D1502

J10B

1801N

K1502

12345

6789

10 11

Z30B

0140G

SC1505

1

2

Z30B0140G

SC1506

1

2

25KZ

0.1GQF

C1518

25KZ

0.1GQF

C1516

25KZ0.1GQF

C1531

25KZ0.1GQF

C1519

25KZ

0.1GQF

C1517

X

C1512

10KM

1LZB

C1522

1/8GZ

000

L1521

10KM

1LZB

C1523

X

C1513

1/8GZ

000

L1522

J10LS300N

K1505

30

31

32

10

11

12

13

14

15

16

17

18

19

1

2

3

20

21

4

22

5

23

6

24

7

25

8

26

9

27

28

29

J10B1801N

K1503

12345

6789

10 11

Z30B

0140G

SC1507

1

2

Z30B

0140G

SC1508

1

2

F34EA

256G

XL1503

123

F34EA

256G

XL1504

123

F34EA256G

XL1505

123

F34EA

256G

XL1506

1

2

3

X

C1503

X

C1504 X

C1505 X

C1506

5V_STANBY

10KZ1UGQF

:10KZ1ULZF

:10KZ1UMAF

C1537

10KZ1UGQF

:10KZ1ULZF

:10KZ1UMAF

C1540

10KZ1UGQF

:10KZ1ULZF

:10KZ1UMAF

C1528

16KZ

4.7GNF

C1538

1

C+

2

GND

3

C-

4

NEG

OUT

5

6

7

8

10KZ1UGQF

:10KZ1ULZF

:10KZ1UMAF

C1529

6.3EM220WV

C1539

Z30B0140G

SC1513

1

2

Z30B0140G

SC1502

1

2

Z30B0140G

SC1501

1

2

F34EA207G

XL1509

1

2

3

F34EA

256G

XL1510

123

F34EA

256G

XL1511

123

F34EA207G

XL1508

123

F34EA207G

XL1507

123

Z30B0140G

SC1512

1

2

Z30B0140G

SC1511

1

2

Z30B0140G

SC1510

1

2

Z30B0140G

SC1509

1

2

25KZ

0.1GQF

C1511

25EM

10WV

C1507

6.3EM

220WV

C1527

X

C1502

X

C1501

X

C1509

X

C1510

X

C1508

Z30B0140G

SC1503

1

2

F34EA

256G

XL1502

1

2

3

F34EA

256G

XL1501

1

2

3

Z30B0140G

SC1504

1

2

+-

1

OUT

2

V-

3

IN

4

I-IN

5

V+

+-

1

OUT

2

V-

3

IN

4

I-IN

5

V+

+-

1

OUT

2

V-

3

IN

4

I-IN

5

V+

J30A

00102

TP1512

J30A

00102

TP1513

1

A0

2

A1

3

A2

4

VSS

5

SDA

6

SCL

7

TEST

8

VDD

1

H

2

L

3

H

4

5

L

6

7

89

10

11

12

L

13

H

14

15

16

25EM

10WV

C1542

25KZ

0.1GQF

C1541

5V_STANBY

1/16GZ

0C

C1543

X

C1544

1/16GZ

0C

C1545

X

C1546

1/16GZ

0C

C1547

X

C1548

X

C1549

X

C1550

X

C1551

1234

5678

6.3KM

47PCH

C1552

6.3KM

22PCB

C1553

1SS355

D1505

1SS355

D1506

1SS355

D1507

1SS355

D1508

6.3KK

10GNB

C1554

10KZ

0.47GQF

C1555

J30A00102

TP1509

AH

Q1501

AJ

Q1502

AJ

Q1503

25KZ

0.1GQF

C1556

16EM

100WV

C1557

25EM

22WV

C1558

-5V_DSUB

5V_STANBY

16KK

0.1GQ

C1559

-5V_DSUB

5V_STANBY

5V_STANBY

L2PD2R2MG

L1523

L2PD2R2MG

L1524

L2PD

2R2MG

L1525

SC07 SC08

J12B06800

K1504

1

2

3

4

5

6

7

89

10

11

12

13

14

15

16

1/16GJ

22KC

R1577

X

R1515

1/16GJ4.7KC

R1505

X

R1514

1/16GJ

1KC

R1578

X

R1513

1/16GJ

4.7KC

R1504

1/16GJ

4.7KC

R1579

1/16GJ

1KC

R1543

X

R1512

1/16GJ

100KC

R1580

1/16GJ

150C

R1542

1/16

GZ0C

R1527

1/16GJ100C

R1530

X

R1518

X

R1555

1/16GJ

22C

R1502

1/16GJ1KC

R1581

1/16GJ

22C

R1503

1/16GJ1KC

R1582

X

R1516

1/16GJ

22KC

R1558

X

R1583

X

R1584

1/16GJ

10KC

R1585

1/16GJ

10KC

R1586

X

R1508

1/16GJ10KC

R1559

X

R1509

1/16GJ

47C

R1531

1/16GJ

47C

R1532

X

R1510

X

R1511

X

R1587

1/16GJ

4.7KC

R1501

X

R1588

1/16GJ

100C

R1528

1/16GJ1KC

R1566

1/16GJ

390C

R1540

1/16GJ1KC

R1567

X

R1537

1/16GJ

1KC

R1546

1/16GJ

4.7KC

R1568

1/16GJ

47C

R1569

X

R1547

1/16GJ

47C

R1571

1/16GJ47C

R1572

X

R1545

1/16GJ

4.7KC

R1551

1/16GJ

1KC

R1544

1/16GJ4.7KC

R1550

1/16GZ0C

R1591

1/16GZ0C

R1592

1/16GJ47C

R1560

1/16GJ

390C

R1539

1/16GJ47C

R1561

X

R1536

1/16GZ0C

R1562

X

R1549

1/16GZ

0C

R1565

1/16GJ

47C

R1573

1/16GJ

1KC

R1548

1/16

GZ0C

R1564

X

R1517

X

R1529

1/16GZ0C

R1519

X

R1533

1/16GZ0C

R1520

1/16GJ

100KC

R1522

1/16GZ0C

R1521

X

R1506

1/8GJ75

R1525

1/16GJ

5.6KC

R1535

1/16GJ

5.6KC

R1534

1/8GJ75

R1526

X

R1507

1/16GJ

100KC

R1523

1/16GJ

150C

R1552

1/8GJ75

R1524

1/16GJ

150C

R1556 1/16GJ

150C

R1557

1/16GJ

150C

R1553

1/16GJ

150C

R1554

1/16GJ

390C

R1541

X

R1574

X

R1538

X

R1575

CL1528

CL1511

CL1530

CL1508

CL1509

CL1507

CL1506

CL1510

CL1513

CL1517

CL1518

CL1505

CL1514

CL1504

CL1503

CL1531

CL1532

CL1520

CL1519

CL1521

CL1502

CL1501

CL1512

CL1515

CL1516

CL1523

CL1524

CL1525

CL1526

CL1527

CL1529

SCREW

RC_PRE

A-SENSOR

L-RED

L-GREEN

1/16GZ0C

R1912

1/16

GZ0C

R1917

RC_PRE

L-GREEN

L-RED

1/16

GZ0C

R1914 1/16

GZ0C

R1913

K19J_6

K19J_5

K19J_4

K19J_3

K19J_2

K19J_1

1/16GJ

100C

R1918

KK1000GQ

C1903

Z30B

0140G

SC1902

1

2

KK1000GQ

C1902

J10EG070G

K19J

1

1

2

3

4

5

6

7

7

SC09 SC10

5V_STANBY

5V_STANBY

X

J1902

X

J1901

U20B65400

A1902

123

K19J_7

1AA2SHF0465--

A1902A

SML-020

MLTG

D1901

1

RED

2

34

GREEN

LR

J1101/../J1008

1/16GZ0C

TO MAIN

SEL

VOL-UP

VDL-DN

PWER

RC

RC_PRE

CH-UP

CH-DN

KEY_IN

POWER

5V_STANBY

J12B07600

K1101

123456

7

8

9

PC113B

PC1101

1

2

34

5

6

F34EA

256G

XL1101

1

2

3

1/8GJ270

R1110

R1101

X

F34EA

256G

XL1102

1

2

3

X

R1104

R1102

1/16GJ5.6KC

1/16GZ0C

R1109

1/16GZ0C

R1108

1/16GZ0C

R1107

S10B1320N

SW1101

-1

1

-2

2

1/16GZ0C

R1106

Z30B

0140G

SC1101

1

2

Z30B

0140G

SC1102

1

2

25KZ

0.1GQF

C1101

K11F_1

K11F_2

K11F_3

K11F_4

K11F_5

Z30B

0140G

SC1104

1

2

K1103_3

K1103_1

K1101_1

K1101_2

K1101_3

K1101_6

K1101_5

K1101_4

Z30B

0140G

SC1103

1

2

1/16GJ

10KC

R1116

1/16GJ

10KC

R1122

K1104_6

K1104_4

1/16GJ

5.6KC

R1117

1/16GJ

22KC

R1114

K1103_5

1/16GJ

2.2KC

R1119

K1104_7

1/16GJ

3.3KC

R1118

1/16GJ

1.8KC

R1120

K1104_8

K1104_2

1/16GZ

0C

R1112

1/16GJ

27KC

R1115

1/16GJ

1KC

R1121

J11MK100G

K1104

1

1

2

3

4

5

6

7

8

9

10

10

K1104_9

K1104_3

1/16

GZ0C

R1113

K1104_10

1/16GZ0C

R1111

AH

Q1101

1/16GJ

22KC

R1123

X

R1125

K11F_8

K11F_7

K11F_6

SC17 SC18

SC19 SC20

J10ES116G

K11F

1

1

GND

2

RC

3

RC_PRE

4

5V_STANBY

10

PHONE_R

5

RESET_SW

11

JACK_MUTE

6

KEY-IN

7

RWRSW

8

GND

9

PHONE_L

Z30B0140G

SC1105

1

2

X

R1126

R1127

X

X

R1103

F34EA256G

XL1103

1

2

3

X

R1105

F34EA

256G

XL1104

1

2

3

J12B07600

K1103

123456

7

8

9

1/16GJ150C

R1129

X

R1128

K1103_2

K1103_4

K1103_6

K1103_8

1/16GJ10KC

R1124

1/8GZ

000

R1130

K11F_11

K11F_10

K11F_9

J1101

J1102

J1108

J1103

J1107

J1104

J1106

J1105

1

2

3

GND

4

5

VCC

25KZ

0.1GQF

C1102

25KZ

0.1GQF

C1104

25KZ

0.1GQF

C1105

25EM

10WV

C1103

AC100V

:AC200V

P9

P6

D1

D26

D8

K8Q

1

1

2

3

3

J10QY200G

K30W

1

1

2

2

34

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

19

20

20

D3

J10EG030G

SS34

TO

PDP

MODULE

SS34

TO

POWER

K6Q

TO MEMBRANE SW

SP202ECNP

IC1503

AD8057ARTK

IC1505

AD8057ARTK

IC1506

AD8057ARTK

IC1504

TC74HC4053AFT

IC1501

ASSY,PWB,JACK-A J3TF 

1AA0B10N0410B

ASSY,PWB,POWER J3TF 

1AA0B10N0410A

24LC21

A/SNP

IC1502

BD6111FVP

IC1509

BD7600FVP

IC1510

IC651

MR1722-4101

BA05FP-E2

IC652

HOT SIDE

ASSY,PWB,CONTROL J3TF 

1AA0B10N0410C

TC7S04FP

IC1101

ASSY,PWB,SENSOR-A

1AA0B10N0410E

ASSY,PWB,SENSOR-B

1AA0B10N0410F

LM50BIM3

IC1881

LM50BIM3

IC1891

DSUB-IN PC AUDIO-IN

RS232C-IN RS23S2-OUT

WIRERED RC IN WIRERED RC OUT

OR HEADPHONE RESET SW

Interface Board (Option)

ASSY,PWB,MAIN J3TF (P1/4~P4/4)

PDP

MODULE

MAIN POWER

MODULE

8A 250V

FOR CONTINUED PROTECTION AGAINST A RISK

OF FIRE, REPLACE ONLY WITH THE SAME TYPE

8A, 250V FUSE.

ATTENTION : POUR MAINTENIR LA PROTECTION

CONTRE LES RISQUES D'INCENDIE UTILISER UN

FUSIBLE DE RECHANGE DE MEME TYPE 8A, 250V.

FUSE PART No. 423 025 1201

CAUTION

COLD SIDE

L51B5510N

T651

SPEAKER_R

SPEAKER_L

ASSY,PWB,JACK-B J3TF 

1AA0B10N0410G

MEMBRANE SW

(Key SW)

M901

FAN

FN901

FAN

FN903

R

G

B

1AA0B10N04000

2345678910 11 12 13 14 15 16

A

B

C

D

E

F

G

H

I

J

K

A

B

C

D

E

F

G

H

I

J

K

L

J3TF_01

1

PDP-42WV1 PDP-42WV1

■Schematic Diagrams PDP-42WV1 / PDP-42WV1S / PDP-42WV1A / PDP-42WV1AS

T-SENSOR1

T-SENSOR2

J10EG040G

K8N

1

1

2

3

4

4

J10EG050G

K8M

1

1

2

3

4

5

5

L26B1730G

L1613

1

23

4

AMP-R R-OUT

AMP-L

16PM

4.7DB

C010

L-OUT

16PM

4.7DB

C009

L-OUT

M5_SCL

R-OUT

16PM

4.7DB

C045

M5_SDA

30

IN1_R

10

SS-FIL

11

CVB

12

CVA

13

SDA

14

SCL

15

GND

16

VCC

17

AUX1

18

AUX0

19

CTL

1

IN_L

2

NC

3

NC

20

CTH

21

VREF

4

OUT1_L

22

SR-FIL

5

IN2_L

23

OUT2_R

6

TONE-H_L

24

TONE-L_R

7

TONE-L_L

25

TONE-H_R

8

OUT2_L

26

IN2_R

9

AGC

27

OUT1_R

28

NC

29

NC

SEL-R

SEL-L

16PM

4.7DB

C046

GND3

P-FAIL3

1

+5GEN

2

DCAP2

3

DCAP1

4

V5D

5

AGND1

6

REF

7

OVERLOADB

8

AGND2

9

V5A

10

VP1

11

IN1(L)

12

H:MUTE

MUTE IDLE

13

NC

14

VP2

15

IN2(R)

16

BIAS CAP

17

AGND3

18

SLEEP

19

FAULT

20

PGND2

21

NC

22

DGND1

23

NC

24

OUTP2(R)

25

VDD2

26

VDD2

27

OUTM2

28

OUTM1

29

VDD1

30

VDD1

31

OUTP1(L)

32

NC

33

VDDA

34

NC

35

PGND1

36

CPUMP

40

GND

J10EP040G

KSP9R

1

2

3

4

AMP-MUTE1

AMP-R

TX

FLW_TX

FLW_RX

RC

RESET_SW

J11B3690N

K8401

12

3456

7

10

9

11

8

FLW_TX

KOUTEI-5

RX

M5_SCL

M5_SDA

FLW_RX

L-GREEN

RC_PRE

PWRSW

L-RED

KEY-IN

A-SENSOR

TXD

1

2

3

4

5

6

7

GND

8

9

10

11

12

13

14

VCC

SUB_TX5

1

2

3

4

5

6

7

GND

8

9

10

11

12

13

14

VCC

KOUTEI-5

SUB_RX5

SUB_TX

RX

RXD

SUB_RX

KOUTEI

TX

L-RED

P-FAIL2

PDPGO_5

RS232C_RX

FAN-CTRL2

FAN-CTRL1

P-FAIL1

RESET_SW

PW_RST

T-SENSOR1

SUB_TX5

1

A0

2

A1

3

A2

4

VSS

5SDA

6SCL

7TEST

8VDD

FAN-LOCK2

1

RTC_DATAOUT

51

RS232

C_A

2

RTC_CLK

52

RS232

C_B

3

FAN-CTRL1

53

P41

4

FAN-CTRL2

54

P40

5

P92

55

SCL

6

HS_DET

56

SDA

7

HS_DET2

57

SCDT_ST2

8

BYTE

58

SCDT_ST1

9

CNVSS

59

P33

60

RED

61

GREEN

62

VCC

63

TV_DATAIN

64

VSS

65

TV_DATAOUT

66

P26

67

P25

68

CF_IN

69

OP_SW

100

P97

70

OP_ID

71

TV_CLK

72

RESET_SW

73

FCOM

74

AIRQ

75

TIRQ

76

P14

77

FAN-LOCK1

78

PANEL-F

79

ALARM

80

PW

RST

81

LINE

OFF

10

P87

82

P-FAIL1

11

P86

83

P-FAIL2

12

RESET

84

P-FAIL3

13

X-OUT

85

P-FAIL4

14

VSS

86

PDPGO

15

XIN

87

PWRSW

16

VCC

88

FAN-LOCK2

17

P85

89

PC_SW3

18

RC

19

VS_DET2

90

P106

91

P105

20

VS_DET

92

T-SENSOR1

21

P81

93

T-SENSOR2

22

PC_SW

94

SENSOR

23

P77

95

KEY-IN

24

P76

96

AVSS

25

P75

97

P100

26

P74

98

VREF

27

P73

99

AVCC

28

P72

29

RXD2

30

TXD2

31

UART

TX

32

UART

RX

33

SCLK

34

BUSY

35

RS232C-TX

36

RS232C-RX

37

P61

38

P60

39

P57

40

P56

41

EPM

42

P54

43

P53

44

P52

45

P51

46

CE

47

JACK-MUTE

48

RTC_CE

49

STB

50

AMP-

MUTE1

KEY-IN

L-GREEN

J11B3690N

K801

12

3456

7

10

9

11

8

PWRSW

RC_1

1

2

34

5

HS_DET

VS_DET

T-SENSOR2

1

2

3GND 4

5

VCC

SUB_RX5

FAN-LOCK1

A-SENSOR

J10EP030G

KFN3

1

2

3

FAN-LOCK2

J10EP030G

KFN1

1

2

3

FAN-CTRL1

FAN-LOCK1

FAN-CTRL2

RTC_DATA

RB500V-40G

D1882

AIRQ

RTC_CLK

TIRQ

RTC_CE

FCOM

1

H

2

L

3

H

4

5

L

6

INH

7

VEE

8

VSS

9

10

11

12

L

13

H

14

15

16

VDD

1

H

2

L

3

H

4

5

L

6

INH

7

VEE

8

VSS

9

10

11

12

L

13

H

14

15

16

VDD

+

+

-

-

1

2

3

45

6

7

8

RS232C_TX

RXD2

TXD2

L26B

2890G

L1603

1

23

4

P-FAIL2

1

IN

2

OUT

3

GND

4

FB

5

ON/OFF

6

1RT

2REF

3IN-

4FB 5

GND

6

OUT

7

VCC

8

CS

SFPB-64P

D1606

1S

2S

3S

4G5

D

6

D

7

D

8

D

1

IN

2

OUT

3

GND

4

FB

5

ON/OFF

6

X

L111

J10EP080G

K16C

1

1

2

3

4

5

6

7

8

8

STB

P-FAIL3

AMP-MUTE1

1

2

3

GND3

GND3

GND3

GND3

GND3

SC01

SC04 SC05 SC03

SC02 SC06

RC_PRE

RC

RTC_CE

STB

FCOM

AIRQ

TIRQ

RTC_CLK

HS_DET2

RTC_DATA

VS_DET2

OP_ID

OP_SW

CF_IN

HL9SJ02-G

B1883

10KM

1LZB

C114

KZ0.047GQF

C1613

25KZ

0.1GQF

C126

10KK

0.22GQ

C125

10KK0.47GQ

C107

25KZ0.1

GQF

C819

10KK

0.47GQ

C128

25KZ

0.1GQF

C112

25KZ

0.1GQF

C1852

CD6

CGQ

C810

25KZ

0.1GQF

C1611

X

C1884

10KM1LZB

C852

KZ0.01GQF

C811

25KZ0.1GQF

C1644

25KZ

0.1GQF

C133

10KZ1UGQF

;10KZ1ULZF

;10KZ1UMAF

C804

X

C1931

X

C1604

25KK

0.1GQ

C037

X

C1605

25KK

0.1GQ

C101

25KZ

0.1GQF

C1885

25KZ

0.1GQF

C1627

25KZ

0.1GQF

C130

KZ0.01

GQF

C1853

KZ0.01

GQF

C813

KZ0.01

GQF

C1601

25KZ

0.1GQF

C1654

10KK

0.22GQ

C124

KZ0.01

GQF

C1855

25KK

0.1GQ

C041

10KM1LZB

C851

25KZ

0.1

GQF

C121

10KM

1LZB

C102

10KZ1UGQF

;10KZ1ULZF

;10KZ1UMAF

C805

10KM

1LZB

C119

25KZ

0.1GQF

C1882

10KK0.47GQ

C116

KK1000GQ

C1646

KK4700GQ

C043

KZ0.01

GQF

C803

10KK

0.47GQ

C127

10KK

0.47GQ

C108

KZ0.01

GQF

C808

25KZ

0.1

GQF

C115

10KZ1UGQF

;10KZ1ULZF

;10KZ1UMAF

C8422

10KK

0.47GQ

C122

CD6

CGQ

C809

KZ

0.01

GQF

C812

25KZ

0.1GQF

C031

25KK

0.1GQ

C040

KK3300

GQ

C120

KK4700

GQ

C044

X

C1610

10KK

0.47GQ

C117

10KM

1LZB

C132

25KZ

0.1GQF

C1648

10KZ1UGQF

;10KZ1ULZF

;10KZ1UMAF

C8421

10KK

0.22GQ

C111

KK

2200GQ

C801

25KK

0.1GQ

C131

25KZ

0.1GQF

C1637

25KK

0.1GQ

C042

10KK

0.22GQ

C109

KK3300

GQ

C104

KZ0.01

GQF

C8401

25KZ

0.1GQF

C1651

25KZ

0.1GQF

C806

10KK

0.47GQ

C123

25KZ

0.1GQF

C129

35EM

3303C

C1609

X

C1603

35EM

4.7WV

C036

25EM

4703C

C1642

X

C106

35EM

3303C

C1608

X

C1602

X

C1606

25EM

4703C

C1641

10EM

10003C

C032

35EM

4.7WV

C039

35EM

4.7WV

C034

6.3EM

220WV

C1652

35EM

4.7WV

C038

25EM10WV

C1612

35EM

3303C

C1636

16EM

100WV

C110

25EM

4703C

C1638

25EM10WV

C1932

6.3EM

220WV

C1653

35EM

3303C

C1614

25EM

470WV

C1615

16EM

680WV

C105

25EM10WV

C1881

X

C1933

35EM

4.7WV

C033

16EM

100WV

C802

35EM

4.7WV

C035

10EM

10003C

C1647

X

C1607 6.3EM

1000D

C1621

16TM

4.7FD

C1643

X

C103

RB051

L-40G

D104

1SS355

D1854

X

D1604

1SS355

D1931

1SS355

D102

RB051

L-40G

D105

RB051L

-40G

D101

RB551

V-30G

D031

RB051

L-40G

D103

RB051

L-40G

D1851

X

D1853

RB551V-30G

D1603

1SS355

D1852

L2PN220MG

L1617

1/8GZ000

L109

1/8GZ000

L102

1/8GZ000

L1614

L2PJ100MG

L1851

1/8GZ

000

L101

L2PK101MG

L1616

L2PK

100MG

L104

L2PD3R3MG

L801

L26B4110G

L1931

1/8GZ

000

L031

L2PK

100MG

L107

L2PK

100MG

L106

L2PK100MG

L105

X

L1612

1/8GZ000

J5901

J30A

00102

TP1882

X

TP812

X

TP811

X

TP803

J30A

00102

TP806

J30A

00102

TP1883

J30A00102

TP1606

J30A00102

TP1608

X

TP8424

J30A00102

TE1631

X

TP804

X

TP8421

J30A

00102

TP1609

X

TP813

J30A

00102

TP1881

X

TP8423

X

TP801

X

TP808

J30A

00102

TP807

J30A00102

TP1610

J30A00102

TP1607

X

TP8422

J30A00102

TP1603

J30A

00102

TP1601

X

TP810

X

TP817

J30A00102

TP1605

J30A00102

TP1604

X

TP816

J30A00102

TP1611

X

TP1602

X

TP815

AH

Q1931

2SC5103PP

;2SC5103QP

Q1851

AH

Q1855

AH

Q1854

AH

Q1932

AH

Q801

AH

Q101

2SC5103PP

;2SC5103QP

Q1853

OPTION_R

A_PC-L

AUD-SWB

AH

Q133

SEL-L

1/16GZ0C

C135

OPTION_L

SEL-R

1/16GZ0C

C134

SLOT-L

10

22

3

3

4

1

5

ENA

6

VEE

7

GND

8

3210

9

HHLL

10

B

11

HLHL

12

A

13

3

14

0

15

1

16

2

AH

Q132

AUD-SWA

A_PC-R

AH

Q131

KZ0.01

GQF

C137

6.3EM

47WM

C136

SLOT-R

PC_SW3

SCDT_ST2

SCDT_ST1_5

PC_SW5

AJ

Q802

J10EP070G

K16P

1

1

2

3

4

5

6

7

7

8

J10EG070G

K8J

1

1

2

3

4

5

6

7

7

8

L2PD2R2MG

L1941

25EM10WV

C1941

BBE

MACH3

RS232C_B

RS232C_A

1VDD

2GND

3RESOUT

1

VDD

2

GND

3

RES

OUT

SPB-G56SG

D1607

SPB-

G56SG

D1601

1

2

3

45

6

7

8

25KZ

0.1GQF

C1942

RC

RC_1 RC_2

LINE_OFF

LINE_OFF

10

GND

4

-AIRQ

11

NC

5

-TIRQ

12

NC

6

CLK

13

NC

7

DATA

14

NC

8

CE1

15

NC

9

FCON

16

NC

17

NC

18

NC

19

NC

20

NC

1

VDD

2

FOUT

3

CEO

16PM

4.7DB

C047

16PM

4.7DB

C048

AMP-L

J10EG110G

K8F

1

1

1

2

3

4

10

5

11

11

6

6

7

8

9

9

JACK_MUTE

PHONE_L

PHONE_R

ALARM

P-FAIL4

AJ

Q804

AH

Q803

KK

2200GQ

C814

D10B03200

B1883A

X

D106

JACK_MUTE

25KZ

0.1GQF

C1887

X

TP821

X

TP822

X

TP823

X

TP824

L26B2890G

L1607

1

23

4

1/8GZ000

L1611

J10EG030G

K8Q

1

1

2

3

3

1/8GZ000

L821

J10EP100G

K16D

1

2

3

4

5

6

7

8

9

10

K16D_4

K8F_8

K16P_1

CL_13VP_2

K801_8

K8M_1

K16C_GND

K8F_5

K8N_4

KFN3_1

KSP9L_4

K16P_2

K8401_4

CL_5VS_1

K16C_1

KFN3_3

K8F_7

K8F_4

K8N_3

K16D_5

K801_5

K8401_2

K16C_7

KFN3_2

KFN1_2

KSP9L_1

CL_3.3VS_1

K8N_2

K16C_2

K16D_6

K16P_3

K8J_1

KFN1_3

K8J_2

K801_4

K8F_9

K801_9

KSP9R_4

K8401_6

K16D_7

CL_3.3VS_2

K8F_1

K16P_9

K8J_3

K8N_1

KSP9R_1

K8401_8

K8M_5

K801_3

K8F_10

KFN1_1

K801_2

CL_13VA_1

CL_13VA_2

K16P_GND

K16D_1

K8M_4

K16D_8

K8J_4

K8401_7

K801_6

K8F_11

K801_7

K16D_9

K16P_GND3

K16D_10

K16D_2

K8F_3

K8401_5

K8J_5

K8F_2

K8M_3

CL_13VP_1

K801_1

K8J_6

K16D_3

K8J_7

K8F_6

K8M_2

K16C_8

K8401_3

V10B2870G

X801

X

L103

RB551V-30G

D1883

RB500V-40G

D1884

TV_CLK

TV_DATAIN

TV_DATAOUT

L2PN151MG

L1601

L26B

1730G

L1609

1

23

4

X

D1621

AH

Q891

SML-210DTLG

D891

J10EP020G

KSP9L

1

1

2

2

PDPGO_5

AH

Q134

DVI_HOT

16EM

220WV

C1856 16EM

220WV

C1858

25EM

10WV

C1851

X

C118

X

C113

10KZ1UGQF

;10KZ1ULZF

;10KZ1UMAF

C807

1AA4BB10N03800

PB001

SCDT_ST1

SCDT_ST1_5

X

R8438

1/16GZ0C

R1882

1/16GJ

3.3KC

R143

1/16GJ

47KC

R826

1/16

GZ0C

R018

1/16GJ

10KC

R8427

1/16

GZ0C

R037

1/16GJ1KC

R870

1/16GJ2.2KC

R148

1/16GJ1KC

R886

1/16GJ

22KC

R881

1/16

GJ

10C

R033

1/16GJ

2.7KC

R830

1/16

GJ56C

R8408

X

R8430

X

R8435

1/16GJ1KC

R827

1/16GJ

47KC

R803

X

R8429

1/16GJ10KC

R1871

1/16GJ1KC

R812

R1867

1/16GJ

10KC

1/16GJ

47KC

R146

1/16GJ56C

R890

1/16GJ1KC

R816

1/16GJ22C

R819

1/16GJ2.2KC

R145

1/16GJ

10KC

R824

1/16GJ10KC

R855

1/16GJ1KC

R829

X

R841

1/16GJ

47KC

R856

X

R896

1/16GJ

100C

R1852

1/16GJ1KC

R817

X

R897

1/16GJ

3.3KC

R1863

1/16

GJ56C

R8409

1/16GJ

10KC

R108

1/16GJ

220KC

R140

1/16GJ

560KC

R1608

X

R1857

1/16GJ

1KC

R1938

1/16GZ0C

R1613

1/16GJ

100KC

R1851

1/16GJ1KC

R8423

1/16

GZ0C

R8439

1/16GZ0C

R8437

1/16GJ

220KC

R136

1/16GJ56C

R887

1/16GZ0C

R8432

1/16GJ150KC

R1858

1/16GJ

220KC

R133

1/16GJ1KC

R814

1/16GJ

1.5KC

R806

1/16GJ

220KC

R142

1/16GJ22C

R848

1/16GJ1KC

R8401

X

R139

1/16GJ

10KC

R1870

1/16

GZ0C

R034

1/16GJ56C

R8405

1/16GJ1KC

R815

X

R107

1/16GF1.2KC

R1603

1/16GJ56C

R8404

1/16GJ

220KC

R144

1/16GJ1KC

R853

X

R875

1/16GJ

47KC

R141

X

R1623

1/16GJ1KC

R839

1/16GZ0C

R1943

1/16GJ1KC

R867

1/16GJ10KC

R810

1/16GJ12KC

R114

X

R893

1/16GJ1.5KC

R894

1/16GJ1KC

R854

1/16GJ

10KC

R1868

1/16GJ47KC

R899

X

R880

1/16GJ33KC

R898

1/16GJ22C

R876

1/16GZ0C

R845

X

R117

1/16GJ10KC

R833

1/16GJ

10KC

R1888

1/16

GZ0C

R1621

1/16GJ

10KC

R847

X

R800

1/16GJ

8.2KC

R119

1/16GJ1KC

R834

1/16GJ10KC

R1884

1/16

GZ0C

R032

1/16GJ

2.2KC

R102

1/16

GJ56C

R8410

X

R153

1/16GJ

10KC

R1612

1/16GJ

47KC

R802

1/16GJ1KC

R1861

1/16GJ

100KC

R1856

1/16GJ10KC

R152

1/16GF10KC

R1601

1/16GJ

470C

R832

X

R149

1/16GJ1KC

R813

1/16GJ

4.7KC

R861

1/16GZ0C

R8407

1/16GZ0C

R1944

1/16

GJ1KC

R874

X

R036

1/16GZ0C

R1946

1/16GJ

4.7KC

R805

1/16GJ22C

R818

1/16GJ1KC

R842

1/16GZ0C

R1947

1/16GJ22C

R840

1/16GJ1KC

R843

1/16GF6.8KC

R1604

1/16GJ

10KC

R151

1/16GJ1KC

R823

1/16GJ

27KC

R116

1/16GJ100C

R844

1/16GJ1KC

R891

1/16GZ0C

R8425

1/16

GJ1KC

R871

1/16GJ1KC

R863

1/16GJ22C

R860

1/3GJ10

R121

1/16GJ

100C

R031

1/16GJ1KC

R865

1/16GJ

10KC

R883

1/16GJ

470KC

R1886

X

R104

X

R1936

1/16GJ

10KC

R846

1/16

GJ

12KC

R103

1/16GJ22C

R825

1/16GF680C

R1606

1/16GJ1KC

R872

1/16GJ1KC

R836

X

R8434

1/16

GZ0C

R8428

1/16GJ22C

R849

1/16GJ100C

R820

1/16GJ22C

R851

1/16GZ0C

R8422

1/16GJ150KC

R1854

1/16GZ0C

R8426

1/16

GZ0C

R866

1/16GJ22KC

R852

1/16

GZ0C

R1931

1/16GJ1MC

R808

X

R8431

1/16

GJ56C

R8406

1/16

GZ0C

R1932

1/16GJ

10KC

R8236

1/16GZ0C

R1941

1/16GJ

10KC

R1866

1/16GJ

10KC

R878

1/16GJ10C

R1955

1/16GJ

10KC

R873

1/16GZ0C

R821

1/16GJ10KC

R1883

1/16GJ22KC

R850

1/16

GZ0C

R038

1/16GZ0C

R1619

1/3GJ120

R1625

1/16GJ56C

R888

1/16GJ

10KC

R801

1/16GZ0C

R1942

1/16

GJ1KC

R1889

1/16GJ10KC

R111

1/16GZ0C

R1887

X

R1865

1/16GJ

220KC

R135

X

R1952

1/16GF

1.2KC

R1616

1/16GJ1KC

R1859

1/16GJ

3.3KC

R1864

X

R1951

1GJ1

R1617

1/16

GZ0C

R8415

1/16GZ0C

R8421

R137

X

1/16GJ10C

R1876

1/16GJ1MC

R807

1/16GJ

1KC

R109

1/16GJ56C

R889

1/16GJ

10KC

R1869

X

R1881

X

R1954

1/16GJ22KC

R1609

1/16GJ22C

R879

X

R1953

1/16GJ

22KC

R882

1/3GJ10

R112

1/16GJ

27KC

R106

1/16GJ3.3KC

R147

X

R1622

1/16

GZ0C

R868

1/16GJ1KC

R892

1/16GJ1MC

R804

1/16GJ

10KC

R113

1/16GZ0C

R8436

1/16GJ1KC

R811

1/16

GZ0C

R014

1/16GJ56C

R8402

1/16GJ22C

R835

1/16GJ

15KC

R132

1/16GJ56C

R8403

1/16GJ10KC

R838

1/16GJ

2.2KC

R118

1/16GJ

2.7KC

R809

1/16GJ

4.7KC

R862

X

R837

1/16GJ22KC

R1611

1/16GF

5.6KC

R1614

1/16GZ0C

R8424

X

R138

1/16GJ1KC

R1937

1/16GZ0C

R885

1/16GJ1KC

R859

1/16GF1.2KC

R1607

1/16GJ1KC

R895

1/16GZ0C

R8433

1/16

GZ0C

R864

1/16GJ

12KC

R131

1/16GZ0C

R1948

1/16GF1KC

R1602

1/16GJ

22KC

R8414

X

R1949

1/16GJ1KC

R828

1/16

GZ0C

R016

X

R1945

1/16

GJ1KC

R1885

1/16

R017

1/16GJ

4.7KC

R822

1/16GJ

22C

R101

1/16GJ

100C

R1855

1/16GZ0C

R884

X

R039

1/16GJ22C

R877

1/16GJ

4.7KC

R858

1/16GZ0C

R869

X

R1853

1/16GJ

220KC

R134

1/16GJ10KC

R831

1/16

GJ56C

R8411

1/16GJ

2.2KC

R857

X

R1610

9V_ANALOG

12V_AUDIO

13V_POWER

9V_ANALOG

27V_AUDIO

5V_STANBY

3.3V_STANBY

5V_STANBY5V_STANBY

5V_STANBY

13V_POWER

3.3V_STANBY

5V_STANBY

27V_AUDIO

9V_ANALOG

5V_STANBY

5V_STANBY

5V_DIGITAL

3.3V_STANBY

5V_STANBY

5V_STANBY

12V_AUDIO

27V_AUDIO

5V_STANBY

5V_STANBY

5V_STANBY

13V_POWER

3.3V_STANBY

5V_DIGITAL

3.3V_PIX

5V_STANBY

5V_STANBY

5V_STANBY

5V_STANBY

5V_STANBY

5V_STANBY

9V_ANALOG

R-OUT

L-OUT

AMP-R

OPTION_R

SLOT-R

OPTION_L

A_PC-L

A_PC-R

SLOT-L

AMP-L

FLW/KOUTEI

SEL(KOU/FLW)

L=FLW

H=KOU

KOUTEI

(SIDE:A)FIX

RX/SCL-KOU

TX/SDA-KOU

TO

CONTROL

K19J

<3.3V-5V>

<5V-3.3V>

PRG_CE

L=FLW

H=PIX

CPURST

TXD

BUSY

CNVSS

SCLK

CPURST

RXD

EPM

CNVSS

PRG_CE

TXD

RXD

SCLK

EPM

CNVSS

BUSY

FAN

CONTROL

FROM POWER-MOD(P6)

FROM PDP-MOD(D26)

FROM 

POWER

K6C

SCREW

<1/3GZ0>

from K8L 9pin

to IC801 58pin

FROM PDP-MOD(D8)

TO

JACK-B

K11F

SENSOR-B

K18M

FN901

SENSOR-A

K18N

FN903

MOTOR-FAN

OPEN

OPEN

REG.

REG.

REG.

RESET

IC8402

TC747HC4053AFT(EL)

NJM2904-T2

IC1851

TC74LCX08FT-(EL)

IC8422

TC74ACT08FT

IC8421

TC7WT125FU-TE12L

IC1941

TA2024

IC101

AUDIO AMP

RTC-4574JE

IC1881

TC7S08F-TE85L

IC803

PST600DMT

IC802

M30624FGAFP-C207

IC801

SUB-CPU

BA033FP-E2

IC1651

24LC08BT/SN

IC804 IC806

TC74HC4053AFT(EL)

TC7S04F-TE85L

IC807

EEPROM

PST600IM

IC1882

AUDIO CONTROL

NJW1138M

IC031

TC4052BFT

IC131

PQ1CZ41H2ZP

IC1603

FA7701V-TE1

IC1604

PQ1CY1032ZP

IC1602

MAIN_P1/4 SUB-CPU/AUDIO/POWER-IN

AUDIO SW

FSS134P

Q1601

2345678910 11 12 13 14 15 16

A

B

C

D

E

F

G

H

I

J

K

A

B

C

D

E

F

G

H

I

J

K

L

J3TF_03

1

PDP-42WV1 PDP-42WV1

A- 6A- 4 A- 5

1

2

3

CBA2

CBZ4

CBZ1

YZ6

CRA5

COASTOUT

YZ1

SEL_Y

CBA4

CRA6

ADPW

CBA1

YA0

CLPB

CRZ4

CLPR

AD_CLK

CBZ7

CLPG

CRA3

CBA0

CBA7

PDEN

CRZ2

YA7

CRZ3

GHSFOUT

SEL_CR

YA4

YZ0

GBLKSPL

CBA5

HSOUT

CLAMPO

CBZ0

M_SCL

YA2

YZ7

CBA6

YZ3

YA5

P-FAIL1

YA3

CRA1

CBZ6

CRZ1

M_SDA

CRZ6

CBZ2

SEL_CB

YZ4

CBA3

YZ5

CBZ3

105

58

106

59

107108109

60 61 62

110

63

111

64

112

65

113

66

114

67

115

68

116

69

117118119

70

71

72

120

73

121

74

122

75

123

76

124

77

125

78

126

79

127128

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39 40 41 42 43 44 45 46 47 48 49 50 51 52

100

53

101

54

102

55

103

56

104

57

YA1

CRA4

P-FAIL1

CBZ5

CRZ0

YA6

CRZ5

CRZ7

CRA7

GATEHS

CRA0

YZ2

CRA2

SYNC_A

AD_VS

LCK_DET

SEL_HD

VS_DET

AD_EN

AD_HS

SEL_VD

HS_DET

YZ6

GRO3

DVI1_DE

GHS

CRA4

GGO2

CRZ6

DVI1_DE

GRE2

AD_EN

GBE1

VSYNC1

GRE5

CBA2

DVI1_DE

CBZ5

FHIN1

GGO7

CBZ7

GBO2

CLPG

YA1

YZ1

GREF

1

2

34

5

GGE2

GRO1

YA4

YZ3

GBO4

GRE7

GRE0

GBE3

YZ7

CLK_MT1

CBZ6

YA6

GBO0

GGE0

GBO5

YA2

CBA1

GGE4

GRO7

GVS

PDEN

YZ0

CBZ3

GRE6

GRE4

GGO4

YA5

GRO5

GRE3

CRA7

GFBK

GGO1

GRO6

GGO5

CRZ4

YA7

GGO0

GRO2

CRZ2

CBA7

GBE4

CBA0

CBA6

CRA3

CBA4

YA0

GGE7

GBO6

GBE7

GATEHS

DVI1_EN

CLK24M

MT_SDA

GGE3

CLPB

MT_SCL

GBO3

CRA2

CBZ0

CRA6

GBO1

CRZ3

CBA5

COASTOUT

CRZ0

YZ4

CRZ1

CRA1

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133134135136137

138139140141142143144

145

146147

148149

150151152153154155

156157158159160

161162163164

165

166

167

168169

170

171172

173174175

176

GRE1

GGO3

GGE1

CBZ2

CLPR

YZ2

CRA0

GBE5

CBZ1

GPEN

GRO4

GGO6

GGE6

ODEV

GRO0

GCLK

CLAMPO

CRZ7

CRZ5

YZ5

CRA5

HSYNC1

CBZ4

GBO7

GBE6

CBA3

GBE0

GGE5

GBE2

YA3

1

2

3

P-FAIL1

P-FAIL1

12345

6

FHIN1

FHIN1

DVI1_CLK

AD_EN

DVI1_HS

CLK_MT1

HSOUT

VSYNC1

AD_HS

DVI1_VS

HSYNC1

HSYNC1

AD_CLK

CLK_MT1

DVI1_EN

AD_VS

VSYNC1

SEL_HD

SEL_VD

BNC_G/Y

12345678

9

10111213141516

BNC_H

BNC_V

DSUB_H

RB551

V-30G

D1101

SEL_VD

DSUB_B

PC_SW3

SEL_CR

BNC_B/CB

SEL_CB

PC_SW5

1

R1IN

2

HD SYNC

SIGNAL_DET

3

G1IN

4

GND

5

B1IN

6

GND

7

R2IN

8

GND

9

G2IN

10

GND

11

B2IN

12

VD1IN

13

VD2IN

14

D_OUT

15

B_OUT

16

CTLH:1/L:2

17

COMP

SYNC_OUT

18

COMP_SYNC

IN

(SYNC_ON_G)

19

G_OUT

20

VCCSV

21

R_OUT

22

HD_OUT

23

HD2IN

24

HD1IN

DSUB_V

SEL_Y

BNC_R/CR

DSUB_R

DSUB_G

SEL_HD

1

2

3

45

6

7

8

1

2

3

45

6

7

8

1

2

3

45

6

7

8

1

2

3

4

5

6

7

89

10

11

12

13

14

15

16

1

2

SYNC

SEP

345

V.SEP

6

GND

7

89

LOCK

DET

10

32FH

VCO

11

COUNT

DOWN

12

AFC

13

VCC

14

LCK_DET

J11SN300N

K8R

30

31 32

10

11

12

13

14

15

16

17

18

19

1

2

3

20

21

4

22

5

23

6

24

7

25

8

26

9

27

28

29

RS232C_TX

DSUB_R

A_PC-L

DSUB_G

A_PC-R

DSUB_H

DSUB_V

DSUB_B

RS232C_RX

10KZ1UGQF

:10KZ1ULZF

:10KZ1UMAF

C4101 16KZ

4.7GNF

C4115

25KZ

0.1GQF

C5003

25KZ

0.1GQF

C4148

25KZ

0.1GQF

C5014

10KZ1UGQF

C1720

:10KZ1ULZF

:10KZ1UMAF

10KZ1UGQF

:10KZ1ULZF

:10KZ1UMAF

C1711

25KZ0.1

GQF

C1736

25KZ0.1

GQF

C4118

KZ0.01GQF

C1758

25KZ

0.1GQF

C5007

10KM1LZB

C1730

10KM1LZB

C1728

25KZ

0.1GQF

C5025

25KZ

0.1GQF

C5024

25KZ

0.1GQF

C5013

25KZ0.1

GQF

C1763

25KZ

0.1GQF

C4159

25KZ0.1GQF

C4103

CJ56CGQ

C4131

25KZ

0.1GQF

C4149

KZ0.01GQF

C1762

X

C1767

10KZ1UGQF

:10KZ1ULZF

:10KZ1UMAF

C4117

CJ82CGQ

C1783

25KZ0.1

GQF

C4119

25KZ

0.1

GQF

C4155

25KZ

0.1GQF

C1712

25KZ

0.1GQF

C4144

25KZ

0.1GQF

C5018

25KZ

0.1GQF

C1718

CJ56CGQ

C4130

X

C1738

25KZ

0.1GQF

C5015

25KZ0.1

GQF

C5002

25KZ

0.1GQF

C4160

25KZ

0.1GQF

C4165

10KM1LZB

C4108

CJ100CGQ

C4145

X

C1769

25KZ0.1GQF

C5017

X

C5010

25KZ

0.1GQF

C1742

16KZ2.2FA

:16KZ2.2GMF

C1729

10KM1LZB

C4105

25KZ0.1GQF

C4166

25KZ0.1

GQF

C4137

25KK0.047GQ

C1726

KZ0.01

GQF

C1740

25KZ0.1

GQF

C1734

16KK

0.1GQ

C4157

X

C1768

10KZ1UGQF

:10KZ1ULZF

:10KZ1UMAF

C5008

25KZ0.1GQF

C4123

25KZ

0.1GQF

C5019

25KZ0.1

GQF

C1737

25KZ0.1

GQF

C1741

10KM1LZB

C4111

25KZ

0.1GQF

C4150

10KZ1UGQF

:10KZ1ULZF

:10KZ1UMAF

C4133

KK0.01GQ

C4158

KK0.01GQ

C1722

16KZ

4.7GNF

C4134

25KZ

0.1GQF

C4163

25KZ0.1

GQF

C5012

10KZ1UGQF

:10KZ1ULZF

:10KZ1UMAF

C1719

10KZ1UGQF

:10KZ1ULZF

:10KZ1UMAF

C4121

10KZ1UGQF

:10KZ1ULZF

:10KZ1UMAF

C4112

KZ0.01GQF

C1756

25KZ0.1GQF

C5016

25KZ

0.1GQF

C4169

16KK

0.1GQ

C4162

25KZ

0.1GQF

C5006

CJ100CGQ

C5011

10KZ1UGQF

:10KZ1ULZF

:10KZ1UMAF

C4124

25KZ0.1

GQF

C4164

KZ0.01GQF

C1752

10KZ1UGQF

:10KZ1ULZF

:10KZ1UMAF

C4136

25KZ

0.1GQF

C5005

KZ0.056

GQF

C1724

X

C1717

1/16GZ0C

C4139

25KZ0.1GQF

C4106

KZ0.01GQF

C1760

CJ100CGQ

C4143

25KZ

0.1GQF

C4127

10KM

1LZB

C1721

X

C1739

CJ100

CGQ

C1733

KZ0.022

GQF

C1732

X

C1766

10KZ1UGQF

:10KZ1ULZF

:10KZ1UMAF

C4132

KK820

GQ

C1731

25KZ

0.1GQF

C5004

CJ100

CGQ

C4146

KZ0.01GQF

C1765

CJ82CGQ

C1782

25KZ

0.1GQF

C4168

X

C1714

X

C1761

1/16GZ0C

C4140

CJ56CGQ

C4129

25KZ

0.1GQF

C4147

10KZ1UGQF

:10KZ1ULZF

:10KZ1UMAF

C4125

1/16GZ0C

C4141

25KZ

0.1GQF

C4151

25KZ

0.1GQF

C5009

25KZ0.1GQF

C4109

16KK

0.1GQ

C4161

16KK0.47BA

C1727

10KZ1UGQF

:10KZ1ULZF

:10KZ1UMAF

C4102

25KZ

0.1GQF

C4167

25KZ0.1

GQF

C4153

KZ0.01GQF

C1754

CJ82CGQ

C1781

X

C4104

16PM22DF

C1777

16PM22DF

C1771

16PM4.7DB

C1725

16PM22DF

C1774

16PM22DF

C1772

X

C4107

16PM10DB

C1715

16PM22DF

C1773

16PM22DF

C1776

X

C4110

1SS355

D4101

RB551

V-30G

D1711

1SS355

D5002

DCC010P

D5001

DCC010P

D5003

DCC010P

D4103

DCC010P

D4102

6.3EM

220WV

C1735

6.3EM

220WV

C4122

6.3EM

47WM

C4128

6.3EM

220WV

C4138

6.3EM

1000D

C1764

6.3EM

220WV

C1723

6.3EM

220WV

C4142

25EM

10WV

C4152

X

C4156

6.3EM

220WV

C5020

6.3EM

220WV

C5023

6.3EM

220WV

C5021

6.3EM

220WV

C4135

6.3EM47WM

C8423

6.3EM

220WV

C5001

6.3EM

220WV

C4113

6.3EM

220WV

C4114

6.3EM

220WV

C4116

6.3EM

47WM

C1716

16EM

100WV

C4120

6.3EM

220WV

C1713

6.3EM

220WV

C5022

6.3EM

220WV

C4126

25EM

10WV

C4154

UDZ3.0BG

D5004

+-

1

OUT

2

V-

3

IN

4

I-IN

5

V+

+-

1

OUT

2

V-

3

IN

4

I-IN

5

V+

+-

1

OUT

2

V-

3

IN

4

I-IN

5

V+

+-

1

OUT

2

V-

3

IN

4

I-IN

5

V+

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

1

2

3

45

6

7

8

L2PD2R2MG

:L2FE2R2MG

L4103

L2PD2R2MG

:L2FE2R2MG

L4105

L2PD3R3MG

:L2FE3R3MG

L1711

L2PD2R2MG

:L2FE2R2MG

L4102

L2PD2R2MG

:L2FE2R2MG

L4106

L2PD2R2MG

:L2FE2R2MG

L4101

L2PD3R3MG

L4111

L2PD3R3MG

:L2FE3R3MG

L1771

L2PD3R3MG

:L2FE3R3MG

L1712

L2FE2R2MG

:L2PD2R2MG

L5001

L2PD3R3MG

:L2FE3R3MG

L4104

1/3GZ0

J5000

1/3GZ0

J1100

1/3GZ0

J1700

1/3GZ0

J4100

R1EA2204G

:R1A42204G

RB4101

R1EA4704G

:R1A44704G

RB5017

R1EA2204G

:R1A42204G

RB4108

R1EA4704G

:R1A44704G

RB5018

R1EA4704G

:R1A44704G

RB5020

R1EA2204G

:R1A42204G

RB4106

R1EA4704G

:R1A44704G

RB5021

R1EA2204G

:R1A42204G

RB4105

R1EA4704G

:R1A44704G

RB5023

R1EA4704G

:R1A44704G

RB5013

R1EA2204G

:R1A42204G

RB4112

R1EA2204G

:R1A42204G

RB4107

R1EA4704G

:R1A44704G

RB5024

R1EA2204G

:R1A42204G

RB4109

R1EA2204G

:R1A42204G

RB4110

R1EA4704G

:R1A44704G

RB5015

R1EA2204G

:R1A42204G

RB4111

R1EA2204G

:R1A42204G

RB4103

R1EA2204G

:R1A42204G

RB4104

R1EA4704G

:R1A44704G

RB5014

R1EA4704G

:R1A44704G

RB5019

R1EA4704G

:R1A44704G

RB5022

R1EA4704G

:R1A44704G

RB5016

R1EA2204G

:R1A42204G

RB4102

X

TP5013

J30A00102

TP5007

X

TP5005

J30A00102

TP5004

X

TP5003

X

TP5006

J30A00102

TP4101

J30A00102

SOGOUT

X

TP5010

X

TP5011

X

TP5009

X

TP5008

J30A00102

AD-CLK

X

TP5012

J30A00102

HSOUT

J30A

00102

TP5002

J30A

00102

TP5001

2SC4269-4

Q4101

AH

Q1772

AH

Q1714

AH

Q1717

2SC4269-4

Q4102

AH

Q1773

AH

Q1716

AH

Q1774

AH

Q1712

2SC4269-4

Q4103

AH

Q1715

AH

Q1771

AH

Q1713

V11B1170G

X1711

1

2

3

45

6

7

8

AJ

Q1711

RS232C_A

RS232C_B

PC_SW5

1

VDD

2

GND

3

RES0OUT

K8R_14

K8R_5

K8R_10

K8R_3

K8R_12

K8R_16

K8R_1

K8R_15

K8R_29

K8R_18

K8R_6

K8R_27

K8R_8

K8R_30

1

2

3

4

5

6

78

9

10

11

12

13

14

1

2

3

4

5

6

78

9

10

11

12

13

14

EXIH

EXIV

LOWPASS

1/16GJ10C

R1779

1/16GZ0C

R5043

1/16GJ68C

R1716

R5075

1/16GJ

680C

R4134

X

R4127

1/16GZ0C

R5056

1/16GZ0C

R5042

1/16GJ

10C

R1781

R5068

X

R5022

1/16GZ0C

R8473

1/16GZ

0C

R5035

1/16GZ0C

R5060

X

R1771

1/16GJ

1KC

R1731

1/16GZ0C

R4102

1/16GZ0C

R8478

X

R4150

1/16GZ0C

R5054

1/16GJ

10KC

R4129

1/16GZ0C

R5006

R5069

1/16GJ

22KC

R4128

1/16GJ100C

R5015

1/16GJ22C

R4143

1/16GZ0C

R4103

1/16GJ22C

R4126

1/16GJ

1KC

R1732

1/16GJ47C

R4162

1/16

GZ0C

R4147

1/16GJ47C

R5053

X

R1790

1/16GJ

4.7KC

R1794

1/16GJ100C

R4160

1/16

GZ0C

R1749

X

R4156

X

R1796

1/16GJ

3.9KC

R4121

R5070

1/16

GZ0C

R1746

1/16GZ0C

R5055

X

R5040

R5077

1/16GZ

0C

R1756

X

R5009

L3DE600PG

R1783

1/16GZ0C

R5008

1/16GJ100C

R5021

X

R5007

1/16GZ0C

R5034

X

R1717

R5078

1/16GJ4.7KC

R5026

1/16GJ

680C

R4137

X

R1763

1/16GZ0C

R5057

1/16GJ10C

R1774

1/16GJ

100C

R4114

1/16GZ0C

R5002

1/16GJ

1KC

R1744

1/16GJ

100C

R1739

1/16GJ

4.7KC

R1795

R5079

1/16GZ0C

R4151

1/16GJ

22C

R1761

1/16GZ0C

R5017

1/16GZ0C

R5019

1/16GJ47C

R5081

1/16GZ0C

R8476

1/16GZ0C

R5036

1/16GJ

33KC

R1721

1/16GJ

220C

R4119

1/16GJ1MC

R1728

1/16GJ22C

R4145

1/16GZ

0C

R5028

1/16GZ0C

R5051

1GJ1

R5087

1/16GZ0C

R8471

1/16GZ0C

R1780

1/16GJ

100C

R5048

1/16GZ0C

R4154

1/16GJ820C

R1727

X

R4149

1/16GZ0C

R5030

1/16GJ

220C

R4120

1/16GZ0C

R5041

1/16GJ

4.7KC

R1792

1/16GJ33C

R4142

1/16GZ0C

R4101

1/16GJ47C

R5064

1/16GZ0CR5084

1/16GJ

10KC

R4106

1/16GJ

33C

R5033

1/16GZ0C

R5004

1/16GJ

100C

R4116

1/16GZ0C

R5052

1/16GZ0C

R5037

1/16GJ47CR5083

X

R1764

1/16GJ

3.9KC

R4122

1/16GZ0C

R5059

1/16GZ0C

R5012

1/16GJ

1.8KC

R1718

1/16GJ100C

R5020

1/16GJ

220C

R4118

X

R1773

R5073

1/16GJ

100KC

R5049

1/16GJ

100C

R1714

1/16GJ33C

R4141

X

R1760

X

R1758

X

R4110

X

R4132

L3DE600PG

R1784

1/16GJ

10KC

R4158

1/16

GZ0C

R1755

1/16GJ

3.9KC

R4123

X

R4146

1/16GJ

1KC

R1733

1/16GJ100C

R5014

1/16GJ

10C

R1787

X

R4117

X

R1751

X

R1752

1/16GJ

1KC

R1723

1/16GJ56C

R4125

1/16GZ

0C

R5029

1/16GJ

4.7KC

R1793

X

R5039

1/16GJ

1KC

R1724

1/16GJ47C

R5066

1/16GJ10C

R1775

X

R1711

1/16GJ3.9KC

R1738

1/16GJ

1.5KC

R1762

1/16GZ0C

R8472

R5072

1/16GJ

100C

R1720

1/16GJ100C

R4161

R5071

1/16GJ

680C

R4136

1/16GJ

680C

R4138

1/16GJ47C

R5065

X

R1789

1/16GJ

1KC

R1745

1/16GJ

100C

R1747

1/16GJ

1.5KC

R1753

X

R4131

1/16GJ10C

R1777

1/16GZ0C

R8474

X

R4164

1/16GZ0C

R5005

1/16GZ0C

R5050

X

R5032

1/16GJ56C

R4124

X

R4163

1/16

GZ0C

R5088

1/16GJ8.2KC

R4108

1/16GJ

10KC

R4104

1/16GJ8.2KC

R4109

1/16GJ10C

R1776

1/16GZ0C

R5031

1/16GJ100C

R4152

1/16GZ0C

R5058

1/16GJ

22C

R1750

1/16GJ

1.8KC

R1719

1/16GJ10C

R1778

X

R1772

1/16GZ0C

R5018

1/16GZ0C

R5024

1/16GZ0C

R8475

1/16GZ0C

R5023

1/16GJ47C

R5082

1/16GZ0C

R5003

1/16GJ

18KC

R1737

1/16GJ

68KC

R1713

X

R5013

X

R1712

1/16GJ

47KC

R1736

X

R4148

1/16GJ

1.5KC

R4159

1/16GZ0C

R1798

1/16GZ0C

R8480

1/16GJ

4.7MC

R1729

1GJ1

R5086

1/16GZ0C

R5044

1/16GJ

47KC

R1797

X

R5011

1/16GZ0C

R5001

1/16GJ8.2KC

R4107

1/16GJ

10KC

R4112

1/16GZ0C

R8481

1/16GJ

22KC

R4111

1/16GZ0C

R5016

1/16GZ0C

R8482

X

R5038

1/16GJ10C

R1782

X

R4130

1/16GJ150C

R5085

1/16GJ

10KC

R1741

1/16GZ0C

R5010

1/16GJ47C

R5067

L3DE

600PG

R1786

X

R1791

1/16GJ

2.2KC

R1734

1/16GJ100C

R1748

1/16GJ100C

R4115

1/16GJ4.7KC

R5027

1/16GZ0C

R5025

1/16GZ0C

R8477

1/16GJ

150KC

R1726

1/16GJ47C

R5063

1/16GJ

1KC

R1715

X

R4139

X

R4153

1/16GJ

10KC

R4157

1/16GJ10C

R1788

R5074

X

R1757

1/16GJ

680C

R4133

1/16GJ

47KC

R1722

X

R1754

R5076

1/16GZ0C

R8479

1/16GZ0C

R5046

1/16GJ

1KC

R1730

1/16GJ

2.2KC

R1743

1/16GJ

22C

R4144

1/16GJ

100C

R5047

1/16GJ

22C

R4155

X

R1785

1/16GZ0C

R5061

1/16GJ

3.3KC

R1735

1/16GJ

680C

R4135

1/16GJ

3.9KC

R1725

1/16GJ

10KC

R4105

1/16GJ

3.3KC

R1742

1/16GZ0C

R5045

1/16GJ47C

R5062

1/16GJ

100C

R1740

X

R1759

1/16GJ47C

R5080

X

R4140

1/16

GZ0C

R1799

5V_DIGITAL

2.5V_MTR

3.3V_MTR

-5V_A/D1

5V_DIGITAL

5V_STANBY

5V_DIGITAL

5V_A/D

2.5V_MTR

-5V_A/D1

-5V_A/D2

5V_SYNC

3.3V_MTR

-5V_A/D2

5V_SYNC

5V_STANBY

5V_SYNC

5V_STANBY

5V_A/D

5V_SYNC

-5V_A/D2

3.3V_MTR

5V_SYNC

5V_SYNC

5V_A/D

-5V_A/D1

5V_SYNC

5V_SYNC

5V_DIGITAL

3.3V_MTR

5V_SYNC

5V_A/D

(SIDE:A)

(IC7210 6P)

(IC7209 6P)

(IC4101 40P)

(IC4101 28P)

TO IC3001

(PW181)

CG PORT

(IC301 155P)

(IC7208 6P)

(IC7211 6P)

(IC4101 41P)

R5074...R5079

1/16GJ47C

R5068...R5073

1/16GJ47C

TO JACK-A (K1505)

IC3001 43P

IC3001 176P

IC3001 176P

from IC8001 10pin

TO IC3001

(PW181)

CG PORT

TO IC5001

(HD2 MATRIX)

TO IC5001

(HD2 MATRIX)

FROM 

IC1771

FROM 

INTERFACE BOARD

BD6111FV-E2

IC4102 BD6111FV-E2

IC4108

AD8057ART

IC4107

AD8057ART

IC4104

AD8057ART

IC4106

BA033FP-E2

IC4109

BA7657F

IC1771

TC74HC4053AFT(EL)

IC1761

LA7217M-T-TRM

IC1712

AD8057ART

IC1711

AD9884AKS-140

IC4101

A/D

TC4052BFT

IC1714

BA7078AF-E2

IC1713

SYNC SEP.

TC7WT125FU-TE12L

IC1716

TC7WT125FU-TE12L

IC1717

LC749400W

IC5001

HD2_MATRIX

MATRIX1

TC7SZ04FU-TE852

IC5002

IC5007

TC74LCX125FT(EL)

IC5006

TC74LCX125FT(EL)

BA033FP-E2

IC5008

PQ025EZ01ZP

:PQ2TZ15

IC5009

PST600IM

IC5003

TC7W125FU

IC5004

MAIN_P2/4 A-D/MATRIX1/JACK-IN

REG.

VIDEO SW

SYNC SW

SYNC SEP.

2345678910 11 12 13 14 15 16

A

B

C

D

E

F

G

H

I

J

K

A

B

C

D

E

F

G

H

I

J

K

L

J3TF_04

1

PDP-42WV1 PDP-42WV1

A- 9A- 7 A- 8

DVI1_VS

DVI1_HS

SLOT_VS

DVI2_HS

DVI2_EN

CLK_MT2

HSYNC2

SLOT_CL

FHIN2

VSYNC2

FHIN2

SLOT_EN

CLK_MT2

HSYNC2

DVI2_CLK

DVI2_VS

SLOT_HS

VSYNC2

P-FAIL1

12345

6

P-FAIL1

VRA1

FHIN2

VB4

VRA4

VB3

VRA3

VBA4

VGA5

VR5

1

2

34

5

VSYNC2

VR4

VB6

DVI2_DE

MT_SDA

VBA3

VG2

VG6

VR6

VRA7

VB2

VG1

VB5

VPEN

VG7

VRA0

VR2

VRA5

VBA1

MT_SCL

VGA1

VBLK

123456789

101112131415161718

19202122232425262728

2930

3132333435363738394041424344

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89 90 91 92 93 94 95 96 97 98 99

100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

VBA2

VGA4

VBA7

VG3

VGA3

VR7

HSYNC2

VHS

VG5

VCLK

VB7

VBA0

VGA0

VB0

VRA6

VRA2

VR3

VG0

VG4

VR0

VR1

VBA6

CLK_MT2

VB1

VGA6

VVS

VGA7

VGA2

VBA5

CLK24M

ODEV2

SLOT_ID2

SLOT_ID3

BNC_H

SLOT-R

BNC_R/CR

SLOT-L

BNC_B/CB

BNC_G/Y

SLOT_ID0

BNC_V

SLOT_ID1

DVI1_CLK

SCDT_ST1

DVI1_EN

D_SYNC_POL1

SCDT1

CR_SW

S_SW

VRA3

VBA4

VGA3

VGA7

VGA1

VRA1

VGA5

VRA0

VBA6

VBA0

VBA7

VGA6

VBA1

VBA3

VGA0

VRA2

VGA4

VRA5

VBA5

VRA7

VRA4

VBA2

VRA6

VGA2

SLOT_VS

SLOT_EN

VBLK

SLOT_CL

VFIELD

SLOT_HS

M_SDA

M_SCL

PSC_SI

PSC_EN

PSC_CL

PC_PD1

HDCP_WE1

6.3EM

220WV

C5120

6.3EM

220WV

C5123

6.3EM

220WV

C5121

6.3EM

220WV

C5103

6.3EM

220WV

C5118

DCC010P

D5103

DCC010P

D5101

25KZ

0.1GQF

C5124

25KZ

0.1GQF

C5116

10KZ1UGQF

:10KZ1ULZF

:10KZ1UMAF

C5110

25KZ

0.1GQF

C5109

X

C5112

25KZ

0.1GQF

C5101

25KZ

0.1GQF

C5117

25KZ0.1GQF

C5106

25KZ

0.1GQF

C5105

25KZ

0.1GQF

C5111

25KZ

0.1GQF

C5115

25KZ

0.1GQF

C5104

25KZ

0.1GQF

C5122

25KZ

0.1GQF

C5114

25KZ0.1GQF

C5107

25KZ0.1GQF

C5102

CJ100CGQ

C5113

25KZ

0.1GQF

C5119

25KZ

0.1GQF

C5099

25KZ0.1GQF

C5108

1SS355

D5104

UDZ3.0BG

D5102

L2FE2R2MG

:L2PD2R2MG

L5101

R1EA4704G

:R1A44704G

RB5113

R1EA0R04G

:R1A40R04G

RB5108

R1EA4704G

:R1A44704G

RB5122

R1A44704G

RB8121

:R1EA4704G

R1EA4704G

:R1A44704G

RB5117

R1EA4704G

:R1A44704G

RB5114

R1A44704G

RB8117

:R1EA4704G

R1EA0R04G

:R1A40R04G

RB5107

R1A44704G

RB8119

:R1EA4704G

R1EA4704G

:R1A44704G

RB5118

R1EA0R04G

:R1A40R04G

RB5112

R1EA0R04G

:R1A40R04G

RB5111

R1EA0R04G

:R1A40R04G

RB5104

R1EA0R04G

:R1A40R04G

RB5103

R1EA4704G

:R1A44704G

RB5121

X

TP5107

X

TP5106

J30A00102

TE5101

J30A

00102

TP5104

J30A00102

TP5113

J30A00102

TP5102

X

TP5111

X

TP5108

X

TP5112

X

TP5109

X

TP8437

X

TP5103

J30A

00102

TP5101

L2FE2R2MG

:L2PD2R2MG

L8101

6.3EM

220WV

C8101

DVI1_EN

25KZ

0.1GQF

C8113

25KZ

0.1GQF

C8111

25KZ

0.1GQF

C8112

25KZ

0.1GQF

C8110

25KZ

0.1GQF

C8108

25KZ

0.1GQF

C8109

25KZ

0.1GQF

C8107

25KZ

0.1GQF

C8106

25KZ

0.1GQF

C8104

25KZ

0.1GQF

C8105

25KZ

0.1GQF

C8103

25KZ

0.1GQF

C8102

P-FAIL4

IO_RESET

1

VDD

2

GND

3

RESOUT

RC_2

J10B1640M

K8L

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177 178

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

2425

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

R1A44704G

RB8116

:R1EA4704G

R1A44704G

RB8118

:R1EA4704G

R1A44704G

RB8122

:R1EA4704G

M5_SDA

M5_SCL

S_SW2

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

2425

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

2425

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

X

RB8106

X

RB8112

X

RB8108

X

RB8109

X

RB8102

X

RB8113

X

RB8111

X

RB8107

X

RB8103

X

RB8101

X

RB8104

X

RB8114

CBZ0

CBZ4

CBZ7

CBZ5

CBZ2

CBZ3

CBZ6

CBZ1

CBA3

CBA4

CBA6

CBA0

CBA5

CBA1

CBA7

CBA2

YA1

YZ4

YZ7

YA7

YA4

YZ6

YA0

YZ5

YA6

YZ0

YA3

YZ1

YZ3

YA5

YA2

YZ2

CRA6

CRA0

CRZ5

CRA5

CRA3

CRZ3

CRA4

CRA1

CRA2

CRZ4

CRZ0

CRZ1

CRZ6

CRA7

CRZ7

CRZ2

HDCP/DVI5

DVI1_DE

TV_DATAOUT

TV_CLK

TV_DATAIN

R1EA4704G

:R1A44704G

RB8141

R1EA4704G

:R1A44704G

RB8142

R1EA4704G

:R1A44704G

RB8143

R1EA4704G

:R1A44704G

RB8144

12

34

56

78

R1EA4704G

:R1A44704G

RB8131

R1EA4704G

:R1A44704G

RB8132

R1EA4704G

:R1A44704G

RB8133

R1EA4704G

:R1A44704G

RB8134

R1EA4704G

:R1A44704G

RB8136

R1EA4704G

:R1A44704G

RB8137

R1EA4704G

:R1A44704G

RB8138

R1EA4704G

:R1A44704G

RB8139

1

2

3

4

5

6

78

9

10

11

12

13

14

1

2

3

4

5

6

78

9

10

11

12

13

14

DVI_HOT

K8L-B

1AA2JTA0006--

K8L-A

1AA2JTA0006--

1

IN

2

GND

3

OUT

R5110

1/16GJ100C

R5096

1/16GZ0C

R8153

1/16GZ0C

R5133

R5105

1/16GZ0C

R5163

R8117

R8120

R8123

1/16GZ0C

R8137

1/16GZ0C

R8141

R8113

1/16GZ0C

R5167

1/16GZ0C

R5129

X

R5134

1/16GZ0C

R5143

1/16GZ0C

R5157

1/16GZ0C

R8134

R8116

1/16GJ22C

R5099

1/16GJ4.7KC

R5140

1/16GZ0C

R8136

1/16GZ0C

R8138

R5101

1/16GJ47C

R5164

1/16GZ0C

R5162

R5114

1/16GZ0C

R5165

1/16GZ0C

R5127

R5120

1/16GZ0C

R8154

1/16GJ22C

R5090

R8112

X

R8162

1/16GZ0C

R5142

R5121

1/16GZ0C

R5132

1/16

GZ0C

R5170

1/16GZ0C

R8148

R5122

1/8GZ000

R8125

1/16GZ0C

R8147

1/16GJ33C

R5146

1/16GZ0C

R5128

1/16GZ0C

R8156

R5124

X

R5145

1/16GZ0C

R5126

1/16GZ0C

R8130

1/16GJ47C

R8143

R5106

1/16GJ47C

R8142

R5119

R5102

1/8GZ000

R8124

R8118

1/16GZ0C

R8129

1/16GZ0C

R8128

1/16GZ0C

R5154

1/16GZ0C

R5138

X

R5152

R5116

1/16GZ0C

R8159

1/16GJ47C

R8133

R8114

R5107

R5103

X

R5150

1/16GZ0C

R8152

1/16GZ0C

R8164

R5109

R8122

1/8GZ000

R8135

R5118

R5115

1/16GZ0C

R8101

1/16GZ0C

R5155

1/16GZ0C

R8158

1/16GZ0C

R8132

X

R5151

1/16GJ100C

R5160

1/16GJ4.7KC

R5139

1/16GZ0C

R5144

1/16GZ0C

R8151

1/16GZ0C

R8139

1/16GZ0C

R5171

1/16GZ0C

R5141

1/16

GZ0C

R5137

1/16

GZ0C

R5125

R5113

R5123

1/16GZ0C

R8149

1/16GZ0C

R8157

X

R5131

1/16GJ47C

R8146

1/16GZ0C

R5130

R8119

1/16GZ0C

R5156

1/16GZ0C

R5148

1/16GZ0C

R5136

1/16GJ47C

R8144

1/16GJ100C

R5097

1/16GJ100C

R5161

1/16GZ0C

R5166

1/8GZ000

R8126

1/16GZ0C

R8131

1/16GZ0C

R8127

R5112

R5104

1GJ1

R5169

X

R8163

X

R5135

R5111

1/16

GZ0C

R5147

R5117

1GJ1

R5168

1/16GJ

100KC

R5159

1/16GJ10KC

R5149

1/16GZ0C

R5153

X

R8161

R8121

R5108

1/16GZ0C

R5158

R8111

3.3V_MTR2

5V_DIGITAL

2.5V_MTR2

5V_DIGITAL

3.3V_MTR

2.5V_MTR2

3.3V_MTR2

9V_ANALOG

5V_SYNC

3.3V_MTR2

5V_DIGITAL

5V_STANBY

3.3V_MTR2

13V_POWER

ODEV2

IIC

BUS

DECODER 24BIT(16BIT)

DEC

H/V/CLK

ETC

R5101...R5112

1/16GJ47C

R5113...R5124

1/16GJ47C

TO IC3001

(PW181)

VIDEO PORT

(IC4101 28P)

(IC7210 6P)

(IC7209 6P)

(IC301 155P)

(IC7211 11P)

TO IC3001

(PW181)

V PORT

R8111/../R8123

1/16GZ0C

MIRROR

MIRROR

TO IC5101 (MATRIX2)

TO IC5001

(HD2 MATRIX)

FROM INTERFACE BOARD

TC74VCX16244FT

IC8103

IC8102

PQ2TZ15

:PQ025EZ01ZP

IC5107

BA033FP-E2

IC5106

IC5102

IC5103

TC74LCX125FT(EL)

TC74LCX125FT(EL)

TC74VCX16244FT

IC8101

TC7SZ04FU-TE852

IC5104

LC749400W

IC5101

MATRIX2

PST600IM

IC5108

TC74VCX16244FT

MAIN_P3/4 MATRIX2/SLOT-IN/OPTION-IN

REG.

2345678910 11 12 13 14 15 16

A

B

C

D

E

F

G

H

I

J

K

A

B

C

D

E

F

G

H

I

J

K

L

J3TF_05

1

PDP-42WV1 PDP-42WV1

A- 12A- 10 A- 11

X

K30Z

20

21 22

23 24

25

1

26

2

27

3

28

4

29

56

78

9

30

31 32

33 34

35 36

37 38

39 40

41 42

43 44

45

10

46

11

47

12

48

13

49

14

15 16

17 18

19

50

A15

A17

D15

D7

D14

D6

D13

D5

D12

D4

D11

D3

D10

D2

D9

D1

D8

D0

A1

A16

A13

A14

A11

A12

A9

A10

A19

A8

A18

A6

A7

A4

A5

A2

A3

ROMWE

ROMOE

J10EG060G

K30Y

1

1

2

3

4

5

6

6

RELAY

LSI_DTOUT

LSI_CLK

ALARM

DISPEN

J10QY200G

K30W

1

1

2

2

34

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

19

20

20

LSI_DTIN

READY

RELAY

LSI_CLK LSI_CL3

LSI_DIN3

READY

ALARM3

DISPEN3

LSI_DTIN

1

2

3

4

5

6

7

GND

8

9

10

11

12

13

14

VCC

LSI_DOT3

1

2

3

4

5

6

7

GND

8

9

10

11

12

13

14

VCC

ALARM

PDPGO_5

LSI_DTOUT

DISPEN

READY3

ODEV

FIELD_SWA

CLK24M

VFIELD

1

2

3

4

5

1

X1

2

VDD

3

GND

4

REF

5

CLK

6

SD

7

S1

8

X2

FIELDOUT

FIELD_SWB

DCKEXT

PW_FIELD

MCKEXT

M_SCL

RESET3

M_SDA

1

A0

2

A1

3

A2

4

VSS

5

SDA

6

SCL

7

TEST

8

VDD

MT_SCL

MT_SDA

PW_RST

M5_SDA

M5_SCL

D11

D12

A7

D10

D15

D9

D14

CS0

D13

D8

PSC_EN

D0

D4

INTR

D3

D7

A5

D2

A3

D6

A4

SUB_RX

D1

RD

A2

D5

PSC_CL

A1

WR

PC_PD2

PSC_SI

CS0

SUB_TX

S10B3300G

SW8221

1

2

34

NMI

TCK

TDO

TMS

X

KJTAG

2

2

3

4

5

6

7

8

9

9

10

10

1

1

S10B3300G

SW8222

1

2

34

S10B3300G

SW8223

1

2

34

TDI

RESET3

TMS

GGO7

GBO4

GRE2

GRE3

DRO0

VHS

VB4

GBE6

GVS

GRO7

MT_SCL

MODE1

DBO7

DGO6

DRE5

A17

DGO5

DBO6

DBE6

DGE0

LSI_CL3

GCLK

GFBK

GGO6

DGO3

GRE5

DBO4

GBE4

DGO2

DBE5

VCLK

A9

GREF

GRO0

GRE4

D6

GBE7

D5

TDO

DBO2

GGE5

IO_RESET

A12

GGE7

GGO2

D2

DCKEXT

GGE4

GGE6

GBE5

D3

D1

GHSFOUT

A13

TCK

GRO5

A16

SLOT_ID2

DRE3

D4

GBLKSPL

GRE6

M_SDA

A15

GBO5

GRO6

DRE1

GRO2

D7

DGE5

DBE2

DRE2

MCKEXT

PANEL_ID0

RAMOE

DHS

VVS

ADPW

ALARM3

DGE3

TDO

VB2

A3

CS1

GGO0

DBO0

GGE0

RAMWE

INTR

DVS

A2

LSI_DOT3

D0

GBE0

READY3

DISPEN3

DBE0

GHS

DBO1

A0

M_SCL

DBO3

GGO1

A8

CS1

VB7

GBE1

GRO1

PDEN

DBE4

MODE3

GBE3

VB6

D8

A14

DRO5

WR

DGO1

D12

D15

DRE0

GPEN

DRO1

GBO2

GGE3

DCLK

GRE7

PDWN

GRO4

MODE2

VB0

GGE1

A7

GRO3

A5

GGO5

GBO7

RESET3

DGE7

TXD

DRE7

A4

DBE7

GBO1

MODE1

A11

MODE3

ROMOE

BHEN

D11

DRO3

DGE1

MODE2

DBE1

GGE2

DBE3

TDI

TMS

LSI_DIN3

DRO6

A19

GGO3

D10

VB5

DRO7

DGE2

DGE4

DGE6

VB1

IO_RESET

DGO0

GRE1

DRO2

RXD

ROMWE

DRE6

CS0

DRE4

DGO4

A6

GBO0

TDI

RD

GBE2

D13

A18

GBO6

DBO5

D9

VB3

GRE0

DGO7

FIELDOUT

GBO3

A1

MT_SDA

A10

DRO4

PW_FIELD

D14

VPEN

GGO4

A19

A11

D4

A12

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22 23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

D7

ROMOE

D12

A6

D14

A11

A9

D5

A16

D7

A14

D11

A1

D3

1

A15

2

A14

3

A13

4

A12

5

A11

6

A10

7

A9

8

A8

9

NC

10 NC

11 WE

12

RESET

13 NC

14 NC

15

RY/BY

16

A18

17

A17

18 A7

19 A6

20 A5

21 A4

22 A3

23 A2

24 A1 25

A0

26

CE

27

VSS

28

OE

29

D0

30

D8

31

D1

32

D9

33

D2

34

D10

35

D3

36

D11

37

VCC

38

D4

39

D12

40

D5

41

D13

42

D6

43

D14

44

D7

45

D15

46

VSS

47

BYTE

48

A16

A13

D13

A4

D6

A7

A15

A1

A14

A13

A6

D12

A15

D1

A8

A5

D15

D2

A8

A3

D2

A9

A10

D6

A17

D0

D10

D9

A2

D8

RAMOE

A2

A18

A12

D10

BHEN

A5

A7

A10

A16

RAMWE

A3

A4

D13

D5

A0

D15

D9

ROMWE

D8

D1

D0

D3

D14

D11

D4

SLOT_ID0

SLOT_ID1

NMI

SYNC_A

PC_SW3

KOUTEI

PC_PD1

SCDT1

SCDT2

D_SYNC_POL1

D_SYNC_POL2

FIELD_SWB

FIELD_SWA

ODEV2

FIELD_SWC

IO_RESET

S_SW

CR_SW

SLOT_ID3

LCK_DET

FIELD_SWC

DVS

DBE5

DBE2

DGE7

DRE6

DGE5

DGE0

DRE0

J10PS210G

K7V

1

1

2

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

21

DBE6

DGE4

DBE0

DRE2

DRE5

DBE3

DGE3

DBE1

DHS

DCLK

DBE4

DRE7

DRE1

DBE7

1

RS

2

TD1

3

TA5

4

TA6

5

GND

6

TB0

7

TB1

8

TD2

9

Vcc

10

TD3

11

TB2

12

TB3

13

GND

14

TB4

15

TB5

16

TD4

17

R/F

18

TD5

19

TB6

20

TC0

21

GND

22

TC1

23

TC2

24

TC3

25

TC6

26

Vcc

27

TC4

28

TC5

29

GND

30

TC6

31

TxCLKIN

32

PWR DWN

33

PLL GND

34

PLL Vcc

35

PLL GND

36

LVDS GND

37

TD+

38

TD-

39

TxCLKOUT+

40

TxCLKOUT-

41

TC+

42

TC-

43

LVDS GND

44

LVDS Vcc

45

TB+

46

TB-

47

TA+

48

TA-

49

LVDS GND

50

TD0

51

TA0

52

TA1

53

GND

54

TA2

55

TA3

56

TA4

DGE1

DRE4

PDWN

DGE6

DGE2

DRE3

AUD-SWB

AUD-SWA

SLOT_ID3

6.3EM

220WV

C3141

25EM

10WV

C3104

16EM100WV

C713

6.3EM

220WV

C3012

25EM

47WV

C3142

16EM100WV

C714

6.3EM

220WV

C3034

16EM

100WV

C703

6.3EM

220WV

C3157

X

C8002

6.3EM

220WV

C3028

6.3EM

220WV

C8005

25KZ

0.1GQF

C3013

25KZ

0.1GQF

C3036

25KZ0.1GQF

C3017

X

C3165

KZ0.01

GQF

C707

25KZ

0.1GQF

C3009

X

C711

CJ12CGQ

C8009

25KZ

0.1GQF

C3004

25KZ

0.1GQF

C3144

25KZ

0.1GQF

C3038

25KZ0.1GQF

C3019

X

C3160

25KZ

0.1GQF

C3156

KZ0.01

GQF

C708

25KZ

0.1GQF

C3163

25KZ

0.1GQF

C3037

X

C3154

25KZ

0.1

GQF

C3011

25KZ

0.1GQF

C3022

25KZ

0.1GQF

C3035

25KZ

0.1GQF

C3102

10KZ1UGQF

;10KZ1ULZF

;10KZ1UMAF

C3103

CJ27CGQ

C3151

10KZ1UGQF

;10KZ1ULZF

;10KZ1UMAF

C751

25KZ

0.1GQF

C8004

10KZ1UGQF

;10KZ1ULZF

;10KZ1UMAF

C752

25KZ

0.1GQF

C3005

25KZ

0.1GQF

C3016

25KZ

0.1GQF

C3105

25KZ0.1GQF

C8001

25KZ

0.1

GQF

C3167

25KZ

0.1GQF

C3027

25KZ0.1GQF

C3003

25KZ0.1GQF

C8006

25KZ

0.1GQF

C3018

CJ22CGQ

C3002

25KZ

0.1GQF

C3166

25KZ

0.1GQF

C3026

25KZ0.1GQF

C3155

25KZ

0.1GQF

C3023

25KZ0.1GQF

C3024

25KZ

0.1GQF

C712

25KZ

0.1GQF

C3014

25KZ

0.1GQF

C3015

25KZ

0.1GQF

C8007

25KZ

0.1GQF

C3143

25KZ

0.1

GQF

C706

25KZ

0.1GQF

C3106

25KZ0.1GQF

C3030

25KZ

0.1GQF

C3007

25KZ

0.1GQF

C3158

X

C3153

25KZ

0.1GQF

C3164

25KZ

0.1GQF

C3033

25KZ0.1GQF

C8003

25KZ

0.1GQF

C3032

25KZ0.1GQF

C3159

25KZ

0.1GQF

C3029

25KZ

0.1GQF

C710

KZ

0.01

GQF

C705

25KZ

0.1GQF

C3006

25KZ

0.1GQF

C3010

25KZ

0.1GQF

C3101

25KZ

0.1GQF

C709

25KZ

0.1GQF

C3008

X

C3152

KZ0.01

GQF

C701

25KZ0.1GQF

C3031

25KZ

0.1GQF

C3020

CJ30CGQ

C3001

X

C3161

25KZ

0.1GQF

C704

X

C3162

25KZ0.1GQF

C3021

25KZ

0.1GQF

C3025

25KZ

0.1GQF

C702

CJ22CGQ

C8008

1SS355

D3102

1SS355

D3101

1SS355

D752

1SS355

D753

1SS355

D751

1

%%oOE1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

11

Y8

12

Y7

13

Y6

14

Y5

15

Y4

16

Y3

17

Y2

18

Y1

19

%%oOE2

20

Vcc

1

%%oOE

2

D0

3

D1

4

D2

5

D3

6

D4

7

D5

8

D6

9

D7

10

GND

11

CK

12

Q7

13

Q6

14

Q5

15

Q4

16

Q3

17

Q2

18

Q1

19

Q0

20

Vcc

1

%%oOE

2

D0

3

D1

4

D2

5

D3

6

D4

7

D5

8

D6

9

D7

10

GND

11

CK

12

Q7

13

Q6

14

Q5

15

Q4

16

Q3

17

Q2

18

Q1

19

Q0

20

Vcc

1/16

GZ0C

L3154

L26B0940G

L703

L26B

2770G

L3142

L26B0940G

L702

1/16GZ0C

L3152

X

L3141

L26B

0940G

L701

L26B0940G

L3153

L26B0940G

L3151

R1EA2204G

;R1A42204G

RB3023

R1EA0R04G

;R1A40R04G

RB8001

R1EA2204G

;R1A42204G

RB3019

R1EA1034G

;R1A41034G

RB8002

R1EA2204G

;R1A42204G

RB3027

R1EA2204G

;R1A42204G

RB3029

R1EA0R04G

;R1A40R04G

RB8003

R1EA2204G

;R1A42204G

RB3017

R1EA0R04G

;R1A40R04G

RB8004

J30A00102

TP3105

X

TP3017

X

TP8001

J30A00102

TP794

X

TP3004

J30A00102

TP795

J30A00102

TPLED-G

X

TP3010

X

TP758

X

TP3016

X

TP8002

X

TP3009

X

TP3003

X

TP3151

X

TP3001

J30A00102

TPLED-R

J30A00102

TP3101

X

TP3141

X

TP3111

X

TP3142

X

TP3015

J30A00102

TP797

X

TP3014

X

TP3021

J30A00102

TP3103

X

TP3008

J30A00102

TP755

X

TP759

J30A00102

TP3104

X

TP3011

J30A00102

TP796

X

TP8003

X

TP8004

X

TP3006

X

TP3002

X

TP3108

X

TP8005

J30A

00102

TP3107

J30A00102

TE8431

J30A00102

TP8446

X

TP3012

X

TP3109

J30A00102

TP757

J30A00102

TPRC

X

TP3005

J30A00102

TP3102

J30A00102

TE8432

J30A

00102

TP3106

X

TP3007

X

TP3013

J30A00102

TP756

2SK

536P

Q751

2SK

536P

Q752

2SK536P

Q3101

2SK

536P

Q3102

2SK

536P

Q753

V10B3600G

X3001

25KZ

0.1GQF

C8091

1SS355

D8077

UDZ

3.6BG

D8072

25KZ

0.1GQF

C8088

P-FAIL1

6.3EM

220WV

C8083

25KZ

0.1GQF

C8073

6.3EM

220WV

C8086

L26B

0940G

L8072

25KZ

0.1GQF

C8089

25KZ

0.1GQF

C8090

UDZ

3.0BG

D8071

6.3EM

220WV

C8075

25KZ

0.1GQF

C8071

6.3EM

220WV

C8077

25KZ

0.1GQF

C8074

25KZ

0.1GQF

C8082

25KZ

0.1GQF

C8092

1

IN

2

ON/OFF

3

OUT

4

NC

5

GND

6

1

IN

2

ON/OFF

3

OUT

4

NC

5

GND

6

L26B0940G

L8075

DCC010P

D8074

P-FAIL1

1SS355

D8073

123

6.3EM

220WV

C8079

25KZ

0.1GQF

C8081

6.3EM

220WV

C8080

6.3EM

220WV

C8076

L26B

2770G

L8071

6.3EM

220WV

C8087

6.3EM

220WV

C8085

25KZ

0.1GQF

C8078

6.3EM

220WV

C8084

6.3EM

220WV

C8072

P-FAIL1

L26B2770G

L8073

DCC010P

D8076

L26B0940G

L8074

HDCP_WE1

HDCP_WE2

X

TP3019

1

2

3

4

5

6

INH

7

-VCC

8

GND

9

C

10

B

11

A

12

13

14

15

16

VCC

PC_SW5

1

VCC

2

GND

3

RESET

AD_EN

DVI1_EN

DVI2_EN

SLOT_EN

PANEL_ID1

PANEL_ID0

PANEL_ID1

R1EA2204G

;R1A42204G

RB3013

R1EA2204G

;R1A42204G

RB3014

R1EA2204G

;R1A42204G

RB3015

R1EA2204G

;R1A42204G

RB3021

R1EA2204G

;R1A42204G

RB3025

R1EA2204G

;R1A42204G

RB3028

R1EA2204G

;R1A42204G

RB3030

VR2

VG5

VR6

VR0

VR5

VG7

VR3

VG6

VG2

VR4

VR1

VR7

VG3

VG4

VG1

VG0

1

2

3

GND

4

5

VCC

S_SW2

HDCP/DVI5

HDCP/DVI3

X

TP8012

SCDT_ST2

SCDT_ST1

V10B

6070G

X3151

1

2

34

5

1

P31

2

Vss

3

P32

4

P33

5

P34

6

P35

7

P36

8

P37

9

P38

10

P15

11

P16

12

Vss

13

P17

14

P18

15

P21

16

P22

17

P23

18

P24

19 P5

20 P6

21

P7

22

P8

23

Vdd

24

X1

25

Vss

26

X2

27

A0

28

A1

29

A2

30

A3

31

A4

32

CLK

33

Vdd

34

P25

35

P26

36

P27

37

P28

38

D0

39

D1

40

D2

41

D3

42

Vss

43

#RD

44

#CE

45

#WR

46

P1

47

P2

48

P3

49

P4

50

P11

51

P12

52

Vss

53

P13

54

P14

55

Vdd

56

Vdd

57

MODE0

58

MODE1

59

Dev0

60

Dev1

61

Vss

62

RST

63

Vss

64

AVD

65

Al1

66

Al2

67

Al3

68

Al4

69

VR

70

AVS

71

Select

72

Vss

73

Vdd

74

D4

75

D5

76

D6

77

D7

78

WakeUP

79

#INT

80

#Invalid

V10B4470G

X3152

V10B5720G

X8001

K7V_9

K7V_8

K7V_11

K30W_1

K7V_3

K7V_2

K7V_5

K30W_15

K30W_2

K30W_11

K30W_18

K30W_20

K30W_8

K30W_14

K7V_14

K30W_3

K7V_12

K30W_19

K7V_15

K30W_7

K30W_12

K7V_21

K30W_GND

K7V_6

K30W_6

K30W_9

K7V_1

1

/OE

2

D0

3

D1

4

D2

5

D3

6

D4

7

D5

8

D6

9

D7

10

GND

11

LE

12

Q7

13

Q6

14

Q5

15

Q4

16

Q3

17

Q2

18

Q1

19

Q0

20

Vcc

HDCP/DVI3

PC_SW3

10KZ1UGQF

;10KZ1ULZF

;10KZ1UMAF

C753

PDPGO_5

<TOP_VIEW>

1

GND

2

VDD2.5

3

XI

4

GRO7

5

GRO3

6

GRO0

7

GGE6

8

GGE3

9

GVS

10

GCLK

11

GFBK

12

GGO7

13

GGO4

14

GGO2

15

GBE7

16

GBE6

17

GBE5

18

GCOAST

19

GBE3

20

GBE1

21

DNC

22

DVS

23

DBO4

24

DBO0

25

DGO5

26

DGO2

27

DRO6

28

DRO3

29

DRO1

30

DBE7

31

DBE2

32

DBE1

33

DGE7

34

DGE3

35

DGE1

36

DRE7

37

DRE6

38

DRE5

39

DRE1

40

PORTB5

41

PORTB3

42

PORTC7

43

PORTC3

44

PORTA5

45

PORTA3

46

PORTA2

47

RXD

48

RESET

49

D1

50

D2

51

D5

52

GND

53

D12

54

RAMWE

55

CS1

56

WR

57

CPUTCK

58

A4

59

A9

60

A11

61

A15

62

A16

63

A18

64

CPUTMS

65

VB6

66

VB5

67

VB1

68

VG7

69

VG4

70

VG1

71

VR7

72

VR1

73

VCLK

74

FIELD

75

GRE5

76

GRE2

77

GND

78

GND

79

VDD1.5P

80

GRO5

81

GR02

82

GGE7

83

GGE4

84

GPEN

85

GSOG

86

GGE2

87

GGE1

88

GGO6

89

GG03

90

GGO1

91

GBE4

92

GBE2

93

GBE0

94

GBO3

95

DNC

96

DBO5

97

DBO1

98

DGO6

99

DGO3

100

DRO7

101

DRO5

102

DRO0

103

DBE6

104

DBE4

105DEN 106

DGE6

107

DGE2

108

DGE0

109

DRE3

110

DRE0

111

PORTB6

112

PORTB1

113

PORTC6

114

PORTC2

115

PORTA6

116

PORTA4

117

PORTA1

118

BHEN

119

IR_RCVR1

120

NMI

121

D3

122

D6

123

D8

124D11

125

RAMOE

126

ROMWE

127

RD

128

A5

129

A7

130

A8

131A14

132A17

133

MODE3

134

VPEN

135

VB7

136

VB0

137

VG6

138

VG3

139

VR6

140

VR4

141

VR2

142

VR0

143

GRE7

144

GRE4

145

GRE1

146

VDD1.5P

147

XO

148

GRO6

149

GRO1

150

GGE5

151

GHSF_OUT

152GHS

153

GGE0

154

GGO5

155

GGO0

156

GBLK_SPL

157

GBO6

158

GBO5

159

GBO2

160

GBO0

161DHS 162

DBO2

163

DGO7

164

DGO4

165

DGO0

166

DRO4

167

DRO2

168GND 169

DGE4

170GND 171

DGE5

172

DRE4

173

PORTB7

174

PORTB4

175

PORTB2

176

PORTC4

177

PORTC1

178

PORTA7

179

DNC

180

PORTA0

181

TXD

182

IR_RCVR0

183

D0

184

D4

185

D7

186D10

187D13

188

ROMOE

189CS0

190

A2

191

A3

192

A6

193A13

194A19

195

CPUTD0

196VB4

197

VB2

198

VG5

199

VG2

200

VR5

201

VR3

202

VHS

203

VVS

204

GRE6

205GND

206GND

207

DCKEXT

208

GRO4

209

GND

210GND

211

GREF

212GND

213GND

214GND

215

GBO7

216GND

217

DBO6

218

DBO7

219

GBO1

220

DBO3

221GND 222

DGO1

223

DCLK

224

DBE5

225

DBE3

226

DBE0

227GND 228GND 229

PORTB0

230

PORTC0

231

PORTC5

232

MODE0

233

ADR24B

234

GND

235

VDD2.5

236

GND

237

VDD2.5

238

EXTNT

239

VDD2.5

240

D9

241D14

242D15

243

VDD2.5

244

A0

245

A1

246A10

247A12

248

MODE1

249

CPUTDI

250

VB3

251

GND

252

VG0

253

GND

254

GND

255

GRE3

256

GRE0

257

MCKEXT

258

VDD3.3

259

VDD1.5

260

VDD3.3

261

VDD1.5

262

VDD1.5

263

VDD1.5

264

VDD1.5

265

VDD1.5

266

VDD1.5

267

VDD1.5

268

GBO4

269

VDD1.5

270

VDD3.3

271

VDD1.5

272

VDD3.3

273

VDD1.5

274

VDD3.3

275

VDD3.3

276

VDD1.5

277

VDD1.5

278

DRE2

279

VDD2.5

280

VDD1.5

281

VDD1.5

282

VDD1.5

283

VDD1.5

284

VDD1.5

285

VDD1.5

286

VDD1.5

287

VDD3.3

288

VDD1.5

289

VDD1.5

290

MODE2

291GND

292

VDD1.5

293

VDD1.5

294

VDD3.3

295

VDD1.5

296

VDD1.5

297

VDD1.5

298

VDD1.5

299

VDD3.3

300

VDD3.3

301

VDD3.3

302

VDD3.3

303

VDD3.3

304

VDD3.3

305

VDD3.3

306

VDD1.5

307

VDD1.5

308

VDD1.5

309

VDD1.5

310

VDD1.5

311

VDD3.3

312

VDD3.3

313

VDD3.3

314

VDD1.5

315

VDD1.5

316

VDD3.3

317 GND

318 GND

319 GND

320 GND

321 GND

322 GND 323 GND 324 GND 325 GND 326 GND 327 GND

328 GND

329 GND

330 GND

331 GND

332 GND

333 GND

334 GND

335 GND

336 GND

337 GND

338 GND

339 GND

340 GND 341 GND 342 GND 343 GND

344 GND

345 GND

346 GND

347 GND

348 GND

349 GND

350 GND 351 GND

352 GND

EXIH

EXIV

LOWPASS

1

2

3

4

5

6

7

8

9

10 11

12

13

14

15

16

17

18

19

20

1/16GZ0C

R3166

1/16GZ0C

R3162

1/16GZ0C

R3070

1/16GZ0C

R796

1/16

GZ0C

R8077

1/16GJ10C

R8050

1/16GZ0C

R8037

1GJ1

R8072

1/16

GZ0C

R3125

1/16GJ10C

R8061

X

R3088

1/16GZ0C

R8051

X

R8027

1/16GJ

10KC

R3087

1/16GJ

10KC

R3089

X

R757

X

R3091

1/16GZ0C

R799

1/16GZ0C

R3147

1/16GZ0C

R763

1/16GZ0C

R3026

1/16GZ0C

R8041

1/16GJ10C

R8063

1/16GZ0C

R3030

X

R3169

1/16

GZ0C

R8076

1/16GZ0C

R8064

1/16

GZ0C

R3119

1/16GZ0C

R3065

1/16GJ10KC

R3084

1/16GZ0C

R8066

1/16GZ0C

R3152

1/8GZ000

R709

1/16GJ10KC

R3086

1/16GZ0C

R8067

1/16GZ0C

R3067

1/16GJ1MC

R3001

1/16GJ10KC

R3083

1/16GZ0C

R8054

1GJ1

R8071

1/16GZ0C

R8010

1/16GZ0C

R8007

1/16GZ0C

R3049

1/16GJ22C

R711

1/16GZ0C

R751

X

R8018

1/16GZ0C

R3017

1/16GZ0C

R8038

1/16GJ

1KC

R8222

1/16GJ100C

R706

1/16GZ0C

R3041

1/16GJ

1.8KC

R780

1/16GZ0C

R765

1/16GZ0C

R3047

X

R8004

1/16GJ10KC

R3085

1/16GZ0C

R3115

X

R704

X

R3076

1/16GJ

1.8KC

R3122

1/16GZ0C

R783

1/16GZ0C

R3057

1/16GZ0C

R3078

X

R8013

1/16GJ10KC

R3051

1/16GZ0C

R8036

1/16GZ0C

R8052

1/16GZ0C

R8023

1/16GJ10KC

R720

1/16GZ0C

R3045

1/16GJ10KC

R8068

1/16GJ

1.8KC

R3107

1/16GZ0C

R8019

1/16GZ0C

R752

1/16GZ0C

R718

1/16GZ0C

R3032

1/16GJ3.3KC

R8231

1/16GZ0C

R3165

1/16GJ

10KC

R3172

1/16GZ0C

R719

1/16GZ0CR793

1/16GZ0C

R3059

X

R3142

1/16GZ0C

R721

1/16GZ0C

R3042

1/16

GZ0C R792

X

R3183

1/16GZ0C

R3151

1/16

GZ0C

R746

1/16GJ10C

R8059

1/16

GZ0C

R3114

1/16GJ4.7KC

R3112

1/16

GZ0C

R702

X

R747

1/16GZ0C

R3103

1/16GZ0C

R8044

X

R3148

1/16GZ0C

R3039

1/16GZ0C

R726

X

R3050

1/8GZ000

R784

1/16GZ0C

R8006

1/16

GZ0C

R774

1/16

GZ0C

R3175

1/16GZ0C

R728

1/16

GZ0C

R771

X

R3113

X

R8053

R773

1/16GZ0C

1/16GZ0C

R725

X

R3171

1/16

GJ1MC

R8057

1/16GZ0C

R8017

X

R8024

1/16GZ0C

R722

1/16GZ0C

R3021

X

R3167

1/16GZ0C

R3035

1/16GZ0C

R8046

1/16GZ0C

R724

1/16GJ10KC

R3143

1/16GJ

10KC

R3149

1/16GZ0C

R3163

1/16GZ0C

R723

1/16GJ100C

R3011

1/16GZ0CR791

1/16GZ0C

R8055

1/16GZ0C

R729

X

R3174

1/16GZ

0C

R716

X

R782

1/16GZ0C

R727

X

R3020

1/16GZ0C

R3063

1/16GZ0C

R8031

1/16GZ0C

R3040

X

R3141

1/16GJ

22C

R3173

X

R3073

X

R8078

1/16GZ0C

R3014

1/16GZ0C

R3004

1/16GJ10C

R8060

1/16

GZ0C

R3120

1/16GJ33C

R3117

1/16GZ0C

R3102

1/16GJ10KC

R3170

1/16GZ0C

R3161

1/16GZ0C

R3003

1/16GZ0C

R3081

1/16GZ0C

R3027

1/16GZ0C

R764

1/16GZ0C

R8011

1/16GZ0C

R754

1/16

GZ0C

R768

1/16GZ0C

R8012

1/16GZ0C

R717

X

R781

1/16GJ10KC

R3168

1/16GZ0C

R756

X

R741

1/16GZ0C

R8049

X

R8015

1/16GZ0C

R3043

1/16

GZ0C

R3181

1/16GZ0C

R8039

1/16GZ0C

R8034

1/16GZ0C

R8062

1/16GZ0C

R3002

1/16GZ0C

R3044

1/16GZ0C

R766

X

R3177

1/16GZ0C

R755

1/16GJ2.2KC

R3096

1/16GZ0C

R3038

1/16GZ

0C

R703

1/16GZ0C

R707

1/16GJ3.3KC

R3097

1/16GZ0C

R8030

1/16GJ47C

R3176

1/16GZ0C

R3036

1/16GZ0C

R3046

1/16GZ0C

R3016

1/16GZ0C

R3069

X

R3184

1/16GZ0C

R798

1/16GZ0C

R3164

1/16GJ2.2KC

R3098

1/16GJ10KC

R3146

1/16GZ0C

R3145

1/16GJ22C

R3179

1/16GZ0C

R3008

X

R772

1/16GJ10KC

R3101

1/16GJ3.3KC

R3099

1/16GZ0C

R3019

1/16GZ0C

R3037

1/16GJ

1.8KC

R778

1/16GZ0C

R8043

X

R3158

1/16GZ0C

R3012

1/16GJ10KC

R3077

1/16GZ0C

R8008

1/16GZ0C

R3018

1/16GZ0C

R3029

X

R770

1/16GZ0C

R3154

1/16GJ

10KC

R8081

1/16GZ0C

R8016

1/16

GZ0C

R3123

1/16GZ0C

R3033

1/16GJ

1.8KC

R779

X

R8002

1/16GZ0C

R794

1/16GZ0C

R8040

1/16GZ0C

R3010

X

R3075

1/16GJ

3.3KC

R8221

1/16GZ0C

R8009

1/16GZ0C

R3031

1/16GZ0C

R767

1/16GZ0C

R8022

1/16GZ0C

R3062

1/16GZ0C

R8025

1/16GJ4.7KC

R760

1/16GJ22C

R714

X

R8029

1/16GJ10C

R8047

1/16GZ0C

R8056

1/16GZ0C

R797

1/16GZ0C

R777

X

R3180

X

R8020

1/16GZ0C

R3066

1/16GZ0C

R8035

1/16GJ47KC

R3110

1/16GZ0C

R3022

1/16GZ0C

R3116

1/16GZ0C

R3079

1/16GJ

1.8KC

R3109

1/16GJ3.3KC

R8232

1/16GZ0C

R3054

X

R8001

1/16GJ

1MC

R3159

1/16

GZ0C

R769

1/16GZ0C

R3153

1/16GZ0C

R3013

1/16GJ

10KC

R3182

X

R3072

1/16GZ0C

R776

1/16GJ10C

R8045

X

R8005

1/16GZ0C

R3028

1/16GZ0C

R8042

1/16GZ0C

R761

1/16GZ0C

R3024

1/16GJ10C

R8058

1/16GJ4.7KC

R759

X

R3023

1/8GZ000

R701

1/16GZ0C

R3009

1/16GJ22C

R713

1/16GZ0C

R8032

1/16GJ10KC

R3071

X

R3074

1/16GJ1.8KC

R3121

1/16GZ0C

R762

1/16GZ0C

R3055

1GJ1

R8074

X

R3082

1/16GJ10KC

R3053

X

R3048

1/16GZ0C

R8028

1/16GZ0C

R3156

1GJ1

R8073

1/16GZ0C

R3006

1/16GZ0C

R3157

1/16GZ0C

R3007

1/16GJ

3.3KC

R8014

1/16GZ0C

R8026

1/16GJ

47KC

R3124

1/16GZ0C

R3005

1/16GZ0C

R3056

1/16GZ0C

R3058

1/16GJ33C

R3118

1/16GZ0C

R3155

1/16GJ4.7KC

R758

1/16GZ0C

R8033

1/16GZ0C

R3068

1/8GZ000

R708

1GJ1

R8075

1/16GZ0C

R3060

1/16GZ0C

R3025

1/16GJ4.7KC

R3111

X

R8003

1/16GZ0C

R8048

1/16GZ0C

R775

X

R8021

X

R3052

1/16GZ0C

R3061

1/16GJ47C

R3178

1/16GZ0C

R3034

1/16GJ1KC

R753

1/16GZ0C

R3160

1/16GZ0C

R3064

X

R3144

1/16GZ0C

R3015

1/16GZ0C

R795

5V_DIGITAL

3.3V_STANBY

3.3V_PIX

3.3V_PIX

3.3V_PIX

2.5V_PIX

5V_STANBY

3.3V_AP

5V_DIGITAL

1.5V_PIX

3.3V_STANBY

3.3V_PIX

1.5V_PIX_P

1.5V_PIX

3.3V_PIX

3.3V_PIX

2.5V_PIX

3.3V_PIX

3.3V_PIX

3.3V_AP

3.3V_PIX

1.5V_PIX_P

3.3V_STANBY

3.3V_PIX

5V_STANBY

2.5V_PIX

3.3V_AP

3.3V_PIX

3.3V_PIX

5V_STANBY

3.3V_PIX

3.3V_PIX

3.3V_STANBY

5V_DIGITAL

3.3V_STANBY

3.3V_PIX

3.3V_PIX

3.3V_PIX

3.3V_PIX

3.3V_PIX

3.3V_PIX

3.3V_STANBY

5V_STANBY

3.3V_PIX

5V_STANBY

3.3V_PIX

3.3V_STANBY

(SIDE:A)

<5V-3.3V>

<3.3V-5V>

(SIDE:B)

(SIDE:A)

<14.318MHz>

IDT71V016

MBM29LV800T

IC4101 125P

TO PANEL MODULE (D1)

TO 

PANEL 

MODULE 

(D3)

AV9155C

IC3152

TC7SZ125FU

IC3153

TC4051BFT

;CD4051BPW

IC3151

TC74LCX08FT-(EL)

IC752

TC74ACT08FT

IC751

THC63LVDM83R

IC701

IC753

TC74LCX573FT

ICS512MT

IC3154

IC3003

TC74LCX574FT

TC74LCX574FT

PW181-10V

IC3001

IC3002

IC3101

TC74LCX541FT

PQ025EZ01ZP

;PQ2TZ15

IC8072

PQ015EZ01ZP

IC8071

BA033FP-E2

IC8073

TC7SZ04FU-TE852

IC8002

24LC32AT-I/SN

IC3102

PST573IM

IC3103

TC7SZ32FU-TE85L

IC3104

IC61LV6416-15T

IC3142

MBM29LV800TA90NC205

IC3141

TE7780

IC8001

MAIN_P4/4 PW181/LVDS

ICE_PROG.

I / O

FLASH ROM

1M SRAM

REG.

REG.

LVDS INTERFACE

2345678910 11 12 13 14 15 16

A

B

C

D

E

F

G

H

I

J

K

A

B

C

D

E

F

G

H

I

J

K

L

J3TF_06

1

PDP-42WV1 PDP-42WV1

A- 15A- 13 A- 14

A- 18

A- 16 A- 17

PDP-42WV1 / PDP-42WV1S / PDP-42WV1A / PDP-42WV1AS

L6

9

210

KJTAG

1

K801 K8401

R8232

R799

R798

R797

R796

R793

R792

R791

R783

R782

R780

R779

R777

R776

R771

R768R763

R762

R761

R760

R759

R758

R757

R739

R738 R711

R3147

C741

C3103

C3143

C751

C752

L3141

L3142

R3077

R3083

R3097

R3110

R3141

R3146

R3148

R3149

R717

R741

R751

R752

R753

R754

R755

R756

R764

R765

R766

R767

R769

R770

R772

R773

R775

R778

C3106

C3144

R3020

R3021

R3096

R3107

R3109

R3113

R3114

R3124

R8221

R8222

R3085

C3102

C742

R3142

R3143

R3144

R3145

R781

C8081

C8082

C8090

C8091

C8092

C851C852

L8073

L8074

L8075

Q1855

R1869

R1871

R3066

R3068

R3103

R3152

R3154

R3155

R3156

R3161

R3162

R3165

R3166 R8071

R8072

R8074

R8075

R3101

R1867

R8067

R8064

R8062 R8061

R8060

R8055

R8054

R8053

R8052

R8050

R8047

R8043

R8036

R8033

R8023

R8020

R8014

R8013

R8005

R8004

R8003

R5159

R5158

R5142

R1865

L8072

L8071

C8089

C8007

C8004

C5113

C5112

RB8002

R8078

R8058

R8048

R8044

R8029

R8028

R8027

R8026

R8025

R8024

R8022

R8021

R8019

R8018

R8016R8015

R8002

R8001

R5168

R1870

R1868

R1866

R1863

R1862

R1861

R1858

C8003

C8001

C5117

C1855

C8006

R8059

C1853

C1854

R1851

R1852

R1853

R1854

R1855

R1856

R1857

R1859

R1860

R1864

R5169

C1852

R3153

R3164 R8073

RB3030

R774

R744

R743

R742

R736

R734

R733 R5170

R5152

R5151

R5138

R3081

R3079

R3046

R3045

R3044

R3038

R3033

R3030

R3027

C740

C738

C737

C5119

C5115

C5109

C3037

C3036

C3035

C3025

C3006

RB3025

R731

R5167

R5166 R5128

R5127

R5126

R5125

R3089

R3084

R3034

R3022

L731

C736

C734

C732

C731

C5111

C5110

C5108

C5106

C5104

C3033

C3032

C3029

C3023

C3022

C3021

C3020

C3018

C3015

C3013

C3010

C3008

C3014

C3017

C3026

C3031

C735

R5143

R5148

RB3028

RB3017

RB3014

R732

R716

R714

R713

R709

R708

R707

R706

R704

R703

R5163

R5162

R5150

R3183

R3182

R3181

R3180

R3179

R3178

R3177

R3175

R3172 R3169

R3002

L702

L3154

C712

C711

C710

C709

C708

C707

C705

C5114

C3167

C3166

C3165

C3030

C3027

C3019

C3016

C3011

C3007

C3005

C3004

C3003

RB8457

R8465

R8464

R5171

R5147

R5145

R5141

R5140

R5139

R5137

R5136

R5135

R5134

R5133

R5132

R5131

R5129

C8457

C8456

C5107

C5105

R5149

R5165

RB3021

R5164

R5130

C3024

C3009

RB8455

R702

R701

R5124

R5123

R5122

R5120

R5117

R5114

R5036 R3174

R3173

R3157

L3152

C8459

C704 C702

C701

C5458

C5018

C3162

C3161

C3160

C3159

C3158

C3155

C3154

C3153

C3152

RB8453

R5111

R5110

R5109

R5108

R5107

R5104

R5103

R5102

R5083 R5077

R5071

R5065

R5062

R5061

R5054

R5053

R5047

R3171

R3170

R3168

R3167 R3151

R1616

R1614 R1613

R1612

L5001

C8452

C5016

C3164

C1648

C1646

C3151

C5002

C5024

C8453

R5059

R5060

RB8454

R5112

R5106

R5105

R5085

R5080

R5079

R5078

R5073

R5067

R5066

R5064

R5063

R5048

R5045

R5044

R5043

R5041

R5038

R5037

R5032

R5019

R5018

R5009

R5008

R1609

C8455

C5017

C5014

C5013

C5012

RB8143

RB8142

R8101

R5088

R5084

R5082

R5076

R5075

R5074

R5072

R5070

R5069

R5068

R5040

R5035

R5030

R5028 R5027

R5025

R5016

R5012

R5011

R1617

25

24

5

4

8

1

C5019

C5006

C5005

L8101

R5007

R5010 R5039 R5042 R5081

RB8144

RB8452

RB8451

R5058

R5057

R5056

R5055

R5034

R1611

C8454

C5009

C5008

C1644

C706 R3158 R5121

RB8456

R5146

R5144

R3184

R3163

R3091

R3082

R3047

R3032

R3031

R3024

C739

RB8139

RB8138

R5052

R5051

R5049

R5046 R5031

R5026

R5022

R5020

R5017

R5013

R5006

R5005

R5004

R5003

R5002

R5001

R1607

R1602

L111

25

24

48

1

C5015

C5011 C5010

C5007

C5004

C5003

C1637

C1611

RB8134

RB8133

R5023

R4163

R4159

R4158

R4154

R4153

R4152

R4151

R4147

R4139

R1606

R1601

R109

25

24

48

1

C4169 C4168

C4167

C4166

C4165

C4162

C4161

C4158

C4144

R1603

R1604

R5024

RB8136

RB8137

RB8131

R5198

R4164

R4161

R4160 R4157

R4156

R4155 R4140

R4110

R119

R117

R116

R113

R111

R108

R107

L1614

L109

L101

48

1

C4164

C4160

C4159

C4155

C4148

C4147

C133 C132

C131

C130

C129

C120

C119

C115

C114

R898 R5195

R5189

R4150

R4149

R4148

R4143

R4141

R4125

R4124

R4118

R1882

R118

R112

R106

R104 R103

R102

R101

L4105

58

11

10

C4149

C4146

C4145 C4143

C4139

C4129

C4121

C4115

C4112

C4102

C1651

C121

C112

C111

C109

C104

C102

C116

C117

C1654

C4117

C4150

C4151

C4153

C4157

R114

R4111

R4142

RB8132

C4163

R899

R894 R809

R806

R5196

R5099

R4136

R4123

R4120

R4119

R1888

R1884

R1883

R007

R004

R003

R002

R001

L4111

58

4

20

1

13

12

C4141

C4136

C4131

C4130

C4101

C1942

C1887

C1884

C011

R805

R5097

R5095

R5094

R4146

R4129

R4128

R4116

R4115

R4114

R4109

R4108

R4107

R1954

R1942

R1941

R1887

R1886

R121

R013

R012 R011

R009 R008

41

41

D1884

C1885

C1882

C1729 C1726

C123

C122

C014 C013

C012

C126

C4132

C4133

C4134

C801

8

5R006

R1951

R4117R4121 R4122

R4127

R4138

R4135

R4134

R1946

R1944

R1943 R1889

R1885 R1751

R1750

R1747

R1739

R1728 R018

R017 R016

R014

24

1

C806

C4140

C4106 C4105 C1739

C1738

C1730

C1727

C125

C017

C016

R846

R829

R827

R824

R814

R4106 R4105 R4104

R4103 R4102 R4101 R1788

R1787

R1783

R1781

R1764

R1763 R1752

R1748

R1743

R1742

R1738 R1737

R1735

R1734 R034

R033 R032

R031

16

15

C804

C803

C4111 C4108

C1737

C1736

C1733

C037

C031

C124

C127

C128

C4103

C4109 R1740

R1753

R1945

R1947 R804

R807

R808

R812

R813 R8236

R803

R4144R4137 R4126

R1953

R1952

C4125

C4124 C1728 C015

C101

C107

C108

1

R1881

R4112

R4133 R4145

R890

R855

R832

R822

R1949

R1938

R1937

R1932

R1931

R053

R052

R051

R050

R049

R048 R047

R046

R045

R044

R043

R042 R041

8

15

4

8

1

C812

C807

C1931

C030

C029

C028

C027

C024

C022

C019

C808

C819

14

16 9

R800

R831

R837

R838

R847

R848

R849 R850

R851

R852

R861

R864

R866

R869

R873

R875

R876

R877

R878

R879

R880

R881

R883

R884

R885

R886

R887

R888

R889

R891

C1752

C1754

C1756

C1758

C1760 C1762

C1768

C1781

C1782

C1783

C813

1

12

85

R1771

R1772 R1773

R1776

R1777

R1778

R1779

R1785

R1798

R8401 R8407

R8412

R862 R868

R840

R833

R825

R821

C811

R835

R844

R8433

R8422

R8421

R8415

R1797

R1796

R1795

R1793

R1780

R1757

R1746

R1724

R1717 R1716

R1715

R1714 R1713

R1712 R1711

C1767 C1766

C1724

C1720

C1711

R8438

R8428

R8135

R8127

R8126

R8125

R8124

R8116

R8114

R1760

R1756

R1755 R1745

R1744

R1741

R1736

R1732

R1731

R1730

R1729

R1725

R1723

R1722

R1721

R1720

C1740

C1732

C1722

C1721

C1717

C1714

C8421

R1718

R1719

R1726

R8413

R1775 R1774

RB8117

R8144

R8142

R8139

R8136

R8134

R8131

R8130

R8128

R3125 R3123

R3122

R3121

R3120

R3119

R3116

R3115

R3112

R3111

R039

R037

1

C043

C041

RB8122

R8164

R8154

R8153

R8152

R8151

R8149

R8146

R8143

R8141

R145

R144

R143

R142

R140

R139

R137

R133

R132

R131

R038

R036

30

C135

C134

C044

C042

R8148

RB8118

C1627

R147

R148

R1621

R1622

R1623

R8147 C1629

R8129

R1948

R1786

R1784

R1782 R1749 R1733

13 24

C805

C1761

C040

R5050

R8120

RB8141

K8L

Q3102

Q3101

IC031

D3102

D3101

Q133

Q132

Q131

D1621

IC001

IC1771

Q1711

IC1711

Q1712

Q1932

Q1931

IC806

IC021

D1931

IC804

IC807

K8R

D021

Q891

IC1882

IC802

IC1941 D1882

D1883

IC1881

IC803

IC4102

IC4108

D4101

D103

D104

D105 D101

IC1602 D1601

IC1603

D1606

Q101

IC8102IC8103

IC8101

IC5004

D5001

D5002

D5003

IC5003

IC5009

D5004

D4103

D4102

IC4109

D1604

D1603

IC1651

IC5008

D1607

D5103

D5101

D5102

D5104

IC3104

Q753

Q752

D753

D752 D751

Q751

IC3103

D1854

IC8071 IC8072

IC8073

IC8002

Q1854

D1853

D1852

L1

6

1

TE8431

SC04 R794

R784

R729

R727

R725

R723

R721

L732

49

50

20

19

2

1

7

1

24

1C743

C3141

C744

C753

48 25

22

23

1

14

7

8

14 8

1

20

10

11

1

2

R3029

R3037

R3086

R3087

R3088

R718

R719

R746

R747 C3101

C3142

110 110

20

11

1

44

1

10 2

9

R3071

R3072

R3074

R3075

R3098

SW8223

TE8432 R8231 R3099

R720

R722

R724

R726

R728

4

1

51

31

C1858

C3163

C8071

C8072

C8073

C8074

C8075

C8076

C8078

C8079

C8080

C8085

C8087

20

11

20

11

1

10

1

16

8

9

L1613

R3053

R3070

R3102

R3160

R8076

R8077

SW8221

SW8222

C3038

X8001

RB8001

R8068

R8066

R8057

R8051

R8034

R8031

R8017

R8006

J5000 80 21

20

1

C8088

C8084

C8083

C8009 C8008

13

RB8004

R8049

R8046

R8042

R8040

R8039

R8037

R8035

R8032

R8030

R8007 60

40

41

61

C5118

C1857

3

R8056 RB8003

1

C1851

C1856

C5121

C8005

14

5

L1851

SC03

8

C8002

C1612

C5116

C8077

R8038

R8041

R8045

R8063

TE5101

RB5111

RB5108

RB3029

R737

R3058

R3057

R3056

R3055

R3054

R3025

R3023

R3019

L733

31

28

88

89

45

44

C5124

C5123

C5120

RB5122

RB5121

RB3023

R3069

R3067

R3065

R3064

R3063

R3062

R3061

R3060

56

1

C5103

C3028

R3059

RB3027

RB5107

X3152

RB5118

RB5117

RB3013

R3176

R3018

R3017

R3016 R3015

R3014

R3013

R3012

R3011

R3010

R3001

L703

L3153

121

29

28

132

133

5

4

8

1

C714

C713

C3012

C3002

C3001

RB5113

RB5103

R8463

R8462

R8461

R8460

R8459 R8458

R8457

R8456

R8455

R8454

R8453

R8452

R8451

R5101

2

1

48

1

176

1

RB5114

RB5104

RB3019

RB3015

L8451

L5101

C8451

C733

X3001 R5119

R5118

R5116

R5115

R5113

L3151

1

25

24

48

1

56

1

8

7

14

1

C703

C5102

SC05

RB5024

RB5023

RB5022

RB5021

RB5020

RB5019

RB5018

RB5017

49

50

J1700

14

1

14

20

1

5

4

C8423 C5101

C3157

C5001

C5020

C5022

L701

R3159

RB8463

RB8464

RB5015

R5086R1608

8

1

1

J1100

25

24

8

7

8

7

1

88

133

8

1

C1643

C1642

C1636 C1609

C1608

RB8114

RB8113

RB5013

R5033

R5021

R5014

5

4

L1616

8

C8112

C8103

C1641

C8101

L1617

R5029

RB5014

RB8462

RB8461

RB5016

8

7

1

14

132

89

1AA4B10N03800

C3156

10

11

R3003

R3004

R3005

R3006

R3007

R3008

R3009

RB8465

RB8466

X3151

RB5112

R8012

R8011

R8010

R8009

R8008

R5161

R5160

R5157

R5156

R5155

R5154

R5153

R3078

R3076

R3073

R3052

R3051

R3050

R3049

R3048

R3043

R3042

R3041

R3040

R3039

R3036

R3035

R3028

R3026

29

C8086

C5122

C3034

SC02

RB8111

RB8109

RB8108

RB8107

R5087

R5015

R1618

L1612

L1611

176

45

44

1

C8107

C8104

C5025

C1638 C1615

C1601

1

7

RB8106

RB8104

RB8103

RB4112

RB4111

RB4110

RB4109

RB4108

RB4107

RB4106

RB4105

RB4104

L1604

L103

L102

102

64

65

103

C8111

C8108

C4138

C4137

C1614

C1606

C1604

C1603

C105

C5023

C8106

C8109

L1603

4

10

1

RB8101

R1619

L4106

L1607

L1606

36

1

C4154

C4152

C4142

C1613

C1610

C1607

C118

C113

AD-CLK

1

1

R5197

R5194

R5193

R5191

J5901

5

4

8

1

38

1

19

18

HSOUT

C5199

C4126

C4116

C1653

C106

C103

B1883

C1652

C4120

C4156

39

128

L105

SOGOUT

RB8102

RB4103

RB4102

RB4101

R4162

L1605

C8113

C8110

C1605

3

R858

R857

R5096

R5090

L821

L4101

8

C814

C5099

C4123

C110

C003

C002

2

R856

R5093

R1761

R1754

L4104

L4103L4102

1

5

4

8

1

C4122

C4113

C1941

C1735

C007

C004

C001

C005

C1881

C4118 C4119 C4127

C4128

C4135

1

L106

R5092

R830

1

R826

R820

R818

R816

R811

R802 R1762

R1759

R1758

L1941

5

4

8

1

C4114

C4110 C4107 C4104

C1742

C010

C009

C008

R872

R870

R867

R817 R815R810

R1789

L031

11

80

100

81

1

16

1

5

4

1

10

9

C1763

C1741

C1723

C1719

C035

C033

C032

C1734

C802

L107

R819

R893

L001

18

1

C1725

C006

L104

R4130

R4131

R4132

7

1

X801

SC06

R8482

R8479

R8478

R8477

R8476

R8475

R8474

R8473

R8472

R8471

R845

R1936

L801

L1931

30

C810

C1933

C1932

C026

C025

C023

C021

51

50

R801

R823

R828

R834

R836

R839

R841

R842

R843

R8480

R8481

R853

R854

R859

R860

R863

R865

R871

R874

R882

R895

R896

R897

C1765

C1773

C1774

C1776

C1777

C8401

8

18

1

16

8

9

K8401

L1771

R1794

R8406

R8408

R8409

R8410

R8411

R892

R8405

R8404

R8403

R8402

K801

C018

31

R8434

R8427

R8426

R8425

R8424

R8423

R8414

R1792

L1711

7

1

7

1

9

16

9

8

7

1

C1716

C1713

C1712

X1711

R8437R8436

R8432

R8431

R8430

R8133

R8123

R8122

R8121

R8119

R8118

R8117

R8113

R8112

R8111

R1727

L1712

814

14

8

14

C8422

C1731

C1718

C1715

98

R8429

R8435

R8439

C1772

C1771

RB8116

R8138

R8137

R3118

R3117

R153

R152

5

4

8

1

C3105

C3104

C047

C045

C039

RB8121

R8162

R8161

R8159

R8158

R8157

R8156

R151

R149

R146

R141

R138

R136

R135

9

8

16

1

C137

C136

C034

C048

R134

RB8119

81

C1621

C1623

J4100

L1609

SC01

TE1631

R8163

L8452

R8132

C1764

R1791

R1790

16

C809

C1769

C046

C038

C036

C1602

C1647

C5021

C8102

C8105

L1601

RB8112

TP797

TP796

TP795

TP794

TP757

TP755

IC3141

IC753

TP756

K30Y

IC752

IC751

K30Z

TP8446

K30W

IC3003

IC3101

IC3142

KJTAG

TP3101

TP3102

TP3103

TP3104

TP3105

KFN3

IC3002

D8071

D8077

IC3151

KFN2

IC5108

D8076

KFN1

IC8001

D8074

K8N

IC5104

Q1853

D1851

IC1851

Q1851

Q1852

IC5106

IC5107

TP5113

TP5104

K8H

IC8452

TP5101

IC5101

IC3154

IC5102

IC3152

TP5102

D8072

D8073

IC3001

IC3153

IC731

K7X K7V

IC701

IC1604

TP5004

Q1601

TP5002

TP5001

TP1601

K16D

TP5007

IC5006

IC5002

IC5007

IC5001

IC5103

IC8451

K8G

TP1610

TP1609

TP1608

K16P

TP1611

IC101

KSP9R

TP1607

KSP9L

IC4101

TP4101

D106

D102

IC5198

IC4107

IC4106

IC4104

IC5098

IC1717

IC1713

Q4101

Q4102

Q4103

TP1602 TP1605

TP1604

TP1883

TP1882

TP1603

TP1881

Q804

Q802

TP807

Q803

K8Q K8F

TP806

K8J

IC801

IC1714

Q801

D1101

Q1773

Q1774

Q1772

Q1771

Q1713 IC1712

Q1717

IC1761

Q1715

IC1716

Q1716

D1711

IC3102

Q1714

K16C

D001

D031

IC131

TP3107

K8L

Q134

IC8421

IC8422

IC8402 IC8401

D891

K8R

K8M

TPRC

TPLED-R

TPLED-G

TP3106

TP1606

MAIN UNIT (ASSY, PWB, MAIN) [A SIDE]

POWER UNIT

K6C

■Printed Wiring Board Diagrams

MAIN UNIT (ASSY, PWB, MAIN) [B SIDE]

CONTROL

UNIT

K19J

JACK-B UNIT

K11F

SENSOR-A

UNIT

K18N

SENSOR-B

UNIT

K18M

MOTOR

FAN

FN901

MOTOR

FAN

FN903

PDP

MODULE

D1

MAIN POWER

MODULE

D26

JACK-A UNIT

K1505

MAIN POWER

MODULE

P6

PDP

MODULE

D8

PDP

MODULE

D3

A- 21A- 19 A- 20

K602

T8AH 250V

B10N0390A

12

3

4

AC-FUSE

F601B F601A

31

4

32

1

F602A

F602B

AC-FUSE

K6Q K6C

K602

K6A

11

8

4

D654

1

2

T8AH

250V 1

1

3

3

K602

C603A

C603

C604

C604A

C605A

C605

R601

C602

C611

C601

C601A

C610

C606

SC601

C663

R660

C666

C655

PTH651

C652

C654

C653

C657

C662

C651

C656 C650

PB1

SC04

SC02

R653

C659

R655

C660

R654

C670

C669

R656

C658

R670

C668

SC01

SC06

SC05

SC04A

C671

C667

R661 C664

F601

F602

VA602

VA601

LF602

LF603

K6A

LF601

K6Q

IC651

K6C

D659

D658

D653

IC652

D651

K6F2K6F1

PC651

T651

D654

D655

RL651

D660

D652

17

A1902

C1901

R1915

SC1901

R1919

R1916

J1901

J1902

B10N0390C A1901

SC10

K19J

IC1901

D1901

1

8

910 16

18

910 16

14

5

8

14

58

14

5

8

B10N0390B

PARTS SIDE

K1504

K1502

K1503

K1501

K1505

XL1509

XL1507

XL1508

XL1510

XL1511

R1519

C1550

R1544

C1532

C1524 R1552

R1545

R1539

XL1501

XL1502

C1527

C1535

C1539

C1507

C1542

C1549

C1528

C1529

C1538

C1540

R1520

R1521

R1530

C1511

R1503

R1502

SC1501

SC1502

C1516

C1518

C1517

C1531

R1571

R1572

C1541

R1540

R1547

R1556

C1526

C1533

R1546

R1548

C1534

C1525 R1557

R1549

R1541

C1551

R1553 R1554

R1565

R1564

R1566

R1567

R1562

XL1503

XL1506

XL1505

XL1504

C1557

C1558

SC1513

R1516

SC1512

R1515

C1552

C1553

C1556 R1577

C1506

C1504

C1503

SC1506

SC1505

R1584

R1583

C1530

C1536

R1504 R1505

L1523

L1524

L1525

R1534 L1521

L1522

R1527 R1528

SC07

SC08

R1535

SC1503

SC1504

R1592

R1591

IC1503

IC1501

IC1509

TP1513 TP1512

IC1504

TP1505 TP1506

IC1506

TP1507

IC1510

TP1509

TP1508

TP1510

IC1505

D1505

D1507

D1506

D1508

IC1502

13

46

B10N0390G

11

1

1

10

K1101

K1103

SW1101

K1104

XL1104

SC1103

XL1102

R1104

R1105

R1123

C1101

R1112

R1103

XL1101

R1129

SC1102

XL1103

SC1101

SC1105

R1110

R1127

R1128

R1126

R1130

R1114

R1125

SC18

SC19

SC20

SC17

C1102

R1102

J1107

J1108

J1106

J1105

K11F

J1104

J1103

C1103

C1104

C1104

R1101

PC1101

IC1101

K11F

Q1101

K1104

14

B10N0390E

K18N

L1891

SC15

C1891

C1892

J1891

R1891

K18N

IC1891

15

B10N0390F

K18M

R1881

L1881

C1881

SC16

C1882

J1881

IC1881

K18M

POWER UNIT (ASSY, PWB, POWER) [A SIDE]

JACK-A UNIT (ASSY, PWB, JACK-A) [A SIDE]

JACK-B UNIT (ASSY, PWB, JACK-B) [A SIDE]

CONTROL UNIT (ASSY, PWB, CONTROL) [A SIDE]

SENSOR-A UNIT

(ASSY, PWB, SENSOR-A)

[A SIDE]

SENSOR-B UNIT

(ASSY, PWB, SENSOR-B)

[A SIDE]

MAIN UNIT

K8J

MAIN UNIT

K16C

MAIN UNIT

K8M

MAIN UNIT

K8N

MAIN UNIT

K8F

MAIN UNIT

K8R

PDP

MODULE

MAIN

POWER

MODULE

A- 24A- 22 A- 23

X

X

X

X

XX

X

X

X

X

XX

1

2

34

1

3

2

1

3

4

2

1

43

1

4

12

3

C603A C603

C604

C604A

C605A

C605

R601

C602

C611

C601

C601A

C610

C606

SC601

C663

R660

C666

C655

PTH651

C652 C654

C653

C657

C662

K602

C651

C656C650

R651 R652

C661

R657

R671

R672

C672

R658

R675

R674

R673

C665

R659

T651

IC651

D654

RL651

Q651

K6A

LF603

LF601

D656

LF602

K602

F601

F602

VA602

VA601

A1902

R1912

R1918

SC1902

R1914

R1913

SC09

C1903

C1902

R1917

J1905

SOLDER SIDE

B10N0390B K1504

K1502

K1503 K1501

K1505

R1581

R1542 C1554

R1517

R1525

C1544

C1543

C1545

C1546

C1510

R1526

C1547

C1548

C1508

R1524

R1579

C1502

C1501

R1518

R1574

C1555 R1575

R1582

R1543

R1508

R1509

R1510

R1511

R1529

R1533

R1532

R1531

SC1510

SC1509

SC1511

R1514

R1513

R1512

R1536

R1537

R1538

R1559R1555

R1558

R1569

R1550

R1568 R1551

R1573

R1501

R1561

R1560

C1519

C1537

R1507

R1522

R1523 R1506

C1523

C1512

R1588

R1585

R1586

R1587

C1505

R1578

C1559

R1580

SC1507

SC1508

C1522

C1509

C1513

D1501

D1502

Q1501

Q1503

Q1502

1

3

46

8

K1103

SW1101

R1109

R1107

R1108

R1111

R1113

R1106

R1116

R1117

SC1104

R1119

R1120

R1121

C1105

R1118

R1115

R1124

J1101

J1102

R1122

K1101

PC1101

B10N0390E

K18N(4PIN)

B10N0390F

K18M(5PIN)

POWER UNIT (ASSY, PWB, POWER) [B SIDE]

JACK-A UNIT (ASSY, PWB, JACK-A) [B SIDE]

JACK-B UNIT (ASSY, PWB, JACK-B) [B SIDE]

CONTROL UNIT (ASSY, PWB, CONTROL) [B SIDE]

SENSOR-A UNIT

(ASSY, PWB, SENSOR-A)

[B SIDE]

SENSOR-B UNIT

(ASSY, PWB, SENSOR-B)

[B SIDE]

www.s-manuals.com
