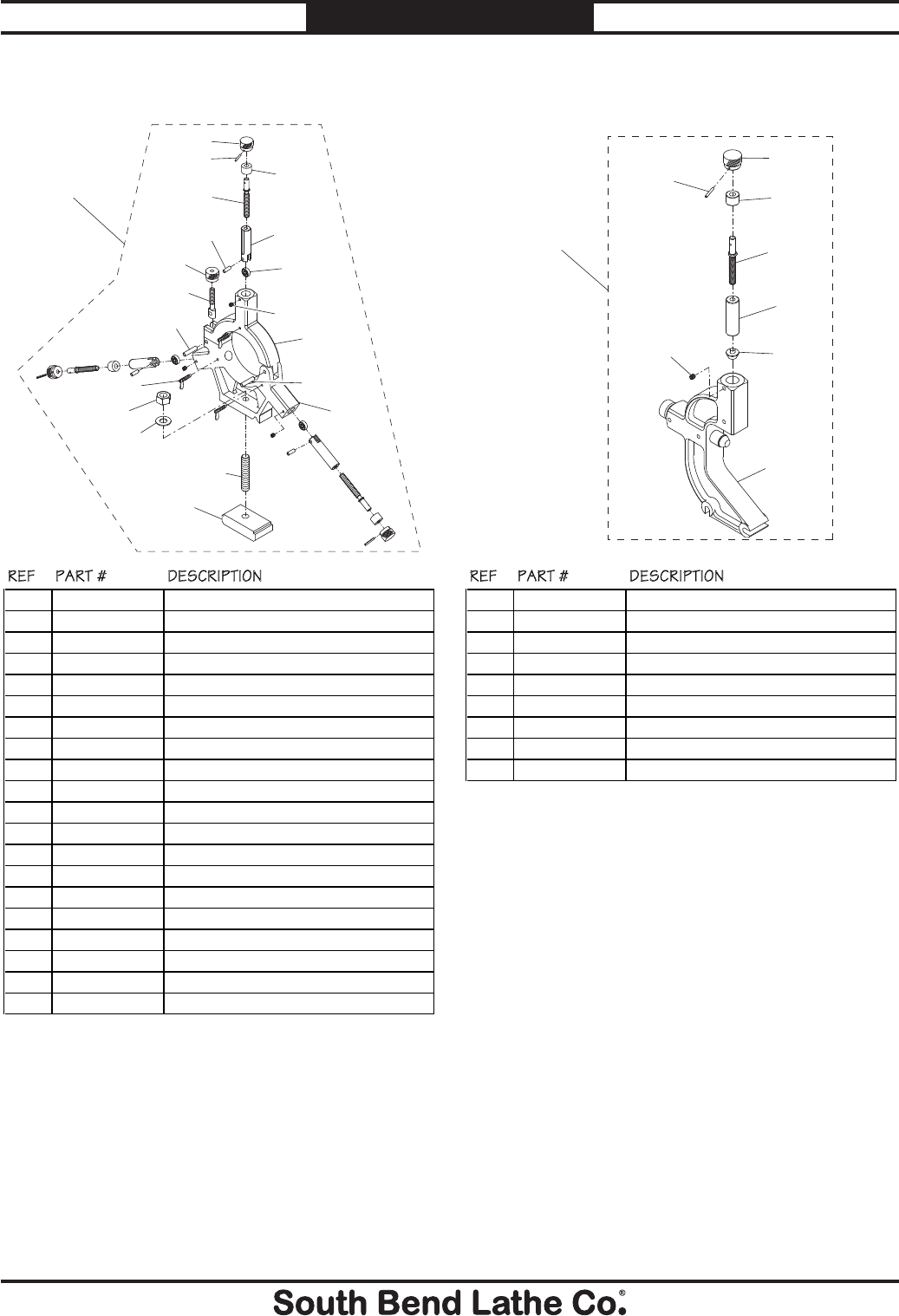

- Follow Rest
- Steady Rest
- Tailstock
- Headstock Oiling System
- Cabinets & Panels
- Motor Assembly
- End Gears
- Bed & Shafts
- Saddle Base
- Saddle Body & Controls

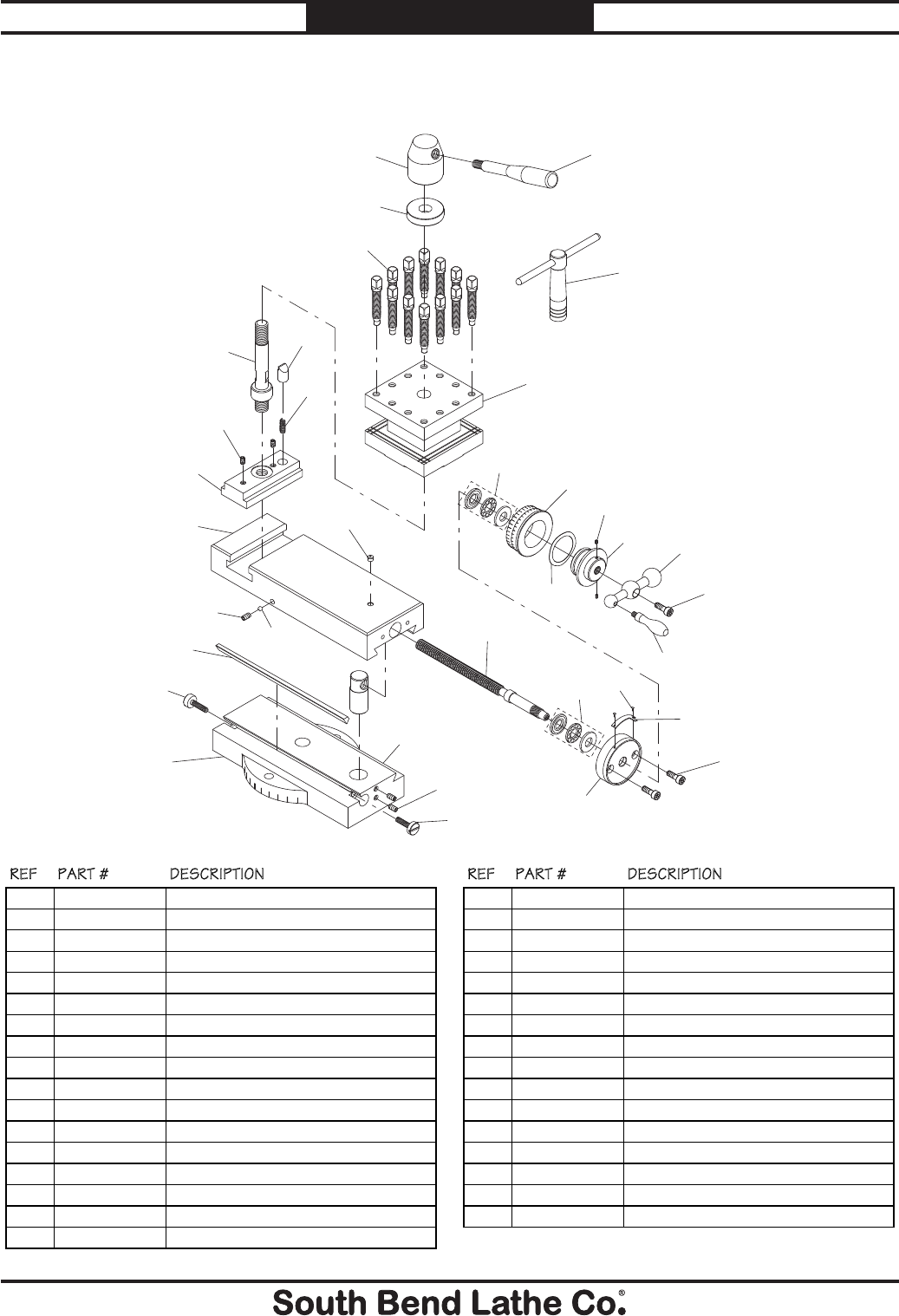

- Compound Slide & Tool Post
- Carriage Stop
- Dial Indicator
- Apron - Rear View
- Apron - Front View
- Gearbox Controls
- Gearbox Gearing
- Headstock Transfer Gearing
- Headstock Upper Gearing
- Headstock Controls
- Headstock Casing
Manual Insert
PHONE: (360) 734-1540 • www.southbendlathe.com
MODEL SB1038F
16" X 40" LATHE 440V w/DRO
Copyright © June, 2011 by South Bend Lathe Co.
WARNING: No portion of this manual may be reproduced without written approval.
#BL14238 Printed in USA

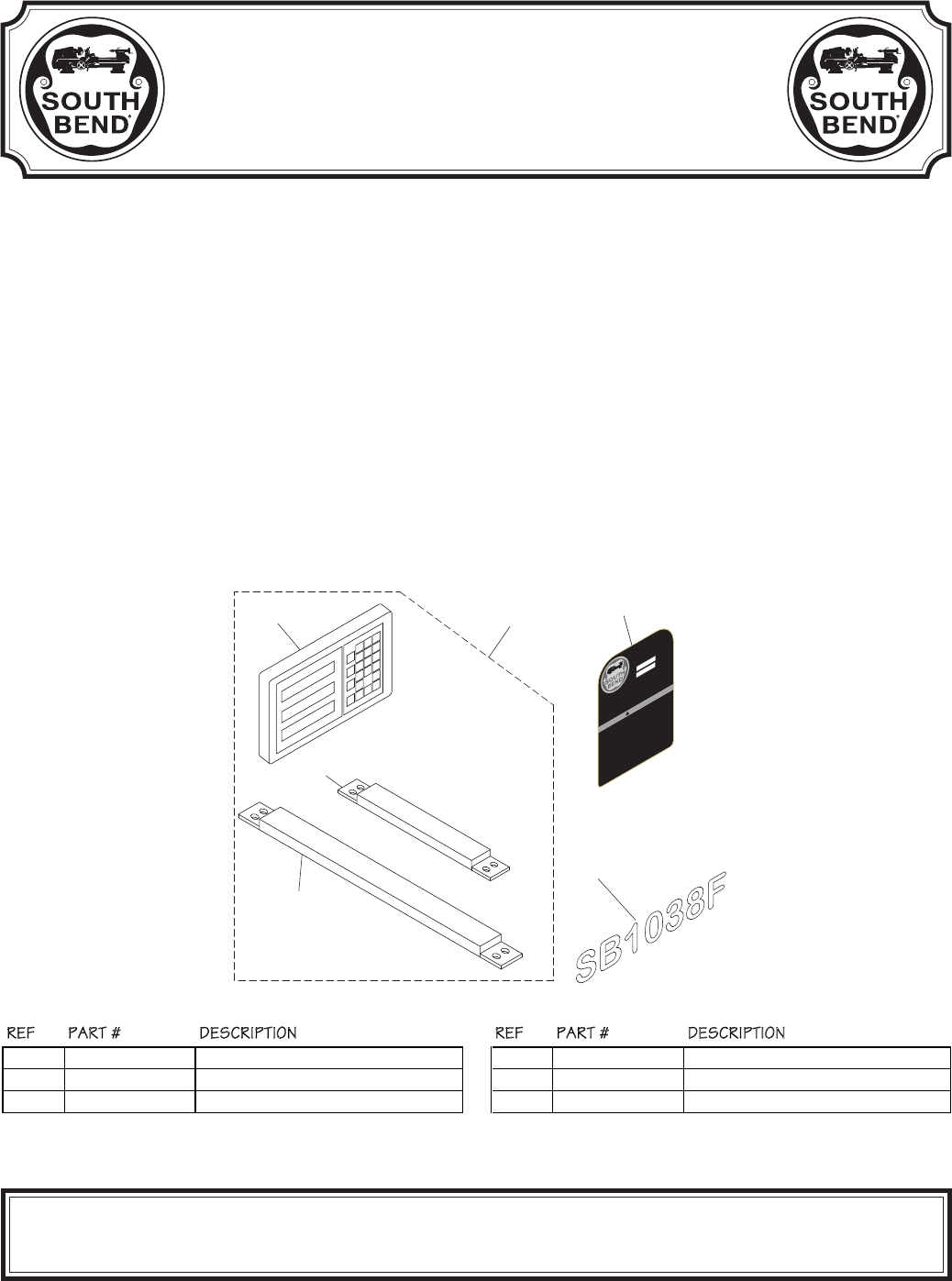

The Model SB1038F Lathe is the same machine as the Model SB1038 except for the following:
• Addeda2-AxisFagorDigitalReadout(DRO).
Exceptforthedifferencesnotedinthisinsert,allothercontentintheModelSB1038Owner’sManual
appliestothismachine.Beforeoperatingyournewlathe,youMUSTreadandunderstandthisinsert,
theentireModelSB1038Owner’sManual,andtheFagorDROOwner’sManualtoreducetheriskof
injurywhenusingthismachine.Keepthisinsertforlaterreference.
IfyouhaveanyfurtherquestionsaboutthismanualinsertorthedifferencesbetweentheModel
SB1038FandtheModelSB1038,contactourTechnicalSupportat(360)734-1639oremail
sales@southbendlathe.com.
REF PART # DESCRIPTION REF PART # DESCRIPTION
2318 PSB1037F2318 DRO ASSEMBLY FAGOR 2-AXIS 2318-3 PSB1014F2318-3 DRO Y-AXIS SCALE FAGOR MKT-27
2318-1 PSB1014F2318-1 DRO DISPLAY FAGOR 20-iT 2407 PSB1038F2407 MACHINE ID LABEL
2318-2 PSB1037F2318-2 DRO X-AXIS SCALE FAGOR MKT-102 2416 PSB1038F2416 MODEL NUMBER LABEL
New & Changed Parts
MODEL SB1038F
16" x 40" EVS
TOOLROOM LATHE
w/DIGITAL READOUT
TO REDUCE THE RISK OF SERIOUS PERSONAL INJURY WHILE USING THIS
MACHINE:
WARNING!
!
Motor: 7.5HP, 440V, 3-Ph, 60Hz
Full Load Amp Draw 10.75A
Swing Over Bed: 16.14"
Distance Between Centers: 40"
Swing Over Cross Slide: 10.375"
Swing Over Gap: 22.95"
Spindle Nose to Gap (max.): 6.5"
Cross Slide Travel: 9"
Compound Travel: 5.1"
Spindle Nose: D1-6 Camlock
Spindle Bore: 2-1/16"
Spindle Taper: MT#6
Tailstock Taper: MT#4
Weight: 3080 lbs.
1. Read and understand manual before starting.
2. Always wear approved eye protection.
3. Make sure the machine is connected to a grounded power source.
4. Keep all guards in place.
5. DO NOT wear loose clothing, gloves, or jewelry; secure long hair and
roll up long sleeves.
6. Disconnect power before service, maintenance, or adjustments.
7. DO NOT operate when tired or under the influence of drugs or alcohol.
8. Make sure the machine is properly adjusted/set up before starting.
9. Change cutting fluid regularly and avoid contact with skin.
10. Make sure workpiece is properly and securely held in the chuck and has
safe clearance through full rotation before starting the lathe.
11. Never leave the chuck key in the chuck.
12. Never touch the chuck or workpiece when it is in motion.
13. Never leave the lathe running unattended.
14. Make sure long workpieces are properly supported.
15. Always use the proper speed rate for the material you are turning.
16. Do not allow children to have unsupervised access to the machine.
2416
2407
2318
2318-1
2318-3
2318-2
Hundreds of Thousands of Lathes Sold With a Tradition of
Q
uality Since 1906!
© November, 2009 by South Bend Lathe Co., Revised February, 2010 (TS) For Machines Mfg. Since 7/09
16" X 40" EVS TOOLROOM LATHES
MODEL SB1037 - 220V
MODEL SB1038 - 440V
PARTS MANUAL
Customer Service
We stand behind our machines. If you have any service questions, parts requests or general questions
about the machine, feel free to contact us.
South Bend Lathe Co.
P.O. Box 2027
Bellingham, WA 98227
Phone: (360) 734-1540
Parts Department: (417) 886-2954
Fax: (360) 676-1075 (International)
Fax: (360) 734-1639 (USA Only)
Email: cs@southbendlathe.com
Updates
For your convenience, any updates to this manual will be available to download free of charge
through our website at:
www.southbendlathe.com
Scope of Manual
The parts breakdowns in this manual are provided to facilitate the service and repair of this machine
as follows: (1) By helping the mechanic understand how and where individual parts fit together;
and (2) by establishing a numbering system from which available replacement parts can be ordered.
Please note that not all parts shown are available for purchase and some individual parts may only
be available in assemblies with other parts. In the case of fasteners or other off-the-shelf hardware,
we will happily provide customers with replacements, but for the sake of expediency, these can also
be found at your local hardware or industrial supply store.
Manual Feedback
We've made every effort to be accurate when documenting this machine. However, errors sometimes
happen or the machine design changes after the documentation process—so the manual may not
exactly match your machine. If a difference between the manual and machine leaves you in doubt,
contact our customer service for clarification.
We highly value customer feedback on our manuals. If you have a moment, please share your
experience using this manual. What did you like about it? Is there anything you would change to
make it better? Did it meet your expectations for clarity, professionalism, and ease-of-use?
South Bend Lathe, Inc.
C/O Technical Documentation Manager
P.O. Box 2027
Bellingham, WA 98227
Email: manuals@southbendlathe.com
Table of Contents
Headstock Casing .......................................................................................................................................2
Headstock Controls .....................................................................................................................................3
Headstock Upper Gearing ..........................................................................................................................5
Headstock Transfer Gearing ......................................................................................................................7
Gearbox Gearing .........................................................................................................................................8
Gearbox Controls ......................................................................................................................................10
Apron - Front View ...................................................................................................................................12
Apron - Rear View .....................................................................................................................................14
Dial Indicator ............................................................................................................................................16
Carriage Stop ............................................................................................................................................16
Compound Slide & Tool Post ....................................................................................................................17
Saddle Body & Controls............................................................................................................................18
Saddle Base ...............................................................................................................................................20
Bed & Shafts .............................................................................................................................................21

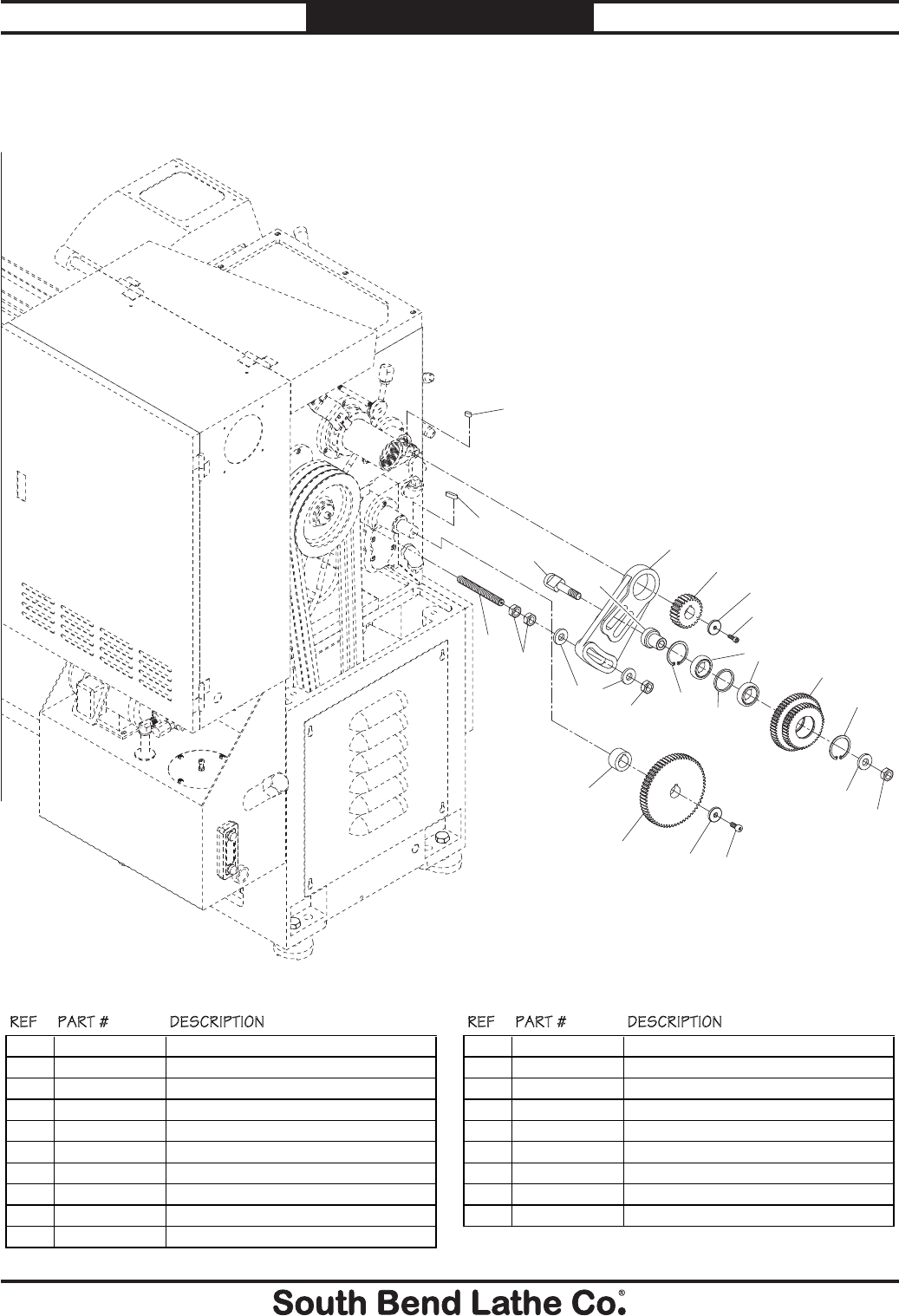

End Gears ..................................................................................................................................................23

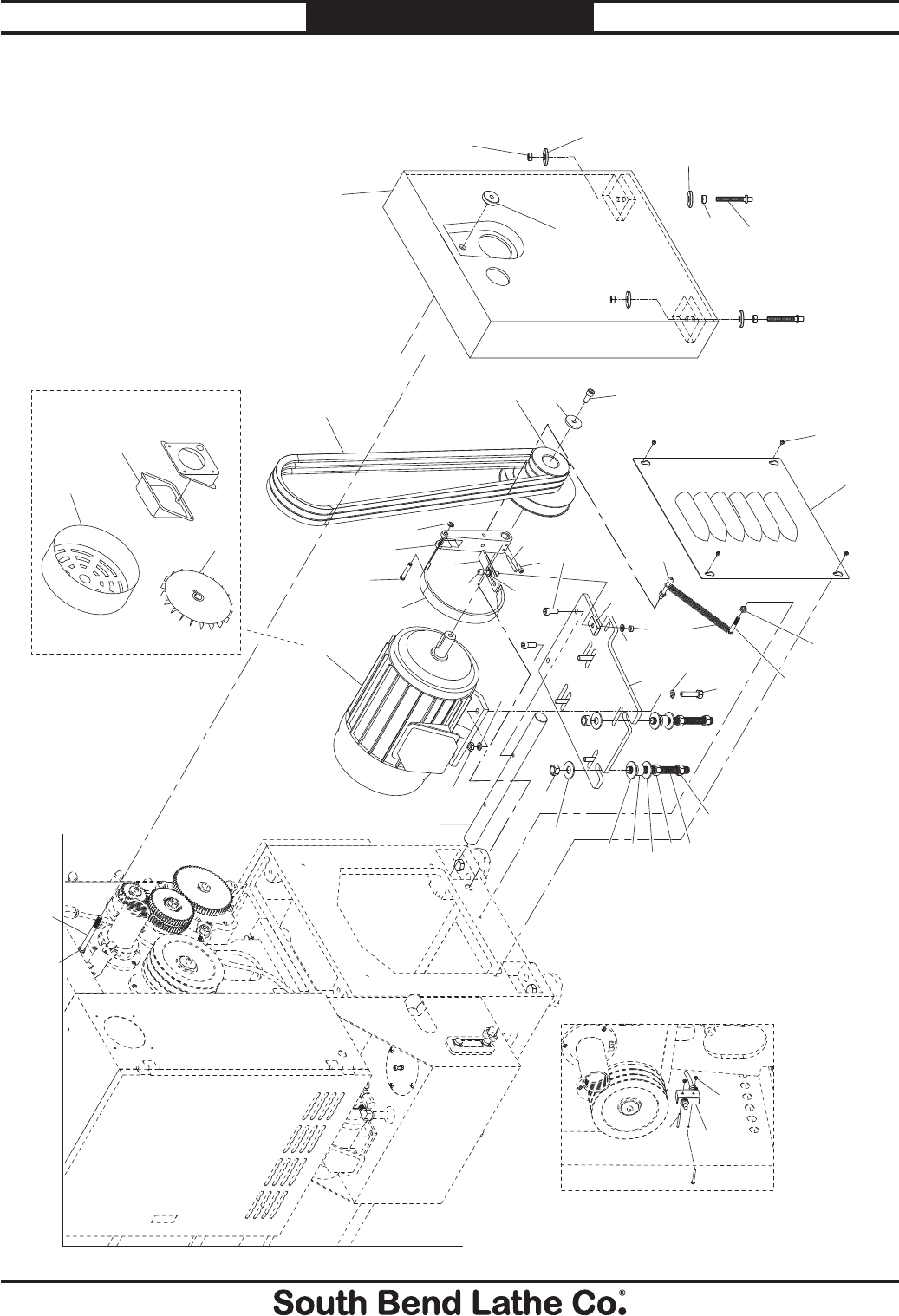

Motor Assembly ........................................................................................................................................24
Cabinets & Panels ....................................................................................................................................26

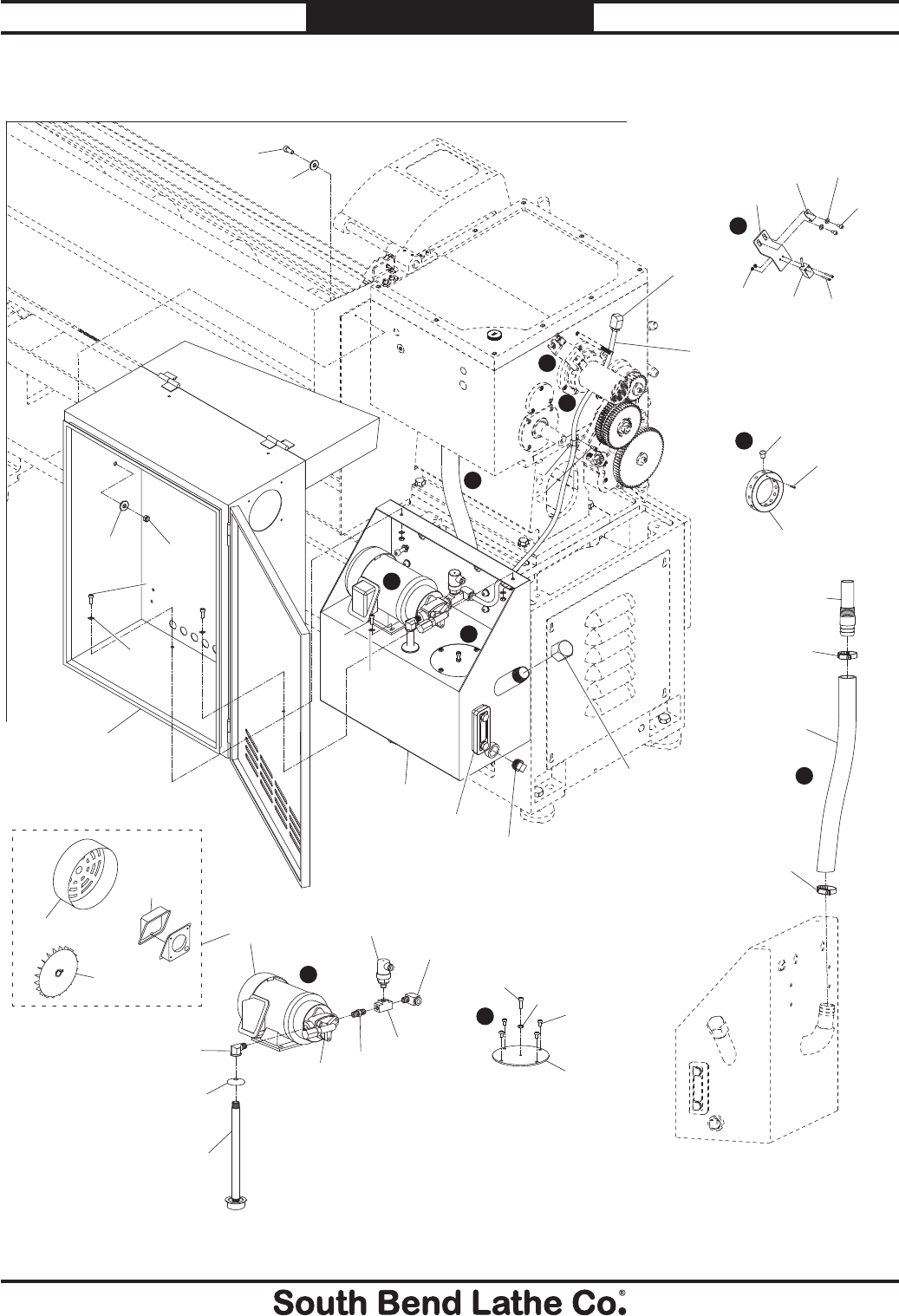

Headstock Oiling System .........................................................................................................................28

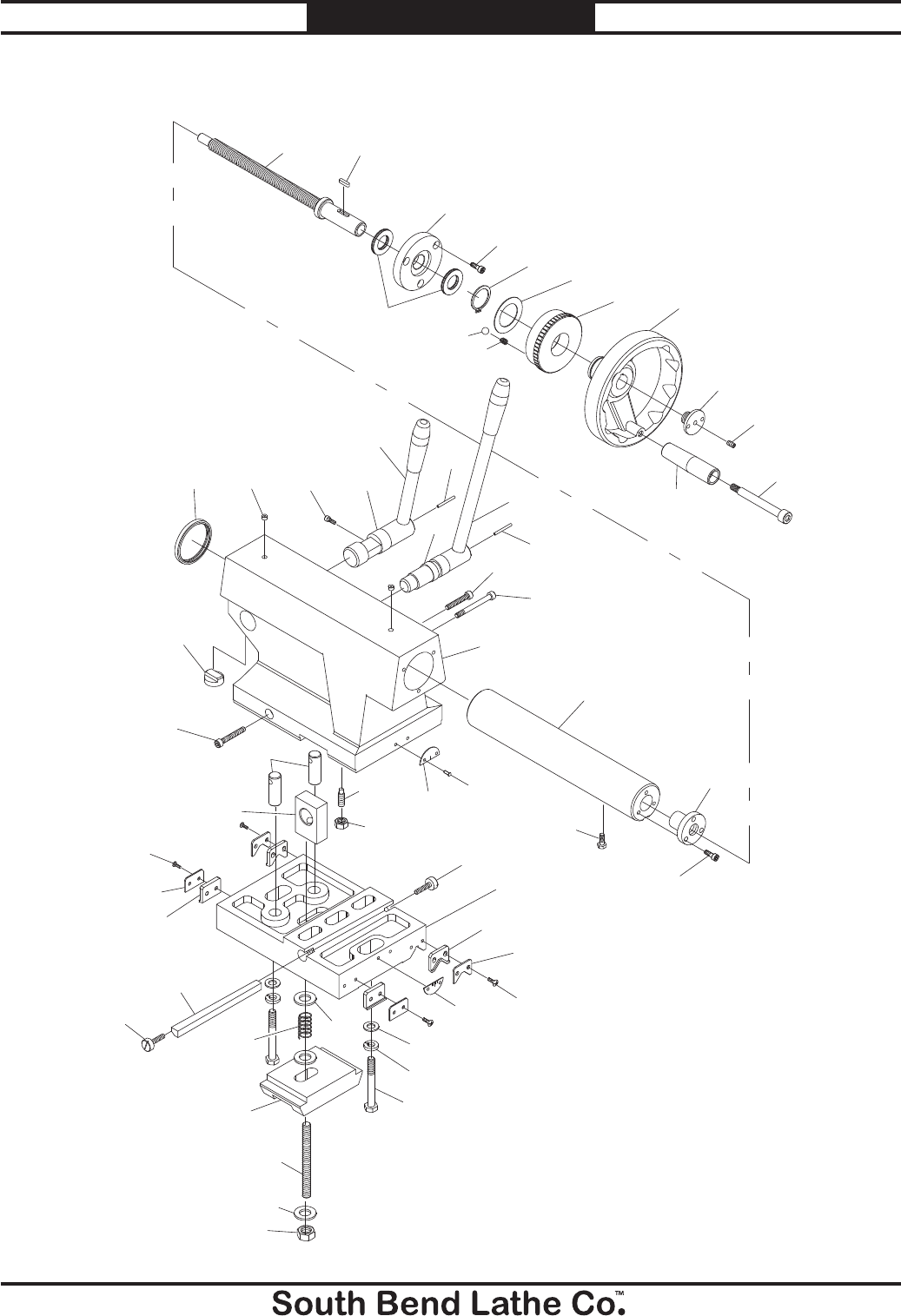

Tailstock ....................................................................................................................................................30
Steady Rest ...............................................................................................................................................32
Follow Rest ................................................................................................................................................32

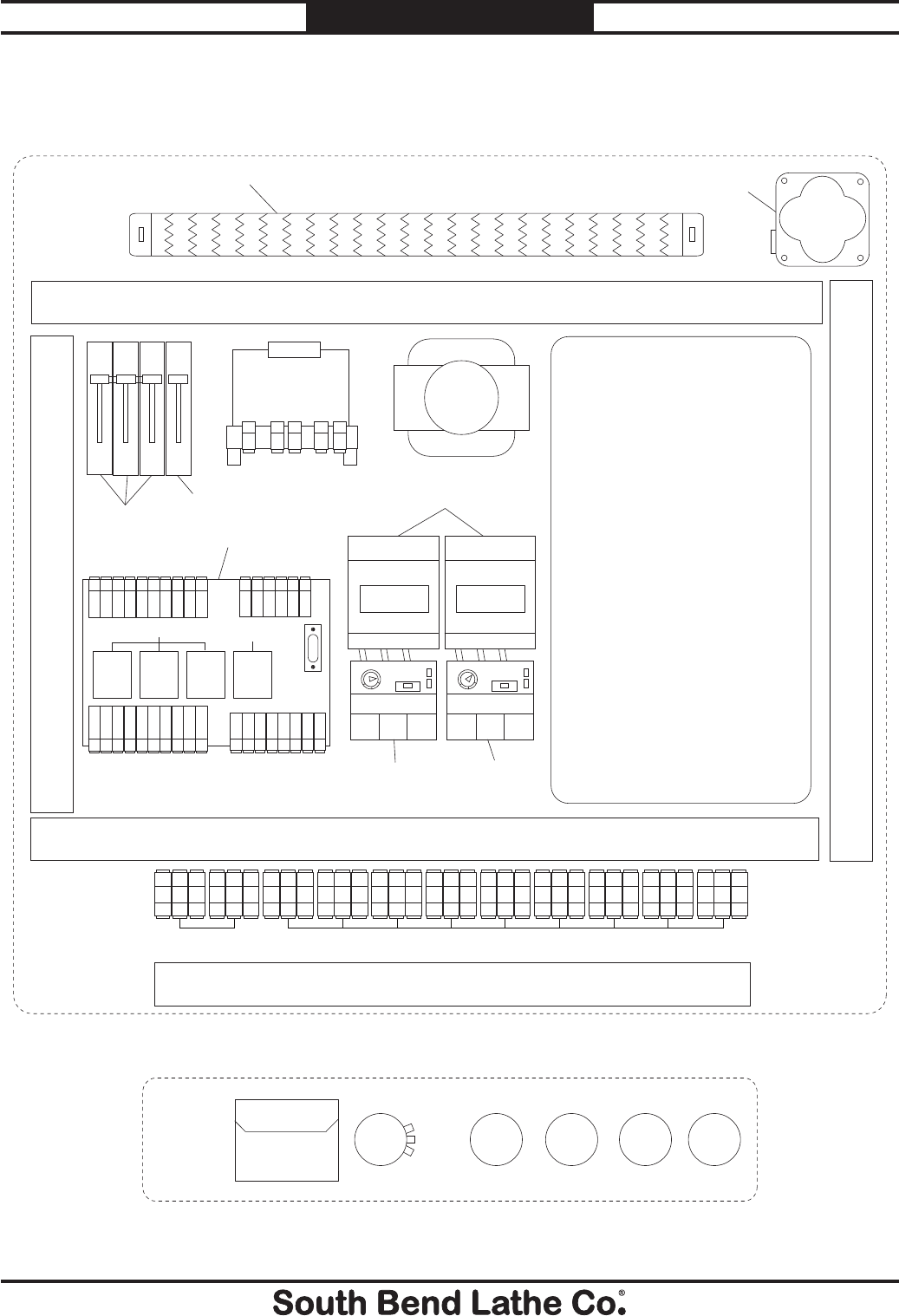

Electrical Cabinet & Control Panel .........................................................................................................33

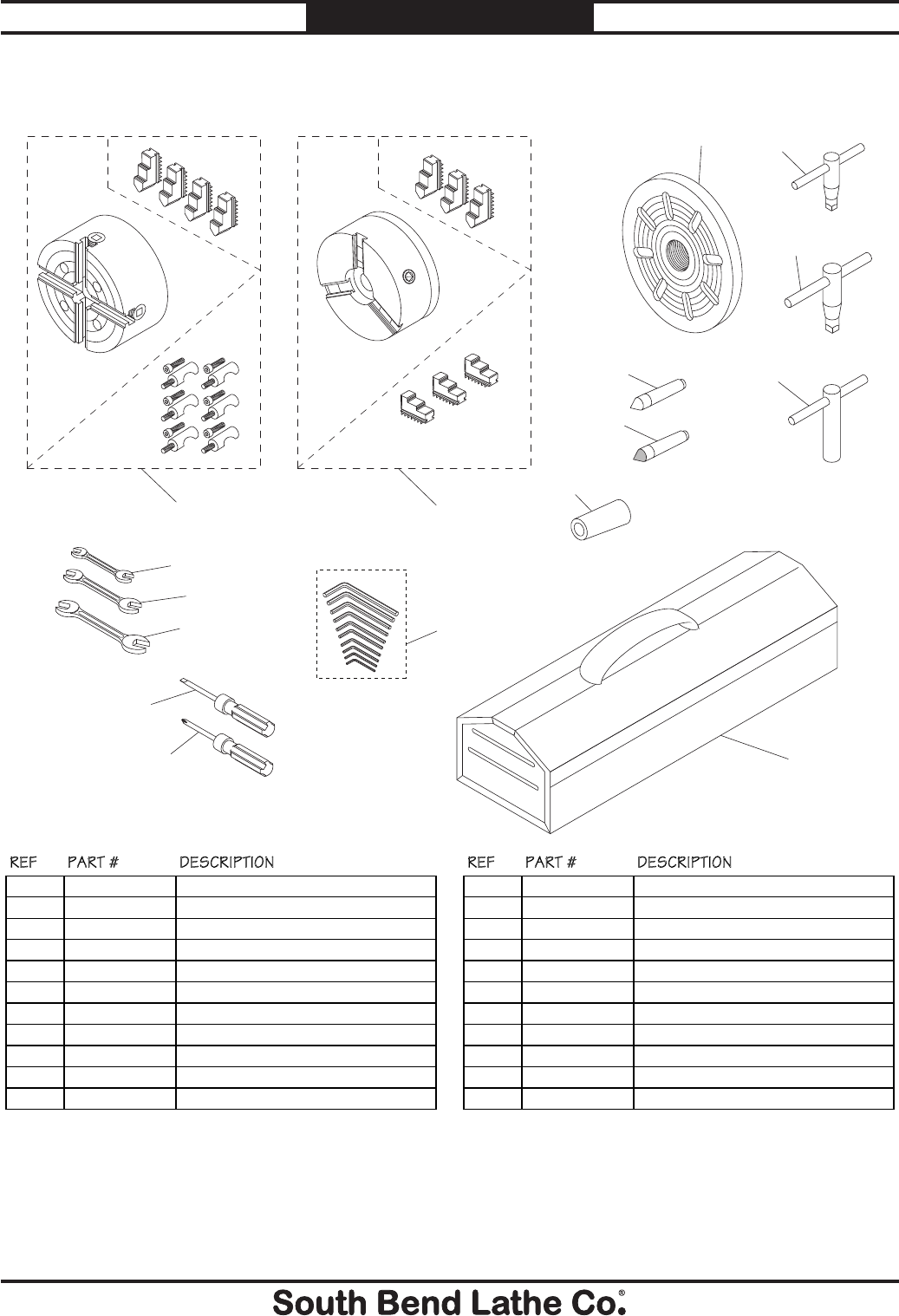

Accessories ................................................................................................................................................35
Machine Labels (Front View) ...................................................................................................................36
Machine Labels (Rear View) ....................................................................................................................37
-2-
For Machines Mfg. Since 8/09
Model SB1037/SB1038 Parts PARTS
Headstock Casing
1
2
3
4
6
7
8
9
10
11
12
13
5
9-1
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PSB10120001 OIL FILL PLUG 8 PFH30M FLAT HD SCR M5-.8 X 8
2 PCAP29M CAP SCREW M6-1 X 40 9 PSB10120009 OIL DISTRIBUTOR A-5S
3 PSB10120003 HEADSTOCK COVER 9-1 PSB10120009-1 OIL DISTRIBUTOR BRACKET
4 PSB10120004 COVER OIL SEAL M4 X 1700 10 PSB10120010 PIPE JOINT
5 PCAP50M CAP SCREW M5-.8 X 10 11 PSB10120011 NYLON TUBE
6 PSB10120006 PIPE CLIP 5MM 12 PSB10120012 HEADSTOCK CONTROL PLATE
7 PCAP15M CAP SCREW M5-.8 X 20 13 PRIV001M STEEL FLUTED RIVET 2 X 5MM
For Machines Mfg. Since 8/09 Model SB1037/SB1038 Parts
-3-
PARTS

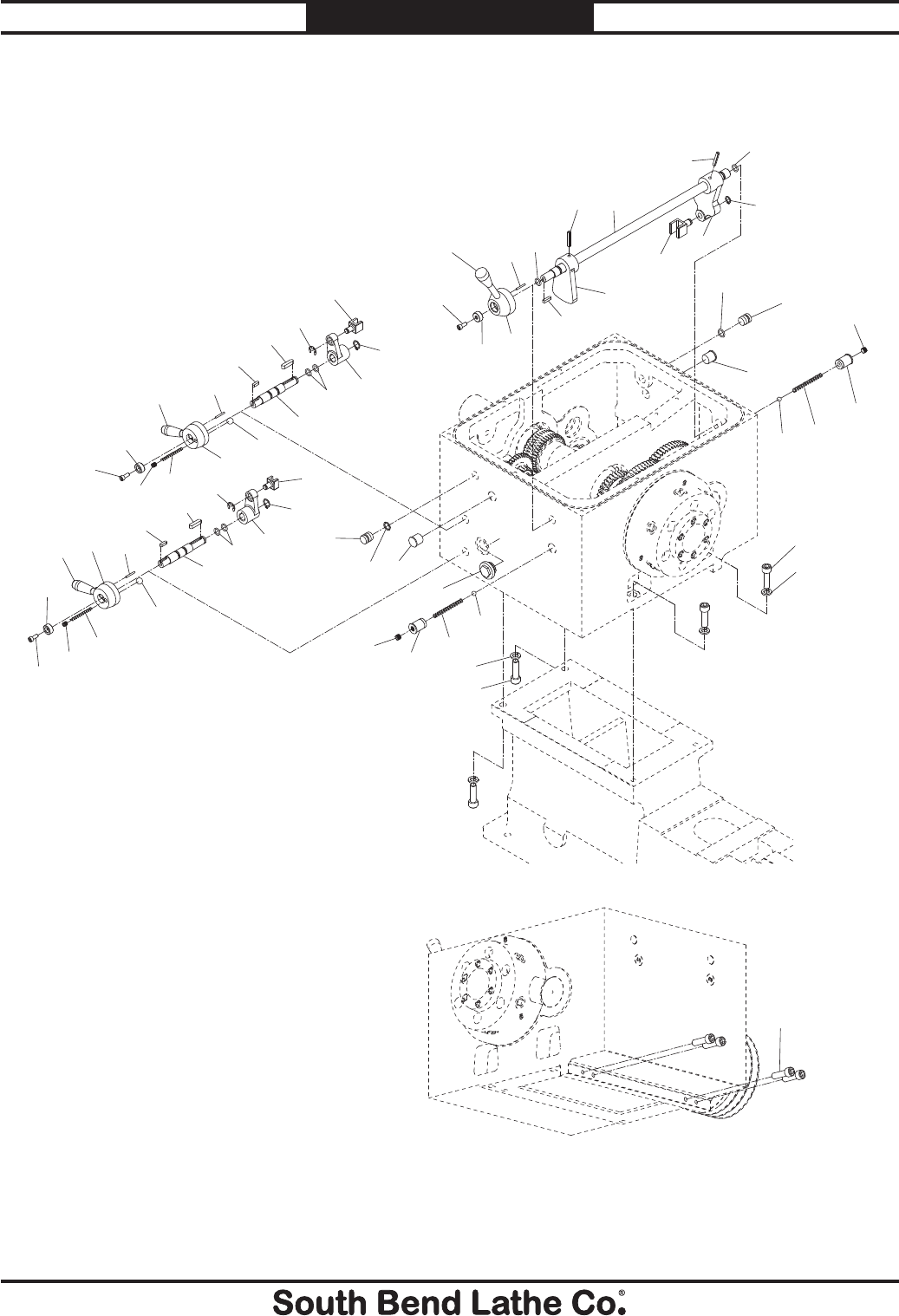

Headstock Controls
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
14
15
16
17
18
19
20
21
21
30
33
34
37
38
39
21
40
42
41
46
47
43
45 44
33
34
30
49
50
50
-4-
For Machines Mfg. Since 8/09
Model SB1037/SB1038 Parts PARTS
Headstock Controls Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
14 PSS30M SET SCREW M10-1.5 X 10 33 PSB10120033 HANDLE WASHER 6MM
15 PSB10120015 THREADED PLUG M10-1.5 34 PCAP01M CAP SCREW M6-1 X 16
16 PSB10120016 COMPRESSION SPRING M8 X 37 35 PSB10120035 SHIFT FORK
17 PSTB001M STEEL BALL 8.5MM 36 PSB10120036 SHIFT FORK
18 PSB10120018 HEADSTOCK CASTING PLUG 20MM 37 PR05M EXT RETAINING RING 15MM
19 PORP014 O-RING 13.8 X 2.4 P14 38 PSB10120038 SHIFT CAM
20 PSB10120020 HEADSTOCK CASTING PLUG 18MM 39 PEC015M E-CLIP 8MM
21 PORP021 O-RING 20.8 X 2.4 P21 40 PK12M KEY 5 X 5 X 30
22 PSB10120022 SHIFT CAM 41 PSB10120041 SHIFT ROD
23 PR03M EXT RETAINING RING 12MM 42 PK164M KEY 5 X 5 X 17
24 PSB10120024 SHIFT FORK 43 PSTB001 STEEL BALL 1/4
25 PRP31M ROLL PIN 6 X 36 44 PSB10120044 SHIFT HANDLE HUB
26 PSB10120026 SHIFT ROD 45 PSB10120045 SHORT SHIFT HANDLE
27 PRP32M ROLL PIN 6 X 40 46 PSB10120046 COMPRESSION SPRING 6 X 27
28 PSB10120028 SHIFT CAM 47 PSS20M SET SCREW M8-1.25 X 8
29 PK01M KEY 5 X 5 X 22 48 PSB10120048 OIL SIGHT GLASS
30 PRP16M ROLL PIN 3 X 25 49 PLW05M LOCK WASHER 12MM
31 PSB10120031 LONG SHIFT HANDLE 50 PCAP92M CAP SCREW M12-1.75 X 40
32 PSB10120032 SHIFT HANDLE HUB
For Machines Mfg. Since 8/09 Model SB1037/SB1038 Parts
-5-
PARTS

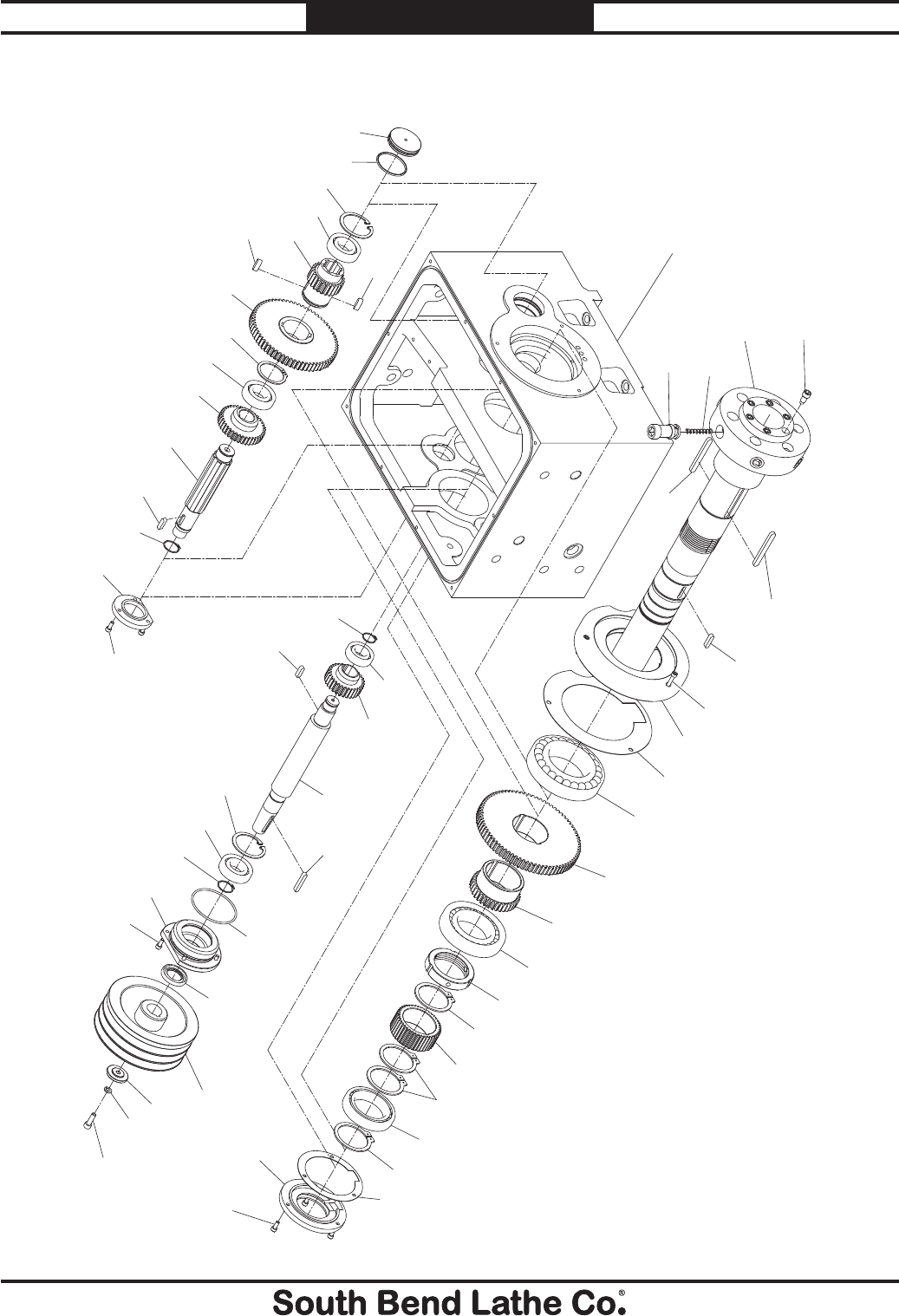

Headstock Upper Gearing
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
60
58
34
65
57
66
34
86
96
96
34
-6-
For Machines Mfg. Since 8/09
Model SB1037/SB1038 Parts PARTS
Headstock Upper Gearing Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
34 PCAP01M CAP SCREW M6-1 X 16 78 PSB10120078 SPINDLE PULLEY
55 PSB10120055 INBOARD DRIVE SHAFT END CAP 79 PSB10120079 PULLEY WASHER 8MM
56 PORG050 O-RING 54.4 X 3.1 G50 80 PLW04M LOCK WASHER 8MM
57 PR38M INT RETAINING RING 62MM 81 PCAP31M CAP SCREW M8-1.25 X 25
58 P6206-OPEN BALL BEARING 6206-OPEN 82 PSB10120082 SPINDLE BOLT
59 PSB10120059 GEAR 24T 83 PSB10120083 SPINDLE
60 PK161M KEY 10 X 8 X 25 84 PSB10120084 CAM LOCK SPRING
61 PSB10120061 GEAR 67T 85 PSB10120085 CAM LOCK
62 PR76M EXT RETAINING RING 52MM 86 PK162M KEY 10 X 6 X 85
63 PSB10120063 GEAR 38T 87 PK28M KEY 7 X 7 X 30
64 PSB10120064 DRIVE SHAFT 88 PCAP48M CAP SCREW M6-1 X 35
65 PK27M KEY 7 X 7 X 25 89 PSB10120089 FRONT SPINDLE BEARING COVER
66 PR15M EXT RETAINING RING 30MM 90 PSB10120090 BEARING COVER GASKET
67 PSB10120067 OUTBOARD DRIVE SHAFT END CAP 91 PSB10120091 TAPERED ROLLER BEARING 32019 NTN
68 PSB10140068 HEADSTOCK CASTING 92 PSB10120092 GEAR 79T
69 PR11M EXT RETAINING RING 25MM 93 PSB10120093 GEAR 36T
70 P6205-OPEN BALL BEARING 6205-OPEN 94 PSB10120094 TAPERED ROLLER BEARING 30214A NTN
71 PSB10120071 GEAR 30T 95 PSB10120095 SPANNER NUT
72 PSB10120072 INPUT SHAFT 96 PR13M EXT RETAINING RING 65MM
73 PK62M KEY 7 X 7 X 45 97 PSB10120097 GEAR 42T
74 P6206RS BALL BEARING 6206RS 98 P6013 BALL BEARING 6013-OPEN
75 PORG085 O-RING 84.4 X 3.1 G85 99 PSB10120099 END CAP GASKET
76 PSB10120076 FLANGED BEARING END CAP 100 PSB10120100 OUTBOARD SPINDLE END CAP
77 PSB10120077 OIL SEAL
For Machines Mfg. Since 8/09 Model SB1037/SB1038 Parts
-7-
PARTS
Headstock Transfer Gearing
34
66
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
34
34
112 110
109
105
34
34
112
115
110
115
121
REF PART # DESCRIPTION REF PART # DESCRIPTION
34 PCAP01M CAP SCREW M6-1 X 16 116 PSB10120116 GEAR SHAFT
66 PR15M EXT RETAINING RING 30MM 117 PR09M EXT RETAINING RING 20MM
105 PSB10120105 GEAR FENDER WASHER 6MM 118 PSB10120118 DOUBLED ENDED GEAR 12T/21T
106 PSB10120106 GEAR 21T 119 PSB10120119 GEAR SHAFT
107 PSB10120107 GEAR 42T 120 PSB10120120 GEAR 21T
108 PK99M KEY 6 X 6 X 15 121 PSB10120121 SPLINE SHAFT SPACER
109 PR12M EXT RETAINING RING 35MM 122 PSB10120122 NEEDLE BEARING RNA-6904
110 PORP021 O-RING 20.8 X 2.4 P21 123 PSB10120123 SPLINE SHAFT
111 PSB10120111 GEAR SHAFT 124 PORP044 O-RING 43.7 X 3.5 P44
112 PSB10120112 GEAR SHAFT WASHER 6MM 125 PSB10120125 FLANGED BEARING END CAP
113 PSB10120113 GEAR 42T 126 PCAP26M CAP SCREW M6-1 X 12
114 PSB10120114 GEAR SLEEVE 21T 127 PSB10120127 OIL SEAL 28 X 44 X 7
115 PSB10120115 O-RING SPACER 128 PSB10120128 SQUARE HEAD DRAIN PLUG 1/2 PT
-8-
For Machines Mfg. Since 8/09
Model SB1037/SB1038 Parts PARTS

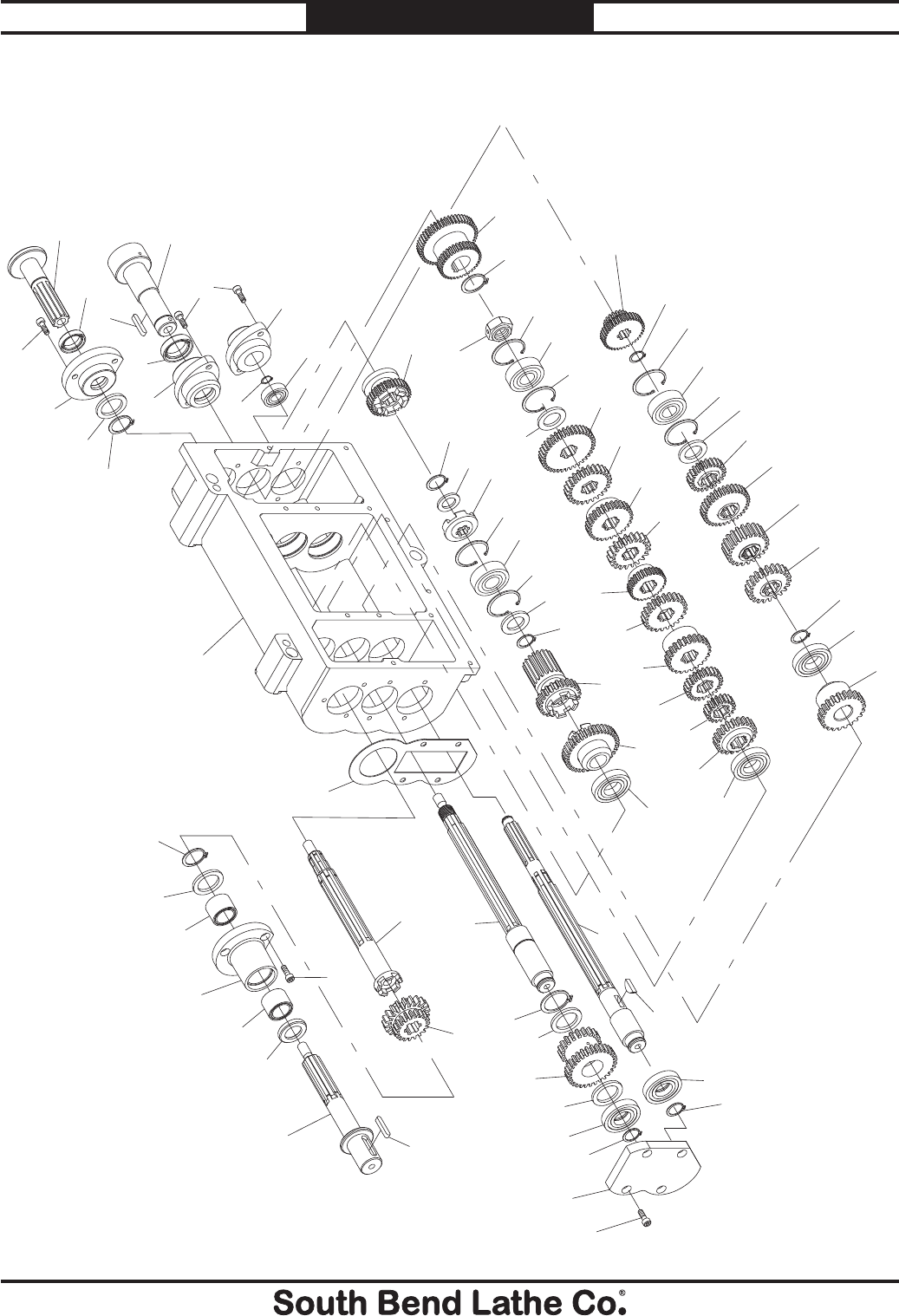

Gearbox Gearing
201
202
203
204
205 206
207
208
209
210 211 212
213 214
215
216
217
218
219
220
221 222
223
224
225
226
227
228
229
230
231 232
233
234
235
236
237
238
239
240
241
242 243
244
245
246
247
248
249
250
251
252
253
254
255 256
257
258
259
260
261
203
401
401 206
211
206
206
225
221
224
225
226
225
221
206
224
225
226
225
206
401
401
For Machines Mfg. Since 8/09 Model SB1037/SB1038 Parts
-9-
PARTS
Gearbox Gearing Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
201 PSB10120201 SPLINE SHAFT 232 PSB10120232 GEAR 19T
202 PSB10120202 OIL SEAL 20 X 32 X 5 233 PSB10120233 GEAR 20T
203 PSB10120203 SLEEVE BEARING TAF202820 234 PSB10120234 GEAR 24T
204 PSB10120204 SLEEVE BEARING HOUSING 235 PSB10120235 GEAR 23T
205 PSB10120205 SLEEVE BEARING SPACER 236 PSB10120236 GEAR 27T
206 PR09M EXT RETAINING RING 20MM 237 PSB10120237 GEAR 24T
207 PK109M KEY 7 X 7 X 35 238 PSB10120238 GEAR 28T
208 PSB10120208 DOUBLE GEAR 19/20T 239 PSB10120239 GEAR 26T
209 PSB10120209 SPLINE SHAFT 240 PSB10120240 GEAR 38T
210 PSB10120210 SPLINE SHAFT END CAP 241 PSB10120241 GEAR RETAINING NUT
211 PSB10120211 BALL BEARING 16004 242 PR10M EXT RETAINING RING 22MM
212 PSB10120212 BEARING SPACER 243 PSB10120243 DOUBLE ENDED GEAR 36T/50T
213 PSB10120213 DOUBLE-ENDED GEAR 19T/30T 244 PSB10120244 GEAR 22T
214 PSB10120214 GEAR SPACER 245 PSB10120245 GEAR 22T
215 PR11M EXT RETAINING RING 25MM 246 PSB10120246 GEAR 22T
216 PSB10120216 SPLINE SHAFT 247 PSB10120247 GEAR 33T
217 PSB10120217 SPLINE SHAFT 248 PSB10120248 GEAR 22T
218 PSB10120218 WOODRUFF KEY 5 X 19 249 PR18M EXT RETAINING RING 17MM
219 PSB10120219 END CAP GASKET 250 PSB10120250 DOUBLE GEAR 20T/36T
220 PSB10120220 GEARBOX CASTING 251 PSB10120251 END CAP SPACER
221 PSB10120211 BALL BEARING 16004 252 PSB10120252 SPLINE SHAFT END CAP
222 PSB10120222 CLUTCH GEAR 38T 253 PSB10120202 OIL SEAL 20 X 32 X 5
223 PSB10120223 DOUBLE ENDED CLUTCH GEAR 23T/19T 254 PSB10120254 SPLINE SHAFT
224 PSB10120224 SPACER 255 PSB10120255 FLANGED SLEEVE BEARING
225 PR23M INT RETAINING RING 40MM 256 PSB10120256 OIL SEAL 24 X 35 X 8
226 P6203-OPEN BALL BEARING 6203-OPEN 257 PSB10120257 GEAR SHAFT
227 PSB10120227 CLUTCH RING 258 PK15M KEY 5 X 5 X 35
228 PSB10120228 CLUTCH SPACER 259 P6001-OPEN BALL BEARING 6001-OPEN
229 PR06M EXT RETAINING RING 16MM 260 PR03M EXT RETAINING RING 12MM
230 PSB10120230 CLUTCH GEAR 35T 261 PSB10120261 FLANGED SLEEVE BEARING
231 PSB10120231 GEAR 22T 401 PCAP26M CAP SCREW M6-1 X 12
-10-
For Machines Mfg. Since 8/09
Model SB1037/SB1038 Parts PARTS

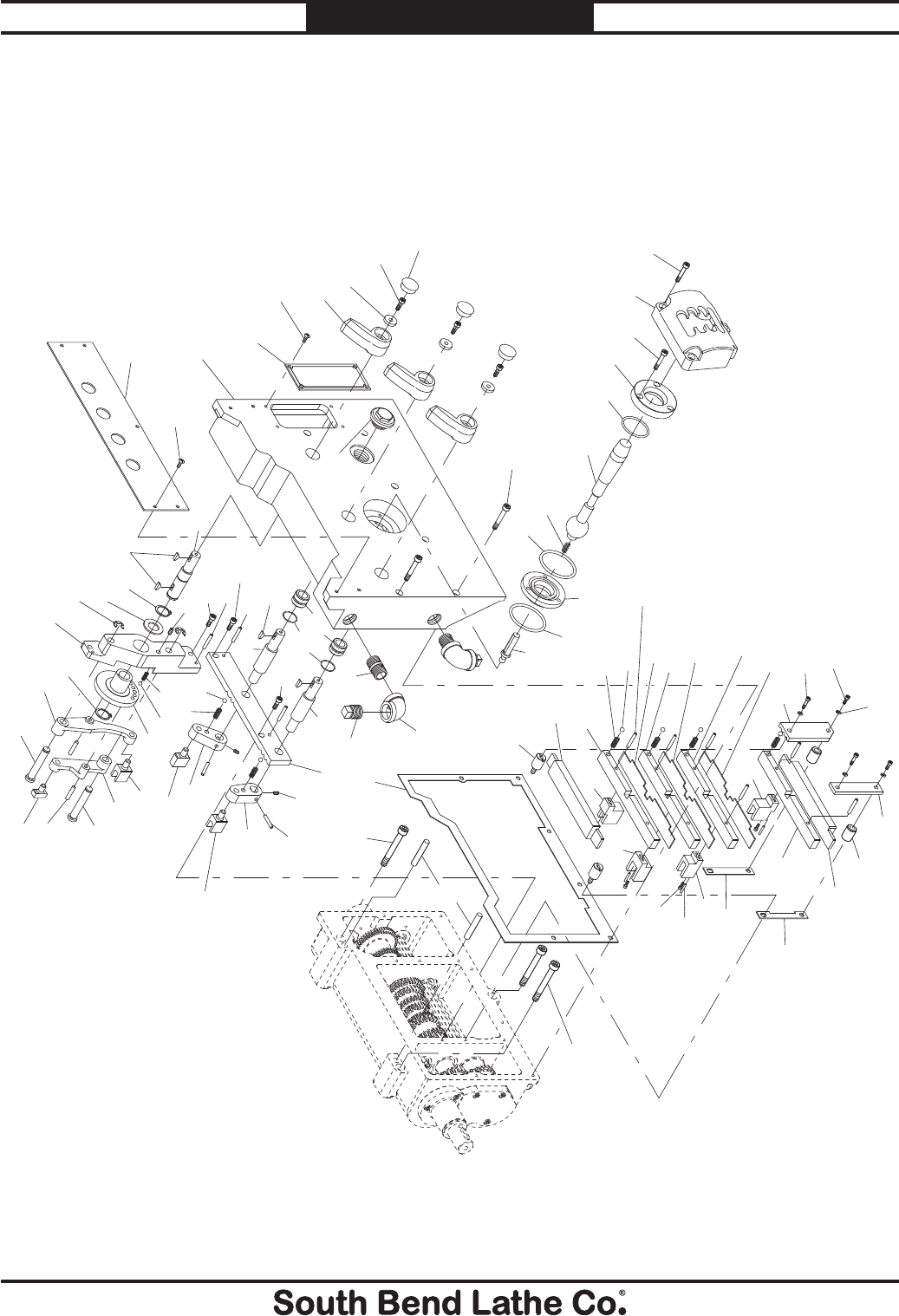

Gearbox Controls
262
263
264
265
266
267
268
269
270
271 272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294 295
296
297 298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316 317
318
319
320
321
322
323
324
402
403
404
405
406 407
408
409
411
412
413
414
415
416
415
268
268
281
264
282
283
417
306
408
297
408
302
288
414
312
For Machines Mfg. Since 8/09 Model SB1037/SB1038 Parts
-11-
PARTS
Gearbox Controls Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
262 PSB10120262 GEARBOX COVER GASKET 301 PSB10120289 WOODRUFF KEY 4 X 13
263 PSB10120263 PARTITION NUT 302 PSB10120302 SHIFT SHAFT
264 PSB10120264 UPPER PLATE 303 PORP018 O-RING 17.8 X 2.4 P18
265 PSB10120265 UPPER FORK SUPPORT 304 PSB10120304 SHIFT SHAFT SLEEVE
266 PSB10120266 COMPRESSION SPRING 4 X 19 305 PSB10120305 SHIFT FORK
267 PSTB001 STEEL BALL 1/4 306 PRP24M ROLL PIN 5 X 16
268 PSB10120268 PARTITION 307 PSB10120128 SQUARE HEAD PIPE PLUG 1/2 PT
269 PSB10120269 MIDDLE FORK SUPPORT 308 PSB10120308 PIPE ELBOW 90 DEG 1/2 X 1/2 PT
270 PSB10120270 LOWER FORK SUPPORT 309 PSB10120309 PIPE NIPPLE 1/2 X 1/2 PT X 1"
271 PSB10120271 BOTTOM FORK SUPPORT 310 PSB10120310 GEARBOX COVER
272 PSB10120272 REVERSE STOP PLATE 311 PSB10120311 SELECTOR ROD
273 PSB10120273 PARTITION SPACER 312 PORG040 O-RING 39.4 X 3.1 G40
274 PSB10120274 SHOULDER PLATE 313 PSB10120313 SELECTOR LEVER SUPPORT
275 PSB10120275 LEFT CONNECTOR PLATE 314 PSB10120314 COMPRESSION SPRING 9 X 38
276 PSB10120276 RIGHT CONNECTOR PLATE 315 PSB10120315 SELECTOR LEVER
277 PSB10120277 BOTTOM FORK 316 PORG030 O-RING 3.1 X 29.4 G30
278 PSB10120278 LOWER FORK 317 PSB10120317 SELECTOR LEVER END CAP
279 PSB10120279 MIDDLE FORK 318 PSB10120318 SELECTOR PLATE
280 PSB10120277 UPPER FORK 319 PSB10120319 SHIFTING HANDLE
281 PRP02M ROLL PIN 3 X 16 320 PSB10120015 HANDLE WASHER 5MM
282 PSB10120282 CONNECTOR PIN 321 PSB10120321 HANDLE CAP
283 PSB10120283 PIVOT ARM 322 PSB10120322 OIL SIGHT GLASS
284 PSB10120284 CAM 323 PSB10120323 CONTROL PANEL
285 PSB10120285 SHIFT BRACKET 324 PSB10120324 FEED CLUTCH COVER
286 PEC015M E-CLIP 8MM 402 PCAP15M CAP SCREW M5-.8 X 20
287 PSB10120287 BRACKET SPACER 403 PLW03M LOCK WASHER 6MM
288 PR18M EXT RETAINING RING 17MM 404 PCAP26M CAP SCREW M6-1 X 12
289 PSB10120289 WOODRUFF KEY 4 X 13 405 PCAP48M CAP SCREW M6-1 X 35
290 PSB10120290 SHIFT ROD 406 PRP04M ROLL PIN 4 X 24
291 PSB10120291 STOP BLOCK 407 PSS03M SET SCREW M6-1 X 8
292 PSB10120292 DOWEL PIN 5 X 24MM 408 PCAP02M CAP SCREW M6-1 X 20
293 PSB10120293 RIGHT SHIFT FORK 409 PCAP167M CAP SCREW M6-1 X 70
294 PSTB001 STEEL BALL 1/4 411 PCAP38M CAP SCREW M5-.8 X 25
295 PSB10120295 COMPRESSION SPRING 6.25 X 18 412 PCAP26M CAP SCREW M6-1 X 12
296 PSB10120296 STOP BLOCK 413 PCAP33M CAP SCREW M5-.8 X 12
297 PSB10120297 SHIFT ROCKER ARM 414 PS17M PHLP HD SCR M4-.7 X 6
298 PSB10120298 COMPRESSION SPRING 6 X 13 415 PCAP66M CAP SCREW M8-1.25 X 65
299 PSTB001 STEEL BALL 1/4 416 PSB10120416 TAPER PIN #3/#7 X 1/4"
300 PSB10120300 SHIFT SHAFT SUPPORT BAR 417 PSB10120417 SHIFT BRACKET SET SCREW
-12-
For Machines Mfg. Since 8/09
Model SB1037/SB1038 Parts PARTS
Apron - Front View
501 502 503
504
505
506
507
508
509
510
511
512
513
514
515
516
517 518
519
520
521
522
523
524
525
526
527
528 529 530
531
532
534
535
537
538
539
540
541
542
544
545
546
547
548
549
601
602
603
604
605
606
607
601
609
610
502
522
608
606
514
603
514
For Machines Mfg. Since 8/09 Model SB1037/SB1038 Parts
-13-
PARTS
Apron - Front View Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
501 PSB10120501 DOUBLE GEAR 18T/60T 529 PORP026 O-RING 25.7 X 3.5 P26
502 PSB10120502 GEAR SPACER 530 PSB10120530 FEED DIRECTION SHAFT SLEEVE
503 PRP20M ROLL PIN 4 X 22 531 PSB10120531 FEED DIRECTION KNOB
504 PSB10120504 DOUBLE GEAR 81T/60T 532 PSB10120532 DIRECTION PLATE
505 PSB10120505 DOWEL PIN 4 X 17MM 534 PORP012 O-RING 11.8 X 2.4 P12
506 PSB10120506 DOUBLE GEAR 72T/60T 535 PSB10120535 GEAR SHAFT
507 PSB10120507 SLEEVE BEARING 537 PSB10120266 COMPRESSION SPRING 4 X 19
508 PSB10120508 BRACKET PLUG 538 PSB10120538 SUPPORT BRACKET
509 PSB10120509 FEED CONTROL BRACKET 539 PSB10120539 GEAR SHAFT 18T
510 PSB10120510 OIL CUP 540 PSB10120218 WOODRUFF KEY 5 X 19
511 PSB10120511 SPLINE SHAFT 541 PSB10120541 INCH GEAR SHAFT SLEEVE
512 PSB10120512 FEED CONTROL HANDLE 542 PSB10120542 INCH INDEX RING
513 PSB10120513 FEED CONTROL WORM 544 PSB10120515 COMPRESSION SPRING 6 X 16
514 PSTB001 STEEL BALL 1/4 545 PSB10120545 HANDWHEEL
515 PSB10120515 COMPRESSION SPRING 6 X 16 546 PSB10120546 HANDWHEEL WASHER 6MM
516 PSB10120516 GEAR SHAFT 547 PSB10120547 HANDWHEEL HANDLE
517 PK14M KEY 5 X 5 X 18 548 PSB10120548 HANDLE CAP SCREW
518 PSB10120518 INCH GEAR 81T 549 PSB10120549 SAFETY PLATE
519 PRP10M ROLL PIN 5 X 36 601 PSS26M SET SCREW M5-.8 X 6
520 PSB10120520 OIL SIGHT GLASS 602 PCAP79M CAP SCREW M5-.8 X 35
521 PR06M EXT RETAINING RING 16MM 603 PSS20M SET SCREW M8-1.25 X 8
522 PSB10120522 GEAR 18T 604 PCAP33M CAP SCREW M5-.8 X 12
523 PORP018 O-RING 17.8 X 2.4 P18 605 PW03M FLAT WASHER 6MM
524 PSB10120524 GEAR SHAFT 606 PCAP06M CAP SCREW M6-1 X 25
525 PRP04M ROLL PIN 4 X 24 607 PSS12M SET SCREW M6-1 X 25
526 PSB10120526 FEED DIRECTION PIVOT ARM 608 PCAP01M CAP SCREW M6-1 X 16
527 PSB10120527 FEED DIRECTION SHAFT 609 PW03M FLAT WASHER 6MM
528 PORP016 O-RING 15.8 X 2.4 P16 610 PCAP38M CAP SCREW M5-.8 X 25
-14-
For Machines Mfg. Since 8/09
Model SB1037/SB1038 Parts PARTS

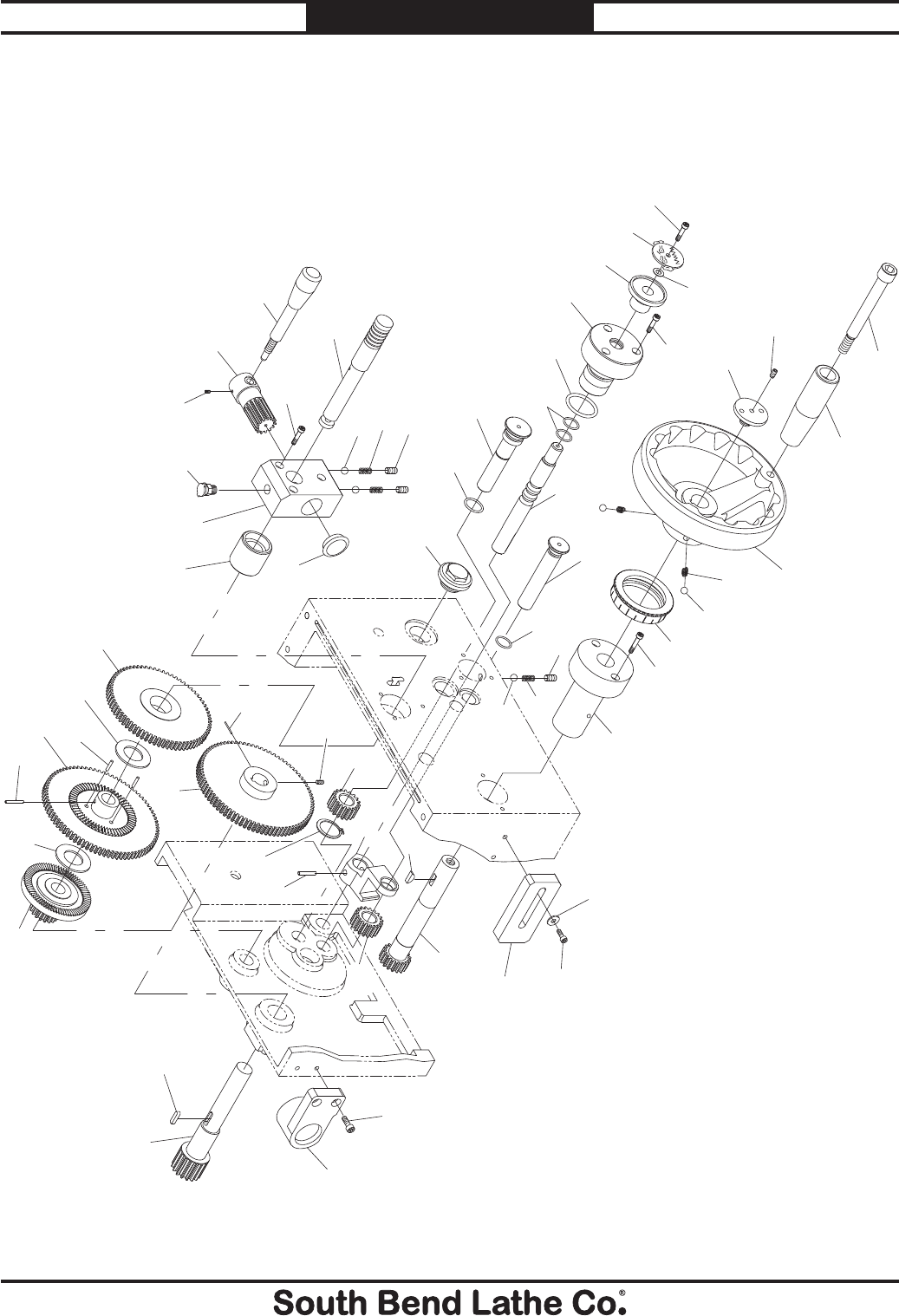

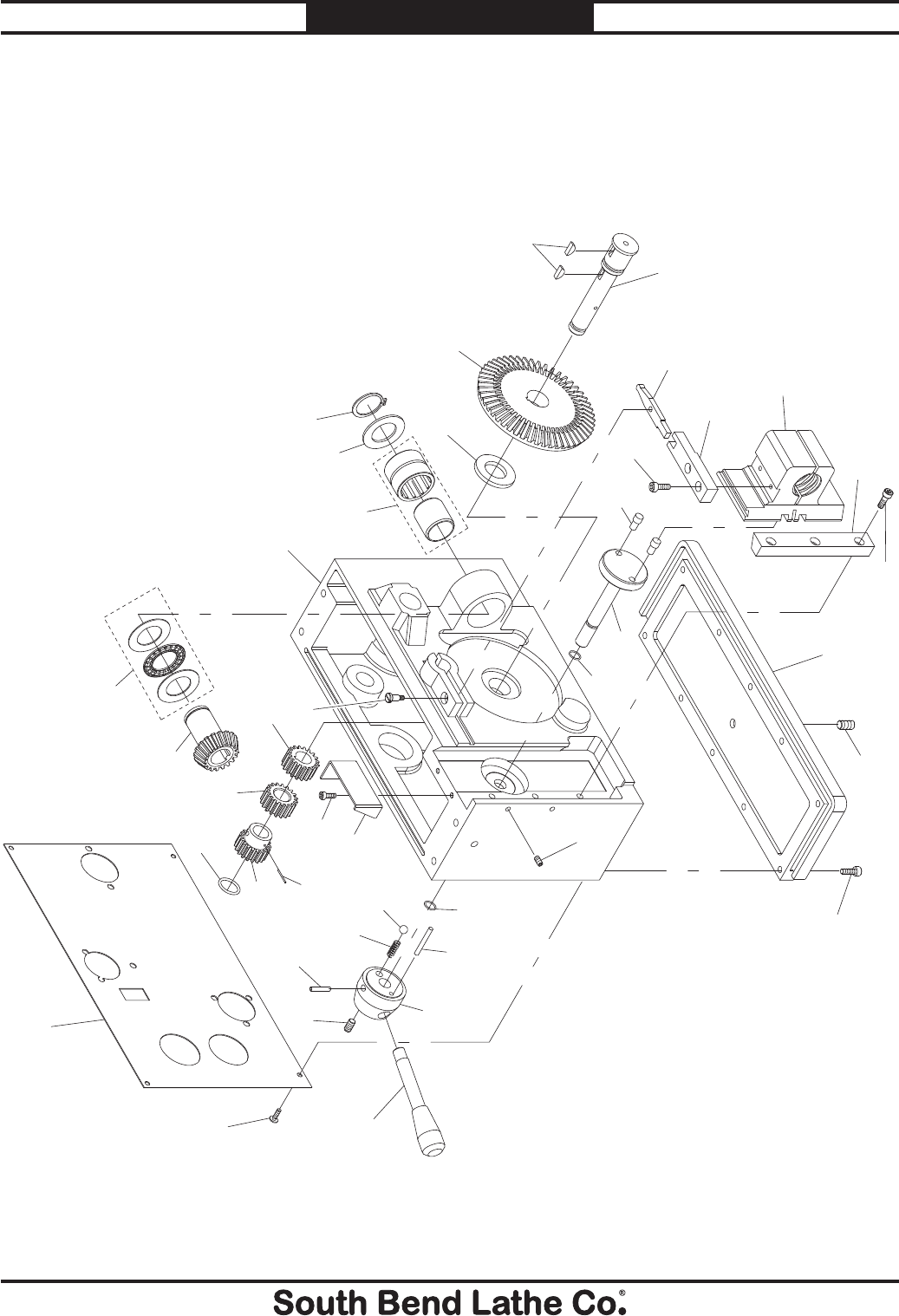

Apron - Rear View
514
522
534
550
551
552
553
554
555
556
558
559
561
562 563
565
566
567
568
569
570
572 573
574
575 576
577
578
579
580
581
582
583
611
612
613
614
613
608
573
614
For Machines Mfg. Since 8/09 Model SB1037/SB1038 Parts
-15-
PARTS
Apron - Rear View Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
514 PSTB001 STEEL BALL 1/4 569 PSB10120569 HALF-NUT LEVER HUB
522 PSB10120522 GEAR 18T 570 PSB10120046 COMPRESSION SPRING 6 X 27
534 PORP012 O-RING 11.8 X 2.4 P12 572 PRP04M ROLL PIN 4 X 24
550 PSB10120550 APRON FRONT PLATE 573 PORP020 O-RING 19.8 X 2.4 P20
551 PSB10120551 BEVEL GEAR 23T 574 PSB10120574 CLAMP STEP SCREW
552 PSB10120552 THRUST BEARING NTB/AS-2542 575 PSB10120575 CAM SHAFT
553 PSB10120553 APRON CASTING 576 PSB10120576 STEP PIN
554 PSB10120554 NEEDLE BEARING NK29/30 577 PSB10120577 PIVOT LEVER
555 PSB10120555 BEARING SPACER 578 PSB10120578 RETAINING BLOCK
556 PR11M EXT RETAINING RING 25MM 579 PSB10120579 INCH HALF-NUT
558 PSB10120558 GEAR 18T 580 PSB10120580 HALF-NUT GIB
559 PRP88M ROLL PIN 5 X 22 581 PSB10120581 APRON CASTING BOTTOM COVER
561 PSB10120561 GEAR 18T 582 PSB10120582 OIL DRAIN PLUG 1/8 PT
562 PSB10120562 GEAR SPACER 583 PRP102M ROLL PIN 4 X 36
563 PSB10120563 BEVEL GEAR 64T 608 PCAP01M CAP SCREW M6-1 X 16
565 PSB10120289 WOODRUFF KEY 4 X 13 611 PS17M PHLP HD SCR M4-.7 X 6
566 PSB10120566 HALF-NUT LEVER SHAFT 612 PCAP03M CAP SCREW M5-.8 X 8
567 PSB10120567 OIL FENCE 613 PSS02M SET SCREW M6-1 X 6
568 PSB10120568 HALF-NUT LEVER 614 PCAP24M CAP SCREW M5-.8 X 16
-16 -
For Machines Mfg. Since 8/09
Model SB1037/SB1038 Parts PARTS

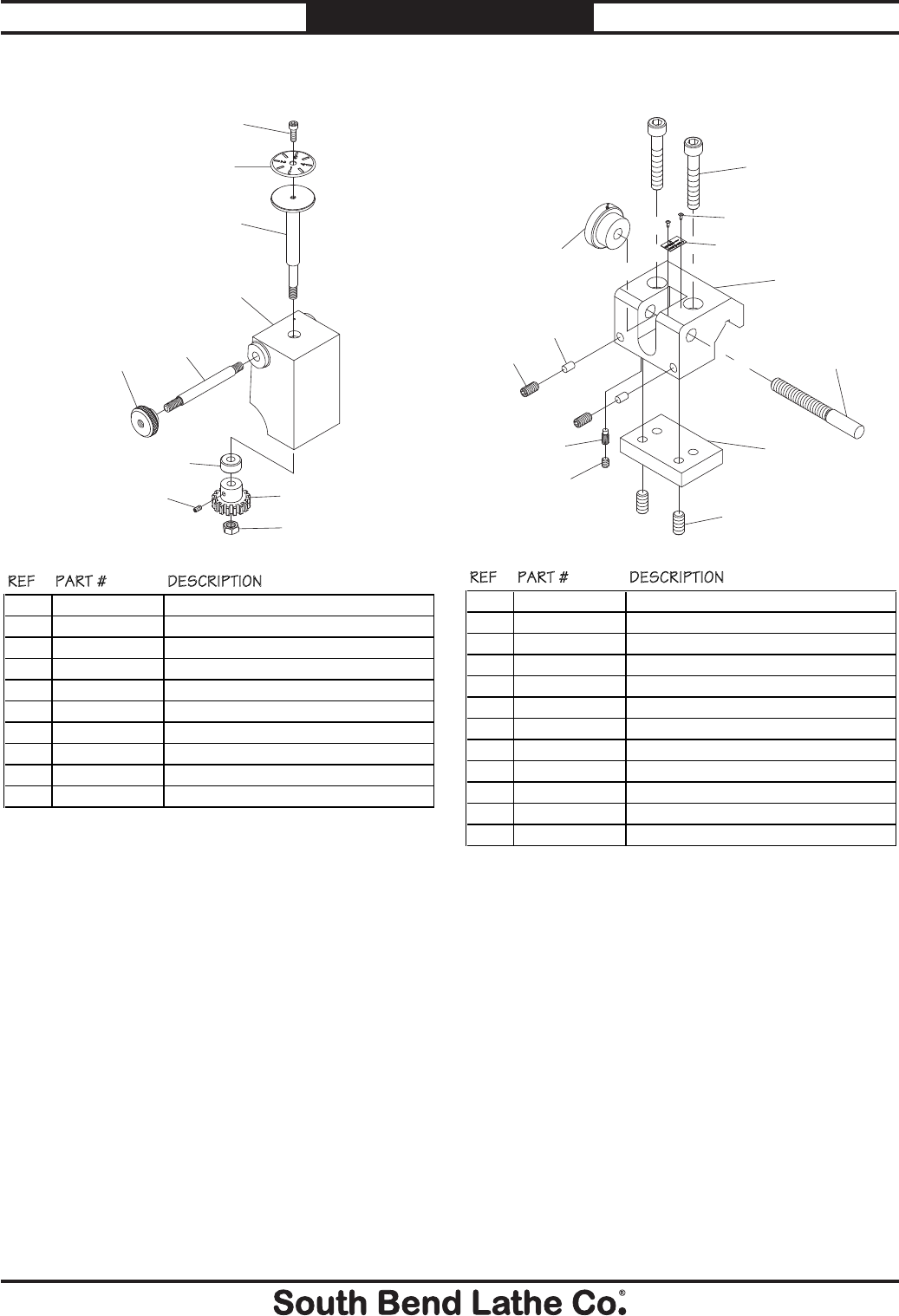

Dial Indicator
701
702
703
704
705
707
708
751
753
754
REF PART # DESCRIPTION
701 PSB10120701 DIAL INDICATOR INDEX PLATE
702 PSB10120702 PIVOT SHAFT
703 PSB10120703 DIAL INDICATOR CASTING
704 PSB10120704 KNURLED KNOB
705 PSB10120705 DOUBLE-THREADED STUD
707 PSB10120707 GEAR SPACER
708 PSB10120708 DIAL GEAR 16T
751 PCAP04M CAP SCREW M6-1 X 10
753 PSS02M SET SCREW M6-1 X 6
754 PN03M HEX NUT M8-1.25
Carriage Stop
801
802
803
804
805
806
807
808
809
810
811
812
REF PART # DESCRIPTION
801 PCAP71M CAP SCREW M10-1.5 X 60
802 PRIV001M STEEL FLUTED RIVET 2 X 5MM
803 PSB10120803 INCH INDEX RING
804 PSB10120804 INCH MICROMETER DIAL
805 PSB10120805 CARRIAGE STOP BODY
806 PSB10120806 INCH THREADED STOP ROD
807 PSB10120807 CLAMP PLATE
808 PSS10M SET SCREW M10-1.5 X 20
809 PSB10120809 COPPER PLUNGER
810 PSS06M SET SCREW M8-1.25 X 16
811 PSB10120811 EXTENDED POINT SET SCREW M6-1 X 12
812 PSS14M SET SCREW M8-1.25 X 12
For Machines Mfg. Since 8/09 Model SB1037/SB1038 Parts
-17-
PARTS
Compound Slide & Tool Post
REF PART # DESCRIPTION REF PART # DESCRIPTION
901 PSB10120901 TOOL POST HANDLE 918 PSB10120918 LEADSCREW SUPPORT BRACKET
902 PSB10120902 TURRET NUT 919 PSB10120919 DUAL INDEX RING
903 PSB10120903 TURRET NUT COLLAR 920 PSB10120920 WAVY WASHER 35 X 45 X 0.3
904 PSB10120904 TOOL POST BOLT 921 PSB10120921 LEADSCREW BEARING HOUSING
905 PSB10120905 TOOL POST BODY 922 PSB10120922 BALL HANDLE
906 PSB10120906 TOOL POST STUD 923 PSB10120923 HANDLE
907 PSB10120907 BEVELED PLUNGER 924 PSB10120924 TOOL POST BOLT KEY
908 PSB10120908 COMPRESSION SPRING 6 X 27 951 PCAP01M CAP SCREW M6-1 X 16
909 PSB10120909 TOOL POST BASE 952 PSS04M SET SCREW M6-1 X 12
910 PSB10120910 COMPOUND SLIDE 953 PCAP26M CAP SCREW M6-1 X 12
911 PSB10120911 COMPOUND GIB 954 PRIV001M STEEL FLUTED RIVET 2 X 5MM
912 PSB10120912 GIB ADJUSTMENT SCREW 955 PSS14M SET SCREW M8-1.25 X 12
913 PSB10140913 COMPOUND SWIVEL BASE 956 PLUBE001 TAP-IN BALL OILER 1/4
914 PSB10120914 COMPOUND LEADSCREW NUT 957 PSTB001 STEEL BALL 1/4
915 PSB10120915 COMPOUND LEADSCREW 958 PSS14M SET SCREW M8-1.25 X 12
916 P51101 THRUST BEARING 51101 959 PSS03M SET SCREW M6-1 X 8
917 PSB10120917 INDEX PLATE
901
902
903
904
905
906 907
908
909
910
911
912
913
914
915
916
917
918
919
920
921 922
923
924
951
952
953
954
955
956
957
958
959
912
916
-18-
For Machines Mfg. Since 8/09
Model SB1037/SB1038 Parts PARTS

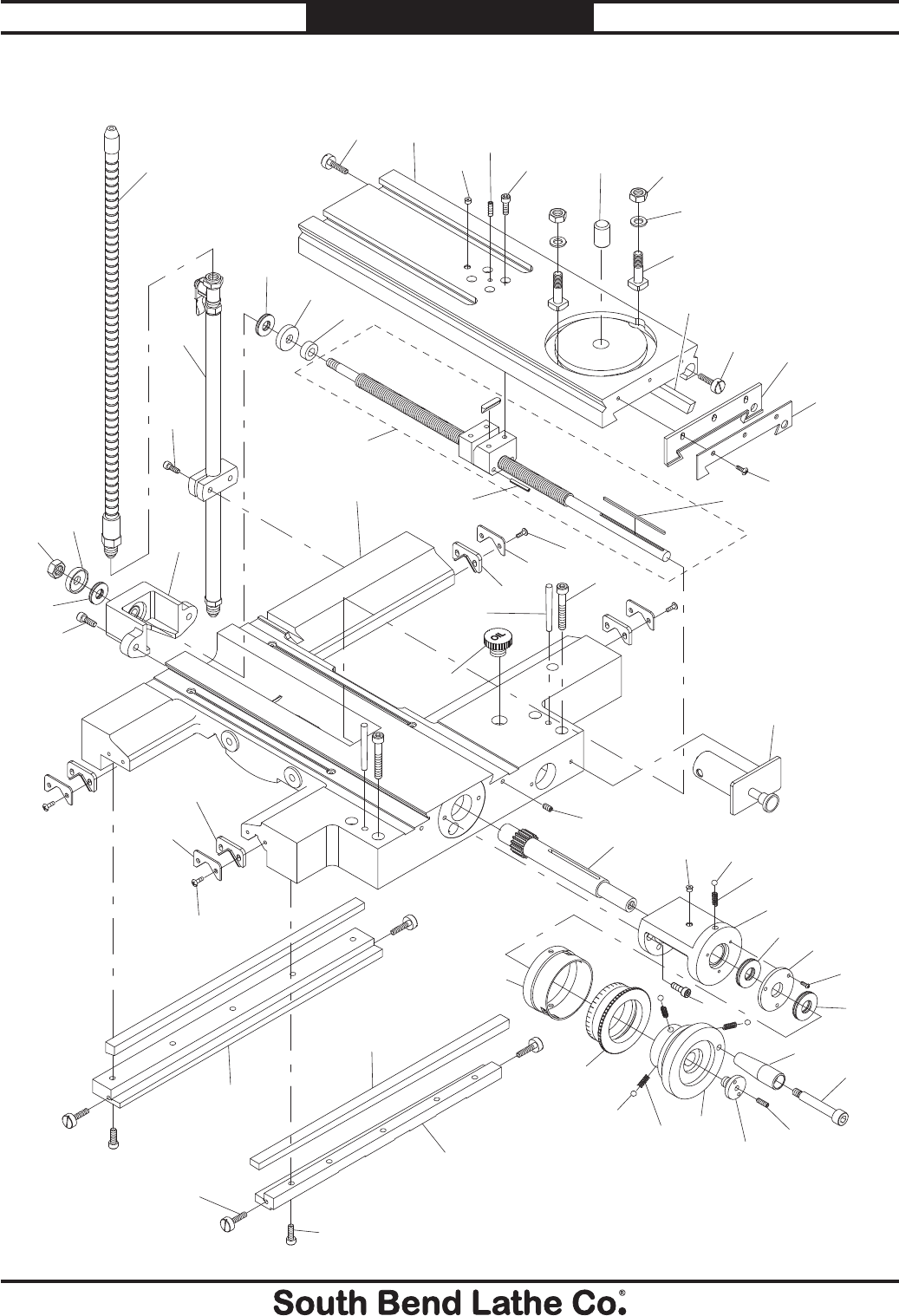

Saddle Body & Controls
1001 1002
1003
1004
1005
1006
1007
1008
1009
1010
1013A
1014
1015
1016
1017
1018
1019
1022
1023
1024
1025
1026
1027
1028
1029
1030
1031
1032
1033
1034
1035
1036
1037
1038
1039
1040
1051
1101
1102
1103 1104
1105
1106
1107
1108
1109
1110
1111
1112
1113
1114
1001
1008
1009
1106
1101
1030
1102
1028
1029
1024
1025
1106
1001
For Machines Mfg. Since 8/09 Model SB1037/SB1038 Parts
-19-
PARTS
Saddle Body & Controls Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1001 PSB10121001 CROSS GIB ADJUSTMENT SCREW 1031 PSB10121031 BEARING CAP 18 X 52 X 4
1002 PSB10121002 CROSS SLIDE 1032 PSB10121032 INDEX DIAL HOUSING
1003 PSB10121003 PIVOT STUD 18 X 28 1033 PSB10121033 DUAL INDEX RING
1004 PSB10121004 COMPOUND T-BOLT 1034 PSB10121034 CARRIAGE HANDWHEEL
1005 PSB10121005 CROSS SLIDE GIB 1035 PSB10121035 HANDWHEEL WASHER 6MM
1006 PSB10121006 CROSS WAY WIPER 1036 PSB10121036 HANDWHEEL HANDLE
1007 PSB10121007 CROSS WAY WIPER PLATE 1037 PSB10121037 HANDWHEEL HANDLE SCREW
1008 PSB10121008 THRUST BEARING NTB/AS2-1226 1038 PSB10121038 SADDLE GIB
1009 PSB10121009 BEARING COLLAR 1039 PSB10121039 REAR GIB PRESSURE BAR
1010 PSB10121010 LEADSCREW SLEEVE BEARING 1040 PSB10121040 FRONT GIB PRESSURE BAR
1013A PSB10121013A CROSS LEADSCREW W/NUT ASSY 1051 PSB10121051 SADDLE OIL PUMP ASSEMBLY
1014 PK165M KEY 3 X 3 X 100 1101 PLUBE001 TAP-IN BALL OILER 1/4
1015 PRP28M ROLL PIN 5 X 40 1102 PSS28M SET SCREW M6-1 X 30
1016 PSB10121016 COOLANT NOZZLE 3/8 PT X 24" 1103 PCAP07M CAP SCREW M6-1 X 30
1017 PSB10121017 COOLANT STAND PIPE/VALVE 3/8 PT 1104 PN02M HEX NUT M10-1.5
1018 PSB10121018 CROSS LEADSCREW END BRACKET 1105 PW04M FLAT WASHER 10MM
1019 PSB10121019 SADDLE 1106 PS08M PHLP HD SCR M5-.8 X 12
1022 PSB10121022 SADDLE OIL FILL PLUG 1107 PCAP06M CAP SCREW M6-1 X 25
1023 PSB10121023 TAPER PIN #6 X #2 X 3/4" 1108 PN02M HEX NUT M10-1.5
1024 PSB10121024 BEDWAY WIPER 1109 PCAP02M CAP SCREW M6-1 X 20
1025 PSB10121025 BEDWAY WIPER PLATE 1110 PCAP35M CAP SCREW M8-1.25 X 60
1026 PSB10121026 PINION 160DP 16T 1111 PSS03M SET SCREW M6-1 X 8
1027 PSB10121027 PINION BRACKET 1112 PCAP17M CAP SCREW M4-.7 X 10
1028 PSTB001 STEEL BALL 1/4 1113 PCAP02M CAP SCREW M6-1 X 20
1029 PSB10121029 COMPRESSION SPRING 6 X 15 1114 PCAP02M CAP SCREW M6-1 X 20
1030 PSB10121030 THRUST BEARING NTB/AS2 1730
-20-
For Machines Mfg. Since 8/09
Model SB1037/SB1038 Parts PARTS

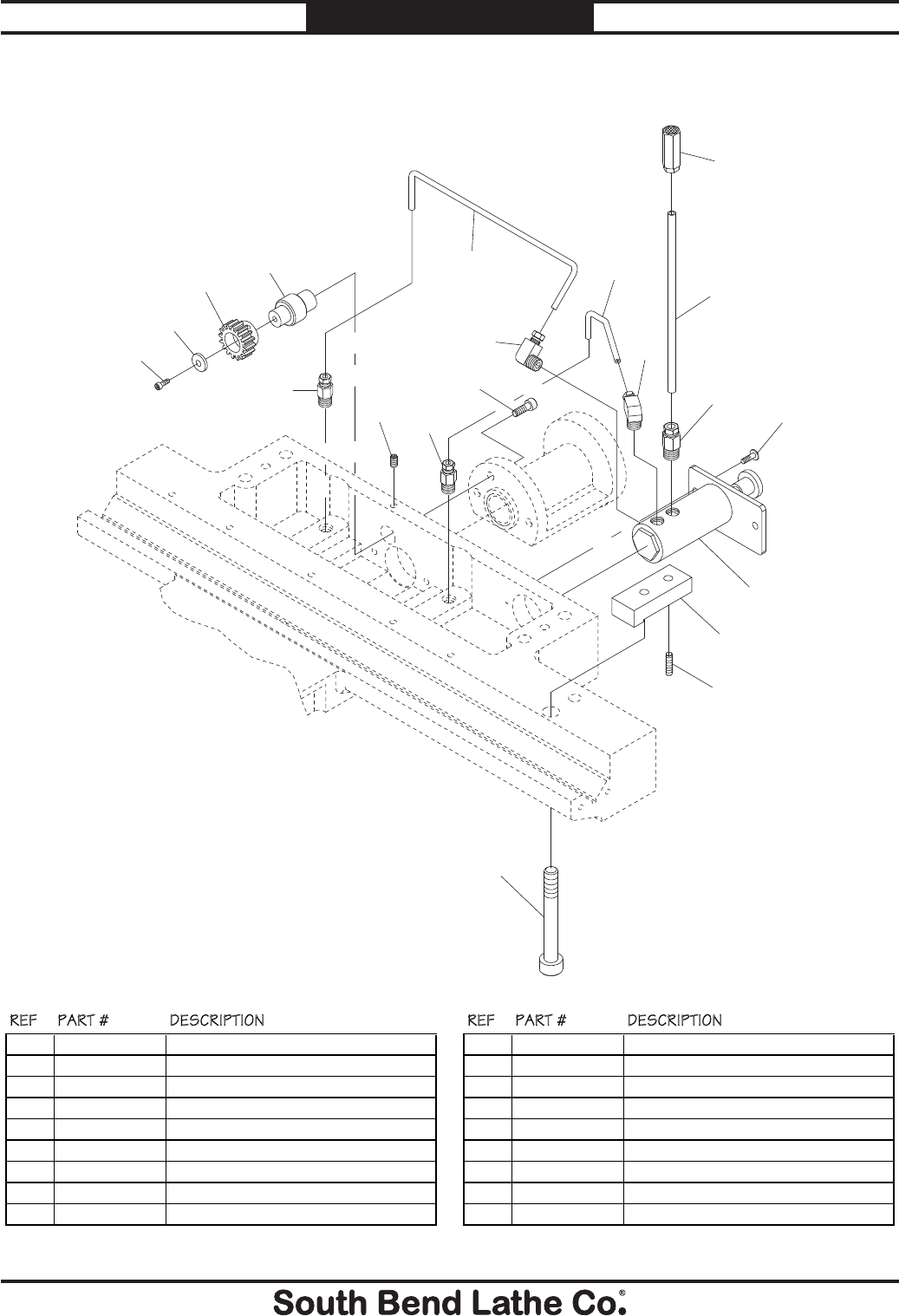

Saddle Base
REF PART # DESCRIPTION REF PART # DESCRIPTION
1041 PSB10121041 GEAR WASHER 5MM 1050 PSB10121050 STRAIGHT PIPE ADAPTER 1/8 PT X 6MM
1042 PSB10121042 GEAR 16T 1051 PSB10121051 SADDLE OIL PUMP ASSEMBLY
1043 PSB10121043 GEAR SHAFT 1052 PSB10121052 SUPPORT BRACKET
1044 PSB10121044 STRAIGHT PIPE ADAPTER 1/8 PT X 4MM 1106 PS08M PHLP HD SCR M5-.8 X 12
1045 PSB10121045 ALUMINUM TUBE 4 X 260MM 1111 PSS03M SET SCREW M6-1 X 8
1046 PSB10121046 ELBOW ADAPTER 1/8 PT X 4MM 1113 PCAP02M CAP SCREW M6-1 X 20
1047 PSB10121047 ALUMINUM TUBE 4 X 120MM 1115 PCAP24M CAP SCREW M5-.8 X 16
1048 PSB10121048 OIL FILTER 6MM 1116 PSS74M SET SCREW M8-1.25 X 35
1049 PSB10121049 ALUMINUM TUBE 6 X 160MM 1117 PCAP169M CAP SCREW M12-1.75 X 75
1041
1042
1043
1044
1045
1046
1047
1049
1050
1051
1052
1106
1111
1113
1115
1116
1117
1046
1048
1044
For Machines Mfg. Since 8/09 Model SB1037/SB1038 Parts
-21-
PARTS

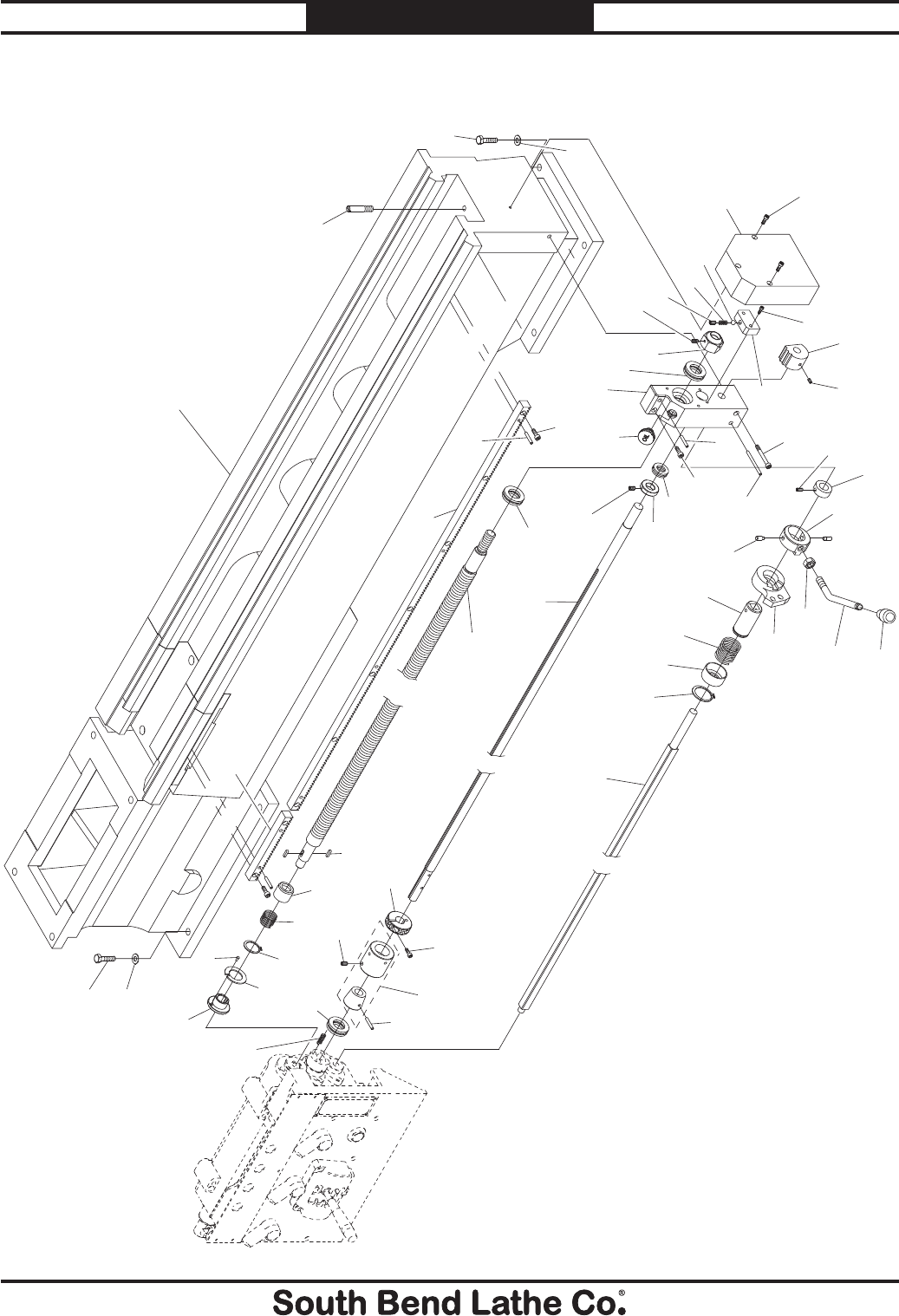

Bed & Shafts
1201
1202
1203
1204
1205
1206
1207
1208
1209
1210
1211
1212
1213
1214
1215
1216
1217
1218
1219
1220
1221
1222
1223A
1225
1226
1227
1228
1229
1230
1232
1234
1235
1236
1237
1301
1302
1303
1304
1305
1306
1307
1308
1309
1310
1311
1312
1314
1315
1316
1317
1318
1319
1231
1238
1218
1318
1318
1228
1313
1316
1317
-22-
For Machines Mfg. Since 8/09
Model SB1037/SB1038 Parts PARTS
Bed & Shafts Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1201 PSB10121201 BED CASTING 1230 PSB10121230 INCH LEADSCREW 4 TPI
1202 PSB10121202 BED END STOP BOLT 1231 PSB10121231 LEADSCREW SLEEVE BEARING
1203 PSB10121203 SHAFT END BRACKET COVER 1232 PSB10121232 COMPRESSION SPRING 27 X 55
1204 PSB10121204 FEED ROD END BRACKET 1234 PSB10121234 LEADSCREW SHEAR PIN
1205 PSTB002 STEEL BALL 5/16 1235 PSB10121235 SHEAR PIN WASHER
1206 PSB10121206 COMPRESSION SPRING 8 X 27 1236 PSB10121236 SHEAR PIN COLLAR
1207 PSB10121207 SPINDLE ROD END BRACKET 1237 PSB10121237 LONGITUDINAL RACK
1208 PSB10121208 SHAFT END BRACKET 1238 PSB10121238 GAP RACK
1209 PSB10121209 LOCK COLLAR 1301 PCAP83M CAP SCREW M6-1 X 55
1210 PSB10121210 SPINDLE LEVER HUB 1302 PSS11M SET SCREW M6-1 X 16
1211 PSB10121211 STEP PIN 1303 PCAP06M CAP SCREW M6-1 X 25
1212 PSB10121212 SPINDLE ROD LEVER 1304 PSS30M SET SCREW M10-1.5 X 10
1213 PSB10121213 SPINDLE ROD LEVER KNOB 1305 PCAP128M CAP SCREW M8-1.25 X 70
1214 PSB10121214 SPINDLE LEVER HUB BRACKET 1306 PSB10121306 TAPER PIN #7 X #3 X 1/4"
1215 PSB10121215 SPINDLE ROD SLEEVE 1307 PSB10121307 DOWEL PIN #2 X 2"
1216 PSB10121216 COMPRESSION SPRING 38 X 75 1308 PCAP40M CAP SCREW M8-1.25 X 35
1217 PSB10121217 SPRING HOUSING 1309 PN09M HEX NUT M12-1.75
1218 PR37M EXT RETAINING RING 32MM 1310 PK20M KEY 5 X 5 X 15
1219 PSB10121219 SPINDLE ROD 1311 PCAP02M CAP SCREW M6-1 X 20
1220 PSB10121220 THRUST BEARING NTB/AS2 1831 1312 PSB10121312 DOWEL PIN 4 X 30MM
1221 PSB10121221 FEED ROD 1313 PRP93M ROLL PIN 6 X 25
1222 PSB10121222 FEED ROD LOCK COLLAR 1314 PCAP02M CAP SCREW M6-1 X 20
1223A PSB10121223A CLUTCH COLLAR ASSEMBLY 1315 PSS02M SET SCREW M6-1 X 6
1225 P51203 THRUST BEARING 51203 1316 PW06M FLAT WASHER 12MM
1226 PSB10121226 COMPRESSION SPRING 9 X 32 1317 PB24M HEX BOLT M12-1.75 X 45
1227 PSB10121227 LEADSCREW LOCK NUT 1318 PSS03M SET SCREW M6-1 X 8
1228 P51105 THRUST BEARING 51105 1319 PSB10121319 FEED ROD LOCK COLLAR
1229 PSB10121229 OIL FILL PLUG
For Machines Mfg. Since 8/09 Model SB1037/SB1038 Parts
-23-
PARTS
End Gears
REF PART # DESCRIPTION REF PART # DESCRIPTION
1401 PCAP02M CAP SCREW M6-1 X 20 1411 PSB10121411 BEARING SPACER
1402 PSB10121402 GEAR WASHER 6MM 1412 PSB10121412 GEAR SHAFT BUSHING
1403 PSB10141403 GEAR 24T 1413 PSB10121413 GEAR SHAFT
1404 PSB10141404 PIVOT ARM 1414 PK28M KEY 7 X 7 X 30
1405 PK166M KEY 7 X 7 X 15 1415 PSB10121415 PIVOT ARM STUD
1406 PN32M HEX NUT M14-2 1416 PCAP14M CAP SCREW M8-1.25 X 20
1407 PSB10121407 GEAR WASHER 14MM 1417 PSB10121417 GEAR WASHER 8MM
1408 PR25M INT RETAINING RING 47MM 1418 PSB10141418 GEAR 57T
1409 PSB10141409 DOUBLE GEAR 44T/56T 1419 PSB10121419 GEAR BUSHING
1410 P6005ZZ BALL BEARING 6005ZZ
1401
1402
1403
1404
1405
1406
1407
1408
1409
1410
1411
1412
1413
1414
1415
1416
1417
1418
1419
1408
1406
1407
1406
-24-
For Machines Mfg. Since 8/09
Model SB1037/SB1038 Parts PARTS

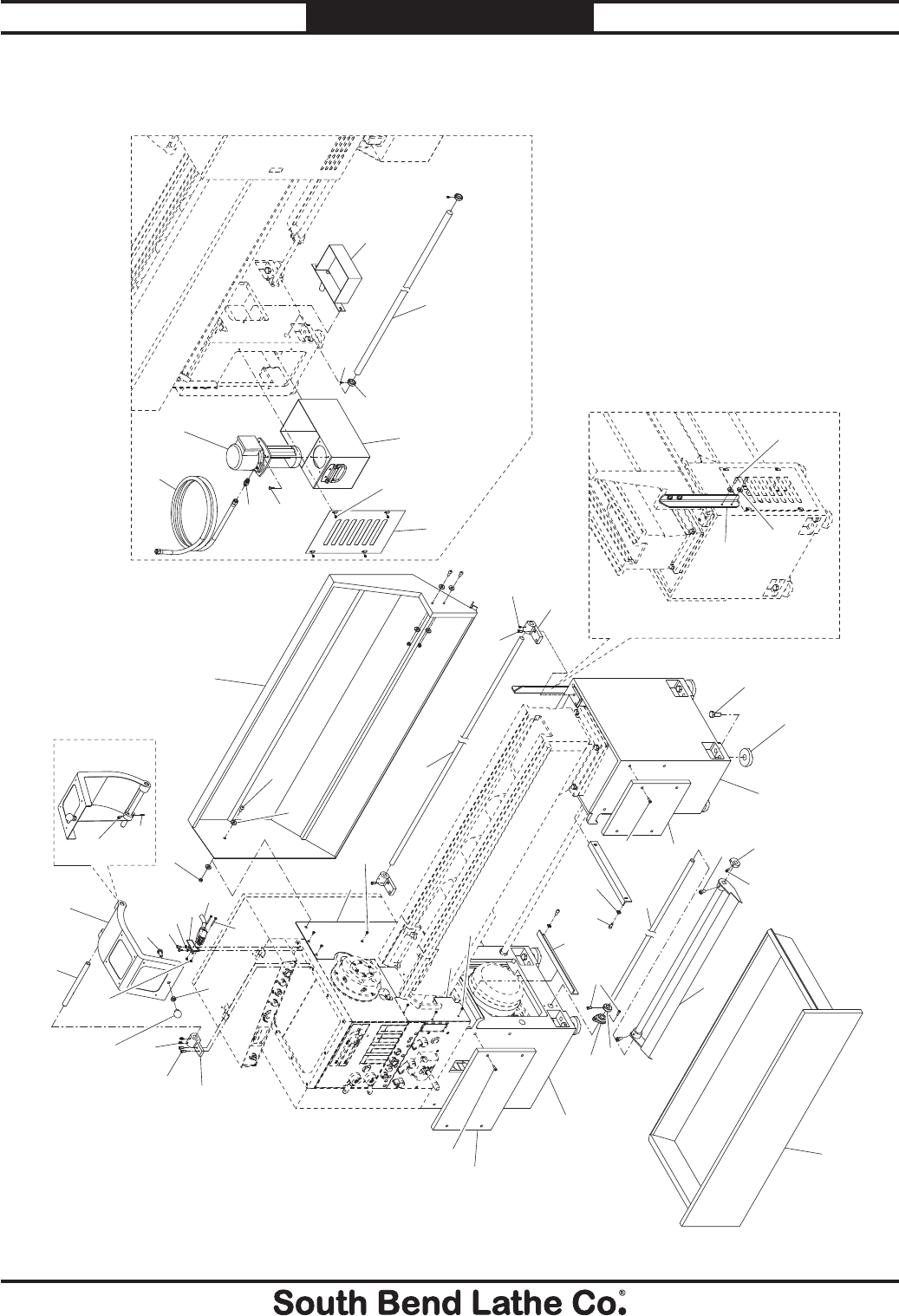

Motor Assembly
1501
1504
1505
1506
1507
1508
1509
1510
1511
1512
1513
1514
1515
1516
1517
1518
1519
1519-1
1519-2
1519-3
1520
1521
1522
1523
1524
1525
1526
1527
1528
1529
1530
1531
1532
1533
1534
1535
1536
1537
1538
1502
1502
1502
1503
1503
1523
1516
1506
1531
1533
1531
1533
1502
1530
For Machines Mfg. Since 8/09 Model SB1037/SB1038 Parts
-25-
PARTS
Motor Assembly Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1501 PSB10121501 SIDE COVER MOUNTING PIN 1519-3 PSB10141519-3 MOTOR JUNCTION BOX
1502 PN02M HEX NUT M10-1.5 1520 PSB10121520 SIDE COVER MOUNTING STUD
1503 PW04M FLAT WASHER 10MM 1521 PS68M PHLP HD SCR M6-1 X 10
1504 PSB10121504 LEFT TOP SIDE COVER 1522 PSB10121522 MOTOR COVER
1505 PSB10121505 KNURLED SIDE COVER KNOB M10-1.5 1523 PN03M HEX NUT M8-1.25
1506 PCAP64M CAP SCREW M10-1.5 X 25 1524 PSB10121524 SPRING MOUNTING STUD
1507 PSB10121507 PULLEY WASHER 10 X 39 X 5MM 1525 PSB10121525 BRAKE BELT EXTENSION SPRING
1508 PVB69 V-BELT B69 1526 PCAP60M CAP SCREW M8-1.25 X 55
1509 PSB10121509 MOTOR PULLEY 1527 PSB10121527 MOUNTING INSERT
1510 PCAP01M CAP SCREW M6-1 X 16 1528 PSB10121528 MOTOR MOUNTING 10T/395 X 300MM
1511 PSB10121511 TAPER PIN #4 X #1 X 3/4" 1529 PB31M HEX BOLT M10-1.5 X 40
1512 PSB10121512 BRAKE BELT BRACKET 1530 PLW06M LOCK WASHER 10MM
1513 PEC09M E-CLIP 6MM 1531 PN13M HEX NUT M16-2
1514 PSB10121514 BRAKE BELT ADJUSTMENT BAR 1532 PSB10121532 ALL-THREAD STUD M16-2 X 170
1515 PCAP45M CAP SCREW M8-1.25 X 45 1533 PW08M FLAT WASHER 16MM
1516 PW01M FLAT WASHER 8MM 1534 PSB10121534 RUBBER CUSHION SLEEVE
1517 PSB10121517 BRAKE BELT 1535 PSB10121535 MOTOR SUPPORT SHAFT
1518 PSB10121518 CAPTIVE PIN 1536 PN04M HEX NUT M4-.7
1519 PSB10141519 MOTOR 5HP 220/440V 7-1/2PH 60HZ 1537 PSB10121537 SIDE COVER SAFETY SWITCH TM1307
1519-1 PSB10141519-1 MOTOR FAN COVER 1538 PS65M PHLP HD SCR M4-.7 X 40
1519-2 PSB10141519-2 MOTOR FAN
-26-
For Machines Mfg. Since 8/09
Model SB1037/SB1038 Parts PARTS
Cabinets & Panels
1601
1602
1603
1604
1605
1606
1608
1609
1610
1611
1612
1613
1614
1616
1617 1618
1619
1620
1621
1622
1623
1624
1625
1626
1627
1628
1629 1630
1631
1632
1633
1634
1635
1636
1637
1638
1639
1640
1642
1643
1644
1645
1646
1647
1648
1649
1650
1651
1652
1653
1654
1603 1612
1612
1614 1612
1603
1634
1614
1612 1603
1655
For Machines Mfg. Since 8/09 Model SB1037/SB1038 Parts
-27-
PARTS
Cabinets & Panels Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1601 PSB10121601 CHIP TRAY 1629 PSB10121629 CHUCK GUARD ROD
1602 PSB10121602 BRAKE CAM 1630 PSB10121630 CHUCK GUARD
1603 PCAP01M CAP SCREW M6-1 X 16 1631 PSB10121631 KNOB 1/2-13
1604 PB56M CAP SCREW M10-1.5 X 20 1632 PN06 HEX NUT 1/2-13
1605 PSB10121605 BRAKE FOOT PEDAL 1633 PB102 HEX BOLT 1/2-13 X 3/4
1606 PSB10121606 BRAKE SHAFT 1634 PCAP26M CAP SCREW M6-1 X 12
1608 PSB10121608 LOCK COLLAR 1635 PN04M HEX NUT M4-.7
1609 PSB10121609 BRAKE SHAFT BRACKET 1636 PLW03M LOCK WASHER 6MM
1610 PSB10121610 RIGHT CABINET 1637 PSB10121637 SAFETY SWITCH BRACKET
1611 PSB10121611 RIGHT FRONT CABINET COVER 1638 PSB10121638 CHUCK GUARD SAFETY SWITCH
1612 PCAP64M CAP SCREW M10-1.5 X 25 1639 PS65M PHLP HD SCR M4-.7 X 40
1613 PSB10121613 CHIP TRAY L-BRACKET 1640 PSS34M SET SCREW M5-.8 X 16
1614 PW04M FLAT WASHER 10MM 1642 PN03M HEX NUT M8-1.25
1616 PSB10121616 LEFT CABINET 1643 PSB10121643 SPLASH GUARD
1617 PSB10121617 LEFT FRONT CABINET COVER 1644 PSB10121644 REAR CABINET COVER
1618 PS05M PHLP HD SCR M5-.8 X 8 1645 PS68M PHLP HD SCR M6-1 X 10
1619 PSB10121619 RIGHT GEARBOX COVER 1646 PSB10121646 COOLANT RESERVOIR
1620 PSB10121620 SPLASH PAN SUPPORT BRACKET 1647 PSB10121647 COOLANT PUMP
1621 PSB10121621 SPLASH PAN ROD BRACKET 1648 PSB10121648 HOSE CONNECTOR 1/8 PT X 3/8 PH
1622 PCAP02M CAP SCREW M6-1 X 20 1649 PSB10121649 COOLANT HOSE CT801 3/8 X 72"
1623 PSS01M SET SCREW M6-1 X 10 1650 PSB10121650 LOCK COLLAR
1624 PSB10121624 SPLASH PAN ROD 1651 PSS03M SET SCREW M6-1 X 8
1625 PFH30M FLAT HD SCR M5-.8 X 8 1652 PSB10121652 CABINET SUPPORT ROD
1626 PSB10141626 ELECTRICAL CABINET BACK PLATE 1653 PSB10121653 COOLANT RETURN CHUTE
1627 PSB10121627 CHUCK GUARD BRACKET 1654 PSB10121654 CAST IRON FOOT PAD
1628 PSS14M SET SCREW M8-1.25 X 12 1655 PB80M HEX BOLT M16-2 X 55
-28-
For Machines Mfg. Since 8/09
Model SB1037/SB1038 Parts PARTS

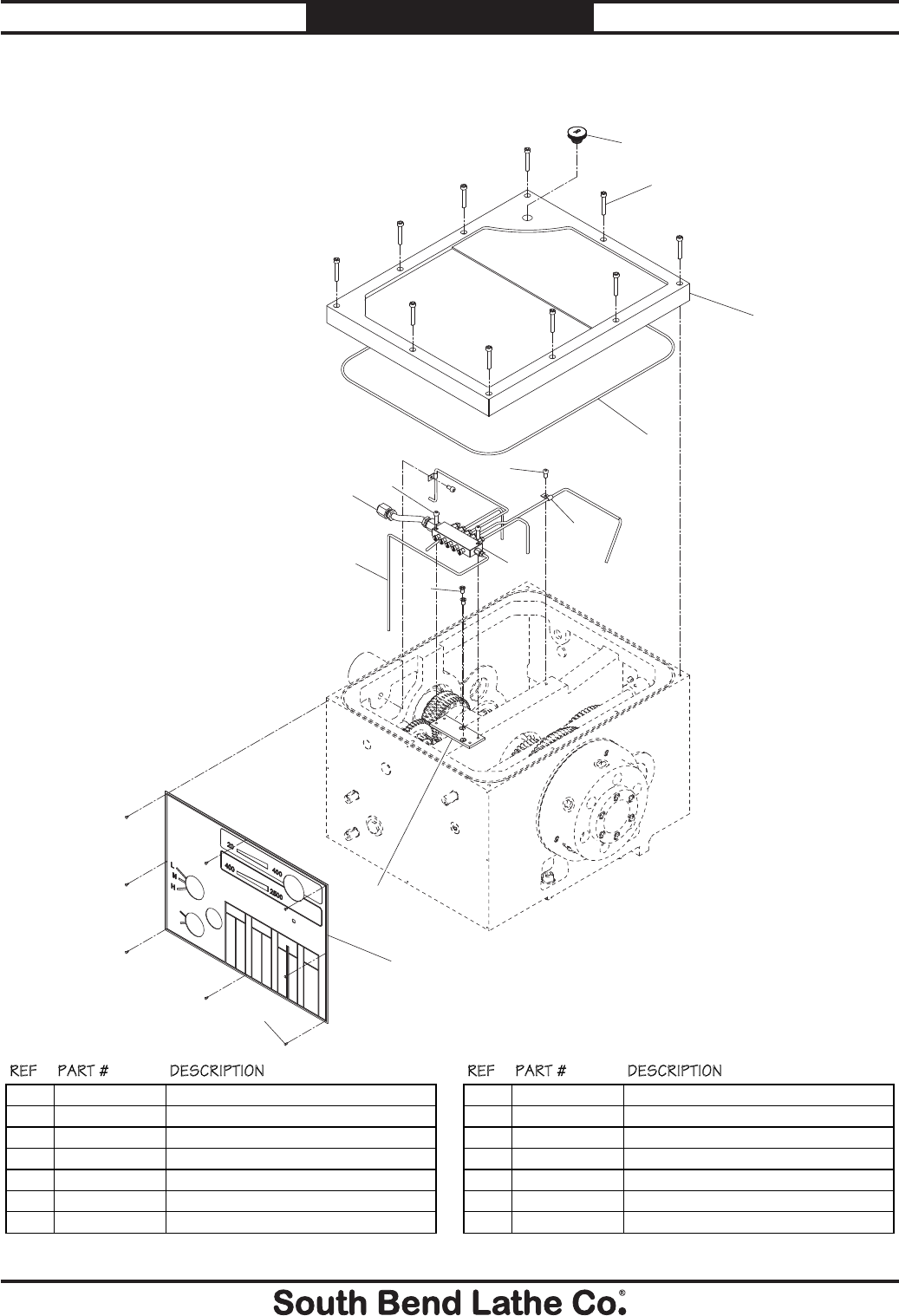

Headstock Oiling System
A
B
C
D
E
A
B
C
D
E
1701
1704
1705
1706
1707
1708
1709
1710
1711
1712
1713
1714
1715
1716
1717
1718
1719
1720
1721
1722
1723
1724
1725-3
1726
1727
1728
1729
1730
1731
1732
1733
1734
1735
1736
1737
1738
1739
1715
1701
1737
1735
1734
1725-1
1725-2
1725
For Machines Mfg. Since 8/09 Model SB1037/SB1038 Parts
-29-
PARTS
Headstock Oiling System Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1701 PSB10121701 ELBOW CONNECTOR 1723 PSB10121723 PIPE CONNECTOR 1/4 PT X 1/4 PT
1704 PCAP50M CAP SCREW M5-.8 X 10 1724 PSB10121724 LUBRICATION PUMP
1705 PW02M FLAT WASHER 5MM 1725 PSB10121725 LUBRICATION MOTOR 1/4HP 220V 3PH
1706 PSB10121706 PIPE CLAMP 10MM 1725-1 PSB10121725-1 MOTOR FAN COVER
1707 PSB10121707 SENSOR BRACKET 1725-2 PSB10121725-2 MOTOR FAN
1708 PS34 PHLP HD SCR M3-.5 X 25 1725-3 PSB10121725-3 MOTOR JUNCTION BOX
1709 PSB10121709 SPINDLE SPEED SENSOR 1726 PSB10121726 ELBOW CONNECTOR 3/8 PT X 1/4 PT
1710 PN07M HEX NUT M3-.5 1727 PSB10121727 RUBBER RING 3/8"
1711 PSB10121711 MINOR TIP 1728 PSB10121728 STAND PIPE 3/8 PT X 8"
1712 PRP02M ROLL PIN 3 X 16 1729 PSB10121729 NYLON OIL DELIVERY TUBE 10 X 100MM
1713 PSB10121713 SPINDLE BALANCE RING 1730 PSB10121730 OIL RESERVOIR FILL CAP 1 PT
1714 PSB10121714 HEADSTOCK OIL DRAIN SCREEN 1731 PSB10121731 OIL LEVEL GLASS 3"
1715 PSB10121715 HOSE CLAMP 1-3/4" 1732 PSB10121732 OIL DRAIN PLUG 3/4 PT
1716 PSB10121716 OIL RETURN HOSE 1-1/4 X 17" 1733 PSB10121733 OIL RESERVOIR
1717 PCAP02M CAP SCREW M6-1 X 20 1734 PW03M FLAT WASHER 6MM
1718 PN01M HEX NUT M6-1 1735 PCAP01M CAP SCREW M6-1 X 16
1719 PCAP04M CAP SCREW M6-1 X 10 1736 PCAP14M CAP SCREW M8-1.25 X 20
1720 PSB10121720 OIL RESERVOIR COVER 129.5MM 1737 PW01M FLAT WASHER 8MM
1721 PSB10121721 OIL PRESSURE SWITCH 1738 PN03M HEX NUT M8-1.25
1722 PSB10121722 PIPE T-JOINT 1/4 PT 1739 PSB10121739 ELECTRICAL CABINET
-30-
For Machines Mfg. Since 8/09
Model SB1037/SB1038 Parts PARTS
Tailstock
1801
1802
1803
1804
1805
1806
1807
1808 1809
1810
1811
1812
1813
1814
1815
1816
1817
1818
1819
1821 1822
1823
1824
1825
1826
1827
1828
1829
1830
1831
1832
1837
1838
1839
1840
1901
1902
1903
1904
1905
1906
1907
1908
1909
1910
1911
1912
1913
1914
1915
1819
1905
1833
1834
1908
1832
1911
1835
1836
For Machines Mfg. Since 8/09 Model SB1037/SB1038 Parts
-31-
PARTS
Tailstock Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1801 PSB10371801 INCH TAILSTOCK LEADSCREW 1829 PSB10371829 PIVOT BLOCK
1802 PSB10371802 INCH LEADSCREW NUT 1830 PSB10371830 DOG POINT SET SCREW
1803 PSB10371803 KEY 5 X 5 X 20 1831 PSB10371831 TAILSTOCK BASE
1804 PSB10371804 THRUST BEARING MTB/AS2-2035 1832 PSB10371832 GIB ADJUSTMENT SCREW
1805 PSB10371805 INCH LEADSCREW FLANGE BRACKET 1833 PSB10371833 V-WAY WIPER
1806 PSB10371806 EXT RETAINING RING 32MM 1834 PSB10371834 V-WAY WIPER PLATE
1807 PSB10371807 INDEX DIAL SPACER 1835 PSB10371835 FLAT-WAY WIPER
1808 PSB10371808 INCH INDEX RING 1836 PSB10371836 FLAT-WAY WIPER PLATE
1809 PSB10371809 HANDWHEEL 1837 PSB10371837 TAILSTOCK GIB
1810 PSB10371810 HANDWHEEL WASHER 6MM 1838 PSB10371838 COMPRESSION SPRING 25 X 45
1811 PSB10371811 HANDLE BOLT M8-1.25 X 90 1839 PSB10371839 CLAMP BLOCK
1812 PSB10371812 HANDWHEEL HANDLE 1840 PSB10371840 TAILSTOCK STUD M14-2 X 110
1813 PSB10371813 COMPRESSION SPRING 6 X 16 1901 PSB10371901 CAP SCREW M6-1 X 16
1814 PSB10371814 STEEL BALL 1/4 1902 PSB10371902 SET SCREW M6-1 X 12
1815 PSB10371815 QUILL LOCK LEVER 1903 PSB10371903 CAP SCREW M6-1 X 12
1816 PSB10371816 QUILL LOCK CAM SHAFT 1904 PSB10371904 CAP SCREW M8-1.25 X 70
1817 PSB10371817 TAILSTOCK LOCK LEVER 1905 PSB10371905 CAP SCREW M8-1.25 X 60
1818 PSB10371818 TAILSTOCK LOCK CAM SHAFT 1906 PSB10371906 CAP SCREW M6-1 X 8
1819 PSB10371819 ROLL PIN 4 X 24 1907 PSB10371907 CAP SCREW M6-1 X 16
1821 PSB10371821 OIL SEAL DH53 1908 PSB10371908 PHLP HD SCR M5-.8 X 12
1822 PSB10371822 TAP-IN BALL OILER 1/4 1909 PSB10371909 FLAT WASHER 10MM
1823 PSB10371823 TAILSTOCK CASTING 1910 PSB10371910 HEX BOLT M10-1.5 X 55
1824 PSB10371824 TAILSTOCK QUILL 1911 PSB10371911 FLAT WASHER 14MM
1825 PSB10371825 QUILL GUIDE KEY 1912 PSB10371912 HEX NUT M14-2
1826 PSB10371826 TOP OFFSET INDEX PLATE 1913 PSB10371913 HEX NUT M8-1.25
1827 PSB10371827 BOTTOM OFFSET INDEX PLATE 1914 PSB10371914 STEEL FLUTED RIVET 2 X 5MM
1828 PSB10371828 TAILSTOCK ALIGNMENT PIN 1915 PSB10371915 LOCK WASHER 10MM
-32-
For Machines Mfg. Since 8/09
Model SB1037/SB1038 Parts PARTS
Steady Rest
2001
2002
2003
2004
2005
2006
2007
2008
2009
2010
2011
2012
2013
2014
2015
2016
2017
2018
2019
2012A
REF PART # DESCRIPTION
2001 PSB10122001 FINGER ADJUSTMENT KNOB
2002 PRP51M ROLL PIN 4 X 40
2003 PSB10122003 FINGER COLLAR
2004 PSB10122004 FINGER STUD
2005 PSB10122005 STEADY REST FINGER
2006 PSB10122006 BEARING DOWEL PIN
2007 P627ZZ BALL BEARING P627ZZ
2008 PSS20M SET SCREW M8-1.25 X 8
2009 PSB10122009 CLAMP STUD KNOB
2010 PSB10122010 CLAMP STUD
2011 PSB10122011 CLAMP STUD DOWEL PIN
2012 PSB10142012 TOP STEADY REST CASTING
2012A PSB10142012A STEADY REST ASSEMBLY
2013 PSB10142013 BOTTOM STEADY REST CASTING
2014 PSB10122014 HINGE PIN
2015 PSB10122015 SINGLE WING SCREW
2016 PN09M HEX NUT M12-1.75
2017 PLW05M LOCK WASHER 12MM
2018 PSB10122018 STUD M12-1.75 X 75
2019 PSB10122019 CLAMP PLATE
Follow Rest
2101
2102
2103
2104
2105
2106
2107
2108
2108A
REF PART # DESCRIPTION
2101 PSB10122001 FINGER ADJUSTMENT KNOB
2102 PRP51M ROLL PIN 4 X 40
2103 PSB10122003 FINGER COLLAR
2104 PSB10122104 FINGER STUD
2105 PSB10122105 FOLLOW REST FINGER
2106 PSB10122106 FINGER TIP
2107 PSS20M SET SCREW M8-1.25 X 8
2108 PSB10142108 FOLLOW REST CASTING
2108A PSB10142108A FOLLOW REST ASSEMBLY
For Machines Mfg. Since 8/09 Model SB1037/SB1038 Parts
-33-
PARTS
Electrical Cabinet & Control Panel
2201 2202
2203
2204 2205
2206
2208 2209
2210
2211
2212
2213
2214
2215
2217
2218 2219 2220 2221 2222
2223 2224
2225
2226
Electrical Cabinet
Control Panel
2207
2212
-34-
For Machines Mfg. Since 8/09
Model SB1037/SB1038 Parts PARTS
Electrical Cabinet & Control Panel Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
2201 PSB10142201 RESISTOR 800W 20-OHM (SB1037) 2212 PSB10122212 WIRE LOOM 17 IN
2201 PSB10152201 RESISTOR 600W 100-OHM (SB1038) 2213 PSB10122213 WIRE LOOM 16 IN
2202 PSB10122202 CABINET COOLING FAN 2214 PSB10122214 WIRE LOOM 14 IN
2203 PSB10122203 CIRCUIT BREAKER 20A 2215 PSB10122215 WIRE LOOM 12 IN
2204 PSB10122204 TRANSFORMER 24-440V 2217 PSB10122217 TACHOMETER DISPLAY
2205 PSB10122205 MAIN POWER SWITCH 2218 PSB10122218 SPINDLE SPEED DIAL
2206 PSB10142206 INVERTER YASKAWA CIMR-G7A25P5 (SB1037) 2219 PSB10122219 POWER LAMP
2206 PSB10152206 INVERTER YASKAWA CIMR-G7A45P5 (SB1038) 2220 PSB10122220 COOLANT PUMP SWITCH
2207 PSB10122207 CONTACTOR AB 100-C09400 24V 2221 PSB10122221 SPINDLE JOG BUTTON
2208 PSB10122208 OL RELAY AB 193-TAA40 0.24-0.4A 2222 PSB10122222 EMERGENCY STOP BUTTON
2209 PSB10122209 OL RELAY AB 193TAB24 1.6-2.5A (SB1037) 2223 PSB10122223 RELAY OMRON MY4NJ 24VAC
2209 PSB10132209 OL RELAY AB 193TAB10 0.6-1.0A (SB1038) 2224 PSB10122224 RELAY OMRON NY2NJ 24VAC
2210 PSB10122210 CIRCUIT BOARD 2225 PSB10122225 CIRCUIT BREAKER 6A
2211 PSB10122211 TERMINAL BLOCK 3-POST 30A 2226 PSB10122226 TERMINAL BLOCK 3-POST 15A
For Machines Mfg. Since 8/09 Model SB1037/SB1038 Parts
-35-
PARTS
Accessories
2301
2301-1
2301-2
2301-3
2303 2304
2305
2306
2307
2308
2309
2311
2312
2313
2314
2315
2316
2317
2302
2302-1
2302-2
2310
REF PART # DESCRIPTION REF PART # DESCRIPTION
2301 PSB10122301 4-JAW CHUCK 10" ASSEMBLY 2307 PSB10122307 STANDARD DEAD CENTER MT#4
2301-1 PSB10122301-1 4-JAW CHUCK 10" 2308 PSB10122308 CARBIDE TIP DEAD CENTER MT#4
2301-2 PSB10122301-2 4-JAW CHUCK JAW SET 2309 PSB10122309 SPINDLE SLEEVE MT#4/MT#6
2301-3 PSB10122301-3 4-JAW CHUCK CAMLOCK STUD SET 2310 PSB10122310 3-JAW CHUCK REVERSIBLE JAW SET
2302 PSB10122302 3-JAW CHUCK 8" ASSEMBLY 2311 PWR1012 WRENCH 10/12MM
2302-1 PSB10122302-1 3-JAW CHUCK 8" 2312 PWR1417 WRENCH 14/17MM
2302-2 PSB10122302-2 3-JAW CHUCK STANDARD JAW SET 2313 PWR2224 WRENCH 22/24MM
2303 PSB10122303 FACEPLATE ASSEMBLY 12" 2314 PSDF2 SCREWDRIVER FLAT #2
2304 PSB10122304 3-JAW CHUCK KEY 2315 PSDP2 SCREWDRIVER PHILLIPS #2
2305 PSB10122305 4-JAW CHUCK KEY 2316 PAW1510M HEX WRENCH SET 10PC 1.5-10 MM
2306 PSB10122306 TOOL POST T-WRENCH 2317 PSB10122317 TOOLBOX
-36-
For Machines Mfg. Since 8/09
Model SB1037/SB1038 Parts PARTS

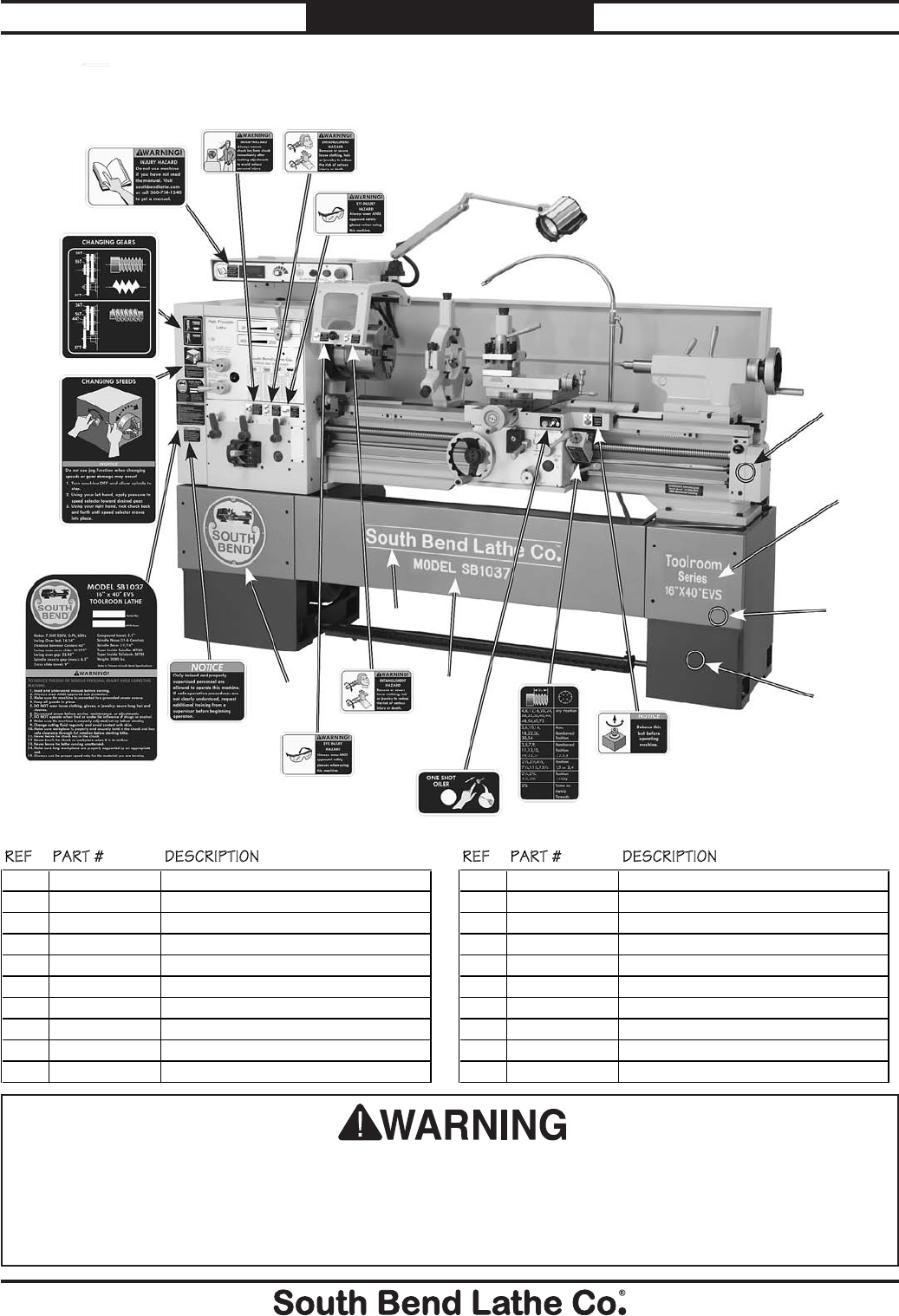

Machine Labels (Front View)
REF PART # DESCRIPTION REF PART # DESCRIPTION
2401 PSB10122401 RELEASE BOLT NOTICE LABEL 2410 PSBLABEL01HS READ MANUAL LABEL
2402 PSB10122402 THREAD DIAL CHART LABEL 2411 PSB10122411 CHUCK KEY HAZARD LABEL
2403 PSB10122403 ONE-SHOT OILER LABEL 2412 PSBPAINT01 SB GRAY TOUCH-UP PAINT
2404 PSBLABEL08HS ENTANGLEMENT HAZARD LABEL 2413 PSBPAINT02 SB LIGHT BLUE TOUCH-UP PAINT
2405 PSBLABEL04HS EYE INJURY HAZARD LABEL 2414 PSBPAINT03 SB DARK BLUE TOUCH-UP PAINT
2406 PSB10122406 AUTHORIZED PERSONNEL NOTICE LABEL 2415 PSB10137415 TOOL ROOM SERIES LABEL
2407 PSB10372407 MACHINE ID LABEL (SB1037) 2416 PSB10372416 MODEL NUMBER LABEL (SB1037)
2407 PSB10382407 MACHINE ID LABEL (SB1038) 2416 PSB10382416 MODEL NUMBER LABEL (SB1038)
2408 PSB10122408 CHANGING SPEED NOTICE LABEL 2417 PSB10122417 SB LATHE CO LABEL
2409 PSB10122409 CHANGING GEARS LABEL 2418 SB1322 SOUTH BEND NAMEPLATE 255MM
2401
2402
2403
2404
2405
2406
2407
2408
2409
2410
2411
2412
2413
2414
2415
2416
2417
2404
2405
2418
The safety labels provided with your machine are used to make the operator aware of the
machine hazards and ways to prevent injury. The owner of this machine MUST maintain the
original location and readability of these safety labels. If any label is removed or becomes
unreadable, REPLACE that label before using the machine again. Contact South Bend Lathe Co. at
(360) 734-1540 or www.southbendlathe.com to order new labels.
For Machines Mfg. Since 8/09 Model SB1037/SB1038 Parts
-37-
PARTS

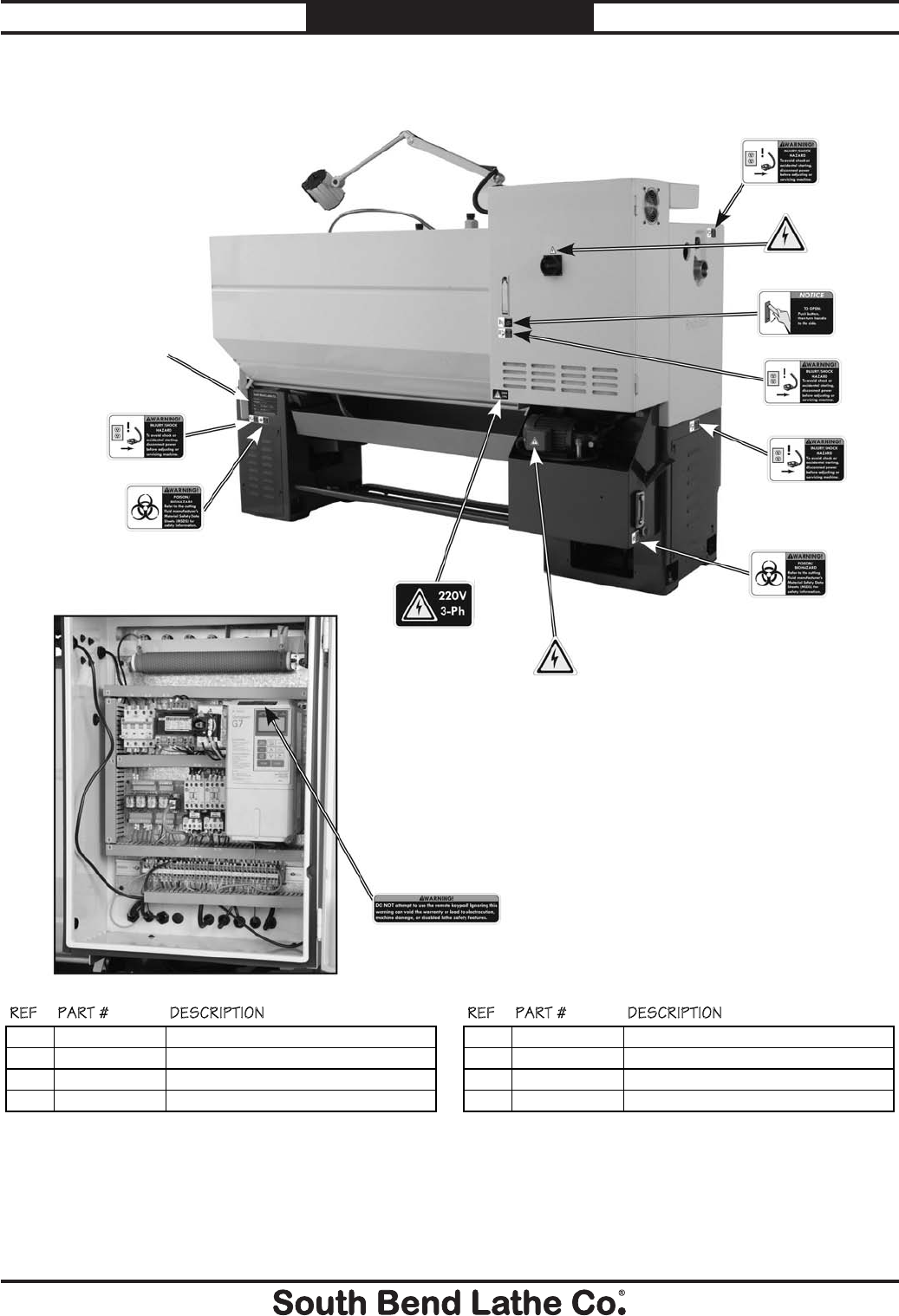

Machine Labels (Rear View)
2425
2420
2421
2422
2423
2424
2419
2419
2419
2420
2422
2419
REF PART # DESCRIPTION REF PART # DESCRIPTION
2419 PSBLABEL01HS DISCONNECT POWER LABEL 2423 PSB10122423 220V 3-PHASE LABEL (SB1037)
2420 PSBLABEL15M ELECTRICITY LABEL 2423 PSB10132423 440V 3-PHASE LABEL (SB1038)
2421 PSB10122421 ELECTRICAL CABINET LATCH LABEL 2424 PSB10122424 INVERTER WARNING LABEL
2422 PSBLABEL06HS BIOHAZARD LABEL 2425 PSB10142425 MOTOR SPECIFICATIONS PLATE
South Bend Lathe Co.
P.O. Box 2027
Bellingham, WA 98227
PHONE: (360) 734-1540 (Administrative Offi ces)
FAX: (360) 676-1075 (International)
FAX: (360) 734-1639 (USA only)
southbendlathe.com
Printed In Taiwan #TS12318
