Service Manual

Color Television

CHASSIS : SC-150

Model : DSC-3220E/3220L

S/M No. : DSC150BEF0

DEC . 2002

DAEWOO ELECTRONICS Corp.

http : //svc.dwe.co.kr

✔

Caution

: In this Manual, some parts can be changed for improving, their

performance without notice in the parts list. So, if you need the

latest parts information,please refer to PPL(Parts Price List) in

Service Information Center (http://svc.dwe.co.kr).

Service manual SC-150

-1-

Contents

1 - Main features ........................................................................................................................................................ 4

1-1 Specifications .................................................................................................................................................. 4

1-2 Channel table .................................................................................................................................................. 8

1-3 ATSS sorting method ....................................................................................................................................... 11

2 - Safety instruction ................................................................................................................................................. 13

3 - Alignment instructions ........................................................................................................................................ 14

3-1 Microcontroller configuration : Service mode ................................................................................................... 14

3-2 Service mode navigation ................................................................................................................................. 14

3-3 Microcontroller configuration : Option .............................................................................................................. 15

3-4 TV set Alignment ............................................................................................................................................. 15

3-4-1 Local oscillator alignment .................................................................................................................... 15

3-4-2 G2 alignment ....................................................................................................................................... 15

3-4-3 White balance ..................................................................................................................................... 15

3-4-4 Focus .................................................................................................................................................. 15

3-4-5 Vertical geometry ................................................................................................................................ 15

3-4-6 Horizontal picture centring................................................................................................................... 16

3-4-7 East/West correction ........................................................................................................................... 16

3-4-8 AGC .................................................................................................................................................... 17

4 - IC description ....................................................................................................................................................... 18

4-1 VCT383xA TV signal processor - Teletext decoder with embedded 8 bit -

Controller ............................................................................................................................................................ 18

4-1-1 Block diagram off the VCT ................................................................................................................... 18

4-1-2 TV-signal Processor ........................................................................................................................... 18

4-1-2 -Controller

......................................................................................................

...................................

4-1-4 Teletext Features ................................................................................................................................ 19

4-1-5 Displaty OSD Features ...................................................................................................................... 20

4-1-6 Audio Features ................................................................................................................................... 20

4-1-7 General Features ............................................................................................................................... 20

4-1-8 Data Capture ....................................................................................................................................... 20

4-1-9 Data Capture Features ........................................................................................................................ 20

4-1-10 TV processor version and -Controller capacity .............................................................................. 21

4-1-11 IC marking and version ....................................................................................................................... 21

4-1-12 Pinning ................................................................................................................................................ 21

4-2 MSP341x Multistandard Sound Processor ................................................................................................... 24

4-2-1 Basic Features of the MSP 341x ......................................................................................................... 24

4-3 TDA4470 - Multistandard Video-IF and Quasi Parallel Sound Processor ...................................................... 28

4-3-1 Description .......................................................................................................................................... 28

4-3-2 Features .............................................................................................................................................. 28

4-3-3 Pinning ................................................................................................................................................ 28

4-3-4 Block diagram .................................................................................................................................... 29

4-4 TDA894xJ Stereo Audio Amplifier ................................................................................................................. 30

4-4-1 Features ............................................................................................................................................... 30

4-5 TDA835xJ Vertical Amplifier ........................................................................................................................... 32

4-5-1 TDA8357J ........................................................................................................................................... 32

Service manual SC-150

-2-

4-5-2 TDA8358J .............................................................................................................................................. 33

4-6 TDA6107Q .......................................................................................................................................................... 33

4-7 24C16 - 16 Kb EEPROM .................................................................................................................................... 35

4-8 STR - F6653 ....................................................................................................................................................... 36

4-8-1 General description ............................................................................................................................... 36

4-8-2 Features ................................................................................................................................................. 36

4-8-3 Block diagram ....................................................................................................................................... 36

4-8-4 Pin description ...................................................................................................................................... 37

4-8-5 Control part - electrical characteristics ................................................................................................. 37

4-8-6 MOSFET electrical characteristics ....................................................................................................... 38

4-9 CXA1315P

4-10 CXA1315P

......................................................................................................................................................... 39

4-9-1 General description................................................................................................................................ 39

4-9-2 Features ................................................................................................................................................39

4-9-3 Block diagram ........................................................................................................................................

4-9-4 Pin Description........................................................................................................................................

..........................................................................................................................................................40

4-10-1 General description................................................................................................................................ 40

4-10-2 Features ................................................................................................................................................ 40

4-10-3 Block diagram ........................................................................................................................................40

4-10-4 Pin Description........................................................................................................................................40

4-11 LA6515 ..........................................................................................................................................................40

4-11-1 General description................................................................................................................................ 40

4-11-2 Features ................................................................................................................................................ 40

4-11-3 Block diagram ........................................................................................................................................40

4-11-4 Pin Description........................................................................................................................................40

5 - Circuit description..................................................................................................................................................

5-1 Block diagram .................................................................................................................................................... 43

5-2 IF section ............................................................................................................................................................ 44

5-2-1 Block diagram ....................................................................................................................................... 44

5-2-2 Vision IF Amplifier .................................................................................................................................. 44

5-2-3 Tuner-and VIF-ACG ................................................................................................................................ 45

5-2-4 FPLL, VCO and AFC .............................................................................................................................. 45

5-2-5 Video Demodulation and Amplifier ...................................................................................................... 46

5-5-6 Sound IF Amplifier and SIF-AGC ....................................................................................................... 46

5-2-7 Quasi-Parallel-Sound (QPS) Mixer ......................................................................................................... 46

5-2-8 Standard Switch .................................................................................................................................... 46

5-2-9 L Switch.................................................................................................................................................. 46

5-2-10 Internal Voltage Stabiliser ..................................................................................................................... 46

5-3 Video - VCT description ...................................................................................................................................... 47

5-3-1 Introduction ............................................................................................................................................ 47

5-3-2 Video Front-end..................................................................................................................................... 47

5-3-3 Input Selector ........................................................................................................................................ 47

5-3-4 Clamping ................................................................................................................................................ 47

5-3-5 Automatic Gain Control ........................................................................................................................ 47

5-3-6 Digitally Controlled Clock Oscillator ..................................................................................................... 47

5-3-7 Analogue Video Output ........................................................................................................................ 47

5-3-8 Adaptive Comb Filter (VCT3834A only) ................................................................................................ 48

5-3-9 Color Decoder ....................................................................................................................................... 48

5-3-10 Horizontal Scaler ................................................................................................................................... 48

5-3-11 Video Sync Processing ........................................................................................................................ 49

5-3-12 Display Processing ................................................................................................................................ 49

5-3-13 Chroma Transient Improvement ............................................................................................................ 49

5-3-14 Video Back-end ..................................................................................................................................... 49

5-3-15 CRT Measurement and Control ........................................................................................................... 50

5-3-16 Average Beam Current Limiter ............................................................................................................. 50

Service manual SC-150

-3-

5-4-1 Introduction........................................................................................................................................... 51

5-4-2 CPU ...................................................................................................................................................... 51

............................................................................... 52

5-4-4 Tuning .................................................................................................................................................. 52

5-4-5 Automatic rmat switching and WSS ............................................................................................... 52

5-4-6 EXTERNAL source control logic........................................................................................................... 54

5-4-7 Over Current Protection........................................................................................................................ 55

5-5Teletext Display ................................................................................................................................................. 55

5-6 Sound processing............................................................................................................................................... 56

5-6-1 Analogue sound IF-input section............................................................................................................ 56

5-6-2 Quadrature Mixers................................................................................................................................ 56

5-6-3 Phase and AM discr imination........................................................................................................... 56

5-6-4 NICAM decoder.................................................................................................................................... 57

5-6-5 DSP section.......................................................................................................................................... 57

5-6-6 Sound Mode switching.......................................................................................................................... 57

5-7 Sound amplification........................................................................................................................................... 57

5-7-1 Power amplifier..................................................................................................................................... 57

5-7-2 Mode selection....................................................................................................................................... 58

5-8 Vertical deflection............................................................................................................................................. 58

5-8-1 Flyback voltage..................................................................................................................................... 58

5-8-2 Protection.............................................................................................................................................. 58

5-8-3 Guard circuit.......................................................................................................................................... 58

5-8-4 Damping resistor................................................................................................................................... 58

5-8-5 EAST-WEST Amplifier (TDA8358J only)............................................................................................... 58

5-9 Power supply (STR F6653).. .............................................................................................................................. 59

5-9-1 STR-F6654 generaral description......................................................................................................... 59

5-9-2 Power supply primary par t operations................................................................................................... 59

5-10TV start-up,TV normal run and stand by mode operations............................................................................... 63

5-10-1 TV start-up operations.......................................................................................................................... 63

5-10-2 TV normal run and stand-by mode operations....................................................................................... 64

6 - Se

6 -1 Service part list

rvice parts list..................................................................................................................................................

...........................................................................................................................................

.69

6 -2 Service part list option ............................................................................................................................... 79

7 - Exploded View ........................................................................................................................................................ 80

..............................................................................................................

.......................................... 81

..............................................................................................................

.......................................... 83

8 - PCB Layout

.........................................................................................................

.......................................... 81

8 -1 MAIN PCB

.........................................................................................................

.......................................... 82

8 -2 UNION PCB

9 - Circuit Diagram

..........................................................................................

.......................................... 83

9 - 1 Circuit Diagram(MAIN)

........................................................................................

.......................................... 84

9 - 2 Circuit Diagram

(UNION)

5-4-3

-Controller I/O pin configuration and function

5-3-17 Analogue RGB Insertion .....................................................................................................................50

5-3-18 Fast-Blank Monitor ................................................................................................................................ 50

5-3-19 Vertical and East/West Deflection ....................................................................................................... 50

5-3-20 EHT Compensation ................................................................................................................................ 51

5-3-21 Reset Function ...................................................................................................................................... 51

5-3-22 Standby and Power-On ........................................................................................................................ 51

5-4 Micro-controller ......................................................................................................................................................... 51

Service manual SC-150

-4-

1- Main Features

1-1 Specifications

TV standard PAL - SECAM B/G D/K, PAL I/I, SECAM L/L'

Sound system NICAM B/G, I, D/K, L,

FM 2Carrier B/G, D/K

Power consumption

Sound Output Power 7W x2 (at 1KHz, 60% mod, 10% THD)

Speaker

10W(Normal) 8 ohm X 2

Teletext system 10 pages memory FASTEXT (FLOF or TOP)

Aerial input 75 ohm unbalanced

Channel coverage Off-air channels, S-cable channels and hyperband

Tuning system frequency synthesiser tuning system

isual screen 32" : 76Cm

Channel indication On Screen Display

program Selection 100 programmes

Aux. terminal

Remote Control Unit R-46G22

32" 16:9 Real Flat : 110W approx.

EURO-SCART 1 : Audio / Video In and Out, R/G/B In, Slow and

Fast switching.

EURO-SCART 2 : Audio / Video In and Out, SVHS In.

AV3 : Audio-Video Jack on right side of cabinet.

Headphone jack (3.5 mm) on right side of cabinet

SVHS3 : Jack on right side of cabinet - sound input common with A

V3.

Monitor Out

Service manual SC-150

-5-

Specification matrix

Chassis Name

3834

R46G22

4859812224(MAIN)/ 4959812324(Union)

16:9 Real Flat

Auto / 4:3 / 14:9 / Zoom 14:9 /Zoom

16:9 / Full Screen

3410G

Off / Spatial

Dedicated

10 Page

Available : Selectable in factory /

Service mode by option bits

Available : Selectable in factory /

Service mode by option bits

"Pan-European Latin, Cyrillic, Greek"

"English, French, German, Italian, Spanish,Dutch, Danish,

Finnish, Norwegian, Swedish, Greek,Polish, Czech, Slovakian,

Romanian, Russian, Bulgarian, Hungarian

"Philips, Alps,Partsnic"

3411G

Off / Spatial / Panorama /

Dolby Virtual

SC-150

VCT Version

Software Version

Remote Control

PCB Serial Number

Tube

SVHS 3

"Picture Improvements,

Comb Filter, Horizontal Scaler"

Teletext Split Screen

Formats Available in Video Mode

AV2 Monitor Output

MSP Version

Sound Dffects

Graphic Equalizer

AV3 Audio Input

Teletext Page Memory

Top Teletext

Flof Teletext

Text Character Support

OSD Languages

Tuner Options

Model Name DSC-3220E DSC-3220L

Service manual SC-150

-6-

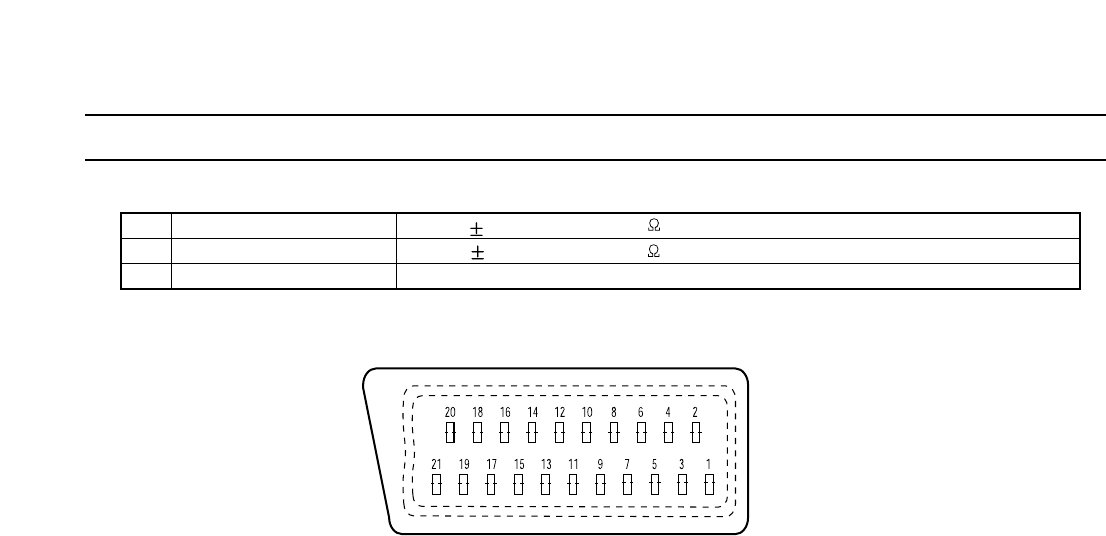

21 Pin EURO-SCART 1 :

Pin Signal Description Matching value

1 Audio Output Right 0.5 Vrms, Impedance < 1 , ( RF 54% Mod )

2 Audio Input Right 0.5 Vrms, Impedance > 10

3 Audio Output Left 0.5 Vrms, Impedance < 1 , ( RF 54% Mod )

4 Audio Earth

5 Blue Earth

6 Audio Input Left 0.5 Vrms, Impedance > 10

7 Blue Input 0.7 Vpp ±0.1V, Impedance 75

8 Slow Switching TV : 0 to 2V, AV 16/9 : 4.5 to 7V, AV 4/3 : 9.5 to 12V ,

Impedance > 10

9 Green Earth

10 N.C.

11 Green Input 0.7 Vpp 0.1V, Impedance 75

12 N.C.

13 Red Earth

14 Blanking Earth

15 Red Input 0.7 Vpp 0.1V, Impedance 75

16 Fast Switching 0 to 0.4V : Logic “0”, 1 to 3V : Logic “1”, Impedance 75

17 Video Out Earth

18 Video In Earth

19 Video Output 1 Vpp 3dB, Impedance 75

20 Video Input 1 Vpp 3dB, Impedance 75

21 Common Earth

21 Pin EURO-SCART 2 :

Pin Signal Description Matching value

1 Audio Output Right 0.5 Vrms, Impedance < 1 , ( RF 54% Mod ) - Not available for cp885

2 Audio Input Right 0.5 Vrms, Impedance > 10

3 Audio Output Left 0.5 Vrms, Impedance < 1 , ( RF 54% Mod ) - Not available for cp885

4 Audio Earth

5 Earth

6 Audio Input Left 0.5 Vrms, Impedance > 10

7 N.C.

8 Slow Switching TV: 0 to 2V, AV 16:9: 4.5V to 7V, AV 4:3: 9.5 to 12V

9 N.C.

10 N.C.

11 N.C.

12 N.C.

13 Earth

14 Earth

15 Chroma Input 3dB for a luminance signal of 1 Vpp

16 N.C.

17 Earth

18 Video In Earth

Service manual SC-150

-7-

19 Video Output 1 Vpp 3dB, Impedance 75 ( Monitor output ) - Not available for cp885

20 Video Input, Y In. 1 Vpp 3dB, Impedance 75

21 Common Earth

Service manual SC-150

-8-

CH EUROPE CCIR FRANCE GB(IRELAND) EAST OIRT

C01 46.25 - 47.75 49.75

C02 48.25 55.75 (L’) 53.75 59.25

C03 55.25 60.5 (L’) 61.75 77.25

C04 62.25 63.75 (L’) 175.25 85.25

C05 175.25 176.00 183.25 93.25

C06 182.25 184.00 191.25 175.25

C07 189.25 192.00 199.25 183.25

C08 196.25 200.00 207.25 191.25

C09 203.25 208.00 215.25 199.25

C10 210.25 216.00 223.25 207.25

C11 217.25 189.25 (LUX) 231.25 215.25

C12 224.25 69.25 (L’) 239.25 223.25

C13 53.75 76.25 (L’) 247.25 -

C14 - 83.25 (L’) 49.75 -

C15 82.25 90.25 57.75 -

C16 - 97.25 65.75 -

C17 183.75 - 77.75 -

C18 192.25 - 85.75 -

C19 201.25 - - -

C20 -- - -

C21 471.25 471.25 471.25 471.25

C22 479.25 479.25 479.25 479.25

C23 487.25 487.25 487.25 487.25

C24 495.25 495.25 495.25 495.25

C25 503.25 503.25 503.25 503.25

C26 511.25 511.25 511.25 511.25

C27 519.25 519.25 519.25 519.25

C28 527.25 527.25 527.25 527.25

C29 535.25 535.25 535.25 535.25

C30 543.25 543.25 543.25 543.25

C31 551.25 551.25 551.25 551.25

C32 559.25 559.25 559.25 559.25

C33 567.25 567.25 567.25 567.25

C34 575.25 575.25 575.25 575.25

C35 583.25 583.25 583.25 583.25

C36 591.25 591.25 591.25 591.25

C37 599.25 599.25 599.25 599.25

C38 607.25 607.25 607.25 607.25

C39 615.25 615.25 615.25 615.25

C40 623.25 623.25 623.25 623.25

C41 631.25 631.25 631.25 631.25

1-2 Channel table

FREQUENCY TABLE

Service manual SC-150

-9-

CH EUROPE CCIR FRANCE GB(IRELAND) EAST OIRT

C42 639.25 639.25 639.25 639.25

C43 647.25 647.25 647.25 647.25

C44 655.25 655.25 655.25 655.25

C45 663.25 663.25 663.25 663.25

C46 671.25 671.25 671.25 671.25

C47 679.25 679.25 679.25 679.25

C48 687.25 687.25 687.25 687.25

C49 695.25 695.25 695.25 695.25

C50 703.25 703.25 703.25 703.25

C51 711.25 711.25 711.25 711.25

C52 719.25 719.25 719.25 719.25

C53 727.25 727.25 727.25 727.25

C54 735.25 735.25 735.25 735.25

C55 743.25 743.25 743.25 743.25

C56 751.25 751.25 751.25 751.25

C57 759.25 759.25 759.25 759.25

C58 767.25 767.25 767.25 767.25

C59 775.25 775.25 775.25 775.25

C60 783.25 783.25 783.25 783.25

C61 791.25 791.25 791.25 791.25

C62 799.25 799.25 799.25 799.25

C63 807.25 807.25 807.25 807.25

C64 815.25 815.25 815.25 815.25

C65 823.25 823.25 823.25 823.25

C66 831.25 831.25 831.25 831.25

C67 839.25 839.25 839.25 839.25

C68 847.25 847.25 847.25 847.25

C69 855.25 855.25 855.25 855.25

C70 863.25 863.25 863.25 863.25

C71 69.25 - - -

C72 76.25 - - -

C73 83.25 - - -

C74 90.25 - - -

C75 97.25 - - -

C76 59.25 - - -

C77 93.25 - - -

S01 105.25 104.75 103.25 105.25

S02 112.25 116.75 111.25 112.25

S03 119.25 128.75 119.25 119.25

S04 126.25 140.75 127.25 126.25

S05 133.25 152.75 135.25 133.25

S06 140.25 164.75 143.25 140.25

S07 147.25 176.75 151.25 147.25

S08 154.25 188.75 159.25 154.25

S09 161.25 200.75 167.25 161.25

Service manual SC-150

-10-

CH EUROPE CCIR FRANCE GB(IRELAND) EAST OIRT

S10 168.25 212.75 - 168.25

S11 231.25 224.75 - 231.25

S12 238.25 236.75 - 238.25

S13 245.25 248.75 255.25 245.25

S14 252.25 260.75 263.25 252.25

S15 259.25 272.75 271.25 259.25

S16 266.25 284.75 279.25 266.25

S17 273.25 296.75 287.25 273.25

S18 280.25 136.00 295.25 280.25

S19 287.25 160.00 303.25 287.25

S20 294.25 - - 294.25

S21 303.25 303.25 - 303.25

S22 311.25 311.25 311.25 311.25

S23 319.25 319.25 319.25 319.25

S24 327.25 327.25 327.25 327.25

S25 335.25 335.25 335.25 335.25

S26 343.25 343.25 343.25 343.25

S27 351.25 351.25 351.25 351.25

S28 359.25 359.25 359.25 359.25

S29 367.25 367.25 367.25 367.25

S30 375.25 375.25 375.25 375.25

S31 383.25 383.25 383.25 383.25

S32 391.25 391.25 391.25 391.25

S33 399.25 399.25 399.25 399.25

S34 407.25 407.25 407.25 407.25

S35 415.25 415.25 415.25 415.25

S36 423.25 423.25 423.25 423.25

S37 431.25 431.25 431.25 431.25

S38 439.25 439.25 439.25 439.25

S39 447.25 447.25 447.25 447.25

S40 455.25 455.25 455.25 455.25

S41 463.25 463.25 463.25 463.25

Service manual SC-150

-11-

1-3 ATSS sorting method

The TV set sweeps all the TV bands from beginning of VHF to end of UHF. The TV controlling software for each

program checks if a VPS CNI code is transmitted ( this system exists for German, Swiss and Austrian transmissions).

If no VPS CNI code is found, then the system check if a CNI code is transmitted as part of the teletext transmission

( Packet 8/30 format 1 ). If such a code ( VPS or teletext ) is found and if this code is in the ATSS list, the program is

automatically named.

If the transmission does not have VPS CNI, and no teletext service is available, then there is no possibility of the

program being automatically named.

The programs found are then sorted in 4 groups :

Group I : It contains all the pro grams from the selected country and named by the TV controlling software. Within this

group the sorting order is fixed by the ATSS list.

Group II : It contains all the pro grams with a strong signal strength which are not listed in group I.

Group III : It contains all the pro grams with a weak signal strength which are not listed in group I.

Group IV : If two or more programs with the same code are found, only the strongest ( or if they have the same level

the one with the lowest frequency) is listed in group I, II or III. The others are listed in group IV.

Program

number

2 Group I

...

n+1

... Group II

m+1

... Group III

p+1

... Group IV

q+1

.... not used

Group Skip Program

number

... Group II

m+1

... Group III

p+1

... Group IV

q+1

.... not used

Group Skip

Special case : Country selection = Others

Special case : France

Note : If two programs with the same name but a different code ar e found these two programs are listed in

group I, II or III ( e.g. Regional program SW3 in Germany ).

Service manual SC-150

-12-

The sor ting order within group II, III, and IV is based on the channel frequency. The Pro gram with the lo west

frequency is allocated the first rank in its group, and so f orth until the last program of the group which has the

highest fr equency.

If France is selected, the TV controlling softw are f irst swe eps all TV bands with Fr ance system selected

( positive video modulation) and the a second time with Europe system selected ( negative video modulation).

Special case : Switzerland

If Switzerland is selected the TV controlling softw are f irst s weeps all TV bands with Eur ope system selected

(ne gative video modulation) and then a second time with France system selected ( positive video modulation).

Special case : GB

Note for sa tellite recei ver users : Before starting ATSS tur n On your satellite r ecei ver and tune “ SKY NEWS ”.

If GB is selected the TV controlling software seeks for programs only in UHF ( C21 to C70 ).

The sorting order is :

1 - BBC1

2 - BBC2

3 - ITV

4 - CH4

5 - CH5

6 - NEWS

If two or more “ identical” pr ograms ( same name but different code e.g. BBC1 and BBC1 Scotland ) are found

the following pro grams in the list will be shifted up. (1 - BBC1, 2 - BBC1, 3 - BBC2, 4 -ITV, 5 - CH4, 6 - CH5,

7 - NEWS, ..)

If one of the progr am abo ve is not f ound, the associated program number remains empty

( freq.=467.25 Mhz - Skip selected - no name - system=GB).

example A : 1 - BBC1, 2 - BBC2, 3 - ITV , 4 - ----, 5 - CH5, 6 - NEW S , ...

example B ( if 2 BBC1 found ) : 1 - BBC1, 2 - BBC1, 3 - BBC2, 4 - IT V, 5 - -----, 6 - CH5, 7 -NEWS, ...

Special case : France

Service manual SC-150

-13-

2 - Safety instruction

WARNING: Only competent service personnel may carry out work involving the testing or repair of this equipment.

X-RAY RADIATION PRECAUTION

1. Excessive high voltage can produce potentially hazardous X-RAY RADIATION. To avoid such hazards, the high

voltage must not exceed the specified limit. The nominal value of the high voltage of this receiver is

26 KV (25” - 28”) at max beam current. The high voltage must not, under any circumstances,

exceed 29.5 KV (25") or 30 KV (28"). Each time a receiver requires servicing, the high voltage should be checked.

It is important to use an accurate and reliable high voltage meter.

2. The only source of X-RAY Radiation in this TV receiver is the picture tube. For continued X-RAY RADIATION

protection, the replacement tube must be exactly the same type tube as specified in the parts list.

SAFETY PRECAUTION

1. Potentials of high voltage are present when this receiver is operating. Operation of the receiver outside the cabinet

or with the back board removed involves a shock hazard from the receiver.

1) Servicing should not be attempted by anyone who is not thoroughly familiar with the precautions necessary

when working on high voltage equipment.

2) Discharge the high potential of the picture tube before handling the tube. The picture tube is highly evacuated

and if broken, glass fragments will be violently expelled.

2. If any Fuse in this TV receiver is blown, replace it with the FUSE specified in the Replacement Parts List.

3. When replacing a high wattage resistor ( metal oxide film resistor) in the circuit board, keep the resistor

10 mm away from circuit board.

4. Keep wires away from high voltage or high temperature components.

5. This receiver must operate under AC 230 volts, 5O Hz. NEVER connect to DC supply or any other power or

frequency.

PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in this equipment have special safety-related characteristics.

These characteristics are often passed unnoticed by a visual inspection and the X-RAY RADIATION protection

afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage,

wattage, etc. Replacement parts which have these special safety characteristics are identified in this manual and its

supplements, electrical components having such features are identified by designated symbol on the parts list.

Before replacing any of these components, read the parts list in this manual carefully. The use of substitutes

replacement parts which do not have the same safety characteristics as specified in the parts list may create X-RAY

Radiation.

Service manual SC-150

-14-

3 - Alignment instructions

3-1 Microcontroller configuration : Service mode

To switch the TV set into service mode please see instruction below.

1 - Select pr. number 91

2 - Adjust sharpness to minimum and exit all menu.

3 - Quickly press the key sequence : RED - GREEN - menu

To software version is displayed beside the word Service, e.g. “ SERVICE V2.00A”.

To exit SERVICE men u press menu key or Std By key.

3-2 Service mode navigation

Pr Up / Down remote keys : cycle through the service items available.

Vol- / + remote keys : Decrement / Increment the values within range.

0~7 digit keys : Toggle bits 0~7 in option byte

Order Item

Default settingh for SC-150

1 PARABOLA

+124

2 HOR WIDTH

-1350

3 CORNER

-97

4 HOR.PARAL

-1

5 V.LINEAR

6 EW TRAPEZ

-30

7 S CORRECT

-21

8 H BOW

+100

9 VERT SIZE

+157

10 VERT CENT

+3889

11 RED GAIN

+97

12 GRN GAIN

+87

13 BLUE GAIN

+95

14 RED BIAS

+128

15 GRN BIAS

+128

16 HOR CEN

17 AGC LEVEL

18 G2-SCREEN

19 AFT

20 OPTION1

OPTION2

22 MAX VOL

Not used

Service manual SC-150

-15-

3-3 Microcontroller configuration : Option bits

These option bits are available from Service mode. First find the OPTION control, and then use keys 0...7 on the

remote keypad to control bits 0 to 7 respectively. The table below shows the options a vailable ;

B7 B6

TOP text

off FASTEXT

FLOF off

TOP text

on FASTEXT

(FLOF) on

B5 B4 B3 B2 B1 B0

TUBE 4:3

AUTO 4:3

switch to

PANORAMA

TUBE 16:9 AUTO 4:3

switch to 4:3

SVHS3

disable 00=Philips

01=ALPS

10=Philips (AGC intern)

11=DAEWOO

SVHS3

enable

Set all the unused bits, markde 'X', to be 0 for future compatibility.

3-4 TV set Alignment

3-4-1- Local oscillator alignment

Tune a colour bar pattern. The Frequency of the signal carrier must be accurate (Max +/- 10khz deviation fron the

nominal channel frequency).

Find "AFT" item in service mode.

Adjust the coil L150 to bring the cursor to central position : 32.

3-4-2- G2 alignment

- Tune a colour bar pattern.

- Find the "G2 - SCREEN" item in service mode.

- Adjust screen volume (on FBT) to bring the cursor to central position : 32.

3-4-3- White balance

- Select a dark picture and adjust RED BIAS and GRN BIAS to the desired colour temperature.

- Select a bright picture and adjust REC, GRN and BLUE GAIN to the desired dolour temperature.

3-4-4- Forcus

Adjust the Forcus volume (on FBT) to have the best resolution on screen.

3-4-5- Vertical geometry

Adjust V.LINEAR (linearity), S CORRECT

(S. Corrention), VERT SIZE (Vertical amplitude),

VERT CENT (vertical centing) to compensate

for vertical distortion.

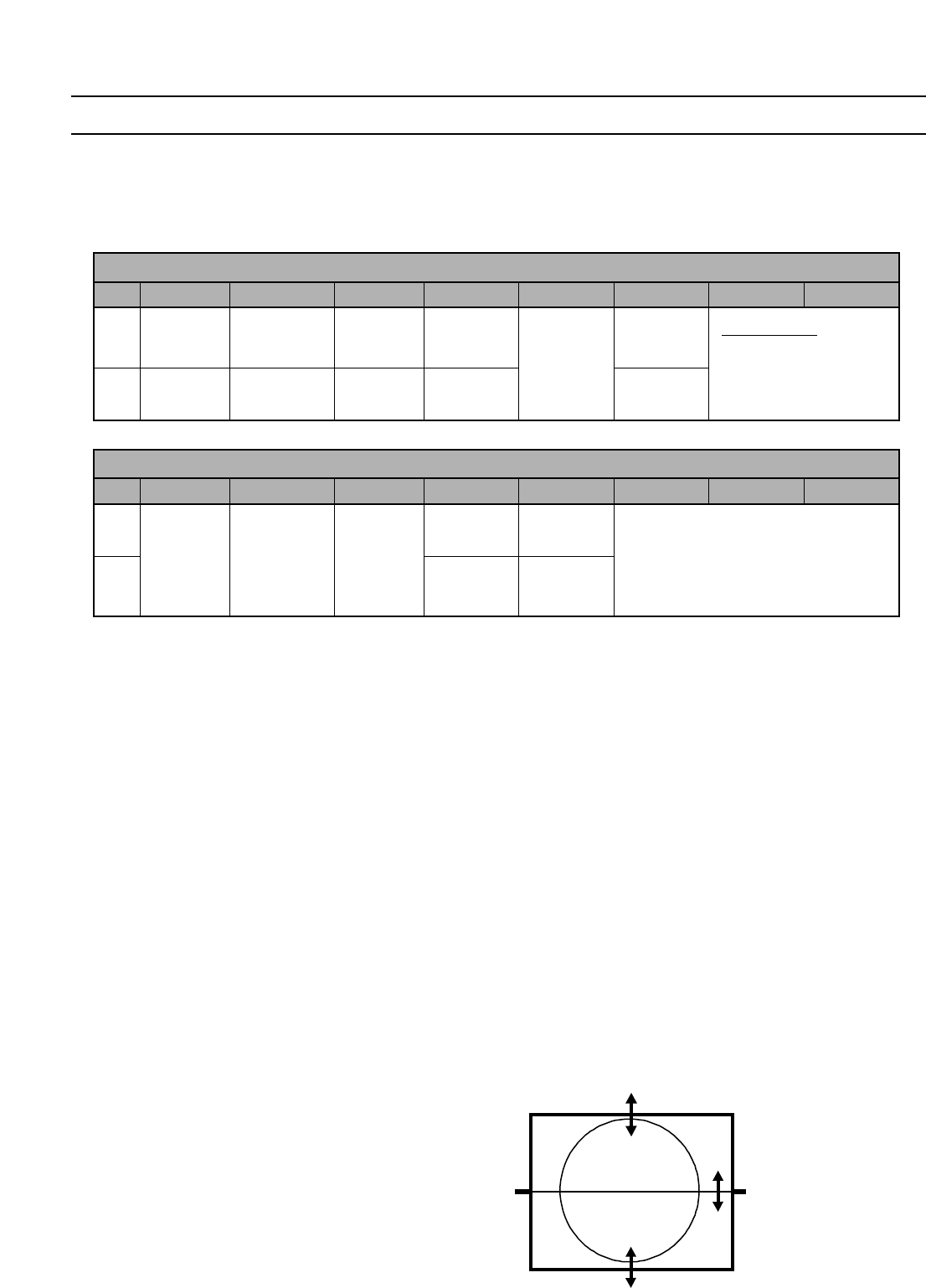

OPTION 1

B7 B6

B5 B4 B3 B2 B1 B0


TILT on

YPICTURE

TILT off

See table below.

OPTION 2 bits B2 B1 B0

Normal I

brightness

Normal I

brightness

+5 steps

OPTION 2

Tuner options

Service manual SC-150

-16-

HOR PARAL

H BOW

HOR WIDTH

PARAROLA

3-4-6- Horizontal picture centring

Adjust HOR CEN(Horizontal center) to have the picture in the center of the screen.

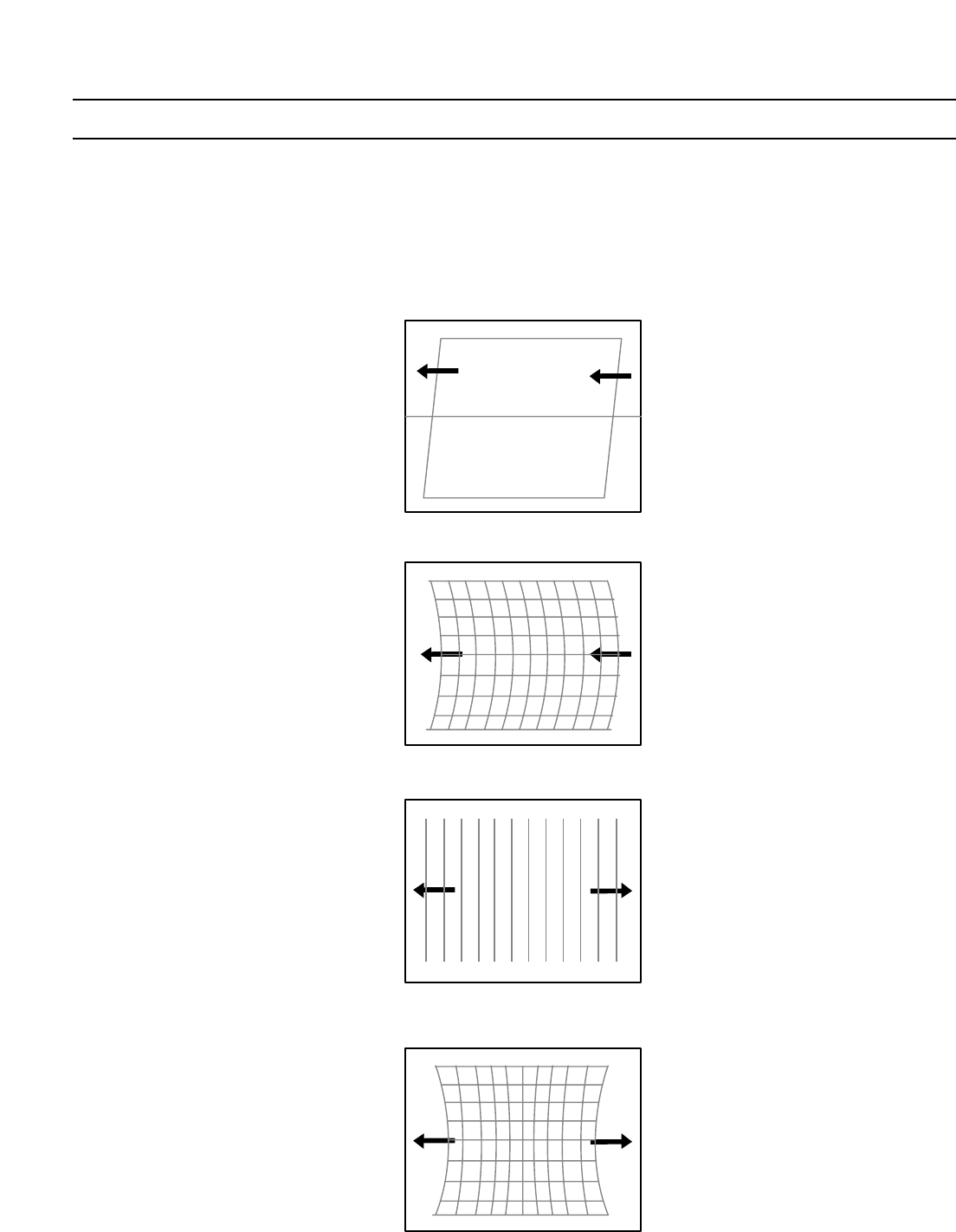

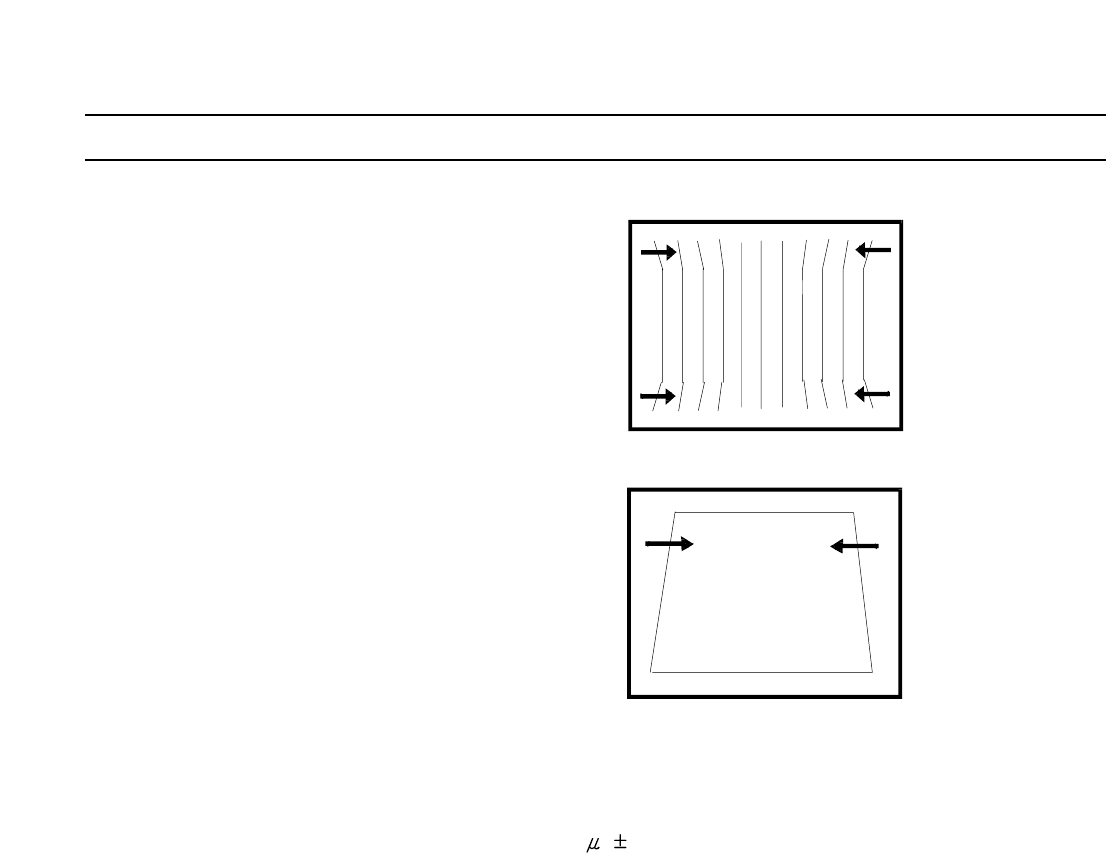

3-4-7- Eau/West comection

Adjust the PARABOLA, HOR WIDTH, CORNER, HOR PARAL, EW TRAPEZ, H BOW, to compensate for

geometrical distorrin,

For HOR WIDTH, adjust for 91% overscan.

Service manual SC-150

-17-

CORNER

EW TRAPEZ

3-4-8- AGC

- Adjust the antenna signal level at 70 dB V 2

- Tune a colour bar pattern.

- Find the “AGC” item in service mode.

- Adjust AGC volume ( RB10 ) to bring the cursor to central position : 32.

Service manual SC-150

-18-

4 - IC description

4-1 VCT383XA TV signal processor - Teletext decoder with embedded 8 bit - Controller.

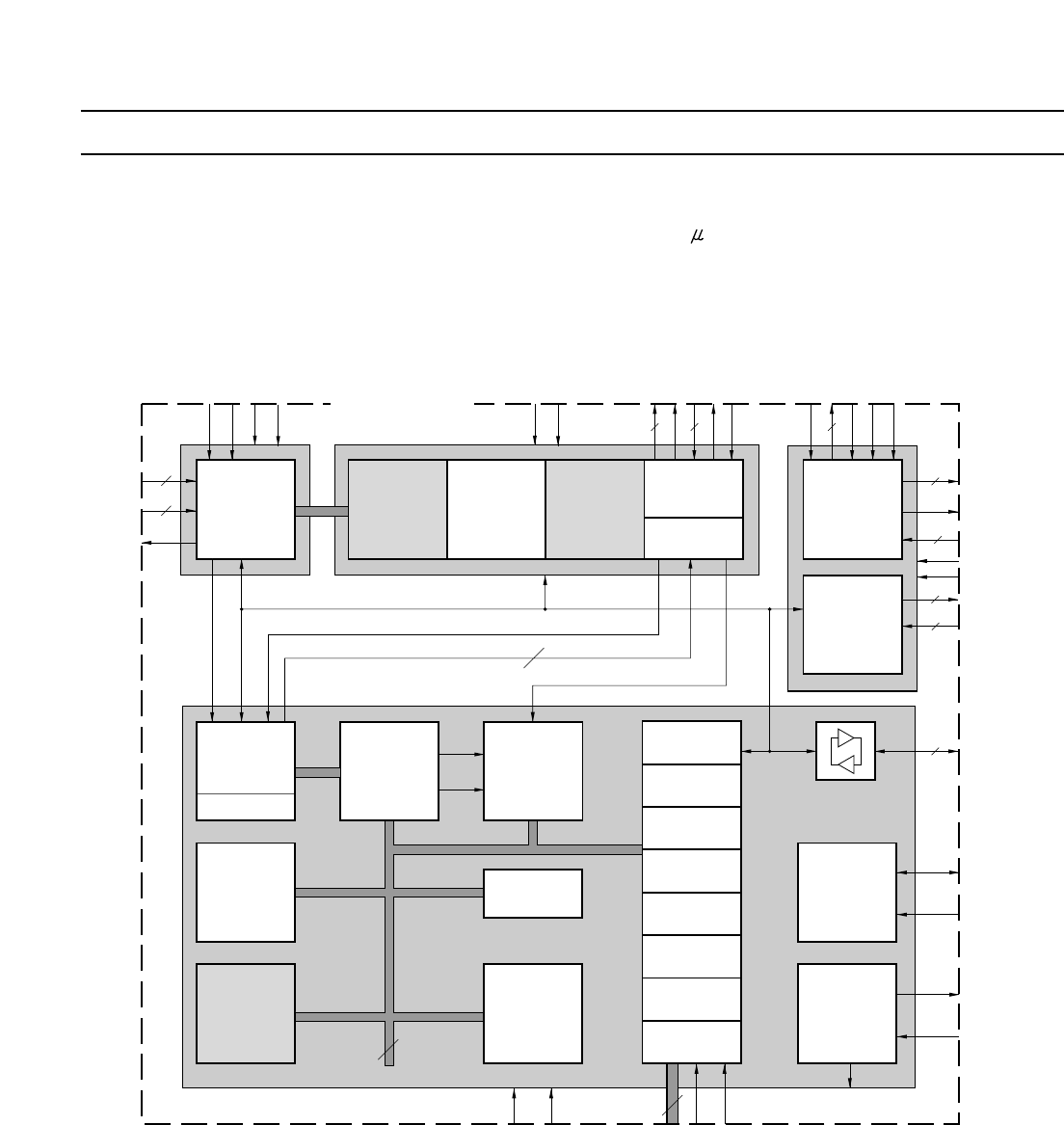

4-1-1- Block diagram of the VCT

4-1-2- TV-signal Processor

Four composite video inputs, two S-VHS inputs

Analogue YC r C b input

Composite video monitor

Multistandard colour decoder ( 1 crystal )

Multistandard sync decoder

Black-line detector

Adaptive 2H comb filter Y/C separator

VIN

VRT

SGND

VSUPAF

GNDAF

VSUPD

GNDD

VERT

PROT

HOUT

HFLB

SENSE

RSW

GNDM

VRD

XREF

Video

Front-end Comb

Filter Color

Decoder Panorama

Scaler

Display

Processor

Pict. Improv

Video

Back-end

Audio

CIN

VOUT

22 2

RGBOUT

SVM

RGBIN

VSUPAB

GNDAB

AOUT

AIN

I2C

I2C Master

I2C

MSync

Color, Prio

VSync

8-bit PWM

14-bit PWM

15:1 Mux

10-bit ACD

2 Timer

2 CapCom

96 kB

CPU ROM

ADB, DB, CB

16 kB

Text

RAM

3 kB

OSD RAM

TPU

Video

24 kB ROM

1 kB

CPU RAM

CPUDMA

RDY

Watchdog

24 IO Ports

RESQ

TEST

XTAL1

XTAL2

CLK20

CNDP1

VSUPP1

Pxy

GNDS

VSUPS

Clock

Oscillator

Reset

Logic

VCT 38xx

Service manual SC-150

-19-

Horizontal scaling ( 0.25 to 4 )

Panoramavision

Black-level expander

Dynamic peaking

Soft limiter (gamma correction)

Colour transient improvement

Programmable RGB matrix

Analogue RGB/Fastblank input

Half-contrast switch

Picture frame generator

Scan velocity modulation output

High-performance H/V deflection

Angle and bow correction

Separate ADC for tube measurements

EHT compensation

4-1-3- -Controller

8-bit, 10-Mhz CPU (65C02)

96 kB program ROM on chip

1 kB program RAM on chip

memory banking

16-input, 16-level interrupt controller

patch module for 10 ROM locations

two 16-bit reloadable timers

capture compare module

watchdog timer

14-bit PWM for voltage synthesis

Four 8-bit PWMs

10-bit ADC with 15:1 input MUX

I2C bus master interface

24 programmable I/O ports

80C51 -controller core standard instruction set and timing

1 s machine cycle

32-128Kx8-bit late programmed ROM

3-12Kx8-bit Auxiliary RAM (shared with Display and Acquisition)

Interrupt controller for individual enable/disable with two level priority

Two 16-bit Timer/Counter registers

WatchDog timer

Auxiliary RAM page pointer

16-bit Data pointer

IDLE and Power Down (PD) mode

14 bits PWM for Voltage Synthesis Tuning

8-bit A/D converter

4 pins which can be programmed as general I/O pin, ADC input or PWM (6-bit) output

4-1-4- Teletext Features

Four programmable video inputs

Adapt ive data slicer

Signal quality detection

WST, PDC, VPS, and WSS acquisition

Service manual SC-150

-20-

High-level command language

FLOF (Fastext), and TOP support

10 pages memory on chip (10kB)

4-1-5- Display OSD Features

3kB OSD RAM on chip

WST level 1.5 compliant

WST level 2 parallel attributes

32 foreground/background colours

programmable colour look-up table

1024 mask programmable characters

17 national languages

(Latin, Cyrillic and Greek caracter sets)

Character matrix 10x10

4-color mode for user font

4-1-6- Audio Features

Three mono inputs

Two mono outputs

Programmable channel select

Volume control for one mono channel

4-1-7- General Features

Submicron CMOS technology

Low-power standby mode

Single 20.25 MHz crystal

64-pin PSDIP package

4-1-8- Data Capture

The Video Front End section takes in the analogue Composite Video and Blanking Signal (CVBS), and from this

extracts the required data, which is then decoded and stored in memory.

The extraction of the data is performed in the digital domain. The first stage is to select and convert the analogue

CVBS signal into a digital form. This is done using 8 bit ADC sampling at 20.25 Mhz.

The digital data services transmitted in the VBI are selected and acquired separately form the video part. This is done

by the use of an adaptive data slicer. The following data types can be extracted : 625 line World System Teletext

(WST), VPS, WSS. The data is acquired and decoded by the teletext decoder (TPU), then stored in an SRAM lnterface.

4-1-9- Data Capture Features

Video Signal Quality detector

Data Capture for 625 line WST

Data Capture for VPS data (PDC system A)

Data Capture for Wide Screen Signalling (WSS) bit decoding

Real-time capture and decoding for WST Teletext in Hardware, to enable optimised microprocessor throughput

10 page memory stored On-Chip

Service manual SC-150

-21-

IC marking

English, French,

German, Italian,

Spanish, Dutch,

Danish, Finnish,

Norwegian, Swedish,

Greek, Polish,

Hungarian, Czech,

Slovakian, Romanian,

Russian,Bulgarian

• Inventory of transmitted Teletext pages stored in the Page Table

Signal quality detector for WST data

Comprehensive Teletext language coverage

Full Field Vertical Blanking Interval (VBI) data capture of WST data

4-1-10- TV processor version and -Controller capacity

IC version VCT 3832A VCT 3834A

8 bit -controller

ROM size 96k 96k

RAM size 1k 1k

PAL decoder

SECAM decoder

NTSC decoder

Picture improvement

Teletext page memory 10 pages 10 pages

Adaptive Comb filter

Panorama Scaler

4-1-11- IC marking and version

Chassis OSD languages ATSS countries Text

SC-150 VCT3834A Pan-European Latin.

Cyrillic, Greek.

GB, France, Germany,

Italy, Belgium, Spain,

Austria, Poland,

Switzerland, Denmark,

Finland, Netherlands,

Norway, Sweden,

Ireland, Hungary,

Czech Republic, Others

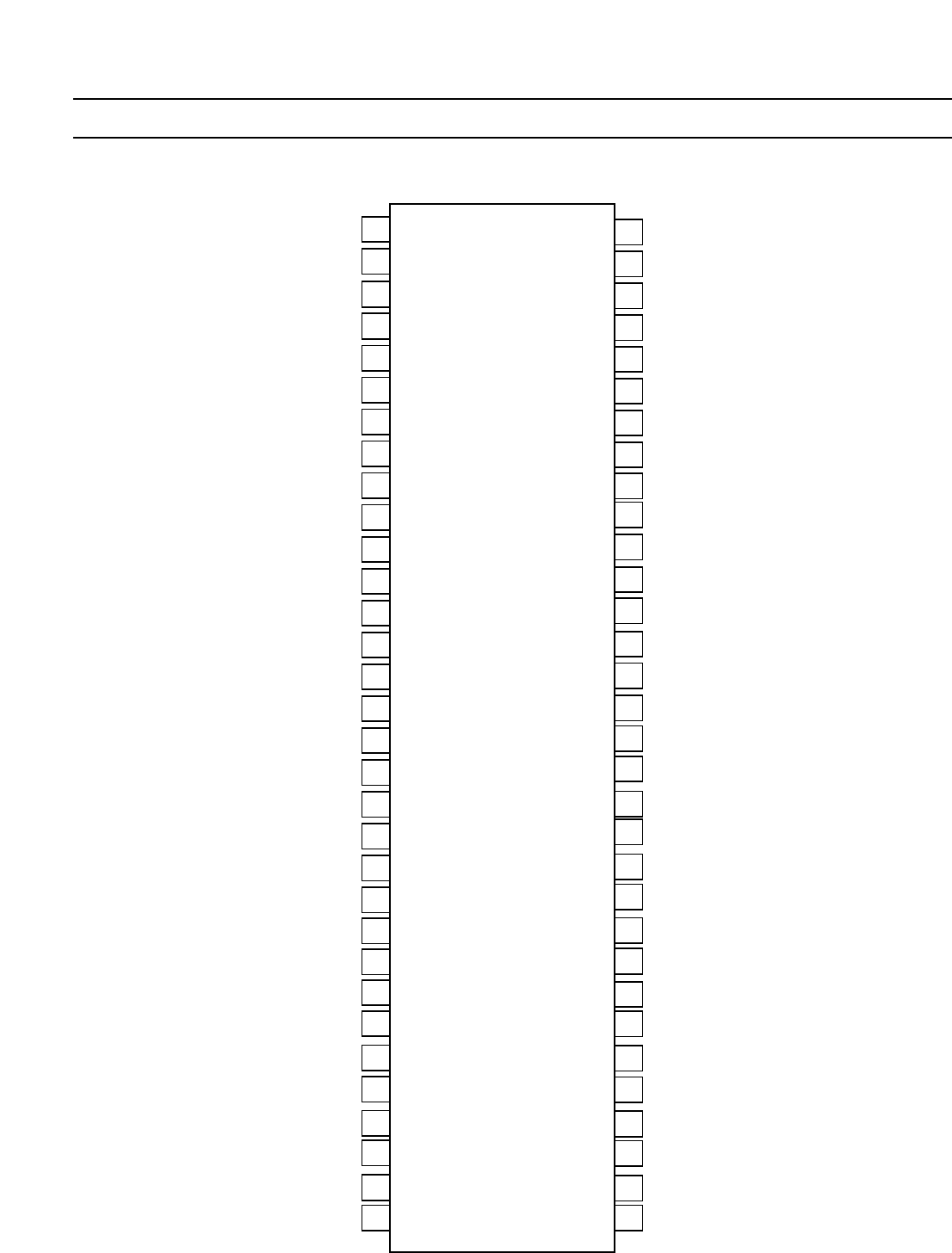

4-1-12- Pinning

PSDIP

64-pin

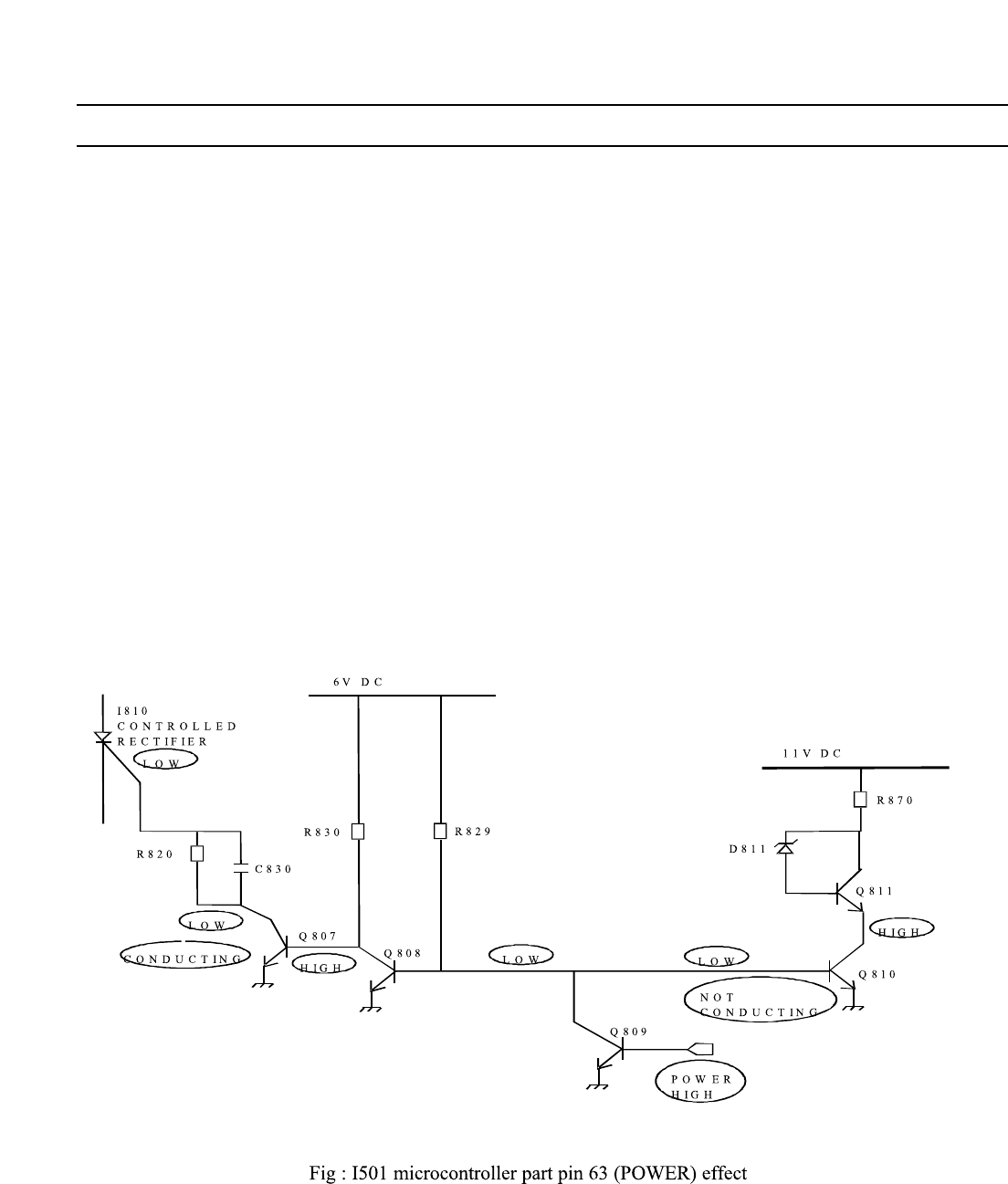

1 Power OUT High = SMPS ON, Low = SMPS in stand by mode.

2 AGC IN For service only, tuner AGC, TOP alignment.

3 VSUPP1 SUPPLY Supply Voltage, Port ( pin 1, 2, 5, 6, 7, 8, 9, 10, 61, 62, 63, 64).

4 GNDP1 SUPPLY Ground, Port.

5 MOD_SW OUT High = Negative modulation, Low = Positive modulation (L/L’).

6 SECAM L/L’ OUT High = L’, L ow = L.

7 AFC IN

8IR IN

9 SC1.SW IN

10 SC2.SW IN

11 VOUT OUT Analog Video Output

12 VRT IN Reference Voltage Top, Video ADC

13 SGND IN Signal Ground for Analog Input

Pin Name Type Short Description

Service manual SC-150

-22-

14 GNDAF SUPPLY Ground, Analog Front-end

15 VSUPAF SUPPLY Supply Voltage, Analog Front-end

16 CBIN IN Analog Component Cb Input

17 CIN1 IN Analog Chroma 1 Input

18 CIN2/CRIN IN Analog Chroma 2 Input / Analog Component Cr Input

19 VIN1 IN Analog Video 1 Input

20 VIN2 IN Analog Video 2 Input

21 VIN3 IN Analog Video 3 Input

22 VIN4 IN Analog Video 4 Input

23 TEST IN Test Pin, Reserved For Test

24 HOUT OUT Horizontal Drive Output

25 VSUPD SUPPLY Supply Voltage, Digital Circuitry

26 GNDD SUPPLY Ground, Digital Circuitry

27 FBLIN IN Fast Blank Input

28 RIN IN Analog Red Input

29 GIN IN Analog Green Input

30 BIN IN Analog Blue Input

31 VPROT IN Vertical Protection Input

32 SAFETY IN Safety Input

33 HFLB IN Horizontal Flyback Input

34 VERTQ/ INTLC OUT Differential Vertical Sawtooth Output Interlace Control Output

35 VERT OUT Differential Vertical Sawtooth Output

36 EW OUT Vertical Parabola Output

37 SENSE IN Sense ADC Input

38 GNDM SUPPLY Ground, MADC Input

39 RSW1 OUT Range Switch1 for Measurement ADC

40 RSW2 OUT Range Switch2 for Measurement ADC

41 SVMOUT OUT Scan Velocity Modulation Output

42 ROUT OUT Analog Red Output

43 GOUT OUT Analog Green Output

44 BOUT OUT Analog Blue Output

45 VSUPAB SUPPLY Supply Voltage, Analog Back-end

46 GNDAB SUPPLY Ground, Analog Back-end

47 VRD IN DAC Reference

48 XREF IN Reference Input for RGB DACs

49 AIN3 IN Analog Audio 3 Input

50 AIN2 IN Analog Audio 2 Input

51 AIN1 IN Analog Audio 1 Input

52 AOUT2 OUT Analog Audio 2 Output

53 AOUT1 OUT Analog Audio 1 Output

54 VSUPS SUPPLY Supply Voltage, Standby

55 GNDS SUPPLY Ground, Standby

56 XTAL1 IN Analog Crystal Input

57 XTAL2 OUT Analog Crystal Output

58 RESQ IN/OUT Reset Input/Output, Active Low

59 SCL IN/OUT I 2 C Bus Clock

60 SDA IN/OUT I 2 C Bus Data

61 Mute OUT High = Mute active

62 LED OUT High = Green, Low = Red

63 KB IN Local keyboard ADC input

64 OCP IN Over Current Protection input

Pin Name Type Short Description

PSDIP

64-pin

Service manual SC-150

-23-

OCP64

LED

MUTE

SDA

SCL

RESET

XTAL in

OSC GND

GND

S/B 3.3V

GND

XREF

VRD

GND

B out

G out

R out

SVM out

RSW2

RSW1

GND

SENSE

VERTQ

VERT

HFLB

Power1

AGC

S/B 5V

Gnd

MOD SW

SECAM L

AFC/RES

SC1 SW

SC2 SW

Vout

VRT

SGND

GND

Cb in

C in

Cr in

IF-IN

SC1-IN

SC2-IN

RCA VIN

TEST

H out

3.3 V

GND

FBLIN

Rin

Gin

Bin

VPROT

SAFETY

VCT 383X

Service manual SC-150

-24-

4-2 MSP341x Multistandard Sound Processor

The MSP 341x is designed as a single-chip Multistandard Sound Processor for applications in analogue and digital TV

sets, video recorders, and PC cards.

The MSP3411 has all functions of MSP3410 with the addition of a virtual surround sound feature.

A Surround sound affect can be rc produced with two loudspeakers. The MSP3411 includes virtualizer

algorithm “3D Panorama” which has been approved by the Dolby laboratories for compliance with the “Virtual Dolby

Surround” technolo gy. In addition, the MSP3411 includes Micronas “Panorama” algorithm.

MSP 341x features :

- sound IF input

- No external filters required

- Stereo baseband input via integrated AD converters

- Two pairs of DA converters

- Two carrier FM or NICAM processing

- AVC : Automatic Volume Correction

- Bass, treble, volume processing

- Full SCART in/out matrix without restrictions

- Improved FM-identification

- Demodulator short programming

- Autodetection for terrestrial TV - sound standards

- Precise bit-error rate indication

- Automatic switching from NICAM to FM/AM or vice versa

- Improved NICAM synchronisation algorithm

- Improved carrier mute algorithm

- Improved AM-demodulation

- Reduction of necessary controlling

- Less external components

4-2-1- Basic Features of the MSP 341x

4-2-1-1 Demodulator and NICAM Decoder Section

The MSP 341x is designed to simultaneously perform digital demodulation and decoding of NICAM-coded TV stereo

sound, as well as demodulation of FM or AM mono TV sound. Alternatively, two carrier FM systems according to the

German terrestrial specs can be processed with the MSP 341x.

The MSP 341x facilitates profitable multistandard capability, offering the following advantages:

- Automatic Gain Control (AGC) for analogue input: input range: 0.10 - 3 Vpp

- integrated A/D converter for sound-IF input

- all demodulation and filtering is performed on chip and is individually programmable

- easy realisation of all digital NICAM standards (B/G, I, L and D/K)

- FM-demodulation of all terrestrial standards (include identification decoding)

- no external filter hardware is required

- only one crystal clock (18.432 MHz) is necessary

Service manual SC-150

-25-

- high deviation FM-mono mode (max. deviation: approx. ±360 kHz)

4-2-1-2 DSP-Section (Audio Baseband Processing)

- flexible selection of audio sources to be processed

- performance of terrestrial de-emphasise systems (FM, NICAM)

- digitally performed FM-identification decoding and de-matrixing

- digital baseband processing: volume, bass, treble

- simple controlling of volume, bass, treble

4-2-1-3 Analogue Section

- two selectable analogue pairs of audio baseband input (= two SCART inputs) input level: <2 V RMS,

input impedance: >25

- one selectable analogue mono input (i.e. AM sound): Not used in this chassis

- two high-quality A/D converters, S/N-Ratio: >85 dB

- 20 Hz to 20 kHz bandwidth for SCART-to-SCART copy facilities

- loudspeaker: one pair of four-fold oversampled D/A converters. Output level per channel:

max. 1.4 VRMS output resistance: max. 5 . S/N-ratio: >85 dB at maximum volume Max.

noise voltage in mute mode: < 10 V (BW: 20 Hz... 16kHz)

- one pair of four-fold oversampled D/A converters supplying a pair of SCART-outputs.

output level per channel: max. 2 V RMS, output resistance: max. 0.5 , S/N-Ratio: >85 dB (20 Hz... 16 kHz)

4-2-1-4 NICAM plus FM/AM-Mono

According to the British, Scandinavian, Spanish, and French TV-standards, high-quality stereo sound is transmitted

digitally. The systems allow two high-quality digital sound channels to be added to the already existing

FM/AM-channel. The sound coding follows the format of the so-called Near Instantaneous Companding System

(NICAM 728). Transmission is performed using Differential Quadrature Phase Shift Keying (DQPSK. Table below

offers an overview of the modulation parameters.)

In the case of NICAM/FM (AM) mode, there are three different audio channels available: NICAM A, NICAM B, and

FM/AM-mono. NICAM A and B may belong either to a stereo or to a dual language transmission. Information about

operation mode and about the quality of the NICAM signal can be read by the controlling software via the control bus.

In the case of low quality (high bit error rate), the controlling software may decide to switch to the analogue FM/AM-

mono sound. Alternatively, an automatic NICAM-FM/AM switching may be applied.

4-2-1-5 German 2-Carrier System (DUAL FM System)

Since September 1981, stereo and dual sound programs have been transmitted in Germany using the 2-carrier system.

Sound transmission consists of the already existing first sound carrier and a second sound carrier additionally

containing an identification signal. More details of this standard are given in Tables below. For D/K very similar

system is used.

Service manual SC-150

-26-

TV standards

TV Position of sound Sound modulation Color system Country

system carrier (MHz)

B/G 5.5 / 5.7421875 FM Stereo PAL Germany

B/G 5.5 / 5.85 FM-Mono / NICAM PAL Scandinavia,

Spain

L 6.5 / 5.85 AM-Mono / NICAM SECAM-L France

I 6.0 / 6.552 FM-Mono / NICAM PAL UK

D/K 6.5 / 6.2578125 D/K1 FM Stereo SECAM-East USSR

6.5 / 6.7421875 D/K2

6.5 / 5.85 D/K-NICAM FM-Mono / NICAM Hungary

Pin connections and short description

Pin No. Pin Name Type Short description

1 TP Out Test pin

2 NC Not Connected

3 NC Not Connected

4 TP Out Test pin

5 TP Out Test pin

6 ADR_SEL In I2C bus Address select

7 STANDBYQ In Standby ( Low-active)

8 NC Not Connected

9 I2C_CL In / Out I2C Clock

10 I2C_DA In / Out I2C data

11 TP In / Out Test pin

Sound IF 1

ADC

DAC

Loud-

speaker

sound

Processing

Headphone

sound

Processing DAC

SCART

Output

Select

DAC

DSP

SCART

input

Select

De-

modulator Pre-

processing

Prescale

Sound IF 2

I2S2

SCART1

SCART2

SCART3

SCART4

MONO

I2S1

I2S

Loudspeaker

Subwoofer

Headphone

SCART1

SCART2

Source Select

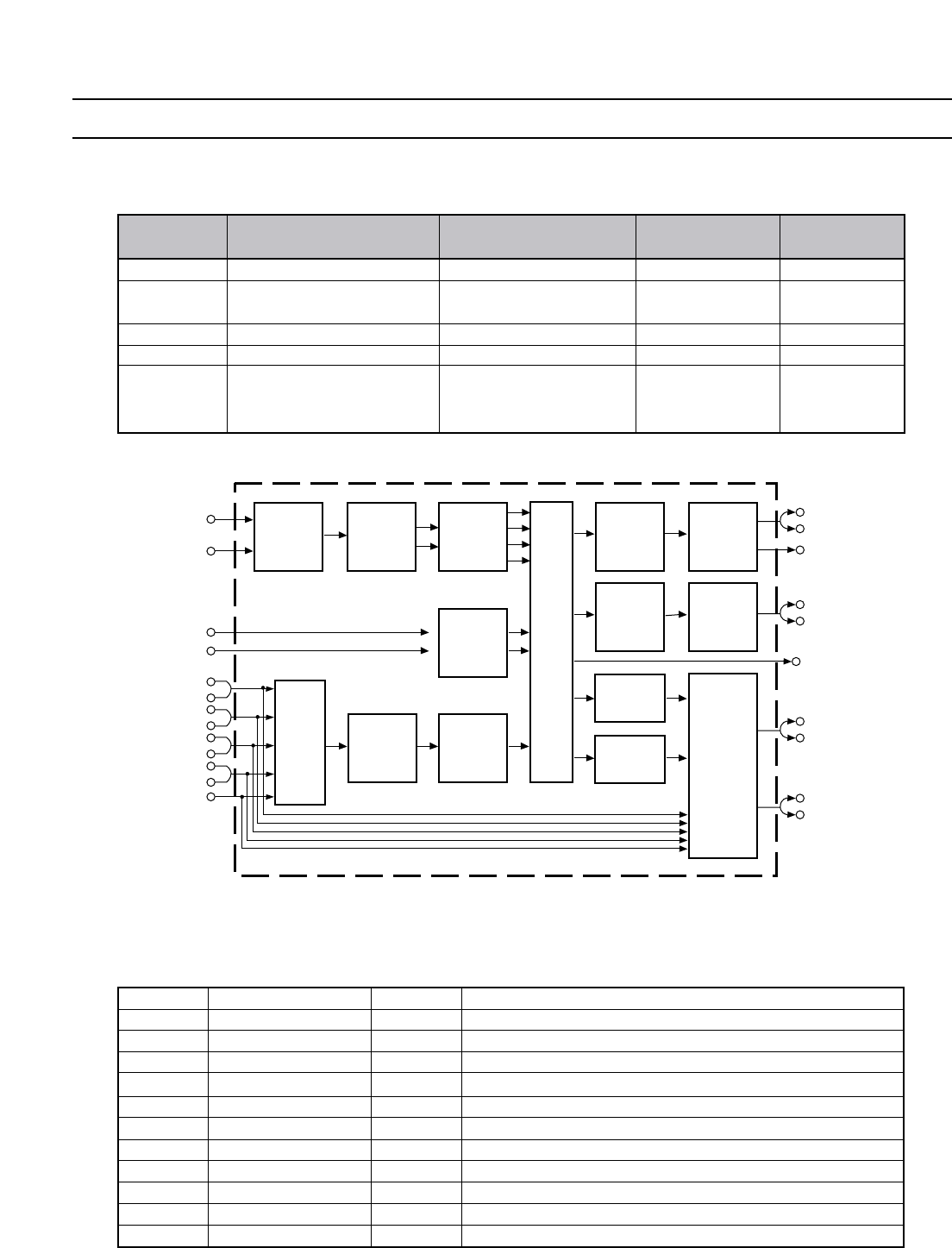

Architecture of MSP341x

Service manual SC-150

-27-

12 TP In / Out Test pin

13 TP Out Test pin

14 NC Not Connected

15 TP Out Test pin

16 TP Out Test pin

17 TP Out Test pin

18 DVSUP Digital power supply +5V

19 DVSS Digital Ground

20 NC Not Connected

21 NC Not Connected

22 NC Not Connected

23 NC Not Connected

24 RESETQ In Power-On-reset

25 NC Not Connected

26 NC Not Connected

27 VREF2 Reference ground 2 high voltage part

28 DACM_R Out Loudspeaker out Right

29 DACM_L Out Loudspeaker out Left

30 NC Not Connected

31 TP Out Test pin

32 NC Not Connected

33 NC Not Connected

34 NC Not Connected

35 VREF1 Reference ground 1 high voltage part

36 SC1_OUT_R Out Scart output 1, right

37 SC1_OUT_L Out Scart output 1, left

38 NC Not Connected

39 AHVSUP Analog power supply 8.0V

40 CAPL_M Volume capacitor MAIN

41 AHVSS Analog ground

42 AGNDC Analog reference voltage high voltage part

43 NC Not Connected

44 NC Not Connected

45 NC Not Connected

46 NC Not Connected

47 NC Not Connected

48 ASG2 Analog Shield Ground 2

49 SC2_IN_L In Scart input 2 in, left

50 SC2_IN_R In Scart input 2 in, right

51 ASG1 Analog Shield Ground 1

52 SC1_IN_L In Scart input 1 in, left

53 SC1_IN_R In Scart input 1 in, right

54 VREFTOP Reference voltage IF A/D converter

55 MONO_IN In Mono input

56 AVSS Analog ground

57 AVSUP Analog power supply

58 ANA_IN1+ In IF input 1

Pin No. Pin Name Type Short description

Service manual SC-150

-28-

Pin No. Pin Name Type Short description

59 ANA_IN1- In IF common

60 NC Not Connected

61 TESTEN In Test pin

62 XTAL_IN In Crystal oscillator

63 XTAL_OUT Out Crystal oscillator

64 NC Test pin

4-3 TDA 4470-Multistandard Video-IF and Quasi Parallel Sound Processor

4-3-1- Description

The TDA 4470 is an integrated bipolar circuit for multi-standard video/sound IF (VIF/SIF) signal processing in

TV/VCR and multimedia applications. The circuit processes all TV video IF signals with negative modulation

(e.g., B/G standard), positive modulation (e.g., L standard) and the AM, FM/NICAM sound IF signals.

4-3-2- Features

- 5V supply voltage ; low power consumption.

- Active carrier generation by FPLL principle (frequency-phase-locked-loop) for true synchronous demodulation.

- Very linear video demodulation, good pulse response and excellent intermodulation figures.

- Alignment-free AFC without external reference circuit, polarity of the AFC curve is switchable.

- VIF-AGC for negative modulated signals (peak sync. detection) and for positive modulation

(peak white/black level detector).

- Tuner AGC with adjustable take over point.

- Alignment-free quasi parallel sound (QPS) mixer for FM/NICAM sound IF signals.

- Intercarrier output signal is gain controlled (necessary for digital sound processing).

- Complete alignment-free AM demodulator with gain controlled AF output.

- Separate SIF-AGC with average detection

- Two independent SIF inputs

- Parallel operation of the AM demodulator and QPS mixer (for NICAM-L stereo sound).

4-3-3- Pinning

Pin Symbol Function

1,2 V

i,SIF1

SIF1 input ( symmetrical)

Input selector switch

4,9,16 GND Ground

AGC

SIF-AGC (time constant)

6,7 V

i,VIF

VIF input (symmetrical)

AGC

VIF-AGC (time constant)

10 R

TOP

Take Over Point, tuner AGC

11 I

tun

Tuner AGC output current

12 V

O,VID

Video output

13 V

Standard switch

14 V

L’switch

15 C

Black level capacitor

17 C

ref

Internal reference voltage

18 LF Loop Filter

Service manual SC-150

-29-

Pin Symbol Function

19 V

AFC switch

20, 21 V

VCO

VCO circuit

22 V

AFC

AFC output

23 V

Supply voltage

24 V

O, FM

Intercarrier output

25 V

O,AM

AF output-AM sound

26 R

COMP

Offset compensation

27, 28 V

i,SIF2

SIF2 input (symmetrical)

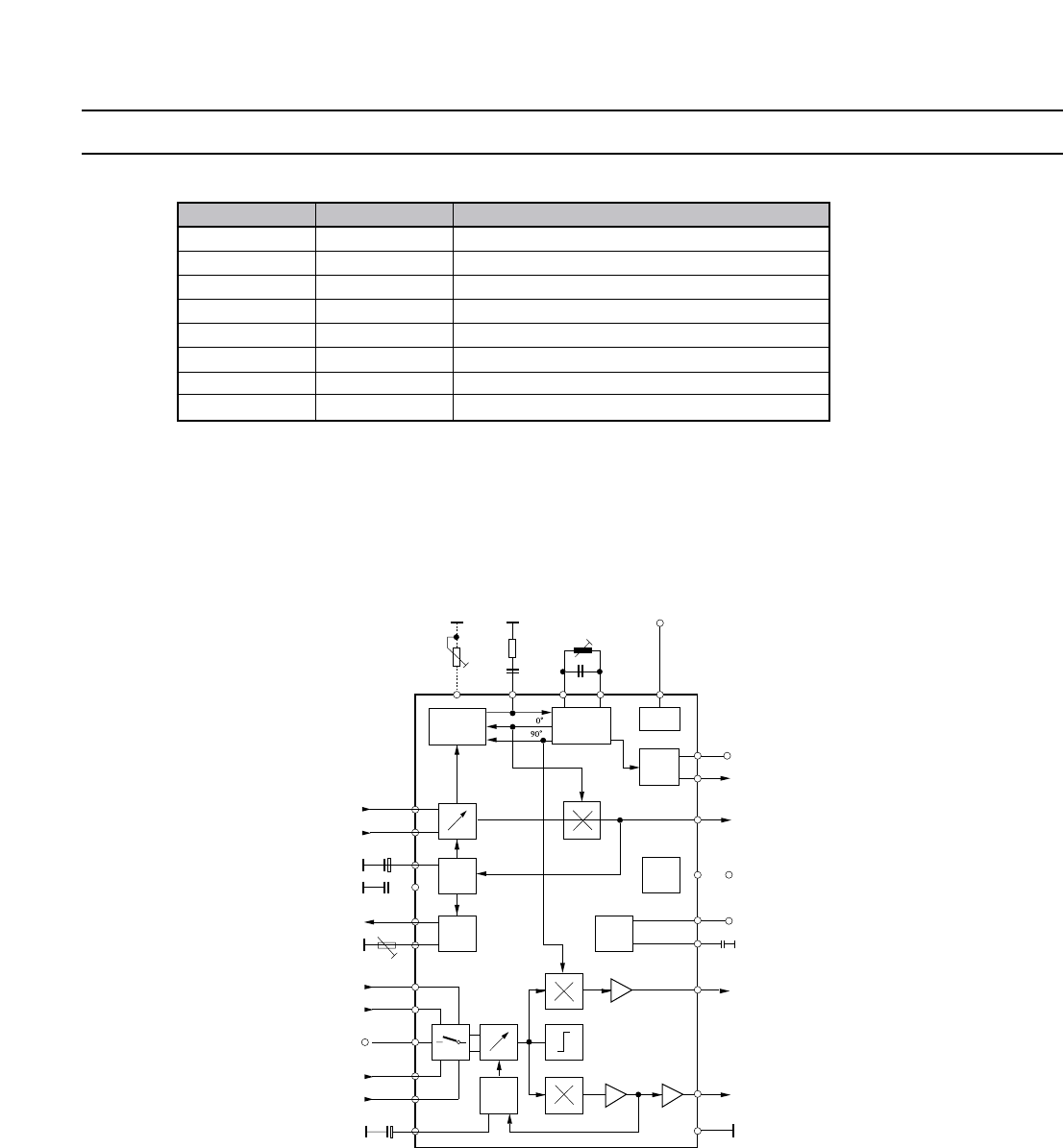

4-3-4 Block diagram

Offset

26 18 20 21 14

VCO

l' switch

VCO Control

phase shift

FPLL

VIF amp

Loop

filter

comp.

(optional)

4,9,16AM det.

FM det.

Cref

SIF 1

CAGC

Standard

Video det.

VIF

CAGC

CBL

AGC

(VIF)

Tuner

AGC

(SIF)

Tuner

SIF 2

SIF input

switch

SIF amp

Take over

point

Video

AFC

switch

AFC

Supply

Standard

switch

(AM)

Intercarrier

(FM/NICAM)

Service manual SC-150

-30-

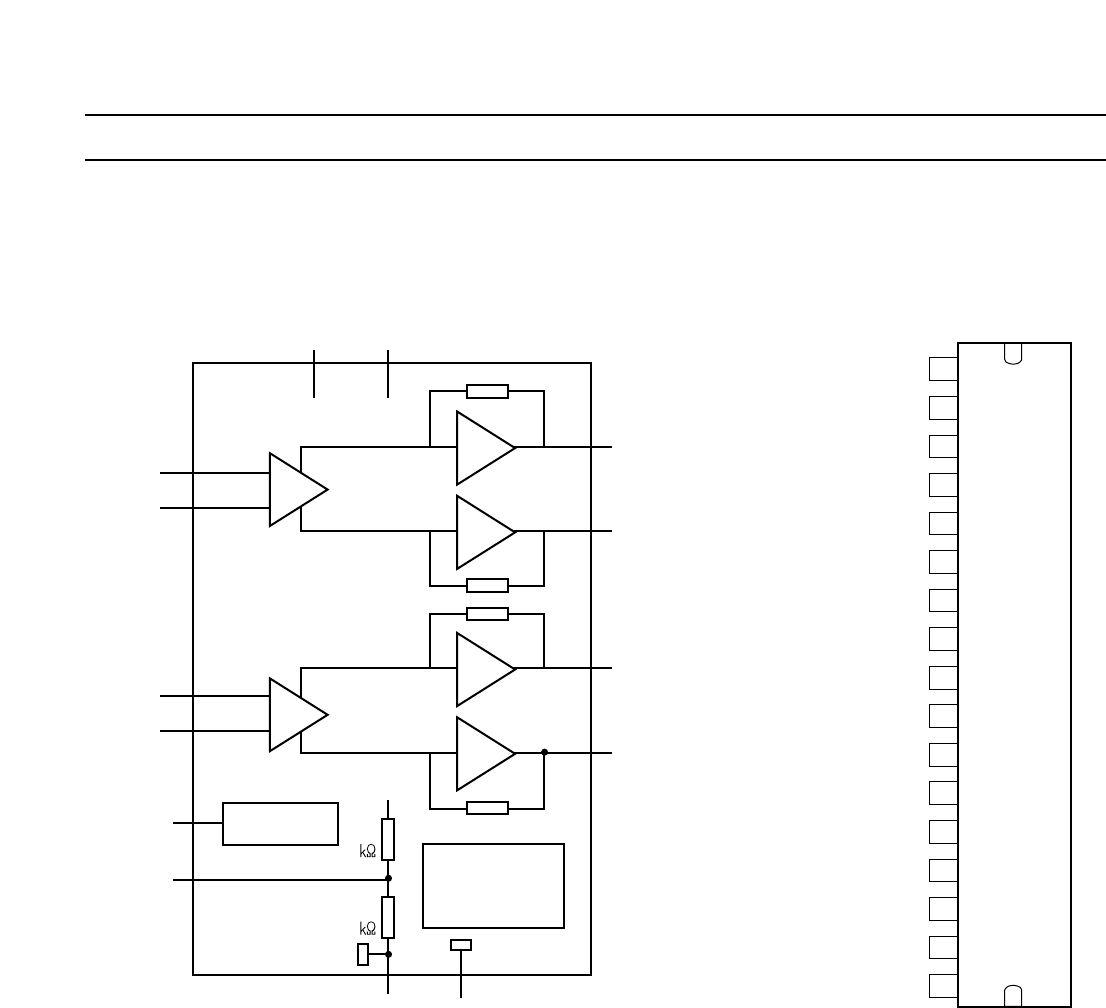

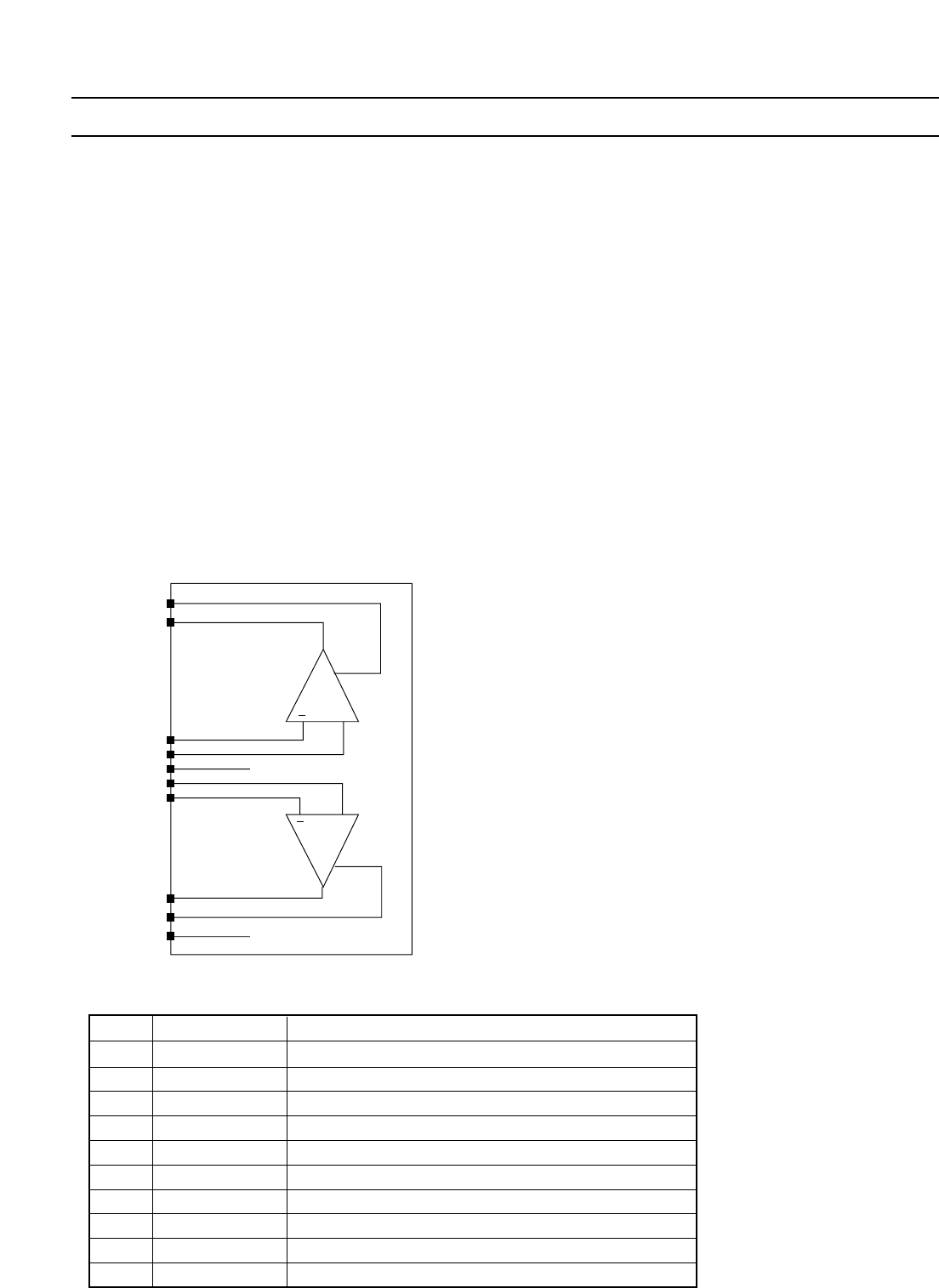

Pin Symbol Description

1 OUT1- negative loudspeaker

terminal 1

2 GND1 ground channel 1

3 Vcc1 supply voltage channel 1

4 OUT1+ positive loudspeaker

terminal 1

5 n.c. not connected

not connected

6 IN1+ poitive input1

7 n.c. not connected

8 IN1- negative input1

9 IN2- negative input2

10 MODE mode selection input

11 SVR half supply voltage

decoupling (ripple rejection)

2 IN2+

n.c

OUT2- nogative loudspeaker terminal 2

ground channel 2

supply voltage channel 2

positive loudspeaker terminal 2

GND2

Vcc2

OUT2+

positive input2

4-4 TDA8946J Stereo Audio Amplifier

The TDA8946J is a dual-channel audio po wer amplifier with an output power of 2 X 15W

at an 8 load and a 18V supply. The circuit contains two Bridges Tied Load(BTL) amplifiers with an all-NPN output

stage and standby/mute logic. The TDA8946J comes in a 17-pin DIL power package.

4-4-1- Features

- Few external components

- Fixed gain

- Standby and mute mode

- No on/off switching pop noise

- low standby current

- High supply voltage ripple rejection

- Outputs short-circuit protected to ground, supply and across the load

- Thermally protected

Pin description

Service manual SC-150

-31-

Block diagram TDA8946J Pin configuration

316

Vcc1 Vcc2

IN1-

OUT1-

OUT1+

OUT2-

OUT2+

IN1+

IN1-

IN2-

MODE

SVR

IN2+

n.c.

GND

GND2

GND1 GND2

Vcc1

Vcc2

OUT1+

OUT2-

OUT2+

IN1+

IN2-

IN2+

MODE

SVR 11

10 STANDBY/

MUTE LOGIC 20

Vcc

SHORT CIRCUIT

AND

TEMPERATURE

PROTECTION

TDA8946J

MBK933

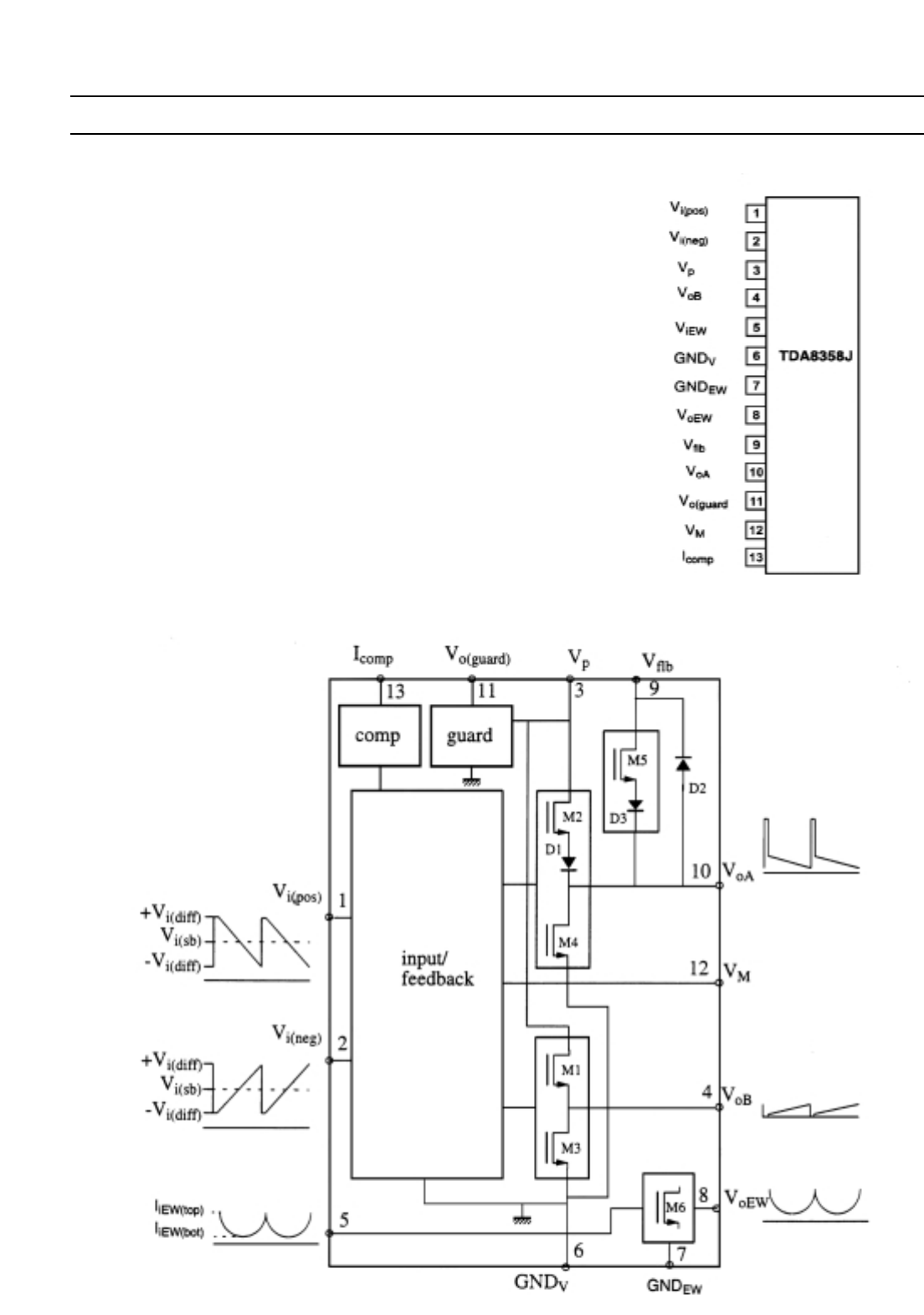

4-5 TDA8358J Vertical Amplifier

The TDA8358J are power circuit for use in 90

and 110

colour deflection systems for field frequencies

of 25 to 200Hz and 16/9 picture tubes. The circuit provides a DC driven vertical deflection output circuit,

operating as a highly efficient class G system. Due to the full bridge output circuit the deflection coils can

be DC coupled.

The IC is constructed in a Low Voltage DMOS process that combines Bipolar, CMOS and DMOS devices.

MOS transistors are used in the output stage because of the absence of second breakdown.

Service manual SC-150

-32-

4-5-1 TDA8358J

An East-West output stage is provided that is able to sink current

from the diode modulator circuit.

Features :

- Few external components

- Highly efficient fully DC-coupled vertical output bridge circuit

- Short rise and fall time of the vertical flyback switch

- Guard circuit

- Temperature (thermal) protection

- High EMC because of common mode inputs

- East-West output stage

Service manual SC-150

-33-

4-6 TDA6107Q

The TDA6107Q includes three video output amplifiers in one plastic DIL-Bent-SIL 9-pin medium power package,

using high voltage DMOS technology, and is intended to drive the three cathodes of a colour CRT directly. To obtain

maximum performance, the amplifier should be used with black-current control.

Features

- Typical bandwidth of 5.5 MHz for an output signal of 60 Vpp

- High slew rate of 900V/ s

- No external components required

- Very simple application

- Single supply voltage of 200V

- Internal reference voltage of 2.5 V

- Fixed gain of 50.

- Black-current stabilisation (BCS) circuit

- Thermal protection

Pin description

Pin Symbol Description

i(1)

inverting input 1

i(2)

inverting input 2

i(3)

inverting input 3

4 GND ground (fin)

black current

measurement output

supply voltage

OC(3)

cathode output 3

OC(2)

cathode output 2

OC(1)

cathode output 1

Service manual SC-150

-34-

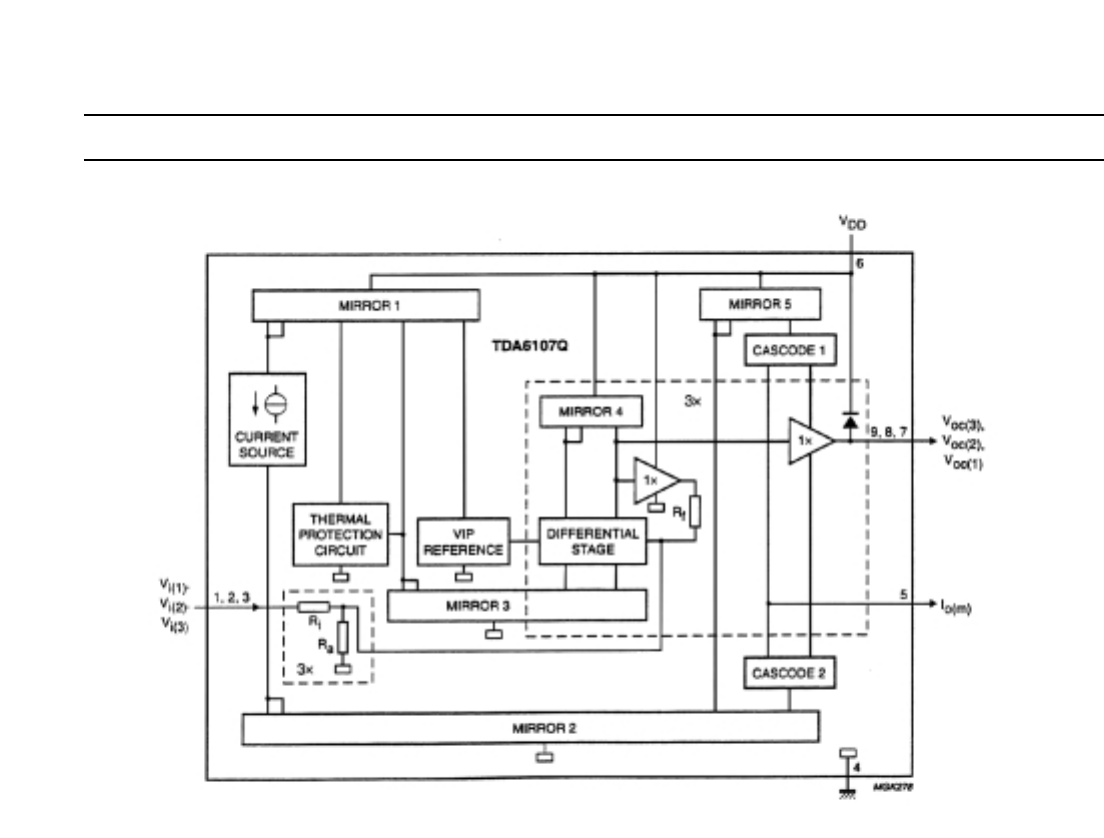

Block diagram TDA6107Q

Service manual SC-150

-35-

4-7 24C16 - 16 Kb EEPROM

features :

- 16 Kbit serial I2C bus EEPROM

- Single supply voltage : 4.5 V to 5.5 V

- 1 Million Erase/Write cycles (minimum)

- 40 year data retention (minimum)

Pin description

Pin No. Name Description

1, 2, 3 E0, E1, E2 Device address - not used

5 SDA Serral Data/Address Input/Output

6 SCL Serial clock

7 WC Write control

8 Vcc Supply voltage

4 Vss Ground

The memory device is compatible with the I2C memory standard. This is a two wire serial interface that uses a

bi-directionnal data bus and serial clock. The memory carries a built-in 4-bit unique device type identifier code (1010)

in accordance with the I2C bus definition.

Serial Clock (SCL)

The SCL input is used to strobe all data in and out of the memory.

Serial Data (SDA)

The SDA pin is bi-directionnal, and is used to transfer data in or out of the memory

Service manual SC-150

-36-

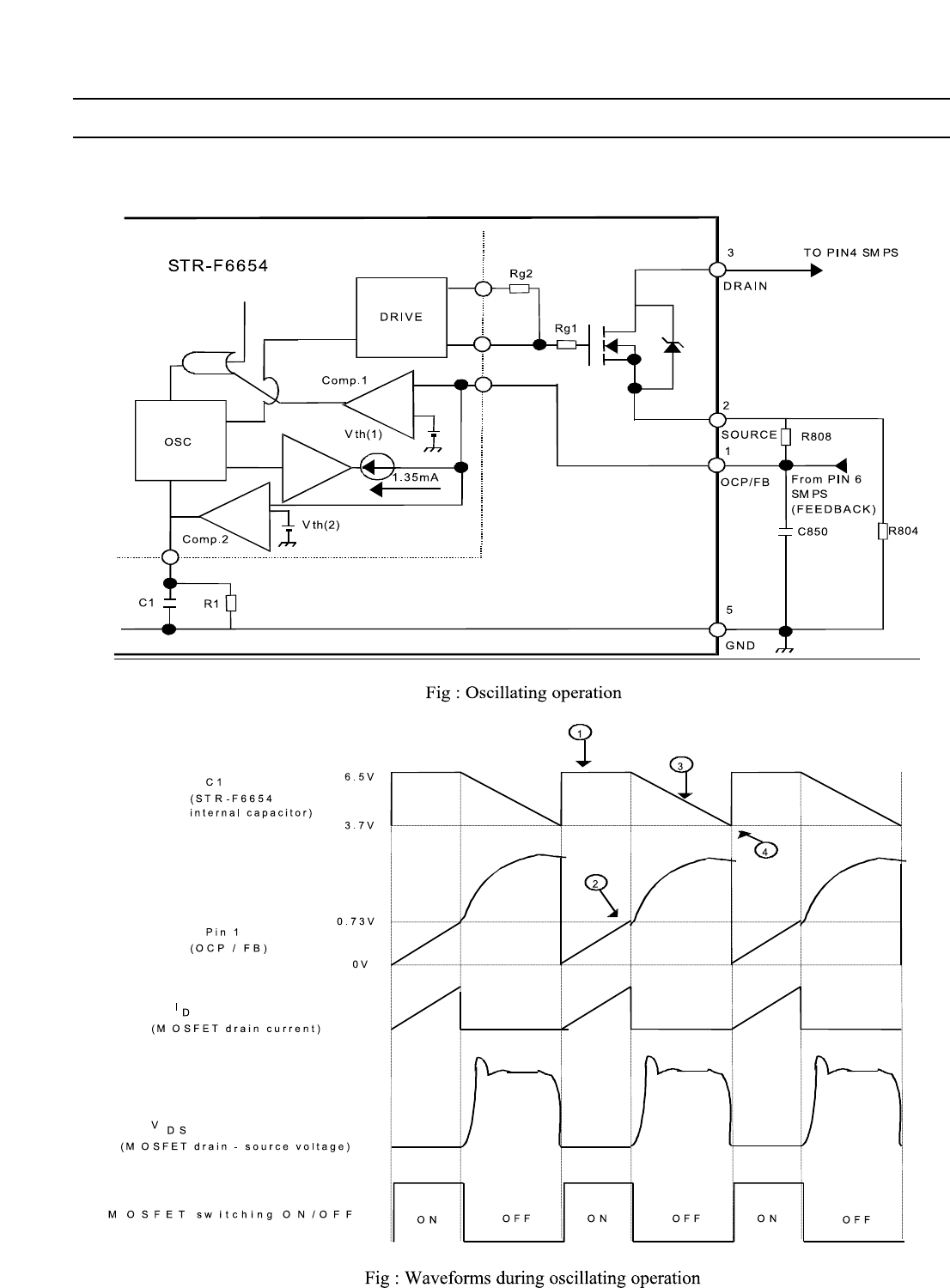

4-8 STR - F6653

4-8-1 General description

The STR-F6653 is an hybrid IC with a build-in MOSFET and control IC, designed for flyback converter type switch

mode power supply applications.

4-8-2 Features

- Small SIP fully isolated molded 5 pins package

- Many protection functions :

* Pulse-by-pulse overcurrent protection (OCP)

* Overvoltage protection with latch mode (OVP)

* Thermal protection with latch mode (TSD)

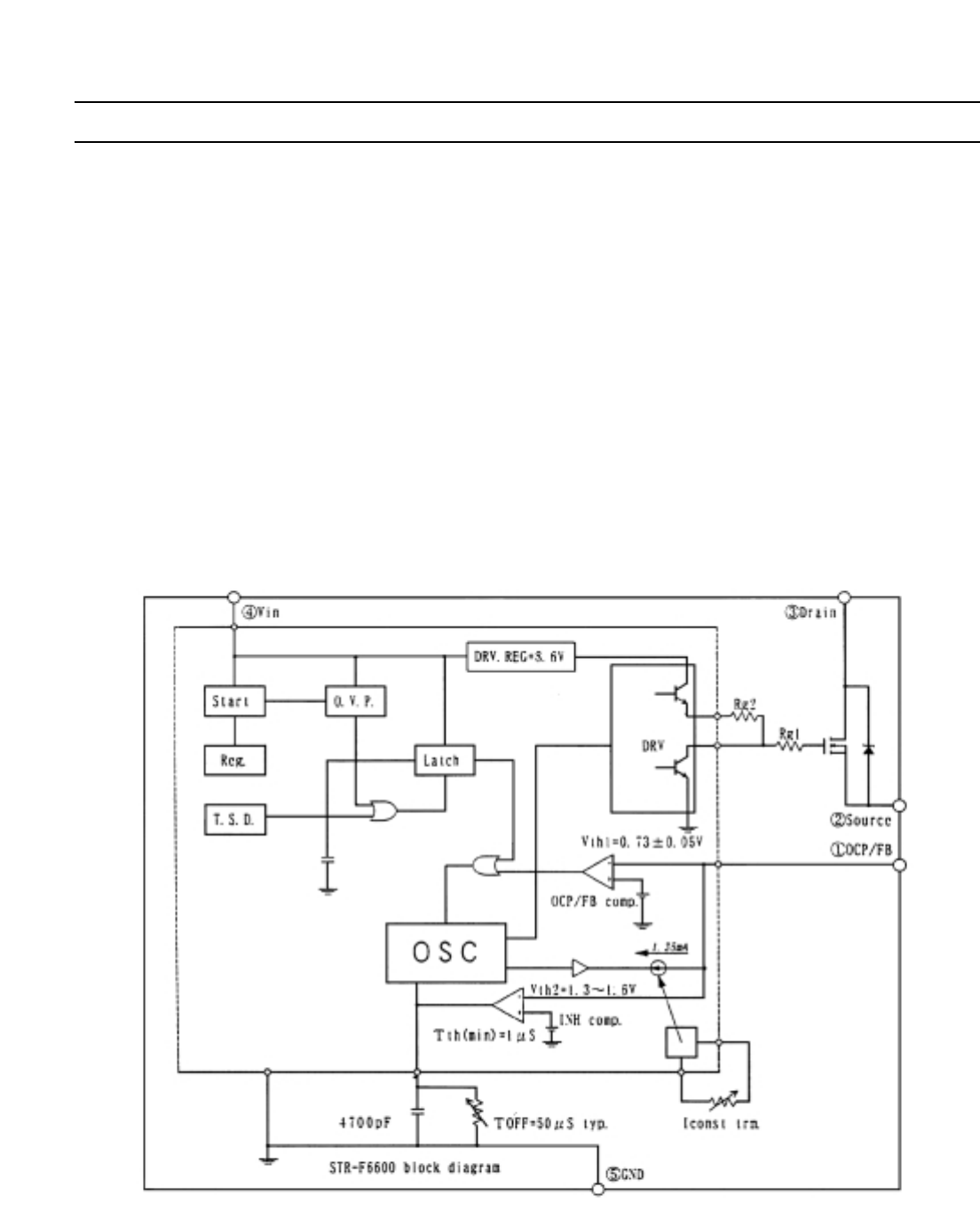

4-8-3 Block diagram

Service manual SC-150

-37-

4-8-4 Pins description

pin name symbol description

1 Overcurrent / feedback O.C.P./ F.B. Input of over current detection signal and

feedback signal

2 Source S MOSFET source

3 Drain D MOSFET drain

4 Supply V

Input of power supply for control circuit

5 Ground GND Ground

4-8-5 Control part electrical characteristics

IC PIN RATING

NUMBER MIN. TYPE MAX

Operation start voltage 4-5 V

(on) 14.4 16 17.6 V

Operation stop voltage 4-5 V

(off) 9 10 111 V

Circuit current in 4-5 I

(on) - - 30 mA

operation

Circuit current in non- 4-5 I

(off) - - 100 mA A

operation

Maximum OFF time - T

OFF

(max) 45 - 55 SEC

Minimum time for input of 1-5 T

(2) - - 1.0 SEC

quaxi resonant signals

Minimum off time - T

OFF

(min) - - 1.5 SEC

O.C.P./F.B. terminal 1-5 V

(1) 0.68 0.73 0.78 V

threshold voltage 1

O.C.P./F.B. terminal 1-5 V

(2) 1.3 1.45 1.6 V

threshold voltage 2

O.C.P./F.B. terminal extraction 1-2 I

OCP/FB

1.2 1.35 1.5 mA

current

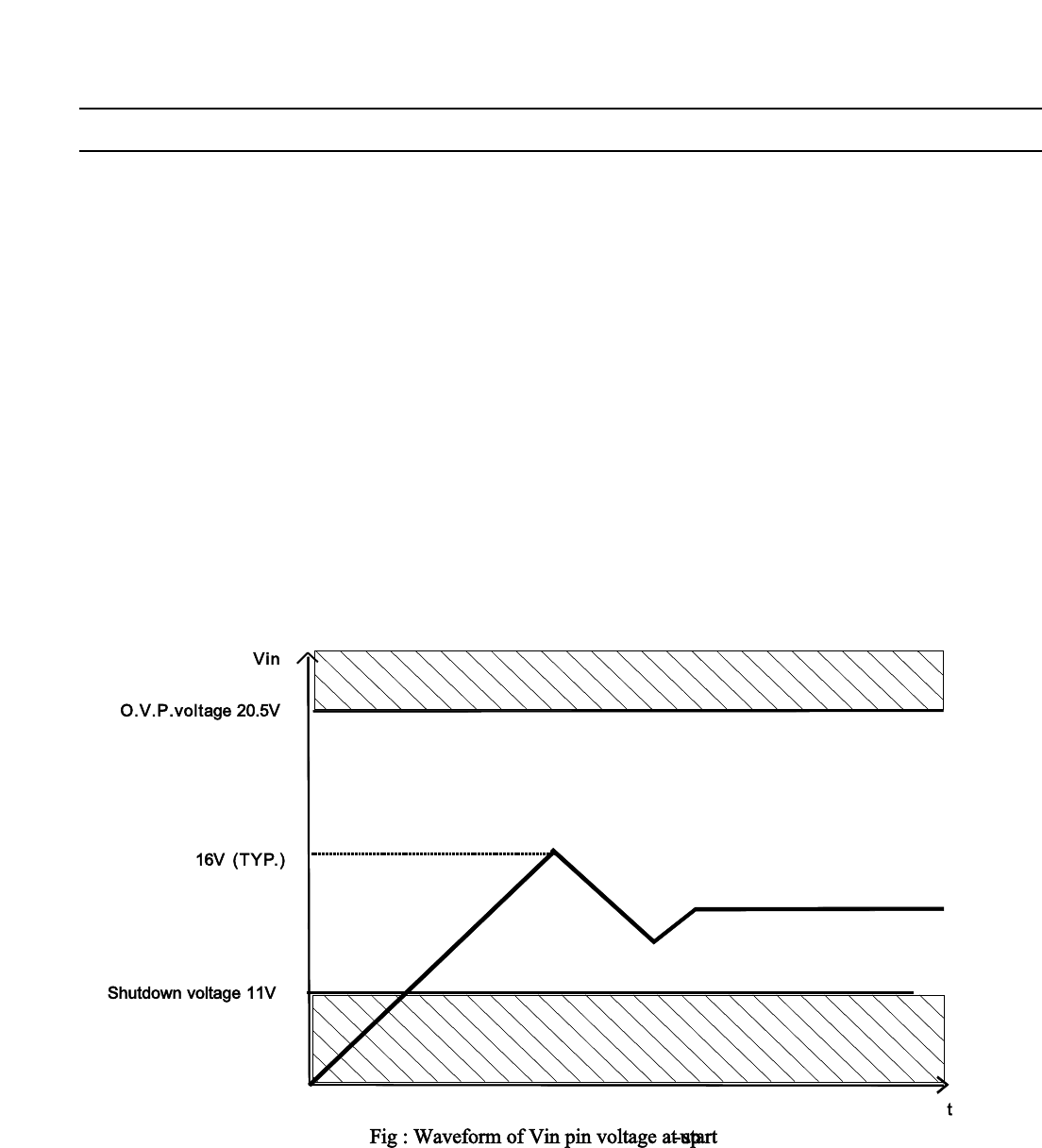

O.V.P. operation voltage 4-5 V

(OVP) 20.5 22.5 24.5 V

Latch circuit sustaining voltage 4-5 I

(H) - - 400 A

Latch circuit release voltage 4-5 V

(La.off) 6.6 - 8.4 V

Thermal shutdown operating - T

(TSD) 140 - -

temperature

SYMBOL UNIT

DESCRIPTION

Service manual SC-150

-38-

DESCRIPTION

4-8-6 MOSFET electrical characteristics

IC PINS RATING

NUMBER MIN. TYPE MAX

Drain-to-source break 3-2 V

DSS

650 - - V

voltage

Drain leakage current 3-2 I

DSS

- - 300 A

On-resistance 3-2 R

(on) - - 1.95

Switching time 3-2 tf - - 2 50 noec

Thermal resistance - O

-F - - 0.95

C/W

SYMBOL UNIT

Service manual SC-150

-39-

4-9 CXA1315P

4-9-1 General description

The CXA1315M/P is developed as a 5-channel 8- bit D/A converter supporting with I 2 C bus.

4-9-2 Features

-Serial control through I 2 C bus

-5-channel 8-bit D/A converter

-Built-in 4general-purpose I/O ports (Digital I/O)

-I/O can be specified to respective ports independently

-Selection of 8 slave addresses possible through address select pins (3 pins)

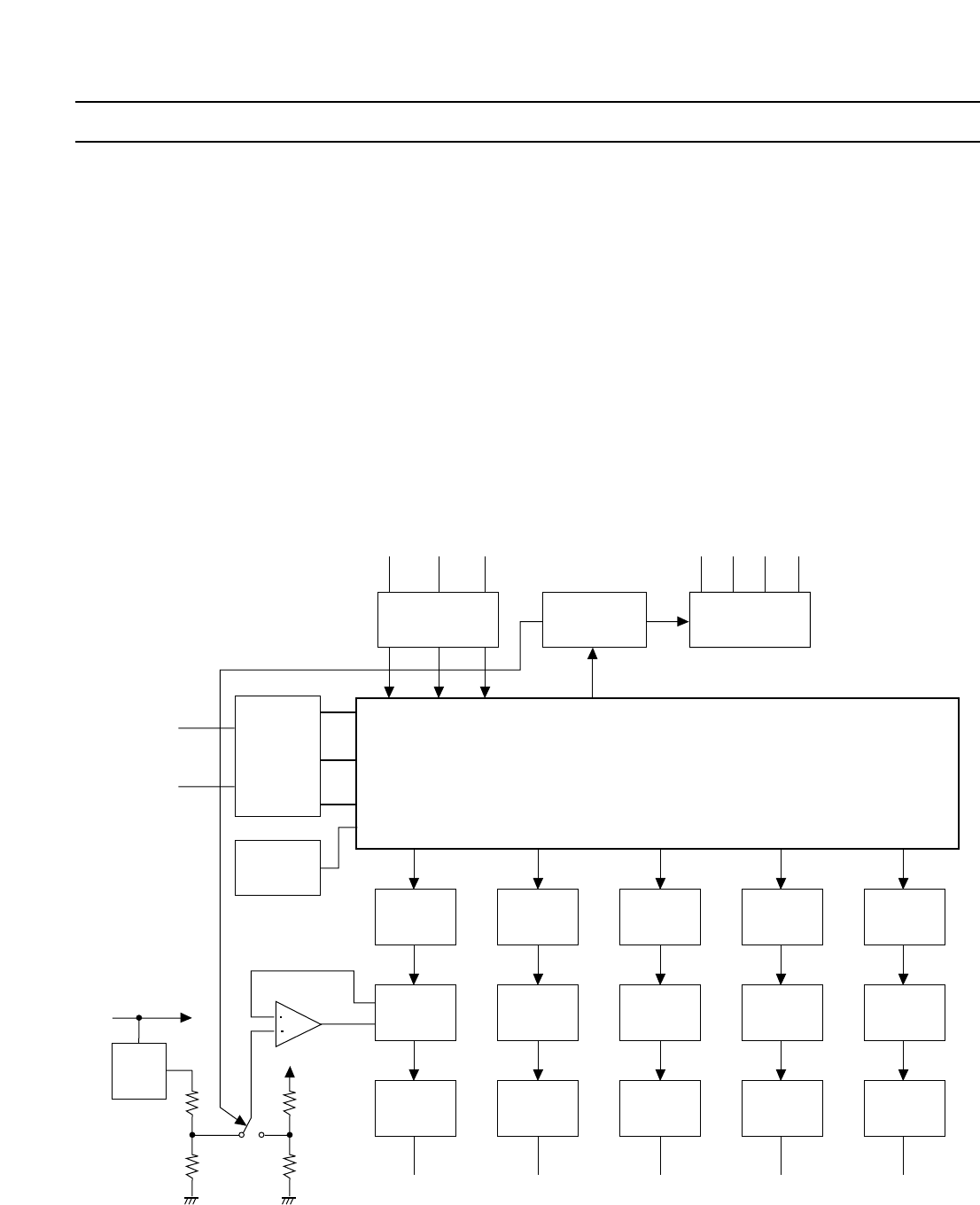

4-9-3 Block diagram

Level

Conversion

Level

Conversion

Power On

Reset

SAD2

SDA

I2C BUS

SCL

LATCH

DAC

REG

DAC4

GND

DAC3 DAC2 DAC1 DAC0

AMP

Vcc

AMP AMP AMP AMP

DAC DAC DAC DAC

LATCH LATCH LATCH LATCH

SAD1 SAD0 SW0 to 3

Open collector

Level

Conversion

LATCH

I2C Decoder

Service manual SC-150

-40-

4-9-4 Pin Description

Pin Symbol Description

I/O pin for general purpose I/O port

1 SW1

2 SW0 VILmax: 1.5V

9 SW2 VIHmin: 3V

10 SW3 VOLmax: 0.4V

10 GND

11 SDA0

GND pin

12 SDA1

13 SDA2

15 SCL

Slave address input pin

Input at positive logic

VILmax: 1.5V

VIHmin: 3V

SCL input pin for I2C bus

Power supply pin

16 Vcc

3 DAC4

4 DSC3

5 DAC2

6 DAC1

7 DAC0

D/A converter output pin

Service manual SC-150

-41-

4-10 MM1118

4-10-1 General description

This is a 3-input, 1-output video switch IC with a clamp function and built-in 6dB amp, for video signal switching.

One of the inputs also has a mute function.

4-10-2 Features

-Built-in 6dB amp

-Clamp function

-Mute function

-Current consumption: 5.1mA typ.

-Operating power supply voltage range: 4.6~13.0V

-Frequency response: 10MHz

-Crosstalk: 64dB (at 4.43MHz)

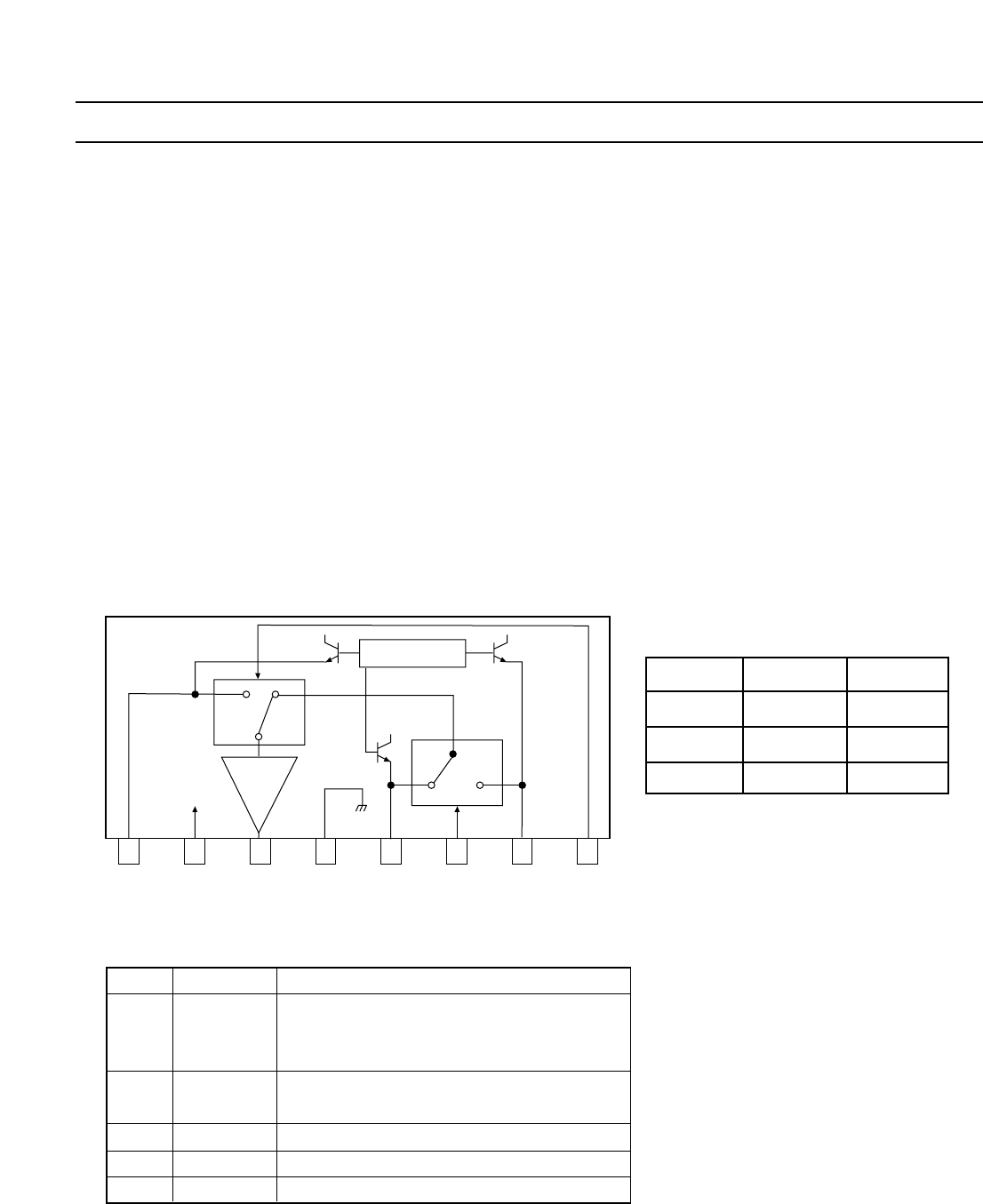

4-10-3 Block diagram

4-10-4 Pin Description

12345678

IN3 Vcc OUT GND IN1 SW1 IN2 SW2

SW1

Control input trurh table

IN1

IN2

IN3

SW2 OUT

Clamp

Clamp SW

Buffer

Bias

Pin Symbol Description

Input1

5 IN1

7 IN2 Input2

1 IN3 Input3

6 SW1 Switch1

8 SW2 Switch2

2 Vcc Power supply

3 OUT Output

Ground

4 GND

Service manual SC-150

-42-

4-11 LA6515

4-11-1 General description

The LA6515 features an on-chip current limiter and provides high voltage gain and a high common-mode

rejection ratio.

The LA6515 is an ideal choice for power applications such as DC servos, capstan drivers, actuator drivers,

programmable power supplies and high-quality audio amplifiers.

The LA6515 is available in 10-pin SIPs and operates from -15V and 15V supplies.

4-11-2 Features

-0.5A output current

-100dB voltage gain

-80dB common-mode rejection

-0.15V/us slew rate

4-11-3 Block diagram

-2mV offset voltage

-10nA offset current

-On-chip current limiter

-15V and 15V supplies

4-11-4 Pin Description

Pin Symbol Description

VSENSE1

OUT1

V1-

V1+

VEE

V2+

V2-

OUT2

VSENSE2

Vcc

Voltage detect

Output

Inverting input

Non-inverting input

-15V supply

Non-inverting input

Inverting input

Output

Voltage detect

15V supply

VSENSE1

VOUT1

VOUT2

VSENSE2

VCC

VIN1-

VIN1+

VEE

VIN2+

VIN2-

Service manual SC-150

-43-

5 - Circuit description

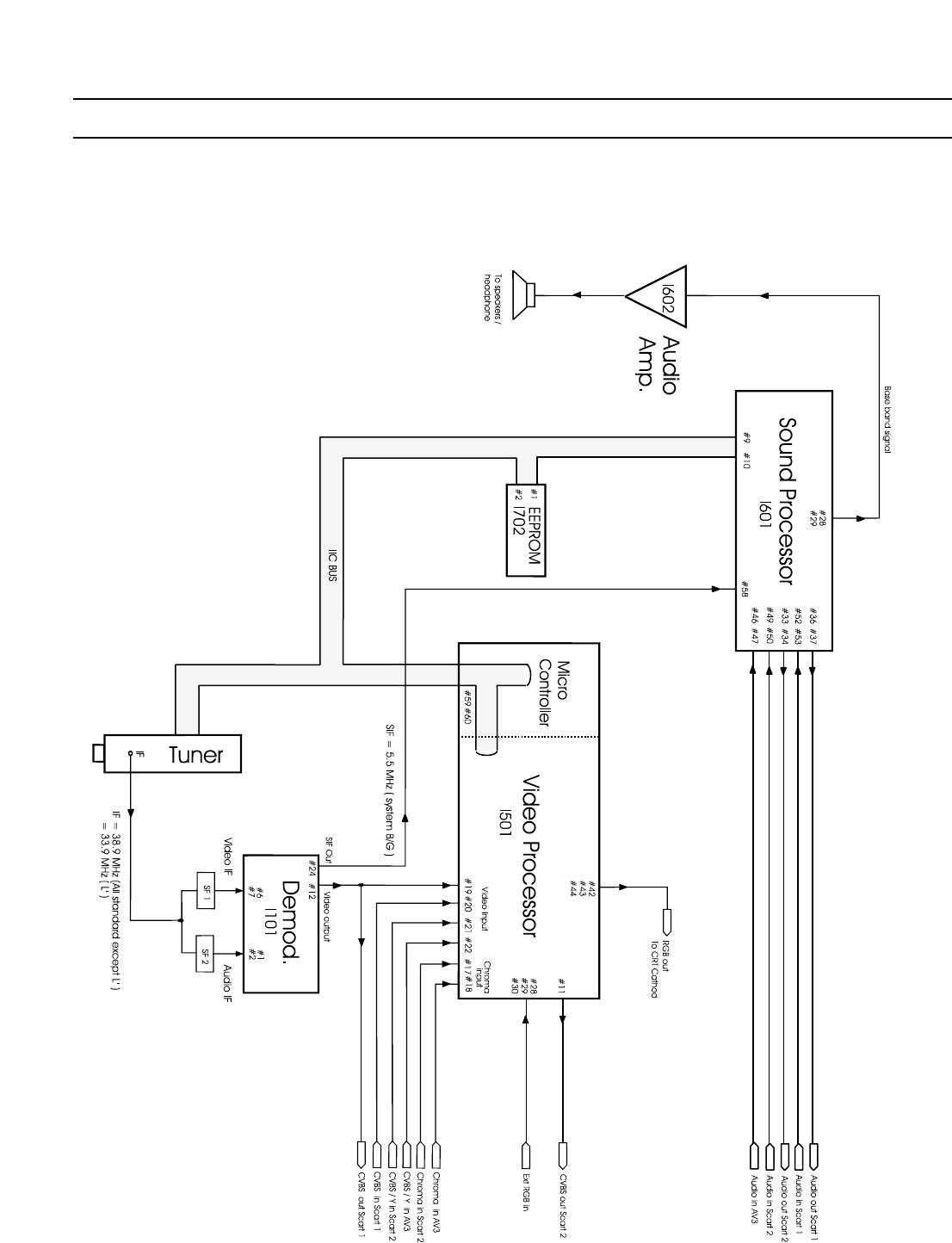

5-1 Block diagram

Service manual SC-150

-44-

5-2 IF section

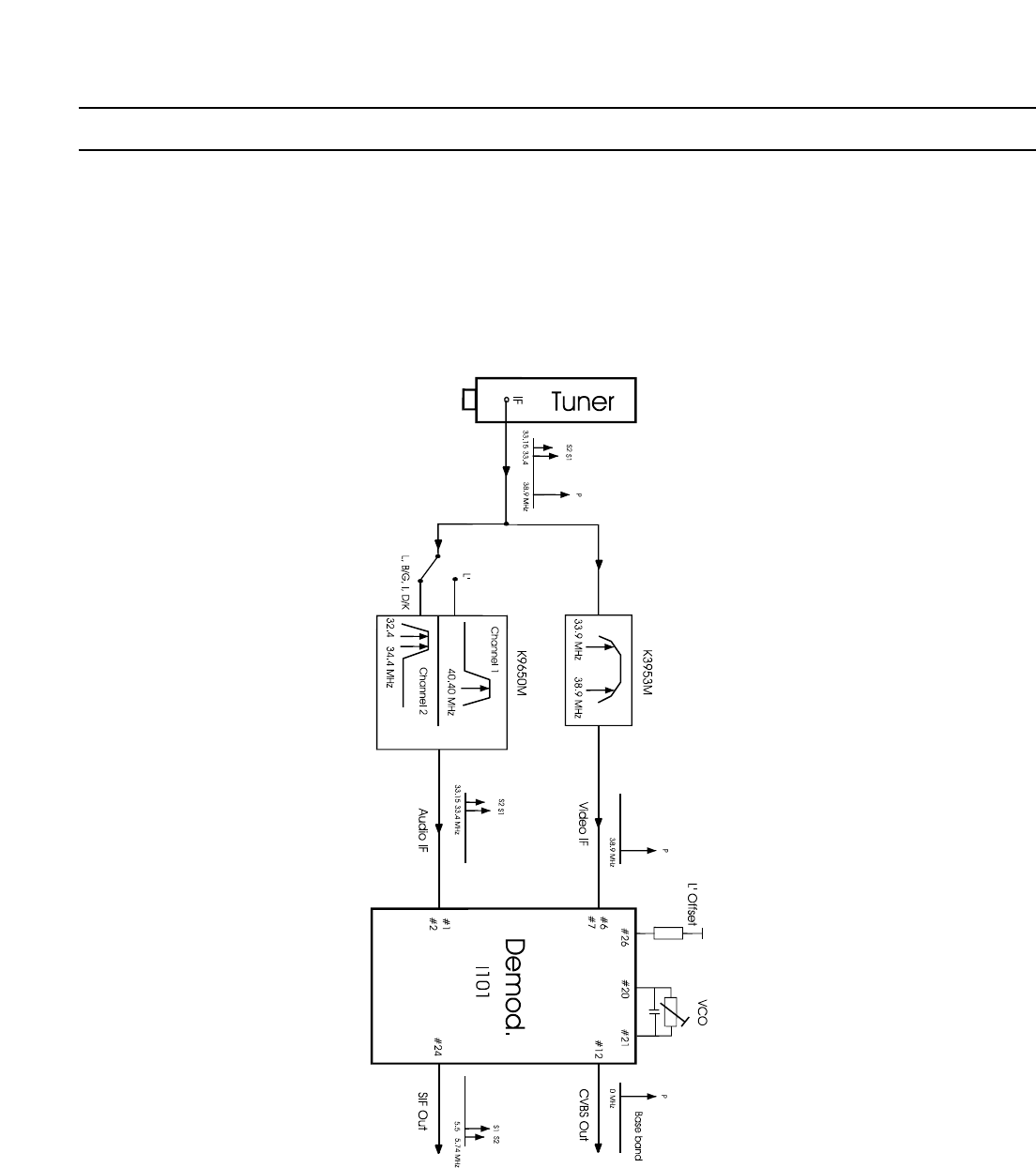

5-2-1 Block diagram

The video IF signal (VIF) is fed through a SAW filter to the differential input (Pin 6-7) of the VIF amplifier.

5-2-2 Vision IF Amplifier

This amplifier consists of three AC-coupled amplifier stages. Each differential amplifier is gain controlled by the

automatic gain control circuit (VIF-AGC). The output signal of the VIF amplifier is applied to the FPLL carrier

generation and the video demodulator.

Service manual SC-150

-45-

SAW filters

Ref. Standard Features

K3953M B/G - D/K - I - L/L’ - IF filter for video application

- TV IF filter with Nyquist slopes at 33.9 MHz and

38.9 MHz

- Constant group delay

K9650M B/G - D/K - I - L/L’ - IF filter for audio application

- TV IF audio filter with two channels

- Channel 1 (L’ ) with one pass band for sound

carrier at 40.40 MHz

- Channel 2 ( L, D/K, I, B/G) with one pass band for

sound carriers between 32.40 MHz and 33.40 MHz

5-2-3 Tuner-and VIF-AGC

At Pin 8, the VIF-AGC charges/discharges the AGC capacitor to generate a control Voltage for setting the gain of the

VIF amplifier and tuner in order to keep the video output signal at a constant level. Therefore, in the case of all

negative modulated signals (e.g., B/G standard) the sync. level of the demodulated video signal is the criterion for a

fast charge/discharge of the AGC capacitor. For positive modulation (e.g., L standard) the peak white level of video

signal controls the charge current. In order to reduce reaction time for positive modulation, where a large time constant

is needed, an additional black level detector controls the discharge current in the event of decreasing VIF input signal.

The control voltage (AGC voltage at Pin 8) is transferred to an internal control signal, and is fed to the tuner AGC to

generate the tuner AGC current at Pin 11 (open collector output). The take over point of the tuner AGC can be adjusted

at Pin 10 by a potentiometer or an external dc voltage (from interface circuit or microprocessor).

5-2-4 FPLL, VCO and AFC

The FPLL circuit (frequency phase locked loop) consists of a frequency and phase detector to generate the control

voltage for the VCO tuning. In locked mode, the VCO is controlled by the phase detector and in unlocked mode,

the frequency detector is superimposed. The VCO operates with an external resonance circuit (L and C parallel) and is

controlled by internal varicaps. The VCO control voltage is also converted to a current and represents the AFC output

signal at Pin 22. At the AFC switch (Pin 19) three operating conditions of the AFC are possible:

AFC curve “rising” or “falling” an d AFC “off”. A practicable VCO alignment of the external coil is the adjustment to

zero AFC output current at Pin 22. At center frequency the AFC output current is equal to zero. Furthermore, at Pin

14, the VCO center frequency can be switched for setting to the required L’value (L’ standard). The optional

potentiometer at Pin 26 allows an offset compensation of the VCO phase for improved sound quality (fine adjustment).

Without a potentiometer (open circuit at Pin 26), this offset compensation is not active. The oscillator signal passes a

phase shifter and supplies the in-phase signal (0

) and the quadrature signal (90

) of the generated picture carrier.

Service manual SC-150

-46-

5-2-5 Video Demodulation and Amplifier

The video IF signal, which is applied from the gain controlled IF amplifier, is multiplied with the in-phase component

of the VCO signal. The video demodulator is designed for low distortion and large bandwidth. The demodulator output

signal passes an integrated low pass filter for attenuation of the residual vision carrier and is fed to the video amplifier.

The video amplifier is realised by an operational amplifier with internal feedback and 8 MHz bandwidth (–3 dB). A

standard dependent dc level shift in this stage delivers the same sync. level for positive and negative modulation. An

additional noise clipping is provided. The video signal is fed to VIF-AGC and to the video output buffer. This amplifier

with a 6 dB gain offers easy adaptation of the sound trap. For nominal video IF modulation the video output signal at

Pin 12 is 2 Vpp.

5-2-6 Sound IF Amplifier and SIF-AGC

The SIF amplifier is nearly identical with the 3-stage VIF amplifier. Only the first amplifier stage exists twice and is

switchable by a control voltage at Pin 3. Therefore with minimal external expense it is possible to switch between two

different SAW filters. Both SIF inputs features excellent cross-talk attenuation and an input impedance which is

independent from the switching condition. The SIF-AGC is related to the average level of AM- or FM-carrier and

controls the SIF amplifier to provide a constant SIF signal to the AM demodulator and QPS mixer.

5-2-7 Quasi-Parallel-Sound (QPS) Mixer

The QPS mixer is realised by a multiplier. The SIF signal (FM or NICAM carrier) is converted to the intercarrier

frequency by the regenerated picture carrier (quadrature signal) which is provided from the VCO. The intercarrier

signal is fed via an output amplifier to Pin 24.

5-2-8 Standard Switch

To have equal polarity of the video output signal the polarity can be switched in the demodulation stage in accordance

with the TV standard. Additionally a standard dependent dc level shift in the video amplifier delivers the same sync. level.

In parallel to this, the correct VIF-AGC is selected for positive or negative modulated VIF signals. In the case of

negative modulation (e.g., B/G standard) the AM output signal is switched off. For positive modulation (L standard) the

AM demodulator and QPS mixer is active. This condition allows a parallel operation of the AM sound signal and the

NICAM-L stereo sound.

5-2-9 L’ Switch

With a control voltage at Pin 14 the VCO frequency can be switched for setting to the required L’ value (L’ standard).

Also a fine adjustment of the L’-VCO center frequency is possible via a potentiometer. The L’ switch is only active for

positive modulated video IF-signals (standard switch in L mode).

5-2-10 Internal Voltage Stabiliser

The internal bandgap reference ensures constant performance independent of supply voltage and temperature.

Service manual SC-150

-47-

5-3 Video - VCT description

5-3-1 Introduction

The VCT 38xxA includes complete video, display, and deflection processing.

All processing is done digitally, the video front-end and video back-end are interfacing to the analogue world.

Most functions can be controlled by software via I 2 C bus slave interface.

5-3-2 Video Front-end

This block provides the analogue interfaces to all video inputs and mainly carries out analogue-to-digital conversion for

the following digital video processing. Most of the functional blocks in the front-end are digitally controlled (clamping,

AGC, and clock-DCO). The control loops are closed by the Fast Processor (‘FP’) embedded in the video decoder.

5-3-3 Input Selector

Up to seven analogue inputs can be connected. Four inputs are for input of composite video or S-VHS luma signal.

These inputs are clamped to the sync back porch and are amplified by a variable gain amplifier. Two chroma inputs can

be used for connection of S-VHS carrier-chrominance signal. These inputs are internally biased and have a fixed gain

amplifier.

5-3-4 Clamping

The composite video input signals are AC-coupled to the IC. The clamping voltage is stored on the coupling capacitors

and is generated by digitally controlled current sources. The clamping level is the back porch of the video signal.

S-VHS chrominance is also AC-coupled. The input pin is internally biased to the center of the ADC input range. Each

channel is sampled at 10.125 MHz with a resolution of 8 bit.

5-3-5 Automatic Gain Control

A digitally working automatic gain control adjusts the

magnitude of the selected baseband.

5-3-6 Digitally Controlled Clock Oscillator

The clock generation is also a part of the analogue front-end. The crystal oscillator is controlled digitally by the control

processor. The clock frequency can be adjusted within ±150 ppm. This adjustment is done in factory for every TV set.

5-3-7 Analogue Video Output

The input signal of the Luma ADC is available at the analogue video output pin (#11). The signal at this pin is buffered

by a source follower. The output voltage is 2 V. The magnitude is adjusted with an AGC in 8 steps together with the

main AGC.

Service manual SC-150

-48-

5-3-8 Adaptive Comb Filter (VCT3834A only)

The adaptive comb filter is used for high-quality luminance/chrominance separation for PAL or NTSC signals. The

comb filter improves the luminance resolution (bandwidth) and reduces interferences like cross-luminance and

cross-color artefacts. The adaptive algorithm can eliminate most of the mentioned errors without introducing new

artefacts or noise. The filter uses two line delays to process the information of three adjacent video lines. To have a

fixed phase relationship of the colour subcarrier in the three channels, the system clock (20.25 MHz) is fractionally

locked to the colour subcarrier. This allows the processing of all colour standards and substandards using a single

crystal frequency. The CVBS signal in the three channels is filtered at the subcarrier frequency by a set of bandpass/

notch filters. The output of the three channels is used by the adaptation logic to select the weighting that is used to

reconstruct the luminance/chrominance signal from the 4 bandpass/notch filter signals. By using soft mixing of the 4

signals switching artefacts of the adaption algorithm are completely suppressed. The comb filter uses the middle line as

reference, therefore, the comb filter delay is one line. If the comb filter is switched off, the delay lines are used to pass

the luma/ chroma signals from the A/D converters to the luma/ chroma outputs. Thus, the comb filter delay is always

one line.

5-3-9 Color Decoder

In this block, the standard luma/chroma separation and multi-standard colour demodulation is carried out. The colour

demodulation uses an asynchronous clock, thus allowing a unified architecture for all colour standards.

The colour killer uses the burst-phase/ burst-frequency measurement to identify a PAL/NTSC or SECAM colour signal.

For PAL/NTSC, the colour is switched off (killed) as long as the colour subcarrier PLL is not locked. For SECAM, the

killer is controlled by the toggle of the burst frequency. The burst amplitude measurement is used to switch-off the

colour if the burst amplitude is below a programmable threshold. Thus, colour will be killed for very noisy signals.

The colour amplitude killer has a programmable hysteresis.

The burst-frequency measurement is also used for automatic standard recognition (together with the status of horizontal

and vertical locking) thus allowing a completely independent search of the line and colour standard of the input signal.

The following standards can be distinguished:

PAL B,G,H,I; NTSC M; SECAM; NTSC 44; PAL M; PAL N; PAL 60. In AV mode or when Prg No 0 is selected all the

standards above are enabled by the controlling software. In INSTALL menu the controlling software enables PAL B,G,

H,I and SECAM detection. The colour standard for each program number is stored in EEPROM. Outside INSTALL

menu and for programmes numbers 1 to 99, the auto colour detection is disabled, the colour standard is recall from

EEPROM and forced.

5-3-10 Horizontal Scaler (VCT3834A only)

The 4:2:2 YC r C b signal from the colour decoder is processed by the horizontal scaler. The scaler block allows a

linear or nonlinear horizontal scaling of the input video signal in the range of 0.25 to 4. Nonlinear scaling, also called

“Panoramavision”, provides a geometrical distortion of the input picture. It is used to fit a picture with 4:3 format on a

16:9 screen by stretching the picture geometry at the borders. Also, the inverse effect can be produced by the scaler.

The scaler contains a programmable decimation filter, a 1-line FIFO memory, and a programmable interpolation filter.

Service manual SC-150

-49-

5-3-11 Video Sync Processing

To extract the sync information from the video signal, a linear phase low-pass filter eliminates all noise and video

contents above 1 MHz. The sync is separated by a slicer; the sync phase is measured. A variable window can be

selected to improve the noise immunity of the slicer. The phase comparator measures the falling edge of sync, as well

as the integrated sync pulse. The sync phase error is filtered by a phase-locked loop that is computed by the Fast

Processor. All timing in the front-end is derived from a counter that is part of this PLL, and it thus counts synchro-

nously to the video signal. A separate hardware block measures the signal back porch and also allows gathering the

maximum/minimum of the video signal. This information is processed by the FP and used for gain control and

clamping. For vertical sync separation, the sliced video signal is integrated. The FP uses the integrator value to derive

vertical sync and field information. The information extracted by the video sync processing is multiplexed onto the

hardware front sync signal (FSY) and is distributed to the rest of the video processing system.

The data for the vertical deflection, the sawtooth, and the East-West correction signal is calculated by the VCT 38xxA.

5-3-12 Display Processing

In the display processing the conversion from digital YC r C b to analogue RGB is carried out.

In the luminance processing path, contrast and brightness adjustments and a variety of features, such as black-level

expansion, dynamic peaking and soft limiting, are provided. In the chrominance path, the C r C b signals are converted

to 4:4:4 format and filtered by a colour transient improvement circuit. The YC r C b signals are converted by a program-

mable matrix to RGB colour space. The digital OSD insertion circuit allows the insertion of a 5-bit OSD signal.

The OSD signals and the display clock are synchronised to the horizontal flyback.

5-3-13 Chroma Transient Improvement

The intention of this block is to enhance the chroma resolution. A correction signal is calculated by differentiation of

the colour difference signals. The differentiation can be selected according to the signal bandwidth, e.g. for PAL/NTSC/

SECAM or digital component signals, respectively. The amplitude of the correction signal is adjustable. Small noise

amplitudes in the correction signal are suppressed by an adjustable coring circuit. To eliminate ‘wrong colours’, which

are caused by over and undershoots at the chroma transition, the sharpened chroma signals are limited to a proper value

automatically.

5-3-14 Video Back-end

The digital RGB signals are converted to analogue RGBs using three video digital-to-analogue converters (DAC) with

10-bit resolution. An analogue brightness value is provided by three additional DACs. The adjustment range is 40 % of

the full RGB range. Controlling the white-drive/analogue brightness and also the external contrast and brightness

adjustments is done via the Fast Processor, located in the front-end. Control of the cutoff DACs is done via I 2 C bus

registers. Finally cutoff and blanking values are added to the RGB signals. Cutoff (dark current) is provided by three 9-

bit DACs. The adjustment range is 60 % of full scale RGB range. The analogue RGB-outputs are current outputs with

current-sink characteristics. The maximum current drawn by the output stage is obtained with peak white RGB. An

external half contrast signal can be used to reduce the output current of the RGB outputs to 50% . Cutoff and white-

drive current measurement are carried out during the vertical blanking interval. They always use the small bandwidth

setting.

Service manual SC-150

-50-

5-3-15 CRT Measurement and Control

The display processor is equipped with an 8-bit ADC for all measuring purposes. The ADC is connected to the

SENSE input pin. Cutoff and white-drive current measurement are carried out during the vertical blanking interval.

5-3-16 Average Beam Current Limiter

The average beam current limiter (BCL) uses the SENSE input for the beam current measurement. The BCL uses a

different filter to average the beam current during the active picture. The filter bandwidth is approx. 2 kHz. The beam

current limiter has an automatic offset adjustment that is active two lines before the first cutoff measurement line. The

beam current limiter function is located in the front-end. The data exchange between the front-end and the back-end is

done via a single-wire serial interface. The beam current limiter allows the setting of a thresh-old current. If the beam

current is above the threshold, the excess current is low-pass filtered and used to attenuate the RGB outputs by

adjusting the white-drive multipliers for the internal (digital) RGB signals, and the analogue contrast multipliers for the

analogue RGB inputs, respectively. The lower limit of the attenuator is programmable, thus a minimum contrast can

always be set. During the tube measurement, the ABL attenuation is switched off. After the white-drive measurement

line it takes 3 lines to switch back to BCL limited drives and brightness.

5-3-17 Analogue RGB Insertion

The VCT 38xxA allows insertion of external analogue RGB signals. The RGB signal is key-clamped and inserted into

the main RGB by the Fast-Blank switch. The external RGB input can be overlaid or underlaid to the digital picture.

The external RGB signals can be adjusted independently as regards DC level (brightness) and magnitude (contrast). All

signals for analogue RGB insertion (RIN, GIN, BIN, FBLIN) must be synchronised to the horizontal flyback, other-

wise a horizontal jitter will be visible. The VCT 38xxA has no means for timing correction of the analogue RGB input

signals. RGB signals are not digitalised and therefore cannot be processed by the picture scaler.

5-3-18 Fast-Blank Monitor

The presence of external analog RGB sources can be detected by means of a Fast-Blank monitor. With a special

monitor logic it is possible to detect if there is an external RGB source active and if it is a full screen insertion or only

a box. The monitor logic is connected directly to the FBLIN pin. The controlling software uses this information to

disable all picture format using display scaler.

5-3-19 Vertical and East/West Deflection

The calculations of the vertical and East/West deflection waveforms is done by the internal Fast Processor (FP).

The algorithm uses a chain of accumulators to generate the required polynomial waveforms. To produce the deflection

waveforms, the accumulators are initialised at the beginning of each field. The initialisation values must be computed

by the TV control processor and ar

e written to the front-end once.

Service manual SC-150

-51-

5-3-20 EHT Compensation

The vertical waveform can be scaled according to the average beam current. This is used to compensate the effects of

electric high-tension changes due to beam current variations. EHT compensation for East/West deflection is done with

an offset corresponding to the average beam current.

5-3-21 Reset Function

Reset of all VDP functions is performed by the RESQ pin. When this pin becomes active, all internal registers and

counters are lost.

5-3-22 Standby and Power-On

The VDP does not have a standby mode. To disable all the analogue and digital video functions, it is necessary to

switch off the supplies for analogue front-end (VSUP AF ), analogue back-end (VSUP AB ) and digital circuitry

(VSUP D ).

5-4- Microcontroller

5-4-1 Introduction

The TV controller basically consists of the CPU, RAM, ROM, and a number of peripheral modules.

For instance:

– a memory banking module is included to allow access to more than 64 kB memory.

– a bootloader softwa re is included to allow in-system-downloading of external code to Flash memory via the I 2 C

interface.

The TV controller runs the complete software necessary to control a TV set. The software includes control of the audio,

video, OSD, and text processors on chip, as well, as control of external devices like tuner or stereo decoder.

Communication between the TV controller and external devices is done either via I 2 C bus interface or via program-

mable port pins. The TV Controller is clocked with f OSC = f XTAL /2.

5-4-2 CPU

The CPU is fully compatible to WDC’s W65C02 micro-processor. The processor has 8-bit registers/accumulator, an 8-

bit data bus, and a 16-bit address bus.

Service manual SC-150

-52-

configuration

Stand by TV ON

1 Power Push Pull Low Push Pull High Switch OFF / ON SMPS

2 AGC High impedance High impedance Tuner AGC level input –

For factory use only

5 Mod SW High impedance Push Pull High = Negative

modulation, Low = Positive

modulation (L/L’).

6 SECAM L’High impedance Push Pull Low = L, High =L’

7 AFC High impedance High impedance ADC input

8 IR High impedance High impedance Interrupt input

9 SC1 SW High impedance High impedance SCART 1 slow switching –

ADC input

10 SC2 SW High impedance High impedance SCART 2 slow switching –

ADC input

61 Mute Push Pull Push Pull High = Mute active

62 LED Open Drain Open Drain

63 KB High impedance High impedance Keyboard input – ADC

input

64 OCP High impedance High impedance Over Current Protection –

Switch the set to Std by if < 2.

5-4-3 - Controller I/O pin configuration and function

There exist different kinds of ports. The universal ports serv

e as digital I/O and have additional special input and output

functions. A subset of the universal ports serves as input for the analogue-to-digital converter.

- Controller I/O pin configuration and function table

pin name description

To reduce power consumption in stand by mode all ports not used are configured in high impedance mode.

5-4-4 Tuning

The AFC information is supplied by the demodulator IC, and becomes available on VCT pin 7 for controlling software.

The controlling software uses this information for tuner frequency tracking ( automatic following ). The AFC window

is typically between 50 KHz and 100 KHz.

The minimum frequency step of the tuner is 50 Khz.

This AFC function is disabled when a program is tuned using the direct frequency entry or after fine tuning adjustment.

Therefore it is recommended to tune channel with the TV search function ( manual or ATSS ) or using the direct

channel entry to enable the Automatic Frequency Control.

5-4-5 Automatic Format switching and WSS

When AUTO mode is selected by the user, the television will automatically select a mode for the user. The format

information is supplied

by SCART pin 8 level when in AV mode or by WSS data. The signal contains codes as defined in

the WSS European Telecommunication Standard, ETS 300 294. Briefly, the signal is received at the beginning of line

Service manual SC-150

-53-

Format Zoom factor – TV with Description Application

Name(OSD) 16:9 CRT

Vertical Horizontal

4:3 100% 75% Picture is centred with Standard 4/3 picture with

black bars at the left 576 active lines

and right hand side of

the display

14:9 114% 87% Picture is centred with 14:9 picture – letter box

black bars at the left format with 504 active

and right hand side of lines

the display

ZOOM 14:9 114% 100% Picture is displayed 14:9 picture – letter box

filling the full width of the format with 504 active

screen by incorporating lines

a small horizontal

geometrical error

(typically 8% linear)

ZOOM 16:9 133% 100% Picture is displayed 16:9 picture – letter box

filling the full screen format with 430 active

(width and height) lines

PANORAMA 100% 100% Picture is displayed Used to fit a picture with

filling the full screen 4:3 format on a 16:9

(width and height) screen by stretching the

picture geometry at the

borders.

23, in each frame. This is bi-phase encoded using a clock frequency of 5 MHz. In total, 14 data bits are available, in

4 groups. Group 1 contains the codes for the received format.

The mode chosen is defined by the following table. In effect the default mode is full screen.

The table below gives a summary of the FORMAT modes available (for WP895 and WP895F), and their given

properties.

Service manual SC-150

-54-

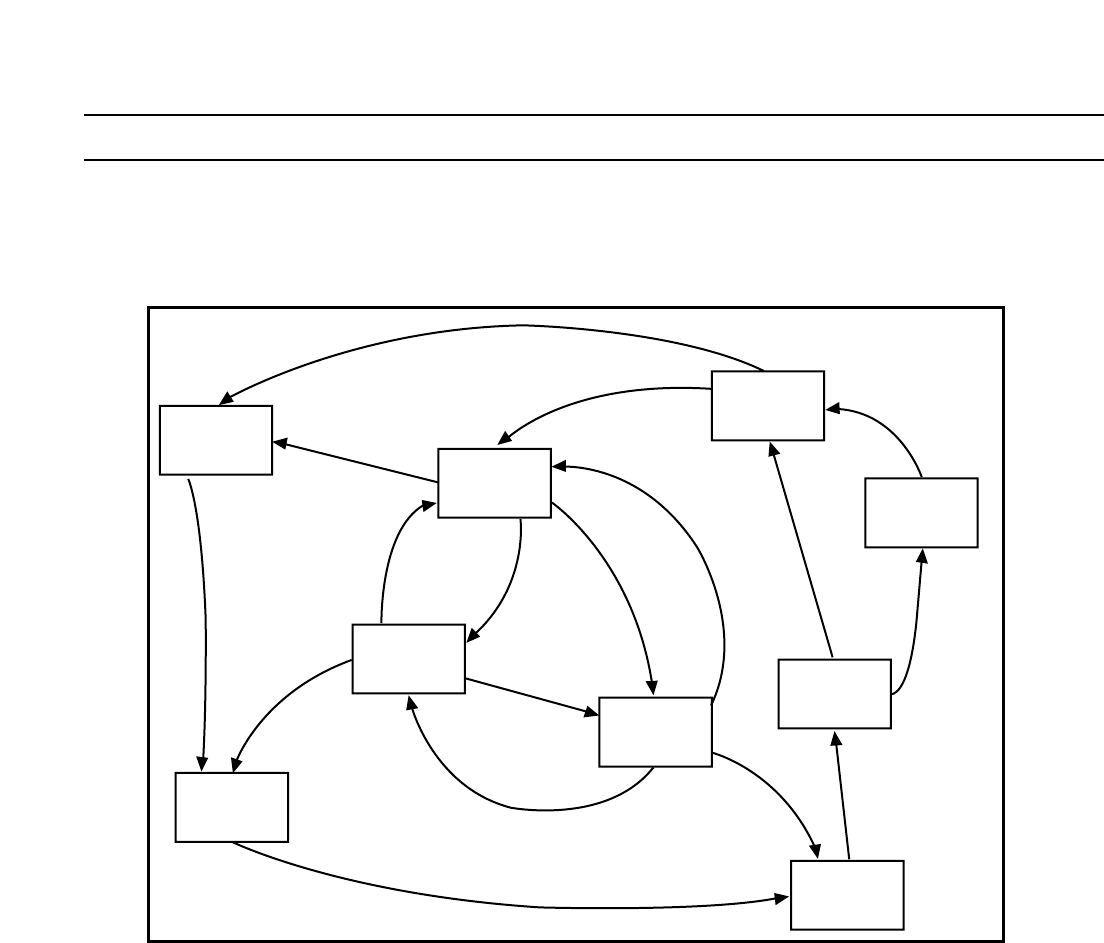

The following schematic, illustrates the logic of control for the two SCART connectors.

The terms used in the schematic are described below ;

1. AUTO represents a situation where the television has self-selected its picture source. This could be when the

SCART SLOW SWITCHING pin has gone to a high state, and the AV 1 input is selected without the intervention

of the user.

2. FORCED represents the change of source which has been commanded by the user (using the EXTERNAL button).

The user always has priority, and can override the AUTO change of source by the television.

3. AV KEY represents the EXTERNAL button of the remote control, or on the television.

4. S/SW 1, or S/SW 2 represent the SLOW SWITCHING inputs of the first SCART (AV 1) or second SCART (AV

2), these each being pin number 8.

5. F/SW 1 represents the FAST SWITCHING input of the first SCART (AV 1), on pin number 16. The second

SCART, AV 2, input does not possess a FAST SWITCHING input.

The HIGH state of a slow switching input represents the request from the external source to be selected by the

television. Whether this is accepted or not depends on the position in the logic diagram. The general rule is that the user

always has priority, so the use of the AV KEY will always result in a defined logic path being followed.

Under certain circumstances, defined in the diagram, the change of state of a slow switching input will result in the

automatic change of source by the television. This change, such as the change from RF broadcast to the AV 1 input,

5-4-6 EXTERNAL source control logic

FORCED

AV 1

FORCED

AV 2

FORCED

S-VHS2

FORCED

S-VHS3

FORCED

AV3

FORCED

AUTO

AV 1

AUTO

AV 2

AV KEY

ENABLE F/SW 1

ENABLE

F/SW 1

ENABLE

F/SW 1

ENABLE

F/SW 1

KEY

DISABLE

F/SW 1

DISABLE

F/SW 1

DISABLE

F/SW 1

DISABLE

F/SW 1

S/SW 1 LOW &

S/SW 2 LOW

S/SW 1 LOW

& S/SW 2 LOW

S/SW 1 LOW &

S/SW 2 LOW

S/SW 1

HIGH

S/SW 1

HIGH

S/SW 1

HIGH

S/SW 2

HIGH

OPTION

WP895

Service manual SC-150

-55-

can always be overridden by the user after the event.

Each line on the diagram, with its associated text, represents the exact conditions under which the change of state will

occur. Sometimes this will be accompanied by another action which will be automatically performed by the television,

being to either ENABLE or DISABLE F/SW 1.

5-4-7 Over Current Protection

In case of overload, the SMPS secondary voltages will drop. The voltage on pin 64 of microcontroller drops below a

reference voltage (2.26V). The controlling software which continuously monitors this voltage will switch the set to

stand by mode. To power on the set again the user must switch it off using the main power switch. Appropriate hyster-

esis guaranrees a reliable operation.

5-5 Teletext Display

National character option bits C12, C13, C14 are transmitted in the page header of a given teletext page. The national

option bits are intended to change (or exchange) 13 characters within the G0 character set, according to the needs of

each national language. However, for Cyrillic and Greek languages, a major character set change (a change of character

mapping) needs to effected for correct display.

These codes represent, for a given broadcaster, the intended language that the teletext page should be displayed in. As

there are only 3 bits, there are only 8 codes available to cover all the possible language combinations. This means that

for a received code there are several possibilities meanings, and therefore several possibilities for display.

This is not as bad as it first seems, as we use the user-selected OSD language to identify the intention of the broadcaster.

For example, a user wishing to see Russian teletext should select Russian OSD language, otherwise he would not have

correct teletext display on the TV.

The table below allows the reader to understand the relationship between selected OSD language (which is under user

control), the teletext language display (selected by national option bits in transmission page header) and the language

mapping (either Latin or Greek/Cyrillic)

An example: For Greek teletext display, (if national option code 1 1 1 is received from the broadcaster), the user should

select the Greek OSD language. Even if English, French, German, Italian, Spanish, Dutch, Danish, Finnish, Norwegian

or Swedish OSD languages are selected, the teletext will be correctly displayed.

However, if Polish, Hungarian, Czech, Slovakian, Rumanian or Russian OSD are selected, Latin font mapping is

selected. The consequence will be incorrect teletext display, with NO GREEK CHARACTERS DISPLAYED. Roma-

nian national font options will be selected.

Service manual SC-150

-56-

OSD Language C C C Teletext Language ESC Mapping

12 13 14 Teletext Language

0 0 0 English English Latin

0 0 1 German German Latin

0 1 0 Swedish/Finnish Swedish/Finnish Latin

0 1 1 Italian Italian Latin

1 0 0 French French Latin

1 0 1 Spanish Spanish Latin

1 1 0 Turkish Turkish Latin

1 1 1 English Greek Greek/Cyrillic

0 0 0 Polish Polish Latin

0 0 1 German German Latin

0 1 0 Hungarian Hungarian Latin

0 1 1 Italian Italian Latin

1 0 0 French French Latin

1 0 1 Serb/Croat/Slovenian Serb/Croat/Slovenian Latin

1 1 0 Czech/Slovak Czech/Slovak Latin

1 1 1 Rumanian Rumanian LatinRussian

0 0 0 English Serbian/Montenegrin Greek/Cyrillic

0 0 1 German German Latin

0 1 0 Estonian Estonian Latin

0 1 1 Lettish/Lithuanian Lettish/Lithuanian Latin

1 0 0 English Russian/Bulgarian Greek/Cyrillic

1 0 1 English Ukrainian Greek/Cyrillic

1 1 0 Czech/Slovak Czech/Slovak Latin

1 1 1 Rumanian Rumanian Latin

English, French,

German, Italian,

Spanish, Dutch,

Danish, Finnish,

Norwegian,

Swedish, Greek

Polish,

Hungarian,

Czech,

Slovakian,

Rumanial

Russian

Bulgarian

5-6 Sound processing

5-6-1 Analogue sound IF - input section

The input pins ANA_IN1+ and ANA_IN- offer the possibility to connect sound IF sources to the MSP 341xD. The

analogue-to-digital conversion of the preselected sound IF signal is done by an A/D converter, whose output is used to

control an analogue automatic gain circuit (AGC), providing an optimal level for a wide range of input levels.

5-6-2 Quadrature Mixers

The digital input coming from the integrated A/D converter may contain audio information at a frequency range of

theoretically 0 to 9 MHz corresponding to the selected standards. By means of two programmable quadrature mixers,

two different audio sources ; for example, NICAM and FM-mono, may be shifted into baseband position.

5-6-3 Phase and AM discrimination

The filtered sound IF signals are demodulated by means of the phase and amplitude discriminator block. On the output,

the phase and amplitude is available for further processing.

AM signals are derived from the amplitude information, whereas the phase information serves for FM and NICAM

demodulation.

Service manual SC-150

-57-

5-6-4 NICAM decoder

In case of NICAM - mode, the phase samples are decoded according the DQPSK - coding scheme. The output of this

block contains the original NICAM bitstream.

5-6-5 DSP section

All audio baseband functions are performed by digital signal processing (DSP). The DSP section controls the source

and output selection, and the signals processing.

5-6-6 Sound Mode switching

In case of NICAM transmission, the controlling software reads the bit error r

ate and the operation mode from the

NICAM Decoder. When the set is in “Auto detection” mode ( default mode after ATSS ) the controlling software sets

automatically the sound mode ( NICAM mono, NICAM Dual 1 or NICAM Dual 2 ) depending on the transmitted

mode.

In the case of 2 Carrier FM transmission, the contr

olling software read the transmission mode and the signal quality level

from the Stereo Detection Register. When the set is in “Auto detection” mode the controlling software automatically sets

the sound mode ( mono, Stereo, Dual 1, Dual 2 ) depending on the transmitted mode.

In “Auto detection” mode the controlling software evaluates the signal quality and automatically switches to the analogue

sound carrier 1, if the transmission quality is too poor. To avoid unwanted automatic switching the threshold levels

mono to stereo and stereo to mono are dif

ferent.

In “forced mono “ mode ( Red OSD in status Display Window),

the controlling software configures the MSP341xD to

demodulate onl

y the analogue (FM or AM) sound carrier 1, no matter the signal quality. The sound mode “ forced “ or “

Autodetect” is stored for each programme.

5-7 Sound amplification

The TDA8946J is a stereo BTL audio amplifier capable of delivering 2 x 15 W output power to

an 8 W load at THD = 10%, using a 18 V power supply and an external heatsink. The voltage gain is fixed at 32dB.

With the three-level MODE input the device can be switched from ‘standby’ to ‘mute’ and to ‘operating’ mode.

The TDA 8946J outputs are protected by an internal thermal shutdown protection mechanism and short-circuit

protection.

5-7-1 Power amplifier

The power amplifier is a Bridge Tied Load (BTL) amplifier with an all-NPN output stage, capable of delivering a peak

output current of 1.5 A.

The BTL principle offers the following advantages :

- Lower peak value of the supply current.

- The ripple frequency on the supply voltage is twice the signal frequency.

- No DC-blocking capacitor

- Good low frequency performance

Service manual SC-150

-58-

5-7-2 Mode selection

The TDA894xJ has several functional modes, which can be selected by applying the proper DC voltage to pin MODE.

Mute : In this mode the amplifier is DC biased but not operational (no audio output). This allows the input coupling

capacitors to be charged to avoid pop-noise. The device is in mute mode when 2.5 V < V

MODE

< (Vcc-1.5 V).

Operating : In this mode the amplifier is operating normally. The operating mode is activated at V

MODE

< 0.5 V.

5-8 Vertical deflection

The vertical driver circuit is a bridge configuration. The deflection coil is connected between the output amplifiers,

which are driven in phase opposition. The differential input circuit is voltage driven. The input circuit is especially

intended for direct connection to driver circuits which deliver symmetrical current signals, but is also suitable for

asymmetrical currents. The output current of these devices is converted to voltages at the input pins via resistors R350

and R351. The differential input voltage is compared with the output current through the deflection coils measured as

voltage across R398, which provides internal feedback information. The voltage across R398 is proportional to the

output current.

5-8-1 Flyback voltage

The flyback voltage is determined by an additional supply voltage V

flb

. The principle of operation with two supply

voltages (class G) makes it possible to fix the supply voltage Vp optimum for the scan voltage and the second supply

voltage V

flb

optimum for the flyback voltage. Using this method, very high efficiency is achieved. The supply voltage

flb

is almost totally available as flyback voltage across the coil, this being possible due to the absence of a coupling

capacitor.

5-8-2 Protection

The output circuit has protection circuits for :

- Too high die temperature

- overvoltage of output stage A

5-8-3 Guard circuit

The guard signal is not used.

5-8-4 Damping resistor

For HF loop stability a damping resistor (R331) is connected across the deflection coil.

5-8-5 EAST-WEST Amplifier (TDA8358J)

The East-West amplifier is current driven. It can only sink currents of the diode modulator circuit. A feedback resistor

R397 is connected between the input and output of this inverting amplifier in order to convert the East-West correction

input into an output voltage.

Service manual SC-150

-59-

5-9 Power supply (STR F6654)

5-9-1 STR-F6654 general description

The STR-F6654 is an hybrid IC with a build-in MOSFET and control IC, designed for flyback converter type switch

mode power supply applications.

5-9-2 Power supply primary part operations

An oscillator generates pulses signals which turn on and off a MOSFET transistor.

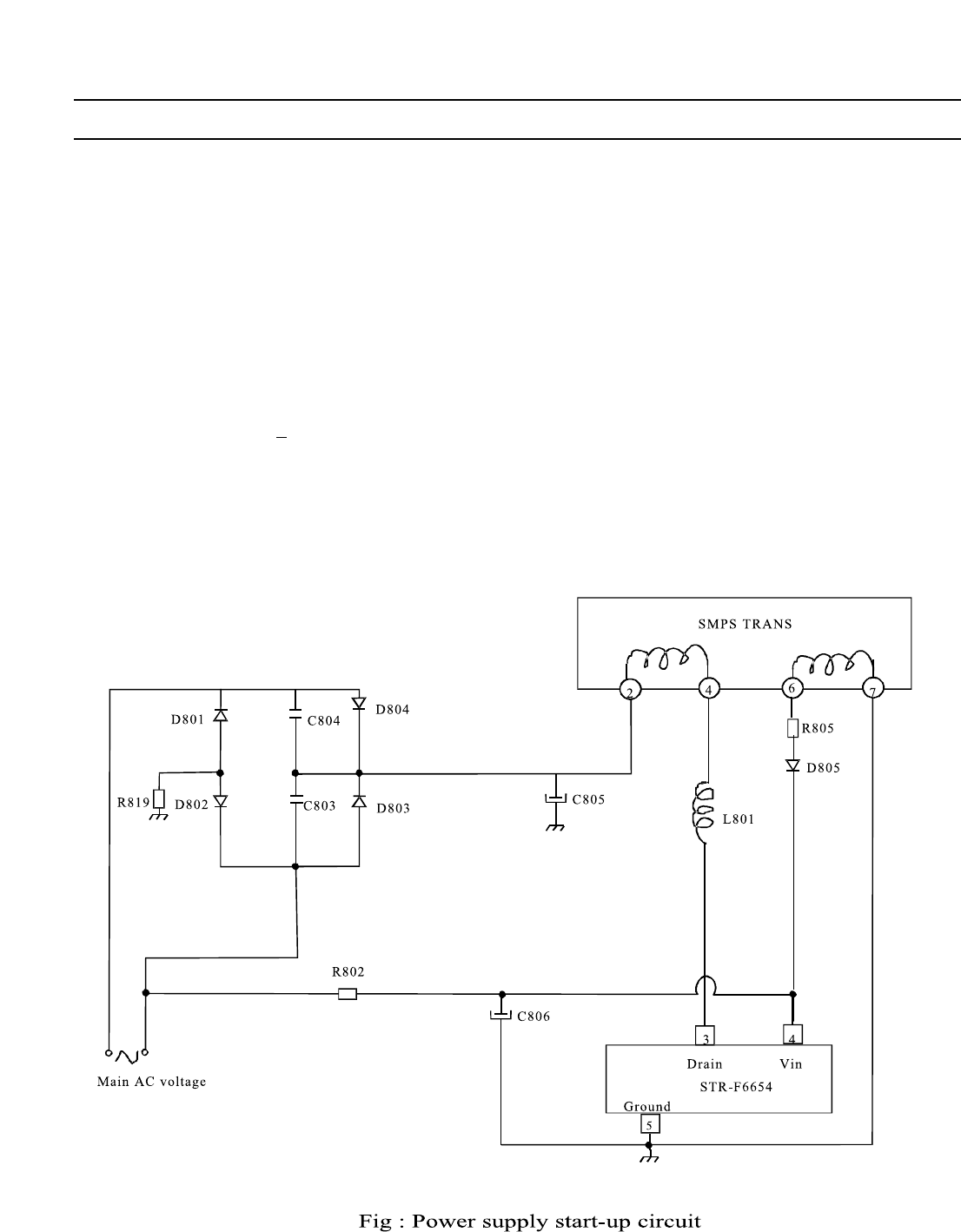

5-9-2-1 Start-up circuit : V

The start-up circuit is used to start and stop the operation of the control IC, by detecting a voltage appearing at V

pin (pin 4).

Service manual SC-150

-60-

When the power switch is pushed on, V

increases slowly. During this time, C806 is charged through R802.

As soon as V

reaches 16V, the STR-F6654 control circuit starts operating. Then, V

is obtained by smoothing the

winding voltage which appears between pin6 and pin7 of the SMPS transformer.

As this winding voltage does not increase to the set voltage immediately after the control circuit starts operating, V

starts dropping. However, as this winding voltage reaches the set value before V

voltage drops to the shutdown

voltage (at 11V), the control circuit continues operating (see below V

voltage at start-up). R805 resistor prevents that

pin voltage varies according to the secondary side output current.

must be set higher than the shutdown voltage (V

(off) = 11V

max

) and lower than the O.V.P. (overvoltage

protection) operating voltage

OVP

= 20.5V

min

)

Service manual SC-150

-61-

5-9-2-2 STR-F6654 oscillating operation

Service manual SC-150

-62-

When the MOSFET is ON, the STR-F6654 internal capacitor C1 is charged at the constant voltage 6.5V.

At the same time, the voltage at pin 1 (OCP / FB) increases with the same waveform as the MOSFET drain current.

When the pin 1 voltage reaches the threshold voltage V

TH1

= 0.73V, the STR-F6654 internal comparator 1 starts

operating. The STR-F6654 internal oscillator is inverted and the MOSFET turns OFF.

When the MOSFET turns OFF, charging of STR-F6654 internal capacitor C1 is released and C1 starts discharging

by the STR-F6654 internal resistance R1. So, C1 voltage starts falling in accordance with the gradient regulated by the

constant discharging time of C1 and R1. So, this means that the fixed time determined by C1 and R1 is the OFF-time

of the MOSFET.

When C1 voltage falls to around 3.7V, the STR-F6654 internal oscillator is reversed again and the MOSFET turns

ON. C1 is quickly charged to around 6.5V

The MOSFET continues to oscillate by repeating the above procedure.

5-9-2-3 STR-F6654 protection circuits

overcurrent protection function (OCP)

Overcurrent protection is performed pulse by pulse detecting at STR-F6654 pin 1 (OCP) the peak of the MOSFET

drain current in every pulse.

• latch circuit

This circuit sustains an output low from the STR-F6654 internal oscillator and stops operation of the power supply

when overvoltage protection (OVP) and thermal shutdown (TSD) circuit are under operation

thermal shutdown circuit (TSD)

This circuit triggers the latch circuit when the frame temperature of STR-F6654 IC exceeds 140

overvoltage protection circuit (OVP)

This circuit triggers the latch circuit when the V

voltage exceeds 22V (typ.)

Service manual SC-150

-63-

5-10 TV start-up, TV normal run and stand by mode operations

5-10-1 TV start-up operations

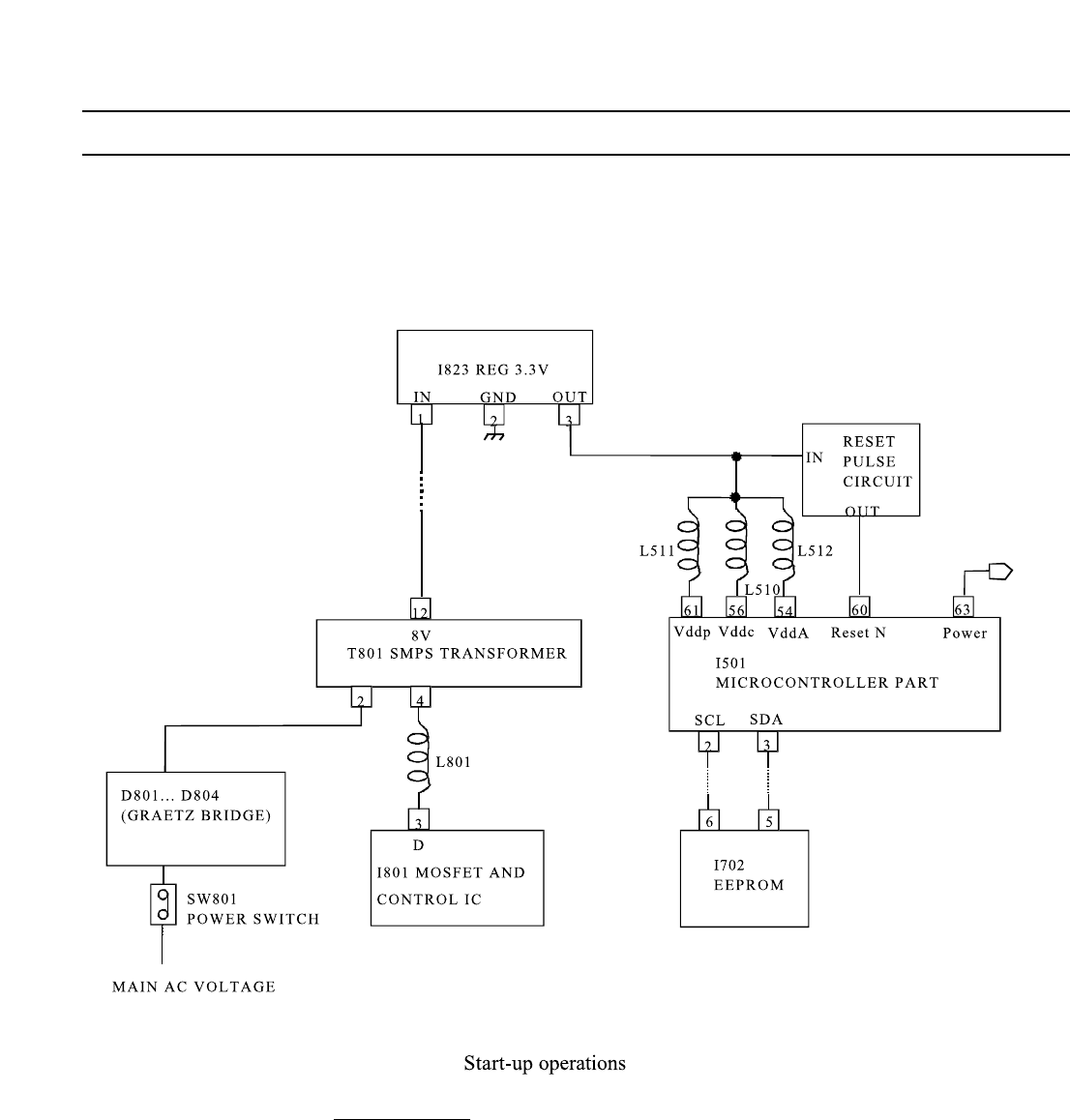

* Schematic diagram for start-up operations

* TV start-up and microcontroller initialisation

- When SW801 power switch is pushed, main AC voltage is applied to T801 transformer (after rectification by D801...

D804 diodes). Then, T801 SMPS transformer starts operating and supplies DC voltage to I823 (5V regulator).

- This regulator provides 5V / 3.3V DC voltage to I501 microcontroller power supply pins (pin 3 / pin 54) and to the

reset pulse circuit which provides reset pulse to I501 microcontroller reset pin (pin 58).

- Then, the microcontroller starts its initialisation. Its power pin (pin 1) is set to high which allows delivery of power

supply voltages (123V, 8V, 5V...). At this step, all IC’s start working but no picture appears on screen: I501 IC

doesn’t provide horizontal drive voltage.

- Then, the microcontroller consults I702 EEPROM via I2C bus to know the last TV set mode (normal run mode or

stand-by mode ) before switching off.

Service manual SC-150

-64-

. If the TV set was on normal run mode before switching off, the microcontroller delivers horizontal drive voltage at pin

24 and picture appears on screen.

. If the TV set was on stand-by mode before switching off, the microcontroller switches TV set to stand-by mode,

decreasing power pin voltage (pin 1).

5-10-2 TV normal run and stand-by mode operations

Depending on remote control commands, I501 microcontroller part pin 1 (power) is set to :

- high for normal run mode

- low for stand-by mode

a) TV on normal run mode

* I501 microcontroller part pin 1 (power) effect

I501 microcontroller part pin 1 (power) is connected to the following circuit :

Service manual SC-150

-65-

On normal run mode, I501 microcontroller pin 1 (power) is set to high

So, I810 controlled rectifier is not conducting

- Q809 is conducting. So, Q808 is not conducting and Q807 is conducting

- So, Q807 collector is connected to the ground and I810 controlled rectifier gate pin is set to low (no

conducting)

So, current from 14V DC voltage (from T801 SMPS transformer pin 13) does not flow through Q811 and Q810

transistors but flows through I806 IC error amplifier

- Q809 is conducting. So, Q810 is not conducting and no current flows from Q810 collector to the ground

Therefore, the power circuit diagram is the following one :

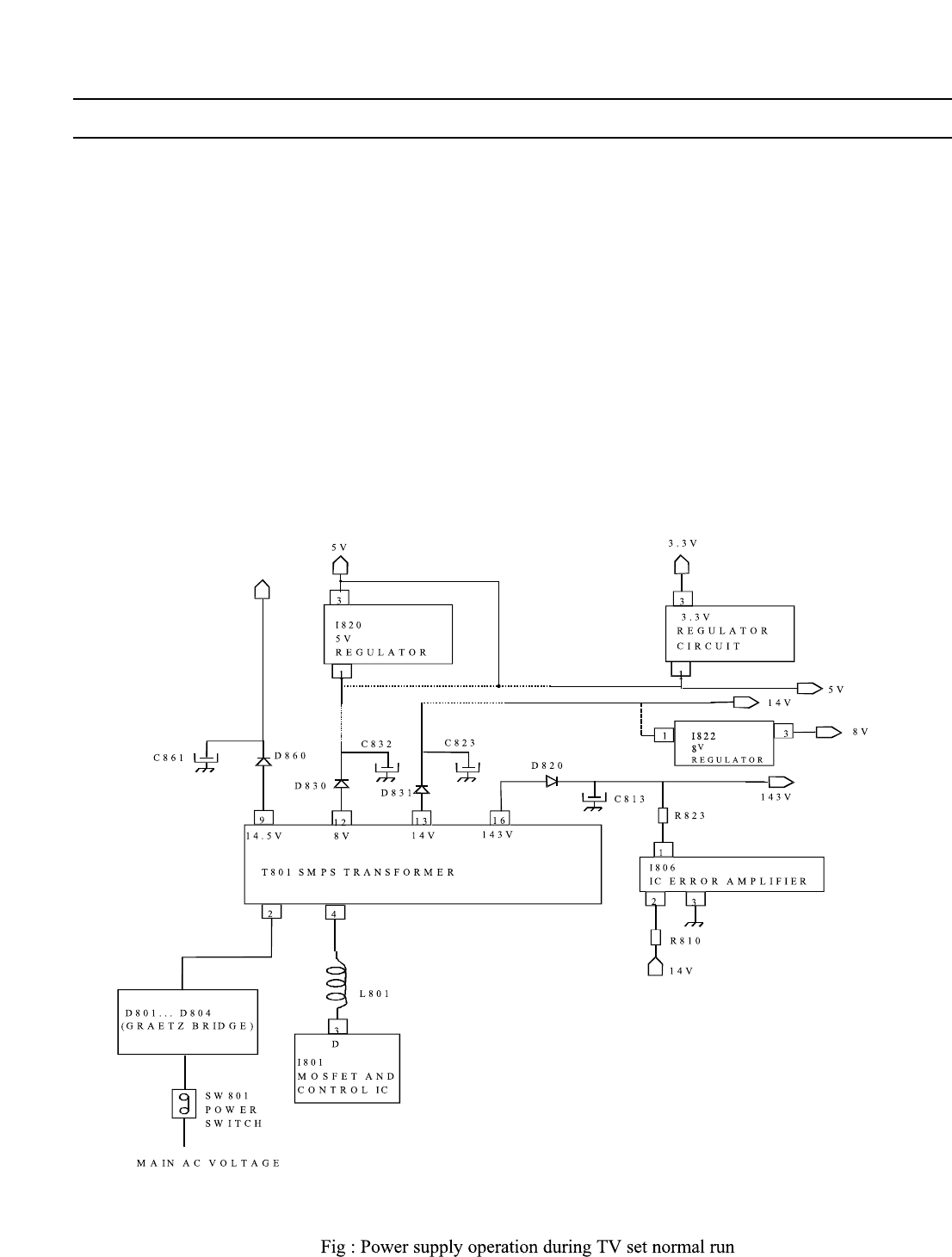

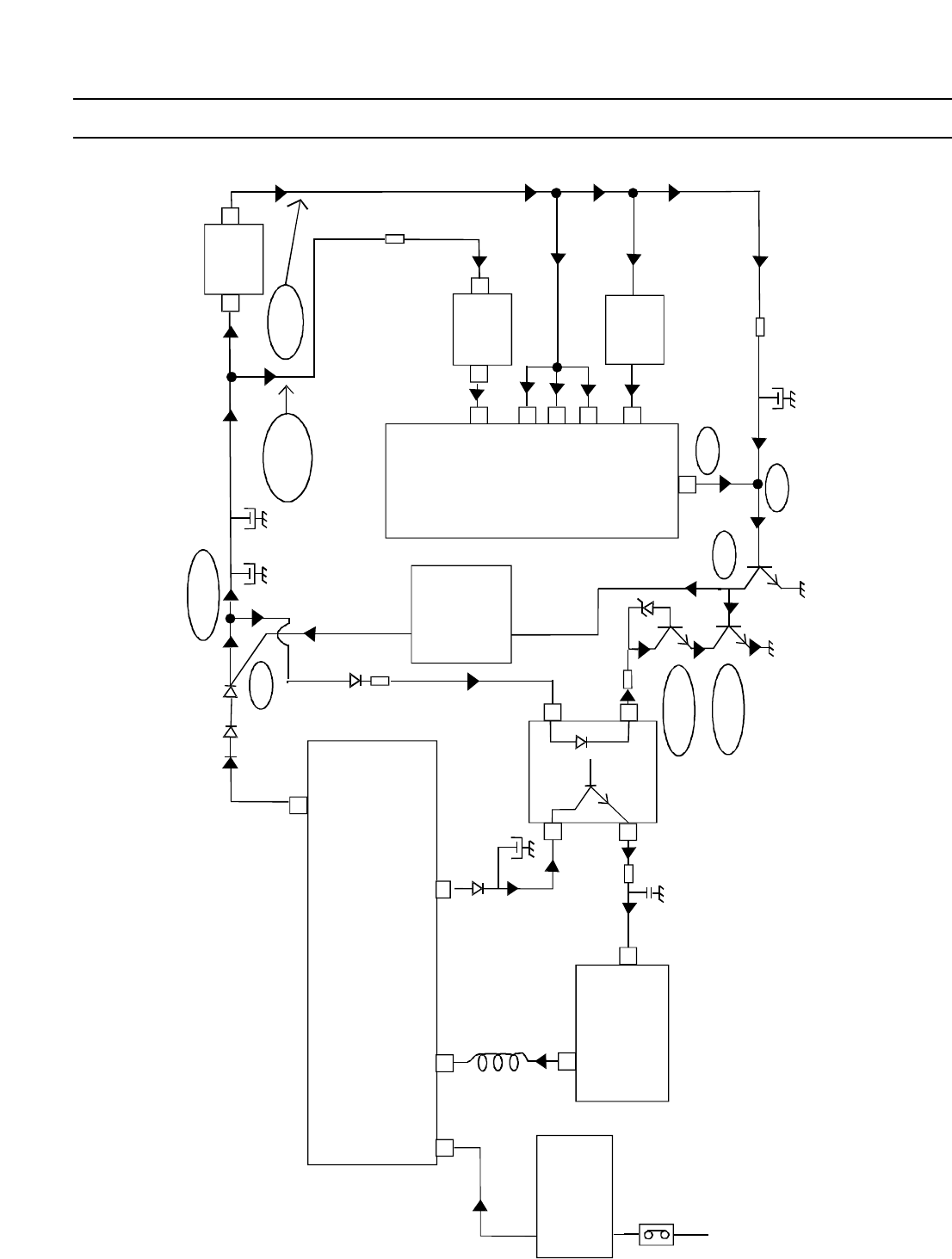

* power supply circuit diagram during TV set normal run

Service manual SC-150

-66-

* power supply functioning during TV set normal run mode

- I801 transmits controlled pulses to T801 which generates DC voltages after rectifications by secondary part diodes

and electro capacitors (by example by D820 and C813 on 143V supply voltage line).

- 8V, 5V, 3.3V supply voltage lines have stabilized voltages obtained by I820, I822, I823 voltage regulators.

- On 143V supply voltage line, R823 resistor has been chosen to reach exact DC voltage required on this line.

- 143V supply voltage line includes an IC error amplifier (I806) which corrects unexpected DC voltage variations on

this line.

* power supply IC delivery during TV set normal run

power supply line IC power supply delivery Remarks

143V FBT FBT supplies 43V to I301 vertical IC

FBT supplies 43

V to T401 H- drive for CP785

FBT supplies 12V to I301 vertical IC

FBT supplies 33V to the tuner

FBT supplies 188V to I901 video amplifier pin 6

14.5V I602 sound amplifier pins 3-16

14V T401 H- drive

8V I501 Main IC pins 14-39

I601 Sound Demod pins 38-39-40

5V I703 IR receiver pin 1

I501 Main IC pins 3-15-45

I601 Sound Demod pins 7-18-57

I702 EEPROM pin 8

tuner

3.3V I501 Main IC pins 25-54

b) TV set on stand-by mode

* TV set circuit diagram on stand-by mode

Service manual SC-150

-67-

DRAIN

I801

MOFSET AND

CONTROL IC

MAIN AC VOLTAGE

I804

OPTO

COUPLER

I823 3.3V

REGULATOR

I703 IR

RECEIVER

FRONT

MASK

BUTTONS

I810

CONTROLLED

RECTIFIER

SWITCHING

CIRCUIT

T 801 SM PS TRA N S

I501

MAIN

OCP

D801...D804

GRAETZ BRIDGE

D821

I810

controlled rectifier

HIGH

C841

C840

R713

CONDUCTING

IR IN

com

supply

voltage

KEY IN

POWER

R888

C888

Q809

Q810

Q811

D811

D825

R810

L801

D806

C808

SW801

POWER SWITCH

C850

R806

R870

HIGH

LOW

CONDUCTING

AROUND

6V dc

AROUND

3.3Vdc

Fig : Power supply operation in stand - by mode

Service manual SC-150

-68-

I810

CONTROLLED

RECTIFIER

R820

R830

C830

R829

808

6V DC

809

807

HIGH

LOW

POWER

LOW

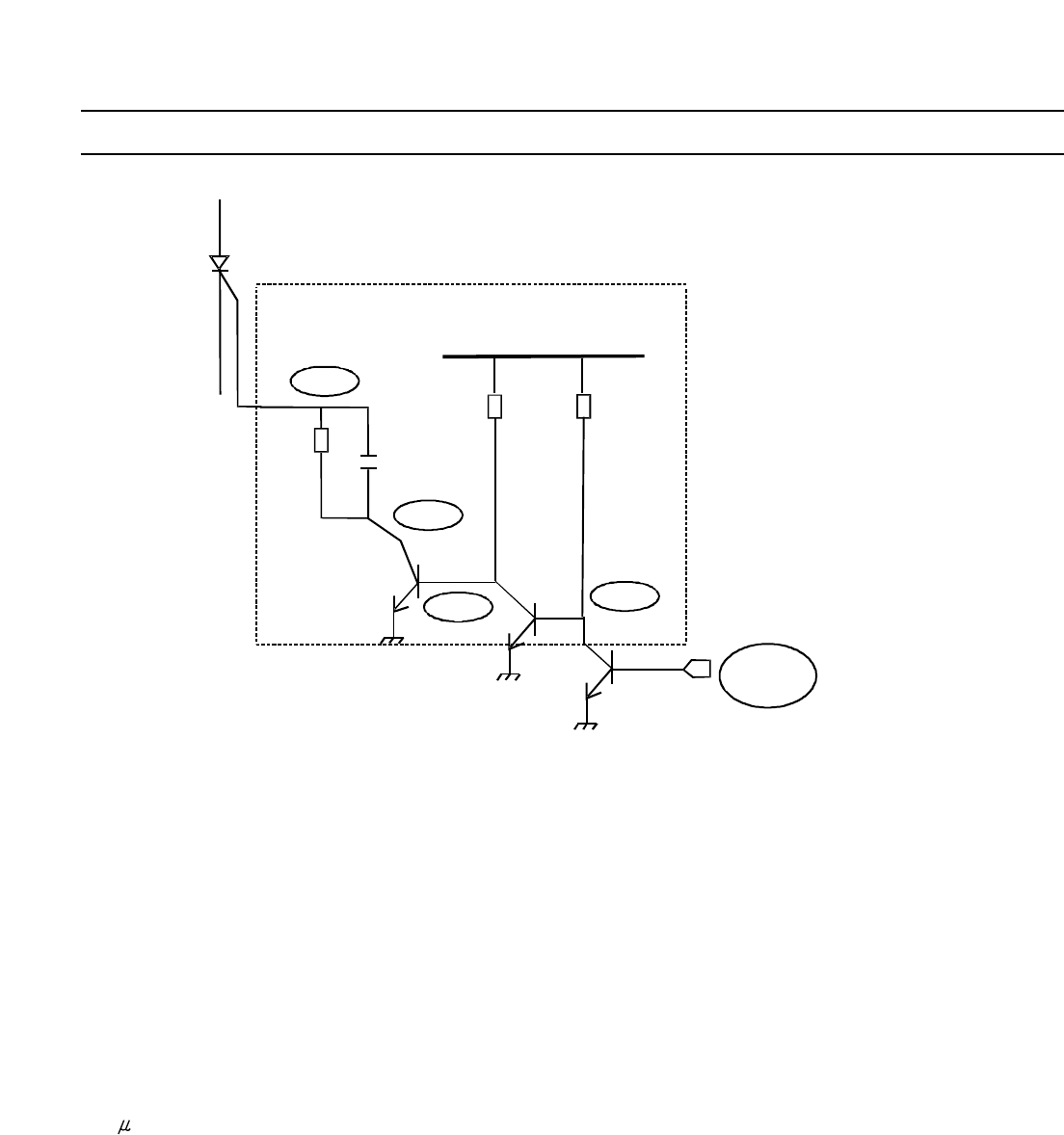

Fig : I810 controlled rectifier switching circuit

* TV set stand-by mode operations

- On stand-by mode, I501 microcontroller pin 1 (power) is set to low.

- So, Q809 collector is set to high.

- Then, I810 controlled rectifier gate pin is set to high and I810 is conducting.

- So, current flows from pin 16 SMPS transformer to the ground via I804 optocoupler and Q810 and Q811 transistors

(which are conducting).

- In these conditions, I801 delivers pulses on light mode and T801 produces voltages with reduced power.

- As I810 is conducting, current flows also from pin 16 SMPS transformer to I823 (5V / 3.3V regulator) for I501

com, IR receiver and front mask buttons supply voltage (then, remote control or front mask buttons can be activated

to leave stand-by mode).

Service manual SC-150

-69-

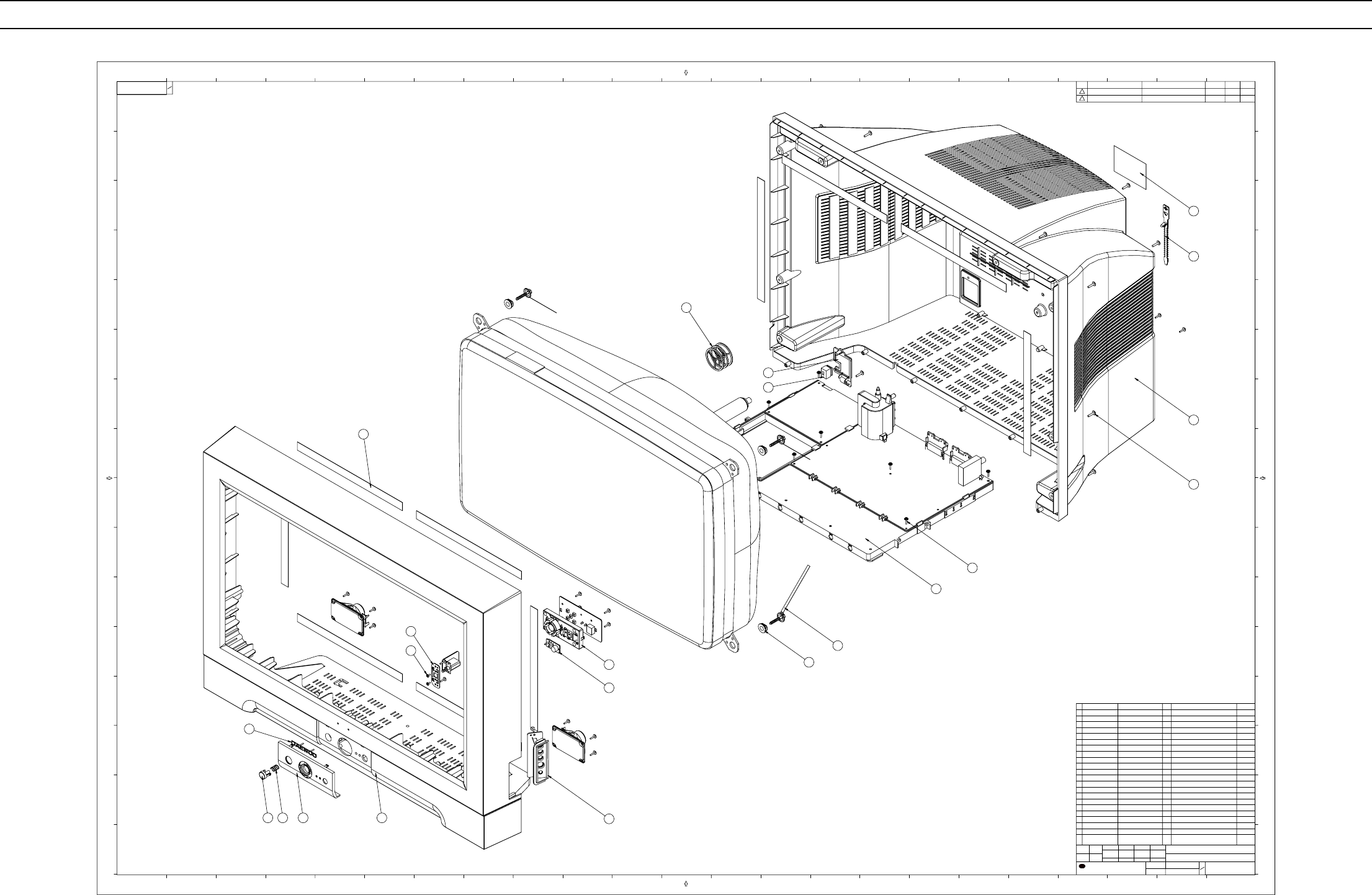

z_loc z_parts_code parts_name parts_descr

ZZ100 48B4846G22 TRANSMITTER REMOCON R-46G22 (AAA)

ZZ110 PEPKCPD037 PACKING AS DSC-3220E

M641 6520010100 STAPLE PIN AUTO W65

M681 4856812400 BAND PP AUTO T1.1XW17mmXL770M

M801 4958002200 BOX CARTON DW-4

M811 4958102500 PAD EPS

M821 4958200701 BAG P.E FOAM T0.5X1880X1380

ZZ120 PEBCSHD037 COVER BACK AS DSC-3220E

M211 4952102201 COVER BACK HIPS

M211E 4857817610 CLOTH BLACK FELT 300X20X0.7

ZZ131 58GD000004 COIL DEGAUSSING DC-3200(D)

ZZ132 49519A0110 CRT GROUND NET DSC-3210E

ZZ140 PECACAD037 CABINET AS DSC-3220E

M201A 4956000100 SCREW CRT FIX SWRM10A L=35

M201B 4856215401 WASHER RUBBER CR T1.0

M201C 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK

M201D 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK

M211A 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK

M211B 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK

M211C 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK

M211D 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK

M231 4952301301 PANEL CTRL HIPS PAINT

M353 4853535600 HOLDER CORD NYROLN 66

M481 4954801001 BUTTON POWER ABS PAINT

M481A 4856716000 SPRING SWPA PIE0.5

M541 4955400100 SPEC PLATE P.E FILM 91.5X63

M561 4855617400 MARK BRAND CU AU+ABS BK

M682 4856816300 CLAMP WIRE NYLON 6 (V0)

S601 4858315610 SPEAKER SP-5090F13

S601A 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK

S601R 4850703S52 CONNECTOR YH025-03+35098+ULW=400

S602 4858315610 SPEAKER SP-5090F13

S602A 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK

S602L 4850703S54 CONNECTOR YH025-03+35098+ULW=600

V901 4859639160 CRT W76ERF042X013

V901A 4850706N14 CONNECTOR YFSH500-06+YH396V+ULW=600

ZZ200 PEFMSJD037 MASK FRONT AS DSC-3220E

M201 4952002401 MASK FRONT HIPS PAINT

M201E 4857817610 CLOTH BLACK FELT 300X20X0.7

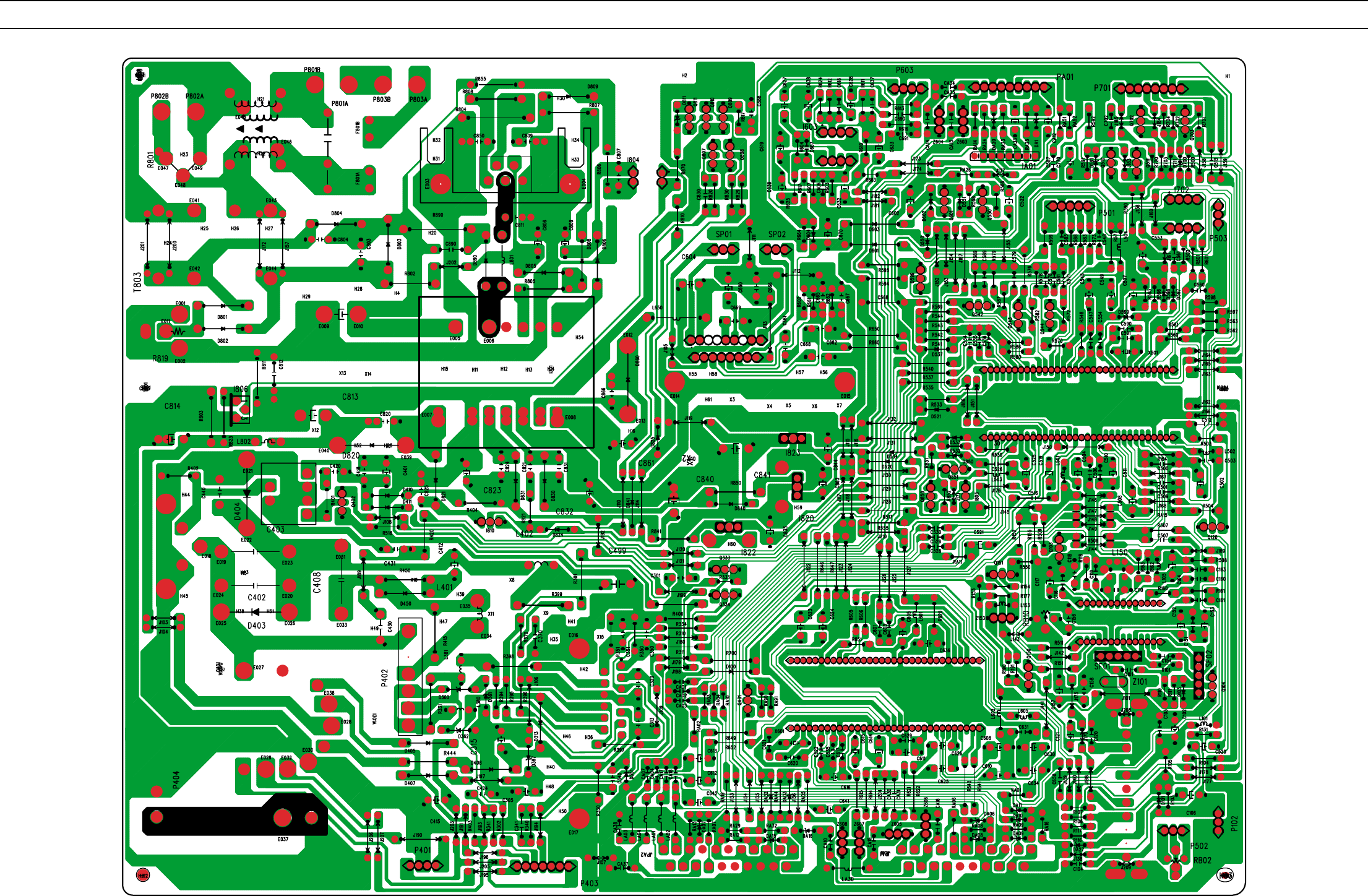

ZZ300 PEMPMSD037 PCB MAIN MANUAL AS DSC-3220E

10 2193102005 SOLDER BAR SN:PB=63:47 S63S-1320

30 2291050616 FLUX SOLDER JS-64T3

40 2291050301 FLUX SOLVENT IM-1000

C402 CMYH3C562J C MYLAR 1.6KV BUP 5600PF J

C403 CMYH3C752J C MYLAR 1.6KV BUP 7500PF J

C408 CMYE2G274J C MYLAR 400V PU 0.27MF J

C499 CEYD1H689W C ELECTRO 50V RHD 6.8MF (16X35.5)

C801 CL1UC3474M C LINE ACROSS 0.47MF 1J(UCVSNDF/SV)+Q/O

C805 CEYN2G181P C ELECTRO 400V LHS 180MF (25X35)

C812 CH1BFE472M C CERA AC AC400V 4700PF M U/C/V

C813 CEXF2E101V C ELECTRO 250V RSS 100MF 18X35.5

z_loc z_parts_code parts_name parts_descr

C890 CCYE3D103P C CERA 2KV E 0.01MF P

D403 DDGP30L—- DIODE DGP30L

D404 DRGP30J—- DIODE RGP30J

D820 DRGP30J—- DIODE RGP30J

D860 DRGP30J—- DIODE RGP30J

F801 5FSCB4022R FUSE CERA SEMKO F4AH 4A 250V MF51

I101 1TDA4470M- IC IF TDA4470-M

I301 1TDA8358J- IC VERTICAL TDA8358J

I301A 4857028227 HEAT SINK AL EX BK

I301B 7174301011 SCREW TAPPTITE TT2 RND 3X10 MFZN

I501 1DW3834AE2 IC MICOM DW3834-C4-AE2

I601 1MSP3410V3 IC SOUND PROCESSOR MSP3410G-PP-B8-V3

I602 1TDA8946J- IC AUDIO AMP TDA8946J

I602A 4857028227 HEAT SINK AL EX BK

I602B 7174301011 SCREW TAPPTITE TT2 RND 3X10 MFZN

I603 1KA4558—- IC AMP KA4558

I702 1CAT24C16P IC MEMORY CAT24WC16P

I801 1STRF6654- IC SMPS STR-F6654

I801A 4857027910 HEAT SINK AL EX

I801B 7174301211 SCREW TAPPTITE TT2 RND 3X12 MFZN

I804 1LTV817C— IC PHOTO COUPLER LTV-817C

I806 1SE130N—- IC SE130N

I810 TX0202DA— THYRISTOR X0202DA1BA2

I820 1KA7805—- IC REGULATOR KA7805

I820A 4857026901 HEAT SINK AL EX BK

I820B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN

I822 1KA7808—- IC REGULATOR KA7808

I822A 4857026901 HEAT SINK AL EX BK

I822B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN

I823 1KA7805—- IC REGULATOR KA7805

IA01 1MM1118—- IC A/V SWITCH MM1118

JPA1 4959103680 JACK SCART DSAM-0266

JPA2 4959103680 JACK SCART DSAM-0266

L150 58E0000041 COIL AFT TRF-A005

L380 5MC0000085 COIL CHOKE CH-100A

L381 5MC0000085 COIL CHOKE CH-100A

L401 58H0000077 COIL H-LINEARITY TRL-40A1

L402 58CD000022 COIL CHOKE CH-700A

L802 58C9430599 COIL CHOKE AZ-9004Y(94MH)

LF801 5PLF3020— FILTER LINE LF-3020

M351 4953500100 HOLDER CORD FR HIPS

M351A 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK

M381 4953802800 FRAME MAIN PCB FR HIPS BK

M381A 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK

M381B 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK

M681 4856815400 CLAMP WIRE NYLON 66

M683 4856812001 TIE CABLE NYLON66 DA100

P402 4859240120 CONN WAFER YFW500-06

P404 4859238620 CONN WAFER YPW500-02

P800 4859907410 CORD POWER AS M5206+TER=2250

M207 4853535500 HOLDER AC CORD NYLON 66

6-1. Service Parts List

✔ Caution:In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the

latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr)

Service manual SC-150

-70-

z_loc z_parts_code parts_name parts_descr

M222 4859906111 CORD POWER M5206+H03VVH2-F=2250

M222T 4857417700 TERM CLAMP PT-01-T3

Q401 T2SD1880— TR 2SD1880

Q401A 4857024500 HEAT SINK AL EX B/K

Q401B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN

R801 DPC7R0M290 POSISTOR 2322 662 96709

R819 RX10T339J- R CEMENT 10W 3.3 OHM J TRIPOD

RB02 RV4121103P R SEMI FIXED NVZ6THT 10K OHM

SF01 5PK3953M— FILTER SAW K3953M

SF02 5PK9650M— FILTER SAW K9650M

T401 50D19A1—- TRANS DRIVE TD-19A1

T402 5DH0000028 FBT LTC-305

T801 50M4936B2- TRANS SMPS 2094.0057

T803 58CD000023 COIL CHOKE HYBRID HCA208-049A

U100 4859721530 TUNER VARACTOR DT5-BF18D N

X501 5XE20R250E CRYSTAL QUARTZ HC-49/U 20.2500MHZ 30PPM

X601 5XE18R432E CRYSTAL QUARTZ HC-49/U 18.43200MHZ 30PPM

Z101 5PMKT40MA- FILTER CERA MKT40MA100P

Z153 5PYXT5R5MB FILTER CERA XT 5.5MB

ZZ200 PEMPJ0D037 PCB MAIN (RHU) AS DSC-3220E

C315 CEXF2C470C C ELECTRO 160V RUS 47MF (13X25) TP

C415 CEXF2E479V C ELECTRO 250V RSS 4.7MF (10X16)TP

C430 CCXB3D681K C CERA 2KV B 680PF K (TAPPING)

C440 CMXE2G273J C MYLAR 400V PU 0.027MF J (TP)

C502 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP

C553 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP

C604 CEXF1E102V C ELECTRO 25V RSS 1000MF (13X20) TP

C811 CCXB3D681K C CERA 2KV B 680PF K (TAPPING)

C814 CEXF2E470V C ELECTRO 250V RSS 47MF (16X25) TP

C823 CEXF1E102V C ELECTRO 25V RSS 1000MF (13X20) TP

C832 CEXF1E102V C ELECTRO 25V RSS 1000MF (13X20) TP

C840 CEXF1C222V C ELECTRO 16V RSS 2200MF (16X31.5) TP

C841 CEXF1C332V C ELECTRO 16V RSS 3300MF (16X25) TP

C861 CEXF1E102C C ELECTRO 25V RUS 1000MF (13X20) TP

ZZ200 PEMPJBD037 PCB MAIN M-10 AS DSC-3220E

E001 4856310600 EYE LET BSR T0.2 (R2.3)

E002 4856310600 EYE LET BSR T0.2 (R2.3)

E003 4856310600 EYE LET BSR T0.2 (R2.3)

E004 4856310600 EYE LET BSR T0.2 (R2.3)

E005 4856310300 EYE LET BSR T0.2 (R1.6)

E006 4856310300 EYE LET BSR T0.2 (R1.6)

E007 4856310300 EYE LET BSR T0.2 (R1.6)

E008 4856310300 EYE LET BSR T0.2 (R1.6)

E009 4856310600 EYE LET BSR T0.2 (R2.3)

E010 4856310600 EYE LET BSR T0.2 (R2.3)

E011 4856310300 EYE LET BSR T0.2 (R1.6)

E012 4856310600 EYE LET BSR T0.2 (R2.3)

E013 4856310600 EYE LET BSR T0.2 (R2.3)

E014 4856310600 EYE LET BSR T0.2 (R2.3)

E015 4856310600 EYE LET BSR T0.2 (R2.3)

E016 4856310600 EYE LET BSR T0.2 (R2.3)

E017 4856310600 EYE LET BSR T0.2 (R2.3)

z_loc z_parts_code parts_name parts_descr

E018 4856310300 EYE LET BSR T0.2 (R1.6)

E019 4856310300 EYE LET BSR T0.2 (R1.6)

E020 4856310300 EYE LET BSR T0.2 (R1.6)

E021 4856310600 EYE LET BSR T0.2 (R2.3)

E022 4856310600 EYE LET BSR T0.2 (R2.3)

E023 4856310300 EYE LET BSR T0.2 (R1.6)

E024 4856310300 EYE LET BSR T0.2 (R1.6)

E025 4856310600 EYE LET BSR T0.2 (R2.3)

E026 4856310600 EYE LET BSR T0.2 (R2.3)

E027 4856310600 EYE LET BSR T0.2 (R2.3)

E028 4856310600 EYE LET BSR T0.2 (R2.3)

E029 4856310600 EYE LET BSR T0.2 (R2.3)

E030 4856310600 EYE LET BSR T0.2 (R2.3)

E031 4856310300 EYE LET BSR T0.2 (R1.6)

E032 4856310600 EYE LET BSR T0.2 (R2.3)

E033 4856310300 EYE LET BSR T0.2 (R1.6)

E034 4856310300 EYE LET BSR T0.2 (R1.6)

E035 4856310300 EYE LET BSR T0.2 (R1.6)

E037 4856310600 EYE LET BSR T0.2 (R2.3)

E038 4856310600 EYE LET BSR T0.2 (R2.3)

E039 4856310600 EYE LET BSR T0.2 (R2.3)

E040 4856310600 EYE LET BSR T0.2 (R2.3)

E041 4856310300 EYE LET BSR T0.2 (R1.6)

E042 4856310300 EYE LET BSR T0.2 (R1.6)

E043 4856310300 EYE LET BSR T0.2 (R1.6)

E044 4856310300 EYE LET BSR T0.2 (R1.6)

E045 4856310300 EYE LET BSR T0.2 (R1.6)

E046 4856310300 EYE LET BSR T0.2 (R1.6)

E047 4856310300 EYE LET BSR T0.2 (R1.6)

E048 4856310300 EYE LET BSR T0.2 (R1.6)

E049 4856310300 EYE LET BSR T0.2 (R1.6)

P102 485923162S CONN WAFER YW025-03 (STICK)

P401 485923172S CONN WAFER YW025-04 (STICK)

P403 485923202S CONN WAFER YW025-07 (STICK)

P501 485923182S CONN WAFER YW025-05 (STICK)

P502 485923162S CONN WAFER YW025-03 (STICK)

P603 485923172S CONN WAFER YW025-04 (STICK)

P701 485923512S CONN WAFER YW025-08 (STICK)

P801A 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)

P801B 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)

P802A 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)

P802B 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)

P803A 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)

P803B 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)

PA01 485923522S CONN WAFER YW025-09 (STICK)

R399 RS02Z180JS R M-OXIDE FILM 2W 18 OHM J SMALL

R406 RS02Z681JS R M-OXIDE FILM 2W 680 OHM J SMALL

R415 RS02Z102JS R M-OXIDE FILM 2W 1K OHM J SMALL

R450 RS02Z223JS R M-OXIDE FILM 2W 22K OHM J SMALL

R802 RS02Z753JS R M-OXIDE FILM 2W 75K OHM J SMALL

R803 RS02Z473JS R M-OXIDE FILM 2W 47K OHM J SMALL

R804 RS02Z158J- R M-OXIDE FILM 2W 0.15 OHM J

Service manual SC-150

-71-

z_loc z_parts_code parts_name parts_descr

R850 RS02Z129JS R M-OXIDE FILM 2W 1.2 OHM J SMALL

R890 RS02Z683J- R M-OXIDE FILM 2W 68K OHM J (TAPPING)

SP01 485923162S CONN WAFER YW025-03 (STICK)

SP02 485923162S CONN WAFER YW025-03 (STICK)

ZZ200 PEMPJRD037 PCB MAIN RADIAL AS DSC-3220E

C102 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP

C106 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP

C110 CXCH1H150J C CERA 50V CH 15PF J (TAPPING)

C117 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP

C118 CMXL1J474J C MYLAR 63V MEU 0.47MF J

C121 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP

C152 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP

C153 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP

C156 CBXF1H104Z C CERA SEMI 50V F 0.1MF Z (TAPPING)

C157 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP

C158 CBXF1H104Z C CERA SEMI 50V F 0.1MF Z (TAPPING)

C164 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP

C301 CMXL1J224J C MYLAR 63V MEU 0.22MF J (TP)

C305 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5) TP

C313 CMXL1J104J C MYLAR 63V MEU 0.1MF J

C320 CBXF1H104Z C CERA SEMI 50V F 0.1MF Z (TAPPING)

C340 CMXL1J683J C MYLAR 63V MEU 0.068MF J

C350 CMXL1J103J C MYLAR 63V MEU 0.01MF J

C351 CMXL1J103J C MYLAR 63V MEU 0.01MF J

C401 CEXF1H101V C ELECTRO 50V RSS 100MF (8X11.5) TP

C412 CEXF2C339V C ELECTRO 160V RSS 3.3MF (8X16) TP

C418 CCXB1H102K C CERA 50V B 1000PF K (TAPPING)

C420 CCXB2H222K C CERA 500V B 2200PF K (TAPPING)

C424 CMXM2A333J C MYLAR 100V 0.033MF J (TP)

C431 CMXM2A103J C MYLAR 100V 0.01MF J (TP)

C504 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP

C508 CEXF1H220V C ELECTRO 50V RSS 22MF (5X11) TP

C511 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP

C519 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP

C520 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP

C521 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP

C522 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP

C525 CEXF1H220V C ELECTRO 50V RSS 22MF (5X11) TP

C546 CEXF1H339V C ELECTRO 50V RSS 3.3MF (5X11) TP

C549 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP

C597 CEXF1H220V C ELECTRO 50V RSS 22MF (5X11) TP

C602 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5) TP

C605 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP

C608 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP

C610 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP

C611 CEXF1H339V C ELECTRO 50V RSS 3.3MF (5X11) TP

C612 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP

C613 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP

C614 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP

C615 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP

C616 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP

C619 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5) TP

z_loc z_parts_code parts_name parts_descr

C623 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP

C624 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP

C625 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP

C626 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP

C627 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP

C628 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP

C630 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP

C632 CEXF1E479A C ELECTRO 25V RSM 4.7MF

C633 CEXF1E479A C ELECTRO 25V RSM 4.7MF

C634 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP

C636 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP

C638 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP

C639 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP

C641 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP

C642 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP

C660 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7

C661 CMXL1J224J C MYLAR 63V MEU 0.22MF J (TP)

C662 CMXL1J224J C MYLAR 63V MEU 0.22MF J (TP)

C665 CCXB1H222K C CERA 50V B 2200PF K (TAPPING)

C666 CBXF1H104Z C CERA SEMI 50V F 0.1MF Z (TAPPING)

C667 CCXB1H222K C CERA 50V B 2200PF K (TAPPING)

C668 CMXL1J224J C MYLAR 63V MEU 0.22MF J (TP)

C669 CMXL1J224J C MYLAR 63V MEU 0.22MF J (TP)

C670 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP

C770 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP

C803 CCXF3A472Z C CERA 1KV F 4700PF Z (T)

C804 CCXF3A472Z C CERA 1KV F 4700PF Z (T)

C806 CEXF1H330V C ELECTRO 50V RSS 33MF (6.3X11) TP

C807 CCXF1H473Z C CERA 50V F 0.047MF Z (TAPPING)

C808 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP

C809 CCXB1H102K C CERA 50V B 1000PF K (TAPPING)

C820 CCXB3A471K C CERA 1KV B 470PF K (T)

C821 CCXB2H102K C CERA 500V B 1000PF K (TAPPING)

C824 CCXB3A471K C CERA 1KV B 470PF K (T)

C825 CCXB2H101K C CERA 500V B 100PF K (TAPPING)

C831 CCXB3A471K C CERA 1KV B 470PF K (T)

C835 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP

C844 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP

C850 CCXB1H821K C CERA 50V B 820PF K (TAPPING)

C863 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP

C866 CCXB3A471K C CERA 1KV B 470PF K (T)

CA12 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP

CA33 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP

F801A 4857415001 CLIP FUSE PFC5000-0702

F801B 4857415001 CLIP FUSE PFC5000-0702

I805 1K1A7042AP IC REGULATOR KIA7042AP

Q103 TKTC3198Y- TR KTC3198Y

Q104 TKTC3198Y- TR KTC3198Y

Q120 TKTC3198Y- TR KTC3198Y

Q150 TKTC3198Y- TR KTC3198Y

Q151 TKTC3198Y- TR KTC3198Y

Q333 TKTC3198Y- TR KTC3198Y

Service manual SC-150

-72-

z_loc z_parts_code parts_name parts_descr

Q334 TKTC3198Y- TR KTC3198Y

Q402 T2SD1207T- TR 2SD1207-T (TAPPING)

Q510 TKTC3198Y- TR KTC3198Y

Q511 TKTC3198Y- TR KTC3198Y

Q542 TKTA1266Y- TR KTA1266Y (TP)

Q543 TKTA1266Y- TR KTA1266Y (TP)

Q544 TKTA1266Y- TR KTA1266Y (TP)

Q550 TKTC3198Y- TR KTC3198Y

Q599 TKTA1266Y- TR KTA1266Y (TP)

Q601 TKTA1266Y- TR KTA1266Y (TP)

Q702 TKTA1266Y- TR KTA1266Y (TP)

Q703 TKTC3198Y- TR KTC3198Y

Q807 TKTC3198Y- TR KTC3198Y

Q808 TKTC3198Y- TR KTC3198Y

Q809 TKTC3198Y- TR KTC3198Y

Q810 TKTC3198Y- TR KTC3198Y

Q811 TKTC3198Y- TR KTC3198Y

Q850 TKTC3198Y- TR KTC3198Y

Q851 TKTC3198Y- TR KTC3198Y

QA01 TKTC3198Y- TR KTC3198Y

RB10 RV5426103P R SEMI FIXED ENV-DJAA03B14 10K OHM B

Z603 5PXF1B471M FILTER EMI CFI 06 B 1H 470PF

Z604 5PXF1B471M FILTER EMI CFI 06 B 1H 470PF

Z605 5PXF1B471M FILTER EMI CFI 06 B 1H 470PF

Z606 5PXF1B471M FILTER EMI CFI 06 B 1H 470PF

Z607 5PXF1B471M FILTER EMI CFI 06 B 1H 470PF

Z608 5PXF1B471M FILTER EMI CFI 06 B 1H 470PF

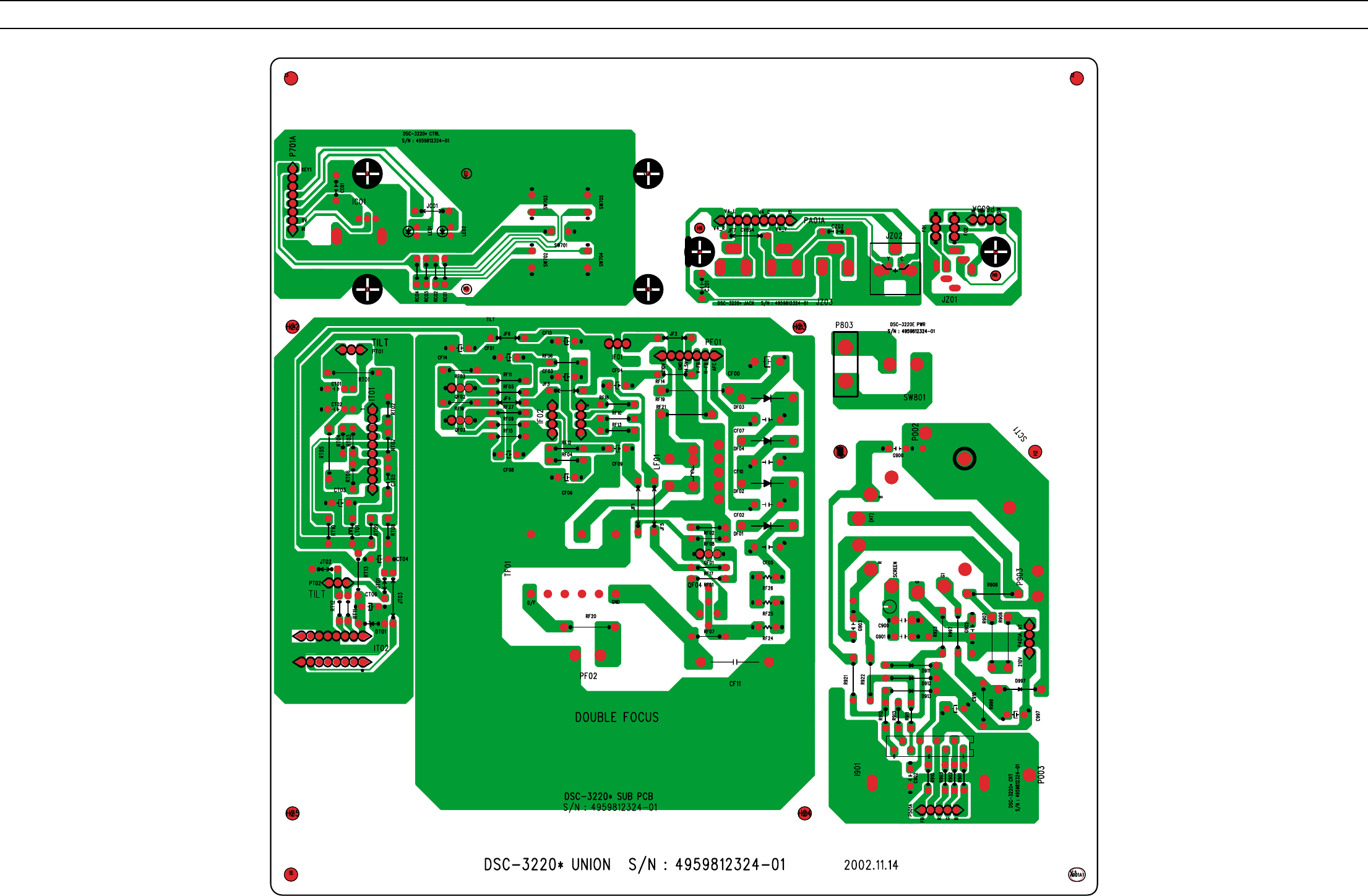

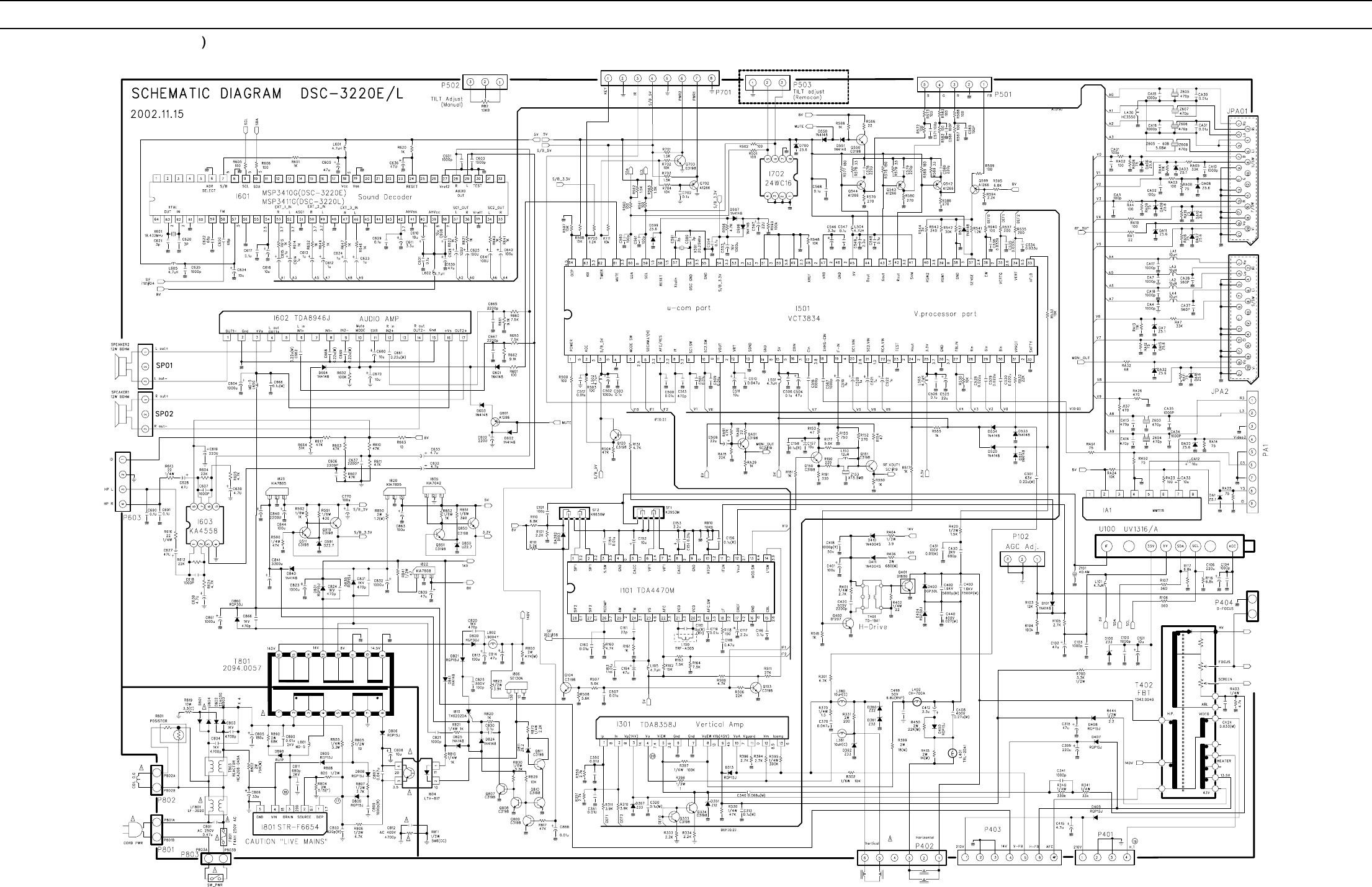

ZZ200 PEMPJAD037 PCB MAIN AXIAL AS DSC-3220E

A001 4959812224 PCB MAIN 330X246 D1B

C101 CCZB1H101K C CERA 50V B 100PF K (AXIAL)

C103 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)

C104 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)

C116 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z

C119 CCZF1H103Z C CERA 50V F 0.01MF Z

C120 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)

C151 CCZF1H103Z C CERA 50V F 0.01MF Z

C154 CCZF1H103Z C CERA 50V F 0.01MF Z

C160 CCZF1H103Z C CERA 50V F 0.01MF Z

C161 CZCH1H220J C CERA 50V CH 22PF J (AXIAL)

C163 CCZF1H103Z C CERA 50V F 0.01MF Z

C341 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)

C370 CCZF1H473Z C CERA 50V F 0.047MF Z

C500 CCZF1H103Z C CERA 50V F 0.01MF Z

C501 CCZF1H103Z C CERA 50V F 0.01MF Z

C503 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z

C506 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z

C507 CCZF1H103Z C CERA 50V F 0.01MF Z

C509 CCZF1H103Z C CERA 50V F 0.01MF Z

C510 CCZF1H473Z C CERA 50V F 0.047MF Z

C512 CCZF1H103Z C CERA 50V F 0.01MF Z

C513 CCZB1H471K C CERA 50V B 470PF K (AXIAL)

C516 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)

z_loc z_parts_code parts_name parts_descr

C526 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z

C528 CCZF1H223Z C CERA 50V F 0.022MF Z

C529 CCZF1H223Z C CERA 50V F 0.022MF Z

C530 CCZF1H223Z C CERA 50V F 0.022MF Z

C534 CCZB1H333K C CERA 50V B 0.033MF K AXL

C535 CCZB1H333K C CERA 50V B 0.033MF K AXL

C536 CCZB1H333K C CERA 50V B 0.033MF K AXL

C547 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z

C548 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z

C554 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z

C560 CCZB1H101K C CERA 50V B 100PF K (AXIAL)

C561 CCZB1H101K C CERA 50V B 100PF K (AXIAL)

C568 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z

C571 CCZB1H101K C CERA 50V B 100PF K (AXIAL)

C578 CCZB1H221K C CERA 50V B 220PF K (AXIAL)

C579 CCZB1H221K C CERA 50V B 220PF K (AXIAL)

C581 CCZB1H101K C CERA 50V B 100PF K (AXIAL)

C585 CCZB1H101K C CERA 50V B 100PF K (AXIAL)

C587 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)

C589 CCZB1H221K C CERA 50V B 220PF K (AXIAL)

C590 CZCH1H309C C CERA 50V CH 3PF C (AXIAL)

C591 CZCH1H309C C CERA 50V CH 3PF C (AXIAL)

C601 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)

C603 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)

C606 CCZB1H222K C CERA 50V B 2200PF K AXIAL

C607 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)

C617 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z

C618 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)

C620 CZCH1H309C C CERA 50V CH 3PF C (AXIAL)

C621 CZCH1H309C C CERA 50V CH 3PF C (AXIAL)

C622 CZCH1H680J C CERA CH 50V 68PF J AXL 52MM

C629 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z

C631 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z

C635 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)

C637 CCZB1H222K C CERA 50V B 2200PF K AXIAL

C650 CZCH1H680J C CERA CH 50V 68PF J AXL 52MM

C690 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z

C691 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z

C702 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z

C830 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z

C888 CCZF1H103Z C CERA 50V F 0.01MF Z

CA01 CCZB1H101K C CERA 50V B 100PF K (AXIAL)

CA02 CCZB1H101K C CERA 50V B 100PF K (AXIAL)

CA03 CCZB1H101K C CERA 50V B 100PF K (AXIAL)

CA04 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)

CA07 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)

CA10 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)

CA13 CCZB1H471K C CERA 50V B 470PF K (AXIAL)

CA14 CCZB1H471K C CERA 50V B 470PF K (AXIAL)

CA15 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)

CA16 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)

CA17 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)

Service manual SC-150

-73-

z_loc z_parts_code parts_name parts_descr

CA18 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)

CA30 CCZF1H103Z C CERA 50V F 0.01MF Z

CA31 CCZF1H103Z C CERA 50V F 0.01MF Z

CA34 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)

CA35 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)

CA37 CCZB1H561K C CERA 50V B 560PF K

CA38 CCZB1H561K C CERA 50V B 560PF K

D100 DUZ33B—— DIODE ZENER UZ-33B

D101 D1N4148—- DIODE 1N4148 (TAPPING)

D103 DBA282—— DIODE BA282

D313 DRGP15J—- DIODE RGP15J

D351 DUZ12BM—- DIODE ZENER UZ-12BM (UNIZON)

D360 DUZ22BM—- DIODE ZENER UZ-22BM

D361 DUZ33B—— DIODE ZENER UZ-33B

D362 DUZ33B—— DIODE ZENER UZ-33B

D367 DUZ33B—— DIODE ZENER UZ-33B

D405 DRGP15J—- DIODE RGP15J

D407 DRGP15J—- DIODE RGP15J

D408 DRGP15J—- DIODE RGP15J

D410 D1N4004S— DIODE 1N4004S

D411 D1N4004S— DIODE 1N4004S

D450 DRGP15J—- DIODE RGP15J

D520 D1N4148—- DIODE 1N4148 (TAPPING)

D521 D1N4148—- DIODE 1N4148 (TAPPING)

D533 D1N4148—- DIODE 1N4148 (TAPPING)

D534 D1N4148—- DIODE 1N4148 (TAPPING)

D537 D1N4148—- DIODE 1N4148 (TAPPING)

D550 D1N4148—- DIODE 1N4148 (TAPPING)

D551 D1N4148—- DIODE 1N4148 (TAPPING)

D591 DUZ2R7B—- DIODE ZENER UZ-2.7B

D597 D1N4148—- DIODE 1N4148 (TAPPING)

D598 D1N4148—- DIODE 1N4148 (TAPPING)

D599 DUZ5R6BM— DIODE ZENER UZ-5.6BM

D601 D1N4148—- DIODE 1N4148 (TAPPING)

D602 D1N4148—- DIODE 1N4148 (TAPPING)

D603 D1N4148—- DIODE 1N4148 (TAPPING)

D604 D1N4148—- DIODE 1N4148 (TAPPING)

D700 DUZ5R6BM— DIODE ZENER UZ-5.6BM

D801 DLT2A05G— DIODE LT2A05G (TP)

D802 DLT2A05G— DIODE LT2A05G (TP)

D803 DLT2A05G— DIODE LT2A05G (TP)

D804 DLT2A05G— DIODE LT2A05G (TP)

D805 DRGP15J—- DIODE RGP15J

D806 DRGP15J—- DIODE RGP15J

D808 DRGP15J—- DIODE RGP15J

D809 DRGP15J—- DIODE RGP15J

D811 DUZ6R2BM— DIODE ZENER UZ-6.2BM

D821 DRGP15J—- DIODE RGP15J

D824 D1N4148—- DIODE 1N4148 (TAPPING)

D825 D1N4148—- DIODE 1N4148 (TAPPING)

D830 DRGP15J—- DIODE RGP15J

D831 DRGP15J—- DIODE RGP15J

z_loc z_parts_code parts_name parts_descr

D840 D1N4148—- DIODE 1N4148 (TAPPING)

D841 D1N4148—- DIODE 1N4148 (TAPPING)

D850 DUZ2R7B—- DIODE ZENER UZ-2.7B

D890 DRU1P——- DIODE RU1P

DA03 DUZ5R1BM— DIODE ZENER UZ-5.1BM

DA06 DUZ5R6BM— DIODE ZENER UZ-5.6BM

DA07 DUZ5R1BM— DIODE ZENER UZ-5.1BM

DA08 DUZ5R6BM— DIODE ZENER UZ-5.6BM

DA09 DUZ5R6BM— DIODE ZENER UZ-5.6BM

DA1 DUZ5R1BM— DIODE ZENER UZ-5.1BM

DA10 DUZ5R6BM— DIODE ZENER UZ-5.6BM

DA11 DUZ5R6BM— DIODE ZENER UZ-5.6BM

DA15 DUZ5R6BM— DIODE ZENER UZ-5.6BM

DA16 DUZ5R6BM— DIODE ZENER UZ-5.6BM

DA20 DUZ5R6BM— DIODE ZENER UZ-5.6BM

DA27 DUZ5R6BM— DIODE ZENER UZ-5.6BM

DA32 DUZ5R6BM— DIODE ZENER UZ-5.6BM

J101 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J103 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J104 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J105 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J106 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J107 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J108 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J109 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J110 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J111 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J112 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J113 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J114 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J115 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J116 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J117 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J118 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J119 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J120 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J121 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J122 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J123 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J124 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J125 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J126 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J127 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J128 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J129 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J130 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J131 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J132 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J133 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J134 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J135 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J136 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

Service manual SC-150

-74-

z_loc z_parts_code parts_name parts_descr

J137 RD-AZ471J- R CARBON FILM 1/6 470 OHM J

J138 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J139 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J140 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J141 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J142 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J143 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J144 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J145 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J146 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J147 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J148 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J149 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J150 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J151 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J152 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J153 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J154 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J155 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J156 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J158 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J159 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J160 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J161 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J162 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J163 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J164 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J165 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J166 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J167 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J168 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J169 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J170 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J171 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J173 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J174 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J175 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J176 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J177 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J178 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J179 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J180 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J181 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J182 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J183 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J184 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J185 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J186 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J187 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J188 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J189 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J190 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

z_loc z_parts_code parts_name parts_descr

J191 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J192 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J193 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J194 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J195 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J196 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J197 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J198 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J199 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J202 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J203 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J204 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J205 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J206 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J207 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J208 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J209 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

J210 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

L101 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM)

L105 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM)

L153 5CPZ120K02 COIL PEAKING 12UH K (AXIAL 3.5MM)

L501 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM)

L502 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM)

L503 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM)

L504 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM)

L601 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM)

L602 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM)

L605 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM)

L650 5MC0000100 COIL BEAD HC-3550

L801 5MC0000100 COIL BEAD HC-3550

LA01 5CPZ100K04 COIL PEAKING 10UH 10.5MM K (LAL04TB)

LA02 5CPZ100K04 COIL PEAKING 10UH 10.5MM K (LAL04TB)

LA03 5CPZ100K04 COIL PEAKING 10UH 10.5MM K (LAL04TB)

LA04 5CPZ100K04 COIL PEAKING 10UH 10.5MM K (LAL04TB)

LA30 5MC0000100 COIL BEAD HC-3550

R101 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J

R103 RD-AZ123J- R CARBON FILM 1/6 12K OHM J

R104 RD-AZ104J- R CARBON FILM 1/6 100K OHM J

R105 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J

R106 RD-AZ561J- R CARBON FILM 1/6 560 OHM J

R107 RD-AZ561J- R CARBON FILM 1/6 560 OHM J

R110 RD-AZ682J- R CARBON FILM 1/6 6.8K OHM J

R111 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J

R116 RD-AZ682J- R CARBON FILM 1/6 6.8K OHM J

R117 RD-AZ682J- R CARBON FILM 1/6 6.8K OHM J

R118 RD-AZ151J- R CARBON FILM 1/6 150 OHM J

R131 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J

R151 RD-AZ102J- R CARBON FILM 1/6 1K OHM J

R152 RD-AZ271J- R CARBON FILM 1/6 270 OHM J

R153 RD-AZ470J- R CARBON FILM 1/6 47 OHM J

R154 RD-AZ470J- R CARBON FILM 1/6 47 OHM J

R155 RD-AZ751J- R CARBON FILM 1/6 750 OHM J

Service manual SC-150

-75-

z_loc z_parts_code parts_name parts_descr

R160 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J

R161 RD-AZ102J- R CARBON FILM 1/6 1K OHM J

R162 RD-AZ153J- R CARBON FILM 1/6 15K OHM J

R163 RD-AZ752J- R CARBON FILM 1/6 7.5K OHM J

R164 RD-AZ752J- R CARBON FILM 1/6 7.5K OHM J

R177 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J

R190 RD-AZ221J- R CARBON FILM 1/6 220 OHM J

R191 RD-AZ331J- R CARBON FILM 1/6 330 OHM J

R301 RD-4Z472J- R CARBON FILM 1/4 4.7K OHM J

R302 RD-AZ103J- R CARBON FILM 1/6 10K OHM J

R310 RD-AZ392J- R CARBON FILM 1/6 3.9K OHM J

R311 RD-AZ392J- R CARBON FILM 1/6 3.9K OHM J

R330 RD-4Z473J- R CARBON FILM 1/4 47K OHM J

R331 RD-2Z201J- R CARBON FILM 1/2 200 OHM J

R333 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J

R334 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J

R340 RD-4Z334J- R CARBON FILM 1/4 330K OHM J

R341 RD-4Z333J- R CARBON FILM 1/4 33K OHM J

R350 RN-4Z2701F R METAL FILM 1/4 2.70K OHM F

R351 RN-4Z2701F R METAL FILM 1/4 2.70K OHM F

R370 RD-4Z159J- R CARBON FILM 1/4 1.5 OHM J

R394 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J

R395 RD-4Z394J- R CARBON FILM 1/4 390K OHM J

R396 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J

R397 RD-AZ104J- R CARBON FILM 1/6 100K OHM J

R398 RD-2Z109J- R CARBON FILM 1/2 1 OHM J

R401 RD-4Z272J- R CARBON FILM 1/4 2.7K OHM J

R402 RD-4Z220J- R CARBON FILM 1/4 22 OHM J

R403 RD-4Z472J- R CARBON FILM 1/4 4.7K OHM J

R404 RD-2Z399J- R CARBON FILM 1/2 3.9 OHM J

R420 RD-2Z152J- R CARBON FILM 1/2 1.5K OHM J

R444 RD-2Z229J- R CARBON FILM 1/2 2.2 OHM J

R500 RD-AZ101J- R CARBON FILM 1/6 100 OHM J

R501 RD-AZ101J- R CARBON FILM 1/6 100 OHM J

R502 RD-AZ101J- R CARBON FILM 1/6 100 OHM J

R503 RD-AZ101J- R CARBON FILM 1/6 100 OHM J

R504 RD-AZ473J- R CARBON FILM 1/6 47K OHM J

R506 RD-AZ223J- R CARBON FILM 1/6 22K OHM J

R507 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J

R508 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J

R509 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J

R511 RD-AZ273J- R CARBON FILM 1/6 27K OHM J

R517 RD-AZ102J- R CARBON FILM 1/6 1K OHM J

R518 RD-AZ102J- R CARBON FILM 1/6 1K OHM J

R530 RD-AZ103J- R CARBON FILM 1/6 10K OHM J

R532 RD-AZ223J- R CARBON FILM 1/6 22K OHM J

R533 RD-AZ103J- R CARBON FILM 1/6 10K OHM J

R535 RD-AZ201J- R CARBON FILM 1/6 200 OHM J

R537 RD-AZ201J- R CARBON FILM 1/6 200 OHM J

R540 RD-AZ101J- R CARBON FILM 1/6 100 OHM J

R541 RD-AZ122J- R CARBON FILM 1/6 1.2K OHM J

R542 RD-AZ303J- R CARBON FILM 1/6 30K OHM J

z_loc z_parts_code parts_name parts_descr

R543 RD-AZ241J- R CARBON FILM 1/6 240 OHM J

R544 RD-AZ202J- R CARBON FILM 1/6 2K OHM J

R548 RD-AZ103J- R CARBON FILM 1/6 10K OHM J

R550 RD-AZ102J- R CARBON FILM 1/6 1K OHM J

R555 RD-AZ102J- R CARBON FILM 1/6 1K OHM J

R560 RD-AZ101J- R CARBON FILM 1/6 100 OHM J

R561 RD-AZ101J- R CARBON FILM 1/6 100 OHM J

R562 RD-AZ152J- R CARBON FILM 1/6 1.5K OHM J

R563 RD-AZ152J- R CARBON FILM 1/6 1.5K OHM J

R566 RD-AZ220J- R CARBON FILM 1/6 22 OHM J

R568 RD-AZ102J- R CARBON FILM 1/6 1K OHM J

R569 RD-AZ181J- R CARBON FILM 1/6 180 OHM J

R570 RD-AZ271J- R CARBON FILM 1/6 270 OHM J

R572 RD-AZ101J- R CARBON FILM 1/6 100 OHM J

R573 RD-AZ101J- R CARBON FILM 1/6 100 OHM J

R576 RD-AZ181J- R CARBON FILM 1/6 180 OHM J

R577 RD-AZ181J- R CARBON FILM 1/6 180 OHM J

R578 RD-AZ330J- R CARBON FILM 1/6 33 OHM J

R579 RD-AZ330J- R CARBON FILM 1/6 33 OHM J

R580 RD-AZ271J- R CARBON FILM 1/6 270 OHM J

R582 RD-AZ101J- R CARBON FILM 1/6 100 OHM J

R583 RD-AZ101J- R CARBON FILM 1/6 100 OHM J

R586 RD-AZ271J- R CARBON FILM 1/6 270 OHM J

R587 RD-AZ101J- R CARBON FILM 1/6 100 OHM J

R588 RD-AZ101J- R CARBON FILM 1/6 100 OHM J

R589 RD-AZ330J- R CARBON FILM 1/6 33 OHM J

R590 RD-4Z473J- R CARBON FILM 1/4 47K OHM J

R591 RD-AZ431J- R CARBON FILM 1/6 430 OHM J

R592 RD-AZ102J- R CARBON FILM 1/6 1K OHM J

R593 RD-AZ104J- R CARBON FILM 1/6 100K OHM J

R594 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J

R595 RD-AZ682J- R CARBON FILM 1/6 6.8K OHM J

R596 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J

R597 RD-AZ153J- R CARBON FILM 1/6 15K OHM J

R598 RD-AZ153J- R CARBON FILM 1/6 15K OHM J

R599 RD-AZ101J- R CARBON FILM 1/6 100 OHM J

R601 RD-AZ101J- R CARBON FILM 1/6 100 OHM J

R602 RD-AZ104J- R CARBON FILM 1/6 100K OHM J

R603 RD-AZ473J- R CARBON FILM 1/6 47K OHM J

R604 RD-AZ223J- R CARBON FILM 1/6 22K OHM J

R605 RD-AZ101J- R CARBON FILM 1/6 100 OHM J

R606 RD-AZ101J- R CARBON FILM 1/6 100 OHM J

R607 RD-AZ473J- R CARBON FILM 1/6 47K OHM J

R610 RD-AZ473J- R CARBON FILM 1/6 47K OHM J

R611 RD-AZ473J- R CARBON FILM 1/6 47K OHM J

R612 RD-AZ223J- R CARBON FILM 1/6 22K OHM J

R613 RD-4Z220J- R CARBON FILM 1/4 22 OHM J

R614 RD-AZ102J- R CARBON FILM 1/6 1K OHM J

R615 RD-AZ102J- R CARBON FILM 1/6 1K OHM J

R616 RD-4Z220J- R CARBON FILM 1/4 22 OHM J

R617 RD-AZ473J- R CARBON FILM 1/6 47K OHM J

R620 RD-AZ102J- R CARBON FILM 1/6 1K OHM J

Service manual SC-150

-76-

z_loc z_parts_code parts_name parts_descr

R621 RD-AZ102J- R CARBON FILM 1/6 1K OHM J

R622 RD-AZ102J- R CARBON FILM 1/6 1K OHM J

R624 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J

R625 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J

R641 RD-AZ102J- R CARBON FILM 1/6 1K OHM J

R642 RD-AZ102J- R CARBON FILM 1/6 1K OHM J

R646 RD-AZ102J- R CARBON FILM 1/6 1K OHM J

R647 RD-AZ102J- R CARBON FILM 1/6 1K OHM J

R649 RD-AZ102J- R CARBON FILM 1/6 1K OHM J

R650 RD-AZ752J- R CARBON FILM 1/6 7.5K OHM J

R651 RD-AZ102J- R CARBON FILM 1/6 1K OHM J

R652 RD-AZ102J- R CARBON FILM 1/6 1K OHM J

R660 RD-AZ752J- R CARBON FILM 1/6 7.5K OHM J

R661 RD-AZ912J- R CARBON FILM 1/6 9.1K OHM J

R662 RD-AZ912J- R CARBON FILM 1/6 9.1K OHM J

R663 RD-AZ100J- R CARBON FILM 1/6 10 OHM J

R664 RD-AZ513J- R CARBON FILM 1/6 51K OHM J

R700 RD-2Z332J- R CARBON FILM 1/2 3.3K OHM J

R701 RD-AZ152J- R CARBON FILM 1/6 1.5K OHM J

R702 RD-AZ103J- R CARBON FILM 1/6 10K OHM J

R703 RD-AZ152J- R CARBON FILM 1/6 1.5K OHM J

R704 RD-AZ103J- R CARBON FILM 1/6 10K OHM J

R711 RD-AZ103J- R CARBON FILM 1/6 10K OHM J

R720 RD-AZ122J- R CARBON FILM 1/6 1.2K OHM J

R805 RD-2Z100J- R CARBON FILM 1/2 10 OHM J

R806 RD-2Z472J- R CARBON FILM 1/2 4.7K OHM J

R807 RD-2Z272J- R CARBON FILM 1/2 2.7K OHM J

R808 RD-2Z821J- R CARBON FILM 1/2 820 OHM J

R810 RD-4Z102J- R CARBON FILM 1/4 1K OHM J

R811 RC-2Z565KP R CARBON COMP 1/2 5.6M OHM K

R817 RD-AZ473J- R CARBON FILM 1/6 47K OHM J

R820 RD-AZ102J- R CARBON FILM 1/6 1K OHM J

R821 RD-4Z102J- R CARBON FILM 1/4 1K OHM J

R823 RD-2Z392J- R CARBON FILM 1/2 3.9K OHM J

R829 RD-AZ103J- R CARBON FILM 1/6 10K OHM J

R830 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J

R841 RD-2Z470J- R CARBON FILM 1/2 47 OHM J

R851 RD-AZ391J- R CARBON FILM 1/6 390 OHM J

R852 RD-AZ102J- R CARBON FILM 1/6 1K OHM J

R855 RD-4Z335J- R CARBON FILM 1/4 3.3M OHM J

R870 RD-4Z222J- R CARBON FILM 1/4 2.2K OHM J

RA01 RD-AZ220J- R CARBON FILM 1/6 22 OHM J

RA02 RD-AZ101J- R CARBON FILM 1/6 100 OHM J

RA03 RD-AZ101J- R CARBON FILM 1/6 100 OHM J

RA04 RD-AZ101J- R CARBON FILM 1/6 100 OHM J

RA05 RD-AZ333J- R CARBON FILM 1/6 33K OHM J

RA06 RD-AZ750J- R CARBON FILM 1/6 75 OHM J

RA07 RD-AZ333J- R CARBON FILM 1/6 33K OHM J

RA08 RD-AZ750J- R CARBON FILM 1/6 75 OHM J

RA09 RD-AZ750J- R CARBON FILM 1/6 75 OHM J

RA10 RD-AZ101J- R CARBON FILM 1/6 100 OHM J

RA11 RD-AZ750J- R CARBON FILM 1/6 75 OHM J

z_loc z_parts_code parts_name parts_descr

RA12 RD-AZ750J- R CARBON FILM 1/6 75 OHM J

RA13 RD-AZ113J- R CARBON FILM 1/6 11K OHM J

RA14 RD-AZ750J- R CARBON FILM 1/6 75 OHM J

RA15 RD-AZ223J- R CARBON FILM 1/6 22K OHM J

RA16 RD-AZ750J- R CARBON FILM 1/6 75 OHM J

RA19 RD-AZ750J- R CARBON FILM 1/6 75 OHM J

RA23 RD-AZ101J- R CARBON FILM 1/6 100 OHM J

RA24 RD-AZ103J- R CARBON FILM 1/6 10K OHM J

RA25 RD-AZ750J- R CARBON FILM 1/6 75 OHM J

RA26 RD-AZ471J- R CARBON FILM 1/6 470 OHM J

RA29 RD-AZ102J- R CARBON FILM 1/6 1K OHM J

RA32 RD-AZ680J- R CARBON FILM 1/6 68 OHM J

RA44 RD-AZ113J- R CARBON FILM 1/6 11K OHM J

RA51 RD-AZ750J- R CARBON FILM 1/6 75 OHM J

RA52 RD-AZ750J- R CARBON FILM 1/6 75 OHM J

RA90 RD-AZ220J- R CARBON FILM 1/6 22 OHM J

RA91 RD-AZ473J- R CARBON FILM 1/6 47K OHM J

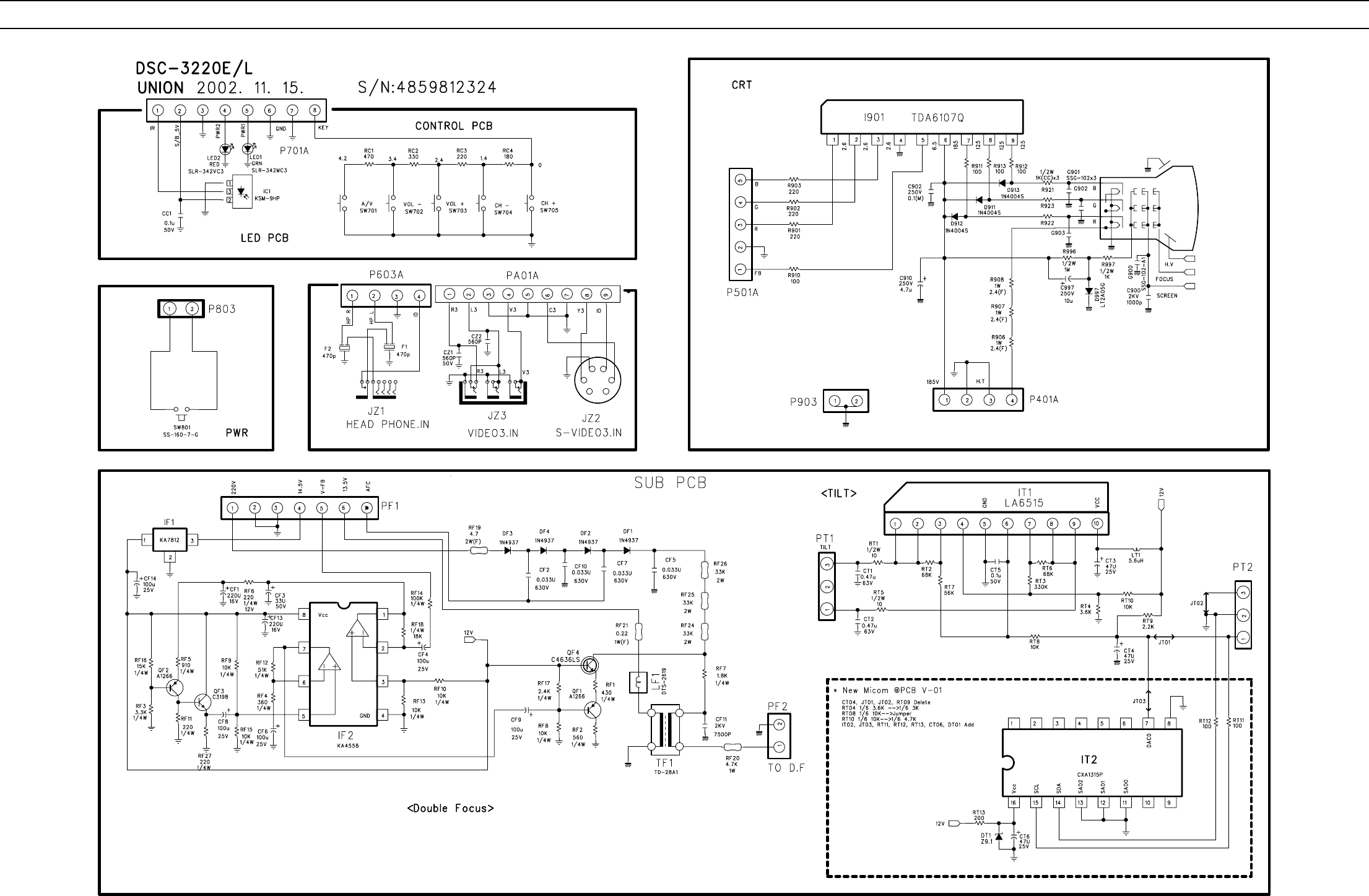

ZZ400 PEUNSWD037 PCB UNION AS DSC-3220E

C900 CCXB3D102K C CERA 2KV B 1000PF K (TAPPING)

C910 CEXF2E479V C ELECTRO 250V RSS 4.7MF (10X16)TP

C997 CEXF2E100V C ELECTRO 250V RSS 10MF (10X20) TP

CF02 CMXE2J333J C MYLAR 630V PU 0.033MF J (TP)

CF05 CMXE2J333J C MYLAR 630V PU 0.033MF J (TP)

CF07 CMXE2J333J C MYLAR 630V PU 0.033MF J (TP)

CF10 CMXE2J333J C MYLAR 630V PU 0.033MF J (TP)

CF11 CMYH3D752J C MYLAR 2KV BUP 7500PF J

I901 1TDA6107Q- IC VIDEO AMP TDA6107Q

I901A 4857031100 HEAT SINK A1050P-H24 T2.0

I901B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN

IC01 1KSM9HP—- IC PREAMP KSM-9HP

IF01 1MC7812—- IC REGULATOR MC7812 12V 1A (KA7812)

IF02 1KA4558—- IC AMP KA4558

IT01 1LA6515—- IC OP AMP LA6515

JZ01 4859105240 JACK PHONE LGT1516-0100

JZ02 4859105340 JACK S-VHS YKF51-5359

JZ03 4859105450 JACK PIN BOARD YSC03P-4120-9S

LED1 DSLR342MC3 LED SLR-342MC3

LED2 DSLR342VC3 LED SLR-342VC3

LF01 58CD000021 COIL CHOKE DTS-2619

M232 4952300701 PANEL AV HIPS PAINT

M232A 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK

M321 4953200600 BRKT POWER EGI T1.2

M321A 7063300612 SCREW MACHINE M/C BIN 3X6 MFZN BK

M491 4954901601 BUTT0N CH ABS PAINT

M551 4955501000 DECO SENSOR GPPS

M684 4856812001 TIE CABLE NYLON66 DA100

P401A 4850704S03 CONNECTOR YH025-04+YST025+ULW=300

P501A 4850705S04 CONNECTOR YH025-05+YBNH250+ULW=400

P603A 4850704S04 CONNECTOR YH025-04+YST025+ULW=400

P701A 4850708S03 CONNECTOR YH025-08+YST025+ULW=500

P803 4850702S10 CONNECTOR BL102NG+MXH40058-02=400

P903 4859238620 CONN WAFER YPW500-02

Service manual SC-150

-77-

z_loc z_parts_code parts_name parts_descr

PA01A 4850709N04 CONNECTOR YH025-09+YBNH250+USW=400

PF01 4850707S02 CONNECTOR YH025-07+YST025+ULW=400

PF02 4859238620 CONN WAFER YPW500-02

PF02A 4850702N06 CONNECTOR YPH500-02+YLT500+ULW=200

PT01 4859231620 CONN WAFER YW025-03

PT02 4850703S21 CONNECTOR YH025-03+YBNH250+ULW=600

QF04 T4636LSRB- TR 2SC4636LS-RB

R906 RF01Y249J- R FUSIBLE 1W 2.4 OHM J

R907 RF01Y249J- R FUSIBLE 1W 2.4 OHM J

R908 RF01Y249J- R FUSIBLE 1W 2.4 OHM J

RF19 RF02Z479J- R FUSIBLE 2W 4.7 OHM J (TAPPING)

RF20 RS01Z472J- R M-OXIDE FILM 1W 4.7K OHM J (TAPPING)

RF21 RS01Z228J- R M-OXIDE FILM 1W 0.22 OHM J

SCT1 4859303730 SOCKET CRT ISD-07S

SW801 5S40000003 SW POWER PUSH SS-160-7-G

TF01 50D28A1—- TRANS DRIVE TD-28A1

ZZ200 PEUNJRD037 PCB UNION RADIAL AS DSC-3220E

C902 CMXL2E104K C MYLAR 250V MEU 0.1MF K

CF01 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP

CF03 CEXF1H330V C ELECTRO 50V RSS 33MF (6.3X11) TP

CF04 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP

CF06 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP

CF08 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP

CF09 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP

CF13 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP

CF14 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP

CT01 CMXL1J474J C MYLAR 63V MEU 0.47MF J

CT02 CMXL1J474J C MYLAR 63V MEU 0.47MF J

CT03 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP

CT04 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP

F01 5PXF1B471M FILTER EMI CFI 06 B 1H 470PF

F02 5PXF1B471M FILTER EMI CFI 06 B 1H 470PF

G900 4SG0DX0001 SPARK GAP SSG-102-A1(1.0KV) TAP

G901 4SG0DX0001 SPARK GAP SSG-102-A1(1.0KV) TAP

G902 4SG0DX0001 SPARK GAP SSG-102-A1(1.0KV) TAP

G903 4SG0DX0001 SPARK GAP SSG-102-A1(1.0KV) TAP

QF01 TKTA1266Y- TR KTA1266Y (TP)

QF02 TKTA1266Y- TR KTA1266Y (TP)

QF03 TKTC3198Y- TR KTC3198Y

RF24 RN02B333JS R METAL FILM 2W 33K OHM J SMALL

RF25 RN02B333JS R METAL FILM 2W 33K OHM J SMALL

RF26 RN02B333JS R METAL FILM 2W 33K OHM J SMALL

SW701 5S50101Z90 SW TACT THVV502GDA

SW702 5S50101Z90 SW TACT THVV502GDA

SW703 5S50101Z90 SW TACT THVV502GDA

SW704 5S50101Z90 SW TACT THVV502GDA

SW705 5S50101Z90 SW TACT THVV502GDA

ZZ200 PEUNJAD037 PCB UNION AXIAL AS DSC-3220E

A001 4959812324 PCB UNION 246X243 D1B

CC01 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z

CT05 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z

CZ01 CCZB1H561K C CERA 50V B 560PF K

z_loc z_parts_code parts_name parts_descr

CZ02 CCZB1H561K C CERA 50V B 560PF K

D911 D1N4004S— DIODE 1N4004S

D912 D1N4004S— DIODE 1N4004S

D913 D1N4004S— DIODE 1N4004S

D997 DLT2A05G— DIODE LT2A05G (TP)

DF01 D1N4937G— DIODE 1N4937G (TAPPING)

DF02 D1N4937G— DIODE 1N4937G (TAPPING)

DF03 D1N4937G— DIODE 1N4937G (TAPPING)

DF04 D1N4937G— DIODE 1N4937G (TAPPING)

JC01 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

JF1 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

JF2 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

JF3 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

JF4 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

JF5 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

JF6 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

JF7 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

LT01 5CPZ569K02 COIL PEAKING 5.6UH K (AXIAL 3.5MM)

R901 RD-AZ221J- R CARBON FILM 1/6 220 OHM J

R902 RD-AZ221J- R CARBON FILM 1/6 220 OHM J

R903 RD-AZ221J- R CARBON FILM 1/6 220 OHM J

R910 RD-AZ101J- R CARBON FILM 1/6 100 OHM J

R911 RD-AZ101J- R CARBON FILM 1/6 100 OHM J

R912 RD-AZ101J- R CARBON FILM 1/6 100 OHM J

R913 RD-AZ101J- R CARBON FILM 1/6 100 OHM J

R921 RC-2Z102K- R CARBON COMP 1/2 1K OHM K

R922 RC-2Z102K- R CARBON COMP 1/2 1K OHM K

R923 RC-2Z102K- R CARBON COMP 1/2 1K OHM K

R996 RD-2Z105J- R CARBON FILM 1/2 1M OHM J

R997 RD-2Z102J- R CARBON FILM 1/2 1K OHM J

RC01 RD-AZ471J- R CARBON FILM 1/6 470 OHM J

RC02 RD-AZ331J- R CARBON FILM 1/6 330 OHM J

RC03 RD-AZ221J- R CARBON FILM 1/6 220 OHM J

RC04 RD-AZ181J- R CARBON FILM 1/6 180 OHM J

RF01 RD-4Z431J- R CARBON FILM 1/4 430 OHM J

RF02 RD-4Z561J- R CARBON FILM 1/4 560 OHM J

RF03 RD-4Z332J- R CARBON FILM 1/4 3.3K OHM J

RF04 RD-4Z361J- R CARBON FILM 1/4 360 OHM J

RF05 RD-4Z911J- R CARBON FILM 1/4 910 OHM J

RF06 RD-4Z221J- R CARBON FILM 1/4 220 OHM J

RF07 RD-4Z182J- R CARBON FILM 1/4 1.8K OHM J

RF08 RD-4Z103J- R CARBON FILM 1/4 10K OHM J

RF09 RD-4Z103J- R CARBON FILM 1/4 10K OHM J

RF10 RD-4Z103J- R CARBON FILM 1/4 10K OHM J

RF11 RD-4Z221J- R CARBON FILM 1/4 220 OHM J

RF12 RD-4Z513J- R CARBON FILM 1/4 51K OHM J

RF13 RD-4Z103J- R CARBON FILM 1/4 10K OHM J

RF14 RD-4Z104J- R CARBON FILM 1/4 100K OHM J

RF15 RD-4Z103J- R CARBON FILM 1/4 10K OHM J

RF16 RD-4Z153J- R CARBON FILM 1/4 15K OHM J

RF17 RD-4Z242J- R CARBON FILM 1/4 2.4K OHM J

RF18 RD-4Z183J- R CARBON FILM 1/4 18K OHM J

Service manual SC-150

-78-

z_loc z_parts_code parts_name parts_descr

RT06 RD-AZ683J- R CARBON FILM 1/6 68K OHM J

RT07 RD-AZ563J- R CARBON FILM 1/6 56K OHM J

RT08 RD-AZ103J- R CARBON FILM 1/6 10K OHM J

RT09 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J

RT10 RD-AZ103J- R CARBON FILM 1/6 10K OHM J

z_loc z_parts_code parts_name parts_descr

RF27 RD-4Z221J- R CARBON FILM 1/4 220 OHM J

RT01 RD-2Z100J- R CARBON FILM 1/2 10 OHM J

RT02 RD-AZ683J- R CARBON FILM 1/6 68K OHM J

RT03 RD-AZ334J- R CARBON FILM 1/6 330K OHM J

RT04 RD-AZ362J- R CARBON FILM 1/6 3.6K OHM J

RT05 RD-2Z100J- R CARBON FILM 1/2 10 OHM J

Service manual SC-150

-79-

MICOM/PCB Ver.

Loc

RB02

P502

P503

4959812224-014959812224-00

DW3834-C4-AE2 DW3834-C4-AE2 New Micom(V0.24)

* THE DIFFERENT PART LIST BY PCB & MICOM VERSION

MAIN PCB

I601 MSP3410G-PP-B8-V3 MSP3411G

LOC DSC-3220E DSC-3220L

MICOM/PCB Ver.

Loc

IT01

JT02

JT03

CT04 25V 47UF

25V 47UF

JUMPER DEL

DEL

JUMPER

DEL

JUMPER

DEL

Z9.1

CXA1315P

JUMPER

CT06

DT01

IT02

RT04

RT08

RT09

RT10

RT11

RT12

RT13

4959812324-014959812324-00

DW3834-C4-AE2 DW3834-C4-AE2 New Micom(V0.25)

UNION PCB

* THE DIFFERENT PART LIST BY MODEL NAME

1/6 3.6K 1/6 3K

1/6 4.7K

1/6 100

1/6 200

1/6 10K

1/6 2.2K

1/6 10K

6-2. Service Parts List option

Service manual SC-150

-80-

12 3 4

5678910 11

49500038

2 3 4 5 6 7 8 9 10 11

13 14 15 16 17 18 19

49500038

REMARKS

A0(1189mm X 841mm)

Daewoo Electronics CO.,LTD.

Mechanical Design Team, TV Research

20 21

Center

REFERENCE

Inspected by

BUTTON CH

BUTTON POWER

FRAME MAIN PCB

HOLDER CORD

BRKT POWER

PANEL CTRL

PANEL AV

COVER BACK

MASK FRONT

CLOTH BLACK

CLAMP WIRE

SPRING

WASHER RUBBER

MARK BRAND

HOLDER CORD

PART NAME

4856716000

4856215402

4855617400

4853535600

4853535500

PART CODENO

SCALE

0.5

UNITS mm

Checked by

2002. 9. 19

CHO S.J

4954901600

4954801000

4953802800

4953500100

4953200600

4952301300

4952300701

4952102200

4952002400

4857817610

4856816300

EXPLODED VIEW

DSC-3220E

SWPA PIE0.5

CU AU+ABS BK

QTY

MODEL

Approved by

PART NAME

MATERIAL

NYLON 66

CR T2.0

FR HIPS BK

HIPS PAINT

FELT 300X20X0.7

NYLON 6 (V0)

FR HIPS

EGI T1.2

FR HIPS

FR ABS

1(1/ )

SCREW TAPTITE

SCREW CRT FIX

DECO SENSOR

SPEC PLATE

7178301212

7172401612

7063300612

4956000100

4955501000

4955400100

TT2 WAS 3X12 MFZN BK

TT2 TRS 4X16 MFZN BK

M/C BIN 3X6 MFZN BK

SWRM10A L=35

PMMA MILKY

PE FILM 91.5X63

13 14 15 16 17 18 19

LIST OF MODIFICATION

REV

REASON OF MODIFICATION

DATE NAME

APPR

7. Explode View

Service manual SC-150

-81-

8-1. PCB MAIN

Service manual SC-150

-82-

8-2. PCB UNION

Service manual SC-150

-83-

9-1. Schematic Diagram(MAIN

Service manual SC-150

-84-

9-2. Schematic Diagram(UNION)

DSC 3220E/3220L Sc 150
