CHAPTER 1. SPECIFICATIONS

[1] SPECIFICATIONS ......................................... 1-1

CHAPTER 2. IMPORTANT SERVICE NOTES

[1] IMPORTANT SERVICE NOTES .................... 2-1

CHAPTER 3. ADJUSTMENT PRECAUTIONS

[1] ADJUSTMENT PRECAUTIONS .................... 3-1

[2] ADJUSTMENT ............................................. 3-14

CHAPTER 4. MEMORY MAP

[1] MEMORY MAP .............................................. 4-1

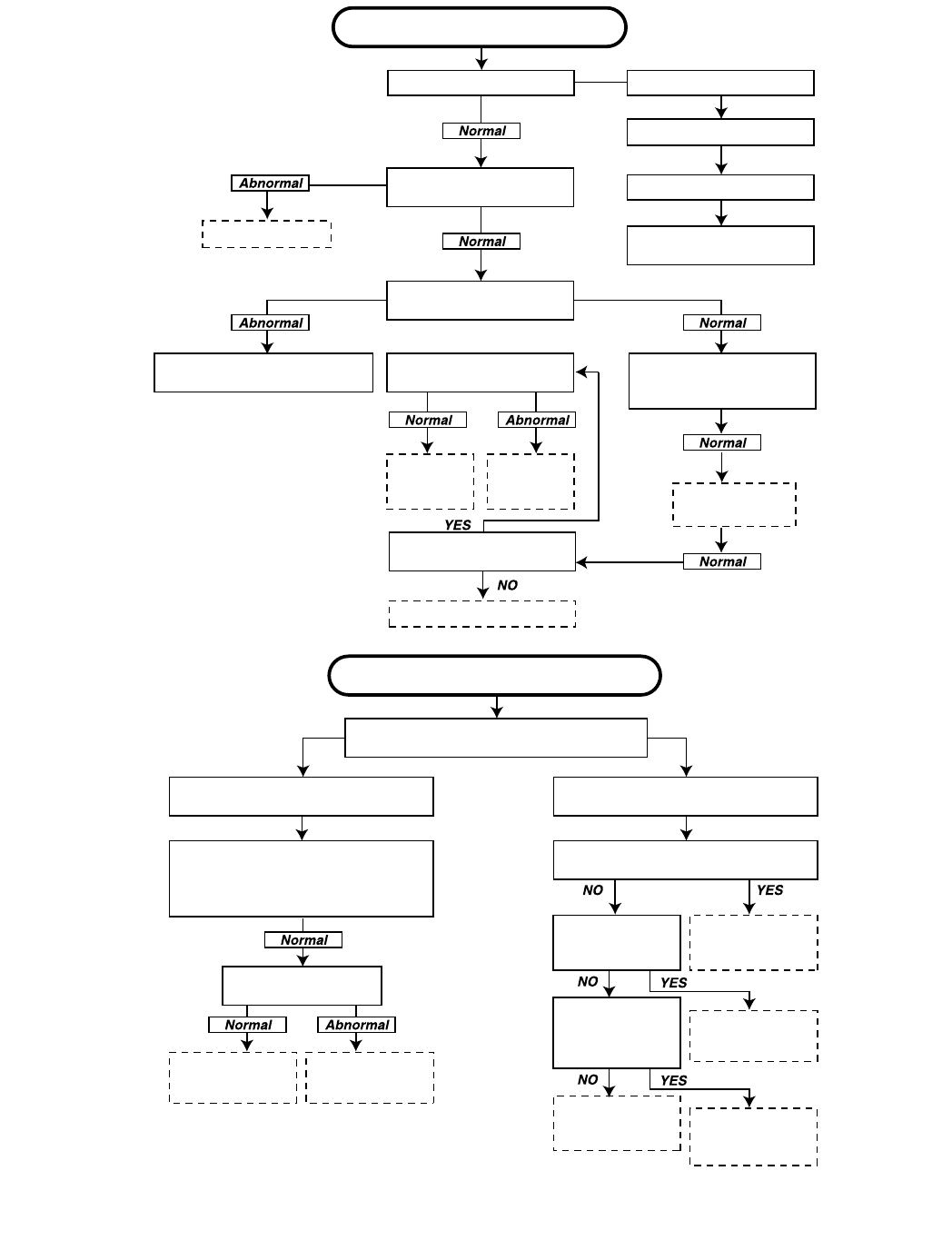

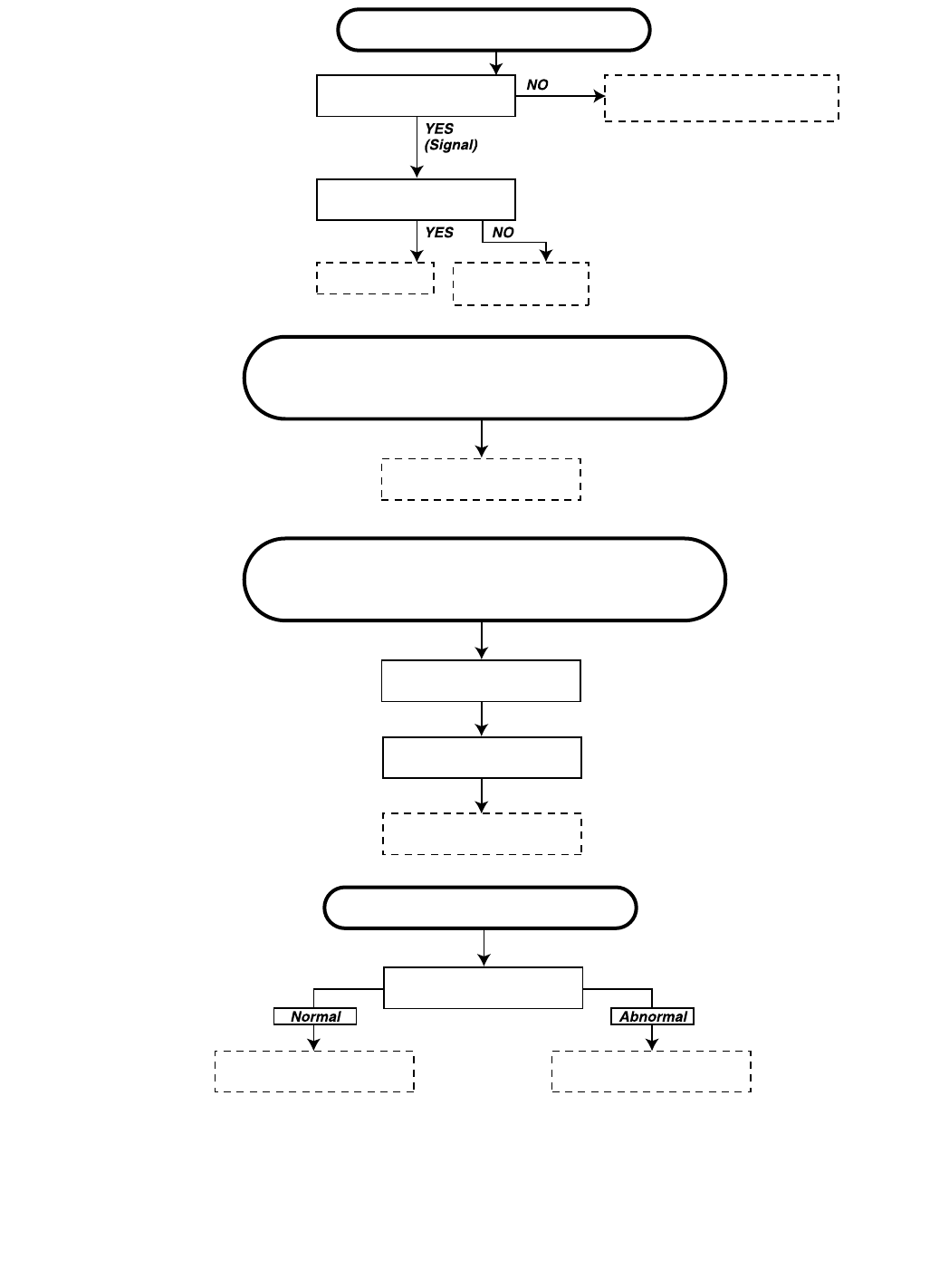

CHAPTER 5. TROUBLE SHOOTING FLOWCHART

[1] TROUBLE SHOOTING FLOWCHART .......... 5-1

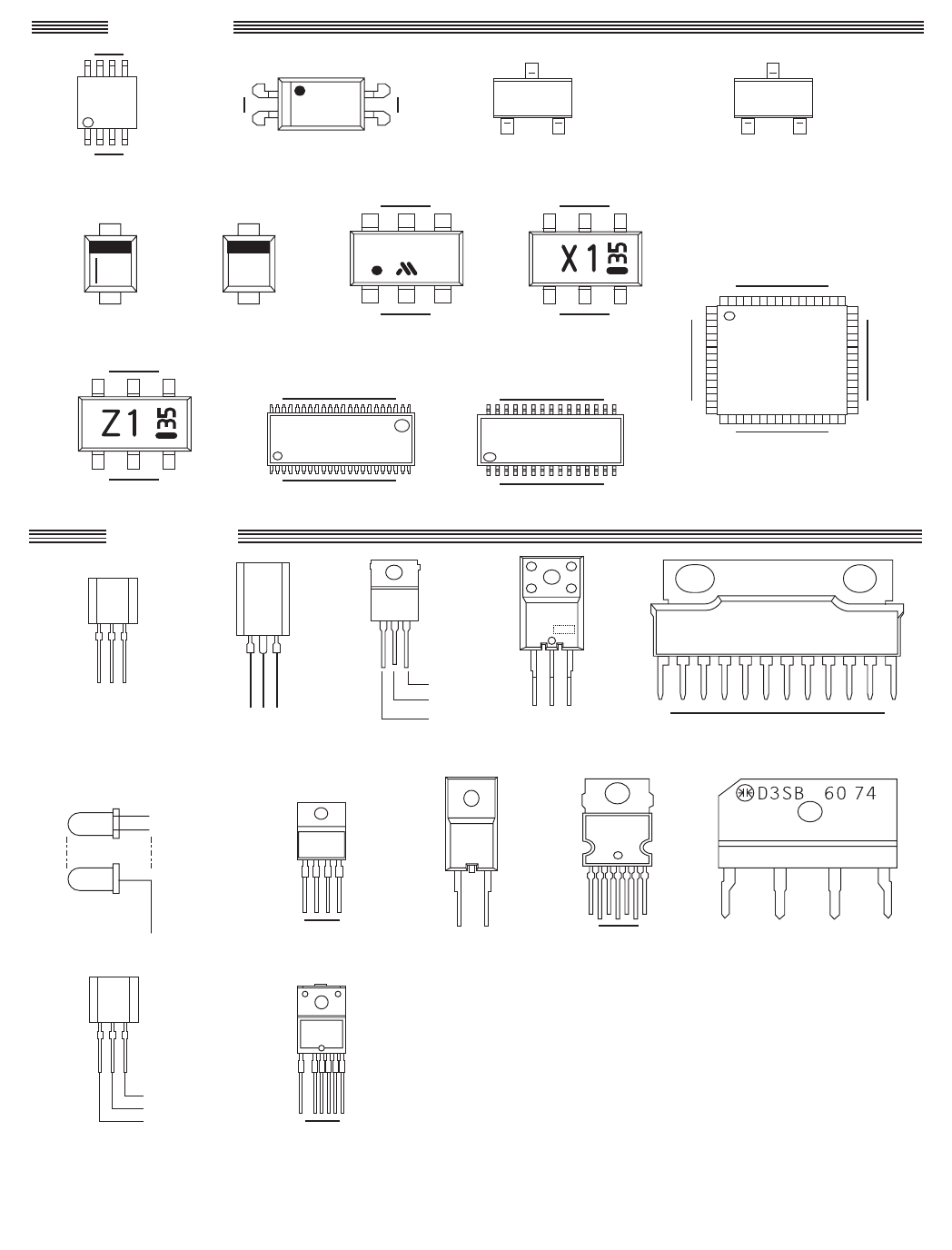

CHAPTER 6. SOLID STATE DEVICE BASE DIA-

GRAM

[1] SOLID STATE DEVICE BASE DIAGRAM........ 6-1

CHAPTER 7. CHASSIS LAYOUT

[1] CHASSIS LAYOUT ........................................ 7-1

CHAPTER 8. BLOCK DIAGRAM

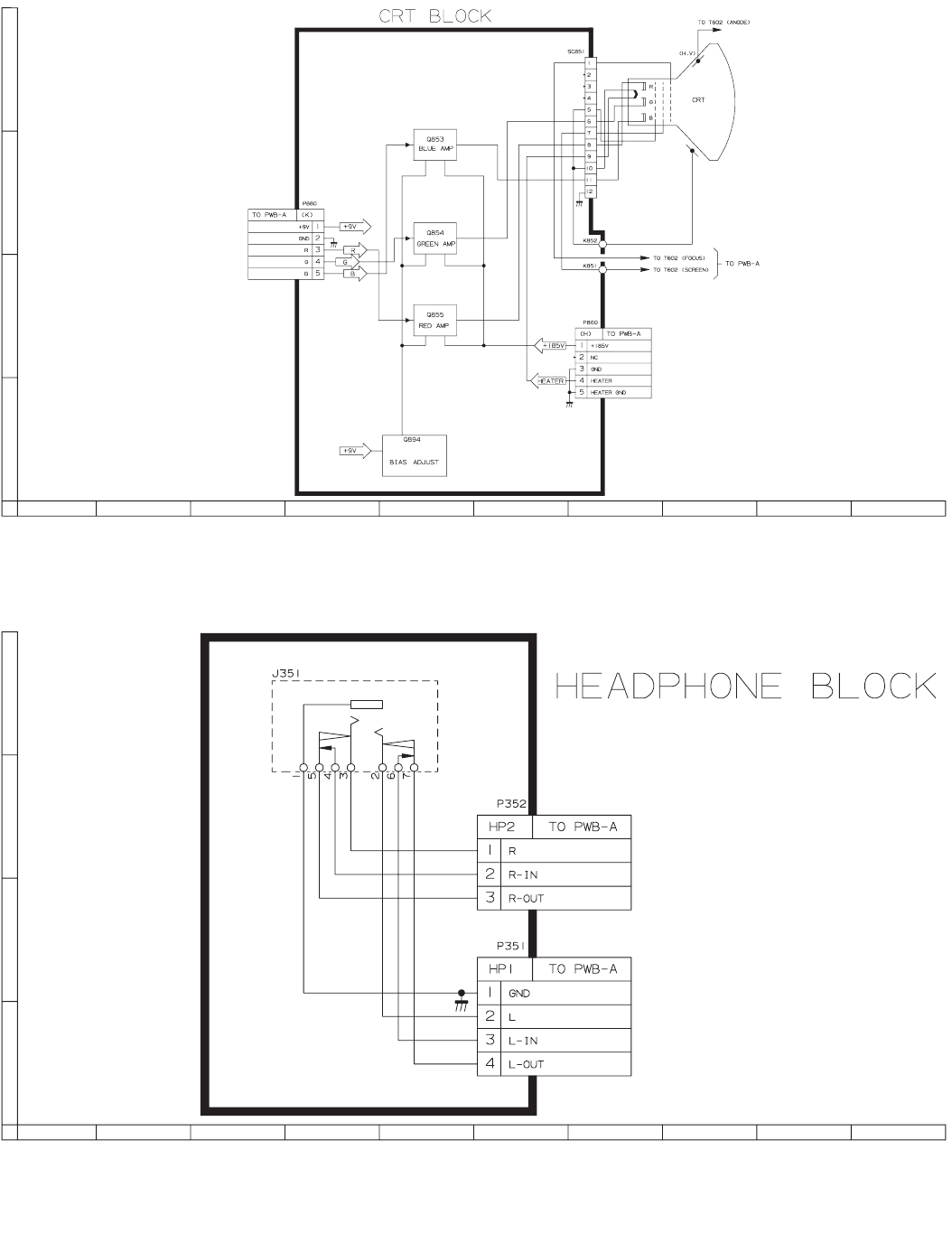

[1] BLOCK DIAGRAM: CRT UNIT ...................... 8-1

[2] BLOCK DIAGRAM: HEADPHONE UNIT........8-1

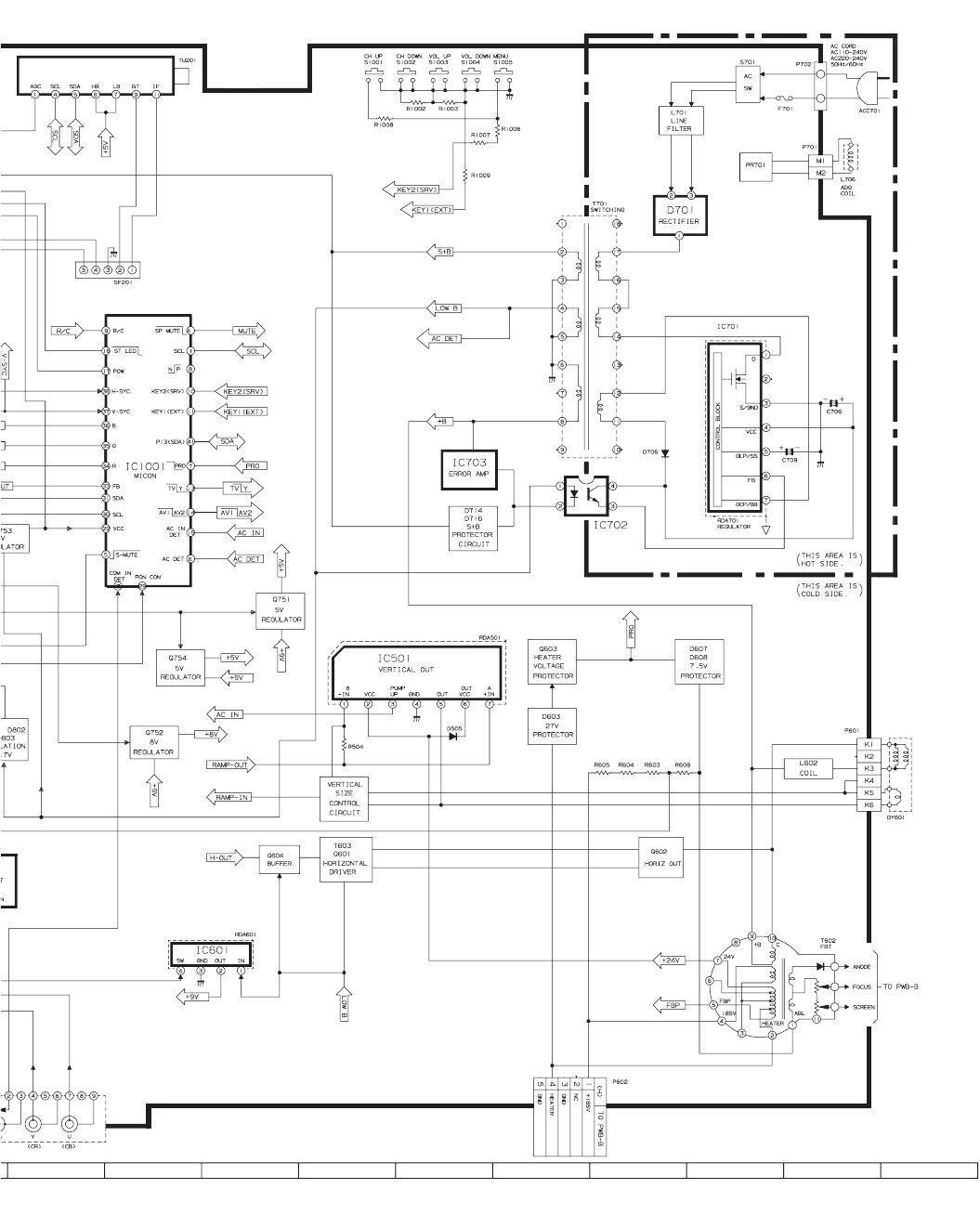

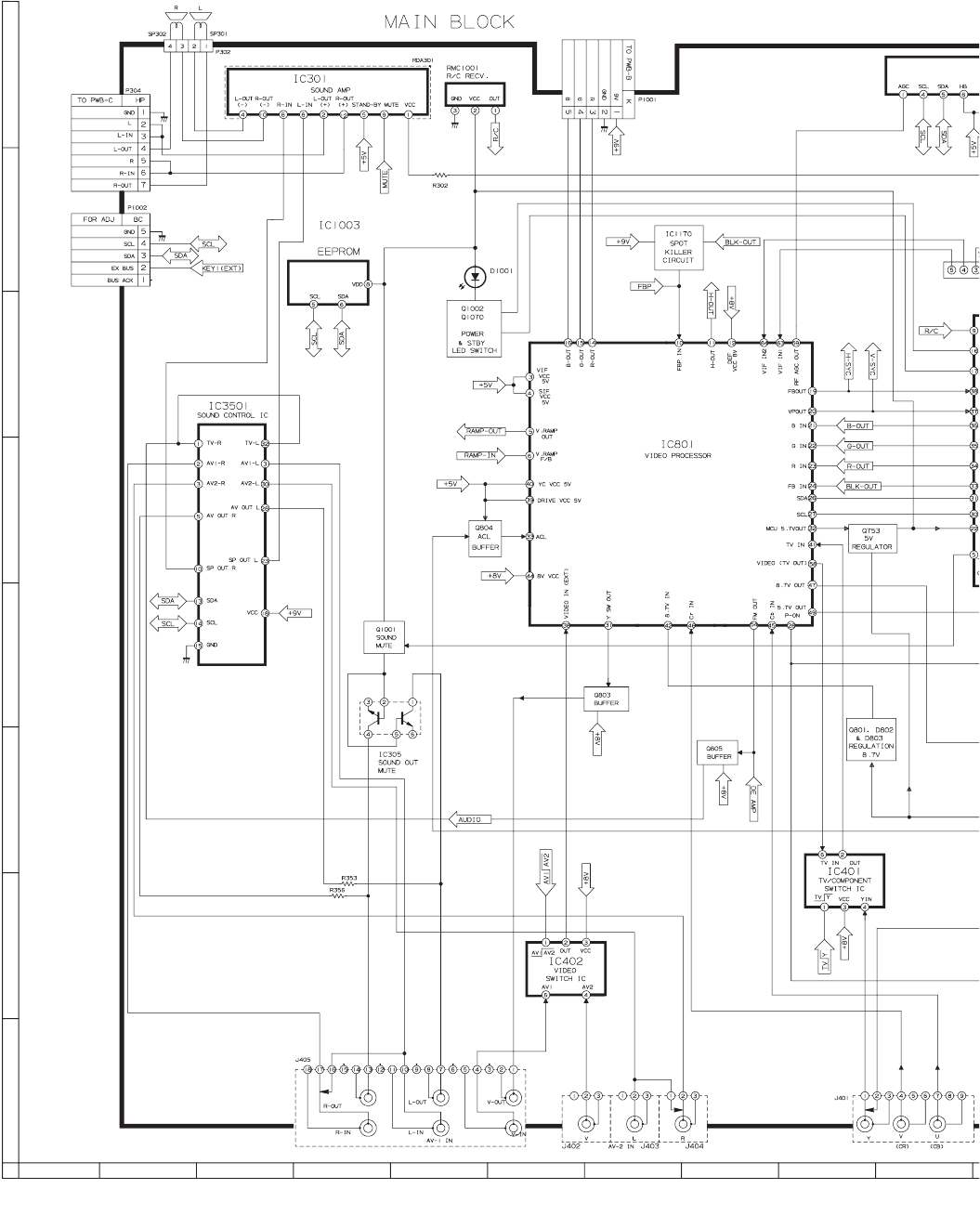

[3] BLOCK DIAGRAM: MAIN UNIT ....................8-2

CHAPTER 9. DESCRIPTION OF SCHEMATIC DIA-

GRAM

[1] DESCRIPTION OF SCHEMATIC DIA-

GRAM............................................................9-1

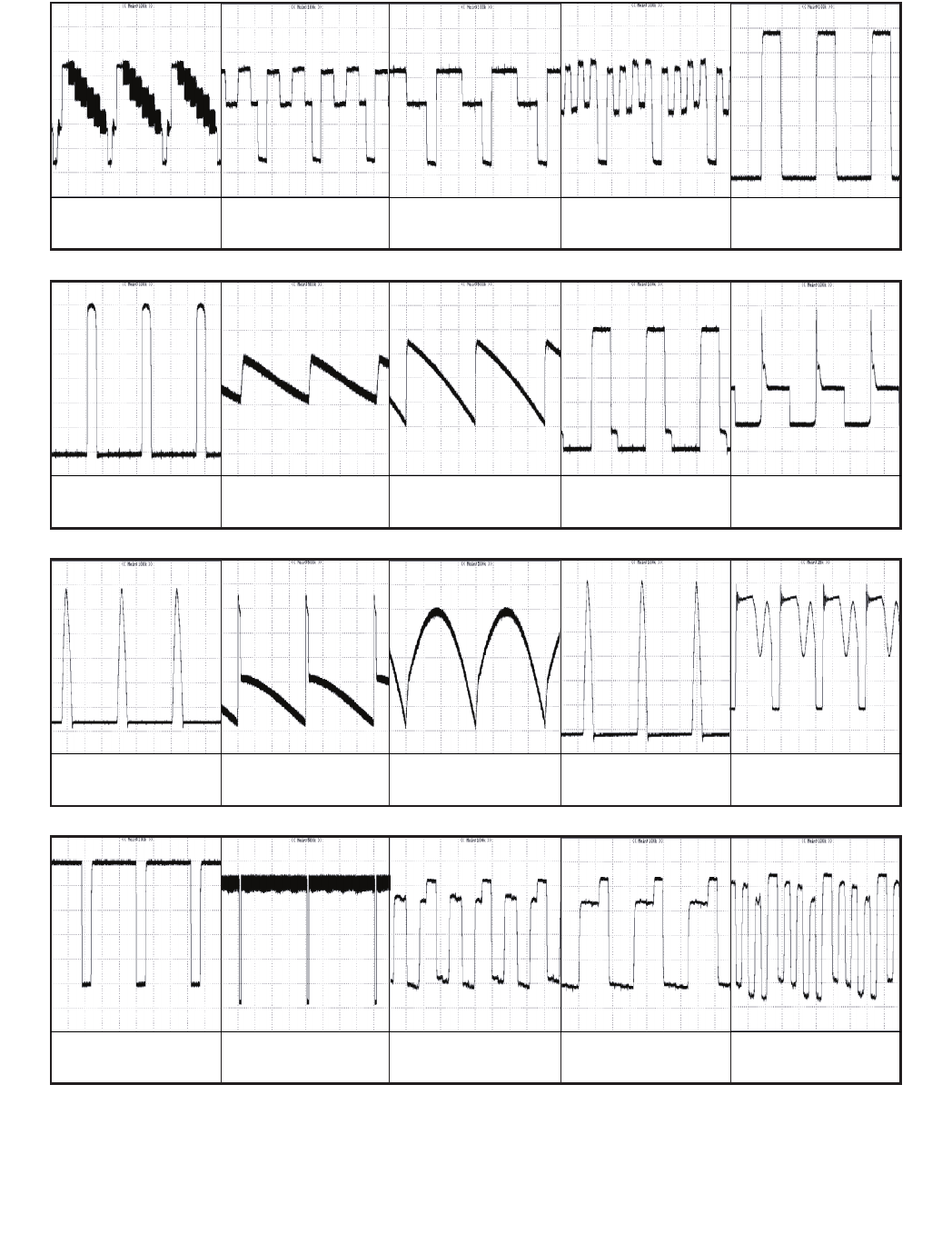

CHAPTER 10. WAVEFORM

[1] WAVEFORMS .............................................10-1

CHAPTER 11. SCHEMATIC DIAGRAM

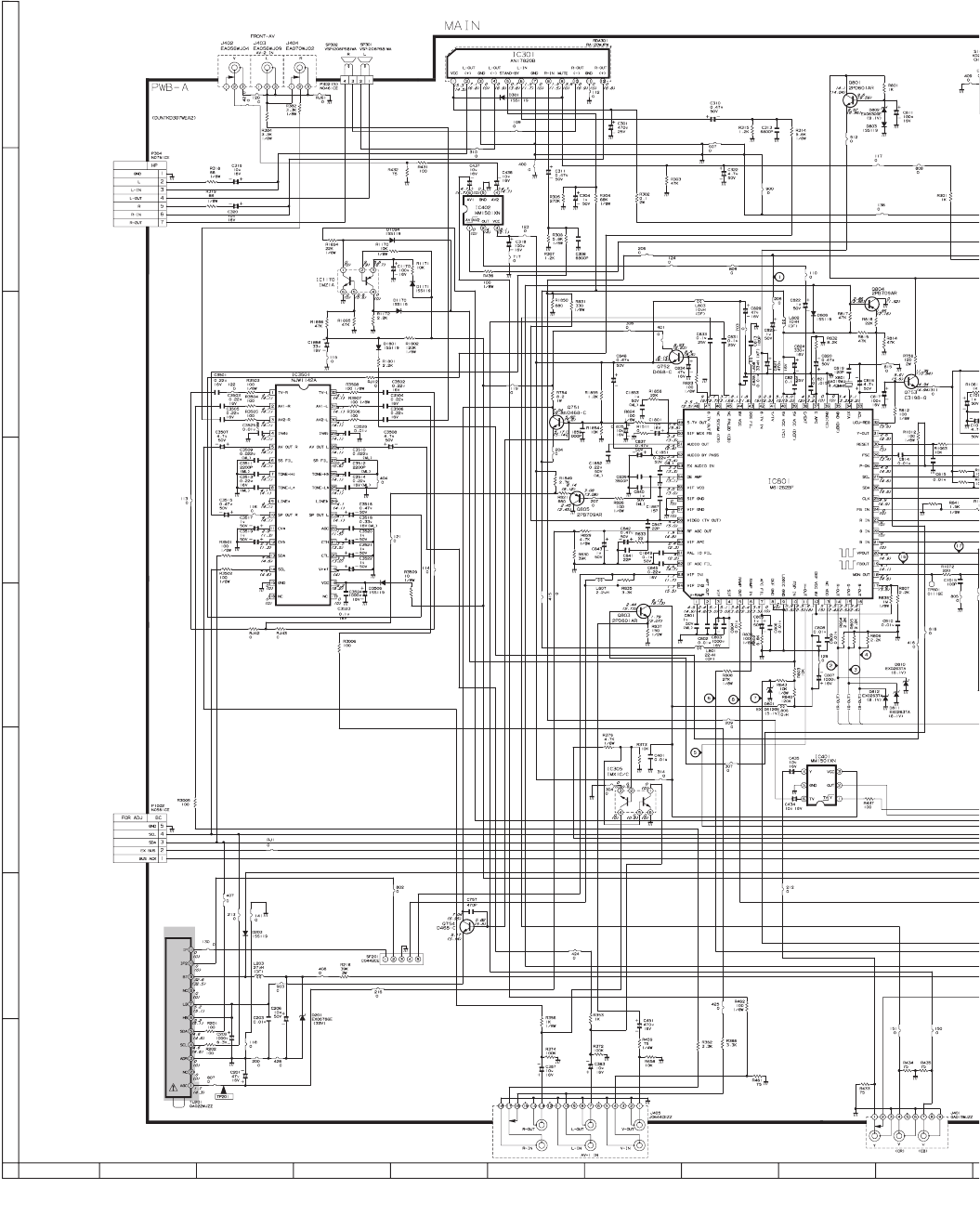

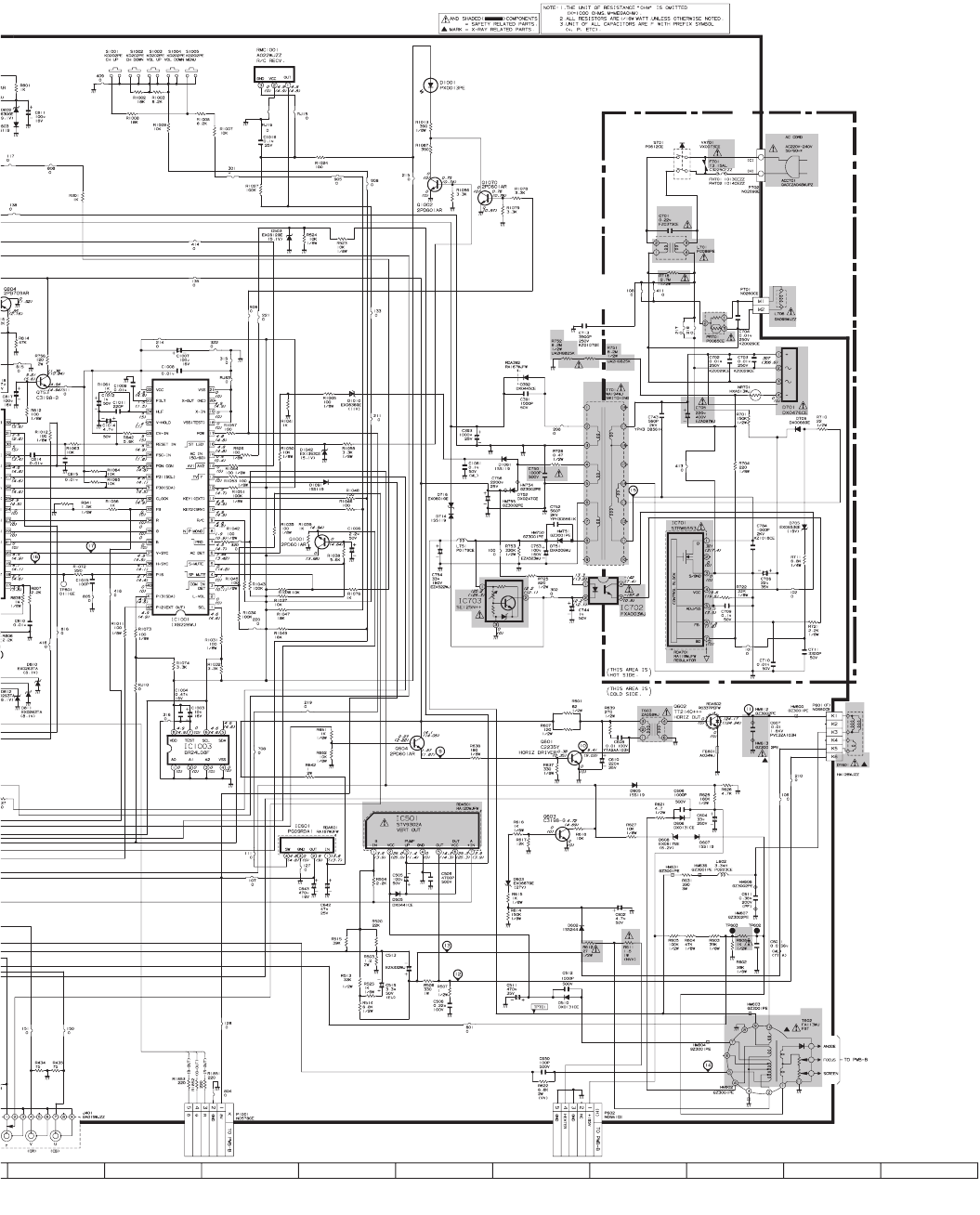

[1] SCHEMATIC DIAGRAM: MAIN UNIT.......... 11-1

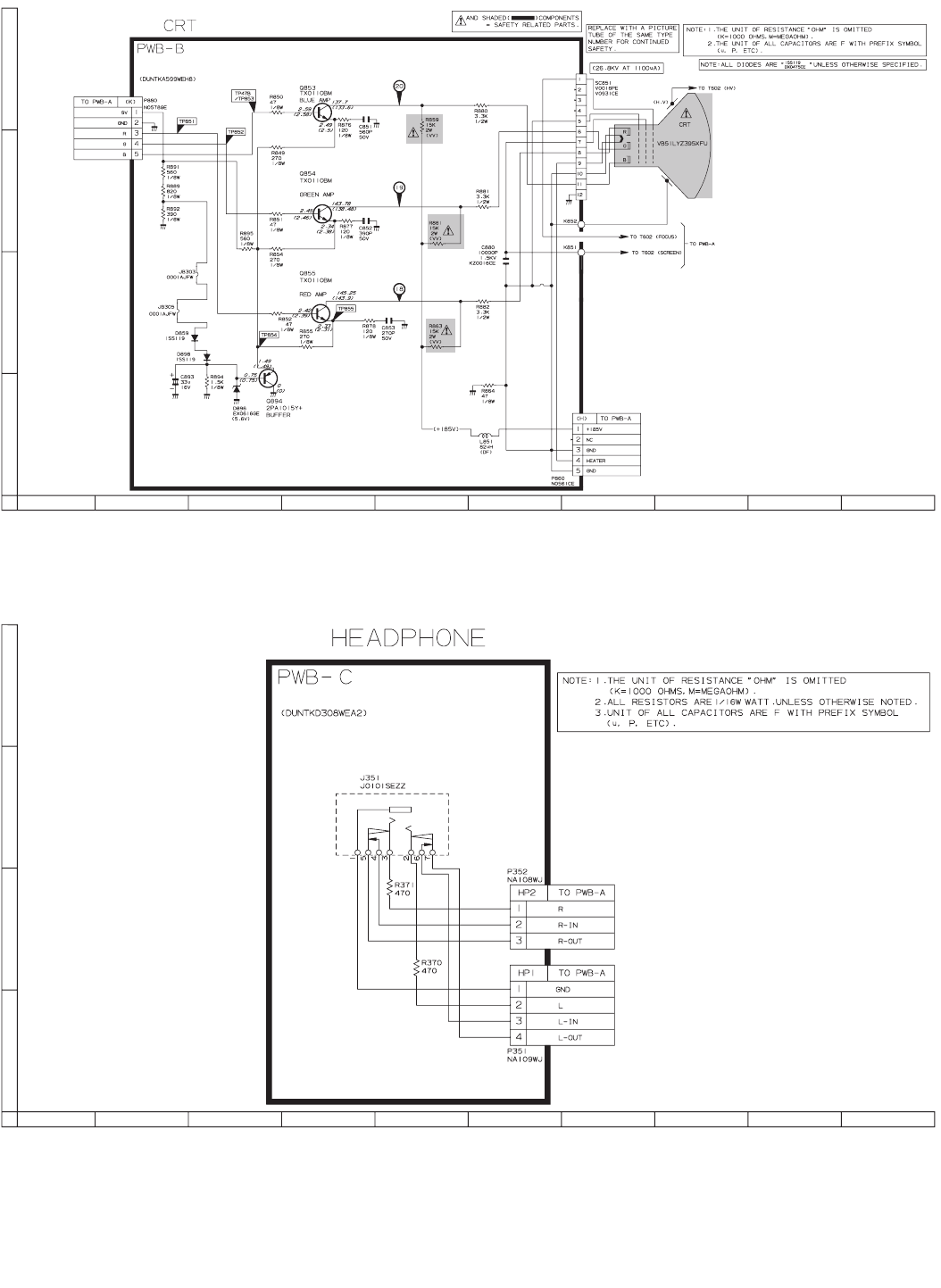

[2] SCHEMATIC DIAGRAM: CRT UNIT ........... 11-3

[3] SCHEMATIC DIAGRAM: HEADPHONE

UNIT ............................................................ 11-3

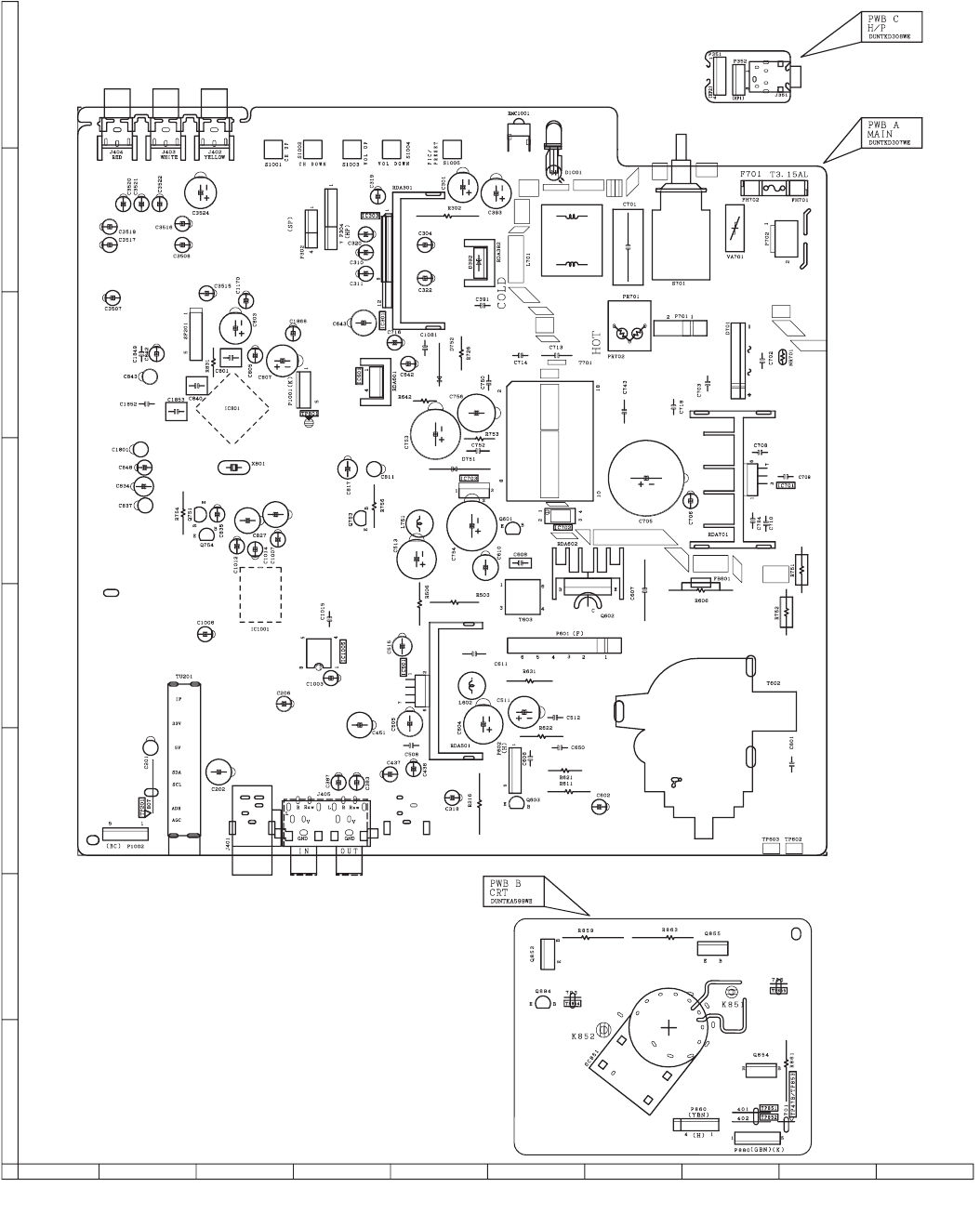

CHAPTER 12. PRINTED WIRING BOARD ASSEM-

BLIES

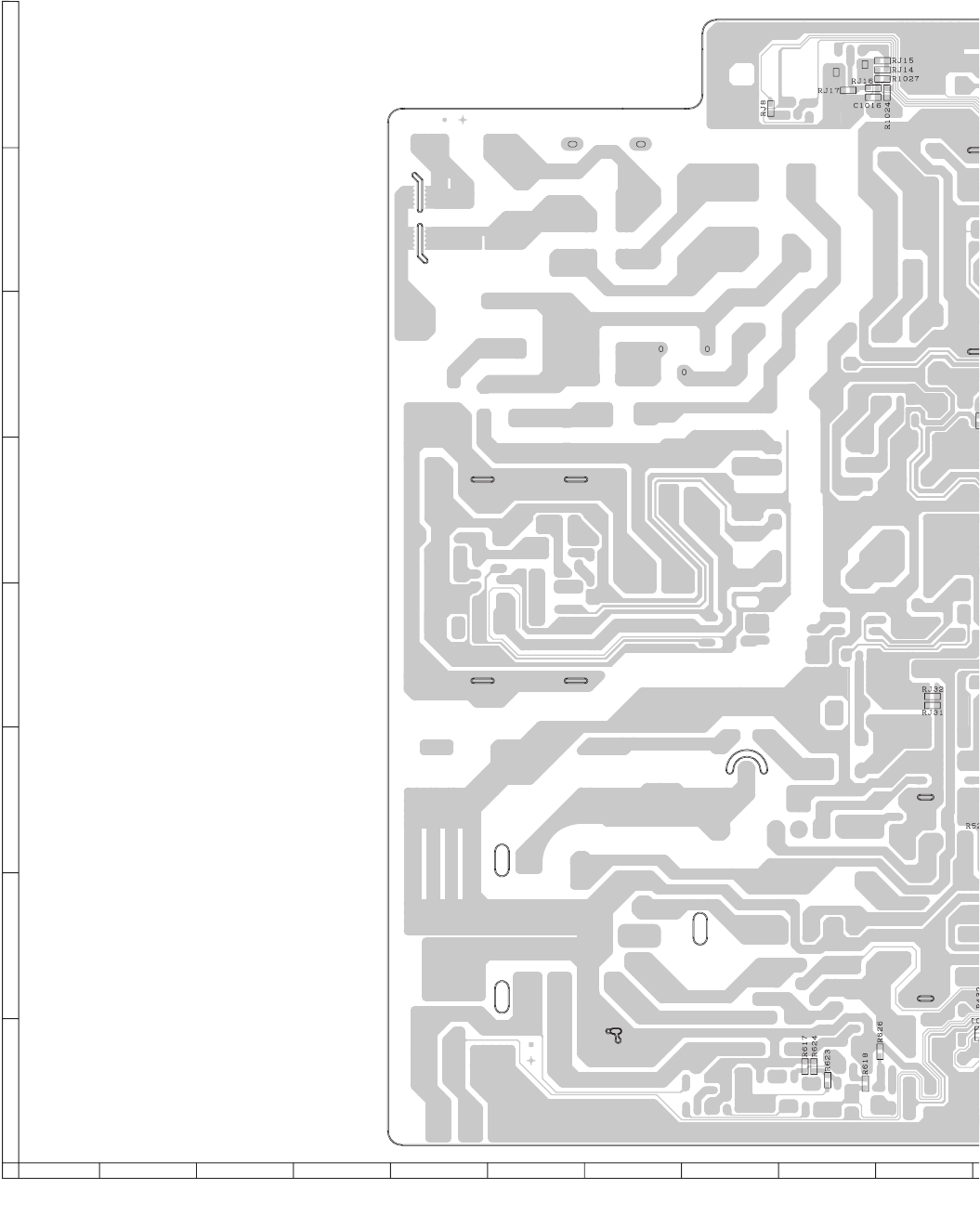

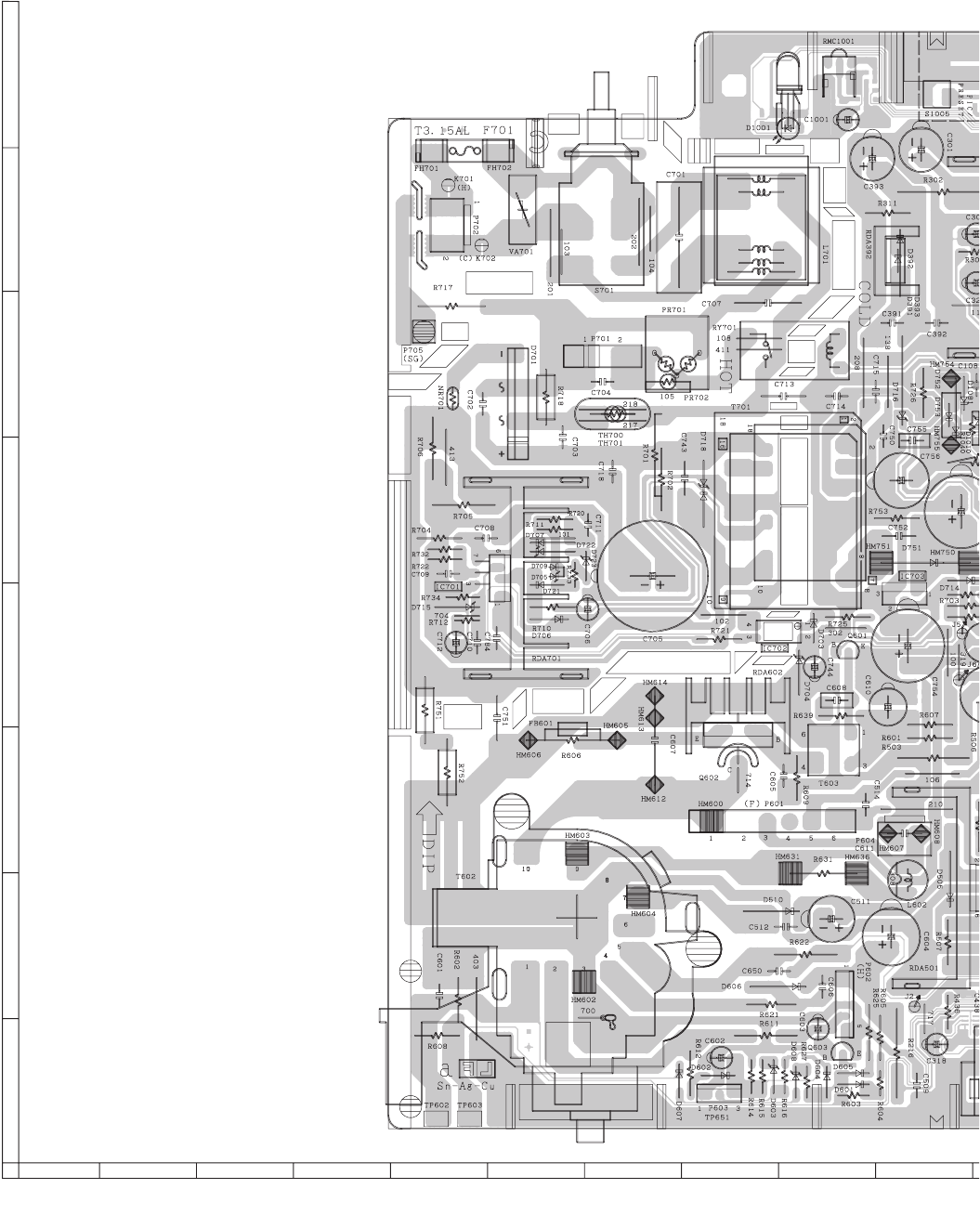

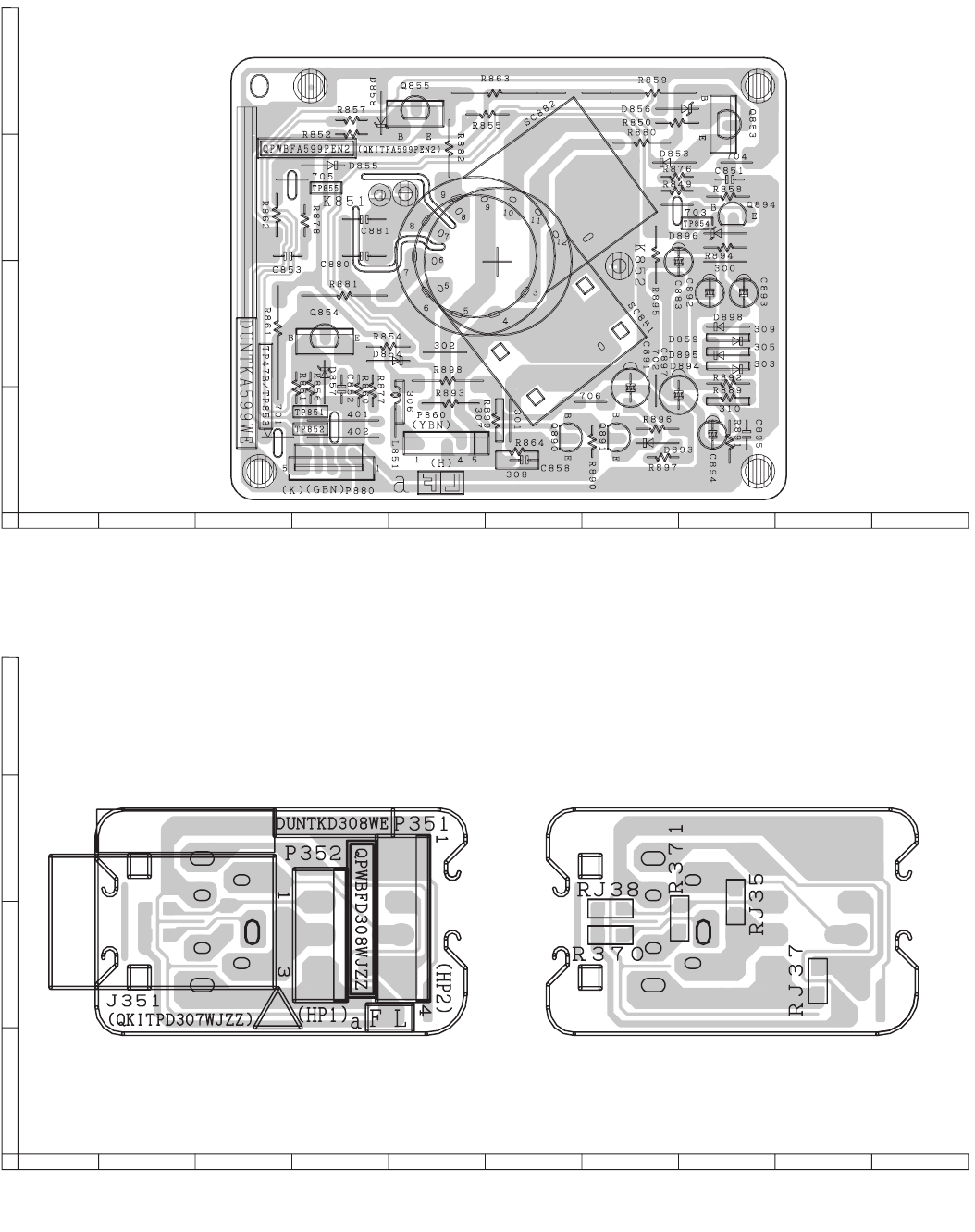

[1] PWB-B: CRT UNIT ......................................12-1

[2] PWB-C: HEADPHONE UNIT ......................12-1

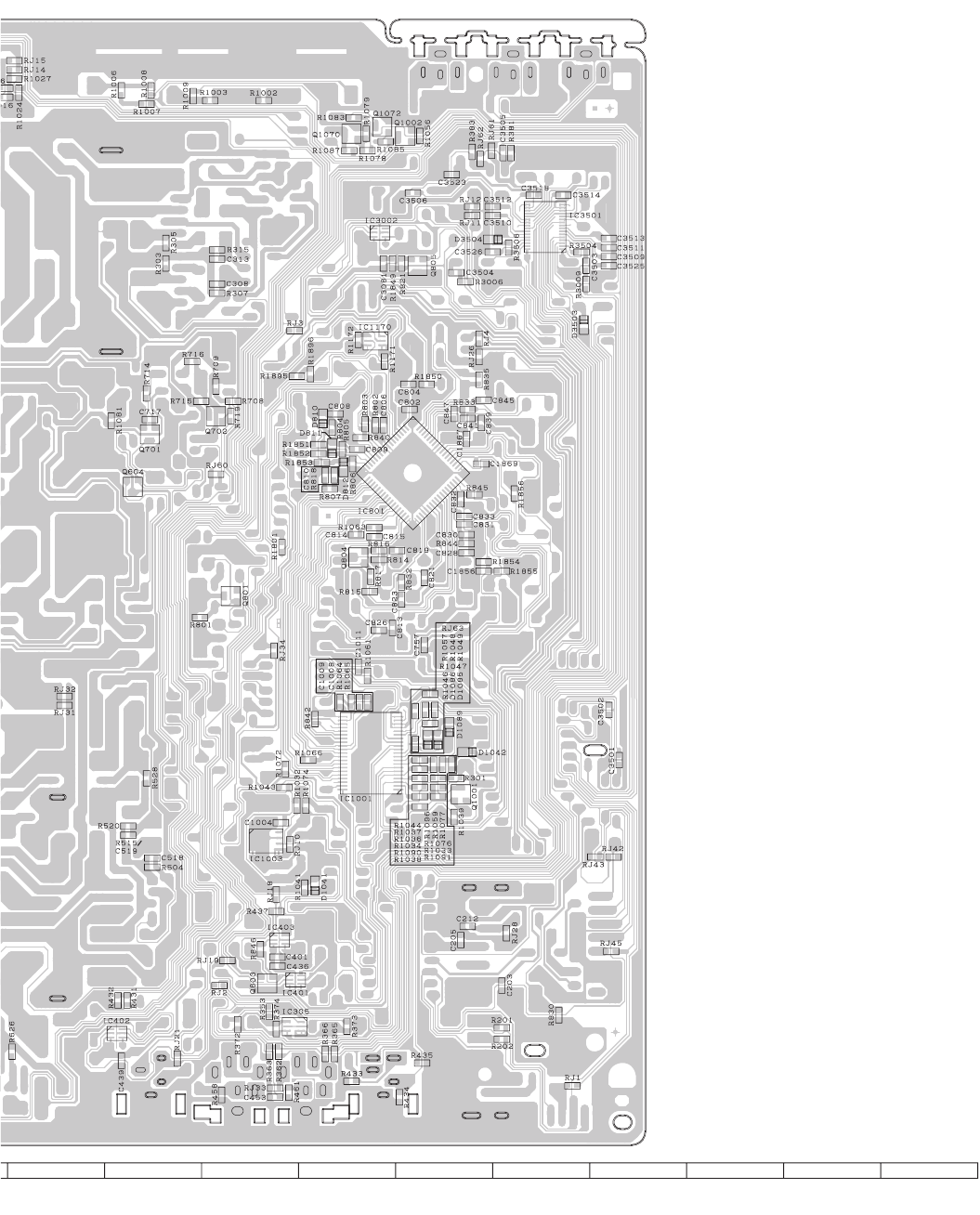

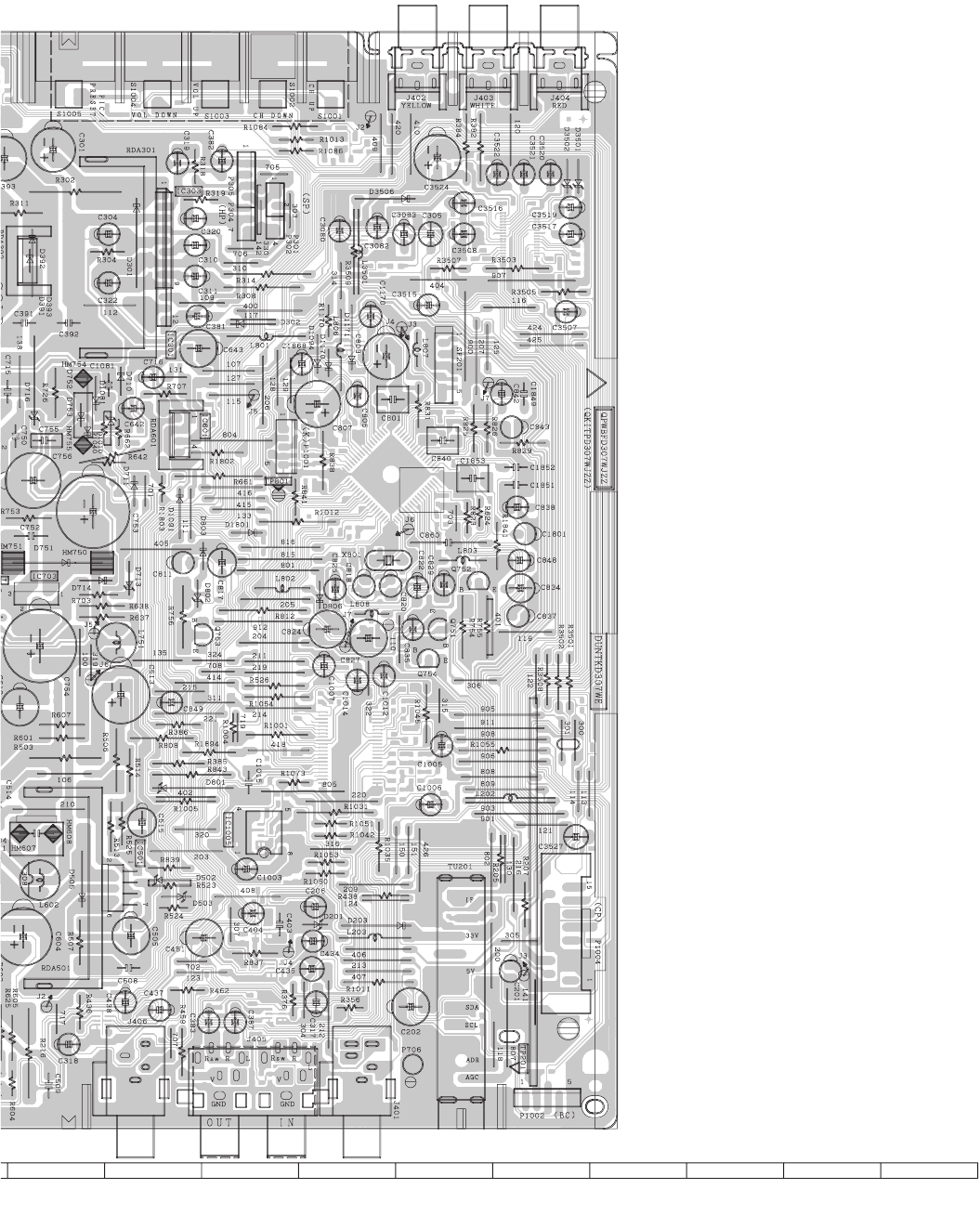

[3] PWB-A: MAIN UNIT ....................................12-2

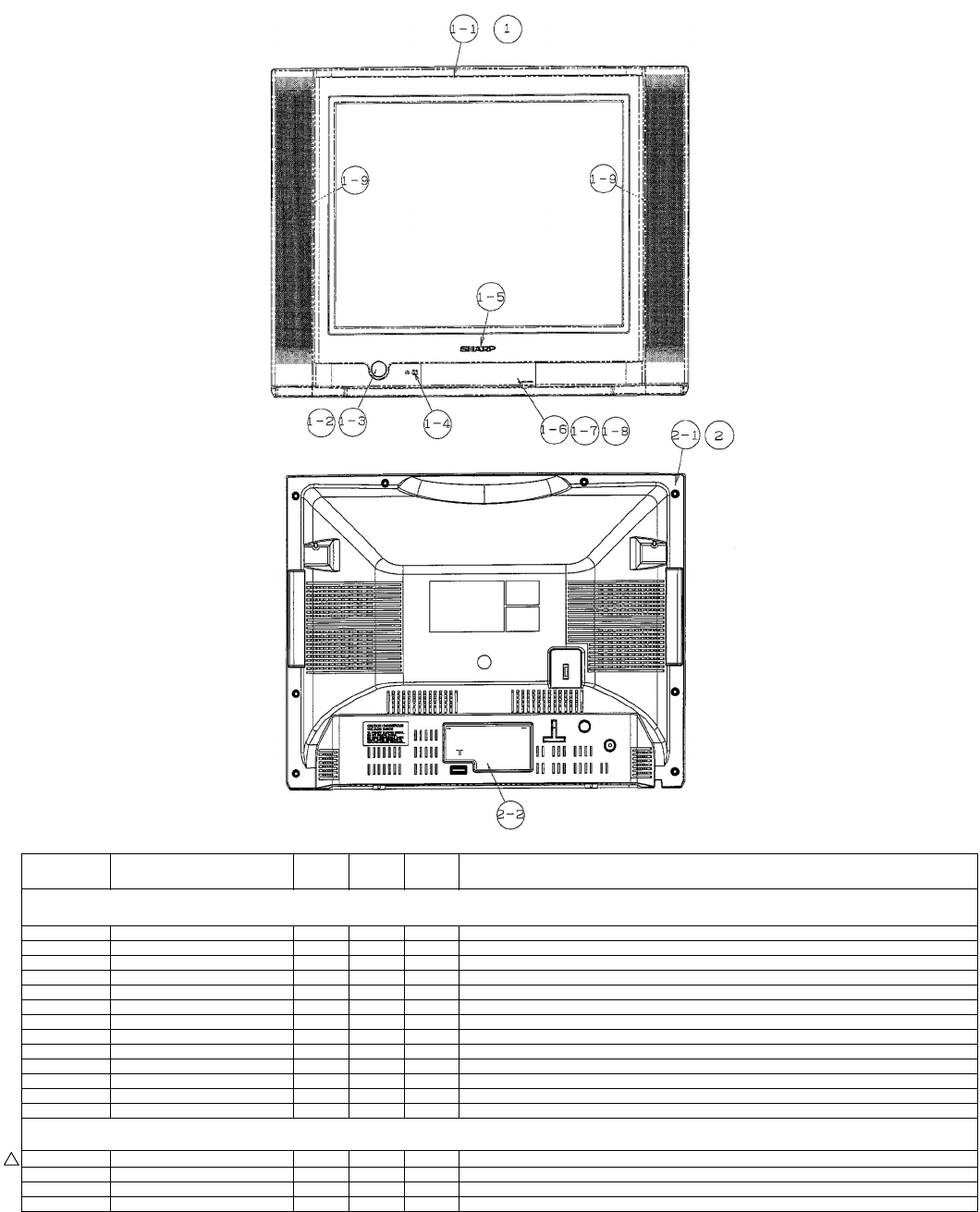

Parts Guide

SERVICE MANUAL

CONTENTS

SHARP CORPORATION

The chassis in this receiver is partially hot. Use an isolation transformer between the line cord plug and power receptacle, when servicing

this chassis. To prevent electric shock, do not remove cover. No user - serviceable parts inside. Refer servicing to qualified service personnel.

WARNING

Multi 18 Systems

Full Auto Channel Preset and Auto

Channel Skip

100-CH Program Memory

CATV (Hyper Band) Ready

<Used Frequency Synthesizer Tuner>

Black Stretch Circuit

On Timer / Off Timer / Reminder Timer

ع

ع

ع

ع

ع

ع

ع

ع

ع

ع

ع

ع

ع

ع

Blue Back Function

Front AV IN & Rear AV IN / OUT Terminals

Front Headphone Jack

Aperture Control Circuit

Auto Fine Tuning

NTSC Colour Comb Filter (AV THRU)

High Contrast Picture

Hotel Mode

ع

ع

ع

ع

ع

Russian and English Languages OSD

White Temperature Select

Component In

Surround Sound Effect

(With Bass / Treble / Balance)

AV Stereo

FEATURES

In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its original condition and

only parts identical to those specified should be used.

21J-FG1RU

No. S75L821JFG1RU

COLOUR TELEVISION

Chassis No. GA-4M

21J-FG1RU

MODEL

21J-FG1RU

1 – 1

21J-FG1RU Service Manual

CHAPTER 1. SPECIFICATIONS

[1] SPECIFICATIONS

Convergence ................................................................................................................ Self Convergence System

Focus

...............................................................................................................................

UNI-BI Focusing

Sweep Deflection ..................................................................................................................................... Magnetic

Intermediate Frequencies

Picture IF Carrier ................................................................................................................................. 38.9MHz

Sound IF Carrier Frequency

6.5MHz ............................................................................................................................................. 32.4MHz

6.0MHz ............................................................................................................................................. 32.9MHz

5.5MHz ............................................................................................................................................. 33.4MHz

Colour Sub-Carrier Frequency........................................................................................................... 34.47MHz

Cabinet material ..................................................................................................................................... All Plastics

Specifications are subject to change without prior notice

Aerial Input Impedance

VHF/UHF .......................................................................................................................... 75 ohms Unbalanced

Receiving System ................................................................................. PAL I, B/G, D/K & SECAM B/G, D/K, -K1

Receiving Channel

VHF-Channels ......................................................................................... E2(48.25MHz) thru E12(224.25MHz)

C1(49.75MHz) thru C12(216.25 MHz)

S1(105.25MHz) thru S41(463.25HMz)

UHF-Channels ..................................................................................... E21(471.25MHz) thru E69(855.25MHz)

C13(471.25MHz) thru C57(863.25MHz)

.

Power Input ..................................................................................................................... 220 ~ 240V AC 50/60 Hz

Power Consumption.........................................................................................................................

....

.......

.

101W

Audio Power Output Rating .............................................................................................................. 5W (rms) x 2

Voice Coil Impedance .............................................................................................................16 ohms at 400 Hz

.............................................................................................................................

Speaker

12 x 6 cm Elliptic (2 pcs)

Size

Dimensions ..................................................................................................................................... Width: 605mm

Height: 468mm

Depth: 482mm

Weight(approx): 21.7 kg

21J-FG1RU

2 – 1

21J-FG1RU Service Manual

CHAPTER 2. IMPORTANT SERVICE NOTES

[1] IMPORTANT SERVICE NOTES

Maintenance and repair of this receiver should be done by qualified service personnel only.

1. SERVICE OF HIGH VOLTAGE SYSTEM AND PICTURE TUBE

When servicing the high voltage system, remove static charge from it by connecting a 10K ohm resistor in series with an insulated wire (such as a test

probe) between picture tube dag and 2nd anode lead. (AC line cord should be disconnected from AC outlet.)

1) Picture tube in this receiver employs integral implosion protection.

2) Replace with the same type number of picture tube for continued safety.

3) Do not lift picture tube by the neck.

4) Handle the picture tube only when wearing shatterproof goggles and after discharging the high voltage completely.

2. X-RAY

This receiver is designed so that any X-Ray radiation is kept to an absolute minimum. Since certain malfunctions or servicing may produce potentially

hazardous radiation with prolonged exposure at close range, the following precautions should be observed:

1) When repairing the circuit, please make sure do not increase the high voltage of the set to more than 30.0kV (at beam 0µA).

2) To keep the set in a normal operation, please make sure it’s function at 26.5kV ± 0.5kV (at beam 1,000µA). The set has been factory - adjusted to

the above-mentioned high voltage.

*If there is a possibility that the high voltage fluctuates as a result of the repairs, never forget to check for such high voltage after the work.

3) Do not substitute a picture tube with unauthorizerd types and/or brands which may cause excessive X-ray radiation.

3. BEFORE RETURNING THE RECEIVER

Before returning the receiver to the user, perform the following safety checks.

1) Inspect all lead dress to make certain that leads are not pinched or that hardware is not lodged between the chassis and other metal parts in the

receiver.

2) Inspect all protective devices such as non-metal control knobs, insulating materials, cabinet backs, adjustment and compartment covers or

shields, isolation resistor-capacity networks, mechanical insulators etc.

21J-FG1RU

3 – 1

21J-FG1RU Service Manual

CHAPTER 3. ADJUSTMENT PRECAUTIONS

[1] ADJUSTMENT PRECAUTIONS

This model's setting are adjusted in two different ways: through the I2C bus control and in the conventional analog manner. The

adjustments via the I2C bus control include preset-only items and variable data.

CAUTION: Make sure TV set in "Normal condition" before switch to Service Mode for adjustment.

1. Setting the service mode by the microprocessor.

i) Press SERVICE key on the remote controller to set the TV set to SERVICE mode position, and the microprocessor is in input

mode. (Adjustment through the I2C bus control).

ii) Press the MENU key on the remote controller to get ready to select the mode (Adjustment mode, Setting mode, Check mode and Option

mode) one by one.

iii) Press the CH DOWN / UP key on the remote controller to select the item in Adjustment mode, Setting mode or Option mode.

iv) Using the VOLUME UP/ DOWN key on the remote controller, the data can be modified. Please wait approximately 200 msec for data storage

in EEPROM before select to another mode.

v) In Check mode the data cannot be changed.

vi) Press the SERVICE key again, it will switch to the NORMAL mode position, and the microprocessor is out of the SERVICE mode.

2. Factory Presetting.

i) Power ON the TV set, press the SERVICE key on the remote controller, then press both the CH UP and VOL UP button on the set

simultaniously for 5secs. Initial values are automatically preset, only when a new EEPROM is used.

ii) The initial data are preset as listed in page 3-7 to 3-12.

iii) Make sure the data need modification or not (Initial data).

Precaution: If haven't done this initialization, it may possibly generate excessive Beam current.

3. For reference please check with memory map RH-IXB226WJZZ (See Page 4-1 ~ 4-16)

21J-FG1RU

3 – 2

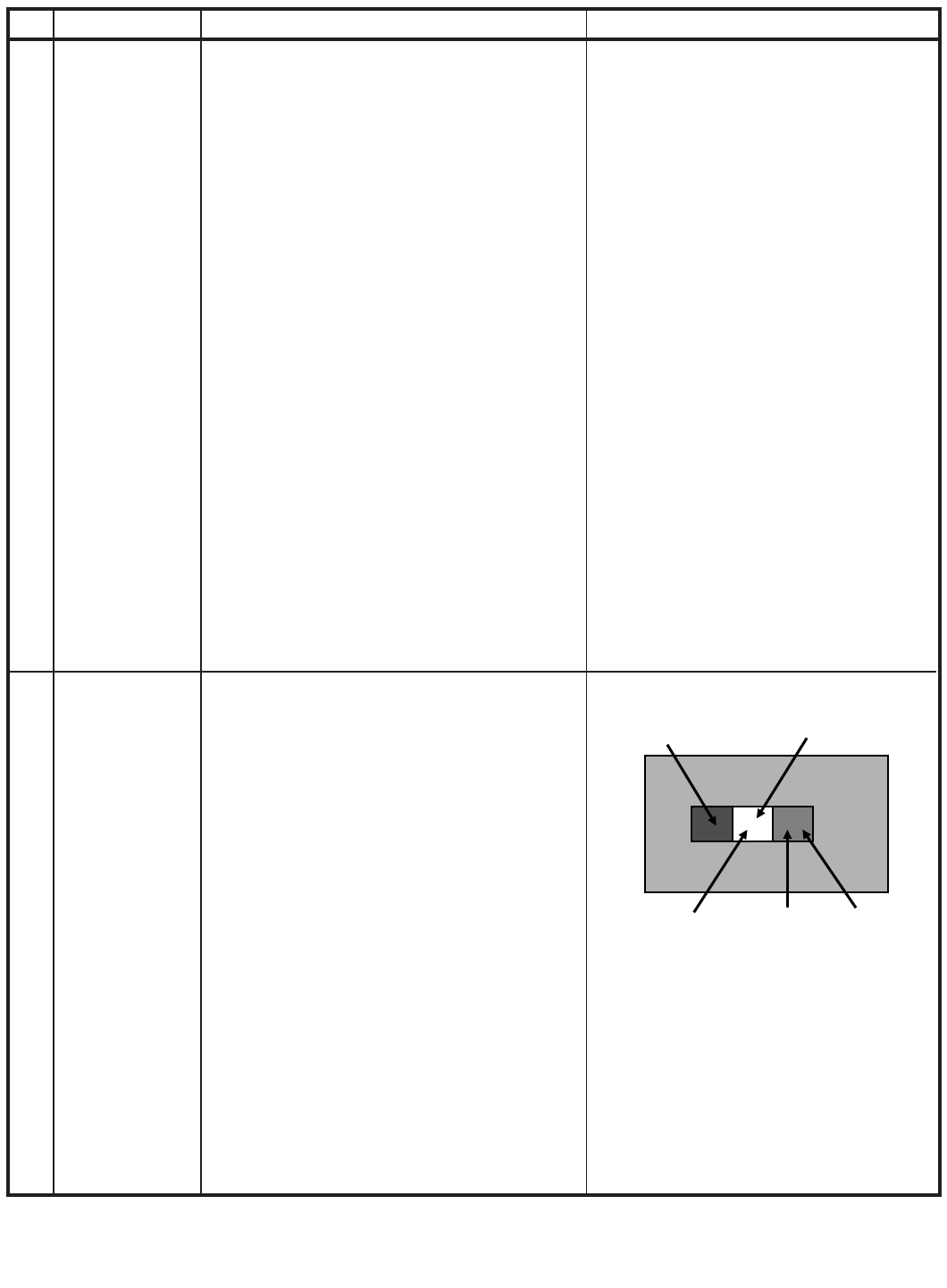

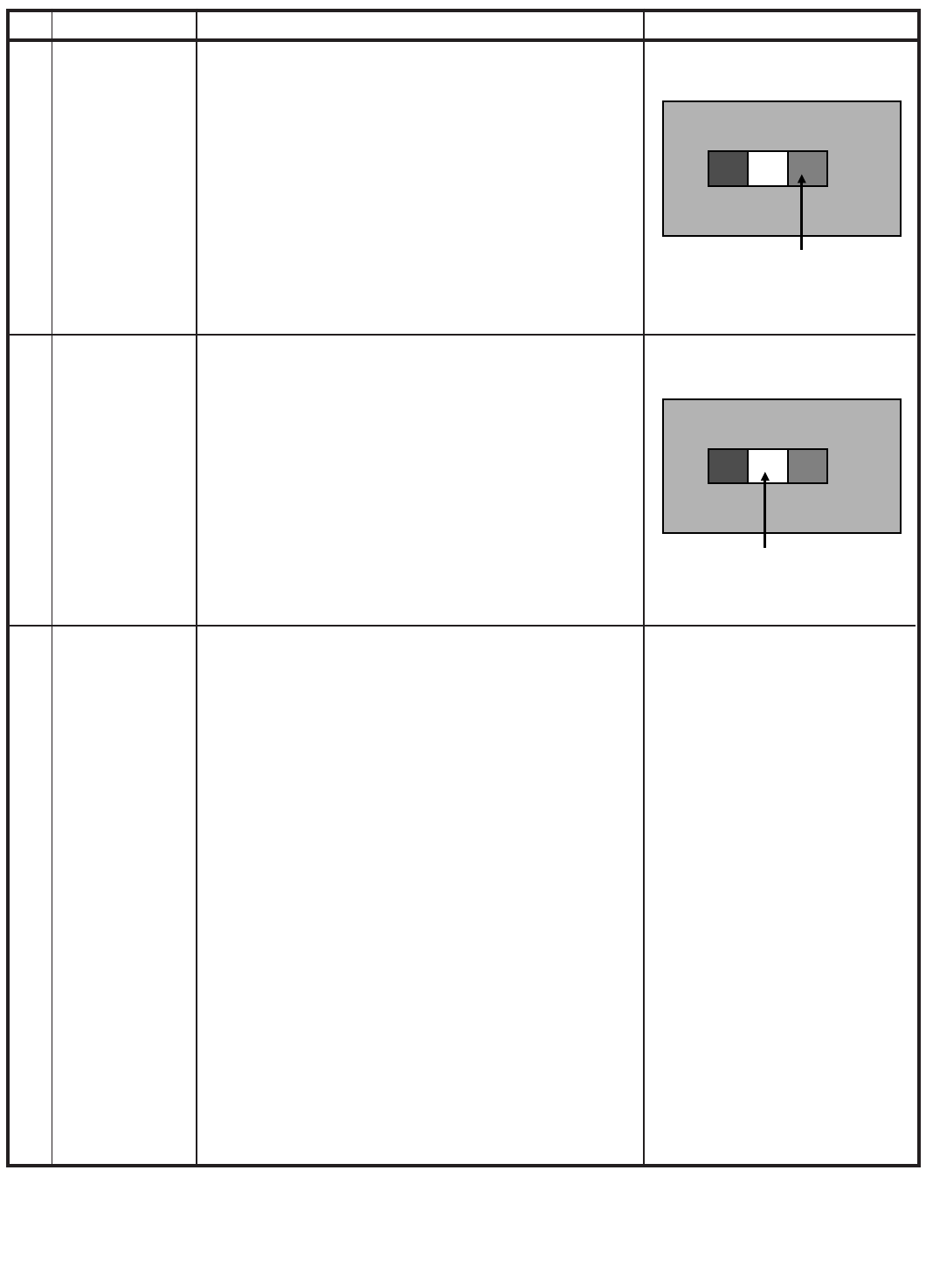

1. ADJUSTMENT ITEM

***Below are the adjustment items that should be done, PLS FOLLOW THE PROCEDURE. Otherwise some adjustment items will

not be accurate.

NO *** ADJUSTMENT ITEM EFFECTIVE MODEL REVISION

1BUS SET UP

21J-FG1RU

2 OPTION SET UP

3H-VCO

4VIF-VCO

5 S-TRAP fo

6RF-AGC

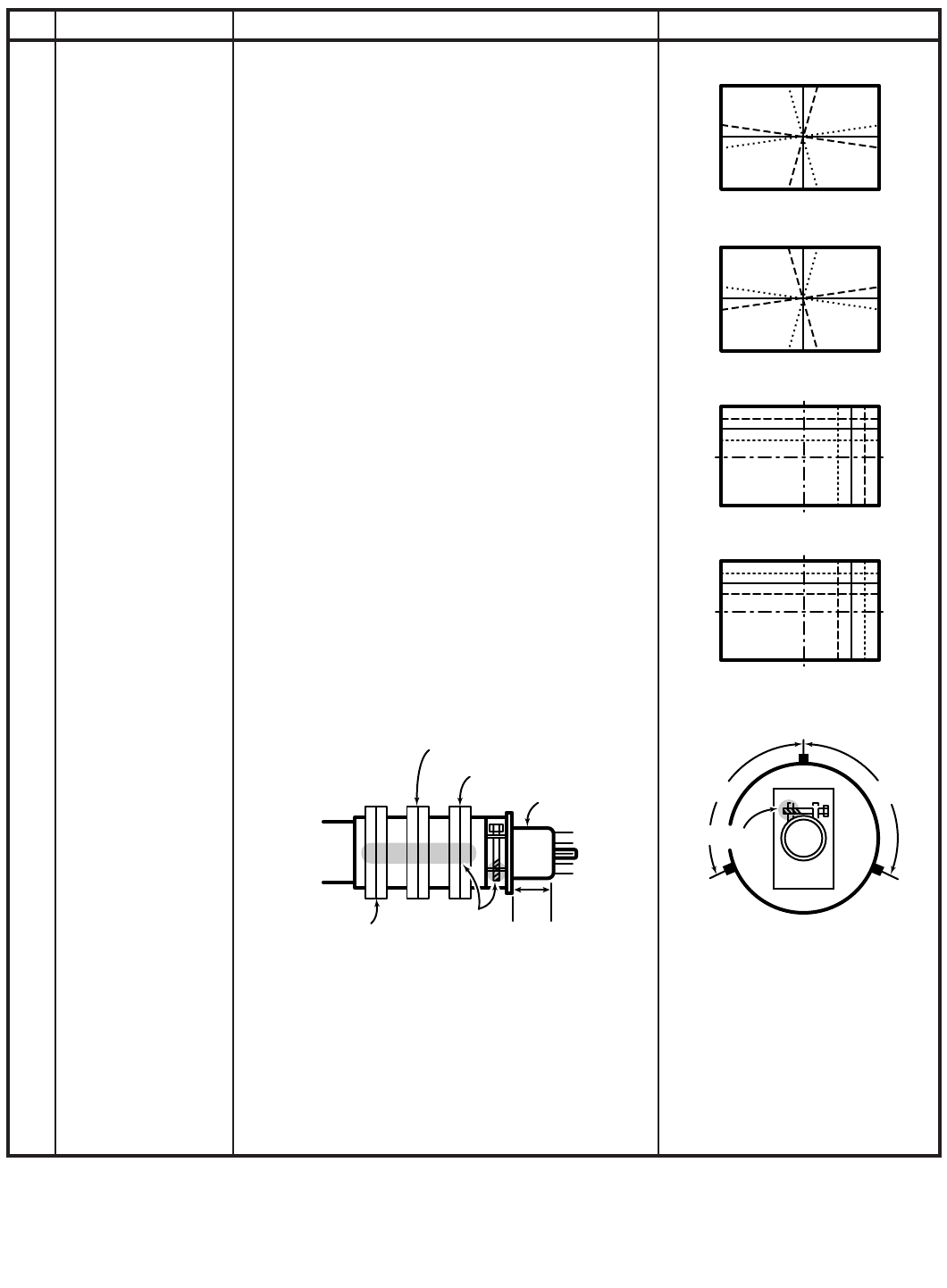

7 PURITY ADJ

8 CONVERGENCE ADJ

9 FOCUS ADJ

10 V-SHIFT (50 Hz)

11 H-SHIFT (50 Hz)

12 V-SIZE (50 Hz)

13 SCREEN

14 WHITE BALANCE

15 SUB-BRIGHTNESS

16 SUB-CONTRAST

17 SUB-TINT

18 SUB-COLOR

19 SECAM-OFFSET

20 SIF VCO ADJ

21 BEAM CURRENT CHECK

22 BEAM PROTECTOR CHECK

23 HV PROTECTOR CHECK

24 OTHER PROTECTOR CHECK

25 AV OUT CHECK

26 AV IN CHECK

27 COMPONENT IN CHECK

28 CONTRAST CONTROL CHECK

29 COLOR CONTROL CHECK

30 BRIGHTNESS CONTROL CHECK

31 TINT CONTROL CHECK

32 SHARPNESS CONTROL CHECK

33 CH DISPLAY COLOR CHECK

34 NORMAL DISPLAY CHECK

35 WHITE TEMP CONTROL CHECK

36 COLOR SYSTEM CHECK

37 SURROUND CHECK

38 TREBLE CHECK

39 BASS CHECK

40 BALANCE CHECK

41 SOUND SYSTEM CHECK

42 NOISE MUTE CHECK

43 OSD LANGUAGE QUANTITY CHECK

44 HEAD PHONE CHECK

45 SHOCK TEST CHECK

21J-FG1RU

3 – 3

2. USER DATA IN SERVICE MODE

1) While SERVICE mode ON, EEPROM DATA will switch to the service data. Also, once SERVICE mode OFF, EEPROM will switch back to previous

USER DATA.

2) In the service mode, the user data establish as below,

*1: For each CH, data is same as before switch to Service mode.

The flow of Mode list as following,

* Direct Key-in Mode for Service Items in Service Mode

USER DATA

CONTRAST MAX (60)

COLOUR CENT (0)

BRIGHTNESS CENT (0)

TINT CENT (0)

SHARPNESS CENT (0)

WHITE TEMP STANDARD

S-VOLUME MIN

SURROUND OFF

TREBLE CENT (0)

BASS CENT (0)

BALANCE CENT (0)

BLUE BACK OFF

C SYSTEM AUTO

S SYSTEM *1

RC CODE (HEX) R/C KEY NAME SERVICE-ITEM

80 POS 1 R-C UP (IN SERVICE MODE V00)

40 POS 2 G-C UP (IN SERVICE MODE V00)

C0 POS 3 B-C UP (IN SERVICE MODE V00)

20 POS 4 R-C DOWN (IN SERVICE MODE V00)

A0 POS 5 G-C DOWN (IN SERVICE MODE V00)

60 POS 6 B-C DOWN (IN SERVICE MODE V00)

E0 POS 7 R-D UP (IN SERVICE MODE V00)

10 POS 8 B-D UP (IN SERVICE MODE V00)

50 POS 0 B-D DOWN (IN SERVICE MODE V00)

E4 FLASHBACK R-D DOWN (IN SERVICE MODE V00)

E4 FLASHBACK Y-MUTE (BESIDES OF SERVICE MODE V00)

75 WHITE TEMP UP RF-AGC (V01)

F5 WHITE TEMP DOWN VIF-VC0 (V02)

C2 TUNE DOWN H-VCO (V03)

8D SHARPNESS DOWN SUB-CON (V04)

D6 BALANCE LEFT SUB-COL (V05)

0D SHARPNESS UP SUB-BRIGHT (V06)

36 BALANCE RIGHT SUB-TINT (V07)

46 TREBLE UP SUB-SHP (V08)

C6 TREBLE DOWN SUB-COL-YUV (V09)

26 BASS UP SUB-TINT-YUV (V10)

24 COLOUR UP V-SIZE (V11), V-SIZE60 (V17)

54 BRIGHTNESS DOWN V-SHIFT (V12), V-SHIFT60 (V18)

74 TINT DOWN H-SHIFT (V13), H-SHIFT60 (V19)

66 SURROUND UP SCM-BR (V14)

E6 SURROUND DOWN SCM-BB (V15)

C4 CONTRAST DOWN SUB-VOL (V16)

4C PICTURE S-TRAP-BG (V20)

CC HOLD S-TRAP-I (V21)

2C TEXT S-TRAP-DK (V22)

AC CANCEL S-TRAP-M (V23)

EC SIZE S-TRAP-574 (V24)

80 POS 1 R-C UP YUV (IN SERVICE MODE V25)

40 POS 2 G-C UP YUV (IN SERVICE MODE V25)

C0 POS 3 B-C UP YUV (IN SERVICE MODE V25)

20 POS 4 R-C DOWN YUV (IN SERVICE MODE V25)

21J-FG1RU

3 – 4

1) Please set the MCL to MCL1 as below.

2) After set the MCL , please set the INITIAL SETTING.

INTIAL 5: For Russia ( All Channel Sound System are set to D/K )

A0 POS 5 G-C DOWN YUV (IN SERVICE MODE V25)

60 POS 6 B-C DOWN YUV (IN SERVICE MODE V25)

E0 POS 7 R-D UP YUV (IN SERVICE MODE V25)

10 POS 8 B-D UP YUV (IN SERVICE MODE V25)

50 POS 0 B-D DOWN YUV (IN SERVICE MODE V25)

E4 FLASHBACK R-D DOWN YUV (IN SERVICE MODE V25)

C1 AUTO ADJ FOR V01, V02, V03, V20, V21, V22, V23, V24

CA T-SET

81 SERVICE MODE

MCL1 (HEX AE)

CH-No Fv (MHz) Sound Sys

0

1 48.25 B/G

2 62.25 B/G

3 77.25 D/K

4 175.25 B/G

5 182.25 B/G

6 183.25 D/K

7 191.25 D/K

8 196.25 B/G

9 199.25 M

10 210.25 B/G

11 224.25 B/G

12 471.25 B/G

13 487.25 I

14 503.25 B/G

15 575.25 B/G

16 583.25 B/G

17 599.25 B/G

18 621.25 M

19 639.25 D/K

20 703.25 B/G

21 735.25 I

22 767.25 B/G

23 815.25 B/G

24 855.25 I

25 855.25 B/G

26 55.25 M

27 83.25 M

28 183.25 M

29 193.25 M

30 217.25 M

31 471.25 M

32 477.25 M

33 693.25 M

34 885.25 M

35 112.25 B/G

36 168.25 B/G

37

38 294.25 B/G

39 463.25 B/G

40

41 647.25 B/G

42 663.25 B/G

43 679.25 B/G

44 174.95 B/G

45 175.55 B/G

RC CODE (HEX) R/C KEY NAME SERVICE-ITEM

21J-FG1RU

3 – 5

NOTE: PLL DATA OF ABOVE FREQ SHOULD TAKE THE ACCOUNT OF PIF SETTING IN SERVICE OPTION O04 (VIF) BEFORE STORING INTO

EEPROM

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

MCL1 (HEX AE)

CH-No Fv (MHz) Sound Sys

21J-FG1RU

3 – 6

3. SHIPPING SETTING & CHECKING

1) The following default data has been factory-set for the E2PROM

follow by INITIAL DATA selected.

FACTORY SETTING BY MODEL

(Reference: Geomagnetism Adjustment)

ITEMS DATA SETTING

LAST POWER ON

LAST TV/AV MODE TV MODE

LAST POSITION CH 1

FLASHBACK CHANNEL CH 1

1/2 DIGIT ENTRY 2 DIGIT ENTRY

VOLUME 0 (Min)

BLUE BACK OFF

OFF TIMER --:--

ON TIMER --:--

ON TIMER POSITION --

ON TIMER VOLUME --

REMINDER --:--

AFT ALL CH ON

COLOR SYSTEM ALL CH AUTO

SKIP ALL CH OFF

CONTRAST 60

COLOR 0

BRIGHTNESS 0

TINT 0

SHARPNESS 0

WHITE TEMP 0

SURROUND OFF

TREBLE 0

BASS 0

BALANCE 0(CENTER)

INITIAL LANGUAGE SOUND SYSTEM

1 CHINESE D/K

2 CHINESE I

3ENGLISH B/G

4 ARABIC B/G

5 RUSSIAN D/K

6 MALAY B/G

7 FRENCH D/K

MODEL MAGNETIC FIELD(V, H) nT BACKGROUND LANG. S-SYS LANG QTY

RUSSIA 45000 20000 7500°K RUSSIAN D/K 2

*NOTE FOR OSD TYPE:

2: ENGLISH/RUSSIAN

21J-FG1RU

3 – 7

**AFTER INITIALIZED THE EEPROM (REFER TO FACTORY PRESETTING), READ DATA FROM EEPROM ADDRESS 00H ~ 03H,AND COM-

PARE TO THE LIST BELOW, IF DIFFERENT, INITIALIZE THE EEPROM.

*** There are four stages of service mode data. First stage data from V00~V31 (Adjustment Mode).

To go into second stage of service mode data, press MENU key.Second stage data from F01~F142 (Setting Mode).

To go into third stage of service mode data, press MENU key.Third stage data is Check Mode.

To go into fourth stage of service mode data, press MENU key.Fourth stage data from O01~O31 (Option Mode).

ADDRESS DATA ADDRESS DATA

00H: 7BH 02H: 72H

01H: 72H 03H: 76H

ADJUSTMENT MODE (FIRST STAGE)

EEPROM ITEMS OSD DATA LENGTH INITIAL DATA FIX/ADJ/AUTO REMARK

R-DRIVE V00 0~127 63 ADJ PLS REFER TO

B-DRIVE V00 0~127 63 ADJ ADJ ITEM FOR

R-CUT V00 0~255 127 ADJ SCREEN AND

G-CUT V00 0~255 127 ADJ WHITE BALANCE

B-CUT V00 0~255 127 ADJ

RF-AGC V01 0~127 50 AUTO

VIF-VCO V02 0~63 31 AUTO

H-VCO V03 0~7 3 AUTO

SUB-CONTRAST V04 0~127 100 ADJ

SUB-COLOR V05 0~127 63 ADJ

SUB-BRIGHT V06 0~255 127 ADJ

SUB-TINT V07 0~127 63 ADJ

SUB-SHARPNESS V08 0~63 43 *FIX BUS SETUP

SUB-COLOR -YUV V09 0~127 90 *FIX BUS SETUP

SUB-TINT-YUV V10 0~127 63 FIX

V-SIZE 50 Hz V11 0~63 38 ADJ

V-SHIFT 50 Hz V12 0~7 3 ADJ

H-SHIFT 50 Hz V13 0~31 9 ADJ

SECAM-BR V14 0~63 37 ADJ

SECAM-BB V15 0~63 22 ADJ

SUB-VOL V16 0~60 60 FIX

V-SIZE 60 Hz V17 -31~0~+31 0 FIX IF NECESSARY, ADJ

V-SHIFT 60 Hz V18 -7~0~+7 -1 FIX IF NECESSARY, ADJ

H-SHIFT 60 Hz V19 -15~0~+15 +2 FIX IF NECESSARY, ADJ

S-TRAP (BG) V20 0~15 7 AUTO

S-TRAP (I) V21 0~15 7 AUTO

S-TRAP (DK) V22 0~15 7 AUTO

S-TRAP (M) V23 0~15 7 AUTO

S-TRAP (5.74) V24 0~15 7 AUTO

CUTOFF/BKGD YUV V25

R-DRI YUV V25 0~127 63 FIX

B-DRI YUV V25 0~127 63 FIX

R-CUT YUV V25 0~255 127 FIX

G-CUT YUV V25 0~255 127 FIX

B-CUT YUV V25 0~255 127 FIX

SUB-CON YUV V26 0~127 100 FIX

SUB-BRGHT YUV V27 0~255 127 FIX

VS-CORRECT V28 0~63 32 FIX ONLY FOR M61266

VC-CORRECT OFFSET V29 -13~+13 0 FIX ONLY FOR M61266

V LINEARITY V30 0~63 32 FIX ONLY FOR M61266

V LINEARITY OFFSET V31 -13~+13 0 FIX ONLY FOR M61266

21J-FG1RU

3 – 8

SETTING MODE (SECOND STAGE)

EEPROM ITEMS FUNCTION OSD DATA LENGTH INITIAL

DATA

FIX/ADJ/

AUTO REMARK

C.CLIP-LVL CLIP LEVEL CONTRAST CON-

TROL OF RGB INPUT

F01 0(20H) / 1(40H) 0 FIX

RGB-CLIP CLIPPING OF RGB CONTRAST

CONTROL

F02 0 (CLIP OFF) / 1(CLIP ON) 0 FIX

BS BLACK STRETCH F03 0(ON) / 1(OFF) 0 FIX

ABCL ABCL PROCESSING (ACL PRO-

CESSING)

F04 0(OFF) / 1(ON) 0 FIX

ABCL-GAIN ABCL PROCESSING GAIN F05 0(LOW) / 1(HIGH) 0 FIX

S-OUT-LVL AUDIO OUTPUT GAIN CONTROL F06 0~127 95 FIX

VIF-G P-IF DETECTION GAIN OUTPUT F07 0~7 4 FIX

SHPG SHARPNESS GAIN F08 0(NORMAL) / 1(HIGH) 0 FIX

SHPG-P SHARPNESS GAIN PAL F09 0(NORMAL) / 1(HIGH) 0 FIX

SHPG-S SHARPNESS GAIN SECAM F10 0(NORMAL) / 1(HIGH) 0 FIX

SHPG-N4 SHARPNESS GAIN N443 F11 0(NORMAL) / 1(HIGH) 0 FIX

SHPG-N3 SHARPNESS GAIN N358 F12 0(NORMAL) / 1(HIGH) 1 FIX

YDL Y SIGNAL DELAY F13 0~7 5 FIX

YDL-P Y SIGNAL DELAY PAL F14 0~7 5 FIX

YDL-S Y SIGNAL DELAY SECAM F15 0~7 7 FIX

YDL-N4 Y SIGNAL DELAY N443 F16 0~7 5 FIX

YDL-N3 Y SIGNAL DELAY N358 F17 0~7 5 FIX

YDL-AV Y SIGNAL DELAY AV F18 0~7 6 FIX

YDL-AV-P Y SIGNAL DELAY PAL (AV) F19 0~7 6 FIX

YDL-AV-S Y SIGNAL DELAY SECAM (AV) F20 0~7 7 FIX

YDL-AV-N4 Y SIGNAL DELAY N443 (AV) F21 0~7 6 FIX

YDL-AV-N3 Y SIGNAL DELAY N358 (AV) F22 0~7 6 FIX

YDL-YUV Y SIGNAL DELAY YUV F23 0~7 6 FIX

COL-AV (OFFSET) COLOUR OFFSET AV F24 -31~0~+31 +10 FIX

COL-P (OFFSET) COLOUR OFFSET PAL F25 -31~0~+31 0 FIX

COL-S (OFFSET) COLOUR OFFSET SECAM F26 -31~0~+31 +9 FIX

COL-N4 (OFFSET) COLOUR OFFSET N443 F27 -31~0~+31 -8 FIX

COL-N3 (OFFSET) COLOUR OFFSET N358 F28 -31~0~+31 -7 FIX

COL-ADJ (OFFSET) COLOUR OFFSET ADJUST F29 -31~0~+31 0 FIX

SHP-AV (OFFSET) SHARPNESS OFFSET AV F30 -31~0~+31 +5 *FIX BUS SETUP

SHP-YUV (OFFSET) SHARPNESS OFFSET YUV F31 -31~0~+31 0 FIX

SHP-P (OFFSET) SHARPNESS OFFSET PAL F32 -31~0~+31 0 FIX

SHP-S (OFFSET) SHARPNESS OFFSET SECAM F33 -31~0~+31 -5 FIX

SHP-N4 (OFFSET) SHARPNESS OFFSET N443 F34 -31~0~+31 0 FIX

SHP-N3 (OFFSET) SHARPNESS OFFSET N358 F35 -31~0~+31 0 FIX

TINT-AV (OFFSET) TINT OFFSET AV F36 -63~0~+63 0 FIX

TINT-ADJ (OFFSET) TINT OFFSET ADJUST F37 -63~0~+63 0 FIX

TINT-YUV-ADJ (OFFSET) TINT YUV OFFSET ADJUST F38 -63~0~+63 0 FIX

R-R (OFFSET) R-DRIVE OFFSET WHEN WHITE

TEMP IS RED

F39 -63~0~+63 +8 FIX

B-R (OFFSET) B-DRIVE OFFSET WHEN WHITE

TEMP IS RED

F40 -63~0~+63 -10 FIX

R-B (OFFSET) R-DRIVE OFFSET WHEN WHITE

TEMP IS BLUE

F41 -63~0~+63 -3 FIX

B-B (OFFSET) B-DRIVE OFFSET WHEN WHITE

TEMP IS BLUE

F42 -63~0~+63 +13 *FIX BUS SETUP

TRAP CENTER VALUE OF CHROMA

TRAP

F43 0~3 2 FIX

TRAP-P CENTER VALUE OF CHROMA

TRAP PAL

F44 0~3 2 FIX

TRAP-S CENTER VALUE OF CHROMA

TRAP SECAM

F45 0~3 2 FIX

TRAP-N4 CENTER VALUE OF CHROMA

TRAP N443

F46 0~3 2 FIX

TRAP-N3 CENTER VALUE OF CHROMA

TRAP N358

F47 0~3 2 FIX

1W-TV VERT SYNC DETECTION MODE

FOR AV (1 WINDOW/2 WINDOW)

F48 ACCEPTABLE PERIOD:

0(AUTOMATIC CHANGE)

/ 1(FIX (WIDE))

0FIX

21J-FG1RU

3 – 9

1W-AV VERT SYNC DETECTION MODE

FOR TV (1 WINDOW/2 WINDOW)

F49 ACCEPTABLE PERIOD:

0(AUTOMATIC CHANGE)

/ 1(FIX (WIDE))

1FIX

V-FREE (NO SYNC) SET VERTICAL TO FORCED FREE

RUN MODE

F50 0(NORMAL) / 1(FRE-

ERUN)

0FIX

AFC2 (NO SYNC) HORIZONTAL AFC2 GAIN F51 0(NORMAL) / 1(DOWN) 0 FIX

GAMMA GAMMA CORRECTION QTY F52 0~3 0 FIX

BS-D/C BLACK STRETCH CONTROL

LEVEL

F53 0~15 10 FIX

BS-GAIN BLACK STRETCH LEVEL F54 0(NORMAL) / 1(DOWN) 0 FIX

OM-DET OVER MODULATION DETECT F55 0(OFF) / 1(ON) 0 FIX

SL-TV SLICE LEVEL OF SYNC DETEC-

TION TV

F56 0~7 2 FIX

SL-AV SLICE LEVEL OF SYNC DETEC-

TION AV

F57 0~7 4 FIX

SL-YUV SLICE LEVEL OF SYNC DETEC-

TION YUV

F58 0~7 4 FIX

VD2/VD1/AS/FBP-TV VD2 & VD1-VERT SYNC DETECT

MIN WIDTH MSB & LSB RESPEC-

TIVELY, AS-TV/AV/YUV SWITCH &

CH CHANGE, FBP-FLYBACK

PULSE SLICE LEVEL (TV)

F59 0~15 6 FIX

VD2/VD1/AS/FBP-AV VD2 & VD1-VERT SYNC DETECT

MIN WIDTH MSB & LSB RESPEC-

TIVELY, AS-TV/AV/YUV SWITCH &

CH CHANGE, FBP-FLYBACK

PULSE SLICE LEVEL (AV)

F60 0~15 14 FIX

VD2/VD1/AS/FBP-YUV VD2 & VD1-VERT SYNC DETECT

MIN WIDTH MSB & LSB RESPEC-

TIVELY, AS-TV/AV/YUV SWITCH &

CH CHANGE, FBP-FLYBACK

PULSE SLICE LEVEL (YUV)

F61 0~15 14 FIX

VDL COLOUR DIFF. INPUT PHASE ADJ F62 0~3 0 FIX

UDL COLOUR DIFF. INPUT PHASE ADJ F63 0~3 0 FIX

AUTO-SCM-KIL-TV SECAM COLOUR KILLER SENSI-

TIVITY (TV)

F64 0~3 1 FIX

SECAM-BGP INTERNAL SECAM BGP TIMING F65 0~3 0 FIX

N45 INHIBIT 50Hz NTSC 4.43 F66 0(NORMAL) / 1(INHIBIT) 0 FIX

TXT-POS-H (TELETEXT) TELETEXT HORIZONTAL POSI-

TION

F67 0~63 30 FIX

TXT-POS-V (TELETEXT) TELETEXT VERTICAL POSITION F68 0~63 34 FIX

OSD-POS OSD POSITION F69 0~127 9 FIX

CP CHARGE PUMP F70 0(FAST TUNING) /

1(MODERATE SPEED

TUNING)

1FIX

SMALL-SURR (S-CTRL) SURROUND MODE SELECT F71 0(EALA EFFECT LARGE)

/ 1(EALA EFFECT SMALL)

0FIX

SUB-BASS (S-CTRL) SUB BASS CONTROL F72 0(0dB), 1(-1dB), 2(-2dB),

3(-3dB), 4(0dB), 5(+1dB),

6(+2dB), 7(+3dB)

6 *FIX BUS SETUP

SUB-TREB (S-CTRL) SUB TREBLE CONTROL F73 0(0dB), 1(-1dB), 2(-2dB),

3(-3dB), 4(0dB), 5(+1dB),

6(+2dB), 7(+3dB)

0 *FIX BUS SETUP

AGC-ADJ (S-CTRL) AGC LEVEL ADJUST F74 0(AGC Off), 1(300mVrms),

2(400mVrms),

3(500Vrms), 4(600mVrms)

0 *FIX BUS SETUP

AGC-SW-OFF (NICAM) NICAM AGC SWITCH OFF F75 0(DISABLE, FIX GAIN),

1(ENABLE)

1FIX

AGC-GAIN-ADJ (NICAM) NICAM AGC GAIN ADJUST F76 0~31 16 FIX

FM-LEVEL-ADJ (NICAM) FM LEVEL ADJUST F77 -15~0~+15 0 FIX

IGR-LEVEL-ADJ (NICAM) IGR LEVEL ADJUST F78 -15~0~+15 +1 FIX

NICAM-BG-LVL-ADJ (NICAM) NICAM B/G LEVEL ADJUST F79 -15~0~+15 -2 FIX

NICAM-I-LVL-ADJ (NICAM) NICAM I LEVEL ADJUST F80 -15~0~+15 +3 FIX

NICAM-DK-LVL-ADJ (NICAM) NICAM D/K LEVEL ADJUST F81 -15~0~+15 -1 FIX

SETTING MODE (SECOND STAGE)

EEPROM ITEMS FUNCTION OSD DATA LENGTH INITIAL

DATA

FIX/ADJ/

AUTO REMARK

21J-FG1RU

3 – 10

NICAM-LOW-ERR-LIM

(NICAM)

NICAM LOWER ERROR LIMIT F82 0~255 35 FIX

NICAM-UPP-ERR-LIM

(NICAM)

NICAM UPPER ERROR LIMIT F83 0~255 70 FIX

IGR-GAIN-ADJ (IGR) IGR GAIN ADJUST F84 -6~0~+7 0 FIX

FM-ID-SPEED (NICAM) FM SOUND IDENTIFICATION

MODE

F85 0(SLOW) / 1(MEDIUM) /

2(FAST) / 3(OFF)

1FIX

NICAM-AUTO-MUTE NICAM AUTO DETECTION F86 0(MUTE) / 1(DEMUTE) 0 FIX

AUTO-SCM-KIL-AV-YUV SECAM COLOUR KILLER SENSI-

TIVITY (AV/YUV)

F87 0~3 1 FIX

AFC1-GAIN-TV MSB OF HORIZONTAL AFC GAIN1

(TV)

F88 0(NORMAL) / 1(x2) /

2(x1.5) / 3(3.5)

0FIX

AFC1-GAIN-AV MSB OF HORIZONTAL AFC GAIN1

(AV)

F89 0(NORMAL) / 1(x2) /

2(x1.5) / 3(3.5)

3FIX

AFC1-GAIN-YUV MSB OF HORIZONTAL AFC GAIN1

(YUV)

F90 0(NORMAL) / 1(x2) /

2(x1.5) / 3(3.5)

3FIX

CON-REDUCE CONTRAST (PICTURE LEVEL)

CONTROL

F91 0(0%)~1(25%)~2(50%) 0 FIX

TAKE-OFF-TV TAKEOFF/BPF OF CHROMA BPF

PROCESSING TV

F92 0(BPF) / 1(TAKEOFF) 1 FIX

TAKE-OFF-AV TAKEOFF/BPF OF CHROMA BPF

PROCESSING AV

F93 0(BPF) / 1(TAKEOFF) 0 FIX

TAKE-OFF-YUV TAKEOFF/BPF OF CHROMA BPF

PROCESSING YUV

F94 0(BPF) / 1(TAKEOFF) 0 FIX

C-ANGLE (103 DEG/ 95 DEG) CHROMA MODULATION ANGLE F95 0(103DEG) / 1(95DEG) 1 FIX

AC-FAIL-WO-BRIGHT PICTURE BLACK LEVEL (BRIGHT)

CONTROL - AC FAILURE

F96 0~255 255 FIX

FORCED-SCM-KIL-TV FORCED SECAM COLOUR KILLER

SENSITIVITY (TV)

F97 0~3 2 FIX

FORCED-SCM-KIL-AV-YUV FORCED SECAM COLOUR KILLER

SENSITIVITY (AV/YUV)

F98 0~3 2 FIX

R-Y ADJ. COLOUR EDGE IMPROVEMENT F99 0(DISABLE) / 1(ENABLE) 1 FIX

V-DEMUTE-DELAY VIDEO DEMUTE DELAY F100 0~255 0 *FIX BUS SETUP

S-DEMUTE-DELAY SOUND DEMUTE DELAY F101 0~255 0 *FIX BUS SETUP

MER S-BOOSTER FREQ. CHARACTER-

ISTIC CONTROL

F102 0~255 70 FIX

MEL1 S-BOOSTER LEVEL1 F103 0~255 150 FIX

MEL2 S-BOOSTER LEVEL2 F104 0~255 156 FIX

MEL3 S-BOOSTER LEVEL3 F105 0~255 163 FIX

MEL4 S-BOOSTER LEVEL4 F106 0~255 165 FIX

MEL5 S-BOOSTER LEVEL5 F107 0~255 170 FIX

MEL6 S-BOOSTER LEVEL6 F108 0~255 180 FIX

S-ST-POINT S-BOOSTER START POINT F109 0~60 21 FIX

S-SP-POINT S-BOOSTER STOP POINT F110 0~60 60 FIX

S-STEP S-BOOSTER STEP F111 0~60 7 FIX

POW-STORAGE CONTRAST/BRIGHTNESS

INCREASE GRADUALLY

F112 0(DISABLE) / 1(ENABLE) 1 FIX

S-B-BASS S-BOOSTER BASS LIMITER

(WHEN S-BOOSTER ON)

F113 -30~0~+30 +15 FIX

S-B-TREB S-BOOSTER TREBLE LIMITER

(WHEN S-BOOSTER ON)

F114 -30~0~+30 +15 FIX

S-BASS S-BOOSTER BASS LIMITER

(WHEN S-BOOSTER OFF)

F115 -30~0~+30 +30 FIX

S-TREB S-BOOSTER TREBLE LIMITER

(WHEN S-BOOSTER OFF)

F116 -30~0~+30 +30 FIX

V-STD-TV VERTICAL STANDARD SIGNAL

DETECTOR SWITCH (TV)

F117 0(DISABLE) / 1(ENABLE) 0 FIX

V-STD-AV VERTICAL STANDARD SIGNAL

DETECTOR SWITCH (AV)

F118 0(DISABLE) / 1(ENABLE) 0 FIX

V-STD-YUV VERTICAL STANDARD SIGNAL

DETECTOR SWITCH (YUV)

F119 0(DISABLE) / 1(ENABLE) 0 FIX

WO-Bright-after-WO-TIME WHITE OUT BRIGHT AFTER

WHITE OUT TIME

F120 0~255 255 FIX

WO-Contrast-after-WO-TIME WHITE OUT CONTRAST AFTER

WHITE OUT TIME

F121 0~127 127 FIX

SETTING MODE (SECOND STAGE)

EEPROM ITEMS FUNCTION OSD DATA LENGTH INITIAL

DATA

FIX/ADJ/

AUTO REMARK

21J-FG1RU

3 – 11

WO-Bright-before-WO-TIME WHITE OUT BRIGHT BEFORE

WHITE OUT TIME

F122 0~255 255 FIX

WO-Contrast-before-WO-

TIME

WHITE OUT CONTRAST BEFORE

WHITE OUT TIME

F123 0~127 127 FIX

WO-TIME WHITE OUT F124 0~31 0 FIX

A2-ID-Response SETTING IDENTIFICATION

RESPONSE TIME

F125 0(NORMAL) / 1(FAST) 1 FIX

R-DRI YUV OFFSET RGB OUTPUT RED GAIN OFFSET

(YUV)

F126 -63~0~+63 0 *FIX BUS SETUP

B-DRI YUV OFFSET RGB OUTPUT BLUE GAIN OFFSET

(YUV)

F127 -63~0~+63 0 *FIX BUS SETUP

R-CUT YUV OFFSET RGB OUTPUT-RED BIAS LEVEL

OFFSET (YUV)

F128 -63~0~+63 0 *FIX BUS SETUP

G-CUT YUV OFFSET RGB OUTPUT-GREEN BIAS LEVEL

OFFSET (YUV)

F129 -63~0~+63 0 *FIX BUS SETUP

B-CUT YUV OFFSET RGB OUTPUT-BLUE BIAS LEVEL

OFFSET (YUV)

F130 -63~0~+63 0 FIX

CON YUV OFFSET SUB-CONTRAS OFFSET (YUV) F131 -63~0~+63 0 FIX

BRT YUV OFFSET SUB-BRIGHT OFFSET (YUV) F132 -63~0~+63 0 *FIX BUS SETUP

SHP ANT-ONII OFFSET SHARP ANT-ON II OFFSET FOR

VIDEO TONE

F133 -31~0~+31 0 FIX

WAIT MD TIME SETTING CYCLE PROCESS TIME

AT LOW POWER

F134 0~4 2 FIX

Contrast OFFSET CONTRAST (PICTURE LEVEL)

OFFSET

F135 -63~0~+63 0 FIX

Bright OFFSET PICTURE BLACK LEVEL (BRIGHT)

OFFSET

F136 -63~0~+63 0 FIX

CR-PEDESTEL-ADJ Cr SIGNAL LEVEL ADJUSTMENT F137 0~15 8 FIX ONLY FOR

M62166

CB-PEDESTEL-ADJ Cb SIGNAL LEVEL ADJUSTMENT F138 0~15 8 FIX ONLY FOR

M62166

SIF-PAL SOUND S/N SWITCH FOR PAL F139 0(DISABLE) / 1(ENABLE) 0 FIX ONLY FOR

M62166

AV2 BRIGHTNESS OFFSET AV2 BRIGHT OFFSET F140 -15~0~+15 +7 FIX

BASS OFFSET BASS OFFSET F141 -30~0~+30 0 FIX

TREBLE OFFSET TREBLE OFFSET F142 -30~0~+30 0 FIX

SETTING MODE (SECOND STAGE)

EEPROM ITEMS FUNCTION OSD DATA LENGTH INITIAL

DATA

FIX/ADJ/

AUTO REMARK

21J-FG1RU

3 – 12

OPTION MODE (FOURTH STAGE)

EEPROM ITEMS OSD DATA LENGTH INITIAL DATA REMARK

***HOTEL MODE O01 0 (0FF) / 1 (0N) 0 OPTION SET UP

***HTL-POS O02 0~99,-- -- OPTION SET UP

***HTL-VOL O03 0~60,-- -- OPTION SET UP

VIF O04 0 (38.0) / 1 (38.9) 1 OPTION SET UP

SECAM O05 0 (DISABLE) / 1 (ENABLE) 1 OPTION SET UP

N443(RF) O06 0 (DISABLE) / 1 (ENABLE) 1 OPTION SET UP

N358(RF) O07 0 (DISABLE) / 1 (ENABLE) 1 OPTION SET UP

FORCE-COL O08 0 (DISABLE) / 1 (ENABLE) 0 OPTION SET UP

S-SYS O09 1(BG ONLY)~15(ALL) 15 OPTION SET UP

AV O10 0 (DISABLE) / 1 (ENABLE) 1 OPTION SET UP

AV2 O11 0 (DISABLE) / 1 (ENABLE) 1 OPTION SET UP

YUV O12 0 (DISABLE) / 1 (ENABLE) 1 OPTION SET UP

S-CTRL O13 0 (DISABLE) / 1 (ENABLE) 1 OPTION SET UP

NICAM O14 0 (DISABLE) / 1 (ENABLE) 0 OPTION SET UP

A2 O15 0 (DISABLE) / 1 (ENABLE) 0 OPTION SET UP

TELETEXT O16 0 (DISABLE) / 1 (ENABLE) 0 OPTION SET UP

BILLINGUAL O17 0 (DISABLE) / 1 (ENABLE) 0 OPTION SET UP

LANGUAGE O18 1~255 63 OPTION SET UP

SEARCH-SPEED O19 1(350)~2(450)~3(550)~4(650)~5(750) 3 OPTION SET UP

R/C-MENU O20 0 (ENABLE) / 1 (DISABLE) 0 OPTION SET UP

LED-CONT O21 0 (ONE LED) / 1 (TWO LED) 0 OPTION SET UP

S-BOOSTER O22 0 (DISABLE) / 1 (ENABLE) 0 OPTION SET UP

SHARP-LOGO O23 0 (DISABLE) / 1 (ENABLE) 0 OPTION SET UP

YUV BKGD ADJ O24 0 (DISABLE) / 1 (ENABLE) 0 OPTION SET UP

WHITE BACK O25 0 (DISABLE) / 1 (ENABLE) 1 OPTION SET UP

BOOSTER O26 0 (DISABLE) / 1 (ENABLE) 0 OPTION SET UP

****MESSAGE O27 0 (DISABLE) / 1 (ENABLE) 0 OPTION SET UP

****MESSAGE SCROLL TIME O28 Message Display Timing 0 OPTION SET UP

LNA TUNER O29 0(Alps) / 1(Matsushita) 0 OPTION SET UP

ONE CHIP IC O30 0(M61260 & M61262) / 1(M61266) 0 OPTION SET UP

MESSAGE INPUT TIMMING O31 0~4 2 OPTION SET UP

*** HOTEL MODE

OPERATION OF HOTEL MODE:

WHEN CHANGE SERVICE DATA O01 TO 1, HOTEL MODE IS ON

WHEN HOTEL MODE IS ON,

1. Max volume data is determined by option setting HTL-VOL (O03)

2. Channel position after POWER ON is determined by option setting HOTEL-POS (O02) (if option setting HOTEL-POS

is not set, processing is according to last position data).

3. User data updates of EEPROM regarding the video and audio control is not allowed.

4. Preset mode is disable.

5. CH SETTING menu is not available.

21J-FG1RU

3 – 13

4. ADJ ITEM: BUS SET UP (1 ST & 2ND STAGE SERVICE DATA)

5. ADJ ITEM: OPTION SET UP (4TH STAGE SERVICE DATA)

SERVICE ITEMS 21J-FG1RU

V08 SUB-SHARPNESS 46

V09 SUB-COLOR YUV 105

F30 SHP-AV +1

F42 B-B (OFFSET) +16

F72 SUB-BASS (S-CTRL) 0

F73 SUB-TREB (S-CTRL) 3

F74 AGC-ADJ (S-CTRL) 3

F100 V-DEMUTE-DELAY 25

F101 S-DEMUTE-DELAY 40

F126 R-DRI YUV OFFSET -1

F127 B-DRI YUV OFFSET -3

F128 R-CUT YUV OFFSET +14

F129 G-CUT YUV OFFSET +35

F132 BRT YUV OFFSET -27

SERVICE ITEMS 21J-FG1RU

O01 HTL MODE 0 (0FF) / 1 (0N) 0

O02 HTL-POS 0>99,-- --

O03 HTL-VOL 0>60,-- --

O04 VIF 0 (38.0) / 1 (38.9) 1

O05 SECAM 0 (DISABLE) / 1 (ENABLE) 1

O06 N443(RF) 0 (DISABLE) / 1 (ENABLE) 1

O07 N358(RF) 0 (DISABLE) / 1 (ENABLE) 0

O08 FORCE-COL 0 (DISABLE) / 1 (ENABLE) 0

O09 S-SYS 1(BG ONLY)>15(ALL) 7

O10 AV 0 (DISABLE) / 1 (ENABLE) 1

O11 AV2 0 (DISABLE) / 1 (ENABLE) 1

O12 YUV 0 (DISABLE) / 1 (ENABLE) 1

O13 S-CTRL 0 (DISABLE) / 1 (ENABLE) 1

O14 NICAM 0 (DISABLE) / 1 (ENABLE) 0

O15 A2 0 (DISABLE) / 1 (ENABLE) 0

O16 TEXT 0 (DISABLE) / 1 (ENABLE) 0

O17 BIL 0 (DISABLE) / 1 (ENABLE) 0

O18 LANG 1>255 9

O19 SEARCH-SP 1(350)>2(450)>3(550)>4(650)>5(750 3

O20 R/C MENU 0 (ENABLE) / 1 (DISABLE) 0

O21 LED-CONT 0 (ONE LED) / 1 (TWO LED) 0

O22 S-BOOSTER 0 (DISABLE) / 1 (ENABLE) 0

O23 SHARP-LOGO 0 (DISABLE) / 1 (ENABLE) 0

O24 YUV BKGD ADJ 0 (DISABLE) / 1 (ENABLE) 0

O25 WHITE BACK 0 (DISABLE) / 1 (ENABLE) 0

O26 BOOSTER 0 (DISABLE) / 1 (ENABLE) 0

O27 MESSAGE 0 (DISABLE) / 1 (ENABLE) 0

O28 MESSAGE SCROLL TIME 0 > 20 0

O29 LNA TUNER 0(Alps) / 1(Matsushita) 0

O30 ONE CHIP IC 0(M61260<FmSdata>[amp ]M61262) / 1(M61266) 0

O31 MSG IN TM 2

21J-FG1RU

3 – 14

[2] ADJUSTMENT

ADJUSTMENT PRECAUTION: Makesure TV Set is in “Normal Condition” before switch to Service Mode for Adjustment.

1. PIF ADJUSTMENT

No.

Adjustment point

Adjustment procedure/conditions Waveform and others

Tuner IFT

( PRESET )

11. Get the tuner ready to receive the CH. E - 9

signal,but with no signal input.

Adjust the PLL data.

2. Connect the sweep generator's output cable to

the tuner antenna. ( RF SWEEP )

3. Adjust the sweep generator's to 80dBµV.

4. Connect the response lead ( use LOW IMPED-

ANCE probe with wave detector ; see Fig.1 ) to

the tuner's IF output terminal. ( This terminal must

have the probe alone connected ).

5. Set the RF AGC to 0 - 6 V with no saturation with

the waveform.

6. Adjust the tuner IF coil to obtain the waveform as

showninFig.2.

Note: Be sure to keep the tuner cover in posi-

tion during this adjustment.

RF-AGC

TAKE OVER

POINT AD-

JUSTMENT

(I

2

C BUS

CONTROL)

(AUTO &

MANUAL ADJ)

1. Receive "PAL COLOUR BAR" signal.

Signal Strength: 56 ±1dBµV (75 ohm open)

2. Connect the oscilloscope to TP201 (Tuner’s AGC

Terminal) as shown in Fig. 3-1.

3. Call "V01" mode in service mode. Adjust the "V01"

bus data to obtain the Tuner output pin drop

0.1~1.0V below maximum voltage.

4. Change the antenna input signal to 63~67dBµV,

and make sure there is no noise.

5. Turn up the input signal to 90~95 dBµVtobesure

that there is no cross modulation beat.

* for Auto ADJ

1)Receive “PAL COLOUR BAR”

signal.

signal strength: 56 ±1dBµV(75

ohm open)

1)Go to service mode.

2)Go to service data V01, press

R/C to operate auto key (Hex

C1) and confirm the ‘OK’

display on the screen.

3)If appear NG, increase data

some step and pls repeat step

2.

4)Proceed step 4 & 5 in manual

mode.

2

»

»

Bias box: About 4.5 V

Oscilloscope

0.1V

TV Set

Bias box

TP201+

+

—

—

Fig. 3-1

E-9 CH

PC

10k

100k

1n60

75ohm

IF OUT

-1.5+/-0.8dB

1000p

1000p

Oscilloscope

Fig.1

Fig.2

21J-FG1RU

3 – 15

2. PURITY ADJUSTMENT

No.

Adjustment point

Adjustment procedure/conditions Waveform and others

1. Receive the GREEN-ONLY signal. Adjust the

beam current to ~700 µA.

2. Degauss the CRT enough with the degausing coil.

Note: Follow the Job Instruction Sheet to adjust

the magnetic field.

Vertical Bv: +0.045 mT (0.45 gauss)

Horizontal Bh: +0.020 mT (0.20 gauss)

(Reference: page 3-6)

3. Maintain the purity magnet at the zero magnetic

field and keep the static convergence roughly

adjusted.

4. Observe the points a, b,as shown in Fig. 1-1

through the microscope. Adjust the landings to A

rank requirement.

5. Orient the raster rotation to 0 eastward.

6. Tighten up the deflection coil screws.

Tightening torque: 108 ±20N(11±2kgf)

7. Make sure the CRT corners landing meet the A

rank requirements. If not, stick the magnet sheet

to correct it.

Note: This adjustment must be done after

warming up the unit for 30 minutes or

longer with a beam current over 700

µ

A.

Note:

* For the following colours press R/C RGB(Hex 7E)

key to change.

PURITY ADJ.1

ab

A

B

A

30mm 30mm

B

A=B

A=B

Rank "A"

(on the right of the CRT)

Rank "A"

(on the left of the CRT)

Fig. 1-1

Fig. 1-2

Fig. 1-3

* Press R/C RGB key for 1 sec-

ond in NORMAL MODE, the

colour will change to RGB

mono colour mode.

Signal-colour

screen cleared

GREEN

ONLY

BLUE

ONLY

RED

ONLY

Set to service mode by remote con-

troller then press factory process R/C

RGB key to change to RGB mono col-

our mode.

21J-FG1RU

3 – 16

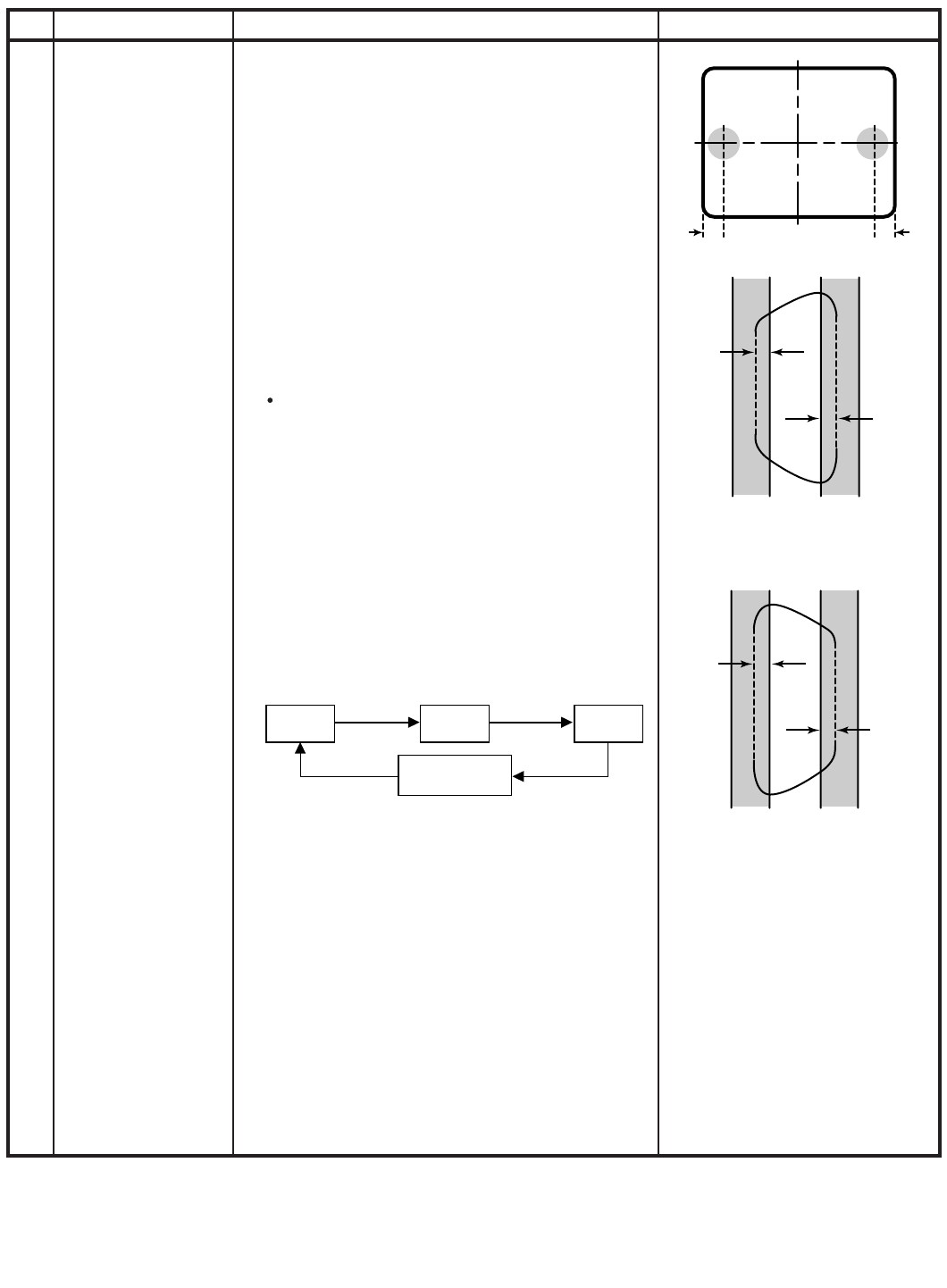

3. CONVERGENCE ADJUSTMENT

No.

Adjustment point

Adjustment procedure/conditions Waveform and others

CONVERGENCE

ADJ.

(Tobedone

after the purity

adjustment.)

1. Receive the "Crosshatch Pattern" signal.

2. Using the remote controller, call NORMAL mode.

Static convergence

1. Turn the 4-pole magnet to a proper opening an-

gle in order to superpose the blue and red col-

ours.

2. Turn the 6-pole magnet to a proper opening an-

gle in order to superpose the green colour over

the blue and red colours.

Dynamic convergence

1. Adjust the convergence on the fringes of the

screen in the following steps.

a) Fig. a: Drive the wedge at point "a" and swing

the deflection coil upward.

b) Fig. b: Drive the wedge at point "b" and "c" and

swing the deflection coil downward.

c) Fig. c: Drive the "c" wedge deeper and swing

the deflection coil rightward.

d) Fig. d: Drive the "b" wedge deeper and swing

the deflection coil leftward.

2. Fix all the wedges on the CRT and apply glass

tape over them.

3. Apply lacquer to the deflection yoke lock screw,

magnet unit (purity, 4-pole, 6-pole magnets) and

magnet unit lock screw.

Finally received the Red-only and Blue-only sig-

nals to make sure there is no other colours on the

screen.

1

RGB

BGR

R

G

B

R

G

B

B

G

R

B

G

R

RGB

BGR

Lacquer

Wedge "a"

Wedge

"b"

Wedge

"c"

About

100Deg

About

100Deg

Fig. a

Fig. b

Fig. c

Fig. d

4-pole magnet

6-pole magnet

CRT neck

20mm

Lacquer

Purity magnet

21J-FG1RU

3 – 17

4. H-VCO, VIF-VCO & S-TRAP fo ADJUSTMENT

No.

Adjustment point

Adjustment procedure/conditions Waveform and others

H-VCO ADJ

(I

2

C BUS

CONTROL)

(AUTO &

MANUAL ADJ)

(MANUAL ADJ)

1) In No signal (RASTER) condition.

2) Go to service mode, choose service data V03.

3) Connect oscilloscope to IC801 pin11, adj V03 until

freq become 15.625 ±0.15 KHz

(Auto Adj)

1) In No signal (RASTER) condition.

2) Go to service mode.

3) Choose service data V03, by pressing R/C Auto

(Hex C1) key, OSD will appear “OK” at screen.

4) If appear “NG” pls repeat step 3.

(Manual ADJ)

1) In No signal (RASTER) condition.

2) Go to service mode, choose service data V02.

3) Connect oscilloscope to IC801 pin2, adj V02 until

voltage become 2.5 ±1V.

(Auto Adj)

1) In No signal (RASTER) condition.

2) Go to service mode, choose service data V02.

3) Press the R/C Auto (Hex C1) key, OSD will appear

“OK” at screen.

4) If appear “NG” pls repeat step 3.

(Manual ADJ)

1) In No signal (RASTER) condition.

2) Go to service mode, choose service data V21.

3) Connect oscilloscope to TP 801, adj V21 until

voltage become Min (below 5 V).

4) After that pls adj service data V20 & V24 same as

“V21”, V22 to “V21-1”, V23 to “V21+2”.

(Auto Adj)

1) In No signal (RASTER) condition.

2) Go to service mode, choose service data V21.

3) Press the R/C Auto (Hex C1) key, OSD will appear

“OK” at screen.

4) If appear “NG” pls repeat step 3.

1

VIF-VCO ADJ

(I

2

C BUS

CONTROL)

(AUTO &

MANUAL ADJ)

2

S-TRAP fo

ADJ

(I

2

C BUS

CONTROL)

(AUTO &

MANUAL ADJ)

3

This adjustment must be done

after aging at least 3 minutes.

21J-FG1RU

3 – 18

5. SCREEN, WHITE BALANCE, SUB-BRIGHTNESS & SUB-CONTRAST ADJUSTMENT

No.

Adjustment point

Adjustment procedure/conditions Waveform and others

SCREEN

ADJUSTMENT

(I2C BUS

CONTROL)

1) In window pattern signal condition.

2) Go to service mode, then select V00.

1

WHITE BAL-

ANCE ADJ

(to be done

after screen

adj)

(I2C BUS

CONTROL)

2

Dark WhiteWhite

WINDOW PATTERN SIGNAL

By pressing R/C key S-Mute (Hex E8), R-D

auto switch to 63, B-D auto switch to 63, R-

Cauto switch to 127, G-C auto switch to

127, B-C auto switch to 127, Sub-

brightness V06 auto switch to 127.

Y-mute & Vertical off, screen will be in

vertical cut-off condition.

3)

Adjust the Screen so that cut-off line ap-

pear in low bright, then judge that whether

the cut-off line appear in Red or Green or

Blue color, in this condition between R-C &

G-C & B-C, fix the data of the color appear

in cut-off line and adj the other two cut-off

data (Note 1) so that cut-off line color be-

come white.

4)

Turn the screen VR of FBT so that cut-off

line just disappear and use R/C by press-

ing key S-Mute (Hex E8) to disable the Y-

mute & V-cut so that picture appear in nor-

mal mode.

5)

WHITE (HIGH BEAM)

(In Window Pattern Signal)

First use Minolta Color Analyzer CA100, let

the gun point at Dark White position (as

drawing attach), Adj V06 until LUMI-

NANCE Y become 5 cd/m2, then let the

gun point at White position (as drawing at-

tach), Adj V04 until LUMINANCE Y be-

come: 160 cd/m2.

Adj the R-D & B-D until the axis of color

temperature become

X=0.30, Y=0.31 7500OK

1)

DARK WHITE (LOW BEAM)

(In Window Pattern

Signal)

Let the gun point at Dark White position, if

the color temperature data shift away from

the data adjusted in step 1, adjust R-C, G-

C & B-C but between them, first color

appears in Screen adj item 1)-4 is fixed,

adj the other two so that to obtain the simi-

lar axis as above.

** Repeat step 1 & 2 to get a regulated posi-

tion.

2)

R-CUTOFF (R-C) UP

R-CUTOFF (R-C) DOWN

G-CUTOFF (G-C) UP

G-CUTOFF (G-C) DOWN

B-CUTOFF (B-C) UP

B-CUTOFF (B-C) DOWN

R-DRIVE (R-D) UP

R-DRIVE (R-D) DOWN

B-DRIVE (B-D) UP

B-DRIVE (B-D) DOWN

RC key "1" (HEX 80)

RC key "4" (HEX 20)

RC key "2" (HEX 40)

RC key "5" (HEX A0)

RC key "3" (HEX C0)

RC key "6" (HEX 60)

RC key "7" (HEX E0)

RC key "Flashback" (HEX E4)

RC key "8" (HEX 10)

RC key "0" (HEX 50)

9.5% IRE

50% IRE

5.5% IRE

Signal using W/B Pattern Generator

SX-1006 (IWATSU) or equivalent.

Window Pattern Signal output level

are as above:

*Note :

21J-FG1RU

3 – 19

No.

Adjustment point

Adjustment procedure/conditions Waveform and others

SUB-

BRIGHTNESS

(to be done

after screen,

white balance

adj)

(I2C BUS

CONTROL)

3

SUB-

CONTRAST

(to be done

after screen,

white balance

adj,

sub-bright-

ness adj)

(I2C BUS

CONTROL)

4

1) Receive the “Monoscope Pattern” signal.

2) Press R/C to set Picture NORMAL condition.

3) Connect the DC miliammeter between TP 603

(+)&TP602(-).

(Full Scale: 3mA Range)

4) Beam current must be within 1000 ±100 µA.

Beam Current

Check

5

Dark White

WINDOW PATTERN SIGNAL

White

WINDOW PATTERN SIGNAL

1) In Window Pattern Signal condition.

Using Minolta Color Analyzer CA-100, let the

gun point at Dark White position (as attach

drawing), adjust V06 Bus data until LUMI-

NANCEY=3± 0.5 cd/m2.

2)

1) In Window Pattern Signal condition.

Using Minolta Color Analyzer CA-100, let the

gun point at White position (as attach drawing),

adjust V04 Bus data until LUMINANCE Y = 160

±10cd/m2

2)

21J-FG1RU

3 – 20

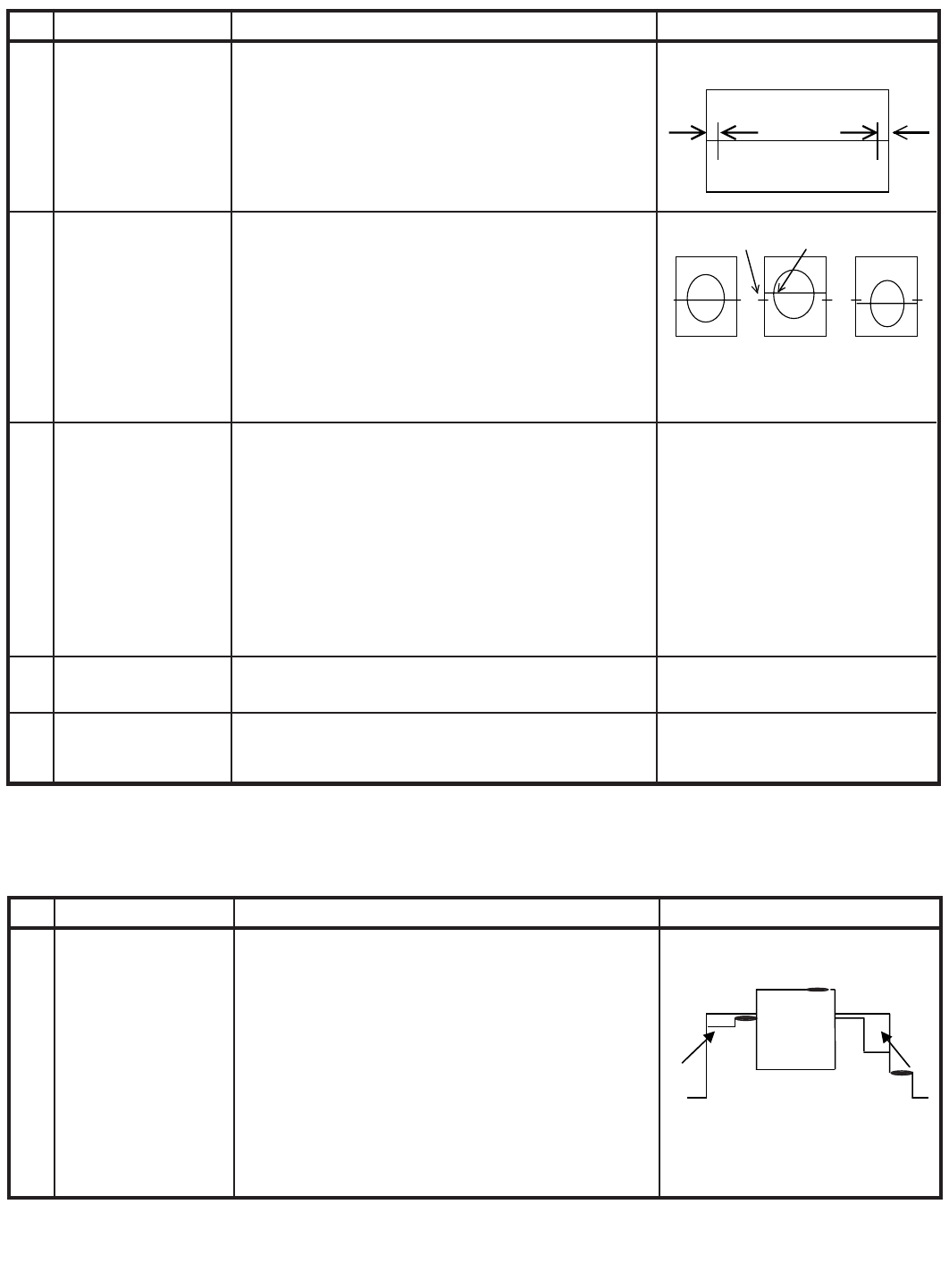

6. HORIZONTAL, VERTICAL, DEFLECTION LOOP and FOCUS ADJUSTMENT

7. PAL CHROMA ADJUSTMENT

No.

Adjustment point

Adjustment procedure/conditions Waveform and others

H-SHIFT

(I

2

CBUS

CONTROL)

(to be done

after purity

adj)

1

V-SHIFT

(I

2

CBUS

CONTROL)

(to be done

after purity

adj)

2

1) Receive Monoscope Pattern Signal (PAL 50 Hz)

2) Choose the service data V13.

3) Adjust the V13 bus data to have a balance position

to spec of A=B (as attach drawing)

4) If cannot make it to A=B, adjust from the best point

so that Bslightly smaller than A.

1) Receive Monoscope Pattern Signal (PAL 50 Hz)

2) Choose the service data V12.

3) Adjust V12 bus data to have a most acceptable

vertical position, the monoscope pattern should

be Balance in vertical position.

1) Receive Monoscope Pattern Signal (PAL 50 Hz)

2) Choose the service data V11.

3) Adjust V11 bus data until the overscan become

10 ±1.5 %

Caution1: Pls aging TV more than 10 minutes

before adjustment.

Caution2: for H-shift & V-shift & V-size adj, after

adj pls switch to Monoscope pattern

signal (NTSC 60 Hz) to confirm all

position are the same.

1) Confirm Service data V08 is 46.

1) Receive the "Monoscope Pattern" signal.

2) Press R/C to set Picture NORMAL condition.

3) Adjust the focus control to get the best focusing.

V-SIZE

(I

2

CBUS

CONTROL)

(to be done

after purity,

V-shift adj)

3

SUB-

SHARPNESS

4

Focus

5

A

AB

OK OK NG

Note: B line (Monoscope middle line) must

same or nearest higher position to the A

mark (Tube middle mark),refer to the attach

drawing.

B

Figure:

No.

Adjustment point

Adjustment procedure/conditions Waveform and others

SUB COLOUR

(I2C BUS

CONTROL)

(to be done

after sub-

picture, sub-

tint adj)

1) Receive the “PAL Colour Bar” signal.

2) Press R/C to set Picture Normal condition.

3) Connect the oscilloscope to R-Amp Transistor

Base(TP 851).

Range : 100mV/Div (AC)

(Using 10:1 Probe)

Sweep Time : 10 µsec/Div

4) Using the R/C call V05 in SERVICE mode. Ad-

just V05 bus data, so that the 75% White & Red

portions of PAL Colour Bar be at the same level

shown as Fig 1-1.

5) Clear the SERVICE mode.

1

Fig. 1-1

Cy G B

WY 100% W Mg R

75%

21J-FG1RU

3 – 21

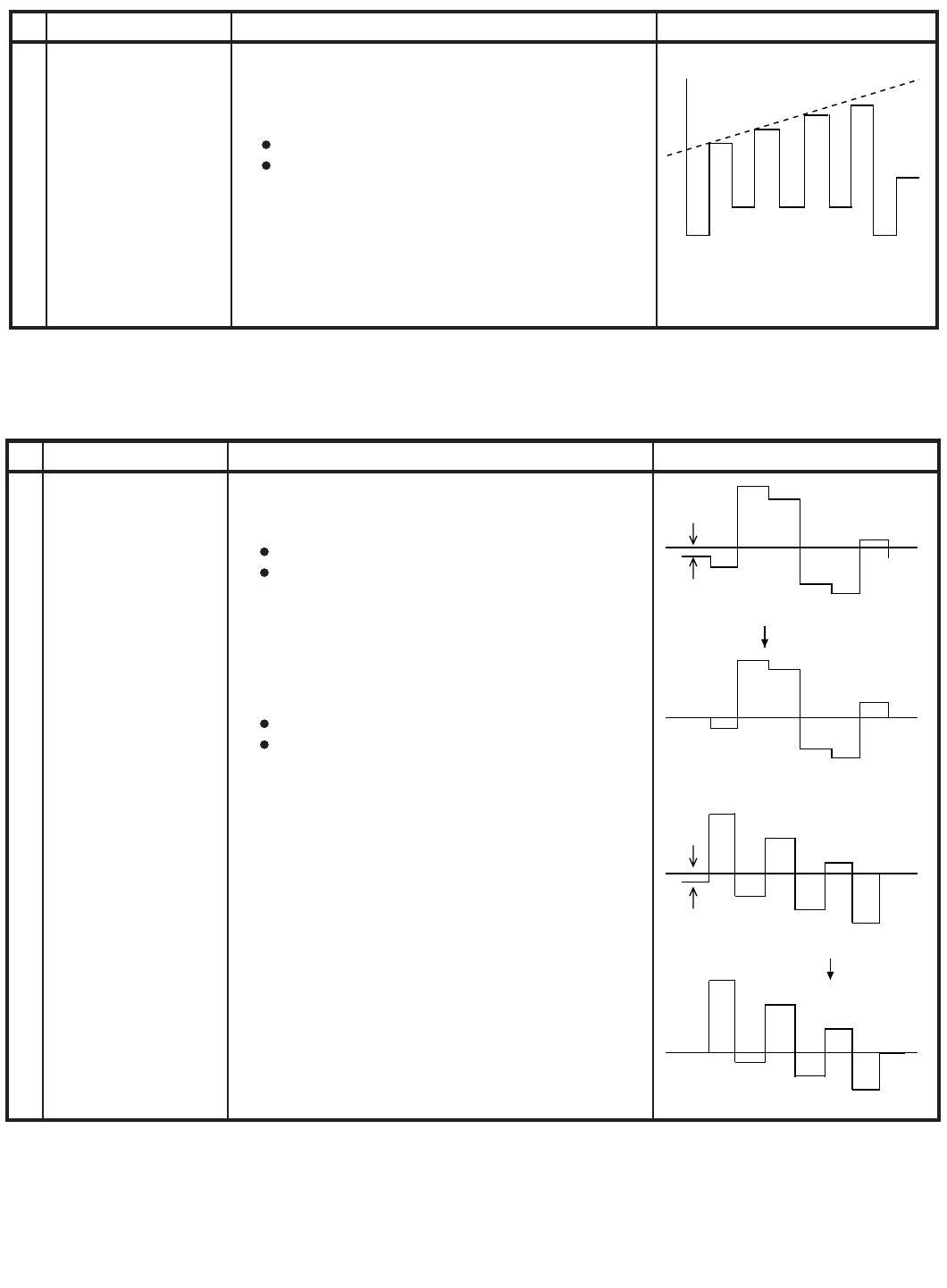

8. NTSC CHROMA ADJUSTMET

9. SECAM CHROMA ADJUSTMENT

No.

Adjustment point

Adjustment procedure/conditions Waveform and others

SUB-TINT 1) Receive the "NTSC3.58 Colour Bar" signal thru

AV in.

2) Connect the oscilloscope to B-Amp Transistor

Base (TP853 ).

Range : 100mV/Div. (AC)(Use Probe 10:1)

Sweep time : 10 µsec/Div.

3) In Service mode, go to V07, press R/C Y-

mute(Hex E4) or FLASHBACK Key.

4) Call the "V07" data in service mode. Adjust the

"V07" bus data to obtain the waveform shown as

Fig. 1-1.

5) Disable Y-Mute by pressing key(Hex E4) or

then clear the SERVICE mode.

1

Fig. 1-1

WYCyGMgR B

FLASHBACK,

(I

2

C BUS CONTROL)

No.

Adjustment point

Adjustment procedure/conditions Waveform and others

SECAM

BLACK LEVEL

R-Y/B-Y

(I2C BUS

CONTROL)

1) Receive “SECAM COLOUR BAR” signal.

2) In the service mode, select service data V14.

3) Connect oscilloscope to TP 801.

Range : 20mV/Div. (AC)(Use Probe 10:1)

Sweep time : 20 µsec/Div.

4) Adjust the V14 so that the offset of R-Y is mini-

mum, shown in Fig 2-1(b), it means adjust the

offset of between No signal line and Signal line to

minimum.

5) In the service mode, select service data V15.

6) Connect oscilloscope to TP 801.

Range : 20mV/Div. (AC)(Use Probe 10:1)

Sweep time : 20 µsec/Div.

7) Adjust the V15 so that the offset of B-Y to mini-

mum, shown in Fig 2-2(b), it means adjust the

offset of between No signal line and Signal line to

minimum.

1

Fig 2-1(a)

Offset

Offset

Fig 2-1(b)

Fig 2-2(a)

Fig 2-2(b)

21J-FG1RU

3 – 22

10. PROTECTOR OPERATION CHECKING

11. A/V INPUT, OUTPUT & COMPONENT IN CHECKING

No.

Adjustment point

Adjustment procedure/conditions Waveform and others

BEAM 1) Receive "Monoscope Pattern" signal.

2) Set CONTRAST MAX.

3) Set BRIGHT MAX.

4) During the Collector & Emitter of Q853/4/5 short,

make sure the protector ON and switch to standby

mode.

1* Select one of Q853/4/5 to do

each short.

H, V PROTECTOR 1) Receive "Monoscope Pattern" signal.

2) Connect output of Bias Box to D602 cathode

(C602 positive).

3) Set voltage of Bias Box to 18V and make sure

the protector is not working.

4) Set voltage of Bias Box to 27V , and make sure

the protector is working.

2

OTHER

PROTECTOR

1) Once finish rectified Electrolytic Capacitor short

testing in +B line, check all possible damaged

components on +B line.

(Use random selected set for inspection)

3

PROTECTOR

No.

Adjustment point

Adjustment procedure/conditions Waveform and others

1

2

3

1) Using the TV/VIDEO key on the remote control-

ler, make sure that the modes change in order of

TV, AV1, AV2 & TV again and the video & audio

output are according to the input terminal for

each mode.

1) Receive the "PAL Color Bar" signal (100%

White Color Bar, Sound 400 Hz 100% Mod).

2) Terminate the Video output with a 75 ohm

impedance.

Make sure the output is as specified

(1.0 Vp-p ±3 dB).

3) Terminate the Audio output with a 10K ohm

impedance.

Make sure the O/P is as specified

(1.5 Vp-p ±3 dB).

1) Connect YUV & Audio signal to Component In

terminal and Audio terminal.

2) Using the TV/VIDEO key on the remote

controler, press it until the modes change to

COMPONENT, confirm output is appear.

VIDEO AND

AUDIO INPUT

CHECK

COMPONENT IN

CHECK

VIDEO AND

AUDIO OUTPUT

CHECK

21J-FG1RU

3 – 23

12. FUNCTION OPERATION CHECKING (VIDEO AND AUDIO)

No.

Adjustment point

Adjustment procedure/conditions Waveform and others

CONTRAST key 1) Receive "Monoscope Pattern" signal.

2) Set MENU, then go into PICTURE mode to se-

lect CONTRAST.

3) Press Volume Up/Down key to check whether the

CONTRAST effect is OK or not.

1

1) Receive "Colour Bar" signal.

2) Set MENU, then go into PICTURE mode to se-

lect COLOUR.

3) Press Volume Up/Down key to check whether the

COLOUR effect is OK or not.

2COLOUR key

BRIGHTNESS key 1) Receive "Monoscope Pattern" signal.

2) Set MENU, then go into PICTURE mode to se-

lect BRIGHTNESS.

3) Press Volume Up/Down key to check whether the

BRIGHTNESS effect is OK or not.

3

TINT key 1) Receive the "NTSC Colour Bar" signal thru AV in.

2) Set MENU, then go into PICTURE mode to se-

lect TINT.

3) Press Volume Up/Down key to check TINT, UP

for GREEN direction and DOWN for PURPLE di-

rection whether is OK or not.

4

SHARPNESS

Key

1) Receive "Monoscope Pattern" signal.

2) Set MENU, then go into PICTURE mode to se-

lect SHARPNESS.

3) Press Volume Up/Down key to check whether

the SHARPNESS effect is OK or not.

5

WHITE TEMP 1) Receive "Monoscope Pattern" signal.

2) Set MENU, then go into PICTURE mode to se-

lect WHITE TEMP.

3) Press Volume Up/Down key to check WHITE

TEMP function The back ground will change to

(shift right) bluish and (shift left) reddish.

8

NORMAL Key71)

CH DISPLAY

COLOUR

1) All Ch (1~99) will have an OSD display of the

channel number in green colour under AFT ON

condition.

6

SURROUND

TREBLE

BASS

BALANCE

: OFF

:CENTER

:CENTER

:CENTER

*SOUND MODE

CONTRAST

COLOUR

BRIGHTNESS

TINT

SHARPNESS

WHITE TEMP

:MAX

:CENTER

:CENTER

:CENTER

:CENTER

:CENTER

PICTURE MODE

Once in PICTURE or SOUND Mode, and the NOR-

MAL key is pressed, all the settings will be preset to

normal setting accordingly.

(Normal setting value for every mode)

In NORMAL Mode, when press

NORMAL key, will appear

NORMAL OSD and all setting

PICTURE, SOUND functions

set to NORMAL.

21J-FG1RU

3 – 24

No.

Adjustment point

Adjustment procedure/conditions Waveform and others

COLOUR

SYSTEM

9

10 SURROUND

TREBLE11

1) Receive the "PAL COLOUR BAR" signal, press

MENU, choose CH-SETTING to select COLOR

modes except PAL, check the COLOUR is not

working properly. Then, select the "PAL" mode.

Check again its colour so that it is working properly.

2) Receive "SECAM COLOUR BAR" signal, press

MENU, choose CH-SETTING to select COLOR

modes except SECAM, check the COLOUR is not

working properly. Then, select the "SECAM" mode.

Check again its colour so that it is working properly.

3) Receive "NTSC 4.43" signal, press MENU, choose

CH-SETTING to select COLOR modes except

N443, check the COLOUR is not working properly.

Then, select the N443 mode. Check again its col-

our so that it is working properly.

4) Receive "NTSC 3.58" signal thru AV, press MENU,

choose CH-SETTING to select COLOR modes ex-

cept N358, check the COLOUR is not working

properly. Then, select the N358 mode. Check again

its colour so that it is working properly.

1) Receive "music" sound signal.

2) Set MENU, then go into SOUND MENU to select

SURROUND.

3) Press VOLUME UP/DOWN key to check SUR-

ROUND I, II and OFF effect.

1) Receive "music" sound signal.

2) Set MENU, then go into SOUND MENU to select

TREBLE.

3) Press VOLUME UP/DOWN key to check whether

the TREBLE effect is OK or not.

BASS12 1) Receive "music" sound signal.

2) Set MENU, then go into SOUND MENU to select

BASS.

3) Press VOLUME UP/DOWN key to check whether

the BASS effect is OK or not.

BALANCE13 1) Receive mono-tone signal.

2) Set MENU, then go into SOUND MENU to select

BALANCE.

3) Press VOLUME UP/DOWN key to check whether

the left to right BALANCE effect is OK or not.

NOISE MUTE

CHECKING

14 1) Receive "PAL COLOUR BAR" signal.

2) Turn up the volume control to maximum, make sure

the sound is heard from the speakers. Then put the

unit in no signal state.

4) Finally turn sound level of CTV to minimum.

3) Check the sound mute is effective.

21J-FG1RU

3 – 25

13. HEADPHONE JACK CHECKING

14. SHOCK TEST CHECKING

No.

Adjustment point

Adjustment procedure/conditions

Waveform and others

SOUND

SYSTEM

15

16 OSD

LANGUAGE

QUANTITY

CHECK

1) Receive "PAL-D/K" signal, press MENU, choose CH-SETTING

then go into SOUND mode to select B/G, I, M. Check the sound

output is not working properly. Select D/K and check the sound

output to make sure it is working properly.

2) Receive "PAL-I" signal, press MENU, choose CH-SETTING then

go into SOUND mode to select B/G, D/K, M. Check the sound out-

put is not working properly. Select I and check the sound output to

make sure it is working properly.

3) Receive "PAL-B/G" signal, press MENU, choose CH-SETTING

then go into SOUND mode to select I, D/K, M. Check the sound

output is not working properly. Select B/G and check the sound

output to make sure it is working properly.

1) Check OSD LANGUAGE quantity and type for respect model.

MODEL

QUANTITY

ENGLISH RUSSIAN CHINESE FRENCH ARABIC MALAY

21J-FG1RU 2 O O - - - -

No.

Adjustment point

Adjustment procedure/conditions Waveform and others

HEADPHONE

OUTPUT

CHECKING

1) Receive PAL COLOUR BAR with SOUND 400Hz,

100% MODULATION (±50kHz Dev).

2) Maximum volume, and check the headphone

output with 400Hz sound and no sound output

speaker.

1

from

No.

Adjustment point

Adjustment procedure/conditions Waveform and others

SHOCK TEST 1) Hit at the top of TV set for two time.

2) Check TV set not damage and TV operation op-

erate correctly.

1

21J-FG1RU

3 – 26

15. ROM CORRECTION CHECKING

ROM CORRECTION DATA

NOTE: Add ROM Correction for countermeasure for data change when AGING and AC POWER OFF. There is posibility of changing background

color if no implement ROM Correction when AGING and AC power OFF.

MCU: M37160MAH-052FP

Soft Ver. V1.00H

ROMCORRECT1... AC-DET protection loop is to be exited when AD3(Prot) is detected HIGH so that protection mode can perform

properly

ROMCORRECT2...

EEPROM Data

Slave Sub. Data Comment

$A2 $76 A0 ROMCORRECT1 Permission

$A2 $77 92 ROMCORRECT1 Address(H)

$A2 $78 14 ROMCORRECT1 Address(L)

$A2 $79 0F ROMCORRECT1 Code length

$A2 $7A 07 ROMCORRECT1 Checksum

$A2 $7B FF ROMCORRECT2 Permission

$A2 $7C FF ROMCORRECT2 Address(H)

$A2 $7D FF ROMCORRECT2 Address(L)

$A2 $7E FF ROMCORRECT2 Code length

$A2 $7F FF ROMCORRECT2 Checksum

$A2 $80-87 A2 40 A9 02 20 D2 F3 90 ROMCORRECT1 Data

$A2 $88-$8F 03 4C CD 91 4C 17 92 FF ROMCORRECT1 Data

$A2 $90-$97 FF FF FF FF FF FF FF FF ROMCORRECT1 Data

$A2 $98-$9F FF FF FF FF FF FF FF FF ROMCORRECT1 Data

$A2 $A0-$A7 FF FF FF FF FF FF FF FF ROMCORRECT2 Data

$A2 $A8-$AF FF FF FF FF FF FF FF FF ROMCORRECT2 Data

$A2 $B0-$B7 FF FF FF FF FF FF FF FF ROMCORRECT2 Data

$A2 $B8-$BF FF FF FF FF FF FF FF FF ROMCORRECT2 Data

No.

Adjustment point

Adjustment procedure/conditions Waveform and others

ROM CORRECTION

CHECK

11) Go to SERVICE mode, press "MENU" key until the

SERVICE mode display as in Figure 1 appeared.*

2) Check the ROM CORRECTION status by monitoring the

screen, follow the model's setting.

CHK1: AC-DET protection loop is to be exited when AD3

(Prot) is detected HIGH so that protection mode

can perform properly

MODEL Micon Version

CHK1 CHK2 FIGURE

21J-FG1RU RH-IXB226WJZZ(Software Ver. 1.0) ACT NO

* OTHERS:

Figure 1

INFO

SLV1 0 0

SLV2 0 0

SLV4 0 0

SLV7 0 0

MICON : ZZ CHK1 : ACT

SOFT : 1.0 CHK2 : NO

21J-FG1RU

4 – 1

21J-FG1RU Service Manual

CHAPTER 4. MEMORY MAP

[1] MEMORY MAP

SLAVE ADDRESS : A0(00-FF) A2(100-1FF) A4(200-2FF) A6(300-3FF) A8(400-4FF)

ADDRESS DATA MICON EEPROM EEPROM CHASSIS CTV FINAL LAST INITIAL

(HEX)D7D6D5D4D3D2D1D0DEFAULT RANGE WRITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE SETTING DATA REMARK

00 7B 00-FF

01 72 00-FF

02 72 00-FF

03 76 00-FF

04 00 00-FF

05 00 00-FF

06 46 00-FF

07

08 00-FF

09 00-FF

0A 00-FF

0B 00-FF

0C 00-FF

0D 00-FF

0E 00-FF

0F 00-FF

10 00-FF

11 00-FF

12 00-FF

13 00-FF

14 00-FF

15 00-FF

16 00-FF

17 00-FF

18 00-FF

19 00-FF

1A 00-FF

1B 00-FF

1C 00-FF

1D 00-FF

1E 00-FF

1F 00-FF

20 00-FF

21 00-FF

22 00-FF

23 00-FF

24 00-FF

25 00-FF

26 00-FF

27 00-FF

28 00-FF

29 00-FF

2A 00-FF

2B 00-FF

2C 00-FF

2D 00-FF

2E 00-FF

2F 00-FF

30 00-FF

31 00-FF

32 00-FF

33 00-FF

34 00-FF

35 00-FF

36 00-FF

37 00-FF

38 00-FF

39 00-FF

3A 00-FF

3B 00-FF

3C 00-FF

3D 00-FF

3E 00-FF

3F 00-FF

MODEL MODEL

LETTER NO. LETTER NO.

POS 27

TUNING FREQUENCY (HIGH BYTE)

POS 25

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 26

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

TUNING FREQUENCY (LOW BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 23

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 24

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 21

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 22

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 19

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 20

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 17

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 18

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 15

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 16

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 13

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 14

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 11

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 12

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 9

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 10

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 7

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 8

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 5

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 6

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 3

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 4

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (HIGH BYTE)

POS 0

POS 1

TUNING FREQUENCY (LOW BYTE)

POS 2

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

TUNING FREQUENCY (HIGH BYTE)

* depend on

Ixcode, current

this model ix

IXB226 so set as

7B 72 72 76.

*depend on

final release

version. If

version 0.70 so

it will become

00 & 46

SOFTWARE VERSION (LOW BYTE)

TUNING FREQUENCY (LOW BYTE)

EEPROM INITIALIZATION JUDGEMENT BYTE-0

EEPROM INITIALIZATION JUDGEMENT BYTE-1

EEPROM INITIALIZATION JUDGEMENT BYTE-2

EEPROM INITIALIZATION JUDGEMENT BYTE-3

ROM VERSION

SOFTWARE VERSION (HIGH BYTE)

21J-FG1RU

4 – 2

MEMORY MAP (Continued)

SLAVE ADDRESS : A0(00-FF) A2(100-1FF) A4(200-2FF) A6(300-3FF) A8(400-4FF)

ADDRESS DATA MICON EEPROM EEPROM CHASSIS CTV FINAL LAST INITIAL

(HEX)D7D6D5D4D3D2D1D0DEFAULT RANGE WRITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE SETTING DATA REMARK

40 00-FF

41 00-FF

42 00-FF

43 00-FF

44 00-FF

45 00-FF

46 00-FF

47 00-FF

48 00-FF

49 00-FF

4A 00-FF

4B 00-FF

4C 00-FF

4D 00-FF

4E 00-FF

4F 00-FF

50 00-FF

51 00-FF

52 00-FF

53 00-FF

54 00-FF

55 00-FF

56 00-FF

57 00-FF

58 00-FF

59 00-FF

5A 00-FF

5B 00-FF

5C 00-FF

5D 00-FF

5E 00-FF

5F 00-FF

60 00-FF

61 00-FF

62 00-FF

63 00-FF

64 00-FF

65 00-FF

66 00-FF

67 00-FF

68 00-FF

69 00-FF

6A 00-FF

6B 00-FF

6C 00-FF

6D 00-FF

6E 00-FF

6F 00-FF

70 00-FF

71 00-FF

72 00-FF

73 00-FF

74 00-FF

75 00-FF

76 00-FF

77 00-FF

78 00-FF

79 00-FF

7A 00-FF

7B 00-FF

7C 00-FF

7D 00-FF

7E 00-FF

7F 00-FF

MODEL MODEL

LETTER NO. LETTER NO.

TUNING FREQUENCY (LOW BYTE)

POS 30

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 31

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 28

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 29

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 58

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 59

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 56

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 57

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 54

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 55

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 52

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 53

TUNING FREQUENCY (HIGH BYTE)

POS 50

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 51

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 48

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 49

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 46

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 47

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 44

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 45

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 42

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 43

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 40

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 41

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 38

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 39

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 36

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 37

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 34

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 35

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 32

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 33

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

21J-FG1RU

4 – 3

MEMORY MAP (Continued)

SLAVE ADDRESS : A0(00-FF) A2(100-1FF) A4(200-2FF) A6(300-3FF) A8(400-4FF)

ADDRESS DATA MICON EEPROM EEPROM CHASSIS CTV FINAL LAST INITIAL

(HEX) D7 D6 D5 D4 D3 D2 D1 D0 DEFAULT RANGE WRITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE SETTING DATA REMARK

80 00-FF

81 00-FF

82 00-FF

83 00-FF

84 00-FF

85 00-FF

86 00-FF

87 00-FF

88 00-FF

89 00-FF

8A 00-FF

8B 00-FF

8C 00-FF

8D 00-FF

8E 00-FF

8F 00-FF

90 00-FF

91 00-FF

92 00-FF

93 00-FF

94 00-FF

95 00-FF

96 00-FF

97 00-FF

98 00-FF

99 00-FF

9A 00-FF

9B 00-FF

9C 00-FF

9D 00-FF

9E 00-FF

9F 00-FF

A0 00-FF

A1 00-FF

A2 00-FF

A3 00-FF

A4 00-FF

A5 00-FF

A6 00-FF

A7 00-FF

A8 00-FF

A9 00-FF

AA 00-FF

AB 00-FF

AC 00-FF

AD 00-FF

AE 00-FF

AF 00-FF

B0 00-FF

B1 00-FF

B2 00-FF

B3 00-FF

B4 00-FF

B5 00-FF

B6 00-FF

B7 00-FF

B8 00-FF

B9 00-FF

BA 00-FF

BB 00-FF

BC 00-FF

BD 00-FF

BE 00-FF

BF 00-FF

MODEL MODEL

LETTER NO. LETTER NO.

TUNING FREQUENCY (LOW BYTE)

POS 90

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 91

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 88

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 89

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 86

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 87

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 84

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 85

TUNING FREQUENCY (HIGH BYTE)

POS 82

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 83

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 80

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 81

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 78

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 79

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 76

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 77

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 74

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 75

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 72

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 73

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 70

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 71

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 68

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 69

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 66

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 67

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 64

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 65

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 62

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 63

TUNING FREQUENCY (HIGH BYTE)

POS 60

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 61

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

21J-FG1RU

4 – 4

MEMORY MAP (Continued)

SLAVE ADDRESS : A0(00-FF) A2(100-1FF) A4(200-2FF) A6(300-3FF) A8(400-4FF)

ADDRESS DATA MICON EEPROM EEPROM CHASSIS CTV FINAL LAST INITIAL

(HEX)D7D6D5D4D3D2D1D0DEFAULT RANGE WRITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE SETTING DA TA REMARK

C0 00-FF

C1 00-FF

C2 00-FF

C3 00-FF

C4 00-FF

C5 00-FF

C6 00-FF

C7 00-FF

C8 00-FF

C9 00-FF

CA 00-FF

CB 00-FF

CC 00-FF

CD 00-FF

CE 00-FF

CF 00-FF

D0 0A 00-65 POS 10

D1 14 00-65 POS 20

D2 1E 00-65 POS 30

D3 28 00-65 POS 40

D4 3C 00-3C

D5 1E 00-3C

D6 1E 00-3C

D7 1E 00-3C

D8 1E 00-3C

D9 01 00-02

DA 00 00-02

DB 1E 00-3C

DC 1E 00-3C

DD 1E 00-3C

DE

Message

Screen

Message

Display S-Booster 01 00-01

(1) Add Message

Display ON/OFF

setting.

DF

E0 POS 7 POS 6 POS 5 POS4 POS 3 POS 2 POS 1 POS 0 FF 00-FF

E1 POS15 POS14 POS13 POS12 POS11 POS10 POS 9 POS 8 FF 00-FF

E2 POS23 POS22 POS21 POS20 POS19 POS18 POS17 POS16 FF 00-FF

E3 POS31 POS30 POS29 POS28 POS27 POS26 POS25 POS24 FF 00-FF

E4 POS39 POS38 POS37 POS36 POS35 POS34 POS33 POS32 FF 00-FF

E5 POS47 POS46 POS45 POS44 POS43 POS42 POS41 POS40 FF 00-FF

E6 POS55 POS54 POS53 POS52 POS51 POS50 POS49 POS48 FF 00-FF

E7 POS63 POS62 POS61 POS60 POS59 POS58 POS57 POS56 FF 00-FF

E8 POS71 POS70 POS69 POS68 POS67 POS66 POS65 POS64 FF 00-FF

E9 POS79 POS78 POS77 POS76 POS75 POS74 POS73 POS72 FF 00-FF

EA POS87 POS86 POS85 POS84 POS83 POS82 POS81 POS80 FF 00-FF

EB POS95 POS94 POS93 POS92 POS91 POS90 POS89 POS88 FF 00-FF

EC POS99 POS98 POS97 POS96 FF 00-0F

ED

EE Blue Back 1/2 digit 48 00-FF

EF 00 00-3C

F0 POS 7 POS 6 POS 5 POS4 POS 3 POS 2 POS 1 POS 0 01 00-FF

F1 POS15 POS14 POS13 POS12 POS11 POS10 POS 9 POS 8 00 00-FF

F2 POS23 POS22 POS21 POS20 POS19 POS18 POS17 POS16 00 00-FF

F3 POS31 POS30 POS29 POS28 POS27 POS26 POS25 POS24 00 00-FF

F4 POS39 POS38 POS37 POS36 POS35 POS34 POS33 POS32 00 00-FF

F5 POS47 POS46 POS45 POS44 POS43 POS42 POS41 POS40 00 00-FF

F6 POS55 POS54 POS53 POS52 POS51 POS50 POS49 POS48 00 00-FF

F7 POS63 POS62 POS61 POS60 POS59 POS58 POS57 POS56 00 00-FF

F8 POS71 POS70 POS69 POS68 POS67 POS66 POS65 POS64 00 00-FF

F9 POS79 POS78 POS77 POS76 POS75 POS74 POS73 POS72 00 00-FF

FA POS87 POS86 POS85 POS84 POS83 POS82 POS81 POS80 00 00-FF

FB POS95 POS94 POS93 POS92 POS91 POS90 POS89 POS88 00 00-FF

FC POS99 POS98 POS97 POS96 00 00-0F

FD AA AA(On),

55(Off)

FE FF 00-3C, FF

FF FF 00-65, FF

MODEL MODEL

LETTER NO. LETTER NO.

FAVORITE CHANNEL 1

FAVORITE CHANNEL 2

FAVORITE CHANNEL 3

FAVORITE CHANNEL 4

LAST SURROUND MODE

LAST CONTRAST

LAST COLOUR

LAST BRIGHTNESS

LAST TINT

1= SKIP ON,

0=SKIP OFF

POWER

ON TIMER VOLUME

1= AFT ON,

0=AFT OFF

TEXT LANGUAGE

LAST VOLUME

POS 98

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 99

TUNING FREQUENCY (HIGH BYTE)

POS 96

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 97

TUNING FREQUENCY (HIGH BYTE)

POS 94

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 95

TUNING FREQUENCY (HIGH BYTE)

POS 92

TUNING FREQUENCY (HIGH BYTE)

TUNING FREQUENCY (LOW BYTE)

POS 93

TUNING FREQUENCY (HIGH BYTE)

ON TIMER CHANNEL

TUNING FREQUENCY (LOW BYTE)

TUNING FREQUENCY (LOW BYTE)

TUNING FREQUENCY (LOW BYTE)

TUNING FREQUENCY (LOW BYTE)

LAST BALANCE

LAST SHARPNESS

LAST TREBLE

LAST BASS

LAST WHITE TEMP.

21J-FG1RU

4 – 5

MEMORY MAP (Continued)

SLAVE ADDRESS : A0(00-FF) A2(100-1FF) A4(200-2FF) A6(300-3FF) A8(400-4FF)

ADDRESS DATA MICON EEPROM EEPROM CHASSIS CTV FINAL LAST INITIAL

(HEX)D7 D6D5D4D3D2D1D0DEFAULT RANGE W RITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE SETTING DATA REMARK

100 00 00-34

101 00 00-34 S-SYSTEM

102 00 00-34 0: B/G

103 00 00-34 1: I

104 00 00-34 2: D/K

105 00 00-34 3: M

106 00 00-34

107 00 00-34 C-SYSTEM

108 00 00-34 0: AUTO

109 00 00-34 1: PAL

10A 00 00-34 2:SECAM

10B 00 00-34 3: N443

10C 00 00-34 4:N358

10D 00 00-34

10E 00 00-34 ANT-BOOSTER

10F 00 00-34 0: OFF

110 00 00-34 1: ON I

111 00 00-34 2: ON II

112 00 00-34

113 00 00-34

114 00 00-34

115 00 00-34

116 00 00-34

117 00 00-34

118 00 00-34

119 00 00-34

11A 00 00-34

11B 00 00-34

11C 00 00-34

11D 00 00-34

11E 00 00-34

11F 00 00-34

120 00 00-34

121 00 00-34

122 00 00-34

123 00 00-34

124 00 00-34

125 00 00-34

126 00 00-34

127 00 00-34

128 00 00-34

129 00 00-34

12A 00 00-34

12B 00 00-34

12C 00 00-34

12D 00 00-34

12E 00 00-34

12F 00 00-34

130 00 00-34

131 00 00-34

132 00 00-34

133 00 00-34

134 00 00-34

135 00 00-34

136 00 00-34

137 00 00-34

138 00 00-34

139 00 00-34

13A 00 00-34

13B 00 00-34

13C 00 00-34

13D 00 00-34

13E 00 00-34

13F 00 00-34

MODEL MODEL

LETTER NO. LETTER NO.

ANT-BOOSTER (POS63)

ANT-BOOSTER (POS59)

ANT-BOOSTER (POS60)

ANT-BOOSTER (POS61)

ANT-BOOSTER (POS62)

ANT-BOOSTER (POS55)

ANT-BOOSTER (POS56)

ANT-BOOSTER (POS57)

ANT-BOOSTER (POS58)

ANT-BOOSTER (POS51)

ANT-BOOSTER (POS52)

ANT-BOOSTER (POS53)

ANT-BOOSTER (POS54)

ANT-BOOSTER (POS47)

ANT-BOOSTER (POS48)

ANT-BOOSTER (POS49)

ANT-BOOSTER (POS50)

ANT-BOOSTER (POS43)

ANT-BOOSTER (POS44)

ANT-BOOSTER (POS45)

ANT-BOOSTER (POS46)

ANT-BOOSTER (POS39)

ANT-BOOSTER (POS40)

ANT-BOOSTER (POS41)

ANT-BOOSTER (POS42)

ANT-BOOSTER (POS35)

ANT-BOOSTER (POS36)

ANT-BOOSTER (POS37)

ANT-BOOSTER (POS38)

ANT-BOOSTER (POS31)

ANT-BOOSTER (POS32)

ANT-BOOSTER (POS33)

ANT-BOOSTER (POS34)

ANT-BOOSTER (POS27)

ANT-BOOSTER (POS28)

ANT-BOOSTER (POS29)

ANT-BOOSTER (POS30)

ANT-BOOSTER (POS23)

ANT-BOOSTER (POS24)

ANT-BOOSTER (POS25)

ANT-BOOSTER (POS26)

ANT-BOOSTER (POS19)

ANT-BOOSTER (POS20)

ANT-BOOSTER (POS21)

ANT-BOOSTER (POS22)

ANT-BOOSTER (POS15)

ANT-BOOSTER (POS16)

ANT-BOOSTER (POS17)

ANT-BOOSTER (POS18)

ANT-BOOSTER (POS11)

ANT-BOOSTER (POS12)

ANT-BOOSTER (POS13)

ANT-BOOSTER (POS14)

ANT-BOOSTER (POS7)

ANT-BOOSTER (POS8)

ANT-BOOSTER (POS9)

ANT-BOOSTER (POS10)

S-SYSTEM (POS29)

S-SYSTEM (POS30)

S-SYSTEM (POS31)

S-SYSTEM (POS32)

S-SYSTEM (POS0)

S-SYSTEM (POS1)

S-SYSTEM (POS2)

S-SYSTEM (POS3)

C-SYSTEM (POS63)

C-SYSTEM (POS29)

C-SYSTEM (POS30)

S-SYSTEM (POS40)

S-SYSTEM (POS41)

S-SYSTEM (POS42)

S-SYSTEM (POS43)

S-SYSTEM (POS44)

C-SYSTEM (POS61)

C-SYSTEM (POS62)

S-SYSTEM (POS61)

C-SYSTEM (POS57)

C-SYSTEM (POS58)

S-SYSTEM (POS57)

S-SYSTEM (POS58)

C-SYSTEM (POS59)

C-SYSTEM (POS60)

S-SYSTEM (POS59)

S-SYSTEM (POS60)

C-SYSTEM (POS55)

C-SYSTEM (POS56)

S-SYSTEM (POS55)

S-SYSTEM (POS56)

C-SYSTEM (POS53)

C-SYSTEM (POS54)

S-SYSTEM (POS53)

S-SYSTEM (POS54)

C-SYSTEM (POS51)

C-SYSTEM (POS52)

S-SYSTEM (POS51)

S-SYSTEM (POS52)

C-SYSTEM (POS49)

C-SYSTEM (POS50)

S-SYSTEM (POS49)

S-SYSTEM (POS50)

C-SYSTEM (POS47)

C-SYSTEM (POS48)

S-SYSTEM (POS47)

S-SYSTEM (POS48)

C-SYSTEM (POS45)

C-SYSTEM (POS46)

S-SYSTEM (POS45)

S-SYSTEM (POS46)

C-SYSTEM (POS43)

C-SYSTEM (POS44)

C-SYSTEM (POS41)

C-SYSTEM (POS42)

S-SYSTEM (POS35)

S-SYSTEM (POS36)

C-SYSTEM (POS39)

C-SYSTEM (POS40)

S-SYSTEM (POS39)

C-SYSTEM (POS37)

C-SYSTEM (POS38)

S-SYSTEM (POS37)

S-SYSTEM (POS38)

C-SYSTEM (POS31)

C-SYSTEM (POS32)

S-SYSTEM (POS62)

S-SYSTEM (POS63)

C-SYSTEM (POS33)

C-SYSTEM (POS34)

S-SYSTEM (POS33)

S-SYSTEM (POS34)

C-SYSTEM (POS35)

C-SYSTEM (POS36)

S-SYSTEM (POS26)

S-SYSTEM (POS27)

S-SYSTEM (POS28)

C-SYSTEM (POS27)

C-SYSTEM (POS28)

C-SYSTEM (POS26)

C-SYSTEM (POS24)

S-SYSTEM (POS23)

S-SYSTEM (POS24)

S-SYSTEM (POS25) C-SYSTEM (POS25)

C-SYSTEM (POS22)

S-SYSTEM (POS21)

S-SYSTEM (POS22)

C-SYSTEM (POS23)

C-SYSTEM (POS20)

S-SYSTEM (POS19)

S-SYSTEM (POS20)

C-SYSTEM (POS21)

C-SYSTEM (POS18)

S-SYSTEM (POS17)

S-SYSTEM (POS18)

C-SYSTEM (POS19)

C-SYSTEM (POS16)

S-SYSTEM (POS15)

S-SYSTEM (POS16)

C-SYSTEM (POS17)

C-SYSTEM (POS14)

S-SYSTEM (POS13)

S-SYSTEM (POS14)

C-SYSTEM (POS15)

C-SYSTEM (POS12)

S-SYSTEM (POS11)

S-SYSTEM (POS12)

C-SYSTEM (POS13)

C-SYSTEM (POS10)

S-SYSTEM (POS9)

S-SYSTEM (POS10)

C-SYSTEM (POS11)

C-SYSTEM (POS8)

S-SYSTEM (POS7)

S-SYSTEM (POS8)

C-SYSTEM (POS9)

C-SYSTEM (POS6)

S-SYSTEM (POS5)

S-SYSTEM (POS6)

C-SYSTEM POS7)

ANT-BOOSTER (POS4)

C-SYSTEM (POS1)

C-SYSTEM (POS2)

C-SYSTEM (POS5)

ANT-BOOSTER (POS5)

ANT-BOOSTER (POS6)

C-SYSTEM (POS0)

C-SYSTEM (POS3)

C-SYSTEM (POS4)S-SYSTEM (POS4)

ANT-BOOSTER (POS0)

ANT-BOOSTER (POS1)

ANT-BOOSTER (POS2)

ANT-BOOSTER (POS3)

21J-FG1RU

4 – 6

MEMORY MAP (Continued)

SLAVE ADDRESS : A0(00-FF) A2(100-1FF) A4(200-2FF) A6(300-3FF) A8(400-4FF)

ADDRESS

DATA

MICON EEPROM EEPROM CHASSIS CTV FINAL LAST INIT IAL

(HEX)D7D6D5D4D3D2D1D0

DEFAULT RANGE WRITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE SETTING DATA REMARK

140 00 00-9C

141 00 00-34

142 00 00-34

143 00 00-34

144 00 00-34

145 00 00-34

146 00 00-34

147 00 00-34

148 00 00-34

149 00 00-34

14A 00 00-34

14B 00 00-34

14C 00 00-34

14D 00 00-34

14E 00 00-34

14F 00 00-34

150 00 00-34

151 00 00-34

152 00 00-34

153 00 00-34

154 00 00-34

155 00 00-34

156 00 00-34

157 00 00-34

158 00 00-34

159 00 00-34

15A 00 00-34

15B 00 00-34

15C 00 00-34

15D 00 00-34

15E 00 00-34

15F 00 00-34

160 00 00-34

161 00 00-34

162 00 00-34

163 00 00-34

164 00 00-44

165 00 00-FF

166 00 00-FF

167 00 00-FF

168 00 00-FF

169 00 00-FF

16A 00 00-FF

16B 00 00-FF

16C 00 00-FF

16D 00 00-FF

16E 00 00-FF

16F 00 00-FF

170 00 00-FF

171 00 00-FF

172 00 00-FF

173 00 0(TV), 1(AV1),

2(AV2)

174 01 00-63

175 01 00-FF

176 00-FF Valid (A0)

177 00-FF

178 00-FF

179 00-FF

17A 00-FF

17B 00-FF Valid (A0)

17C 00-FF

17D 00-FF

17E 00-FF

17F 00-FF

MODEL MODEL

LETTER NO. LETTER NO.

ANT-BOOSTER (POS98)

ANT-BOOSTER (POS99)

ANT-BOOSTER (POS94)

ANT-BOOSTER (POS95)

ANT-BOOSTER (POS96)

ANT-BOOSTER (POS97)

ANT-BOOSTER (POS90)

ANT-BOOSTER (POS91)

ANT-BOOSTER (POS92)

ANT-BOOSTER (POS93)

ANT-BOOSTER (POS86)

ANT-BOOSTER (POS87)

ANT-BOOSTER (POS88)

ANT-BOOSTER (POS89)

ANT-BOOSTER (POS82)

ANT-BOOSTER (POS83)

ANT-BOOSTER (POS84)

ANT-BOOSTER (POS85)

ANT-BOOSTER (POS78)

ANT-BOOSTER (POS79)

ANT-BOOSTER (POS80)

ANT-BOOSTER (POS81)

ANT-BOOSTER (POS74)

ANT-BOOSTER (POS75)

ANT-BOOSTER (POS76)

ANT-BOOSTER (POS77)

SLV6 (LOW)

SLV7 (HIGH)

ANT-BOOSTER (POS66)

ANT-BOOSTER (POS67)

ANT-BOOSTER (POS68)

ANT-BOOSTER (POS69)

ANT-BOOSTER (POS70)

ANT-BOOSTER (POS71)

ANT-BOOSTER (POS72)

ANT-BOOSTER (POS73)

SLV5 (HIGH)

SLV5 (LOW)

SLV1 (HIGH)

SLV6 (HIGH)

ROM CORRECTION-1 HIGH BYTE ADDRESS

ROM CORRECTION-1 LOW BYTE ADDRESS

SLV7 (LOW)

SLV1 (LOW)

SLV2 (HIGH)

SLV2 (LOW)

SLV3 (HIGH)

SLV3 (LOW)

SLV4 (HIGH)

SLV4 (LOW)

TV/AV

LAST CHANNEL POSITION

FLASH BACK POSITION

ROM CORRECTION-1 ID

ROM CORRECTION-2 CHECKSUM

ROM CORRECTION-1 DATA LENGTH

ROM CORRECTION-1 CHECKSUM

ROM CORRECTION-2 ID

ROM CORRECTION-2 HIGH BYTE ADDRESS

ROM CORRECTION-2 LOW BYTE ADDRESS

ROM CORRECTION-2 DATA LENGTH

C-SYSTEM (POS99)

C-SYSTEM (AV1)C-SYSTEM (AV2)

S-SYSTEM (POS99)

C-SYSTEM (POS97)

C-SYSTEM (POS98)

S-SYSTEM (POS97)

S-SYSTEM (POS98)

C-SYSTEM (POS95)

C-SYSTEM (POS96)

S-SYSTEM (POS95)

S-SYSTEM (POS96)

C-SYSTEM (POS93)

C-SYSTEM (POS94)

S-SYSTEM (POS93)

S-SYSTEM (POS94)

C-SYSTEM (POS91)

C-SYSTEM (POS92)

S-SYSTEM (POS91)

S-SYSTEM (POS92)

C-SYSTEM (POS89)

C-SYSTEM (POS90)

S-SYSTEM (POS89)

S-SYSTEM (POS90)

C-SYSTEM (POS87)

C-SYSTEM (POS88)

S-SYSTEM (POS87)

S-SYSTEM (POS88)

C-SYSTEM (POS85)

C-SYSTEM (POS86)

S-SYSTEM (POS85)

S-SYSTEM (POS86)

C-SYSTEM (POS83)

C-SYSTEM (POS84)

S-SYSTEM (POS83)

S-SYSTEM (POS84)

C-SYSTEM (POS81)

C-SYSTEM (POS82)

S-SYSTEM (POS81)

S-SYSTEM (POS82)

C-SYSTEM (POS79)

C-SYSTEM (POS80)

S-SYSTEM (POS79)

S-SYSTEM (POS80)

C-SYSTEM (POS77)

C-SYSTEM (POS78)

S-SYSTEM (POS77)

S-SYSTEM (POS78)

C-SYSTEM (POS75)

C-SYSTEM (POS76)

S-SYSTEM (POS75)

S-SYSTEM (POS76)

C-SYSTEM (POS73)

C-SYSTEM (POS74)

S-SYSTEM (POS73)

S-SYSTEM (POS74)

C-SYSTEM POS71)

C-SYSTEM (POS72)

S-SYSTEM (POS71)

S-SYSTEM (POS72)

C-SYSTEM (POS68)

C-SYSTEM (POS69)

C-SYSTEM (POS70)

S-SYSTEM (POS68)

S-SYSTEM (POS69)

S-SYSTEM (POS70)

ANT-BOOSTER (POS64)

ANT-BOOSTER (POS65)

C-SYSTEM (POS66)

C-SYSTEM (POS67)

S-SYSTEM (POS66)

S-SYSTEM (POS67)

C-SYSTEM (POS65)

C-SYSTEM (POS64)S-SYSTEM (POS64)

S-SYSTEM (POS65)

21J-FG1RU

4 – 7

MEMORY MAP (Continued)

SLAVE ADDRESS : A0(00-FF) A2(100-1FF) A4(200-2FF) A6(300-3FF) A8(400-4FF)

ADDRESS DATA MICON EEPROM EEPROM CHASSIS CTV FINAL LAST INITIAL

(HEX)D7D6D5D4D3D2D1D0DEFAULT RANGE W RITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE SETTING DATA REMARK

180 00-FF

181 00-FF

182 00-FF

183 00-FF

184 00-FF

185 00-FF

186 00-FF

187 00-FF

188 00-FF

189 00-FF

18A 00-FF

18B 00-FF

18C 00-FF

18D 00-FF

18E 00-FF

18F 00-FF

190 00-FF

191 00-FF

192 00-FF

193 00-FF

194 00-FF

195 00-FF

196 00-FF

197 00-FF

198 00-FF

199 00-FF

19A 00-FF

19B 00-FF

19C 00-FF

19D 00-FF

19E 00-FF

19F 00-FF

1A0 00-FF

1A1 00-FF

1A2 00-FF

1A3 00-FF

1A4 00-FF

1A5 00-FF

1A6 00-FF

1A7 00-FF

1A8 00-FF

1A9 00-FF

1AA 00-FF

1AB 00-FF

1AC 00-FF

1AD 00-FF

1AE 00-FF

1AF 00-FF

1B0 00-FF

1B1 00-FF

1B2 00-FF

1B3 00-FF

1B4 00-FF

1B5 00-FF

1B6 00-FF

1B7 00-FF

1B8 00-FF

1B9 00-FF

1BA 00-FF

1BB 00-FF

1BC 00-FF

1BD 00-FF

1BE 00-FF

1BF 00-FF

MODEL MODEL

LETTER NO. LETTER NO.

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-2 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

ROM CORRECTION-1 CODE

21J-FG1RU

4 – 8

MEMORY MAP (Continued)

SLAVE ADDRESS : A0(00-FF) A2(100-1FF) A4(200-2FF) A6(300-3FF) A8(400-4FF)

ADDRESS DATA MICON EEPROM EEPROM CHASSIS CTV FINAL LAST INITIAL

(HEX)D7D6D5D4D3D2D1D0DEFAULT RANGE WRITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE SETTING DATA REMARK

1C0 FF 00-FF

1C1 FF 00-FF

1C2 FF 00-FF

1C3 FF 00-FF

1C4 FF 00-FF

1C5 FF 00-FF

1C6 FF 00-FF

1C7 FF 00-FF

1C8 FF 00-FF

1C9 FF 00-FF

1CA FF 00-FF

1CB FF 00-FF

1CC FF 00-FF

1CD FF 00-FF

1CE FF 0-FF

1CF FF 0-FF

1D0 FF 0-FF

1D1 FF 0-FF

1D2 FF 0-FF

1D3 FF 0-FF

1D4 FF 0-FF

1D5 FF 0-FF

1D6 FF 0-FF

1D7 FF 0-FF

1D8 FF 0-FF

1D9 FF 0-FF

1DA FF 0-FF

1DB FF 0-FF

1DC FF 0-FF

1DD FF 0-FF

1DE FF 0-FF

1DF FF 0-FF

1E0 FF 0-FF

1E1 FF 0-FF

1E2 FF 0-FF

1E3 FF 0-FF

1E4 FF 0-FF

1E5 FF 0-FF

1E6 FF 0-FF

1E7 FF 0-FF

1E8 FF 0-FF

1E9 FF 0-FF

1EA FF 0-FF

1EB FF 0-FF

1EC FF 0-FF

1ED FF 0-FF

1EE FF 0-FF

1EF FF 0-FF

1F0 FF 0-FF

1F1 FF 0-FF

1F2 FF 0-FF

1F3 FF 0-FF

1F4 FF 0-FF

1F5 FF 0-FF

1F6 FF 0-FF

1F7 FF 0-FF

1F8 FF 0-FF

1F9 FF 0-FF

1FA FF 0-FF

1FB FF 0-FF

1FC FF 0-FF

1FD FF 0-FF

1FE FF 0-FF

1FF FF 0-FF

MODEL MODEL

LETTER NO. LETTER NO.

Message Favorite Three - Character 63

Message Favorite Three - Character 64

1) Add new

area for

Message Data

for Favorite

Message

Three.

Message Favorite Three - Character 59

Message Favorite Three - Character 60

Message Favorite Three - Character 61

Message Favorite Three - Character 62

Message Favorite Three - Character 55

Message Favorite Three - Character 56

Message Favorite Three - Character 57

Message Favorite Three - Character 58

Message Favorite Three - Character 51

Message Favorite Three - Character 52

Message Favorite Three - Character 53

Message Favorite Three - Character 54

Message Favorite Three - Character 47

Message Favorite Three - Character 48

Message Favorite Three - Character 49

Message Favorite Three - Character 50

Message Favorite Three - Character 43

Message Favorite Three - Character 44

Message Favorite Three - Character 45

Message Favorite Three - Character 46

Message Favorite Three - Character 39

Message Favorite Three - Character 40

Message Favorite Three - Character 41

Message Favorite Three - Character 42

Message Favorite Three - Character 35

Message Favorite Three - Character 36

Message Favorite Three - Character 37

Message Favorite Three - Character 38

Message Favorite Three - Character 31

Message Favorite Three - Character 32

Message Favorite Three - Character 33

Message Favorite Three - Character 34

Message Favorite Three - Character 27

Message Favorite Three - Character 28

Message Favorite Three - Character 29

Message Favorite Three - Character 30

Message Favorite Three - Character 23

Message Favorite Three - Character 24

Message Favorite Three - Character 25

Message Favorite Three - Character 26

Message Favorite Three - Character 19

Message Favorite Three - Character 20

Message Favorite Three - Character 21

Message Favorite Three - Character 22

Message Favorite Three - Character 15

Message Favorite Three - Character 16

Message Favorite Three - Character 17

Message Favorite Three - Character 18

Message Favorite Three - Character 01

Message Favorite Three - Character 02

Message Favorite Three - Character 09

Message Favorite Three - Character 10

Message Favorite Three - Character 05

Message Favorite Three - Character 06

Message Favorite Three - Character 07

Message Favorite Three - Character 08

Message Favorite Three - Character 13

Message Favorite Three - Character 14

Message Favorite Three - Character 03

Message Favorite Three - Character 04

Message Favorite Three - Character 11

Message Favorite Three - Character 12

21J-FG1RU

4 – 9

MEMORY MAP (Continued)

SLAVE ADDRESS : A0(00-FF) A2(100-1FF) A4(200-2FF) A6(300-3FF) A8(400-4FF)

ADDRESS DATA MICON EEPROM EEPROM CHASSIS CTV FINAL LAST INITIAL

(HEX)D7D6D5D4D3D2D1D0DEFAULT RANGE WRITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE SETTING DATA REMARK

200 3F 00-7F

201 3F 00-7F

202 7F 00-FF

203 7F 00-FF

204 7F 00-FF

205 32 00-7F

206 1F 00-3F

207 03 00-07

208 64 00-7F

209 3F 00-7F

20A 7F 00-FF

20B 3F 00-7F

20C 2B 00-3F

20D 5A 00-7F

20E 3F 00-7F

20F 26 00-3F

210 03 00-07

211 09 00-1F

212 25 00-3F

213 16 00-3F

214 3C 00-3C

215 1F 00-3E

216 06 00-0E

217 11 00-1E

218 07 00-0F

219 07 00-0F

21A 07 00-0F

21B 07 00-0F

21C 07 00-0F

21D 3F 00-7F (1) New item V25

21E 3F 00-7F (1) New item V25

21F 7F 00-FF (1) New item V25

220 7F 00-FF (1) New item V25

221 7F 00-FF (1) New item V25

222 64 00-7F (1) New item V26

223 7F 00-FF (1) New item V27

224 VS-CORRECT (V28) 20 00-3F

225 VS-CORRECT OFFSET (V29) 0D 00-1A

226 V-LINEARITY (V30) 20 00-3F

227 0D 00-1A

228

229

22A

22B

22C 5F 00-7F

22D 04 00-07

22E 05 00-07

22F 05 00-07

230 07 00-07

231 05 00-07

232 05 00-07

233 06 00-07

234 06 00-07

235 07 00-07

236 06 00-07

237 06 00-07

238 06 00-07

239 29 00-3E

23A 1F 00-3E

23B 28 00-3E

23C 17 00-3E

23D 18 00-3E

23E 1F 00-3E

23F 24 00-3E

MODEL MODEL

LETTER NO. LETTER NO.

SHARPNESS-AV (F30)

COLOUR-N358 (F28)

COLUR-ADJ (F29)

VIF-G (F07)

YDL (F13)

COLOUR-AV (F24)

COLOUR-PAL (F25)

COLOUR-SECAM (F26)

COLOUR-N443 (F27)

YDL-AV-N358 (F22)

V-SHIFT-50Hz (V12)

H-SHIFT-50Hz (V13)

SECAM BR (V14)

SECAM BB (V15)

S-TRAP-DK (V22)

S-TRAP-M (V23)

SUB VOLUME (V16)

V-SIZE-60Hz (V17)

H-SHIFT-60Hz (V19)

V-SHIFT-60Hz (V18)

S-TRAP-BG (V20)

S-TRAP-I (V21)

H-VCO (V03)

SUB-COLOUR-YUV (V09)

V-SIZE-50Hz (V11)

SUB CONTRAST (V04)

SUB COLOUR (V05)

SUB BRIGHTNESS (V06)

SUB TINT (V07)

SUB SHARPNESS (V08)

SUB-TINT-YUV (V10)

R-CUTOFF (V00)

G-CUTOFF (V00)

R-DRIVE (V00)

YDL-AV (F18)

S-TRAP-574 (V24)

B-CUTOFF YUV (V25)

B-DRIVE (V00)

B-CUTOFF (V00)

RF-AGC (V01)

VIF-VCO (V02)

R-DRIVE YUV (V25)

B-DRIVE YUV (V25)

R-CUTOFF YUV (V25)

YDL-YUV (F23)

YDL-AV-PAL (F19)

YDL-AV-SECAM (F20)

YDL-AV-N443 (F21)

YDL-N358 (F17)

YDL-PAL (F14)

YDL-SECAM (F15)

G-CUTOFF YUV (V25)

S-OUT-LEVEL (F06)

V-LINEARITY OFFSET (V31)

YDL-N443 (F16)

SUB CONTRAST YUV (V26)

SUB BRIGHTNESS YUV (V27)

21J-FG1RU

4 – 10

MEMORY MAP (Continued)

SLAVE ADDRESS : A0(00-FF) A2(100-1FF) A4(200-2FF) A6(300-3FF) A8(400-4FF)

ADDRESS DATA MICON EEPROM EEPROM CHASSIS CTV FINAL LAST INITIAL

(HEX)D7D6D5D4D3D2D1D0DEFAULT RANGE WRITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE SETTING DATA REMARK

240 1F 00-3E

241 1F 00-3E

242 1A 00-3E

243 1F 00-3E

244 1F 00-3E

245 3F 00-7E

246 3F 00-7E

247 3F 00-7E

248 47 00-7E

249 35 00-7E

24A 3C 00-7E

24B 4C 00-7E

24C 02 00-03

24D 02 00-03

24E 02 00-03

24F 02 00-03

250 02 00-03

251 00 00-03

252 0A 00-0F

253 02 00-07

254 04 00-07

255 04 00-07

256 06 00-0F

257 0E 00-0F

258 0E 00-0F

259 00 00-03

25A 00 00-03

25B 01 00-03

25C 00 00-03

25D 1E 00-3F

25E 22 00-3F

25F 09 00-7F

260 06 00-07

261 00 00-07

262 00 00-04

263 10 00-1F

264 0F 00-1E

265 10 00-1E

266 0D 00-1E

267 12 00-1E

268 0E 00-1E

269 23 00-FF

26A 46 00-FF

26B 06 00-0D

26C 01 00-03

26D 01 00-03

26E 00 00-03

26F 03 00-03

270 03 00-03

271 00 00-02

1. Keep but no

use

272 FF 00-FF

273 02 00-03

274 02 00-03

275 00 00-FF

276 00 00-FF

277 46 00-FF

278 96 00-FF

279 9C 00-FF

27A A3 00-FF

27B A5 00-FF

27C AA 00-FF

27D B4 1-FF

27E 15 00-3C

27F 3C 00-3C

MODEL MODEL

LETTER NO. LETTER NO.

S-Start Point (F109)

S-Stop Point (F110)

MEL6 (F108)

MEL1 (F105)

MEL1 (F107)

MEL1 (F106)

TINT-YUV-ADJ (F38)

R-R DRIVE (F39)

(1) No teletext

function

SHARPNESS-YUV (F31)

SHARPNESS-PAL (F32)

SHARPNESS-SECAM (F33)

SHARPNESS-N443 (F34)

SHARPNESS-N358 (F35)

TINT-AV (F36)

TINT-ADJ (F37)

B-R DRIVE (F40)

TRAP-PAL (F44)

B-B DRIVE (F42)

R-B DRIVE (F41)

SL-AV (F57)

SL-TV (F56)

BS-D/C (F53)

TRAP (F43)

GAMMA (F52)

TRAP-N358 (F47)

TRAP-N443 (F46)

TRAP-SECAM (F45)

VD2/VD1/AS/FBP-YUV (F61)

VD2/VD1/AS/FBP-AV (F60)

VD2/VD1/AS/FBP-TV (F59)

SL-YUV (F58)

SECAM-BGP (F65)

AUTO-SCM-KIL-TV

(F64)

UDL (F63)

VDL (F62)

SUB-BASS (F72)

OSD-POS (F69)

TEXT POS-V (F68)

TEXT POS-H (F67)

FM-LEVEL-ADJUST (F77)

AGC-GAIN-ADJUST (F76)

AGC-ADJ (F74)

SUB-TREBLE (F73)

FM-ID-SPEED (F85)

IGR-GAIN-ADJUST (F84)

NICAM-UPPER-ERROR-LIMIT (F83)

NICAM-LOWER-ERROR-LIMIT (F82)

NICAM-DK-LEVEL-ADJUST (F81)

NICAM-I-LEVEL-ADJUST (F80)

NICAM-BG-LEVEL-ADJUST (F79)

IGR-LEVEL-ADJUST (F78)

FORCED-SCM-KIL-

AV-YUV (F98)

FORCED-SCM-KIL-

TV (F97)

CON-REDUCE (F91)

AUTO-SCM-KIL-AV-

YUV (F87)

AC-FAIL-WO-BRIGHT (F96)

AFC1-GAIN-YUV

(F90)

AFC1-GAIN-AV

(F89)

AFC1-GAIN-TV (F88)

MEL1 (F104)

MEL1 (F103)

VIDEO-DEMUTE-DELAY (F100)

SOUND-DEMUTE-DELAY (F101)

MEL1 (F102)

21J-FG1RU

4 – 11

MEMORY MAP (Continued)

SLAVE ADDRESS : A0(00-FF) A2(100-1FF) A4(200-2FF) A6(300-3FF) A8(400-4FF)

ADDRESS DATA MICON EEPROM EEPROM CHASSIS CTV FINAL LAST INITIAL

(HEX)D7D6D5D4D3D2D1D0DEFAULT RANGE W RITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE SETTING DATA REMARK

280 07 00-3C

281 2D 00-3C

282 2D 00-3C

283 3C 00-3C

284 3C 00-3C

285 FF 00-FF

286 7F 00-7F

287 FF 00-FF

288 7F 00-7F

289

WO-TIME (F124)

00 00-1F

28A

R-DRI YUV OFFSET (F126)

3F 00-7E

28B

B-DRI YUV OFFSET (F127)

3F 00-7E

28C

R-CUT OFF YUV OFFSET (F128)

3F 00-7E

28D

G-CUT OFF YUV OFFSET (F129)

3F 00-7E

28E

B-CUT OFF YUV OFFSET (F130)

3F 00-7E

28F

CONTRAST YUV OFFSET (F131)

3F 00-7E

290

BRIGHT YUV OFFSET (F132)

3F 00-7E

291

SHP ANT ON II OFFSET (F133)

1F 00-3E

292

WAIT MODE TIME (F134)

02 00-04

293 3F 00-7E

294 3F 00-7E

295 08 00-0F

296 08 00-0F

297 16 00-1E

298 1E 00-1F

299 1E 00-1F

29A

29B

29C

29D

29E

29F

2A0

ABCL-G

(F05)

ABCL

(F04)

BS OFF

(F03)

RGB CLIP

(F02)

C.CLIP-

LVL (F01)

00 00-1F

2A1

SHP-G-

N3 (F12)

SHP-G-

N4 (F11)

SHP-G-

SCM

(

F10

)

SHP-G-

PAL (F09)

SHP-G

(F08)

10 00-1F

2A2

PLL-CP

(

F70

)

N45 (F66) OM DET

(

F55

)

BS GAIN

(

F54

)

AFC2

(

F51

)

V-FREE

(

F50

)

1W-AV

(

F49

)

1W-TV

(

F48

)

82 00-FF

2A3

Pow-

Storage

(

F112

)

R-Y Adj.

(F99)

C-ANGLE

(F95)

TAKE-

OFF-YUV

(

F94

)

TAKE-

OFF-AV

(

F93

)

TAKE-

OFF-TV

(

F92

)

39 00-3F

2A4

SIF-PAL

(F139)

A2-ID-

Response

(

F125

)

V-STD

YUV

(

F119

)

V-STD-AV

(F118)

V-STD-TV

(F117)

08 00-1F

2A5

NICAM-

AUTO-

MUTE

(

F86

)

AGC-SW-

OFF (F75)

SMALL-

SURR

(F71)

02 00-07

2A6

AV2 (O11) AV (O10) Forced-

Col

(

O08

)

N358-TV

(

O07

)

N443-TV

(

O06

)

SECAM

(

O05

)

VIF (O04) HOTEL

(

O01

)

DE 00-FF

2A7

LED-

CONT

(

O21

)

R/C

MENU

(

O20

)

BIL (O17) TEXT

(O16) A2 (O15) NICAM

(O14)

S-CTR

(O13)

YUV

(O12)

03 00-FF

2A8

1-Chip

(O30)

LNA

TUNER

(O29)

MESSAGE

(O27)

ANT-

BOOSTE

R (O26)

WHITE

BACK

(O25)

YUV

BKGD

(O24)

Sharp-

logo (O23)

S-Booster

(O22)

08 00-FF

2A9

M (O09) D/K (O09) I (O09) B/G (O09)

0F 01-0F

2AA

Thai

(

018

)

Malay

(

O18

)

Arabic

(

O18

)

Russian

(

O18

)

France

(

O18

)

Chinese

(

O18

)

Engilish

(

O18

)

3F 01-3F

2AB

SEARCH

SPEED

(

O19

)

03 01-05

2AC FF 00-63, FF

2AD FF 00-3C, FF

2AE 00 00-14

2AF

2B0

2B1

2B2

2B3

2B4

2B5

2B6

2B7

2B8 FF 00-FF

2B9 FF 00-FF

2BA FF 00-FF

2BB FF 00-FF

2BC FF 00-FF

2BD FF 00-FF

2BE FF 00-FF

2BF FF 00-FF

MODEL MODEL

LETTER NO. LETTER NO.

HOTEL VOLUME (O03)

HOTEL CHANNEL POSITION (O02)

MESSAGE SCROLL TIME (O28)

Inbox Message - Character 72

Inbox Message - Character 65

Inbox Message - Character 66

Inbox Message - Character 67

Inbox Message - Character 68

Inbox Message - Character 69

Inbox Message - Character 70

Inbox Message - Character 71

WO-Contrast-After-WO-TIME (F121)

WO-Bright-Before-WO-TIME(F122)

WO-Bright-After-WO-TIME (F120)

WO-Contrast-Before-WO-TIME (F123)

CONTRAST OFFSET (F135)

BRIGHT OFFSET (F136)

CR-PEDESTEL ADJ (F137)

CB-PEDESTEL ADJ (F138)

BASS OFFSET (F141)

S-Step (F111)

S-TREB (F116)

S-B-TREB (F114)

S-BASS (F115)

TREBLE OFFSET (F142)

1) New item

for IXB226

AV-BRIGHTNESS OFFSET (F140)

S-B-BASS (F113)

21J-FG1RU

4 – 12

MEMORY MAP (Continued)

SLAVE ADDRESS : A0(00-FF) A2(100-1FF) A4(200-2FF) A6(300-3FF) A8(400-4FF)

ADDRESS DATA MICON EEPROM EEPROM CHASSIS CTV FINAL LAST INITIAL

(HEX)D7D6D5D4D3D2D1D0DEFAULT RANGE WRITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE SETTING DATA REMARK

2C0 FF 0-FF

2C1 FF 0-FF

2C2 FF 0-FF

2C3 FF 0-FF

2C4 FF 0-FF

2C5 FF 0-FF

2C6 FF 0-FF

2C7 FF 0-FF

2C8 FF 0-FF

2C9 FF 0-FF

2CA FF 0-FF

2CB FF 0-FF

2CC FF 0-FF

2CD FF 0-FF

2CE FF 0-FF

2CF FF 0-FF

2D0 FF 0-FF

2D1 FF 0-FF

2D2 FF 0-FF

2D3 FF 0-FF

2D4 FF 0-FF

2D5 FF 0-FF

2D6 FF 0-FF

2D7 FF 0-FF

2D8 FF 0-FF

2D9 FF 0-FF

2DA FF 0-FF

2DB FF 0-FF

2DC FF 0-FF

2DD FF 0-FF

2DE FF 0-FF

2DF FF 0-FF

2E0 FF 0-FF

2E1 FF 0-FF

2E2 FF 0-FF

2E3 FF 0-FF

2E4 FF 0-FF

2E5 FF 0-FF

2E6 FF 0-FF

2E7 FF 0-FF

2E8 FF 0-FF

2E9 FF 0-FF

2EA FF 0-FF

2EB FF 0-FF

2EC FF 0-FF

2ED FF 0-FF

2EE FF 0-FF

2EF FF 0-FF

2F0 FF 0-FF

2F1 FF 0-FF

2F2 FF 0-FF

2F3 FF 0-FF

2F4 FF 0-FF

2F5 FF 0-FF

2F6 FF 0-FF

2F7 FF 0-FF

2F8 FF 0-FF

2F9 FF 0-FF

2FA FF 0-FF

2FB FF 0-FF

2FC FF 0-FF

2FD FF 0-FF

2FE FF 0-FF

2FF FF 0-FF

MODEL MODEL

LETTER NO. LETTER NO.

*1 0 : individually selectable rating system 1 : threshold selectable rating system

*2 0 : CATEGORY bit mask with (01,05) 1st character 1 : CATEGORY bit mask with (01,05) 2nd character

1) Add new

area for

Message Data

for Inbox

Message .

Inbox Message - Character 61

Inbox Message - Character 62

Inbox Message - Character 63

Inbox Message - Character 64

Inbox Message - Character 57

Inbox Message - Character 58

Inbox Message - Character 59

Inbox Message - Character 60

Inbox Message - Character 53

Inbox Message - Character 54

Inbox Message - Character 55

Inbox Message - Character 56

Inbox Message - Character 49

Inbox Message - Character 50

Inbox Message - Character 51

Inbox Message - Character 52

Inbox Message - Character 45

Inbox Message - Character 46

Inbox Message - Character 47

Inbox Message - Character 48

Inbox Message - Character 41

Inbox Message - Character 42

Inbox Message - Character 43

Inbox Message - Character 44

Inbox Message - Character 37

Inbox Message - Character 38

Inbox Message - Character 39

Inbox Message - Character 40

Inbox Message - Character 33

Inbox Message - Character 34

Inbox Message - Character 35

Inbox Message - Character 36

Inbox Message - Character 29

Inbox Message - Character 30

Inbox Message - Character 31

Inbox Message - Character 32

Inbox Message - Character 25

Inbox Message - Character 26

Inbox Message - Character 27

Inbox Message - Character 28

Inbox Message - Character 21

Inbox Message - Character 22

Inbox Message - Character 23

Inbox Message - Character 24

Inbox Message - Character 17

Inbox Message - Character 18

Inbox Message - Character 19

Inbox Message - Character 20

Inbox Message - Character 13

Inbox Message - Character 14

Inbox Message - Character 15

Inbox Message - Character 16

Inbox Message - Character 09

Inbox Message - Character 10

Inbox Message - Character 11

Inbox Message - Character 12

Inbox Message - Character 05

Inbox Message - Character 06

Inbox Message - Character 07

Inbox Message - Character 08

Inbox Message - Character 01

Inbox Message - Character 02

Inbox Message - Character 03

Inbox Message - Character 04

21J-FG1RU

4 – 13

MEMORY MAP (Continued)

SLAVE ADDRESS : A0(00-FF) A2(100-1FF) A4(200-2FF) A6(300-3FF) A8(400-4FF)

ADDRESS

DATA

MICON EEPROM EEPROM CHASSIS CTV FINAL

LAST INITIAL

(HEX)D7D6D5D4D3D2D1D0

DEFAULT RANGE

WRITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE SETTING DAT A

REMARK

300 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 0

301 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 1

302 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 2

303 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 3

304 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 4

305 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 5

306 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 6

307 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 7

308 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 8

309 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 9

30A A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 10

30B A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 11

30C A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 12

30D A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 13

30E A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 14

30F A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 15

310 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 16

311 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 17

312 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 18

313 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 19

314 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 20

315 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 21

316 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 22

317 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 23

318 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 24

319 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 25

31A A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 26

31B A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 27

31C A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 28

31D A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 29

31E A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 30

31F A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 31

320 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 32

321 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 33

322 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 34

323 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 35

324 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 36

325 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 37

326 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 38

327 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 39

328 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 40

329 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 41

32A A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 42

32B A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 43

32C A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 44

32D A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 45

32E A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 46

32F A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 47

330 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 48

331 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 49

332 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 50

333 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 51

334 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 52

335 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 53

336 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 54

337 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 55

338 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 56

339 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 57

33A A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 58

33B A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 59

33C A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 60

33D A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 61

33E A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 62

33F A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 63

MODEL MODEL

LETTER NO. LETTER NO.

21J-FG1RU

4 – 14

MEMORY MAP (Continued)

SLAVE ADDRESS : A0(00-FF) A2(100-1FF) A4(200-2FF) A6(300-3FF) A8(400-4FF)

ADDRESS DATA MICON EEPROM EEPROM CHASSIS CTV FINAL LAST INITIAL

(HEX)D7D6D5D4D3D2D1D0DEFAULT RANGE WRITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE SETTING DATA REMARK

340 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 64

341 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 65

342 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 66

343 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 67

344 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 68

345 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 69

346 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 70

347 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 71

348 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 72

349 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 73

34A A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 74

34B A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 75

34C A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 76

34D A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 77

34E A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 78

34F A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 79

350 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 80

351 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 81

352 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 82

353 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 83

354 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 84

355 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 85

356 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 86

357 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 87

358 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 88

359 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 89

35A A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 90

35B A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 91

35C A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 92

35D A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 93

35E A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 94

35F A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 95

360 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 96

361 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 97

362 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 98

363 A2 FM A2 ST A2 BIL1 NCM FM NCM

MONO NCM ST NCM BIL2 NCM BIL1 4C 00-FF POS 99

364

365

366

367

368 FF 0-FF

369 FF 0-FF

36A FF 0-FF

36B FF 0-FF

36C FF 0-FF

36D FF 0-FF

36E FF 0-FF

36F FF 0-FF

370 FF 0-FF

371 FF 0-FF

372 FF 0-FF

373 FF 0-FF

374 FF 0-FF

375 FF 0-FF

376 FF 0-FF

377 FF 0-FF

378 FF 0-FF

379 FF 0-FF

37A FF 0-FF

37B FF 0-FF

37C FF 0-FF

37D FF 0-FF

37E FF 0-FF

37F FF 0-FF

MODEL MODEL

LETTER NO. LETTER NO.

1) Add in for

Favorite

Message

Three.

1) Add in for

Favorite

Message

Two.

1) Add in for

Favorite

Message

One.

Message Favorite One- Character 69

Message Favorite One- Character 70

Message Favorite One- Character 71

Message Favorite One- Character 72

Message Favorite One- Character 65

Message Favorite One- Character 66

Message Favorite One- Character 67

Message Favorite One- Character 68

Message Favorite Two- Character 69

Message Favorite Two- Character 70

Message Favorite Two- Character 71

Message Favorite Two- Character 72

Message Favorite Two- Character 65

Message Favorite Two- Character 66

Message Favorite Two- Character 67

Message Favorite Two- Character 68

Message Favorite Three- Character 69

Message Favorite Three- Character 70

Message Favorite Three- Character 71

Message Favorite Three- Character 72

Message Favorite Three- Character 65

Message Favorite Three- Character 66

Message Favorite Three- Character 67

Message Favorite Three- Character 68

21J-FG1RU

4 – 15

MEMORY MAP (Continued)

SLAVE ADDRESS : A0(00-FF) A2(100-1FF) A4(200-2FF) A6(300-3FF) A8(400-4FF)

ADDRESS

DATA

MICON EEPROM EEPROM CHASSIS CTV FINAL LAST INITIAL

(HEX)D7D6D5D4D3D2D1D0

DEFAULT RANGE W RITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE SETTING DATA REMARK

380 FF 00-FF

381 FF 00-FF

382 FF 0-FF

383 FF 0-FF

384 FF 0-FF

385 FF 0-FF

386 FF 0-FF

387 FF 0-FF

388 FF 0-FF

389 FF 0-FF

38A FF 0-FF

38B FF 0-FF

38C FF 0-FF

38D FF 0-FF

38E FF 0-FF

38F FF 0-FF

390 FF 0-FF

391 FF 0-FF

392 FF 0-FF

393 FF 0-FF

394 FF 0-FF

395 FF 0-FF

396 FF 0-FF

397 FF 0-FF

398 FF 0-FF

399 FF 0-FF

39A FF 0-FF

39B FF 0-FF

39C FF 0-FF

39D FF 0-FF

39E FF 0-FF

39F FF 0-FF

3A0 FF 0-FF

3A1 FF 0-FF

3A2 FF 0-FF

3A3 FF 0-FF

3A4 FF 0-FF

3A5 FF 0-FF

3A6 FF 0-FF

3A7 FF 0-FF

3A8 FF 0-FF

3A9 FF 0-FF

3AA FF 0-FF

3AB FF 0-FF

3AC FF 0-FF

3AD FF 0-FF

3AE FF 0-FF

3AF FF 0-FF

3B0 FF 0-FF

3B1 FF 0-FF

3B2 FF 0-FF

3B3 FF 0-FF

3B4 FF 0-FF

3B5 FF 0-FF

3B6 FF 0-FF

3B7 FF 0-FF

3B8 FF 0-FF

3B9 FF 0-FF

3BA FF 0-FF

3BB FF 0-FF

3BC FF 0-FF

3BD FF 0-FF

3BE FF 0-FF

3BF FF 0-FF

MODEL MODEL

LETTER NO. LETTER NO.

1) Add new

area for

Message Data

for Favorite

Message One .

Message Favorite One- Character 61

Message Favorite One- Character 62

Message Favorite One- Character 63

Message Favorite One- Character 64

Message Favorite One- Character 57

Message Favorite One- Character 58

Message Favorite One- Character 59

Message Favorite One- Character 60

Message Favorite One- Character 53

Message Favorite One- Character 54

Message Favorite One- Character 55

Message Favorite One- Character 56

Message Favorite One- Character 49

Message Favorite One- Character 50

Message Favorite One- Character 51

Message Favorite One- Character 52

Message Favorite One- Character 45

Message Favorite One- Character 46

Message Favorite One- Character 47

Message Favorite One- Character 48

Message Favorite One- Character 41

Message Favorite One- Character 42

Message Favorite One- Character 43

Message Favorite One- Character 44

Message Favorite One- Character 37

Message Favorite One- Character 38

Message Favorite One- Character 39

Message Favorite One- Character 40

Message Favorite One- Character 33

Message Favorite One- Character 34

Message Favorite One- Character 35

Message Favorite One- Character 36

Message Favorite One- Character 29

Message Favorite One- Character 30

Message Favorite One- Character 31

Message Favorite One- Character 32

Message Favorite One- Character 25

Message Favorite One- Character 26

Message Favorite One- Character 27

Message Favorite One- Character 28

Message Favorite One- Character 21

Message Favorite One- Character 22

Message Favorite One- Character 23

Message Favorite One- Character 24

Message Favorite One- Character 17

Message Favorite One- Character 18

Message Favorite One- Character 19

Message Favorite One- Character 20

Message Favorite One- Character 13

Message Favorite One- Character 14

Message Favorite One- Character 15

Message Favorite One- Character 16

Message Favorite One- Character 09

Message Favorite One- Character 10

Message Favorite One- Character 11

Message Favorite One- Character 12

Message Favorite One- Character 05

Message Favorite One- Character 06

Message Favorite One- Character 07

Message Favorite One- Character 08

Message Favorite One- Character 01

Message Favorite One- Character 02

Message Favorite One- Character 03

Message Favorite One- Character 04

21J-FG1RU

4 – 16

MEMORY MAP (Continued)

SLAVE ADDRESS : A0(00-FF) A2(100-1FF) A4(200-2FF) A6(300-3FF) A8(400-4FF)

ADDRESS

DATA

MICON EEPROM EEPROM CHASSIS CTV FINAL LAST INITIAL

(HEX)D7D6D5D4D3D2D1D0

DEFAULT RANGE W RITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE SETTING DATA REMARK

3C0 FF 0-FF

3C1 FF 0-FF

3C2 FF 0-FF

3C3 FF 0-FF

3C4 FF 0-FF

3C5 FF 0-FF

3C6 FF 0-FF

3C7 FF 0-FF

3C8 FF 0-FF

3C9 FF 0-FF

3CA FF 0-FF

3CB FF 0-FF

3CC FF 0-FF

3CD FF 0-FF

3CE FF 0-FF

3CF FF 0-FF

3D0 FF 0-FF

3D1 FF 0-FF

3D2 FF 0-FF

3D3 FF 0-FF

3D4 FF 0-FF

3D5 FF 0-FF

3D6 FF 0-FF

3D7 FF 0-FF

3D8 FF 0-FF

3D9 FF 0-FF

3DA FF 0-FF

3DB FF 0-FF

3DC FF 0-FF

3DD FF 0-FF

3DE FF 0-FF

3DF FF 0-FF

3E0 FF 0-FF

3E1 FF 0-FF

3E2 FF 0-FF

3E3 FF 0-FF

3E4 FF 0-FF

3E5 FF 0-FF

3E6 FF 0-FF

3E7 FF 0-FF

3E8 FF 0-FF

3E9 FF 0-FF

3EA FF 0-FF

3EB FF 0-FF

3EC FF 0-FF

3ED FF 0-FF

3EE FF 0-FF

3EF FF 0-FF

3F0 FF 0-FF

3F1 FF 0-FF

3F2 FF 0-FF

3F3 FF 0-FF

3F4 FF 0-FF

3F5 FF 0-FF

3F6 FF 0-FF

3F7 FF 0-FF

3F8 FF 0-FF

3F9 FF 0-FF

3FA FF 0-FF

3FB FF 0-FF

3FC FF 0-FF

3FD FF 0-FF

3FE FF 0-FF

3FF FF 0-FF

MODEL MODEL

LETTER NO. LETTER NO.

1) Add new

area for

Message Data

for Favorite

Message Two .

Message Favorite Two- Character 61

Message Favorite Two- Character 62

Message Favorite Two- Character 63

Message Favorite Two- Character 64

Message Favorite Two- Character 57

Message Favorite Two- Character 58

Message Favorite Two- Character 59

Message Favorite Two- Character 60

Message Favorite Two- Character 53

Message Favorite Two- Character 54

Message Favorite Two- Character 55

Message Favorite Two- Character 56

Message Favorite Two- Character 49

Message Favorite Two- Character 50

Message Favorite Two- Character 51

Message Favorite Two- Character 52

Message Favorite Two- Character 45

Message Favorite Two- Character 46

Message Favorite Two- Character 47

Message Favorite Two- Character 48

Message Favorite Two- Character 41

Message Favorite Two- Character 42

Message Favorite Two- Character 43

Message Favorite Two- Character 44

Message Favorite Two- Character 37

Message Favorite Two- Character 38

Message Favorite Two- Character 39

Message Favorite Two- Character 40

Message Favorite Two- Character 33

Message Favorite Two- Character 34

Message Favorite Two- Character 35

Message Favorite Two- Character 36

Message Favorite Two- Character 29

Message Favorite Two- Character 30

Message Favorite Two- Character 31

Message Favorite Two- Character 32

Message Favorite Two- Character 25

Message Favorite Two- Character 26

Message Favorite Two- Character 27

Message Favorite Two- Character 28

Message Favorite Two- Character 21

Message Favorite Two- Character 22

Message Favorite Two- Character 23

Message Favorite Two- Character 24

Message Favorite Two- Character 17

Message Favorite Two- Character 18

Message Favorite Two- Character 19

Message Favorite Two- Character 20

Message Favorite Two- Character 13

Message Favorite Two- Character 14

Message Favorite Two- Character 15

Message Favorite Two- Character 16

Message Favorite Two- Character 09

Message Favorite Two- Character 10

Message Favorite Two- Character 11

Message Favorite Two- Character 12

Message Favorite Two- Character 05

Message Favorite Two- Character 06

Message Favorite Two- Character 07

Message Favorite Two- Character 08

Message Favorite Two- Character 01

Message Favorite Two- Character 02

Message Favorite Two- Character 03

Message Favorite Two- Character 04

21J-FG1RU

5 – 1

21J-FG1RU Service Manual

CHAPTER 5. TROUBLE SHOOTING FLOWCHART

[1] TROUBLE SHOOTING FLOWCHART

NO RASTER

Blown out.

Replace the fuse.

Check IC701, D701 and

C705.

The fuse is blown out again.

Does horizontal circuit

oscillate ?

Check T701 pin (17) voltage

(Approx. 310V at 220V AC)

Check F701.

Check Secondary Main+B

(Approx. 125V)

Check CRT connector K-

wire and the signal on it.

Check Q601 and Q602.

Check 185V

Bias on

CRT board.

Check

IC801. Checking the

protector circuit.

Check Q752 for 8V regulator

circuit and Q751, Q754 for

5V regulator circuit.

Check D751, IC702 and IC703.

Check NR701.

NO PICTURE, NO SOUND

No snow noise.

Does noise or signal appear at pin (41)

of IC801 ?

Noise increases but no signal is

received.

Check the tuner supply voltage LB must

approx. 5V. BT must be approx. 33V.

And check the CH preset data.

Check the tuner AGC at

TP201.

Does noise or

signal appear at

pin (58) of IC801 ?

Check IC801 and

related circuit.

Check IC401 and

related circuit.

Check pin (1) of

SF201, Tuner and

related circuit.

Check pin (60) at

IC801 and related

circuit.

Check pin (59) of

IC801, Tuner and

related circuit.

Check pin(58) of

IC801.

Does the noise level increase at max.

Contrast, Brightness and Sound controls ?

CIRCUITS TO BE CHECKED:

»Tuner.

»PIF.

»Automatic Gain Control.

»(5V), (32V) Power Source.

Does noise or

signal appear at

pin (63) and (64)

of IC801 ?

21J-FG1RU

5 – 2

TROUBLE SHOOTING FLOWCHART (Continued)

Does signal appear at pins

(10) and (23) of IC3501 ?

NO SOUND

CIRCUITS TO BE CHECKED:

»Sound Detector Circuit.

»Sound Switch and Att.

Control.

»Audio Output Circuit.

Does signal appear at pins

(6) and (8) of IC301 ?

Check TV sound from pin (54)

of IC801.

Check Speaker. Check IC301 and

peripheral circuit.

NEITHER VERTICAL NOR

HORIZONTAL SYNCHRONIZATION

CIRCUIT TO BE CHECKED:

»Sync. Separator Circuit. Check pins(5), (6), (10) and

(11) of IC801.

Vertical linearity and size are

abnormal.

DEFECTIVE VERTICAL AMP.

AND VERTICAL LINEARITY

Re-adjust vertical size.

(Bus Data)

Check R503, R506, R513,

R520 and C515.

NO VERTICAL SCAN

Check IC501.

Check C511.

Check IC501 bias.

21J-FG1RU

5 – 3

TROUBLE SHOOTING FLOWCHART (Continued)

NO SPECIFIC COLOUR

Is some colour produced in

B/W broadcast reception ?

Is the white balance properly

adjusted ?

Re-adjust the white balance.

The picture colour is yellow.The picture colour is magenta.The picture colour is cyan.

Check Q855 and its adjacent

circuits.

Check Q854 and its adjacent

circuits.

Check Q853 and its adjacent

circuits.

Check IC801.

Check IC801 and bias

control circuit.

NO SPECIFICATION COLOUR

“PAL / SECAM”

(NO COLOUR SYNCHRONIZATION)

Check X801 (4.43MHz)

21J-FG1RU

6 – 1

21J-FG1RU Service Manual

CHAPTER 6. SOLID STATE DEVICE BASE DIAGRAM

[1] SOLID STATE DEVICE BASE DIAGRAM

TOP VIEW

85

1

1

N

4

BR24L08

CATHODE

ANODE

A2

EX1393C

42

IXB226WJZZ

22

121

SHARP

IXB226W

30 16

115

NJW1142

CATHODE

ANODE

P1

EX0263T

64

13

M1501XN

46

31

IMX1C/C

64

M61262BF

1

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

64

63

62

61

60

59

58

57

56

55

54

53

52

51

50

49

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

16 33

48

49

17 32

M61262B

1

2

4

3

PC123

S4

FXA003WJ

COLLECTOR

BASE EMITTER

ZR

D601A

COLLECTOR

BASE EMITTER

BR

B709A

46

31

IMZ1A

CATHOD

ANODE (RED)

PX0013

17

STV9302A

+~~

_

DX0476CE

SIDE VIEW

112

112

ECB

2SC3198

ECB

2SD468-C

2SC2235

GND

COLLECTOR

Vout

SE125N AN17820B

ECB

TT2140

LOTNo.

TT2140

123

PQ09RDA

14

DX0445CE

CATHODE ANODE

STRW6553

17

TX0110BM

3. BASE

2. COLLECTOR

1. EMITTER

21J-FG1RU

7 – 1

21J-FG1RU Service Manual

CHAPTER 7. CHASSIS LAYOUT

[1] CHASSIS LAYOUT

A

C

B

D

E

F

G

H

12345678910

21J-FG1RU

8 – 1

21J-FG1RU Service Manual

CHAPTER 8. BLOCK DIAGRAM

[1] BLOCK DIAGRAM: CRT UNIT

[2] BLOCK DIAGRAM: HEADPHONE UNIT

A

C

B

D

12345678910

A

C

B

D

12345678910

21J-FG1RU

8 – 2

[3] BLOCK DIAGRAM: MAIN UNIT

A

C

B

D

E

F

G

H

12345678910

21J-FG1RU

8 – 3

10 11 12 13 14 15 16 17 18 19

21J-FG1RU

9 – 1

21J-FG1RU Service Manual

CHAPTER 9. DESCRIPTION OF SCHEMATIC DIAGRAM

[1] DESCRIPTION OF SCHEMATIC DIAGRAM

SAFETY NOTES:

DISCONNECT THE AC PLUG FROM THE AC OUT-

LET BEFORE REPLACING PARTS.

SEMICONDUCTOR HEAT SINKS SHOULD BE RE-

GARDED AS POTENTIAL SHOCK HAZARDS

WHEN THE CHASSIS IS OPERATING.

1.

2.

NOTES:

The unit of resistance "ohm" is omitted.

(K = 1000 ohms, M = Mega ohm).

1.

All resistors are 1/16 watt, unless otherwise noted.2.

All capacitors are µF, unless otherwise noted.

(P = µµF).

3.

VOLTAGE MEASUREMENT CONDITIONS:

Voltages in parenthesis measured with no signal.1.

Voltages without parenthesis measured with 3mV B & W

or Colour signal.

2.

All the voltages in each point are measured with VTVM.3.

WAVEFORM MEASUREMENT CONDITIONS:

The colour bar generator signal of 1.0V peak applied at

pin (41) of IC801.

1.

Approximately 4V AGC bias.2.

SERVICE PRECAUTION:

THE AREA ENCLOSED BY THIS LINE ( - ) IS DI-

RECTLY CONNECTED WITH AC MAINS VOLTAGE.

WHEN SERVICING THE AREA, CONNECT AN ISOLAT-

ING TRANSFORMER BETWEEN TV RECEIVER AND

AC LINE TO ELIMINATE HAZARD OF ELECTRIC

SHOCK.

IMPORTANT SAFETY NOTICE:

PARTS MARKED WITH " " ( ) ARE IMPO-

TANT FOR MAINTAINING THE SAFETY OF THE SET.

BE SURE TO REPLACE THESE PARTS WITH SPECI-

FIED ONES FOR MAINTAINING THE SAFETY AND

PERFORMANCE OF THE SET.

CAUTION:

This circuit diagram is a standard one, prited circuits may

be subject to change for product improvement without pri-

or notice.

21J-FG1RU

10 – 1

21J-FG1RU Service Manual

CHAPTER 10. WAVEFORM

[1] WAVEFORMS

1) 0.92 Vp-p

Horiz. Rate

2) 4.08 Vp-p

Horiz. Rate

3) 4.21 Vp-p

Horiz. Rate

4) 4.38 Vp-p

Horiz. Rate

5) 6.25 Vp-p

Horiz. Rate

6) 6.42 Vp-p

Horiz. Rate

7) 2.04 Vp-p

Vert. Rate

8) 1.81 Vp-p

Vert. Rate

9) 5.33 Vp-p

Horiz. Rate

10) 48.33 Vp-p

Horiz. Rate

11) 1.15 KVp-p

Horiz. Rate

12) 53.33 Vp-p

Vert. Rate

13) 5.04 Vp-p

Vert. Rate

14) 132.50 Vp-p

Horiz. Rate

15) 516.67 Vp-p

16) 5.21 Vp-p

Horiz. Rate

17) 5.38 Vp-p

Vert. Rate

18) 91.67 Vp-p

Horiz. Rate

19) 94.17 Vp-p

Horiz. Rate

20) 106.67 Vp-p

Horiz. Rate

21J-FG1RU

11 – 1

21J-FG1RU Service Manual

CHAPTER 11. SCHEMATIC DIAGRAM

[1] SCHEMATIC DIAGRAM: MAIN UNIT

A

C

B

D

E

F

G

H

12345678910

21J-FG1RU

11 – 2

10 11 12 13 14 15 16 17 18 19

21J-FG1RU

11 – 3

[2] SCHEMATIC DIAGRAM: CRT UNIT

[3] SCHEMATIC DIAGRAM: HEADPHONE UNIT

A

C

B

D

12345678910

A

C

B

D

12345678910

21J-FG1RU

12 – 1

21J-FG1RU Service Manual

CHAPTER 12. PRINTED WIRING BOARD ASSEMBLIES

[1] PWB-B: CRT UNIT

1. CRT UNIT (Component Side)

[2] PWB-C: HEADPHONE UNIT

1. HEADPHONE UNIT (Component Side) (Chip Parts Side)

A

C

B

D

12345678910

Component Side

A

C

B

D

12345678910

Component Side Chip Parts Side

21J-FG1RU

12 – 2

[3] PWB-A: MAIN UNIT

1. MAIN UNIT (Component Side)

A

C

B

D

E

F

G

H

12345678910

21J-FG1RU

12 – 3

10 11 12 13 14 15 16 17 18 19

21J-FG1RU

12 – 4

2. MAIN UNIT (Chip Parts Side)

A

C

B

D

E

F

G

H

12345678910

21J-FG1RU

12 – 5

10 11 12 13 14 15 16 17 18 19

PARTS GUIDE

No. S75L821JFG1RU

21J-FG1RU

MODEL

SHARP CORPORATION

CONTENTS

Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these

parts with specified ones for

This document has been published to be used

for after sales service only.

The contents are subject to change without notice.

21J-FG1RU

[1] PICTURE TUBE

[2] PRINTED WIRING BOARD

ASSEMBLIES

[3] MAIN UNIT

[4] CRT UNIT

[5] HEADPHONE UNIT

[6] MISCELLANEOUS PARTS

[7] CABINET PARTS

[8] SUPPLIED ACCESSORIES

[9] PACKING PARTS

21J-FG1RU

2

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

RANK DESCRIPTION

[1] PICTURE TUBE

!

VB51LYZ395XFU R Picture Tube

!

L706 RCILGA095WJZZ AM R Degaussing Coil

!

DY601 RCILHA128WJZZ R Deflection Yoke

QEARCA012WJZZ AG R Corting Earth

PMAGF3046CEZZ AF R Purity Mag.

PSPAG0003PEZZ AD R Rubber Wedge

LHLDW0003PEKZ AB R Wire Holder

LHLDW1075PEKZ AC R Wire Holder

[2] PRINTED WIRING BOARD ASSEMBLIES

(NOT REPLACMENT ITEM)

DUNTKD307WEA2 - - MAIN Unit

DUNTKA599WEH8 - - CRT Unit

DUNTKD308WEA2 - - HEADPHONE Unit

[3] MAIN UNIT

PWB-A: DUNTKD307WEA2

!

TU201 RTUNQA022WJZZ AT R Tuner

IC301 VHIAN17820B-1 AL R Audio IC, AN17820B

IC305 VSIMX1C/C//-1Y AC R Transistor, IMX1C/C

IC401 VHIMM1501XN-1Y AE R MM1501XNRE

IC402 VHIMM1501XN-1Y AE R MM1501XNRE

!

IC501 VHISTV9302A-1 AH R VertICal IC, STV9302A

IC601 VHIPQ09RDA1-1 AF R PQ090RDA1SZ

!

IC701 VHISTRW6553-1 R Power IC, STRW6553

!

IC702 RH-FXA003WJZZ AD R Power IC,

!

IC703 VHISE125N++-F AG R Hybrid IC, SE125N

IC801 VHIM61262BF1EQ AZ R 1 Chip IC, M61262BFP

IC1001 RH-IXB226WJZZ R Micon, M37160MAH

IC1003 VHIBR24L08F-1Y AE R EEPROM IC, BR24L08F

IC1170 VSIMZ1A////-1Y AC R Transistor, IMZ1A

IC3501 VHINJW1142A-1Y AM R S-Control IC, NJW1142A

Q601 VS2SC2235Y/1E+ AE R Transitor, 2SC2235Y1E

Q602 VSTT2140+++-F AG R Transitor, TT2140-F

Q603 VS2SC3198-G-1+ AA R Transitor, 2SC3198-G

Q604 VS2PD601AR/-1Y AB R Transitor, 2PD601AR

Q751 VS2SD468-C/-1+ AD R Transitor, 2SD468-C

Q752 VS2SD468-C/-1+ AD R Transitor, 2SD468-C

Q753 VS2SC3198-G-1+ AA R Transitor, 2SC3198-G

Q754 VS2SD468-C/-1+ AD R Transitor, 2SD468-C

Q801 VS2PD601AR/-1Y AB R Transitor, 2PD601AR

Q803 VS2PD601AR/-1Y AB R Transitor, 2PD601AR

Q804 VS2PB709AR/-1Y AB R Transitor, 2PB709AR

Q805 VS2PB709AR/-1Y AB R Transitor, 2PB709AR

Q1001 VS2PD601AR/-1Y AB R Transitor, 2PD601AR

Q1002 VS2PD601AR/-1Y AB R Transitor, 2PD601AR

Q1070 VS2PD601AR/-1Y AB R Transitor, 2PD601AR

D201 RH-EX0676GEZZY AA R Zener Diode, 32.5V

D203 VHD1SS119//-1Y AA R Diode, 1SS119

D301 VHD1SS119//-1Y AA R Diode, 1SS119

D392 RH-DX0445CEZZ AL R Diode

D503 RH-EX0612GEZZY AB R Zener Diode, 5.2V

D505 RH-DX0441CEZZY AC R Diode

D510 RH-DX0131CEZZY AC R Diode

D602 VHD1SS244//-1Y AB R Diode, 1SS244

D603 RH-EX0667GEZZY AA R Zener Diode, 26.26V

D605 VHD1SS119//-1Y AA R Diode, 1SS119

D606 RH-DX0131CEZZY AC R Diode

D607 VHD1SS119//-1Y AA R Diode, 1SS119

D608 RH-EX0617GEZZY AA R Zener Diode, 6V

!

D701 RH-DX0476CEZZ AG R Diode

D705 RH-EX0653GEZZY R Zener Diode, 18.33V

D706 RH-DX0066GEZZY AC R Diode

D714 VHD1SS119//-1Y AA R Diode, 1SS119

D716 RH-EX0601GEZZY AA R Zener Diode, 3.7V

D751 RH-DXA006WJZZ AD R Diode

D752 RH-DX0247CEZZ AE R Diode

D801 RH-EX0612GEZZY AB R Zener Diode, 5.2V

D802 RH-EX0630GEZZY AA R Zener Diode, 9V

D803 VHD1SS119//-1Y AA R Diode, 1SS119

D806 VHD1SS119//-1Y AA R Diode, 1SS119

D810 RH-EX0263TAZZY AC R Zener Diode, 8.36V

D811 RH-EX0263TAZZY AC R Zener Diode, 8.36V

D812 RH-EX0263TAZZY AC R Zener Diode, 8.36V

D1001 RH-PX0013PEZZ AC R LED

D1010 RH-EX0636GEZZY AC R Zener Diode, 10.7V

D1042 RH-EX1393CEZZY AB R Zener Diode, 5.2V

D1081 VHD1SS119//-1Y AA R Diode, 1SS119

D1091 VHD1SS119//-1Y AA R Diode, 1SS119

D1094 VHD1SS119//-1Y AA R Diode, 1SS119

D1170 VHD1SS119//-1Y AA R Diode, 1SS119

D1171 VHD1SS119//-1Y AA R Diode, 1SS119

D1801 VHD1SS119//-1Y AA R Diode, 1SS119

D3506 VHD1SS119//-1Y AA R Diode, 1SS119

21J-FG1RU

3

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

RANK DESCRIPTION

!

VA701 RH-VX0073CEZZ AD R Varistor

!

PR701 RMPTP0085CEZZ AL R Packaged Circuit

X801 RCRSAA019WJZZ AF R Crystal, 4.433619MHz

L203 VP-DF270K0000Y AB R Peaking 27µH

L602 RCILP0223CEZZ+ AD R Coil

!

L701 RCILF0086PEN1 AF R Coil

L751 RCILP0179CEZZ+ AD R Coil

L801 VP-CF220K0000Y AB R Peaking 22µH

L802 VP-DF100K0000Y AB R Peaking 10µH

L803 VP-DF100K0000Y AB R Peaking 10µH

L806 VP-DF100K0000Y AB R Peaking 10µH

L807 VP-XF2R2K0000Y AB R Peaking 2.2µH

L808 VP-XF330K0000Y AB R Peaking 33µH

SF201 RFILC0442CEZZ AL R Filter

!

T602 RTRNFA113WJZZ R H-Volt Transformer

!

T603 RTRNZA058WJZZ AD R Transformer

!

T701 RTRNWA194WJZZ R Transformer

C201 VCEA9M1CW476M+ AB R 47 16V Electrolytic

C202 VCEA0A0JW108M+ AC R 1000 6.3V Electrolytic

C203 VCKYCY1HF103ZY AA R 0.01 50V Ceramic

C206 VCEA0A1HW106M+ AB R 10 50V Electrolytic

C301 VCEA0A1EW477M+ AD R 470 25V Electrolytic

C304 VCEA0A1HW105M+ AB R 1 50V Electrolytic

C308 VCKYCY1HB682KY AA R 6800p 50V Ceramic

C310 VCEA0A1HW474M+ AB R 0.47 50V Electrolytic

C311 VCEA0A1HW474M+ AB R 0.47 50V Electrolytic

C313 VCKYCY1HB682KY AA R 6800p 50V Ceramic

C318 VCEA0A1CW107M+ AC R 100 16V Electrolytic

C319 VCEA0A1CW106M+ AB R 10 16V Electrolytic

C320 VCEA0A1CW106M+ AB R 10 16V Electrolytic

C322 VCEA0A1HW475M+ AB R 4.7 50V Electrolytic

C383 VCEA0A1CW106M+ AB R 10 16V Electrolytic

C387 VCEA0A1CW106M+ AB R 10 16V Electrolytic

C391 VCKYPA1HB102K+ AA R 1000p 50V Ceramic

C393 VCEA0A1EW108M+ AD R 1000 25V Electrolytic

C401 VCKYCY1HF103ZY AA R 0.01 50V Ceramic

C434 VCEA0A1CW106M+ AB R 10 16V Electrolytic

C435 VCE9GA1CW106M+ AB R 10 16V Electrolytic_ (N.P)

C437 VCEA0A1CW106M+ AB R 10 16V Electrolytic

C438 VCEA0A1CW106M+ AB R 10 16V Electrolytic

C451 VCEA0A1CW477M+ AC R 470 16V Electrolytic

C505 VCEA0A1HW107M+ AB R 100 50V Electrolytic

C508 VCFYAA2AA224J+ AD R 0.22 100V Metalized Polypro Film

C509 VCKYPA2HB472K+ AB R 4700p 500V Ceramic

C511 VCEA0A1VW477M+ AB R 470 35V Electrolytic

C512 VCKYPA2HB102K+ AA R 1000p 500V Ceramic

C513 RC-EZA332WJZZ+ AD R

C515 VCEACA1HC335J+ AC R 3.3 50V Electrolytic

C601 VCQYTA1HM563J+ AB R 0.056 50V Mylar

C602 VCEA0A1HW475M+ AB R 4.7 50V Electrolytic

C604 VCEA0A2EW336M+ AD R 33 250V Electrolytic

C606 VCKYPA2HB102K+ AA R 1000p 500V Ceramic

!

C607 VCFPVC3ZA103H AD R 0.01 1800V Metalized Polypro Film

C608 VCQYTA2AA103K+ AC R 0.01 100V Mylar

C610 VCEA0A1EW227M+ AB R 220 25V Electrolytic

C611 VCFPVC2DB364J R 0.36 200V Metalized Polypro Film

C642 VCEA0A1EW476M+ AB R 47 25V Electrolytic

C643 VCEA0A1CW477M+ AC R 470 16V Electrolytic

C650 VCKYPA2HB101K+ AB R 100p 500V Ceramic

!

C701 RC-FZ037SCEZZ AD R 0.22 275V Metalized Polypro Film

C702 RC-KZ0029CEZZ+ AC R 0.01 250V Ceramic

C703 RC-KZ0029CEZZ+ AC R 0.01 250V Ceramic

C704 RC-KZ0029CEZZ+ AC R 0.01 250V Ceramic

!

C705 RC-EZA097WJZZ AM R 220 400V Electrolytic

C706 VCEA0A1VW226M+ AB R 22 35V Electrolytic

C709 VCFYFA1HA104J+ AA R 0.1 50V Metalized Polypro Film

C710 VCQYTA1HM103J+ AB R 0.01 50V Mylar

C711 VCKYPA1HB332K+ AB R 3300p 50V Ceramic

C713 RC-KZ0107GEZZ AE R 3900p 250V Ceramic

C743 VCKYPH3DB561K AC R 560p 2000V Ceramic

C744 VCEA0A1HW105M+ AB R 1 50V Electrolytic

!

C750 VCKYPA2HB102K+ AA R 1000p 500V Ceramic

C752 VCKYPH3DB561K AC R 560p 2000V Ceramic

C753 RC-EZA523WJZZ AD R 100 160V Electrolytic

C754 RC-EZA522WJZZ AD R 33 160V Electrolytic

C756 VCEA0A1EW228M+ AE R 2200 25V Electrolytic

C757 VCKYCY1HB471KY AA R 470p 50V Ceramic

C784 RC-KZ1018CEZZ+ AC R 1000 2kV Ceramic

C801 VCFYFA1HA105J+ AE R 1 50V Metalized Polypro Film

C802 VCKYCY1HF103ZY AA R 0.01 50V Ceramic

C803 VCEA0A1CW108M+ AD R 1000 16V Electrolytic

C804 VCKYCY1HF103ZY AA R 0.01 50V Ceramic

C805 VCEA0A1HW105M+ AB R 1 50V Electrolytic

C806 VCKYCY1HF103ZY AA R 0.01 50V Ceramic

[3] MAIN UNIT

21J-FG1RU

4

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

RANK DESCRIPTION

C807 VCEA0A1CW108M+ AD R 1000 16V Electrolytic

C808 VCKYCY1HF103ZY AA R 0.01 50V Ceramic

C809 VCKYCY1HF103ZY AA R 0.01 50V Ceramic

C810 VCKYCY1HF103ZY AA R 0.01 50V Ceramic

C811 VCEA9M1CW107M+ AB R 100 16V Electrolytic

C813 VCCCCY1HH181JY AA R 180p 50V Ceramic

C814 VCKYCY1HF103ZY AA R 0.01 50V Ceramic

C815 VCKYCY1HF103ZY AA R 0.01 50V Ceramic

C817 VCEA0A1CW107M+ AC R 100 16V Electrolytic

C818 VCEA9M1HW475M+ AB R 4.7 50V Electrolytic

C819 VCCCCY1HH121JY AA R 120p 50V Ceramic

C820 VCEA9M1HW474M+ AB R 0.47 50V Electrolytic

C821 VCKYCY1HF153ZY AA R 0.015 50V Ceramic

C822 VCEA0A1HW105M+ AB R 1 50V Electrolytic

C823 VCKYCY1EF104ZY AA R 0.1 25V Ceramic

C824 VCEA0A1CW337M+ AC R 330 16V Electrolytic

C825 VCEA0A1HW105M+ AB R 1 50V Electrolytic

C827 VCEA0A1CW477M+ AC R 470 16V Electrolytic

C828 VCKYCY1HF103ZY AA R 0.01 50V Ceramic

C829 VCEA0A1CW476M+ AB R 47 16V Electrolytic

C831 VCKYCY1EF104ZY AA R 0.1 25V Ceramic

C833 VCKYCY1EF104ZY AA R 0.1 25V Ceramic

C834 VCEA0A1CW476M+ AB R 47 16V Electrolytic

C835 VCEA0A1CW106M+ AB R 10 16V Electrolytic

C837 VCEA9M1HW474M+ AB R 0.47 50V Electrolytic

C839 VCKYCY1HB392KY AA R 3900p 50V Ceramic

C840 VCFYFA1HA105J+ AE R 1 50V Metalized Polypro Film

C841 VCCCCY1HH220JY AA R 22p 50V Ceramic

C842 VCEA0A1HW474M+ AB R 0.47 50V Electrolytic

C843 VCEA9M1HW105M+ AB R 1 50V Electrolytic

C845 VCKYCY1CF224ZY AB R 0.22 16V Ceramic

C847 VCCCCY1HH220JY AA R 22p 50V Ceramic

C848 VCEA0A1HW474M+ AB R 0.47 50V Electrolytic

C1003 VCEA0A1CW106M+ AB R 10 16V Electrolytic

C1004 VCKYCY1CF474ZY AB R 0.47 16V Ceramic

C1006 VCEA0A1HW225M+ AB R 2.2 50V Electrolytic

C1007 VCEA0A1CW107M+ AC R 100 16V Electrolytic

C1008 VCKYCY1HF103ZY AA R 0.01 50V Ceramic

C1009 VCKYCY1HF103ZY AA R 0.01 50V Ceramic

C1011 VCKYCY1HB221KY AA R 220p 50V Ceramic

C1012 VCEA0A1HW105M+ AB R 1 50V Electrolytic

C1014 VCEA0A1HW475M+ AB R 4.7 50V Electrolytic

C1015 VCCCPA1HH101J+ AA R 100p 50V Ceramic

C1016 VCKYCY1EF104ZY AA R 0.1 25V Ceramic

C1081 VCQYTA1HM104J+ AB R 0.1 50V Mylar

C1170 VCEA0A1CW107M+ AC R 100 16V Electrolytic

C1801 VCEA9M1CW106M+ AB R 10 16V Electrolytic

C1849 VCFYFA1HA104J+ AA R 0.1 50V Metalized Polypro Film

C1851 VCFYFA1HA224J+ AB R 0.22 50V Metalized Polypro Film

C1852 VCFYFA1HA224J+ AB R 0.22 50V Metalized Polypro Film

C1853 VCFYFA1HA105J+ AE R 1 50V Metalized Polypro Film

C1856 VCKYCY1HB102KY AA R 1000p 50V Ceramic

C1867 VCCCCY1HH150JY AA R 15p 50V Ceramic

C1868 VCEA0A1CW336M+ AB R 33 16V Electrolytic

C3501 VCKYCY1CF224ZY AB R 0.22 16V Ceramic

C3502 VCKYCY1CF224ZY AB R 0.22 16V Ceramic

C3503 VCKYCY1CF224ZY AB R 0.22 16V Ceramic

C3504 VCKYCY1CF224ZY AB R 0.22 16V Ceramic

C3505 VCKYCY1CF224ZY AB R 0.22 16V Ceramic

C3506 VCKYCY1CF224ZY AB R 0.22 16V Ceramic

C3507 VCEA0A1HW475M+ AB R 4.7 50V Electrolytic

C3508 VCEA0A1HW475M+ AB R 4.7 50V Electrolytic

C3509 VCKYCY1HF223ZY AB R 0.022 50V Ceramic

C3510 VCKYCY1HF223ZY AB R 0.022 50V Ceramic

C3511 VCKYCY1HB222KY AA R 2200p 50V Ceramic

C3512 VCKYCY1HB222KY AA R 2200p 50V Ceramic

C3513 VCKYCY1CF224ZY AB R 0.22 16V Ceramic

C3514 VCKYCY1CF224ZY AB R 0.22 16V Ceramic

C3515 VCEA0A1HW474M+ AB R 0.47 50V Electrolytic

C3516 VCEA0A1HW474M+ AB R 0.47 50V Electrolytic

C3517 VCEA0A1HW105M+ AB R 1 50V Electrolytic

C3518 VCKYCY1CF334ZY AB R 0.33 16V Ceramic

C3519 VCEA0A1HW105M+ AB R 1 50V Electrolytic

C3520 VCEA0A1HW105M+ AB R 1 50V Electrolytic

C3521 VCEA0A1HW105M+ AB R 1 50V Electrolytic

C3522 VCEA0A1HW105M+ AB R 1 50V Electrolytic

C3523 VCKYCY1CF104ZY AA R 0.1 16V Ceramic

C3524 VCEA0A1CW108M+ AD R 1000 16V Electrolytic

C3525 VCKYCY1HF103ZY AA R 0.01 50V Ceramic

C3526 VCKYCY1HF103ZY AA R 0.01 50V Ceramic

R201 VRS-CY1JF101JY AA R 100 1/16W Metal Oxide

R202 VRS-CY1JF101JY AA R 100 1/16W Metal Oxide

R216 VRS-RG3LB393J+ R 39k 3.0W Metal Oxide

R301 VRS-CY1JF102JY AA R 1k 1/16W Metal Oxide

R302 VRN-RL3DBR10J+ AB R 0.1 2W Metal Film

[3] MAIN UNIT

21J-FG1RU

5

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

RANK DESCRIPTION

R303 VRS-CY1JF473JY AA R 47k 1/16W Metal Oxide

R304 VRD-RA2BE683JY AA R 68k 1/8W Carbon

R305 VRS-CY1JF274JY AA R 270k 1/16W Metal Oxide

R307 VRS-CY1JF122JY AA R 1.2k 1/16W Metal Oxide

R308 VRD-RA2BE562JY AA R 5.6k 1/8W Carbon

R314 VRD-RA2BE562JY AA R 5.6k 1/8W Carbon

R315 VRS-CY1JF122JY AA R 1.2k 1/16W Metal Oxide

R318 VRD-RA2BE680JY AA R 68 1/8W Carbon

R319 VRD-RA2BE680JY AA R 68 1/8W Carbon

R353 VRS-CY1JF102JY AA R 1k 1/16W Metal Oxide

R356 VRD-RA2BE102JY AA R 1k 1/8W Carbon

R362 VRS-CY1JF332JY AA R 3.3k 1/16W Metal Oxide

R366 VRS-CY1JF332JY AA R 3.3k 1/16W Metal Oxide

R372 VRS-CY1JF104JY AA R 100k 1/16W Metal Oxide

R373 VRS-CY1JF103JY AA R 10k 1/16W Metal Oxide

R374 VRS-CY1JF104JY AA R 100k 1/16W Metal Oxide

R376 VRD-RA2BE472JY AA R 4.7k 1/8W Carbon

R382 VRD-RA2BE332JY AA R 3.3k 1/8W Carbon

R384 VRD-RA2BE332JY AA R 3.3k 1/8W Carbon

R431 VRS-CY1JF101JY AA R 100 1/16W Metal Oxide

R432 VRS-CY1JF750JY AA R 75 1/16W Metal Oxide

R433 VRS-CY1JF750JY AA R 75 1/16W Metal Oxide

R434 VRS-CY1JF750JY AA R 75 1/16W Metal Oxide

R435 VRS-CY1JF750JY AA R 75 1/16W Metal Oxide

R436 VRD-RA2BE101JY AA R 100 1/8W Carbon

R437 VRS-CY1JF101JY AA R 100 1/16W Metal Oxide

R458 VRS-CY1JF103JY AA R 10k 1/16W Metal Oxide

R459 VRD-RA2EE750JY AA R 75 1/4W Carbon

R461 VRS-CY1JF750JY AA R 75 1/16W Metal Oxide

R462 VRD-RA2BE101JY AA R 100 1/8W Carbon

R503 VRN-RL3DB1R2J+ AB R 1.2 2W Metal Film

R504 VRS-CY1JF222JY AA R 2.2k 1/16W Metal Oxide

R506 VRS-RG3AB331J+ AB R 330 1W Metal Oxide

R507 VRD-RM2HD1R0JY AA R 1 1/2W Carbon

R513 VRD-RM2HD333JY AB R 33k 1/2W Carbon

R514 VRD-RM2HD682JY AA R 6.8k 1/2W Carbon

R515 VRS-CY1JF393JY AA R 39k 1/16W Metal Oxide

R520 VRS-CY1JF223JY AA R 22k 1/16W Metal Oxide

R523 VRD-RA2BE103JY AA R 10k 1/8W Carbon

R524 VRD-RA2BE103JY AA R 10k 1/8W Carbon

R525 VRD-RA2BE102JY AA R 1k 1/8W Carbon

R526 VRD-RA2BE101JY AA R 100 1/8W Carbon

R601 VRD-RM2HD820JY AA R 82 1/2W Carbon

R602 VRD-RA2BE393JY AA R 39k 1/8W Carbon

R603 VRD-RA2BE393JY AA R 39k 1/8W Carbon

R604 VRD-RA2BE473JY AA R 47k 1/8W Carbon

R605 VRD-RM2HD104JY AA R 100k 1/2W Carbon

R607 VRD-RM2HD121JY AA R 120 1/2W Carbon

!

R608 VRD-RM2HD102JY AA R 1k 1/2W Carbon

!

R611 VRN-RL3AB1R5J+ AB R 1.5 1W Metal Film

!

R612 VRD-RM2HD270JY AA R 27 1/2W Carbon

R614 VRD-RA2BE154JY AA R 150k 1/8W Carbon

R615 VRD-RA2BE102JY AA R 1k 1/8W Carbon

R616 VRD-RA2BE102JY AA R 1k 1/8W Carbon

R617 VRS-CY1JF123JY AA R 12k 1/16W Metal Oxide

R618 VRS-CY1JF103JY AA R 10k 1/16W Metal Oxide

R621 VRN-RL2HC4R7J+ AB R 4.7 1/2W Metal Film

R622 VRS-VV3DB682J AA R 6.8k 2W Metal Oxide

R625 VRD-RM2HD184JY AA R 180k 1/2W Carbon

R626 VRS-CY1JF472JY AA R 4.7k 1/16W Metal Oxide

R627 VRD-RA2BE103JY AA R 10k 1/8W Carbon

R631 VRS-KT3LB391J AD R 390 3.0W Metal Oxide

R637 VRD-RA2BE331JY AA R 330 1/8W Carbon

R638 VRD-RA2BE181JY AA R 180 1/8W Carbon

R639 VRD-RM2HD271JY AA R 270 1/2W Carbon

R642 VRN-RL3DB1R0J+ AB R 1 2W Metal Film

R661 VRD-RA2BE102JY AA R 1k 1/8W Carbon

R662 VRD-RA2BE103JY AA R 10k 1/8W Carbon

R701 VRD-RM2HD154JY AA R 150k 1/2W Carbon

!

R704 VRD-RA2BE221JY AA R 220 1/8W Carbon

R710 VRD-RM2HD220JY AA R 22 1/2W Carbon

R711 VRD-RA2EE682JY AA R 6.8k 1/4W Carbon

!

R718 VRC-UA2HG275KY AC R 2.7 M 1/2W Solid

R721 VRD-RA2BE222JY AA R 2.2k 1/8W Carbon

R722 VRD-RA2BE333GY AB R 33k 1/8W 2% Carbon

R725 VRD-RM2HD821JY AA R 820 1/2W Carbon

R726 VRN-RL2HCR47J+ AB R 0.47 1/2W Metal Film

!

R751 VRC-UA2HG825KY AA R 8.2 M 1/2W Solid

!

R752 VRC-UA2HG825KY AA R 8.2 M 1/2W Solid

R753 VRD-RM2HD334JY AA R 330k 1/2W Carbon

R754 VRN-RL3AB8R2J+ AB R 8.2 1W Metal Film

R756 VRS-RG3DB121J+ AB R 120 2W Metal Oxide

R801 VRS-CY1JF102JY AA R 1k 1/16W Metal Oxide

R802 VRS-CY1JF682JY AA R 6.8k 1/16W Metal Oxide

R803 VRS-CY1JF103JY AA R 10k 1/16W Metal Oxide

[3] MAIN UNIT

21J-FG1RU

6

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

RANK DESCRIPTION

R804 VRS-CY1JF222JY AA R 2.2k 1/16W Metal Oxide

R805 VRS-CY1JF222JY AA R 2.2k 1/16W Metal Oxide

R806 VRS-CY1JF222JY AA R 2.2k 1/16W Metal Oxide

R807 VRS-CY1JF222JY AA R 2.2k 1/16W Metal Oxide

R370 VRS-CY1JF471JY AA R 470 1/16W Metal Oxide

R371 VRS-CY1JF471JY AA R 470 1/16W Metal Oxide

J351 QJAKJ0101SEZZ AE R Jack

P352 QPLGNA108WJZZ AB R Plug

P351 QPLGNA109WJZZ AB R Plug

R808 VRD-RA2BE273JY AA R 27k 1/8W Carbon

R812 VRD-RA2BE101JY AA R 100 1/8W Carbon

R814 VRS-CY1JF473JY AA R 47k 1/16W Metal Oxide

R815 VRS-CY1JF473JY AA R 47k 1/16W Metal Oxide

R816 VRS-CY1JF223JY AA R 22k 1/16W Metal Oxide

R817 VRS-CY1JF473JY AA R 47k 1/16W Metal Oxide

R821 VRS-CY1JF681JY AA R 680 1/16W Metal Oxide

R823 VRD-RA2BE101JY AA R 100 1/8W Carbon

R824 VRD-RA2BE101JY AA R 100 1/8W Carbon

R826 VRD-RA2BE101JY AA R 100 1/8W Carbon

R829 VRD-RA2BE472JY AA R 4.7k 1/8W Carbon

R830 VRS-CY1JF393JY AA R 39k 1/16W Metal Oxide

R831 VRD-RA2BE331JY AA R 330 1/8W Carbon

R832 VRS-CY1JF822JY AA R 8.2k 1/16W Metal Oxide

R833 VRS-CY1JF220JY AA R 22 1/16W Metal Oxide

R835 VRS-CY1JF332JY AA R 3.3k 1/16W Metal Oxide

R837 VRD-RM2HD151JY AA R 150 1/2W Carbon

R838 VRD-RA2BE105JY AA R 1 M 1/8W Carbon

R839 VRD-RA2BE101JY AA R 100 1/8W Carbon

R840 VRS-CY1JF124JY AA R 120k 1/16W Metal Oxide

R841 VRD-RA2BE152JY AA R 1.5k 1/8W Carbon

R842 VRS-CY1JF562JY AA R 5.6k 1/16W Metal Oxide

R843 VRD-RA2BE103JY AA R 10k 1/8W Carbon

R1002 VRS-CY1JF183JY AA R 18k 1/16W Metal Oxide

R1003 VRS-CY1JF822JY AA R 8.2k 1/16W Metal Oxide

R1005 VRD-RA2BE101JY AA R 100 1/8W Carbon

R1006 VRS-CY1JF822JY AA R 8.2k 1/16W Metal Oxide

R1007 VRS-CY1JF103JY AA R 10k 1/16W Metal Oxide

R1008 VRS-CY1JF183JY AA R 18k 1/16W Metal Oxide

R1009 VRS-CY1JF103JY AA R 10k 1/16W Metal Oxide

R1011 VRD-RA2BE101JY AA R 100 1/8W Carbon

R1012 VRD-RA2BE101JY AA R 100 1/8W Carbon

R1013 VRD-RA2BE391JY AA R 390 1/8W Carbon

R1024 VRS-CY1JF101JY AA R 100 1/16W Metal Oxide

R1027 VRS-CY1JF104JY AA R 100k 1/16W Metal Oxide

R1031 VRD-RA2BE101JY AA R 100 1/8W Carbon

R1032 VRS-CY1JF332JY AA R 3.3k 1/16W Metal Oxide

R1034 VRS-CY1JF104JY AA R 100k 1/16W Metal Oxide

R1035 VRD-RA2BE101JY AA R 100 1/8W Carbon

R1036 VRS-CY1JF103JY AA R 10k 1/16W Metal Oxide

R1037 VRS-CY1JF103JY AA R 10k 1/16W Metal Oxide

R1038 VRS-CY1JF562JY AA R 5.6k 1/16W Metal Oxide

R1039 VRS-CY1JF102JY AA R 1k 1/16W Metal Oxide

R1041 VRS-CY1JF102JY AA R 1k 1/16W Metal Oxide

R1042 VRD-RA2BE101JY AA R 100 1/8W Carbon

R1043 VRS-CY1JF104JY AA R 100k 1/16W Metal Oxide

R1045 VRD-RA2BE101JY AA R 100 1/8W Carbon

R1046 VRS-CY1JF101JY AA R 100 1/16W Metal Oxide

R1047 VRS-CY1JF183JY AA R 18k 1/16W Metal Oxide

R1048 VRS-CY1JF101JY AA R 100 1/16W Metal Oxide

R1049 VRS-CY1JF183JY AA R 18k 1/16W Metal Oxide

R1050 VRD-RA2BE103JY AA R 10k 1/8W Carbon

R1051 VRD-RA2BE104JY AA R 100k 1/8W Carbon

R1053 VRD-RA2BE101JY AA R 100 1/8W Carbon

R1054 VRD-RA2BE101JY AA R 100 1/8W Carbon

R1055 VRD-RA2BE332JY AA R 3.3k 1/8W Carbon

R1056 VRS-CY1JF332JY AA R 3.3k 1/16W Metal Oxide

R1057 VRS-CY1JF101JY AA R 100 1/16W Metal Oxide

R1061 VRS-CY1JF102JY AA R 1k 1/16W Metal Oxide

R1063 VRS-CY1JF103JY AA R 10k 1/16W Metal Oxide

R1064 VRS-CY1JF103JY AA R 10k 1/16W Metal Oxide

R1065 VRS-CY1JF103JY AA R 10k 1/16W Metal Oxide

R1066 VRS-CY1JF102JY AA R 1k 1/16W Metal Oxide

R1072 VRS-CY1JF221JY AA R 220 1/16W Metal Oxide

R1073 VRD-RA2BE101JY AA R 100 1/8W Carbon

R1074 VRS-CY1JF332JY AA R 3.3k 1/16W Metal Oxide

R1076 VRS-CY1JF102JY AA R 1k 1/16W Metal Oxide

R1078 VRS-CY1JF332JY AA R 3.3k 1/16W Metal Oxide

R1079 VRS-CY1JF332JY AA R 3.3k 1/16W Metal Oxide

R1087 VRS-CY1JF391JY AA R 390 1/16W Metal Oxide

R1170 VRD-RA2BE103JY AA R 10k 1/8W Carbon

R1171 VRS-CY1JF103JY AA R 10k 1/16W Metal Oxide

R1172 VRS-CY1JF222JY AA R 2.2k 1/16W Metal Oxide

R1511 VRS-CY1JF000JY AA R 0 1/16W Metal Oxide

R1801 VRS-CY1JF222JY AA R 2.2k 1/16W Metal Oxide

R1802 VRD-RA2BE124JY AA R 120k 1/8W Carbon

[3] MAIN UNIT

21J-FG1RU

7

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

RANK DESCRIPTION

R1849 VRS-CY1JF272JY AA R 2.7k 1/16W Metal Oxide

R1850 VRS-CY1JF681JY AA R 680 1/16W Metal Oxide

R1851 VRS-CY1JF221JY AA R 220 1/16W Metal Oxide

R1852 VRS-CY1JF221JY AA R 220 1/16W Metal Oxide

R1853 VRS-CY1JF221JY AA R 220 1/16W Metal Oxide

R1854 VRS-CY1JF103JY AA R 10k 1/16W Metal Oxide

R1855 VRS-CY1JF122JY AA R 1.2k 1/16W Metal Oxide

R1856 VRS-CY1JF223JY AA R 22k 1/16W Metal Oxide

R1894 VRD-RA2BE223JY AA R 22k 1/8W Carbon

R1895 VRS-CY1JF473JY AA R 47k 1/16W Metal Oxide

R1896 VRS-CY1JF473JY AA R 47k 1/16W Metal Oxide

R3006 VRS-CY1JF101JY AA R 100 1/16W Metal Oxide

R3009 VRS-CY1JF101JY AA R 100 1/16W Metal Oxide

R3501 VRD-RA2BE101JY AA R 100 1/8W Carbon

R3502 VRD-RA2BE101JY AA R 100 1/8W Carbon

R3503 VRD-RA2BE101JY AA R 100 1/8W Carbon

R3504 VRS-CY1JF101JY AA R 100 1/16W Metal Oxide

R3505 VRD-RA2BE101JY AA R 100 1/8W Carbon

R3506 VRS-CY1JF101JY AA R 100 1/16W Metal Oxide

R3507 VRD-RA2BE101JY AA R 100 1/8W Carbon

R3508 VRD-RA2BE101JY AA R 100 1/8W Carbon

R3509 VRD-RA2BE100JY AA R 10 1/8W Carbon

RJ1 VRS-CY1JF000JY AA R 0 1/16W Metal Oxide

RJ10 VRS-CY1JF000JY AA R 0 1/16W Metal Oxide

RJ12 VRS-CY1JF000JY AA R 0 1/16W Metal Oxide

RJ15 VRS-CY1JF000JY AA R 0 1/16W Metal Oxide

RJ16 VRS-CY1JF000JY AA R 0 1/16W Metal Oxide

RJ42 VRS-CY1JF000JY AA R 0 1/16W Metal Oxide

RJ43 VRS-CY1JF000JY AA R 0 1/16W Metal Oxide

RJ61 VRS-CY1JF000JY AA R 0 1/16W Metal Oxide

RJ63 VRS-CY1JF000JY AA R 0 1/16W Metal Oxide

S1001 QSW-K0202PEZZ+ AC R Switch

S1002 QSW-K0202PEZZ+ AC R Switch

S1003 QSW-K0202PEZZ+ AC R Switch

S1004 QSW-K0202PEZZ+ AC R Switch

S1005 QSW-K0202PEZZ+ AC R Switch

!

S701 QSW-P0612CEZZ AG R Switch

!

F701 QFS-C3225CEZZ AC R Fuse, 3.15A 250V

FB601 RBLN-A034WJZZY AA R Balun

FH701 QFSHD1013CEZZ+ AC R Fuse Holder

FH702 QFSHD1014CEZZ+ AC R Fuse Holder

J401 QJAKGA015WJZZ AH R Jack

J402 QJAKEA056WJ04 AB R Jack

J403 QJAKEA056WJ09 AB R Jack

J404 QJAKEA070WJ02 R Jack

J405 QTANJ0644CEZZ AM R Terminal

P302 QPLGN0461CEZZA AB R Plug, 4pins

P304 QPLGN0761CEZZA AC R Plug, 7pins

P601 QPLGN0660CEZZ AC R Plug, 6pins

P602 QPLGN0561CEZZA AB R Plug, 5pins

P701 QPLGN0260CEZZ AC R Plug, 2pins

P702 QPLGN0269GEZZ AB R Plug, 2pins

P1001 QPLGN0578GEZZ AB R Plug, 5pins

P1002 QPLGN0561CEZZ AB R Plug, 5pins

RMC1001 RRMCUA022WJZZ AG R Remote Receiver

RDA301 PRDARA120WJFW AD R Audio Heatsink

RDA392 PRDARA167WJFW AD R Heat Sink, D392

RDA501 PRDARA120WJFW AD R Heat Sink, IC501

RDA601 PRDARA167WJFW AD R Heat Sink, IC601

RDA602 PRDAR0337PEFW AD R Heat Sink, Q602

RDA701 PRDARA119WJFW AF R Heat Sink, IC701

NR701 RH-HXA013WJZZ+ AD R Thermistor

TP801 QLUGP0111GEFW AA R Lug

[4] CRT UNIT

Q853 RH-TX0110BMZZ+ AC R Transistor, BF422

Q854 RH-TX0110BMZZ+ AC R Transistor, BF422

Q855 RH-TX0110BMZZ+ AC R Transistor, BF422

Q894 VS2PA1015Y+-1+ AC R Transistor, 2PA1015Y

D859 VHD1SS119//-1Y AA R Diode, 1SS119

D896 RH-EX0616GEZZY AA R Zener Diode, 5.9V

D898 VHD1SS119//-1Y AA R Diode, 1SS119

L851 VP-MK820K0000+ AB R Peaking 82µH

C851 VCKYPA1HB561K+ AA R 560p 50V Ceramic

C852 VCKYPA1HB391K+ AA R 390p 50V Ceramic

C853 VCKYPA1HB271K+ AB R 270p 50V Ceramic

C880 RC-KZ0016CEZZ AC R 0.01 250V Ceramic

C893 VCEA0A1CW336M+ AB R 33 16V Electrolytic

R849 VRD-RA2BE271JY AA R 270 1/8W Carbon

R850 VRD-RA2BE470JY AA R 47 1/8W Carbon

R851 VRD-RA2BE470JY AA R 47 1/8W Carbon

R852 VRD-RA2BE470JY AA R 47 1/8W Carbon

R854 VRD-RA2BE271JY AA R 270 1/8W Carbon

R855 VRD-RA2BE271JY AA R 270 1/8W Carbon

!

R859 VRS-VV3DB153J AA R 15k 2W Metal Oxide

[3] MAIN UNIT

21J-FG1RU

8

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

RANK DESCRIPTION

!

R861 VRS-VV3DB153J AA R 15k 2W Metal Oxide

!

R863 VRS-VV3DB153J AA R 15k 2W Metal Oxide

R864 VRD-RA2BE470JY AA R 47 1/8W Carbon

R876 VRD-RA2BE121JY AA R 120 1/8W Carbon

R877 VRD-RA2BE121JY AA R 120 1/8W Carbon

R878 VRD-RA2BE121JY AA R 120 1/8W Carbon

R880 VRD-RM2HD332JY AA R 3.3k 1/2W Carbon

R881 VRD-RM2HD332JY AA R 3.3k 1/2W Carbon

R882 VRD-RM2HD332JY AA R 3.3k 1/2W Carbon

R889 VRD-RA2BE821JY AA R 820 1/8W Carbon

R891 VRD-RA2BE561JY AA R 560 1/8W Carbon

R892 VRD-RA2BE391JY AA R 390 1/8W Carbon

R894 VRD-RA2BE152JY AA R 1.5k 1/8W Carbon

R895 VRD-RA2BE561JY AA R 560 1/8W Carbon

P860 QPLGN0561CEZZ AB R Plug, 5pins

P880 QPLGN0578GEZZ AB R Plug, 5pins

SC851 QSOCV0016PEZZ AF R CRT Socket

[5] HEADPHONE UNIT

R370 VRS-CY1JF471JY AA R 470 1/16W Metal Oxide

R371 VRS-CY1JF471JY AA R 470 1/16W Metal Oxide

J351 QJAKJ0101SEZZ AE R Jack

P352 QPLGNA108WJZZ AB R Plug, 3pins

P351 QPLGNA109WJZZ AB R Plug, 4pins

[6] MISCELLANEOUS PARTS

QCNW-A922WJZZ AF R K-Wire

QCNW-A923WJZZ AE R H-Wire

QCNW-B266WJZZ AF R H/P Wire

LHLDKA004WJZZ R AC Cord Holder

LHLDW1002PEZZ AB R AC Holder

QCNW-D818WJPZ R Speaker Wire

TCAUAA005WJZZ R Caution Label

VSP1206PB81WA R Speaker 16 Ohm

[4] CRT UNIT

21J-FG1RU

9

[7] CABINET PARTS

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

RANK DESCRIPTION

[7] CABINET PARTS

1 CCABAB104WEV0 R Font Cabinet Ass'y

1-1 Not Available - - Font Cabinet

1-2 JBTN-A485WJSA R Power Button

1-3 MSPRC0005PEFW AB R Spring for Button

1-4 GCOVAB345WJSA R R/C Cover

1-5 HBDGB3155CESA AF R Sharp Badge

1-6 GDORFA158WJKA R Door

1-7 MSPRPA031WJFW AB R Door Spring

1-8 HINDPB368WJZZ R Indication Plat

1-9 LHLDZA646WJZZ R Speaker Holder

2 CCABBA631WEV0 R Rear Cabinrt Ass'y

2-1 Not Available - - Rear Cabinrt

2-2 HINDPB418WJZZ R Indicater Plate(Rear)

[8] SUPPLIED ACCESSORIES

!

X1 QACCZA048WJPZ R AC Cord

X2 RRMCGA296WJSB AN R Remote Control

X3 TINS-B982WJZZ R Operation Manual

X4 TGAN-A101WJZZ AC R Warranty Card

21J-FG1RU

10

[9] PACKING PARTS

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

RANK DESCRIPTION

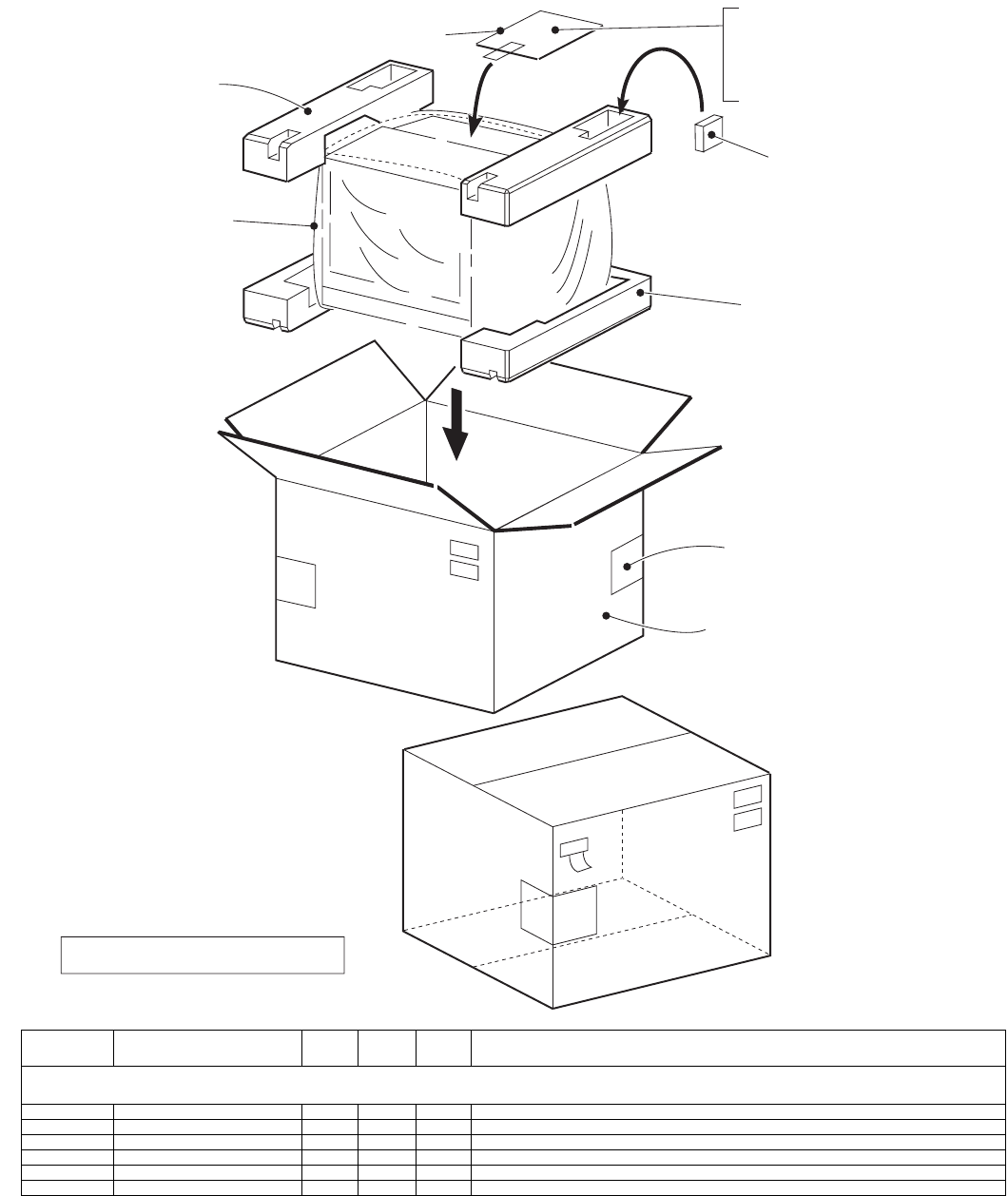

[9] PACKING PARTS

(NOT REPLACEMENT ITEM)

S1 SPAKCC260WJZZ - - Packing Case

S2 SPAKXA822WJZZ - - Packing Foam

S3 SSAKA0031PEZZ - - Rrapping Sack

S4 TLABZB002WJZZ - - Packing Label

S5 SPAKP0122PEZZ - - Rrapping Sheet

REAR

★ S1

★ S4

★ S5

★ MARK : Not replacement items.

FRONT

★ S2

★ S2

★ S3

X2

X1

X3

X4

SHARP CORPORATION

AV Systems Group

CS Promotion Center

Yaita, Tochigi 329-2193, Japan

TQ1921-S

Aug. 2005 Printed in Japan

Design and Production Information

Design : SEM

Production : SREC

MY. KD

No part of this publication may be reproduced,

stored in a retrieval system, or transmitted in

any form or by any means, electronic, mechanical,

photocopying, recording, or otherwise, without

prior written permission of the publisher.

COPYRIGHT 2005 BY SHARP CORPORATION

ALL RIGHTS RESERVED.

www.s-manuals.com
