1. SAFETY RULES

2. WEAPON THEORY

2.1 Weapon description

2.2 Technical specifications

2.3 Accessories

3. HANDLING

3.1 Important instructions

3.2 Loading the weapon

3.3 Unloading

3.4 Changing the magazine

3.5 Reloading

3.6 Filling and coupling of magazines

3.7 Aiming, firing

3.8 Adjusting

3.9 Gas valve position

3.10 Folding the butt

3.11 Firing with mittens

3.12 Use of accessories

3.13 Field stripping

3.14 Assembly

3.15 Function check

3.16 Procedure in case of faults

4. MAINTENANCE

4.1 Cleaning

5. FUNCTION

5.1 Weapon function

6. APPENDIX

6.1 List of parts

6.2 Exploded drawing

2

1. Safety rules

-The shooter should always consider the weapon as loaded and

ready to fire until he has personally convinced himself of the

contrary by unloading it.

-Use only commercial grade ammunition.

-Use only ammunition that corresponds to the caliber of the

weapon.

-During all manipulations point the weapon in a safe direction.

- Never aim the weapon at any object you do not intend to shoot at.

-Do not load the weapon until immediately before use.

-Do not place your finger on the trigger until the target has been

sighted.

-Unload weapon immediately after shooting is finished.

-Detach bolt and magazine from the weapon prior to transportation.

- Keep weapon and ammunition separately and under lock and key.

-Never leave the weapon unattended and keep it out of the reach of

children.

3

2. WEAPON THEORY

2.1 Weapon description

2.1.1 General

The semiautomatic SIG SG 550/551 SP is a gas operated weapon with

rotary bolt mechanism. The operation and maintenance of the standard

version SIG SG 550 and the short version SIG SG 551 are identical.

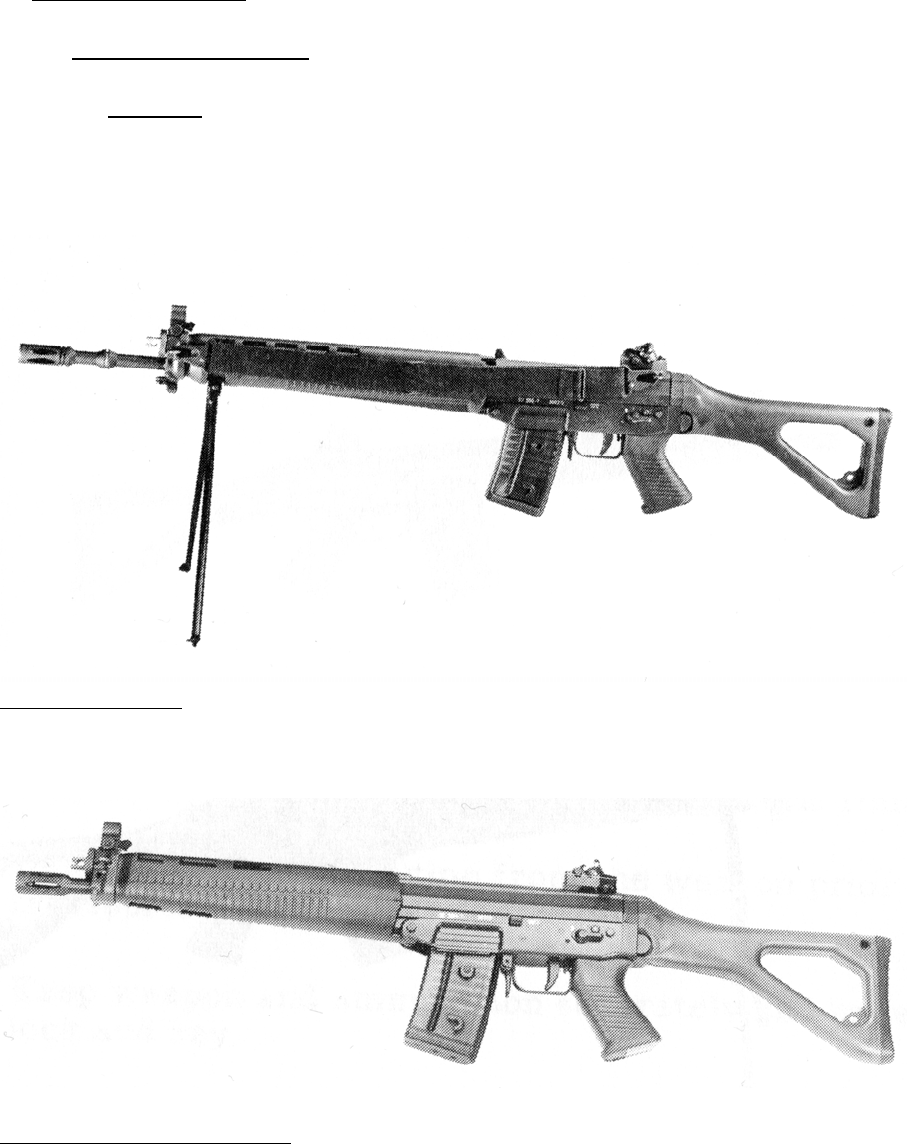

SIG SG 550 SP

Standard version with folding butt, bipod and carrying sling

SIG assault rifle SG 551

Short version with folding butt.

4

2.1.2 Barrel with receiver and gas system

The barrel is screwed into the receiver. The muzzle is fitted with a

flash suppressor. The front sight mount, which is fixed to the barrel,

contains the gas port, accepts the front sight and gas system and

also serves as a support for the handguard.

The receiver guides the bolt and houses the locking system.

The rear sight mount with diopter drum is also mounted on top of

the receiver.

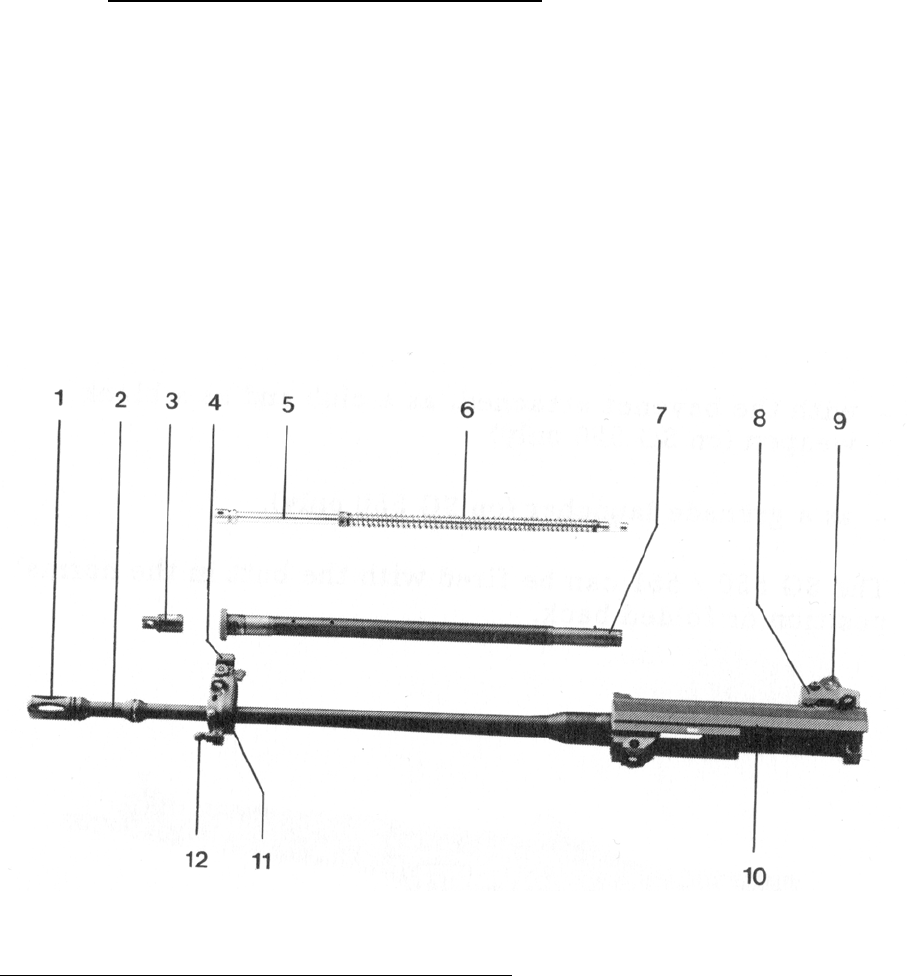

Barrel with upper receiver and gas system

1. Flash suppressor

2. Barrel

3. Gas valve

4. Front sight

5. Gas piston

6. Recoil spring

7. Gas tube

8. Rear sight mount

9. Diopter drum

10.Receiver casing

11.Front sight mount

12.Bayonet lug (on SG 550 only)

5

2.1.3. Bolt

The bolt consists of two main parts:

-bolt head

-bolt carrier

a. Bolt head

The bolt head locks the bolt assembly, houses the firing pin and the

extractor and feeds the cartridge to the chamber.

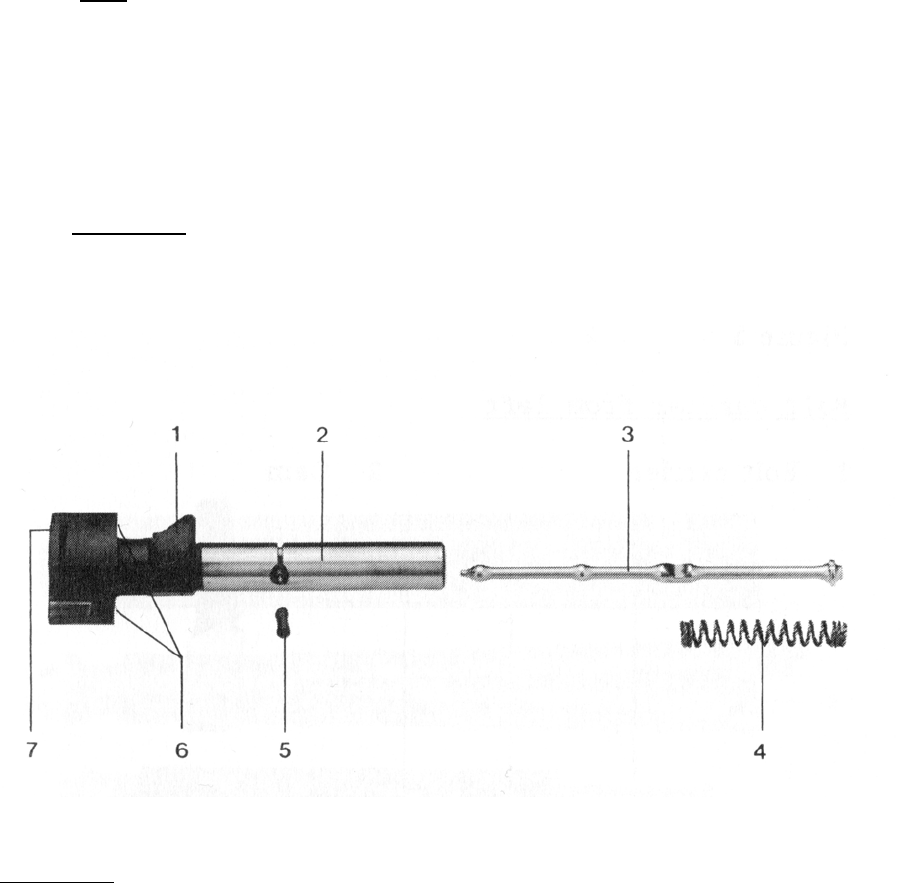

Bolt head

1. Control cam

2. Bolt head

3. Firing pin

4. Firing pin spring

5. Firing pin retaining stud

6. Locking lug

7. Extractor

6

b. Bolt carrier

The bolt carrier guides the bolt head, controls the locking and

unlocking by means of the cam, connects the bolt to the gas system

and cocks the hammer.

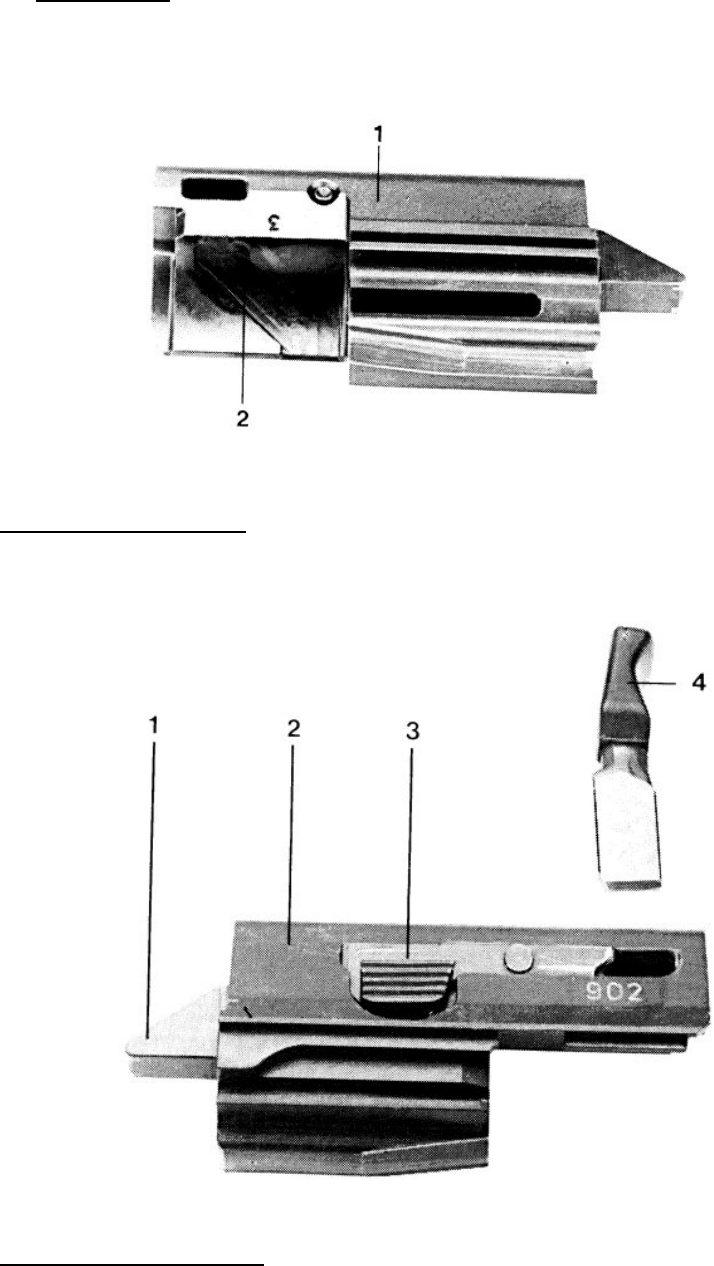

Bolt carrier from left

1. Bolt carrier 2. Cam

Bolt carrier from right

1. Cocking lug

2. Bolt carrier

3. Bolt handle catch

4. Bolt handle

7

2.1.4. Handguard and bipod

The handguard protects the barrel and the gas system from damage

and provides heat protection. The bipod on the SIG SG 550 can be

used to support the rifle when firing.

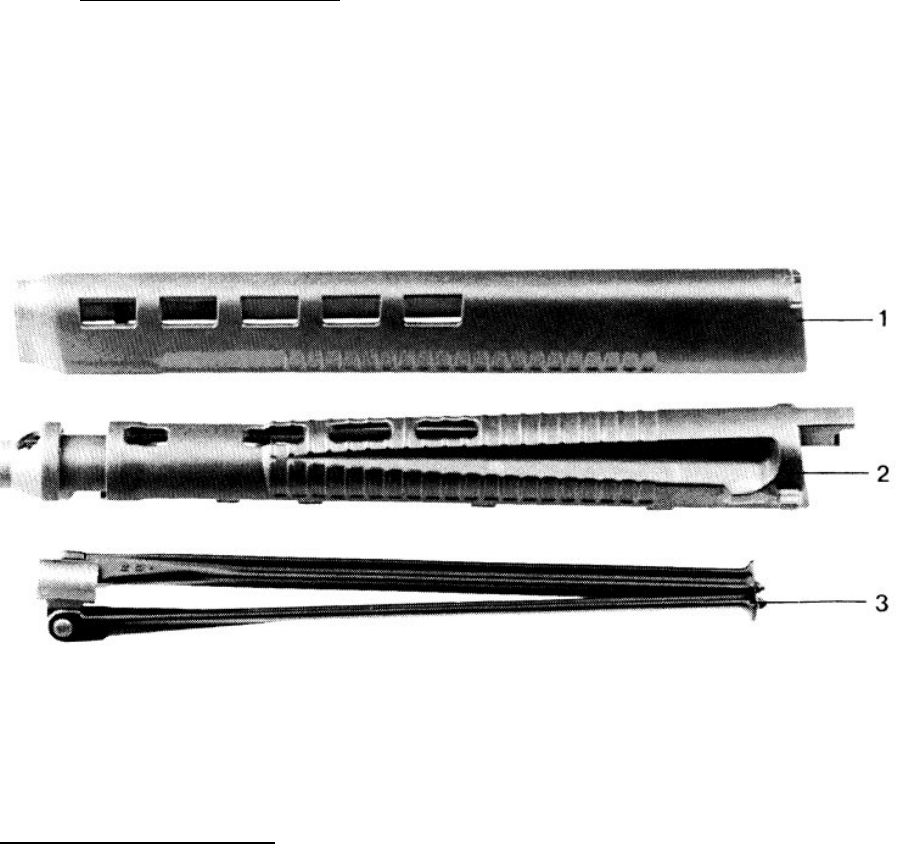

Hand guard with bipod

1. Handguard, upper part

2. Handguard, lower part

3. Bipod

8

2.1.5. Trigger assembly and butt

The trigger assembly comprises all the parts required for siring a shot.

The safety lever on both sides can be set to two positions.

Position “S”

The weapon is locked in the safe position.

Position “1”

The weapon will fire semi auto.

By pivoting the trigger guard to the right or left side, the trigger

becomes accessible for shooting with mittens. For safety reasons the

trigger guard must not be shifted until just before firing the weapon,

and after firing it should be immediately replaced in the normal

position.

The folding butt is made of high strength synthetic material.

In the firing position it is held by the butt locking mechanism, and

when folded it’s held by spring pressure on the handguard.

9

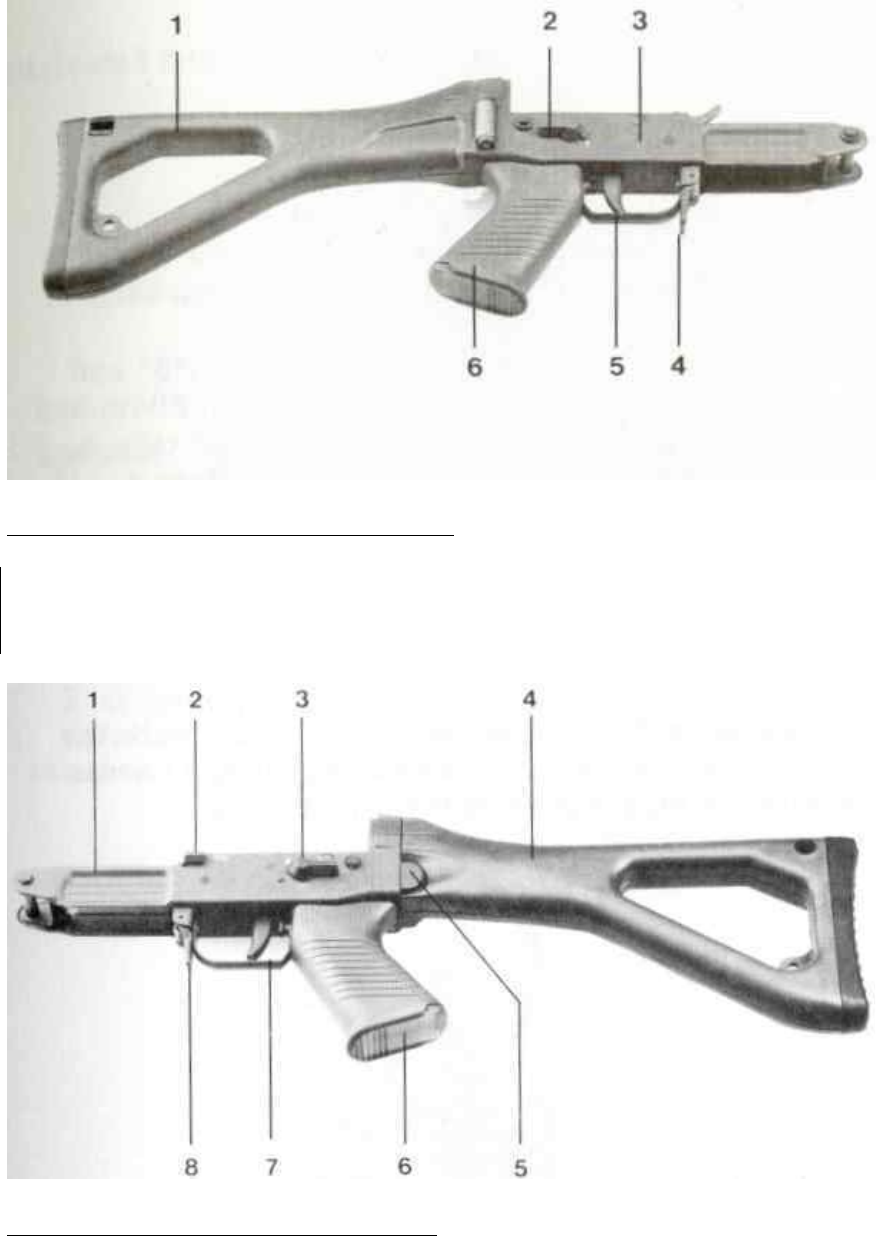

Trigger assembly and butt from right

1. Butt

2. Safety lever

3. Trigger casing

4. Magazine catch

5. Trigger

6. Pistol grip

Trigger assembly and butt from left

1. Trigger casing

2. Bolt catch

3. Safety lever

4. Butt

5. Butt catch

6. Pistol grip

7. Trigger guard

8. Magazine catch

10

2.1.6 Sights mechanism

The sights mechanism comprises the rear sight and foresight.

The rear sight is

made up of the:

 Rear sight mount

 Diopter drum

 Windage correction screw

 Elevation correction screw

The diopter drum can be set to positions “1”, “2”, “3”, and “4”,

corresponding to firing ranges 100 m, 200 m, 300 m, and 400 m.

The positions marked in white correspond to aiming point =

point of impact.

The red “3” position corresponds to aiming point “black 6” at 300 m.

Sighting position “1” is designed for immediate firing, and two

luminous dots are fitted laterally for aiming at night.

The foresight with tunnel is fixed to its mount with the foresight screw.

A folding foresight is provided for use at with the night sights on the

diopter drum.

11

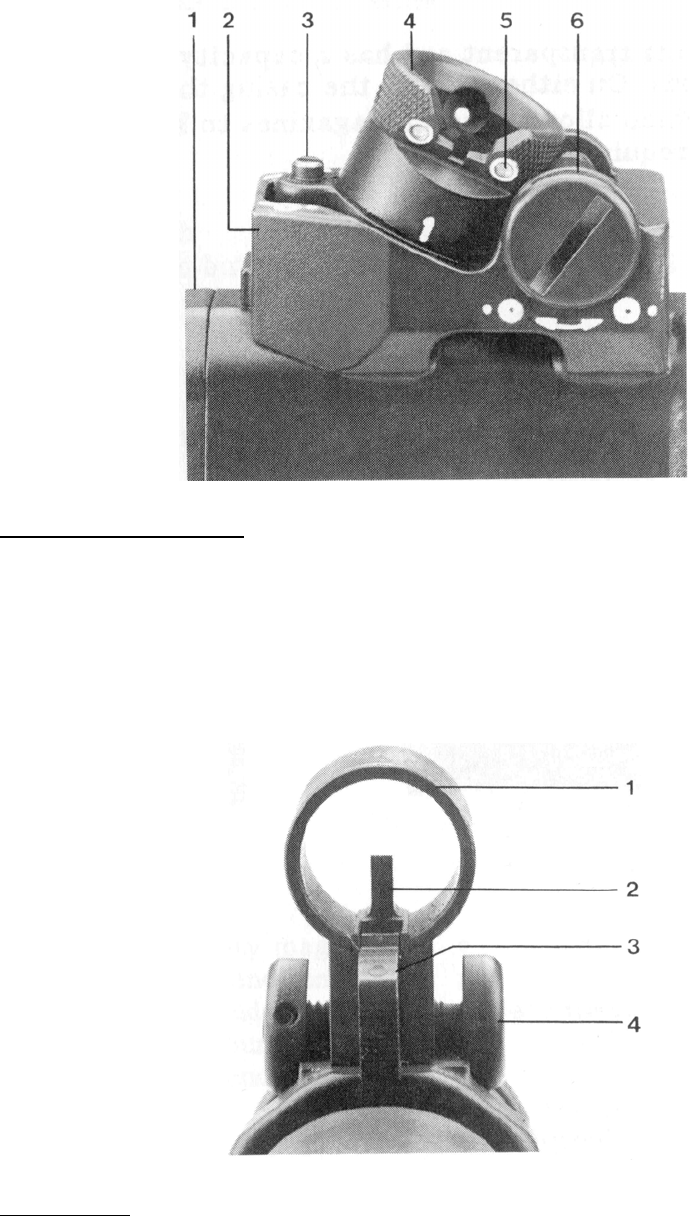

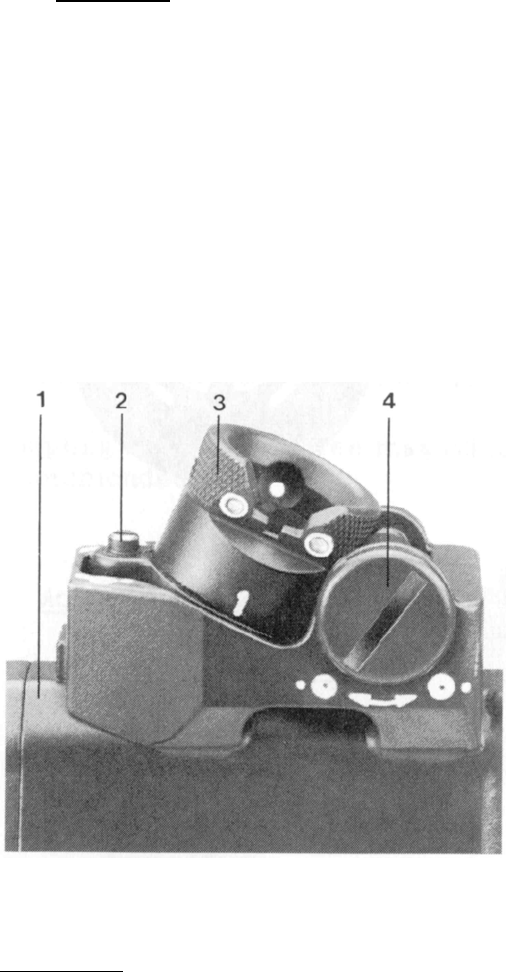

Rear sight assembly

1. Receiver casing

2. Rear sight mount

3. Elevation correction screw

4. Rear sight drum

5. Night sight

6. Windage correction screw

Front sight

1. Front sight tunnel

2. Front sight

3. Night front sight

4. Front sight screw

12

2.1.7. Magazine

The magazine is transparent and has a capacity of twenty or thirty

rounds. On either side of the casing there is a mechanism, that allows

several magazines to be connected if required.

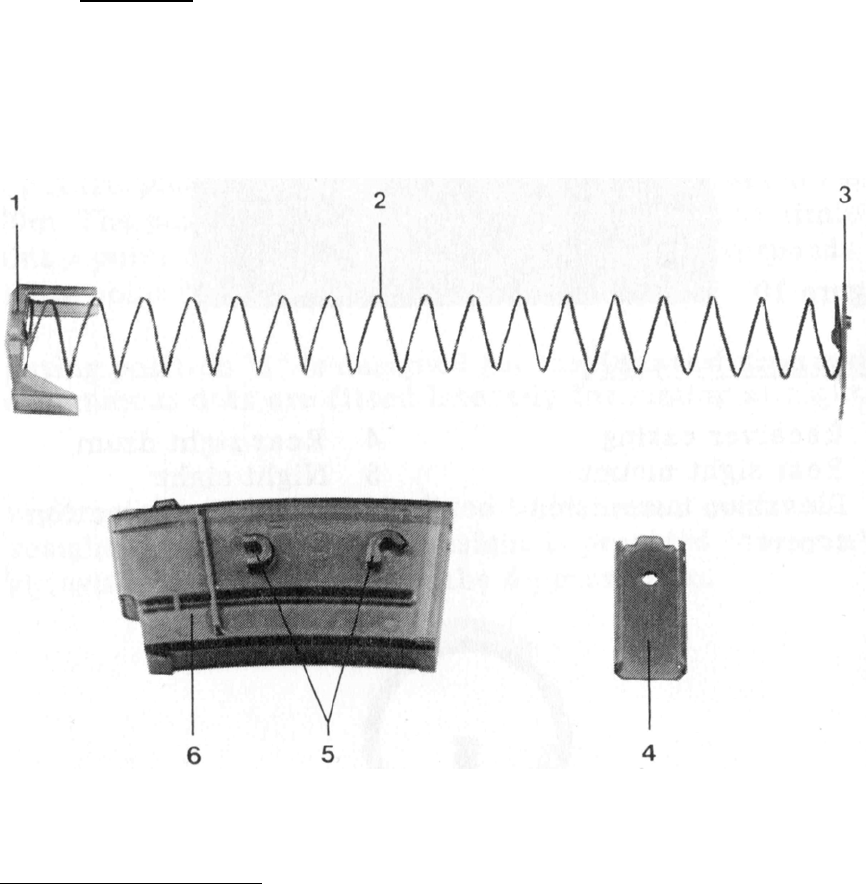

Magazine, dismantled

1. Feeder

2. Magazine spring

3. Magazine floorplate catch

4. Magazine floorplate

5. Magazine coupling lugs

6. Magazine casing

13

2.2. Technical specifications

SG 550 SG 551

Dimensions inches

Caliber

inches

.223 .223

Total length inches 39.29 34.53

Length with butt folded inches 30.39 25.63

Barrel

Barrel length inches 20.78 16.02 (USA)

14.3 (others)

Number of grooves 6 6

Rifling:

SG550-1/ SG551-1 right inches 10 10

SG550-2/ SG551-2 right inches 7 7

Sights

Type Diopter sights

Sight base mm 21.26 18.34

Range adjustment m 100 to 400

yards 110 to 440

Weight

Weapon incl. empty

magazine

lb 9.03 7.49

Empty 20 rd. magazine oz 3.35

3.35

Empty 30 rd. magazine oz 3.87

3.87

Loaded 20 rd. magazine oz 11.99

11.99

Loaded 30 rd. magazine oz 16.75

16.75

Subject to change without notice

14

2.3. Accessories

Every SIG assault rifle SG 500/551has the following accessories:

 Carrying sling

 Loading aid

 Cleaning kit

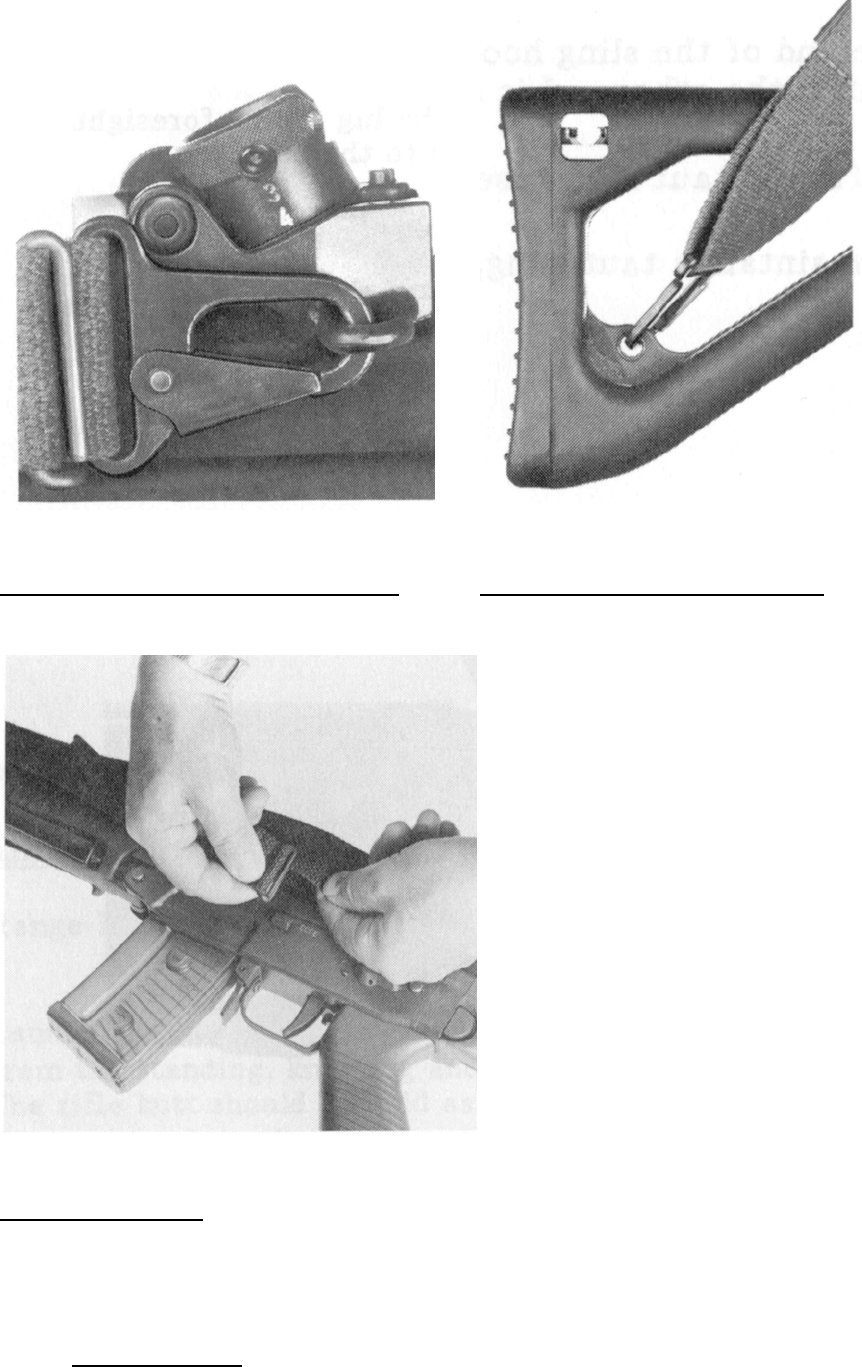

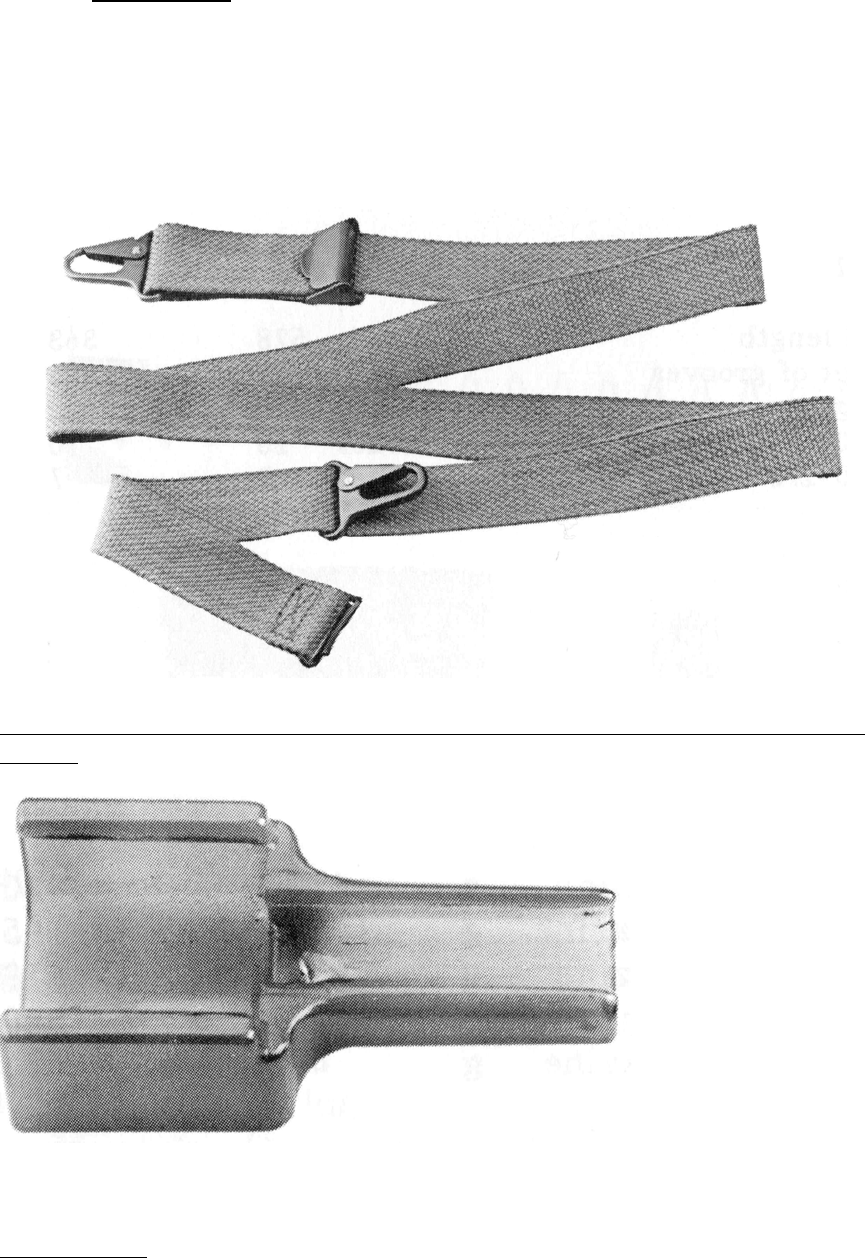

Carrying sling in woven nylon with two hooks, an adjustment clip and a

buckle

Loading tool

15

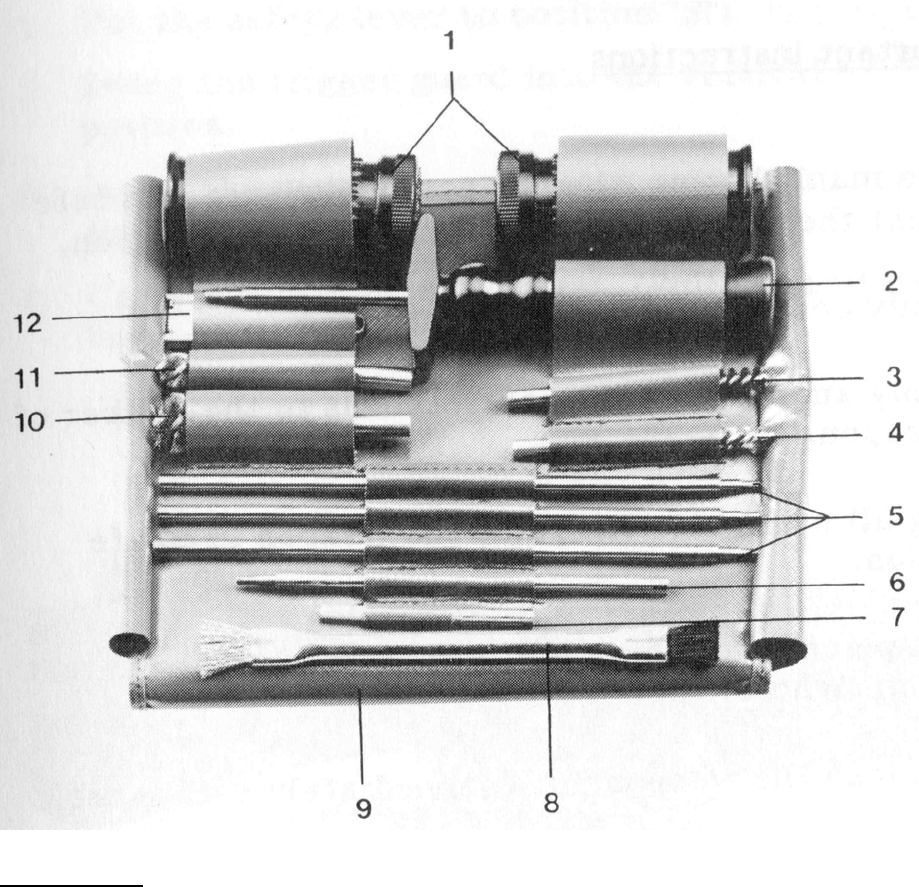

Cleaning kit

1. Weapon grease tube

2. Cleaning rod handle

3. Grease brush

4. Barrel brush

5. Cleaning rod sections

6. Extension rod with ferrule

7. Cleaning jag

8. Cleaning brush

9. Simileather case

10. Gas tube brush

11. Chamber cleaning tool

12. Barrel inspection mirror

16

3. Handling

3.1 Important instructions

 Before manipulation the weapon, make sure that it is safe and

that the trigger guard is put in the vertical position.

 Use only commercial grade ammunition.

 Use only ammunition that corresponds to the caliber of the

weapon.

 During all manipulations point the weapon in a safe direction.

 Do not place your finger on the trigger until the target has

been sighted.

 Do not load the weapon until immediately before use.

 Unload weapon immediately after shooting is finished.

 Detach bolt and magazine from the weapon prior to

transportation.

17

3.2. Loading the weapon

1. Put the safety lever to position “S”;

2. Swing the trigger guard into the vertical position;

3. Insert the magazine and check that it is properly seated by

pressing forward;

4. Carry out loading movement. (Pull the bolt handle fully back

and let it fly forward)

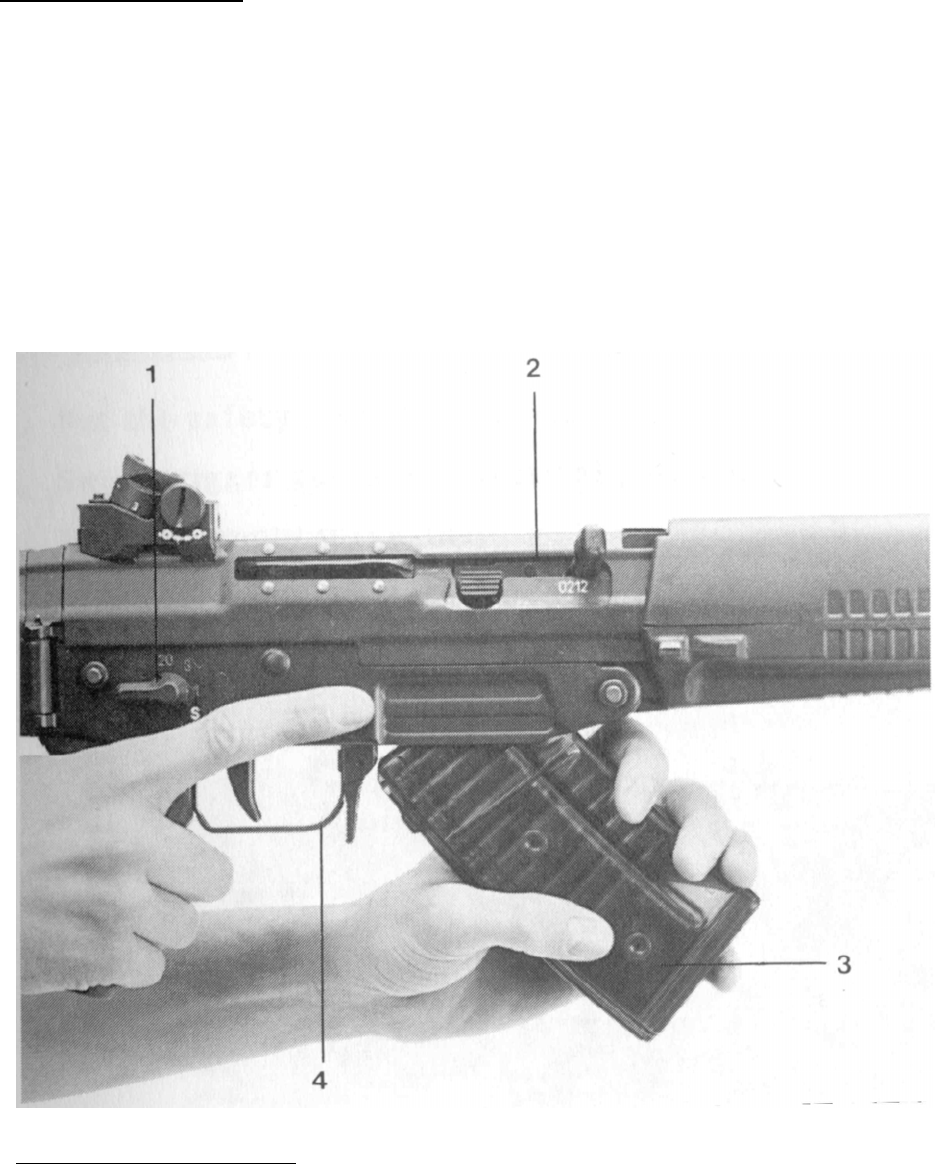

Inserting the magazine

1. Safety lever

2. Bolt

3. Magazine

4. Trigger guard

18

3.3. Unloading

1. Put safety lever to position “S”;

2. Swing trigger guard into vertical position;

3. Remove magazine by pressing magazine catch;

4. Carry out loading movement, with bolt retracted check for

empty chamber;

5. Switch safety lever to “1”, pull trigger (with weapon pointing

downrange), switch safety lever to “S”.

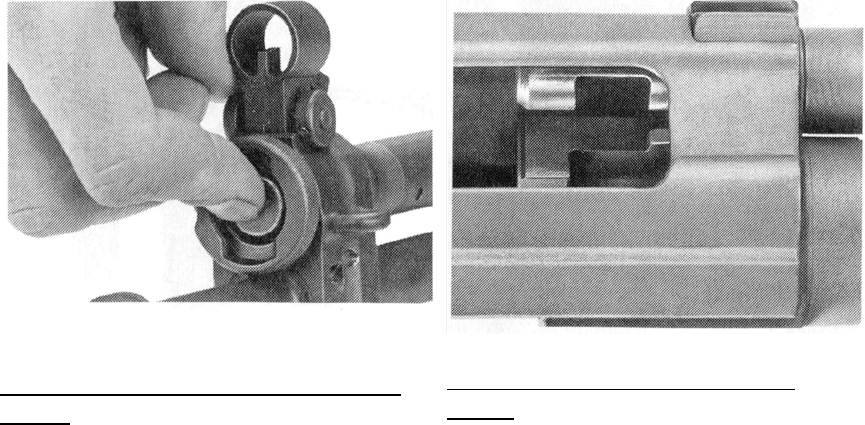

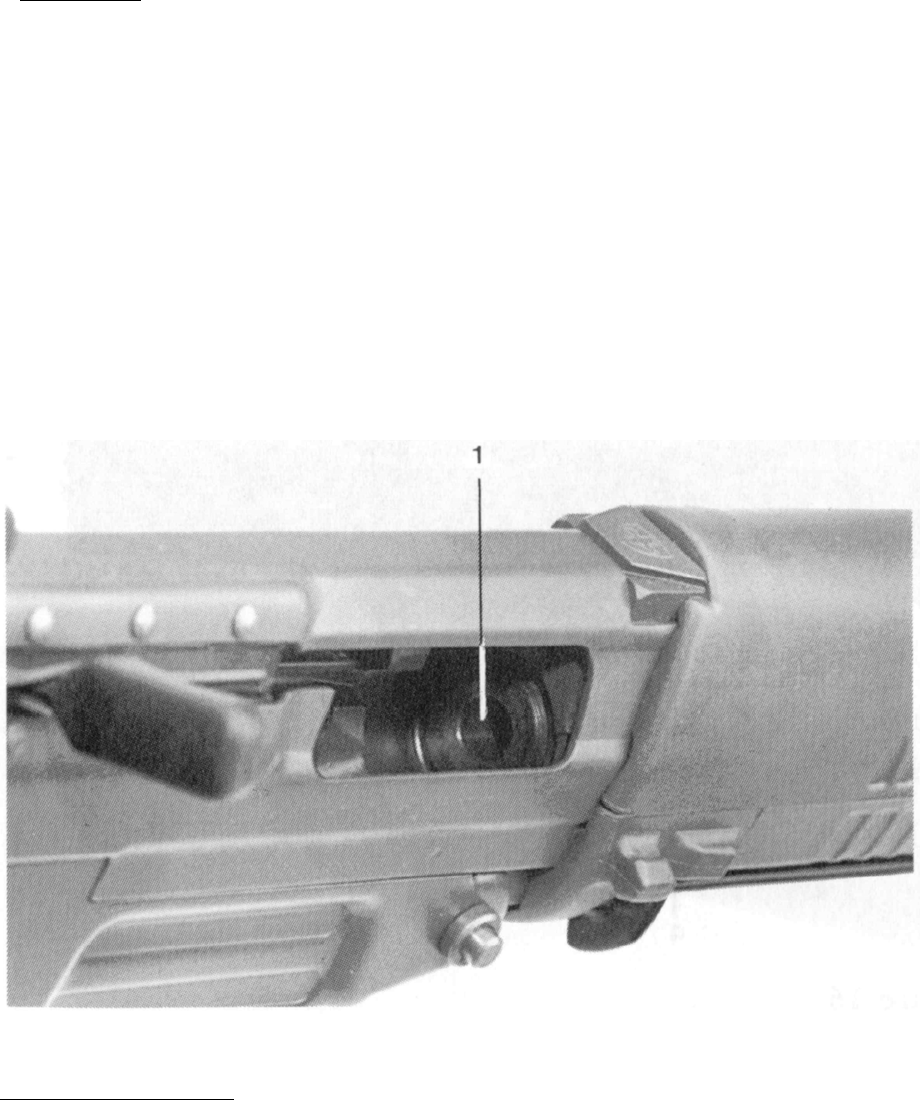

Check the chamber

1. Chamber

19

3.4. Changing the magazine

1. Put safety lever to position “S”;

2. Swing trigger guard into vertical position;

3. Remove magazine;

4. Insert loaded magazine and check that it is properly seated by

pressing forward.

3.5. Reloading

1. Put safety lever to position “S”;

2. Swing trigger guard into vertical position;

3. Remove magazine;

4. Insert loaded magazine and check that it is properly seated

by pressing forward;

5. Push the bolt catch up or pull back the bolt handle slightly and

allow the bolt to fly forward.

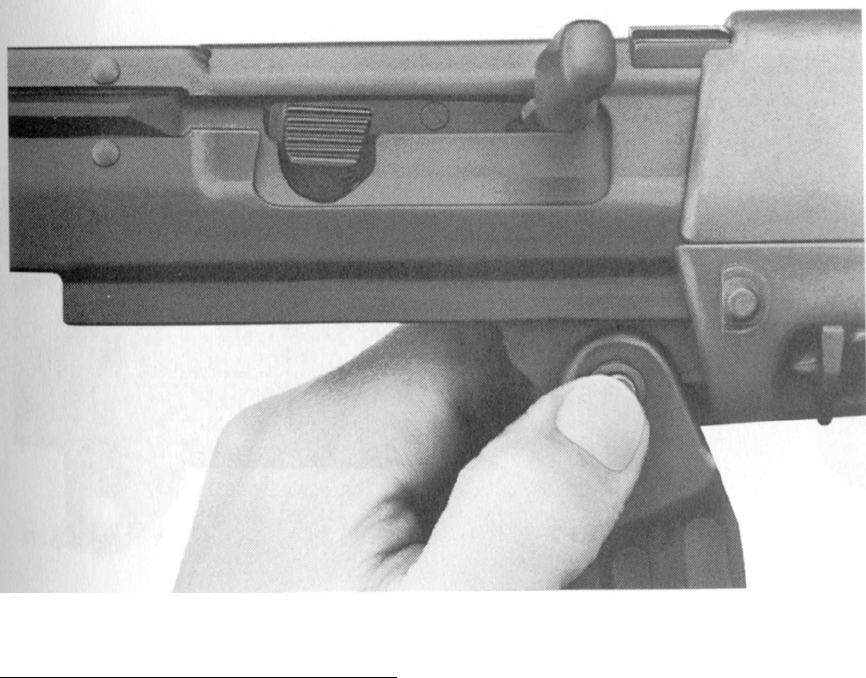

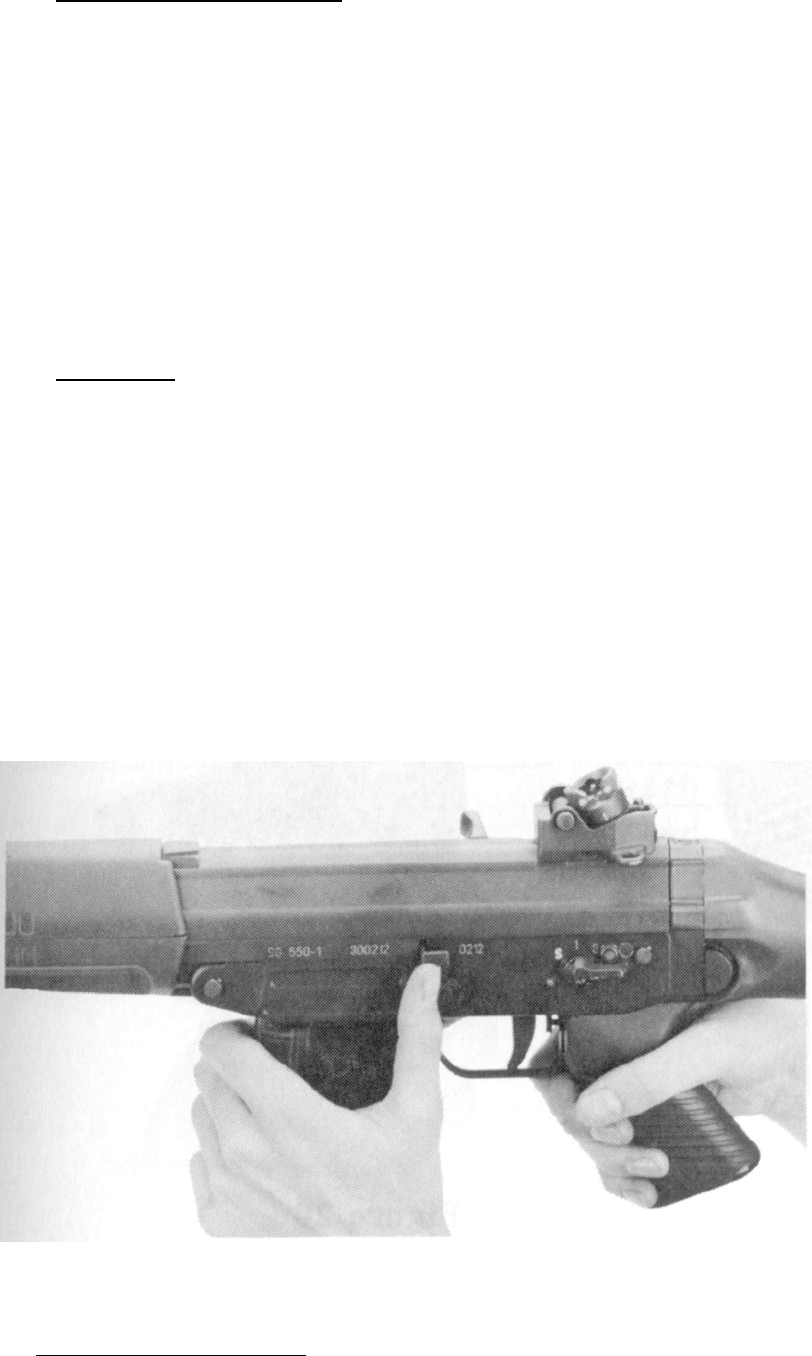

Push the bolt catch up

20

3.6. Filling and coupling of magazines

3.6.1. Filling the magazine

1. Place the tool on magazine;

2. Insert the ammunition clip and press cartridges into

magazine;

3. Remove loading tool.

3.6.2. Coupling of magazines

1. Hold magazine vertically;

2. With the floorplate of the second or third magazine pointing to

the rear, firstly connect the upper lugs, the rotate forward and

connect lower lugs.

Coupling of more than three magazines in sequence is not

recommended.

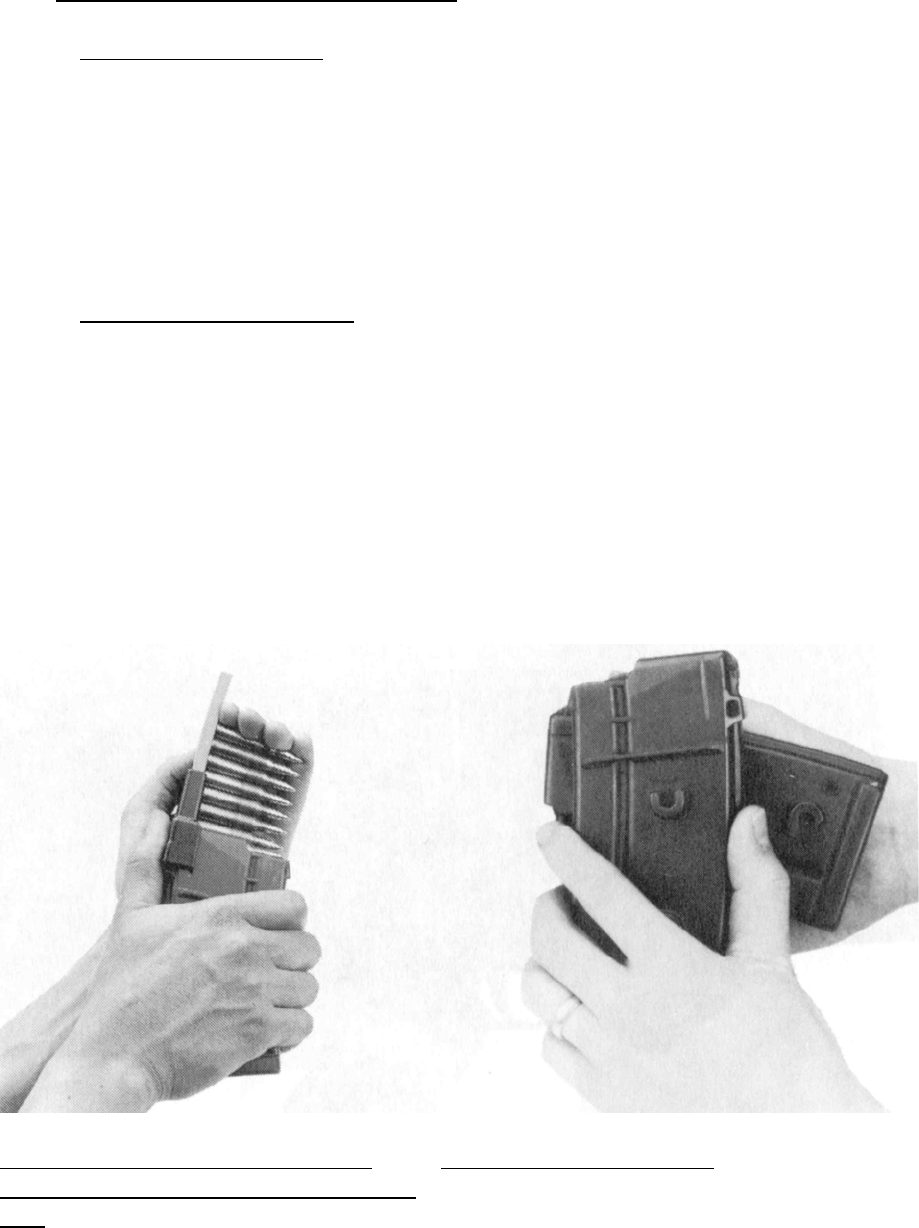

Loading the cartridges into the

magazine by means of the loading

tool

Coupling of magazines

21

3.7. Aiming, firing

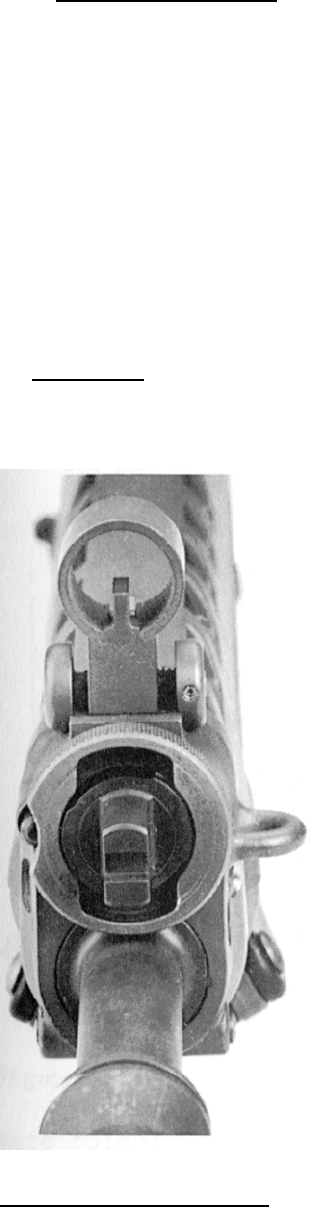

To aim, align the eye, diopter or battle sight, foresight and target.

When using the diopter, ensure that the periphery of the foresight

tunnel and the diopter aperture are concentric.

At all ranges the foresight should be aimed at the center of the target.

Firing is therefore to point of aim.

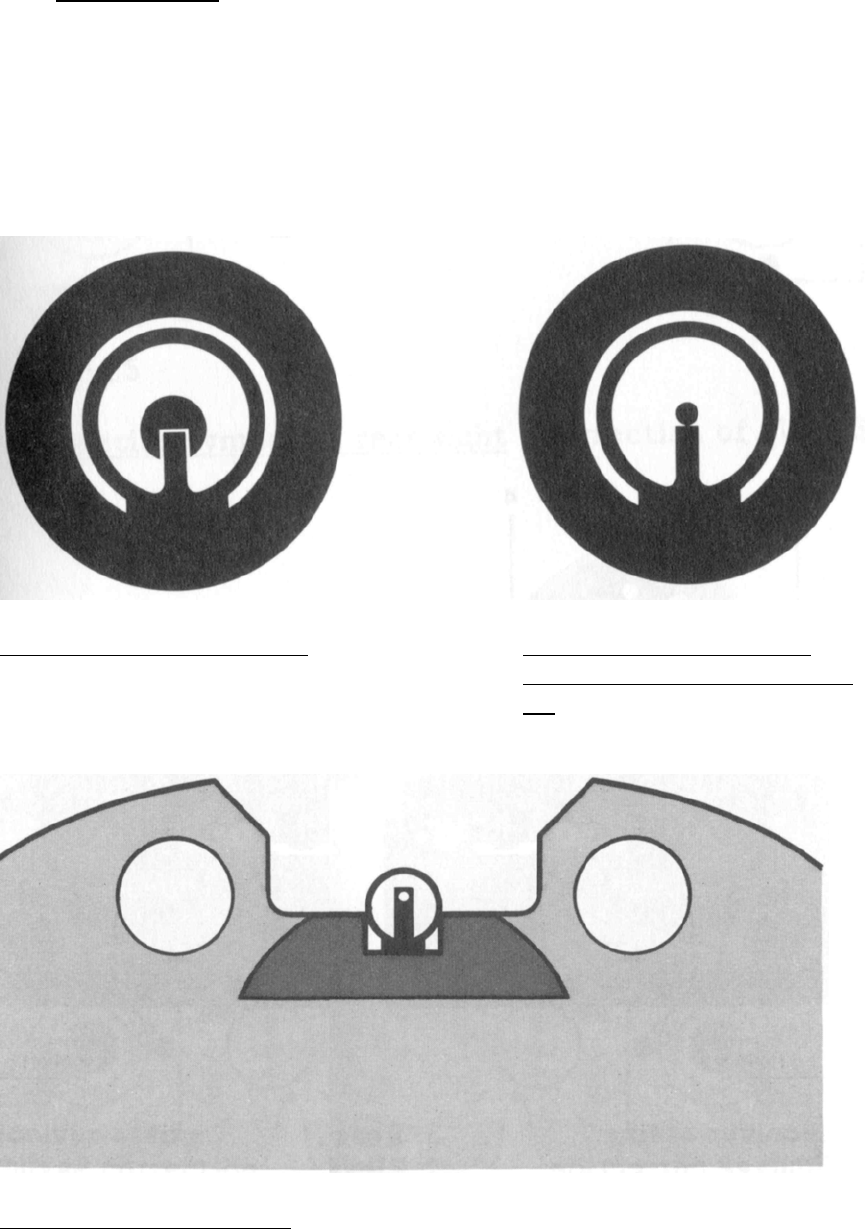

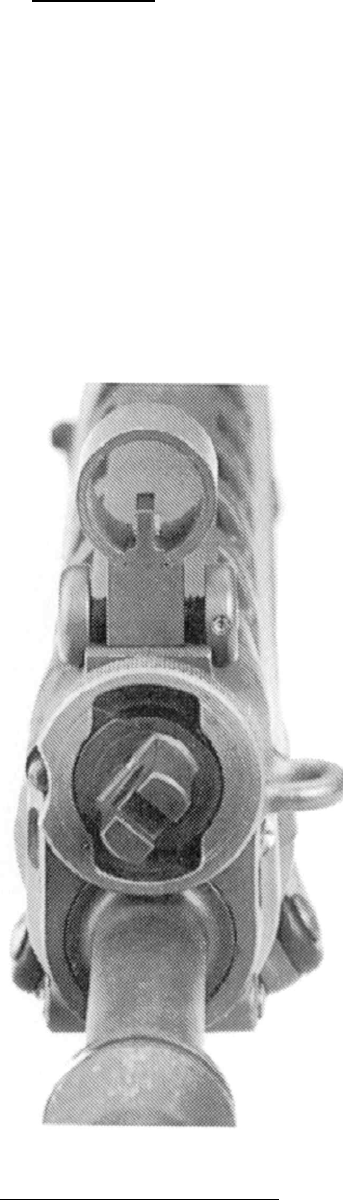

Sight picture point of aim

Bull’s eye 6 o’clock with

sight setting “red 3” at 300

m.

Sight picture night sight

22

3.8. Adjusting

To correct for elevation and windage, the corresponding correction

screw is turned with a screwdriver.

By rotating the elevation correction screw and the windage correction

screw by one click, the average point of impact in the vertical

respectively the horizontal axis is displaced by approximately 0.15 o/oo.

Rear sight

1. Receiver casing

2. Elevation correction screw

3. Rear sight drum

4. Windage correction screw

23

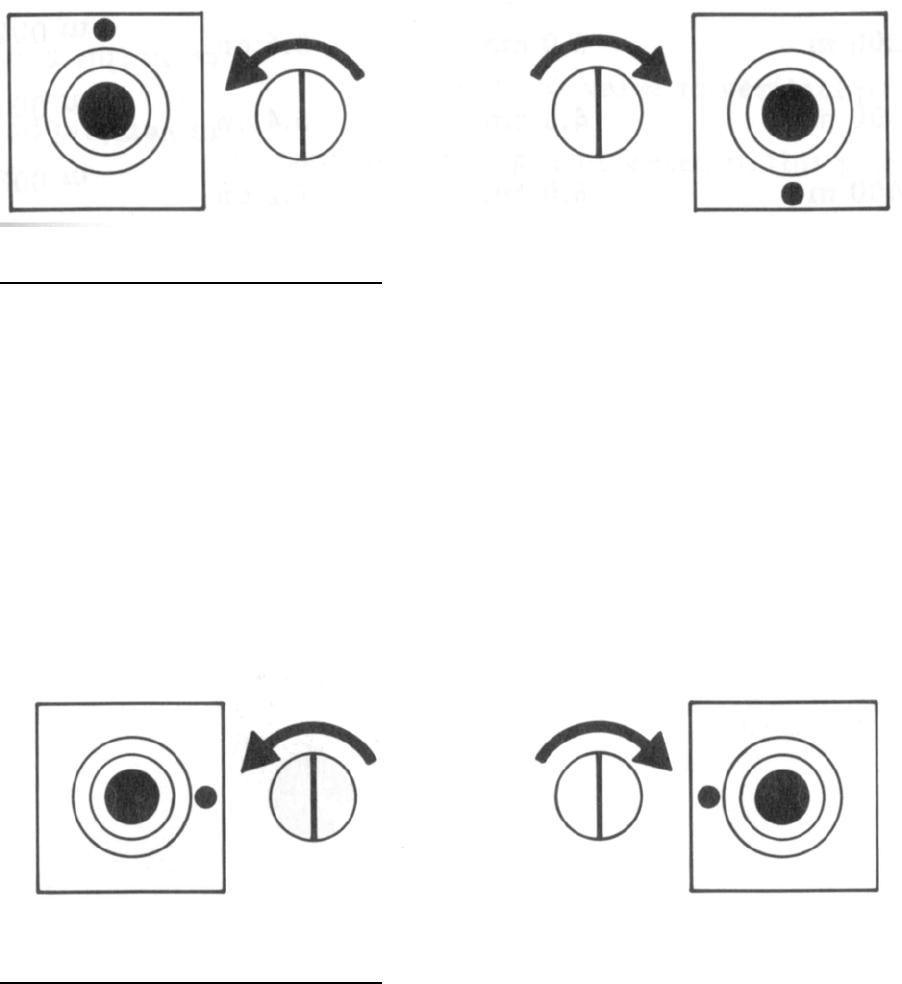

Elevation:

High shots are corrected by turning the elevation correction screw to

the left.

Low shots are corrected by turning the elevation correction screw to

the right.

Correction symbol on rear sight (correction of elevation)

Windage:

Shots to the right are corrected by turning the windage correction

screw to the left.

Shots to the left are corrected by turning the windage correction screw

to the right.

Correction symbol on rear sight (correction of windage)

24

Firing range Average point of impact correction per notch

100 m

200 m

300 m

400 m

SG 550

1.5 cm

3.0 cm

4.5 cm

6.0 cm

SG 551

1.8 cm

3.6 cm

5.4 cm

7.2 cm

To correct for elevation or windage, the corresponding correction screw

is turned with a screwdriver.

25

3.9. Gas valve position

With the SIG SG 550/551, the gas volume required for the function of

the weapon can be controlled by adjusting the gas valve.

a. Position I (Rib of gas valve in vertical position)

Under normal conditions, firing is effected in this position.

Gas valve in position I

26

b. Position II (Rib of gas valve in slanting position)

When cycling or ejection problems are encountered due to heavy

fouling or icing-up, the gas valve is to be turned clockwise as far as the

stop. In this position, a larger gas quantity acts on the gas piston.

The adjustment of the gas valve is effected manually, and, in case of a

hot or heavily fouled weapon, by means of a cartridge or auxiliary aid.

Firing with the gas valve in position II is an exception. As soon as the

weapon works, the gas valve must be turned back to position I,

otherwise the recoil is intensified and the weapon is unnecessarily

stressed.

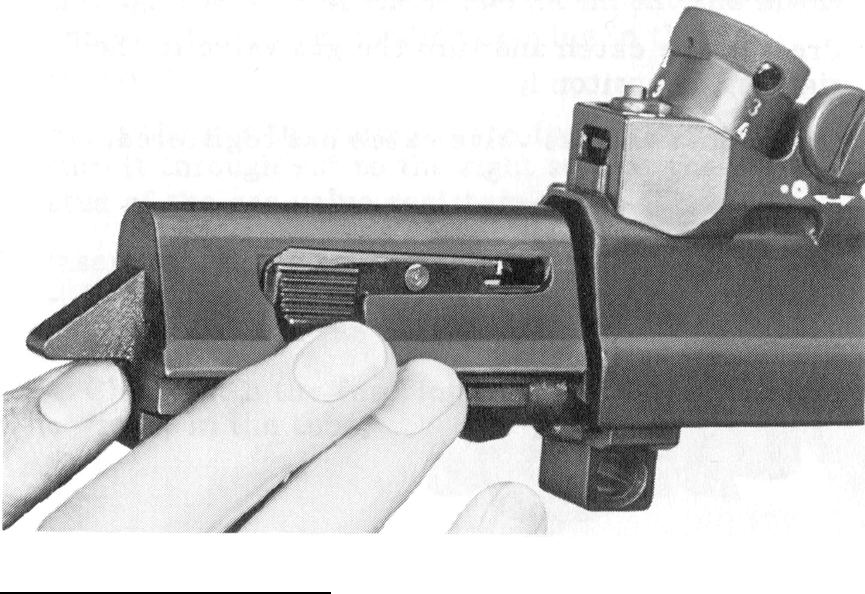

Gas valve in position II

27

3.10. Folding the butt

Thumb in the butt catch and fold the butt so that it registers with the

handguard under spring pressure.

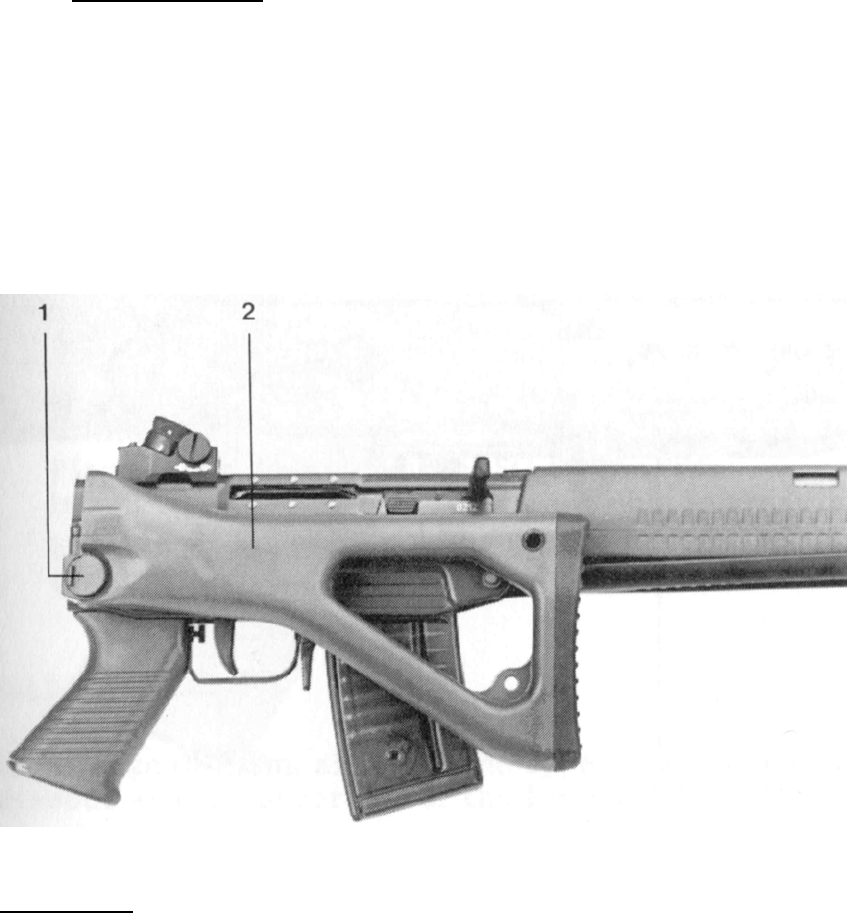

Butt folded

1. Butt catch

2. Butt

28

3.11 Firing with mittens

For firing with mittens the trigger guard can be pivoted to the left or

right.

For safety reasons the trigger guard must be placed in the vertical

position before carrying out any manipulations.

Trigger guard folded

1. Trigger casing

2. Trigger guard

29

3.12. Use of accessories

3.12.1. Carrying sling

One end of the sling hooks into the lug on the foresight mount, the

other end is attached to the butt.

To fix the taut sling, use the clip.

To maintain a taut sling, slip the clip over the sling strap.

Sling hooked to foresight mount

30

Sling hooked to rear sight mount

Sling attachment to the butt

Fix the taut sling

3.13. Field stripping

31

1. Unload weapon;

2. Remove carrying sling;

3. Press the rear trigger casing stud from both sides and withdraw

it from the stud head side as far as the stop;

4. Lay the weapon on its left side and swing out the trigger

assembly;

5. Withdraw the front trigger casing stud as described in point 3

and remove the trigger assembly;

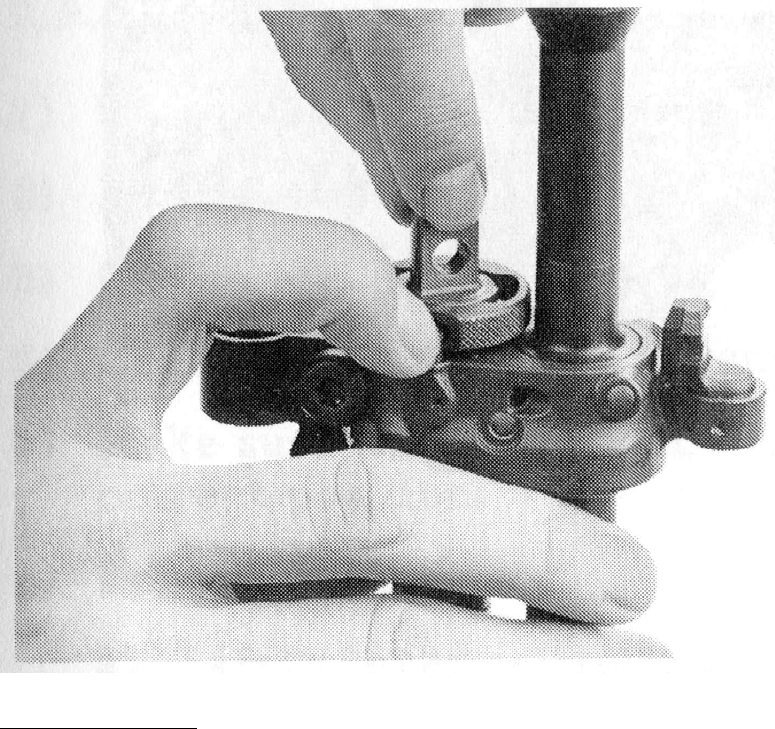

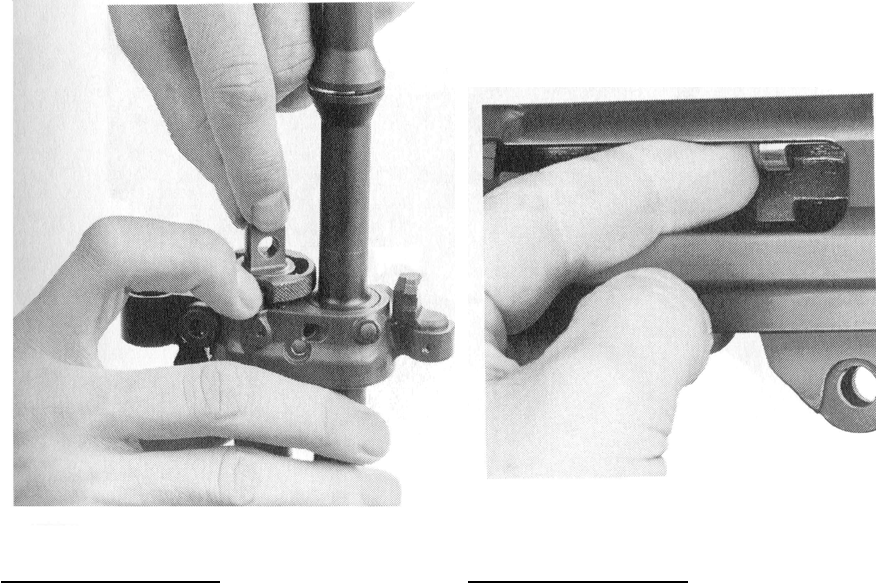

Remove the trigger housing stud

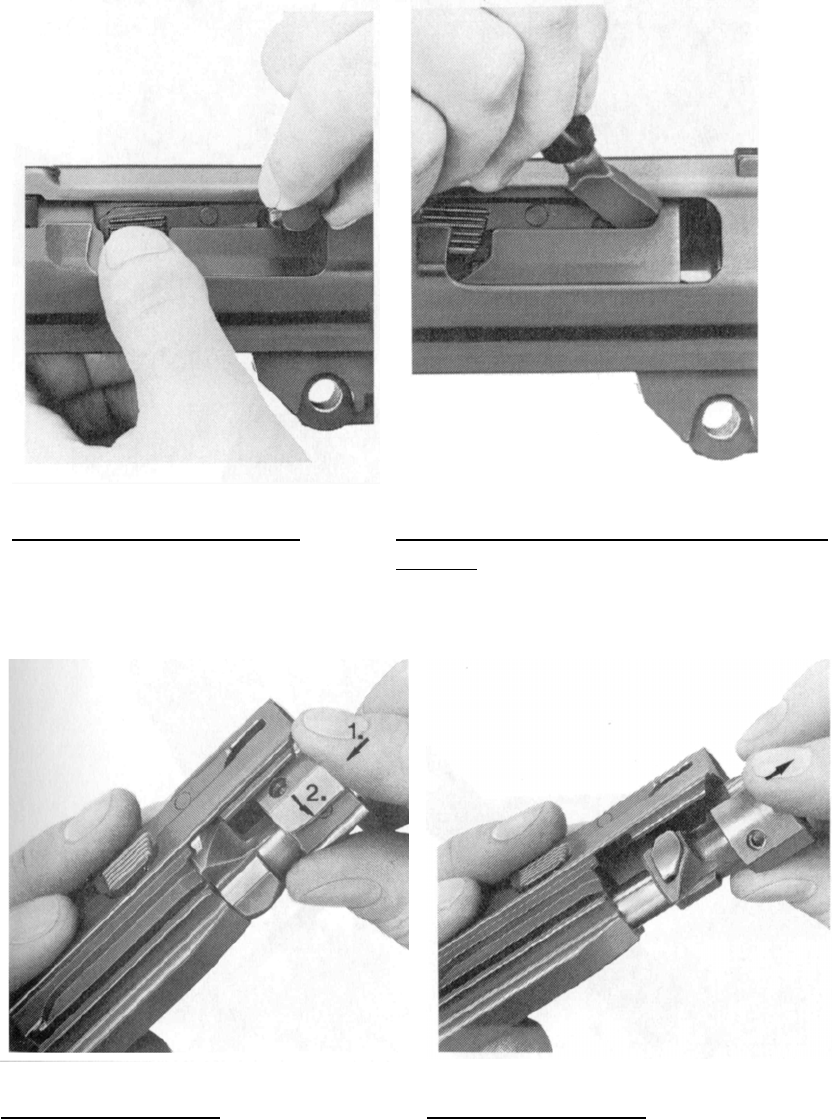

6. Press down the bolt handle catch and remove the bolt handle;

32

7. Use the bolt handle to push the bolt to the rear, remove the

bolt from the receiver;

Remove the bolt handle

Push the bolt to the rear, using bolt

handle

8. Twist the bolt head to remove it from the bolt carrier;

Remove bolt head

Remove bolt head

33

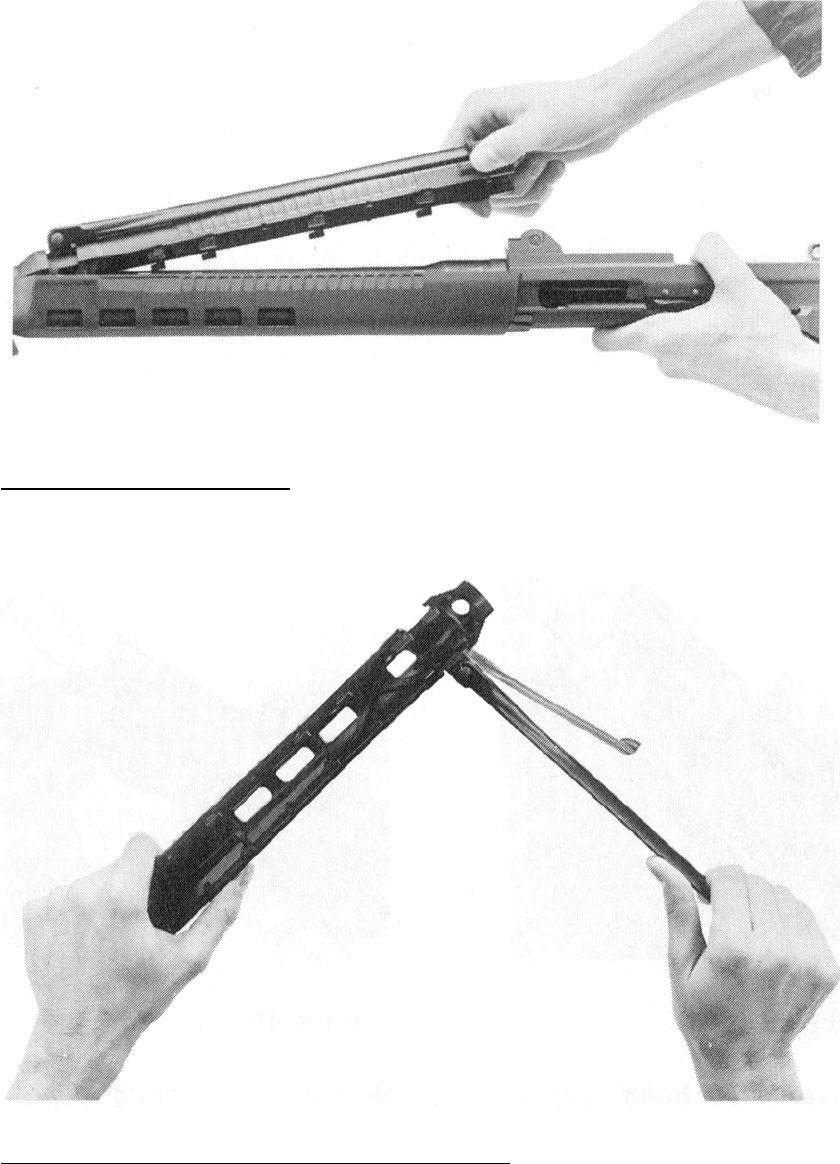

9. Pull lower handguard to the rear and remove; swing out the

bipod legs and remove laterally;

10. Lift upper handguard at the rear and remove at the front sight

mount;

Lift off lower handguard

Remove bipod carrier from the handguard

34

11. Press in the gas valve catch, remove the valve by

simultaneously rotating it and pulling it forward;

12. Push the Gas piston and recoil spring forward, reaching through

the ejection port, and extract them from the front;

13. Press down the gas-valve catch and rotate the gas tube through

90o so that the notch on the headpiece lies on the barrel;

14. Pull the gas tube out from the front end;

Remove gas valve

Push in gas piston

35

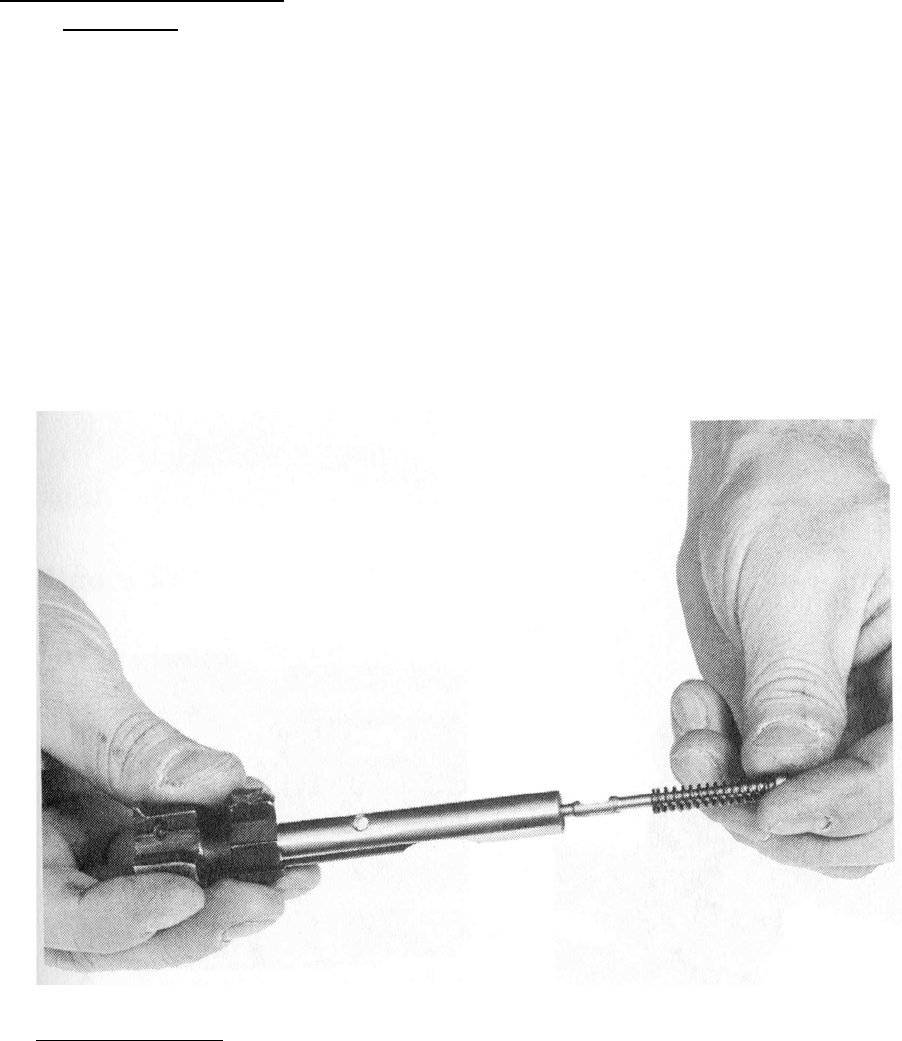

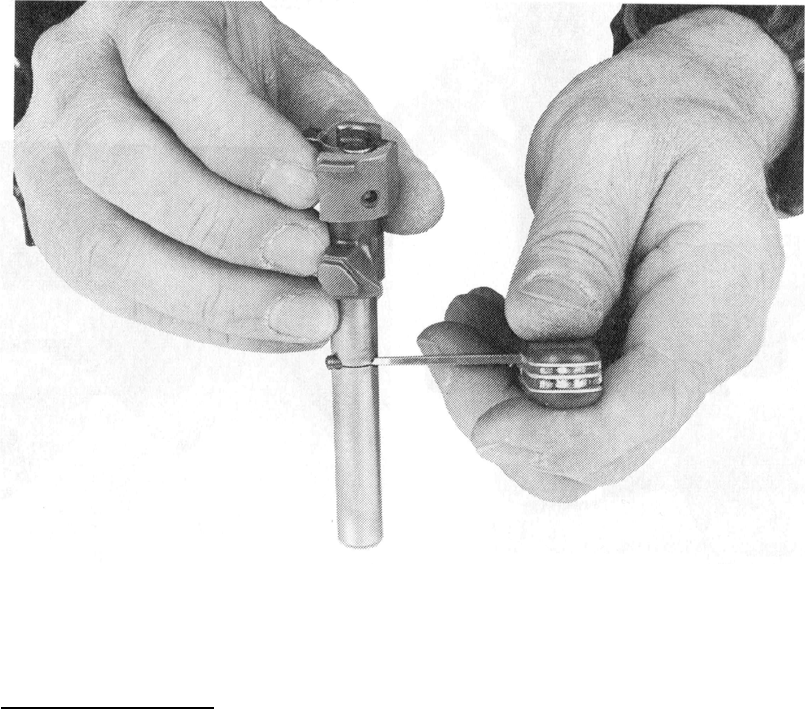

15. Remove the firing pin:

 Hold the bolt head against a firm surface in such a way that

the firing pin is completely pressed into the bolt head;

 Remove the retention pin using a knife-edge and extract

the firing pin and spring;

Figure 45

Remove firing pin

36

16. Dismantle the magazine;

 Press in the retention plug of the magazine floorplate with

the thick end of the firing pin. Pull the magazine floorplate

out from the rear;

 Pull out the floorplate catch along with the spring and

follower.

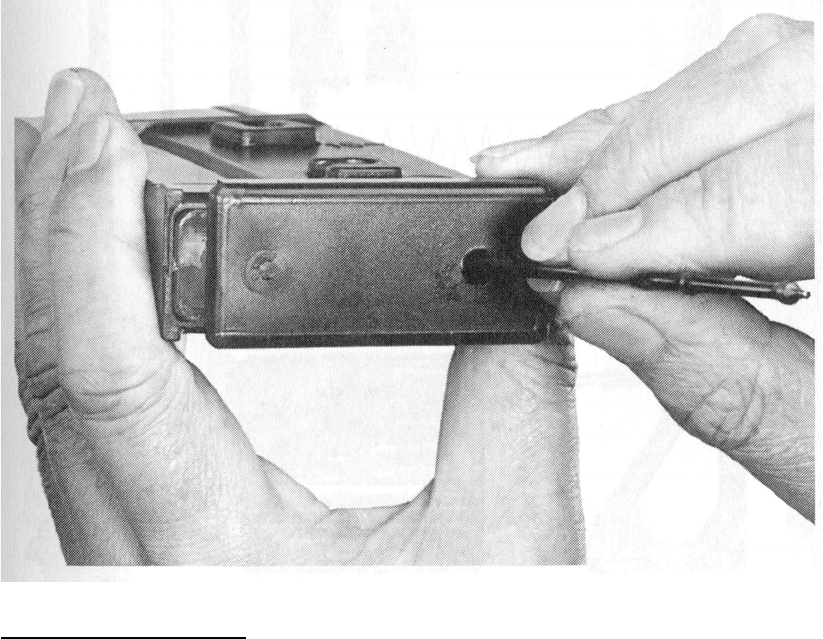

Dismantle magazine

37

Figure 47

38

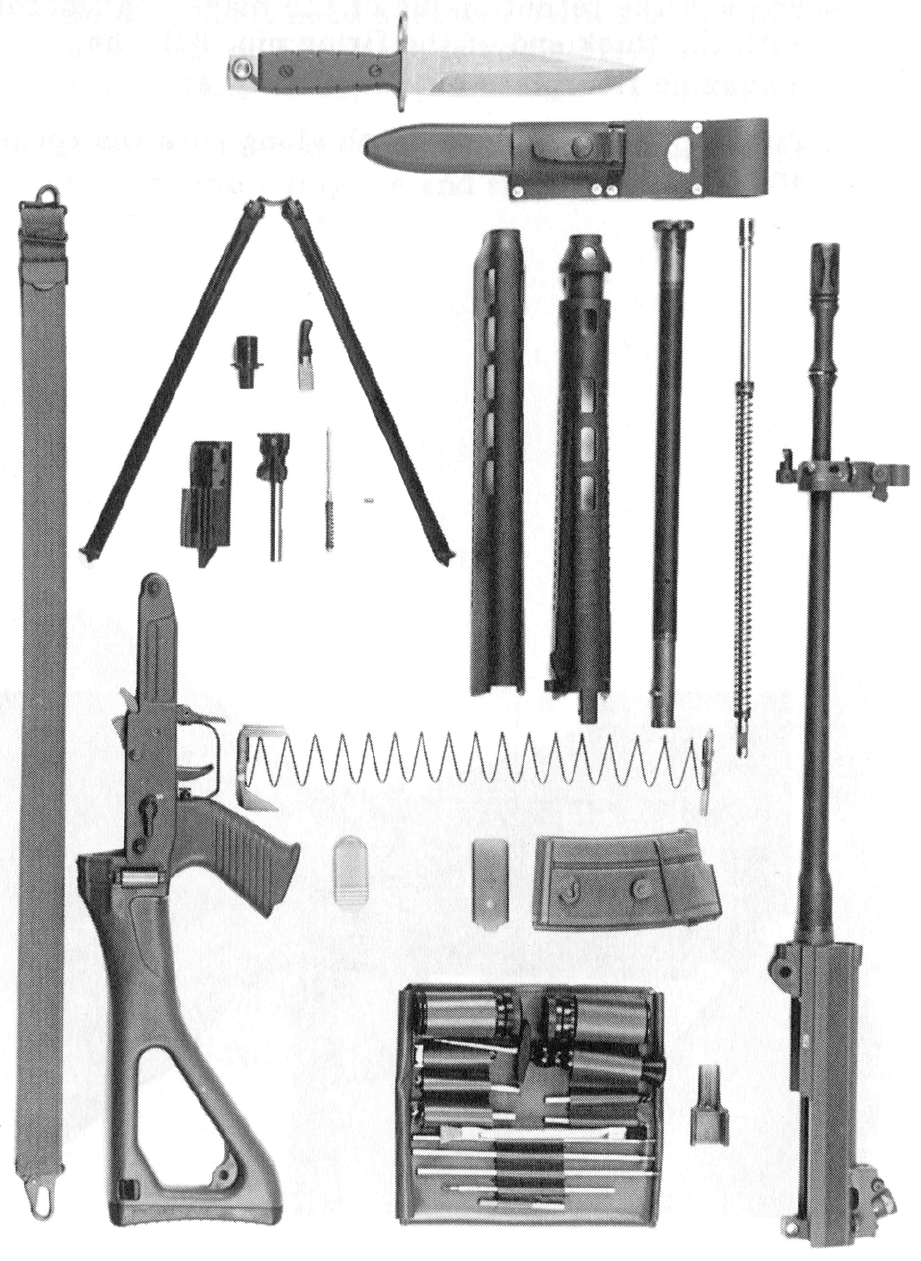

SIG SG 550 dismantled

3.14 Assembly

The weapon should always be reassembled in the reverse order of

stripping:

1. Assemble magazine;

2. Insert firing pin:

 Slip the firing pin into the bolt head.

Ensure that the notch is correctly placed to accept the

retention stud;

 Push the firing pin into the bolt head an secure it with the

retention stud as soon as the notch is flush with the bore;

Insert firing pin

Correct position of the notch

39

3. Install the gas tube:

 Slip the gas tube (flange notch pointing downwards)

through the bore of the foresight mount and insert the

end into the corresponding opening in the receiver;

 Press the gas tube against the foresight mount and turn

it through 90o to the right so that the retention stud of

the gas valve registers in the flange;

4. Insert the piston with the recoil spring:

 Insert the piston, with its retention notch slide facing

against the barrel, into the gas tube;

 Check with forefinger that the gas piston moves freely in

the tube;

Check correct position with index

finger

Correct position of retention

notch

40

5. Install the gas valve:

 With the notch for retention stud facing downwards in

the flange of the gas tube;

 Press in the catch and turn the gas valve to the right up

to position I;

 Check that the gas valve catch has registered;

Install gas valve

6. Install the upper handguard;

7. Attach the bipod;

8. Install the lower handguard;

9. Assemble bolt head and carrier;

41

10. Insert bolt assembly:

 Slide bolt head completely to the front by pressing firing

pin;

 Slide bolt into receiver casing.

Inserting the bolt assembly

11. Insert the bolt handle into its slot in the bolt carrier and check

that it has registered with the catch

12. Install trigger casing:

 Ensure that the holes in the front trigger casing stud

overlap;

 Press the trigger casing stud through as far as the

stop;

 Tilt up the trigger casing and fix with rear trigger

casing stud.

13. The function check should be carried out in accordance with

section 3.16;

42

3.15 Function check

The function check described below is to be made after every stripping.

1. Unload per Section 3.3;

2. Make sure that bolt handle is engaged in correct position;

3. Functions:

a. Safety lever set to “S”, carry out loading movement, pull the

trigger:

 The hammer must not trip, the trigger must be blocked;

b. Safety lever set to “1”, pull the trigger and hold it:

 The hammer must trip

Carry out loading movement with trigger being pulled:

 The hammer must not trip;

Release the trigger and pull it again:

 The hammer must trip;

c. Loading movement:

 Safety lever on “1”: verify several times that there is a

discernible pressure point;

4. Insert empty magazine and check firm seating;

5. Bolt catch;

a. Carry out loading movement;

 The bolt must be retained in the rear position;

b. Push up the bolt catch:

 The bolt must run forward;

 Check engagement of folded butt, pull the trigger and

put the weapon on safe.

43

3.16. Procedure in case of malfunction

Whenever a SIG SG 550/551 SP no longer works due to a malfunction,

proceed as follows:

 Carry out loading movement;

 Continue firing;

If the weapon does not fire:

 Insert a fresh magazine;

 Loading action;

 Continue firing;

If the weapon still does not fire:

 Put weapon on safe;

 Remove magazine;

 Loading action, hold the bolt in rearmost position, check ejection

of cases and, if necessary, remove any jammed cases or

cartridges;

 Turn gas valve to position II when weapon is heavily fouled or

iced up;

 Insert a fresh magazine and load;

 Set safety lever to the desired firing mode, continue firing;

44

If the weapon still will not fire:

 Put weapon on safe;

 Unload per Section 3.3;

 Clean weapon in accordance with section 4.1;

 Take up firing position;

 Load;

 Set safety lever to the desired firing mode, continue firing;

If the weapon can not be unloaded or the fault rectified by the rifleman

in accordance with the operating instructions, a trained expert must be

consulted. The following points must be borne in mind:

 If the weapon can not be unloaded immediately and there is any

danger that of self-ignition due to a hot barrel (140oC), wait at

least 15 minutes.

 The weapon must remain in position as long as it is loaded.

 Spectators and other unnecessary persons must be sent away so

that the problem can be tackled carefully without disturbance.

 As long as the weapon is loaded, only trained experts should be

allowed to manipulate the weapon.

Malfunctions can largely be avoided by:

 Cleaning the weapon according to item 4.1. after each period of

firing, at the latest just after setting the gas valve to position II.

 Carrying out cleaning in accordance with the regulations

 Loading the magazine correctly.

45

4. Maintenance

4.1 Cleaning

The SIG SG 550/551 SP must be cleaned after each period of shooting.

The following sequence must be adhered to:

1. Unload weapon per section 3.3.;

2. Field strip the weapon (see Section 3.13.);

3. Clean the barrel and cartridge chamber from the rear.

4. Clean the other parts of the weapon;

5. Lubricate the barrel and chamber using oil or grease;

6. Smear the other parts of the weapon lightly with gun oil or

grease;

7. Reassemble the weapon in accordance with Item 3.14;

8. Carry out function check in accordance with Item 3.15.

46

5. Function

5.1. Weapon function

5.1.1. Readiness to fire

At the moment of readiness to fire the bolt is closed and locked.

 The recoil spring [2] holds the bolt carrier [4] in the front final

position, via the gas piston[1];

 The bolt head [5] is rotated by the control cam [3] of the bolt

carrier [4] in such a way that its locking lugs [8] engage in the

corresponding recesses of the locking piece [9];

 In this position the hammer [7] is cocked and the release bar [6]

is depressed.

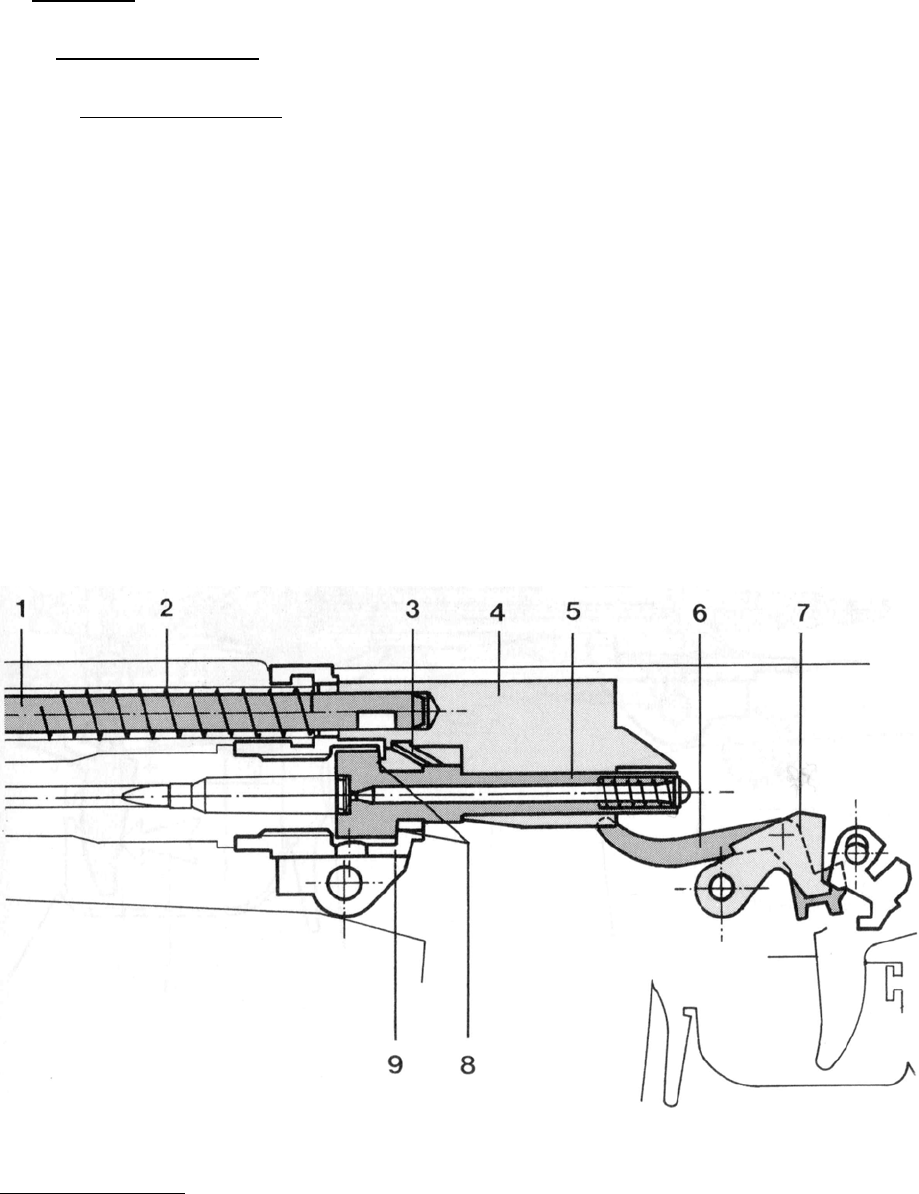

Weapon loaded

47

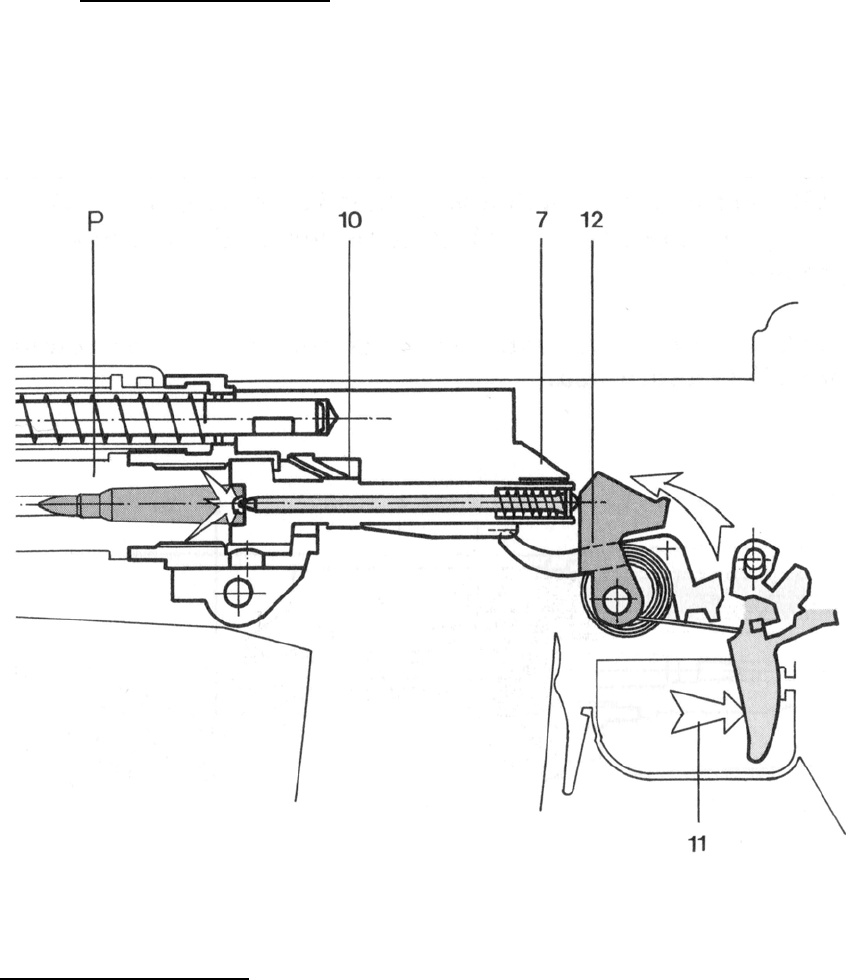

5.1.2. Discharging the shot

By pressing the trigger [11] the hammer [7] is released. The hammer

is under pressure from the main spring [12] and strikes the firing pin

[10] which, in turn, impacts against the cartridge primer of the

cartridge [P] thus discharging the shot.

Discharging the shot

48

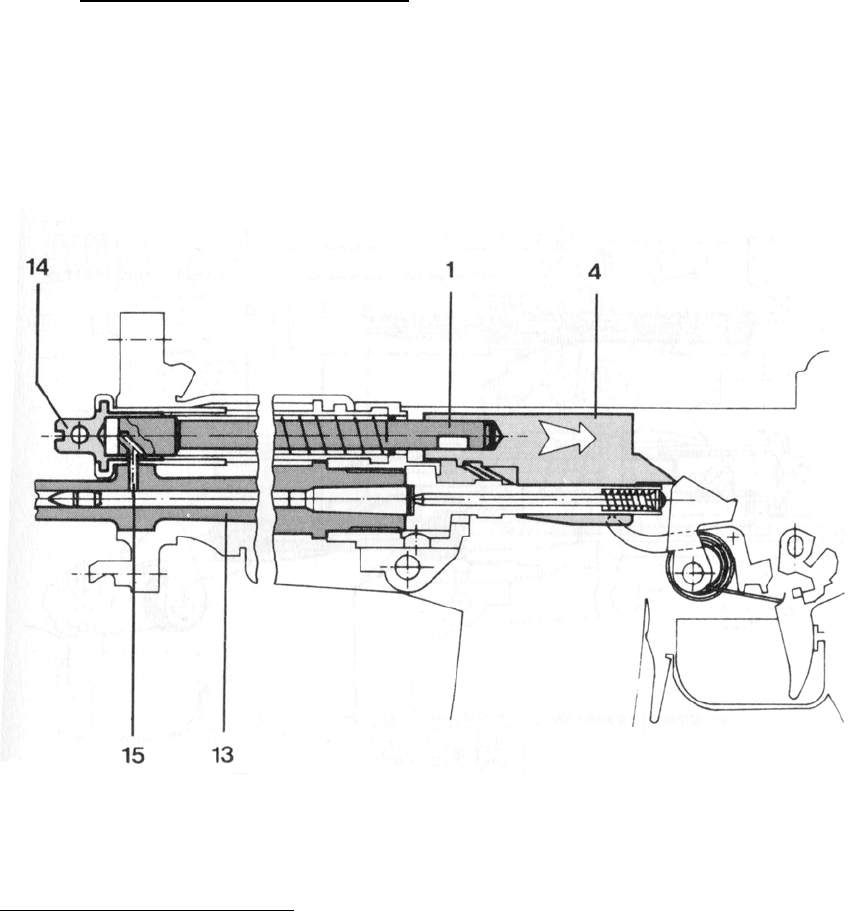

5.1.3. Unlocking and recoil of bolt

The gas pressure, generated by the burning powder, drives the bullet

up the barrel [13]. As soon as the projectile passes the gas port [15],

the propellant gas flows through the adjustable gas valve [14]. The gas

pressure acts on the gas piston [1] which pushes the bolt carrier to the

rear.

Bolt carrier recoil begins

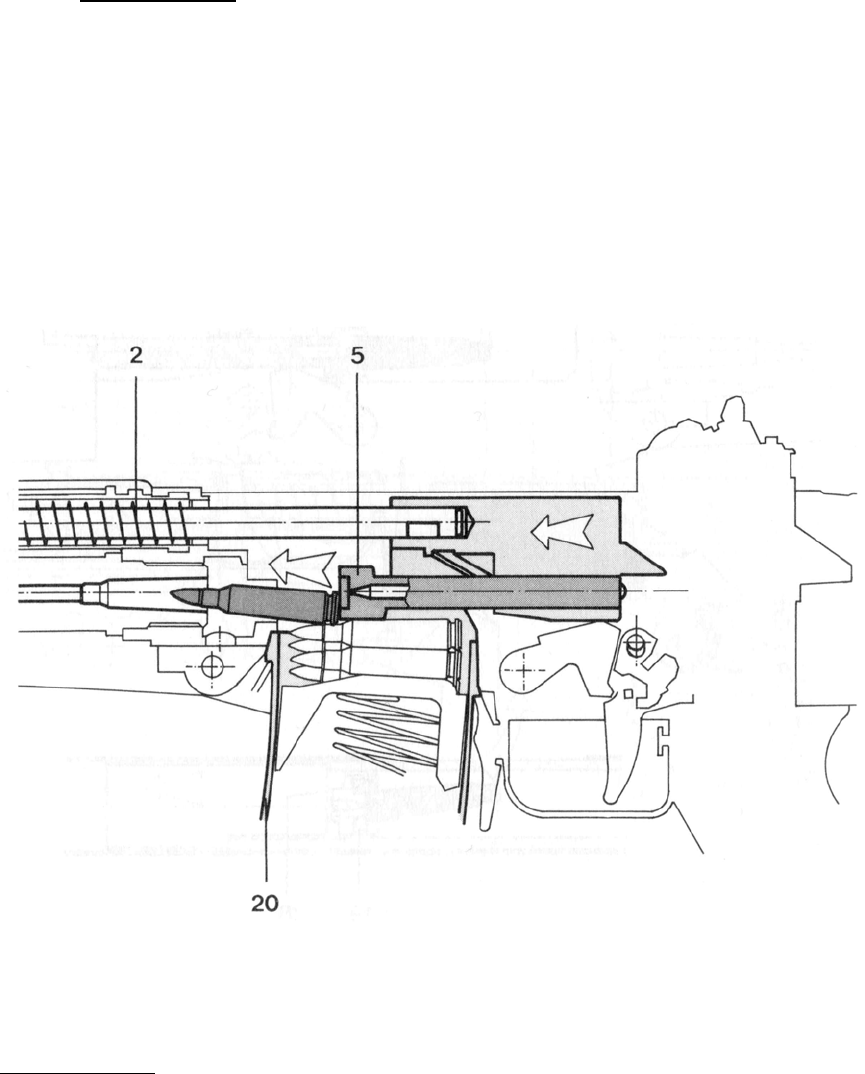

49

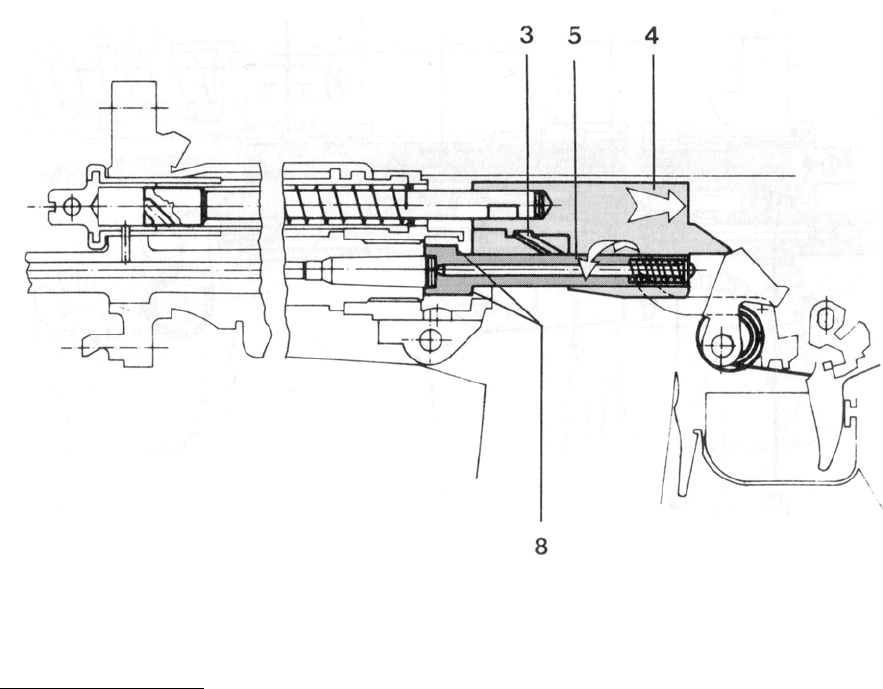

During the rearward motion of the bolt carrier [4] the bolt head [5] is

rotated by the control cam [3] so that the locking lugs [8] are

disengaged. The bolt is now unlocked.

Unlocking begins

50

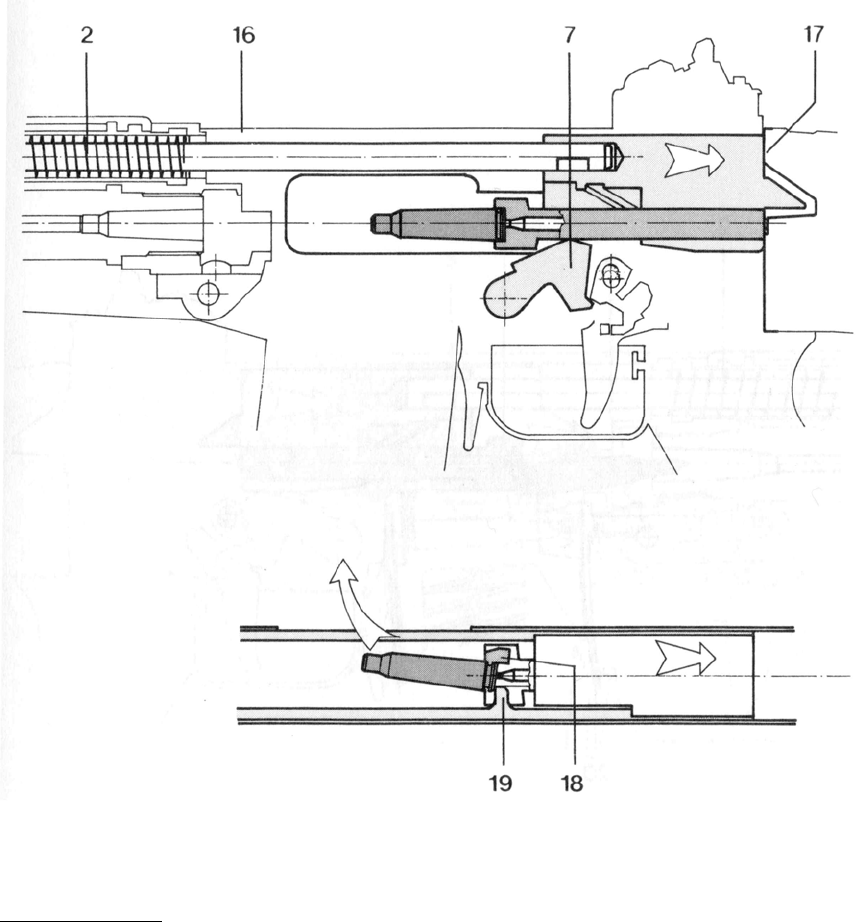

The bolt assembly moves back along the rails in the receiver [16] as

far as the stop [17] whereby:

 The recoil spring [2] is compressed;

 The hammer [7] is cocked;

 The extractor [18] extracts the case from the chamber;

 The ejector [19] ejects the case through the port in the receiver

[16].

Case ejection

51

5.1.4. Bolt advance

The force of the compressed recoil spring [2] thrusts the bolt forward.

The bolt head [5] feeds the next round from the magazine [20] into

the chamber.

Bolt advance

52

In the final stage of the advance, the bolt head [5] locks up and the

release bar [6] is depressed. The weapon is ready to be fired.

Locking

53

6. Appendix

6.1. list of parts

100 receiver

111. Receiver casing

141. Bolt cover

142. Rivet

151. Rear sight drum

152. Drum spring

153. Drum stud

154. Luminous ampoule*

155. Insert

156. Rubber disc

161. Pivot

162. Drum axle

163. Spring washer

164. Safety washer

165. Leaf spring

171. Windage correction screw

172. Click stud

173. Rear sight spring

174. Limitation spring

175. Spring pin

181. Elevation correction screw

200 Barrel / gas system

211. Barrel*

212. Front sight mount*

213. Roll pin

214. Spring ring**

221. Bayonet lug**

222. Spring pin

223. Stop pin

224. Compression spring

225. Spring pin

231. Front sight

232. Night front sight

233. Positioning bolt

234. Night front sight spring

235. Spring pin

236. Front sight screw

237. Front sight disc

238. Spring pin

241. Gas valve

251. Gas tube

261. Gas piston

262. Recoil spring

263. Spring pin

264. Spring pin

265. Spacer

268. Support washer

300 Handguard

311. Upper handguard

321. Lower handguard

330. Bipod complete**

331. Leg left**

332. Leg right**

333. Bipod carrier**

334. Stud**

335. Circlip**

336. Click stud**

337. Bipod spring**

400 Bolt

411. Bolt head

412. Firing pin

413. Firing pin stud

414. Firing pin spring

415. Extractor

416. Extractor spring

417. Pin

421. Bolt carrier

422. Bolt handle catch

423. Axel of bolt handle catch

424. Spring of bolt handle catch

425. Bolt handle

* Can not be ordered as individual parts

**Not on SG 551

54

500 Trigger assembly

501. Trigger casing

521. Magazine catch

522. Magazine catch spring

523. Magazine catch pin

524. Bush

541. Pistol grip

542. Floorplate

543. Allen screw

544. Stop nut

545. Nameplate

551. Pressure point screw

552. Stop nut

553. Pressure point spring

554. Trigger guard

555. Trigger guard bearing

561. Hammer

562. Hammer axle

563. Main spring

564. Bolt catch

565. Bolt catch spring

566. Spring bolt

571. Safety lever

572. Safety shaft

573. Locking spring

576. Spring pin

578. Stop ring

581. Trigger

582. Trigger spring

583. Trigger rod

584. Pivot trigger

585. Trigger bush

586. Trigger rod spring

591. Trigger casing stud

592. Spring –pressure pin

593. Spring for trigger casing stud

594. Spring pin

595. Pin

596. Cup spring

600 Butt

611. Buttstock

612. Butt catch

613. Butt catch spring

614. Clip

615. Spring pin

616. Butt

700 Magazine

711. Magazine casing

712. Magazine floorplate

713. Floorplate catch

714. Feeder

715. Magazine spring

6.2. Exploded drawing

Information to be supplied when ordering spare parts:

 Type of weapon

 Serial number

 Caliber

 Item number

 Parts designation

55

56
