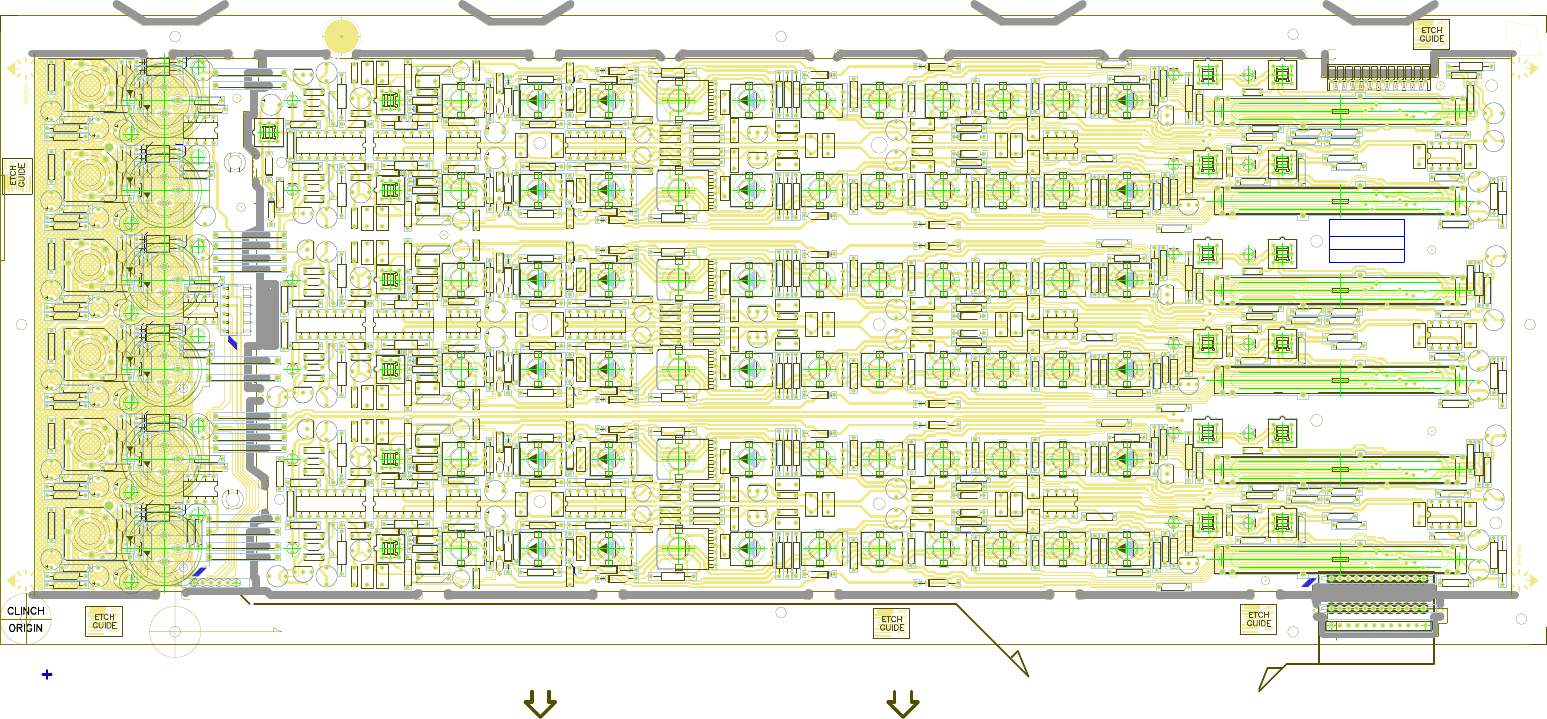

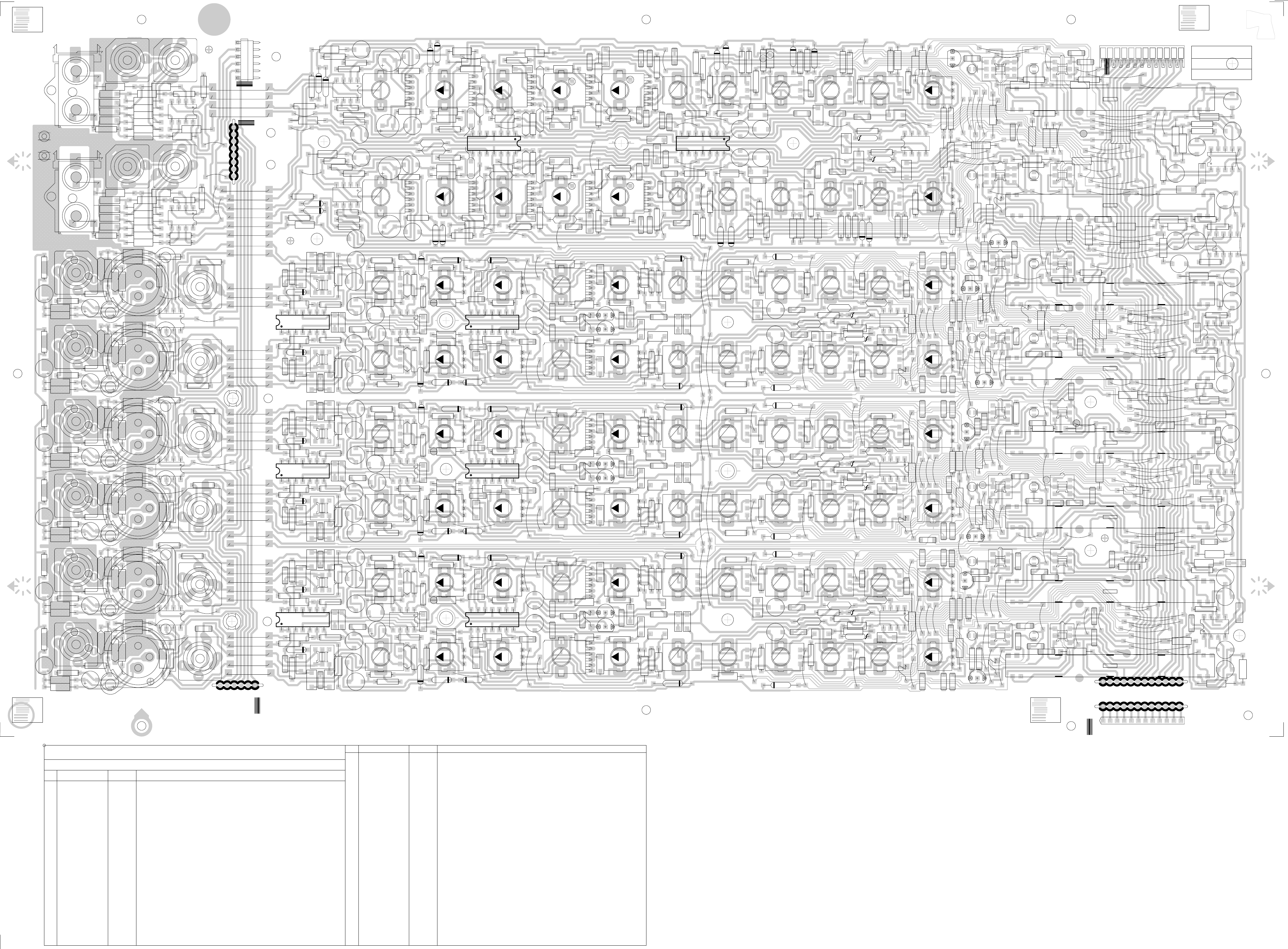

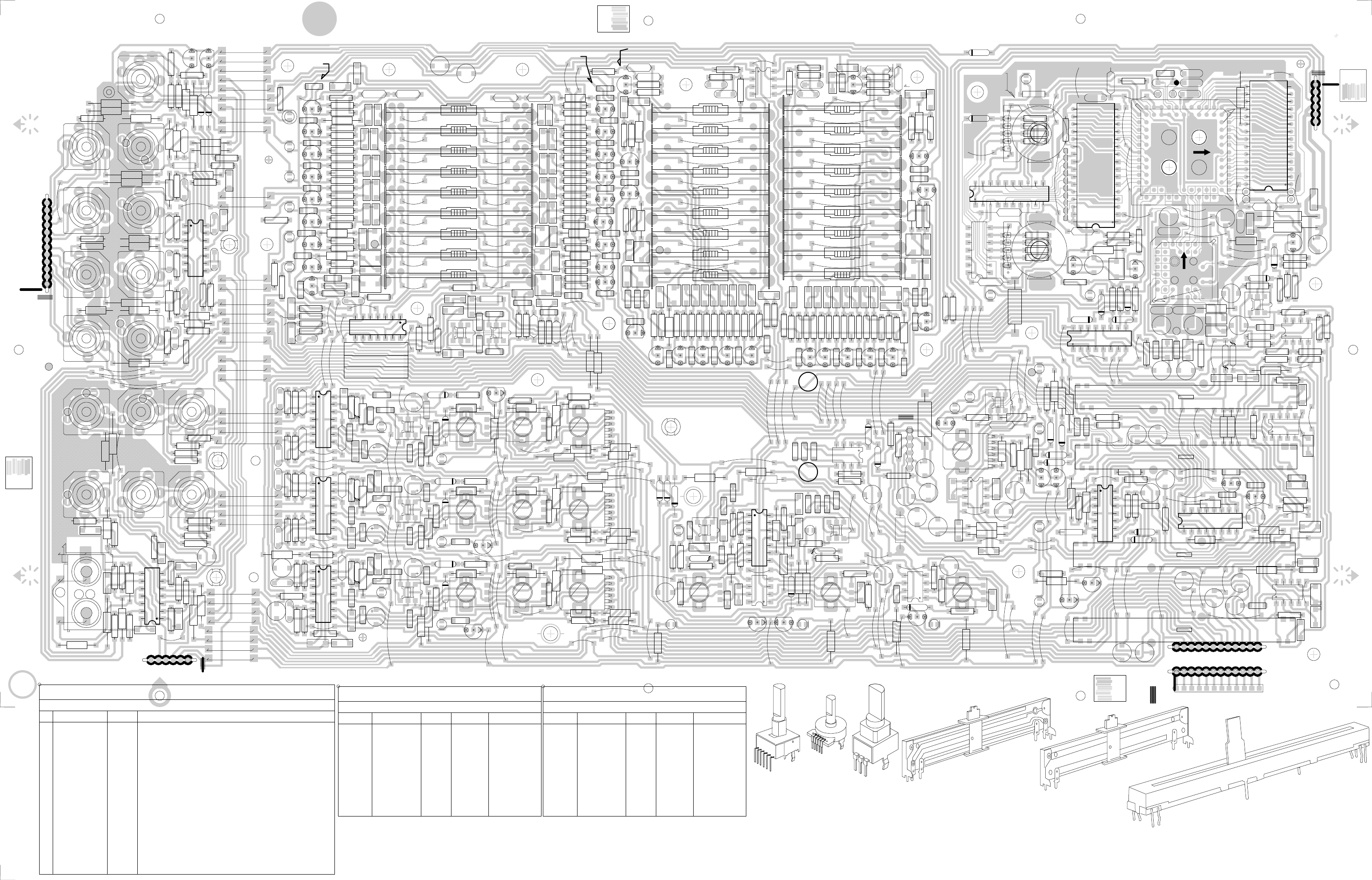

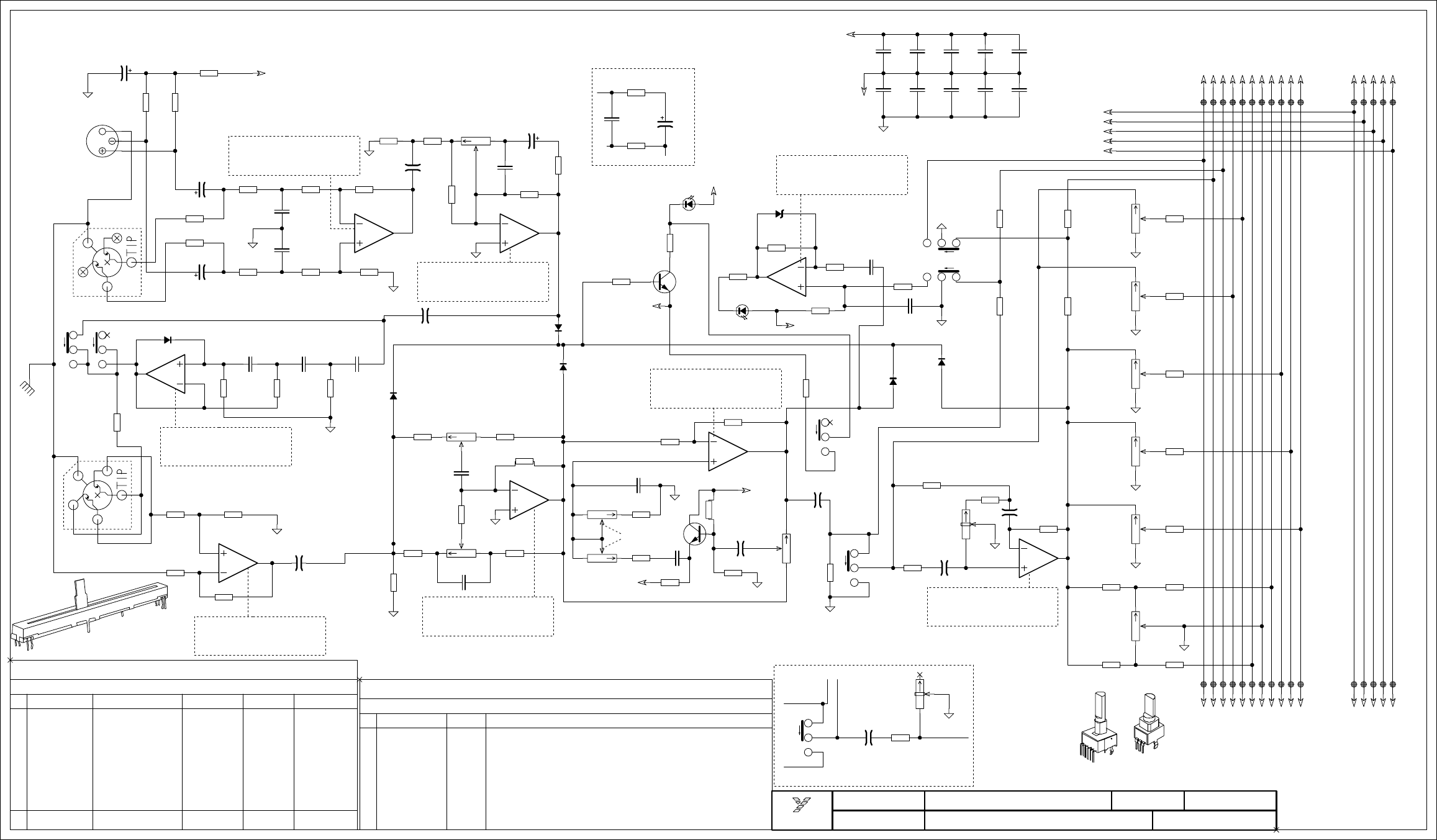

- Layout-M1117-PM16-PM22-Input 1/3
- PartsOnly-M1117-PM16-PM22-Input

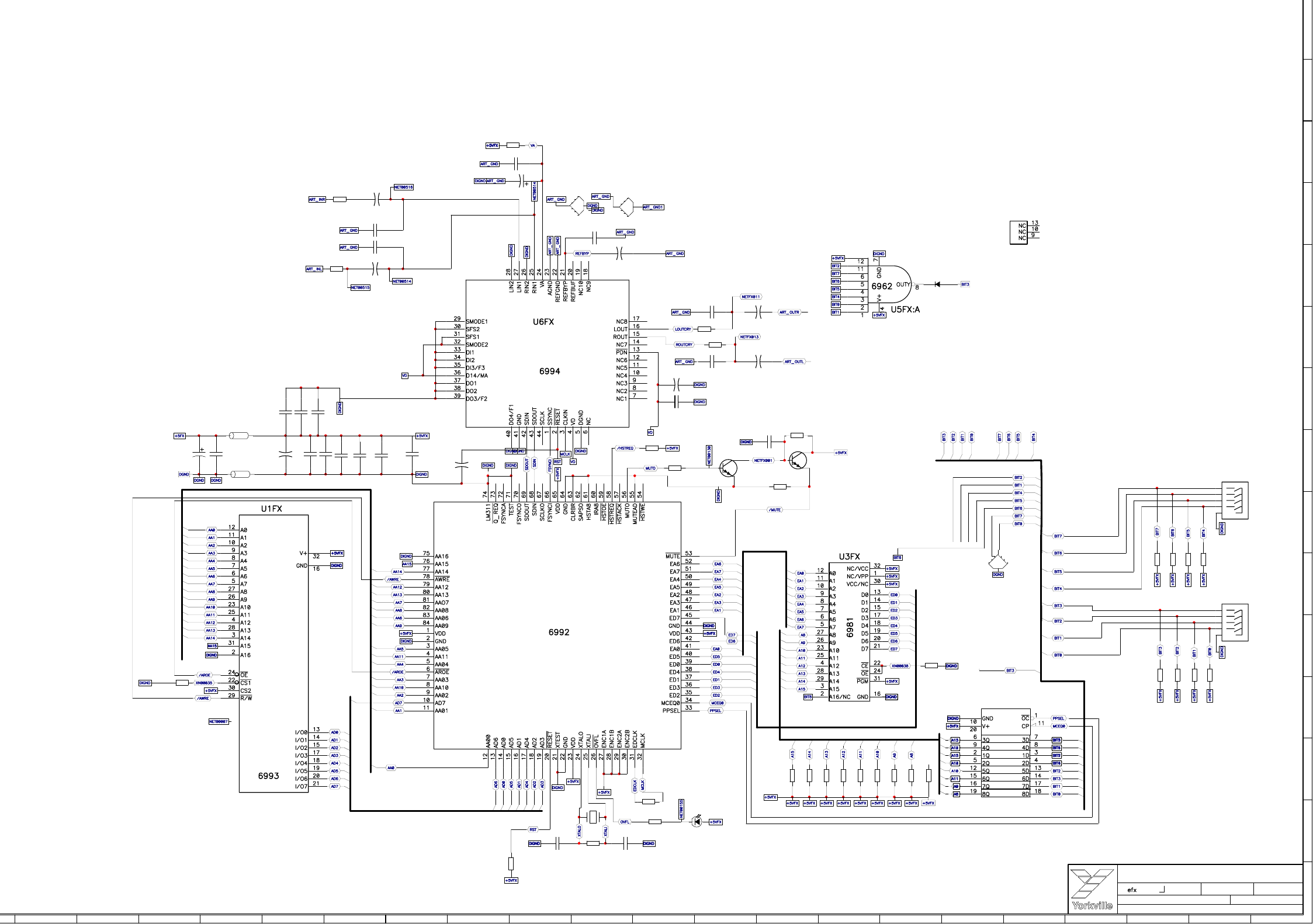

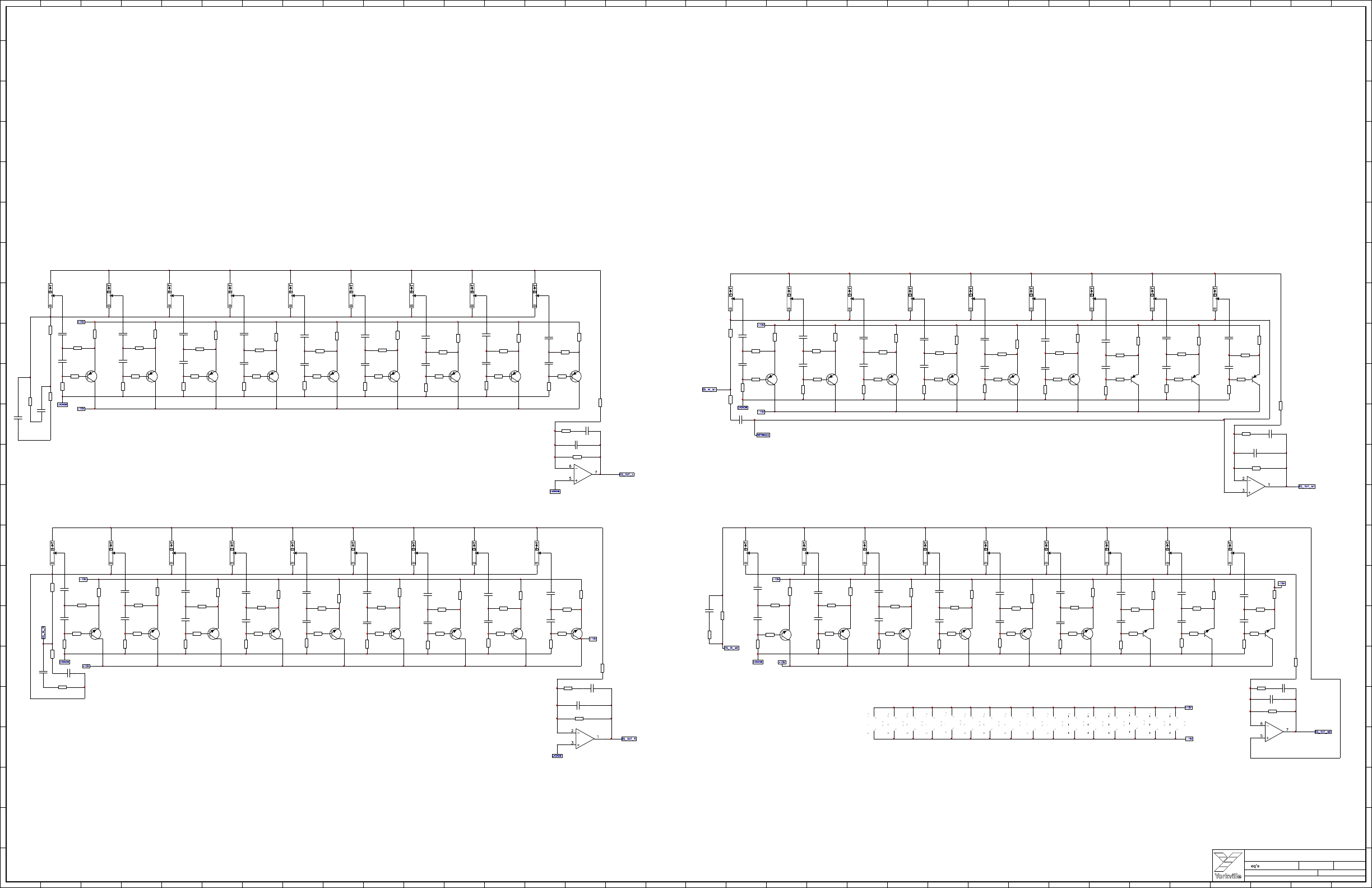

- Schematic-M1118-PM16-PM22-VUDisplay
- Layout-M1118-PM16-PM22-VUDisplay

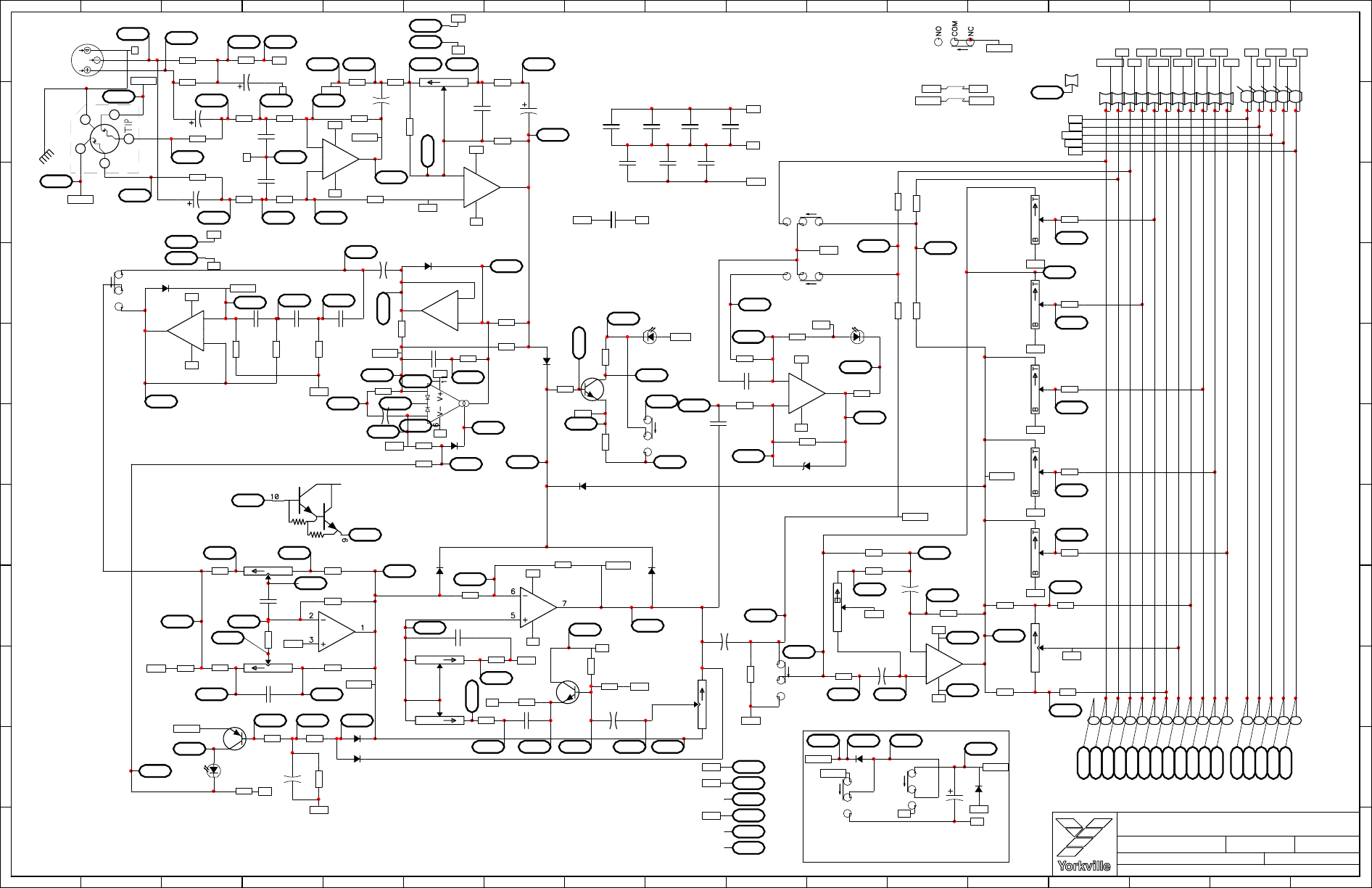

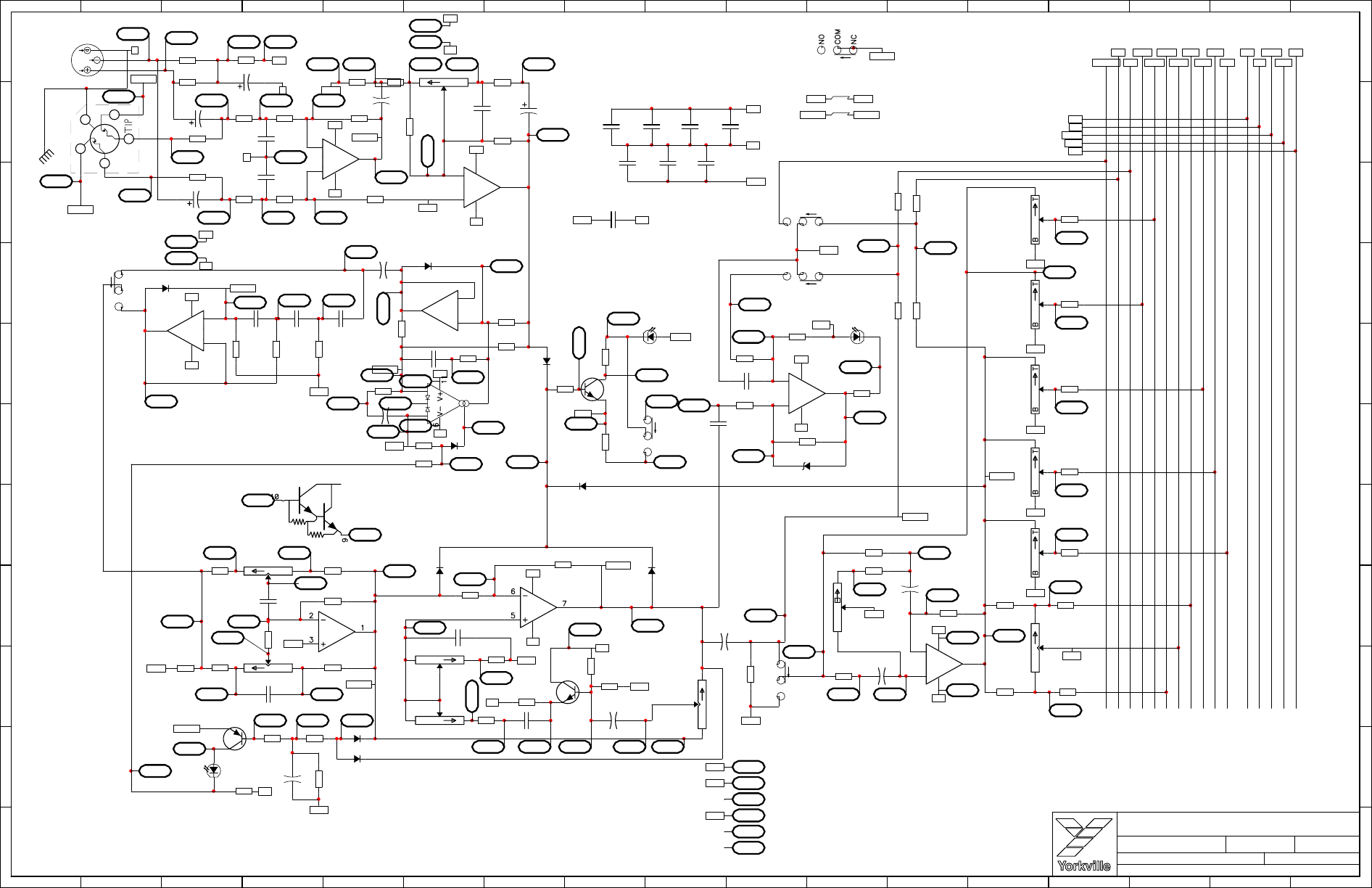

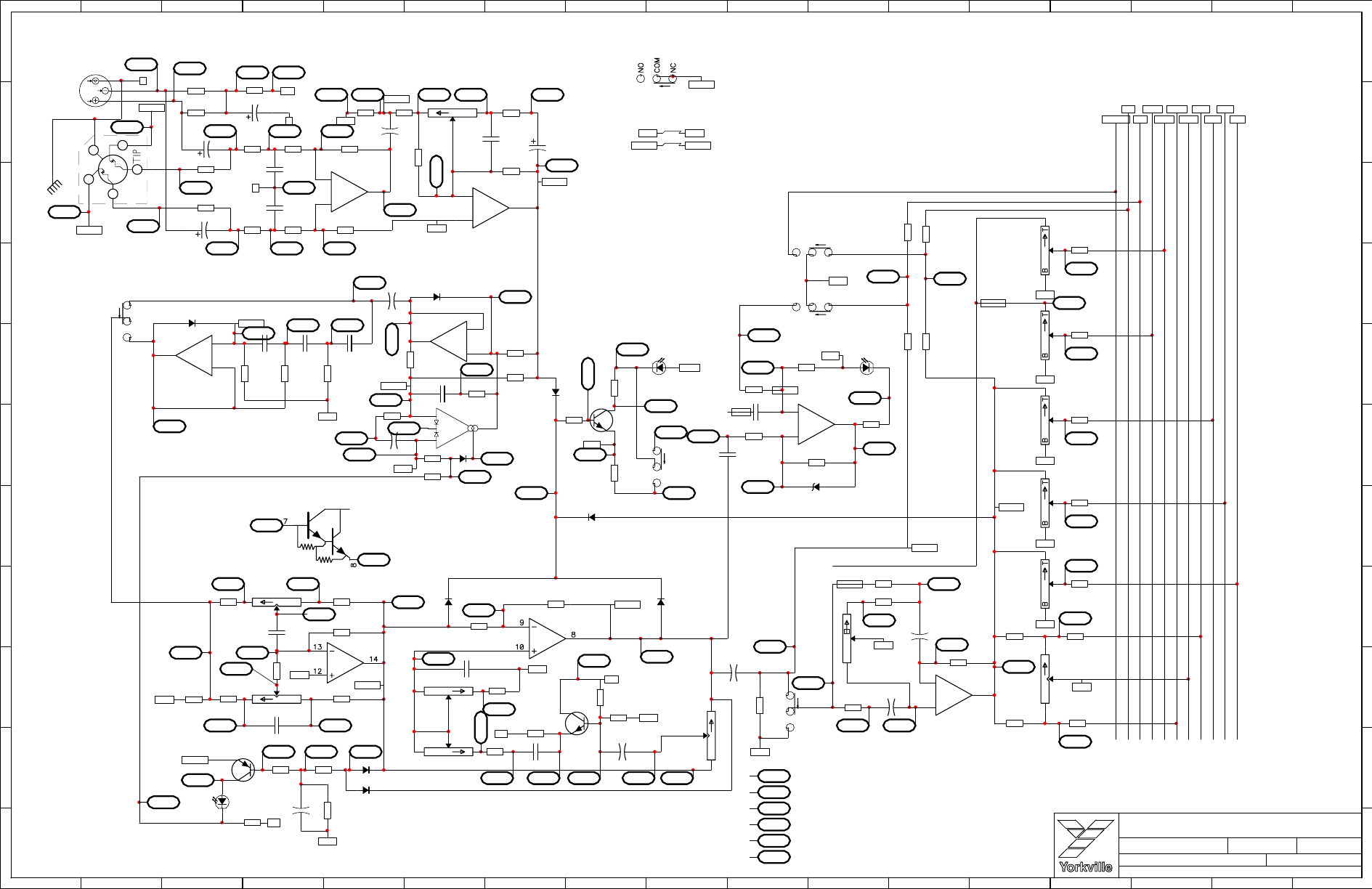

- Schematic-M1119-PM16-PM22-Inputs (Mono) 1/2

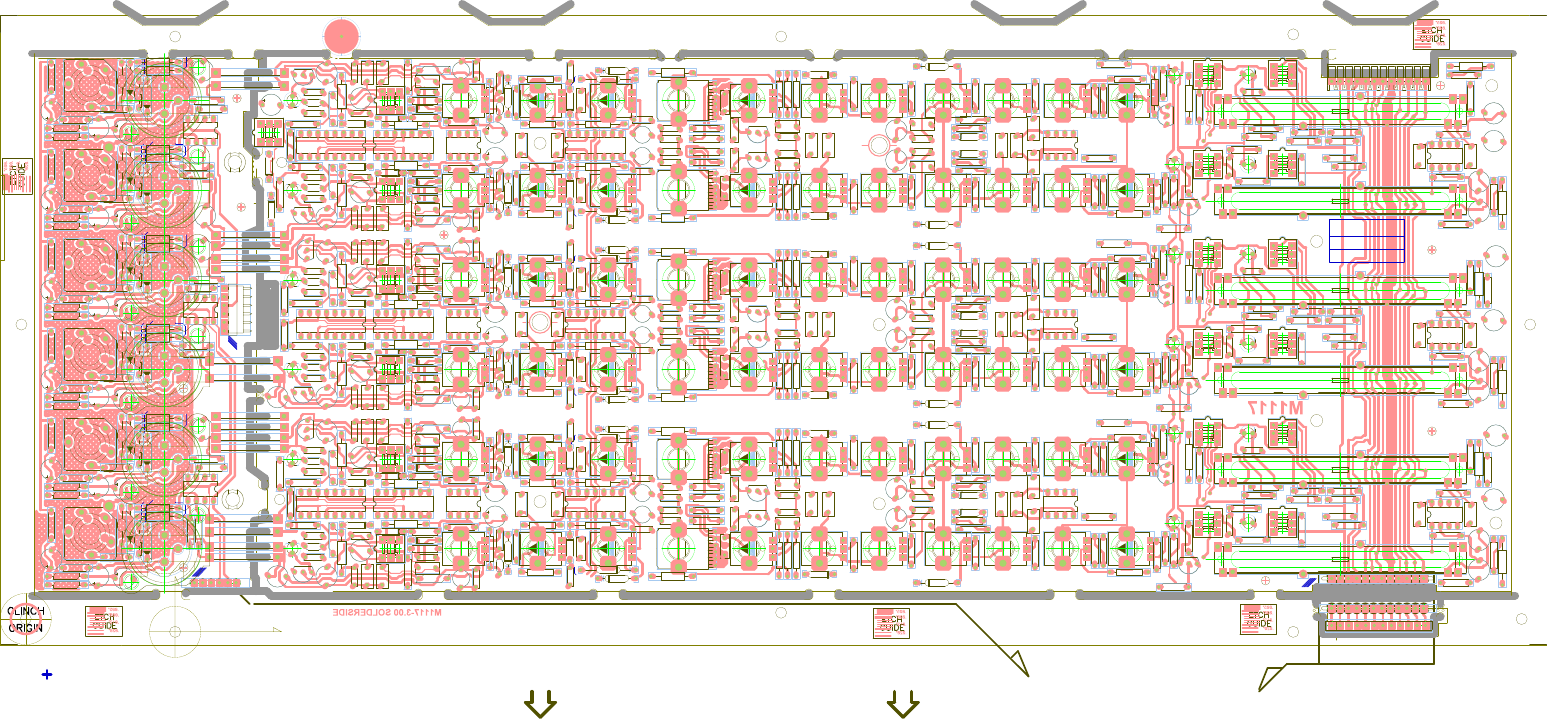

- Layout-M1119-PM16-PM22-Inputs
- Schematic-M1121-PM16-PM22-Master (Master) 1/3
- Layout-M1121-PM16-PM22-Master

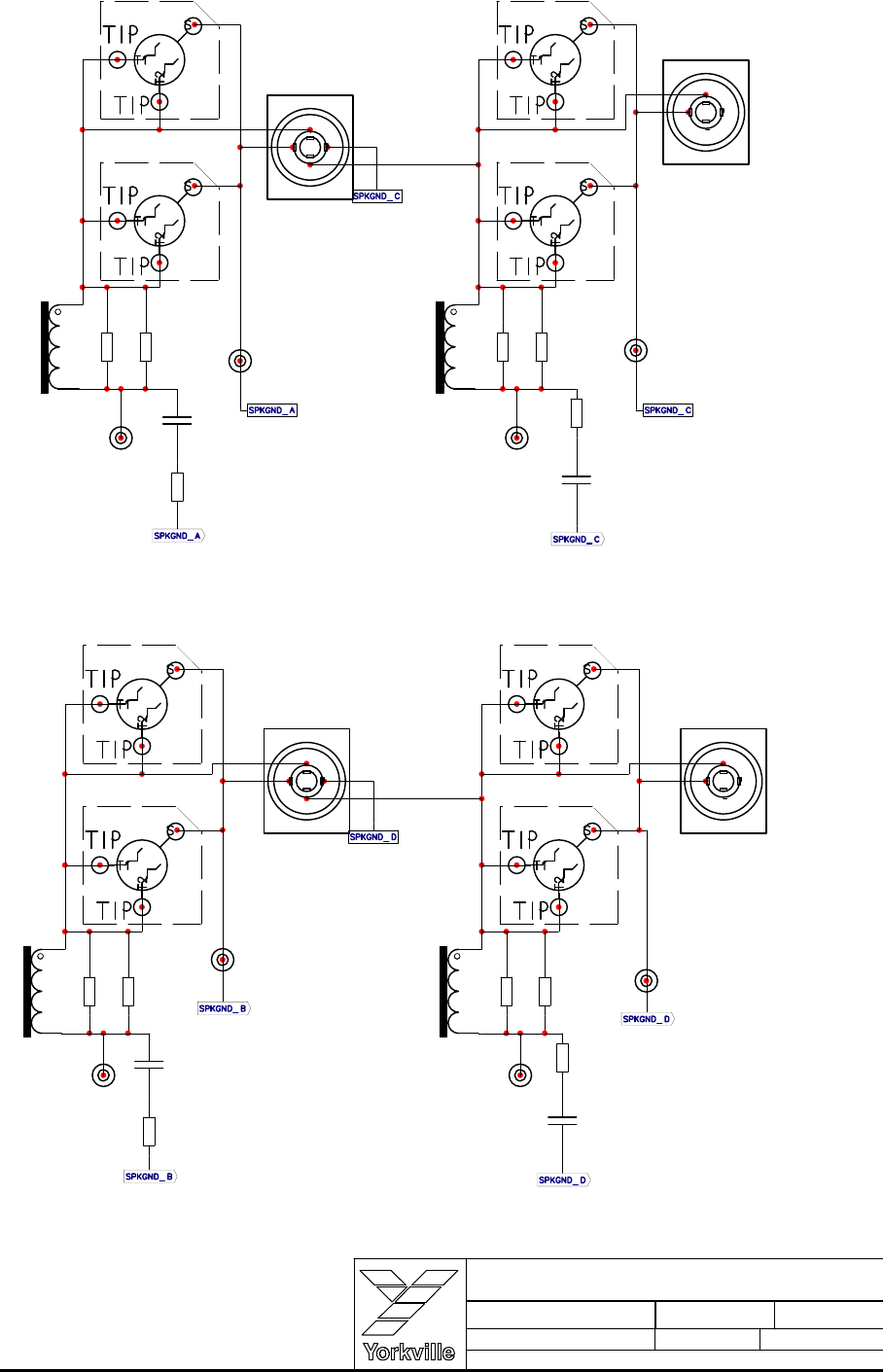

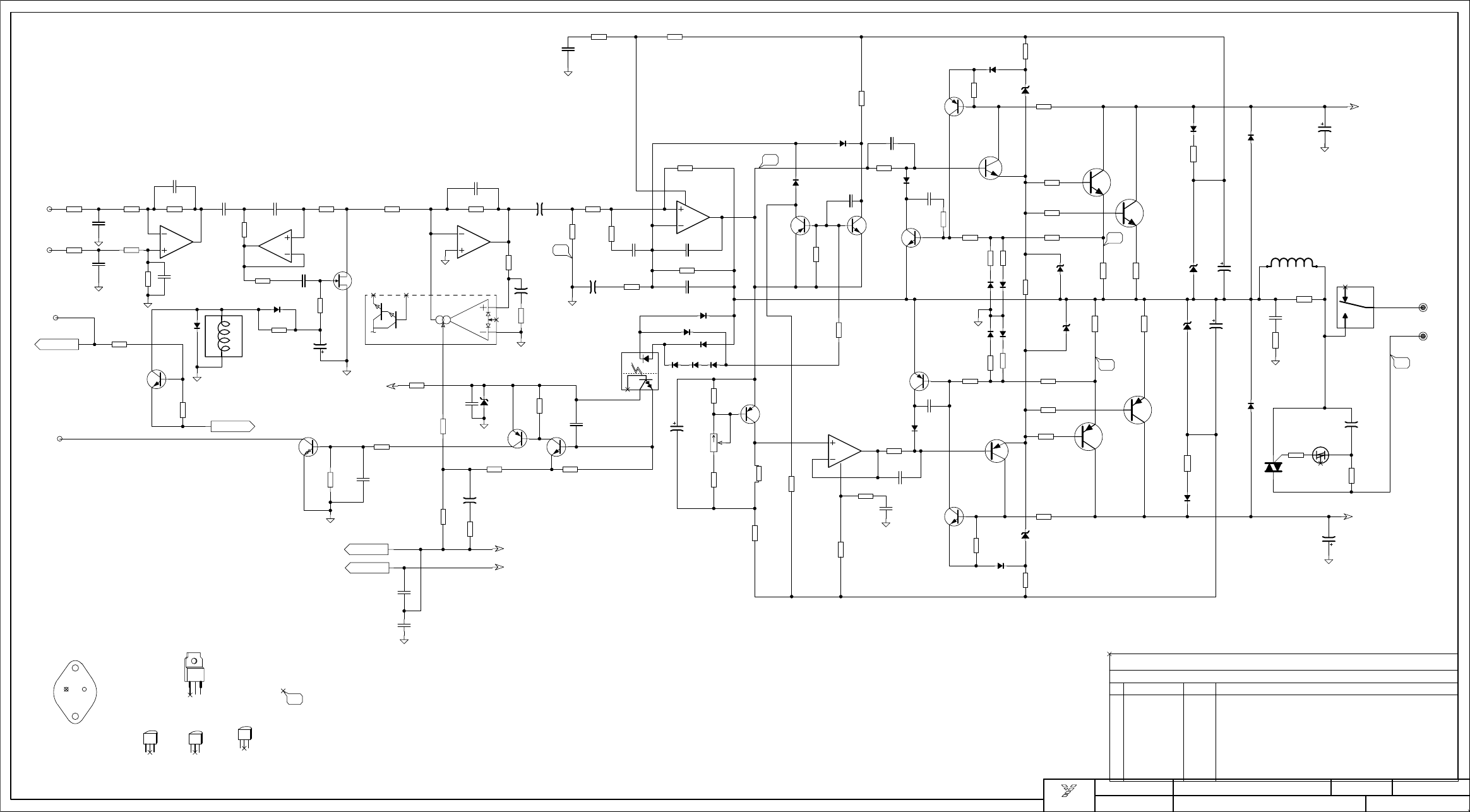

- Schematic-M1122-PM16-PM22-PwrAmp (275W) 1/2

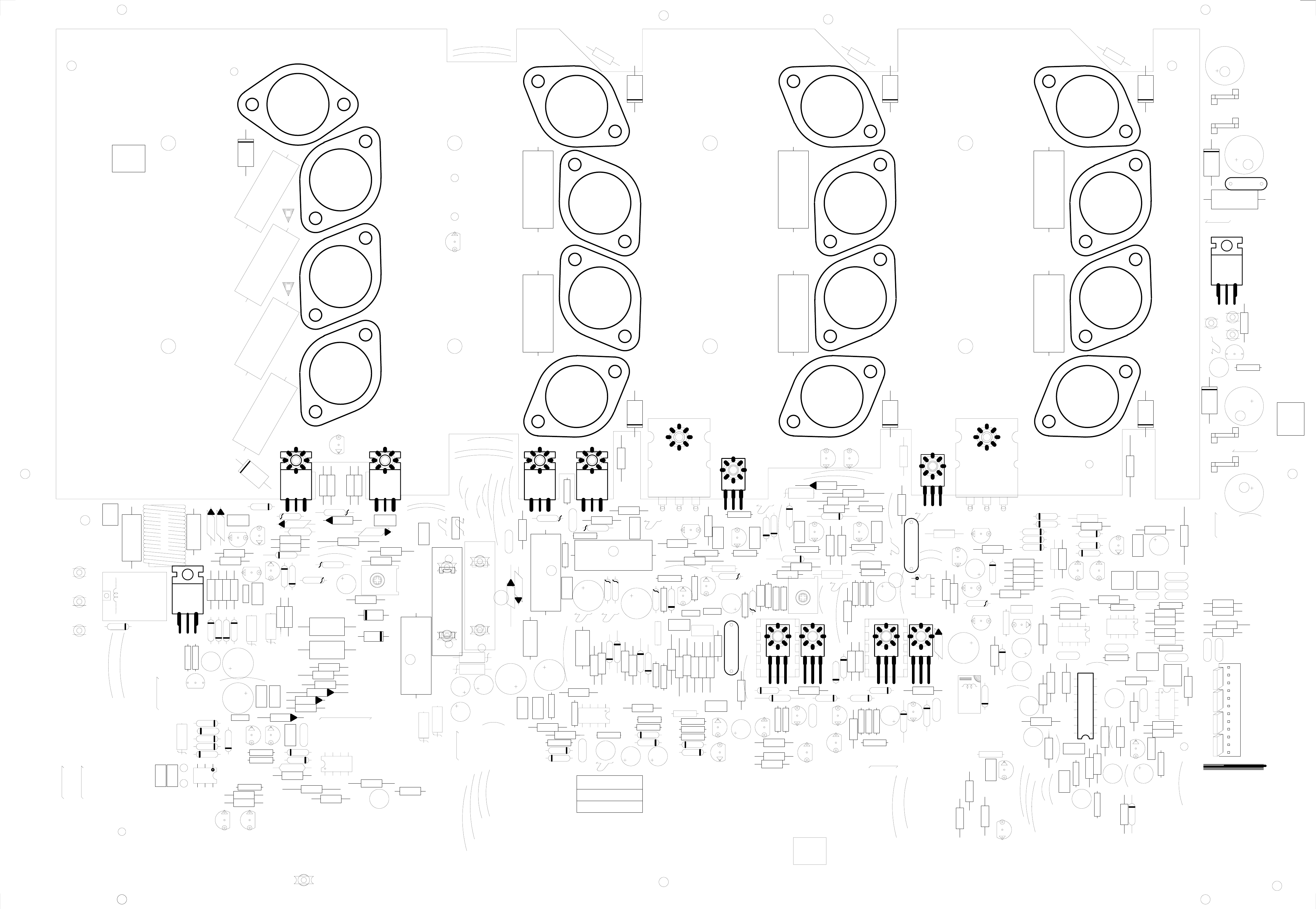

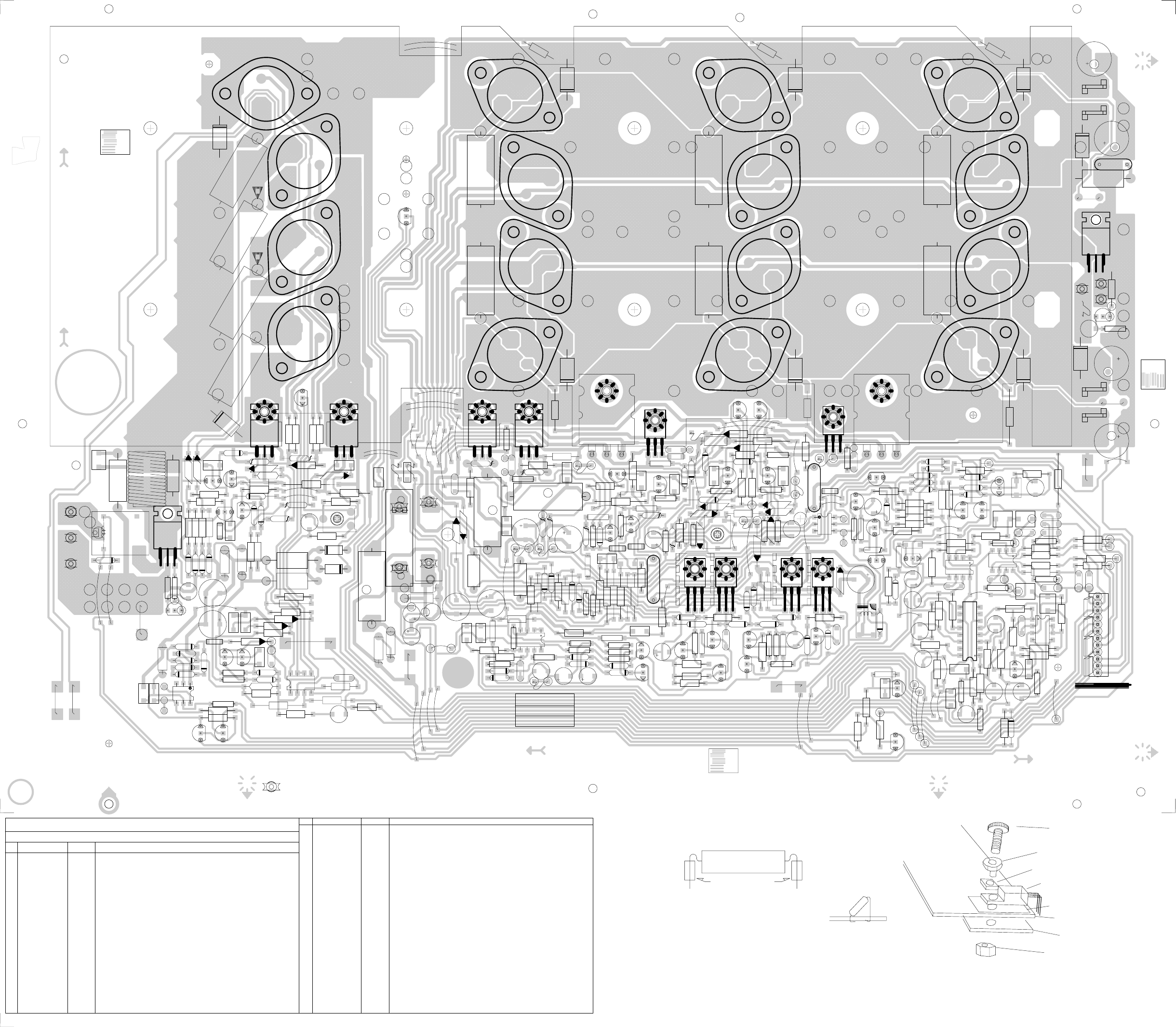

- Layout-M1122-PM16-PM22-PwrAmp
- PartsOnly-M1122-PM16-PM22-PwrAmp

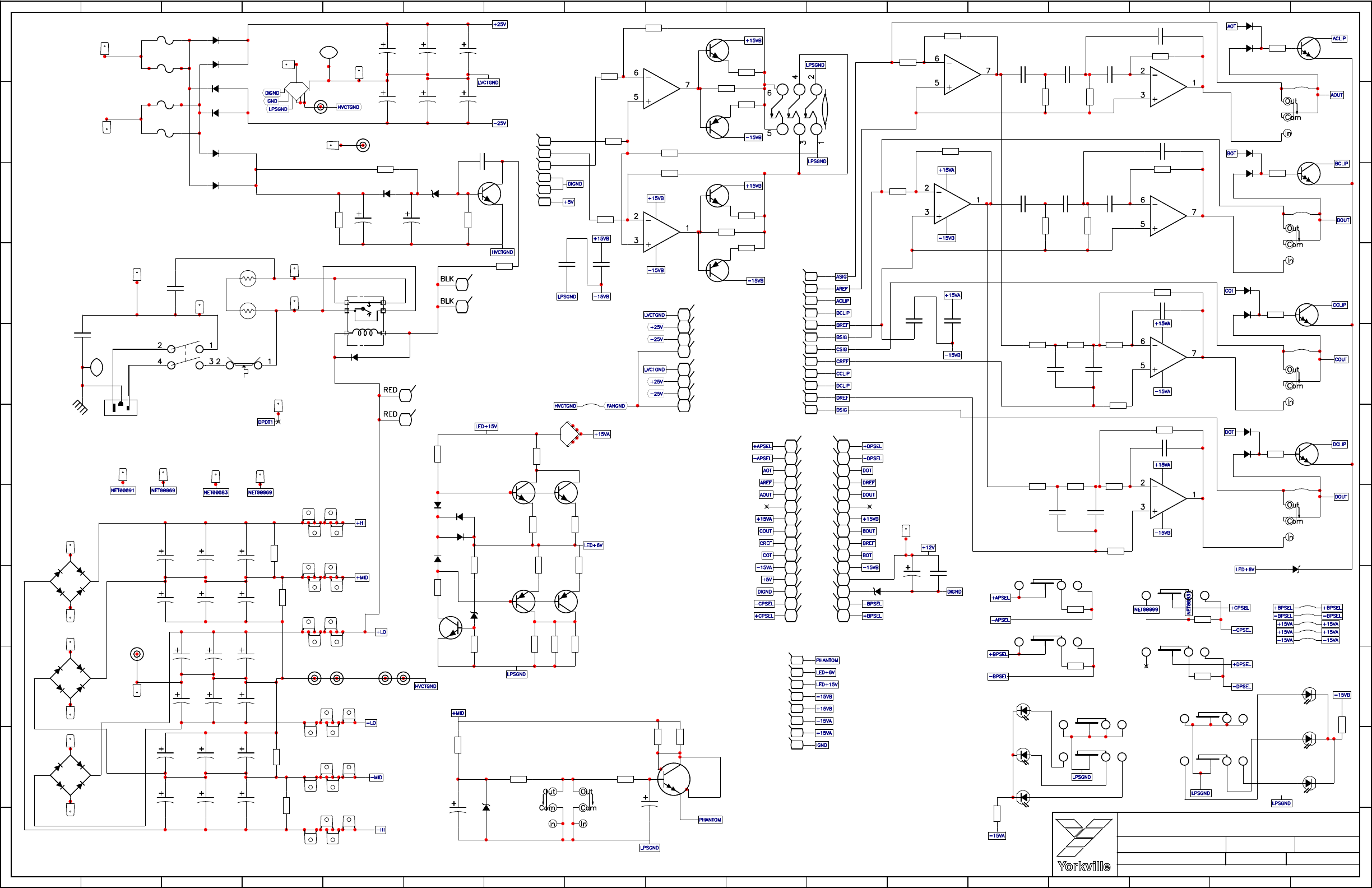

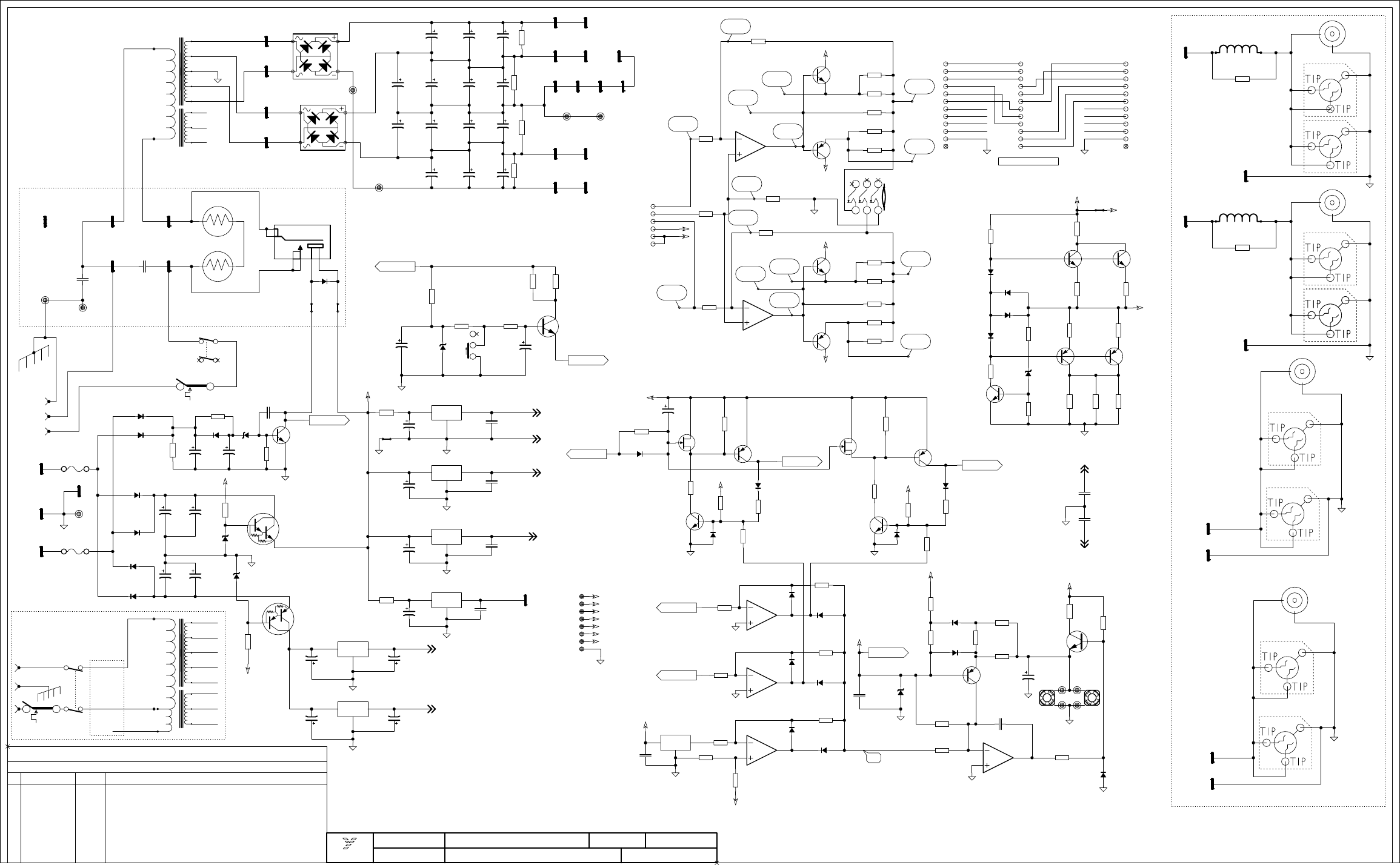

- Schematic-M1123-PM16-PM22-PwrSupply

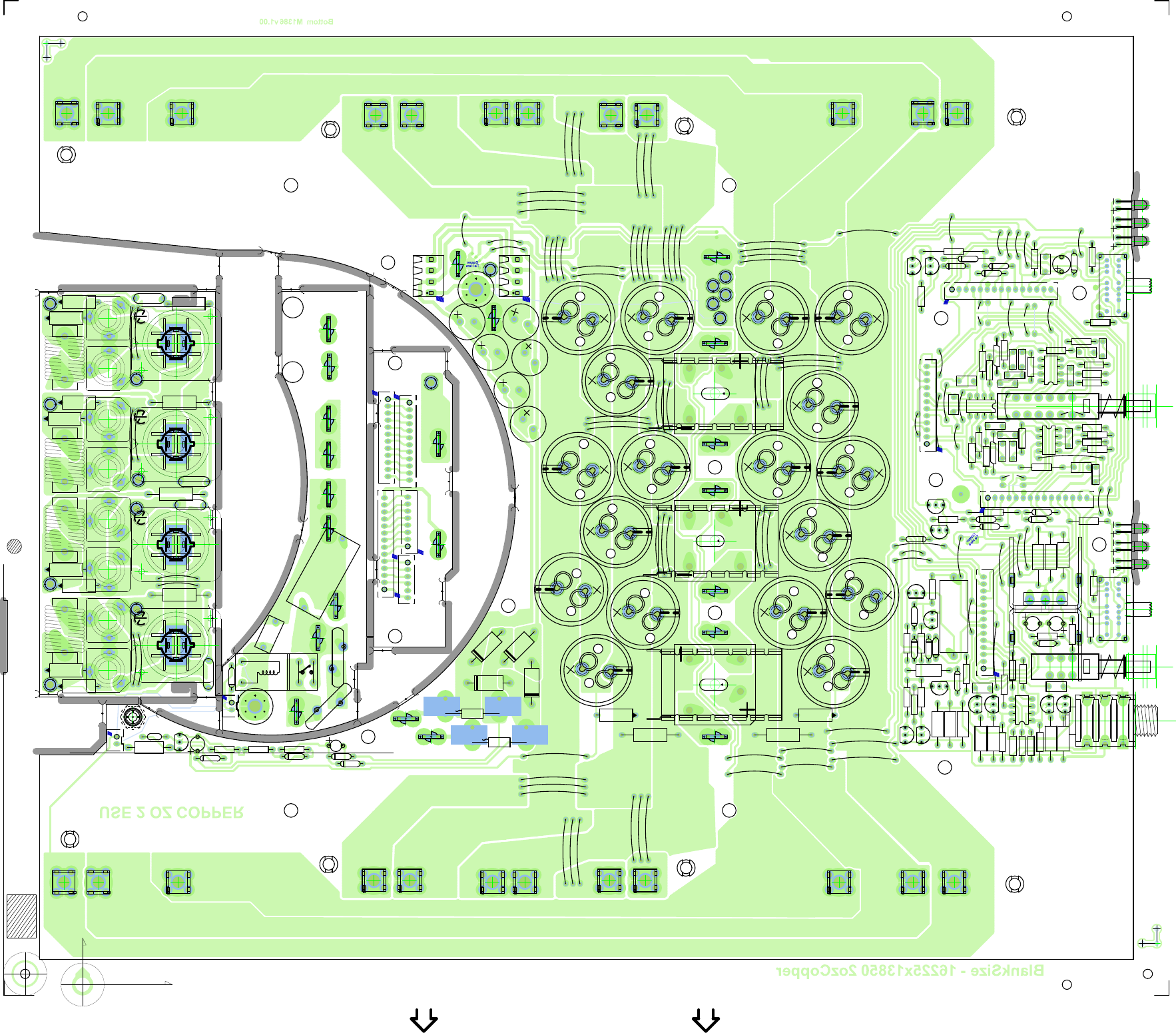

- Layout-M1123-PM16-PM22-PwrSupply
- Schematic-M1386-PM16-PM22-PwrAmp 1/2
- Layout-M1386-PM16-PM22-PwrSupply 1/2

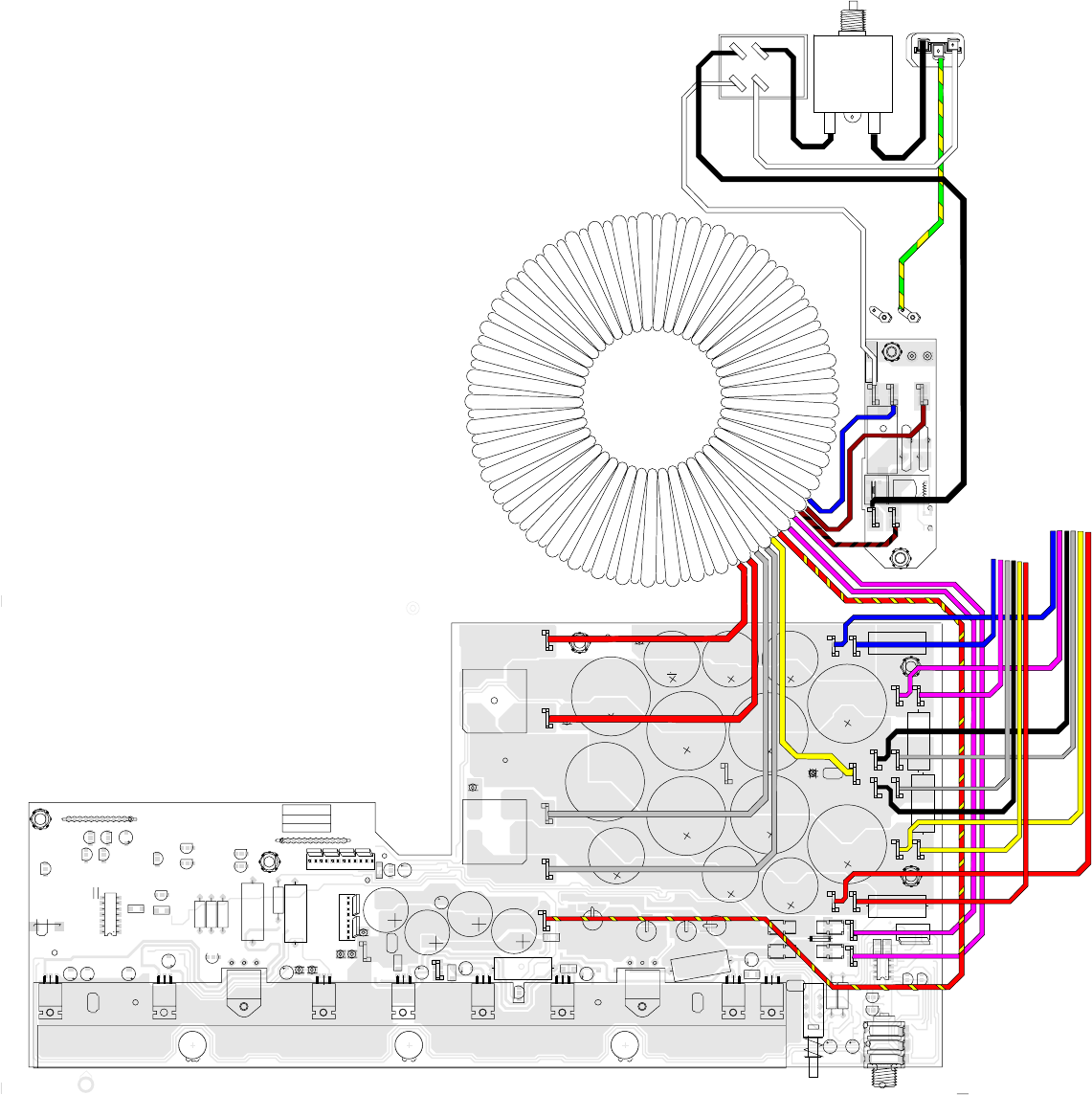

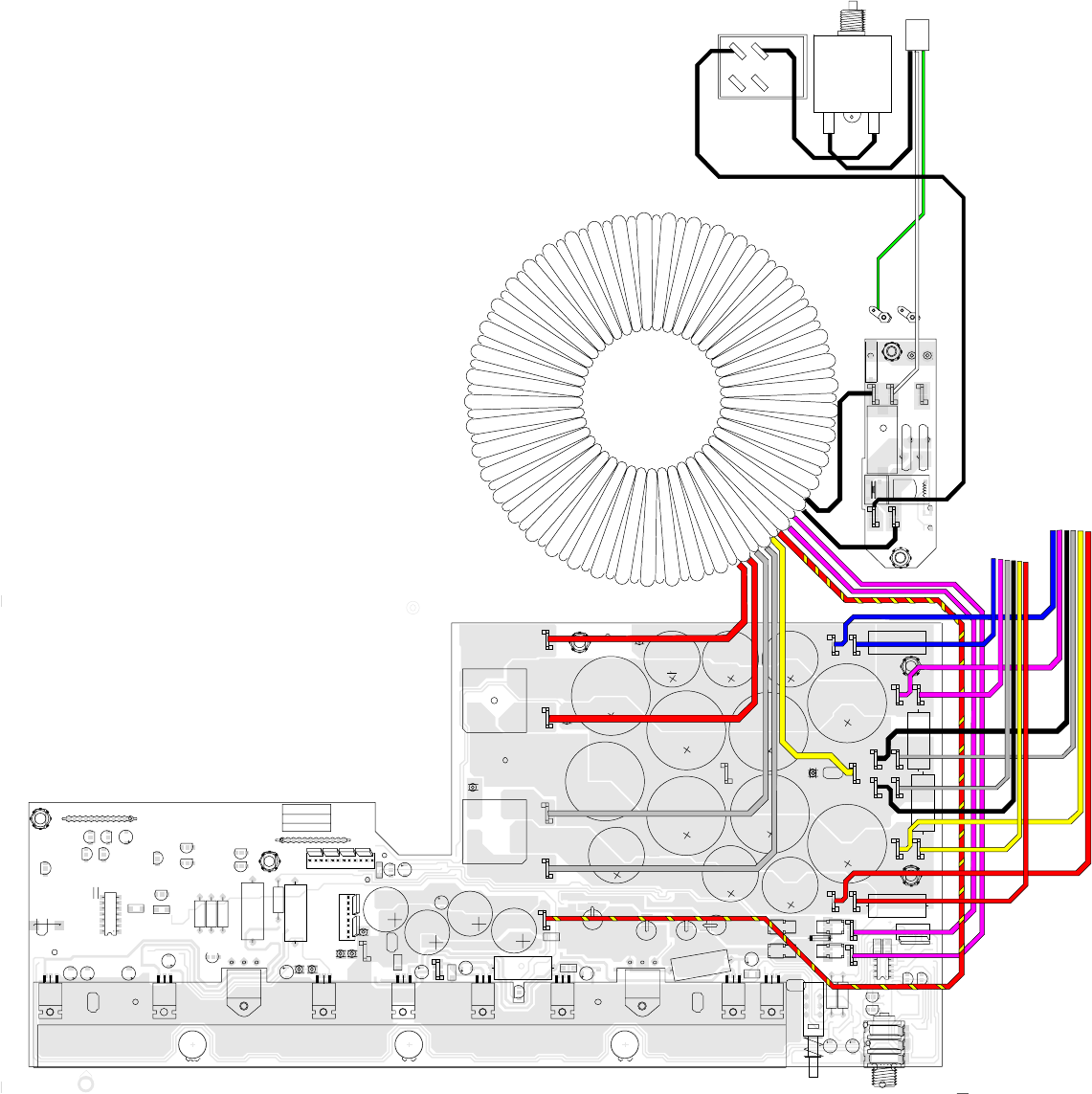

- Wiring-PM16-ce-230V-1v00
- Wiring-PM16-ce-245V-1v00
- Wiring-PM16-NA-1v00
U.S.A.
Yorkville Sound Inc.
4625 Witmer Industrial Estate
Niagara Falls, New York
14305 USA
Voice: (716) 297-2920
Fax: (716) 297-3689
WORLD HEADQUARTERS
WEB ACCESS: http://www.yorkville.com
CANADA
Yorkville Sound
550 Granite Court
Pickering, Ontario
L1W-3Y8 CANADA
Voice: (905) 837-8481
Fax: (905) 837-8746
Quality and Innovation Since 1963
Printed in Canada
SERVICE MANUAL
PM16/PM22
MODEL TYPE: YS1011
Yorkville
Manual-Service-powerMAX-00-1v7.pdf
