LT20440 Snelt18 97 Lt18400
User Manual: LT20440
Open the PDF directly: View PDF
.
Page Count: 74
Yvan Béal - 21, av. de l’Agriculture - B.P. 16
Z.I. du Brézet - 63014 Clermont-Ferrand Cedex 2
Tél : 04 73 91 93 51 - Télécopie : 04 73 90 23 11
www.yvanbeal.fr - E-mail : info@yvanbeal.fr
R.C.S. Clermont-Fd B 304 973 886 S.A.S. au capital de 612 000 €
PIÈCES DÉTACHÉES
Tondeuses autoportées
SNELT18/97
LT18400
2690404
SNLT20/102
LT2040
2690500
S N E LT 2 0/112
LT20440
2690283
03-000891-080613
PIÈCES DÉTACHÉES
Tondeuses autoportées
SNELT18/97
SNLT20/102
LT2040
2690500
S N E LT 2 0/112
LT20440
2690283
Parts Manual fo
r
Revision 1,
LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
McDonough, GA, 30253 U.S.A.
TP 400-5079-1-TC-N
5/30/2007
Manual No. 7006458
HYDRO DRIVE RMO
Copyright © 2007
Briggs & Startton Yard Power Products Group
Milwaukee, WI USA. All Rights Reserved
Briggs & Startton Corporation
MODEL
LT1840
(
1694808
)
LT18400
(
2690404
)
LT2040
(
2690500
)
LT20440
(
2690283
)
YT2050
(
1694637
)
LAWN TRACTOR ELECTRIC CLUTCH
Table Of Contents
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 3
PAGE GROUP
4Wheels & Tires Group
6Hood, Grille & Dash Group
8Steering Group - Manual Steering
10 Frame & Front Axle Group
14 Controls Group
18 Cruise Control Group

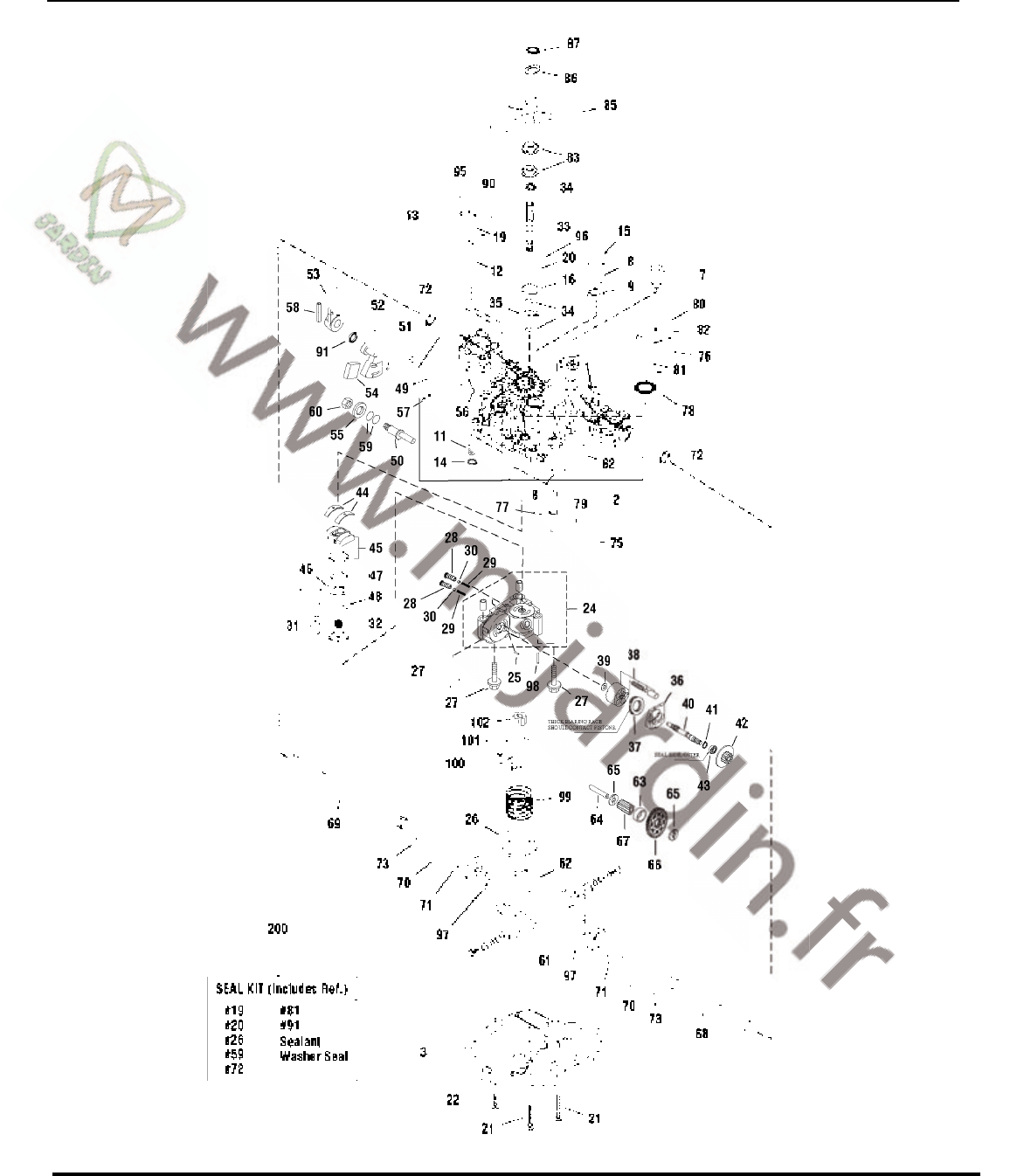

20 Transmission Group - Tuff Torq K-57
24 Transmission SERVICE PARTS - Tuff Torq K-57A

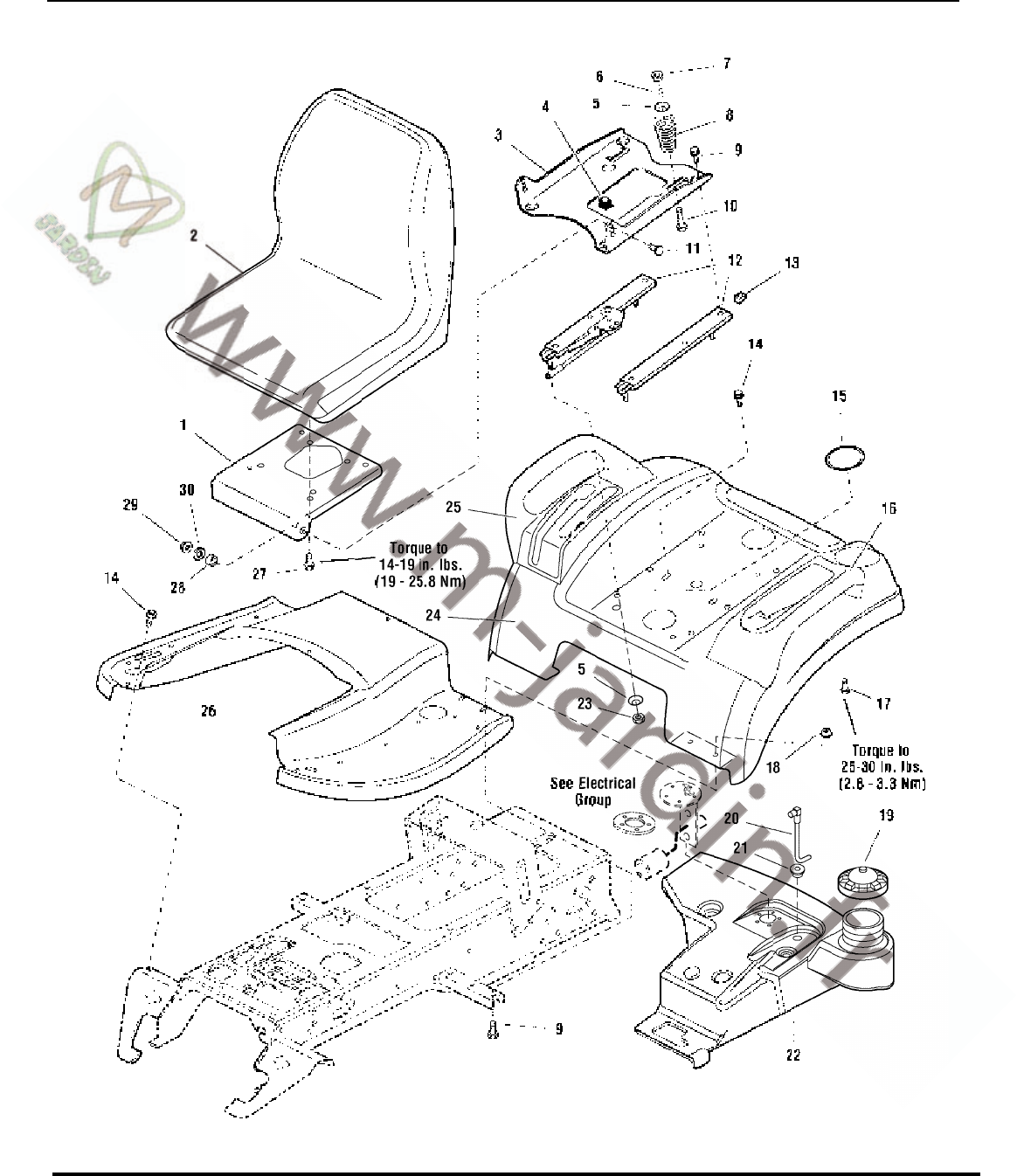

30 Seat & Seat Deck Group

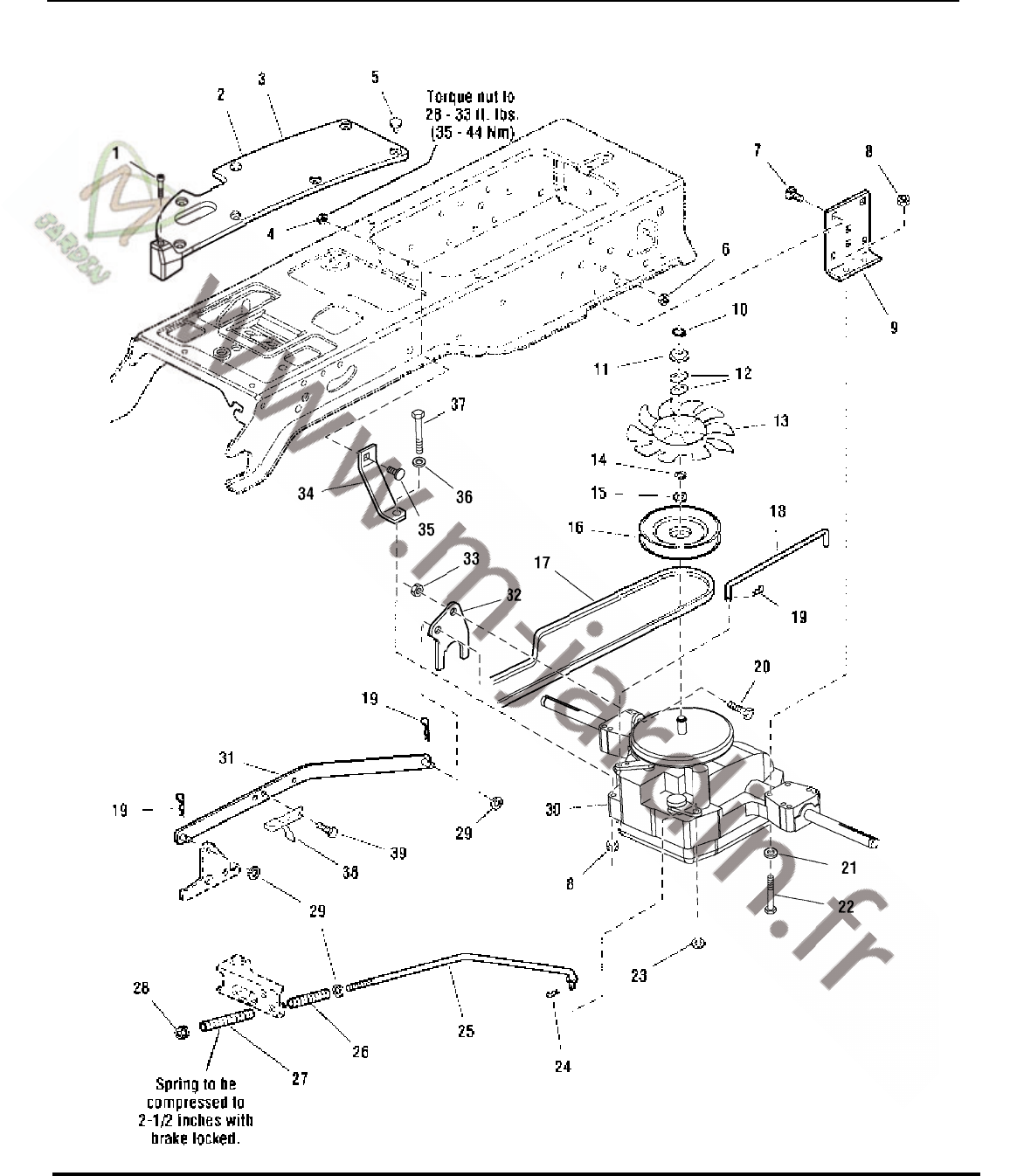

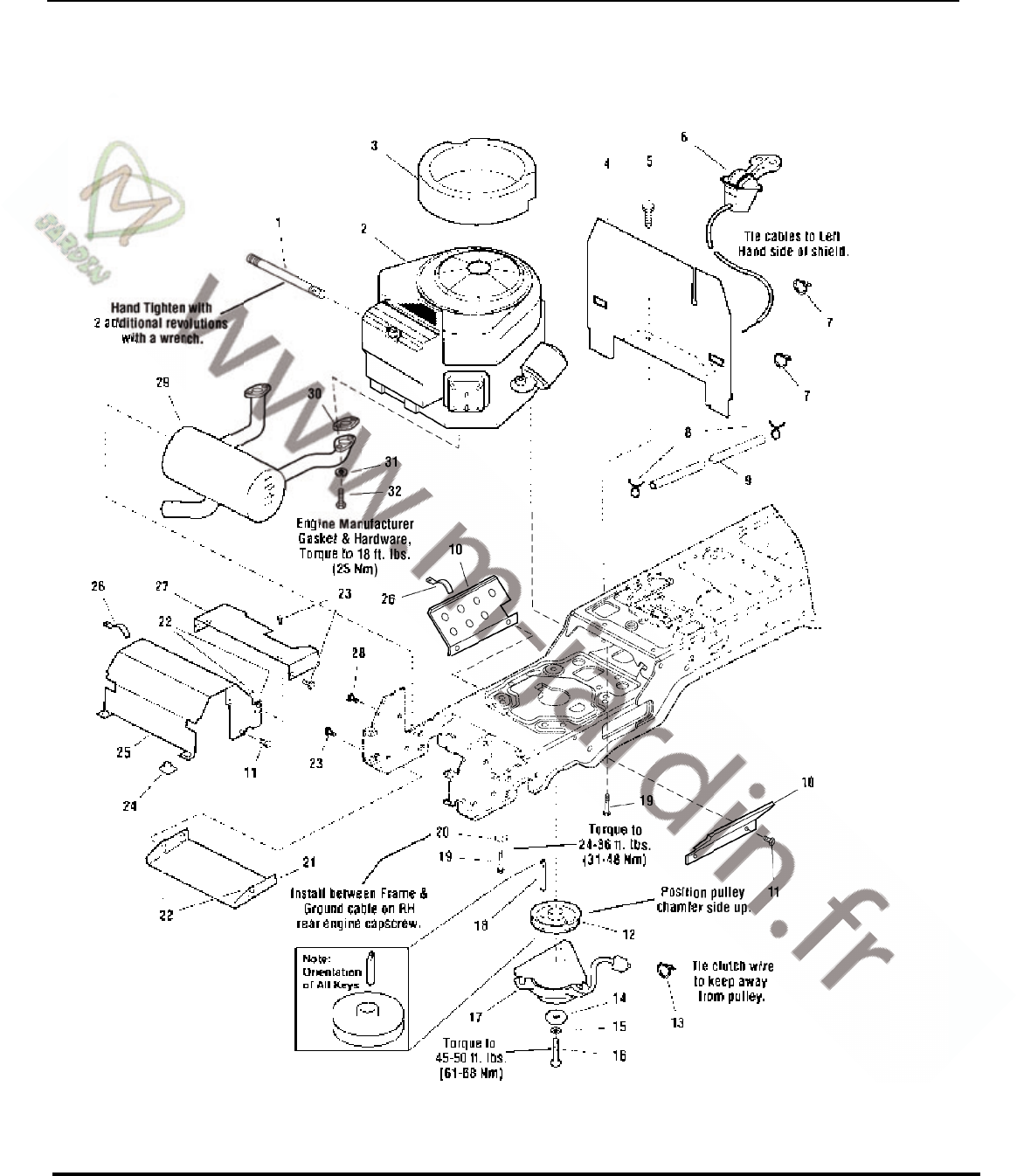

32 Engine & Electric Clutch Group - 18HP & 20HP B&S, Vanguard
34 Lift Group - Manual Lift
36 Lift Group - Manual Lift with Cruise Control

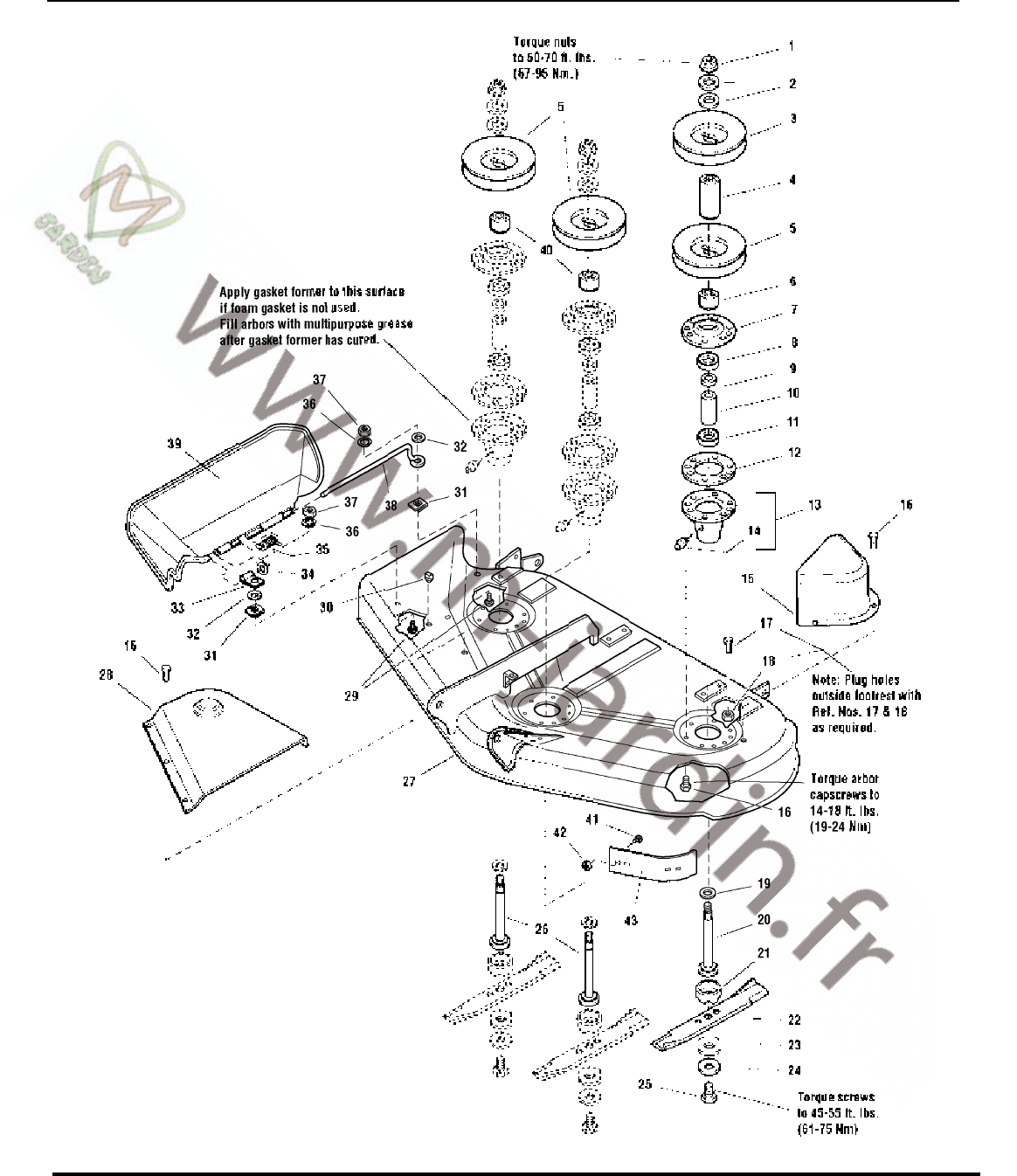

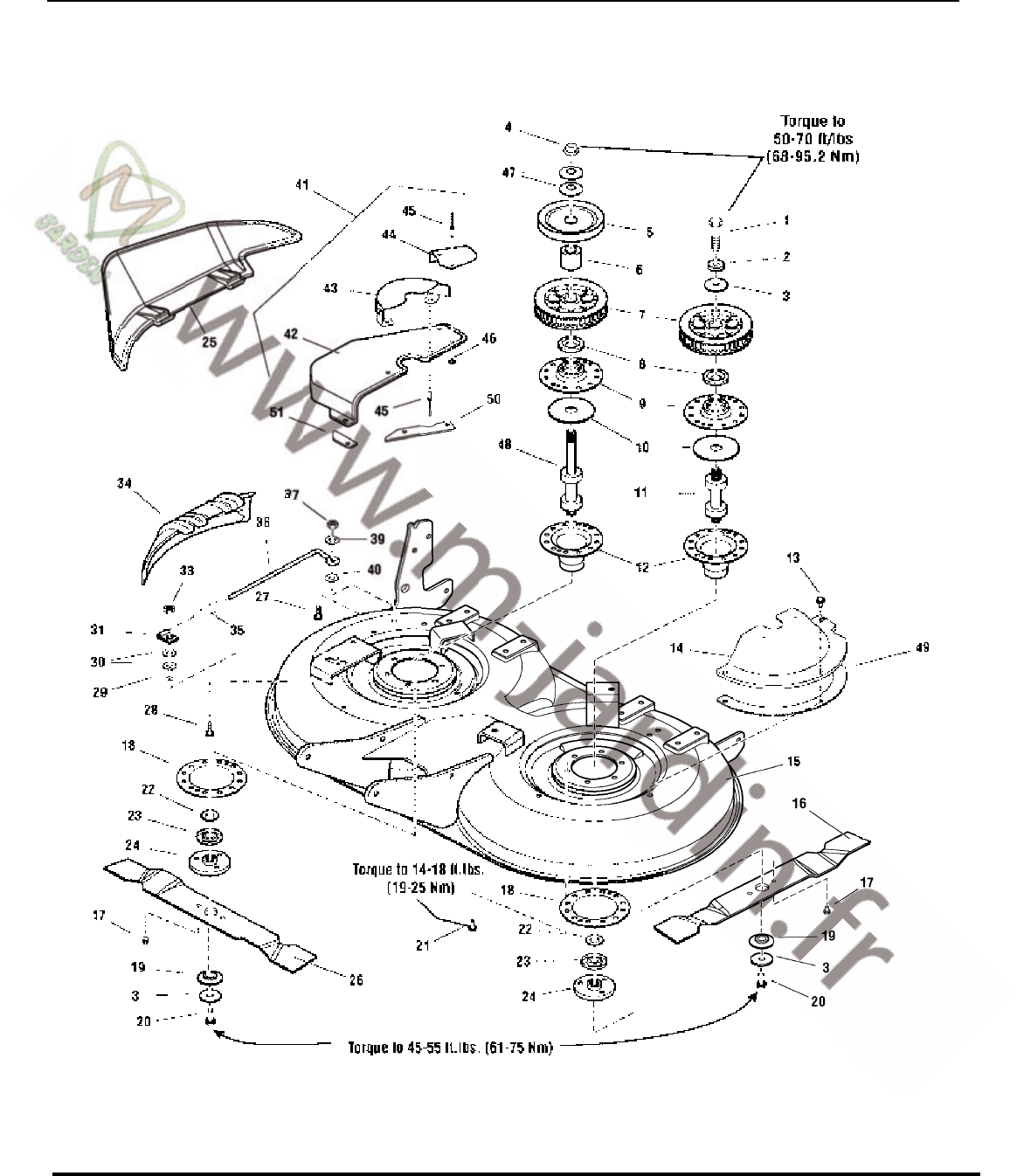

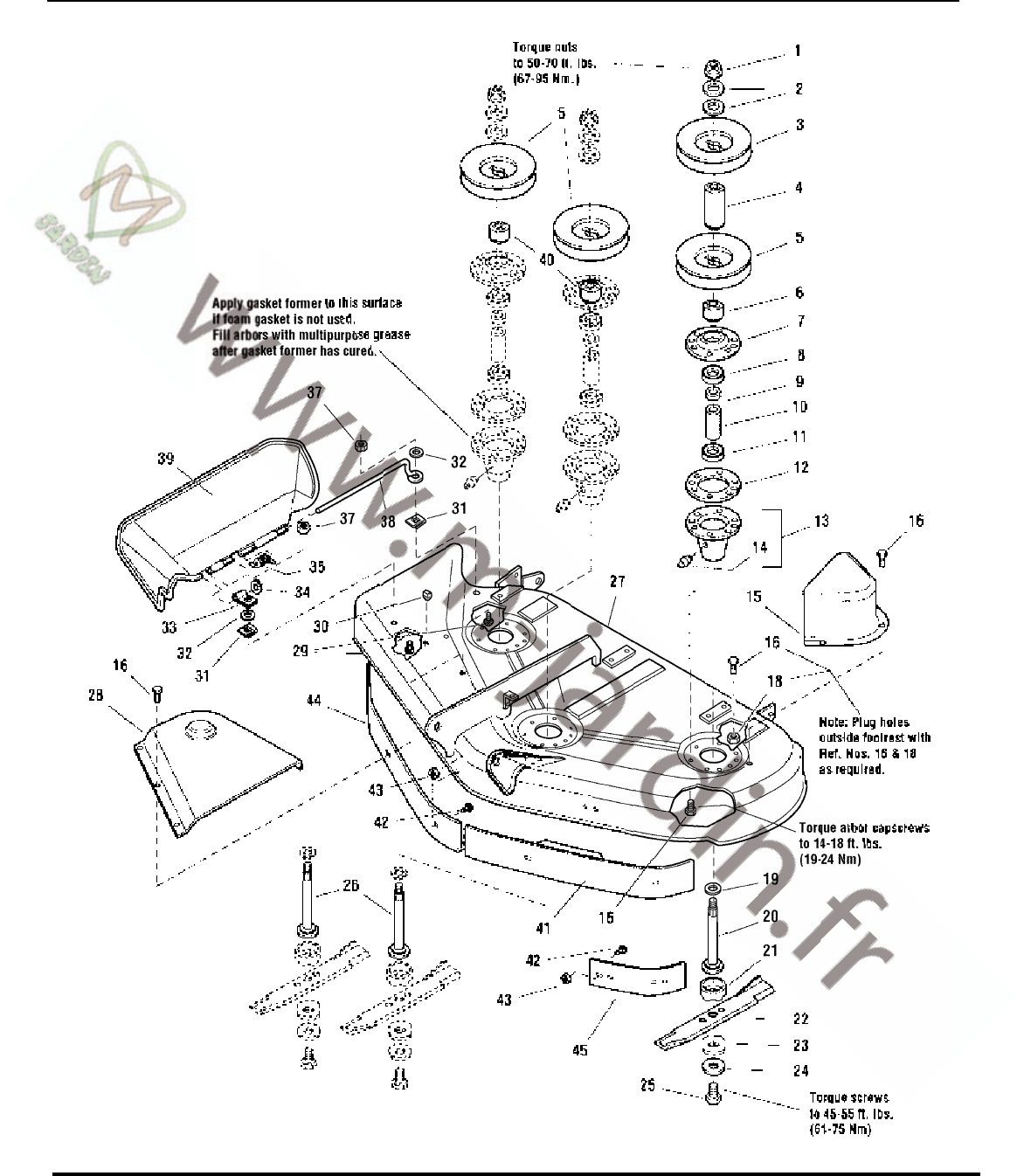

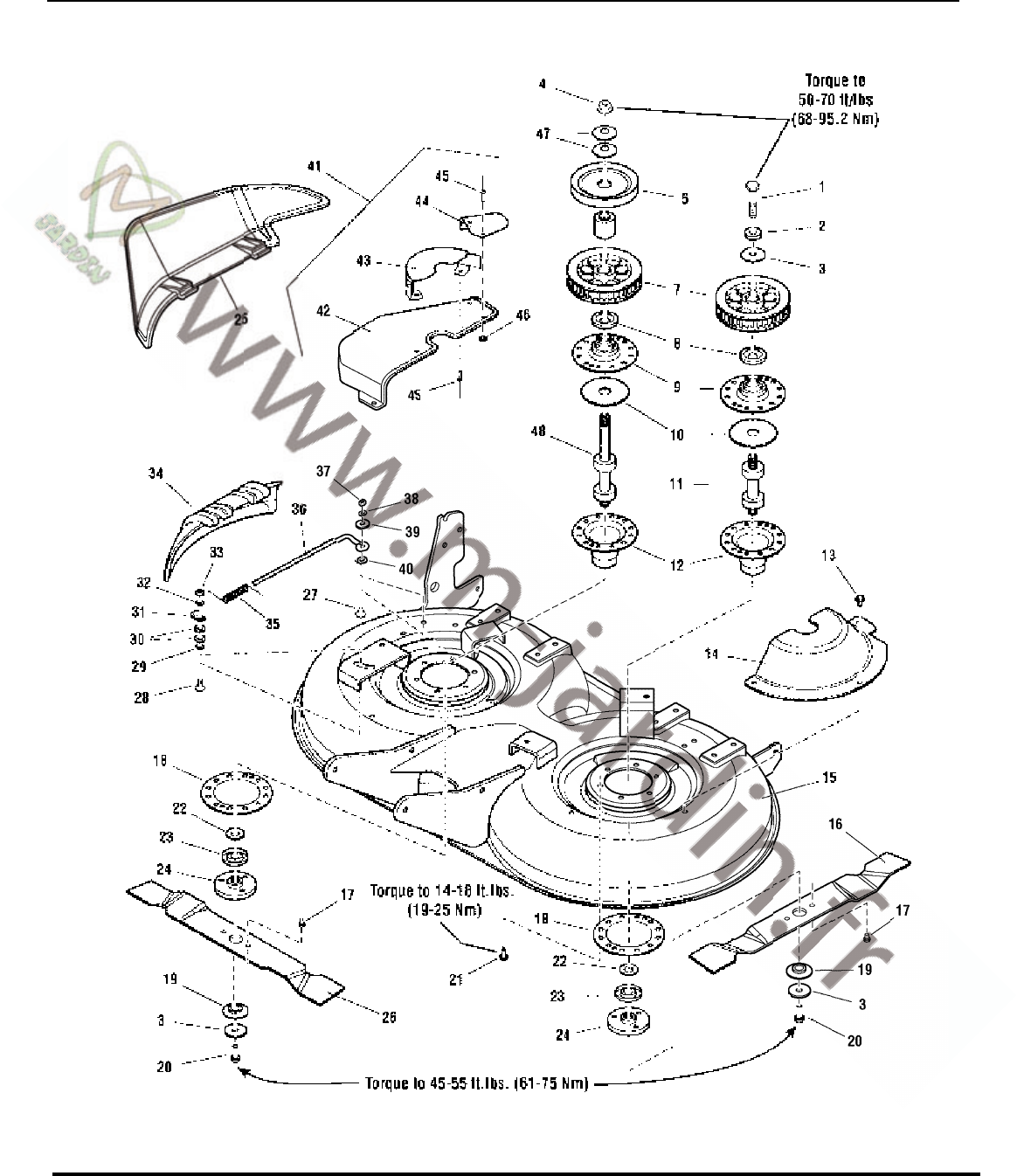

38 40" Mower Deck - Housing, Arbors & Blades
42 40" Mower Deck - Housing, Arbors & Blades

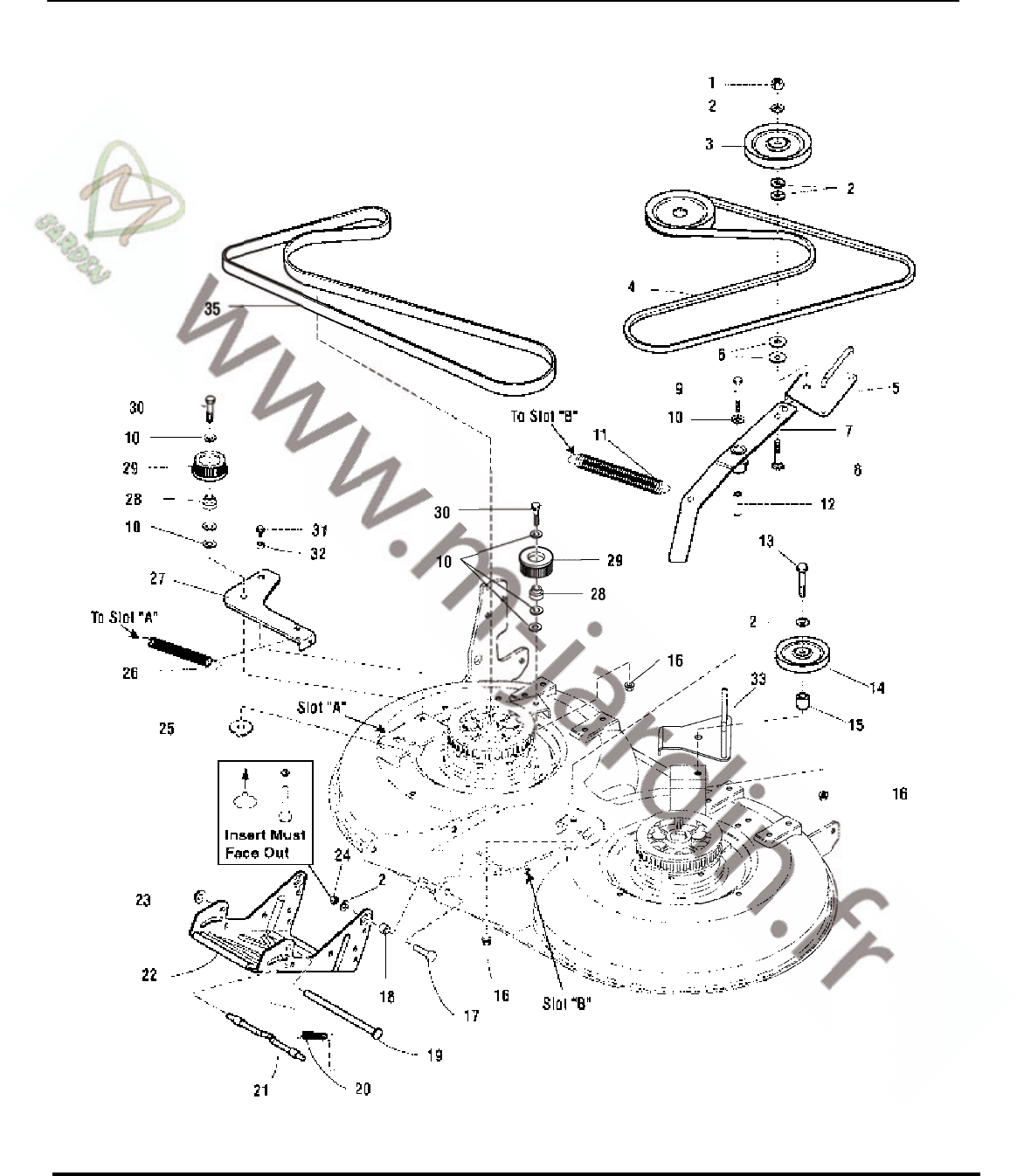

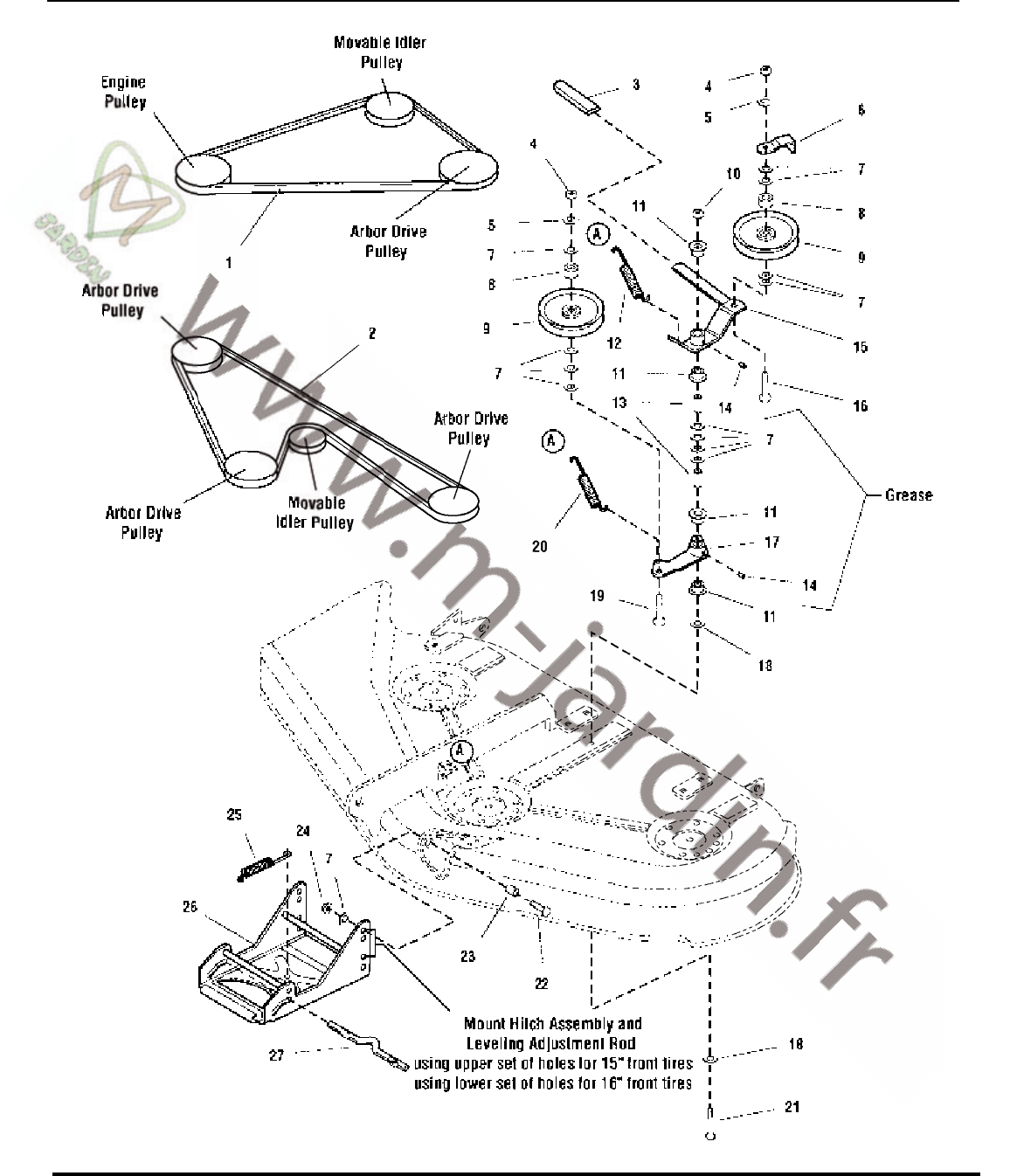

46 40" Mower Deck - Belt, Idler Arm & Hitch
48 40" Mower Deck - Height Adjustment & Roller Bar
52 44" Mower Deck - Housing, Arbors & Blades
56 44" Mower Deck - Housing, Arbors & Blades
60 44" Mower Deck - Belt, Idler Arm & Hitch
62 44" Mower Deck - Height Adjustment

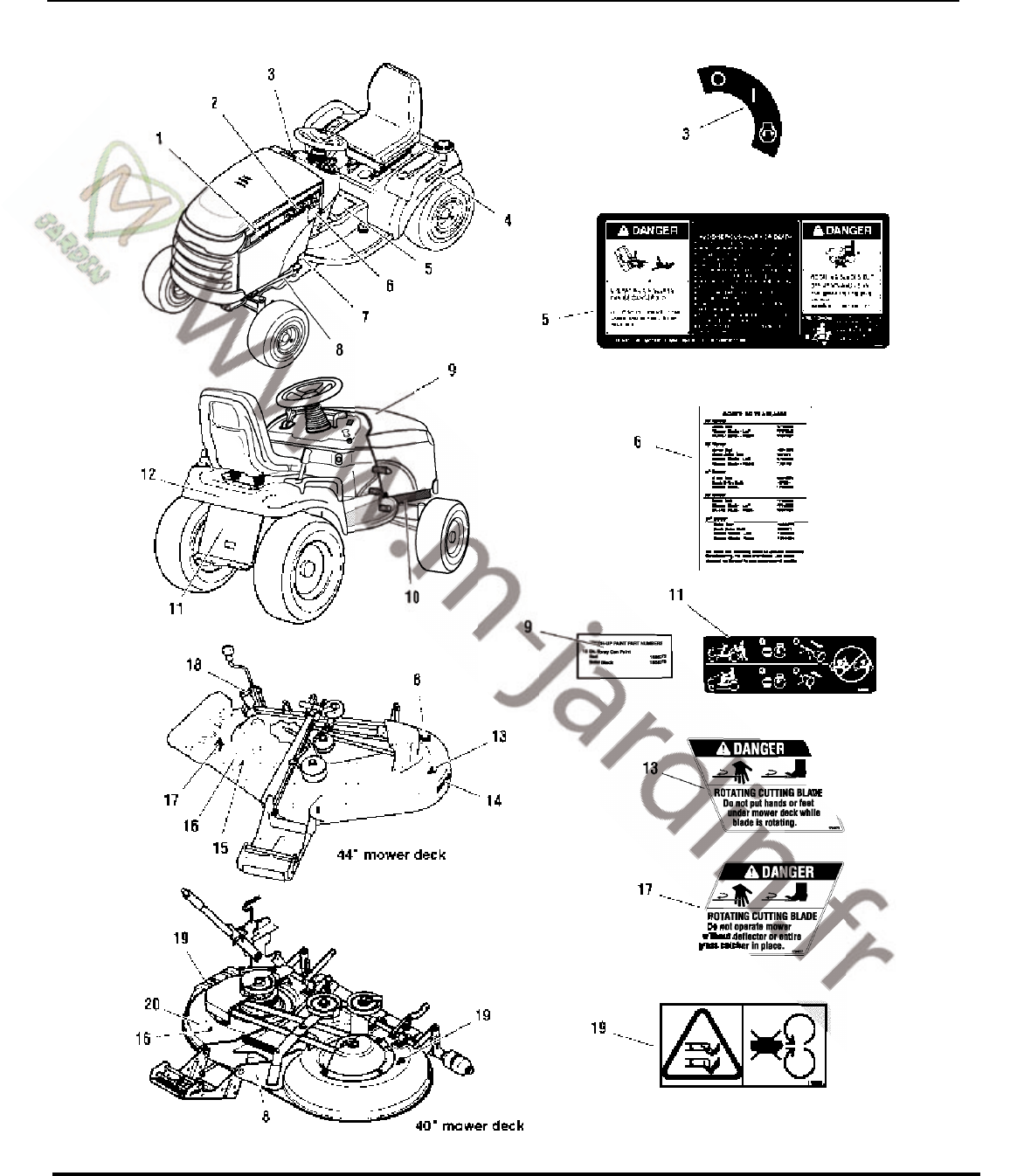

66 Decals Group

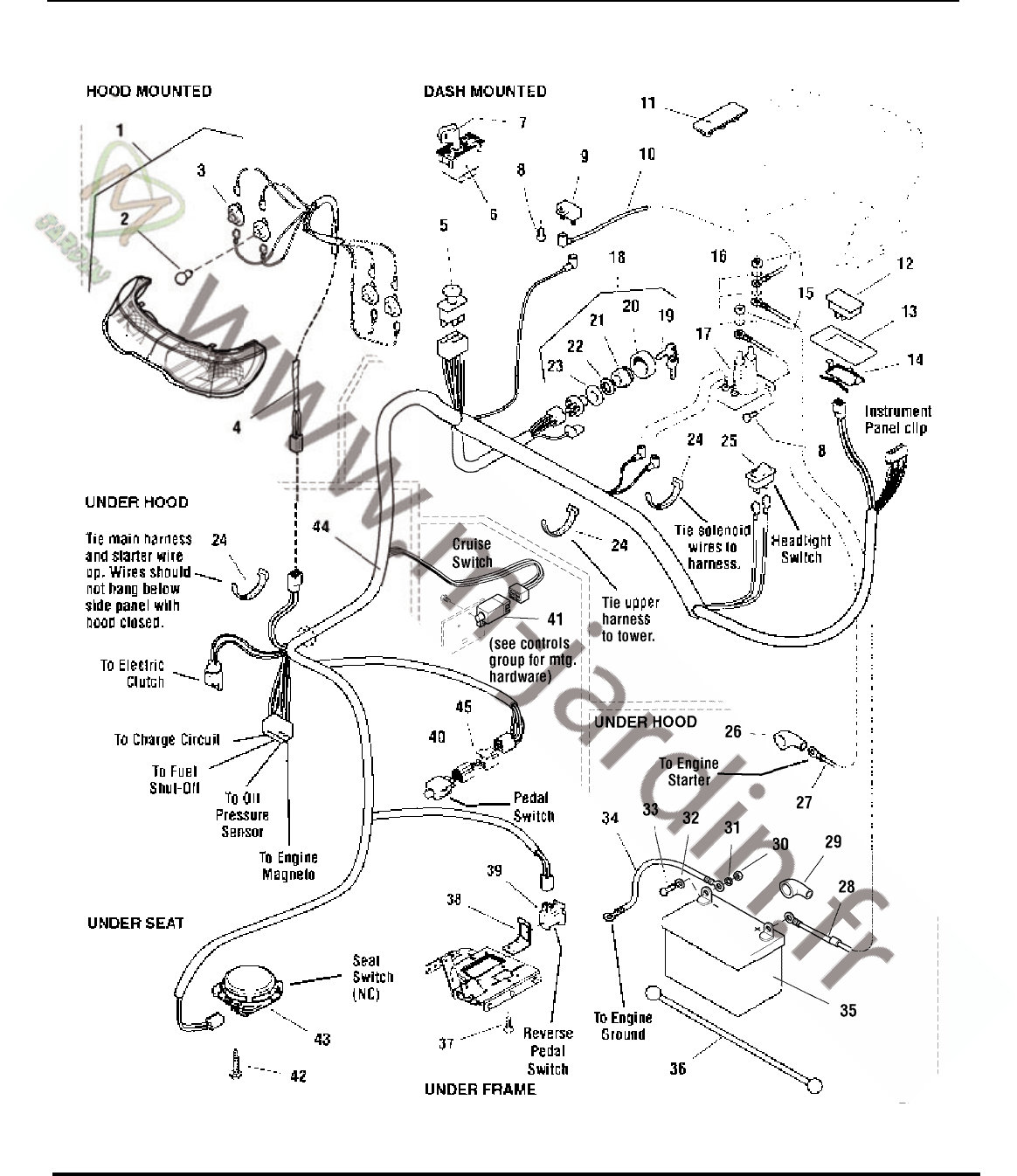

68 Electrical Group
8
10
Frame & Front Axle Group
14
Controls Group
18
Cruise Control Group
20
Transmission Group - Tuff Torq K-57
24
Transmission SERVICE PARTS - Tuff Torq K-57A
30
Seat & Seat Deck Group
32
Engine & Electric Clutch Group - 18HP & 20HP B&S, Vanguard
Lift Group - Manual Lift
Lift Group - Manual Lift with Cruise Control
40" Mower Deck - Housing, Arbors & Blades
40" Mower Deck - Housing, Arbors & Blades
40" Mower Deck - Belt, Idler Arm & Hitch
40" Mower Deck - Height Adjustment & Roller Bar
44" Mower Deck - Housing, Arbors & Blades
44" Mower Deck - Housing, Arbors & Blades
44" Mower Deck - Belt, Idler Arm & Hitch
44" Mower Deck - Height Adjustment
Wheels & Tires Group
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
4

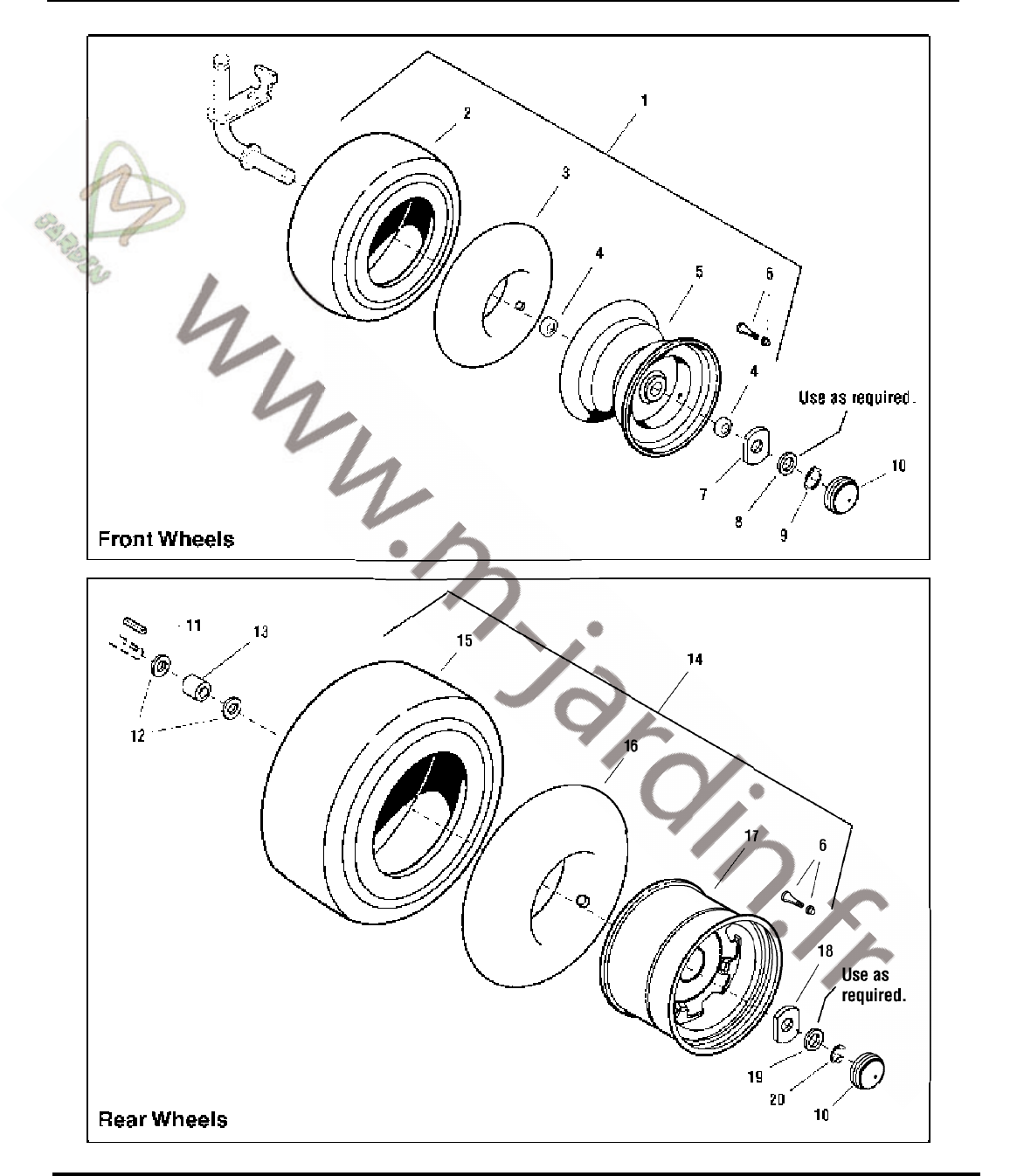

Wheels & Tires Group
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 5
Part No Descri
p
tionItem QtyNote
1 1722065 2 WHEEL & TIRE ASSEMBLY, Front, (Includes Ref. Nos. 2, 3, 4,
5, & 6)
2 1722838 1 TIRE, 15 x 6, Super Turf
3 1664090 1 TUBE, Tire, Front, 4.10/3.50
4 1717056 2 BEARING, Ball
5 1722837 1 WHEEL, 4-1/2" x 6"
6 2172353 4 VALVE STEM & CAP ASSEMBLY
7 1722726 2 WASHER, Special
8 1919394 4 WASHER, 1
9 2832577 2 RING, Retaining, External #98
10 1722676 4 CAP, Hub, Gray
11 1729279 2 KEY, Parellel, 3/16 x 3/16 x 1-1/2
12 2860202 8 WASHER, 3/4
13 1709527 2 SPACER
14 1726491 2 WHEEL & TIRE ASSEMBLY, Rear, (Includes Ref. Nos. 6, 15, 16
& 17)
15 1727136 1 TIRE, 22 x 10, 10 Super Turf
16 2173477 1 TUBE, Tire, 20 x 8, Rear
17 1726492 1 WHEEL, 7 x 9.97 Dia. 3/4 ID, Hub
18 1722717 2 WASHER, Special
19 1960114 2 WASHER, 3/4 x 1-1/16 x 5/64
20 2827794 2 RING, "E" External
2 1722838 1 TIRE, 15 x 6, Super Turf
3 1664090 1 TUBE, Tire, Front, 4.10/3.50
4 1717056 2 BEARING, Ball
5 1722837 1 WHEEL, 4-1/2" x 6"
6 2172353 4 VALVE STEM & CAP ASSEMBLY
7 1722726 2 WASHER, Special
8 1919394 4 WASHER, 1
9 2832577 2 RING, Retaining, External #98
10 1722676 4 CAP, Hub, Gray
11 1729279 2 KEY, Parellel, 3/16 x 3/16 x 1-1/2
12 2860202 8 WASHER, 3/4
13 1709527 2 SPACER
14 1726491 2 WHEEL & TIRE ASSEMBLY, Rear, (Includes Ref. Nos. 6, 15, 16
& 17)
15 1727136 1 TIRE, 22 x 10, 10 Super Turf
16 2173477 1 TUBE, Tire, 20 x 8, Rear
17 1726492 1 WHEEL, 7 x 9.97 Dia. 3/4 ID, Hub
18 1722717 2 WASHER, Special
19 1960114 2 WASHER, 3/4 x 1-1/16 x 5/64
20 2827794 2 RING, "E" External

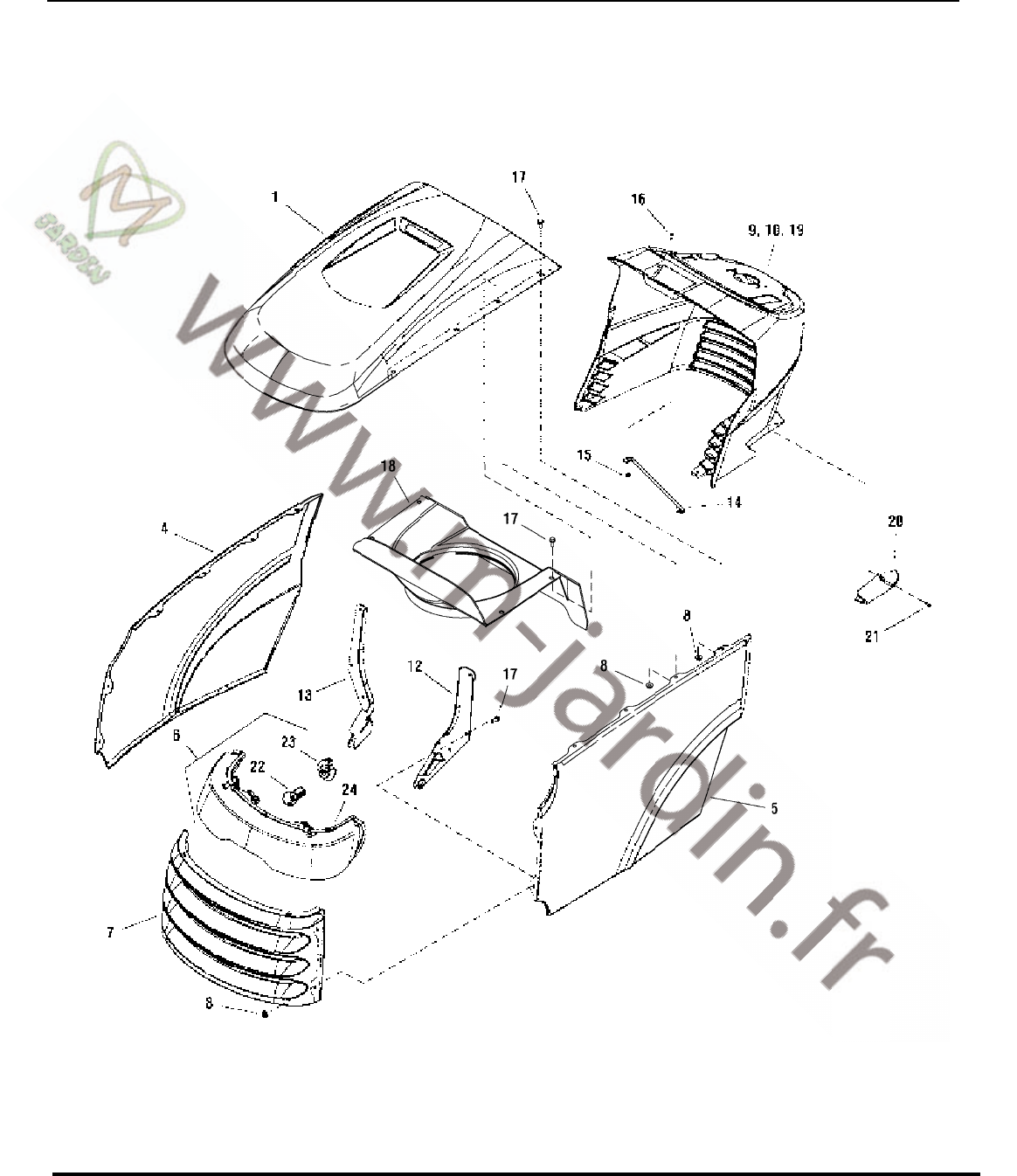

Hood, Grille & Dash Group
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
6
Hood, Grille & Dash Group
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 7
Part No Descri
p
tionItem QtyNote
1 1728031D 1 HOOD, W/Scoop
4 1721804D 1 PANEL, R.H. Side
5 1721803D 1 PANEL, L.H. Side
6 1721810 1 HEADLIGHT ASSEMBLY (Includes Ref. Nos. 22, 23 & 24)
7 1721802D 1 GRILLE
8 1930641 12 NUT, Hex Flange 1/4-20 Whiz Lock
9 1726827 1 DASHBOARD (Used only on YT & LT models)
10 1726894 1 DASHBOARD, W/Hydraulic Lift Slot (Used only on GT models)
12 1721808A 1 HINGE, Hood L.H.
13 1721809A 1 HINGE, Hood R.H.
14 1723123 1 ROD, Dash Support
15 1933896 1 NUT, Hex Lock 10-24 w/Nylon Insert
16 1960392 1 SCREW, Pan Head Phillips #10-24 x 1
17 1960295 12 SCREW, Hex Whiz Lock Flange 1/4-20 x 5/8
18 1733457A 1 DUCT, Air Inlet
19 1726895 1 DASHBOARD, w/Buzzer Hole (Used only on Barons models)
20 1722285 1 COVER, Dash (Used only on Barons models)
21 1722607 1 SCREW, Pan Head Torx #8-16 x 1/2 Plastite (Used only on Barons models)
22 1677371 4 BULB, Headlight
23 1723451 4 SOCKET ASSEMBLY, Seal
24 1722902 1 REFLECTOR, Headlight
5 1721803D 1 PANEL, L.H. Side
6 1721810 1 HEADLIGHT ASSEMBLY
7 1721802D 1 GRILLE
8 1930641 12 NUT, Hex Flange 1/4-20 Whiz Lock
9 1726827 1 DASHBOARD
10 1726894 1 DASHBOARD, W/Hydraulic Lift Slot
12 1721808A 1 HINGE, Hood L.H.
13 1721809A 1 HINGE, Hood R.H.
14 1723123 1 ROD, Dash Support
15 1933896 1 NUT, Hex Lock 10-24 w/Nylon Insert
16 1960392 1 SCREW, Pan Head Phillips #10-24 x 1
17 1960295 12 SCREW, Hex Whiz Lock Flange 1/4-20 x 5/8
18 1733457A 1 DUCT, Air Inlet
19 1726895 1 DASHBOARD, w/Buzzer Hole
20 1722285 1 COVER, Dash
21 1722607 1 SCREW, Pan Head Torx #8-16 x 1/2 Plastite
22 1677371 4 BULB, Headlight
23 1723451 4 SOCKET ASSEMBLY, Seal
24 1722902 1 REFLECTOR, Headlight

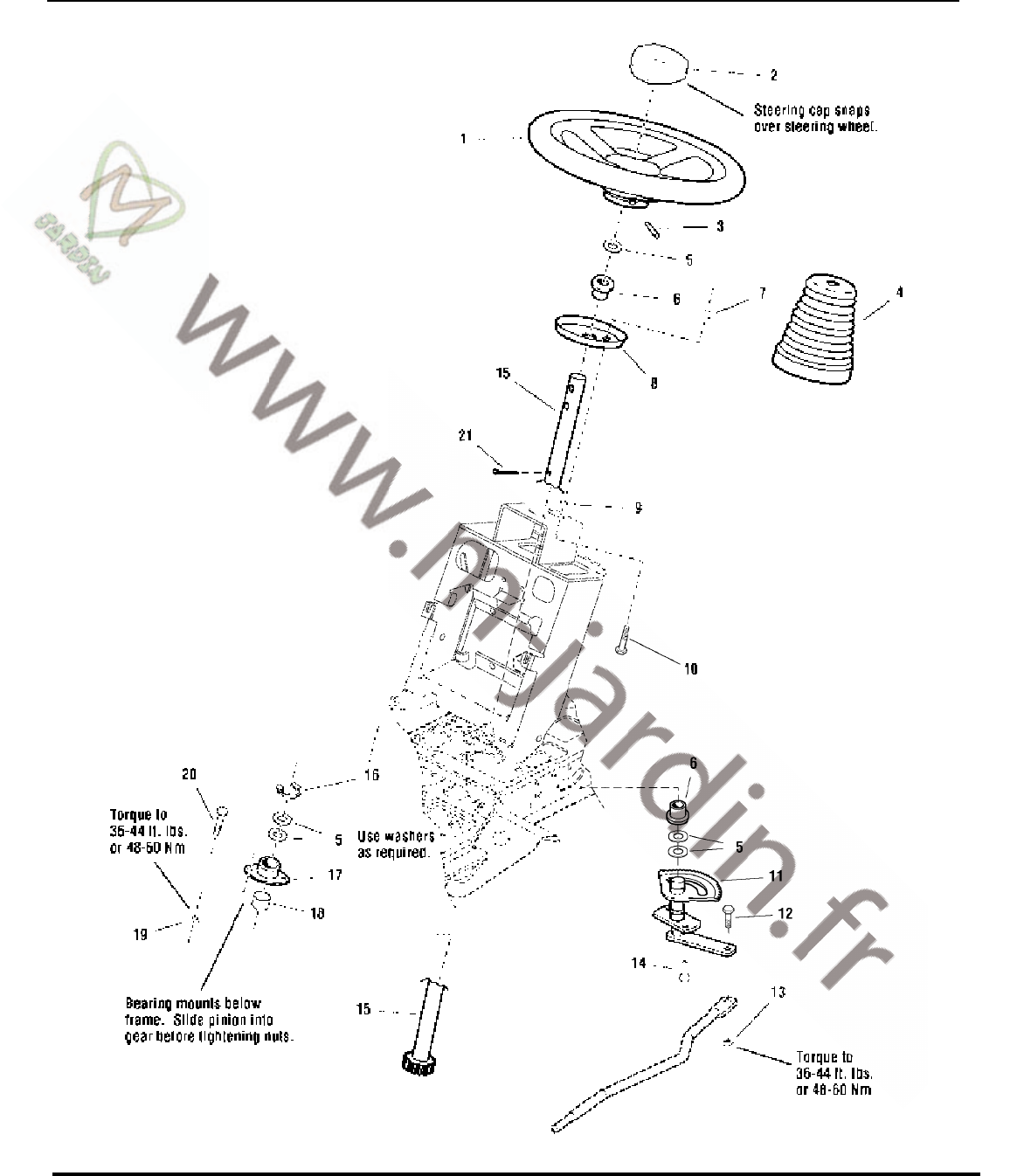

Steering Group - Manual Steering
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
8
Steering Group - Manual Steering
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 9
Part No Descri
p
tionItem QtyNote
1 1722318 1 STEERING WHEEL, Straight, Shaft
2 1725024 1 CAP, Steering Wheel, Plain
3 1960540 1 PIN, Spring, 5/16 x 2-1/2
4 1722749 1 COVER, Rubber, Upper Steering Shaft
5 1960114 5 WASHER, 3/4
6 2176440 2 BUSHING, 15/32 x 7/8 x 7/8, Nylon
7 1960636 2 NUT, Hex KEPS 5/6-18
8 1721736A 1 PLATE, Mounting Steering
9 1933988 2 NUT, Push
10 1960655 2 CARRIAGE BOLT, 5/16-18 x 1-1/4
11 1724470A 1 GEAR & SHAFT ASSEMBLY, Steering
12 1960032 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4, Black
13 1930645 1 NUT, Hex Flange Two-Way Lock, 3/8-16
14 1664847 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
15 1721626 1 SHAFT & PINION ASSEMBLY, Steering Manual
16 1611710 1 RING, Clipring Extension
17 1722459 1 BEARING, 3/4 x 1-11/16 x 13/16, 3” Long Housing
18 1722461 1 SPACER, 3/4 x 1-1/16 x 3/8, Powder Metal
19 1931211 2 NUT, Hex Flange Whiz Lock, 3/8-16, Small
20 1933260 2 CAPSCREW, Hex Whiz Lock Flange, 3/8-16 x 3/4, Black
21 1919314 1 PIN, Cotter, 1-1/4, Black
3 1960540 1 PIN, Spring, 5/16 x 2-1/2
4 1722749 1 COVER, Rubber, Upper Steering Shaft
5 1960114 5 WASHER, 3/4
6 2176440 2 BUSHING, 15/32 x 7/8 x 7/8, Nylon
7 1960636 2 NUT, Hex KEPS 5/6-18
8 1721736A 1 PLATE, Mounting Steering
9 1933988 2 NUT, Push
10 1960655 2 CARRIAGE BOLT, 5/16-18 x 1-1/4
11 1724470A 1 GEAR & SHAFT ASSEMBLY, Steering
12 1960032 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4, Black
13 1930645 1 NUT, Hex Flange Two-Way Lock, 3/8-16
14 1664847 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
15 1721626 1 SHAFT & PINION ASSEMBLY, Steering Manual
16 1611710 1 RING, Clipring Extension
17 1722459 1 BEARING, 3/4 x 1-11/16 x 13/16, 3” Long Housing
18 1722461 1 SPACER, 3/4 x 1-1/16 x 3/8, Powder Metal
19 1931211 2 NUT, Hex Flange Whiz Lock, 3/8-16, Small
20 1933260 2 CAPSCREW, Hex Whiz Lock Flange, 3/8-16 x 3/4, Black
21 1919314 1 PIN, Cotter, 1-1/4, Black

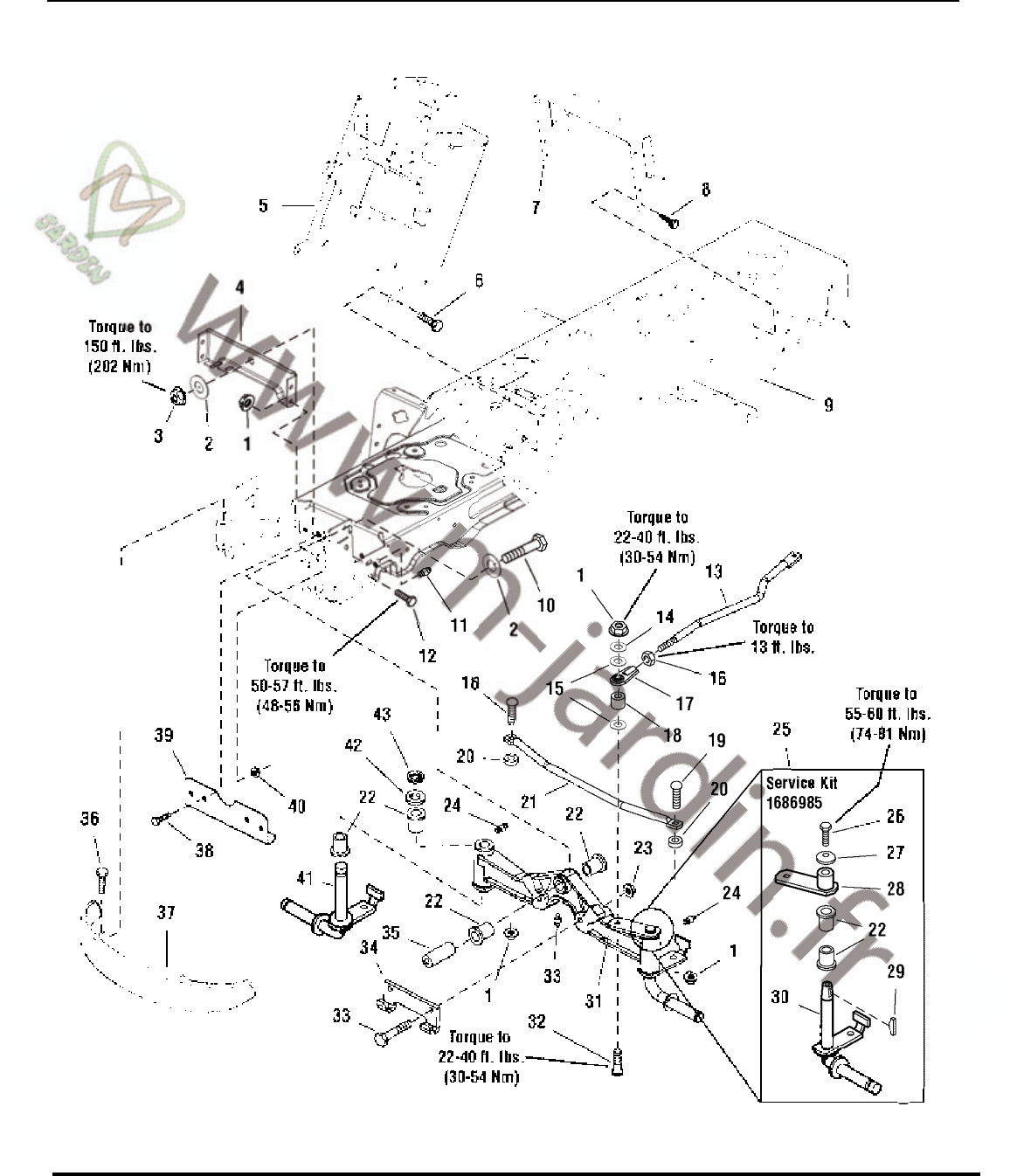

Frame & Front Axle Group
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
10
Frame & Front Axle Group
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 11
Part No Descri
p
tionItem QtyNote
1 1930645 7 NUT, Hex Flange Lock, 3/8-16
2 1960035 2 WASHER
3 2860646 1 NUT, Hex Flange, 5/8-11
4 1722212A 1 PLATE, Axle
5 1724081A 1 TOWER & SUPPORT ASSEMBLY
6 1923683 4 CAPSCREW, Hex Head Taptite, 3/8-16 x 3/4
7 1723528A 1 SUPPORT
8 1664847 4 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4
9 1726989A 1 FRAME ASSEMBLY
10 2860645 1 CAPSCREW, 5/8-11 x 3-1/2
11 1704314 2 FITTING, Grease for Wear Plate, 1/4-20, with Ball
12 1933260 4 CAPSCREW, Hex Head, Flange Lock, 3/8-16 x 3/4
13 1722541 1 LINK, Drag
14 1922755 1 WASHER
15 1960103 2 WASHER
16 1919262 1 NUT, Hex Jam, 1/2-20
17 1702779A 1 JOINT, Ball
18 1708236 1 SPACER
19 1931350 2 CARRIAGE BOLT, 3/8-16 x 1
20 1611705 2 SPACER
21 1722626A 1 ROD, Tie
22 1721682 6 BUSHING
23 1930650 2 NUT, Hex Flange Lock, 7/16-14
24 1704314 3 FITTING, Lube
25 1686985 1 SPINDLE REPLACEMENT KIT, LH (Includes Ref. Nos. 22, 26,
27, 28, 29 & 30)
26 2823485 1 CAPSCREW, 3/8-16 x 7/8, GR8
27 1663151 1 WASHER, Spring, 3/8
28 1725112 1 HUB & ARM ASSEMBLY
29 2830671 1 KEY, Woodruff
30 1724264 1 SPINDLE, LH
31 1722200A 1 AXLE ASSEMBLY, w/ LH Spindle, Complete (Includes Ref. Nos.
22, 24, 41, 42 & 43)
32 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2
33 1927531 2 CAPSCREW, Hex Head, 7/16-14 x 2, GR8
34 1721918A 1 HOOK, “J”
35 1721752 1 SPACER
36 1960086 4 SCREW, Torx Head, 5/16-18 x 7/8
37 1721805A 1 BUMPER, Black, Steel, Standard
3 2860646 1 NUT, Hex Flange, 5/8-11
4 1722212A 1 PLATE, Axle
5 1724081A 1 TOWER & SUPPORT ASSEMBLY
6 1923683 4 CAPSCREW, Hex Head Taptite, 3/8-16 x 3/4
7 1723528A 1 SUPPORT
8 1664847 4 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4
9 1726989A 1 FRAME ASSEMBLY
10 2860645 1 CAPSCREW, 5/8-11 x 3-1/2
11 1704314 2 FITTING, Grease for Wear Plate, 1/4-20, with Ball
12 1933260 4 CAPSCREW, Hex Head, Flange Lock, 3/8-16 x 3/4
13 1722541 1 LINK, Drag
14 1922755 1 WASHER
15 1960103 2 WASHER
16 1919262 1 NUT, Hex Jam, 1/2-20
17 1702779A 1 JOINT, Ball
18 1708236 1 SPACER
19 1931350 2 CARRIAGE BOLT, 3/8-16 x 1
20 1611705 2 SPACER
21 1722626A 1 ROD, Tie
22 1721682 6 BUSHING
23 1930650 2 NUT, Hex Flange Lock, 7/16-14
24 1704314 3 FITTING, Lube
25 1686985 1 SPINDLE REPLACEMENT KIT, LH (Includes Ref. Nos. 22, 26,
26 2823485 1 CAPSCREW, 3/8-16 x 7/8, GR8
ndle, Complete (Includes Ref. Nos.
Frame & Front Axle Group
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
12
Frame & Front Axle Group
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 13
Part No Descri
p
tionItem QtyNote
37 1723502 1 BUMPER, Chrome, Optional
38 1930591 2 CAPSCREW, Hex Whiz Lock, 5/16-18 x 3/4
39 1724801A 1 PLATE, Axle Wear
40 1931277 2 NUT, Hex Falnge Whiz Lock, 5/16-18
41 1722199 1 SPINDLE, RH
42 1919394 1 WASHER
43 2832577 1 RETAINING RING
39 1724801A 1 PLATE, Axle Wear
40 1931277 2 NUT, Hex Falnge Whiz Lock, 5/16-18
41 1722199 1 SPINDLE, RH
42 1919394 1 WASHER
43 2832577 1 RETAINING RING

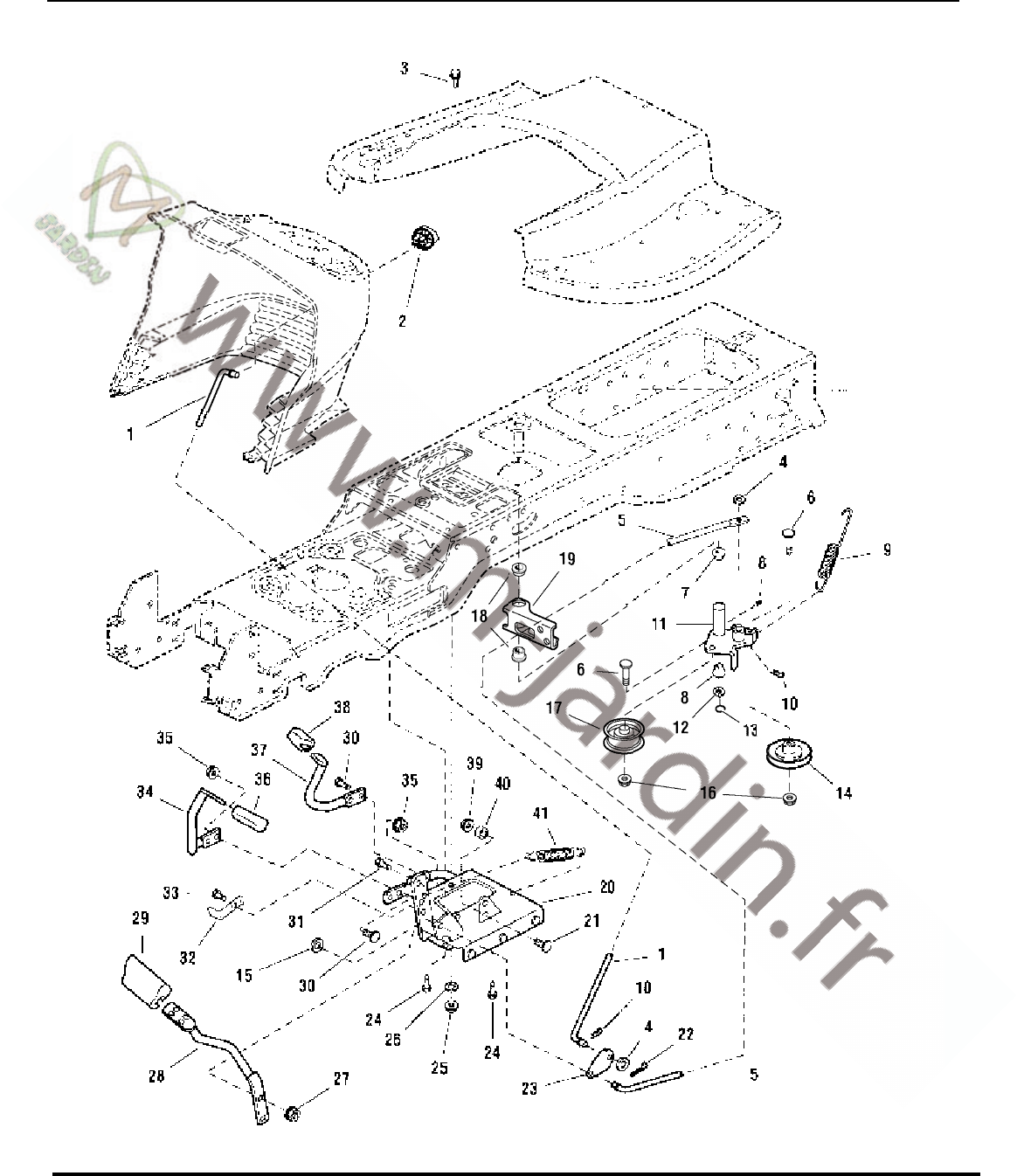

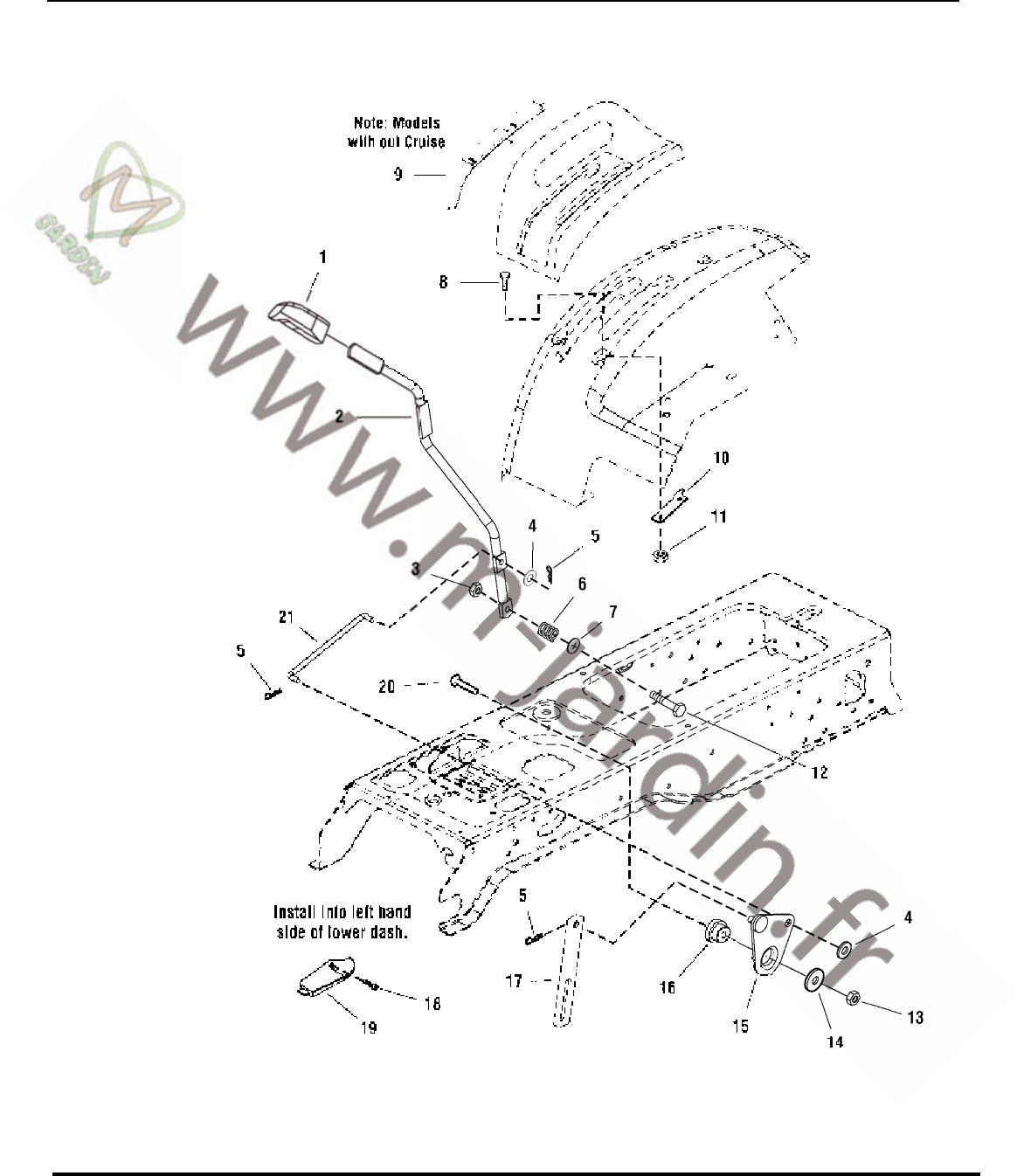

Controls Group
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
14
Controls Group
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 15
Part No Descri
p
tionItem QtyNote
1 1721353 1 ROD, Brake Lock
2 1721891 1 KNOB, Push On, Red Plastic “P”
3 1930591 1 CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4
4 1919326 2 WASHER, 5/16, Black
5 1721476 1 ROD, Brake
6 1931353 2 CARRIAGE BOLT, 3/8-16 x 1 3/4
7 1663114 2 BUSHING, 5/8 x 3/4 x 3/4, Nylon
8 2821133 1 FITTING, Lube, 1/4
9 1725250 1 SPRING, Extension
10 1722460 3 PIN, Quick
11 1724917 1 ARM & HUB ASSEMBLY, Idler
12 1960020 1 WASHER, 5/8
13 1704420 1 RING, Clipring Extension
14 1721134 1 PULLEY, w/Bearing
15 1924940 1 WASHER, 3/8
16 1960687 2 NUT, Hex Flange ESNA, 3/8-16
17 1721133 1 PULLEY, Idler
18 1723237 2 BUSHING, 1 x 1-1/8 x 5/8, Nylon
19 1722513 1 ARM, Brake
20 1726763 1 PEDAL ASSEMBLY, Foot
21 1931320 1 CARRIAGE BOLT, 1/4-20 x 1-1/4
22 1918447 1 PIN, Cotter, Black
23 1721354A 1 LATCH, Brake
24 1664847 3 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
25 1919438 1 NUT, Hex Lock ESNA Light, 5/16-18
26 1919381 1 WASHER, 5/16, Black
27 1927557 2 NUT, Hex Flange Whiz Lock Large, 5/16-18
28 1722535A 1 PEDAL, Brake
29 1721577 1 PAD, Brake Pedal
30 1931334 4 CARRIAGE BOLT, 5/16-18 x 7/8
31 1921333 2 CAPSCREW, 5/16-18 x 1
32 1722083A 1 ACTUATOR, Switch 2.53” Long
33 1923683 1 CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 3/4
34 1722070A 1 PEDAL, Forward
35 1960636 4 NUT, Hex KEPS, 5/16-18
36 1721675 1 PAD, Foot Pedal Forward
37 1722071A 1 PEDAL, Reverse
3 1930591 1 CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4
4 1919326 2 WASHER, 5/16, Black
5 1721476 1 ROD, Brake
6 1931353 2 CARRIAGE BOLT, 3/8-16 x 1 3/4
7 1663114 2 BUSHING, 5/8 x 3/4 x 3/4, Nylon
8 2821133 1 FITTING, Lube, 1/4
9 1725250 1 SPRING, Extension
10 1722460 3 PIN, Quick
11 1724917 1 ARM & HUB ASSEMBLY, Idler
12 1960020 1 WASHER, 5/8
13 1704420 1 RING, Clipring Extension
14 1721134 1 PULLEY, w/Bearing
15 1924940 1 WASHER, 3/8
16 1960687 2 NUT, Hex Flange ESNA, 3/8-16
17 1721133 1 PULLEY, Idler
18 1723237 2 BUSHING, 1 x 1-1/8 x 5/8, Nylon
19 1722513 1 ARM, Brake
20 1726763 1 PEDAL ASSEMBLY, Foot
21 1931320 1 CARRIAGE BOLT, 1/4-20 x 1-1/4
22 1918447 1 PIN, Cotter, Black
23 1721354A 1 LATCH, Brake
24 1664847 3 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
25 1919438 1 NUT, Hex Lock ESNA Light, 5/16-18
26 1919381 1 WASHER, 5/16, Black
27 1927557 2 NUT, Hex Flange Whiz Lock Large, 5/16-18
33 1923683 1 CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 3/4
Controls Group
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
16
Controls Group
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 17
Part No Descri
p
tionItem QtyNote
38 1721674 1 PAD, Foot Pedal Reverse
39 1920397 1 NUT, Hex Lock ESNA Light, 1/4-20
40 1686612 1 CAM, Roller
41 1721995 1 SPRING, Extension
40 1686612 1 CAM, Roller
41 1721995 1 SPRING, Extension

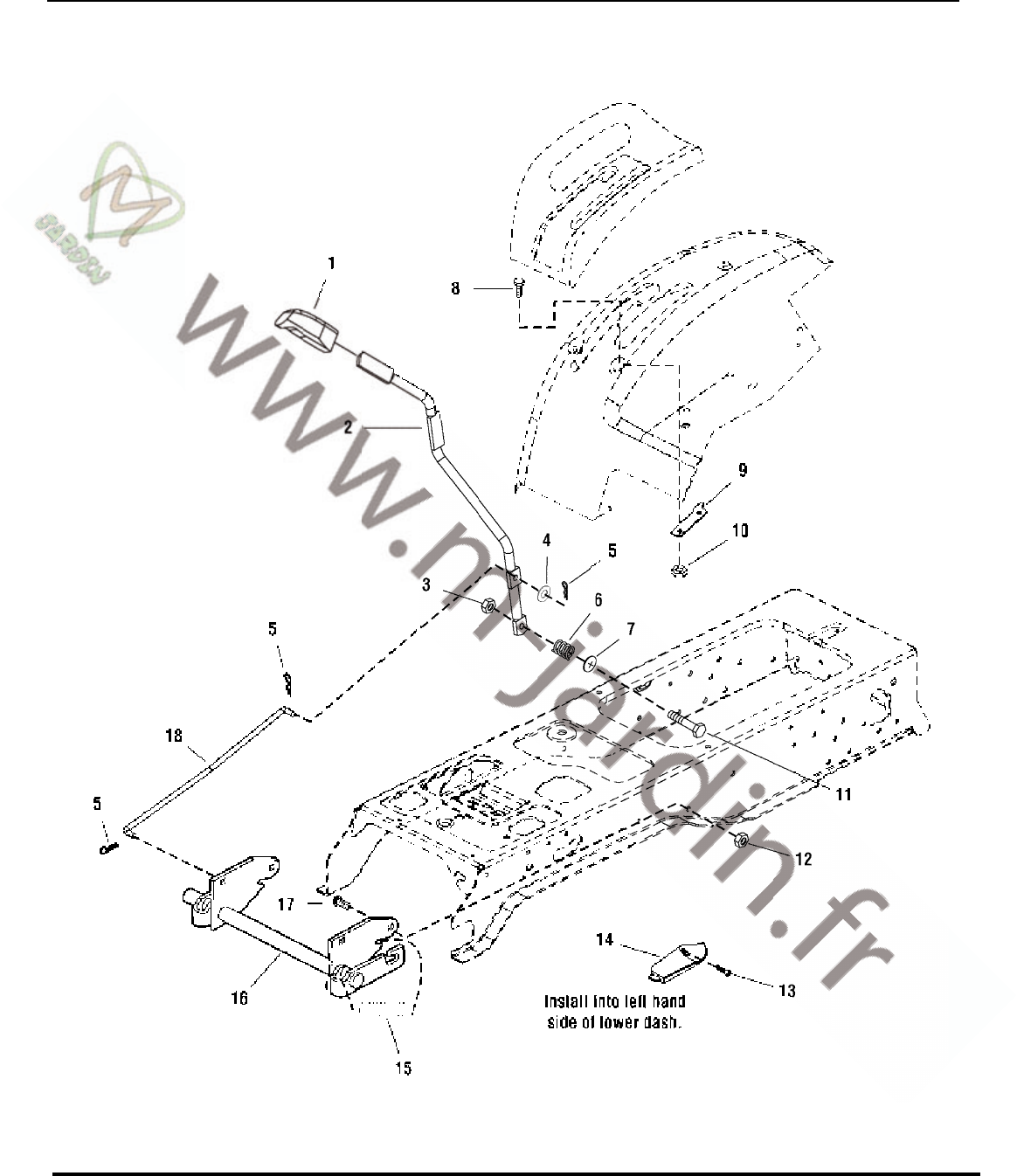

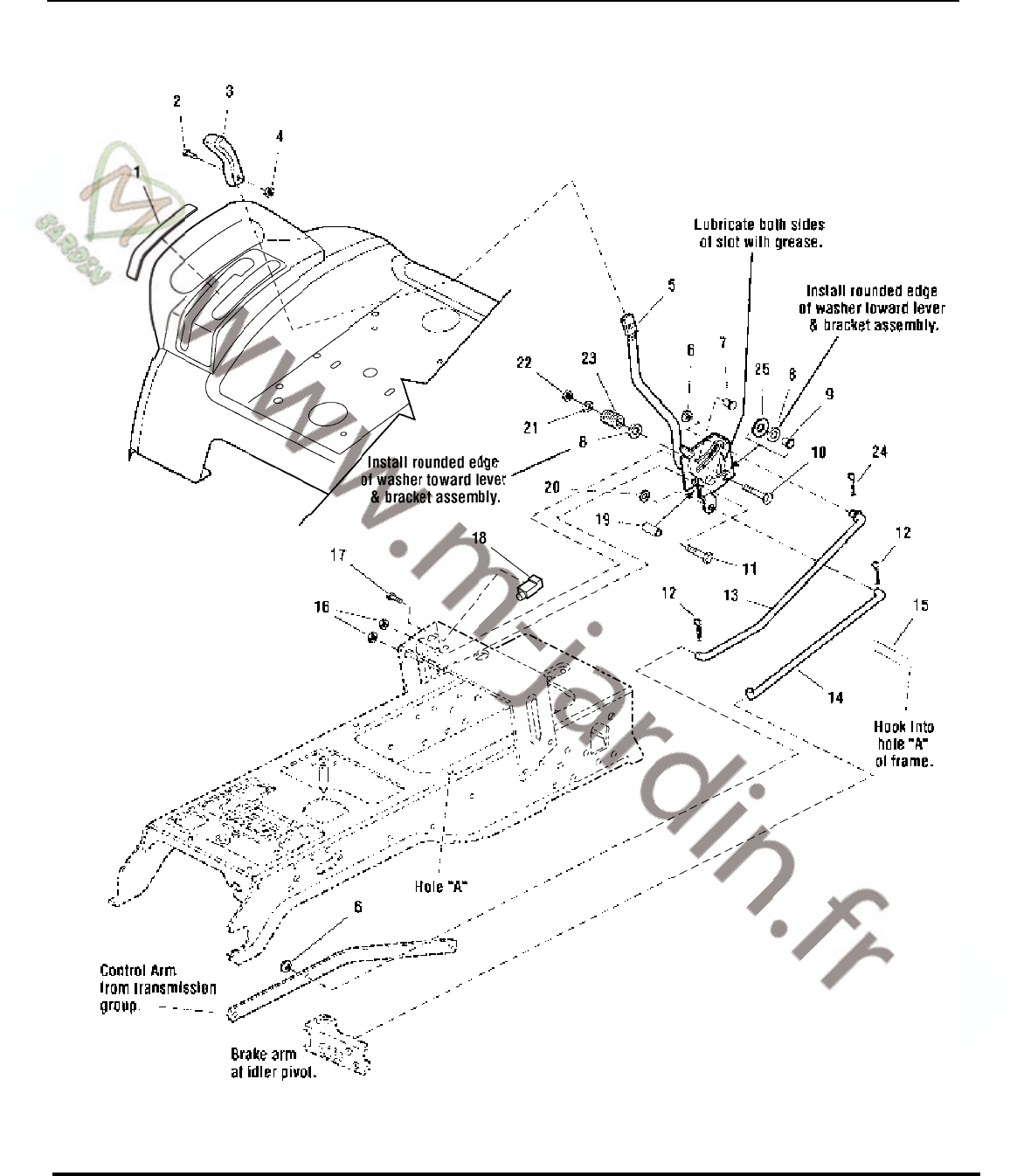

Cruise Control Group
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
18
Cruise Control Group
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 19
Part No Descri
p
tionItem QtyNote
1 1723713 1 DECAL, Cruise & Lift
2 1960666 1 SCREW, Torque Head Plus Socket Head, 1/4-20 x 7/8
3 1722303 1 KNOB, Cruise
4 1920397 1 NUT, Hex Lock ESNA Light, 1/4-20
5 1722003 1 LEVER & BRACKET ASSEMBLY, Cruise
6 1960103 2 WASHER, 3/8, Black
7 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4
8 2826192 2 WASHER, 9/16 x 1-1/4 x 1/8
9 1709043 1 SPACER, w/Flange, 11/32 x 15/32 x 3/4
10 1931342 1 CARRIAGE BOLT, 5/16-18 x 2 3/4
11 1960273 1 CARRIAGE BOLT, 5/16-18 x 2-1/4
12 1722460 2 PIN, Quick
13 1722117 1 ROD, Cruise
14 1722481 1 ROD, Return
15 2159106 1 SPRING, Cruise Return to Frame
16 1960636 2 NUT, Hex KEPS, 5/16-18
17 1960001 2 CAPSCREW, Hex Washer Head Plastite, 10-14 x 5/8
18 1717050 1 SWITCH, Push, Neutral Start, Gray
19 1722080 1 SPACER, 11/32 x 5/8 x 1-13/32
20 1919326 1 WASHER, 5/16, Black
21 1919381 1 WASHER, 5/16, Black
22 1919438 1 NUT, Hex Lock ESNA Light, 5/16-18
23 1677746 1 SPRING, Compression
24 1918447 1 PIN, Cotter
25 1705928 1 DISC, Fricion
3 1722303 1 KNOB, Cruise
4 1920397 1 NUT, Hex Lock ESNA Light, 1/4-20
5 1722003 1 LEVER & BRACKET ASSEMBLY, Cruise
6 1960103 2 WASHER, 3/8, Black
7 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4
8 2826192 2 WASHER, 9/16 x 1-1/4 x 1/8
9 1709043 1 SPACER, w/Flange, 11/32 x 15/32 x 3/4
10 1931342 1 CARRIAGE BOLT, 5/16-18 x 2 3/4
11 1960273 1 CARRIAGE BOLT, 5/16-18 x 2-1/4
12 1722460 2 PIN, Quick
13 1722117 1 ROD, Cruise
14 1722481 1 ROD, Return
15 2159106 1 SPRING, Cruise Return to Frame
16 1960636 2 NUT, Hex KEPS, 5/16-18
17 1960001 2 CAPSCREW, Hex Washer Head Plastite, 10-14 x 5/8
18 1717050 1 SWITCH, Push, Neutral Start, Gray
19 1722080 1 SPACER, 11/32 x 5/8 x 1-13/32
20 1919326 1 WASHER, 5/16, Black
21 1919381 1 WASHER, 5/16, Black
22 1919438 1 NUT, Hex Lock ESNA Light, 5/16-18
23 1677746 1 SPRING, Compression
Transmission Group - Tuff Torq K-57
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
20
Transmission Group - Tuff Torq K-57
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 21
Part No Descri
p
tionItem QtyNote
1 1960676 2 SCREW, Pan Head Torx Taptite, 1/4-20 x 1-1/4, Black
2 1722345 1 PAD, Footrest, LH, without Differential Lock
3 1722173 1 PAD, Footrest, RH
4 1960636 1 NUT, Hex KEPS, 5/16-18, Black
5 1704351 15 FASTENER, Panel
6 1960637 6 NUT, Hex KEPS, 3/8-16, Black
7 1931350 6 CARRIAGE BOLT, 3/8-16 x 1, Black
8 1960686 5 NUT, Hex Flange ESNA, 5/16-18, Black
9 1721728A 2 SUPPORT, Transmission
10 1724316 1 RING, Snap, Transmission
11 1724312 1 COLLOR, Spline, Transmission
12 1724315 2 LOCK WASHER, Transmission
13 1724314 1 FAN, 10 Blade, Transmission
14 1718076 1 RING, E Transmission
15 1960027 2 WASHER, 1/2
16 1721666 1 PULLEY & HUB ASSEMBLY
17 1726841 1 V-BELT, Drive
18 1726806 1 ROD, Transmission Release
19 1722460 3 PIN, Quick
20 1921332 1 CAPSCREW, Hex Head, 5/16-18 x 2
21 1919326 4 WASHER, 5/16, Black
22 1923141 4 CAPSCREW, Hex Head, 5/16-18 x 2-3/4, Black
23 1918267 1 WASHER, 15/32 x 15/16, Black
24 1918447 1 PIN, Cotter, Black
25 1726871 1 ROD, Brake
26 1722684 1 SPRING, Compression, 3-1/4” Long, Black
27 1729277 1 SPRING, Compression, 3-5/8” Long, Black
28 1960687 1 NUT, Hex FlangeESNA, 3/8-16, Black
29 1924940 3 WASHER, 3/8, Black
30 1722668 1 TRANSMISSION ASSEMBLY, K57, without Pulley
31 1726803 1 CONTROL ARM ASSEMBLY
32 1724423A 1 ARM, Control
33 1960636 2 NUT, KEPS Lock, 5/16-18
34 1721592A 1 STRAP, Torque
35 1931335 1 CARRIAGE BOLT, 5/16-18 x 1, Black
36 1960141 1 WASHER, 5/16, Black
37 1921978 1 CAPSCREW, Hex Head, 5/16-18 x 2, Black
3 1722173 1 PAD, Footrest, RH
4 1960636 1 NUT, Hex KEPS, 5/16-18, Black
5 1704351 15 FASTENER, Panel
6 1960637 6 NUT, Hex KEPS, 3/8-16, Black
7 1931350 6 CARRIAGE BOLT, 3/8-16 x 1, Black
8 1960686 5 NUT, Hex Flange ESNA, 5/16-18, Black
9 1721728A 2 SUPPORT, Transmission
10 1724316 1 RING, Snap, Transmission
11 1724312 1 COLLOR, Spline, Transmission
12 1724315 2 LOCK WASHER, Transmission
13 1724314 1 FAN, 10 Blade, Transmission
14 1718076 1 RING, E Transmission
15 1960027 2 WASHER, 1/2
16 1721666 1 PULLEY & HUB ASSEMBLY
17 1726841 1 V-BELT, Drive
18 1726806 1 ROD, Transmission Release
19 1722460 3 PIN, Quick
20 1921332 1 CAPSCREW, Hex Head, 5/16-18 x 2
21 1919326 4 WASHER, 5/16, Black
22 1923141 4 CAPSCREW, Hex Head, 5/16-18 x 2-3/4, Black
23 1918267 1 WASHER, 15/32 x 15/16, Black
24 1918447 1 PIN, Cotter, Black
26 1722684 1 SPRING, Compression, 3-1/4” Long, Black
27 1729277 1 SPRING, Compression, 3-5/8” Long, Black
28 1960687 1 NUT, Hex FlangeESNA, 3/8-16, Black
30 1722668 1 TRANSMISSION ASSEMBLY, K57, without Pulley
Transmission Group - Tuff Torq K-57
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
22
Transmission Group - Tuff Torq K-57
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 23
Part No Descri
p
tionItem QtyNote
38 1727215A 1 ACTUATOR, Switch
39 1924856 2 CAPSCREW, Hex Head Taptite, 5/16-18 x 1/2
Transmission SERVICE PARTS - Tuff Torq K-57A
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
24
Transmission SERVICE PARTS - Tuff Torq K-57A
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 25
Part No Descri
p
tionItem QtyNote
2 1724951 1 HOUSING ASSEMBLY, UPPER
3 1724938 1 HOUSING, LOWER
7 1718052 1 VENT VALVE 15
8 1724279 2 MAGNET, K50
9 1724280 1 HOLDER, MAGNET
11 1708684 1 SPRING
12 1724281 1 SHAFT, BYPASS
13 1720418 1 LEVER, BYPASS
14 1718061 1 RING
15 1724282 1 SEALING CAP
16 1708650 1 RING 35
19 1708691 2 PACKING
20 1724283 1 SEAL TC
21 1707789 14 SCREW, TAPPING
22 1724284 2 SCREW, TAPPING
24 1724939 1 CASE, CENTER
25 1718070 1 PIN 3 x 9.8
26 1724954 1 FILTER
27 1720805 3 BOLT 10 x 75
28 1724286 2 VALVE, IDS 1.0
29 1724287 2 SPRING, IDS
30 1724288 2 BALL, 3/16
31 1724940 1 CYLINDER BLOCK ASSEMBLY
32 1724290 1 SPRING, PUMP
33 1724941 1 SHAFT, PUMP
34 1718076 3 RING E15
35 1708673 1 BEARING
36 1718077 1 HOUSING
37 1724942 1 BEARING, THRUST
38 1724289 1 BLOCK, CYLINDER
39 1718084 1 WASHER 12 x 24 x 1
40 1724943 1 SHAFT, MOTOR
41 1708672 1 RING 15
42 1724944 1 GEAR, MOTOR
43 1718083 1 BEARING 6202UC3
44 1718089 2 THRUST METAL
45 1720426 1 SWASH PLATE ASSEMBLY
46 1718088 1 THRUST PLATE B
7 1718052 1 VENT VALVE 15
8 1724279 2 MAGNET, K50
9 1724280 1 HOLDER, MAGNET
11 1708684 1 SPRING
12 1724281 1 SHAFT, BYPASS
13 1720418 1 LEVER, BYPASS
14 1718061 1 RING
15 1724282 1 SEALING CAP
16 1708650 1 RING 35
19 1708691 2 PACKING
20 1724283 1 SEAL TC
21 1707789 14 SCREW, TAPPING
22 1724284 2 SCREW, TAPPING
24 1724939 1 CASE, CENTER
25 1718070 1 PIN 3 x 9.8
26 1724954 1 FILTER
27 1720805 3 BOLT 10 x 75
28 1724286 2 VALVE, IDS 1.0
29 1724287 2 SPRING, IDS
30 1724288 2 BALL, 3/16
31 1724940 1 CYLINDER BLOCK ASSEMBLY
32 1724290 1 SPRING, PUMP
Transmission SERVICE PARTS - Tuff Torq K-57A
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
26
Transmission SERVICE PARTS - Tuff Torq K-57A
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 27
Part No Descri
p
tionItem QtyNote
47 1718086 1 BEARING K81105
48 1718087 1 THRUST PLATE A
49 1724343 1 SHAFT, CONTROL
50 1724344 1 FULCRUM, ECCENTRIC
51 1724345 1 SPRING, TORSION
52 1724346 1 LEVER, CONTROL
53 1724347 1 ARM, CONTROL
54 1724348 1 PLATE, JERK
55 1708689 1 WASHER
56 1724349 1 PIN, COTTER
57 1724296 1 PIN, SPRING
59 1707879 2 PACKING
58 1718100 1 PIN 6.0A x 4.0
60 1708692 1 NUT 12
61 1724955 1 GEAR & PINION ASSEMBLY
62 1724945 1 GEAR, FINAL CONTR TRAC
63 1724946 2 COLLAR, PINION
64 1724947 1 SHAFT, REDUCTION
65 1724948 2 WASHER, 12 x 32 x 3.2
66 1724949 1 GEAR, REDUCTION
67 1724950 1 PINION, FINAL
68 1724304 1 SHAFT, AXLE RH
69 1724303 1 SHAFT, AXLE LH
70 1718112 2 WASHER, THRUST
71 1718113 2 RING 17
72 1718111 2 SEAL 19 x 32 x 8
73 1718110 2 BUSHING 19 x 21
75 1724305 1 SHOE, BRAKE
76 1724306 1 ARM, BRAKE
77 1724307 1 SHAFT, BRAKE
78 1724308 1 SPRING, RETURN B
79 1724309 1 BRAKE, ACTUATOR
80 1724310 1 PIN
81 1708690 2 PACKING
82 1724311 2 PIN, SPRING
83 1724312 2 COLLAR, SPLINE
85 1724314 1 FAN
49 1724343 1 SHAFT, CONTROL
50 1724344 1 FULCRUM, ECCENTRIC
51 1724345 1 SPRING, TORSION
52 1724346 1 LEVER, CONTROL
53 1724347 1 ARM, CONTROL
54 1724348 1 PLATE, JERK
55 1708689 1 WASHER
56 1724349 1 PIN, COTTER
57 1724296 1 PIN, SPRING
59 1707879 2 PACKING
58 1718100 1 PIN 6.0A x 4.0
60 1708692 1 NUT 12
61 1724955 1 GEAR & PINION ASSEMBLY
62 1724945 1 GEAR, FINAL CONTR TRAC
63 1724946 2 COLLAR, PINION
64 1724947 1 SHAFT, REDUCTION
65 1724948 2 WASHER, 12 x 32 x 3.2
66 1724949 1 GEAR, REDUCTION
67 1724950 1 PINION, FINAL
68 1724304 1 SHAFT, AXLE RH
69 1724303 1 SHAFT, AXLE LH
70 1718112 2 WASHER, THRUST
Transmission SERVICE PARTS - Tuff Torq K-57A
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
28
Transmission SERVICE PARTS - Tuff Torq K-57A
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 29
Part No Descri
p
tionItem QtyNote
86 1724315 1 LOCKWASHER
87 1724316 1 RING, SNAP
90 1720421 1 PIN 3.0A x 20
91 1724318 1 OIL SEAL
95 1707839 1 PIN, ROLL
97 1724956 2 WASHER, THRUST DIFF
98 1724958 2 PIN, 3.0A x 18
99 1724957 1 SPRING, CHARGE
100 1724953 1 CHARGE PUMP CASE ASSEMBLY
200 1727542 1 K57 SMP SEAL KIT
90 1720421 1 PIN 3.0A x 20
91 1724318 1 OIL SEAL
95 1707839 1 PIN, ROLL
97 1724956 2 WASHER, THRUST DIFF
98 1724958 2 PIN, 3.0A x 18
99 1724957 1 SPRING, CHARGE
100 1724953 1 CHARGE PUMP CASE ASSEMBLY
200 1727542 1 K57 SMP SEAL KIT
Seat & Seat Deck Group
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
30
Seat & Seat Deck Group
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 31
Part No Descri
p
tionItem QtyNote
1 1722129A 1 BRACKET, 1-5/8 x 1-3/4
2 1725019 1 SEAT, 15” Back
3 1722128A 1 SUPPORT, Seat
4 2172434 1 CLIP, Wire
5 1709256A 2 WASHER, Spring, 5/16 x 1-1/4
6 1714263 2 SPRING, Compression
7 1919438 10 NUT, Hex Lock, ESNA Light, 5/16-18
8 1717051 2 SPRING, Compression
9 1930591 8 CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4
10 1931339 2 CARRIAGE BOLT, 5/16-18 x 2
11 1931350 2 CARRIAGE BOLT, 3/8-16 x 1
12 1722356 1 SLIDE, Seat
13 1935255 4 NUT, Speed, 5/16-18, Lug Type
14 1930601 4 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 5/8
15 1722309 2 PLUG, Plastic
16 1722109 1 POD, with Cup Holder, LH
17 2860664 8 CAPSCREW, Hex Washer Head, 1/4-20 x 5/8
18 1931277 4 NUT, Hex Flange Whiz Lock, 5/16-18
19 1715917 1 CAP, Gas
20 1726902 1 TUBE & ELBOW ASSEMBLY
21 1654930 1 BUSHING, 3/8 x 9/16 x 5/8, Rubber
22 1722432 1 TANK, Fuel
23 1960636 8 NUT, Hex KEPS, 5/16-18
24 1722106D 1 DECK, Seat, Red
25 1722108 1 POD, RH with 2 Slots
26 1729322D 1 TUNNEL, Red
27 1960667 8 CAPSCREW, Hex Flange Whiz Lock Dog Point, 5/16-18 x 1
28 1663752 2 SPACER, 25/64 x 5/8 x 3/16, Hardened
29 1930645 2 NUT, Hex Flange Two-Way Lock, 3/8-16
30 1924940 2 WASHER, 3/8
3 1722128A 1 SUPPORT, Seat
4 2172434 1 CLIP, Wire
5 1709256A 2 WASHER, Spring, 5/16 x 1-1/4
6 1714263 2 SPRING, Compression
7 1919438 10 NUT, Hex Lock, ESNA Light, 5/16-18
8 1717051 2 SPRING, Compression
9 1930591 8 CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4
10 1931339 2 CARRIAGE BOLT, 5/16-18 x 2
11 1931350 2 CARRIAGE BOLT, 3/8-16 x 1
12 1722356 1 SLIDE, Seat
13 1935255 4 NUT, Speed, 5/16-18, Lug Type
14 1930601 4 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 5/8
15 1722309 2 PLUG, Plastic
16 1722109 1 POD, with Cup Holder, LH
17 2860664 8 CAPSCREW, Hex Washer Head, 1/4-20 x 5/8
18 1931277 4 NUT, Hex Flange Whiz Lock, 5/16-18
19 1715917 1 CAP, Gas
20 1726902 1 TUBE & ELBOW ASSEMBLY
21 1654930 1 BUSHING, 3/8 x 9/16 x 5/8, Rubber
22 1722432 1 TANK, Fuel
23 1960636 8 NUT, Hex KEPS, 5/16-18
24 1722106D 1 DECK, Seat, Red
25 1722108 1 POD, RH with 2 Slots
27 1960667 8 CAPSCREW, Hex Flange Whiz Lock Dog Point, 5/16-18 x 1
28 1663752 2 SPACER, 25/64 x 5/8 x 3/16, Hardened
29 1930645 2 NUT, Hex Flange Two-Way Lock, 3/8-16
Engine & Electric Clutch Group - 18HP & 20HP B&S, Vanguard
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
32
Engine & Electric Clutch Group - 18HP & 20HP B&S, Vanguard
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 33
Part No Descri
p
tionItem QtyNote
1 1723165 1 HOSE, Oil Drain, 10-1/2" Long, 3/8-18 Fittings
2 1 * ENGINE, 18HP Briggs & Stratton Vanguard Twin, Mod. 356777-
0113-E1
2 1 * ENGINE, 20HP Briggs & Stratton Vanguard Twin, Mod. 358777-
0110-E1
3 1722949 1 SEAL, Circle, 18HP & 20HP
4 1722388A 1 BULKHEAD
5 1925003 2 CAPSCREW, Hex Washer Head Taptite, 1/2-20 x 1/2, Black
6 1727223 1 CONTROL, Throttle Double 39" Long w/Knobs
7 1701011 2 TIE, Wire, 7-5/16" Long
8 2860112 2 CLAMP, Hose Type E
9 1718678 1 HOSE, Fuel, 59" Long
10 1722392A 2 SHIELD, Side
11 1929000 8 CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 3/8
12 1722288 1 PULLEY & HUB ASSEMBLY
13 2832747 1 TIE, Self Locking, 3-5/8 Long
14 1708264 1 WASHER, Hex, 7/16, Black
15 1918199 1 LOCKWASHER, 7/16
16 1960649 1 CAPSCREW, Hex Head, 7/16-20 x 3-1/2, 20HP
16 1960648 1 CAPSCREW, Hex Head, 7/16-20 x 2-3/4, 20HP
17 1686883 1 CLUTCH, Electric, 18HP
17 1686880 1 CLUTCH, Electric, 20HP
18 1720463 1 KEY, HI PRO, 1/4 x 2 1/2
19 2830598 4 CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 1-1/2
20 2820427 1 LOCKWASHER, External Tooth, 3/8
21 1722414A 1 SHIELD, Muffler Bottom
22 1960368 8 NUT, Speed, 1/4-20, Lug
23 1960295 4 CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8
24 1935255 2 NUT, Speed, 5/16-18, Lug, Black
25 1722389A 1 DUCT, Muffler Top
26 2834683 2 CLIP, Wire 1/8
27 1722390A 1 DUCT, Muffler Extension
28 1924856 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1/2, Black
29 1722625 1 MUFFLER, Briggs & Stratton, Vanguard Twin
30 1 * GASKET, Briggs & Stratton, Vanguard Twin
31 1917356 4 LOCKWASHER, 5/16
32 2860660 4 CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 7/8
Note* See your local Briggs & Stratton distributor for parts and service.
2 1 * ENGINE, 20HP Briggs & Stratton Vanguard Twin, Mod. 358777-
3 1722949 1 SEAL, Circle, 18HP & 20HP
4 1722388A 1 BULKHEAD
5 1925003 2 CAPSCREW, Hex Washer Head Taptite, 1/2-20 x 1/2, Black
6 1727223 1 CONTROL, Throttle Double 39" Long w/Knobs
7 1701011 2 TIE, Wire, 7-5/16" Long
8 2860112 2 CLAMP, Hose Type E
9 1718678 1 HOSE, Fuel, 59" Long
10 1722392A 2 SHIELD, Side
11 1929000 8 CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 3/8
12 1722288 1 PULLEY & HUB ASSEMBLY
13 2832747 1 TIE, Self Locking, 3-5/8 Long
14 1708264 1 WASHER, Hex, 7/16, Black
15 1918199 1 LOCKWASHER, 7/16
16 1960649 1 CAPSCREW, Hex Head, 7/16-20 x 3-1/2, 20HP
16 1960648 1 CAPSCREW, Hex Head, 7/16-20 x 2-3/4, 20HP
17 1686883 1 CLUTCH, Electric, 18HP
17 1686880 1 CLUTCH, Electric, 20HP
18 1720463 1 KEY, HI PRO, 1/4 x 2 1/2
19 2830598 4 CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 1-1/2
20 2820427 1 LOCKWASHER, External Tooth, 3/8
21 1722414A 1 SHIELD, Muffler Bottom
22 1960368 8 NUT, Speed, 1/4-20, Lug
23 1960295 4 CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8
24 1935255 2 NUT, Speed, 5/16-18, Lug, Black
28 1924856 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1/2, Black
29 1722625 1 MUFFLER, Briggs & Stratton, Vanguard Twin
Lift Group - Manual Lift
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
34
Lift Group - Manual Lift
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 35
Part No Descri
p
tionItem QtyNote
1 1722302 1 GRIP, Black Vinyl
2 1722024A 1 ROD, Lift Lever with Flats
3 1930645 1 NUT, Hex Flange Lock, 3/8-16
4 1924940 1 WASHER
5 1722460 2 PIN, Quick
6 2162085 1 SPRING, Compression
7 1723866 1 NUT, Push, 3/8
8 1923341 2 CAPSCREW, Hex Head, 1/4-20 x 3/4
9 1722313 1 PLUG, Lift Cover (Models without Cruise Control)
10 1722284A 1 QUADRANT
11 1920397 2 NUT, Hex Lock ESNA, 1/4-20
12 1923701 1 CAPSCREW, Hex Head, 3/8-16 x 2
13 1919438 4 NUT, ESNA Lock, 5/16-18
14 1960044 1 WASHER, Flat, 5/16 x 1-1/4
15 1722491 1 CAM ASSEMBLY, Lift
16 1704629 1 SPACER
17 1727083A 1 LINK, Lift Upper
18 1722607 1 SCREW, Torx Head, # 8-16 x 1/2
19 1722285 1 COVER, Dash
20 1921977 4 CAPSCREW, Hex Head, 5/16-18 x 1-1/4
21 1721789 1 ROD, Lift
3 1930645 1 NUT, Hex Flange Lock, 3/8-16
4 1924940 1 WASHER
5 1722460 2 PIN, Quick
6 2162085 1 SPRING, Compression
7 1723866 1 NUT, Push, 3/8
8 1923341 2 CAPSCREW, Hex Head, 1/4-20 x 3/4
9 1722313 1 PLUG, Lift Cover (Models without Cruise Control)
10 1722284A 1 QUADRANT
11 1920397 2 NUT, Hex Lock ESNA, 1/4-20
12 1923701 1 CAPSCREW, Hex Head, 3/8-16 x 2
13 1919438 4 NUT, ESNA Lock, 5/16-18
14 1960044 1 WASHER, Flat, 5/16 x 1-1/4
15 1722491 1 CAM ASSEMBLY, Lift
16 1704629 1 SPACER
17 1727083A 1 LINK, Lift Upper
18 1722607 1 SCREW, Torx Head, # 8-16 x 1/2
19 1722285 1 COVER, Dash
20 1921977 4 CAPSCREW, Hex Head, 5/16-18 x 1-1/4
21 1721789 1 ROD, Lift
Lift Group - Manual Lift with Cruise Control
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
36
Lift Group - Manual Lift with Cruise Control
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 37
Part No Descri
p
tionItem QtyNote
1 1722302 1 GRIP, Black Vinyl
2 1722024A 1 ROD, Lift Lever with Flats
3 1930645 1 NUT, Hex Flange Lock, 3/8-16
4 1924940 1 WASHER
5 1722460 2 PIN, Quick
6 2162085 1 SPRING, Compression
7 1723866 1 NUT, Push, 3/8
8 1923341 2 CAPSCREW, Hex Head, 1/4-20 x 3/4
9 1722284A 1 QUADRANT
10 1920397 2 NUT, Hex Lock ESNA, 1/4-20
11 1923701 1 CAPSCREW, Hex Head, 3/8-16 x 2
12 1960636 4 NUT, KEPS Lock, 5/16-18
13 1722607 1 SCREW, Torx Head, # 8-16 x 1/2
14 1722285 1 COVER, Dash
15 2156302 1 SPRING, Extension, 4-1/8
16 1725639 1 LIFT SHAFT ASSEMBLY,
17 1931333 4 CARIAGE BOLT, 5/16-18 x 3/4
18 1725638 1 ROD, Lift
3 1930645 1 NUT, Hex Flange Lock, 3/8-16
4 1924940 1 WASHER
5 1722460 2 PIN, Quick
6 2162085 1 SPRING, Compression
7 1723866 1 NUT, Push, 3/8
8 1923341 2 CAPSCREW, Hex Head, 1/4-20 x 3/4
9 1722284A 1 QUADRANT
10 1920397 2 NUT, Hex Lock ESNA, 1/4-20
11 1923701 1 CAPSCREW, Hex Head, 3/8-16 x 2
12 1960636 4 NUT, KEPS Lock, 5/16-18
13 1722607 1 SCREW, Torx Head, # 8-16 x 1/2
14 1722285 1 COVER, Dash
15 2156302 1 SPRING, Extension, 4-1/8
16 1725639 1 LIFT SHAFT ASSEMBLY,
17 1931333 4 CARIAGE BOLT, 5/16-18 x 3/4
18 1725638 1 ROD, Lift
40" Mower Deck - Housing, Arbors & Blades
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
38
40" Mower Deck - Housing, Arbors & Blades
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 39
Part No Descri
p
tionItem QtyNote
1 1930584 1 CAPSCREW, Hex Head, 7/16-14 x 2-3/4 G8
2 1933263 1 WASHER, 7/16
3 1656916 3 WASHER, Spring
4 1714419 1 NUT, Hex Flange, 9/16-18
5 1713091 1 PULLEY, Drive 5"
5 1732123 1 PULLEY, Drive 6"
6 1719870 1 HUB
7 1687229 2 SPROCKET & FLANGE ASSEMBLY, w/Screws, 38 Tooth
8 1657969 2 SHIELD, Bearing Upper, Arbor
9 1655729A 2 HOUSING, Arbor Top
10 1707335 2 GASKET, Foam Poly
11 1722396 1 ARBOR SHAFT & BEARINGS ASSEMBLY
12 1703273A 2 HOUSING, Arbor Bottom with Lube Fitting
13 1664847 6 CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 3/4
14 1724601 1 COVER, Arbor, LH
15 1687175 1 HOUSING ASSEMBLY, 40", Red
16 1719624A 1 BLADE, Mower, LH
17 1722258 2 PIN, Blade
18 1677274A 2 ADAPTOR, Arbor
19 1722257 2 WASHER, Spline
20 2827120 2 CAPSCREW, Hex Head, 7/16-14 x 2-1/4 G8
21 1960373 12 CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 1
22 1700230 2 WASHER, Shim
23 1700229 2 SHIELD, Arbor Bearing, Lower
24 1655777 2 ADAPTER, Blade
25 1723453 1 DEFLECTOR, Discharge
26 1719623A 1 BLADE, Mower, RH
27 1931335 1 CARRIAGE BOLT, 5/16-18 x 1
28 1931318 1 CARRIAGE BOLT, 1/4-20 x 7/8
29 1960518 1 NUT, Push
30 1960353 2 WASHER, 1/4
31 1704873 1 CLAMP
33 1920397 1 NUT, Hex 1/4-20, ESNA
34 1719597 1 DOOR, Mulching, Black Plastic
35 1723938 1 SPRING, Torsion
36 1719617 1 ROD, Pivot
3 1656916 3 WASHER, Spring
4 1714419 1 NUT, Hex Flange, 9/16-18
5 1713091 1 PULLEY, Drive 5"
5 1732123 1 PULLEY, Drive 6"
6 1719870 1 HUB
7 1687229 2 SPROCKET & FLANGE ASSEMBLY, w/Screws, 38 Tooth
8 1657969 2 SHIELD, Bearing Upper, Arbor
9 1655729A 2 HOUSING, Arbor Top
10 1707335 2 GASKET, Foam Poly
11 1722396 1 ARBOR SHAFT & BEARINGS ASSEMBLY
12 1703273A 2 HOUSING, Arbor Bottom with Lube Fitting
13 1664847 6 CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 3/4
14 1724601 1 COVER, Arbor, LH
15 1687175 1 HOUSING ASSEMBLY, 40", Red
16 1719624A 1 BLADE, Mower, LH
17 1722258 2 PIN, Blade
18 1677274A 2 ADAPTOR, Arbor
19 1722257 2 WASHER, Spline
20 2827120 2 CAPSCREW, Hex Head, 7/16-14 x 2-1/4 G8
21 1960373 12 CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 1
22 1700230 2 WASHER, Shim
23 1700229 2 SHIELD, Arbor Bearing, Lower
24 1655777 2 ADAPTER, Blade
25 1723453 1 DEFLECTOR, Discharge
27 1931335 1 CARRIAGE BOLT, 5/16-18 x 1
28 1931318 1 CARRIAGE BOLT, 1/4-20 x 7/8
40" Mower Deck - Housing, Arbors & Blades
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
40
40" Mower Deck - Housing, Arbors & Blades
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 41
Part No Descri
p
tionItem QtyNote
37 1919438 1 NUT, Hex 5/16-18, ESNA
39 1919381 1 WASHER, 5/16
40 1933988 1 NUT, Push
41 1721155 1 COVER ASSEMBLY, Arbor, RH (Includes Ref. Nos. 42 thru 46)
42 1724600 1 COVER, Arbor RH (Only used with 5" Pulley)
42 1732425 1 COVER, Arbor RH (Only used with 6" Pulley
43 1721259A 1 GUARD ASSEMBLY, RH
44 1721132A 1 GUARD, Extension
45 1675044 4 RIVIT, Pop
46 1960096 4 WASHER, 3/16 x 3/4 x 1/16
47 1713675 2 WASHER, Bellville
48 1726825 1 ARBOR SHAFT & BEARING ASSEMBLY
49 1732960 1 SHIM-Cover LH 7GA 40" Mower
50 1732691 1 SHIM-Cover RH 7GA 6.5 LG 40" Mower
51 1732693 1 SHIM-Cover RH 7GA 2.8 LG 40" Mower
40 1933988 1 NUT, Push
41 1721155 1 COVER ASSEMBLY, Arbor, RH
42 1724600 1 COVER, Arbor RH
42 1732425 1 COVER, Arbor RH
43 1721259A 1 GUARD ASSEMBLY, RH
44 1721132A 1 GUARD, Extension
45 1675044 4 RIVIT, Pop
46 1960096 4 WASHER, 3/16 x 3/4 x 1/16
47 1713675 2 WASHER, Bellville
48 1726825 1 ARBOR SHAFT & BEARING ASSEMBLY
49 1732960 1 SHIM-Cover LH 7GA 40" Mower
50 1732691 1 SHIM-Cover RH 7GA 6.5 LG 40" Mower
51 1732693 1 SHIM-Cover RH 7GA 2.8 LG 40" Mower
40" Mower Deck - Housing, Arbors & Blades
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
42
40" Mower Deck - Housing, Arbors & Blades
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 43
Part No Descri
p
tionItem QtyNote
1 1930584 1 CAPSCREW, Hex Head, 7/16-14 x 2-3/4 G8
2 1933263 1 WASHER, 7/16
3 1656916 3 WASHER, Spring
4 1714419 1 NUT, Hex Flange, 9/16-18
5 1713091 1 PULLEY
6 1719870 1 HUB
7 1724453 2 SPROCKET & FLANGE ASSEMBLY, Riveted, 38 Tooth
8 1657969A 2 SHIELD, Arbor Bearing, Upper
9 1655729A 2 HOUSING, Arbor Top
10 1707335 2 GASKET, Foam Poly
11 1722396 1 ARBOR SHAFT & BEARINGS ASSEMBLY
12 1703273A 2 HOUSING, Arbor Bottom with Lube Fitting
13 1664847 6 CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 3/4
14 1724601 1 COVER, Arbor, LH
15 1687175 1 HOUSING ASSEMBLY, 40”, Red
16 1719624A 1 BLADE, Mower, LH
17 1722258 2 PIN, Blade
18 1677274A 2 ADAPTOR, Arbor
19 1722257 2 WASHER, Spline
20 2827120 2 CAPSCREW, Hex Head, 7/16-14 x 2-1/4 G8
21 1960373 12 CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 1
22 1700230 2 WASHER, Shim
23 1700229A 2 SHIELD, Arbor Bearing, Lower
24 1655777 2 ADAPTER, Blade
25 1723453 1 DEFLECTOR, Discharge
26 1719623A 1 BLADE, Mower, RH
27 1931335 1 CARRIAGE BOLT, 5/16-18 x 1
28 1931318 1 CARRIAGE BOLT, 1/4-20 x 7/8
29 1960518 1 NUT, Push
30 1960353 2 WASHER, 1/4
31 1704873 1 CLAMP
32 1916964 1 LOCKWASHER, Spring 1/4
33 1916622 1 NUT, Hex 1/4-20
34 1719597 1 DOOR, Mulching, Black Plastic
35 1723938 1 SPRING, Torsion
36 1719617 1 ROD, Pivot
37 1917372 1 NUT, Hex 5/16-18
3 1656916 3 WASHER, Spring
4 1714419 1 NUT, Hex Flange, 9/16-18
5 1713091 1 PULLEY
6 1719870 1 HUB
7 1724453 2 SPROCKET & FLANGE ASSEMBLY, Riveted, 38 Tooth
8 1657969A 2 SHIELD, Arbor Bearing, Upper
9 1655729A 2 HOUSING, Arbor Top
10 1707335 2 GASKET, Foam Poly
11 1722396 1 ARBOR SHAFT & BEARINGS ASSEMBLY
12 1703273A 2 HOUSING, Arbor Bottom with Lube Fitting
13 1664847 6 CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 3/4
14 1724601 1 COVER, Arbor, LH
15 1687175 1 HOUSING ASSEMBLY, 40”, Red
16 1719624A 1 BLADE, Mower, LH
17 1722258 2 PIN, Blade
18 1677274A 2 ADAPTOR, Arbor
19 1722257 2 WASHER, Spline
20 2827120 2 CAPSCREW, Hex Head, 7/16-14 x 2-1/4 G8
21 1960373 12 CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 1
22 1700230 2 WASHER, Shim
23 1700229A 2 SHIELD, Arbor Bearing, Lower
24 1655777 2 ADAPTER, Blade
25 1723453 1 DEFLECTOR, Discharge
27 1931335 1 CARRIAGE BOLT, 5/16-18 x 1
28 1931318 1 CARRIAGE BOLT, 1/4-20 x 7/8
40" Mower Deck - Housing, Arbors & Blades
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
44
40" Mower Deck - Housing, Arbors & Blades
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 45
Part No Descri
p
tionItem QtyNote
38 1917356 1 LOCKWASHER, Spring 5/16
39 1919381 1 WASHER, 5/16
40 1933988 1 NUT, Push
41 1721155 1 COVER ASSEMBLY, Arbor, RH (Includes Ref. Nos. 42 thru 46)
42 1724600 1 COVER, Arbor RH
43 1721259A 1 GUARD ASSEMBLY, RH
44 1721132A 1 GUARD, Extension
45 1675044 4 RIVIT, Pop
46 1960096 4 WASHER, 3/16 x 3/4 x 1/16
47 1713675 2 WASHER, Bellville
48 1726825 1 ARBOR SHAFT & BEARING ASSEMBLY
40 1933988 1 NUT, Push
41 1721155 1 COVER ASSEMBLY, Arbor, RH (Includes Ref. Nos. 42 thru 46)
42 1724600 1 COVER, Arbor RH
43 1721259A 1 GUARD ASSEMBLY, RH
44 1721132A 1 GUARD, Extension
45 1675044 4 RIVIT, Pop
46 1960096 4 WASHER, 3/16 x 3/4 x 1/16
47 1713675 2 WASHER, Bellville
48 1726825 1 ARBOR SHAFT & BEARING ASSEMBLY
40" Mower Deck - Belt, Idler Arm & Hitch
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
46
40" Mower Deck - Belt, Idler Arm & Hitch
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 47
Part No Descri
p
tionItem QtyNote
1 1919439 1 NUT, Hex Lock Esna Light, 3/8-16
2 1924940 6 WASHER, 3/8
3 1725408 1 PULLEY, Idler
4 1723391 1 V-BELT, Arbor Drive
5 1722175A 1 BELT GUIDE
6 1960534 2 WASHER, 3/8
7 1724835 1 ARM ASSEMBLY, Idler with Bushings & Fitting, 38 Tooth
8 1931355 1 CARRIAGE BOLT, 3/8-16 x 2
9 1928957 1 CAPSCREW, Hex Head, 3/8-16 x 2-3/4 G8
10 1922755 6 WASHER, 3/8
11 1715435 1 SPRING, Extension, Idler Arm
12 1657242 1 SPACER, Hardened
13 1922130 1 CAPSCREW, Hex Head, 3/8-16 x 2-1/4
14 1723952 1 PULLEY
15 1667812 1 SPACER
16 1928352 4 NUT, Hex Flange Whiz Lock, Large, 3/8-16
17 1921968 2 CAPSCREW, Hex Head, 3/8-16 x 1-3/8
18 2172329 2 SPACER
19 1713578 1 ROD, Mower Hitch
20 2156302 1 SPRING, Extension, Hitch Release
21 1715759 1 ROD, Latch
22 1720044A 1 HITCH, Mower
23 1960519 1 NUT, Push
24 2860681 2 NUT, Hex Toplock Sprial Flange, 3/8-16
25 1721425 1 WASHER & NUT ASSEMBLY, 3/8 x 1-1/2
26 1674671 1 SPRING, Extension
27 1719923 1 ARM, Idler
28 1719221 2 HUB
29 1724802 2 PULLEY, Idler
30 1960315 2 CARRIAGE BOLT, 3/8-16 x 2
31 1930601 1 CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 1/2
32 1666697 1 SPACER
33 1722182A 1 BELT GUIDE
34 1724625 1 BELT, Timing, 38 Tooth
3 1725408 1 PULLEY, Idler
4 1723391 1 V-BELT, Arbor Drive
5 1722175A 1 BELT GUIDE
6 1960534 2 WASHER, 3/8
7 1724835 1 ARM ASSEMBLY, Idler with Bushings & Fitting, 38 Tooth
8 1931355 1 CARRIAGE BOLT, 3/8-16 x 2
9 1928957 1 CAPSCREW, Hex Head, 3/8-16 x 2-3/4 G8
10 1922755 6 WASHER, 3/8
11 1715435 1 SPRING, Extension, Idler Arm
12 1657242 1 SPACER, Hardened
13 1922130 1 CAPSCREW, Hex Head, 3/8-16 x 2-1/4
14 1723952 1 PULLEY
15 1667812 1 SPACER
16 1928352 4 NUT, Hex Flange Whiz Lock, Large, 3/8-16
17 1921968 2 CAPSCREW, Hex Head, 3/8-16 x 1-3/8
18 2172329 2 SPACER
19 1713578 1 ROD, Mower Hitch
20 2156302 1 SPRING, Extension, Hitch Release
21 1715759 1 ROD, Latch
22 1720044A 1 HITCH, Mower
23 1960519 1 NUT, Push
24 2860681 2 NUT, Hex Toplock Sprial Flange, 3/8-16
25 1721425 1 WASHER & NUT ASSEMBLY, 3/8 x 1-1/2
31 1930601 1 CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 1/2

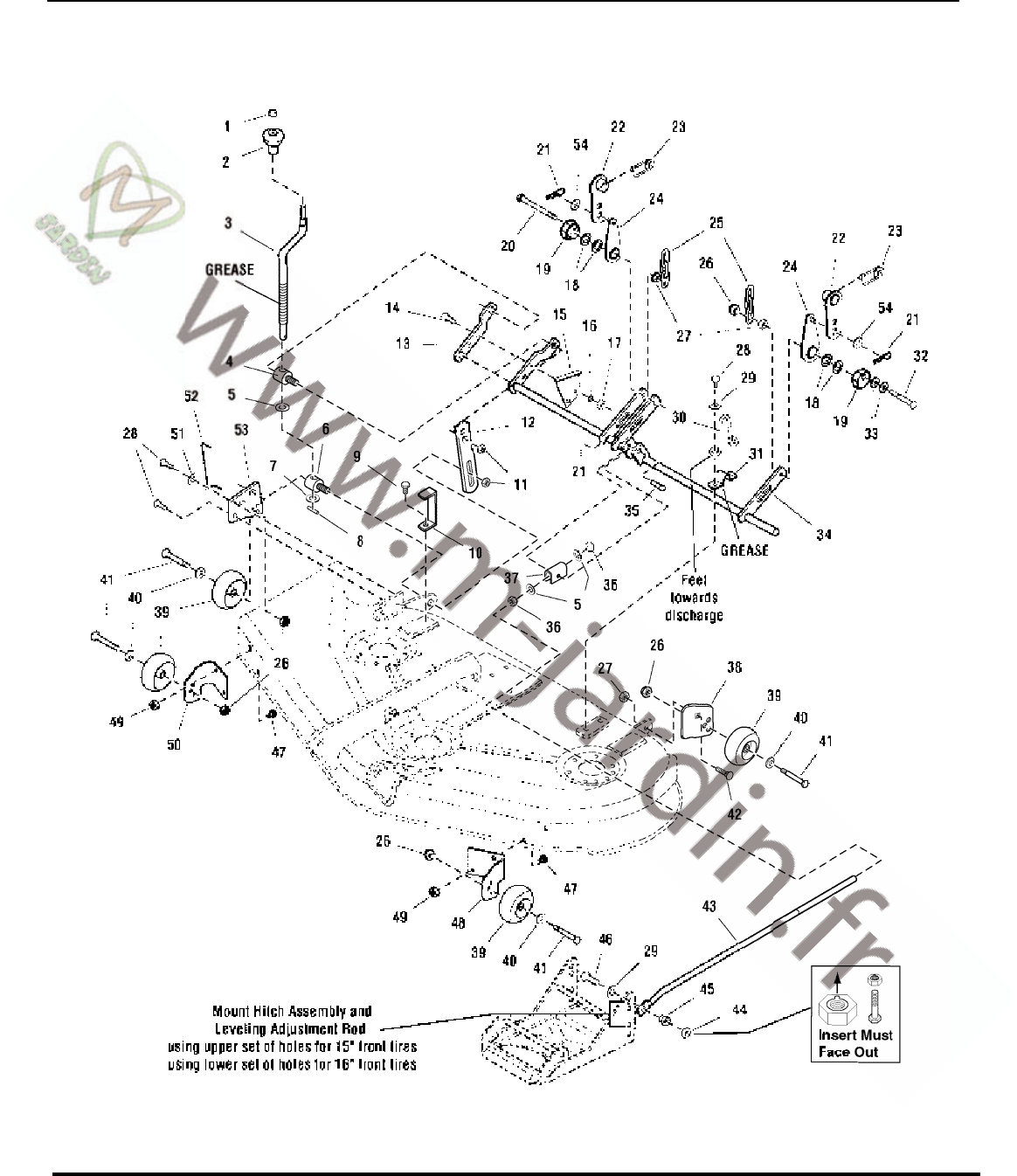

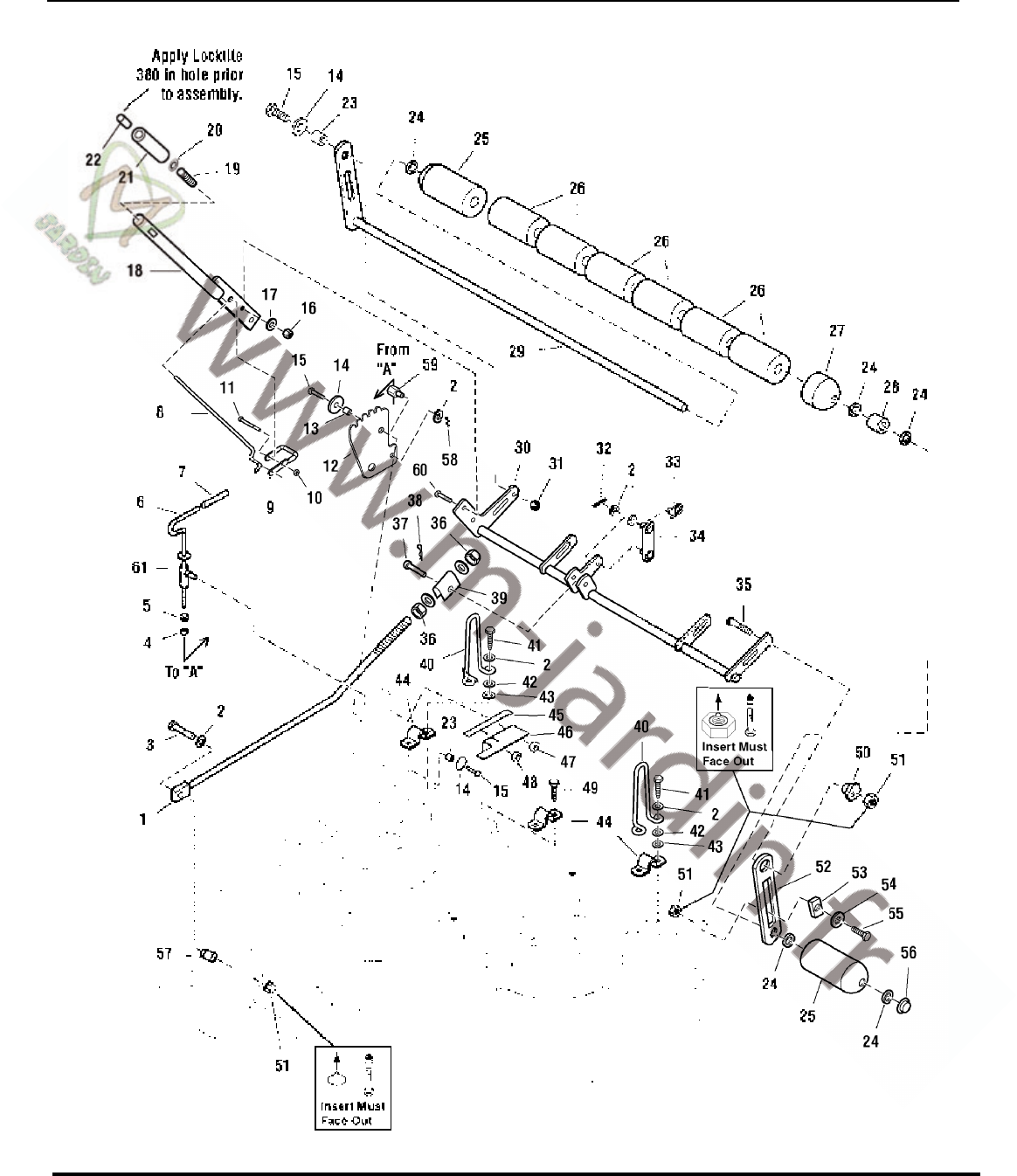

40" Mower Deck - Height Adjustment & Roller Bar
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
48
40" Mower Deck - Height Adjustment & Roller Bar
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 49
Part No Descri
p
tionItem QtyNote
1 1722661 1 ROD
2 1924940 8 WASHER, 3/8
3 1922606 1 CAPSCREW, Hex Head, 3/8-16 x 1 3/4
4 1917421 1 NUT, Hex Jam, 3/8-16
5 1960601 1 NUT, Hex Flange, 3/8-16 Black
6 1720704 1 ROD & WASHER ASSEMBLY, Adjust Handle
7 1651820 1 GRIP, Black Vinyl For Rod
8 1721257 1 ROD, Latch
9 1720599 1 LATCH, 5/16 WIRE
10 1920397 1 NUT, Hex Lock Esna Light, 1/4-20
11 1921159 1 CAPSCREW, Hex Head, 1/4-20 x 2 1/4
12 1723409A 1 BRACKET, Adjusting
13 1666697 1 SPACER
14 1960044 5 WASHER, 5/16
15 1921977 2 CAPSCREW, Hex Head, 5/16-18 x 1 1/4
16 1917372 3 NUT, Hex 5/16-18
17 1917356 3 LOCKWASHER, Spring 5/16
18 1720695A 1 HANDLE ASSEMBLY, Lift, 40” Munching
19 1723321 1 SPRING, Compression 3-7/8” Long
20 1960674 1 PUSH NUT, 1/4
21 1713995 1 GRIP, Black Soft for Rod
22 1723124 1 BUTTON, Red
23 1960236 4 SPACER
24 1924366 7 WASHER, 5/8
25 1722036 2 ROLLER
26 1668513 6 ROLLER
27 1717675 2 ROLLER
28 1602946 1 SPACER
29 1723305A 1 SHAFT & BAR ASSEMBLY
30 1723303A 1 SHAFT ASSEMBLY
31 2860643 2 NUT, Hex, 5/16-18
32 1920161 1 NUT, Hex Jam, 5/16-18
33 7028200 1 TRUNNION
34 1724959 1 ROD, Height Adjustment
35 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2
36 1915726 2 NUT, Hex, 5/8-11
37 2118053 1 PIN
3 1922606 1 CAPSCREW, Hex Head, 3/8-16 x 1 3/4
4 1917421 1 NUT, Hex Jam, 3/8-16
5 1960601 1 NUT, Hex Flange, 3/8-16 Black
6 1720704 1 ROD & WASHER ASSEMBLY, Adjust Handle
7 1651820 1 GRIP, Black Vinyl For Rod
8 1721257 1 ROD, Latch
9 1720599 1 LATCH, 5/16 WIRE
10 1920397 1 NUT, Hex Lock Esna Light, 1/4-20
11 1921159 1 CAPSCREW, Hex Head, 1/4-20 x 2 1/4
12 1723409A 1 BRACKET, Adjusting
13 1666697 1 SPACER
14 1960044 5 WASHER, 5/16
15 1921977 2 CAPSCREW, Hex Head, 5/16-18 x 1 1/4
16 1917372 3 NUT, Hex 5/16-18
17 1917356 3 LOCKWASHER, Spring 5/16
18 1720695A 1 HANDLE ASSEMBLY, Lift, 40” Munching
19 1723321 1 SPRING, Compression 3-7/8” Long
20 1960674 1 PUSH NUT, 1/4
21 1713995 1 GRIP, Black Soft for Rod
22 1723124 1 BUTTON, Red
24 1924366 7 WASHER, 5/8
40" Mower Deck - Height Adjustment & Roller Bar
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
50
40" Mower Deck - Height Adjustment & Roller Bar
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 51
Part No Descri
p
tionItem QtyNote
38 1960074 2 CLIP, Hair Pin
39 1706645A 1 TRUNNION, Rod
40 1720659 2 UPSTOP
41 1931202 4 CAPSCREW, Hex Head Taptite, 5/16-18 x 1-1/4
42 1919381 6 WASHER, 5/16
43 1933988 4 NUT, Push, 5/16
44 1665374A 3 STRAP, Roller Support
45 1720919 1 DECAL, Height of Cut
46 1720931A 1 BRACKET, Height of Cut
47 1930651 1 NUT, Hex Centerlock 3/8-16
48 1935048 1 NUT, Hex Flange Lock, 5/16-18
49 1664847 8 CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 3/4
50 1704082 1 NUT, Hex Adjusting
51 2860681 3 NUT, Toplock Spiral Flange, 3/8-16
52 1704073A 1 BAR
53 1677507 1 SLIDE
54 1924361 1 WASHER, 1/2
55 2172622 1 BOLT, Shoulder, 3/8-16 x 1-11/32
56 1960520 1 NUT, Push 5/8
57 1706644 1 SPACER
58 1918447 1 PIN, Cotter
59 2108512 1 PIVOT, 3/4 Hex
60 1931335 2 CARRIAGE BOLT, 5/16-18 x 1
61 2108241 1 GUIDE ASSEMBLY, Rod
40 1720659 2 UPSTOP
41 1931202 4 CAPSCREW, Hex Head Taptite, 5/16-18 x 1-1/4
42 1919381 6 WASHER, 5/16
43 1933988 4 NUT, Push, 5/16
44 1665374A 3 STRAP, Roller Support
45 1720919 1 DECAL, Height of Cut
46 1720931A 1 BRACKET, Height of Cut
47 1930651 1 NUT, Hex Centerlock 3/8-16
48 1935048 1 NUT, Hex Flange Lock, 5/16-18
49 1664847 8 CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 3/4
50 1704082 1 NUT, Hex Adjusting
51 2860681 3 NUT, Toplock Spiral Flange, 3/8-16
52 1704073A 1 BAR
53 1677507 1 SLIDE
54 1924361 1 WASHER, 1/2
55 2172622 1 BOLT, Shoulder, 3/8-16 x 1-11/32
56 1960520 1 NUT, Push 5/8
57 1706644 1 SPACER
58 1918447 1 PIN, Cotter
59 2108512 1 PIVOT, 3/4 Hex
60 1931335 2 CARRIAGE BOLT, 5/16-18 x 1
61 2108241 1 GUIDE ASSEMBLY, Rod
44" Mower Deck - Housing, Arbors & Blades
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
52
44" Mower Deck - Housing, Arbors & Blades
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 53
Part No Descri
p
tionItem QtyNote
1 1714419 3 NUT, Hex Flange, 9/16-18
2 1713675 6 WASHER, Bellevilled, 9/16
3 1713161 1 PULLEY, 4-1/2 O.D.
4 1713158 1 HUB, Double Pulley
5 1713098 3 PULLEY, 4-1/4 O.D.
6 1713533 1 HUB, Double Pulley
7 1655729A 3 COVER, Arbor Housing
8 2108202 3 BEARING, Ball, 3/4 x 1-3/4 x 5/8
9 1715724 3 SPACER, 21/32 x 3/4 x 5/8
10 1715723 3 SPACER, 11/16 x 5/32 x 2-11/16
11 1705897 3 BEARING, Ball, 11/16 x 1-9/16 x 15/32
12 1707335 3 GASKET, Foam
13 1713338 3 ARBOR HOUSING ASSEMBLY, (Includes Ref. No. 14)
14 1704314 3 FITTING, Grease
15 1720560A 1 COVER, Arbor
16 1664847 26 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4
17 1924856 1 CAPSCREW, Hex Washer Head, 5/16-18 x 1/2, Black
18 1931277 1 NUT, Hex Flange, 5/16,
19 1713619 3 WASHER, Bellevilled, 9/16, Black
20 1713612 1 SHAFT, Arbor (LH)
21 1713196 3 SHIELD, Grass, Lower
22 1704100A 3 BLADE, Mower, 16-1/8 (for 44” Decks)
23 1713089 3 WASHER, Hex, 11/16 x 2
24 1656916 3 WASHER, Spring 15/32, Black
25 2823471 3 CAPSCREW, Hex Head, 7/16-14 x 1
26 1713195 2 SHAFT, Arbor (Center & RH)
27 1687154 1 MOWER HOUSING ASSEMBLY, 44” Mower (Red)
28 1703601 1 COVER, Arbor
29 1931318 2 CARRIAGE BOLT, 1/4-20 x 7/8
30 1705115 1 PLUG, Hole
31 1960518 2 NUT, Push
32 1960353 2 WASHER, 1/4, Black
33 1704873 1 CLAMP
34 1919326 1 WASHER, 5/16, Black
35 1723938 1 SPRING
36 1916964 2 WASHER, Lock, 1/4
37 1916622 2 NUT, Hex, 1/4-20
3 1713161 1 PULLEY, 4-1/2 O.D.
4 1713158 1 HUB, Double Pulley
5 1713098 3 PULLEY, 4-1/4 O.D.
6 1713533 1 HUB, Double Pulley
7 1655729A 3 COVER, Arbor Housing
8 2108202 3 BEARING, Ball, 3/4 x 1-3/4 x 5/8
9 1715724 3 SPACER, 21/32 x 3/4 x 5/8
10 1715723 3 SPACER, 11/16 x 5/32 x 2-11/16
11 1705897 3 BEARING, Ball, 11/16 x 1-9/16 x 15/32
12 1707335 3 GASKET, Foam
13 1713338 3 ARBOR HOUSING ASSEMBLY, (Includes Ref. No. 14)
14 1704314 3 FITTING, Grease
15 1720560A 1 COVER, Arbor
16 1664847 26 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4
17 1924856 1 CAPSCREW, Hex Washer Head, 5/16-18 x 1/2, Black
18 1931277 1 NUT, Hex Flange, 5/16,
19 1713619 3 WASHER, Bellevilled, 9/16, Black
20 1713612 1 SHAFT, Arbor (LH)
21 1713196 3 SHIELD, Grass, Lower
22 1704100A 3 BLADE, Mower, 16-1/8 (for 44” Decks)
23 1713089 3 WASHER, Hex, 11/16 x 2
24 1656916 3 WASHER, Spring 15/32, Black
25 2823471 3 CAPSCREW, Hex Head, 7/16-14 x 1
26 1713195 2 SHAFT, Arbor (Center & RH)
27 1687154 1 MOWER HOUSING ASSEMBLY, 44” Mower (Red)
29 1931318 2 CARRIAGE BOLT, 1/4-20 x 7/8
44" Mower Deck - Housing, Arbors & Blades
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
54
44" Mower Deck - Housing, Arbors & Blades
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 55
Part No Descri
p
tionItem QtyNote
38 1706709A 1 ROD, Deflector, Front
39 1705449 1 DEFLECTOR, Plastic
40 1713197 2 HUB, Pulley, Center & RH
41 1931333 2 CARRIAGE BOLT, 5/16-18 x 3/4
42 1927557 2 NUT, Hex Flagne Whiz Lock, 5/16-18
43 1724538A 1 BAFFLE, Blowout, 44” & 50”
40 1713197 2 HUB, Pulley, Center & RH
41 1931333 2 CARRIAGE BOLT, 5/16-18 x 3/4
42 1927557 2 NUT, Hex Flagne Whiz Lock, 5/16-18
43 1724538A 1 BAFFLE, Blowout, 44” & 50”
44" Mower Deck - Housing, Arbors & Blades
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
56
44" Mower Deck - Housing, Arbors & Blades
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 57
Part No Descri
p
tionItem QtyNote
1 1714419 3 NUT, Hex Flange, 9/16-18
2 1713675 6 WASHER, Bellevilled, 9/16
3 1713161 1 PULLEY, 4-1/2 O.D.
3 1713091 1 PULLEY, 5 O.D.
4 1713158 1 HUB, Double Pulley
5 1713098 3 PULLEY
6 1713533 1 HUB, Double Pulley
7 1655729A 3 COVER, Arbor Housing
8 2108202 3 BEARING, Ball, 3/4 x 1-3/4 x 5/8
9 1715724 3 SPACER, 21/32 x 3/4 x 5/8
10 1732544 3 SPACER, 11/16 x 5/32 x 2-11/16
11 1705897 3 BEARING, Ball, 11/16 x 1-9/16 x 15/32
12 1707335 3 GASKET, Foam
13 1713338A 3 HOUSING ASSEMBLY, Arbor Bottom, w/Lube Fitting (Includes Ref. No. 14)
14 1704314 3 FITTING, Grease
15 1720560A 1 COVER, Arbor
15 1732200A 1 COVER, Arbor without Ribs
16 1664847 29 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4
18 1931277 1 NUT, Hex Flange, 5/16,
19 1713619 3 WASHER, Bellevilled, 9/16, Black
20 1713612 1 SHAFT, Arbor (LH)
21 1713196 3 SHIELD, Grass, Lower
22 1704100A 3 BLADE, Mower, 16-1/8
23 1713089 3 WASHER, Hex, 11/16 x 2
24 1656916 3 WASHER, Spring 15/32, Black
25 2823471 3 CAPSCREW, Hex Head, 7/16-14 x 1
26 1713195 2 SHAFT, Arbor (Center & RH)
27 1687154 1 MOWER HOUSING ASSEMBLY, 44" Mower (Red)
28 1715673 1 COVER, Arbor
29 1931318 2 CARRIAGE BOLT, 1/4-20 x 7/8
30 1705115 1 PLUG, Hole
31 1960518 2 NUT, Push
32 1960353 2 WASHER, 1/4, Black
33 1704873 1 CLAMP
34 1919326 1 WASHER, 5/16, Black
35 7101082 1 SPRING
3 1713161 1 PULLEY, 4-1/2 O.D.
3 1713091 1 PULLEY, 5 O.D.
4 1713158 1 HUB, Double Pulley
5 1713098 3 PULLEY
6 1713533 1 HUB, Double Pulley
7 1655729A 3 COVER, Arbor Housing
8 2108202 3 BEARING, Ball, 3/4 x 1-3/4 x 5/8
9 1715724 3 SPACER, 21/32 x 3/4 x 5/8
10 1732544 3 SPACER, 11/16 x 5/32 x 2-11/16
11 1705897 3 BEARING, Ball, 11/16 x 1-9/16 x 15/32
12 1707335 3 GASKET, Foam
13 1713338A 3 HOUSING ASSEMBLY, Arbor Bottom, w/Lube Fitting
14 1704314 3 FITTING, Grease
15 1720560A 1 COVER, Arbor
15 1732200A 1 COVER, Arbor without Ribs
16 1664847 29 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4
18 1931277 1 NUT, Hex Flange, 5/16,
19 1713619 3 WASHER, Bellevilled, 9/16, Black
20 1713612 1 SHAFT, Arbor (LH)
21 1713196 3 SHIELD, Grass, Lower
22 1704100A 3 BLADE, Mower, 16-1/8
23 1713089 3 WASHER, Hex, 11/16 x 2
24 1656916 3 WASHER, Spring 15/32, Black
25 2823471 3 CAPSCREW, Hex Head, 7/16-14 x 1
26 1713195 2 SHAFT, Arbor (Center & RH)
27 1687154 1 MOWER HOUSING ASSEMBLY, 44" Mower (Red)
44" Mower Deck - Housing, Arbors & Blades
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
58
44" Mower Deck - Housing, Arbors & Blades
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 59
Part No Descri
p
tionItem QtyNote
37 1920397 2 NUT, ESNA 1/4-20
38 1706709 1 ROD, Deflector, Front
39 1705449 1 DEFLECTOR, Plastic
40 1713197 2 HUB, Pulley, Center & RH
41 1716879A 1 BAFFLE, Anti-Blowout, LH (CE/Export)
42 1931333
2
/8/11 CARRIAGE BOLT, 5/16-18 x 3/4, Black (CE/Export)
43 1927557
2
/8/11 NUT, Hex Flange Whiz Lock, 5/16-18, Black (CE/Export)
44 1716878A 1 BAFFLE, Anti-Blowout, RH (CE/Export)
45 1724538A 1 BAFFLE, Blowout, 44" & 50"
39 1705449 1 DEFLECTOR, Plastic
40 1713197 2 HUB, Pulley, Center & RH
41 1716879A 1 BAFFLE, Anti-Blowout, LH
42 1931333
43 1927557
2
/8/11 NUT, Hex Flange Whiz Lock, 5/16-18, Black
44 1716878A 1 BAFFLE, Anti-Blowout, RH
45 1724538A 1 BAFFLE, Blowout, 44" & 50"
44" Mower Deck - Belt, Idler Arm & Hitch
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
60
44" Mower Deck - Belt, Idler Arm & Hitch
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 61
Part No Descri
p
tionItem QtyNote
1 1601672 1 V-BELT, Mower Drive
2 1721532 1 V-BELT, Arbor Drive
3 1665835 1 GRIP, Lever
4 1916950 2 NUT, Hex, 3/8-16
5 1916965 2 WASHER, Lock, 3/8
6 1677135A 1 BELT STOP, Idler
7 1924940 14 WASHER, 3/8
8 1666294 2 SPACER, 25/64 x 21/32 x 7/16, Powder Metal
9 1685150 2 PULLEY, Idler (Includes Ref. No. 8)
10 1960339 1 NUT, Hex Flange, 3/8-16, MAC Lock Large, Black
11 1676148 4 BUSHING, 5/8 x 3/4 x 13/32, Powder Metal
12 1715435 1 SPRING
13 1674669A 2 SPACER, 25/64 x 5/8 x 1-1/8, Case Hardened
14 2812808 2 GREASE FITTING
15 1704658 1 LEVER ASSEMBLY, Idler (Includes Ref. Nos. 3, 11 & 14)
16 1960315 1 CARRIAGE BOLT, 3/8-16 x 2
17 1718561 1 LEVER ASSEMBLY, Idler Arm (Includes Ref. Nos. 11 & 14)
18 1924356 2 WASHER, 3/8, Black
19 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2
20 1656936 1 SPRING
21 1923938 1 CAPSCREW, Hex Head, 3/8-16 x 3-1/2
22 1921968 2 CAPSCREW, Hex Head, 3/8-16 x 1-3/8
23 2157081 2 SPACER, 3/8 x 3/4 x 1/2
24 2860681 2 NUT, Hex Toplock Spiralock Flange, 3/8-16
25 2156302 1 SPRING
26 1707432A 1 HITCH ASSEMBLY
27 1715759 1 ROD, Latch
3 1665835 1 GRIP, Lever
4 1916950 2 NUT, Hex, 3/8-16
5 1916965 2 WASHER, Lock, 3/8
6 1677135A 1 BELT STOP, Idler
7 1924940 14 WASHER, 3/8
8 1666294 2 SPACER, 25/64 x 21/32 x 7/16, Powder Metal
9 1685150 2 PULLEY, Idler
10 1960339 1 NUT, Hex Flange, 3/8-16, MAC Lock Large, Black
11 1676148 4 BUSHING, 5/8 x 3/4 x 13/32, Powder Metal
12 1715435 1 SPRING
13 1674669A 2 SPACER, 25/64 x 5/8 x 1-1/8, Case Hardened
14 2812808 2 GREASE FITTING
15 1704658 1 LEVER ASSEMBLY, Idler
16 1960315 1 CARRIAGE BOLT, 3/8-16 x 2
17 1718561 1 LEVER ASSEMBLY, Idler Arm
18 1924356 2 WASHER, 3/8, Black
19 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2
20 1656936 1 SPRING
21 1923938 1 CAPSCREW, Hex Head, 3/8-16 x 3-1/2
22 1921968 2 CAPSCREW, Hex Head, 3/8-16 x 1-3/8
23 2157081 2 SPACER, 3/8 x 3/4 x 1/2
24 2860681 2 NUT, Hex Toplock Spiralock Flange, 3/8-16
44" Mower Deck - Height Adjustment
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
62
44" Mower Deck - Height Adjustment
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 63
Part No Descri
p
tionItem QtyNote
1 1960093 1 NUT, Push Pal Stud Capped
2 1714084 1 KNOB, Spinner
3 1719901 1 CRANK, Height Adjustment
4 1704087 1 TRUNNION
5 1960170 3 WASHER, 1/2
6 1704086 1 TRUNNION
7 1704097 1 WASHER, Detent
8 2816001 1 PIN, Spring
9 1664847 5 SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
10 1722750A 1 BRACKET, Upstop
11 1930644 2 NUT, Hex Flange Two-Way Lock, 1/2-13
12 1727143A 1 STOP, Height Adjust
13 1704083A 1 ARM, 1-1/4 Wide 6-41/64 Long
14 1921977 2 CAPSCREW, Hex Head, 5/16-18 x 1-1/4 G5
15 1704116A 1 BRACKET, Height of Cut
16 1917356 2 LOCKWASHER, Spring 5/16
17 1917372 2 NUT, Hex, 5/16-18 NC-2B
18 2860208 4 WASHER,1.000(1.01IDX1.50ODX.05THK)
19 1704082 2 NUT, Hex Adjust, Powdered Metal
20 1913709 1 CAPSCREW, Hex Head, 3/8-16 x 3 G5
21 1960074 3 CLIP, Hair Pin Spring Wire 1-5/8 Long
22 1727361A 2 HANGER & SPACER ASSEMBLY
23 2176012 2 RETAINER, Pin Spring
24 1727356A 2 HANGER & PIN ASSEMBLY
25 1707514A 2 CHAIN, Link 3 Links 4-1/2 Long
26 1960687 5 NUT, Hex Flange ESNA, 3/8-16
27 1931211 3 NUT, Hex Flange Whiz Lock Small, 3/8-16
28 1931202 4 SCREW, Hex Washer Head Taptite, 5/16-18 x 1-1/4
29 1924940 3 WASHER, 3/8
30 1720659 1 STOP, Up
31 1665374A 3 STRAP
32 1922130 1 CAPSCREW, Hex Head, 3/8-16 x 2-1/4 G5
33 1922755 2 WASHER, 3/8
34 1727138A 1 SHAFT ASSEMBLY, Rocker 44”
35 2118053 1 PIN, Round Head Drilled, 3/8 x 2
36 1913744 2 NUT, Hex Jam, 1/2-13 NC-2B
37 1704081A 1 TRUNNION, 2 Wide for 9/16 Rod
3 1719901 1 CRANK, Height Adjustment
4 1704087 1 TRUNNION
5 1960170 3 WASHER, 1/2
6 1704086 1 TRUNNION
7 1704097 1 WASHER, Detent
8 2816001 1 PIN, Spring
9 1664847 5 SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
10 1722750A 1 BRACKET, Upstop
11 1930644 2 NUT, Hex Flange Two-Way Lock, 1/2-13
12 1727143A 1 STOP, Height Adjust
13 1704083A 1 ARM, 1-1/4 Wide 6-41/64 Long
14 1921977 2 CAPSCREW, Hex Head, 5/16-18 x 1-1/4 G5
15 1704116A 1 BRACKET, Height of Cut
16 1917356 2 LOCKWASHER, Spring 5/16
17 1917372 2 NUT, Hex, 5/16-18 NC-2B
18 2860208 4 WASHER,1.000(1.01IDX1.50ODX.05THK)
19 1704082 2 NUT, Hex Adjust, Powdered Metal
20 1913709 1 CAPSCREW, Hex Head, 3/8-16 x 3 G5
21 1960074 3 CLIP, Hair Pin Spring Wire 1-5/8 Long
22 1727361A 2 HANGER & SPACER ASSEMBLY
23 2176012 2 RETAINER, Pin Spring
24 1727356A 2 HANGER & PIN ASSEMBLY
25 1707514A 2 CHAIN, Link 3 Links 4-1/2 Long
26 1960687 5 NUT, Hex Flange ESNA, 3/8-16
27 1931211 3 NUT, Hex Flange Whiz Lock Small, 3/8-16
28 1931202 4 SCREW, Hex Washer Head Taptite, 5/16-18 x 1-1/4
32 1922130 1 CAPSCREW, Hex Head, 3/8-16 x 2-1/4 G5
44" Mower Deck - Height Adjustment
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
64
44" Mower Deck - Height Adjustment
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 65
Part No Descri
p
tionItem QtyNote
38 1727135A 1 SUPPORT, Roller LH
39 1714760 4 WHEEL, 2 Wide
40 1960170 4 WASHER, 1/2
41 2108765 4 BOLT, Wheel, 3/8-16 x 2-25/32
42 1931350 1 CARRIAGE BOLT, 3/8-16 x 1 G5
43 1704093 1 ROD, Adjustment, 28 Long
44 2860681 1 NUT, Hex Toplock Spiral Flange 3/8-16
45 1706644 1 SPACER
46 1922606 1 CAPSCREW, Hex Head, 3/8-16 x 1-3/4 G8
47 1931334 4 CARRIAGE BOLT, 5/16-18 x 7/8 G5
48 1719852A 1 BRACKET, Wheel Guage LH
49 1927557 4 NUT, Hex Flange Whiz Liock Large, 5/16-18
50 1719853A 1 BRACKET, Wheel Guage RH
51 1919381 1 WASHER, 5/16
52 1704114 1 ROD, Indicator, 6-5/16 Long
53 1727134A 1 SUPPORT, Plate
54 1960103 2 WASHER, 3/8
40 1960170 4 WASHER, 1/2
41 2108765 4 BOLT, Wheel, 3/8-16 x 2-25/32
42 1931350 1 CARRIAGE BOLT, 3/8-16 x 1 G5
43 1704093 1 ROD, Adjustment, 28 Long
44 2860681 1 NUT, Hex Toplock Spiral Flange 3/8-16
45 1706644 1 SPACER
46 1922606 1 CAPSCREW, Hex Head, 3/8-16 x 1-3/4 G8
47 1931334 4 CARRIAGE BOLT, 5/16-18 x 7/8 G5
48 1719852A 1 BRACKET, Wheel Guage LH
49 1927557 4 NUT, Hex Flange Whiz Liock Large, 5/16-18
50 1719853A 1 BRACKET, Wheel Guage RH
51 1919381 1 WASHER, 5/16
52 1704114 1 ROD, Indicator, 6-5/16 Long
53 1727134A 1 SUPPORT, Plate
54 1960103 2 WASHER, 3/8
Decals Group
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
66
Decals Group
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 67
Part No Descri
p
tionItem QtyNote
1 1727749 2 DECAL, LT1840
1 1727031 2 DECAL, LT2044
2 1725065 1 DECAL, Hood Stripe, Snapper, LH
2 1725066 1 DECAL, Hood Stripe, Snapper, RH
3 1722806 1 DECAL, Ignition Switch Symbols, White/Black
4 1718025 1 DECAL, Automatic Control Traction
5 1726923 1 DECAL, Tunnel Cover, Danger Slopes/Blades
6 1727014 1 DECAL, Drive Belts & Mower Blades
7 1723296 2 DECAL, Protective Sticker
8 1 * DECAL, I.D. Plate
9 1708927 1 DECAL, Touch Up Paint
10 1 * DECAL, Patent
11 1723160 1 DECAL, Transmission Release Valve
12 1725061 1 DECAL, Snapper
13 1704276 1 DECAL, Danger Do Not Put Hands/Feet in Mower
14 1722771 1 DECAL, Free Floating Mower, Silver
15 1 * DECAL, OPEI Certified
16 1722789 1 DECAL, 44", Silver on Black with Stripe
17 1704277 1 DECAL, Danger Do Not Operate Without Deflector
18 1721197 1 DECAL, Height of Cut, 38" & 44"
19 1720389 2 DECAL, Danger Rotating Blades
20 1722788 1 DECAL, 40", Silver on Black with Stripe
Note* Not a serviceable part.
2 1725065 1 DECAL, Hood Stripe, Snapper, LH
2 1725066 1 DECAL, Hood Stripe, Snapper, RH
3 1722806 1 DECAL, Ignition Switch Symbols, White/Black
4 1718025 1 DECAL, Automatic Control Traction
5 1726923 1 DECAL, Tunnel Cover, Danger Slopes/Blades
6 1727014 1 DECAL, Drive Belts & Mower Blades
7 1723296 2 DECAL, Protective Sticker
8 1 * DECAL, I.D. Plate
9 1708927 1 DECAL, Touch Up Paint
10 1 * DECAL, Patent
11 1723160 1 DECAL, Transmission Release Valve
12 1725061 1 DECAL, Snapper
13 1704276 1 DECAL, Danger Do Not Put Hands/Feet in Mower
14 1722771 1 DECAL, Free Floating Mower, Silver
15 1 * DECAL, OPEI Certified
16 1722789 1 DECAL, 44", Silver on Black with Stripe
17 1704277 1 DECAL, Danger Do Not Operate Without Deflector
18 1721197 1 DECAL, Height of Cut, 38" & 44"
19 1720389 2 DECAL, Danger Rotating Blades
20 1722788 1 DECAL, 40", Silver on Black with Stripe
Electrical Group
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
68
Electrical Group
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 69
Part No Descri
p
tionItem QtyNote
1 1721810 1 HEADLIGHT ASSEMBLY, 4 Bulb, (Includes Ref. Nos. 2 & 3)
2 1677371 4 BULB, Headlight, 12.8V
3 1723451 4 SOCKET ASSEMBLY, Headlight, Sealed
4 1722669 1 HARNESS, Headlight
5 1722887 1 SWITCH, PTO Push/Pull Symbols
6 1726556 1 MODULE, RMO (Includes Ref. No. 7)
7 1726557 1 KEY, RMO Module Plastic
8 1925003 2 CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 1/2, Black
9 1665238 1 BREAKER, Circuit, 12 Volt 20 Amps
10 1665237 1 WIRE, 12GA 5-15/16 Long, Red
11 1722611 1 PLUG, Hole, Square
12 1731184 1 HOUR METER, (Includes Ref. Nos. 12)
13 1725524 1 PLUG, Dash
14 1725835 1 CLIP, Hour Meter (Service Only)
15 2820263 2 NUT, Hex, 5/16-24
16 2820426 3 LOCKWASHER, External Tooth, 5/16
17 1722739 1 SOLENOID
18 1686734 1 SWITCH ASSEMBLY, Ignition, 6 Pin, (Includes Ref. Nos. 17, 18,
19, 20 & 21)
19 1717163 1 KEYS, Set of 2
20 1717550 1 COVER, For Ignition Switch, Plastic
21 1717549 1 NUT, Hex Flange, 5/8-32, Ignition Switch
22 1960547 1 LOCKWASHER, Internal Tooth, 5/8, Thin
23 2101025 1 WASHER, Shim
24 1701011 3 TIE, Strap, 7-5/16 Long
25 1716951 1 SWITCH, Headlights , 2 Terminal
26 1713535 1 BOOT, Insulator Cable Terminal, 1-15/16 Long, Red
27 1721830 1 CABLE, #6 x 25" Long, Ring Terminals
28 1603618 1 CABLE, #6 x 8" Long, Ring Terminals
29 1677296 1 BOOT, Insulator Battery Terminal
30 2816622 3 NUT, Hex, 1/4-20
31 2816964 2 LOCKWASHER, 1/4
32 2821319 2 WASHER, 1/4
33 2823341 2 CAPSCREW, Hex Head, 1/4-20 x 3/4
34 1713163 1 CABLE, #6 x 26 Long, Ring Terminal
35 1685215 1 BATTERY, 12 Volt
36 1722009 1 STRAP, Battery, 14 Long, Rubber
37 1929000 2 CAPSCREW, Hex Head Taptite, 1/4-20 x 3/8
3 1723451 4 SOCKET ASSEMBLY, Headlight, Sealed
4 1722669 1 HARNESS, Headlight
5 1722887 1 SWITCH, PTO Push/Pull Symbols
6 1726556 1 MODULE, RMO (Includes Ref. No. 7)
7 1726557 1 KEY, RMO Module Plastic
8 1925003 2 CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 1/2, Black
9 1665238 1 BREAKER, Circuit, 12 Volt 20 Amps
10 1665237 1 WIRE, 12GA 5-15/16 Long, Red
11 1722611 1 PLUG, Hole, Square
12 1731184 1 HOUR METER, (Includes Ref. Nos. 12)
13 1725524 1 PLUG, Dash
14 1725835 1 CLIP, Hour Meter (Service Only)
15 2820263 2 NUT, Hex, 5/16-24
16 2820426 3 LOCKWASHER, External Tooth, 5/16
17 1722739 1 SOLENOID
18 1686734 1 SWITCH ASSEMBLY, Ignition, 6
19, 20 & 21)
19 1717163 1 KEYS, Set of 2
20 1717550 1 COVER, For Ignition Switch, Plastic
21 1717549 1 NUT, Hex Flange, 5/8-32, Ignition Switch
22 1960547 1 LOCKWASHER, Internal Tooth, 5/8, Thin
23 2101025 1 WASHER, Shim
24 1701011 3 TIE, Strap, 7-5/16 Long
25 1716951 1 SWITCH, Headlights , 2 Terminal
26 1713535 1 BOOT, Insulator Cable Terminal, 1-15/16 Long, Red
27 1721830 1 CABLE, #6 x 25" Long, Ring Terminals
28 1603618 1 CABLE, #6 x 8" Long, Ring Terminals
29 1677296 1 BOOT, Insulator Battery Terminal
Electrical Group
TP 400-5079-1-TC-N
Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0
70
Electrical Group
Footnotes:
TP 400-5079-1-TC-N
Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH
SERIES 0 71
Part No Descri
p
tionItem QtyNote
38 1726810A 1 BRACKET, Switch Mount
39 1732004 1 SWITCH, Reverse Pedal
40 1732006 1 SWITCH, Push Button, Foot Pedal
41 1717050 1 SWITCH, Cruise Control, Grey, NO
42 1960536 2 CAPSCREW, Hex Washer Head Plastite, 1/4 x 1/2
43 1716368 1 SWITCH, Seat, Grey, NC
44 1730192 1 HARNESS, Wiring
45 1734025 1 WIRING ASSEMBLY, All Conditions Shutdown (CE/Export)
40 1732006 1 SWITCH, Push Button, Foot Pedal
41 1717050 1 SWITCH, Cruise Control, Grey, NO
42 1960536 2 CAPSCREW, Hex Washer Head Plastite, 1/4 x 1/2
43 1716368 1 SWITCH, Seat, Grey, NC
44 1730192 1 HARNESS, Wiring
45 1734025 1 WIRING ASSEMBLY, All Conditions Shutdown
