The SonicWall SuperMassive Series is
SonicWall’s next-generation rewall
(NGFW) platform designed for large
networks to deliver scalability, reliability
and deep security at multi-gigabit
speeds with near zero latency.
Built to meet the needs of enterprise,
government, university and
service provider deployments, the
SuperMassive Series is ideal for securing
enterprise networks, data centers and
service providers.
Combining its massively multi-core
architecture and SonicWall’s patented*
Reassembly-Free Deep Packet
Inspection® (RFDPI) technology, the
SuperMassive E10000 and 9000 Series
deliver industry-leading application
control, intrusion prevention, malware
protection and SSL inspection at multi-
gigabit speeds. The SuperMassive
Series is designed with power, space
and cooling (PSC) in mind, providing
the leading Gbps/watt NGFW in the
industry for application control and
threat prevention.
The SonicWall RFDPI engine scans
every byte of every packet across all
ports, delivering full content inspection
of the entire stream while providing
high performance and low latency. This
technology is superior to outdated
proxy designs that reassemble content
using sockets bolted to anti-malware
programs, which are plagued with
inefciencies and the overhead of
socket memory thrashing, which leads
to high latency, low performance and
le size limitations. The RFDPI engine
delivers full content inspection to
eliminate threats before they enter
the network and provides protection
against millions of unique malware
variants — without le size, performance
or latency limitations. The RFDPI
engine also provides full inspection
of SSL-encrypted trafc as well as
non-proxyable applications, enabling
complete protection regardless of
transport or protocol.
Application trafc analytics enable
the identication of productive and
unproductive application trafc in real
time, and trafc can then be controlled
through powerful application-level
policies. Application control can be
exercised on both a per-user and per-
group basis, along with schedules and
exception lists. All application, intrusion
prevention and malware signatures are
constantly updated by the SonicWall
Threats Research Team. Additionally,
SonicOS, an advanced purpose-built
operating system, provides integrated
tools that allow for custom application
identication and control.
The design of the SuperMassive
Series rewalls provides near-linear
performance and scales up to 96 cores
of processing power to deliver up to 40
Gbps of rewall throughput, 30 Gbps
of threat prevention, and 30 Gbps of
application inspection and control.
The SuperMassive E10000 Series is
eld upgradeable, future-proong
the security infrastructure investment
as network bandwidth and security
requirements increase.
SonicWall SuperMassive Series
Uncompromising, high-performance, next-generation rewall protection for
your enterprise network.
Benets:
• Complete threat protection
including high performance
intrusion prevention, low
latency malware protection and
network sandboxing
• Superior granular application
intelligence, control and
visualization
• Full inspection of SSL encrypted
trafc without the overhead, latency
and memory thrashing associated
with socket-based SSL proxies
• Massively scalable multicore
architecture designed for 10/40
bps infrastructures
*U.S. Patents 7,310,815; 7,600,257; 7,738,380; 7,835,361

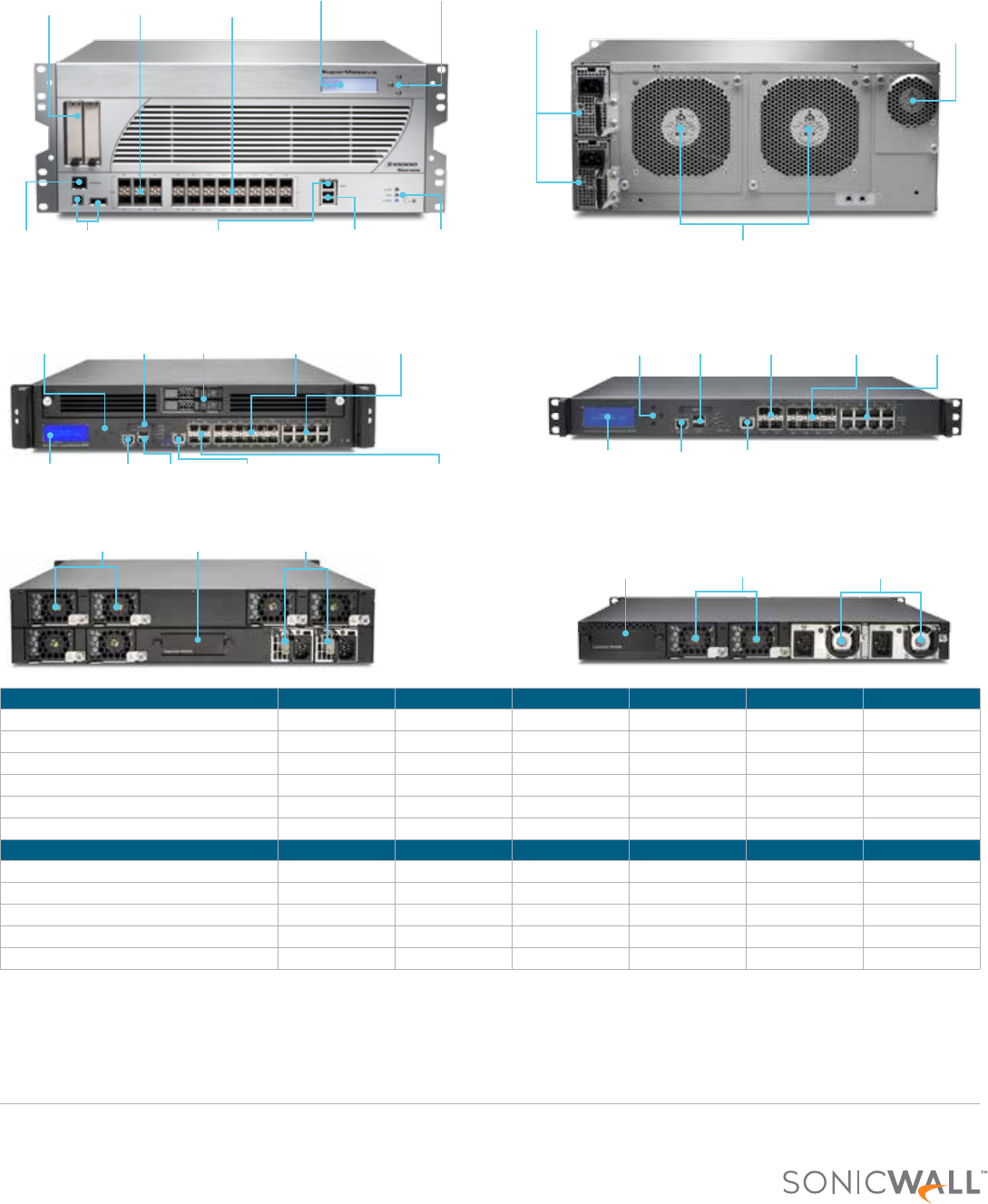

SuperMassive E10000 Series
SuperMassive 9000 Series
Series lineup
The SonicWall SuperMassive E10000
Series chassis includes 6 x 10-GbE
SFP+ and 16 x 1-GbE SFP ports,
redundant 850W AC power supplies
and hot-swappable, dual-redundant fan
modules, and it massively scales up to 96
processing cores.
The SonicWall SuperMassive 9000
Series features 4 x 10-GbE SFP+, up to
12 x 1-GbE SFP, 8 x 1-GbE copper and
1 GbE management interfaces, with an
expansion port for an additional 2 x 10-
GbE SFP+ interfaces (future release). The
9000 Series features hot-swappable fan
modules and power supplies.
SuperMassive E10000 Series
SuperMassive 9000 Series
LCD
display Console
port 1 GbE management
interface
4 x 10-GbE
SFP+ ports 8 x 1-GbE
SFP ports 8 x 1-GbE
ports
Dual
USB ports
LCD
controls
Dual hot-
swappable fans
Expansion bay
for future use Two hot-swappable,
redundant power supplies
Dual hot-
swappable fans Expansion bay
for future use Two hot-swappable,
redundant power supplies
80 GB
SSD drive
Future
use
Console
port
6 x 10-GbE
SFP+ ports 16 x 1-GbE
SFP ports
Status LED
indicators
Dual USB
ports
1-GbE management
interface
LCD controlsLCD display
Hot-swappable, redundant 850W power supplies Module
slot fan
Two hot-swappable, dual-redundant fan modules
SD card for
future use
LCD
display Console
port 1 GbE management
interface 4 x 10-GbE
SFP+ ports
12 x 1-GbE
SFP ports
2 x 80Gb
SSD 8 x 1-GbE
ports
Dual USB
ports
LCD
controls
Capability 9200 9400 9600 9800 E10400 E10800
Processing cores 24 32 32 64 48 96
Firewall throughput 15 Gbps 20 Gbps 20 Gbps 40 Gbps 20 Gbps 40 Gbps
Application intelligence throughput 5 Gbps 10 Gbps 11.5 Gbps 24 Gbps 15 Gbps 28 Gbps
Intrusion prevention system (IPS) throughput 5 Gbps 10 Gbps 11.5 Gbps 24 Gbps 15 Gbps 30 Gbps
Anti-malware 3.5 Gbps 4.5 Gbps 5 Gbps 10 Gbps 6 Gbps 12 Gbps
Maximum DPI connections 1.25 M 1.25 M 1.5 M 2.5 M 5 M 10 M
Deployment modes 9200 9400 9600 9800 E10400 E10800
L2 bridge mode Yes Yes Yes Yes Yes Yes
Wire mode Yes Yes Yes Yes Yes Yes
Gateway/NAT mode Yes Yes Yes Yes Yes Yes
Tap mode Yes Yes Yes Yes Yes Yes
Transparent mode Yes Yes Yes Yes Yes Yes
Reassembly-Free Deep Packet
Inspection engine
The RFDPI engine provides superior
threat protection and application control
without compromising performance.
This patented engine relies on streaming
trafc payload inspection in order to
detect threats at Layers 3-7. The RFDPI
engine takes network streams through
extensive and repeated normalization
and decryption in order to neutralize
advanced evasion techniques that seek
to confuse detection engines and sneak
malicious code into the network.
Once a packet undergoes the
necessary pre-processing, including SSL
decryption, it is analyzed against a single
proprietary memory representation of
three signature databases: intrusion
attacks, malware and applications. The
connection state is then advanced to
represent the position of the stream
relative to these databases until it
encounters a state of attack, or other
“match” event, at which point a pre-
set action is taken. In most cases, the
connection is terminated and proper
logging and notication events are
created. However, the engine can also
be congured for inspection only or, in
the case of application detection, to
provide Layer 7 bandwidth management
services for the remainder of the
application stream as soon as the
application is identied.
Extensible architecture for extreme
scalability and performance
The RFDPI engine is designed from
the ground up with an emphasis
on providing security scanning at a
high level of performance, to match
both the inherently parallel and ever-
growing nature of network trafc. When
combined with 24-, 32-, 48-, 64- or 96-
core processor systems, this parallelism-
centric software architecture scales up
perfectly to address the demands of
deep packet inspection (DPI) at high
trafc loads. The SuperMassive platform
relies on processors that, unlike x86,
are optimized for packet, crypto and
network processing while retaining
exibility and programmability in the
eld — a weak point for ASICs systems.
This exibility is essential when new code
and behavior updates are necessary
to protect against new attacks that
require updated and more sophisticated
detection techniques.
Another aspect of the platform design
is the unique ability to establish new
connections on any core in the system,
providing ultimate scalability and the
ability to deal with trafc spikes. This
approach delivers extremely high new
session establishment rates (new conn/
sec) while deep packet inspection is
enabled — a key metric that is often a
bottleneck for data center deployments.

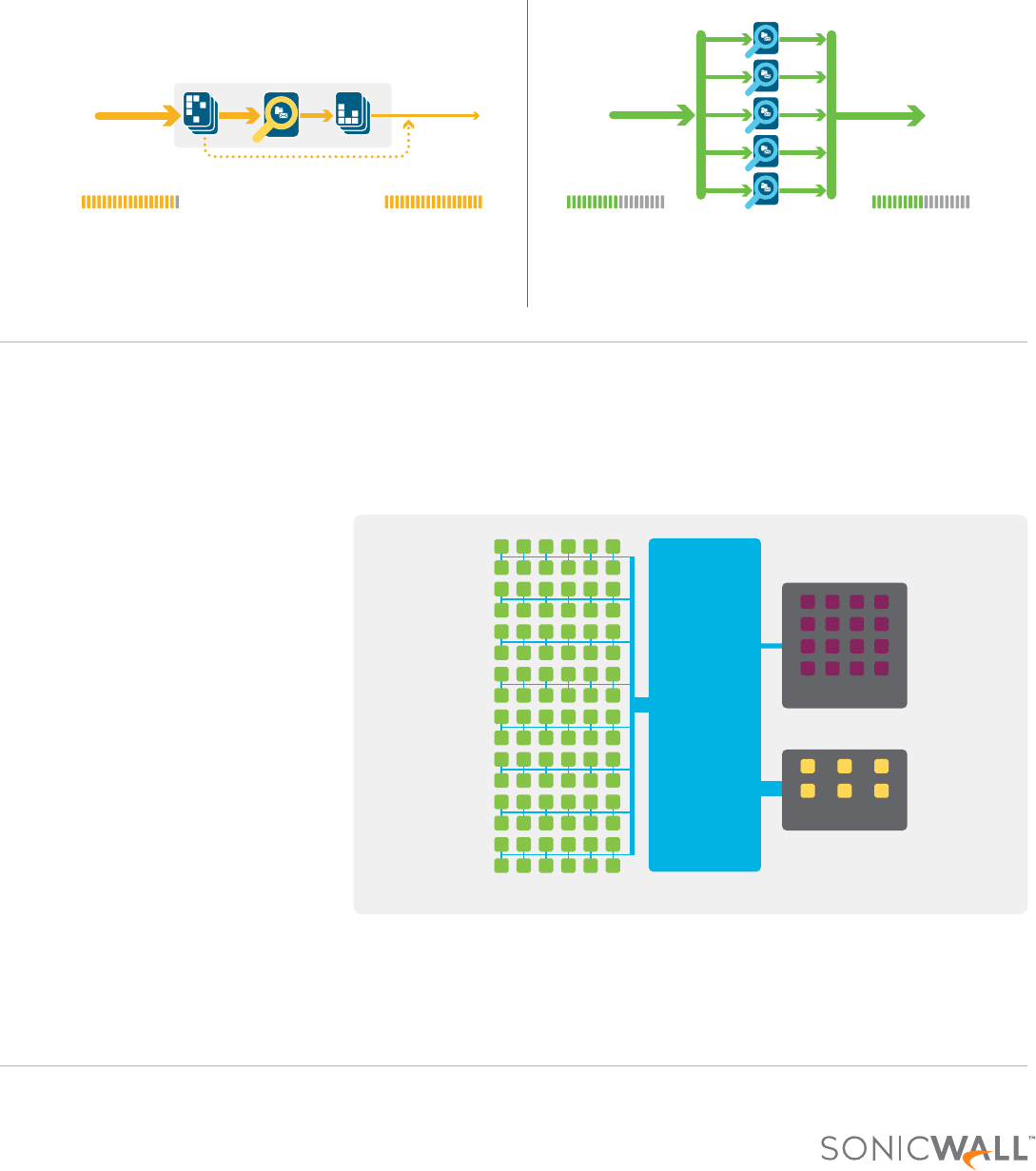

96 cores
240 GbE
SM interconnect
16 x 1 GbE SFP
6 x 10 GbE SFP+
Traffic out
Traffic out
Proxy
Scanning Packet
disassembly
Packet assembly-based process
SonicWall architectureCompetitive architecture
When proxy
becomes full or
content too large,
files bypass
scanning.
Traffic in Traffic in
Packet reassembly-free process
Reassembly-free packet
scanning eliminates proxy
and content size limitations.
Inspection time
Less More
Inspection capacity
Min Max
Inspection time
Less More
Inspection capacity
Min Max
Security and protection
The dedicated, in-house SonicWall
Threats Research Team works
on researching and developing
countermeasures to deploy to the
rewalls in the eld for up-to-date
protection. The team leverages more
than one million sensors across the
globe for malware samples and for
telemetry feedback on the latest threat
information, which in turn is fed into
the intrusion prevention, anti-malware
and application detection capabilities.
SonicWall NGFW customers with the
latest security capabilities are provided
continuously updated threat protection
around the clock, with new updates
taking effect immediately without
reboots or interruptions. The signatures
on the appliances protect against wide
classes of attacks, covering up to tens
of thousands of individual threats with a
single signature.
In addition to the countermeasures on
the appliance, SuperMassive rewalls
also have access to the SonicWall
CloudAV Service, which extends the
onboard signature intelligence with
more than seventeen million signatures,
and growing. This CloudAV database is
accessed via a proprietary, lightweight
protocol by the rewall to augment the
inspection done on the appliance. With
Capture Advanced Threat Protection,
a cloud-based network sandbox,
organizations can examine suspicious
les and code in an isolated environment
to stop advanced threats such as zero-
day attacks.
Application intelligence and control
Application intelligence informs
administrators of application trafc
traversing their network so they can
schedule application controls based on
business priority, throttle unproductive
applications and block potentially
dangerous applications. Real-time
visualization identies trafc anomalies
as they happen, enabling immediate
countermeasures against potential
inbound or outbound attacks or
performance bottlenecks.

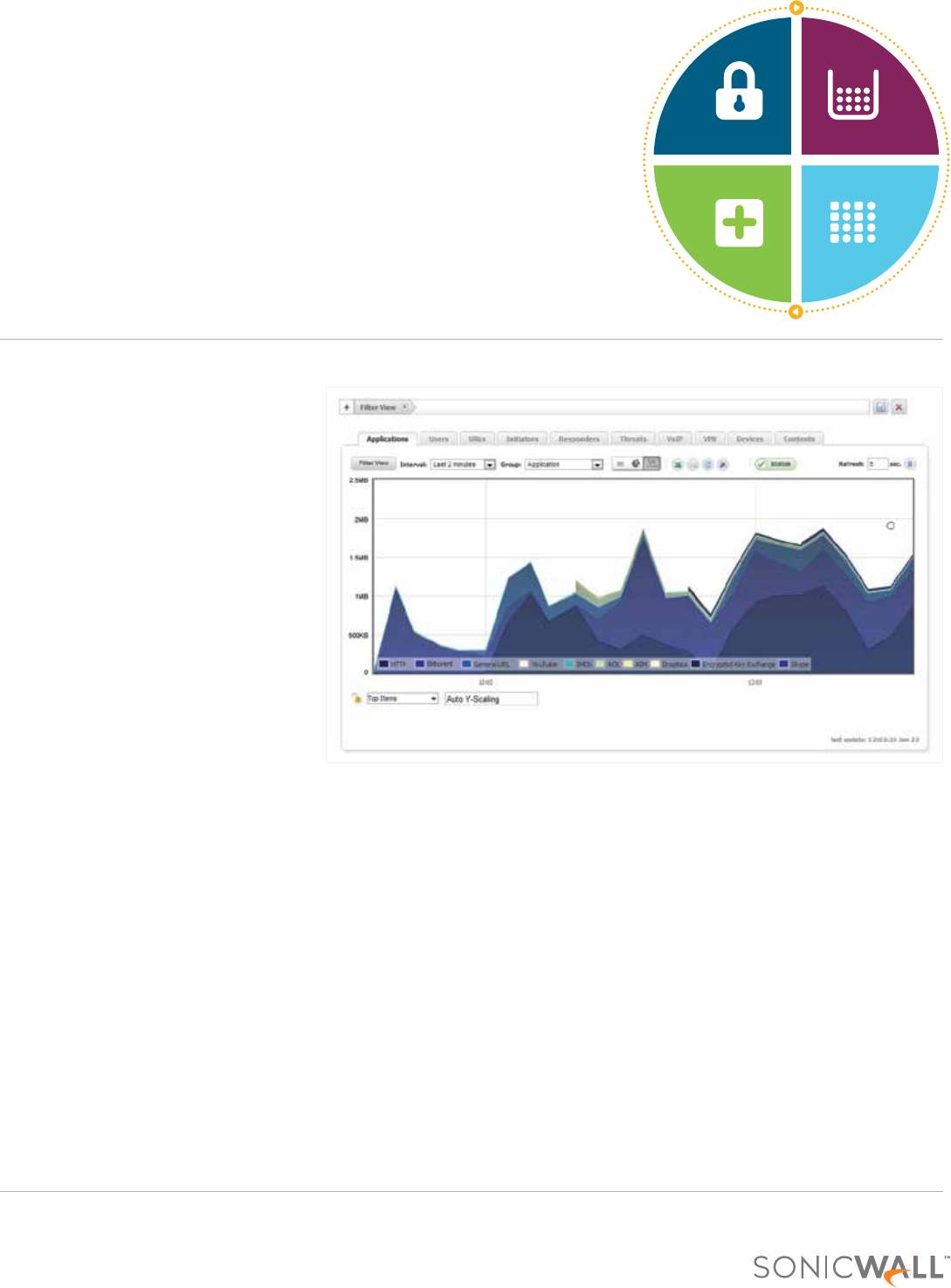

SonicWall Application Trafc Analytics
provide granular insight into application
trafc, bandwidth utilization and
security threats, as well as powerful
troubleshooting and forensics
capabilities. Additionally, secure single
sign-on (SSO) capabilities ease the user
experience, increase productivity and
reduce support calls. Management of
application intelligence and control
is simplied by the intuitive web-
based interface.
Global management and reporting
For larger, distributed enterprise
deployments, the optional SonicWall
Global Management System (GMS®)
provides administrators a unied,
secure and extensible platform to
manage SonicWall security appliances.
It enables enterprises to easily
consolidate the management of security
appliances, reduce administrative
and troubleshooting complexities,
and govern all operational aspects of
the security infrastructure, including
centralized policy management
and enforcement, real-time event
monitoring, analytics and reporting,
and more. GMS also meets the rewall
change management requirements
of enterprises through a workow
automation feature. With GMS workow
automation, all enterprises will gain
agility and condence in deploying the
right rewall policies, at the right time
and in conformance to compliance
regulations. GMS provides a better
way to manage network security by
business processes and service levels,
dramatically simplifying lifecycle
management of your overall security
environments as compared to managing
on a device-by-device basis.
Protection
Creation
Collection
Classification
Features
RFDPI engine
Feature Description
Reassembly-Free Deep Packet
Inspection (RFDPI)
This high-performance, proprietary and patented inspection engine performs stream-based, bi-directional trafc analysis, without
proxying or buffering, to uncover intrusion attempts and malware and to identify application trafc regardless of port.
Bi-directional inspection Scans for threats in both inbound and outbound trafc simultaneously to ensure that the network is not used to distribute malware
and does not become a launch platform for attacks in case an infected machine is brought inside.
Stream-based inspection Proxy-less and non-buffering inspection technology provides ultra-low latency performance for DPI of millions of simultaneous
network streams without introducing le and stream size limitations, and can be applied on common protocols as well as raw
TCP streams.
Highly parallel and scalable The unique design of the RFDPI engine works with the multi-core architecture to provide high DPI throughput and extremely high
new session establishment rates to deal with trafc spikes in demanding networks.
Single-pass inspection A single-pass DPI architecture simultaneously scans for malware, intrusions and application identication, drastically reducing DPI
latency and ensuring that all threat information is correlated in a single architecture.
Capture advanced threat protection
Feature Description
Multi-engine sandboxing The multi-engine sandbox platform, which includes virtualized sandboxing, full system emulation and hypervisor level analysis
technology, executes suspicious code and analyzes behavior, providing comprehensive visibility into malicious activity.
Broad le type and size analysis Analyzes a broad range of le types including executable programs (PE), DLL, PDFs, MS Ofce documents, archives, JAR, and APK
plus multiple operating systems (Windows, Android, Mac OS X) and multi-browser environments.
Rapid deployment of signatures When a le is identied as malicious, a signature is immediately deployed to rewalls with an active SonicWall Capture subscription
as well as Capture Threat Network Gateway Anti-virus and IPS signature databases plus URL, IP and domain reputation databases
within 48 hours.
Block until verdict To prevent potentially malicious les from entering the network, les sent to the cloud for analysis can be held at the gateway until
a verdict is determined.
Intrusion prevention
Feature Description
Countermeasure-based
protection
Tightly integrated intrusion prevention system (IPS) leverages signatures and other countermeasures to scan packet payloads for
vulnerabilities and exploits, covering a broad spectrum of attacks and vulnerabilities.
Automatic signature updates The SonicWall Threat Research Team continuously researches and deploys updates to an extensive list of IPS countermeasures that
covers more than 50 attack categories. The new updates take effect immediately, without any reboot or service interruption required.
Intra-zone IPS protection Bolsters internal security by segmenting the network into multiple security zones with intrusion prevention, preventing threats
from propagating across the zone boundaries.
Botnet command and control
(CnC) detection and blocking
Identies and blocks command and control trafc originating from bots on the local network to IPs and domains that are identied
as propagating malware or are known CnC points.
Protocol abuse/anomaly
detection and prevention
Identies and blocks attacks that abuse protocols in an attempt to sneak past the IPS.
Zero-day protection Protects the network against zero-day attacks with constant updates against the latest exploit methods and techniques that cover
thousands of individual exploits.
Anti-evasion technology Extensive stream normalization, decoding and other techniques ensure that threats do not enter the network undetected by
utilizing evasion techniques in Layers 2-7.
Threat prevention
Feature Description
Gateway anti-malware The RFDPI engine scans all inbound, outbound and intra-zone trafc for viruses, Trojans, key loggers and other malware in les of
unlimited length and size across all ports and TCP streams.
CloudAV A continuously updated database of over 17 million threat signatures resides in the SonicWall cloud servers and is referenced to
augment the capabilities of the onboard signature database, providing RFDPI with extensive coverage of threats.
Around-the-clock security
updates
The SonicWall Threat Research Team analyzes new threats and releases countermeasures 24 hours a day, 7 days a week. New
threat updates are automatically pushed to rewalls in the eld with active security services, and take effect immediately without
reboots or interruptions.
SSL inspection Decrypts and inspects SSL trafc on the y, without proxying, for malware, intrusions and data leakage, and applies application,
URL and content control policies in order to protect against threats hidden in SSL encrypted trafc.
Bi-directional raw TCP
inspection
The RFDPI engine is capable of scanning raw TCP streams on any port bi-directionally, preventing attacks that try to sneak by
outdated security systems that focus on securing a few well-known ports.
Extensive protocol support Identies common protocols, such as HTTP/S, FTP, SMTP and SMB v1/v2, which do not send data in raw TCP, and decodes
payloads for malware inspection, even if they do not run on standard, well-known ports.
Features
Application intelligence and control
Feature Description
Application control Controls applications, or individual application features, which are identied by the RFDPI engine against a continuously
expanding database of over 3600 application signatures, to increase network security and enhance network productivity.
Custom application
identication
Controls custom applications by creating signatures based on specic parameters or patterns unique to an application in its
network communications, in order to gain further control over the network.
Application bandwidth
management
Granularly allocates and regulates available bandwidth for critical applications or application categories while inhibiting non-
essential application trafc.
On-box/off-box trafc
visualization
Identies bandwidth utilization and analyzes network behavior with real-time, on-box application trafc visualization and off-box
application trafc reporting via NetFlow/IPFix.
Granular control Controls applications, or specic components of an application, based on schedules, user groups, exclusion lists and a range of
actions with full SSO user identication through LDAP/AD/Terminal Services/Citrix integration.
Content ltering
Feature Description
Inside/outside content ltering Content Filtering Service enforces acceptable use policies and blocks access to websites containing information or images that are
objectionable or unproductive. Content Filtering Client extends policy enforcement to block internet content for devices located
outside the rewall perimeter.
Granular controls Blocks content using the predened categories or any combination of categories. Filtering can be scheduled by time of day, such
as during school or business hours, and applied to individual users or groups.
Dynamic rating architecture All requested web sites are cross-referenced against a dynamically updated database in the cloud categorizing millions of URLs, IP
addresses and domains in real time.
YouTube for Schools Enables teachers to choose from hundreds of thousands of free educational videos from YouTube EDU that are organized by
subject and grade and that align with common educational standards.
Web caching URL ratings are cached locally on the SonicWall rewall so that the response time for subsequent access to frequently visited sites
is only a fraction of a second.
Enforced anti-virus and anti-spyware
Feature Description
Multi-layered protection A rewall’s gateway anti-virus solution provides the rst layer of defense at the perimeter; however, viruses can still enter the
network through laptops, thumb drives and other unprotected systems. Utilizes a layered approach to anti-virus and anti-spyware
protection to extend to both client and server.
Automated enforcement Ensures every computer accessing the network has the most recent version of anti-virus and anti-spyware signatures installed and
active, eliminating the costs commonly associated with desktop anti-virus and anti-spyware management.
Automated deployment and
installation
Machine-by-machine deployment and installation of anti-virus and anti-spyware clients is automatic across the network,
minimizing administrative overhead.
Always on, automatic virus
protection
Frequent anti-virus and anti-spyware updates are delivered transparently to all desktops and le servers to improve end-user
productivity and reduce security management.
Spyware protection Powerful spyware protection scans and blocks the installation of a comprehensive array of spyware programs on desktops and
laptops before they can transmit condential data, providing greater desktop security and performance.
Firewall and networking
Feature Description
Stateful packet inspection All network trafc is inspected, analyzed and brought into compliance with rewall access policies.
DDoS/DoS attack protection SYN ood protection provides a defense against DOS attacks using both Layer 3 SYN proxy and Layer 2 SYN blacklisting
technologies. Additionally, it protects against DOS/DDoS through UDP/ICMP ood protection and connection rate limiting.
Flexible deployment options The SuperMassive Series can be deployed in traditional NAT, Layer 2 bridge, wire and network tap modes.
IPv6 support Internet Protocol version 6 (IPv6) is in its early stages to replace IPv4. With the latest SonicOS 6.2, the hardware will
support ltering and wire mode implementations.
High availability/clustering The SuperMassive Series supports Active/Passive (A/P) with state synchronization, Active/Active (A/A) DPI and Active/
Active clustering high availability modes. Active/Active DPI ofoads the deep packet inspection load to cores on the
passive appliance to boost throughput.
WAN load balancing Load-balances multiple WAN interfaces using Round Robin, Spillover or Percentage methods.
Policy-based routing Creates routes based on protocol to direct trafc to a preferred WAN connection with the ability to fail back to a
secondary WAN in the event of an outage.
Advanced quality of service (QoS) Guarantees critical communications with 802.1p, DSCP tagging, and remapping of VoIP trafc on the network.
H.323 gatekeeper and SIP proxy support Blocks spam calls by requiring that all incoming calls are authorized and authenticated by H.323 gatekeeper or SIP proxy.
Features
Management and reporting
Feature Description
Global Management System SonicWall GMS monitors, congures and reports on multiple SonicWall appliances through a single management console with an
intuitive interface, reducing management costs and complexity.
Powerful single device
management
An intuitive web-based interface allows quick and convenient conguration, in addition to a comprehensive command-line
interface and support for SNMPv2/3.
IPFIX/NetFlow application
ow reporting
Exports application trafc analytics and usage data through IPFIX or NetFlow protocols for real-time and historical monitoring and
reporting with tools such as SonicWall Scrutinizer or other tools that support IPFIX and NetFlow with extensions.
Virtual private networking (VPN)
Feature Description
IPSec VPN for site-to-site
connectivity
High-performance IPSec VPN allows the SuperMassive Series to act as a VPN concentrator for thousands of other large sites,
branch ofces or home ofces.
SSL VPN or IPSec client
remote access
Utilizes clientless SSL VPN technology or an easy-to-manage IPSec client for easy access to email, les, computers, intranet sites
and applications from a variety of platforms.
Redundant VPN gateway When using multiple WANs, a primary and secondary VPN can be congured to allow seamless, automatic failover and failback of
all VPN sessions.
Route-based VPN The ability to perform dynamic routing over VPN links ensures continuous uptime in the event of a temporary VPN tunnel failure,
by seamlessly re-routing trafc between endpoints through alternate routes.
Content/context awareness
Feature Description
User activity tracking User identication and activity are made available through seamless AD/LDAP/Citrix1/Terminal Services1 SSO integration
combined with extensive information obtained through DPI.
GeoIP country trafc
identication
Identies and controls network trafc going to or coming from specic countries to either protect against attacks from known or
suspected origins of threat activity, or to investigate suspicious trafc originating from the network.
Regular expression DPI ltering Prevents data leakage by identifying and controlling content crossing the network through regular expression matching.
1 Supported on SonicOS 6.1 and 6.2. Not supported on SonicOS 6.2.1.
2 Requires added subscription.
Firewall
• Reassembly-Free Deep Packet
Inspection
• SSL decryption and inspection
• Stateful packet inspection
• Stealth mode
• Common Access Card (CAC) support
• DOS attack protection
• UDP/ICMP/SYN ood protection
• IPv6 security
• Management and monitoring: IPv4 and
IPv6 management
• Networking: IPv6
Capture advanced threat protection2
• Cloud-based multi-engine analysis
• Virtualized sandboxing
• Hypervisor level analysis
• Full system emulation
• Broad le type examination
• Automated and manual submission
• Real-time threat intelligence updates
• Auto-block capability
Intrusion prevention2
• Signature-based scanning
• Automatic signature updates
• Bi-directional inspection engine
• Granular IPS rule set
• GeoIP and reputation-based ltering
• Regular expression matching
• UDP/ICMP/SYN ood protection
Anti-malware2
• Stream-based malware scanning
• Gateway anti-virus
• Gateway anti-spyware
• Bi-directional inspection
• No le size limitation
• Cloud malware database
Application intelligence
• Application control
• Application component blocking
• Application bandwidth management
• Custom application signature creation
• Application trafc visualization
• Data leakage prevention
• Application reporting over NetFlow/
IPFIX
• User activity tracking (SSO)
• Comprehensive application signature
database
Web content ltering2
• URL ltering
• Anti-proxy technology
• Keyword blocking
• Bandwidth management for CFS
categories
• Unied policy model with app control
• 56 content ltering categories
• Content Filtering Client (SonicOS 6.2)
VPN
• IPSec VPN for site-to-site connectivity
• SSL VPN and IPSEC client remote access
• Redundant VPN gateway
• Mobile Connect for Apple® iOS and
Google® Android™
• Route-based VPN (OSPF, RIP)
Networking
• Jumbo frames (SonicOS 6.0.5 and 6.2
only)
• Path MTU discovery
• Enhanced logging
• VLAN trunking
• Layer-2 network discovery
• Port mirroring
• Layer-2 QoS
• Port security
• Dynamic routing
• SonicPoint wireless controller1
• Policy-based routing
• Advanced NAT
• DHCP server
• Bandwidth management
• Link aggregation
• Port redundancy
• A/P high availability with state sync
• A/A clustering
• Inbound/outbound load balancing
• L2 bridge, wire mode, tap mode, NAT
mode
VoIP
• Granular QoS control
• Bandwidth management
• DPI for VoIP trafc
• H.323 gatekeeper and SIP proxy support
Management and monitoring
• Web GUI
• Command-line interface (CLI)
• SNMPv2/v3
• Off-box reporting (Scrutinizer)
• Centralized management and reporting
with SonicWall Global Management
System (GMS)2
• Logging
• Netow/IPFix exporting
• Application and bandwidth visualizer
• LCD management screen
• Single sign-on (SSO)
• Terminal service/Citrix support1
• BlueCoat Security Analytics Platform
Feature summary
SuperMassive E10000 Series system specications
E10400 E10800
Operating system SonicOS
Security processing cores 48 96
10 GbE interfaces 6 x 10-GbE SFP+
1 GbE interfaces 16 x 1-GbE SFP
Management interfaces 1 GbE, 1 console
Memory (RAM) 32 GB 64 GB
Storage 80 GB SSD, ash
Firewall inspection throughput120 Gbps 40 Gbps
Application inspection throughput215 Gbps 30 Gbps
IPS throughput215 Gbps 28 Gbps
Anti-malware inspection throughput26 Gbps 12 Gbps
IMIX performance 4.3 Gbps 9 Gbps
SSL-DPI performance 3 Gbps 5 Gbps
VPN throughput37.5 Gbps 11 Gbps
Latency 24µs
Connections per second 200,000/sec 400,000/sec
Maximum connections (SPI) 6 M 12 M
Maximum connections (DPI) 5 M 10 M
SSO users 40,000 60,000
VPN E10400 E10800
Site-to-site tunnels 10,000
IPSec VPN clients (max) 2,000 (10,000)
Encryption DES, 3DES, AES (128, 192, 256-bit)
Authentication MD5, SHA-1, Common Access Card (CAC)
Key exchange Dife Hellman Groups 1, 2, 5, 14
Route-based VPN RIP, OSPF
Networking E10400 E10800
IP address assignment Static, internal DHCP server, DHCP relay
NAT modes 1:1, many:1, 1:many, exible NAT (overlapping IPs), PAT, transparent mode
VLAN interfaces 1024 2048
Routing protocols BGP, OSPF, RIPv1/v2, static routes, policy-based routing, multicast
QoS Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1p
Authentication XAUTH/RADIUS, Active Directory, SSO, LDAP, Novell, internal user database, Terminal Services, Citrix
VoIP Full H323-v1-5, SIP
Standards TCP/IP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certications FIPS 140-2, Common Criteria NDPP, IPv6 Phase 2, VPAT, VPNC
Third-party verication NSS NGFW Recommended and NSS IPS Recommended
Hardware E10400 E10800
Power supply Dual-redundant, hot-swappable, 850 W
Fans Dual-redundant, hot-swappable
Display Front LED display
Input power 100-240 VAC, 60-50 Hz
Maximum power consumption (W) 550 750
MTBF @25ºC in hours 120,790
MTBF @25ºC in years 13.789
Form factor 4U Rack Mountable
Dimensions 17x18x7 in (43x43.5x17.8 cm)
Weight 61 lb (27.7 kg) 67 lb (30.3 k
WEEE weight 62 lb (28.1 kg) 68 lb (30.8 kg)
Shipping weight 82 lb (37.2 kg) 88 lb (39.9 kg)
Major regulatory FCC Class A, CE, C-Tick, VCCI, Compliance MIC, UL, cUL, TUV/GS, CB, NOM, RoHS, WEEE
Environment 40-105 F, 5-40 deg C
Humidity 10-90% non-condensing
1 Testing methodologies: Maximum performance based on RFC 2544 (for rewall). Actual performance may vary
depending on network conditions and activated services. 2 Full DPI/Gateway AV/Anti-Spyware/IPS throughput
measured using industry standard Spirent WebAvalanche HTTP performance test and Ixia test tools. Testing done
with multiple ows through multiple port pairs. 3 VPN throughput measured using UDP trafc at 1280 byte packet
size adhering to RFC 2544. All specications, features and availability are subject to change.
SuperMassive 9000 Series system specications
9200 9400 9600 9800
Operating system SonicOS
Security processing cores 24 32 64
10 GbE interfaces 4 x 10-GbE SFP+
1 GbE interfaces 8 x 1-GbE SFP, 8 x 1 GbE (1 LAN bypass pair) 12 x 1-GbE SFP, 8 x 1 GbE
Management interfaces 1 GbE, 1 console
Memory (RAM) 8 GB 16 GB 32 GB 64 GB
Storage Flash 2x 80GB SSD, Flash
Expansion 1 expansion slot (rear)*, SD card*
Firewall inspection throughput115 Gbps 20 Gbps 40 Gbps
Application inspection throughput25 Gbps 10 Gbps 11.5 Gbps 24 Gbps
IPS throughput25 Gbps 10 Gbps 11.5 Gbps 24 Gbps
Anti-malware inspection throughput23.5 Gbps 4.5 Gbps 5 Gbps 10 Gbps
IMIX performance 4.4 Gbps 5.5 Gbps 9 Gbps
SSL-DPI 1 Gbps 2 Gbps 2 Gbps 5 Gbps
VPN throughput35 Gbps 10 Gbps 11.5 Gbps 18 Gbps
Latency 17µs
Connections per second 100,000/sec 130,000/sec 280,000/sec
Maximum connections (SPI) 1.25 M 1.5 M 3 M
Maximum connections (DPI) 1 M 1.25 M 2.5 M
SSO users 80,000 90,000 100,000 110,000
Maximum SonicPoints supported 128 -
VPN 9200 9400 9600 9800
Site-to-site tunnels 10,000 25,000
IPSec VPN clients (max) 2,000 (4,000) 2,000 (6,000) 2,000 (10,000) 2,000 (10,000)
Encryption/authentication DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B, Common Access Card (CAC)
Key exchange Dife Hellman Groups 1, 2, 5, 14v
Route-based VPN RIP, OSPF
Networking 9200 9400 9600 9800
IP address assignment Static, DHCP, PPPoE, L2TP and PPTP client, internal DHCP server, DHCP relay4
NAT modes 1:1, many:1, 1:many, exible NAT (overlapping IPs), PAT, transparent mode
VLAN interfaces 512
Routing protocols BGP, OSPF, RIPv1/v2, static routes, policy-based routing, multicast
QoS Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1p
Authentication XAUTH/RADIUS, Active Directory, SSO, LDAP, Novell, internal user database, Terminal Services5, Citrix5
VoIP Full H323-v1-5, SIP
Standards TCP/IP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certications UC APL4, ICSA Enterprise Firewall, IPV6 Phase 2, VPNC, VPAT, FIPS 140-24, Common Criteria NDPP4
Certications pending ICSA Anti-Virus
Hardware 9200 9400 9600 9800
Power supply Dual-redundant, hot-swappable, 300 W Dual-redundant, hot-
swappable, 500 W
Fans Dual-redundant, hot-swappable
Display Front LED display
Input power 100-240 VAC, 60-50 Hz
Maximum power consumption (W) 200 350
MTBF @25ºC in hours 188,719 187, 702 186,451 126,144
MTBF @25ºC in years 21.543 21.427 21.284 14.400
Form factor 1U rack-mountable 2U rack-mountable
Dimensions 17x19.1x1.75 in (43.3x48.5x4.5 cm) 17x24x3.5 in (9x60x43 cm)
Weight 18.1 lb (8.2 kg) 40.5 lb (18.38 kg)
WEEE weight 23 lb (10.4 kg) 49.5 lb (22.4 kg)
Shipping weight 29.3 lb (13.3 kg) 65 lb (29.64 kg)
Major regulatory FCC Class A, CE, C-Tick, VCCI, Compliance KCC, UL, cUL, TUV/GS, CB, NOM, RoHS, WEEE , ANATEL, BSMI
Environment 32-105 F, 0-40 deg C 15-40 deg C
Humidity 10-90% non-condensing
1 Testing Methodologies: Maximum performance based on RFC 2544 (for rewall). Actual performance may vary depending on
network conditions and activated services. 2 Full DPI/Gateway AV/Anti-Spyware/IPS throughput measured using industry standard
Spirent WebAvalanche HTTP performance test and Ixia test tools. Testing done with multiple ows through multiple port pairs.
3 VPN throughput measured using UDP trafc at 1280 byte packet size adhering to RFC 2544. 4 PPPoE, L2TP and PPTP clients are
not supported on SM9800. 5 Supported on SonicOS 6.1 and 6.2. 6 Applies to SuperMassive 9200, 9400 and 9600. SuperMassive
9800 UC APL certication is pending. *Future use. All specications, features and availability are subject to change.
SuperMassive E10000 Series ordering information
Product SKU
SuperMassive E10400, 6 SFP+ 10GbE ports, 16 SFP 1GbE ports, dual fans, dual AC power supplies 01-SSC-8881
SuperMassive E10800, 6 SFP+ 10GbE ports, 16 SFP 1GbE ports, dual fans, dual AC power supplies 01-SSC-8856
System upgrades SKU
SuperMassive E10200 to E10400 upgrade 01-SSC-9497
SuperMassive E10400 to E10800 upgrade 01-SSC-9498
SuperMassive E10400 support and security subscriptions SKU
Threat Prevention: Intrusion Prevention, Gateway Anti-Virus, Gateway Anti-Spyware, Cloud Anti-Virus for E10400 (1-year) 01-SSC-9536
Application Intelligence and Control: Application Intelligence, Application Control, App Flow Visualization for E10400 (1-year) 01-SSC-9542
Content Filtering Premium Business Edition for E10400 (1-year) 01-SSC-9539
Platinum Support for the SuperMassive E10400 (1-year) 01-SSC-9548
Comprehensive Gateway Security Suite: Application Intelligence, Threat Prevention, Content Filtering with Support for E10400 (1-year) 01-SSC-9551
SuperMassive E10800 support and security subscriptions SKU
Application Intelligence and Control: Application Intelligence, Application Control, App Flow Visualization for E10800 (1-year) 01-SSC-9560
Threat Prevention: Intrusion Prevention, Gateway Anti-Virus, Gateway Anti-Spyware, Cloud Anti-Virus for E10800 (1-year) 01-SSC-9554
Content Filtering Premium Business Edition for E10800 (1-year) 01-SSC-9557
Platinum Support for the SuperMassive E10800 (1-year) 01-SSC-9566
Comprehensive Gateway Security Suite: Application Intelligence, Threat Prevention, Content Filtering with Support for E10800 (1-year) 01-SSC-9569
Modules and accessories* SKU
SuperMassive E10000 Series system fan eld replaceable unit (FRU) 01-SSC-8885
SuperMassive E10000 Series SSD fan module 01-SSC-8886
SuperMassive E10000 Series power supply FRU 01-SSC-8887
10GBASE-SR SFP+ Short Reach Module 01-SSC-9785
10GBASE-LR SFP+ Long Reach Module 01-SSC-9786
10GBASE SFP+ 1M Twinax Cable 01-SSC-9787
10GBASE SFP+ 3M Twinax Cable 01-SSC-9788
1000BASE-SX SFP Short Haul Module 01-SSC-9789
1000BASE-LX SFP Long Haul Module 01-SSC-9790
1000BASE-T SFP Copper Module 01-SSC-9791
Management and reporting SKU
SonicWall GMS 10-node software license 01-SSC-3363
SonicWall GMS E-Class 24x7 Software Support for 10 nodes (1-year) 01-SSC-6514
SonicWall Scrutinizer virtual appliance with Flow Analytics Module software license for up to 5 nodes (includes one year of 24x7 Software
Support) 01-SSC-3443
SonicWall Scrutinizer with Flow Analytics Module software license for up to 5 nodes (includes one year of 24x7 Software Support) 01-SSC-4002
SonicWall Scrutinizer Advanced Reporting Module software license for up to 5 nodes (includes one year of 24x7 Software Support) 01-SSC-3773
*Please consult with an SE for a complete list of supported SFP and SFP+ modules.
SuperMassive 9000 Series ordering information
Product SKU
SuperMassive 9800 01-SSC-0200
SuperMassive 9800 High Availability 01-SSC-0801
SuperMassive 9600 01-SSC-3880
SuperMassive 9600 High Availability 01-SSC-3881
SuperMassive 9400 01-SSC-3800
SuperMassive 9400 High Availability 01-SSC-3801
SuperMassive 9200 01-SSC-3810
SuperMassive 9200 High Availability 01-SSC-3811
SuperMassive 9200 support and security subscriptions SKU
Advanced Gateway Security Suite – Capture ATP, Threat Prevention, Content Filtering and 24x7 Support for SuperMassive 9200 (1-year) 01-SSC-1570
Capture Advanced Threat Protection for SuperMassive 9200 (1-year) 01-SSC-1575
Comprehensive Gateway Security Suite: Application Intelligence, Threat Prevention, Content Filtering with Support for 9200 (1-year) 01-SSC-4172
Intrusion Prevention, Anti-Malware, CloudAV, Application Intellience, Control and Visualization for SuperMassive 9200 (1-year) 01-SSC-4202
Content Filtering Premium Business Edition for 9200 (1-year) 01-SSC-4184
Platinum Support for the SuperMassive 9200 (1-year) 01-SSC-4178
SuperMassive 9400 support and security subscriptions SKU
Advanced Gateway Security Suite – Capture ATP, Threat Prevention, Content Filtering and 24x7 Support for SuperMassive 9400 (1-year) 01-SSC-1580
Capture Advanced Threat Protection for SuperMassive 9400 (1-year) 01-SSC-1585
Comprehensive Gateway Security Suite: Application Intelligence, Threat Prevention, Content Filtering with Support for 9400 (1-year) 01-SSC-4136
Intrusion Prevention, Anti-Malware, CloudAV, Application Intellience, Control and Visualization for SuperMassive 9400 (1-year) 01-SSC-4166
Content Filtering Premium Business Edition for 9400 (1-year) 01-SSC- 4148
Platinum Support for the SuperMassive 9400 (1-year) 01-SSC-4142
SuperMassive 9600 support and security subscriptions SKU
Advanced Gateway Security Suite – Capture ATP, Threat Prevention, Content Filtering and 24x7 Support for SuperMassive 9600 (1-year) 01-SSC-1590
Capture Advanced Threat Protection for SuperMassive 9600 (1-year) 01-SSC-1595
Comprehensive Gateway Security Suite: Application Intelligence, Threat Prevention, Content Filtering with Support for 9600 (1-year) 01-SSC- 4100
Intrusion Prevention, Anti-Malware, CloudAV, Application Intellience, Control and Visualization for SuperMassive 9600 (1-year) 01-SSC- 4130
Content Filtering Premium Business Edition for 9600 (1-year) 01-SSC-4112
Platinum Support for the SuperMassive 9600 (1-year) 01-SSC-4106
SuperMassive 9800 support and security subscriptions SKU
Comprehensive Gateway Security Suite: Application Intelligence, Threat Prevention, Content Filtering with Support for 9800 (1-year) 01-SSC-0809
Intrusion Prevention, Anti-Malware, CloudAV, Application Intellience, Control and Visualization for SuperMassive 9800 (1-year) 01-SSC-0827
Content Filtering Premium Business Edition for 9800 (1-year) 01-SSC-0821
Gold 24x7 Support for the SuperMassive 9800 (1-year) 01-SSC-0815
Modules and accessories* SKU
SonicWall SuperMassive 9800 Series system fan FRU 01-SSC-0204
SonicWall SuperMassive 9800 Series power supply AC FRU 01-SSC-0203
SonicWall SuperMassive 9000 Series system fan FRU 01-SSC-3876
SonicWall SuperMassive 9000 Series power supply AC FRU 01-SSC-3874
10GBASE-SR SFP+ Short Reach Module 01-SSC-9785
10GBASE-LR SFP+ Long Reach Module 01-SSC-9786
1000BASE-SX SFP Short Haul Module 01-SSC-9789
1000BASE-LX SFP Long Haul Module 01-SSC-9790
1000BASE-T SFP Copper Module 01-SSC-9791
Management and reporting SKU
SonicWall GMS 10-node software license 01-SSC-3363
SonicWall GMS E-Class 24x7 Software Support for 10 nodes (1-year) 01-SSC-6514
SonicWall Scrutinizer virtual appliance with Flow Analytics Module software license for up to 5 nodes (includes one year of 24x7 Software Support) 01-SSC-3443
SonicWall Scrutinizer with Flow Analytics Module software license for up to 5 nodes (includes one year of 24x7 Software Support) 01-SSC-4002
SonicWall Scrutinizer Advanced Reporting Module software license for up to 5 nodes (includes one year of 24x7 Software Support) 01-SSC-3773
*Please consult with an SE for a complete list of supported SFP and SFP+ modules.
About Us
Over a 25 year history, SonicWall has been the industry’s trusted security partner. From network security to access security to email
security, SonicWall has continuously evolved its product portfolio, enabling organizations to innovate, accelerate and grow. With
over a million security devices in almost 200 countries and territories worldwide, SonicWall enables its customers to condently
say yes to the future.
© 2016 SonicWall Inc. ALL RIGHTS RESERVED. SonicWall is a
trademark or registered trademark of SonicWall Inc. and/or its afliates
in the U.S.A. and/or other countries. All other trademarks
and registered trademarks are property of their respective owners.
SonicWall, Inc.
5455 Great America Parkway | Santa Clara, CA 95054
Refer to our website for additional information.
www.sonicwall.com
Datasheet-SuperMassive-US-KJ-22292-D1

Navigation menu
