SERVICING NOTE
GENERAL
DISASSEMBLY
TEST MODE
ELECTRICAL ADJUSTMENTS
DIAGRAMS
EXPLODED VIEWS
ELECTRICAL PARTS LIST

US Model

Canadian Model

AEP Model

UK Model

SERVICE MANUAL

MINIDISC DECK

MICROFILM

Model Name Using Similar Mechanism MDS-JA50ES

MD Mechanism Type MDM-4B

Base Unit Type MBU-2B

Optical Pick-up Type KMS-210A/J-N

MDS-JA30ES

SPECIFICATIONS

— Continued on next page —

U.S. and foreign patents licensed from Dolby Laboratories

Licensing Corporation.

Photo: GOLD

— 2 —

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH

MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS

LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE

COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS

APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS

PUBLISHED BY SONY.

ATTENTION AU COMPOSANT AYANT RAPPORT

À LA SÉCURITÉ!

LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE ! SUR LES

DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT

CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE

REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY

DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU

DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.

After correcting the original service problem, perform the

following safety checks before releasing the set to the customer:

Check the antenna terminals, metal trim, “metallized” knobs, screws,

and all other exposed metal parts for AC leakage. Check leakage as

described below.

LEAKAGE

The AC leakage from any exposed metal part to earth ground

and from all exposed metal parts to any exposed metal part having

a return to chassis, must not exceed 0.5 mA (500 microampers).

Leakage current can be measured by any one of three methods.

1. A commercial leakage tester, such as the Simpson 229 or RCA

WT-540A. Follow the manufacturers’ instructions to use these

instruments.

2. A battery-operated AC milliammeter. The Data Precision 245

digital multimeter is suitable for this job.

3. Measuring the voltage drop across a resistor by means of a

VOM or battery-operated AC voltmeter. The “limit” indication

is 0.75 V, so analog meters must have an accurate low-voltage

scale. The Simpson 250 and Sanwa SH-63Trd are examples of

a passive VOM that is suitable. Nearly all battery operated

digital multimeters that have a 2V AC range are suitable. (See

Fig. A)

SAFETY CHECK-OUT

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by

the equipment manufacturer.

Discard used batteries according to manufacture’s instructions.

ADVARSEL!

Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering.

Udskiftning må kun ske med batteri af samme fabrikat og type.

Levér det brugte batteri tilbage til leverandøren.

ADVARSEL

Eksplosjonsfare ved feilakting skifte av batteri.

Benytt samme batteritype eller en tilsvarende type anbefalt av

apparatfabrikanten.

Brukte batterier katterier kasseres i henhold til fabrikantens

VARNIG

Explosionsfara vid felaktigt batteribyte.

Använd samma batterityp eller en likvärdig typ som rekommenderas

av apparattillverkaren.

Kassera använt batteri enligt gällande föreakrifter.

VAROITUS

Parist voi räjähtää, jos se on virheellisesti asennettu.

Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin.

Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.

Earth Ground

voltmeter

(0.75V)

1.5k

Ω

0.15

Fig. A. Using an AC voltmeter to check AC leakage.

To Exposed Metal

Parts on Set

— 3 —

This appliance is classified as a CLASS 1

LASER product. The CLASS 1 LASER

PRODUCT MARKING is located on the

rear exterior.

The following caution label is located

inside the unit.

CAUTION

Use of controls or adjustments or performance of procedures

other than those specified herein may result in hazardous

radiation exposure.

Notes on chip component replacement

• Never reuse a disconnected chip component.

• Notice that the minus side of a tantalum capacitor may be

damaged by heat.

Flexible Circuit Board Repairing

• Keep the temperature of soldering iron around 270˚C

during repairing.

• Do not touch the soldering iron on the same conductor of the

circuit board (within 3 times).

• Be careful not to apply force on the conductor when soldering

or unsoldering.

The laser component in this product is

capable of emitting radiation exceeding

the limit for Class 1.

MODEL IDENTIFICATION

— BACK PANEL —

Parts No.

4-992-959-1 : AEP, UK, German model

4-992-959-2 : US model

4-992-959-3 : Canadian model

TABLE OF CONTENTS

1. SERVICING NOTE ······················································ 4

2. GENERAL ······································································ 7

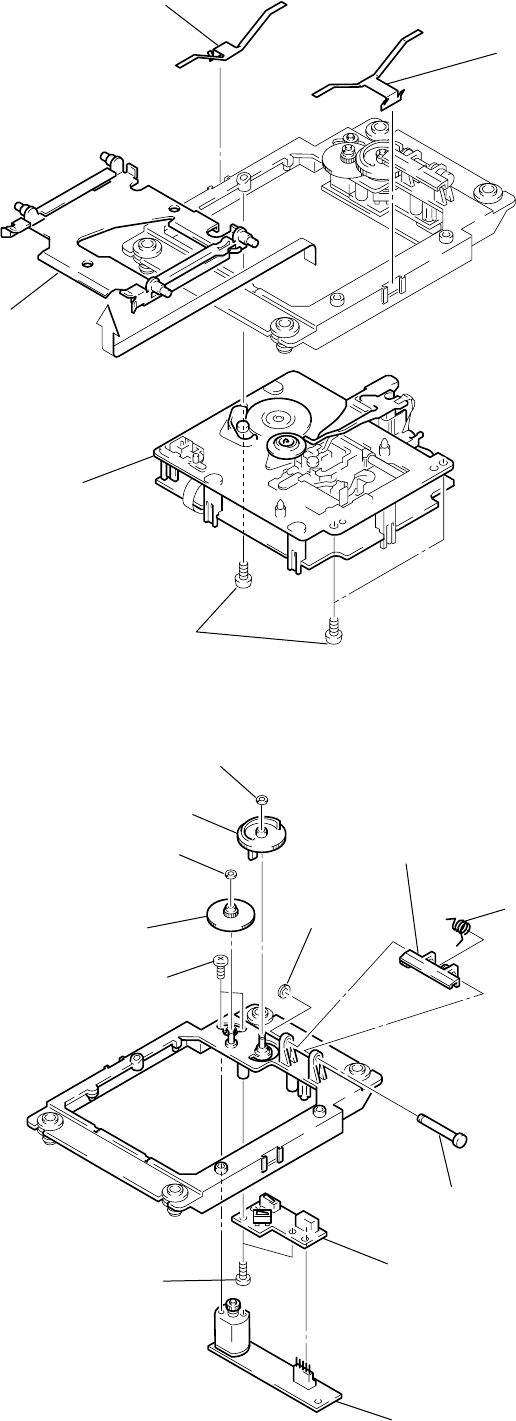

3. DISASSEMBLY

3-1. Tray Assembly ···································································· 8

3-2. Bracket (Motor) ASSY ······················································· 9

3-3. Holder ASSY ······································································ 9

3-4. Base Unit ·········································································· 10

3-5. HMOT Board and HLIM Board ······································· 10

4. TEST MODE ································································ 11

5. ELECTRICAL ADJUSTMENTS ··························· 14

6. DIAGRAMS

6-1. BD Section ······································································· 19

6-2. Digital Section ·································································· 21

6-3. Audio Section ··································································· 23

6-4. Power Section ··································································· 25

6-5. Circuit Boards Location ··················································· 26

6-6. Printed Wiring Board — BD Section — ·························· 28

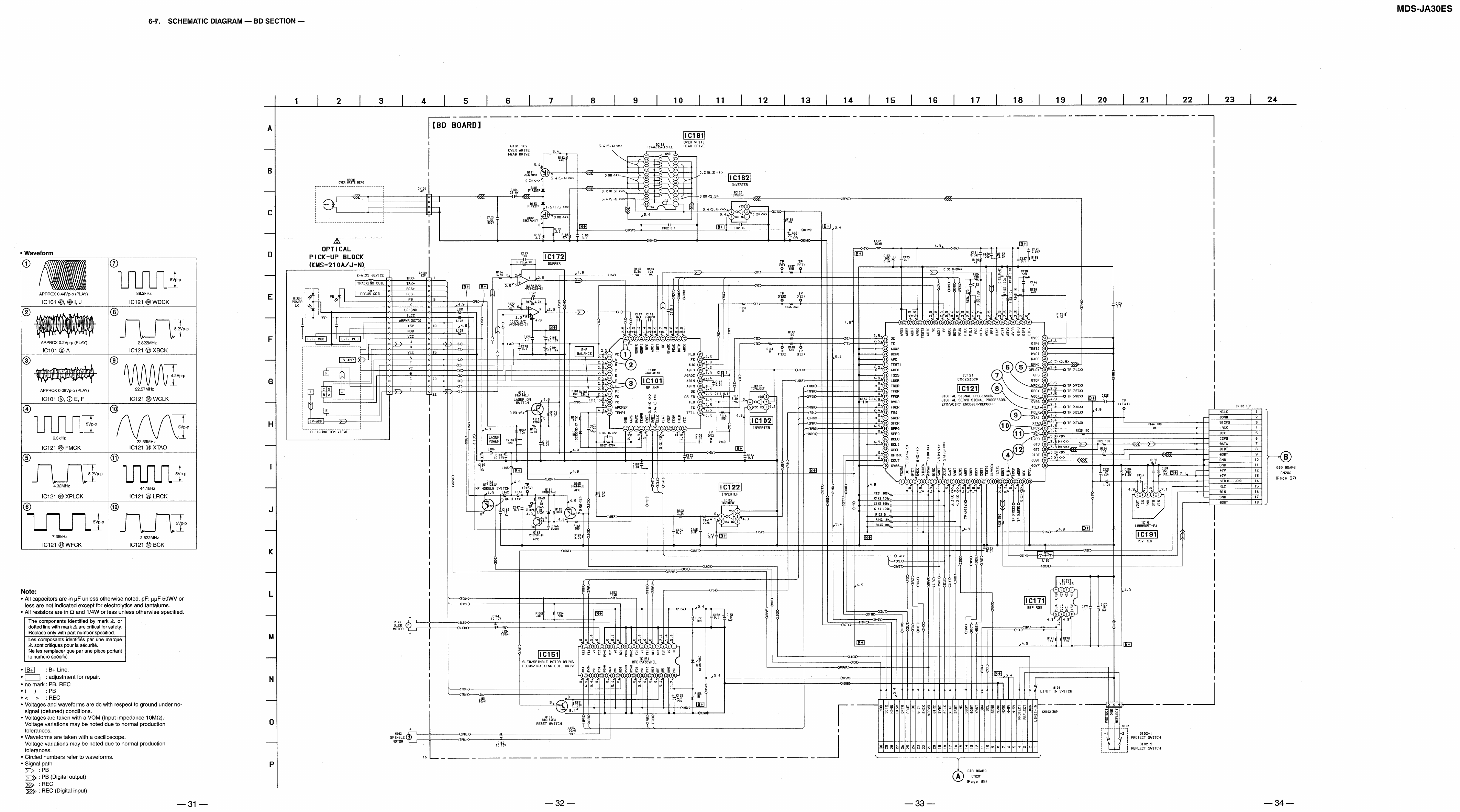

6-7. Schematic Diagram — BD Section — ····························· 31

6-8. Schematic Diagram — Digital Section — ······················· 35

6-9. Printed Wiring Board — Digital Section — ···················· 39

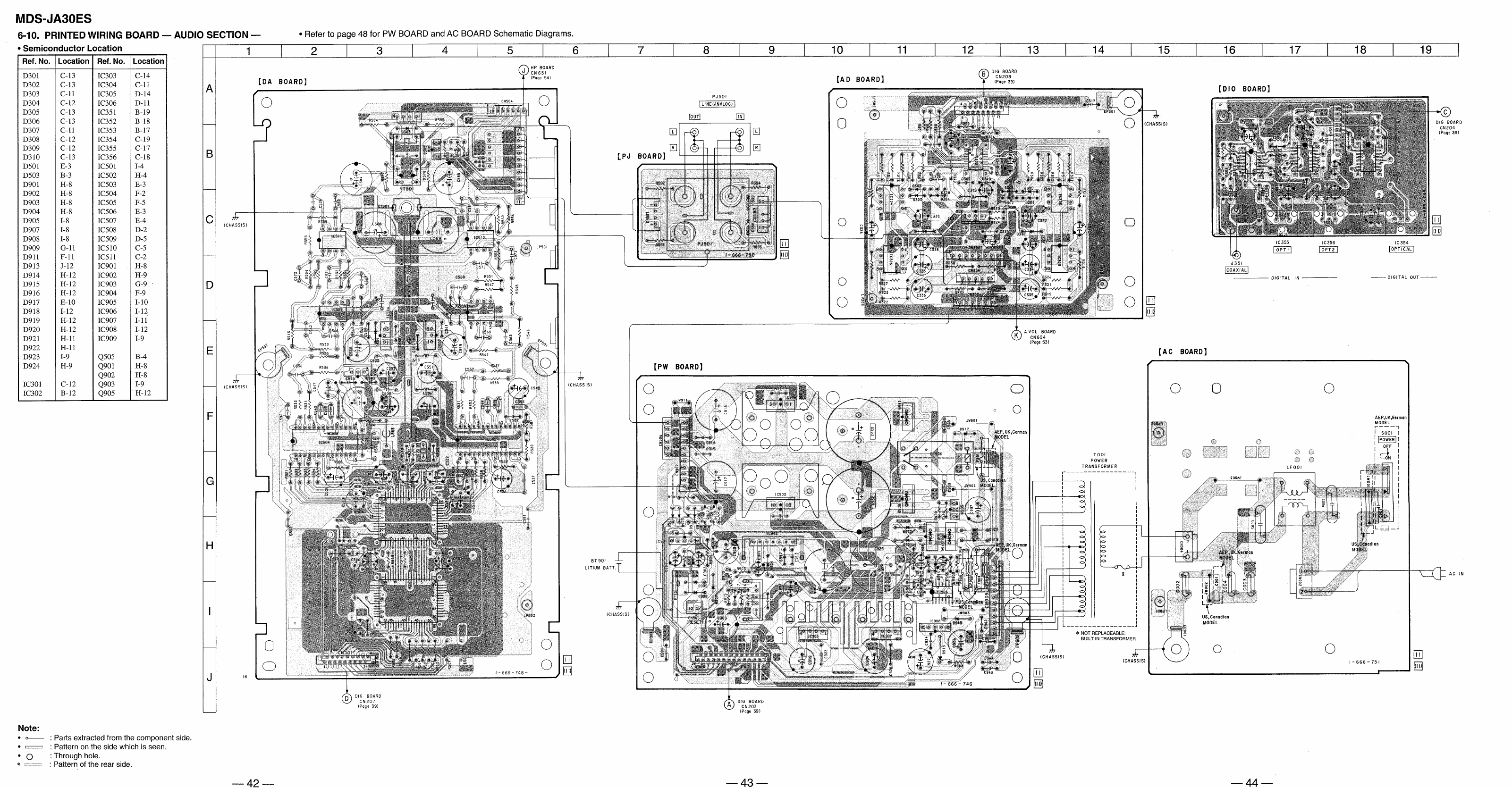

6-10. Printed Wiring Board — Audio Section — ······················ 42

6-11. Schematic Diagram — Audio Section —························· 45

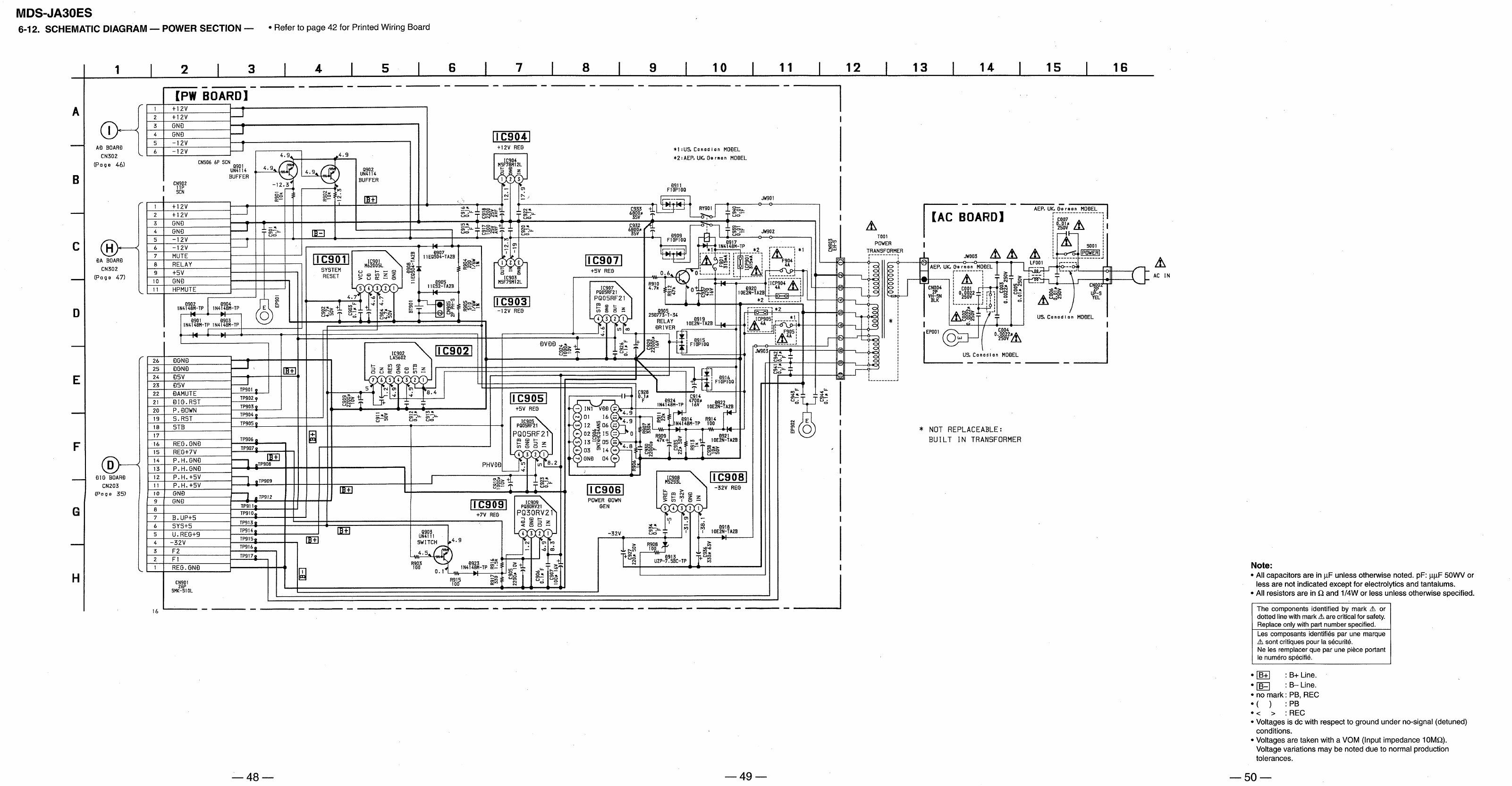

6-12. Schematic Diagram — Power Section — ························ 48

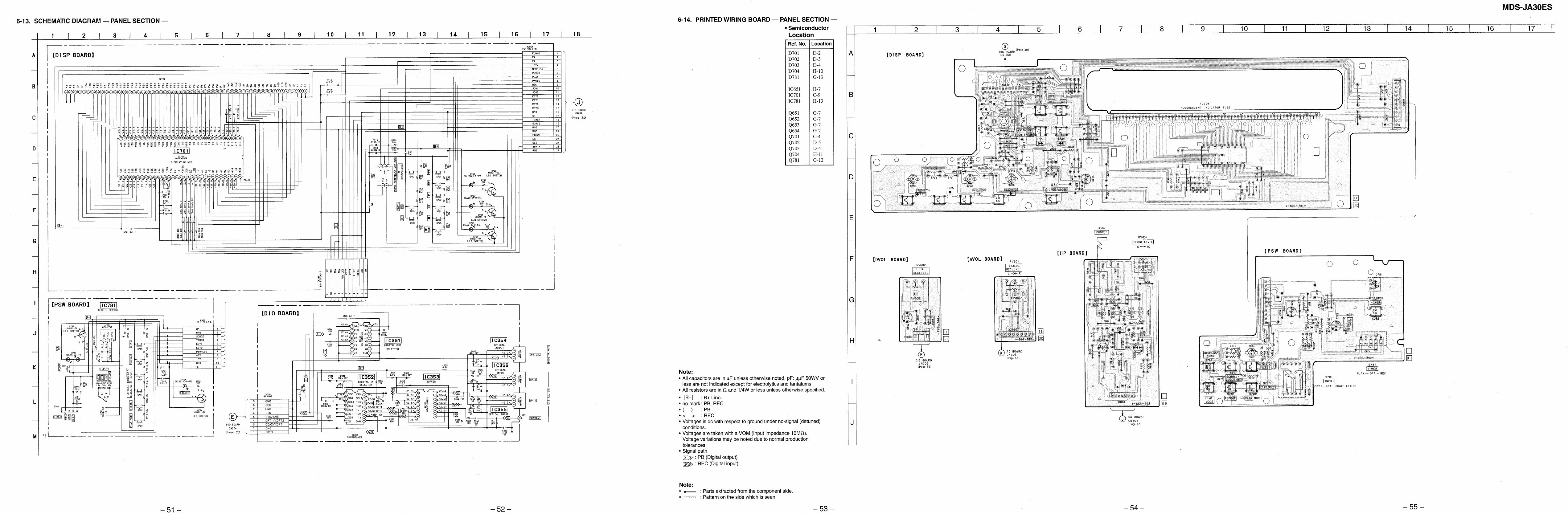

6-13. Schematic Diagram — Panel Section — ························· 51

6-14. Printed Wiring Board — Panel Section —······················· 53

6-15. IC Block Diagrams ··························································· 56

6-16. IC Pin Functions ······························································· 61

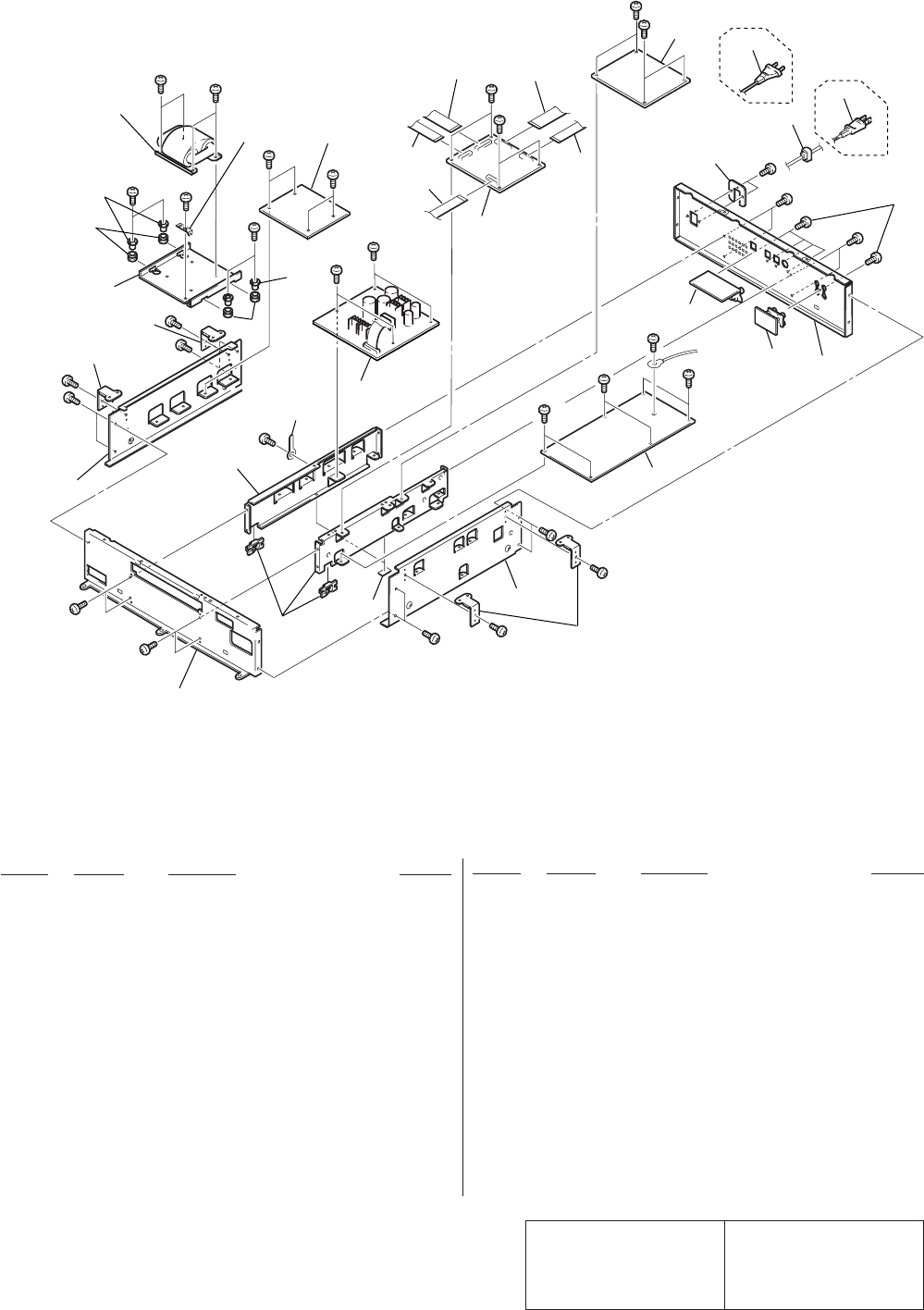

7. EXPLODED VIEWS

7-1. Main Section····································································· 73

7-2. Chassis Section ································································· 74

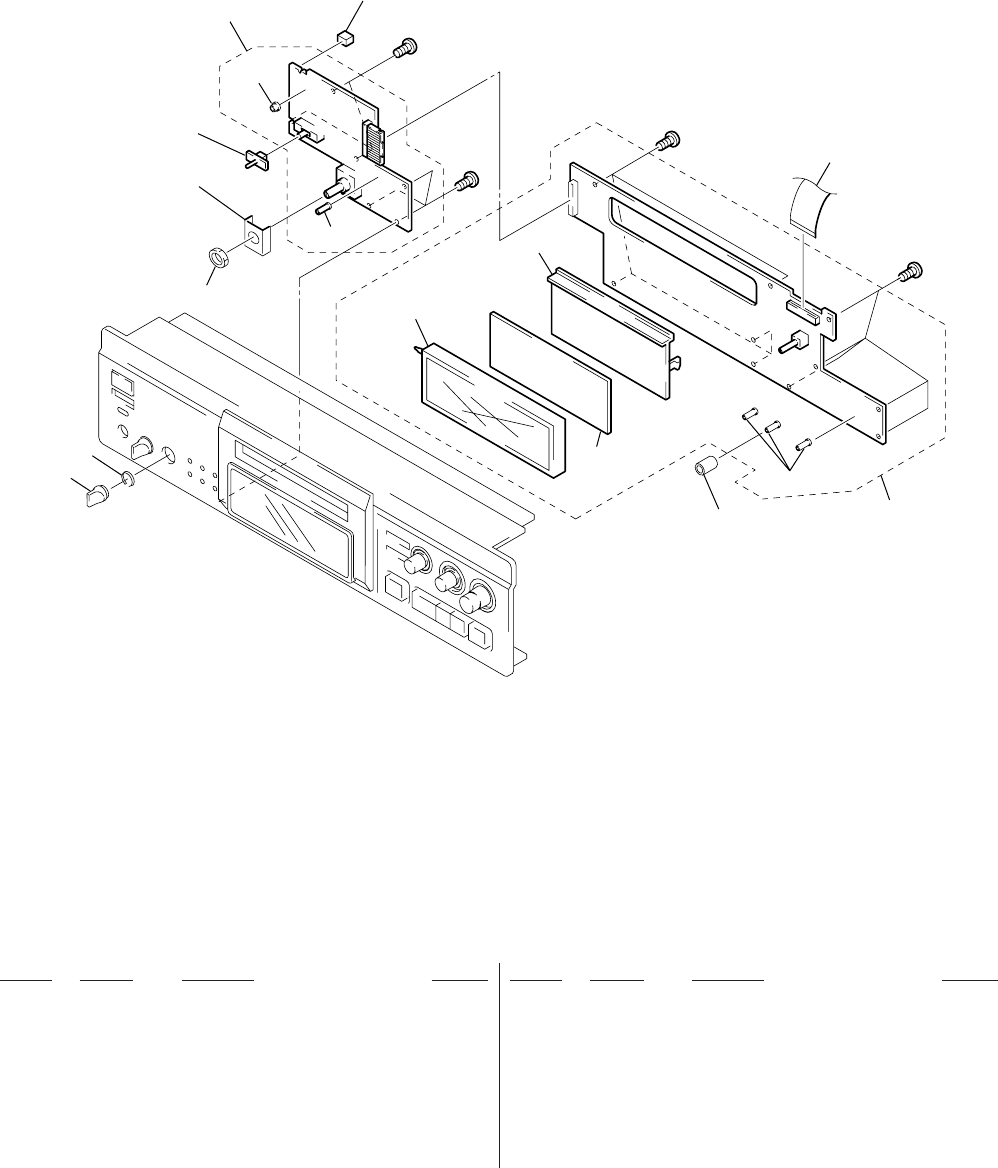

7-3. Front Panel Section 1 ······················································· 75

7-4. Front Panel Section 2 ······················································· 76

7-5. Mechanism Section 1 (MDM-4B)···································· 77

7-6. Mechanism Section 2 (MDM-4B)···································· 78

7-7. Mechanism Section 3 (MDM-4B)···································· 79

7-8. Base Unit Section (MBU-2B) ·········································· 80

8. ELECTRICAL PARTS LIST ··································· 81

— 4 —

SECTION 1

SERVICING NOTE

HOW TO OPEN THE DISC TRAY WHEN POWER SWITCH TURNS OFF

1 Remove the sixteen screws (BVTT 3×8) from the bottom plate.

2 Remove the bottom plate.

3 Rotate the pulley gear in the arrow direction A, and open the tray assembly in the arrow direction B.

Forced Reset

The system microprocessor can be reset in the following way.

Use these methods when the unit cannot be operated normally due to the overrunning of the microprocessor, etc.

Method 2:

Disconnect the power plug, and short-circuit CN905 of the PW board

with a pair of tweezers, etc.

[PW board] (Component Side)

CN905

(RESET)

CN901

Method 1:

Set TP (S.RST) of the DIG board to ground momentarily.

[DIG board] (Side A)

(S.RST)

CN203

C206

IC202

Pully gear

Tray assembly

— 5 —

Retry Cause Display Mode

• In this test mode, the causes for retry of the unit during recording can be displayed on the fluorescent display tube.

This is useful for locating the faulty part of the unit.

• The retry cause, number of retries, and number of retry errors are displayed. Each is displayed in hexadecimal number.

Method:

1. Load a recordable disc whose contents can be erased into the unit.

2. Press the p button, §OPEN/CLOSE button, DISPLAY/CHAR button simultaneously.

3. Press the r button, and start recording.

4. The ## value increases with each retry. If an error occurs after a retry, the @@ count will also increase.

5. To exit the test mode, press the TIME button.

Fig. 1 Reading the Test Mode Display

R.T s ∗ ∗ c # # e @@

Fluorescent Display Tube Signs

∗ ∗: Cause of retry

# # : Number of retries

@@: Number of retry errors

All three displays above are in hexadecimal numbers.

— 6 —

Reading the Retry Cause Display

Hexadecimal

Bit

Binary

Higher Bits Lower Bits

84218421

b7 b6 b5 b4 b3 b2 b1 b0

00000001

00000010

00000100

00001000

00010000

00100000

01000000

10000000

When more than 3.5 shocks are detected

When ADER was counted more than

five times continuously

When ADIP address is not continuous

(Not used)

When not in focus

When ABCD signal level exceeds the specified range

When spindle rotation is detected as slow

When access operation is not performed normally

Hexa-

decimal

shock *1

ader5

Discontinuous address

(Not used)

FCS incorrect

IVR rec error

Spindle is slow

Access fault

Cause of Retry Occurring conditions

*1 Some displays are not used depending on the microprocessor version.

Reading the Display:

Convert the hexadecimal display into binary display. If more than two causes, they will be added.

Example

When 42 is displayed:

Higher bit : 4 = 0100 n b6

Lower bit : 2 = 0010 n b1

In this case, the retry cause is combined of “spindle is slow” and “ader5”.

When A2 is displayed:

Higher bit : A = 1010 n b7+b5

Lower bit : 2 = 0010 n b1

The retry cause in this case is combined of “access fault”, “IVR rec error”, and “ader5”.

Hexadecimal

Binary Conversion Table

Hexadecimal Binary Hexadecimal Binary

0000

0001

0010

0011

0100

0101

0110

0111

1000

1001

1010

1011

1100

1101

1110

1111

Reference:

In this test mode, when the · button is pressed, and the disc is played back, the “PLAYBACK MODE” is set.

The display becomes as shown in Fig. 2. The playback mode is not used in particular during servicing.

44 ¢¢¢¢¢¢ p

Fig. 2 Display during Playback Mode

44 : Parts No. (Name of area named on TOC)

¢¢¢¢¢¢ : Address (Physical address on disc)

p : Track mode (Copyright information of each part, information on copyright, etc.)

— 7 —

SECTION 2

GENERAL

1POWER switch

2Remote sensor

3TIMER switch

4FILTER button

5SCROLL/CLOCK SET button

6DISPLAY/CHAR button

7Disc tray

80/) (fast backward/fast forward) buttons

9EDIT/NO/YES buttons

!º AMS knob

!¡ DIGITAL REC LEVEL knob

!™ ANALOG REC LEVEL L/R knob

!£ r REC (recording) button

!¢ p (stop) button

!∞P (pause) button

!§ ( (play) button

!¶ § OPEN/CLOSE button

!• Display window

!ª TIME button

@º REPEAT button

@¡ PLAY MODE button

@™ INPUT switch

@£ PHONE LEVEL knob

@¢ PHONES jack

This section is extracted

from instruction manual.

— 8 —

SECTION 3

DISASSEMBLY

Note : Follow Xthe disassembly procedure in the numerical order given.

3-1. TRAY ASSEMBLY

Rotate the pulley gear in the arrow

direction

, and pull out the tray

assembly.

Two screws

(PTP 2.6x6)

Two screws

(PTP 2.6x6)

Gear 4

(Two gear)

Screw

(BVTT 3x6)

Shaft

Remove the tray assembly

in the arrow direction

Bracket (TOP)

Note:

When attaching the bracket (TOP), attach while

pressing the switch as shown in the figure.

• Precautions on Attaching

(Assemble in the reverse order of removal.)

Slider assembly

When attaching the tray assembly, first move the slider

assembly in the arrow direction

and set Pin

at the

position shown.

When attaching gear 4 (two in front), pull the tray

assembly in arrow direction

completely, and

position racks (L), (R) and (D) as shown in the

figure.

Rack (L)

Gear 4

Rack (D)

Hole

Gear 4

(Two gear)

Stopper

(Shaft A)

Bracket

(TOP)

— 9 —

3-2. BRACKET (MOTOR) ASSY

Two screws

(BVTT 3x6)

Two screws

(BVTT 3x6)

Bracket (Motor) assembly

Connector (CN198 : HMOT board)

3-3. HOLDER ASSY

Shaft

Slider assembly

When removing, move the slider assembly

in the arrow direction, and check that shaft

A is at the position shown in the figure.

Remove the four screws (BVTT 3x6), and

remove the four collars (dampers) and four

compression springs.

Connector

(CN198 :

HMOT board)

— 10 —

3-4. BASE UNIT

Leaf spring (UDL)

Leaf spring (UDR)

Holder assembly

Base unit

(MBU-2B)

Three screws

(BVTP 3x6)

3-5. HMOT BOARD AND HLIM BOARD

Stopper washer

Gear (HEAD C)

Gear (HEAD B)

Two screws

(Precision P2x3)

Stopper

washer

Lever (OWH)

Torsion spring (OWH)

Shaft (OWH)

!™

HLIM board

!¡

Two screws

(PTP 2.6x6)

Stopper washer

!º

HMOT board

— 11 —

4-4. Selecting the Test Mode

Eight test modes are selected by turning the AMS knob.

SECTION 4

TEST MODE

4-1. Setting the Test Mode

While pressing the AMS knob, insert the power plug into the power supply inlet, and release the AMS knob.

4-2. Exiting the Test Mode

Press the REPEAT button. Unplug the power plug from an outlet.

4-3. Basic Operations of the Test Mode

All operations are performed using the AMS knob, YES button, and NO button.

The functions of these buttons are as follows.

For detailed description of each adjustment mode, refer to 5. Electrical Adjustments.

If a different adjustment mode has been selected by mistake, press the NO button to exit from it.

* The EEP MODE is not used in servicing. If set accidentally, press the NO button immediately to exit it.

4-4-1. Operating the Continuous Playback Mode

1. Entering the continuous playback mode

1Set the disc in the unit (either MO or CD).(MO: Recordable disc, CD: Disc for playback only).

2Rotate the AMS knob and display “CPLAY MODE”.

3Press the YES button to change the display to “CPLAY IN”.

4When access completes, the display changes to “C = AD = – –”.

Note : The “ ” displayed are arbitrary numbers.

2. Changing the parts to be played back

1Press the YES button during continuous playback to change the display to “CPLAY MID”, “CPLAY OUT”.

When pressed another time, the parts to be played back can be changed.

2When access completes, the display changes to “C = AD = – –”.

Note : The “ ” displayed are arbitrary numbers.

3. Ending the continuous playback mode

1Press the NO button. The display will change to “CPLAY MODE”.

2Press the §OPEN/CLOSE button and remove the disc.

Note 1 : The playback start addresses for IN, MID, and OUT are as follows.

IN 40h cluster

MID 300h cluster

OUT 700h cluster

Function

AMS knob

YES button

NO button

Contents

Changes parameters and modes

Proceeds onto the next step. Finalizes input.

Returns to previous step. Stops operations.

Contents

Temperature compensation offset adjustment

Laser power adjustment

Traverse adjustment

Focus bias adjustment

Focus bias check

Continuous playback mode

Continuous recording mode

Non-volatile memory mode *

Display

TEMP ADJUS

LDPWR ADJUS

EFBAL ADJUS

FBIAS ADJUS

FBIAS CHECK

CPLAY MODE

CREC MODE

EEP MODE

Test Mode initial display

— 12 —

4-4-2. Operating the Continuous Recording Mode

1. Entering the continuous recording mode

1Set the MO disc in the unit.

2Rotate the AMS knob and display “CREC MODE”.

3Press the YES button to change the display to “CREC IN”.

4When access completes, the display changes to “CREC ( ” an

REC

lights up.

Note : The “ ” displayed are arbitrary numbers.

2. Changing the parts to be recorded

1When the YES button is pressed during continuous recording, the display changes to “CREC MID”, “CREC OUT” and

REC

goes

off.

When pressed another time, the parts to be recorded can be changed.

2When access completes, the display changes to “CREC ( ” and

REC

lights up.

Note : The “ ” displayed are arbitrary numbers.

3. Ending the continuous recording mode

1Press the NO button. The display changes to “CREC MODE” and

REC

goes off.

2Press the §OPEN/CLOSE button and remove the disc.

Note 1 : The recording start addresses for IN, MID, and OUT are as follows.

IN 40h cluster

MID 300h cluster

OUT 700h cluster

Note 2 : The NO button can be used to stop recording anytime.

Note 3 : During the test mode, the erasing-protection tab will not be detected. Therefore be careful not to set the continuous recording

mode when a disc not to be erased is set in the unit.

Note 4 : Do not perform continuous recording for long periods of time above 5 minutes.

Note 5 : During continuous recording, be careful not to apply vibration.

4-4-3. Non-Volatile Memory Mode

This mode reads and writes the contents of the non-volatile memory.

It is not used in servicing. If set accidentally, press the NO button immediately to exit it.

4-5. Functions of Other buttons

Function

)

SCROLL/

CLOCK SET

PLAY MODE

DISPLAY/

CHAR

Contents

Sets continuous playback when pressed in the STOP state. When pressed during continuous playback, the tracking servo turns ON/OFF.

Stops continuous playback and continuous recording.

The sled moves to the outer circumference only when this is pressed.

The sled moves to the inner circumference only when this is pressed.

Turns recording ON/OFF when pressed during continuous playback.

Switches between the pit and groove modes when pressed.

Switches the spindle servo mode (CLVS and A).

Switches the display when pressed.Returns to previous step. Stops operations.

Note : The erasing-protection tab is not detected during the test mode. Recording will start regardless of

the position of the erasing-protection tab when the r button is pressed.

— 13 —

4-6. Test Mode Displays

Each time the DISPLAY/CHAR button is pressed, the display changes in the following order.

MODE display n Error rate display n Address display

1. MODE display

Displays “TEMP ADJUS”, “CPLAY MODE”, etc.

2. Error rate display

Error rates are displayed as follows.

C = AD =

C = : Indicates C error

AD = : Indicates ADER

3. Address display

Addresses are displayed as follows.

“h s ” (MO pit and CD)

“h a ” (MO groove)

h : Header address

s : SUBQ address

a : ADIP address

* “—” is displayed when the address cannot be read.

4-7. Meanings of Other Displays

During continuous playback

Tracking servo OFF

Recording mode ON

CLV LOCK

Pit

High reflection

CLV-S

ABCD adjustment completed

STOP

Tracking servo ON

Recording mode OFF

CLV UNLOCK

Groove

Low reflection

CLV-A

Display Contents

Light Blinking

Off

Focus auto gain successful

Tracking auto gain successful

Focus auto gain successful

Tracking auto gain failed

4-8. Precautions for Use of Test Mode

1As loading related operations will be performed regardless of the test mode operations being performed, be sure to check that the disc is

stopped before setting and removing it.

Even if the §OPEN/CLOSE button is pressed while the disc is rotating during continuous playback, continuous recording, etc., the disc

will not stop rotating.

Therefore, it will be ejected while rotating.

Always press the NO button first before pressing the §OPEN/CLOSE button.

2The erasing-protection tab is not detected in the test mode. Therefore, when modes which output the recording laser power such as

continuous recording mode and traverse adjustment mode, etc. are set, the recorded contents will be erased regardless of the position of

the tab. When using a disc that is not to be erased in the test mode, be careful not to enter the continuous recording mode and traverse

adjustment mode.

REC

CLOCK

TRACK

DISC

DATE

A. SPACE

A – B

— 14 —

SECTION 5

ELECTRICAL ADJUSTMENTS

Precautions for Checking Laser Diode Emission

To check the emission of the laser diode during adjustments, never

view directly from the top as this may lose your eye-sight.

Precautions for Use of optical pick-up (KMS-210A)

As the laser diode in the optical pick-up is easily damaged by static

electricity, solder the laser tap of the flexible board when using it.

Before disconnecting the connector, desolder first. Before

connecting the connector, be careful not to remove the solder. Also

take adequate measures to prevent damage by static electricity.

Handle the flexible board with care as it breaks easily.

Precautions for Adjustments

1) When replacing the following parts, perform the adjustments

and checks with ® in the order shown in the following table.

Optical pick-up flexible board

4. Focus bias

adjustment

5. Error rate check

BD Board

Optical

Pick-up

1. Temperature

compensation

offset adjustment

2. Laser power

adjustment

3. Traverse

adjustment

IC171 D101 IC101, IC121, IC191

G¬¬

¬¬

¬¬ ¬

¬¬¬

¬¬

2) Set the test mode when performing adjustments.

After completing the adjustments, exit the test mode.

3) Perform the adjustments in the order shown.

4) Use the following tools and measuring devices.

• Check Disc (CD) TGYS-1 (Parts No. 4-963-646-01)

• Laser power meter LPM-8001 (Parts No. J-2501-046-A)

• Oscilloscope

• Digital voltmeter

• Thermometer

5) When observing several signals on the oscilloscope, etc.,

make sure that VC and ground do not connect inside the

oscilloscope.

(VC and ground will become short-circuited.)

Creating Continuously Recorded Disc

* This disc is used in focus bias adjustment and error rate check.

The following describes how to create a continuous recording

disc.

1. Insert a MO disc (blank disc) commercially available.

2. Rotate the AMS knob and display “CREC MODE”.

3. Press the YES button and display “CREC IN”.

4. Press the YES button again to display “CREC MID”.

“CREC (0300” is displayed for a moment and recording starts.

5. Complete recording within 5 minutes.

6. Press the NO button and stop recording .

7. Press the §OPEN/CLOSE button and remove the MO disc.

The above has been how to create a continuous recording data for

the focus bias adjustment and error rate check.

Note :

• Be careful not to apply vibration during continuous recording.

laser tap

• Abbreviation

MO : Recordable disc

CD : Disc for playback only

— 15 —

Temperature Compensation Offset Adjustment

Save the temperature data at that time in the non-volatile memory

as 25 ˚C reference data.

Note :

1. Usually, do not perform this adjustment.

2. Perform this adjustment in an ambient temperature of 22 ˚C to

28 ˚C. Perform it immediately after the power is turned on

when the internal temperature of the unit is the same as the

ambient temperature.

3. When D101 has been replaced, perform this adjustment after

the temperature of this part has become the ambient

temperature.

Adjusting Method :

1. Rotate the AMS knob and display “TEMP ADJUS”.

2. Press the YES button and select the “TEMP ADJUS” mode.

3. “TEMP = ” and the current temperature data will be

displayed.

4. To save the data, press the YES button.

When not saving the data, press the NO button.

5. When the YES button is pressed, “TEMP = SAV” will be

displayed for some time, followed by “TEMP ADJUS”.

When the NO button is pressed, “TEMP ADJUS” will be

displayed.

Specifications :

The “TEMP = ” should be within “E0 - EF”, “F0 - FF”, “00 -

0F”, “10 - 1F” and “20 - 2F”.

Laser Power Adjustment

Connection :

Laser power

meter

Optical pick-up

objective lens

Digital voltmeter

BD board

TP (I + 5V)

TP (IOP)

Adjusting Method :

1. Set the laser power meter on the objective lens of the optical

pick-up. (When it cannot be set properly, press the 0 button

or ) button and move the optical pick-up.)

Connect the digital volt meter to TP (IOP) and TP (I+5V).

2. Rotate the AMS knob and display “LDPWR ADJUS”.

(Laser power : For adjustment)

3. Press the YES button twice and display “LD $ 4B = 3.5 m”.

4. Adjust RV102 of the BD board so that the reading of the laser

power meter becomes 3.45 ± 0.1mW.

5. Press the YES button and display “LD $ 96 = 7.0 m”.

(Laser power : MO writing)

6. Check that the laser power meter and digital voltmeter readings

satisfy the specified value.

Specification :

Laser power meter reading : 7.0

+ 0.2

Digital voltmeter reading : Optical pick-up displayed value ± 10%

(Optical pick-up label)

lop = 82.5 mA in this case

lop (mA) = Digital voltmeter reading (mV)/ 1 (

Ω

)

7. Press the YES button and display “LD $ 0F = 0.7 m”.

(Laser power : MO reading)

8. Check that the laser power meter at this time satisfies the

specified value.

Specification :

Laser power meter reading : 0.70

+ 0.05

9. Press the NO button and display “LDPWR ADJUS”, and stop

laser emission.

(The NO button is effective at all times to stop the laser

emission.)

KMS

210A

27X40

B0825

– 0.3

– 0.1

— 16 —

Traverse Adjustment

Connection :

servo is imposed.

11. Rotate the AMS knob until the waveform of the oscilloscope

moves closer to the specified value.

In this adjustment, waveform varies at intervals of approx. 3%.

Adjust the waveform so that the specified value is satisfied as

much as possible.

Specification A=B

(Traverse Waveform)

12. Press the YES button, display “EFB = $ SAV” for a moment

and save the adjustment results in the non-volatile memory.

Next “EFBAL CD” is displayed. The disc stops rotating

automatically.

13. Press the §OPEN/CLOSE button and remove the MO disc.

14. Load the check disc (MD) TDYS-1.

15. Press the YES button and display “EFB = $ CD”. Servo is

imposed automatically.

16. Rotate the AMS knob so that the waveform of the oscilloscope

moves closer to the specified value.

In this adjustment, waveform varies at intervals of approx. 3%.

Adjust the waveform so that the specified value is satisfied as

much as possible.

Specification A=B

(Traverse Waveform)

17. Press the YES button, display “EFB = $ SAV” for a moment

and save the adjustment results in the non-volatile memory.

Next “EFBAL ADJUS” is displayed.

18. Press the §OPEN/CLOSE button and remove the test disc

TDYS-1.

Note 1 : Data will be erased during MO reading if a recorded disc

is used in this adjustment.

Note 2 : If the traverse waveform is not clear, connect the

oscilloscope as shown in the following figure so that it

can be seen more clearly.

BD board

TP (TEO)

TP (VC)

330k

Ω

10pF

Oscilloscope

BD board

TP (TEO)

TP (VC)

Adjusting method :

1. Connect an oscilloscope to TP (TEO) and TP (VC) of the BD

board.

2. Load a MO disc (any available on the market).

3. Press the 0 button or ) button and move the optical pick-

up outside the pit.

4. Rotate the AMS knob and display “EFBAL ADJUS”.

5. Press the YES button and display “EFBAL MO-W”.

(Laser power WRITE power/Focus servo ON/tracking servo

OFF/spindle (S) servo ON)

6. Adjust RV101 of the BD board so that the waveform of the

oscilloscope becomes the specified value.

(MO groove write power traverse adjustment)

(Traverse Waveform)

Specification A = B

7. Press the YES button and display “EFB = $ MO-R”.

(Laser power : MO reading)

8. Rotate the AMS knob so that the waveform of the oscilloscope

becomes the specified value.

(When the AMS knob is rotated, the of “EFB = $ ” changes

and the waveform changes.) In this adjustment, waveform

varies at intervals of approx. 3%. Adjust the waveform so that

the specified value is satisfied as much as possible.

(MO groove read power traverse adjustment)

Specification A=B

(Traverse Waveform)

9. Press the YES button, display “EFB = $ SAV” for a moment

and save the adjustment results in the non-volatile memory.

Next “EFBAL MO-P” is displayed.

10. Press the YES button and display “EFB = $ MO-P”.

The optical pick-up moves to the pit area automatically and

MDS-JA30ES

— 17 — — 18 —

Focus Bias Adjustment

Adjusting Method :

1. Load a continuously recorded disc (Refer to “Page 14 Creating

Continuously Recorded Disc”.).

2. Rotate the AMS knob and display “CPLAY MODE”.

3. Press the YES button twice and display “CPLAY MID”.

4. Press the NO button when “C = AD = ” is displayed.

5. Rotate the AMS knob and display “FBIAS ADJUS”.

6. Press the YES button and display “ / a = ”.

The first four digits indicate the C1 error rate, the two digits

after [/] indicate ADER, and the 2 digits after [a =] indicate the

focus bias value.

7. Rotate the AMS knob in the clockwise direction and find the

focus bias value at which the C1 error rate becomes 220.

8. Press the YES button and display “ / b = ”.

9. Rotate the AMS knob in the counterclockwise direction and

find the focus bias value at which the C1 error rate becomes

220.

10. Press the YES button and display “ / c = ”.

11. Check that the C1 error rate is below 50 and ADER is 00. Then

press the YES button.

12. If the “( ” in “ - - ( ” is above 20, press the

YES button.

If below 20, press the NO button and repeat the adjustment

from step 2 again.

13. Press the NO button and press the §OPEN/CLOSE button to

remove the continuously recorded disc.

Note 1 : The relation between the C1 error and focus bias is as

shown in the following figure. Find points a and b in the

following figure using the above adjustment. The focal

point position C is automatically calculated from points a

and b.

Note 2 : As the C1 error rate changes, perform the adjustment using

the average value.

Error Rate Check

CD Error Rate Check

Checking Method :

1. Load a check disc TGYS-1.

2. Rotate the AMS knob and display “CPLAY MODE”.

3. Press the YES button twice and display “CPLAY MID”.

4. “C = AD = ” is displayed.

5. Check that the C1 error rate is below 20.

6. Press the NO button, stop playback, press the §OPEN/CLOSE

button, and remove the test disc.

MO Error Rate Check

Checking Method :

1. Load a continuously recorded disc (Refer to “Page 14 Creating

Continuously Recorded Disc”.).

2. Rotate the AMS knob and display “CPLAY MODE”.

3. Press the YES button twice and display “CPLAY MID”.

4. “C = AD = ” is displayed.

5. If the C1 error rate is below 50, check that ADER is 00.

6. Press the NO button, stop playback, press the §OPEN/CLOSE

button, and remove the continuously recorded disc.

Focus Bias Check

Change the focus bias and check the focus tolerance amount.

Checking Method :

1. Load a continuously recorded disc (Refer to “Page 14 Creating

Continuously Recorded Disc”.).

2. Rotate the AMS knob and display “CPLAY MODE”.

3. Press the YES button twice and display “CPLAY MID”.

4. Press the NO button when “C = AD = ” is displayed.

5. Rotate the AMS knob and display “FBIAS CHECK”.

6. Press the YES button and display “ / c = ”.

The first four digits indicate the C1 error rate, the two digits

after [/] indicate ADER, and the 2 digits after [c =] indicate the

focus bias value.

Check that the C1 error is below 50 and ADER is 00.

7. Press the YES button and display “ / b = ”.

Check that the C1 error is not below 220 and ADER is not

above 00 every time.

8. Press the YES button and display “ / a = ”.

Check that the C1 error is not below 220 and ADER is not

above 00 every time.

9. Press the NO button, next press the §OPEN/CLOSE button,

and remove the continuously recorded disc.

Note 1 : If the C1 error and ADER are above 00 at points a or b,

the focus bias adjustment may not have been carried out

properly. Adjust perform the beginning again.

C1 error

Focus bias value

(F. BIAS)

220

Adjusting Points and Connecting Points

[BD BOARD] (SIDE A)

D101

[BD BOARD] (SIDE B)

(IOP)

(I + 5V)

RV101 (VC)

RV102 (TEO)

IC121

IC171

IC101

IC191

MDS-JA30ES

SECTION 6

DIAGRAMS

6-1. BLOCK DIAGRAM — BD SECTION —

— 19 — — 20 —

OPTICAL PICK-UP BLOCK

(KMS-210A/J-N)

IV-AMP

JCB

IC172

BUFFER 48

IRF AMP

46 45 44 43

RF AGC

& EQ

BPF

IV AMP

RV101

E-F

BALANCE

1+2.5V

GENERATOR

D101 TEMP

AMP

TEMPR +5V

TEMPI

Q101

APC

APCREF

LASER ON

SWITCH

LASER

POWER

RV102

14 15

TRACKING

ERROR

AMP

AUX

PEAK &

BOTTOM

ABCD

AMP

FOCUS

ERROR

AMP

AMP 30

SERIAL

PARALLEL

DECODER

17 18 19 20

RF AMP

IC101

+5V

HR901

OVER

WRITE

HEAD

2IC122

Q162,163

APC

HIGH

POWER

Q164

MODULE

SWITCH SLED/SPINDLE MOTOR DRIVE,

FOCUS/TRACKING COIL DRIVE

IC151

HEAD

DRIVE

Q181,182 11

OVER WRITE

HEAD DRIVE

IC181

IC102

DRIVER

L.F

MOD

H.F

MOD

TRK+

TRK–

TRACKING

COIL

FOCUS

COIL 2

M101

SLED

MOTOR

M102

SPINDLE

MOTOR

CLOCK

DETECTOR 3

Q151

RESET

SWITCH

DRIVER

TFDR

TRDR

FRDR

FFDR

SFDR

SRDR

SPFD

SPRD

FS4

DIGITAL SIGNAL PROCESSOR,

DIGITAL SERVO SIGNAL PROCESSOR,

EFM/ACIRC ENCODER/DECODER

IC121

SUBCODE

PROCESSOR,

READER/

GENERATOR

EFM

MOD/DEMOD

DIN

PLL

FILTER

PLL

EFM

TIMING

GENERATOR

DIGITAL

CLV

PROCESSOR

TIMING

GENERATOR

CLOCK

GENERATOR

AUDIO

DATA

CONTROL

ECC

ENCODER

DECODER

32K RAM

DIGITAL

AUDIO

IN/OUT

FILTER

82 ADIP

DEMOD ADIP

DECODER

ANALOG

MUX

69VC

A/D

CONV

CPU

SERVO

CONTROL

DIRC

SERVO

AUTO

SEQUENCER

PROCESSOR

APC

PWM

GEN

SERVO DSP/PWM GENERATOR

FOCUS/TRACKING/

SLED SERVO & PWM

DFCT

FOK

SHCK

OFTRK

COUT

BCK

LRCK

FS4

XTAI

SENS

CONTROL

12 85 86 87 89 91 92

51 52 49 53

DICV

DIFI

DIPD

DIFO

SQSY

DQSY

DIN

DOUT

DIDT

DODT

DTO

DTI

C2PO

TRDR

TFDR

FFDR

FRDR

SRDR

SFDR

SENS

SWDT

SCLK

XLAT

XRST

REC

SRDT

AUX

BOTM

PEAK

ABCD

SPFD

SPRD

CLTV

FILI

PCO

FILO

EFMO

RFI

AUX

BOTM

PEAK

ABCD

ADFM

ADIN

TLB

ADFG

XRST

SWDT

SCLK

XLAT

FCS+

FCS–

SLED–

SLED+

SPDL+

SPDL–

IC182

LDDR

AAPC

DAPC

WRPWR

LIMIT

INSW

OUTSW

HDS

HUS

PROTECT

REFLECT

-1 -2 S102-1

PROTECT

S102-2

REFLECT

S101

LIMIT IN

SW191

LOAD IN DET

SW192

LOAD OUT DET

SW193

HEAD DOWN

DET

SW194

HEAD UP DET

IC171

MEMORY

5 SDA

SCL

SDA

SCL

WRPWR

SHCK

FOK

DFCK

512FS

SQSY

SCTX

SWDT

SCLK

XLAT

SRDT

SENS

LRCK

BCK

C2PO

L OUT

L IN

DATA

DODT

DOUT

LDON

MOD

REC

DIGITAL

SECTION

(Page 21)

P-P TFIL

THID

TENV

M191

LOADING MOTOR

M192

HEAD MOTOR

XRST

Signal Path

REC

REC (Digital out)

(Digital in)

MDS-JA30ES

— 21 — — 22 —

6-2. BLOCK DIAGRAM — DIGITAL SECTION —

OSCO

•

XOE

XCAS

XRAS

XWE

DATA

LRCK

BCK

MIN

C2PO

EFM

DATA

INTERFACE RAM

INTERFACE

CPU

TIMING

CONTROL

ATRAC

INTERFACE

CPU

INTERFACE

ATRAC

ENCODER

/DECODER

DODT

DIDT

DOUT

ADIN

ALRCK

ABCK

ATRAC ENCODER/DECODER

IC206

2 3 5678911 17 26

13 2 5

SWDT

SCK

XLAT

SRDT

SENSE

SCMD0

XINT

WRMN

XRST

AIRCPB

SCMD1

CLOCK

GENERATOR

7 13

BUFFER

IC210

21 DATAO DECIMATION

FILTER

SAMPLING

RATE

CONVERTER

ATT

OVER

SAMPLING

FILTER

IIR I/F DATAI

SAMPLING

RATE

DETECTOR

SYSTEM

CONTROLLER

22 TIMING

BIT

DET SUBQ

DET

MICON

I/F

11 10 14 15 16 17 18 24

726

3SRDT

28 58

MOTOR

DRIVE

MOTOR DRIVE

IC201

MOTOR

DRIVE

HEAD MOTOR DRIVE

IC212

DIGITAL AUDIO INTERFACE RECEIVER

IC203

19 13

DIGITAL

REC

LEVEL

DVOL

RV602

IC213IC211

CLOCK DIVIDER

CLK Q

42 QD

RESET

SWITCH

Q201

SWITCH

Q202

20 43

2472

32303331

2355545756 58

INSW

OUTSW

HDOWNS

HUPS

PROTECT

REFLECT

LIMIT-IN

INSW

OUTSW

PROTECT

REFLECT

LIMIT

75 SDA

SCL

SQSY

SCTX

FOK

SHCK

WRPWR

SENS

LDON

REC/PB

MOD

SQSY

FOK

SHCK

WRPWR

SENS

LDON

REC

MOD

SDA

SCL

SYSTEM CONTROL

IC202

HUP

HDWN

LDIN

LDOUT

XINT

37RST

SWDT

SCLK

XLATCH

SRDT

04LAT

DQSY

DIG-RST

EROR

SRCRST

SRC TEST

POWER DOWN

FLDATA

FLCLK

FLCS

S702

FL DRIVER

IC701

RST

SDATA

SCK

•

S36 12

D16

KEY

MATRIX

KEY1

KEY3

•

KEY0

•

TIMER

•

SORCE

•

100

•

PLAY

•

REC

•

PAUSE

•

POWER

LED

DRIVER

Q701-704,

781

4ROTARY

ENCODER

JOG0

JOG1

REMOCON OUT

D701-704,

781

S702

AMS

PUSH ENTER

REMOTE CONTROL

RECEIVER

IC781

FL701

FLUORESCENT

INDICATOR

TUBE

POWER

TRANSFORMER

X202

32.768KHz

X201

10MHz

XIN-T

XOUT-T

XOUT

XIN

40 4142

DIN/XMD

COAX/XOPT

OPT1/XOPT2

95LAT

95RST

62RST

ADRST

ADLAT

DA-MUTE

STB

SYSTEM-RST

DOUT

ADIN

ALRCK

ABCK

XRST

1024FS

ATT(SW DT)

SHIFT(SCLK)

256FS

LATCH

95RST

AUDIO

SECTION

(Page 23)

P. DOWN

DA-MUTE

STB

S.RST

POWER

SECTION

(Page 25)

DOUT

DODT

SCTX

DATA

LRCK

BCK

DFCK

C2PO

512FS

XRST

SWDT

SCLK

XLAT

SRDT

LDOUT

LDIN

SECTION

(Page 20)

2CE

SRDT

•

DQ1

DQ4

CAS

RAS

DRAM

IC208

LRCKI

BCKI

FIMCK

FIMO

LRCKO

SCK

XLAT

SWDT

BCKO

317

713

515

911

12 8

DATAO

18 2DATA

MODULATION

16 4

14 6

LRCK

BCK

CKOUT

INPUT

SAMPLING RATE CONVERTER, DIGITAL FILTER

IC207

AVOCK

XMODE

SCLK

XLAT

SWDT

SRDT

DQSY

EROR

DIN1

IC205

ABCK

ALRCK

SCLK

XLAT

SWDT

SRDT

87 SPO

36 37

OSCI

INIT

TEST1

IC205

•

14 12

7 3

DIGITAL IN SELECTOR

IC352

142

DIGITAL OUT

SELECTOR

IC351

J351

IC353

IC355

IC356

COAXIAL

OPT1

OPT2

DIGITAL

OUT

OPTICAL

DIGITAL

SEL

SEL1

SEL0

8 5

10 13

IC354

PLL

Signal Path

REC

REC (Digital out)

(Digital in)

MDS-JA30ES

— 23 — — 24 —

6-3. BLOCK DIAGRAM — AUDIO SECTION —

DOUT

ABCK

ALRCK S/P

LRCKI

DATAI

BCKI

45 ATT IIR

MODE

FIR P/S

CONVERT

AND

D/F

CLOCK GEN.

TIMING

CIRCUIT CLOCK

GENERATOR

47 48 49 46

ATT

SHIFT

LATCH

INIT

MCKIN

64FSI

NSDOL1-4 46

S/P

INTER

POLATER

40 64FSO

DINIT 50 MUTE

35 256FSO

TIMING

CIRCUIT

3rd ORDER

NOISE SHAPER

PLM

D/A CONVERTER

IC502

CLOCK

GENERATOR

L1(+)

L1(–)

L2(+)

L2(–)

33LVCK01

LVCK02

IN1+

IN1–

IN2+

IN2–

SWITCHING

CIRCUIT

CURRENT PULSE

IC505

IO1+

IO2–

IO1–

IO2+

CONSTANT

CURRENT

CIRCUIT

LPF

L.P.F.

IC509

57 3 1

MIX/LINE AMP

IC510

XIN

XOUT

X501

45MHz

HEADPHONE

AMP

IC651

RV651

RY501

RCH J651

MUTE

Q651,654

RELAY

DRIVE

Q505

HP MUTE

RELAY

PHONES

PJ501

LINE

OUT

POWER

SECTION

(Page 25)

PHONE

LEVEL

PJ501 LINE

ANALOG

REC

LEVEL

RV601

LINE AMP

IC305

L.P.F., PRE AMP

IC303

LPF

DAC

19 L/R

MCLK

A/D CONVERTER

IC302

SDATA +

AINL–

AINL+

ADIN

256FS

ATT(SWDT)

SHIFT(SCLK)

LATCH

95RST

1024FS

DIGITAL

SECTION

(Page 22)

NOISE SHAPER, DIGITAL FILTER

IC501

+5V

Signal path

R CH is omitted.

:PB

:REC

MDS-JA30ES

6-5. CIRCUIT BOARDS LOCATION6-4. BLOCK DIAGRAMS — POWER SECTION —

— 25 — — 26 — — 27 —

AC board

PW board

DIO board

PJ board

AD board

DA board

DIG board

DISP board

AVOL board

DVOL board

HP board

PSW board

LMOT board

HLIM board

OUT board

IN board

BD board

+5V REG

IC301

+5V REG

IC503

+7V REG

IC507

1 3

+12V REG

IC904 RECT

D911

RECT

D909

–12V REG

IC903

–5V REG

IC303

–7V REG

IC506

RELAY

DRIVE

Q905 RECT

D919,920

RY901 CN001AC

2 1

+3.3V REG

IC204

+5V REG

IC191

2 1

+7V REG

IC909

STB

STBY SW

Q903

+5V REG

IC907

STB

+5V REG

IC905

STB RESET GEN.

IC901

3 5 D907

D908

BT901

LITHIUM ION

BATTERY

B. UP +5V

SYS. +5V

7 1

+5V REG

IC902

RECT

D916

RES

1310

POWER DOWN

DETECT

IC906

RECT

D921,922

D914

D901,903

D902,904

POWER ON/OFF

MUTE SW

Q901,902

RELAY

MUTE

HP MUTE

AUDIO

SECTION

(Page 24)

P. DOWN

DA-MUTE

S.RST

DIGITAL

SECTION

(Page 22)

AMP. +12V

AD. +5V

DA. +5V

AMP. –12V

AD. –5V RELAY. +5V

D+5V

D +3.3V

BD. +5V

UNREG. +9V

P.H. +5V

M+5V

RECT

D915

RECT

D918

3 1

FL. –32V

–32V REG

IC908

FLUORESCENT

INDICATOR

TUBE

T001

POWER

TRANSFORMER

STB

MAIN

POWER

S001

DA. +7V

AD. –7V

Abbreviation

G : German model

AEP, UK, G

MDS-JA30ES

– 56 – – 57 – – 58 – – 59 – – 60 –

IC151 MPC17A38VMEL

6-15. IC BLOCK DIAGRAMS

36 7

FO1

RO1

PGND

FO2

RO2

PGND

FO3

RO3

PGND

FO4

RO4

PGND

CLK

FI1

RI1

FI2

RI2

FI3

RI3

F/R4

PI4

GND

CLOCK

DC/DC

Converter

CLK

Detector

Driver

Pre-driver

Control

Driver

Pre-driver

Control

Driver

Pre-driver

Control

Driver

Pre-driver

Control

OUT1

VCC

FIN

GND

OUT2

VREF

RIN

CONTROL LOGIC

TSD

POWER

SAVE

DRIVER DRIVER

IC201, 212 BA6287F

DIN1 ERROR

DATAOUT

LRCK

BCK

FSI28

CKOUT

DQSY/LD

SRDT/DO

SWDT/DI

XLAT/CE

SCLK/CL

TEST2

DIN2

E/DOUT

VDD

VIN

VCO

XMODE

GND

CKSEL

AVOCK

TEST1

INPUT

PLL

DATA

DEMODULATION

LOCK ERROR

DET

MUTE

OUTPUT

TIMING

C BIT

DET SUB-Q

DET

MICOM

INTERFACE

TEST

IC205 TC74LCX244FS (EL)

IC210 TC74VHCT244F (EL)

IC203 LC89051V-TLM

CLR

VCC

RSQ

GND

QDC

IC213 TC7W74F

16 15 14 13 12 11 10 9

1234 5 678

2C3 2C2 2C1 2C0 2Y

VCC 2C3 2C2 2C1 2C0

STROBE

2G OUTPUT

SELECT

DATA INPUTS

BBAA

1C3 1C2 1C1 1C0 1Y

STROBE

1G B

SELECT 1C3 1C2 1C1 1C0 OUTPUT

1Y GND

DATA INPUTS

IC352 SN74HC153ANS

SWITCHING

CIRCUIT

CONSTANT

CURRENT

CIRCUIT

REFERENCE

VOLTAGE

CIRCUIT

CONTROL

CIRCUIT

I01+ IN2–

IN2+

IN1+

IN1–

GND2

VEE2

VEE1

CIREF

I02–

I01–

I02+

VCC2

VCC1

VREF

VCNT

GND1

RIREF

IC504, 505 CXA8042AS

IC701 M66004M8FP

INDICATION

CODE

RESISTOR

(8BIT x 16)

DECODER

(35BIT x 16)

DECODER

(35BIT x 16)

CODE/COMMAND

CONTROL

CIRCUIT

INDICATION

CONTROL

RESISTOR

INDICATION

CONTROLLER

DIGITAL

OUTPUT

CIRCUIT

CODE

WRITE

SERIAL

RECEIVE

CIRCUIT

OUTPUT

PORT

(2BIT)

CLOCK

GENERATOR

CIRCUIT

RAM WRITE

CODE SELECT

DIG12

DIG15

SEG0

SEG26

XIN

XOUT

RES

DIG11

DIG0

CLK

DATA

SEG35

SEG27

SEGMENT OUTPUT CIRCUIT 59

IC353 SN74HCU04ANS-E20

14 13 12 11 10 9 8

1 2 3 4 5 6 7

VCC

GND

IC501 CXD8679Q

3rd order

NOISE

SHAPER

S / P

TIMING

CIRCUIT

CLOCK

GENERATOR

DATA SELECT

P/S CONVERT

D/F-CLK GEN.

4BIT DATA

BITSTREAM

"0" DETECT

MUTE

CIRCUIT

3rd order

NOISE

SHAPER

L . I . P.

ATT

x 0.75

L . I . P.

ATT

x 0.75

DITHER

OVERFLOW DETECTOR

FIR 4

MODE

INAF

OVFLAG

MUTER

MUTEL

MTPOL

DRPOL

MODE

DFDTOR

DFLRCKO

TEST4

TEST3

VSS

IF SELD

IF SELC

SBCKI

SDATAR

SDATAL

DFDTOL

DFBCKO

DFDTEN

TEST1

TEST2

VSS

PLMG2

VDD

NSDOL4

NSDOL3

NSDOL2

NSDOL1

VDD

64FSI

NSDOR1

NSDOR2

NSDOR3

NSDOR4

MCKIN

VDD

PLMG1

NRGCLR

SYSM

LATCH

SHIFT

ATT

INIT

LRCKI

DATAI

BCKI

VSS

INVO2

INVO1

INVI

128FSO

CKVDD

DINIT

51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

1 2 3456789 10 11 12 13 14 15 16 17 18 19

FIR 2FIR 1 FIR 3

ATT

IIR

OVERFLOW DETECTOR

FIR 4

FIR 2FIR 1 FIR 3

ATT

IIR

POLALITY

IC901 M62005L

1 2 3 4 5

VCC

RESET

INT

GND

–

RESET

SIGNAL

GENERATOR

INTERRUPT

SIGNAL

GENERATOR

IC902 LA5602

V IN

GND

CDEL

RES

V OUT

REFERENCE

VOLTAGE

OVER HEAT

PROTECTION

OVER CURRENT

LIMITTER

ON/OFF

RESET

GEN

ERROR

AMP

IC707 MDM9404AGS-BK

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

ATT/

MODE

SAMPLE RATE DET

RESAMPLE POINTER

GENERATOR

IIR/FIR

FILTER

CONTROL

(RAM/ROM/

ACC)

OUTPUT

I/F

(PISO)

ATT & DEMP &

1Fsi to 8Fsi

FILTER BLOCK

SRC &

DECIMATION

LOW PASS

FILTER BLOCK

FLAME

COUNTER

INPUT I/F

(SIPO)

OUTPUT I/F

(PISO)

SEL

SRDT

SWDT

SCK

XLAT

INIT

VDD

RBPH

STA

FRS

FRM

SLAVE

TEST5

TB3

FS2

FS1

DEMP

TEST3

DAOL

DAOR

VDD

ABCKO

ALRKO

MAO1

MAO0

TB4

TB5

TB7

MDO0

MDO1

MUTE

DATAO

BCKO

LRCKO

TEST4

GND

XOO

VDD

TB6

TB0

TBO

DI0

MI1

MI0

FIS

TEST1

TEST2

GND

FIMO

FIMCK

BCKI

LRCKI

DATAI

TB1

TB2

20 19 18 17 16 15 14 13 12 11

1 2 3 4 5 6 7 8 9 10

1A1

2Y4

1A2

2Y3

1A3

2Y2

1A4

2Y1

GND 2A4

1Y4

2A3

1Y3

2A3

1Y2

2A4

1Y1

Vcc

— 61 —

6-21. IC PIN FUNCTIONS

• IC101 RF Amplifier (CXA1981AR)/BD board

Pin No. I/O DescriptionPin Name

2 to 7

47, 48

A to F

APCREF

TEMPI

GND

AAPC

DAPC

TEMPR

XRST

SWDT

SCLK

XLAT

VREF

TENV

THLD

VCC

TFIL

TLB

CSLED

ADFM

ADIN

ADAGC

ADFG

AUX

FLB

ABCD

BOTM

PEAK

RFAGC

ISET

AGCT

RFO

MORFI

MORFO

I, J

—

Middle point voltage (+2.5V) generation output

Input of signal from optical pick-up detector

F operation amplifier input

F operation amplifier output

Front monitor Connected to photo diode

Input for setting laser power

Temperature sensor connection pin

Ground

APC LD amplifier output

Digital APC output (Not used)

Temperature sensor reference voltage output

Input of reset signal from system controller Reset: “L”

Input of write data signal from system controller

Input of clock signal from system controller

Input of latch signal from system controller

Reference voltage output (Not used)

Tracking envelop signal output (Not used)

Track hold capacitor connection pin

Power supply (+5V)

Track hold input (Connected to VC)

Output of tracking error signal to CXD2535CR

Input of add signal to tracking error

Sled error LPF pin

Output of sled error signal to CXD2535CR

ADIP FM signal output

Inputs ADIP FM signal by AC coupling

Connection pin of external capacitor for ADIP AGC

Output of ADIP dual FM signal to CXD2535CR (22.05 kHz±1 kHz)

Output of auxiliary signal to CXD2535CR

Output of focus error signal to CXD2535CR

Focus bias control input (Not used)

Output of light amount signal to CXD2535CR

Output of bottom hold signal of light amount signal to CXD2535CR

Output of peak hold signal of light amount signal to CXD2535CR

Connection pin of RF AGC circuit external capacitor

Output of playback EFM RF signal to CXD2535CR

Internal circuit constant setting pin 22 kHz BPF center frequency (Fixed at “H”)

Inputs RF signal by AC coupling

Output pin of RF signal

Inputs MO RF signal by AC coupling

Output pin of MO RF signal

Input of signal from optical pick-up detector

— 62 —

I/O DescriptionPin Name

• IC121 Digital Signal Processor, Digital Servo Processor, EFM/ACIRC Encoder/Decoder (CXD2535CR)/BD board

Pin No.

FS256

FOK

DFCT

SHCK

SHCKEN

WRPWR

DIRC

SWDT

SCLK

XLAT

SRDT

SENS

ADSY

SQSY

DQSY

XRST

TEST4

CLVSCK

TEST5

DOUT

DIN

FMCK

ADER

REC

DVSS

DOVF

DODT

DIDT

DTI

DTO

C2PO

BCK

LRCK

XTAO

XTAI

MCLK

XBCK

DVDD

WDCK

RFCK

O (3)

—

O (3)

—

11.2896 MHz clock output (MCLK) (Not used)

Output of FOK signal to system controller

Outputs “H” when focus is set

Outputs defect ON/OFF switching signal to ATRAC encoder/decoder

Outputs track jump detection signal to system controller

Track jump detection enable input (Not used) (Fixed at “H”)

Inputs laser power switching signal from system controller

Disc drive recording/playback switching signal input (Fixed at “H”)

Inputs write data signal from system controller

Inputs serial clock signal from system controller

Inputs serial latch signal from system controller

Outputs read data signal to system controller

Outputs internal status (SENSE) to system controller

ADIP sync signal output (Not used)

Output subcode Q sync (SCOR) to system controller

Outputs “L” every 13.3 msec Outputs “H” at all most mostly

Outputs digital-in U-bit CD format subcode Q sync (SCOR) to system controller

Outputs “L” every 13.3 msec Outputs “H” at all most mostly

Inputs reset signal from system controller Reset: “L”

Test input (Fixed at “L”)

Not used

Test input (Fixed at “L”)

Digital audio signal output (For optical output)

Digital audio signal input (For optical input) (Not used)

ADIP FM demodulation clock signal output

ADIP CRC flag output “H”:Error

Input of recording/playback switching signal from system controller

Recording: “H” Playback: “L”

Ground (Digital)

Digital audio output validity flag input (Fixed at “L”)

Input of 16bit data for digital audio output

Output of 16bit data for digital audio input to ATRAC encoder/decoder

Input of recording audio data signal from ATRAC encoder/decoder

Output of playback audio data signal to ATRAC encoder/decoder

Outputs C2PO signal to ATRAC encoder/decoder (Output indicating data error status)

Playback: C2PO (“H”) Digital recording: Digital-in-Vflag Analog recording: “L”

Outputs bit clock signal (2.8224 MHz) (MCLK)

Outputs L/R clock signal (44.1 kHz) (MCLK)

System clock (512 fs=22.5792 MHz) signal output

Input of system clock (512fs=22.5792 MHz) signal input

MCLK clock (22.5792 MHz) signal output (Not used)

Pin 32 (BCK) inversion output (Not used)

Power supply (+5V) (Digital)

WDCK clock (88.2 kHz) signal output (MCLK)

RFCK clock (7.35 kHz) signal output (MCLK)

* (3) of I/O is 3-state output, (A) is analog output.

— 63 —

Pin No. I/O DescriptionPin Name

• Abbreviation

EFM : Eight to Fourteen Modulation

PLL : Phase Locked Loop

* (3) of I/O is 3-state output, (A) is analog output.

WFCK

GTOP

GFS

XPLCK

EFMO

RAOF

MVCI

TEST2

DIPD

DVSS

DICV

DIFI

DIFO

AVDD

ASYO

ASYI

BIAS

RFI

AVSS

CLTV

PCO

FILI

FILO

PEAK

BOTM

ABCD

AUX1

ADIO

TEST3

AVDD

ADRT

ADRB

AVSS

AUX2

DCHG

APC

O (3)

—

I (A)

O (A)

—

I (A)

—

I (A)

O (3)

I (A)

O (3)

I (A)

O (A)

I (A)

—

I (A)

—

I (A)

WFCK clock (7.35 kHz) signal output

(Playback: EFM decoder PLL Recording: EFM encoder PLL)

“H”: Opens playback EFM frame sync protection window

“H”: Playback EFM sync and interpolation protection timing match

EFM decoder PLL clock output (98 fs=4.3218 MHz)

Falling edge and EFM signal edge match

EFM signal output (Recording)

Internal RAM overflow detection signal output (decoder monitor output)

Outputs “H” when the disc rotation exceeds ±4F jitter margin during playback

Digital-in PLL oscillation input (Not used) (Fixed at “L”)

Test pin (Fixed at “L”)

Digital-in PLL phase comparison output

Internal VCO: (Frequency: Low n “H”) External VCO: (Frequency: Low n “L”)

Ground (Digital)

Digital-in PLL internal VCO control voltage input

Filter input when digital-in PLL internal VCO is used

Filter output when digital-in PLL internal VCO is used (Not used)

Power supply (+5V) (Analog )

Playback EFM full-swing output (L=VSS, H=VDD)

Playback EFM asymmetry comparate voltage input

Playback EFM asymmetry circuit constant current input

Inputs playback EFM RF signal from RF amplifier

Ground (Analog )

Decoder PLL master clock PLL VCO control voltage input

Decoder PLL master clock PLL phase comparison output

Decoder PLL master clock PLL filter input

Decoder PLL master clock PLL filter output

Inputs peak hold signal for light amount signal from RF amplifier

Inputs bottom hold signal for light amount signal from RF amplifier

Light amount signal from RF amplifier

Input of focus error signal from RF amplifier

Input of auxiliary signal from RF amplifier

Input of middle point voltage (+2.5V) from RF amplifier

A/D converter input signal monitor output

Test input (Fixed at “L”)

Power supply (+5V) (Analog)

A/D converter operation range upper limit voltage input (Fixed at “H”)

A/D converter operation range lower limit voltage input (Fixed at “L”)

Ground (Analog)

Input of sled error signal from RF amplifier

Input of tracking error signal from RF amplifier

Auxiliary input pin 2 (Fixed at “L”)

Connected to ground

Laser APC input (Fixed at “L”)

— 64 —

Pin No. I/O DescriptionPin Name

100

TEST1

ADFG

TS25

LDDR

TRDR

TFDR

FFDR

DVDD

FRDR

FS4

SRDR

SFDR

SPRD

SPFD

DCLO

DCLI

XDCL

OFTRK

COUT

DVSS

—

Test pin (Fixed at “L”)

Input of ADIP dual FM signal from RF amplifier (22.05 kHz ±1 kHz)

(TTL Schmidt input)

Test pin (Fixed at “L”)

Laser APC signal output

Tracking servo drive signal output (–)

Tracking servo drive signal output (+)

Focus servo drive signal output (+)

Power supply (+5V) (Digital)

Focus servo drive signal output (–)

176.4 kHz clock signal output (MCLK) (Not used)

Sled servo drive signal output (–)

Sled servo drive signal output (+)

Spindle servo drive signal output (–)

Spindle servo drive signal output (+)

Not used normally

Not used normally (Fixed at “H”)

Not used normally

Off track signal output (Not used)

Traverse count signal output (Not used)

Ground (Digital)

— 65 —

Pin No. I/O DescriptionPin Name

• IC202 System Controller (M30610EC-1086CFP)/DIG board

1, 2

21, 22

—

JOG0

JOG1

SQSY

REMOCON

—

BYTE

CNVSS

XIN-T

XOUT-T

SYSTEM-RST

XOUT

GND

XIN

+5V

MNI

—

POWER DOWN

DQSY

—

XINT

04LAT

62RST

95RST

95LAT

ADRST

ADLAT

XLATCH

SWDT

SRDT

SCLK

—

FLDATA

—

FLCLK

FLCS

—

COAX/XOPT

OPT1/XOPT2

DIN/XMD

EROR

SRCRST

—

AMS jog signal input

ATP address sync or sub code Q sync (SCOR) input from CXD2535CR

“L” is input every 13.3 msec Mainly “H”

Remote control signal interruption input

Not used

Data bus switching signal input “L”:Single chip mode (Fixed at “L”)

Ground

Sub clock input (37.768 kHz)

Sub clock output (32.768 kHz)

System reset input “L”:Reset

Main clock output (10 MHz)

Ground

Main clock input (10 MHz)

Power supply (+5V)

Not used

Power down detection signal input “L”:Power down

Digital-in U-bit CD format sub code Q sync (SCOR) input from CXD2535CR

“L” is input every 13.3 msec Mainly “H”

Not used

Interruption status input from ATRAC encoder/decoder

Data read signal output to sampling rate converter, digital filter

“L”:Active

Reset signal output to D/A converter “L”:Reset

Reset signal output to CXD8595Q “L”:Reset

Transmission data latch signal output to CXD8595Q

Reset signal output to A/D converter “H”:Reset

Latch signal output to A/D converter

Serial data latch signal output

Write data signal input to serial bus

Read data signal input from serial bus

Clock signal output to serial bus

Not used

Transmission data clock output to FL driver

Not used

Transmission data clock output to FL driver

Transmission data chip select output to FL driver

Not used

Digital-in select signal output “L”:Optical input, “H”:Coaxial input

Digital-in select signal output “L”:OPT2, “H”:OPT1

Digital-out select signal output “L”:MD, “H”:Digital in through

Digital-in error signal input

Reset signal output to sampling rate converter, digital filter “L”:Reset

• Abbreviation

FL : Fluorescent indicator tube

— 66 —

Pin No. I/O DescriptionPin Name

46 to 48

SRC TEST

—

DAMUTE

STB

OUTSW

INSW

—

LDIN

LDOUT

HUP

HDWN

37RST

HUPS

HDOWNS

REC/PB

VCC

—

VSS

—

MOD

SCTX

FOK

SHCK

WRPWR

DIG-RST

—

SDA

SCL

SENS

PROTECT

REFLECT

LDON

LIMIT-IN

—

I/O

The second reset signal output from sampling rate converter

Not used

D/A line mute output “L”:Active

Strobe signal output to power supply circuit When power is ON:“H”, When standby:“L”

Detection input from loading out detection switch

Detection input from loading in detection switch

Not used

Loading motor control output

Magnetic head up/down control output

Reset signal output to ATRAC encoder/decoder “L”:Reset

Detection input from magnetic head up detection switch

Detection input from magnetic head down detection switch

Recording/playback selection signal output to CXD2535CR

When recording:“H”, when playing back:“L”

Power supply (+5V)

Not used

Ground

Not used

Laser modulation switching signal output

During playback power: “L”, During stop:“H”

During recording power:

Write data transmission timing output to ATRAC encoder/decoder

Used also as magnetic head ON/OFF output

FG detection signal output from spindle motor driver

FOK signal input from CXD2535CR

“H” is input when focus is set

Track jump detection signal input from CXD2535CR

Laser power switching signal output to optical pick-up and CXD2535CR

Digital reset signal output

Not used

Input/output of data signal with EEPROM

Clock signal output to EEPROM

Internal status (SENSE) input from CXD2535CR

Recording prevention tab detection input from protect detection switch

When protect is ON:“H”

Disc reflection rate detection input from reflect detection switch

When low reflection rate disc is used:“H”

Laser ON/OFF control output “H”:Laser ON

Detection input from limit-in switch

When sled limit in:“L”

0.5S

— 67 —

Pin No. I/O DescriptionPin Name

100

CSET0

CSET1

POWER

PLAY

—

REC

—

PAUSE

—

KEY1

KEY2

KEY3

KEY0

TIMER

SORCE

AVSS(AGND)

DVOL

VREF(+5V)

AVCC

—

Destination setting pin

POWER LED drive output

PLAY (() LED drive output

Not used

REC (r) LED drive output

Not used

PAUSE (P) LED drive output

Not used

Key input (A/D)

Timer recording/playback/OFF switching input “L”:Playback, “H”:Recording, “M”:OFF

Input signal (analog/digital input) selection signal input

Analog ground

Digital input level volume input (A/D)

A/D reference voltage input (+5V)

Analog power supply (+5V)

FILTER LED drive output

— 68 —

Pin No. I/O DescriptionPin Name

• IC203 Digital Audio Interface Receiver (LC89051V-TLM)/DIG board

DIN1

DIN2

E/DOUT

VDD

VIN

VCO

GND

CKSEL

XMODE

AVOCK

TST1

TST2

SCLK

XLAT

SWDT

SRDT

DQSY

CKOUT

FS128

BCK

LRCK

DATAOUT

ERROR

—

Data input with built-in amplifier (responding to the coaxial optical module)

Data input (responding to the optical module) (Not used)

Emphasis, input bi-phase, validity flag output (Not used)

Power supply (+5V)

VCO gain control input

VCO freerunning frequency setting input

LPF setting of PLL

Ground

System clock select input (384fs, 512fs) (Fixed at “H”)

Reset input

Clock input for preventing PLL lock failure

Test input (Normally “L”)

Microcomputer IF clock input

Microcomputer IF latch/chip enable input

Microcomputer IF write data input

Microcomputer IF read data output

Microcomputer IF Sub-Q sync and ID sync output

VCO clock output (freerunning, 384fs, 512fs)

128fs clock output (Not used)

Bit clock output

L/R clock output

Audio data output

PLL lock error mute output

— 69 —

Pin No. I/O DescriptionPin Name

• IC206 Shock-Proof Memory Controller, ATRAC Encoder/Decoder (CXD2537R)/DIG board

18 to 21

45 to 47

VDD

SWDT

SCK

XLAT

SRDT

SENSE

SCMD0

SCMD1

XINT

RCPB

WRMN

VSS

SICK

IDSL

XILT

XRST

TS0 to TS3

EXIR

SASL

SNGLE

VSS

AIRCPB

XRQ

ADTO

ADTI

XALT

ACK

AC2

LCHST

EXE

MUTE

OSCO

OSCI

VSS

ATT

F86

DOUT

ADIN

ABCK

ALRCK

SA2 to SA0

—

O/Z

—

I/O

—

I/O

Power supply (+5V)

Input of write data signal from system controller

Input of serial clock signal from system controller

Input of serial latch signal from system controller

Output of read data signal to system controller

Internal status (SENSE) output (Not used)

Serial command control mode input (Fixed at “H”)

Interrupt status output

Recording/playback switching input “L”: Recording mode (Fixed at “L”)

Write/monitor mode switching signal input “H”: Monitor mode (Fixed at “L”)

Write data transmission timing input

Also used as magnetic field head ON/OFF output

Ground

Chip reservation pin (Fixed at “L”)

Chip reservation pin (Fixed at “H”)

Input of reset signal from system controller Reset: “L”

Test pin (Fixed at “L”)

Chip reservation pin (Fixed at “L”)

Block selection in single use “L”: ATRAC “H”: RAM controller (Fixed at “L”)

Normally fixed at “L” Fixed at “H” when used as ATRAC or RAM controller for single (Fixed at “L”)

Ground

Output of ATRAC and external audio block recording/playback mode signal (Not used)

ATRAC I/F data request signal output (Not used)

ATRAC decode data signal input (Not used)

ATRAC encode data signal output (Not used)

ATRAC I/F XALT signal input (Not used)

ATRAC I/F ACK signal input (Not used)

ATRAC I/F C2PO signal input (Not used)

ATRAC I/F Lch start data signal input/output (Not used)

ATRAC I/F EXE signal input/output (Not used)

ATRAC I/F MUTE signal input/output (Not used)

Clock output (45 MHz) (Not used)

Clock input (45 MHz)

Ground

ATRAC I/F ATT signal input/output (Not used)

ATRAC block 11.6 msec timing signal output (Not used)

Output of audio data signal to D/A converter

Input of recording signal from A/D converter

Bit clock signal output

L/R clock output

Address signal output (Not used)

* O/Z: In case of no output data, it becomes high impedance

— 70 —

Pin No. I/O DescriptionPin Name

48, 49

52 to 55

56 to 60

68, 69

70 to 74

100

A11, A10

VSS

VDD

A03 to A00

A04 to A08

XOE

XCAS

VSS

XCS

A09

XRAS

XWE

D1, D0

D2 to D6

VSS

ERR

EXTC2R

BUSY

EMP

FUL

EQL

MDLK

CPSY

CTMD0

CTMD1

SPO

VSS

MDSY

LRCK

BCK

C2PO

DATA

DIDT

DODT

DIRCPB

MIN

SPOSL

MCK

VSS

—

I/O

—

I/O

—

I/O

—

Address signal output (Not used)

Ground

Power supply (+5V)

Address signal output

Output enable control signal output

Column address strobe signal output

Ground

Chip select signal output (Not used)

Address signal output

Row address strobe signal output

Read/write control signal output

Data signal input/output

Ground

Data signal input/output (Not used)

Input/output of error (C2PO) data to external RAM (Not used)

External RAM selection input for error data writing (“H”: External RAM) (Fixed at “L”)

RAM access BUSY signal output (Not used)

EMPTY or immediately before FULL of ATRAC data (When DSC=ASC+1: “H”)

(Not used)

FULL or immediately before EMPTY of ATRAC data (When ASC=DSC+1: “H”)

(Not used)

ATRAC data EMPTY (When DSC=ASC: “H”) (Not used)

Indicates recording/playback data main/sub (“H”: Sub, Linking: “L”: Main) (Not used)

Interpolation sync signal output (Not used)

DSC counter mode output (Not used)

System clock (512fs=22.5792 MHz) signal output

Ground

Main data sync detection signal output (Not used)

L/R clock signal input (44.1 kHz)

Bit clock signal input (2.8224 MHz)

C2PO signal input (Shows data error status)

Playback:C2PO (“H”) Digital recording: D In-Vflag Analog recording: “L”

Recording: Recording audio data signal output

Playback: Playback audio data signal input

Input of digital audio input 16-bit data from CXD2535CR

Output of digital audio output 16-bit data to CXD2535CR

Disc drive and EFM encoder/decoder recording/playback mode output (Not used)

External monitor signal input

Pin 87 (SPO) input/output switching input pin (“L”:IN “H”:OUT) (Not used)

(Fixed at “H”)

RAM controller internal master clock output (Not used)

Ground

— 71 —

Pin No. I/O DescriptionPin Name

• IC207 Sampling Rate Converter, Digital Filter (MSM9404AGS-BX)/DIG board

32 to 34

SEL

SRDT

SWDT

SCK

XLAT

INIT

VDD

RBPH

STA

FRS

FRM

SLAVE

TEST5

TB7

MDO0

MDO1

MUTE

DATAO

BCKO

LRCKO

TEST4

GND

XOO

VDD

TB6 to TB4

MAO0

MAO1

ALRKO

ABCKO

VDD

—

I/O

—

I/O

—

Data output (Not used)

Data select control input “L”:DI0 n DO, “H”:DI1 n DO (Fixed at “L”)

Serial data output

Serial data input

Serial clock input

Serial latch pulse input

Initialize input “L”:Reset

Not used

Power supply (+3.3V)

Not used

Ring buffer R/W phase control monitor signal output “L”:Control OFF (Not used)

Fs conversion rate measurement state monitor signal output “L”:High accuracy

“H”:High speed response mode (Not used)

Input/output Fs rate measurement time selection input

“L”:High accuracy “H”:High speed response mode (Fixed at “L”)

Input/output Fs rate measurement mode signal input

“L”:Automatic, “H”:Manual (Fixed at “L”)

Output sync mode selection input “L”:Slave, “H”:Master (Fixed at “L”)

Test pin (Fixed at “L”)

Test bus input/output (Open)

Data output serial data format setting input (Fixed at “L”)

Output mute setting input “L”:Muted (DATAO only)

Data output (Fso output)

Data output bit clock input/output

Data output Fso word clock input/output

Test pin (Fixed at “L”)

Ground

512 Fso output line master clock input

Ground

Clock output

Output line master clock output (Not used)

Power supply (+3.3V)

Not used

Test bus input/output (Open)

D/A output serial data format setting input (Fixed at “L”)

D/A output word clock output Data changes at “L”→“H” edge (Not used)

D/A output bit clock output Data changes at “L”→“H” edge (Not used)

Not used

Power supply (+3.3V)

— 72 —

Pin No. I/O DescriptionPin Name

48 to 50

DAOR

DAOL

TEST3

DEMP

FS1

FS2

TB3 to TB1

DATAI

LRCKI

BCKI

FIMCK

FIMO

GND

TEST2

TEST1

FIS

MI0

MI1

DI0

DI1

TB0

—

I/O

—

I/O

Not used

Rch D/A 8Fso, 4Fso data output (Not used)

Lch D/A 8Fso, 4Fso data output (Not used)

Test pin (Fixed at “L”)

Deemphasis setting input “L”:OFF (Fixed at “L”)

Deemphasis setting input Fsi frequency selection input (Fixed at “L”)

Test bus input/output (Open)

Data input

Input data 1Fs word clock input (Schmidt)

Input data bit clock input

Input data line Fs reference input and master clock input

Master clock output

Ground

Test pin (Fixed at “L”)

The second reset signal input from system controller

FIMCK frequency division rate setting input “L”:1/1 (256 Fs), “H”:1/2 (512 Fs) (Fixed at “H”)

Input data format setting input (Fixed at “H”)

Input data format setting input (Fixed at “L”)

Data input (Not used)

Test bus input/output (Open)

SECTION 7

EXPLODED VIEWS

Note:

• -XX, -X mean standardized parts, so they may

have some differences from the original one.

• Items marked “*” are not stocked since they

are seldom required for routine service. Some

delay should be anticipated when ordering these

items.

• The mechanical parts with no reference number

in the exploded views are not supplied.

• Hardware (# mark) list and accessories and

packing materials are given in the last of this

parts list.

The components identified by mark !or

dotted line with mark ! are critical for safety.

Replace only with part number specified.

Les composants identifiés par une marque

! sont critiques pour la sécurité.

Ne les remplacer que par une pièce portant

le numéro spécifié.

— 73 —

• Color Indication of Appearance Parts Example:

KNOB, BALANCE (WHITE) . . . (RED)

↑ ↑

Parts of Color Cabinet’s Color

#1 #1

#7 #7

MDM-4

not supplied

1 4-970-124-01 CUSHION (F50180S)

2 4-970-123-01 FOOT (F50180S)

3 4-929-074-01 SCREW (3X8)

*4 4-615-354-01 SPACER

5 3-363-099-21 SCREW (CASE 3 TP2)(BLACK)

5 3-363-099-51 SCREW (CASE 3 TP2) (GOLD)

6 4-969-469-01 CASE (BLACK)

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

6 4-969-469-31 CASE (GOLD)

7 4-987-666-01 PANEL, LOADING (GOLD)

7 4-987-666-11 PANEL, LOADING (BLACK)

8 3-831-441-99 CUSHION, SPEAKER

9 4-945-431-01 WASHER

*10 4-993-065-02 PLATE, BOTTOM

7-1. MAIN SECTION

— 74 —

*51 4-993-066-01 BRACKET (CASE)

52 3-846-312-11 SPACER (E)

53 3-703-397-01 STOPPER, WIRING

*54 4-888-798-00 BUSHING, RUBBER

55 4-928-032-01 COLLAR (A)

*56 1-666-751-11 AC BOARD

*57 A-4699-791-A PW BOARD, COMPLETE (US,Canadian)

*57 A-4699-804-A PW BOARD, COMPLETE (AEP,UK,German)

58 1-782-216-11 WIRE (FLAT TYPE) (30 CORE)

59 1-782-215-11 WIRE (FLAT TYPE) (18 CORE) (10cm)

60 1-777-738-11 WIRE (FLAT TYPE) (26 CORE) (18cm)

61 1-777-737-11 WIRE (FLAT TYPE) (16 CORE)

62 1-777-735-11 WIRE (FLAT TYPE) (18 CORE) (7.5cm)

*63 A-4699-802-A DIG BOARD, COMPLETE (US,Canadian)

*63 A-4699-806-A DIG BOARD, COMPLETE (AEP,UK,German)

*64 A-4699-789-A AD BOARD, COMPLETE

*65 A-4699-790-A DA BOARD, COMPLETE

*66 4-923-873-01 BRACKET, CORD STOPPER

67 3-703-571-12 BUSHING (2104), CORD

!68 1-558-568-21 CORD, POWER (AEP,UK,German)

!68 1-782-959-11 CORD, POWER (US,Canadian)

69 4-929-074-01 SCREW (3X8)

*70 4-992-959-12 PANEL, BACK (AEP,UK,German)

*70 4-992-959-22 PANEL, BACK (US)

*70 4-992-959-32 PANEL, BACK (Canadian)

*71 1-666-750-11 PJ BOARD

*72 A-4699-793-A DIO BOARD, COMPLETE

!T001 1-431-469-11 TRANSFORMER, POWER (US,Canadian)

!T001 1-431-470-11 TRANSFORMER, POWER (AEP,UK,German)

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

7-2. CHASSIS SECTION

The components identified by

mark ! or dotted line with mark

! are critical for safety.

Replace only with part number

specified.

Les composants identifiés par

une marque ! sont critiques

pour la sécurité.

Ne les remplacer que par une

pièce portant le numéro spécifié.

#1 #1

#7 #7

#4 #6

#7 #7

not supplied

not

supplied

71 70

T001

AEP, UK,

German model

US, Canadian

model

— 75 —

*101 A-4699-794-A DISP BOARD, COMPLETE

*102 3-362-478-11 HOLDER (T), LED

*103 4-988-382-01 COVER (LED)

104 1-517-620-11 INDICATOR TUBE, FLUORESCENT

*105 4-987-501-01 HOLDER (FL)

106 1-777-736-11 WIRE (FLAT TYPE) (26 CORE) (9.5cm)

107 4-971-774-01 KNOB (TIMER)(BLACK)

107 4-971-774-21 KNOB (TIMER)(GOLD)

*108 4-972-608-01 HOLDER (DIA. 5), LED

*109 A-4699-796-A PSW BOARD, COMPLETE

110 9-911-842-XX RUBBER (B)

111 4-992-539-01 KNOB (VOL) (GOLD)

111 4-992-539-11 KNOB (VOL) (BLACK)

112 3-354-981-01 SPRING (SUS), RING

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

7-3. FRONT PANEL SECTION 1

not supplied

supplied with S701

not

supplied

103

102

101

104

112

111

105

106

110

109

108

107

102

— 76 —

151 4-992-534-01 PANEL, FRONT (GOLD)(AEP,UK,German)

151 4-992-534-11 PANEL, FRONT (BLACK)(AEP,UK,German)

151 4-992-534-21 PANEL, FRONT (BLACK)(US,Canadian)

152 4-929-074-01 SCREW (3X8)

153 4-987-524-01 KNOB (REC L) (GOLD)

153 4-987-524-11 KNOB (REC L)(BLACK)

154 4-987-525-01 KNOB (REC R) (GOLD)

154 4-987-525-11 KNOB (REC R) (BLACK)

155 4-987-526-01 KNOB (AMS) (GOLD)

155 4-987-526-11 KNOB (AMS) (BLACK)

156 4-987-526-21 KNOB (AMS) (GOLD)

156 4-987-526-31 KNOB (AMS) (BLACK)

157 4-992-635-01 BASE, ORNAMENT (GOLD)

157 4-992-635-11 BASE, ORNANENT (BLACK)

158 4-992-537-01 PANEL (ESCUTCHEON) (GOLD)

158 4-992-537-11 PANEL (ESCUTCHEON) (BLACK)

159 4-992-541-01 PLATE, INDICATION

160 4-992-539-01 KNOB (VOL) (GOLD)

160 4-992-539-11 KNOB (VOL) (BLACK)

161 3-354-981-01 SPRING (SUS), RING

162 4-942-568-01 EMBLEM (NO.5), SONY (BLACK)

162 4-942-568-31 EMBLEM (NO.5), SONY (GOLD)

163 4-987-519-01 INDICATOR (D2)

164 4-987-496-01 BUTTON (POWER) (GOLD)

164 4-987-496-11 BUTTON (POWER) (BLACK)

*165 4-989-071-01 SHEET (LED POWER)

166 4-987-520-01 WINDOW (REMOTE CONTROL) (GOLD)

166 4-987-520-11 WINDOW (REMOTE CONTROL) (BLACK)

167 4-992-535-02 PANEL (EDGE L) (GOLD)

167 4-992-535-12 PANEL (EDGE L) (BLACK)

*168 1-666-743-11 HP BOARD

169 4-992-540-01 BUTTON (FUNC) (GOLD)

169 4-992-540-11 BUTTON (FUNC) (BLACK)

170 X-4947-844-1 BUTTON (PLAY) ASSY (GOLD)

170 X-4947-845-1 BUTTON (PLAY) ASSY (BLACK)

171 4-992-542-01 BUTTON (EDIT) (GOLD)

171 4-992-542-11 BUTTON (EDIT) (BLACK)

*172 1-666-745-11 ANALOG VOLUME BOARD

*173 1-666-744-11 DIGITAL VOLUME BOARD

174 4-992-538-01 BASE (R), PANEL (GOLD)

174 4-992-538-11 BASE (R), PANEL (BLACK)

175 4-989-035-01 CUSHION (FL)

176 4-992-536-01 ESCUTCHEON, KNOB (GOLD)

176 4-992-536-11 ESCUTCHEON, KNOB (BLACK)

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

7-4. FRONT PANEL SECTION 2

not supplied

164 165

163 166

167

168

170

171

169

176

163

175

173

172

162

161

160

159 158

157 156 155 154 153 152

151

174

#15

#10

#15 not supplied

supplied with

RV602 supplied with

RV601

supplied with J651,RV651

— 77 —

#14

#15#15

#15

310

306 311

309

308

not

supplied

304

305

302

303

301

not supplied

307

*301 4-987-291-01 BRACKET (TOP)

302 4-987-293-01 GEAR (4)

303 X-4948-835-1 SLIDER (D) ASSY

*304 4-987-267-01 TABLE (EJECT)

*305 4-987-282-01 TRAY

306 4-987-270-01 STOPPER (SHAFT A)

307 4-993-436-01 SHAFT

*308 4-987-294-01 GUIDE (SHAFT)

309 4-987-271-01 STOPPER (SHAFT B)

310 4-987-269-01 RACK (L)

311 4-987-268-01 RACK (R)

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

7-5. MECHANISM SECTION 1 (MDM-4B)

— 78 —

*351 X-4947-819-1 SLIDER ASSY

352 X-4947-937-1 LEVER (LOCK) ASSY

*353 X-4947-818-1 CHASSIS ASSY

*354 1-663-898-11 OUT BOARD

*355 1-663-897-11 IN BOARD

356 4-987-313-01 SPRING, COMPRESSION

*357 4-987-314-01 COLLAR (DAMPER)

358 4-987-308-01 BELT (LOADING)

359 4-987-297-01 GEAR, PULLEY

*360 1-663-900-11 LMOT BOARD

*361 X-4947-823-1 BRACKET (MOTOR) ASSY

362 4-987-274-01 TABLE (LOADING)

363 4-968-919-31 WASHER, STOPPER

364 4-987-302-01 GEAR

365 4-987-298-01 GEAR (A), PLANET

366 4-987-301-01 GEAR (D), PLANET

367 4-987-300-01 GEAR (C), PLANET

368 4-987-299-01 GEAR (B), PLANET

M191 X-4947-824-1 MOTOR (LOADING) ASSY

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

7-6. MECHANISM SECTION 2 (MDM-4B)

351

362

353

363

352

354

355

356 356

357

356

357

356

357

360

M191

361

358

359

364

363

368

367

366

365

363 357 363

#6 #6

#6#6

#13

— 79 —

401

402

403

413

403

412 406

405

414

404

407

405

408

409

410

411

M192

405

MBU-2B

#14

#10

not supplied

401 4-987-273-01 SPRING (UDL), LEAF

*402 X-4947-847-1 HOLDER ASSY

403 4-989-938-01 WASHER, STOPPER

405 4-987-312-01 INSULATOR (MD)

406 4-987-306-01 LEVER (OWH)

407 4-987-307-01 SPRING (OWH), TORSION

*408 4-989-233-01 SHAFT (OWH)

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

409 4-987-272-01 SPRING (UDR), LEAF

*410 1-663-896-11 HLIM BOARD

*411 1-663-899-11 HMOT BOARD

412 4-987-276-01 GEAR (HEAD-B)

413 4-987-277-01 GEAR (HEAD-C)

*414 4-987-278-03 SHAFT (HEAD)

M192 X-4947-821-1 MOTOR ASSY, HEAD

7-7. MECHANISM SECTION 3 (MDM-4B)

— 80 —

452

S102

HR901

M102

455

454

457

456

453

M101

451

not supplied

not

supplied

not supplied

#11

#12

#11

7-8. BASE UNIT SECTION (MBU-2B)

451 4-967-679-01 SPRING (OP), LEAF

452 4-967-675-01 GEAR (SL-A)

*453 A-4673-809-A BD BOARD, COMPLETE

454 4-967-676-01 GEAR (SL-B)

455 4-967-677-01 GEAR (SL-C)

456 4-967-678-01 SHAFT (OP)

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

!457 8-583-009-12 OPTICAL PICK-UP KMS-210A/J-N

HR901 1-500-304-21 HEAD, OVER WRITE

M101 A-4660-651-A MOTOR ASSY (SLED)

M102 A-4660-650-A CHASSIS ASSY, BU (SPINDLE)

S102 1-762-148-11 SWITCH, PUSH (2 KEY)(PROTECT/REFLECT)

The components identified by

mark ! or dotted line with mark

! are critical for safety.

Replace only with part number

specified.

Les composants identifiés par

une marque ! sont critiques

pour la sécurité.

Ne les remplacer que par une

pièce portant le numéro spécifié.

Note: • Due to standardization, replacements in the

par ts list ma y be different from the par ts

specified in the diagrams or the components

used on the set.

• -XX, -X mean standardized parts, so they may

ha ve some diff erence from the or iginal one .

• Items marked “*” are not stocked since they

are seldom required for routine service. Some

delay should be anticipated when ordering these

items.

• CAPACITORS:

uF: µF

• RESIST ORS

All resistors are in ohms.

METAL: metal-film resistor

METAL OXIDE: Metal Oxide-film resistor

F: nonflammable

• COILS

uH: µH

• SEMICONDUCT ORS

In each case, u: µ, for example:

uA...: µA... , uPA... , µPA... ,

uPB... , µPB... , uPC... , µPC... ,

uPD..., µPD...

When indicating parts by reference number,

please include the board name.

The components identified by mark ! or

dotted line with mark ! are critical for safety.

Replace only with part number specified.

Les composants identifiés par une marque

! sont critiques pour la sécurité.

Ne les remplacer que par une pièce portant

le numéro spécifié.

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

— 81 —

• Abbreviation

G : German

*1-666-751-11 AC BOARD

********

< CAPACITOR >

!C001 1-113-920-11 CERAMIC 0.0022uF 20% 250V

(AEP,UK,G)

!C002 1-113-920-11 CERAMIC 0.0022uF 20% 250V

!C003 1-113-920-11 CERAMIC 0.0022uF 20% 250V

!C004 1-113-920-11 CERAMIC 0.0022uF 20% 250V

!C005 1-113-925-11 CERAMIC 0.01uF 20% 250V

!C006 1-113-925-11 CERAMIC 0.01uF 20% 250V

!C007 1-113-925-11 CERAMIC 0.01uF 20% 250V

(AEP,UK,G)

< CONNECTOR >

CN002 1-580-230-11 PIN, CONNECTOR (PC BOARD) 2P

CN004 1-564-321-00 PIN, CONNECTOR 2P

< GROUND >

*EP001 4-870-539-00 PLATE, GROUND

< LINE FILTER >

!LF001 1-424-485-11 FILTER, LINE

< SWITCH >

!S001 1-762-764-11 SWITCH, POWER (AEP,UK,G)

************************************************************

*A-4699-789-A AD BOARD, COMPLETE

*******************

< CAPACITOR >

C305 1-162-294-31 CERAMIC 0.001uF 10% 50V

C307 1-164-159-11 CERAMIC 0.1uF 50V

C308 1-164-159-11 CERAMIC 0.1uF 50V

C309 1-124-994-11 ELECT 100uF 20% 10V

C310 1-164-159-11 CERAMIC 0.1uF 50V

C312 1-136-169-00 FILM 0.22uF 5% 50V

C313 1-126-048-81 ELECT 10uF 20% 50V

C315 1-124-995-11 ELECT 220uF 20% 10V

C317 1-164-159-11 CERAMIC 0.1uF 50V

C320 1-136-816-11 FILM 0.0022uF 5% 100V

C321 1-136-816-11 FILM 0.0022uF 5% 100V

C322 1-164-159-11 CERAMIC 0.1uF 50V

C325 1-126-023-11 ELECT 100uF 20% 25V

C326 1-126-023-11 ELECT 100uF 20% 25V

C327 1-126-023-11 ELECT 100uF 20% 25V

SECTION 8

ELECTRICAL PARTS LIST AC AD

C328 1-126-023-11 ELECT 100uF 20% 25V

C329 1-126-023-11 ELECT 100uF 20% 25V

C330 1-126-023-11 ELECT 100uF 20% 25V

C331 1-164-159-11 CERAMIC 0.1uF 50V

C333 1-126-023-11 ELECT 100uF 20% 25V

C334 1-126-023-11 ELECT 100uF 20% 25V

C335 1-126-023-11 ELECT 100uF 20% 25V

C336 1-126-023-11 ELECT 100uF 20% 25V

C337 1-126-022-11 ELECT 47uF 20% 10V

< CONNECTOR >

CN301 1-580-463-11 SOCKET, CONNECTOR 16P

*CN302 1-564-509-11 PLUG, CONNECTOR 6P

CN303 1-564-511-11 PLUG, CONNECTOR 8P

*CN304 1-564-508-11 PLUG, CONNECTOR 5P

< DIODE >

D301 8-719-987-63 DIODE 1N4148M

D302 8-719-987-63 DIODE 1N4148M

D303 8-719-987-63 DIODE 1N4148M

D304 8-719-987-63 DIODE 1N4148M

D305 8-719-987-63 DIODE 1N4148M

D306 8-719-987-63 DIODE 1N4148M

D307 8-719-987-63 DIODE 1N4148M

D308 8-719-987-63 DIODE 1N4148M

D309 8-719-210-21 DIODE 11EQS04

D310 8-719-210-21 DIODE 11EQS04

< GROUND >

*EP301 4-870-539-00 PLATE, GROUND

< IC >

IC301 8-759-604-35 IC M5F78M05L

IC302 8-759-462-08 IC AK5352-VF-E2

IC303 8-759-712-02 IC NJM2114D

IC304 8-759-712-02 IC NJM2114D

IC305 8-759-712-02 IC NJM2114D

IC306 8-759-712-02 IC NJM2114D

< COIL >

L301 1-408-405-00 INDUCTOR 4.7uH

< RESISTOR >

R301 1-259-404-11 CARBON 100 5% 1/6W

R302 1-259-380-11 CARBON 10 5% 1/6W

R303 1-259-380-11 CARBON 10 5% 1/6W

R304 1-259-380-11 CARBON 10 5% 1/6W

R305 1-259-380-11 CARBON 10 5% 1/6W

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

— 82 —

C112 1-164-232-11 CERAMIC CHIP 0.01uF 50V

C113 1-107-682-11 CERAMIC CHIP 1uF 10% 16V

C114 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C115 1-107-682-11 CERAMIC CHIP 1uF 10% 16V

C116 1-163-019-00 CERAMIC CHIP 0.0068uF 10% 50V

C117 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C119 1-104-913-11 TANTAL. CHIP 10uF 20% 16V

C121 1-126-395-11 ELECT 22uF 20% 16V

C122 1-164-232-11 CERAMIC CHIP 0.01uF 50V

C123 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C124 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C125 1-104-760-11 CERAMIC CHIP 0.047uF 10% 50V

C126 1-107-682-11 CERAMIC CHIP 1uF 10% 16V

C127 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C128 1-164-232-11 CERAMIC CHIP 0.01uF 50V

C129 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V

C130 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C131 1-104-760-11 CERAMIC CHIP 0.047uF 10% 50V

C132 1-107-682-11 CERAMIC CHIP 1uF 10% 16V

C133 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V

C134 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C135 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C136 1-126-206-11 ELECT CHIP 100uF 20% 6.3V

C141 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C142 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C143 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C144 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C151 1-104-913-11 TANTAL. CHIP 10uF 20% 16V

C152 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C155 1-104-916-11 TANTAL. CHIP 6.8uF 20% 20V

C160 1-104-601-11 ELECT CHIP 10uF 20% 10V

C161 1-104-601-11 ELECT CHIP 10uF 20% 10V

C163 1-164-232-11 CERAMIC CHIP 0.01uF 50V

C164 1-164-232-11 CERAMIC CHIP 0.01uF 50V

C166 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V

C167 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C169 1-104-913-11 TANTAL. CHIP 10uF 20% 16V

C170 1-104-913-11 TANTAL. CHIP 10uF 20% 16V

C171 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C175 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C176 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V

C177 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V

C178 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C181 1-104-913-11 TANTAL. CHIP 10uF 20% 16V

C182 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C183 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C184 1-107-836-11 ELECT CHIP 22uF 20% 8V

C185 1-164-611-11 CERAMIC CHIP 0.001uF 10% 500V

C186 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C191 1-126-395-11 ELECT 22uF 20% 16V

C192 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C193 1-164-346-11 CERAMIC CHIP 1uF 16V

C194 1-126-206-11 ELECT CHIP 100uF 20% 6.3V

< CONNECTOR >

CN101 1-766-508-11 CONNECTOR, FFC/FPC (ZIF) 22P

CN102 1-766-510-21 CONNECTOR, FFC/FPC 30P

CN103 1-766-509-21 CONNECTOR, FFC/FPC 18P

CN104 1-766-898-21 HOUSING, CONNECTOR (PC BOARD) 4P

AD AVOL BD

R306 1-259-416-11 CARBON 330 5% 1/6W

R307 1-259-416-11 CARBON 330 5% 1/6W

R308 1-259-416-11 CARBON 330 5% 1/6W

R309 1-259-416-11 CARBON 330 5% 1/6W

R310 1-259-452-11 CARBON 10K 5% 1/6W

R311 1-259-452-11 CARBON 10K 5% 1/6W

R312 1-259-452-11 CARBON 10K 5% 1/6W

R313 1-259-452-11 CARBON 10K 5% 1/6W

R314 1-259-452-11 CARBON 10K 5% 1/6W

R315 1-259-452-11 CARBON 10K 5% 1/6W

R316 1-259-452-11 CARBON 10K 5% 1/6W

R317 1-259-452-11 CARBON 10K 5% 1/6W

R318 1-259-456-11 CARBON 15K 5% 1/6W

R319 1-259-452-11 CARBON 10K 5% 1/6W

R320 1-259-456-11 CARBON 15K 5% 1/6W

R321 1-259-484-11 CARBON 220K 5% 1/6W

R322 1-259-452-11 CARBON 10K 5% 1/6W

R323 1-259-484-11 CARBON 220K 5% 1/6W

R324 1-259-452-11 CARBON 10K 5% 1/6W

R325 1-259-452-11 CARBON 10K 5% 1/6W

R326 1-259-428-11 CARBON 1K 5% 1/6W

R327 1-259-428-11 CARBON 1K 5% 1/6W

R329 1-259-500-11 CARBON 1M 5% 1/6W

R330 1-259-500-11 CARBON 1M 5% 1/6W

R331 1-259-500-11 CARBON 1M 5% 1/6W

R332 1-259-500-11 CARBON 1M 5% 1/6W

R340 1-259-388-11 CARBON 22 5% 1/6W

************************************************************

*1-666-745-11 AVOL BOARD

**********

< CAPACITOR >

C604 1-164-159-11 CERAMIC 0.1uF 50V

< CONNECTOR >

CN604 1-564-511-11 PLUG, CONNECTOR 8P

< VARIABLE RESISTOR >

RV601 1-225-493-11 RES, VAR, CARBON 20K/20K

(ANALOG REC LEVEL)

************************************************************

*A-4673-809-A BD BOARD, COMPLETE

*******************

< CAPACITOR >

C101 1-104-913-11 TANTAL. CHIP 10uF 20% 16V

C102 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C103 1-104-913-11 TANTAL. CHIP 10uF 20% 16V

C104 1-104-913-11 TANTAL. CHIP 10uF 20% 16V

C105 1-164-232-11 CERAMIC CHIP 0.01uF 50V

C106 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V

C107 1-164-232-11 CERAMIC CHIP 0.01uF 50V

C108 1-164-232-11 CERAMIC CHIP 0.01uF 50V

C109 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V

C111 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

— 83 —

< DIODE >

D101 8-719-988-62 DIODE 1SS355

D155 8-719-031-17 DIODE 1SS322-TE85L

D161 8-719-421-15 DIODE MA8027-L

D181 8-719-033-60 DIODE F1P2STP

D183 8-719-033-60 DIODE F1P2STP

< IC >

IC101 8-752-072-68 IC CXA1981AR

IC102 8-759-243-19 IC TC7SU04F

IC121 8-752-378-79 IC CXD2535CR

IC122 8-759-243-19 IC TC7SU04F

IC151 8-759-179-60 IC MPC17A38VMEL

IC171 8-759-504-12 IC X24C01S

IC172 8-759-149-73 IC uPC842G2

IC181 8-759-095-65 IC TC74ACT540FS

IC182 8-759-243-19 IC TC7SU04F

IC191 8-759-822-99 IC L88MS05T-FA

< COIL >

L101 1-414-234-11 INDUCTOR, FERRITE BEAD

L102 1-414-234-11 INDUCTOR, FERRITE BEAD

L103 1-414-234-11 INDUCTOR, FERRITE BEAD

L105 1-414-234-11 INDUCTOR, FERRITE BEAD

L106 1-414-234-11 INDUCTOR, FERRITE BEAD

L121 1-414-234-11 INDUCTOR, FERRITE BEAD

L122 1-412-039-51 INDUCTOR CHIP 100uH

L151 1-412-622-51 INDUCTOR 10uH

L152 1-412-622-51 INDUCTOR 10uH

L153 1-412-039-51 INDUCTOR CHIP 100uH

L154 1-412-039-51 INDUCTOR CHIP 100uH

L155 1-410-980-51 INDUCTOR CHIP 1mH

L161 1-414-234-11 INDUCTOR, FERRITE BEAD

L162 1-414-234-11 INDUCTOR, FERRITE BEAD

L195 1-233-316-21 FILTER, CHIP EMI

< MOTOR >

M101 A-4660-651-A MOTOR (SLED) ASSY

M102 A-4660-650-A CHASSIS ASSY, BU (SPINDLE)

< TRANSISTOR >

Q101 8-729-905-12 TRANSISTOR DTA144EU

Q151 8-729-905-18 TRANSISTOR DTC144EU

Q162 8-729-101-07 TRANSISTOR 2SB798-DL

Q163 8-729-905-12 TRANSISTOR DTA144EU

Q164 8-729-924-19 TRANSISTOR DTA123JU

Q181 8-729-018-75 TRANSISTOR 2SJ278MY

Q182 8-729-017-65 TRANSISTOR 2SK1764KY

< RESISTOR >

R101 1-216-077-00 METAL CHIP 15K 5% 1/10W

R102 1-216-073-00 METAL CHIP 10K 5% 1/10W

R103 1-216-073-00 METAL CHIP 10K 5% 1/10W

R104 1-216-049-91 METAL GLAZE 1K 5% 1/10W

R105 1-216-065-00 METAL CHIP 4.7K 5% 1/10W

R106 1-216-133-00 METAL CHIP 3.3M 5% 1/10W

R107 1-216-113-00 METAL CHIP 470K 5% 1/10W

R110 1-216-077-00 METAL CHIP 15K 5% 1/10W

R113 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

R114 1-216-025-91 METAL GLAZE 100 5% 1/10W

R116 1-216-069-00 METAL CHIP 6.8K 5% 1/10W

R117 1-216-113-00 METAL CHIP 470K 5% 1/10W

R120 1-216-025-91 METAL GLAZE 100 5% 1/10W

R121 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R122 1-216-295-91 CONDUCTOR, CHIP (2012)

R123 1-216-037-00 METAL CHIP 330 5% 1/10W

R124 1-216-025-91 METAL GLAZE 100 5% 1/10W

R125 1-216-025-91 METAL GLAZE 100 5% 1/10W

R128 1-216-053-00 METAL CHIP 1.5K 5% 1/10W

R129 1-216-037-00 METAL CHIP 330 5% 1/10W

R130 1-216-041-00 METAL CHIP 470 5% 1/10W

R131 1-216-073-00 METAL CHIP 10K 5% 1/10W

R132 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R133 1-216-129-00 METAL CHIP 2.2M 5% 1/10W

R134 1-216-037-00 METAL CHIP 330 5% 1/10W

R135 1-216-053-00 METAL CHIP 1.5K 5% 1/10W

R136 1-216-041-00 METAL CHIP 470 5% 1/10W

R137 1-216-025-91 METAL GLAZE 100 5% 1/10W

R139 1-216-017-91 METAL GLAZE 47 5% 1/10W

R140 1-216-017-91 METAL GLAZE 47 5% 1/10W

R141 1-216-295-91 CONDUCTOR, CHIP (2012)

R142 1-216-073-00 METAL CHIP 10K 5% 1/10W

R143 1-216-073-00 METAL CHIP 10K 5% 1/10W

R144 1-216-025-91 METAL GLAZE 100 5% 1/10W

R145 1-216-121-91 METAL GLAZE 1M 5% 1/10W

R146 1-216-037-00 METAL CHIP 330 5% 1/10W

R147 1-216-025-91 METAL GLAZE 100 5% 1/10W

R148 1-216-045-00 METAL CHIP 680 5% 1/10W

R150 1-216-295-91 CONDUCTOR, CHIP (2012)

R151 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R154 1-220-262-11 METAL GLAZE 680 5% 1/4W

R155 1-220-262-11 METAL GLAZE 680 5% 1/4W

R158 1-216-121-91 METAL GLAZE 1M 5% 1/10W

R161 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R162 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R163 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R164 1-216-045-00 METAL CHIP 680 5% 1/10W

R165 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R166 1-220-250-11 METAL GLAZE 10 5% 1/2W

R167 1-216-065-00 METAL CHIP 4.7K 5% 1/10W

R169 1-219-724-11 METAL CHIP 1 1% 1/4W

R170 1-216-073-00 METAL CHIP 10K 5% 1/10W

R171 1-216-073-00 METAL CHIP 10K 5% 1/10W

R172 1-216-065-00 METAL CHIP 4.7K 5% 1/10W

R174 1-216-065-00 METAL CHIP 4.7K 5% 1/10W

R176 1-216-065-00 METAL CHIP 4.7K 5% 1/10W

R178 1-216-065-00 METAL CHIP 4.7K 5% 1/10W

R181 1-216-073-00 METAL CHIP 10K 5% 1/10W

R182 1-216-089-91 METAL GLAZE 47K 5% 1/10W

R183 1-216-089-91 METAL GLAZE 47K 5% 1/10W

R186 1-216-134-00 METAL CHIP 2.2 5% 1/8W

R187 1-216-134-00 METAL CHIP 2.2 5% 1/8W

< VARIABLE RESISTOR >

RV101 1-241-396-11 RES, ADJ, METAL GLAZE 22K

RV102 1-241-396-11 RES, ADJ, METAL GLAZE 22K

< SWITCH >

S101 1-572-467-61 SWITCH, PUSH (1 KEY)(LIMIT IN)

************************************************************

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

— 84 —

*A-4699-790-A DA BOARD, COMPLETE

*******************

< BUS BAR >

*BB501 1-560-242-31 BUS BAR 5P

< CAPACITOR >

C501 1-124-995-11 ELECT 220uF 20% 10V

C502 1-162-294-31 CERAMIC 0.001uF 10% 50V

C503 1-164-159-11 CERAMIC 0.1uF 50V

C504 1-124-995-11 ELECT 220uF 20% 10V

C505 1-164-159-11 CERAMIC 0.1uF 50V

C506 1-124-995-11 ELECT 220uF 20% 10V

C507 1-164-159-11 CERAMIC 0.1uF 50V

C508 1-164-159-11 CERAMIC 0.1uF 50V

C511 1-162-294-31 CERAMIC 0.001uF 10% 50V

C513 1-126-335-11 ELECT 220uF 20% 10V

C514 1-164-159-11 CERAMIC 0.1uF 50V

C515 1-164-159-11 CERAMIC 0.1uF 50V

C516 1-126-335-11 ELECT 220uF 20% 10V

C517 1-164-159-11 CERAMIC 0.1uF 50V

C518 1-164-159-11 CERAMIC 0.1uF 50V

C519 1-162-199-31 CERAMIC 10PF 5% 50V

C520 1-162-199-31 CERAMIC 10PF 5% 50V

C521 1-126-335-11 ELECT 220uF 20% 10V

C522 1-126-335-11 ELECT 220uF 20% 10V

C523 1-164-159-11 CERAMIC 0.1uF 50V

C524 1-126-335-11 ELECT 220uF 20% 10V

C525 1-124-689-11 ELECT 1000uF 20% 16V

C526 1-128-198-11 ELECT 22uF 20% 63V

C527 1-136-960-11 FILM 0.1uF 10% 160V

C528 1-128-198-11 ELECT 22uF 20% 63V

C530 1-164-159-11 CERAMIC 0.1uF 50V

C531 1-136-960-11 FILM 0.1uF 10% 160V

C532 1-164-159-11 CERAMIC 0.1uF 50V

C535 1-164-159-11 CERAMIC 0.1uF 50V

C537 1-126-052-11 ELECT 100uF 20% 16V

C541 1-126-052-11 ELECT 100uF 20% 16V

C543 1-164-159-11 CERAMIC 0.1uF 50V

C544 1-136-165-00 FILM 0.1uF 5% 50V

C545 1-136-165-00 FILM 0.1uF 5% 50V

C547 1-124-724-11 ELECT 47uF 20% 50V

C548 1-124-724-11 ELECT 47uF 20% 50V

C549 1-136-165-00 FILM 0.1uF 5% 50V

C550 1-136-165-00 FILM 0.1uF 5% 50V

C551 1-126-052-11 ELECT 100uF 20% 16V

C553 1-126-052-11 ELECT 100uF 20% 16V

C554 1-164-159-11 CERAMIC 0.1uF 50V

C555 1-164-159-11 CERAMIC 0.1uF 50V

C556 1-130-973-00 FILM 0.022uF 5% 63V

C557 1-130-973-00 FILM 0.022uF 5% 63V

C558 1-126-103-11 ELECT 470uF 20% 16V

C559 1-126-103-11 ELECT 470uF 20% 16V

C560 1-164-159-11 CERAMIC 0.1uF 50V

C561 1-164-159-11 CERAMIC 0.1uF 50V

C562 1-130-969-11 FILM 0.012uF 3% 100V

C563 1-130-969-11 FILM 0.012uF 3% 100V

C564 1-130-969-11 FILM 0.012uF 3% 100V

C565 1-130-969-11 FILM 0.012uF 3% 100V

C566 1-136-233-11 FILM 0.0047uF 3% 100V

C567 1-136-233-11 FILM 0.0047uF 3% 100V

C568 1-136-233-11 FILM 0.0047uF 3% 100V

C569 1-136-233-11 FILM 0.0047uF 3% 100V

C570 1-136-356-11 FILM 470PF 5% 100V

C571 1-136-356-11 FILM 470PF 5% 100V

C572 1-136-356-11 FILM 470PF 5% 100V

C573 1-136-356-11 FILM 470PF 5% 100V

C576 1-136-818-11 FILM 0.0047uF 5% 100V

C577 1-136-818-11 FILM 0.0047uF 5% 100V

C580 1-136-814-11 FILM 0.001uF 5% 100V

C581 1-136-814-11 FILM 0.001uF 5% 100V

C584 1-128-201-11 ELECT 100uF 20% 50V

C585 1-128-201-11 ELECT 100uF 20% 50V

C588 1-128-088-11 ELECT 220uF 20% 50V

C589 1-128-088-11 ELECT 220uF 20% 50V

C590 1-162-294-31 CERAMIC 0.001uF 10% 50V

C591 1-164-159-11 CERAMIC 0.1uF 50V

C592 1-164-159-11 CERAMIC 0.1uF 50V

C593 1-162-294-31 CERAMIC 0.001uF 10% 50V

C595 1-104-646-11 CERAMIC 2.2uF 20% 50V

C596 1-104-646-11 CERAMIC 2.2uF 20% 50V

< CONNECTOR >

CN501 1-573-150-11 SOCKET, CONNECTOR 18P

*CN503 1-564-514-11 PLUG, CONNECTOR 11P

*CN504 1-564-709-11 PIN, CONNECTOR (SMALL TYPE) 7P

< DIODE >

D501 8-719-210-21 DIODE 11EQS04

D503 8-719-987-63 DIODE 1N4148M

< GROUND >

*EP501 4-870-539-00 PLATE, GROUND

*EP502 4-870-539-00 PLATE, GROUND

< TERMINAL >

ET501 4-924-264-01 TERMINAL, MOUNT

< IC >

IC501 8-759-462-70 IC CXD8679Q

IC502 8-759-476-47 IC CXD8594Q

IC503 8-759-604-35 IC M5F78M05L

IC504 8-759-371-51 IC CXA8042AS

IC505 8-759-371-51 IC CXA8042AS

IC506 8-759-604-95 IC M5F79M07L

IC507 8-759-605-00 IC M5F78M07L

IC508 8-759-712-02 IC NJM2114D

IC509 8-759-712-02 IC NJM2114D

IC510 8-759-712-02 IC NJM2114D

IC511 8-759-712-02 IC NJM2114D

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

— 85 —

< COIL >

L501 1-408-405-00 INDUCTOR 4.7uH

*L503 1-410-858-21 INDUCTOR 0uH

L505 1-408-405-00 INDUCTOR 4.7uH

L506 1-408-405-00 INDUCTOR 4.7uH

L507 1-408-405-00 INDUCTOR 4.7uH

L508 1-408-405-00 INDUCTOR 4.7uH

< TRANSISTOR >

Q505 8-729-140-98 TRANSISTOR 2SD773-34

< RESISTOR >

R501 1-259-380-11 CARBON 10 5% 1/6W

R502 1-259-380-11 CARBON 10 5% 1/6W

R503 1-259-404-11 CARBON 100 5% 1/6W

R504 1-259-380-11 CARBON 10 5% 1/6W

R505 1-259-380-11 CARBON 10 5% 1/6W

R506 1-259-380-11 CARBON 10 5% 1/6W

R507 1-259-380-11 CARBON 10 5% 1/6W

R512 1-259-380-11 CARBON 10 5% 1/6W

R513 1-259-404-11 CARBON 100 5% 1/6W

R514 1-259-404-11 CARBON 100 5% 1/6W

R518 1-259-404-11 CARBON 100 5% 1/6W

R520 1-259-452-11 CARBON 10K 5% 1/6W

R521 1-259-416-11 CARBON 330 5% 1/6W

R522 1-259-416-11 CARBON 330 5% 1/6W

R523 1-259-416-11 CARBON 330 5% 1/6W

R524 1-259-416-11 CARBON 330 5% 1/6W

R525 1-259-416-11 CARBON 330 5% 1/6W

R526 1-259-416-11 CARBON 330 5% 1/6W

R527 1-259-416-11 CARBON 330 5% 1/6W

R528 1-259-416-11 CARBON 330 5% 1/6W

R529 1-259-416-11 CARBON 330 5% 1/6W

R530 1-259-416-11 CARBON 330 5% 1/6W

R531 1-249-504-11 CARBON 10 5% 1/4W

R532 1-249-504-11 CARBON 10 5% 1/4W

R533 1-249-504-11 CARBON 10 5% 1/4W

R534 1-249-504-11 CARBON 10 5% 1/4W

R535 1-249-504-11 CARBON 10 5% 1/4W

R536 1-249-504-11 CARBON 10 5% 1/4W

R537 1-249-504-11 CARBON 10 5% 1/4W

R538 1-249-504-11 CARBON 10 5% 1/4W

R539 1-249-514-11 CARBON 27 5% 1/4W

R540 1-249-514-11 CARBON 27 5% 1/4W

R541 1-249-514-11 CARBON 27 5% 1/4W

R542 1-249-514-11 CARBON 27 5% 1/4W

R543 1-249-542-11 CARBON 390 5% 1/4W

R544 1-249-542-11 CARBON 390 5% 1/4W

R545 1-249-542-11 CARBON 390 5% 1/4W

R546 1-249-542-11 CARBON 390 5% 1/4W

R547 1-249-567-91 CARBON 4.3K 5% 1/4W

R548 1-249-567-91 CARBON 4.3K 5% 1/4W

R549 1-249-567-91 CARBON 4.3K 5% 1/4W

R550 1-249-567-91 CARBON 4.3K 5% 1/4W

R551 1-247-722-11 CARBON 5.6K 5% 1/4W F

R552 1-247-722-11 CARBON 5.6K 5% 1/4W F

R553 1-247-722-11 CARBON 5.6K 5% 1/4W F

R554 1-247-722-11 CARBON 5.6K 5% 1/4W F

R555 1-249-923-11 CARBON 1K 5% 1/4W

R556 1-249-923-11 CARBON 1K 5% 1/4W

R559 1-249-923-11 CARBON 1K 5% 1/4W

R560 1-249-923-11 CARBON 1K 5% 1/4W

R577 1-249-528-91 CARBON 100 5% 1/4W

R578 1-249-528-91 CARBON 100 5% 1/4W

R581 1-259-452-11 CARBON 10K 5% 1/6W

R582 1-259-452-11 CARBON 10K 5% 1/6W

R583 1-259-452-11 CARBON 10K 5% 1/6W

R584 1-249-469-11 CARBON 100K 5% 1/4W

R585 1-249-469-11 CARBON 100K 5% 1/4W

R586 1-259-412-11 CARBON 220 5% 1/6W

R587 1-259-412-11 CARBON 220 5% 1/6W

R588 1-259-436-11 CARBON 2.2K 5% 1/6W

R589 1-259-436-11 CARBON 2.2K 5% 1/6W

< RELAY >

RY501 1-515-802-11 RELAY

< VIBRATOR >

X501 1-579-161-11 VIBRATOR, CRYSTAL (45MHz)

************************************************************

*A-4699-802-A DIG BOARD, COMPLETE (US,Canadian)

*******************

*A-4699-806-A DIG BOARD, COMPLETE (AEP,UK,G)

********************

< CAPACITOR >

C201 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C202 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C203 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C204 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V

C205 1-163-117-00 CERAMIC CHIP 100PF 5% 50V

C206 1-126-204-11 ELECT CHIP 47uF 20% 16V

C207 1-163-117-00 CERAMIC CHIP 100PF 5% 50V

C208 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V

C209 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C210 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V

C211 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V

C212 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V

C213 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V

C214 1-126-204-11 ELECT CHIP 47uF 20% 16V

C215 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C216 1-164-232-11 CERAMIC CHIP 0.01uF 50V

C217 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C218 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C219 1-126-204-11 ELECT CHIP 47uF 20% 16V

C220 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V

C221 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C222 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C223 1-163-231-11 CERAMIC CHIP 15PF 5% 50V

C224 1-163-231-11 CERAMIC CHIP 15PF 5% 50V

C225 1-163-117-00 CERAMIC CHIP 100PF 5% 50V

C226 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V

C227 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V

C228 1-163-109-00 CERAMIC CHIP 47PF 5% 50V

C230 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C231 1-126-193-11 ELECT 1uF 20% 50V

DIGDA

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

— 86 —

C232 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C233 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C234 1-126-206-11 ELECT CHIP 100uF 20% 6.3V

C236 1-126-204-11 ELECT CHIP 47uF 20% 16V

C238 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C239 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C240 1-126-204-11 ELECT CHIP 47uF 20% 16V

C241 1-126-204-11 ELECT CHIP 47uF 20% 16V

C242 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C243 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C244 1-126-204-11 ELECT CHIP 47uF 20% 16V

C245 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C246 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C247 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C248 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C249 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V

C250 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C251 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C252 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C255 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C256 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C258 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C259 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C261 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C262 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C263 1-163-109-00 CERAMIC CHIP 47PF 5% 50V

C264 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V

C265 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C266 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C267 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C268 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C269 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C270 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V

C271 1-163-117-00 CERAMIC CHIP 100PF 5% 50V

C272 1-163-109-00 CERAMIC CHIP 47PF 5% 50V

C273 1-163-117-00 CERAMIC CHIP 100PF 5% 50V

C275 1-163-038-91 CERAMIC CHIP 0.1uF 25V

< CONNECTOR >

CN201 1-766-510-21 CONNECTOR, FFC/FPC 30P

CN202 1-766-502-11 PIN, CONNECTOR (FOR PCB)

CN203 1-770-142-11 CONNECTOR, FFC (ZIF) 26P

CN204 1-766-502-11 PIN, CONNECTOR (FOR PCB)

CN205 1-770-142-11 CONNECTOR, FFC (ZIF) 26P

CN206 1-766-509-21 CONNECTOR, FFC/FPC 18P

CN207 1-580-888-11 SOCKET, CONNECTOR (SMT) 18P

CN208 1-580-887-11 SOCKET, CONNECTOR (SMT) 16P

*CN209 1-750-492-31 PIN, CONNECTOR (PC BOARD) 4P

< IC >

IC201 8-759-040-83 IC BA6287F

IC202 8-759-491-62 IC M30610EC-1086CFP

IC203 8-759-444-20 IC LC89051V-TLM

IC204 8-759-426-95 IC L88MS33T-TL

IC205 8-759-456-31 IC TC74LCX244FS (EL)

IC206 8-752-381-28 IC CXD2537R

IC207 8-759-461-47 IC MSM9404AGS-BK

IC208 8-759-344-86 IC MSM514400C-70SJ

IC210 8-759-272-05 IC TC74VHCT244F (EL)

IC211 8-759-031-84 IC SC7S04F

IC212 8-759-040-83 IC BA6287F

IC213 8-759-180-84 IC TC7W74F

< JUMPER RESISTOR >

JW201 1-216-295-91 CONDUCTOR, CHIP (2012)

< COIL >

L201 1-412-336-41 INDUCTOR 4.7uH

L202 1-412-336-41 INDUCTOR 4.7uH

L203 1-412-336-41 INDUCTOR 4.7uH

L204 1-412-336-41 INDUCTOR 4.7uH

L205 1-412-336-41 INDUCTOR 4.7uH

L206 1-412-336-41 INDUCTOR 4.7uH

< TRANSISTOR >

Q201 8-729-015-76 TRANSISTOR UN5211

Q202 8-729-015-76 TRANSISTOR UN5211

< RESISTOR >

R201 1-216-021-00 METAL CHIP 68 5% 1/10W

R203 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R204 1-216-073-00 METAL CHIP 10K 5% 1/10W

R205 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R206 1-216-073-00 METAL CHIP 10K 5% 1/10W

R207 1-216-049-91 METAL GLAZE 1K 5% 1/10W

R209 1-216-073-00 METAL CHIP 10K 5% 1/10W

R210 1-216-073-00 METAL CHIP 10K 5% 1/10W

R211 1-216-073-00 METAL CHIP 10K 5% 1/10W

R212 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R213 1-216-073-00 METAL CHIP 10K 5% 1/10W

R214 1-216-073-00 METAL CHIP 10K 5% 1/10W

R216 1-216-073-00 METAL CHIP 10K 5% 1/10W

(AEP,UK,G)

R217 1-216-073-00 METAL CHIP 10K 5% 1/10W

(US,Canadian)

R218 1-216-073-00 METAL CHIP 10K 5% 1/10W

(US,Canadian)

R219 1-216-073-00 METAL CHIP 10K 5% 1/10W

(AEP,UK,G)

R220 1-216-073-00 METAL CHIP 10K 5% 1/10W

R221 1-216-073-00 METAL CHIP 10K 5% 1/10W

R222 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R223 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R224 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R225 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R226 1-216-073-00 METAL CHIP 10K 5% 1/10W

R227 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R228 1-216-073-00 METAL CHIP 10K 5% 1/10W

R229 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R230 1-216-109-00 METAL CHIP 330K 5% 1/10W

R231 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R232 1-216-073-00 METAL CHIP 10K 5% 1/10W

R233 1-216-073-00 METAL CHIP 10K 5% 1/10W

R234 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R235 1-216-073-00 METAL CHIP 10K 5% 1/10W

R236 1-216-065-00 METAL CHIP 4.7K 5% 1/10W

R237 1-216-109-00 METAL CHIP 330K 5% 1/10W

R238 1-216-065-00 METAL CHIP 4.7K 5% 1/10W

DIG

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

— 87 —

R239 1-216-082-00 METAL GLAZE 24K 5% 1/10W

R240 1-216-073-00 METAL CHIP 10K 5% 1/10W

R241 1-216-073-00 METAL CHIP 10K 5% 1/10W

R242 1-216-029-00 METAL CHIP 150 5% 1/10W

R243 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R244 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R245 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R246 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R247 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R248 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R249 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R250 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R251 1-216-073-00 METAL CHIP 10K 5% 1/10W

R252 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R253 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R254 1-216-073-00 METAL CHIP 10K 5% 1/10W

R255 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R256 1-216-025-91 METAL GLAZE 100 5% 1/10W

R257 1-216-025-91 METAL GLAZE 100 5% 1/10W

R258 1-216-025-91 METAL GLAZE 100 5% 1/10W

R259 1-216-025-91 METAL GLAZE 100 5% 1/10W

R260 1-216-025-91 METAL GLAZE 100 5% 1/10W

R261 1-216-025-91 METAL GLAZE 100 5% 1/10W

R262 1-216-025-91 METAL GLAZE 100 5% 1/10W

R263 1-216-033-00 METAL CHIP 220 5% 1/10W

R264 1-216-033-00 METAL CHIP 220 5% 1/10W

R265 1-216-025-91 METAL GLAZE 100 5% 1/10W

R266 1-216-025-91 METAL GLAZE 100 5% 1/10W

R267 1-216-025-91 METAL GLAZE 100 5% 1/10W

R268 1-216-025-91 METAL GLAZE 100 5% 1/10W

R269 1-216-025-91 METAL GLAZE 100 5% 1/10W

R270 1-216-025-91 METAL GLAZE 100 5% 1/10W

R271 1-216-025-91 METAL GLAZE 100 5% 1/10W

R272 1-216-025-91 METAL GLAZE 100 5% 1/10W

R273 1-216-025-91 METAL GLAZE 100 5% 1/10W

R275 1-216-025-91 METAL GLAZE 100 5% 1/10W

R276 1-216-025-91 METAL GLAZE 100 5% 1/10W

R277 1-216-025-91 METAL GLAZE 100 5% 1/10W

R278 1-216-025-91 METAL GLAZE 100 5% 1/10W

R279 1-216-025-91 METAL GLAZE 100 5% 1/10W

R280 1-216-025-91 METAL GLAZE 100 5% 1/10W

R281 1-216-025-91 METAL GLAZE 100 5% 1/10W

R282 1-216-025-91 METAL GLAZE 100 5% 1/10W

R283 1-216-025-91 METAL GLAZE 100 5% 1/10W

R284 1-216-025-91 METAL GLAZE 100 5% 1/10W

R285 1-216-073-00 METAL CHIP 10K 5% 1/10W

R286 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R287 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R288 1-216-073-00 METAL CHIP 10K 5% 1/10W

R289 1-216-097-91 METAL GLAZE 100K 5% 1/10W

R290 1-216-025-91 METAL GLAZE 100 5% 1/10W

R291 1-216-073-00 METAL CHIP 10K 5% 1/10W

R292 1-216-025-91 METAL GLAZE 100 5% 1/10W

< VIBRATOR >

X201 1-767-273-11 VIBRATOR, CERAMIC (CHIP TYPE) (10MHz)

X202 1-760-458-21 VIBRATOR, CRYSTAL (32.768KHz)

************************************************************

*1-666-744-11 DVOL BOARD

***********

< CAPACITOR >

C601 1-162-294-31 CERAMIC 0.001uF 10% 50V

C602 1-104-664-11 ELECT 47uF 20% 25V

C603 1-164-159-11 CERAMIC 0.1uF 50V

< CONNECTOR >

*CN603 1-564-720-11 PIN, CONNECTOR (SMALL TYPE) 4P

< VARIABLE RESISTOR >

RV602 1-225-494-11 RES, VAR, CARBON 10K (DIGITAL REC LEVEL)

************************************************************

*A-4699-793-A DIO BOARD, COMPLETE

********************

< CAPACITOR >

C351 1-126-933-11 ELECT 100uF 20% 10V

C352 1-162-294-31 CERAMIC 0.001uF 10% 50V

C353 1-164-159-11 CERAMIC 0.1uF 50V

C354 1-126-933-11 ELECT 100uF 20% 10V

C355 1-164-159-11 CERAMIC 0.1uF 50V

C356 1-162-294-31 CERAMIC 0.001uF 10% 50V

C357 1-162-294-31 CERAMIC 0.001uF 10% 50V

C358 1-164-159-11 CERAMIC 0.1uF 50V

C359 1-126-933-11 ELECT 100uF 20% 10V

C360 1-136-165-00 FILM 0.1uF 5% 50V

C361 1-126-933-11 ELECT 100uF 20% 10V

C362 1-126-933-11 ELECT 100uF 20% 10V

C363 1-126-933-11 ELECT 100uF 20% 10V

C364 1-136-165-00 FILM 0.1uF 5% 50V

C365 1-136-165-00 FILM 0.1uF 5% 50V

C366 1-164-159-11 CERAMIC 0.1uF 50V

C367 1-164-159-11 CERAMIC 0.1uF 50V

C368 1-164-159-11 CERAMIC 0.1uF 50V

C369 1-104-646-11 CERAMIC 2.2uF 20% 50V

< IC >

IC351 8-759-926-18 IC SN74HC157ANS

IC352 8-759-926-17 IC SN74HC153ANS

IC353 8-759-269-92 IC SN74HCU04ANS-E20

IC354 8-749-921-12 IC GP1F32T (DIGITAL OUT OPTICAL)

IC355 8-759-430-27 IC GP1F37R (DIGITAL IN OPT1)

IC356 8-759-430-27 IC GP1F37R (DIGITAL OPT2)

< JACK >

J351 1-568-750-21 JACK, PIN (1P SHIELD TYPE)

(DIGITAL IN COXIAL)

< COIL >

L351 1-408-405-00 INDUCTOR 4.7uH

L352 1-408-405-00 INDUCTOR 4.7uH

L353 1-408-405-00 INDUCTOR 4.7uH

DIG DVOL DIO

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

— 88 —

< RESISTOR >

R351 1-259-404-11 CARBON 100 5% 1/6W

R352 1-259-404-11 CARBON 100 5% 1/6W

R353 1-259-404-11 CARBON 100 5% 1/6W

R354 1-259-404-11 CARBON 100 5% 1/6W

R355 1-259-404-11 CARBON 100 5% 1/6W

R356 1-259-404-11 CARBON 100 5% 1/6W

R357 1-259-452-11 CARBON 10K 5% 1/6W

R358 1-259-476-11 CARBON 100K 5% 1/6W

R359 1-259-404-11 CARBON 100 5% 1/6W

R360 1-259-452-11 CARBON 10K 5% 1/6W

R361 1-259-404-11 CARBON 100 5% 1/6W

R363 1-259-404-11 CARBON 100 5% 1/6W

R364 1-259-404-11 CARBON 100 5% 1/6W

R365 1-259-401-11 CARBON 75 5% 1/6W

R366 1-259-404-11 CARBON 100 5% 1/6W

************************************************************

*A-4699-794-A DISP BOARD, COMPLETE

*********************

*3-362-478-11 HOLDER (T), LED

*4-987-501-01 HOLDER (FL)

< CAPACITOR >

C701 1-164-159-11 CERAMIC 0.1uF 50V

C702 1-162-282-31 CERAMIC 100PF 10% 50V

C703 1-164-159-11 CERAMIC 0.1uF 50V

C704 1-126-154-11 ELECT 47uF 20% 6.3V

C705 1-162-282-31 CERAMIC 100PF 10% 50V

C706 1-162-282-31 CERAMIC 100PF 10% 50V

C707 1-162-282-31 CERAMIC 100PF 10% 50V

C708 1-162-294-31 CERAMIC 0.001uF 10% 50V

C709 1-162-302-11 CERAMIC 0.0022uF 30% 16V

C710 1-162-302-11 CERAMIC 0.0022uF 30% 16V

C712 1-164-159-11 CERAMIC 0.1uF 50V

C713 1-164-159-11 CERAMIC 0.1uF 50V

C714 1-164-159-11 CERAMIC 0.1uF 50V

C715 1-162-286-31 CERAMIC 220PF 10% 50V

C716 1-162-286-31 CERAMIC 220PF 10% 50V

< CONNECTOR >

CN701 1-766-201-11 SOCKET, CONNECTOR PIN 11P

CN702 1-580-473-11 SOCKET, CONNECTOR 26P

< DIODE >

D701 8-719-301-39 DIODE SEL2210S (r)

D702 8-719-301-49 DIODE SEL2810A (P)

D703 8-719-303-02 DIODE SEL2510C-D (()

< FILTER >

FL701 1-517-620-11 INDICATOR TUBE, FLUORESCENT

< IC >

IC701 8-759-297-23 IC M66004M8FP

< TRANSISTOR >

Q701 8-729-900-80 TRANSISTOR DTC114ES

Q702 8-729-900-80 TRANSISTOR DTC114ES

Q703 8-729-900-80 TRANSISTOR DTC114ES

< RESISTOR >

R701 1-249-435-11 CARBON 33K 5% 1/4W

R702 1-247-807-31 CARBON 100 5% 1/4W

R703 1-247-807-31 CARBON 100 5% 1/4W

R704 1-247-807-31 CARBON 100 5% 1/4W

R705 1-247-807-31 CARBON 100 5% 1/4W

R709 1-249-429-11 CARBON 10K 5% 1/4W

R710 1-249-429-11 CARBON 10K 5% 1/4W

R723 1-249-435-11 CARBON 33K 5% 1/4W

R724 1-249-429-11 CARBON 10K 5% 1/4W

R725 1-249-425-11 CARBON 4.7K 5% 1/4W F

R726 1-247-843-11 CARBON 3.3K 5% 1/4W

R727 1-249-421-11 CARBON 2.2K 5% 1/4W F

R728 1-249-429-11 CARBON 10K 5% 1/4W

R729 1-249-435-11 CARBON 33K 5% 1/4W

R730 1-249-429-11 CARBON 10K 5% 1/4W

R731 1-249-425-11 CARBON 4.7K 5% 1/4W F

R732 1-247-843-11 CARBON 3.3K 5% 1/4W

R733 1-249-421-11 CARBON 2.2K 5% 1/4W F

R734 1-249-409-11 CARBON 220 5% 1/4W F

R735 1-249-409-11 CARBON 220 5% 1/4W F

R736 1-249-429-11 CARBON 10K 5% 1/4W

R737 1-249-412-11 CARBON 390 5% 1/4W F

< SWITCH >

S702 1-475-315-11 ENCODER, ROTARY (AMS)

S717 1-554-303-21 SWITCH, TACTILE (OPEN/CLOSE)

S718 1-554-303-21 SWITCH, TACTILE (EDIT/YES)

S719 1-554-303-21 SWITCH, TACTILE (EDIT/NO)

S720 1-554-303-21 SWITCH, TACTILE (r)

S721 1-554-303-21 SWITCH, TACTILE (P)

S722 1-554-303-21 SWITCH, TACTILE (()

S723 1-554-303-21 SWITCH, TACTILE (0)

S724 1-554-303-21 SWITCH, TACTILE ())

S725 1-554-303-21 SWITCH, TACTILE (p)

************************************************************

*1-666-743-11 HP BOARD

*********

< CAPACITOR >

C651 1-162-207-31 CERAMIC 22PF 5% 50V

C652 1-162-207-31 CERAMIC 22PF 5% 50V

C653 1-126-022-11 ELECT 47uF 20% 25V

C654 1-126-022-11 ELECT 47uF 20% 25V

C655 1-162-294-31 CERAMIC 0.001uF 10% 50V

C656 1-162-294-31 CERAMIC 0.001uF 10% 50V

C657 1-164-159-11 CERAMIC 0.1uF 50V

C658 1-164-159-11 CERAMIC 0.1uF 50V

< CONNECTOR >

CN651 1-564-723-11 PIN, CONNECTOR (SMALL TYPE) 7P

< IC >

IC651 8-759-712-02 IC NJM2114D

< JACK >

J651 1-770-904-11 JACK (LARGE TYPE) (PHONES)

DISP HPDIO

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

— 89 —

< TRANSISTOR >

Q651 8-729-231-55 TRANSISTOR 2SC2878-AB

Q652 8-729-231-55 TRANSISTOR 2SC2878-AB

Q653 8-729-231-55 TRANSISTOR 2SC2878-AB

Q654 8-729-231-55 TRANSISTOR 2SC2878-AB

< RESISTOR >

R651 1-259-460-11 CARBON 22K 5% 1/6W

R652 1-259-460-11 CARBON 22K 5% 1/6W

R653 1-259-444-11 CARBON 4.7K 5% 1/6W

R654 1-259-458-11 CARBON 18K 5% 1/6W

R655 1-259-444-11 CARBON 4.7K 5% 1/6W

R656 1-259-458-11 CARBON 18K 5% 1/6W

R657 1-259-406-11 CARBON 120 5% 1/6W

R658 1-259-406-11 CARBON 120 5% 1/6W

R659 1-259-444-11 CARBON 4.7K 5% 1/6W

R660 1-259-444-11 CARBON 4.7K 5% 1/6W

R661 1-259-444-11 CARBON 4.7K 5% 1/6W

R662 1-259-444-11 CARBON 4.7K 5% 1/6W

R665 1-259-428-11 CARBON 1K 5% 1/6W

R666 1-259-428-11 CARBON 1K 5% 1/6W

< VARIABLE RESISTOR >

RV651 1-225-492-11 RES, VAR, CARBON 20K/20K (PHONE LEVEL)

************************************************************

*1-663-896-11 HLIM BOARD

***********

< CONNECTOR >

*CN195 1-750-148-11 SOCKET, CONNECTOR (PC BOARD) 5P

< SWITCH >

SW193 1-762-010-11 SWITCH, LEVER (HEAD DOWN DET)

SW194 1-762-010-11 SWITCH, LEVER (HEAD UP DET)

************************************************************

*1-663-899-11 HMOT BOARD

***********

< CONNECTOR >

*CN196 1-568-947-11 PIN, CONNECTOR 9P

CN197 1-568-940-21 PIN, CONNECTOR 2P

*CN198 1-568-941-11 PIN, CONNECTOR 3P

CN199 1-778-987-11 PIN,BOARD TO BOARD CONNECTOR5P

< MOTOR >

M192 X-4947-821-1 MOTOR ASSY, HEAD

************************************************************

*1-663-897-11 IN BOARD

********

< CONNECTOR >

CN191 1-506-481-11 PIN, CONNECTOR 2P

*CN192 1-568-941-11 PIN, CONNECTOR 3P

< SWITCH >

SW191 1-571-300-21 SWITCH, ROTARY (LOAD IN DET)

************************************************************

*1-663-900-11 LMOT BOARD

***********

< MOTOR >

M191 X-4947-824-1 MOTOR (LOADING) ASSY

************************************************************

*1-663-898-11 OUT BOARD

**********

< CONNECTOR >

CN193 1-506-481-11 PIN, CONNECTOR 2P

< SWITCH >

SW192 1-571-300-21 SWITCH, ROTARY (LOAD OUT DET)

************************************************************

*1-666-750-11 PJ BOARD

*********

< CAPACITOR >

C598 1-110-335-11 MYLAR 100PF 5% 50V

C599 1-110-335-11 MYLAR 100PF 5% 50V

< CONNECTOR >

*CN581 1-564-519-11 PLUG, CONNECTOR 4P

< JACK >

PJ501 1-568-101-11 JACK, PIN 4P (LINE (ANALOG))

< RESISTOR >

R591 1-249-528-91 CARBON 100 5% 1/4W

R592 1-249-528-91 CARBON 100 5% 1/4W

R593 1-249-528-91 CARBON 100 5% 1/4W

R594 1-249-528-91 CARBON 100 5% 1/4W

************************************************************

*A-4699-796-A PSW BOARD, COMPLETE

*********************

4-976-360-02 REINFORCEMENT (CONT)

*4-972-608-01 HOLDER (DIA. 5), LED

< CAPACITOR >

C711 1-162-294-31 CERAMIC 0.001uF 10% 50V

C781 1-162-294-31 CERAMIC 0.001uF 10% 50V

C782 1-164-159-11 CERAMIC 0.1uF 50V

C783 1-164-159-11 CERAMIC 0.1uF 50V

C784 1-126-154-11 ELECT 47uF 20% 6.3V

C785 1-126-154-11 ELECT 47uF 20% 6.3V

< CONNECTOR >

CN781 1-766-204-11 PLUG, CONNECTOR PIN 11P

< DIODE >

D704 8-719-303-02 DIODE SEL2510C-D (FILTER)

D781 8-719-313-40 DIODE SEL1516W (POWER)

IN LMOT OUT PJ PSWHLIM HMOTHP

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

— 90 —

< IC >

IC781 8-759-332-18 IC GP1U27XB

< TRANSISTOR >

Q704 8-729-900-80 TRANSISTOR DTC114ES

Q781 8-729-422-57 TRANSISTOR UN4111

< RESISTOR >

R706 1-249-429-11 CARBON 10K 5% 1/4W

R707 1-249-429-11 CARBON 10K 5% 1/4W

R708 1-249-429-11 CARBON 10K 5% 1/4W

R716 1-249-429-11 CARBON 10K 5% 1/4W

R717 1-249-435-11 CARBON 33K 5% 1/4W

R718 1-249-429-11 CARBON 10K 5% 1/4W

R719 1-249-425-11 CARBON 4.7K 5% 1/4W F

R720 1-247-843-11 CARBON 3.3K 5% 1/4W

R721 1-249-421-11 CARBON 2.2K 5% 1/4W F

R722 1-249-429-11 CARBON 10K 5% 1/4W

R738 1-249-411-11 CARBON 330 5% 1/4W

R781 1-249-415-11 CARBON 680 5% 1/4W F

R782 1-249-429-11 CARBON 10K 5% 1/4W

R783 1-249-429-11 CARBON 10K 5% 1/4W

R784 1-249-409-11 CARBON 220 5% 1/4W F

R785 1-247-807-31 CARBON 100 5% 1/4W

< SWITCH >

S701 1-771-171-11 SWITCH, ROTARY (INPUT)

S709 1-554-303-21 SWITCH, TACTILE (PLAY MODE)

S710 1-554-303-21 SWITCH, TACTILE (FILTER)

S711 1-554-303-21 SWITCH, TACTILE (SCROLL/CLOCK SET)

S712 1-554-303-21 SWITCH, TACTILE (REPEAT)

S713 1-554-303-21 SWITCH, TACTILE (TIME)

S714 1-554-303-21 SWITCH, TACTILE (DISPLAY/CHAR)

S781 1-572-625-11 SWITCH, SLIDE (TIMER)

S782 1-554-303-21 SWITCH, TACTILE (POWER)

************************************************************

*A-4699-791-A PW BOARD, COMPLETE (US,Canadian)

*******************

*A-4699-804-A PW BOARD, COMPLETE (AEP,UK,G)

*******************

*3-309-144-21 HEAT SINK

*4-363-146-00 HEAT SINK, V.OUT

*4-921-402-01 HEAT SINK

7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S

< BATTERY >

BT901 1-528-739-11 BATTERY, LITHIUM

< CAPACITOR >

C901 1-164-159-11 CERAMIC 0.1uF 50V

C902 1-126-963-11 ELECT 4.7uF 20% 50V

C903 1-164-159-11 CERAMIC 0.1uF 50V

C904 1-126-963-11 ELECT 4.7uF 20% 50V

C905 1-126-927-11 ELECT 2200uF 20% 10V

C906 1-164-159-11 CERAMIC 0.1uF 50V

C907 1-126-933-11 ELECT 100uF 20% 16V

C909 1-126-927-11 ELECT 2200uF 20% 10V

C911 1-126-960-11 ELECT 1uF 20% 50V

C912 1-164-159-11 CERAMIC 0.1uF 50V

C913 1-164-159-11 CERAMIC 0.1uF 50V

C914 1-126-937-11 ELECT 4700uF 20% 16V

C915 1-164-159-11 CERAMIC 0.1uF 50V

C916 1-164-159-11 CERAMIC 0.1uF 50V

C917 1-124-557-11 ELECT 1000uF 20% 25V

C918 1-117-149-21 ELECT 2200uF 20% 25V

C919 1-126-926-11 ELECT 1000uF 20% 10V

C920 1-164-159-11 CERAMIC 0.1uF 50V

C922 1-164-159-11 CERAMIC 0.1uF 50V

C923 1-164-159-11 CERAMIC 0.1uF 50V

C924 1-126-926-11 ELECT 1000uF 20% 10V

C926 1-164-159-11 CERAMIC 0.1uF 50V

C927 1-126-969-11 ELECT 220uF 20% 50V

C928 1-164-159-11 CERAMIC 0.1uF 50V

C929 1-117-401-11 ELECT 22000uF 20% 16V

C930 1-161-494-00 CERAMIC 0.022uF 25V

C932 1-117-896-11 ELECT 6800uF 20% 35V

C933 1-117-896-11 ELECT 6800uF 20% 35V

C934 1-164-159-11 CERAMIC 0.1uF 50V

C935 1-126-965-11 ELECT 22uF 20% 50V

C936 1-128-553-11 ELECT 220uF 20% 63V

C937 1-126-935-11 ELECT 470uF 20% 16V

C938 1-126-964-11 ELECT 10uF 20% 50V

C939 1-136-153-00 FILM 0.01uF 5% 50V

C940 1-136-153-00 FILM 0.01uF 5% 50V

C941 1-164-159-11 CERAMIC 0.1uF 50V

C942 1-164-159-11 CERAMIC 0.1uF 50V

C943 1-164-159-11 CERAMIC 0.1uF 50V

C944 1-164-159-11 CERAMIC 0.1uF 50V

< CONNECTOR >

CN901 1-580-460-11 SOCKET, CONNECTOR 26P

CN903 1-564-513-11 PLUG, CONNECTOR 10P

*CN905 1-564-704-11 PIN, CONNECTOR (SMALL TYPE) 2P

< DIODE >

D901 8-719-987-63 DIODE 1N4148M

D902 8-719-987-63 DIODE 1N4148M

D903 8-719-987-63 DIODE 1N4148M

D904 8-719-987-63 DIODE 1N4148M

D905 8-719-200-82 DIODE 11ES2

D907 8-719-210-21 DIODE 11EQS04

D908 8-719-210-21 DIODE 11EQS04

D909 8-719-210-29 DIODE F10P10Q

D911 8-719-210-29 DIODE F10P10Q

D913 8-719-014-96 DIODE UZP-7.5BC

D914 8-719-987-63 DIODE 1N4148M

D915 8-719-210-29 DIODE F10P10Q

D916 8-719-210-29 DIODE F10P10Q

D917 8-719-987-63 DIODE 1N4148M

D918 8-719-200-77 DIODE 10E2N

D919 8-719-200-77 DIODE 10E2N

D920 8-719-200-77 DIODE 10E2N

D921 8-719-200-77 DIODE 10E2N

D922 8-719-200-77 DIODE 10E2N

D923 8-719-987-63 DIODE 1N4148M

D924 8-719-987-63 DIODE 1N4148M

PWPSW

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

— 91 —

< GROUND >

*EP901 4-870-539-00 PLATE, GROUND

*EP902 4-870-539-00 PLATE, GROUND

< FUSE >

!F901 1-532-771-21 FUSE, MICRO (SECONDARY)(315mA/125V)

(US,Canadian)

!F904 1-532-782-11 FUSE, MICRO (SECONDARY)(4A/125V)

(US,Canadian)

!F905 1-532-782-11 FUSE, MICRO (SECONDARY)(4A/125V)

(US,Canadian)

< IC >

IC901 8-759-327-15 IC M62005L

IC902 8-759-061-65 IC LA5602

IC903 8-759-604-45 IC M5F79M12

IC904 8-759-604-39 IC M5F78M12

IC905 8-759-513-71 IC PQ05RF21

IC906 8-759-925-74 IC SN74HC04ANS

IC907 8-759-513-71 IC PQ05RF21

IC908 8-759-633-42 IC M5293L

IC909 8-759-520-49 IC PQ30RV21

< IC LINK >

!ICP901 1-532-834-21 LINK, IC (PRF315)(315mA)(AEP,UK,G)

!ICP904 1-532-845-21 LINK, IC (PRF4000)(4A)(AEP,UK,G)

!ICP905 1-532-845-21 LINK, IC (PRF4000)(4A)(AEP,UK,G)

< TRANSISTOR >

Q901 8-729-902-80 TRANSISTOR DTA114YS

Q902 8-729-902-80 TRANSISTOR DTA114YS

Q903 8-729-422-57 TRANSISTOR UN4111

Q905 8-729-140-98 TRANSISTOR 2SD773-34

< RESISTOR >

R901 1-259-452-11 CARBON 10K 5% 1/6W

R902 1-259-452-11 CARBON 10K 5% 1/6W

R903 1-259-404-11 CARBON 100 5% 1/6W

R904 1-215-404-00 METAL 200 1% 1/4W

R905 1-215-414-00 METAL 510 1% 1/4W

R906 1-259-428-11 CARBON 1K 5% 1/6W

R907 1-259-488-11 CARBON 330K 5% 1/6W

R908 1-259-404-11 CARBON 100 5% 1/6W

R909 1-259-468-11 CARBON 47K 5% 1/6W

R910 1-259-444-11 CARBON 4.7K 5% 1/6W

R911 1-259-460-11 CARBON 22K 5% 1/6W

R912 1-259-468-11 CARBON 47K 5% 1/6W

R913 1-259-428-11 CARBON 1K 5% 1/6W

R914 1-259-404-11 CARBON 100 5% 1/6W

R915 1-259-404-11 CARBON 100 5% 1/6W

R916 1-259-432-11 CARBON 1.5K 5% 1/6W

R917 1-259-416-11 CARBON 330 5% 1/6W

< RELAY >

RY901 1-515-925-11 RELAY

************************************************************

MISCELLANEOUS

**************

58 1-782-216-11 WIRE (FLAT TYPE) (30 CORE)

59 1-782-215-11 WIRE (FLAT TYPE) (18 CORE) (10cm)

60 1-777-738-11 WIRE (FLAT TYPE) (26 CORE) (18cm)

61 1-777-737-11 WIRE (FLAT TYPE) (16 CORE)

62 1-777-735-11 WIRE (FLAT TYPE) (18 CORE) (7.5cm)

!68 1-558-568-21 CORD, POWER (AEP,UK,G)

!68 1-782-959-11 CORD, POWER (US,Canadian)

106 1-777-736-11 WIRE (FLAT TYPE) (26 CORE) (9.5cm)

!457 8-583-009-12 OPTICAL PICK-UP KMS-210A/J-N

HR901 1-500-304-21 HEAD, OVER WRITE

M101 A-4660-651-A MOTOR ASSY (SLED)

M102 A-4660-650-A CHASSIS ASSY, BU (SPINDLE)

M191 X-4947-824-1 MOTOR (LOADING) ASSY

M192 X-4947-821-1 MOTOR ASSY, HEAD

S102 1-762-148-11 SWITCH, PUSH (2 KEY)(PROTECT/REFLECT)

!T001 1-431-469-11 TRANSFORMER, POWER (US,Canadian)

!T001 1-431-470-11 TRANSFORMER, POWER (AEP,UK,G)

************************************************************

ACCESSORIES & PACKING MATERIALS

********************************

1-475-091-11 REMOTE COMMANDER (RM-D13M)

1-590-925-31 CORD, CONNECTION (AUDIO 1m)

3-861-101-11 MANUAL, INSTRUCTION (ENGLISH/FRENCH)

3-861-101-21 MANUAL, INSTRUCTION

(SPANISH/GERMAN/ITALIAN) (AEP, G)

3-861-101-31 MANUAL, INSTRUCTION

(DUTCH/SWEDISH/PORTUGUESE) (AEP)

4-983-537-01 COVER, BATTERY (for RM-D13M)

************************************************************

**************

HARDWARE LIST

**************

#1 7-685-885-09 SCREW +BVTT 4X16 (S)

#2 7-682-247-09 SCREW +K 3X6

#3 7-685-103-19 SCREW +P 2X5 TYPE2 NON-SLIT

#4 7-685-873-09 SCREW +BVTT 3X10 (S)

#5 7-685-645-79 SCREW +BVTP 3X6 TYPE2 N-S

#6 7-685-871-01 SCREW +BVTT 3X6 (S)

#7 7-682-548-09 SCREW (3X8)

#8 7-621-770-87 SCREW

#9 7-621-775-10 SCREW +B 2.6X4

#10 7-627-553-38 SCREW,PRECISION +P 2X3

#11 7-685-105-19 TPG +P 2X8, TYPE2, NON-SLIT

#12 7-627-852-48 SCREW, PRECISION +P 1.7X3.5 TYPE3

#13 7-627-553-48 SCREW, PRECISION +P 2X4

#14 7-685-133-19 SCREW +P 2.6X6 TYPE2

#15 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S

The components identified by

mark ! or dotted line with mark

! are critical for safety.

Replace only with part number

specified.

Les composants identifiés par

une marque ! sont critiques

pour la sécurité.

Ne les remplacer que par une

pièce portant le numéro spécifié.

— 92 —

MDS-JA30ES

Sony Corporation

Home A&V Products Company

9-920-951-11

97H1677-1

Published by General Engineering Dept.

(Shibaura)

0_00_MDSJA30ES_11 Sony_MDS JA30ES_service_manual Sony MDS JA30ES Service Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
