Sony Ericsson K770i Part List, Mechanical. Www.s Manuals.com. K770 Mechanical
User Manual: Phone Sony Ericsson K770 - Service manuals and Schematics, Disassembly / Assembly. Free.
Open the PDF directly: View PDF
.
Page Count: 15
Part List, Mechanical
131 22-1/FEA 209 544/142 B
Company Internal © Sony Ericsson Mobile Communications AB
1(14)
Part List, Mechanical
Applicable for K770
CONTENTS
1 General............................................................................................... 2
2 Parts.................................................................................................... 3
3 Label Part List................................................................................. 13
4 Revision History.............................................................................. 14
Part List, Mechanical
131 22-1/FEA 209 544/142 B
Company Internal © Sony Ericsson Mobile Communications AB
2(14)
1 General
This Part List includes all parts possible to replace by using the Mechanical Repair Process.
Parts available to order will be found in the Web Shop.
Part List, Mechanical
131 22-1/FEA 209 544/142 B
Company Internal © Sony Ericsson Mobile Communications AB
3(14)

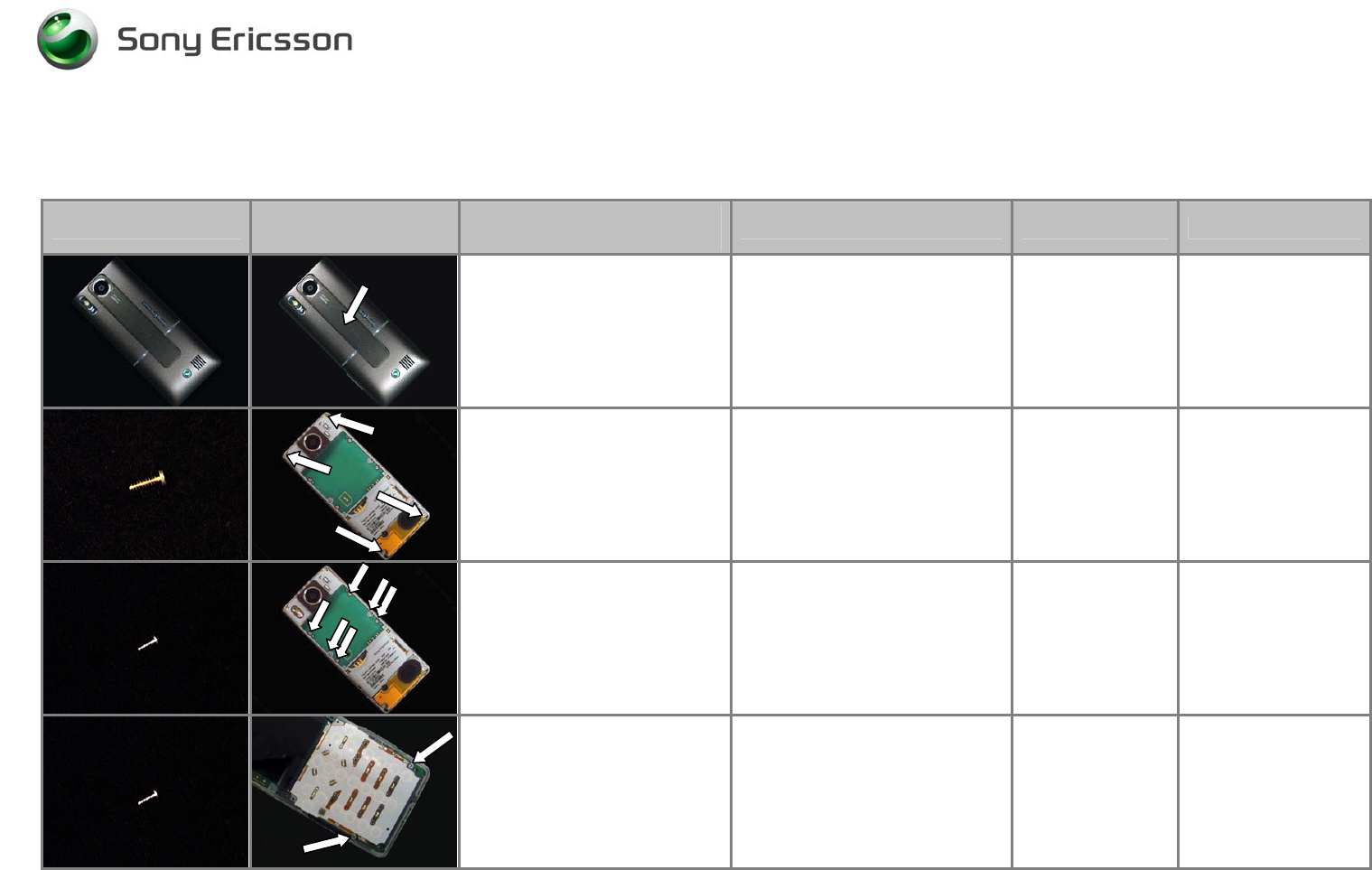

2 Parts
Part Part Location on
Phone Working Instruction
Description Webshop Description Part Number Comments
Battery cover assembly
Battery cover assembly Brown
Battery cover assembly Beige
Battery cover assembly Purple
ODM53-89012
ODM53-89015
ODM53-89018
Screw Torx6, length 6.6 Screw Torx6, length 6.6 SXA1092883
Screw crosshead, length 4.0 Screw cosshead, length 4.0 SXA1095031
Screw cosshead, length 4.0 Screw cosshead, length 4.0 SXA1095031
Part List, Mechanical
131 22-1/FEA 209 544/142 B
Company Internal © Sony Ericsson Mobile Communications AB
4(14)

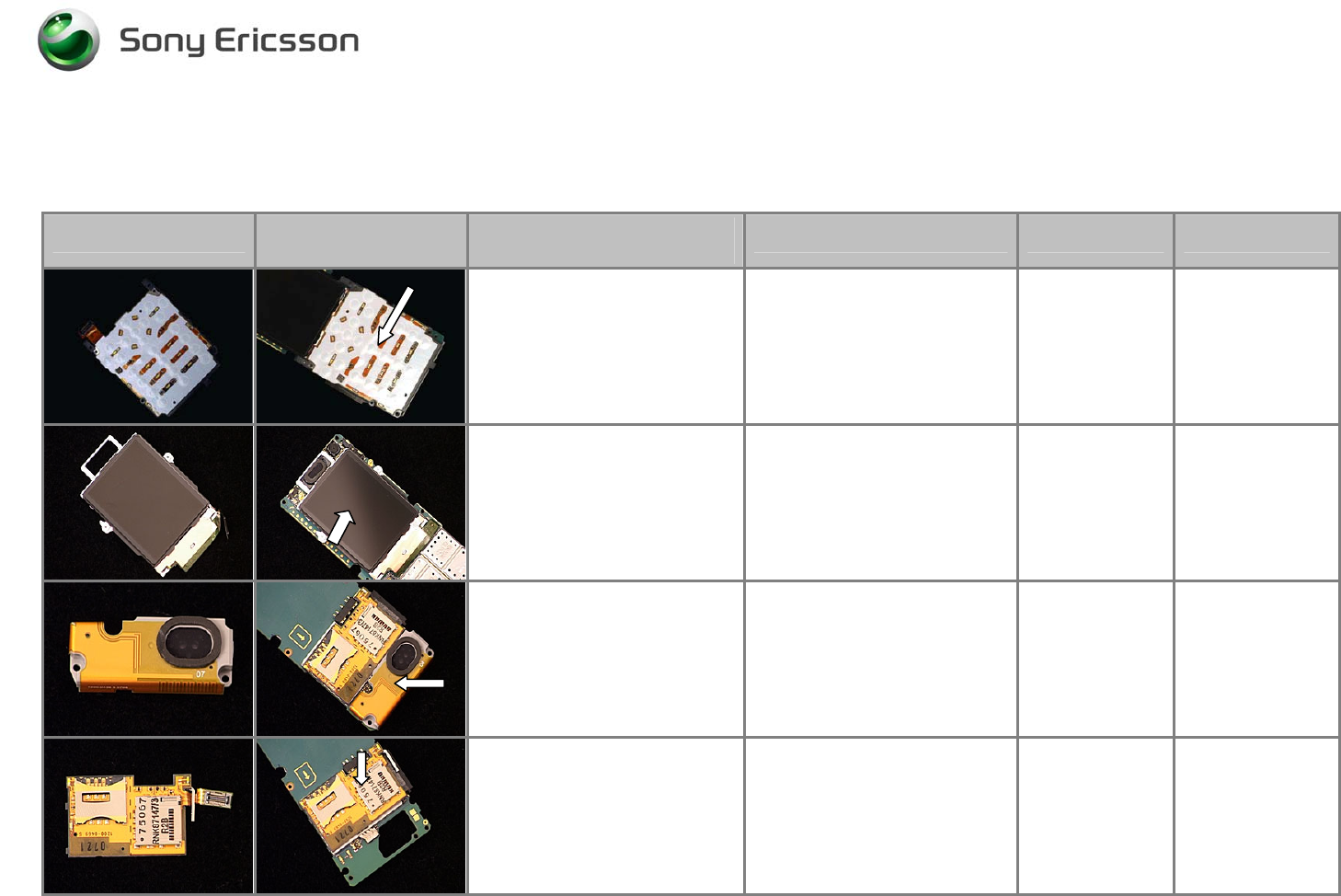

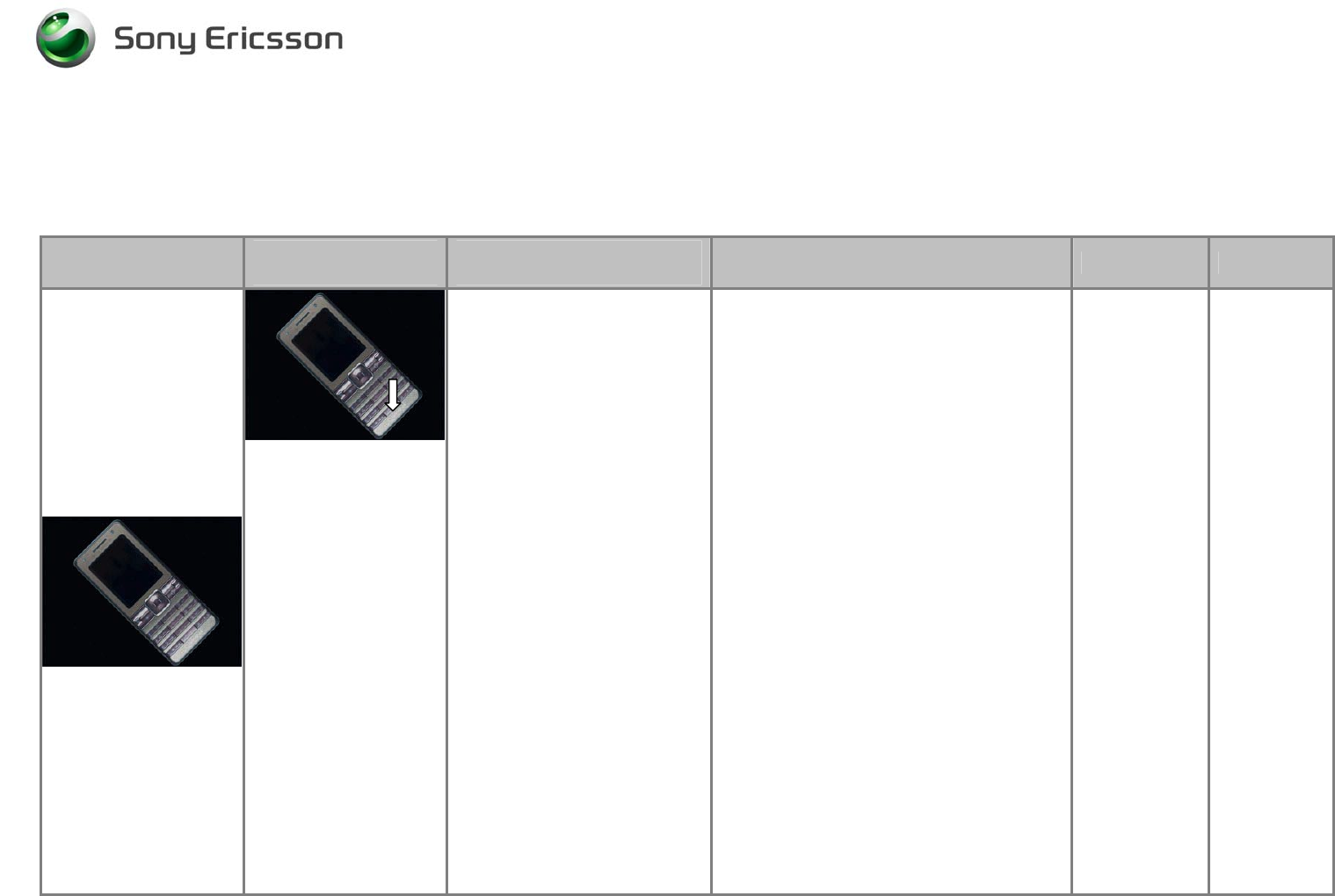

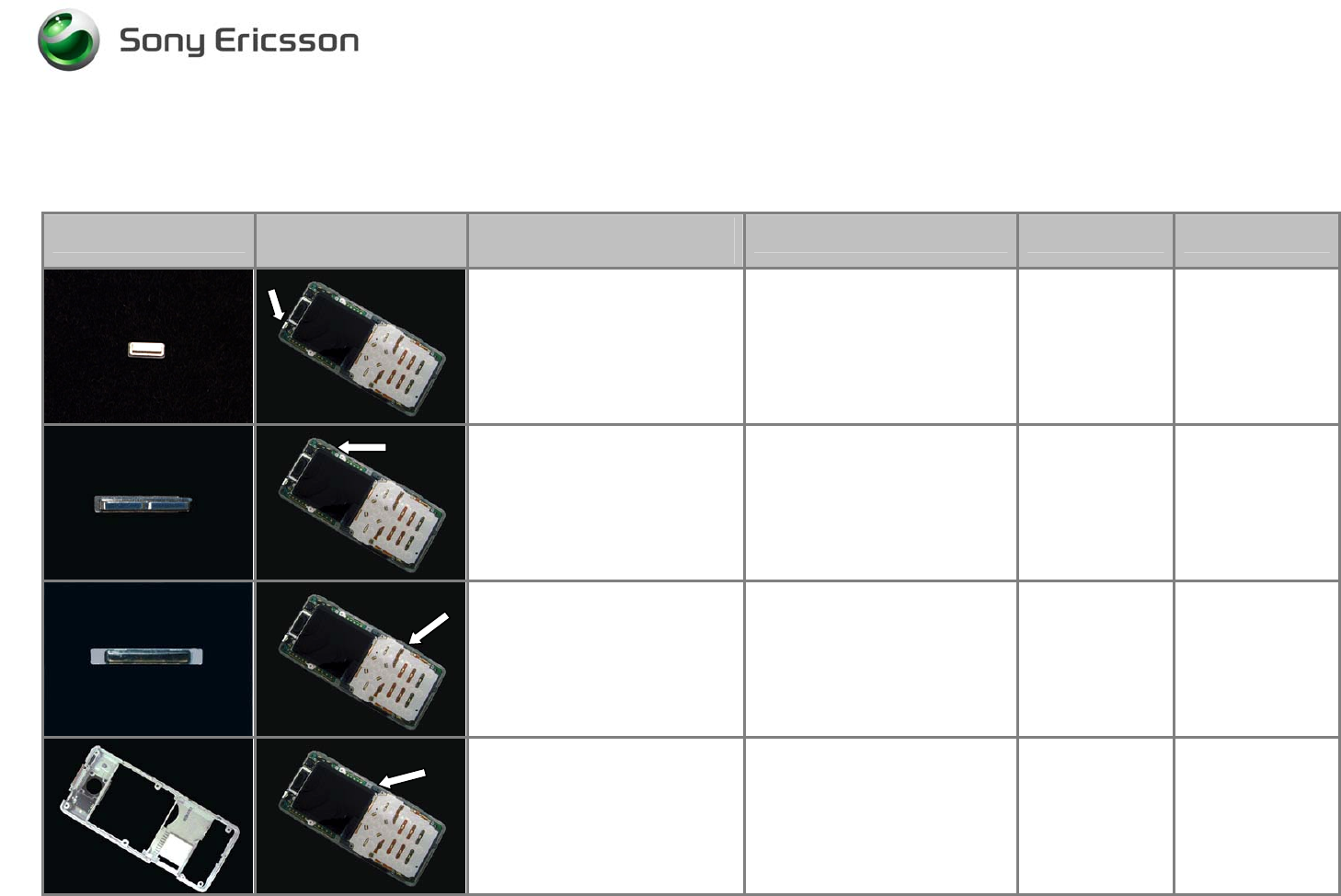

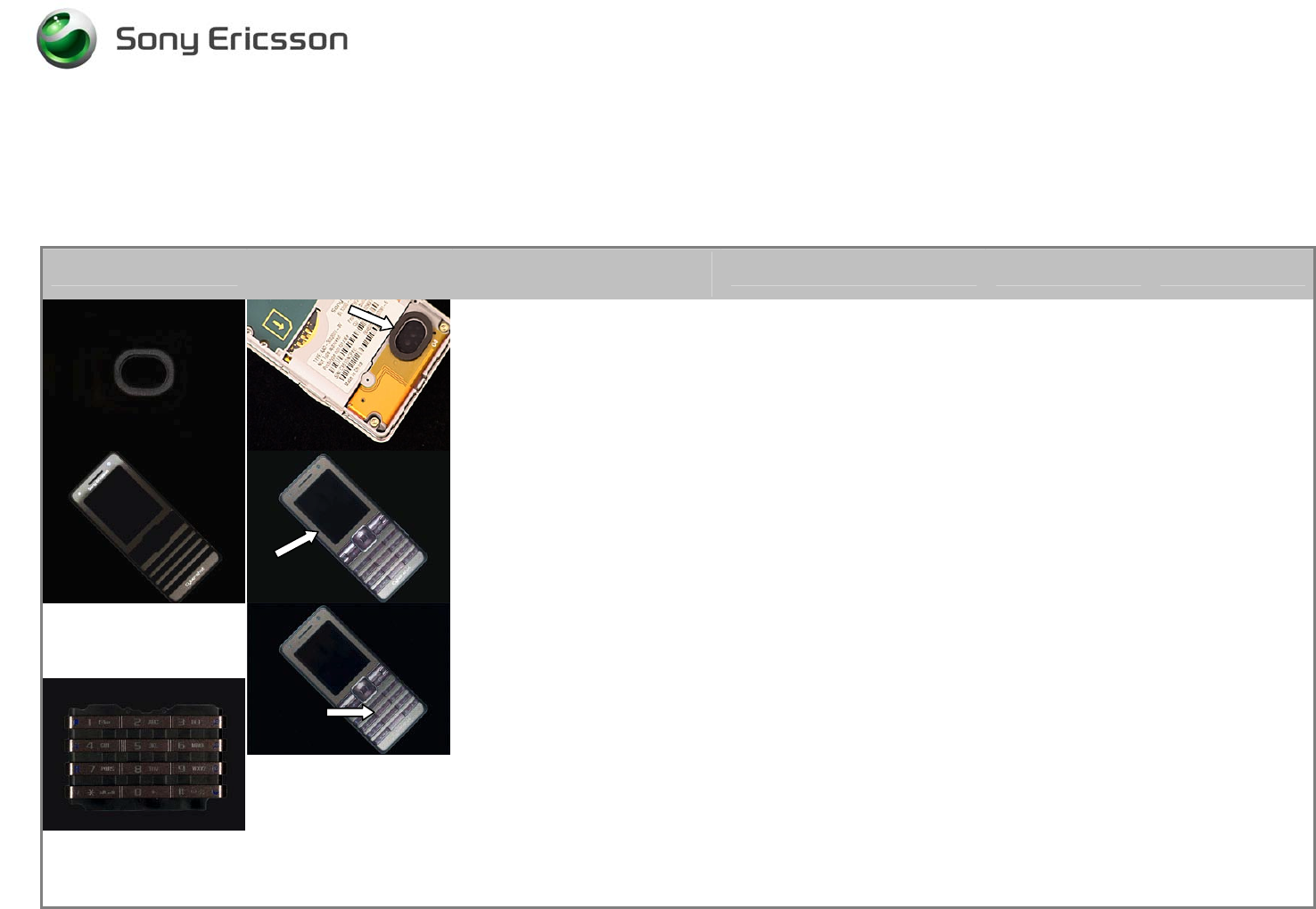

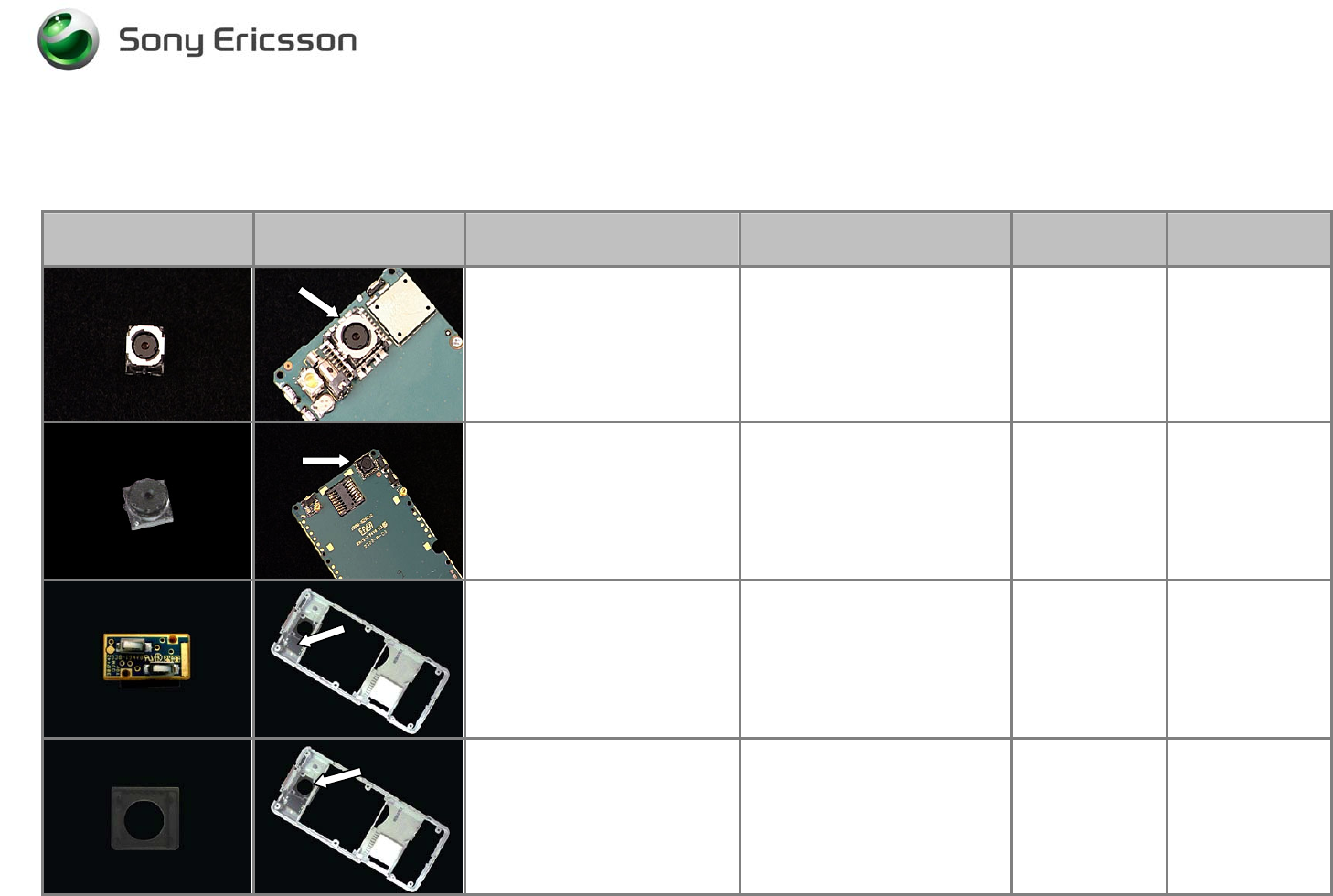

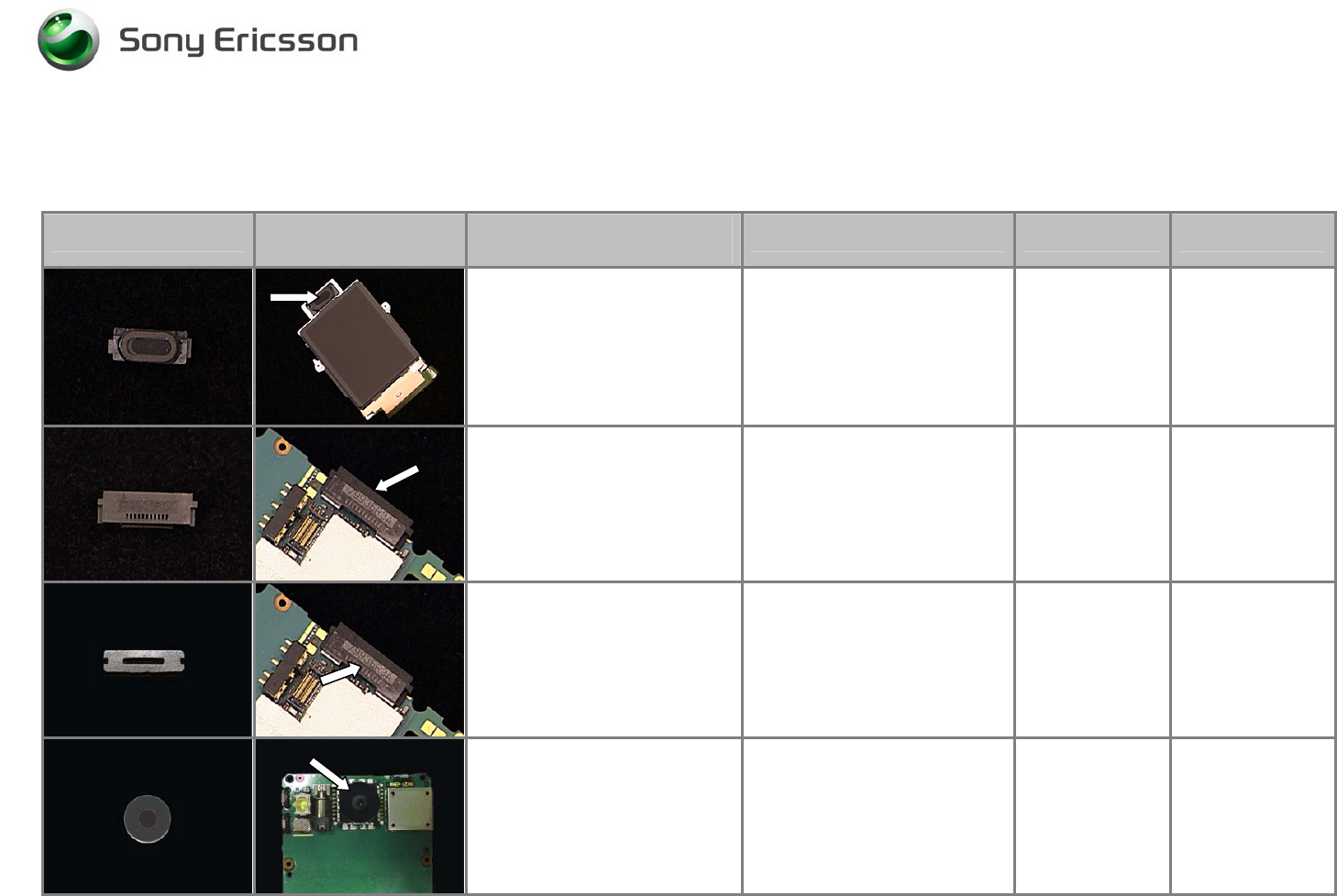

Parts continued
Part Part Location on
Phone Working Instruction
Description Webshop Description Part Number Comments
Speaker gasket with dust net Speaker gasket with dust net ODM57-94402
Front cover assembly
Front cover assembly Brown
Front cover assembly Beige
Front cover assembly Purple
ODM53-88350
ODM53-88362
ODM53-88367
Keypad assembly Numeric
Keypad assembly Numeric Brown
Latin
Keypad assembly Numeric Brown
Cyrillic
Keypad assembly Numeric Silver
Latin
Keypad assembly Numeric Silver
Bopomofo
Keypad assembly Numeric Silver
Hebrew
Keypad assembly Numeric Silver
Cyrillic
Keypad assembly Numeric Silver
Arabic
ODM65-65100
ODM65-65113
ODM65-65101
ODM65-65103
ODM65-65108
ODM65-65111
ODM65-65131
Part List, Mechanical
131 22-1/FEA 209 544/142 B
Company Internal © Sony Ericsson Mobile Communications AB
5(14)
Parts continued
Part Part Location on
Phone Working Instruction
Description Webshop Description Part
Number Comments
Keypad assembly Navi
Keypad assembly Navi Brown
Keypad assembly Navi Beige
Keypad assembly Navi Purple
Keypad assembly Navi Brown Vodafone
Keypad assembly Navi Brown Orange
Keypad assembly Navi Brown Hutchinson
Keypad assembly Navi Brown TIM
Keypad assembly Navi Brown T-Mobile
Keypad assembly Navi Beige Vodafone
Keypad assembly Navi Beige TIM
Keypad assembly Navi Purple Orange
Keypad assembly Navi Purple Hutchinson
Keypad assembly Navi Purple TIM
ODM65-66810
ODM65-66708
ODM65-66911
ODM65-66832
ODM65-66820
ODM65-66830
ODM65-66829
ODM65-66816
ODM65-66714
ODM65-66719
ODM65-66916
ODM65-66919
ODM65-66923
Part List, Mechanical
131 22-1/FEA 209 544/142 B
Company Internal © Sony Ericsson Mobile Communications AB
6(14)
Parts continued
Part Part Location on
Phone Working Instruction
Description Webshop Description Part Number Comments
On/Off Key assembly On/Off Key assembly ODM53-39788
Volume Key assembly Volume Key assembly ODM53-39950
Camera Key assembly Camera Key assembly ODM53-39850
Frame assembly Frame assembly ODM53-88917
Part List, Mechanical
131 22-1/FEA 209 544/142 B
Company Internal © Sony Ericsson Mobile Communications AB
7(14)
Parts continued
Part Part Location on
Phone Working Instruction
Description Webshop Description Part Number Comments
Keypad support plate assembly Keypad support plate assembly ODM65-87877
DISPLAY MODULE PMMA 2.0 DISPLAY MODULE PMMA 2.0
ODM-1203-2186
Speaker & Antenna box Speaker & Antenna box
ODM53-82040
M2 SIM assembly M2 SIM assembly FDM53-31102
Part List, Mechanical
131 22-1/FEA 209 544/142 B
Company Internal © Sony Ericsson Mobile Communications AB
8(14)
Parts continued
Part Part Location on
Phone Working Instruction
Description Webshop Description Part Number Comments
Ear Speaker Sania Ear Speaker Sania 1200-0296
System Connector
System Connector
RNV79936
System Connector Gasket System Connector Gasket ODM57-20335
Camera lens assembly Camera lens assembly ODM55-69000
Part List, Mechanical
131 22-1/FEA 209 544/142 B
Company Internal © Sony Ericsson Mobile Communications AB
9(14)
Parts continued
Part Part Location on
Phone Working Instruction
Description Webshop Description Part Number Comments
Camera Sania 3MPixel COMS Camera Sania 3MPixel COMS
1200-0112
Camera Sania QCIF MPixel
COMS Camera Sania QCIF MPixel
COMS 1200-0117
Camera door PWBA Camera door PWBA ODM76-92834
Camera cap assembly
Camera cap assembly Brown
Camera cap assembly Beige
Camera cap assembly Purple
ODM53-43968
ODM53-43928
ODM53-43910
Part List, Mechanical
131 22-1/FEA 209 544/142 B
Company Internal © Sony Ericsson Mobile Communications AB
10(14)
Parts continued
Part Part Location on
Phone Working Instruction

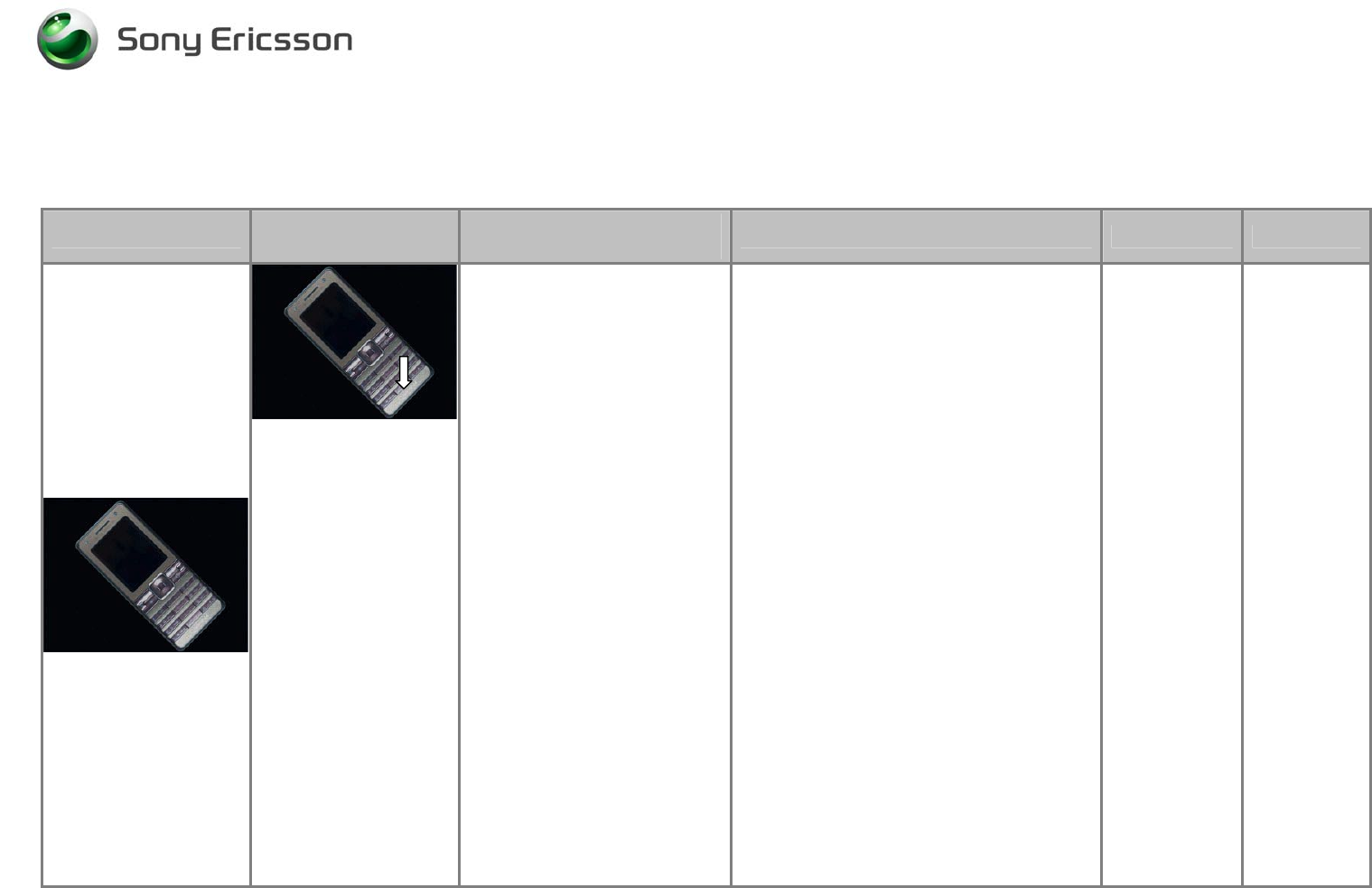

Description Webshop Description Part Number Comments
CO BRAND STICKER
CO BRAND STICKER BROWN HUTCHINSON
CO BRAND STICKER BROWN VODAFONE
CO BRAND STICKER BROWN ORANGE
CO BRAND STICKER BROWN SWISSCOM
CO BRAND STICKER BROWN T-MOBILE
CO BRAND STICKER BROWN TIM
CO BRAND STICKER BROWN O2
ODM80-69118
ODM80-69323
ODM80-69299
ODM80-69199
ODM80-69144
ODM80-69235
ODM80-69240
Part List, Mechanical
131 22-1/FEA 209 544/142 B
Company Internal © Sony Ericsson Mobile Communications AB
11(14)
Parts continued
Part Part Location on
Phone Working Instruction
Description Webshop Description Part Number Comments
CO BRAND STICKER
CO BRAND STICKER BEIGE VODAFONE
CO BRAND STICKER BEIGE SWISSCOM
CO BRAND STICKER BEIGE TIM
CO BRAND STICKER BEIGE MOBILKOM
ODM80-69114
ODM80-69368
ODM80-69378
ODM80-69211
Part List, Mechanical
131 22-1/FEA 209 544/142 B
Company Internal © Sony Ericsson Mobile Communications AB
12(14)
Parts continued
Part Part Location on
Phone Working Instruction
Description Webshop Description Part Number Comments
CO BRAND STICKER
CO BRAND STICKER PURPLE HUTCHINSON
CO BRAND STICKER PURPLE ORANGE
CO BRAND STICKER PURPLE TIM
ODM80-69110
ODM80-69225
ODM80-69405
Part List, Mechanical
131 22-1/FEA 209 544/142 B
Company Internal © Sony Ericsson Mobile Communications AB
13(14)

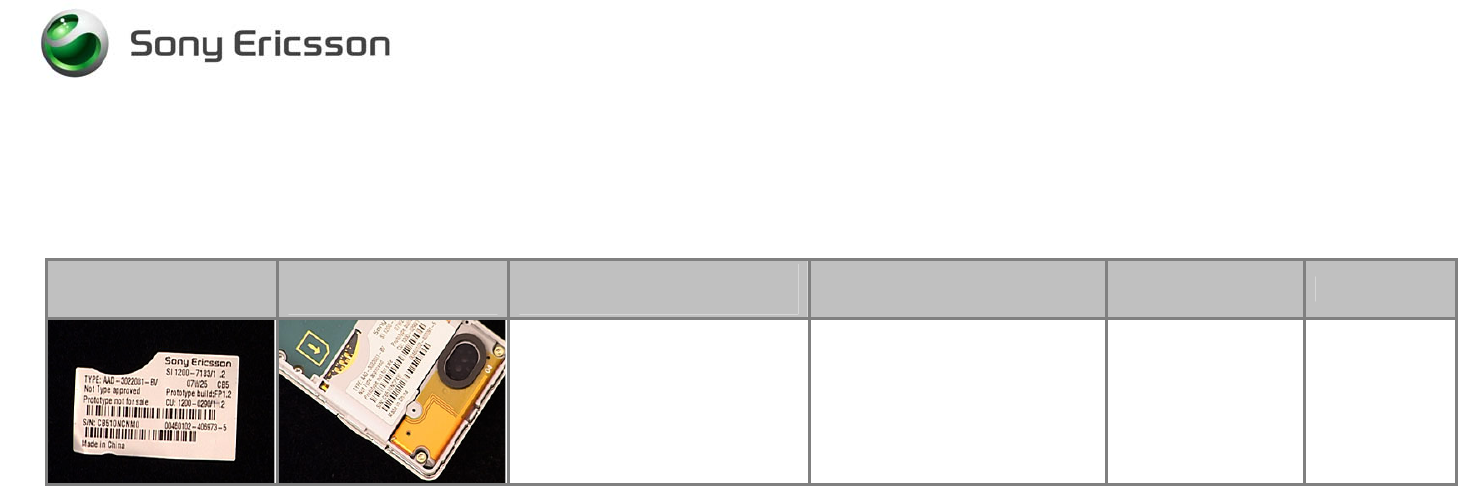

3 Label Part List
Part Part Location on
Phone Working Instruction
Description Webshop Description Part Number Comments
KRH-label
KRH-label
ODM80-71075
Part List, Mechanical
131 22-1/FEA 209 544/142 B
Company Internal © Sony Ericsson Mobile Communications AB
14(14)
4 Revision History
Rev. Date Changes / Comments
A 2007-09-24 Initial release
B 2007-10-19 Removed co-brand sticker
