K800 - K810

1202-3085 rev. 2

Electrical repair manual

APPENDIX

SAMPLE POINTS TROUBLESHOOTER

ABOUT

ABOUT FUNCTION OVERVIEW COMPONENT OVERVIEW

K800 K810

SEMC Electrical Repair Manual

1 (121)

K800 - K810

1202-3085 rev. 2

ABOUT

ABOUT

CONTENTS

ABOUT

General information

The purpose of this document is to provide enhanced technical information for Sony Ericsson

repair technicians in order to assist during service, repair and troubleshooting operations on Sony

Ericsson mobile phones. It should be used as a complement to other repair instructions and tools

as notifi ed by the local Sony Ericsson representative.

To search for components throughout the entire document use the “search” function in Adobe

Acrobat Reader 7.0 (or later version) and enter the component name or other word. Use zoom to

enlarge.

For easier navigation of the document you can use the bookmarks that appear in the Bookmarks

tab on the left side of the Adobe Acrobat Reader window. Each bookmark jumps to a page in the

document.

Instruments used

Power supply ........................ Agilent 6632B

Power supply………... ...........Agilent 66311B

Power supply set to 3,8V and limited to 2A

Oscilloscope ................ Tektronix TDS 2012

Multimeter ......................................Fluke 83

Spectrum Analyzer..Hewlett Packard 8596E

Mobile Phone Tester……...Yokogawa VC230

Disclaimer

This document is Sony Ericsson confi dential and should be treated as confi dential in accordance

with the agreement with Sony Ericsson. This document is intended for use by authorized service

technicians only. Sony Ericsson is not to be held responsible for any damages or losses caused

intentionally or unintentionally due to unauthorised use of the information in this document.

Rev. Date Changes / Comments

1 6/29/2007 Initital revision.

Revision History

Contents

ABOUT 2

General Information 2

Contents 2

FUNCTION OVERVIEW 3

Description 3

General 3

Mechanical Design 3

RF Parts 3

Logic/Audio Part 5

Antenna 5

Bluetooth 5

IR 6

FM Radio 6

External Connections 6

High Level 7

Radio 8

Baseband 9

Data and Signals 10

Acoustics 11

Power Distribution 12

Baseband Top - Radio Top - Bluetooth - FM Radio 13

Radio - Top 14

Radio - Power Supply 15

Radio - UMTS 16

Radio - GSM 17

Radio - Bluetooth 18

Baseband - Logic Top 19

Baseband - System Control Top 20

Baseband - System Control Clocks and Resets 21

Baseband - System Control Test 22

Baseband - Power Top 23

Baseband - Regulators and Charging 24

Baseband - Power Camera 25

Baseband - Power ASICs 26

Baseband - Power Memories 27

Baseband - Operation & Services Top 28

Baseband - Operation & Services Memories 29

Baseband - Operation & Services GPIO 30

Baseband - Operation & Services ADC & DAC 31

Baseband - Operation & Services MS Pico & SIM 32

Baseband - Operation & Services Connectivity 33

Baseband - UMTS Access Top 34

Baseband - UMTS Access WCDMA 35

Baseband - UMTS Access GSM 36

Baseband - MMI Top 37

Baseband - MMI Keypad 38

Baseband - MMI Display 39

Baseband - MMI Audio 40

Baseband - MMI Camera 41

Baseband - MMI FM Radio 42

COMPONENT OVERVIEW 43

Front Side B - C 43

Front Side D - Z 44

Back Side A - Z 45

SAMPLE POINTS 46

Front Side 46

Back Side 47

TROUBLESHOOTER 48

Repair Actions 48

Repair Actions 49

On/Off - Dead Phone 50

Charging Problems - VBUS Charging Problems 51

Keyboard & Display Backlight - SIM 52

Flash Problems - Audio Internal Problems 53

Audio External Problems - Camera Problems 54

FM Radio Problems - Vibrator Problems 55

Memory Stick Problems - Bluetooth Problems 56

Network Problems - Display Problems 57

Test Current Consumptions 58

Test Charging 58

Test the ASIC Revisions 59

Test Backup Capacitor 59

Test the Joystick Switch S2504 and Diodes V2503, V2506-09 60

Test the Diode V2500 61

Test the Protection Diodes V2510 to V2514 61

Test the diode V2504 and Switch S2500 62

Test the Switches S2505 & S2506 62

Test the Switch S2502 63

Test the Switches S2503 & S2507 63

Joystick and Other Keys Problems 64

Test the System Connector Protections 64

Reference MP 65

APPENDIX 66

K800 Mechanical Parts List 66

K810 Mechanical Parts List 70

Part List Main Board 73

Components A1200 74

Components A1300 83

Components B2100, B4100 90

Components C2217, D1400 91

Components D2301, D2304 92

Components H2300, D3100, D3101 93

Components N2000, N2200 94

Components N2202, N2203, N2300 95

Components N2600, N3100, N4100 96

Components N4202, S2500, S2502 97

Components S2504, S2505, S2506 98

Components V2201, V2202 99

Components V2220, V2301, V2552 100

Components V2500, V4101, V2504 101

Components V3101, V3102 102

Components V3103, V3110 103

Components V3113, X1000 104

Components X1002, X2200 105

Components X2301, X2302 106

Components X2501, X2505, X2510 107

Components X2550, X3102 108

Keyboard K800 109

Keyboard K810 110

Display 111

VGA Camera KNC20116 112

Camera Module KNC20125 112

Xenon Flash Module 113

SI Can’t Power On 114

SI Can’t Power On 115

SI Joystick Switch Replacement 116

SI Support Pad for Camera Switch 116

SI Problem with Front Spare Part 117

SI Problem with On/Off Button 117

SI Emma 3 White Screen Patch 118

SIActivate Sporadic Behaviour 118

SI Pre-Confi guration Change 119

SI Vincenne Replacement 120

SI Emma 3 Important Start-Up Operation, SI New Software 120

Torque Set tings 121

Placing in a Shield Box 121

SEMC Electrical Repair Manual

2 (121)

K800 - K810

1202-3085 rev. 2

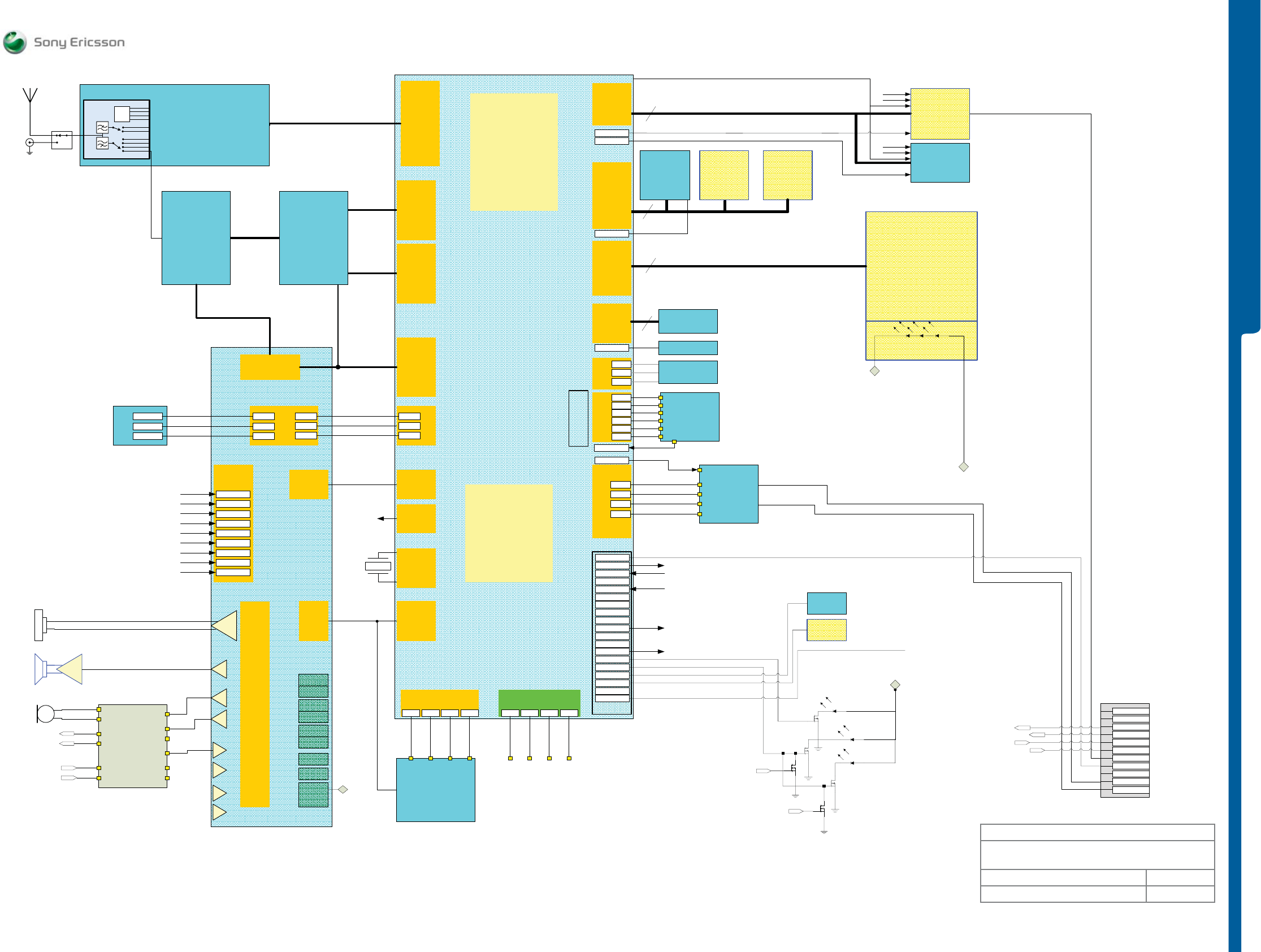

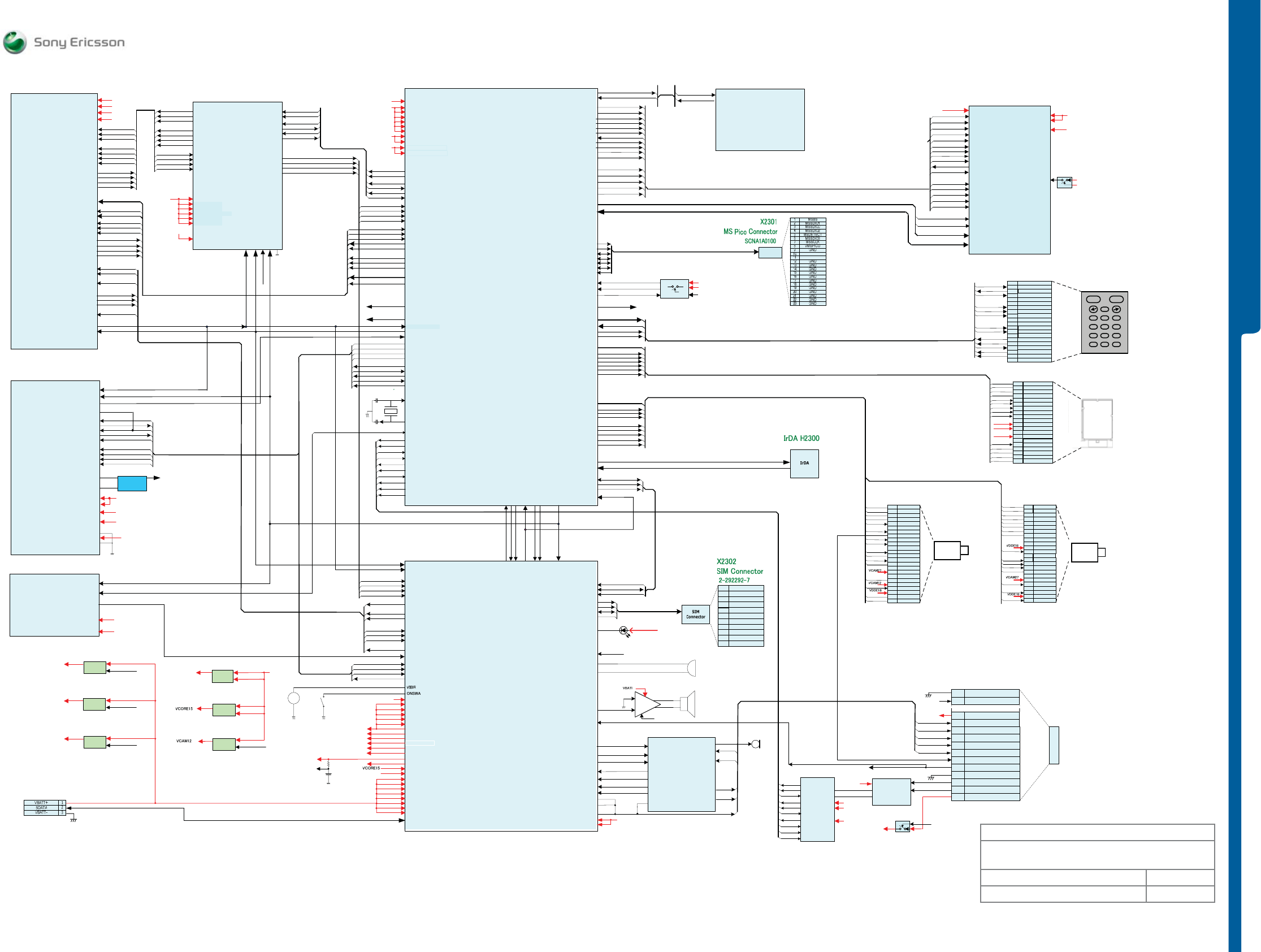

FUNCTION OVERVIEW

FUNCTION OVERVIEW

DESCRIPTION

1 General

The Sony Ericsson Mobile Communication phone K800 is a 3G dual mode mobile phone

supporting WCDMA and triple band GSM/GPRS in the 900, 1800 and 1900 frequency bands. The

phone is a GPRS class 10 terminal supporting voice, circuit switched (CS) and packet switched

(PS) data. This Sony Ericsson dual mode 3G product is designed to be compatible with all

mandatory GSM phase 2+ recommendations.

The phone has an in-built antenna, a 3.2 Mega Pixel Camera with a lens cover and an associated

xenon fl ash, a VGA-Camera for Video Call, a Display, and a slot for a Memory Stick M2 external

memory.

There is only one size of battery. A connector at the bottom of the phone makes it possible

to connect various accessories like chargers and hands-free units. A USB cable can also be

connected to the bottom connector. The external antenna connector can be used to connect to an

external antenna, disconnecting the internal phone antenna.

The electronic functions are divided into RF parts, logic/audio parts, opto-electronic parts,

Bluetooth parts, an IR transceiver, and an FM radio. The electronics parts consists of the main

PCB with components placed on both sides, the Key-Flexible-PCB that has Key-Matrix-circuit/

LEDs, loudspeaker box with the internal antenna, ear speaker, microphone, vibrator, 3.2 mega

pixel camera, xenon fl ash module, VGA camera, the Display, Bluetooth module, and FM radio

parts. The RF parts are mainly housed in separate modules.

Transmitter

Receiver

Baseband

Control

DC and Return

CPU

TDMA/CDMA

DSP

AF part

Display

Keyboard

RF Logic / audio

3,6V battery

Antenna

External connector

FM radio

Bluetooth

3.2 MPix Camera

IR

VGA Camera

Flash

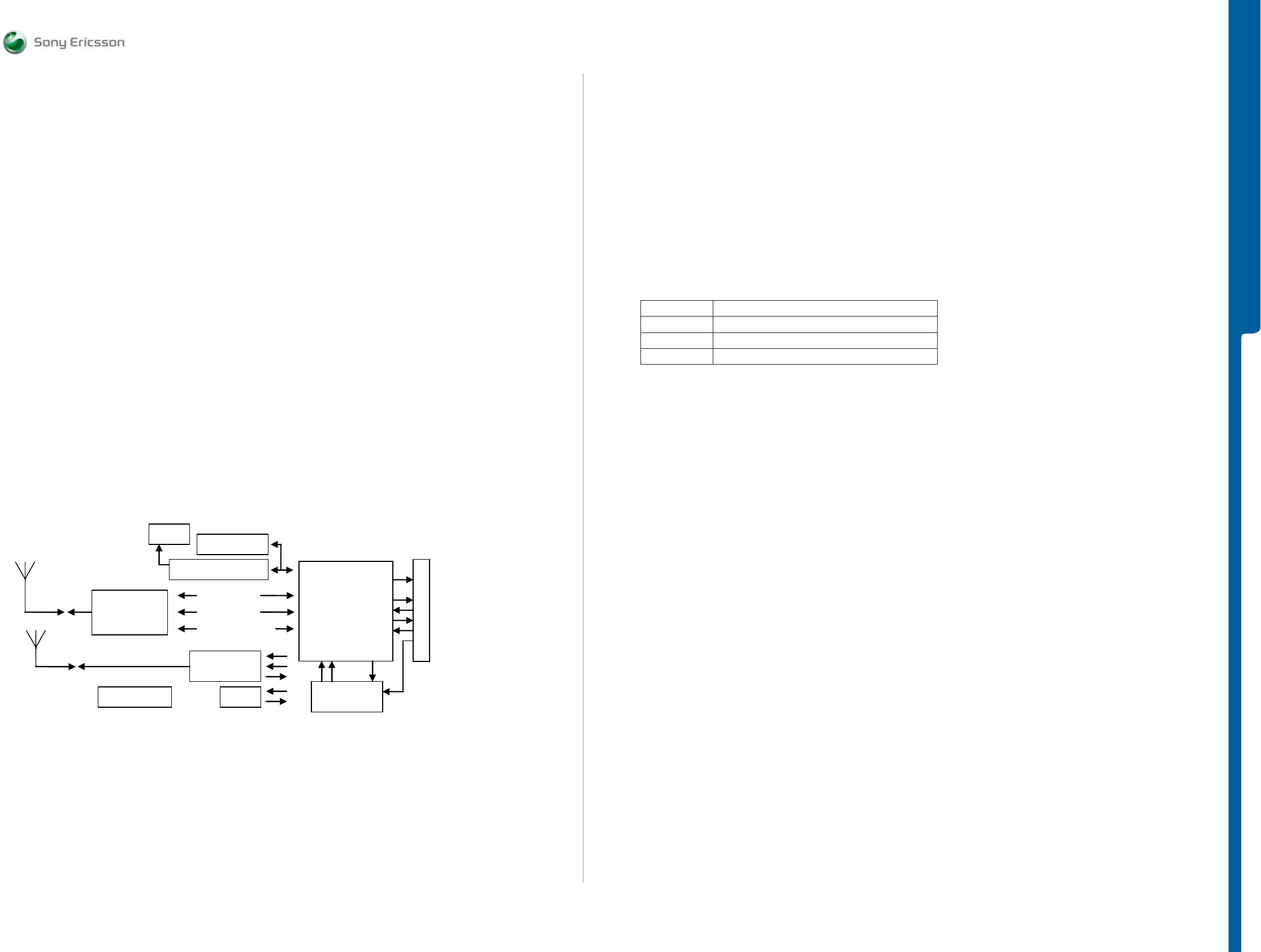

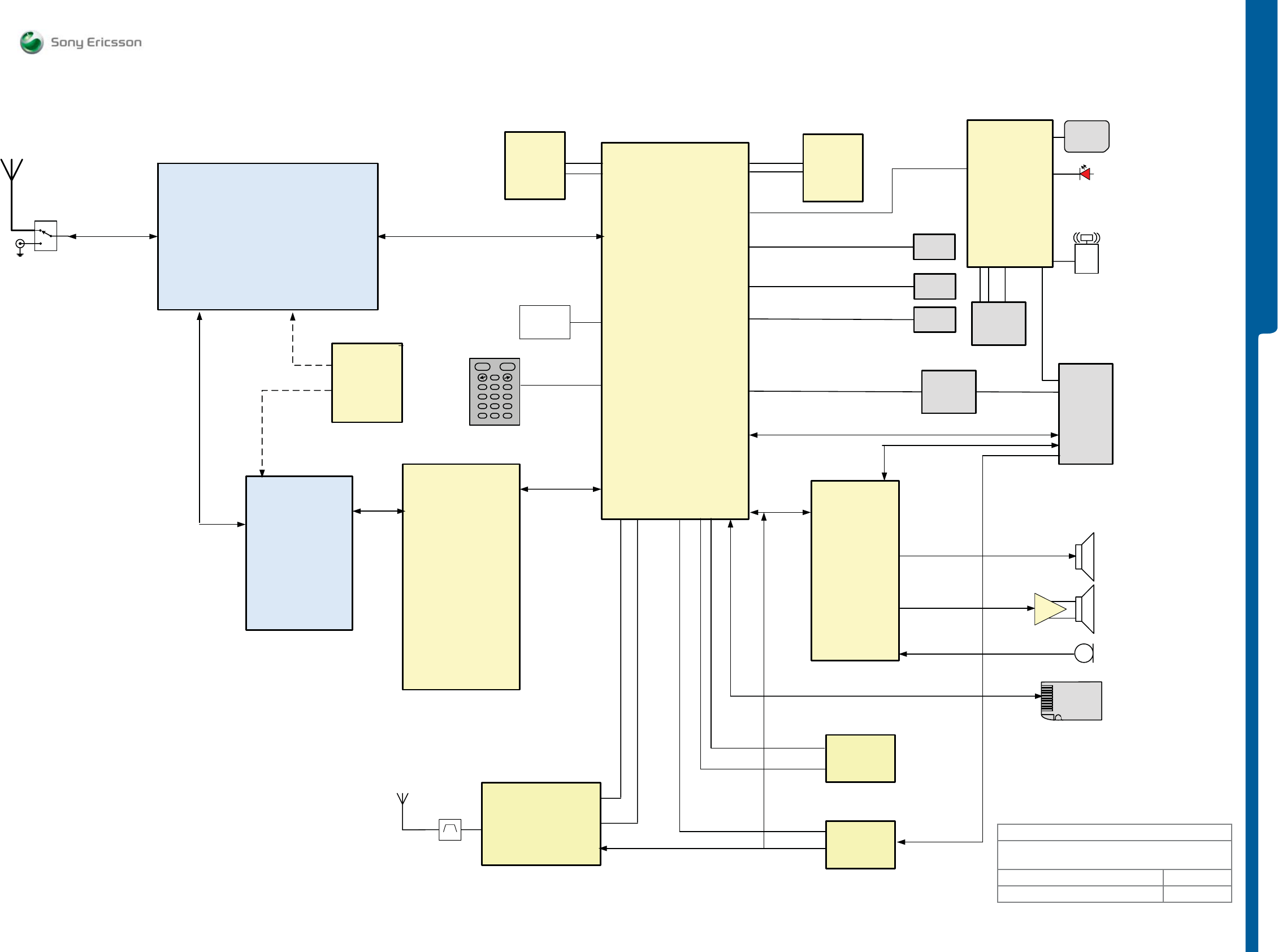

Figure 1. Block diagram of the K800.

2 Transceiver

This description provides only a simple general description of the transceiver section and its

components.

2.1 Mechanical Design

The phone is built up around a core unit consisting of a plastic frame with the BT antenna

mounted on which the assembled PCB, the cameras, the vibrator, a plastic LCD holder and

the LCD, a plastic keyboard support plate and the keyboard dome foil, the loud speaker box

with loudspeaker and antenna, and the xenon fl ash module are mounted. This core unit is then

snapped and screwed in the front cover together with the keys, joystick, and the M2 cover. The

antenna cover with the sliding camera lens cover is then mounted. The battery fi ts in a dedicated

cavity and is covered with a battery cover.

Dimensions

Length 106mm

Width 47mm

Thickness 18mm (22mm across the lens cover)

Weight 115g

2.2 RF parts

2.2.1 GSM 900

The GSM 900 part of the transceiver is including E-GSM and has a frequency range spanning

from 925.2 to 959.8 MHz for the receiver, and from 880.2 to 914.8 MHz for the transmitter. This

gives 174 channels with 200kHz channel separation. The TX – RX frequency separation is always

45MHz.

2.2.2 GSM 1800

The GSM 1800 part of the transceiver has a frequency range spanning from 1805.2 to 1879.8

MHz for the receiver, and from 1710.2 to 1784.8 MHz for the transmitter. This gives 374 channels

with 200kHz channel separation. The TX – RX frequency separation is always 95MHz.

2.2.3 GSM 1900

The GSM 1900 part of the transceiver has a frequency range spanning from 1930.2 to 1989.8

MHz for the receiver, and from 1850.2 to 1909.8 MHz for the transmitter. This gives 299 channels

with 200kHz channel separation. The TX – RX frequency separation is always 80MHz.

2.2.4 WCDMA

The WCDMA part of the transceiver has a frequency range spanning from 2110 to 2170 MHz for

the receiver, and from 1920 to 1980 MHz for the transmitter. This gives 12 channels with 5MHz

channel separation. The TX – RX frequency separation is always 190MHz.

2.2.5 RF architecture

VCXO

A voltage controlled crystal oscillator (VCXO) running at 13 MHz is used as a reference for all

frequencies generated in the transceiver.

Description SEMC Electrical Repair Manual

3 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Antenna

The internal antenna is common for all GSM bands and the WCDMA band. There is an antenna

switch between the antenna and the RF electronics allowing usage of an external antenna.

GSM 900/1800/1900

One synthesizer is used for both RX and TX operation. Direct conversion is used for RX and TX.

In TX mode, the PLL works directly on the transmitted frequency, whereas the RX VCOs operates

at the double received frequency. The LO is then divided by two just before entering the RX mixer.

The main component for the frequency synthesis and up-conversion is the GSM RF ASIC. A

direct modulation concept is used and the base-band chip has, together with the GSM RF ASIC,

all the required functions for direct modulation. The use of direct modulation means that no

intermediate frequency (IF) in the transmitter chain is needed. The receiver is of direct conversion

type, i.e. a homodyne receiver (the RX VCOs operates at two times the received frequency).

Thus, there is no need for any other LOs than a “main loop” in this radio.

The modulated transmitter signal is amplifi ed by a power amplifi er before being routed to the front

end module and the antenna.

The front end module contains all necessary functions for separating GSM and WCDMA, and

routing WCDMA signals to and from the WCDMA RF module. It also contains a TX/RX switch for

GSM for routing the received GSM RF signal to the correct GSM receiver input, and routing the

GSM TX signal to the antenna. Band selection fi ltering for GSM RX is also done in the front end

module.

All the GSM parts including the front end module are housed in a separate module.

WCDMA

The WCDMA receiver ASIC contains the receiver chain, the RF synthesizer and the circuitry

needed for the13 MHz crystal reference oscillator, plus the 2.3GHz RF synthesizer. The

transmitter ASIC is also used to generate the IF signal (4*190MHz) needed in Rx receiver.

2.2.6 GSM/DCS/PCS Receiver

The fi rst stage of the receiver is a band selection fi lter, which suppresses unwanted frequencies.

The receiver is a homodyne receiver. The local oscillator frequency is generated by a frequency

synthesizer, which allows the receiver to be set at frequencies in intervals of 200 kHz. The

synthesizer is controlled from the logic/audio part. The receiver chip also contains A/D converters,

and thus I and Q samples are sent to the logic/audio parts as serial data.

2.2.7 WCDMA Receiver

The receiver is of classical super-heterodyne type, with intermediate frequency at 190MHz.

The signal picked up from the antenna is sent, through the antenna switch (which is used to switch

among GSM TX/RX, DCS TX/RX, PCS TX/RX and UMTS) to the WCDMA duplexer.

The main purpose of the WCDMA duplexer is to route the received signal from the antenna

towards the receiver, while simultaneously allowing the transmitter signal from the PA to go to the

antenna and limiting the leakage from the PA to the LNA inside the receiver ASIC.

The receive signal from the duplexer reaches then the LNA (integrated into the WCDMA RX ASIC)

and the amplifi ed signal is fi ltered by means of an external inter stage SAW fi lter. The fi ltered

signal returns into the WCDMA RX ASIC to be down converted to the IF frequency, 190MHz, by

means of a mixer. The fi rst local oscillator signal is generated in the WCDMA RX ASIC and is

190MHz higher than the input signal, so it ranges between 2300 and 2360MHz.

The IF signal is fi ltered by an external IF SAW fi lter, then amplifi ed and demodulated. After

demodulation, a chain of amplifi ers and low pass fi lters will render the analog I and Q signals.

High pass fi ltering (needed to remove DC offset) is provided externally using series capacitors.

The analog I and Q signals are then processed by the WCDMA signal processor, that contains the

4-bit, analog to digital converters. The sampling rate is 15.36MHz, which is four times the chip rate

(3.84MHz).

2.2.8 GSM/DCS/PCS Transmitter

The I and Q signals generated from the baseband is modulating the output frequency directly, this

is done in the dedicated GSM/DCS/PCS RF ASIC.

An output power control loop, controlled by the logic, is regulating the output power of the power

amplifi er during the burst.

The transmitter has a dedicated GSM/GPRS output power control block with a logarithmic 8 bit

DAC in a mixed signal ASIC, and one dual band power amplifi er. The DAC is controlled by a serial

bus from the GSM/GPRS baseband controller ASIC.

The PA control block applies a transfer function (2nd order low pass) to the reference value from

the DAC. This new value becomes an internal reference value. The regulator in the PA control

block measures IPA (feed current to the power amplifi er) and calculates the error signal by taking

the difference between the IPA and the internal reference signal. This error signal is integrated

(PI-regulator) and then adjusts the PA regulator voltage to cancel the error. The PAREG signal is

fi ltered by a low-pass to give a smooth ramping signal.

2.2.9 WCDMA Transmitter

PA -

Module

QVGAVGA

6 bit 2 bit DC/DC for PA

PA-DAC

8 bit

HGBUFFERBIAS

3 bit Power control DA C,

8 bit

Buff gain,

1 bit

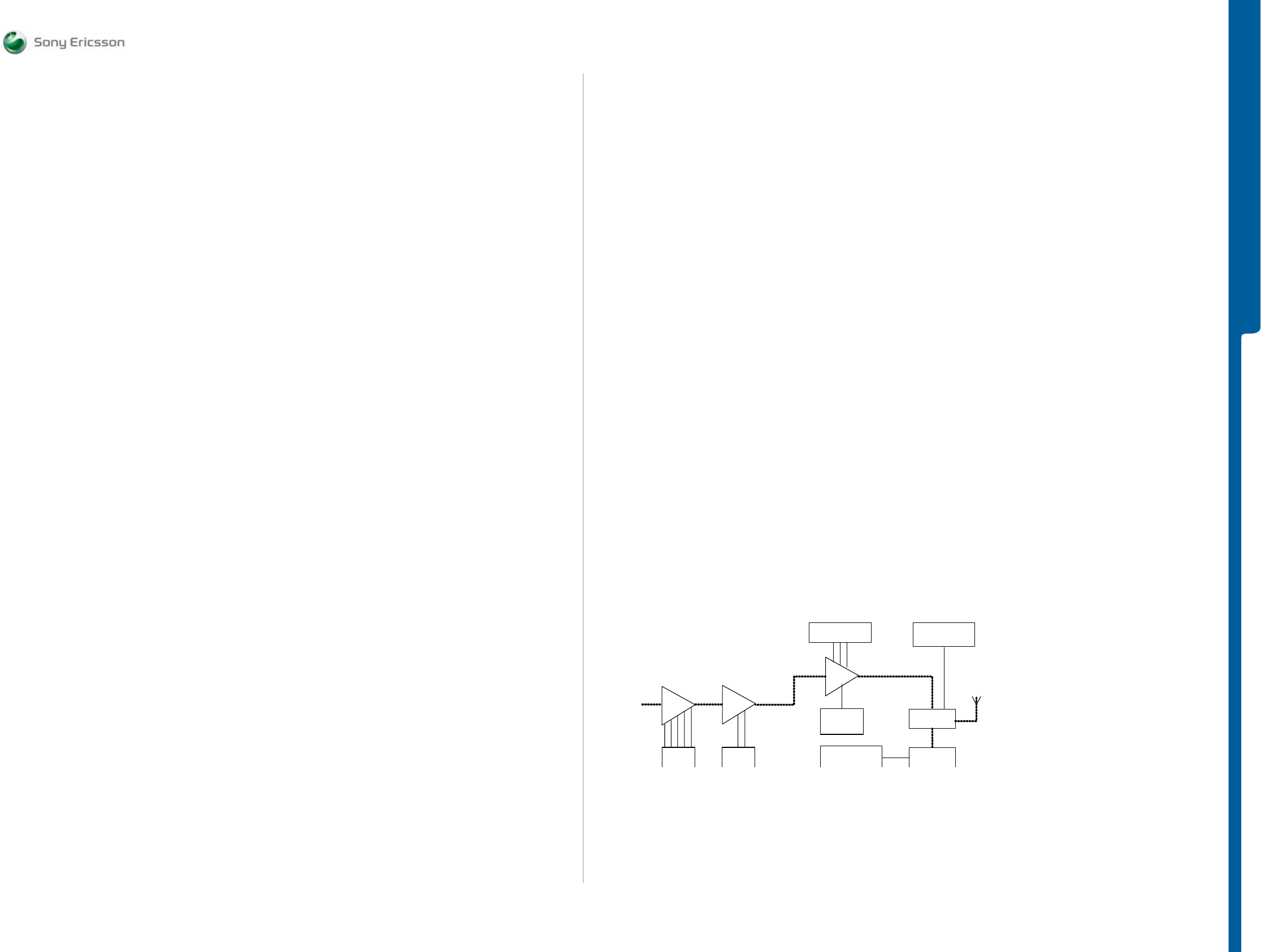

Figure 2. WCDMA transmitter.

The picture above shows in a generalized the way how the WCDMA transmitter works. A TX

ASIC is able to generate a dynamic range of more than 81dB while the power amplifi er work as an

amplifi er with fi xed amplifi cation.

The VGA, QVGA and “HGBufferbias” plus “Buffgain” are all inside the TX ASIC.

Description SEMC Electrical Repair Manual

4 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

The TX ASIC is the main component for controlling the power. The VGA is able to handle at least

50dB power dynamic in 1dB steps while the QVGA handles 1dB in 0.25dB steps.

“Buffgain” is a programmable PA buffer in which the bias current is optimized and fi nally is the buffer

possible to be used in low gain mode, which generates about 30dB lower output power compared

with the highest output setting.

The PA has also a variable voltage created by a DC/DC converter. By changing the PA voltage it’s

possible to have a better effi ciency and it’s done with the reference signal from a DAC.

It’s also possible to change the bias current in the PA by tuning a DAC.

By combining the variable voltage and bias current it’s possible to have the best current effi ciency

and still cope with the linear performance demands.

2.3 Logic/Audio Part

2.3.1 Functions

The purpose of the logic part is to control and monitor the transmission and reception functions of

the mobile phone and to maintain contact with the mobile phone system. The logic therefore has

links to all the relevant parts of the radio. Its functions, with reference to the radio, include selection

of radio channel and control of the transmitter power and the overall radio timing. It also generates

the base-band modulation after encryption, channel coding and demodulates the received base-

band signal including equalization, decryption and channel decoding.

Its functions, with reference to the audio parts, include volume control of the earphone and

loudspeaker. Speech codec and PCM A/D and D/A are also performed here, together with the

appropriate audio frequency fi ltering.

The external tasks of the logic part include monitoring and control of links with the control unit and

power supply and also the communication to the SIM/USIM and external units connected to the

external connectors.

The Logic/Audio part also includes a 32.768 kHz XTAL used for the real time clock.

2.4 Antenna

The in-built antenna is made as a pattern on a fl exible printed circuit foil supported by a plastic

carrier containing the loudspeaker and attached to PCB. This HDA type antenna is fed via 2

contacts springs, one grounded and one connected to RF signal.

The antenna signal is also accessible through the external antenna connector located at the upper

part on back of the phone.

2.5 BLUETOOTHTM

The Bluetooth implementation is compliant with Bluetooth specifi cation 2.0 + EDR

2.5.1 RF part

The BluetoothTM transceiver has frequency channels with 1 MHz separation from 2402 to 2480

MHz. The same band is used for both transmission and reception. This gives 79 frequency

channels.

2.5.2 Frequency generation

The BluetoothTM transceiver uses the 13 MHz system clock as reference clock to the synthesizer.

One synthesizer is used for both RX and TX. To separate the receiver from the transmitter an

integrated antenna switch is used.

2.5.3 Receiver

The fi rst stage of the receiver is an external antenna fi lter, which suppresses unwanted

frequencies. The receiver is of a “near-zero” IF receiver architecture. The local oscillator is

generated by a frequency synthesizer, which allows the receiver to be set at frequencies in

intervals of 1 MHz. The synthesizer is controlled from the logic part.

The received signal is sampled in the logic for later signal processing.

2.5.4 Transmitter

The synthesizer generates the TX frequency which modulated by the BT baseband block. It

is then amplifi ed. The BT system is a class 1 device with maximum of +4 dBm output power

(minimum setting is about -50 dBm).

2.5.5 Logic/Audio part

The purpose of the logic part is to control and monitor the transmission and reception functions of

the BluetoothTM transceiver in the mobile phone. The logic therefore has links with all the relevant

parts of the radio. Its functions, with reference to the radio, include selection of radio channel and

control of radio timing. It also generates the data to be sent over the link after burst building and

channel coding. The logic/audio part also demodulates the received base-band signal including

channel decoding.

Its functions, with reference to the audio parts, include a PCM interface.

2.5.6 Antenna

The antenna is in-built and located in the bottom part of the phone. The antenna is in contact with

the PCB by means of two metal springs.

Description SEMC Electrical Repair Manual

5 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

2.6 IR

The IR transceiver is IrDA compatible.

2.7 FM radio

The FM radio receiver is a stereo radio able to decode RDS information.

2.7.1 RF part

The FM radio can tune to the US/European broadcast FM frequency band, 87.5 – 108 MHz

2.7.2 Frequency generation

The FM radio receiver uses a 32.768 kHz reference clock to tune the local oscillator.

2.7.3 Receiver

The RF signal to the FM radio is fi rst fed into a low noise amplifi er. The amplifi ed signal is then

mixed with the local oscillator. The IF is of low frequency-type.

The signal is then further amplifi ed, limited and demodulated. The demodulated signal is fed into a

decoding circuitry where the right and left audio signals and RDS information are separated.

2.7.4 Logic part

The logic part of the FM radio controls the frequency tuning system, and various settings within

the FM radio system. It also handles the communication, including transfer of RDS data, with the

CPU of the mobile phone. The communication with the CPU is over a two-wire I2C interface.

2.7.5 Antenna

The cord to the portable hands-free headset functions as the antenna for the FM radio.

2.8 External Connectors

External units are connected to the transceiver by means of a 12-pin connector on the bottom of

the phone. The pin numbering is starting from the left when looking at the system connector with

the back of the phone up.

1

Vbus

2

SP

Ref

5

Sp

L

/

DBG

TX

6

Sp

R

/

DBG

RX

4

Mic-

/

Aux in

R

7

Video

/

Strob e

8

AID

/

ACB

/

Vp p

Flash

9

GND

10

D+

/

DTMS

3

Mic+

/

Au x in

L

11

D-

/

DFMS

12

DCIO

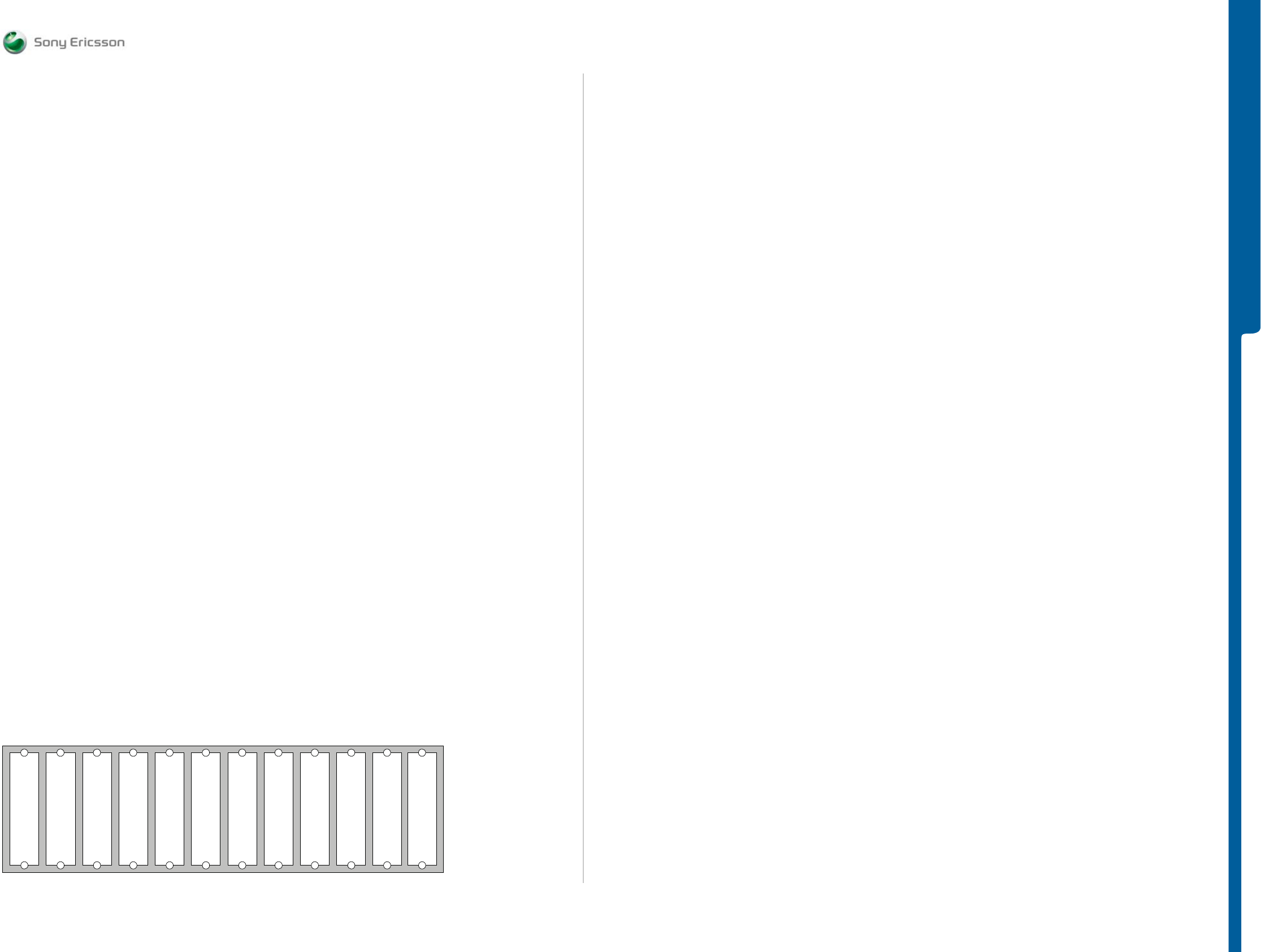

Figure 3. System connector pin out

Description SEMC Electrical Repair Manual

6 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

B2100

32kHz

XO

SIM

BATTERY

VINCENNE 2

N2000

Power Management

Charger & GPADC Part

1

87

654

32

0

9

#

C

YES NO

*

VINCENNE2 N2000

Radio Part

MARLIN GSM

A1300

WANDA

D2001

RAY UMTS

A1200

Bluetooth

D1400

Display

Module

MIC

BDATA

+

I

System

Connector

X2300

Memory

Stick

SPEAKER

VINCENNE2

Audio Part

NOR&SDRAM

D2300

MARIKA D2000

External

Antenna

Connector

EAR

SPEAKER

VGA

CAMERA

MODULE

3,2 Mpix

CAMERA

MODULE

Keyboard

USB

Transceiver

NAND FLASH

D2301

Irda

H2300

FM

N2600

ANT

High Level SEMC Electrical Repair Manual

7 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Doc resp ons/Approved

Produc t name

RevDate

Prepared

Reference

Docume nt no Sheet

BASEBAND

INTERFACE

RXIA

RXIB

RXQA

RXQB

WCLK

WDATA

WSTR

TXIA

TXIB

TXQA

TXQB

WCLK

WDAT

WSTR

XOOB

XOOA

XOIA

XOIB XO /65 PHD

CHARGE PUMP

MCLK

PHDOUT

VCO

VTUNE

IFLOB

IFLOA

IFINA

IFINB

RFLOOB

RFLOOA

/4

CDI

CDQ

MIXINA

MIXINB

VGA

IRA

IRB

QRA

QRB

VGA

LOGIC

SERIAL BUS

CURR.

REG.

REFON

XOON

RXON

CLOCK

DATA

STROBE

From Bus

IFOUTB

LNA

GLNA

RFIN

IFOUTA

RFOUT

2110-2170 MHz

190 MHz

LNA

090

/N

13 MHz

760 MHz

190 MHz

2110-2170 MHz 190 MHz

2300-2360 MHz

200 kHz

1800

900

RADCLK

RADDAT

RADSTR

Loop

Filter

Vapc

Vbatt

Band

Balun

Balun

TX

RX

1920-1980 MHz

2110-2170 MHz

ANT

Vbias

VCONT

Vcc

RFin

RFout

CHARGE

PUMP

XOOB

XOOC

PHDRFOUT

PHD

/N

/5

CHARGE PUMP

/760

LOGIC SERIAL

BUS

PHDIFOUT

CLK

DATA

STROBE

TXON

WON

VTUNEIF

IFLO

IFLOBAR

PHD

VTUNERF

RFLO

RFLOBAR

OUT

OUTBAR

QINBAR

QIN

IINBAR

IIN

IFBP

IFBPBAR

MIXOUT

MIXOUTBAR

/2

/2

380 MHz

switchVGA

2300-2360 MHz

13 MHz

1520 MHz

760 MHz

380 MHz

1 MHz 1 MHz

RFPLL used only for

variable duplex distance

/13

1920-1980 MHz

900

1800/

1900

Tuning

CLKREQ

CLKREQ

TESTOUT

MOD[D:A]

IDATA

DCLK

QDATA

ANTSW[3:0]

RADCLK, RADDAT, RADSTR

CLKREQ

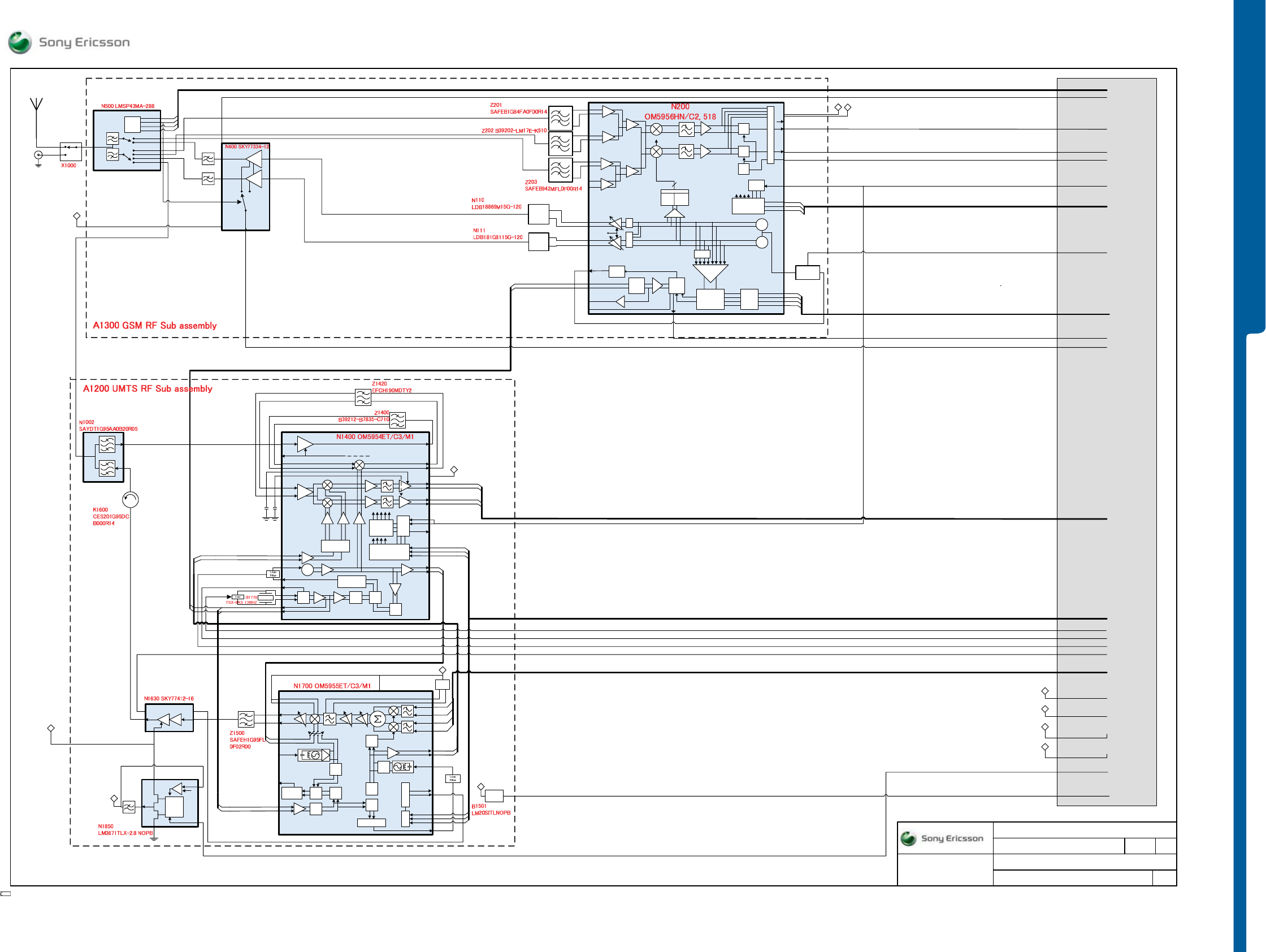

Hardware Block Diagram (RF)

RF

A

1900

WCDMA

GSM 1800/1900 TX

GSM 1800 RX

GSM 1900 RX

GSM 900 TX

GSM 900 RX

ANTSW 1

ANTSW 2

ANTSW 3

ANTSW 0

Control

Enable

VAPC

TXON

Rx1900p

Rx1900n

Rx1800p

Rx900p

Rx1800n

IRA

Rx900n

BUS INTERFACE

REFON

IRB

QRA

QRB

TxHp

Vtunep

CHARGE

PUMP

XO PHD

XOp

XOn

XoOut

PS

DELAY

MOD0

MOD1

MOD2

MOD3

LOGIC

CLK

DATA

STROBE

PHDOUT

TxHn

VCO

PRESCALER

TxLn

TxLp

1/2

1/2 1/4

4

1/2

1/4

TXPATH

A/D

A/D

CLK

MUX

VCO

Rx850p

Rx850n

TestOut

IDat

BbTest

QDat

DCLK

VDIG

VccA

CMOS

Temp

Sensor

FB

SW

REF

EN

Control

Logic

VCXOCONT

C619201-1

VREF

VBATI

VBATI

VccB

V_WIVI

WPABIAS

XTLDO

V_WIVI

V_WIVI

RTEMP

WRFLOOP

VLOOP

RXIA, RXIB, RXQA, RXQB

WCLK, WDAT, WSTR

TXIA, TXIB, TXQA, TXQB

MCLK

VDIG

VccA

VccB

VBATI

VDIG

VccA

VccB

VBATI

1/1

Radio SEMC Electrical Repair Manual

8 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

VDDE18

VRTC13

I2CSCL0

RTCCLK

MCLK

CLKREQ

DATA[15:0]

CLK_REQ_OUT_1

REF_CLK_IN

XTAL1

SCL

ONSWc

PWRRST

IRQ

SLEEP

CLKREQ

RTCDCON

PWRREQ_N

RESPOW_N

IRQ0_N

RTCBDIs

RF Block

MOD[D:A]

TXON

ANTSW[3:0]

D[15:0]

ADDR[25:1]

TXON

RADCLK

RADDAT

RADSTR

I2CSDA0SDA

SIMCLK

SIMDAT

SIMRST

PCMCLK

PCMSYN

PCMDATA

PCMDATB PCMO

PCMI

PCMSYNK

PCMCLK

VLOOP

VCXOCONT

XTLDO

SCLK

SDAT

SRST

A[25:1]

VDDExx

VDDRTC

UART_RTS/SPI_CSN

UART_TXD/SPI_DO

CLKREQ CLKREQ

RTCCLK

MCLK

CLKREQ

MCLK RESOUT1_N

D2001 WANDA

RESOUT0_N

VBATI

VDIG

VDDF13 VDDA

VDD1~VDD22

VCORE15 VDD_DPLL

VDD_BG

VDD_CS_ADPLL

VDD_TX

VDD_RX

VRTC13

VDD_CLK32

ISSYNCn

DAC_DAT

DAC_STR

DAC_CLK

HSSLRX_D

HSSLRX_CLK

HSSLTX_D

HSSLTX_CLK

IS_EVENT

IS_SYNC

ISEVENTn

HSSLRXCLK

HSSLRX

HSSLTXCLK

HSSLTX

ACC_STR

MEMORY BUS

ADDRESS BUS

DATA BUS

BlueTooth BUS

RESOUT2_N

PCMCLK PCMCLK

PCMSYN

PCMDATA

PCMDATB

PCMSYN

PCMDATA

PCMDATB

GPIO20/UARTRX3

GPIO21/UARTTX3

GPIO23/UARTRTS3

GPIO22/UARTCTS3

BTRX

BTTX

BTCTS

BTRTS

BTRESn

VDD_HV_A

VDDE18

VDD_HV_D VBT27

CONFIG1

CONFIG2

CONFIG3

RESETn

RESETn

UART_CTS/SPI_CLK

UART_RXD/SPI_DI

PCM_B

PCM_A

PCM_CLK

PCM_SYNC PCMCLK

PCMSYNC

PCMDATA

PCMDATB

BTCTS

BTRTS

BTRX

BTTX

F-WE/D-WE

D-DM1

F-ADV

F-CLK

D-DM0

WAIT

A[25:1]

DQ[15:0]

ADDR[25:1]

DATA[15:0]

CS1n

MEM_CLK

NOR & SDRAM

F-WP1/2

F-VPP

WAIT

CS0n F1-CE

VBATI

VPPFLASH

F2-CE

RF BUS-1

BlueTooth BUS

F-RST

CS0n

MEM_BE0n

MEM_BE1n

MEM_ADVn

MEM_CLK

WAIT

WEn

OEn

WE_N

OE_N

MEMADV_N

MEMCLK

MEMWAIT_N

CS0_N

CS1_N

MEMBE0_N

MEMBE1_N

CS1n

ISEVENT_N

ISSYNC_N

ISSYNCn

ISEVENTn

HSSLRXCLK

HSSLRX

HSSLTXCLK

HSSLTX HSSLTX

HSSLTXCLK

HSSLRXCLK

HSSLRX

DACCLK

DACSTR

DACDAT

ADCSTR

DACCLK

DACSTR

DACDAT

ADCSTR ADCSTR

DACDAT

DACSTR

DACCLK

RESETOUT1_N

HCLK

MCLK

MCLK

RESET

RESOUT1_N CLKRQ

RTCCLK

CLKREQ

CLK32

WSTR

WCLK

WDAT

TXIA

TXIB

TXQA

TXQB

RXIB

RXIA

RXQB

RXQA

RADIO_STR

RADIO_CLK

RADIO_DAT

DAC_I_OUT

DAC_I_OUT_INV

DAC_Q_OUT

DAC_Q_OUT_INV

ADC_I_IN_INV

ADC_I_IN

ADC_Q_IN_INV

ADC_Q_IN

WSTR

WCLK

WDAT

TXIA

TXIB

TXQA

TXQB

RXIB

RXIA

RXQB

RXQA

WSTR

WCLK

WDAT

TXIA

TXIB

TXQA

TXQB

RXIB

RXIA

RXQB

RXQA

ANTSW[3:0]

RADCLK

RADDAT

RADSTR

MOD[D:A]

TESTOUT TESTOUT

DCLK

QDATA

IDATA

DCLK

QDATA

IDATA

XTLDO

WPABIAS WPAREF

VCXOCONT

RTEMP RTEMP

WRFLOOP

WRFLOOP

VLOOP

VAPC

VAPC

CLKREQ

MCLK

RF BUS-3

ANTSW[3:0]

TESTOUT

RFCLK

RFSTR

RFDAT

IDATA

QDATA

DCLK

DIRMOD[3:0]

TXON

QDATA

DCLK

MOD[D:A]

TXON

RADCLK

RADSTR

RADDAT

TESTOUT

ANTSW[3:0]

IDATA

RTCCLK

CLKREQ

MCLK

SIM BUS

UARTTX0

UARTRX0

USBPUEN

USBDM

USBDP

DFMS

DTMS

USBPUEN

USBDP

USBDM

BlueTooth BUS

USB BUS

VLOOP

VCXOCONT

XTLDO EXTLDO

DAC02

WPAREF

DAC03

GPA1

RTEMP

WRFLOOP GPA4

GPA2

VAPC PAREG

RF BUS-2

RF BUS-2

RF BUS-2

DACCLK

DACSTR

DACDAT

ADCSTR ADSTR

DACDAT

DACSTR

DACCLK

MCLK

MCLK

GPIO15

AMPCTRL

KEYOUT[5:0]

KEYIN[4:0]

KEYOUT[5:0]_N

KEYIN[4:0]_N

VDIG

VDDE18

VRTC13 VCORE18

VBATI

VccA

VccB

DCIO_INT

VDDF13

AID_AD MIDREF

MICP

MICN

SPL

SPR

VBUS

VPP

STROBE

AID_AD

DFMS

LINEN MIDREF

VBUS

USBMOD

GPA13

AUXI3N

AUXI2N

LINEP

DCI0_INT

LED1

LED2

BDATA

VDDD

VDDE

VDDA

VDDB

VDDLP

VBUCK

VDDBEAR

VDDCODEC

VDDADC

VDDPA

VBAT_x

VDDBUF

DCIO

VDDIO

MOD1

FGSENSE+

FGSENSE-

CHSENSE-

CHSENSE+

VDIGVDD

VDDIO18

VDDF

VDDG

VBATI

VCORE13 IN

ON

OUT

MAX1976AETA130+T

N2200

VFM27 IN

ON

OUT

N2203

IN

ON

OUT

N2205

IN

ON

OUT

MAX1976AETA+150

N2201

BATT Connector

X2200

DCIO12

D-/DFMS11

D+/DTMS10

GND9

AID/ACB/VPPFLASH8

VIDEO/STROB7

SPR6

SPL5

MIC-/AUXINR4

MIC+/AUXINL3

SPREF2

VBUS1

BT_ANT_EXT14

GND13

E-STLC2500CTR

D1400

BTCLKREQ

RTCCLK

LP_CLK

System Connector

X2300

B1 C2

A2 B2

C1

IP4078CX6/LF

N2300

VBUS

ISP1110VH

D2304

VBUSDET

VP

RXD

DP

DM

VCC_IO

VCC5V0

VCC_UART

VUSB

USBVALID

USBDP

DTMS

USBDM

BEARP

BEARN

BEARP

BEARN

VBUS

SPL

SPR

MICP

MICN

MICP

MICN

SPL

SPR

AUXO1

AUXO2

SPR_int

SPL_int

CCOCCO

AUXI1N

AUXI1P

MICNint

MICPint

Tjatte3

N4202

AMPCTRL

+

-

SPP

SPN

SIMDAT

SIMRST

SIMCLK

SIMCLK

SIMDAT

SIMRST_N

RTCIN

RTCOUT

USB BUS

RFP BTANT

BTANT

DCI0_INT DCIO_ON

SERVICEn

CTMS

CFMS_AID

VDIG

VPP

GPIO30 DCIO_ON

SERVICEn

GPIO04

GPIO05

N2000 VINCENNE2

D2000 Marika

VBT27 IN

ON

OUT

N2204

VCAM27 IN

ON

OUT

N2202

CAM_27_EN

VBT_EN

CAM_12_EN

FM_EN VCORE18

VDDBUCK

GPA7

VBACKUP

VRTC13

VDD_IO_B

VDDE18

VccA

VDDCPLL

VMSPICO

VDDE18

VDIG

TXD

RFN

BT_WAKEUP

VDD_IO_A

VDDE18

VccB

VBACKUP

VM

RCV

USBRCV

EDB_EN UART_EN

USBOE

USBSUSP

USBPUEN

OE

SUSPEND

SOFTCON

UARTRTS0

EDB_EN

USBVALID

USBRCV

USBVBUS

USBRCV

USBSUSP

USBOE

USBSUSP

USBOE

SP_ref

INTMICint

MIC1P

GPA5 VAD

INTMIC

OEn F-OE

MEM_BE0n

MEM_BE1n

MEM_ADVn

WEn

MEMRESn

VDDE18

MEMRESn

SDR_CSn

SDR_CLK

SDR_CKE

SDR_CASn

SDR_RASn

SDR_CS_N

SDR_CLK

SDR_CKE

SDR_CAS_N

SDR_RAS_N

SDR_CSn

SDR_CLK

SDR_CKE

SDR_CASn

SDR_RASn

D1-CS

D-CLK

D-CKE

D-CAS

D-RAS

ADDR[15]

ADDR[16] D-BA0

D-BA1

MEMDPD F-DPD

MEMDPD

GPIO40

SIMVCC1

SIMRSTn2SIMCLK3

GND

5NC6

SIMDAT7

GND8GND9

GND10

GND11

SIMRST

SIMCLK

SIMDAT

SIMVCC

MSSCLK/MMCCLK

MSBS/MMCCMD

MSSDIO3/MMCDAT3/CD

GPIO34/MCCLKRET

MSSDIO2/MMCDAT2

MSSDIO1/MMCDAT1

MSSDIO0/MMCDAT0 MS Pico

VDDE18

M

VCC12 VCCIO11 GND10 FLM9CS8RS7

RESET

6

GND

5WR

4

3

2

1

RD

D420 D519

D0

18

D1

17

D2

16

D3

15 LCD_BL_A14

GND(LCD_BLK)

13

LCD_D3

LCD_D2

LCD_D1

LCD_D0

LCD_RD

LCD_WR

LCD_RS

LCD_CS

LCD_FLM

VDDE18

VDIG

VBTI

LCD_RST

LCD_D7

LCD_D6

LCD_D5

LCD_D4

KEY_BL_UPPER12

11

KENIN3

10

KEYIN2

9

KEYOUT3

8

KEYOUT2

7KEYOUT0

6

KEYIN1

5

KEYIN0

4KEYIN43

KEYOUT1

2

KEYOUT4

1

20

19

18

GND

17

GND

16

GND

15

GND

14

GND

13

KEYIN0

KEYIN1

KEYIN2

KEYIN3

KEYIN4

KEYOUT4

KEYOUT1

KEYOUT0

KEYOUT2

KEYOUT3

VSYNC

GND

HREF

PWDN

STROBE

RESETB

GND

XCLK

D6

D4

D0

D7

D524 D323

DIOVDD22 PCLK21 DVDD20

D119 GND

AVDD

GND

SIO_D

SIO_C

D2

12

11

10

9

8

7

6

5

4

3

2

1

18

17

16

15

14

13

MPX1_OFF

VGA_HSYNC

VGA_VSYNC

VGA_DAT2

I2CCLK1

I2CDAT1

STROBE

VGA_DAT4

VGA_DAT6

CIRES_N

VGA_DAT1

VGA_DAT3

CLE9124-1501F

X2505

KEY CONNECTOR

X2501

KEYOUT5

GND

KEY_BL_LOWER

KEY_BL_A

LCD CONNECTOR

X3102

D7

D6

RCLK

HVDD

GND(DAS)

GND

D0

D1

D2

D3

D4

D5

D6

D7

VS24 DVDD23

HREF22 GND21 CKI20

AVDD19

GND

SDA

STDBY

RSTN

SDC

STROBE(NC)

12

11

10

9

8

7

6

5

4

3

2

1

18

17

16

15

14

13

VGA CAMERA CONNECTOR

X2510

KEYOUT5

KBDIM

NAVDIM

GPIO32

KBDIM

NAVDIM

GPIO31 VBATI

PDID[7:0] LCD_D[7:0]

LCD_RD

LCD_WR

LCD_RS

LCD_CS

LCD_FLM

LCD_RST

PDIC4

PDIC1

PDIC2

PDIC3

PDIC0

PDIIRES_N

VGA_DAT7

VGA_DAT0

CAMSYSCLK

VGA_DAT5

VGA_DAT7

VGA_DAT6

VGA_DAT5

VGA_DAT4

VGA_DAT3

VGA_DAT2

VGA_DAT0

VGA_DAT1

VGA_CIPCLK

VGA_CIPCLK

I2CCLK1

I2CDAT1

CIRES_N

VGA_OFF

CAMSYSCLK

VGA_HSYNC

VGA_VSYNC

VGA_CIPCLK

VGA_VSYNC

VGA_HSYNC

CAMSYSCLK

I2CCLK1

I2CDAT1

CIPCLK

CIVSYNC

CIHSYNC

SYSCLK1

I2CSCL1

I2CSCA1

CDID[7:0] VGA_DAT[7:0]

MPX1_OFF

VGA_OFF

GPIO26

GPIO24

KEY_BUS

LCD_BUS

CAMERA_BUS

BTCLKREQ GPIO10

VDDE18

F-VCC

VCCQ

VCORE18

D-VCC

VDDEWLx

VDD_CLK32

VDD_xx

VDD_DPLL

VDD_CS_ADPLL

VDD_BG

VDD_RX/TX

VCORE15

SPEAKER

EAR

SPEAKER

MIC

D2300

IP4027CX20/LF

Bluetooth

R1161D121D-TR-FA

CSS5003-0E01E

51338-0274

51338-0274

CLE9124-1611E

MEGA CAMERA CONNECTOR

CSS5012-3A02E

1

87

654

32

0

9

#

C

YES NO

*

KeyBoard&Illumination

FPC

LCD-Module

VGAcamera-Module

camera-Module

DEA212450BT-7043C1

Z1400 Filter

Q13FC1350000400

B2100 X tal

B2506 Vibrator

EVQ9P701E

S2500 On/Off SW

LA4-466BB

FRYPY1212F-TR

V3110 LED

NCP2890AFCT2G

N4100 Power Amp

V2210 Tr RN1102FS

V2203 Tr NTHS5441T1G

N2301 Translator ST1G3234BJR

V2300 Tr SI1551DL-T1-E3

V2301 Tr RN1112FS

V2206 Tr

MMBT2907AWT1G

N2600 FM RADIO

D2301 NAND FLASH

NAND

FLASH

RTCCLK

VDDE18

VFM27

FMINT

FMR/FML

Baseband SEMC Electrical Repair Manual

9 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

LCD Back light

MARIKA

VINCENNE2

Full USB

Transceiver

ISP1110

B

D+/DTMS

GND

AID/ACB/VPP

VIDEO/STROBE

SPR

SPL

Mic-/AUXinR

Mic+/AUXinL

SPREF

VBUS

1

2

3

4

5

6

7

8

9

10

D-/DFMS

11

MIC

SP Power

Amplifier

16bit

EMIF CID

SPI

UART0/USB

UART3

CODEC

Tjatte3

GSM Sub

system

RF GSM

MARLIN

Inter

System

Interface

High Speed

Serial Link

DAC / ADC

Interface

DAC

PCM I/F

PCM I/F

BT 2.0

SIM I/F

SIM LS

IrDAMS I/F KEY

PAD

5×4

BEAR

LINE

MIC1

AUXI1

AUXI2

AUXI3

GPADC

I2C

#0

I2C 0

I2C

#1

ARM9EJ-S

208MHz

RF UMTS

RAY WANDA

SIM

DSP

Sub System

RTC

(UART6)

Main LCD

3.2M

CAM

GPIO04

GPIO05

CTMS

CFMS_AID

GPIO06

GPIO07 OPTOSENSESEL

GPIO10 BTCLKREQ

GPIO11

GPIO12

GPIO13

GPIO14

GPIO15 AMPCTRL

AUXO1

AUXO2

GPIO16

GPIO17

GPIO30 DCIO_ON

GPIO31

GPIO32 PWM1 NAVDIM

PWM0 KBDIM

GPIO33

GPIO35

GPIO36

GPIO37

VBT

REG

Camera

REG(2.7)

512Mbit

NOR

Burst

128Mbit

SDRAM

104MHz

GPIO40

MS Micro

MEMDPD

GPIO41 PTT

GPIO42 EDB_EN

GPIO44

GPIO45

GPIO46

IRRXD

IRTXD

IRSD

KEY Matrix

RF TEMP GPA1

RF VLOOP GPA2

UMTS POWER CNT GPA3

WRFLOOP GPA4

VAD GPA5

OPTO_SENSE GPA6

VBACKUP GPA7

OPTO(LCD)_TEMP GPA12

AID_AD GPA13

GPIO24 GPIO25 GPIO26 GPIO27

SPIDI

SPIDO

SPIRDY

SPICLK

GPIO20 GPIO21 GPIO22 GPIO23

BTRX

BTTX

BTCTS

BTRTS

MSSDIO0

MSSDIO1

MSSDIO2

MSSDIO3

MSSCLK

MSBS

GPIO34

MSSDIO0

MSSDIO1

MSSDIO2

MSSDIO3

MSSCLK

MSBS

MSDETECT

LDO_A

LDO_B

LDO_D

LDO_E

LDO_F

LDO_G

BUCK

LPGEG

BOOST

FB+

*

VBOOST

FB+

VBOOST

VBOOST

VBOOST

GPIO00

GPIO01

GPIO02

GPIO03

DTMS

DFMS

USBRCV

USBBALID

MIC+

MIC-

SPL

SPR

SIMRST_

N

SIMCLK

SIMDAT

SRST

SCLK

SDAT

SIMRST

SIMCLK

SIMDAT

SIMCONRST

SIMCONCLK

SIMCONDAT

I2C#1

VBT_EN

LCD_BL_ON

VGA

CAM

CAM_27_EN

HS_USB_INT

MIC+ MIC-

SPL

SPR

UNLOCK

DISABLE_STAR

DISABLE_UNLOCK

8bit

I2CCLK1

I2CDAT1

I2CCLK1

I2CDAT1

CIRES_N

RESET

VGA_PRESET

STROBE

DISPLAY

I/F

8bit

GPIO46

GPIO47

VGA_OFF

MPX1_OFF

SPK

RECIEVER

WCDMA

GSM 1800/1900 TX

GSM 1800 RX

GSM 1900 RX

GSM 900 TX

GSM 900 RX

ANTSW 1

ANTSW 2

ANTSW 3

ANTSW 0

Control

512Mbit

NAND

RAM

IrDA

Data and Signals SEMC Electrical Repair Manual

10 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

Vincenne2

ROP1013066/4

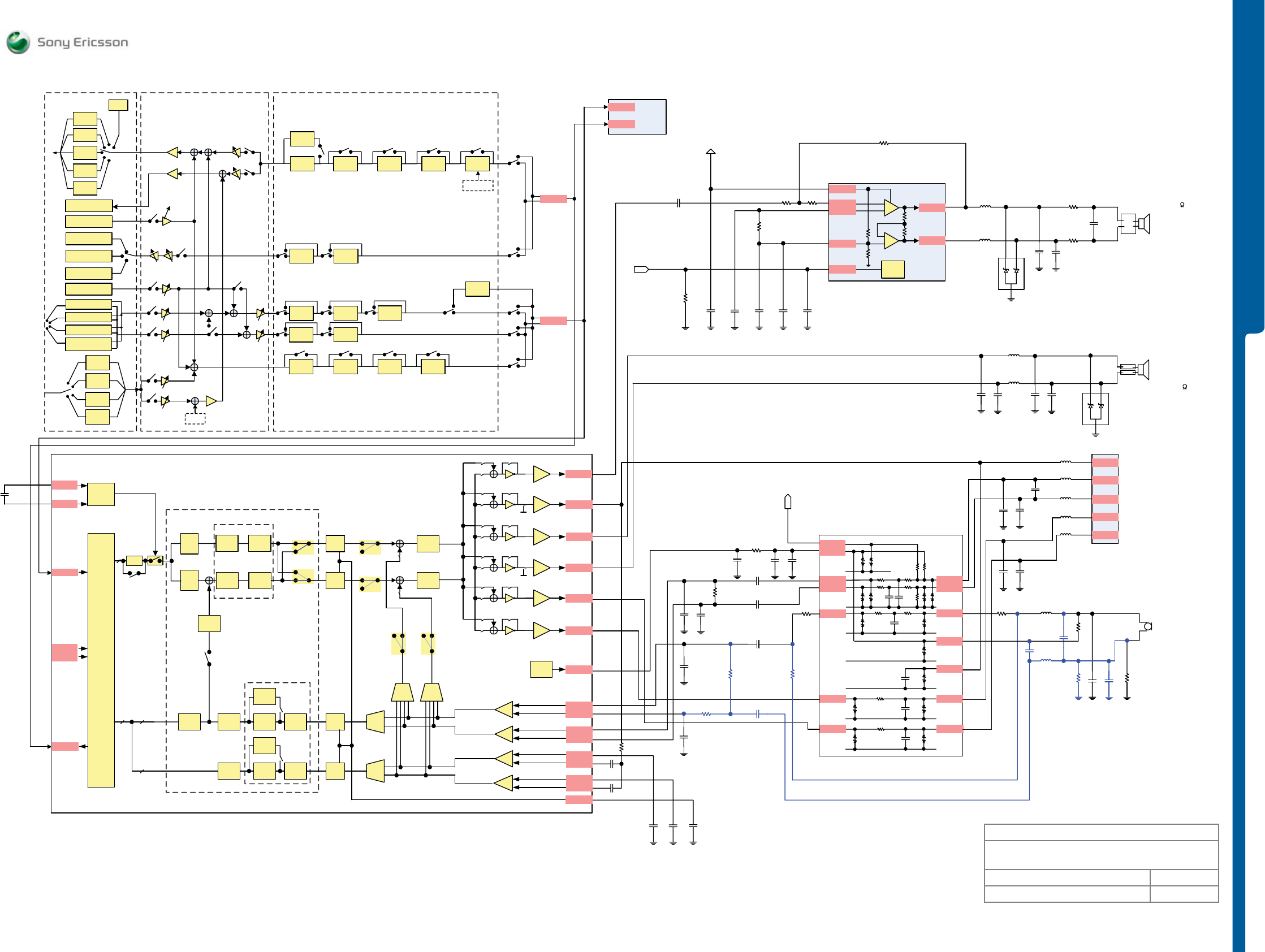

15kΩ100nF

１uF 33pF

(NM)

180Ω

1_OUT

2_GND

33nF

NM

FB 1GH

(0Ω)

FB 1GH

(0Ω)

NM

100nF

100nF

33pF33pF

33pF

33pF

33pF

(NM)

33pF

(NM)

MIC

RLC509429

SPR(6pin)

1.1k 47k

50 50

50 50

50p 50p

20p

1450 1450

200p

200p

200p

50

50

MICP(D2)

MICN(D3)

INTMIC(B5)

V_MIC(A5)

SP_ref(D1)

SPL(D4)

SPR(D5)

VAD(B1)

CCO(B2)

MICPint(A1)

MICNint(A2)

INTMICint

(B5)

SPLint(A3)

SPRint(A4)

Tjatte3

ROP1013074

SPL(5pin)

Mic+/AUXinR

(4pin)

Mic+/AUXinL

(3pin)

SPREF(2pin)

SYSTEM_CN

33pF

(NM)

33pF

(NM)

33pF

(NM)

220pF

(NM)

220pF

(NM)

FB

100MHz

FB

100MHz

FB

100MHz

FB

100MHz

FB

100MHz

FB 1GHz

(0Ω)

33pF

(NM)

33pF

(NM)

33pF 33pF

EMI FILTER

RKZ223914/1

(NM)

Receiver(32 )

RLE90824

FB 1GHz

EMI FILTER

RKZ223914/1

Pogo-PIN

SXA1095652

FB 1GHz

FB 1GHz

(0Ω)

33pF

(NM)

33pF

(NM)

33pF

(NM)

0Ω

0Ω

470Ω2.2kΩ

10kΩ

VBATI

470Ω

AMPCTRL(Marika_GPIO15)

100kΩ

470nF

33pF

(NM)

220nF220nF33pF

10uF

Loudspeaker(8 )

33pF33pF 10uF

100nF

100nF

0Ω

0Ω(NM)

22pF(NM)

0Ω(NM)

↓

15kΩ

100nF

0Ω

(NM)

0Ω

0Ω

1kΩ

From Voice

Call Tx

Dictation Functionally Record

Dictation Functionally Playback

Tone Generator

MIDI or WAV

ASR Algorithms

FR Speech

Decoder

HR Speech

Decoder

AMR Speech

Decoder

EFR Speech

Deccoder

AMR Speech

Encoder

HR Speech

Encoder

FR Speech

Encoder

EFR Speech

Encoder

Transparent

PCM

Silence

( PCM = 0 )

0dB

Acoustic

Compensation

DRC Voice

Call Rx CTM Whining noize

Filiter

DRC Tx CTM Noize

Reduction

Echo

Canceller

Acoustic

Compensation

Hard Limiter

Tx

0dB

0dB

Loud Speaker signal

from Voice Call Rx

AMR Decoder

AMR-WB Decoder

E-AAC/AAC+/AAC,

MP3, WMA,

RealAudio/Video

Acoustic

Compensation

Acoustic

Compensation

Equalizer

Equalizer

Dtnamic Range

Control

AMR-WB Encoder

Dynamic

Range

Control

Acoustic

Compensation

AMR Speech Encoder

SBC encoder

-

-

+

+

SHUTDOWN

CONTROL

OUTA(A2)

OUTB(C2)

R1

20k

R2

20k

SHUDOWN

(C3)

BYPASS(C1)

300k

300k

INP(A3)

INM(A1)

Vp(B3)

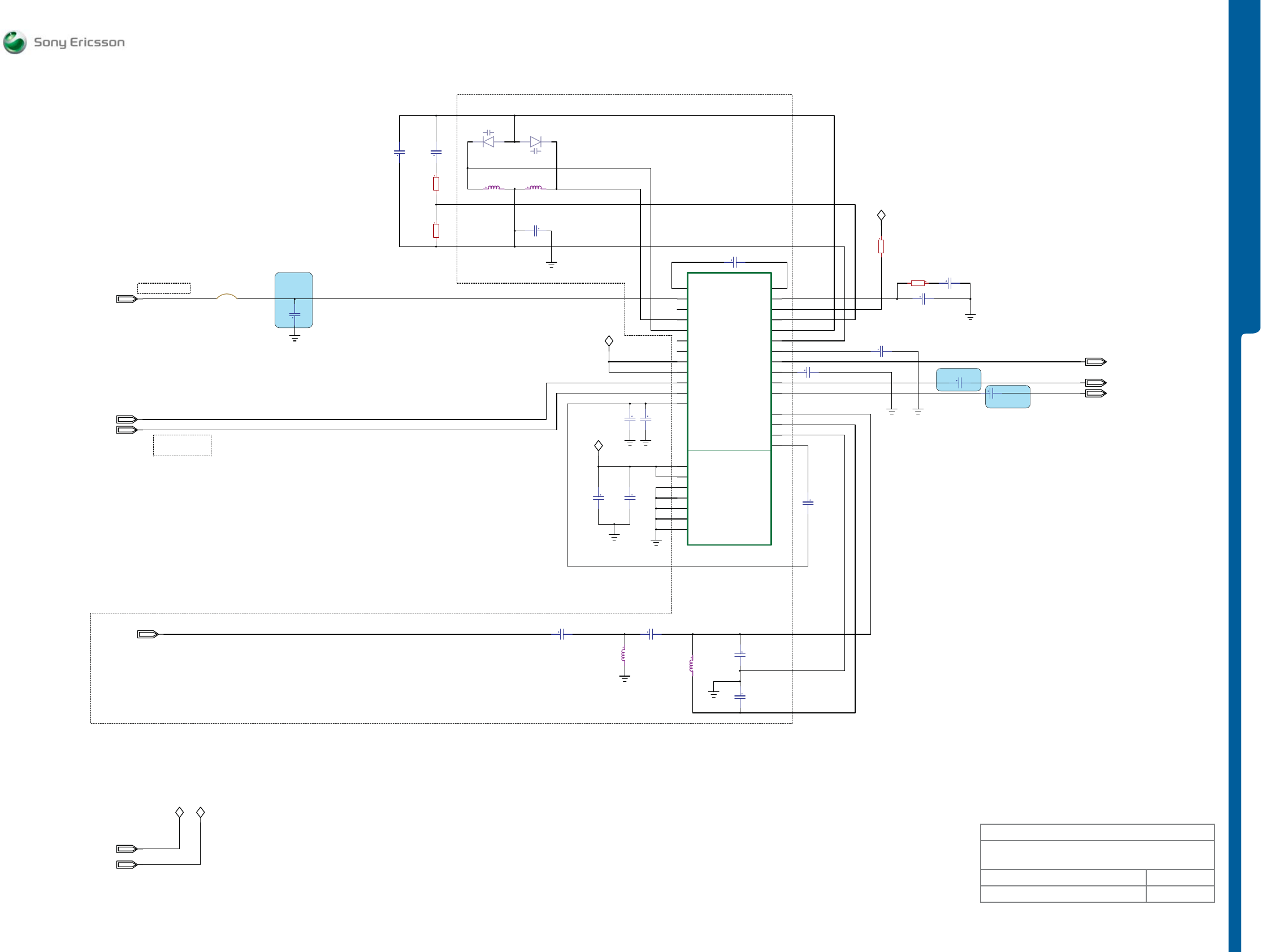

AUDIO_PA NCP2890

RYT101947/2

PCMDATB

PCMDATA

Audio Codec Audio Mixer Audio Processing

Bluetooth Module

STLC2500B

RYT123922/1

PCM_A

PCM_B

47nF

0Ω

1kΩ

1uF

NM

Vincenne2_GPA5

MIC 1

AUXI 1

AUXI 2

AUXI 3

TX1

MUX

TX2

MUX

DAC1

DAC2

ADC2

ADC1

TX2

LPF

TX1

LPF

TX2

HPF3

TX-

PGA2

TX-

PGA1

TX1

HPF3

SIDE

TONE

VOL1

VOL2

PCM-IF

C5cde

C5fgh

C6cde

C6fgh

CFd

CEd

C3bcd

C0c

C0d

C0f

C0e

C5defgh

C6ab

C6a-h

MIC1/AUXI 3

overrideAUXI1/AUXI

2inTX1/2MUX

C9ab

C9ab

C1f

C2fgh

C2bcd

C5ab

C4abcd

C4efgh

C8h

C8efg

DIGITAL FILTER

C0g

C9abc

C1a

C9abdfgh

CA a-h

32

32 16

16

ENCODER

PCM 8/16

TWO CH.

PCM8/16always

bypassFIFO

Selectable for

PCM44/48

PCMI

PCMSYN

PCMCLK

PCMO

RX1

LPF

RX1

HPF

TX-GC

FIFO

RX2

LPF

RX2

HPF

RX-

PGA2

C3fgh

RX-

PGA1

ADD2

ADD1

MUX2 MUX1

CEcCFc

CEfgCFfg

LINEP

CDef

CDab

LINEN

CDgh

CDcd

BEARP

CCef

C7be

CCab

BEARN

C7d

CCgh

C7be

CCcd

AUXO1

CBef

C7b

CBab

AUXO2

CBgh

C7b

CBcd

AUXI3N

AUXI3P

AUXI2N

AUXI2P

AUXI1N

AUXI1P

MIC1N

MIC1P

AUXO2

AUXO1

BEARN

BEARP

LINEN

LINEP

Cdabef

D0a

C7fg

Ccabef

D0c

VMID

VMID

C7fg

CCcdgh

D0d

C7h

Cbabef

D0gh

C7h

CBcdgh

D0ef

CDgh

C7d

CCgh

CFc

CEc

DEC0

CCO CCO

C0b

C1b

Analog

PLL

C0a

DEC3

DEC4

RX-FILTER

C9ab

TX1

HPF1

TX2

HPF1

C1e

TX-FILTER

C9ab

DECODER

PCM 8/16/44/48

TWO CH.

Codec power up

TｘPGA1: 0dB

TｘPGA2: 0dB

TxGC: 0dB

Acoustics SEMC Electrical Repair Manual

11 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

ERICSSON AB2010 Vincenne2

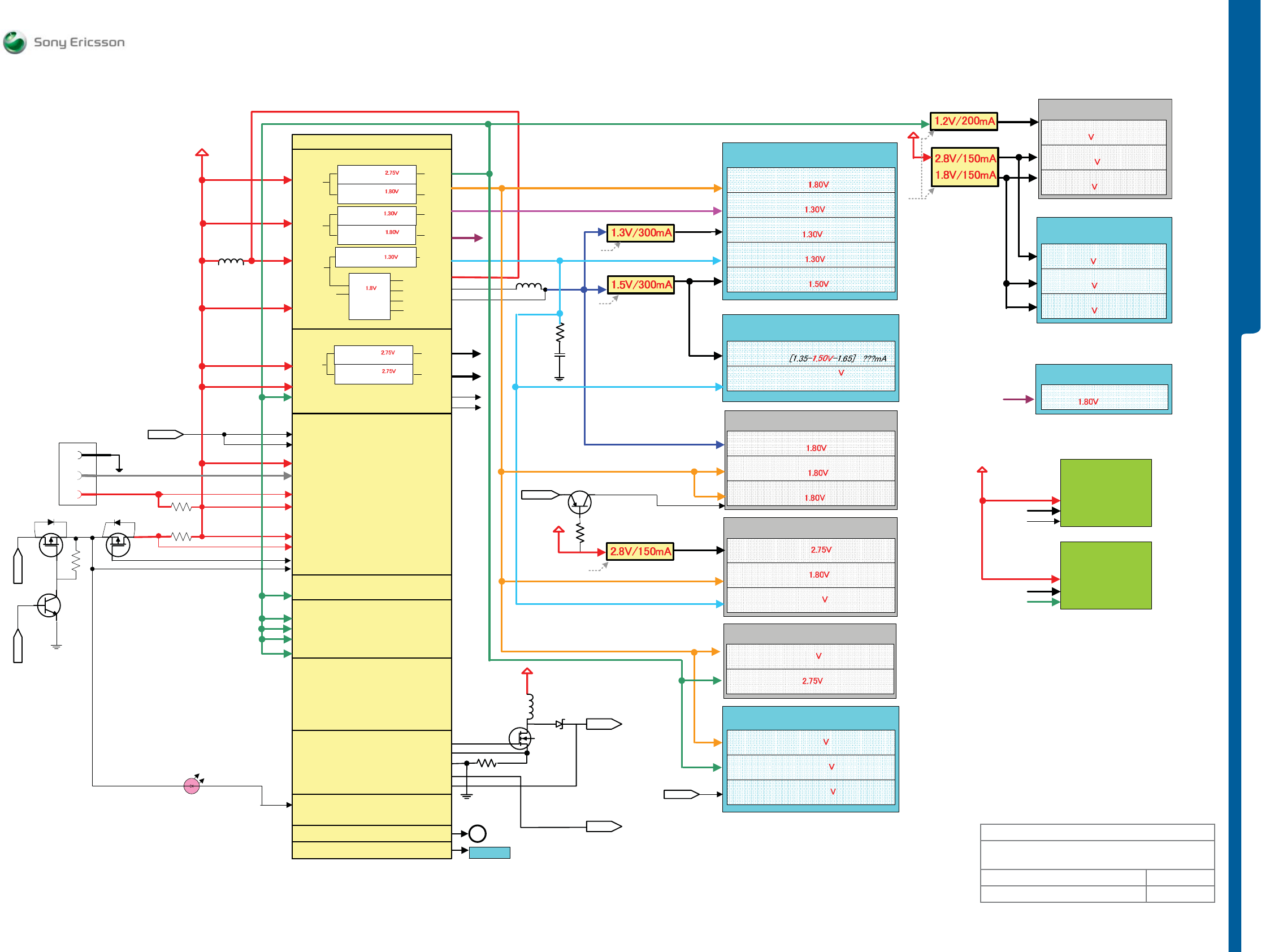

BASEBAND REGULATORS

BATTERY MANAGEMENT

LDO_D 2.70- -2.85

30-200mA max

LDO_E 1.75- -1.90

-170-200mA max

VBATB

VBATF

VBATC

MOD1

VDDD

VDDE

VDDF

VDDG

VDDLP

VDDBUCK

SWBUCK

VBUCK

VSSBUCK

REF

VBUS

USBMOD

VBATD

BDATA

FGSENSE-

FGSENSE+

CHSENSE-

CHSENSE+

CHREG

VDCIO

BAT CN

X2200

25mΩ

VBUS

ANALOG BLOCK SUPPLY

VDDADC

AUDIO BLOCK SUPPLY

DIGVSS

DIGVDD

VDDCODEC

VDDBEAR

VDDIO_18

VDDIO

SUB

TEST

VREF

IREF

100mΩ

100kΩ

LED1

LED2 LED

Vibrator VIBR

Services SIMVCC

ChargeLED

DCIODCIO_ON

Ferrite Beads

120Ω/2A 22uH

-

+

DB2021 MARIKA

Bluetooth STLC2500C

NOR + LPSDRAM

WANDA

EN

VBT_EN

R1115Z281B

VCORE13

MAX1976AEETA-130

/EN

VCORE18

MAX1976AEETA-150

VCORE15

VCORE18

VPP

1kΩ

VBATI

CAM_27_EN

TPS79912YZU

VBATI

VMSPICO

VBT27

VRTC13

VDDE18

VDDF13

Boost SWBOOST

ISENSE+

ISENSE-

FB+

VBOOST

Vib

SIM

150ｍΩ

VBATI

22uH

LED+

VDIG

VDDE18

4.7kΩ

Backup

cap

RADIO

VBATA

VDDBUF

VDDPA

VDDA

VDDB

EXTLDO

PAREG

VccA

VccB

XTLDO

VAPC

RAY MODULE

(UMTS)

VBATI

VccB

XTLDO

MARLIN MODULE

(GSM)

VBATI

VRAD

VDIG

VBATI

VccB

XTLDO

VccA

VDIG

Key Backlight LED

LCD Backlight LED

LDO_F 1.235- -1.360

30mA max

LDO_G 1.70- -1.90

30-200mA max

LPREG 1.265- -1.365

BUCK

1.72- -1.9

400mA max

LDO_A 2.70- -2.85

50-125mA max

LDO_B 2.70- -2.85

50-125mA max

CORE (ARM,DSP,RAM,GSM,UMA,TCM)

VDDC [1.235- -1.365] TBDmA

I/O WL (DAC ,HSSL ,ISI)

VDDEWL [1.35- -1.65] TBDmA

I/O E

VDDEE [1.71- -1.89] TBDmA

RTC

VDDRTC [1.235- -1.365] TBDmA

Analog cells / PLL

VDDA [1.235- -1.365] TBDmA

WANDA VDD (DIGITAL)

VDD_1-22

VDDCLK32 [1.265-1.30 -1.65] ??

TBDmA

SD-RAM VCC

D-VCC [1.70- -1.90] 130mA

NOR-Flash VCC

F-VCC [1.70- -2.00] 50mA

I/O VCC

VCCQ [1.70- -2.00] ???mA

VDD_HV_A,D [XXX- -XXX] TBDmA

VDD_IO_A [1.65- -2.85] TBDmA

VDD_IO_B [1.35-1.30 -2.85] TBDmA

Camera

VDD_IO

[1.70-1.80 -3.30] TBDmA

AVDD Analog

[2.45-2.70 -2.80] TBDmA

DVDD_Core

[1.10-1.20 -1.30] 50mA max

VGA Camera

VDD_Core

[1.70-1.80 -1.90] TBDmA

VDD_IO

[1.70-1.80 -3.30] TBDmA

VDD_Analog

[2.45-2.70 -2.80] TBDmA

LCD

VCCIO [1.70-1.80 -1.90] TBDmA

VCC [XXX- -XXX] TBDmA

USB Transceiver (ISP1110)

VCC_5V0 [4.0-5.0 -5.5] 8mA

VCC_IO [1.65-1.8 -2.85] 2mA

VCC_UART [2.7-2.8 -4.5] 8mA

LED-

R5323Z022B

VBATI

/EN

VCORE18

VBUS

MS pico

VCC

[1.70- -1.95] TBDmA

VMSPICO

EN

EN

DCIO_INT

Power Distribution SEMC Electrical Repair Manual

12 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

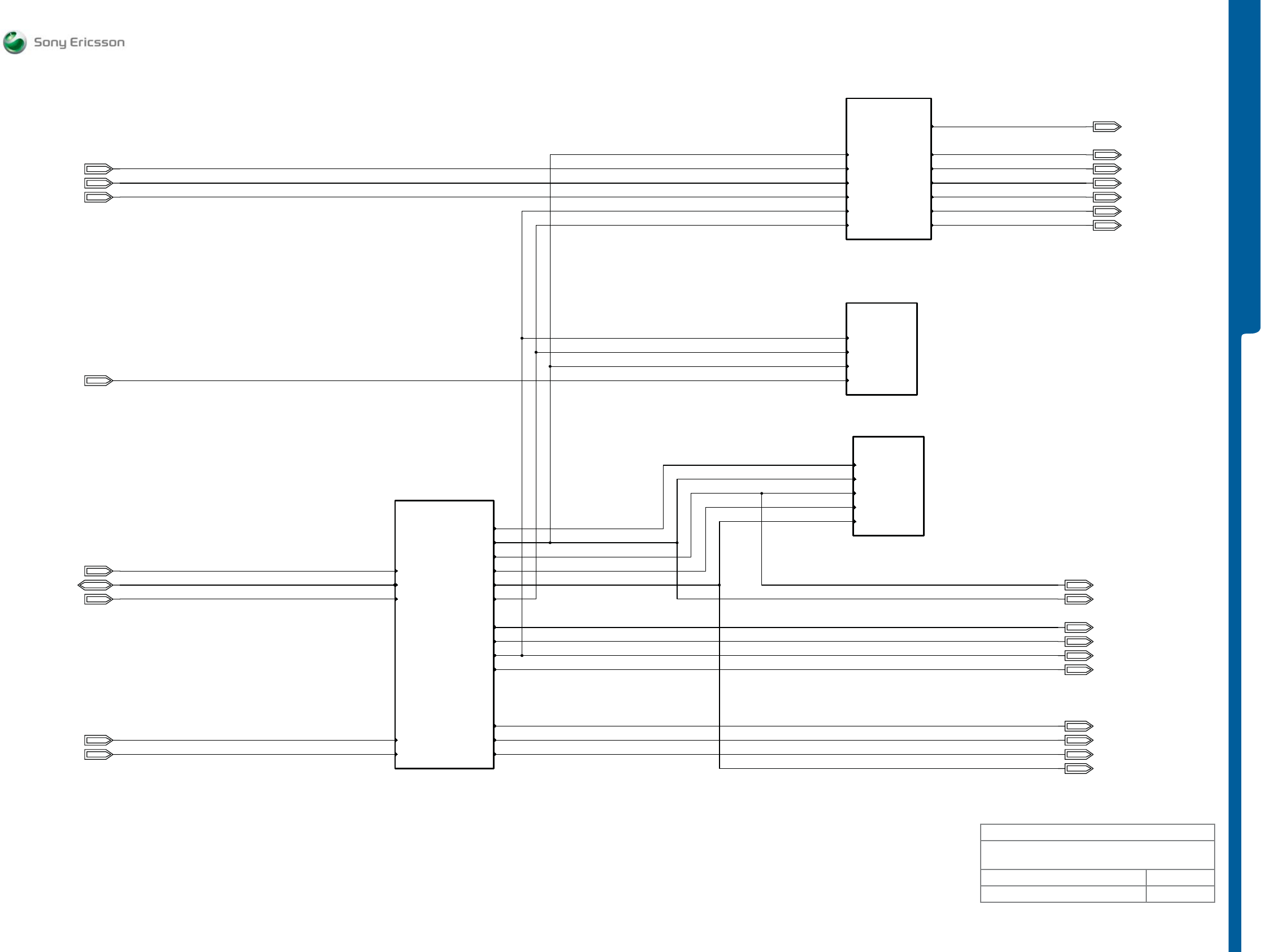

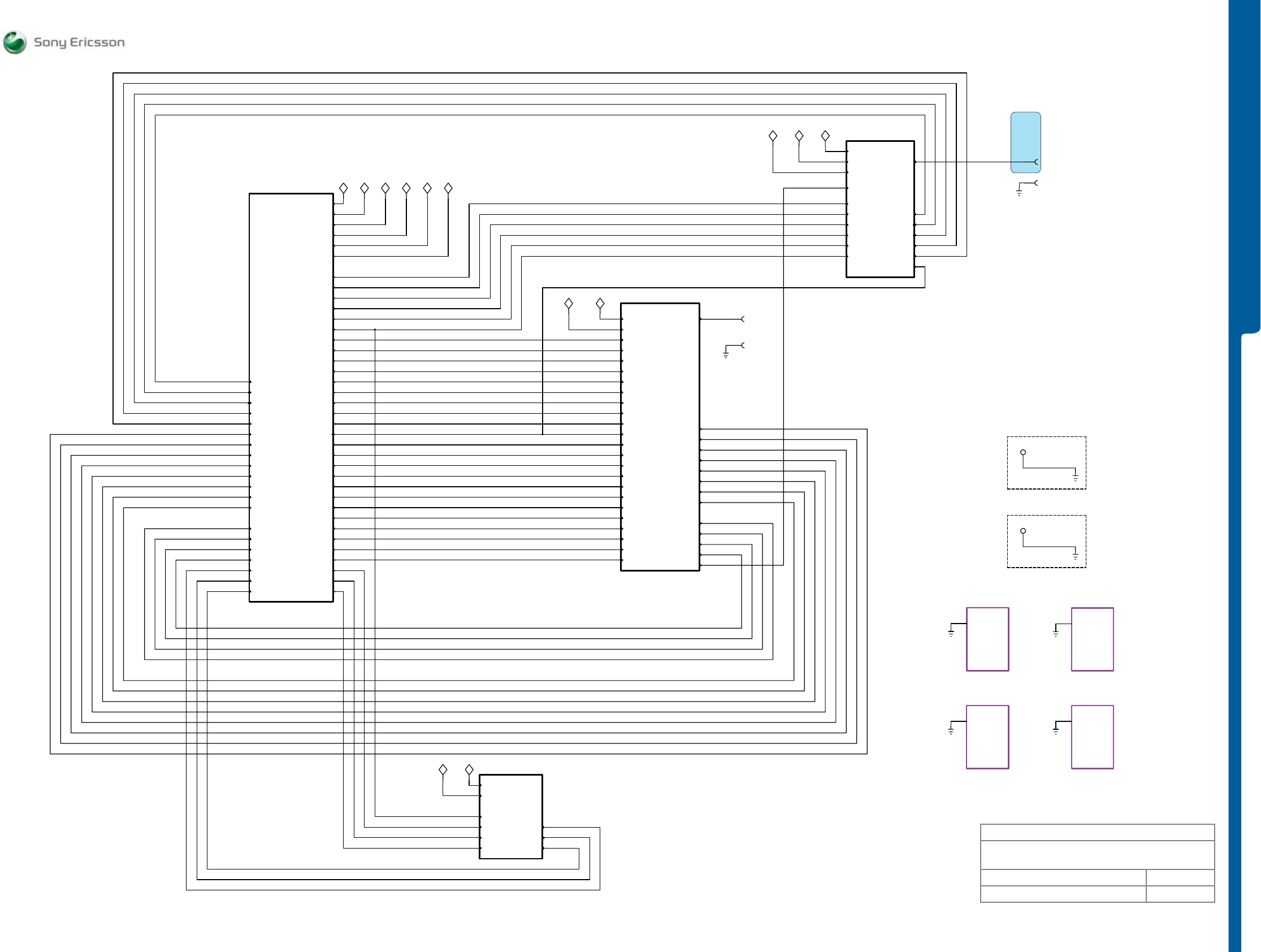

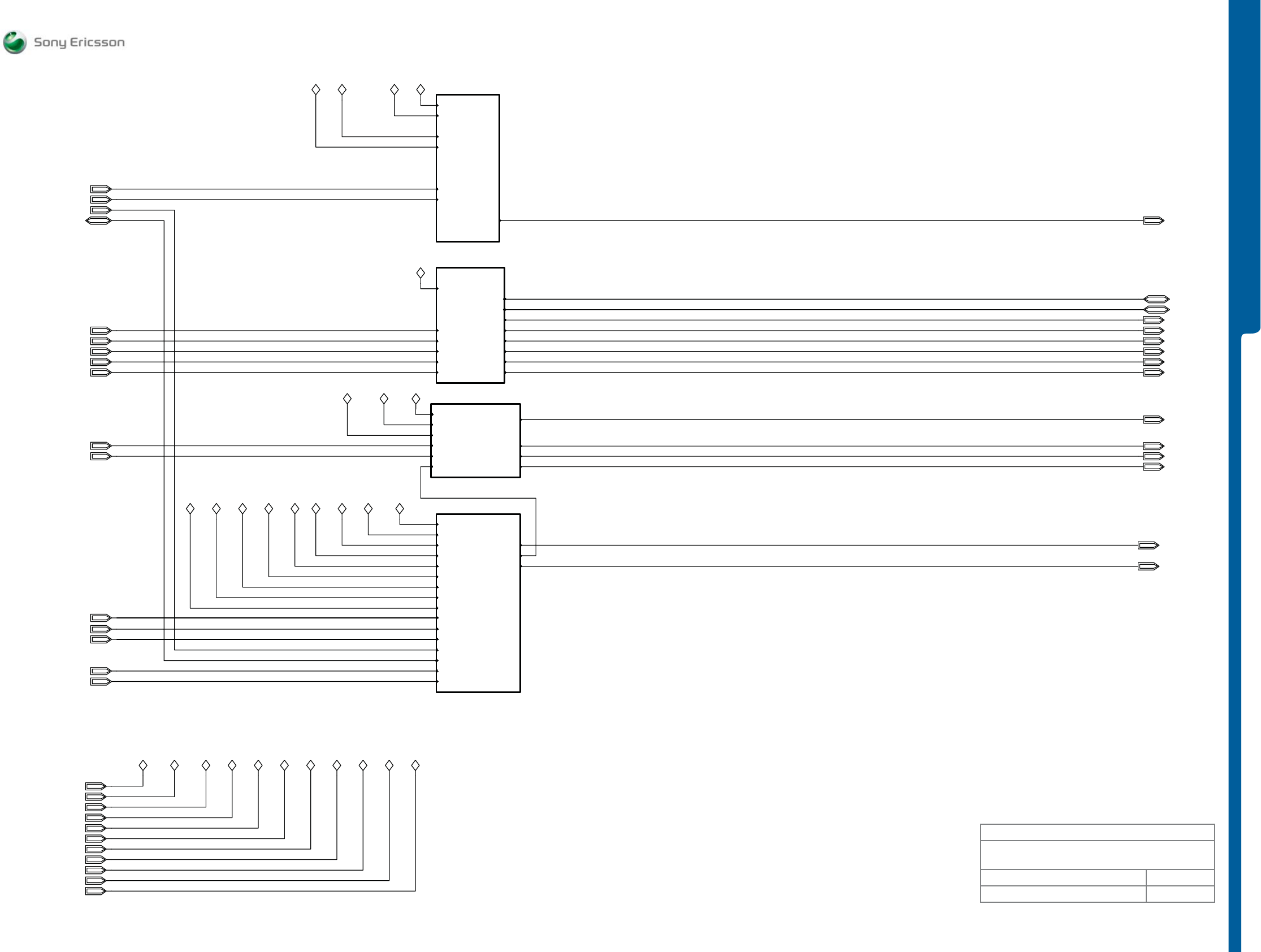

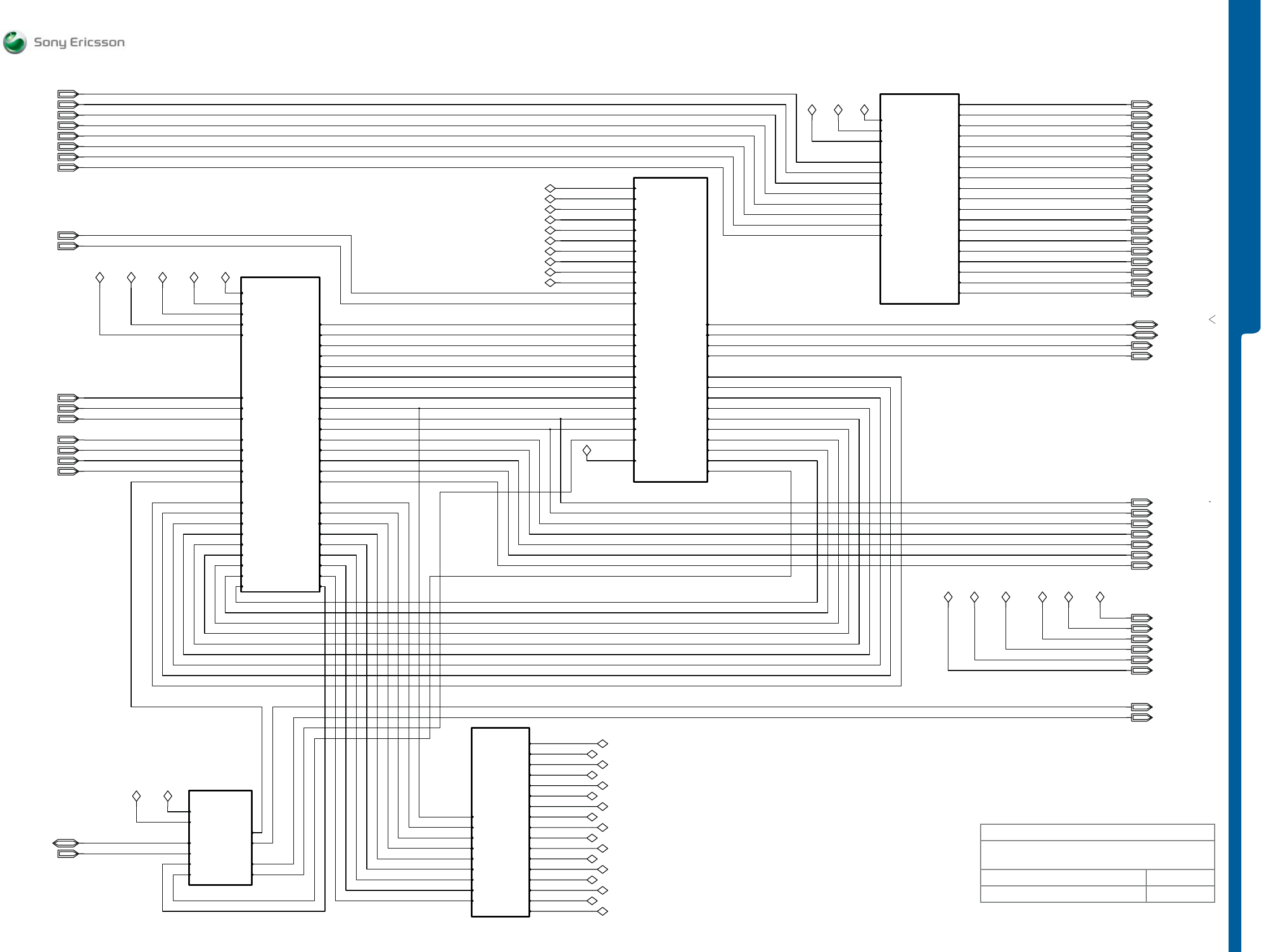

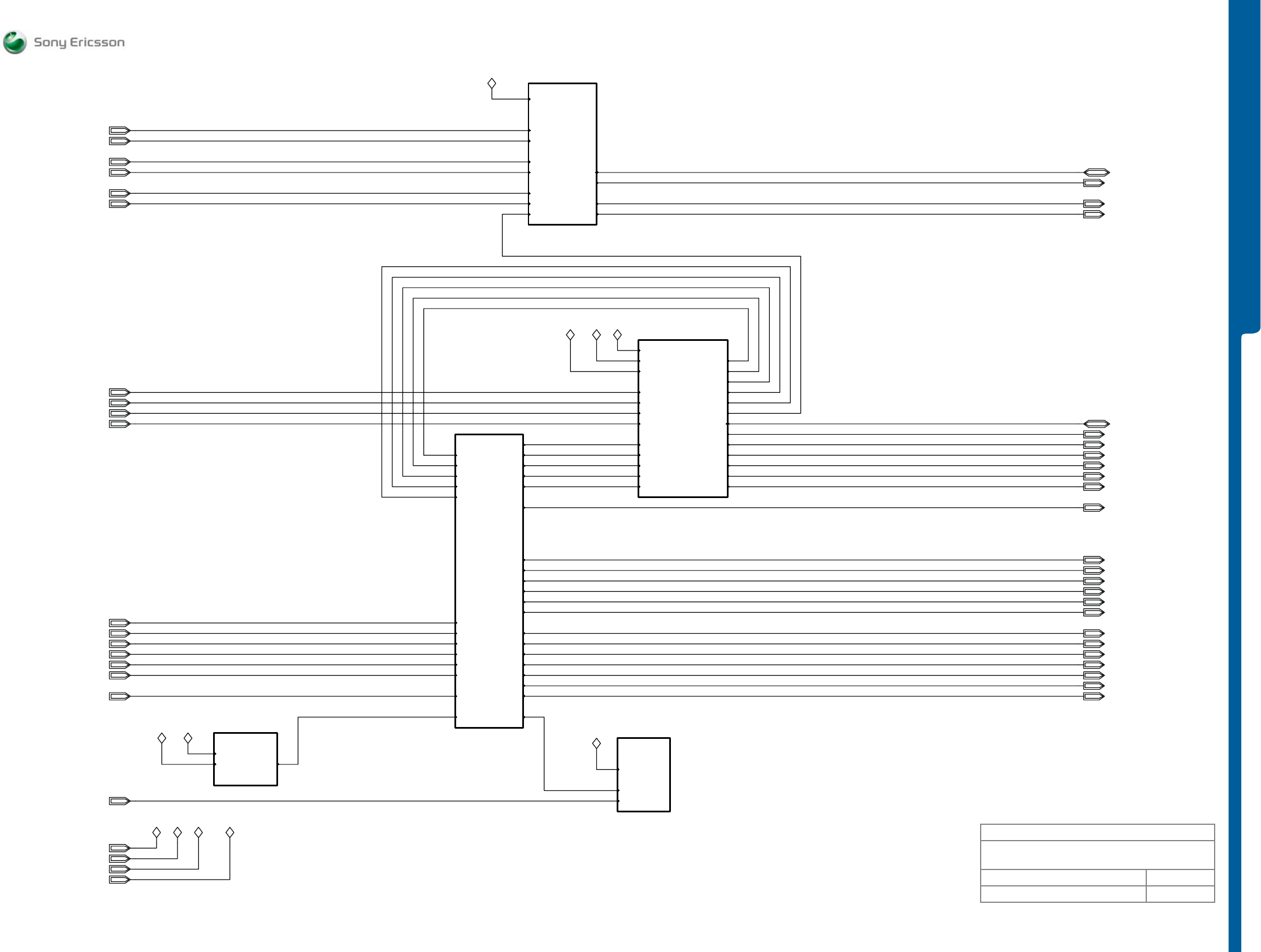

ANTSW3

ANTSW2

ANTSW1

ANTSW0

MODD

MODC

MODB

MODA

TXON

RADCLK

RADDAT

RADSTR

CLKREQ

TXIB

TXIA

TXQA

TXQB

WCLK

WDAT

WSTR

VCXOCONT

WPABIAS

VDIG VBT27 VFM27 VRTC13

RTCCLK

RTCCLK

BTRTS

BTTX

PCMCLK

PCMSYN

BTRESn

FML

FML

FMR

FMR

FMINT

FMINT

VBATI VDDE18

I2CDAT1

I2CCLK1

FM_ANTENNA

VFM27VDDE18

VBT27

VDDE18

VRTC13

BTANT

VBATIVDIG

BTCLKREQ

BTCLKREQ

PCMDATA

PCMDATA

PCMDATB

PCMDATB

BTRX

BTRX

BTCTS

BTCTS

ANT

RXQB

RXQB

RXQB

RXQA

RXQA

RXQA

RXIA

RXIA

RXIA

RXIB

RXIB

RXIB

RTEMP

RTEMP

RTEMP

VLOOP

VLOOP

VLOOP

WRFLOOP

WRFLOOP

WRFLOOP

IDATA

IDATA

IDATA

QDATA

QDATA

QDATA

DCLK

DCLK

DCLK

DIRMODCLK

DIRMODCLK

DIRMODCLK

MCLK_BT

CONNECTORPAD

1

X1400 <NM>

CONNECTORPAD

1

X1401 <NM>

RPT79951

1

X1001

RPT79951

1

X1002

SHIELDCAN_CYNDI_BT

R1A

E1002

1

SXA1096043

Will be connected

to GND in PCB

Clamp

GND

VDDE18

VFM27

RTCCLK

FM_ANTENNA

I2CDAT1

I2CCLK1

FMINT

FMR

FML

FM RadioFM Radio

SHIELDCAN_MARIKA-WILMA

SXA1096372

1

E1001

R1A

Will be connected

to GND in PCB

Clamp

GND

SHIELDCAN_CYNDI_WANDA

SXA1095997

1

E1000

R1A

Will be connected

to GND in PCB

Clamp

GND

MCLK_BT

Bluetooth

BTCTS

BTRX

BTCLKREQ

BTANT

PCMDATA

PCMDATB

VBT27

VDDE18

VRTC13

BTRTS

BTTX

RTCCLK

BTRESn

PCMCLK

PCMSYN

CLKREQ

Bluetooth

VDDE18

FML

FMR

WRFLOOP

VRTC13

Baseband

PCMDATA

PCMDATB

PCMSYN

PCMCLK

I2CDAT1

I2CCLK1

FM_ANTENNA

BTTX

BTRTS

WPABIAS

VCXOCONT

BTRESn

RTCCLK

ANTSW3

ANTSW2

ANTSW1

ANTSW0

MODD

MODC

MODB

MODA

TXON

RADCLK

RADDAT

RADSTR

TXIB

TXIA

TXQA

TXQB

WCLK

WDAT

WSTR

CLKREQ

MCLK

FMINT

BTCTS

BTRX

BTCLKREQ

RTEMP

VLOOP

RXQB

RXQA

RXIB

RXIA

IDATA

QDATA

DCLK

VBATI

VDIG

VBT27

VFM27

DIRMODCLK

Baseband

MCLK_BT

Radio

RXQB

ANTSW3

RADCLK

RADDAT

RADSTR

MODD

MODC

MODB

MODA

ANTSW0

ANTSW1

ANTSW2

TXON

TXIB

TXIA

CLKREQ

TXQB

TXQA

WCLK

WDAT

WSTR

VCXOCONT

WPABIAS

VDIG

VBATI

RXQA

RXIB

RXIA

VLOOP

DCLK

QDATA

IDATA

DIRMODCLK

WRFLOOP

RTEMP

MCLK

ANT

Radio

SHIELDCAN_WILMA_CAMERA

R1A

E1003

1

SXA1096981

Will be connected

to GND in PCB

Clamp

GND

TP1000

TP1001

Front upper ESD connection.

Front lower ESD connection.

Baseband Top - Radio Top -

Bluetooth - FM Radio

1911 - ROA 128 1534/2 A

Page 19

Page 14

Page 18

Page 42

MP 138

Page 47

Baseband Top - Radio Top - Bluetooth - FM RadioBaseband Top - Radio Top - Bluetooth - FM Radio SEMC Electrical Repair Manual

13 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

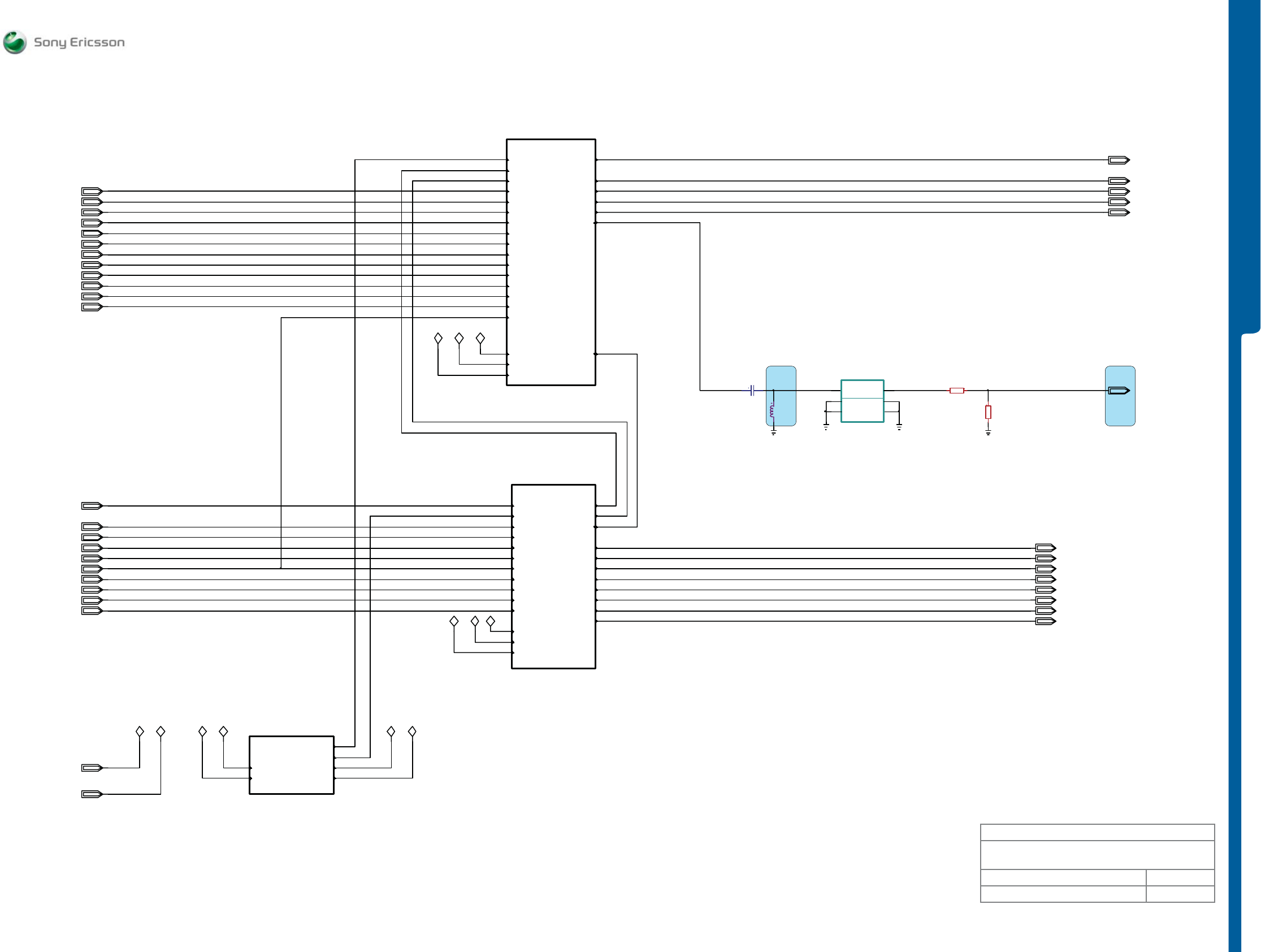

VBATI VDIG VBATI

VDIG VccB

VBATI

VDIG

VccA

VccA

VBATI

VccB

VDIG

VBATI

VDIG

WPABIAS

VCXOCONT

WSTR

WDAT

WCLK

TXQA

TXQB

CLKREQ

TXIA

TXIB

RXIA

RXIB

RXQA

RXQB

MCLK

RTEMP

WRFLOOP

TXON

ANTSW2

ANTSW1

ANTSW0

MODA

MODB

MODC

MODD

RADSTR

RADDAT

RADCLK

DIRMODCLK

IDATA

QDATA

DCLK

VLOOP

ANTSW3

ANT

22pF

C1000

R02_PowerSupply

VAPC

VccA

XTLDO

VccB

VBATI

VDIG

C04000390-O51

X1000

6

5

4

2

31

RPT79953

IO ANT

GND

68nH

NM

L1000

0ohms

R1000

0ohms

<NM>

R1002

MCLK_BT

MCLK_BT

R03_UMTS

WCDMA_ANT

RXIA

RXIB

RXQA

RXQB

XOOA

XOOB

MCLK

RTEMP

WRFLOOP

VCXOCONT

XTLDO

WPABIAS

WCLK

WDAT

WSTR

CLKREQ

TXQB

TXQA

TXIB

TXIA

VBATI

VccB

VDIG

WCDMA_ANT

ANTSW3

R04_GSM

QDATA

DCLK

VLOOP

GSM_ANT

DIRMODCLK

IDATA

XOOA

XOOB

TXON

ANTSW2

ANTSW1

ANTSW0

MODA

MODB

MODC

MODD

RADSTR

RADDAT

RADCLK

CLKREQ

VAPC

VBATI

VDIG

VccA

RADIO TOP

1/1911 - ROA 128 1534/2 A

Page 17

Page 16

Page 15

MP 118

Page 47

X1001

MP 115

Page 47

Radio - Top SEMC Electrical Repair Manual

14 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

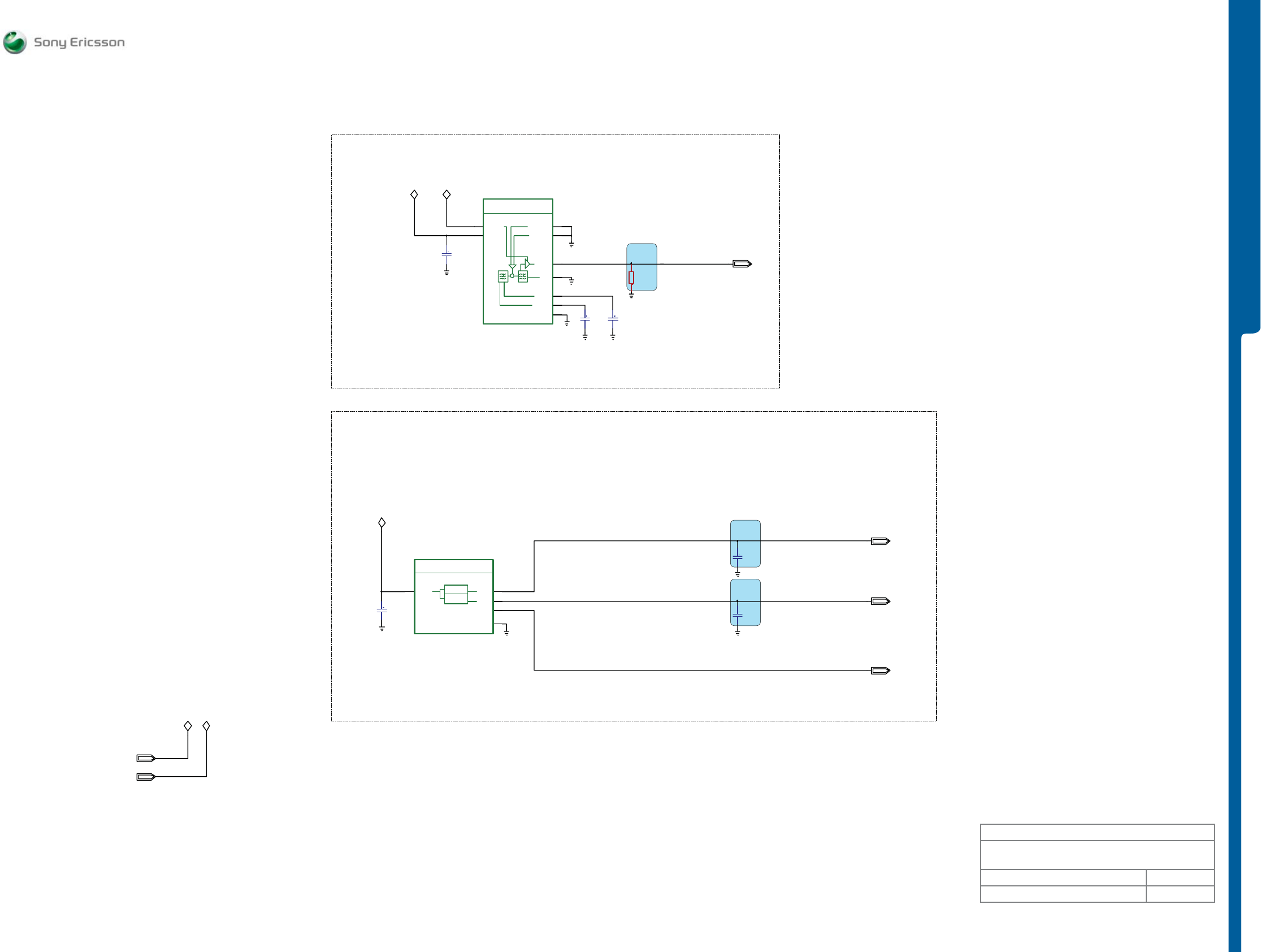

VDIG VBATI

VBATI VDIG

VBATI

VAPC

VccA

XTLDO

VccB

VBATI

VDIG

R1A

LEADFREE

ERICSSON_AB2012

N2000

E10

G12

C12

E11

E12

D11

D12

F10

G10

ROP1013066/6

VDDBUF

VDDPA

PASENSE+

PASENSE-

PAREG

IOUT

FF_IN

EXPOUT

VSSPA

ERICSSON AB 2012

UMTS ACCESS

PA CONTROL

R1A

LEADFREE

ERICSSON_AB2012

N2000

H10

A11

B12A12

C11

ROP1013066/6

VSSA

EXTLDO

VDDB

VDDAVBATA

ERICSSON AB 2012

POWER

RADIO

LDO_B

LDO_A

10nF

C1100

470pF

C1101

470pF

C1102

4.7uF

C1103

10uF

C1107

820ohms

R1100

10uF

C1106

PA Control

Power Supply

RADIO - Power Supply

1/1911 - ROA 128 1534/2 A

MP 36

Page 46

MP 35

Page 46

MP 34

Page 46

Radio - Power Supply SEMC Electrical Repair Manual

15 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

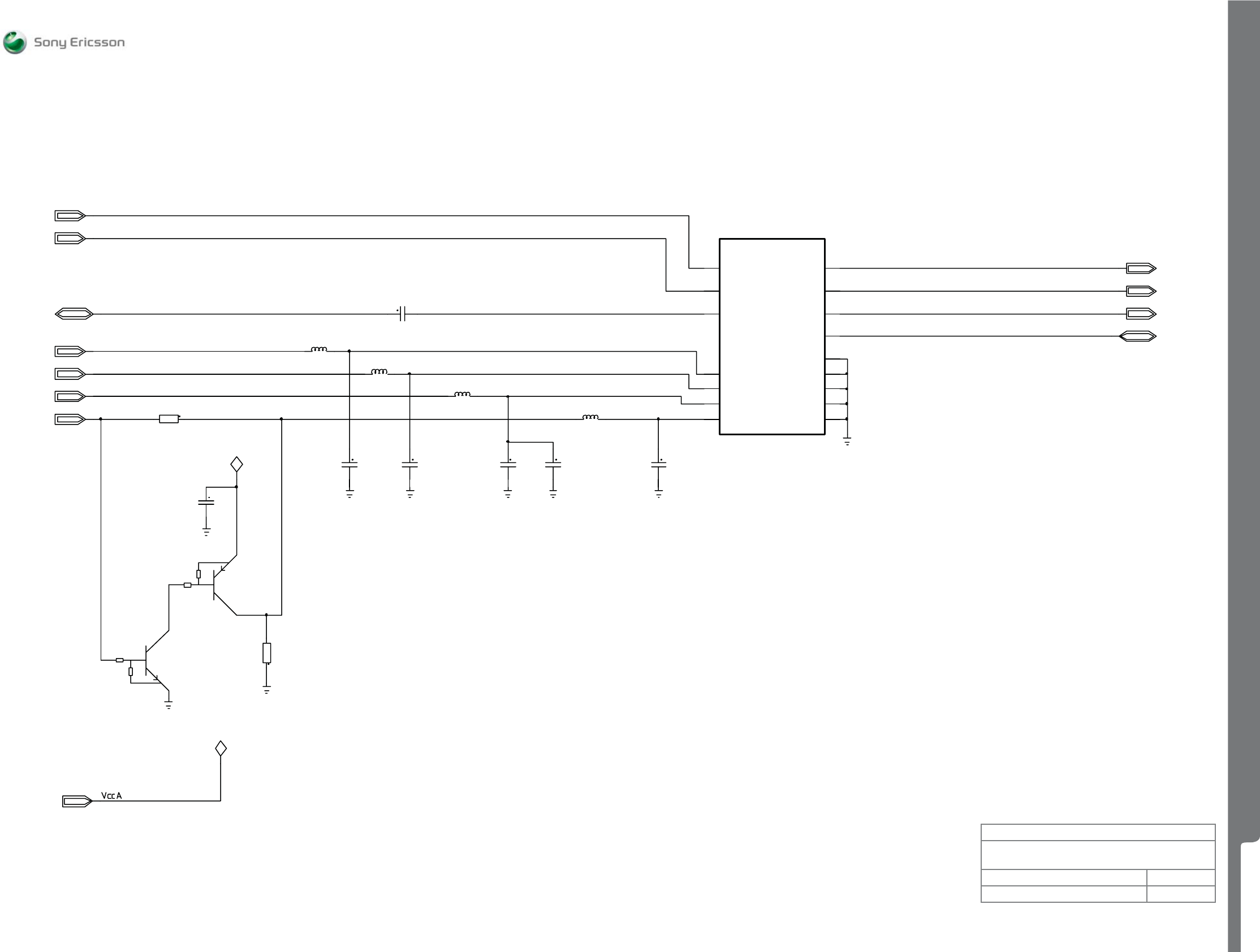

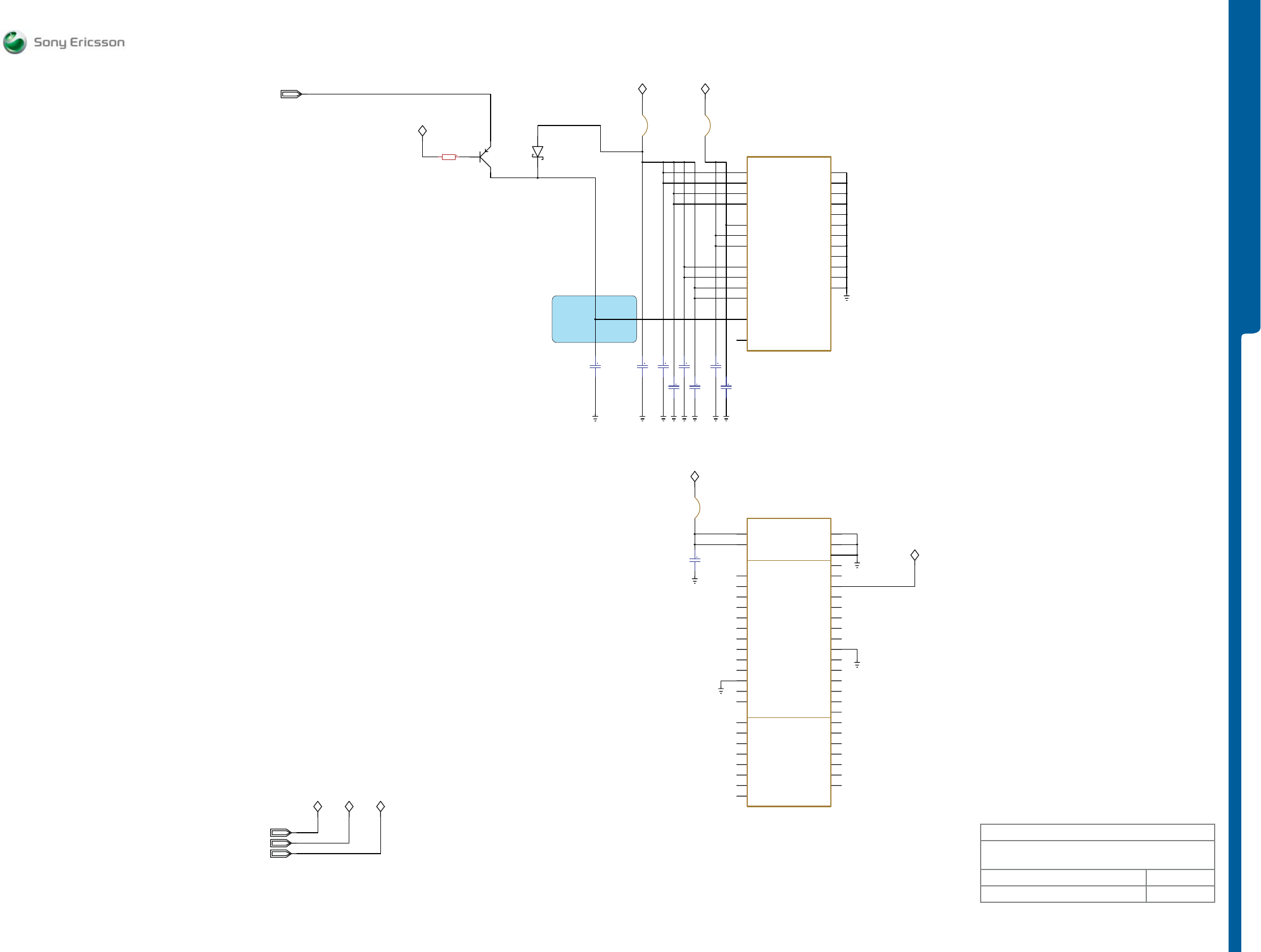

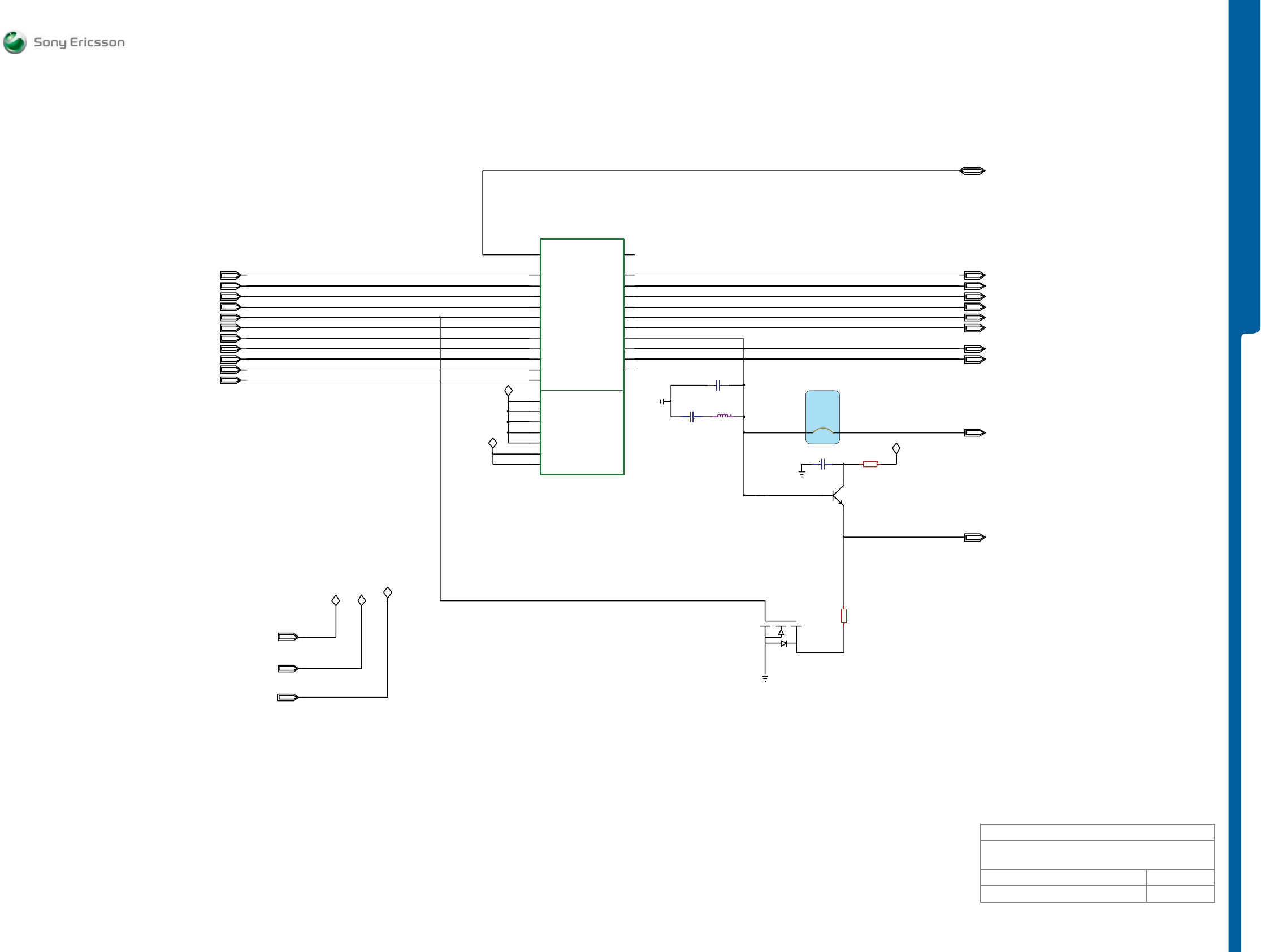

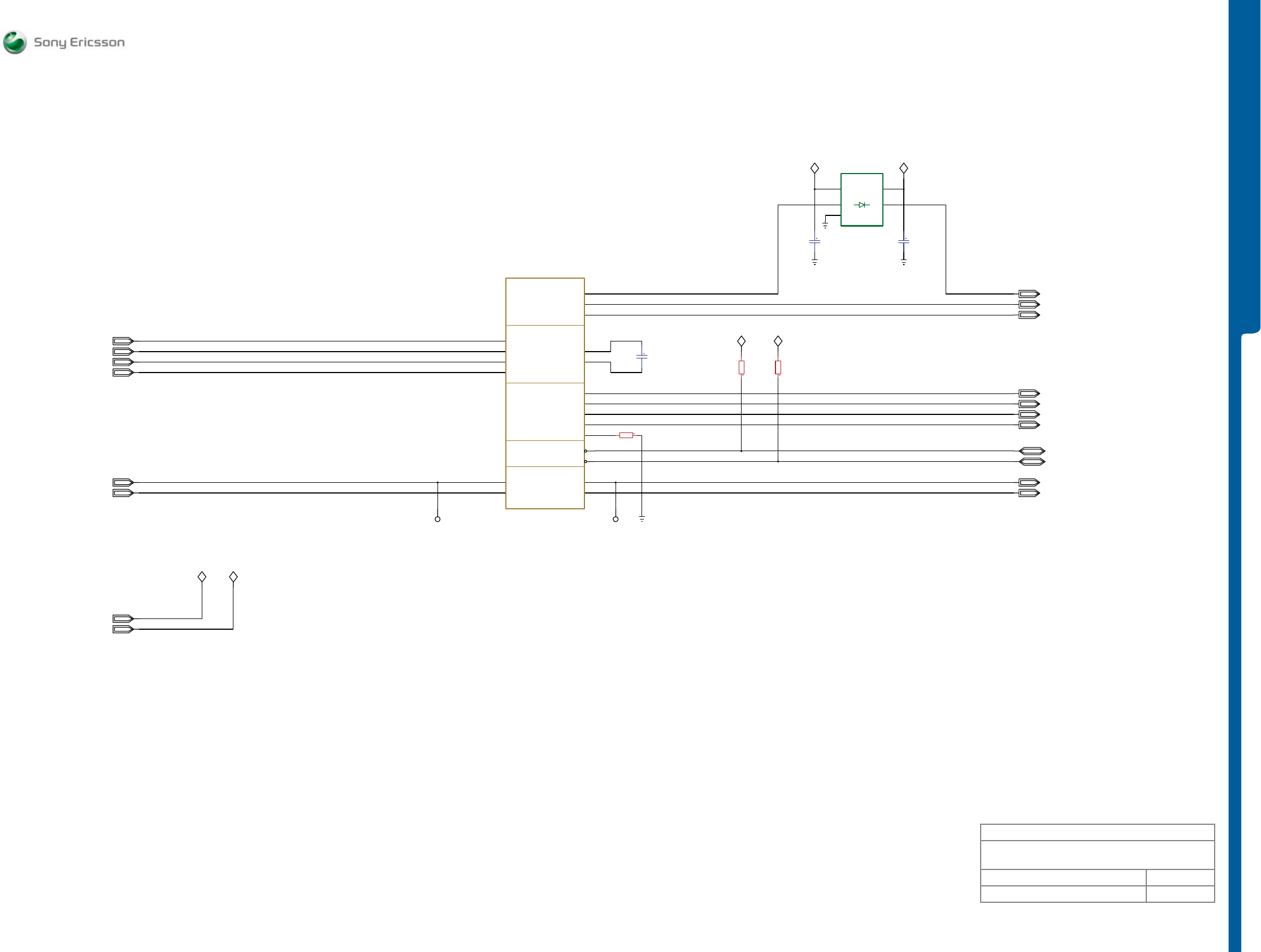

VBATI

VccB

VBATI VccB

MCLK_BT

VDIG

VDIG

MCKL_1

MCLK

WCDMA_ANT

VCXOCONT

XTLDO

WPABIAS

WCLK

WDAT

WSTR

CLKREQ

TXQB

TXQA

TXIB

TXIA RXIA

RXIB

RXQA

RXQB

XOOA

XOOB

RTEMP

WRFLOOP

VBATI

VccB

RAY_MODULE

R1A

A1200

47

4

5

52

1532

56

53

54

3020

66

1

9

39

38

37

36

35

61

60

59

58

70

71

68

69

45

63

12

ROA1281112

GND pins

are hidden

RAY_MODULE_IF

WCDMA_ANT

TXIA

TXIB

TXQA

TXQB

CLKREQ

WSTR

WDAT

WCLK

WPABIAS

XTLDO

VCXOCONT

VBATI

VBATI

VBATI

VBATI

VBATI

VccB

VccB_mix

WCDMA_SENSE

RXIA

RXIB

RXQA

RXQB

XOOA

XOOB

MCLK

RTEMP

WRFLOOP

POWER/GND

WON

MCLK

MCLK_BT

RYN123911/2

LEADFREE

SI1012R_LEADFREE

3

1

2

V1301

DS

G

3.9Kohms

R1304

GND

GND

10ohms

R1301

100nF

C1300

GND

<N.M>

1uH

L1300

<N.M>

10nF

C1302

RYN121933/2

BFR193L3

V1300

B

E

C

VDIG

<N.M>

C1301

100pF

12

ST1300

RADIO - UMTS

1/1911 - ROA 128 1534/2 A

MP 99

Page 47

Radio - UMTS SEMC Electrical Repair Manual

16 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

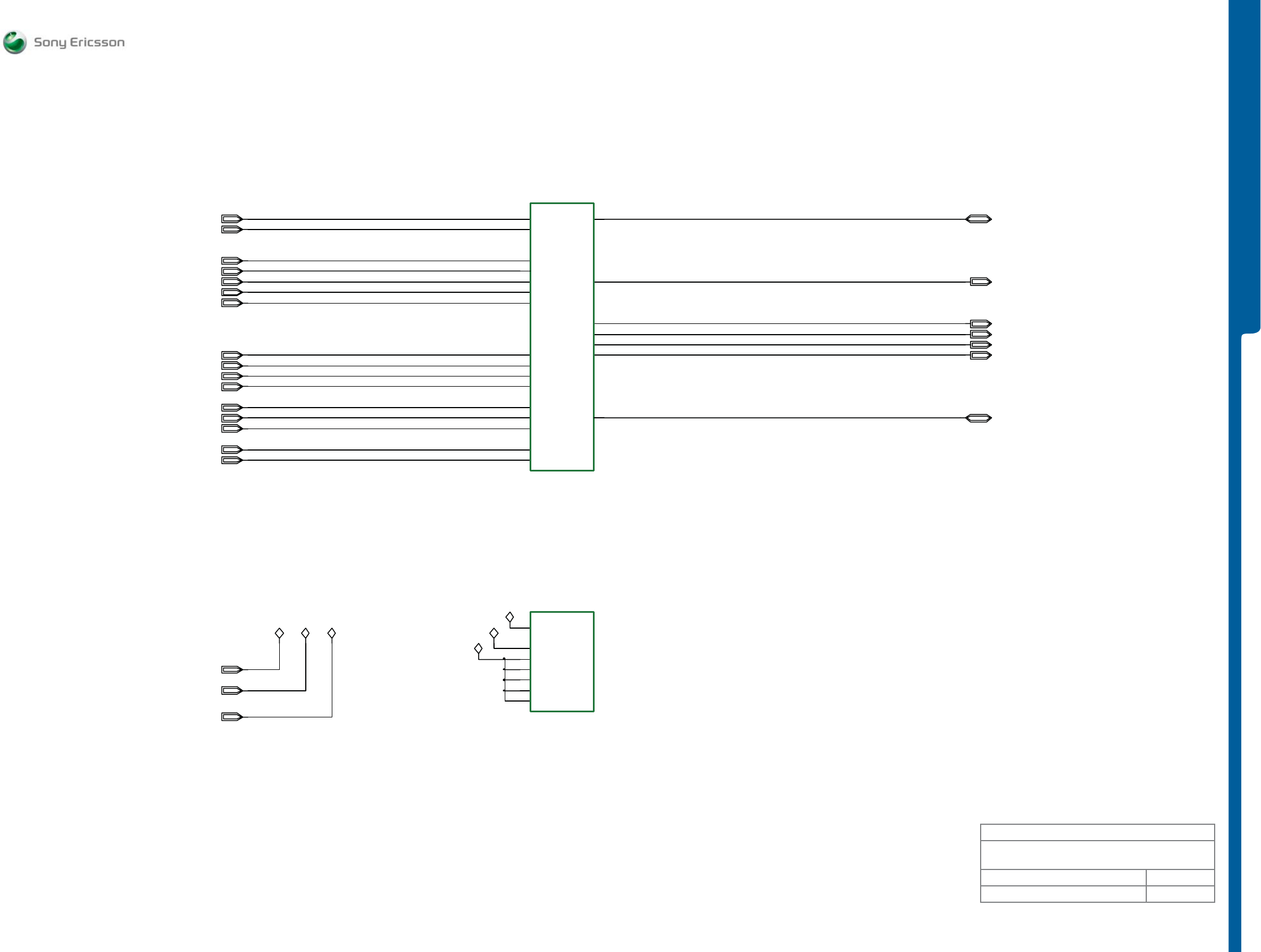

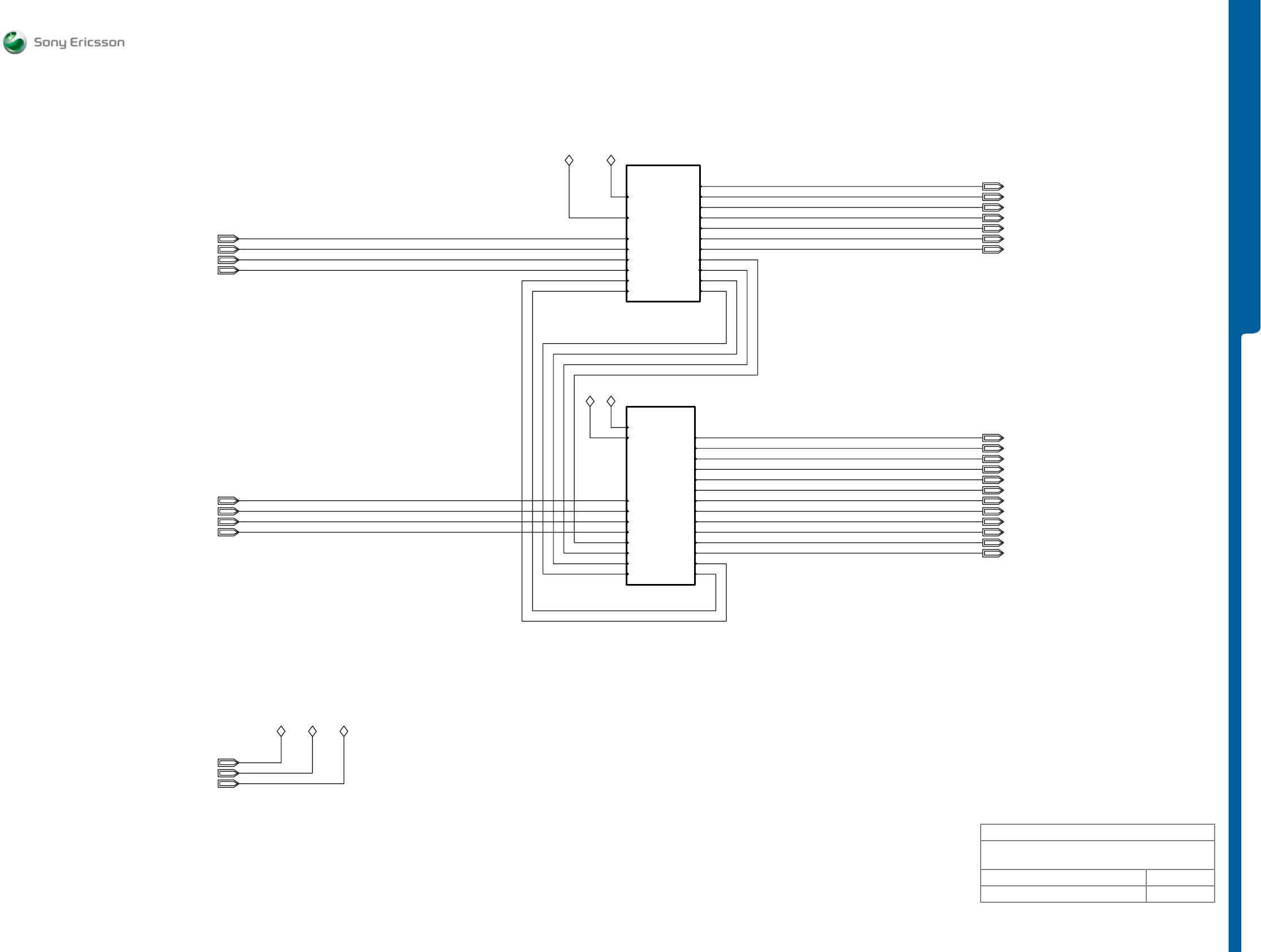

VccAVBATI VDIG

VDIG

VccA

VBATI

XOOA

XOOB

GSM_ANT

DIRMODCLK

IDATA

QDATA

DCLK

VLOOP

TXON

ANTSW2

ANTSW1

ANTSW0

MODA

MODB

MODC

MODD

RADSTR

RADDAT

RADCLK

CLKREQ

VAPC

VBATI

VDIG

VccA

ANTSW3

WCDMA_ANT

A1300

R1B

22

20

46

15

53

7

23

17

18

19

34

27

26

25

24

36

35

30

3

4

5

6

48

ROA1281640

MARLIN_MODULE

WCDMA_ANT

ANTSW3

MARLIN_IO

XOOA

XOOB

TXON

ANTSW2

ANTSW1

ANTSW0

MODA

MODB

MODC

MODD

RADSTR

RADDAT

RADCLK

CLKREQ

VAPC

ANT

TESTOUT

IDATA

QDATA

DCLK

VLOOP

R1B

A1300

10

39

130

63

62

2

1

ROA1281640

MARLIN_MODULE

VBATTI

VBATTI

VBATTI

VBATTI

VBATTI

VRAD

VDIG

MARLIN_POWER

RADIO - GSM

1/1911 - ROA 128 1534/2 A

Radio - GSM SEMC Electrical Repair Manual

17 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

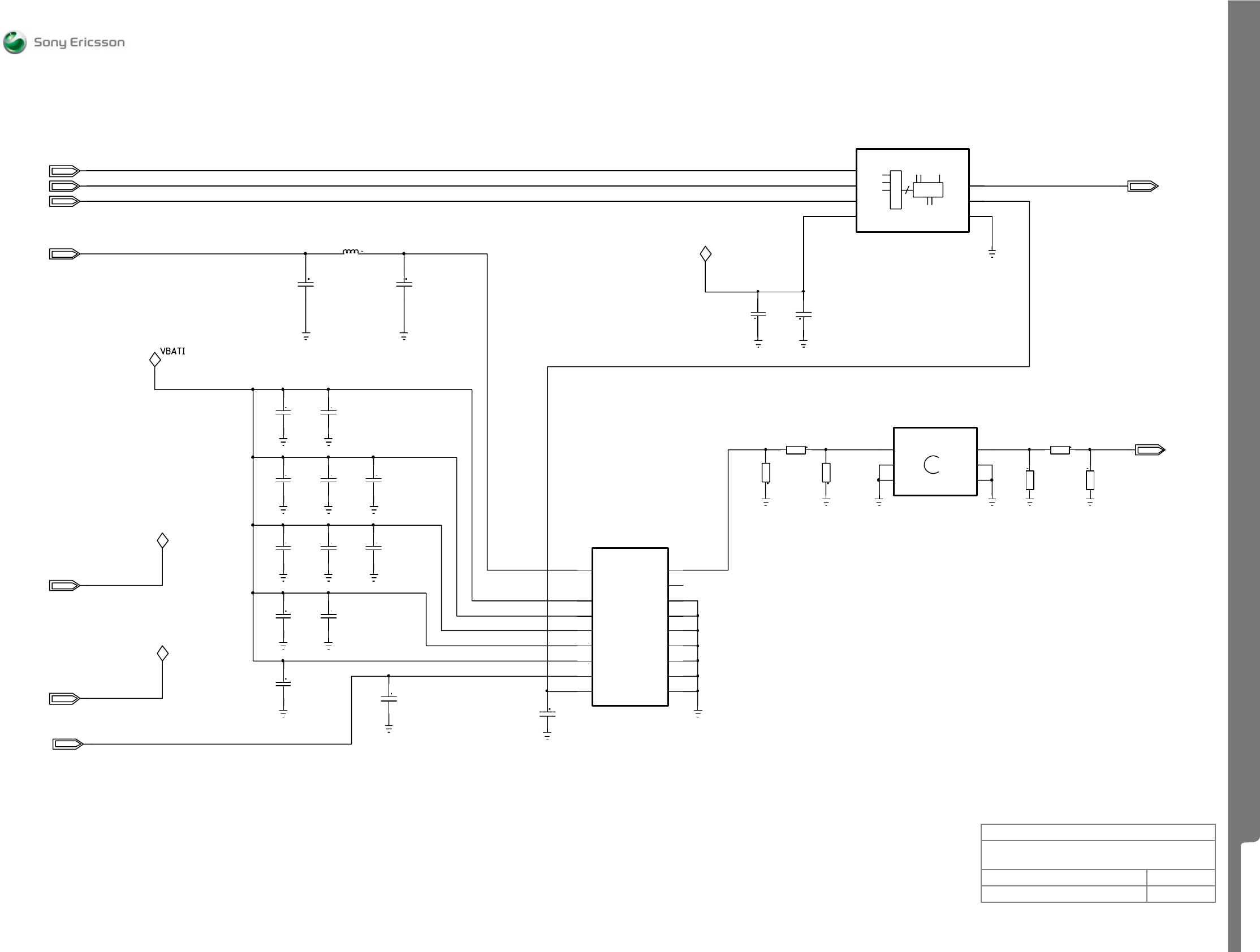

VBT27

VDDE18

VBT27 VDDE18 VRTC13

PCMDATB

PCMDATA

BTCLKREQ

CLKREQ

VRTC13

BTANT

VDDE18

12

ST1401

12

ST1400

12

ST1402

12

ST1403

VBT27

VDDE18

VRTC13

BTRTS

BTTX

RTCCLK

BTRESn

PCMCLK

PCMSYN

PCMDATA

PCMDATB

BTCTS

BTRX

BTCLKREQ

BTANT

MCLK_BT

CLKREQ

C1400

220nF

C1401

220nF

C1402

220nF

C1403

220nF

C1404

220nF

C1405

220nF

C1406

220nF

C1407

1uF

C1408 10nF

R1404 10Kohms

R1405

100Kohms

R1406

<NM>

0ohms

C1409

100nF

C1411

220nF

C4152

<NM>

1.2pF

Z1400

63

1

5

4

2

DEA212450BT-7043D1

RTN202932/4

UNBAL

Freq

BAL

BAL

BAL_DC-FEED

GNDGND

D1400

F6F5

F4G4

A3

A4

D3

D6

C2

D1

E1

D2

G3

C1

B2

B1

C3

B3

F7

D5

F2

F1

E2

G7

C4

G6

E6

C5

E5

STLC2500C4

RYT123923/2

CLK_REQ_OUT_2

CLK_REQ_OUT_1

BT-FUNCTIONAL

REF_CLK_IN

RESETn

LP_CLK

CLOCK AND RESET

HOST_WAKEUP/SPI_INT

SW INITIATED LOW POWER MODE

BT_WAKEUP

UART INTERFACE

UART_RXD/SPI_DI

UART_CTS/SPI_CLK

UART_TXD/SPI_DO

UART_RTS/SPI_CSN

PCM INTERFACE

PCM_CLK

PCM_SYNC

PCM_A

PCM_B

JTAG_TDO/GPIO_11

JTAG/GPIO

JTAG_NTRST/GPIO_16

JTAG_TCK/GPIO_8

JTAG_TDI/GPIO_9

JTAG_TMS/GPIO_10

GEN_PURPOSE/GPIO_0

CLK_REQ_IN_1

CLK_REQ_IN_2

CONFIG_3

CONFIG_2

CONFIG_1

CONFIGURATION

PINS

RFP

RFN

RF

AF_PRG

TEST-PIN

LEAVE UNCONNECTED

D1400

A5

A2

E3

E4

C6

B6

B4

A1

C7

F3

G5

G1

A7

B7

G2

E7

D7

A6

B5

STLC2500C4

RYT123923/2

RF GROUND

VSS_RF

VSS_RF

VDD_D

OUTPUT

REGULATOR

FOR CORE LOGIC

TOUT_IP_QN

TOUT_IN_QP

TEST PINS

VDD_N

VDD_CL

VDD_RF

VDD_DSM

INTERNAL SUPPLY

DECOUPLING

ANALOG GROUND

POWER SUPPLY

2.75V

1V65 to 2V85

SYSTEM CLOCK

SUPPLY

VDD_CLD

VDD_IO_B 1V17 to 2V85

IOs SUPPLY

1V65 to 2V85

IOs SUPPLY

VSS_DIG

DIGITAL GROUND

BT-SUPPLY

VDD_IO_A

VDD_HV_A

VDD_HV_D

VSS_ANA

VSS_ANA

VSS_ANA

VSS_DIG

4.7nH

L4122

RADIO - Bluetooth

1/1911 - ROA 128 1534/2 A

MP 133

Page 47

Radio - Bluetooth SEMC Electrical Repair Manual

18 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

MODA

MODB

MODC

MODD

ANTSW0

ANTSW1

ANTSW2

ANTSW3

VDDE18VCORE15

VBATI

VDIGVBT27VFM27

TXON

RADCLK

RADDAT

RADSTR

TXIB

TXIA

TXQA

TXQB

WCLK

WDAT

WSTR

VRTC13

VDDE18

VDIGVDDE18

VCORE15

PCMDATA

PCMDATB

PCMSYN

PCMCLK

RXQB

RXQA

RXIB

RXIA

IDATA

QDATA

DCLK

DIRMODCLK

VBATI

VDIG

VCAM27

VCAMAF

VCAM12

VDDE18

I2CDAT1

I2CDAT1

I2CCLK1

I2CCLK1

FM_ANTENNA

FM_ANTENNA

BTTX

BTTX

BTRTS

BTRTS

WPABIAS

WPABIAS

VCXOCONT

VCXOCONT

OPTOTEMP

FLASH_STROBE

VAD

VLOOP

RTEMP

WRFLOOP

BTCLKREQ

BTRX

BTCTS

FMINT

CAMDIR

CAMDIR

MICP/AUXinL

MICN/AUXinR

AMPCTRL

UKEYBRGT

LKEYBRGT

VBATIVDIGVDDE18VMSPICOVBACKUP

SERVICEn

CAMSYSCLK

CAMSYSCLK

RTCCLK

BTRESn

DCIOint

SPL

ONSWA

ONSWA

SPR

MIDREF

LIDSENSE

CHARGE_RDY

FOCUSLED_ON

CHARGE_ON

FML

FMR

VCAMIO

VCAMSD

CAMIRQ

STROBE_ENABLE

VPP

VBUS

DCIO

DCIO_ON

VBT_EN

CAM_27_EN

CAM_12_EN

FM_EN

VCORE15

VRTC13

DCIOint

VFM27

VMSPICO

VCAM12

VCAMAF

VCAM27

VBACKUP

VDDE18

VBT27

VDIG

VBATI

VCAMIO

VCAMSD

V_VGAANA

V_VGADIG

V_VGAANA

V_VGADIG

PCMDATA

PCMDATB

PCMSYN

PCMCLK

I2CDAT1

I2CCLK1

FM_ANTENNA

BTTX

BTRTS

WPABIAS

VCXOCONT

BTRESn

RTCCLK

ANTSW3

ANTSW2

ANTSW1

ANTSW0

MODD

MODC

MODB

MODA

TXON

RADCLK

RADDAT

RADSTR

TXIB

TXIA

TXQA

TXQB

WCLK

WDAT

WSTR

FMINT

BTCTS

BTRX

BTCLKREQ

RTEMP

VLOOP

RXQB

RXQA

RXIB

RXIA

IDATA

QDATA

DCLK

VBATI

VDIG

VBT27

VFM27

DIRMODCLK

VRTC13

WRFLOOP

FMR

FML

VDDE18

MCLK

CLKREQ

RTCCLK

MEMRESn

BTRESn

CAMSYSCLK

CLKREQ

SERVICEn

ONSWAn

MCLK

VCORE15

VDDE18

System Control

Pages 20-22

System Control

STROBE_ENABLE

MICN/AUXinR

VAD

WRFLOOP

VBUS

VMSPICO

VDIG

VBATI

MEMRESn

FMINT

BTCLKREQ

BTCTS

BTRX

FLASH_STROBE

SPR

SPL

VBACKUP

VLOOP

RTEMP

DCIO

SERVICEn

VPP

FM_ANTENNA

MICP/AUXinL

VCXOCONT

WPABIAS

I2CCLK1

I2CDAT1

DCIO_ON

BTRTS

BTTX

FM_EN

VBT_EN

AMPCTRL

UKEYBRGT

LKEYBRGT

VDDE18

Operation & Services

Pages 28-33

CAM_12_EN

CAMDIR

CAM_27_EN

FOCUSLED_ON

CHARGE_ON

MIDREF

LIDSENSE

CHARGE_RDY

OPTOTEMP

CAMIRQ

Operation & Services

STROBE_ENABLE

MICN/AUXinR

VCAM12

VAD

CAMDIR

ONSWA

UKEYBRGT

Pages 37-42

MMI

SPR

FLASH_STROBE

PCMDATA

PCMDATB

PCMSYN

PCMCLK

SPL

I2CDAT1

I2CCLK1

LKEYBRGT

AMPCTRL

MICP/AUXinL

VDIG

VDDE18

VCAM27

CAMSYSCLK

FMR

FML

VCAMAF

DCIOint

FOCUSLED_ON

CHARGE_ON

MIDREF

LIDSENSE

CHARGE_RDY

VCAMIO

VCAMSD

OPTOTEMP

CAMIRQ

VBATI

V_VGADIG

V_VGAANA

MMI

CAMDIR

VPP

VCAMSD

V_VGAANA

V_VGADIG

VCAM12

CAM_27_EN

VRTC13

VFM27

VMSPICO

VCAM27

FM_EN

VBT_EN

CAM_12_EN

DCIO_ON

VBUS

VBACKUP

VBT27

DCIO

VDDE18

VDIG

P

Pages 23-27

DCIOint

VCAMAF

VCORE15

VBATI

VCAMIO

P

Pages 34-36

UMTS Access

TXON

MODA

MODB

MODC

MODD

ANTSW0

ANTSW1

ANTSW2

ANTSW3

WSTR

WDAT

WCLK

TXQB

TXQA

TXIA

TXIB

RADSTR

RADDAT

RADCLK

VDIG

VDDE18

VCORE15

DCLK

QDATA

IDATA

RXIB

RXIA

RXQA

RXQB

DIRMODCLK

UMTS Access

BASEBAND - Logic TOP

2/1911 - ROA 128 1534/2 A

Baseband - Logic Top SEMC Electrical Repair Manual

19 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

VDDE18 VCORE15 VDDE18VCORE15

CLKREQ

MCLK

SERVICEn

ONSWAn

RTCCLK

CAMSYSCLK

MEMRESn

BTRESn

SERVICEn

ONSWAn

MCLK

VCORE15

VDDE18

CLKREQ

RTCCLK

MEMRESn

BTRESn

CAMSYSCLK

Test

Page 4Page 4

Test

RTCCLK

MEMRESn

BTRESn

CAMSYSCLK

CLKREQ

SERVICEn

ONSWAn

MCLK

VDDE18

VCORE15

Clocks & Resets

Page 3Page 3

Clocks & Resets

BASEBAND - System Control Top

2/1911 - ROA 128 1534/2 A

Page 21

Page 22

Baseband - System Control Top SEMC Electrical Repair Manual

20 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

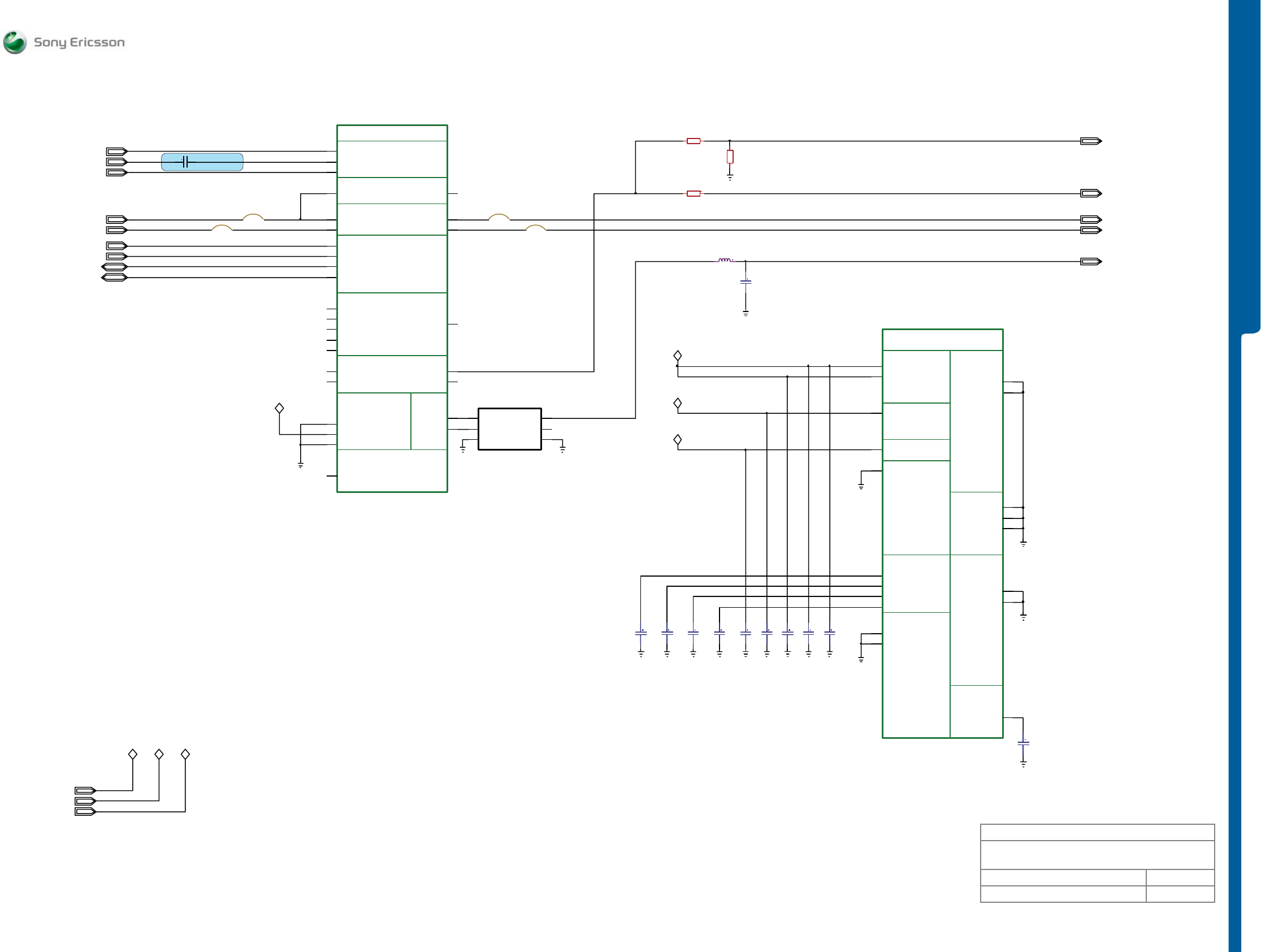

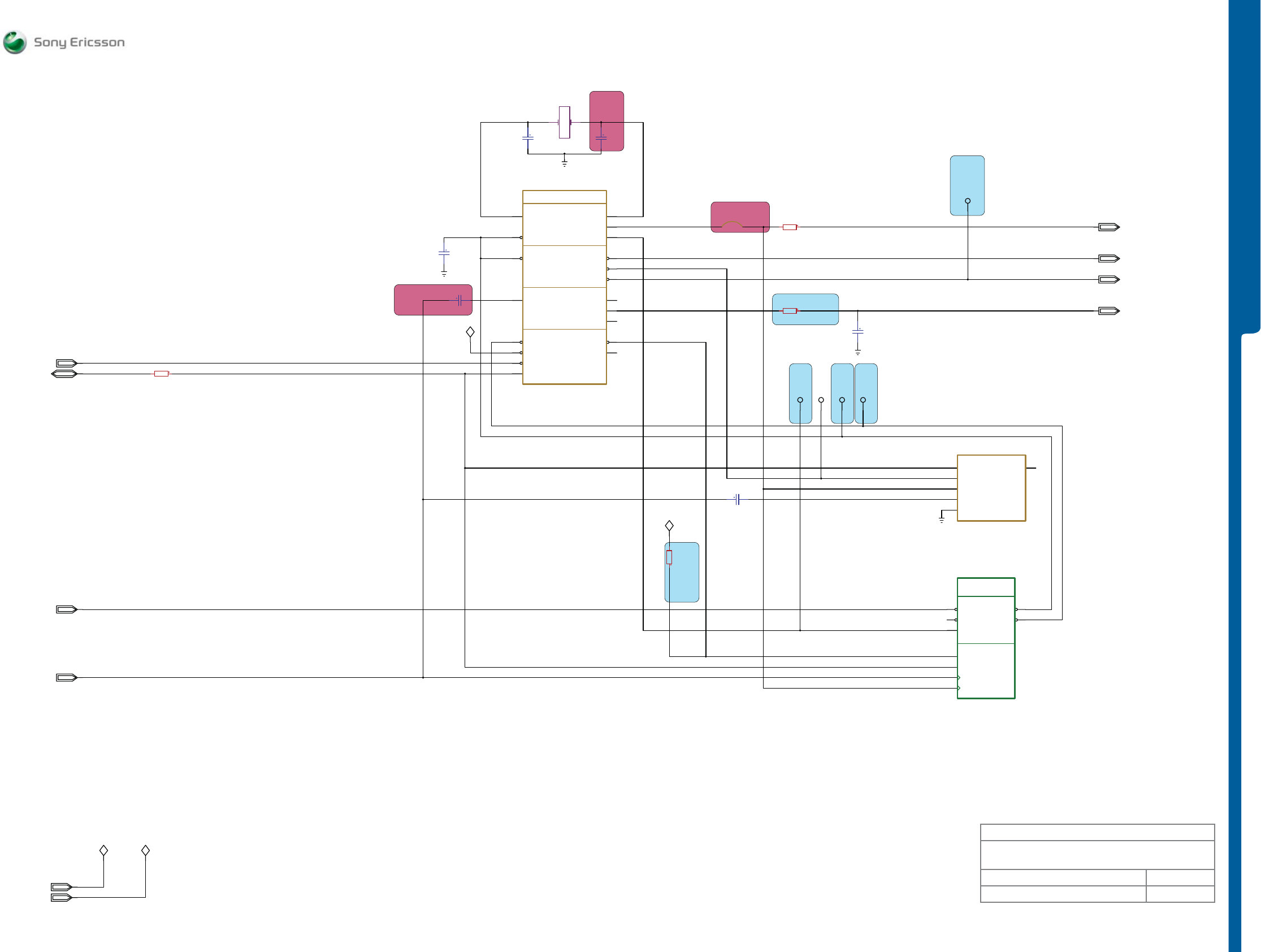

WANDARESn

RTCCLK_1

RTCCLK_1

PWRRST

PWR_IRQ

PWRREQn

CLKREQ_1

CLKREQ_1

CLKREQ_1

VDDE18 VCORE15

VCORE15

VDDE18

MCLKMCLK

MCLK_WANDA

ONSWAnONSWAn

SERVICEn

MEMRESn

BTRESn

CAMSYSCLK

RTCCLK

RTCDCON

D2001

ROP1013044/4

T15

T16

R15

D4

U13

N13

R1B

Leadfree

ID_BALL

HCLK

MCLK

CLK32

RESET

CLKRQ

EMP_WANDA_SYSTEM_IF

R2101

100Kohms

VCORE15

VDDE18

ONSWAn

SERVICEn

MCLK

CLKREQ

R2102 100ohms

32.768kHz

B2100

RTM501911/2

C2C1

C2102

22pF

C2103

22pF

SP2100

MEMRESn

BTRESn

CAMSYSCLK

RTCCLK

R2104 47ohms

R2105 10Kohms

SP2103SP2102SP2101

SP2105

D2000

R18

T19

V21

J8

W17AA17

R13

W15

R14

Y16

J1

W21

J7

W20

U19

AA15

K4

J2

V19

ROP1013083/4 R2A

DB2021_MARIKA_SECURITY_EFUSE

MARIKA_SYSTEM_CONTROL

RTCIN

RTCBDIS_N

RESPOW_N

MCLK

IRQ0_N

IRQ1_N

SERVICE_N

CLKREQ

RTCOUT

RTCCLK

RTCDCON

RESOUT0_N

RESOUT1_N

RESOUT2_N

SYSCLK0

SYSCLK1

SYSCLK2

PWRREQ0_N

PWRREQ1

RTC

Resets

Clocks

Control

R1A

N2000

ROP1013066/6

K3

C1

K9

C4

C5

A7

B8

C10

M1

ERICSSON_AB2012

LEADFREE

CONTROL

MCLK

CLKREQ

SLEEP

XTAL1

ERICSSON AB 2010

SYSTEM CONTROL

POWER ON/RESET

IRQ

PWRRST

ONSWC

ONSWB

ONSWA

C2104

1nF

C2101 1nF

C2100 1nF

33pF

C2105

12

ST2100

BASEBAND - System Control

Clocks & Resets

2/1911 - ROA 128 1534/2 A

PIC 54

Page 46

MP 55

Page 46

MP 30

Page 46 MP 31

Page 46 MP 50

Page 46

MP 60

Page 47

PIC 52

Page 46

PIC 53

Page 46

MP 67

Page 46

Baseband - System Control Clocks and Resets SEMC Electrical Repair Manual

21 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

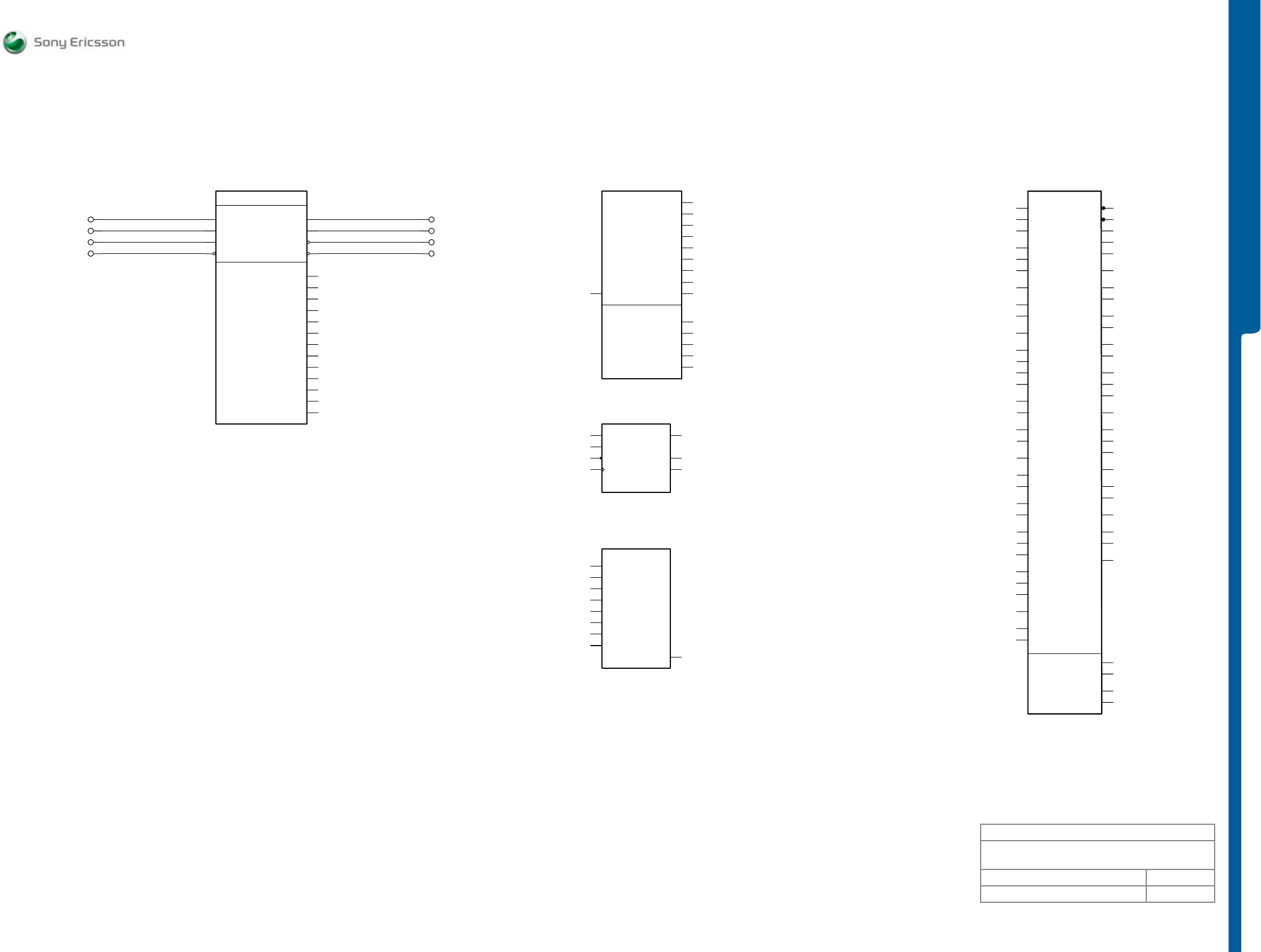

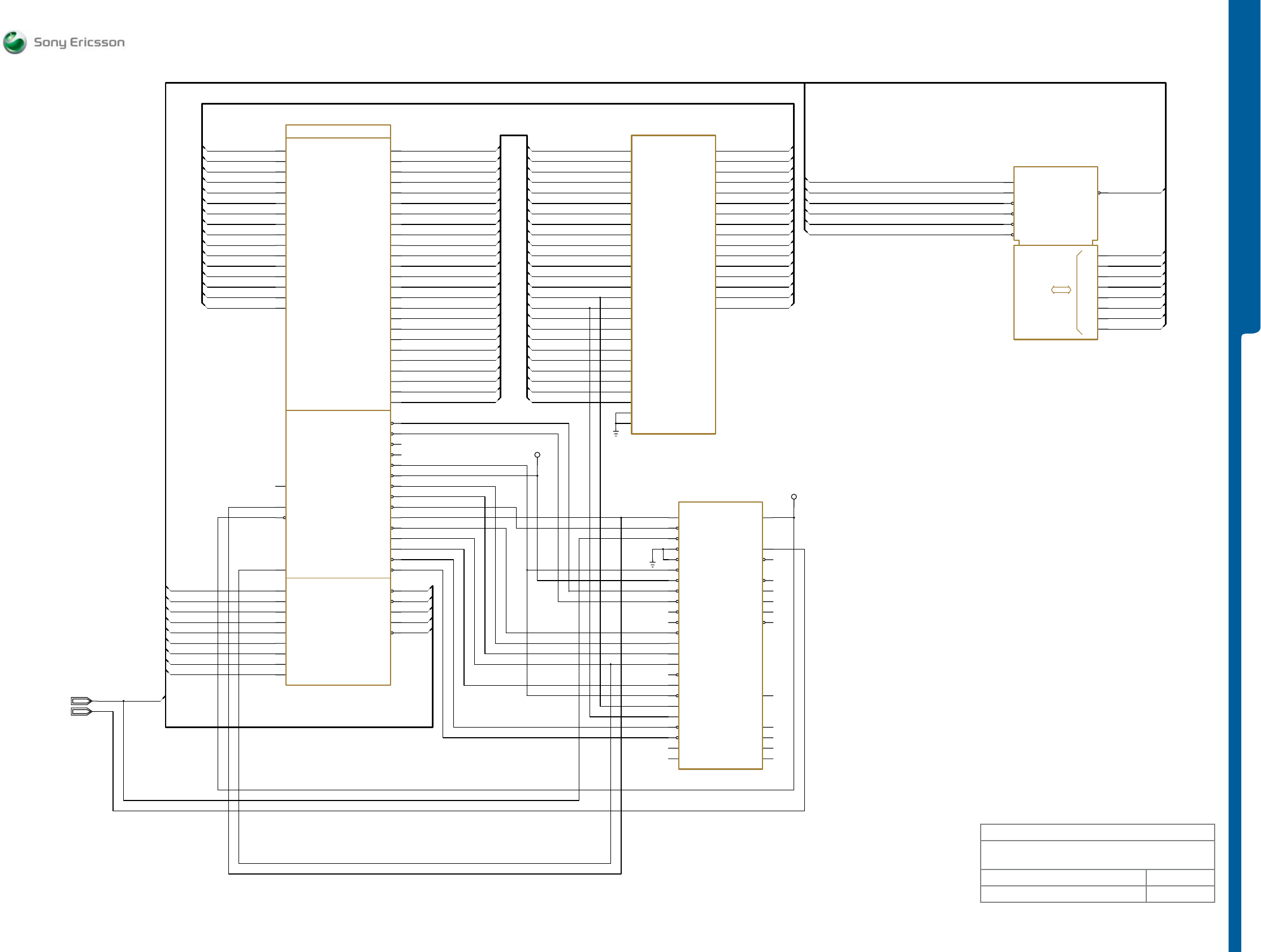

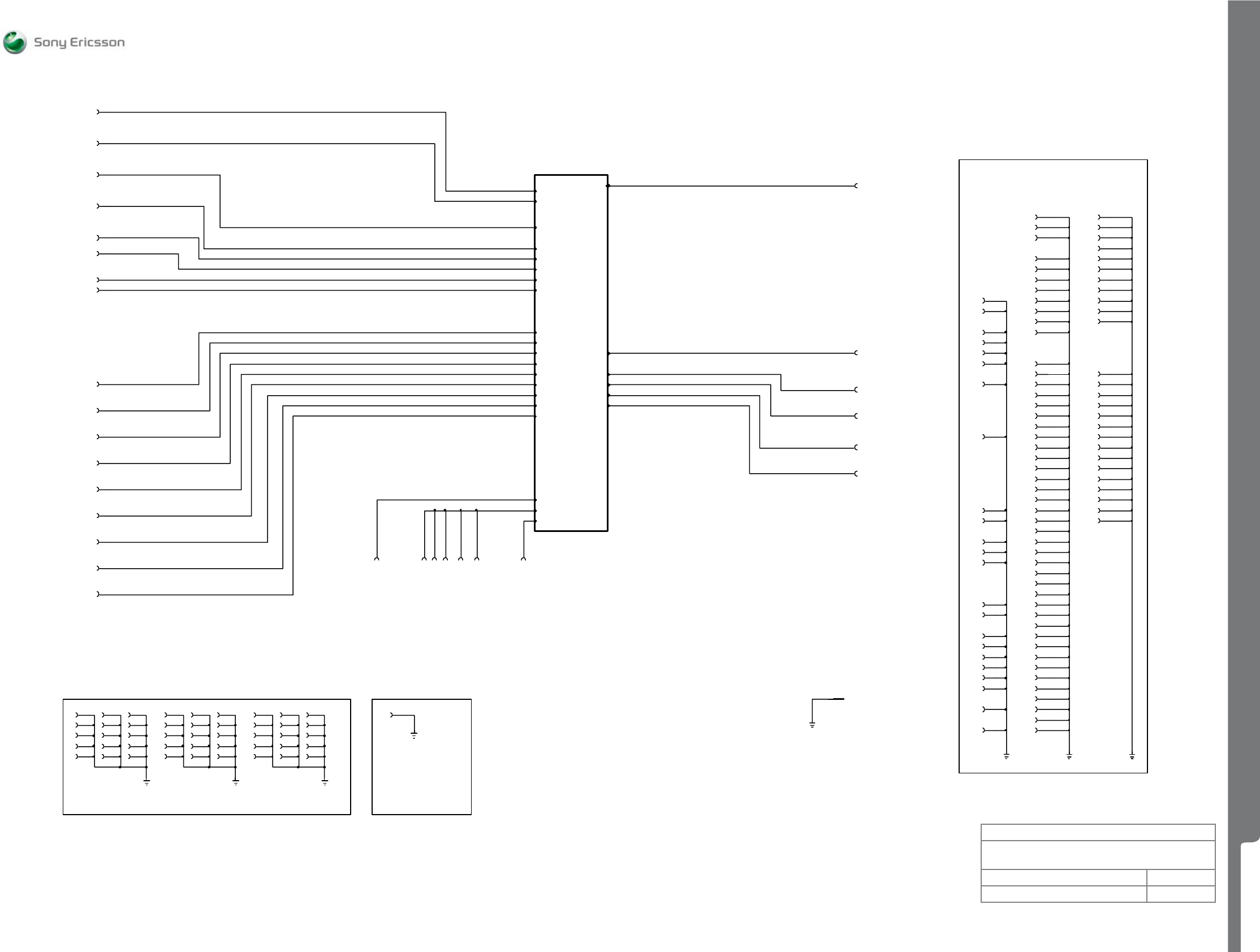

MARIKA_TDI

MARIKA_TMS

MARIKA_TCK

MARIKA_TRSTn

MARIKA_TDO

MARIKA_RTCK

MARIKA_TEMU0n

MARIKA_TEMU1n

R1A

D2001

R14

T14

N12

E17

U1

N5

T1

R2

P3

P2

M5

M3

N1

L5

M2

L3

L1

K1

K5

K3

J5

J3

J2

H2

H1

H5

G2

G3

F1

F2

E1

G5

E3

F5

C1

C2

B2

E5

A1

A2

B3

C4

B4

E6

C6

A5

E7

B6

C7

A7

A8

E8

C8

E9

C9

B9

C10

A10

E10

U3

U2

T3

ROP1013044/4

Wanda_External_MEM_IF

EMIF_D0

EMIF_D1

EMIF_D2

EMIF_D3

EMIF_D4

EMIF_D5

EMIF_D6

EMIF_D7

EMIF_D8

EMIF_D9

EMIF_D10

EMIF_D11

EMIF_D12

EMIF_D13

EMIF_D14

EMIF_D15

EMIF_D16

EMIF_D17

EMIF_D18

EMIF_D19

EMIF_D20

EMIF_D21

EMIF_D22

EMIF_D23

EMIF_D24

EMIF_D25

EMIF_D26

EMIF_D27

EMIF_D28

EMIF_D29

EMIF_D31

EMIF_D30

EMIF_AWE

EMIF_ARE

EMIF_ARE_ADY

EMIF_A1

EMIF_A2

EMIF_A3

EMIF_A4

EMIF_A5

EMIF_A6

EMIF_A7

EMIF_A8

EMIF_A9

EMIF_A10

EMIF_A11

EMIF_A12

EMIF_A13

EMIF_A14

EMIF_A15

EMIF_A16

EMIF_A17

EMIF_A18

EMIF_A19

EMIF_A20

EMIF_A21

EMIF_A22

EMIF_A23

EXT_MEM_UBUS10

EXT_MEM_UBUS11

EXT_MEM_UBUS12

EXT_FRAME_STROBE

D2001

E12C13

H13

H15

J13

J15

K16

K15

K13

L17

R5

N7

R6

N6

M17

ROP1013044/4

CPU_IACK

CPU_XF

CPU_IRQ1

CPU_IRQ0

CPU_CLKOUT

UART_RX

DSP INTERRUPT

UART_TX

GPO7

GPO6

GPO5

GPO4

GPO3

GPO2

GPO1

GPO0

EMP_WANDA_SWDEBUG

R1A

D2001

G16

G15

G13F16

G17 E15

F13

ROP1013044/4

EMU1

EMU0

JTAG_TDO

JTAG_TCK

JTAG_TRSTN

JTAG_TMS

JTAG_TDI

EMP_WANDA_TEST_IF

R1A

D2001

D15

A11

C15

E13

B17

C17

C11

U12

E11

ROP1013044/4

EMP_WANDA_MODE_SEL

BOOTMODE0

BOOTMODE1

BOOTMODE2

BOOTMODE3

TESTMODE

ANALOG_ENABLE

APLL_BYPASS

CS_BYPASS

APLL_ATEST1

SP2106

SP2107

SP2108

SP2109

SP2110

SP2111

SP2112

SP2113

DB2021_MARIKA_SECURITY_EFUSE

D2000

P18

R19

T20

P19

U20P14

V20

T21

M20

K15

H20

K19

J20

K20

L14

L20

L15

L18

M14

L19

M15

ROP1013083/4 R2A

MARIKA_TEST_AND_EMULATION

TDI

TMS

TCK

TRST_N

TDO

RTCK

TEMU0_N

TEMU1_N

ETMPSTAT0

ETMPSTAT1

ETMPSTAT2

ETMTSYNC

ETMTCLK

ETMTPKT0

ETMTPKT1

ETMTPKT2

ETMTPKT3

ETMTPKT4

ETMTPKT5

ETMTPKT6

ETMTPKT7

JTAG_IF

ETM_IF

R1A

BASEBAND - System Control Test

2/1911 - ROA 128 1534/2 A

Baseband - System Control Test SEMC Electrical Repair Manual

22 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

VDDE18

VDDE18

VDDE18

VDDE18

VBATI

VBATI

VRTC13

VPP VPP

FM_EN

VBT_EN

DCIO_ON

DCIO

VBUS

VDDF13

VCORE13

VCORE15

VCORE18

VBT27

VBACKUP

VDIG

VMSPICO

VFM27

DCIOint

CAM_12_EN

CAM_27_EN

VCAMAF

VCAM27

VCAM12

VCAMIO

VCAMSD

CAMDIR

V_VGAANA

V_VGADIG

VBUS

DCIO_ON

DCIO

VBT27

VBACKUP

VBATI

VDIG

VDDE18

VPP

VCAM27

VMSPICO

VFM27

CAM_12_EN

VBT_EN

FM_EN DCIOint

VRTC13

CAM_27_EN VCAM12

VCAMAF

VCORE15

Page 26

Power Asics

VCORE15

VCORE13

VRTC13

VDDF13

VDDE18

Power Asics

VCAMIO

VCAMSD

CAMDIR

V_VGAANA

V_VGADIG

DCIOint

VFM27

VMSPICO

FM_EN

VBT_EN

DCIO VCORE15

VBT27

VBACKUP

VBATI

VRTC13

VDDE18

VDIG

VCORE18

VDDF13

VCORE13

DCIO_ON

VBUS

Regulators & Charging

Page 24

Regulators & Charging

VBATI

VPP

VDDE18

VCORE18

Memories

Page 27

Memories

VCORE18

VBATI

CAM_12_EN

VCAMSD

VCAMIO

VCAMAF

VCAM12

Page 25

Camera Power

CAM_27_EN

VCAM27

V_VGAANA

V_VGADIG

CAMDIR

VDDE18

Camera Power

BASEBAND - Power Top

2/1911 - ROA 128 1534/2 A

Baseband - Power Top SEMC Electrical Repair Manual

23 (121)

K800 - K810

1202-3085 rev. 2

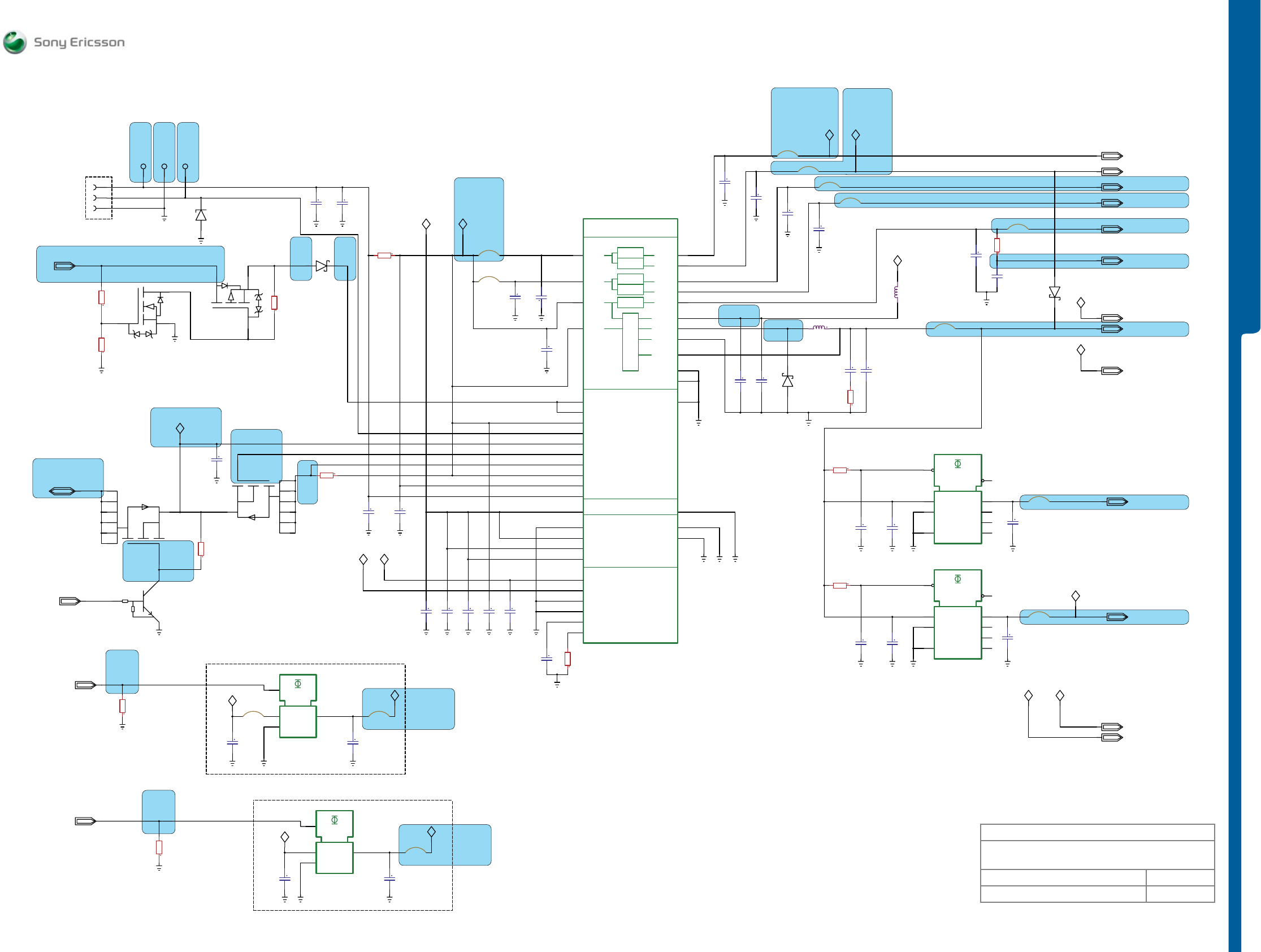

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

VBAT

VDDE18

BDATA

VDD_F

VDIG

VDD_E

VCORE15

VBUS_VINC

DCIOint

DCIOint

VDDE18

VCORE15

VDIG

VDD_D

VDDLP

VBUCK

VBATI

VDD_G

VCORE18

VBATI

FM_EN

VBT_EN

VBATI

DCIOint

VBATI

VBATI

VBT27

VFM27

VBT27VFM27

SWBUCK

VBUS_1

VDDBUCK

3

R1A

X2200 SND10622

2

1

V2200

12

AC

R2200

25mohms

ST2200

21

RYN122684/2 1

2

3

6

7

8

4

5

V2202 R2201

100mohms

RYN122684/2

1

2

3

6

7

8

4

5

V2203

Leadfree

<NM>

C2201

1uF

DCIO

DCIO_ON

R2202

100Kohms

C2202

100nF

C2203

100nF

C2204

100nF

C2205

22pF

C2206

47pF

C2207

47pF

C2208

100nF R2203

100Kohms

ST2201

21

C2209

100nF

C2210

100nF

C2211

22pF

C2212

3.3pF

12

ST2202

12

ST2204

C2213

4.7uF C2214

4.7uF

C2215

4.7uF

21

ST2203

C2216

1uF 21

ST2205

R2204

4.7Kohms

C2218

1uF

L2200 22uH

C2219

10uF

C2220

100nF

C2221

100nF

C2222

10uF

R2205

220mohms

L2201

12

ST2206

C2223

1uF

C2224

4.7uF

ST2207

21

VMSPICO

ST2208

21

VBACKUP

VBATI

VRTC13

VDDE18

VDIG

VBUS

C2200

4.7uF

VCORE13

VCORE15

VCORE18

VDDF13

12

ST2213

C2281

4.7uF

C2280

1uF

VFM27

VBT27

VBT_EN

FM_EN

C2293

1uF

C2295

10uF

R2208

100Kohms

R2209

1Mohms

C2296

4.7uF

C2297

2.2uF

Strap

12

ST2219

Strap

12

ST2218

DCIOint

N2000

ROP1013066/6

B11

D1

D3

D2

J8

H9

F11

F12

H12

E9

D10

A1

D4

F3

M12

A3

E1

A8

B2

F2

E2

M9

M3

A2

M5

M11

L12

B7

A9

C3

M10

L2

J12

K8

G3

K4

B1

C6

K5

E3

R1A

VDDIO_18

VDDIO

IREF

VREF

TEST

SUB

REF

VDDBEAR

VSSBEAR

VDDCODEC

VSSCODEC

AUDIO BLOCK SUPPLY

VSSADCVDDADC

ANALOG BLOCK SUPPLY

FGSENSE-

FGSENSE+

CHSENSE-

CHSENSE+

CHREG

VDCIO

BDATA

VBATD

VSSD

BATTERY MANAGEMENT

ERICSSON AB 2010

POWER

BASEBAND REGULATORS

VSSC

VSSB

BUCK

CONVERTER

MOD1

VBUCK

VSSBUCK

SWBUCK

VDDBUCK

LPREG

LDO_E

LDO_D

VDDLP

VDDE

VDDD

VBATC

VBATB

DIGVSS

DIGVDD

VBUS

USBMOD

VBATF VDDF

VDDG

LDO_F

LDO_G

R2212

1.8Kohms

C22105

100nF

R2213

4.7Kohms

C22106

100nF

V2201

RKZ323907/1

TP2220 TP2221 TP2222

N2200

7

2

5

6

4

18

3

9

RYT1137810/1

MAX1976AETA-130

1.3V

RESET

I.C

SHDN

IN

GND

OUT

EP NC

NC

N2201

7

2

5

6

4

18

3

9

RYT1137810/2

MAX1976AETA-150

1.5V

RESET

I.C

SHDN

IN

GND

OUT

EP NC

NC

V2208

RKZ123905/1

<NM>

V2205

RKZ123905/2

Leadfree

RJE3551335/7

C2217

+

21

Strap

ST2250

RYN123919/1

6

2

1

V2220

NTJD4105C

G

SD

RYN123919/1

3

5

4

V2220

NTJD4105C

G

SD

R2233

100Kohms

R2235

100Kohms

R2234

220Kohms

V2210

2

3

1RYN121916/2

DTC114EM3T5G

C22117

100nF

RYT1137824/1

R1115Z-281B-TR

2

14

3

N2204

IN

GND

OUT

CE

3

41

2

R1115Z-281B-TR

RYT1137824/1

N2203

IN

GND

OUT

CE

FM Radio regulator

Bluetooth regulator

Local ground plane

Vincenne2

BASEBAND - Regulators & Charging

2/1911 - ROA 128 1534/2 A

MP 13

Page

46

MP 12

Page

46

MP 11

Page

46

MP 107

Page 47

MP 103

Page 47

MP 106

Page 47

MP 28

Page

46

MP 126

Page 47

MP 128

Page 47

MP 130

Page 47

MP 127

Page 47

MP 76

Page 46

MP 137

Page 47

MP 77

Page 46

MP 134

Page 47

MP 38

Page 46

MP 39

Page 46 MP 37

Page 46

MP 26

Page 47 MP 25

Page 47

MP 29 Page 46

MP 33 Page 46

MP 58 Page 46

MP 51 Page 46

MP 24 Page 46

MP 56 Page 46

MP 100 Page 47

Baseband - Regulators and Charging SEMC Electrical Repair Manual

24 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

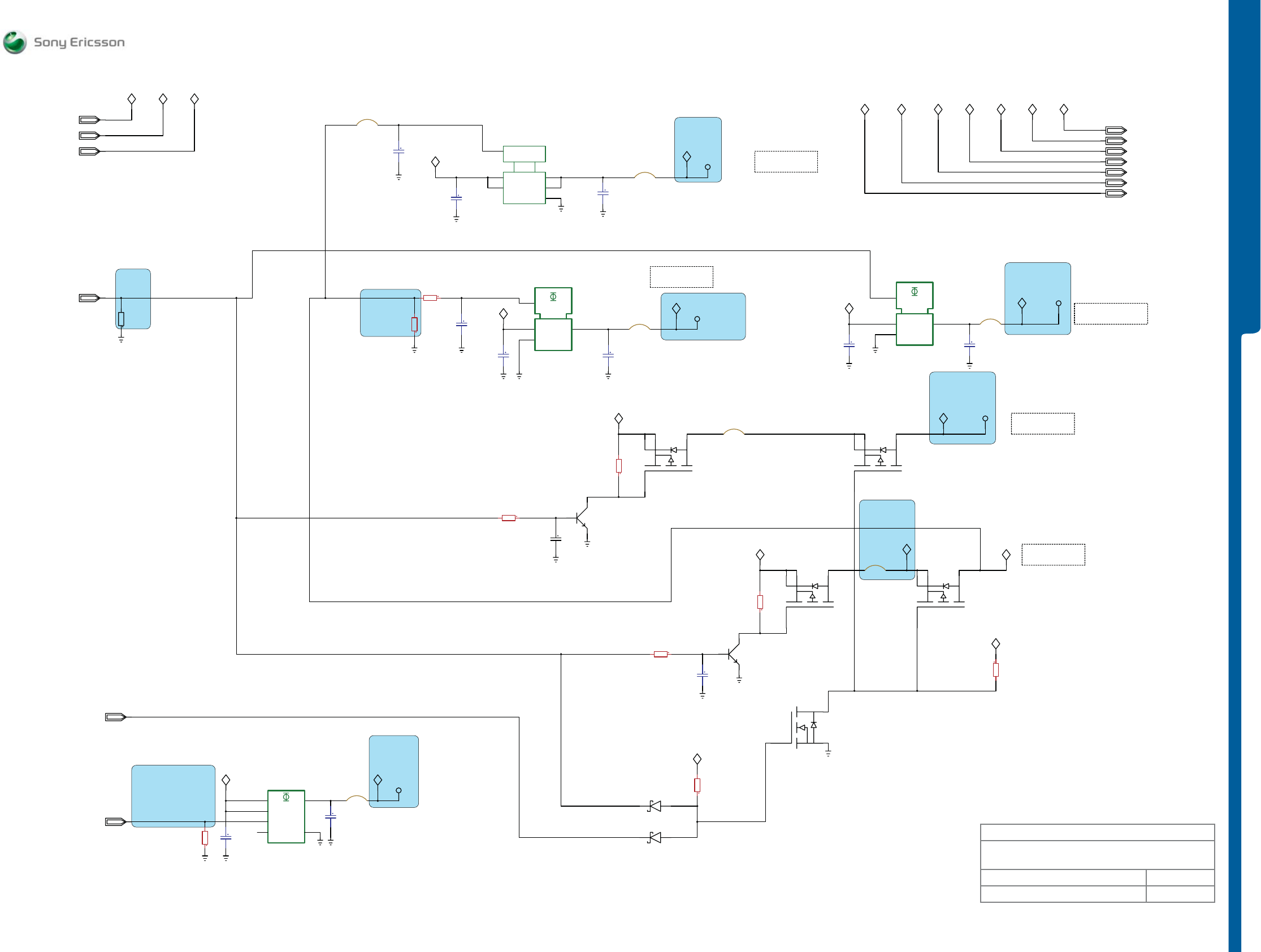

VBATI

VCAM27_1

VCAM27

VBATI

CAM_12_EN

VCAM12

VCAMAF_1

VBATI

VCAMAF

N2202_CE

N2209_CE

VDDE18

VDDE18

VCAMAFVCAMIOVCAMSDVCAM27VCAM12

VBATI VCORE18

V_VGADIG

VCAMSD

VCAMSD

VCAMIO_1

VCAMIO

VBATI

V_VGAANA

V_VGAANAV_VGADIG

CAM_27_EN

CAM_27_EN

CAM_27_EN

VCAMSD_EN

VCORE18

VDDE18

VDDE18

VCAMSD_EN_2

CAMDIR

C2290

1uF

C2292

10uF

CAM_27_EN

R2207

100Kohms ST2217

21

Strap

Max current on VCAM27

70 mA.

CAM_12_EN

C2299

2.2uF

R2210

100Kohms

C22100

10uF

ST2220

12

TP2200

TP2202

N2209

1

5

6

4

3

RYT1137822/1

R1170D281B-TR

CE

VDD1

VDD2

2

GND

VOUT2

VOUT1

C22110

10uF

Max current on VCAMAF

310 mA.

ST2227

Strap

12

TP2201

C22111

1uF

C22112

<NM>

1uF

R2227 15Kohms

R2228 15Kohms

V2212

51

6

7

RYN901926/1

FDJ1027P

G

S1 DS2

V2212

42

3

8

RYN901926/1

FDJ1027P

G

S1 DS2

R2229

100Kohms

R2230

100Kohms

C22113

<NM>

1uF

C22114

<NM>

1uF

R2231

100Kohms

ST2228

Strap

12

ST2229

Strap

12

Max current on VCAMIO

20 mA.

Max current on VCAMSD

110 mA.

VCAMAF

VCAMIO

VCAMSD

VCAM27

VCAM12

VBATI

VCORE18

R2232 15Kohms

C22109

10uF

RYN901926/1

7

6

15

V2213

FDJ1027P

G

S1 DS2

RYN901926/1

8

3

24

V2213

FDJ1027P

G

S1 DS2

CAMDIR

C22115

1uF

C22116

10uF

Strap

12

ST2230 Max current on V_VGAANA

50 mA.

V_VGAANA

V_VGADIG

R2236

100Kohms

V2211

1

2

6

RYN121929/1

BC847BV

C

E

B

V2211

4

5

3

RYN121929/1

BC847BV

C

E

B

TP2204

TP2205

N2205

25

13

4

6

RYT113962/1

R1161D121B-XX

NC GND

VDD VOUT

CE

ECO

RYT1137824/1

R1115Z-281B-TR

2

14

3

N2202

CE

OUT

GND

IN 3

41

2

R1115Z-281B-TR

RYT1137824/1

N2210

CE

OUT

GND

IN

VDDE18

RKZ123905/1

V2215

RKZ123905/1

V2216

R2237

1Mohms

3

1

2

RYN123930/1

NTK3043N

V2214

G

SD

ST2222

Strap

12

BASEBAND - Power Camera

2/1911 - ROA 128 1534/2 A

MP 3

Page 46

MP 95

Page 47

MP 90

Page 46

K800

MP 48

Page 46

MP 92

Page 46

MP 89

Page 46

MP 6

Page 46

MP 93

Page 46

MP 46

Page 46

Baseband - Power Camera SEMC Electrical Repair Manual

25 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

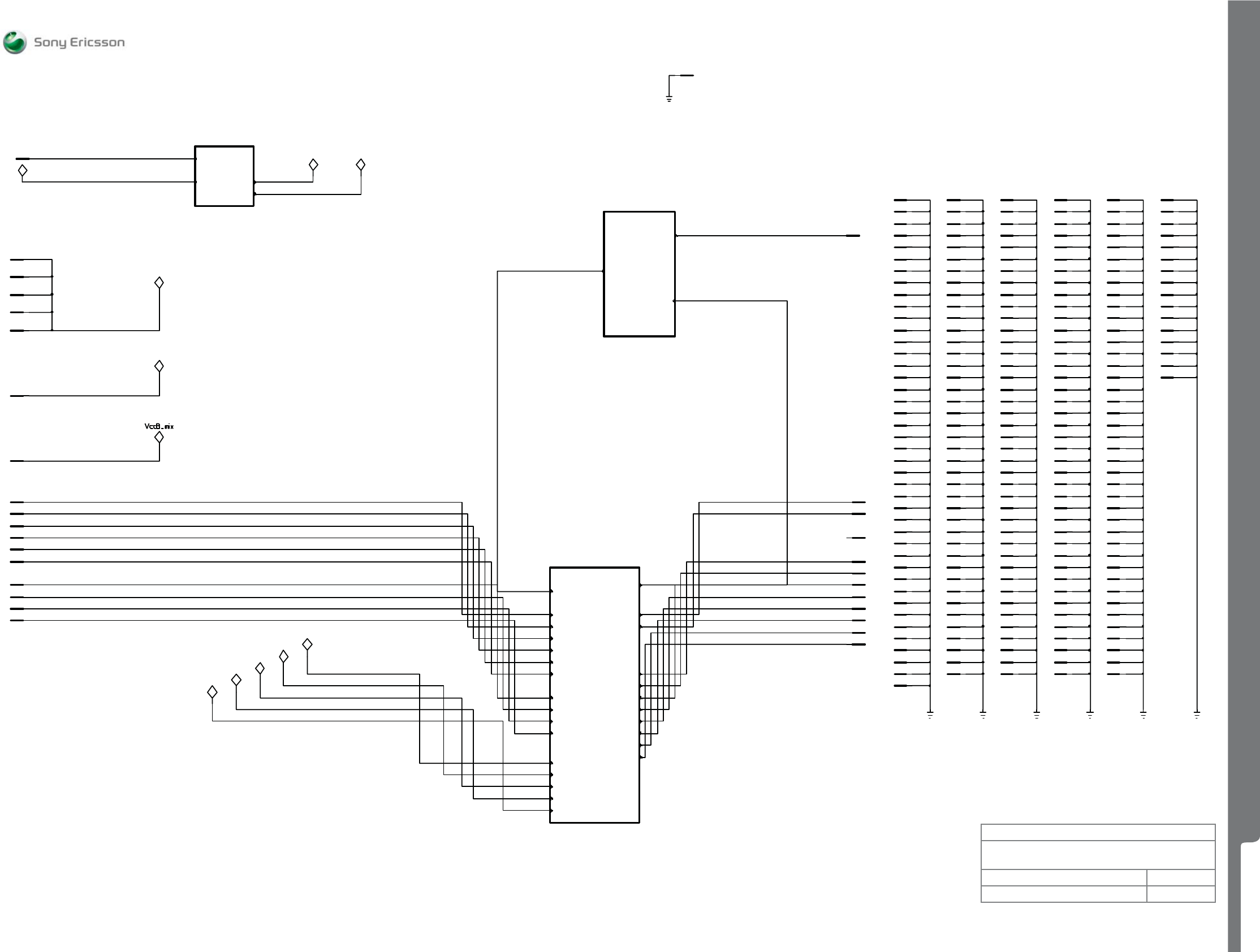

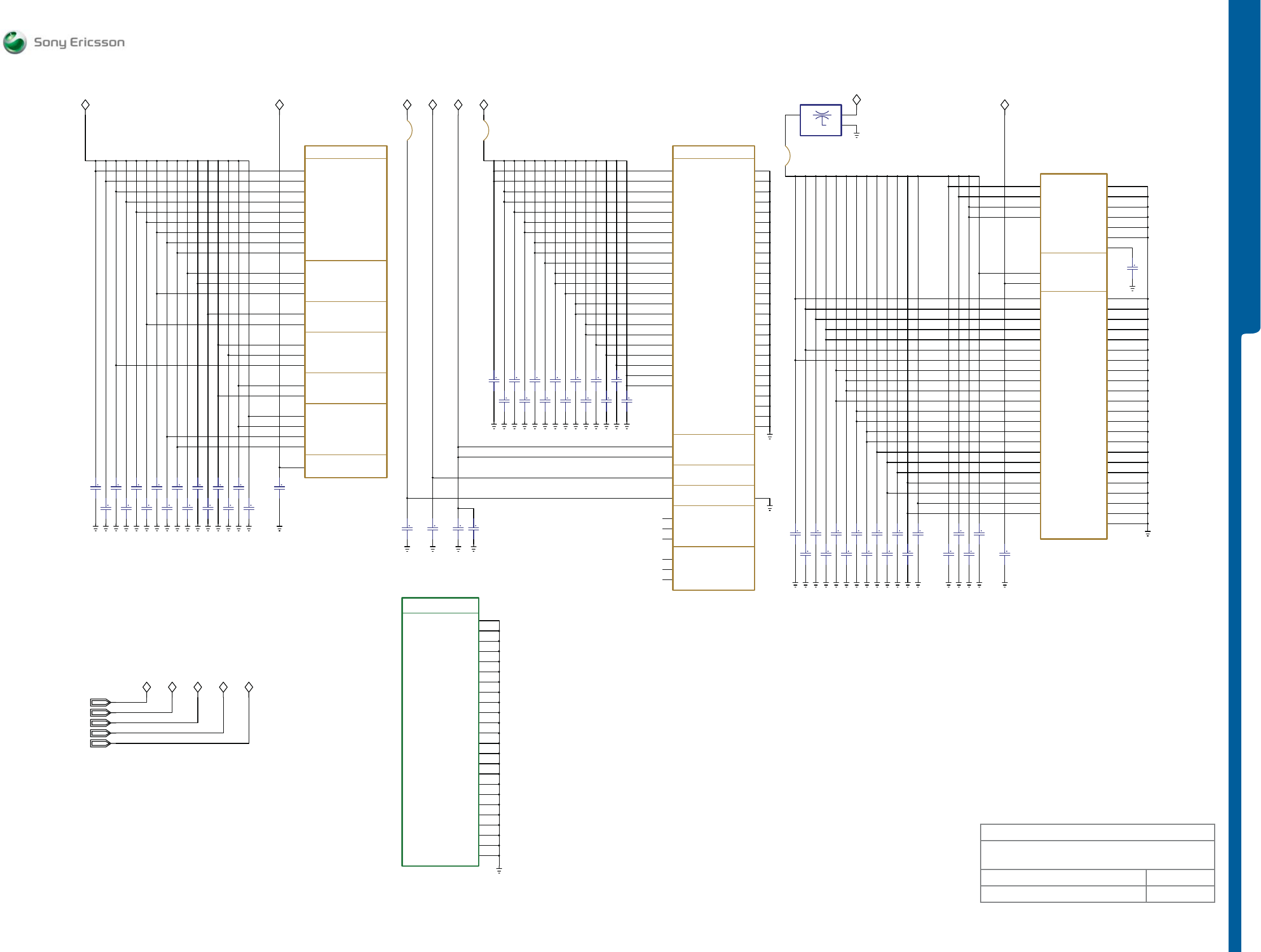

VDDE18 VDDF13 VRTC13 VCORE13 VCORE15

VDDF13 VDDE18

VCORE15

VRTC13 VRTC13VDDF13 VCORE15

VCORE13

R1A

D2001

ROP1013044/4

U11

R11

T17

R12

L15

U10

U6

A3

A6

A12

A17

B14

B8

B1

D2

D16

F17

G1

H17

K17

K2

M1

N17

R1

R13

R16

T2

U5

U16

T6

T12

T11

N11

T8

R8

B15

B11

B10

B7

C3

C5

C12

C16

D3

F3

F15

H3

H16

J16

L2

L16

N3

P16

R3

R4

T4

U15

U17

VSS_22

VSS_23

DIGITAL SUPPLY

VSS_21

VSS_20

VSS_19

VSS_18

VSS_17

VSS_16

VSS_15

VSS_14

VSS_13

VSS_12

VSS_11

VSS_10

VSS_9

VSS_8

VSS_7

VSS_6

VSS_5

VSS_4

VSS_3

VSS_2

VSS_1

BG_REF

VSSCOMPLEX_IO2

VSSCOMPLEX_IO1

VSS_CS_ADPLL

VSS_BG

VSS_RX

VSS_TX

VDD_22

VDD_21

VDD_20

VDD_19

VDD_18

VDD_17

VDD_16

VDD_15

VDD_14

VDD_13

VDD_12

VDD_11

VDD_10

VDD_9

VDD_8

VDD_7

VDD_6

VDD_5

VDD_4

VDD_3

VDD_2

VDD_1

VDD_CLK32

VDD_DPLL

VDD_CS_ADPLL

VDD_BG

VDD_RX

VDD_TX

EMP_WANDA_POWER

VDDE18

VDDF13

VRTC13

VCORE13

VCORE15

100nF C2241

100nF C2225

100nF C2226

100nF C2227

100nF C2228

100nF C2229

100nF C2230

100nF C2231

100nF C2232

100nF C2233

100nF C2234

100nF C2235

100nF C2236

100nF C2237

100nF C2238

100nF C2239

100nF C2240

100nF C2242

100nF C2243

100nF C2244

100nF C2245

100nF C2246

100nF C2247

100nF C2248

100nF C2249

100nF C2250

100nF C2251

100nF C2252

100nF C2253

100nF C2254

100nF C2255

100nF C2256

100nF C2257

100nF C2258

100nF C2259

100nF C2260

100nF C2261

100nF C2262

100nF C2263

100nF C2264

100nF C2265

100nF C2266

100nF C2267

100nF C2268

100nF C2269

100nF C2270

100nF C2271

100nF C2272

100nF C2273

100nF C2274

100nF C2275

100nF C2276

100nF C2277

100nF C2279

ST2211

12

ST2210

12

DB2021_MARIKA P2A

D2000

ROP1013083/1

H21

A17

A13

U1

AA4

AA10

AA19

N1

R1

P21

L21

F1

L1

A9

A5

M1

T1

AA11

AA16

U21

K21

A12

A10

A6

DPLL-1.3V

UMACore-1.3V

RAMCore-1.3V

GSMCore-1.3V

TCMCore-1.3V

ARMCore-1.3V

Core-1.3V

VDDCPLL

VDDCUMA3

VDDCUMA2

VDDCUMA1

VDDCUMA0

VDDCRAM1

VDDCRAM0

VDDCGSM2

VDDCGSM1

VDDCGSM0

VDDCTCM1

VDDCTCM0

VDDCARM2

VDDCARM1

VDDCARM0

VDDC8

VDDC7

VDDC6

VDDC5

VDDC4

VDDC3

VDDC2

VDDC1

VDDC0

MARIKA_POWER_CORE

DB2021_MARIKA_SECURITY_EFUSE

D2000

ROP1013083/4 R2A

AA1

A21

A1

V13

C1

D1

G1

K1

P1

V1

AA3

AA6

AA9

AA14

R21

N21

J21

G21

D21

A20

A18

A15

A11

A8

A4

A3

AA18

Y21

Y17

W18

V16

AA21

Y15

G4

J4

L4

M4

P4

T4

V5

V6

V9

V11

W14

V14

V18

T18

N18

M18

K18

H18

E18

D17

D14

D12

D10

D9

D7

D5

NotConnected_Balls

Efuse

Analog-1.3V

RTC-1.3V

I/O-1.5/1.8V

I/O-1.8V

NC_RSV2

NC_RSV1

NC_RSV0

VPPSTDSENSE

VPPSTD1

VPPSTD0

VSSA

VSS25

VSS24

VSS23

VSS22

VSS21

VSS20

VSS19

VSS18

VSS17

VSS16

VSS15

VSS14

VSS13

VSS12

VSS11

VSS10

VSS09

VSS08

VSS07

VSS06

VSS05

VSS04

VSS03

VSS02

VSS01

VSS00

VDDA

VDDRTC

VDDEWL1

VDDEWL0

VDDEE21

VDDEE20

VDDEE19

VDDEE18

VDDEE17

VDDEE16

VDDEE15

VDDEE14

VDDEE13

VDDEE12

VDDEE11

VDDEE10

VDDEE09

VDDEE08

VDDEE07

VDDEE06

VDDEE05

VDDEE04

VDDEE03

VDDEE02

VDDEE01

VDDEE00

MARIKA_POWER_OTHER

1uF

C2278

23

1

REV501107/201

GND

IN

OUT

ST2212

21

R1A

ERICSSON_AB2012

N2000

ROP1013066/6

F7

G7

G6

E5

E6

E7

E8

F8

G8

H8

H7

H6

H5

G5

F5

D6

D7

D8

F9

G9

J7

J6

J5

F4

ERICSSON AB 2010

POWER

THERMAL GROUNDS

VSSTH1

VSSTH2

VSSTH3

VSSTH4

VSSTH5

VSSTH6

VSSTH7

VSSTH8

VSSTH9

VSSTH10

VSSTH11

VSSTH12

VSSTH13

VSSTH14

VSSTH15

VSSTH17

VSSTH18

VSSTH19

VSSTH21

VSSTH22

VSSTH25

VSSTH26

VSSTH27

VSSTH30 BASEBAND - Power ASICs

2/1911 - ROA 128 1534/2 A

Baseband - Power ASICs SEMC Electrical Repair Manual

26 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

VCORE18 VDDE18

VBATI

VBATI

FLASH_VPP

VDDE18

VDDE18_NOR VCORE18_NOR

VCORE18

VDDE18 VCORE18

PF38F4060L0YTB0

RYT118953/1

D3

C5

D7

D4

D6

J4

J6

J1

D2

J2

J3

J7

J8

C2

C3

C4

C6

C7

C8

K2

K3

K4

K6

K7

K8

D2300

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

S-VCC

F-VPP

VCCQ

VCCQ

VCCQ

VCCQ

D-VCC

D-VCC

D-VCC

F-VCC

F-VCC

F-VCC

F-VCC

X16D_POWER

VCORE18

VDDE18

1KohmsR2206

VPP

VBATI

220nF

C2298

4.7uF C2282

100nF C2283

100nF C2284

100nF C2285

100nF C2286

100nF C2287

100nF C2288

100nF C2289

ST2216

21

RKZ123905/1

V2207

K9F1208R0B-JIB

D2301

H6

H1

A3

G4

F6

G3

G1

F5

F4

F3

F1

E6

E5

E4

E3

E2

E1

D6

D5

D4

D3

D2

D1

C6

C5

C4

C3

C2

C1

B6

B5

B4

B1

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

RYT118932/2

VSS

32Mx8Bit-NAND_FLASH_POW

VCC

VCCQ

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

DNU

DNU

DNU

DNU

DNU

DNU

DNU

DNU

VSS

VSS

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

DNU

DNU

DNU

DNU

DNU

DNU

DNU

POWER/GND

AND NC

SUPPORTPINS

RYN120903/1

V2206

B

E

C

ST2231

1

2

ST2232

12

BASEBAND - Power Memories

2/1911 - ROA 128 1534/2 A

MP 64

Page 46

Baseband - Power Memories SEMC Electrical Repair Manual

27 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

WPABIAS

VCXOCONT

MICN/AUXinR

MICP/AUXinL

FM_ANTENNA

VPP

SERVICEn

VDDE18

VMSPICOVDDE18

MEMRESn MEMRESn

RTEMP

VLOOP

VBACKUP

OPTOTEMP

VBATI VDIG VDDE18 VMSPICO

VBUS

WRFLOOP

AID_AD

DCIO

VAD

DCIO_ON

MSDETECT

FMINT

BTCLKREQ

BTCTS

BTRX

USBVALID

USBRCV

DTMS

CTMS

IRRXD

MEMDPD

BTRTS

BTTX

FM_EN

CAM_12_EN

CAM_27_EN

VBT_EN

AMPCTRL

UKEYBRGT

LKEYBRGT

I2CDAT1

I2CCLK1

VBATI

VDIGVDDE18

MIDREF

SPL

SPR

FLASH_STROBE

EDB_EN

IRTXD

IRSD

CFMS_AID

DFMS

CAMDIR

FOCUSLED_ON

CHARGE_ON

LIDSENSE

CHARGE_RDY

CAMIRQ

STROBE_ENABLE

VDDE18

LKEYBRGT

UKEYBRGT

AMPCTRL

VBT_EN

FM_EN

BTTX

BTRTS

DCIO_ON

I2CCLK1

WPABIAS

VCXOCONT

MICN/AUXinR

MICP/AUXinL

FM_ANTENNA

VPP

SERVICEn

DCIO

RTEMP

VLOOP

VBACKUP

OPTOTEMP

SPL

SPR

FLASH_STROBE

BTRX

BTCTS

BTCLKREQ

FMINT

MEMRESn

VBATI

VDIG

VDDE18

CAM_27_EN

VMSPICO

VBUS

WRFLOOP

MIDREF

VAD I2CDAT1

CAM_12_EN

CAMDIR

FOCUSLED_ON

CHARGE_ON

LIDSENSE

CHARGE_RDY

VBUS

VPP

AID_AD

CTMS

SERVICEn

FM_ANTENNA

MICN/AUXinR

MICP/AUXinL

USBRCV

DTMS

USBVALID

DCIO

IRRXD

CFMS_AID

VBATI

IRSD

IRTXD

SPL

SPR

FLASH_STROBE

VDIG

VDDE18

DFMS

Connectivity

MIDREF

EDB_EN

Connectivity

SIM & MS Pico

MSDETECT

VMSPICO

VDDE18

SIM & MS Pico

CAMIRQ

VBACKUP

VAD

OPTOTEMP

AID_AD

VLOOP

RTEMP

VDDE18

I2CCLK1

I2CDAT1

VCXOCONT

WPABIAS

ADC/DAC & MP-PCM & I2C

WRFLOOP

ADC/DAC & MP-PCM & I2C

LIDSENSE

BTRX

CHARGE_ON

FOCUSLED_ON

UKEYBRGT

MEMDPD

IRTXD

FM_EN

DCIO_ON

AMPCTRL

BTTX

IRSD

BTRTS

DFMS

CFMS_AID

VBT_EN

CTMS

USBVALID

USBRCV

DTMS

BTCLKREQ

IRRXD

MSDETECT

BTCTS

FMINT

GPIO

CAM_27_EN

CAM_12_EN

EDB_EN

CAMDIR

CHARGE_RDY

CAMIRQ

LKEYBRGT

STROBE_ENABLE

GPIO

STROBE_ENABLE

Memories

VDDE18

MEMDPD

MEMRESn

Memories

BASEBAND - Operation & Services Top

2/1911 - ROA 128 1534/2 A

Page 32 Page 29

Page 30

Page 31

Page 33

Baseband - Operation and Services Top SEMC Electrical Repair Manual

28 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

CS0n

SDR_CSn

SDR_CLK

SDR_CLK

SDR_CLK

MEM_ADVn

WEn

MEMWAITn

EMIF_DATA[0:15]

EMIF_ADDRESS[1:25]

NANDBUS

MEMRESn

MEMDPD

MEM_CLK

MEM_CLK

MEM_CLK

MEM_BE0n

MEM_BE1n

SDR_CASn

SDR_RASn

OEn

CS1n

SDR_CKE

SDR_CKE

J9

G1

H2

F6

H1

E5

D8

B6

E3

E6

H3

G2

G3

F1

E1

E2

G7

H7

K5

D5

F2

M9

M1

A9

A1

H6

M7

F4

M3

H8

H9

H5

J5

G6

F3

H4

G4

RYT118953/1

D2300

PF38F4060L0YTB0

X16D_CONTROL

F-CLK

F-ADV

F-RST

F-WP1

F-WP2

F-WE

F-OE

F1-CE

F2-CE

F3-CE

F4-CE/A28

D1-CS

D-DM0

D-DM1

D-CLK

/D-CLK

D-CKE

D-WE

D-BA0

D-BA1

D-CAS

D-RAS

D-UDQS

D-LDQS

WAIT

NC_F-DPD

NC_D2-CS

NC_S-CS1

NC_S-CS2

NC_N-ALE

NC_N-CLE

NC_N-RY/BY

RFU

DU_1

DU_2

DU_3

DU_4

M8

L9

K9

L8

L7

M6

L6

M5

L5

L4

L3

M4

L2

K1

L1

M2

B8

A8

A7

A6

B7

E7

F7

A5

B5

B4

B9

C9

D9

E9

F9

G9

E8

F8

G8

A4

A3

B3

A2

B2

B1

C1

D1

RYT118953/1

D2300

PF38F5060M0Y0B0

DQ15

DQ14

DQ13

DQ12

DQ11

DQ10

DQ9

DQ8

DQ7

DQ6

DQ5

DQ4

DQ3

DQ2

DQ1

DQ0

A27

A26

A25

A24

A23

A22

A21

A20

A19

A18

A17

A16

A15

A14

A13

A12

A11

A10

A9

A8

A7

A6

A5

A4

A3

A2

A1

X16D_IO

EMIF_DATA[15]

EMIF_DATA[14]

EMIF_DATA[13]

EMIF_DATA[12]

EMIF_DATA[11]

EMIF_DATA[0]

EMIF_DATA[1]

EMIF_DATA[2]

EMIF_DATA[3]

EMIF_DATA[4]

EMIF_DATA[5]

EMIF_DATA[6]

EMIF_DATA[7]

EMIF_DATA[8]

EMIF_DATA[9]

EMIF_DATA[10]

EMIF_DATA[0]

EMIF_DATA[1]

EMIF_DATA[2]

EMIF_DATA[3]

EMIF_DATA[4]

EMIF_DATA[5]

EMIF_DATA[6]

EMIF_DATA[7]

EMIF_DATA[8]

EMIF_DATA[9]

EMIF_DATA[10]

EMIF_DATA[11]

EMIF_DATA[12]

EMIF_DATA[13]

EMIF_DATA[14]

EMIF_DATA[15]

EMIF_ADDRESS[1]

EMIF_ADDRESS[2]

EMIF_ADDRESS[3]

EMIF_ADDRESS[4]

EMIF_ADDRESS[5]

EMIF_ADDRESS[6]

EMIF_ADDRESS[7]

EMIF_ADDRESS[8]

EMIF_ADDRESS[9]

EMIF_ADDRESS[10]

EMIF_ADDRESS[11]

EMIF_ADDRESS[12]

EMIF_ADDRESS[13]

EMIF_ADDRESS[14]

EMIF_ADDRESS[15]

EMIF_ADDRESS[16]

EMIF_ADDRESS[17]

EMIF_ADDRESS[18]

EMIF_ADDRESS[19]

EMIF_ADDRESS[20]

EMIF_ADDRESS[21]

EMIF_ADDRESS[22]

EMIF_ADDRESS[23]

EMIF_ADDRESS[24]

EMIF_ADDRESS[25]

EMIF_ADDRESS[1]

EMIF_ADDRESS[2]

EMIF_ADDRESS[3]

EMIF_ADDRESS[4]

EMIF_ADDRESS[5]

EMIF_ADDRESS[6]

EMIF_ADDRESS[7]

EMIF_ADDRESS[8]

EMIF_ADDRESS[9]

EMIF_ADDRESS[10]

EMIF_ADDRESS[11]

EMIF_ADDRESS[12]

EMIF_ADDRESS[13]

EMIF_ADDRESS[14]

EMIF_ADDRESS[15]

EMIF_ADDRESS[16]

EMIF_ADDRESS[17]

EMIF_ADDRESS[18]

EMIF_ADDRESS[19]

EMIF_ADDRESS[20]

EMIF_ADDRESS[21]

EMIF_ADDRESS[22]

EMIF_ADDRESS[23]

EMIF_ADDRESS[24]

EMIF_ADDRESS[25]

NF_D[0]

NF_D[1]

NF_D[2]

NF_D[3]

NF_D[4]

NF_D[5]

NF_D[6]

NF_D[7]

NF_RB

NF_WEn

NF_ALE

NF_CLE

NF_CSn

NF_D[0]

NF_D[1]

NF_D[2]

NF_D[3]

NF_D[4]

NF_D[5]

NF_D[6]

NF_D[7]

NF_RB

MEMRESn

MEMDPD

MEMRESn

NF_ALE

NF_CSn

NF_REn

NF_WEn

MEMRESn

NF_REn

ROP1013083/4 R2A

H14

A16

G14

A14

D13

G13

H13

G12

H12

D11

G11

H11

G10

H10

A7

G9

B5

C5

D8

G8

B4

H9

B3

A2

D6

E4

E3

F4

F3

B17

B16

C15

B15

C14

B14

C13

B13

C12

B12

C11

B11

C10

B10

C9

B9

B18

C4

D4

C7

C6

C8

H1

J3

H2

D2

E1

G3

H8

E2

H4

H3

F2

K3

H7

G2

C3

D3

B7

B8

B6

B1

C2

E5

B2

D2000

DB2021_MARIKA_SECURITY_EFUSE

MARIKA_MEMORY

D0

D1

D2

D3

D4

D5

D6

D7

D8

D9

D10

D11

D12

D13

D14

D15

VINITHI

MEMCLKRET/PSR_CLKRET

MEMWAIT_N

SDR_CLKRET

NF_D0

NF_D1

NF_D2

NF_D3

NF_D4

NF_D5

NF_D6

NF_D7

NF_R/B

A1

A2

A3

A4

A5

A6

A7

A8

A9

A10

A11

A12

A13

A14

A15/SDR_BS0

A16/SDR_BS1

A17

A18

A19

A20

A21

A22

A23

A24

A25/CRE

CS0_N

CS1_N

CS2_N

CS3_N

WE_N

OE_N

MEMBE0_N/SDR_DQML

MEMBE1_N/SDR_DQMU

MEMADV_N

MEMCLK/PSR_CLK

SDR_CS_N

SDR_CLK

SDR_CKE

SDR_CAS_N

SDR_RAS_N

NF_RE_N

NF_WE_N

NF_ALE

NF_CLE

NF_CS_N

Data_and_Address_Bus

Memory_Control

NAND-Flash_IF

NF_CLE

RYT118932/2

A2

A4

B3

F2

G2

H2

H3

H4

G5

H5

G6

A6

B2

A5

A1

D2301

K9F1208R0B-JIB

DATA

IO_7

IO_6

IO_5

IO_4

IO_3

IO_2

IO_1

IO_0

32Mx8Bit-NAND_FLASH_IF

CLE

ALE

CE

RE

WE

WP

R/B

SP2333

SP2319

BASEBAND - Operation & Sevices Memories

2/1911 - ROA 128 1534/2 A

Baseband - Operation and Services Memories SEMC Electrical Repair Manual

29 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

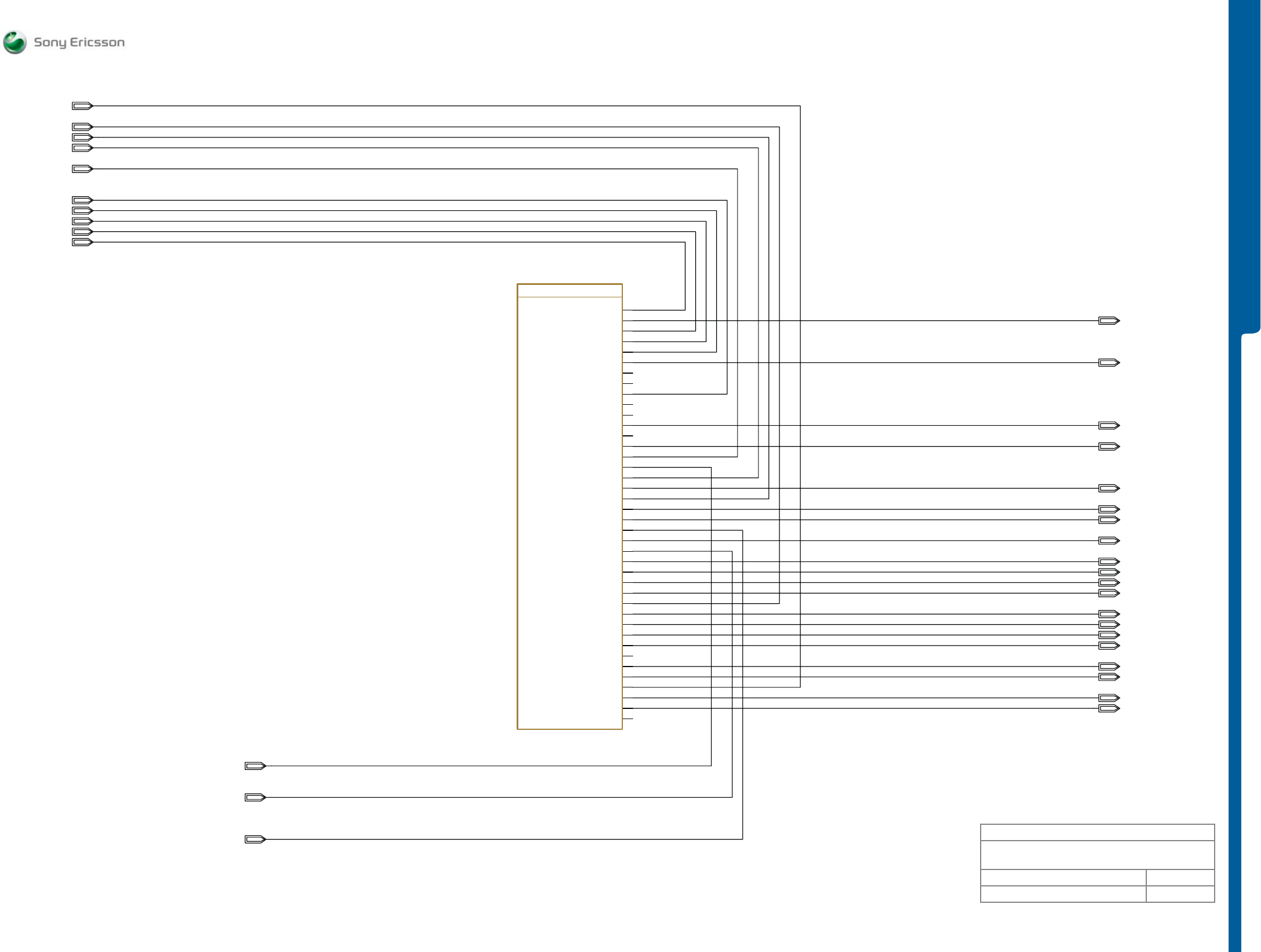

DTMS

DTMS

DFMS

USBRCV

USBRCV

USBVALID

USBVALID

CTMS

CTMS

CFMS_AID

BTCLKREQ

BTCLKREQ

AMPCTRL

FMINT

FMINT

BTRX

BTRX

BTTX

BTCTS

BTCTS

BTRTS

DCIO_ON

LKEYBRGT

UKEYBRGT

VBT_EN

MSDETECT

MSDETECT

FM_EN

IRRXD

IRRXD

IRTXD

IRSD

MEMDPD

CAM_27_EN

EDB_EN

CAM_12_EN

CAMDIR

CHARGE_ON

LIDSENSE

CAMIRQ

FOCUSLED_ON

STROBE_ENABLE

CHARGE_RDY

CTMS

USBVALID

USBRCV

DTMS

BTCLKREQ

IRRXD

MSDETECT

BTCTS

BTRX

FMINT

DFMS

CFMS_AID

VBT_EN

IRTXD

FM_EN

DCIO_ON

LKEYBRGT

UKEYBRGT

AMPCTRL

BTTX

IRSD

BTRTS

MEMDPD

CAM_27_EN

D2000

W11

V10

Y9

P9

R9

W10

Y8

W9

AA8

Y7

AA7

R8

Y6

W8

V8

Y5

P8

W7

AA5

Y4

V7

W6

W4

W5

Y3

AA2

V4

V3

W3

U4

Y2

Y1

W2

N8

W1

R4

V2

T3

P7

R3

ROP1013083/4 R2A

DB2021_MARIKA_SECURITY_EFUSE

MARIKA_GPIO

GPIO00/UARTRX0

GPIO01/UARTTX0

GPIO02/UARTCTS0/USBRCV

GPIO03/UARTRTS0/USBVBUS

GPIO04/UARTRX1

GPIO05/UARTTX1

GPIO06/UARTCTS1

GPIO07/UARTRTS1

GPIO10/SYSCLKREQ0

GPIO11/SYSCLKREQ1

GPIO12/SYSCLKREQ2

GPIO13/GPSSTART

GPIO14

GPIO15/EXTTRIG

GPIO16/BUS_REQ

GPIO17/BUS_GNT

GPIO20/UARTRX3/DSPGPIO0

GPIO21/UARTTX3/DSPGPIO1

GPIO22/UARTCTS3/DSPGPIO2

GPIO23/UARTRTS3/DSPGPIO3

GPIO24/UARTRX6/SPIDI/DSPGPIO4

GPIO25/UARTTX6/SPIDO/DSPGPIO5

GPIO26/UARTCTS6/SPIRDY/DSPGPIO6

GPIO27/UARTRTS6/SPICLK/DSPGPIO7

GPIO30/FM

GPIO31/PWM0

GPIO32/PWM1

GPIO33/MMCPOW

GPIO34/MCCLKRET

GPIO35/JOGXA

GPIO36/JOGXB

GPIO37/JOGXS

GPIO40/JOGYA/SPIEN0

GPIO41/JOGYB/SPIEN1/UARTCTS0

GPIO42/JOGYS/SPIEN2/UARTRTS0

GPIO43/TGBUZZ/SPIEN3/IRSELECT

GPIO44/UARTRX6

GPIO45/UARTTX6/IRTX/RCTX

GPIO46/UARTCTS6/IRSD

GPIO47/UARTRTS6/RCTX/RC

Gen.Purpose_I/O

EDB_EN

CAM_12_EN

CAMDIR

CHARGE_RDY

FOCUSLED_ON

CHARGE_ON

LIDSENSE

CAMIRQ

STROBE_ENABLE

BASEBAND - Operation & Services GPIO

2/1911 - ROA 128 1534/2 A

Baseband - Operation and Services GPIO SEMC Electrical Repair Manual

30 (121)

K800 - K810

1202-3085 rev. 2

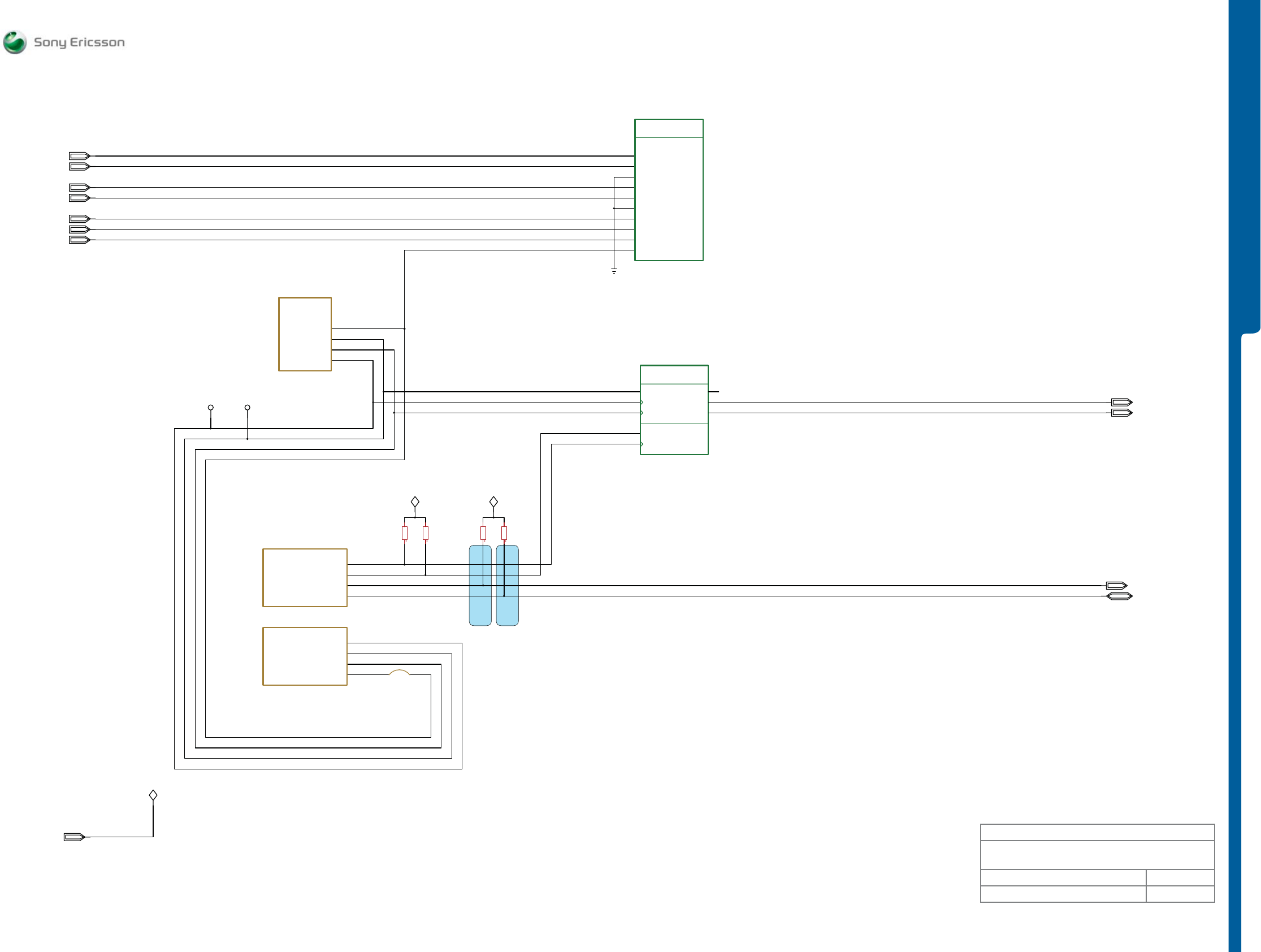

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

VDDE18

VDDE18 VDDE18

I2CCLK1

I2CDAT1

ADCSTR

ADCSTR

DACSTR

DACDAT

DACCLK

WPABIAS

VCXOCONT

VAD

RTEMP

VLOOP

VBACKUP

OPTOTEMP

AID_AD

WRFLOOP

ROP1013044/4

M16

N15

L13

M15

D2001

R1A

ACC_STR

DAC_DAT

DAC_STR

DAC_CLK

EMP_WANDA_OP

ADC_DAC IF

VDDE18

RTEMP

VLOOP

AID_AD

OPTOTEMP

VAD

VBACKUP

WPABIAS

VCXOCONT

I2CCLK1

R2313

3.3Kohms

R2314

3.3Kohms

M3

N15

N2

M19

ROP1013083/4

D2000

DB2021_MARIKA_SECURITY_EFUSE

MARIKA_I2C_IF

I2CSCL0

I2CSDA0

I2CSCL1

I2CSDA1

W16

Y18

V15

AA20

ROP1013083/4

D2000

DB2021_MARIKA_SECURITY_EFUSE

MARIKA_DAC_IF

DACCLK

DACDAT

DACSTR

ADCSTR

WRFLOOP

I2CDAT1

ROP1013066/6

C7

L10

K10

L11

K11

K12

J11

J10

J9

D9

N2000

ERICSSON_AB2012

R1A

ADC

ERICSSON AB 2010

OP AND SERVICES

ADSTR

GPA13

GPA12

GPA7

GPA6

GPA5

GPA4

GPA3

GPA2

GPA1

R2311

10Kohms

R2312

10Kohms

SP2350 SP2351

ROP1013066/6

A10

C9 B5

G11

H11B10

B9

C8

N2000

ERICSSON_AB2012

R1A

I2C IF

DACDAT

DACCLK

DACSTR

SDA

SCL

ERICSSON AB 2010

OP AND SERVICES

DAC DACO1

DACO3

DAC02/4

ST2301

21

BASEBAND

Operation & Services ADC & DAC

2/1911 - ROA 128 1534/2 A

MP 65

Page 46 MP 66

Page 46

Baseband - Operation and Services ADC & DAC SEMC Electrical Repair Manual

31 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

MSSDIO0

MSSDIO1

MSSDIO2

MSSDIO3

MSSCLK

MSBS

VMSPICO

MSDETECT

VDDE18

SIMRSTn_1

SIMCLK_1

SIMDAT_1 SIMDAT_2

SIMDAT

SIMCLK

SIMCLK_2

SIMRSTn

SIMVCC

VMSPICO VDDE18

VDDE18

MSDETECT

R2305

1Mohms

C2307

22pF

<NM>

R2307 0ohms

R2306 0ohms

R2308

10Kohms

C2310

22pF

C2311

22pF

C2312

22pF

VMSPICO

VDDE18

D2000

N14

N20

M21

M2

L8

L2

L7

L3

K8

K7

K2

ROP1013083/4

DB2021_MARIKA_SECURITY_EFUSE

SIM_IF

MemoryCard_IF

SIMDAT

SIMCLK

SIMRST_N

MSSDIODIR/MMCDATDIR

MSBSDIR/MMCCMDDIR

MSBS/MMCCMD

MSSCLK/MMCCLK

MSSDIO3/MMCDAT3/CD

MSSDIO2/MMCDAT2

MSSDIO1/MMCDAT1

MSSDIO0/MMCDAT0

MARIKA_CARD_IF

R1A

ROP1013066/6

J3

H1

G1

H3

C2

G2

F1

H2

N2000

ERICSSON_AB2012

SIMVCC

SIMDAT

SIMCLK

SIMRST

SIMOFF

SRST

SCLK

SDAT

ERICSSON AB 2010

OP AND SERVICES

SIM IF

R2326

10Kohms

C2309

1uF

C2314

1uF

R2A

RNK87146

5

6

3

7

2

1

X2302

CCM03-3801

SIMVCC

SIMCONRST

SIMCONCLK

GND

NC

SIMCONDAT

C2313

1nF

C2325

100pF

<NM>

V2302

RKZ123905/1

SP2334 SP2335

R1A

BS

X2301

RNK87147

1

DATA1

2

DATA0

3

DATA2

4

INS 5

DATA3

6

SCLK

7

VCC

8

VSS

9

Reserved

10

Reserved

11

Chassi

12

Chassi

13

Chassi 14

Chassi

15

Chassi

16

Chassi

17

Chassi

18

Chassi 19

Chassi

20

Chassi

21

Chassi

22

R2324 100Kohms

R2325 100Kohms

R2327 100Kohms

R2328 100Kohms

C2330

33pF

C2332

1uF

MS Micro connector

BASEBAND

Operation & Services MS Pico and SIM

2/1911 - ROA 128 1534/2 A

MP 125

Page

47

MP 96 Page 47

MP 123

Page

47

MP 124

Page

47

MP 129

Page

47

Baseband - Operation and Services MS Pico & SIM SEMC Electrical Repair Manual

32 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

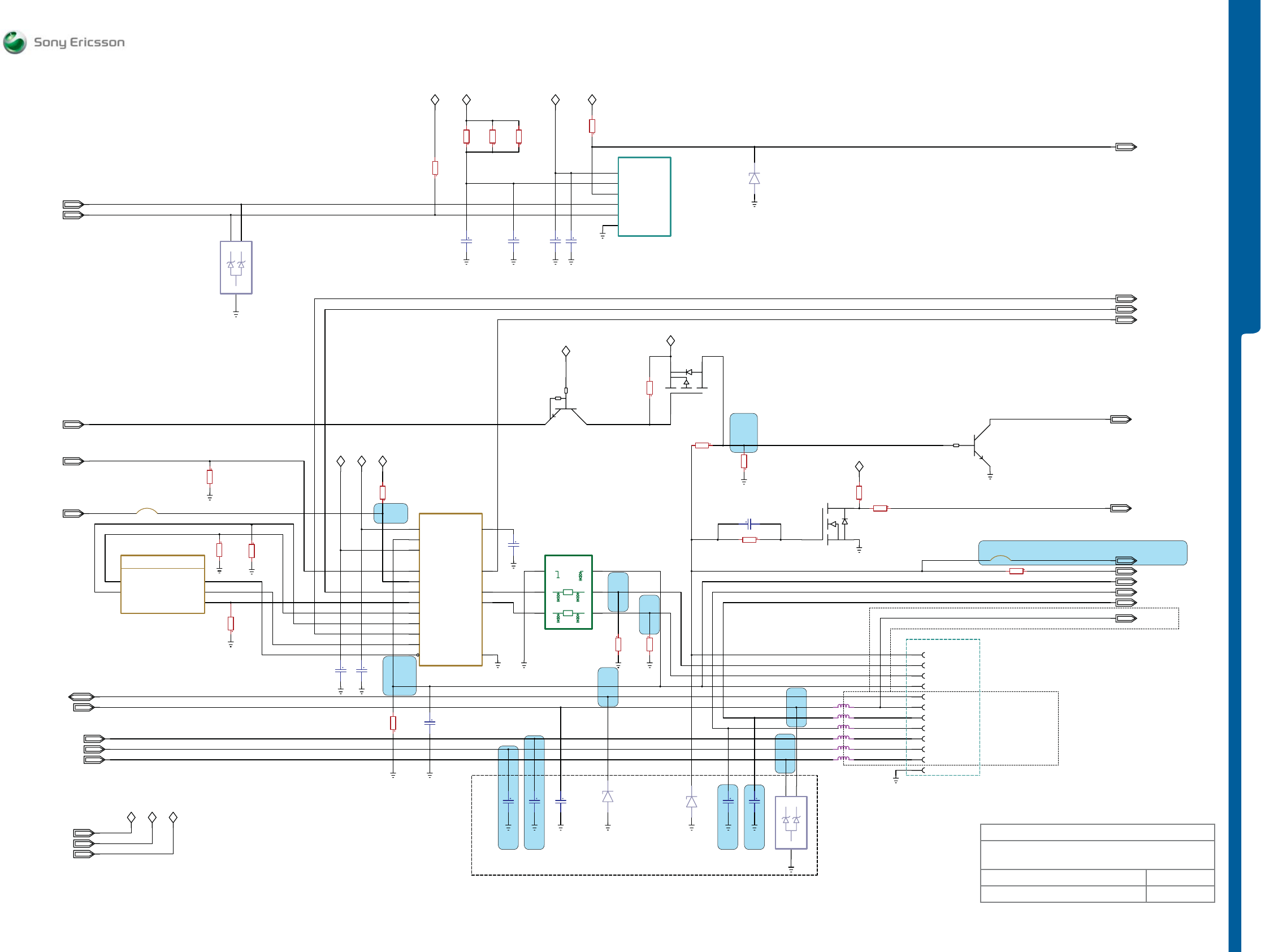

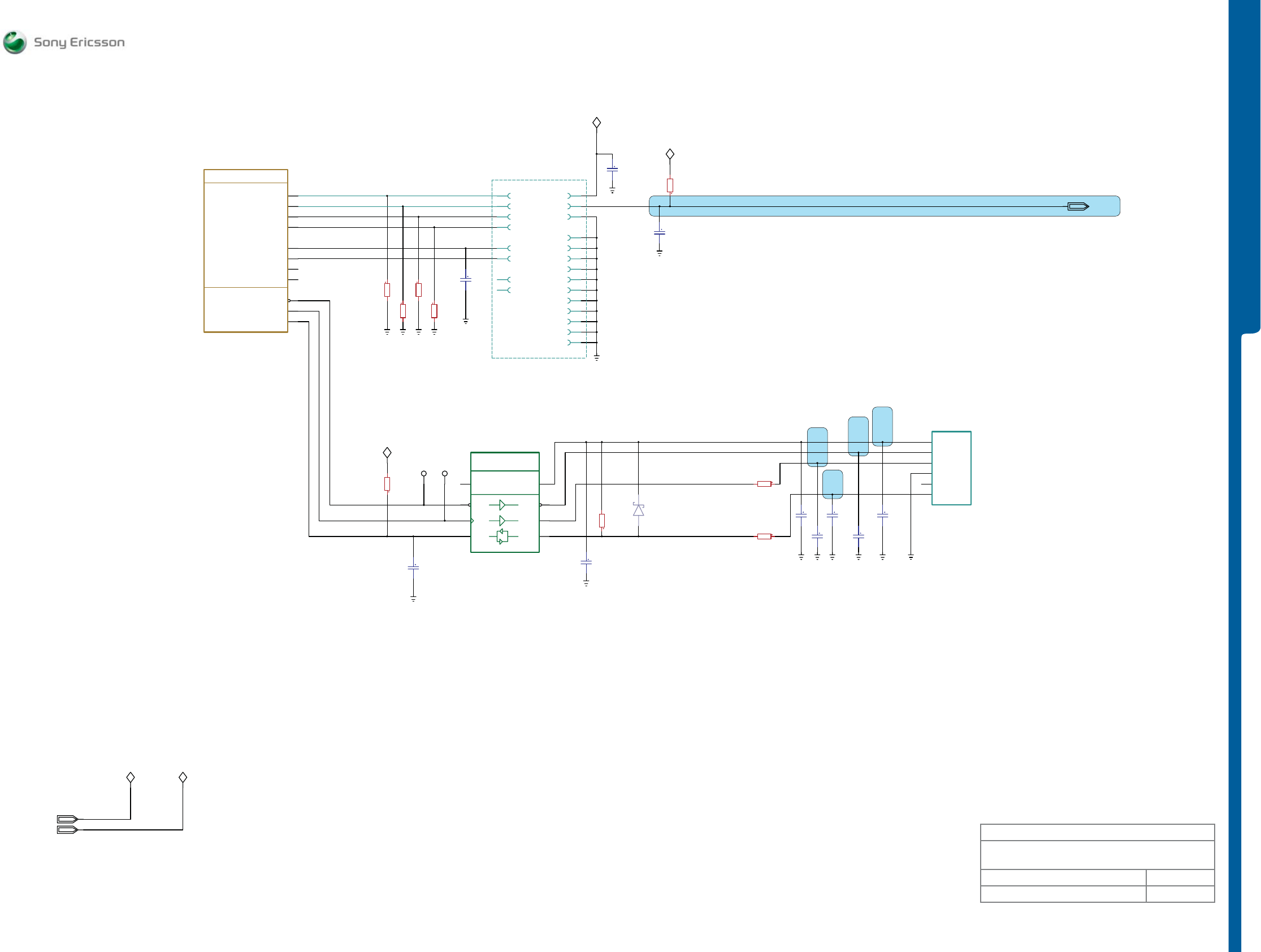

USBPUEN

USBSUSP

USBOE

USBDP

USBDM

DFMS

VDIG VDDE18

VDDE18VDIG

AID/ACB/VPP_1

AID/ACB/VPP

AID/ACB/VPP

VDDE18

CTMS

SERVICEn

USBRCV

USBVALID

DTMS

FM_ANTENNA

SPL

SPR

MICP/AUXinL

MICN/AUXinR

DCIO

VBATI

IRSD

VBATI

VDIG

IRTXD

VDDE18

IRRXD

VPP

AID_AD

MIDREF

VDDE18

VDDE18

EDB_EN

VIRLED

VBUSVBUS

DPext/DTMS

DMext/DFMS

VDIG

FLASH_STROBE_2FLASH_STROBE

CFMS_AID

VDDE18

CFMS_AID_1

<NM> RNV79936

X2300

1

VBUS

SPREF

2

Mic+/AUXinL

3

Mic-/AUXinR

4

SPL

5

SPR

6

VIDEO/STROBE

7

8

AID/ACB/VPP

GND

9

10

D+/DTMS

11

D-/DFMS

CTMS

SERVICEn

FM_ANTENNA

MICN/AUXinR

MICP/AUXinL

USBRCV

DTMS

USBVALID

CFMS_AID

VBATI

IRSD

IRTXD

SPL

SPR

VDIG

VDDE18

DFMS

100nF

C2300

100nF

C2301

100nF

C2302

RYN901918/2

6

2

1

V2300

G

SD

RYN901918/2

3

5

4

V2300

DS

G

1KohmsR2301

560ohms

R2302

4.7Kohms

R2303

470ohmsR2304

DCIO

12

DCIO

4.7uF

C2315

100Kohms

R2310

IRRXD

NZL5V6-SOT723

V2303

21

3

RKZ223914/1

A

C1

C2

47KohmsR2316

ST2300

21

AID_AD

VPP

DB2021_MARIKA_SECURITY_EFUSE

ROP1013083/4 R2A

C18

C16 D16

D15

A19

D2000

USB_IF

USBPUEN

USBSUSP

USBOE

USBDM/USBSE0

USBDP/USBDAT

MARIKA_USBIF

VBUS

MIDREF

100Kohms

R2321

EDB_EN

470Kohms

R2322

ISP1110

RYT109913/1

10

11

176

3

1

8

7

2

16

9

15

13

12

5

4

14

D2304

ISP1110

VREG

RXD

DP

DM

GND_DIE

SUSPEND

OE

RCV

VM/VMO

VP/VPO

SOFTCON

VBUSDET

UART_EN

TXD

VCC_UART

VCC_5V0

VCC_IO

15V

21

V2204

CA

FLASH_STROBE

220nF

C2320

220nF

C2321

1uF

C2322

100MHz

L2300

100MHz

L2301

100MHz

L2302

100MHz

L2303

100MHz

L2304

100MHz

L2305

22pF

C2350

<NM>

33pF

C2351

<NM>

33pF

<NM>

C2352

27Kohms

R2350

1uF

C2326

CIM-130M7-T

RKZ923919/1

1

3

4

2

5

6

H2300

LEDA

RXD

TXD

SD

GND

VCC

IrDA module

<NM>

V2305

2

1

3

RKZ223914/1

A

C1

C2

<NM>

V2306

12

CA

IP4078CX6

N2300

A1

C2C1

B2B1

A2

RKZ923921/1

A2

B2

A1

C2C1

B1

R2338

100Kohms

UNR32A7

RYN121931/1

1

3

2

V2301

1KohmsR2331

47pFC2331

15V

12

V2221

CA

1nF

C2327

1nF

C2328

56ohms

R2343

56ohms

R2342

56ohms

R2309

100Kohms

<NM>

R2360

R2341

470Kohms

R2344

470Kohms

1

3

2

RYN121916/2

DTC114EM3T5G

V2310

10Kohms

R2300

System connector

No ground plane underneath!

Signal routed in outer layer and no ground plane underneath!

Place close to system connector X2300.

R2712

100Kohms R2713

100Kohms

ST2302

21

BASEBAND

Operation & Services Connectivity

2/1911 - ROA 128 1534/2 A

MP 105

Page 47

MP 78

Page 46

MP 108

Page 47

MP 136

Page 47

MP 109

Page 47

MP110

Page 47

MP 111

Page 47

MP 112

Page 47

MP 131

Page 47

MP 104

Page 47

MP 101

Page 47

MP 132

Page 47

MP 102

Page 47

Baseband - Operation and Services Connectivity SEMC Electrical Repair Manual

33 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

HSSLRX

HSSLTXCLK

HSSLTX

HSSLRXCLK

ISEVENTn

ISSYNCn

VDIG VDDE18 VCORE15

VDDE18VDIG

VCORE15VDIG

WSTR

WDAT

WCLK

TXQB

TXQA

TXIA

TXIB

MODA

MODB

MODC

MODD

ANTSW0

ANTSW1

ANTSW2

ANTSW3

RXQB

RXQA

RXIA

RXIB

IDATA

QDATA

DCLK

DIRMODCLK

RADSTR

RADDAT

RADCLK

TXON

VDIG

VDDE18

VCORE15

DCLK

QDATA

IDATA

RXIB

RXIA

RXQA

RXQB

WSTR

WDAT

WCLK

TXQB

TXQA

TXIA

TXIB

RADSTR

RADDAT

RADCLK

TXON

MODA

MODB

MODC

MODD

ANTSW0

ANTSW1

ANTSW2

ANTSW3

DIRMODCLK

VDIG

RXIB

RXIA

RXQA

RXQB

HSSLRXCLK

HSSLTX

VCORE15

ISEVENTn

ISSYNCn

TXIB

TXIA

TXQA

TXQB

WCLK

WDAT

WSTR

HSSLTXCLK

HSSLRX

WCDMAWCDMA

DIRMODCLK

HSSLTXCLK

HSSLRX

DCLK

QDATA

IDATA

VDIG

VDDE18

MODB

MODA

HSSLTX

HSSLRXCLK

RADDAT

RADCLK

RADSTR

TXON

ISSYNCn

ISEVENTn ANTSW3

ANTSW2

ANTSW1

ANTSW0

MODD

MODC

GSMGSM

BASEBAND - UMTS Access Top

2/1911 - ROA 128 1534/2 A

Page 35

Page 36

Baseband - UMTS Access Top SEMC Electrical Repair Manual

34 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

RXQB

RXQA

RXIA

RXIB

HSSLTX

HSSLRXCLK

VCORE15

WDAT

WCLK

TXQB

TXQA

TXIA

TXIB

ISSYNCn

ISEVENTn

VCORE15 VCORE15

HSSLRX

HSSLTXCLK

WSTR_1V5 WSTR

VDIG

VCORE15 VDIG

D2001

M13

P15

R17

A13

B12

A15

A16

B16

C14

T7

R7

U7

U8

N8

T10

N9

T9

R9

N10

R10

ROP1013044/4 R1B

EMP_WANDA_UMTSACCESS

RADIO_STR

RADIO_DAT

RADIO_CLK

ADC_RXEXT_P

ADC_RXEXTREF

DAC_Q_OUT_INV

DAC_Q_OUT

DAC_I_OUT

DAC_I_OUT_INV

DAC_TXEXTRES

IS_SYNC

IS_EVENT

HSSLTX_D

HSSLRX_CLK

HSSLTX_CLK

HSSLRX_D

ADC_I_IN_INV

ADC_I_IN

ADC_Q_IN

ADC_Q_IN_INV

HSSLRX

HSSLTXCLK

WSTR

WDAT

WCLK

TXQB

TXQA

TXIA

TXIB

ISSYNCn

ISEVENTn

VCORE15

HSSLTX

HSSLRXCLK

RXQB

RXQA

RXIA

RXIB

R2400 43Kohms

C2400

100nF

<NM>

R2401

100Kohms

<NM>

R2402

100Kohms

SP2400 SP2401

RYT109914/1

A1C1

C3 A3

B2

N2402

ST1G3234

GND

B1

VCCB

A1

VCCA

VDIG

C2401

100nF

C2402

100nF

BASEBAND - UMTS Access WCDMA

2/1911 - ROA 128 1534/2 A

Baseband - UMTS Access WCDMA SEMC Electrical Repair Manual

35 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

ANTSW0_1V8

ANTSW1_1V8

ANTSW2_1V8

ANTSW3_1V8

VDDE18 VDIG

VDDE18 VDIG

RADSTR_1V8

MODA_1

MODB_1

MODC_1

MODD_1

MODA

MODB

MODC

MODD

RADSTR

ANTSW0

ANTSW1

ANTSW2

ANTSW3

ISSYNCn

ISEVENTn

HSSLRX

HSSLTXCLK

IDATA

QDATA

DCLK

RADCLK

RADCLK

HSSLTX

HSSLRXCLK

RADDAT

RADDAT

TESTOUT_1

VDDE18

DIRMODCLK

TXON

TXON

N2400

B2

B6B4

C1

C3

C5

C7

A1

A3

A5

A7

RYT113995/1

ST4G3234

VCCA

A1

VCCB

B1

GND

A3

A4

A2

B4

B3

B2

VDDE18

VDIG

IDATA

QDATA

DCLK

HSSLRX

HSSLTXCLK

ISEVENTn

ISSYNCn

TXON

RADSTR

RADCLK

RADDAT

HSSLRXCLK

HSSLTX

MODA

MODB

MODC

MODD

ANTSW0

ANTSW1

ANTSW2

ANTSW3

C2403

100nF

C2404

100nF

R2409

10Kohms

D2000

ROP1013083/4 R2A

R10

P10

R11

P11

AA12

R12

W12

Y10

Y11

Y13

Y12

Y19

P13

V17

Y20

P12

U18

W19

W13

V12

Y14

AA13

DB2021_MARIKA_SECURITY_EFUSE

MARIKA_ACCESS

IDATA

QDATA

DCLK

HSSLRX

HSSLTXCLK

DIRMOD0

DIRMOD1

DIRMOD2

DIRMOD3

DIRMODCLK/TESTOUT

RFCLK

RFSTR

RFDAT

BANDSEL/TXON

ANTSW0

ANTSW1

ANTSW2

ANTSW3

ISSYNC_N

ISEVENT_N

HSSLTX

HSSLRXCLK

GSMRadio_IF

InterSystem_IF

UMTS-HSSL_IF

DIRMODCLK

ST22408 21

ST2407 21

ST2406 21

ST2405 21

ST2404 21

BASEBAND - UMTS Access GSM

2/1911 - ROA 128 1534/2 A

Baseband - UMTS Access GSM SEMC Electrical Repair Manual

36 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

VBATI VDIG VDDE18 VCAM27

VBATI

PCMDATA

PCMDATB

PCMSYN

PCMCLK

VAD

SPL

SPR

MIDREF

VCAM12

VCAMAF

AMPCTRL

MICP/AUXinL

MICN/AUXinR

FML

FMR

UKEYBRGT

LKEYBRGT

VBATIVDIG

DCIOint VDDE18

OPTOTEMPI2CDAT1

I2CCLK1

DCIOint

CAMDIR

CAMSYSCLK

VCAM27VCAMAFVDDE18VCAM12

VDIG

ONSWAn

VDDE18

VBATI

FOCUSLED_ON

CHARGE_ON

VCAMIOVCAMSD

VCAMIO VCAMSD

STROBE_ENABLE

V_VGAANA V_VGADIG

V_VGAANAV_VGADIG

FLASH_STROBE_1

I2CCLK1

UKEYBRGT

AMPCTRL

MICN/AUXinR

MICP/AUXinL

VBATI

VDIG

VDDE18

VCAM27

CAMSYSCLK

OPTOTEMP

SPL

SPR

FLASH_STROBE

PCMDATA

PCMDATB

PCMSYN

PCMCLK

LKEYBRGT

ONSWA

FMR

FML

CAMDIR

MIDREF

VAD

I2CDAT1

VCAM12

VCAMAF

DCIOint

FOCUSLED_ON

CHARGE_ON

LIDSENSE

CHARGE_RDY

VBATI

AMPCTRL

MICN/AUXinR

MICP/AUXinL

FMR

FML

MIDREF

PCMDATB

PCMDATA

PCMSYN

PCMCLK

SPL

SPR

VAD

AudioAudio

VCAMIO

VCAMSD

CAMIRQ

VDDE18

Display

VBATI

VDIG

DCIOint

UKEYBRGT

LKEYBRGT

OPTOTEMP

Display

STROBE_ENABLE

V_VGAANA

V_VGADIG

V_VGADIG

V_VGAANA

VCAM27

CAMIRQ

CAMDIR

Camera

I2CDAT1

CAMSYSCLK

VDDE18

VCAMAF

VCAM12

VCAMIO

VCAMSD

I2CCLK1

FLASH_STROBE_1

FLASH_STROBE

STROBE_ENABLE

VDIG

Camera

VBATI

VDDE18

Keyboard

CHARGE_ON

FLASH_STROBE_1

FOCUSLED_ON

ONSWAn

LIDSENSE

CHARGE_RDY

Keyboard

CAM_27_EN

CAM_27_EN CAM_27_EN

VGA_STDBY

VGA_STDBY VGA_STDBY

VCAMIO

VCAMIO

XE_STROBE

XE_STROBE

FLASH_STROBE

LIDSENSE

CHARGE_RDY

CAMIRQ

XE_STROBE

BASEBAND - MMI Top

2/1911 - ROA 128 1534/2 A

Page 38

Page 41

Page 40

Page 39

Baseband - MMI Top SEMC Electrical Repair Manual

37 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

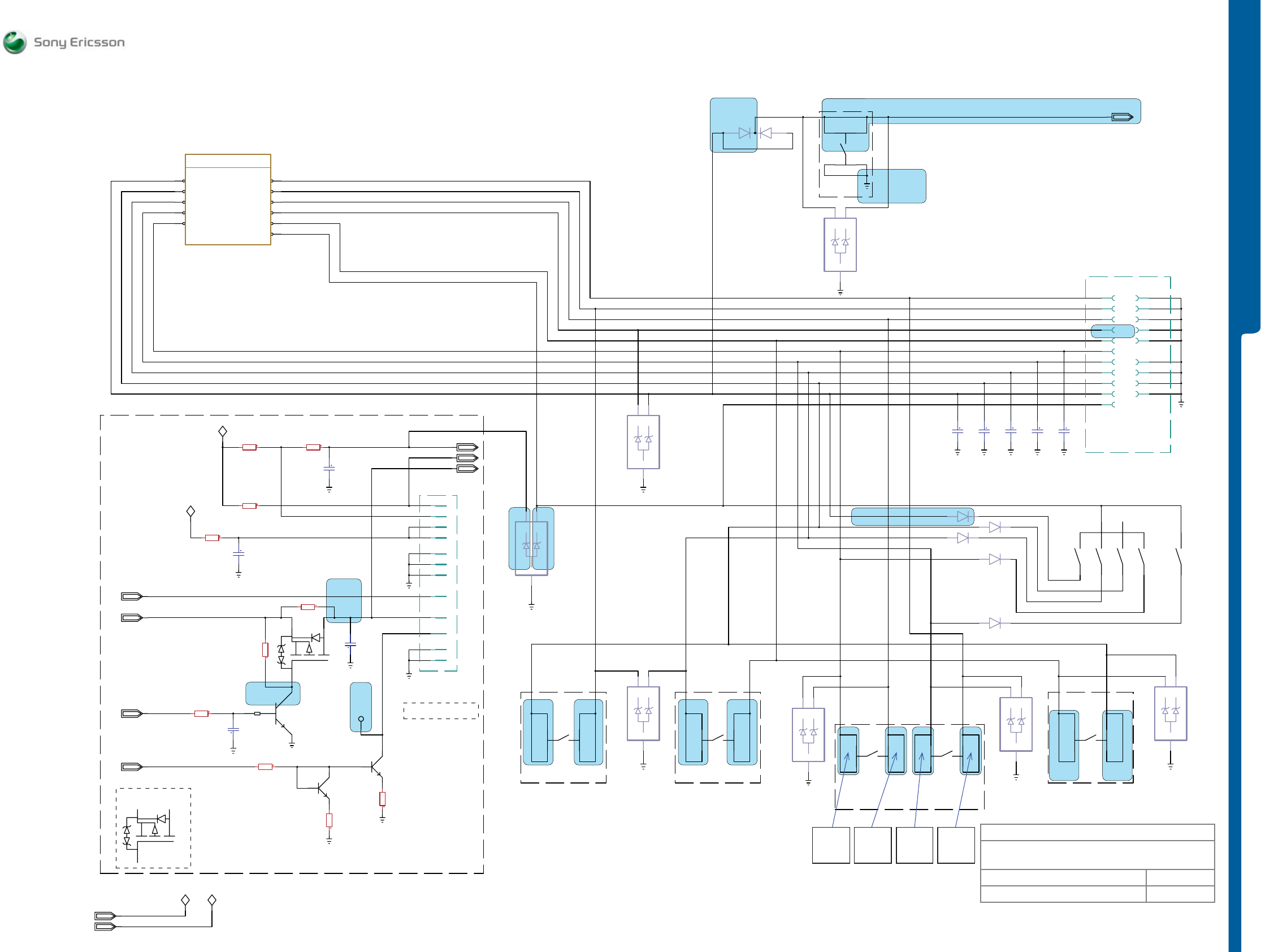

DB2021_MARIKA_SECURITY_EFUSE

ROP1013083/4

T2

P3

N7

U2

U3

P2

M7

M8

N3

R2

N4

D2000

R2A

MARIKA_MMI

KEYIN0_N

KEYIN1_N

KEYIN2_N

KEYIN3_N

KEYIN4_N

KEYOUT0_N

KEYOUT1_N

KEYOUT2_N

KEYOUT3_N

KEYOUT4_N

KEYOUT5_N

Keyboard_IF

1

X2501 RNV799009

R1A

4

5

6

7

8

16

15

14

13

12

9

10

11

17

20

uESD3.3DT5G

Place V2500 close

to joystick S2504.

3

1

2

RKZ223914/1

V2500

A

C1

C2

ONSWAn

VDDE18

V2504

A1

K1/K2

A2

RMD10116/9

ab

cd

S2500

R1A

a

b

c

d

RMD10116/9

S2502

R1A

a

b

c

d

R1A

RMD10116/9

S2503

<NM>

RKZ223914/1

V2505

3

1

2

A

C1

C2

68pF

C2515

<NM>

VBATI

270ohmsR2550

470ohms

R2551

10ohms

R2552

FOCUSLED_ON

LIDSENSE

CHARGE_RDYn

470KohmsR2553

CHARGE_ON

10uF

C2550 1

6

2

3

4

R1A

X2550

RNV799019/10

5

9

10

TP2553

11

Pin11andpin12areusedfor

chassi ground connection.

12

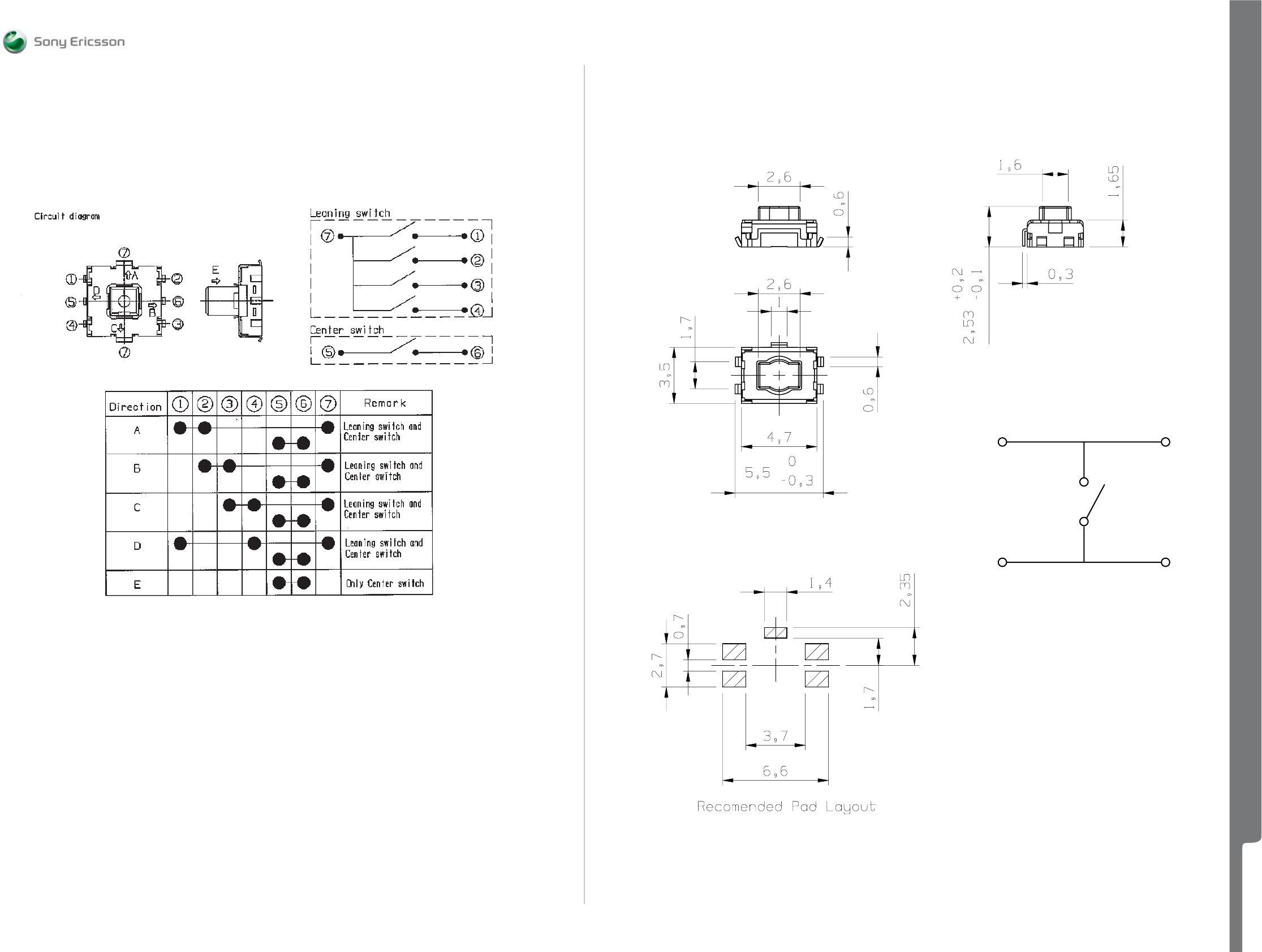

Switch_5pol

1234

5

6

78

S2504

R1BSXA1092476

V2506

V2507

V2508

V2509

21

22

23

24

1

34

2

R1B

RMD10147

S2506

1

34

2

RMD10147

R1B

S2505

dc

ba

S2507

R1A

RMD10116/9

100KohmsR2732

0ohmsR2554

2SC5658

RYN1216043/1

V2550

C

E

B

BC817-25LT1

V2551

RYN121928/1

C

E

B

NTJD4152P

V3113

1

2

6

RYN122904/1

<NM>

DS

G

FLASH_STROBE_1

UNR32A7

V2552

3

1RYN121931/1

2<NM>

100Kohms

<NM>

R2557

100ohms

R2556

8

7

68pF

<NM>

C2516

68pF

<NM>

C2517

68pF

<NM>

C2518

68pF

<NM>

C2519

uESD3.3DT5G

V2510

2

1

3

RKZ223914/1

A

C1

C2

uESD3.3DT5G

V2511

2

3

1

RKZ223914/1

A

C1

C2

uESD3.3DT5G

V2512

2

1

3

RKZ223914/1

A

C1

C2

uESD3.3DT5G

V2513

2

1

3

RKZ223914/1

A

C1

C2

10nF

<NM>

C2551

5.6KohmsR2558

<NM>

VCAMIO

XE_STROBE

NTJD4152P

RYN122904/1

3

5

4

V3113 contains two transistors.

V3113

DS

G

V2503

1KohmsR2555

33pF

C2555

<NM>

68pF

C2559

uESD3.3DT5G

V2514

RKZ223914/1

2

1

3A

C1

C2

KOUT0

KOUT0

KOUT0

KOUT1

KOUT1

KOUT1

KOUT2

KOUT2

KOUT2

KOUT4

KOUT4

KOUT4

KIN4

KIN4

KIN4

KIN2

KIN2

KIN2

KIN1

KIN1

KIN1

KIN1

KIN0

KIN0

KIN0

KOUT5

KOUT5

KOUT5

VDDE18

ONSWAn

VBATI

VB

LIDSENSE_1

CHARGE_RDYn

VDDE18

KIN0_2

KIN1_2

KIN4_2

KIN2_2

FLED_ON

VBATI

XE_STROBE

KOUT3

KOUT3

KIN3

KIN3

KIN3

KIN3_2

OnOff

Pins 2,3, 18 and 19

is illumination. Found

at page B21_MMI_Display.

Pin 21, 22, 23 and 24

are chassi connection.

Keyboard connector

Volume Down Volume Up

Volume switches

Xenon Flash IF

Xenon flash

module connector

Game B button Game A button Music Mode button

BASEBAND - MMI Keypad

2/1911 - ROA 128 1534/2 A

MP 1

Page 46

MP 117

Page 47

MP 4

Page 46 /

MP 116

Page 47

MP 120

Page 47

MP 10

Page 46 /

MP 119

Page 47

MP 83

Page 46

MP 82

Page 46

MP 2

Page 46

MP 23

Page

46

MP 57

Page 46

MP 22

Page

46

MP 14

Page 46

K800

MP 15

Page 46

MP 21

Page 46

MP 19

Page 46

MP 47

Page 46 MP 114 Page 47

MP 113

Page 47 /

MP 44

Page 46

MP 121

Page 47 MP 122

Page 47

Baseband - MMI Keypad SEMC Electrical Repair Manual

38 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

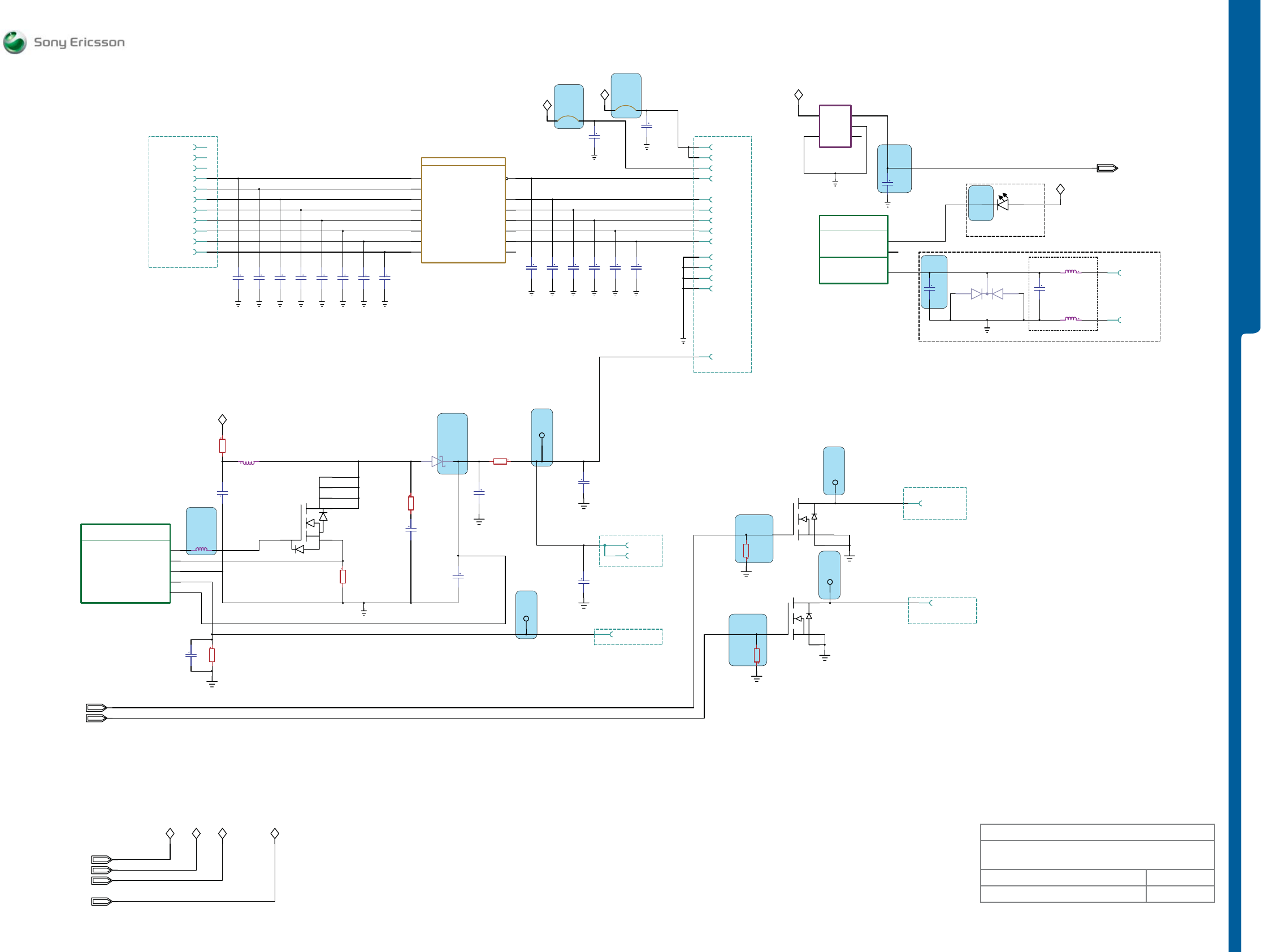

VBATI

VIBP

VIBN

VIBR

LCD_RESn

VBATI

UKEYBRGT

LKEYBRGT

LEDCAT_KEYUP

DCIOintVDIG VDDE18

DCIOint

LEDRED

LCD_VSYNC

LCD_RDn

LCD_WRn

LCD_CSn

LCD_RS

LCD_DAT0

LCD_DAT1

LCD_DAT2

LCD_DAT3

LCD_DAT4

LCD_DAT5

LCD_DAT6

LCD_DAT7

VDIG

LED_Anode

LED_Anode

LEDCAT_KEYLOW

LCD_VDIG

LCD_VDIG

VDIG

LCD_VDDE18

VDDE18

VBATI

<NM>

X2506

1

CONNECTORPAD

<NM>

X2507

1

CONNECTORPAD

L3100 56nH

L3101 56nH

C3115

33pF

V3100

RKZ123904/1

<NM>

A1

K1/K2

A2

C3116

2.2uF

R1A

N2000

B3

B6

A6

ROP1013066/6

ERICSSON_AB2012

ERICSSON AB 2010

MMI

LED

VIBRATOR

VIBR

LED2

LED1

RKZ323907/1

V3102

33pF

RJC4633212/33

<NM>

C3103

0ohms

<NM>

REP621001/0

R3103

0ohms

REP622001/0

R3100

2.2uF

RJC5163037/22

C3100

33pF

<NM>

RJC4633012/33

C3101

0ohms

REP622001/0

R3104

1uF

RJC5163237/1

C3104

33pF

RJC4633212/33

<NM>

C3106

TP3100

TP3101

22uH

REG7245372/22

L3103

47ohms

REP621102/47

R3101

4

3

6

5

2

1

RYN123915/1

V3101

G

S

33pF

<NM>

RJC4633212/33

C3107

150mohms

REP622450/15

R3102

L3102

100MHz

REG70630/1

R1A

N2000

E4

A4

A5

B4

D5

ROP1013066/6

ERICSSON_AB2012

LEADFREE

ISENSE+

FB+

ISENSE-

SWBOOST

ERICSSON AB 2010

BOOST

VBOOST

UKEYBRGT

LKEYBRGT

DCIOint

VDIG

OPTOTEMP

C3132

22pF

VDDE18

LED_Anode

2

RNV799009

X2501 R1A

LED_Anode

3

LED_Cathode2

18

X2501

RNV799009

R1A

RNV799009

X2501

LED_Cathode1

19

R1A

RYN901923/1

7

6

1

5

V3103

FDJ1028N

S1

G

S2

D

RYN901923/1

8

3

2

4

V3103

FDJ1028N

S1

G

S2

D

R3136

100Kohms

R3137

100Kohms

TP3105

TP3106

33pF

C3105

RJC4633212/33

1

N.C

X3102

2

RNV79994

R1A

X3102

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

N.C 23 24

N.C

25

X3102

26

C3200

33pF

C320133pF

C3202

33pF

C3203

33pF

C3204

33pF

C3205

33pF

C3206

33pF

C3207

33pF

C3208

33pF

C3209

33pF

C3210

33pF

C3211

33pF

C321233pF

C3213

33pF

RYT101937/4

2

43

51

B3100

LM20_LEADFREE

V+

NC

VO

GND

GND

V3110

RKZ433924/1

SML-A12UT

CA

12

ST3110

12

ST3111

D2000

K14

D20

F19

H15

G19

E19

E21

E20

J15

F21

H19

F20

J18

G20

J19

ROP1013083/4 R2A

DB2021_MARIKA_SECURITY_EFUSE

PDID0

PDID1

PDID2

PDID3

PDID4

PDID5

PDID6

PDID7

MARIKA_MMI

Display_IF

PDIC5

PDIC4

PDIC3

PDIC2

PDIC1

PDIC0

PDIRES_N

C3155

100nF

C3156

100nF

Display module connector,

LED Cathode LCD backlight

Display module connector

Display module connector

Charge LED

Keyboard Connector,

LED Cathode backlight

Keyboard lower part.

Keyboard Connector,

LED Anode backlight.

Keyboard Connector,

LED Cathode backlight

Keyboard upper part.

Vibrator

Radio components

BASEBAND - MMI Display

2/1911 - ROA 128 1534/2 A

MP 88

Page 46

MP 91

Page 46

MP 45

Page 46

MP 135

Page 47

MP 49

Page 46

MP 20

Page 46

MP 18

Page 46

MP 98

Page 47

MP 97

Page 47

MP 94

Page 46

MP 16

Page 46

MP 32

Page 46

MP 27

Page 46

Baseband - MMI Display SEMC Electrical Repair Manual

39 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

DEC0

AUXI1P

AUXI1N

AUXI2P

AUXI2P

AUXI3P

CCO_1

CCO_1

CCO

MIC1P

AUXO2

AUXO2

BEARN

LINEP

MIDREF

MIDREF

MIDREF

MIDREF

VAD

SPR

SPL

PCMCLK

PCMSYN

PCMDATA

PCMDATB

VBATI

VBATI

BEARN_1

INTMIC_1

AUXO1

AUXO1

VDDSPPA

AMPCTRL

INTMIC

CCO_2

BEARP BEARP_1 BEARP_2

BEARN_2

33pF

C4121

33pF

C4122 33pF

C4123

33pF

C4124

33pF

<NM>

C4114

33pF

<NM>

C4111

1GHz

L4101

100nF

C4107

100nF

C4112

15Kohms

R4104

100nF

C4120

100nF

C4118 33pF

C4142

33pF

C4143

470nF

C4110

470nF

C4113

FML

FMR

100nF

C4119

MICP/AUXinL

MICN/AUXinR

33pF

C4115

<NM>

33pF

C4116

<NM>

1uF

C4109

47nF

C4125

Leadfree

R1A

TJATTE3

N4202

B4

C1

C2

C3

C4

C5

A5

B1

D1

A4D5

A3D4

A1D2

A2D3

B3

B5

B2

ROP1013074/1

TJATTE3

V_MIC

INTMICint

INTMIC

MICP

MICN

SPL

SPR

COO

SP_ref

MICP_int

MICN_int

SPL_int

SPR_int

VAD

GND

GND

GND

GND

GND

GND

220nF

C4128

220nF

C4129

1<NM>

NEGATIVE

X2504

1<NM>

POSITIVE

X2503

470nF

C4126

Leadfree

NCP2890FCT1_LEADFREE

N4100

RYT101947/2

C1

A3

A1

C3

C2

A2

B3

B2

B1

IN-

IN+

Bypass

SHDN

V02

Vo1

VDD

GND

GND

AUDIO_PA

AMPCTRL

33pF

C4104

NM

33pF

C4105

NM

33pF

C4106

NM

33pF

C4133

<NM>

33pF

C4132

<NM>

33pF

C4127

33pF

C4108

100nF

C4102 33pF

<NM>

C4103

33pF

C4130

<NM>

100nF

C4117

33pF

C4140

33pF

C4141

10Kohms

R4115

470ohms

R4114

470ohms

R4113

2.2Kohms

R4112

MIDREF

VAD

SPR

SPL

DB2021_MARIKA_SECURITY_EFUSE

ROP1013083/4 R2A

P15N19

P20 R20

D2000

PCMSYN

PCMCLK

PCMDATB

PCMDATA

MARIKA_MP-PCM_IF

PCMCLK

PCMSYN

PCMDATA

PCMDATB

VBATI

R1A

LEADFREE

ERICSSON_AB2012

N2000

K1

K2J2

J1

M8

L8

L1

M2

G4

H4

L5

L9

M4

L3

J4

L4

M7

K7

L6

L7

M6

K6

ROP1013066/6

AUXI3P

DEC3

DEC4

AUXI3N

PCMI

PCMSYNK

PCMCLK

MP_PCM IF

ERICSSON AB 2010

MMI

AUDIO IF

PCMO

MIC1P

MIC1N

BEARP

BEARN

AUXO1

AUXO2

AUXI1P

AUXI2P

AUXI2N

AUXI1N

LINEN

LINEP

CCO

DEC0

33pF

C4145

NM

33nF

C4144

33pF

<NM>

C4146

10uF

C4131

18KohmsR4100

18KohmsR4101

1nF

C4149

1nF

C4150

5.6Kohms

R4103

5.6Kohms

R4105

100ohms

R4102

33nF

C4151

100Kohms

R4120

TP4105 TP4106

uESD3.3DT5G

2

1

3

RKZ223914/1

V4101

A

C1

C2

0ohms

R4125

0ohms

R4124

SP0102BE3-PB

RLC509427/2

14

5

23

B4100

MICGND

OUT VCC

GND GND

33pF

NM

C4154

1GHz

L4104

1uF

C4153

33pF

C4252

100ohms

R4123

X2509

<NM>

1GHz

L4100

X2508

<NM>

1GHz

L4105

1GHz

L4106

R4126

0ohms

R4127

0ohms

Sensitive node

Antenna components

Antenna components

Cora speaker pad...

Earspeaker pads

Sensitive node

12

ST4116

1

2

ST1406

L4121 56nH

l4120 56nH

BASEBAND - MMI Audio

2/1911 - ROA 128 1534/2 A

MP 7

Page 46

MP 40

Page 46

MP 41

Page 46

MP 42

Page 46

MP 70

Page 46

MP 73

Page 46

MP 59

Page 46

MP 72

Page 46

MP 71

Page 46

MP 75

Page 46

MP 62

Page 46

MP 61

Page 46

MP 74

Page 46 MP 86

Page 46

MP 68

Page 46

MP 69

Page 46

Baseband - MMI Audio SEMC Electrical Repair Manual

40 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

DB2021_MARIKA_SECURITY_EFUSE

R2A

ROP1013083/4

B21

F18

B20

C19

D19

D18

B19

C17

C20

C21

G18

J14

D2000

Camera_IF

CIRES_N

CIHSYNC

CIVSYNC

CIPCLK

CID7

CID6

CID5

CID4

CID3

CID2

CID1

CID0

MARIKA_MMI

I2CCLK1

I2CDAT1

CAMSYSCLK

FLASH_STROBE

VCAM27

VCAMAF

VDDE18

VCAM12

CAMDIR

100nF

C3133

100nF

C3134

22pF

<NM>

C3135

22pF

<NM>

C3136

22pF

<NM>

C3137

22pF

<NM>

C3138

22pF

<NM>

C3139

22pF

<NM>

C3140

22pF

<NM>

C3141

22pF

<NM>

C3142

33pF C3143

33pF C3144

33pF C3145

VDIG

TP3111 TP3112

TP3113

TP3114

VCAMIO

VCAMSD

CAMIRQ

AF_GND

1

VDD_AF (2.7V)

2

GND

3

RNV79992X2505 R1A

VDD_SA (2.7V)

4

GND

5

VDD_IO (1.8V)

6

TRIG 7

GND

8

D[7] 9

D[5] 10

D[3] 11

D[1] 12

VDD_SD (1.8V)

13

DCLK 14

GND

15

VDD_L (1.2V)

16

GND

17

MCLK

18

GND

19

D[0] 20

D[2] 21

D[4] 22

D[6] 23

CAPTSTRB 24

XRST

25

HSYNC 26

VSYNC 27

SDATA

28

SCLK

29

GND

30

Chassi

31

Chassi

32

Chassi

33

Chassi

34

RNV799015/3X2510 R1A

DVDD

1

DATA0

2

DATA1

3

DATA2

4

DATA3

5

GND

6

PCLK

7

STROBE

8

SCLK

9

RESET

10

AVDD

11

SDATA

12

STANDBY

13

HSYNC

14

VSYNC

15

MCLK

16

DATA7

17

DATA6

18

DATA5

19

DATA4

20

GND

21

GND

22

GND

23

GND

24

GND

25

GND

26

GND

27

GND

28

FLASH_STROBE_1

STROBE_ENABLE

V_VGADIG

V_VGAANA

TP3115

74LVC245ABQ

D3100

RYT109915/1

2

3

4

5

6

7

8

9

18

17

16

15

14

13

12

11

1

21

19

20 10

2

1

TRANSCEIVER

DIR

A1

A2

A3

A4

A5

A6

A7

B0

B1

B2

B3

B4

B5

B6

B7

OE

GNDVCC POWER-GND

A0

HEATSLUG

74LVC245ABQ

D3101

1020

19

21

1

11

12

13

14

15

16

17

18

9

8

7

6

5

4

3

2

RYT109915/1

2

1

TRANSCEIVER

DIR

A1

A2

A3

A4

A5

A6

A7

B0

B1

B2

B3

B4

B5

B6

B7

OE

GNDVCC POWER-GND

A0

HEATSLUG

100Kohms

R3155

100Kohms

<NM>

R2741

SP3120

SN74LVC2G66YZPR

N3100

C1 C2

D2

B2

B1

A1

A2

D1

RYT109933/1

1A

1B

2C

GND

1C

2A

2B

VCC

0ohms

R3157

<NM>

0ohms

R3158

<NM>

100nF

C3157

SN74LVC1T45YZPR

RYT109935/1

C2

B1

A2

C1

A1

B2

D3104 <NM>

AB

DIRGND

VCCB VCCA

0ohms

R2743

<NM>

12pF

C3146

12pF

C3147

12pF

C3148

12pF

C3149

100Kohms

R2742

100nF

C2741

100nF

C2742

100nF

C2743

100nF

C2744

100nF

C2745

100nF

C2746

100nF

C2747

CAM_27_EN

VGA_STDBY

VCAM27 VCAMAF VDDE18 VCAM12

VDDE18

VCAM27VCAMAF

VCAM12

CIRESn

V_VGAANA

VDIG

VCAMIO VCAMSD

VDDE18

VCAMSD

VCAMIO

CAMIRQ

V_VGADIGV_VGAANA

CAMDIR

V_VGADIG

VDDE18

I2CCLK_CAM

I2CDAT_CAM

VDDE18

FLASH_STROBE_1

STROBE_ENABLE

VDIG

F_STR

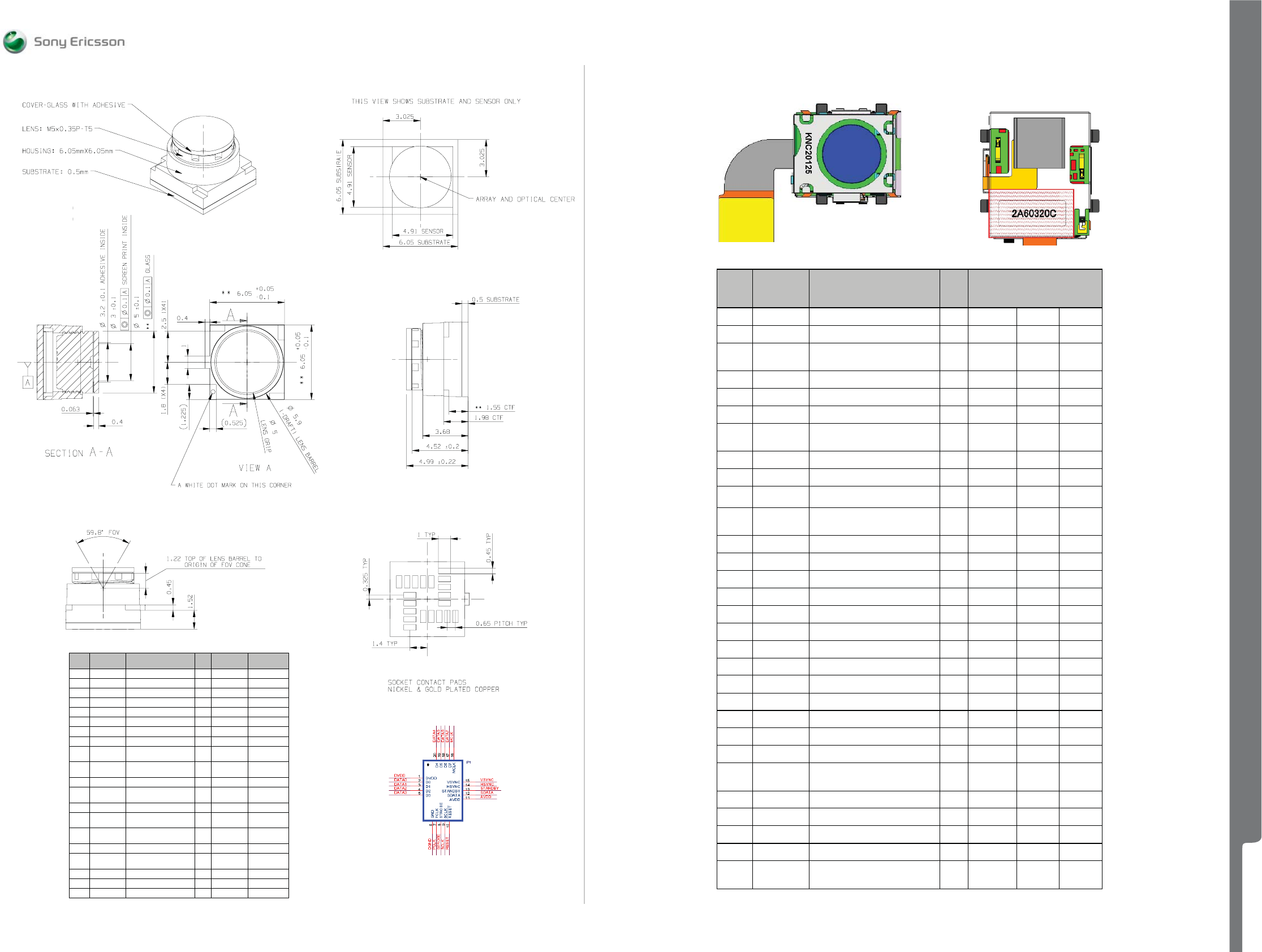

Camera connector

VGA Camera Socket

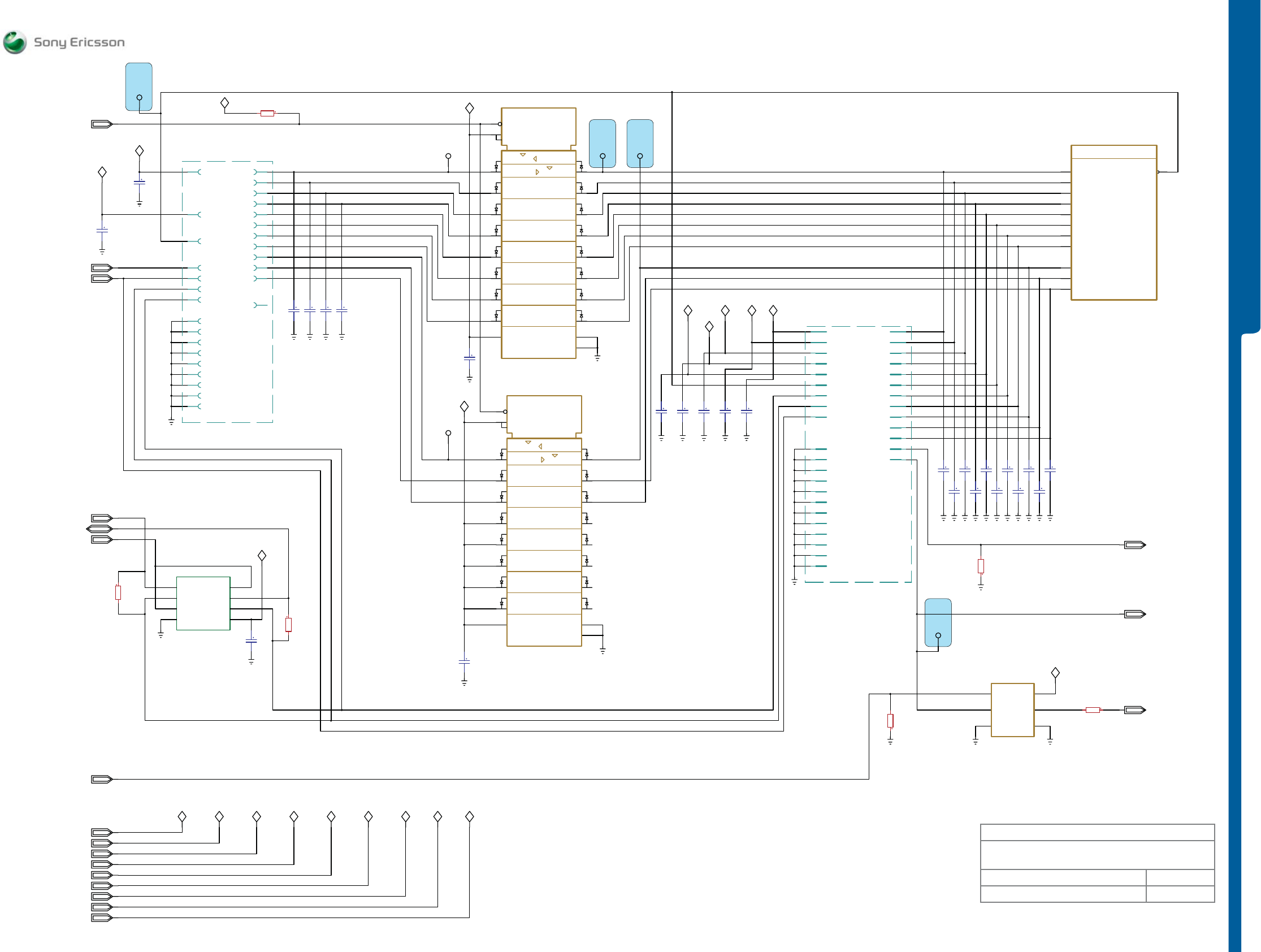

BASEBAND - MMI Camera

2/1911 - ROA 128 1534/2 A

MP 63

Page 46

MP 87

Page 46 MP 8

Page 46

MP 17

Page 46

Baseband - MMI Camera SEMC Electrical Repair Manual

41 (121)

K800 - K810

1202-3085 rev. 2

FUNCTION OVERVIEW

FUNCTION OVERVIEW

Made for

Document Nr Revision

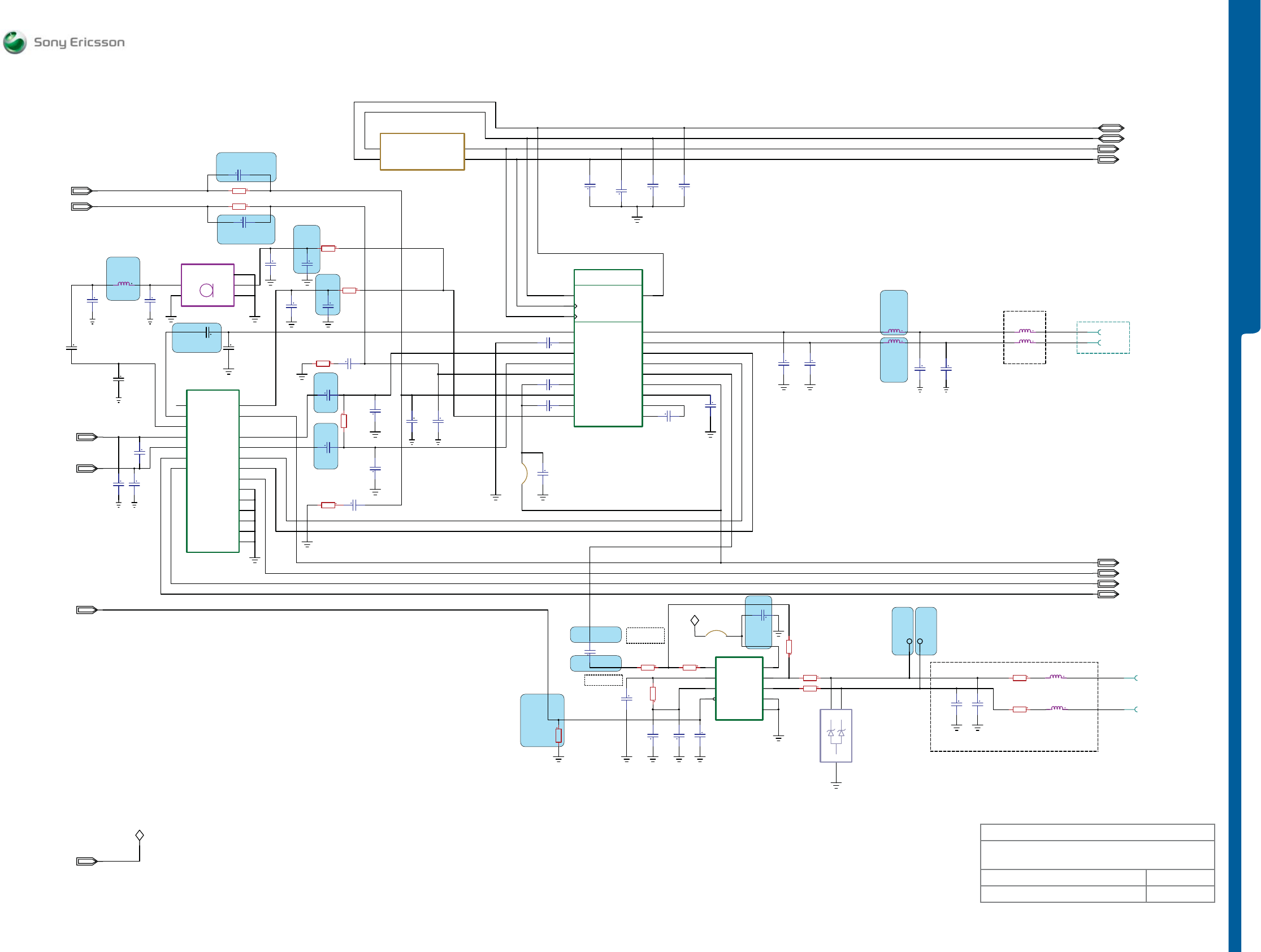

FM_RTCCLK

I2CCLK1

I2CDAT1

VDDE18

VDDE18

VFM27

VFM27 VDDE18

FM_ANTENNA

GND

GND

GND

GND

GND

GND

GND GND

GND

GND

GND

I2CCLK1

I2C Addresses:

FM 0xC0(W) 0xC1(R)

I2CDAT1

FM_ANTENNA

FML

FMR

Digital 1.3V 32768Hz

RTCCLK

C2616

470nF

C2615

470nF

V2601

V2600

BB202

L2601

33nH

L2600

33nH

L2603

120nH

VFM27

C2602

22nF

FMINT

VDDE18

C2604

1uF

C2600

10nF

C2601

47nF

R2600

10Kohms

R2601

100Kohms R2604

<NM>

100Kohms

R2603

47Kohms

C2618

33nF

C2617 33nF

C2614

<NM>

33nF

C2613 33nF

C2612

10nF

C2606

33nF

C2607

33nF

C2619 33nF

C2608 22pF

C2610

27pF

C2611

47pF

C2605

33pF

C2603

68pF

C2609 10pF

L2602

220nH

R3A

N2600

RYT109905/3

A6

B1

A4

E7

D2

A7

B2

B7

G1

F6

E6

G7

A1A2

A3

G3 G4

B4

C2

D1

C1

A5

G6

F4

G5

B6

F1

D7

E1

G2

F7

D6

C7

F2

TEA5764HN_26

DGND

TEA5764

MPXIN

FREQIN

XTAL

LO1

LO2

INTCON1

INTCON2

BUSENABLE

VREFDIG

CLOCK

DATA

CD3

VCC

VDD

DGND

DGND

DGND

AGND

MPXOUT

RDSLP

SWPORT

LOOPSW

CPOUT

CD1

CD2

INTX

TMUTE

VAFR

VAFL

RFIN1

RFIN2

RFGND

CAGC

POWER/GND

Signal routed in outer layer and no groundplane underneath

No Groundplane underneath

Close to N2600

12

ST2602

BASEBAND - MMI FM Radio

2/1911 - ROA 128 1534/1 A

MP 79

Page 46

MP 80

Page 46

MP 81

Page 46

Baseband - MMI FM Radio SEMC Electrical Repair Manual

42 (121)

K800 - K810

1202-3085 rev. 2

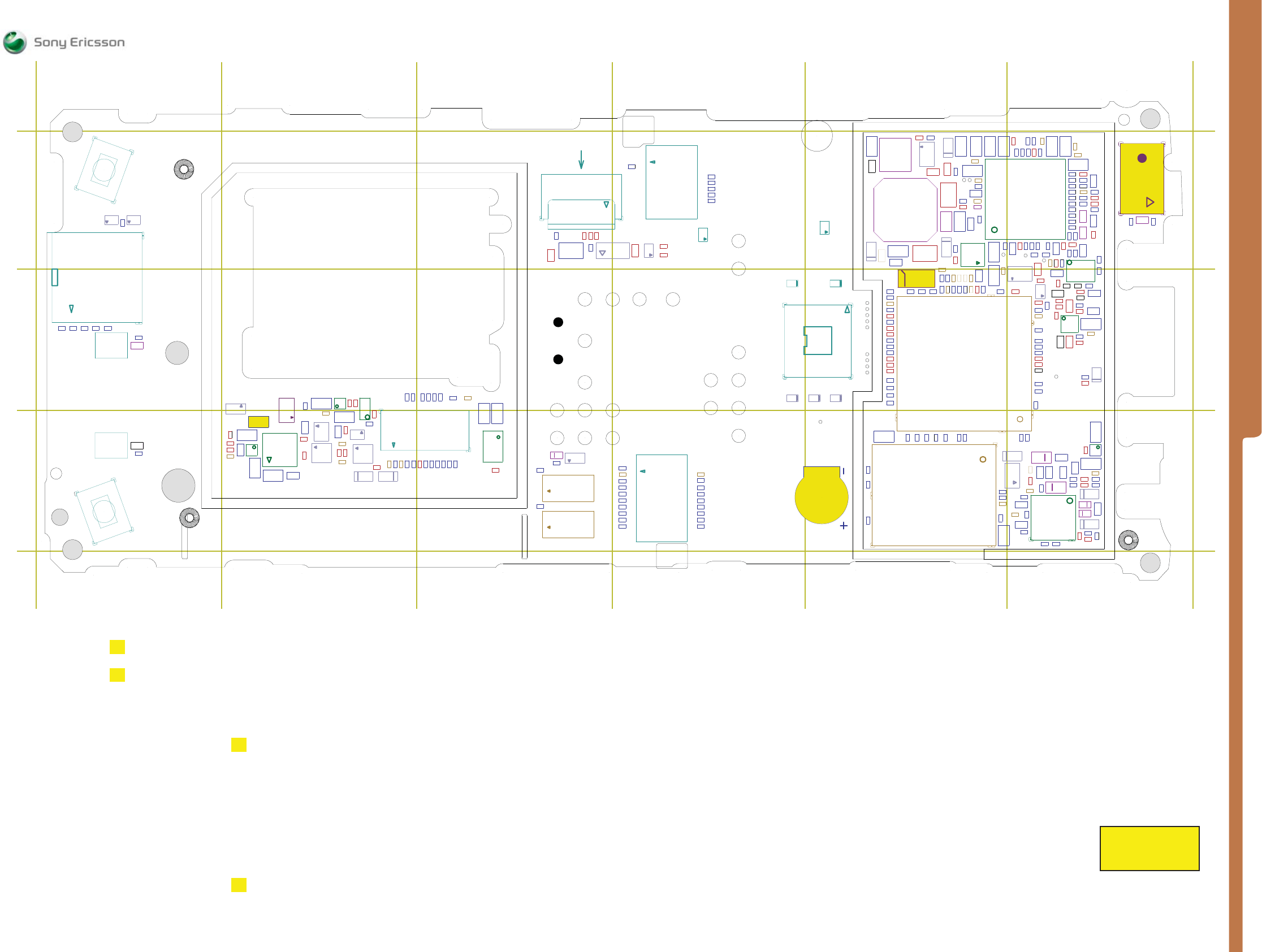

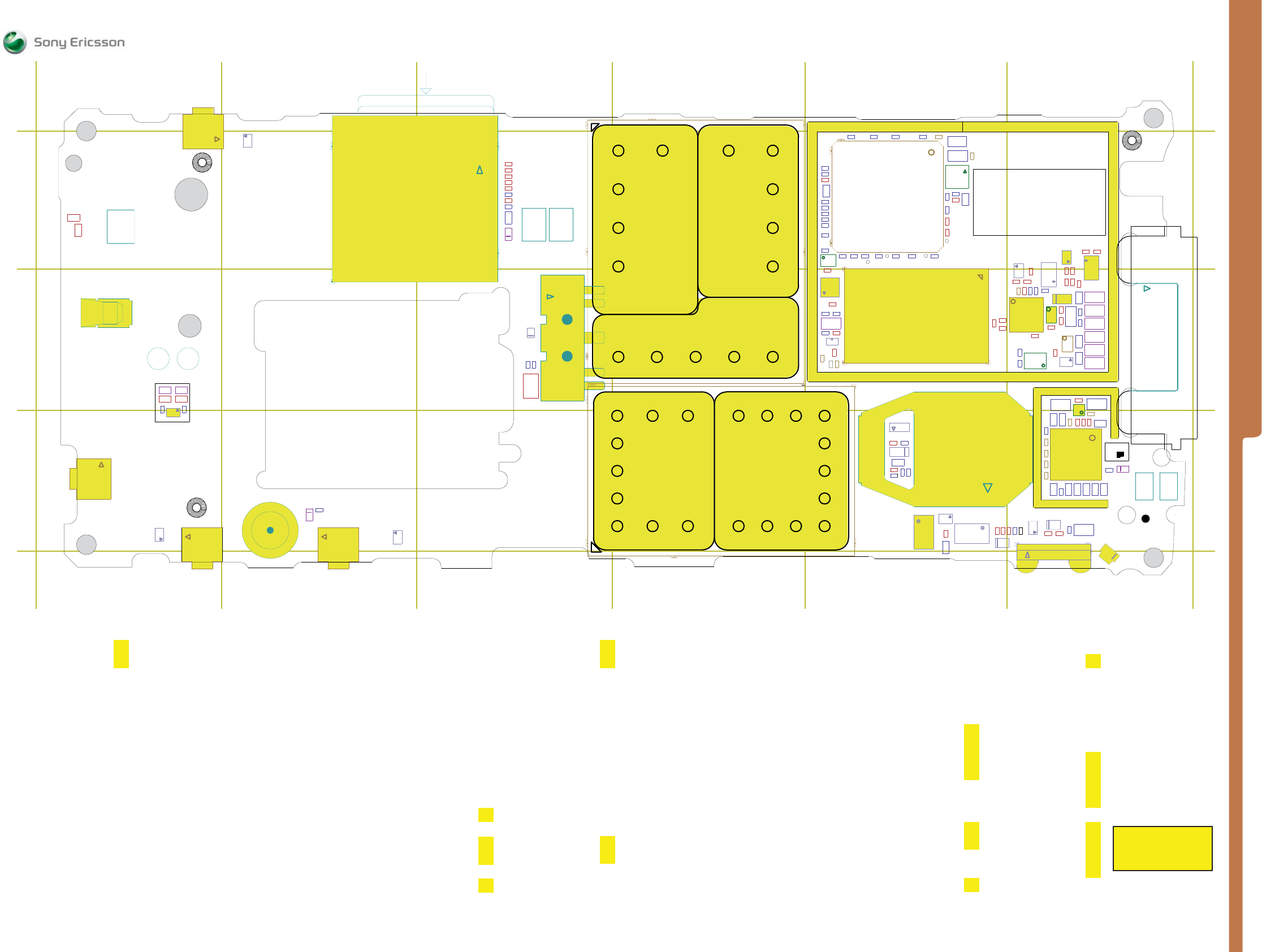

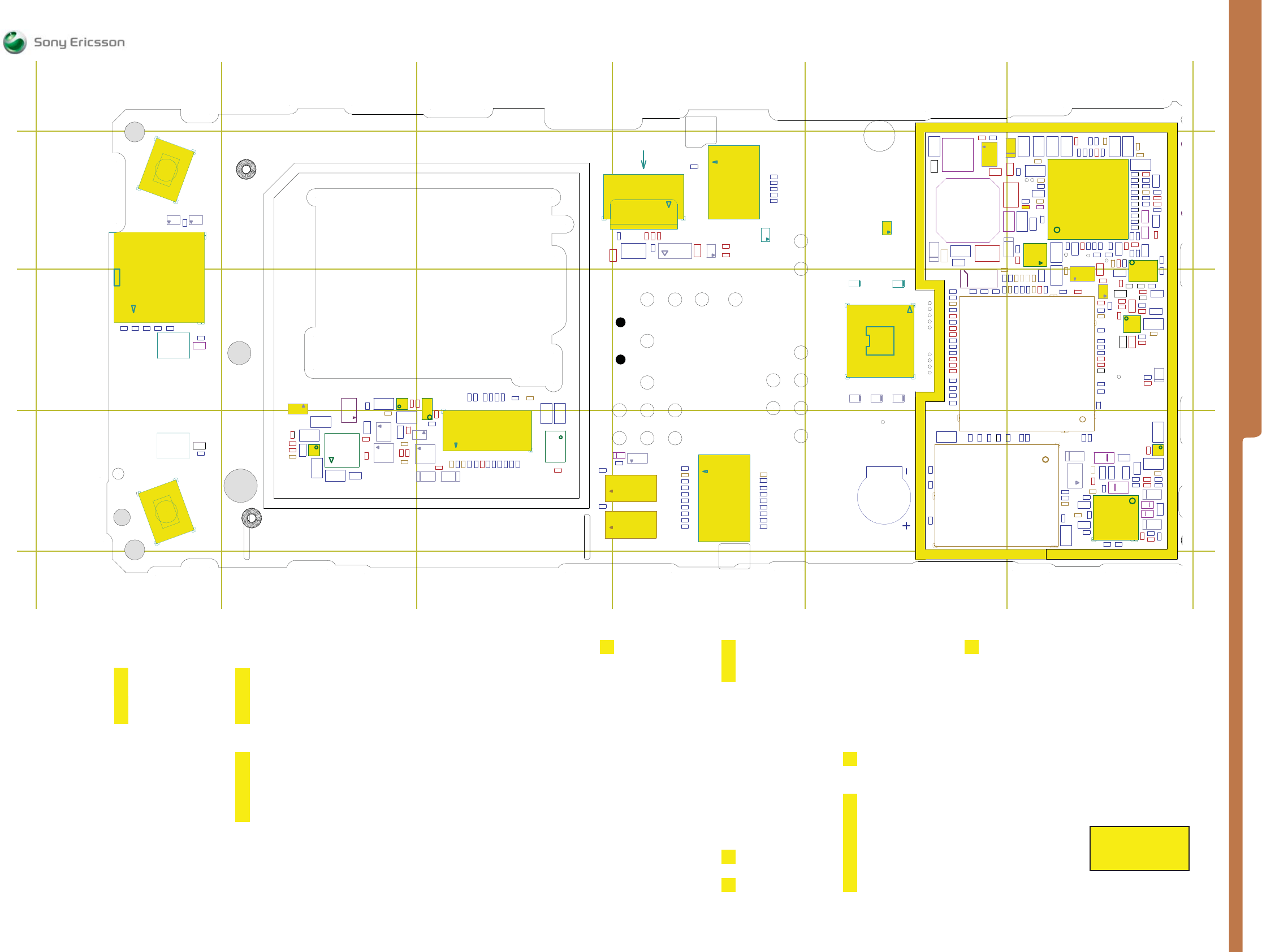

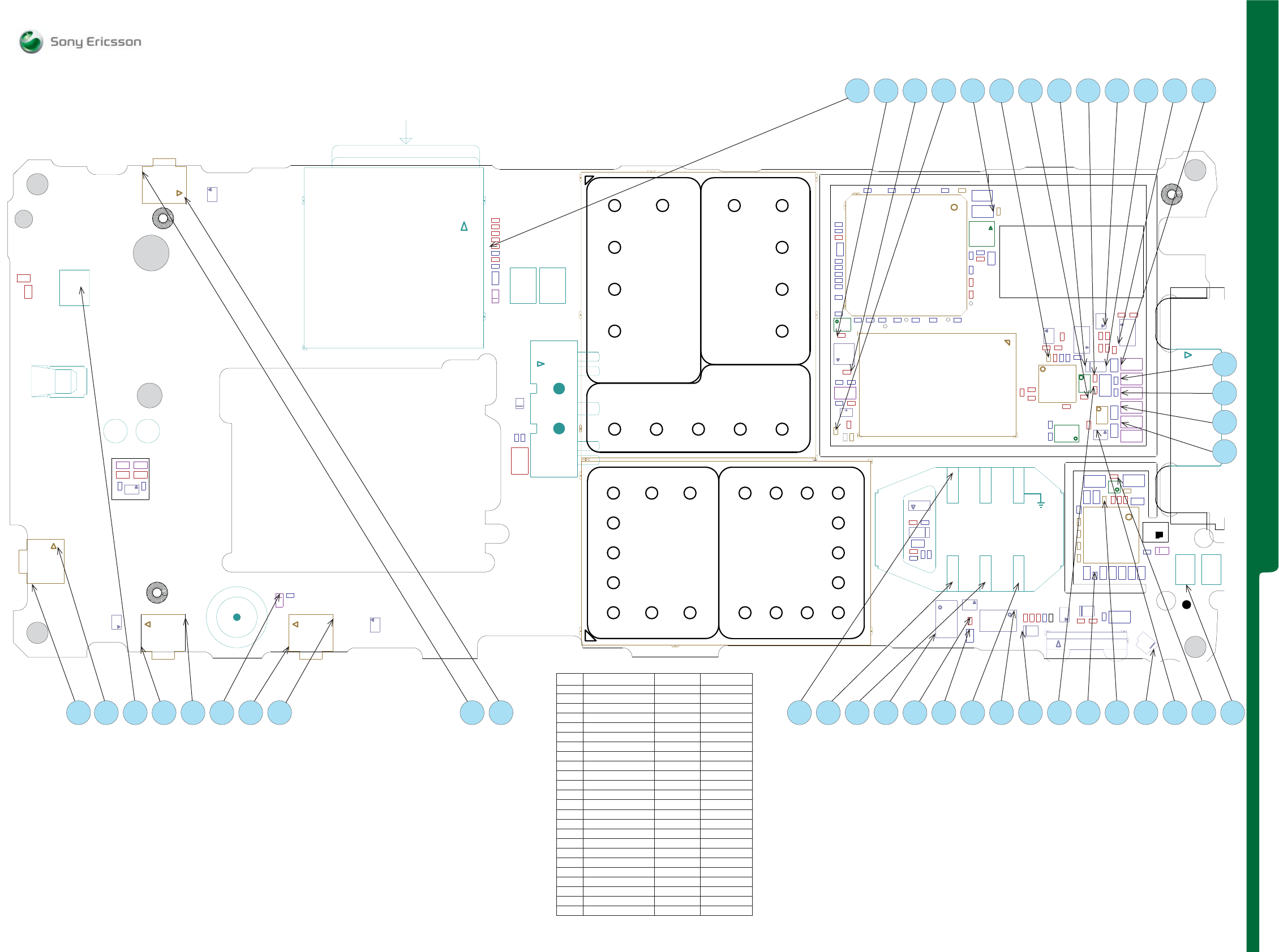

COMPONENT OVERVIEW

COMPONENT OVERVIEW

COMPONENT OVERVIEW

123456

123456

A

D

C

B

A

D

C

B

B2100 RTM 501 911/1 C5 R

B3100 RYT 101 937/4 C2

B4100 RLC 509 427/2 B6 R

C1100 RJC 516 3015/1 B6

C1101 RJC 516 3613/47 B6

C1102 RJC 516 3613/47 B6

C1103 RJC 516 3037/47 B5

C1106 RJC 516 3037/47 B5

C1107 RJC 516 3037/47 B5

C2100 RJC 516 3514/1 C5

C2102 RJC 463 3012/22 C5

C2103 RJC 463 3012/22 C5

C2104 RJC 516 3514/1 C5

C2200 RJC 516 3037/47 B6

C2202 RJC 516 4016/1 B6

C2203 RJC 516 4016/1 B6

C2204 RJC 516 4016/1 B6

C2205 RJC 463 3012/22 B6

C2206 RJC 463 3012/47 B6

C2207 RJC 463 3012/47 B6

C2208 RJC 516 4016/1 B6

C2209 RJC 516 4016/1 B5

C2210 RJC 516 4016/1 B6

C22100 RJC 516 4038/1 C3

C22105 RJC 516 4016/1 B5

C22109 RJC 516 4038/1 D2 R

C22110 RJC 516 4038/1 D2

C22111 RJC 516 3027/1 D2

C22115 RJC 516 3537/1 D2

C22116 RJC 516 4038/1 D2

C22117 RJC 516 4016/1 B5

C2213 RJC 516 3037/47 B6

C2214 RJC 516 3037/47 B6

C2215 RJC 516 3037/47 B5

C2216 RJC 516 3027/1 B5

C2217 RJE 355 1335/7 D5 R

C2218 RJC 516 3027/1 B6

C2219 RJC 516 4038/1 B5

C2220 RJC 516 3526/1 B5

C2221 RJC 516 3526/1 B5

C2222 RJC 516 4038/1 B5

C2223 RJC 516 3027/1 C5

C2224 RJC 516 3037/47 C5

C2225 RJC 516 4016/1 C6

C2226 RJC 516 4016/1 C6

C2227 RJC 516 4016/1 C5

C2228 RJC 516 4016/1 C5

C2229 RJC 516 4016/1 C5

C2230 RJC 516 4016/1 C5

C2231 RJC 516 4016/1 D5

C2232 RJC 516 4016/1 D5

C2233 RJC 516 4016/1 D6

C2234 RJC 516 4016/1 C5

C2235 RJC 516 4016/1 D5

C2236 RJC 516 4016/1 C5

C2237 RJC 516 4016/1 C6

C2238 RJC 516 4016/1 C5

C2239 RJC 516 4016/1 C6

C2240 RJC 516 4016/1 C6

C2241 RJC 516 4016/1 C5

C2242 RJC 516 4016/1 C6

C2243 RJC 516 4016/1 C6

C2244 RJC 516 4016/1 C6

C2245 RJC 516 4016/1 C6

C2246 RJC 516 4016/1 C5

C2247 RJC 516 4016/1 C5

C2248 RJC 516 4016/1 C5

C2249 RJC 516 4016/1 C5

C2250 RJC 516 4016/1 C5

C2251 RJC 516 4016/1 D5

C2252 RJC 516 4016/1 D5

C2253 RJC 516 4016/1 D5

C2254 RJC 516 4016/1 D6

C2255 RJC 516 4016/1 D6

C2256 RJC 516 4016/1 C5

C2257 RJC 516 4016/1 C5

C2258 RJC 516 4016/1 C5

C2259 RJC 516 4016/1 C5

C2282 RJC 516 3037/47 D5

C2283 RJC 516 4016/1 D5

C2284 RJC 516 4016/1 D5

C2285 RJC 516 4016/1 D5

C2286 RJC 516 4016/1 D5

C2287 RJC 516 4016/1 D5

C2288 RJC 516 4016/1 D5

C2290 RJC 516 3537/1 D2

C2292 RJC 516 4038/1 D2

C2293 RJC 516 3537/1 D6

C2295 RJC 516 4038/1 D6

C2298 RJC 464 3036/22 D5

C2299 RJC 516 3037/22 D3

C2309 RJC 516 3027/1 B6

C2325 RJC 516 3613/1 B6

C2331 RJC 463 3012/47 C6

C2550 RJC 516 4048/1 B3

C2600 RJC 516 3015/1 D6

C2601 RJC 516 3015/47 D6

C2602 RJC 464 3025/22 D6

C2603 RJC 463 3012/68 D6

C2604 RJC 516 3027/1 D6

C2605 RJC 463 3012/33 D6

C2606 RJC 516 3015/33 D6

C2607 RJC 516 3015/33 D6

C2608 RJC 463 3022/22 D6

C2609 RJC 463 3022/1 D6

C2610 RJC 463 3022/27 D6

C2611 RJC 463 3022/47 D6

C2612 RJC 516 3015/1 D6

C2613 RJC 516 3015/33 D6

C2615 RJC 516 3026/47 D6

C2616 RJC 516 3026/47 D6

C2617 RJC 516 3015/33 D6

C2618 RJC 516 3015/33 D6

C2619 RJC 516 3015/33 D6

C3100 RJC 516 3037/22 B5

C3104 RJC 516 3237/1 B5

C3105 RJC 463 3212/33 B5

C3115 RJC 463 3012/33 D3

C3116 RJC 516 3037/22 B5

C3132 RJC 463 3012/22 C2

C3133 RJC 516 4016/1 D3

C3134 RJC 516 4016/1 D3

C3155 RJC 516 4016/1 D4

C3156 RJC 516 4016/1 D4

C3157 RJC 516 4016/1 D2

C3200 RJC 516 3612/47 D4

C3201 RJC 516 3612/47 D4

C3202 RJC 516 3612/47 D4

C3203 RJC 516 3612/47 D4

C3204 RJC 516 3612/47 D4

C3205 RJC 516 3612/47 D4

C3206 RJC 516 3612/47 D4

C3207 RJC 516 3612/47 D4

C3208 RJC 516 3612/47 D4

C3209 RJC 516 3612/47 D4

C3210 RJC 516 3612/47 D4

C3211 RJC 516 3612/47 D4

C3212 RJC 516 3612/47 D4

C3213 RJC 516 3612/47 D4

C4102 RJC 516 3526/1 B6

C4103 RJC 463 3012/33 B6

C4107 RJC 516 4016/1 B6

C4108 RJC 463 3012/33 B6

C4109 RJC 516 3027/1 C6

C4110 RJC 516 3026/47 B6

C4112 RJC 516 4016/1 B6

C4113 RJC 516 3026/47 B6

C4117 RJC 516 4016/1 B6

C4118 RJC 516 4016/1 B6

C4119 RJC 516 4016/1 B6

C4120 RJC 516 4016/1 B6

C4121 RJC 463 3012/33 B6

C4122 RJC 463 3012/33 B6

C4123 RJC 463 3012/33 B6

C4124 RJC 463 3012/33 B6

C4125 RJC 516 3015/47 B6

C4126 RJC 516 3026/47 C6

C4127 RJC 463 3012/33 C6

C4128 RJC 516 3026/22 C6

C4129 RJC 516 3026/22 C6

C4131 RJC 516 4038/1 C6

C4140 RJC 463 3012/33 B6

C4141 RJC 463 3012/33 B6

C4142 RJC 463 3012/33 D1

C4143 RJC 463 3012/33 C1

C4144 RJC 516 3015/33 B6

C4146 RJC 463 3012/33 B6

C4149 RJC 516 3514/1 B6

C4150 RJC 516 3514/1 B6

C4151 RJC 516 3015/33 B6

C4153 RJC 516 3027/1 C6

C4252 RJC 463 3012/33 C6

11 20

10 1

N2000

L2200

D2300

C4108

SP2105

TP1001

R2105

C4126

N4100

C2611

L2603

C2608

N2600

C1106

V3102

SP2100

R2201 R3104

SP2103

C2210

D2000

ST2232

C2282

L3103

C2229

C2221

C2222

C2258

V2506

C2259

ST2301

R2102

C2241

C2248

R2312

R2104

R2311

C2105

R2326

C2236

R2101

C2249

V2508

C2230

C2250

C2234

X3102

X2501

V2551

R2550

R2551

TP3115TP2553

TP2201

TP2202

N2205

TP4106

C2299

R2210

L3100

TP4105

C3115

X2505

C3135

V2216

ST2230

C22116

N2209

C22110

V2212

X2510

X2509

X2508

B4100

C4145

C4154

L4104

C2200

ST2202

C2331

C2293 V2221

E1001

ST2200

R4100

C4117

R4105

C4115

C4149

C4151

C2204

C4120

C4103

C4116

C2202

C2213

C4119

C4118

R4101

C4113

ST4106

C2203

R4104

C4141

L4101

C4110

C4144

C4107

C4112

C2205

C4114

C4140

L4100

R4103

C4111

C4150

C4102

C4128

R4123

N4202

C4146

C4106

C4252

C4153

C4127

R4126

R4114

C4104 C4105

R4120

ST4116

C4131

C4130

R4127

R2331

C2295

C2600

R2600

R2601

C2605 C2601

R2208

C2612

ST2218

C2604

N2203

C2602

L2601

C2618

L2600

C2617

R2603

V2600

R2604

V2601

C2208

C2206

R2203

C2214

C1100

C2207

ST2205

SP2335

R2204

R2556

C2255

C2233

C2606

R1100

C1101

C1102

ST2204

C2309

C2218

C4125

SP2334

C4121

C2325

C4124

C4122

R2308

C4123

R4113

V3113

ST2210

V2552

C4109

R4112

R4115

R4102

R2557

C2551

R2741

R2558

C2245

C4129

R2314

C2239

C2225

R2313

C2226

C2244

C2237

C2240

C2243

C2242

R2206

L2602

V2207

ST2300

V2206

C2609

C2610

ST2602

C2603

ST2231

C2619

C2616

C2613

C2615

C2607C2614

L3102R3101

C1107

C1103

C3104

C2235

C2254

C2288

C2209

C2216

C3105

ST2201

ST2208

SP2102

C2215

C3101

ST2203

R2212

C2219

C2220

C22105

C3116

C22117

N2200

ST2207

C2227

C2100

C2246

C2224

C2223

C2238

C2247

R2409

ST2404

ST2405

ST2407

ST2406

ST2408

C2283

C2287

V3101

C2253

C2232

C2251

C2252

C2231

C3103R3103

R3102

R2205

L2201

V2205

C2103

ST2100

C2102

C2104

C2257

C2256

C2228

ST2211

B2100

C3100

SP2111

R3100

V2208

ST2206

SP2110

SP2101

SP2108

SP2106

SP2113

SP2107

SP2109

SP2112

C2298

C2284 C2285C2286

S2504

V2500

V2509

V2503

V2507

SP3120

C2217

TP3105

TP3106

TP2204

TP3113

TP3101

TP3111

C2515

C2518

C2517

C2516

C2519

V2514

TP2200

TP2205

C3156

C3209

ST3111

C3207

C3201

C3205

C3203

C3211

C3213

C3106

R2552

V2550

TP3100

C3107

C3155

ST3110

C3208

C3200

C3206

C3204

C3210

C3202

C3212

D3101

X2550

R2732

C2550

R2553

C2559

R2555

C2555

TP2220

TP2222

TP2221

TP3114

V3100

TP3112

D3100

E1003

R2554

C3134

C3133

C2745

C22100

ST2220

C3143

C3136

C2742

C3144

C3145

C3141

C3139

C3137

C2747

C3138

C3140

C2746

C2741

ST2217

R2742

C3142

ST2227

C22113

C22115

R2207

R3158

C3157

R2228

N2210

N3100

R3157

R2236

V2215

R2237

V2214

R2229

ST2229

ST2228

V2213

V2211

C3132C22114

B3100

C22112

R2227

R2230

C2290

R3155

V2504

C22109

N2202

C22111

C2292

R2232

R2231

ST2222

S2506

V2505 V2510

C2744

C3149

L4106

C4143

C4142

L4105

S2505

C3148C3147C2743 C3146

TP1000

Front Side B - C

R - Replaceable

See Appendix for

more information.

SEMC Electrical Repair Manual

43 (121)

K800 - K810

1202-3085 rev. 2

COMPONENT OVERVIEW

COMPONENT OVERVIEW

COMPONENT OVERVIEW

123456

123456

A

D

C

B

A

D

C

B

D2000 ROP 101 3083/1 C5

D2300 RYT 118 953/1 D5

D3100 RYT 109 915/1 D3 R

D3101 RYT 109 915/1 D3 R

E1001 SXA 109 6372 A6 R

E1003 SXA 109 6981 B3 R

L2200 REG 724 5172/22SL B5

L2201 REG 706 05/15 B5

L2600 REG 724 9342/33 D6

L2601 REG 724 9342/33 D6

L2602 REG 704 9543/22 D6

L2603 REG 704 9543/12 D6

L3100 REG 724 9342/56 D3

L3102 REG 706 30/1 B5

L3103 REG 724 5372/22 B5

L4100 REG 706 18/2 B6

L4101 REG 706 18/2 B6

L4104 REG 706 18/2 B6

L4105 REG 706 18/2 D1

L4106 REG 706 18/2 C1

N2000 ROP 101 3066/6 B6 R

N2200 RYT 113 7810/1 B5 R

N2202 RYT 113 7824/1 D2 R

N2203 RYT 113 7824/1 D6 R

N2205 RYT 113 962/1 D3

N2209 RYT 113 7822/1 D2

N2210 RYT 113 7824/1 C2 R

N2600 RYT 109 905/3 D6 R

N3100 RYT 109 933/1 C2 R

N4100 RYT 101 947/2 C6 R

N4202 ROP 101 3074/1 C6 R

R1100 REP 621 003/82 B6

R2101 REP 621 006/1 C5

R2102 REP 621 103/1 C5

R2104 REP 621 002/47 C5

R2105 REP 621 105/1 B6

R2201 REP 624 650/1 B5

R2203 REP 621 106/1 B6

R2204 REP 621 004/47 B6

R2205 REP 624 650/22 B5

R2206 REP 621 004/1 D6

R2207 REP 621 006/1 C2

R2208 REP 621 006/1 D6

R2210 REP 621 006/1 D3

R2212 REP 621 004/18 B5

R2227 REP 621 005/15 D2

R2228 REP 621 005/15 D2

R2229 REP 621 006/1 D2

R2230 REP 621 006/1 D2

R2231 REP 621 006/1 D2

R2232 REP 621 005/15 D2

R2236 REP 621 006/1 D2

R2237 REP 621 007/1 D2

R2308 REP 621 005/1 B6

R2311 REP 621 105/1 C5

R2312 REP 621 105/1 C5

R2313 REP 621 004/33 C6

R2314 REP 621 004/33 C6

R2326 REP 621 005/1 C5

R2331 REP 621 004/1 C6

R2409 REP 621 005/1 C5

R2550 REP 621 003/27 B4

R2551 REP 621 003/47 B4

R2552 REP 622 452/1 B4

R2553 REP 621 006/1 B3

R2554 REP 622 001/0 B3

R2555 REP 621 006/1 B3

R2557 REP 621 006/1 C6

R2600 REP 621 005/1 D6

R2601 REP 621 006/1 D6

R2603 REP 621 005/47 D6

R3100 REP 622 001/0 B5

R3101 REP 621 102/47 B5 R

R3102 REP 622 450/15 B5

R3104 REP 622 001/0 B5

R3155 REP 621 006/1 D2

R4100 REP 621 105/18 B6

R4101 REP 621 105/18 B6

R4102 REP 621 103/1 C6

R4103 REP 621 104/56 B6

R4104 REP 621 005/15 B6

R4105 REP 621 104/56 B6

R4112 REP 621 004/22 C6

R4113 REP 621 003/47 C6

R4114 REP 621 003/47 C6

R4115 REP 621 005/1 C6

R4120 REP 621 106/1 C6

R4123 REP 621 103/1 C6

R4126 REP 622 001/0 C6

R4127 REP 622 001/0 C6

S2504 SXA 109 2476 C5 R

S2505 RMD 101 47 D1 R

S2506 RMD 101 47 B1 R

V2205 RKZ 123 905/2 B5

V2206 RYN 120 903/1 D6

V2207 RKZ 123 905/1 D6

V2208 RKZ 123 905/1 B5

V2210 RYN 121 916/2 D2

V2211 RYN 121 929/1 D2

V2212 RYN 901 926/1 D2

V2213 RYN 901 926/1 D2

V2214 RYN 123 930/1 D2

V2215 RKZ 123 905/1 D2

V2216 RKZ 123 905/1 D2

V2221 RKZ 223 905/2 C6

V2500 RKZ 223 914/1 B5 R

V2503 RKZ 123 910/2

V2504 RKZ 123 904/1 D2 R

V2506 RKZ 123 910/2 C5

V2507 RKZ 123 910/2 C4

V2508 RKZ 123 910/2 C5

V2509 RKZ 123 910/2 C4

V2510 RKZ 223 914/1 B1

V2514 RKZ 223 914/1 B4

V2550 RYN 121 6043/1 B4

V2551 RYN 121 928/1 B4

V2552 RYN 121 931/1 C6 R

V2600 RKZ 123 903/1 D6

V2601 RKZ 123 903/1 D6

V3101 RYN 123 915/1 B5 R

V3102 RKZ 323 907/1 B5 R

V3113 RYN 122 904/1 C6 R

X2501 RNV 799 009 B4 R

X2505 RNV 799 92 D3 R

X2510 RNV 799 015 C1 R

X2550 RNV 799 019/10 B3 R

X3102 RNV 799 94 D4 R

Z2500 RKZ 923 909/2 B4

11 20

10 1

N2000

L2200

D2300

C4108

SP2105

T

R2105

C4126

N4100

C2611

L2603

C2608

N2600

C1106

V3102

SP2100

R2201 R3104

SP2103

C2210

D2000

ST2232

C2282

L3103

C2229

C2221

C2222

C2258

V2506

C2259

ST2301

R2102

C2241

C2248

R2312

R2104

R2311

C2105

R2326

C2236

R2101

C2249

V2508

C2230

C2250

C2234

X3102

X2501

V2551

R2550

R2551

TP3115TP2553

TP2201

TP2202

N2205

TP4106

C2299

R2210

L3100

TP4105

C3115

X2505

C3135

V2216

ST2230

C22116

N2209

C22110

V2212

X2510

X2509

X2508

C2200

ST2202

C2331

C2293 V2221

E1001

ST2200

R4100

C4117

R4105

C4115

C4149

C4151

C2204

C4120

C4103

C4116

C2202

C2213

C4119

C4118

R4101

C4113

ST4106

C2203

R4104

C4141

L4101

C4110

C4144

C4107

C4112

C2205

C4114

C4140

L4100

R4103

C4111

C4150

C4102

C4128

R4123

N4202

C4146

C4106

C4252

C4153

C4127

R4126

R4114

C4104 C4105

R4120

ST4116

C4131

C4130

R4127

R2331

C2295

C2600

R2600

R2601

C2605 C2601

R2208

C2612

ST2218

C2604

N2203

C2602

L2601

C2618

L2600

C2617

R2603

V2600

R2604

V2601

C2208

C2206

R2203

C2214

C1100

C2207

ST2205

SP2335

R2204

R2556

C2255

C2233

C2606

R1100

C1101

C1102

ST2204

C2309

C2218

C4125

SP2334

C4121

C2325

C4124

C4122

R2308

C4123

R4113

V3113

ST2210

V2552

C4109

R4112

R4115

R4102

R2557

C2551

R2741

R2558

C2245

C4129

R2314

C2239

C2225

R2313

C2226

C2244

C2237

C2240

C2243

C2242

R2206

L2602

V2207

ST2300

V2206

C2609

C2610

ST2602

C2603

ST2231

C2619

C2616

C2613

C2615

C2607C2614

L3102R3101

C1107

C1103

C3104

C2235

C2254

C2288

C2209

C2216

C3105

ST2201

ST2208

SP2102

C2215

C3101

ST2203

R2212

C2219

C2220

C22105

C3116

C22117

N2200

ST2207

C2227

C2100

C2246

C2224

C2223

C2238

C2247

R2409

ST2404

ST2405

ST2407

ST2406

ST2408

C2283

C2287

V3101

C2253

C2232

C2251

C2252

C2231

C3103R3103

R3102

R2205

L2201

V2205

C2103

ST2100

C2102

C2104

C2257

C2256

C2228

ST2211

B2100

C3100

SP2111

R3100

V2208

ST2206

SP2110

SP2101

SP2108

SP2106

SP2113

SP2107

SP2109

SP2112

C2298

C2284 C2285

C2286

S2504

V2500

V2509

V2503

V2507

SP3120

C2217

TP3105

TP3106

TP2204

TP3113

TP3101

TP3111

C2515

C2518

C2517

C2516

C2519

V2514

TP2200

TP2205

C3156

C3209

ST3111

C3207

C3201

C3205

C3203

C3211

C3213

C3106

R2552

V2550

TP3100

C3107

C3155

ST3110

C3208

C3200

C3206

C3204

C3210

C3202

C3212

D3101

X2550

R2732

C2550

R2553

C2559

R2555

C2555

TP2220

TP2222

TP2221

TP3114

V3100

TP3112

D3100

E1003

R2554

C3134

C3133

C2745

C22100

ST2220

C3143

C3136

C2742

C3144

C3145

C3141

C3139

C3137

C2747

C3138

C3140

C2746

C2741

ST2217

R2742

C3142

ST2227

C22113

C22115

R2207

R3158

C3157

R2228

N2210

N3100

R3157

R2236

V2215

R2237

V2214

R2229

ST2229

ST2228

V2213

V2211

C3132C22114

B3100

C22112

R2227

R2230

C2290

R3155

V2504

C22109

N2202

C22111

C2292

R2232

R2231

ST2222

S2506

V2505 V2510

C2744

C3149

L4106

C4143

C4142

L4105

S2505

C3148C3147C2743 C3146

TP1000

Front Side D - Z

R - Replaceable

See Appendix for

more information.

SEMC Electrical Repair Manual

44 (121)

K800 - K810

1202-3085 rev. 2

COMPONENT OVERVIEW

COMPONENT OVERVIEW

COMPONENT OVERVIEW

123456

123456

A

D

C

B

A

D

C

B

BT Test

BT Test

IN

OUT

H2300

D2301

A1300

A1200

L4122

C1401

Z1400

D1400

V2303

C2296

D3104 R2316

V2201

R2301

X2302

SP2401

R2213

C22106

C2281

N2201

C2278

D2001

V1301

V2302

C2314

C2266C2401

R2305

C2332

R2328

C2307

C2330

X2506

R2325

R2327

R2329

R2324

X2301

X1000

S2502

V4101

X1002

X2300

X1400

X1401

C4152

C2320 C2322

C2352

C2315

V3110

C1404

C1407

C1403

C1402

R1406

R1405

ST2219

C1400

ST2250

R1404

R2209

L2305

C2297

N2204

C2327 C2328

C2326

L2304

L2302

L2303

L2301

C2321

L2300

V2220

R2722

R2302

R2234

R2233R2235

V2305

R2310R2321

C2351

C2350

C1405

V2306

E1002

ST1402

C1408

C1409

C1411

ST1403

C1406

ST1401 ST1400

C2404

N2400

R2350R2341

N2300

R2743

R2360

C2403

R2344

D2304

C2300

ST2302

R2303

C2302

V2300

C2301

R2300

V2301

R2322

R2304

V2310

V2204

R2309

V2203

R2343

R2342

R2713

R2712

R2338

C2280

ST2213

C2310

V2202

C2313

C2201 R2202

V2210

C2312

SP2400

C2265 C2263

C2261R2402 R2401 C2262

C2260 ST2212

R2306

C2311

R2307

C2277

SP2351

C2276

SP2350

C2268

C2264

C2267C2269

ST1300 C2400

C2289

ST2216

E1000

L1300

C1302C1301

R1304

R3137

C1300 R1301

V1300

N2402

C2402

R3136

V3103

C2101

C2270

C2274

C2275

C2271

C2279

R2400

C2272

C2273

X2200

R2200 C2211

C2212

V2200

X2507

L3101

V2511

C1000

L1000

V2513

X2504

S2507

S2503

C4132

R4125

L4120

X2503

V2512

R4124

C4133

L4121

X1001

S2500

R1002

R1000

A1200 ROA 128 1112 C4 R

A1300 ROA 128 1640 D4 R

C1000 RJC 463 3012/22 D2

C1300 RJC 516 4016/1 C5

C1400 RJC 516 3026/22 D6

C1401 RJC 516 3026/22 D6

C1402 RJC 516 3026/22 D6

C1403 RJC 516 3026/22 D6

C1404 RJC 516 3026/22 D6

C1405 RJC 516 3026/22 D6

C1406 RJC 516 3026/22 D6

C1407 RJC 516 3027/1 D6

C1408 RJC 516 3015/1 D6

C1409 RJC 516 4016/1 D6

C1411 RJC 516 3026/22 D6

C2101 RJC 516 3514/1 B5

C22106 RJC 516 4016/1 B5

C2211 RJC 463 3012/22 C3

C2212 RJC 463 3011/33 C3

C2260 RJC 516 4016/1 B5

C2261 RJC 516 4016/1 B5

C2262 RJC 516 4016/1 B5

C2263 RJC 516 4016/1 B5

C2264 RJC 516 4016/1 B5

C2265 RJC 516 4016/1 B5

C2266 RJC 516 4016/1 B5

C2267 RJC 516 4016/1 B5

C2268 RJC 516 4016/1 B5

C2269 RJC 516 4016/1 B5

C2270 RJC 516 4016/1 B5

C2271 RJC 516 4016/1 B5

C2272 RJC 516 4016/1 B5

C2273 RJC 516 4016/1 B5

C2274 RJC 516 4016/1 B5

C2275 RJC 516 4016/1 B5

C2276 RJC 516 4016/1 B5

C2277 RJC 516 4016/1 B5

C2278 REV 501 107/201 B5

C2279 RJC 516 4016/1 B5

C2280 RJC 516 3027/1 B5

C2281 RJC 516 3037/47 B5

C2289 RJC 516 4016/1 C4

C2296 RJC 516 3037/47 C6

C2297 RJC 516 3037/22 C6

C2300 RJC 516 4016/1 C6

C2301 RJC 516 4016/1 C6

C2302 RJC 516 4016/1 C6

C2310 RJC 463 3012/22 D5

C2311 RJC 463 3012/22 D5

C2312 RJC 463 3012/22 D5

C2313 RJC 516 3514/1 D5

C2314 RJC 516 3027/1 D5

C2315 RJC 516 3037/47 D6

C2320 RJC 516 3026/22 C6

C2321 RJC 516 3026/22 C6

C2322 RJC 516 3026/22 C6

C2326 RJC 516 3537/1 C6

C2327 RJC 516 3514/1 C6

C2328 RJC 516 3514/1 C6

C2330 RJC 463 3012/33 B3

C2332 RJC 516 3027/1 B3

C2400 RJC 516 3526/1 B5

C2401 RJC 516 4016/1 B5

C2402 RJC 516 4016/1 B5

C2403 RJC 516 4016/1 C6

C2404 RJC 516 4016/1 C6

D1400 RYT 123 923/2 B6 R

D2001 ROP 101 3044/4 B5

D2301 RYT 118 932/2 C5 R

D2304 RYT 109 913/1 C6 R

D3104 RYT 109 914/1 C6

E1000 SXA 109 5997 C5 R

E1002 SXA 109 6043 D6 R

H2300 RKZ 923 919/1 E6 R

L1000 REG 724 5541/29B D2

L2300 REG 706 05/19 C6

L2301 REG 706 05/19 C6

L2302 REG 706 05/19 C6

L2303 REG 706 05/19 C6

L2304 REG 706 05/19 C6

L2305 REG 706 05/19 C6

L3101 REG 724 9342/56 B3

L4120 REG 724 5542/56J C1

L4121 REG 724 5542/56J C1

L4122 REG 724 9301/47 D6

N2201 RYT 113 7810/2 B5

N2204 RYT 113 7824/1 D6 R

N2300 RKZ 923 921/1 C6 R

N2400 RYT 113 995/1 C6

N2402 RYT 109 914/1 B5

N2403 RYT 109 914/1 C5

R1000 REP 622 001/0 B2

R1003 REP 622 001/0 B2

R1301 REP 621 002/1 C5

R1304 REP 621 104/39 C5

R1404 REP 621 105/1 D6

R1405 REP 621 106/1 D6

R2200 REP 624 650/025 C3

R2202 REP 621 006/1 D5

R2209 REP 621 006/1 C6

R2213 REP 621 004/47 B5

R2233 REP 621 006/1 B6

R2234 REP 621 006/22 C6

R2235 REP 621 006/1 B6

R2300 REP 621 006/1 C6

R2301 REP 621 004/1 C6

R2302 REP 621 103/56 C6

R2303 REP 621 004/47 C6

R2304 REP 621 003/47 C6

R2305 REP 621 006/1 B3

R2306 REP 621 001/0 D5

R2307 REP 621 001/0 D5

R2309 REP 621 002/33 D5

R2310 REP 621 006/1 D6

R2316 REP 621 105/47 C6

R2321 REP 621 006/1 D6

R2322 REP 621 106/1 C6

R2324 REP 621 006/1 B3

R2325 REP 621 006/1 B3

R2327 REP 621 006/1 B3

R2328 REP 621 006/1 B3

R2338 REP 621 006/1 C5

R2341 REP 621 006/47 C6

R2342 REP 621 002/33 D6

R2343 REP 621 002/33 D6

R2344 REP 621 006/47 C6

R2350 REP 621 005/22 C6

R2400 REP 621 105/43 B5

R3136 REP 621 106/1 C5

R3137 REP 621 106/1 C5

R4124 REP 622 001/0 C1

R4125 REP 622 001/0 C1

S2500 RMD 101 16/4 D1 R

S2502 RMD 101 16/4 D2 R

S2503 RMD 101 16/4 D1 R

S2507 RMD 101 16/4 B1 R

V1300 RYN 121 933/2 C5

V1301 RYN 123 911/2 D5

V2200 RKZ 223 911/1 C3

V2201 RKZ 323 907/1 C6 R

V2202 RYN 122 684/2 D5 R

V2203 RYN 122 684/2 D5

V2204 RKZ 223 905/2 D5

V2220 RYN 123 919/1 C6 R

V2300 RYN 901 918/2 C6

V2301 RYN 121 931/1 B6 R

V2303 RKZ 223 914/1 C6

V2305 RKZ 223 914/1 D6

V2310 RYN 121 916/2 C6

V2311 RKZ 223 914/1 D2

V2312 RKZ 223 914/1 D1

V2313 RKZ 223 914/1 B2

V3103 RYN 901 923/1 C5 R

V3110 RKZ 433 924/1 E6 R

V4101 RKZ 223 914/1 D1 R

X1000 RPT 799 53 D2 R

X1001 RPT 799 51 B1

X1002 RPT 799 51 C1 R

X2200 SND 106 22 C3 R

X2301 (RNK 871 47) B2 R

X2302 RNK 871 46 D5 R

Z1400 RTN 202 932/4 D6

Back Side A - Z

R - Replaceable

See Appendix for

more information.

SEMC Electrical Repair Manual

45 (121)

K800 - K810

1202-3085 rev. 2

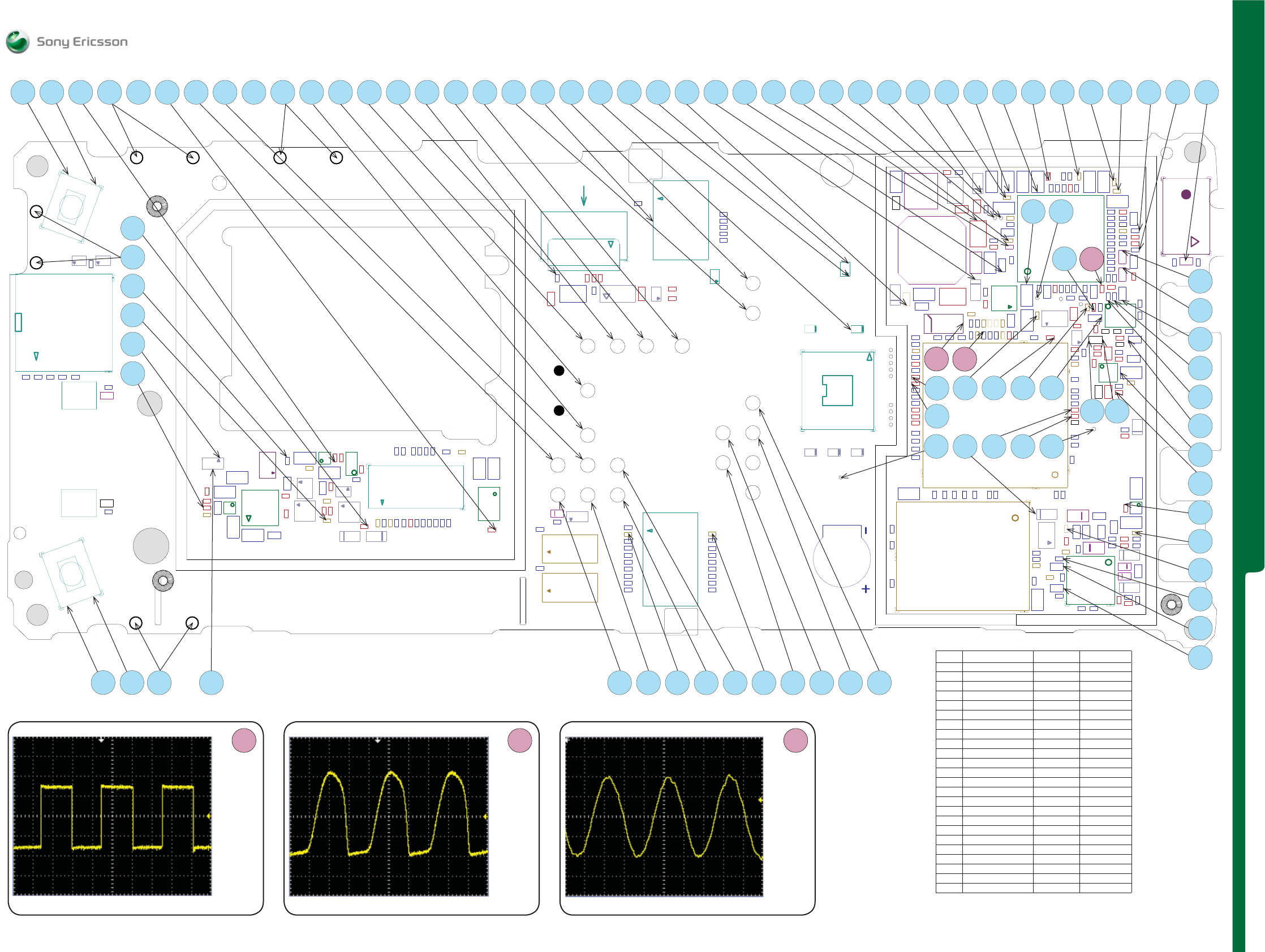

SAMPLE POINTS

SAMPLE POINTS

11 20

10 1

N2000

L2200

D2300

C4108

SP2105

TP1001

R2105

C4126

N4100

C2611

L2603

C2608

N2600

C1106

V3102

SP2100

R2201 R3104

SP2103

C2210

D2000

ST2232

C2282

L3103

C2229

C2221

C2222

C2258

V2506

C2259

ST2301

R2102

C2241

C2248

R2312

R2104

R2311

C2105

R2326

C2236

R2101

C2249

V2508

C2230

C2250

C2234

X3102

X2501

V2551

R2550

R2551

TP3115TP2553

TP2201

TP2202

N2205

TP4106

C2299

R2210

L3100

TP4105

C3115

X2505

C3135

V2216

ST2230

C22116

N2209

C22110

V2212

X2510

X2509

X2508

B4100

C4145

C4154

L4104

C2200

ST2202

C2331

C2293 V2221

E1001

ST2200

R4100

C4117

R4105

C4115

C4149

C4151

C2204

C4120

C4103

C4116

C2202

C2213

C4119

C4118

R4101

C4113

ST4106

C2203

R4104

C4141

L4101

C4110

C4144

C4107

C4112

C2205

C4114

C4140

L4100

R4103

C4111

C4150

C4102

C4128

R4123

N4202

C4146

C4106

C4252

C4153

C4127

R4126

R4114

C4104 C4105

R4120

ST4116

C4131

C4130

R4127

R2331

C2295

C2600

R2600

R2601

C2605 C2601

R2208

C2612

ST2218

C2604

N2203

C2602

L2601

C2618

L2600

C2617

R2603

V2600

R2604

V2601

C2208

C2206

R2203

C2214

C1100

C2207

ST2205

SP2335

R2204

R2556

C2255

C2233

C2606

R1100

C1101

C1102

ST2204

C2309

C2218

C4125

SP2334

C4121

C2325

C4124

C4122

R2308

C4123

R4113

V3113

ST2210

V2552

C4109

R4112

R4115

R4102

R2557

C2551

R2741

R2558

C2245

C4129

R2314

C2239

C2225

R2313

C2226

C2244

C2237

C2240

C2243

C2242

R2206

L2602

V2207

ST2300

V2206

C2609

C2610

ST2602

C2603

ST2231

C2619

C2616

C2613

C2615

C2607C2614

L3102R3101

C1107

C1103

C3104

C2235

C2254

C2288

C2209

C2216

C3105

ST2201

ST2208

SP2102

C2215

C3101

ST2203

R2212

C2219

C2220

C22105

C3116

C22117

N2200

ST2207

C2227

C2100

C2246

C2224

C2223

C2238

C2247

R2409

ST2404

ST2405

ST2407

ST2406

ST2408

C2283

C2287

V3101

C2253

C2232

C2251

C2252

C2231

C3103R3103

R3102

R2205

L2201

V2205

C2103

ST2100

C2102

C2104

C2257

C2256

C2228

ST2211

B2100

C3100

SP2111

R3100

V2208

ST2206

SP2110

SP2101

SP2108

SP2106

SP2113

SP2107

SP2109

SP2112

C2298

C2284 C2285

C2286

S2504

V2500

V2509

V2503

V2507

SP3120

C2217

TP3105

TP3106

TP2204

TP3113

TP3101

TP3111

C2515

C2518

C2517

C2516

C2519

V2514

TP2200

TP2205

C3156

C3209

ST3111

C3207

C3201

C3205

C3203

C3211

C3213

C3106

R2552

V2550

TP3100

C3107

C3155

ST3110

C3208

C3200

C3206

C3204

C3210

C3202

C3212

D3101

X2550

R2732

C2550

R2553

C2559

R2555

C2555

TP2220

TP2222

TP2221

TP3114

V3100

TP3112

D3100

E1003

R2554

C3134

C3133

C2745

C22100

ST2220

C3143

C3136

C2742

C3144

C3145

C3141

C3139

C3137

C2747

C3138

C3140

C2746

C2741

ST2217

R2742

C3142

ST2227

C22113

C22115

R2207

R3158

C3157

R2228

N2210

N3100

R3157

R2236

V2215

R2237

V2214

R2229

ST2229

ST2228

V2213

V2211

C3132C22114

B3100

C22112

R2227

R2230

C2290

R3155

V2504

C22109

N2202

C22111

C2292

R2232

R2231

ST2222

S2506

V2505 V2510

C2744

C3149

L4106

C4143

C4142

L4105

S2505

C3148C3147C2743 C3146

TP1000

MP 9MP 8MP 7MP 6MP 5MP 4MP 3MP 2MP 1 MP 10 MP 20MP 19MP 18MP 17MP 16MP 15MP 14MP 13MP 12MP 11 MP 21 MP 31MP 30MP 29MP 28MP 27MP 26MP 25MP 24MP 23MP 22 MP 32 MP 42MP 41MP 40MP 39MP 38MP 37MP 36MP 35MP 34MP 33

MP 84 MP 85 MP 92MP 91MP 90MP 89MP 88MP 87MP 86 MP 93 MP 95MP 94

MP 69

MP 70

MP 71

MP 72

MP 73

MP 74

MP 75

MP 76

MP 77

MP 78

MP 79

MP 58MP 57MP 56

PIC 54

MP 59

MP 50MP 49

MP 51

MP 66MP 65 MP 67MP 63 MP 64

MP 60

MP 55

MP 61 MP 62

MP 68

MP 80

MP 81

PIC 53

PIC 52

MP 82 MP 83

MP 43

MP 44

MP 45

MP 46

MP 47

MP 48

PIC 54

13 MHz MCLK at C2100

Pk-Pk

300 mV

100 mV 25,0 ns 13,000 MHz

PIC 53

32,768 KHz RTCOUT at B2100

Pk-Pk

760 mV

200 mV 10,0 us 32,768 KHz

PIC 52

32,768 KHz RTCCLK at R2105

Pk-Pk

1,4 V

500 mV 10,0 us 32,768 KHz

7

MP REF VALUE (V) CONDITION

3CAM_EN 2,7 CAM SET

6 CAM_12_EN 1,8 CAM SET

11 Gr oun d 0

13 VBAT 3,8

24 VCORE18 1,8

26 VDDBUCK 3,8

29 VDDF13 1,3

34 VccB 2,75

35 VccA 2,75

37 VDDE18 1,8

38 VBATI 3,8

39 VDIG 2,75

43 VCAMSD_EN_2 1,8 CAM SET

46 V_VGADIG 1,8 CAM SET

48 VCAMSD 1,8 CAM SET

56 VCORE13 1,3

58 VRTC13 1,3

77 VFM27 2,7 FM SET

89 VCAM12 1,2 CAM SET

90 VCAMAF CAM SET

92 VCAMIO 1,8 CAM SET

95 V_VGAANA 2,7 CAM SET

100 VCORE15 1,5

137 VBT27 2,7 BT SET

Front Side SEMC Electrical Repair Manual

46 (121)

K800 - K810

1202-3085 rev. 2

SAMPLE POINTS

SAMPLE POINTS

MP 97MP 96 MP 98 MP 108MP 107MP 106MP 105MP 104MP 103MP 102MP 101MP 100MP 99

BT

BT Test

IN

OUT

H2300

D2301

A1300

A1200

L4122

C1401

Z1400

D1400

V2303

C2296

D3104 R2316

V2201

R2301

X2302

SP2401

R2213

C22106

C2281

N2201

C2278

D2001

V1301

V2302

C2314

C2266C2401

R2305

C2332

R2328

C2307

C2330

X2506

R2325

R2327

R2329

R2324

X2301

X1000

S2502

V4101

X1002

X2300

X1400

X1401

C4152

C2320 C2322

C2352

C2315

V3110

C1404

C1407

C1403

C1402

R1406

R1405

ST2219

C1400

ST2250

R1404

R2209

L2305

C2297

N2204

C2327 C2328

C2326

L2304

L2302

L2303

L2301

C2321

L2300

V2220

R2722

R2302R2234

R2233R2235

V2305

R2310R2321

C2351

C2350

C1405

V2306

E1002

ST1402

C1408

C1409

C1411

ST1403

C1406

ST1401 ST1400

C2404

N2400

R2350R2341

N2300

R2743

R2360

C2403

R2344

D2304

C2300

ST2302

R2303

C2302

V2300

C2301

R2300

V2301

R2322

R2304

V2310

V2204

R2309

V2203

R2343

R2342

R2713

R2712

R2338

C2280

ST2213

C2310

V2202

C2313

C2201 R2202

V2210

C2312

SP2400

C2265 C2263

C2261R2402 R2401 C2262

C2260 ST2212

R2306

C2311

R2307

C2277

SP2351

C2276

SP2350

C2268

C2264

C2267C2269

ST1300 C2400

C2289

ST2216

E1000

L1300

C1302C1301

R1304

R3137

C1300 R1301

V1300

N2402

C2402

R3136

V3103

C2101

C2270

C2274

C2275

C2271

C2279

R2400

C2272

C2273

X2200

R2200 C2211

C2212

V2200

X2507

L3101

V2511

C1000

L1000

V2513

X2504

S2507

S2503

C4132

R4125

L4120

X2503

V2512

R4124

C4133

L4121

X1001

S2500

R1002

R1000

1

5

2

7

3

6

GND

VBat

MP 119MP 118MP 117MP 116MP 115MP 114 MP 120 MP 126MP 125MP 124MP 123 MP 127 MP 137MP 136MP 135MP 134MP 133MP 132MP 131MP 130

MP 128

MP 109

MP 110

MP 111

MP 112

MP 113 MP 129MP 122MP 121 MP 138

MP REF VALUE (V) CONDITION

3CAM_EN 2,7 CAM SET

6 CAM_12_EN 1,8 CAM SET

11 Gr oun d 0

13 VBAT 3,8

24 VCORE18 1,8

26 VDDBUCK 3,8

29 VDDF13 1,3

34 VccB 2,75

35 VccA 2,75

37 VDDE18 1,8

38 VBATI 3,8

39 VDIG 2,75

43 VCAMSD_EN_2 1,8 CAM SET

46 V_VGADIG 1,8 CAM SET

48 VCAMSD 1,8 CAM SET

56 VCORE13 1,3

58 VRTC13 1,3

77 VFM27 2,7 FM SET

89 VCAM12 1,2 CAM SET

90 VCAMAF CAM SET

92 VCAMIO 1,8 CAM SET

95 V_VGAANA 2,7 CAM SET

100 VCORE15 1,5

137 VBT27 2,7 BT SET

Back Side SEMC Electrical Repair Manual

47 (121)

K800 - K810

1202-3085 rev. 2

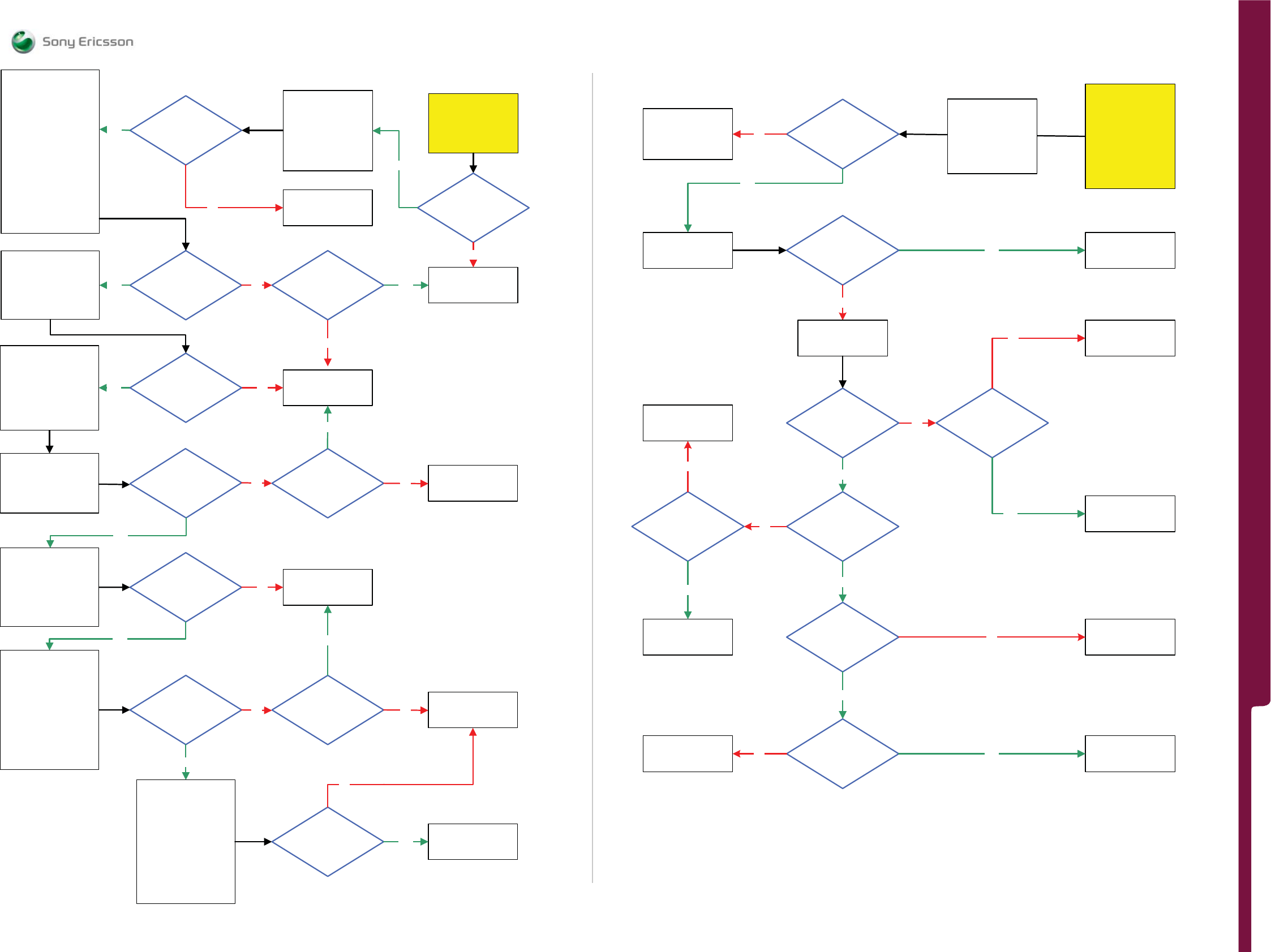

TROUBLESHOOTER

TROUBLESHOOTER

Repair Actions for Manual Test Failures

Failure Failure Symptom Repair Action

Power On / Off

Current draw greater than 300 mAmps

• N2000

• C22109

• K790 ONLY – N1100

• K800/K810 ONLY –

• A1200 – Approved Centers Only

Current draw when powered off

• C22109

• K790 ONLY – N1100

• K800/K810 ONLY –

• A1200 – Approved Centers Only

• A1300 – Approved Centers Only

Hangs at gray display. Constant

vibration. Will not power off. • B2100

Draws current when pushing power key,

returns to zero

• Run pre-confi guration using EMMA

• N2000

• D2301

• N2200

Powers on by itself after installing

battery. Will not power off.

• Replace S2500 if damaged

• V2504

No response when pushing power key

(no current change) • Replace S2500 if damaged

Phone hang when Bluetooth is turned

on.

If you can’t recreate the phone hang

problem, you should check that

Bluetooth is switched on to eliminate

this possibility

• D1400

Permanent phone hangs at start up or in

standby

• K790 ONLY (ROA revision R3A

and R3B only) – Replace R1404 and

R1405

Other symptoms • Replace X2200 if damaged

• N2000, D2301

Software Flash

USB icon does not fl ash

Error message “USB device not

recognized”

• N2300, D2304

• D2301

USB icon fl ashes

Progress indicator appears with red X • V2301

No response from computer or phone

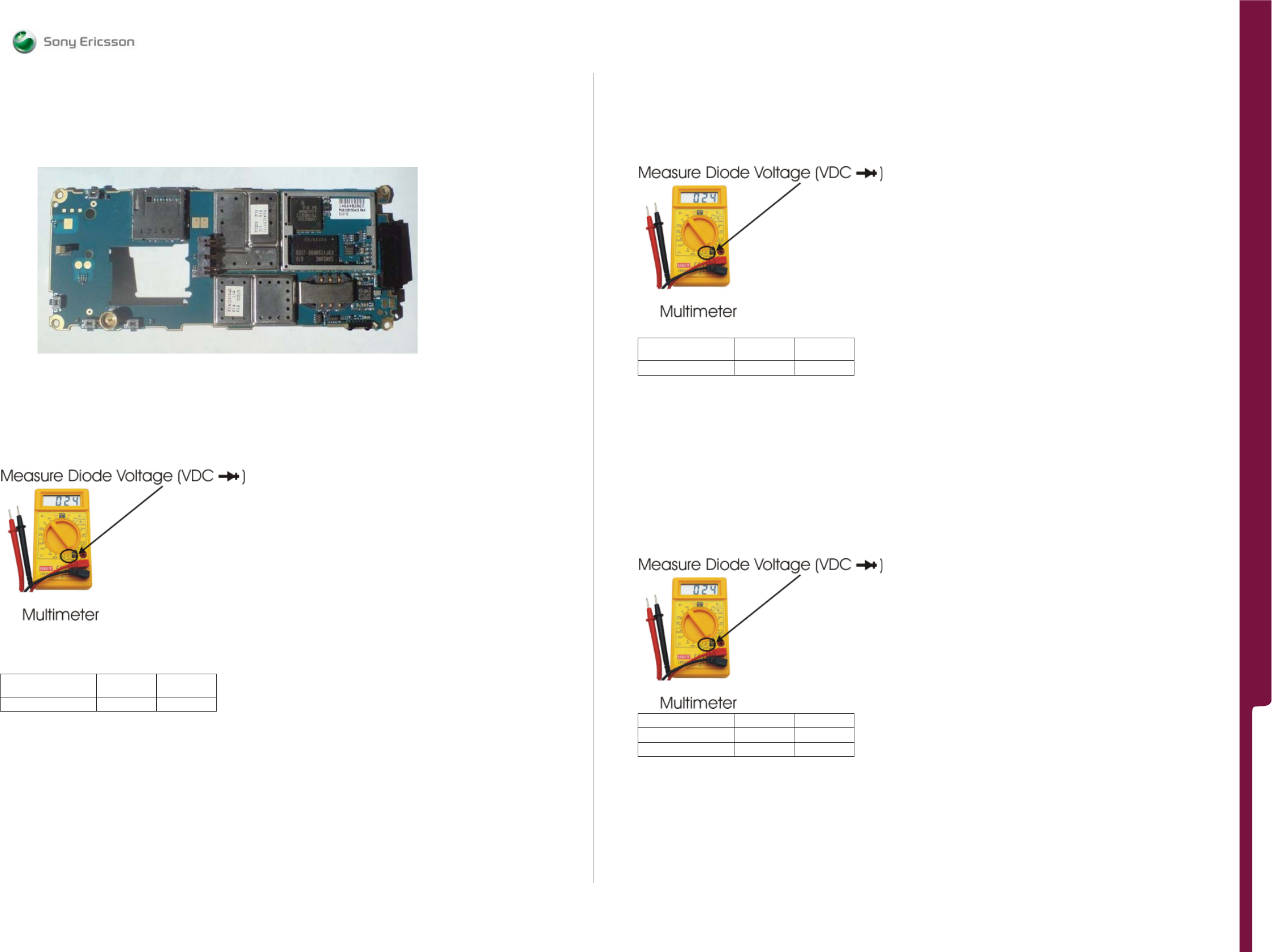

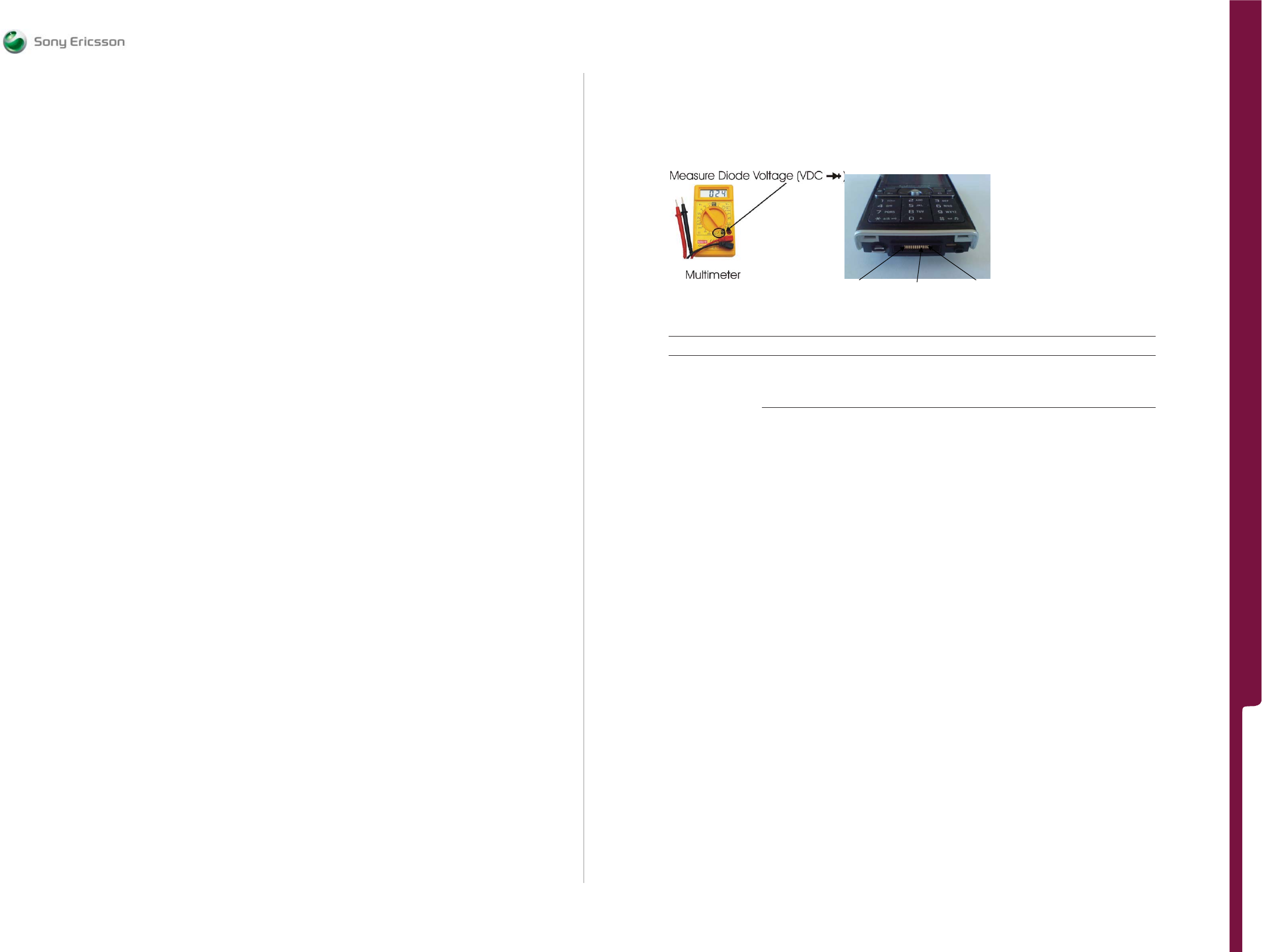

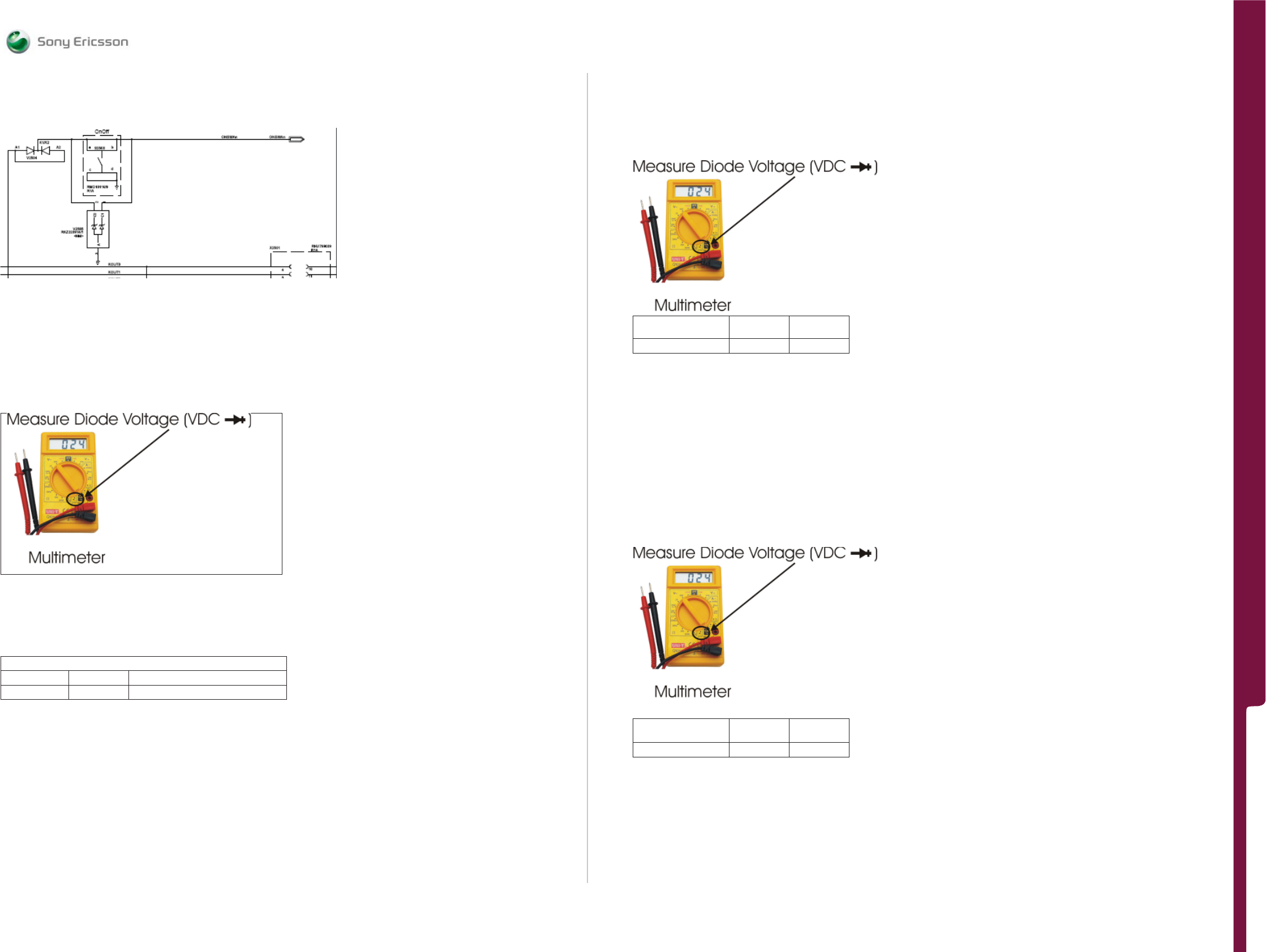

Measure V2201 with positive lead on the

Anode.

VDC should equal 0.15 to 0.19.

• If VDC is outside of range, then

replace V2201

• V2220

Other symptoms • D2301, D2304

General

The purpose of this document is to indicate the electrical level repair actions associated with the different

failure symptoms.

For symptoms that have multiple repair actions, the repair actions are listed in order of their probability of

creating a successful repair. The fi rst action has the highest probability, and subsequent actions have lower

probabilities. The intention is for the repair technician to implement the fi rst repair action and then retest

the phone. If the phone continues to fail the same test, then the technician should continue to the second

repair action. If the phone continues to fail the same test after all of the repair actions are exhausted,

then the phone will be considered not reparable at this level. This document should be used only after the

actions from the Mechanical Trouble Shooting Guide have been exhausted for the specifi c symptom.

Voltage, current, and resistance information is provided for some symptoms to enable faster repairs.

Perform current measurements using a dummy battery and power supply with digital current display.

The phone should be fully assembled. Perform voltage and resistance measurements with a multimeter.

Purchasing this equipment and performing these measurements is optional but recommended.

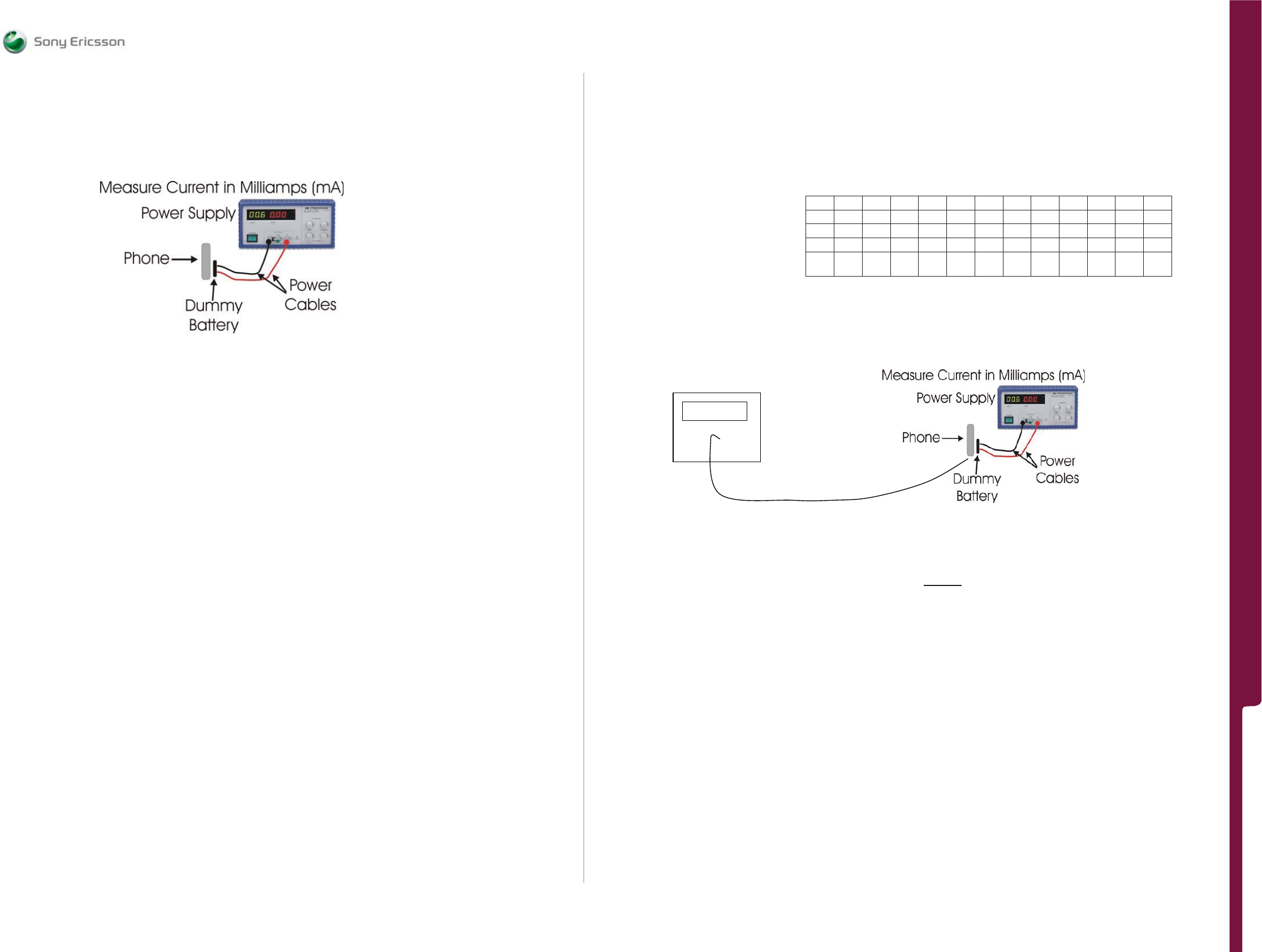

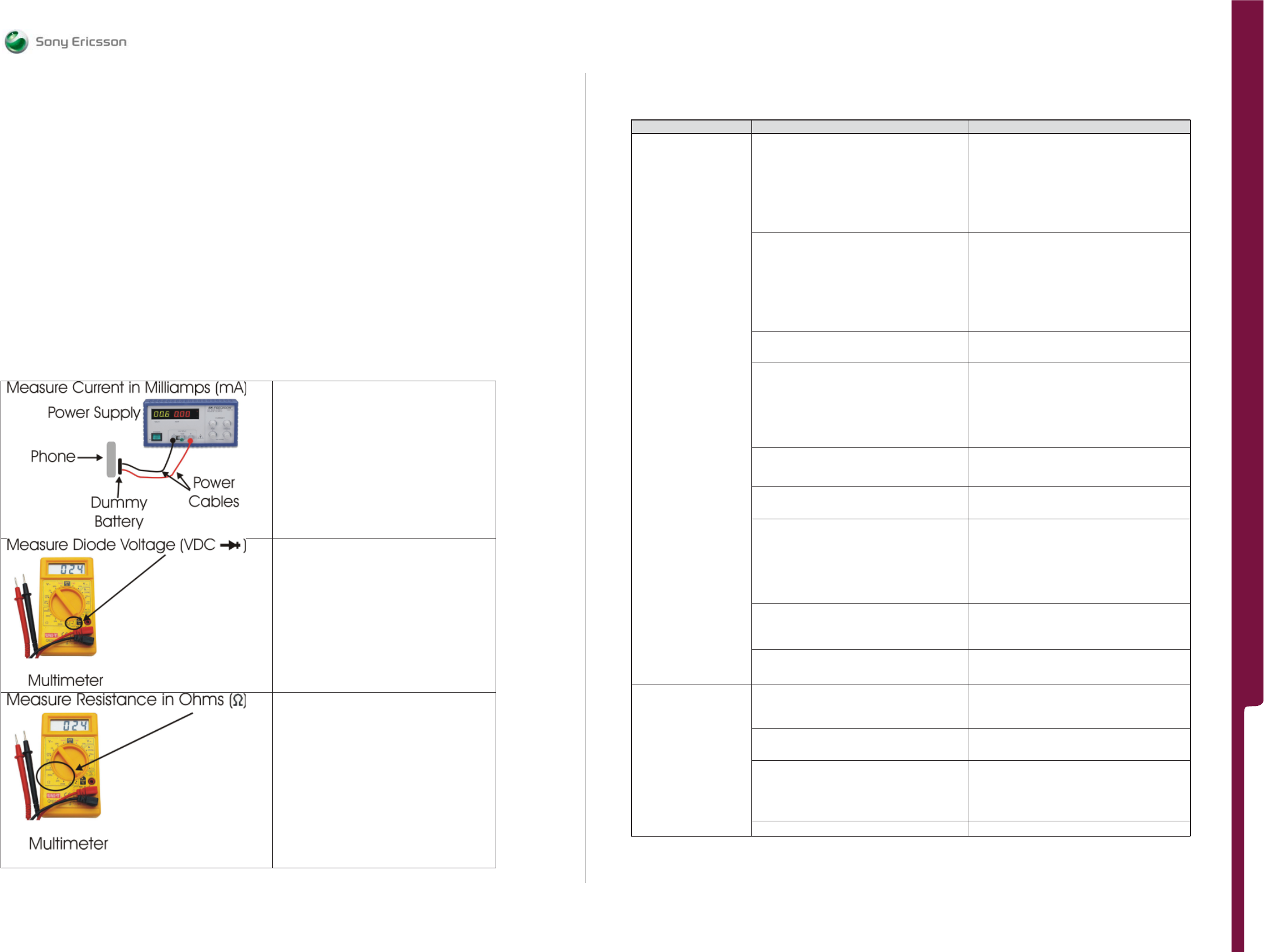

Perform current measurements using a

dummy battery and power supply with

digital current display. The phone should

be fully assembled.

Perform voltage measurements with a

multimeter.

Perform resistance measurements with a

multimeter.

Repair Actions SEMC Electrical Repair Manual

48 (121)

K800 - K810

1202-3085 rev. 2

TROUBLESHOOTER

TROUBLESHOOTER

Failure Failure Symptom Repair Action

Camera Flash

• Replace X2550 if damaged

• V3113

• V2552

Camera Lens Cover Sensor • Replace X2550 if damaged

• V2500

IR • H2300

Bluetooth

• N2204

• N2000

• D1400

FM Radio

• N2203

• N2600

• N2000

Memory Card • Replace X2301 if damaged

Repair Actions for Go/No Go Test Failures

Failure Repair Action

Fails any part of Go/No Go testing • run the calibration routine

Fails Go/No Go test, but passes calibration

• replace the antenna

• Replace X1002 if damaged

• rerun the phone through Go/No Go testing

Fails Go/No Go test after passing calibration • change X1000 and retest

Repair Actions for Calibration Failures

K790

Failure Repair Action

Fails any part of the calibration routine

• Replace X1002 if damaged

• Replace X1000 if damaged

• N1100

K800

Failure Repair Action

Fails any part of the calibration routine

• Replace X1002 if damaged

• Replace X1000 if damaged

• A1200 UMTS – Approved Centers Only

• A1300 GSM – Approved Centers Only

Failure Failure Symptom Repair Action

Charging

Charging from power outlet • V2202

• N2000

Charging from computer via USB

Measure V2201 with positive lead on the

Anode.

VDC should equal 0.15 to 0.19.

• If VDC is outside of range, then

replace V2201

• V2220

Charging indicator (RED LED) • V3110

Hands-Free connection (PHF) • N4202

• N2000

SIM • Replace X2302 if damaged

• N2000

Display • Replace X3102 if damaged

Display /Keypad

LED Illumination

Display and keys work, but they are

dark.

Measure V3102 with the Positive (red)

probe on the anode = 0.16 to 0.19

• Replace X3102 if damaged

• Replace X2501 if damaged

• If VDC is outside of range, then

replace V3102

• V3101

• N2000

• R3101

Display light works, but keys are dark • V3103

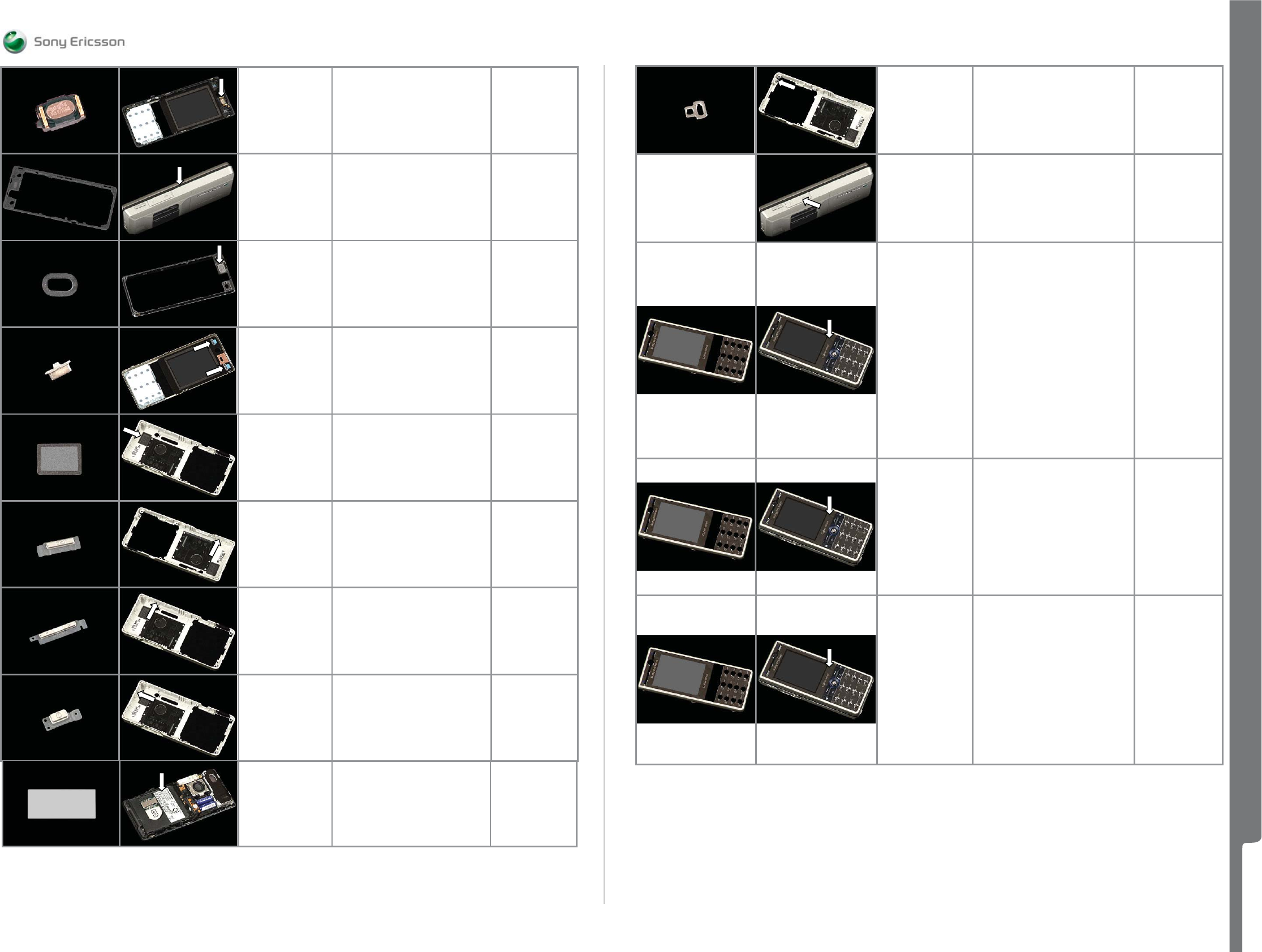

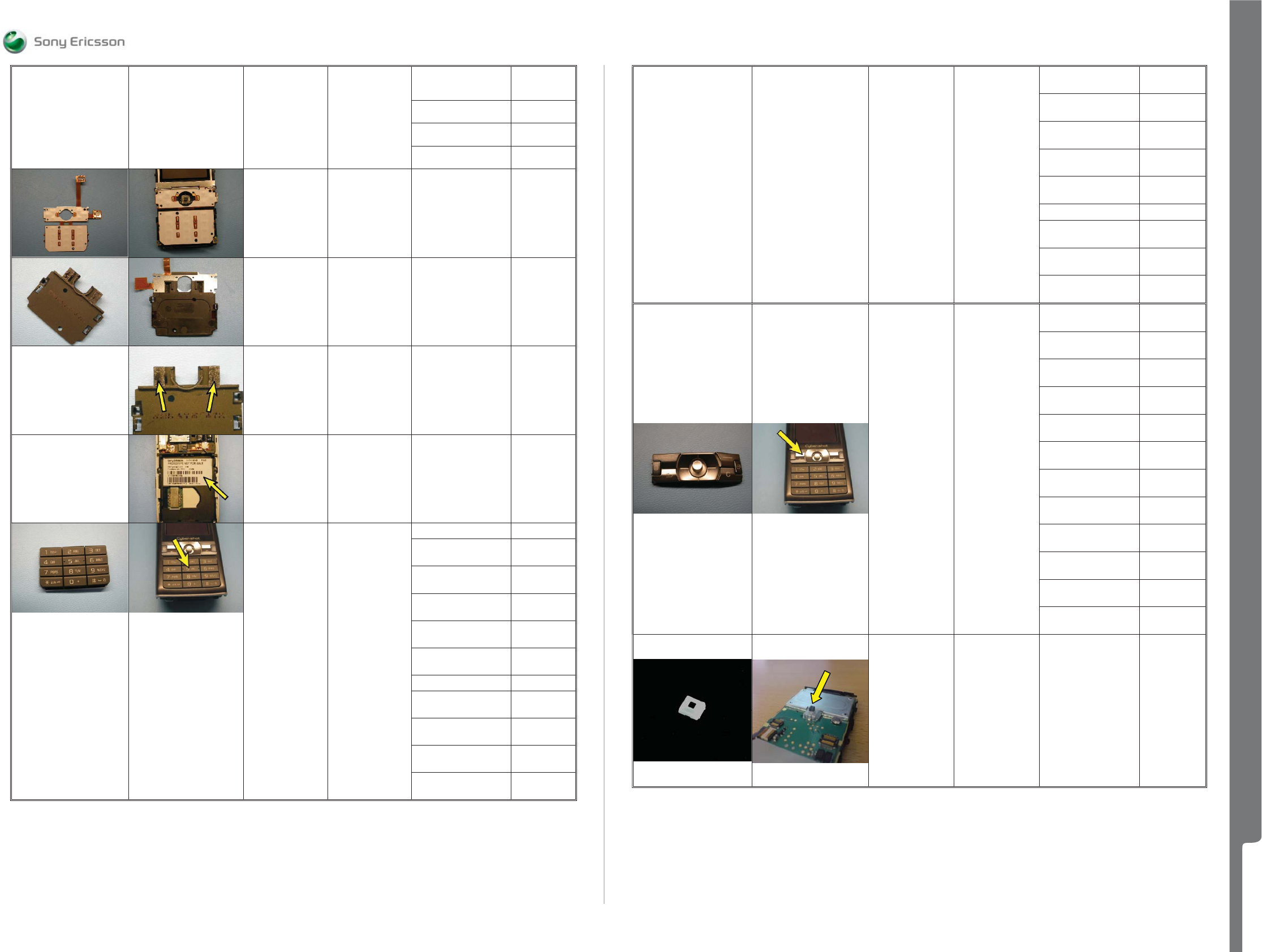

Keypad Keys • Replace X2501 if damaged

Volume Down/Up Keys • Replace S2502, S2503 if damaged

Camera Key • Replace X2501 if damaged

On/Off key • Replace S2500 if damaged

Gaming (A and B) Keys • Replace S2505, S2506 if damaged

Media Player Key • Replace S2507 if damaged

Navigation Key (Joystick) • Replace S2504 if damaged

• V2500

Vibrator • N2000

Earphone (Speaker, Receiver) • N2000

Polyphonic Speaker (Alert, Speakerphone)

• V4101

• N4100

• N2000

Backup Battery • C2217

Microphone

• B4100

• N4202

• N2000

Real Time Clock • B2100

Camera (Large, Rear)

• Replace X2505 if damaged

• N2202

• N3100 (Can’t take picture)

VGA Camera (Small, Front)

• K800/K810 ONLY. K790 does not

include this camera.

• Replace X2510 if damaged

• D3100, D3101

• N2210

Repair Actions SEMC Electrical Repair Manual

49 (121)

K800 - K810

1202-3085 rev. 2

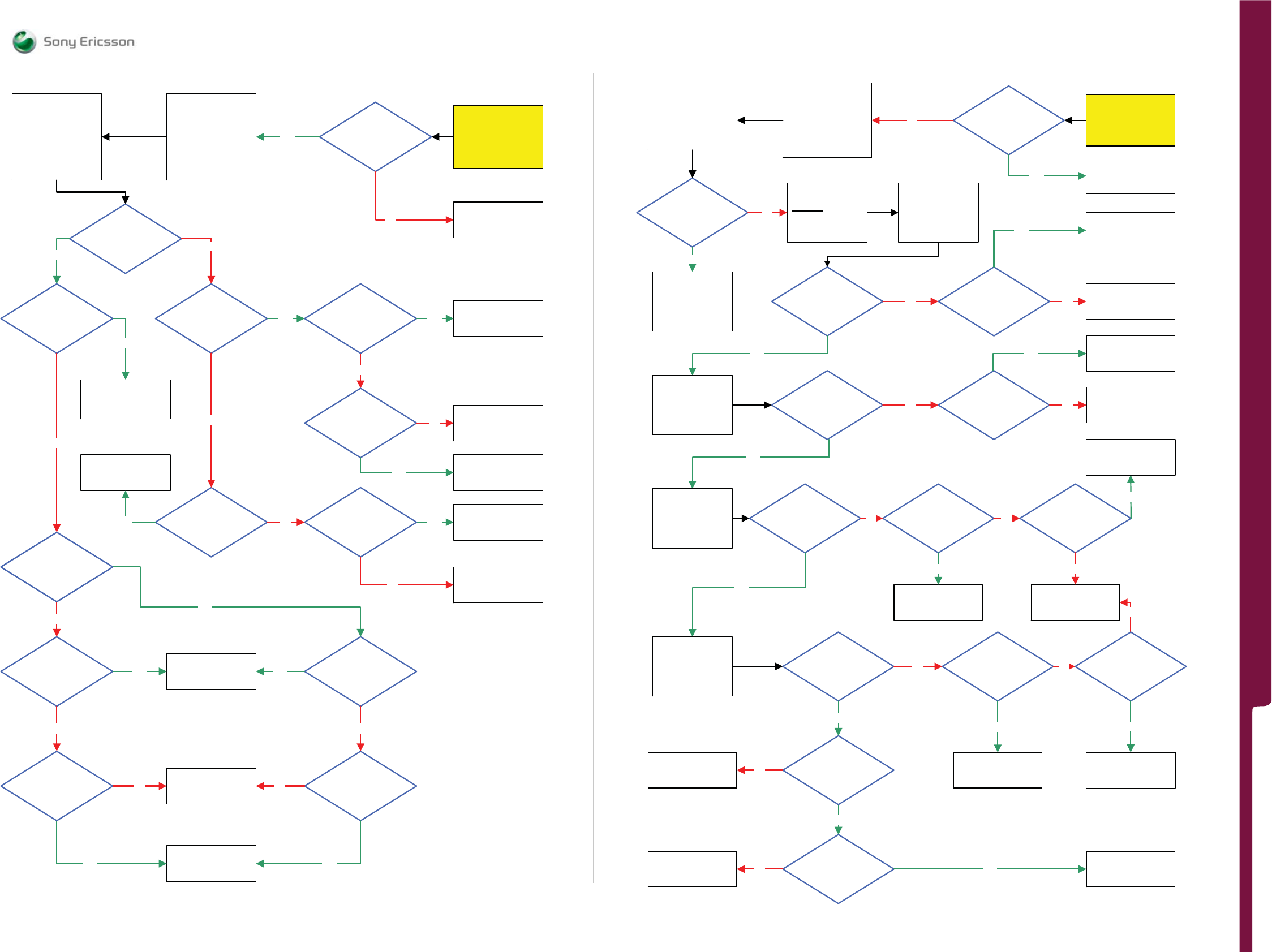

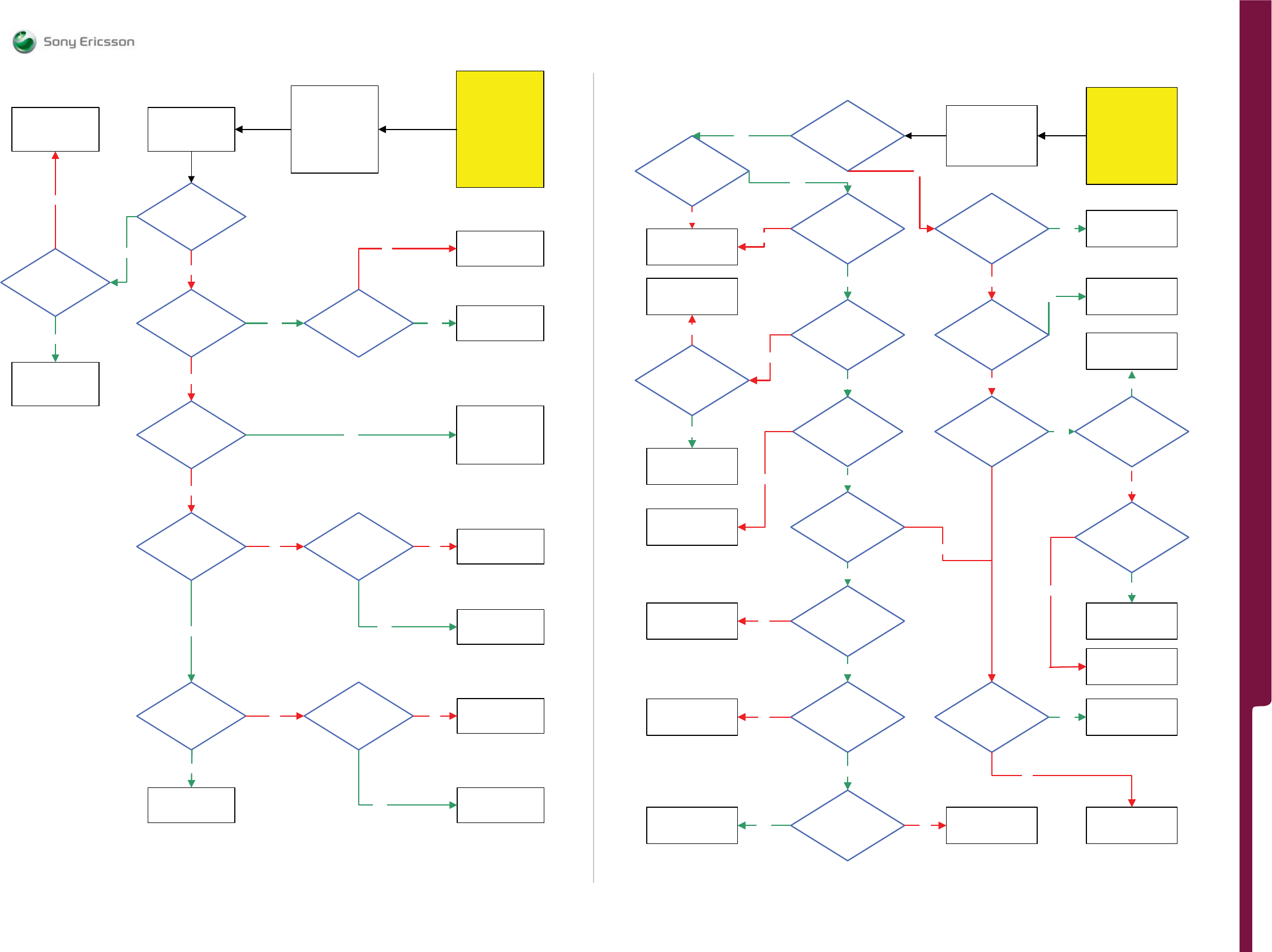

TROUBLESHOOTER

TROUBLESHOOTER

1. Customize the phone into DPY/Z

2. Startup the phone and wait for the

configuration to take place (takes less

than a minute)

3. Customize with correct CDA

4. Activate the phone

No

No

START

Connect dummy

battery

3,8V

2A current limit

Go to

Dead phone

problems

Yes

No

No

Connect a chargerNo

Yes

Go to

Test the diode

V2504 and switch

S2500

Yes

Go to

Dead phone

problems

No

Go to

Dead phone

Problems.

Yes

No

Go to

Dead phone

Problems.

Yes

No

Yes

Yes

Go to

Test the system

connector

protections.

After this

Flash problems

Yes

Yes

NoYes

No

Is the phone

consuming more than

1mA when the phone is

powered off

Is it possible to

power on the phone

Is the phone

consuming any current

when powering on the

phone

Did this solve the

problem

Is the phones

behavior as normal

Optimized

charging

Does the phone

consume more than

10 mA

Does the phone

consume more than

50 mA

Flash

the phone with correct

CDA software.

Successful

Did the flash process

started

Flash

The phone with

ITP software

successful

Did this solve the

problem

Is it possible to power

off the phone

Yes

Go to

Test the Diode

V2504 and switch

S2500.

Go to Test

current consumption

After this

Test Charging.

Yes

No

Claim for a

sw upgrade

Yes

Press 2 and 5

Connect USB

Run pre-config 1 and 2

Run DPY/Z

Flash Successful

Yes

No No

Go to

Flash problems

Trouble shooting guide On/Off

START

Try to recover the phone

using SW

Press key 2 and 5

Run pre-config 1 and 2

Connect to usb flash

Run DPY/Z

Use fixture

Connect 3,8V

Limiter 2A

No chargers

plug inserted

Yes

No

Yes

S2500

Not pressed

Using more than

1 mA

current

13 MHz

MCLK at

PIC 54

No

Try to trace the

faulty component

with freezing spray

No

Yes

No

Replace

A1300 or

A1200

Try to trace the

faulty component

with freezing spray

Replace

B2100

3.8 Volt

at

MP 38

VBATi

No

Yes

Replace

N2000

Yes

No

Yes

A1300 Marlin

A1200 Ray

getting hot

Remove

N2000 Using more than

1 mA

current

Keep S2500

pressed or

connect

Charger plug

SL 5 Replace

R2200

SL 4 scrap

Replace N2000

32KHz

at

PIC 53 RTCOUT

Yes

0,3 Volt

DC at

PIC 53 RTCOUT

Scrap

D2000

Faulty

Yes

Try to recover the

phone using SW

Load ITP

2.75 Volt at

MP 39 VDIG

MP 34 VccB

MP 35 VccA

Replace

A1200

Ray

1.8 Volt at

MP 24 VCORE18

32KHz

at

PIC 52 RTCCLK

Flash process

passed

Go to Test

System connector

protections

Replace

D2301

No

Yes

3.8 Volt

At

MP 13

VBAT

Yes

Replace X2200

No

13 MHz

at

PIC 54

Claime

A1200

Ray

Yes

1.3 V at

MP 29 VDDF13

MP 58 VRTC13

1.8V at

MP 37

1.3 Volt at

MP 56 VCORE13

Replace

N2200 No

1.5 Volt at

MP 100 VCORE15

SL 5 Replace

N2201

SL 4 scrap

No

Yes

Yes

No

Yes

13 MHz

at

MP 99

No

No

SL 5 Replace V1300

SL 4 Scrap

Yes

Replace

D1400

Bluetooth

Yes

No

No

L2000 or L2201

Faulty

Check MP 25 and

26

No

SL 5 Replace

L2200 or L2201

SL 4 scrap

Yes

Yes

No

No

C22109

getting hot

Replace

C22109

Yes

No

Dead phone problems

Trouble Shooting Guide On/Off - Dead Phone SEMC Electrical Repair Manual

50 (121)

K800 - K810

1202-3085 rev. 2

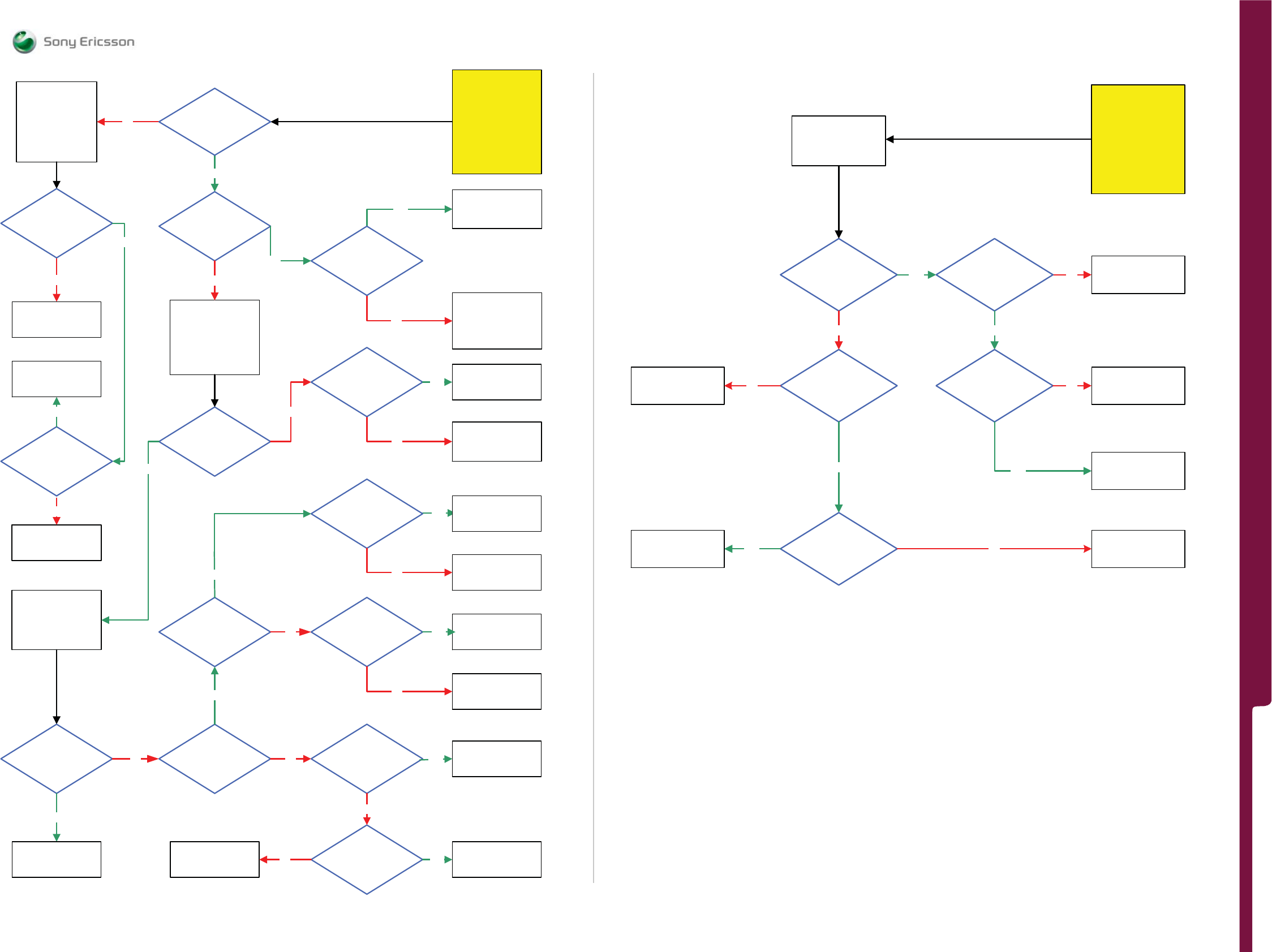

TROUBLESHOOTER

TROUBLESHOOTER

START

Load the ITP Sw into

the phone

Connect dummy

battery3,8V

2A current limit and

Chargers plug 5.3V

2A current limit.

Yes

No

Use fixture and

fault trace SW

Connect 3.8V

Connect charger

Plug 5.3 V and

then SEPI cabel

Yes

No

Use fault trace

SW. Run Battery

calibrations

Passed

Use fault trace

SW. Run Current

calibrations

Passed

Yes

No

Load SW from EMMA

Content refresh

Go to

Test Charging

Use fixture and

fault trace SW

Connect 3.8V

Connect charger

Plug 5.3 V and then

SEPI cabel

No

3.2 V and 4.1 V

at MP 13 TP2220 when

battery calibrations

Is done Yes

SL 5 Replace

R2200

SL 4 scrap

5,3 Volt at

MP 130

DCIO

Yes

No

SL5 Replace

V2204

SL 4 scrap

Using current.

V2204 getting

hot

Yes

Replace X2300

System connector

Start

current calibrations

Replace N2000

SL 5 Replace

R2201

SL 4 scrap

Replace V2202

Replace N2000

SL 5 Replace

V2203

SL 4 Scrap

SL 5 Replace

V2210

SL 4 scrap

Marita

D2000 faulty

Scrap

R2201

0.1 Ohm

No

Mp 128

DCIOint

Higher than

3,8 Volt

Mp 28

CHSENSE+

Higher than

3,8 Volt

Mp 126

CHREG

Pin 4 V2202

Lower than

MP 128

Yes

No

Mp 127

Pin 4 V2203

Lower than

MP 130

Pin 8 V2203

Yes

No

Yes

No Yes

DCIO_ON

Pin 1 V2210

High Yes

No

No

3.2 V and 4.1 V

at MP 38 VBATI when

battery calibations

Is done

Replace N2000

Yes

No

Using Current

when charger

calibration

Is done

No

Yes

Replace N2000

Replace X2200

SL 5 replace

V2200

SL 4 scrap

No

V2200

Short circuit

Yes

Charging problems

START

Phone with

Normal SW

Use fixture

Connect 3.8V

No

N2300 or D2304

Getting hot

Yes

Replace

V2201

Replace

D2304

5V at

MP 107

VBUS

5V at

MP 106

VBUS_1

Replace

V2220

Yes

N2300

Getting hot

No

Replace

System connector

Yes

Yes

4.7V at

MP 103

VBUS_VINC No

Replace

N2000

Yes

No

Replace

N2300 No

Connect USB plug

From CPU

VBUS Charging problems

Trouble Shooting Guide Charging Problems - VBUS Charging ProblemsSEMC Electrical Repair Manual

51 (121)

K800 - K810

1202-3085 rev. 2

TROUBLESHOOTER

TROUBLESHOOTER

START

No

Keyboard backlights

works

Display backlights

works

Yes

Yes

Replace

N2000

SL 5 Replace

R3100 or L3103

SL 4 scrap

Replace or resolder

X2501

Replace

V3103

Yes

Keyboard backlights

Upper works

Yes

0 Volt at

MP 20

TP3105

No

No Scrap

D2000 faulty

Yes

No

3.8V at

MP 16

TP 3100

Yes

Fault trace SW

MMI

Start

LCD backlight

Lower keyboard bac

Upper keyboard bac

Flash with EMMA

Run SUCR

15 V ptp

Pulses at MP 16

short after

Lcd bachlights

Is set.

No

Replace

X3102 or Display

Yes

1.8 Volt at

MP 97

No

Keyboard backlights

Upper works

0 Volt at

MP 18

TP3105

Yes

No

1.8 Volt at

MP 98

Yes

No

3.8V at

MP 32

No

3.8V at

Annode

V3102

No

Replace

V3102

No

SL 5 Replace

R3104

SL 4 scrap

Yes

Yes

3.8 V ptp

Pulses at MP 27

short after

Lcd bachlights

Is set.

No

Replace

V3101

Yes

Load the ITP Sw into

the phone.

Use fixture

Connect 3.8V

Insert display

and Keyboard

Use fault trace SW

47 Ohm

Between MP 94

And ground

No Replace

R3101

Yes

Keyboard and Display backlights problems

Load the ITP Sw into

the phone.

Use fixture

Connect 3.8V

Insert SIM

Use fault trace SW

No

Run SIM com test

Passed

2.8 Volt at

Pin 1 X2302

MP 129

Yes

Yes

Replace

N2000

SL 5 Replace

C2313

SL 4 scrap

Replace

N2000

Replace or

Resolder

X2302

Yes

Remove SIM

Restart the phone

Use fault trace

SW

Start

SIMVCC

SIMVCC on

Start

SIMRST

2.8 Volt at

Pin 2 X2302

MP 125 No

Yes

SIMVCC on

SIMRST on

Start

SIMCLK

2.8 Volt at

Pin 3 X2302

MP 124

Yes

SIMVCC on

SIMRST on

SIMCLK on

Start

SIM DATA

2.8 Volt at

Pin 7 X2302

MP 123

2.8 volt at

ST2306 K790

R2306 K800

SIMCLK_2

2.8 Volt at

ST2307 K790

R2307 K800

SIMDAT_2

Pin 5 X2302

Ground

No

No

Yes

No

Replace

N2000

Sl 4 Resolder or

Replace X2302

Sl 5 replace R2307

No

Sl 4 Resolder or

replace X2302

Sl 5 replace R2306

No

Yes

Yes

Check X2302

faulty

No

Replace or

resolder

X2302

Yes

C2313

Short circuit No Replace

N2000

Yes

Fault trace SW

Logic

SIM Card control Start

Flash with EMMA

Run customize

or refresh

No

C2309, C2310

or C2314

Short circuit

No

SL 5 Replace C2309

C2310 or C2314

SL 4 scrap

Yes

C2311

Short circuit

No

Sl 5 Replace

C2311

Sl 4 scrap

Yes

C2312

Short circuit

No

Sl 5 Replace

C2312

Sl 4 scrap

Yes

10Kohm between

Pin 1 and 7

X2302

Sl 5 Replace or

Resolder R2308

Sl 4 scrap No Yes

SIM problems

Trouble Shooting Guide Keyboard & Display Backlight - SIM SEMC Electrical Repair Manual

52 (121)

K800 - K810

1202-3085 rev. 2

TROUBLESHOOTER

TROUBLESHOOTER

START

Test the system

Connector

protections first.

Phone with

Normal SW

Use fixture

Connect 3.8V

No

Yes

Replace

D2304

Replace N2300

Retest then

Replace D2304

Is the phone

Indicate charging

1.8V at

MP 101

EDB_EN

Remove the USB

cabel

Yes

Data signal

3V PTP at

MP 132

No

Replace

System connector

Yes

Yes

0 Ohm

between

Pin 10 at X2300

And MP132

No

SL 5 Replace

R2322

SL 4 Scrap

Yes

No

No

Power up the phone

Connect USB plug

From CPU

Go to VBUS

Charging problems

No

Insert the USB

cabel

0V at

MP 101

EDB_EN

Scrap

D2000 faulty

Yes

3.1V at

MP 132

D+/DTMS

0 Ohm

between

Pin 11 at X2300

And MP102 Yes

Replace

System connector

Replace N2300

Retest then

Replace D2304

No

Flash process

startes

When using

EMMA

No

Yes

Flash ITP

Using EMMA

passed Yes Replace

D2301

No

Flash problems

START

Load the ITP Sw into

the phone.

Use fixture

Connect 3.8V

Use fault trace SW

Fault trace SW

Audio and FM Radio

Audio Loop test

Settings Mic1

Dictaphone

Earphone

Apply Audio Loop

Talk to the int Mik

Replace

N2000

Yes

Replace

Mic B4100

Yes

Mic audio

200 mVolt AC at

MP 68 BEARP and

MP 69 BEARN

No

No

2.4 Volt DC

At

MP 73

CCO_2

No

Replace

N4202

Mic audio

20 mVolt AC

At MP 42

INTMIC

Settings

Mic1

Dictaphone

Loudspeaker

Apply Audio Loop

Mic audio

200 mVolt AC

At X2503

and X2504

Yes

Mic audio

20 mVolt AC

MP70

C4102

Yes

No

MP 59 CCO_1

Short circuit

To ground No Replace

N2000

Yes Replace

N4202

Mic audio

200 mVolt AC

At X2508

and X2509

Yes

No

Sl 5 Resolder

L4100 L4101

L4105 L4106

Sl 4 scrap

1.9 Volt DC

At X2503

and X2504

Yes

No

Go to

Audio External

Problems

No

MP 61 and

MP 62

Short circuit No

Replace

C4126 Replace

N4100

Replace

N2000

Yes

Audio

At MP61

LINEP No

Yes

Replace

V4101

MP 86 or

MP 7

Short circuit

To Ground

Yes

No

1.9 Volt DC

At TP 4105

and TP 4106 No

Yes

Sl 5 Resolder

R4124 L4121

R4125 L4120

Sl 4 scrap

Yes

Scrap

D2000

faulty

1.8 Volt DC

At MP 75 Yes

No

Audio internal problems

Trouble Shooting Guide Flash Problems - Audio Internal Problems SEMC Electrical Repair Manual

53 (121)

K800 - K810

1202-3085 rev. 2

TROUBLESHOOTER

TROUBLESHOOTER

START

Load the ITP Sw into

the phone.

Use fixture

Connect 3.8V

Use fault trace SW

Camera inserted

Display inserted

Fault trace SW

MMI

Misc

Start

Camera connection

SL 5 Rplace

V2213

SL 4 Scrap

Yes

Replace

N2202

No

No

1.2 Volt DC

At

MP 89

VCAM12

2.7 Volt DC

At

MP 93

VCAM27

Yes

Yes

2.7 Volt DC

At

MP 90

CAMAF

1.8 Volt DC

At

MP 48

VCAMSD

1.8 Volt DC

At

MP 6

CAM_12_EN

No

D2000 faulty

Scrap

Yes

No

SL 5 replace

N2205

SL 4 Scrap

1.8 Volt DC

at

MP 92

VCAMIO

Yes

1.8 Volt DC

At

MP 46

St2229

Yes

No

1.8 Volt DC

At MP 43

VCAMSD_EN_2

R2237

0 Volt DC

At

R2230

SL 5 Replace

R2237

SL 4 Scrap

SL 5 Replace

V2214

SL 4 Scrap

No

Yes

SL 5 Replace

V2212

SL 4 Scrap

SL 5 Replace

V2211

SL 4 Scrap

Yes

No

SL 5 replace

N2209

SL 4 Scrap

No

Replace

Or resolder

X2505

Yes

2.7 Volt DC

At

MP 95

V_VGANA

Replace

N2210 No

VGA camera

problems

No

Yes

Replace

X2510

Check

X2510

faulty

Yes

Yes

Replace

D3100

D3101

No

1.8 Volt DC

at

MP 92

VCAMIO

Yes

No

No

1.8 Volt DC

At

MP 3

CAM_27_EN

Scrap

D2000 faulty

Yes

No

Same DATsignal

At both side

R3158

Same CLK signal

at both side

R3157

Yes

Replace

N3100

No

Yes

No

Camera problems

START

Before this do

Test the system

connector protection

Load the ITP Sw into

the phone.

Use fixture

Connect 3.8V

Use fault trace SW

Fault trace SW

Audio and FM Radio

Audio Loop test

Settings AUX

Dictaphone

AUX Earphone

Apply Audio Loop

SL 5 Replace

L2303 or L3204

SL 4 Scrap

You can hear the

Ext mik at the

Ext earphone

No

Replace

System connector

Mic audio

10 mVolt AC

At MP 71

and MP72

Yes

Mic audio

20 mVolt AC at

MP 111 and

MP 112

L2303 and L2304

ok

No

Replace N4202

Retest.

If stille faulty

Replace

N2000

Yes

Replace

System connector

Yes

No

Remove SEPI cabel

Insert PHF set

Talk to the ext mik

Pin 4 at system

connector

Connected to

MP 110

No

Yes

Pin 3 at system

connector

Connected to

MP 109

No

Replace

N4202

Yes

No

Flash the phone

Using EMMA

Content refresh

Yes

Yes

L2301

ok

SL 5 Replace

L2301

SL 4 Scrap

L2302

ok

SL 5 Replace

L2302

SL 4 Scrap

Replace

System connector

No No

Yes

Audio Internal

Tested

Go to

Audio internal

problems

Yes

No

Audio external problems

Trouble Shooting Guide Audio External Problems - Camera Problems SEMC Electrical Repair Manual

54 (121)

K800 - K810

1202-3085 rev. 2

TROUBLESHOOTER

TROUBLESHOOTER

START

Test the phone

PHF speaker

and

Internal loudspeaker

Fault trace SW

Audio and FM Radio

FM Radio

Freqvency

100.00Mhz

Set FM Radio

Replace

N2600

Yes

Clame

resolder

No

No

2.7 Volt DC

At MP 77

VFM27

Yes

Some signal at

MP 81 C2615

MP 80 C2616

Yes

Yes

Signal ok

Replace

N2600

Sl 4 go to next

SL 5 Resolder

C2608 L2602

C2609 L2603

C2610 C2611

Clame

System connector

Replace

N2203

Signal ok

Signal ok

Yes

Clame

Resolder

No

1.8 Volt DC

At Mp 76

FM_EN

Scrap

D2000 faulty

Yes

No

Sl 4 Resolder N2600

Sl 5 Resolder

V2600 V2601

No

No

Replace

System connector

Add

signal generator

20.0 uVrms +/-22.5

kHz 1kHz tone

Freqvency

100.00 Mhz

To

Pin 2 X2300 signal

Pin 9 X2300 shield

Load the ITP Sw into

the phone.

Use fixture

Use fault trace SW

FM radio Internal

loudspeaker

Works properly

No

Replace

N4202 PHF works with

Normal call

No Yes

Replace

N2000 Yes

Signal at all when

tested

Replace

N2000

No

Yes

FM Radio problems

Start

Load the ITP Sw into

the phone.

Use fixture

Connect 3.8V

Limiter 2A

Use fault trace SW

Replace

N2000

Yes

Replace Vibrator

Clean Pad X2506

Clean Pad X2507

Yes

3.0 volt PTP

Pulses at VIBR

MP 49

No

Yes

No

Sl 5 Replace or

Resolder L3100

Sl 4 scrap

Ground at

VIBN

X2507 No

Sl 5 Replace or

Resolder L3101

Sl 4 scrap

Fault trace SW

MMI

Misc

Start Vibrator

C3116 or C3115

Short circuit

3.0 Volt PTP

Pulses at VIBP

X2506

No

Sl 5 Replace C3116

or C3115

Sl 4 scrap

Yes

Vibrator problems

Trouble Shooting Guide FM Radio Problems - Vibrator Problems SEMC Electrical Repair Manual

55 (121)

K800 - K810

1202-3085 rev. 2

TROUBLESHOOTER

TROUBLESHOOTER

Load the ITP Sw into

the phone.

Use fixture

Connect 3.8V

Insert M2 card

Use fault trace SW

Run

memory stick test

Passed

0 Volt at

MP 96

MSDETECT

Yes Yes

Scrap

D2000 faulty

Yes

Yes

C2215

Or C2332

Short circuit

No

Sl 5 Replace

C2215 or C2332

SL 4 Scrap

No

Yes

Check X2301

faulty

No

Replace or

resolder

X2301

Yes

Fault trace SW

Logic

SIM Card control

Memory stick test

Start

Flash

Run customize

or refresh

No

1.8 Volt at

Mp 33

Only 40 sek

After card

inserted

No

Phone recovered

No

Replace or

resolder

X2301

Claim X2301

Or resolder

Replace N2000

If still problems

Scrap

D2000 faulty

Memory stick problems Start.

Before this do SW

refresh and retest.

Load the ITP Sw

Into the phone

Do not use fixture

Connect 3.8Volt

Use battery clamps

Use fault trace SW

No

No

Min.230KHz

higher then

Mod 0

4 dBm at

MP 138

BTANT Yes

Replace

D1400

Signal

At MP 138

BTANT

No

Yes

Change the

Bluetooth channel

In fault trace

and test the output

Use the spectrum

Analyzer.

Span 10MHz

1MHz channel

spacing

Yes

All channel

passed

Yes

D2000 faulty

Scrap

No

SL 5 Replace

Z1400

SL 4 Scrap

Fault trace Sw

TX and RX

Bluetooth

Channel 0

Set max pwr mod 0

Use spectrum

analyzer

Set the spectrum

Analyzer to

freqency 2402 MHz

span 1MHz

Fault trace Sw

TX and RX

Bluetooth

Channel 0

Set max pwr mod 1

Replace

N2204

Yes

Yes

2.7Volt at

MP 134

VBT27

Mp 137

BT_EN

1.8Volt

1.8Volt at

MP 37

And 1.3Volt at

MP 58

Replace

N2000

No

No

Replace

D1400

Yes

No

Signal at

Z1400

ok

Replace

D1400

No

Replace

The BT antenna

Yes

Bluetooth problems

Trouble Shooting Guide Memory Stick Problems - Bluetooth ProblemsSEMC Electrical Repair Manual

56 (121)

K800 - K810

1202-3085 rev. 2

TROUBLESHOOTER

TROUBLESHOOTER

Start

No

Measure

33dBm

RSSI

equal to

-40dBm

2db tolerence Yes

Yes Replace

A1300 Marlin

Replace X1000

Set the Mobile

Service tester

To GSM 900

Channel 001

TX Analyzer

RSSI between

-40dBm

And -60dBm

No

RSSI

All band

Passed

NoYes

No

Connect Mobile

Service tester

GSM 900

Channel 001

RF Gen -40dBm

Fault trace SW

TX and RX

GSM

GSM Mode settings

RX Switched

GSM Radio settings

GSM 900 channel 1

GSM RSSI

Measurement

Read RSSI

Test RX

1800 and 1900 MHz

RSSI

Fault trace SW

TX and RX

GSM

GSM Mode settings

TX Switched

GSM Radio settings

GSM 900 channel 1

Powerlevel 5

Replace

A1300 Marlin

Replace

N2000

Test TX

1800 and 1900 Mhz

Powerlevel 0

Set the Mobile

Service tester

to the right channel

Yes

Measure

30dBm

All band

1.3 V Pulses at

MP 36

VACP No

Run SERP

calibration

Yes

No

Yes

2.75 Volt at

MP 35 VccA

MP 34 VccB

Replace N2000No

Yes

Fault trace SW

TX and RX

WCDMA

Fast select channels

Set Mid Channel

Modes

Max PWR 23dBm

Set the Mobile Service

tester to WCDMA TX

Channel 9750

Measure

23 dBm Tolerence

3dB at Channel

9750

Using between

600 mA to 800mA

Current.

No

Yes

No Replace

A1200 Ray

Yes

Fault trace SW

TX and RX

WCDMA

Fast select channels

Set Mid Channel

Modes

Read RSSI

RX On

Read measurement

Set the Mobile Service

Channel 10700

Tester to RX -60dBm.

Phone Reported

Power -60dBm

Tolerence 5db

No

Yes

Load the ITP Sw into

the phone.

Use fixture

Connect 3,8V

Limiter 3A

Use fault trace SW

0 Ohm between

Mp115

And MP118

No

Yes

Network problems

START

Load The ITP into

the phone

Use fixture

Connect 3.8V

Insert display

Use fault trace SW

No

Display backlights

works

Yes

Replace

X3102

Scrap

PCB faulty

2.75V at

MP 91

Pin 3 and 24

X3102

Restart

the test

Display works

Yes

2.75V at

MP 91

VDIG

No

Claim

Display

Yes

Yes

1.8V at

MP 37

VDDE18

No Replace

N2000

Yes

No

Scrap

PCB faulty

No

Fault trace SW

MMI

Display pattern

Start

Tri color pattern

Go to Keyboard and

Display backlights

problems

Replace

Display

Scrap

D2000

Faulty

Replace

N2000

SL 5 Replace

C23xx

SL 4 Scrap

1.8V at

MP 88

Pin 4

X3102

Ground at

Pin 5 13

14 and 22

X3102

Remove

Display

Restart the test

No

Yes

No

C3200 to C2313

Short circuit

Yes

No Yes

Display problems

Trouble Shooting Guide Network Problems - Display Problems SEMC Electrical Repair Manual

57 (121)

K800 - K810

1202-3085 rev. 2

TROUBLESHOOTER

TROUBLESHOOTER

Test current consumptions

3.8 Volt limiter 3A

Connect the Dummy Battery (3.8 Volt, limiter 3A)

Measure the current in off mode, less than 1mA. If more, it could be Marlin A1300 or A1200

fault.

Insert a live SIM and power up the phone.

Measure the deep sleep current max 6mA typical between 0-3mA.

If the phone uses more than 6mA, make a master reset. Make sure that the operator is running

with deep sleep. (This operation can be switched off by operator if the network is busy).

Insert a test SIM and power up the phone to a network tester.

Measure the current in idle mode max 6mA typical between 0-3mA.

Measure the Transmitter current 900 MHz power level 5. Max 400mA (RMS) 1800mA (peak)

Measure the Transmitter current 1800 and 1900 MHz power level 0. Max 300mA (RMS)

1500mA (peak)

Measure the Transmitter current WCDMA at 23dBm output power. Max 900mA (RMS) 3000mA

(peak).

If the phone uses more the fault could be fixed by running SERP calibrating or the fault is in the

Marlin A1300, Ray A1200 or Vincenne N2000.

If Using fault trace Sw and ITP loaded in the phone the current consumptions are as followed.

Transmitter current 900 MHz at power level 5. Typical 300mA (RMS)

Transmitter current 1800 and 1900 MHz at power level 0. Typical 250mA (RMS)

Current in WCDMA mode at max power level 23 dBm and Rx on.Typical 750mA (RMS)

If the current consumptions are equal to the sheet then go to charging test.

Test Charging

Current at 20sek. after chargers plug

I

has been inserted ( 20 % tolerance )

Dummy battery (Volt) 3.0 3.1 3.2 3.3 3.4 3.5 3.6 3.7 3.8 3.9 4.0 4.1 4.2

Chargers plug 5.3 Volt.Current mA 250 250 600 700 800 800 800 800 800 800 800 800 0

LCD show charging X % to 100%

indicator 0 0 0 10 10 20 60 80 90 90

LCD show Nothing

Fully

charged

Chargers plug

The power supplier at 3.8 Volt must allow reverse current.

If the charging current is not equal to the sheet go to Charging problems.

If the charging current is equal to the sheet then insert the normal battery and test the

charging current to define if the battery is working properly.

Measure the voltage at the battery to define the current level.

If the battery is receiving the right current, then the phone and the battery are working

properly.

O oo O

5,3V 800mA

Test Current Consumptions - Test Charging SEMC Electrical Repair Manual

58 (121)

K800 - K810

1202-3085 rev. 2

TROUBLESHOOTER

TROUBLESHOOTER

Test the ASIC revisions

The purpose with this test is to see that all larger ASICs used are working,

that the communication to the ASICs works and that the revisions of the

ASICs are correct.

The ASICs tested are:

D2000 Marika , N2000 Vincenne2, D1400 Bluetooth ASIC,

N2600 FM Radio ASIC and D2301 NAND memory.

How to perform the test?

Load ITP to the phone.

Use fault trace SW

General

ASIC revisions

READ all

ASIC Product number Return value (hex)

D2000 Marika Volume ROP 101 3083/X 99 00

N2000 Vincenne2 ROP 101 3066/4 E3

D1400 Bluetooth:

HCI Revision

LMP Subversion

RYT 123 922/1

0402

0520

N2600 FM Radio RYT 109 905/3 5764

D2301 NAND memory:

Samsung, 512 MBit

ST, 512 MBit

RYT 118 932/2

RYT 118 932/2

EC,36

20,36

Test Backup Capacitor.

This test should be preformed in 3 steps.

Step1:

Measure the voltage at the Back up capacitor using fault trace SW, Logic ADC

Channels GP7-Vbackup and read the Adc value (reading1).

Step2:

This step should be done 10 seconds after step 1. Measure the voltage at the

Back up capacitor using fault trace SW Logic ADC Channels GP7-Vbackup

and read the Adc value (reading2).

Step3:

Compare the difference between reading 1 and reading 2 with the limits.

Limits

Min Max Unit

Absolute readout

Reading 1 1 120 Dec

Reading 1 (Dec) Reading 2–Reading

1 (Dec)

Min Max

Interval 1 (1 – 32) 4 40

Interval 2 (33 – 64) 2 35

Interval 3 (65 – 96) 2 25

Interval 4 (97 –

120) 1 12

Note: The upper table contains the absolute limits for the readouts. The lower

table contains the allowed delta between the first and the second readout,

separated in time with 10s.

If the readings is out of limits replace C2217 Backup capacitor.

If the fault exists replace N2000 Vincenne2.

Test the ASIC Revisions - Test Backup Capacitor SEMC Electrical Repair Manual

59 (121)

K800 - K810

1202-3085 rev. 2

TROUBLESHOOTER

TROUBLESHOOTER

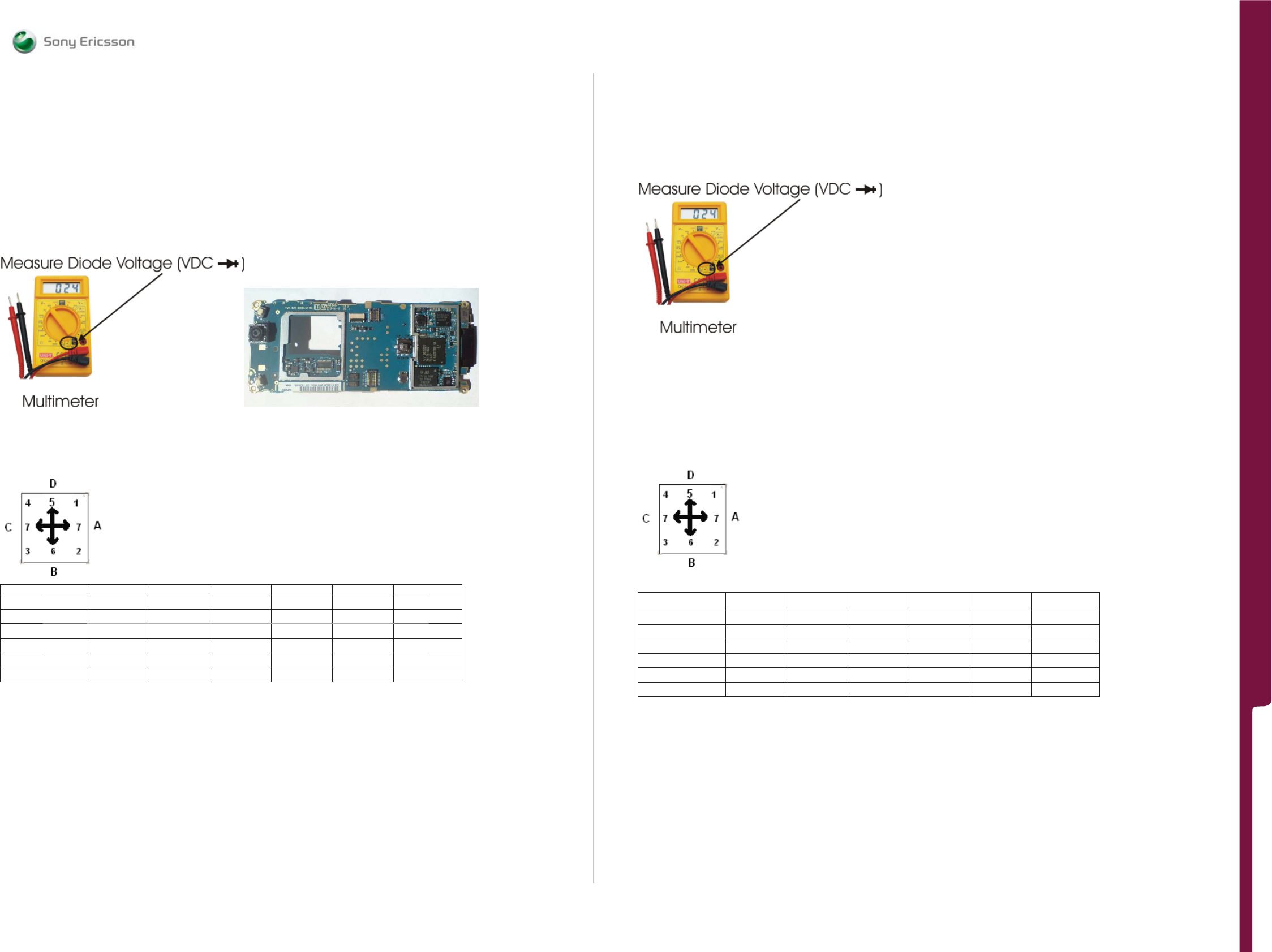

Test the joystick Switch S2504 and the diodes V2503,

V2506, V2507, V2508 and V2509.

Place the phone as picture Joystick up, system connector at right.

Remove the keyboard.

Connect the black probe onto MP 22 or pin 7 (frame) at joystick.

Connect red probe onto MP 1 to MP 82.

Joystick 10 4 82 47 1 MP

No action 1.8-OL 1.8-OL 1.8-OL 1.8-OL 1.8-OL Volt

A Right 1.8-OL 0.0-0.6 0.6 0.6 1.8-OL Volt

B Down 1.8-OL 0.0-0.6 0.6 1.8-OL 0.6 Volt

C Left 0.6 0.0-0.6 1.8-OL 1.8-OL 0.6 Volt

D Up 0.6 0.0-0.6 1.8-OL 0.6 1.8-OL Volt

Center push 1.8-OL0.0-0.61.8-OL1.8-OL1.8-OL Volt

V2509 V2503 V2508 V2506 V2507 Diode

Go to Test the joystick Switch S2504 if the measurements are not equal to the reference sheet

Go to Test the diode V2500 if the measurements are equal to the reference sheet

Test the joystick Switch S2504

Connect the black probe onto pin 7 (frame) at joystick.

Connect the Red probe onto pin 1-6 at joystick.

If the measurement are equal to the reference sheet,

the joystick is working properly.

Joystick 46213Pin

No action 1.8-OL 1.8-OL 1.8-OL 1.8-OL 1.8-OL Volt

A Right 1.8-OL 0.0 0.0 0.0 1.8-OL Volt

B Down 1.8-OL 0.0 0.0 1.8-OL 0.0 Volt

C Left 0.0 0.0 1.8-OL 1.8-OL 0.0 Volt

D Up 0.0 0.0 1.8-OL 0.0 1.8-OL Volt

Center push 1.8-OL 0.01.8-OL1.8-OL1.8-OL Volt

Repair action if both joystick and diode test and joystick test is failed then replace the joystick switch

S2504.

Repair action if joystick and diode test is failed and joystick test is passed.

SL5: compare the column in the sheet and replace the diode.

SL4: scrap the phone.

Test the Joystick Switch S2504 and Diodes V2503, V2506-09 SEMC Electrical Repair Manual

60 (121)

K800 - K810

1202-3085 rev. 2

TROUBLESHOOTER

TROUBLESHOOTER

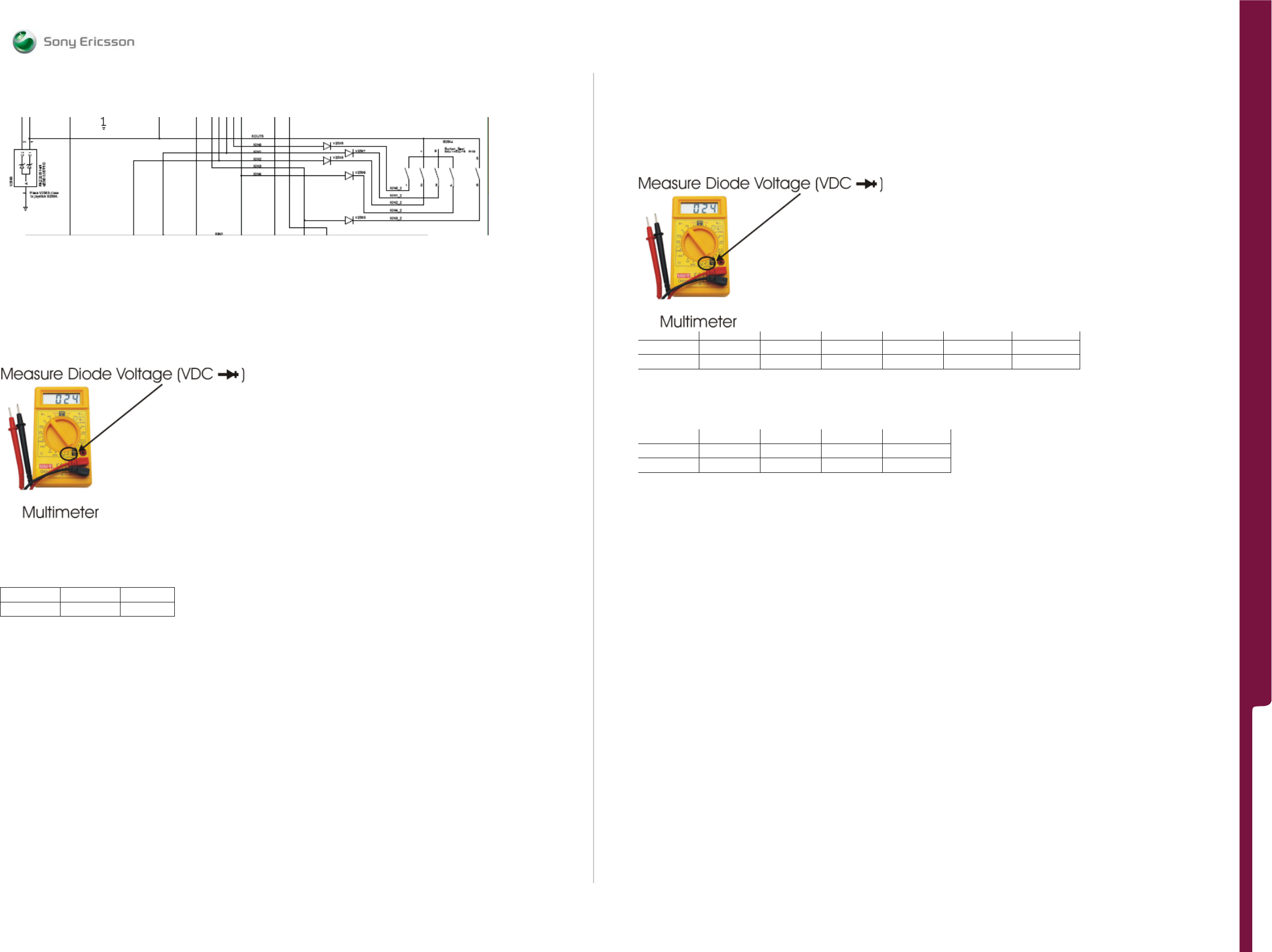

Test the diode V2500.

MP 23 MP22

Connect the Red probe onto MP 44 or Ground.

Connect Black probe onto MP 22 and MP 23.

If the measurement are equal to the reference sheet,

the diode V2500 is working properly.

22 23 MP

0.6 0.6 Volt

Tolerance up to 20 %

ReplaceV2500 if the measurements are not equal to the reference sheet.

Test the protection diodes V2510 to V2514.

Connect the Black probe onto MP 44 or Ground.

Connect the Red probe onto MP 1 to MP 120.

28210120 4 117 MP

1.2-OL 1.2-OL 1.2-OL 1.2-OL 1.2-OL 1.2-OL Volt

V2510 V2510 V2511 V2511 V2512 V2512

83 1 47 19 MP

1.2-OL 1.2-OL 1.2-OL 1.2-OL Volt

V2513 V2513 V2514 V2514

If the measurement are equal to the reference sheet,

the diode V2511,V2511,V2512,V2513 and V2514 is not short circuit.

Repair action.

SL 5:Replace the faulty diode if the measurement is not equal to the reference sheet.

At very old product the diode is not mounted, Z2500 EDS fi lter is mounted instead.

SL 4: scrap the phone.

Test the Diodes V2500 and V2510 to V2514 SEMC Electrical Repair Manual

61 (121)

K800 - K810

1202-3085 rev. 2

TROUBLESHOOTER

TROUBLESHOOTER

Test the diode V2504 and switch S2500.

MP 47 MP 44 MP 85

Connect the Black probe onto MP 44 or Ground.

Connect the Red probe onto MP 47 and MP 85

If the measurement are equal to the reference sheet,

The diode V2504 and S2500 is working properly.

S2500 47 85 MP

No action 1.4-OL 1.4-OL Volt

Pressed 0.6 0.0 Volt

V2504 S2500

Tolerance up to 20 %

Repair actions if the measurements are not equal to the reference sheet.

Replace V2504 if MP 47 is wrong and MP 85 is right.

Remove S2500 if MP 85 is 0 Volt when S2500 is not pressed.

Replace N2000 if MP 85 is still 0 Volt after S2500 is removed.

Replace S2500 if MP 47 and MP 85 is 1.4 Volt when S2500 is pressed.

Test the Switch S2505 Game A.

Connect the Black probe onto MP 82.

Connect the Red probe onto MP 83.

No key pressed 1.4-OL Volt

S2505 pressed 0 Volt

If the measurement are equal to the reference sheet,

The switch S2505 is working properly.

Replace S2505 if the measurements are not equal to the reference sheet.

Test the Switch S2506 Game B.

Connect the Black probe onto MP 1.

Connect the Red probe onto MP 2.

No key pressed 1.4-OL Volt

S2506 pressed 0 Volt

If the measurement are equal to the reference sheet,

The switch S2506 is working properly.

Replace S2506 if the measurements are not equal to the reference sheet.

Test the diode V2504 and Switches S2500, S2505 & S2506 SEMC Electrical Repair Manual

62 (121)

K800 - K810

1202-3085 rev. 2

TROUBLESHOOTER

TROUBLESHOOTER

Test the Switch S2502 Volume down.

Place the phone as picture joystick down, system connector at right.

Connect the Black probe onto MP 120.

Connect the Red probe onto MP 119.

No key pressed 1.4-OL Volt

S2502 pressed 0 Volt

If the measurement are equal to the reference sheet,

The switch S2502 is working properly.

Replace S2502 if the measurements are not equal to the reference sheet.

Test the Switch S2503 Volume Up.

Connect the Black probe onto MP 117.

Connect the Red probe onto MP 116.

No key pressed 1.4-OL Volt

S2503 pressed 0 Volt

If the measurement are equal to the reference sheet,

The switch S2503 is working properly.

Replace S2503 if the measurements are not equal to the reference sheet.

Test the Switch S2507 Music.

Connect the Black probe onto MP 122.

Connect the Red probe onto MP 121.

No key pressed 1.4-OL Volt

S2507 pressed 0 Volt

If the measurement are equal to the reference sheet,

The switch S2507 is working properly.

Replace S2507 if the measurements are not equal to the reference sheet.

Test the Switches S2502, S2503 & S2507 SEMC Electrical Repair Manual

63 (121)

K800 - K810

1202-3085 rev. 2

TROUBLESHOOTER

TROUBLESHOOTER

Joystick and other keys problems.

All the measurements are equal to the reference sheet.

The fault is:

1. Keyboard,

2. ESD Z2500 if mounted. ( Z2500 is mounted at very old product )

3. Marika D2000

Start replacing the keyboard.

SL 5 if the fault exists then re solder or replace Z2500 if mounted.

If the fault exists the fault is Marika D2000, scrap the phone.

Keyboard problems.

1. All the measurements are equal to the reference sheet.

2. Joystick, side keys and game keys are working properly.

The fault is:

1: keyboard

2: keyboard connector X2501.

Start replacing the keyboard if the fault exists then re solder or replace X2501.

Test the system connector protections.

Perform voltage measurements with a multimeter.

Connect the black probe at ground (Pin 9 system connector)

Pin 1 Pin 9 Pin 12

Pin at system

connector 1 2 3 4 5 6 7 8 9 10 11 12

Diode measurements

if lower than x.x Volt 2.0 1.0 1.4 0.7 1.0 1.0 2.0 0.9 0.0 2.0 1.8 2.0

Do this repair action

Service level 4 replace N2300 N4202 N4202 N4202 N4202 N4202 Scrap Scrap Ground N2300 N2300 Scrap

Service level 5 replace V2303 V2303 V2221 V2204

Joystick and Keyboard Problems - Test the System Connector SEMC Electrical Repair Manual

64 (121)

TROUBLESHOOTER

Reference MP

MP: To Vincenne 2.

MP MP 11 MP 13 MP 38 MP 12 MP 26 Power sup 3.8 Volt

Ground VBAT VBATi VBATA

Phone Off 0.00 3.80 3.80 0.00 3.80

Phone On 0.00 3.80 3.80 0.00 3.80

Phone On 0.00 3.80 3.80 0.00 3.80

MP: FromVincenne 2.

MP MP 34 MP 35 Mp 39 Mp 24 MP37 MP 100 MP29 MP 56 MP 58 MP 51

VccB VccA VDIG VCORE18 VDDE18 VCORE15 VDDF13 VCORE13 VRTC13

0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.30 1.30 Power sup 0.0 Volt

Phone Off 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.30 1.30 Power sup 3.80 Volt

Phone On 2.75 2.75 2.75 1.80 1.80 1.50 1.3 1.30 1.30 1.30 Power sup 3.80 Volt

C 2217 completely charged

MP: Bluetooth MP: FM Radio

MP MP 134 Mp 137 MP MP 77 Mp 76

VBT27 VBT_EN VFM27 FM_EN

BT Off 0.00 0.00 FM Off 0.00 0.00

BT On 2.70 1.80 FM On 2.70 1.80

MP: Charging.

Power sup 3.8 Volt Phone loaded SW ITP

MP Mp 28 Mp 128 Mp 126 Mp 127 Mp 130

onto R2201 Dicoint V2202 pin 4 V2210 pin 4 DCIO

Charging off 3.8 3.6 3.6 3.6 0.0 Charger voltage 0 Volt

Charging off 3.8 5.0 5.0 5.0 5.3 Charger voltage 5.3 Volt

Charging 100mA 3.9 4.7 3.6 4.7 5.3 Charger voltage 5.3 Volt

Charging 800mA 4.1 4.3 2.9 4.3 5.0 Charger voltage 5.3 Volt

MP: Cameras.

MP MP 3 Mp 95 MP 6 Mp 43 MP 46 MP 48 MP 92 MP 89 Power sup 3.8 V.

CAM_EN V_VGAANA CAM_12_EN VCAMSD_EN_2 V_VGADIG VCAMSD VCAMIO VCAM12

CAMERA Off 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00

CAMERA On 2.70 2.70 1.80 1.80 1.80 1.80 1.80 1.20

K800 - K810

1201–1591 rev. 1

TROUBLESHOOTER

Reference MP SEMC Electrical Repair Manual

65 (75)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

K800 Mechanical Parts List

Part Part Location on

Phone

Working

Instruction

Description

Webshop

Description Part Number Comment

Receiver Ear Speaker RLE 908 24/2

SXA 109 6481 Black

SXA 109 6481/1 Brown

Antenna Port

Plug

Plug (external

antenna)

SXA 109 6481/3 Silver

1.4MM Screw Screw M1.4 x 4 SXA 109 6306

1.7MM Screw Screw 1.7mm

self threading SXA 109 5242

Board Frame Frame

Assembly SXK 109 6856

Conductive

Cylinder

Rubber

Connector,

Front

SXA 109 6537

LCD Conductive

Cylinder

Rubber

Connector, LCD SXA 109 6540

LCD Assembly LCD Assembly RNH 942 268

LCD Holder LCD Holder

Assembly SXK 109 6963

Metal Retaining

Strap

ESD protection

sheet, LCD SXA 109 6413

Rear Camera

Module Camera KNC 20125

Flash Assembly Xenon Flash RKZ 433970

SXK 109 6866 Black

SXK 109 6866/2 Brown

Battery Cover Battery Lid

Assembly

SXK 109 6866/3 Silver

SXA 109 6313/2 Black/

CMCC

SXA 109 6313/3 Black/ T-

mobile

SXA 109 6313/4 Black/

Orange

SXA 109 6313/5 Black/

Vodafone

SXA 109 6313/7 Black /

Hutchinson

SXA 109 6313/8 Black/

Telefonica

SXA 109 6313/9 Black/

Swisscom

SXA 109 6313/10 Black/ SFR

SXA 109 6313/11 Black/

Cingular

Co-brand Label Co-brand Label

SXA 109 6313/13 Black/

Mobilcom

SEMC Electrical Repair Manual

66 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

K800 Mechanical Parts List

SXA 109 6313/15

Black /

Virgin

Mobile

SXA 109 6824/2 Brown/

CMCC

SXA 109 6824/5 Brown/

Vodafone

SXA 109 6824/7 Brown/

Hutchinson

Keyfoil

Assembly

Keyfoil

Assembly ROA 128 1764

Keyfoil Support

Plate

Key Support

Plate SXK 109 7140

Key Support

Plate Adhesive

Film

Key Support

Plate Tape SXA 109 6724

Label KRH Label SVF 930 1478

SXA 109 6376/1 Black/ Latin

SXA 109 6376/2 Black/

Latin/Stroke

SXA 109 6376/3 Black/

Bopomofo

SXA 109 6376/4 Black/

Hebrew

SXA 109 6376/5 Black/

Cyrillic

SXA 109 6376/6 Black/ Latin

/ Thai

SXA 109 6376/7 Black/ Hindi

SXA 109 6376/8 Black/

Arabic

SXA 109 6636/1 Brown/

Latin

SXA 109 6636/2 Brown/

Stroke

Numeric

Keyboard

Numeric

Keyboard

SXA 109 6636/3 Brown/

Bopomofo

SXA 109 6636/4 Brown/

Hebrew

SXA 109 6636/5 Brown/

Cyrillic

SXA 109 6636/6 Brown/

Latin Thai

SXA 109 6636/7 Brown/

Hindi

SXA 109 6636/8 Brown/

Arabic

SXA 109 7317/1 Silver/ Latin

SXA 109 7317/2 Silver/

Latin/Stroke

SXA 109 7317/3 Silver/

Arabic

SXA 109 7317/4 Silver/

Cyrillic

SXA 109 6669/1 Black/

Generic

SXA 109 6669/3 Black/

Vodafone

SXA 109 6669/5 Black/

CMCC

SXA 109 6669/6 Black/

Orange

SXA 109 6669/7 Black/ T-

Mobile

SXA 109 6669/8 Black/

Cingular

SXA 109 6669/9 Black /

Hutchinson

SXA 109 6669/2 Brown/

Generic

SXA 109 6669/4 Brown/

Vodafone

SXA 109 6669/11 Brown/

CMCC

SXA 109 6669/12 Brown/

Hutchinson

Functional

Keyboard

Functional

Keyboard

SXA 109 6669/13 Brown/

Orange

Joystick Gasket Joystick Gasket SXA 109 8126

Only for

Functional

keyboards

R2A (R3A

for SXA 109

6669/9) or

higher in

order to

have a good

feeling

when you

add the

gasket

SEMC Electrical Repair Manual

67 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

K800 Mechanical Parts List

System

Connector

System

Connector RNV 79936

System

Connector Foam

Pad

Dust gasket

large system

connector

SXA 109 6165

Liquid Intrusion

Indicator

Liquid Intrusion

Indicator SXA 109 4884

Rear Speaker

Cloth

Loudspeaker

Gasket SXA 109 6300

Vibrator Vibrator BKE 90332

SXK 109 6859 Black

SXK 109 6859/2 Brown

Antenna Cover Antenna Cover

Assembly

SXK 109 6859/6

Silver

(old part

number

SXK 109

6859/5)

Camera Support

Pad

Camera Support

Pad SXA 109 7348

SXA 109 6296 Black

SXA 109 6296/2 Brown

Memory Stick

Cover MS Cover

SXA 109 6296/3 Silver

SXA 109 6292 Black

SXA 109 6292/2 Brown

Volume Key Volume Key

SXA 109 6292/3 Silver

Power Key On/Off Key SXA 109 6294

SXA 109 6295 Black

SXA 109 6295/2 Brown

Music Player

Key

Music Player

Key

SXA 109 6295/3 Silver

Camera Key Camera Key SXA 109 6293

Insulation Label Insulation Label

(Shield Can) SXA 109 6161

Shield Can Lid

over Camera

Connection

Shield can lid,

camera

assembly

SXK 109 7268

HPM-62 Stereo

Headphones

HPM-62/Stereo

PHF RLF 501 62

SEMC Electrical Repair Manual

68 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

K800 Mechanical Parts List

64MB Memory

Stick Micro(M2)

64MB Memory

Stick Micro(M2) KDR 109 171/64

Dust Preventing

Tape

Dust Preventing

Tape SXA 109 8088

Antenna/Speake

r Box Assembly

Antenna/Speake

r Box Assembly SXK 109 6930

Front Camera VGA Camera KNC 201 16

Front Assy

Complete /Black SXK 109 6857/Z Black

Front Assy

Complete /Black

Cybershot

SXK 109 6857/3Z Black

Front Assy

Complete

/Brown

SXK 109 6857/2Z Brown

Front Assy

Complete

/Brown

Cybershot

SXK 109 6857/4Z Brown

Front Assy

Complete

/Silver

Cybershot

SXK 109 6857/5Z Silver

Front Cover

Assembly

Front Assy

Complete

/Silver

SXK 109 6857/6Z Silver

SEMC Electrical Repair Manual

69 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

K810 Mechanical Parts List

Part Part Location on Phone Working

Instruction

Description Webshop Description Part Number

Battery lid assembly

Battery lid assembly/Noble Blue

Battery lid assembly/Golden Ivory

Battery lid assembly/Pulse Red

SXK1097675

SXK1097675/2

SXK1097675/3

MS Cover

MS Cover/Noble Blue

MS Cover/Golden Ivory

MS Cover/Pulse Red

SXA1097683

SXA1097683/2

SXA1097683/3

Antenna cover

assembly

Antenna cover assembly

Noble Blue

Antenna cover assembly

Golden Ivory

Antenna cover assembly

Pulse Red

SXK1097674

SXK1097674/2

SXK1097674/3

Screw 1,7 x 6mm Screw 1,7 x 6mm SXA1097716

Function keyboard

Assy

Function keyboard Assy Nobel Blue

Generic

Function keyboard Assy Nobel Blue

Orange

Function keyboard Assy Nobel Blue

Vodafone

Function keyboard Assy Nobel Blue

T-Mobile

Function keyboard Assy Nobel Blue

Hutch

Function keyboard Assy Golden

Ivory Generic

Function keyboard Assy Golden

Ivory Orange

Function keyboard Assy Golden

Ivory Vodafone

Function keyboard Assy Golden

Ivory T-mobile

Function keyboard Assy Golden

Ivory Hutch

SXK1097706/1

SXK1097706/2

SXK1097706/3

SXK1097706/4

SXK1097706/8

SXK1097706/21

SXK1097706/22

SXK1097706/23

SXK1097706/24

SXK1097706/28

Function keyboard

Assys

Function keyboard Assy Pulse Red

Generic

Function keyboard Assy Pulse Red

Orange

Function keyboard Assy Pulse Red

Vodafone

Function keyboard Assy Pulse Red

T-mobile

Function keyboard Assy Pulse Red

TIM

Function keyboard Assy Pulse Red

Hutch

Function keyboard Assy Pulse Red

CMCC

SXK1097706/41

SXK1097706/42

SXK1097706/43

SXK1097706/44

SXK1097706/45

SXK1097706/48

SXK1097706/53

Antenna/

Speakerbox

assembly

Antenna/ Speakerbox assembly SXK1097667

Keyfoil Complete Keyfoil Complete SXK1097719

ESD protection

sheet LCD ESD protection sheet LCD SXA1097659

Screw 1,7 x 7mm Screw 1,7 x 7mm SXA1097717

LCD LCD RNH942286

LCD holder

assembly LCD holder assembly SXK1097669

SEMC Electrical Repair Manual

70 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

K810 Mechanical Parts List

Shield can lid,

camera assy Shield can lid, camera assy SXK1097268

System connector System connector RNV79936

Dust gasket, system

connector Dust gasket, system connector SXA1096165

Insulation label Insulation label SXA1096161

Camera Camera KNC20125

Frame Assembly Frame Assembly SXK1097666

Vibrator Vibrator BKE90324

Microphone gasket Microphone gasket SXA1096298

Screw M1,4x5 Screw M1,4x5 SXA1096306

Liquid indicator Liquid indicator SXA1094884

Plug (external

antenna)

Plug (external antenna)

Noble Blue

Plug (external antenna)

Golden Ivory

Plug (external antenna)

Pulse Red

SXA1097681

SXA1097681/2

SXA1097681/3

Tape (holder

capacitor) Tape (holder capacitor) SXA1097100

Xenon flash Xenon flash RKZ433999

Numeric keyboard

Numeric keyboard/Noble Blue

Numeric keyboard/Golden Ivory

Numeric keyboard/Pulse Red

SXA1097690/1

SXA1097690/2

SXA1097690/3

Camera key

Camera key

Camera key/Pulse Red

SXA1097663

SXA1097663/3

Ground Connector Ground Connector SXA1097718

VGA camera VGA camera KNC20116

VGA Socket

Gasket VGA Socket Gasket SXA1097865

VGA camera

window VGA camera window SXA1097724

SEMC Electrical Repair Manual

71 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

K810 Mechanical Parts List

Ear Speaker Ear Speaker RLE90824/2

Front Assy

Front Assy Nobel Blue

Front Assy Golden Ivory

Front Assy Pulse Red

SXK1097673

SXK1097673/2

SXK1097673/3

Earspeaker gasket Earspeaker gasket SXA1097673

A/B key

A/B key Nobel Blue

A/B key Golden Ivory

A/B key Pulse Red

SXA1097661

SXA1097661/2

SXA1097661/3

Loudspeaker gasket Loudspeaker gasket SXA1097771

Music Player Key

Music Player Key/Noble Blue

Music Player Key/Golden Ivory

Music Player Key/Pulse Red

SXA1097665

SXA1097665/2

SXA1097665/3

Volume key

Volume key/Noble Blue

Volume key/Golden Ivory

Volume key/Pulse Red

SXA1097662

SXA1097662/2

SXA1097662/3

On/Off Key

On/Off Key/Noble Blue

On/Off Key/Golden ivory

On/Off Key/Pulse Red

SXA1097664

SXA1097664/2

SXA1097664/3

Handstrap plate Handstrap plate SXA1097652

128Mb Memory

Stick micro

(M2)

128Mb Memory Stick micro

(M2) KDR 109171/128

Front complete

K810i/Front complete/Z/

Noble Blue/Latin/Cybershot

K810i/Front complete/Z/

Noble Blue/Arabic/Cybershot

K810i/Front complete/Z/

Noble Blue/Stroke/Cybershot

K810i/Front complete/Z/

Noble Blue/Thai/Cybershot

K810i/Front complete/Z/

Noble Blue/Bopomofo/Cybershot

K810i/Front complete/Z/

Noble Blue/Cyrillic/Cybershot

K810i/Front complete/Z/

Noble Blue/Latin/Orange

K810i/Front complete/Z/

Noble Blue/Latin/T-Mobile

K810i/Front complete/Z/

Noble Blue/Latin/TIM

K810i/Front complete/Z/

Noble Blue/Latin/Telefonica

SXK1097852/1

SXK1097852/2

SXK1097852/3

SXK1097852/4

SXK1097852/5

SXK1097852/7

SXK1097852/8

SXK1097852/10

SXK1097852/11

SXK1097852/12

Front complete

K810i/Front complete/Z/

Golden Ivory/Latin/Cybershot

K810i/Front complete/Z/

Golden Ivory/Arabic/Cybershot

K810i/Front complete/Z/

Golden Ivory/Stroke/Cybershot

K810i/Front complete/Z/

Golden Ivory/Thai/Cybershot

K810i/Front complete/Z/

Golden Ivory/Bopomofo/Cybershot

K810i/Front complete/Z/

Golden Ivory/Cyrillic/Cybershot

SXK 109 7852/22

SXK 109 7852/23

SXK 109 7852/24

SXK 109 7852/25

SXK 109 7852/26

SXK 109 7852/28

Front complete

K810i/Front complete/Z/

Pulse Red/Latin/Cybershot

K810i/Front complete/Z/

Pulse Red/Arabic/Cybershot

K810i/Front complete/Z/

Pulse Red/Stroke/Cybershot

K810i/Front complete/Z/

Pulse Red /Thai/Cybershot

K810i/Front complete/Z/

Pulse Red /Bopomofo/Cybershot

K810i/Front complete/Z/

Pulse Red /Hebrew/Cybershot

K810i/Front complete/Z/

Pulse Red /Cyrillic/Cybershot

SXK 109 7852/43

SXK 109 7852/44

SXK 109 7852/45

SXK 109 7852/46

SXK 109 7852/47

SXK 109 7852/48

SXK 109 7852/49

KRH Label KRH Label SVF9301478

SEMC Electrical Repair Manual

72 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

Part List Main Board

This list contains only components that are possible to replace on the main board.

Pos. number refers to the components position number on the board.

Component placing can be found on pages 43 – 45 in this manual.

Some components are noted as MSL X. These components are moisture-sensitive and are rated at various levels

(MSL):

Level 1: Unlimited fl oor life; does not require dry pack or re-baking.

Level 2: 1 year fl oor life; </=30 C; 60%rh; shipped in dry pack; must be re-baked after being opened if fl oor life is

exceeded.

Level 2A: 4 week fl oor life; </=30 C; 60%rh; shipped in dry pack; must be re-baked after being opened if fl oor life is

exceeded.

Level 3: 168 hours fl oor life; </=30 C; 60%rh; shipped in dry pack; must be re-baked after being opened if fl oor life

is exceeded.

Level 4: 72 hours fl oor life; </=30 C; 60%rh; shipped in dry pack; must be re-baked after being opened if fl oor life is

exceeded.

Level 5: 48 hours fl oor life; </=30 C; 60%rh; shipped in dry pack; must be re-baked

after being opened if fl oor life is exceeded.

Level 5A: 24 hours fl oor life; </=30 C; 60%rh; shipped in dry pack; must be re-baked

after being opened if fl oor life is exceeded.

Level 6: 6 hours fl oor life; </=30 C; 60%rh; shipped in dry pack; must be re-baked

after being opened if fl oor life is exceeded.

NOTE!

RF Calibration by using SERP can only be done by authorized repair centers.

Fence modifi cation according to Working Instruction Electrical.

F = Front Side, B = Back Side

Side Pos Description Part Number Comments Page

B A1200 Ray/UMTS-module ROA 128 1112/Z Calibration Required MSL 5A

Special Soldering Process Required 74

BA1300Marlin/GSM-module ROA1281640/Z Calibration Required MSL 5A

Special Soldering Process Required 83

F B2100 Crystal 32768HZ +-20PPM 12.5pF RTM501911/1 Calibration Required 90

F B4100 Microphone RF Improved RLC509427/3 90

F C2217 0.07F 3.3V Capacitor RJE3551335/7 91

F C22109 Capacitor Ceramic 10,0 uF 6,3 V RJC5164038/1

B D1400 MICROCIRCUIT/Bluetooth E- RYT 123 923/2 MSL 3 91

B D2301 512Mb NAND RYT118932/2 92

B D2304 USB transceiver and UART MUX RYT109913/1 92

B H2300 IRDA 6,7*2,45*1,7 RKZ923919/1 93

FD3100

D3101 Octal bus transceiver RYT109915/1 93

F N2000 ASIC Vincenne2 A07 1.8V Cu-Plug Thin

Ni (Pb-free package) ROP1013066/6 Calibration Required

MSL 3 94

F N2200 LDO 1.3V RYT1137810/1 94

F

N2202

N2203

N2204

N2210

Voltage regulator 2,8V RYT1137824/1 95

Side Pos Description Part Number Comments Page

B N2300 USB FILTER NETWORK RKZ923921/1 95

F N2600 Single chip elec tuned FM stereo radio RYT109905/3 96

F N3100 Dual Bilateral Switch RYT109933/1 96

F N4100 1W OPAMP Pb-Free version RYT101947/2 96

F N4202 ASIC TJATTE 3 ROP1013074/1 97

F R3101 Resistor 47, Ohm +/-1% 50 mW REP621102/47

B

S2500

S2502

S2503

S2507

Side push switch RMD10116/4 97

FS2504JOYSTICK SWITCH SXA1092476 98

FS2505

S2506 A/B key switch RMD10147 98

BV2201

Diode, Shottky, Pb Free RKZ123918/1 99

B V2202 P-CHANNEL MOSFET RYN122684/2 99

B V2220 Dual MOSFET complementary N-P RYN123919/1 100

B V2301 NPN transistor, SOT723, R1=22k RYN121931/1 same as V2552 100

F V2500 Dual ESD protection diode RKZ223914/1 same as V4101 101

F V2504 SWI X2 75V 2X75mA SC75 RKZ123904/1 101

F V2552 NPN transistor, SOT723, R1=22k RYN121931/1 same as V2301 100

F V3101 Transistor, Mosfet, N-Channel, SC88 RYN123915/1 102

FV3102SCHOTTKY DIODE. RKZ323907/1 102

B V3103 Dual N-Channel 2.5V MOSFET RYN901923/1 103

B V3110 LED Red Side fi re RKZ433924/1 103

F V3113 MOSFET, Dual P-CHANNEL NoPb RYN122904/1 104

B V4101 Dual ESD protection diode RKZ223914/1 same as V2500 101

B X1000 External Antenna connector RPT79953 104

B X1002 Int antenna connector RPT79951 105

B X2200 Battery connector SND10622 105

B X2301 M2 Memory Card Reader RNK87147 106

B X2302 Sim Reader RNK87146 106

F X2501 20 Pin BtB (female) RNV799009 107

F X2505 30 Pin BtB (male) RNV79992 107

F X2510 Socket VGA camera RNV 799 015 107

F X2550 FPC 10 pin (DDK) RNV799019/10 108

F X3102 26 Pin BtB (female) RNV79994 108

BCovers

E1000 Shield can lid, Bb Prim/Assembly SXK1096823

FCovers

E1001 Shield can lid, Bb Sec SXA 109 6371

B E1002 Shield Can BT SXA 109 6043

Part List Main Board SEMC Electrical Repair Manual

73 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

A1200 Ray/UMTS Module ROA 128 1112/Z

Note: Size 23.50 x 19.20 = Nominal PWB-size

Interface-pattern of the module:

Pin number Copper pad Soldermask opening

1-152 Round 0.57mm Round 0.67mm

153-251 Round 1.00mm Round 1.10mm

252 (pin 1 marking) Round 0.57mm Round 0.67mm

The interface have copper between the pads connected to signal: GND

Pins connected to GND could be connected the copper between pads.

Recommended interface-pattern for the motherboard:

Pin number Copper pad Soldermask opening

1-152 Round 0.67mm Round 0.77mm

153-251 Round 1.10mm Round 1.20mm

252 (pin 1 marking) Round 0.67mm Round 0.77mm

The outer layer using this footprint shall be  lled with copper with good connection to GND. Isolation

between signal copper and GND-plane  lling: min 0.4mm

Pins / Signal cross-reference:

Pin number Signal

1 VccB_mix

2-3, 6-8, 10-11, 13-14, 16-17, 18-19, 21 29, 31,

33-34, 40-44, 46, 48-51, 55, 57, 62, 64-65, 67,

72, 73-251, 252

GND

4 XOOB

5 XOOA

9 VccB

12 CLKREQ

15 WRFLOOP

20 WCDMA_ANT

30 WCDMA_SENSE

32 WPABIAS

35-39 VBATI

45 RTEMP

47 XTLDO

52 WSTR

53 WDAT

54 WCLK

56 WON

58 TXIA

59 TXIB

60 TXQA

61 TXQB

63 MCLK

66 VCXOCONT

68 RXIB

69 RXIA

70 RXQB

71 RXQA

Components A1200 SEMC Electrical Repair Manual

74 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

Made for

Document Nr Revision

APPENDIX

TXQB

TXQA

TXIB

TXIA

CLKREQ

WSTR

WCLK

WDAT

V_Wivi_A

VCXOCONT

WPABIAS

RXIA

RXIB

RXQA

RXQB

MCLK

V_Wivi_B

WRFLOOP

RTEMP

VBATI

V_Wivi_B

V_Wivi_A

VccB

XOOB

XOOA

WCDMA_ANT

VBATI

EXTLDO

VccB

VccB_mix

VccB_mix

WCDMA_RX

WCDMA_TX

VBATI

WON

VBATI

V_Wivi_A V_Wivi_B

VccB

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

41

33

34

35

36

37

38

39

40

32

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

GND

WCDMA_TX

WCDMA_RX

Duplex

WCDMA_ANT

GND

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

GND

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

GND

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

GND

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

GND

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

GND

252

VBATI

EXTLDO

VBATI

V_Wivi_B

V_Wivi_A

Power_supply

S1

1

VccB_mix

VBATI

VccB

V_Wivi_B

V_Wivi_A

XOOA

XOOB

MCLK

RTEMP

WRFLOOP

RXIA

RXIB

RXQA

RXQB

WCDMA_TX

TXIA

TXIB

TXQA

TXQB

VCXOCONT

WPABIAS

WDAT

WCLK

WSTR

CLKREQ

WCDMA_RX

UMTS

WON

RADIO TOP

RAY/UMTS Module

1/1911 - ROA 128 1112/1

Components A1200 SEMC Electrical Repair Manual

75 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

Made for

Document Nr Revision

APPENDIX

1/1911 - ROA 128 1112/2

RADIO Power Supply

RAY/UMTS Module

EXTLDO

VBATI

V_Wivi_A

V_Wivi_B

VBATI

EXTLDO

NETCON_C

12

ST5003

GNDGND

GND

GND

2.8V

LM3671TL-2.8

N1850

A3

B2A1

C3

C1

RYT1137802/1

SW

FBGND

IN

EN

2.2uH

L1800

10uF

C1802

4.7uF

C1801

22pF

C1803

22pF

C1804

0ohmsR1800

Components A1200 SEMC Electrical Repair Manual

76 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

Made for

Document Nr Revision

APPENDIX

1/1911 - ROA 128 1112/3

RADIO Duplex

RAY/UMTS Module

WCDMA_RX

WCDMA_TX

GND

WCDMA_ANT

N1002

11

10

9

76

5

3

2

1

4

128

RTN202926/1

xxxxxx

ANT RX

Freq

TX

SAW

CASE GND

L1016

2.7nH

C1012

1.2pF

Components A1200 SEMC Electrical Repair Manual

77 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

Made for

Document Nr Revision

APPENDIX

V_Wivi_AVBATI

V_Wivi_BVccB

V_Wivi_A

XOOA

XOOB

TXIA

TXIB

TXQA

TXQB

RXIA

RXIB

RXQA

RXQB

WCDMA_TX

VCXOCONT

WPABIAS

WDAT

WCLK

WSTR

WRFLOOP

MCLK

CLKREQ

WCDMA_RX

VccB

RTEMP

V_Wivi_A

RFLOBAR

RFLO

TXQB

TXQA

TXIB

TXIA

WCDMA_RF

Mod_UMTS

RTEMP

XOOB

IFLO

IFLOBAR

RFLOBAR

RFLO

MCLK

WRFLOOP

XOOA

VCXOCONT

Synt_UMTS

Rx_UMTS

CLKREQ

IFLOBAR

IFLO

WSTR

WCLK

WDAT

WCDMA_RX

RXIA

RXQB

RXQA

RXIB

VccB

VccB_mix

VccB_mix

WON

WCDMA_RF

WSTR

WDAT

WCLK

WPABIAS

WCDMA_TX

PA_UMTS

V_Wivi_A

VBATI

WON

1/1911 - ROA 128 1112/4

RADIO Top UMTS

RAY/UMTS Module

Components A1200 SEMC Electrical Repair Manual

78 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

Made for

Document Nr Revision

APPENDIX

1/1911 - ROA 128 1112/5

RADIO Receiver UMTS

RAY/UMTS Module

LNA_out_50_Ohm

VccB

VccB_mix

WCDMA_RX

WDAT

WCLK

WSTR

IFLO

IFLOBAR

CLKREQ

RXIA

RXIB

RXQA

RXQB

VccB_mix

VccB

6.8nH

L1411

100nH

L1441

3.3nH

L1402

68nH

L1421

68nH

L1422

Wopy_LEADFREE

Leadfree

E3

D3

G3G8

H4

F3

H3

B10 E8

N1400

R1AROP1013064/2

GLNA

RXON

GNDREFVCCREF

STROBE

CLK

DATA

XOOON

REFON

WOPY CONTROL

REG LOGIC

BUS

Wopy_LEADFREE

Leadfree

C5

C4

A4

A5

F10

G10

A9

A10

A7

A8

A6

A3

E10

C6

F8

C3

N1400

R1AROP1013064/2

IRA

IRB

QRA

QRB

GNDLF

GNDIF

GNDIFLOIFLOB

IFLOA

CDQ

CDI

IFINB

IFINA

VCCBUS

VCCIF

VCCLF

WOPY IF

LNA

-4

Wopy_LEADFREE

Leadfree

A1

B1

D1

E1

C1

A2

N1400

R1AROP1013064/2

VCCMIX

MIXINA

MIXINB

GNDMIX

IFQUTB

IFQUTA

WOPY RFMIXER

Wopy_LEADFREE

Leadfree

K2

H1 K 3

K1

G1

J1F1

N1400

R1AROP1013064/2

INBYP

RFOUT

GNDBYP

GNDEME

GNDBIAS

RFIN

VCCRF WOPY LNA

LNA

2140.0

B7835

Z1400

25

4

31

RTN201955/1

GNDGND

IN OUT

OUT

EFCH190MD-TY1

Z1420

86

42

5

3

7

1

RTN201954/1

OUT

OUT

GND

Freq

GND

GND

GND

IN

IN

VccB_mix

2.7nH

L1401

22pF

C1403

100nF

C1404

10pF

C1401

1nF

C1402

22pF

C1414

22pF

C1424

1.2pF

C1443

10pF

C1407

22pF

C1431

100nF

C1444

27pF

C1422

27pF

C1423

1pF

<N.M>

C1421

1pF

C1412

1pF

C1413

10nF

C1451

10nF

C1452

10nF

C1453

10nF

C1454

10nF

C1447

10nF

C1448

2.2nF

C1441

2.2nF

C1442

2.2nF

C1425

10ohms

R1430

3.3Kohms

R1411

Components A1200 SEMC Electrical Repair Manual

79 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

Made for

Document Nr Revision

APPENDIX

XOOA

V_Wivi_B

VccB

WRFLOOP

IFLO

IFLOBAR

MCLK

XOOA

XOOB

WRFLOOP

VCXOCONT

RFLO

RFLOBAR

V1770

RKZ323904/2

V_Wivi_B

VccB

1uH

L1760

Wopy_LEADFREE

C7

K6

J10

K10

K7

C10

D10

C8

D8

K8 K9

K4

K5

H8

H7

H10

H5

H6

N1400

R1AROP1013064/2

VCO

-NPHD-R

WOPY VCO

VCCVCO

VTUNE

PHDOUT

MCLK

XOIA

XOIB

XOOA

XOOB

GNDTUNE

GNDVCO GNDRFLO

GNDPHD

GNDPLL

RFLOB

RFLOA

VCCPLL

VCCPHD

VCCRFLO

13MHz

TSX_8A

RTM501907/7

13

24

B1770

Metal cap

IN OUT

56pF

C1777

Wivi_LEADFREE

Leadfree

N1700

J10

H10

G10

E10

F10

I10

H8

F8

D8

G3

H3

ROP1013063/3

CHPPHD

Wivi RF PLL

VTUNERF

VCCRFVCO

VCCRFPHD

VCCRFPLL GNDTUNEVCO

GNDRFVCO

GNDRFPLL

GNDRFPHD

GNDRFLO1

GNDRFLO

PHDRFOUT

Wivi_LEADFREE

Leadfree

N1700

C1

B1

B10

A10

A8

A6

G1

A7

F1

E1

C10

D10

C8

A9

C6

C5

F3

ROP1013063/3

PHDIFOUT

IFLO

IFLOBAR

GNDIFLO

GNDIFPHD

GNDIFPLL

GNDTUIF

GNDIFVCO_A9

VCCIFVCO

VCCIFPLL

VCCIFPHD

VCCIFLO

XOOC

XOOB

VTUNEIF

Wivi IF PLL

PHD CHP

GNDIFVCO_C8

GNDIFVCO_D10

4.7pF

C1776

Confidential

3.3nF

C1711

22pF

C1702

22pF

C1704

100nF

C1701

150pF

C1710

100nF

C1703

22pF

C1741

22pF

C1731

10nF

C1770

100nF

C1730

100nF

C1740

100pF

C1714

100pF

C1715

330pF

C1772

4.7pF

C1773

56pF

C1778

4.7pF

C1716

10pF

C1750

10pF

C1751

10nF

C1760

120pF

C1761

5.6nF

C1720

390pF

C1721

10ohms

R1740

10ohms

R1730

10ohms

R1701

10ohms

R1702

10Kohms

R1772

REP621

R1770

10Kohms

R1771

5.6Kohms

R1720

4.7Kohms

R1710

10Kohms

R1722

1/1911 - ROA 128 1112/6

RADIO Synthesizer UMTS

RAY/UMTS Module

Components A1200 SEMC Electrical Repair Manual

80 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

Made for

Document Nr Revision

APPENDIX

1/1911 - ROA 128 1112/7

RADIO Modulation UMTS

RAY/UMTS Module

V_Wivi_A

WCDMA_RF

TXIA

TXIB

TXQA

TXQB

RFLO

RFLOBAR

V_Wivi_A

V_Wivi_A

RTEMP

1GHz

L1507

V_Wivi_A

12nH

L1502

12nH

L1501

10nH

L1508

SAFEK1G95F0F01R00

RTN201958/1

4

6

2

1

3

5

Z1500

IN

IN GND

GND

GND OUT

Freq

LM20SITL

RYT101937/3

B1B2

A2 A1

B1501

Temp Sensor

NC

VOV+

GND

4.7nH

L1504

3.3nH

L1503

6.8nH

L1505

2pF

C1508

2pF

C1507

Wivi_LEADFREE

Leadfree

N1700

J1

J7

A5

I1

H1

A1

A2

J3

J2

H4

J6

J5

A3

A4

J9

J8

J4

H6

H5

H7

C3

ROP1013063/3

NC

Wivi IQ_mod RF_mix Buffer

IIN

IINBAR

QIN

QINBAR

RFLO

RFLOBAR

IFBP

IFBPBAR

VCCBB

VCCRF

VCCIF GNDIF

GNDRF_H6

GNDRF_J4

GNDRF_H5

GNDBB

MIXOUTBAR

MIXOUT

OUTBAR

OUT

100nF

C1510

22pF

C1503

22pF

C1505

47pF

C1501 10pF

C1504

10pF

C1509

100nF

C1511

100nF

C1512

RES 680ohm, 1%, 50mW, K0201_HD

R1502

680ohms

R1504

4.7pF

C1502

22pF

C1513

22pF

C1514

0ohms

R1506

Components A1200 SEMC Electrical Repair Manual

81 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

Made for

Document Nr Revision

APPENDIX

1/1911 - ROA 128 1112/8

RADIO Power Amplifi er UMTS

RAY/UMTS Module

VBATI

V_Wivi_A

WPABIAS

WPABIAS

WCLK

WDAT

WSTR

WCDMA_RF

V_Wivi_A

VBATI

V_Wivi_A

GND GNDGND

GND

Isolator

K1600

6

4

3

1

25

UNH1021010/1

ISOLATOR

IN OUT

GND

GND

GND

GND

WON

0ohms

R1601

GNDGND

2.2nH

L1601

1pF

C1616

0ohms

<N.M>

R1602

0ohms

<N.M>

R1603

0.47pF

C1617

0ohms

R1604

0ohms

<N.M>

R1605

Wivi_LEADFREE

ROP1013063/3

C4

E3

D3

G8 E8

D1

C7

N1700

Leadfree

Wivi LOGIC

LOGIC

CLK

DATA

STROBE

VCCBUS GNDBUS

TXON

WON

SKY77412

RYT101969/3

311

16

6

5

9

13

7

15

14

12

10

8

4

2

17

1

N1630

GND_CPAD

GND

GND

GND

GND

GND

GND

NC

RFOUT

VREF

VCONT

VBIAS

VCC2B

VCC2A

VCC1B

VCC1A

RFIN

SKY774nn Module

100nF

C1601

22pF

C1602

4.7uF

C1608

100pF

C1609

10nF

C1610

4.7uF

C1611

100pF

C1612

10nF

C1613

10nF

C1614

10nF

C1615

4.7uF

C1603

100pF

C1604

4.7uF

C1605

10nF

C1607

100pF

C1606

0ohms

R1645

<N.M>

Components A1200 SEMC Electrical Repair Manual

82 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

A1300 Marlin/GSM Module ROA1281640/Z

TOP VIEW

Note: Size 23.80 x 15.00 = Nominal PWB-size

Interface-pattern of the module:

Pin number Copper pad Solder mask opening

1-130 Round 0.67mm Round 0.77mm

131-175 Round 1.35mm Round 1.45mm

The interface has copper between pads, connected to signal: GND.

Pin number 176, are intended to be used as an “Pin-1”-marker

Recommended interface-pattern for the motherboard

Pin number Copper pad Solder mask opening

1-130 Round 0.57mm Round ≤0.72mm

131-175 Round 1.25mm Round ≤1.40mm

The outer layer using this footprint shall be  lled with copper with good connection to GND. Isolation

between signal copper and GND-plane  lling: min 0.4mm

Pins / Signal cross-reference:

Pin number Signal

1-2, 62-63, 130 VBATTi

8-9, 11-14, 16, 21, 28-29, 31-33, 37-38, 40-45,

47, 49-52, 54-61, 64-110, 115-129, 131-175, 176

GND

3 ANTSW3

4 ANTSW2

5 ANTSW1

6 ANTSW0

7 TXON

10 VccA

15 VLOOP

17 RADSTR

18 RADDAT

19 RADCLK

20 XOOB

22 XOOA

23 DIRMODCLK

24 MODA

25 MODB

26 MODC

27 MODD

30 CLKREQ

34 QDATA

35 DCLK

36 IDATA

39 VDIG

46 WCDMA_RF

48 ANT

53 VAPC

Components A1300 SEMC Electrical Repair Manual

83 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

Made for

Document Nr Revision

APPENDIX

RADIO TOP

Marlin/GSM-Module

1911 - ROA 128 140/1

ANT

DIRMODCLK

XOOA

XOOB

WCDMA_RF

TXON

MODD

MODC

MODB

MODA

RADSTR

RADDAT

RADCLK

CLKREQ

VAPC

IDATA

QDATA

DCLK

VLOOP

ANTSW1

ANTSW0

ANTSW2

ANTSW3

VccAVBATTi

VDIG

GND

13

16

33

37

40

41

42

43

44

45

47

49

50

51

55

54

858

59

60

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

115

116

117

118

119

120

121

122

GND GND

15

23

34

35

36

48

1 2

9

7

5

6

11

12

17

18

19

10

24

25

26

27

46

30

39

53

62

123

124

125

126

28

14

61

52

32

38

29

127

128

129

63 130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

GND

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

GND

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

GND

176

X001

20

22

3

4

56

57

21

31

GND

ANTSW0

XOOB

XOOA

VAPC

TXON

ANTSW2

ANTSW1

CLKREQ

VBATTi

VDIG

IDATA

QDATA

DCLK

VLOOP

MODD

MODC

MODB

MODA

RADSTR

RADDAT

RADCLK

ANTSW3

GSM

ANT

VccA

WCDMA_RF

DIRMODCLK

R2A

S001

1

X001

X001

X001 - GND-intercae

"Inner ring" "Outer ring"

X001 - Heat-slag pins Shield can

X001 - Pin1 marking

Components A1300 SEMC Electrical Repair Manual

84 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

Made for

Document Nr Revision

APPENDIX

1911 - ROA 128 140/2

RADIO TOP GSM

Marlin/GSM-Module

WCDMA_RF

ANT

RF50ohm_RX_900

RF50ohm_RX_1800

RF50ohm_RX_1900

RF50ohm_TX900

RF50ohm_TX1800_1900

VccA

IDATA

QDATA

DCLK

MODD

MODC

MODB

MODA

RADSTR

RADDAT

RADCLK

ANTSW0

VLOOP

VDIG VccA

VccA

VDIG

CLKREQ

VAPC

VccA

ANTSW2

ANTSW1

TXON

DIRMODCLK

XOOA

XOOB

ANTSW3

WCDMA_RF

ANT

VccA

VBATTi

VBATTi

VccA

ANTSW3

ANTSW2

ANTSW1

ANTSW0

TX1800_1900

TX900

Ant

WCDMA_RF

RX_1900

RX_1800

RX_900

AntSwitch

VccA

TXON

ANTSW1

PA_gsm

VccA

VBATTi

VAPC

TX900

TX1800_1900

Mod_GSM

VLOOP

MODA

MODB

MODC

MODD

RADCLK

RADDAT

RADSTR

CLKREQ

VccA

XOOA

XOOB

DIRMODCLK

RX_900

RX_1800 DCLK

QDATA

IDATA

Rx_gsm

VccA

VDIG

RX_1900

Components A1300 SEMC Electrical Repair Manual

85 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

Made for

Document Nr Revision

APPENDIX

1911 - ROA 128 140/3

RADIO Receiver GSM

Marlin/GSM-Module

QDATA

IDATA

RX_900

DCLK

VDIG VccA

RX_1900

VccA

DIRMODCLK

5.6nH

L201

15nH

L202

33pF

C213

33pF

C211 33pF

C214

1uF

C209

68pF

C206

10uF

<NM>

C219

47pF

C201

47pF

C202

22pF

C203

22pF

C204

27pF

C207

27pF

C208

33pF

C216

10nF

C215

RX_1800

10nF

C210

15pF

C200

15pF

C205

100nF

C212

942.5MHz

B9401_DGLL96F

RTN201977/3

13

4

52

Z203

GNDGND

IN OUT

OUT

1960MHz

B3902-B9403-K610

RTN201973/2

13

4

52

Z202

GNDGND

IN OUT

OUT

1842.5MHz

B39182-B9402-K610

RTN201976/3

13

4

52

Z201

GNDGND

IN OUT

OUT

TILDE_BIN2

ROP1013073/3

26

24

29

28

31

34

37

40

43

25

23

33

32

36

35

42

41

38

39

12

27

22

30

N200

R1B

VCCDIG

LNAs

XoDACn

XoDACp

RxLOn

RxLOp

QUAD

MUX

ADC

0

1

TILDE_RX

VCCRF

GNDRF5

RX1800N

RX1800P

GNDRF4

RX1900P

RX1900N

GNDRF3

RX900N

RX900P

GNDRF2

RX800N

RX800P

GNDRF1

VCCADC

DECADC1

DECADC2

TESTOUT

BBTEST

IDAT

QDAT

DCLK

6.8nH

L200

Components A1300 SEMC Electrical Repair Manual

86 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

Made for

Document Nr Revision

APPENDIX

1911 - ROA 128 140/4

RADIO Modulation GSM

Marlin/GSM-Module

VccA_N200_20

MODA

MODB

MODC

MODD

RADCLK

RADDAT

RADSTR

CLKREQ

VLOOP

XOOB

XOOA

VccA

1nFC395

1nF

C397

1.8nF

C304

1.2nF

C305

560pF

C306 470pF

C300

33pF

C301

10nF

C307

47nF

C303

5.6uH

L300

0ohms

R313

0ohms

R311

560ohms

R307

120ohms

R309 390ohms

R310

100nF

C302

10Kohms

R306

1MHz

100uHL301

TILDE_BIN2

ROP1013073/3

7

8

11

10

49

13

14

15

16

17

9

20

4

6

5

18

19

21

N200

R1B

XoADCp

XoADCn

CHARGE

PUMP

PHD

PRE

SCALER

MUX

BUS

IF

TILDE_CONTROL

STROBE

DATA

CLK

MOD0

MOD1

MOD2

MOD3

REFON

XOP

XON

VCCVCO

VCCPLL

VTUNEP

VTUNEN

CHPOUTP

CHPOUTN

X0OUT

GNDPLANE

+/- 5%

+/- 5%

Components A1300 SEMC Electrical Repair Manual

87 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

Made for

Document Nr Revision

APPENDIX

1911 - ROA 128 140/5

RADIO Power Amplifi er GSM

Marlin/GSM-Module

RF75ohm_TXHN

RF75ohm_TXHP

VccA_N110_5

RF75ohm_TXLN

RF75ohm_TXLP

VccA_N111_5

RF50ohm_DCSPCS_2

RF50ohm_GSM_2

RF50ohm_TX900_1

RF50ohm_TX1800_1900_1

RF50ohm_TX900

RF50ohm_TX1800_1900

TXON

869.5MHz

LDB18869M15G-120TEMP

REG7359906/1

4

3

1

2

5

6

N110

GND

GND

Unbal

BalB

NC

BalA

Balun

1810MHz

LDB181G8115G-120TEMP

REG7359906/2

4

3

1

2

5

6

N111

GND

GND

Unbal

BalB

NC

BalA

Balun

VccA

VccA

VBATTi

TX1800_1900

TX900

ANTSW1

VAPC

VccA

VccA

VBATTi

VBATTi

33pF

C401

22pF

C414 22pF

C413

33pF

C400

15pF

C402

22pF

C417

<NM>

22pF

C416

<NM>

10uF

C410

10uF

C409

2.7pF

<NM>

C405

1.2pF

C406

2.7pF

<NM>

C403

1.2pF

C404

22pF

C407

1.2nF

<NM>

C415

10nF

C411

10nF

C412

4.7nH

L402

4.7nH

L403

0ohms

R410

12ohms

R405

470ohms

R404

470ohms

R406

0ohms

R409

100nF

C408

SKY77334

RYT1017810/1

1

3

15

18

4

11

20

6

2

17

19

16

14

13

12

10

9

8

7

5

N400

R1B

GND8

VAPC

GND16

GND14

GND7

GND12 GND9

GSM_OUT

GND10

DCS_PCS_in

QUADBAND PA

VBATT

GND13

DCS_PCS_out

ENABLE

RSVD(GND)

VCC1B

VCC1A

GND5

BS

GSM_in

8.2nH

L401

<NM>

33nH

L400

<NM>

1.5pF

C418

1.5pF

C419

5.6nH

L404

IC N;ASIC_TILDE;BYX101158_CTILDE_BIN2

ROP1013073/3

45

48

3

1

2

47

46

44

N200

R1B

GNDBUF3

TXHP

TXHN

GNDBUF2

TXLP

TXLN

GNDBUF1

VCCBUFF

TILDE_TX

Tx BUFF

SYNTH

RxLOp

RxLOn

3 X VCO

MUX

2dB Attenuator

C412 close to N1300 pin 2

C411 close to N1300 pin 6

C410, C409, C408 and C407 close to N1300 pin 17

Components A1300 SEMC Electrical Repair Manual

88 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

Made for

Document Nr Revision

APPENDIX

1911 - ROA 128 140/6

RADIO Antenna Switch

Marlin/GSM-Module

RX_900

RX_1800

RX_1900

TX900

TX1800_1900

ANTSW0

ANTSW1

ANTSW2

ANTSW3

1GHz

L501

22pF

C502

1GHz

L502

1GHz

L503

1GHz

L504

22pF

C503

22pF

C504

WCDMA_RF

Ant

VccA

VccA

22pF

C506

1nF

C501

<NM>

1nF

C505

0ohmsR501

<NM>

RN47A4_LEADFREE

V100

3

4

5

RYN901904/3

RN47A4_LEADFREE

V100

1

5

2RYN901904/3

10Kohms

R500

LMSP43MA-412

RYT901962/1

7

41

13 2

12 3

10

8

9

516

15

14

11

6

N500

1800-Rx

WCDMA

1900-Rx

900-Rx1

VDD

VC1

VC2

VCG GND(16)

GND(15)

GND(14)

GND(11)

GND(6)

Dual Mode Quad Band

Switchplexer

1800/1900-Tx

900-Tx

ANT

100pF

C507

Components A1300 SEMC Electrical Repair Manual

89 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

B2100 Crystal 32 768 Hz RTM501911/1 B4100 Microphone RF Improved RLC509427/3

Housing

3.76 mm

6.15 mm

Bottom view

1.25 mm

Side view

Dimensions Mounting

PWB

Grommet

Microphone

Microphone

port hole

2

4

3

1

Connections

Terminal Function

1 Output

2 Ground

3 Ground

4 Power

Electrical Characteristics

Test condition (VS=2.0±0.05 V, R=2.0±0.05 k, Tamb = 20±2 C, R.H.=65±5 %).

Quantity Symbol Condition Limits Unit

Min Typ Max

Sensitivity S f=1kHz, Pin=1Pa, 0db=1V/Pa -39 -42 -45 dB

Output impedance ZOUT f=1kHz, Pin=0.1Pa 300 Ω

Current consumption I 1.5 to 3.6 V 250 A

S/N Ratio S/N(A) f=1kHz, Pin=1Pa,

A-Weighted, 100 – 8000 Hz

55 59 dB

Decreasing voltage S f=1kHz, Pin=0.1Pa, Vs=2.0  1.5V -3 dB

Distortion D SPL = 110 dB, 0 dB = 20 Pa, f=1kHz 2% THD

TDMA Disturbance

Immunity

TDMADI Under study TBD

Supply Voltage 1.5 3.6 V

Test Circuit

Terminal 1

Terminal 3

(Ground)

Micro

p

hone

Terminal 4

1ųF

Components B2100 - B4100 SEMC Electrical Repair Manual

90 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

C2217 0.07F 3.3V Capacitor RJE3551335/7 D1400 Microcircuit/Bluetooth E-STLC2500C4 RYT 123 923/2

STLC2500C Block Diagram

Filter

RECEIVER

TRANSMITTER

AUTOCALIBRATION

DEMO-

DULATOR

MODU-

LATOR

PLL

BASEBAND

CORE

EBC

ARM7TDMI

CPU Wrapper

RAM

ROM

AMBA

PERIPH.

BUS

UART/

SPI

INTERNAL SUPPLY MANAGEMENT

TIMER

INTERRUPT

PCM

WLAN

RFP

RFN

REF_CLK_IN

RF PLL

Fractional N

CONTROL

AND

REGISTER

JTAG

I2C

VDD_HV[1:0] VDD_IO_A VDD_IO_B

GPIO/JTAG

[4:0]

LP_CLK

HOST_WAKEUP/

SPI_INT

BT_WAKEUP

RESETN

UART/SPI

[3:0]

PCM

[3:0]

CONFIG

[2:0]

CLK_REQ_IN

[1:0]

CLK_REQ_OUT

[1:0]

GPIO_0

VDD[4:0]

TOUT[1:0] VDD_CLD AF_PRG VSS[5:0]

Pin out bottom view

JTAG_TCK

GPIO_0

GPIO_3

7654321

A

B

C

D

E

F

G

RESET_N

REF_CLK_IN

LP_CLK

HOST_WAKEUP

/ SPI_INT

BT_WAKEUP

UART_TXD

/ SPI_DO

UART_RXD

/ SPI_DI

UART_CTS

/ SPI_CLK

VDD_IO_B

UART_RTS

/ SPI_CS

PCM_SYNC

PCM_CLKPCM_A

PCM_B

GPIO_9

VSS_RF

GPIO_10

GPIO_11

GPIO_16

VSS_ANA

CLK_REQ_IN_1

CLK_REQ_IN_2

CLK_REQ_OUT_1

CONFIG_1

CONFIG_3 CONFIG_2

RFPRFNVDD_HV_A

VDD_HV_DVDD_DVDD_IO_A

VDD_CLD

VDD_DSM

VDD_N

VDD_CL

VDD_RF

VSS_DIGVSS_DIGAF_PRG

VSS_ANA

VSS_ANA TOUT_IN_QP

TOUT_IP_QN

CLK_REQ_OUT_2

VSS_RF

GPIO_8

GPIO_0

Components C2217 - D1400 SEMC Electrical Repair Manual

91 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

D2301 512 MB NAND RYT118932/2 D2304 USB Transceiver and UART MUX RYT109913/1

Pin configuration HBCC16; top view.

Pin configuration HBCC16; bottom view.

ISP1110W

Transparent top view

RXD

UART_EN

VCC(I/O)

VREG

OE_N

SUSPEND

SOFTCON

TXD

RCV

VP/VPO

VM/VMO

VCC(UART)

VCC(5V0)

DP

DM

VBUSDET

004aaa683

1

2

3

4

5

13

12

11

10

9

16

15

14

6

7

8

ISP1110W

bottom view

VM/VMO

OE_N

SUSPEND

SOFTCON

UART_EN

VCC(I/O)

VREG

VP/VPO

RCV

TXD

RXD

VBUSDET

DM

DP

VCC(5V0)

VCC(UART)

004aaa684

1

2

3

4

5

13

12

11

10

9

16

15

14

6

7

8

GND (exposed

die pad)

FBGA63 Connections, x8 devices (Top view through package)

I/O7

WP

I/O4I/O3

NC VDD

I/O5VDD

NC

F

VSS

I/O6

B

E

CL

A

NC

NC

DU

NC

W

NC

654321

NCNC

NC NC

E

D

C

I/O0

AL

DU

NC NC

NC

NCNC NC NCNC

NCNC

VSS

NCNC

NC NC

RB

I/O2

DU

NC

DU

I/O1

R

NC

NC

NC

VSS

DU

DU DU

DU

DU DU

DU

DU

DU DU

DU

H

G

Components D2301 - D2304 SEMC Electrical Repair Manual

92 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

H2300 IrDA 6,7*2,45*1,7 RKZ923919/1 D3100, D3101 Octal Bus Transceiver RYT109915/1

Dimensions in mm and tolerance 0. 2 mm unless noted.

Light receiving center

Emitting center

Soldering Pads for Reflow Soldering

Mounting center

Grounded wholly

1.225

0.5125

0.6

2.375

2.375

P0.95 ×5=4.75 ±0.1

2.55

0.825

1.7 ±0.1

(6) (5) (1)(2)(3)(4)

P0.95 ×5=4.75 ±0.1

0.4

(1)LEDA

(2)TXD

(3)RXD

(4)SD

(5)VCC

(6)GND

2.55

2.55

1.45

3.35

0.6

3.35

6.7

R1.0

R1.0

30

0.725

Mounting Center Lot No.

0.825

2.55

handbook, halfpage

1

2

3

4

5

6

7

8

9

A0

A1

A2

A3

A4

A5

A6

A7

19

18

17

16

15

14

13

12

OE

B0

B1

B2

B3

B4

B5

B6

20

DIR VCC

10 11

GND B7

GND*

MCE182

Pin configuration DHVQFN20

terminal 1

index area

0.51

A1Eh

b

UNIT ye

0.2

c

mm 4.6

4.4

Dh

3.15

2.85

y1

2.6

2.4

1.15

0.85

e1

3.5

0.30

0.18

0.05

0.00 0.05 0.1

DIMENSIONS (mm are the original dimensions)

0.5

0.3

L

0.1

v

0.05

w

mm55.20

scale

A(1)

max.

A

A1

c

detail X

y

y1C

e

L

Eh

Dh

e

e1

b

92

19 12

11

10

1

20

X

D

E

C

BA

terminal 1

index area

AC

C

B

vM

wM

E(1)

D(1)

Components H2300 - D3100, D3101 SEMC Electrical Repair Manual

93 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

N2000 ASIC Vincenne 2 A07 1.8V Cu-Plug Thin Ni (Pb Free Package)

ROP1013066/6 N2200 LDO 1.3V RYT1137810/1

Pin Conguration Diagram

SUB

SIM

OFF

ONSW

A

ONSW

B

ONSW

C

VDD_F

VBAT_

FVDD_ G

LED2

SIM

VCC

VDD

_IO

SIM

CLK

SDA

V

BUCK

VDD

BUF

MCLK

AUXI3P MIC1PAUXI1P VDD_D

VBAT_

B

LDOd,e

SCL

VSS_D

CHRG

LED1

VSS

BEAR

AUXI2N MIC1NAUXI2P

DAC

STR

PWR

RST

AUXI3N

BEARN

PCMO

PCM

SYN

IREF

VDD

LP

VDD_IO

_18

SIM

DAT

MOD_

USB

BEARP

PCM

CLK

SDAT

VDD

BEAR

SCLK

SRST

VSS

CODEC

DCIO

VDD

CODEC

AUXO1

CH

REG

DAC

CLK

LINE P

VIBR

DACO2/

4

CCO

SLEEP

DACO3

AUXI1N

SIM

RST

EXT

LDO

VREF

XTAL1

B

DATA

AD

STR

IRQ

TEST GPA13

GPA12AUXO2

CLK_

REQ

GPA6

Vbat-D

CHRG,

SIM

VBAT_

A

LDOa,b

VDD_A

VDD_B

DAC

DAT

VDD

ADC

CHSEN

SE+

CHSEN

SE-

VSS

PA

VBUS

VSS_B

SIM

VSS_A

ANA-

LOG

VSS

ADC

LINE N

PCMI

PASEN

SE+

FGSEN

SE-

FGSEN

SE+

PASEN

SE-

FF_IN

IOUT

PA

REG

EXP

OUT

GPA1

GPA2 GPA4

GPA3 VDD_E

GPA5

GPA7

VSS

BUCK

BOOST

ISENSE

+

DACO1

VDD

BUCK

SW

BUCK

SW

BOOST

BOOST

ISENSE

-

VBAT_

C

VSS_C

BUCK

DCDC

VDD

PA/

DAC

DEC0

A

B

C

D

E

F

G

H

J

K

L

M

123456789101112

VSS

TH 1

VSS

TH 3

VSS

TH 2

VSS

TH 15

DEC4 VSS

TH 14

VSS

TH 21

VSS

TH 9

VSS

TH 22

VSS

TH 30

VSS

TH 8

VSS

TH 12

VSS

TH 11

DEC3 VSS

TH 13

VSS

TH 10

DIG

VSS

VSS

TH 5

VSS

TH 6

V

BOOST

VSS

TH 4

VSS

TH 7 MOD1

VSS

TH 17

VSS

TH 18

BOOST

FB+

VSS

TH 19

VSS

TH 26

VSS

TH 25

VSS

TH 27

DIG

VDD

View of Pin Conguration Diagram (as seen from top of package)

Package Information

SYMBOL

COMMON DIMENSIONS

2.101.90

0.80

MAX.

0.70

MIN.

0.20 REF.

0.40

0.05

2.10

0.20

0.00

1.90

D

A

L

A1

E

A2

k0.25 MIN.

TOP VIEW

TDFN

2mm x 2mm

R

N.C.

I.C.

OUT

N.C.

IN

SHDN

123

ESET

4

876

GND

5

Pin Congurations Pin Description

8-PIN

TDFN

(2mm x 2mm)

NAME FUNCTION

8IN

Regulator Input. Supply voltage can range from +1.62V to +3.6V. Bypass IN

with at least a 1μF ceramic capacitor to GND (see the Capacitor Selection and

Regulator Stability section).

—GND Ground. GND also functions as a heatsink. Solder to a large pad or circuit-

board ground plane to maximize SOT23 power dissipation.

5 GND Ground

6SHDN Active-Low Shutdown Input. A logic-low reduces supply current to below 1μA.

Connect to IN or logic-high for normal operation.

4RESET

Open-Drain, Active-Low Reset Output. RESET rises

100ms after the output has achieved regulation. RESET falls

immediately if V OUT drops below 82.5% of its nominal voltage, or if the device

is shut down.

.C. Internally Connected. Leave oating or connect to GND.

1OUT

Regulator Output. Sources up to 300mA. Bypass with a 4.7μF low-ESR

ceramic capacitor to GND.

2, 7 N.C. No Connection. Not internally connected.

—EP

Ground. EP also functions as a heatsink. Solder EP to a large pad or circuit-

board ground plane to maximize TDFN power dissipation.

3

Components N2000 - N2200 SEMC Electrical Repair Manual

94 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

N2202, N2203, N2204, N2210 Voltage Regulator 2.8V RYT1137824/1 N2300 USB Filter Network RKZ923921/1

PIN CONFIGURATION

WL-CSP4-P4

Bump side

4 V OUT

3 GND

2CE 1 V DD

Silicon Side

34

12

PIN DESCRIPTIONS

• R1115Z

noitpircseDlobmyS.oNniP

1V

DD Input Pin

2 CE Chip Enable Pin

3 GND Ground Pin

4V

OUT Output pin

Unit: mm

PACKAGE DIMENSIONS

A

0.97 B

0.97

INDEX

0.05

×4

0.05 S

S0.05 S

0.475±0.020.12±0.03

0.50

0.50

0.235

0.235

B

2

1

A

?0.30±0.03 SAB

?0.05 M

Bottom View

PACKAGE OUTLINE

0.41 (0.445)

3

+/- 0.05

0.5 +/- 0.05

0.32 +/- 0.05

0.24 +/- 0.02

~ 1.5 +/- 0.05

A

B

C

~0.98

+/- 0.05

1 2

Bottom view, balls facing upwards

Side view

A

Pin A1 Indicator BMarking Code

Area

78

C

1 2

Top view, balls down

IP4078CX6/LF outline dimensions

Notes: (Unless otherwise specified)

1. Dimensions are in mm.

2. Solder ball diameter 0.30 mm before reflow

3. Back side protected by an additional 35μm polymer layer (optional)

Components N2202, N2203 - N2300 SEMC Electrical Repair Manual

95 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

N2600 Single Chip elec tuned FM Stereo Radio RYT109905/3 N3100 Dual Bilateral Analog Switch RYT109933/1

Pin configuration - Topview

CPOUT

RFIN2

RFGND

RFIN1

AGND

XTAL

CAGC

CD3

PILLP

BUSENABLE

DATA

CLOCK

DGND

NC1

INTX

INTCON1

12345

TEA5764HN

30

67 8

910

32

31

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

33

34

36

35

38

37

39

40

VAFR

TMUTE

VAFL

MPXIN

MPXOUT

DGND

NC2

NC3

FREFIN

VCC

NC4

VREFDIG

CD2 / INTCON3

LO1

LO2

CD1

SWPORT

VDD

DGND

INTCON2

LOOPSW

NC5

NC6

DGND

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

handbook, full pagewidth

MHC283

I/Q-MIXER

1st FM

IF CENTRE

FREQUENCY

ADJUST

100 pF

22 nF

VCCA

35

32

33

34

29 28 27 26 25

27 pF

L1 47 pF

22 μF

36

37

38

39

RFI1

Igain

AGND

VCCA

RFGND

RFI2

TAGC

LOOPSW

23

VCOTANK1

45

CPOUT VCOTANK2 VCC(VCO)

6789

DATA

VCCD KCO

L

C

D

N

G

D

AGC

FM antenna

programmable divider output

reference frequency divider output

TUNING SYSTEM

4.7 nF

47 nF 47 nF 33 nF

24 23 22

LIMDEC2 LIMDEC1 TIFC Vref MPXO TMUTE VAFL VAFR

19

18

17

16

15

14

13 BUSENABLE

WRITE/READ

SWPORT1

SWPORT2

XTAL1

XTAL2

PHASEFIL

PILFIL

11

SDS

33 nF

1 nF

22 nF

22 nF

Ccomp(1)

Cpull(1) 32.768 kHz

or

13 MHz

33 kΩ

10 kΩ

10 kΩ

47 nF

VCO

39 nF10 nF

R1

4.7 Ω

100 kΩ

10 kΩ

47 Ω

VCC(VCO)

12 Ω

22 nF

D1

L3

D2

L2

22 nF

LEVEL

ADC

IF

COUNTER

LIMITER

DEMODULATOR

Iref

RESONANCE

AMPLIFIER

SOFTWARE

PROGRAMMABLE

PORT

MUX

I2C-BUS

AND

3-WIRE BUS

VCCD

GAIN

STABILIZATION

POWER

SUPPLY

SOFT

MUTE

MPX

DECODER

CRYSTAL

OSCILLATOR

TEA5767HN

VCCA

2

N1

1, 10, 20, 21,

30, 31, 40

n.c.

12 BUSMODE

pilot

mono

Block diagram.

(1) Ccomp and Cpull data depends on crystal specification.

PIN CONNECTIONS

A3

B3

C3

A2

B2

C2

A1

B1

C1

INM OUTA INP

VM_P VM Vp

BYPASS OUTB SHUTDOWN

Microbump-9

(Top View)

DIM MIN MAX

MILLIMETERS

A0.540 0.660

A1 0.210 0.270

A2

NOTES:

1. DIMENSIONING AND TOLERANCING PER ANSI

Y14.5M, 1982.

2. CONTROLLING DIMENSION: MILLIMETERS.

3. COPLANARITY APPLIES TO SPHERICAL

CROWNS OF SOLDER BALLS.

D1.450 BSC

E

0.330 0.390

b0.290 0.340

e0.500 BSC

D1 1.000 BSC

E1 1.000 BSC

1.450 BSC

E

D

-A-

-B-

0.10 C

A2

A

A1

-C-

0.05 C

0.10 C

4X

SEATING

PLANE

D1

e

E1

e

0.05 C

0.03 C

A B

9X b

C

B

A

12 3

RECOMMENDED PCB FOOTPRINT

0.250

0.280

0.5

0.5

Components N2600 - N3100, N4100Components

N4100 1W OPAMP Pb-free version RYT101947/2

GND

54

2A

36

2B 2C

2

7

1C 1B

8

VCC 11A

TOP VIEW

SEMC Electrical Repair Manual

96 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

N4202 ASIC Tjatte 3 ROP1013074/1 S2500, S2502, S2503, S2507 Side Push Switch RMD10116/4

1 2 3 4 5

A

B

C

D

Top View (Bumps down)

PIN DESCRIPTION PIN DESCRIPTION PIN DESCRIPTION PIN DESCRIPTION

A1 MICPint B1 VAD C1 GND D1 SP_ref

A2 MICNint B2 COO C2 GND D2 MICP

A3 SPLint B3 INTMICint C3 GND D3 MICN

A4 SPRint B4 GND C4 GND D4 SPL

A5 VMIC B5 INTMIC C5 GND D5 SPR

IP4027CX20/LF Pin configurations

4027

PHILIPS

Pin A1 Indicator

A

B

C

D

5421 3

Top view, bump side down

Electrical diagram

SPRi

SPLi

MICPe

GND

SPRe

SPREF

MICPi

MICNi

CCO/VMICVAD

MICNe

INTmici

SPLe

GND

CCO/VMIC

INTmice

R1

R7

R8R6

R4

R5

R3

R2

SPRi

SPLi

MICPe

GND

SPRe

SPREF

MICPi

MICNi

CCO/VMICVAD

MICNe

INTmici

SPLe

GND

CCO/VMIC

INTmice

R1

R7

R8R6

R4

R5

R3

R2

ab

cd

Components N4202 - S2500, S2502 SEMC Electrical Repair Manual

97 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

S2504 Joystick Switch SXA1092476 S2505, S2506 A/B Key Switch RMD10147

24

13

Components S2504 - S2505, S2506 SEMC Electrical Repair Manual

98 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

V2201 Diode, Schottky, Pb-free RKZ123918/1 V2202 P-channel MOSFET RYN122684/2

PIN DESCRIPTION

1 cathode

2 anode

handbook, halfpage

ka

Top view

MAM403

Fig.1 Simplified outline (SOD523; SC-79) and

symbol.

Marking code: L5.

The marking bar indicates the cathode.

0 0.5 1 mm

scale

D

21

HE

Ebp

A

c

vMA

A

UNIT bpcDEv

mm

HA E

DIMENSIONS (mm are the original dimensions)

Note

1. The marking bar indicates the cathode.

(1)

0.34

0.26

0.17

0.11 0.1

0.85

0.75

1.25

1.15

0.65

0.58

1.65

1.55

L

R

Components V2201 - V2202 SEMC Electrical Repair Manual

99 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

V2220 Dual MOSFET complementary N-P RYN123919/1 V2301, V2552 NPN Transistor, SOT723, R1=22k RYN121931/1

Top View

MARKING DIAGRAM

& PIN ASSIGNMENT

6

1

TC = Specific Device Code

D = Date Code

16

Drain−1

Gate−2

Source−2

Source−1

Gate−1

Drain−2

Top View

TCD

SOT−363

D1

G2

S2

S1

G1

D2

6

5

4

1

2

3

Components V2220 - V2301, V2552 SEMC Electrical Repair Manual

100 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

V2500, V4101 Dual ESD Protection Diode RKZ223914/1 V2504 SWI X2 75V 2X75mA SC75 RKZ123904/1

1

3

2

PIN 1. CATHODE

2. CATHODE

3. ANODE

MARKING

DIAGRAM

SOT−723

CASE 631AA

STYLE 4

3

2

1

xx = Device Code

M = Date Code

xx M

Components V2500, V4101 - V2504 SEMC Electrical Repair Manual

101 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

V3101 Transistor MOSFET N-Channel, SC88 RYN123915/1 V3102 Schottky Diode RKZ323907/1

SC−88

(SOT−363)

6

1

TS D

TS = Specific Device Code

D = Date Code

PIN CONNECTIONS AND

MARKING DIAGRAM

DRAIN

DRAIN

GATE

DRAIN

DRAIN

SOURCE

16

1256

Drain

3

Gate

ecruoS4

N−Channel

Components V3101 - V3102 SEMC Electrical Repair Manual

102 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

V3103 Dual N-Channel 2.5V MOSFET RYN901923/1 V3110 LED Red Side Fire RKZ433924/1

Components V3103 - V3110 SEMC Electrical Repair Manual

103 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

V3113 MOSFET, Dual P-Channel NoPb RYN122904/1 X1000 External Antenna Connector RPT79953

Top View

SOT−363 / SC−88

CASE 419B

STYLE 26

MARKING DIAGRAM

6

1

TK = Device Code

D = Date Code

16

Drain−1

Gate−2

Source−2

Source−1

Gate−1

Drain−2

Top View

SOT−363 (SC−88−6)

D1

G2

S2

S1

G1

6

5

4

1

2

3

PIN ASSIGNMENT

TK D

D2

Components V3113 - X1000 SEMC Electrical Repair Manual

104 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

X1002 Internal Antenna Connector RPT79951 X2200 Battery Connector SND10622

Components X1002 - X2200 SEMC Electrical Repair Manual

105 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

X2301 M2 Memory Card Reader RNK87147 X2302 Sim Card Reader RNK87146

TOP VIEW

123

567

Components X2301 - X2302 SEMC Electrical Repair Manual

106 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

X2501 20 Pin BtB (female) RNV799009 X2505 30 Pin BtB (male) RNV79992

Components X2501 - X2505, X2510

X2510 Socket VGA Camera RNV799015

SEMC Electrical Repair Manual

107 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

X2550 FPC 10 Pin (DDK) RNV799019/10 X3102 26 Pin BtB (female) RNV79994

Components X2550 - X3102 SEMC Electrical Repair Manual

108 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

Made for

Document Nr Revision

APPENDIX

KOUT0

KOUT1

KOUT2

KOUT3

KIN0

KIN1

KIN2

KIN3

KIN4

KOUT4

S1

0

RKZ433949/2

LNJ026X8B4ER

V1

CA

S2

1

S3

2

S4

3

S5

4

S6

5

S7

6

S8

7

S9

8

S10

9

S11

*

S12

#

S13

Soft

Left

S14

Soft

Right

S15

Clear

S16

OP

/Yes

S17

Multi

/No

S18

Back

LNJ026X8B4ER

RKZ433949/2

V2

CA

LNJ026X8B4ER

RKZ433949/2

V3

CA

LNJ026X8B4ER

RKZ433949/2

V4

CA

LNJ026X8B4ER

RKZ433949/2

V5

CA

LNJ026X8B4ER

RKZ433949/2

V6

CA

LNJ026X8B4ER

RKZ433949/2

V7

CA

LNJ026X8B4ER

RKZ433949/2

V8

CA

470ohmsR1

470ohmsR2

Camera Shutter Button

SXA1095033

SKRNPAE010

1

3

2

4

65

S20

GNDGND

1

2

OUT1

IN1

IN2 OUT2

GND GND

1

2

3

4

5

6

7

8

9NC

10

11

12

X1

13

14

15

16

17

18

19

20

GND

LED V5, V6, V7 and V8 are the 4 lower LEDs on the keyboard.

LED V1, V2, V3 and V4 are the 4 upper LEDs on the keyboard.

Keyboard

Connector

1911-ROA 128 1764

Keyboard K800

Keyboard K800

Keyboard K800 SEMC Electrical Repair Manual

109 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

Made for

Document Nr Revision

APPENDIX

S1

0

SSC_HB601_AD3

V1

RKZ433998/1

CA

S2

1

S3

2

S4

3

S5

4

S6

5

S7

6

S8

7

S9

8

S10

9

S11

*

S12

#

S13

Soft

Left

S14

Soft

Right

S15

Clear

S16

OP

/Yes

S17

Multi

/No

S18

Back

SSC_HB601_AD3

V2

RKZ433998/1

CA

V7

RKZ433949/2

CA

V8

RKZ433949/2

CA

470ohms

R1

SKRNPEE010

Camera Shutter Button

1

3

2

4

65

S20

SXA1096160

GNDGND

1

2

OUT1

IN1

IN2 OUT2

GND GND

GND

V9

RKZ433949/2

CA

V10

RKZ433949/2

C

A

V11

RKZ433949/2

C

A

V12

RKZ433949/2

CA

0ohms

R5

0ohms

R4

X1

12

13

14

15

16

4

5

6

7

8

2

19

3

18

1

10

11

17

20

9

X1

21

22

23

24

GND

180ohms

R2

180ohms

R3

V6

SSC-Z16B

RKZ433952/1

C

A

V5

SSC-Z16B

RKZ433952/1

C

A

KOUT0

KOUT1

KOUT2

KOUT3

KIN1

KIN2

KIN4

KOUT4

KIN3

KIN3_int

KIN0

KIN0_int

BLUE DIODES

LED V5 and V6 are blue

LED V7-V12 are white.

LED V1 and V2 are Blue sidefire diodes.

Keyboard

Connector

Keyboard K810

Keyboard K810

1911-ROA 128 2402

Keyboard K810 SEMC Electrical Repair Manual

110 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

Made for

Document Nr Revision

APPENDIX

1_1301-RNH942268ENB

Display

Display SEMC Electrical Repair Manual

111 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

VGA Camera KNC 201 16

PIN# Pin name Description Type State After

reset State @ standby

1 DVDD Digital power S VDD 2.8 VDD 2.8

2 DOUT0 Pixel Data Output bit 0 (LSB) O Default Value High-Z

3 DOUT1 Pixel Data Output bit 1 O Default Value High-Z

4 DOUT2 Pixel Data Output bit 2 O Default Value High-Z

5 DOUT4 Pixel Data Output bit 4 O Default Value High-Z

6 GND Ground S GND GND

7 PCLK Pixel clock output O Default Value High-Z

8 STROBE Flash active O Default Value High-Z

9 SCLK Two-Wire Serial Interface

Clock

I Default Value SCLK

10 RESET_BAR# Asynchronous reset, active

low

ILow High

11 AVDD Analog power S VANA VANA

12 SDATA Two-Wire Serial Interface

Data I/O

I/O Default Value SDATA

13 STANDBY Standby mode setting I Low High

14 HSYNC Active high, indicates active

pixel

O Default Value High-Z

15 VSYNC Active high, indicates active

frame

O Default Value High-Z

16 MCLK Master clock in sensor I MCLK MCLK

17 DOUT7 Pixel Data Output bit 7

(MSB)

O Default Value High-Z

18 DOUT6 Pixel Data Output bit 6 O Default Value High-Z

19 DOUT5 Pixel Data Output bit 5 O Default Value High-Z

20 DOUT4 Pixel Data Output bit 4 O Default Value High-Z

Camera Module KNC 201 25

Pin# Pin name Description I/O State @ State @ State@

Reset Power

off Standby

1 AF_GND Autofocus ground - ---

2GNDGround -- - -

3VDD_AF Voltage supply for autofocus

(2.7 V) -- - -

4SCLI

2

C serial bus clock I/O HiZ HiZ Active

5GNDGround -- - -

6SDAI

2

C serial bus data I/O HiZ HiZ Active

7VDD_SA Voltage supply for analog part

of sensor (2.7 V) -- - -

8 VSYNC Vertical synchronization signal O Low HiZ HiZ

9GNDGround -- - -

10 HSYNC Horizontal synchronization

signal OLow HiZHiZ

11 VDD_IO Voltage supply for DSP I/O (2.7

V) -- - -

12 XRST System reset I - - -

13 TRIG Interrupt signal O Low HiZ* HiZ*

14 CAPTSTRB Capture/strobe signal O Low HiZ* HiZ*

15 GND Ground - - - -

16 D[6] Digital video data O Low HiZ HiZ

17 D[7] Digital video data (MSB) O Low HiZ HiZ

18 D[4] Digital video data O Low HiZ HiZ

19 D[5] Digital video data O Low HiZ HiZ

20 D[2] Digital video data O Low HiZ HiZ

21 D[3] Digital video data O Low HiZ HiZ

22 D[0] Digital video data (LSB) O Low HiZ HiZ

23 D[1] Digital video data O Low HiZ HiZ

24 GND Ground - - - -

25 VDD_SD Voltage supply for digital part of

sensor (1.8 V) -- - -

26 MCK System clock input I - - -

27 DCK Digital video data clock O Low HiZ HiZ

28 GND Ground - - - -

29 GND Ground - - - -

30 VDD_L Voltage supply for DSP core

(1.2 V) -- - -

VGA Camera KNC20116 - Camera Module KNC20125 SEMC Electrical Repair Manual

112 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

Made for

Document Nr Revision

APPENDIX

The connector interface of the flash module consists of 10 terminals.

Terminal definitions are shown in the table

.

No Symbol

1 Shield (GND)*

2LED(K)

3SW

4CC

5COK

6 GND (Module)

7 GND (Module)

8V

B

9V

B

10 TRIG

Xenon Flash Module RKZ 433 970

1301-RKZ433970ENF

Xenon Flash Module

Xenon Flash Module SEMC Electrical Repair Manual

113 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

SI - Can’t Power On

SI Can’t Power On

Symptom:

Before doing any electrical / mechanical repair on “Can not Power on”, fi rst secure that the problem is not

caused by software!

Attach a charger; if the charging indicator LED is blinking only approx. 4-7 times before it stops, the prob-

lem is caused by software!

Important: You might have to try attaching the charger up to 5 times in order to be sure you don’t have

symptom.

IF THE UNIT’S CHARGING INDICATOR BLINKS ONLY APPROX. 4-7 TIMES YOU SHALL NOT RE-

PLACE ANY COMPONENTS!

The problem is caused by corrupt software.

Please see solutions Pre-confi g (1) and Pre-confi g (2) below for this type of problems.

Pre-confi g (1) (see old SI for more details)

ONLY applicable if you have a K800 or K790 produced 2006 otherwise go directly to Pre-confi guration 2

section.

Log on to EMMA III as usual.

Make sure you that there is at least 1/3 left of the battery capacity, loss off power during below will destroy

the unit!

You should press “5” fi rst, keep it pressed and then press the “2” and keep it pressed.

Thereafter while pressing “2” and “5”, you attach the USB cable.

When information box appears in the Service Client window, release the keys.

Select “Yes” and the Pre-confi guration will proceed as normal.

If this doesn’t help proceed to pre-confi g (2) below:

Pre-confi g (2) fi x for “Inaccessible GDFS”

Require access to Activate in Emma III.

Instructions:

1) Connect the phone to EMMAIII with a USB cable while pressing the “C” button.

1a) If EMMAIII is showing a USB icon, apply normal trouble shooting.

1b) If you can’t see a USB icon, continue with 2 below.

2) Remove and re-insert the battery and make sure Emma III is working online. Press “5” fi rst, keep it pressed

and then press the “2” and keep it pressed. There after and while pressing “2” and “5” attach the USB cable to the

phone.

2a) If there is no USB icon in Emma III you shall apply normal trouble shooting.

2b) If you now can see a USB icon in Emma III followed by below information box:

Press No (this box is needed to be able to support both variants of pre-confi guration)

If you now get the box with “Pre-confi guration 2” script below, you should run this script.

SEMC Electrical Repair Manual

114 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

SI Can’t Power On

When this script is fi nished, you must download the DPY/Z script with the “c” key and USB cable as usual.

If you have units with exactly this symptom and the Pre-confi guration and Pre-confi guration 2 have not

solved the problem, please submit a BO errand and send in samples.

If you do not have access to activate, you will not see the “pre-confi guration 2” script, please send the unit to

a scrap recovery center or center with access to activate appointed by your local Sony Ericsson contact.

Note: The SEPI support in EMMA III (only) for these products has been removed in order for Pre-confi gura-

tion 2 to work.

Information provided by:

Customer Services

Sony Ericsson Mobile Communications AB

Helpdesk

Phone: +46 46 19 49 80

E-mail: CS-Applications.Support@sonyericsson.com

Reference number: 15600-63909

Created: 2007-09-06

Author: Patrik Cesar (patrik.cesar@ecs.ericsson.se)

SEMC Electrical Repair Manual

115 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

SI-Joystick Switch Replacement

Instruction:

It is very important to avoid that you get fl ux remains inside the

joysticks contact surfaces in order to avoid re-repair!

When you replace a joystick switch you MUST:

1. Avoid using extra fl ux!

2. Do not clean the area around the joystick with alcohol or similar. It will dissolve fl ux on

the PCB and bring it into the joystick switch if you are not very careful.

Watch the joystick replacement movie on CSPN:

CSPN/ Repair instructions/ Standard/[product] (ex. K800) /

JOYSTICK SWITCH MOVIE GENERAL

JOYSTICK SWITCH MOVIE GENERAL

JOYSTICK_SWITCH_MOVIE_GENERAL.PKZIPV2R04.zip

Reference number: 15365-61602

Created: 2007-05-09

Author: Patrik Cesar (patrik.cesar@ecs.ericsson.se)

SI-K800/K790 SI-Support Pad for Camera Switch

Background:

We have seen some cases reported that the shutter function doesn’t work, i.e. the camera is not

activated / deactivated by it.

This can be caused by that the camera switch tilts up a little due to incorrect assembly.

From Production week 06W26 a support pad was added in the antenna cover to prevent these

problems at assembly.

Instruction:

If you order new antenna covers you will get this support pad attached to the antenna cover.

Support pad on the antenna cover.

If you have old antenna covers without these or get in units produced earlier than W626 we will

make this support pad available as a spare part so you can add it to them to prevent any problems

during assembly. It is expected within a few weeks. There will be an update when they are

available.

Reference number: 14861-57674

Created: 2006-10-19

Author: Patrik Cesar (patrik.cesar@ecs.ericsson.se)

SI Joystick Switch Replacement - Support Pad for Camera Switch SEMC Electrical Repair Manual

116 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

SI-K800/K790 Problem with front spare part

Background:

We have seen some cases of cosmetic gap problems reported on the spare part front. The cause to the problems is

that some of the hooks in the K800/K790 spare part front have unhooked during transport.

This has not been seen in production since the front is not transported or stored there.

In order to avoid having to reassemble the phone if there is a problem and securing the quality, please follow the

instructions below.

Instruction:

You should always fi rst ensure that the 6 hooks (3 on each side) are in place before assembly by gently pushing them

with a blunt plastic tool.

After the hooks are in place they will stay there locked in place by the other components in the phone.

Reference number: 15129-59878

Created: 2007-02-26

Author: Patrik Cesar (patrik.cesar@ecs.ericsson.se)

SI-K800/K790 Problem with On/Off button

Background:

In our scrap analyze we have seen a few cases where the on / off button is stuck in the down position. The unit then starts

directly and the other keys do not work. In W642 there was done an improvement in production regarding the on/off key.

Recommendation:

If the K790 or K800 is produced before 06W42 and you are opening the unit due to other mechanical and electrical

problems, the on / off button shall be replaced at the same time.

Reference number: 15168-60144

Created: 2007-03-13

Author: Patrik Cesar (patrik.cesar@ecs.ericsson.se)

SI Problem with Front Spare Part - Problem with On/Off Button SEMC Electrical Repair Manual

117 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

SI - White screen patch in Emma3

Affected products:

K800, K790, K610, K618, V630, W850, K610im, Z610, W710, Z710, W830

Description:

Emma3 has been updated and now has an implemented solution for white screen

problem seen on many different phones, e.g. W850 & Z610. Please note that it’s not a

physical script which has been released, but a new set of Emma3 loaders. This affects

the initial identifi cation phase when connecting a unit to Emma3.

Please note that this solution is not applicable for all white screen problems. I solves the

recent white screen problems caused by ST memory failures.

To trigger White screen problem one can change the theme 15 times straight. This

triggers the problem on a non-patched unit with bad ST memory.

IMPORTANT!

Emma3 must be restarted in order for the new loaders to be downloaded locally to

PC. “Software Update Content Refresh” OR “Customize” MUST be downloaded in

affected phone in order to successfully and completely recover a unit from white screen

problem. Scripts used, and thus locally cached MUST be downloaded again from the

Server using “Server Search”. Make sure to use a fully charged battery! Loader will

be downloaded in the initial detection phase and it is CRUCIAL that this step is not

interrupted. If detection phase is interrupted the phone can become totally

unrecoverable. It is NOT suffi cient to run Software Update or using the Update Service,

Update Service Pro or FOTA services.

Units that contain “infected” ST memory but still not got white screen symptom need

to be updated (using SUCR or Customize) in order to secure them from not getting

white screen problem in the future. If there are many units on stock or in warehouse that

need to be screened for ST memory, there is a “White Screen Memory Test” script in

Emma3 ( Service Information reference number: 14979 58607) Memory test will only

distinguish between Intel and ST. It can not tell if phone with ST memory has been

patched and hence is a good unit.

Reference number: 14980-58609

Created: 2006-12-05

Author: Jens Lindström (jens.lindstrom@sonyericsson.com)

SI - Sporadic behaviour for Activate

Below only applies if you have access to the

Activation service in EMMA 3

Applicable only for: K800, K790, W850, W830, K610, K610im, K618, V630, Z610, W710,

and Z710.

Description

The latest update for above products has caused a very minor sporadic behaviour on

certain occasions (not constantly and not on all phones) for Activate.

The behaviour is as follows: During the running of “Activation” script, the phone may start

up in “USB transfer mode”.

If the phone has started up in “USB transfer mode” during the time the “Activation” script

is running, the phone will automatically shut itself down after physical removal from USB

cable.

Please note, the behaviour is not harmful and does not cause issues of any kind other than

sporadic behaviour changes.

By entering “USB transfer mode” the unit will automatically shutdown when the cable

is removed, as apposed to manual shutdown normally. Either way, the unit still needs to

be restarted after the activation process to enable the activation.

We are investigating what is creating this behaviour so we can remove it, in order to

have a consistent behaviour.

Reference number: 15010-58848

Created: 2006-12-22

Author: Patrik Cesar (patrik.cesar@ecs.ericsson.se)

SI Emma 3 White Screen Patch - Activate Sporadic Behaviour SEMC Electrical Repair Manual

118 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

SI-K800/K610 Pre-confi guration change

Applicable for: K800/K790/K610/V630/K618

Information:

The Pre-confi guration process is updated on EMMA III. The Pre-confi guration can

fi x and prevent “Can not power on” problems on units made before approx. 06W42.

Please note that this update will not start until the EMMA III client is restarted!

Instruction:

Log on to EMMA III as usual. You should press “5” fi rst, keep it pressed and then

press the “2” and keep it pressed. Thereafter while pressing “2” and “5”, you attach

the USB cable. When icon appears in the Service Client window, release the keys.

Previously, you’ve had an automatically performed Pre-confi guration, but due to

needed structural changes, there will be a question to respond to.

Select “Yes” and the Pre-confi guration will proceed as normal.

When selecting “No”, the operation will be cancelled.

There is no need at this stage to update the software if you have the latest software version

for the DPY.

IMPORTANT!

The pre-confi guration process is successful even if EMMA III states that the script failed.

The pre-confi guration process is successful anyway.

MU Information:

This change is done to support a recovery script to be used in the scrap recovery centers.

(BMC will not need it since region China have not been affected by the simlock bug)

Reference number: 15195-60423

Created: 2007-03-21

Author: Patrik Cesar (patrik.cesar@ecs.ericsson.se)

SI Pre-Confi guration Change SEMC Electrical Repair Manual

119 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

SI - Vincenne replacement for SL4 and SL5

This document is applicable for

SL4 and SL5 centers with access to:

ROP1013057/1 ASIC Vincenne

ROP1013057/2 ASIC Vincenne Leadfree

ROP1013057/3 ASIC Vincenne Leadfree

ROP1013066/2 PROD. ADAPT. CIRCUIT/ASIC Vincenne2 A07

ROP1013066/5 ASIC, Vincenne2 A07 Cu-Plug Thin Ni (Pb-

ROP1013066/6R1A ASIC Vincenne2 A07 1.8V Cu-Plu

Description:

Vincenne 2 is now available again as spare part for level 4. After you have replaced

Vincenne, you MUST do a Vincenne calibration with the new “Vincenne calibration

tool”

After the Vincenne calibration in “Vincenne calibration tool” you MUST do a

normal SERP (RF calibration) in order to avoid a high re-repair rate and bad quality

perception of the product.

Failing to do the mandatory calibration correctly will result in that the access to

Vincenne will be permanently withdrawn for the service center.

System Requirements

At least a Pentium III 500 MHz, with 128 MB of RAM

Win2000 or Win XP

One free USB connector

At least 1024x768 display resolution. (1152x864 is recommended.)

SEPI interface must be installed.

SEPI A1 Cable

Dummy battery

CST-60 Charger

CST-75 Charger cable (customized according instruction)

One dual or two single Channel Power Supplies. (Equipment Setup.)

Software is found in CSPN under “Repair Instructions>Standard>VINCENNE

CALIBRATION TOOL 20/031 62-2/FEA 209 544/755 “. In the zip-package there are

also installation instructions. Instructions on how to use the tool are found under the

menu Help in the Vincenne calibration tool (also attached below). Important: Make

sure you connect the CST-75 Charger cable according instructions, i.e. between the

Phone and the SEPI A1 cable and not in the SEPI A1 cable!!

Reference number: 15382-61799

Created: 2007-05-15

Author: Patrik Cesar (patrik.cesar@ecs.ericsson.se)

SI-EMMA 3 IMPORTANT Start-up operation

K800, K790, K610, V630, K618

In order to get the important pre-confi guration on units made before 06W42 you should

press “5” fi rst, keep it pressed and then press the “2” and keep it pressed. Thereafter while

pressing “2” and “5”, you attach the USB cable. Keep the buttons pressed until there is a

message appearing in Emma III (This will fi x some of the “dead” or “white screen” units)

Reference number: 15177-60248

Created: 2007-03-19

Author: Patrik Cesar (patrik.cesar@ecs.ericsson.se)

SI Vincenne Replacement - Emma 3 Important Start-Up Operation

SI-New software R8BA024

Applicable for K810, K818

Note: No more general releases planned for K800, K790

(i.e. no default update of all those DPY / SI that doesn’t require a Operator Acceptance).

Information

New and improved software R8BA024 for K810, K818 is about to be released on EMMA

III.

Due to the number of models and kits that are affected there will be a transition period

until all of the scripts are updated. We will start the release 07w44 and we estimate to

have fi nalised the work during 07w47.

For those DPY / SI with operator acceptance, the release date will depend on the approv-

al from the operator.

Reference number: 15805-65184

Created: 2007-10-31

Author: Patrik Cesar (patrik.cesar@ecs.ericsson.se)

SEMC Electrical Repair Manual

120 (121)

K800 - K810

1202-3085 rev. 2

APPENDIX

APPENDIX

Placing in a Shield Box

The picture shows how to place the K800-unit in a Rohde & Schwartz Shield Box and Coupler

Install two M1.7 screws in the

locations indicated using a torque

driver set at 10 N*cm with a JCIS

No. 0 bit.

Torque Settings K790, K800 and K810

Install four M1.4 screws where in-

dicated using a torque driver set at

22 N*cm with an T6 bit.

Torque Settings - Placing in a Shield Box SEMC Electrical Repair Manual

121 (121)

www.s-manuals.com
