Monochrome Display User Guide
Mohammed Rezwanul Islam
November 29, 2016
1

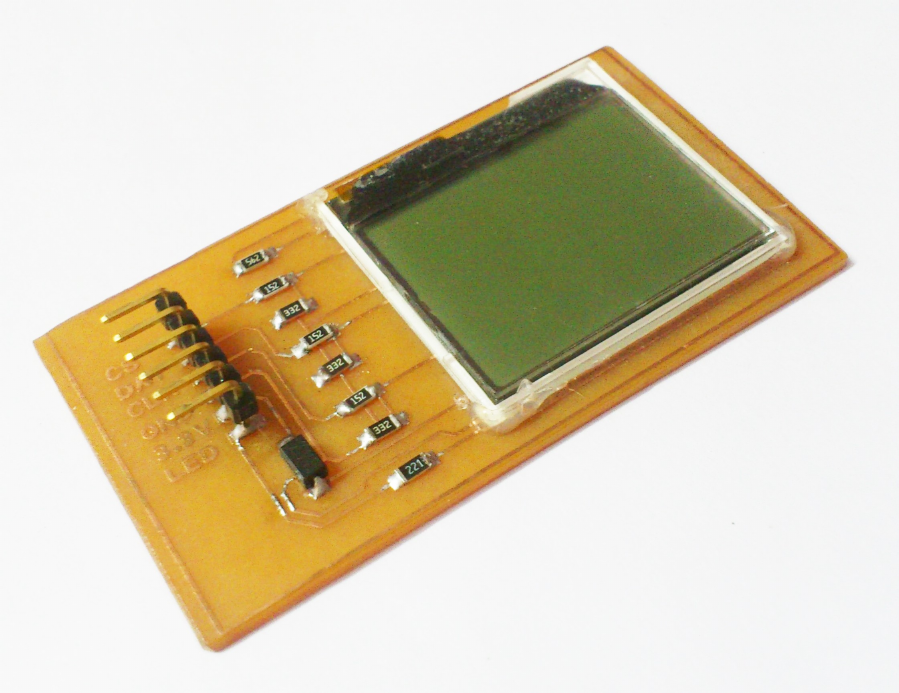

Specifications
•1.3” diagonal LCD display.
•Monochrome display.
•96 x 68 pixels.
•STE2007 controller.
•IO pins are 5V compatible, built in level converter.
•3 pin SPI digital interface.
•Example codes are included.
•Library has text and geometric functions.
•Requires only 3 IO of the micro-controller to drive the LCD.
•LCD dimension 35mm x 31 mm.
•Video of different demo can be found here:
https://www.youtube.com/playlist?list=PLXmFn1t1oCOGQAfpgBrAcLJo2DrieCy3K
2

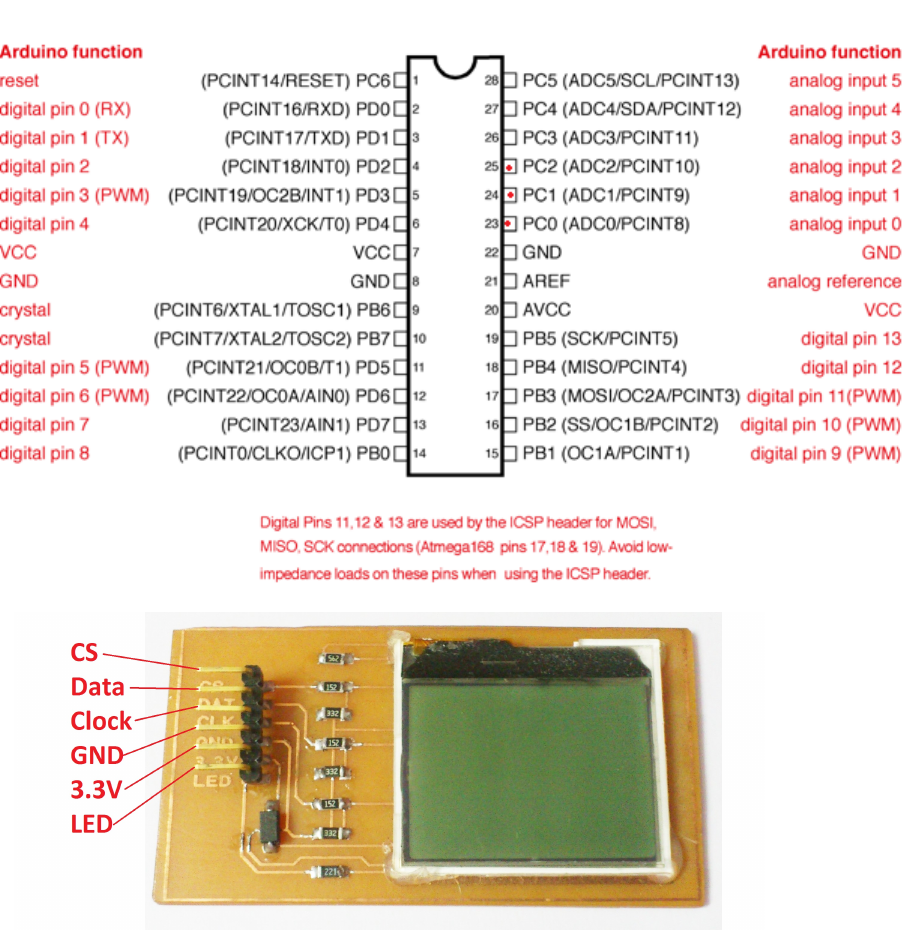

Pin Connection
3
LCD Arduino General
CS Analog 2 PC2
Data Analog 1 PC1
Clock Analog 0 PC0
Gnd Gnd Gnd
3.3v 3.3v supply 3.3V
LED PWM/3.3v 3.3v
Code Example
The video illustrates all the possible functions needed to develop a project.
Further ..........

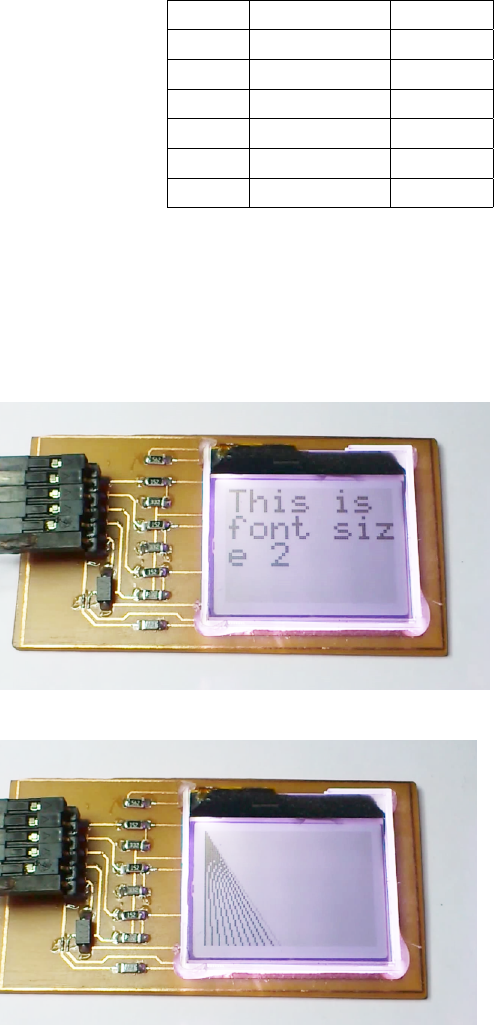

•Font sizes
•Lines
4

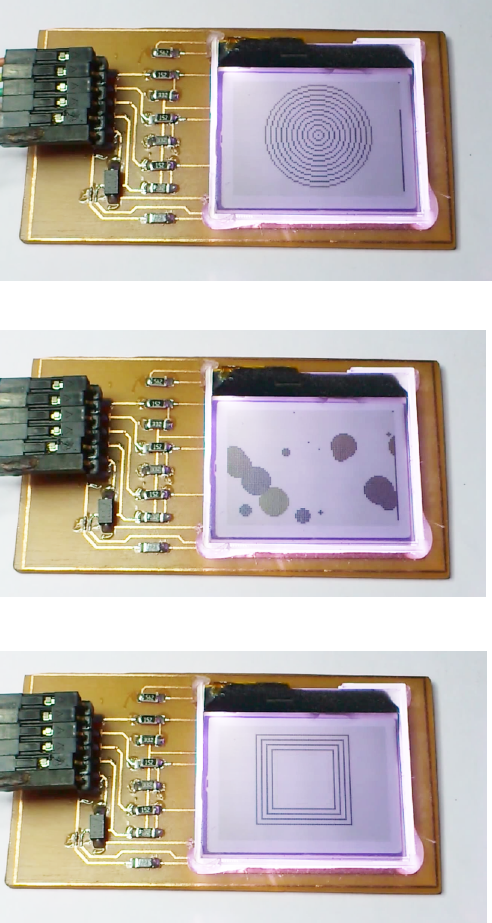

•Circle
•fillCircle
•rectangle
5

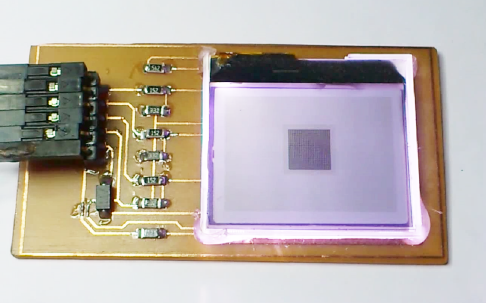

•fillRectangle
6
