TBV

Cryogenic Flanged Ball Valve

Series 21/20

™

TBV

P R O C E S S V A L V E S

P R O C E S S V A L V E S

BR-TBV-21/20

01/09 ION-3M 1

™

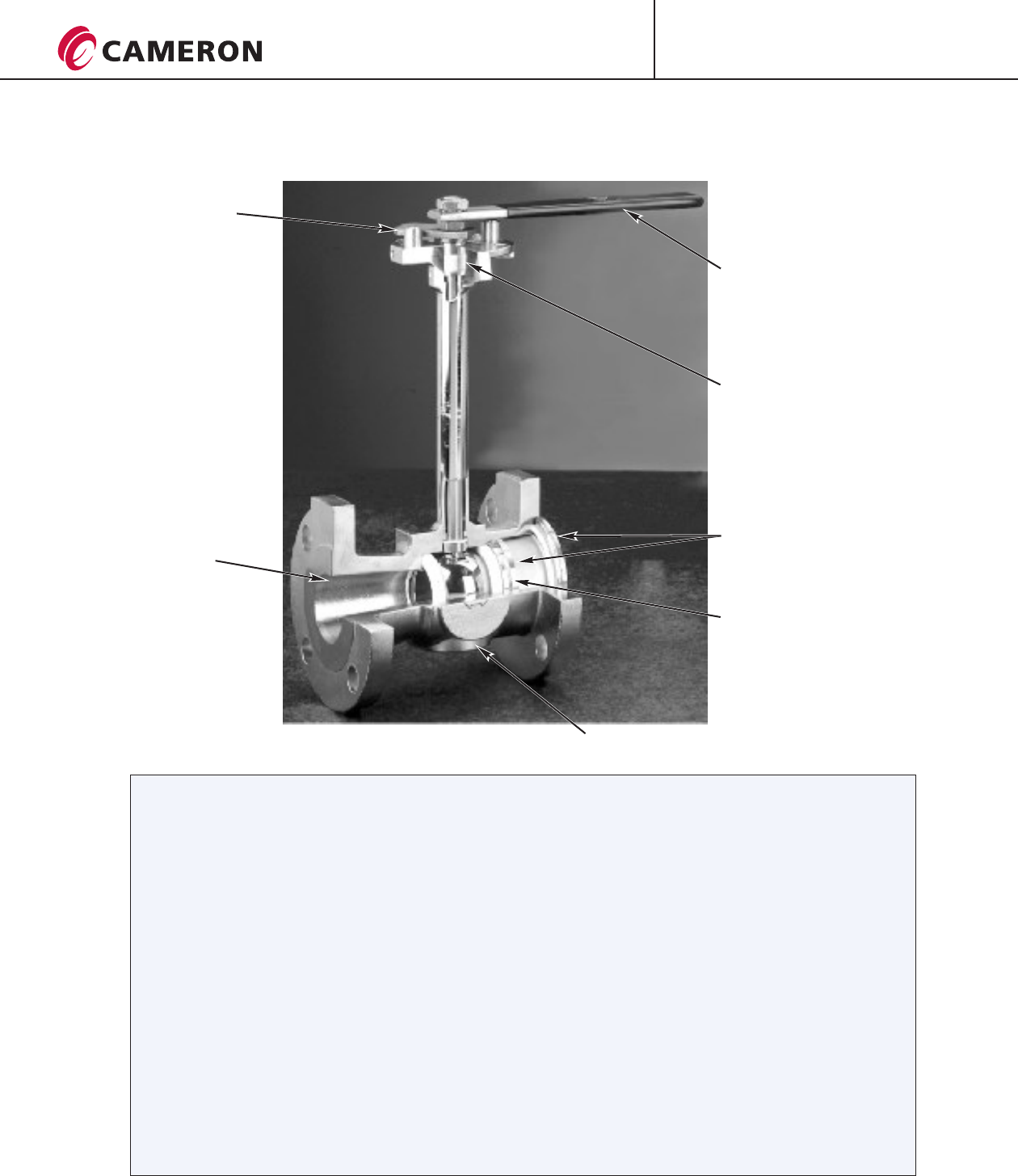

TBV

The TBV 21/20 Series Flanged Cryogenic

Ball Valve is the result of more than 20 years

of experience providing valves for cryogenic

service.

The combination of its investment cast,

unibody, standard port design, extended

bonnet and blow-out proof stem offers

unrivaled safety and reliability in both on-off

and modulating applications.

As a result of our exclusive Cryofil seat

material, adjustable V-ring stem packing and

dual, fully-encapsulated body seals, the 21/20

offers low torque operation and tight shutoff

at temperatures down to -452°F (-269°C).

Actuator mounting is facilitated by a rugged,

four-bolt mounting pad as standard. In the

manually operated version this mounting pad

provides a standard locking device.

Cleaning procedures for TBV Cryogenic Valves

are based on Praxair Specification GS-38.

w

1/2” THROUGH 6” SIZES

w

LOW OPERATING TORQUE TO -452°F

w

INVESTMENT CAST UNIBODY CONSTRUCTION

w

EXCLUSIVE CRYOFIL SEATS

w

ACTUATOR MOUNTING CAPABILITY STANDARD

w

PADLOCKING DEVICE STANDARD

w

OXYGEN CLEANING STANDARD

• BRITISH STANDARD (BS) 6364 COMPLIANT

SERIES 21/20

P R O C E S S V A L V E S

PART QUANTITY DESCRIPTION

Body 1 316L, Stainless Steel, ASTM A351, Gr. CF 3M

End Plug 1 316L, Stainless Steel, ASTM A351, Gr. CF 3M

Ball 1 316 Stainless Steel, ASTM A479 or Monel, ASTM B164, Gr. 400

Stem 1 316 Stainless Steel, ASTM A479 or Monel, ASTM B164, Gr. 500

Follower 1 300 Series Stainless Steel

Seat 2 Cryofil, CTFE, Kel-F or Ultrafil

®

Stem Seal 5 PTFE, Grafoil

®

Body Seal - Inner 1 PTFE, Grafoil

®

Body Seal - Outer 1 PTFE, Grafoil

Stop 300 Series Stainless Steel

Handle 1 300 Series Stainless Steel or Carbon Steel Plated

Thrust Bearing 1 Filled PTFE

Stem Nut 2 300 Series Stainless Steel

Stop Pin Screw 2 300 Series Stainless Steel

Lock Washer 1 300 Series Stainless Steel

Belleville Washer 2 300 Series Stainless Steel

Seal Washer 1 316 SS, ASTM 479 or Monel, ASTM B164, Gr. 400

Stop Pin 2 300 Series Stainless Steel

Set Screw 1 300 Series Stainless Steel

Stem Collar 1 300 Series Stainless Steel

Spacer 1 300 Series Stainless Steel

Flat Washer 1 300 Series Stainless Steel

Handle Screw 1 300 Series Stainless Steel

Lock Washer 2 300 Series Stainless Steel

® Union Carbide.

Repair Kit Items: seats, stem seal, body seals and thrust bearing.

When ordering a repair kit, customer must provide valve code and sales order number stamped on body of valve:

Example: Repair kit for 10S 2B 150 6L6L CT 0 (Part Number); S16754-3 (Sales Order Number).

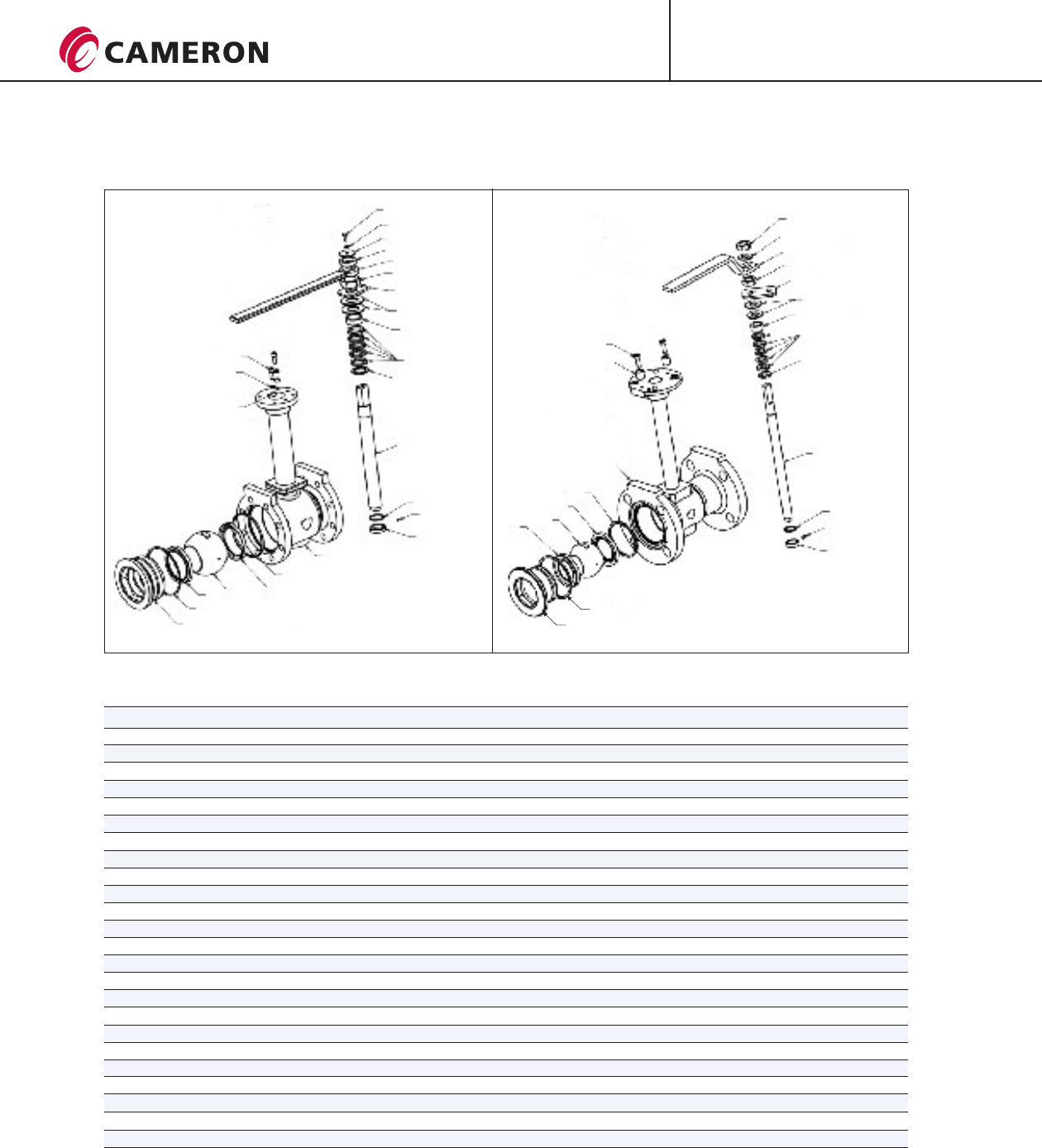

3” - 6” 1/2” - 2”

STEM BOLT

SPLIT WASHER

HANDLE WASHER

HANDLE SPACER

HANDLE

STEM NUT

LOCK STOP

BELLEVILLE WASHER

FOLLOWER

STEM SEALS

SEAL WASHER

STEM

THRUST BEARING

SET SCREW

STEM COLLAR

STOP SCREW

STOP WASHER

STOP SPACER

INNER BODY SEAL

BODY

SEAT

SEAT BALL

OUTER BODY SEAL

END PLUG

STEM NUT

LOCK WASHER

HANDLE

STEM NUT

LOCK STOP

BELLEVILLE WASHER

FOLLOWER

STEM SEALS

SEAL WASHER

STEM

THRUST BEARING

SET SCREW

STEM COLLAR

INNER BODY SEAL

BODY

SEAT

SEAT BALL

OUTER BODY SEAL

END PLUG

STOP SCREW

STOP SPACER

2

SERIES 21/20

MATERIALS LIST

P R O C E S S V A L V E S

BR-TBV-21/20

01/09 ION-3M

™

TBV

3

Valve A B C D E F G H J K L M N P Weight lb.

1/2" 4.25 2.12 3.50 7.88 8.83 8.64 5.50 0.38 0.38 0.230 0.75 0.34 3.18 3/8-24 5.5

3/4" 4.62 2.31 3.88 7.97 8.92 8.73 5.50 0.41 0.38 0.230 0.75 0.34 3.18 3/8-24 7.5

1" 5.00 2.25 4.25 8.19 9.35 9.08 5.50 0.75 0.50 0.296 0.88 0.34 3.18 7/16-20 9

1 1/2" 6.50 2.50 5.00 10.28 11.60 11.22 7.55 1.18 0.63 0.340 1.13 0.34 3.18 9/16-18 17

2" 7.00 2.92 6.00 10.47 11.79 11.41 7.55 1.44 0.63 0.340 1.13 0.34 3.18 9/16-18 24

3" 8.00 4.06 7.50 15.50 17.91 17.41 17.88 2.50 0.75 0.995 2.75 3/8-16 4.02 1 3/8-12 42

4" 9.00 4.51 9.00 16.10 18.51 18.01 17.88 3.25 0.75 0.995 2.75 3/8-16 4.02 1 3/8-12 54

6" 10.50 5.25 11.00 18.70 21.95 21.45 21.50 4.38 1.40 1.246 3.25 7/16-14 4.92 1 3/4-12 155

1/2" 5.50 2.12 3.75 7.88 8.83 8.64 5.50 0.38 0.38 0.230 0.75 0.34 3.18 3/8-24 8.5

3/4" 6.00 2.31 4.62 7.97 8.92 8.73 5.50 0.41 0.38 0.230 0.75 0.34 3.18 3/8-24 10.5

1" 6.50 2.25 4.88 8.19 9.35 9.08 5.50 0.75 0.50 0.296 0.88 0.34 3.18 7/16-20 12

1 1/2" 7.50 2.50 6.12 10.28 11.60 11.22 7.55 1.18 0.63 0.340 1.13 0.34 3.18 9/16-18 24

2" 8.50 2.92 6.50 10.47 11.79 11.41 7.55 1.44 0.63 0.340 1.13 0.34 3.18 9/16-18 30

3" 11.12 4.06 8.25 15.50 17.91 17.41 17.88 2.50 0.75 0.995 2.75 3/8-16 4.02 1 3/8-12 56

4" 12.00 4.51 10.00 16.10 18.51 18.01 17.88 3.25 0.75 0.995 2.75 3/8-16 4.02 1 3/8-12 80

6" 15.88 5.25 12.50 18.70 21.95 21.45 21.50 4.38 1.40 1.246 3.25 7/16-14 4.92 1 3/4-12 175

Valve A B C D E F G H J K L M N P Weight lb.

4 HOLES (M) DIA THRU

ON A (N) DIA B.C.

1/2” - 2” MOUNTING

CONFIGURATION

CLOSE

OPEN

Ø L

K

G

F

D

E

1/2” - 6” STEM

DIMENSIONS 3” - 6” MOUNTING

CONFIGURATION

Ø P

J

Ø L

K

4 HOLES (M) DIA THRU

ON A (N) DIA B.C.

G

F

D

B

A

Ø H Ø C

E

Ø H Ø C

B

A

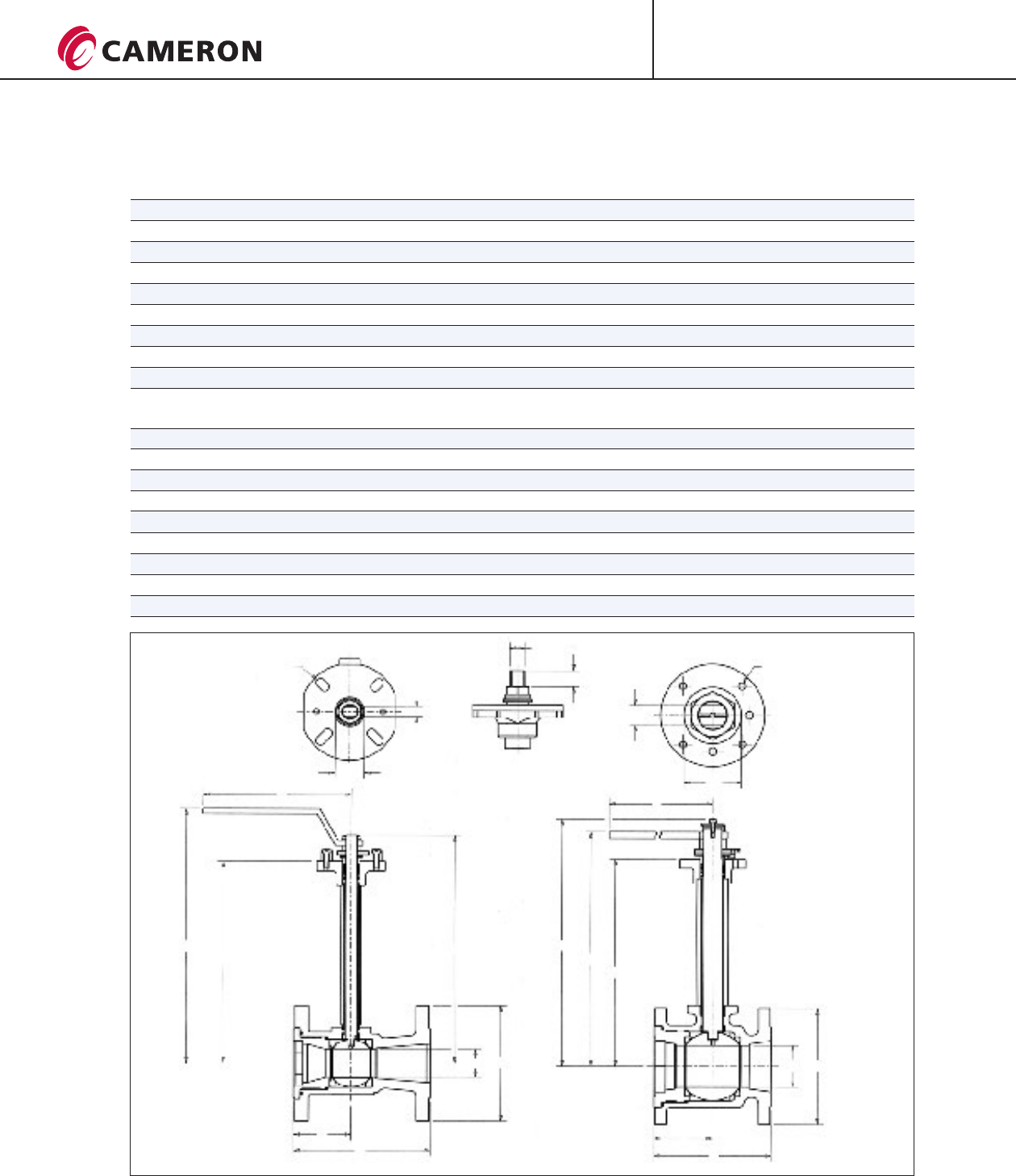

SERIES 21/20 ENGINEERING DATA

MAJOR DIMENSIONS ASME/ANSI CLASS 150

MAJOR DIMENSIONS ASME/ANSI CLASS 300

P R O C E S S V A L V E S

BR-TBV-21/20

01/09 ION-3M

™

TBV

DESIGN SPECIFICATIONS

ASME B16.5 Pipe flanges and flanged fitting

ASME B16.10 Face-to-face dimensions of ferrous valves

ASME B16.34 Steel valves (performance & design)

ASME B31.3 Process Piping (application)

MSS SP25 Valve marking

MSS SP61 Pressure testing

API 607 4th Edition Fire test for soft seated valves

Extended pressures and temperatures may

be achieved by altering design for specific

applications. Consult factory with service

conditions.

The valve rating is the lesser of the body

rating and the seat rating. We manufacture

an extensive line of high pressure valves

capable of the full seat ratings shown.

Consult factory for details.

SEAT MATERIAL IDENTIFICATION CODE

C - Cryofil white

K - CTFE translucent

U - Ultrafil black

C VALUES AND MAXIMUM TORQUE (in.- lbs.)

V

SIZE C SEAT C SEAT K SEAT U

V

1/2" 8 100 120 50

3/4" 12 125 150 70

1" 33 250 300 120

1 1/2" 85 375 450 350

2" 133 610 732 600

3" 370 1350 1620 1900

4" 720 2500 3000 2800

6" 1050 5800 6960 5500

CRYOGENIC BOILING POINTS AT 1 ATM

NOTES FOR TORQUE INFORMATION AND CV

w

All torque values are based on maximum rated pressure, clean service, and frequent operation (more than once per month).

w

The recommended safety margin for sizing purposes is a minimum of 25%

w

For valves with torques above 1440 inch lbs., gear operator or actuation should be considered.

w

Lower working pressures will reduce stem operating torque. Consult factory for further assistance.

CLASS 300

CLASS 150

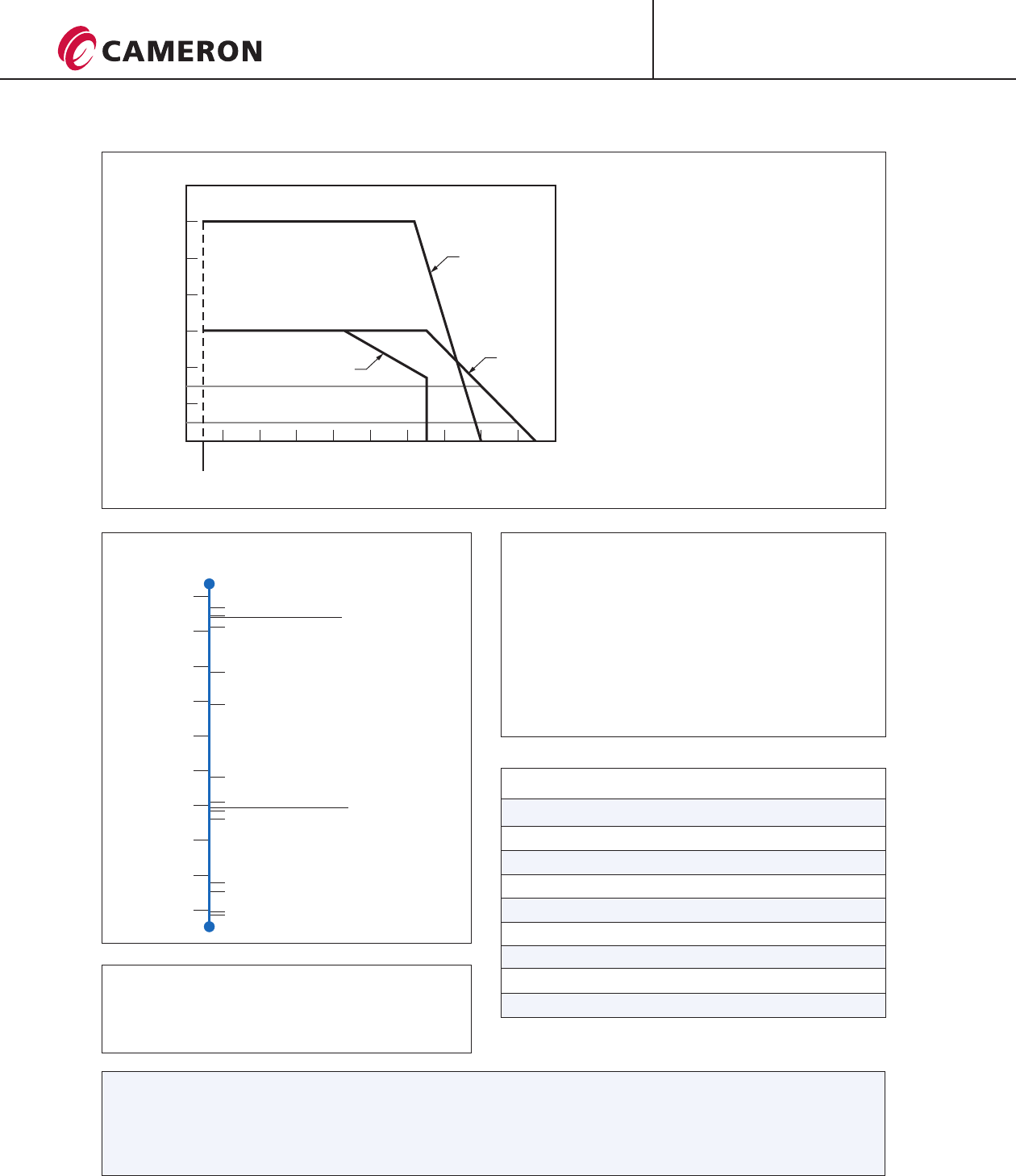

SEAT RATING CHART

4

SERIES 21/20 ENGINEERING DATA

C values are based on the flow of water at 60°F and 14.7 psig through the

V

valve in US gallons per minute at a pressure drop of 1 psi.

KEL-F

ULTRAFIL

CRYOFIL

3500

3000

2500

2000

1500

1000

500

0

-500°F

-296°C

-452°F

-269°C

-400°F

-240°C

-300°F

184°C

-200°F

-129°C

-100°F

-73°C

0°F

-18°C

100°F

38°C

200°F

93°C

300°F

149°C

400°F

204°C

500°F

260°C

TEMPERATURE (in Fahrenheit and Celsius)

PRESSURE (psig)

0°F

-50°F

-100°F

-150°F

-200°F

-250°F

-300°F

-350°F

-400°F

-450°F

Freon (-18°F -28°C)

Ammonia (-28°F -33°C) Chlorine (-30°F -34°C)

Propane (-44°F -42°C)

Carbon Dioxide (-109°F -78°C)

Ethylene (-155°F -104°C)

Methane (-259°F -162°C)

-18°C

-46°C

-73°C

-101°C

-129°C

-157°C

-184°C

-212°C

-240°C

-268°C

Oxygen (-297°F -183°C) Argon (-303°F -186°C)

Fluorine (-307°F -188°C)

Nitrogen (-320°F -196°C)

Neon (-411°F -246°C)

Hydrogen (-423°F -253°C)

Absolute Zero (-459°F -273°C)

Helium (-452°F -269°C)

P R O C E S S V A L V E S

BR-TBV-21/20

01/09 ION-3M

™

TBV

5

The TBV Series 21/20 Flanged Cryogenic Ball Valve provides the features and versatility to meet the requirements of

virtually all cryogenic applications.

Available in 1/2” through 6” sizes and ASME/ANSI Class 150 and 300 flanged configurations, the Series 21/20

provides unsurpassed quality, reliability and safety in both on-off and modulating applications.

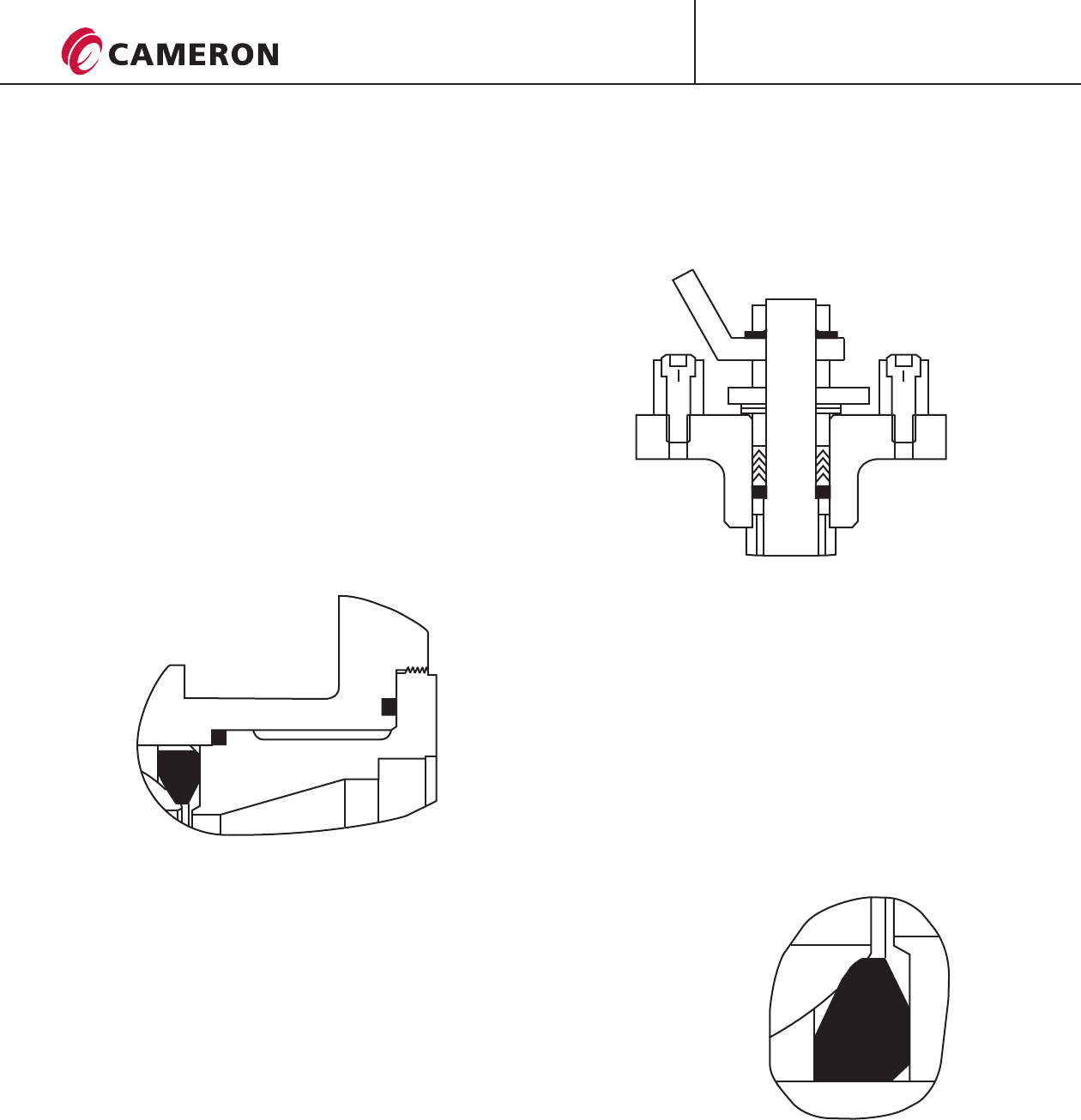

STEM SEAL

Leak-free stem sealing of the Series 21/20 is provided by a

unified stem sealing system. The 5 rings of PTFE V-ring packing

sits on a shoulder machined on the blowout-proof stem,

allowing the packing and stem to move as a unit during

thermal cycles. In addition, the packing is live-loaded, retained

by self-compensating belleville spring washers and a packing

adjustment nut that is captured between two stem-keyed

components, virtually guaranteeing that the packing nut

cannot loosen. These features coupled with close tolerance

machining and finish of the packing bore, provide maximum

stem seal life with the minimum maintenance.

BODY SEAL

The leak tight integrity of the Series 21/20 is further enhanced

through the use of dual, fully-encapsulated body seals.

These dual body seals are contained on all four sides by the valve

end plug, thus preventing cold-flow of the PTFE.

A positive, internal, metal-to-metal stop assures that the seals are

effectively loaded during assembly. There is no guesswork and no

torque wrench required. Maintenance is further simplified by the

standard hex drive in the end plug which allows the use of

conventional tools.

The raised face surface finish meets the latest ASME B16.5

requirements and is uninterrupted, facilitating leak tight installation.

The Series 21/20 may be ordered as fire safe to API 607 4th Edition

with the addition of graphite packing and graphite body seals.

SEATS

TBV’s exclusive Cryofil seat material was developed in conjunction with a major

elastomer producer. It is essentially a refined grade of Virgin PTFE with no

fillers and therefore, does not represent a potential source of contamination.

It is extremely stable at cryogenic temperatures.

The Cryofil seat utilizes a flexible lip design which allows the seat to follow the

floating ball as the valve goes through pressure fluctuations, maintaining tight

shutoff while minimizing operating torque through the full range of pressure

and temperatures.

TBV’s Series 21/20 is normally a unidirectional valve since a vent hole in the

upstream side of the ball is utilized to prevent trapped media from building up

pressure in the body cavity. If bidirectional shutoff is required, the vent hole

may be eliminated through the use of our optional self-relieving seat.

ACTUATION

The Series 21/20 includes a rugged actuator mounting pad as standard, allowing pneumatic or electric actuators to

be easily and securely installed utilizing a four-bolt mounting pattern. TBV’s exclusive Cryofil seats provide low

torque operation, minimizing the size of the actuator required. The Series 21/20 also provides a compact,

lightweight, quarter-turn control valve package when utilized with a pneumatic or electric actuator/positioner.

SERIES 21/20 ENGINEERING DATA

P R O C E S S V A L V E S

BR-TBV-21/20

01/09 ION-3M

™

TBV

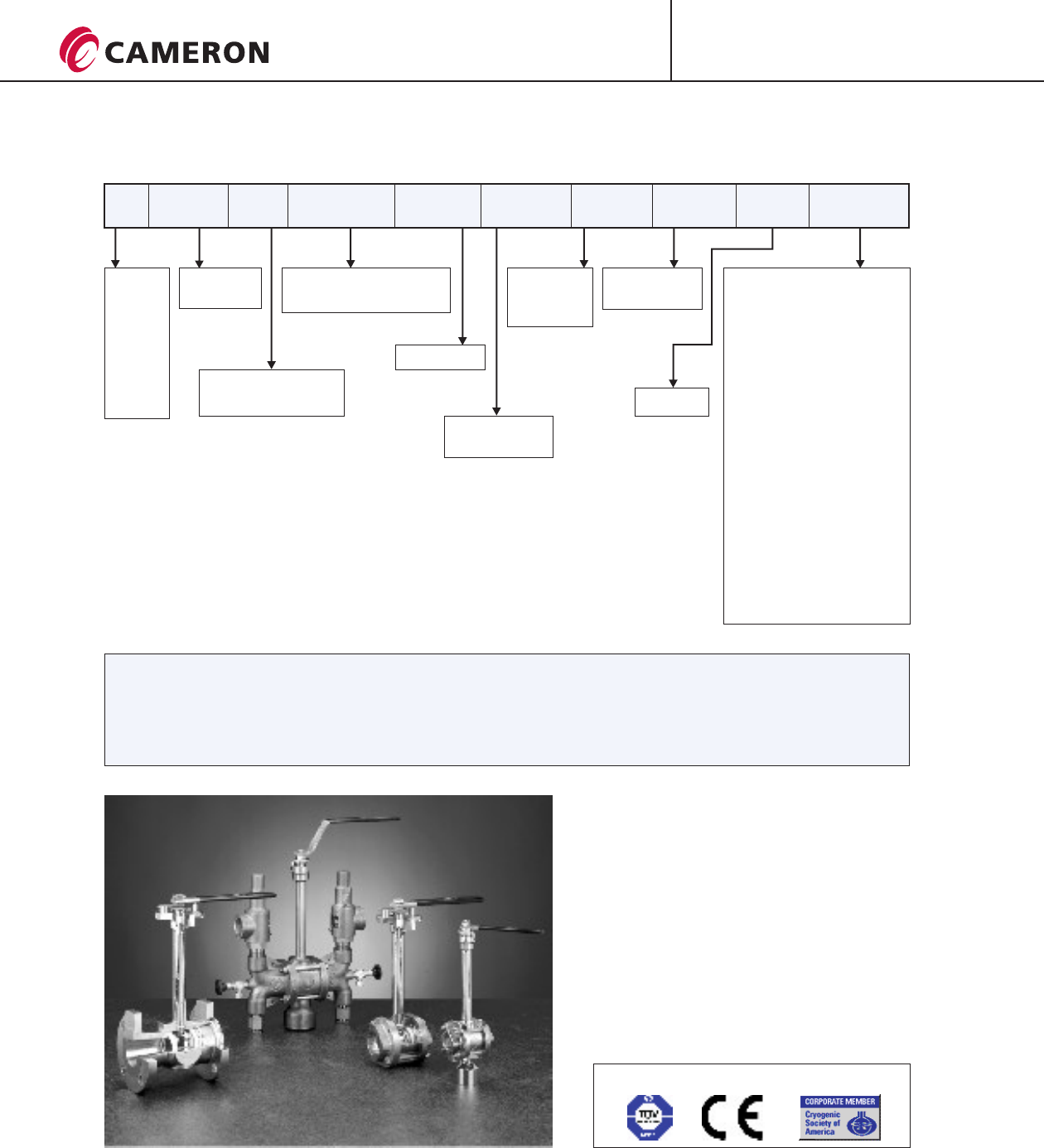

Quality, reliability and safety make the Series 21/20 Flanged Cryogenic Ball Valve and the following products the

ultimate choice for cryogenic applications.

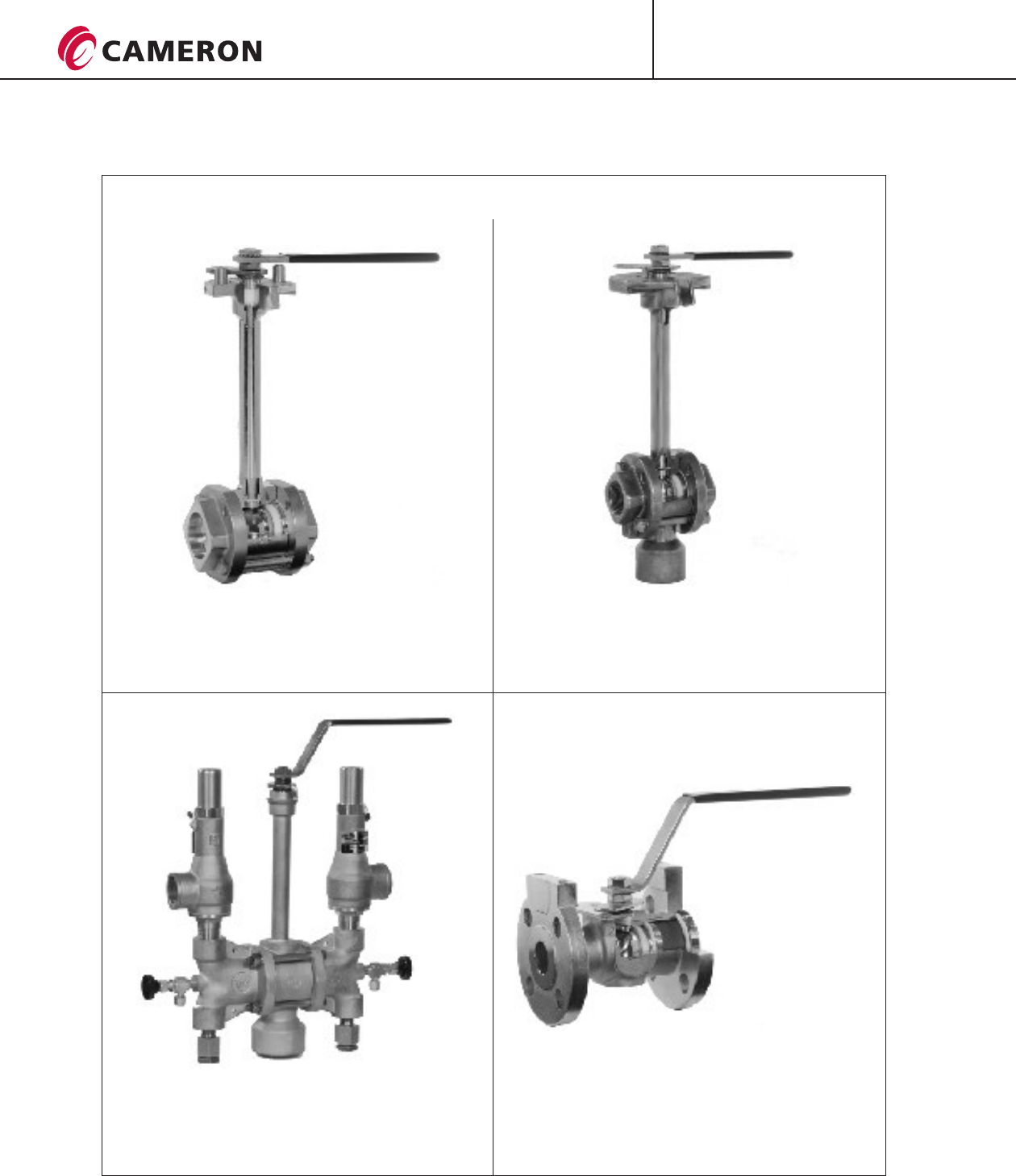

Series 2100 Three Piece Cryogenic Valve:

1/4” through 3”; 316 stainless steel or bronze;

threaded, socket weld or butt weld end connections.

Series 21/51 Three Piece Cryogenic Diverter Valve:

1/4” through 6”; 90 or 180 degree operation;

side or bottom ported; 316L stainless steel or bronze;

threaded, socket weld, butt weld or flanged end connections.

Series 21/51A Multi-Ported Diverter Valve:

dual safety relief diverter valve assembly design to meet the

flow requirements of stationary cryogenic containers and

eliminate fabrication.

Series 21/20NE Non-Extended Bonnet:

ASME/ANSI Class 150 and 300 flanged, cryogenic ball valve.

For use in intermittent or semi-cryogenic service.

Incorporates the same features as the Series 21/20.

6

SERIES 21/20

OTHER TBV CRYOGENIC VALVES

P R O C E S S V A L V E S

BR-TBV-21/20

01/09 ION-3M

™

TBV

7

PADLOCKING DEVICE

AS STANDARD

ASME/ANSI CLASS

150 OR 3000

EXCLUSIVE CRYOFIL SEAT

PTFE BODY SEALS

5 -RING, V-RING STEM PACKING

FEATURES BENEFITS

Variety of seating materials Wide range of process media and service conditions.

Flexible lip seat design Low operating torque.

Integral actuator mounting pad Ease of automation.

Live loaded stem Pressure and temperature recovery, stem seal integrity with a low

operating torque.

Blow-out proof stem Operator safety.

Heavy duty handle and stop Ease of operation, long life.

Fully traceable materials Certification of all pressure retaining parts available for stringent

specification requirements.

5 ring chevron packing Stem seal integrity.

Investment cast High quality casting.

Unibody design with totally

encapsulated, double end plug seals Positive body sealing.

Cryofil seats Specially designed to provide leakproof operation to -452°F.

Welded bonnet construction No leak paths or exposed gaskets.

Stainless Steel externals Atmospheric corrosion resistance (optional).

No lubrication used No possible contamination.

LEVER OR OVAL HANDLE FOR

EASE OF OPERATION

(OVAL HANDLE ONLY FOR

1” AND SMALLER)

HIGH INTEGRITY UNIBODY CONSTRUCTION

SERIES 21/20

FEATURES AND BENEFITS

Note: Valve should not be installed more than 30 degrees from the vertical position.

P R O C E S S V A L V E S

BR-TBV-21/20

01/09 ION-3M

™

TBV

01 = 90° Operation

02 = 180° Operation

AH = Act. Prep w/standard

Handle

AI = Act. Installed

AP = Prepared for Actuation

FS = Fire Safe

GS = Grounding Spring

LG = Locking Gear

Operation

LO = Locking Oval Handle

M3 = 30° Control Seat

M6 = 60° Control Seat

M9 = 90° Control Seat

NE = Non-Extented

OH = Oval Handle

OS = Stainless Oval Handle

RS = Self Relieving Seats

SB = Support Braces

VB = Vented Ball

VS = Vacuum Service

0 = None

150 = ASME/ANSI Class 150

300 = ASME/ANSI Class 300

05 = 1/2”

07 = 3/4”

10 = 1”

12 = 1 1/4”

15 = 1 1/2”

20 = 2”

30 = 3”

40 = 4”

60 = 6”

S = Standard

Port

2B = Series 21/20

Cryo Unibody Flange

M4 = Monel 400

36 = 316 SS

C = Cryofil

K = CTFE

U = Ultrafil

H = Grafoil

T = Virgin PTFE

END BALL/STEM SEAT SEAL

SIZE PORTING SERIES BOLTING MODIFIERS

CONNECTIONS MATERIAL MATERIAL* MATERIAL MATERIAL

BODY/END

* If ball and stem are different materials, expand code to show ball first, stem second.

For additional ordering information, see the TBV General Brochure, Corrosion Resistant and Cryogenic Valves.

Example:

20S 2B 150 6L36 CT O = 2” Series 21/20, standard port, 150# flange, cryogenic ball valve with

316L stainless steel body and end plug; 316 stainless steel ball and stem,

Cryofil seats, Virgin PTFE V-ring packing.

OTHER TBV CRYOGENIC VALVES

(from left to right):

Series 21/20

Cryogenic Flanged Ball Valves - Standard Port

Series 2151A

Multiport High Flow Cryogenic Diverter

Series 2100

Cryogenic Ball Valves 3-Piece

Series 21/51

Three Piece Cryogenic Diverter Valve

Series 21/18

Cryogenic Flanged Ball Valves - Full Port

(not shown)

6L = 316L SS

CERTIFICATIONS

TECHNOLOGY BASED VALUE IN VALVES AND INSTRUMENTATION PRODUCTS

8

SERIES 21/20

HOW TO ORDER

Please contact Cameron, Valves & Measurement for Trademark information.

P R O C E S S V A L V E S

BR-TBV-21/20

01/09 ION-3M

™

TBV

9

P R O C E S S V A L V E S

TRADEMARK INFORMATION

TM

TBV is a registered trademark which is owned by Cameron.

This document contains references to registered trademarks or product designations,

which are not owned by Cameron.

Trademark Owner

HASTELLOY Haynes International, Inc.

MONEL INCO Alloys International, Inc.

PEEK Vitrex PLC Corp United Kingdom

TEFLON E.I. DuPont De Nemours & Company

To be checked for this BR

BR-TBV-21/20

01/09 ION-3M

™

TBV

BR-TBV-21-20

For the most current contact and location information go to: www.c-a-m.com/valvesandmeasurement

VALVES & MEASUREMENT

3250 Briarpark Drive, Suite 300

Houston, Texas 77042

USA Toll Free 800 323 9160

Printed in Canada 01/09-ION-2M Rev. 0 01/09

P R O C E S S V A L V E S
