Introduction
Overview
This edition of the Technical Reference contains information about the following printers or multifunction printers
(MFPs):
C950de
X950de
X952dte
X952dte
X954de
X954dhe
Understanding letters after model numbers
Some LexmarkTM printers may have one or more letters after the model name to indicate printer features.
Acronym Meaning
dduplex1
de duplex and e-Task (electronic task) touch-screen interface
dfe duplex, finisher/stapler, and e-Task touch-screen interface
dhe duplex, high-capacity drawer, and e-Task touch-screen interface
dhn duplex, high-capacity drawer, and network
dme duplex, mailbox, and e-Task touch-screen interface
dn duplex and network
dnf duplex, network, and finisher/stapler
dnw or dw duplex, network, and wireless
dt duplex and additional tray2
dte duplex, additional tray, and e-Task touch-screen interface
dtn duplex, additional tray, and network
dttn duplex, tandem tray module, and network
dtwe duplex, additional tray, wireless, and e-Task touch-screen interface
e e-Task touch-screen interface
hdn hard disk, duplex, and network
nnetwork
nl network light model
1 Duplex printing (two‑sided printing) using an optional duplex unit or an internal duplex unit based on the product.
2 The additional tray is part of a drawer.
Introduction 5
Acronym Meaning
ni network and ImageQuick
tn network and additional tray
1 Duplex printing (two‑sided printing) using an optional duplex unit or an internal duplex unit based on the product.
2 The additional tray is part of a drawer.
Introduction 6
Learning about the printer
Finding information about the printer
What are you looking for? Find it here
Initial setup instructions:
•Connecting the printer
•Installing the printer software
Setup documentation—The setup documentation came
with the printer and is also available on the Lexmark Web
site at http://support.lexmark.com.
Additional setup and instructions for using the printer:
•Selecting and storing paper and specialty media
•Loading paper
•Configuring printer settings
•Viewing and printing documents and photos
•Setting up and using the printer software
•Configuring the printer on a network (depending on your
printer model)
•Caring for and maintaining the printer
•Troubleshooting and solving problems
User's Guide—The User's Guide is available on the
Software and Documentation CD.
For updates, check our Web site at
http://support.lexmark.com.
Instructions for:
•Installing the printer using Guided or Advanced wireless setup
•Connecting the printer to an Ethernet or a wireless network
•Troubleshooting printer connection problems
Networking Guide—Open the Software and
Documentation CD, and then look for Printer and
Software Documentation under the Pubs folder. From
the list of publications, click the Networking Guide link.
Help using the printer software Windows or Mac Help—Open a printer software program
or application, and then click Help.
Click
?
to view context‑sensitive information.
Notes:
•Help is automatically installed with the printer
software.
•The printer software is located in the printer
program folder or on the desktop, depending on
your operating system.
Learning about the printer 7
What are you looking for? Find it here
Latest supplemental information, updates, and customer
support:
•Documentation
•Driver downloads
•Live chat support
•E‑mail support
•Voice support
Lexmark Support Web site—
http://support.lexmark.com
Note: Select your country or region, and then select
your product to view the appropriate support site.
Support telephone numbers and hours of operation for
your country or region can be found on the Support Web
site or on the printed warranty that came with your
printer.
Record the following information (located on the store
receipt and at the back of the printer), and have it ready
when you contact customer support so that they may
serve you faster:
•Machine Type number
•Serial number
•Date purchased
•Store where purchased
Warranty information Warranty information varies by country or region:
•In the US—See the Statement of Limited Warranty
included with this printer, or at
http://support.lexmark.com.
•In other countries and regions—See the printed
warranty that came with your printer.
Learning about the printer 8
Printer Control Language (PCL) page formatting
For more information on PCL, see the Printer Languages and Interfaces Technical Reference. It contains a complete
listing with descriptions of PCL commands.
To determine which PCL commands your printer supports, see “Appendix A: PCL support” on page 23.
Printable areas

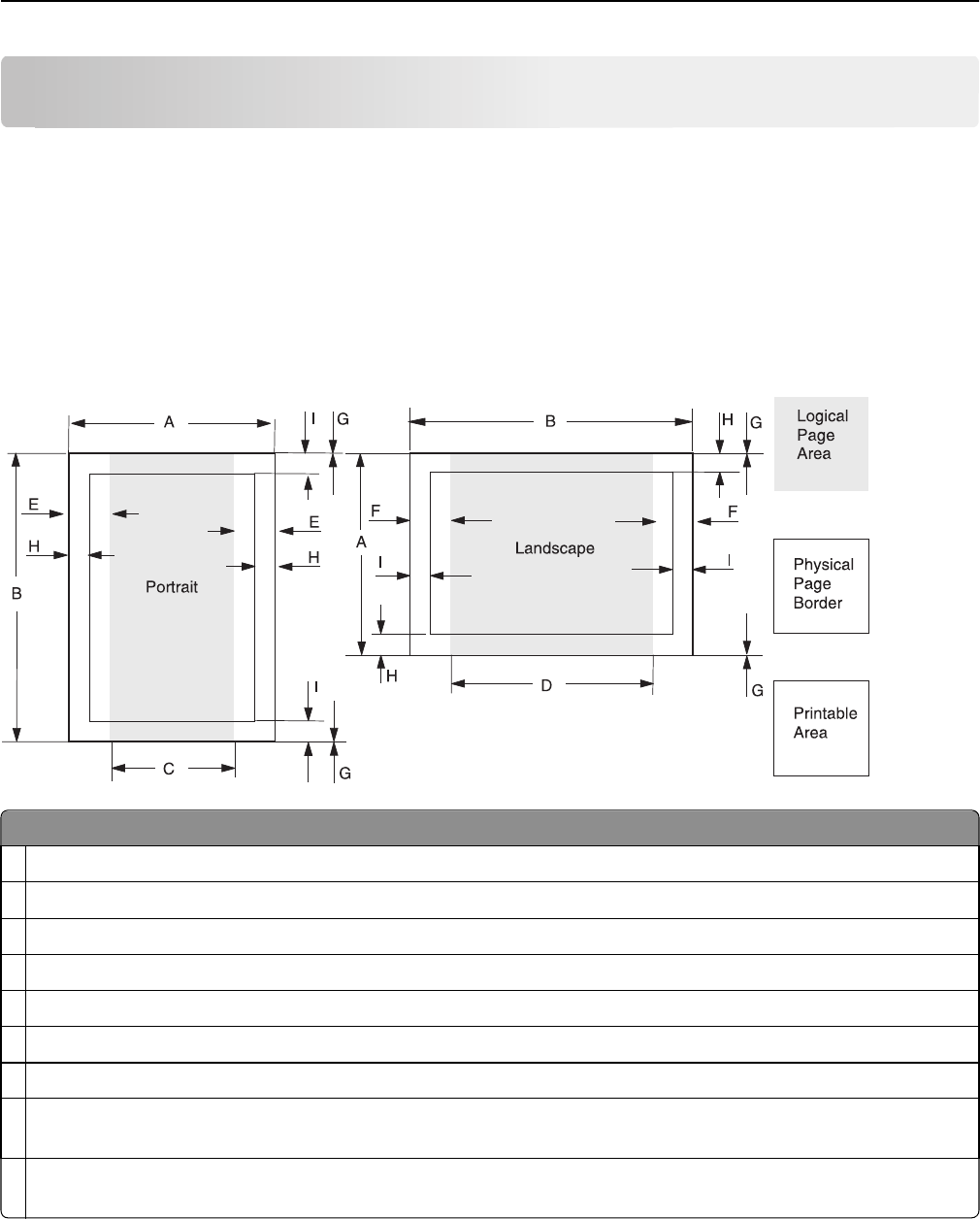

The printable areas and logical pages for PCL emulation (both portrait and landscape orientation) are illustrated below.
See the legend that follows for definitions of areas A through I.
Legend:
APortrait physical page width and landscape physical page length
BPortrait physical page length and landscape physical page width
CPortrait logical page width
DLandscape logical page width
EDistance between the side edge of the physical page and the logical page in portrait
FDistance between the side edge of the physical page and the logical page in landscape
GDistance between the top and bottom edge of the physical page and logical page
HDistance between the left and right edge of the physical page and the printable area in portrait, or distance between
the top and bottom edge of the physical page and printable area in landscape
IDistance between the top and bottom edge of the physical page and the printable area in portrait, or distance between
the left and right edge of the physical page and the printable area in landscape
Note: The tables that follow in this chapter list the page sizes and dimensions of each area labeled on the preceding
diagram for all paper and envelope sizes your printer supports.
Printer Control Language (PCL) page formatting 9
Supported paper and envelope dimensions
The following table lists the page sizes and print area dimensions for all supported paper and envelope sizes. For more
information about the printable areas and logical pages for PCL emulation, see “Printable areas” on page 9.
Selection Paper/envelope
dimensions
Dimensions by area (pels)1
Page size
parameters2
Name mm inches A B C D E F G H I
Paper
2, 602 Letter 216 x 279 8.5 x 11 5100 6600 4800 6360 150 120 0 100 100
3, 603 Legal 216 x 356 8.5 x 14 5100 8400 4800 8160 150 120 0 100 100
12, 45, 612 JIS B5 182 x 257 7.2 x 10.1 4300 6070 4000 5830 150 120 0 100 100
26, 626 A4
(198 mm)3
210 x 297 8.3 x 11.7 4960 7014 4676 6778 142 118 0 80 100
26, 626 A4
(203 mm)3
210 x 297 8.3 x 11.7 4960 7014 4800 6778 80 118 0 80 100
1, 601 Executive 184 x 267 7.5 x 10.5 4350 6300 4050 6060 150 120 0 100 100
13, 613 A5 148 x 210 5.8 x 8.27 3496 4960 3196 4720 142 118 0 100 100
300 Oficio
(México)
216 x 340 8.5 x 13.4 5100 8040 4800 7800 150 120 0 100 100
46 JIS B4 257 x 364 10.12 x 14.
33
6070 8600 5786 8364 142 118 0 100 100
27 A3 297 x 420 11.69 x 16.
54
7014 9920 6730 9684 142 118 0 100 100
6 or 11 11 x 17 279.4 x 431.
8
11.69 x 16.
54
6600 1200 6300 9960 150 120 0 100 100
4 or 10 Folio 216 x 330 8.5 x 13 5100 7800 4800 7560 150 120 0 100 100
15 Statemen
t
139.7 X
215.9
5.5 x 8.5 3300 5100 3000 4860 150 120 0 100 100
24 A6 148 x 105 5.8 x 41 2480 3496 2199 3260 142 118 0 100 100
101 Universal 297 x 431.8 11.69 x 17 1800–
51004
1800–
85024
1500–
48004
1500–
82624
150 120 0 100 100
1 Pel dimensions are for 600 dpi.
2 Page Size Parameters are explained in the Page Control table in the PCL chapter in the Printer Language and Interfaces
Technical Reference.
3 The width of the logical page for A4 paper can be changed from the printer control panel or your application.
4 For the Universal paper size, the area dimensions are listed in pel ranges.
5 Paper ID 99 will be supported for backward compatibility with other Lexmark printers. Paper ID 99 has the same logical
paper size as ID 100 (compatible with HP LaserJet 5Si/5SiMx) but is 8 pels wider than the Lexmark 4039.
Note: The explanation of the printable area assumes that the Print Area menu item is set to Normal. For more
information, see “Print Area Menu Item” in the PCL chapter in the Printer Language and Interfaces Technical Reference.
Printer Control Language (PCL) page formatting 10
Selection Paper/envelope
dimensions
Dimensions by area (pels)1
Page size
parameters2
Name mm inches A B C D E F G H I
Envelope
80 7 3/4
Envelope
98.4 x 190.5 3.875 x 7.5 2324 4500 2024 4260 150 120 0 100 100
81 10
Envelope
104.8 x 241.
3
4.125 x 9.5 2474 5700 2174 5460 150 120 0 100 100
90 DL
Envelope
220 x 110 8.66 x 4.33 2598 5196 2314 4960 142 118 0 100 100
91 C5
Envelope
229 x 162 9.02 x 6.38 3826 5408 3542 5172 142 118 0 100 100
995, 100 B5
envelope
176.0 x 250.
0
6.93 x 9.84 4156 5904 3872 5668 142 118 0 100 100
600 Other
Envelope
216 x 356 8.5 x 14 7012 8400 4800 8160 150 120 0 100 100
1 Pel dimensions are for 600 dpi.
2 Page Size Parameters are explained in the Page Control table in the PCL chapter in the Printer Language and Interfaces
Technical Reference.
3 The width of the logical page for A4 paper can be changed from the printer control panel or your application.
4 For the Universal paper size, the area dimensions are listed in pel ranges.
5 Paper ID 99 will be supported for backward compatibility with other Lexmark printers. Paper ID 99 has the same logical
paper size as ID 100 (compatible with HP LaserJet 5Si/5SiMx) but is 8 pels wider than the Lexmark 4039.
Note: The explanation of the printable area assumes that the Print Area menu item is set to Normal. For more
information, see “Print Area Menu Item” in the PCL chapter in the Printer Language and Interfaces Technical Reference.
Printer Control Language (PCL) page formatting 11
Printer Job Language (PJL)
PJL commands information
Your printer supports complete PJL commands, including certain commands that cause the printer to enter PCL
emulation, PostScript emulation, and Personal Printer Data Stream (PPDS).
For a complete listing with descriptions of PJL commands, see the Printer Languages and Interfaces Technical Reference.
To determine which commands your printer supports, see “Appendix B: PJL support” on page 32.
Printer Job Language (PJL) 12
PostScript (PS) emulation
Your printer supports complete PostScript emulation supplemental operators. For full descriptions in detail for these
operators, refer to the PostScript emulation chapter in the Printer Languages and Interfaces Technical Reference.
To determine which commands your printer supports, see “Appendix C: PostScript support” on page 79.
Supported paper sizes
= Supported
X = Not supported
Paper sizes Printer models
Size Literal name Size (mm) Size (inches) Size (points) C950 X950,
X952,
X954
Letter letter 215.9 x 279.4 8.5 x 11.0 612 x 792
Legal legal 215.9 x 355.6 8.5 x 14.0 612 x 1008
JIS B5 b5* 182.0 x 257.0 7.2 x 10.1 516 x 729
A4 a4 210.0 x 297.0 8.3 x 11.7 595 x 842
Executive executivepage 184.2 x 266.7 7.25 x 10.5 522 x 756
A5 a5 148.0 x 210.0 5.83 x 8.27 419 x 595
Oficio oficio 215.9 x 340.4 8.5 x 13.4 612 x 965
(Lexmark‑unique size)
612 x 972 (official
PostScript size)
JIS B4 b4* 257 x 364 10.12 x 14.33 729 x 1032
A3 a3 297 x 420 11.7 x 16.54 842 x 1191
11 x 17 11x17 279.4 x 431.8 11 x 17 792 x 1224
17 x 11 ledger 431.8 x 279.4 17 x 11 1224 x 792
Folio folio 215.9 x 330.2 8.5 x 13.0 612 x 936
Statement statement 139.7 x 215.9 5.5 x 8.5 396 x 612
A6 a6 105.0 x 148.0 4.13 x 5.83 297 x 419
Universal universal 297 x 431.8 11.69 x 17 612 x 1008
Custom custom 215.9 x 355.6 8.5 x 14.0 612 x 1020 XX
* This is a Japanese Industry Standard (JIS) paper size. The same named designation is used by JIS and International
Organization for Standardization (ISO) for different paper sizes.
PostScript (PS) emulation 13
= Supported
X = Not supported
Paper sizes Printer models
Size Literal name Size (mm) Size (inches) Size (points) C950 X950,
X952,
X954
Custom custom 297 x 431.8 11.7 x 17 842 x 1224
Custom custom 320 x 559 12.6 x 22 908 x 1584 XX
Custom custom 297 x 914 11.7 x 36 842 x 2592 XX
* This is a Japanese Industry Standard (JIS) paper size. The same named designation is used by JIS and International
Organization for Standardization (ISO) for different paper sizes.
PostScript paper tray support
When the printer receives one of the operators listed in “Tray selected with tray operators” on page 15, it performs
the actions listed in this section. This paper tray selection process ends when a suitable paper source is chosen and
paper is fed from this tray.
•The printer checks the value of manualfeed in statusdict and the ManualFeed page device parameter. If either one
is true, then the printer sends a message to load the requested size in the manual feeder or multipurpose feeder.
•The PageSize Policy is set to 0 by means of setpagedevice.
•The printer checks the paper size loaded in the current active source to determine if it matches the requested size.
If the sizes match, then the paper is fed from the active source.
Note: The current active tray is the last source that was selected from the printer control panel or by the printer
language.
•If the requested size and the size loaded in the active source do not match, then the sources are searched in the
order defined by the Priority array in the InputAttributes dictionary in the pagedevice dictionary.
•If the requested media size is not found by the previous search, then the following search order is used:
–Tray 1
–Tray 2
–Tray 3
–Multipurpose feeder
–Tray 4
–Tray 5
•If the requested size cannot be located in any automatic source, then a configurationerror is issued and the job is
flushed.
For printers that support automatic duplexing:
•Automatic duplexing is not supported for custom-size paper or for envelopes in the multipurpose feeder. Automatic
duplexing is supported from the multipurpose feeder for all other papers.
•If the paper source is changed before the back side of a duplexed page prints, then a blank back page prints, the
paper source changes, and the information for the back side of the page is printed on the front side of a page sent
from the new paper source.
PostScript (PS) emulation 14
When these operators are used, it is equivalent to executing the following PostScript emulation sequence:
<< /PageSize [x y]/ImagingBBox null /Policies << /PageSize 0>> >>
setpagedevice
where x y are the PageSize in points.
Tray selected with tray operators
= Supported
X = Not supported Printer models
Operator Tray selected (corresponding image size is set) C950 X950, X952, X954
a4tray tray with A4-size paper
a5tray tray with A5-size paper
b5tray tray with B5-size paper
customtray tray with custom-size paper XX
executivetray tray with executive-size paper
foliotray tray with folio-size paper
legaltray tray with legal-size paper
lettertray tray with letter-size paper
oficiotray tray with oficio‑size paper
b4tray tray with B4‑size paper
a3tray tray with A3‑size paper
ledgertray tray with ledger‑size paper
11x17tray tray with 11 x 17‑size paper
statementtray tray with statement-size paper
a6tray tray with A6-size paper
PostScript envelope size support
The literal names in “Envelope sizes supported” on page 16 are also supported as operators in userdict. These
operators change the image size, but do not change the active paper source. Therefore, when these operators are used,
part of the image may be clipped.
When these literal names are used as operators, it is equivalent to executing the following PostScript emulation
sequence. The following example uses a 3.875 x 7.5 envelope.
<</Policies <</PageSize 7>> /PageSize [279 540]>> >>setpagedevice
PostScript (PS) emulation 15
Envelope sizes supported
= Supported
X = Not supported
Envelope sizes Printer models
Size name Literal name Size (mm) Size (inches) Size (points) C950 X950,
X952,
X954
7 3/4 3.875x7.5envelope 98.4 x 190.5 3.875 x 7.5 279 x 540
Commercial 9 3.875x8.875envelope 98.4 x 225.4 3.875 x 8.875 279 x 639 XX
Commercial 10 4.125x9.5envelope 104.8 x 241.3 4.125 x 9.5 297 x 684
International DL 110x220envelope 110 x 220 4.33 x 8.66 312 x 624
International C5 162x229envelope 162 x 229 6.38 x 9.01 459 x 649
International B5 176x250envelope 176 x 250 6.93 x 9.84 499 x 708 XX
Other envelope otherenvelope 296.93 x 427.48 11.69 x 16.83 841 x 842
otherenvelope* Other 229.11 x 355.6 9.02 x 14 612 x 996
* For other envelopes, the page is formatted to 216 x 356 mm (8.5 x 14 in.) unless a size is specified by your software
program.
Literal names supported
= Supported
X = Not Supported
Literal names Printer models
Literal name Compatible literal name C950 X950, X952, X954
monarchenvelope 3.875x7.5envelope XX
com10envelope 4.125x9.5envelope
dlenvelope 110x220envelope
c5envelope 162x229envelope
b5envelope 176x250envelope XX
PostScript envelope tray support
If manualfeed in statusdict and the ManualFeed page device parameter are false when the printer receives one of the
envelopetray operators listed in “Envelopetray operator selections” on page 17, then the following occurs:
•The printer sets the PageSize Policy to 0.
•The printer checks the active source to see if it matches the requested envelope size. If the sizes match, then the
envelope is fed from the active source.
Note: The active source is the last source selected from the printer control panel or data stream.
PostScript (PS) emulation 16
•If the requested size and the size loaded in the active source do not match, then the sources are searched in the
order defined by the Priority array in the InputAttributes dictionary in the pagedevice dictionary.
•If the requested media size is not found by the previous search, then the following search order is used:
–Envelope feeder
–Multipurpose feeder
•If the requested size and type are not available from any automatic source, then you are prompted to load the
requested envelope size and type in the manual feed source.
•If the size is still not available, then a configurationerror is issued and the print job is flushed.
If manualfeed or ManualFeed is true, then the printer prompts you to load the requested size manually. If no manual
feed exists on the printer, then a rangecheck error message is issued.
The envelope tray the printer selects when it receives an envelopetray operator is listed in “Envelopetray operator
selections” on page 17. These operators are equivalent to executing the following PostScript emulation sequence:
<</PageSize [x y] /ImagingBBox null /Policies<</PageSize 0>> >>
setpagedevice
where x y are the PageSize in points.
Envelopetray operator selections
= Supported
X = Not supported
Tray operators Printer models
Operator Tray selected (Corresponding image size is set) C950 X950, X952, X954
110x220envelopetray tray with 110 x 220 size envelopes
dlenvelopetray tray with 110 x 220 size envelopes
162x229envelopetray tray with 162 x 229 size envelopes
c5envelopetray tray with 162 x 229 size envelopes
176x250envelopetray tray with 176 x 250 size envelopes
b5envelopetray tray with 176 x 250 size envelopes XX
3.875x7.5envelopetray tray with 3.875 x 7.5 size envelopes
monarcenvelopetray tray with 3.875 x 7.5 size envelopes XX
3.875x8.875envelopetray tray with 3.875 x 8.875 size envelopes XX
4.125x9.5envelopetray tray with 4.125 x 9.5 size envelopes
com10envelopetray tray with 4.125 x 9.5 size envelopes
otherenvelopetray tray with other size envelopes
PostScript (PS) emulation 17
Printer specifications
Airflow requirement
The room should meet ASHRAE 62—1989 standards.
Noise emission levels
The following measurements were made in accordance with ISO 7779 and reported in conformance with ISO 9296.
Status
1-meter average sound pressure, dBA
C950 X950 X952 X954
Idle/Ready 22 24 24 24
Printing (simplex) 53 52 52 53
Printing (duplex) 54 54 54 55
ADF Mono Scan Not applicable 55 55 54
ADF Mono Copy Not applicable 55 55 55
ADF Color Scan Not applicable 54 54 53
ADF Color Copy Not applicable 52 52 53
Note: Measurements apply to 300‑, 600‑, and 1200‑dpi printing.
Status
Declared sound power level, bels
C950 X950 X952 X954
Idle/Ready 4.3 4.2 4.2 4.2
Printing (simplex
mono)
7.0 6.9 6.9 7.0
Printing (simplex color) 6.9 6.9 6.9 6.9
Printing (duplex) 7.0 7.1 7.1 7.2
ADF Mono Scan Not applicable 7.1 7.1 7.1
ADF Mono Copy Not applicable 7.1 7.1 7.1
ADF Color Scan Not applicable 7.0 7.0 7.1
ADF Color Copy Not applicable 7.0 7.0 7.0
Note: Measurements apply to 300‑, 600‑, and 1200‑dpi printing.
Printer specifications 18
Electrical specifications
Printer model Electrical specification
C950 SFP low‑voltage models 100–127 V at 50–60Hz, nominal
90–137 V, extreme
C950 SFP high‑voltage models 220–240 V at 50–60Hz, nominal (available only in some countries)
198–259 V, extreme
X95x MFP low‑voltage models 100–127 V at 50–60Hz, nominal
90–137 V, extreme
X95x MFP high‑voltage models 220–240 V at 50–60Hz, nominal (available only in some countries)
198–259 V, extreme
Warning—Potential Damage: Do not use voltage converters with printers.
Power requirements
The following table specifies the nominal average power requirements for the base configuration, including fuser power.
Printing state C950 X950de X952de
X952dte
X954de
X954dhe
Average power while printing continuously
One‑sided (simplex)
Two‑sided (duplex)
680 W
670 W
675 W
650 W
710 W
700 W
750 W
725 W
Average power while idle
Hibernate mode
Ready mode
Sleep mode
1.0 W
95 W
15 W
1.0 W
110 W
17 W
1.0 W
115 W
17 W
1.0 W
120 W
17 W
Average power while copying
Copy Not applicable 810 W 830 W 850 W
Average power while scanning
Scan Not applicable 125 W 130 W 135 W
Maximum current while printing
100 V
120 V
230 V
15.0 A
13.2 A
8.0 A
15.0 A
13.2 A
8.0 A
15.0 A
13.2 A
8.0 A
15.0 A
13.2 A
8.0 A
Normal mode 7.24 kWh/wk 7.932 kWh/wk 9.188 kWh/wk 9.462 kWh/wk
Eco mode 5.314 kWh/wk 5.933 kWh/wk 6.566 kWh/wk 6.913 kWh/wk
Off 0.35 W 0.35 W 0.35 W 0.35 W
Printer specifications 19
Physical specifications
Lexmark C950 dimensions
Height Width Depth Weight with cartridge
(unpackaged)
C950 565 mm (22.24 in.) 640 mm (25.20 in.) 685 mm (26.97 in.) 95.0 kg (209.5 lb)
Lexmark X95x dimensions
Height Width Depth Weight with cartridge
(unpackaged)
X950de, X952de, X954de 762.3 mm (30.01 in.) 640 mm (25.20 in.) 685 mm (26.97 in.) 116.0 kg (255.8 lb)
X952dte 1127.3 mm (44.38 in.) 640 mm (25.20 in.) 685 mm (26.97 in.) 150.7 kg (332.2 lb)
X954dhe 1127.3 mm (44.38 in.) 640 mm (25.20 in.) 685 mm (26.97 in.) 159.6 kg (351.8 lb)
Input option for C950 and X95x printer models
Height Width Depth Weight with cartridge
(unpackaged)
520‑sheet 1 tray
module
365 mm (14.37 in.) 640 mm (25.20 in.) 685 mm (26.97 in.) 26.5 kg (58.3 lb)
3 tray module 365 mm (14.37 in.) 640 mm (25.20 in.) 685 mm (26.97 in.) 34.7 kg (76.4 lb)
Tandem tray module 365 mm (14.37 in.) 640 mm (25.20 in.) 685 mm (26.97 in.) 43.6 kg (96.0 lb)
Booklet finisher 998 mm (39.3 in.) 750 mm (29.5 in.) 680 mm (26.8 in.) 43.6 kg (96.0 lb)
Standard finisher 998 mm (39.3 in.) 700 mm (27.6 in.) 680 mm (26.8 in.) 43.6 kg (96.0 lb)
High‑capacity feeder 381 mm (15 in.) 406 mm (16 in.) 610 mm (24 in.) 29 kg (64 lb)
Physical dimensions with extensions fully open
Height Width Depth
C950 565 mm (22.24 in.) 640 mm (25.20 in.) 1108.2 mm (43.63 in.)
X950 1097.6 mm (43.21 in.) 640 mm (25.20 in.) 1108.2 mm (43.63 in.)
X952, X954 1462.6 mm (57.58 in.) 640 mm (25.20 in.) 1108.2 mm (43.63 in.)
Clearance requirements
Lexmark C950
Model Left side Right side Front Rear Top
C950 374.65 mm
(14.75 in.)
307.34 mm (12.1 in.) 444.5 mm (17.5 in.) 100 mm (3.9 in.) 152.4 mm (6 in.)
Printer specifications 20
Lexmark X95x Series
Model Left side Right side Front Rear Top
X950, X952,
X954
374.65 mm
(14.75 in.)
307.34 mm (12.1 in.) 444.5 mm (17.5 in.) 100 mm (3.9 in.) 304.8 mm (12 in.)
Environmental conditions
Note: When shipping or storing printers, always pack the printer supplies (such as cartridges and photoconductors)
separately.
Printer air temperature ranges
Printer model Operating value Shipping and storage value
(with cartridges)
C950 10.0–32.0°C (50–90°F) ‑40 to 40°C (‑40 to 104°F)
X950, X952, X954 10.0–32.0°C (50–90°F) ‑40 to 40°C (‑40 to 104°F)
Printer humidity ranges
Printer model Operating value
C950 15–85%*
X950, X952, X954 15–85%*
* Approaching 32°C (90°F), the maximum relative humidity is 60%.
Cartridge air temperature and humidity ranges
Shipping and storage value
Air temperature Humidity
Extreme environment Normal environment Extreme environment Normal environment
‑20 to 0°C (‑4 to 32°F)
35–40°C (95–104°F)
0–35°C (32–104°F) 5–20%
80–95%
15–80%
Notes:
•Up to 1 month from the date of manufacture when stored in an extreme environment.
•Up to 24 months from the date of manufacture when stored in a normal environment.
Printer specifications 21
Altitude and atmospheric pressure specifications
Altitude specifications
Altitude (above sea level)
Printer model Operating value Shipping and storage value
C950 0–2500 m (8200 ft) 0–15000 m (0–49200 ft)
X950, X952, X954 0–2500 m (8200 ft) 0–15000 m (0–49200 ft)
Atmospheric pressure specifications
Atmospheric pressure
Printer model Operating value
C950 760 mmHg (1013 hPa)
X950, X952, X954 760 mmHg (1013 hPa)
Printer specifications 22
Appendix A: PCL support
PCL emulation commands
= Supported
X = Not supported Printer model
Command Function C950 X950, X952, X954
ESCEPrinter Reset
ESCYDisplay FunctionsOn
ESCZDisplay FunctionsOff
ESCzPrint Test Page XX
ESC&a#C Set Horizontal Cursor Position
(Column Number)
ESC&a#G Duplex Page Side Selection
ESC&a#H Set Horizontal Cursor Position
(in Decipoints)
ESC&a#L Set Left Margin
ESC&a#M Set Right Margin
ESC&a#N Negative Motion XX
ESC&a#P Print Direction
ESC&a#R Set Vertical Cursor Position (Row
Number)
ESC&a#V Set Vertical Cursor Position
(in Decipoints)
ESC&b#M Monochrome Print Mode
ESC&b#W[data] Key / Value Pair XX
ESC&c#T Character Text Path Direction
ESC&d@ Disable Underline
ESC&d#A Collation ‑ Collated Copies (QTY)
ESC&d#D Select Underline Type
ESC&f#F Set Universal Height
ESC&f#G Set Universal Width
ESC&f#O Set Universal Feed Direction
Appendix A: PCL support 23
= Supported
X = Not supported Printer model
Command Function C950 X950, X952, X954
ESC&f#W Set Universal Custom Name
ESC&f#S Push / Pop Cursor
ESC&f#X Macro Control
ESC&f#Y Set Macro ID
ESC&k#G Set Line Termination
ESC&k#H Set Horizontal Motion Index (HMI)
ESC&k#S Select Primary and Secondary Pitch
ESC&k#W Text Scale Mode XX
ESC&l#A Set Page Size
ESC&l#C Set Vertical Motion Index (VMI)
ESC&l#D Set Line Spacing
ESC&l#E Set Top Margin
ESC&l#F Set Text Length
ESC&l#G Set Output Bin
ESC&l#H Select Paper Feed
ESC&l#L Skip Perforation
ESC&l#O Select Orientation
ESC&l#M(b) Media Type XX
ESC&l#P Set Page Length
ESC&l#S Simplex/Duplex
ESC&l1T Job Separation XX
ESC&l#U Left (Long-Edge) Offset Registration
ESC&l#X Set Copy Count
ESC&l#Z Top (Short-Edge) Offset
Registration
ESC&n#W [operation] [string id] Alphanumeric ID
ESC&p#C Palette Control
ESC&p#I Palette Control ID
Appendix A: PCL support 24
= Supported
X = Not supported Printer model
Command Function C950 X950, X952, X954
ESC&p#S Select Palette
ESC&p#X[data] Transparent Print Data
ESC&r#F Flush All Pages
ESC&s#C End-Of-Line Text Wrap
ESC&t#P Text Parsing Method
ESC&u#D Unit of Measure
ESC(# Select Symbol Set
ESC(#X Select Font by ID
ESC(3@ Select Default Primary Font
ESC(f#W[data] Define Symbol Set
ESC(s#B Select Stroke Weight
ESC(s#H Select Pitch
ESC(s#P Select Spacing
ESC(s#S Select Style
ESC(s#T Select Typeface
ESC(s#V Select Point Size
ESC(s#W[data] Load Character
ESC)# Secondary Font Symbol Set XX
ESC)#X Select Secondary Download Font
(by Font ID)
XX
ESC)3@ Select Default Secondary Font
ESC)s#B Secondary Font Stroke Weight XX
ESC)s#H Secondary Font Pitch XX
ESC)s#P Secondary Font Spacing XX
ESC)s#S Secondary Font Style XX
ESC)s#T Secondary Font Typeface Selection XX
ESC)s#V Secondary Font Height (Point Size) XX
ESC)s#W[data] Load Font Header
Appendix A: PCL support 25
= Supported
X = Not supported Printer model
Command Function C950 X950, X952, X954
ESC*b#M Set Raster Compression Mode
ESC*b#V[data] Transfer Raster Data (Plane)
ESC*b#W[data] Transfer Raster Data (Row / Block)
ESC*b#Y Y Offset
ESC*c#A Horizontal Rectangle Size
(in PCL Units)
ESC*c#B Vertical Rectangle Size (in PCL Units)
ESC*c#D Set Font ID
ESC*c#E Set Character Code
ESC*c#F Font Control
ESC*c#G Area Fill ID
ESC*c#H Horizontal Rectangle Size
(in Decipoints)
ESC*c#K Horizontal Plot Size (in Inches)
ESC*c#L Vertical Plot Size (in Inches)
ESC*c#P Fill Rectangular Area
ESC*c#Q Pattern Control
ESC*c#R Symbol Set ID Code
ESC*c#S Symbol Set Control
ESC*c0T Set Picture Frame Anchor Point
ESC*c#V Vertical Rectangle Size
(in Decipoints)
ESC*c#W[data] Define Pattern
ESC*c#X Picture Frame Horizontal Size
(in Decipoints)
ESC*c#Y Picture Frame Vertical Size
(in Decipoints)
ESC*l#O Logical Operation
ESC*l#R Pixel Placement
ESC*l#W[data] Color Lookup Tables XX
Appendix A: PCL support 26
= Supported
X = Not supported Printer model
Command Function C950 X950, X952, X954
ESC*m#W[data] Download Dither Matrix
ESC*o#M(b) Print Quality XX
ESC*o#Q Mechanical Print Quality XX
ESC*o#W[data] Driver Configuration
ESC*p#P Push / Pop Palette
ESC*p#R Set Pattern Reference Point
ESC*p#X Set Horizontal Cursor Position
(in PCL Units)
ESC*p#Y Set Vertical Cursor Position
(in PCL Units)
ESC*r#A Start Raster Graphics
ESC*r#F Raster Graphics Presentation
ESC*r#S Raster Width (Source)
ESC*r#T Raster Height (Source)
ESC*r#U Simple Color
ESC*rB End Raster Graphics (Version B)
ESC*rC End Raster Graphics (Version C)
ESC*s#I Inquire Status Readback Entity
ESC*s1M Free Space
ESC*s#T Set Status Readback Location Type
ESC*s#U Set Status Readback Location Unit
ESC*s#X Echo
ESC*t#H Raster Width (Destination)
ESC*t#I Gamma Correction
ESC*t#J Render Algorithm XX
ESC*t#K Scale Algorithm XX
ESC*t#R Set Resolution
ESC*t#V Raster Height (Destination)
Appendix A: PCL support 27
= Supported
X = Not supported Printer model
Command Function C950 X950, X952, X954
ESC*g#W Set Raster Configuration XX
ESC*v#A Color Component One
ESC*v#B Color Component Two
ESC*v#C Color Component Three
ESC*v#I Assign Color Index
ESC*v#N Source Transparency Mode
ESC*v#O Pattern Transparency Mode
ESC*v#S Foreground Color
ESC*v#T Select Current Pattern
ESC*v#W[data] Configure Image Data
ESC*i#W[data] Viewing Illuminant XX
ESC9Clear Horizontal Margins
ESC=Half Line-Feed
ESC%#A Enter HP PCL 5 Mode
ESC%#B Enter HP‑GL/2 Mode
Note: The values ‑1, 2, and 3 are
not supported by any of the
printers included in this document.
ESC%12345X Universal Exit Language (UEL) /
Start of PJL
GL/2 commands
= Supported
X = Not supported Printer model
Command Function C950 X950, X952, X954
AA Arc Absolute
AC Anchor Corner
AD Define Alternate Font
AR Arc Relative
Appendix A: PCL support 28
= Supported
X = Not supported Printer model
Command Function C950 X950, X952, X954
AT Arc Absolute Three Point
BR Bezier Relative
BZ Bezier Absolute
CF Character Fill
CI Circle
CO Comment
CP Character Plot
CR Color Range
DF Default
DI Absolute Direction
DR Relative Direction
DT Define Label Terminator
DV Define Variable Text Path
EA Edge Rectangle Absolute
EP Edge Polygon
ER Edge Rectangle Relative
ES Extra Space
EW Edge Wedge
FI Primary Font
FN Secondary Font
FP Fill Polygon, Odd/Even
FP Fill Polygon, Non-Zero Winding
FT Fill Type
FT Fill Type - 22
FT Fill Type - 9
IN Initialize
IP Input P1 and P2
Appendix A: PCL support 29
= Supported
X = Not supported Printer model
Command Function C950 X950, X952, X954
IR Input Relative P1 and P2
IW Input Window
LA Line Attributes
LB Label, Default Terminator = '03'x
LO Label Origin
LO Uses PCL Label Origin
LT Line Type
LM Label Mode XX
MC Logical Operation
NP Number of Pens
PA Plot Absolute
PC Pen Color
PD Pen Down
PE Polyline Encoded
PM Polygon Mode
PP Pixel Placement
PR Plot Relative
PU Pen Up
PW Pen Width
RA Fill Rectangle Absolute
RF Define Raster Fill
RO Rotate Coordinate System
RR Fill Rectangle Relative
RT Arc Relative Three Point
SA Select Alternate Font
SB Scalable/Bitmapped Fonts
SC Scale
Appendix A: PCL support 30
= Supported
X = Not supported Printer model
Command Function C950 X950, X952, X954
SD Define Standard Font
SI Absolute Character Size
SL Character Slant
SM Symbol Mode
SP Select Pen
SR Relative Character Size
SS Select Standard Font
SV Screened Vectors
SV Screened Vectors - 9, level
TD Transparent Data
TM Threshold Matrix
TR Transparency Mode
UL User Defined Line
WG Fill Wedge
WU Pen Width Units
Appendix A: PCL support 31
Appendix B: PJL support
Common variables for both printer languages
= Supported
X = Not supported Printer model
Variable name C950 X950, X952, X954
AUTOCONT
AUTOSELECT XX
BINDING
BITSPERPIXEL XX
CLEARABLEWARNINGS
CONTEXTSWITCH XX
COPIES
CPLOCK
DENSITY
DISKLOCK XX
DUPLEX
ECONOMODE XX
FORMATTERNUMBER
FORMLINES
HELDJOBTIMEOUT
HOLD XX
HOLDKEY
HOLDTYPE
IMAGEADAPT XX
INTRAY1 XX
INTRAY2
INTRAY3
INTRAY4
INTRAY5
Appendix B: PJL support 32
= Supported
X = Not supported Printer model
Variable name C950 X950, X952, X954
INTRAY1SIZE
INTRAY2SIZE
INTRAY3SIZE
INTRAY4SIZE
INTRAY5SIZE
IOBUFFER XX
IOSIZE XX
JOBATTR XX
JOBNAME
JOBOFFSET
LANG
LOWTONER
MANUALFEED
MEDIASOURCE XX
MEDIATYPE
MPTRAY
ORIENTATION
OUTBIN
PAGEPROTECT
PAPER
PARALLEL
PASSWORD
PERSONALITY
POWERSAVE
POWERSAVETIME
PRINTQUALITY XX
QTY
RENDERMODE XX
Appendix B: PJL support 33
= Supported
X = Not supported Printer model
Variable name C950 X950, X952, X954
REPEATJUSTTIMEOUT
REPRINT
RESERVEJOBTIMEOUT
RESOLUTION
RESOURCESAVE
RESOURCESAVESIZE
RET
STRINGCODESET
TIMEOUT
USERNAME
VERIFYJOBTIMEOUT
WIDEA4
Lexmark‑unique PJL variables for both printer languages
= Supported
X = Not supported Printer model
Variable name C950 X950, X952, X954
LACTIVEBINRESET
LADVANCEDSTATUS
LALARMCONTROL
LAUTOCRLF
LAUTOLFCR
LBAYERSCREENLIMIT
LBLANKPAGES
LBONDLENGTH XX
LBONDLOADING
LBONDOUTBIN
Appendix B: PJL support 34
= Supported
X = Not supported Printer model
Variable name C950 X950, X952, X954
LBONDTEXTURE
LBONDWEIGHT XX
LBOTTOMMARGINOFFSET XX
LBWLOCK XX
LCANCEL
LCARDSTOCKLENGTH XX
LCARDSTOCKLOADING
LCARDSTOCKOUTBIN
LCARDSTOCKTEXTURE
LCARDSTOCKWEIGHT XX
LCOLLATION
LCOLORCORRECTION XX
LCOLOREDLENGTH XX
LCOLOREDLOADING
LCOLOREDOUTBIN
LCOLOREDTEXTURE
LCOLOREDWEIGHT XX
LCOLORMODEL XX
LCUSTOMPAPERUNITS
LCUSTOMPAPERWIDTH
LCUSTOMPAPERHEIGHT
LCUSTOMPAPERFEED
LCUSTOMTYPE1LENGTH XX
LCUSTOMTYPE1LOADING
LCUSTOMTYPE1MEDIA
LCUSTOMTYPE1NAME
LCUSTOMTYPE1OUTBIN
LCUSTOMTYPE1TEXTURE
LCUSTOMTYPE1WEIGHT XX
Appendix B: PJL support 35
= Supported
X = Not supported Printer model
Variable name C950 X950, X952, X954
LCUSTOMTYPE2LENGTH XX
LCUSTOMTYPE2LOADING
LCUSTOMTYPE2MEDIA
LCUSTOMTYPE2NAME
LCUSTOMTYPE2OUTBIN
LCUSTOMTYPE2TEXTURE
LCUSTOMTYPE2WEIGHT XX
LCUSTOMTYPE3LENGTH XX
LCUSTOMTYPE3LOADING
LCUSTOMTYPE3MEDIA
LCUSTOMTYPE3NAME
LCUSTOMTYPE3OUTBIN
LCUSTOMTYPE3TEXTURE
LCUSTOMTYPE3WEIGHT XX
LCUSTOMTYPE4LENGTH XX
LCUSTOMTYPE4LOADING
LCUSTOMTYPE4MEDIA
LCUSTOMTYPE4NAME
LCUSTOMTYPE4OUTBIN
LCUSTOMTYPE4TEXTURE
LCUSTOMTYPE4WEIGHT XX
LCUSTOMTYPE5LENGTH XX
LCUSTOMTYPE5LOADING
LCUSTOMTYPE5MEDIA
LCUSTOMTYPE5NAME
LCUSTOMTYPE5OUTBIN
LCUSTOMTYPE5TEXTURE
LCUSTOMTYPE5WEIGHT XX
Appendix B: PJL support 36
= Supported
X = Not supported Printer model
Variable name C950 X950, X952, X954
LCUSTOMTYPE6LENGTH XX
LCUSTOMTYPE6LOADING
LCUSTOMTYPE6MEDIA
LCUSTOMTYPE6NAME
LCUSTOMTYPE6OUTBIN
LCUSTOMTYPE6TEXTURE
LCUSTOMTYPE6WEIGHT XX
LDOWNLOADTARGET
LDRYTIMEDELAY XX
LDUPLEXLEFTMARGINOFFSET XX
LDUPLEXTOPMARGINOFFSET XX
LDUPLICATEHELDJOBS
LECOMODE
LENVELOPEENHANCE XX
LENVELOPELENGTH XX
LENVELOPEOUTBIN
LENVELOPETEXTURE
LENVELOPEWEIGHT XX
LESCCHAR
LFAXRESOLUTION X
LFAXJOBWAITFORTONER X
LFAXFOLD XX
LFAXREDIAL X
LFAXREDIALFREQUENCY X
LFAXTRANSMISSIONLOG X
LFOLD
LFEEDERPAPERTYPE
LGLOSSYLOADING
Appendix B: PJL support 37
= Supported
X = Not supported Printer model
Variable name C950 X950, X952, X954
LGLOSSYOUTPUTBIN
LGLOSSYTEXTURE
LGLOSSYWEIGHT XX
LHEAVYGLOSSYLOADING
LHEAVYGLOSSYOUTBIN
LHEAVYGLOSSYTEXTURE
LHEAVYGLOSSYWEIGHT XX
LHEAVYPAPERLOADING
LHEAVYPAPEROUTBIN
LHEAVYPAPERTEXTURE XX
LHEAVYPAPERWEIGHT
LHELDJOBPRTORDER
LHOLEPUNCHALARM
LHOLEPUNCHMODE
LHONORINIT
LIMAGEESS XX
LIMAGEBRIGHTNESS XX
LIMAGECONTRAST XX
LIMAGEENHANCE XX
LIMAGEENHANCETYPE XX
LIMAGEORIENTATION
LIMAGESMOOTHING XX
LINFEEDER XX
LINFEEDERSIZE XX
LINKALERT XX
LINMPFEEDERSIZE
LJAMRECOVERY
LJOBPARKPERSIST
LJOBWAITFORSUPPLIES
Appendix B: PJL support 38
= Supported
X = Not supported Printer model
Variable name C950 X950, X952, X954
LLABELSLENGTH XX
LLABELSLOADING XX
LLABELSOUTBIN
LLABELSTEXTURE
LLABELSWEIGHT XX
LLEFTMARGINOFFSET XX
LLETTERHEADLENGTH XX
LLETTERHEADLOADING
LLETTERHEADOUTBIN
LLETTERHEADTEXTURE
LLETTERHEADWEIGHT XX
LLIGHTPAPERLOADING XX
LLIGHTPAPEROUTBIN
LLIGHTPAPERTEXTURE
LLIGHTPAPERWEIGHT XX
LLINEDETAIL
LMANUALCOLORRGBTEXT
LMANUALCOLORRGBGRAPHICS
LMANUALCOLORRGBIMAGE
LMANUALCOLORCMYKTEXT
LMANUALCOLORCMYKGRAPHICS
LMANUALCOLORCMYKIMAGE
LMANUALENVELOPESIZE
LMANUALENVELOPETYPE
LMANUALPAPERSIZE
LMANUALPAPERTYPE
MICRJOB XX
LMAXSTATUSMSG XX
Appendix B: PJL support 39
= Supported
X = Not supported Printer model
Variable name C950 X950, X952, X954
LMPFEEDERPAPERTYPE
LMFEEDERRENUMBER
LMULTIPAGEBORDER
LMULTIPAGEORDER
LMULTIPAGEPRINT
LMULTIPAGEVIEW
LNPAP
LOPTIONALOUTBIN1NAME
LOPTIONALOUTBIN2NAME
LOPTIONALOUTBIN3NAME
LOPTIONALOUTBIN4NAME XX
LOPTIONALOUTBIN5NAME XX
LOPTIONALOUTBIN6NAME XX
LOPTIONALOUTBIN7NAME XX
LOPTIONALOUTBIN8NAME XX
LOPTIONALOUTBIN9NAME XX
LOPTIONALOUTBIN10NAME XX
LOUTBINCONFIG
LOVERFLOWOUTBIN XX
LOVERFLOWTIMER
LPAGECOUNT
LPAGEMODE
LPAPERSOURCE
LPICTUREGRADE XX
LPLAINLENGTH XX
LPLAINOUTBIN
LPLAINTEXTURE
LPLAINWEIGHT XX
LPOWERSAVER
Appendix B: PJL support 40
= Supported
X = Not supported Printer model
Variable name C950 X950, X952, X954
LPPDS
LPPDSFORMLINES
LPPDSLINESPERINCH
LPREPRINTEDLENGTH XX
LPREPRINTEDLOADING
LPREPRINTEDOUTBIN
LPREPRINTEDTEXTURE
LPREPRINTEDWEIGHT XX
LPRINTBUFFER
LPRINTSCREENS
LPRINTHEADIDLETIME XX
LPRINTERUSAGE
LPRINTMENUSBUTTON XX
LPRINTQUALITY XX
LPUNCH
LQUIETMODE
LREAROUTBINNAME XX
LRECYCLEDLOADING
LRECYCLEDMEDIA
LRECYCLEDOUTBIN
LRECYCLEDTEXTURE
LRECYCLEDWEIGHT XX
LREPEATPRINTLIMIT
LRESET
LRESOURCESAVE
LRIGHTMARGINOFFSET XX
LROUGHENVELOPELOADING XX
LROUGHENVELOPEOUTBIN
Appendix B: PJL support 41
= Supported
X = Not supported Printer model
Variable name C950 X950, X952, X954
LROUGHENVELOPETEXTURE
LROUGHENVELOPEWEIGHT XX
LROUGHPAPERLOADING
LROUGHPAPEROUTBIN
LROUGHPAPERTEXTURE
LROUGHPAPERWEIGHT XX
LSCREENING XX
LSEPARATORSHEETS
LSEPARATORSOURCE
LSMALLFONTENHANCER XX
LSSGALVO XX
LSTANDARDOUTBINNAME
LSTAPLE
LSTAPLESEMPTYALARM
LSTAPLETESTBIN XX
LSTAPLETESTSOURCE XX
LSTROKEWIDTH
LSUBSTITUTESIZE
LTOPBINROTATE
LTOPMARGINOFFSET XX
LTRANSPARENCYLENGTH XX
LTRANSPARENCYOUTBIN
LTRANSPARENCYTEXTURE
LTRANSPARENCYWEIGHT XX
LTRAY1AUTOSIZE
LTRAY2AUTOSIZE
LTRAY3AUTOSIZE
LTRAY4AUTOSIZE
Appendix B: PJL support 42
= Supported
X = Not supported Printer model
Variable name C950 X950, X952, X954
LTRAY5AUTOSIZE
LTRAY1PAPERTYPE
LTRAY2PAPERTYPE
LTRAY3PAPERTYPE
LTRAY4PAPERTYPE
LTRAY5PAPERTYPE
LTRAY1RENUMBER
LTRAY1SENSEDTYPEPAPER XX
LTRAY1SENSEDTYPETRANSPARENCY XX
LTRAY2SENSEDTYPEPAPER XX
LTRAY2SENSEDTYPETRANSPARENCY XX
LTRAY3SENSEDTYPEPAPER XX
LTRAY3SENSEDTYPETRANSPARENCY XX
LTRAY4SENSEDTYPEPAPER XX
LTRAY4SENSEDTYPETRANSPARENCY
LTYPE1FONTS
LUSDEFAULTS
LVINYLLABELSLOADING XX
LVINYLLABELSOUTBIN XX
LVINYLLABELSTEXTURE XX
LVINYLLABELSWEIGHT XX
LWRITECOVERAGE
Common variables for PCL emulation
= Supported
X = Not supported Printer model
Variable name C950 X950, X952, X954
FONTNUMBER
FONTSOURCE
Appendix B: PJL support 43
= Supported
X = Not supported Printer model
Variable name C950 X950, X952, X954
PITCH
PTSIZE
SYMSET
Printer‑unique variables for PCL emulation
= Supported
X = Not supported Printer model
Variable name C950 X950, X952, X954
LA4WIDTH
LASSIGNFEEDER XX
LASSIGNMANUALENVELOPE
LASSIGNMANUALPAPER
LASSIGNMPFEEDER
LASSIGNTRAY1
LASSIGNTRAY2
LASSIGNTRAY3
LASSIGNTRAY4
LASSIGNTRAY5
LBITMAPROUNDING
LCOLOREXTENSIONS
LFONTCOMPATIBILITY
LFONTPRIORITY
Appendix B: PJL support 44
Common variables for PostScript emulation
= Supported
X = Not supported Printer model
Variable name C950 X950, X952, X954
JAMRECOVERY
PRTPSERRS
ADOBEMBT XX
Printer‑unique variables for PostScript emulation
= Supported
X = Not supported Printer model
Variable name C950 X950, X952, X954
LPICTUREGRADE XX
LPSFONTPRIORITY
Printer‑unique LRESOURCE variables
= Supported
X = Not supported Printer model
Variable name C950 X950, X952, X954
LDESCRIPTION
LRWLOCK
LWLOCK
Status Readback commands
= Supported
X = Not supported Printer model
Variable name C950 X950, X952, X954
Dinquire
Echo
Info
Inquire
Appendix B: PJL support 45
= Supported
X = Not supported Printer model
Variable name C950 X950, X952, X954
Ustatus
Ustatusoff
USTATUS unsolicited status variables
= Supported
X = Not supported Printer model
Variable name C950 X950, X952, X954
DEVICE
JOB
PAGE
TIMED
PJL messages for auto-continuable conditions
= Supported
X = Not supported Printer model
Message Status code Return string C950 X950, X952, X954
Intervention Required -
PPDS Font Error
30014 50 PPDS Font Error
Intervention Required -
Insufficient Collation
Area
30016 37 Insufficient
Collation Area
Intervention Required -
Insufficient Defragment
Memory
30016 37 Insufficient
Defrag Memory
Intervention Required -
Insufficient Memory
30016 37 Insufficient
Memory
Intervention Required -
Insufficient Defragment
Memory
30016 37 Insufficient
memory, some Held
Jobs were deleted
Intervention Required -
Insufficient Defragment
Memory
30016 37 Insufficient
memory, some Held
Jobs will not be
restored
Appendix B: PJL support 46
= Supported
X = Not supported Printer model
Message Status code Return string C950 X950, X952, X954
Intervention Required -
Insufficient Collation
Area
30016 37 Insufficient
memory to collate
job
Intervention Required -
Memory Full
30016 38 Memory Full
Intervention Required -
Configuration Change
30016 57 Configuration
Change
Intervention Required -
Configuration Change
30016 57 Configuration
change, some held
jobs were not
restored
Intervention Required -
Held Jobs May Not Be
Restored
30016 Held Jobs May Not
Be Restored
Intervention Required -
Held Jobs May Not Be
Restored
30016 Some held jobs
were not restored
Intervention Required -
Complex Page
30017 39 Complex Page
Intervention Required -
Parallel Error
30018 54 Parallel Error XX
Intervention Required -
Serial Option Error
30018 54 Serial option
[slot #] error
XX
Intervention Required -
Standard Serial Error
30018 54 Standard Serial
Error
XX
Intervention Required -
Network Software Error
30018 54 Standard
Network Software
Error
Intervention Required -
Standard Serial Fax
Connection Lost
30018 54 Std Ser Fax
Connection Lost
XX
Intervention Required -
Parallel Port Disabled
30018 56 Parallel Port
Disabled
XX
Intervention Required -
Parallel Port Error
30018 56 Parallel Port
Disabled
XX
Intervention Required -
Serial Option Disabled
30018 56 Serial [slot #]
Port Disabled
XX
Appendix B: PJL support 47
= Supported
X = Not supported Printer model
Message Status code Return string C950 X950, X952, X954
Intervention Required -
Standard Serial Disabled
30018 56 Standard Serial
Disabled
XX
Intervention Required -
Standard USB Disabled
30018 56 Standard USB
Port Disabled
Intervention Required -
Std Parallel Port Disabled
30018 56 Std Parallel
Port Disabled
XX
Intervention Required -
Resource Save Off
Deficient Memory
30019 35 Res Save Off
Deficient Memory
XX
Intervention Required -
Insufficient Fax Buffer
30026 55 Insufficient
Fax Buffer
XX
Intervention Required -
Std Par ENA Connection
Lost
30027 54 Std Par ENA
Connection Lost
XX
Intervention Required -
Standard Parallel Port
Disabled
30027 56 Standard
Parallel Port
Disabled
XX
Intervention Required -
Std Parallel Port Disabled
30027 56 Std Parallel
Port Disabled
XX
Intervention Required -
Resolution Reduced
30029 36 Resolution
Reduced
XX
Intervention Required -
Print Jobs on Disk
Request
30031 Print Jobs on
Disk? or
Print Jobs on
Disk. Go/Stop?
XX
Intervention Required -
Restore Held Jobs.
Go/Stop?
30031 Restore Held Jobs.
Go/Stop?
Intervention Required -
Short Paper
30034 34 Short Paper
Intervention Required -
Flash Full
30035 52 Flash Full XX
Intervention Required -
Disk Full
30035 62 Disk Full XX
Intervention Required -
Defective Flash
30036 51 Defective Flash XX
Appendix B: PJL support 48
= Supported
X = Not supported Printer model
Message Status code Return string C950 X950, X952, X954
Intervention Required -
Unformatted Flash
30036 53 Unformatted
Flash
XX
Intervention Required -
Defective Disk
30036 61 Defective Disk XX
Intervention Required -
Unformatted Disk
30036 63 Unformatted
Disk
XX
Intervention Required -
Scheduled Maintenance
30075 80 Scheduled
Maintenance
XX
Intervention Required -
Scheduled Maintenance
30075 80 Scheduled
maintenance ADF
kit
X
Intervention Required -
Res Save Off Deficient
30076 35 Insufficient
memory to support
Resource Save
feature
Intervention Required -
Insufficient memory
30076 35 Insufficient
memory to support
Resource Save
feature
Intervention Required -
Resource Save Off
Deficient Memory
30076 35 Res Save Off
Deficient Memory
Intervention Required -
Insufficient Collation
Area
30076 37 Insufficient
Collation Area
XX
Intervention Required -
Service Required
30095 36 Printer service
required
XX
Intervention Required -
Empty Box M
30107 Empty Box M XX
Intervention Required -
Empty Hole Punch Box
30107 Empty Hole Punch
Box
Intervention Required -
Insert Box M
30107 Insert Box M XX
Intervention Required -
Insert Staple Cartridge
30107 Insert staple
cartridge
XX
Intervention Required -
Insert Stapler
30107 Insert Stapler XX
Appendix B: PJL support 49
= Supported
X = Not supported Printer model
Message Status code Return string C950 X950, X952, X954
Intervention Required -
Priming Failed
30107 Priming Failed,
Retry. Go/Stop?
XX
Intervention Required -
Network [x] Software
Error
30112 54 Network [x]
Software Error
Intervention Required -
Serial [x] Fax Connection
Lost
30112 54 Ser [x] Fax
Connection Lost
XX
Intervention Required -
Serial Option [x] Error
30112 54 Serial
Option [x] Error
Intervention Required -
Serial Port [x] Disabled
30112 56 Serial Port [x]
Disabled
Intervention Required -
USB Port Disabled
30112 56 USB Port [x]
Disabled
Intervention Required -
Parallel [x] ENA
Connection Lost
30113 54 Par [x] ENA
Connection Lost
XX
Intervention Required -
Parallel [x] Port Disabled
30113 56 Parallel
Port [x] Disabled
Intervention Required -
Disk Operation Failed
Faxes on Disk
32001 Operation Failed
Faxes on Disk
XX
Intervention Required -
Disk Operation Failed
Jobs on Disk
32001 Operation Failed
Jobs on Disk
XX
Intervention Required -
Flash Full
32002 52 Flash Full
Intervention Required -
Flash Full
32002 52 Not enough free
space in flash
memory for
resources
Intervention Required -
Disk Full
32002 62 Disk full
Intervention Required -
Disk Corrupted
32015 Disk Corrupted XX
Intervention required -
Disk Corrupted.
Reformat?
32015 Disk Corrupted.
Reformat?
XX
Appendix B: PJL support 50
= Supported
X = Not supported Printer model
Message Status code Return string C950 X950, X952, X954
Intervention required -
Too Many Bins Attached
32030 58 Too many bins
attached
XX
Intervention Required -
Too Many Flash Options
Installed
32030 58 Too Many Flash
Options
Intervention Required -
Too Many Flash Options
Installed
32030 58 Too many flash
options installed
Intervention Required -
Unformatted Flash
32052 53 Unformatted
Flash
Intervention Required -
Unformatted Flash
Detected
32052 53 Unformatted
Flash detected
Intervention Required -
Unformatted Disk
32052 63 Unformatted
disk
XX
Intervention Required -
Unsupported Disk
Format
32052 64 Unsupported
Disk Format
XX
Intervention Required -
Defective Flash
32056 51 Defective Flash
Intervention Required -
Defective Flash
32056 51 Defective flash
detected
Intervention Required -
Defective Disk
32056 61 Defective Disk XX
Intervention Required -
Defective Disk
32056 61 Remove
defective disk
XX
Intervention Required -
Scheduled Maintenance
35075 80 Scheduled
Maintenance
XX
Intervention Required -
Scheduled Maintenance
35075 81 Scheduled
Maintenance
XX
Intervention Required -
Scheduled Maintenance
40315 81 Scheduled
Maintenance [x]
Intervention Required -
Scheduled Maintenance
40316 81 Scheduled
Maintenance [x]
Intervention Required -
Belt Life Warning
40038 80 Belt Life
Warning
XX
Appendix B: PJL support 51
= Supported
X = Not supported Printer model
Message Status code Return string C950 X950, X952, X954
Intervention Required -
Belt Exhausted
40038 80 Belt Exhausted XX
Intervention Required -
Fuser Maintenance
40038 80 Fuser
Maintenance
XX
Intervention Required -
Fuser Life Warning
40038 80 Fuser Life
Warning
XX
Intervention Required -
Fuser Exhausted
40038 80 Fuser Exhausted XX
Intervention Required -
Fuser/Belt Life Warning
40038 80 Fuser/Belt Life
Warning
XX
Intervention Required -
Fuser/Belt Exhausted
40038 80 Fuser/Belt
Exhausted
XX
Intervention Required -
ITU Maintenance
40038 83 ITU Maintenance XX
PJL messages for attendance conditions
= Supported
X = Not supported Printer model
Message Status code Return string C950 X950, X952, X954
Intervention Required -
Too Many Bins Attached
32030 58 Too many bins
attached
XX
Intervention Required -
Too Many Flash Options
Installed
32030 58 Too many
flash options
installed
XX
Intervention Required -
Remove Defective Disk
32056 61 Remove
defective disk
Intervention Required -
Defective Flash
32056 61 Defective
flash detected
Intervention Required -
Insert Hole Punch Box
40010 Insert Hole
Punch Box
XX
Intervention Required -
Insert PC Cartridge
40010 Insert PC
Cartridge
XX
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
Appendix B: PJL support 52
= Supported
X = Not supported Printer model
Message Status code Return string C950 X950, X952, X954
Intervention Required -
30 CMYK* Print Unit
Missing
40010 30 CMYK* Print
Unit Missing
XX
Intervention Required -
30 Coating Roll Missing
40010 30 Coating Roll
Missing
XX
Intervention Required -
Remove Originals from
Scanner ADF
40019 Remove
originals from
the scanner
automatic
document feeder
XX
Intervention Required -
Remove Paper Standard
Bin
40019 Remove paper
from standard
output bin
Intervention Required -
Install MICR cartridge
40020 Install MICR
cartridge
XX
Intervention Required -
Cartridge Life Expired
40021 Cartridge Life
Expired CMYK*
XX
Intervention Required -
Cartridge Life Warning
40021 Cartridge Life
Warning CMYK*
XX
Intervention Required -
Change Cartridge Invalid
Refill
40021 Change
Cartridge
Invalid Refill
XX
Intervention Required -
Close Cover <x>
40021 Close cover <x>
Intervention Required -
Printer Cover Open
40021 Close Cover XX
Intervention Required -
Close Toner Box Cover
40021 Close Cover XX
Intervention Required -
Close Deflector G
40021 Close Deflector
G
XX
Intervention Required -
Close Door
40021 Close Door
Intervention Required -
Close Door <x>
40021 Close door <x>
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
Appendix B: PJL support 53
= Supported
X = Not supported Printer model
Message Status code Return string C950 X950, X952, X954
Intervention Required -
Close Door Insert
Cartridge
40021 Close door or
insert
cartridge
XX
Intervention Required -
Close Finisher Door
40021 Close Finisher
Door
XX
Intervention Required -
Close Finisher Side Door
40021 Close Finisher
Side Door
XX
Intervention Required -
Close Finisher Top Cover
40021 Close Finisher
Top Cover
XX
Intervention Required -
Close Front Door
40021 Close Front Door XX
Intervention Required -
Close Side Door
40021 Close Side Door XX
Intervention Required -
Close Surface
40021 Close surface H XX
Intervention Required -
Close Cover
40021 Close top access
cover
XX
Intervention Required -
Close Cover and Door
40021 Close top access
cover and front
door
XX
Intervention Required -
Close Door
40021 Close <tray>
door
XX
Intervention Required -
Close Tray <x> Top Cover
40021 Close Tray <x>
Top Cover
XX
Intervention Required -
Printer Upper Door Open
40021 Cover Open,
Close Top
Covers, Close
Door, or Insert
Cartridge
XX
Intervention Required -
Insert Print Cartridge
40021 Insert Print
Cartridge
XX
Intervention Required -
Open Cover
40021 Open Cover XX
Intervention Required -
Open Rear Door
40021 Open Rear Door XX
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
Appendix B: PJL support 54
= Supported
X = Not supported Printer model
Message Status code Return string C950 X950, X952, X954
Intervention Required -
Invalid Refill
40021 30 Invalid
Refill Change
Cartridge
XX
Intervention Required -
Defective Ink Cartridge
40021 31 Defective
Cartridge CMYK*
XX
Intervention Required -
Defective Print Cartridge
40021 31 Defective
Print Cartridge
XX
Intervention Required -
Missing Cartridge
40021 31 Missing
Cartridge CMYK*
XX
Intervention Required -
Missing Printhead
40021 31 Missing
Printhead
XX
Intervention Required -
Defective Print Cartridge
40021 31 Replace
defective
cartridge
XX
Intervention Required -
Invalid Refill
40021 31.xx Invalid
refill, change
cartridge
XX
Intervention Required -
Defective Print Cartridge
40021 31.xx Replace
defective
cartridge
XX
Intervention Required -
Defective Print Cartridge
40021 31.xx Replace
defective print
cartridge
XX
Intervention Required -
Unsupported Cartridge
40021 32 Unsupported
Cartridge
XX
Intervention Required -
Unsupported CMYK*
Cartridge
40021 32 Unsupported
CMYK* Cartridge
XX
Intervention Required -
Unsupported Print
Cartridge
40021 32 Unsupported
Print Cartridge
XX
Intervention Required -
Unsupported Printhead
40021 32 Unsupported
Printhead
XX
Intervention Required -
Unsupported Cartridge
40021 32.xx Cartridge
part number
unsupported by
device
XX
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
Appendix B: PJL support 55
= Supported
X = Not supported Printer model
Message Status code Return string C950 X950, X952, X954
Intervention Required -
Tray Size Sense Error
40021 40 Tray <x> Size
Sense Error
XX
Intervention Required -
Open Bin Exit Tray
40021 41 Open Bin 1
Exit Tray
XX
Intervention Required -
Cartridge Region
Mismatch
40021 42.xy Cartridge
region mismatch
XX
Intervention Required -
Paper Jam
40022 2xx Paper Jam XX
Intervention Required -
Remove Packaging
Material
40025 Remove
packaging
material
Intervention Required -
Waste Toner Missing
40025 82 Waste toner
bottle missing
XX
Intervention Required -
Waste Toner Bottle
Missing
40025 82.xx Waste
toner bottle
missing
Intervention Required -
Check Tray Connection
40027 Check tray
<source #>
connection
XX
Intervention Required -
Install Tray <x> or Cancel
Job
40027 Install Tray <x> XX
Intervention Required -
Install Tray <x> or Cancel
Job
40027 Install Tray <x>
or Cancel Job
XX
Intervention Required -
Install Envelope Feeder
40028 Install
envelope feeder
XX
Intervention Required -
Install Env Feeder or
Cancel Job
40028 Install Env Feed
or Cancel Job
XX
Intervention Required -
Reattach Envelope
Feeder
40028 Reattach
Envelope Feeder
XX
Intervention Required -
Reattach MP Feeder
40028 Reattach MP
Feeder
XX
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
Appendix B: PJL support 56
= Supported
X = Not supported Printer model
Message Status code Return string C950 X950, X952, X954
Intervention Required -
Check Finisher
Installation
40029 Check Finisher
Installation
XX
Intervention Required -
Check Mailbox
Installation
40029 Check Mailbox
Installation
XX
Intervention Required -
Install Bin <x> or Cancel
Job
40029 Install Bin <x>
or Cancel Job
XX
Intervention Required -
Reattach Bin
40029 Reattach bin <x> XX
Intervention Required -
Reattach Bins
40029 Reattach
Bins <bin #x—bin
#y>
XX
Intervention Required -
Reattach Output Bin
40029 Reattach Output
Bin <bin #>
XX
Intervention Required -
Tray Config Error
40030 33 Tray <x>
Config Error
XX
Intervention Required -
Input Config Error
40030 58 Input config
error
XX
Intervention Required -
Too Many Bins Attached
40030 58 Too Many Bins
Attached
XX
Intervention Required -
Too Many Disks Installed
40030 58 Too many
disks installed
Intervention Required -
Too Many Trays
Attached
40030 58 Too many
trays attached
XX
Intervention Required -
Too Many Disks Installed
40036 58 Too Many
Disks Installed
XX
Intervention Required -
PerfectFinish Missing
40037 31
PerfectFinish
Missing
XX
Intervention Required -
PerfectFinish Empty
40037 87
PerfectFinish
Empty
XX
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
Appendix B: PJL support 57
= Supported
X = Not supported Printer model
Message Status code Return string C950 X950, X952, X954
Intervention Required -
Replace Oil Coating Roll
40038 Replace Oil
Coating Roll
XX
Intervention Required -
Replace PC Kit
40038 Replace PC Kit XX
Intervention Required -
Replace PC Kit To
Continue
40038 Replace PC Kit
To Continue
XX
Intervention Required -
Replace Toner Cartridge
40038 Replace Toner
Cartridge
XX
Intervention Required -
Replace Toner Cartridge
To Continue
40038 Replace Toner To
Continue
XX
Intervention Required -
84 All Photo Devs
Exhausted
40038 84 All Photo
Devs Exhausted
XX
Intervention Required -
84 Black Photo Dev
Exhausted
40038 84 Black Photo
Dev Exhausted
XX
Intervention Required -
84 Black Photo Dev Life
Warning
40038 84 Black Photo
Dev Life Warning
XX
Intervention Required -
84 Color Photo Dev Life
Warning
40038 84 Color Photo
Dev Life Warning
XX
Intervention Required -
Cartridge Low
40038 88 Cartridge Low XX
Intervention Required -
[Color] Cartridge Low
40038 88
[Color] cartrid
ge is low
XX
Intervention Required -
Toner Low
40038 88 Cartridge low XX
Intervention Required -
Cartridge Low
40038 88 Cartridge
Low <CMYK>
XX
Intervention Required -
Toner Low
40038 88 Toner is low XX
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
Appendix B: PJL support 58
= Supported
X = Not supported Printer model
Message Status code Return string C950 X950, X952, X954
Intervention Required -
Toner Low
40038 88 Toner Low XX
Intervention Required -
Toner Low
40038 88 Yellow Toner
Low
88 Magenta Toner
Low
88 Cyan Toner
Low
88 Black Toner
Low
XX
88 Color Print
Cartridge Low
88 Black Print
Cartridge Low
88 Photo Print
Cartridge Low
XX
88 Yellow Toner
Empty
88 Magenta Toner
Empty
88 Cyan Toner
Empty
88 Black Toner
Empty
XX
Intervention Required -
Cartridge Nearly Low
40038 88.xx Cartridge
nearly low
XX
Intervention Required -
Cartridge Empty
40039 89 Cartridge
Empty <CMYK>
XX
Intervention Required -
Load Staples
40040 Load Staples XX
Intervention Required -
Priming Failed. Retry?
40041 Priming Failed.
Retry?
XX
Intervention Required -
OPMSG
40048 OPMSG message XX
Intervention Required -
PJL OP Message
40048 OPMSG message XX
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
Appendix B: PJL support 59
= Supported
X = Not supported Printer model
Message Status code Return string C950 X950, X952, X954
Intervention Required -
STMSG
40049 STMSG message XX
Intervention Required -
PJL ST Message
40049 STMSG message XX
Intervention Required -
Replace Fuser
40050 Replace Fuser XX
Intervention Required -
Replace Transfer Kit
40050 Replace
Transfer Kit
XX
Intervention Required -
Incompatible Bin <x>
40087 59 Incompatible
Bin <x>
XX
Intervention Required -
Incompatible Bin <x>
40087 59 Incompatible
output bin <x>
XX
Intervention Required -
Incompatible Duplex
40088 59 Incompatible
Duplex
XX
Intervention Required -
Incompatible Duplex
40088 59 Incompatible
duplex
XX
Intervention Required -
Incompatible Tray <x>
40089 59 Incompatible
Tray <x>
XX
Intervention Required -
Incompatible Tray <x>
40089 59 Incompatible
tray <x>
XX
Intervention Required -
Incompatible Envelope
Feeder
40090 59 Incompatible
Envelope Feeder
XX
Intervention Required -
Incompatible Envelope
Feeder
40090 59 Incompatible
envelope feeder
XX
Intervention Required -
Check Duplex
Connection
40095 Check Duplex
Connection
XX
Intervention Required -
Check Duplex
Connection
40095 Check duplex
connection
XX
Intervention Required -
Install Duplex or Cancel
Job
40095 Install Duplex
or Cancel Job
XX
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
Appendix B: PJL support 60
= Supported
X = Not supported Printer model
Message Status code Return string C950 X950, X952, X954
Intervention Required -
Install Duplex or Cancel
Job
40095 Install duplex XX
Intervention Required -
Duplex Cover Open
40096 Close Duplex
Door
XX
Intervention Required -
Insert Duplex Option
40096 Insert Duplex
Option
XX
Intervention Required -
Load Staples
40101 Load Staples
Intervention Required -
Insert Hole Punch Box
40107 Insert the hole
punch box
Intervention Required -
Replace Color PC Units
40129 84 Replace color
PC Units
XX
Intervention Required -
Replace Photoconductor
40129 84.xx Replace
[Color]
photoconductor
Intervention Required -
Replace Waste Toner
Bottle
40141 82.xx Replace
waste toner
bottle
Intervention Required -
Replace Waste Toner
40141 82 Replace waste
toner bottle
XX
Intervention Required -
Waste Toner Bottle
Nearly Full
40141 82.xx Waste
toner bottle
nearly full
Intervention Required -
Waste Toner Nearly Full
40141 82 Waste toner
bottle nearly
full
XX
Intervention Required -
Transfer Module Missing
40143 83.xx Transfer
module missing
XX
Intervention Required -
Cartridge Low
40200 88.xx black
cartridge low
Intervention Required -
Cartridge Nearly Low
40200 88.1x black
cartridge
nearly low
XX
Intervention Required -
Replace Cartridge
40200 88.2x Replace
black cartridge
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
Appendix B: PJL support 61
= Supported
X = Not supported Printer model
Message Status code Return string C950 X950, X952, X954
Intervention Required -
Cartridge Low
40201 88.xx cyan
cartridge low
Intervention Required -
Cartridge Nearly Low
40201 88.1x cyan
cartridge
nearly low
XX
Intervention Required -
Replace Cartridge
40201 88.2x Replace
cyan cartridge
Intervention Required -
Cartridge Low
40202 88.xx magenta
cartridge low
Intervention Required -
Cartridge Nearly Low
40202 88.1x magenta
cartridge
nearly low
XX
Intervention Required -
Replace Cartridge
40202 88.2x Replace
magenta
cartridge
XX
Intervention Required -
Cartridge Low
40203 88.xx yellow
cartridge low
Intervention Required -
Cartridge Nearly Low
40203 88.1x yellow
cartridge
nearly low
XX
Intervention Required -
Replace Cartridge
40203 88.2x Replace
yellow
cartridge
Black PC Unit Life
Warning
40204 84 Black pc unit
life warning
XX
Intervention Required -
Unsupported PC Unit
40204 84 unsupported
[color] pc unit
XX
Intervention Required -
Color PC Units Life
Warning
40204 84.xx Color PC
Unit Life
warning
XX
Intervention Required -
PC Kit Life Warning
40204 84 PC kit life
warning
XX
Intervention Required -
Photoconductor Low
40204 84.xx [Color]
photoconductor
low
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
Appendix B: PJL support 62
= Supported
X = Not supported Printer model
Message Status code Return string C950 X950, X952, X954
Intervention Required -
Photoconductor Low
40204 84
Photoconductor
low
XX
Intervention Required -
Photoconductor Nearly
Low
40204 84.xx [color]
photoconductor
nearly low
XX
Intervention Required -
Transfer Module Life
Warning
40215 83.xx Transfer
module life
warning
XX
Intervention Required -
Transfer Module Near
Life Warning
40215 83.xx Transfer
module near life
warning
XX
Intervention Required -
Fuser Life Warning
40216 87 Fuser Life
Warning
XX
Intervention Required -
Fuser Life Warning
40216 80.xx Fuser life
warning
XX
Intervention Required -
Fuser Near Life Warning
40216 80.xx Fuser near
life warning
XX
Intervention Required -
Replace Toner
40300 88 Replace black
toner
XX
Intervention Required -
Replace Toner
40301 88 Replace cyan
toner
XX
Intervention Required -
Replace Toner
40302 88 Replace
magenta toner
XX
Intervention Required -
Replace Toner
40303 88 Replace
yellow toner
XX
Intervention Required -
Replace PC Kit
40304 84 Replace PC
Kit
XX
Intervention Required -
Replace Photoconductor
40304 84 Replace
photoconductor
XX
Intervention Required -
84 Replace Black PC Unit
40305 84 Replace black
PC Unit
XX
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
Appendix B: PJL support 63
= Supported
X = Not supported Printer model
Message Status code Return string C950 X950, X952, X954
Intervention Required -
Cartridge Part Number
Unsupported
40309 32.xx black
cartridge part
number
unsupported by
device
Intervention Required -
Replace unsupported
cartridge
40309 32.xx Replace
unsupported
black cartridge
XX
Intervention Required -
Invalid Refill, Change
Cartridge
40309 40 black invalid
refill, change
cartridge
XX
Intervention Required -
Cartridge Part Number
Unsupported
40310 32.xx cyan
cartridge part
number
unsupported by
device
Intervention Required -
Replace unsupported
cartridge
40310 32.xx Replace
unsupported
cyan cartridge
XX
Intervention Required -
Invalid Refill, Change
Cartridge
40310 40 cyan invalid
refill, change
cartridge
XX
Intervention Required -
Cartridge Part Number
Unsupported
40311 32.xx magenta
cartridge part
number
unsupported by
device
Intervention Required -
Replace unsupported
cartridge
40311 32.xx Replace
unsupported
magenta
cartridge
XX
Intervention Required -
Invalid Refill, Change
Cartridge
40311 40 magenta
invalid refill,
change
cartridge
XX
Intervention Required -
Cartridge Part Number
Unsupported
40312 32.xx yellow
cartridge part
number
unsupported by
device
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
Appendix B: PJL support 64
= Supported
X = Not supported Printer model
Message Status code Return string C950 X950, X952, X954
Intervention Required -
Replace unsupported
cartridge
40312 32.xx Replace
unsupported
yellow
cartridge
XX
Intervention Required -
Invalid Refill, Change
Cartridge
40312 40 yellow
invalid refill,
change
cartridge
XX
Intervention Required -
Scheduled Maintenance
40315 80 Scheduled
maintenance [x]
Note: [x] indicates
600K kit.
Intervention Required -
Replace Transfer Module
40315 83.xx Replace
transfer module
XX
Intervention Required -
Replace Fuser
40316 80.xx Replace
fuser
XX
Intervention Required -
Replace Fuser
40316 87.xx Replace
fuser
XX
Intervention Required -
Scheduled Maintenance
40316 80 Scheduled
maintenance [x]
Note: [x] indicates
100K kit.
Intervention Required -
Replace Cartridge
40400 31.xx Replace
defective or
missing
cartridge
XX
Intervention Required -
Insert Photoconductor
40404 84 Insert
photoconductor
XX
Intervention Required - 40404 84
Photoconductor
abnormal
XX
Intervention Required -
[Color] PC Unit Missing
40405 84.41 Black PC
Unit missing
Intervention Required -
[Color] Photoconductor
Missing
40405 84.41 Black
photoconductor
missing
XX
Intervention Required -
[Color] PC Unit Missing
40406 84.41 Cyan PC
Unit missing
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
Appendix B: PJL support 65
= Supported
X = Not supported Printer model
Message Status code Return string C950 X950, X952, X954
Intervention Required -
[Color] Photoconductor
Missing
40406 84.41 Cyan
photoconductor
missing
XX
Intervention Required -
[Color] PC Unit Missing
40407 84.41 Magenta PC
Unit missing
Intervention Required -
[Color] Photoconductor
Missing
40407 84.41 Magenta
photoconductor
missing
XX
Intervention Required -
[Color] PC Unit Missing
40408 84.41 Yellow PC
Unit missing
Intervention Required -
[Color] Photoconductor
Missing
40408 84.41 Yellow
photoconductor
missing
XX
Intervention Required -
Toner Cartridge Missing
40409 30.xx Black
toner cartridge
missing
XX
Intervention Required -
Defective Cartridge
40409 31.xx Defective
black cartridge
XX
Intervention Required -
Missing or Defective
Cartridge
40409 31.41 Missing or
defective black
cartridge
XX
Intervention Required -
Toner Cartridge Missing
40410 30.xx Cyan toner
cartridge
missing
XX
Intervention Required -
Defective Cartridge
40410 31.xx Defective
cyan cartridge
XX
Intervention Required -
Missing or Defective
Cartridge
40410 31.41 Missing or
defective cyan
cartridge
XX
Intervention Required -
Toner Cartridge Missing
40411 30.xx Magenta
toner cartridge
missing
XX
Intervention Required -
Defective Cartridge
40411 31.xx Defective
magenta
cartridge
XX
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
Appendix B: PJL support 66
= Supported
X = Not supported Printer model
Message Status code Return string C950 X950, X952, X954
Intervention Required -
Missing or Defective
Cartridge
40411 31.41 Missing or
defective
magenta
cartridge
XX
Intervention Required -
Toner Cartridge Missing
40412 30.xx Yellow
toner cartridge
missing
XX
Intervention Required -
Defective Cartridge
40412 31.xx Defective
yellow
cartridge
XX
Intervention Required -
Missing or Defective
Cartridge
40412 31.41 Missing or
defective
yellow
cartridge
XX
Intervention Required -
Fuser Missing
40416 80.xx Fuser
missing
XX
Intervention Required -
Fuser Missing
40416 87.xx Fuser
missing
XX
Intervention Required -
Insert Duplex Pages in
Tray <x>
41202 Reload printed
pages in
Tray <x>
XX
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
PJL messages for paper handling
= Supported
X = Not supported Printer model
Message Status code Return string C950 X950, X952, X954
Intervention Required -
Tray <x> Empty
11xyy Tray <source #>
Empty
XX
Intervention Required -
Tray <x> Missing
12x01 Tray <source #>
Missing
XX
Intervention Required -
Bin <x> Full
15ww1 Bin <Bin #>
Full
XX
Intervention Required -
Wrong Paper Size in
Tray <x>
30034 34 Wrong Paper
Size in
Tray <x>
XX
Appendix B: PJL support 67
= Supported
X = Not supported Printer model
Message Status code Return string C950 X950, X952, X954
Intervention Required -
Wrong Paper Size
Manual Feed
30034 34 Wrong Paper
Size Manual
Feed
XX
Intervention Required -
Remove Paper All Output
Bins
40019 Remove Paper
All Output Bins
XX
Intervention Required -
Remove Paper From All
Bins
40019 Remove paper
from all bins
Intervention Required -
Remove Paper From
<bin #>
40019 Remove paper
from bin
<bin #>
Intervention Required -
Remove Paper <linked
set bin name>
40019 Remove paper
from <linked
set bin name>
Intervention Required -
Remove Paper From
Standard Output Bin
40019 Remove paper
from standard
output bin
Intervention Required -
Remove Paper <linked
set bin name>
40019 Remove
Paper <linked
set bin name>
Intervention Required -
Remove Paper Outbin
<bin #>
40019 Remove Paper
Output Bin
<bin #>
Intervention Required -
Remove Paper Standard
Bin
40019 Remove Paper
Standard Bin
Intervention Required -
Photoconductor
Exposure Warning
40025 Photoconductor
exposure
warning
XX
Intervention Required -
Check <Source>
Orientation or Guides
4100x Check <source>
orientation or
guides
Intervention Required -
Check <Source> Paper
Guide
4100x Check <source>
Paper Guide
XX
Intervention Required -
Incorrect Media
41xy Paper changes
needed
XX
Appendix B: PJL support 68
= Supported
X = Not supported Printer model
Message Status code Return string C950 X950, X952, X954
Intervention Required -
Load [src] [Custom Type
Name]
41xyy Load [src] with
[Custom Type
Name]
Intervention Required -
Load [src] [Custom
String]
41xyy Load [src] with
[Custom String]
Intervention Required -
Load [src] [size]
41xyy Load [src] with
[size]
Intervention Required -
Load [src] [type] [size]
41xyy Load [src] with
[type] [size]
Intervention Required -
Load Manual [Custom
Type Name]
41xyy Load single
sheet feeder
with [Custom
Type Name]
XX
Intervention Required -
Load Manual [Custom
String]
41xyy Load single
sheet feeder
with [Custom
String]
XX
Intervention Required -
Load Manual [size]
41xyy Load single
sheet feeder
with [size]
XX
Intervention Required -
Load Manual [type] [size]
41xyy Load single
sheet feeder
with [type]
[size]
XX
Intervention Required -
Change Request
41xyy Change <src> to
<Custom Type
Name>
Intervention Required -
Change Request
Change <src> to
<Custom Type
Name>, load
<orientation>
Intervention Required -
Change Request
Change <src> to
<Custom String>
Intervention Required -
Change Request
Change <src> to
<Custom String>
load
<orientation>
Intervention Required -
Change Request
Change <src> to
<type> <size>
Appendix B: PJL support 69
= Supported
X = Not supported Printer model
Message Status code Return string C950 X950, X952, X954
Intervention Required -
Change Request
Change <src> to
<type> <size>
load
<orientation>
Intervention Required -
Load Manual Request
41xxy Load Manual
Feeder
with <Custom
Type Name>
Intervention Required -
Load Manual Request
41xxy Load Manual
Feeder
with <Custom
String>
Intervention Required -
Load Manual Request
41xxy Load Manual
Feeder
with <size>
Intervention Required -
Load Manual Request
41xxy Load Manual
Feeder
with <type><siz
e>
Intervention Required -
Incorrect Media
41xyy 34 Incorrect
Media
Intervention Required -
Insert Duplex Pages &
Press Go.
412yy Insert Duplex
Pages & Press
Go.
XX
Intervention Required -
Insert Tray Request
4300x Insert Tray <x>
Appendix B: PJL support 70
PJL messages for paper jams
= Supported
X = Not supported Printer model
Message Status code C950 X950, X952, X954
Intervention Required -
Paper Jam
4200x XX
Intervention Required -
Paper Jam
4200z XX
Intervention Required -
Paper Jam
4201x XX
Intervention Required -
Paper Jam
4201z
Intervention Required -
Paper Jam
4202x XX
Intervention Required -
Paper Jam
4202z
Intervention Required -
Paper Jam
4203x XX
Intervention Required -
Paper Jam
4203z
Intervention Required -
Paper Jam
4204x XX
Intervention Required -
Paper Jam
4205x XX
Intervention Required -
Paper Jam
4206x XX
Intervention Required -
Paper Jam
4207x XX
Intervention Required -
Paper Jam
4208x XX
Intervention Required -
Paper Jam
4209x XX
Intervention Required -
Paper Jam
4210x XX
w indicates this message includes a letter indicating a door or cover that needs to be opened.
x represents the number of jammed pages in the printer.
y represents the tray number.
z represents the bin number.
Appendix B: PJL support 71
= Supported
X = Not supported Printer model
Message Status code C950 X950, X952, X954
Intervention Required -
Paper Jam
4211x XX
Intervention Required -
Paper Jam
4220x XX
Intervention Required -
Paper Jam
4221x XX
Intervention Required -
Paper Jam
4222x XX
Intervention Required -
Paper Jam
4230x XX
Intervention Required -
Paper Jam
4230z
Intervention Required -
Paper Jam
4231x XX
Intervention Required -
Paper Jam
4231z XX
Intervention Required -
Paper Jam
4232x XX
Intervention Required -
Paper Jam
4233x XX
Intervention Required -
Paper Jam
4234 XX
Intervention Required -
Paper Jam
424yx XX
Intervention Required -
Paper Jam
424xz
Intervention Required -
Paper Jam
4241wy XX
Intervention Required -
Paper Jam
4241z XX
Intervention Required -
Paper Jam
4242wy XX
w indicates this message includes a letter indicating a door or cover that needs to be opened.
x represents the number of jammed pages in the printer.
y represents the tray number.
z represents the bin number.
Appendix B: PJL support 72
= Supported
X = Not supported Printer model
Message Status code C950 X950, X952, X954
Intervention Required -
Paper Jam
4242z XX
Intervention Required -
Paper Jam
4243w XX
Intervention Required -
Paper Jam
4243z XX
Intervention Required -
Paper Jam
4244wy XX
Intervention Required -
Paper Jam
4244z XX
Intervention Required -
Paper Jam
4245w XX
Intervention Required -
Paper Jam
4246w XX
Intervention Required -
Paper Jam
4247wy XX
Intervention Required -
Paper Jam
4248w XX
Intervention Required -
Paper Jam
4249w XX
Intervention Required -
Paper Jam
4250w XX
Intervention Required -
Paper Jam
4250x XX
Intervention Required -
Paper Jam
4250z
Intervention Required -
Paper Jam
4251wy XX
Intervention Required -
Paper Jam
4251x XX
Intervention Required -
Paper Jam
4252w XX
w indicates this message includes a letter indicating a door or cover that needs to be opened.
x represents the number of jammed pages in the printer.
y represents the tray number.
z represents the bin number.
Appendix B: PJL support 73
= Supported
X = Not supported Printer model
Message Status code C950 X950, X952, X954
Intervention Required -
Paper Jam
4253w XX
Intervention Required -
Paper Jam
4254wy XX
Intervention Required -
Paper Jam
4255 XX
Intervention Required -
Paper Jam
4256w XX
Intervention Required -
Paper Jam
4257w XX
Intervention Required -
Paper Jam
4258w XX
Intervention Required -
Paper Jam
4259wy XX
Intervention Required -
Paper Jam
4260w XX
Intervention Required -
Paper Jam
4260x XX
Intervention Required -
Paper Jam
4260z XX
Intervention Required -
Paper Jam
4261w XX
Intervention Required -
Paper Jam
4261x XX
Intervention Required -
Paper Jam
427xz XX
Intervention Required -
Paper Jam
427zx
Intervention Required -
Paper Jam
4271 XX
Intervention Required -
Paper Jam
4271z XX
w indicates this message includes a letter indicating a door or cover that needs to be opened.
x represents the number of jammed pages in the printer.
y represents the tray number.
z represents the bin number.
Appendix B: PJL support 74
= Supported
X = Not supported Printer model
Message Status code C950 X950, X952, X954
Intervention Required -
Paper Jam
4272 XX
Intervention Required -
Paper Jam
4272z XX
Intervention Required -
Paper Jam
4273 XX
Intervention Required -
Paper Jam
4280w XX
Intervention Required -
Paper Jam
4280x XX
Intervention Required -
Paper Jam
4280z
Intervention Required -
Paper Jam
4281w XX
Intervention Required -
Paper Jam
4281x XX
Intervention Required -
Paper Jam
4281z
Intervention Required -
Paper Jam
4282w XX
Intervention Required -
Paper Jam
4282x XX
Intervention Required -
Paper Jam
4282z XX
Intervention Required -
Paper Jam
4283w XX
Intervention Required -
Paper Jam
4283x XX
Intervention Required -
Paper Jam
4283z
Intervention Required -
Paper Jam
4284w XX
w indicates this message includes a letter indicating a door or cover that needs to be opened.
x represents the number of jammed pages in the printer.
y represents the tray number.
z represents the bin number.
Appendix B: PJL support 75
= Supported
X = Not supported Printer model
Message Status code C950 X950, X952, X954
Intervention Required -
Paper Jam
4284x XX
Intervention Required -
Paper Jam
4284z XX
Intervention Required -
Paper Jam
4285w XX
Intervention Required -
Paper Jam
4285z XX
Intervention Required -
Paper Jam
4286w XX
Intervention Required -
Paper Jam
4286z XX
Intervention Required -
Paper Jam
4287 XX
Intervention Required -
Paper Jam
4287z XX
Intervention Required -
Paper Jam
4288 XX
Intervention Required -
Paper Jam
4288z XX
Intervention Required -
Paper Jam
4289 XX
Intervention Required -
Paper Jam
4289z
Intervention Required -
Paper Jam
4290 XX
Intervention Required -
Paper Jam
4291 XX
Intervention Required -
Paper Jam
4292 XX
Intervention Required -
Paper Jam
4293 XX
w indicates this message includes a letter indicating a door or cover that needs to be opened.
x represents the number of jammed pages in the printer.
y represents the tray number.
z represents the bin number.
Appendix B: PJL support 76
= Supported
X = Not supported Printer model
Message Status code C950 X950, X952, X954
Intervention Required -
Paper Jam
4294 XX
Intervention Required -
Paper Jam
4295 XX
w indicates this message includes a letter indicating a door or cover that needs to be opened.
x represents the number of jammed pages in the printer.
y represents the tray number.
z represents the bin number.
Service errors
= Supported
X = Not supported Printer model
Message Error code C950 X950, X952, X954
ALL SERVICE MESSAGES 50000 XX
Device attendance messages
= Supported
X = Not supported Printer model
Message C950 X950, X952, X954
RDYMSG
OPMSG
STMSG
Lexmark‑unique PJL commands
These commands are Lexmark extensions which have been added to the PJL command set to provide the user with
remote control of many printer functions.
= Supported
X = Not supported Printer model
Command C950 X950, X952, X954
LBEEP
LDOWNLOADTARGET
Appendix B: PJL support 77
= Supported
X = Not supported Printer model
Command C950 X950, X952, X954
LPORTROTATE
LPRINT testpage
•LPRINTDIRECTORY
•LPRINTTESTPAGE
•LPRINTMENUS
•LPRINTPCLFONTS
•LPRINTPSFONTS
LESCAPECHAR
LFAX PHONENUMBER X
LOPENFILE
LCLOSEFILE
LREADFILE
LWRITEFILE
LRUNFILE
LRENAMEFILE
LDELETEFILE
LFORMAT
LDEFRAG
File and device protection commands
= Supported
X = Not supported Printer model
Command C950 X950, X952, X954
LDECLARE LRESOURCE
LDELETEPASSWORD
LQUERYSEEDLBYPASSPASSWORD KEY
Appendix B: PJL support 78
Appendix C: PostScript support
Supplemental operators
= Supported
X = Not supported Printer model
Operator name C950 X950, X952, X954
appletalktype
buildtime
byteorder
checkpassword
currentfilenameextend
currentmanualduplexmode
currentuniversalsize
defaulttimeouts XX
deletefile
devcontrol
devdismount
devforall
devformat
devmount
devstatus
diskonline
diskstatus
displayoperatormsg
doidlefonts
dojamrecovery
doprinterrors
doret XX
dostartpage
Appendix C: PostScript support 79
= Supported
X = Not supported Printer model
Operator name C950 X950, X952, X954
dosysstart
duplexer
duplexmode
enginesync
file
filenameforall
fileposition
firstside
fontnonzerowinding
hardwareiomode
idlefonts
ignoresize
initializedisk
jobname
jobsource
jobtimeout XX
manualfeed
manualfeedtimeout XX
newsheet
pagecount
pagesprinted
papertray
printername
product
PS2fonts
PS3fonts
quiet
Appendix C: PostScript support 80
= Supported
X = Not supported Printer model
Operator name C950 X950, X952, X954
ramsize
realformat
renamefile
resolution
revision
sccbatch
sccinteractive
setcoverpage XX
setdefaulttimeouts
setdoidlefonts
setdojamrecovery
setdoprinterrors
setdoret XX
setdostartpage
setdosysstart
setduplexmode
setenginesync
setethernetaddress
setfilenameextend
setfileposition
sethardwareiomode
setidlefonts
setignoresize
setjobtimeout XX
setmanualduplexmode
setpapertray
setprintername
Appendix C: PostScript support 81
= Supported
X = Not supported Printer model
Operator name C950 X950, X952, X954
setquiet
setresolution
setsccbatch
setsccinteractive
setsoftwareiomode
settumble
setuniversalsize
setuserdiskpercent
softwareiomode
tumble
userdiskpercent
waittimeout XX
Page device parameters
= Supported
X = Not supported Printer model
Key C950 X950, X952, X954
BeginPage
Collate
DeferredMediaSelection
DeviceRenderingInfo
•Screening XX
‑ ColorGrade XX
‑ PictureGrade XX
‑ IET XX
‑ IETImagesOnly XX
‑ IETPictureGrade XX
‑ None XX
Appendix C: PostScript support 82
= Supported
X = Not supported Printer model
Key C950 X950, X952, X954
•TonerSaver
•PictureGrade XX
•ImageEnhancement XX
•ImageEnhancementType XX
•PrintDarkness
•AutoMediaType
•EdgeToEdge XX
•DefaultPoliciesPageSize XX
•SubstituteSize
•LineDetail
•Type
•ColorCorrection
•ColorBalance
•ColorSaver
•ImageBrightness XX
•Imageess
•ImageContrast
•ImageSaturation
•ManualColor
•PrintQuality XX
Duplex
EndPage
ExitJamRecovery
HWResolution
ImagingBBox
InputAttributes
•0 - Tray 1
Appendix C: PostScript support 83
= Supported
X = Not supported Printer model
Key C950 X950, X952, X954
•1 - Tray 2
•2 - Envelope Feeder
•3 - Tray 3
•4 - Multipurpose Feeder
•5 - Tray 4
•6 - Tray 5
‑ PageSize
‑ MatchAll
‑ MediaColor
‑ MediaType
‑ MediaWeight
‑ InputLocation
•Mode
•Priority
Install
Jog
ManualFeed
ManualFeedTimeout
MediaColor
MediaPosition
MediaType
MediaWeight
NumCopies
Nup
NupDetails
•Rows
•Columns
Appendix C: PostScript support 84
= Supported
X = Not supported Printer model
Key C950 X950, X952, X954
•Orientation
•Border
•Order
•Type
•LandscapeOverride
OutputAttributes
•0 - Standard Bin
•1 - Optional Bin 1
•2 - Optional Bin 2
•3 - Optional Bin 3
•4 - Optional Bin 4 XX
•5 - Optional Bin 5 XX
•6 - Optional Bin 6 XX
•7 - Optional Bin 7 XX
•8 - Optional Bin 8 XX
•9 - Optional Bin 9 XX
•10 - Optional Bin 10 XX
‑ OutputType XX
‑ OutputLocation XX
OutputPage
OutputType
PageDeviceName
PageSize
Policies
•PolicyNotFound
•PolicyReport
•PageSize
PostRenderingEnhance XX
Appendix C: PostScript support 85
= Supported
X = Not supported Printer model
Key C950 X950, X952, X954
PostRenderingEnhanceDetails XX
•REValue XX
•Type XX
PowerSave
ProcessColorModel XX
Punch
SlipSheet
SlipSheetDetails
•SlipSheetSource
•Type
Staple
TraySwitch
Tumble
UniversalDetails
•Type
•PageSize
•Orientation
•Prompt
User interpreter parameters
= Supported
X = Not supported Printer model
Key Default C950 X950, X952, X954
AccurateScreens false
CollatedCopies Collation - Collated Copies (QTY)
value
HalftoneMode 0
IdiomRecognition true
Appendix C: PostScript support 86
= Supported
X = Not supported Printer model
Key Default C950 X950, X952, X954
JobName ( )
JobTimeout JobTimeout system parameter
MaxDictStack 255
MaxExecStack 10015
MaxFontItem 12500
MaxFormItem 100000
MaxLocalVM 2147483647
MaxOpStack 100000
MaxPatternItem 20000
MaxScreenItem 48000
MaxSuperScreen 1024
MaxUPathItem 5000
MinFontCompress 2147483647
PageCount 0
UseOldcopypage false
VMReclaim 0
VMThreshold 25000 per MB of RAM
WaitTimeout WaitTimeout system parameter
System interpreter parameters
= Supported
X = Not supported Printer model
Key C950 X950, X952, X954
BuildTime
ByteOrder
CurDisplayList
CurFontCache
Appendix C: PostScript support 87
= Supported
X = Not supported Printer model
Key C950 X950, X952, X954
CurFormCache
CurInputDevice
CurOutlineCache
CurOutputDevice
CurPatternCache
CurScreenStorage
CurSourceList
CurUPathCache
DisableFastProcs
DoPrintErrors
DoStartPage
EnableExtraFonts
EngineBoot
EngineCode
EngineSpeed
EnvironmentSave
FactoryDefaults
FatalErrorAddress
FontResourceDir
FontVersion
GenericResourceDir
GenericResourcePathSep
InstalledRam
JobTimeout
languagelevel
MaxDisplayList
MaxDisplayAndSourceList
Appendix C: PostScript support 88
= Supported
X = Not supported Printer model
Key C950 X950, X952, X954
MaxFontCache
MaxFormCache
MaxImageBuffer
MaxOutlineCache
MaxPatternCache
MaxPermanentVM
MaxRasterMemory
MaxScreenStorage
MaxSourceList
MaxUPathCache
PageCount
PanelCode
PrinterCode
PrinterName
RamSize
RealFormat
Revision
SearchBuiltinFontsFirst
SerialNumber
StartJobPassword
StartupMode
StaticRamSize
SystemParamsPassword
UseOldcopypage
UseOldfonts
ValidNV
WaitTimeout
Appendix C: PostScript support 89
Devices supported
= Supported
X = Not supported Printer model
Device C950 X950, X952, X954
%AppSocketA%
%AppSocketB%
%AppSocketC%
%AppSocketD%
%EthernetPhysicalA%
%EthernetPhysicalB%
%EthernetPhysicalC%
%EthernetPhysicalD%
%EtherTalkA%
%EtherTalkB%
%EtherTalkC%
%EtherTalkD%
%IP_A%
%IP_B%
%IP_C%
%IP_D%
%IR_A% XX
%IR_B% XX
%IR_C% XX
%IR_D% XX
%LexLinkA% XX
%LexLinkB% XX
%LexLinkC% XX
%LexLinkD% XX
%LocalTalkA%
%LocalTalkB%
%LocalTalkC%
Appendix C: PostScript support 90
= Supported
X = Not supported Printer model
Device C950 X950, X952, X954
%LocalTalkD%
%LPR_A%
%LPR_B%
%LPR_C%
%LPR_D%
%ParallelA%
%ParallelB%
%ParallelC%
%ParallelD%
%PrintServerA%
%PrintServerB%
%PrintServerC%
%PrintServerD%
%RemotePrinterA%
%RemotePrinterB%
%RemotePrinterC%
%RemotePrinterD%
%SerialA%
%SerialB%
%SerialC%
%SerialD%
%TokenRingPhysicalA% XX
%TokenRingPhysicalB% XX
%TokenRingPhysicalC% XX
%TokenRingPhysicalD% XX
%TokenTalkA% XX
%TokenTalkB% XX
%TokenTalkC% XX
Appendix C: PostScript support 91
= Supported
X = Not supported Printer model
Device C950 X950, X952, X954
%TokenTalkD% XX
%USB_A%
%USB_B%
%USB_C%
%USB_D%
Device parameters
= Supported
X = Not supported Printer model
Key C950 X950, X952, X954
Device Parameters for the Communication Device %Parallel%,
%ParallelA%, %ParallelB%, %ParallelC%, %ParallelD%
DelayedOutputClose
Enabled
Filtering
Handshake
HasNames
Interpreter
On
OutputDevice
PCLSmartSwitch
PortLocation
PSSmartSwitch
Type
Device Parameters for the Communication Device %Serial%, %SerialA%,
%SerialB%, %SerialC%, %SerialD%
Baud
CheckParity
Appendix C: PostScript support 92
= Supported
X = Not supported Printer model
Key C950 X950, X952, X954
DataBits
DelayedOutputClose
Enabled
Filtering
FlowControl
HasNames
HonorDSR
Interpreter
On
Parity
PCLSmartSwitch
PortLocation
PSSmartSwitch
RobustXon
SerialMode
StopBits
Type
Device Parameters for the Communication Device %LocalTalk%,
%LocalTalkA%, %LocalTalkB%, %LocalTalkC%, %LocalTalkD%
DelayedOutputClose
Enabled
Filtering
HasNames
Interpreter
LocalTalkType
NodeID
On
Appendix C: PostScript support 93
= Supported
X = Not supported Printer model
Key C950 X950, X952, X954
PCLSmartSwitch
PortLocation
PSSmartSwitch
Type
Device Parameters for the Communication Device %EtherTalk%,
%EtherTalkA%, %EtherTalkB%, %EtherTalkC%, %EtherTalkD%
DelayedOutputClose
Enabled
EthernetAddress
EtherTalkType
EtherTalkZone
Filtering
HasNames
Interpreter
NodeID
On
PCLSmartSwitch
PortLocation
PSSmartSwitch
Type
Device Parameters for the Communication Device %IR%, %IR_A%,
%IR_B%, %IR_C%, %IR_D%
DelayedOutputClose XX
Enabled XX
Filtering XX
HasNames XX
Interpreter XX
On XX
PCLSmartSwitch XX
Appendix C: PostScript support 94
= Supported
X = Not supported Printer model
Key C950 X950, X952, X954
PortLocation XX
PSSmartSwitch XX
Type XX
Device Parameters for the Communication Device %USB%, %USB_A%,
%USB_B%, %USB_C%, %USB_D%
DelayedOutputClose
Enabled
Filtering
HasNames
Interpreter
On
PCLSmartSwitch
PortLocation
PSSmartSwitch
Type
Device Parameters for the Communication Device %TokenTalk%,
%TokenTalkA%, %TokenTalkB%, %TokenTalkC%, %TokenTalkD%
Address XX
Bridging XX
DelayedOutputClose XX
Enabled XX
Filtering XX
HasNames XX
Interpreter XX
NodeID XX
On XX
PCLSmartSwitch XX
PortLocation XX
PSSmartSwitch XX
TokenTalkType XX
Type XX
Appendix C: PostScript support 95
= Supported
X = Not supported Printer model
Key C950 X950, X952, X954
Zone XX
Device Parameters for the Communication Device %AppSocket%,
%AppSocketA%, %AppSocketB%, %AppSocketC%, %AppSocketD%
DelayedOutputClose
Enabled
Filtering
HasNames
Interpreter
On
PortLocation
Type
Device Parameters for the Communication Device %RemotePrinter%,
%RemotePrinterA%, %RemotePrinterB%, %RemotePrinterC%,
%RemotePrinterD%
DelayedOutputClose
Enabled
Filtering
HasNames
Interpreter
On
PortLocation
Type
Device Parameters for the Communication Device %PrintServer%,
PrintServerA%, PrintServerB%, %PrintServerC%, %PrintServerD%
DelayedOutputClose
Enabled
Filtering
HasNames
Interpreter
Appendix C: PostScript support 96
= Supported
X = Not supported Printer model
Key C950 X950, X952, X954
On
PortLocation
Type
Device Parameters for the Communication Device %LPR%, %LPR_A%,
%LPR_B%, %LPR_C%, %LPR_D%
Enabled
Filtering
HasNames
Interpreter
On
PortLocation
Type
Device Parameters for the Communication Device %LexLink%,
%LexLinkA%, %LexLinkB%, %LexLinkC%, %LexLinkD%
DelayedOutputClose XX
Enabled XX
HasNames XX
Interpreter XX
On XX
PortLocation XX
Type XX
Device Parameters for the Communication Device %IP%, %IP_A%,
%IP_B%, %IP_C%, %IP_D%
GatewayAddress
IPAddress
IPAddressDynamic
NetworkMask
On
Physical
PortLocation
Appendix C: PostScript support 97
= Supported
X = Not supported Printer model
Key C950 X950, X952, X954
Type
Device Parameters for the Communication Device %EthernetPhysical%,
%EthernetPhysicalA%, %EthernetPhysicalB%, %EthernetPhysicalC%,
%EthernetPhysicalD%
EthernetAddress
On
PortLocation
Type
Device Parameters for the Communication Device
%TokenRingPhysical%, %TokenRingPhysicalA%,
%TokenRingPhysicalB%, %TokenRingPhysicalC%,
%TokenRingPhysicalD%
Address XX
On XX
PortLocation XX
Speed XX
Type XX
Device Parameters for the Parameters Device %Engine%
BSizeStandard
Darkness
PageCount
TimeToStandby
Type
Device Parameters for the Parameters Device %Console%
Language
Type
Device Parameters for the Parameters Device %Calendar%,
%CalendarA%, %CalendarB%, %CalendarC%, %CalendarD%
Day
Hour
Minute
Appendix C: PostScript support 98
= Supported
X = Not supported Printer model
Key C950 X950, X952, X954
Month
Running
Second
Type
Year
DateTime
DayOfWeekLong
DayOfWeekNum
DayOfWeekShort
Device Parameters for the Parameters Device %disk1%
BlockSize
Free
HasNames
InitializeAction
LogicalSize
Mounted
PhysicalSize
Removable
Searchable
SearchOrder
Type
Writeable
Device Parameters for the Parameters Device %flash1%
BlockSize
Free
HasNames
InitializeAction
Appendix C: PostScript support 99
= Supported
X = Not supported Printer model
Key C950 X950, X952, X954
LogicalSize
Mounted
PhysicalSize
Removable
Searchable
SearchOrder
Type
Writeable
Device Parameters for the Parameters Device %rom%
BlockSize
Free
HasNames
InitializeAction
LogicalSize
Mounted
PhysicalSize
Removable
Searchable
SearchOrder
Type
Writeable
Appendix C: PostScript support 100
PostScript message keys commands
= Supported
X = Not supported Printer model
Key C950 X950, X952, X954
job
status
source
Appendix C: PostScript support 101
Index
A
air temperature ranges 21
airflow requirement 18
altitude specifications 22
atmospheric pressure 22
C
clearance requirements 20
commands
PJL, file and device protection 78
PJL, Lexmark‑unique 77
PostScript, message keys 101
commands supported
GL/2 28
PJL, common variables for both
languages 32
PJL, Status Readback 45
PJL, unique variables for both
languages 34
PJL, unique variables for
LRESOURCE 45
PJL, unique variables for PCL
emulation 44
PJL, unique variables for PostScript
emulation 45
PJL, USTATUS variables 46
commands, supported
PCL emulation 23
PJL, common variables for PCL
emulation 43
PJL, common variables for
PostScript emulation 45
D
devices supported
PostScript 90
dimensions, printer 20
E
electrical specifications 19
envelope sizes
support in PostScript 15
envelope sizes supported
Lexmark C950 10
Lexmark X95x 10
envelope tray support
PostScript operators 16
environmental conditions 21
errors
PJL, service 77
F
finding more information about the
printer 7
G
GL/2
commands supported 28
H
humidity ranges 21
L
letter meanings 5
logical page
PCL emulation 9
M
meanings, letters after model
number 5
messages
PJL, attendance conditions 52
PJL, auto-continuable
conditions 46
PJL, device attendance 77
PJL, paper handling 67
PJL, paper jams 71
model numbers
understanding letters 5
N
noise emission levels 18
O
operators, envelope sizes
PostScript 15
P
page, printable
PCL emulation 9
paper sizes supported
Lexmark C950 10
Lexmark X95x 10
paper sizes, PostScript
supported by printer 13
paper tray
operators, PostScript 14, 15
support in PostScript 14
parameters
PostScript, device 92
PostScript, page device 82
PostScript, system interpreter 87
PostScript, user interpreter 86
PCL emulation
supported commands 23
PCL emulation, paper and envelope
dimensions
Lexmark C950 10
Lexmark X95x 10
physical page
PCL emulation 9
physical specifications 20
PJL commands
common variables, both
languages 32
common variables, PCL
emulation 43
common variables, PostScript
emulation 45
file and device protection 78
Lexmark‑unique 77
Status Readback 45
unique variables, both
languages 34
unique variables, LRESOURCE 45
unique variables, PCL
emulation 44
unique variables, PostScript
emulation 45
USTATUS variables 46
PJL commands, information
location
Printer Languages and Interfaces
Technical Reference 12
PJL errors
service errors 77
PJL messages
attendance conditions 52
auto-continuable conditions 46
device attendance 77
paper handling 67
Index 102
paper jams 71
PostScript
device parameters 92
devices supported 90
operators, envelope sizes 15
page device parameters 82
supplemental operators 79
supported paper sizes 13
tray operators 14
PostScript commands
message keys 101
PostScript operators
envelope tray support 16
PostScript parameters
system interpreter 87
user interpreter 86
power requirements 19
printable areas 9
printer dimensions 20
printer information
where to find 7
printer specifications
airflow requirement 18
altitude 22
atmospheric pressure 22
clearance requirements 20
electrical 19
environmental conditions 21
noise emission levels 18
power requirements 19
publications
where to find 7
R
required clearance 20
S
size, printer 20
supplemental operators
PostScript 79
T
tray operators
PostScript 14
W
weight, printer 20
Index 103

Navigation menu
