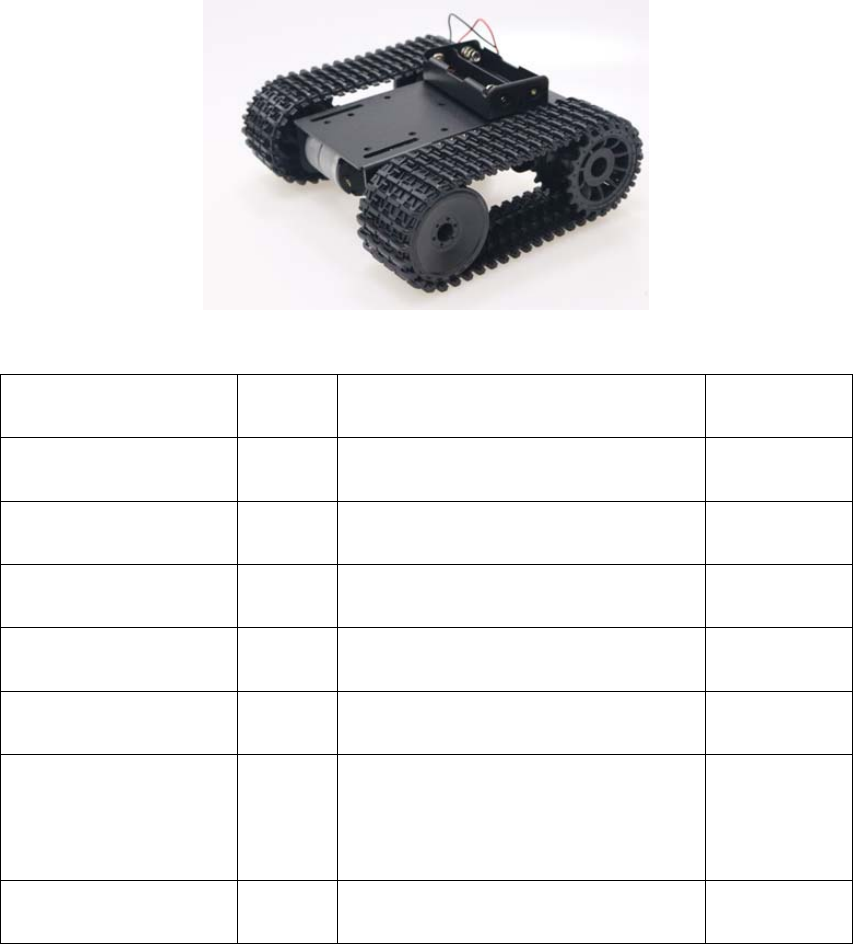

TP101 Installation Manual

PackageIncluded：

NameQTYNameQTY

Chassis1M4*50hexagonscrews2

Motor2M3*8hexagonscrews2

Track2M3*8flatheadscrews8

Bearingwheel2M4nut4

Drivingwheel2gasket4

18650battery

box

1Topsilk2

Connector2 

Installation Steps:

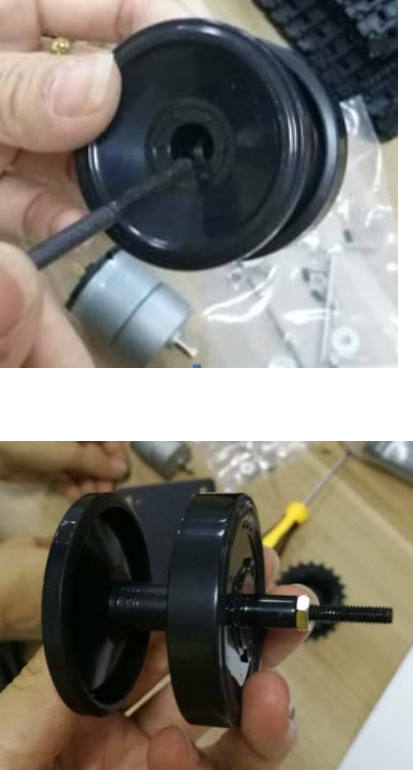

1. Install the bearing wheel（Install the M4*50 screws into the wheel），

Lock with M4 nut in another part

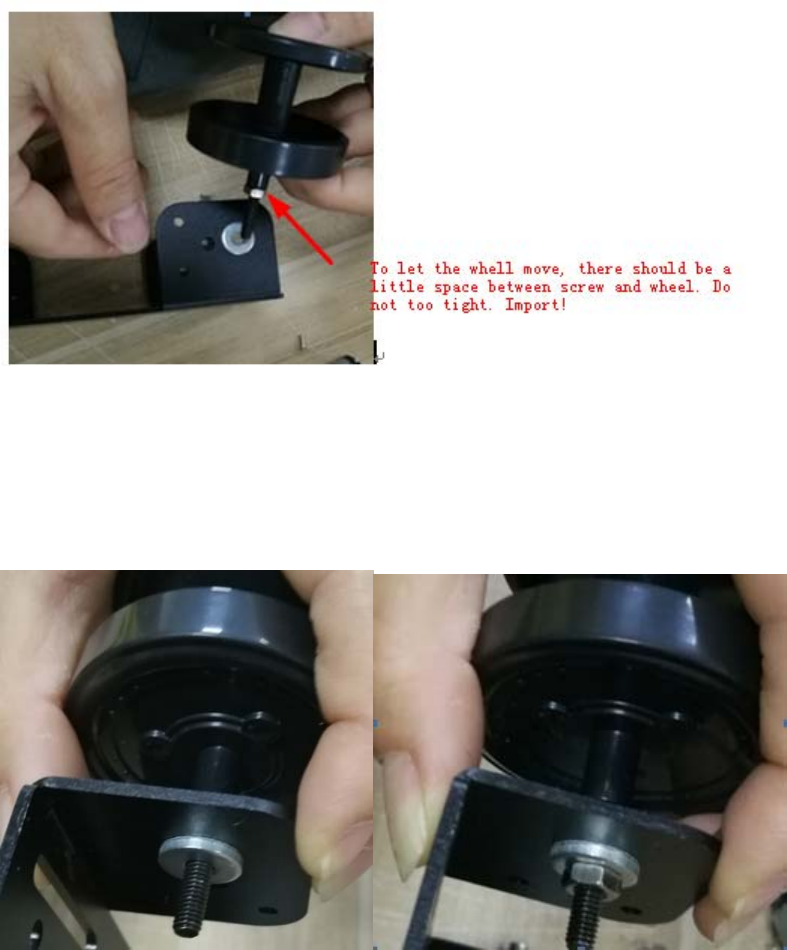

2.Put the gasket on the hole of the chassis，install the bearing wheel into

the chassis.

Install the gasket in another part, lock with M4 nut, Pls note that Do not

tighten too much the bearing wheel.

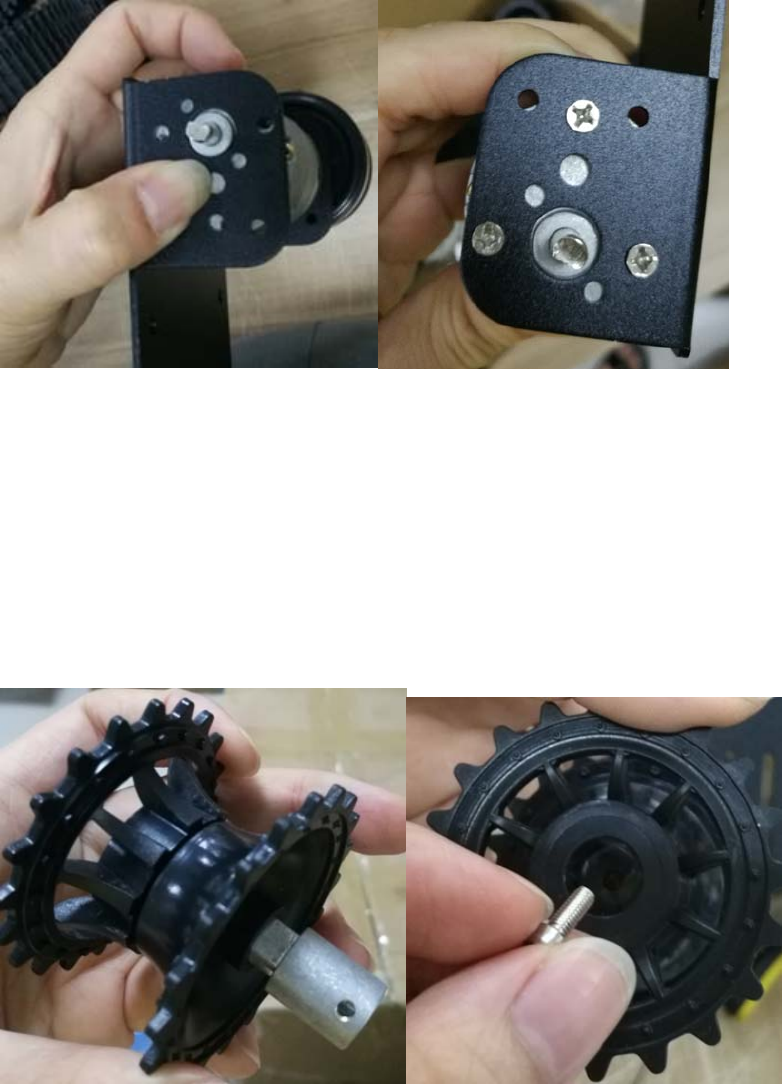

3.Install the motor into the chassis，lock it with 3pcs M3*6mm flat haed

screws.

4.Install the driving wheel：Firstly install the connector into the driving

wheel，use the wrench to install the M3*8 hexagon screws into driving

wheel to lock with the connector.

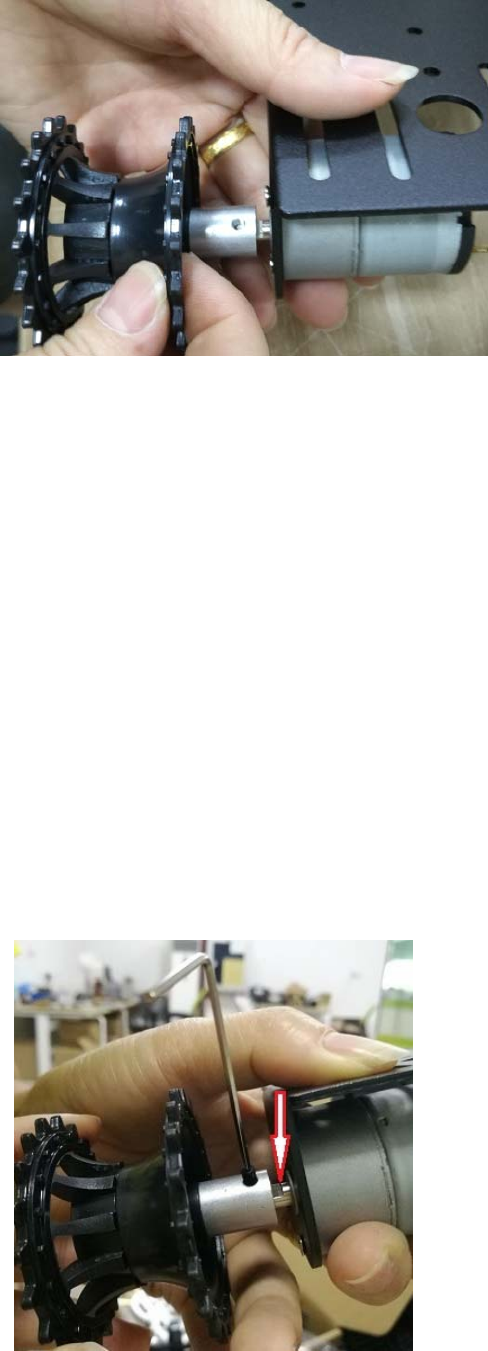

5. Install the driving wheel into the motor, lock it with top silk.

Note：The hole in the connector must be aligned with the flat end of the

motor shaft, and the connector is stuck at the position of the arrow as the

below picture showed.

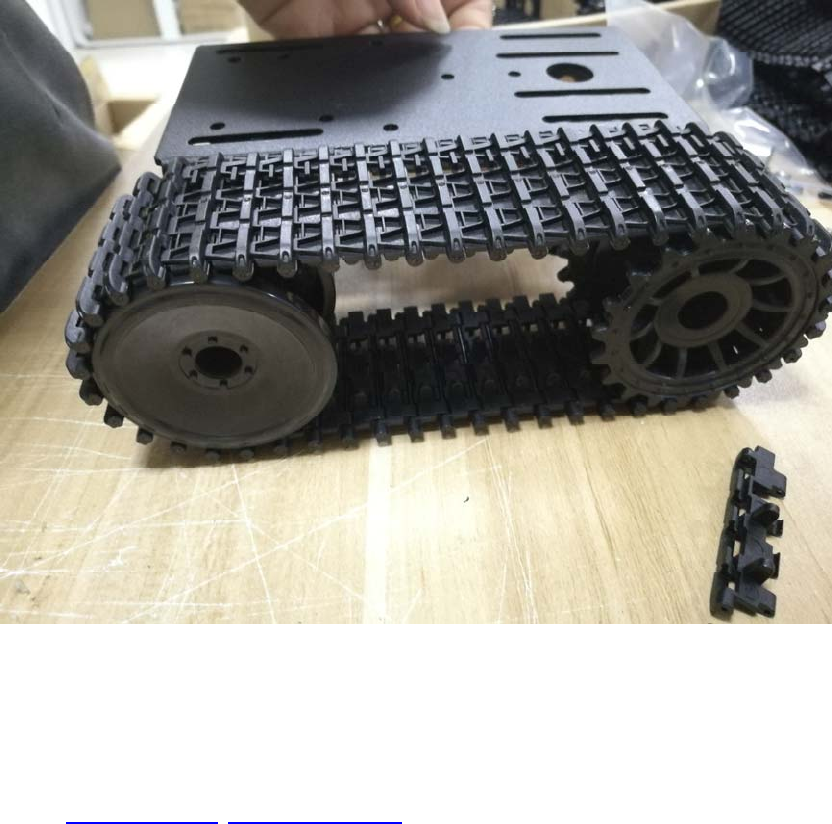

5. Remove the track first and remove the excess parts

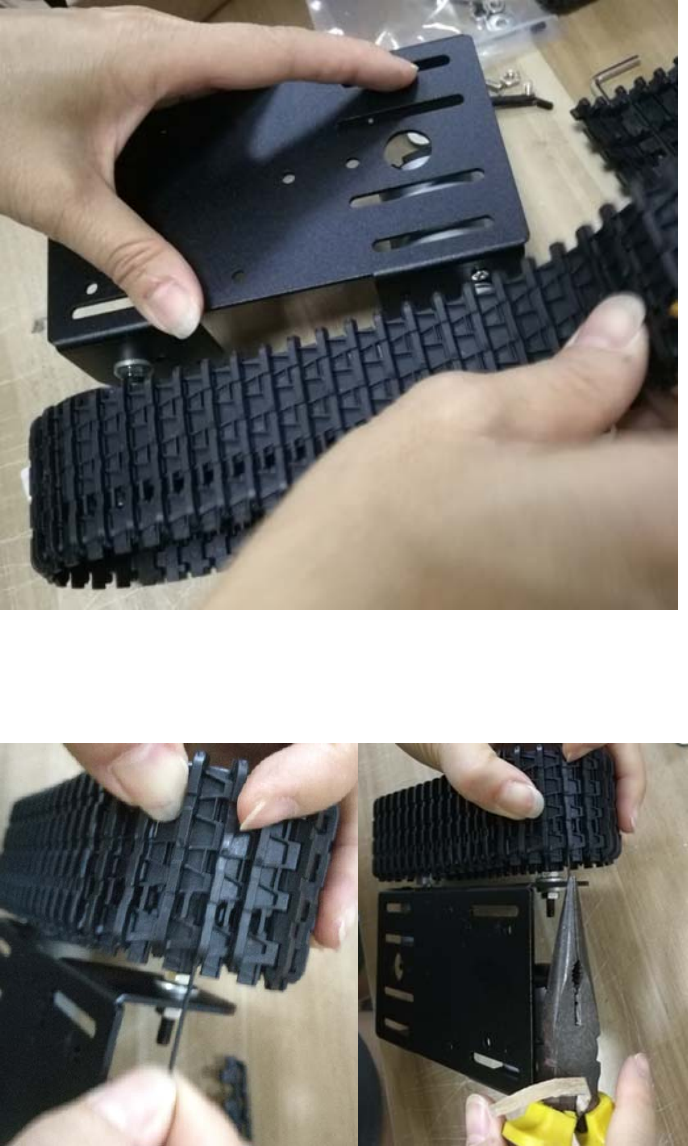

Measuring the required track length

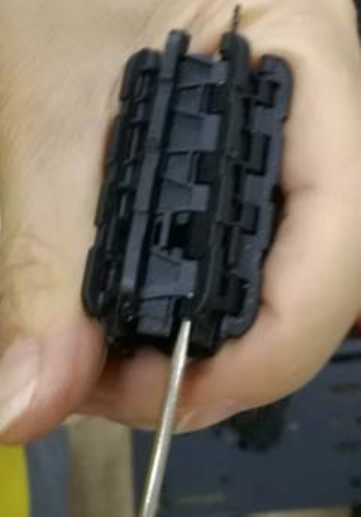

Load the track pin into the track with the aid of a tool

Finish, you can install the other half as the same way.
