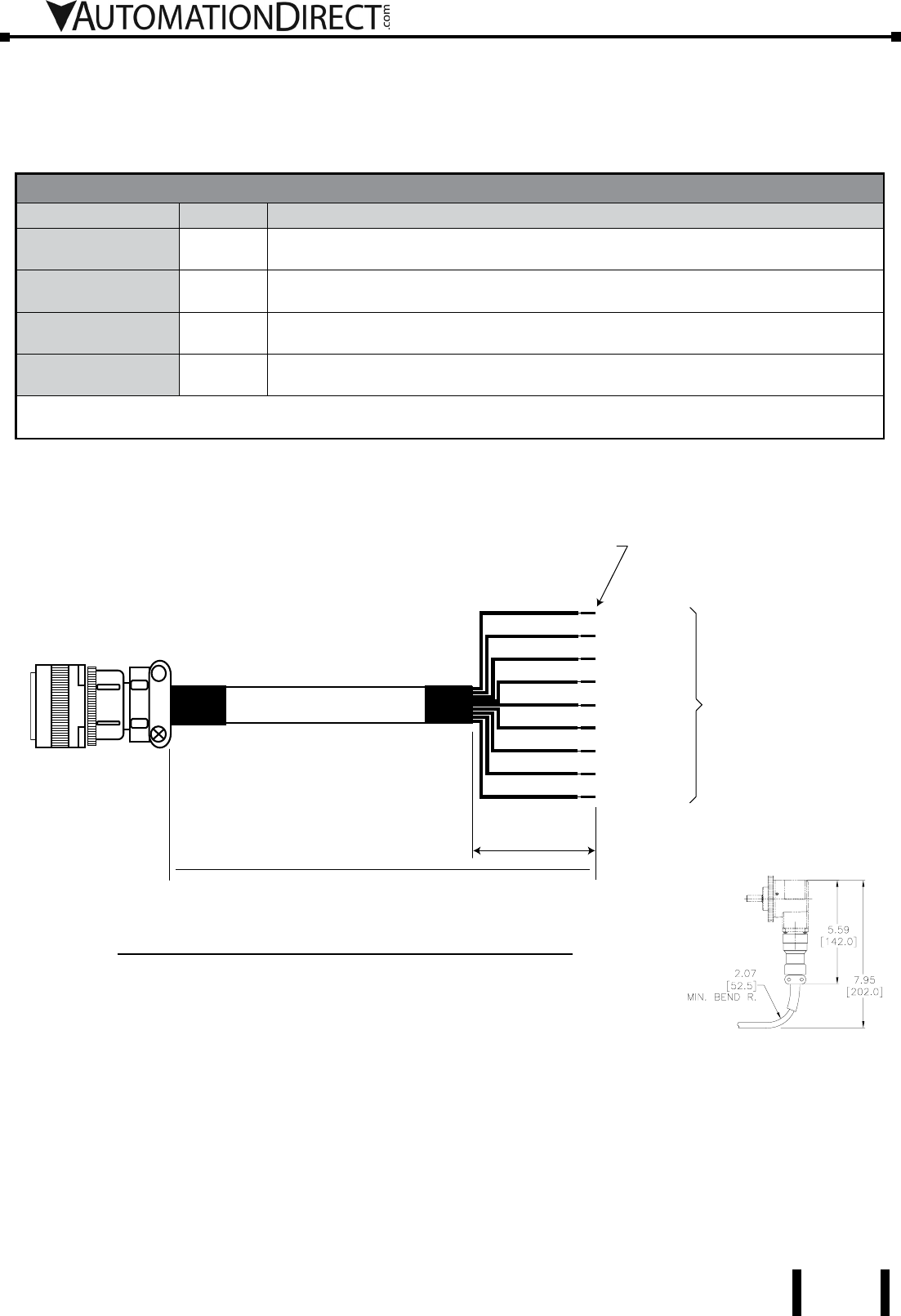

TRDA-25 Cables & Connectors
TRDA-25_cable_DS QS1
1st Ed, Rev C 11/2017
TRDA SeRieS encoDeR connecTion cAbleS & connecToRS
Cable Part Numbers for use with Line-Driver (Differential) Encoders
TRDA-25CBL-VWD-xx Cables for use with TRDA-25RNxxx-VWD-MS Line-Driver (Differential) Encoders
and with Marathon Black Max Motors with Dynapar HS35 Encoders
Additional Cable Information Follows on Page QS–2.
* Grounding is accomplished with the tinned copper braid and the 24AWG yellow/green drain wire.
(The yellow/green drain wire is internally connected to the tinned copper braid.)
Connector: APEX # WPS 3106A 18-1S
Cable clamp: APEX # WPS 3057-10A
3.1m (10 ft) – TRDA-25CBL-VWD-10
6.1m (20 ft) – TRDA-25CBL-VWD-20
9.1m (30 ft) – TRDA-25CBL-VWD-30
TRDA-25CBL-VWD-xx
Cable: UL2464 SB24AWG-4P
100 mm (3.94 in)
Pin:
A
B
C
D
F
G*
H
I
J
E
Stripped back 7mm (0.28 in) and tinned
Wire Color:
black
red
yellow
purple
blue
yellow/green*
brown
Orange
green
n/c
Signal:
OutA+
OutB+
OutZ+
Power
0V
Ground
OutA–
OutB–
OutZ–
Connections for
TRDA-25RNxxx-VWD-MS
Line Driver Encoders
and for Marathon
Black Max Motors
Dynapar HS35 Encoders
Cable Bend Radius:
(with TRDA-25RNxxx-VWD-MS)
( in [mm] )
Connector Cables with Military-style Connectors – for use with Line-driver (Differential) Encoders
Cable Part Numbers Length Description
TRDA-25CBL-VWD-10 10 ft [3.1m] Connection cable for TRDA-25N* series encoders with line driver (differential) output;
10-pin Military Style (MS) connector to flying leads; 10 feet
TRDA-25CBL-VWD-20 20 ft [6.1m] Connection cable for TRDA-25N* series encoders with line driver (differential) output;
10-pin Military Style (MS) connector to flying leads; 20 feet
TRDA-25CBL-VWD-30 30 ft [9.1m] Connection cable for TRDA-25N* series encoders with line driver (differential) output;
10-pin Military Style (MS) connector to flying leads; 30 feet
TRDA-25CON-VWD –Military Style (MS) mating connector for TRDA-25N series encoders with line driver (differential)
output; 10-pin; solder connections
* TRDA-25CBL-VWD-xx cables and TRDA-25CON-VWD connectors can also be used with Marathon Black Max motors with Dynapar HS35 encoders
(available from AutomationDirect).

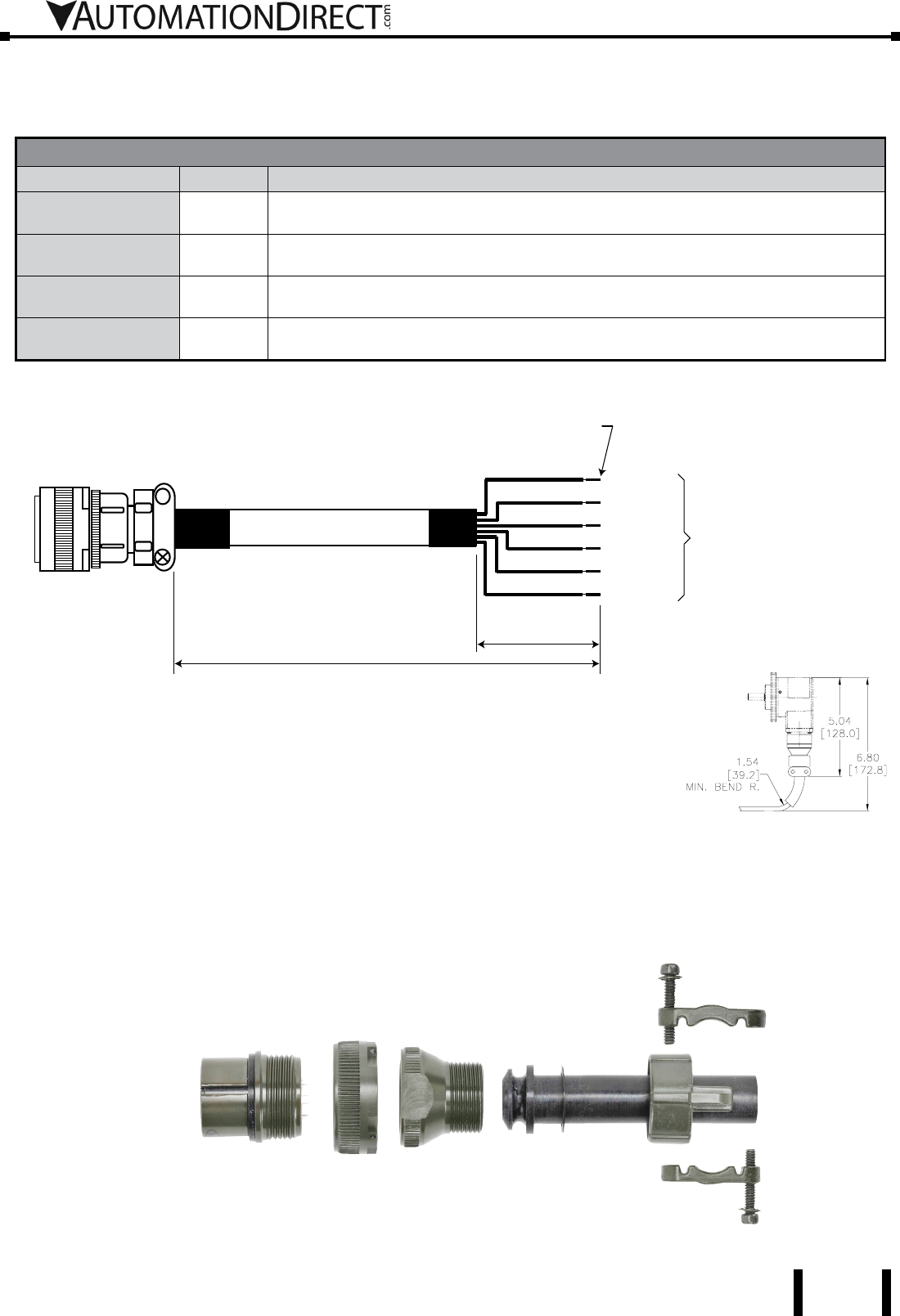

TRDA-25 Cables & Connectors
TRDA-25_cable_DS QS2
1st Ed, Rev C 11/2017
TRDA SeRieS encoDeR connecTion cAbleS & connecToRS
Cable Part Numbers for use with Push-Pull (Totem Pole) Encoders
TRDA-25CBL-RZWD-xx Cable for use with TRDA-25RNxxx-RZWD-MS Push-Pull (Totem Pole) Encoders
TRDA-25CON-RZWD & TRDA-25CON-VWD Military-style Connectors
(for use with both TRDA-25RNxxx-RZWD-MS and TRDA-25RNxxx-VWD-MS Encoders)
* Grounding is accomplished with the tinned copper braid and the 24AWG yellow/green drain wire.
(The yellow/green drain wire is internally connected to the tinned copper braid.)
Connector: APEX # WPS 3106A 16S-1S
Cable clamp: APEX # WPS 3057-8A
3.1m (10 ft) – TRDA-25CBL-RZWD-10
6.1m (20 ft) – TRDA-25CBL-RZWD-20
9.1m (30 ft) – TRDA-25CBL-RZWD-30
TRDA-25CBL-RZWD-xx
Cable: UL2464 SB24AWG-5C
100 mm (3.94 in)
A - white
B - green
C - yellow
D - red
F - black
G*-yellow/green*
E - n/c
Pin: Wire Color: Signal:
Stripped back 7mm (0.28 in) and tinned
OutA
OutB
OutZ
Power
0V
Ground
Connections for
TRDA-25RNxxx-RZWD-MS
Totem Pole Encoders
Cable Bend Radius:
(with TRDA-25RNxxx-RZWD-MS)
( in [mm] )
TRDA-25CON-RZWD and TRDA-25CON-VWD
differ by number of connection pins.
TRDA-25CON-RZWD has 7 pins; TRDA-25CON-VWD has 10 pins
Connector Cables with Military-style Connectors – for use with Push-pull (Totem Pole) Encoders
Cable Part Numbers Length Description
TRDA-25CBL-RZWD-10 10 ft [3.1m] Connection cable for TRDA-25N series encoders with push-pull (totem pole) output;
7-pin Military Style (MS) connector to flying leads; 10 feet
TRDA-25CBL-RZWD-20 20 ft [6.1m] Connection cable for TRDA-25N series encoders with push-pull (totem pole) output;
7-pin Military Style (MS) connector to flying leads; 20 feet
TRDA-25CBL-RZWD-30 30 ft [9.1m] Connection cable for TRDA-25N series encoders with push-pull (totem pole) output;
7-pin Military Style (MS) connector to flying leads; 30 feet
TRDA-25CON-RZWD –Military Style (MS) mating connector for TRDA-25N series encoders with push-pull (totem pole)
output; 7-pin; solder connections
