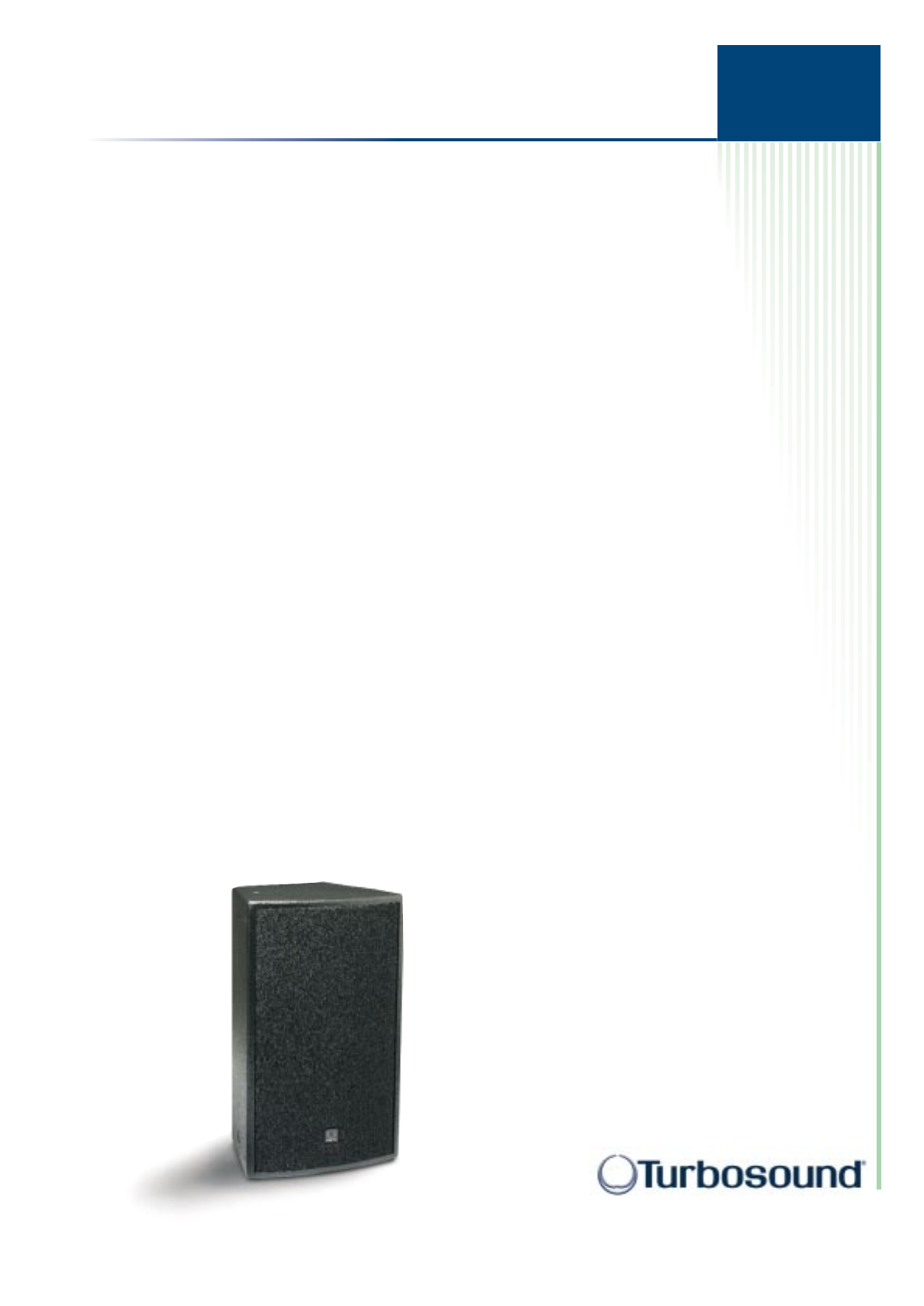

QLIGHT™ SERIES ENGINEERING INFORMATION
datasheet
TQ-310DP
FEATURES
Self-powered
96kHz DSP technology
CEW™ technology
Trapezoidal cabinet
Rotatable HF waveguide
High power handling
M10 rigging points
Pole mount socket
APPLICATIONS
Front of house
Dry hire and rental
Theatre
Audio-visual
Houses of Worship
Corporate / industrial
PRELIMINARY
INFORMATION
The TQ-310DP is a self-powered full range two-way
loudspeaker enclosure incorporating integral
amplifiers and control electronics. The use of DSP
amplifier technology ensures an exact match
between amplifier and speaker for optimum
acoustic output, and offers exceptional ease of use
by having the entire electro-acoustic system in one
convenient, easily transportable physical package.
It is designed for use in mobile speech and music
sound reinforcement applications as well as in a
wide variety of fixed installations.
The TQ-310DP features a new generation of
innovative digital power amplifier modules,
utilising revolutionary 96kHz DSP technology
to give operating efficiency in excess of 90%.
The loudspeaker complement consists of a
front loaded 10” low-mid frequency driver
and a 1” high frequency compression driver
on a rotatable 100°H x 60°V HF waveguide.
The TQ-310DP features Turbosound’s
Converging Elliptical Waveguide™ (CEW™)
technology. The comparatively short flare
allows physical alignment of the HF and LF
devices, and ensures that the wavefront is
shaped smoothly, eliminating reflections in
the throat area while giving excellent pattern
control. Additionally this design does not
suffer from the distortion typical of horns
employing diffraction edges. The waveguide
can be rotated within the enclosure, making it
possible to swap the horizontal and vertical
coverage patterns.
The rear panel carries a fully integrated Class
D amplifier and control electronics module,
which is field removable for servicing.
Providing two independent amplifier channels
each capable of delivering 800 watts rms into
8Ω, this module also incorporates high
performance limiters set to optimise the
continuous power and excursion threshold for
the specific loudspeaker model. A Speakon™
Powercon connector provides mains input to
the unit – the switch mode power supply is
auto-sensing over a range from 100 volts to
250 volts – and 3-pin XLR’s are used for input
and parallel link signal connections.
The cabinet includes a pole mount socket for
use with 35mm poles and speaker stands.
M10 rigging points are provided on the top,
bottom and sides for use with M10 shoulder
eyebolts. It is also compatible with optional
Turbosound pole brackets.
The cabinet is constructed from 12mm (1/2”)
birch plywood, screwed and glued together
for maximum strength and rigidity, and
includes a reticulated foam and steel mesh
grille. It is finished in durable semi-matt black
textured paint; TurboBlue™ textured paint is
optionally available.
QLIGHT™ SERIES ENGINEERING INFORMATION
datasheet
TQ-310DP
page 2
PRELIMINARY
INFORMATION
525mm x 315mm x 300mm (20.7” x 12.4” x 11.8”)
25kg (55 lbs)
1 x 10” (254mm) LF driver, 1 x 1” (25mm) HF driver on a Converging Elliptical Waveguide™
65Hz - 20kHz ±4dB
100˚H x 60˚V@-6db points. Rotatable waveguide allows swap of horizontal and vertical pattern
124dB continuous4, 130dB peak5
12mm (1/2”) birch plywood; rebated, screwed and glued. Finished in black semi-matt textured
paint. One recessed carrying handle. Integral pole mount socket
Powder coated perforated steel with acoustically transparent reticulated foam
Input: (1) XLR female, Link: (1) XLR male, wired pin 2 hot; Neutrik Powercon; RS232 data port
TYPE: Class D
POWER OUTPUT: HF: 800 watts continuous @ 8Ω(1kHz, 0.5% THD)
LF: 800 watts continuous @ 8Ω(1kHz, 0.5% THD)
DYNAMIC RANGE: 110dB
INPUT IMPEDANCE: 10kΩ
BANDWIDTH: 20Hz - 20kHz ±0.5dB
POWER REQUIREMENTS: 100V to 240V AC @50/60Hz
M10 internal rigging points for M10 shoulder eyebolts
Optional colour: TurboBlue™ textured paint
LS-1018 10” (254mm) LF loudspeaker
RC-1018 Recone kit for LS-1018
CD-110 1” (25mm) HF compression driver
RD-110 Replacement diaphragm for CD-110
MG-310 Replacement grille
SB-310 Swivel bracket
PB-55 Wall bracket, pole mount fixing
FH-310 Flying frame
DPM-001 Replacement power amplifier module
Notes
1Measured on axis
2Average over stated bandwidth
3Average over stated bandwidth
4Unweighted diode-clipped pink noise. Measured in a half space environment
5Verified by subjective listening tests of familiar program material, before the onset of perceived signal degradation
DIMENSIONS (HxWxD)
NET WEIGHT
COMPONENTS
FREQUENCY RESPONSE1
NOMINAL DISPERSION2
MAXIMUM SPL
CONSTRUCTION
GRILLE
CONNECTORS
AMPLIFIER
FLYING HARDWARE
OPTIONS
SPARES AND
ACCESSORIES
page 3

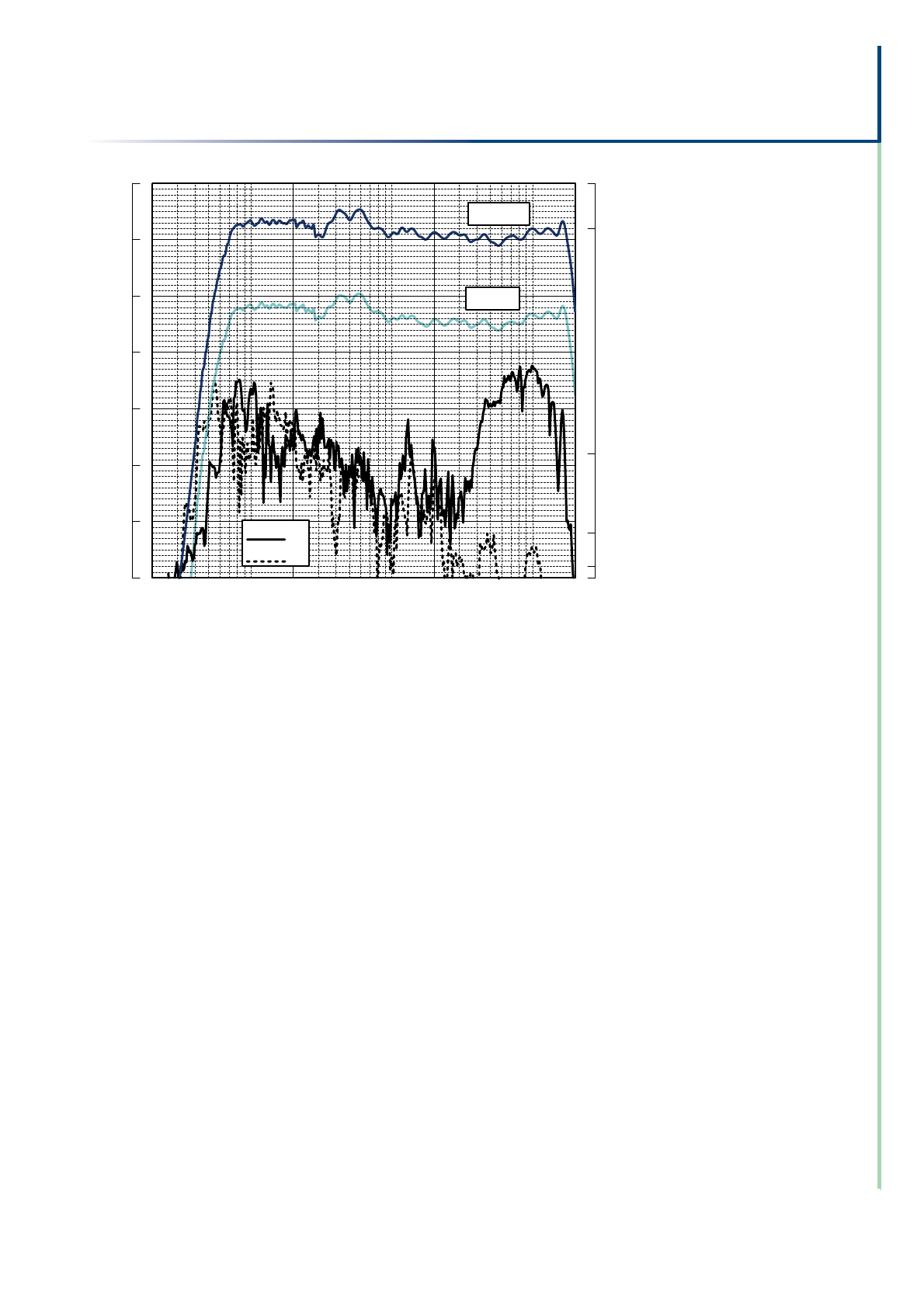

FREQUENCY
RESPONSE
NOTES ON
MEASUREMENT
CONDITIONS
QLIGHT™ SERIES ENGINEERING INFORMATION
Impedance A constant current circuit was used to measure the impedance. Frequency response The frequency response
shown was obtained by feeding a swept sine wave through the system in a full space environment. The position of the
microphone was vertically on-axis at a distance of 2 metres, then scaled to represent 1 metre. 2nd & 3rd Harmonic Distortion
Distortion measurements were obtained using an Audio Precision harmonic distortion analysis system and comply with
AES recommendations for enclosure measurement (AES paper ANSI S4-26-1984). Data Conversion All graphs were digitally
generated using the APEX custom software system, designed to translate data derived from Audio Precision ‘System
One’ test equipment into AutoCAD™. This program enables graphical information to be plotted to a high degree of
accuracy.
datasheet
TQ-310DP
PRELIMINARY
INFORMATION

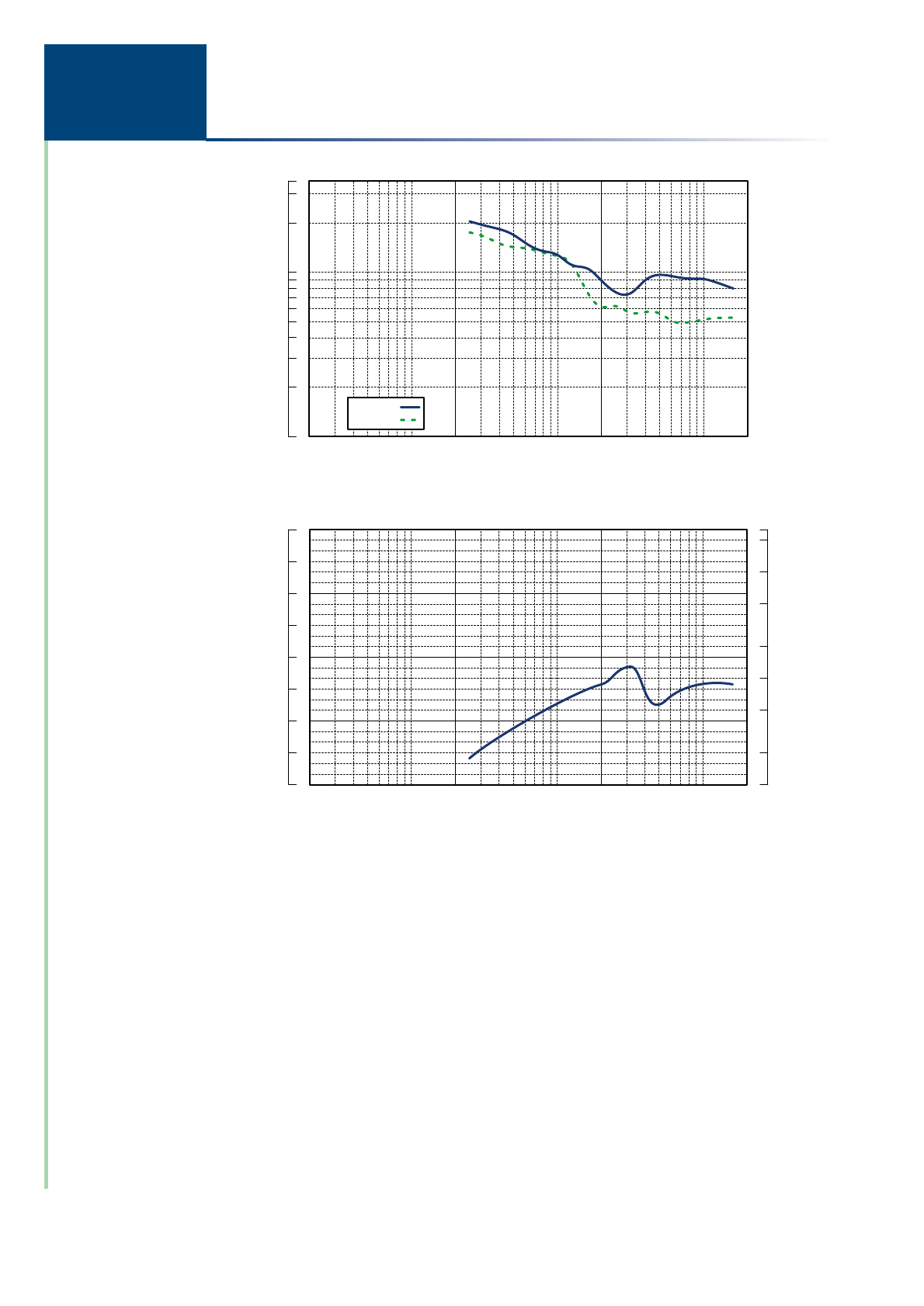

100 1 kHz 10 20
Frequency
50 200 500 2 5
20 Hz
0.1%
0.2%
1.0%
Ref.
10% Power
Fundamental
1W/1M
Sensitivity
3rd Harmonic
10% Power
2nd Harmonic
10% Power
120
110
100
90
80
70
60
50
Sound Pressure Level in dB
Distortion %
page 4
datasheet
TQ-310DP QLIGHT™ SERIES ENGINEERING INFORMATION
PRELIMINARY
INFORMATION

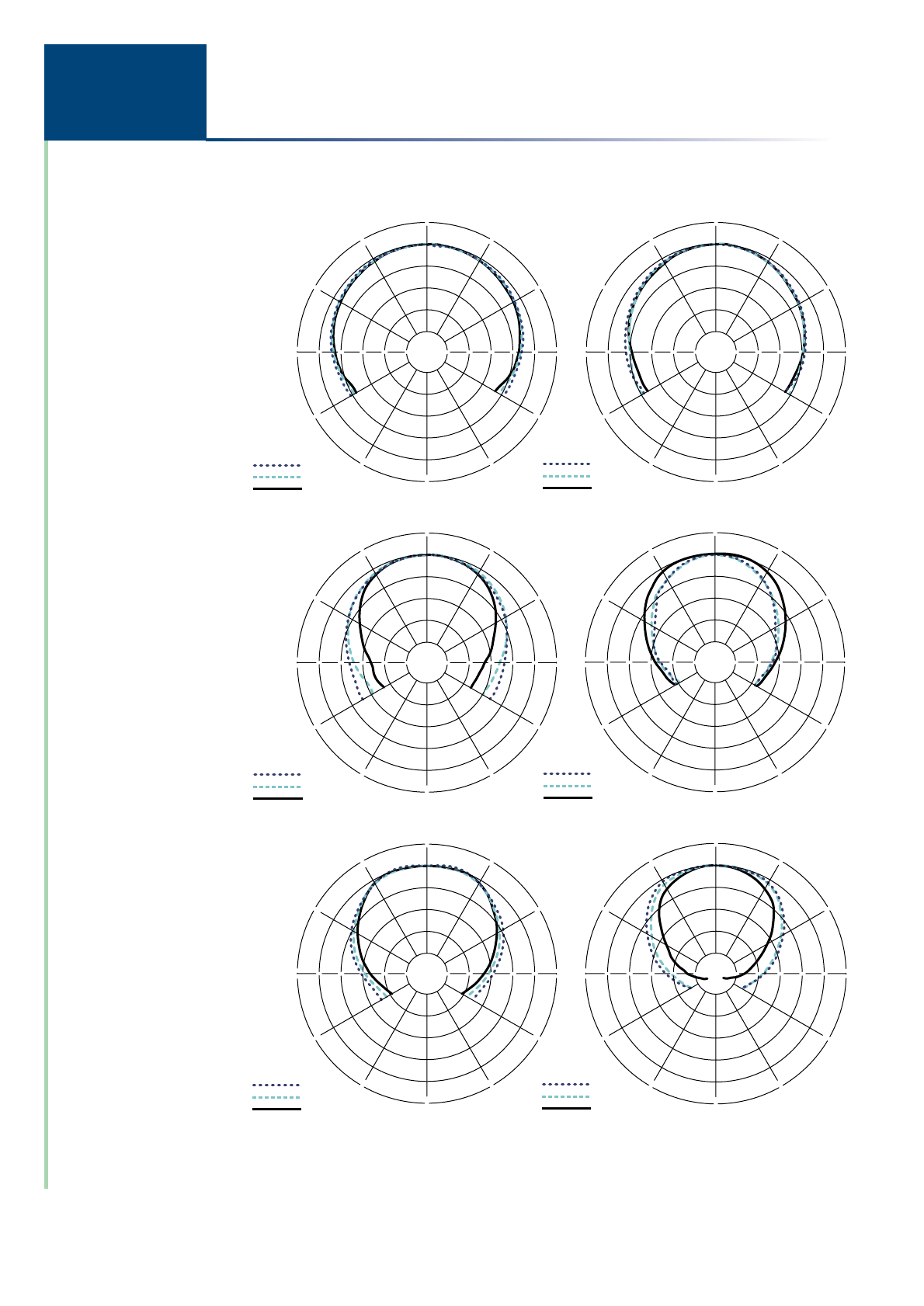

HORIZONTAL THIRD
OCTAVE POLARS
0°
330°
300°
270°
240°
210°
180°
150°
120°
90°
60°
30°
10
10
010203040
40
3020100
0°
330°
300°
270°
240°
210°
180°
150°
120°
90°
60°
30°
10
10
010203040
40
3020100
0°
330°
300°
270°
240°
210°
180°
150°
120°
90°
60°
30°
10
10
010203040
40
3020100
0°
330°
300°
270°
240°
210°
180°
150°
120°
90°
60°
30°
10
10
010203040
40
3020100
0°
330°
300°
270°
240°
210°
180°
150°
120°
90°
60°
30°
10
10
010203040
40
3020100
315 Hz
400 Hz
500 Hz
1.25 kHz
1.6 kHz
2 kHz
5 kHz
6.3 kHz
8 kHz
630 Hz
800 Hz
1 kHz
2.5 kHz
3.15 kHz
4 kHz
10 kHz
12.5 kHz
16 kHz
0°
330°
300°
270°
240°
210°
180°
150°
120°
90°
60°
30°
10
10
010203040
40
3020100
page 5

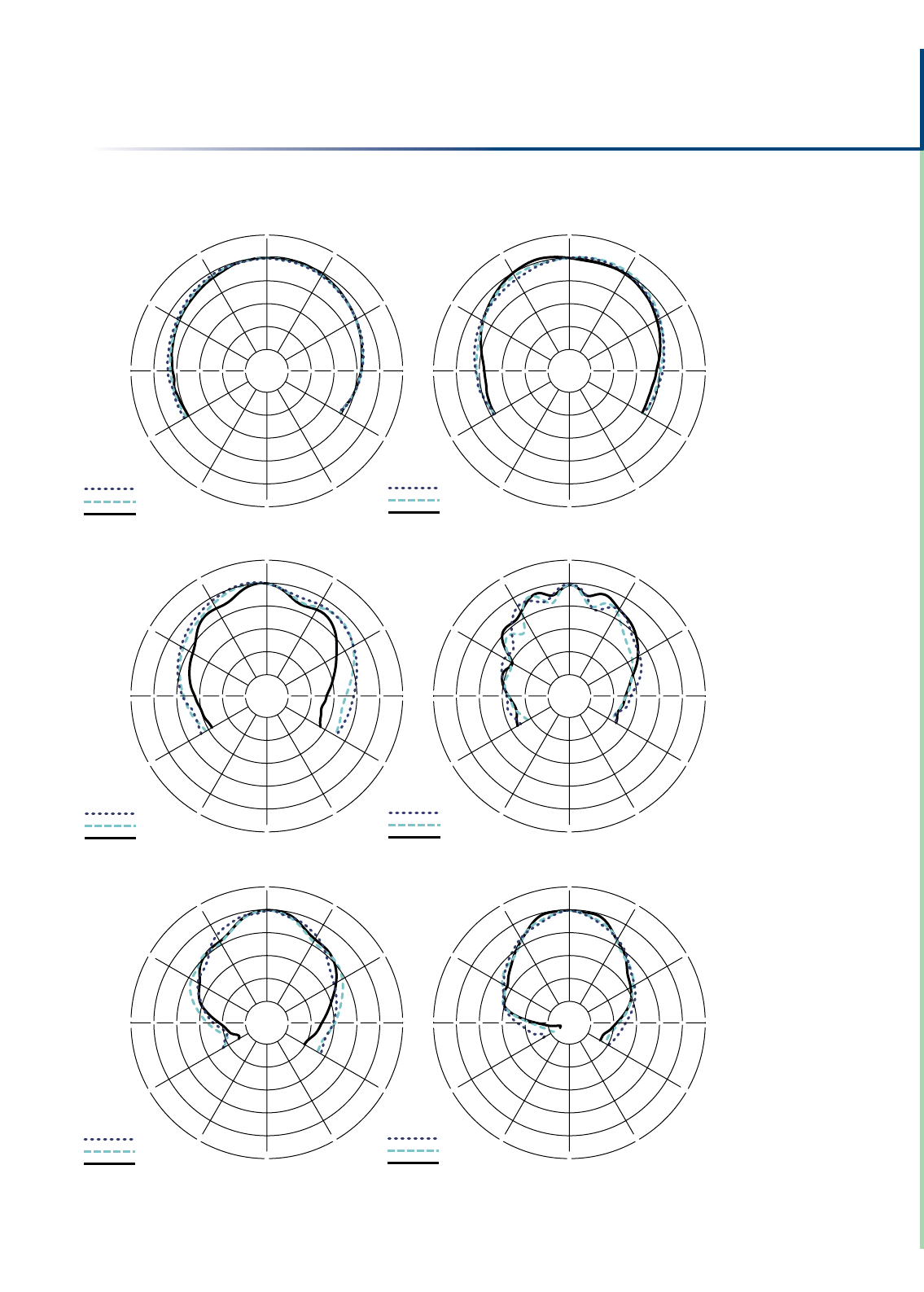

VERTICAL THIRD
OCTAVE POLARS
QLIGHT™ SERIES ENGINEERING INFORMATION
datasheet
TQ-310DP
PRELIMINARY
INFORMATION
315 Hz
400 Hz
500 Hz
1.25 kHz
1.6 kHz
2 kHz
5 kHz
6.3 kHz
8 kHz
630 Hz
800 Hz
1 kHz
2.5 kHz
3.15 kHz
4 kHz
10 kHz
12.5 kHz
16 kHz
10
0°
330°
300°
270°
240°
210°
180°
150°
120°
90°
60°
30°
10 010203040
40
3020100
0°
330°
300°
270°°
240°
210°
180°
150°
120°
90°
60°
30°
10
10
010203040
40
3020100
0°
330°
300°°
270°
240°
210°
180°
150°
120°
90°
60°
30°
10
10
010203040
40
3020100
0°
330°
300°
270°
240°
210°
180°
150°
120°
90°
60°
30°
10
10
010203040
40
3020100
0°
330°
300°
270°
240°
210°
180°
150°
120°
90°
60°
30°
10
10
010203040
40
3020100
0°
330°
300°
270°
240°
210°
180°
150°
120°
90°
60°
30°
10
10
010203040
40
3020100
page 6
BEAMWIDTH
DIRECTIVITY
datasheet
TQ-310DP QLIGHT™ SERIES ENGINEERING INFORMATION
PRELIMINARY
INFORMATION
100 1 kHz 10 20
Degrees between -6dB points
Frequency
10 200 500 2 550
360
300
200
100
90
80
70
60
50
40
30
20
Horizontal
Vertical
20 Hz
Directivity Index dB
Frequency
Directivity Factor Q
100 1 kHz 10 20
0200 500 2 550
24
3
6
9
12
15
18
21
1
2
5
10
20
50
100
200
20 Hz
TURBOSOUND Ltd Star Road Partridge Green West Sussex RH13 8RY England
tel: +44 (0) 1403 711447 fax: +44 (0) 1403 710155 • www.turbosound.com • e-mail: sales@turbosound.com
TQ-310DP Version 1.0 03/04
© Turbosound 2004
ARCHITECTURAL
& ENGINEER’S
SPECIFICATIONS
DIMENSIONS
QLIGHT™ SERIES ENGINEERING INFORMATION
datasheet
TQ-310DP
PRELIMINARY
INFORMATION
The system shall be of the self-powered, two-way trapezoidal type consisting of one reflex
loaded 10” (254mm) low frequency loudspeaker and one 1” (25mm) high frequency driver on
a rotatable 100°x 60°Converging Elliptical Waveguide™. The integral power amplifier shall
provide two channels of Class D amplification, output limiting and equalisation incorporating
frequency responses optimised for speech and music applications. Performance
specifications of a typical production unit shall meet or exceed the following: frequency
response, measured with swept sine wave input, shall be flat within ±4dB from 65Hz to 20kHz.
Nominal dispersion, at –6dB points, shall average 100°H x 60°V. Maximum SPL (peak)
measured with music program at stated amplifier input shall be 130dB. Dimensions: 525mmH
x 315mmW x 300mmD (20.7”H x 12.4”W x 11.8”D). Weight: 25kg (55lbs). The loudspeaker
system shall be the Turbosound TQ-310DP. No other loudspeaker shall be acceptable unless
submitted data from an independent test laboratory verify that the above combined
performance / size specifications are equalled or exceeded.

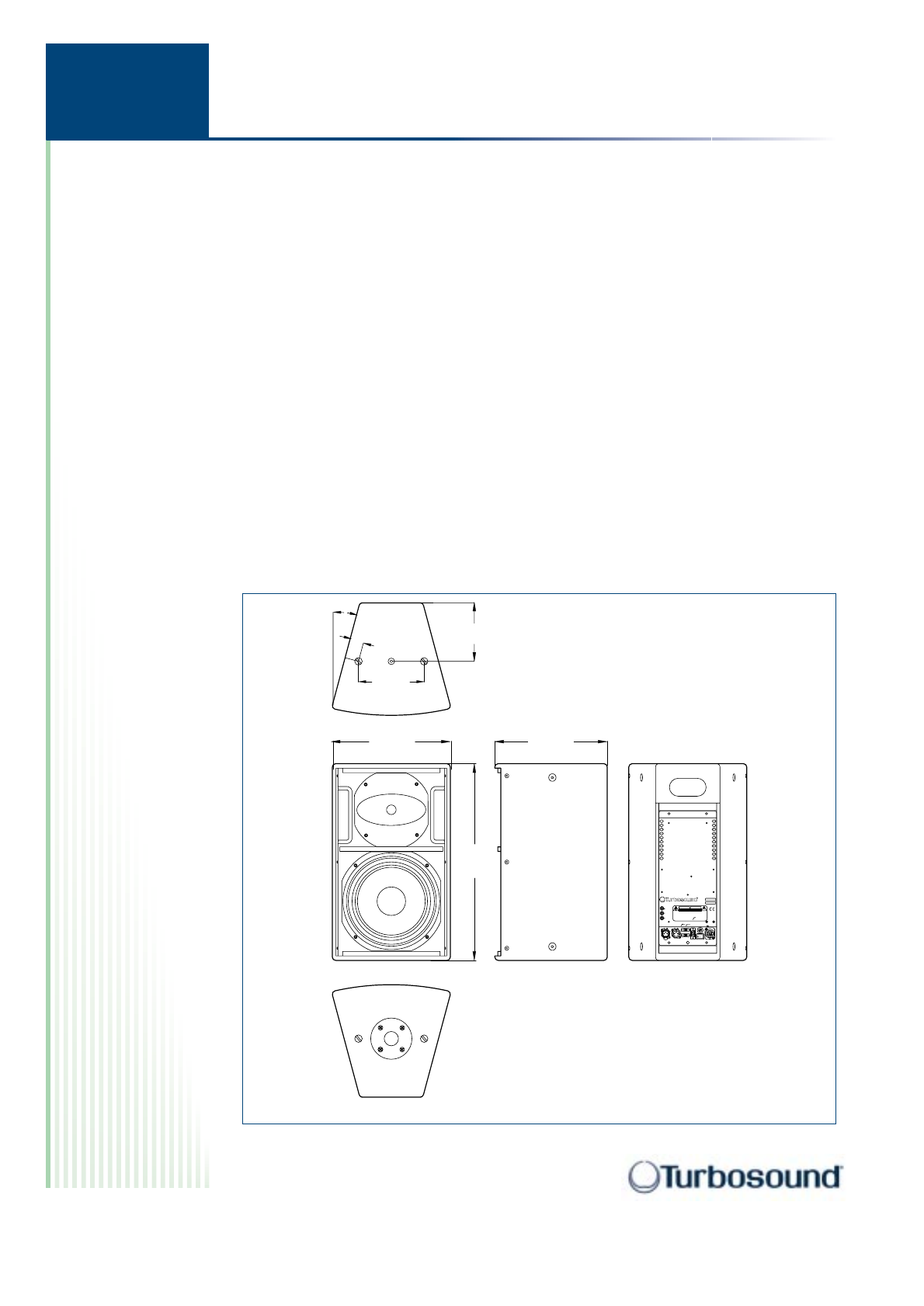

315mm
[12.4"]
525mm
[20.7"]
300mm
[11.8"]
156mm
[6.1"]
15°
BOTTOM
TOP
FRONT SIDE BACK
175.2mm
[6.9"]
37mm
[1.5"]
PUSH
DO NOT OPEN
CAUTION
tel:+44(0)1403 711447 fax:+44(0)1403 710155 www.turbosound.com
to reduce the risk of fire replace only with the
utiliser un fusible de rechange de meme type.
THIS EQUIPMENT MUST BE EARTHED
WARNING : THIS PANEL MAY BE HOT
MODE
TO RAIN OR MOISTURE
RISK OF ELECTRIC SHOCK
DO NOT EXPOSE
type and rating of fuse.
Star Road, Partridge Green, West Sussex, RH13 8RY England
Limit LO
Power
INPUT
Limit HI
LINK
A
AVIS
CAUTION
same
50-60Hz
1000w max
115-230V
ATTENTION
NE PAS ENLEVER
NE PAS EXPOSER A LA
RISQUE DE CHOC ELECTRIQUE
PLUIE NI A L'HUMIDITE
T10AL 250V
B
AUX
FUSE
Model No
Serial No
