uArm Metal Getting Started Guide
2016-12
Addr:NANSHAN DISTRICT, SHENZHEN, P.R.CHINA Tel：0755-23301959
Contents
1．Saftey Instructions ............................................................................................................... 2
2．uArm Metal Parts List .......................................................................................................... 3
3．Assembly Instructions ......................................................................................................... 4
3.1 Install the 4 foot brackets. ............................................................................................... 4
3.2 Install the Pump ............................................................................................................... 4
3.3 Attach the Cable and the Pipe. ........................................................................................ 5
4．Operation Instructions ........................................................................................................ 6
4.1 Power On ......................................................................................................................... 6
4.2 Connect uArm to computer with USB. ............................................................................ 6
4.3 Install uAmAssistant ........................................................................................................ 6
4.4 Control uArm via uClient ................................................................................................. 8
4.5 Learning mode of uArm Metal ................................................................................... 12
5．uArm Community .............................................................................................................. 13
Addr:NANSHAN DISTRICT, SHENZHEN, P.R.CHINA Tel：0755-23301959
1．Saftey Instructions

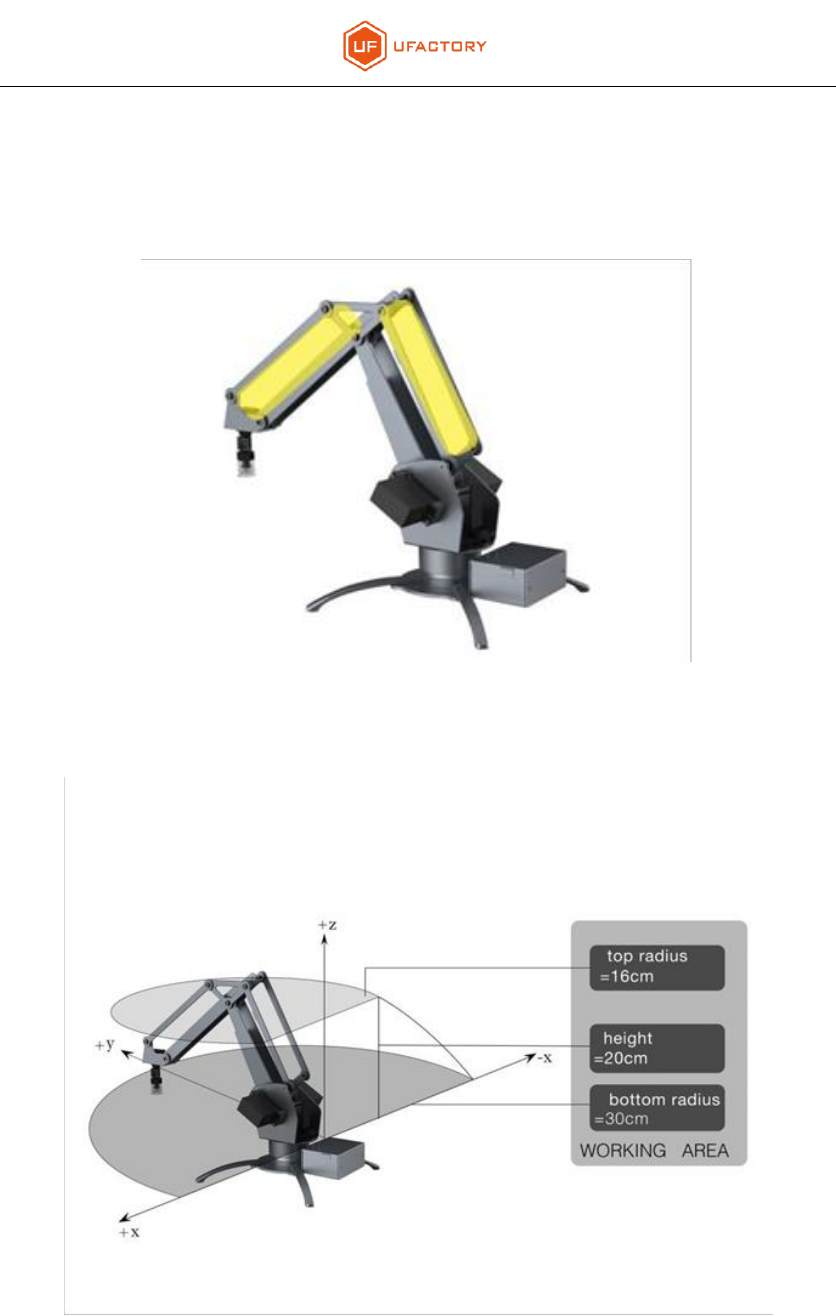

Please don’t put your hands in the highlighted area.
When uArm is moving, please ensure that nothing that may get hurt or broken is within uArm’s
moving range.
Addr:NANSHAN DISTRICT, SHENZHEN, P.R.CHINA Tel：0755-23301959

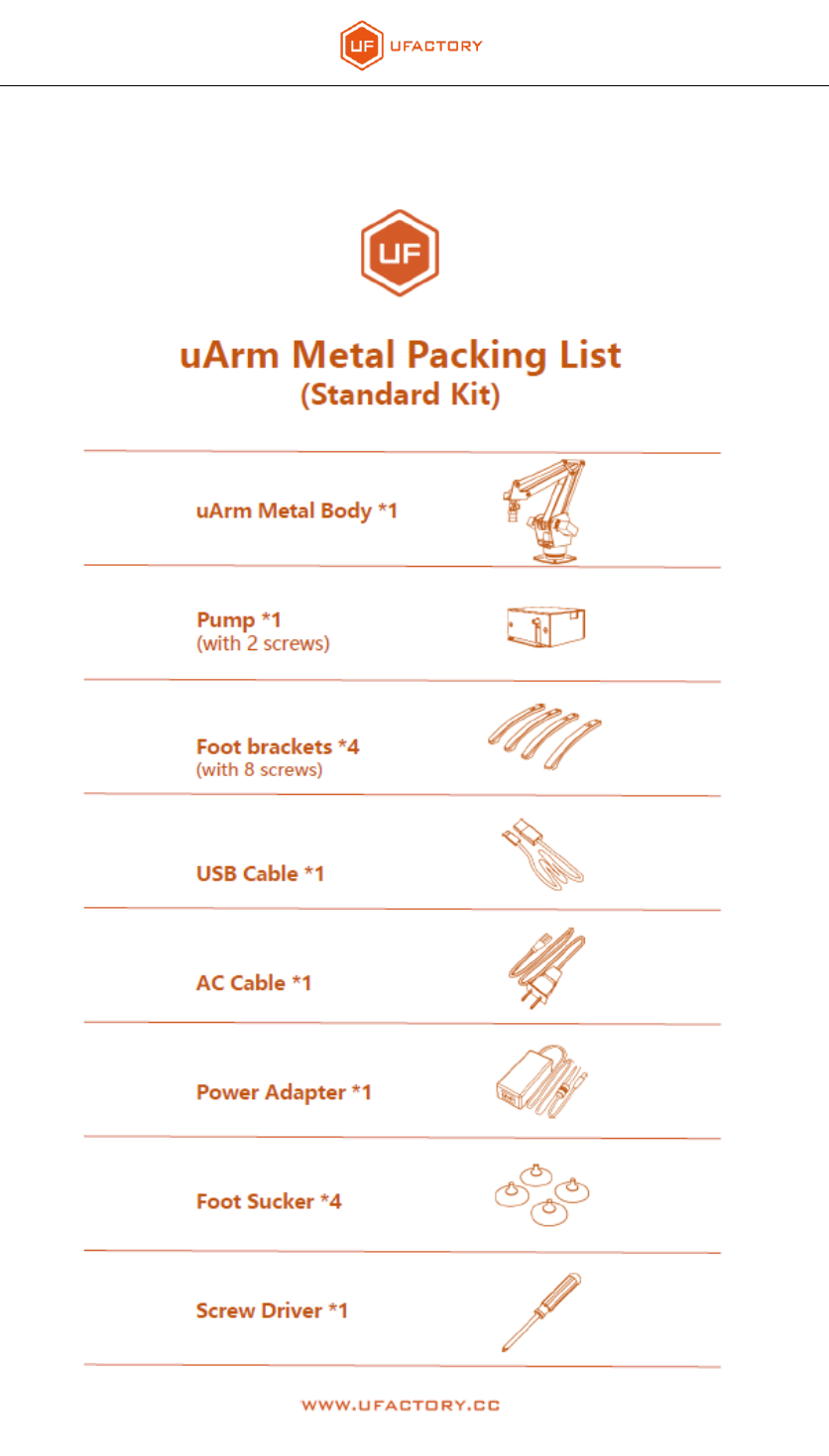

2．uArm Metal Parts List
Addr:NANSHAN DISTRICT, SHENZHEN, P.R.CHINA Tel：0755-23301959
3．Assembly Instructions
3.1 Install the 4 foot brackets.

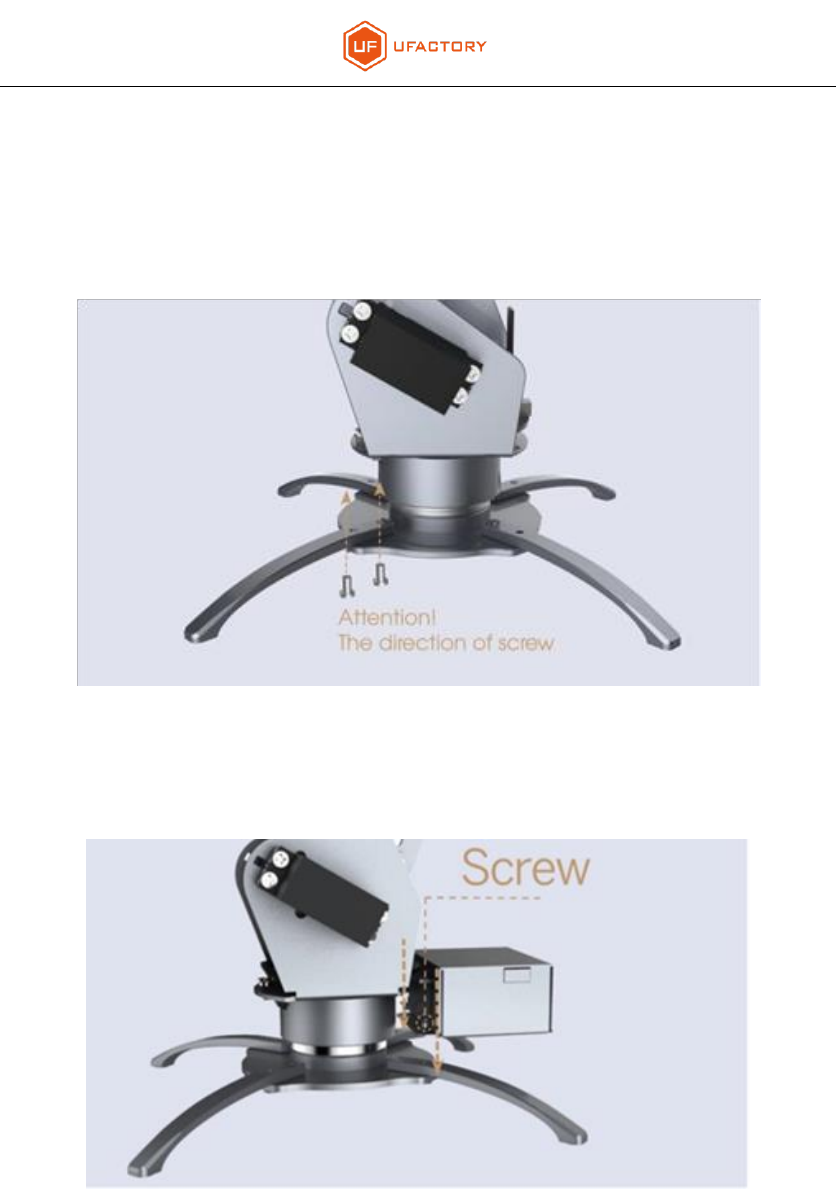

( Please be aware the screws should be inserted from the bottom to top.)
3.2 Install the Pump
(Insert 2 screws to install the pump.)
Addr:NANSHAN DISTRICT, SHENZHEN, P.R.CHINA Tel：0755-23301959

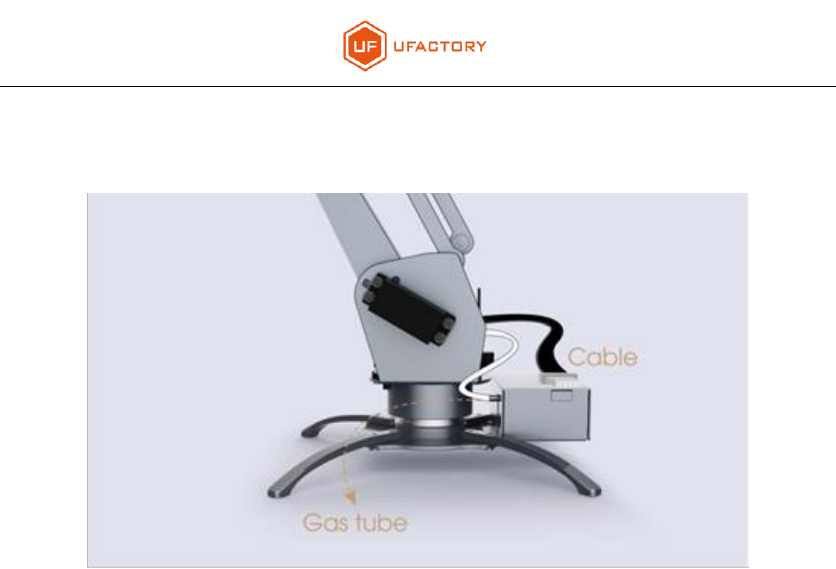

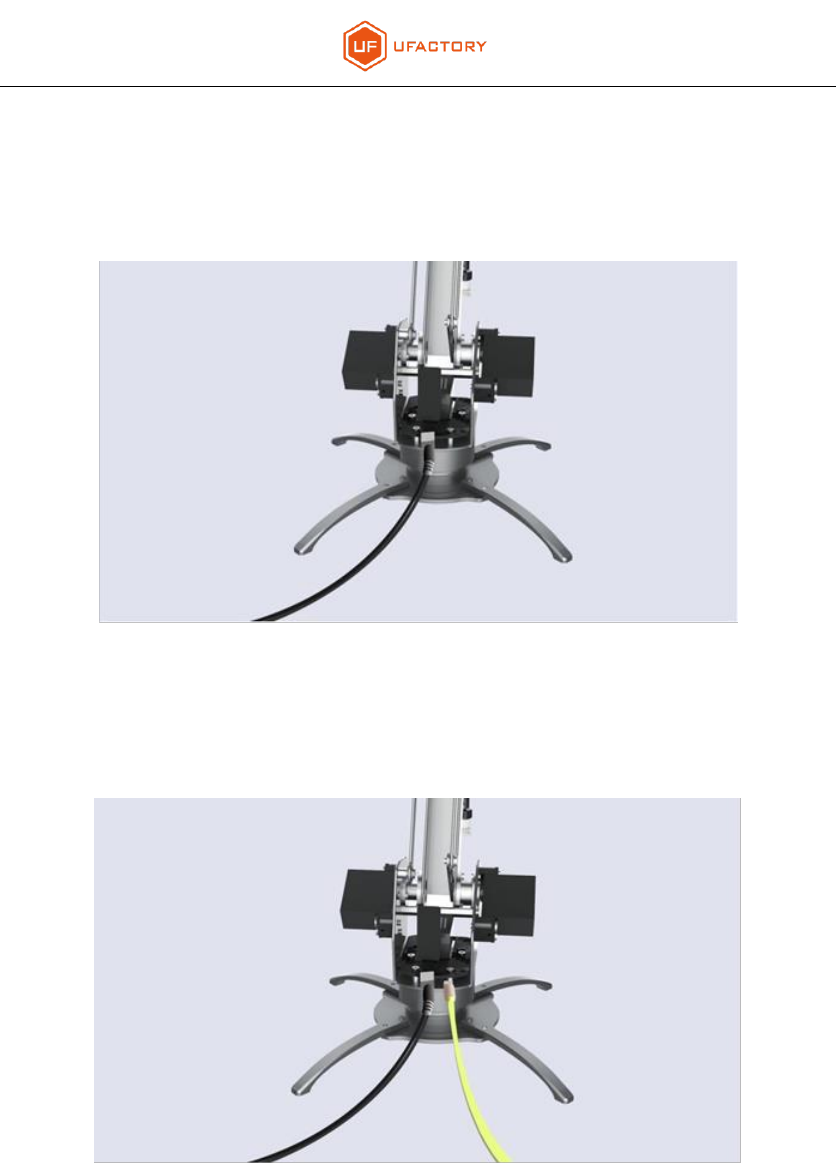

3.3 Attach the Cable and the Pipe.
Addr:NANSHAN DISTRICT, SHENZHEN, P.R.CHINA Tel：0755-23301959
4．Operation Instructions
4.1 Power On
（(If the RED light is on, the uArm is powered.)
4.2 Connect uArm to computer with USB.
4.3 Install uAmAssistant
This process requires a network connection;
uArmAssistant functions:
1、 Install driver automatically;
Addr:NANSHAN DISTRICT, SHENZHEN, P.R.CHINA Tel：0755-23301959
2、 Upgrade to latest firmware;
3、 *Re-calibration（This function is limited to the purchase of uArm users before April 2016,
after April 2016, the user does not have calibration problems, DO NOT DO THIS STEP.）

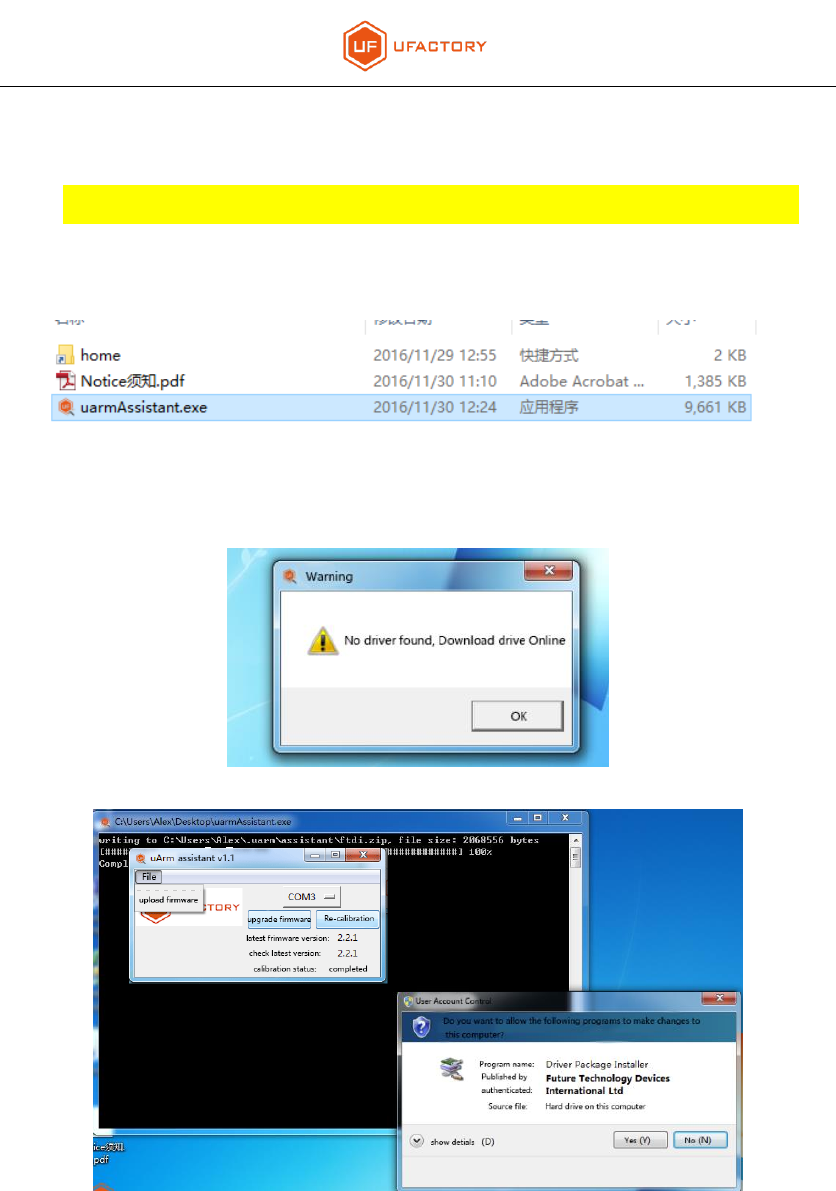

Run uarmAssistant as Administrator:
（Read Notice.pdf before run uarmAssistant.exe and run as Administrator）

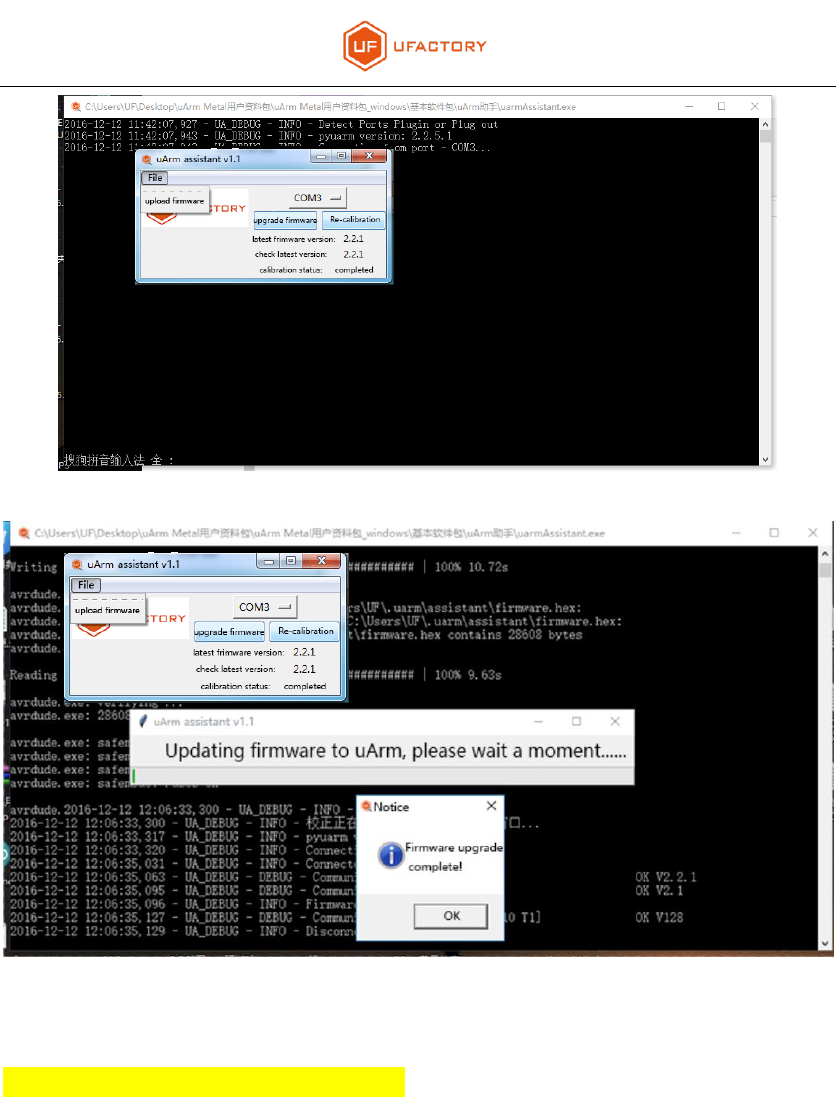

Install driver Online:
Install driver automatically:
Upgrade to latest firmware:
Addr:NANSHAN DISTRICT, SHENZHEN, P.R.CHINA Tel：0755-23301959
Tips will remind that Upgrade latest firmware successfully:
4.4 Control uArm via uClient

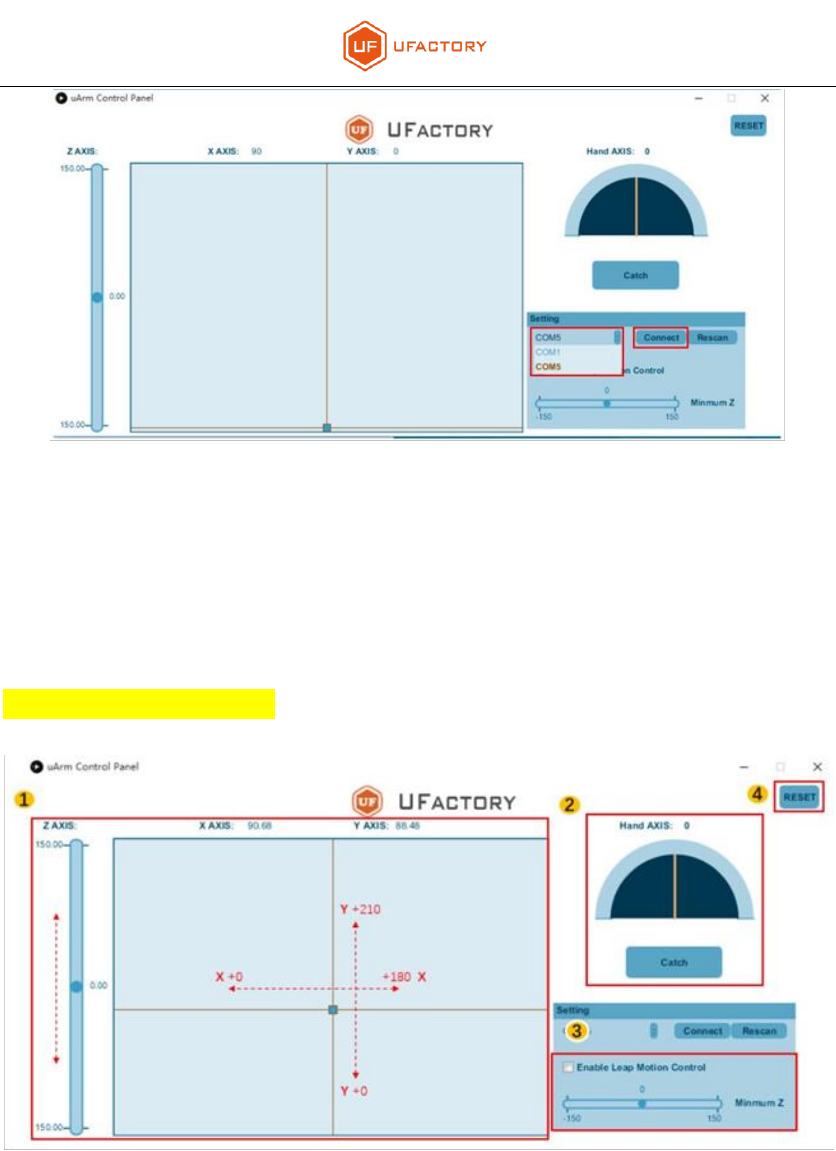

Step 1 – Select the right COM and Click Connect
Addr:NANSHAN DISTRICT, SHENZHEN, P.R.CHINA Tel：0755-23301959
- COM No. for uArm may vary
- Click Rescan if uClient does not detect the COM for uArm.
- If there are blue lights flashing, uArm is connected with uClient, and you don’t need to
click Connect again.
Step 2 – Familiarize with uClient
Addr:NANSHAN DISTRICT, SHENZHEN, P.R.CHINA Tel：0755-23301959

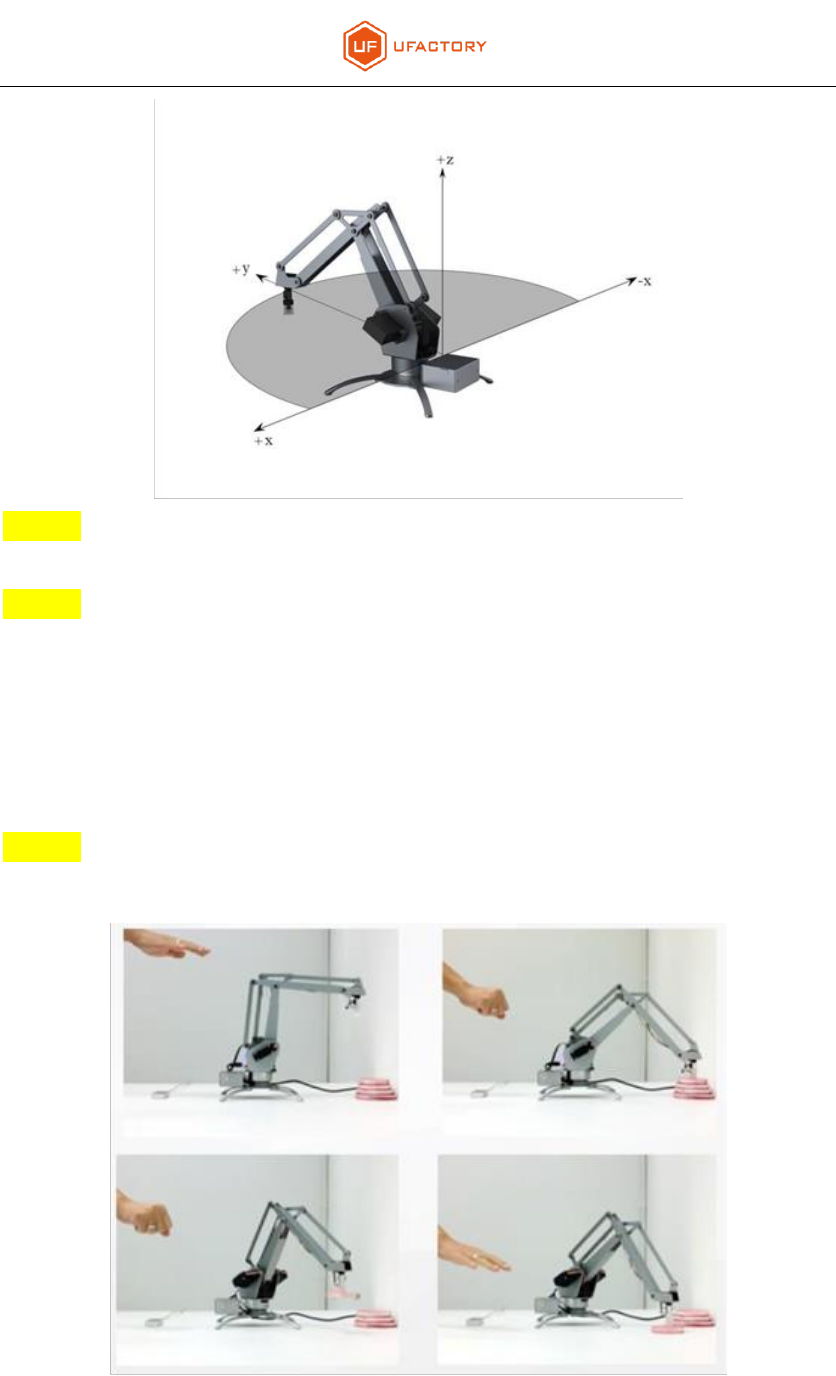

Area 1：Control uArm movement along X, Y, Z Axis.
Area 2：Control the end-effector (Suction Cup/Gripper/Universal Holder)
- You may rotate the suction cup from 0° to 180° by moving the yellow line. Rotation does not
apply to Gripper or Universal Holder.
- Click Catch/Release to pick/release (for suction cup) or grab/release (for gripper).
Catch/Release does not apply to Universal Holder

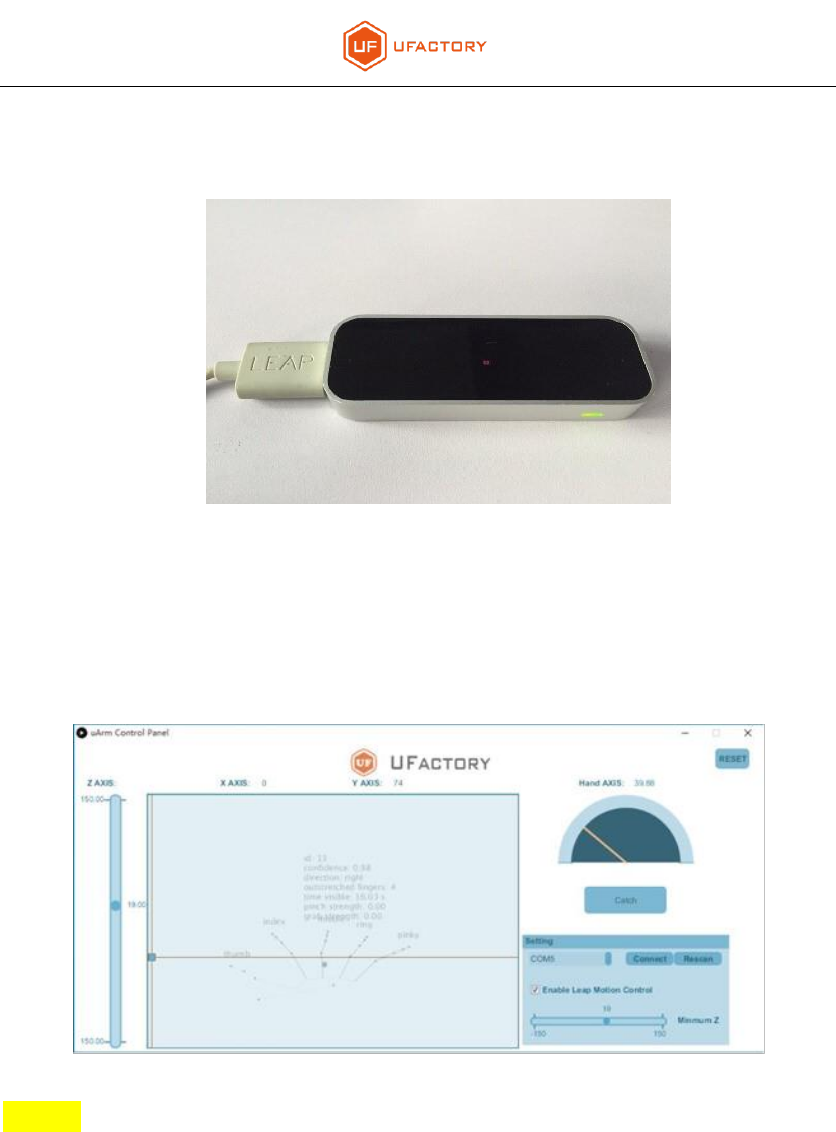

Area 3：Leap Motion Control (alternative to mouse control)
IF you have a Leap Motion Controller, you may control uArm in this way.
To enable Leap Motion Control, please:
Addr:NANSHAN DISTRICT, SHENZHEN, P.R.CHINA Tel：0755-23301959
- Connect Leap Motion Controller to PC, and tick the box in uClient
- Place the Leap Motion Controller in a way that you are facing the flashing GREEN light
- Ensure that you have downloaded Leap Motion APP (for PC)
- Leap Motion is activated when the uClient interface displays the following:
(You may change the minimum Z value of Leap Motion Control.)
Area 4：You may reset uArm to the default position.
Addr:NANSHAN DISTRICT, SHENZHEN, P.R.CHINA Tel：0755-23301959
4.5 Learning mode of uArm Metal
The Firmware over version 2.2.1, which combines the learning mode (recording mode) that
allows uArm Metal to be operated in a learning mode. It is only need the power supply
connected.
Notice:
1、 uArm Metal's learning mode does not exceed 5 minutes, please record the total length
of time within 5 minutes of action.
2、 Learning mode can not simultaneously connect the USB cable for serial communication,
do not at the same time, easy to damage the mainboard.
How to use Learning mode?

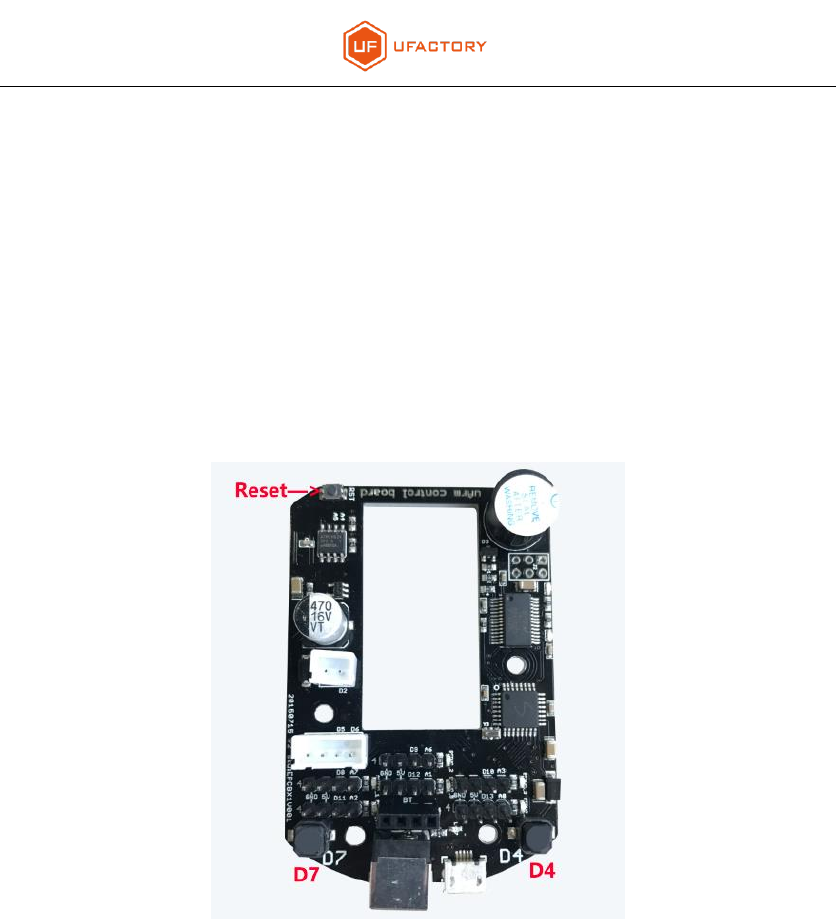

1、 First need to know a few buttons about the mainboard：Reset、D4、D7.
2、 Start learning mode / recording mode
Enter learning mode：D4
In learning mode,switch pump on and off：D7
Ends the learning mode：D4
3、 Play the learning / recording process
Single Play：D7
Repeat playback：D7（Long press 3 seconds and release）
Pause / resume playback：D7
Reset：Reset
Addr:NANSHAN DISTRICT, SHENZHEN, P.R.CHINA Tel：0755-23301959
5．uArm Community
Welcome to the uArm Community! Now,you can explore uArm with the world of robot
enthusiasts,Makers, sartists and scientists!
Official Website：
https://www.ufactory.cc/
Official Forum：
https://forum.ufactory.cc/
Official WeChat Account：
Official Media：
More Help?
【Contact Us】.
