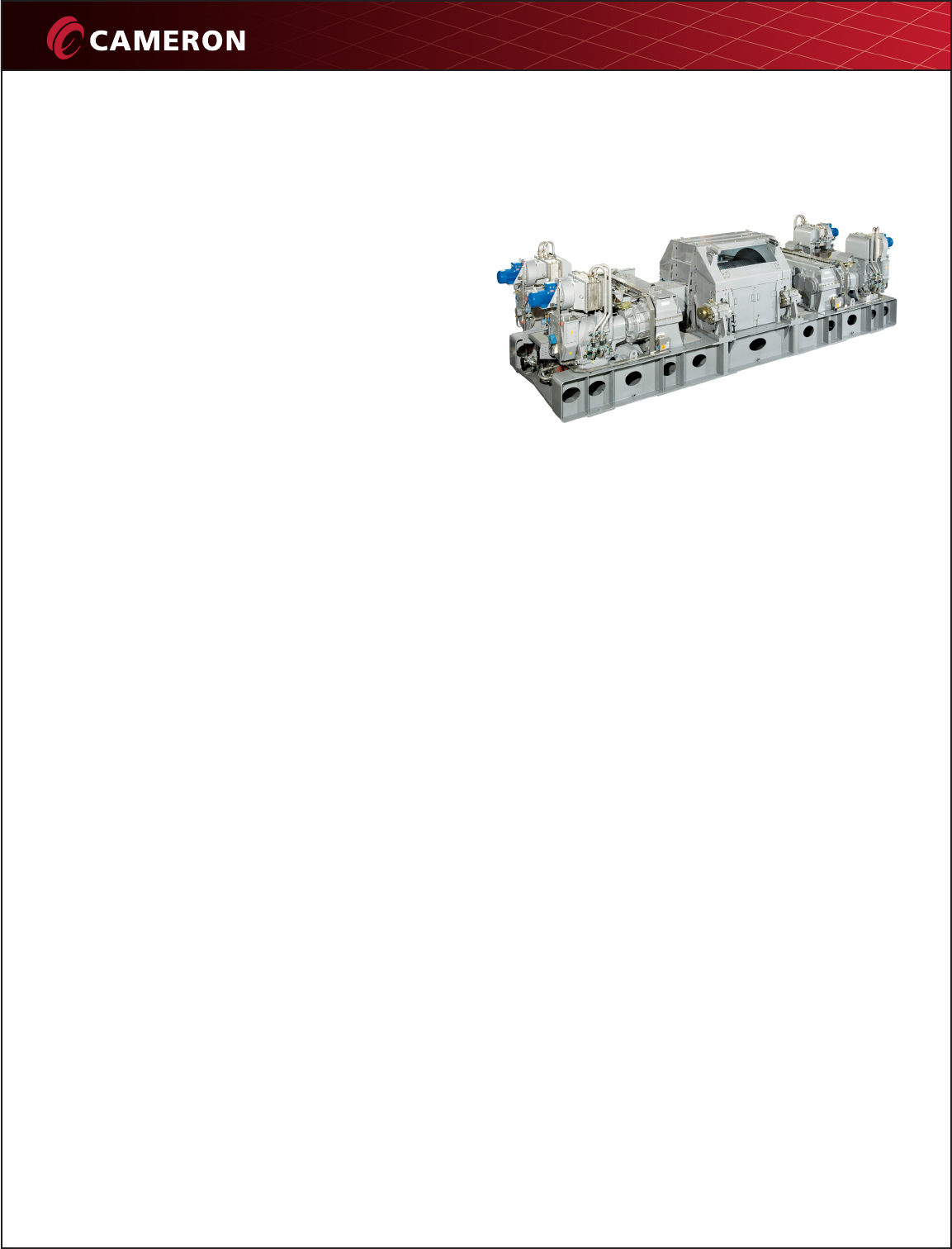

UltraHoist Drawworks System

UH 3G-1250-5600-DDW

Cameron’s UltraHoistTM drawworks deliver efficient

hoisting and lowering during drilling, tripping and

handling operations. All UltraHoist drawworks are AC and

gear-driven. The three-speed version offers operational

flexibility, both at high speeds and high loads.

The UltraHoist 1250-5600 is a fully-integrated drawworks

system, designed to hoist and lower defined loads

and velocities during tripping and drilling modes. The

UltraHoist is designed for offshore installation and is

centered on maintaining personnel safety and increasing

equipment service life and long-term optimal performance

through component selection and system design.

Main Features

• Three-speed transmissions used between AC motors and

fixed speed gearbox provide unique fast line speed and

pull characteristics

• Lebus grooved drum for 2” drill line – complete with

kickback rollers and easily removable guards

• Easily removable cable anchor

• Control system interfaces with the Zone Management

System via the C-NET network to enable communication

with other system PLC, such as the anti-collision system

• Custom PLC software ensures smooth and natural

operations for the driller

• Built-in, self-diagnostic functions automatically warn for

service and overhaul of main components

• Onboard HPU systems for brakes and lubrications fitted

with dual pumps and motors

• Remote-operated fast shift mechanism in the gearbox to

avoid gear-shift problems and load-dropping

• Internal gearboxes use a keyless design to avoid stress

configurations

Safety Features

• Fail-safe braking system comprised of two brake

discs, one at each side of the drum, and two calipers

with brake pads acting on each disc

• Braking capacity of the emergency brakes equal to

200% of maximum line pull

• Automatic brake monitoring system, including brake

slip detection, drum creep detection and drum response

detection

• Two separately fused emergency shutdown circuits

• Integrated crown and floor saver provides full control of

the various braking systems

© 2013 Cameron | UltraHoist is a trademark of Cameron. | 07/13 AD00390DRL

4601 Westway Park Blvd.

Houston, TX 77041

USA

Tel 1 713 939 2211

Andøyfaret 3

N-4623 Kristiansand S.

Norway

Tel 47 380 00 570

drilling@c-a-m.com | www.c-a-m.com

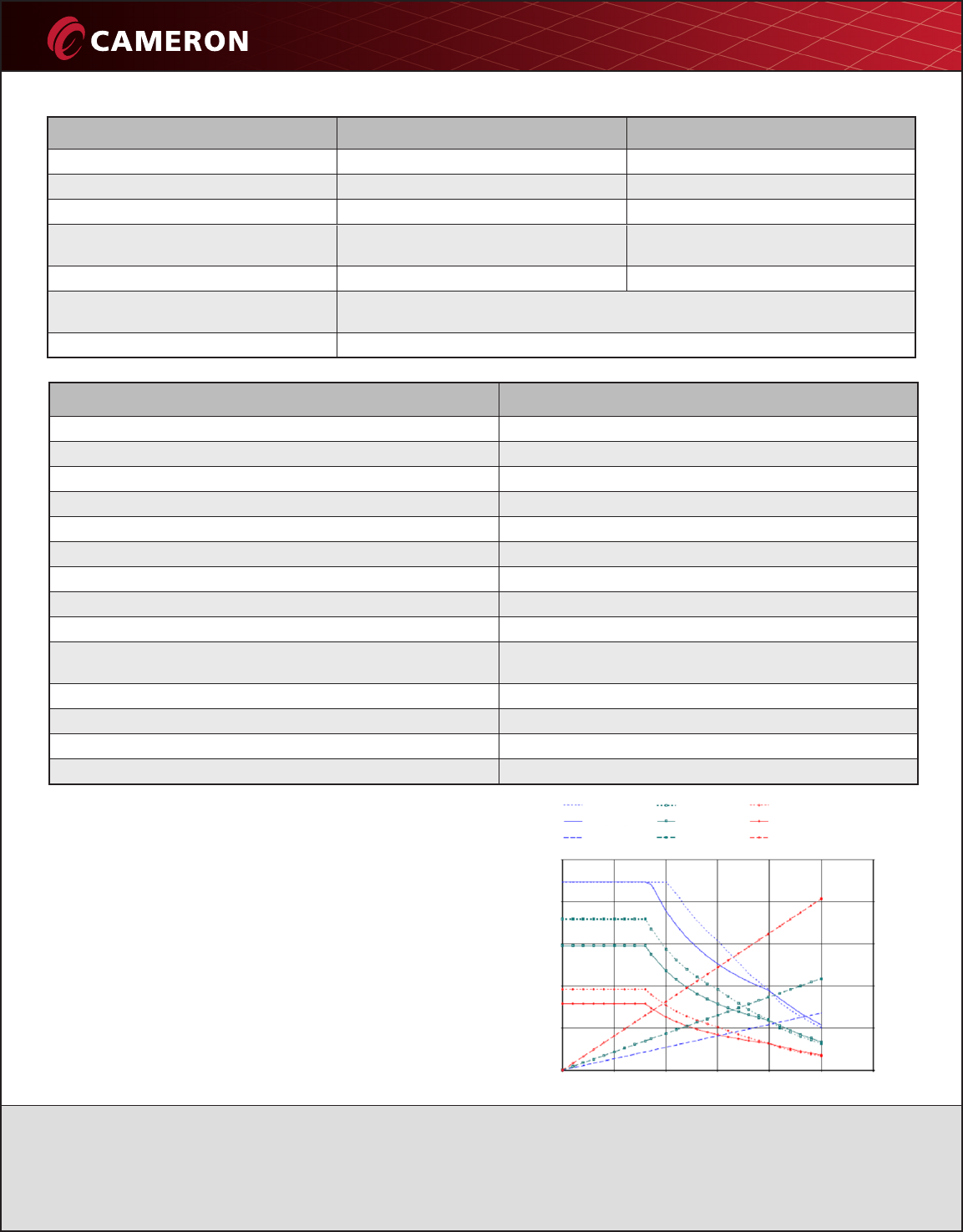

Technical Specifications SI Imperial (US)

Power rating drawworks duty 4180 kW 5600 hp

Maximum wire pull on 16 lines 1133 tonnes 1250 tons

Maximum fast line pull 87 tonnes 96.4 tons

Maximum block speed on 14 lines 2.29 m/sec 451 ft/min

Drum size (diameter x length) 1422 mm x 1905 mm 56” x 75”

Design API 7K drilling equipment, DNV-OS-E101 drilling plant

Any third-party approval is available up on request

Area classification Zone 1, IIB, T3

Scope of Supply Options

Drawworks skid Foundation bolts

Drum and drum support Sound attenuation housing

Dual brake disks and calipers Forced air cooling system for AC motors

Single-speed gearbox Lifting spreader bar

Dual three-speed planetary transmissions AC drives

AC motors Operator’s control panel

Water to air cooling system for AC motors

HPU for lube oil and gearshift system

HPU for brake control system

UltraHoist control system, including PLC with software as needed for

safe and reliable control and monitoring of all drawworks functions

Local control panel (for cut-and-slip operations)

Block reset sensors

Floor/crown saver sensors

User manuals/documentation

Hook Load and Speed Chart

* Calculations based on 16 lines, layer 2 over Lebus bar

** Motor speed limited to 2500 rpm

*** Hook load given is in lb, block speed in m/sec

Drawworks duty - low gear Drawworks duty - mid gear Drawworks duty - high gear

Cont. duty - low gear Cont. duty - mid gear Cont. duty - high gear

Speed - low gear Speed - mid gear Speed - high gear

Hook load (lb) Block speed (m/sec)

2.5

2.0

1.5

1.0

0.5

0.0

2,500,000

30002500

2,000,000

2000

1,500,000

1500

1,000,000

1000

500,000

500

0

0

Motor speed (rpm)
