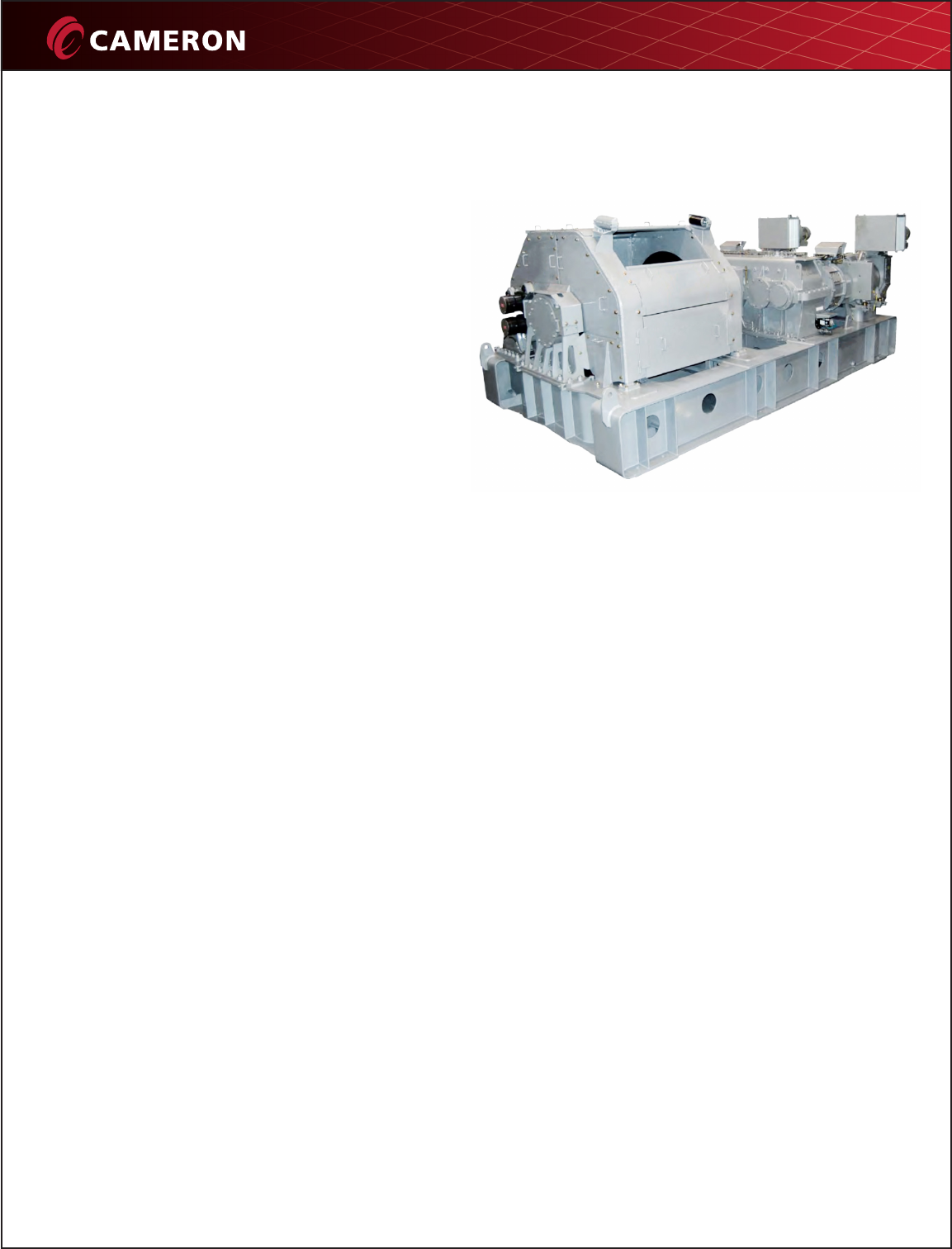

UltraHoist Drawworks System
UH 3G-750-3000-DDW
Cameron’s UltraHoistTM drawworks deliver efficient
hoisting and lowering during drilling, tripping and
handling operations. All UltraHoist drawworks are AC and
gear-driven. The three-speed version offers operational
flexibility, both at high speeds and high loads.
The UltraHoist 750-3000 is a fully-integrated drawworks
system, designed to be able to hoist and lower defined
loads and velocities during tripping and drilling modes.
The UltraHoist is designed for offshore installation and is
centered on maintaining personnel safety and increasing
equipment service life and long-term optimal performance
through component selection and system design.
Main Features
• Three-speed transmissions used between AC motors and
fixed speed gearbox provide unique, fast line speed
and pull characteristics
• Lebus grooved drum for 1-5/8” drill line – complete with
kickback rollers and easily removable guards
• Easily removable cable anchor
• Control system interfaces with the Zone Management
System for safe interaction with other drillfloor
equipment
• Custom PLC software ensures smooth and natural
operation for the driller
• Built-in, self-diagnostic functions with automatic
warning system for service and overhaul of main
components
• Onboard HPU systems for brakes and lubrications fitted
with dual pumps and motors
• Remote-operated fast shift mechanism in the gearbox to
avoid gear-shift problems and load-dropping
• Internal gearboxes use a keyless design to avoid stress
configurations
Safety Features
• Fail-safe braking system comprised of two brake discs,
one at each side of the drum, and two calipers with
brake pads acting on each disc
• Braking capacity of the emergency brakes equal to 200%
of maximum line pull
• Automatic brake monitoring system, including brake slip
detection, drum creep detection and drum
response detection
• Two separately fused emergency shutdown circuits
• Integrated crown and floor saver provides full control of
the various braking systems
© 2013 Cameron | UltraHoist is a trademark of Cameron. | 07/13 AD00389DRL
4601 Westway Park Blvd.
Houston, TX 77041
USA
Tel 1 713 939 2211
Andøyfaret 3
N-4623 Kristiansand S.
Norway
Tel 47 380 00 570
drilling@c-a-m.com | www.c-a-m.com

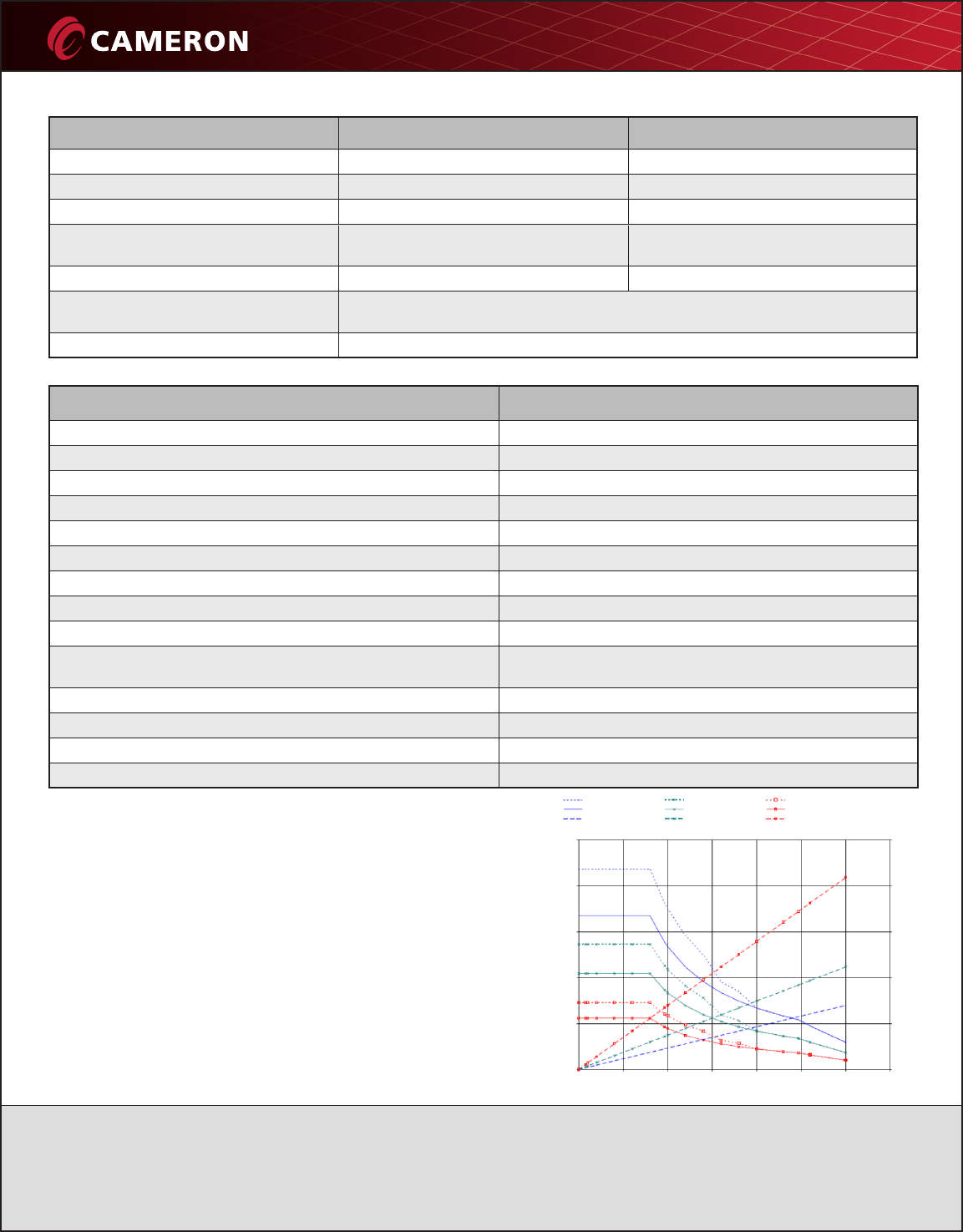

Technical Specifications SI Imperial (US)
Power rating maximum drawworks duty 2240 kW 3000 hp
Maximum hook load on 14 lines 680 tonnes 750 tons
Maximum fast line pull 59 k∙N 65 tons
Maximum block speed on 14 lines 1.74 m/sec 343 ft/min
Drum size (diameter x length) 914 mm x 1445 mm 36” x 56.9”
Design API 7K drilling equipment
Any third-party approval is available upon request
Area classification Zone 1, IIB, T3
Hook Load and Speed Chart
* Calculations based on 14 lines, layer 2 over Lebus bar
** Hook load given is in lb, block speed in m/sec
Drawworks duty - low gear Drawworks duty - mid gear Drawworks duty - high gear
Cont. duty - low gear Cont. duty - mid gear Cont. duty - high gear
Speed - low gear Speed - mid gear Speed - high gear
Hook load (lb) Block speed (m/sec)
2.5
2.0
1.5
1.0
0.5
0.0
2,500,000
350030002500
2,000,000
2000
1,500,000
1500
1,000,000
1000
500,000
500
0
0
Motor speed (rpm)
Scope of Supply Options
Drawworks skid Foundation bolts
Drum and drum support Sound attenuation housing
Dual brake disks and calipers Water-cooled AC motors
Single-speed gearbox Lifting spreader bar
Dual three-speed planetary transmissions AC drives
AC motors Operator’s control panel
Blowers for cooling of AC motors
HPU for lube oil and gearshift system
HPU for brake control system
UltraHoist control system includes PLC with software as needed for
safe and reliable control and monitoring of all drawworks functions
Local control panel (for cut-and-slip operations)
Block reset sensors
Floor/crown saver sensors
User manuals/documentation
