wannier90: User Guide

Version 3.0

28th February 2019

Contents

I Introduction 5

II wannier90.x 11

1 Methodology 13

2 Parameters 17

3 Projections 51

4 Code Overview 59

5wannier90 as a post-processing tool 61

6wannier90 as a library 71

7 Transport Calculations with wannier90 77

8 Files 81

9 Some notes on the interpolation 101

10 Sample Input Files 103

III postw90.x 107

11 Parameters 109

12 Overview of the berry module 141

13 Overview of the gyrotropic module 145

4wannier90: User Guide

14 Electronic transport calculations with the BoltzWann module 149

15 Generic Band interpolation 153

IV Appendices 155

A Utilities 157

B Frequently Asked Questions 161

Part I

Introduction

Getting Help

The latest release of wannier90 and documentation can always be found at http://www.wannier.org.

The development version may be cloned/downloaded from the oﬃcial repository of the wannier90 code

on GitHub (see https://github.com/wannier-developers/wannier90).

There is a wannier90 mailing list for discussing issues in the development, theory, coding and algorithms

pertinent to MLWF. You can register for this mailing list by following the links at http://www.

wannier.org/forum.html. Alternatively, for technical issues about the wannier90 code, check the

oﬃcial repository of wannier90 on GitHub where you may raise issues or ask questions about about

its functionalities.

Finally, many frequently asked questions are answered in Appendix B. An expanded FAQ session may

be found on the Wiki page of the GitHub repository at https://github.com/wannier-developers/

wannier90/wiki/FAQ.

Citation

We ask that you acknowledge the use of wannier90 in any publications arising from the use of this

code through the following reference

[ref] A. A. Mostoﬁ, J. R. Yates, G. Pizzi, Y.-S. Lee, I. Souza, D. Vanderbilt and N. Marzari,

An updated version of wannier90: A Tool for Obtaining Maximally-Localised Wannier

Functions, Comput. Phys. Commun. 185, 2309 (2014)

http://dx.doi.org/10.1016/j.cpc.2014.05.003

It would also be appropriate to cite the original articles:

Maximally localized generalized Wannier functions for composite energy bands,

N. Marzari and D. Vanderbilt, Phys. Rev. B 56, 12847 (1997)

Maximally localized Wannier functions for entangled energy bands,

I. Souza, N. Marzari and D. Vanderbilt, Phys. Rev. B 65, 035109 (2001)

8wannier90: User Guide

Credits

The Wannier90 Developer Group includes Giovanni Pizzi (EPFL, CH), Valerio Vitale (Cambridge,

GB), David Vanderbilt (Rutgers University, US), Nicola Marzari (EPFL, CH), Ivo Souza (Universi-

dad del Pais Vasco, ES), Arash A. Mostoﬁ (Imperial College London, GB), and Jonathan R. Yates

(University of Oxford, GB).

The present release of wannier90 was written by the Wannier90 Developer Group together with Ry-

otaro Arita (Riken and U. Tokyo, JP), Stefan Blügel (FZ Jülich, DE), Frank Freimuth (FZ Jülich, DE),

Guillame Géranton (FZ Jülich, DE), Marco Gibertini (EPFL and University of Geneva, CH), Dominik

Gresch (ETHZ, CH), Charles Johnson (Imperial College London, GB), Takashi Koretsune (Tohoku

University and JST PRESTO, JP), Julen Ibañez-Azpiroz (Universidad del Pais Vasco, ES), Hyungjun

Lee (EPFL, CH), Daniel Marchand (EPFL, CH), Antimo Marrazzo (EPFL, CH), Yuriy Mokrousov (FZ

Jülich, DE), Jamal I. Mustafa (UC Berkeley, USA), Yoshiro Nohara (Tokyo, JP), Yusuke Nomura (U.

Tokyo, JP), Lorenzo Paulatto (Sorbonne Paris, FR), Samuel Poncé (Oxford University, GB), Thomas

Ponweiser (RISC Software GmbH, AT), Florian Thöle (ETHZ, CH), Stepan Tsirkin (Universidad del

Pais Vasco, ES), Małgorzata Wierzbowska (Polish Academy of Science, PL).

Contributors to the code include: Daniel Aberg (w90pov code), Lampros Andrinopoulos (w90vdw

code), Pablo Aguado Puente (gyrotropic routines), Raﬀaello Bianco (k-slice plotting), Marco Buon-

giorno Nardelli (dosqc v1.0 subroutines upon which transport.f90 is based), Stefano De Gironcoli

(pw2wannier90.x interface to Quantum ESPRESSO), Pablo Garcia Fernandez (matrix elements of the

position operator), Nicholas D. M. Hine (w90vdw code), Young-Su Lee (specialised Gamma point

routines and transport), Antoine Levitt (preconditioning), Graham Lopez (extension of pw2wannier90

to add terms needed for orbital magnetisation), Radu Miron (constrained centres), Nicolas Poilvert

(transport routines), Michel Posternak (original plotting routines), Rei Sakuma (Symmetry-adapted

Wannier functions), Gabriele Sclauzero (disentanglement in spheres in k-space), Matthew Shelley

(transport routines), Christian Stieger (routine to print the U matrices), David Strubbe (various bug-

ﬁxes/improvements), Timo Thonhauser (extension of pw2wannier90 to add terms needed for orbital

magnetisation).

We also acknowledge individuals not already mentioned above who participated in the ﬁrst Wannier90

community meeting (San Sebastian, 2016) for useful discussions: Daniel Fritsch, Victor Garcia Suarez,

Jan-Philipp Hanke, Ji Hoon Ryoo, Jürg Hutter, Javier Junquera, Liang Liang, Michael Obermeyer,

Gianluca Prandini, Paolo Umari.

wannier90 Version 2.x was written by: Arash A. Mostoﬁ, Giovanni Pizzi, Ivo Souza, Jonathan R.

Yates. wannier90 Version 1.0 was written by: Arash A. Mostoﬁ, Jonathan R. Yates, Young-Su Lee.

wannier90 is based on Fortran 77 codes written for isolated bands by Nicola Marzari and David

Vanderbilt and for entangled bands by Ivo Souza, Nicola Marzari, and David Vanderbilt.

wannier90 c

2007-2019 The Wannier Developer Group and individual contributors

Licence

All the material in this distribution is free software; you can redistribute it and/or modify it under

the terms of the GNU General Public License as published by the Free Software Foundation; either

version 2 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY;

wannier90: User Guide 9

without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR

PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program; if not,

write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301,

USA.

Part II

wannier90.x

Chapter 1

Methodology

wannier90 computes maximally-localised Wannier functions (MLWF) following the method of Marzari

and Vanderbilt (MV) [1]. For entangled energy bands, the method of Souza, Marzari and Vanderbilt

(SMV) [2] is used. We introduce brieﬂy the methods and key deﬁnitions here, but full details can be

found in the original papers and in Ref. [3].

First-principles codes typically solve the electronic structure of periodic materials in terms of Bloch

states, ψnk. These extended states are characterised by a band index nand crystal momentum k.

An alternative representation can be given in terms of spatially localised functions known as Wannier

functions (WF). The WF centred on a lattice site R,wnR(r), is written in terms of the set of Bloch

states as

wnR(r) = V

(2π)3ZBZ "X

U(k)

mnψmk(r)#e−ik.Rdk,(1.1)

where Vis the unit cell volume, the integral is over the Brillouin zone (BZ), and U(k)is a unitary

matrix that mixes the Bloch states at each k.U(k)is not uniquely deﬁned and diﬀerent choices will

lead to WF with varying spatial localisations. We deﬁne the spread Ωof the WF as

Ω = X

nhwn0(r)|r2|wn0(r)i − |hwn0(r)|r|wn0(r)i|2.(1.2)

The total spread can be decomposed into a gauge invariant term ΩIplus a term ˜

Ωthat is dependant

on the gauge choice U(k).˜

Ωcan be further divided into terms diagonal and oﬀ-diagonal in the WF

basis, ΩDand ΩOD,

Ω=ΩI+˜

Ω=ΩI+ ΩD+ ΩOD (1.3)

where

ΩI=X

n"hwn0(r)|r2|wn0(r)i − X

Rm|hwnR(r)|r|wn0(r)i|2#(1.4)

ΩD=X

R6=0|hwnR(r)|r|wn0(r)i|2(1.5)

ΩOD =X

m6=nX

R|hwmR(r)|r|wn0(r)i|2(1.6)

The MV method minimises the gauge dependent spread ˜

Ωwith respect the set of U(k)to obtain

MLWF.

wannier90 requires two ingredients from an initial electronic structure calculation.

14 wannier90: User Guide

1. The overlaps between the cell periodic part of the Bloch states |unki

M(k,b)

mn =humk|unk+bi,(1.7)

where the vectors b, which connect a given k-point with its neighbours, are determined by

wannier90 according to the prescription outlined in Ref. [1].

2. As a starting guess the projection of the Bloch states |ψnkionto trial localised orbitals |gni

A(k)

mn =hψmk|gni,(1.8)

Note that M(k,b),A(k)and U(k)are all small, N×Nmatrices1that are independent of the basis set

used to obtain the original Bloch states.

To date, wannier90 has been used in combination with electronic codes based on plane-waves and

pseudopotentials (norm-conserving and ultrasoft [4]) as well as mixed basis set techniques such as

FLAPW [5].

1.1 Entangled Energy Bands

The above description is suﬃcient to obtain MLWF for an isolated set of bands, such as the valence

states in an insulator. In order to obtain MLWF for entangled energy bands we use the “disentangle-

ment” procedure introduced in Ref. [2].

We deﬁne an energy window (the “outer window”). At a given k-point k,N(k)

win states lie within this

energy window. We obtain a set of NBloch states by performing a unitary transformation amongst

the Bloch states which fall within the energy window at each k-point:

|uopt

nki=X

m∈N(k)

win

Udis(k)

mn |umki(1.9)

where Udis(k)is a rectangular N(k)

win ×Nmatrix2. The set of Udis(k)are obtained by minimising the

gauge invariant spread ΩIwithin the outer energy window. The MV procedure can then be used to

minimise ˜

Ωand hence obtain MLWF for this optimal subspace.

It should be noted that the energy bands of this optimal subspace may not correspond to any of the

original energy bands (due to mixing between states). In order to preserve exactly the properties of a

system in a given energy range (e.g., around the Fermi level) we introduce a second energy window.

States lying within this inner, or “frozen”, energy window are included unchanged in the optimal

subspace.

1Technically, this is true for the case of an isolated group of Nbands from which we obtain NMLWF. When using

the disentanglement procedure of Ref. [2], A(k), for example, is a rectangular matrix. See Section 1.1.

2As Udis(k)is a rectangular matrix this is a unitary operation in the sense that (Udis(k))†Udis(k)=1N.

wannier90: User Guide 15

Chapter 2

Parameters

2.1 Usage

wannier90.x can be run in parallel using MPI libraries to reduce the computation time.

For serial execution use: wannier90.x [-pp] [seedname]

•seedname: If a seedname string is given the code will read its input from a ﬁle seedname.win.

The default value is wannier. One can also equivalently provide the string seedname.win instead

of seedname.

•-pp: This optional ﬂag tells the code to generate a list of the required overlaps and then exit.

This information is written to the ﬁle seedname.nnkp.

For parallel execution use: mpirun -np NUMPROCS wannier90.x [-pp] [seedname]

•NUMPROCS: substitute with the number of processors that you want to use.

Note that the mpirun command and command-line ﬂags may be diﬀerent in your MPI implementation:

read your MPI manual or ask your computer administrator.

Note also that this requires that the wannier90.x executable has been compiled in its parallel version

(follow the instructions in the ﬁle README.install in the main directory of the wannier90 distribution)

and that the MPI libraries and binaries are installed and correctly conﬁgured on your machine.

2.2 seedname.win File

The wannier90 input ﬁle seedname.win has a ﬂexible free-form structure.

The ordering of the keywords is not signiﬁcant. Case is ignored (so num_bands is the same as

Num_Bands). Characters after !, or # are treated as comments. Most keywords have a default value

that is used unless the keyword is given in seedname.win. Keywords can be set in any of the following

ways

18 wannier90: User Guide

num_wann 4

num_wann = 4

num_wann : 4

A logical keyword can be set to true using any of the following strings: T,true,.true..

For further examples see Section 10.1 and the the wannier90 Tutorial.

2.3 Keyword List

wannier90: User Guide 19

Keyword Type Description

System Parameters

num_wann I Number of WF

num_bands I Number of bands passed to the code

unit_cell_cart P Unit cell vectors in Cartesian coor-

dinates

atoms_cart * P Positions of atoms in Cartesian co-

ordinates

atoms_frac * R Positions of atoms in fractional co-

ordinates with respect to the lattice

vectors

mp_grid I Dimensions of the Monkhorst-Pack

grid of k-points

kpoints R List of k-points in the Monkhorst-

Pack grid

gamma_only L Wavefunctions from underlying ab

initio calculation are manifestly real

spinors L WF are spinors

shell_list I Which shells to use in ﬁnite diﬀer-

ence formula

search_shells I The number of shells to search when

determining ﬁnite diﬀerence formula

skip_B1_tests L Check the condition B1 of Ref. [1]

nnkpts I Explicit list of nearest-neighbour k-

points.

kmesh_tol R The tolerance to control if two

kpoint belong to the same shell

Table 2.1: seedname.win ﬁle keywords deﬁning the system. Argument types are represented by, I for

a integer, R for a real number, P for a physical value, L for a logical value and S for a text string.

*atoms_cart and atoms_frac may not both be deﬁned in the same input ﬁle.

20 wannier90: User Guide

Keyword Type Description

Job Control

postproc_setup L To output the seedname.nnkp ﬁle

exclude_bands I List of bands to exclude from the

calculation

select_projections I List of projections to use in Wan-

nierisation

restart S Restart from checkpoint ﬁle

iprint I Output verbosity level

length_unit S System of units to output lengths

wvfn_formatted L Read the wavefunctions from a

(un)formatted ﬁle

spin S Which spin channel to read

devel_flag S Flag for development use

timing_level I Determines amount of timing infor-

mation written to output

optimisation I Optimisation level

translate_home_cell L To translate ﬁnal Wannier centres to

home unit cell when writing xyz ﬁle

write_xyz L To write atomic positions and ﬁnal

centres in xyz ﬁle format

write_vdw_data L To write data for futher processing

by w90vdw utility

write_hr_diag L To write the diagonal elements of

the Hamiltonian in the Wannier ba-

sis to seedname.wout (in eV)

Table 2.2: seedname.win ﬁle keywords deﬁning job control. Argument types are represented by, I for

a integer, R for a real number, P for a physical value, L for a logical value and S for a text string.

translate_home_cell only relevant if write_xyz is .true.

Keyword Type Description

Plot Parameters

wannier_plot L Plot the WF

wannier_plot_list I List of WF to plot

wannier_plot_supercell I Size of the supercell for plotting the

wannier_plot_format S File format in which to plot the WF

wannier_plot_mode S Mode in which to plot the WF,

molecule or crystal

wannier_plot_radius R Cut-oﬀ radius of WF*

wannier_plot_scale R Scaling parameter for cube ﬁles

wannier_plot_spinor_mode S Quantity to plot for spinor WF

wannier_plot_spinor_phase L Include the “phase” when plotting

spinor WF

wannier90: User Guide 21

bands_plot L Plot interpolated band structure

kpoint_path P K-point path for the interpolated

band structure

bands_num_points I Number of points along the ﬁrst sec-

tion of the k-point path

bands_plot_format S File format in which to plot the in-

terpolated bands

bands_plot_project I WF to project the band structure

onto

bands_plot_mode S Slater-Koster type interpolation or

Hamiltonian cut-oﬀ

bands_plot_dim I Dimension of the system

fermi_surface_plot L Plot the Fermi surface

fermi_surface_num_points I Number of points in the Fermi sur-

face plot

fermi_energy P The Fermi energy

fermi_energy_min P Lower limit of the Fermi energy

range

fermi_energy_max P Upper limit of the Fermi energy

range

fermi_energy_step R Step for increasing the Fermi energy

in the speciﬁed range

fermi_surface_plot_format S File format for the Fermi surface

plot

hr_plot LThis parameter is not used anymore.

Use write_hr instead.

write_hr LWrite the Hamiltonian in the WF

basis

write_rmn LWrite the position operator in the

WF basis

write_bvec LWrite to ﬁle the matrix elements of

the bvectors and their weights

write_tb LWrite lattice vectors, Hamiltonian,

and position operator in WF basis

hr_cutoff P Cut-oﬀ for the absolute value of the

Hamiltonian

dist_cutoff P Cut-oﬀ for the distance between WF

dist_cutoff_mode S Dimension in which the distance be-

tween WF is calculated

translation_centre_frac R Centre of the unit cell to which ﬁnal

WF are translated

use_ws_distance LImprove interpolation using mini-

mum distance between WFs, see

Chap. 9

ws_distance_tol RAbsolute tolerance for the distance

to equivalent positions.

22 wannier90: User Guide

ws_search_size IMaximum extension in each direc-

tion of the super-cell of the Born-von

Karmann cell to search for points in-

side the Wigner-Seitz cell

write_u_matrices LWrite U(k)and Udis(k)matrices to

ﬁles

Table 2.5: seedname.win ﬁle keywords controlling the plot-

ting. Argument types are represented by, I for a integer,

R for a real number, P for a physical value, L for a logical

value and S for a text string. * Only applies when wan-

nier_plot_format is cube.

wannier90: User Guide 23

Keyword Type Description

Disentanglement Parameters

dis_win_min P Bottom of the outer energy window

dis_win_max P Top of the outer energy window

dis_froz_min P Bottom of the inner (frozen) energy

window

dis_froz_max P Top of the inner (frozen) energy win-

dow

dis_num_iter I Number of iterations for the minimi-

sation of ΩI

dis_mix_ratio R Mixing ratio during the minimisa-

tion of ΩI

dis_conv_tol R The convergence tolerance for ﬁnd-

ing ΩI

dis_conv_window I The number of iterations over which

convergence of ΩIis assessed.

dis_spheres_num I Number of spheres in k-space where

disentaglement is performed

dis_spheres_first_wann I Index of the ﬁrst band to be consid-

ered a Wannier function

dis_spheres R List of centres and radii, for disen-

tanglement only in spheres

Table 2.3: seedname.win ﬁle keywords controlling the disentanglement. Argument types are repre-

sented by, I for a integer, R for a real number, P for a physical value, L for a logical value and S for a

text string.

24 wannier90: User Guide

Keyword Type Description

Wannierise Parameters

num_iter I Number of iterations for the minimi-

sation of Ω

num_cg_steps I During the minimisation of Ωthe

number of Conjugate Gradient steps

before resetting to Steepest Descents

conv_window I The number of iterations over which

convergence of Ωis assessed

conv_tol P The convergence tolerance for ﬁnd-

ing Ω

precond L Use preconditioning

conv_noise_amp R The amplitude of random noise ap-

plied towards end of minimisation

procedure

conv_noise_num I The number of times random noise

is applied

num_dump_cycles I Control frequency of check-pointing

num_print_cycles I Control frequency of printing

write_r2mn L Write matrix elements of r2between

WF to ﬁle

guiding_centres L Use guiding centres

num_guide_cycles I Frequency of guiding centres

num_no_guide_iter I The number of iterations after which

guiding centres are used

trial_step * R The trial step length for the

parabolic line search during the min-

imisation of Ω

fixed_step * R The ﬁxed step length to take dur-

ing the minimisation of Ω, instead

of doing a parabolic line search

use_bloch_phases ** L To use phases for initial projections

site_symmetry*** L To construct symmetry-adapted

Wannier functions

symmetrize_eps*** R The convergence tolerance used in

the symmetry-adapted mode

scdm_proj L Whether to use the SCDM-k

method of Ref. [6]

scdm_entanglement I The entanglement method to use in

SCDM-k

scdm_mu P The value of the parameter µin

SCDM-k

scdm_sigma P The value of the parameter σin

SCDM-k

slwf_num I The number of objective WFs for se-

lective localization

slwf_constrain L Whether to constrain the centres of

the objective WFs

slwf_lambda R Value of the Lagrange multiplier for

constraining the objective WFs

slwf_centres P The centres to which the objective

WFs are to be constrained

Table 2.4: seedname.win ﬁle keywords controlling the wannierisation. Argument types are represented

by, I for a integer, R for a real number, P for a physical value, L for a logical value and S for a text

string. *fixed_step and trial_step may not both be deﬁned in the same input ﬁle. **Cannot be used in

conjunction with disentanglement. ***Cannot be used in conjunction with the inner (frozen) energy window.

wannier90: User Guide 25

Keyword Type Description

Transport Parameters

transport L Calculate quantum conductance and

density of states

transport_mode S Bulk or left-lead_conductor_right-

lead calculation

tran_win_min P Bottom of the energy window for

transport calculation

tran_win_max P Top of the energy window for trans-

port calculation

tran_energy_step R Sampling interval of the energy val-

ues

fermi_energy R The Fermi energy

tran_num_bb I Size of a bulk Hamiltonian

tran_num_ll I Size of a left-lead Hamiltonian

tran_num_rr I Size of a right-lead Hamiltonian

tran_num_cc I Size of a conductor Hamiltonian

tran_num_lc I Number of columns in a left-

lead_conductor Hamiltonian

tran_num_cr I Number of rows in a

conductor_right-lead Hamilto-

nian

tran_num_cell_ll I Number of unit cells in PL of left

lead

tran_num_cell_rr I Number of unit cells in PL of right

lead

tran_num_bandc I Half-bandwidth+1 of a band-

diagonal conductor Hamiltonian

tran_write_ht L Write the Hamiltonian for transport

calculation

tran_read_ht L Read the Hamiltonian for transport

calculation

tran_use_same_lead L Left and right leads are the same

tran_group_threshold R Distance that determines the group-

ing of WFs

hr_cutoff P Cut-oﬀ for the absolute value of the

Hamiltonian

dist_cutoff P Cut-oﬀ for the distance between WF

dist_cutoff_mode S Dimension in which the distance be-

tween WF is calculated

one_dim_axis S Extended direction for a one-

dimensional system

translation_centre_frac R Centre of the unit cell to which ﬁnal

WF are translated

Table 2.6: seedname.win ﬁle keywords controlling transport. Argument types are represented by, I for

a integer, R for a real number, P for a physical value, L for a logical value and S for a text string.

26 wannier90: User Guide

2.4 System

2.4.1 integer :: num_wann

Number of WF to be found.

No default.

2.4.2 integer :: num_bands

Total number of bands passed to the code in the seedname.mmn ﬁle.

Default num_bands=num_wann

2.4.3 Cell Lattice Vectors

The cell lattice vectors should be speciﬁed in Cartesian coordinates.

begin unit_cell_cart

[units]

A1xA1yA1z

A2xA2yA2z

A3xA3yA3z

end unit_cell_cart

Here A1xis the x-component of the ﬁrst lattice vector A1,A2yis the y-component of the second lattice

vector A2, etc.

[units] speciﬁes the units in which the lattice vectors are deﬁned: either Bohr or Ang.

The default value is Ang.

2.4.4 Ionic Positions

The ionic positions may be speciﬁed in fractional coordinates relative to the lattice vectors of the unit

cell, or in absolute Cartesian coordinates. Only one of atoms_cart and atoms_frac may be given in

the input ﬁle.

Cartesian coordinates

begin atoms_cart

[units]

P RP

xRP

yRP

Q RQ

xRQ

yRQ

end atoms_cart

wannier90: User Guide 27

The ﬁrst entry on a line is the atomic symbol. The next three entries are the atom’s position R=

(Rx, Ry, Rz)in Cartesian coordinates. The ﬁrst line of the block, [units], speciﬁes the units in which

the coordinates are given and can be either bohr or ang. If not present, the default is ang.

Fractional coordinates

begin atoms_frac

P F P

1FP

2FP

Q F Q

1FQ

2FQ

end atoms_frac

The ﬁrst entry on a line is the atomic symbol. The next three entries are the atom’s position in

fractional coordinates F=F1A1+F2A2+F3A3relative to the cell lattice vectors Ai,i∈[1,3].

2.4.5 integer, dimension :: mp_grid(3)

Dimensions of the regular (Monkhorst-Pack) k-point mesh. For example, for a 2×2×2grid:

mp_grid : 2 2 2

No default.

2.4.6 K-points

Each line gives the coordinate K=K1B1+K2B2+K3B3of a k-point in relative (crystallographic)

units, i.e., in fractional units with respect to the primitive reciprocal lattice vectors Bi,i∈[1,3]. The

position of each k-point in this list assigns its numbering; the ﬁrst k-point is k-point 1, the second is

k-point 2, and so on.

begin kpoints

1K1

2K1

1K2

2K2

end kpoints

There is no default.

Note: There is an utility provided with wannier90, called kmesh.pl, which helps to generate the

explicit list of kpoints required by wannier90. See Sec. A.1.

2.4.7 logical :: gamma_only

If gamma_only=true, then wannier90 uses a branch of algorithms for disentanglement and localisation

that exploit the fact that the Bloch eigenstates obtained from the underlying ab initio calculation are

manifestly real. This can be the case when only the Γ-point is used to sample the Brillouin zone. The

localisation procedure that is used in the Γ-only branch is based on the method of Ref. [7].

28 wannier90: User Guide

The default value is false.

2.4.8 logical :: spinors

If spinors=true, then wannier90 assumes that the WF correspond to singularly occupied spinor states

and num_elec_per_state=1.

The default value is false.

2.4.9 Shells

The MV scheme requires a ﬁnite diﬀerence expression for ∇kdeﬁned on a uniform Monkhorst-Pack

mesh of k-points. The vectors {b}connect each mesh-point kto its nearest neighbours. Nsh shells of

neighbours are included in the ﬁnite-diﬀerence formula, with Msvectors in the sth shell. For ∇kto be

correct to linear order, we require that the following equation is satisﬁed (Eq. B1 of Ref. [1]):

Nsh

bi,s

αbi,s

β=δαβ ,(2.1)

where bi,s,i∈[1, Ms], is the ith vector belonging to the sth shell with associated weight ws, and α

and βrun over the three Cartesian indices.

2.4.10 integer :: shell_list(:)

shell_list is vector listing the shells to include in the ﬁnite diﬀerence expression. If this keyword is

absent, the shells are chosen automatically.

2.4.11 integer :: search_shells

Speciﬁes the number of shells of neighbours over which to search in attempting to determine an

automatic solution to the B1 condition Eq. 2.1. Larger values than the default may be required in

special cases e.g. for very long thin unit cells.

The default value is 36.

2.4.12 logical :: skip_B1_tests

If set to .true., does not check the B1 condition Eq. 2.1. This should only be used if one knows why

the B1 condition should not be veriﬁed. A typical use of this ﬂag is in conjunction with the Z2PACK

code: http://www.physics.rutgers.edu/z2pack/.

The default value is .false..

2.4.13 integer, dimension(:, 5) :: nnkpts

Speciﬁes the nearest-neighbour k-points which are written to the .nnkp ﬁle. This can be used to

explicitly specify which overlap matrices should be calculated.

wannier90: User Guide 29

begin nnkpts

1 2 0 0 0

end nnkpts

Each nearest neighbour k+bis given by a line of 5 integers. The ﬁrst speciﬁes the k-point number

nkp of k. The second is the k-point number of the neighbour. The ﬁnal three integers specify the

reciprocal lattice vector which brings the k-point speciﬁed by the second integer to k+b.

This format is the same as in the .nnkp ﬁle, except that the number of neighbours per k-point is not

speciﬁed. However, the number of neighbours still needs to be a multiple of the number of k-points.

This input parameter can be used only if postproc_setup = .true., and is not intended to be used

with a full Wannier90 run. It can be used also if the k-points do not describe a regular mesh.

2.4.14 real(kind=dp) :: kmesh_tol

Two kpoints belong to the same shell if the distance between them is less than kmesh_tol. Units are

Ang.

The default value is 0.000001 Ang.

2.5 Projection

The projections block deﬁnes a set of localised functions used to generate an initial guess for the

unitary transformations. The projection block can be speciﬁed in conjunction with scdm_proj=true

(see below). This is only used to read the centres of the projections, which in some cases could help

the optimisation if guiding_centres=true is added to the input ﬁle. This data will be written in the

seedname.nnkp ﬁle to be used by a ﬁrst-principles code.

begin projections

end projections

If guiding_centres=true, then the projection centres are used as the guiding centres in the Wan-

nierisation routine.

For details see Section 3.1.

2.6 Job Control

2.6.1 logical :: postproc_setup

If postproc_setup=true, then the wannier code will write seedname.nnkp ﬁle and exit. If wannier90

is called with the option -pp, then postproc_setup is set to true, over-riding its value in the

seedname.win ﬁle.

30 wannier90: User Guide

The default value is false.

2.6.2 integer :: iprint

This indicates the level of verbosity of the output from 0 (“low”), the bare minimum, to 3 (“high”),

which corresponds to full debugging output.

The default value is 1.

2.6.3 integer :: optimisation

This indicates the level of optimisation used in the code. This is a trade between speed and memory. A

positive number indicates fastest execution time at the cost of more memory. Zero or negative numbers

indicates a smaller memory footprint - at increased execution time.

At the moment the only values that have an eﬀect are optimisation<=0 (low memory) and optimisation>0

(fast)

The default value is 3.

2.6.4 character(len=20) :: length_unit

The length unit to be used for writing quantities in the output ﬁle seedname.wout.

The valid options for this parameter are:

–Ang (default)

–Bohr

2.6.5 character(len=50) :: devel_flag

Not a regular keyword. Its purpose is to allow a developer to pass a string into the code to be used

inside a new routine as it is developed.

No default.

2.6.6 integer :: exclude_bands(:)

A k-point independent list of states to excluded from the calculation of the overlap matrices; for example

to select only valence states, or ignore semi-core states. This keyword is passed to the ﬁrst-principles

code via the seedname.nnkp ﬁle. For example, to exclude bands 2, 6, 7, 8 and 12:

exclude_bands : 2, 6-8, 12

2.6.7 integer :: select_projections(:)

A list of projections to be included in the wannierisation procedure. In the case that num_proj is

greater than num_wann, this keyword allows a subset of the projections in the projection matrices to

wannier90: User Guide 31

be used. For example, to select the projections given by the indices 2, 6, 7, 8 and 12:

select_projections : 2, 6-8, 12

2.6.8 character(len=20) :: restart

If restart is present the code will attempt to restart the calculation from the seedname.chk ﬁle.

The value of the parameter determines the position of the restart

The valid options for this parameter are:

–default. Restart from the point at which the check ﬁle seedname.chk was written

–wannierise. Restart from the beginning of the wannierise routine

–plot. Go directly to the plotting phase

–transport. Go directly to the transport routines

2.6.9 character(len=20) :: wvfn_formatted

If wvfn_formatted=true, then the wavefunctions will be read from disk as formatted (ie ASCII) ﬁles;

otherwise they will be read as unformatted ﬁles. Unformatted is generally preferable as the ﬁles will

take less disk space and I/O is signiﬁcantly faster. However such ﬁles will not be transferable between

all machine architectures and formatted ﬁles should be used if transferability is required (i.e., for test

cases).

The default value of this parameter is false.

2.6.10 character(len=20) :: spin

For bands from a spin polarised calculation spin determines which set of bands to read in, either up

or down.

The default value of this parameter is up.

2.6.11 integer :: timing_level

Determines the amount of timing information regarding the calculation that will be written to the

output ﬁle. A value of 1 produces the least information.

The default value is 1.

2.6.12 logical :: translate_home_cell

Determines whether to translate the ﬁnal Wannier centres to the home unit cell at the end of the

calculation. Mainly useful for molecular systems in which the molecule resides entirely within the

home unit cell and user wants to write an xyz ﬁle (write_xyz=.true.) for the WF centres to compare

with the structure.

32 wannier90: User Guide

The default value is false.

2.6.13 logical :: write_xyz

Determines whether to write the atomic positions and ﬁnal Wannier centres to an xyz ﬁle, seedname_centres.xyz,

for subsequent visualisation.

The default value is false.

2.6.14 logical :: write_vdw_data

Determines whether to write seedname.vdw for subsequent post-processing by the w90vdw utility (in

the utility/w90vdw/ directory of the distribution) for calculating van der Waals energies. Brillouin

zone sampling must be at the Gamma-point only.

The default value is false.

2.7 Disentanglement

These keywords control the disentanglement routine of Ref. [2], i.e., the iterative minimisation of ΩI.

This routine will be activated if num_wann <num_bands.

2.7.1 real(kind=dp) :: dis_win_min

The lower bound of the outer energy window for the disentanglement procedure. Units are eV.

The default is the lowest eigenvalue in the system.

2.7.2 real(kind=dp) :: dis_win_max

The upper bound of the outer energy window for the disentanglement procedure. Units are eV.

The default is the highest eigenvalue in the given states (i.e., all states are included in the disentan-

glement procedure).

2.7.3 real(kind=dp) :: dis_froz_min

The lower bound of the inner energy window for the disentanglement procedure. Units are eV.

If dis_froz_max is given, then the default for dis_froz_min is dis_win_min.

2.7.4 real(kind=dp) :: dis_froz_max

The upper bound of the inner (frozen) energy window for the disentanglement procedure. If dis_froz_max

is not speciﬁed, then there are no frozen states. Units are eV.

No default.

wannier90: User Guide 33

2.7.5 integer :: dis_num_iter

In the disentanglement procedure, the number of iterations used to extract the most connected sub-

space.

The default value is 200.

2.7.6 real(kind=dp) :: dis_mix_ratio

In the disentanglement procedure, the mixing parameter to use for convergence (see pages 4-5 of

Ref. [2]). A value of 0.5 is a ‘safe’ choice. Using 1.0 (i.e., no mixing) often gives faster convergence,

but may cause the minimisation of ΩIto be unstable in some cases.

Restriction: 0.0<dis_mix_ratio ≤1.0

The default value is 0.5

2.7.7 real(kind=dp) :: dis_conv_tol

In the disentanglement procedure, the minimisation of ΩIis said to be converged if the fractional

change in the gauge-invariant spread between successive iterations is less than dis_conv_tol for

dis_conv_window iterations. Units are Å2.

The default value is 1.0E-10

2.7.8 integer :: dis_conv_window

In the disentanglement procedure, the minimisation is said to be converged if the fractional change in

the spread between successive iterations is less than dis_conv_tol for dis_conv_window iterations.

The default value of this parameter is 3.

2.7.9 integer :: dis_spheres_num

Number of spheres in reciprocal space where the k-dependent disentanglement is performed. No dis-

entanglement is performed for those k-points that are not included in any of the spheres.

The default is 0, which means disentangle at every k-point in the full BZ (the standard mode in

Wannier90).

2.7.10 integer :: dis_spheres_first_wann

Index of the ﬁrst band that has to be considered as a Wannier function. Used only if dis_spheres_num

is greater than zero. At k-points where disentanglement is not performed the bands from dis_spheres_first_wann

to dis_spheres_first_wann+num_wann are used to wannierise. The bands excluded using exclude_bands

should not be counted.

The default is 1, the band at the lowest energy.

34 wannier90: User Guide

2.7.11 dis_spheres

Each line gives the coordinate K=K1B1+K2B2+K3B3of a k-point representing the center of one of

the spheres used for k-dependent disentanglement. The same crystallographic units as for kpoints are

used here. Each k-point coordinate Kimust the followed by the respectice sphere radius riin inverse

angstrom (on the same line).

The number of lines must be equal to dis_spheres_num.

begin dis_spheres

1K1

2K1

3r1

1K2

2K2

3r2

end dis_spheres

There is no default.

2.8 Wannierise

Iterative minimisation of e

Ω, the non-gauge-invariant part of the spread functional.

2.8.1 integer :: num_iter

Total number of iterations in the minimisation procedure. Set num_iter=0 if you wish to generate

projected WFs rather than maximally-localized WFs (see Example 8 in the Tutorial).

The default value is 100

2.8.2 integer :: num_cg_steps

Number of conjugate gradient steps to take before resetting to steepest descents.

The default value is 5

2.8.3 integer :: conv_window

If conv_window>1, then the minimisation is said to be converged if the change in Ωover conv_window

successive iterations is less than conv_tol. Otherwise, the minimisation proceeds for num_iter itera-

tions (default).

The default value is -1

2.8.4 real(kind=dp) :: conv_tol

If conv_window >1, then this is the convergence tolerance on Ω, otherwise not used. Units are Å2.

The default value is 1.0E-10

wannier90: User Guide 35

2.8.5 logical :: precond

Whether or not to use preconditioning to speed up the minimization of the spreads. This is based on

the same idea as the classical Tetter-Payne-Allan preconditionning for DFT and dampens the high-

frequency oscillations of the gradient due to contributions from large real lattice vectors. It is useful

when the optimization is slow, especially on ﬁne grids. When optimisation<3, this uses a slower

algorithm to save memory.

The default value is false.

2.8.6 real(kind=dp) :: conv_noise_amp

If conv_noise_amp>0, once convergence (as deﬁned above) is achieved, some random noise fis added

to the search direction, and the minimisation is continued until convergence is achieved once more. If

the same value of Ωas before is arrived at, then the calculation is considered to be converged. If not,

then random noise is added again and the procedure repeated up to a maximum of conv_noise_num

times. conv_noise_amp is the amplitude of the random noise fthat is added to the search direction:

0<|f|<conv_noise_amp. This functionality requires conv_window >1. If conv_window is not

speciﬁed, it is set to the value 5 by default.

If conv_noise_amp ≤0, then no noise is added (default).

The default value is -1.0

2.8.7 integer :: conv_noise_num

If conv_noise_amp >0, then this is the number of times in the minimisation that random noise is

added.

The default value is 3

2.8.8 integer :: num_dump_cycles

Write suﬃcient information to do a restart every num_dump_cycles iterations.

The default is 100

2.8.9 integer :: num_print_cycles

Write data to the master output ﬁle seedname.wout every num_print_cycles iterations.

The default is 1

2.8.10 logical :: write_r2mn

If write_r2mn =true, then the matrix elements hm|r2|ni(where mand nrefer to WF) are written

to ﬁle seedname.r2mn at the end of the Wannierisation procedure.

The default value of this parameter is false.

36 wannier90: User Guide

2.8.11 logical :: guiding_centres

Use guiding centres during the minimisation, in order to avoid local minima.

wannier90 uses a logarithm deﬁnition of the spread functional. As we are taking the log of a complex

argument there is a possibility that the algorithm might make inconsistent choices for the branch cut.

This manifests itself as complex WF with a large spread. By using guiding centres the code will attempt

to make a consistent choice of branch cut. Experience shows that with guiding_centres set to true

this problem is avoided and doing so does not cause any problems. For this reason we recommend

setting guiding_centres to true where possible (it is only not possible if an explicit projection block

is not deﬁned).

The default value is false.

2.8.12 integer :: num_guide_cycles

If guiding_centres is set to true, then the guiding centres are used only every num_guide_cycles.

The default value is 1.

2.8.13 integer :: num_no_guide_iter

If guiding_centres is set to true, then the guiding centres are used only after num_no_guide_iter

minimisation iterations have been completed.

The default value is 0.

2.8.14 real(kind=dp) :: trial_step

The value of the trial step for the parabolic ﬁt in the line search minimisation used in the minimisation of

the spread function. Cannot be used in conjunction with fixed_step (see below). If the minimisation

procedure doesn’t converge, try decreasing the value of trial_step to give a more accurate line search.

The default value is 2.0

2.8.15 real(kind=dp) :: fixed_step

If this is given a value in the input ﬁle, then a ﬁxed step of length fixed_step (instead of a parabolic

line search) is used at each iteration of the spread function minimisation. Cannot be used in conjunction

with trial_step. This can be useful in cases in which minimisation with a line search fails to converge.

There is no default value.

2.8.16 logical :: use_bloch_phases

Determines whether to use the Bloch functions as the initial guess for the projections. Can only be

used if disentanglement = false.

The default value is false.

wannier90: User Guide 37

2.8.17 logical :: site_symmetry

Construct symmetry-adapted Wannier functions. For the detail of the theoretical background, see

Ref. [8]. Cannot be used in conjunction with the inner (frozen) energy window.

The default value is false.

2.8.18 real(kind=dp) :: symmetrize_eps

Convergence threshold to check whether the symmetry condition (Eq. (19) in Ref. [8]) on the unitary

matrix U(k)is satisﬁed or not. See also Eq. (29) in Ref. [8]. Used when site_symmetry = .true.

The default value is 1.0E-3.

2.8.19 logical :: scdm_proj

If scdm_proj=true then the A(k)

mn matrices are generated with the SCDM-k method of Ref. [6]. In this

case, one also needs to specify the scdm_entanglement keyword. One then needs to run wannier90.x

-pp seedname to generate the seedname.nnkp ﬁle, to be used by a ﬁrst-principle code (at the moment

only interface available is with the QuantumEspresso code).

The default value is false.

2.8.20 integer :: scdm_entanglement

Select the functional form for the occupation number matrix f(nk)for the SCDM-k method. Only

three integer values are allowed:

isolated:f(nk)is the identity matrix Ink

erfc: The occupation number matrix is given by:

f(nk) = 1

2ERFC nk−µ

σ

gaussian: The occupation number matrix is given by

f(nk) = EXP −(nk−µ)2

σ2

The default value is isolated.

2.8.21 real(kind=dp) :: scdm_mu

The value of the µparameter in the formulas above. It is strictly required only when scdm_entanglement=erfc

or gaussian. It deﬁnes the characteristic energy for the occupation numbers matrix, in units of

eV. If scdm_entanglement=erfc, it gives the mean value of the complementary error function. If

scdm_entanglement=gaussian, it gives the mean value of the gaussian instead.

The default value is 0 eV.

38 wannier90: User Guide

2.8.22 real(kind=dp) :: scdm_sigma

The value of the σparameter in the formulas for the occupation numbers matrix. It is strictly required

only when scdm_entanglement=erfc or gaussian. It deﬁnes the spread of the occupation numbers

matrix around µ, and as such it must be a positive real number. It must be given in units of eV.

The default value is 1.0 eV.

2.8.23 integer :: slwf_num

The number of objective Wannier functions for selective localisation in the selectively localised Wan-

nier function (SLWF) method of Ref. [9]. These functions are obtained by minimising the spread

functional only with respect to the degrees of freedom of a subset of slwf_num ≤num_wann functions.

At convergence, the objective WFs will have a minimum cumulative spread, whereas the remaining

num_wann −slwf_num functions are left unoptimised. The initial guesses for the objective WFs are

given by the ﬁrst slwf_num orbitals in the projections block.

The default is num_wann.

2.8.24 logical :: slwf_constrain

If slwf_constrain=true, then the centres of the objective Wannier functions are constrained to either

the centres of the ﬁrst slwf_num orbitals in the projections block or to new positions speciﬁed in the

slwf_centres block (see Sec. 2.8.26). In this case, a modiﬁed spread functional, Ωc, with the addition

of a constraint term, as described in Ref. [9].

The default is false

2.8.25 real(kind=dp) :: slwf_lambda

The value of the Lagrange multiplier λfor the constraint term in term added to modify the spread

functional: λPJ0

n=1 (rn−r0n)2, where J0is slwf_num, and rnand r0nare the centre and target centre,

respectively, for the nth objective WF.

The default is 0.0.

2.8.26 Constraints on centres

If slwf_constrain=true, then by default the centres to which the slwf_num objective Wannier function

centres are constrained are given by the ﬁrst slwf_num rows of the projections block.

Optionally, the slwf_centres block may be used to deﬁne alternative target centres for some or all of

the slwf_num objective Wannier functions.

The block below shows an example of how to set the constraints:

begin centre_constraints

2 0.0 0.0 0.0

4 0.25 0.0 0.0

end centre_constraints

wannier90: User Guide 39

•The ﬁrst line sets the constraint for the centre of objective WF number 2 (as deﬁned by the order

of WFs in the projections block) to (0.0,0.0,0.0) in fractional co-ordinates.

•The second line sets the constraint for the centre of objective WF number 4 (as deﬁned by the

order of WFs in the projections block) to (0.25,0.0,0.0) in fractional co-ordinates.

•The target centres of all other objective Wannier functions remain as the centres given in the

corresponding rows of the projections block.

2.9 Post-Processing

Capabilities:

–Plot the WF

–Plot the interpolated band structure

–Plot the Fermi surface

–Output the Hamiltonian in the WF basis

–Transport calculation (quantum conductance and density of states)

2.9.1 logical :: wannier_plot

If wannier_plot =true, then the code will write out the Wannier functions in a format speciﬁed by

wannier_plot_format

The default value of this parameter is false.

2.9.2 integer :: wannier_plot_list(:)

A list of WF to plot. The WF numbered as per the seedname.wout ﬁle after the minimisation of the

spread.

The default behaviour is to plot all WF. For example, to plot WF 4, 5, 6 and 10:

wannier_plot_list : 4-6, 10

2.9.3 integer :: wannier_plot_supercell

The code generates the WFs on a grid corresponding to a ‘super-unit-cell’. If wannier_plot_supercell

is provided as a single integer, then the size of the super-unit-cell is wannier_plot_supercell times

the size of the unit cell along all three linear dimensions (the ‘home’ unit cell is kept approxi-

mately in the middle); otherwise, if three integers are provided, the size of the super-unit-cell is

wannier_plot_supercell(i) times the size of the unit cell along the i−th linear dimension.

The default value is 2.

40 wannier90: User Guide

2.9.4 character(len=20) :: wannier_plot_format

WF can be plotted in either XCrySDen (xsf) format or Gaussian cube format. The valid options for

this parameter are:

–xcrysden (default)

–cube

If wannier_plot_format=xsf: the code outputs the WF on the entire super-unit-cell speciﬁed by

wannier_plot_supercell.

If wannier_plot_format=cube: the code outputs the WF on a grid that is smaller than the super-

unit-cell speciﬁed by wannier_plot_supercell. This grid is determined by wannier_plot_mode,

wannier_plot_radius and wannier_plot_scale, described in detail below.

The code is able to output Gaussian cube ﬁles for systems with non-orthogonal lattice vectors. Many vi-

sualisation programs (including XCrySDen), however, are only able to handle cube ﬁles for systems with

orthogonal lattice vectors. One visualisation program that is capable of dealing with non-orthogonal

lattice vectors is VESTA (http://jp-minerals.org/vesta/en/).1

2.9.5 character(len=20) :: wannier_plot_mode

Choose the mode in which to plot the WF, either as a molecule or as a crystal.

The valid options for this parameter are:

–crystal (default)

–molecule

If wannier_plot_format=cube:

•if wannier_plot_mode = molecule, then wherever the WF centre sits in the supercell, the origin

of the cube is shifted (for the purpose of plotting only, ie, nothing is done to the U matrices etc)

to coincide with the centre of mass of the atomic positions speciﬁed by the user in the *.win

input ﬁle. These atomic positions are also written to the cube ﬁle, so when it is visualised, the

WF appears superimposed on the molecular structure.

•if wannier_plot_mode = crystal, then the WF is not shifted, but instead the code searches

for atoms that are within a radius of wannier_plot_scale ×wannier_plot_radius of the WF

centre and writes the coordinates of these atoms to the cube ﬁle. In this way, when the cube ﬁle

is visualised, the WF appears superimposed on the nearest atoms to the WF centre.

•crystal mode can be used for molecules, and molecule mode can be used for crystals.

1It’s worth noting that another visualisation program, VMD (http://www.ks.uiuc.edu/Research/vmd), is able to

deal with certain special cases of non-orthogonal lattice vectors; see http://www.ks.uiuc.edu/Research/vmd/plugins/

molfile/cubeplugin.html for details.

wannier90: User Guide 41

2.9.6 real(kind=dp) :: wannier_plot_radius

If wannier_plot_format=cube, then wannier_plot_radius is the radius of the sphere that must ﬁt

inside the parallelepiped in which the WF is plotted. wannier_plot_radius must be greater than 0.

Units are Å.

The default value is 3.5.

2.9.7 real(kind=dp) :: wannier_plot_scale

If wannier_plot_format=cube and wannier_plot_mode=crystal, then the code searches for atoms

that are within a radius of wannier_plot_scale ×wannier_plot_radius of the WF centre and writes

the coordinates of these atoms to the cube ﬁle. In this way, when the cube ﬁle is visualised, the WF

appears superimposed on the nearest atoms to the WF centre. wannier_plot_scale must be greater

than 0. This parameter is dimensionless.

The default value is 1.0.

2.9.8 character(len=20) :: wannier_plot_spinor_mode

If spinors =true then this parameter controls the quantity to plot. For a spinor WF with components

[φ, ψ]the quatity plotted is

–total (default). p[|φ|2+|ψ|2

–up.|φ| × sign(Re{φ})if wannier_plot_spinor_mode =true, otherwise |φ|

–down.|ψ| × sign(Re{ψ})if wannier_plot_spinor_mode =true, otherwise |ψ|

Note: making a visual representation of a spinor WF is not as straightforward as for a scalar WF.

While a scalar WF is typically a real valued function, a spinor WF is a complex, two component spinor.

wannier90 is able to plot several diﬀerent quantities derived from a spinor WF which should give you

a good idea of the nature of the WF.

2.9.9 logical :: wannier_plot_spinor_phase

If wannier_plot_spinor_phase =true phase information will be taken into account when plotting a

spinor WF.

2.9.10 logical :: bands_plot

If bands_plot =true, then the code will calculate the band structure, through Wannier interpolation,

along the path in k-space deﬁned by bands_kpath using bands_num_points along the ﬁrst section of

the path and write out an output ﬁle in a format speciﬁed by bands_plot_format.

The default value is false.

42 wannier90: User Guide

2.9.11 kpoint_path

Deﬁnes the path in k-space along which to calculate the bandstructure. Each line gives the start and

end point (with labels) for a section of the path. Values are in fractional coordinates with respect to

the primitive reciprocal lattice vectors.

begin kpoint_path

G0.0 0.0 0.0L0.0 0.0 1.0

L0.0 0.0 1.0N0.0 1.0 1.0

end kpoint_path

There is no default

2.9.12 integer :: bands_num_points

If bands_plot =true, then the number of points along the ﬁrst section of the bandstructure plot

given by kpoint_path. Other sections will have the same density of k-points.

The default value for bands_num_points is 100.

2.9.13 character(len=20) :: bands_plot_format

Format in which to plot the interpolated band structure. The valid options for this parameter are:

–gnuplot (default)

–xmgrace

Note: it is possible to request output in both formats eg bands_format =gnuplot xmgrace

2.9.14 integer :: bands_plot_project(:)

If present wannier90 will compute the contribution of this set of WF to the states at each point of the

interpolated band structure. The WF are numbered according to the seedname.wout ﬁle. The result is

written in the seedname_band.dat ﬁle, and a corresponding gnuplot script to seedname_band_proj.dat

For example, to project on to WFs 2, 6, 7, 8 and 12:

bands_plot_project : 2, 6-8, 12

2.9.15 character(len=20) :: bands_plot_mode

To interpolate the band structure along the k-point path, either use the Slater-Koster interpolation

scheme or truncate the Hamiltonian matrix in the WF basis. Truncation criteria are provided by

hr_cutoff and dist_cutoff.

The valid options for this parameter are:

wannier90: User Guide 43

–s-k (default)

–cut

2.9.16 integer :: bands_plot_dim

Dimension of the system. If bands_plot_dim <3 and bands_plot_mode =cut, lattice vector R=

N1A1+N2A2+N3A3, where Ni= 0 if Aiis parallel to any of the conﬁned directions speciﬁed by

one_dim_axis, are exclusively used in the band structure interpolation.

The valid options for this parameter are:

–3 (default)

–2

–1

2.9.17 logical :: fermi_surface_plot

If fermi_surface_plot =true, then the code will calculate, through Wannier interpolation, the

eigenvalues on a regular grid with fermi_surface_num_points in each direction. The code will write

a ﬁle in bxsf format which can be read by XCrySDen in order to plot the Fermi surface.

The default value is false.

2.9.18 integer :: fermi_surface_num_points

If fermi_surface_plot =true, then the number of divisions in the regular k-point grid used to

calculate the Fermi surface.

The default value for fermi_surface_num_points is 50.

2.9.19 real(kind=dp) :: fermi_energy

The Fermi energy in eV. This parameter is written into the bxsf ﬁle. If fermi_energy is speciﬁed,

fermi_energy_min,fermi_energy_max, and fermi_energy_step should not be speciﬁed, and vice-

versa.

The default value is 0.0

2.9.20 real(kind=dp) :: fermi_energy_min

Instead of specifyﬁng a single Fermi energy, it is possible to scan the Fermi level over a range of values,

and recompute certain quantities for each εF.2This is the minimum value in the range (in eV).

There is no default value.

2Scanning the Fermi level is currently supported only by the postw90 module berry, for berry_task=ahc,morb. For

all other functionalities that require a knowledge of εF, use fermi_energy instead.

44 wannier90: User Guide

2.9.21 real(kind=dp) :: fermi_energy_max

The maximum value in the range of Fermi energies. Units are eV.

The default value is fermi_energy_min+1.0.

2.9.22 real(kind=dp) :: fermi_energy_step

Diﬀerence between consecutive values of the Fermi energy when scanning from fermi_energy_min to

fermi_energy_max. Units are eV.

The default value is 0.01.

2.9.23 character(len=20) :: fermi_surface_plot_format

Format in which to plot the Fermi surface. The valid options for this parameter are:

–xcrysden (default)

2.9.24 logical :: write_hr

If write_hr =true, then the Hamiltonian matrix in the WF basis will be written to a ﬁle seedname_hr.dat.

The default value is false.

2.9.25 logical :: write_rmn

If write_rmn =true, then the position operator in the WF basis will be written to a ﬁle seedname_r.dat.

The default value is false.

2.9.26 logical :: write_bvec

If write_bvec =true, then the the matrix elements of bvector and their weights will be written to a

ﬁle seedname.bvec.

The default value is false.

2.9.27 logical :: write_tb

If write_tb =true, then the lattice vectors, together with the Hamiltonian and position-operator

matrices in the WF basis, will be written to a ﬁle seedname_tb.dat, in units of Angstrom and eV.

The default value is false.

wannier90: User Guide 45

2.9.28 logical :: transport

If transport =true, then the code will calculate quantum conductance and density of states of a

one-dimensional system. The results will be written to ﬁles seedname_qc.dat and seedname_dos.dat,

respectively. Since both quantities are a function of energy, they will be evaluated from tran_win_min

to tran_win_max with an interval of tran_energy_step.

The default value of this parameter is false.

2.9.29 character(len=20) :: transport_mode

If transport_mode =bulk, quantum conductance and density of states are calculated for a perfectly-

periodic one-dimensional system. In this case, the transport part can either use the Hamiltonian

matrix in the WF basis generated by wannier90 or a Hamiltonian matrix provided by the external ﬁle

seedname_htB.dat.

If transport_mode =lcr, quantum conductance and density of states are calculated for a system

where semi-inﬁnite, left and right leads are connected through a central conductor region. In this

case, the transport part will work independently from the disentanglement and wannierise procedure.

Details of the method is described in Ref. [10].

If tran_read_ht =true then the Hamiltonian matrices must be provided by the ﬁve external ﬁles:

seedname_htL.dat, seedname_htLC.dat, seedname_htC.dat, seedname_htCR.dat, seedname_htR.dat.

If tran_read_ht =false then the Hamiltonian matrices are found automatically provided the super-

cell adheres to conditions outlined in Section 7.3.

The valid options for this parameter are:

–bulk (default)

–lcr

2.9.30 real(kind=dp) :: tran_win_min

The lower bound of the energy window for the transport calculation. Units are eV.

The default value is -3.0.

2.9.31 real(kind=dp) :: tran_win_max

The upper bound of the energy window for the transport calculation. Units are eV.

The default value is 3.0.

2.9.32 real(kind=dp) :: tran_energy_step

Sampling interval of the energy values from tran_win_min to tran_win_max. Units are eV.

The default value is 0.01.

46 wannier90: User Guide

2.9.33 real(kind=dp) :: fermi_energy

The Fermi energy in eV. The energy axis of the quantum conductance and density of states data will

be shifted rigidly by this amount.

The default value is 0.0

2.9.34 integer :: tran_num_bb

Size of a bulk Hamiltonian matrix. This number is equal to the number of WFs in one principal layer.

A one-dimensional system can be viewed as an array of principal layers which are deﬁned in a way

that localized basis functions inside a certain principal layer only interact with those in the nearest

neighbor principal layer. In wannier90 a principal layer will be an integer multiple of a unit cell, and

the size is determined by hr_cutoff and/or dist_cutoff. The criterion is rather arbitrary when WFs

are adopted as a localized basis set, and it is up to a user’s choice.

The default value is 0.

2.9.35 integer :: tran_num_ll

Size of a left-lead Hamiltonian matrix. If transport_mode =lcr and tran_read_ht =false then

tran_num_ll is the number of Wannier functions in a principal layer.

The default value is 0.

2.9.36 integer :: tran_num_rr

Size of a right-lead Hamiltonian matrix.

The default value is 0.

2.9.37 integer :: tran_num_cc

Size of a conductor Hamiltonian matrix.

The default value is 0.

2.9.38 integer :: tran_num_lc

Number of columns in a left-lead_conductor Hamiltonian matrix. Number of rows must be equal to

tran_num_ll.

The default value is 0.

wannier90: User Guide 47

2.9.39 integer :: tran_num_cr

Number of rows in a conductor_right-lead Hamiltonian matrix. Number of columns must be equal to

tran_num_rr.

The default value is 0.

2.9.40 integer :: tran_num_cell_ll

Number of unit cells in one principal layer of left lead. Used if transport_mode =lcr and tran_read_ht =

false.

The default value is 0.

2.9.41 integer :: tran_num_cell_rr

Number of unit cells in one principal layer of right lead. Not used at present.

The default value is 0.

2.9.42 integer :: tran_num_bandc

Half-bandwidth+1 of a band-diagonal conductor Hamiltonian matrix.

The Hamiltonian matrix of a central conductor part, which is read from seedname_htC.dat, will

be diagonally dominant when tran_num_cc is very large. tran_num_bandc is used to construct a

compact matrix which contains the non-zero band-diagonal part of a full conductor Hamiltonian matrix.

Setting this parameter is only meaningful when tran_num_bandc is greater than tran_num_lc and

tran_num_cr.

The default value is 0.

2.9.43 logical :: tran_write_ht

If tran_write_ht =true, then the Hamiltonian matrix formatted for the transport calculation will

be written to a ﬁle seedname_htB.dat.

The default value is false.

2.9.44 logical :: tran_read_ht

If tran_write_ht =true, then the Hamiltonian matrix formatted for the transport calculation will

be read from a set of ﬁles described in the parameter transport_mode. Set tran_write_ht =false

to perform automated lcr calculations (see Section 7.3).

The default value is false.

48 wannier90: User Guide

2.9.45 logical :: tran_use_same_lead

If tran_use_same_lead =true, then the left and the right leads are the same. In this case, seedname_htR.dat

is not required.

The default value is true.

2.9.46 real(kind=dp) :: tran_group_threshold

Used to group and sort Wannier functions according to the positions of their centres. Wannier functions

in a group are within tran_group_threshold from one another in x,y and zdirections. Units are Å

The default is 0.15

2.9.47 real(kind=dp) :: translation_centre_frac(3)

Centre of the unit cell to which the ﬁnal Wannier centres are translated. Numbers are in fractional

coordinates with respect to the lattice vectors.

The default value is (0.0,0.0,0.0).

2.9.48 logical :: use_ws_distance

Improves the interpolation of the k-space Hamiltonian, by applying a translation to each WF by a

basis vector of the super-lattice that minimises the distance between their centres. The translation

is dependent on both WF and on the unit cell vector to which they belong, i.e., translate function

Wj(r−R)inside the Wigner-Seitz cell centred on WF Wi(r).

For a longer explanation, see Chapter 9.

If false the code puts all the WF in the home cell, only possible choice until wannier90 v2.0.1.

The default value is true (default changed since v.3.0). Introduced in v2.1.

2.9.49 real(kind=dp) :: ws_distance_tol

Tolerance when determining whether two values kdijR+˜

Rnmlkand kdijR+˜

Rn0m0l0k(as deﬁned in

chapter 9) for the shortest distance between two Wannier functions are equivalent. If the diﬀerence in

distance (in Angstrom) is less than ws_distance_tol, they are taken to be equivalent.

The default value is 10−5.

2.9.50 :: ws_search_size

Maximum absolute value for the integers n, m, l that identify the super-lattice vectors ˜

Rnml (see

chapter 9) when searching for points inside the Wigner-Seitz cell. If ws_search_size is provided as

a single integer, then the number of repetitions of the Born-von Karman cell is the same along all

three linear dimensions; otherwise, if three integers are provided, the number of repetitions along the

i−th linear dimension is ws_search_size(i). The variable is used both in hamiltonian.F90 and in

wannier90: User Guide 49

ws_distance.F90. In the latter case, its value is incremented by one in order to account for WFs

whose centre wanders away from the original reference unit cell.

The default value is generally suﬃcient, but might need to be increased in case of elongated cells.

The default value is 2.

2.9.51 logical :: write_u_matrices

Write the U(k)and Udis(k)matrices obtained at the end of wannierization to ﬁles seedname_u.mat

and seedname_u_dis.mat, respectively.

The default value is false.

2.9.52 real(kind=dp) :: hr_cutoff

The absolute value of the smallest matrix element of the Hamiltonian in the WF basis. If hmn(R)>

hr_cutoff, then the matrix element hmn(R)is retained and used in the band structure interpola-

tion (when bands_plot_mode =cut) or in the transport calculation. Otherwise it is deemed to be

insigniﬁcant and is discarded. Units are eV.

The default value is 0.0.

2.9.53 real(kind=dp) :: dist_cutoff

The largest distance between two WFs for which the Hamiltonian matrix element is retained and used

in the band interpolation (when bands_plot_mode =cut) or in the transport calculation. Units are

Å.

The default value is 1000.0.

2.9.54 character(len=20) :: dist_cutoff_mode

Dimension in which the distance between two WFs is calculated. The vector connecting two WFs may

be projected to a line (one_dim) or a plane (two_dim). The size of the projected vector is calculated,

and dist_cutoff is applied. When one_dim or two_dim is used, one_dim_axis must be given to

specify extended or conﬁned direction.

The valid options for this parameter are:

–three_dim (default)

–two_dim

–one_dim

2.9.55 character(len=20) :: one_dim_axis

Extended direction for a one-dimensional system or conﬁned direction for a two-dimensional system.

This direction must be parallel to one of the Cartesian axes.

50 wannier90: User Guide

The valid options for this parameter are:

–x

–y

–z

No default.

Chapter 3

Projections

3.1 Speciﬁcation of projections in seedname.win

Here we describe the projection functions used to construct the initial guess A(k)

mn for the unitary

transformations.

Each projection is associated with a site and an angular momentum state deﬁning the projection

function. Optionally, one may deﬁne, for each projection, the spatial orientation, the radial part, the

diﬀusivity, and the volume over which real-space overlaps Amn are calculated.

The code is able to

1. project onto s,p,d and f angular momentum states, plus the hybrids sp, sp2, sp3, sp3d, sp3d2.

2. control the radial part of the projection functions to allow higher angular momentum states, e.g.,

both 3s and 4s in silicon.

The atomic orbitals of the hydrogen atom provide a good basis to use for constructing the projec-

tion functions: analytical mathematical forms exist in terms of the good quantum numbers n,l

and m; hybrid orbitals (sp, sp2, sp3, sp3d etc.) can be constructed by simple linear combination

|φi=Pnlm Cnlm|nlmifor some coeﬃcients Cnlm.

The angular functions that use as a basis for the projections are not the canonical spherical harmonics

Ylm of the hydrogenic Schrödinger equation but rather the real (in the sense of non-imaginary) states

Θlmr, obtained by a unitary transformation. For example, the canonical eigenstates associated with

l= 1,m={−1,0,1}are not the real px, pyand pzthat we want. See Section 3.4 for our mathematical

conventions regarding projection orbitals for diﬀerent n,land mr.

We use the following format to specify projections in <seedname>.win:

Begin Projections

[units]

site:ang_mtm:zaxis:xaxis:radial:zona

End Projections

Notes:

52 wannier90: User Guide

units:

Optional. Either Ang or Bohr to specify whether the projection centres speciﬁed in this block (if given

in Cartesian co-ordinates) are in units of Angstrom or Bohr, respectively. The default value is Ang.

site:

C,Al, etc. applies to all atoms of that type

f=0,0.50,0 – centre on (0.0,0.5,0.0) in fractional coordinates (crystallographic units) relative to the

direct lattice vectors

c=0.0,0.805,0.0 – centre on (0.0,0.805,0.0) in Cartesian coordinates in units speciﬁed by the optional

string units in the ﬁrst line of the projections block (see above).

ang_mtm:

Angular momentum states may be speciﬁed by land mr, or by the appropriate character string. See

Tables 3.1 and 3.2. Examples:

l=2,mr=1 or dz2 – a single projection with l= 2,mr= 1 (i.e., dz2)

l=2,mr=1,4 or dz2,dx2-y2 – two functions: dz2and dxz

l=-3 or sp3 – four sp3hybrids

Speciﬁc hybrid orbitals may be speciﬁed as follows:

l=-3,mr=1,3 or sp3-1,sp3-3 – two speciﬁc sp3hybrids

Multiple states may be speciﬁed by separating with ‘;’, e.g.,

sp3;l=0 or l=-3;l=0 – four sp3hybrids and one s orbital

zaxis (optional):

z=1,1,1 – set the z-axis to be in the (1,1,1) direction. Default is z=0,0,1

xaxis (optional):

x=1,1,1 – set the x-axis to be in the (1,1,1) direction. Default is x=1,0,0

radial (optional):

r=2 – use a radial function with one node (ie second highest pseudostate with that angular momentum).

Default is r=1. Radial functions associated with diﬀerent values of rshould be orthogonal to each other.

zona (optional):

zona=2.0 – the value of Z

afor the radial part of the atomic orbital (controls the diﬀusivity of the radial

function). Units always in reciprocal Angstrom. Default is zona=1.0.

Examples

1. CuO, s,p and d on all Cu; sp3hybrids on O:

Cu:l=0;l=1;l=2

O:l=-3 or O:sp3

2. A single projection onto a pzorbital orientated in the (1,1,1) direction:

c=0,0,0:l=1,mr=1:z=1,1,1 or c=0,0,0:pz:z=1,1,1

3. Project onto s, p and d (with no radial nodes), and s and p (with one radial node) in silicon:

Si:l=0;l=1;l=2

Si:l=0;l=1:r=2

wannier90: User Guide 53

3.2 Spinor Projections

When spinors=.true. it is possible to select a set of localised functions to project onto ‘up’ states

and a set to project onto ‘down’ states where, for complete ﬂexibility, it is also possible to set the local

spin quantisation axis.

Note, however, that this feature requires a recent version of the interface between the ab-initio code

and Wannier90 (i.e., written after the release of the 2.0 version, in October 2013) supporting spinor

projections.

Begin Projections

[units]

site:ang_mtm:zaxis:xaxis:radial:zona(spin)[quant_dir]

End Projections

spin (optional):

Choose projection onto ‘up’ or ‘down’ states

u– project onto ‘up’ states.

d– project onto ‘down’ states.

Default is u,d

quant_dir (optional):

1,0,0 – set the spin quantisation axis to be in the (1,0,0) direction. Default is 0,0,1

Examples

•18 projections on an iron site

Fe:sp3d2;dxy;dxx;dyz

•same as above

Fe:sp3d2;dxy;dxx;dyz(u,d)

•same as above

Fe:sp3d2;dxy;dxz;dyz(u,d)[0,0,1]

•same as above but quantisation axis is now x

Fe:sp3d2;dxy;dxz;dyz(u,d)[1,0,0]

•now only 9 projections onto up states

Fe:sp3d2;dxy;dxz;dyz(u)

•9 projections onto up-states and 3 on down

Fe:sp3d2;dxy;dxz;dyz(u)

Fe:dxy;dxz;dyz(d)

•projections onto alternate spin states for two lattice sites (Cr1, Cr2)

Cr1:d(u)

Cr2:d(d)

54 wannier90: User Guide

3.3 Short-Cuts

3.3.1 Random projections

It is possible to specify the projections, for example, as follows:

Begin Projections

random

C:sp3

End Projections

in which case wannier90 uses four sp3orbitals centred on each C atom and then chooses the appropriate

number of randomly-centred s-type Gaussian functions for the remaining projection functions. If the

block only consists of the string random and no speciﬁc projection centres are given, then all of the

projection centres are chosen randomly.

3.3.2 Bloch phases

Setting use_bloch_phases = true in the input ﬁle absolves the user of the need to specify explicit

projections. In this case, the Bloch wave-functions are used as the projection orbitals, namely A(k)

mn =

hψmk|ψnki=δmn.

3.4 Orbital Deﬁnitions

The angular functions Θlmr(θ, ϕ)associated with particular values of land mrare given in Tables 3.1

and 3.2.

The radial functions Rr(r)associated with diﬀerent values of rshould be orthogonal. One choice would

be to take the set of solutions to the radial part of the hydrogenic Schrödinger equation for l= 0, i.e.,

the radial parts of the 1s, 2s, 3s. . . orbitals, which are given in Table 3.3.

wannier90: User Guide 55

l mrName Θlmr(θ, ϕ)

0 1 s1

√4π

1 1 pz q3

4πcos θ

1 2 px q3

4πsin θcos ϕ

1 3 py q3

4πsin θsin ϕ

2 1 dz2 q5

16π(3 cos2θ−1)

2 2 dxz q15

4πsin θcos θcos ϕ

2 3 dyz q15

4πsin θcos θsin ϕ

2 4 dx2-y2 q15

16πsin2θcos 2ϕ

2 5 dxy q15

16πsin2θsin 2ϕ

3 1 fz3 √7

4√π(5 cos3θ−3 cos θ)

3 2 fxz2 √21

4√2π(5 cos2θ−1) sin θcos ϕ

3 3 fyz2 √21

4√2π(5 cos2θ−1) sin θsin ϕ

3 4 fz(x2-y2) √105

4√πsin2θcos θcos 2ϕ

3 5 fxyz √105

4√πsin2θcos θsin 2ϕ

3 6 fx(x2-3y2) √35

4√2πsin3θ(cos2ϕ−3 sin2ϕ) cos ϕ

3 7 fy(3x2-y2) √35

4√2πsin3θ(3 cos2ϕ−sin2ϕ) sin ϕ

Table 3.1: Angular functions Θlmr(θ, ϕ)associated with particular values of land mrfor l≥0.

56 wannier90: User Guide

l mrName Θlmr(θ, ϕ)

−1 1 sp-1 1

√2s+1

√2px

−1 2 sp-2 1

√2s−1

√2px

−2 1 sp2-1 1

√3s−1

√6px +1

√2py

−2 2 sp2-2 1

√3s−1

√6px −1

√2py

−2 3 sp2-3 1

√3s+2

√6px

−3 1 sp3-1 1

2(s+px +py +pz)

−3 2 sp3-2 1

2(s+px −py −pz)

−3 3 sp3-3 1

2(s−px +py −pz)

−3 4 sp3-4 1

2(s−px −py +pz)

−4 1 sp3d-1 1

√3s−1

√6px +1

√2py

−4 2 sp3d-2 1

√3s−1

√6px −1

√2py

−4 3 sp3d-3 1

√3s+2

√6px

−4 4 sp3d-4 1

√2pz +1

√2dz2

−4 5 sp3d-5 −1

√2pz +1

√2dz2

−5 1 sp3d2-1 1

√6s−1

√2px −1

√12 dz2 +1

2dx2-y2

−5 2 sp3d2-2 1

√6s+1

√2px −1

√12 dz2 +1

2dx2-y2

−5 3 sp3d2-3 1

√6s−1

√2py −1

√12 dz2 −1

2dx2-y2

−5 4 sp3d2-4 1

√6s+1

√2py −1

√12 dz2 −1

2dx2-y2

−5 5 sp3d2-5 1

√6s−1

√2pz +1

√3dz2

−5 6 sp3d2-6 1

√6s+1

√2pz +1

√3dz2

Table 3.2: Angular functions Θlmr(θ, ϕ)associated with particular values of land mrfor l < 0, in

terms of the orbitals deﬁned in Table 3.1.

wannier90: User Guide 57

r Rr(r)

12α3/2exp(−αr)

2√2α3/2(2 −αr) exp(−αr/2)

3q4

27 α3/2(1 −2αr/3+2α2r2/27) exp(−αr/3)

Table 3.3: One possible choice for the radial functions Rr(r)associated with diﬀerent values of r:

the set of solutions to the radial part of the hydrogenic Schrödinger equation for l= 0, i.e., the radial

parts of the 1s, 2s, 3s. . . orbitals, where α=Z/a =zona.

3.5 Projections via the SCDM-k method

For many systems, such as aperiodic systems, crystals with defects, or novel materials with complex

band structure, it may be extremely hard to identify a-priori a good initial guess for the projection

functions used to generate the A(k)

mn matrices. In these cases, one can use a diﬀerent approach, known

as the SCDM-kmethod[6], based on a QR factorization with column pivoting (QRCP) of the density

matrix from the self-consistent ﬁeld calculation, which allows one to avoid the tedious step of specifying

a projection block altogether, hence to avoid . This method is robust in generating well localised

function with the correct spatial orientations and in general in ﬁnding the global minimum of the

spread functional Ω. Any electronic-structure code should in principle be able to implement the

SCDM-kmethod within their interface with Wannier90, however at the moment (develop branch

on the GitHub repository November 2017) only the QuantumEspresso package has this capability

implemented in the pw2wannier90 interface program. The SCDM-kcan operate in two modes:

1. In isolation, i.e., without performing a subsequent Wannier90 optimisation (not recommended).

This can be achieved by setting num_iter=0 and dis_num_iter=0 in the <seedname>.win input

ﬁle. The rationale behind this is that in general the projection functions obtained with the

SCDM-kare already well localised with the correct spatial orientations. However, the spreads of

the resulting functions are usually larger than the MLWFs ones.

2. In combination with the Souza-Marzari-Vanderbilt (recommended option). In this case, the

SCDM-kis only used to generate the initial A(k)

mn matrices as a replacement scheme for the

projection block.

The following keywords need to be speciﬁed in the input ﬁle <seedname>.win:scdm_proj scdm_entanglement

scdm_mu scdm_sigma

Chapter 4

Code Overview

wannier90 can operate in two modes:

1. Post-processing mode: read in the overlaps and projections from ﬁle as computed inside a ﬁrst-

principles code. We expect this to be the most common route to using wannier90, and is

described in Ch. 5;

2. Library mode: as a set of library routines to be called from within a ﬁrst-principles code that

passes the overlaps and projections to the wannier90 library routines and in return gets the

unitary transformation corresponding to MLWF. This route should be used if the MLWF are

needed within the ﬁrst-principles code, for example in post-LDA methods such as LDA+U or

SIC, and is described in Ch. 6.

60 wannier90: User Guide

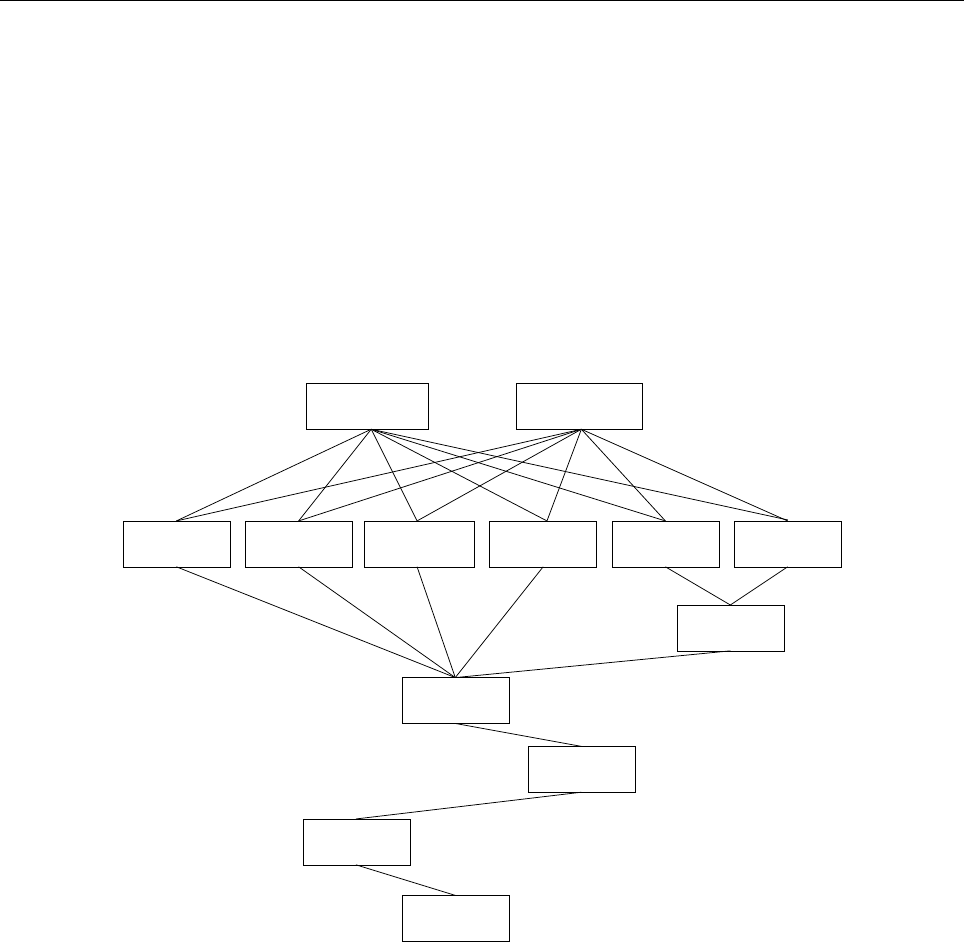

Wannier_libWannier_prog

Wannerise PlotOverlap Disentangle Transport

Hamiltonian

Kmesh

Constants

Parameters

Utility

Figure 4.1: Schematic overview of the module structure of wannier90. Modules may only use data

and subroutines from lower modules.

Chapter 5

wannier90 as a post-processing tool

This is a description of how to use wannier90 as a post-processing tool.

The code must be run twice. On the ﬁrst pass either the logical keyword postproc_setup must be set

to .true. in the input ﬁle seedname.win or the code must be run with the command line option -pp.

Running the code then generates the ﬁle seedname.nnkp which provides the information required to

construct the M(k,b)

mn overlaps (Ref. [1], Eq. (25)) and A(k)

mn (Ref. [1], Eq. (62); Ref. [2], Eq. (22)).

Once the overlaps and projection have been computed and written to ﬁles seedname.mmn and seedname.amn,

respectively, set postproc_setup to .false. and run the code. Output is written to the ﬁle seedname.wout.

5.1 seedname.nnkp ﬁle

OUTPUT, if postproc_setup =.true.

The ﬁle seedname.nnkp provides the information needed to determine the required overlap elements

M(k,b)

mn and projections A(k)

mn. It is written automatically when the code is invoked with the -pp

command-line option (or when postproc_setup=.true. in seedname.win. There should be no need

for the user to edit this ﬁle.

Much of the information in seedname.nnkp is arranged in blocks delimited by the strings begin block_name

. . . end block_name, as described below.

5.1.1 Keywords

The ﬁrst line of the ﬁle is a user comment, e.g., the date and time:

File written on 12Feb2006 at 15:13:12

The only logical keyword is calc_only_A, eg,

calc_only_A : F

5.1.2 Real_lattice block

begin real_lattice

62 wannier90: User Guide

2.250000 0.000000 0.000000

0.000000 2.250000 0.000000

0.000000 0.000000 2.250000

end real_lattice

The real lattice vectors in units of Angstrom.

5.1.3 Recip_lattice block

begin recip_lattice

2.792527 0.000000 0.000000

0.000000 2.792527 0.000000

0.000000 0.000000 2.792527

end recip_lattice

The reciprocal lattice vectors in units of inverse Angstrom.

5.1.4 Kpoints block

begin kpoints

0.00000 0.00000 0.00000

0.00000 0.50000 0.00000

0.50000 0.50000 0.50000

end kpoints

The ﬁrst line in the block is the total number of k-points num_kpts. The subsequent num_kpts lines

specify the k-points in crystallographic co-ordinates relative to the reciprocal lattice vectors.

5.1.5 Projections block

begin projections

n_proj

centre l mr r

z-axis x-axis zona

centre l mr r

z-axis x-axis zona

end projections

Notes:

n_proj: integer; the number of projection centres, equal to the number of MLWF num_wann.

wannier90: User Guide 63

centre: three real numbers; projection function centre in crystallographic co-ordinates relative to the

direct lattice vectors.

l mr r: three integers; land mrspecify the angular part Θlmr(θ, ϕ), and rspeciﬁes the radial part

Rr(r)of the projection function (see Tables 3.1, 3.2 and 3.3).

z-axis: three real numbers; default is 0.0 0.0 1.0; deﬁnes the axis from which the polar angle θin

spherical polar coordinates is measured.

x-axis: three real numbers; must be orthogonal to z-axis; default is 1.0 0.0 0.0 or a vector per-

pendicular to z-axis if z-axis is given; deﬁnes the axis from with the azimuthal angle ϕin spherical

polar coordinates is measured.

zona: real number; the value of Z

aassociated with the radial part of the atomic orbital. Units are in

reciprocal Angstrom.

5.1.6 spinor_projections block

begin spinor_projections

n_proj

centre l mr r

z-axis x-axis zona

spin spn_quant

centre l mr r

z-axis x-axis zona

spin spn_quant

end spinor_projections

Notes: Only one of projections and spinor_projections should be deﬁned. Variables are the same as

the projections block with the addition of spin and spn_quant.

spin: integer. ‘1’ or ‘-1’ to denote projection onto up or down states.

spn_quant: three real numbers. Deﬁnes the spin quantisation axis in Cartesian coordinates.

5.1.7 nnkpts block

begin nnkpts

1 2 0 0 0

end nnkpts

First line: nntot, the number of nearest neighbours belonging to each k-point of the Monkhorst-Pack

mesh

Subsequent lines: nntot×num_kpts lines, ie, nntot lines of data for each k-point of the mesh.

64 wannier90: User Guide

Each line of consists of 5 integers. The ﬁrst is the k-point number nkp. The second to the ﬁfth specify

it’s nearest neighbours k+b: the second integer points to the k-point that is the periodic image of the

k+bthat we want; the last three integers give the G-vector, in reciprocal lattice units, that brings

the k-point speciﬁed by the second integer (which is in the ﬁrst BZ) to the actual k+bthat we need.

5.1.8 exclude_bands block

begin exclude_bands

end exclude_bands

To exclude bands (independent of k-point) from the calculation of the overlap and projection matrices,

for example to ignore shallow-core states. The ﬁrst line is the number of states to exclude, the following

lines give the states for be excluded.

5.1.9 An example of projections

As a concrete example: one wishes to have a set of four sp3projection orbitals on, say, a carbon atom at

(0.5,0.5,0.5) in fractional co-ordinates relative to the direct lattice vectors. In this case seedname.win

will contain the following lines:

begin projections

C:l=-1

end projections

and seedname.nnkp, generated on the ﬁrst pass of wannier90 (with postproc_setup=T), will contain:

begin projections

0.50000 0.50000 0.50000 -1 1 1

0.000 0.000 1.000 1.000 0.000 0.000 2.00

0.50000 0.50000 0.50000 -1 2 1

0.000 0.000 1.000 1.000 0.000 0.000 2.00

0.50000 0.50000 0.50000 -1 3 1

0.000 0.000 1.000 1.000 0.000 0.000 2.00

0.50000 0.50000 0.50000 -1 4 1

0.000 0.000 1.000 1.000 0.000 0.000 2.00

end projections

where the ﬁrst line tells us that in total four projections are speciﬁed, and the subsquent lines provide

the projection centre, the angular and radial parts of the orbital (see Section 3.4 for deﬁnitions), the

zand xaxes, and the diﬀusivity and cut-oﬀ radius for the projection orbital.

pwscf, or any other ab initio electronic structure code, then reads seedname.nnkp ﬁle, calculates the

projections and writes them to seedname.amn.

wannier90: User Guide 65

5.2 seedname.mmn ﬁle

INPUT.

The ﬁle seedname.mmn contains the overlaps M(k,b)

mn .

First line: a user comment, e.g., the date and time

Second line: 3 integers: num_bands,num_kpts,nntot

Then: num_kpts ×nntot blocks of data:

First line of each block: 5 integers. The ﬁrst speciﬁes the k(i.e., gives the ordinal corresponding to

its position in the list of k-points in seedname.win). The 2nd to 5th integers specify k+b. The

2nd integer, in particular, points to the k-point on the list that is a periodic image of k+b, and in

particular is the image that is actually mentioned in the list. The last three integers specify the G

vector, in reciprocal lattice units, that brings the k-point speciﬁed by the second integer, and that thus

lives inside the ﬁrst BZ zone, to the actual k+bthat we need.

Subsequent num_bands ×num_bands lines of each block: two real numbers per line. These are the real

and imaginary parts, respectively, of the actual scalar product M(k,b)

mn for m, n ∈[1,num_bands]. The

order of these elements is such that the ﬁrst index mis fastest.

5.3 seedname.amn ﬁle

INPUT.

The ﬁle seedname.amn contains the projection A(k)

mn.

First line: a user comment, e.g., the date and time

Second line: 3 integers: num_bands,num_kpts,num_wann

Subsequently num_bands ×num_wann ×num_kpts lines: 3 integers and 2 real numbers on each line.

The ﬁrst two integers are the band indices mand n. The third integer speciﬁes the kby giving the

ordinal corresponding to its position in the list of k-points in seedname.win. The real numbers are the

real and imaginary parts, respectively, of the actual A(k)

mn.

5.4 seedname.dmn ﬁle

INPUT.

The ﬁle seedname.dmn contains the data needed to construct symmetry-adapted Wannier functions [8].

Required if site_symmetry = .true.

First line: a user comment, e.g., the date and time

Second line: 4 integers: num_bands,nsymmetry,nkptirr,num_kpts.

nsymmetry: the number of symmetry operations

nkptirr: the number of irreducible k-points

Blank line

66 wannier90: User Guide

num_kpts integers: Mapping between full k- and irreducible k-points. Each k-point is related to some

k-point in the irreducible BZ. The information of this mapping is written. Each entry corresponds to a

k-point in the full BZ, in the order in which they appear in the k-point list in seedname.win ﬁle. The

(integer) value of each entry is the k-point index in the IBZ to which the k-point maps. The number

of unique values is equal to the number of k-points in the IBZ. The data is written 10 values per line.

Blank line

nkptirr integers: List of irreducible k-points. Each entry corresponds to a k-point of the IBZ. The

(integer) value of each entry is the k-point index corresponding to the k-point list in seedname.win

ﬁle. The values should be between 1 and num_kpts. The data is written 10 values per line.

Blank line

nkptirr blocks of nsymmetry integer data (each block separated by a blank line): List of k-points

obtained by acting the symmetry operations on the irreducible k-points. The data is written 10 values

per line.

Blank line

nsymmetry ×nkptirr blocks of data:

The information of Dmatrix in Eq. (15) of Ref. [8]. Each block contains num_wann ×num_wann

lines and is separated by a blank line. The data are stored in d_matrix_wann(m,n,isym,ikirr) with

m,n∈[1,num_wann],isym ∈[1,nsymmetry], and ikirr ∈[1,nkptirr]. The order of the elements is

such that left indices run faster than right indices (m: fastest, ikirr: slowest).

Blank line

nsymmetry ×nkptirr blocks of data:

The information of ˜

dmatrix in Eq. (17) of Ref. [8]. Each block contains num_bands ×num_bands

lines and is separated by a blank line. The data are stored in d_matrix_band(m,n,isym,ikirr) with

m,n∈[1,num_bands],isym ∈[1,nsymmetry], and ikirr ∈[1,nkptirr]. The order of the elements is

such that left indices run faster than right indices (m: fastest, ikirr: slowest).

5.5 seedname.eig ﬁle

INPUT.

Required if any of disentanglement,plot_bands,plot_fermi_surface or write_hr are .true.

The ﬁle seedname.eig contains the Kohn-Sham eigenvalues εnk(in eV) at each point in the Monkhorst-

Pack mesh.

Each line consist of two integers and a real number. The ﬁrst integer is the band index, the second

integer gives the ordinal corresponding to the k-point in the list of k-points in seedname.win, and the

real number is the eigenvalue.

E.g.,

1 1 -6.43858831271328

2 1 19.3977795287297

3 1 19.3977795287297

4 1 19.3977795287298

wannier90: User Guide 67

5.6 Interface with pwscf

Interfaces between wannier90 and many ab-initio codes such as pwscf,abinit (http://www.abinit.

org), siesta (http://www.icmab.es/siesta/), fleur,VASP and Wien2k (http://www.wien2k.

at) are available. Here we describe the seamless interface between wannier90 and pwscf, a plane-wave

DFT code that comes as part of the Quantum ESPRESSO package (see http://www.quantum-espresso.

org). You will need to download and compile pwscf (i.e., the pw.x code) and the post-processing inter-

face pw2wannier90.x. Please refer to the documentation that comes with the Quantum ESPRESSO

distribution for instructions.

1. Run ‘scf’/‘nscf’ calculation(s) with pw

2. Run wannier90 with postproc_setup =.true. to generate seedname.nnkp

3. Run pw2wannier90. First it reads an input ﬁle, e.g., seedname.pw2wan, which deﬁnes prefix

and outdir for the underlying ‘scf’ calculation, as well as the name of the ﬁle seedname.nnkp, and

does a consistency check between the direct and reciprocal lattice vectors read from seedname.nnkp

and those deﬁned in the ﬁles speciﬁed by prefix.pw2wannier90 generates seedname.mmn,

seedname.amn and seedname.eig.seedname.dmn and seedname.sym ﬁles are additionally cre-

ated when write_dmn = .true. (see below).

4. Run wannier90 with postproc_setup =.false. to disentangle bands (if required), localise

MLWF, and use MLWF for plotting, bandstructures, Fermi surfaces etc.

Examples of how the interface with pwscf works are given in the wannier90 Tutorial.

5.6.1 seedname.pw2wan

A number of keywords may be speciﬁed in the pw2wannier90 input ﬁle:

•outdir – Location to write output ﬁles. Default is ‘./’

•prefix – Preﬁx for the pwscf calculation. Default is ‘ ’

•seedname – Seedname for the wannier90 calculation. Default is ‘wannier’

•spin_component – Spin component. Takes values ‘up’,‘down’ or ‘none’ (default).

•wan_mode – Either ‘standalone’ (default) or ‘library’

•write_unk – Set to .true. to write the periodic part of the Bloch functions for plotting in

wannier90. Default is .false.

•reduce_unk – Set to .true. to reduce ﬁle-size (and resolution) of Bloch functions by a factor of

8. Default is .false. (only relevant if write_unk=.true.)1

•wvfn_formatted – Set to .true. to write formatted wavefunctions. Default is .false. (only

relevant if write_unk=.true.)

1Note that there is a small bug with this feature in v3.2 (and subsequent patches) of quantum-espresso. Please use

a later version (if available) or the CVS version of pw2wannier90.f90, which has been ﬁxed.

68 wannier90: User Guide

•write_amn – Set to .false. if A(k)

mn not required. Default is .true.

•write_mmn – Set to .false. if M(k,b)

mn not required. Default is .true.

•write_spn – Set to .true. to write out the matrix elements of Sbetween Bloch states (non-

collinear spin calculation only). Default is .false.

•spn_formatted – Set to .true. to write spn data as a formatted ﬁle. Default is .false. (only

relevant if write_spn=.true.)

•write_uHu – Set to .true. to write out the matrix elements

hunk+b1|Hk|umk+b2i.

Default is .false.

•uHu_formatted – Set to .true. to write uHu data as a formatted ﬁle. Default is .false. (only

relevant if write_uHu=.true.)

•write_uIu – Set to .true. to write out the matrix elements of

hunk+b1|umk+b2i.

Default is .false.

•uIu_formatted – Set to .true. to write uIu data as a formatted ﬁle. Default is .false. (only

relevant if write_uIu=.true.)

•write_unkg – Set to .true. to write the ﬁrst few Fourier components of the periodic parts of

the Bloch functions.

•write_dmn – Set to .true. to construct symmetry-adapted Wannier functions. Default is

.false.

•read_sym – Set to .true. to customize symmetry operations to be used in symmetry-adapted

mode. When read_sym = .true., an additional input seedname.sym is required. Default is

.false. (only relevant if write_dmn=.true.).

For examples of use, refer to the wannier90 Tutorial.

5.6.2 seedname.sym

If read_sym = .true., then this additional input ﬁle is required for pw2wannier90.x

if read_sym = .false., then this ﬁle is written by pw2wannier90.x (only for reference – it is not used

in subsequent calculations)

The ﬁle seedname.sym contains the information of symmetry operations used to create symmetry-

adapted Wannier functions. If read_sym = .false. (default), pw2wannier90.x uses the full symme-

try recognized by pw.x. If read_sym = .true., you can specify symmetry operations to be used in

symmetry-adapted mode.

First line: an integer: nsymmetry (number of symmetry operations)

Second line: blank

Then: nsymmetry blocks of data. Each block (separated by a blank line) consists of four lines. The

order of the data in each block is as follows:

wannier90: User Guide 69

R(1,1) R(2,1) R(3,1)

R(1,2) R(2,2) R(3,2)

R(1,3) R(2,3) R(3,3)

t(1) t(2) t(3)

Here, Ris the rotational part of symmetry operations (3×3matrix), and tis the fractional translation

in the unit of “alat” (refer the deﬁnition of “alat” to the manual of pwscf). Both data are given in

Cartesian coordinates. The symmetry operations act on a point ras rR−t.

Chapter 6

wannier90 as a library

This is a description of the interface between any external program and the wannier code. There

are two subroutines: wannier_setup and wannier_run. Calling wannier_setup will return informa-

tion required to construct the M(k,b)

mn overlaps (Ref. [1], Eq. (25)) and A(k)

mn =hψmk|gniprojections

(Ref. [1], Eq. (62); Ref. [2], Eq. (22)). Once the overlaps and projection have been computed, calling

wannier_run activates the minimisation and plotting routines in wannier90.

IMPORTANT NOTE: the library mode ONLY works in serial. Please call it from a serial code, or

if compiled in parallel, make sure to run it from a single MPI process.

You can ﬁnd a minimal example of how the library mode can be used among the tests, in the ﬁle

test-suite/library-mode-test/test_library.F90 in the Wannier90 git repository.

6.1 Subroutines

6.1.1 wannier_setup

wannier_setup(seed_name,mp_grid,num_kpts,real_lattice,recip_lattice,

kpt_latt,num_bands_tot,num_atoms,atom_symbols,atoms_cart,

gamma_only,spinors,nntot,nnlist,nncell,num_bands,num_wann,proj_site,

proj_l,proj_m,proj_radial,proj_z,proj_x,proj_zona,

exclude_bands,proj_s,proj_s_qaxis)

•character(len=*), intent(in) :: seed_name

The seedname of the current calculation.

•integer, dimension(3), intent(in) :: mp_grid

The dimensions of the Monkhorst-Pack k-point grid.

•integer, intent(in) :: num_kpts

The number of k-points on the Monkhorst-Pack grid.

•real(kind=dp), dimension(3,3), intent(in) :: real_lattice

The lattice vectors in Cartesian co-ordinates in units of Angstrom.

•real(kind=dp), dimension(3,3), intent(in) :: recip_lattice

The reciprocal lattice vectors in Cartesian co-ordinates in units of reciprocal Angstrom.

72 wannier90: User Guide

•real(kind=dp), dimension(3,num_kpts), intent(in) :: kpt_latt

The positions of the k-points in fractional co-ordinates relative to the reciprocal lattice vectors.

•integer, intent(in) :: num_bands_tot

The total number of bands in the ﬁrst-principles calculation (note: including semi-core states).

•integer, intent(in) :: num_atoms

The total number of atoms in the system.

•character(len=20), dimension(num_atoms), intent(in) :: atom_symbols

The elemental symbols of the atoms.

•real(kind=dp), dimension(3,num_atoms), intent(in) :: atoms_cart

The positions of the atoms in Cartesian co-ordinates in Angstrom.

•logical, intent(in) :: gamma_only

Set to .true. if the underlying electronic structure calculation has been performed with only

Γ-point sampling and, hence, if the Bloch eigenstates that are used to construct A(k)

mn and M(k,b)

are real.

•logical, intent(in) :: spinors

Set to .true. if underlying electronic structure calculation has been performed with spinor

wavefunctions.

•integer, intent(out) :: nntot

The total number of nearest neighbours for each k-point.

•integer, dimension(num_kpts,num_nnmax), intent(out) :: nnlist

The list of nearest neighbours for each k-point.

•integer,dimension(3,num_kpts,num_nnmax), intent(out) :: nncell

The vector, in fractional reciprocal lattice co-ordinates, that brings the nnth nearest neighbour

of k-point nkp to its periodic image that is needed for computing the overlap M(k,b)

mn .

•integer, intent(out) :: num_bands

The number of bands in the ﬁrst-principles calculation used to form the overlap matricies (note:

excluding eg. semi-core states).

•integer, intent(out) :: num_wann

The number of MLWF to be extracted.

•real(kind=dp), dimension(3,num_bands_tot), intent(out) :: proj_site

Projection function centre in crystallographic co-ordinates relative to the direct lattice vectors.

•integer, dimension(num_bands_tot), intent(out) :: proj_l

lspeciﬁes the angular part Θlmr(θ, ϕ)of the projection function (see Tables 3.1, 3.2 and 3.3).

•integer, dimension(num_bands_tot), intent(out) :: proj_m

mrspeciﬁes the angular part Θlmr(θ, ϕ), of the projection function (see Tables 3.1, 3.2 and 3.3).

•integer, dimension(num_bands_tot), intent(out) :: proj_radial

rspeciﬁes the radial part Rr(r)of the projection function (see Tables 3.1, 3.2 and 3.3).

•real(kind=dp), dimension(3,num_bands_tot), intent(out) :: proj_z

Deﬁnes the axis from which the polar angle θin spherical polar coordinates is measured. Default

is 0.0 0.0 1.0.

wannier90: User Guide 73

•real(kind=dp), dimension(3,num_bands_tot), intent(out) :: proj_x

Must be orthogonal to z-axis; default is 1.0 0.0 0.0 or a vector perpendicular to proj_z if

proj_z is given; deﬁnes the axis from with the azimuthal angle ϕin spherical polar coordinates

is measured.

•real(kind=dp), dimension(num_bands_tot), intent(out) :: proj_zona

The value of Z

aassociated with the radial part of the atomic orbital. Units are in reciprocal

Angstrom.

•integer, dimension(num_bands_tot), intent(out) :: exclude_bands

Kpoints independant list of bands to exclude from the calculation of the MLWF (e.g., semi-core

states).

•integer, dimension(num_bands_tot), optional,intent(out) :: proj_s

’1’ or ’-1’ to denote projection onto up or down spin states

•real(kind=dp), dimension(3,num_bands_tot), intent(out) :: proj_s_qaxisx

Deﬁnes the spin quantisation axis in Cartesian coordinates.

Conditions:

?num_kpts =mp_grid(1) ×mp_grid(2) ×mp_grid(3).

?num_nnmax = 12

This subroutine returns the information required to determine the required overlap elements M(k,b)

and projections A(k)

mn, i.e., M_matrix and A_matrix, described in Section 6.1.2.

For the avoidance of doubt, real_lattice(1,2) is the y−component of the ﬁrst lattice vector A1, etc.

The list of nearest neighbours of a particular k-point nkp is given by nnlist(nkp,1:nntot).

Additionally, the parameter shell_list may be speciﬁed in the wannier90 input ﬁle.

6.1.2 wannier_run

wannier_run(seed_name,mp_grid,num_kpts,real_lattice,recip_lattice,

kpt_latt,num_bands,num_wann,nntot,num_atoms,atom_symbols,

atoms_cart,gamma_only,M_matrix_orig,A_matrix,eigenvalues,

U_matrix,U_matrix_opt,lwindow,wann_centres,wann_spreads,

spread)

•character(len=*), intent(in) :: seed_name

The seedname of the current calculation.

•integer, dimension(3), intent(in) :: mp_grid

The dimensions of the Monkhorst-Pack k-point grid.

•integer, intent(in) :: num_kpts

The number of k-points on the Monkhorst-Pack grid.

•real(kind=dp), dimension(3,3), intent(in) :: real_lattice

The lattice vectors in Cartesian co-ordinates in units of Angstrom.

74 wannier90: User Guide

•real(kind=dp), dimension(3,3), intent(in) :: recip_lattice

The reciprical lattice vectors in Cartesian co-ordinates in units of inverse Angstrom.

•real(kind=dp), dimension(3,num_kpts), intent(in) :: kpt_latt

The positions of the k-points in fractional co-ordinates relative to the reciprocal lattice vectors.

•integer, intent(in) :: num_bands

The total number of bands to be processed.

•integer, intent(in) :: num_wann

The number of MLWF to be extracted.

•integer, intent(in) :: nntot

The number of nearest neighbours for each k-point.

•integer, intent(in) :: num_atoms

The total number of atoms in the system.

•character(len=20), dimension(num_atoms), intent(in) :: atom_symbols

The elemental symbols of the atoms.

•real(kind=dp), dimension(3,num_atoms), intent(in) :: atoms_cart

The positions of the atoms in Cartesian co-ordinates in Angstrom.

•logical, intent(in) :: gamma_only

Set to .true. if the underlying electronic structure calculation has been performed with only

Γ-point sampling and, hence, if the Bloch eigenstates that are used to construct A(k)

mn and M(k,b)

are real.

•complex(kind=dp), dimension(num_bands,num_bands,nntot,num_kpts),

intent(in) :: M_matrix

The matrices of overlaps between neighbouring periodic parts of the Bloch eigenstates at each

k-point, M((k,b))

mn (Ref. [1], Eq. (25)).

•complex(kind=dp), dimension(num_bands,num_wann,num_kpts),

intent(in) :: A_matrix

The matrices describing the projection of num_wann trial orbitals on num_bands Bloch states at

each k-point, A(k)

mn (Ref. [1], Eq. (62); Ref. [2], Eq. (22)).

•real(kind=dp), dimension(num_bands,num_kpts), intent(in) :: eigenvalues

The eigenvalues εnkcorresponding to the eigenstates, in eV.

•complex(kind=dp), dimension(num_wann,num_wann,num_kpts),

intent(out) :: U_matrix

The unitary matrices at each k-point (Ref. [1], Eq. (59))

•complex(kind=dp), dimension(num_bands,num_wann,num_kpts),

optional, intent(out) :: U_matrix_opt

The unitary matrices that describe the optimal sub-space at each k-point (see Ref. [2], Sec-

tion IIIa). The array is packed (see below)

•logical, dimension(num_bands,num_kpts), optional, intent(out) :: lwindow

The element lwindow(nband,nkpt) is .true. if the band nband lies within the outer energy

window at kpoint nkpt.

wannier90: User Guide 75

•real(kind=dp), dimension(3,num_wann), optional, intent(out) :: wann_centres

The centres of the MLWF in Cartesian co-ordinates in Angstrom.

•real(kind=dp), dimension(num_wann), optional, intent(out) :: wann_spreads

The spread of each MLWF in Å2.

•real(kind=dp), dimension(3), optional, intent(out) :: spread

The values of Ω,ΩIand ˜

Ω(Ref. [1], Eq. (13)).

Conditions:

?num_wann ≤num_bands

?num_kpts =mp_grid(1) ×mp_grid(2) ×mp_grid(3).

If num_bands =num_wann then U_matrix_opt is the identity matrix and lwindow=.true.

For the avoidance of doubt, real_lattice(1,2) is the y−component of the ﬁrst lattice vector A1, etc.

M_matrix(m,n,nn,nkp) =humk|unk+bi

A_matrix(m,n,nkp) =hψmk|gni

eigenvalues(n,nkp) =εnk

where

k=kpt_latt(1:3,nkp)

k+b=kpt_latt(1:3,nnlist(nkp,nn)) +nncell(1:3,nkp,nn)

and {|gni} are a set of initial trial orbitals. These are typically atom or bond-centred Gaussians that

are modulated by appropriate spherical harmonics.

Additional parameters should be speciﬁed in the wannier90 input ﬁle.

Chapter 7

Transport Calculations with wannier90

By setting transport =TRUE,wannier90 will calculate the quantum conductance and density of states

of a one-dimensional system. The results will be written to ﬁles seedname_qc.dat and seedname_dos.dat,

respectively.

The system for which transport properties are calculated is determined by the keyword transport_mode.

7.1 transport_mode = bulk

Quantum conductance and density of states are calculated for a perfectly periodic one-dimensional

conductor. If tran_read_ht =FALSE the transport properties are calculated using the Hamiltonian in

the Wannier function basis of the system found by wannier90. Setting tran_read_ht =TRUE allows

the user to provide an external Hamiltonian matrix ﬁle seedname_htB.dat, from which the properties

are found. See Section 2.9 for more details of the keywords required for such calculations.

7.2 transport_mode = lcr

Quantum conductance and density of states are calculated for a system where semi-inﬁnite, left and

right leads are connected through a central conductor region. This is known as the lcr system. Details

of the method is described in Ref. [10].

In wannier90 two options exist for performing such calculations:

•If tran_read_ht =TRUE the external Hamiltonian ﬁles seedname_htL.dat, seedname_htLC.dat,

seedname_htC.dat, seedname_htCR.dat, seedname_htR.dat are read and used to compute the

transport properties.

•If tran_read_ht =FALSE, then the transport calculation is performed automatically using the

Wannier functions as a basis and the 2c2 geometry described in Section 7.3.

78 wannier90: User Guide

7.3 Automated lcr Transport Calculations: The 2c2 Geometry

Calculations using the 2c2 geometry provide a method to calculate the transport properties of an lcr

system from a single wannier90 calculation. The Hamiltonian matrices which the ﬁve external ﬁles

provide in the tran_read_ht =TRUE case are instead built from the Wannier function basis directly.

As such, strict rules apply to the system geometry, which is shown in Figure 7.1. These rules are as

follows:

•Left and right leads must be identical and periodic.

•Supercell must contain two principal layers (PLs) of lead on the left, a central conductor region

and two principal layers of lead on the right.

•The conductor region must contain enough lead such that the disorder does not aﬀect the principal

layers of lead either side.

•A single k-point (Gamma) must be used.

PL3 PL4PL1 ConductorPL2

hCR

H , HR

PL1

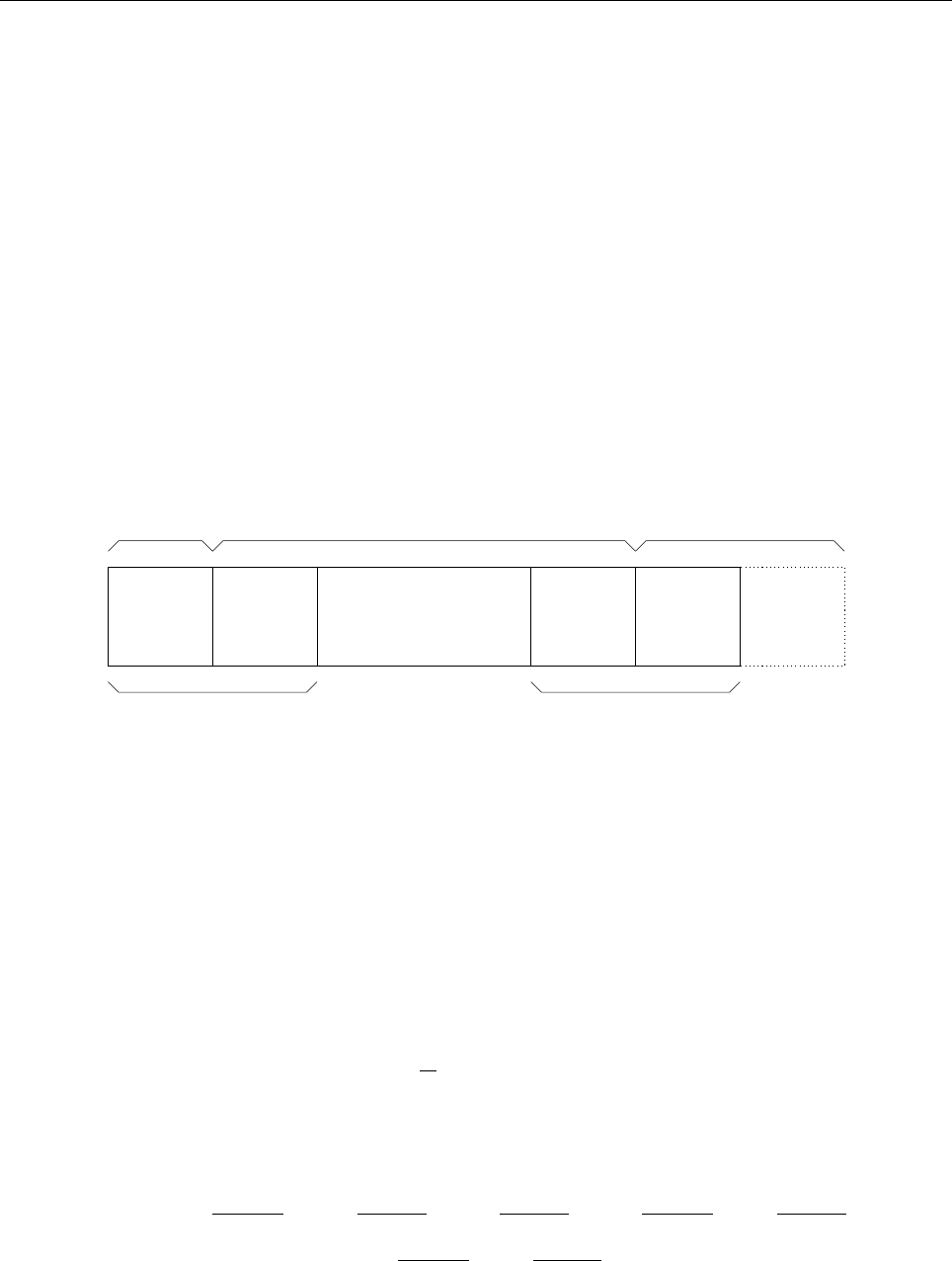

Figure 7.1: Schematic illustration of the supercell required for 2c2 lcr calculations, showing where

each of the Hamiltonian matrices are derived from. Four principal layers (PLs) are required plus the

conductor region.

In order to build the Hamiltonians, Wannier functions are ﬁrst sorted according to position and then

type if a number of Wannier functions exist with a similar centre (eg. d-orbital type Wannier functions

centred on a Cu atom). Next, consistent parities of Wannier function are enforced. To distingiush

between diﬀerent types of Wannier function and assertain relative parities, a signature of each Wannier

function is computed. The signature is formed of 20 integrals which have diﬀerent spatial dependence.

They are given by:

I=1

VZV

g(r)w(r)dr(7.1)

where Vis the volume of the cell, w(r)is the Wannier function and g(r)are the set of functions:

g(r) = n1,sin 2π(x−xc)

Lx,sin 2π(y−yc)

Ly,sin 2π(z−zc)

Lz,sin 2π(x−xc)

Lxsin 2π(y−yc)

Ly,

sin 2π(x−xc)

Lxsin 2π(z−zc)

Lz, ...o(7.2)

upto third order in powers of sines. Here, the supercell has dimension (Lx, Ly, Lz)and the Wannier

function has centre rc= (xc, yc, zc). Each of these integrals may be written as linear combinations of

the following sums:

wannier90: User Guide 79

Sn(G) = eiG.rcX

Umn ˜u∗

mΓ(G)(7.3)

where nand mare the Wannier function and band indexes, Gis a G-vector, Umn is the unitary matrix

that transforms from the Bloch reopresentation of the system to the maximally-localised Wannier

function basis and ˜u∗

mΓ(G)are the conjugates of the Fourier transforms of the periodic parts of the

Bloch states at the Γ-point. The complete set of ˜umk(G)are often outputted by plane-wave DFT

codes. However, to calculate the 20 signature integrals, only 32 speciﬁc ˜umk(G)are required. These

are found in an additional ﬁle (seedname.unkg) that should be provided by the interface between the

DFT code and wannier90 . A detailed description of this ﬁle may be found in Section 8.31.

Additionally, the following keywords are also required in the input ﬁle:

•tran_num_ll : The number of Wannier functions in a principal layer.

•tran_num_cell_ll : The number of unit cells in one principal layer of lead

A further parameter related to these calculations is tran_group_threshold.

Examples of how 2c2 calculations are preformed can be found in the wannier90 Tutorial.

Chapter 8

Files

8.1 seedname.win

INPUT. The master input ﬁle; contains the speciﬁcation of the system and any parameters for the run.

For a description of input parameters, see Chapter 2; for examples, see Section 10.1 and the wannier90

Tutorial.

8.1.1 Units

The following are the dimensional quantities that are speciﬁed in the master input ﬁle:

•Direct lattice vectors

•Positions (of atomic or projection) centres in real space

•Energy windows

•Positions of k-points in reciprocal space

•Convergence thresholds for the minimisation of Ω

•zona (see Section 3.1)

•wannier_plot_cube: cut-oﬀ radius for plotting WF in Gaussian cube format

Notes:

•The units (either ang (default) or bohr) in which the lattice vectors, atomic positions or projection

centres are given can be set in the ﬁrst line of the blocks unit_cell_cart,atoms_cart and

projections, respectively, in seedname.win.

•Energy is always in eV.

•Convergence thresholds are always in Å2

•Positions of k-points are always in crystallographic coordinates relative to the reciprocal lattice

vectors.

82 wannier90: User Guide

•zona is always in reciprocal Angstrom (Å−1)

•The keyword length_unit may be set to ang (default) or bohr, in order to set the units in which

the quantities in the output ﬁle seedname.wout are written.

•wannier_plot_radius is in Angstrom

The reciprocal lattice vectors {B1,B2,B3}are deﬁned in terms of the direct lattice vectors {A1,A2,A3}

by the equation

B1=2π

ΩA2×A3etc., (8.1)

where the cell volume is V=A1·(A2×A3).

8.2 seedname.mmn

INPUT. Written by the underlying electronic structure code. See Chapter 5 for details.

8.3 seedname.amn

INPUT. Written by the underlying electronic structure code. See Chapter 5 for details.

8.4 seedname.dmn

INPUT. Read if site_symmetry = .true. (symmetry-adapted mode). Written by the underlying

electronic structure code. See Chapter 5 for details.

8.5 seedname.eig

INPUT. Written by the underlying electronic structure code. See Chapter 5 for details.

8.6 seedname.nnkp

OUTPUT. Written by wannier90 when postproc_setup=.TRUE. (or, alternatively, when wannier90

is run with the -pp command-line option). See Chapter 5 for details.

8.7 seedname.wout

OUTPUT. The master output ﬁle. Here we give a description of the main features of the output. The

verbosity of the output is controlled by the input parameter iprint. The higher the value, the more

detail is given in the output ﬁle. The default value is 1, which prints minimal information.

wannier90: User Guide 83

8.7.1 Header

The header provides some basic information about wannier90, the authors, the code version and

release, and the execution time of the current run. The header looks like the following diﬀerent (the

string might slightly change across diﬀerent versions):

+---------------------------------------------------+

| |

| WANNIER90 |

| |

+---------------------------------------------------+

| |

| Welcome to the Maximally-Localized |

| Generalized Wannier Functions code |

| http://www.wannier.org |

| |

| Wannier90 Developer Group: |

| Giovanni Pizzi (EPFL) |

| Valerio Vitale (Cambridge) |

| David Vanderbilt (Rutgers University) |

| Nicola Marzari (EPFL) |

| Ivo Souza (Universidad del Pais Vasco) |

| Arash A. Mostofi (Imperial College London) |

| Jonathan R. Yates (University of Oxford) |

| |

| For the full list of Wannier90 3.x authors, |

| please check the code documentation and the |

| README on the GitHub page of the code |

| |

| Please cite |

| |

+---------------------------------------------------+

| Execution started on 18Dec2018 at 18:39:42 |

+---------------------------------------------------+

8.7.2 System information

This part of the output ﬁle presents information that wannier90 has read or inferred from the master

input ﬁle seedname.win. This includes real and reciprocal lattice vectors, atomic positions, k-points,

parameters for job control, disentanglement, localisation and plotting.

------

SYSTEM

84 wannier90: User Guide

------

Lattice Vectors (Ang)

a_1 3.938486 0.000000 0.000000

a_2 0.000000 3.938486 0.000000

a_3 0.000000 0.000000 3.938486

Unit Cell Volume: 61.09251 (Ang^3)

Reciprocal-Space Vectors (Ang^-1)

b_1 1.595330 0.000000 0.000000

b_2 0.000000 1.595330 0.000000

b_3 0.000000 0.000000 1.595330

*----------------------------------------------------------------------------*

| Site Fractional Coordinate Cartesian Coordinate (Ang) |

+----------------------------------------------------------------------------+

| Ba 1 0.00000 0.00000 0.00000 | 0.00000 0.00000 0.00000 |

| Ti 1 0.50000 0.50000 0.50000 | 1.96924 1.96924 1.96924 |

*----------------------------------------------------------------------------*

------------

K-POINT GRID

------------

Grid size = 4 x 4 x 4 Total points = 64

*---------------------------------- MAIN ------------------------------------*

| Number of Wannier Functions : 9 |

| Number of input Bloch states : 9 |

| Output verbosity (1=low, 5=high) : 1 |

| Length Unit : Ang |

| Post-processing setup (write *.nnkp) : F |

*----------------------------------------------------------------------------*

8.7.3 Nearest-neighbour k-points

This part of the output ﬁles provides information on the b-vectors and weights chosen to satisfy the

condition of Eq. 2.1.

*---------------------------------- K-MESH ----------------------------------*

+----------------------------------------------------------------------------+

| Distance to Nearest-Neighbour Shells |

| ------------------------------------ |

| Shell Distance (Ang^-1) Multiplicity |

wannier90: User Guide 85

| ----- ----------------- ------------ |

| 1 0.398833 6 |

| 2 0.564034 12 |

+----------------------------------------------------------------------------+

| The b-vectors are chosen automatically |

| The following shells are used: 1 |

+----------------------------------------------------------------------------+

| Shell # Nearest-Neighbours |

| ----- -------------------- |

| 1 6 |

+----------------------------------------------------------------------------+

| Completeness relation is fully satisfied [Eq. (B1), PRB 56, 12847 (1997)] |

+----------------------------------------------------------------------------+

8.7.4 Disentanglement

Then (if required) comes the part where ΩIis minimised to disentangle the optimally-connected sub-

space of states for the localisation procedure in the next step.

First, a summary of the energy windows that are being used is given:

*------------------------------- DISENTANGLE --------------------------------*

+----------------------------------------------------------------------------+

| Energy Windows |

| --------------- |

| Outer: 2.81739 to 38.00000 (eV) |

| Inner: 2.81739 to 13.00000 (eV) |

+----------------------------------------------------------------------------+

Then, each step of the iterative minimisation of ΩIis reported.

Extraction of optimally-connected subspace

------------------------------------------

+---------------------------------------------------------------------+<-- DIS

| Iter Omega_I(i-1) Omega_I(i) Delta (frac.) Time |<-- DIS

+---------------------------------------------------------------------+<-- DIS

1 3.82493590 3.66268867 4.430E-02 0.36 <-- DIS

2 3.66268867 3.66268867 6.911E-15 0.37 <-- DIS

<<< Delta < 1.000E-10 over 3 iterations >>>

<<< Disentanglement convergence criteria satisfied >>>

Final Omega_I 3.66268867 (Ang^2)

+----------------------------------------------------------------------------+

86 wannier90: User Guide

The ﬁrst column gives the iteration number. For a description of the minimisation procedure and

expressions for Ω(i)

I, see the original paper [2]. The procedure is considered to be converged when

the fractional diﬀerence between Ω(i)

Iand Ω(i−1)

Iis less than dis_conv_tol over dis_conv_window

iterations. The ﬁnal column gives a running account of the wall time (in seconds) so far. Note that

at the end of each line of output, there are the characters “<– DIS”. This enables fast searching of the

output using, for example, the Unix command grep:

my_shell> grep DIS wannier.wout | less

8.7.5 Wannierisation

The next part of the output ﬁle provides information on the minimisation of e

Ω. At each iteration, the

centre and spread of each WF is reported.

*------------------------------- WANNIERISE ---------------------------------*

+--------------------------------------------------------------------+<-- CONV

| Iter Delta Spread RMS Gradient Spread (Ang^2) Time |<-- CONV

+--------------------------------------------------------------------+<-- CONV

------------------------------------------------------------------------------

Initial State

WF centre and spread 1 ( 0.000000, 1.969243, 1.969243 ) 1.52435832

WF centre and spread 2 ( 0.000000, 1.969243, 1.969243 ) 1.16120620

0 0.126E+02 0.0000000000 12.6297685260 0.29 <-- CONV

O_D= 0.0000000 O_OD= 0.1491718 O_TOT= 12.6297685 <-- SPRD

------------------------------------------------------------------------------

Cycle: 1

WF centre and spread 1 ( 0.000000, 1.969243, 1.969243 ) 1.52414024

WF centre and spread 2 ( 0.000000, 1.969243, 1.969243 ) 1.16059775

Sum of centres and spreads ( 11.815458, 11.815458, 11.815458 ) 12.62663472

1 -0.313E-02 0.0697660962 12.6266347170 0.34 <-- CONV

O_D= 0.0000000 O_OD= 0.1460380 O_TOT= 12.6266347 <-- SPRD

Delta: O_D= -0.4530841E-18 O_OD= -0.3133809E-02 O_TOT= -0.3133809E-02 <-- DLTA

------------------------------------------------------------------------------

Cycle: 2

WF centre and spread 1 ( 0.000000, 1.969243, 1.969243 ) 1.52414866

WF centre and spread 2 ( 0.000000, 1.969243, 1.969243 ) 1.16052405

Sum of centres and spreads ( 11.815458, 11.815458, 11.815458 ) 12.62646411

2 -0.171E-03 0.0188848262 12.6264641055 0.38 <-- CONV

O_D= 0.0000000 O_OD= 0.1458674 O_TOT= 12.6264641 <-- SPRD

Delta: O_D= -0.2847260E-18 O_OD= -0.1706115E-03 O_TOT= -0.1706115E-03 <-- DLTA

wannier90: User Guide 87

------------------------------------------------------------------------------

Final State

WF centre and spread 1 ( 0.000000, 1.969243, 1.969243 ) 1.52416618

WF centre and spread 2 ( 0.000000, 1.969243, 1.969243 ) 1.16048545

Sum of centres and spreads ( 11.815458, 11.815458, 11.815458 ) 12.62645344

Spreads (Ang^2) Omega I = 12.480596753

================ Omega D = 0.000000000

Omega OD = 0.145856689

Final Spread (Ang^2) Omega Total = 12.626453441

------------------------------------------------------------------------------

It looks quite complicated, but things look more simple if one uses grep:

my_shell> grep CONV wannier.wout

gives

+--------------------------------------------------------------------+<-- CONV

| Iter Delta Spread RMS Gradient Spread (Ang^2) Time |<-- CONV

+--------------------------------------------------------------------+<-- CONV

0 0.126E+02 0.0000000000 12.6297685260 0.29 <-- CONV

1 -0.313E-02 0.0697660962 12.6266347170 0.34 <-- CONV

50 0.000E+00 0.0000000694 12.6264534413 2.14 <-- CONV

The ﬁrst column is the iteration number, the second is the change in Ωfrom the previous iteration, the

third is the root-mean-squared gradient of Ωwith respect to variations in the unitary matrices U(k),

and the last is the time taken (in seconds). Depending on the input parameters used, the procedure

either runs for num_iter iterations, or a convergence criterion is applied on Ω. See Section 2.8 for

details.

Similarly, the command

my_shell> grep SPRD wannier.wout

gives

O_D= 0.0000000 O_OD= 0.1491718 O_TOT= 12.6297685 <-- SPRD

O_D= 0.0000000 O_OD= 0.1460380 O_TOT= 12.6266347 <-- SPRD

O_D= 0.0000000 O_OD= 0.1458567 O_TOT= 12.6264534 <-- SPRD

which, for each iteration, reports the value of the diagonal and oﬀ-diagonal parts of the non-gauge-

invariant spread, as well as the total spread, respectively. Recall from Section 1 that Ω=ΩI+ΩD+ΩOD.

88 wannier90: User Guide

Wannierisation with selective localization and constrained centres

For full details of the selectively localised Wannier function (SLWF) method, the reader is referred to

Ref. [9]. When using the SLWF method, only a few things change in the output ﬁle and in general the

same principles described above will apply. In particular, when minimising the spread with respect to

the degrees of freedom of only a subset of functions, it is not possible to cast the total spread functional

Ωas a sum of a gauge-invariant part and a gauge-dependent part. Instead, one has Ω0= ΩIOD + ΩD,

where

Ω0=

J0<J

n=1 hr2in−r2

n

and

ΩIOD =

J0<J

n=1 "hr2

ni − X

R|hRn|r|nRi|2#.

The total number of Wannier functions is J, whereas J0is the number functions to be selectively

localized (so-called objective WFs). The information on the number of functions which are going to be

selectively localized (Number of Objective Wannier Functions) is given in the MAIN section of the

output ﬁle:

*---------------------------------- MAIN ------------------------------------*

| Number of Wannier Functions : 4 |

| Number of Objective Wannier Functions : 1 |

| Number of input Bloch states : 4 |

Whether or not the selective localization procedure has been switched on is reported in the WANNIERISE

section as

| Perform selective localization : T |

The next part of the output ﬁle provides information on the minimisation of the modiﬁed spread

functional:

*------------------------------- WANNIERISE ---------------------------------*

+--------------------------------------------------------------------+<-- CONV

| Iter Delta Spread RMS Gradient Spread (Ang^2) Time |<-- CONV

+--------------------------------------------------------------------+<-- CONV

------------------------------------------------------------------------------

Initial State

WF centre and spread 1 ( -0.857524, 0.857524, 0.857524 ) 1.80463310

WF centre and spread 2 ( 0.857524, -0.857524, 0.857524 ) 1.80463311

WF centre and spread 3 ( 0.857524, 0.857524, -0.857524 ) 1.80463311

WF centre and spread 4 ( -0.857524, -0.857524, -0.857524 ) 1.80463311

Sum of centres and spreads ( -0.000000, -0.000000, 0.000000 ) 7.21853243

0 -0.317E+01 0.0000000000 -3.1653368719 0.00 <-- CONV

O_D= 0.0000000 O_IOD= -3.1653369 O_TOT= -3.1653369 <-- SPRD

------------------------------------------------------------------------------

wannier90: User Guide 89

Cycle: 1

WF centre and spread 1 ( -0.853260, 0.853260, 0.853260 ) 1.70201498

WF centre and spread 2 ( 0.857352, -0.857352, 0.862454 ) 1.84658331

WF centre and spread 3 ( 0.857352, 0.862454, -0.857352 ) 1.84658331

WF centre and spread 4 ( -0.862454, -0.857352, -0.857352 ) 1.84658331

Sum of centres and spreads ( -0.001010, 0.001010, 0.001010 ) 7.24176492

1 -0.884E-01 0.2093698260 -3.2536918930 0.00 <-- CONV

O_IOD= -3.2536919 O_D= 0.0000000 O_TOT= -3.2536919 <-- SPRD

Delta: O_IOD= -0.1245020E+00 O_D= 0.0000000E+00 O_TOT= -0.8835502E-01 <-- DLTA

------------------------------------------------------------------------------

Final State

WF centre and spread 1 ( -0.890189, 0.890189, 0.890189 ) 1.42375495

WF centre and spread 2 ( 0.895973, -0.895973, 0.917426 ) 2.14313664

WF centre and spread 3 ( 0.895973, 0.917426, -0.895973 ) 2.14313664

WF centre and spread 4 ( -0.917426, -0.895973, -0.895973 ) 2.14313664

Sum of centres and spreads ( -0.015669, 0.015669, 0.015669 ) 7.85316486

Spreads (Ang^2) Omega IOD = 1.423371553

================ Omega D = 0.000383395

Omega Rest = 9.276919811

Final Spread (Ang^2) Omega Total = 1.423754947

------------------------------------------------------------------------------

When comparing the output from an SLWF calculation with a standard wannierisation (see Sec. 8.7.5),

the only diﬀerences are in the deﬁnition of the spread functional. Hence, during the minimization O_OD

is replaced by O_IOD and O_TOT now reﬂects the fact that the new total spread functional is Ω0. The

part on the ﬁnal state has one more item of information: the value of the diﬀerence between the global

spread functional and the new spread functional given by Omega Rest

ΩR=

J−J0

n=1 hr2in−r2

n

If adding centre-constraints to the SLWFs, you will ﬁnd the information about the centres of the

original projections and the desired centres in the SYSTEM section

*----------------------------------------------------------------------------*

| Wannier# Original Centres Constrained centres |

+----------------------------------------------------------------------------+

| 1 0.25000 0.25000 0.25000 | 0.00000 0.00000 0.00000 |

*----------------------------------------------------------------------------*

As before one can check that the selective localization with constraints is being used by looking at the

WANNIERISE section:

90 wannier90: User Guide

| Perform selective localization : T |

| Use constrains in selective localization : T |

| Value of the Lagrange multiplier : 0.100E+01 |

*----------------------------------------------------------------------------*

which also gives the selected value for the Lagrange multiplier. The output ﬁle for the minimisation

section is modiﬁed as follows: both O_IOD and O_TOT now take into account the factors coming from

the new term in the functional due to the constraints, which are implemented by adding the following

penalty functional to the spread functional,

λc

n=1

(rn−r0n)2,

where r0nis the desired centre for the nth Wannier function, see Ref. [9] for details. The layout of the

output ﬁle at each iteration is unchanged.

1 -0.884E-01 0.2093698260 -3.2536918930 0.00 <-- CONV

As regarding the ﬁnal state, the only addition is the information on the value of the penalty functional

associated with the constraints (Penalty func), which should be zero if the ﬁnal centres of the Wannier

functions are at the target centres:

Final State

WF centre and spread 1 ( -1.412902, 1.412902, 1.412902 ) 1.63408756

WF centre and spread 2 ( 1.239678, -1.239678, 1.074012 ) 2.74801593

WF centre and spread 3 ( 1.239678, 1.074012, -1.239678 ) 2.74801592

WF centre and spread 4 ( -1.074012, -1.239678, -1.239678 ) 2.74801592

Sum of centres and spreads ( -0.007559, 0.007559, 0.007559 ) 9.87813534

Spreads (Ang^2) Omega IOD_C = -4.261222001

================ Omega D = 0.000000000

Omega Rest = 5.616913337

Penalty func = 0.000000000

Final Spread (Ang^2) Omega Total_C = -4.261222001

------------------------------------------------------------------------------

8.7.6 Plotting

After WF have been localised, wannier90 enters its plotting routines (if required). For example, if you

have speciﬁed an interpolated bandstucture:

*---------------------------------------------------------------------------*

| PLOTTING |

*---------------------------------------------------------------------------*

Calculating interpolated band-structure

wannier90: User Guide 91

8.7.7 Summary timings

At the very end of the run, a summary of the time taken for various parts of the calculation is given.

The level of detail is controlled by the timing_level input parameter (set to 1 by default).

*===========================================================================*

| TIMING INFORMATION |

*===========================================================================*

| Tag Ncalls Time (s)|

|---------------------------------------------------------------------------|

|kmesh: get : 1 0.212|

|overlap: read : 1 0.060|

|wann: main : 1 1.860|

|plot: main : 1 0.168|

*---------------------------------------------------------------------------*

All done: wannier90 exiting

8.8 seedname.chk

INPUT/OUTPUT. Information required to restart the calculation or enter the plotting phase. If we

have used disentanglement this ﬁle also contains the rectangular matrices Udis(k).

8.9 seedname.r2mn

OUTPUT. Written if write_r2mn =true. The matrix elements hm|r2|ni(where mand nrefer to

MLWF)

8.10 seedname_band.dat

OUTPUT. Written if bands_plot=.TRUE.; The raw data for the interpolated band structure.

8.11 seedname_band.gnu

OUTPUT. Written if bands_plot=.TRUE. and bands_plot_format=gnuplot; A gnuplot script to plot

the interpolated band structure.

8.12 seedname_band.agr

OUTPUT. Written if bands_plot=.TRUE. and bands_plot_format=xmgrace; A grace ﬁle to plot the

interpolated band structure.

92 wannier90: User Guide

8.13 seedname_band.kpt

OUTPUT. Written if bands_plot=.TRUE.; The k-points used for the interpolated band structure, in

units of the reciprocal lattice vectors. This ﬁle can be used to generate a comparison band structure

from a ﬁrst-principles code.

8.14 seedname.bxsf

OUTPUT. Written if fermi_surface_plot=.TRUE.; A Fermi surface plot ﬁle suitable for plotting with

XCrySDen.

8.15 seedname_w.xsf

OUTPUT. Written if wannier_plot=.TRUE. and wannier_plot_format=xcrysden. Contains the wth

WF in real space in a format suitable for plotting with XCrySDen or VMD, for example.

8.16 seedname_w.cube

OUTPUT. Written if wannier_plot=.TRUE. and wannier_plot_format=cube. Contains the wth WF

in real space in Gaussian cube format, suitable for plotting in XCrySDen, VMD, gopenmol etc.

8.17 UNKp.s

INPUT. Read if wannier_plot=.TRUE. and used to plot the MLWF. Read if transport_mode=lcr

and tran_read_ht=.FALSE. for use in automated lcr transport calculations.

The periodic part of the Bloch states represented on a regular real space grid, indexed by k-point p

(from 1 to num_kpts) and spin s(‘1’ for ‘up’, ‘2’ for ‘down’).

The name of the wavefunction ﬁle is assumed to have the form:

write(wfnname,200) p,spin

200 format (’UNK’,i5.5,’.’,i1)

The ﬁrst line of each ﬁle should contain 5 integers: the number of grid points in each direction (ngx,

ngy and ngz), the k-point number ik and the total number of bands num_band in the ﬁle. The full ﬁle

will be read by wannier90 as:

read(file_unit) ngx,ngy,ngz,ik,nbnd

do loop_b=1,num_bands

read(file_unit) (r_wvfn(nx,loop_b),nx=1,ngx*ngy*ngz)

end do

If spinors=true then s=‘NC’, and the name of the wavefunction ﬁle is assumed to have the form:

wannier90: User Guide 93

write(wfnname,200) p

200 format (’UNK’,i5.5,’.NC’)

and the ﬁle will be read by wannier90 as:

read(file_unit) ngx,ngy,ngz,ik,nbnd

do loop_b=1,num_bands

read(file_unit) (r_wvfn_nc(nx,loop_b,1),nx=1,ngx*ngy*ngz) ! up-spinor

read(file_unit) (r_wvfn_nc(nx,loop_b,2),nx=1,ngx*ngy*ngz) ! down-spinor

end do

All UNK ﬁles can be in formatted or unformatted style, this is controlled by the logical keyword

wvfn_formatted.

8.18 seedname_centres.xyz

OUTPUT. Written if write_xyz=.TRUE.; xyz format atomic structure ﬁle suitable for viewing with

your favourite visualiser (jmol,gopenmol,vmd, etc.).

8.19 seedname_hr.dat

OUTPUT. Written if write_hr=.TRUE.. The ﬁrst line gives the date and time at which the ﬁle was

created. The second line states the number of Wannier functions num_wann. The third line gives the

number of Wigner-Seitz grid-points nrpts. The next block of nrpts integers gives the degeneracy of

each Wigner-Seitz grid point, with 15 entries per line. Finally, the remaining num_wann2×nrpts lines

each contain, respectively, the components of the vector Rin terms of the lattice vectors {Ai}, the

indices mand n, and the real and imaginary parts of the Hamiltonian matrix element H(R)

mn in the WF

basis, e.g.,

Created on 24May2007 at 23:32:09

412141121461112

1 2

0 0 -2 1 1 -0.001013 0.000000

0 0 -2 2 1 0.000270 0.000000

0 0 -2 3 1 -0.000055 0.000000

0 0 -2 4 1 0.000093 0.000000

0 0 -2 5 1 -0.000055 0.000000

94 wannier90: User Guide

8.20 seedname_r.dat

OUTPUT. Written if write_rmn =true. The matrix elements hm0|r|nRi(where nRrefers to MLWF

nin unit cell R). The ﬁrst line gives the date and time at which the ﬁle was created. The second

line states the number of Wannier functions num_wann. The third line states the number of Rvectors

nrpts. Similar to the case of the Hamiltonian matrix above, the remaining num_wann2×nrpts lines

each contain, respectively, the components of the vector Rin terms of the lattice vectors {Ai}, the

indices mand n, and the real and imaginary parts of the position matrix element in the WF basis.

8.21 seedname.bvec

OUTPUT. Written if write_bvec =true. This ﬁle contains the matrix elements of bvector and their

weights. The ﬁrst line gives the date and time at which the ﬁle was created. The second line states

the number of k-points and the total number of neighbours for each k-point nntot. Then all the other

lines contain the b-vector (x,y,z) coordinate and weigths for each k-points and each of its neighbours.

8.22 seedname_wsvec.dat

OUTPUT. Written if write_hr =true or write_rmn =true or write_tb =true. The ﬁrst line gives

the date and time at which the ﬁle was created and the value of use_ws_distance. For each pair of

Wannier functions (identiﬁed by the components of the vector Rseparating their unit cells and their

indices) it gives: (i) the number of lattice vectors of the periodic supercell Tthat bring the Wannier

function in Rback in the Wigner-Seitz cell centred on the other Wannier function and (ii) the set

of superlattice vectors Tto make this transformation. These superlattice vectors Tshould be added

to the Rvector to obtain the correct centre of the Wannier function that underlies a given matrix

element (e.g. the Hamiltonian matrix elements in seedname_hr.dat) in order to correctly interpolate

in reciprocal space.

## written on 20Sep2016 at 18:12:37 with use_ws_distance=.true.

00011

000

00012

000

00013

000

00014

000

00015

000

00016

wannier90: User Guide 95

0 -1 -1

1 -1 -1

8.23 seedname_qc.dat

OUTPUT. Written if transport =.TRUE.. The ﬁrst line gives the date and time at which the ﬁle was

created. In the subsequent lines, the energy value in units of eV is written in the left column, and the

quantum conductance in units of 2e2

h(e2

hfor a spin-polarized system) is written in the right column.

## written on 14Dec2007 at 11:30:17

-3.000000 8.999999

-2.990000 8.999999

-2.980000 8.999999

-2.970000 8.999999

8.24 seedname_dos.dat

OUTPUT. Written if transport =.TRUE.. The ﬁrst line gives the date and time at which the ﬁle

was created. In the subsequent lines, the energy value in units of eV is written in the left column, and

the density of states in an arbitrary unit is written in the right column.

## written on 14Dec2007 at 11:30:17

-3.000000 6.801199

-2.990000 6.717692

-2.980000 6.640828

-2.970000 6.569910

8.25 seedname_htB.dat

INPUT/OUTPUT. Read if transport_mode =bulk and tran_read_ht =.TRUE.. Written if tran_write_ht =

.TRUE.. The ﬁrst line gives the date and time at which the ﬁle was created. The second line gives

tran_num_bb. The subsequent lines contain tran_num_bb×tran_num_bb Hmn matrix, where the in-

dices mand nspan all tran_num_bb WFs located at 0th principal layer. Then tran_num_bb is recorded

again in the new line followed by Hmn, where mth WF is at 0th principal layer and nth at 1st principal

layer. The Hmn matrix is written in such a way that mis the fastest varying index.

96 wannier90: User Guide

written on 14Dec2007 at 11:30:17

150

-1.737841 -2.941054 0.052673 -0.032926 0.010738 -0.009515

0.011737 -0.016325 0.051863 -0.170897 -2.170467 0.202254

-0.057064 -0.571967 -0.691431 0.015155 -0.007859 0.000474

-0.000107 -0.001141 -0.002126 0.019188 -0.686423 -10.379876

150

0.000000 0.000000 0.000000 0.000000 0.000000 0.000000

0.000000 0.000000 0.000000 0.000000 0.000000 -0.001576

0.000255 -0.000143 -0.001264 0.002278 0.000000 0.000000

8.26 seedname_htL.dat

INPUT. Read if transport_mode =lcr and tran_read_ht =.TRUE.. The ﬁle must be written in

the same way as in seedname_htB.dat. The ﬁrst line can be any comment you want. The second line

gives tran_num_ll.tran_num_ll in seedname_htL.dat must be equal to that in seedname.win. The

code will stop otherwise.

Created by a WANNIER user

105

0.316879 0.000000 -2.762434 0.048956 0.000000 -0.016639

0.000000 0.000000 0.000000 0.000000 0.000000 -2.809405

0.000000 0.078188 0.000000 0.000000 -2.086453 -0.001535

0.007878 -0.545485 -10.525435

105

0.000000 0.000000 0.000315 -0.000294 0.000000 0.000085

0.000000 0.000000 0.000000 0.000000 0.000000 0.000021

0.000000 0.000000 0.000000 0.000000 0.000000 0.000000

0.000000 0.000000 0.000000

8.27 seedname_htR.dat

INPUT. Read if transport_mode =lcr and tran_read_ht =.TRUE. and tran_use_same_lead =

.FALSE.. The ﬁle must be written in the same way as in seedname_htL.dat.tran_num_rr in

wannier90: User Guide 97

seedname_htR.dat must be equal to that in seedname.win.

8.28 seedname_htC.dat

INPUT. Read if transport_mode =lcr and tran_read_ht =.TRUE.. The ﬁrst line can be any com-

ment you want. The second line gives tran_num_cc. The subsequent lines contain tran_num_cc×tran_num_cc

Hmn matrix, where the indices mand nspan all tran_num_cc WFs inside the central conductor region.

tran_num_cc in seedname_htC.dat must be equal to that in seedname.win.

Created by a WANNIER user

-10.499455 -0.541232 0.007684 -0.001624 -2.067078 -0.412188

0.003217 0.076965 0.000522 -0.000414 0.000419 -2.122184

-0.003438 0.078545 0.024426 0.757343 -2.004899 -0.001632

0.007807 -0.542983 -10.516896

8.29 seedname_htLC.dat

INPUT. Read if transport_mode =lcr and tran_read_ht =.TRUE.. The ﬁrst line can be any

comment you want. The second line gives tran_num_ll and tran_num_lc in the given order. The

subsequent lines contain tran_num_ll×tran_num_lc Hmn matrix. The index mspans tran_num_ll

WFs in the surface principal layer of semi-inﬁnite left lead which is in contact with the conductor

region. The index nspans tran_num_lc WFs in the conductor region which have a non-negligible

interaction with the WFs in the semi-inﬁnite left lead. Note that tran_num_lc can be diﬀerent from

tran_num_cc.

Created by a WANNIER user

105 99

0.000000 0.000000 0.000000 0.000000 0.000000 0.000000

-0.000003 0.000009 0.000290 0.000001 -0.000007 -0.000008

0.000053 -0.000077 -0.000069

8.30 seedname_htCR.dat

INPUT. Read if transport_mode =lcr and tran_read_ht =.TRUE.. The ﬁrst line can be any

comment you want. The second line gives tran_num_cr and tran_num_rr in the given order. The

subsequent lines contain tran_num_cr×tran_num_rr Hmn matrix. The index mspans tran_num_cr

WFs in the conductor region which have a non-negligible interaction with the WFs in the semi-inﬁnite

98 wannier90: User Guide

right lead. The index nspans tran_num_rr WFs in the surface principal layer of semi-inﬁnite right

lead which is in contact with the conductor region. Note that tran_num_cr can be diﬀerent from

tran_num_cc.

Created by a WANNIER user

99 105

-0.000180 0.000023 0.000133 -0.000001 0.000194 0.000008

-0.000879 -0.000028 0.000672 -0.000257 -0.000102 -0.000029

0.000000 0.000000 0.000000 0.000000 0.000000 0.000000

0.000000 0.000000 0.000000

8.31 seedname.unkg

INPUT. Read if transport_mode =lcr and tran_read_ht =.FALSE.. The ﬁrst line is the number

of G-vectors at which the ˜umk(G)are subsequently printed. This number should always be 32 since

32 speciﬁc ˜umkare required. The following lines contain the following in this order: The band index

m, a counter on the number of G-vectors, the integer co-eﬃcient of the G-vector components a, b, c

(where G=ab1+bb2+cb3), then the real and imaginary parts of the corresponding ˜umk(G)at the

Γ-point. We note that the ordering in which the G-vectors and ˜umk(G)are printed is not important,

but the speciﬁc G-vectors are critical. The following example displays for a single band, the complete

set of ˜umk(G)that are required. Note the G-vectors (a, b, c) needed.

1 1 0 0 0 0.4023306 0.0000000

1 2 0 0 1 -0.0000325 0.0000000

1 3 0 1 0 -0.3043665 0.0000000

1 4 1 0 0 -0.3043665 0.0000000

1 5 2 0 0 0.1447143 0.0000000

1 6 1 -1 0 0.2345179 0.0000000

1 7 1 1 0 0.2345179 0.0000000

1 8 1 0 -1 0.0000246 0.0000000

1 9 1 0 1 0.0000246 0.0000000

1 10 0 2 0 0.1447143 0.0000000

1 11 0 1 -1 0.0000246 0.0000000

1 12 0 1 1 0.0000246 0.0000000

1 13 0 0 2 0.0000338 0.0000000

1 14 3 0 0 -0.0482918 0.0000000

1 15 2 -1 0 -0.1152414 0.0000000

1 16 2 1 0 -0.1152414 0.0000000

1 17 2 0 -1 -0.0000117 0.0000000

1 18 2 0 1 -0.0000117 0.0000000

1 19 1 -2 0 -0.1152414 0.0000000

1 20 1 2 0 -0.1152414 0.0000000

1 21 1 -1 -1 -0.0000190 0.0000000

1 22 1 -1 1 -0.0000190 0.0000000

wannier90: User Guide 99

1 23 1 1 -1 -0.0000190 0.0000000

1 24 1 1 1 -0.0000190 0.0000000

1 25 1 0 -2 -0.0000257 0.0000000

1 26 1 0 2 -0.0000257 0.0000000

1 27 0 3 0 -0.0482918 0.0000000

1 28 0 2 -1 -0.0000117 0.0000000

1 29 0 2 1 -0.0000117 0.0000000

1 30 0 1 -2 -0.0000257 0.0000000

1 31 0 1 2 -0.0000257 0.0000000

1 32 0 0 3 0.0000187 0.0000000

2 1 0 0 0 -0.0000461 0.0000000

8.32 seedname_u.mat

OUTPUT. Written if write_u_matrices =.TRUE.. The ﬁrst line gives the date and time at which the

ﬁle was created. The second line states the number of kpoints num_kpts and the number of wannier

functions num_wann twice. The third line is empty. Then there are num_kpts blocks of data, each

of which starts with a line containing the kpoint (in fractional coordinates of the reciprocal lattice

vectors) followed by num_wann * num_wann lines containing the matrix elements (real and imaginary

parts) of U(k). The matrix elements are in column-major order (ie, cycling over rows ﬁrst and then

columns). There is an empty line between each block of data.

written on 15Sep2016 at 16:33:46

64 8 8

0.0000000000 +0.0000000000 +0.0000000000

0.4468355787 +0.1394579978

-0.0966033667 +0.4003934902

-0.0007748974 +0.0011788678

-0.0041177339 +0.0093821027

0.1250000000 0.0000000000 +0.0000000000

0.4694005589 +0.0364941808

+0.2287801742 -0.1135511138

-0.4776782452 -0.0511719121

+0.0142081014 +0.0006203139

100 wannier90: User Guide

8.33 seedname_u_dis.mat

OUTPUT. Written if write_u_matrices =.TRUE. and disentanglement is enabled. The ﬁrst line

gives the date and time at which the ﬁle was created. The second line states the number of kpoints

num_kpts, the number of wannier functions num_bands and the number of num_bands. The third line

is empty. Then there are num_kpts blocks of data, each of which starts with a line containing the

kpoint (in fractional coordinates of the reciprocal lattice vectors) followed by num_wann * num_bands

lines containing the matrix elements (real and imaginary parts) of Udis(k). The matrix elements are

in column-major order (ie, cycling over rows ﬁrst and then columns). There is an empty line between

each block of data.

written on 15Sep2016 at 16:33:46

64 8 16

0.0000000000 +0.0000000000 +0.0000000000

1.0000000000 +0.0000000000

+0.0000000000 +0.0000000000

0.1250000000 0.0000000000 +0.0000000000

1.0000000000 +0.0000000000

+0.0000000000 +0.0000000000

Chapter 9

Some notes on the interpolation

In wannier90 v.2.1, a new ﬂag use_ws_distance has been introduced (and it is set to .true. by

default since version v3.0). Setting it to .false. reproduces the “standard” behavior of wannier90 in

v.2.0.1 and earlier, while setting it to .true. changes the interpolation method as described below. In

general, this allows a smoother interpolation, helps reducing (a bit) the number of k−points required

for interpolation, and reproduces the band structure of large supercells sampled at Γonly (setting

it to .false. produces instead ﬂat bands, which might instead be the intended behaviour for small

molecules carefully placed at the centre of the cell).

The core idea rests on the fact that the Wannier functions wnR(r)that we build from N×M×L

k−points are actually periodic over a supercell of size N×M×L, but when you use them to interpolate

you want them to be zero outside this supercell. In 1D it is pretty obvious want we mean here, but in

3D what you really want that they are zero outside the Wigner–Seitz cell of the N×M×Lsuperlattice.

The best way to impose this condition is to check that every real-space distance that enters in the

R→kFourier transform is the shortest possible among all the N×M×L−periodic equivalent copies.

If the distances were between unit cells, this would be trivial, but the distances are between Wannier

functions which are not centred on R= 0. Hence, when you want to consider the matrix element of a

generic operator O(i.e., the Hamiltonian) hwi0(r)|O|wjR(r)iyou must take in account that the centre

τiof wi0(r)may be very far away from 0and the centre τjof wjR(r)may be very far away from R.

There are many way to ﬁnd the shortest possible distance between wi0(r)and wjR(r−R), the one

used here is to consider the distance dijR=τi−(τj+R)and all its superlattice periodic equivalents

dijR+˜

Rnml, with ˜

Rnml = (Nna1+Mma2+Lla3)and n, l, m =−L, −L+ 1, ...0, ..., L −1, L, with L

controlled by the parameter ws_search_size.

Then,

1. if dijR+˜

Rnml is inside the N×M×Lsuper-WS cell, then it is the shortest, take it and quit

2. if it is outside the WS, then it is not the shortest, throw it away

3. if it is on the border/corner of the WS then it is the shortest, but there are other choices of

(n, m, l)which are equivalent, ﬁnd all of them

In all distance comparisons, a small but ﬁnite tolerance is considered, which can be controlled with

the parameter ws_distance_tol.

101

102 wannier90: User Guide

Because of how the Fourier transform is deﬁned in the wannier90 code (not the only possible choice)

it is only R+˜

Rnml that enters the exponential, but you still have to consider the distance among

the actual centres of the Wannier functions. Using the centres of the unit-cell to which the Wannier

functions belong is not enough (but is easier, and saves you one index).

Point 3 is not stricly necessary, but using it helps enforcing the symmetry of the system in the resulting

band structure. You will get some small but evident symmetry breaking in the band plots if you just

pick one of the equivalent ˜

Rvectors.

Note that in some cases, all this procedure does absolutely nothing, for instance if all the Wannier

function centres are very close to 0 (e.g., a molecule carefully placed in the periodic cell).

In some other cases, the eﬀect may exist but be imperceptible. E.g., if you use a very ﬁne grid of

k−points, even if you don’t centre each functions perfectly, the periodic copies will still be so far away

that the change in centre applied with use_ws_distance does not matter.

When instead you use few k−points, activating the use_ws_distance may help a lot in avoiding

spurious oscillations of the band structure even when the Wannier functions are well converged.

Chapter 10

Sample Input Files

10.1 Master input ﬁle: seedname.win

num_wann : 4

mp_grid : 4 4 4

num_iter : 100

postproc_setup : true

begin unit_cell_cart

ang

-1.61 0.00 1.61

0.00 1.61 1.61

-1.61 1.61 0.00

end unit_cell_cart

begin atoms_frac

C -0.125 -0.125 -0.125

C 0.125 0.125 0.125

end atoms_frac

bands_plot : true

bands_num_points : 100

bands_plot_format : gnuplot

begin kpoint_path

L 0.50000 0.50000 0.50000 G 0.00000 0.00000 0.00000

G 0.00000 0.00000 0.00000 X 0.50000 0.00000 0.50000

X 0.50000 0.00000 0.50000 K 0.62500 0.25000 0.62500

end kpoint_path

begin projections

C:l=0,l=1

end projections

begin kpoints

103

104 wannier90: User Guide

0.00 0.00 0.00

0.00 0.00 0.25

0.00 0.50 0.50

0.75 0.75 0.50

0.75 0.75 0.75

end kpoints

10.2 seedname.nnkp

Running wannier90 on the above input ﬁle would generate the following nnkp ﬁle:

File written on 9Feb2006 at 15:13: 9

calc_only_A : F

begin real_lattice

-1.612340 0.000000 1.612340

0.000000 1.612340 1.612340

-1.612340 1.612340 0.000000

end real_lattice

begin recip_lattice

-1.951300 -1.951300 1.951300

1.951300 1.951300 1.951300

-1.951300 1.951300 -1.951300

end recip_lattice

begin kpoints

0.00000 0.00000 0.00000

0.00000 0.25000 0.00000

0.00000 0.50000 0.00000

0.00000 0.75000 0.00000

0.25000 0.00000 0.00000

0.50000 0.75000 0.75000

0.75000 0.00000 0.75000

0.75000 0.25000 0.75000

0.75000 0.50000 0.75000

0.75000 0.75000 0.75000

end kpoints

wannier90: User Guide 105

begin projections

-0.12500 -0.12500 -0.12500 0 1 1

0.000 0.000 1.000 1.000 0.000 0.000 2.00

-0.12500 -0.12500 -0.12500 1 1 1

0.000 0.000 1.000 1.000 0.000 0.000 2.00

-0.12500 -0.12500 -0.12500 1 2 1

0.000 0.000 1.000 1.000 0.000 0.000 2.00

-0.12500 -0.12500 -0.12500 1 3 1

0.000 0.000 1.000 1.000 0.000 0.000 2.00

0.12500 0.12500 0.12500 0 1 1

0.000 0.000 1.000 1.000 0.000 0.000 2.00

0.12500 0.12500 0.12500 1 1 1

0.000 0.000 1.000 1.000 0.000 0.000 2.00

0.12500 0.12500 0.12500 1 2 1

0.000 0.000 1.000 1.000 0.000 0.000 2.00

0.12500 0.12500 0.12500 1 3 1

0.000 0.000 1.000 1.000 0.000 0.000 2.00

end projections

begin nnkpts

1 2 0 0 0

1 4 0 -1 0

1 5 0 0 0

1 13 -1 0 0

1 17 0 0 0

1 22 0 0 0

1 49 0 0 -1

1 64 -1 -1 -1

2 1 0 0 0

2 3 0 0 0

2 6 0 0 0

2 14 -1 0 0

2 18 0 0 0

2 23 0 0 0

2 50 0 0 -1

2 61 -1 0 -1

64 1 1 1 1

64 16 0 0 1

64 43 0 0 0

64 48 0 0 0

64 52 1 0 0

64 60 0 0 0

64 61 0 1 0

64 63 0 0 0

106 wannier90: User Guide

end nnkpts

begin exclude_bands

end exclude_bands

Part III

postw90.x

107

Chapter 11

Parameters

11.1 Introduction

The wannier90.x code described in Part II calculates the maximally-localized Wannier functions.

The postw90.x executable contains instead a series of modules that take the Wannier functions cal-

culated by wannier90.x and use them to calculate diﬀerent properties. This executable is parallel

(by means of MPI libraries), so it can be run on multiple CPUs. The information on the calculated

Wannier functions is read from the checkpoint seedname.chk ﬁle. Note that this is written in an un-

formatted machine-dependent format. If you need to use this ﬁle on a diﬀerent machine, or you want

to use a version of postw90.x compiled with a diﬀerent compiler, refer to Sec. A.2 in the Appendices

for a description of how to export/import this ﬁle.

11.2 Usage

postw90.x can be run in parallel using MPI libraries to reduce the computation time.

For serial execution use: postw90.x [seedname]

•seedname: If a seedname string is given the code will read its input from a ﬁle seedname.win.

The default value is wannier. One can also equivalently provide the string seedname.win instead

of seedname.

For parallel execution use: mpirun -np NUMPROCS postw90.x [seedname]

•NUMPROCS: substitute with the number of processors that you want to use.

Note that the mpirun command and command-line ﬂags may be diﬀerent in your MPI implementation:

read your MPI manual or ask your computer administrator.

Note also that this requires that the postw90.x executable has been compiled in its parallel version

(follow the instructions in the ﬁle README.install in the main directory of the wannier90 distribution)

and that the MPI libraries and binaries are installed and correctly conﬁgured on your machine.

109

110 wannier90: User Guide

11.3 seedname.win File

The postw90.x uses the same seedname.win input ﬁle of wannier90.x. The input keywords of

postw90.x must thus be added to this ﬁle, using the same syntax described in Sec. 2.2.

Note that wannier90.x checks if the syntax of the input ﬁle is correct, but then ignores the value of

the ﬂags that refer only to modules of postw90.x, so one can safely run wannier90.x on a ﬁle that

contains also postw90.x ﬂags.

Similarly, postw90.x ignores ﬂags that refer only to wannier90.x (as number of iterations, restart

ﬂags, . . . ). However, some parts of the input ﬁle must be there, as for instance the number of Wannier

functions, etc.

The easiest thing to do is therefore to simply add the postw90 input keywords to the seedname.win

ﬁle that was used to obtain the Wannier functions.

11.4 List of available modules

The currently available modules in postw90.x are:

•dos: Calculation of the density of states (DOS), projected density of states (PDOS), net spin

etc.

•kpath: Calculation of k-space quantities such as energy bands and Berry curvature along a

piecewise linear path in the BZ (see examples 17 and 18 of the tutorial).

•kslice: Calculation of k-space quantities on a planar slice of the BZ (see examples 17 and 18 of

the tutorial).

•berry: Calculation of properties related to the BZ integral of the Berry curvature and Berry

connection, including anomalous Hall conductivity, orbital magnetisation, optical conductivity

and nonlinear shift current (see Chap. 12 and examples 18, 19 and 25 of the tutorial).

•gyrotropic: Calculation of gyrotropic properties, including natural and current0induced optical

rotation, and the current-induced magnetization (see Chap. 13 and examples of the tutorial).

•BoltzWann: Calculation of electronic transport properties for bulk materials using the semiclas-

sical Boltzmann transport equation (see Chap. 14 and example 16 of the tutorial).

•geninterp (Generic Band Interpolation): Calculation band energies (and band derivatives) on a

generic list of kpoints (see Chap. 15).

11.5 Keyword List

On the next pages the list of available postw90 input keywords is reported. In particular, Table 11.1

reports keywords that aﬀect the generic behavior of all modules of postw90. Often, these are “global”

variables that can be overridden by module-speciﬁc keywords (as for instance the kmesh ﬂag). The

subsequent tables describe the input parameters for each speciﬁc module.

A description of the behaviour of the global ﬂags is described Sec. 11.6; the description of the ﬂags

speciﬁc to the modules can be found in the following sections.

wannier90: User Guide 111

Keyword Type Description

Global Parameters of postw90

kmesh I Dimensions of the uniform interpo-

lation k-mesh (one or three integers)

kmesh_spacing R Minimum spacing between kpoints

in Å−1

adpt_smr L Use adaptive smearing

adpt_smr_fac R Adaptive smearing prefactor

adpt_smr_max P Maximum allowed value for the

adaptive energy smearing (eV)

smr_type S Analytical form used for the broad-

ened delta function

smr_fixed_en_width P Energy smearing (if non-adaptive)

num_elec_per_state I Number of electrons per state

scissors_shift P Scissors shift applied to the conduc-

tion bands (eV) (deprecated)

num_valence_bands I Number of valence bands

spin_decomp L Decompose various properties into

up-spin, down-spin, and possibly

spin-ﬂip parts

spin_axis_polar P Polar angle of the spin quantization

axis (deg)

spin_axis_azimuth P Azimuthal angle of the spin quanti-

zation axis (deg)

spin_moment∗L Determines whether to evaluate the

spin magnetic moment per cell

uHu_formatted L Read a formatted seedname.uHu ﬁle

spn_formatted L Read a formatted seedname.spn ﬁle

berry_curv_unit S Unit of Berry curvature

Table 11.1: seedname.win ﬁle keywords controlling the general behaviour of the modules in postw90.

Argument types are represented by, I for a integer, R for a real number, P for a physical value, L for

a logical value and S for a text string.

The keyword spin_moment does not aﬀect the behavior of the modules in postw90, and does not really

belong to any of them. It is listed here for lack of a better place.

112 wannier90: User Guide

Keyword Type Description

dos Parameters

dos L Calculate the density of states and

related properties

dos_task S List of properties to compute

dos_energy_min P Lower limit of the energy range for

computing the DOS (eV)

dos_energy_max P Upper limit of the energy range for

computing the DOS (eV)

dos_energy_step R Step for increasing the energy in the

speciﬁed range (eV)

dos_project I List of WFs onto which the DOS is

projected

[dos_]kmesh I Dimensions of the uniform interpo-

lation k-mesh (one or three integers)

[dos_]kmesh_spacing R Minimum spacing between kpoints

in Å−1

[dos_]adpt_smr L Use adaptive smearing for the DOS

[dos_]adpt_smr_fac R Adaptive smearing prefactor

[dos_]adpt_smr_max P Maximum allowed value for the

adaptive energy smearing (eV)

[dos_]smr_fixed_en_width P Energy smearing (if non-adaptive)

for the DOS (eV)

[dos_]smr_type S Analytical form used for the broad-

ened delta function when computing

the DOS.

Table 11.2: seedname.win ﬁle keywords controlling the dos module. Argument types are represented

by, I for a integer, R for a real number, P for a physical value, L for a logical value and S for a text

string.

Keyword Type Description

kpath Parameters

kpath L Calculate properties along a piece-

wise linear path in the BZ

kpath_task L List of properties to evaluate

kpath_num_points I Number of points in the ﬁrst kpath

segment

kpath_bands_colour S Property used to colour the energy

bands along the path

Table 11.3: seedname.win ﬁle keywords controlling the kpath module. Argument types are represented

by, I for a integer, R for a real number, P for a physical value, L for a logical value and S for a text

string.

wannier90: User Guide 113

Keyword Type Description

kslice Parameters

kslice L Calculate properties on a slice in the

kslice_task S List of properties to evaluate

kslice_corner R Position of the corner of the slice

kslice_b1 R First vector deﬁning the slice

kslice_b2 R Second vector deﬁning the slice

kslice_2dkmesh I Dimensions of the uniform interpo-

lation k-mesh on the slice (one or

two integers)

kslice_fermi_level PThis parameter is not used anymore.

Use fermi_energy instead.

kslice_fermi_lines_colour S Property used to colour the Fermi

lines

Table 11.4: seedname.win ﬁle keywords controlling the kslice module. Argument types are repre-

sented by, I for a integer, R for a real number, P for a physical value, L for a logical value and S for a

text string.

114 wannier90: User Guide

Keyword Type Description

berry Parameters

berry L Calculate Berry-type quantities

berry_task L List of properties to compute

[berry_]kmesh I Dimensions of the uniform interpo-

lation k-mesh (one or three integers)

[berry_]kmesh_spacing R Minimum spacing between kpoints

in Å−1

berry_curv_adpt_kmesh I Linear dimension of the adaptively

reﬁned k-mesh used to compute the

anomalous Hall conductivity

berry_curv_adpt_kmesh_thresh P Threshold magnitude of the Berry

curvature for adaptive reﬁnement

kubo_freq_min P Lower limit of the frequency range

for optical spectra, JDOS and shift

current (eV)

kubo_freq_max P Upper limit of the frequency range

for optical spectra, JDOS and shift

current (eV)

kubo_freq_step R Step for increasing the optical fre-

quency in the speciﬁed range

kubo_eigval_max P Maximum energy eigenvalue in-

cluded when evaluating the Kubo-

Greenwood conductivity, JDOS and

shift current

[kubo_]adpt_smr L Use adaptive energy smearing for

the optical conductivity, JDOS and

shift current

[kubo_]adpt_smr_fac R Adaptive smearing prefactor

[kubo_]adpt_smr_max P Maximum allowed value for the

adaptive energy smearing (eV)

[kubo_]smr_type S Analytical form used for the broad-

ened delta function when computing

the optical conductivity, JDOS and

shift current

[kubo_]smr_fixed_en_width P Energy smearing (if non-adaptive)

for the optical conductivity, JDOS

and shift current (eV)

sc_eta R Energy broadening of energy diﬀer-

ences in the sum over virtual states

when computing shift current

sc_phase_conv I Convention for phase factor of Bloch

states when computing shift current

sc_w_thr R Frequency threshold for speeding

up delta function integration when

computing shift current

Table 11.5: seedname.win ﬁle keywords controlling the berry module. Argument types are represented

by, I for a integer, R for a real number, P for a physical value, L for a logical value and S for a text

string.

wannier90: User Guide 115

Keyword Type Description

berry Parameters

gyrotropic L Calculate gyrotropic quantities

gyrotropic_task L List of properties to compute

[gyrotropic_]kmesh I Dimensions of the uniform interpo-

lation k-mesh (one or three integers)

[gyrotropic_]kmesh_spacing R Minimum spacing between kpoints

in Å−1

gyrotropic_freq_min P Lower limit of the frequency range

for optical rotation (eV)

gyrotropic_freq_max P Upper limit of the frequency range

for optical rotation (eV)

gyrotropic_freq_step P Step for increasing the optical fre-

quency in the speciﬁed range

gyrotropic_eigval_max P Maximum energy eigenvalue in-

cluded when evaluating the inter-

band natural optical activity

gyrotropic_degen_thresh P threshold to exclude degenerate

bands from the calculation

[gyrotropic_]smr_type S Analytical form used for the broad-

ened delta function

[gyrotropic_]smr_fixed_en_width P Energy smearing (eV)

[gyrotropic_]band_list I list of bands used in the calculation

gyrotropic_box_center R The center and three basis vectors,

deﬁning the box for integration (in

reduced coordinates, three real

numbers for each vector)

gyrotropic_box_b1 R

gyrotropic_box_b2 R

gyrotropic_box_b3 R

Table 11.6: seedname.win ﬁle keywords controlling the gyrotropic module. Argument types are

represented by, I for a integer, R for a real number, P for a physical value, L for a logical value and S

for a text string.

116 wannier90: User Guide

Keyword Type Description

BoltzWann Parameters

boltzwann L Calculate Boltzmann transport co-

eﬃcients

[boltz_]kmesh I Dimensions of the uniform interpo-

lation k-mesh (one or three integers)

[boltz_]kmesh_spacing R Minimum spacing between kpoints

in Å−1

boltz_2d_dir S Non-periodic direction (for 2D sys-

tems only)

boltz_relax_time P Relaxation time in fs

boltz_mu_min P Minimum value of the chemical po-

tential µin eV

boltz_mu_max P Maximum value of the chemical po-

tential µin eV

boltz_mu_step R Step for µin eV

boltz_temp_min P Minimum value of the tempera-

ture Tin Kelvin

boltz_temp_max P Maximum value of the tempera-

ture Tin Kelvin

boltz_temp_step R Step for Tin Kelvin

boltz_tdf_energy_step R Energy step for the TDF (eV)

boltz_tdf_smr_fixed_en_width P Energy smearing for the TDF (eV)

boltz_tdf_smr_type S Smearing type for the TDF

boltz_calc_also_dos L Calculate also DOS while calculat-

ing the TDF

boltz_dos_energy_min P Minimum value of the energy for the

DOS in eV

boltz_dos_energy_max P Maximum value of the energy for the

DOS in eV

boltz_dos_energy_step R Step for the DOS in eV

[boltz_dos_]smr_type S Smearing type for the DOS

[boltz_dos_]adpt_smr L Use adaptive smearing for the DOS

[boltz_dos_]adpt_smr_fac R Adaptive smearing prefactor

[boltz_dos_]adpt_smr_max P Maximum allowed value for the

adaptive energy smearing (eV)

[boltz_dos_smr_]fixed_en_width P Energy smearing (if non-adaptive)

for the DOS (eV)

boltz_bandshift L Rigid bandshift of the conduction

bands

boltz_bandshift_firstband I Index of the ﬁrst band to shift

boltz_bandshift_energyshift P Energy shift of the conduction bands

(eV)

Table 11.7: seedname.win ﬁle keywords controlling the BoltzWann module (calculation of the Boltz-

mann transport coeﬃcients in the Wannier basis). Argument types are represented by, I for a integer,

R for a real number, P for a physical value, L for a logical value and S for a text string.

wannier90: User Guide 117

Keyword Type Description

geninterp Parameters

geninterp L Calculate bands for given set of k

points

geninterp_alsofirstder L Calculate also ﬁrst derivatives

geninterp_single_file L Write a single ﬁle or one for each

process

Table 11.8: seedname.win ﬁle keywords controlling the Generic Band Interpolation (geninterp) mod-

ule. Argument types are represented by, I for a integer, R for a real number, P for a physical value, L

for a logical value and S for a text string.

118 wannier90: User Guide

11.6 Global variables

11.6.1 integer :: kmesh(:)

Dimensions of the interpolation grid used in postw90.x.

Not to be confused with the mp_grid input ﬂag, which instead speciﬁes the Monkhorst–Pack grid used

in the ab-initio calculation!

If three integers l m n are given, the reciprocal-space cell subtended by the three primitive translations

is sampled on a uniform l×m×ngrid (including Γ). If only one integer mis given, an m×m×m

grid is used.

If you use a module which needs a k-mesh, either kmesh_spacing or kmesh must be deﬁned.

11.6.2 real(kind=dp) :: kmesh_spacing

An alternative way of specifying the interpolation grid. This ﬂag deﬁnes the minimum distance for

neighboring kpoints along each of the three directions in kspace.

The units are Å−1.

If you use a module which needs a k-mesh, either kmesh_spacing or kmesh must be deﬁned.

11.6.3 logical :: adpt_smr

Determines whether to use an adaptive scheme for broadening the DOS and similar quantities deﬁned

on the energy axis. If true, the values for the smearing widths are controlled by the ﬂag adpt_smr_fac.

The default value is true.

11.6.4 real(kind=dp) :: adpt_smr_fac

The width ηnkof the broadened delta function used to determine the contribution to the spectral

property (DOS, ...) from band nat point kis calculated as

ηnk=α|∇kεnk|∆k,

where εnkis the energy eigenvalue and the dimensionless factor αis given by adpt_smr_fac.∆kis

taken to be the largest of the mesh spacings along the three reciprocal lattice vectors b1,b2, and b3.

If the calculated value of ηnkexceeds adpt_smr_max, the latter value is used.

The default value is √2.

11.6.5 real(kind=dp) :: adpt_smr_max

See description given immediately above.

The units are eV. The default value is 1.0.

wannier90: User Guide 119

11.6.6 character(len=120) :: smr_type

Deﬁnes the analytical form used for the broadened delta function in the computation of the DOS and

similar quantities deﬁned on the energy axis.

•gauss: Gaussian smearing

•m-pN: derivative of the N-th order Methfessel-Paxton function (N≥0). Example: m-p2 for the

second-order Methfessel-Paxton function. If only m-p is provided, the ﬁrst-order function is used,

i.e., it is equivalent to m-p1.

•m-v or cold: derivative of the Marzari–Vanderbilt cold-smearing function

•f-d: derivative of the Fermi-Dirac distribution function

The default value is gauss.

11.6.7 logical :: smr_fixed_en_width

Energy width for the smearing function for the DOS. Used only if adpt_smr is false.

The units are eV. The default value is 0 eV. Note that if the width is smaller than twice the energy

step (e.g. dos_energy_step for the dos module), the DOS will be unsmeared (thus the default is to

have an unsmeared properties when adpt_smr is set to false.).

11.6.8 integer :: num_elec_per_state

Number of electrons per state. It can only take the values one or two.

The default value is 1 if spinors=true, 2 otherwise.

11.6.9 real(kind=dp) :: scissors_shift

Scissors shift applied to the conduction bands.

Note! This variable is deprecated and will be removed in future versions of the code. This applies the

scissors shift only to the Hamiltonian, but also other matrices might need to be updated if a scissors

shift is applied. If you are using BoltzWann, consider using boltz_bandshift instead.

The units are eV. The default value is 0 eV (i.e., no scissors shift applied).

11.6.10 integer :: num_valence_bands

Number of valence bands of the system. Used in diﬀerent modules and for the scissors shift.

No default value.

120 wannier90: User Guide

11.6.11 logical :: spin_decomp

If true, extra columns are added to some output ﬁles (such as seedname-dos.dat for the dos module,

and analogously for the berry and BoltzWann modules).

For the dos and BoltzWann modules, two further columns are generated, which contain the decomposi-

tion of the required property (e.g., total or orbital-projected DOS) of a spinor calculation into up-spin

and down-spin parts (relative to the quantization axis deﬁned by the input variables spin_axis_polar

and spin_axis_azimuth). For the berry module with berry_task = kubo, three extra columns are

added to seedname-jdos.dat, containing the decomposition of the JDOS into up →up, down →

down, and spin-ﬂip transitions. In the same way, six extra columns are added to the data ﬁles

seedname-kubo*.dat where the complex optical conductivity is stored.

The ﬁle seedname.spn must be present at input. Furthermore, if this variable is set to true it requires

num_elec_per_state = 1.

The default value is false.

11.6.12 real(kind=dp) :: spin_axis_polar

Polar angle of the spin quantization axis.

The units are degrees. The default value is 0.

11.6.13 real(kind=dp) :: spin_axis_azimuth

Azimuthal angle of the spin quantization axis.

The units are degrees. The default value is 0.

11.6.14 logical :: spin_moment

Determines whether to evaluate the spin moment.

The default value is false.

11.6.15 logical :: uHu_formatted

If uHu_formatted=true, then the uHu matrix elements will be read from disk as formatted (ie ASCII)

ﬁles; otherwise they will be read as unformatted ﬁles.

The default value of this parameter is false.

11.6.16 logical :: spn_formatted

If spn_formatted=true, then the spin matrix elements will be read from disk as formatted (ie ASCII)

ﬁles; otherwise they will be read as unformatted ﬁles. Unformatted is generally preferable as the ﬁles

will take less disk space and I/O is signiﬁcantly faster. However such ﬁles will not be transferable

wannier90: User Guide 121

between all machine architectures and formatted ﬁles should be used if transferability is required (i.e.,

for test cases).

The default value is false.

11.6.17 character(len=20) :: berry_curv_unit

Unit in which the Berry curvature is speciﬁed at input (in berry_curv_adpt_kmesh_thresh) or written

to ﬁle (when kpath_task=curv or kslice_task=curv).

•ang2: Angstrom2

•bohr2: Bohr2(atomic units)

The default value is ang2.

11.6.18 real(kind=dp) :: sc_eta

The width ηused to broaden energy diﬀerences in denominators of the form

εnk−εmk→Re 1

εnk−εmk+iη .

The above is needed in shift-current calculations in order to avoid numerical problems caused by

near-degeneracies in the sum over virtual states.

The units are eV. The default value is 0.4.

11.6.19 integer :: sc_phase_conv

Convention for the expansion of the Bloch states in shift-current calculations. It can only take the

values one or two. We follow the convention of Ref. [11]:

•1: Include Wannier centre τn=hwn0|r|wn0iin the phase factor (so-called tight-binding conven-

tion):

|unki=X

e−ik(r−R−τn)|wnRi

•2: Do not include Wannier centre in the phase factor (usual Wannier90 convention):

|unki=X

e−ik(r−R)|wnRi

The convention does not aﬀect the full shift-current matrix element, but it does aﬀect the weights of

the internal components that compose it (see Ref. [12]).

The default value is 1.

122 wannier90: User Guide

11.6.20 real(kind=dp) :: sc_w_thr

Parameter αtfor speeding up the frequency integration in shift-current calculations. It settles the

frequency threshold ωt=αtηnk(a factor times the broadening) beyond which the delta functions are

taken as zero.

The default value is 5.0.

wannier90: User Guide 123

11.7 DOS

Note that the behavior of the dos module is also inﬂuenced by the value of some global ﬂags (listed in

Table 11.1), as spin_decomp,spin_axis_polar,spin_axis_azimuth,scissors_shift, etc. Some of

the global ﬂags can be possibly overridden by local ﬂags of the DOS module, listed below, which have

the same name of the global ﬂag but are preﬁxed by dos_.

11.7.1 logical :: dos

Determines whether to enter the DOS routines.

The default value is false.

11.7.2 character(len=20) :: dos_task

The quantity to compute when dos=true

The valid options for this parameter are:

–dos_plot Density of states. An output data ﬁle seedname-dos.dat is created, containing the

energy values in eV in the ﬁrst column, and the total DOS per unit cell and unit energy range

(in eV−1) in the second. Two additional columns are present if spin_decomp=true

The default value is dos_plot.

11.7.3 real(kind=dp) :: dos_energy_min

Lower limit of the energy range for computing the DOS. Units are eV.

The default value is the minimum value of the energy eigenvalues stored in seedname.eig, minus

0.6667.

11.7.4 real(kind=dp) :: dos_energy_max

Upper limit of the energy range for computing the DOS. Units are eV.

If an inner energy window was speciﬁed, the default value is the upper bound of the innter energy win-

dow, plus 0.6667. Otherwise it is the maximum value of the energy eigenvalues stored in seedname.eig,

plus 0.6667.

11.7.5 real(kind=dp) :: dos_energy_step

Energy step for the grid of energies used to plot the dos. Units are eV.

The default value is 0.01 eV.

124 wannier90: User Guide

11.7.6 integer :: dos_project(:)

If present postw90 computes, instead of the total DOS, the partial DOS projected onto the WFs listed.

The WFs are numbered according to the ﬁle seedname.wout.

For example, to project onto WFs 2, 6, 7, 8, and 12:

dos_project : 2, 6-8, 12

The DOS projected onto a set Sof orbitals is calculated as

ρS(E) = 1

NkX

nhψ(H)

nk|ˆ

Pk(S)|ψ(H)

nkiδ(εnk−E)(11.1)

Pk(S) = X

m∈S |ψ(W)

nkihψ(W)

nk|,(11.2)

where Nkis the number of mesh points used to sample the BZ, and the superscript (H) and (W) refer

to Hamiltonian gauge and Wannier gauge [13].

11.7.7 integer :: dos_kmesh(:)

Overrides the kmesh global variable (see Sec. 11.6).

11.7.8 real(kind=dp) :: dos_kmesh_spacing

Overrides the kmesh_spacing global variable (see Sec. 11.6).

11.7.9 logical :: dos_adpt_smr

Overrides the adpt_smr global variable (see Sec. 11.6).

11.7.10 real(kind=dp) :: dos_adpt_smr_fac

Overrides the adpt_smr_fac global variable (see Sec. 11.6).

11.7.11 real(kind=dp) :: dos_adpt_smr_max

Overrides the adpt_smr_max global variable (see Sec. 11.6).

11.7.12 logical :: dos_smr_fixed_en_width

Overrides the smr_fixed_en_width global variable (see Sec. 11.6).

Note that if the width is smaller than twice the energy step dos_energy_step, the DOS will be

unsmeared (thus the default is to have an unsmeared DOS).

wannier90: User Guide 125

11.7.13 character(len=20) :: dos_smr_type

Overrides the smr_type global variable (see Sec. 11.6).

126 wannier90: User Guide

11.8 kpath

11.8.1 logical :: kpath

Determines whether to enter the kpath routines.

The default value is false.

11.8.2 character(len=20) :: kpath_task

The quantities to plot when kpath=true

The valid options for this parameter are:

–bands Energy bands, in eV. The following ﬁles are created:

·seedname-bands.dat (data ﬁle)

·seedname-bands.gnu (gnuplot script)

·seedname-bands.py (python script)

·seedname-path.kpt (list of k-points along the path, written in the pwscf format)

–curv Minus the Berry curvature given by Eq. (12.18) of Ch. 12, in units of berry_curv_unit.

The following ﬁles are created:

·seedname-curv.dat (data ﬁle)

·seedname-curv_{x,y,z}.gnu (gnuplot scripts)

·seedname-curv_{x,y,z}.py (python scripts)

–morb The integrand of the k-space orbital magnetization formula [Eq. (12.20) of Ch. 12] in eV·Å2.

Four output ﬁles are created:

·seedname-morb.dat (data ﬁle)

·seedname-morb_{x,y,z}.gnu (gnuplot scripts)

·seedname-morb_{x,y,z}.py (python scripts)

–Any combination of the above. The following combinations are of special interest

kpath_task = bands+curv

kpath_task = bands+morb

They generate the following ﬁles:

·seedname-bands.dat (data ﬁle)

·seedname-{curv,morb}.dat (data ﬁle)

·seedname-bands+{curv,morb}_{x,y,z}.py (python scripts)

Two-panel ﬁgures are produced, with the energy bands within ±0.65 eV of the Fermi level in the

top panel, and the Berry curvature (or k-space orbital magnetization) in the bottom panel.

The default value is bands.

wannier90: User Guide 127

11.8.3 integer :: kpath_num_points

If kpath =true, then the number of points along the ﬁrst section of the bandstructure plot given by

kpoint_path. Other sections will have the same density of k-points.

The default value is 100.

11.8.4 character(len=20) :: kpath_bands_colour

When kpath_task=bands, colour code the energy bands according to the speciﬁed quantity.

The valid options for this parameter are:

–spin Spin projection (in units of ¯h/2) along the quantization axis deﬁned by the variables

spin_axis_polar and spin_axis_azimuth, for a spinor calculation

–none no colour coding

The default value is none.

128 wannier90: User Guide

11.9 kslice

11.9.1 logical :: kslice

Determines whether to enter the kslice routines.

The default value is false.

11.9.2 character(len=20) :: kslice_task

The quantity to plot when kslice=true

The valid options for this parameter are:

–fermi_lines Lines of intersection between constant-energy surfaces and the slice. The energy

level is speciﬁed by the keyword fermi_energy. Output ﬁles:

·seedname-kslice-fermi-spn.dat (data ﬁle when kslice_fermi_lines_colour = spin)

·seedname-bnd_n.dat (gnuplot data ﬁles when kslice_fermi_lines_colour = none)

·seedname-kslice-coord.dat (python data ﬁles when kslice_fermi_lines_colour = none)

·seedname-kslice-bands.dat (python data ﬁle when kslice_fermi_lines_colour = none)

·seedname-kslice-fermi_lines.gnu (gnuplot script)

·seedname-kslice-fermi_lines.py (python script)

–curv[+fermi_lines] Heatmap of the Berry curvature of the occupied states [together with the

constant-energy contours]. The unit of Berry curvature is berry_curv_unit.

Output ﬁles:

·seedname-kslice-coord.dat (data ﬁles)

·seedname-kslice-curv.dat (data ﬁle)

·[seedname-kslice-bands.dat] (data ﬁle)

·seedname-kslice-curv_{x,y,z}[+fermi_lines].py (python scripts)

–morb[+fermi_lines] Heatmap of the k-space orbital magnetization in eV·Å2[together with the

constant-energy contours]. Output ﬁles:

·seedname-kslice-coord.dat (data ﬁles)

·seedname-kslice-morb.dat (data ﬁle)

·[seedname-kslice-bands.dat] (data ﬁle)

·seedname-kslice-morb_{x,y,z}[+fermi_lines].py (python scripts)

The default value is fermi_lines.

Note: When kslice_fermi_lines_colour = none the gnuplot scripts draw the k-slices with a square

shape, even when kslice_b1 and kslice_b2 below are not at right angles, or do not have equal lengths.

(The python scripts draw the slices with the correct parallelogram shape.)

wannier90: User Guide 129

11.9.3 real(kind=dp) :: kslice_corner(3)

Reduced coordinates of the lower-left corner of the slice in k-space.

The default value is (0.0,0.0,0.0)

11.9.4 real(kind=dp) :: kslice_b1(3)

Reduced coordinates of the ﬁrst reciprocal-space vector deﬁning the slice.

The default value is (1.0,0.0,0.0).

11.9.5 real(kind=dp) :: kslice_b2(3)

Reduced coordinates of the second reciprocal-space vector deﬁning the slice.

The default value is (0.0,1.0,0.0).

11.9.6 integer :: kslice_2dkmesh(2)

Dimensions of the k-point grid covering the slice. If two integers m n are given, the slice is sampled

on a uniform m×ngrid. If only one integer mis given, an m×mgrid is used.

The default value for kslice_kmesh is 50.

11.9.7 character(len=20) :: kslice_fermi_lines_colour

When kslice_task=fermi_lines (but not when combined with curv or morb), colour code the Fermi

lines according to the speciﬁed quantity.

The valid options for this parameter are:

–spin Spin projection (in units of ¯h/2) along the quantization axis deﬁned by the variables

spin_axis_polar and spin_axis_azimuth, for a spinor calculation

–none no colour coding

The default value is none.

130 wannier90: User Guide

11.10 berry

11.10.1 logical :: berry

Determines whether to enter the berry routines.

The default value is false.

11.10.2 character(len=120) :: berry_task

The quantity to compute when berry=true

The valid options for this parameter are:

–kubo Complex optical conductivity and joint density of states. Output ﬁles:

·seedname-kubo-S_{xx,yy,zz,xy,xz,yz}.dat (data ﬁles). First column: optical frequency

¯hω in eV. Second and third columns: real and imaginary parts of the symmetric conductivity

σS

αβ(¯hω) = σS

βα(¯hω)in S/cm. Six additional columns are present if spin_decomp = true.

·seedname-kubo-A_{yz,zx,xy}.dat (data ﬁles). First column: optical frequency ¯hω in eV.

Second and third columns: real and imaginary parts of the antisymmetric conductivity

σA

αβ(¯hω) = −σA

βα(¯hω)in S/cm. Six additional columns are present if spin_decomp = true.

·seedname-jdos.dat (data ﬁle). First column: energy diﬀerence ¯hω in eV between conduc-

tion (c) and valence (v) states with the same crystal momentum k. Second column: joint

density of states ρcv(¯hω)(number of states per unit cell per unit energy range, in eV−1).

Three additional columns are present if spin_decomp = true.

–ahc Anomalous Hall conductivity, in S/cm. The three independent components σx=σyz,σy=

σzx, and σz=σxy are computed. Output ﬁles:

·seedname-ahc-fermiscan.dat (data ﬁle) . The ﬁrst column contains the Fermi level εFin

eV, and the following three column the values of σx,y,z(εF). This ﬁle is written if a range of

Fermi energies is speciﬁed via fermi_energy_min and fermi_energy_max. If a single Fermi

energy is given, the AHC is printed in seedname.wpout only.

–morb Orbital magnetisation, in bohr magnetons per cell.

Output ﬁles:

·seedname-morb-fermiscan.dat (data ﬁle). The ﬁrst column contains the Fermi level εFin

eV, and the following three column the values of Morb

x,y,z(εF). This ﬁle is written if a range of

Fermi energies is speciﬁed via fermi_energy_min and fermi_energy_max. If a single Fermi

energy is given, Morb is printed in seedname.wpout only.

There is no default value.

11.10.3 integer :: berry_kmesh(:)

Overrides the kmesh global variable (see Sec. 11.6).

wannier90: User Guide 131

11.10.4 real(kind=dp) :: berry_kmesh_spacing

Overrides the kmesh_spacing global variable (see Sec. 11.6).

11.10.5 integer :: berry_curv_adpt_kmesh

If a positive integer nis given and berry_task=ahc, an n×n×nmesh is placed around points on

the uniform mesh (deﬁned by either berry_kmesh or berry_kmesh_spacing) where the magnitude of

the k-space Berry curvature exceeds the threshold value speciﬁed in berry_curv_adpt_kmesh_thresh.

This can be used to densify the BZ integration mesh around spikes in the Berry curvature.

The default value is 1.

11.10.6 real(kind=dp) :: berry_curv_adpt_kmesh_thresh

Magnitude of the Berry curvature (in units of berry_curv_unit) that triggers adaptive mesh reﬁnement

when berry_task=ahc.

The default value is 100.0.

11.10.7 real(kind=dp) :: kubo_freq_min

Lower limit of the frequency range for computing the optical conductivity and JDOS. Units are eV.

The default value 0.0.

11.10.8 real(kind=dp) :: kubo_freq_max

Upper limit of the frequency range for computing the optical conductivity and JDOS. Units are eV.

If an inner energy window was speciﬁed, the default value is dis_froz_max-fermi_energy+0.6667.

Otherwise it is the diﬀerence between the maximum and the minimum energy eigenvalue stored in

seedname.eig, plus 0.6667.

11.10.9 real(kind=dp) :: kubo_freq_step

Diﬀerence between consecutive values of the optical frequency between kubo_freq_min and kubo_freq_max.

Units are eV.

The default value is 0.01.

11.10.10 real(kind=dp) :: kubo_eigval_max

Maximum energy eigenvalue of the eigenstates to be included in the evaluation of the optical conduc-

tivity and JDOS. Units are eV.

132 wannier90: User Guide

If an inner energy window was speciﬁed, the default value is the upper bound of the inner energy

window plus 0.6667. Otherwise it is the maximum energy eigenvalue stored in seedname.eig plus

0.6667.

11.10.11 logical :: kubo_adpt_smr

Overrides the adpt_smr global variable (see Sec. 11.6).

11.10.12 real(kind=dp) :: kubo_adpt_smr_fac

Overrides the adpt_smr_fac global variable (see Sec. 11.6).

11.10.13 real(kind=dp) :: kubo_adpt_smr_max

Overrides the adpt_smr_max global variable (see Sec. 11.6).

11.10.14 logical :: kubo_smr_fixed_en_width

Overrides the smr_fixed_en_width global variable (see Sec. 11.6).

11.10.15 character(len=120) :: kubo_smr_type

Overrides the smr_type global variable (see Sec. 11.6).

wannier90: User Guide 133

11.11 Gyrotropic

11.11.1 logical :: gyrotropic

Determines whether to enter the gyrotropic routines.

The default value is false.

11.11.2 character(len=120) :: gyrotropic_task

The quantity to compute when gyrotropic=true

May contain one or more of the following valid options (note that each option starts with a ’-’):

•-D0 The Berry-curvature dipole tensor Eq. (13.1) (dimensionless)

Output ﬁle: seedname-gyrotropic-D.dat ( see Sec. 11.11.3 for ﬁle format description)

•-Dw The ﬁnite-frequency Berry-curvature dipole tensor Eq. (13.2) (dimensionless)

Output ﬁle: seedname-gyrotropic-tildeD.dat ( see Sec. 11.11.3 for ﬁle format description)

•-C The ohmic conductivity tensor Eq. (13.4) (Ampere/cm)

Output ﬁle: seedname-gyrotropic-C.dat ( see Sec. 11.11.3 for ﬁle format description)

•-K The orbital contribution to the kME tensor Eq. (13.5) (Ampere)

Output ﬁle: seedname-gyrotropic-K_orb.dat ( see Sec. 11.11.3 for ﬁle format description)

◦-spin : if this task is present, compute also the spin contribution.

Output ﬁle: seedname-gyrotropic-K_spin.dat

•-NOA The orbital contribution to the NOA Eq. (13.5) (Å)

Output ﬁle: seedname-gyrotropic-NOA_orb.dat ( see Sec. 11.11.3 for ﬁle format description)

◦-spin : if this task is present, compute also the spin contribution.

Output ﬁle: seedname-gyrotropic-NOA_spin.dat

•-dos the density of states Output ﬁle: seedname-gyrotropic-DOS.dat. First column - energy

(eV), second column - DOS (1/(eV ×3))

There is no default value.

11.11.3 output data format

The calculated tensors are written as functions of Fermi level EF(ﬁrst column) and frequency ω(second

column). If the tensor does not denend on ω, the second column is ﬁlled by zeros. Data is grouped in

blocks of the same ωseparated by two blank lines. In case of natural optical activity the columns 3 to

11 contain the independent components of γabc (antisymmetric in ab): yzx,zxy ,xyz,yzy,yzz,zxz,

xyy,yzz and zxx. For tensors Cab,Dab,e

Dab,Kab the symmetric and antisymmetric components are

writted. Thus, the columns 3 to 11 are marked as xx,yy,zz,xy,xz,yz,x,y,z, wich correspond ,e.g.,

for Dab to Dxx,Dyy,Dzz,(Dxy +Dyx)/2,(Dxz +Dzx)/2,(Dyz +Dzy)/2,(Dyz −Dzy)/2,(Dzx −Dxz)/2,

(Dxy −Dyx)/2

134 wannier90: User Guide

11.11.4 integer :: gyrotropic_kmesh(:)

Overrides the kmesh global variable (see Sec. 11.6).

11.11.5 real(kind=dp) :: gyrotropic_kmesh_spacing

Overrides the kmesh_spacing global variable (see Sec. 11.6).

11.11.6 real(kind=dp) :: gyrotropic_freq_min

Lower limit of the frequency range for computing the optical activity.

Units are eV. The default value 0.0.

11.11.7 real(kind=dp) :: gyrotropic_freq_max

Upper limit of the frequency range for computing the optical activity. Units are eV.

If an inner energy window was speciﬁed, the default value is dis_froz_max-fermi_energy+0.6667.

Otherwise it is the diﬀerence between the maximum and the minimum energy eigenvalue stored in

seedname.eig, plus 0.6667.

11.11.8 real(kind=dp) :: gyrotropic_freq_step

Diﬀerence between consecutive values of the optical frequency between gyrotropic_freq_min and

gyrotropic_freq_max.

Units are eV. The default value is 0.01.

11.11.9 real(kind=dp) :: gyrotropic_eigval_max

Maximum energy eigenvalue of the eigenstates to be included in the evaluation of the Natural optical

activity. Units are eV.

If an inner energy window was speciﬁed, the default value is the upper bound of the inner energy

window plus 0.6667. Otherwise it is the maximum energy eigenvalue stored in seedname.eig plus

0.6667.

11.11.10 logical :: gyrotropic_smr_fixed_en_width

Overrides the smr_fixed_en_width global variable (see Sec. 11.6).

11.11.11 character(len=120) :: gyrotropic_smr_type

Overrides the smr_type global variable (see Sec. 11.6).

wannier90: User Guide 135

11.11.12 character(len=120) :: gyrotropic_degen_thresh

The threshould to eliminate degenerate bands from the calculation in order to avoid divergences.

Units are eV. The dfault value is 0.

11.11.13 character(len=120) :: gyrotropic_box_center

- three real numbers. Optionally the integration may be restricted to a parallelogram, centered at

gyrotropic_box_center and deﬁned by vectors gyrotropic_box_b{1,2,3}

In reduced coordinates. Default value is 0.5 0.5 0.5

11.11.14 character(len=120) :: gyrotropic_box_b1

- three real numbers. In reduced coordinates. Default value is 1.0 0.0 0.0

11.11.15 character(len=120) :: gyrotropic_box_b2

- three real numbers. In reduced coordinates. Default value is 0.0 1.0 0.0

11.11.16 character(len=120) :: gyrotropic_box_b3

- three real numbers. In reduced coordinates. Default value is 0.0 0.0 1.0

136 wannier90: User Guide

11.12 BoltzWann

11.12.1 logical :: boltzwann

Determines whether to enter the BoltzWann routines.

The default value is false.

11.12.2 integer :: boltz_kmesh(:)

It determines the interpolation kmesh used to calculate the TDF (from which the transport coeﬃcient

are calculated). If boltz_calc_also_dos is true, the same kmesh is used also for the DOS. Overrides

the kmesh global variable (see Sec. 11.6).

11.12.3 real(kind=dp) :: boltz_kmesh_spacing

Overrides the kmesh_spacing global variable (see Sec. 11.6).

11.12.4 character(len=4) :: boltz_2d_dir

For two-dimensional systems, the direction along which the system is non-periodic. It can assume the

following values: xfor a 2D system on the yz plane, yfor a 2D system on the xz plane, zfor a 2D

system on the xy plane, or no for a 3D system with periodicity along all threee directions.

This value is used when calculating the Seebeck coeﬃcient, where the electrical conductivity tensor

needs to be inverted. If the value is diﬀerent from zero, only the relevant 2×2sub-block of the electrical

conductivity is inverted.

The default value is no.

11.12.5 real(kind=dp) :: boltz_relax_time

The relaxation time to be used for the calculation of the TDF and the transport coeﬃcients.

The units are fs. The default value is 10 fs.

11.12.6 real(kind=dp) :: boltz_mu_min

Minimum value for the chemical potential µfor which we want to calculate the transport coeﬃcients.

The units are eV. No default value.

11.12.7 real(kind=dp) :: boltz_mu_max

Maximum value for the chemical potential µfor which we want to calculate the transport coeﬃcients.

The units are eV. No default value.

wannier90: User Guide 137

11.12.8 real(kind=dp) :: boltz_mu_step

Energy step for the grid of chemical potentials µfor which we want to calculate the transport coeﬃ-

cients.

The units are eV. No default value.

11.12.9 real(kind=dp) :: boltz_temp_min

Minimum value for the temperature Tfor which we want to calculate the transport coeﬃcients.

The units are K. No default value.

11.12.10 real(kind=dp) :: boltz_temp_max

Maximum value for the temperature Tfor which we want to calculate the transport coeﬃcients.

The units are K. No default value.

11.12.11 real(kind=dp) :: boltz_temp_step

Energy step for the grid of temperatures Tfor which we want to calculate the transport coeﬃcients.

The units are K. No default value.

11.12.12 real(kind=dp) :: boltz_tdf_energy_step

Energy step for the grid of energies for the TDF.

The units are eV. The default value is 0.001 eV.

11.12.13 character(len=120) :: boltz_tdf_smr_type

The type of smearing function to be used for the TDF. The available strings are the same of the global

smr_type input ﬂag.

The default value is the one given via the smr_type input ﬂag (if deﬁned).

11.12.14 real(kind=dp) :: boltz_tdf_smr_fixed_en_width

Energy width for the smearing function. Note that for the TDF, a standard (non-adaptive) smearing

scheme is used.

The units are eV. The default value is 0 eV. Note that if the width is smaller than twice the energy

step boltz_tdf_energy_step, the TDF will be unsmeared (thus the default is to have an unsmeared

TDF).

138 wannier90: User Guide

11.12.15 logical :: boltz_calc_also_dos

Whether to calculate also the DOS while calculating the TDF.

If one needs also the DOS, it is faster to calculate the DOS using this ﬂag instead of using independently

the routines of the dos module, since in this way the interpolation on the kpoints will be performed

only once.

The default value is false.

11.12.16 real(kind=dp) :: boltz_dos_energy_min

The minimum value for the energy grid for the calculation of the DOS.

The units are eV. The default value is minval(eigval)-0.6667, where minval(eigval) i s the mini-

mum eigenvalue returned by the ab-initio code on the ab-initio qme sh.

11.12.17 real(kind=dp) :: boltz_dos_energy_max

The maximum value for the energy grid for the calculation of the DOS.

The units are eV. The default value is maxval(eigval)+0.6667, where maxval(eigval) i s the maxi-

mum eigenvalue returned by the ab-initio code on the ab-initio qme sh.

11.12.18 real(kind=dp) :: boltz_dos_energy_step

Energy step for the grid of energies for the DOS.

The units are eV. The default value is 0.001 eV.

11.12.19 character(len=120) :: boltz_dos_smr_type

Overrides the smr_type global variable (see Sec. 11.6).

11.12.20 logical :: boltz_dos_adpt_smr

Overrides the adpt_smr global variable (see Sec. 11.6).

11.12.21 real(kind=dp) :: boltz_dos_adpt_smr_fac

Overrides the adpt_smr_fac global variable (see Sec. 11.6).

11.12.22 real(kind=dp) :: boltz_dos_adpt_smr_max

Overrides the adpt_smr_max global variable (see Sec. 11.6).

wannier90: User Guide 139

11.12.23 logical :: boltz_dos_smr_fixed_en_width

Overrides the smr_fixed_en_width global variable (see Sec. 11.6).

11.12.24 logical :: boltz_bandshift

Shift all conduction bands by a given amount (deﬁned by boltz_bandshift_energyshift).

Note: this ﬂag slightly diﬀers from the global scissors_shift ﬂag: with boltz_bandshift, an exact

rigid shift is applied after interpolation; scissors_shift applies instead the shift before interpolation.

As a consequence, results may slightly diﬀer (and this is why we provide both possibilities). Note

also that with scissors_shift you have to provide the number of valence bands num_valence_bands,

while with boltz_bandshift you should provide the ﬁrst band to shift boltz_bandshift_firstband

=num_valence_bands+1.

The default value is false.

11.12.25 integer :: boltz_bandshift_firstband

Index of the ﬁrst conduction band to shift.

That means that all bands with index i≥boltz_bandshift_firstband will be shifted by boltz_bandshift_energyshift,

if boltz_bandshift is true.

The units are eV. No default value; if boltz_bandshift is true, this ﬂag must be provided.

11.12.26 real(kind=dp) :: boltz_bandshift_energyshift

Energy shift of the conduction bands.

The units are eV. No default value; if boltz_bandshift is true, this ﬂag must be provided.

11.13 Generic Band Interpolation

11.13.1 logical :: geninterp

Determines whether to enter the Generic Band Interpolation routines.

The default value is false.

11.13.2 logical :: geninterp_alsofirstder

Whether to calculate also the ﬁrst derivatives of the bands at the given kpoints.

The default value is false.

140 wannier90: User Guide

11.13.3 logical :: geninterp_single_file

Whether to write a single seedname_geninterp.dat ﬁle (all I/O is done by the root node); or instead

multiple ﬁles (one for each node) with names seedname_geninterp_NNNNN.dat, where NNNNN is the

node number. See also the discussion in Sec. 15.1.2 on how to use this ﬂag.

The default value is true.

Chapter 12

Overview of the berry module

The berry module of postw90 is called by setting berry = true and choosing one or more of the

available options for berry_task. The routines in the berry module which compute the k-space

Berry curvature and orbital magnetization are also called when kpath = true and kpath_task =

{curv,morb}, or when kslice = true and kslice_task = {curv,morb}.

12.1 Background: Berry connection and curvature

The Berry connection is deﬁned in terms of the cell-periodic Bloch states |unki=e−ik·r|ψnkias

An(k) = hunk|i∇k|unki,(12.1)

and the Berry curvature is the curl of the connection,

Ωn(k) = ∇k×An(k) = −Imh∇kunk|×|∇kunki.(12.2)

These two quantities play a central role in the description of several electronic properties of crystals [14].

In the following we will work with a matrix generalization of the Berry connection,

Anm(k) = hunk|i∇k|umki=A∗

mn(k),(12.3)

and write the curvature as an antisymmetric tensor,

Ωn,αβ(k) = αβγ Ωn,γ(k) = −2Imh∇kαunk|∇kβunki.(12.4)

12.2 berry_task=kubo: optical conductivity and joint density of states

The Kubo-Greenwood formula for the optical conductivity of a crystal in the independent-particle

approximation reads

σαβ(¯hω) = ie2¯h

NkΩcX

n,m

fmk−fnk

εmk−εnk

hψnk|vα|ψmkihψmk|vβ|ψnki

εmk−εnk−(¯hω +iη).(12.5)

Indices α, β denote Cartesian directions, Ωcis the cell volume, Nkis the number of k-points used for

sampling the Brillouin zone, and fnk=f(εnk)is the Fermi-Dirac distribution function. ¯hω is the

optical frequency, and η > 0is an adjustable smearing parameter with units of energy.

141

142 wannier90: User Guide

The oﬀ-diagonal velocity matrix elements can be expressed in terms of the connection matrix [15],

hψnk|v|ψmki=−i

¯h(εmk−εnk)Anm(k) (m6=n).(12.6)

The conductivity becomes

σαβ(¯hω) = 1

NkX

σk,αβ(¯hω)(12.7)

σk,αβ(¯hω) = ie2

¯hΩcX

n,m

(fmk−fnk)εmk−εnk

εmk−εnk−(¯hω +iη)Anm,α(k)Amn,β(k).(12.8)

Let us decompose it into Hermitian (dissipative) and anti-Hermitean (reactive) parts. Note that

δ(ε) = 1

πIm 1

ε−iη ,(12.9)

where δdenotes a “broadended” delta-function. Using this identity we ﬁnd for the Hermitean part

σH

k,αβ(¯hω) = −πe2

¯hΩcX

n,m

(fmk−fnk)(εmk−εnk)Anm,α(k)Amn,β (k)δ(εmk−εnk−¯hω).(12.10)

Improved numerical accuracy can be achieved by replacing the Lorentzian (12.9) with a Gaussian, or

other shapes. The analytical form of δ(ε)is controlled by the keyword [kubo_]smr_type.

The anti-Hermitean part of Eq. (12.8) is given by

σAH

k,αβ(¯hω) = ie2

¯hΩcX

n,m

(fmk−fnk)Re εmk−εnk

εmk−εnk−(¯hω +iη)Anm,α(k)Amn,β(k).(12.11)

Finally the joint density of states is

ρcv(¯hω) = 1

NkX

n,m

fnk(1 −fmk)δ(εmk−εnk−¯hω).(12.12)

Equations (12.9–12.12) contain the parameter η, whose value can be chosen using the keyword

[kubo_]smr_fixed_en_width. Better results can often be achieved by adjusting the value of ηfor each

pair of states, i.e., η→ηnmk. This is done as follows (see description of the keyword adpt_smr_fac)

ηnmk=α|∇k(εmk−εnk)|∆k. (12.13)

The energy eigenvalues εnk, band velocities ∇kεnk, and oﬀ-diagonal Berry connection Anm(k)entering

the previous four equations are evaluated over a k-point grid by Wannier interpolation, as described

in Refs. [13, 16]. After averaging over the Brillouin zone, the Hermitean and anti-Hermitean parts of

the conductivity are assembled into the symmetric and antisymmetric tensors

σS

αβ = ReσH

αβ +iImσAH

αβ (12.14)

σA

αβ = ReσAH

αβ +iImσH

αβ,(12.15)

whose independent components are written as a function of frequency onto nine separate ﬁles.

wannier90: User Guide 143

12.3 berry_task=ahc: anomalous Hall conductivity

The antisymmetric tensor σA

αβ is odd under time reversal, and therefore vanishes in non-magnetic

systems, while in ferromagnets with spin-orbit coupling it is generally nonzero. The imaginary part

ImσH

αβ describes magnetic circular dichroism, and vanishes as ω→0. The real part ReσAH

αβ describes

the anomalous Hall conductivity (AHC), and remains ﬁnite in the static limit.

The intrinsic dc AHC is obtained by setting η= 0 and ω= 0 in Eq. (12.11). The contribution from

point kin the Brillouin zone is

σAH

k,αβ(0) = 2e2

¯hΩcX

n,m

fnk(1 −fmk)Imh∇kαunk|umkihumk|∇kβunki,(12.16)

where we replaced fnk−fmkwith fnk(1 −fmk)−fmk(1 −fnk).

This expression is not the most convenient for ab initio calculations, as the sums run over the complete

set of occupied and empty states. In practice the sum over empty states can be truncated, but

a relatively large number should be retained to obtain accurate results. Using the resolution of the

identity 1 = Pm|umkihumk|and noting that the term Pn,m fnkfmk(. . .)vanishes identically, we arrive

at the celebrated formula for the intrinsic AHC in terms of the Berry curvature,

σAH

αβ (0) = e2

¯h

NkΩcX

(−1)Ωαβ(k),(12.17)

Ωαβ(k) = X

fnkΩn,αβ(k).(12.18)

Note that only occupied states enter this expression. Once we have a set of Wannier functions spanning

the valence bands (together with a few low-lying conduction bands, typically) Eq. (12.17) can be

evaluated by Wannier interpolation as described in Refs. [13, 17], with no truncation involved.

12.4 berry_task=morb: orbital magnetization

The ground-state orbital magnetization of a crystal is given by [14, 18]

Morb =e

¯h

NkΩcX

Morb(k),(12.19)

Morb(k) = X

2fnkIm h∇kunk| × (Hk+εnk−2εF)|∇kunki,(12.20)

where εFis the Fermi energy. The Wannier-interpolation calculation is described in Ref. [17]. Note

that the deﬁnition of Morb(k)used here diﬀers by a factor of −1/2from the one in Eq. (97) and Fig. 2

of that work.

12.5 Needed matrix elements

All the quantities entering the formulas for the optical conductivity and AHC can be calculated by

Wannier interpolation once the Hamiltonian and position matrix elements h0n|H|Rmiand h0n|r|Rmi

are known [13, 16]. Those matrix elements are readily available at the end of a standard MLWF

144 wannier90: User Guide

calculation with wannier90. In particular, h0n|r|Rmican be calculated by Fourier transforming the

overlap matrices in Eq. (1.7),

hunk|umk+bi.

Further Wannier matrix elements are needed for the orbital magnetization [17]. In order to calculate

them using Fourier transforms, one more piece of information must be taken from the k-space ab-initio

calculation, namely, the matrices

hunk+b1|Hk|umk+b2i

over the ab-initio k-point mesh [17]. These are evaluated by pw2wannier90, the interface routine

between pwscf and wannier90, by adding to the input ﬁle seedname.pw2wan the line

write_uHu =.true.

Chapter 13

Overview of the gyrotropic module

The gyrotropic module of postw90 is called by setting gyrotropic = true and choosing one or more

of the available options for gyrotropic_task. The module computes the quantities, studied in [19],

where more details may be found.

13.1 berry_task=-d0: the Berry curvature dipole

The traceless dimensionless tensor

Dab =Z[dk]X

∂En

∂ka

Ωb

n−∂f0

∂E E=En

,(13.1)

13.2 berry_task=-dw: the ﬁnite-frequency generalization of the Berry

curvature dipole

Dab(ω) = Z[dk]X

∂En

∂kae

Ωb

n(ω)−∂f0

∂E E=En

,(13.2)

where e

Ωkn(ω)is a ﬁnite-frequency generalization of the Berry curvature:

Ωkn(ω) = −X

ω2

kmn

ω2

kmn −ω2Im (Aknm ×Akmn)(13.3)

Contrary to the Berry curvature, the divergence of ˜

Ωkn(ω)is generally nonzero. As a result, e

D(ω)can

have a nonzero trace at ﬁnite frequencies, ˜

Dk6=−2˜

D⊥in Te.

13.3 berry_task=-C: the ohmic conductivity

In the constant relaxation-time approximation the ohmic conductivity is expressed as σab = (2πeτ /¯h)Cab,

with

Cab =e

hZ[dk]X

∂En

∂ka

∂En

∂kb−∂f0

∂E E=En

(13.4)

a positive quantity with units of surface current density (A/cm).

145

146 wannier90: User Guide

13.4 berry_task=-K: the kinetic magnetoelectric eﬀect (kME)

A microscopic theory of the intrinsic kME eﬀect in bulk crystals was recently developed [20, 21].

The response is described by

Kab =Z[dk]X

∂En

∂ka

n−∂f0

∂E E=En

,(13.5)

which has the same form as Eq. (13.1), but with the Berry curvature replaced by the intrinsic magnetic

moment mknof the Bloch electrons, which has the spin and orbital components given by [14]

mspin

kn=−1

2gsµBhψkn|σ|ψkni(13.6)

morb

kn=e

2¯hImh∂kukn| × (Hk−Ekn)|∂kukni,(13.7)

where gs≈2and we chose e > 0.

13.5 berry_task=-dos: the density of states

The density of states is calculated with the same width and type of smearing, as the other properties

of the gyrotropic module

13.6 berry_task=-noa: the interband contributionto the natural opti-

cal activity

Natural optical rotatory power is given by [22]

ρ0(ω) = ω2

2c2Re γxyz(ω).(13.8)

for light propagating ling the main symmetry axis of a crystal z. Here γxyz (ω)is an anti-symmetric

(in xy) tensor with units of length, which has both inter- and intraband contributions.

Following Ref. [23] for the interband contribution we writewe write, with ∂c≡∂/∂kc,

Re γinter

abc (ω) = e2

ε0¯h2Z[dk]

o,e

n,l h1

ω2

ln −ω2Re Ab

lnBac

nl −Aa

lnBbc

nl

−3ω2

ln −ω2

(ω2

ln −ω2)2∂c(El+En)Im Aa

nlAb

lni.(13.9)

The summations over nand lspan the occupied (o) and empty (e) bands respectively, ωln = (El−

En)/¯h, and Aln(k)is given by (12.3) Finally, the matrix Bac

nl has both orbital and spin contributions

given by

Bac (orb)

nl =hun|(∂aH)|∂culi−h∂cun|(∂aH)|uli(13.10)

and

Bac (spin)

nl =−i¯h2

abchun|σb|uli.(13.11)

wannier90: User Guide 147

The spin matrix elements contribute less than 0.5% of the total ρinter

0of Te. Expanding H=

Pm|umiEmhum|we obtain for the orbital matrix elements

Bac (orb)

nl =−i∂a(En+El)Ac

nl X

mn(En−Em)Aa

nmAc

ml −(El−Em)Ac

nmAa

mlo.(13.12)

This reduces the calculation of B(orb) to the evaluation of band gradients and oﬀ-diagonal elements

of the Berry connection matrix. Both operations can be carried out eﬃciently in a Wannier-function

basis following Ref. [16].

13.7 berry_task=-spin: compute also the spin component of NOA and

KME

Unless this task is speciﬁed, only the orbital contributions are calcuated in NOA and KME, thus

contributions from Eqs. (13.6) and (13.11) are omitted.

Chapter 14

Electronic transport calculations with the

BoltzWann module

By setting boltzwann =TRUE,postw90 will call the BoltzWann routines to calculate some transport

coeﬃcients using the Boltzmann transport equation in the relaxation time approximation.

In particular, the transport coeﬃcients that are calculated are: the electrical conductivity σ, the

Seebeck coeﬃcient Sand the coeﬃcient K(deﬁned below; it is the main ingredient of the thermal

conductivity).

The list of parameters of the BoltzWann module are summarized in Table 11.7. An example of a

Boltzmann transport calculation can be found in the wannier90 Tutorial.

Note: By default, the code assumes to be working with a 3D bulk material, with periodicity along

all three spatial directions. If you are interested in studying 2D systems, set the correct value for the

boltz_2d_dir variable (see Sec. 11.12.4 for the documentation). This is important for the evaluation

of the Seebeck coeﬃcient.

Please cite the following paper [24] when publishing results obtained using the BoltzWann module:

G. Pizzi, D. Volja, B. Kozinsky, M. Fornari, and N. Marzari,

BoltzWann: A code for the evaluation of thermoelectric and electronic transport properties

with a maximally-localized Wannier functions basis,

Comp. Phys. Comm. 185, 422 (2014), DOI:10.1016/j.cpc.2013.09.015.

14.1 Theory

The theory of the electronic transport using the Boltzmann transport equations can be found for

instance in Refs. [25–27]. Here we brieﬂy summarize only the main results.

The current density Jand the heat current (or energy ﬂux density) JQcan be written, respectively, as

J=σ(E−S∇T)(14.1)

JQ=TσSE −K∇T, (14.2)

where the electrical conductivity σ, the Seebeck coeﬃcient Sand Kare 3×3tensors, in general.

149

150 wannier90: User Guide

Note: the thermal conductivity κ(actually, the electronic part of the thermal conductivity), which

is deﬁned as the heat current per unit of temperature gradient in open-circuit experiments (i.e., with

J= 0) is not precisely K, but κ=K−SσST(see for instance Eq. (7.89) of Ref. [25] or Eq. (XI-57b)

of Ref. [26]). The thermal conductivity κcan be then calculated from the σ,Sand Ktensors output

by the code.

These quantities depend on the value of the chemical potential µand on the temperature T, and can

be calculated as follows:

[σ]ij(µ, T ) = e2Z+∞

−∞

dε −∂f (ε, µ, T )

∂ε Σij (ε),(14.3)

[σS]ij(µ, T ) = e

TZ+∞

−∞

dε −∂f (ε, µ, T )

∂ε (ε−µ)Σij (ε),(14.4)

[K]ij(µ, T ) = 1

TZ+∞

−∞

dε −∂f (ε, µ, T )

∂ε (ε−µ)2Σij (ε),(14.5)

where [σS]denotes the product of the two tensors σand S,f(ε, µ, T )is the usual Fermi–Dirac

distribution function

f(ε, µ, T ) = 1

e(ε−µ)/KBT+ 1

and Σij(ε)is the Transport Distribution Function (TDF) tensor, deﬁned as

Σij(ε) = 1

n,k

vi(n, k)vj(n, k)τ(n, k)δ(ε−En,k).

In the above formula, the sum is over all bands nand all states k(including spin, even if the spin

index is not explicitly written here). En,kis the energy of the n−th band at k,vi(n, k)is the i−th

component of the band velocity at (n, k),δis the Dirac’s delta function, V=NkΩcis the total volume

of the system (Nkand Ωcbeing the number of k-points used to sample the Brillouin zone and the unit

cell volume, respectively), and ﬁnally τis the relaxation time. In the relaxation-time approximation

adopted here, τis assumed as a constant, i.e., it is independent of nand kand its value (in fs) is read

from the input variable boltz_relax_time.

14.2 Files

14.2.1 seedname_boltzdos.dat

OUTPUT. Written by postw90 if boltz_calc_also_dos is true. Note that even if there are other

general routines in postw90 which speciﬁcally calculate the DOS, it may be convenient to use the

routines in BoltzWann setting boltz_calc_also_dos = true if one must also calculate the transport

coeﬃcients. In this way, the (time-demanding) band interpolation on the kmesh is performed only

once, resulting in a much shorter execution time.

The ﬁrst lines are comments (starting with # characters) which describe the content of the ﬁle. Then,

there is a line for each energy εon the grid, containing a number of columns. The ﬁrst column is the

energy ε. The following is the DOS at the given energy ε. The DOS can either be calculated using the

adaptive smearing scheme1if boltz_dos_adpt_smr is true, or using a “standard” ﬁxed smearing, whose

1Note that in BoltzWann the adaptive (energy) smearing scheme also implements a simple adaptive k−mesh scheme:

if at any given kpoint one of the band gradients is zero, then that kpoint is replaced by 8 neighboring kpoints. Thus,

the ﬁnal results for the DOS may be slightly diﬀerent with respect to that given by the dos module.

wannier90: User Guide 151

type and value are deﬁned by boltz_dos_smr_type and boltz_dos_smr_fixed_en_width, respectively.

If spin decomposition is required (input ﬂag spin_decomp), further columns are printed, with the spin-

up projection of the DOS, followed by spin-down projection.

14.2.2 seedname_tdf.dat

OUTPUT. This ﬁle contains the Transport Distribution Function (TDF) tensor Σon a grid of energies.

The ﬁrst lines are comments (starting with # characters) which describe the content of the ﬁle. Then,

there is a line for each energy εon the grid, containing a number of columns. The ﬁrst is the energy

ε, the followings are the components if Σ(ε)in the following order: Σxx,Σxy,Σyy,Σxz,Σyz,Σzz . If

spin decomposition is required (input ﬂag spin_decomp), 12 further columns are provided, with the 6

components of Σfor the spin up, followed by those for the spin down.

The energy εis in eV, while Σis in 1

¯h2·eV ·fs

Å.

14.2.3 seedname_elcond.dat

OUTPUT. This ﬁle contains the electrical conductivity tensor σon the grid of Tand µpoints.

The ﬁrst lines are comments (starting with # characters) which describe the content of the ﬁle. Then,

there is a line for each (µ, T )pair, containing 8 columns, which are respectively: µ,T,σxx,σxy,σyy,

σxz,σyz,σzz. (The tensor is symmetric).

The chemical potential is in eV, the temperature is in K, and the components of the electrical conduc-

tivity tensor ar in SI units, i.e. in 1/Ω/m.

14.2.4 seedname_sigmas.dat

OUTPUT. This ﬁle contains the tensor σS, i.e. the product of the electrical conductivity tensor and

of the Seebeck coeﬃcient as deﬁned by Eq. (14.4), on the grid of Tand µpoints.

The ﬁrst lines are comments (starting with # characters) which describe the content of the ﬁle. Then,

there is a line for each (µ, T )pair, containing 8 columns, which are respectively: µ,T,(σS)xx,(σS)xy,

(σS)yy ,(σS)xz,(σS)yz,(σS)zz. (The tensor is symmetric).

The chemical potential is in eV, the temperature is in K, and the components of the tensor ar in SI

units, i.e. in A/m/K.

14.2.5 seedname_seebeck.dat

OUTPUT. This ﬁle contains the Seebeck tensor Son the grid of Tand µpoints.

Note that in the code the Seebeck coeﬃcient is deﬁned as zero when the determinant of the electrical

conductivity σis zero. If there is at least one (µ, T )pair for which det σ= 0, a warning is issued on

the output ﬁle.

The ﬁrst lines are comments (starting with # characters) which describe the content of the ﬁle. Then,

there is a line for each (µ, T )pair, containing 11 columns, which are respectively: µ,T,Sxx,Sxy,Sxz,

Syx,Syy,Syz,Szx,Szy,Szz.

152 wannier90: User Guide

NOTE: therefore, the format of the columns of this ﬁle is diﬀerent from the other three ﬁles (elcond,

sigmas and kappa)!

The chemical potential is in eV, the temperature is in K, and the components of the Seebeck tensor ar

in SI units, i.e. in V/K.

14.2.6 seedname_kappa.dat

OUTPUT. This ﬁle contains the tensor Kdeﬁned in Sec. 14.1 on the grid of Tand µpoints.

The ﬁrst lines are comments (starting with # characters) which describe the content of the ﬁle. Then,

there is a line for each (µ, T )pair, containing 8 columns, which are respectively: µ,T,Kxx,Kxy,Kyy,

Kxz,Kyz,Kzz. (The tensor is symmetric).

The chemical potential is in eV, the temperature is in K, and the components of the Ktensor are the

SI units for the thermal conductivity, i.e. in W/m/K.

Chapter 15

Generic Band interpolation

By setting geninterp =TRUE,postw90 will calculate the band energies (and possibly the band deriva-

tives, if also geninterp_alsofirstder is set to TRUE) on a generic list of kpoints provided by the

user.

The list of parameters of the Generic Band Interpolation module are summarized in Table 11.8.

The list of input kpoints for which the band have to be calculated is read from the ﬁle named

seedname_geninterp.kpt. The format of this ﬁle is described below.

15.1 Files

15.1.1 seedname_geninterp.kpt

INPUT. Read by postw90 if geninterp is true.

The ﬁrst line is a comment (its maximum allowed length is 500 characters).

The second line must contain crystal (or frac) if the k-point coordinates are given in crystallographic

units, i.e., in fractional units with respect to the primitive reciprocal lattice vectors. Otherwise, it must

contain cart (or abs) if instead the k−point coordinates are given in absolute coordinates (in units of

1/Å) along the kx,kyand kzaxes.

Note on units: In the case of absolute coordinates, if alat is the lattice constant expressed in angstrom,

and you want to represent for instance the point X=2π

alat [0.5,0,0], then you have to input for its x

coordinate kx= 0.5∗2∗π/alat. As a practical example, if alat = 4Å, then kx= 0.78539816339745 in

absolute coordinates in units of 1/Å.

The third line must contain the number nof following kpoints.

The following nlines must contain the list of kpoints in the format

kpointidx k1 k2 k3

where kpointidx is an integer identifying the given kpoint, and k1,k2 and k3 are the three coordinates

of the kpoints in the chosen units.

153

154 wannier90: User Guide

15.1.2 seedname_geninterp.dat or seedname_geninterp_NNNNN.dat

OUTPUT. This ﬁle/these ﬁles contain the interpolated band energies (and also the band velocities if

the input ﬂag geninterp_alsofirstder is true).

If the ﬂag geninterp_single_file is true, then a single ﬁle seedname_geninterp.dat is written by

the code at the end of the calculation. If instead one sets geninterp_single_file to false, each pro-

cess writes its own output ﬁle, named seedname_geninterp_00000.dat,seedname_geninterp_00001.dat,

. . .

This ﬂag is useful when one wants to parallelize the calculation on many nodes, and it should be used

especially for systems with a small number of Wannier functions, when one wants to compute the

bands on a large number of kpoints (if the ﬂag geninterp_single_file is true, instead, all the I/O

is made by the root node, which is a signiﬁcant bottleneck).

Important! The ﬁles are not deleted before the start of a calculation, but only the relevant ﬁles are

overwritten. Therefore, if one ﬁrst performs a calculation and then a second one with a smaller number

of processors, care is needed to avoid to mix the results of the older calculations with those of the new

one. In case of doubt, either check the date stamp in the ﬁrst line of the seedname_geninterp_*.dat

ﬁles, or simply delete the seedname_geninterp_*.dat ﬁles before starting the new calculation.

To join the ﬁles, on can simply use the following command:

cat seedname_geninterp_*.dat > seedname_geninterp.dat

or, if one wants to remove the comment lines:

rm seedname_geninterp.dat

for i in seedname_geninterp_*.dat ; do grep -v \# "$i" >> \

seedname_geninterp.dat ; done

The ﬁrst few lines of each ﬁles are comments (starting with #), containing a datestamp, the comment

line as it is read from the input ﬁle, and a header. The following lines contain the band energies (and

derivatives) for each band and kpoint (the energy index runs faster than the k-point index). For

each of these lines, the ﬁrst four columns contain the k-point index as provided in the input, and the

kcoordinates (always in absolute coordinates, in units of 1/Å). The ﬁfth column contains the band

energy.

If geninterp_alsofirstder is true, three further columns are printed, containing the three ﬁrst

derivatives of the bands along the kx,kyand kzdirections.

The kpoint coordinates are in units of 1/Å, the band energy is in eV.

Part IV

Appendices

155

Appendix A

Utilities

The wannier90 code is shipped with a few utility programs that may be useful in some occasions. In

this chapter, we describe their use.

A.1 kmesh.pl

The wannier90 code requires the deﬁnition of a full Monkhorst–Pack grid of kpoints. In the input

ﬁle the size of this mesh is given by means of the mp_grid variable. E.g., setting

mp_grid = 4 4 4

tells wannier90 that we want to use a 4×4×4kgrid.

One has then to specify (inside the kpoints block in the the seedname.win ﬁle) the list of kpoints of

the grid. Here, the kmesh.pl Perl script becomes useful, being able to generate the required list.

The script can be be found in the utility directory of the wannier90 distribution. To use it, simply

type:

./kmesh.pl nx ny nz

where nx,ny and nz deﬁne the size of the Monkhorst–Pack grid that we want to use (for instance, in

the above example of the 4×4×4kgrid, nx=ny=nz=4).

This produces on output the list of kpoints in Quantum Espresso format, where (apart from a header)

the ﬁrst three columns of each line are the kcoordinates, and the fourth column is the weight of each

kpoint. This list can be used to create the input ﬁle for the ab-initio nscf calculation.

If one wants instead to generate the list of the kcoordinates without the weight (in order to copy and

paste the output inside the seedname.win ﬁle), one simply has to provide a fourth argument on the

command line. For instance, for a 4×4×4kgrid, use

./kmesh.pl 4 4 4 wannier

and then copy the output inside the in the kpoints block in the seedname.win ﬁle.

157

158 wannier90: User Guide

We suggest to always use this utility to generate the kgrids. This allows to provide the kpoint

coordinates with the accuracy required by wannier90, and moreover it makes sure that the kgrid used

in the ab-initio code and in wannier90 are the same.

A.2 w90chk2chk.x

During the calculation of the Wannier functions, wannier90 produces a .chk ﬁle that contains some

information to restart the calculation.

This ﬁle is also required by the postw90 code. In particular, the postw90 code requires at least the

.chk ﬁle, the .win input ﬁle, and (almost always) the .eig ﬁle. Speciﬁc modules may require further

ﬁles: see the documentation of each module.

However, the .chk ﬁle is written in a machine-dependent format. If one wants to run wannier90 on a

machine, and then continue the calculation with postw90 on a diﬀerent machine (or with postw90 com-

piled with a diﬀerent compiler), the ﬁle has to be converted ﬁrst in a machine-independent “formatted”

format on the ﬁrst machine, and then converted back on the second machine.

To this aim, use the w90chk2chk.x executable. Note that this executable is not compiled by default:

you can obtain it by executing

make w90chk2chk

in the main wannier90 directory.

A typical use is the following:

1. Calculate the Wannier functions with wannier90

2. At the end of the calculation you will ﬁnd a seedname.chk ﬁle. Run (in the folder with this ﬁle)

the command

w90chk2chk.x -export seedname

or equivalently

w90chk2chk.x -u2f seedname

(replacing seedname with the seedname of your calculation).

This command reads the seedname.chk ﬁle and creates a formatted ﬁle seedname.chk.fmt that

is safe to be transferred between diﬀerent machines.

3. Copy the seedname.chk.fmt ﬁle (together with the seedname.win and seedname.eig ﬁles) on

the machine on which you want to run postw90.

4. On this second machine (after having compiled w90chk2chk.x) run

w90chk2chk.x -import seedname

or equivalently

wannier90: User Guide 159

w90chk2chk.x -f2u seedname

This command reads the seedname.chk.fmt ﬁle and creates an unformatted ﬁle seedname.chk

ready to be used by postw90.

5. Run the postw90 code.

A.3 PL_assessment

The function of this utility is to assess the length of a principal layer (in the context of a Landauer-

Buttiker quantum conductance calculation) of a periodic system using a calculation on a single unit

cell with a dense k-point mesh.

The utility requires the real-space Hamiltonian in the MLWF basis, seedname_hr.dat.

The seedname_hr.dat ﬁle should be copied to a directory containing executable for the utility. Within

that directory, run:

\$> ./PL_assess.x nk1 nk2 nk3 num_wann

where:

nk1 is the number of k-points in x-direction nk2 is the number of k-points in y-direction nk3 is the

number of k-points in z-direction num_wann is the number of wannier functions of your system

e.g.,

\$> ./PL_assess.x 1 1 20 16

Note that the current implementation only allows for a single k-point in the direction transverse to the

transport direction.

When prompted, enter the seedname.

The programme will return an output ﬁle seedname_pl.dat, containing four columns

1. Unit cell number, R

2. Average ’on-site’ matrix element between MLWFs in the home unit cell, and the unit cell R

lattice vectors away

3. Standard devaition of the quantity in (2)

4. Maximum absolute value in (2)

A.4 w90vdw

This utility provides an implementation of a method for calculating van der Waals energies based on

the idea of density decomposition via MLWFs.

160 wannier90: User Guide

For theoretical details, please see the following publication and references therein:

Lampros Andrinopoulos, Nicholas D. M. Hine and Arash A. Mostoﬁ, “Calculating dispersion interac-

tions using maximally localized Wannier functions”, J. Chem. Phys. 135, 154105 (2011).

For further details of this program, please see the documentation in utility/w90vdw/doc/ and the

related examples in utility/w90vdw/examples/.

A.5 w90pov

An utility to create Pov ﬁles (to render the Wannier functions using the PovRay utility) is provided

inside utility/w90pov.

Please refer to the documentation inside utility/w90pov/doc for more information.

A.6 k_mapper.py

The wannier90 code requires the deﬁnition of a full Monkhorst–Pack grid of k-vectors, which can be

obtained by means of the kmesh.pl utility. In order to perform a GW calculation with the Yambo

code, you need to perform a nscf calculation on a grid in the irreducible BZ. Moreover, you may need a

ﬁner grid to converge the GW calculation than what you need to interpolate the band structure. The

k_mapper.py tools helps in ﬁnding the k-vectors indeces of a full grid needed for interpolation into the

reduced grid needed for the GW calculation with Yambo.

Within the /utility folder type:

./k_mapper.py nx ny nz "path_of_the_QE_nscf_output_file_given_to_Yambo"

A.7 gw2wannier90.py

This utility allows to sort in energy the input data of wannier90 (e.g. overlap matrices and energy

eigenvalues). gw2wannier90.py allows to use wannier90 at the G0W0level, where quasi-particle cor-

rections can change the energy ordering of eigenvalues (Some wannier90 modules require states to be

ordered in energy).

Within the work directory type: ./gw2wannier90.py seedname options

NB: Binary ﬁles are supported, though not reccommended.

Appendix B

Frequently Asked Questions

B.1 General Questions

B.1.1 What is wannier90?

wannier90 is a computer package, written in Fortran90, for obtaining maximally-localised Wannier

functions, using them to calculate bandstructures, Fermi surfaces, dielectric properties, sparse Hamil-

tonians and many things besides.

B.1.2 Where can I get wannier90?

The most recent release of wannier90 is always available on our website http://www.wannier.org.

B.1.3 Where can I get the most recent information about wannier90?

The latest news about wannier90 can be followed on our website http://www.wannier.org.

B.1.4 Is wannier90 free?

Yes! wannier90 is available for use free-of-charge under the GNU General Public Licence. See the ﬁle

LICENSE that comes with the wannier90 distribution or the GNU hopepage at http://www.gnu.org.

B.2 Getting Help

B.2.1 Is there a Tutorial available for wannier90?

Yes! The examples directory of the wannier90 distribution contains input ﬁles for a number of tutorial

calculations. The doc directory contains the accompanying tutorial handout.

161

162 wannier90: User Guide

B.2.2 Where do I get support for wannier90?

There are a number of options:

1. The wannier90 User Guide, available in the doc directory of the distribution, and from the

webpage (http://www.wannier.org/user_guide.html)

2. The wannier90 webpage for the most recent announcements (http://www.wannier.org)

3. The wannier90 mailing list (see http://www.wannier.org/forum.html)

B.2.3 Is there a mailing list for wannier90?

Yes! You need to register: go to http://www.wannier.org/forum.html and follow the instructions.

B.3 Providing Help: Finding and Reporting Bugs

B.3.1 I think I found a bug. How do I report it?

•Check and double-check. Make sure it’s a bug.

•Check that it is a bug in wannier90 and not a bug in the software interfaced to wannier90.

•Check that you’re using the latest version of wannier90.

•Send us an email. Make sure to describe the problem and to attach all input and output ﬁles

relating to the problem that you have found.

B.3.2 I have got an idea! How do I report a wish?

We’re always happy to listen to suggestions. Email your idea to the wannier90 developers.

B.3.3 I want to help! How can I contribute to wannier90?

Great! There’s always plenty of functionality to add. Email us to let us know about the functionality

you’d like to contribute.

B.3.4 I like wannier90! Should I donate anything to its authors?

Our Swiss bank account number is... just kidding! There is no need to donate anything, please just

cite our paper in any publications that arise from your use of wannier90:

[ref] A. A. Mostoﬁ, J. R. Yates, G. Pizzi, Y.-S. Lee, I. Souza, D. Vanderbilt and N. Marzari,

An updated version of wannier90: A Tool for Obtaining Maximally-Localised Wannier

Functions, Comput. Phys. Commun. 185, 2309 (2014)

http://dx.doi.org/10.1016/j.cpc.2014.05.003

wannier90: User Guide 163

B.4 Installation

B.4.1 How do I install wannier90?

Follow the instructions in the ﬁle README.install in the main directory of the wannier90 distribution.

B.4.2 Are there wannier90 binaries available?

Not at present.

B.4.3 Is there anything else I need?

Yes. wannier90 works on top of an electronic structure calculation.

At the time of writing there are public, fully functioning, interfaces between wannier90 and pwscf,

abinit (http://www.abinit.org), siesta (http://www.icmab.es/siesta/), VASP (https://www.

vasp.at), Wien2k (http://www.wien2k.at), fleur (http://www.fleur.de), OpenMX (http://

www.openmx-square.org/), GPAW (https://wiki.fysik.dtu.dk/gpaw/).

To use wannier90 in combination with pwscf code (a plane-wave, pseudopotential, density-functional

theory code, which is part of the quantum-espresso package) you will need to download pwscf from

the webpage http://www.quantum-espresso.org. Then compile pwscf and the wannier90 interface

program pw2wannier90. For instructions, please refer to the documentation that comes with the

quantum-espresso distribution.

For examples of how to use pwscf and wannier90 in conjunction with each other, see the wannier90

Tutorial.

Bibliography

[1] N. Marzari and D. Vanderbilt, Phys. Rev. B 56, 12847 (1997).

[2] I. Souza, N. Marzari, and D. Vanderbilt, Phys. Rev. B 65, 035109 (2001).

[3] A. A. Mostoﬁ, J. R. Yates, Y.-S. Lee, I. Souza, D. Vanderbilt, and N. Marzari, Comput. Phys.

Commun. 178, 685 (2008).

[4] D. Vanderbilt, Phys. Rev. B 41, 7892 (1990).

[5] M. Posternak, A. Baldereschi, S. Massidda, and N. Marzari, Phys. Rev. B 65, 184422 (2002).

[6] A. Damle and L. Lin, ArXiv e-prints (2017), 1703.06958 .

[7] F. Gygi, J. L. Fattebert, and E. Schwegler, Comput. Phys. Commun. 155, 1 (2003).

[8] R. Sakuma, Phys. Rev. B 87, 235109 (2013).

[9] R. Wang, E. A. Lazar, H. Park, A. J. Millis, and C. A. Marianetti, Physical Review B 90 (2014),

10.1103/PhysRevB.90.165125.

[10] M. B. Nardelli, Phys. Rev. B 60, 7828 (1999).

[11] T. Yusufaly, D. Vanderbilt, and S. Coh, “Tight-Binding Formalism in the Context of the PythTB

Package,” http://physics.rutgers.edu/pythtb/formalism.html.

[12] J. Ibañez-Azpiroz, S. S. Tsirkin, and I. Souza, ArXiv e-prints (2018), arXiv:1804.04030 .

[13] X. Wang, J. R. Yates, I. Souza, and D. Vanderbilt, Phys. Rev. B 74, 195118 (2006).

[14] D. Xiao, M.-C. Chang, and Q. Niu, Rev. Mod. Phys. 82, 1959 (2010).

[15] E. I. Blount, Solid State Physics 13, 305 (1962).

[16] J. R. Yates, X. Wang, D. Vanderbilt, and I. Souza, Phys. Rev. B 75, 195121 (2007).

[17] M. G. Lopez, D. Vanderbilt, T. Thonhauser, and I. Souza, Phys. Rev. B 85, 014435 (2012).

[18] D. Ceresoli, T. Thonhauser, D. Vanderbilt, and R. Resta, Phys. Rev. B 74, 024408 (2006).

[19] S. S. Tsirkin, P. Aguado Puente, and I. Souza, ArXiv e-prints (2017), arXiv:1710.03204 [cond-

mat.mtrl-sci] .

[20] T. Yoda, T. Yokoyama, and S. Murakami, Sci. Rep. 5, 12024 (2015).

[21] S. Zhong, J. E. Moore, and I. Souza, Phys. Rev. Lett. 116, 077201 (2016).

[22] E. Ivchenko and G. Pikus, Sov. Phys. Solid State 16, 1261 (1975).

165

166 wannier90: User Guide

[23] A. Malashevich and I. Souza, Phys. Rev. B 82, 245118 (2010).

[24] G. Pizzi, D. Volja, B. Kozinsky, M. Fornari, and N. Marzari, Comput. Phys. Commun. 185, 422

(2014).

[25] J. Ziman, Principles of the Theory of Solids, 2nd ed. (Cambridge University Press, 1972).

[26] G. Grosso and G. P. Parravicini, Solid State Physics (Academic Press, 2000).

[27] G. D. Mahan, in Intern. Tables for Crystallography, Vol. D (2006) Chap. 1.8, p. 7828.

Wannier90 User Guide

Navigation menu

Versions of this User Manual:

Views

Navigation
