vSphere 4.0 Security Hardening Guide

April 2010

VMware

vSphere 4.0 Security Hardening Guide

Table of Contents

vSphere Hardening Guide Introduction.............................................................4

Scope ........................................................................................................................... 4

Recommendation Level: ............................................................................................ 4

Testing for configurations ......................................................................................... 5

Guideline Organization............................................................................................... 5

Virtual Machine ......................................................................................................... 5

ESX/ESXi Host ......................................................................................................... 5

vNetwork (Virtual Networking) .................................................................................. 5

vCenter ..................................................................................................................... 5

Console Operating System (COS) ............................................................................ 6

Guideline Templates................................................................................................... 6

Type A: Parameter Setting........................................................................................ 6

Type B: Component Configuration............................................................................ 7

Type C: Operational Patterns ................................................................................... 9

Virtual Machines ................................................................................................12

Unprivileged User Actions ....................................................................................... 12

Virtual Devices .......................................................................................................... 14

Virtual Machine Information Flow ........................................................................... 17

Virtual Machine Management APIs ......................................................................... 19

VMsafe ....................................................................................................................... 21

VMsafe CPU/Memory API ...................................................................................... 22

Security Virtual Appliance ....................................................................................... 23

Protected Virtual Machines ..................................................................................... 23

VMsafe Network API............................................................................................... 24

Control path Security Virtual Appliance .................................................................. 25

Protected Virtual Machines ..................................................................................... 26

General Virtual Machine Protection ........................................................................ 27

ESX/ESXi Host....................................................................................................31

Installation ................................................................................................................. 31

Storage....................................................................................................................... 31

Host Communications.............................................................................................. 33

Logging...................................................................................................................... 38

Management .............................................................................................................. 41

Host Console............................................................................................................. 46

vNetwork (Virtual Networking)..........................................................................52

Network Architecture................................................................................................ 52

vNetwork Configuration ........................................................................................... 58

Physical Network ...................................................................................................... 67

vCenter ...............................................................................................................70

vCenter Server Host .................................................................................................70

vCenter Server Communication .............................................................................. 74

vCenter Server Database ......................................................................................... 81

vSphere client components ..................................................................................... 82

vCenter Update Manager.......................................................................................... 84

Console Operating System (COS)....................................................................90

Console Network Protection .................................................................................... 90

vSphere 4.0 Security Hardening Guide

Console Management............................................................................................... 92

Console Password Policies ..................................................................................... 95

Console Logging..................................................................................................... 100

Console Hardening .................................................................................................102

Console Access ...................................................................................................... 105

vSphere 4.0 Security Hardening Guide

vSphere Hardening Guide Introduction

Scope

This set of documents provides guidance on how to securely deploy vSphere 4.0

in a production environment. The focus is on initial configuration of the

virtualization infrastructure layer, which covers the following:

‐ The virtualization hosts (both ESX and ESXi)

‐ Configuration of the virtual machine container (NOT hardening of the

guest OS or any applications running within)

‐ Configuration of the virtual networking infrastructure, including the

management and storage networks as well as the virtual switch (but NOT

security of the virtual machine’s network)

‐ vCenter Server, its database, and client components

‐ VMware Update Manager (included because the regular update and

patching of the ESX/ESXi hosts and the virtual machine containers is

essential to maintaining the security of the environment)

The following are specifically out of scope and are NOT covered:

‐ Security of the software running inside the virtual machine, such as

operating system and applications, nor of the traffic traveling through the

virtual machine networks

‐ Security of any other add-on products, such as SRM

‐ Detailed operational procedures related to maintaining security, such as

event monitoring, auditing and privilege management. Guidance is

provided on general areas in which to perform these important tasks, but

details on exactly how to perform them are out of scope.

Recommendation Level:

The recommendation level for a guideline consists of a rating that corresponds to

the operational environment in which it is to be applied:

• Enterprise: this includes most enterprise production environments, and the

recommendations are meant to protect against most security attacks and

provide protection of confidential information to the level required by all major

security and compliance standards

• DMZ: this includes environments that are particularly susceptible to targeted

attacks. Examples include: Internet-facing hosts, internal systems with highly

confidential data, etc. Note that, despite the name, this level should not be

restricted only to DMZ hosts; each organization should make its own

determination as to the applicability of this level.

• Specialized Security Limited Functionality (SSLF): this represents

specialized environments that have some unique aspect that makes them

especially vulnerable to sophisticated attacks. Recommendations at this level

might result in loss of functionality, and careful consideration must be used to

vSphere 4.0 Security Hardening Guide

determine the applicability of these recommendations, including the possibility

of using alternate compensating controls.

Unless otherwise specified, higher security levels include all recommendations

from lower levels. For example, a DMZ environment should implement all level

Enterprise and DMZ recommendations, except when otherwise specified (e.g., a

parameter which should be set to one value at level Enterprise but a different

value at level DMZ).

Testing for configurations

Most configuration parameters can be viewed using the vSphere Client as well

as being probed using an API client such as PowerCLI or vSphere Command-

Line Interface (vCLI). These methods are all equivalent and nothing in this guide

should be viewed as requiring a certain test method unless otherwise indicated.

Guideline Organization

All recommendations are annotated using a code that consists of three letters

followed by a two-digit number (starting with 01). The three-letter codes are as

follows.

Virtual Machine

• VMX: VM (vmx) parameters

• VMP: General VM protection

ESX/ESXi Host

Unless otherwise specified, all guidelines apply to both ESXi 4 and ESX 4.

• HIN: Installation

• HST: Storage

• HCM: Host Communication

• HLG: Logging

• HMT: Management

• HCN: Host Console

vNetwork (Virtual Networking)

• NAR: Network Architecture

• NCN: vNetwork Configuration

• NPN: Physical Network

vCenter

• VSH: vCenter Server Host

• VSC: vCenter Server Communication

• VSD: vCenter Server Database

• VCL: vSphere Client components

• VUM: VMware Update Manager

vSphere 4.0 Security Hardening Guide

Console Operating System (COS)

NOTE: these guidelines only apply to ESX 4, not ESXi 4.

• CON: Console OS Networks

• COM: Console OS Management

• COP: Console OS Password Policies

• COL: Console OS Logging

• COH: Console OS Hardening

• COA: Console OS Access

Guideline Templates

The following templates are used to define the guidelines.

Since a particular security issue might have different recommendations for

different operating environments, it is possible that one guideline might have

multiple recommendations. The templates below use shading to indicate which

parts are common to all recommendations, and which parts are unique.

Type A: Parameter Setting

Use this template type when the recommendation specifies a configuration

parameter to set (or not set) in specific products.

Examples:

• VMX parameters

• ESX parameters

• vCenter parameters

• COS parameters

Parameter

Element

Description

Code

Code String

Name

Short name of guideline

Description

Description of the interface or feature that the parameter governs

Threat

Description of the specific threat exposed by this feature. Include

characterization of vulnerability

Recommendation

Level

Parameter setting

Where the parameter is defined, and what are the recommended

or not recommended values. Also, indicated if there are preferred

vSphere 4.0 Security Hardening Guide

ways of setting the value, e.g. for a COS parameter, using the API

instead of directly editing a config file.

Effect on

functionality

If this setting is adopted, what possible effects does it have on

functionality? Does some feature stop working, is there some

information missing from a UI, etc?

Example:

Parameter

Element

Description

Code

VMX01

Name

Prevent Virtual Disk Shrinking

Description

Shrinking a virtual disk reclaims unused space in the virtual disk. If

there is empty space in the disk, this process reduces the amount

of space the virtual disk occupies on the host drive. Normal users

and processes—that is users and processes without root or

administrator privileges—within virtual machines have the

capability to invoke this procedure. However, if this is done

repeatedly, the virtual disk can become unavailable while this

shrinking is being performed, effectively causing a denial of

service. In most datacenter environments, disk shrinking is not

done, so you should disable this feature by setting the parameters

listed in Table 9.

Threat

Repeated disk shrinking can make virtual disk unavailable.

Capability is available to non-administrative users in the guest.

Recommendation

Level

Enterprise

Parameter setting

isolation.tools.diskWiper.disable=TRUE

isolation.tools.diskShrink.disable=TRUE

Effect on

functionality

Type B: Component Configuration

Use this template type when the guideline recommends a certain configuration of

components, either to reduce risk or to provide a compensating control.

Typically, these involve setting some parameter to a site-specific value or

vSphere 4.0 Security Hardening Guide

installing some components in a manner that satisfy some constraint, and so

there is no definitive value to be checked against. Examples:

• Configure an NTP server

• Isolate management networks

• Install Update Manager on a separate server

Configuration Element

Description

Code

Code String

Name

Short name of guideline

Description

Description of the component being addressed and

the configuration being recommended.

Risk or Control

Description of the risk being mitigated, including

characterization of vulnerability if applicable

Recommendation Level

Parameters or objects

configuration

All the parameters or objects involved, and how

they should be configured.

Test

Any procedure or way to show evidence that the

guideline is being followed, if this is possible.

Example:

Configuration

Element

Description

Code

NAR02

Name

Ensure VMotion Traffic is isolated

Description

The security issue with VMotion migrations is that information is

transmitted in plaintext and anyone with access to the network

over which this information flows may view it. Ensure that

VMotion traffic is separate from production traffic on an isolated

network. This network should be a non-routable (no layer 3

router spanning this and other networks), which will prevent any

outside access to the network.

vSphere 4.0 Security Hardening Guide

Risk or Control

Attackers can sniff VMotion traffic to obtain memory contents of a

VM. They could also potentially stage a man-in-the-middle attack

in which the contents are modified during migration.

Recommendation

Level

Enterprise

SSLF

Parameters or

objects

configuration

vMotion

Portgroup should

be in a dedicated

VLAN on a

common vSwitch.

The vSwitch can

be shared with

production (VM)

traffic, as long as

the VMotion

portgroup’s VLAN

is not used by

production VMs.

vMotion Portgroup should be on a

management-only vSwitch

Effect on

functionality

At least one additional physical NIC must be

dedicated to management (more if NIC

teaming used). This could greatly increase

the cost of the physical networking

infrastructure required, and in resource-

constrained environments (such as blades),

this might not even be possible to achieve.

Test

• Check for

usage of

VLAN ID on

non-vMotion

Portgroups

• Check that

VLAN is

isolated and

not routed in

the physical

network

In addition to Enterprise tests,

• Check that vMotion Portgroup vSwitch

does not contain any non-management

portgroups

• Check that the physical network is not

accessed by any other non-management

entity

Type C: Operational Patterns

This type of template should be used to describe recommendations for how to

operate or interact with the administrative components of the system. Examples:

• Use vSphere Client and vCenter instead of COS

• Avoid Linux-based clients unless on secure network

• Use certificates signed by an authority

vSphere 4.0 Security Hardening Guide

Operational Element

Description

Code

Code String

Name

Short name of guideline

Description

Description of the operational pattern or condition.

Risk or Control

Description of the risk being mitigated

Recommendation Level

Condition or steps

Concise description of the specific conditions to

meet or avoid, and/or the steps needed to achieve

this

Example:

Configuration

Element

Description

Code

HCM01

Name

Do not use default self-signed certificates for ESX/ESXi

Communication

Description

Replace default self-signed certificates with those from a trusted

certification authority, either a commercial CA or an organizational CA.

Risk or

Control

The use of default certificates leaves the SSL connection open to Man

in the Middle (MiTM) attacks. By changing the default certificates to

trusted CA Signed certificates, mitigates the potential for (MiTM)

attacks.

Recommenda

tion Level

Enterprise

Parameters or

objects

configuration

Information on how to replace default self-signed certificates can be

found in both the ESXi Configuration Guide and the ESX Configuration

Guide, Chapter “Security”, Section “Authentication and User

Management”, Subsection “Encryption and Security Certificates for

ESX/ESXi”. This section covers the following advanced customization

options:

• Configuring SSL timeouts

vSphere 4.0 Security Hardening Guide

• Configuration for certificates in nondefault locations

The two guides can be found at these URLs:

• http://www.vmware.com/pdf/vsphere4/r40_u1/vsp_40_u1_esxi_

server_config.pdf

• http://www.vmware.com/pdf/vsphere4/r40_u1/vsp_40_u1_esx_

server_config.pdf

Test

Ensure that any certificates presented by the host can be verified by a

trusted certification authority.

vSphere 4.0 Security Hardening Guide

Virtual Machines

Virtual machines are encapsulated in a small number of files. One of the

important is the configuration file (.vmx), which governs the behavior of the virtual

hardware and other settings. You can view and modify the configuration settings

by viewing the .vmx file directly in a text editor or by checking the settings in the

vSphere Client, using the following procedure:

1. Choose the virtual machine in the inventory panel.

2. Click Edit settings. Click Options > Advanced/General.

3. Click Configuration Parameters to open the Configuration Parameters

dialog box.

You can also use any vSphere API-based tool such as PowerCLI to view and

modify VMX parameters. In many instances, a VMX parameter has two

versions: XXX.disable and XXX.enable. In nearly all cases, it is better to use the

form XXX.disable=TRUE in order to disable a feature, because these are all

parsed centrally in the VMX code.

Whether you change a virtual machine’s settings in the vSphere Client, a

vSphere API-based tool, or using a text editor, you must restart the virtual

machine for most changes to take effect.

The following sections provide guidelines you should observe when dealing with

these and other virtual machine files.

Unprivileged User Actions

Parameter

Element

Description

Code

VMX01

Name

Prevent Virtual Disk Shrinking

Description

Shrinking a virtual disk reclaims unused space in the virtual disk. If

there is empty space in the disk, this process reduces the amount

of space the virtual disk occupies on the host drive. Normal users

and processes—that is users and processes without root or

administrator privileges—within virtual machines have the

capability to invoke this procedure. However, if this is done

repeatedly, the virtual disk can become unavailable while this

shrinking is being performed, effectively causing a denial of

service. In most datacenter environments, disk shrinking is not

done, so you should disable this feature by setting the parameters

listed in Table 9.

Threat

Repeated disk shrinking can make virtual disk unavailable.

vSphere 4.0 Security Hardening Guide

Capability is available to non-administrative users in the guest.

Recommendation

Level

Enterprise

Parameter setting

isolation.tools.diskWiper.disable=TRUE

isolation.tools.diskShrink.disable=TRUE

Effect on

functionality

Parameter

Element

Description

Code

VMX02

Name

Prevent others users from spying on Administrator remote

consoles

Description

By default, remote console sessions can be connected to by more

than one user at a time.

Threat

If an Administrator in the VM logs in using a VMware remote

console, during their session a non-administrator in the VM could

connect to the console and observe the administrator's actions.

Recommendation

Level

DMZ

Parameter setting

RemoteDisplay.maxConnections=1

Effect on

functionality

Only one remote console connection to the VM will be permitted.

Other attempts will be rejected until the first session disconnects.

Parameter

Element

Description

Code

VMX03

Name

Disable Copy/Paste to Remote Console

Description

When VMware Tools runs in a virtual machine, by default you can

copy and paste between the guest operating system and the

computer where the remote console is running. As soon as the

vSphere 4.0 Security Hardening Guide

console window gains focus, nonprivileged users and processes

running in the virtual machine can access the clipboard for the

virtual machine console. It is recommended that you disable copy

and paste operations for the guest operating system.

Threat

If a user copies sensitive information to the clipboard before using

the console, the user—perhaps unknowingly—exposes sensitive

data to the virtual machine.

Recommendation

Level

Enterprise

Parameter setting

isolation.tools.copy.disable=TRUE

isolation.tools.paste.disable=TRUE

isolation.tools.setGUIOptions.enable=FALSE

Effect on

functionality

Copy and paste to/from remote console will not work

Virtual Devices

Parameter

Element

Description

Code

VMX10

Name

Ensure Unauthorized Devices are Not Connected

Description

Besides disabling unnecessary virtual devices from within the

virtual machine, you should ensure that no device is connected to

a virtual machine if it does not need to be there. For example,

serial and parallel ports are rarely used for virtual machines in a

datacenter environment, and CD/DVD drives are usually

connected only temporarily during software installation.

For less commonly-used devices that are not needed, either the

parameter should not be present or its value must be FALSE.

Note that the parameters listed are not sufficient to ensure that a

device is usable, because other parameters are needed to

indicate specifically how each device is instantiated.

Threat

Any enabled or connected device represents another potential

attack channel.

Recommendation

Level

Enterprise

vSphere 4.0 Security Hardening Guide

Parameter setting

The following parameters should NOT be present unless the

device is needed:

1. Floppy drives: floppyX.present

2. Serial ports: serialX.present

3. Parallel ports: parallelX.present

4. USB Controller: usb.present

5. CD-ROM: ideX:Y.present

Effect on

functionality

Parameter

Element

Description

Code

VMX11

Name

Prevent Unauthorized Removal, Connection and Modification of

Devices

Description

Normal users and processes—that is users and processes without

root or administrator privileges—within virtual machines have the

capability to connect or disconnect devices, such as network

adapters and CD-ROM drives, as well as the ability to modify

device settings.

In general, you should use the virtual machine settings editor or

Configuration Editor to remove any unneeded or unused hardware

devices. However, you may want to use the device again, so

removing it is not always a good solution. In that case, you can

prevent a user or running process in the virtual machine from

connecting or disconnecting a device from within the guest

operating system, as well as modifying devices, by adding the

parameters shown below.

Threat

By default, a rogue user with non-administrator privileges in a

virtual machine can:

• Connect a disconnected CD-ROM drive and access

sensitive information on the media left in the drive

• Disconnect a network adapter to isolate the virtual machine

from its network, which is a denial of service

• Modify settings on a device

Recommendation

Level

Enterprise

Parameter setting

isolation.device.connectable.disable=TRUE

vSphere 4.0 Security Hardening Guide

isolation.device.edit.disable=TRUE

Effect on

functionality

VMCI, or Virtual Machine Communications Interface is a new type of interface

designed to provide efficient and controlled communication between VMs and

trusted endpoints on the host, and from VM to VM. The vmkernel is considered a

trusted end-point.

VMCI’s main objective is to provide a socket-based framework for a new

generation of applications that will exist only on virtual machines. More

information on how to use this interface is detailed here:

http://www.vmware.com/support/developer/vmci-sdk.

This interface is implemented as a virtual PCI device, present by default in all

VMs created with virtual hardware version 7, common in vSphere 4, VMware

Fusion and VMware Workstation 6 and above. A device driver is included and

installed by default with the vmware-tools software package in supported guest

operating systems.

The interface has currently only two settings, enabled or restricted. The default is

restricted. The formal recommendation is to keep it restricted unless there is a

reason to enable it, in this case, an application that is specifically created to

leverage this feature. At the time of this writing, there is no other usage for this

interface.

Parameter

Element

Description

Code

VMX12

Name

Disable VM to VM communication through VMCI

Description

If the interface is not restricted, a VM can see and be seen by all

other VMs with the same option enabled within the same host.

This may be the intended behavior, but custom-built software may

have unexpected vulnerabilities that may potentially lead to an

exploit. Additionally, it is possible for a VM to find out how many

other VMs within the same ESX system by simply registering the

VM. This information could also be used for a potentially malicious

objective.

By default, the setting is FALSE

Threat

The VM can be exposed to other VMs within the same system as

long as there is at least one program listening on the VMCI socket

vSphere 4.0 Security Hardening Guide

interface.

Recommendation

Level

Enterprise

Parameter setting

vmci0.unrestricted=FALSE

Effect on

functionality

Virtual Machine Information Flow

Virtual machines can write troubleshooting information to a virtual machine log

file (vmware.log) stored on the VMware VMFS volume used to store other files

for the virtual machine. Virtual machine users and processes can be configured

to abuse the logging function, either intentionally or inadvertently, so that large

amounts of data flood the log file. Over time, the log file can consume so much of

the ESX/ESXi host’s file system space that it fills the hard disk, causing an

effective denial of service as the datastore can no longer accept new writes.

In addition to logging, guest operating system processes can send informational

messages to the ESX/ESXi host through VMware Tools. These messages,

known as setinfo messages, are written to the virtual machine’s configuration file

(.vmx). They typically contain name-value pairs that define virtual machine

characteristics or identifiers that the host stores—for example,

ipaddress=10.17.87.224. A setinfo message has no predefined format and can

be any length. However, the total size of the VMX file is limited by default to

1MB.

Parameter

Element

Description

Code

VMX20

Name

Limit VM log file size and number

Description

You can use these settings to limit the total size and number of log

files. Normally a new log file is created only when a host is

rebooted, so the file can grow to be quite large, but you can ensure

new log files are created more frequently by limiting the maximum

size of the log files. If you want to restrict the total size of logging

data, VMware recommends saving 10 log files, each one limited to

1000KB. Datastores are likely to be formatted with a block size of

2MB or 4MB, so a size limit too far below this size would result in

unnecessary storage utilization.

Each time an entry is written to the log, the size of the log is

vSphere 4.0 Security Hardening Guide

checked, and if it is over the limit, the next entry is written to a new

log. If the maximum number of log files already exists, when a new

one is created, the oldest log file is deleted. A denial of service

attack that avoids these limits could be attempted by writing an

enormous log entry, but each log entry is limited to 4KB, so no log

files are ever more than 4KB larger than the configured limit.

A second option is to disable logging for the virtual machine.

Disabling logging for a virtual machine makes troubleshooting

challenging and support difficult, so you should not consider

disabling logging unless the log file rotation approach proves

insufficient.

Threat

Uncontrolled logging could lead to denial of service due to the

datastore being filled.

Recommendation

Level

Enterprise

SSLF

Parameter setting

log.rotateSize=1000000

log.keepOld=10

Isolation.tools.log.disable=TRUE

Effect on

functionality

VM logs unavailable for

troubleshooting and support

Parameter

Element

Description

Code

VMX21

Name

Limit informational messages from the VM to the VMX file

Description

The configuration file containing these name-value pairs is limited

to a size of 1MB. This 1MB capacity should be sufficient for most

cases, but you can change this value, if necessary. You might

increase this value if large amounts of custom information are

being stored in the configuration file. The default limit is 1MB, and

this limit is applied even when the sizeLimit parameter is not listed

in the .vmx file.

Threat

Uncontrolled size for the VMX file could lead to denial of service if

the datastore is filled.

Recommendation

Level

Enterprise

Parameter setting

tools.setInfo.sizeLimit=1048576

vSphere 4.0 Security Hardening Guide

Effect on

functionality

Parameter

Element

Description

Code

VMX22

Name

Avoid using independent-nonpersistent disks

Description

The security issue with nonpersistent disk mode is that successful

attackers may undo or remove any traces that they were ever on

the machine with a simple shutdown or reboot.

To safeguard against this risk, you should set production virtual

machines to either use persistent disk mode, or to use

nonpersistent disk mode but additional make sure that activity

within the VM is logged remotely on a separate server, such as a

syslog server or equivalent Windows-based event collector.

Threat

Without a persistent record of activity on a VM, administrators

may never know if they have been attacked or hacked.

Recommendation

Level

DMZ

Parameter setting

If remote logging of events and activity is not configured for the

guest, then scsiX:Y.mode should be either

1. Not present

2. Not set to independent-nonpersistent

Effect on

functionality

Won’t be able to make use of non-persistent mode, which allows

rollback to a known state when rebooting the VM

Virtual Machine Management APIs

The VIX API is high-level and practical for both script writers and application

programmers. It runs on either Windows or Linux and supports management of

VMware Workstation, VMware Server, and VMware vSphere including ESX/ESXi

and vCenter Server. Additionally, bindings are provided for C, Perl, and COM

(Visual Basic, VBscript, C#).

vSphere 4.0 Security Hardening Guide

Parameter

Element

Description

Code

VMX30

Name

Disable remote operations within the guest

Description

The VIX API allows systems administrators to write programs and

scripts that automate virtual machine operations, as well as guests

Operating Systems within the VMs themselves. If enabled, the

system administrator can execute scripts or programs that use the

VIX API to execute tasks within the guest OS

Threat

An adversary can potentially execute unauthorized scripts within

the guest OS

Recommendation

Level

Enterprise

Parameter setting

guest.command.enabled=FALSE

Effect on

functionality

vSphere 4.0 introduces the integration of virtual machine performance counters

such as CPU and memory into Perfmon for Microsoft Windows guest operating

systems when VMware Tools is installed. With this feature, virtual machine

owners can do accurate performance analysis within the guest operating system.

The Perfmon integration in vSphere 4.0 leverages the guest SDK API to get to

the accurate counters from the hypervisor. The programming guide for vSphere

guest SDK 4.0 is available at http://www.vmware.com/support/developer/guest-

sdk/. The list of available perf counters is in Page 11 of the PDF (Accessor

functions for VM data).

There is some information about the host that can optionally be exposed to the

VM guests:

• GUESTLIB_HOST_CPU_NUM_CORES

• GUESTLIB_HOST_CPU_USED_MS

• GUESTLIB_HOST_MEM_SWAPPED_MB

• GUESTLIB_HOST_MEM_SHARED_MB

• GUESTLIB_HOST_MEM_USED_MB

• GUESTLIB_HOST_MEM_PHYS_MB

• GUESTLIB_HOST_MEM_PHYS_FREE_MB

• GUESTLIB_HOST_MEM_KERN_OVHD_MB

vSphere 4.0 Security Hardening Guide

• GUESTLIB_HOST_MEM_MAPPED_MB

• GUESTLIB_HOST_MEM_UNMAPPED_MB

The default is not to expose this information, and ordinarily you wouldn’t want the

guest to know anything about the host it’s running on.

Parameter

Element

Description

Code

VMX31

Name

Do not send host performance information to guests

Description

If enabled, a VM can obtain detailed information about the

physical host. The default value for the parameter is FALSE. This

setting should not be TRUE unless a particular VM requires this

information for performance monitoring

Threat

An adversary can potentially use this information to inform further

attacks on the host

Recommendation

Level

Enterprise

Parameter setting

tools.guestlib.enableHostInfo=FALSE

Effect on

functionality

VMsafe

VMsafe provides a security architecture for virtualized environments and an

application program interface (API)-sharing program to enable partners to

develop security products for virtualized environments. It consists of three parts.

• VMsafe Memory and CPU API (VMsafe Mem/CPU): Inspections of

memory accesses and CPU states

• VMsafe Network Packet Inspection API (VMsafe-Net): The Vmsafe-Net

allows you to create agents that inspect network packets at a point in the

packet stream between the virtual NIC (vNic) and a virtual switch

(vSwitch) that sits in front of a physical NIC (pNIC). The interface provided

is a function call library located in the same security appliance where the

vSphere 4.0 Security Hardening Guide

slow-path agent resides. The fast-path and slow-path agents

communicate using the function calls from the library.

• VMsafe Virtual Disk Development Kit (VDDK): The VDDK is separately

published. Using the VDDK, you can create applications that manage

virtual disk volumes. This allows you to inspect for and prevent malicious

access and modification of data in protected disks.

The VDDK API is built into vSphere, and cannot be disabled. Any entity wishing

to make use of this API must present the proper credentials to vSphere of an

authorized user. The method of controlling access to this API is to use the

vSphere Roles and Permissions system. The user whose credentials are

presented must have permissions to access and modify the datastore on which

the protected VM’s virtual disks reside. Note that this doesn’t need to be a virtual

machine running on the host; any application which has network access to an

ESX/ESXi host connected to the datastore can access the VDDK API.

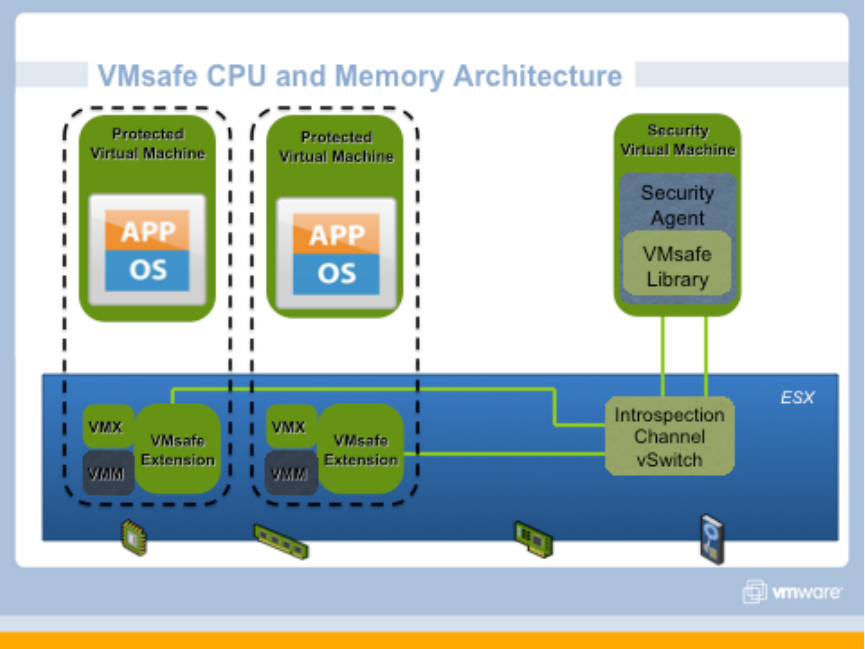

VMsafe CPU/Memory API

In order for a VM to view and modify the CPU and memory contents of others

VMs on the host, it must have access to the CPU/Mem APIs. This access is

enabled by attaching the VM to a special VMsafe introspection vSwitch. The

follow diagram shows how the VMsafe CPU/Memory API works.

vSphere 4.0 Security Hardening Guide

The follow two groups of parameter settings control the VMsafe CPU/Memory

API

Security Virtual Appliance

Communication with hypervisor extension occurs over an isolated network

created specifically for this purpose. A Security Appliance needs to be

configured on this network before it can access the CPU and Memory APIs. The

isolated network provided through a special Introspection Virtual Switch and must

use the following naming:

• vSwitch name: vmsafe

• Portgroup name: vmsafe-appliances

Protected Virtual Machines

By default, the CPU and Memory of a virtual machine CANNOT be inspected or

modified. In order to enable this functionality, the following settings must be

present in the .vmx config file for each VM that is to be protected:

• vmsafe.enable = TRUE

• vmsafe.agentAddress=”www.xxx.yyy.zzz”

• vmsafe.agentPort=”nnnn”

where “www.xxx.yyy.zzz” is the IP address and “nnnn” is the port number that the

VMsafe CPU/Memory Security Virtual Appliance uses to connect to the

Introspection Virtual Switch.

Parameter Element

Description

Code

VMX51

Name

Restrict access to VMsafe CPU/Mem APIs

Description

You should ensure that the only VMs configured on the VMsafe

CPU/Mem introspection vSwitch are those that you have

specifically installed to perform this task.

Threat

An attacker could compromise all other VMs by making use of

this introspection channel

Recommendation

Level

Enterprise

Parameter setting

If a VM is not running a VMsafe CPU/Mem product, ensure that

the following parameter is NOT present in its VMX file:

ethernetX.networkName=”vmsafe-appliances”

vSphere 4.0 Security Hardening Guide

where X is a digit.

Effect on

functionality

Parameter

Element

Description

Code

VMX52

Name

Control access to VMs through VMsafe CPU/Mem API

Description

A VM needs to be configured explicitly to accept access by the

VMsafe CPU/Mem API. This involves three parameters: one to

enable the API, one to set the IP address used by the Security

Virtual Appliance on the introspection vSwitch, and one to set the

port number for that IP address. This should only be done for VMs

for which you want this to be done.

Threat

An attacker could compromise the VM by making use of this

introspection channel

Recommendation

Level

Enterprise

Parameter setting

If a VM is not supposed to be protected by a VMsafe CPU/Mem

product, ensure that the following is NOT present in its VMX file

vmsafe.enable=TRUE

vmsafe.agentAddress=”www.xxx.yyy.zzz”.

vmsafe.agentPort=”nnnn”

The latter two parameters are based on how the VMsafe Security

Virtual Appliance is configured, but they should not be present at

all if the VM is not to be protected.

Effect on

functionality

VMsafe Network API

VMsafe Network API protection is enabled by a data path kernel module that

must be installed on the ESX/ESXi host by an administrator. This data path

agent has the ability to inspect, modify, and block network traffic going to and

from a virtual machine’s NIC ports. There can be up to 16 data path agents on

one virtual machine NIC port. In addition, there typically would be a control path

vSphere 4.0 Security Hardening Guide

virtual appliance running on the host. This security virtual appliance needs to be

attached to a special VMsafe introspection vSwitch in order to communicate with

the data path agent. The follow diagram shows how the VMsafe CPU/Memory

API works.

The follow two groups of parameter settings control the VMsafe Network API

Control path Security Virtual Appliance

Communication with the data path kernel module occurs over an isolated

network created specifically for this purpose. A Security Appliance needs to be

configured on this network before it can access the data path kernel module. The

isolated network provided through a special Introspection Virtual Switch and must

use the following naming:

• vSwitch name: dvfilter

• Portgroup name: dvfilter-appliances

vSphere 4.0 Security Hardening Guide

Protected Virtual Machines

By default, the network traffic of a virtual machine CANNOT be inspected or

modified. In order to enable this functionality, the following setting must be

present in the .vmx config file for each VM that is to be protected:

• ethernet0.filter1.name = dv-filter1

where “ethernet0” is the NIC interface of the virtual machine that is to be

protected, “filter1” is the number of the filter which is being used, and “dv-filter1”

is the name of the particular data path kernel module that is protecting the virtual

machine. There can be up to 10 NICs per virtual machine (ethernet0 through

ethernet9) and up to 16 filters per vNIC (filter0 through filter15).

Parameter Element

Description

Code

VMX54

Name

Restrict access to VMsafe Network APIs

Description

You should ensure that the only VMs configured on the VMsafe

Network introspection vSwitch are those that you have

specifically installed to perform this task.

Threat

An attacker could compromise all other VMs by making use of

this introspection channel

Recommendation

Level

Enterprise

Parameter setting

If a VM is not running a VMsafe Network Security Appliance,

ensure that the following parameter is NOT present in its VMX

file:

ethernetX.networkName=”dvfilter-appliances”

where X is a digit.

Effect on

functionality

Parameter

Element

Description

Code

VMX55

Name

Control access to VMs through VMsafe Network API

vSphere 4.0 Security Hardening Guide

Description

A VM needs to be configured explicitly to accept access by the

VMsafe Network API. This should only be done for VMs for which

you want this to be done.

Threat

An attacker could compromise the VM by making use of this

introspection channel

Recommendation

Level

Enterprise

Parameter setting

If a VM is not supposed to be protected by a VMsafe CPU/Mem

product, ensure that the following is NOT present in its VMX file

ethernet0.filter1.name = dv-filter1

where “ethernet0” is the NIC interface of the virtual machine that is

to be protected, “filter1” is the number of the filter which is being

used, and “dv-filter1” is the name of the particular data path kernel

module that is protecting the. If the VM is supposed to be

protected, then ensure that the name of the data path kernel is set

correctly.

Effect on

functionality

General Virtual Machine Protection

Operational Element

Description

Code

VMP01

Name

Secure Virtual Machines as You Would Secure

Physical Machines

Description

A key to understanding the security requirements of

a virtualized environment is the recognition that a

virtual machine is, in most respects, the equivalent

of a physical server. Therefore, it is critical that you

employ the same security measures in virtual

machines that you would for physical servers.

Risk or Control

The guest operating system that runs in the virtual

machine is subject to the same security risks as a

physical system.

Recommendation Level

Enterprise

Condition or steps

Ensure that antivirus, antispyware, intrusion

vSphere 4.0 Security Hardening Guide

detection, and other protection are enabled for

every virtual machine in your virtual infrastructure.

Make sure to keep all security measures up-to-date,

including applying appropriate patches. It is

especially important to keep track of updates for

dormant virtual machines that are powered off,

because it could be easy to overlook them.

Operational Element

Description

Code

VMP02

Name

Disable Unnecessary or Superfluous Functions

inside VMs

Description

By disabling unnecessary system components that

are not needed to support the application or service

running on the system, you reduce the number of

parts that can be attacked. VMs often don’t require

as many services or function as ordinary physical

servers, so when virtualizing you should evaluate if

a particular service or function is truly needed.

Risk or Control

Any service running in a VM provides a potential

avenue of attack.

Recommendation Level

Enterprise

Condition or steps

Some of these steps include:

 Disable unused services in the operating system.

For example, if the system runs a file server, make

sure to turn off any Web services.

 Disconnect unused physical devices, such as

CD/DVD drives, floppy drives, and USB adapters.

This is described in the section “Removing

Unnecessary Hardware Devices” in the ESX Server

3 Configuration Guide.

 Turn off any screen savers. If using a Linux,

BSD, or Solaris guest operating system, do not run

the X Window system unless it is necessary.

Operational Element

Description

vSphere 4.0 Security Hardening Guide

Code

VMP03

Name

Use Templates to deploy VMs whenever possible

Description

By capturing a hardened base operating system

image (with no applications installed) in a template,

you can ensure that all your virtual machines are

created with a known baseline level of security. You

can then use this template to create other,

application-specific templates, or you can use the

application template to deploy virtual machines.

Risk or Control

Manual installation of the OS and applications into a

VM introduces the risk of misconfiguration due to

human or process error.

Recommendation Level

Enterprise

Condition or steps

Provide templates for VM creation that contain

hardened, patched, and properly configured OS

deployments. If possible, pre-deploy applications in

templates as well, although care should be taken

that the application doesn’t depend upon VM-

specific information in order to be deployed. In

vSphere, you can convert a template to a virtual

machine and back again quickly, which makes

updating templates quite easy. VMware Update

Manager also provides the ability to patch the

operating system and certain applications in a

template automatically, thus ensuring that they

remain up to date.

Operational Element

Description

Code

VMP04

Name

Prevent Virtual Machines from Taking Over

Resources

Description

By default, all virtual machines on an ESX/ESXi

host share the resources equally. By using the

resource management capabilities of ESX/ESXi,

such as shares and limits, you can control the

server resources that a virtual machine consumes.

Risk or Control

You can use this mechanism to prevent a denial of

service that causes one virtual machine to consume

vSphere 4.0 Security Hardening Guide

so much of the host’s resources that other virtual

machines on the same host cannot perform their

intended functions.

Recommendation Level

DMZ

Condition or steps

Use Shares or Reservations to guarantee resources

to critical VMs. Use Limits to constrain resource

consumption by virtual machines that have a

greater risk of being exploited or attacked, or which

run applications that are known to have the

potential to greatly consume resources.

Operational Element

Description

Code

VMP05

Name

Minimize Use of the VM Console

Description

The VM Console allows you to connect to the

console of a virtual machine, in effect seeing what a

monitor on a physical server would show.

Risk or Control

The VM Console also provides power management

and removable device connectivity controls, which

could potentially allow a malicious user to bring

down a virtual machine. In addition, it also has a

performance impact on the service console,

especially if many VM Console sessions are open

simultaneously.

Recommendation Level

Enterprise

Condition or steps

Instead of VM Console, use native remote

management services, such as terminal services

and ssh, to interact with virtual machines. Grant

VM Console access only when necessary.

vSphere 4.0 Security Hardening Guide

ESX/ESXi Host

Installation

Operational Element

Description

Code

HIN01

Name

Verify integrity of software before installation

Description

Before installing any software from VMware, its

authenticity and integrity should be verified.

VMware provides digital signatures for downloaded

software, and physical seals for software distributed

via physical media.

Risk or Control

Software tampering can be used to break security

Recommendation Level

Enterprise

Condition or steps

Always check the SHA1 hash after downloading an

ISO from download.vmware.com to insure the ISO

images authenticity. If you obtain media from

VMware and the security seal is broken, they

should return the software to VMware for a

replacement.

Storage

Parameter

Element

Description

Code

HST01

Name

Ensure Bidirectional CHAP Authentication is enabled for iSCSI

traffic.

Description

vSphere allows for the use of bidirectional authentication of both

the iSCSI Target and Host. Choosing not to enforce more

stringent authentication can make sense if you create a dedicated

network or VLAN to service all your iSCSI devices. If the iSCSI

facility is isolated from general network traffic, it is less vulnerable

to exploit.

vSphere 4.0 Security Hardening Guide

Threat

By not authenticating both the iSCSI Target and Host there is a

potential for a MiTM attack in which an attacker could impersonate

either side of the connection to steal data. Bidirectional

authentication can mitigate this risk.

Recommendation

Level

DMZ

Parameter setting

Configuration  Storage Adapters  iSCSI Initiator Properties 

CHAP  CHAP (Target Authenticates Host) and Mutual CHAP

(Host Authenticates Target) both set to “Use CHAP” and each

have a “Name” and “Secret” configured.

Effect on

functionality

Operational Element

Description

Code

HST02

Name

Ensure uniqueness of CHAP authentication secrets

Description

The mutual authentication secret for each host

should be different, and if possible the secret should

be different for each client authenticating to the

server as well. This ensures that if a single host is

compromised, an attacker cannot create another

arbitrary host and authenticate to the storage

device.

Risk or Control

With a single shared secret, compromise of one

host can allow an attacker to authenticate to the

storage device

Recommendation Level

DMZ

SSLF

Condition or steps

Configure a different

authentication secret for

each ESX/ESXi host

Configure a different

secret for each client

authenticating to the

server

Zoning provides access control in a SAN topology. It defines which host bus

adapters (HBAs) can connect to which SAN device service processors. When a

SAN is configured using zoning, the devices outside a zone are not visible to the

vSphere 4.0 Security Hardening Guide

devices inside the zone. In addition, SAN traffic within each zone is isolated from

the other zones. Within a complex SAN environment, SAN switches provide

zoning, which defines and configures the necessary security and access rights

for the entire SAN.

LUN masking is commonly used for permission management. LUN masking is

also referred to as selective storage presentation, access control, and

partitioning, depending on the vendor. LUN masking is performed at the storage

processor or server level. It makes a LUN invisible when a target is scanned. The

administrator configures the disk array so each server or group of servers can

see only certain LUNs. Masking capabilities for each disk array are vendor

specific, as are the tools for managing LUN masking.

Operational Element

Description

Code

HST03

Name

Mask and Zone SAN Resources Appropriately

Description

You should use zoning and LUN masking to

segregate SAN activity. For example, you manage

zones defined for testing independently within the

SAN so they do not interfere with activity in the

production zones. Similarly, you could set up

different zones for different departments. Zoning

must take into account any host groups that have

been set up on the SAN device.

Risk or Control

Recommendation Level

Enterprise

Condition or steps

Zoning and Masking capabilities for each SAN

switch and disk array are vendor specific, as are the

tools for managing LUN masking.

Host Communications

To ensure the protection of the data transmitted to and from external network

connections, ESX uses the 256-bit AES block encryption. ESX Server also uses

1024-bit RSA for key exchange. Client sessions with the ESX/ESXi host may be

initiated from any vSphere API client, such as vSphere Client, vCenter Server,

and the vCLI.

SSL encryption protects the connection to ESX/ESXi, but the default certificates

are not signed by a trusted certificate authority and, therefore, do not provide the

vSphere 4.0 Security Hardening Guide

authentication security you might need in a production environment. These self-

signed certificates are vulnerable to man-in-the-middle attacks, and clients

receive a warning about them. If you intend to use encrypted remote connections

externally, consider purchasing a certificate from a trusted certification authority

or use your own security certificate for your SSL connections.

Configuration

Element

Description

Code

HCM01

Name

Do not use default self-signed certificates for ESX/ESXi

Communication

Description

Replace default self-signed certificates with those from a trusted

certification authority, either a commercial CA or an organizational CA.

Risk or

Control

The use of default certificates leaves the SSL connection open to Man

in the Middle (MiTM) attacks. By changing the default certificates to

trusted CA Signed certificates, mitigates the potential for (MiTM)

attacks.

Recommenda

tion Level

Enterprise

Parameters or

objects

configuration

Information on how to replace default self-signed certificates can be

found in both the ESXi Configuration Guide and the ESX Configuration

Guide, Chapter “Security”, Section “Authentication and User

Management”, Subsection “Encryption and Security Certificates for

ESX/ESXi”. This section covers the following advanced customization

options:

• Configuring SSL timeouts

• Configuration for certificates in nondefault locations

The two guides can be found at these URLs:

• http://www.vmware.com/pdf/vsphere4/r40_u1/vsp_40_u1_esxi_

server_config.pdf

• http://www.vmware.com/pdf/vsphere4/r40_u1/vsp_40_u1_esx_

server_config.pdf

Test

Ensure that any certificates presented by the host can be verified by a

trusted certification authority.

The host agent (hostd) acts as a proxy for several services running on the

ESX/ESXi host. Most of the services are required for proper functioning of

ESX/ESXi, but there are some that may be disabled. This will limit some

management and diagnostic functionality on the host.

vSphere 4.0 Security Hardening Guide

The configuration of these services is stored in the proxy.xml file on both ESX

and ESXi. The locations are as follows:

• ESX: on the Service Console, /etc/vmware/hostd/proxy.xml

• ESXi: through the file interface, which can be access in a couple of ways:

o Directly via the HTTPS interface:

https://<hostname>/host/proxy.xml.

o Using the vCLI vifs. For example: vifs --server <hostname> --

username <username> --get /host/proxy.xml <directory>/proxy.xml

For information on supported ways to modify the proxy.xml file, please see the

following KB article: http://kb.vmware.com/kb/1017022.

Each service is contained in a XML element under the following tree:

<_length>10</_length>

<_type>vim.ProxyService.EndpointSpec[]</_type>

<_type>vim.ProxyService.LocalServiceSpec</_type>

<accessMode>httpsWithRedirect</accessMode>

</e>

<_type>vim.ProxyService.LocalServiceSpec</_type>

<accessMode>httpAndHttps</accessMode>

<serverNamespace>/client/clients.xml</serverNamespace>

</e>

<_type>vim.ProxyService.LocalServiceSpec</_type>

<accessMode>httpAndHttps</accessMode>

</e>

<_type>vim.ProxyService.NamedPipeServiceSpec</_type>

<accessMode>httpsWithRedirect</accessMode>

<pipeName>/var/run/vmware/proxy-mob</pipeName>

</e>

<_type>vim.ProxyService.LocalServiceSpec</_type>

<accessMode>httpAndHttps</accessMode>

</e>

<_type>vim.ProxyService.LocalServiceSpec</_type>

<accessMode>httpsWithRedirect</accessMode>

</e>

<_type>vim.ProxyService.NamedPipeTunnelSpec</_type>

vSphere 4.0 Security Hardening Guide

<accessMode>httpOnly</accessMode>

<pipeName>/var/run/vmware/proxy-sdk-tunnel</pipeName>

<serverNamespace>/sdkTunnel</serverNamespace>

</e>

<_type>vim.ProxyService.LocalServiceSpec</_type>

<accessMode>httpsWithRedirect</accessMode>

</e>

<_type>vim.ProxyService.LocalServiceSpec</_type>

<accessMode>httpsOnly</accessMode>

</e>

<_type>vim.ProxyService.LocalServiceSpec</_type>

<accessMode>httpsWithRedirect</accessMode>

<serverNamespace>/wsman</serverNamespace>

</e>

</EndpointList>

Services can be modified by changing entries in their node, or can be disabled by

removing the node entirely. Changes take effect when the host is rebooted or

the host agent (hostd) is restarted.

• On ESX: log into the Service Console and execute the command

“service mgmt-vmware restart”

• On ESXi: log into the DCUI and use the “Restart Management Agents”

operation.

Parameter

Element

Description

Code

HCM02

Name

Disable Managed Object Browser

Description

The Managed Object Browser provides a way to explore the object

model used by the vmkernel to manage the host, and enables

configurations to be changed as well. This interface is used

primarily for debugging the vSphere SDK.

Threat

This interface could potentially be used to perform malicious

configuration changes or actions

Recommendation

Level

SSLF

Parameter setting

Perform the following edits on the proxy.xml file:

1. Remove the Managed Object Browser element. This

vSphere 4.0 Security Hardening Guide

element can be identified as the one with element

“<serverNamespace>/mob</serverNamespace>”. Remove

or comment out the entire element, i.e. “<e id=’n’>” and

everything within it.

2. Re-number the subsequent <e id=”n”> to reflect the

removed element, so that there are no skipped numbers.

3. Decrement the value of the “<_length>” element by one.

Then restart the host agent.

Effect on

functionality

The Managed Object Browser will no longer be available for

diagnostics.

Parameter

Element

Description

Code

HCM03

Name

Disable Web Access (ESX ONLY)

Description

Web Access provides a means for users to view virtual machines

on a single ESX host and perform simple operations such as

power on and suspend. It also provides a way to obtain console

access to virtual machines. All of this is governed by the users

permissions on the local ESX host.

In most cases, users should manage virtual machines through

vCenter Server, either using the vSphere Client or else using the

vCenter web access.

Note that ESXi does not have Web Access and so this guideline is

not relevant for ESXi.

Threat

This is a web interface and hence has some of the general risks

associated with all web interfaces

Recommendation

Level

DMZ

Parameter setting

In the vSphere Client, select the host, then click on the

Configuration tab, and select the Security Profile item. Click on

Properties, and then in the list of services, ensure that the box for

“vSphere Web Access” is unchecked.

Effect on

functionality

Web Access will no longer be available.

vSphere 4.0 Security Hardening Guide

Parameter

Element

Description

Code

HCM04

Name

Ensure ESX is Configured to Encrypt All Sessions

Description

Sessions with the ESX server should be encrypted since

transmitting data in plaintext may be viewed as it travels through

the network.

Threat

The use of unencrypted client session leaves the communications

between the different components of vSphere open to man in the

middle attacks.

Recommendation

Level

Enterprise

Parameter setting

<httpPort> and <accessMode> XML Settings in the proxy.xml file.

Effect on

functionality

In the proxy.xml file ensure that for all the different entries, ensure

that <httpPort>-1</httpPort> is set, and ensure that the

<accessMode> </accessMode> parameters are NOT set to

http. They can be set to either httpsWithRedirect or

httpsOnly.

Logging

The following sets of recommendations do not pertain to ESX 4.0 (i.e. the

“classic” ESX architecture, with the Console OS). They only apply to the ESXi

architecture.

ESXi 4.0 maintains a log of activity in log files, using a syslog facility. The

following logs are available:

• hostd.log

• messages

• vpxa.log (only if the host has been joined to a VirtualCenter instance)

There are several ways to view the contents of these log files.

To view the logs in a VI Client, take the following steps:

1. Log in directly to the ESXi host using VI Client and make sure the host is

selected in the Inventory.

2. Click Administration, then click the System Logs tab.

3. Choose the log file you want to view in the drop-down menu in the upper

left.

vSphere 4.0 Security Hardening Guide

To view the logs in a Web browser, enter the URL https://<hostname>/host,

where <hostname> is the host name or IP address of the management interface

of the ESXi host, then choose from the list of files presented. You can also use

the vCLI command vifs to download the log files to your local system.

An important point to consider is that the log messages are not encrypted when

sent to the remote host, so it is important that the network for the service console

be strictly isolated from other networks.

Another point is that, by default, the logs on ESXi are stored only in the in-

memory file system. The logs are lost upon reboot, and only 1 day’s worth of

logs are stored. Persistent logging to a datastore can be configured, and it is

recommended that this be done so that a dedicated record of server activity is

available for that host.

Configuration Element

Description

Code

HLG01

Name

Configure remote syslog

Description

Remote logging to a central host provides a way to

greatly increase administration capabilities. By

gathering log files onto a central host, you can

easily monitor all hosts with a single tool as well as

do aggregate analysis and searching to look for

such things as coordinated attacks on multiple

hosts.

Risk or Control

Logging to a secure, centralized log server can help

prevent log tampering and provides a long-term

audit record.

Recommendation Level

Enterprise

Parameters or objects

configuration

Remote Syslog can be configured on an ESXi host

using a remote command line such as vCLI or

PowerCLI, or using an API client.

Test

Query the Syslog configuration to make sure that a

valid syslog server has been configured, including

the correct port

Configuration Element

Description

Code

HLG02

Name

Configure persistent logging

Description

By default, the logs on ESXi are stored only in the

in-memory file system. The logs are lost upon

vSphere 4.0 Security Hardening Guide

reboot, and only 1 day’s worth of logs are stored.

Persistent logging to a datastore can be configured,

and it is recommended that this be done so that a

dedicated record of server activity is available for

that host.

Risk or Control

In addition to remote syslog, having the log files for

a server sent to a datastore provides a dedicated

set of log records for that server, making it easier to

monitor events and diagnose issues for that specific

server.

Recommendation Level

Enterprise

Parameters or objects

configuration

Persistent logging to a datastore for an ESXi host

can be configured using the vSphere Client, vCLI or

other API client. More information on how this can

be done can be found in vSphere Basic System

Administration Guide in the chapter “Configuring

Hosts and vCenter Server” in the section “System

Log Files : Configure Syslog on ESXi Hosts”

Test

View the contents of the configured log file on the

datastore to make sure that it is being updated with

log messages.

Configuration Element

Description

Code

HLG03

Name

Configure NTP time synchronization

Description

By ensuring that all systems use the same relative

time source (including the relevant localization

offset), and that the relative time source can be

correlated to an agreed-upon time standard (such

as Coordinated Universal Time—UTC), you can

make it simpler to track and correlate an intruder’s

actions when reviewing the relevant log files.

Risk or Control

Incorrect time settings could make it difficult to

inspect and correlate log files to detect attacks, and

would make auditing inaccurate.

Recommendation Level

Enterprise

Parameters or objects

configuration

NTP can be configured on an ESXi host using the

vSphere Client, or using a remote command line

such as vCLI or PowerCLI. It is recommended to

synchronize the ESXi clock not directly with a time

server on a public network, but rather with a time

vSphere 4.0 Security Hardening Guide

server that is located on the management network,

in order to avoid potential vulnerabilities in the NTP

software. This time server could then synchronize

with a public source through a strictly controlled

network connection with a firewall.

Test

• Query the NTP configuration to make sure

that a valid time source has been

configured,

• Make sure that the NTP service is running

on the host

Management

The Common Information Model (CIM) is an open standard that defines a

framework for agent-less, standards-based monitoring of hardware resources for

ESXi. This framework consists of a CIM object manager, often called a CIM

broker, and a set of CIM providers.

CIM providers are used as the mechanism to provide management access to

device drivers and underlying hardware. Hardware vendors, including server

manufacturers and specific hardware device vendors, can write providers to

provide monitoring and management of their particular devices. VMware also

writes providers that implement monitoring of server hardware, ESXi storage

infrastructure, and virtualization-specific resources. These providers run inside

the ESXi system and hence are designed to be extremely lightweight and

focused on specific management tasks. The CIM broker takes information from

all CIM providers and presents it to the outside world via standard APIs, the most

common one being WS-MAN.

Parameter Element

Description

Code

HMT01

Name

Control access by CIM-based hardware monitoring tools

Description

The Common Information Model (CIM) system provides an

interface that enables hardware-level management from remote

applications via a set of standard APIs. To ensure that the CIM

interface is secure, provide only the minimum access necessary

to these applications. Do not provision them with the root

account or any other full administrator account, but instead

provide an account that only has limited privileges.

Threat

If an application has been provisioned with a root or full

administrator account, then compromise of that application can

lead to full compromise of the virtual environment.

vSphere 4.0 Security Hardening Guide

Recommendation

Level

Enterprise

Parameters or

objects

configuration

Do not provide root credentials to remote applications to access

the CIM interface. Instead, create a service account specific to

these applications. Read-only access to CIM information is

granted to any local account defined on the ESX/ESXi system,

as well as any role defined in vCenter Server.

If the application requires write access to the CIM interface, only

two privileges are required. It is recommended that you create a

role to apply to the service account with only these privileges:

• Host > Config > SystemManagement

• Host > CIM > CIMInteraction

This role can either be local to the host, or centrally defined on

vCenter Server, depending on how the particular monitoring

applications works.

Test

Logging into the host with the service account (e.g. using the

vSphere Client) should only provide Read-Only access, or only

the two privileges indicated above.

ESXi 4.0 contains a different SNMP agent from that in ESX 4.0, and it supports

only versions 1 and 2c. It provides the same notifications as ESX 4.0 and adds

notifications for hardware-related sensors. Unlike ESX 4.0, it supports only the

SNMPv2-MIB and supports it only for discovery, inventory, and diagnostics of the

SNMP agent.

SNMP messages contain a field called the community string, which conveys

context and usually identifies the sending system for notifications. This field also

provides context for the instance of a MIB module on which the host should

return information. ESX/ESXi SNMP agents allow multiple community strings per

notification target as well as for polling. Keep in mind that community strings are

not meant to function as passwords, but only as a method for logical separation.

Configuration Element

Description

Code

HMT02

Name

Ensure proper SNMP configuration (ESXi ONLY)

Description

If SNMP is not being used, it should remain

disabled. If it is being used, then the proper trap

destination should be configured

vSphere 4.0 Security Hardening Guide

Risk or Control

If SNMP is not properly configured then monitoring

information could be sent to a malicious host that

could then use this information to plan an attack.

Recommendation Level

Enterprise

Parameters or objects

configuration

SNMP can be configured on an ESXi host using a

remote command line such as vCLI or PowerCLI, or

using an API client.

Test

If SNMP is not being used, then make sure that it is

not running.

If SNMP is being used, then make sure the

parameter settings have the right destination

properly configured.

As with ESX, ESXi maintains its configuration state in a set of configuration files.

However, on ESXi these files can be accessed only using the remote file access

API, and there are far fewer files involved. These files normally are not modified

directly. Instead, their contents normally change indirectly because of some

action invoked on the host. However, the file access API does allow for direct

modification of these files, and some modifications might be warranted in special

circumstances.

The following is a list of configuration-related files exposed via the vSphere API

on ESXi:

• esx.conf

• hostAgentConfig.xml

• hosts

• license.cfg

• motd

• openwsman.conf

• proxy.xml

• snmp.xml

• ssl_cert

• ssl_key

• syslog.conf

• vmware_config

• vmware_configrules

• vmware.lic

• vpxa.cfg

Operational Element

Description

vSphere 4.0 Security Hardening Guide

Code

HMT03

Name

Establish and Maintain Configuration File Integrity

(ESXi ONLY)

Description

ESXi maintains its configuration state in a set of

configuration files. You should monitor all of these

files for integrity and unauthorized tampering, either

by periodically downloading them and tracking their

contents or by using a commercial tool designed to

do this. Any changes should be correlated with

some approved administrative action, such as a

configuration change.

Risk or Control

Tampering with these files has the potential to

enable unauthorized access to the host

configuration and virtual machines.

Recommendation Level

DMZ

Condition or steps

The accessible and relevant configuration files in

ESXi 4.0 are found by browsing to

https://<hostname>/host.

The files can be viewed or retrieved using this web

interface or with an API client (e.g. vCLI,

PowerCLI). This provides a mean to keep track of

the files and their contents to ensure they are not

improperly modified.

Be sure not to monitor log files and other files

whose content is expected to change regularly due

to system activity. Also, account for configuration

file changes that are due to deliberate

administrative activity.

VMsafe provides a security architecture for virtualized environments and an

application program interface (API)-sharing program to enable partners to

develop security products for virtualized environments. For more information on

VMsafe, please see the Virtual Machine section of this guide.

In order for a VM to view and modify the CPU and memory contents of others

VMs on the host, it must have access to the CPU/Mem APIs. This access is

enabled by attaching the VM to a special VMsafe introspection vSwitch.

• vSwitch name: vmsafe

• Portgroup name: vmsafe-appliances

vSphere 4.0 Security Hardening Guide

Configuration Element

Description

Code

HMT10

Name

Prevent unintended use of VMsafe CPU/Mem APIs

Description

If you are not using any products that make use of

the VMsafe CPU/Mem API, then the VMsafe

CPU/Mem introspection vSwitch should not even be

present.

Risk or Control

If the API is enabled, an attacker could attempt to

connect a VM to it, thereby potentially providing

access to the CPU and memory of other VMs on

the host.

Recommendation Level

Enterprise

Parameters or objects

configuration

If a VMsafe CPU/Memory product is not be used on

the host, then ensure that no vSwitch named

“vmsafe” exists on the host.

Test

Options include:

• Check via vSphere Client GUI

• Query using CLI, e.g. vCLI or PowerCLI

• Employ code which uses the vSphere API

VMsafe Network API protection is enabled by a data path kernel module that

must be installed on the ESX/ESXi host by an administrator. This data path

agent has the ability to inspect, modify, and block network traffic going to and

from a virtual machine’s NIC ports. In addition, there typically would be a control

path virtual appliance running on the host. This security virtual appliance needs

to be attached to a special VMsafe introspection vSwitch in order to

communicate with the data path agent.

• vSwitch name: dvfilter

• Portgroup name: dvfilter-appliances

Configuration Element

Description

Code

HMT11

Name

Prevent unintended use of VMsafe Network APIs

vSphere 4.0 Security Hardening Guide

Description

If you are not using any products that make use of

the VMsafe Network API, then the VMsafe Network

introspection vSwitch should not even be present.

Risk or Control

If the API is enabled, an attacker could attempt to

connect a VM to it, thereby potentially providing

access to the network of other VMs on the host.

Recommendation Level

Enterprise

Parameters or objects

configuration

If a VMsafe Network Security Appliance is not be

used on the host, then ensure that no vSwitch

named “dvfilter” exists on the host.

Test

Options include:

• Check via vSphere Client GUI

• Query using CLI, e.g. vCLI or PowerCLI

• Employ code which uses the vSphere API

Host Console

The following sets of recommendations do not pertain to ESX 4.0 (i.e. the

“classic” ESX architecture, with the Console OS). They only apply to the ESXi

architecture.

The DCUI (Direct Console User Interface) is the interface available at the

console of an ESXi host, e.g. at the terminal connect to the server, or the iLO,

DRAC, or other out-of-band management console of the host. It allows for basic

host configuration—modifying networking settings and the root password, for

example – as well as performing maintenance operations such as restarting

agents or rebooting the host.

A username and password must be entered in order to access the DCUI. By

default, only the root account has access to the DCUI. One particular built-in

local group has special meaning. If you give a user membership in the

localadmin group, that user has the ability to log in to the DCUI, which is the

interface available at the console of an ESXi host that allows for basic host

configuration—modifying networking settings and the root password, for

example. Assignment to this group enables an administrative user to perform

tasks on the DCUI without logging in as root. However, this is a very powerful

privilege, because access to the DCUI allows someone to change the root

password or even power off the host. Therefore, only the most trusted

administrators should be granted membership to the localadmin group.

Configuration Element

Description

vSphere 4.0 Security Hardening Guide

Code

HCN01

Name

Ensure only authorized users have access to the

DCUI

Description

Users that are members of the local group called

“localadmin” have the ability to log into the DCUI.

Only those who are authorized should be members

of this group.

Risk or Control

Anyone with credentials to access the DCUI can

reconfigure the host or reboot and turn it off.

Recommendation Level

Enterprise

Parameters or objects

configuration

Check the users in the local group named

“localadmin” and ensure only authorized users are

present.

Test

Unauthorized users should not be able to enter

credentials and log into the DCUI.

Lockdown mode is available on any ESXi 4.0 host that you have added to a

vCenter Server. Enabling lockdown mode disables all remote root access to

ESXi 4.0 machines. Any subsequent local changes to the host must be made:

• Using the DCUI. Access to the DCUI is not affected by Lockdown mode.

• In a vSphere Client session or using vCLI commands to vCenter Server.

• In a vSphere Client session or using vCLI commands direct to the ESXi

4.0 system using a local user account defined on the host.

By default, no local user accounts exist on the ESXi system. You must create

those accounts before enabling lockdown mode and must create them in a

vSphere Client session connected directly to the ESXi system. Changes to a host

are limited to those that can be made with the privileges granted to a particular

user locally on that host.

Note that Lockdown Mode can be enabled or disabled in two places:

• In the vSphere Client, when connected to the vCenter Server managing

the host

• In the DCUI (Direct Console User Interface) of the host.

Parameter

Element

Description

Code

HCN02

vSphere 4.0 Security Hardening Guide

Name

Enable Lockdown Mode to restrict root access

Description

Lockdown mode can be enabled after an ESXi host is added to

vCenter Server. Enabling lockdown mode disables all remote root

access to ESXi 4.0 machines. Any subsequent local changes to

the host must be made:

• Using the DCUI

• In a vSphere Client session or using vCLI commands to

vCenter Server.

• In a vSphere Client session or using vCLI commands direct

to the ESXi 4.0 system

Threat

Security best practices dictate that the root password should be

known to as few individuals as possible, and the root account

should not be used if any alternative is possible, because it is an

anonymous account and activity by the root user cannot be

definitively associated with a specific individual

Recommendation

Level

Enterprise

Parameter setting

To do this manually, in the vSphere Client, in the Configuration

Tab for a host, in the Security Profile setting, click the checkbox for

“Lockdown Mode”. This can also be done using PowerCLI or with

an API client. Lockdown mode can also be enabled and disable

from the DCUI

Effect on

functionality

Enabling Lockdown prevents all API-based access by the root

account to the ESXi host. This includes: vSphere Client, vCLI,

PowerCLI, and any API-based client. Non-root accounts are not

affected.

Configuration Element

Description

Code

HCN03

Name

Avoid adding the root user to local groups

Description

It is possible to add the local root account to local

user groups on the host. However, doing this could

allow one to subvert Lockdown Mode. If root is a

member of a particular group, and then this group is

granted an administrative local role, then root will be

able to log in even if Lockdown Mode is enabled.

Risk or Control

Putting root in a local group, and then granting a

local access role to that group, subverts Lockdown

vSphere 4.0 Security Hardening Guide

Mode, because it allows the root user to continue

logging into the host.

Recommendation Level

Enterprise

Parameters or objects

configuration

Make sure that the local root user is not a member

of any groups other than the defaults.

Test

While Lockdown Mode is enabled, ensure that root

cannot still log in or perform any tasks.

ESXi has a special technical support mode, which is an interactive command line

available only on the console of the server. Technical support mode is

unsupported unless used in consultation with VMware Technical Support and

must be activated before it can be used. Access to this mode requires the root

password of the server in addition to access to the console of the server, either

physically or through a remote KVM or iLO interface.

Technical support mode is designed to be used only in cases of emergency,

when management agents that provide the remote interfaces are inoperable and

they cannot be restarted through the DCUI. There is no reason to use technical

support mode for any other purpose apart from technical support. Technical

support mode is on by default, but you can disable it entirely.

Technical support mode is secured in the following ways:

• It is accessible only on the local console; unlike SSH or Telnet, it cannot

be accessed remotely. Thus, physical access to the host—or something

equivalent to physical access, such as HP ILO, Dell DRAC, IBM RSA, or a

similar remote console tool—is absolutely required for access to technical

support mode. Most organizations have sufficient forms of protection on

physical (or physical equivalent) access to the host (for example, door

locks, key cards, and authentication for the remote console).

• It requires the root password before access is granted. Any individuals

who have both physical (or console) access and the root password are

already fully privileged and can do anything they want on the system. The

presence of technical support mode does not augment or reduce this risk.

You can audit technical support mode using the following information:

• Whenever someone activates technical support mode, the time and date

of activation are sent to the system log messages file.

• All unsuccessful attempts to access technical support mode (that is,

someone enters the incorrect root password) are recorded in the system

log.

• The time and date of all successful accesses to technical support mode

are sent to the system log

vSphere 4.0 Security Hardening Guide

To ensure accurate and reliable system logs, you should configure remote syslog

on the server, so log messages are kept on an outside system and cannot be

altered from the server. Actions performed while in technical support mode are

not logged. Any access to technical support mode should be correlated with a

specific call to VMware Technical Support. If there is no corresponding support

session, you should immediately suspect malicious activity and inspect the

system for tampering.

If you are unable to audit technical support mode to a degree that matches your

security risk posture, you should disable it for all of your ESXi hosts. For details

on disabling technical support mode, see VMware knowledge base article

1003677 (http://kb.vmware.com/kb/1003677).

Parameter

Element

Description

Code

HCN04

Name

Disable Tech Support Mode

Description

Tech Support Mode is an interactive command line available only

on the console of the server. Technical support mode is

unsupported unless used in consultation with VMware Technical

Support and must be activated before it can be used. Access to

this mode requires the root password of the server in addition to

access to the console of the server, either physically or through a

remote KVM or iLO interface.

Threat

Anyone logged into Tech Support Mode can assume complete

control of the host, including reconfiguring and stealing virtual

machine.

Recommendation

Level

SSLF

Parameter setting

Tech Support Mode is governed by a particular kernel parameter

VMkernel.Boot.techSupportMode. This parameter can be unset

either via the vSphere Client or an API client, e.g. the PowerCLI.

For details on disabling technical support mode, see VMware

knowledge base article 1003677

(http://kb.vmware.com/kb/1003677).

Effect on

functionality

If Tech Support Mode is disabled, supportability and diagnosability

of the host may be greatly limited. Since re-enabling Tech Support

Mode requires a reboot, in some cases an issue may not be

resolvable without forcefully shutting down VMs.

vSphere 4.0 Security Hardening Guide

vNetwork (Virtual Networking)

Network Architecture

NOTE: unless otherwise indicated, “vSwitch” refers generically to both vNetwork

Standard Switches and vNetwork Distributed Switches. In the case of vNetwork

Distributed Switches, it is not restricted to any particular vendor either.

Several capabilities of vSphere involve communication among components over

a Management network.

This includes the following types of communication:

• Between ESX/ESXi and vCenter

• Amongst ESX/ESXi hosts—for example, for VMware High Availability

coordination

• Between ESX/ESXi or vCenter and systems running client software such

as the vSphere Client or a VI

• SDK application

• Between ESX/ESXi and ancillary management services, such as DNS,

NTP, syslog, and the user authentication service

• Between ESX/ESXi and third-party management tools, such as 3rd party

virtual switch management, hardware monitoring, systems management,

and backup tools

• Between vCenter and supporting services, such as the vCenter database

and the user authentication service

• Between vCenter and optional add-on components such as VMware

Update Manager and

• VMware Converter Enterprise, if they are installed on separate servers

• VMotion. This involves transferring the live running state of a virtual

machine from one ESX/ESXi host to another.

• Storage. This includes any network-based storage, such as iSCSI and

NFS.

All of the networks used for these communications provide direct access to core

functionality of vSphere, The management network provides access to the

vSphere management interface on each component, and any remote attack

would most likely begin with gaining entry to this network. VMotion traffic is not

encrypted, so the entire state of a virtual machine could potentially be snooped

from this network. Finally, access to the storage network potentially allows

someone to read the contents of virtual disks residing on shared storage.

Therefore, all of these networks should be isolated and strongly secured from all

other traffic, especially any traffic going to and from virtual machines. The

exception is if one of the components listed above actually runs in a virtual

machine. In that case, this virtual machine naturally has an interface on the

management network and thus should not have an interface on any other

network.

vSphere 4.0 Security Hardening Guide

VMware recommends that you isolate networks using one of these methods:

• Create a separate VLAN for each network.

• Configure network access for each network through its own virtual switch

and one or more uplink ports.

In either case, you should consider using NIC teaming for the virtual switches to

provide redundancy.

If you use VLANs, you need fewer physical NICs to provide the isolation, a factor

that is especially important in environments with constrained hardware such as

blades. VMware virtual switches are by design immune to certain types of attacks

that have traditionally targeted VLAN functionality. In general, VMware believes

that VLAN technology is mature enough that it can be considered a viable option

for providing network isolation. The greater risk in using VLANs is that of

misconfiguration, both in the virtual network layer as well as the physical

switches.

If you do not use VLANs, either because the VLAN support in your physical

network environment is not sufficiently mature, or because you do not consider

VLANs strong enough for isolation, you can combine the management networks

onto two or fewer virtual switches. However, you should still keep the virtual

machine networks separate from the management networks by using separate

virtual switches with separate uplinks.

Configuration

Element

Description

Code

NAR01

Name

Ensure vSphere management traffic is on a restricted network.

Description

The vSphere management network provides access to the

vSphere management interface on each component, and any

remote attack would most likely begin with gaining entry to this

network. The vSphere management interfaces include

• Service Console interface on ESX

• Management vmkernel interface on ESXi

Risk or Control

Services running on the management interface provide an

opportunity for attacker to gain privileged access to the systems.

Recommendation

Level

Enterprise

SSLF

Parameters or

objects

configuration

The vSphere management

Portgroup should be in a

dedicated VLAN on a

common vSwitch. The

vSwitch can be shared with

The vSphere management

Portgroup should be on a

management-only vSwitch,

vSphere 4.0 Security Hardening Guide

production (VM) traffic, as

long as the vSphere

management portgroup’s

VLAN is not used by

production VMs.

Effect on

functionality

At least one additional physical

NIC must be dedicated to

management (more if NIC

teaming used). This could

greatly increase the cost of the

physical networking infrastructure

required, and in resource-

constrained environments (such

as blades), this might not even be

possible to achieve.

Test

• Check for usage of VLAN

ID on non- Management

Portgroups

• Check that the network

segment is not routed

except possibly to

networks where other

management-related

entities are found. In

particular, make sure

production VM traffic

cannot be routed to this

network.

In addition to Enterprise tests,

• Check that Management-only

vSwitch does not contain any

non-management portgroups

Configuration

Element

Description

Code

NAR02

Name

Ensure VMotion Traffic is isolated

Description

The security issue with VMotion migrations is that information is

transmitted in plaintext and anyone with access to the network

over which this information flows may view it. Ensure that

VMotion traffic is separate from production traffic on an isolated

network. This network should be a non-routable (no layer 3

router spanning this and other networks), which will prevent any

outside access to the network.

vSphere 4.0 Security Hardening Guide

Risk or Control

Attackers can sniff VMotion traffic to obtain memory contents of a

VM. They could also potentially stage a man-in-the-middle attack

in which the contents are modified during migration.

Recommendation

Level

Enterprise

SSLF

Parameters or

objects

configuration

vMotion

Portgroup should

be in a dedicated

VLAN on a

common vSwitch.

The vSwitch can

be shared with

production (VM)

traffic, as long as

the VMotion

portgroup’s VLAN

is not used by

production VMs.

vMotion Portgroup should be on a

management-only vSwitch

Effect on

functionality

At least one additional physical NIC must be

dedicated to management (more if NIC

teaming used). This could greatly increase

the cost of the physical networking

infrastructure required, and in resource-

constrained environments (such as blades),

this might not even be possible to achieve.

Test

• Check for

usage of

VLAN ID on

non-vMotion

Portgroups

• Check that

VLAN is

isolated and

not routed in

the physical

network

In addition to Enterprise tests,

• Check that vMotion Portgroup vSwitch

does not contain any non-management

portgroups

• Check that the physical network is not

accessed by any other non-management

entity

Configuration

Element

Description

Code

NAR03

vSphere 4.0 Security Hardening Guide

Name

Ensure IP Based Storage Traffic is isolated

Description

Virtual machines may share virtual switches and VLANs with the

IP Based Storage configurations. IP Based Storage includes

• iSCSI

• NFS

This type of configuration may expose IP Based Storage traffic to

unauthorized virtual machine users. To restrict unauthorized

users from viewing the IP Based Storage traffic, the IP Based

Storage network should be logically separated from the

production traffic. Configuring the IP Based Storage adapters on

separate VLANs or network segments from the VMkernel

management and service console network will limit unauthorized

users from viewing the traffic.

Risk or Control

IP-based storage is frequently not encrypted and so could be

viewed by anyone with access to this network.

Recommendation

Level

Enterprise

SSLF

Parameters or

objects

configuration

Storage Portgroups should

be in a dedicated VLAN on

a common vSwitch. The

vSwitch can be shared

with production (VM)

traffic, as long as the

Storage portgroup’s VLAN

is not used by production

VMs.

Storage Portgroup should be on a

management-only vSwitch

Effect on

functionality

At least one additional physical NIC

must be dedicated to management

(more if NIC teaming used). This

could greatly increase the cost of

the physical networking

infrastructure required, and in

resource-constrained environments

(such as blades), this might not

even be possible to achieve.

Test

• Check for usage of

VLAN ID on non-

Storage Portgroups

• Check that VLAN is

isolated and not routed

in the physical network

In addition to Enterprise tests,

• Check that Storage Portgroup

vSwitch does not contain any

non-management portgroups

• Check that the physical network

is not accessed by any other

non-management entity

vSphere 4.0 Security Hardening Guide

Operational Element

Description

Code

NAR04

Name

Strictly control access to Management network

Description

However the Management network is restricted,

there will always be a need for administrators to

access this network in order to configure vCenter

and the ESX/ESXi hosts. Instead of allowing client

systems on this network, there are ways to enable

access to management functionality in a strictly

controlled manner.

Risk or Control

If an attacker gains access to the Management

network, then it provides the staging ground for

further attack.

Recommendation Level

DMZ

SSLF

Condition or steps

Configure a controlled

gateway to access the

management network.

For example, require

that administrators

connect to it via a VPN,

and only allow access

by trusted

administrators.

Configure jump boxes

that run vSphere Client

and other management

clients (e.g., vMA).

These systems reside

on the Management

network and do not run

any other application. In

addition to controlling

access to the

management network,

require that

administrators use a

remote display protocol

(such as RDP or VNC)

to connect to the jump

boxes, and that this

access goes through a

firewall that restricts

network traffic only to

this display protocol and

any other required to

support it. Only the

management clients

running on the jump

boxes are able to

vSphere 4.0 Security Hardening Guide

manage the vSphere

deployment.

vNetwork Configuration

Port groups define how virtual machine connections are made through the virtual

switch. Port groups may be configured with bandwidth limitations and VLAN

tagging policies for each member port. Multiple ports may be aggregated under

port groups to provide a local point for virtual machines to connect to a network.

The maximum number of port groups that may be configured on a virtual switch

is 512. A network label and optionally a VLAN ID identify each port group.

Configuration Element

Description

Code

NCN02

Name

Ensure that there are no unused ports on a

Distributed vSwitch Port Group

Description

The number of ports in a Distributed Port Group can

be adjusted to exactly match the number of VMs

assigned to that port group

Risk or Control

By limiting the number of ports in a port group it

limits the potential for a VM administrator either

accidentally or maliciously moving a VM to an

unauthorized network.

Recommendation Level

DMZ

Parameters or objects

configuration

“Number of Ports” Setting in the Settings Page of a

Port Group.

Test

Can be done manually through the vSphere Client.

1. While connected to the vCenter Server

Navigate to Home  Inventory 

Networking in the vSphere Client and click

on the vDS in question.

2. Click on the Ports Tab

3. Check if all of the ports in the list have a

VM associated with them in the

“connected” column.

The equivalent steps can be automated using

scripting or the SDK.

vSphere 4.0 Security Hardening Guide

Each virtual NIC in a virtual machine has an initial MAC address assigned when

the virtual adapter is created. Each virtual adapter also has an effective MAC

address that filters out incoming network traffic with a destination MAC address

different from the effective MAC address. A virtual adapter’s effective MAC

address and initial MAC address are the same when they are initially created.

However, the virtual machine’s operating system may alter the effective MAC

address to another value at any time. If the virtual machine operating system

changes the MAC address, the operating system can send frames with an

impersonated source MAC address at any time. This allows an operating system

to stage malicious attacks on the devices in a network by impersonating a

network adapter authorized by the receiving network. System administrators can

use virtual switch security profiles on ESX Server hosts to protect against this

type of attack by setting two options on virtual switches. These options are MAC

Address Changes and Forged Transmits.

MAC address changes are set to accept by default, meaning that the virtual

switch accepts requests to change the effective MAC address. The MAC

Address Changes option setting affects traffic received by a virtual machine. To

protect against MAC impersonation this option will be set to reject, ensuring the

virtual switch does not honor requests to change the effective MAC address to

anything other than the initial MAC address. Setting this to reject disables the

port that the virtual network adapter used to send the request. Therefore, the

virtual network adapter does not receive any more frames until it configures the

effective MAC address to match the initial MAC address. The guest operating

system will not detect that the MAC address change has not been honored.

Forged transmissions are set to accept by default. This means the virtual switch

does not compare the source and effective MAC addresses. The Forged

Transmits option setting affects traffic transmitted from a virtual machine. If this

option is set to reject, the virtual switch compares the source MAC address being

transmitted by the operating system with the effective MAC address for its virtual

network adapter to see if they are the same. If the MAC addresses are different,

the virtual switch drops the frame. The guest operating system will not detect that

its virtual network adapter cannot send packets using the different MAC address.

To protect against MAC address impersonation, all virtual switches should have

forged transmissions set to reject.

ESX Server has the ability to run virtual and physical network adapters in

promiscuous mode. Promiscuous mode may be enabled on public and private

virtual switches. When promiscuous mode is enabled for a public virtual switch,

all virtual machines connected to the public virtual switch have the potential of

reading all packets sent across that network, from other virtual machines and any

physical machines or other network devices. When promiscuous mode is

enabled for a private virtual switch, all virtual machines connected to the private

virtual switch have the potential of reading all packets across that network,

meaning only the virtual machines connected to that private virtual switch. By

vSphere 4.0 Security Hardening Guide

default, promiscuous mode is set to Reject, meaning that the virtual network

adapter cannot operate in Promiscuous mode.

These parameters can be set on a per-vSwitch basis. They can also be

overridden on individual port groups, and this is how exceptions should be made

for special VMs that require these capabilities, such as inline virtual security

devices or clustering software.

Parameter

Element

Description

Code

NCN03

Name

Ensure the “MAC Address Change” Policy is set to Reject.

Description

To protect against MAC impersonation this option should be set to

reject, ensuring the virtual switch does not honor requests to

change the effective MAC address to anything other than the

initial MAC address.

Threat

If the virtual machine operating system changes the MAC

address, the operating system can send frames with an

impersonated source MAC address at any time. This allows an

operating system to stage malicious attacks on the devices in a

network by impersonating a network adapter authorized by the

receiving network.

Recommendation

Level

Enterprise

Parameter setting

MAC Address Changes set to Reject (Accept by default) on all

vSwitches

Effect on

functionality

This will prevent VMs from changing their effective MAC address.

This will affect applications that require this functionality. An

example of an application like this is Microsoft Clustering, which

requires systems to effectively share a MAC address. This will

also effect how a layer 2 bridge will operate. vShield Zones will

not operate properly if the MAC Address Changes” is set to reject.

Also this will affect applications that require a specific MAC

address for licensing. An exception for the port groups that these

applications are connected to should be made.

Parameter

Element

Description

Code

NCN04

vSphere 4.0 Security Hardening Guide

Name

Ensure the “Forged Transmits” Policy is set to Reject.

Description

Forged transmissions should be set to accept by default. This

means the virtual switch does not compare the source and

effective MAC addresses. To protect against MAC address

impersonation, all virtual switches should have forged

transmissions set to reject.

Threat

If the virtual machine operating system changes the MAC

address, the operating system can send frames with an

impersonated source MAC address at any time. This allows an

operating system to stage malicious attacks on the devices in a

network by impersonating a network adapter authorized by the

receiving network.

Recommendation

Level

Enterprise

Parameter setting

“Forged Transmits” parameter should be set to “Reject” on all

vSwitches

Effect on

functionality

This will prevent VMs from changing their effective MAC address.

This will affect applications that require this functionality. An

example of an application like this is Microsoft Clustering which

requires systems to effectively share a MAC address. This will

also effect how a layer 2 bridge will operate. vShield Zones will

not operate properly if the Forged Transmits” parameter is set to

“Reject”. Also this will affect applications that require a specific

MAC address for licensing. An exception for the port groups that

these applications are connected to should be made.

Parameter

Element

Description

Code

NCN05

Name

Ensure the “Promiscuous Mode” Policy is set to Reject.

Description

Promiscuous mode is disabled by default on the ESX Server, and

this is the recommended setting. However there might be a

legitimate reason to enable it for debugging, monitoring, or

troubleshooting reasons.

Threat

When promiscuous mode is enabled for a private virtual switch, all

virtual machines connected to the private virtual switch have the

potential of reading all packets across that network, meaning only

vSphere 4.0 Security Hardening Guide

the virtual machines connected to that private virtual switch.

Recommendation

Level

Enterprise

Parameter setting

“Promiscuous Mode” parameter should be set to “Reject” on all

vSwitches

Effect on

functionality

vShield Zones and other security devices that require the ability to

see all packets on a vSwitch will not operate properly if the

“Promiscuous Mode” parameter is set to “Reject”. An exception

for the port groups that these applications are connected to should

be made to allow for full time visibility to the traffic on that virtual

switch.

Physical switches use the native VLAN for switch control and management

protocol. Native VLAN frames are not tagged with any VLAN ID in many types of

switches. The trunk ports implicitly treat all untagged frames as native VLAN

frames. VLAN 1 is the default native VLAN ID for many commercial switches.

However, in many enterprise networks, the native VLAN might be VLAN 1 or any

number depending on the switch type.

Parameter Element

Description

Code

NCN06

Name

Ensure that port groups are not configured to the

value of the native VLAN.

Description

ESX does not use the concept of native VLAN.

Frames with VLAN specified in the port group will

have a tag, but frames with VLAN not specified in

the port group are not tagged and hence will end

up as belonging to native VLAN of the physical

switch.

For example, frames on VLAN 1 from a Cisco

physical switch will be untagged, because this is

considered as the native VLAN. However, frames

from ESX specified as VLAN 1 will be tagged with

a “1”. Therefore, traffic from ESX that is destined

for the native VLAN will not be correctly routed

(since it is tagged with a 1 instead of being

untagged), and traffic from the physical switch

coming from the native VLAN will not be visible

(since it is not tagged).

vSphere 4.0 Security Hardening Guide

Risk or Control

If the ESX virtual switch port group uses the native

VLAN ID, then traffic from those VMs will not be

visible to the native VLAN on the switch, since the

switch is expecting untagged traffic.

Recommendation Level

Enterprise

Parameters setting

If the default value of 1 for the native VLAN is being

used, then the ESX Server virtual switch port

groups should be configured with any value

between 2 and 4094. Otherwise, ensure that the

port group is NOT configured to use whatever value

is set for the native VLAN.

Parameter Element

Description

Code

NCN07

Name

Ensure that port groups are not configured to VLAN

4095 except for Virtual Guest Tagging

Description

When a portgroup is set to VLAN 4095, this

activates Virtual Guest Tagging (VGT) mode. In

this mode, the vSwitch passes all network frames to

the guest VM without modifying the VLAN tags,

leaving it up to the guest to deal with them. VLAN

4095 should only be used if the guest has been

specifically configured to manage VLAN tags itself.

Risk or Control

If VGT is enabled inappropriately, it could cause

denial of service or allow a guest VM to interact with

traffic on an unauthorized VLAN.

Recommendation Level

Enterprise

Parameters setting

VLAN ID setting on all portgroups should not be set

to 4095 unless VGT is required.

Parameter Element

Description

Code

NCN08

Name

Ensure that port groups are not configured to VLAN

values reserved by upstream physical switches

vSphere 4.0 Security Hardening Guide

Description

Certain physical switches reserve certain VLAN IDs

for internal purposes, and often times disallow traffic

configured to these values. For example, Cisco

Catalyst switches typically reserve VLANs 1001-

1024 and 4094, while Nexus switches typically

reserve 3968-4047 and 4094. Check with the

documentation for your specific switch.

Risk or Control

Using a reserved VLAN could result in a denial of

service on the network.

Recommendation Level

Enterprise

Parameters setting

VLAN ID setting on all portgroups should not be set

to reserved values of the physical switch.

Operational Element

Description

Code

NCN10

Name

Ensure that Port Groups are Configured with a clear

network label.

Description

A network label identifies each port group with a

name. These names are important since they serve

as a functional descriptor for the port group.

Risk or Control

Without these descriptions, identifying port groups

and their functions becomes difficult as the network

becomes more complex.

Recommendation Level

Enterprise

Condition or steps

This can be done through the vSphere client by

manually checking the names of the different port

groups. To check the port group names in the

vSphere client, connect to the vCenter server and

navigate to Home  Inventory  Networking. You

will be able to view all the different port groups and

determine if the port group names are clearly

labeled or could be renamed with a meaningful

name.

Scripted method (vCLI command): vicfg-vswitch –l

command.

vSphere 4.0 Security Hardening Guide

Operational Element

Description

Code

NCN11

Name

Ensure that all vSwitches have a clear network

label.

Description

Virtual switches within the ESX Server require a

field for the name of the switch. This label is

important since it serves as a functional descriptor

for the switch, just as physical switches require a

hostname.

Risk or Control

Labeling virtual switches will indicate the function or

the IP subnet of the virtual switch. For instance,

labeling the virtual switch as “internal” or some

variation will indicate that the virtual switch is only

for internal networking between virtual machines

private virtual switch with no physical network

adapters bound to it.

Recommendation Level

Enterprise

Condition or steps

This can be done through the vSphere client by

manually checking the names of the different

vSwitches. To check the port group names in the

vSphere client, connect to the vCenter server and

navigate to Home  Inventory  Networking. You

will be able to view all the different vSwitches and

determine if the port group names are clearly

labeled or could be renamed with a meaningful

name.

Scripted method (vCLI command): vicfg-vswitch –l

command.

Operational Element

Description

Code

NCN12

Name

Fully document all VLANs used on vSwitches

vSphere 4.0 Security Hardening Guide

Description

When defining a physical switch port for trunk

mode, care must be taken to ensure only specified

VLANs are configured. It is considered best practice

to restrict only those VLANs required on the VLAN

trunk link.

Risk or Control

The risk with not fully documenting all VLANs on the

vSwitch is that it is possible that a physical trunk

port could be configured without needed VLANs, or

with unneeded VLANs potentially allowing an

administrator the ability to either accidentally or

maliciously to connect a VM to an unauthorized

VLAN.

Recommendation Level

Enterprise

Condition or steps

Both standard and distributed vSwitch

configurations can be viewed in the vSphere Client

or by using the vSphere API.

For a standard vSwitch, vicfg-vswitch –l will list all

portgroups and their VLAN association. Compare

this list with the physical switch configuration.

Operational Element

Description

Code

NCN13

Name

Ensure that only authorized administrators have

access to virtual networking components.

Description

It is important to leverage the role based access

controls within vSphere to ensure that only

authorized administrators have access to the

different virtual networking components. For

example, VM administrators should only have

access to port groups in which their VMs reside.

Network administrators should have permissions to

all virtual networking components, but not have

access to VMs. These controls will depend very

much on the organizations policy on separation of

duties, least privilege, and the responsibilities of the

administrators within the organization.

Risk or Control

This control mitigates the risk of misconfiguration,

whether accidental or malicious, and enforces key

vSphere 4.0 Security Hardening Guide

security concepts of separation of duties and least

privilege.

Recommendation Level

Enterprise

Condition or steps

Ensure that vSphere permissions to specific port

groups are granted only to those individuals that

need it.

Physical Network

Operational Element

Description

Code

NPN01

Name

Ensure physical switch ports are configured with

spanning tree disabled.

Description

EST mode has a one-to-one relationship; the

number of VLANs supported on the ESX Server

system is limited to the number of physical network

adapter ports assigned to the VMkernel. EST is

enabled when the port group’s VLAN ID is set to 0

or left blank. Due to the integration of the ESX

Server into the physical network, the physical

network adapters will need to have spanning-tree

disabled or portfast configured for external

switches, since VMware virtual switches do not

support STP. Virtual switch uplinks do not create

loops within the physical switch network.

Risk or Control

If these are not set, potential performance and

connectivity issues could arise.

Recommendation Level

Enterprise

Condition or steps

spanning-tree protocol is disabled and/or portfast is

configured for all physical ports connected to

ESX/ESXi hosts.

Operational Element

Description

vSphere 4.0 Security Hardening Guide

Code

NPN02

Name

Ensure that the non-negotiate option is configured

for trunk links between external physical switches

and virtual switches in VST mode

Description

In order to communicate with virtual switches in

VST mode, external switch ports must be

configured as trunk ports. VST mode does not

support Dynamic Trunking Protocol (DTP), so the

trunk must be static and unconditional. The auto or

desirable physical switch settings do not work with

the ESX Server because the physical switch

expects the ESX Server to communicate using

DTP. The non-negotiate and on options enable

VLAN trunking on the physical switch

unconditionally and create a VLAN trunk link

between the ESX Server and the physical switch.

The difference between non-negotiate and on

options is that on mode still sends out DTP frames,

while the non-negotiate option does not.

Risk or Control

The non-negotiate option should be used for all

VLAN trunks to minimize unnecessary network

traffic for virtual switches in VST mode.

Recommendation Level

Enterprise

Condition or steps

Dynamic Trunking Protocol is not enabled on the

physical switch ports connected to the ESX/ESXi

Host.

Operational Element

Description

Code

NPN03

Name

Ensure that VLAN trunk links are connected only to

physical switch ports that function as trunk links.

Description

When connecting a virtual switch to a VLAN trunk

port, you must be careful to properly configure both

the virtual switch and the physical switch at the

uplink port. If the physical switch is not properly

configured, frames with the VLAN 802.1q header

would be forwarded to a switch not expecting their

vSphere 4.0 Security Hardening Guide

arrival. The vSphere administrator should always

ensure that virtual switch uplinks, acting as VLAN

trunk links, are connected only to physical switch

ports that function as trunk links.

Risk or Control

Misconfiguration of the physical switch ports could

lead to undesirable behavior, including frames

being dropped or misdirected.

Recommendation Level

Enterprise

Condition or steps

Routinely check physical switch ports to ensure

they are properly configured as trunk ports.

vSphere 4.0 Security Hardening Guide

vCenter

vCenter Server Host

Because vCenter Server runs on a Windows host, it is especially critical to

protect this host against vulnerabilities and attacks. The standard set of

recommendations applies, as it would for any host: install antivirus agents,

spyware filters, intrusion detection systems, and any other security measures.

Make sure to keep all security measures up-to-date, including application of

patches.

Operational

Element

Description

Code

VSH01

Name

Maintaining supported operating system, database, and hardware for

vCenter

Description

vCenter Server resides on a Windows based operating system and

therefore requires a supported version of Windows.

Risk or Control

If vCenter is not running on a supported OS, then it might not run

properly, and an attacker might be able to take advantage of this to

perform a DoS attack or worse.

Recommendati

on Level

Enterprise

Condition or

steps

For Operating System and database compatibility use, “vSphere

Compatibility Matrixes” whitepaper:

http://www.vmware.com/pdf/vsphere4/r40/vsp_compatibility_matrix.pd

For Hardware Requirements use, “ESX and vCenter Server

Installation Guide” whitepaper:

http://www.vmware.com/pdf/vsphere4/r40/vsp_40_esx_vc_installation

_guide.pdf

Operational Element

Description

Code

VSH02

vSphere 4.0 Security Hardening Guide

Name

Keep vCenter Server system properly patched

Description

By staying up to date on Window patches,

vulnerabilities in the OS can be mitigated.

Risk or Control

If an attacker can obtain access and elevate

privileges on the vCenter Server system, then can

then take over the entire vSphere deployment

Recommendation Level

Enterprise

Condition or steps

Employ a system to keep the vCenter Server

system up to date with patches, in accordance with

industry-standard guidelines, or internal guidelines

where appropriate.

Operational Element

Description

Code

VSH03

Name

Provide Windows system protection on the vCenter

Server host

Description

By providing OS-level protection, vulnerabilities in

the OS can be mitigated. This protection includes

anti-virus, anti-malware, and other similar

measures.

Risk or Control

If an attacker can obtain access and elevate

privileges on the vCenter Server system, then can

then take over the entire vSphere deployment

Recommendation Level

Enterprise

Condition or steps

Provide Windows system protection, such as anti-

virus, in accordance with industry-standard

guidelines, or internal guidelines where appropriate.

Operational Element

Description

Code

VSH04

vSphere 4.0 Security Hardening Guide

Name

Avoid user login to vCenter Server system

Description

Once someone has logged in to the vCenter Server

system, it becomes more difficult to prevent what

they can do. In general, logging in to the vCenter

Server system should be limited to very privileged

Admins, and then only for the purpose of administer

vCenter Server or the host OS.

Risk or Control

Anyone logged into the vCenter Server can

potentially cause harm, either intentionally or

unintentionally, by altering settings and modifying

processes. They also have potential access to

vCenter credentials, such as the SSL certificate.

Recommendation Level

Enterprise

Condition or steps

Restrict login to the vCenter System only to those

personnel who have legitimate tasks to perform in it.

Ensure that they only log in when necessary, and

audit these events.

Configuration Element

Description

Code

VSH05

Name

Install vCenter Server using a Service Account

instead of a built-in Windows account

Description

You can use the Microsoft Windows built-in system

account or a user account to run vCenter Server.

With a user account, you can enable Windows

authentication for SQL Server, and it also provides

more security.

The user account must be an administrator on the

local machine. In the installation wizard, you specify

the account name as DomainName\Username. If

you are using SQL Server for the vCenter

Database, you must configure the SQL Server

database to allow the domain account access to

SQL Server.

Even if you do not plan to use Microsoft Windows

authentication for SQL Server or you are using an

Oracle database, you might want to set up a local

user account for the vCenter Server system. In this

vSphere 4.0 Security Hardening Guide

case, the only requirement is that the user account

is an administrator on the local machine.

Risk or Control

The Microsoft Windows built-in system account has

more permissions and rights on the server than the

vCenter Server system needs, which can contribute

to security problems.

Recommendation Level

DMZ

Parameters or objects

configuration

Before installing vCenter Server, Create a special-

purpose user account on the Windows host and

grant it only the local administrator role on the host.

This account should have "Act as part of the

Operating System" privilege, and write access to

the local file system. Specify this account in the

vCenter Server installation process.

Test

‐ Check to see that the vCenter processes are

running as the Service Account.

‐ Check to make sure Service Account has

only local administrator role

Configuration

Element

Description

Code

VSH06

Name

Restrict usage of vSphere Administrator Privilege

Description

By default, vCenter Server grants full administrative rights to the

local administrators account, which can be access by domain

administrators.

Risk or Control

Separation of Duties dictates that full vSphere administrative rights

should be granted only those Admins who are required to have it.

This privilege should not be granted to any group whose

membership is not strictly controlled. Therefore, administrative

rights should be removed from the local Windows Administrator

account and instead be given to a special-purpose local vSphere

administrator account.

Recommendation

Level

Enterprise

DMZ

vSphere 4.0 Security Hardening Guide

Condition or

steps

1. Create an ordinary user

account that will be used to

manage vCenter (example

vi-admin)

2. Make sure the user does not

belong to any local groups,

such as Administrator

3. Log onto vCenter as the

Windows Administrator, then

grant the role of

Administrator (Global

vCenter Administrator) to the

account created in step 1 on

the top-level Hosts and

Clusters Folder

4. Log out of vCenter and log

into vCenter with the

account created in step 1,

verify user is able to perform

all tasks available to a

vCenter Administrator

5. Remove the permissions in

the vCenter for the Local

Administrator Group

After performing the steps in the

“Enterprise” level, protect the vi-

admin account from regular

usage and instead rely upon

accounts tied to specific

individuals. This should be

done as follows

1. Logged in as vi-admin,

grant full administrative

rights to the minimum

number of individuals

required, typically senior

IT staff.

2. Log out as vi-admin, and

then protect the

password.

There are numerous ways in

which the password can be

protected, e.g., use a very

strong password and then lock

the printout in a safe, or employ

a system in which two

individuals must each type one

half of a password, each of

which is mutually unknown to

the other.

Test

Observe the assigned

permissions in vSphere, and

make sure that “Administrator”

or any other unnecessary

account or group has any

assigned privileges.

vCenter Server Communication

Client sessions with vCenter Server may be initiated from any vSphere API

client, such as vSphere Client and PowerCLI. By default, SSL encryption protects

this connection, but the default certificates are not signed by a trusted certificate

authority and, therefore, do not provide the authentication security you might

need in a production environment. These self-signed certificates are vulnerable

to man-in-the-middle attacks, and clients receive a warning about them. If you

intend to use encrypted remote connections externally, consider purchasing a

certificate from a trusted certificate authority or use your own security certificate

for your SSL connections.

vSphere 4.0 Security Hardening Guide

Certificates are currently stored in C:\Documents and Settings\All

Users\Application Data\VMware\VMware VirtualCenter\SSL\ . By default, these

can be accessed by any user on the server.

Configuration

Element

Description

Code

VSC01

Name

Do not use default self-signed certificates

Description

Self-signed certificates are automatically generated by vCenter

Server during the installation process and are not signed by a

commercial Certificate Authority (CA) and may not provide strong

security. Replace default self-signed certificates with those from a

trusted certification authority, either a commercial CA or an

organizational CA.

Risk or Control

The use of default certificates leaves the SSL connection open to

Man in the Middle (MiTM) attacks. By changing the default

certificates to trusted CA Signed certificates, mitigates the potential

for (MiTM) attacks.

Recommendation

Level

Enterprise

Condition or

steps

For new certificate installations on vSphere use the “Replacing

vCenter Server Certificates” whitepaper:

http://www.vmware.com/pdf/vsp_4_vcserver_certificates.pdf

For existing certificate installations on vSphere use the “vSphere

Upgrade Guide” whitepaper :

http://www.vmware.com/pdf/vsphere4/r40/vsp_40_upgrade_guide.pdf

Test

Ensure that any certificates presented by the host can be verified by

a trusted certification authority.

Operational Element

Description

Code

VSC02

Name

Monitor access to SSL certificates

Description

The directory that contains the SSL certificates only

vSphere 4.0 Security Hardening Guide

needs to be access by the Service Account user on

a regular basis. Occasionally, the vCenter Server

system administrator might need to access them for

support purposes.

Risk or Control

The SSL certificate can be used to impersonate

vCenter and decrypt the vCenter Database

password.

Recommendation Level

DMZ

Condition or steps

Use event log and MOM to alert on non-service

account access to certificates directory

Parameter

Element

Description

Code

VSC03

Name

Restrict access to SSL certificates

Description

By default, any user on the vCenter Server system can access the

directory containing the SSL certificates. The directory that

contains the SSL certificates only needs to be accessed by the

Service Account user on a regular basis. Occasionally, when

collecting data for support purposes, the vCenter Server system

administrator might need to access them.

Threat

The SSL certificate can be used to impersonate vCenter and

decrypt the vCenter Database password.

Recommendation

Level

SSLF

Parameter setting

Change the Windows file permission on the SSL certificate

directory so that only the vCenter service account can access it.

Effect on

functionality

Supportability limitations:

• Will prevent a complete support log from being collected

when the vc-support script is issued

• Will prevent the admin from being able to change the

vCenter DB password

Operational Element

Description

vSphere 4.0 Security Hardening Guide

Code

VSC04

Name

Always verify SSL certificates

Description

When connecting to vCenter Server using vSphere

Client, the client checks to see if the certificate

being presented can be verified by a trusted 3rd

party. If it cannot be, then the user is presented

with a warning and the option to ignore this check.

This warning should not be ignored, and if an

administrator is presented with this warning then

they should inquire further about it before

proceeding

Risk or Control

Without certificate verification, the user can be

subject to a man-in-the-middle attack, which

potentially allows for compromise by impersonating

to the vCenter Server system with the user’s

credentials

Recommendation Level

Enterprise

Condition or steps

Instruct any user of vSphere Client to never ignore

certificate verification warnings.

The only network connection vCenter Server requires is to the management

network described in the vNetwork Section. You should avoid putting the vCenter

Server system on any other network, such as your production or storage

network, or a network with access to the public Internet. Specifically, vCenter

Server does not need access to the network on which VMotion takes place. By

limiting the network connectivity, you cut down on the possible avenues of attack.

In general vCenter Server only needs network connectivity to the following

systems:

‐ All ESX/ESXi hosts

‐ The vCenter Server Database

‐ Other vCenter Server systems if operating in Linked Mode.

‐ Systems that are authorized to run management clients. Examples of

these include:

o vSphere Client

o vMA (the vSphere Management Assistant)

o A windows system from which the PowerCLI is to be used

o Any other SDK-based client

‐ Systems running add-on components, such as VMware Update Manager

‐ IT infrastructure services, such as DNS, AD, NTP, etc.

vSphere 4.0 Security Hardening Guide

‐ Other systems running components essential to any particular functionality

of vCenter Server that is needed.

Use the following guidelines to limit network connectivity:

Configuration Element

Description

Code

VSC05

Name

Restrict network access to vCenter Server system

Description

Restrict access only to those essential components

required to communicate with vCenter.

Risk or Control

Blocking access by unnecessary systems mitigates

against general attacks on the Windows system.

Recommendation Level

DMZ

Parameters or objects

configuration

You should protect the vCenter Server using a local

firewall on the Windows system of vCenter or a

network firewall. This protection should include IP-

based access restrictions, so that only necessary

components can communicate with the vCenter

Server system

Test

Configuration Element

Description

Code

VSC06

Name

Block access to ports not being used by vCenter

Description

A local firewall on the Windows system of vCenter

or a network firewall can be used to block access to

ports not specifically being used by vCenter.

Risk or Control

Block unneeded ports can mitigate against general

attacks on the Windows system.

Recommendation Level

DMZ

Parameters or objects

configuration

The list of ports used by vCenter may be found in

this KB article: http://kb.vmware.com/kb/1012382

Here is a partial list of examples when ports may be

vSphere 4.0 Security Hardening Guide

blocked:

• 636/TCP: If the vCenter will not be part of a

Linked Mode vCenter group.

• 1521/TCP: If the VCDB is not Oracle.

Make sure not to block any ports for functionality

that is actually in use in your environment.

Test

Parameter

Element

Description

Code

VSC07

Name

Disable Managed Object Browser

Description

The Managed Object Browser provides a way to explore the object

model used by the vCenter to manage the vSphere environment,

and enables configurations to be changed as well. This interface

is used primarily for debugging the vSphere SDK.

Threat

This interface could potentially be used to perform malicious

configuration changes or actions

Recommendation

Level

DMZ

Parameter setting

To disable the Managed Object Browser, edit the vpxd.cfg file and

ensure that the following element is set

<enableDebugBrowse>false<enableDebugBrowse/>

This should be the only occurrence of this element, and it should

be within de the

<vpxd>

...

</vpxd>

element in vpxd.cfg

Effect on

functionality

The Managed Object Browser will no longer be available for

diagnostics.

Parameter

Element

Description

Code

VSC08

vSphere 4.0 Security Hardening Guide

Name

Disable Web Access

Description

Web Access provides a means for users to view virtual machines

and perform simple operations such as power on and suspend. It

also provides a way to obtain console access to virtual machines.

All of this is governed by the users permissions on vCenter Server.

In some cases, you may want to disable web access in order to

eliminate the risk from having an open interface that is not being

used.

Threat

This is a web interface and hence has some of the general risks

associated with all web interfaces

Recommendation

Level

SSLF

Parameter setting

To completely delete the vSphere Web Access service from

vCenter Server:

1. Select Start > Programs > Administrative Tools > Services.

2. Stop the VMware VirtualCenter Management Webservices

service.

3. Use Windows Explorer to open C:\Program

Files\VMware\Infrastructure\tomcat\webapps and delete the ui

directory.

4. (Optional) Use Windows Explorer to open C:\Program

Files\VMware\Infrastructure\tomcat\work\Catalina\localhost and

delete the ui directory.

5. Start the VMware VirtualCenter Management Webservices

service.

See VMware KB #1009420 for more details.

Note that any upgrade to vCenter Server will recreate this file.

Effect on

functionality

Web Access will no longer be available.

Parameter

Element

Description

Code

VSC09

vSphere 4.0 Security Hardening Guide

Name

Disable Datastore Browser

Description

The Datastore Browser allows you to view all the datastores

associated with the vSphere deployment, including all folders and

files contained in them, such as VM files. This is governed by the

users permissions on vCenter Server.

In some cases, you may want to disable the Datastore Browser in

order to eliminate the risk from having an open interface that is not

being used.

Threat

This is a web interface and hence has some of the general risks

associated with all web interfaces

Recommendation

Level

SSLF

Parameter

setting

To disable the Datastore Browser, edit the vpxd.cfg file and ensure

that the following element is set

<enableHttpDatastoreAccess>false</enableHttpDatastoreAccess>

This should be the only occurrence of this element, and it should

be within the

<vpxd>

...

</vpxd>

element in vpxd.cfg

Effect on

functionality

You will no longer be able to browse and view datastore files using

a web browser connected to vCenter Server. Note that the

Datastore Browser available on each ESX/ESXi host is unaffected

by this setting, and may be disabled separately using a host-level

setting.

vCenter Server Database

Configuration

Element

Description

Code

VSD01

Name

Use least privileges for the vCenter Server Database user

Description

vCenter requires only certain specific privileges on the database.

Furthermore, certain privileges are required only for installation and upgrade,

and can be removed during normal operation. These privileges should be

vSphere 4.0 Security Hardening Guide

added again if another upgrade needs to be performed.

Risk or Control

Least privileges mitigates attacks if the vCenter database account is

compromised

Recommendation

Level

Enterprise

Parameters or

objects

configuration

The privileges needed for vCenter on both Oracle and Microsoft SQL Server

are given in the vSphere Upgrade Guide, Chapter 2 “Preparing for the

Upgrade to vCenter Server”, Section “Prerequisites for the vCenter Server

Upgrade”, Subsection “Database Prerequisites”. This document may be

found here:

http://www.vmware.com/pdf/vsphere4/r40_u1/vsp_40_u1_upgrade_guide.pdf

Note that this section indicates which privileges are needed for installation

and upgrade, and which are needed just for ongoing operation.

Test

vSphere client components

Although SSL-based encryption is used to protected communication between

client components and vCenter Server or ESX/ESXi, the Linux versions of these

components do not perform certificate validation. Therefore, even if you have

replaced the self-signed certificates on vCenter and ESX/ESXi with legitimate

certificates signed by your local root certificate authority or a third party,

communications with Linux clients are still vulnerable to man-in-the-middle

attacks. The components that are vulnerable when running on Linux include:

• Any vCLI command

• Any vSphere SDK for Perl script

• Virtual machine console access initiated from a Linux-based Web Access

browser session

• Any program written using the vSphere SDK

The management interfaces of vCenter Server and ESX should be available only

on trusted networks, but providing encryption and certificate validation add extra

layers of defense against an attack. If you are able to mitigate against systems

on the management network interposing themselves on network traffic, or can

trust that such systems will not appear on the network, the use of Linux-based

clients would not increase the security risk.

Operational Element

Description

vSphere 4.0 Security Hardening Guide

Code

VCL01

Name

Restrict the use of Linux-based Clients

Description

Although SSL-based encryption is used to protected

communication between client components and

vCenter Server or ESX/ESXi, the Linux versions of

these components do not perform certificate

validation.

Risk or Control

Even if you have replaced the self-signed

certificates on vCenter and ESX/ESXi with

legitimate certificates signed by your local root

certificate authority or a third party, communications

with Linux clients are still vulnerable to man-in-the-

middle attacks.

With proper controls, this restriction may be relaxed

if deemed appropriate. These controls include:

‐ restriction of management network access

only to authorized systems

‐ use of firewalls to restrict access to vCenter

only by authorized hosts

‐ use of jump box systems for exclusive

access to vCenter

Recommendation Level

DMZ

Condition or steps

Options include:

• Instruct Admins, especially those who have

high levels of privileges, not to use Linux-

based clients when connecting to vCenter

Server.

• Make use of a jump-box architecture so that

the only Linux clients are those behind the

jump.

vCenter Server includes a vSphere Client extensibility framework, which provides

the ability to extend the vSphere Client with menu selections or toolbar icons

that provide access to vCenter add-on components or external, Web-based

functionality. With the flexibility, customization, and innovation that this entails,

there is also the risk of introducing vSphere Client capabilities that were not

intended. For example, a plug-in could be surreptitiously installed on an

administrator’s vSphere Client instance, then execute arbitrary commands with

vSphere 4.0 Security Hardening Guide

the privilege level of that administrator. If a user with low or no privileges were to

use such a client, there would be no added risk, because the plug-in can interact

with vCenter or ESX/ESXi only with the permissions of the user running the

client.

The integrity of client software is a common concern across all client-server

platforms in which the client could be running on an insecure host, but the

vSphere Client extensibility framework reduces the effort needed to compromise

the client software. To protect against such compromises, users of vSphere

Client should not install any plug-ins that do not come from a trusted source. You

can check to see which plug-ins are actually installed for a given vSphere Client

by going to the menu item Plugins > Manage Plugins and clicking the Installed

Plugins tab.

Operational Element

Description

Code

VCL02

Name

Verify the Integrity of vSphere Client

Description

vCenter Server includes a vSphere Client

extensibility framework, which provides the ability to

extend the vSphere Client with menu selections or

toolbar icons that provide access to vCenter Server

add-on components or external, Web-based

functionality

Risk or Control

vSphere Client extensions run at the same privilege

level as the user logged in. A malicious extension

could masquerade as something useful but then do

harmful things like steal credential or misconfigure

the system

Recommendation Level

Enterprise

Condition or steps

Make sure that the vSphere Client installation used

by Admins include only authorized extensions from

trusted sources. You can check to see which plug-

ins are actually installed for a given vSphere Client

by going to the menu item Plugins > Manage

Plugins and clicking the Installed Plugins tab.

vCenter Update Manager

vCenter includes a framework that enables you to add components to vCenter to

extend its functionality. These components typically run as separate services,

which are installed typically on separate host or in a virtual machine. For the

vSphere Hardening Guide, the only such component that is considered in-scope

vSphere 4.0 Security Hardening Guide

is VMware Update Manager. If you choose to make use of other add-on

components, use the recommendations here as a guide for how they should be

deployed securely.

You should consider VMware Update Manager an essential component of any

VMware Infrastructure deployment. The ability to make sure that critical operating

system patches are applied to all virtual machines, especially offline virtual

machines and templates, addresses one of the most important aspects of

security in a virtualized environment. Furthermore, the ability to automate the

patching of ESX/ESXi hosts greatly increases the likelihood that you are

protected against any vulnerability that may be discovered for this platform.

Although there are numerous other ways to keep the virtual machine up-to-date

with respect to patches, VMware Update Manager is the preferred way to keep

the ESX/ESXi hosts patched.

In the default installation, the host where you install VMware Update Manager

also needs access to the Internet in order to download patches and patch

information. You can configure it to use a Web proxy, a step you should take if a

Web proxy is available. For highest security, you can install the Update Manager

Download Service on a separate server, and the patches and information that it

downloads can be transferred manually to the Update Manager host—for

example, using a USB key or scheduled, secure file transfer. This avoids having

the Update Manager host itself connected to an external network. For more

information on installing Update Manager and the Update Manager Download

Service, see the chapter “Working with Update Manager” in the Update Manager

Administration Guide.

Configuration

Element

Description

Code

VUM01

Name

Use least privileges for the Update Manager Database user

Description

Update Manager requires certain privileges on its DB user in order to

install, and the installer automatically checks for these. These are

documented in the VMware Update Manager Administration Guide.

However, after installation, only a small number of privileges are

required for operation. The privileges on the VUM database user

can be reduced during normal operation. These privileges should be

added again if an upgrade or uninstall needs to be performed.

Risk or Control

Least privileges mitigates attacks if the Update Manager database

account is compromised

Recommendation

Level

Enterprise

vSphere 4.0 Security Hardening Guide

Parameters or

objects

configuration

For Oracle: after installation, only the following permissions are

needed for normal operation: create session, create any table, drop

any table.

For SQL Server: after installation, the dba_owner role or sysadmin

role can be removed from the MSDB database (it is still required,

however, for the Update Manager database)

Please check the latest VMware Update Manager Administration

Guide for any updates to these configurations.

Test

Operational Element

Description

Code

VUM02

Name

Keep Update Manager system properly patched

Description

By staying up to date on Window patches,

vulnerabilities in the OS can be mitigated.

Risk or Control

If an attacker can obtain access and elevate

privileges on the Update Manager system, then it

can compromise the patching process

Recommendation Level

Enterprise

Condition or steps

Employ a system to keep the Update Manager

system up to date with patches, in accordance with

industry-standard guidelines, or internal guidelines

where appropriate.

Operational Element

Description

Code

VUM03

Name

Provide Windows system protection on the Update

vSphere 4.0 Security Hardening Guide

Manager system

Description

By providing OS-level protection, vulnerabilities in

the OS can be mitigated.

Risk or Control

If an attacker can obtain access and elevate

privileges on the Update Manager system, then it

can compromise the patching process

Recommendation Level

Enterprise

Condition or steps

Provide Windows system protection, such as anti-

virus, in accordance with industry-standard

guidelines, or internal guidelines where appropriate.

Operational Element

Description

Code

VUM04

Name

Avoid user login to Update Manager system

Description

Once someone has logged in to the Update

Manager system, it becomes more difficult to

prevent what they can do. In general, logging in to

the Update Manager system should be limited to

very privileged Admins, and then only for the

purpose of administer Update Manager or the host

OS.

Risk or Control

Anyone logged into the Update Manager can

potentially cause harm, either intentionally or

unintentionally, by altering settings and modifying

processes.

Recommendation Level

Enterprise

Condition or steps

Restrict login to the Update Manager only to those

personnel who have legitimate tasks to perform in it.

Ensure that they only log in when necessary, and

audit these events.

vSphere 4.0 Security Hardening Guide

Configuration

Element

Description

Code

VUM05

Name

Do not configure Update Manager to manage its own VM or

its vCenter Server’s VM

Description

Although you can install both Update Manager and vCenter

Server on VMs and place them on the same ESX/ESXi host,

you should not configure Update Manager to manage the

patches on those VMs.

Risk or Control

Upon scanning and remediation, the virtual machine on which

Update Manager and vCenter Server are installed can reboot

and the whole deployment system will shut down.

Recommendation

Level

Enterprise

Parameters or objects

configuration

If installed in virtual machines, ensure that Update Manager

does not manage the patching of the VM on which it runs, nor

the VM on which the associated vCenter runs.

Test

Update Manager has three main architectures for obtaining and registering

patches:

1) Direct download onto the Update Manager system

2) Download onto a separate system and then network-based transfer via a

web server – this is referred to as a “semi-air-gap” model

3) Download onto a separate system, and then physical transfer via portable

media – this is referred to as an “air-gap” model

Both the semi-air-gap and air-gap models make use of the Download Service,

which is a component that is installed on a separate, standalone system. It

connects to public repositories and downloads the patches. From that point, how

the patches are transferred to the Update Manager system depends on the

model being used.

For information on how to set up these alternatives, please refer to the VMware

vCenter Update Manager Administration Guide, in the Chapter “Installing, Setting

Up, and Using Update Manager Download Service” as well as the Chapter

“Configuring Update Manager”, Section “Configuring Update Manager Patch

Download Sources”.

vSphere 4.0 Security Hardening Guide

Configuration

Element

Description

Code

VUM10

Name

Limit the connectivity between Update Manager and public patch

repositories

Description

In a typical deployment, Update Manager connects to public patch

repositories on the Internet to download patches. This connection

should be limited as much as possible in order to avoid access to

the Update Manager system from the outside.

Risk or Control

Any channel to the Internet represents a threat

Recommendation

Level

Enterprise

DMZ

SSLF

Parameters or

objects

configuration

Configure a web proxy

for Update Manager,

rather than directly

connecting to the

Internet

Configure Update

Manager to use the

Download Service,

and configure a

web server to

transfer the files to

the Update

Manager server

(semi-air-gap

model)

Configure Update

Manager to use

the Download

Service, and use

physical media to

transfer the files to

the Update

Manager server

(air-gap model)

Test

Check the proxy

settings for Update

Manager to make sure

they are correct. Refer

to the guide in the

Chapter “Configuring

Update Manager” in

the Section “Configure

Update Manager Proxy

Settings”

Ensure that the

Download Service

is functioning and

that the Update

Manager server

does not obtain

patches directly

from the Internet

Ensure that the

Download Service

is functioning and

that the Update

Manager server

does not obtain

patches directly

from the Internet

vSphere 4.0 Security Hardening Guide

Console Operating System (COS)

Console Network Protection

ESX includes a built in firewall between the service console and the network. To

ensure the integrity of the service console, VMware has limited the number of

firewall ports that are open by default. At installation time, the service console

firewall is configured to block all incoming and outgoing traffic except for ports

902, 80, 443, and 22, which are used for basic communication with ESX. This

setting enforces a high level of security for the ESX host. Medium Security blocks

all incoming traffic except on the default ports (902, 443, 80, and 22), and any

ports users specifically open. Outgoing traffic is not blocked. Low Security does

not block either incoming or outgoing traffic. This setting is equivalent to

removing the firewall. Because the ports open by default on the ESX are strictly

limited, additional ports may need to be open after installation for third party

applications such as management, storage, NTP, etc. For instance, a backup

agent may use specific ports such as 13720, 13724, 13782, and 13783.

The list of ports used by ESX may be found in this KB article:

http://kb.vmware.com/kb/1012382

Configuration Element

Description

Code Number

CON01

Name

Ensure ESX Firewall is configured to High Security

Description

ESX Server includes a built in firewall between the

service console and the network. A High Security

setting disables all outbound traffic and only allows

selected inbound traffic.

Risk or Control

Prevention of network-based exploits

Recommendation Level

Enterprise

Parameters or objects

configuration

The following commands configure High Security on the

firewall

esxcfg-firewall --blockIncoming

esxcfg-firewall --blockOutgoing

Test

Ensure that outbound connections are blocked and only

selected inbound connections are allowed

vSphere 4.0 Security Hardening Guide

Configuration Element

Description

Code Number

CON02

Name

Limit network access to applications and services

Description

As a security best practice, disabling and removing services

and applications that aren’t required is advisable. The ESX

Service Console, by default, has a number of available

services that should be disabled unless required for

business. Also, ensure that limited use of external software

within the service console. Examples of additional software

that may be acceptable to run in the service console would

be management and backup agents.

For more information and recommendations on running

third-party software in the service console, see

http://www.vmware.com/vmtn/resources/516

Risk or Control

Prevention of network-based exploits

Recommendation Level

Enterprise

Parameters or objects

configuration

All services not required explicitly for business purposes

should be disabled.

Test

Run the “esxcfg-firewall –query” command to determine

what services are enabled. To disable a service, execute

the “esxcfg-firewall –d <service name>” command.

Parameter Element

Description

Code Number

CON03

Name

Do not run NFS or NIS clients in the Service Console

Description

Because of the standards for how NFS and NIS are

implemented, enabling the NFS or NIS client service in the

Service Console opens up outbound UDP and TCP ports 0-

65535, i.e. it unblocks ALL outbound IPv4 connections.

Note that some implementations of NFS allow the server to

configure specific ports for communication. These can then

be selectively opened on the Service Console firewall, but

not through the built-in services configuration.

vSphere 4.0 Security Hardening Guide

Risk or Control

Turning on these services effectively disables the Service

Console firewall for outbound connections

Recommendation Level

Enterprise

Parameters setting

Run the “esxcfg-firewall –query” command to determine if

nfsClient or nisClient are enabled. To disable a service,

execute the “esxcfg-firewall –d <service name>” command.

Console Management

Although the ESX Service Console is derived from Red Hat Linux, it is a unique

operating platform that should not be managed as a true Linux host. As such, the

Service Console should be managed according to VMware and other

virtualization security best practices, which may differ from many well-known

Linux-focused best practices in some ways.

If you follow the best practice of isolating the network for the service console,

there is no reason to run any antivirus or other such security agents, and their

use is not necessarily recommended. However, if your environment requires that

such agents be used, use a version designed to run on Red Hat Enterprise Linux

Operational Element

Description

Code Number

COM01

Name

Do not apply Red Hat patches to the Service Console

Description

Although the ESX Service Console is derived from Red

Hat Linux, it is important that you not treat the service

console like a Linux host when it comes to patching. Never

apply patches issued by Red Hat or any other third-party

vendor.

Risk or Control

The service console is generated from a Red Hat Linux

distribution that has been modified to provide exactly the

functionality necessary to communicate with and allow

management of the VMkernel. Any additional software

installed should not make assumptions about what RPM

packages are present, nor that the software can modify

them. In several cases, the packages that do exist have

been modified especially for ESX.

Recommendation Level

Enterprise

vSphere 4.0 Security Hardening Guide

Condition or steps

Apply only patches that are published by VMware

specifically for the versions of ESX that you have in use.

These are published for download periodically, as well as

on an as-needed basis for security fixes. You can receive

notifications for security-related patches by signing up for

email notifications at http://www.vmware.com/security.

Operational Element

Description

Code Number

COM02

Name

Do not rely upon tools that only check for Red Hat patches

Description

You should never use a scanner to analyze the security of

the service console unless the scanner is specifically

designed to work with your version of ESX.

Risk or Control

Scanners that assume the service console is a standard

Red Hat Linux distribution routinely yield false positives.

These scanners typically look only for strings in the names

of software, and therefore do not account for the fact that

VMware releases custom versions of packages with special

names when providing security fixes. Because these

special names are unknown to the scanners, they flag them

as vulnerabilities when in reality they are not.

Recommendation Level

Enterprise

Condition or steps

You should use only scanners that specifically treat the

ESX service console as a unique target. For more

information, see the section “Security Patches and Security

Vulnerability Scanning Software” in the chapter “Service

Console Security” of the ESX Server 4 Configuration Guide.

Operational Element

Description

Code Number

COM03

Name

Do Not Manage the Service Console as a Red Hat Linux

Host

Description

The usual redhat-config-* commands are not present, nor

are other components such as the X server.

vSphere 4.0 Security Hardening Guide

Risk or Control

Attempts to manage the Service Console as a typical Red

Hat Linux host could result in misconfigurations that affect

security, including availability.

Recommendation Level

Enterprise

Condition or steps

Manage the Service console using purpose-built

commands, such as vmkfstools and the esxcfg-*

commands, to the extent possible, and only use other built-

in commands as necessary. Do not deploy additional

packages for management unless absolutely needed for a

specific purpose.

Operational Element

Description

Code Number

COM04

Name

Use vSphere Client and vCenter to Administer the Hosts

Instead of Service Console

Description

The best measure to prevent security incidents in the

service console is to avoid accessing it if at all possible.

You can perform many of the tasks necessary to configure

and maintain the ESX host using the vSphere Client, either

connected directly to the host or, better yet, going through

vCenter. Another alternative is to use a remote scripting

interface, such as the vSphere command line interface

(vCLI) or the PowerCLI interface. These interfaces are built

on the same API that vSphere Client and vCenter use, so

any script using them automatically enjoys the same

benefits of authentication, authorization, and auditing.

Risk or Control

By using alternatives to the Service Console, the need to

access it is reduced, and hence the risk due to misuse.

Recommendation Level

Enterprise

Condition or steps

Security policies and processes should be written to require

the use of the remote API based tools wherever possible.

Accounts with direct service console access should be

limited to the minimum number of administrators possible.

Some advanced tasks, such as initial configuration for

password policies, cannot be performed via the vSphere

Client. For these tasks, you must log in to the service

console. Also, if you lose your connection to the host,

executing certain of these commands through the

command line interface may be your only recourse—for

vSphere 4.0 Security Hardening Guide

example, if the network connection fails and you are

therefore unable to connect using vSphere Client.

Console Password Policies

Configuration

Element

Description

Code Number

COP01

Name

Use a Directory Service for Authentication

Description

Advanced configuration and troubleshooting of an ESX host may

require local privileged access to the service console. For these

tasks, you should set up individual host-localized user accounts

and groups for the few administrators with overall responsibility for

your virtual infrastructure. Ideally, these accounts should

correspond to real individuals and not be accounts shared by

multiple people. Although you can create on the service console

of each host local accounts that correspond to each global

account, this presents the problem of having to manage user

names and passwords in multiple places. It is much better to use

a directory service, such as NIS or LDAP, to define and

authenticate users on the service console, so you do not have to

create local user accounts.

If an organization does not rely upon the Service Console for

configuration and routine operations, or the number of individuals

who are allowed to access the Service Console is small, then the

maintenance of local accounts will not present too large an

overhead. In this case, a Directory Service might not be

necessary. This decision should be dictated by local security

policies.

Risk or Control

Centralized control of user authentication greatly reduces the

chance of misconfiguration or inappropriate access

Recommendation

Level

Enterprise

Parameters or

objects

configuration

In the default installation, ESX 3.5-4.0 cannot use Active Directory

to define user accounts. However, it can use Active Directory to

authenticate users. In other words, you can define individual user

accounts on the host, then use the local Active Directory domain

to manage the passwords and account status. You must create a

local account for each user that requires local access on the

service console. This should not be seen as a burden; in general,

only relatively few people should have access to the service

console, so it is better that the default is for no one to have access

unless you have created an account explicitly for that user.

vSphere 4.0 Security Hardening Guide

AD, NIS, Kerberos, and LDAP are all supported directory

services. Authentication on the service console is controlled by

the command esxcfg-auth. You can find information on this

command in its man page. Type man esxcfg-auth at the

command line when logged in to the service console. For

information on authentication with Active Directory, see the

technical note at http://www.vmware.com/vmtn/resources/582.

It is also possible to use third-party packages, such as Winbind or

Centrify, to provide tighter integration with Active Directory.

Consult the documentation for those solutions for guidance on

how to deploy them securely.

Test

The esxcfg-auth –probe command will list all of the files that are

generated and edited by the esxcfg-auth command. The entries

in those files will be different depending on which authentication

mechanism you choose.

Configuration

Element

Description

Code Number

COP02

Name

Establish a Password Policy for Password Complexity

Description

These controls ensure that users create passwords that are hard

for password generators to determine. Instead of using words, a

common technique for ensuring password complexity is to use a

memorable phrase, then derive a password from it—for example,

by using the first letter of each word.

The default pam_cracklib.so plug-in provides sufficient password

strength enforcement for most environments. However, if the

pam_cracklib.so plug-in is not stringent enough for your needs,

you can change the parameters used for the pam_cracklib.so

plug-in or use the pam_passwdqc.so plug-in instead. You change

the plug-in using the esxcfg-auth–usepamqc command.!!!

Risk or Control

This recommendation addresses the risk of passwords being

guessed or cracked.

Recommendation

Level

DMZ

Parameters or

objects

configuration

esxcfg(auth!((usepamqc!

This&command&requires&6&parameters&in&the&following&order:&

‐ Minimum&length&of&a&single&character&class&password&

vSphere 4.0 Security Hardening Guide

‐ Minimum&length&of&a&password&that&has&characters&from&2&

character&classes&

‐ Minimum&number&of&words&in&a&passphrase&

‐ Minimum&length&of&a&password&that&has&characters&from&3&

character&classes&

‐ Minimum&length&of&a&password&that&has&characters&from&4&

character&classes&

‐ Maximum&number&of&characters&reused&from&the&previous&

password&

If&you&pass&a&value&of&‐1&for&any&of&the&six&parameters&it&disables&

that&option.&

For&example&the&command&line&

esxcfg(auth!((usepamqc=(1!(1!(1!12!8!(1!!

disables&the&first&three&parameters,&requires&a&12&character&

password&using&characters&from&3&character&classes&or&an&8&

character&password&that&uses&characters&from&4&character&

classes&and&disables&the&final&parameter.&

Test

Check the following line in the /etc/pam.d/system-auth-generic

file:

“password required /lib/security/$ISA/pam_passwdqc.so”:

if no text string is displayed, the complexity is not set. If there is a

text string at the end of this line, ensure that it meets your policy.

Configuration Element

Description

Code Number

COP03

Name

Establish a Password Policy for Password History

Description

Keeping a password history mitigates the risk of a user

reusing a previously used password too often.

Risk or Control

This recommendation addresses the risk of passwords being

guessed or cracked.

Recommendation Level

DMZ

Parameters or objects

configuration

If it does not already exist create a password history file:

touch /etc/security/opasswd

chmod 600 /etc/security /opasswd

Set the number of passwords to retain for matching:

vSphere 4.0 Security Hardening Guide

Edit the /etc/pam.d/system-auth-generic file and add the

string “remember=x” where x is the number of passwords to

retain to the end of the following line:

“password sufficient /lib/security/$ISA/pam_unix.so”

Test

Check for the presence of the string “remember=” and

ensure that the value is in compliance with your internal

policy.

Configuration Element

Description

Code Number

COP04

Name

Establish a Maximum Password Aging Policy

Description

These controls govern how long a user password can be

active before the user is required to change it.

Risk or Control

They help ensure that passwords change often enough that

if an attacker obtains a password through sniffing or social

engineering, the attacker cannot continue to access the ESX

host indefinitely.

Recommendation Level

DMZ

Parameters or objects

configuration

To set the maximum password age use the following

command:

esxcfg-auth --passmaxdays=n

where n is the maximum number of days for a password to

live.

Test

Run the following command to see what the password

maximu life setting is set to:

grep –i max_days /etc/login.defs

This number should be compared to your policy.

Configuration Element

Description

Code Number

COP05

Name

Establish a Password Policy for Minimum Days Before a

Password is Changed

vSphere 4.0 Security Hardening Guide

Description

As the maximum number of days for a password to live is

important, there also needs to be a minimum number of

days as well. This will mitigate the risk of a user changing a

password enough times to be able to reuse their favorite

password that is outside of the password reuse policy.

Risk or Control

This recommendation addresses the risk of passwords being

guessed or cracked.

Recommendation Level

DMZ

Parameters or objects

configuration

esxcfg-auth --passmindays=n

Test

Run the following command to see what the password

minimum life setting is set to:

“grep –i min_days /etc/login.defs”

This number should be compared to your policy.

Configuration Element

Description

Code Number

COP06

Name

Ensure that vpxuser auto-password change in vCenter

meets policy

Description

By default the vpxuser password will be automatically

changed by vCenter every 30 days. Ensure that this setting

meets your policies and if not, configure to meet password

aging policies. Note that it is very important that the

password aging policy should not be shorter than the interval

that is set to automatically change the vpxuser password or

vCenter could get locked out of an ESX Host.

Risk or Control

If an attacker obtains the vpxuser password through brute-

force, it can only be used for a limited amount of time.

Recommendation Level

DMZ

Parameters or objects

configuration

Configure the following parameter in the vCenter Server

Advanced Settings in the vSphere Client:

vCenterVirtualCenter.VimPasswordExpirationInDays

Ensure that the value is set lower than the password aging

policy on the COS

vSphere 4.0 Security Hardening Guide

100

Console Logging

Proper and thorough logging allows you to keep track of any unusual activity that

might be a precursor to an attack and also allows you to do a postmortem on any

compromised systems and learn how to prevent attacks from happening in the

future.

The syslog daemon performs the system logging in ESX. You can access the log

files in the service console by going to the /var/log/ directory. Several types of log

files generated by ESX are shown in the following table.

Component

Location

Purpose

VMkernel

/var/log/vmkernel

Records activities related to the

virtual machines and ESX

VMkernel

warnings

/var/log/vmkwarning

Records activities with the

virtual machines

VMkernel

summary

/var/log/vmksummary

Used to determine uptime and

availability statistics for ESX;

human-readable summary

found in

/var/log/vmksummary.txt

ESX host

agent log

/var/log/vmware/hostd.log

Contains information on the

agent that manages and

configures the ESX host and its

virtual machines

Virtual

machines

The same directory as the

affected virtual machine’s

configuration files; named

vmware.log and vmware-*.log

Contain information when a

virtual machine crashes or ends

abnormally

vCenter agent

/var/log/vmware/vpx

Contains information on the

agent that communicates with

vCenter

Web access

Files in

/var/log/vmware/webAccess

Records information on Web-

based access to ESX

Service

console

/var/log/messages

Contain all general log

messages used to troubleshoot

virtual machines or ESX

Authentication

log

/var/log/secure

Contains records of

connections that require

vSphere 4.0 Security Hardening Guide

101

authentication, such as VMware

daemons and actions initiated

by the xinetd daemon.

The log files provide an important tool for diagnosing security breaches as well

as other system issues. They also provide key sources of audit information. In

addition to storing log information in files on the local file system, you can send

this log information to a remote system. The syslog program is typically used for

computer system management and security auditing, and it can serve these

purposes well for ESX hosts. You can select individual service console

components for which you want the logs sent to a remote system.

Configuration Element

Description

Code Number

COL01

Name

Configure syslog logging

Description

Remote logging to a central host provides a way to greatly

increase administration capabilities. By gathering log files

onto a central host, you can easily monitor all hosts with a

single tool as well as do aggregate analysis and searching

to look for such things as coordinated attacks on multiple

hosts.

Risk or Control

Logging to a secure, centralized log server can help

prevent log tampering and provides a long-term audit

record.

Recommendation Level

Enterprise

Parameters or objects

configuration

Syslog behavior is controlled by the configuration file

/etc/syslog.conf. For logs you want to send to a remote log

host, add a line with @<loghost.company.com> after the

message type, where <loghost.company.com> is the name

of a host configured to record remote log files. Make sure

that this host name can be properly resolved, putting an

entry in the name service maps if needed.

Example:

local6.warning @<loghost.company.com>

After modifying the file, tell the syslog daemon to reread it

by issuing the following command:

kill -SIGHUP `cat /var/run/syslogd.pid`

At a minimum the following files should be logged to a

remote syslog server:

vSphere 4.0 Security Hardening Guide

102

/var/log/vmkernel

/var/log/secure

/var/log/messages

/var/log/vmware/*log.

/var/log/vmware/vpx/vpxa.log

Test

To check that remote logging is configured :

cat /etc/syslog.conf | grep @

To check that remote logging traffic is permitted outbound

from the host :

esxcfg-firewall –q | grep 514

To check that syslog service is configured to run:

chkconfig –list | grep syslog

Configuration Element

Description

Code Number

COL02

Name

Configure NTP time synchronization

Description

By ensuring that all systems use the same relative time

source (including the relevant localization offset), and that

the relative time source can be correlated to an agreed-

upon time standard (such as Coordinated Universal Time—

UTC), you can make it simpler to track and correlate an

intruder’s actions when reviewing the relevant log files.

Risk or Control

Incorrect time settings could make it difficult to inspect and

correlate log files to detect attacks, and would make

auditing inaccurate.

Recommendation Level

Enterprise

Parameters or objects

configuration

NTP can be configured on an ESX host using the vSphere

Client, or using a remote command line such as vCLI or

PowerCLI.

Test

• Query the NTP configuration to make sure that a

valid time source has been configured,

• Make sure that the NTP service is running on the

host

Console Hardening

vSphere 4.0 Security Hardening Guide

103

Configuration

Element

Description

Code Number

COH01

Name

Partition the disk to prevent the root file system from filling up

Description

If the root filesystem fills up, it can seriously degrade the

performance of ESX management capabilities or even make them

unresponsive.

When you install ESX 4.0, the default partitioning creates only 3

partitions. To protect against the root file system filling up, you can

create additional separate partitions for the directories /home,

/tmp, and /var/log. These are all directories that have the potential

to fill up, and if they are not isolated from the root partition, you

could experience a denial of service if the root partition is full and

unable to accept any more writes. The Chapter “ESX Partitioning”

in the ESX and vCenter Server Installation Guide covers disk

partitions in more detail

(http://pubs.vmware.com/vsp40u1/install/c_esx_partitioning.html#1

_9_18_1)

Risk or Control

Prevents a denial-of-service against the management of that host

Recommendatio

n Level

Enterprise

Parameters or

objects

configuration

/etc/fstab

Test

Run the “df” command and ensure that the directories for /home,

/tmp, and /var/log are mounted on their own partitions.

The service console has a number of files that specify its configurations:

/etc/profile

/etc/ssh/sshd_config

/etc/pam.d/system-auth

/etc/grub.conf

/etc/krb.conf

/etc/krb5.conf

/etc/krb.realms

/etc/login.defs

vSphere 4.0 Security Hardening Guide

104

/etc/openldap/ldap.conf

/etc/nscd.conf

/etc/ntp

/etc/ntp.conf

/etc/passwd

/etc/group

/etc/nsswitch.conf

/etc/resolv.conf

/etc/sudoers

/etc/shadow

In addition, ESX configuration files located in the /etc/vmware directory store all

the VMkernel information. Not all of these files are actually used by your

particular ESX deployment, but all the files are listed for completeness.

Operational Element

Description

Code Number

COH03

Name

Establish and Maintain File System Integrity

Description

It is critical to monitor the integrity of certain critical system

files within the ESX Service Console. In addition, the

permissions of numerous critical files should be configured

to prevent unnecessary access from occurring.

Risk or Control

Recommendation Level

DMZ

Condition or steps

Configuration files should be monitored for integrity and

unauthorized tampering, using a commercial tool such as

Tripwire, or by using a checksum tool such as sha1sum,

which is included in the service console. These files should

also be backed up regularly, either using backup agents or

by doing backups based on file copying.

Configuration

Element

Description

Code Number

COH04

vSphere 4.0 Security Hardening Guide

105

Name

Ensure permissions of important files and utility commands have not

been changed from default

Description

Various files and utilities are installed with particular file permissions

to enable certain functionality without requiring unnecessary privilege

levels for the user accessing them.

Risk or

Control

Changing permissions from default on these important files can have

an affect on the functionality of the ESX host and could potentially

cause these commands to not run properly and as such cause a

denial of service.

Recommendati

on Level

DMZ

Parameters or

objects

configuration

The /usr/sbin/esxcfg-* commands, which are all installed by default

with permissions 555.

The log files discussed in the previous section, which all have

permissions 600, except for the directory /var/log/vmware/webAccess,

which has permissions 755, and the virtual machine log files, which

have permissions 644.

Certain system commands that have the SUID bit. These commands

are listed here:

http://pubs.vmware.com/vsp40u1/server_config/r_default_setuid_appli

cations.html

For all of these files, the user and group owner should be root.

Console Access

Parameter

Element

Description

Code Number

COA01

Name

Prevent tampering at boot time

Description

A grub password can be used to prevent users from booting into

single user mode or passing options to the kernel during boot.

Threat

By passing in boot parameters, it might be possible to influence

the host so that it behaves improperly, perhaps in a manner that is

hard to detect.

Recommendation

Level

DMZ

vSphere 4.0 Security Hardening Guide

106

Parameter setting

During the ESX installation, the Advanced option allows you to set

a grub password. This can also be set by directly editing

/boot/grub/grub.conf.. See the Chapter “Installing VMware ESX”

in the ESX and vCenter Server Installation Guide for more details.

Effect on

functionality

Unless the password is entered, the server boots only the kernel

with the default options.

Parameter Element

Description

Code Number

COA02

Name

Require Authentication for Single User Mode

Description

Anyone with physical access can access the service console

as root if a password is not set for single user mode access.

Threat

When this recommendation is followed, then if an attacker

gains access to the console, they can only log in as an

ordinary user and won’t necessarily be able to escalate

privilege level without additional effort.

Recommendation Level

SSLF

Parameter setting

Add the line

~~:S:wait:/sbin/sulogin

to /etc/inittab

Effect on functionality

If the root password is lost then there will be no way to

access the system.

Parameter Element

Description

Code Number

COA03

Name

Ensure root access via SSH is disabled

Description

Because the root user of the service console has almost

unlimited capabilities, securing this account is the most

important step you can take to secure the ESX host. By

default, all insecure protocols, such as FTP, Telnet, and

HTTP, are disabled. Remote access via SSH is enabled, but

not for the root account.

vSphere 4.0 Security Hardening Guide

107

Threat

By allowing root access via SSH, the ability to audit who is

executing commands or performing tasks is negated. It is

preferable to require users to log into the system using their

own account, and then elevate privileges to perform tasks

that require this, using ‘su’ or ‘sudo’.

Recommendation Level

Enterprise

Parameter setting

The line “PermitRootLogin” in the /etc/sshd_conf should be

set to “no”

Effect on functionality

The root user will not be able to login via SSH.

Parameter Element

Description

Code Number

COA04

Name

Disallow Console root Login

Description

You can disallow root access even on the console of the

ESX host—that is, when you log in using a screen and

keyboard attached to the server itself, or to a remote session

attached to the server’s console. This approach forces

anyone who wants to access the system to first log in using

a regular user account, then use sudo or su to perform

tasks.

The net effect is that administrators can continue to access

the system, but they never have to log in as root. Instead,

they use sudo to perform particular tasks or su to perform

arbitrary commands.

Threat

When this recommendation is followed, then if an attacker

gains access to the console, they can only log in as an

ordinary user and won’t necessarily be able to escalate

privilege level without additional effort.

Recommendation Level

SSLF

Parameter setting

To prevent direct root login on the console, modify the file

/etc/securetty to be empty. While logged in as root, enter the

following command:

cat /dev/null > /etc/securetty

You should first create a nonprivileged account on the host

to enable logins, otherwise you could find yourself locked out

of the host. This nonprivileged account should be a local

account—that is, one that does not require remote

vSphere 4.0 Security Hardening Guide

108

authentication—so that if the network connection to the

directory service is lost, access to the host is still possible.

You can assure this access by defining a local password for

this account, using the passwd command.

Effect on functionality

After you do this, only nonprivileged accounts are allowed to

longer be possible.

Configuration Element

Description

Code Number

COA05

Name

Limit access to the su command.

Description

Because su is such a powerful command, you should limit

access to it. By default, only users that are members of the

wheel group in the service console have permission to run

su. If a user attempts to run su - to gain root privileges and

that user is not a member of the wheel group, the su -

attempt fails and the event is logged.

Threat

Recommendation Level

Enterprise

Parameters or objects

configuration

Besides controlling who has access to the su command,

through the pluggable authentication module (PAM)

infrastructure, you can specify what type of authentication is

required to successfully execute the command. In the case

of the su command, the relevant PAM configuration file is

/etc/pam.d/su. To allow only members of the wheel group to

execute the su command, and then only after authenticating

with a password, find the line beginning with auth required

and remove the leading pound sign (#) so it reads:

auth required /lib/security/$ISA/pam_wheel.so use_uid

The sudo utility should be used to control what privileged commands users can

run while logged in to the service console. Among the commands you should

regulate are all of the esxcfg-* commands as well as those that configure

networking and other hardware on the ESX host. You should decide what set of

commands should be available to more junior administrators and what

commands you should allow only senior administrators to execute. You can also

use sudo to restrict access to the su command.

Use the following tips to help you configure sudo:

vSphere 4.0 Security Hardening Guide

109

• Configure local and remote sudo logging (see Maintain Proper Logging

“Maintain Proper Logging” on page 12).

• Create a special group, such as vi_admins, and allow only members of

that group to use sudo.

• Use sudo aliases to determine the authorization scheme, then add and

remove users in the alias definitions instead of in the commands

specification.

• Be careful to permit only the minimum necessary operations to each

user and alias. Permit very few users to run the su command, because

su opens a shell that has full root privileges but is not auditable.

• If you have configured authentication using a directory service, sudo

uses it by default for its own authentication. This behavior is controlled

by the /etc/pam.d/sudo file, on the line for auth. The default setting—

service=system-auth—tells sudo to use whatever authentication

scheme has been set globally using the esxcfg-auth command.

• Require users to enter their own passwords when performing

operations. This is the default setting. Do not require the root

password, because this presents a security risk, and do not disable

password checking. In sudo the authentication persists for a brief

period of time before sudo asks for a password again.

For further information and guidelines for using sudo, see

http://www.gratisoft.us/sudo/.

Configuration Element

Description

Code Number

COA06

Name

Configure and use sudo to control administrative access

Description

The sudo utility should be used to control what privileged

commands users can run while logged in to the service

console.

Risk or Control

Recommendation Level

Enterprise

Parameters or objects

configuration

Parameters to be configured are in the /etc/sudoers file.

Among the commands you should regulate are all of the

esxcfg-* commands as well as those that configure

networking and other hardware on the ESX host. You should

decide what set of commands should be available to more

junior administrators and what commands you should allow

only senior administrators to execute. You can also use

sudo to restrict access to the su command. Because each

vSphere 4.0 Security Hardening Guide

110

situation will be different, each configuration will be different,

so no specific guidance can be given here.

Test

Check the configuration in the /etc/sudoers file and ensure

that it meets your policy.

VSphere Hardening Guide April 2010x 2010

Navigation menu

Versions of this User Manual:

Views

Navigation
