Wascator FOM71 CLS
61
520
1100
350
5.4
Washer extractor
Wascator FOM71 CLS
Main options
•WPM (Wash Program Manager) PC programming kit in
Windows
• Extra program memory cards
Certified in accordance with ISO 9001 and ISO 14001 and approved IP 24D.
Main specifications
Drum, volume litre
diameter ø mm
Extraction, max rpm
G-factor, max
Heating electricity kW
Features and benefits
•Meets IEC and ISO international standards
•Suitable for testing washing effects of detergents and
chemicals and for textile quality control
•Suspended drum construction allows a high extraction force.
No foundation required
• Small space between outer/inner drum for efficient use of
water and detergent
•Dual water control of volume (weight) and level
•Built in scale for precise volume control, accuracy:
- volume control +/- 0.2 litre/bath
- level control +/- 0.8 litre/bath
•Equipped with Clarus Control® - a fully programmable
electronic timer
•Frequency controlled motor system for flexibility in
programming and precise speed
•Test tap for water samples
•Stainless steel drum assembly, front, side and top panel
5716
P
5717
N
Wascator FOM71 CLS
5.7(16)
5.7(10)
5.7(10)
20
150-400
20
50/75
150
4
18.3
1.6±0.5
71
195
211
0.89
x
720
690
1315
200
750
555
720
1230
220
1010
135
825
45
100
240
135
I
L
M
O
KH
R
1
3
2
5
4
B
G
A
FE
C
D
8
76
5715
Rear side
Electrical connections*
Heating Voltage
El. 230V 3AC 50 Hz kW(A)
400-415V 3N AC 50 Hz kW(A)
415V 3N AC 50 Hz kW(A)
Water and steam connection
Water valves DN
Water pressure kPa
Capacity at 300 kPa l/min
Drain valve ømm
Draining capacity l/min
Liquid detergent supplies
Floor requirements
Frequency of the dynamic force Hz
Max floor load at extraction kN
Sound levels
Airborne sound level dB(A)
Shipping data
Weight net, kg
crated, kg
Shipping volume m3
Accessories
Hose connection kit for water

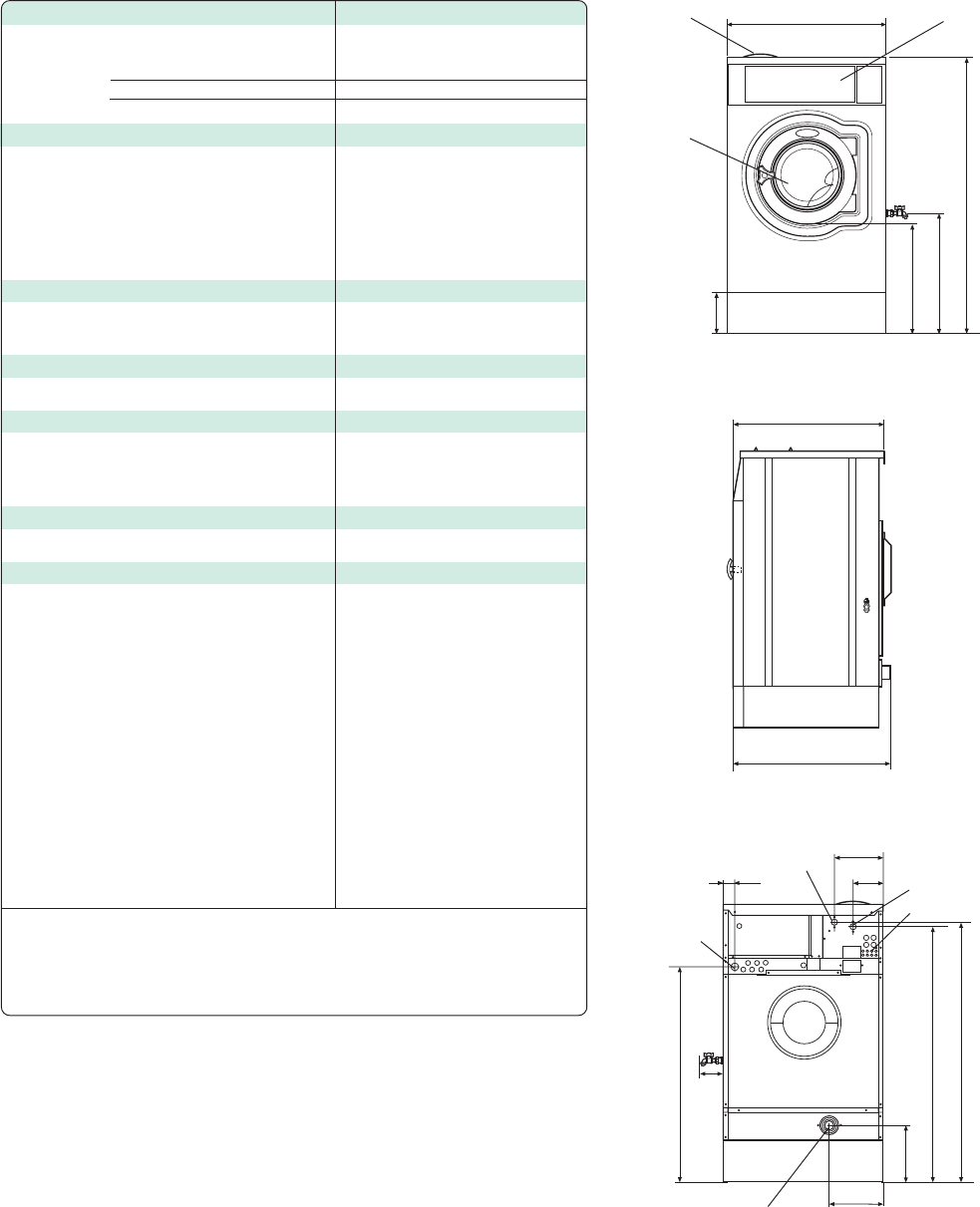

Dimensions in mm
AWidth
BDepth
CHeight
D
E
F
G
H
I
K
L
M
N
O
P
R
1Electrical connection
2Cold water
3Hot water
4Drain
5Liquid supply connections
6Control panel
7Soap box
8Door opening ø310
Right side
Front
* Other voltages available, see installation manual.
Function/subsystem
Ambient conditions
The machine shall be able to function during the same
ambient conditions as normal washing machines.
The functional values with tolerances will be valid if
following ambient conditions are kept.
Voltage
Frequency
Inlet water Cold
Hot
Water pressure
Ambient temperature
Inner drum
Diameter
Depth
Volume
Lifting vanes: Number
Height
Radius
Base width
Perforation: Diameter
Depth of countersink
Total hole area
Material: Stainless steel
Outer drum
Diameter
Sump
Material: Stainless steel
Door opening
Opening diameter
Cabinet
Stainless steel
Drum speed
Washing speed: Programmable
Extraction: Programmable
Reversing rythm
Programmable
Water level
Weight sensing
Repeatability
Stepsize
Dosing accuracy weight control
Level sensing:
Repeatability
Stepsize
Dosing accuracy level control
Thermostat
Continuos variable in each wash sequence
Selectable interval
Programming steps
Switch off temperature accuracy in Interval 30-97 oC
Interval switch off temperature – switch on temperature
Nominal ±2%
Nominal ±2%
(15±2) oC
Max (60±2) oC
(240±50) kPa
(20±5) oC
(520±1) mm
(315±1) mm
61 l
3
53 mm
17 mm
65 mm
5 mm
2.5 mm
600 cm2
2333 (SS 18/8)
554 mm
~ (1300±25) ml
2333 (SS 18/8)
310 mm
2333 (SS 18/8)
(20 – 59±1) RPM
(200 – 1100±20) RPM
(0 – 250±0.1) = sec.
(Tolerance area refers to
timer intervals)
≤±0.1kg/bath
0.05kg
≤±0.2kg/bath
≤±5 mm
3 mm
≤±0.8litre/bath
Yes
(4-97) oC
1 oC
±1 oC
≤4 oC
Lundtoftegaardsvej 93A, DK-2800 Lyngby, Denmark
Telephone: +45 4526 4800. Telefax: +45 4526 4801
Internet: www.electrolux.com/laundrysystems
E-mail: els.info@electrolux.com
ELECTROLUX LAUNDRY SYSTEMS
Soap box
Number of compartments
Number of programmable liquid detergents
Wash programs
Fully programmable wash programs
Memory cards for
Approvals
The machine shall have same approvals as normal
washing machines
Special equipment
Manual tap for sampling of bath water on right side:
Connection for temperature recording sensor in rear
gable:
Possibility to connect lint trap:
Memory card with copy safe programs for M&S and
(IEC; ISO):
Procedure for calibration of the machine according to ISO
9000 rules:
Possibility to take out test pieces from wash bath during
the wash:
Analog output from load cells to data acquisition
systems:
4
4
Clarus
IEC 60456
ISO 6330
M&S
CE, cETLus
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Pre- programmed wash programs
The Clarus Control in the Wascator FOM71 CLS contains 9 pre- programmed ”wash
programs”. They are not real wash programs but are mainly designated for checking
purposes. The stored programs are:
Place Name Content
991 Start-up Programme Flushes the machine with water. Shall be used if
the machine has been idle for more than 2 hours.
992 Level check Checking of the level. With ruler inside the machine
fills to 100 mm, 130 mm, 160 mm, and 200 mm.
993 Weight check Machine fills water to 18kg and to 26kg.
994 Temperature check Check of the temperatures at 25oC, 40oC, 60oC
and 90oC 2 minutes at each temperature.
995 Extraction 500 RPM 1 min.
996 Extraction 500 RPM 5 min.
997 Extraction 775 RPM 2 min.
998 Extraction 950 RPM 4 min.
999 Extraction 1100 RPM 5 min.
Art. No. 438918101/08 04.11
We reserve the right to alter specifications without notice.
