Specification:
Dimensions:
How to operate:
Wireless Camera Scanner Include:
Wireless Camera Scanner

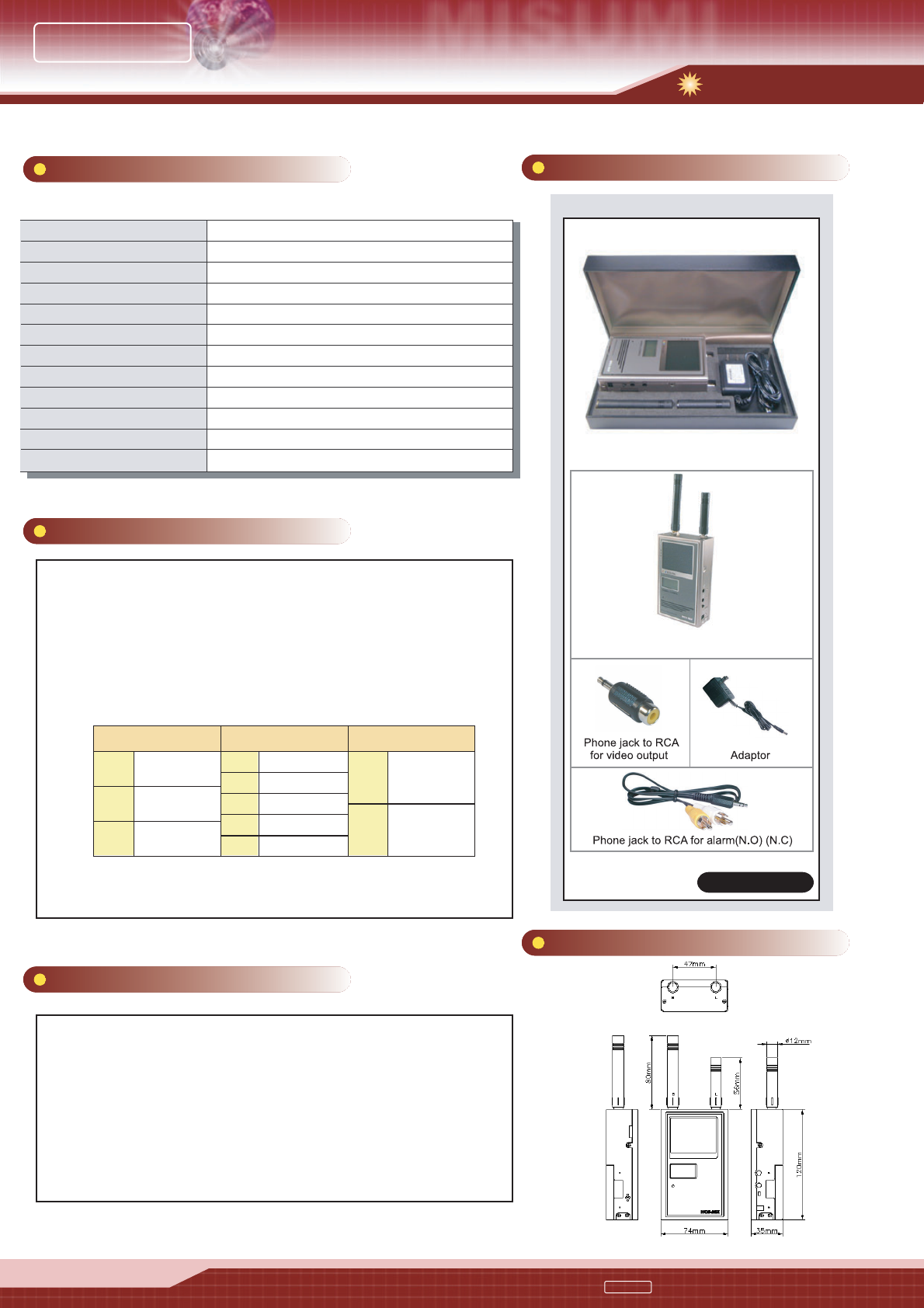

WIRELESS CAMERA SCANNER (PALM TYPE)
Wireless Camera Scanner:
WCS-99X
WCS-99X
900MHz ~2520MHz
Auto / Manual
2.5" Color TFT Monitor
LCM
20 sec/Per Cycle(H)-10 sec/Per Cycle(MH,M,ML,L)
Once:1MHz/sec , Fastforward:10MHz/sec
120(L) x 74(W) x 35(H)mm
Item NO.
ISM Band
Switcher
Video Display
Frequency Display
Auto Scan
Manual Scan
Dimension
SMA
Antenna
3Hrs appro. (Depent monitor on)
Battery Working Time
DC 5V , 650mA(MAX) or AA Battery DC 1.5V x4
Power Input
240gWeight
SCANNER
(1) Function adjust
a. After the power switch to ON , to press smart key to 3
sec later and then unlock.
b. Option function and to use smart key upper and lower
fine tuning.(To adjust when the icon blinking.)
C. To press smart key to 3 sec can finish all settlement.
Capture moving picture
2 sec
4 sec
8 sec
2L-20dBm
-30dBm
-40dBm
-50dBm
-60dBm
ML ON OPEN
OFF CLOSE
M
MH
H
4
8
Sensitivity icon Warning indicator
(2) When scan the video signal , push the smart key to lock.
(1) Camera Scanner ......................................................1pcs
(2) SMA Antenna............................................................2pcs
(3) Adaptor (DC 5V)........................................................1pcs
(4) Alarm Terminal....... ...................................................1pcs
(5) Instruction manual...................................................1copy
