February 2009

C510

Beautifully simple Cyber-shot™

White paper C510

2 February 2009

This document is published by Sony Ericsson

Mobile Communications AB or its local affiliated

company, without any warranty*. Improvements

and changes to this text necessitated by

typographical errors, inaccuracies of current

information or improvements to programs and/or

equipment, may be made by Sony Ericsson

Mobile Communications AB at any time and

without notice. Such changes will, however, be

incorporated into new editions of this document.

Printed versions are to be regarded as temporary

reference copies only.

*All implied warranties, including without limitation

the implied warranties of merchantability or fitness

for a particular purpose, are excluded. In no event

shall Sony Ericsson or its licensors be liable for

incidental or consequential damages of any

nature, including but not limited to lost profits or

commercial loss, arising out of the use of the

information in this document.

This White paper is published by:

Sony Ericsson Mobile Communications AB,

SE-221 88 Lund, Sweden

www.sonyericsson.com

a licence to download and/or print a copy of this

document.

Any rights not expressly granted herein are

reserved.

First edition (February 2009)

Publication number: 1217-1810.1

Preface

Purpose of this document

This White paper will be published in several revisions as the phone is developed. Therefore, some of the

headings and tables in this document contain limited information. Additional information and facts will be

forthcoming in later revisions.

The aim of this White paper is to give the reader an understanding of the main functions and features of

this phone.

People who can benefit from this document include:

• Operators

• Service providers

• Software developers

• Support engineers

• Application developers

White paper C510

3 February 2009

Sony Ericsson Developer World

On www.sonyericsson.com/developer, developers will find documentation and tools such as phone White

papers, Developers guidelines for different technologies, SDKs and relevant APIs. The Web site also

contains discussion forums monitored by the Sony Ericsson Developer Support team, an extensive

Knowledge Base, Tips & Tricks, example code and news.

Sony Ericsson also offers technical support services to professional developers. For more information

about these professional services, go to the Sony Ericsson Developer World Web site.

Document history

Change history

2009-02-27 Version 1 First release

White paper C510

4 February 2009

Contents

Product overview ....................................................................................................................... 5

Key features ............................................................................................................................. 5

Images ...................................................................................................................................... 8

Technologies in detail ................................................................................................................ 9

Technical specifications ......................................................................................................... 24

General technical data ....................................................................................................... 24

Performance and technical characteristics ........................................................................ 24

USSD technical data ...........................................................................................................26

GPRS technical data ...........................................................................................................26

SIM AT services supported ................................................................................................ 27

Entertainment ......................................................................................................................... 32

Audio and Video ................................................................................................................. 32

Java™ ................................................................................................................................. 33

Imaging/Messaging ................................................................................................................ 34

3.2 megapixel camera ........................................................................................................ 34

Video telephony .................................................................................................................. 35

Images ................................................................................................................................. 35

Supported character set ..................................................................................................... 36

Short Messaging Service .................................................................................................... 36

Enhanced Messaging Service ............................................................................................ 38

Multimedia Messaging Service ........................................................................................... 39

Email client technical data ..................................................................................................41

Connectivity ........................................................................................................................... 42

Bluetooth™ wireless technology technical data ................................................................ 42

OMA Data Synchronization (SyncML™) technical data ..................................................... 43

Microsoft® Exchange ActiveSync® .................................................................................. 43

Web browser technical data ............................................................................................... 44

Client Provisioning............................................................................................................... 47

Abbreviations ........................................................................................................................... 49

Related information ................................................................................................................. 53

Documents ............................................................................................................................. 53

Links ....................................................................................................................................... 53

Trademarks and acknowledgements ..................................................................................... 53

White paper C510

5 February 2009

Product overview

C510 is a stylish and easy to use Cyber-shot™ camera phone. Among the latest imaging features are

Smile Shutter™ and face detection. Both of these innovative features make it easy for you to capture the

best moments. C510 has a 3.2 megapixel camera with digital zoom and Photo light. Designed with

imaging in mind, C510 has easy access camera-related shortcuts and image editing features. If you want

to share your photos or video clips with others, you can have them online in seconds.

Key features

3.2 megapixel camera

The main camera is 3.2 megapixel and includes auto focus, 3.2x digital zoom, Photo light, Auto rotate,

Face detection, Smile Shutter™ and Photo fix. All this means high quality photos. The Photo light can be

used as video light when recording videos. The camera is protected by a lens cover. The horizontal user

interface allows for easier camera handling. A photo can be shared as a picture message, email message

or blog with friends or family. Photos can also be transferred to another phone or computer using any

available transfer method, such as Bluetooth™ wireless technology or USB cable.

Smile Shutter™

Smile Shutter™ knows when the subject of your picture is smiling and automatically activates the camera

shutter and the smile is captured the moment it happens.

White paper C510

6 February 2009

YouTube™ upload and download

Enjoy everywhere access to the largest video sharing site on the Web. You can shoot some video using

your phone and upload it straight away. You can also enjoy any of the millions of videos on YouTube™

wherever you are.

Video telephony

Video telephony lets you share moments with friends and family as they happen or save them to share

later. You can also use video telephony to see others while talking to them. Video telephony takes people

connecting to the next level and is the next best thing to being there in person.

2.2-inch QVGA scratch resistant mineral glass screen

The large 2.4-inch (240x320 pixels) full graphic QVGA 262k colour screen enhances viewing, facilitating

high-quality multimedia and entertainment.

Auto rotate

Capturing a portrait photo with a horizontal camera, usually results in a photo which must be rotated

manually when viewed later, in the phone. Auto rotate is a new feature, which enables HB108 R1.1 to

mode. This information is saved with the photo. When viewed, the photo is automatically rotated and

presented with the same orientation as it was originally taken.

Video camera

The camera captures a video recording and saves it in the phone or on a memory card. A video clip can

be shared as a picture message or email with friends and family or using any available transfer method,

such as Bluetooth™ wireless technology. The phone supports QVGA size video recording.

HTML Web browser support

Browse the Internet and look at Web sites in a different way with Access NetFront™ 3.4 – an HTML

browser which supports a complete Web standard suite.

Mobile blogging

Send photos and video clips using the Internet to show on your personal blog, allowing people easy

access to view and comment on your photos and video clips.

PictBridge™ – Camera printing

Print photos from the phone using the USB cable directly to a printer, without a computer or photo editing

software.

Media

A unique Sony Ericsson media experience. All media can be accessed directly from the desktop. Navigate

seamlessly through captured photos and video clips, pictures, photo tags, music, videos and more.

Music player

Located in Media. Play downloaded music and audio. The navigation system enables you, for example, to

browse through your favourite tracks and create simple playlists.

White paper C510

7 February 2009

Bluetooth™ wireless technology

Several devices (simultaneous Bluetooth™ wireless technology connections) can be connected up to 10

metres (33 feet) away using Bluetooth wireless technology. For example, when the phone rings, it can be

answered with a Bluetooth headset, and images can be sent to another phone at the same time. Several

mobile phones can take part in a Bluetooth wireless technology-supported game and the phone and a

computer can exchange data such as images, video clips, vCards, music files and calendar data.

Bluetooth wireless technology version 2.0 and Enhanced Data Rate (EDR) is supported.

White paper C510

8 February 2009

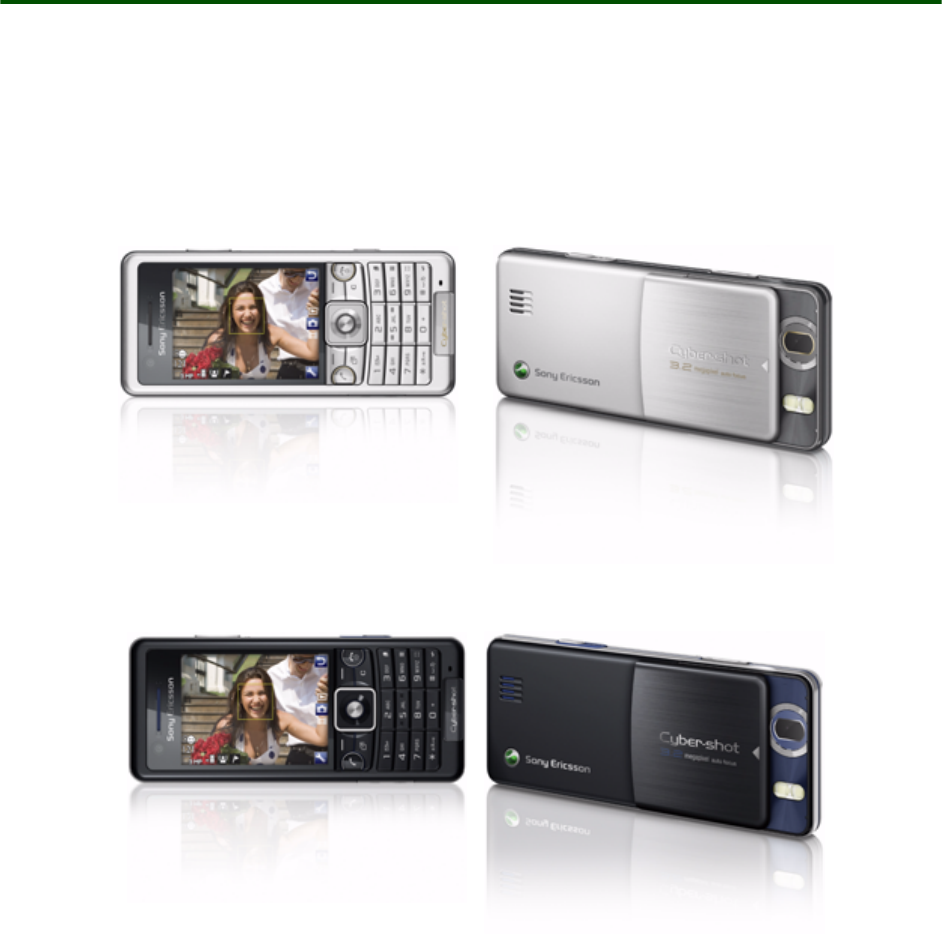

Images

White paper C510

9 February 2009

Technologies in detail

This chapter includes short descriptions of the technologies available in this product.

Feature C510 Cyber-shot™

3D games Yes

3G enabled Yes

Activity menu (multi-tasking)

The user can easily handle missed calls, new text and picture

messages, task reminders, shortcuts and get quick access to

favourite Internet bookmarks

Yes

with enhanced functionality for

background applications

A-GPS

Assisted GPS. Support for control plane and SUPL (Secure User

Plane Location protocol)

Alarm clock

Set up to five individual times for single or recurring weekly alarms

Yes

Auto rotate

The photo appears as a landscape or portrait photo, as it was

originally taken

Yes

Backlight

White backlight to illuminate the phone screen

Yes

White paper C510

10 February 2009

Battery BST-38 3.6 V, 930 mAh, Lithium

Polymer

Battery charging time At least 90% charged within 2

hours. Fully charged within 2.5

hours

BestPic™

Enhance photo taking by automatically capturing a range of 7

photos ranging from before to after a camera key press. Select the

best photo to catch the moment. You can also save more than one

photo.

Select BestPic™ speed

BestPic™ with light

Bluetooth™ audio streaming

Listen to audio in compatible devices

Yes

Bluetooth™ audio video remote control

Control music player functions from a Bluetooth™ accessory, and

control the volume in the accessory from the phone

Yes

Bluetooth™ PAN

Connect the phone to Internet using Bluetooth™ wireless

technology

Yes

Bluetooth™ wireless technology

Wireless connectivity between devices within a range of up to 10

metres (33 feet). Support for specification of the Bluetooth System,

version 2.0 and EDR

Yes

Business card exchange

Exchange contact information

Yes

Buy Now

Mark a track if you are interested in buying it later. Option to buy the

track when synchronising with Microsoft® Windows Media® Player.

The Buy Now service requires a subscription and account with a

downloadable music service, a computer with Microsoft® Windows

Media® Player 11 or subsequent compatible version of Windows

Media® Player, and a USB computer connection

Yes

Calculator Yes

Calendar

Calendar with day, week and month views and reminders

Yes

Feature C510 Cyber-shot™

White paper C510

11 February 2009

Call list

View calls made and received

Yes

Camera 3.2 megapixel

Camera retractable lens cover

Open the cover and camera functionality starts automatically

Yes

Camera auto focus

The camera automatically focuses on the subject in a focus area in

the screen/viewfinder

Yes

Camera face detection

The camera brings an off-centre face into focus

Yes

Camera file browser

Browse the photo folder without leaving the camera function

Yes

Camera flash Yes

Camera image stabiliser

Photo and video image stabiliser functionality. If available, use to

keep the image steady

Camera key

A dedicated camera key

Yes

Camera keys on top

When the camera is used in horizontal mode, the side keys with

camera functionality are on top, for a digital still camera feel. For

photo key functionality, see also “Keys – side and other” on page 16

Yes

Camera menu

Easy-to-use horizontal digital camera menu

Yes

Camera mode switch

Use to switch between photo, video and play modes

Camera scene modes

Use predefined settings when taking photos in different

environments, for example, at night or fast-moving objects

Yes

Dedicated key for scenes

Camera settings bar

Settings bar with options and info texts

Yes

Feature C510 Cyber-shot™

White paper C510

12 February 2009

Chinese input method

Chinese input methods: Text input methods based on Simplified or

Traditional Chinese. Bopomofo, Pinyin or Stroke

Yes

Circuit Switched Data

CSD

HSCSD – a communications standard enabling GSM data transfer

14.4 Kbps.

Yes

Co-branding area 20 x 6.4 mm

Code memo

A safe place to save all PIN codes and other information. To access

Code memo, only one PIN code is needed

Yes

Colour Future black

Radiation Silver

Contact photos

Add a photo to a saved contact. The picture appears on the screen

when the saved contact calls

Yes

Contacts

Phonebook with fields for name, phone, fax and instant messaging

information, presence information, email address, Web site, title,

company address info, personal address info and birthday

Yes

Conference calls

Support for multiparty calling

Yes

Connector A1 (Fast port) Yes (side)

Content online

Downloadable pictures, games, themes, ringtones available online

Yes

DRM (Digital Rights Management) features the rights and copy

protection of downloaded content (audio, pictures, music tones,

video clips and entertainment features such as games, Java

applications etc.)

Yes, OMA DRM 1.0, 2.0 and 2.1,

Microsoft DRM Janus

Feature C510 Cyber-shot™

White paper C510

13 February 2009

Device Management (DM)

DM utilises GPRS as a bearer (basic network connectivity needs to

be in place) of the provisioning data and allows the operator to

access the phone, check and send out different settings such as

network connectivity (GPRS), email, MMS, Internet settings and

Java™. Device Management is achieved by supporting OMA Client

Provisioning 1.1 (CP) and OMA Device Management (DM) 1.2

Yes

Digital zoom 16x for all photo sizes except big

sizes and video recording

Dual microphones

Two microphones give stereo sound to video clips recorded by the

phone

Yes

Built-in email client with inbox, outbox, compose/send and other

functions

Yes

EMS (Enhanced messaging)

Text messaging (SMS) with support for pictures and sounds

Note: EMS is not available for operators who use unified messaging

Yes

Exterior description

Size mm (Length x width x thickness/thinnest)

107 x 46.6 x12.5 (mm)

Fast port

A system connector which enables faster data transfer between the

phone and a computer

Yes

File manager

Folder structure storage to help save and organise pictures, sounds

and other phone content

Yes,

with enhanced functionality for

camera content

Flash themes Yes

Feature C510 Cyber-shot™

White paper C510

14 February 2009

Flight mode

All phone radio transceivers are inactivated. Flight mode starts the

phone so that only certain functions are available, such as the

calendar, the music player or a game. The phone may then be used

in some areas, such as aeroplanes or hospitals, where full mobile

phone functionality is not allowed

Bluetooth™ wireless technology function availability in Flight mode

Yes

FM radio with RDS

FM radio with presets, auto and manual search. The handsfree is

used as an antenna. The radio can also be used as an alarm signal

Yes,

100 kHz tuning interval

FM radio with TrackID™

Identify tracks playing on the radio

Yes

Form factor Stick

Games download

Add more games to your phone

Yes

Games embedded Yes

Geo tagging

Photos are tagged with geo data and can be shown on a map

Yes,

geo data from Cell ID

Google Maps™ for mobile

Preloaded application with support for cell-id. View satellite

imagery, find locations and calculate routes

Yes

GPRS

General Packet Radio Services – a communications standard

enabling packet data transfer of 21.4 Kbps per time slot.

Multislot class 10 supported (max 5 simultaneously)

Yes

High Speed Data

HSDPA – High Speed Downlink Packet Access

HSUPA - High Speed Uplink Packet Access

Yes

Icon Desktop 12

A graphic icon desktop with 12 interactive icons

Yes

Feature C510 Cyber-shot™

White paper C510

15 February 2009

Image formats

8 MP (3264 x2448 pixels)

5 MP (2592x1944 pixels)

3.2 MP (2048x1536 pixels)

3 MP (2048x1536 pixels)

2 MP (1632x1224 pixels)

1 MP (1280x960 pixels)

VGA (640x480 pixels)

Yes

Instant messaging (Wireless Village™)

Chat – several people can take part in a mobile messaging session.

Instant messaging/Wireless Village server community

Yes

Internet blogging

Share over the Internet on your personal Web site. The size of

uploaded photos is dependent on customizations

Yes

Internet browser

Full HTML support, ECMA script, DOM level 1&2, CSS 1&2 etc.

Support for AJAX (Asynchronous JavaScript and XML)

Progressive download of video files.

Direct access to Bookmarks, Search Internet and Enter address

Mouse Pointer

Text Wrapping

Pan&Zoom

Yes

Internet security

Encrypts confidential information such as credit card and bank

account numbers. Necessary for mobile banking and shopping

Yes, SSL/TLS

Feature C510 Cyber-shot™

White paper C510

16 February 2009

JavaTM

Support for J2ME™ technology

Sony Ericsson Java Platform

Support for new Java programming features including banking,

payment transactions, user identification and authentication through

secure encryption technology.

Java 2, Micro Edition (J2ME™),

Java 3D™

JP-8.4

Yes

Keys – navigation and more 4 navigation keys

3 selection keys

C (Clear) key

Activity menu key

End and on/off key

Call key

Keys – keypad 12 alphanumeric

Keys – side and other Volume/camera zoom key

Camera key

Lunar calendar

A calendar system used in China and other parts of Asia. A lunar

month is determined by the period required for the moon to

complete its full cycle of 29.5 days and is available in Chinese

phone variants

Yes

Adobe™ Flash Lite™

For animated wallpapers, menus and other graphic elements

Yes

Media

A centre for all media content with horizontal and vertical navigation.

You can view photos, listen to music, watch video clips

Yes

Media player See Music player and Video player

Feature C510 Cyber-shot™

White paper C510

17 February 2009

Mega Bass™

An audio feature which enhances bass frequencies for better overall

music experience

Yes

Memory (built-in)

Phone memory that is free to use (depending on software

configuration and file content). Many applications share phone

memory. The maximum amount of storage available for any one

application, such as calendar entries, is affected by the amount of

memory used by other applications, such as messaging, music,

photos and so on

Up to 120 MB

Memory card reader (slot)

A slot for inserting a micro peripheral storage device

Memory card support:

Memory Stick Micro™ (M2™)

SanDisk microSD™/Transflash™

Yes

Menu layout options

Possibility to change the layout of the icons in the main menu

Yes

Menu shortcuts

A function making it possible to dedicate shortcuts to the most-

used phone functions

Yes

MMS (Multimedia messaging)

Picture messaging with text and sound

Yes

MMS video

Support in the phone for sending video clips using MMS

Yes

Modem

Circuit Switched/Packet Switched Internet dial-up support

Yes

MusicDJ™

A music composer tool with MIDI drum, guitar, keyboard, bass and

brass loops in different music styles, which can be combined to

create polyphonic ringtones

Yes

Music listening time Up to 20 hours

Feature C510 Cyber-shot™

White paper C510

18 February 2009

Music player 3.0

A digital music player with horizontal navigation. Play music you

have transferred or downloaded. The list structure system enables

you, for example, to organise favourite songs into groups and create

simple playlists

Yes

Music tones

Music tones, also called master tones, are DRM protected music by

original artists. Various digital audio formats are supported

Yes

My time zone

Select the time zone manually by country or city

Yes

Networks

Variant 1

UMTS/HSUPA/HSDPA 2100

GSM/GPRS/EDGE 900, 1800, 1900

____________________

Variant 2

UMTS/HSUPA/HSDPA 2100

GSM/GPRS/EDGE 900, 1800, 1900

Variant 3

GSM/GPRS/EDGE 850, 900, 1800, 1900

Yes

Notes

Make notes of things to remember. A note can be shown in standby

Yes

OMA Data Synchronization (SyncML)

A device communications standard that enables remote

synchronization between devices

Yes

OMA DS 1.2

OMA DS 1.1.2

OTA settings

Internet, email and other settings can be sent over the air to the

phone

Yes

OMA CP 1.1

Photo light (built-in)

When lighting conditions are poor, activate the picture light

Yes

PhotoDJ™

A drawing tool in the phone where existing photos can be altered

Yes

Feature C510 Cyber-shot™

White paper C510

19 February 2009

Photo fix

Improves an under-exposed photo by calculating and adjusting the

light balance

Yes

PictBridge™

Transfer images from the phone via the USB cable directly to a

printer, without a computer or photo editing software

Yes

Picture gallery

A thumbnail image gallery where sections of several photos can be

viewed at the same time

Yes

Use photo tags

PlayNow™ (direct link)

Listen to music before you purchase and download it to your phone

Yes

PlayNow™ Games (direct link)

Download and purchase games straight from the phone desktop

Yes

Polyphonic voices 72

Powersave

default setting for display light

Yes

Predictive text input Yes

Push email Yes

RSS reader See Web feeds

Screen

Type:

Size:

Resolution:

Technology:

Colours displayed together:

Backlight colour:

Full graphical

2.2 inches

240x320 pixels

TFT, QVGA

262,000 (18 bit)

White

Screen saver Yes

Settings download (Ready to run)

Set up functions that require a connection to the Internet such as

the Internet browser and picture messaging.

This function runs in the setup wizard or can also be chosen in the

Settings menu. This function is not included in the setup wizard for

customised phones

Yes

Feature C510 Cyber-shot™

White paper C510

20 February 2009

Shake control

Shake control for music and gaming

SIM card lock

The possibility to protect the SIM card with a four-digit to eight-digit

PIN code

Yes

Smart search

Search for numbers and contacts from standby by using the

number keys. Smart filter and smart search by names in contacts

list by entering some keys. Call or send messages from a filtered list

of search results.

Yes

SMS long (Text messaging)

Concatenated SMS text messaging

Yes

Smile Shutter™

In autofocus mode, the camera detects a smile and automatically

takes the picture.

Yes

Sleep mode

A power-saving feature that minimises the battery power consumed

when the phone is in standby

Yes

Sony Ericsson Remote Update Service

Download the latest software over the air

Yes

Sony Ericsson Update Service

Connect the phone to an Internet-connected computer, download

the latest software from the Web site, www.sonyericsson.com/

support and update the mobile device

Yes

Sony Ericsson Update Service Pro

Update the phone with the latest software at your local Sony

Ericsson retailer

Yes

Sound recorder

A recording device in the phone that can record voice messages or

other sounds

Yes

Speakerphone Yes

Speed dialling

Allocate contacts in the phone book to specific keys on the keypad

Yes

Feature C510 Cyber-shot™

White paper C510

21 February 2009

Standby time

GSM

UMTS

Up to:

400 hours

Status view

The screen shows the network being used, the time and other status

information

Yes

Stereo microphone Yes

Stopwatch Yes

SVG Tiny

Scalable Vector Graphics for impressive animated wallpapers,

menus and other graphic elements

Yes

Synchronization PC

Synchronise and share phone content with a computer

Yes

Tal k t i m e

GSM

UMTS

Up to:

10hours

2.5 hours

Tas ks

Keeps track of important things you have to do

Yes

Themes

Phone menu texts and background graphics

Yes

Timer

Set the phone to alert after a specific time

Yes

TrackID™

Music recognition

Text search for artist, album, track, lyrics etc.

Yes

UMTS Yes

USB connectivity support

Connect the phone to a computer using the USB cable provided

Yes

USB 2.0

Hi-Speed

Feature C510 Cyber-shot™

White paper C510

22 February 2009

USB ethernet emulation

Connect to the Internet using the phone or the computer

Yes

Vibrating alert

The phone vibrates when a call comes in

Yes

Video blogging

Share video clips over the Internet on your personal Web site. The

size of uploaded video clips is dependent on customizations

Yes

Video call camera Yes

Video call talk time Up to 1 hours 30 minutes

VideoDJ™

Create video sequences by combining different clips and adding

music and images

Yes

Video player

Play video clips you have transferred or downloaded. Transfer video

clips to another phone or a computer using an available transfer

method

Yes

Video streaming

Real-time streaming of video clips, for example, live cam. Media can

also be downloaded and saved in the phone memory

Yes

Video telephony

When you make a video call, the other party can be seen on the

screen. The service requires UMTS/WCDMA

Yes

Viewfinder

When using the camera, a photo can be previewed before it is

captured

Yes

Voice control

Voice answer, reject and call. Assign voice commands to items in

the phonebook. When a call is made, the voice command can be

used instead of pressing keys

Yes

Voicemail

Support for voicemail operator service including automatic

answering and message recording

Yes

Feature C510 Cyber-shot™

White paper C510

23 February 2009

This chapter offers readers a detailed listing of all the technical data relating to the product.

Comprehensive descriptions of performance and technical characteristics are presented in table format

for quick and easy access.

Web feeds

Frequently updated content delivered as feeds via a Web site, for

example, news headlines in the browser

Yes

Web feeds ticker

View news headers in standby

Yes

Weight 91.5 g

Feature C510 Cyber-shot™

White paper C510

24 February 2009

Technical specifications

General technical data

Performance and technical characteristics

System Tri-band Edge: GSM 850/1800/1900 and GSM 900/1800/1900

Tri band HSUPA 850,1900,2100 supported

Speech coding HR, FR, EFR, AMR, supported where available, for high speech

quality.

GSM SIM/ UMTS USIM/SIM

card

GSM SIM - 3GPP TS 51.011; UMTS USIM - 3GPP TS 31.102; UMTS

ISIM - 3GPP TS 31.103.

Small plug-in card, 1.8 V and 3 V.

Memory Up to 120 MB internal (depending on software configuration/file

content) plus extra slot for supported memory cards.

Data transfer speeds Up to 7.2 Mbps (downlink, HSDPA, cat 8)

Up to 2.0 MBps (uplink, HSUPA, Cat 5)

Property WCDMA 2100

Frequency range (MHz) TX: 1920–1980

RX: 2110–2170

Channel spacing 5 MHz with 200 kHz channel rasters

Number of channels 277

Modulation QPSK (WCDMA R99)

QPSK/16 QAM (HSDPA)

TTI 10 ms (WCDMA R99)

2 ms (HSDPA)

TX phase accuracy Error Vector Magnitude: <17.5%

Duplex spacing 190 MHz

Frequency stability +/–0.1 ppm

Voltage operation (nominal) 3.6 V

Transmitter RF power

output

24 dBm Class 3 (0.25 W peak)

Transmitter Output

impedance

50 ohm

Transmitter spurious

emission (according to

specification)

< –36 dBm up to 1 GHz

< –30 dBm over 1 GHz

(according to 3GPP™ spec.)

White paper C510

25 February 2009

Receiver RF sensitivity Better than –106.7 dBm @ 12.2 kbps CS voice

Receiver RX bit error rate < 0.1%

Property GSM 850 GSM 900/

E-GSM 900

Frequency range (MHz) TX: 824–849

RX: 869–894

TX: 880–915

RX: 925–960

Channel spacing 200 kHz 200 kHz

Number of channels 124 Carriers *8 (TDMA) 174 Carriers *8 (TDMA)

Modulation GMSK GMSK

TX phase accuracy < 5º RMS phase error

(burst)

< 5º RMS phase error

(burst)

Duplex spacing 45 MHz 45 MHz

Frequency stability +/- 0.1ppm +/- 0.1ppm

Voltage operation (nominal) 3.6 V 3.6 V

Transmitter RF power output 33 dBm Class 4

(2 W peak)

33 dBm Class 4

(2 W peak)

Transmitter output impedance 50 ohm 50 ohm

Transmitter spurious emission (according to

specification)

< –36 dBm up to 1 GHz

< –30 dBm over 1 GHz

< –36 dBm up to 1 GHz

< –30 dBm over 1 GHz

Receiver RF sensitivity Better than –104 dBm Better than –102 dBm

Receiver RX bit error rate < 2.4% < 2.4%

Property GSM 1800 GSM 1900

Frequency range (MHz) TX: 1710–1785

RX: 1805–1880

TX:1850–1910

RX:1930–1990

Channel spacing 200 kHz 200 kHz

Number of channels 374 Carriers *8 (TDMA) 299 Carriers *8 (TDMA)

Modulation GMSK GMSK

TX Phase Accuracy < 5º RMS Phase error

(burst)

< 5º RMS Phase error

(burst)

Duplex spacing 95 MHz 80 MHz

Frequency stability +/–0.1ppm +/–0.1ppm

Voltage operation (nominal) 3.6 V 3.6 V

Transmitter RF power output 30 dBm Class 1

(1 W peak)

30 dBm Class 1

(1 W peak)

Property WCDMA 2100

White paper C510

26 February 2009

USSD technical data

GPRS technical data

Transmitter output impedance 50 ohm 50 ohm

Transmitter spurious emission (according to

specification)

< –30 dBm < –30 dBm

Receiver RF sensitivity Better than –102 dBm Better than –102 dBm

Receiver RX bit error rate < 2.4% < 2.4%

cÉ~íìêÉ pìééçêí

USSD support GSM Phase 1/2 (cross-phase compatibility)

Mode support • UI-mode supported

• SAT initiated USSD supported

UI-mode details • It is possible to scroll the text up and down in USSD messages

• It is possible to highlight embedded numbers and take actions

accordingly

Property Support

Compatible GPRS/EDGE and SMG

specifications

Release 99 according to ETSI specification

Data rates GPRS (per time slot) Coding scheme

CS-1: 9 Kbps

CS-2: 13,4 Kbps

CS-3: 15,6 Kbps

CS-4: 21,4 Kbps (network-dependent).

Data rates EDGE (per time slot) Modulation & coding scheme (MCS)

MCS-1 (GMSK): 8.0 Kbps

MCS-2 (GMSK): 11.4 Kbps

MCS-3 (GMSK): 14.8 Kbps

MCS-4 (GMSK): 17.6 Kbps

MCS-5 (8-PSK): 22.4 Kbps

MCS-6 (8-PSK): 29.4 Kbps

MCS-7 (8-PSK): 44.8 Kbps

MCS-8 (8-PSK): 54.4 Kbps

MCS-9 (8-PSK): 59.2 Kbps

Medium Access Modes Dynamic allocation

Support of Packet Control

Channels (PBCCH/PCCCH)

Yes

Network operation mode NOM I, II, III

Property GSM 1800 GSM 1900

White paper C510

27 February 2009

SIM AT services supported

Support of GPRS/CS combined

procedures

Yes

Network control mode NC0 and NC2

Support of access in 2 phases Yes

Support of PRACH on 11 bits Yes

Support of GPRS re-selection C31/

C32

Yes

Support of static and dynamic

addressing

Yes

Support of power control uplink

and downlink

Uplink = yes, downlink is a network feature

Support of ciphering algorithms GEA1, GEA2

Support of compression algorithms Yes, V42bis and IP header compression

Mode of operation Class B and Class C modes of operation supported

R Reference point • Physical layer: Support of RS232

• PPP is supported as L2 layer in the R reference point

• Authentication algorithms PAP, CHAP supported

IP connectivity • PDP type IP is supported

• IP termination in mobile or TE (laptop, PDA) is supported

PDP context • 10 PDP context descriptions saved in the phone

• PDP context description is edited via application in the phone

• AT-command or via OTA

• Simultaneous PDP contexts are supported, maximum 4

SIM GPRS aware, as well as non-GPRS aware, SIM cards are

supported

AT commands Some of the supported commands:

AT+CGDCONT - DEFINE PDP CONTEXT

AT+CGEQREQ - Quality of Service Profile (REQUESTED)

AT+CGEQMIN - Quality of Service Profile (Minimum Acceptable)

AT+CGATT - PACKET DOMAIN SERVICE ATTACH OR DETACH

AT+CGACT - PDP CONTEXT ACTIVATE OR DEACTIVATE

AT+CGDATA - ENTER DATA STATE

For more information, see www.sonyericsson.com/developer

pÉêîáÅÉ= jçÇÉ pìééçêí

CALL CONTROL BY SIM Yes

MO SMS CONTROL Yes

Property Support

White paper C510

28 February 2009

DATA DOWNLOAD TO SIM Cell Broadcast

SMS

Yes

DISPLAY TEXT Text of up to 240 characters (120 UCS2 coded). Yes

bit 1: 0 = normal priority Yes

1 = high priority Yes

bit 8: 0 = clear message after a delay Yes

1 = wait for user to clear message Yes

GET INKEY General: The GET_INKEY requires that the user

confirms his/her choice

Yes

bit 1: 0 = digits (0-9, *, # and +) only

1 = alphabet set

Yes

bit 2: 0 = SMS default alphabet

1 = UCS2 alphabet

Yes

bit 3: 0 = character sets defined by bit 1 and bit 2 are

enabled

1 = character sets defined by bit 1 and bit 2 are

disabled and the Yes/No response is requested

Yes

GET INPUT General: No. of hidden input characters 252

bit 1: 0 = digits (0-9, *, # and +) only

1 = alphabet set

Yes

bit 2: 0 = SMS default alphabet

1 = UCS2 alphabet

Yes

bit 3: 0 = ME may echo user input on the display

1 = user input not to be revealed in any way (see

note)

Yes

bit 4: 0 = user input to be in unpacked format

1 = user input to be in SMS packed format

Yes

bit 8: 0 = no help information available

1 = help information available

Yes

LAUNCH BROWSER Yes

MORE TIME Yes

PLAY TONE Yes

POLLING OFF Yes

POLL INTERVAL Yes

pÉêîáÅÉ= jçÇÉ pìééçêí

White paper C510

29 February 2009

PROVIDE LOCAL

INFORMATION

'00' = Location Information (MCC, MNC, LAC

and Cell Identity)

Yes

'01' = IMEI of the ME Yes

'02' = Network Measurement results Yes

'03' = Date, time and time zone (DTTinPLI) Yes

'04' =Language setting Yes

'05' =Timing advance Yes

REFRESH General: The reset option requests the user to

wait while the phone restarts

Yes

'00' = (U)SIM Initialization and Full File Change

Notification

Yes

'01' = File Change Notification Yes

'02' = (U)SIM Initialization and File Change

Notification

Yes

'03' = (U)SIM Initialization Yes

'04' = (U)SIM Reset Yes

'05' = USIM Application Reset Yes

'06' = 3G Session Reset Yes

SELECT ITEM Yes

SEND DTMF Yes

SEND SHORT MESSAGE bit 1: 0 = packing not required

1 = SMS packing by the ME required

Yes

SEND SS Yes

SEND USSD Yes

pÉêîáÅÉ= jçÇÉ pìééçêí

White paper C510

30 February 2009

SET UP CALL General: Capability configuration

Set-up speech call CallParty Subaddress

DTMF support

Yes

'00' = set up call, but only if not currently busy on

another call

Yes

'01' = set up call, but only if not currently busy on

another call, with re-dial

Yes

'02' = set up call, putting all other calls (if any) on

hold

Yes

'03' = set up call, putting all other calls (if any) on

hold, with re-dial

Yes

'04' = set up call, disconnecting all other calls (if

any)

Yes

'05' = set up call, disconnecting all other calls (if

any), with re-dial

Yes

SET UP EVENT LIST '00' = MT call Yes

'01' = Call connected Yes

'02' = Call disconnected Yes

'03' = Location status Yes

'04' = User activity Yes

'05' = Idle screen available Yes

'06' = Card reader status Not

Applicable

'07' = Language selection Yes

'08' = Browser termination Yes

'09' = Data available Yes

'OA' = Channel status Yes

SET UP IDLE MODE TEXT Yes, 1 row

of text is

supported

SET UP MENU Yes

TIMER MANAGEMENT Yes

OPEN CHANNEL Yes

CLOSE CHANNEL Yes

RECEIVE DATA Yes

pÉêîáÅÉ= jçÇÉ pìééçêí

White paper C510

31 February 2009

User Interaction with SIM AT

BIP – Open Channel

A user confirmation is displayed with the default

text “Open channel” when no alpha identifier is

present. Alpha identifier text replaces the default

text when the Alpha Identifier is present & not null.

No user indication is provided (transparent mode)

when alpha identifier is present and null.

Display text

Text of up to 240 characters (120 UCS coded) is

supported.

Text clearing times are 5-20 seconds with a 60-

second time-out limit for the user to clear the text.

‘Key’ responses:

• ‘End key’ – Proactive session terminated by

user.

• ‘Back’ – Backward move in proactive session.

MSK clears the screen if the command is

performed successfully.

Get inkey

Prompt for a one-character input. Pressing ‘Ok’

without entering a character gives warning

message “Text too short”. ‘Key’ responses:

• ‘C’ clears current character.

• ‘End key’ terminates the proactive session.

• ‘Back’ – Backward move in the proactive

session.

• ‘OK’ – Command performed successfully.

Get input

Prompt for character input. The phone will refuse to

accept further input when maximum response

length is exceeded. UI Maximum Response

lengths:

• Digits Only – 160 characters.

• SMS default alphabet characters – 160

characters.

• Hidden Characters (digits only) – 20 characters.

‘Key’ responses:

• ‘C’ clears current character.

• ‘End key’ terminates the proactive session.

• ‘Back’ – Backward move in proactive session.

• ‘OK’ – Command performed successfully.

Select item

Scroll to highlight item for selection. ‘Key’

responses:

• Navigational key press down – Scroll down list.

• Navigational key press up – Scroll up list.

• End key terminates proactive session.

• ‘Back’ – Backward move in proactive session.

• ‘OK’– Command performed successfully.

Send short message

Alpha Identifier text is displayed, if it is present.

Otherwise, there is no user indication if the

customization for default text is not enabled. If the

customization for default text is enabled, and there

is no Alpha Identifier, default message “Sending

message" is displayed. Default responses are

“Message failed” or “Message sent” for the

customization enabled case with no Alpha

Identifier.

‘Key’ responses:

• End key or ‘Back’ ends the proactive session.

Set up call

If you are on a call when the commands ‘Set up

Call’, ‘Putting all other calls on hold' are sent, the

user will see the "Let SIM card setup call" user

confirmation text. If ‘OK’ is pressed the current call

will be put on hold and the new call set up. If the

phone is on a call when the command ‘Set Up Call,

disconnecting all other calls’ is sent, the user will

SEND DATA Yes

GET CHANNEL STATUS Yes

pÉêîáÅÉ= jçÇÉ pìééçêí

White paper C510

32 February 2009

see the ‘Let SIM card setup call’ user information

text. If the ‘OK’ key is pressed the current call will

be disconnected and the new call set up.

Set up menu

Incorporates a SIM Application Toolkit Menu Item

into the ME’s main menu structure.

If an Alpha Identifier is supplied in the Set Up Menu

command, this is used as the SIM AT entry in the

ME’s main menu. If null alpha identifier is supplied

and several items are found in the menu, the

default title “ONLINE SERVICES” is used. If the

SIM AT Menu Item is selected by pressing ‘Select’,

all the items sent in the Set Up Menu command will

be available for selection, in the same way as the

Select Item command.

Entertainment

Audio and Video

File types Formats Extensions

Audio

(All listed audio file formats are

supported ringtone file formats)

3GP

AAC

MP4

M4A

MP3

AMR

AMR-WB

WAV

SMF (Standard MIDI File format)

iMelody

XMF (Mobile XMF supported)

WMA

.3gp

.aac

.mp4

.m4a

.mp3

.amr

.awb

.wav

.mid

.imy

.xmf, .mxmf

.wma

Video

(including audio part)

MP4 (Video: MPEG4 or H.264, Audio: AAC or

AAC+ or eAAC+)

3GPP™ (Video: MPEG4, H.263 or H.264,

Audio: AMR-NB, AMR-WB, AMR-WB+, AAC,

AAC+ or eAAC+

WMV

.mp4

.3gp

.wmv, .asf

Streaming transport RTSP according to 3GPP™

Video encoding H.263 Profile 0, Level 10

MPEG-4 Visual Simple Profile Level 3

Audio encoding AMR-NB

AAC (for video recording only)

White paper C510

33 February 2009

Java™

File types Decoder format Supported in file

format

Video decoding MPEG-4 Visual Simple Profile

H.264 Baseline Profile

H.263 Profile 0

VC-1 (WMV9)

3GP/MP4

3GP

WMV

Audio decoding MPEG-1/2/2.5, audio layer 3

AAC

AAC+

eAAC+

AMR-NB

AMR-WB

AMR-WB+

WMA version 2, 7, 8: Class 1

WMA version 9: Level 3

WMA Pro (profile M0a)

General MIDI (GM)

GML

SP-MIDI

DLS (Mobile DLS supported)

Linear/A-law/μ-law PCM

MP3

3GP/AAC/MP4/M4A

3GP/AMR

3GP/AMR/AMR-WB

3GP

WMA

SMF

SMF, XMF

XMF

WAV

Feature Functionalities

Java™ Platform, Micro Edition • JSR-75 PDA Optional Packages for J2ME™

• JSR-82 Bluetooth Wireless Technology API

• JSR 118 MIDP 2.0

• JSR-120 Wireless Messaging API

• JSR-205 Wireless Messaging API 2.0

• JSR-135 Mobile Media API 1.1

• JSR 139 CLDC 1.1

• JSR-172 J2ME™ Web Services Specification

• JSR-177 Security and Trust Services API for J2ME™

• JSR-179 Location API (built-in GPS)

• JSR-180 SIP API for J2ME™

• JSR-184 Mobile 3D Graphics API for J2ME™

• JSR 185 Java™ Technology for the Wireless Industry

• JSR-211 Content Handler API

• JSR-226 SVG API for J2ME™

• JSR-229 Payment API

• JSR-234 Advanced Multimedia Supplements

• JSR-238 Mobile Internationalization API

• JSR-239 OpenGL ES

• JSR-248 Mobile Services Architecture

• JSR-256 Mobile Sensor API (accelerometer)

• Nokia UI Extension API

Java 3D • Mascot Capsule Micro3D Version 3

• JSR-239 OpenGL ES

• JSR-184 Mobile 3D Graphics API for J2ME™

White paper C510

34 February 2009

Imaging/Messaging

3.2 megapixel camera

Digital still camera (DSC)

True colour Yes

Digital zoom Main camera: 3.2x zoom

Photo fix Improves an under-exposed photo by calculating and adjusting

the light balance

Still camera settings bar

Shoot modes Normal, Panorama, Frames, Smile shutter

Scenes Auto, Twilight landscape, Twilight portrait, Landscape, Portrait,

Beach/Snow, Sports, Document

Photo sizes (resolution) 3.2 MP (2048x1536 pixels)

2 MP (1632x1224 pixels)

1 MP (1280x960 pixels)

VGA (640x480 pixels)

Note: MP = megapixel

Focus Auto, Macro, Infinity, Face detection

Flash On, Auto

ISO setting ISO 400, ISO 200, ISO 100, ISO Auto

Self-timer Off, On

Effects Off, Black & white, Negative, Sepia, Solarize

White balance Auto, Daylight, Cloudy, Fluorescent, Incandescent

Metering mode Normal, Spot

Still camera setup

Picture quality Normal, Fine

Shutter sounds Yes

Auto rotate Off, On

Reset file number Yes

Save to memory Memory card, phone memory

Video recorder

Video size (resolution) QVGA 320x240 pixels

Frame rate 30 fps (frames per second)

White paper C510

35 February 2009

Video telephony

Images

Images can be shared using a Bluetooth wireless technology connection, MMS, email message, computer

file transfer or memory card.

Digital zoom 3.2x

Video camera settings bar

Video clip length Normal, For picture message

Light Off, Auto

Focus Same as camera

Night mode Off, On

Self-timer Yes, same as camera

Effects Yes, same as camera

White balance Yes, same as camera

Metering mode Yes, same as camera

Turn on/off microphone Off, On

Video camera setup

Reset file number Yes, same as camera

Save to memory Yes, same as camera

Photo sizes (resolution) QCIF (176x144 pixels)

SQCIF (128x96 pixels)

Digital zoom 3.2x zoom

Night mode Yes

White balance Auto

Brightness Yes

Video coding H.263

MPEG-4 Visual Simple Profile Level 0

Audio coding AMR

White paper C510

36 February 2009

The image size is limited by the amount of free RAM.

Supported character set

Short Messaging Service

Formats Details

JPEG • ISO/IEC JPEG

• Baseline DCT

• Progressive DCT

• Non-differential

• nlimited size

GIF • 87a, 89a, support for interlacement, animation and

transparency

• Unlimited size

BMP Windows® bitmap format

PNG Unlimited size

SVG SVG Tiny 1.2

WBMP • Wireless bitmap

• Unlimited size

Decoding text (Incoming MMS)

US-ASCII

ISO-8859-1

ISO-8859-2

Windows-1251

ISO 10646 (UCS-2)

UTF-7

UTF-8

UTF-16

KOI8-R

GB2312

GB 18030

GB 13000

BIG-5

Coding Text (Outgoing MMS)

UTF-8

Feature Support

SMS Service Centre Number It is possible to pre-load the SMS Service Centre

Number

Pictures It is possible to insert a picture or an icon into the text

message. EMS compliant mobile phones will be able to

see the picture correctly

Reply to messages It is possible to reply to received messages by SMS,

MMS, voice message and email

Input methods: Predictive writing and multitap

White paper C510

37 February 2009

Copy and paste words Yes

Teaching of predictive words that are not

in the predictive dictionary

Yes

Options when creating a message:

Save a sent message in a “Sent items”

folder

Yes

Insert a line in the message Yes

Assign a validity period to the message Yes

Use predefined messages Yes

Options when receiving a message:

Reply to the sender Yes

Forward the message Yes

Save the message on the SIM card Yes

Get delivery time and date Yes

Options with the previously sent message:

Delivery report of the message Yes (if requested when sending)

Forward the message Yes

Save the message on the SIM card Yes

Know the remaining capacity storage Yes, > 95% full warning, capacity on SIM when saving to

SIM

Options with the previously received

message:

Reply to the sender Yes

Save the message in the inbox Yes

Forward the message Yes

Know the remaining capacity storage Yes, > 95% full warning, capacity on SIM when saving to

SIM

Supported ways for replying to a received

SMS:

Via SMS, MMS, voice message, email Yes

Via phone call (set up a call to the number

contained in the message body)

Yes

Via Web browser (go to the Web address

contained in the message body)

Yes

Via USSD session No

Feature Support

White paper C510

38 February 2009

Enhanced Messaging Service

Print via infrared No

Possibility to enable the user to send a text

message to a list of recipients

Yes

Possibility to write an email address as a

recipient address

Yes, if email gateway is present

SMS storage In the phone memory, on the SIM card, or on memory

card

Capacity Up to 1,000 messages

Nokia Picture Messaging Yes

Feature Support

Level of compliance supported by the phone

regarding the specifications described in

release 99

Enhanced Messaging Service (EMS) according to the

standard 3GPP™ TS 23.040 v4.3.0, with the addition of

the ODI feature from 3GPP™ TS 23.040 v5.0.0

Number of messages that the phone is able

to handle to generate a concatenated

message

Outgoing messages It is possible to:

• See how many short messages an EMS message

consists of before sending it.

• Choose whether to send the message or not after

writing it.

Incoming messages • A signal is heard once all parts of the message have

been received or when a time-out occurs.

• It is possible to re-use the content of an EMS message.

Sounds, pictures, and animations can be inserted in a

new message, if the object is not protected using ODI.

Delivery report for concatenated messages A receipt is received in the phone when all parts of a

concatenated message have been delivered if a delivery

report is requested when it is being sent

Insert objects It is possible to add pictures, animations and sounds to

an EMS message

Sounds Chimes high, chimes low, ding, tada, notify, drum, claps,

fanfare, chords high, chords low

I-melody Yes, version 1.2

Feature Support

White paper C510

39 February 2009

Multimedia Messaging Service

Melodies It is possible to:

• Receive (always), send using EMS (if not copyright

protected).

• Download melodies and commercial tunes from the

Web.

WBMP Yes

Picture sizes 16x16, 32x32 pixels, variable size in black and white

Pictures It is possible to:

• Edit pictures using PhotoDJ™.

• Receive (always), send using EMS (if not copyright

protected).

• Download pictures from the Web.

Animations There is support for the following animations: Angry,

Crying, Flirty, Happy, Kiss, Sad, Tongue, Wow, Confused,

Devil, Glasses, Indifferent, Laughter, Sceptical and Wink,

as defined in 3GPP™ TS 23.040 v4.3.0.

It is possible to send and receive animations

TP-PID field value given by the phone before

sending an EMS message

0x00

EMS storage capacity Up to 1,000 messages

Feature Support

MMS/CSD parameters and MMS/GPRS

parameters placement

• MMS is bound to an MMS profile.

• A MMS profile is bound to a Data account.

• A data account contains either CSD parameters or

GPRS parameters and possibly proxy settings

Possibility to pre-configure the MMS

parameters in the factory

• MMS/CSD: Yes

• MMS/GPRS: Yes

Possibility to configure the MMS parameters

by OTA provisioning

• MMS/CSD: Yes

• MMS/GPRS: Yes

Possibility for all the parameters from the

parameters set to be OTA provisioned at the

same time

• MMS/CSD: Yes

• MMS/GPRS: Yes

Possibility for only one parameter, in the set

of parameters, to be OTA provisioned

• MMS/CSD: No

• MMS/GPRS: No

Supplier indication of realized

interoperability tests between its MMS User

Agent and MMS Relay/Server from other

suppliers

Yes

Feature Support

White paper C510

40 February 2009

Support of a standard procedure for OTA

provisioning of MMS parameters

OMA Client Provisioning 1.1

Functionalities that the user is able to set

during message composition:

• Message subject

• Message priority

• Email recipient address

• Message Cc, Bcc recipient(s) address(es)

• Delivery report request

• MSISDN recipient address

• Validity period

From where can the user insert multimedia

elements into multimedia messages:

File Manager

Photo album

Camera

Contacts

Calendar

Task

Note

Browser (vBookmark)

VideoDJ™

PhotoDJ™

MusicDJ™

Sound recorder

Possibility for sent messages to be

memorised into a folder in phone memory

Yes

Actions that the user can perform after

message retrieval:

• Reply to the sender of the message SMS/MMS

• Reply to the sender and to Cc, Bcc people SMS/MMS

• Forward the message

• Delete the message

• Save message in a dedicated folder

• Call the sender of a message

• Save item

• Mark as unread

• Details

Multimedia codecs/formats supported for

audio

AAC, AMR, MPEG Layer 3, AWB, WAV, MP4, MIDI,

iMelody, 3GPP™, XMF, M4A, WMA

Multimedia codecs/formats supported for

video

MPG4, 3GPP™, SDP, WMV

Multimedia codecs/formats supported for


JPEG, GIF87, GIF89A, PNG, SVG, WBMP, BMP

Supported formats for message

presentation:

• Message body plus attachments (email presentation)

• SMIL version as described in OMA MMS IOP

document version 1.2

Maximum message size that can be handled

by the phone

Content Class and Creation mode are applied. Maximum

size can also be customised

Maximum number of objects supported in a

message

30 objects is standard. It is possible to increase the

number through configuration

Feature Support

White paper C510

41 February 2009

Email client technical data

Maximum text size 5,000 characters/text

Storage capacity Up to 500 messages

cÉ~íìêÉ Support

Bearer type (IP) Yes

Bearer type GSM Data (IP) Yes, GPRS and HSCSD

Character sets • ISO: ISO-8859-1, ISO-8859-2, ISO-8859-5, ISO-8859-

7, ISO-8859-9, ISO-8859-10, ISO-8859-11

• Windows: Windows-1251, Windows-1252, Windows-

1254, Windows-1255, Windows-1258

• US-ASCII

• Unicode: UTF-7, UTF-8, UTF-16

• Japanese: Shift_JIS, ISO-2022-JP

• Cyrillic: KOI8-R

• Simplified Chinese: GB2312, GB18030

• Traditional Chinese: Big5

OTA provisioning solution OMA Client Provisioning 1.1

Protocols POP3 and IMAP4

Push email IMAP IDLE (extension of IMAP4 Rev1), OMA Email

Notification 1.0 and scheduled checking, Exchange

ActiveSync® (EAS)

Secure email SSL/TLS, both port methods (POPS/IMAPS) and

STARTTLS

HTML mail Yes (tags removed)

Thumbnailed image attachments Yes

Message management User selectable inbox size, save messages to Memory

Stick, arrange messages by date, size and Email address

ESMTP Yes

Background sending Yes

Feature Support

White paper C510

42 February 2009

Connectivity

Bluetooth™ wireless technology technical data

Dimension Support

Bluetooth™ wireless technology

capability statement

This phone supports Bluetooth Specification, version 2.0 with

enhanced data rate (EDR)

Bluetooth™ wireless technology

profiles

Advanced Audio Distribution Profile

Audio/Video Remote Control Profile

Basic Imaging Profile

Dial-up Networking Profile

File Transfer Profile

Generic Access Profile

Generic Object Exchange Profile

Handsfree Profile

Headset Profile

Human Interface Device Profile

Object Push Profile

Personal Area Networking Profile

Phonebook Access Profile

Serial Port Profile

Synchronization Profile

SyncML OBEX binding

Connectable devices All products supporting Bluetooth spec. 1.1, or higher, and at

least one of the profiles above

Coverage area Varies due to radio performance between the connected

devices and the occurrence of obstacles. Up to 10 metres (33

feet)

Transmission power Class 1, typical +3 dBm or 2 mW

Frequency band 2.4 GHz – the unlicensed ISM band

Power consumption GSM host processor excluded:

• Standby, Bluetooth On mode: <0.6 mA

• Voice to headset (HV3 master): 11 mA (7 mA with EDR

functionality, 2EV3 master). Dependent on various

parameters such as if the phone is master or slave

• Data mode average: 27mA at 172.8 Kbps symmetrical (DH1)

•

Data transmission rate • Data speed at least 800 Kbps on a Dial-up Networking

connection (requires access to HSDPA network and may be

limited by capacity situation on the 3G base station)

• Data speed typically 1.0 Mbps on an Object Push connection

between two phones (in case of using similar phones and if

no other Bluetooth devices are connected)

White paper C510

43 February 2009

OMA Data Synchronization (SyncML™) technical data

Microsoft® Exchange ActiveSync®

Feature Support for Sync ML

SyncML compliance The phone is fully SyncML compliant, having passed SyncML

Conformance testing. OMA DS 1.2 or OMA DS 1.1.2 is used

depending on configuration and both are supported in Server-

alerted synchronization

Basic data formats Contacts: vCard 2.1, Calendar: vCalendar 1.0 (vEvent)

Tasks: vCalendar 1.0 (vTodo)

Notes: text/plain, Bookmarks:vBookmark 1.0

Possibility for operators to extend

SyncML functionality

The device may be configured to include preset SyncML settings,

and to control whether SyncML 1.1 or SyncML 1.2 will be used

Transport method for SyncML

messages

HTTP, HTTPS, OBEX (USB, Bluetooth)

Possibility for the user to configure

username and password) to

access the remote database

Yes

Configuration parameters that can

be entered/modified by the user

Server URL, Username, User PWD, Paths to databases (Calendar,

Contacts, Notes, Tasks and Bookmarks), UserID and PWD for

databases, Databases to be synchronised (On/Off), Internet profile,

Synchronization interval, Server ID and Server PWD, permission to

allow server-alerted synchronization and roaming options. Can be

provisioned with OMA Client provisioning v1.1 and OMA Device

Management v1.2

Ability to deal with multiple servers Yes

Ability to perform conflict

resolution actions

Yes

Feature Support for Exchange ActiveSync

Protocol version The phone supports version 2.5 of Microsoft Exchange

ActiveSync

Supported applications Email, Calendar, Phonebook

Transport method used HTTP, HTTPS

Possibility for the user to configure

Yes

White paper C510

44 February 2009

Web browser technical data

Configuration parameters that can be

entered/modified by the user

Server URL, username, domain name, password, applications

to sync, email message size, email attachment size, email date

range, message alert sound, calendar date range, interval sync,

secure connection, roaming option

Ability to perform conflict resolution No

Feature Support in the browser

Bookmarks Yes, with folders and sorting supported

Bookmark Export/Import Yes, can be sent and received using vBookmark format using

Bluetooth™ wireless technology, SMS, MMS and email

Browser compliancy The Web browser is compliant with the following standards:

HTML ver. 4.01

XHTML Basic 1.0

XHTML 1.1, Module-based XHTML

XHTML Mobile profile

WML 1.3

Cascading Style Sheets, level 2 revision 1, CSS 2.1 Specification

Wireless CSS Specification, Version 26-Oct-2001 (WAP-239-WCSS-

20011026-a)

ECMA-script according to specifications found at

http://www.ecma-international.org/publications/standards/

Stnindex.htm

ECMAScript Mobile Profile

AJAX

Document Object Model Level 2 (DOM 2)

Scalable Vector Graphics, Mobile SVG Profile: SVG Tiny, version 1.2

For further details, see the WAP User Agent strings and profiles for

Sony Ericsson mobile phones Developers guidelines at Developer

World http://developer.sonyericsson.com/

Browser version Access NetFront 3.4

Cache Yes (size 2 MB)

Character sets * Most standard character sets, among others UTF-8 (Default), UTF-16,

USASCII, Latin1, UCS2.

For updated and detailed information, see the WAP User Agent strings

and profiles for Sony Ericsson mobile phones Developers guidelines at

Developer World

http://developer.sonyericsson.com/

* When creating pages, it is recommended to always save the page

contents as UTF-8.

Clear cache Yes, persistent. By user interaction, at SIM card change or master reset

Frames Full Frame support: Frames, IFrames

Feature Support for Exchange ActiveSync

White paper C510

45 February 2009

Image formats and animations GIF (interlaced and non-interlaced) WBMP, JPEG, PNG, BMP and

SVG. Animated GIFs, animated SVG and Flash

Schemes Http:, https:, rtsp:, mailto:, smsto:, mmsto:, tel:, wtai:

Streaming Progressive download, RTSP, Java script controls

Web feeds Ticker, podcasts, enclosures, OPML import. No support for ATOM

User agent profile

User Agent Profiles Yes, list of client characteristics - for example, screen size.

For details, see the WAP User Agent strings and profiles for Sony

Ericsson mobile phones Developers guidelines at Developer World

http://developer.sonyericsson.com/

URL sent pointing to the UA

profile at the beginning of

browser session

Yes. For details, see the WAP User Agent strings and profiles for Sony

Ericsson mobile phones Developers guidelines at Developer World

http://developer.sonyericsson.com/

Download

OMA download functionality Yes

HTTP GET solution to

download content/ Uses

browser for download

Yes

Other download content Yes. No download limit when using HTTP protocol

Download application/product

memory check

Yes

Downloaded object solution Yes. The user is informed where the content is saved and asked if it

should be used at once or later

UAP indication for downloading Yes

Other features Yes. Save, delete, forward, use, manage

Object formats All formats can be downloaded and saved, but only formats supported

by the phone can be used by the phone

Resume Yes

Background download Yes

Progressive download Yes

Streaming Yes

Browser navigation

Selection keys Yes. Two selection keys and centre navigation key

Search from standby Yes. Enter address, search the web or bookmarks.

Separate/dedicated back or

erase keys

Yes

Feature Support in the browser

White paper C510

46 February 2009

Display backlight on when

browsing

Yes

Predictive writing Yes

“http://” string displayed

automatically when entering

URLs

Not displayed but the “http://” is added automatically to the URL

“www” added automatically

when entering URLs

Yes

Combined Search/Go To input

field

Intelligent input field changes appearance (Search or Go to) depending

on user input. “www”, “.com” and other URL syntax can be used to

trigger the Go To appearance

Internet network features

Bluetooth™ wireless

technology (as local

connection)

Yes

Infrared (as local connection) No

Network settings Yes

PPP Authentication PAP, CHAP supported

Security HTTPS authentication

TLS version 1

SSL version 3

WIM on SIM ICC

X.509 certificate support, Mobile Profile

WPKI OTA download of trusted certificates

USB (as local connection) Yes

PUSH

Content types

Service Indication (SI) Yes

Service Loading (SL) Yes

Cache Operation (CO) content

type

Session Initiation Application

(SIA)

Yes

Man Machine Interface

SI/content retrieval postponing Yes

SI menu structure accessibility Messaging, Inbox

SL reception warning The user can make a choice if a dialogue is wanted or not before

loading the SL

Feature Support in the browser

White paper C510

47 February 2009

Client Provisioning

SIA reception warning Yes

Cache size limitations The oldest push in the inbox will be discarded

Number of push messages Depends on the size of the push messages. Around 20 push messages

with a size of 1024 bytes URL and 1024 bytes Indications for Service

Indication can be saved.

Push deactivate Yes

Dynamic push menu changes No. There are no changes in the menus when activating/deactivating

push

Security

Mechanisms for push None

Trust with PPG Sending a SIA is the most reliable

WSP push sessions No

HTTP push sessions The White List (a setting to allow push messages only from certain

addresses) is supported for IP address

SMS connection-less push The White List (a setting to allow push messages only from certain

addresses) is supported for SMS Center

Denial of service/spoofing Setting to select when to allow push messages: Always, always ask or

never. There is also a setting to select whether to allow push messages

from all senders or only from certain addresses (the White List)

Feature Support

Provisioning types OMA Client Provisioning

(v1.1)

Total Parameter sets 25 (shared between the provisioning types)

< or = 25 (total number of data accounts)

Parameter set list See the Device

Management v4

Developers Guideline at

Developer World http://

www.sonyericsson.com

Factory pre-configuration Yes. This also provides the possibility to lock a setting

Security mechanism

Bearer

Feature Support in the browser

White paper C510

48 February 2009

SMS Uses security mechanism

(SEC) methods according

to OMA-WAP-ProvCont-

v1_1-20050428-C (see

www.openmobilealliance.o

rg).

For NETWPIN the user is

asked to accept to install

received settings. For

USERPIN, USERNETWPIN

and USERPINMAC the

user is subsequently asked

to enter a PIN code that is

a shared secret between

the service provider and

the user

Carrier reset/provisioning Yes, but not if the set is pre-configured in the factory and locked

SWIM Not used for provisioning.

The SWIM is only used for wireless security, both SSL/TLS

connections and digital signatures

Applicative provisioning

Preferred bearer customization Yes

Other applications/features Yes (MMS, Email, OMA Data Synchronization, Wireless Village,

OMA Device Management, Streaming)

Technologies

OMA Client Provisioning Yes, Client Provisioning version 1.1

Nokia/Ericsson OTA No

Openwave OTA No

Other No

Provisioning bearer SMS

Feature Support

White paper C510

49 February 2009

Abbreviations

3GPP™

3rd Generation Partnership Project

AAC

Advanced Audio Coding

AAC+

High Efficiency AAC v.1

AJAX

Asynchronous JavaScript and XML

AMR

Adaptive Multi Rate. Audio format for speech

sounds

AMR-NB

Adaptive Multi Rate Narrow Band

AMR-WB

Adaptive Multi Rate Wide Band, a more efficient

codec that supports speech with higher quality

API

Application Programming Interface

Bluetooth PAN

Bluetooth Personal Area Network

Circuit Switched

CSD

Circuit Switched Data

DRM

Digital Rights Management. Controlling copying

and distribution of contents, with respect to

intellectual property rights

DTMF or Touch Tone

Dual Tone Multi-Frequency signal. Codes sent as

tone signals. Used for telephone banking,

accessing an answering machine, etc.

EDGE

Enhanced Data Rates for GSM Evolution

e-GSM

Extended GSM. New frequencies specified by the

European Radio Communications Committee

(ERC) for GSM use when additional spectrum is

needed (network-dependent). It allows operators to

transmit and receive just outside GSM’s core 900

frequency band. This extension provides increased

network capability

eAAC+

High Efficiency AAC v.2

EDR

Enhanced Data Rate

EFR

Enhanced Full Rate, speech coding

EMS

Enhanced Messaging Service. Allows the user to

add simple pixel pictures and animations, sounds

and melodies to a text message. The EMS 3GPP™

standard also includes text formatting

ETSI

European Telecommunications Standards Institute

White paper C510

50 February 2009

Frequency Modulation of the (radio) carrier wave

Full Rate, speech coding.GIF

Graphics Interchange Format

GPRS

General Packet Radio Services

GSM

Global System for Mobile Communications. GSM

is the world’s most widely used digital mobile

phone system, now operating in over 100 countries

around the world, particularly in Europe and Asia-

Pacific.

The GSM system family includes GSM 850, GSM

900, GSM 1800 and GSM 1900. There are different

phases of roll-out for the GSM system and GSM

phones are either phase 1 or phase 2 compliant

Half Rate, speech coding

HSCSD

High Speed Circuit Switched Data

HSDPA

High Speed Downlink Packet Access

HTML

HyperText Markup Language

HTTP

HyperText Transfer Protocol

JPEG

Joint Photographer Expert Group

MIDI

Musical Instrument Digital Interface

Mobile Equipment

Megapixel

MP3

Short for “MPEG-1 layer 3”, an audio coding

scheme

MPEG4/MPG4

Moving Picture Experts Group. MPEG-4 is a

standard used primarily to compress audio and

visual digital data.

Mobile Termination

ODI

Object Distribution Indicator

OMA

Open Mobile Alliance

OTA

Over The Air

PDA

Personal Digital Assistant

PDP

Packet Data Protocol

PIM

Personal Information Management

PNG

Portable Network Graphic

White paper C510

51 February 2009

QCIF

Quarter Common Intermediate Format

RDS

Radio Data System

RSS

Really Simple Syndication

RTSP

Real Time Streaming Protocol session control.

Service Indication

Service Loading

SIM card

Subscriber Identity Module card – a card that must

be inserted in any GSM-based mobile phone. It

contains subscriber details, security information

and memory for a personal directory of numbers.

The card can be a small plug-in type or credit card-

sized, but both types have the same functions. The

phone uses the small plug-in card.

SMS

Short Messaging Service. Allows messages of up

to 160 characters to be sent and received via the

network operator’s message centre to a mobile

phone

SP-MIDI

Scalable Polyphony MIDI

Supplementary Services

SSL

Secure Socket Layer

TLS

Transport Layer Security

TTI

Transmission Time Interval

User Interface

UMTS

Universal Mobile Telecommunications System

URL

Uniform Resource Locator.

The global address of documents and other

resources on the World Wide Web

USSD

Unstructured Supplementary Services Data

vCard

vCard automates the exchange of personal

information typically found on a traditional business

card, for use in applications such as Internet mail,

voicemail, Web browsers, telephony applications,

call centres, conferences, PIMs /PDAs, pagers, fax,

office equipment and smart cards. vCard is

specified by IETF

VGA

Video Graphics Array

WAV

Waveform audio format

WMA

Windows Media Audio

WMA Pro

Windows Media Audio Professional

White paper C510

52 February 2009

WBMP

Wireless BitMap.

A graphic format optimised for mobile computing

devices

WCDMA

Wideband Code Division Multiple Access

WML

Wireless Markup Language. A markup language

used for authoring services, fulfilling the same

purpose as HyperText Markup Language (HTML)

does on the World Wide Web (WWW). In contrast

to HTML, WML is designed to fit small handheld

devicesWWW

World Wide Web

XHTML™

Extensible HyperText Markup Language

XML

Extensible Markup Language

White paper C510

53 February 2009

Related information

Documents

•Sony Ericsson User guide

•Sony Ericsson FAQ

• AT Command Reference Manual

• WAP 2.0 Specifications

Links

•www.sonyericsson.com/

•www.ericsson.com/mobilityworld/

•www.midi.org

•www.extendedsystems.com

•www.gsmworld.com/

•www.bluetooth.com

•www.imc.org

•www.3gpp.org

•www.etsi.fr

•www.openmobilealliance.org

•www.imc.org/pdi/

•www.w3.org/TR/xhtml-basic/

•www.java.sun.com

•www.memorystick.org/

•www.memorystick.com/

•www.sonyericsson.com/updateservice

•www.sonyericsson.com/support

Trademarks and acknowledgements

The Bluetooth™ word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by

Sony Ericsson is under licence.

The Liquid Identity logo, PlayNow, BestPic, VideoDJ, MusicDJ, TrackID and PhotoDJ are trademarks or

registered trademarks of Sony Ericsson Mobile Communications AB.

Mega Bass, Memory Stick Micro, Cyber-shot, M2, Smile Shutter and Sony are trademarks or registered

trademarks of Sony Corporation.

NetFront is a trademark or a registered trademark of ACCESS Co., Ltd.

PictBridge is a trademark or registered trademark of Canon Kabushiki Kaisha Corporation.

Ericsson is a trademark of Telefonaktiebolaget LM Ericsson.

White paper C510

54 February 2009

TrackID™ is powered by Gracenote Mobile MusicID™. Gracenote and Gracenote Mobile MusicID are

trademarks or registered trademarks of Gracenote, Inc.

Google™, Google Maps™ and YouTube™ are trademarks or registered trademarks of Google, Inc.

Wayfinder and Wayfinder Navigator are trademarks or registered trademarks of Wayfinder Systems AB.

MicroSD™ and Transflash™ are trademarks or registered trademarks of SanDisk Corporation.

XHTML™ is a registered trademark of the W3C.

Microsoft®, Windows® Vista, Windows Media and ActiveSync are either registered trademarks or

trademarks of Microsoft Corporation in the United States and/or other countries.

Adobe Flash Lite are trademarks or registered trademarks of Adobe Systems Incorporated in the United

States and/or other countries.

3GPP™ is a trademark of ETSI in France and other jurisdictions.

SyncML is a trademark or registered trademark of Open Mobile Alliance Ltd.

Wireless Village is a trademark or registered trademark of Open Alliance LTD.

Java and all Java based trademarks and logos are trademarks or registered trademarks of Sun

Microsystems, Inc. in the U.S. and other countries.

End-user license agreement for Sun Java™ J2ME™:

1. Restrictions: Software is confidential copyrighted information of Sun and title to all copies is retained by

Sun and/or its licensors. Customer shall not modify, decompile, disassemble, decrypt, extract, or

otherwise reverse engineer Software. Software may not be leased, assigned, or sub licensed, in whole or

in part.

2. Export Regulations: Software including technical data, is subject to U.S. export control laws, including

the U.S. Export Administration Act and its associated regulations, and may be subject to export or import

regulations in other countries. Customer agrees to comply strictly with all such regulations and

acknowledges that it has the responsibility to obtain licenses to export, re-export, or import Software.

Software may not be downloaded, or otherwise exported or re-exported (i) into, or to a national or resident

of, Cuba, Iraq, Iran, North Korea, Libya, Sudan, Syria (as such listing may be revised from time to time) or

any country to which the U.S. has embargoed goods; or (ii) to anyone on the U.S. Treasury Department's

list of Specially Designated Nations or the U.S. Commerce Department's Table of Denial Orders.

3. Restricted Rights: Use, duplication or disclosure by the United States government is subject to the

restrictions as set forth in the Rights in Technical Data and Computer Software Clauses in DFARS

252.227-7013(c) (1) and FAR 52.227-19(c) (2) as applicable.

All other trademarks and copyrights are the property of their respective owners.

CYBER SHOT C510 Whitepaper EN

Whitepaper En C510 whitepaper_EN_c510 whitepaper_EN_c510 c510 css-supports-prod 3:

Navigation menu

Versions of this User Manual:

Views

Navigation
